Taz 6 Inserts 1 of 7
PP-GP0222 -- Y belt mount v.75
PP-GP0208 -- Extruder Mount TAZ6 v0.8
PP-GP0213 -- Z Carriage Motor, v2.3
2x-
HD-MS0030
M3 inserts
4x-
PP-MP0066
M2 inserts
5x-
HD-MS0030
M3 inserts
Direction of
insertion shown
2x-
HD-MS0158
M5 Short Inserts
4x-
PP-MP0066
M2 inserts
2x-
HD-MS0030
M3 inserts

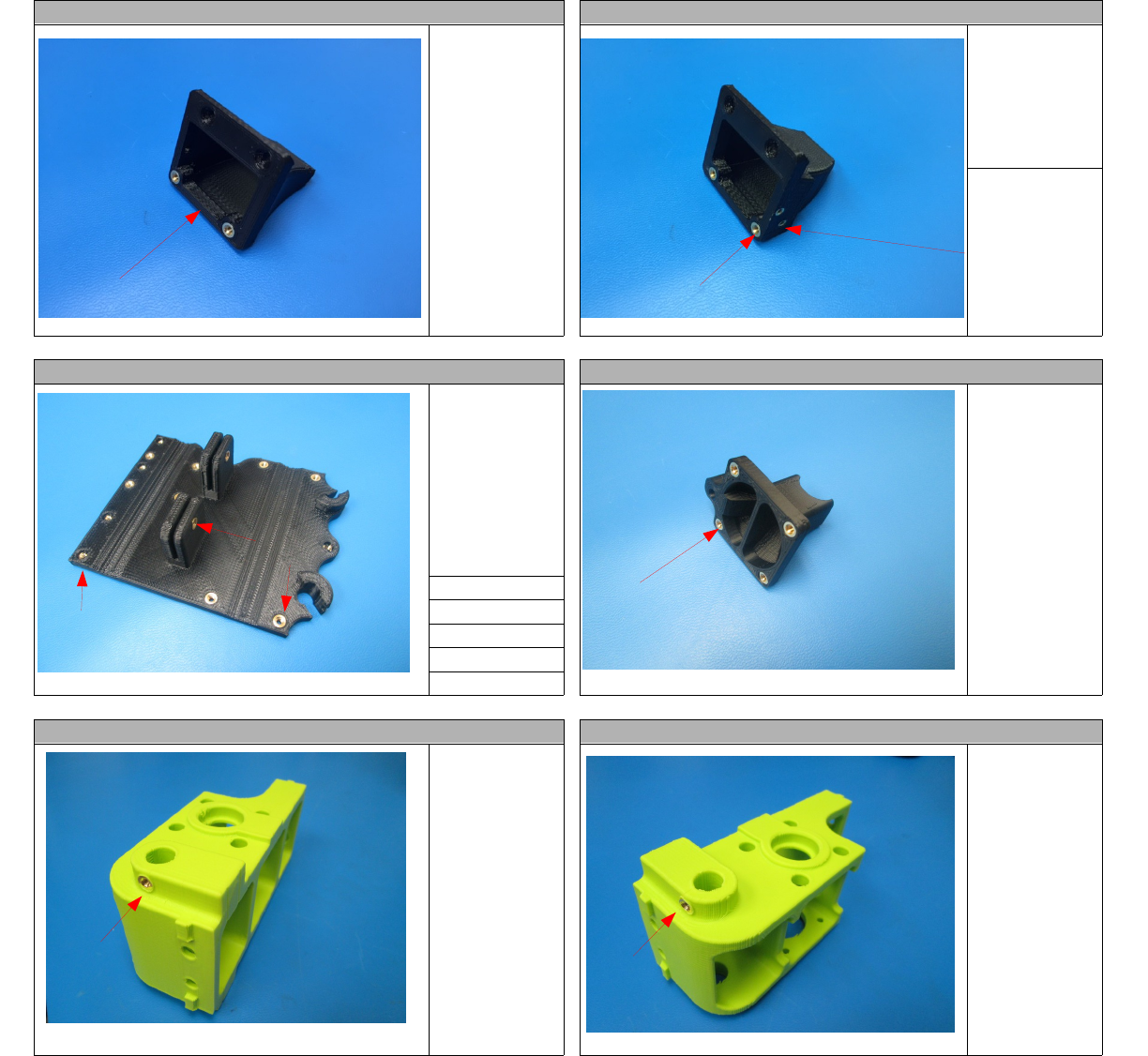

Taz 6 Inserts 2 of 7
PP-GP0211 -- Fan duct left v0.7.4 PP-GP0212 -- Fan duct right v0.7.4
Approved Approved
PP-GP0206 -- X-Carriage TAZ v0.3 PP-GP0232 -- Heatsink Fan Duct v0.6
2 in clamp
8 top side
5 PEI side
PP-GP0215 -- Z Lower Left v2.3 PP-GP0227 – Z Lower Right v2.3
2x-
HD-MS0030
M3 inserts
2x-
HD-MS0030
M3 inserts
2x-
PP-MP0066
M2 inserts
15x-
HD-MS0030
M3 inserts
4x-
HD-MS0030
M3 inserts
1x-
HD-MS0030
M3 inserts
(Around the back
side of the part)
1x-
HD-MS0030
M3 inserts

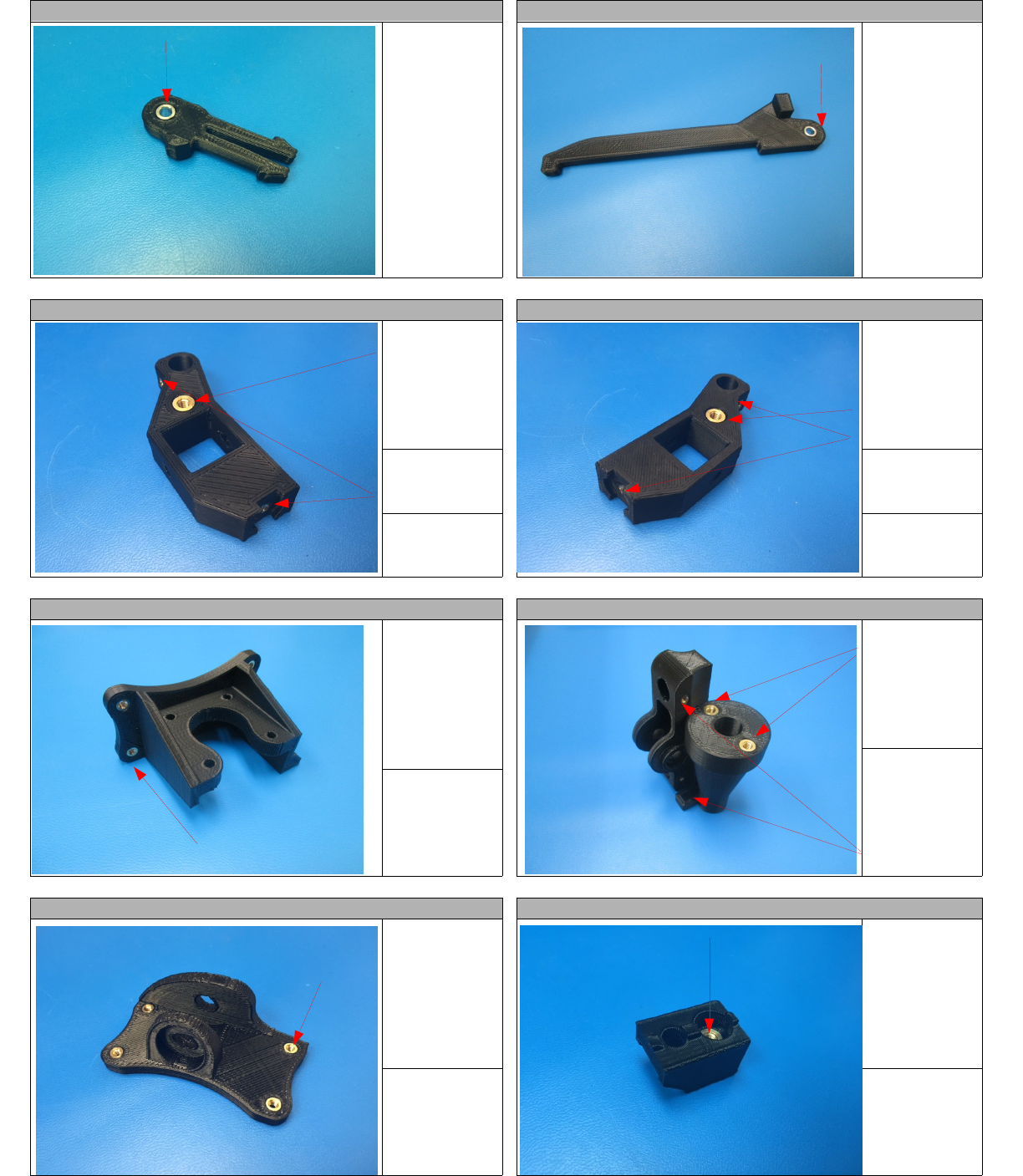

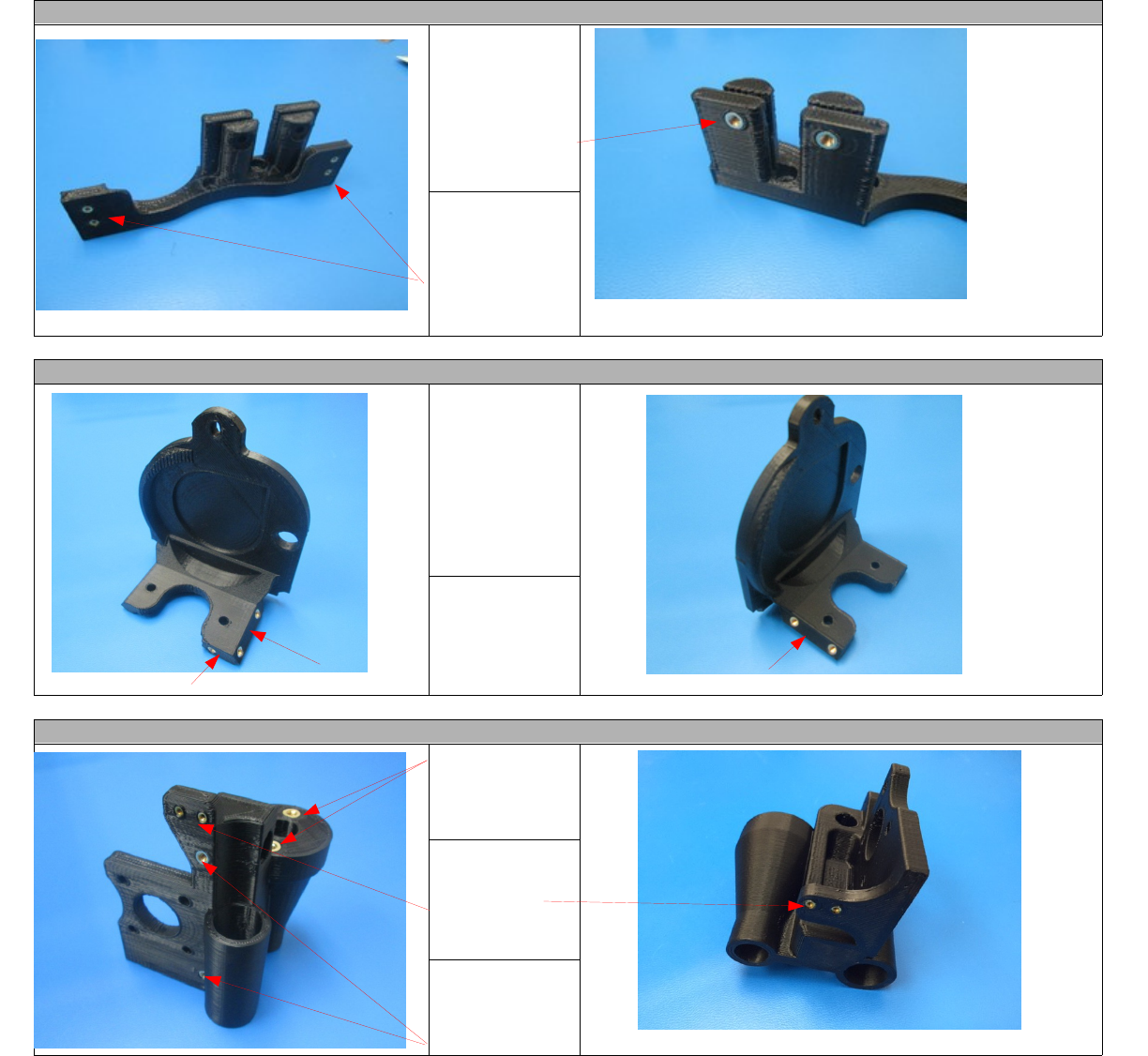

Taz 6 Inserts 3 of 7
PP-GP0218 -- Feed Tube Holder v2.5 PP-GP0217 -- Spool Arm v2.0, TAZ
PP-GP0228 – Y Corner Left v2.4 PP-GP0229 – Y Corner Right v2.4
PP-GP0226 – Y Motor Mount v3.0, TAZ PP-GP0214 -- Z Carriage Idler v2.3
PP-GP0225 -- Y Idler Mount v4.0, TAZ PP-GP0223 -- Y Mount Chassis v3.3
1x-
M5 bushing
1x-
M5 bushing
1x-
HD-MS0060
M5 Long
1x-
HD-MS0060
M5 Long
2x-
HD-MS0030
M3 inserts
2x-
HD-MS0030
M3 inserts
Print side of part
is the outward
face of the part
Print side of part
is the outward
face of the part
4x-
HD-MS0030
M3 inserts
2x-
HD-MS0158
M5 Short
2x-
HD-MS0030
M3 inserts
Direction of
insertion shown
4x-HD-MS0030
M3 inserts
1x-
HD-MS0060
M5 Long Insert
Push insert
slightly below
flush to
counterbore
Direction of
insertion shown
Direction of
insertion shown

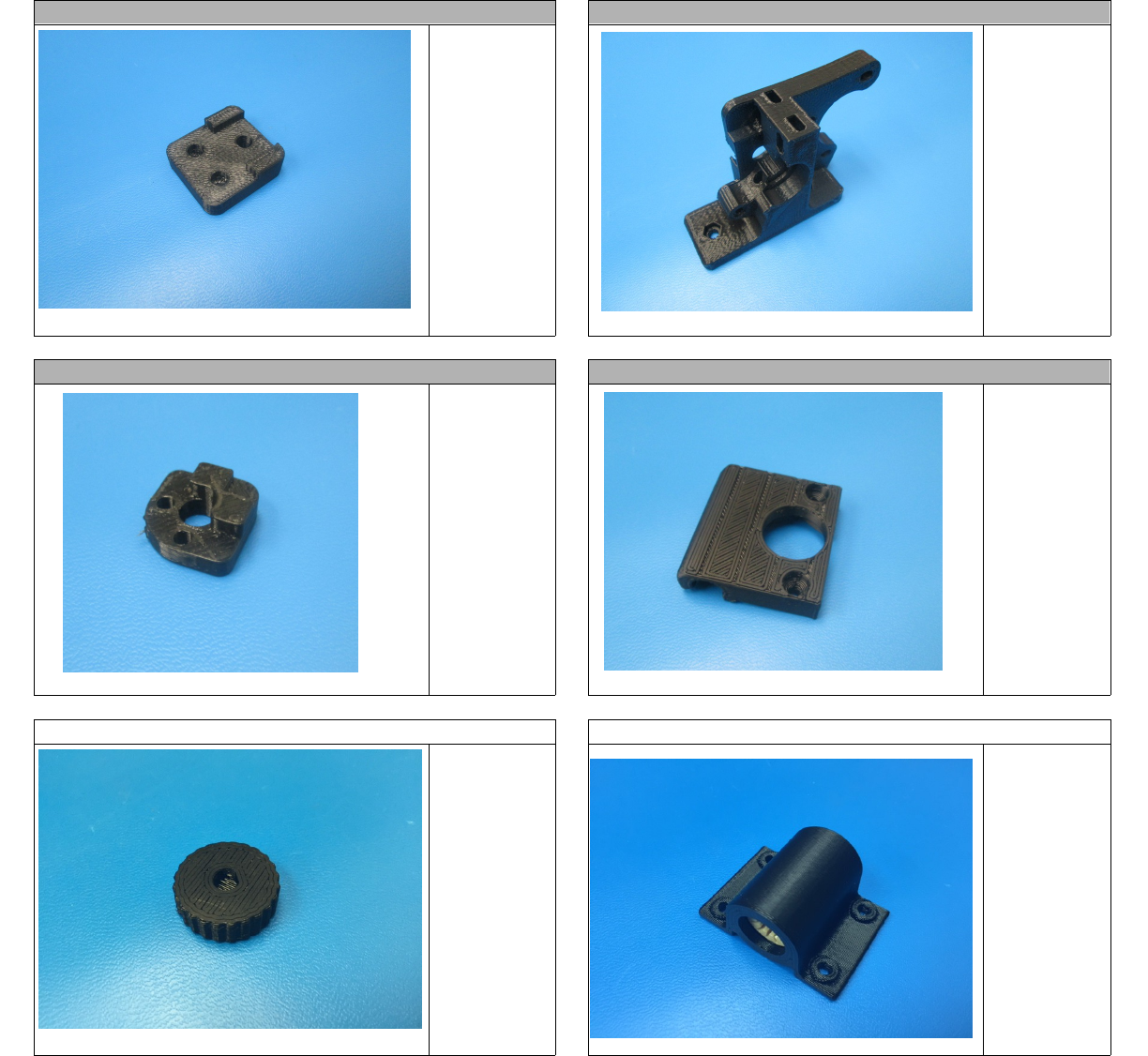

Taz 6 non-inserts 4 of 7
PP-GP0224 -- Y mount table v2.5, TAZ PP-GP0186 -- Wade extruder body for Hex nozzle v1.0
No Inserts No Inserts
PP-GP0221 -- Bed corner ninjaflex v1.0, TAZ PP-GP0216 -- Z-min switch mount v0.4, TAZ
No Inserts No Inserts
PP-GP0234 – LCD Knob, V1.0 PP-GP0233 – Bearing Holder Printing, V1.0
No Inserts No Inserts

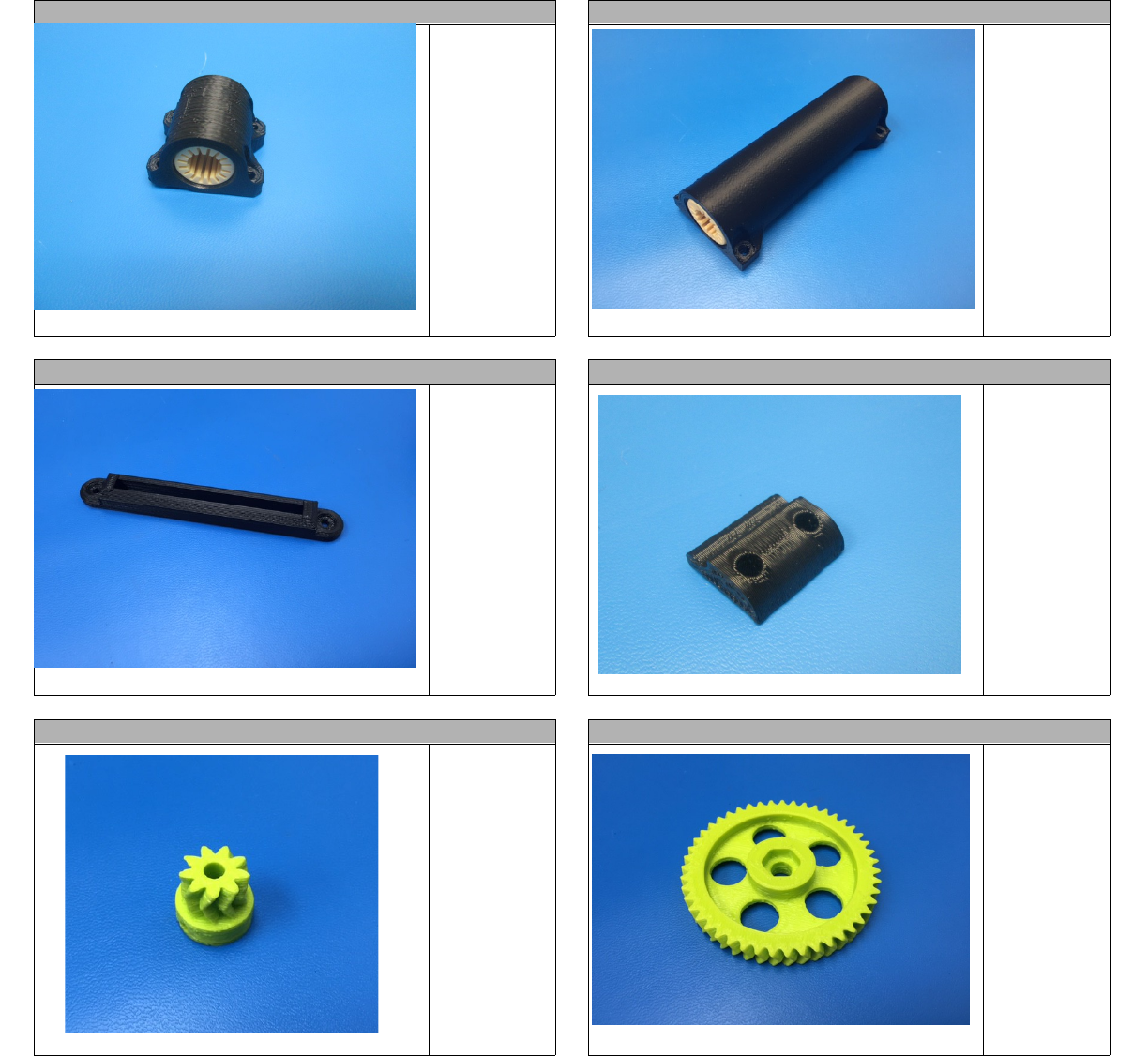

Taz 6 non-inserts 5 of 7
PP-GP0210 -- Single Bearing Holder for 12mm rod v0.3 PP-GP0209 -- Double Bearing Holder for 12mm rod v0.3
No Inserts No Inserts
PP-GP0231 – Wiper Mount, v2.0 PP-GP0091 -- extruder_latch
No Inserts No Inserts
PP-GP0192 – Herringbone Small Gear v1.1, Lulzbot green PP-GP0191 – Herringbone Large Gear v1.3, Lulzbot green
No Inserts No Inserts

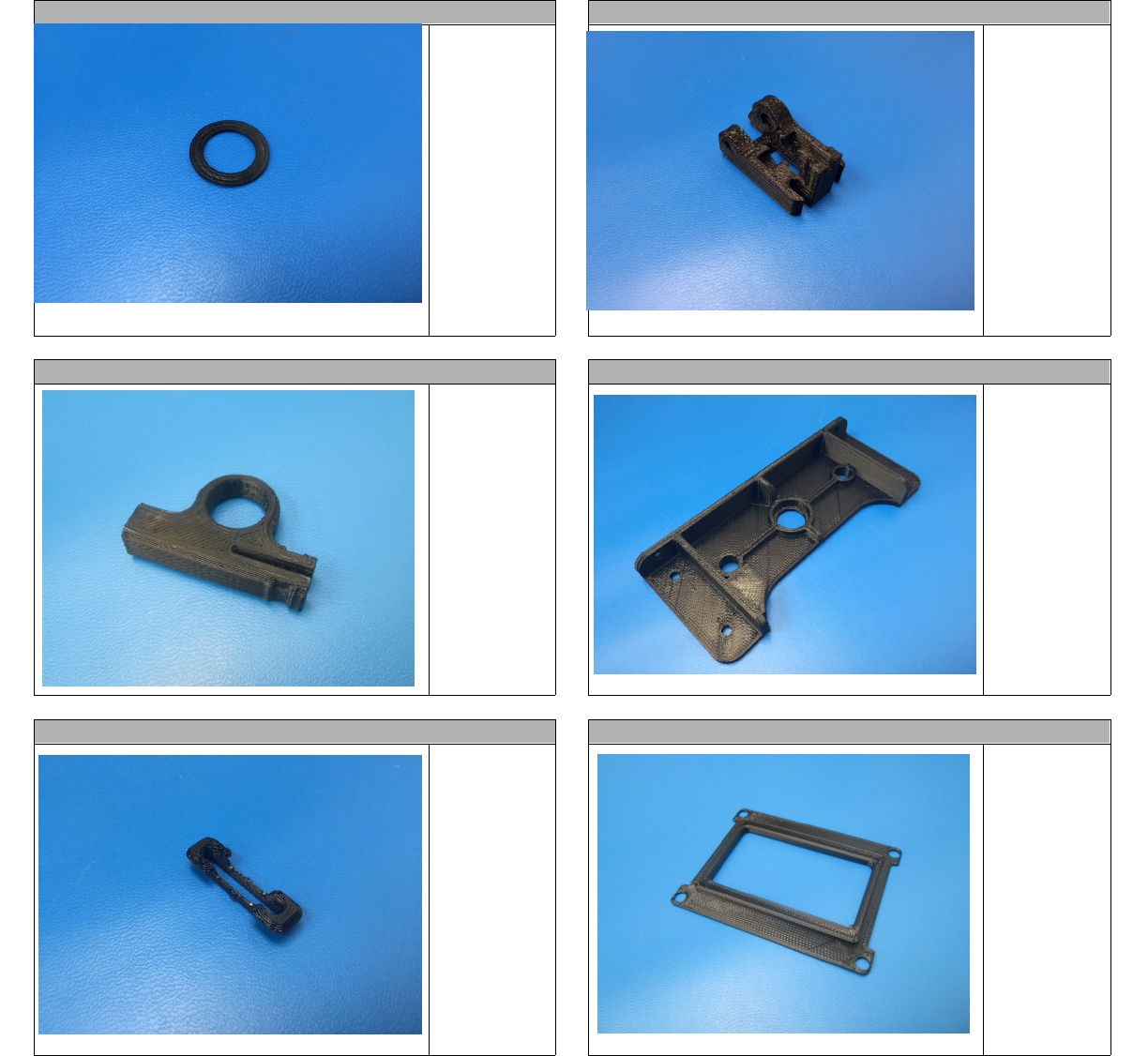

Taz 6 non-inserts 6 of 7
PP-GP0060 -- Wade Reloaded Bearing Washer PP-GP0193 – Extruder Idler Block v1.4c, Taz & Mini
No Inserts No Inserts
PP-GP0219 -- Feed Tube Spinner v2.5 PP-GP0236 -- Z Upper v2.0, TAZ6
No Inserts No Inserts
PP-GP0235 – SD card bezel, TAZ 6, v0.7 PP-GP0230 – Printed_LCD_bezel, TAZ 6, v1.0
No Inserts No Inserts
Taz 6 non-inserts 7 of 7
PP-GP0154 -- Electronics Case Mount v1.0 PP-GP0220 -- Interconnect housing v0.1, TAZ
No Inserts approved, need Pic No Inserts
PP-GP0207 -- X-Carriage Guidev2.0, TAZ PP-GP0089 – LCD Spacer, TAZ
No Inserts approved, need Pic No Inserts
PP-GP0237 – Flexy Washer V0.1 PP-GP0238 – Flexy Bed Foot v0.1
No Inserts No Inserts
