VENTED GAS FIREPLACE

INSTALLATION AND OWNER’S OPERATION MANUAL

4" B-VENT DECORATIVE GAS FIREPLACES

MODELS(V)CB36N(E) AND (V)CB36P(E)

WARNING: If the information in this manual is not

followed exactly, a re or explosion may result causing

property damage, personal injury or loss of life.

— Do not store or use gasoline or other ammable

vapors and liquids in the vicinity of this or any other

appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any

phone in your building.

• Immediately call your gas supplier from a neighbor’s

phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re

department.

— Installation and service must be performed by a quali-

ed installer, service agency or the gas supplier.

INSTALLER: Leave this manual with the appliance

CONSUMER: Retain this manual for future reference.

For more information, visit www.fmiproducts.com

PFS

www.fmiproducts.com 117437-01F2

WARNING: Improper

installation, adjustment,

alteration, service or

maintenance can cause

injury or property dam-

age. Refer to this manual

for correct installation

and operational proce-

dures. For assistance or

additional information

consult a qualified in-

staller, service agency or

the gas supplier.

This appliance may be in-

stalled in an aftermarket,*

permanently located,

manufactured (mobile)

home, where not prohib-

ited by local codes.

This appliance is only for

use with the type of gas

indicated on the rating

plate. This appliance is

not convertible for use

with other gases.

* Aftermarket: Completion of sale, not for

purpose of resale, from the manufacturer

WARNING: This product

contains and/or generates

chemicals known to the State

of California to cause cancer or

birth defects or other reproduc-

tive harm.

IMPORTANT: Read this owner’s

manual carefully and completely

before trying to assemble, op-

erate or service this replace.

Improper use of this replace

can cause serious injury or death

from burns, fire, explosion,

electrical shock and carbon

monoxide poisoning.

DANGER: Carbon monoxide

poisoning may lead to death!

This fireplace complies with the National

Safety Standards and is listed and tested by

PFS Corporation to ANSI Z21.50 standard as

vented gas replace.

NOTICE: Decorative product not

for use as a heating appliance.

SAFETY

TABLE OF CONTENTS

Safety .................................................................. 2

Product Identication ........................................... 4

Local Codes......................................................... 4

Product Features ................................................. 5

Pre-Installation Preparation ................................. 5

Installation Precautions ....................................... 9

Venting Installation .............................................. 9

Installing Optional Controls................................ 12

Fireplace Installation.......................................... 15

Operating Fireplace ........................................... 20

Inspecting Burners............................................. 23

Cleaning and Maintenance ................................ 24

Specications .................................................... 25

Service Hints ..................................................... 25

Technical Services ............................................. 25

Troubleshooting ................................................. 26

Replacement Parts ............................................ 31

Accessories ....................................................... 31

Parts .................................................................. 32

Warranty ..............................................Back Cover

State of Massachusetts:

The installation must

be made by a licensed

plumber or gas tter in

the Commonwealth of

Massachusetts.

www.fmiproducts.com

117437-01F 3

Due to high temperatures, the

appliance should be located out

of trafc and away from furniture

and draperies.

Do not place clothing or other

ammable material on or near

the appliance. Never place any

objects on or around replace.

Fireplace reaches high tempera-

tures. Keep children and adults

away from hot surface to avoid

burns or clothing ignition. Fire-

place will remain hot for a time

after shutdown. Allow surfaces

to cool before touching.

Do not operate replace with

glass door removed, cracked

or broken.

Carefully supervise young chil-

dren when they are in the room

with the replace.

Keep the appliance area clear

and free from combustible ma-

terials, gasoline and other am-

mable vapors and liquids.

This product is intended only

as a supplement to your central

heating system and is not to be

installed as a primary source of

heat. You may use this product

for emergency heating during a

power outage.

1. This appliance is only for use with the type

of gas indicated on the rating plate. This

appliance is not convertible for use with

other gases unless a certied kit is used.

2. Do not place propane/LP supply tank(s)

inside any structure. Locate propane/

LP supply tank(s) outdoors (propane/LP

units only).

SAFETY

Continued

This replace is a vented product. This replace

will not produce any gas leakage into your

home if properly installed. This replace must

be installed by a qualied (certied or licensed)

service person. If this unit is not properly in-

stalled by a qualied service person gas and/or

carbon monoxide leakage (spillage) can occur.

Carbon Monoxide Poisoning: Early signs of

carbon monoxide poisoning resemble the u,

with headaches, dizziness or nausea. If you

have these signs, the replace may not be

working properly. Get fresh air at once! Have

replace serviced. Some people are more af-

fected by carbon monoxide than others. These

include pregnant women, people with heart or

lung disease or anemia, those under the inu-

ence of alcohol and those at high altitudes.

Natural and Propane/LP Gas: Natural and

propane/LP gases are odorless. An odor-mak-

ing agent is added to these gases. The odor

helps you detect a gas leak. However, the

odor added to the gas can fade. Gas may be

present even though no odor exists.

Make certain you read and understand all

warnings. Keep this manual for reference. It

is your guide to safe and proper operation of

this replace.

WARNING: Any change to

this replace or its controls can

be dangerous.

WARNING: Do not use a blow-

er insert, heat exchanger insert

or other accessory not approved

for use with this replace.

WARNING: Do not allow fans

to blow directly into the replace.

Avoid any drafts that alter burner

ame patterns. Ceiling fans can

create drafts that alter burner

ame patterns. Altered burner

patterns can cause sooting.

www.fmiproducts.com 117437-01F4

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not

use any phone in your building

• immediately call your gas supplier from

a neighbor’s phone. Follow the gas sup-

plier’s instructions

• if you cannot reach your gas supplier,

call the re department

4. Never install the replace

• in a recreational vehicle

• in windy or drafty areas where curtains

or other combustible (ammable) objects

can make contact with the replace front

• in high trafc areas

5. Do not modify this replace under any

circumstances. Any parts removed for

servicing must be replaced prior to operat-

ing replace.

6. Turn fireplace off and let cool before

servicing, installing or repairing. Only a

qualied service person should install,

service or repair this replace.

7. You must keep control compartments,

burners and circulating air passages

clean. More frequent cleaning may be

needed due to excessive lint and dust

from carpeting, bedding material, etc.

Turn off the gas valve and pilot light before

cleaning replace.

SAFETY

Continued

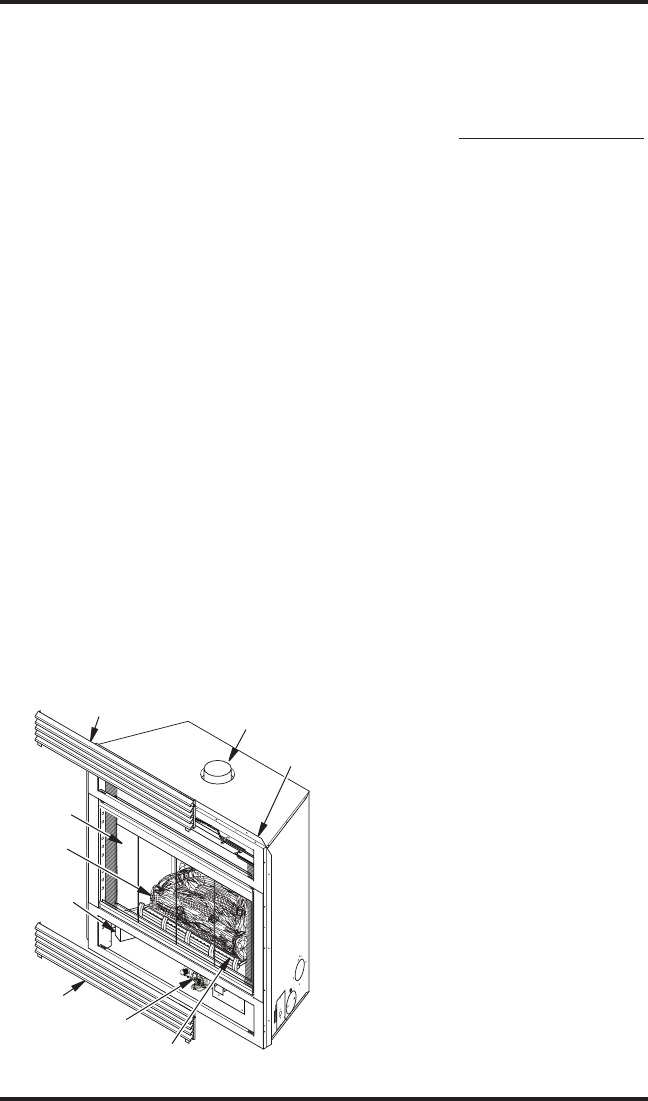

Figure 1 - B-Vent Fireplace

PRODUCT

IDENTIFICATION

Top Louver Panel

Glass

Door

Assembly

Bottom

Louver

Panel

Junction Box

(Electronic

Ignition Only)

Control

Valve Ember Tray

Log Set

Nailing

Flange

4" B-Vent

Flue Collar

8. Have replace and venting system inspect-

ed annually by a qualied service person.

If needed, have venting system cleaned or

repaired. See Cleaning and Maintenance,

page 24.

9. Do not use this replace to cook food or

burn paper or other objects.

10. Do not use any solid fuels (wood, coal, pa-

per, cardboard, etc.) in this replace. Use

only gas type indicated on nameplate.

11. This appliance, when installed, must be

electrically grounded in accordance with

local codes or, in the absence of local

codes, with the National Electric Code,

ANSI/NFPA 70.

12. Do not use replace if any part has been

exposed to or under water. Immediately

call a qualied service technician to ar-

range for replacement of the unit.

13. Do not operate replace if any log is bro-

ken or missing.

14. To prevent performance problems, do

not use propane/LP fuel tank of less than

100 lb. (45 kg) capacity (propane/LP

units only).

15. Provide adequate clearances around air

openings.

LOCAL CODES

Install and use replace with care. Follow all

local codes. In the absence of local codes,

use the latest edition of The National Fuel

Gas Code ANSI Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

www.fmiproducts.com

117437-01F 5

PRODUCT FEATURES

These are a few facts that can help you un-

derstand and enjoy your vented decorative

replace:

• The (V)CB36N(E) and (V)CB36P(E) series

of vented decorative replaces may be

recessed into an exterior chase, an interior

ush wall enclosure or a framed-in corner

installation.

• Models (V)CB36N and (V)CB36P are

equipped with a millivolt gas control system

that does not require electricity to operate.

A piezo ignitor is provided to light the pilot

without using matches or lighters.

• Models (V)CB36N(E) and (V)CB36P(E)

are equipped with an electronic ignition

system that requires 120 VAC to operate.

An electrode ignitor automatically lights the

pilot ame when the replace is turned on.

• These replaces can accept any approved

4" B-Type venting system and must be

terminated vertically through the roof using

Through exterior wall

enclosed in a chase

Corner

Installation

Flush with a wall

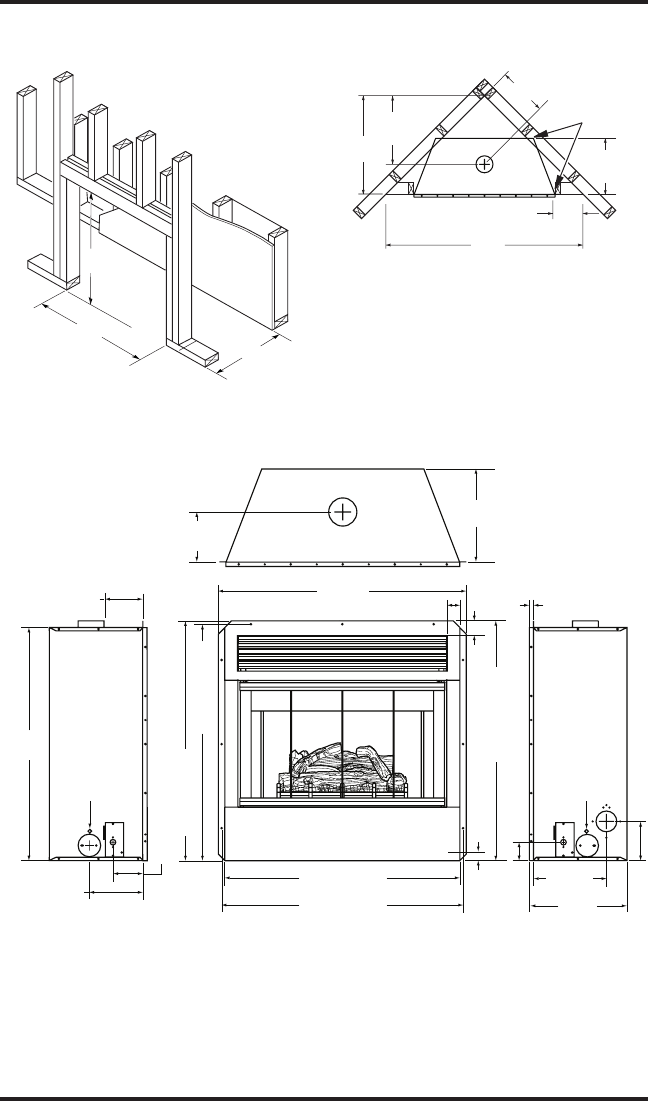

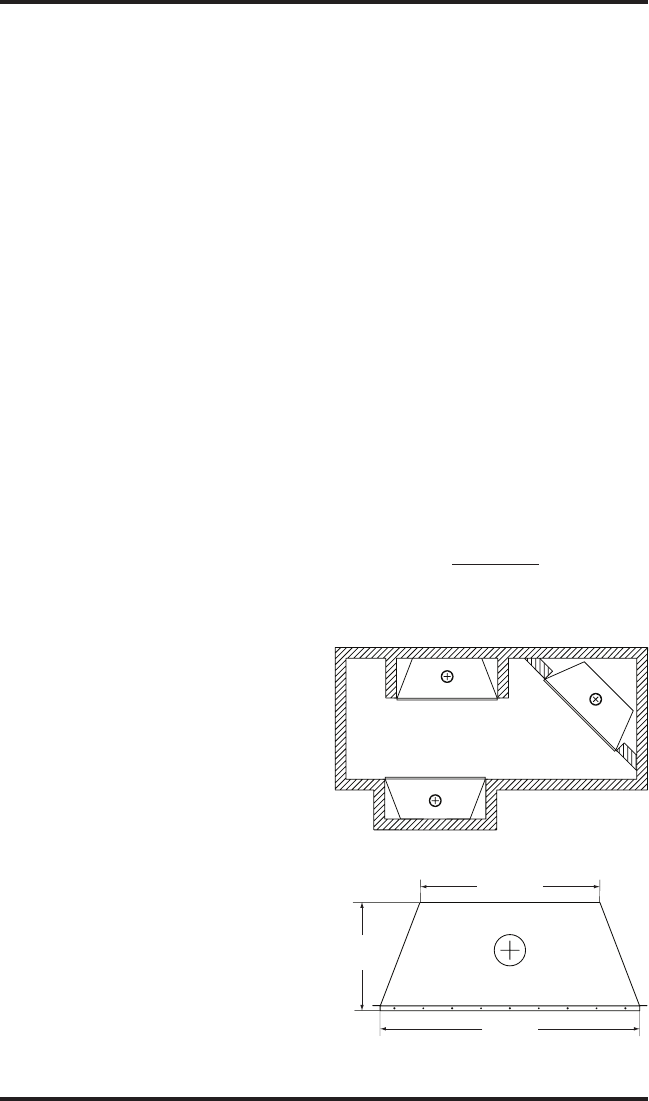

Figure 2 - Common Fireplace Locations

25"

(63.5 cm)

36"

(91.4 cm)

36"

(91.4 cm)

Figure 3 - Fireplace Bottom Dimensions

a listed type vent cap only. See venting

instructions starting on page 8 for proper

venting requirements.

• These vented replaces require indoor air

for combustion and must be installed in a

room of sufcient size to provide adequate

fresh air for safe and proper operation. The

room intended for installation must be of

sufcient size to meet the requirements

for an unconned space as dened in the

National Fuel Gas Code, ANSI Z223.1/

NFPA 54. Air for Combustion and Ventila-

tion. If sufcient air for combustion is not

available a makeup air kit model AK4 may

be required to provide outside air to this

appliance. Check your local codes as to

specic requirements for make up air.

• This replace may be installed in any room

of the house provided all local codes and

these installation instructions are followed.

PRE-INSTALLATION PREPARATION

LOCATION AND SPACE

REQUIREMENTS

Determine the safest and most efcient loca-

tion for your FMI PRODUCTS, LLC B-vent

replace. Make sure that rafters and wall

studs are not in the way of the venting system.

Choose a location where the heat output is

not affected by drafts, air conditioning ducts,

windows or doors. Figure 2 shows some com-

mon locations. Be aware of all restrictions and

precautions before deciding the exact location

for your replace and termination cap.

When deciding the location of your replace,

follow these rules:

• Do not connect this replace to a chimney

ue servicing a separate solid fuel burning

replace or appliance.

• Do to high temperatures, do not locate this

replace in high trafc areas, windy or drafty

areas, or near furniture or draperies.

• Proper clearances must be maintained.

• If your replace is to be installed directly on

carpeting, vinyl, tile or any combustible mate-

rial other than wood, it must be installed on a

metal or wood panel extending the full width

and depth of the replace (see Figure 3).

• Only trim kits supplied by FMI PRODUCTS,

LLC shall be used in the installation of this

replace, see Accessories, page 31.

• Do not install aftermarket vent dampers.

Manual or automatic vent dampers are not

approved for use with this appliance.

www.fmiproducts.com 117437-01F6

• Your replace is designed to be used in

zero clearance installations. Wall or framing

material can be placed directly against any

exterior surface on the back, sides or top

of your replace, except when clearances

are required from ue vent pipe, see Clear-

ances.

• If recessed into a wall, you can avoid extra

framing by positioning your replace against

an already existing framing member.

• A hearth extension is not required with

this appliance. If one is installed, it is for

aesthetic purposes only and does not have

to meet standard requirements for hearth

extensions.

• If you plan on installing a television or

entertainment center recessed above your

replace, it is recommended that you main-

tain a minimum 18" (45.7 cm) above the top

of louver opening.

• When locating the termination cap, it is im-

portant to observe the minimum vent height

and clearances required under code, see

Venting Installation Instructions, page 9.

• Do not recess termination cap into a wall

or siding.

• You may paint the termination cap with 450°

F (232° C) heat resistant paint to coordinate

with the exterior nish.

PACKAGING AND REMOVAL

The (V)CB36 vented decorative gas replaces

are packaged with the following items:

• one box containing a 4 piece log set located

on the burner in the rebox.

• one bag containing the owner’s manual

with installation instructions, operator’s

guide, and warranty information.

• one bag of glowing ember material.

• one bag of vermiculite hearth treatments.

1. Remove shrink wrap securing 2 carton

trays to unit.

2. Lift top carton tray off and remove four

corner posts.

3. Discard bottom tray once unit is moved

into position.

Note: To prevent damage to ceramic logs and

glass panels you may want to remove them

before positioning and framing the unit. To

access rebox, see Louver Panels and Glass

Door, page 17.

PRE-INSTALLATION PREPARATION

Continued

CLEARANCES

Minimum clearances to combustibles for

replace:

Back, Sides, Floor and Top

0" (0 mm)

Perpendicular walls 10" (25.4 cm)

Ceiling to Louver & Front 36" (91.4 cm)

B-Vent Surfaces 1" (26 mm) (See venting

instructions for specics

on vent clearances.)

Mantel Clearances (See Mantel Clearances,

page 8, for specic clear-

ances to combustible

mantels.)

Combustible material with a maximum thick-

ness of 5/8" (16 mm) may be ush with top

and sides of front face of replace.

FRAMING AND FINISHING

Figure 5, page 7, shows typical framing of this

replace. Figure 6, page 7, shows framing for

corner installation. All minimum clearances

must be met.

For overall unit dimensions, framing allow-

ances and vent collar locations, see Figure

7 on page 7.

For available accessories for this replace,

see Accessories, page 31. If you are using a

separate combustible mantel piece, refer to

Figures 8 and 9, page 8, for proper height and

clearances. You can install a noncombustible

mantel at any height above the fireplace

opening.

Note: Noncombustible mantels may discolor!

Figure 4 - Unpacking Fireplace

Carton

Tray

Glass

Panel

Log

Carton

Corner

Post

www.fmiproducts.com

117437-01F 7

Figure 5 - Framing Clearances for Flush

Wall Installation

36"

(91.4 cm)

36 1/4"

(92.1 cm) 14 3/4"

(37.5 cm)

Figure 6 - Framing Clearances for Corner

Installation

28 5/8"

(72.7 cm)

21" (53.3 cm)

To Center of

Top Vent

14 3/4"

(37.5 cm)

14 3/4" (37.5 cm)

to Nailing

Flanges

56 3/4"

(144 cm)

12 1/4"

(31 cm)

to Opening

PRE-INSTALLATION PREPARATION

Continued

Figure 7 - Unit Dimensions

14 3/4" (37.5 cm)

to Nailing Flanges

7 7/8" (20 cm) to

Center of 4" B-Vent

5 7/8"

(15 cm) to

Nailing

Flange

36 1/4" (92.1 cm)

to Nailing Flange

36 1/4" (92.1 cm)

Face Dimensions

1 1/2" (3.8 cm)

2 1/2" (6.4 cm)

6" (15.2 cm)

5/8"

(16 mm)

11 1/8"

(28.3 cm)

Air Kit Location

1 1/4"

(3.2 cm)

(5.1 cm)

38"

(96.5 cm)

15 3/8"

(39 cm)

36" (91.4 cm)

Face Dimensions

37" (94 cm)

to Nailing Flange

35 3/4"

(90.8 cm)

4 1/2" (11.4 cm) Electrical Inlet

36 3/4" (93.4 cm)

Wall Switch

Wireway Wall Switch

Wireway

8" (20.3 cm)

Gas Supply

Inlet

**These dimensions allow for 1" clearance at

sides and back of replace. However, 0" clearance

is also permitted at all sides when framed.

www.fmiproducts.com 117437-01F8

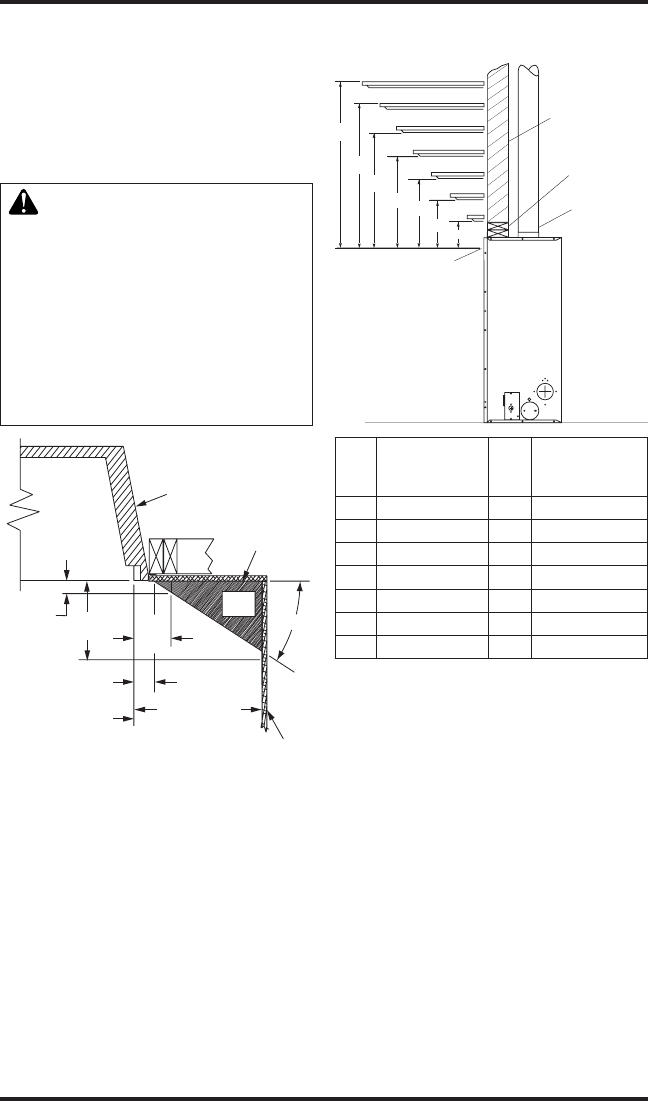

Figure 9 - Clearances for Combustible

Mantels

Figure 8 - Side Clearances for

Combustible Mantels

PRE-INSTALLATION PREPARATION

Continued

1 1/2"

(3.8 cm) 3 1/2"

(8.9

cm)

Outer

Surround

Combustible

Material May

Be Used

Perpendicular

Side Wall

5 1/4"

(13.3 cm)

1 3/4"

(4.4 cm)

To Fireplace

Opening

10" (25.4 cm)

33°

Safe

Zone

Ref. Mantel Depth Ref.

Mantel from

Top of Louver

Opening

116" (40.6 cm) A 18" (45.7 cm)

214" (35.6 cm) B 16" (40.6 cm)

312" (30.5 cm) C 14" (35.6 cm)

410" (25.4 cm) D 12" (30.5 cm)

58" (20.3 cm) E 10" (25.4 cm)

64" (10.2 cm) F 8" (20.3 cm)

72" (5.1 cm) G 6" (15.2 cm)

Top of Louver

Opening

Stud Wall

4" B-Vent

Flue Pipe

2 x 4 Header

at 1" Min.

Clearance

MANTEL CLEARANCES

Figure 8 shows projected mantel depths at

various heights above top of louver opening.

Figure 7, page 7, shows minimum allowable

distances from various mantel components in

relation to both sides of replace opening.

WARNING: When nishing

appliance do not overlap com-

bustible materials onto the black

front face. Brick, tile or other

noncombustible materials may be

applied to the face provided that

any replace openings are not

blocked and gaps in the material

used and the face are sealed with

a noncombustible caulking.

www.fmiproducts.com

117437-01F 9

INSTALLATION PRECAUTIONS

NOTICE: Failure to follow these

instructions will void the warranty.

• Wear gloves and safety glasses for

protection

• Use extreme caution when using ladders

or when on roof tops

• Be aware of electrical wiring locations in

walls and ceilings

The following actions will void the warranty

on this product:

• Installation of any damaged venting

component

• Unauthorized modication of the venting

system (Do not cut or alter vent compo-

nents)

• Installation of any component part not

manufactured or approved by FMI PROD-

UCTS, LLC

• Installation other than as instructed by

these instructions

WARNING: Read all instruc-

tions completely and thoroughly

before attempting installation.

Failure to do so could result in

serious injury, property damage

or loss of life.

WARNING: B-type vent pipe

airspace clearance to combus-

tibles is 1" on all sides. Where

the vent pipe passes through a

vertical wall a listed thimble ap-

proved for use with B-type vent

must be used.

VENTING INSTALLATION

A 4" B-type venting system must be connected

to the appliance for venting to the outside of

the building.

The following section is provided as a guide to

install a standard B-type vent installation.

Standing code requirements concerning

B-type vent installations may vary within

your state, province or local codes jurisdic-

tion. Therefore, it is recommended that you

check with your local building code authority

for specic requirements or in absence of

local codes, follow Section 7.0 of the cur-

rent National Fuel Gas Code NFPA 54/ANSI

Z223.1 for Category I systems using double

wall B-1 vent pipe.

This gas appliance must be vented to the

outdoors only and may not be terminated into

an attic space or into a chimney ue servicing

a solid fuel burning appliance.

This appliance may be vented through a

manufactured chimney liner system if all are

listed, inspected and approved by local codes

and/or building authorities.

The examples shown in Figure 10, page 10,

are typical of most B-vent installations and

code practices.

WARNING: This gas replace

and vent assembly must be vented

directly to the outside. The venting

system must NEVER be attached

to a chimney serving a separate

solid fuel burning appliance.

Example 1: Shows the minimum allowable sys-

tem height and lateral offset for a 60° or greater

inclination. Code species that offsets at 60° or

greater are considered horizontal and must fol-

low the 75% rule for lateral to total vertical sys-

tem height. Codes also allows only one offset

in the total system when at 60° or greater. The

total vertical height in this example represents

the minimum height of 8 feet and therefore the

allowable lateral is 6 feet when the 75% rule

applies. If the lateral length must exceed 75%

then the system must be sized in accordance

with the Category I venting tables.

Example 2: Shows multiple offsets each at

45° of inclination. Multiple offsets are permit-

ted if they do not exceed 45° of inclination.

The total lengths of the two offsets are not

required to meet the 75% rule.

Example 3: Shows a single offset at 45° of

inclination and therefore the lateral length at 10

feet of offset does not have to meet the 75%

allowable rule.

www.fmiproducts.com 117437-01F10

In each case the offsets must be supported

and restops must be positioned wherever

the vent must pass through a sub-oor, ceil-

ing joist or an attic overhang. The vent pipe

must terminate vertically into a listed type vent

cap and extend a sufcient height through

an approved roof ashing, roof jack or a roof

thimble. At all points the listed clearances

must be maintained.

Vent terminations must be located in ac-

cordance with height and proximity rules of

NFPA No. 54. These rules apply to vents at

12" diameter or less and require a minimum

height in accordance with the roof pitch and

a minimum of 8 foot distance from a vertical

wall or obstruction (see Figure 11).

If venting horizontally through a side wall be-

comes necessary, a listed thimble approved

for use with B-type vent must be used. Check

with your local codes before venting through

a side wall.

Some codes areas allow the use of existing B-

type vent systems if the system is at or above

the recommended diameter of the ue.

The ue connection must be made using listed

B-type connectors and the existing system

must be code inspected for damage and proper

installation.

It is not recommended that this appliance be

common vented with and existing gas burning

appliance. However, if it becomes necessary

to common vent the appliance. The venting

system must be sized and congured in ac-

cordance with the common venting guides

Appendix G of the current National Fuel Gas

Code NFPA No. 54/ANSI Z223.1.

Note: Before connecting this appliance to an

existing vent system or a common venting

system consult with your local architect plan-

ner, or building ofcial.

CHECKING FOR PROPER VENTING

VENTING INSTALLATION

Continued

Lowest

Discharge

Opening

Listed

Vent Cap

8 Ft. Min.

Roof Pitch x/12

Listed Clearance

Listed

Gas

Vent

H (Min)

Height

From Roof

Figure 11 - B-Vent Termination

Roof Pitch H (Min.)

Flat to 6/12 1.0 ft (0.3 m)

6/12 to 7/12 1.25 ft (0.38 m)

Over 7/12 to 8/12 1.5 ft (0.46 m)

Over 8/12 to 9/12 2.0 ft (0.61 m)

Over 9/12 to 10/12 2.5 ft (0.76 m)

Over 10/12 to 11/12 3.25 ft (0.99 m)

Over 11/12 to 12/12 4.0 ft (1.22 m)

Over 12/12 to 14/12 5.0 ft (1.52 m)

Over 14/12 to 16/12 6.0 ft (1.83 m)

Over 16/12 to 18/12 7.0 ft (2.13 m)

Over 18/12 to 20/12 7.5 ft (2.27 m)

Over 20/12 to 21/12 8.0 ft (2.44 m)

Figure 10 - Typical B-Vent Conguration

Maintain

Listed

Clearance

Maintain

Listed

Clearance

12' Min.

12' Min. 45°

12' Min.

60 45

Position

Firestop

Position

Firestop

Position

Firestop

Listed

Vent Cap

Listed

Vent Cap

Listed

Vent Cap

Maintain

Listed

Clearance

Maintain

Listed

Clearance

Maintain

Listed

Clearance

Maintain

Listed

Clearance

Support Each

Lateral At

Least Every

6 Feet

Maintain

Listed

Clearance

10'

EXAMPLE 3EXAMPLE 2

EXAMPLE 1

www.fmiproducts.com

117437-01F 11

VENTING INSTALLATION

Continued

After completing and checking electrical,

gas and vent connections, follow lighting

instructions and allow main burner to run for

approximately 5 minutes. Hold a match or

butane lighter ame, near opening between

glass and replace face and play it along

entire length of opening (Smoke may also be

used). Proper venting will tend to draw ame

or smoke into appliance. Improper venting,

escaping or spillage of burned gas, is indi-

cated when match ickers or goes out (see

Figure 12). Smoke will also tend to disperse

away from appliance.

If appliance is not venting properly, shut it off

and notify your installer or a qualied service

agency to inspect venting system.

ELECTRICAL SUPPLY CONNECTION

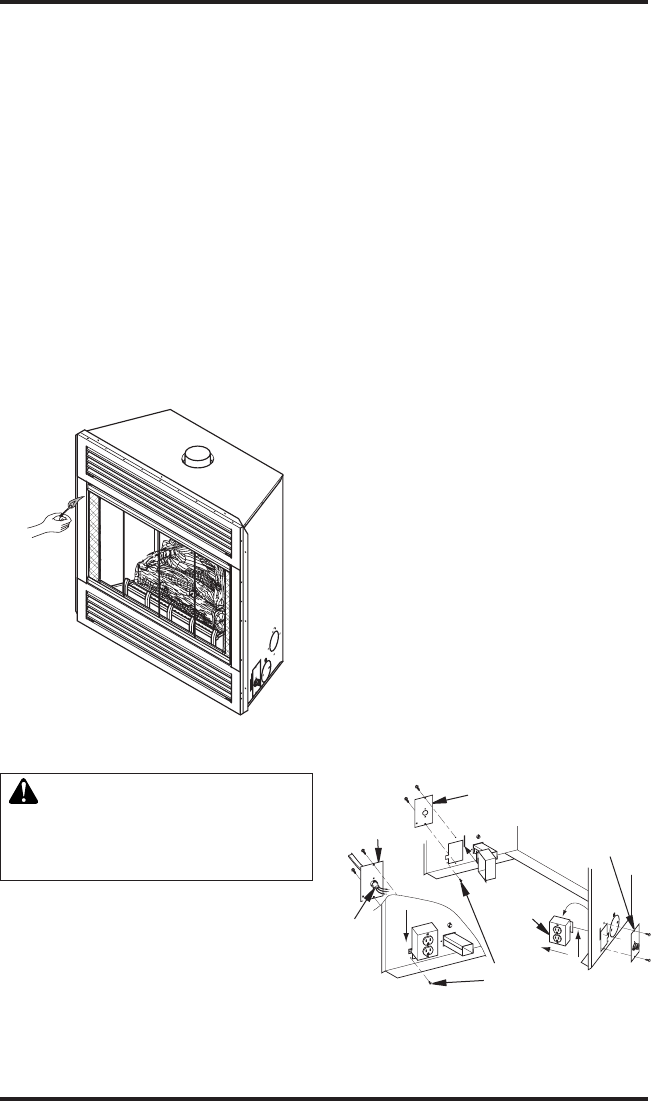

Figure 12 - Checking for Spillage

Figure 13 - Relocating Junction Box Recep-

tacle and Electrical Supply Connection

CAUTION: Disconnect the

electrical power to the supply

circuit before attempting to con-

nect or service this appliance.

A prewired junction box receptacle with strain

relief is provided on right side of cabinet for

hard wiring unit to a 15 Amp, 120 VAC, 60 Hz

grounded branch circuit. If installation demands

electrical supply be connected from the left, the

entire receptacle box can be relocated to the

left side by following these instructions:

J-Box

Cover

with Strain

Relilef

J-Box

Cover

Romex

Cable

J-Box with

Receptacle

J-Box Cover

with Strain

Relief

Screw/Tab

Retainer

Note: If you do not need to relocate the junc-

tion box, to connect the electric supply follow

steps 8 through 11 only:

1. Remove 2 screws and outer cover with

strain relief bushing on right side of cabi-

net (see Figure 13).

2. Remove inner retaining screw on junction

box mounting tab.

3. Slide junction box up until screw mounting

tab is lined up to notch in outer cabinet.

4. Swing junction box out and slip retaining

ange out through slot in outer cabinet.

5. Remove 2 screws and outer cover on left

side of outer cabinet.

6. Reinsert junction box retaining flange

through slot now on left side and swing

screw mounting tab back through notch

as before.

7. Slide junction box down till mounting tab

holes line up and replace inner retaining

screw.

8. With junction box cover removed, pull

end of 3-wire Romex supply line through

universal strain relief bushing on cover.

(see Figure 13).

9. Strip back outer Romex to about 4" and

connect black, white and green wires ac-

cordingly using 3 wire nut connectors.

10. Tuck tailing wires into junction box and

replace junction box cover using 2 remain-

ing screws.

11. Tighten adjustment on universal strain

bushing to secure Romex sheathing and

complete supply connection.

www.fmiproducts.com 117437-01F12

WARNING: This appliance,

when installed must be electri-

cally grounded in accordance

with local code or in the absence

of local code, with the current

National Electric Code, ANSI/

NFPA 70.

HIGH ALTITUDE INSTALLATION

Your FMI PRODUCTS, LLC B-vent replace

has been tested and approved in the USA for

elevations from 0-2,000 feet.

VENTING INSTALLATION

Continued

When installing a non-high altitude replace

at an elevation above 2,000 feet, you may

need to decrease the input rating by changing

the existing burner orice to a smaller size.

Reduce input 4% for each 1,000 feet above

sea level. Check with your local gas company

for proper orice size identication.

Consult your local gas company to help deter-

mine the proper orice for your location.

For assistance with any high altitude installa-

tion contact FMI PRODUCTS, LLC’s Custom-

er Service Department at 1-866-328-4537.

INSTALLING OPTIONAL CONTROLS

INSTALLING OPTIONAL WALL

MOUNT SWITCH - GWMS2

1. Connect one terminal of 15 foot wire from

wall switch to male connector on high limit

harness. Connect remaining wire terminal

to TH terminal on valve. Make sure that

wire terminals are in positions on unit as

pictured in Figure 14. If wires are not con-

nected as shown switch will not work.

2. Route 15 foot wire through hole openings

with bushings provided on either side of

replace cabinet.

3. Connect one bare wire end to each of

terminals of GWMS2 wall switch.

4. Install wall switch and cover in wall.

IMPORTANT: Do not use any other wire than

that provided with GWMS2 wall switch kit. Do

not exceed 15 feet of distance from valve con-

nection. Using wire of higher gauge or turns

or exceeding minimum distance will increase

resistance at control valve causing unreliable

performance of replace controls.

Remote Receiver

or Wall Switch to

Terminal Marked “TH”

Wire Harness From

High Limit Switch

Male Connector to

Remote Receiver

or Wall Switch

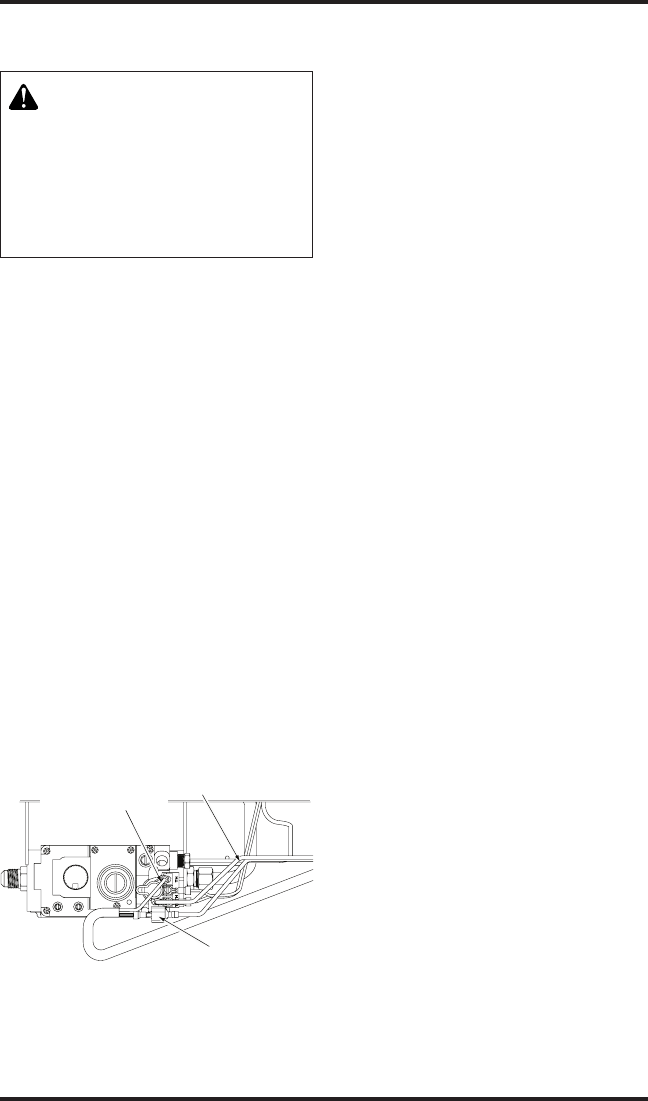

Figure 14 - Connecting Remote Receiver

or Wall Switch to the Gas Control Valve

www.fmiproducts.com

117437-01F 13

INSTALLING OPTIONAL CONTROLS

Continued

Figure 15 - Installing WRC Remote Receiver

Figure 16 - Installing Battery into Back of

Handset

Fireplace

Receptacle

Remote

Control

Receiver

Extension Cord

Ignition

Module

Plug

Pull to

Remove

Insulation

Tab

Battery Cover

12 Volt Battery Back of Handset

INSTALLING OPTIONAL WIRELESS

REMOTE CONTROL - MODEL WRC

(Electronic Ignition)

Installing and Activating the Remote

Receiver

1. Open bottom louver and locate plug re-

ceptacle. Plug receptacle is located either

on right or left side of cabinet.

2. The WRC model receiver does not require

a battery. Receiver can be installed by

rst plugging short extension cord into

replace receptacle. Then plug receiver

unit into extension cord. Finally plug igni-

tion module plug into receiver unit (see

Figure 15).

3. Activate remote handset battery by re-

moving insulating tab on back of handset

(see Figure 16). Battery is included pre

installed

4. Once battery is activated unit is ready to

use.

5. Replace bottom louver panel.

www.fmiproducts.com 117437-01F14

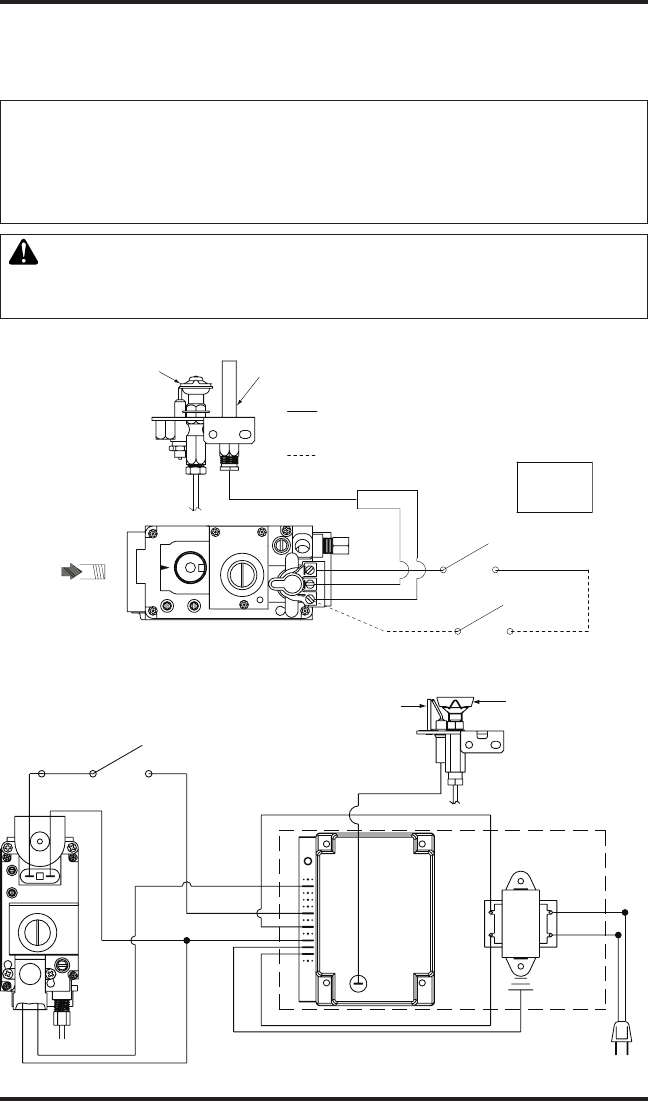

Figure 17 - Millivolt Ignition Wiring Diagram

Figure 18 - Electronic Ignition Wiring Diagram

TH/TP

WHITE

RED

DO NOT

CONNECT

TO 120V

HIGH LIMIT

SWITCH

Pilot

Burner

Incoming

Main Gas

Supply

Thermocouple

Wall Switch/Remote Receiver

Replace factory wiring with

105° C equivalent or higher rating

External wiring use only Class 2

thermostat wire 18 Ga. Red/White

Millivolt Wiring Diagram

WIRING DIAGRAMS

NOTICE: This appliance is equipped with a vent safety shutoff switch

which will shut down the appliance in case of a venting problem. Do

not bypass the vent safety shutoff switch. If the appliance should

shut down, have a qualied installer, service agency, or your gas

supplier inspect the vent before operating.

CAUTION: label all wires prior to disconnection when servicing

controls. Wiring errors can cause improper and dangerous opera-

tion. Verify proper operation after servicing.

EV2

EV1

High Limit

Switch

Gas Valve

Orange

Red

Transformer

Ignition Control

Module

Black

Ground

120 VAC

White

24 VAC

Blue

High Voltage

MV PV TH P/MV GND TR

Green Ignition Module

ELECTRONIC IGNITION

WIRING DIAGRAM

Black

Pilot Burner

Ignitor

INSTALLING OPTIONAL CONTROLS

Continued

www.fmiproducts.com

117437-01F 15

FIREPLACE INSTALLATION

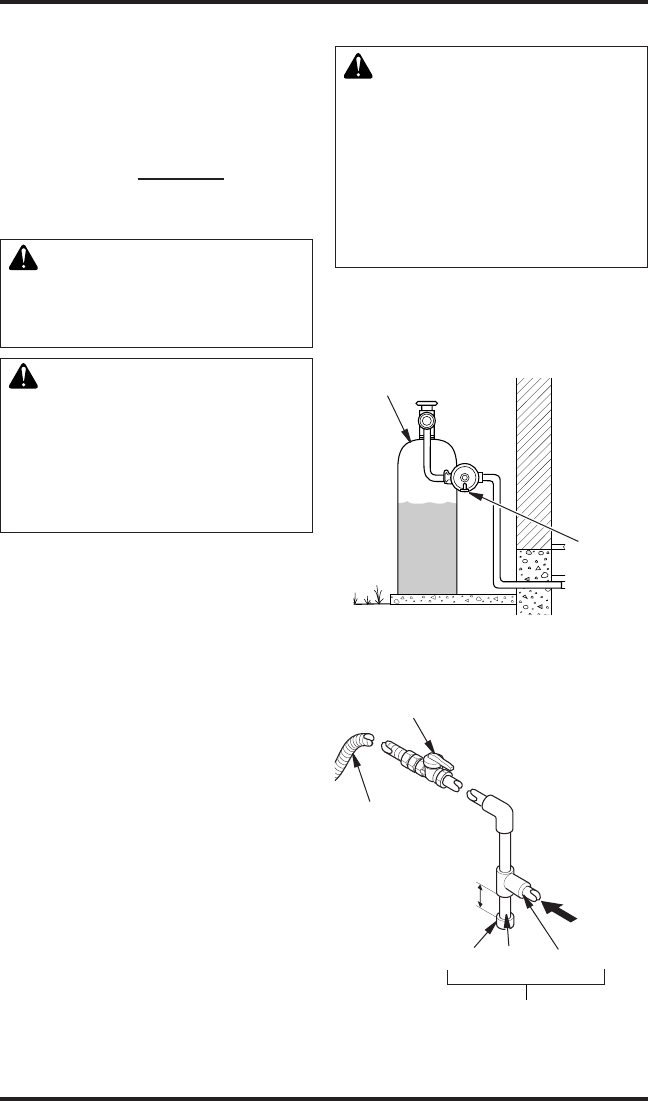

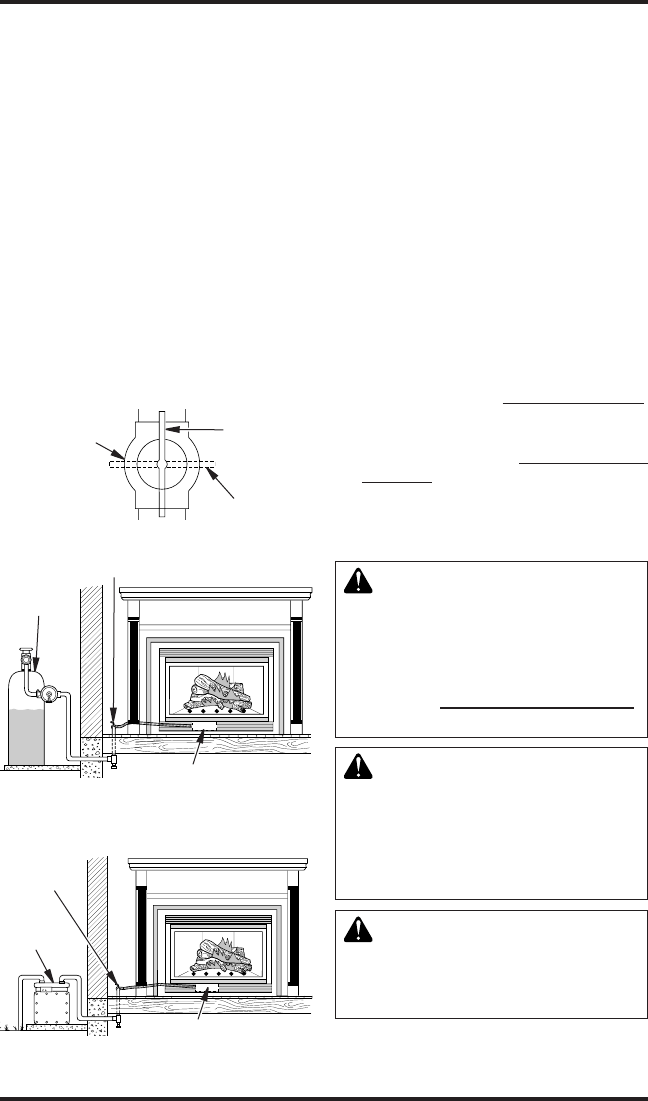

Figure 19 - External Regulator with Vent

Pointing Down (Propane/LP Only)

Propane/LP Supply Tank

External

Regulator

with Vent

Pointing

Down

CAUTION: Use only new,

black iron or steel pipe. Inter-

nally-tinned copper tubing may

be used in certain areas. Check

your local codes. Use pipe of

1/2" diameter or greater to allow

proper gas volume to replace.

If pipe is too small, undue loss

of volume will occur.

Installation must include an equipment shutoff

valve, union and plugged 1/8" NPT tap. Locate

NPT tap within reach for test gauge hook up.

NPT tap must be upstream from replace

(see Figure 20).

CHECK GAS TYPE

Use only the correct type of gas (natural or

propane/LP). If your gas supply is not the

correct gas type, do not install replace. See

dealer where you purchased your replace for

proper gas type replace or to purchase gas

conversion kit (see Accessories, page 31).

INSTALLING GAS PIPING TO

FIREPLACE LOCATION

WARNING: A qualified

service person must connect

replace to gas supply. Follow

all local codes.

CAUTION: For propane/LP

units, never connect fireplace

directly to the propane/LP supply.

This replace requires an external

regulator (not supplied). Install the

external regulator between the

replace and propane/LP supply.

Installation Items Needed

Before installing replace, make sure you

have the items listed below.

• external regulator (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection *

• sediment trap

• tee joint

• pipe wrench

• approved exible gas line with gas connec-

tor (if allowed by local codes)

* An equipment shutoff valve with 1/8" NPT

tap is an acceptable alternative to test gauge

connection. Purchase the equipment shutoff

valve from your retailer.

For propane/LP connection only, installer

must supply an external regulator. External

regulator will reduce incoming gas pressure.

You must reduce incoming gas pressure to

between 11" and 14" of water. If you do not

reduce incoming gas pressure, fireplace

regulator damage could occur. Install external

regulator with vent pointing down as shown in

Figure 19. Pointing vent down protects it from

freezing rain or sleet.

Figure 20 - Gas Connection

Equipment Shutoff Valve

with 1/8" NPT Tap*

3" Minimum

Approved

Flexible

Gas Line

Cap Pipe Tee Joint

Nipple

Sediment Trap/Drip Leg

Natural - From

Gas Meter (5.5"

W.C. to 10.5" W.C.

Pressure)

Propane/LP From

External Regulator

(11" W.C. to 14"

W.C. Pressure)

* The equipment shutoff valve may be sup-

plied with the appliance or you can purchase

it from your retailer.

www.fmiproducts.com 117437-01F16

FIREPLACE INSTALLATION

Continued

IMPORTANT: Install main gas valve (equip-

ment shutoff valve) in an accessible location.

The main gas valve is for turning on or shutting

off gas to appliance.

Check your building codes for any special

requirements for locating equipment shutoff

valve to replaces.

Apply pipe joint sealant lightly to male NPT

threads. This will prevent excess sealant from

going into pipe. Excess sealant in pipe could

result in clogged replace valves.

WARNING: Use pipe joint

sealant that is resistant to liquid

petroleum (LP) gas.

We recommend that you install a sediment

trap/drip leg in supply line as shown in Figure

20, page 15. Locate sediment trap/drip leg

where it is within reach for cleaning. Install

in piping system between fuel supply and

replace. Locate sediment trap/drip leg where

trapped matter is not likely to freeze. A sedi-

ment trap traps moisture and contaminants.

This keeps them from going into replace

gas controls. If sediment trap/drip leg is not

installed or is installed wrong, replace may

not run properly.

CONNECTING FIREPLACE TO GAS

SUPPLY

Installation Items Needed

• 3/4" and a 7/8" open end wrench or adjust-

able wrench

• sealant (resistant to propane/LP gas, not

provided)

1. Remove lower louver door panel by lifting

up until disengaged. Swing forward and

out of locating slots at bottom.

2. Route exible gas line (provided by in-

staller) from equipment shutoff valve to

replace. Route exible gas supply line

through one access hole on each side of

replace cabinet.

3. Attach exible gas line from gas supply

to the 1/2" are tting provided on control

valve (see Figure 21).

4. Check all gas connections for leaks (see

Checking Gas Connections).

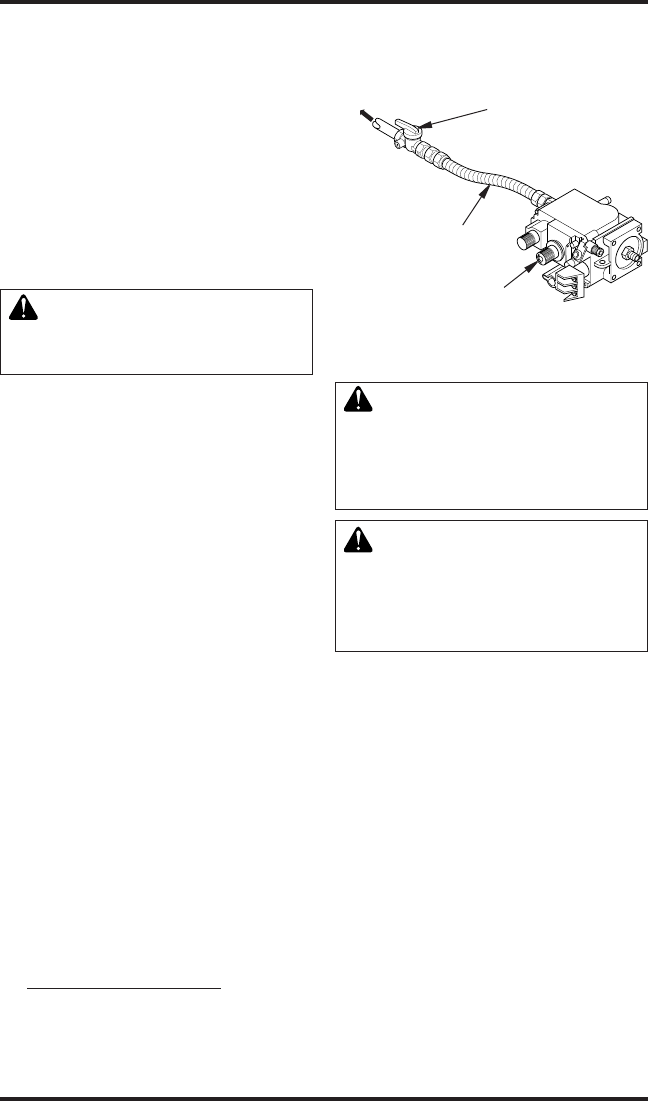

Figure 21 - Connecting Flexible Gas Line

to Millivolt Valve

Flexible Gas Line

Do NOT Kink

Equipment

Shutoff Valve

To Gas Supply

(Natural)

To External

Regulator

(Propane/LP)

Control Valve

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping

and connections, internal and

external to unit, for leaks after

installing or servicing. Correct

all leaks at once.

WARNING: Never use an open

ame to check for a leak. Apply

noncorrosive leak detection uid

to all joints. Bubbles forming show

a leak. Correct all leaks at once.

PRESSURE TESTING GAS SUPPLY

PIPING SYSTEM

Test Pressures In Excess Of 1/2 PSIG

(3.5 kPa)

1. Disconnect replace and its individual

equipment shutoff valve from gas supply

piping system. Pressures in excess of 1/2

psig (3.5 kPa) will damage replace gas

regulator.

2. Cap off open end of gas pipe where equip-

ment shutoff valve was connected.

3. Pressurize supply piping system by either

opening propane/LP supply tank valve

for propane/LP gas replace or opening

main gas valve located on or near gas

meter for natural gas replace or using

compressed air.

4. Check all joints of gas supply piping sys-

tem. Apply noncorrosive leak detection

uid to all joints. Bubbles forming show a

leak. Correct all leaks at once.

5. Reconnect fireplace and equipment

shutoff valve to gas supply. Check recon-

nected ttings for leaks.

www.fmiproducts.com

117437-01F 17

Test Pressures Equal To or Less Than

1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Fig-

ure 22).

2. Pressurize supply piping system by either

opening propane/LP supply tank valve

for propane/LP gas replace or opening

main gas valve located on or near gas

meter for natural gas replace or using

compressed air.

3. Check all joints from propane/LP supply

tank or gas meter to equipment shutoff

valve (see Figure 23, for propane/LP or

Figure 24, for natural gas). Apply noncor-

rosive leak detection uid to all joints.

Bubbles forming show a leak. Correct all

leaks at once.

FIREPLACE INSTALLATION

Continued

Figure 22 - Equipment Shutoff Valve

Open

Closed

Equipment

Shutoff Valve

Figure 23 - Checking Gas Joints for

Propane/LP Gas Fireplace

Propane/LP

Supply Tank

Gas Valve

Equipment Shutoff Valve

Figure 24 - Checking Gas Joints for

Natural Gas Fireplace

Gas

Meter

Gas Valve

Equipment

Shutoff

Valve

PRESSURE TESTING FIREPLACE GAS

CONNECTIONS

1. Open equipment shutoff valve (see Fig-

ure 22).

2. Open propane/LP supply tank valve for

propane/LP replace or main gas valve

located on or near gas meter for natural

gas replace.

3. Make sure control knob of replace is in

the OFF position.

4. Check all joints from equipment shutoff

valve to gas valve (see Figure 23, for

propane/LP or Figure 24, for natural gas).

Apply noncorrosive leak detection uid to

all joints. Bubbles forming show a leak.

Correct all leaks at once.

5. Light replace (see Operating Fireplace,

page 20). Check all other internal joints

for leaks.

6. Turn off replace (see To Turn Off Gas to

Appliance, page 20 or 21 depending on

your model).

LOUVER PANELS AND GLASS

DOOR

CAUTION: Do not operate

this replace with a broken glass

door panel or without the glass

door panel securely in place.

For replacement part informa-

tion see Replacement Parts,

page 31.

CAUTION: Wear gloves and

safety glasses while handling

or removing broken glass. Do

not remove if glass is hot. Keep

children and pets away from

glass.

WARNING: If replace has

been running, turn off and un-

plug replace. Let cool before re-

moving glass door or louvers.

www.fmiproducts.com 117437-01F18

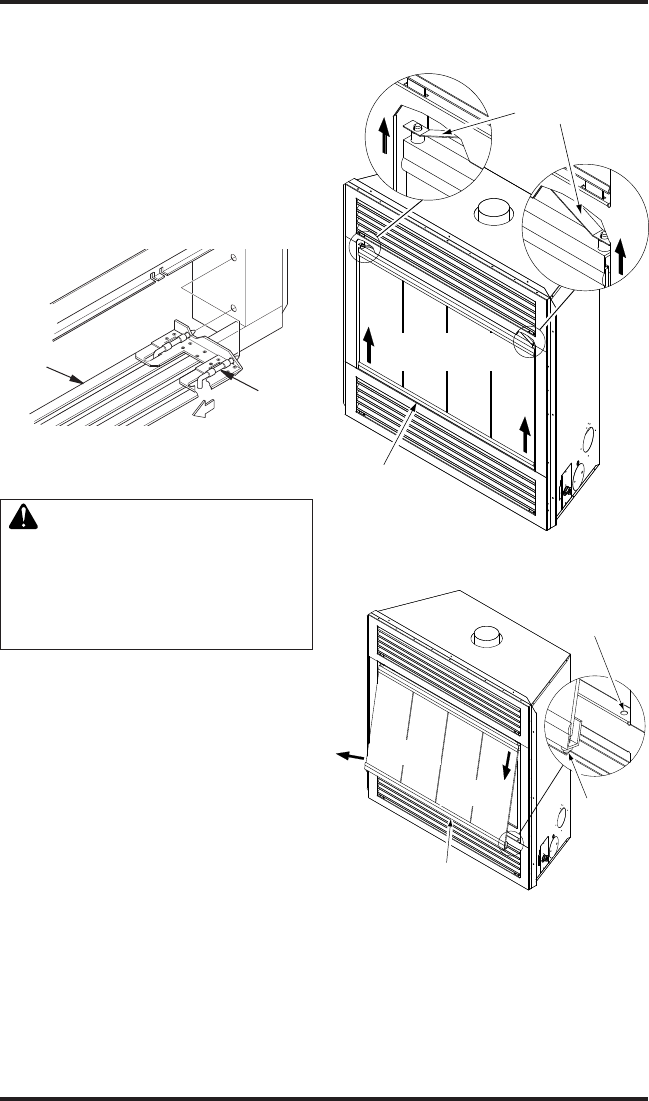

Figure 25 - Removing Louver Panel

Louver

Panel

Spring

Latch

Removing/Replacing Glass Door

WARNING: Handle glass

door panel with care. Do not

strike, slam or otherwise abuse

glass. Do not operate fire-

place with glass door removed,

cracked or broken.

If replacement of glass is necessary, the

entire assembly, glass and frame, must be

replaced. If glass is broken, wear gloves and

tape remaining fragments onto frame.

1. Placing a screw driver or your nger tips

into gap between lower glass panel rail

and bottom face frame, lift glass door as-

sembly until door pins clear locating holes

in bottom face frame (see Figure 26).

2. Swing bottom glass panel assembly out

until door pins on lower rail clear bottom

face frame (see Figure 27).

3. Lower door down until upper door pins are

free of locating holes in spring clips and

place in a safe area.

4. Replace glass panel in reverse order by

inserting top door pins into spring clips,

lifting up at lower frame rail and locating

bottom pins in holes on lower face frame.

FIREPLACE INSTALLATION

Continued

Figure 27 - Removing/Replacing Glass

Door

Spring Clips

Glass Panel

Frame Rail

1. Lift Up Panel

at Lower Rail

Figure 26 - Removing/Replacing Glass

Door

Locating

Hole

Door Pin

Glass Panel

Frame Rail

2. Swing Out

Panel

3. Lower

Panel Out

Removing Louver Panels

Remove top and bottom louver panels by

simultaneously pulling both top end spring

latches toward center of appliance until they

are disengaged from locating holes (see

Figure 25). Repeat for bottom spring latches

and pull louvers outward. To install or replace

items removed, simply reverse procedures

above.

www.fmiproducts.com

117437-01F 19

INSTALLING LOGS AND GLOWING

EMBERS

A 4 piece ceramic log set comes packed in-

side the unit rebox. Removal of glass door is

necessary to unpack and assemble logs and

add hearth treatments. Follow steps under

Removing/Replacing Glass Door, page 18 to

access logs and burner.

Assemble logs and add burner treatments

as follows:

1. Position base log onto burner log mounts

(see Figure 28).

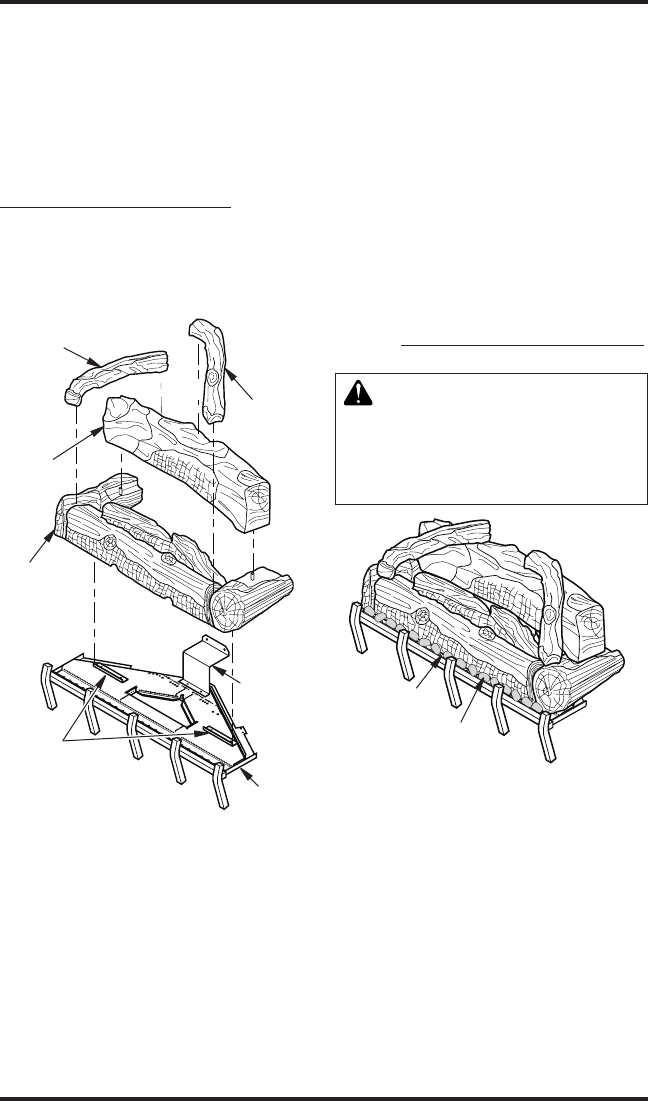

Figure 28 - Installing Logs

FIREPLACE INSTALLATION

Continued

Figure 29 - Applying Ember Material

Note: Cut out on bottom should t over

mounts and base log should be positioned

against rear panel.

2. Position holes on bottom of rear log over

pins on base log (see Figure 28).

3. Position top left log and top right log

onto rear log and base log as shown in

Figure 28.

4. Break ember material into quarter sized

pieces and place a single layer along the

full length of ember tray to hide bottom

edge of base log (see Figure 29).

5. Replace glass door and louver panels

(see Removing/Replacing Glass Door,

page 18).

WARNING: The glass door

must be securely in place before

running this replace. Do not run

this replace if glass is missing

or broken.

Top

Right

Log

Top Left

Log

Rear

Log

Burner

Base Log

Rear Log

Stand

Burner

Pan

Log

Mounts

Ember

Tray

Ember

Material

www.fmiproducts.com 117437-01F20

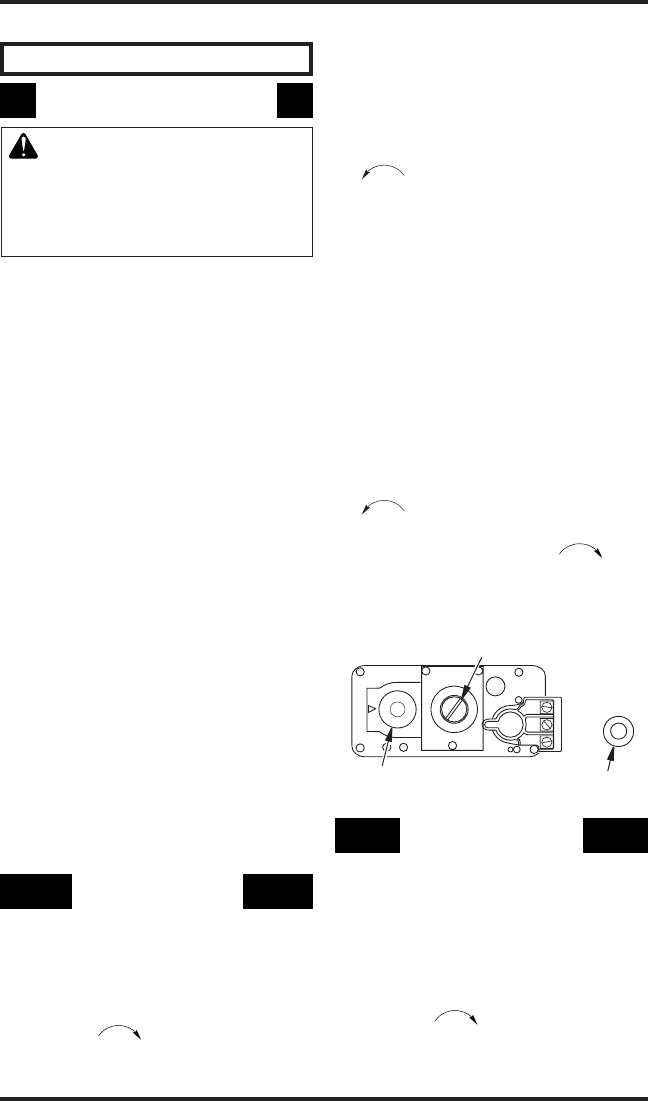

OPERATING FIREPLACE

MANUAL IGNITION SYSTEM

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not fol-

low these instructions exactly,

a re or explosion may result

causing property damage, per-

sonal injury or loss of life.

A. This appliance is equipped with an igni-

tion device which automatically lights

the pilot. Do not light pilot by hand.

B. BEFORE LIGHTING smell all around

the appliance area for gas. Be sure to

smell next to the oor because some

gas is heavier than air and will settle

on the oor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do

not use any phone in your building.

• Immediately call your gas supplier

from a neighbor's phone. Follow the

gas supplier's instructions.

• If you cannot reach your gas supplier,

call the re department

C. Use only your hand to push in or turn

the gas control knob. Never use tools.

If the knob will not push in or turn

by hand, don't try to repair it, call a

qualied service technician. Force or

attempted repair may result in a re or

explosion.

D. Do not use this appliance if any part

has been under water. Immediately call

a qualied service technician to inspect

the appliance and to replace any part of

the control system and any gas control

which has been under water.

LIGHTING

INSTRUCTIONS

1. STOP! Read the safety information

above.

2. Open lower louver panel.

3. Turn off all electric power to the replace.

4. Push in gas control knob slightly and turn

clockwise to OFF (see Figure 30).

5. Wait ve (5) minutes to clear out any

gas. Then smell for gas, including near

Figure 30 - Control Valve Millivolt

the oor. If you smell gas, STOP! Follow

“B” in the safety information above. If you

don’t smell gas go to the next step.

6. The pilot is located by the main burner and

should not require accessing for lighting.

7. Turn gas control knob counterclockwise

to PILOT.

8. Push in gas control knob all the way and

hold. Immediately light the pilot by repeat-

edly pressing the piezo ignitor until a ame

appears. Continue to hold for about one

(1) minute after the pilot is lit. Release

gas control knob and it will pop up. Pilot

should remain lit. If it goes out, repeat

steps 5 through 8.

• If gas control knob does not pop up when

released, stop and immediately call your

service technician or gas supplier.

• If the pilot will not stay lit after several tries,

turn gas control knob to OFF and call your

service technician or gas supplier.

9. Turn on all electric power to replace.

10. Turn gas control knob counterclockwise

to ON.

11. To leave pilot lit and shut off burners only:

turn control knob clockwise to the

PILOT position. Set wall switch or remote

selector switch to OFF position to prevent

draining battery.

12. Close lower louver panel.

Gas Control Knob

Regulator Cap

Piezo Ignitor

TO TURN OFF GAS

TO APPLIANCE

1. Open lower louver panel.

2. Set the wall switch to “OFF” position or the

HRC selector switch (when equipped) to

prevent draining the battery.

3. Turn off all electric power to the appliance

if service is to be performed.

4. Push in gas control knob slightly and turn

clockwise to OFF.

5. Close lower louver panel.

6. Close equipment shutoff valve (see Figure

22, page 17).

www.fmiproducts.com

117437-01F 21

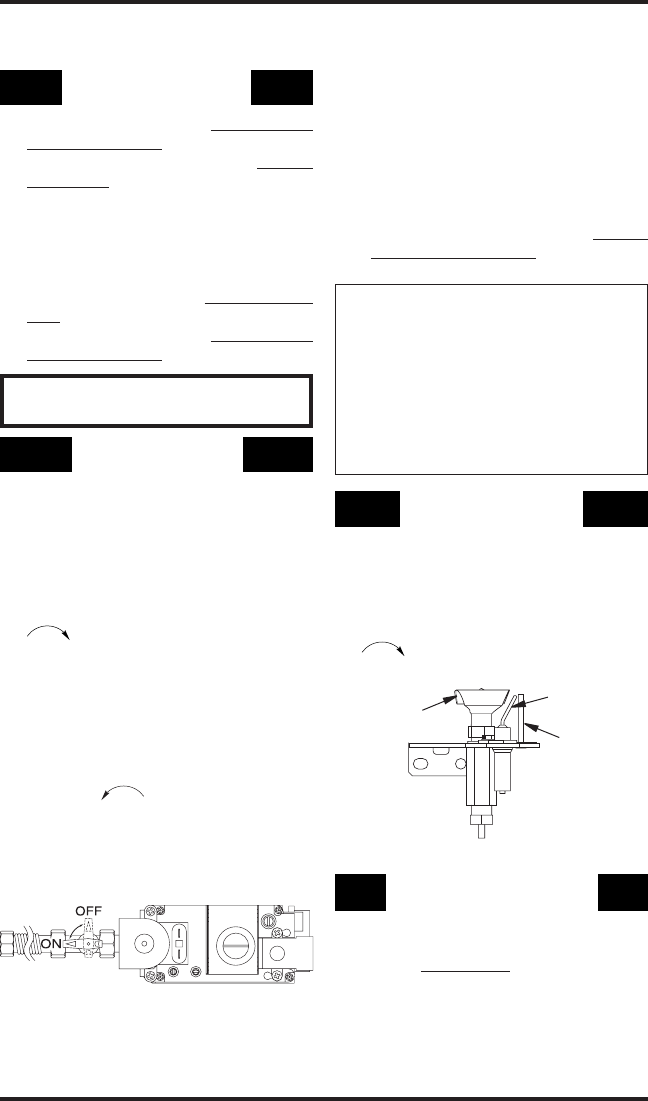

OPERATING FIREPLACE

Continued

MANUAL LIGHTING

PROCEDURE

1. Remove glass door (see Removing/Re-

placing Glass Door, page 18).

2. Follow steps 1 through 8 under Lighting

Instructions, page 20).

3. Press gas control knob and light pilot with

match.

Keep gas control knob pressed in for 30

seconds after lighting pilot. After 30 sec-

onds, release gas control knob. Follow

steps 10 through 11 under Lighting Instruc-

tions, page 20).

5. Replace glass door (see Removing/Re-

placing Glass Door, page 18).

ELECTRONIC IGNITION

SYSTEM

LIGHTING

INSTRUCTIONS

1. STOP! Read the safety information,

page 20.

2. Turn off all electrical power to the re-

place.

3. Turn wall switch to the OFF position.

4. Open lower louver panel.

5. Turn equipment shutoff valve clockwise

to the OFF position (see Figure

31). Do not force.

6. Wait ve (5) minutes to clear out any gas.

Then smell for gas, including near the oor.

If you smell gas, STOP! Follow “B” in the

safety information, page 20. If you don’t

smell gas go to the next step.

7. Turn equipment shutoff valve counter-

clockwise to the ON position. Do

not force.

8. Close lower louver panel.

9. Turn on all electric power to replace.

10. Turn wall switch to the ON position.

Figure 32 - Pilot

Pilot

Burner

Ignitor

Sensor

Rod

Figure 31 - Turning Equipment Shutoff

Valve to the OFF Position

11. Visually locate pilot. Ignitor should begin

to spark and main burner should ignite

once ame appears at pilot.

• If lighting appliance for the rst time each

season, it may take several attempts

before supply gas can reach pilot and

main burner.

• If appliance will not stay lit after several

attempts, follow instructions in To Turn

Off Gas To Appliance, and call your

service technician or gas supplier.

NOTICE: During initial operation

of a new replace, the burning of

residues from the manufacturing

process of the rebox and logs

will produce a paper-burning smell

and orange ames. Open a window

for the rst few hours of operation

to adequately vent this smell.

TO TURN OFF GAS

TO APPLIANCE

1. Turn off wall switch.

2. Turn off all electric power to appliance if

service is to be performed.

3. Open lower louver panel.

4. Turn equipment shutoff valve clockwise

to OFF. Do not force.

5. Close lower louver panel.

OPTIONAL WIRELESS

REMOTE OPERATION

Note: The WRC receiver and hand-held

remote control kit must be purchased sepa-

rately (see Accessories, page 31). Follow

installation instructions included with the

remote control.

1. Turn equipment shutoff valve to ON posi-

tion. You can now turn burner on and off

with hand-held remote unit.

www.fmiproducts.com 117437-01F22

OPERATING FIREPLACE

Continued

OFF

REMOTE

OFF

Blower Control Knob

(Optional Accessory) Variable

Control Knob

Selector Switch in

Remote Position

Gas Control Knob

in ON Position

Figure 33 - Setting the Selector Switch,

Gas Control Knob and Variable Control

Knob for Remote Operation

IMPORTANT: Be sure to press the ON/

OFF buttons on hand-held remote control

unit for up to 3 seconds to assure proper

operation.

2. Press ON/OFF button to turn the burner

on and off.

OPTIONAL HAND-HELD

REMOTE OPERATION

Note: All remote control accessories must

be purchased separately (see Accessories,

page 31). Follow instructions included with

the remote control.

NOTICE: You must light the pilot

before using the hand-held re-

mote control unit. See Lighting

Instructions, page 21.

After lighting, let pilot ame burn for about

one minute. Turn control knob to ON position.

Adjust ame adjustment knob anywhere be-

tween HI and LO. Slide the selector switch to

the REMOTE position (see Figure 33).

Note: Burner may light if hand-held remote

was on when selector switch was last turned

off. You can now turn burner on and off with

hand-held remote control unit.

IMPORTANT: Do not leave selector switch in

the REMOTE or ON position when pilot is not

lit. This will drain battery.

OPTIONAL GWMS2

ON/OFF WALL

MOUNTED SWITCH

WARNING: Do not connect

the appliance gas controls to a

120 VAC power source. Damage

or injury may occur.

Light replace as instructed in Lighting In-

structions on page 21 . If using an optional

remote with a wall switch, set remote selector

switch to the ON position (see Figure 33). Wall

switch may now be used to turn burner ame

ON and OFF.

To turn replace off, turn wall switch and/or

remote selector switch to the OFF position

and turn gas control knob back to PILOT. Pilot

will remain lit.

IMPORTANT: To turn pilot off, turn gas control

knob on replace to the OFF position.

www.fmiproducts.com

117437-01F 23

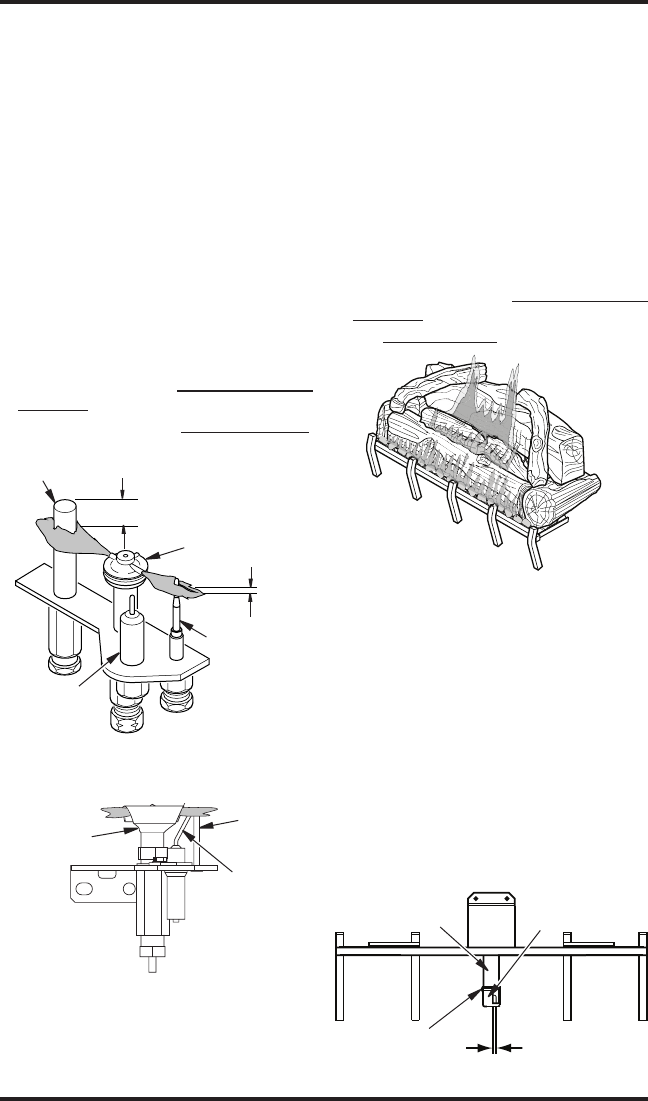

INSPECTING BURNERS

Thermocouple

Thermopile

1/4"

Pilot Burner

Piezo

Ignitor

Figure 34 - Pilot Assembly

(Millivolt Ignition System)

3/8" to 1/2"

Sensor

Rod

Pilot

Burner

Piezo

Ignitor

Figure 35 - Pilot Assembly

Electronic Ignition System)

Check pilot ame pattern and burner ame

patterns often.

PILOT ASSEMBLY

The pilot assembly is factory preset for

proper ame height. Alterations may have

occurred during shipping and handling. Call

a qualied service person to readjust the pilot

if necessary.

The position and pattern of pilot ames in rela-

tion to sensing devices should be as shown

in Figures 34 and 35 respectively.

Pilot ame may need adjustment in order

for thermocouple, thermopile and/or ignition

system to sense pilot ame.

If your pilot assembly does not meet these

requirements:

• turn replace off (see To Turn Off Gas to

Appliance, page 20 or 21)

• see sections under Troubleshooting,

page 25

Figure 36 - Typical Flame Pattern

Figure 37 - Adjusting Air Setting

AIR ADJUSTMENT SETTING

The main burner air shutter opening is factory

set to the following:

Natural Gas - 1/8", Propane/LP Gas - 3/4"

Air shutter may require adjustment depending

on altitude, venting condition, burner opera-

tion and general ame appearance.

If ames are lifting or sooting shutter may

require opening. If ames are too blue or im-

properly lighting shutter may require closing.

See Figure 37 for proper air adjustment.

IMPORTANT: Do not reduce air shutter open-

ing any lower than designed minimum stop

setting of 1/8".

1/8" Minimum

Air Opening

Air

Shutter

Burner

Tube

Adjustment

Screw

BURNER FLAME PATTERNS

Burner ames will be steady, not lifting or

oating. Flame patterns will differ from unit

to unit and will vary depending on installation

type and weather conditions.

If vent conguration is installed incorrectly,

ames will lift or “ghost”. This can be danger-

ous. Inspect ames after installation to ensure

proper installation and performance. Figure 40

shows a typical ame pattern.

If burner ame pattern differs from that de-

scribed:

• turn replace off (see To Turn Off Gas to

Appliance, page 20 or 21)

• see Troubleshooting, page 26

www.fmiproducts.com 117437-01F24

CLEANING AND MAINTENANCE

WARNING: Turn off replace

and let cool before cleaning.

CAUTION: You must keep

control areas, burners, and cir-

culating air passages of replace

clean. Inspect these areas of

replace before each use. Have

replace inspected yearly by a

qualied service person. Fire-

place may need more frequent

cleaning due to excessive lint

from carpeting, bedding mate

rial, pet hair, etc.

GLASS DOOR

WARNING: Handle glass

door panel with care. Do not

strike, slam, or otherwise abuse

glass. Do not operate replace

with the glass door removed,

cracked, or broken.

WARNING: Do not use

abrasive cleaners as this may

damage glass. Use a nonabra-

sive household glass cleaner to

clean glass. Do not clean glass

when hot.

Glass must be cleaned periodically. During

start-up it is normal for condensation to form

on the inside of the glass causing lint, dust,

and other airborne particles to cling to the

glass surface. During initial start-up a slight

lm may form on the glass due to paint curing.

The glass should be cleaned several times

with a non-ammonia, non-abrasive household

cleaner and warm water after the rst two

weeks of operation. Thereafter, clean the

glass two or three times during each heating

season, depending on the usage and circum-

stances present. Refer to Removing/Replac-

ing Glass Door, page 18, when removing

glass door for cleaning.

WARNING: Only parts sup-

plied by the manufacturer should

be used when replacing broken

or damaged glass door panel

(see Replacement Parts, page

31). This glass door panel is

a complete unit. No substitute

materials may be used.

CAUTION: Wear gloves and

safety glasses while handling

or removing broken glass. Do

not remove if glass is hot. Keep

children and pets away from

glass.

If glass has been broken, carefully remove

glass door (see Removing/Replacing Glass

Door, page 18). Vacuum all glass pieces with

a shop vac.

CAUTION: Do not vacuum if

pieces are hot.

Use only the tempered glass door replace-

ment intended for this replace (see Replace-

ment Parts, page 31 for detail on ordering).

No substitutions may be made. See Remov-

ing/Replacing Glass Door, page 18 for instruc-

tions for replacing glass door.

WARNING: Do not block

required air openings around

glass or louver panels. Venti-

lated compartments should be

inspected and vacuumed at least

once a year to prevent blockage

prior to operation.

PILOT AND BURNERS

• Remove ember material before cleaning

burners and replace

• Burner and controls should be cleaned

with compressed air to remove dust, dirt

or lint.

• Use a vacuum cleaner or small, soft bristled

brush to remove excess dust, dirt or lint.

www.fmiproducts.com

117437-01F 25

LOGS

• If you remove logs for cleaning, refer to

Installing Logs and Glowing Embers, page

19, to properly replace logs.

• Use a vacuum cleaner to remove any

carbon buildup on logs.

• Replace log(s) if broken. See Replacement

Parts, page 31.

• Replace ember material periodically as

needed. See Replacement Parts, page 31.

VENTING SYSTEM

Conduct annual inspection of the venting

system following these guidelines:

1. Check areas of venting system that are

exposed to the weather corrosion (rust

CLEANING AND MAINTENANCE

Continued

spots or streaks and in extreme cases,

holes). Have these items replaced im-

mediately by a qualied service person.

2. Remove the vent cap and shine a ashlight

into vent. Remove any foreign material.

3. Check for evidence of excessive con-

densation. Continuous condensation can

cause corrosion of caps, pipes and ttings

and can be caused by having excessive

lateral runs, too many elbows or exterior

portions of the system being exposed to

cold weather.

4. Inspect joints to verify that no pipe sec-

tion or tting has been distributed and

loosened. Check mechanical supports

such as wall straps for rigidity.

SPECIFICATIONS

(V)CB36N

• Maximum Input Rating: 18,000 Btu/hr

• Gas Type: Natural

• Orifice Size (Main Burner): #45 DMS

(0.082")

• Ignition: Millivolt

• Manifold Pressure: 3.5" w.c. (0.87 kPa)

• Min. Inlet Supply Pressure: 5.5" w.c. (1.1 kPa)

(V)CB36P

• Maximum Input Rating: 18,000 Btu/hr

• Gas Type: Propane/LP

• Orifice Size (Main Burner): #55 DMS

(0.052")

• Ignition: Millivolt

• Manifold Pressure: 10" w.c. (2.5 kPa)

• Min. Inlet Supply Pressure: 11" w.c. (2.7 kPa)

(V)CB36NE

• Maximum Input Rating: 18,000 Btu/hr

• Gas Type: Natural

• Orifice Size (Main Burner): #45 DMS

(0.082")

• Ignition: Electronic

• Manifold Pressure: 3.5" w.c. (0.87 kPa)

• Min. Inlet Supply Pressure: 5.5" w.c. (1.1 kPa)

(V)CB36PE

• Maximum Input Rating: 18,000 Btu/hr

• Gas Type: Propane/LP

• Orifice Size (Main Burner): #55 DMS

(0.052")

• Ignition: Electronic

• Manifold Pressure: 10" w.c. (2.5 kPa)

• Min. Inlet Supply Pressure: 11" w.c. (2.7 kPa)

ALL MODELS

• Fireplace Dimension HxWxD (Actual size of rebox measurements do not include nailing

anges or standoffs): 35.75" x 36.25" x 14.75" (90.8 x 92.1 x 37.5 cm)

• Carton Dimension HxWxD: 36.75" x 38" x 16.25" (93.3 x 96.5 x 41.3 cm)

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• replace will not produce specied heat

• for propane/LP units, propane/LP gas sup-

ply may be low

You may feel your gas pressure is too low. If

so, contact your local natural or propane/LP

gas supplier.

TECHNICAL SERVICES

You may have further questions about

installation, operation, or troubleshooting.

If so, contact FMI PRODUCTS, LLC at

1-866-328-4537. When calling please have

your model and serial numbers of your

replace ready.

You can also visit FMI PRODUCTS, LLC’s web

site at www.fmiproducts.com.

www.fmiproducts.com 117437-01F26

TROUBLESHOOTING

WARNING: Turn off replace and let cool before servicing. Only

a qualied service person should service and repair replace.

CAUTION: Never use a wire, needle or similar object to clean

ODS/pilot. This can damage ODS/pilot unit.

Note: All troubleshooting items are listed in order of operation.

The two most common causes of a malfunctioning gas appliance are:

1. Loose wiring connections

2. Construction debris clogging the pilot and/or gas control valve lter

POSSIBLE CAUSE

1. Ignitor electrode not con-

nected to ignitor cable

2. Ignitor cable pinched or

wet

3. Piezo ignitor nut is loose

4. Broken ignitor cable

5. Bad piezo ignitor

6. Ignitor electrode positioned

wrong

7. Ignitor electrode broken

1. Gas supply turned off or

equipment shutoff valve

closed

2. Control knob not in PILOT

position

3. Control knob not pressed

in while in PILOT position

4. Air in gas lines when in-

stalled

5. Depleted gas supply (pro-

pane/LP only)

6. ODS/pilot is clogged

7. Gas regulator setting is not

correct

OBSERVED PROBLEM

Manual Ignition System

Only When ignitor button is

pressed, there is no spark at

ODS/pilot

Manual Ignition System Only

When ignitor button is pressed,

there is spark at ODS/pilot but

no ignition

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched

by any metal or tubing.

Keep ignitor cable dry

Tighten nut holding piezo

ignitor to base panel of log

set. Nut is located behind

base panel.

4. Replace ignitor cable

5. Replace piezo ignitor

6. Replace pilot assembly

7. Replace pilot assembly

1. Turn on gas supply or open

equipment shutoff valve

2. Turn control knob to PILOT

position

3. Press in control knob while

in PILOT position

4. Continue holding down

control knob. Repeat ignit-

ing operation until air is

removed

5. Contact local propane/LP

gas company

6. Clean ODS/pilot (see Clean-

ing and Maintenance, page

24) or replace ODS/pilot

assembly

7. Replace gas regulator

www.fmiproducts.com

117437-01F 27

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

1. Gas control knob not fully

pressed in

2. Gas control knob not

pressed in long enough

3. Equipment shutoff valve

not fully open

4. Pilot flame not touching

thermocouple, which al-

lows thermocouple to cool,

causing pilot to go out. This

problem could be caused

by one or more of the fol-

lowing:

A) Low gas pressure

B) Dirty or partially clogged

pilot

5. Thermocouple connection

loose at control valve.

6. Thermocouple damaged

7. Control valve damaged

1. Burner orice clogged

2. Inlet gas pressure is too

low

3. Thermopile leads dis-

connected or improperly

connected

4. Thermopile is defective

5. Improper venting or exces-

sive blockage

1. Manifold pressure too

low

2. Burner porting or orice

clogged

1. Burner orice is clogged or

damaged

2. Damaged burner

3. Gas regulator defective

1. Residues from manufac-

turing processes and logs

curing

OBSERVED PROBLEM

Manual Ignition System Only

Pilot lights but ame goes

out when control knob is

released

Burner does not light after

pilot is lit or cycles during

operation.

Delayed ignition at burner

Burner backring during com-

bustion

Slight smoke or odor during

initial operation

REMEDY

1. Press in gas control knob

fully

After pilot lights, keep gas

control knob pressed in 30

seconds

3. Fully open equipment shut-

off valve

4. A) Contact local natural or

propane/LP gas company

B) Clean pilot (see Cleaning

and Maintenance, page 24)

or replace pilot assembly

5. Hand tighten until snug,

then tighten 1/4 turn more

6. Replace pilot assembly

7. Replace control valve

1. Clean burner (see Cleaning

and Maintenance, page 24)

or replace burner orice

2. Contact local propane/LP or

natural gas company

3. Reconnect leads

4. Replace thermopile

5. Have the vent system in-

spected, including the ter-

mination cap. Remove any

restriction or obstruction

1. Contact local propane/LP or

natural gas company

2. Clean burner (see Cleaning

and Maintenance, page 24)

or replace burner orice

1. Clean burner (see Cleaning

and Maintenance, page 24)

or replace burner orice

2. Replace damaged burner

3. Replace gas control

1. Problem will stop after a few

hours of operation

www.fmiproducts.com 117437-01F28

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

1. Turning gas control knob

to HI position when burner

is cold

2. Air in gas line

3. Dirty or partially clogged

burner orice

1. Flame impingement on

logs

2. Debris around burner air

mixer

1. Metal expanding while

heating or contracting

while cooling

1. Battery is not installed or

battery is power is low

1. High or gusting winds

2. Low line pressure

3. Pilot is partially clogged

Improper or restricted vent-

ing

5. Clogged burner tube,

blocked orice or improper

burner air adjustment

6. Bad thermopile or thermo-

couple

7. Vent cap improperly in-

stalled or blocked

OBSERVED PROBLEM

Heat produces a whistling

noise when burner is lit

Glass soots

Fireplace produces a clicking/

ticking noise just after burners

are lit or shut off

Remote does not function

Fireplace shuts off in use.

Burner backring during com-

bustion

REMEDY

1. Turn gas control knob to LO

position and let warm up for

a minute

2. Operate burner until air is

removed from line. Have

gas line checked by pro

pane/LP or natural gas

company

3. Clean burner (see Cleaning

and Maintenance, page 24)

or replace burner orice

1. Adjust the log set so the

ame does equipment shut-

off valve

2. Inspect the opening at the

base of the burner to see

that it is not packed with

any type of material

1. This is normal. If noise is

excessive, contact qualied

service person

1. Replace 9-volt batteries in

receiver and remote control

1. Fireplace has been tested for

up to 40 mph winds. How-

ever, extreme conditions

may occur. See Lighting

Instructions, page 20 or 21

2. Check local propane/LP or

natural gas company

3. Clean pilot (see Cleaning

and Maintenance, page

24)

4. Locate and correct all vent

conditions (see Checking for

Proper Venting, page 10)

5. Clean burner tube and

orice, adjust air shutter

(see Inspecting Burners,

page 23)

6. Replace faulty compo-

nents

7. Check for proper installa-

tion or remove debris or

blockage

www.fmiproducts.com

117437-01F 29

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

1. No gas supply, or shutoff

valve is OFF

2. Air in gas line

3. Construction debris clog-

ging pilot orice

4. Low gas pressure

5. Kinked pilot line

6. Control valve is not open-

ing

7. No power to unit or the

ignition module

1. Loose wiring on ignitor wire

to ignition module and/

or poor ground to ignition

module

2. Pilot flame too low to

sense

1. Pilot ame may be too low

to sense flame causing

ignition module to shut

down

Improper or restricted

venting

OBSERVED PROBLEM

Electronic Ignition Models

Only Ignitor will not spark or

pilot will not light

Electronic Ignition Models

Only Pilot will not stay lit

Electronic Ignition Models

Only Frequent outage of main

burner and pilot after complete

ignition sequence

REMEDY

1. Check to see if you have gas

supply and that equipment

shutoff valve is opened

2. Repeat lighting procedure

several times to purge all air

out of lines. If after repeated

attempts appliance does

not light, call for qualied

service and repair

3. Remove debris and dirt, and

inspect and clean any other

possible obstructions

4. Contact your gas supplier

to check pressure

5. Have a qualied technician

replace pilot line

6. Replace control valve (Re-

fer to Replacement Parts,

page 31)

7. Check that main power is

on and that wire connec-

tions are made correctly

to the ignition model (see

Wiring Diagrams, page 14).

Check for 24 VAC at the

secondary side of the trans-

former. If 24 VAC is present,

and the module does not

operate, have the module

replaced otherwise have

the transformer replaced

Check wiring connection.

Refer to wiring diagram (see

Wiring Diagrams, page 14)

and/or check ground wire to

ignition module

Clean and adjust pilot burner

and check gas supply and

inlet pressure to unit. Note:

Have a qualied technician

replace pilot assembly if

broken or corroded

1. Clean and adjust pilot ame

for maximum ame across

sensor rod

2. Locate and correct all vent

conditions (see Checking for

Proper Venting, page 10)

www.fmiproducts.com 117437-01F30

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your

building.

• Immediately call your gas supplier from a neighbor’s phone. Fol-

low the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department.

IMPORTANT: Operating replace where impurities in air exist may create odors. Cleaning

supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles,

etc., create fumes. These fumes may mix with combustion air and create odors. These odors

will disappear over time.

POSSIBLE CAUSE

1. Gas leak. See Warning

statement above

1. Gas leak. See Warning

statement above

2. Control valve defective

1. Improper log placement

2. Air holes at burner inlet

blocked

3. Burner flame holes

blocked

4. Improper venting or exces-

sive blockage

5. Excessive amounts of

embers and pan material

OBSERVED PROBLEM

Fireplace produces unwanted

odors

Gas odor when control knob

is in OFF position or during

combustion

Dark residue on logs or inside

of replace

REMEDY

1. Locate and correct all leaks

(see Checking Gas Con-

nections, page 16)

1. Locate and correct all leaks

(see Checking Gas Con-

nections, page 16)

2. Replace gas control valve

1. Properly locate logs (see

Installing Logs, Lava Rock

and Glowing Embers, page

19)

2. Clean out air holes at burn-

er inlets. Periodically repeat

as needed

3. Remove blockage or re-

place burner

4. Have the vent system in-

spected, including the ter-

mination cap. Remove any

restrictions or blockage

5. Clear excess embers from

around rear main ports.

Use a minimum one layer

of smaller ember pieces to

achieve best glowing effect

over visible areas

www.fmiproducts.com

117437-01F 31

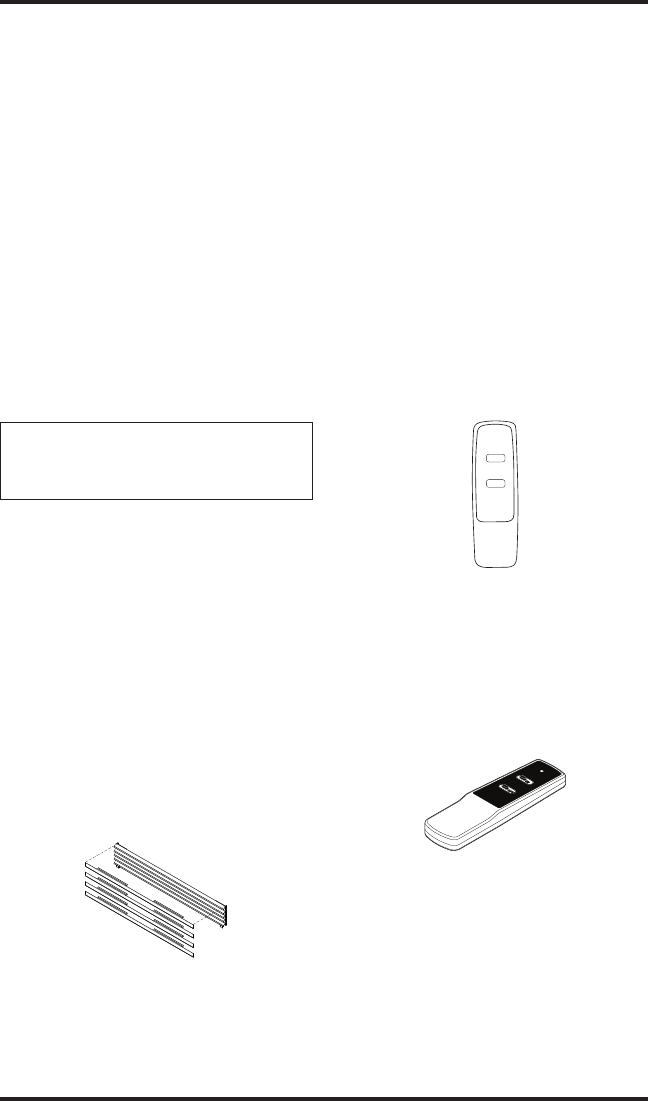

Usually, we will ask you to return the part to

the factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product.

If they can’t supply original replacement

part(s), call FMI PRODUCTS, LLC at

1-866-328-4537 for referral information. A

list of authorized dealers can be found by

visiting www.fmiproducts.com.

When calling FMI PRODUCTS, LLC, have

ready

• model number of your replace

• the replacement

REPLACEMENT PARTS

Note: Use only original replacement parts.

This will protect your warranty coverage for

parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product.

If they can’t supply original replacement

part(s), call FMI PRODUCTS, LLC at

1-866-328-4537.

When calling FMI PRODUCTS, LLC have

ready

• your name and address

• model and serial numbers of your replace

• how replace was malfunctioning

• type of gas (propane/LP or natural gas)

• purchase date

NOTE: All accessories may not

be available for all replace

models.

Purchase these replace accessories from

your local retailer. If they can not supply these

accessories, call FMI PRODUCTS, LLC at

1-866-328-4537, for information. You can

also write to the address listed on the back

of this manual

PROPANE/NATURAL GAS

CONVERSION KIT

PCBM-36C - Propane/LP Gas Millivolt

Models

NCBM-36C - Natural Gas Millivolt Models

PCBE-36C - Propane/LP Gas Electronic

Models

NCBE-36C - Natural Gas Electronic Models

RECEIVER AND HAND-HELD ON/

OFF REMOTE CONTROL MRC

Allows the replace to be turned on and off

conveniently with dual safety lock feature.

ROLLED LOUVER TRIM KITS

LTC36B - Brushed Brass

LTC36P - Platinum

OFF

ACCESSORIES

REMOTE CONTROL KIT WRC

SERIES

Standard ON/OFF electronic remote control

kit.

WALL MOUNTED ON/OFF SWITCH

GWMS2

Allows burner system to be turned on and off

with a wall switch.

www.fmiproducts.com 117437-01F32

PARTS

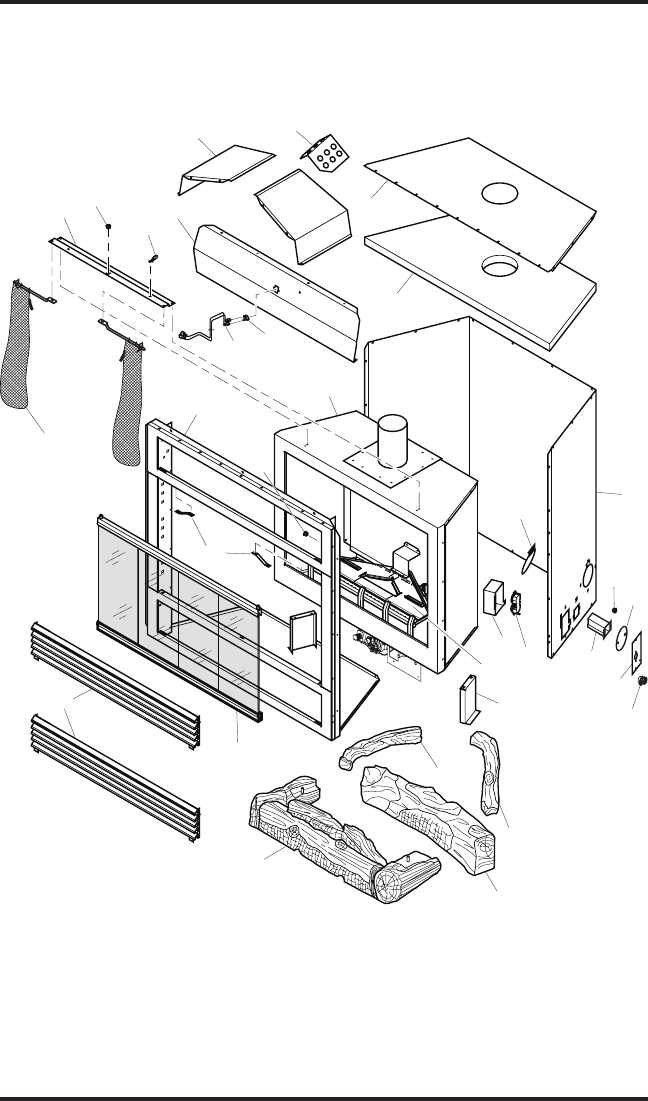

FIREPLACE ASSEMBLY FOR MODELS

(V)CB36N, (V)CB36P, (V)CB36NE AND (V)CB36PE

1-2

1-1

1-4

1-3

13 26

324

www.fmiproducts.com

117437-01F 33

PARTS

This list contains replaceable parts used in your replace. When ordering parts, follow the

instructions listed under Replacement Parts on page 31 of this manual.

KEY

NO. PART NO. DESCRIPTION QTY.

1 116108-01 Log Set •••• 1

1-1 116109-01 Burner Base Log •••• 1

1-2 116110-01 Rear Log •••• 1

1-3 111802-05 Right Top Log •••• 1

1-4 111802-04 Left Top Log •••• 1

2 117447-01 Burner Assembly Complete (See pages 30 and 32) • • • • 1

3 114889-01 Junction Box Duplex Plug • • 1

4 106967-01 Damper Assembly • • • • 1

5 117461-01 Vent Bafe • • • • 1

6 117456-01 Diverter Panel • • • • 2

7 117455-01 Heat Deector • • • • 1

8 114875-02 Fireplace Surround •••• 1

9 117450-01 Wire Harness Assembly •••• 1

10 117451-01 Fireplace Top •••• 1

11 117452-01 Fireplace Top Insulation •••• 1

12 117445-01 Louver Assembly •••• 2

13 117458-01 Hanger Bracket •••• 1

14 117446-01 Glass Door Assembly • • • • 1

15 ** Face Assembly •••• 1

16 ** Firebox Assembly (see pages 32 and 33 for details) • • • • 1

17 110973-01 Cover Junction Box •••• 2

18 106543-01 High Limit Switch •••• 1

19 26782 Screen Assembly •••• 2

20 26290 Firebox Leg •••• 2

21 24460 Gas Conduit Assembly • • • • 2

22 21171 Gas Knock-Out Cover • • • • 2

23 20090 Spring Clip •••• 2

24 14418 Duplex Plug Receptacle • • 1

25 14123 Bushing Universal Strain Relief • • 1

26 11408 Bushing 0.5" Electric • • • • 3

27 11404 Cable Tie Down • • • • 1

PARTS AVAILABLE - NOT SHOWN

25580 Ember Bag •••• 1

27253 Notice Label •••• 1

117700-01 Wiring Diagram Label • • 1

117701-01 Wiring Diagram Label • • 1

(V)CB36N

(V)CB36P

(V)CB36NE

(V)CB36PE

** Not a eld replaceable part.

www.fmiproducts.com 117437-01F34

PARTS

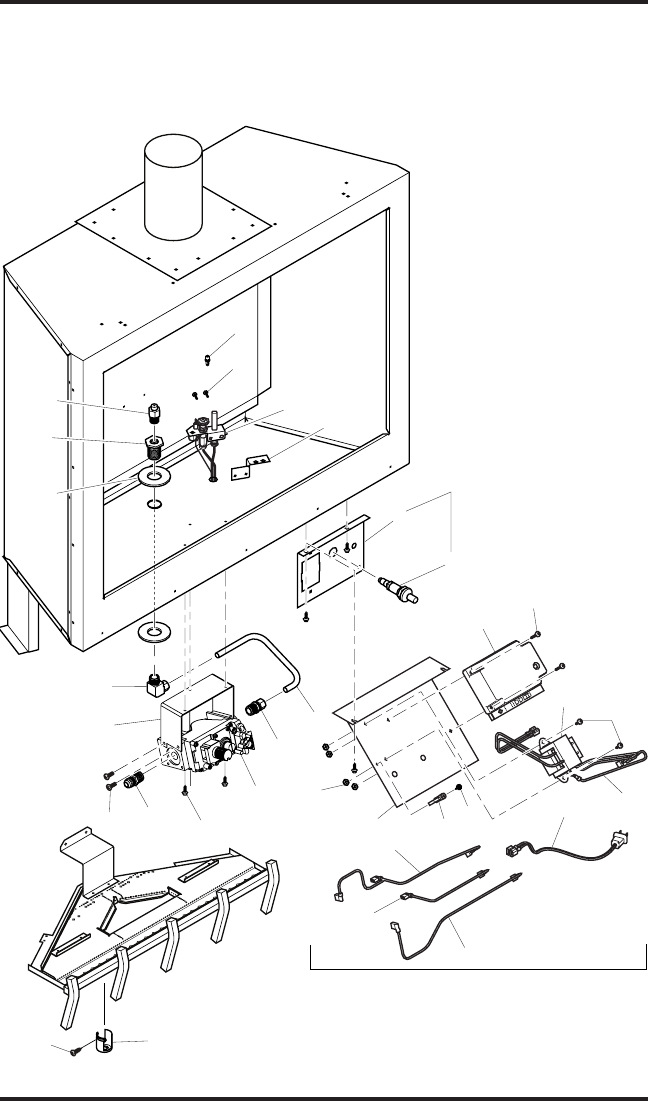

BURNER ASSEMBLY FOR MODELS

(V)CB36N (V)CB36P, (V)CB36NE AND (V)CB36PE

HIGH VOLTAGE

25 26

22 15

Piezo Ignition

Models Only

Electric Ignition Models Only

www.fmiproducts.com

117437-01F 35

PARTS

This list contains replaceable parts used in your replace. When ordering parts, follow the

instructions listed under Replacement Parts on page 31 of this manual.

KEY

NO. DESCRIPTION QTY.

1 116317-01 Remote Ignitor Bracket • • 1

2 102445-01 Ignitor Piezo • • 1

3 108085-01 Pilot Orice #51 (Natural Gas) • 1

108085-02 Pilot Orice #30 (Propane/LP Gas) • 1

108867-01 Pilot Orice BL14LP (Propane/LP Gas) • 1

108867-02 Pilot Orice BL22N (Natural Gas) • 1

4 117702-01 Burner Orice #45 (Natural Gas) • • 1

26482 Burner Orice #55 (Propane/LP Gas) • • 1

5 11214 Fitting Bulkhead w/ Nut Brass • • • • 1

6 11226 Washer, Flat 7/8" ID x 2" OD x 1/8" Thick • • • • 2

711102 Screw, #8 x 3/8" PPH F Zinc. • • • • 2

8 117507-01 Pilot Assembly (Natural Gas) • 1

117507-02 Pilot Assembly (Propane/LP Gas) • 1

108866-01 Pilot Assembly PSE (Natural Gas) • 1

108866-02 Pilot Assembly PSE (Propane/LP Gas) • 1

9 24360 Pilot Bracket • • • • 1

10 14399 Fitting Brass Elbow 3/8" MPT x 3/8" Comp. Tube • • • • 1

11 26808 Valve Bracket • • • • 1

12 24389 Tube 3/8" Dia. x 11" Aluminum • • • • 1

13 14396 Fitting Brass Straight 3/8" MPT x 3/8” Comp. Tube • • • • 1

14 14512 Gas Control Valve Millivolt (Natural Gas) • 1

14513 Gas Control Valve Millivolt (Propane/LP Gas) • 1

14569 Gas Control Valve Electric (Natural Gas) • 1

14570 Gas Control Valve Electric (Propane/LP Gas) • 1

15 11105 Screw, #10 x 1/2" HWH LGM Zinc • • • • 11

16 14500 Fitting 3/8" MPT x 1/2” Flare • • • • 1

17 11107 Screw, #10-32 x 1/4" PPH Zinc • • • • 4

18 11187 Screw, #8 x 1/4" PPH • • • • 1

19 14299 Air Shutter • • • • 1

20 116316-01 Ignition Module Bracket • • 1

21 11201 Nut, #8-32 Hex Zinc • • 4

22 11404 Cable, Tie 8.5” #10 Screw down • • 1

23 110286-01 Ignition Module Synetek • • 1

24 11186 Screw, #8-32 x 1” PPH • • 2

25 14129 Transformer, 24V Class 2 • • 1

26 11109 Screw, #8-32 x 1/2” PPH • • 2

27 111059-03 Ground Wire Harness • • 1

28 108863-01 Plug 24” Supply Connect • • 1

29 116719-01 Gas Valve Wire Harness (MV/PV) • • 1

30 116719-02 Gas Valve Wire Harness (MV) • • 1

31 116719-03 Gas Valve Wire Harness (PV) • • 1

(V)CB36N

(V)CB36P

(V)CB36NE

(V)CB36PE

117437-01

Rev F

04/13

WARRANTY

KEEP THIS WARRANTY

FMI PRODUCTS, LLC LIMITED WARRANTIES

New Products

Standard Warranty: FMI PRODUCTS, LLC warrants this new product and any parts thereof to be free from defects

in material and workmanship for a period of four (4) years from the date of rst purchase from an authorized dealer

provided the product has been installed, maintained and operated in accordance with FMI PRODUCTS, LLC’s

warnings and instructions.

For products purchased for commercial, industrial or rental usage, this warranty is limited to 90 days from the date

of rst purchase.

Factory Reconditioned Products

Limited Warranty: FMI PRODUCTS, LLC warrants factory reconditioned products and any parts thereof to be

free from defects in material and workmanship for 30 days from the date of rst purchase from an authorized dealer

provided the product has been installed, maintained and operated in accordance with FMI PRODUCTS, LLC’s

warnings and instructions.

Terms Common to All Warranties

The following terms apply to all of the above warranties:

Always specify model number and serial number when contacting the manufacturer. To make a claim under this

warranty the bill of sale or other proof of purchase must be presented.

This warranty is extended only to the original retail purchaser when purchased from an authorized dealer, and only

when installed by a qualied installer in accordance with all local codes and instructions furnished with this product.

This warranty covers the cost of part(s) required to restore this product to proper operating condition and an allow-

ance for labor when provided by a FMI PRODUCTS, LLC Authorized Service Center or a provider approved by

FMI PRODUCTS, LLC. Warranty parts must be obtained through authorized dealers of this product and/or FMI

PRODUCTS, LLC who will provide original factory replacement parts. Failure to use original factory replacement

parts voids this warranty.

Travel, handling, transportation, diagnostic, material, labor and incidental costs associated with warranty repairs, unless

expressly covered by this warranty, are not reimbursable under this warranty and are the responsibility of the owner.

All warranty will be voided if this product is used with a thermostat.

Excluded from this warranty are products or parts that fail or become damaged due to misuse, accidents, improper

installation, lack of proper maintenance, tampering, or alteration(s).

This is FMI PRODUCTS, LLC’s exclusive warranty, and to the full extent allowed by law; this express warranty

excludes any and all other warranties, express or implied, written or verbal and limits the duration of any and all

implied warranties, including warranties of merchantability and tness for a particular purpose to four (4) years on

new products and 30 days on factory reconditioned products from the date of rst purchase. FMI PRODUCTS, LLC

makes no other warranties regarding this product.

FMI PRODUCTS, LLC’s liability is limited to the purchase price of the product, and FMI PRODUCTS, LLC shall not

be liable for any other damages whatsoever under any circumstances including indirect, incidental, or consequential

damages.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental

or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.

For information about this warranty contact:

Model (

located on product or identication tag

) _____________________________

Serial No. (

located on product or identication tag

) __________________________

Date Purchased __________________________

Keep receipt for warranty verication.

2701 S. Harbor Blvd.

Santa Ana, CA 92704

1-866-328-4537

www.fmiproducts.com

(V)CB36P(E) 117437 01F

Navigation menu

Versions of this User Manual:

Views

Navigation
