CooperTools

FASTENER TOOLS

TC-100 1201 30M W

Apex®

Introduction . . . . . . . . . . . . . . . . . . . . . . .iv

Bits

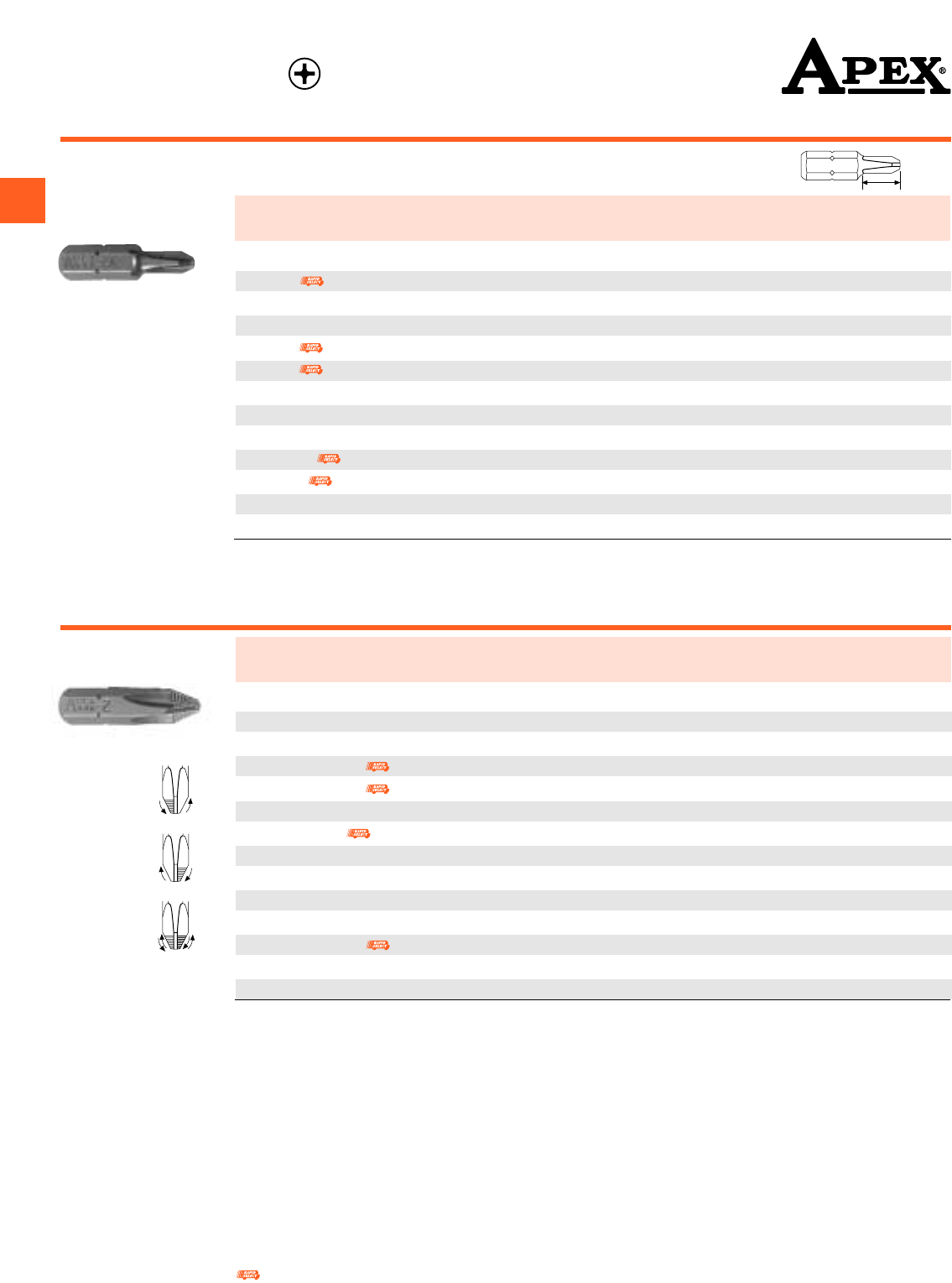

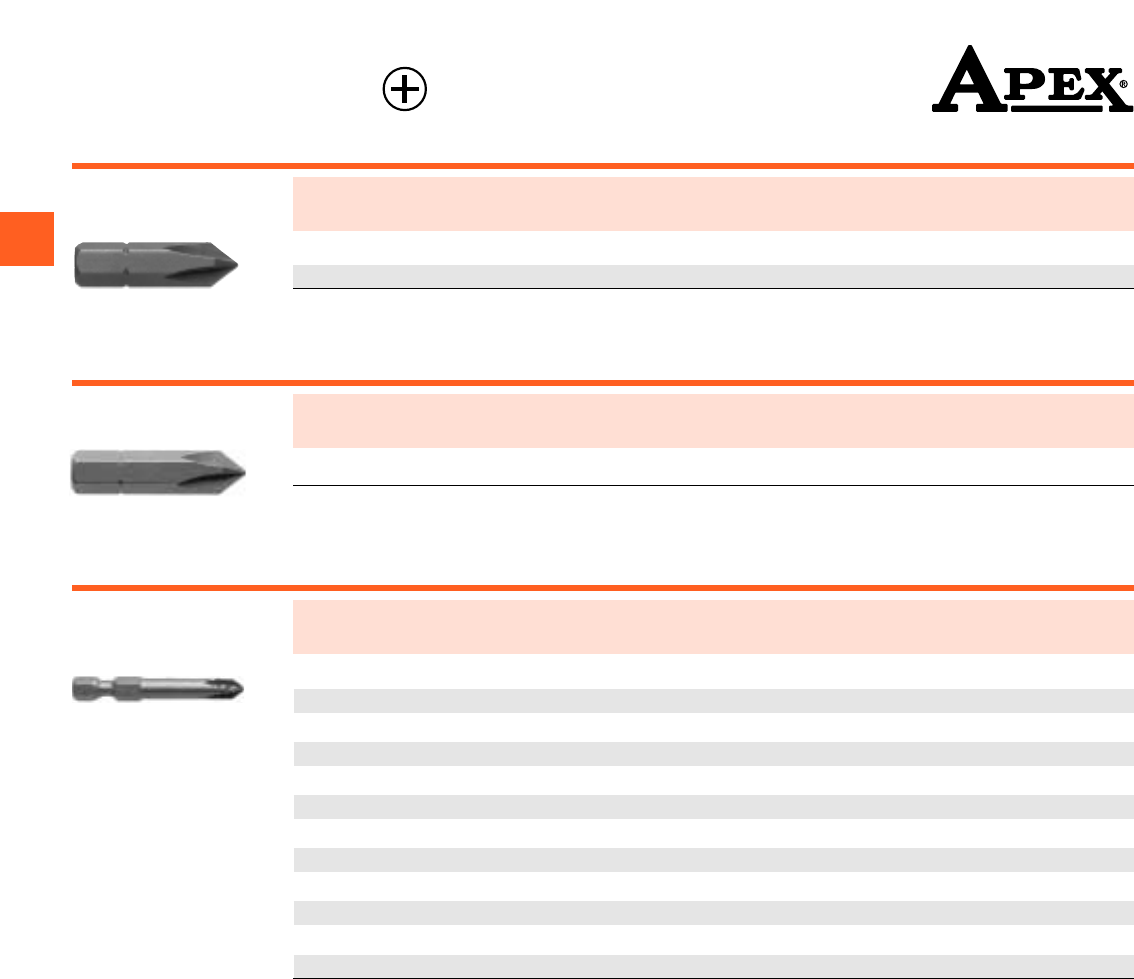

Phillips . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

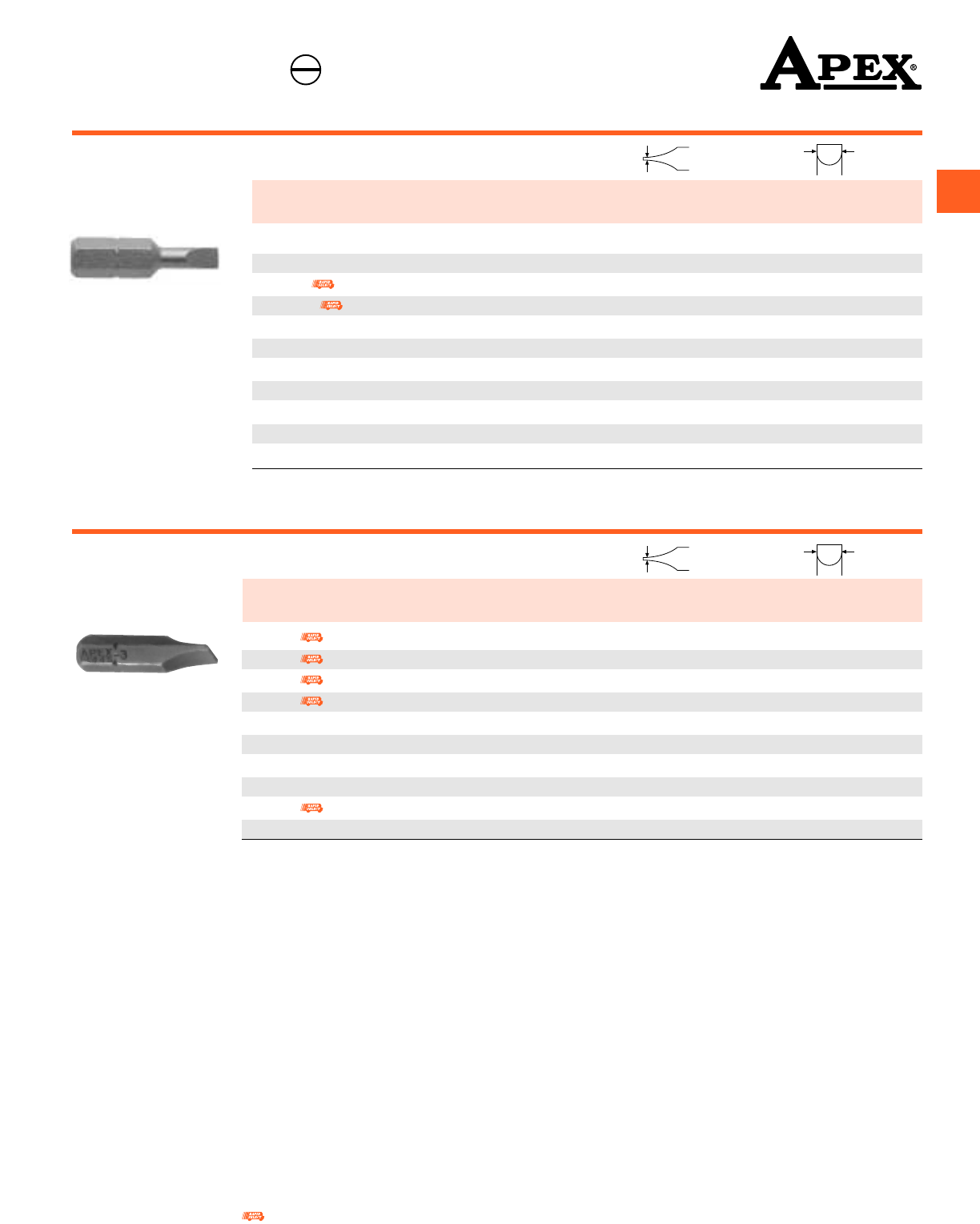

Slotted . . . . . . . . . . . . . . . . . . . . . . . . . . .11

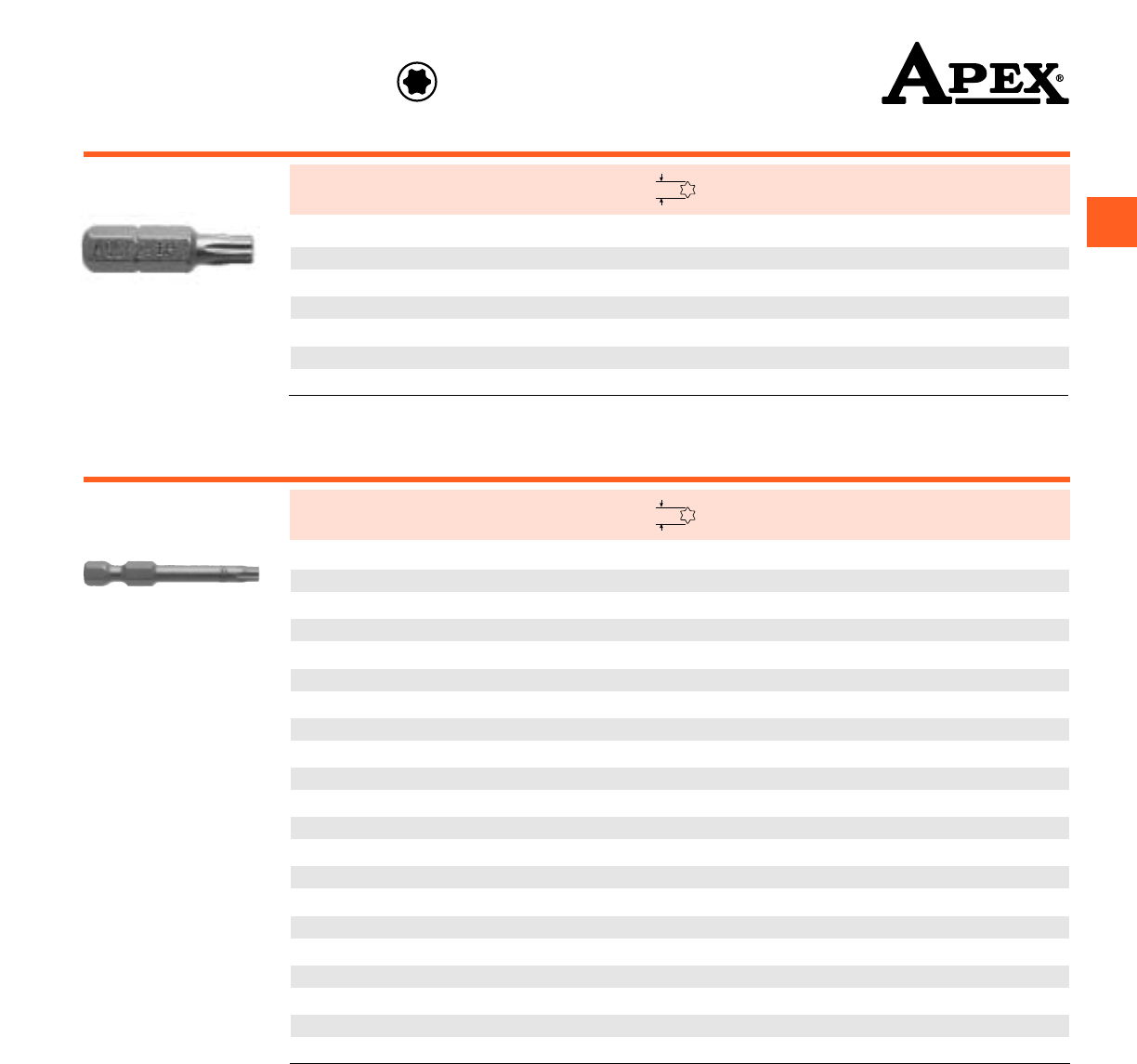

Torx® . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Torx Plus® . . . . . . . . . . . . . . . . . . . . . . . .25

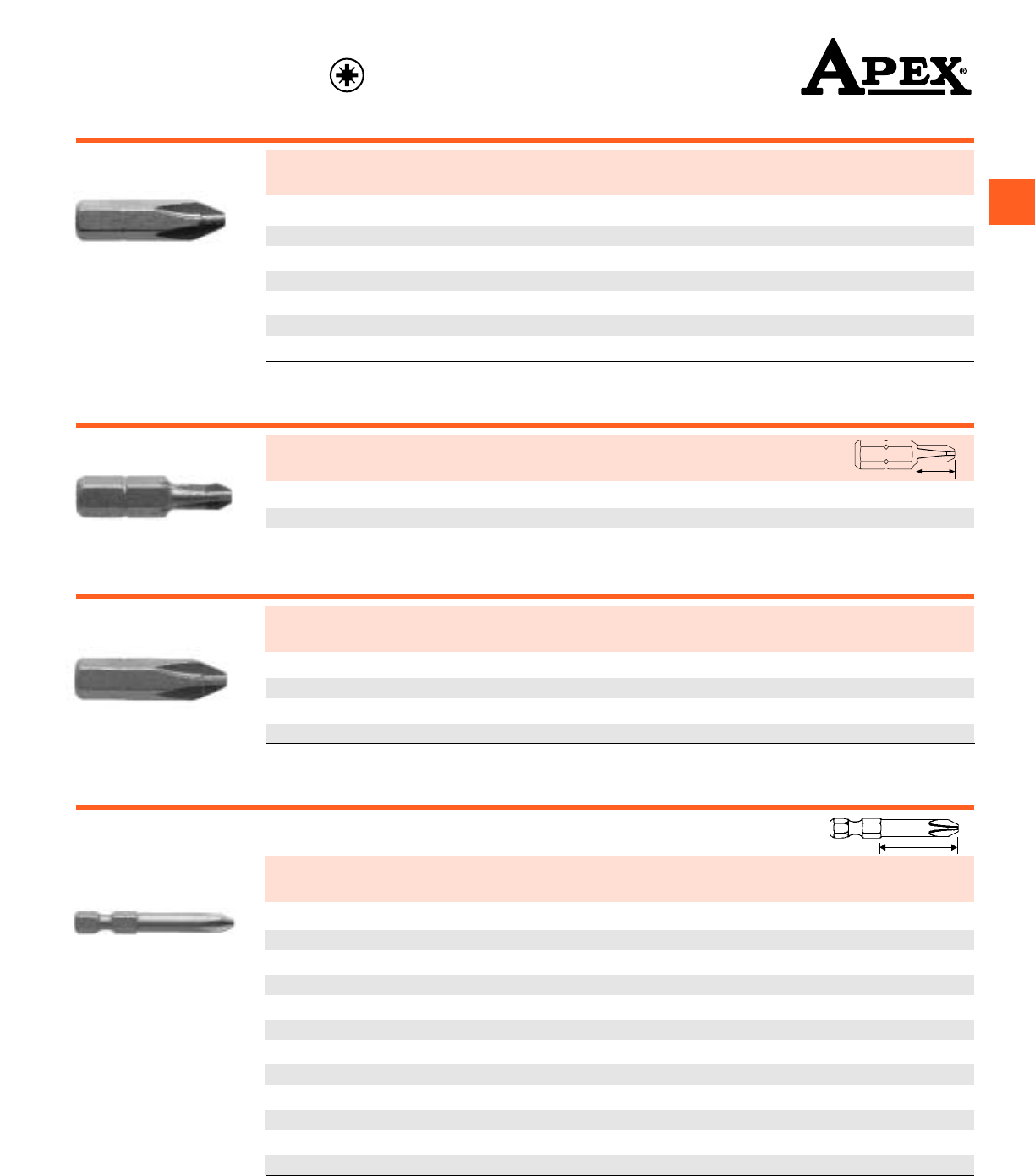

Pozidriv® . . . . . . . . . . . . . . . . . . . . . . . . .26

Sel-O-Fit® . . . . . . . . . . . . . . . . . . . . . . . . .29

Frearson . . . . . . . . . . . . . . . . . . . . . . . . .30

B.N.A.E. . . . . . . . . . . . . . . . . . . . . . . . . . .31

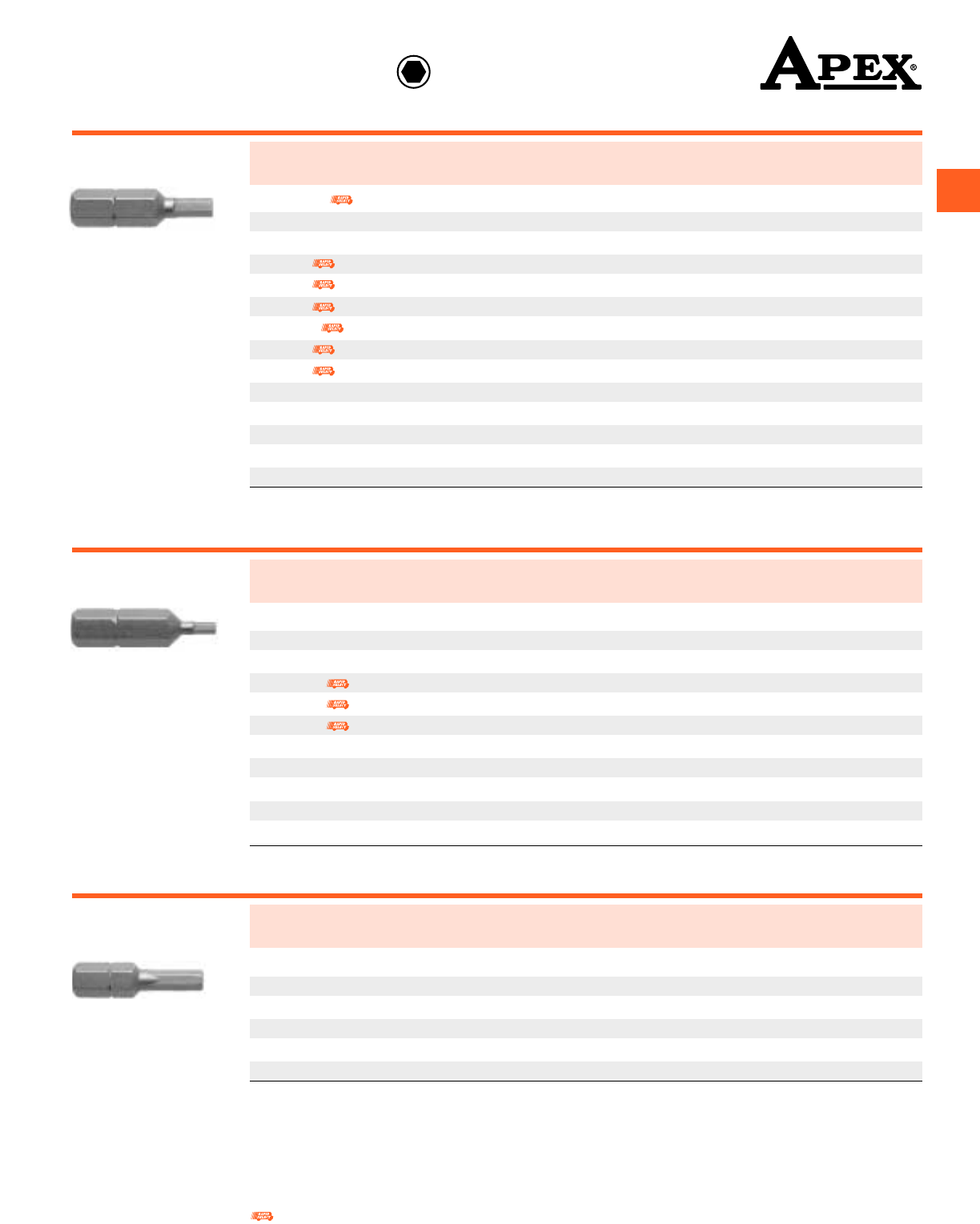

Socket Head . . . . . . . . . . . . . . . . . . . . . .32

Square Recess . . . . . . . . . . . . . . . . . . . . .41

Clutch Head . . . . . . . . . . . . . . . . . . . . . . .42

Pipe Plug Inserts . . . . . . . . . . . . . . . . . . .42

Torq-Set® . . . . . . . . . . . . . . . . . . . . . . . . .43

Tri-Wing® . . . . . . . . . . . . . . . . . . . . . . . . .46

Hi-Torque® . . . . . . . . . . . . . . . . . . . . . . . .48

Triple Square . . . . . . . . . . . . . . . . . . . . . .49

Bit Holders

Hex Drive . . . . . . . . . . . . . . . . . . . . . . . .52

Female Square Drive . . . . . . . . . . . . . . . .55

Hand Drivers

Replaceable Bit . . . . . . . . . . . . . . . . . . . .57

Torx®Keys . . . . . . . . . . . . . . . . . . . . . . . .58

Torx®and Torq-Set®Hand Drivers . . . . . . .59

Awls . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Pivex™ . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Hex Drive Nutsetters,

Extensions & Universal Wrenches

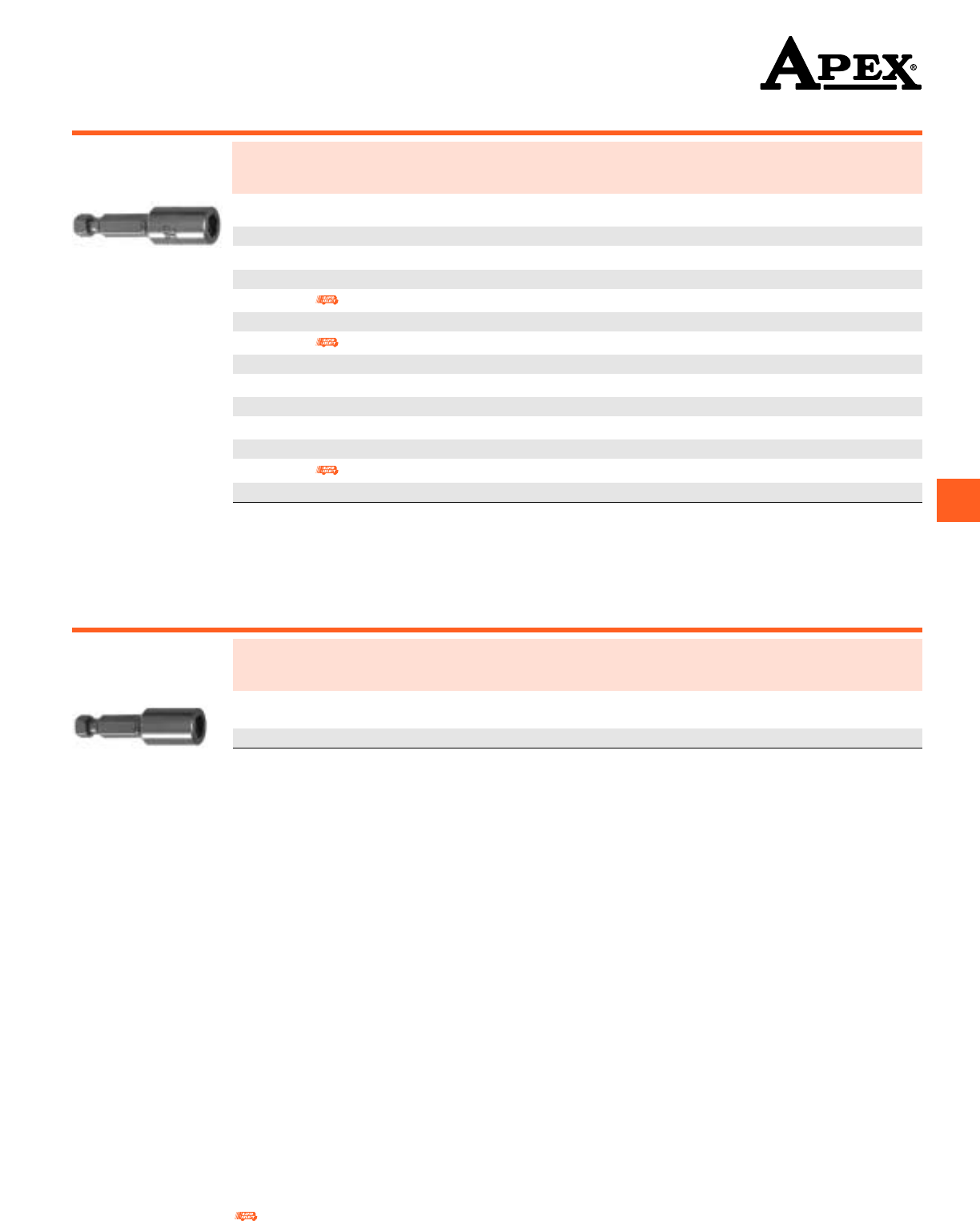

Nutsetters . . . . . . . . . . . . . . . . . . . . . . . .60

Extensions . . . . . . . . . . . . . . . . . . . . . . . .64

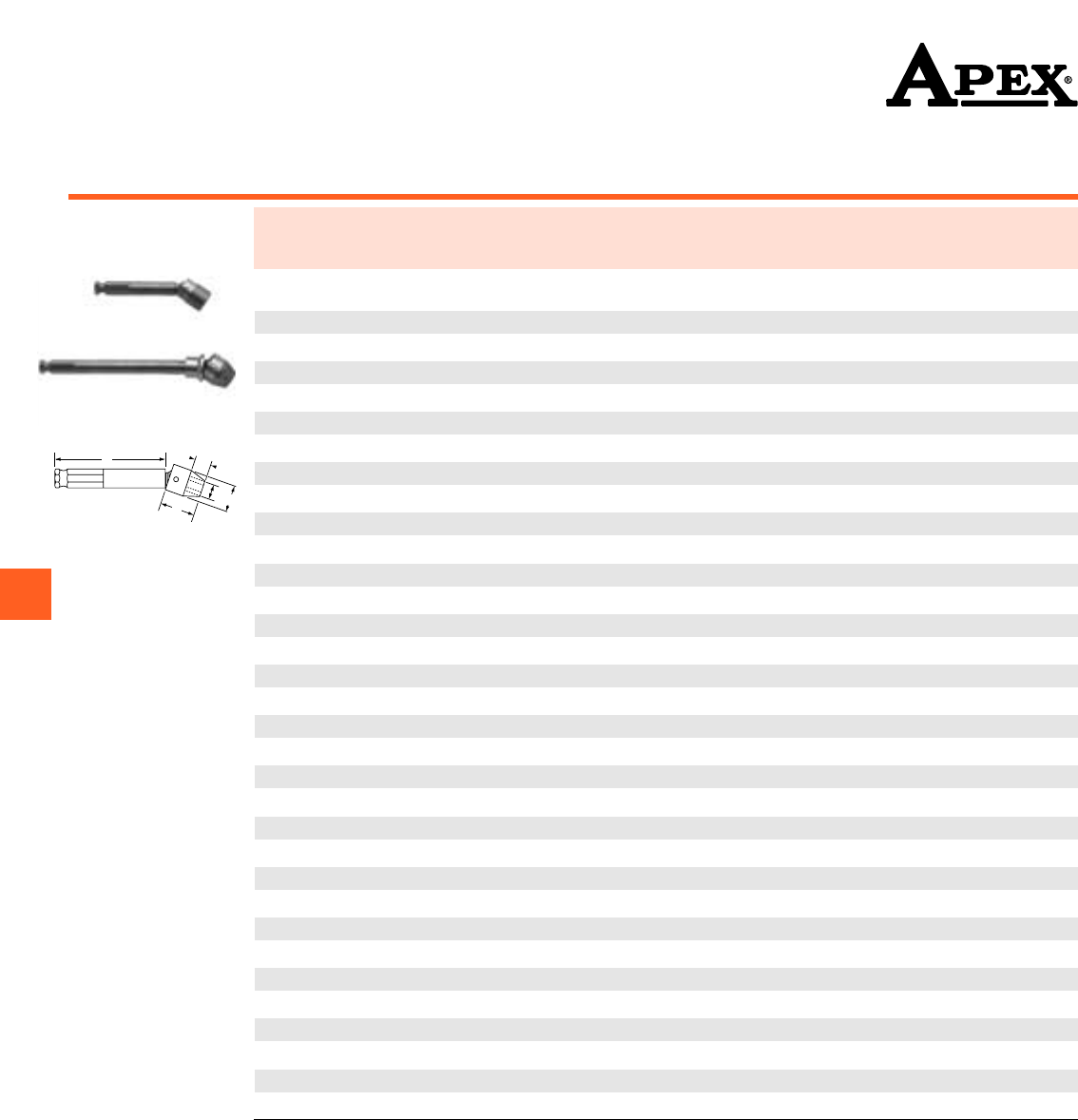

Universal Wrenches . . . . . . . . . . . . . . . . .68

1/4” Drive Sockets, Extensions,

Adapters & Universal Wrenches

SAE Sockets and Universal Wrenches . . .77

Metric Sockets and Universal Wrenches .81

Spline and Torx®Sockets . . . . . . . . . . . . .83

Extensions and Adapters . . . . . . . . . . . . .85

3/8” Drive Sockets, Extensions,

Adapters & Universal Wrenches

SAE Sockets & Universal Wrenches . . . . .86

Metric Sockets & Universal Wrenches . . .95

Spline & Torx®Sockets . . . . . . . . . . . . . .102

Extensions & Adapters . . . . . . . . . . . . . .103

1/2” Drive Sockets, Extensions,

Adapters & Universal Wrenches

SAE Sockets & Universal Wrenches . . . .105

Metric Sockets & Universal Wrenches . .116

Spline & Torx®Sockets . . . . . . . . . . . . . .125

Extensions & Adapters . . . . . . . . . . . . . .126

5/8” Drive Sockets, Extensions,

Adapters & Universal Wrenches

SAE Sockets, Universal Wrenches &

Budd Wheel Sockets . . . . . . . . . . . . . . .128

Metric Sockets . . . . . . . . . . . . . . . . . . . .131

Extensions & Adapters . . . . . . . . . . . . . .131

3/4” Drive Sockets, Extensions,

Adapters & Universal Wrenches

SAE Sockets, Universal Wrenches &

Budd Wheel Sockets . . . . . . . . . . . . . . .133

Metric Sockets . . . . . . . . . . . . . . . . . . . .137

Spline Sockets, Extensions & Adapters .138

1” Drive Sockets,

Extensions & Adapters

SAE Sockets & Budd Wheel Sockets . . .140

Metric Sockets . . . . . . . . . . . . . . . . . . . .144

Spline Sockets, Extensions & Adapters .145

1 1/2” Drive SAE

Sockets & Adapters . . . . . . . . . . . . . . .147

2 1/2” Drive SAE

Sockets & Adapters . . . . . . . . . . . . . . .148

Special Sockets,

Adapters & Accessories

Reversible Sockets . . . . . . . . . . . . . . . .151

Tap Holding Sockets . . . . . . . . . . . . . . .152

Grease Fitting Sockets . . . . . . . . . . . . . .153

Drill Holders . . . . . . . . . . . . . . . . . . . . . .154

#5 (1 5/8”) Spline Drive Sockets, Extensions,

Adapters,Registered Universal Wrenches

& Budd Wheel Sockets . . . . . . . . . . . .155

Socket Retaining Rings . . . . . . . . . . . . .156

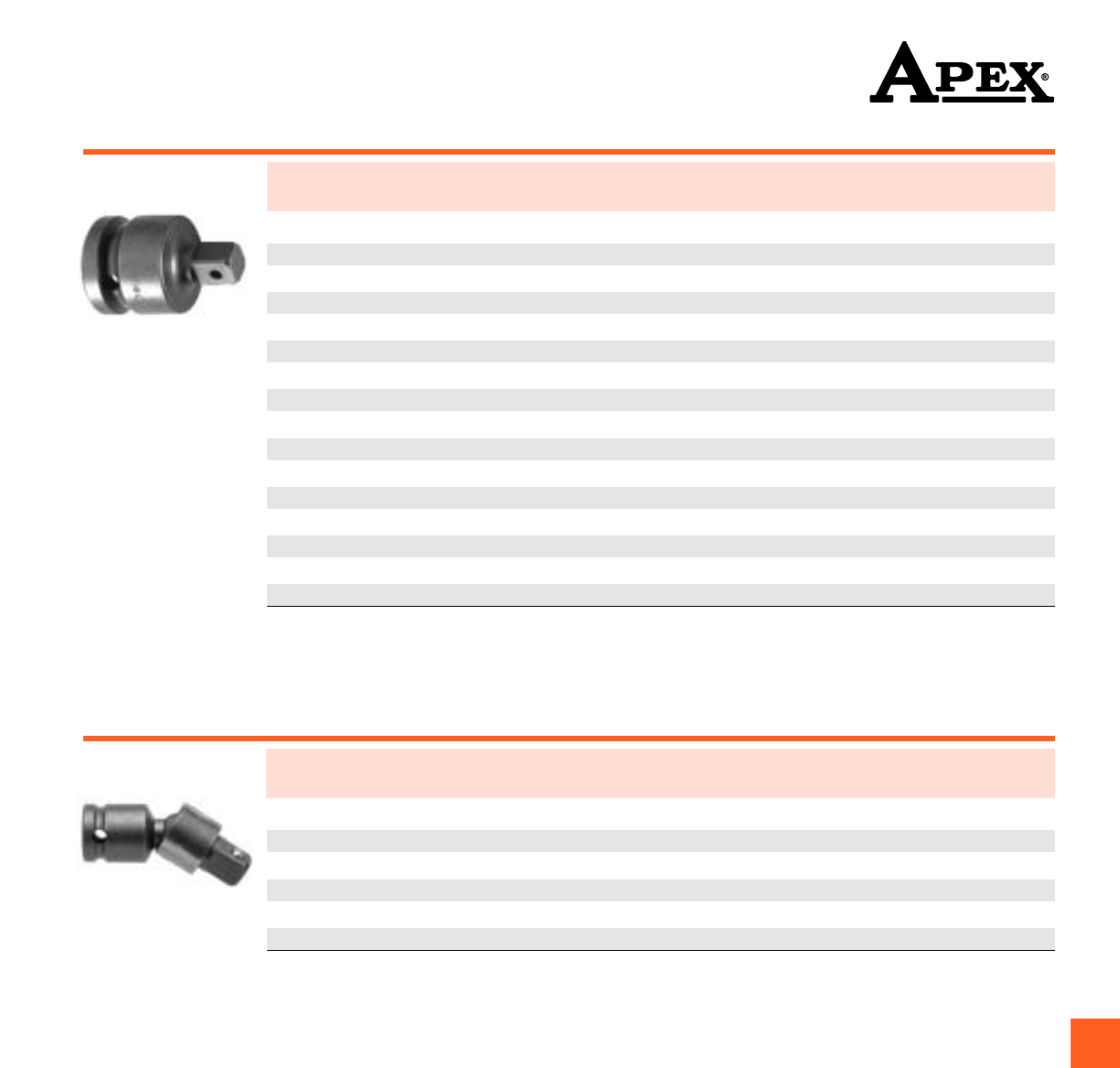

Adapters . . . . . . . . . . . . . . . . . . . . . . . .157

Part Number Index . . . . . . . . . . . . . . . . .161

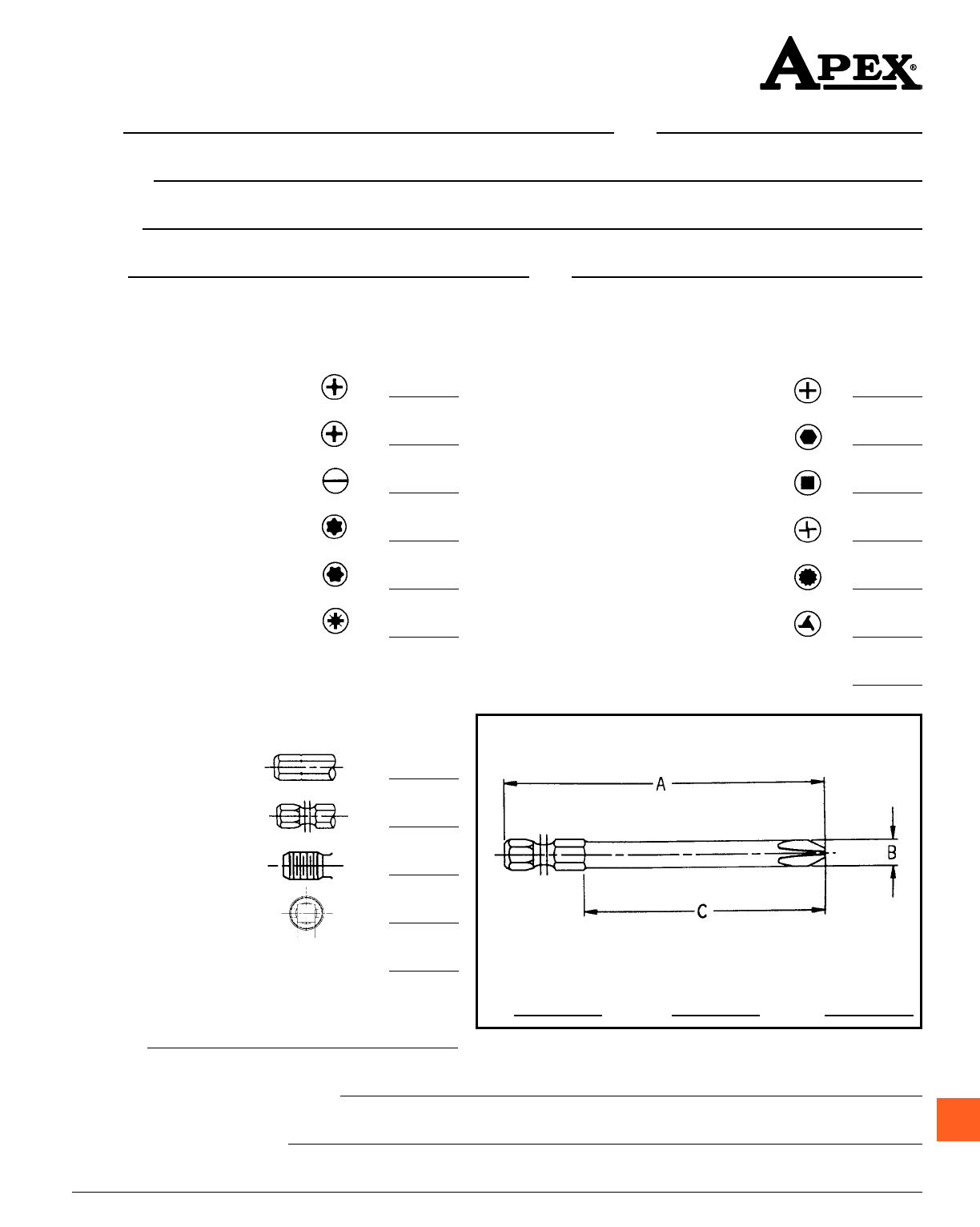

Quotation Worksheets . . . . . . . . . . . . . .169

Conversion Chart . . . . . . . . . . . . . . . . .172

Table of Contents

Registered trademarks: Pozidriv, Torq-Set, and Tri-Wing, Phillips Screw Co.; Apex, Sel-O-Fit, Copper Industries, Inc.; Hi-Torque, Voi-Shan; Torx

and Torx Plus, Camcar Div. of Textron.

iii

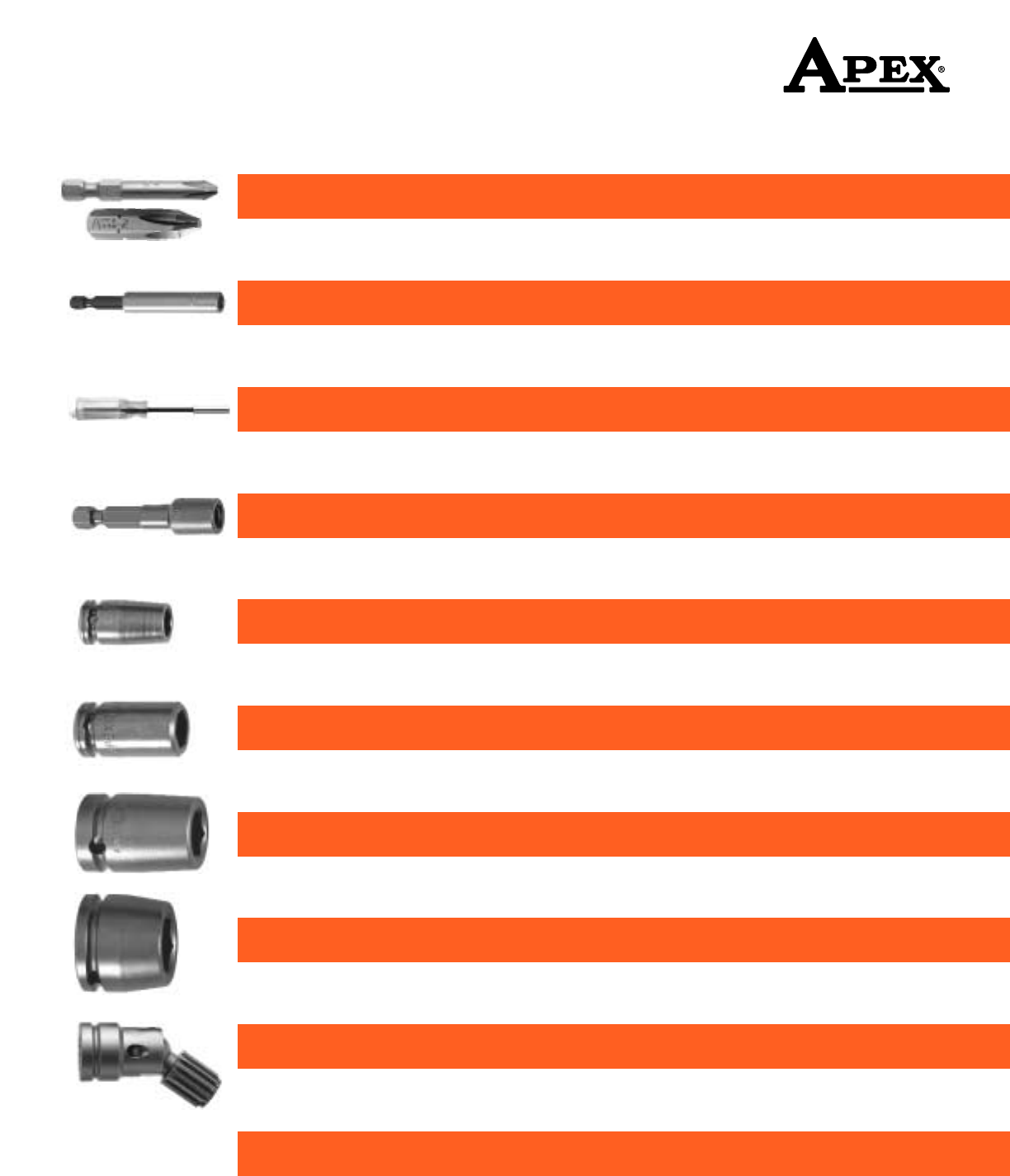

Quick Reference

Bits 1 – 50

Bit Holders 51 – 56

Hand Drivers 57 – 59

Hex Drive Nutsetters, Extensions & Universal Wrenches 60 – 73

1/4" Sockets, Extensions, Adapters & Universal Wrenches 74 – 85

3/8" Sockets, Extensions, Adapters & Universal Wrenches 86 – 104

1/2" Sockets, Extensions, Adapters & Universal Wrenches 105 – 127

5/8"–2 1/2" Sockets, Extensions, Adapters & Universal Wrenches 128 – 148

Special Sockets, Adapters & Accessories 149 – 160

Part Number Index 161 – 168

The Apex heritage

of quality, delivery

and support.

Apex has maintained a position of leadership in industrial fastening tools. Today,

Apex stands ready to improve the productivity of assembly operations around the

world with unsurpassed tool performance and customer service. Here’s how:

Apex quality begins with select raw materials. Only carefully

chosen, high grade tool steel is used. Each tool is precision

machined from solid bar stock to close-tolerance standards. You

get an exact, sure fit – a fit not possible from tools made in a

process that grows less precise with every stamp. Finally, each

tool is tempered with the exclusive Apex heat treating process

that lets you select the degree of hardness you require. Choose

from tough, non-brittle durability that stands up to torque, to the

hardest heat treat available for the ultimate in wear resistance.

Models indicated with a Rapid Select icon represent our most

popular tools, and are available for fast delivery on limited quantities.

On bit items, the heat treat code has been added to Rapid Select part

numbers. See page vi for selecting the proper heat treat.

Apex provides the broadest selection of fastener tools in the world. From this catalog

you can choose from over 5,000 individual items: from bits, sockets and hand

drivers to universal wrenches, extensions and adapters. If the tool you need is not in

this catalog, call your Apex representative. We may have what you need as a non-

catalog item—or our experienced staff of tooling experts can design and produce

application specific fastener tools to suit your needs.

For more than half a century…

Highest Quality

Rapid Select Means Fast Delivery

Complete Support For Your Requirements

Apex is the standard on assembly lines around the world.

Made in the U.S.A. since 1933.

Responsive service for all your fastener tool needs.

Precision manufactured with the highest quality materials.

Choosing the proper heat treat for screwdriver tools is important in achieving long

tool life. Different applications, different operators, and different power tools require

different heat treats. Apex offers a choice of three heat treat hardness levels in many

of our screwdriver bits to match the particular customer’s application. These heat

treats are specified by a letter suffix as follows:

X - The hardest heat treat available

I - Intermediate hardness

R - Lowest hardness

Selecting the heat treat best suited for a particular application may require some trial

and error. The proper heat treat depends on the failure mode. If the bit breaks or

shatters, select a bit with less hardness. If the failure mode is wear, select a harder

bit. Many times both breakage and wear may occur within the same application.

This can be due to a number of factors such a different operators, different torque

values, and different power tool settings.

In general, high torque applications require “R” heat treats to withstand twisting and

resist breakage. The “X” heat treat is most suitable for low torque applications,

particularly if hardened screws are used.

If a failure occurs, a change in hardness may result in better service. The “X” heat

treat is most common and should be selected unless the specifics of an application

or an existing problem would suggest using “I” or “R” hardness.

To specify a particular heat treat, add a letter suffix to the part number. For example,

to specify “X” hardness in a #2 Phillips insert, the part number would be 440-2X.

Not all Apex bits are available in all heat treats. Special heat treats can be supplied

for a particular application. Contact your Apex representative for specific

recommendations.

Selecting the proper heat treat for bits

User safety tips

• Always wear safety glasses when using any tool.

• Always visually inspect tool for damage and cracking. Immediately

replace all damaged tools.

• Do not modify or alter any tool.

• Do not use tools beyond their limit or useful life.

• Contact Apex for the recommended operating torque of any tool.

Warning

• Using any adapter may result in a torque overload and failure in the adapter,

socket or fastener.

• Do not use thin wall sockets with impact power tools.

• Do not use universal wrenches with impact power tools.

Important Notes

vii

What’s the difference between

an insert and a power bit?

Insert bits are commonly used with a bit

holder in power tool applications. This

combination is economical, provides

flexibility and allows a fastener to be mag-

netically held by the bit. Power bits are

placed directly into the power tool chuck.

See pages 48-52 for a complete listing of

Apex bit holders.

Why do Apex bits last

so much longer?

Apex’s premium tool alloys and proprietary

heat treat help avoid typical problems

such as shattering and

premature bit wear.

Most Apex bits are

available in three different

heat treat hardnesses.

Refer to page vi for information on

selecting the proper heat treat.

What’s the advantage of

reduced diameter bits?

Reduced diameter bits are ideal for driving

screws below the surface of drywall.

What’s the

advantage

of Apex®

ACR®bits?

Painted,

coated or

corroded

fasteners can

present special

problems. Apex®

ACR®insert bits’

special wing-face ribs

grip screw recesses to reduce stripping

and cam-out which can result in damage

to the surrounding workpiece. Choose

from bits ribbed for screw removal,

driving or both. They’re also available in

both insert bits and power drives.

What’s the advantage of

27 Series bits?

27 Series bits are ideal for poorly recessed

Phillips screws. A wider tip design fills out

an inexact recess to make better contact.

Solutions

viii

In this section…

Wood Screws Machine Screws Sheet Metal Screws

Point Body Flat, Flat, Oval, Round, Truss, Brazier, Flat, Round, Oval,

Size Dia. Oval Round Binding Fillister Button Stove, Binding

0 000 0 0 0

1 3/16 2 2 2 2 2 2

333 3 3 3

444 4 4 4

2 1/4 5 5 5 5 5 5

666 6 8 6

778 8 10 7

8 8 10 10 8

9910

3 5/16 10 12 12 12 12 12

12 14 1/4 1/4 1/4 14

14 16 5/16

4 3/8 18 18 5/16 3/8 5/16

20 20 3/8 7/16 3/8

24 24 7/16 1/2 7/16

1/2 1/2

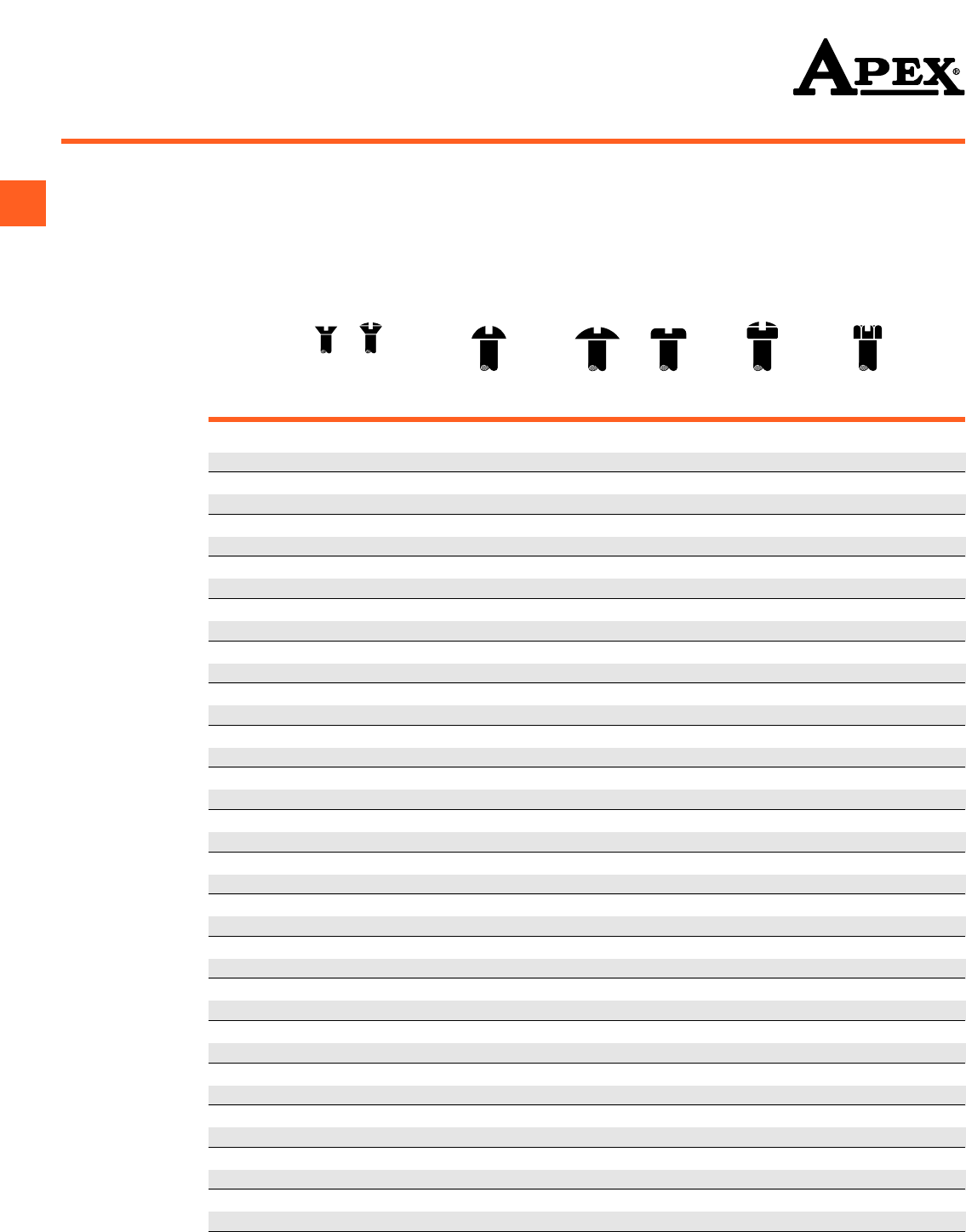

IMPORTANT The table above will enable you to determine the Phillips point size required for any Phillips screws or bolts. The No. 2

and No. 3 point sizes cover the range of Phillips screws most commonly used. The Apex Phillips bits on the following pages are

available in point sizes to drive any Phillips screw.

Selecting the correct Phillips point size

Apex bits in these five point sizes will drive ANY Phillips screw

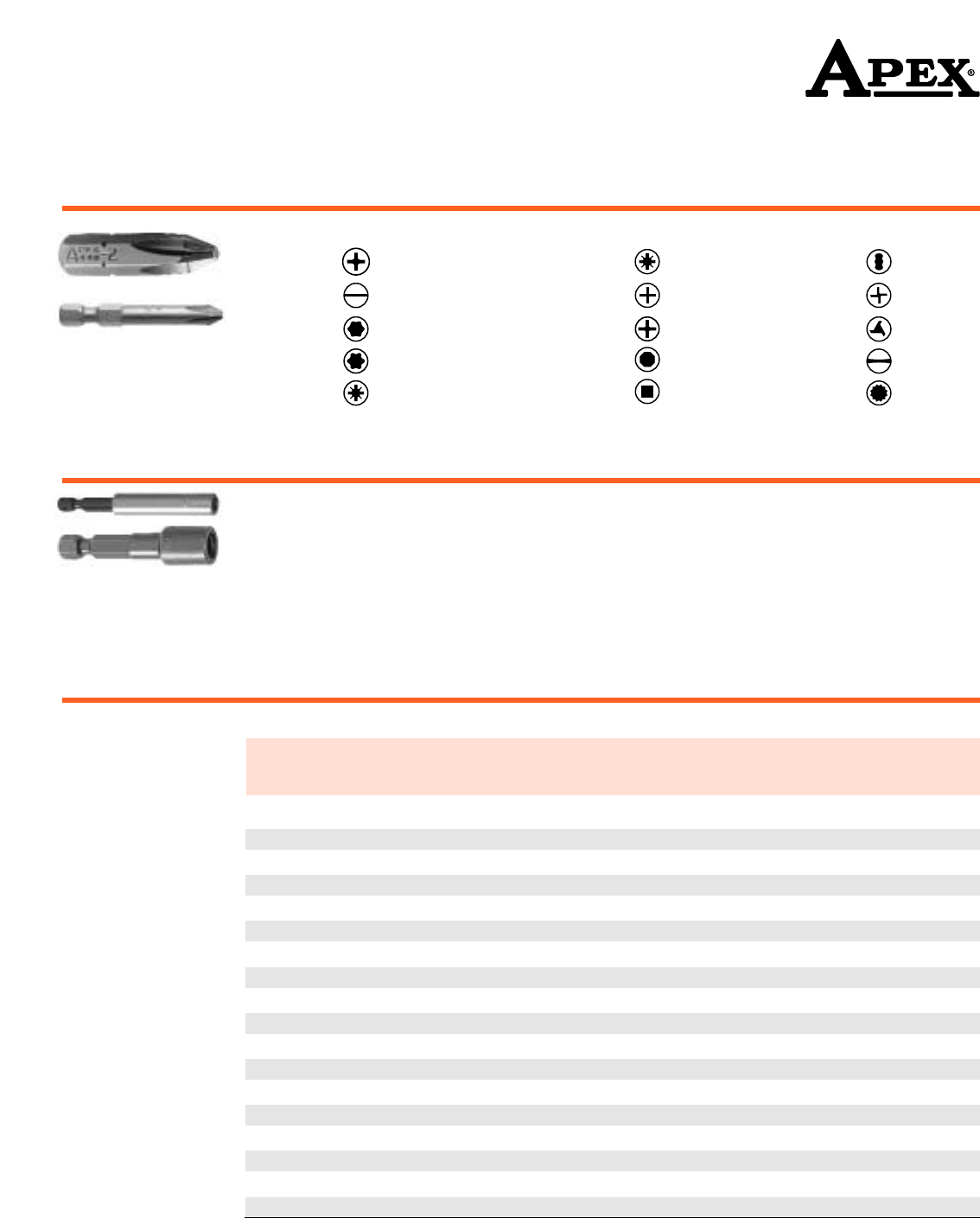

For all these fastener styles:

Phillips®Sel-o-fit®Clutch Head

Slotted Frearson Torq-Set®

Torx®B.N.A.E. Tri-Wing®

Torx Plus®Socket Head Hi-Torque®

Pozidriv®Square Recess Triple Square

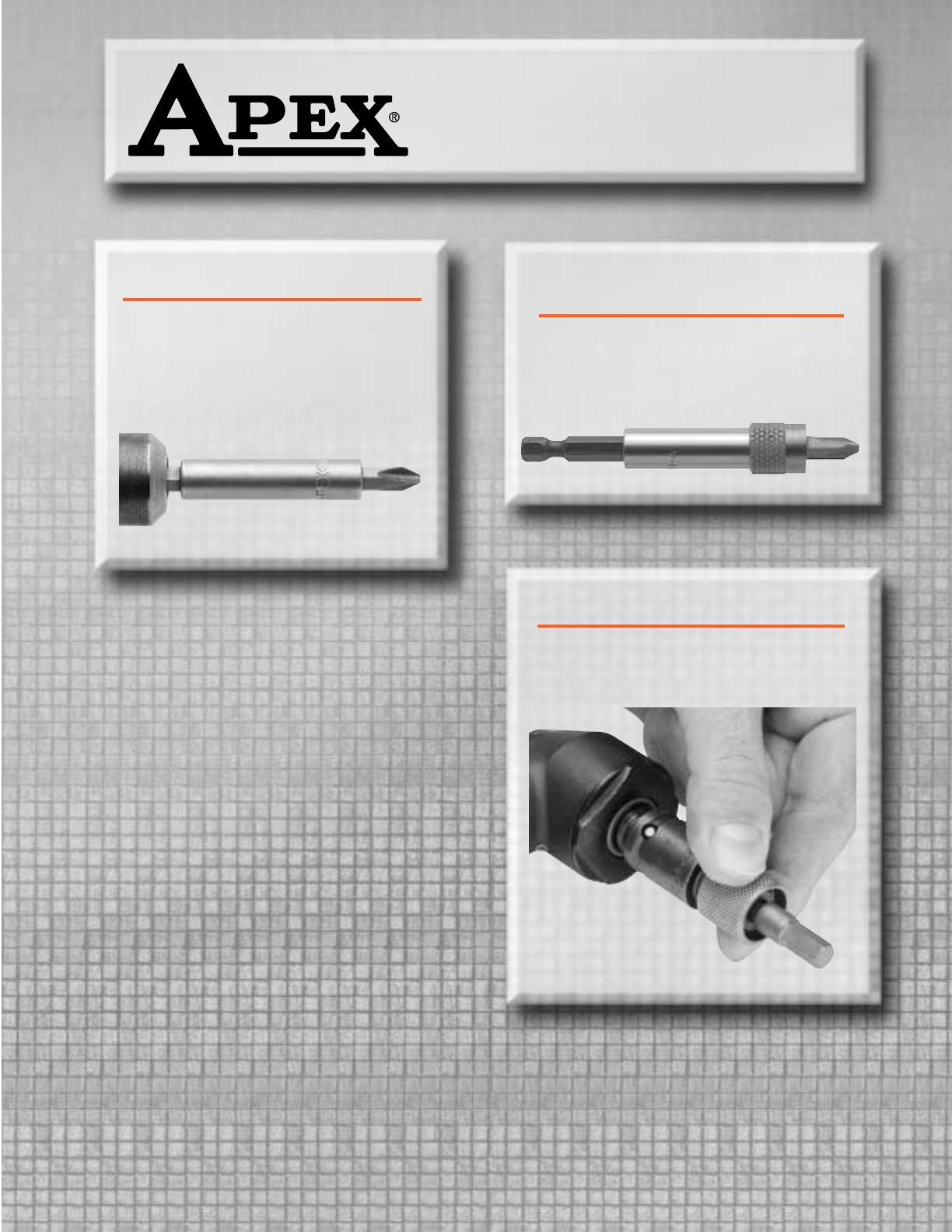

Bit holders adapt hex drive and female square drive power tools to a variety of insert

bits. Hex drive nutsetters, extensions and universal wrenches allow nutrunning in all

types of applications.

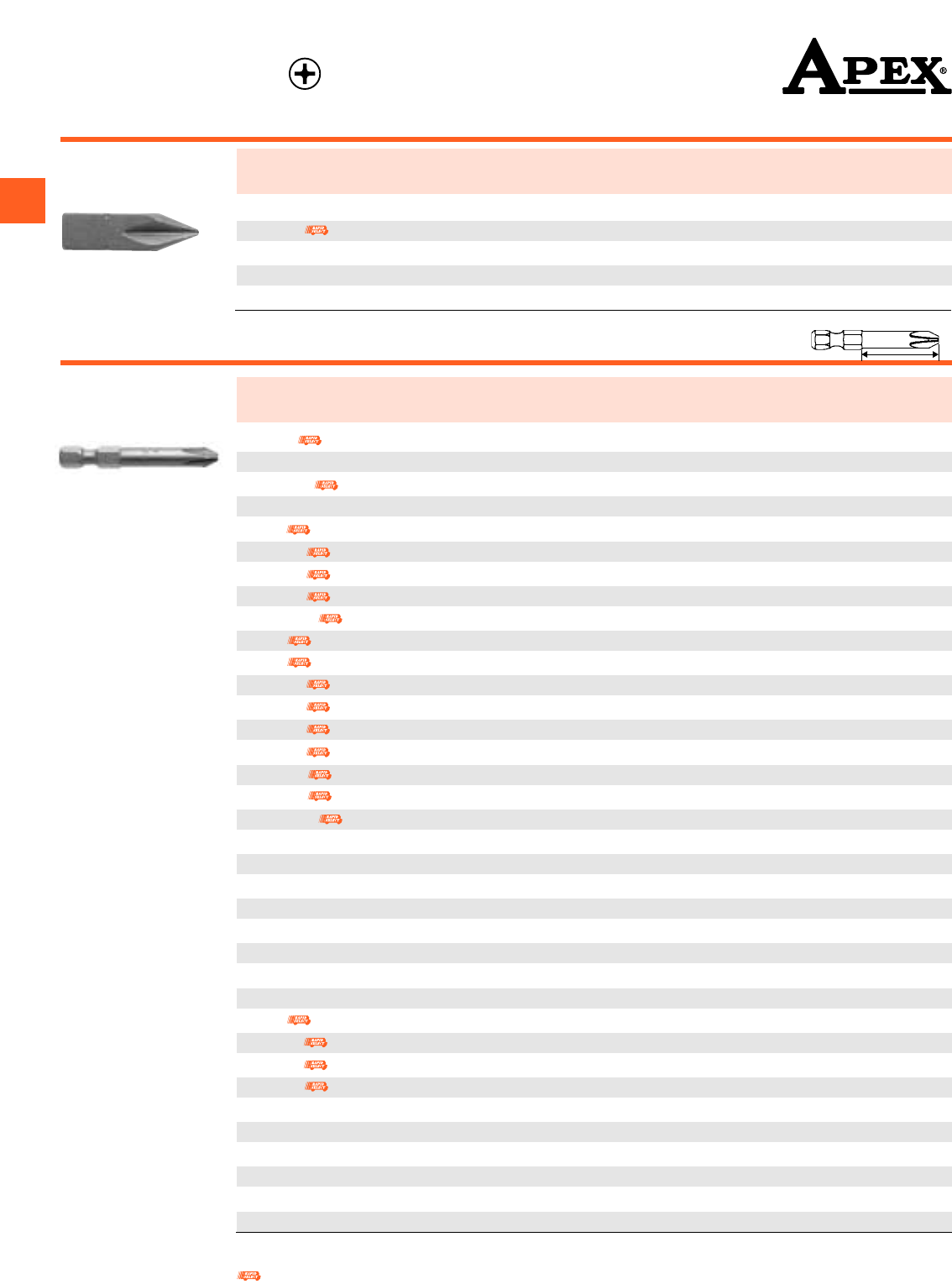

Insert and Power Drive Bits

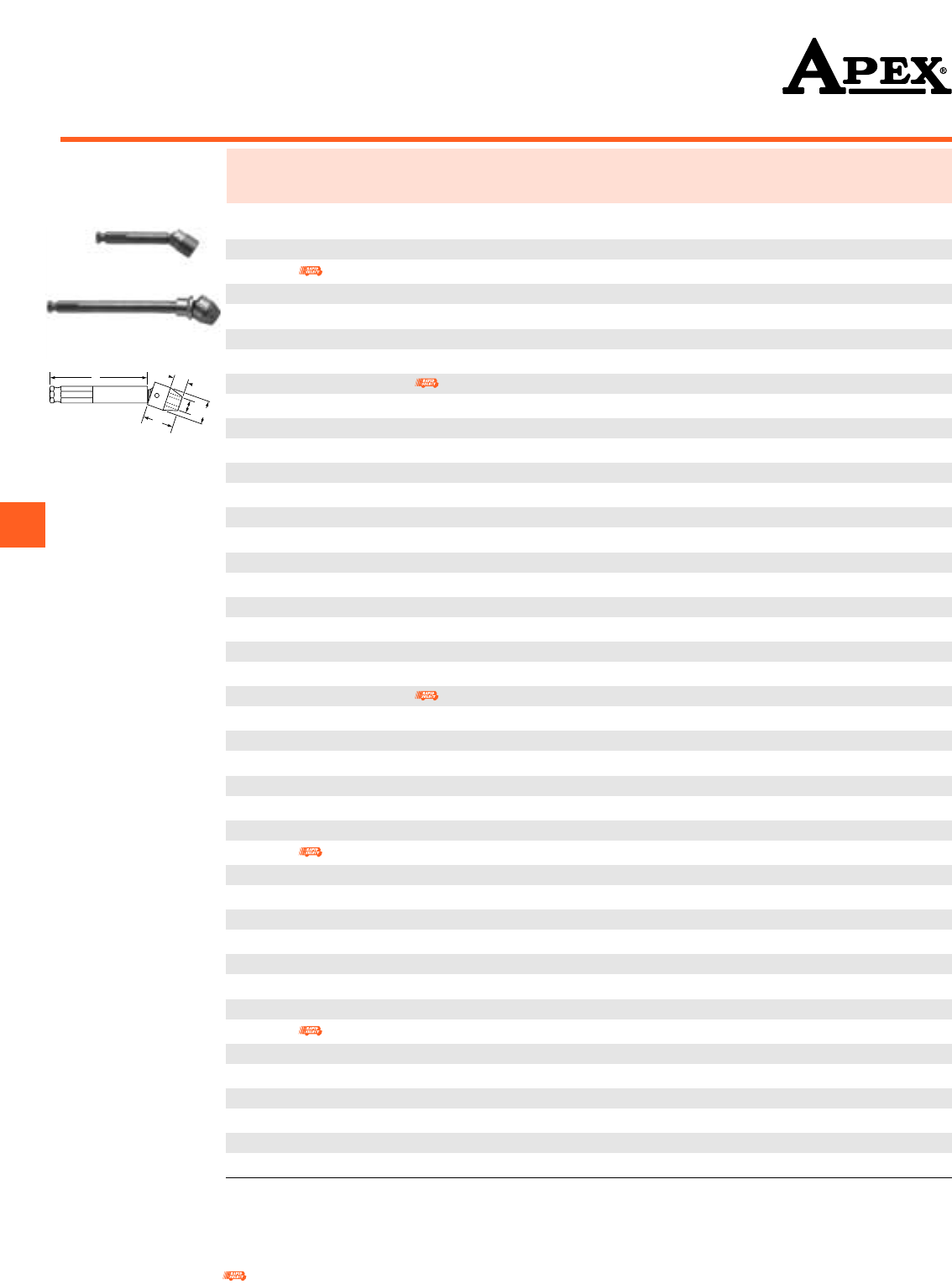

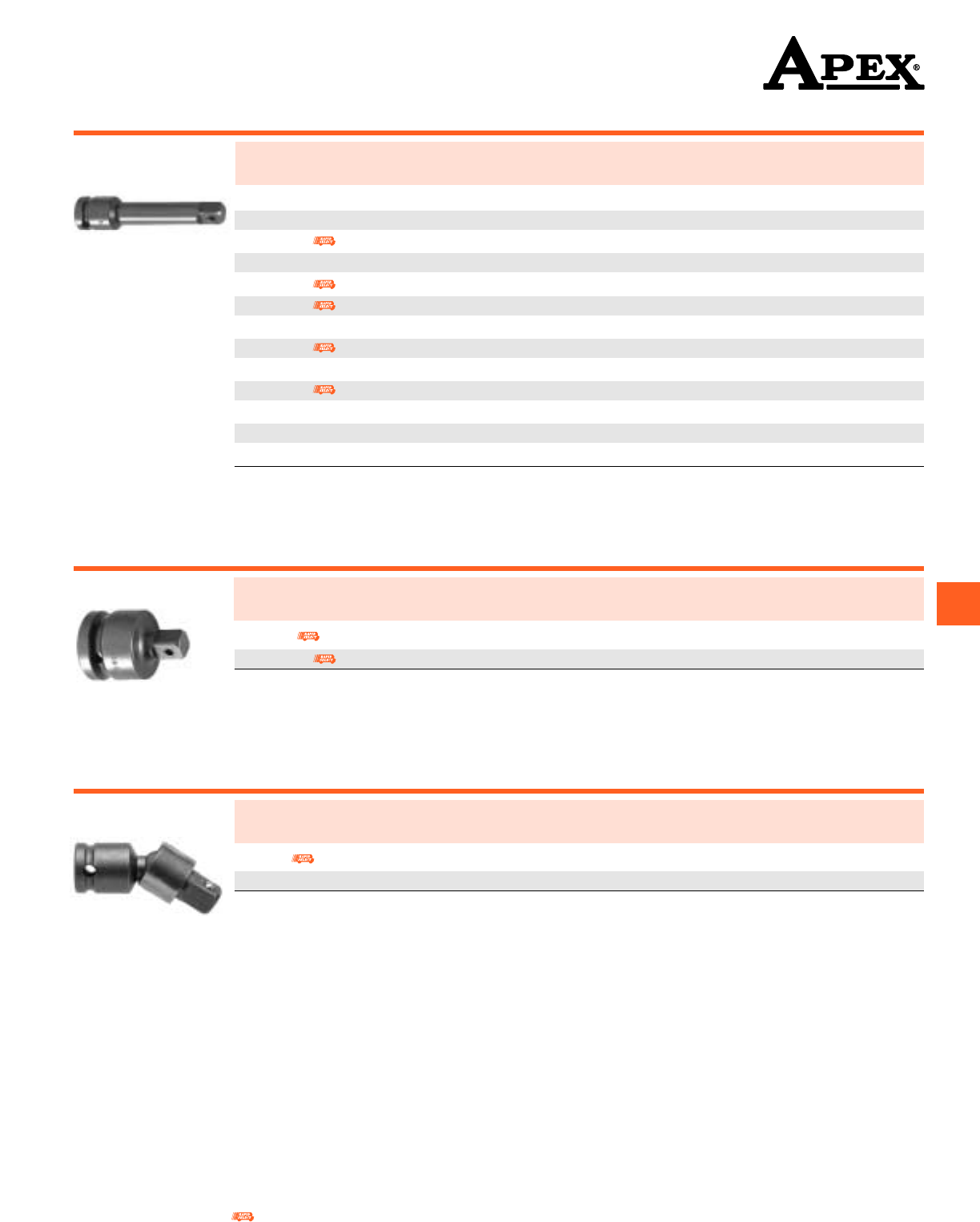

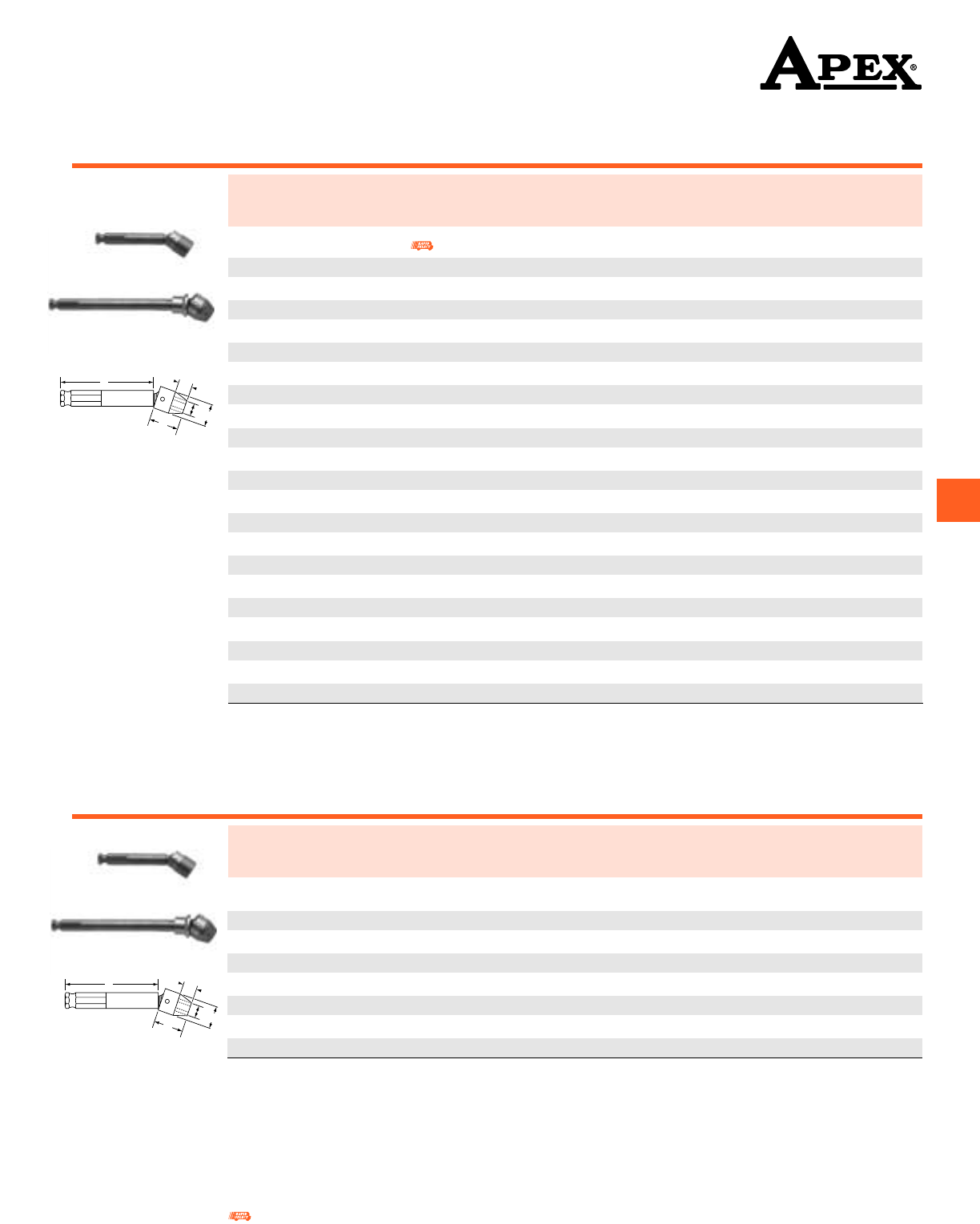

Bit Holders, Nutsetters, Extensions and Universal Wrenches

Part Point Overall Length

Number Size In. mm

440-1X 1 1 25

440-115 1 1 1/2 38

440-12 1 2 51

440-125 1 2 1/2 64

440-13 1 3 76

440-2X 2 1 25

440-2I 2 1 25

440-27* 2 1 25 For shallow screw recesses

440-215X 2 1 1/2 38

440-22X 2 2 51

440-225X 2 2 1/2 64

440-23 2 3 76

440-24 2 4 101

440-255 2 5 1/2 140

440-26 2 6 152

440-3X 3 1 25

440-3I 3 1 25

440-3125 3 1 1/4 32

440-3BN 3 1 1/4 32 Large body

440-32 3 2 51

440-325 3 2 1/2 64

440-33 3 3 76

440-34 3 4 101

440-4 4 1 5/16 33

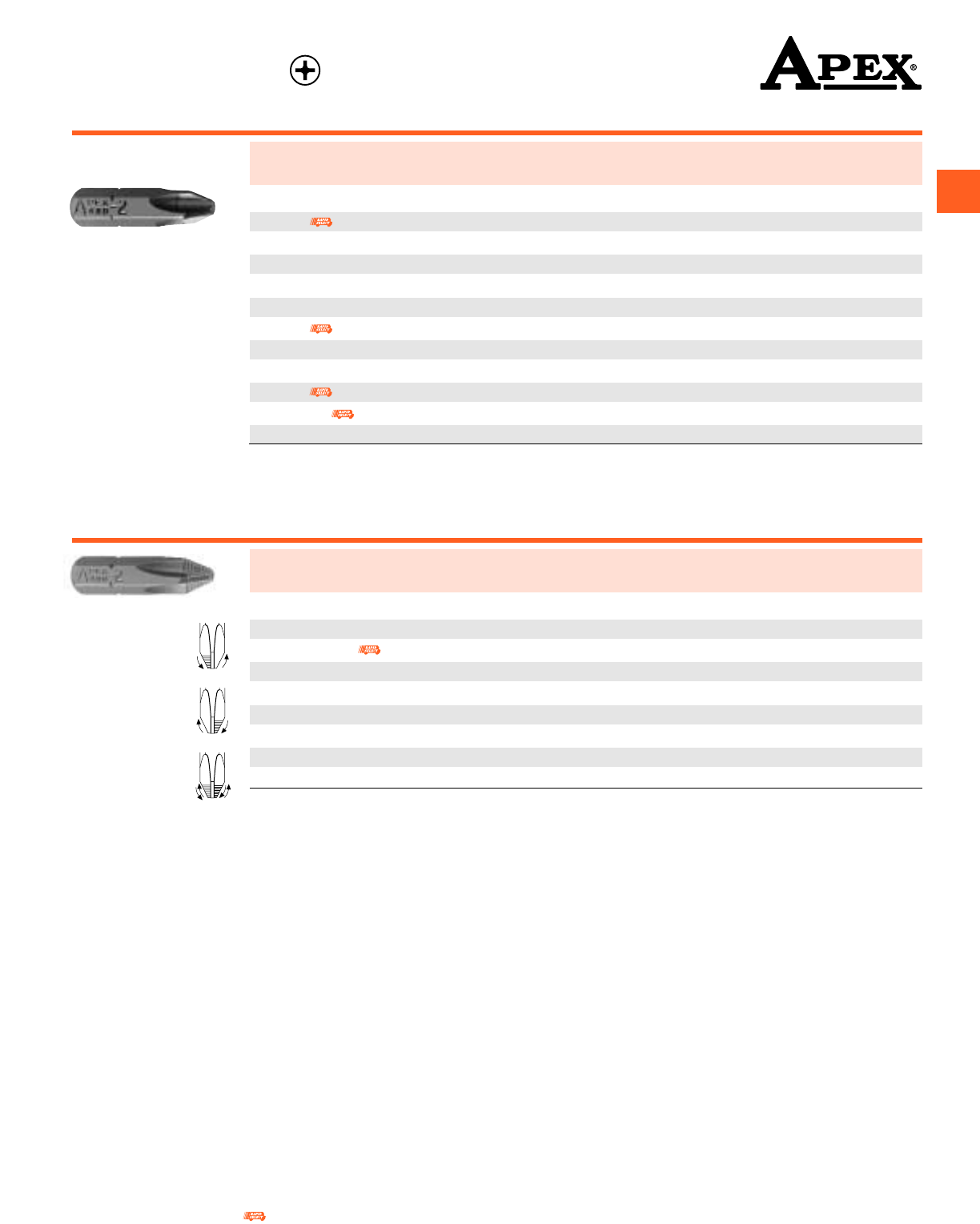

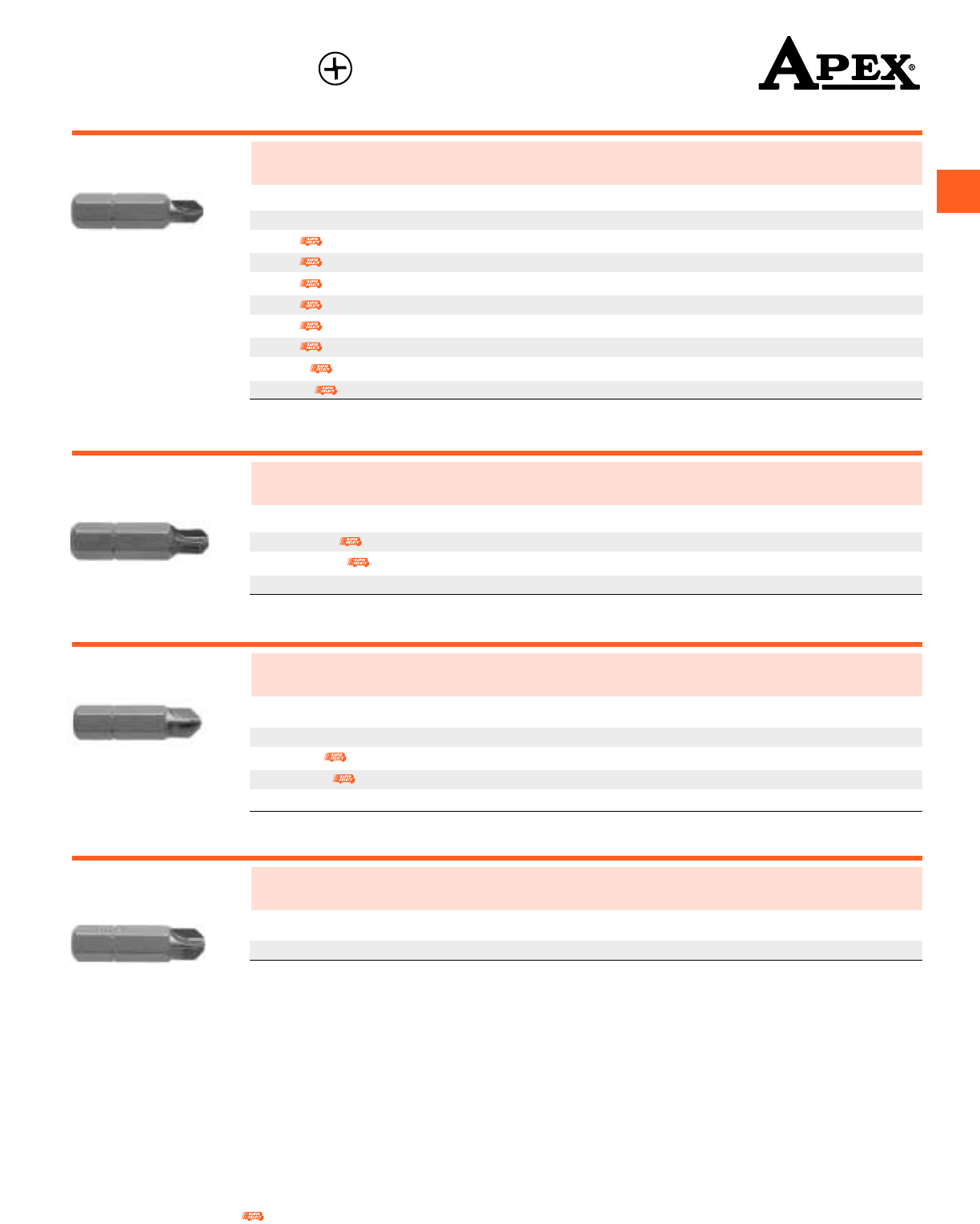

1/4” Hex Insert Bits

Phillips Bits

*For shallow screw recesses. See Tool Tip on page 7

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

Part Point Overall Length

Number Size In. mm

440-1-ACR1-R 1 1 25

440-1-ACR1-D 1 1 25

440-1-ACR1 1 1 25

440-2-ACR2-RX 2 1 25

440-2-ACR2-RI 2 1 25

440-2-ACR2-D 2 1 25

440-2-ACR2X 2 1 25

446-2-ACR2-D 2 1 25 Limited Clearance

440-22-ACR2-R 2 2 51

440-22-ACR2-D 2 2 51

440-22-ACR2 2 2 51

440-3-ACR3-RX 3 1 25

440-3-ACR3-D 3 1 25

440-3-ACR3 3 1 25

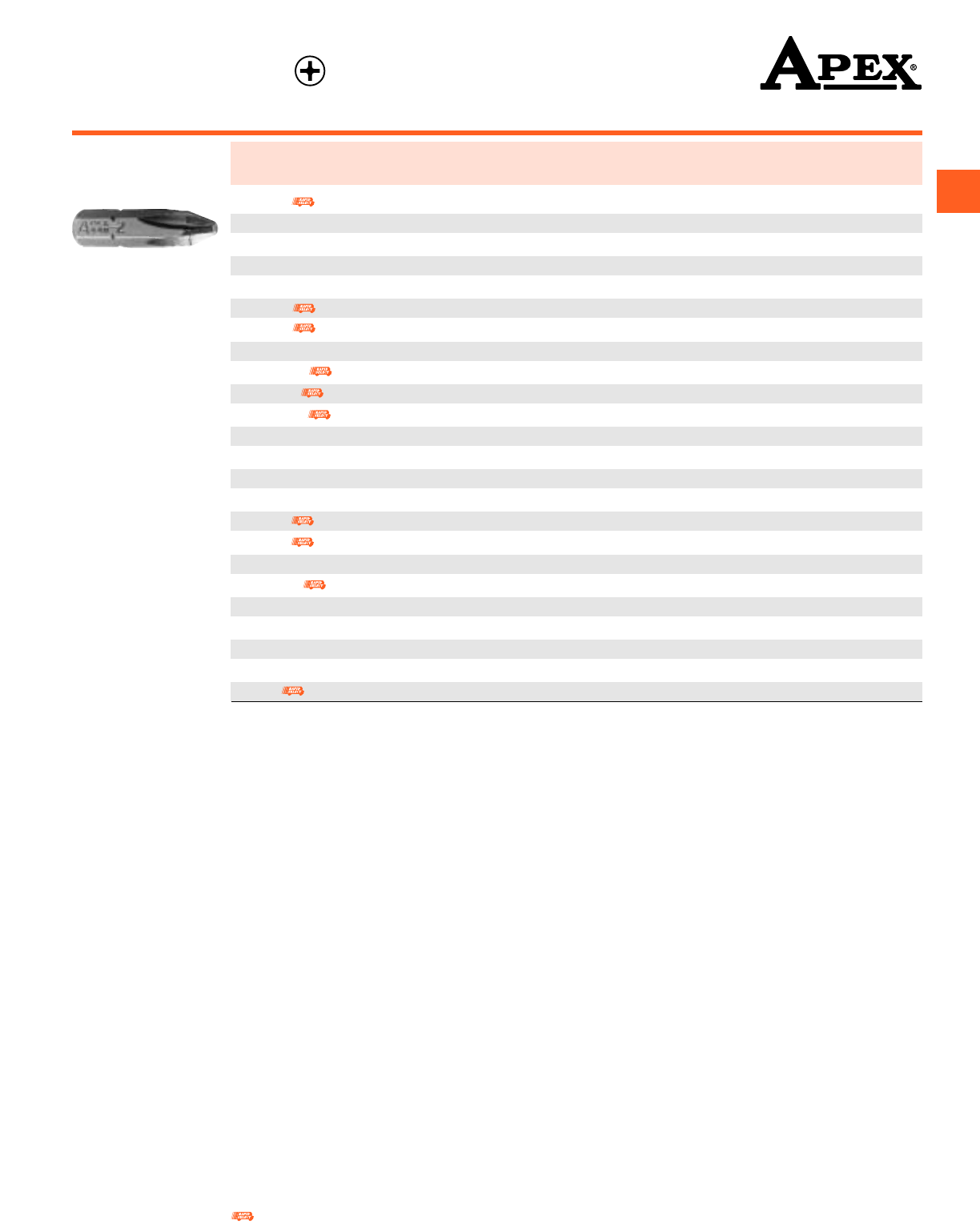

1/4” Hex Insert Bits – ACR®

ACR®is a trademark of the Phillips Screw Co.

Part number

suffix -R

For removal

Part number

suffix -D

For driving

No part number

suffix

For both removal

and driving

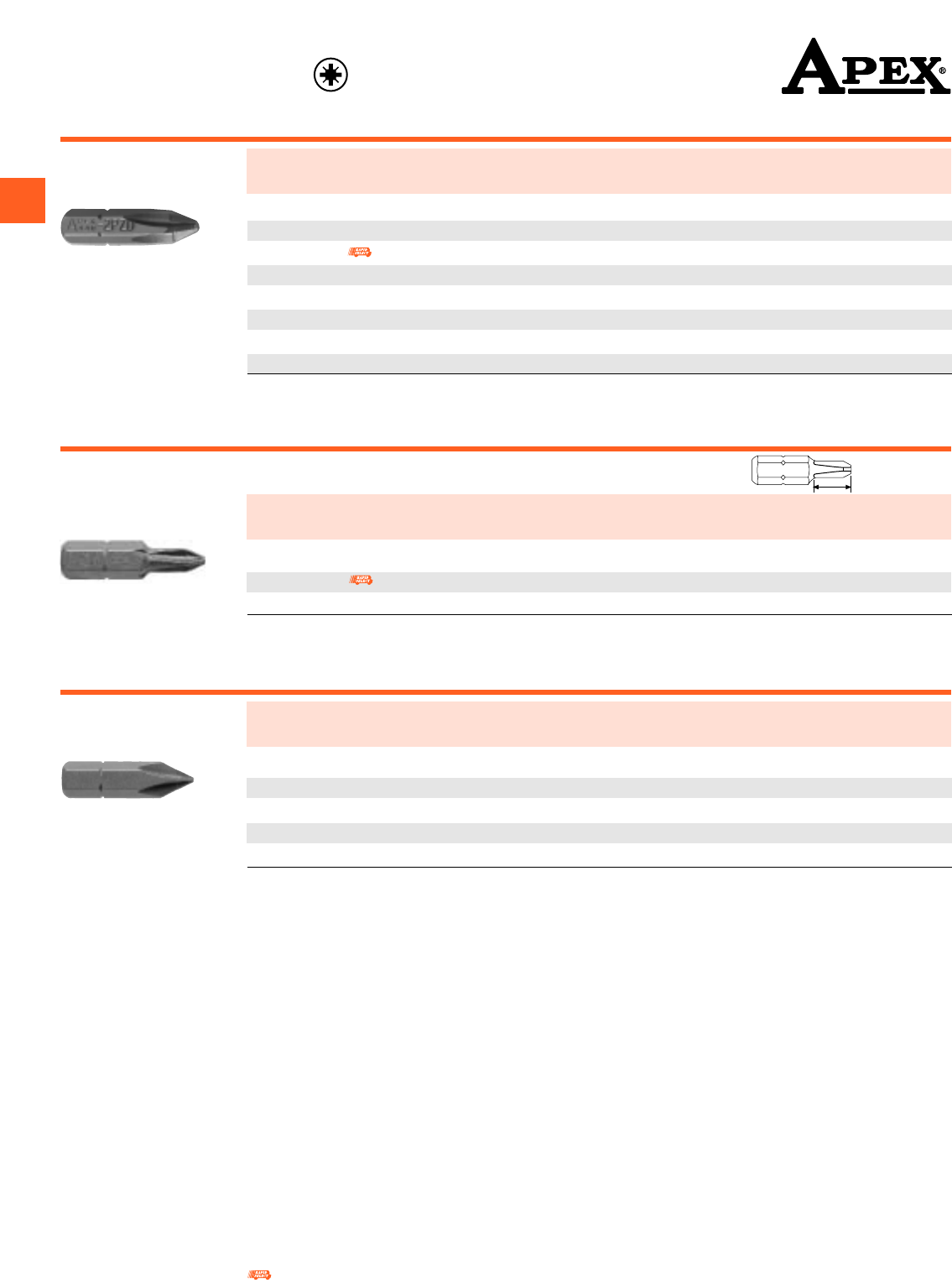

Part Point Overall Length Turned Length

Number Size In. mm In. mm

446-0 0 1 25 7/16 11

446-1X 1 1 25 7/16 11

446-12 1 2 51 7/16 11

SD-1055-A 1 2 51 1 3/8 35

446-2X 2 1 25 7/16 11

446-2I 2 1 25 7/16 11

446-27* 2 1 25 7/16 11

446-215 2 1 1/2 38 7/16 11

446-22 2 2 51 7/16 11

446-215T 2 1 1/2 38 1 25

446-22T 2 2 51 1 1/2 38

446-225T 2 2 1/2 64 1 3/4 44

446-23T 2 3 76 2 1/4 57

1/4” Hex Insert Bits – Limited Clearance

* For shallow screw recesses see Tool Tip on page 7.

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

Phillips Bits

Part Point Overall Length

Number Size In. mm

480-2-ACR2-R 2 1 1/4 32

480-2-ACR2-D 2 1 1/4 32

480-2-ACR2X 2 1 1/4 32

480-3-ACR3-R 3 1 1/4 32

480-3-ACR3-D 3 1 1/4 32

480-3-ACR3 3 1 1/4 32

480-4-ACR4-R 4 1 1/4 32

480-4-ACR4-D 4 1 1/4 32

480-4-ACR4 4 1 1/4 32

Part Point Overall Length

Number Size In. mm

480-1 1 1 1/4 32

480-2X 2 1 1/4 32

480-27* 2 1 1/4 32 For shallow screw recesses

480-22 2 2 51

480-225 2 2 1/2 64

480-24 2 4 101

480-3X 3 1 1/4 32

480-325 3 2 1/2 64

480-34 3 4 101

480-4X 4 1 1/4 32

480-4BNX 4 1 1/2 38 Large body

480-425 4 2 1/2 64

5/16” Hex Insert Bits

5/16” Hex Insert Bits – ACR®

ACR®is a trademark of the Phillips Screw Co.

Part number suffix -R

For removal

Part number suffix -D

For driving

No part number suffix

For both removal

and driving

* For shallow screw recesses see Tool Tip on page 7.

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

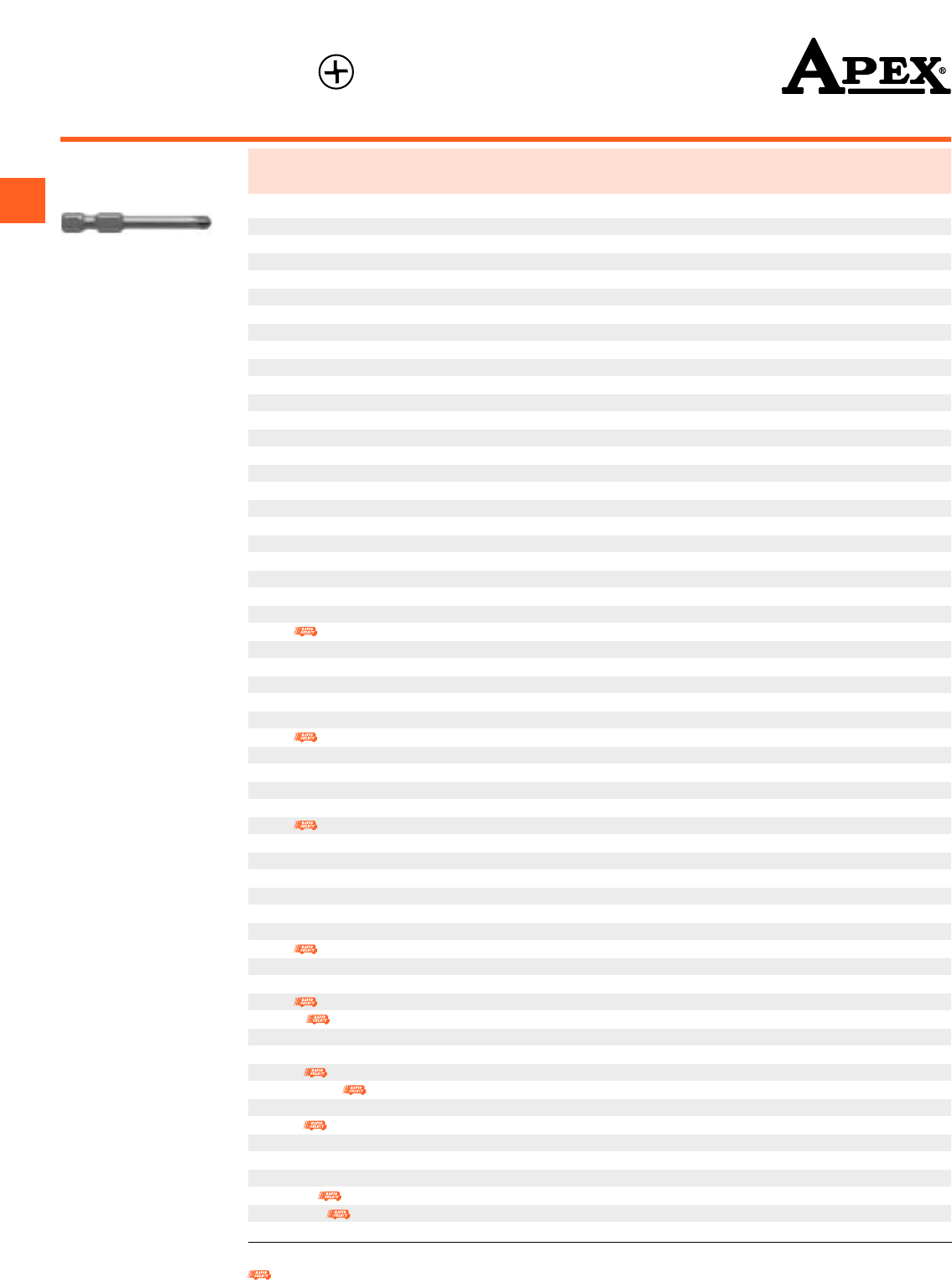

Phillips Bits

Part Point Overall Length Body Diameter Turned Length

Number Size In. mm In. mm In. mm

4910X 0 1 15/16 49 1/8 3.2 1 1/4 32

4910-A 0 2 3/4 70 1/8 3.2 2 51

4910-BX 0 3 1/2 89 1/8 3.2 2 3/4 70

4910-C 0 6 152 1/8 3.2 2 51

491X 1 1 15/16 49 3/16 4.8 1 1/4 32

491-AX 1 2 3/4 70 3/16 4.8 2 51

491-BX 1 3 1/2 89 3/16 4.8 2 3/4 70

491-CX 1 6 152 3/16 4.8 2 51

491-CCX 1 6 152 3/16 4.8 5 1/4 133

492X 2 1 15/16 49 1/4 6.4 1 1/4 32

492I 2 1 15/16 49 1/4 6.4 1 1/4 32

492-AX 2 2 3/4 70 1/4 6.4 2 51

492-AI 2 2 3/4 70 1/4 6.4 2 51

492-BX 2 3 1/2 89 1/4 6.4 2 3/4 70

492-BI 2 3 1/2 89 1/4 6.4 2 3/4 70

492-CX 2 6 152 1/4 6.4 2 51

492-CI 2 6 152 1/4 6.4 2 51

492-CCX 2 6 152 1/4 6.4 5 1/4 133

492-27* 2 1 15/16 49 1/4 6.4 1 1/4 32

492-A-27* 2 2 3/4 70 1/4 6.4 2 51

492-B-27* 2 3 1/2 89 1/4 6.4 2 3/4 70

492-C-27* 2 6 152 1/4 6.4 2 51

492-CC-27* 2 6 152 1/4 6.4 5 1/4 133

492-200MM 2 7 13/16 200 1/4 6.4 7 178

SD-2052-8 2 8 203 9/32 7.1 7 178

SD-2052-10 2 10 254 9/32 7.1 9 229

493X 3 1 15/16 49 5/16 7.9 1 25

493-AX 3 2 3/4 70 5/16 7.9 1 3/4 44

493-BX 3 3 1/2 89 5/16 7.9 2 1/2 64

493-CX 3 6 152 5/16 7.9 5 127

4930 3 1 15/16 49 1/4 6.4 1 1/4 32

4930-A 3 2 3/4 70 1/4 6.4 2 51

4930-B 3 3 1/2 89 1/4 6.4 2 3/4 70

4930-C 3 6 152 1/4 6.4 2 51

4930-CC 3 6 152 1/4 6.4 5 1/4 133

494 4 1 15/16 49 3/8 9.5 1 25

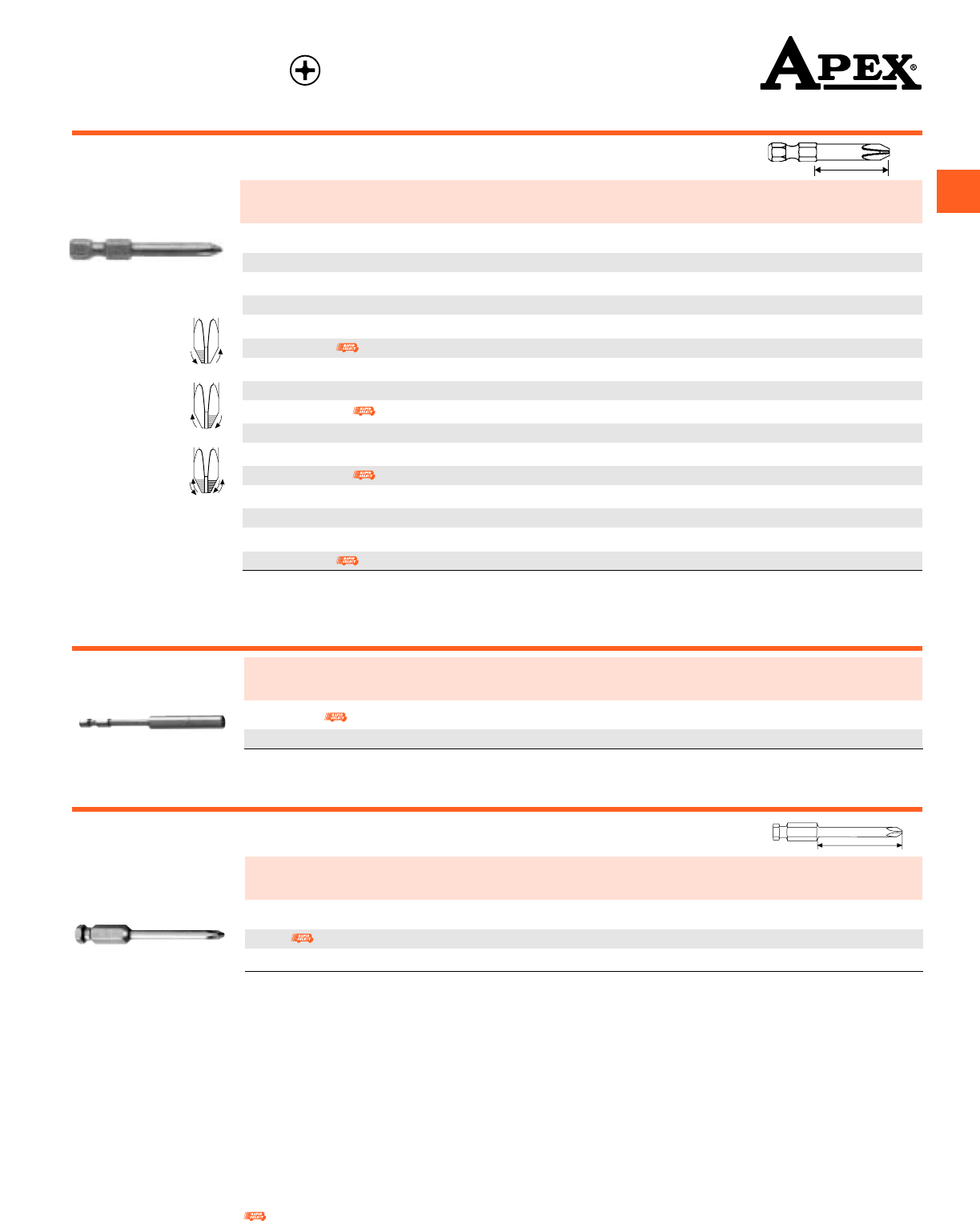

1/4” Hex Power Drive

* For shallow screw recesses. See Tool Tip on page 7.

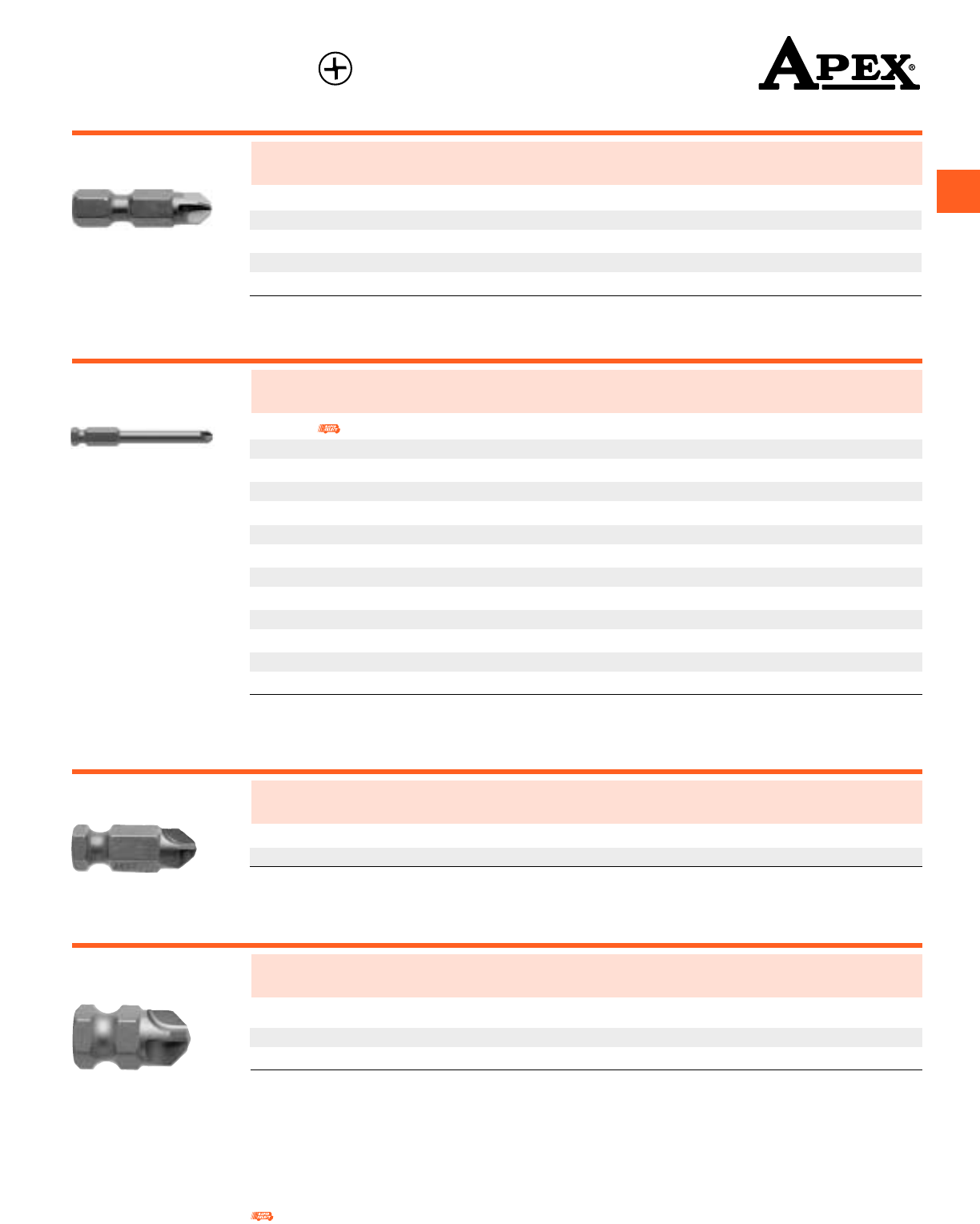

Part Point Overall Length

Number Size In. mm

830-1 1 1 1/8 29

830-2X 2 1 1/8 29

830-27 2 1 1/8 29 For shallow screw recesses*

830-3 3 1 1/8 29

830-4 4 1 1/8 29

5/16” Square Insert Bits

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

Phillips Bits

Part Point Overall Length Sleeve Diameter

Number Size In. mm In. mm

SD-556-A 2 3 1/2 89 7/16 11.1

SD-556 2 6 152 7/16 11.1

Part Point Overall Length Body Diameter Turned Length

Number Size In. mm In. mm In. mm

491-ACR1-R 1 1 15/16 49 3/16 4.8 1 1/4 32

491-ACR1-D 1 1 15/16 49 3/16 4.8 1 1/4 32

491-ACR1 1 1 15/16 49 3/16 4.8 1 1/4 32

492-ACR2-R 2 1 15/16 49 1/4 6.4 1 1/4 32

492-ACR2-D 2 1 15/16 49 1/4 6.4 1 1/4 32

492-ACR2X 2 1 15/16 49 1/4 6.4 1 1/4 32

492-A-ACR2-R 2 2 3/4 70 1/4 6.4 2 51

492-A-ACR2-D 2 2 3/4 70 1/4 6.4 2 51

492-A-ACR2X 2 2 3/4 70 1/4 6.4 2 51

492-B-ACR2-R 2 3 1/2 89 1/4 6.4 2 3/4 70

492-B-ACR2-D 2 3 1/2 89 1/4 6.4 2 3/4 70

492-B-ACR2X 2 3 1/2 89 1/4 6.4 2 3/4 70

492-C-ACR2-D 2 6 152 1/4 6.4 2 51

493-ACR3-R 3 1 15/16 49 5/16 7.9 1 25

493-ACR3-D 3 1 15/16 49 5/16 7.9 1 25

493-ACR3X 3 1 15/16 49 5/16 7.9 1 25

1/4” Hex Power Drive – ACR®

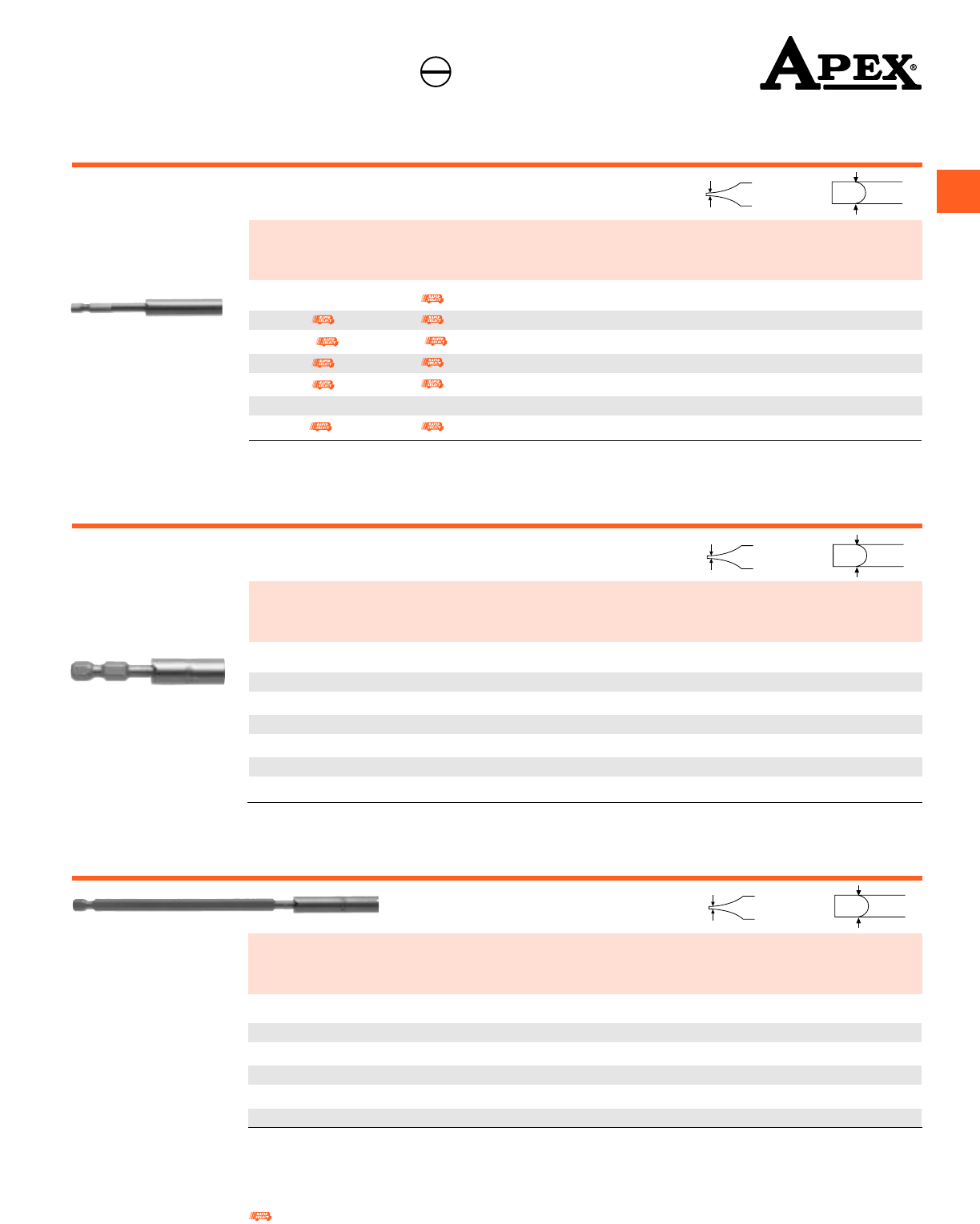

1/4” Hex Power Drive with Finder Sleeve

7/16” Hex Power Drive

Part number

suffix -R

For removal (diagram)

Part number

suffix -D

For driving (diagram)

No part number

suffix

For both removal

and driving (diagram)

ACR®is a trademark of the Phillips Screw Co.

Part Point Overall Length Body Diameter Turned Length

Number Size In. mm In. mm In. mm

482 2 3 1/2 89 1/4 6.4 2 1/4 57

483X 3 3 1/2 89 5/16 7.9 2 1/4 57

484 4 3 1/2 89 3/8 9.5 2 1/4 57

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

Phillips Bits

Part Point Overall Length Body Diameter

Number Size In. mm In. mm

401 1 1 1/2 38 3/16 4.8

402X 2 1 1/2 38 1/4 6.4

403 3 1 1/2 38 5/16 7.9

Part Point Overall Length Body Diameter

Number Size In. mm In. mm

551 1 1 3/16 30 .30 7.6

552X 2 1 3/16 30 .30 7.6

552I 2 1 3/16 30 .30 7.6

553 3 1 3/16 30 .30 7.6

Part Point Overall Length Body Diameter

Number Size In. mm In. mm

451 1 3 1/4 83 3/16 4.8

452 2 3 1/4 83 9/32 7.1

453 3 3 1/4 83 5/16 7.9

454 4 3 1/4 83 3/8 9.5

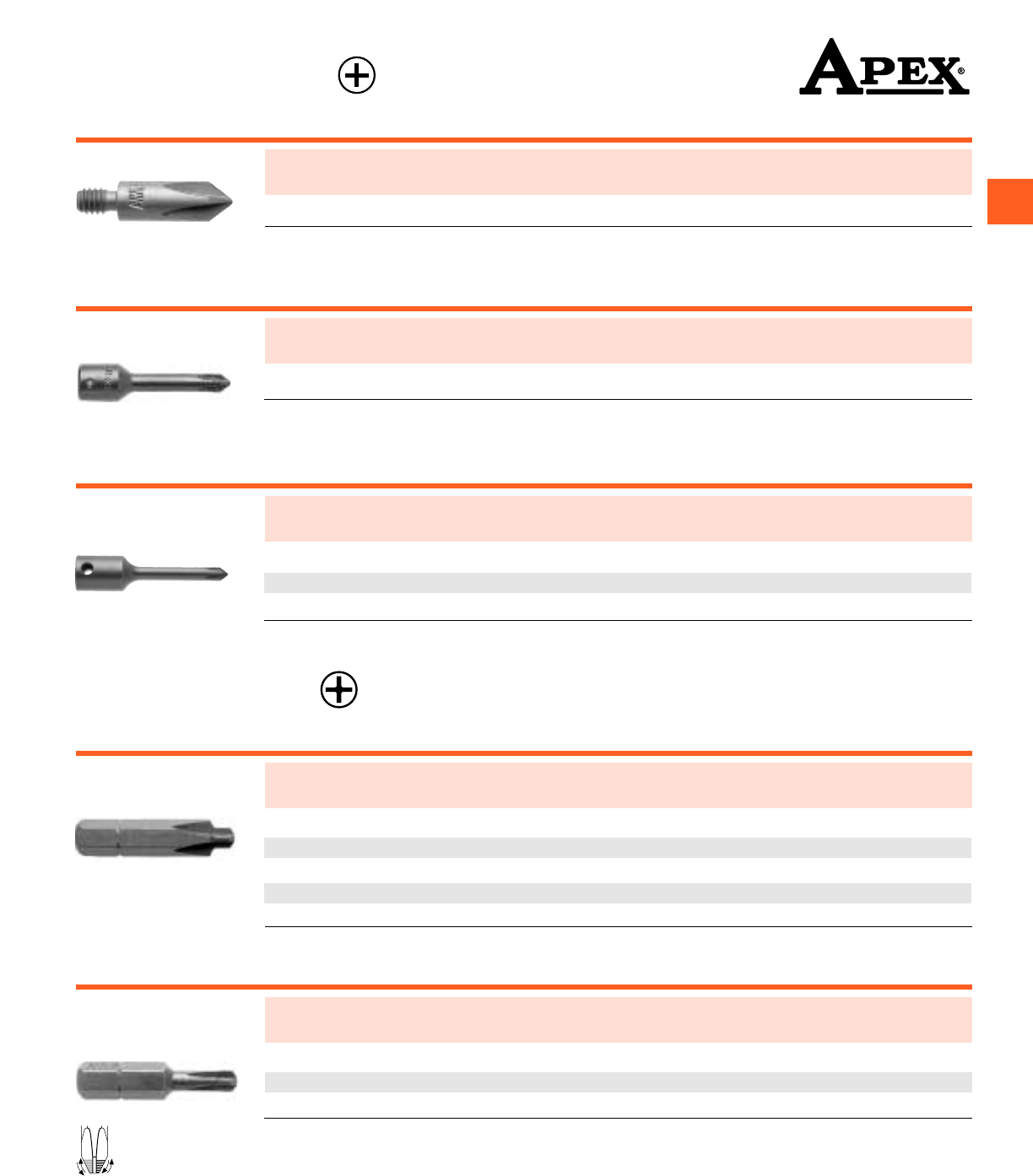

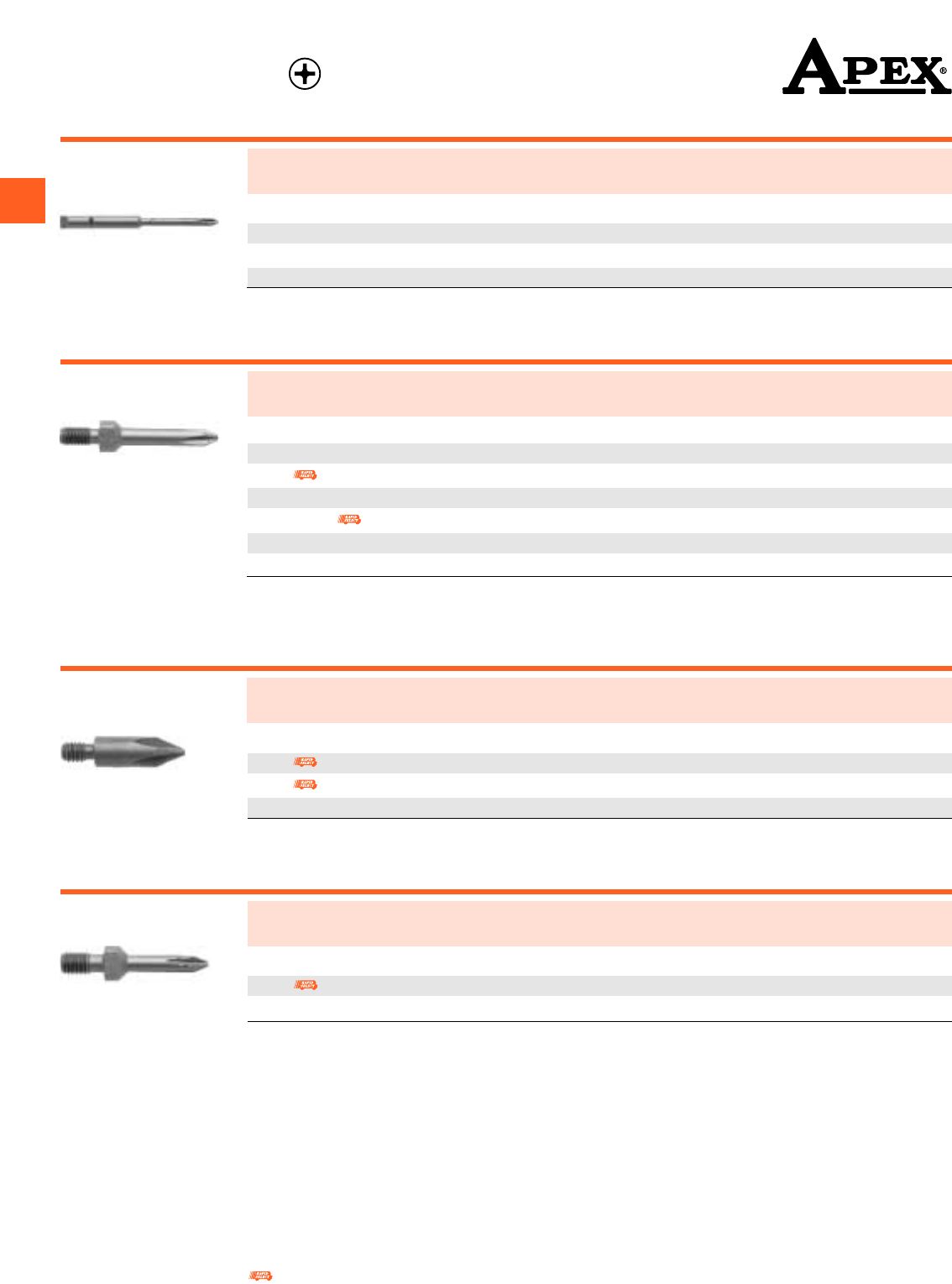

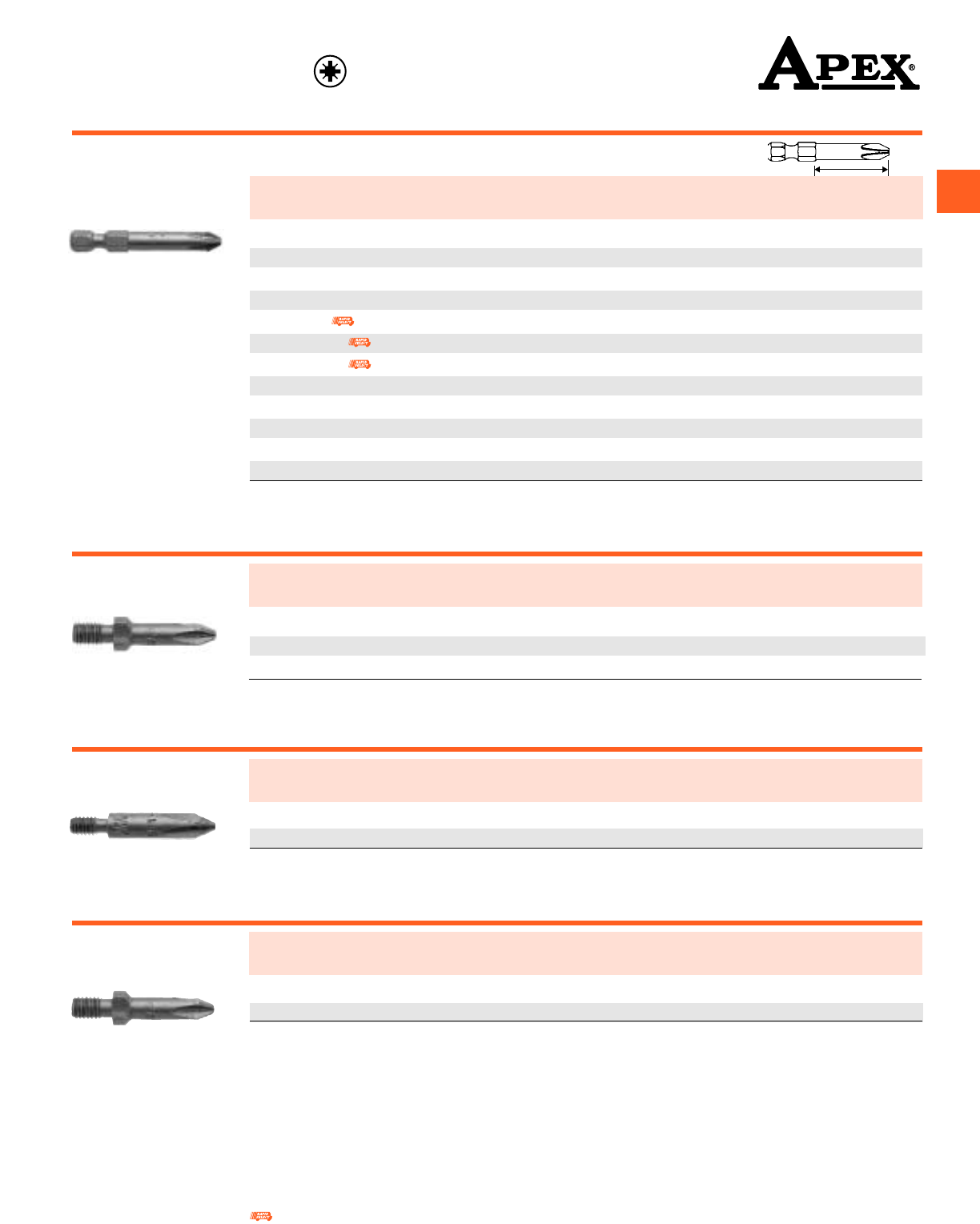

9/32” No. 130A Yankee Drive

10-32 Screw Shank Drive

12-24 Screw Shank Drive

1/4”-24 Screw Shank Drive

Part Point Overall Length Body Diameter

Number Size In. mm In. mm

501 1 1 1/2 38 3/16 4.8

501-A 1 1 13/16 46 3/16 4.8

502X 2 1 1/2 38 1/4 6.4

502-ACR2* 2 1 1/2 38 1/4 6.4

SD-1342-2 2 1 3/4 45 1/4 6.4

502-A 2 1 13/16 46 1/4 6.4

503 3 1 1/2 38 5/16 7.9

*Features ACR®anti-camout ribs. See Tool Tip on page 3.

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

Phillips Bits

Part Point Overall Length Body Diameter

Number Size In. mm In. mm

591 1 1 3/16 30 7/32 5.6

592X 2 1 3/16 30 7/32 5.6

592-27* 3 1 3/16 30 7/32 5.6

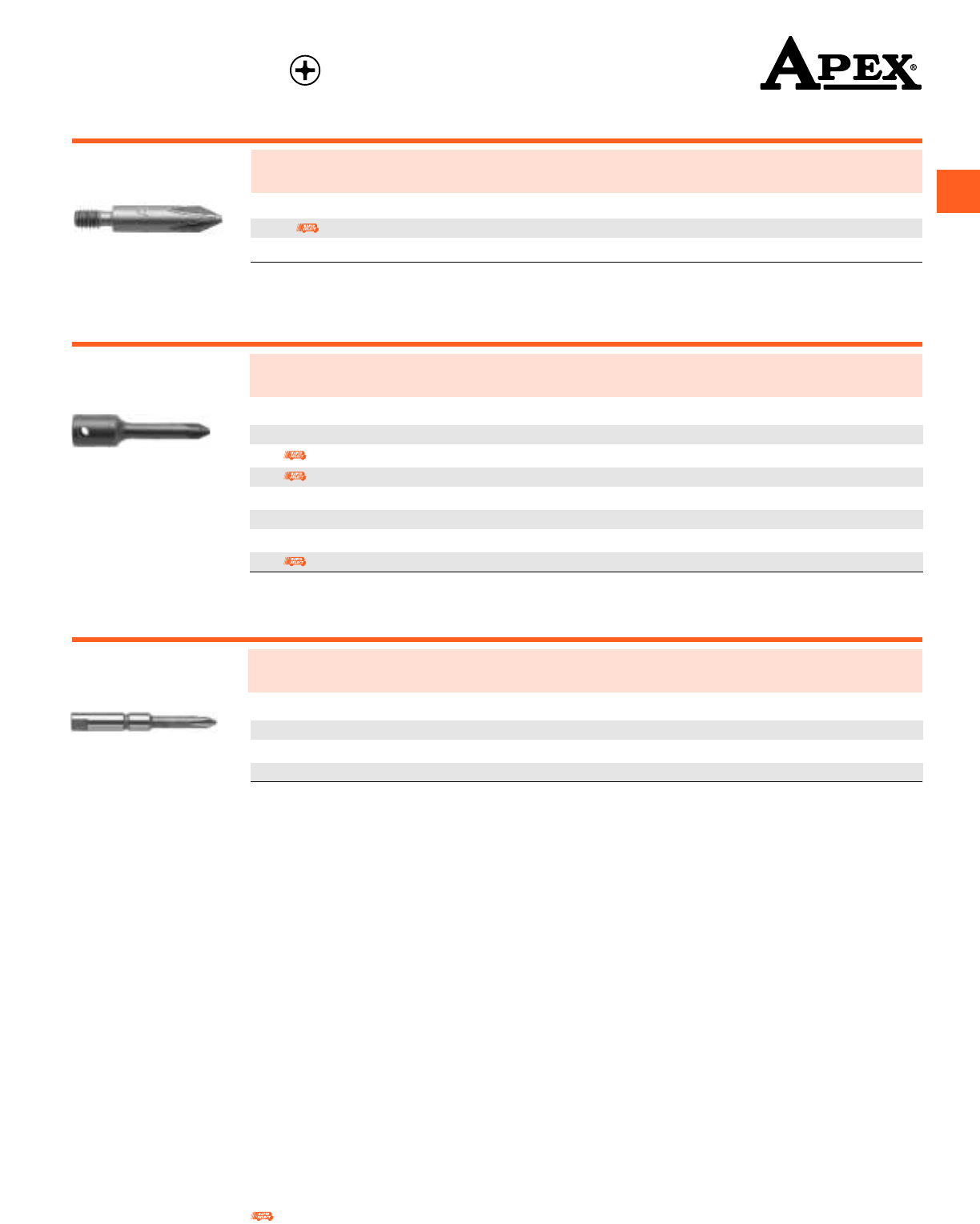

Female Square Service Drive

8–32 Screw Shank Drive

Part Female Point Overall Length Body Diameter

Number Square Drive Size In. mm In. mm

821 1/4 1 2 51 1/4 6.4

822 1/4 2 2 51 1/4 6.4

832 3/8 2 2 5/8 67 5/16 7.9

833 3/8 3 2 5/8 67 5/16 7.9

834 3/8 4 2 5/8 67 5/16 7.9

852 1/2 2 2 7/8 73 5/16 7.9

853 1/2 3 2 7/8 73 5/16 7.9

854 1/2 4 2 7/8 73 3/8 9.5

Fein Drive

Part Point Length

Number Size In. mm

FND-1PH 1 2 53

FND-2PH 2 2 53

FND-2PH-70M 2 2 3/4 70

FND-3PH 3 2 53

* For shallow screw recesses.

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

Phillips Bits

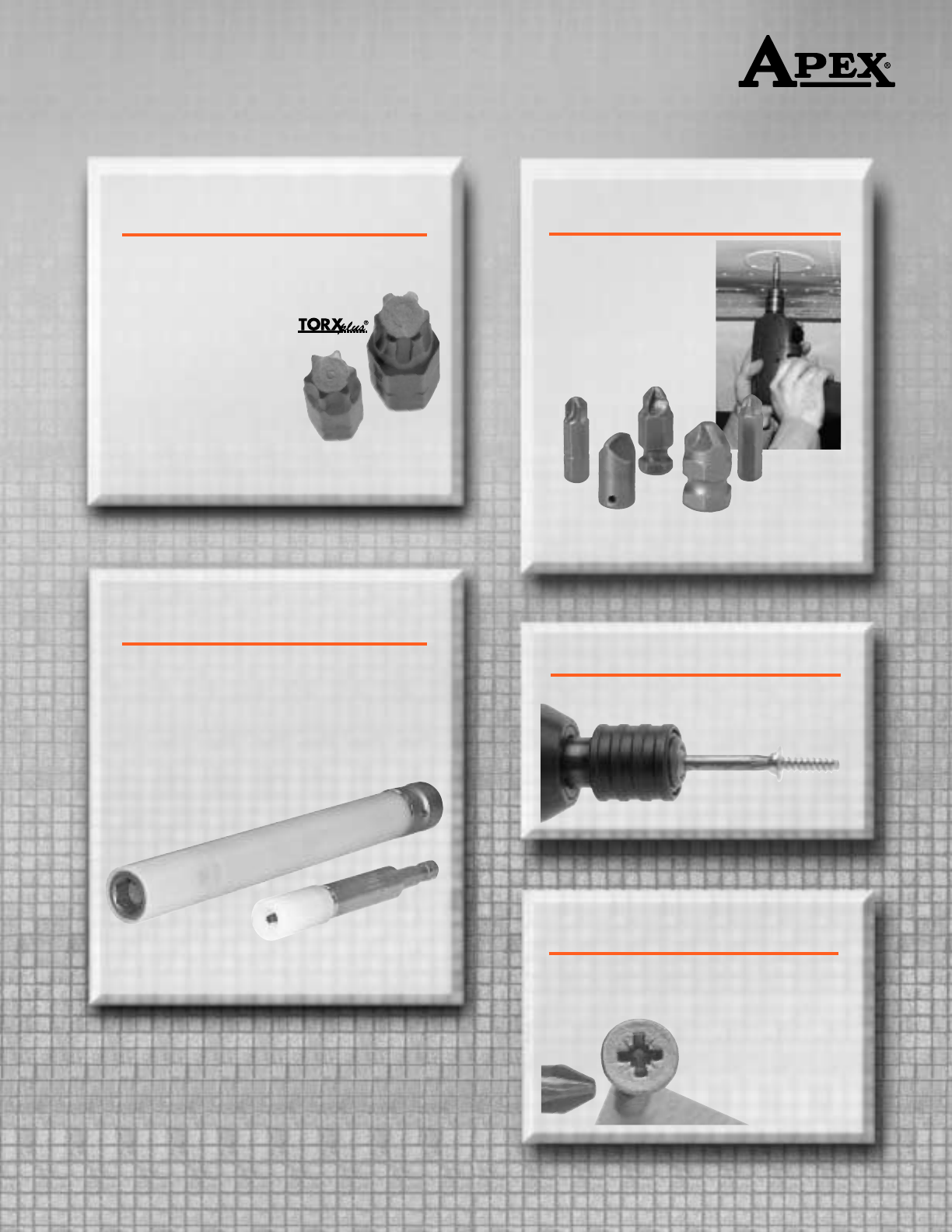

Solutions

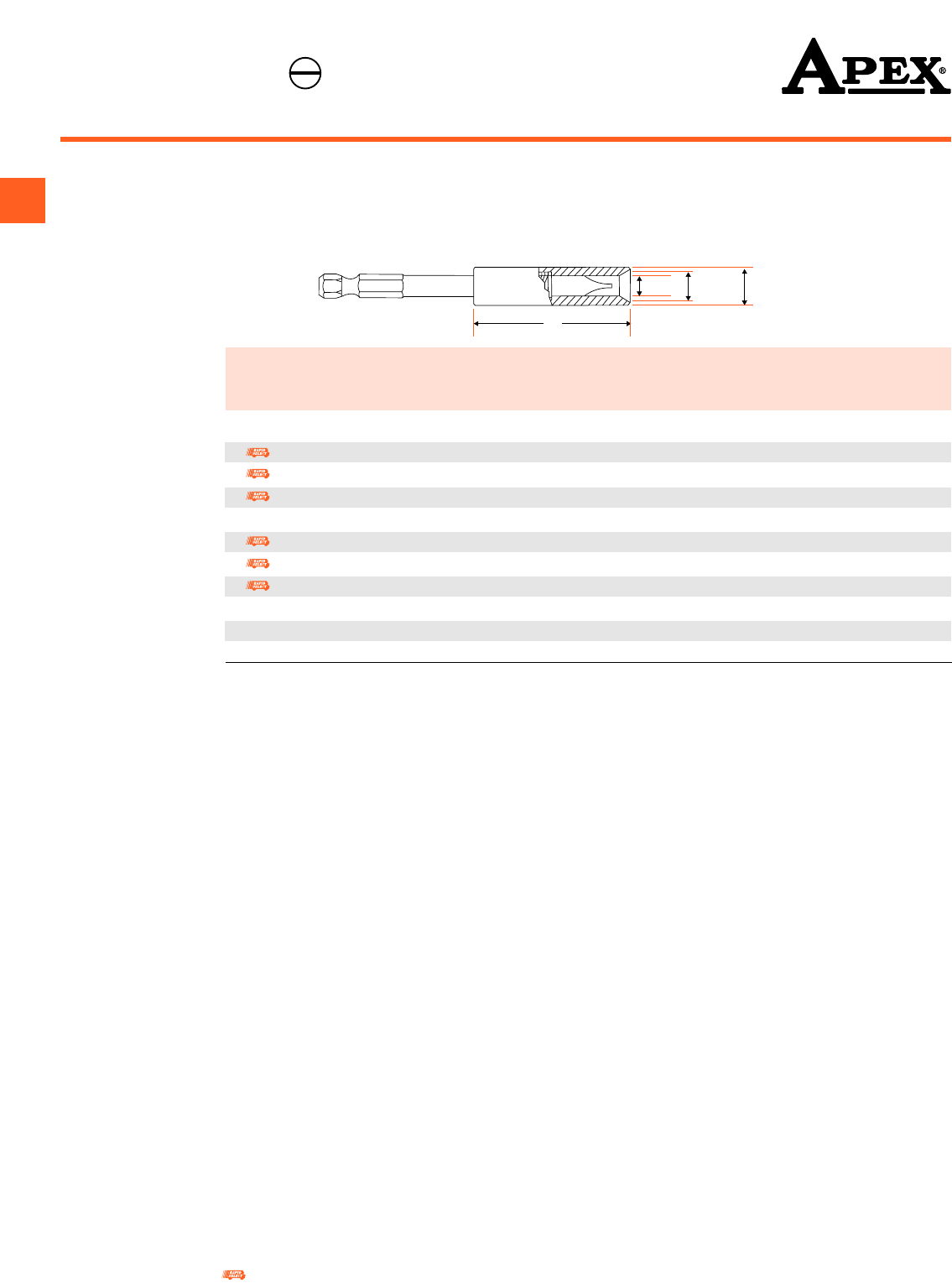

What is a finder sleeve?

A finder sleeve makes it easy to engage

slotted fasteners with the bit. It guides the

bit so there is less ”searching” for the

proper alignment between blade and slot.

(See page 16)

Does Apex offer Torx

bits?

Torx®fasteners are becoming more and

more common in automotive and

appliance

assembly. Apex

provides a full

selection of bits for

Torx screws.

(See pages 19–25)

Torx®is a trademark of the

Camcar Division of Textron.

Is there an easy way to select a bit?

Take the guesswork out of bit

selection. Apex Phillips

and Torx®ring gauges

help you find the

right bit for your

fasteners.

Order SD-3749 for

Phillips and SD-4064-G

for Torx®.

Why do Apex bits last so much

longer than other bits?

Apex’s premium tool alloys and

proprietary heat treat help

avoid typical problems

such as shattering and

premature bit wear. Most

Apex bits are available in

three different heat treat

hardnesses.

Refer to page vi for

information on selecting

the proper heat treat.

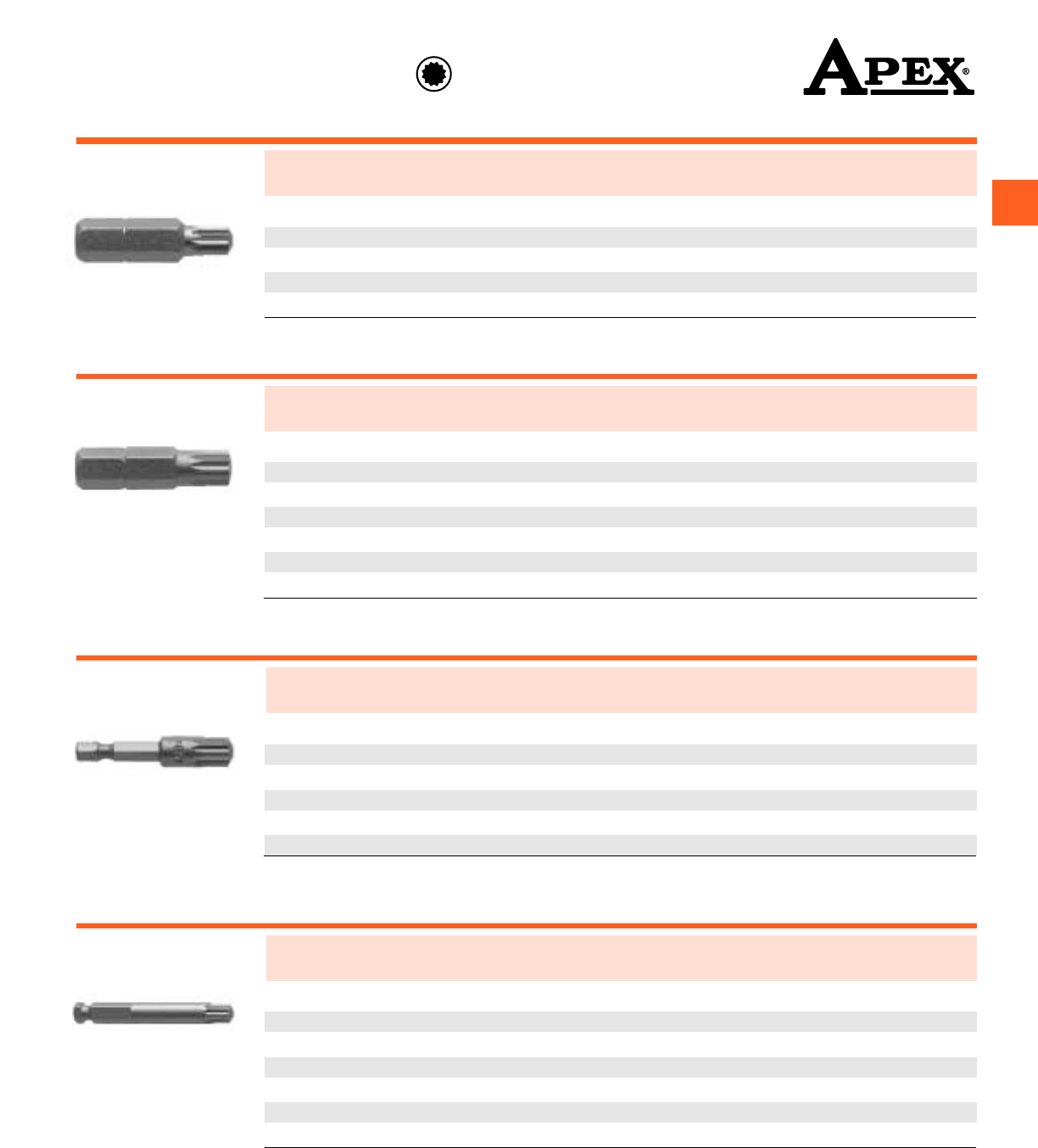

How do Torxalign

bits work?

Torxalign

bits “wedge” into the Torx

recess to firmly hold the fastener to

the bit.

(See pages 19–24)

What’s the difference between Torx

and Torx Plus

bits?

Torx Plus®bits and fasteners feature a

greater engagement area for higher torque

transfer and reduced camout when

driving Torx Plus®fasteners. They

can provide up to 100%

more drive cycles. Torx

Plus®bits are not

compatible with standard

Torx®fasteners.

(See pages 19–25)

Regular

Tor x ®

Torx Plus®is a trademark of the Camcar Division of Textron.

Torx Plus®Tamper Resistent Bits are available on a limited basis. Please

contact your Area Distributor or Representative for more details.

Does Apex offer mar resistant bits

and sockets?

Apex can nylon coat just about any of our

bits or sockets. Nylon offers excellent mar

resistance for assemblies that have

painted, varnished or chromed surfaces.

Nylon also offers some safety benefits by

covering tool junctions. Contact your Apex

distributor or representative for more

information or for a quote.

What’s the difference between a

Phillips and a Pozidriv

screw?

The shallow “cross” indention in the

screw head identifies a Pozidriv®fastener.

The Pozidriv®bit and recess design

provides contact than a

standard Phillips for

more torque with less

possibility of camout.

(See pages 26 & 27)

Torq-Set® and ACR® are registered trademarks of the

Phillips Screw Company.

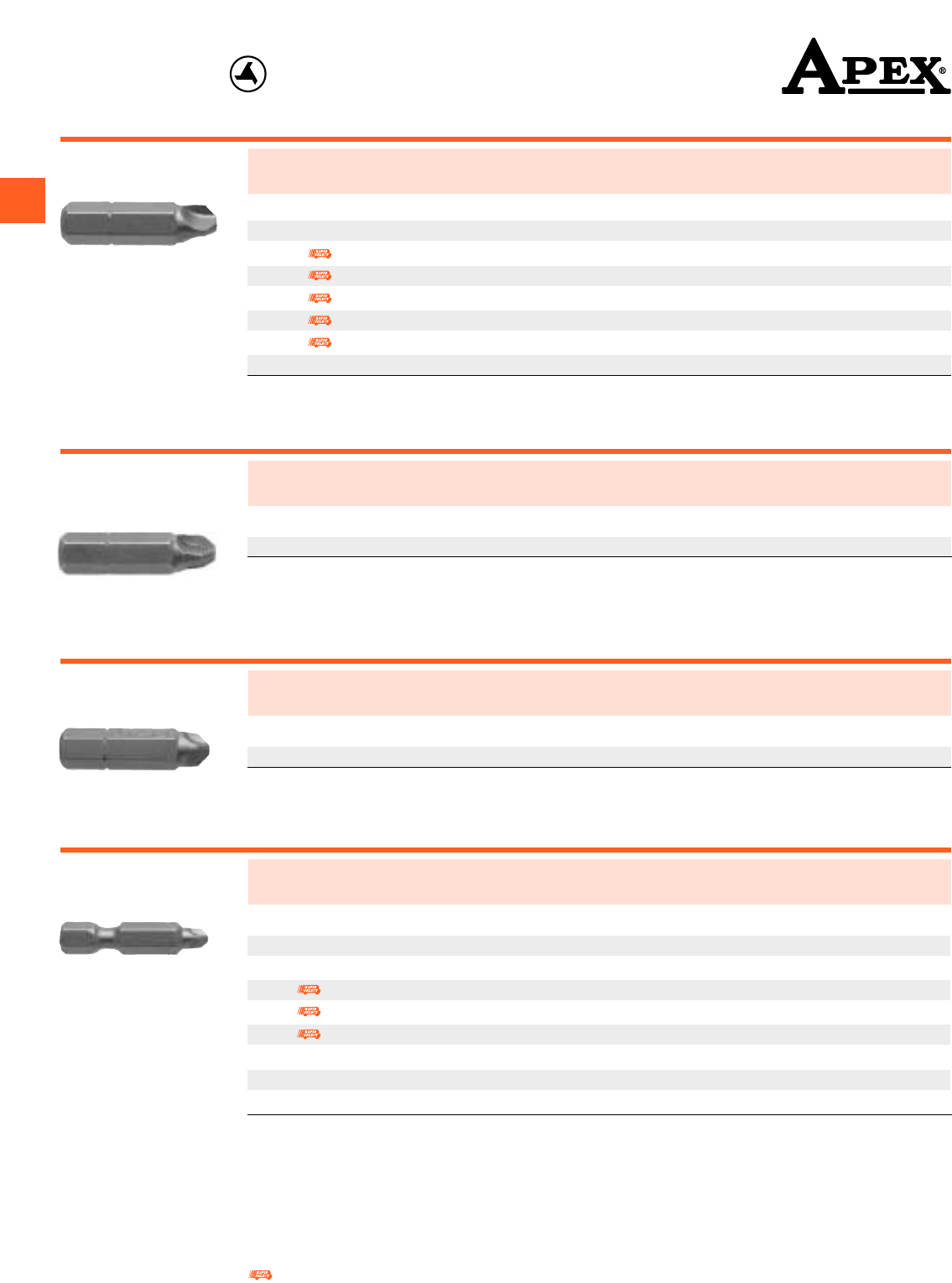

Does Apex offer fastener tools for

the aircraft industry?

Apex offers a full

selection of fastener

tools common to

aircraft assembly and

maintenance, including

Tri-Wing®, Torq-Set®,

Hi-Torque® and Phillips.

(See pages 43-48)

Diameter of Head

Flat Head

Screw Oval Head Round Head Truss Binding Fillister Pan Width

Sizes Wood Mach. Wood Mach. Head Head Cap Mach. Head of slot

1 .146 .146 .138 .138 .118 .026

.130 .130 .122 .122 .104 .019

2 .172 .172 .162 .162 .194 .181 .140 .167 .031

.156 .156 .146 .146 .180 .171 .124 .155 .023

3 .199 .199 .187 .187 .226 .208 .161 .193 .035

.181 .181 .169 .169 .211 .197 .145 .180 .027

4 .225 .225 .211 .211 .257 .235 .183 .219 .039

.207 .207 .193 .193 .241 .223 .166 .205 .031

5 .252 .252 .236 .236 .289 .263 .205 .245 .043

.232 .232 .217 .217 .272 .249 .187 .231 .035

6 .279 .279 .260 .260 .321 .290 .226 .270 .048

.257 .257 .240 .240 .303 .275 .208 .256 .039

7 .305 .285 .352 .296 .048

.283 .264 .333 .281 .039

8 .332 .332 .309 .309 .384 .344 .270 .322 .054

.308 .308 .287 .287 .364 .326 .250 .306 .045

9 .358 .334 .054

.334 .311 .045

10 .385 .385 .359 .359 .448 .339 .313 .373 .060

.359 .334 .334 .425 .378 .292 .357 .050

12 .438 .438 .408 .408 .511 .454 .357 .425 .067

.410 .410 .382 .382 .487 .430 .334 .407 .056

14 .491 .457 .075

.461 .424 .064

1/4”.507 .472 .573 .513 .375 .414 .492 .075

.477 .443 .546 .488 .363 .389 .473 .064

16 .544 .506 .075

.512 .476 .064

18 .597 .555 .084

.563 .523 .072

5/16”.635 .590 .698 .641 .437 .518 .615 .084

.600 .557 .666 .609 .424 .490 .594 .072

20 .650 .604 .084

.614 .570 .072

24 .756 .702 .094

.716 .664 .081

3/8”.762 .708 .823 .769 .562 .622 .740 .094

.722 .670 .787 .731 .547 .590 .716 .081

Types of Heads

Slotted Screw Sizes

Note: When ordering slotted bits, please remember that head sizes and slot widths

of hardened, self tapping, and sheet metal screws do not conform to the same

specifications as standard wood or machine screws described in the chart below. Also,

because of variations in these dimensions among screws from different manufacturers,

bits should be ordered to head and slot size rather than screw size.

Part Screw Length Blade Thickness Blade Width

Number Size In. mm In. mm In. mm

445-1X 4F-5R 1 25 .034 .86 3/16 4.8

445-2X 6F-8R 1 25 .040 1.02 7/32 5.6

445-3X 8F-10R 1 25 .042 1.07 1/4 6.4

445-4X 10F-12R 1 25 .046 1.17 9/32 7.1

445-1-15 4F-5R 1 1/2 38 .034 .86 3/16 4.8

445-2-15 6F-8R 1 1/2 38 .040 1.02 7/32 5.6

445-3-15 8F-10R 1 1/2 38 .042 1.07 1/4 6.4

445-4-15 10F-12R 1 1/2 38 .046 1.17 9/32 7.1

445-5X 12F-14R 1 1/2 38 .050 1.27 5/16 7.9

445-6 14F-16R 1 1/2 38 .055 1.40 23/64 9.1

Part Screw Length Blade Thickness Blade Width

Number Size In. mm In. mm In. mm

445-000 1F-2R 1 25 .021 .53 .125 3.2

445-00 2F-3R 1 25 .025 .64 .140 3.6

445-0X 3F-4R 1 25 .030 .76 .154 3.9

445-10X 4F-5R 1 25 .034 .86 .185 4.7

445-20 5F-6R 1 25 .036 .91 .216 5.5

445-30 6F-7R 1 25 .038 .97 .248 6.3

445-00-15 2F-3R 1 1/2 38 .028 .71 .138 3.5

445-0-15 3F-4R 1 1/2 38 .032 .81 .154 3.9

445-10-15 4F-5R 1 1/2 38 .034 .86 .185 4.7

445-20-15 5F-6R 1 1/2 38 .036 .91 .216 5.5

445-30-15 6F-7R 1 1/2 38 .038 .97 .248 6.3

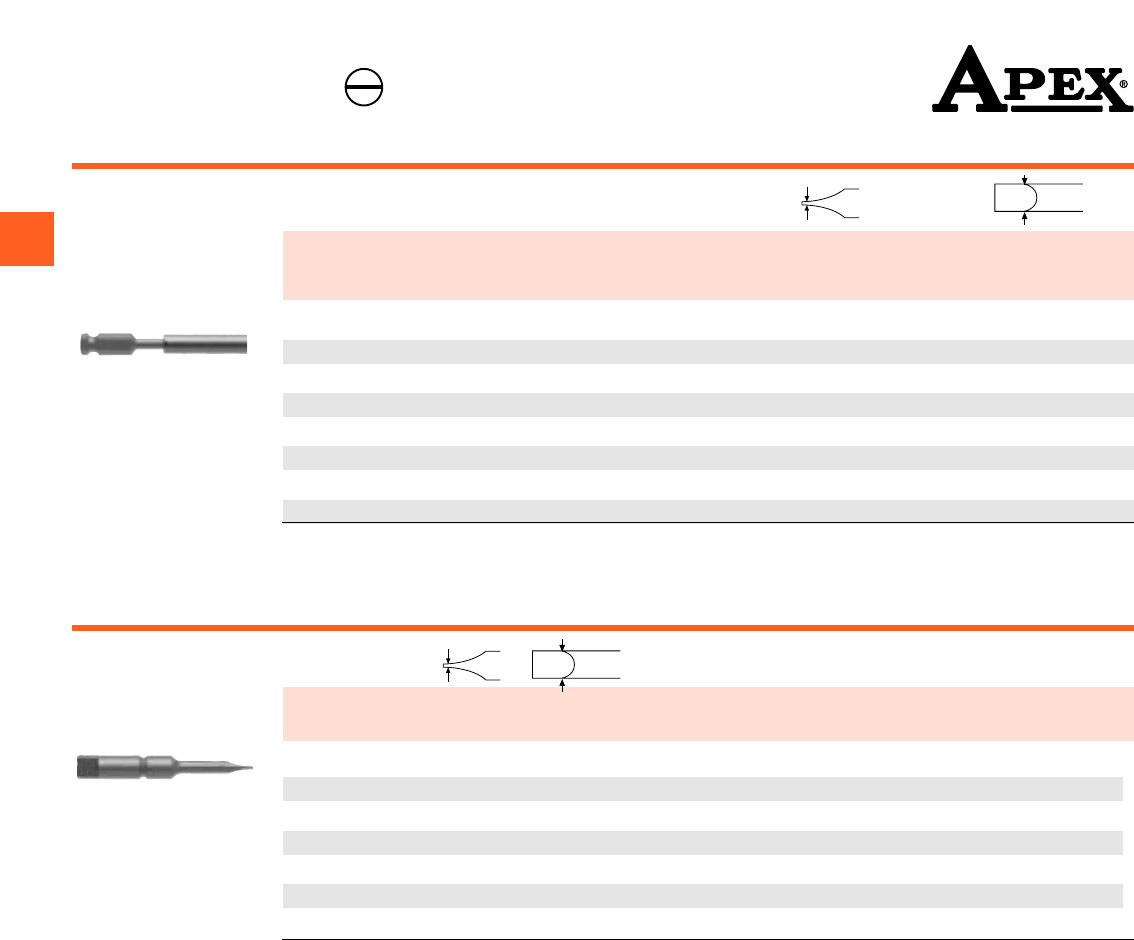

1/4” Hex Insert Bits

1/4” Hex Insert Bits – Limited Clearance

Slotted Bits

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

Blade Width/

Part Screw Length Blade Thickness Body Diameter

Number Size In. mm In. mm In. mm

320-000 1F-2R 1 15/16 49 .022 .56 .122 3.10

326-000 1F-2R 2 3/4 70 .022 .56 .122 3.10

323-000 1F-2R 3 76 .022 .56 .122 3.10

327-000 1F-2R 3 1/2 89 .022 .56 .122 3.10

324-000 1F-2R 4 102 .022 .56 .122 3.10

325-000 1F-2R 5 127 .022 .56 .122 3.10

328-000 1F-2R 6 152 .022 .56 .122 3.10

320-00 2F-3R 1 15/16 49 .026 .66 .134 3.40

326-00 2F-3R 2 3/4 70 .026 .66 .134 3.40

323-00 2F-3R 3 76 .026 .66 .134 3.40

327-00 2F-3R 3 1/2 89 .026 .66 .134 3.40

324-00 2F-3R 4 102 .026 .66 .134 3.40

325-00 2F-3R 5 127 .026 .66 .134 3.40

328-00 2F-3R 6 152 .026 .66 .134 3.40

320-0 3F-4R 1 15/16 49 .030 .76 .151 3.84

326-0 3F-4R 2 3/4 70 .030 .76 .151 3.84

323-0 3F-4R 3 76 .030 .76 .151 3.84

327-0 3F-4R 3 1/2 89 .030 .76 .151 3.84

324-0 3F-4R 4 102 .030 .76 .151 3.84

325-0 3F-4R 5 127 .030 .76 .151 3.84

328-0 3F-4R 6 152 .030 .76 .151 3.84

320-1X 4F-5R 1 15/16 49 .034 .86 .187 4.75

326-1 4F-5R 2 3/4 70 .034 .86 .187 4.75

323-1 4F-5R 3 76 .034 .86 .187 4.75

327-1 4F-5R 3 1/2 89 .034 .86 .187 4.75

324-1 4F-5R 4 102 .034 .86 .187 4.75

325-1 4F-5R 5 127 .034 .86 .187 4.75

5/16” Hex Insert Bits

Part Screw Length Blade Thickness Blade Width

Number Size In. mm In. mm In. mm

485-1 4F-5R 1 1/2 38 .034 .86 3/16 4.8

485-2 6F-8R 1 1/2 38 .040 1.02 7/32 5.6

485-3 8F-10R 1 1/2 38 .042 1.07 1/4 6.4

485-4 10F-12R 1 1/2 38 .046 1.17 .296 7.52

485-5 12F-14R 1 1/2 38 .050 1.27 .328 8.33

485-6 14F-16R 1 1/2 38 .055 1.40 .328 8.33

485-7X 16F-18R 1 3/4 45 .060 1.52 1/2 12.7

1/4” Hex Power Drive

(continued on next page)

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

Slotted Bits

1/4” Hex Power Drive (continued)

Blade Width/

Part Screw Length Blade Thickness Body Diameter

Number Size In. mm In. mm In. mm

328-1 4F-5R 6 152 .034 .86 .187 4.75

320-20 5F-6R 1 15/16 49 .036 .91 .215 5.46

326-20 5F-6R 2 3/4 70 .036 .91 .215 5.46

323-20 5F-6R 3 76 .036 .91 .215 5.46

327-20 5F-6R 3 1/2 89 .036 .91 .215 5.46

324-20 5F-6R 4 102 .036 .91 .215 5.46

325-20 5F-6R 5 127 .036 .91 .215 5.46

328-20 5F-6R 6 152 .036 .91 .215 5.46

320-2X 5F-6R 1 15/16 49 .036 .91 .250 6.35

326-2 5F-6R 2 3/4 70 .036 .91 .250 6.35

323-2 5F-6R 3 76 .036 .91 .250 6.35

327-2 5F-6R 3 1/2 89 .036 .91 .250 6.35

324-2 5F-6R 4 102 .036 .91 .250 6.35

325-2 5F-6R 5 127 .036 .91 .250 6.35

328-2 5F-6R 6 152 .036 .91 .250 6.35

320-3X 6F-8R 1 15/16 49 .038 .97 .250 6.35

326-3 6F-8R 2 3/4 70 .038 .97 .250 6.35

323-3 6F-8R 3 76 .038 .97 .250 6.35

327-3 6F-8R 3 1/2 89 .038 .97 .250 6.35

324-3 6F-8R 4 102 .038 .97 .250 6.35

325-3 6F-8R 5 127 .038 .97 .250 6.35

328-3 6F-8R 6 152 .038 .97 .250 6.35

320-4X 8F-10R 1 15/16 49 .042 1.07 .275 6.99

326-4 8F-10R 2 3/4 70 .042 1.07 .275 6.99

323-4 8F-10R 3 76 .042 1.07 .275 6.99

327-4 8F-10R 3 1/2 89 .042 1.07 .275 6.99

324-4 8F-10R 4 102 .042 1.07 .275 6.99

325-4 8F-10R 5 127 .042 1.07 .275 6.99

328-4 8F-10R 6 152 .042 1.07 .275 6.99

320-5X 10F-12R 1 15/16 49 .046 1.17 .312 7.92

326-5 10F-12R 2 3/4 70 .046 1.17 .312 7.92

323-5 10F-12R 3 76 .046 1.17 .312 7.92

327-5 10F-12R 3 1/2 89 .046 1.17 .312 7.92

324-5 10F-12R 4 102 .046 1.17 .312 7.92

325-5 10F-12R 5 127 .046 1.17 .312 7.92

328-5 10F-12R 6 152 .046 1.17 .312 7.92

320-6 12F-14R 1 15/16 49 .050 1.27 .360 9.14

326-6 12F-14R 2 3/4 70 .050 1.27 .360 9.14

323-6 12F-14R 3 76 .050 1.27 .360 9.14

327-6 12F-14R 3 1/2 89 .050 1.27 .360 9.14

324-6 12F-14R 4 102 .050 1.27 .360 9.14

325-6 12F-14R 5 127 .050 1.27 .360 9.14

328-6 12F-14R 6 152 .050 1.27 .360 9.14

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

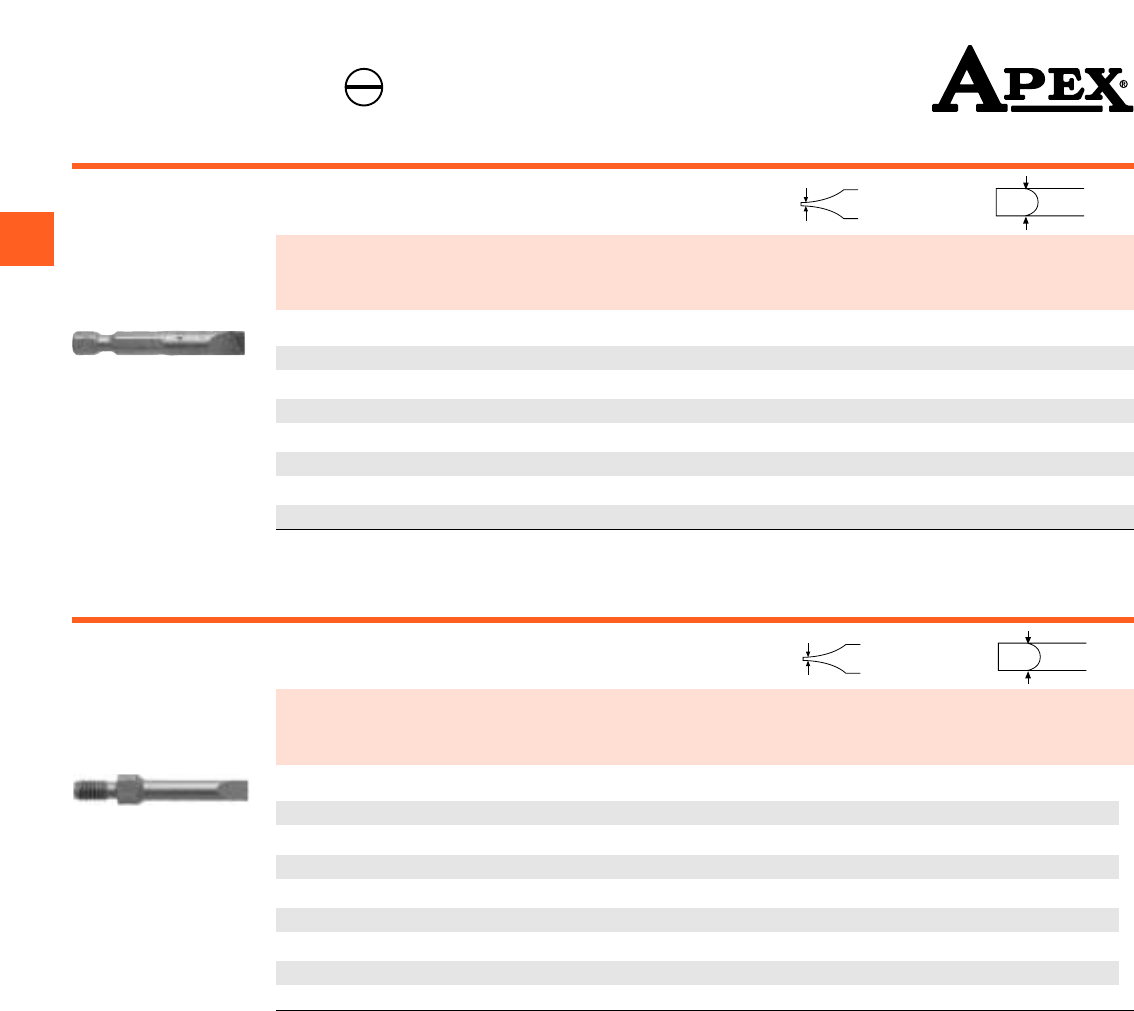

Slotted Bits

5/16” Hex Power Drive

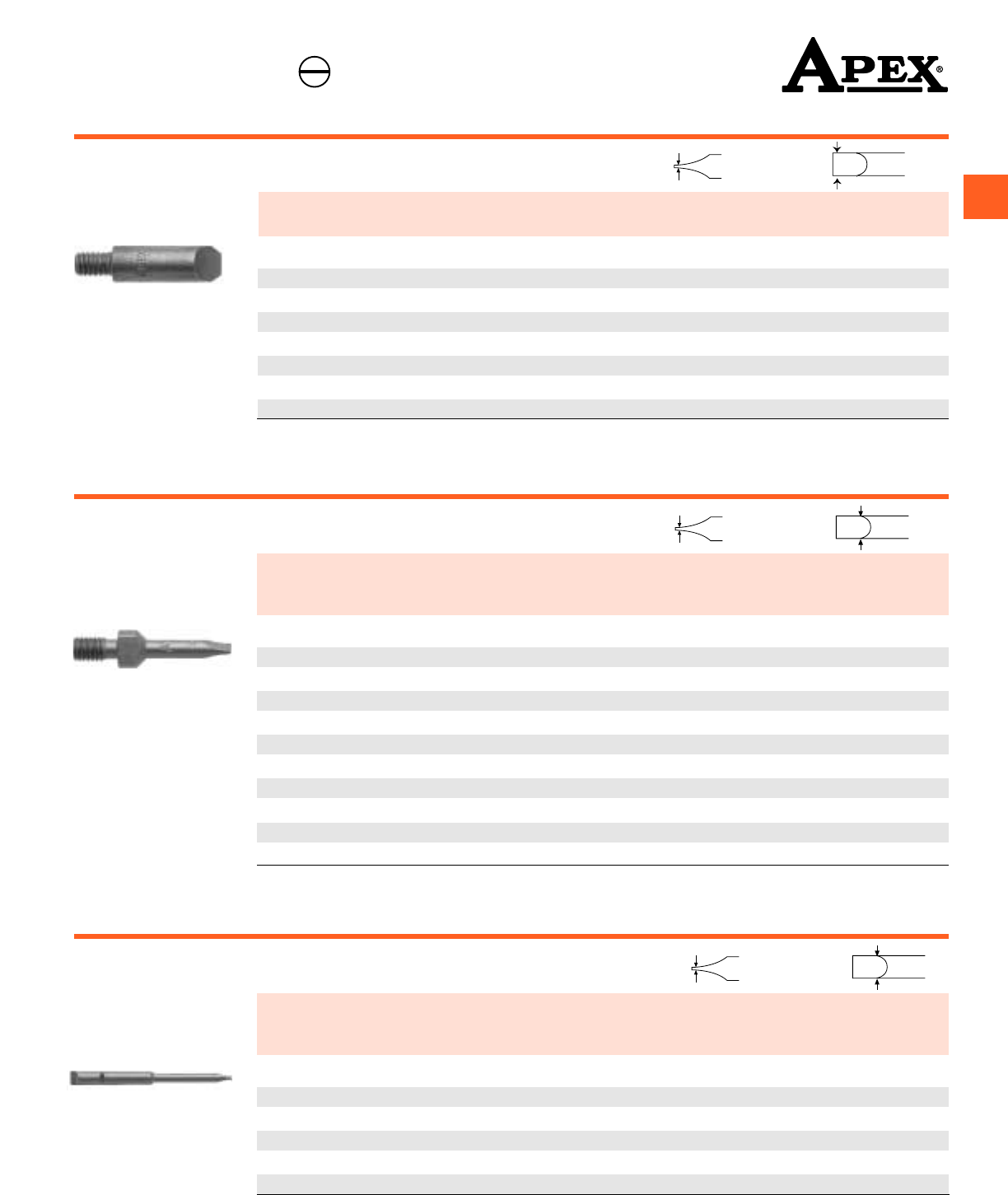

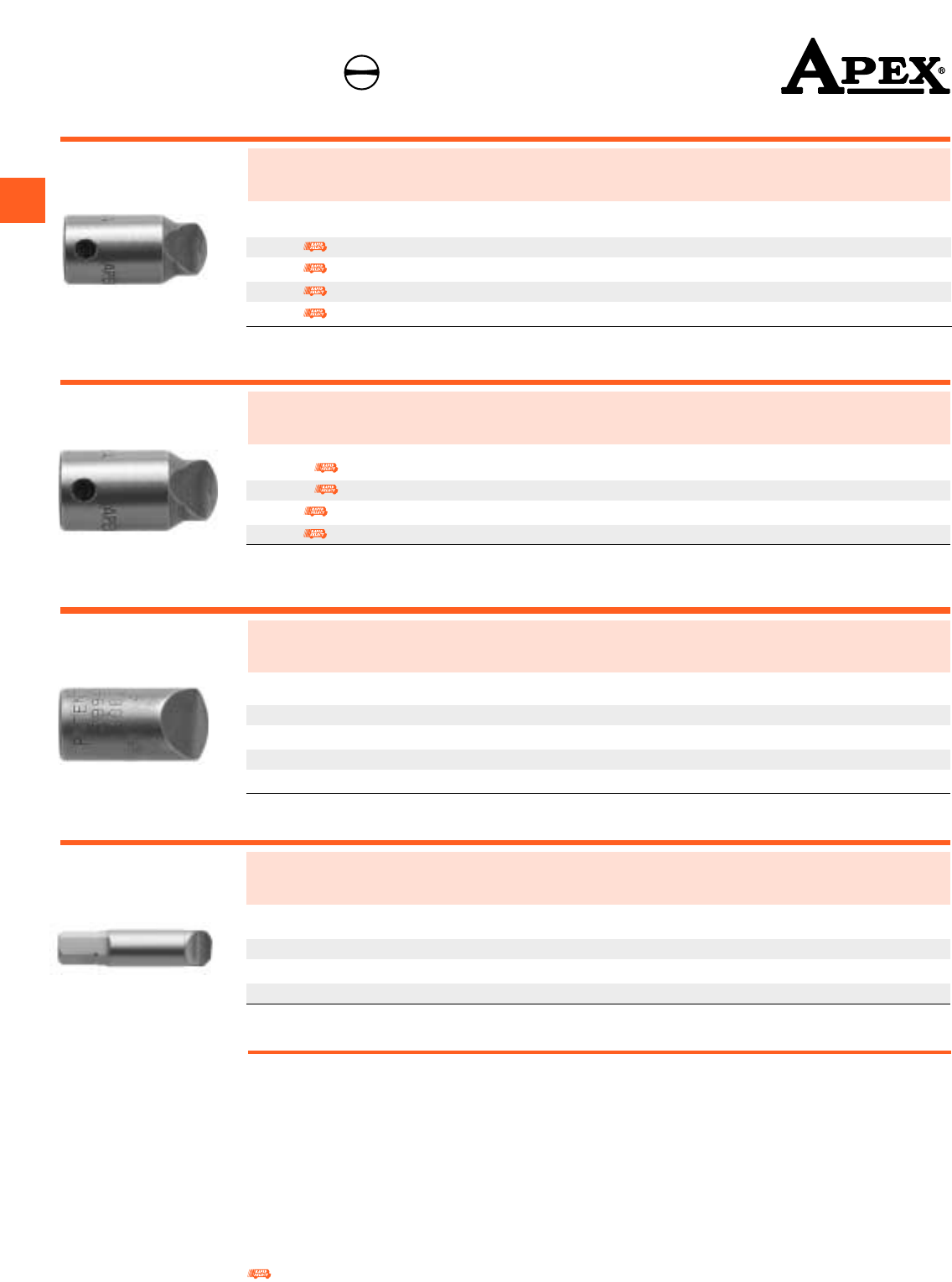

10-32 Screw Shank Drive

Blade Width/

Part Screw Length Blade Thickness Body Diameter

Number Size In. mm In. mm In. mm

635-3 5F-6R 2 1/4 57 .036 .91 .250 6.35

635-4 6F-8R 2 1/4 57 .038 .97 .275 6.99

635-5 8F-10R 2 1/4 57 .042 1.07 .312 7.92

635-6 10F-12R 2 1/4 57 .046 1.17 .360 9.14

635-7 12F-14R 2 1/4 57 .050 1.27 .395 10.03

635-8 14F-16R 2 1/4 57 .055 1.40 .457 11.61

635-9 16F-20R 2 1/4 57 .060 1.52 .503 12.78

635-10 20F-22R 2 1/4 57 .062 1.57 .545 13.84

Blade Width/

Part Screw Length Blade Thickness Body Diameter

Number Size In. mm In. mm In. mm

103-000 1F-2R 1 1/2 38 .022 .56 .125 3.18

103-00 2F-3R 1 1/2 38 .026 .66 .140 3.56

103-0 3F-4R 1 1/2 38 .030 .76 .156 3.96

103-1 4F-5R 1 1/2 38 .034 .86 .187 4.75

103-2 5F-6R 1 1/2 38 .036 .91 .225 5.72

103-3 6F-7R 1 1/2 38 .038 .97 .250 6.35

103-4 7F-8R 1 1/2 38 .040 1.02 .275 7.24

103-5 8F-10R 1 1/2 38 .042 1.07 .296 7.52

103-6 10F-12R 1 1/2 38 .046 1.17 .309 7.85

Slotted Bits

12-24 Screw Shank Drive

1/4”-24 Screw Shank Drive

9/32” No. 130A Yankee Drive

Part Screw Length Blade Thickness Blade Width

Number Size In. mm In. mm In. mm

260-1 2F-3R 1 3/16 30 .026 .66 .171 4.3

260-2 3F-4R 1 3/16 30 .030 .76 .191 4.7

260-3 4F-5R 1 3/16 30 .034 .86 .212 5.4

260-4 5F-6R 1 3/16 30 .036 .91 .238 6.0

260-5 6F-7R 1 3/16 30 .038 .97 .261 6.6

260-7 8F-10R 1 3/16 30 .042 1.07 .309 7.8

260-8 10F-12R 1 3/16 30 .046 1.17 .309 7.8

260-9 12F-14R 1 3/16 30 .050 1.27 .309 7.8

Blade Width/

Part Screw Length Blade Thickness Body Diameter

Number Size In. mm In. mm In. mm

309-000 1F-2R 1 1/2 38 .022 .56 .125 3.18

309-00 2F-3R 1 1/2 38 .026 .66 .140 3.56

309-0 3F-4R 1 1/2 38 .030 .76 .156 3.96

309-1 4F-5R 1 1/2 38 .034 .86 .187 4.75

309-2 5F-6R 1 1/2 38 .036 .91 .225 5.72

309-3 6F-7R 1 1/2 38 .038 .97 .250 6.35

309-4 7F-8R 1 1/2 38 .040 1.02 .285 7.24

309-5 8F-10R 1 1/2 38 .042 1.07 .296 7.52

309-6 10F-12R 1 1/2 38 .046 1.17 .315 8.00

309-7 12F-14R 1 1/2 38 .050 1.27 .361 9.17

309-8 14F-16R 1 1/2 38 .055 1.40 .361 9.17

Blade Width/

Part Screw Length Blade Thickness Body Diameter

Number Size In. mm In. mm In. mm

130-3 3F-4R 3 1/4 83 .030 .76 .156 3.96

130-4 4F-5R 3 1/4 83 .034 .86 .187 4.75

130-5 5F-6R 3 1/4 83 .036 .91 .225 5.72

130-6 6F-7R 3 1/4 83 .038 .97 .250 6.35

130-7 7F-8R 3 1/4 83 .040 1.02 .285 7.24

130-8 8F-10R 3 1/4 83 .042 1.07 .315 8.00

Slotted Bits

Each finder sleeve assembly part number begins with a letter prefix that denotes

the particular sleeve used with that assembly. The chart below gives complete

dimensional data for each finder sleeve.

1/4” Power Drive with Finder Sleeves

D D Sleeve Sleeve

Part Screw Max. Min. Length G Diameter E

No. Size In. mm In. mm In. mm In. mm

NOL 4F-5R .232 5.89 .217 5.51 1 7/8 47.6 3/8 9.5

L 5F-6R .260 6.60 .233 5.92 1 7/8 47.6 3/8 9.5

M 6F-6R .309 7.85 .261 6.63 1 7/8 47.6 7/16 11.1

P 8F-6R .368 9.35 .310 7.87 1 7/8 47.6 1/2 12.7

NP 8F-10R .368 9.35 .310 7.87 1 7/8 47.6 7/16 11.1

R 10F-12R .415 10.54 .369 9.37 2 50.8 9/16 14.3

S 12F-14R .478 12.14 .416 10.57 2 50.8 5/8 15.9

T 14F-16R .522 13.26 .479 12.17 2 1/8 54.0 11/16 17.5

U 16F-20R .621 15.77 .523 13.28 2 1/8 54.0 3/4 19.1

W 20F-22R .665 16.89 .622 15.80 2 1/16 52.4 13/16 20.3

Y 24F-24R .715 18.16 .666 16.92 2 1/32 51.6 15/16 23.8

D Min. D Max.

Refer to Page iv for description of Rapid Select.

Slotted Bits

1/4” Hex Power Drive

Slotted Power Bits

with Finder Sleeves

1/4” Hex Power Drive – Extra Short Series

1/4” Hex Power Drive – Long Series

Part No. Blade Bit Body

Complete Part No. Screw Bit Length Thickness Diameter

Assembly Bit Only Size In. mm In. mm In. mm

NOL-320 320-LX 4F-5R 3 3/4 95 .036 .91 .193 4.90

L-320X 320-LX 5F-6R 3 3/4 95 .036 .91 .193 4.90

M-320X 320-MX 6F-8R 3 3/4 95 .038 .97 .241 6.12

P-320X 320-PX 8F-10R 3 3/4 95 .042 1.07 .290 7.37

R-320X 320-RX 10F-12R 3 3/4 95 .046 1.17 .350 8.89

S-320 320-S 12F-14R 3 7/8 98 .050 1.27 .395 10.03

T-320X 320-TX 14F-16R 4 1/8 105 .055 1.40 .457 11.61

Part No. Blade Bit Body

Complete Part No. Screw Bit Length Thickness Diameter

Assembly Bit Only Size In. mm In. mm In. mm

OOOL-322 322-000L 2F-3R 2 3/32 53 .026 .66 .138 3.91

OOL-322 322-00L 3F-4R 2 3/32 53 .030 .76 .154 3.91

OL-322 322-0L 4F-5R 2 5/32 55 .034 .86 .185 4.70

L-322 322-L 5F-6R 2 5/32 55 .036 .91 .185 4.70

M-322 322-M 6F-8R 2 5/32 55 .040 1.02 .248 6.30

P-322 322-P 8F-10R 2 5/32 55 .042 1.07 .283 7.19

R-322 322-R 10F-12R 2 5/32 55 .046 1.17 .283 7.19

Part No. Blade Bit Body

Complete Part No. Screw Bit Length Thickness Diameter

Assembly Bit Only Size In. mm In. mm In. mm

L-328 328-L 5F-6R 6 1/2 165 .036 .91 .193 4.90

M-328 328-M 6F-8R 6 1/2 165 .038 .97 .241 6.12

P-328 328-P 8F-10R 6 1/2 165 .046 1.07 .290 7.37

R-328 328-R 10F-12R 6 1/2 165 .046 1.17 .350 8.89

S-328 328-S 12F-14R 6 1/2 165 .050 1.27 .395 10.03

T-328 328-T 14F-16R 6 1/2 165 .055 1.40 .457 11.61

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

7/16” Hex Power Drive with Finder Sleeves

Bit Body

Part Screw Bit Length Blade Thickness Diameter

Number Size In. mm In. mm In. mm

M-321 6F-8R 3 3/4 95 .038 .97 .241 6.12

P-321 8F-10R 3 3/4 95 .046 1.07 .290 7.37

R-321 10F-12R 3 7/8 98 .046 1.17 .350 8.89

S-321 12F-14R 3 7/8 98 .050 1.27 .395 10.03

T-321 14F-16R 4 1/8 105 .055 1.40 .457 11.61

U-321 16F-20R 4 1/8 105 .060 1.52 .503 12.78

W-321 20F-22R 4 1/8 105 .062 1.57 .545 13.84

Y-321 24F-24R 4 1/8 105 .065 1.65 .595 15.11

Fein Drive

Part Width X Length

Number Thickness (mm) In. mm

FND-320-A 3 X .5 2 1/8 53

FND-320-B 4 X .5 2 1/8 53

FND-320-C 3.5 X .6 2 1/8 53

FND-320-E 4 X .8 2 1/8 53

FND-320-F 5.5 X .8 2 1/8 53

FND-320-H 6.5 X 1.2 2 1/8 53

FND-320-I 8 X 1.2 2 1/8 53

See chart on page 14 for sleeve diameters.

Slotted Bits

Tor x®Bits

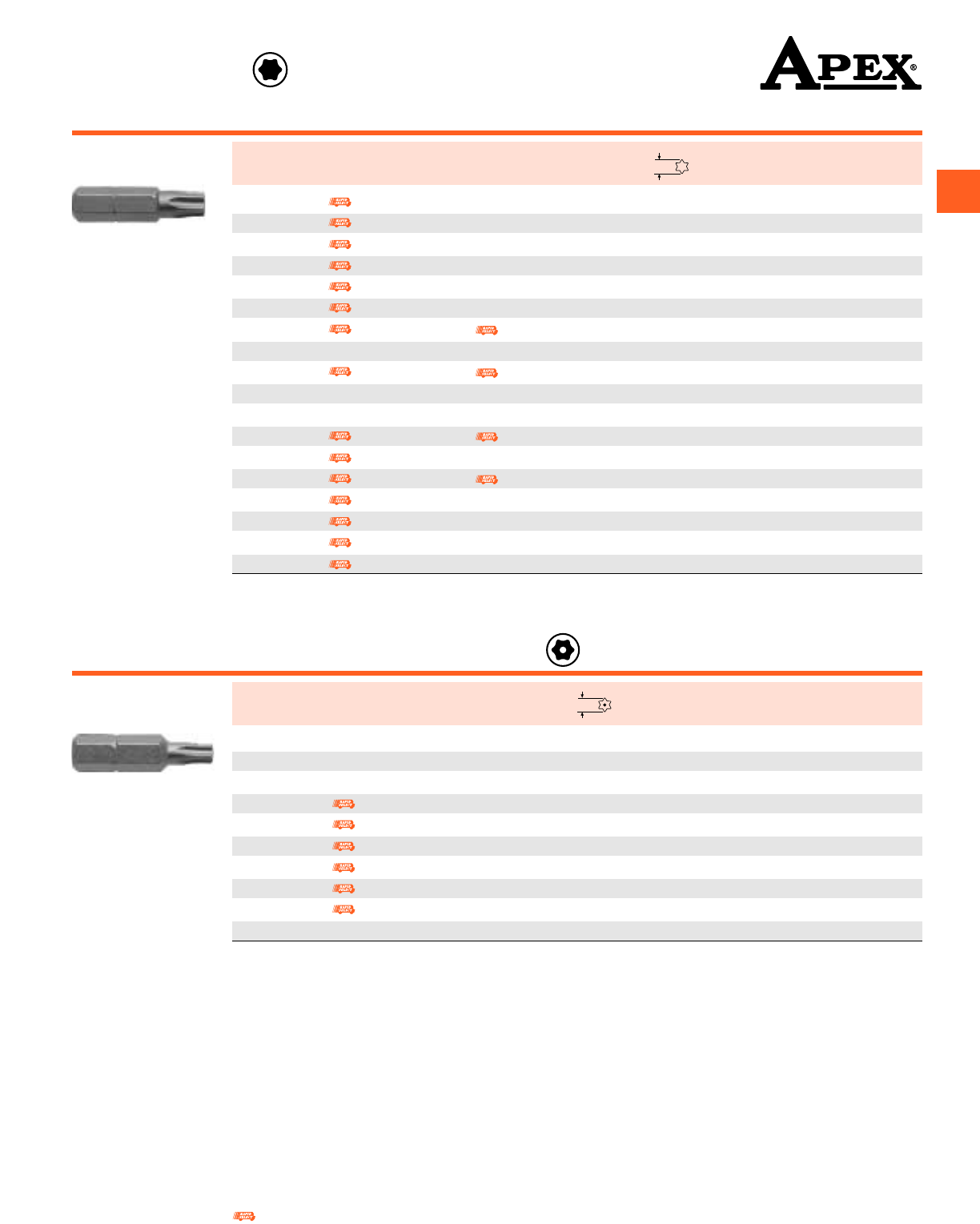

1/4”Hex Insert Bits

Part Driver A Overall Length

Number Size (Ref.) In. mm

440-TX-07-H T-7-H .077 1 25

440-TX-08-H T-8-H .090 1 25

440-TX-09-H T-9-H .097 1 25

440-TX-10-H T-10-H .107 1 25

440-TX-15-H T-15-H .128 1 25

440-TX-20-H T-20-H .151 1 25

440-TX-25-H T-25-H .173 1 25

440-TX-27-H T-27-H .195 1 25

440-TX-30-H T-30-H .216 1 25

440-TX-40-H T-40-H .260 1 25

** Tamper resistant Torx®screws feature a post in the center of the recess–this post will only fit into a tamper resistant Torx®bit. Tamper

resistant Torx®bits are available on a restricted distribution basis. Contact your local Apex representative for details.

1/4" Hex Insert Bits – Tamper Resistant**

Torx® and Torxalign® are registered trademarks of the Camcar Division of Textron.

Part Torxalign®Driver A Overall Length

Number Part Number Size (Ref.) In. mm

440-TX-05X - T-5 .055 1 25

440-TX-06X - T-6 .065 1 25

440-TX-07X - T-7 .077 1 25

440-TX-08X - T-8 .090 1 25

440-TX-09X - T-9 .097 1 25

440-TX-10X 440-TX-10-W T-10 .107 1 25

440-TX-15X 440-TX-15-W T-15 .128 1 25

440-TX-15-125 - T-15 .128 1 1/4 32

440-TX-20X 440-TX-20-W T-20 .151 1 25

440-TX-20-125 - T-20 .151 1 1/4 32

440-TX-20-2 - T-20 .151 2 51

440-TX-25X 440-TX-25-W T-25 .173 1 25

440-TX-27X 440-TX-27-W T-27 .195 1 25

440-TX-30X 440-TX-30-W T-30 .216 1 25

440-TX-40X 440-TX-40-W T-40 .260 1 25

440-TX-40I 440-TX-40-W T-40 .260 1 25

440-TX-45X* - T-45 .306 1 1/4 32

440-TX-50X* - T-50 .346 1 1/4 32

* Hex will break before rated ultimate torque of the Torx®point is met.

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

Part Driver A Overall Length

Number Size (Ref.) In. mm

480-TX-20 T-20 .151 1 1/4 32

480-TX-25 T-25 .173 1 1/4 32

480-TX-27 T-27 .195 1 1/4 32

480-TX-30X T-30 .216 1 1/4 32

480-TX-40X T-40 .260 1 1/4 32

480-TX-40-4 T-40 .260 4 102

480-TX-45X T-45 .306 1 1/4 32

480-TX-45-6 T-45 .306 6 152

480-TX-50X T-50 .346 1 1/4 32

480-TX-55X T-55 .440 1 1/4 32

5/16” Hex Insert Bits

Part Driver A Overall Length

Number Size (Ref.) In. mm

480-TX-40-H T-40-H .260 1 1/4 32

480-TX-45-H T-45-H .306 1 1/4 32

480-TX-50-H T-50-H .346 1 1/4 32

480-TX-55-H T-55-H .440 1 1/4 32

**Tamper resistant Torx® bits are available on a restricted distribution basis.

Contact your local Apex representative for details.

5/16” Hex Insert Bits – Tamper Resistant**

5/8” Hex Insert Bits

Part Hex Driver A Overall Length

Number Flat Type* Size (Ref.) In. mm

SZ-TX-90-A TH T-90 .782 2 51

SZ-TX-100-A TH T-100 .870 2 51

7/8” Hex Insert Bits

Part Hex Driver A Overall Length

Number Flat Type* Size (Ref.) In. mm

SZ-TX-55-A DP T-55 .440 1 9/16 40

SZ-TX-60-A DP T-60 .520 1 9/16 40

SZ-TX-70-A DP T-70 .610 1 9/16 40

SZ-TX-70-A-3 TH T-70 .610 3 76

SZ-TX-80-A TH T-80 .689 1 9/16 40

*DP-Drill Point; TH-Thru Hole. 5/8” insert bits are used with SC and RP adapters found on pages 51.

*TH-Thru Hole. 7/8” insert bits are used with RP adapters found on pages 51.

Torx®and Torxalign®are registered trademarks of the Camcar Division of Textron.

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

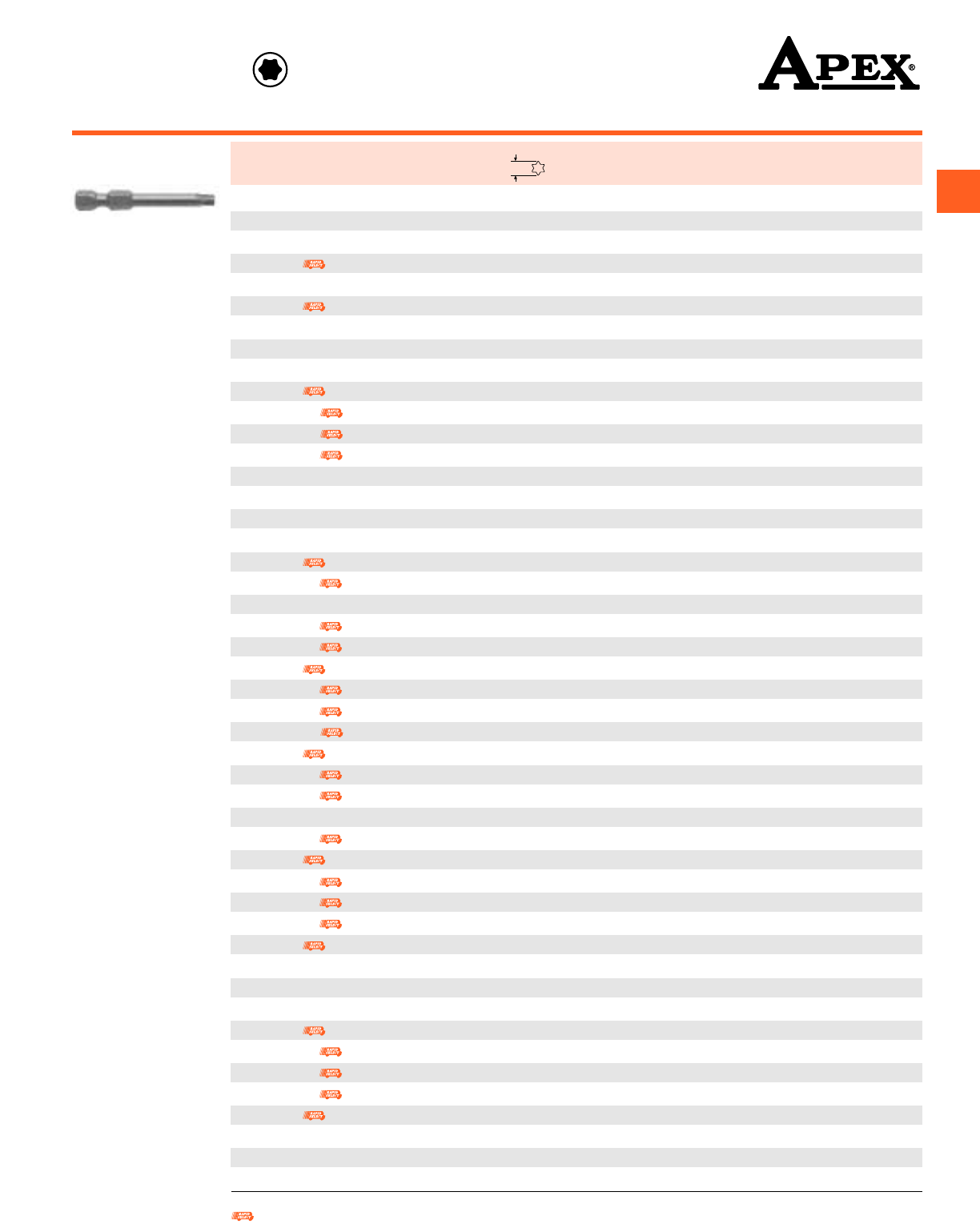

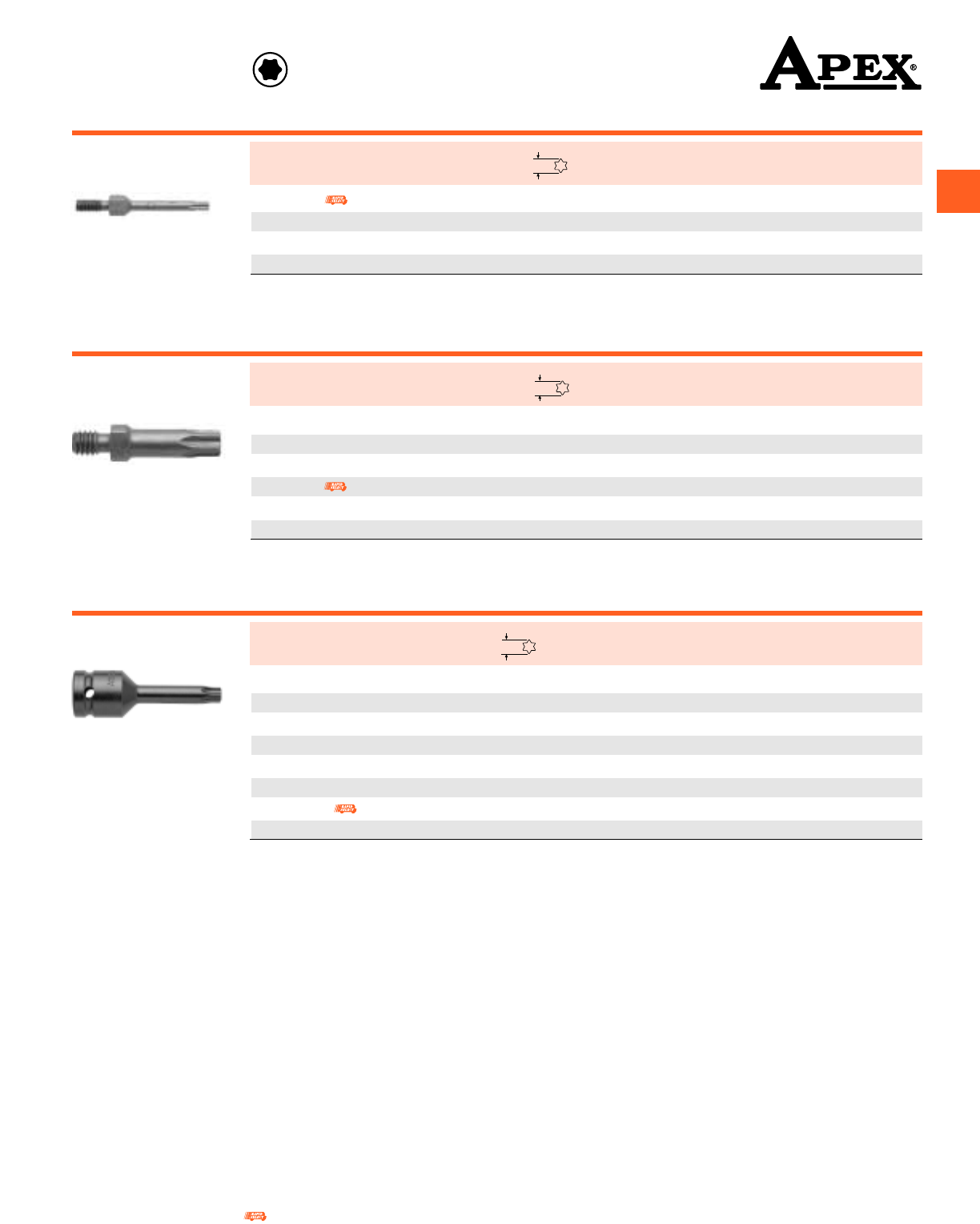

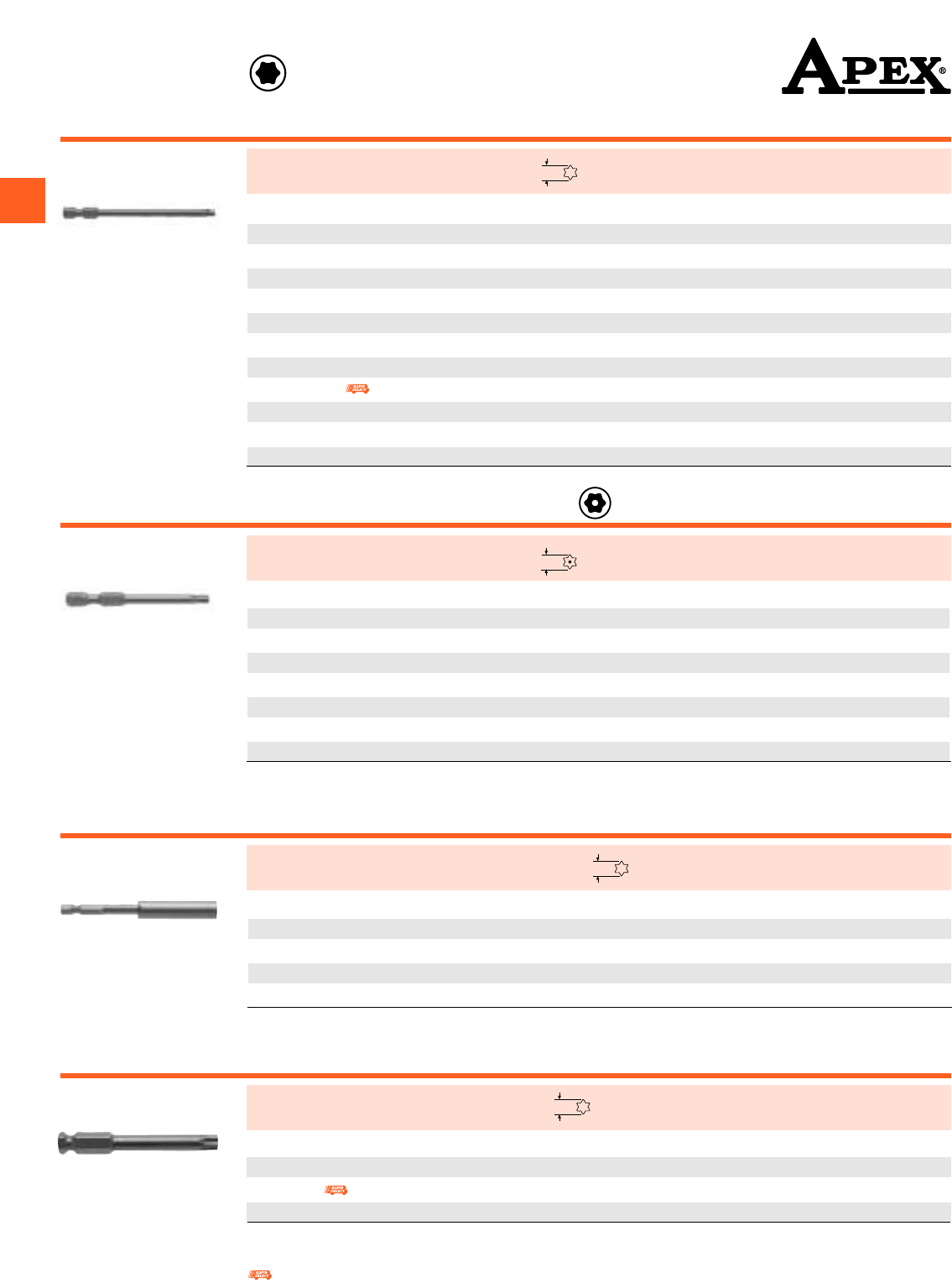

Tor x®Bits

Part Driver A Body Diameter Overall Length

Number Size (Ref.) In. mm In. mm

49-TX-05 T-5 .055 .119 3.0 1 15/16 49

49-A-TX-05 T-5 .055 .119 3.0 2 3/4 70

49-B-TX-05 T-5 .055 .119 3.0 3 1/2 89

49-TX-06 T-6 .065 .119 3.0 1 15/16 49

49-A-TX-06 T-6 .065 .119 3.0 2 3/4 70

49-TX-07 T-7 .077 .119 3.0 1 15/16 49

49-A-TX-07 T-7 .077 .119 3.0 2 3/4 70

49-B-TX-07 T-7 .077 .119 3.0 3 1/2 89

49-C-TX-07 T-7 .077 .119 3.0 6 152

49-TX-08 T-8 .090 .119 3.0 1 15/16 49

49-A-TX-08 T-8 .090 .119 3.0 2 3/4 70

49-B-TX-08 T-8 .090 .119 3.0 3 1/2 89

49-C-TX-08 T-8 .090 .119 3.0 6 152

49-TX-09 T-9 .097 .119 3.0 1 15/16 49

49-A-TX-09 T-9 .097 .119 3.0 2 3/4 70

49-B-TX-09 T-9 .097 .119 3.0 3 1/2 89

49-C-TX-09 T-9 .097 .119 3.0 6 152

49-TX-10 T-10 .107 .150 3.8 1 15/16 49

49-A-TX-10 T-10 .107 .150 3.8 2 3/4 70

SD-4693 T-10 .107 .150 3.8 3 75

49-B-TX-10 T-10 .107 .150 3.8 3 1/2 89

49-C-TX-10 T-10 .107 .150 3.8 6 152

49-TX-15 T-15 .128 .150 3.8 1 15/16 49

49-A-TX-15 T-15 .128 .150 3.8 2 3/4 70

49-B-TX-15 T-15 .128 .150 3.8 3 1/2 89

49-C-TX-15 T-15 .128 .150 3.8 6 152

49-TX-20 T-20 .151 .171 4.3 1 15/16 49

49-A-TX-20 T-20 .151 .171 4.3 2 3/4 70

49-B-TX-20 T-20 .151 .171 4.3 3 1/2 89

49-TX-20-5 T-20 .151 .171 4.3 5 127

49-C-TX-20 T-20 .151 .171 4.3 6 152

49-TX-25 T-25 .173 .193 4.9 1 15/16 49

49-A-TX-25 T-25 .173 .193 4.9 2 3/4 70

49-B-TX-25 T-25 .173 .193 4.9 3 1/2 89

49-C-TX-25 T-25 .173 .193 4.9 6 152

49-TX-27 T-27 .195 .215 5.5 1 15/16 49

49-A-TX-27 T-27 .195 .215 5.5 2 3/4 70

49-B-TX-27 T-27 .195 .215 5.5 3 1/2 89

49-C-TX-27 T-27 .195 .215 5.5 6 152

49-TX-30 T-30 .216 .236 6.0 1 15/16 49

49-A-TX-30 T-30 .216 .236 6.0 2 3/4 70

49-B-TX-30 T-30 .216 .236 6.0 3 1/2 89

49-C-TX-30 T-30 .216 .236 6.0 6 152

49-TX-40 T-40 .260 .309 7.8 1 15/16 49

49-A-TX-40 T-40 .260 .309 7.8 2 3/4 70

49-B-TX-40 T-40 .260 .309 7.8 3 1/2 89

49-C-TX-40 T-40 .260 .309 7.8 6 152

1/4” Hex Power Drive

Refer to Page iv for description of Rapid Select.

Tor x®Bits

Part Driver A Body Diameter Overall Length

Number Size (Ref.) In. mm In. mm

49-TX-08-W T-8 .090 .119 3.0 1 15/16 49

49-TX-09-W T-9 .097 .119 3.0 1 15/16 49

49-TX-10-W T-10 .107 .150 3.8 1 15/16 49

49-TX-15-W T-15 .128 .150 3.8 1 15/16 49

49-A-TX-15-W T-15 .128 .150 3.8 2 3/4 70

49-B-TX-15-W T-15 .128 .150 3.8 3 1/2 89

49-TX-20-W T-20 .151 .171 4.3 1 15/16 49

49-B-TX-20-W T-20 .151 .171 4.3 3 1/2 89

49-TX-25-W T-25 .173 .193 4.9 1 15/16 49

49-TX-27-W T-27 .195 .215 5.5 1 15/16 49

49-TX-30-W T-30 .216 .236 6.0 1 15/16 49

49-B-TX-30-W T-30 .216 .236 6.0 3 1/2 89

1/4” Hex Power Drive – Torxalign®

Part Driver A Body Diameter Overall Length

Number Size (Ref.) In. mm In. mm

49-TX-10-H T-10-H .107 .150 3.8 1 15/16 49

49-A-TX-10-H T-10-H .107 .150 3.8 2 3/4 70

49-TX-15-H T-15-H .128 .150 3.8 1 15/16 49

49-A-TX-15-H T-15-H .128 .150 3.8 2 3/4 70

49-B-TX-15-H T-15-H .128 .150 3.8 3 1/2 89

49-A-TX-20-H T-20-H .151 .171 4.3 2 3/4 70

49-B-TX-20-H T-20-H .151 .171 4.3 3 1/2 89

49-C-TX-20-H T-20-H .151 .171 4.3 6 152

1/4” Hex Power Drive – Tamper Resistant**

Part Driver Sleeve A Sleeve Diameter Overall Length

Number Size Number* (Ref.) In. mm In. mm

M-32-TX-15 T-15 M .128 .437 12.1 3 1/2 89

M-32-TX-20 T-20 M .151 .437 12.1 3 1/2 89

NP-32-TX-25 T-25 NP .173 .437 12.1 3 3/4 95

R-32-TX-27 T-27 R .195 .563 14.3 3 5/8 92

S-32-TX-30 T-30 S .216 .625 15.9 3 7/8 98

1/4” Hex Power Drive with Finder Sleeves

7/16” Hex Power Drive

Part Driver A Body Diameter Overall Length

Number Size (Ref.) In. mm In. mm

48-TX-40 T-40 .260 .277 7.0 3 1/2 89

48-TX-45 T-45 .306 .323 8.2 3 1/2 89

48-TX-50 T-50 .346 .363 9.2 3 1/2 89

48-TX-55 T-55 .440 .503 12.8 3 3/4 95

Torx®and Torxalign®are registered trademarks of the Camcar Division of Textron.

**Tamper resistant Torx®bits are available on a restricted distribution basis. Contact your local Apex representative for details.

*See page 14 for Sleeve Selection

Refer to Page iv for description of Rapid Select.

Tor x®Bits

Part Driver A Body Diameter Overall Length

Number Size (Ref.) In. mm In. mm

50-TX-08 T-8 .090 .125 3.2 1 1/2 38

50-TX-10 T-10 .107 .150 3.8 1 1/2 38

50-TX-15 T-15 .128 .150 3.8 1 1/2 38

50-TX-20 T-20 .151 .171 4.3 1 1/2 38

10-32 Screw Shank Drive

Part Driver A Body Diameter Overall Length

Number Size (Ref.) In. mm In. mm

55-TX-10 T-10 .107 .150 3.8 1 3/16 30

55-TX-15 T-15 .128 .150 3.8 1 3/16 30

SD-4048 T-15 .128 .309 7.8 1 3/16 30

55-TX-20 T-20 .151 .171 4.3 1 3/16 30

55-TX-25 T-25 .173 .193 4.9 1 3/16 30

55-TX-30 T-30 .216 .309 7.8 1 3/16 30

12-24 Screw Shank Drive

Part Driver A Square Body Diameter Overall Length

Number Size (Ref.) Drive In. mm In. mm

834-TX-25 T-25 .173 3/8 .240 6.1 2 13/16 71

834-TX30-1.62 T-30 .216 3/8 .234 5.9 1 5/8 41

834-TX40-2.95 T-40 .260 3/8 .277 7.0 2 61/64 75

834-TX50-1.62 T-50 .346 3/8 .373 9.4 1 1/4 41

834-TX-45-5 T-45 .306 3/8 .323 8.2 5 125

834-TX-50 T-50 .346 3/8 .363 9.2 2 5/8 66

854-TX-50 T-50 .346 1/2 .323 8.2 2 7/8 73

854-TX-55-150M T-55 .346 1/2 .363 9.2 5 7/8 150

Female Square Service Drive

Refer to Page iv for description of Rapid Select.

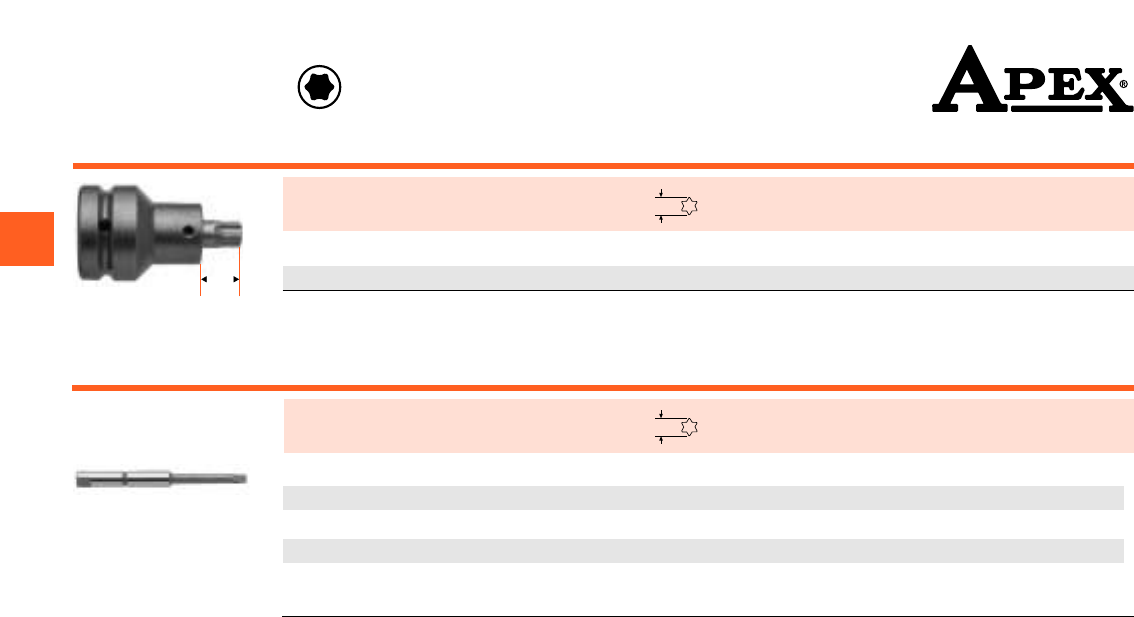

Tor x®Bits

1” Square Drive Adapters with Torx®Insert Bit

Fein Drive

Part Driver A Overall Length

Number Size (Ref.) In. mm

FND-TX10 T-10 .107 2 3/4 70

FND-TX20 T-20 .151 2 3/4 70

FND-TX25 T-25 .173 2 3/4 70

FND-TX27 T-27 .195 2 3/4 70

FND-TX30 T-30 .216 2 3/4 70

Torx®and Torxalign®are registered trademarks of the Camcar Division of Textron.

Part Driver A Overall Length Bit Length (B)

Number Size (Ref.) In. mm In. mm

SZ-8L-TX-70 T-70 .610 3 19/32 91 .90 23

SZ-TX-100 T-100 .870 3 19/32 91 1.13 29

Tor x®Bits

Torx Plus®is a trademark of the Camcar Division of Textron.

Torx Plus® Tamper Resistent Bits are available on a limited basis. Please contact your Area Distributor or Representative for more details.

1/4” Hex Insert Bits

Torx Plus®Bits

Part Driver A Overall Length

Number Size (Ref.) In. mm

49-10IP 10IP .107 1 15/16 49

49-A-10IP 10IP .107 2 3/4 70

49-B-10IP 10IP .107 3 1/2 89

49-15IP 15IP .128 1 15/16 49

49-A-15IP 15IP .128 2 3/4 70

49-B-15IP 15IP .128 3 1/2 89

49-20IP 20IP .151 1 15/16 49

49-A-20IP 20IP .151 2 3/4 70

49-B-20IP 20IP .151 3 1/2 89

49-25IP 25IP .173 1 15/16 49

49-A-25IP 25IP .173 2 3/4 70

49-B-25IP 25IP .173 3 1/2 89

49-27IP 27IP .195 1 15/16 49

49-A-27IP 27IP .195 2 3/4 70

49-B-27IP 27IP .195 3 1/2 89

49-30IP 30IP .216 1 15/16 49

49-A-30IP 30IP .216 2 3/4 70

49-B-30IP 30IP .216 3 1/2 89

49-40IP 40IP .260 1 15/16 49

49-A-40IP 40IP .260 2 3/4 70

49-B-40IP 40IP .260 3 1/2 89

1/4” Hex Power Drive

Part Driver A Overall Length

Number Size (Ref.) In. mm

440-10IP 10IP .107 1 25

440-15IP 15IP .128 1 25

440-20IP 20IP .151 1 25

440-25IP 25IP .173 1 25

440-27IP 27IP .195 1 25

440-30IP 30IP .216 1 25

440-40IP 40IP .260 1 25

Part Point Overall Length Turned Length

Number Size In. mm In. mm

446-1-PZD 1 1 25.4 7/16 11

446-2-PZDX 2 1 25.4 7/16 11

446-22-PZD 2 2 50.8 7/16 11

Part Point Overall Length

Number Size In. mm

440-1-PZD 1 1 25

440-125-PZD 1 2 1/2 64

440-2-PZDX 2 1 25

440-215-PZD 2 1 1/2 38

440-22-PZD 2 2 51

440-225-PZD 2 2 1/2 64

440-3-PZD 3 1 25

440-4-PZD 4 1 1/4 32

Part Point Overall Length

Number Size In. mm

480-1-PZD 1 1 1/4 32

480-2-PZD 2 1 1/4 32

480-3-PZD 3 1 1/4 32

480-4-PZD 4 1 1/4 32

480-4BN-PZD 4 1 1/2 38 Large body

Pozidriv®Bits

1/4” Hex Insert Bits

1/4” Hex Insert Bits – Limited Clearance

5/16” Hex Insert Bits

Pozidriv®is a registered trademark of the Phillips Screw Company.

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

1/4” Hex Power Drive

Pozidriv®is a registered trademark of the Phillips Screw Company.

1/4”-24 Screw Shank Drive

Part Point Overall Length Body Diameter Turned Length

Number Size In. mm In. mm In. mm

491-PZD 1 1 15/16 49 3/16 4.8 1 1/4 32

491-A-PZD 1 2 3/4 70 3/16 4.8 2 51

491-B-PZD 1 3 1/2 89 3/16 4.8 2 3/4 70

491-C-PZD 1 6 152 3/16 4.8 2 51

492-PZDX 2 1 15/16 49 1/4 6.4 1 1/4 32

492-A-PZDX 2 2 3/4 70 1/4 6.4 2 51

492-B-PZDX 2 3 1/2 89 1/4 6.4 2 3/4 70

492-C-PZD 2 6 152 1/4 6.4 2 51

493-PZD 3 1 15/16 49 5/16 7.9 1 25

493-A-PZD 3 2 3/4 70 5/16 7.9 1 3/4 44

493-B-PZD 3 3 1/2 89 5/16 7.9 2 1/4 57

493-C-PZD 3 6 152 5/16 7.9 5 127

Part Point Overall Length Body Diameter

Number Size In. mm In. mm

401-PZD 1 1 1/2 38 3/16 4.8

402-PZD 2 1 1/2 38 1/4 6.4

403-PZD 3 1 1/2 38 5/16 7.9

Part Point Overall Length Body Diameter

Number Size In. mm In. mm

591-PZD 1 1 3/16 30 7/32 5.6

592-PZD 2 1 3/16 30 7/32 5.6

Part Point Overall Length Body Diameter

Number Size In. mm In. mm

502-PZD 2 1 1/2 38 1/4 6.4

SD-1342-2-PZD 2 1 3/4 45 1/4 6.4

8-32 Screw Shank Drive

10-32 Screw Shank Drive

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

Pozidriv®Bits

Part Point Overall Length

Number Size In. mm

FND-1PZD 1 2 53

FND-2PZD 2 2 53

FND-2PZD-70M 2 2 3/4 70

FND-3PZD 3 2 53

FND-3PZD-70M 3 2 3/4 70

Fein Drive

Pozidriv®Bits

Sel-O-Fit Bits

Part Point Overall Length

Number Size In. mm

440-1-SF 1 1 25

440-2-SF 2 1 25

440-215-SF 2 1 1/2 38

440-22-SF 2 2 51

440-225-SF 2 2 1/2 64

440-3-SF 3 1 25

440-4-SF 4 1 1/4 32

1/4” Hex Insert Bits

Part Point Overall Length Turned Length

Number Size In. mm In. mm

446-1-SF 1 1 25 7/16 11

446-2-SF 2 1 25 7/16 11

1/4” Hex Insert Bits – Limited Clearance

Part Point Overall Length

Number Size In. mm

480-2-SF 2 1 1/4 32

480-3-SF 3 1 1/4 32

480-4-SF 4 1 1/4 32

480-4BN-SF 4 1 1/2 38 Large body

5/16” Hex Insert Bits

Part Point Overall Length Body Diameter Turned Length

Number Size In. mm In. mm In. mm

491-SF 1 1 15/16 49 3/16 5 1 1/4 32

491-A-SF 1 2 3/4 70 3/16 5 2 51

491-B-SF 1 3 1/2 89 3/16 5 2 3/4 70

491-C-SF 1 6 152 3/16 5 2 51

492-SF 2 1 15/16 49 1/4 6 1 1/4 32

492-A-SF 2 2 3/4 70 1/4 6 2 51

492-B-SF 2 3 1/2 89 1/4 6 2 3/4 70

492-C-SF 2 6 152 1/4 6 2 51

493-SF 3 1 15/16 49 5/16 8 1 25

493-A-SF 3 2 3/4 70 5/16 8 1 3/4 44

493-B-SF 3 3 1/2 89 5/16 8 2 1/2 64

493-C-SF 3 6 152 5/16 8 5 127

1/4” Hex Power Drive

Sel-O-Fit®bits are designed to provide a more efficient means of driving Pozidriv®screws.

The Sel-O-Fit bit places torque on the strongest and most mechanically advantageous portion of the driver tip.

This allows more torque to be applied while minimizing the possibility of breakage and camout.

Sel-O-Fit®is a registered trademark of Cooper Industries.

Frearson Bits

Part Point Overall Length

Number Size In. mm

440-F All 1 25

446-F All 1 25 For limited clearance

1/4” Hex Insert Bits

Part Point Overall Length

Number Size In. mm

480-F All 1 3/8 35

5/16” Hex Insert Bit

Part Screw Overall Length Body Diameter Turned Length

Number Size In. mm In. mm In. mm

491-F All 1 15/16 49 3/16 5 1 1/4 32

491-AF All 2 3/4 70 3/16 5 2 51

491-BF All 3 1/2 89 3/16 5 2 3/4 70

491-CF All 6 152 3/16 5 2 51

492-F All 1 15/16 49 1/4 6 1 1/4 32

492-AF All 2 3/4 70 1/4 6 2 51

492-BF All 3 1/2 89 1/4 6 2 3/4 70

492-CF All 6 152 1/4 6 2 51

493-F All 1 15/16 49 5/16 8 1 25

493-AF All 2 3/4 70 5/16 8 1 3/4 44

493-BF All 3 1/2 89 5/16 8 2 1/2 64

493-CF All 6 152 5/16 8 5 127

1/4” Hex Power Drive

The Frearson recess is designed so that any size bit will fit any size recess.

Choose bits on the basis of body diameter – the larger the screw, the larger the body diameter.

B.N.A.E. Bits

Part Point Overall Length

Number Size In. mm

BNAE-3mm 3mm 1 1/8 29

BNAE-4mm 4mm 1 1/8 29

BNAE-5mm 5mm 1 1/8 29

BNAE-6mm 6mm 1 1/8 29

BNAE-8mm 8mm 1 1/8 29

1/4” Hex Insert Bits

Part Point Overall Length

Number Size In. mm

BNAE-4mm-ACR 4mm 1 1/8 29

BNAE-5mm-ACR 5mm 1 1/8 29

BNAE-6mm-ACR 6mm 1 1/8 29

1/4” Hex Insert Bits – ACR®

Part Screw Overall Length Body Diameter

Number Size In. mm In. mm

552-F All 1 3/16 30 .30 8

12-24 Screw Shank Drive

Part Screw Overall Length Body Diameter

Number Size In. mm In. mm

822-F All 2 51 1/4 6

1/4” Female Square Drive

Part Screw Overall Length Body Diameter

Number Size In. mm In. mm

832-F All 2 5/8 67 1/4 6

833-F All 2 5/8 67 5/16 8

834-F All 2 5/8 67 3/8 10

3/8” Female Square Drive

ACR®ribs for both

removal and driving

ACR®is a trademark of the Phillips Screw Co.

Frearson Bits

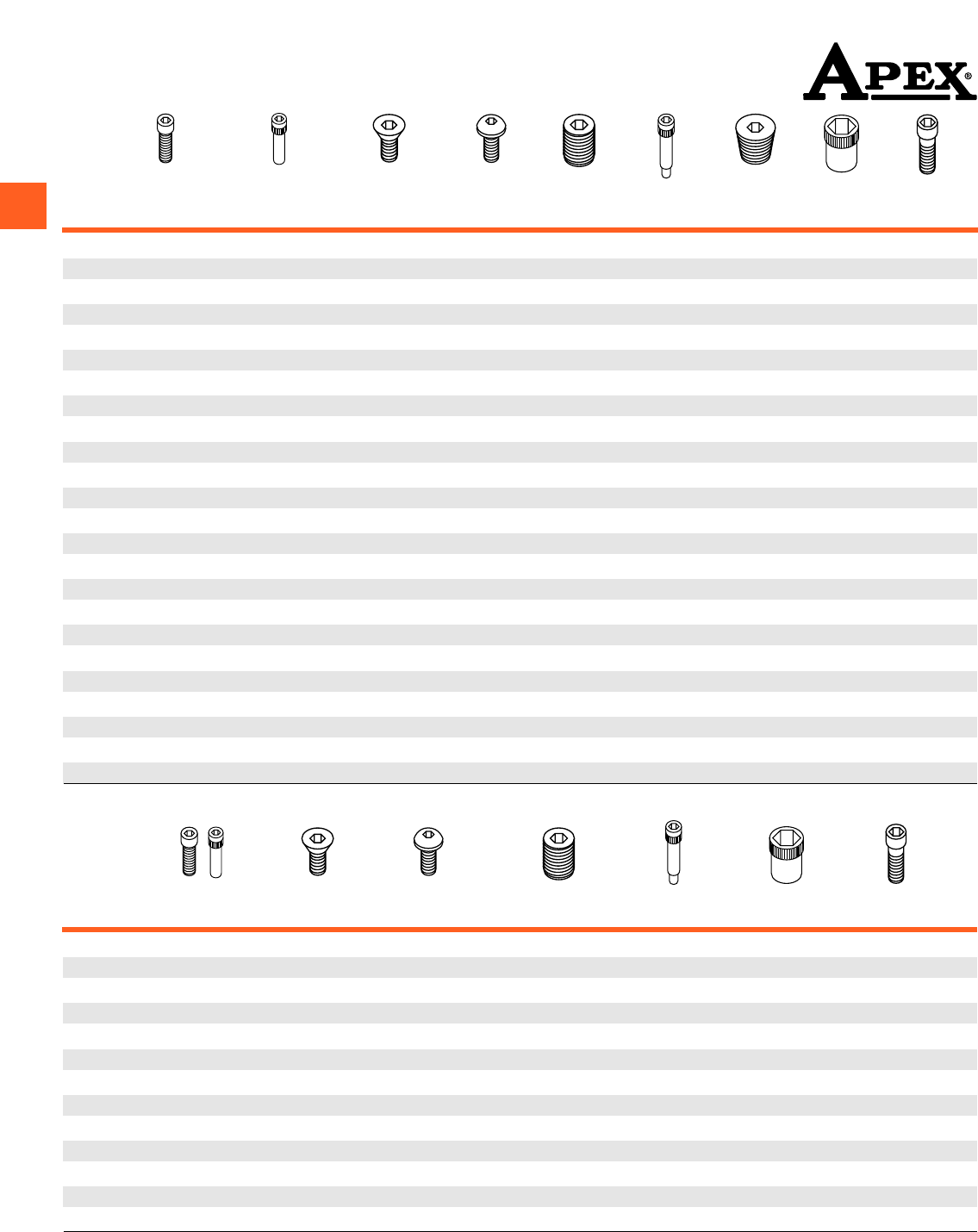

Socket Head Sizing Chart

Nominal Socket Head Cap Screws Flat Head Button

Hex Size, 1960 1936 Cap Head Set Shoulder Pressure Low Head

Inches Series Series Screws Cap Screws Screws Screws Plugs Allenuts Cap Screws

.050 0 0, 1 1, 2 3, 4 ——— 4 .050

1/16 1 2 3, 4 3, 4 5, 6 ———5, 6

5/64 2, 3 3, 4 5, 6 5, 6 8 ———8

3/32 4, 5 5, 6 8 8 10 ———10

7/64 6 ————————

1/8 —8 10 10 1/4 1/4 —4, 5 1/4

9/64 8 10 ———————

5/32 10 1/4 1/4 1/4 5/16 5/16 1/16 6 5/16

3/16 1/4 —5/16 5/16 3/8 3/8 1/8 8, 10 3/8

7/32 —5/16 3/8 3/8 7/16 ———7/16

1/4 5/16 —7/16 —1/2 1/2 1/4 1/4 1/2

5/16 3/8 3/8, 7/16 1/2 —5/8 5/8 3/8 5/16 5/8

3/8 7/16, 1/2 1/2 5/8 —3/4 3/4 1/2 3/8 —

7/16 ———————7/16 —

1/2 5/8 5/8 3/4 —7/8 1 —1/2 —

9/16 —3/4, 7/8 7/8 —1, 1 1/8 —3/4 ——

5/8 3/4 1 1 —1 1/4, 1 3/8 1 1/4 1 5/8 —

3/4 7/8, 1 1 1/8, 1 1/4, 1 3/8 1 1/8 —1 1/2 —1 1/4 3/4 —

7/8 1 1/8, 1 1/4 —1 1/4, 1 3/8 ——1 1/2 —7/8 —

1 1 3/8, 1 1/2 1 1/2 1 1/2 —1 3/4, 2 1 3/4 1 1/2, 2 1 —

1 1/4 1 3/4 ————2—1 1/4 —

1 1/2 2 ——————1 1/2 —

1 3/4 2 1/4, 2 1/2 ———————1 3/4

2 2 3/4 ————————

Nominal

hex Size, Socket Head Flat Head Button Head Set Shoulder Low Head

MM Cap Screws Cap Screws Cap Screws Screws Screws Allenuts Cap Screws

1.5 M1.6, M1.7, M2 —— M3 ———

2 M2.3, M2.5, M2.6 M3 M3 M4 ———

2.5 M3 M4 M4 M5 ———

3 M4 M5 M5 M6 6mm M3 M4

4 M5 M6 M6 M8 8mm M4 M5

5 M6 M8 M8 M10 10mm M5 M6

6 M8 M10 M10 M12, M14 12mm M6 M8

8 M10 M12 M12 M16 16mm M8 M10

10 M12 M14, M16 —M20 20mm M10 M12

12 M14 M20 —M24 —M12 M14

14 M16 —— — — —M16

17 M20 —— — —M16 M20, M22

19 M24 —— — — —M24

SAE

Metric

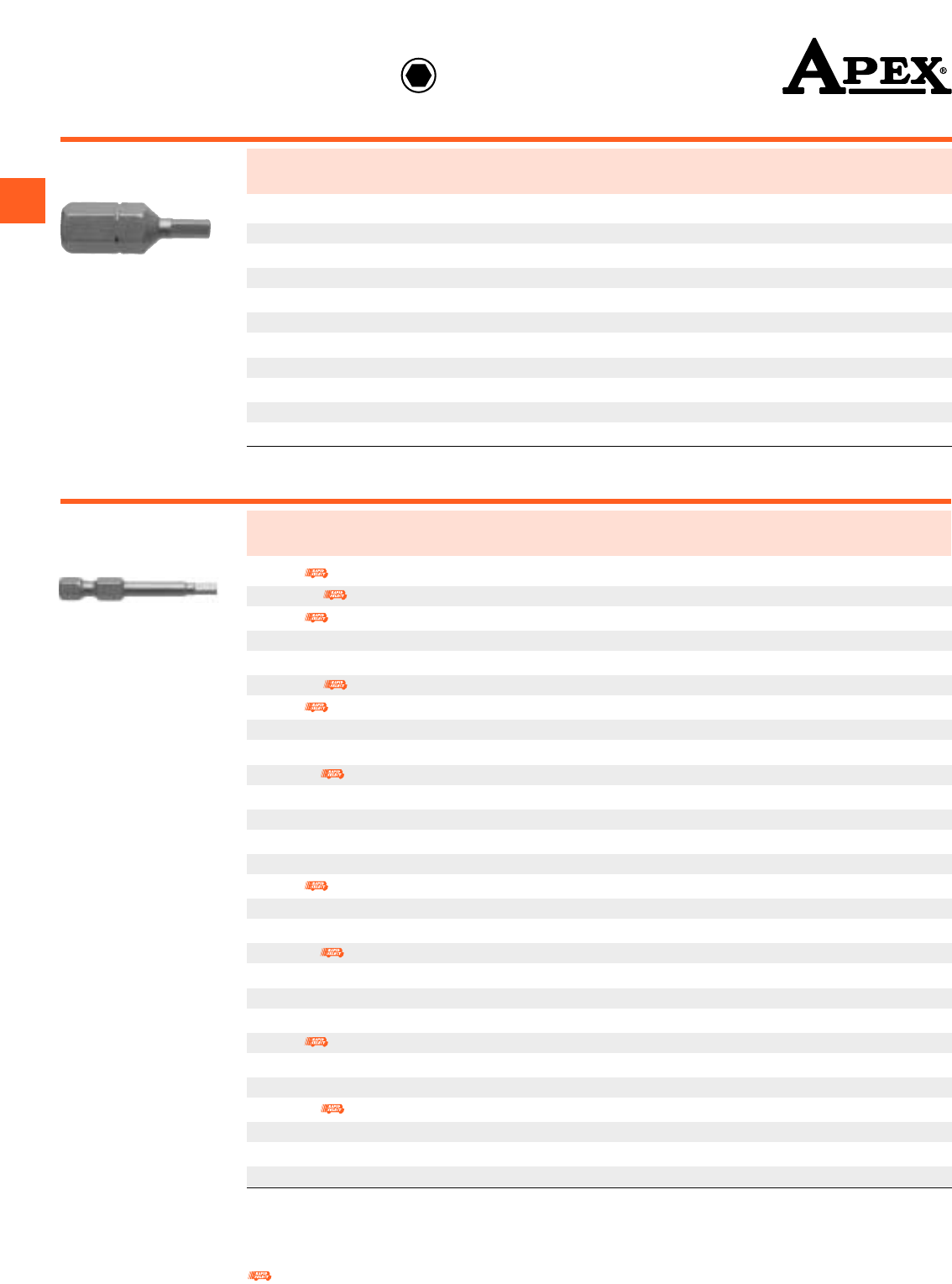

Socket Head Bits

Part Hex Overall Length

Number Size In. mm

185-000X .050 1 25

185-00 1/16 1 25

185-0 5/64 1 25

185-1X 3/32 1 25

185-9X 7/64 1 25

185-2X 1/8 1 25

185-10X 9/64 1 25

185-3X 5/32 1 5/16 33

185-4X 3/16 1 5/16 33

185-4-4 3/16 4 102

185-5 7/32 1 5/16 33

185-6 1/4 1 5/16 33

185-7 5/16 1 1/4 32

185-8 3/8 1 1/4 32

1/4” Hex Insert Bits

1/4” Hex Insert Bits – Metric

Part Hex Overall Length

Number Size In. mm

315-3 5/32 1 5/16 33

315-4 3/16 1 5/16 33

315-5 7/32 1 5/16 33

315-6 1/4 1 5/16 33

315-7 5/16 1 5/16 33

315-8 3/8 1 5/16 33

5/16” Hex Insert Bits

Part Hex Overall Length

Number Size In. mm

185-1.5mm 1.5mm 1 25

185-2mm 2mm 1 25

185-2.5mm 2.5mm 1 25

185-3mm 3mm 1 25

185-4mm 4mm 1 5/16 33

185-5mm 5mm 1 5/16 33

185-6mm 6mm 1 5/16 33

185-7mm 7mm 1 1/4 32

185-8mm 8mm 1 1/4 32

185-9mm 9mm 1 1/4 32

185-10mm 10mm 1 1/4 32

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

Part Hex Overall Length

Number Size In. mm

315-2.5mm 2.5mm 1 25

315-3mm 3mm 1 25

315-4mm 4mm 1 5/16 33

315-5mm 5mm 1 5/16 33

315-6mm 6mm 1 5/16 33

315-7mm 7mm 1 5/16 33

315-8mm 8mm 1 5/16 33

315-9mm 9mm 1 5/16 33

315-10mm 10mm 1 3/8 35

315-12mm 12mm 1 1/4 32

315-14mm 14mm 1 1/4 32

5/16” Hex Insert Bits – Metric

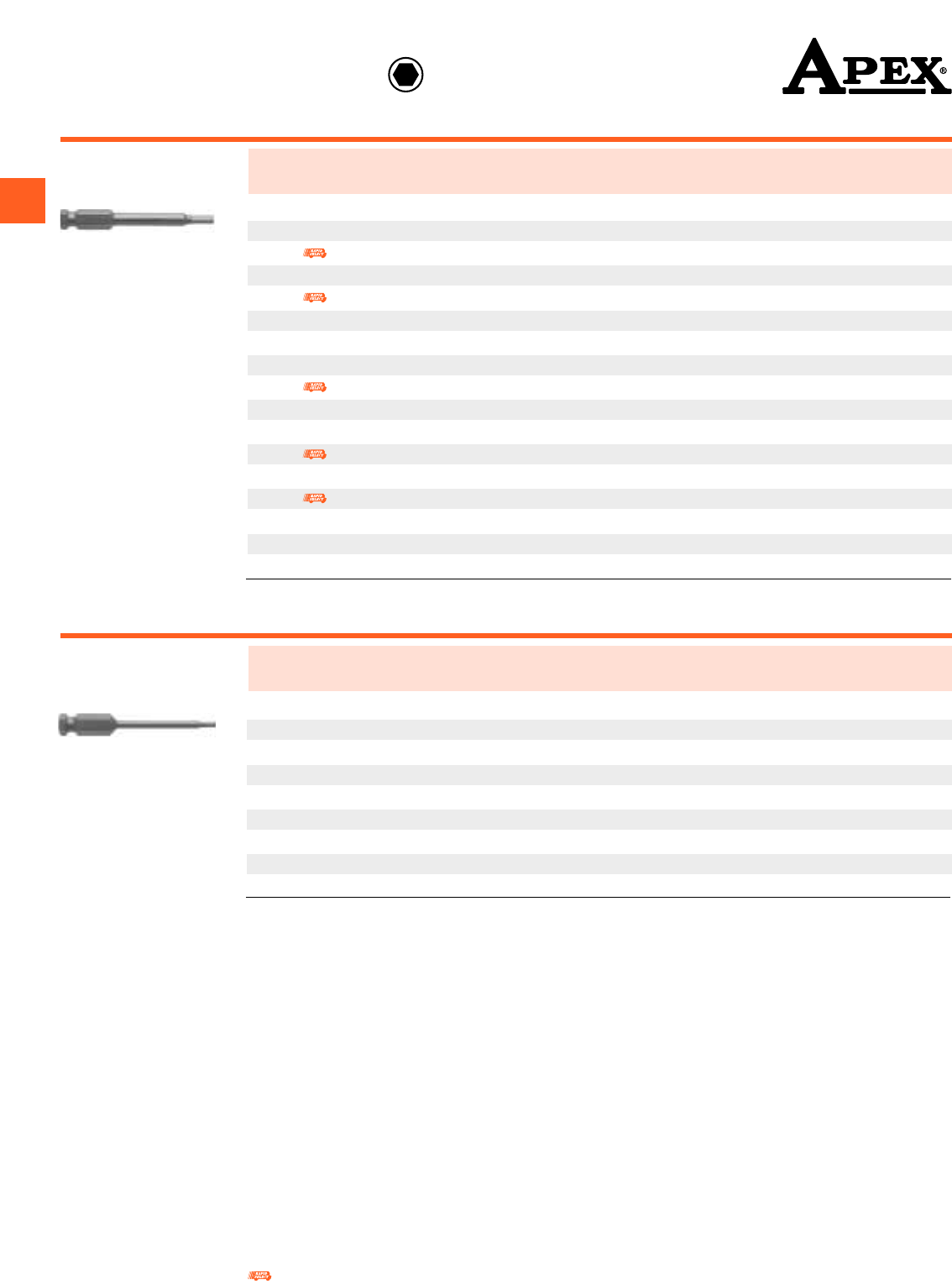

Part Hex Overall Length

Number Size In. mm

AM-02 1/16 1 15/16 49

AM-02-A 5/64 1 15/16 49

AM-03 3/32 1 15/16 49

AM-03-3 3/32 3 76

AM-03-6 3/32 6 152

AM-03-A 7/64 1 15/16 49

AM-04 1/8 1 15/16 49

AM-04-3 1/8 3 76

AM-04-35 1/8 3 1/2 89

AM-04-4 1/8 4 102

AM-04-5 1/8 5 127

AM-04-6 1/8 6 152

AM-04-A 9/64 1 15/16 49

AM-04-A-4 9/64 4 102

AM-05 5/32 1 15/16 49

AM-05-3 5/32 3 76

AM-05-35 5/32 3 1/2 89

AM-05-4 5/32 4 102

AM-05-5 5/32 3 127

AM-05-6 5/32 6 152

AM-05-8 5/32 8 203

AM-06 3/16 1 15/16 49

AM-06-3 3/16 3 76

AM-06-4 3/16 4 102

AM-06-6 3/16 6 152

AM-07 7/32 1 15/16 49

AM-08 1/4 1 15/16 49

AM-10 5/16 1 15/16 49

1/4” Hex Power Drive

Refer to Page iv for description of Rapid Select.

Socket Head Bits

Part Hex Overall Length

Number Size In. mm

AS-04 1/8 3 76

AS-05 5/32 3 76

AS-06 3/16 3 76

AS-07 7/32 3 76

AS-08 1/4 3 76

AS-10 5/16 3 76

AS-12 3/8 3 76

5/16” Hex Power Drive

Part Hex Overall Length

Number Size In. mm

AM-1.5mm 1.5mm 1 15/16 49

AM-2mm 2mm 1 15/16 49

AM-2.5mm 2.5mm 1 15/16 49

AM-3mm 3mm 1 15/16 49

AM-3mm-3 3mm 3 76

AM-3mm-4 3mm 4 102

AM-4mm 4mm 1 15/16 49

AM-5mm 5mm 1 15/16 49

AM-5mm-4 5mm 4 102

AM-6mm 6mm 1 15/16 49

AM-6mm-4 6mm 4 102

AM-7mm 7mm 1 15/16 49

AM-8mm 8mm 1 15/16 49

AM-10mm 10mm 1 15/16 49

1/4" Hex Power Drive – Metric

Refer to Page iv for description of Rapid Select.

Socket Head Bits

Part Hex Overall Length

Number Size In. mm

AN-04 1/8 3 1/2 89

AN-04-A 9/64 3 1/2 89

AN-05 5/32 3 1/2 89

AN-05-6 5/32 6 152

AN-06 3/16 3 1/2 89

AN-06-6 3/16 6 152

AN-07 7/32 3 1/2 89

AN-07-8 7/32 8 203

AN-08 1/4 3 1/2 89

AN-08-8 1/4 8 203

AN-09 9/32 3 1/2 89

AN-10 5/16 3 1/2 89

AN-10-6 5/16 6 152

AN-12 3/8 3 1/2 89

AN-12-6 3/8 6 152

AN-16 1/2 3 1/2 89

AN-16-6 1/2 6 152

7/16” Hex Power Drive

Part Hex Overall Length

Number Size In. mm

AN-3mm 3mm 3 1/2 89

AN-4mm 4mm 3 1/2 89

AN-5mm 5mm 3 1/2 89

AN-6mm 6mm 3 1/2 89

AN-8mm 8mm 3 1/2 89

AN-10mm 10mm 3 1/2 89

AN-12mm 12mm 3 1/2 89

AN-14mm 14mm 3 1/2 89

AN-14mm-6 14mm 6 152

7/16” Hex Power Drive—Metric

Refer to Page iv for description of Rapid Select.

Socket Head Bits

Part Hex Overall Length

Number Size In. mm

AP-08 1/4 4 102

AP-10 5/16 4 102

AP-12 3/8 4 102

AP-16 1/2 4 102

AP-18 9/16 4 102

AP-20 5/8 4 102

AP-24 3/4 4 102

5/8” Hex Power Drive

Part Hex Overall Length

Number Size In. mm

FND-185-3MM 3 mm 2 53

FND-185-4MM 4 mm 2 53

FND-185-5MM 5 mm 2 53

FND-185-8MM 8 mm 2 53

Fein Drive

Socket Head Bits with

Square Drive Adapters, SAE

3/8” Square Drive

Part Number Overall Length

Adapter Insert Hex Length of Insert

Complete Only Only Size In. mm In. mm

SZ-9 SC-314 SZ-9-A 3/32 2 1/4 57 1 3/8 35

SZ-7 SC-314 SZ-7-A 7/64 2 1/4 57 1 3/8 35

SZ-10 SC-314 SZ-10-A 1/8 2 1/4 57 1 3/8 35

SZ-11 SC-314 SZ-11-A 5/32 2 1/4 57 1 3/8 35

SZ-12 SC-314 SZ-12-A 3/16 2 1/4 57 1 3/8 35

SZ-13 SC-314 SZ-13-A 7/32 2 1/4 57 1 3/8 35

SZ-14 SC-314 SZ-14-A 1/4 2 1/4 57 1 3/8 35

SZ-15 SC-314 SZ-15-A 5/16 2 1/4 57 1 3/8 35

SZ-16 SC-314 SZ-16-A 3/8 2 1/4 57 1 3/8 35

SZ-17 SC-314 SZ-17-A 1/2 2 1/4 57 1 3/8 35

SZ-18 SC-314 SZ-18-A 9/16 2 1/4 57 1 3/8 35

SZ-19 SC-314 SZ-19-A 5/8 2 1/4 57 1 3/8 35

Refer to Page iv for description of Rapid Select.

Socket Head Bits

1/2” Square Drive

Part Number Overall Length

Adapter Insert Hex Length of Insert

Complete Only Only Size In. mm In. mm

SZ-40 SC-514 SZ-10-A 1/8 2 1/2 64 1 3/8 35

SZ-41 SC-514 SZ-11-A 5/32 2 1/2 64 1 3/8 35

SZ-20 SC-514 SZ-12-A 3/16 2 1/2 64 1 3/8 35

SZ-21 SC-514 SZ-13-A 7/32 2 1/2 64 1 3/8 35

SZ-22 SC-514 SZ-14-A 1/4 2 1/2 64 1 3/8 35

SZ-23 SC-514 SZ-15-A 5/16 2 1/2 64 1 3/8 35

SZ-24 SC-514 SZ-16-A 3/8 2 1/2 64 1 3/8 35

SZ-25 SC-514 SZ-17-A 1/2 2 1/2 64 1 3/8 35

SZ-42 SC-520 SZ-31-A 1/2 2 1/2 64 1 9/16 40

SZ-43 SC-514 SZ-18-A 9/16 2 1/2 64 1 3/8 35

SZ-44 SC-520 SZ-32-A 9/16 2 1/2 64 1 9/16 40

SZ-26 SC-514 SZ-19-A 5/8 2 1/2 64 1 3/8 35

SZ-27 RP-520 SZ-33-A 5/8 2 1/2 64 1 9/16 40

Adapters with an “SC” prefix feature a set screw for locking in the bit. An “RP” prefix indicates adapters with a thru hole for a spring pin.

Part Hex Overall Length

Number Size In. mm

SZ-11-A-3 5/32 3 76

SZ-12-A-2 3/16 2 51

SZ-12-A-3 3/16 3 76

SZ-12-A-6 3/16 6 152

SZ-13-A-3 7/32 3 76

SZ-14-A-3 1/4 3 76

SZ-14-A-4 1/4 4 102

SZ-15-A-2 5/16 2 51

SZ-15-A-3 5/16 3 76

SZ-15-A-4 5/16 4 102

SZ-16-A-3 3/8 3 76

SZ-16-A-4 3/8 4 102

7/16” Hex Insert Bit Only

Use 7/16” Hex Insert Bits with 7/16” Female Hex Square drive adapters,page 51.

These bits feature a thru hole on the hex flat for use with a spring pin.

Refer to Page iv for description of Rapid Select.

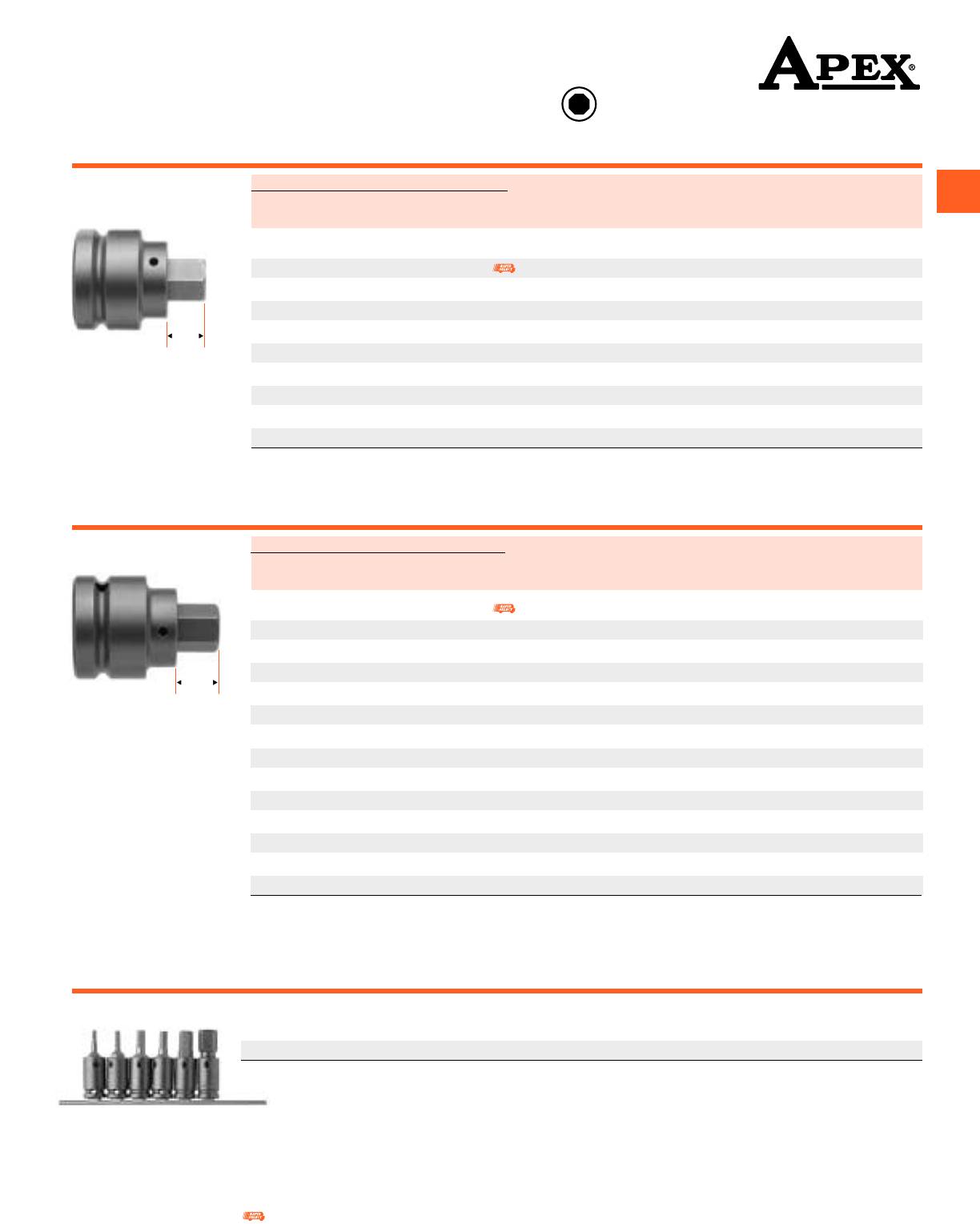

Socket Head Bits with

Square Drive Adapters, SAE

3/4” Square Drive

1” Square Drive

Socket Head Bit and Adapter Sets

APH38 8 piece, 3/8” square drive: 1/8, 9/64, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8

APH56 6 piece, 1/2” square drive: 1/4, 5/16, 3/8, 1/2, 9/16, 5/8

An “RP” prefix indicates adapters with a roll pin that is inserted through the bit.

Part Number Overall Length Bit

Adapter Insert Hex Length of Insert Length (A)

Complete Only Only Size In. mm In. mm In. mm

SZ-30 SC-720 SZ-30-A 3/8 2 5/8 67 1 9/16 40 29/32 23

SZ-31 SC-720 SZ-31-A 1/2 2 5/8 67 1 9/16 40 29/32 23

SZ-32 SC-720 SZ-32-A 9/16 2 5/8 67 1 9/16 40 29/32 23

SZ-33 RP-720 SZ-33-A 5/8 2 5/8 67 1 9/16 40 29/32 23

SZ-34 RP-720 SZ-34-A 3/4 2 5/8 67 1 9/16 40 29/32 23

SZ-37 RP-728 SZ-37-A 3/4 3 1/8 79 2 51 1 1/8 29

SZ-35 SC-720 SZ-35-A 7/8 2 5/8 67 1 9/16 40 29/32 23

SZ-38 RP-728 SZ-38-A 7/8 3 1/8 79 2 51 1 1/8 29

SZ-36 RP-720 SZ-36-A 1 2 5/8 67 1 9/16 40 29/32 23

SZ-39 RP-728 SZ-39-A 1 3 1/8 79 2 51 1 1/8 29

Part Number Overall Length Bit

Adapter Insert Hex Length of Insert Length (A)

Complete Only Only Size In. mm In. mm In. mm

SZ-80 RP-820 SZ-31-A 1/2 3 1/16 78 1 9/16 40 29/32 23

SZ-82 RP-820 SZ-32-A 9/16 3 1/16 78 1 9/16 40 29/32 23

SZ-83 RP-828 SZ-83-A 9/16 3 1/4 83 2 51 1 1/8 29

SZ-84 RP-820 SZ-33-A 5/8 3 1/16 78 1 9/16 40 29/32 23

SZ-85 RP-828 SZ-85-A 5/8 3 1/4 83 2 51 1 1/8 29

SZ-86 RP-820 SZ-34-A 3/4 3 1/32 77 1 9/16 40 29/32 23

SZ-87 RP-828 SZ-37-A 3/4 3 1/4 83 2 51 1 1/8 29

SZ-88 SC-820 SZ-35-A 7/8 3 1/16 78 1 9/16 40 29/32 23

SZ-89 RP-828 SZ-38-A 7/8 3 1/4 83 2 51 1 1/8 29

SZ-91 RP-828 SZ-39-A 1 3 1/4 83 2 51 1 1/8 29

SZ-100 RP-848 SZ-100-A 1 3 1/16 78 2 1/2 64 1 3/8 35

SZ-101 RP-848 SZ-101-A 1 1/4 3 1/2 89 2 5/8 67 1 3/8 35

SZ-102 RP-848 SZ-102-A 1 1/2 3 3/4 95 2 5/8 67 1 3/8 35

SZ-104 RP-848 SZ-104-A 1 3/4 4 1/4 108 3 1/4 83 2 1/32 51

Refer to Page iv for description of Rapid Select.

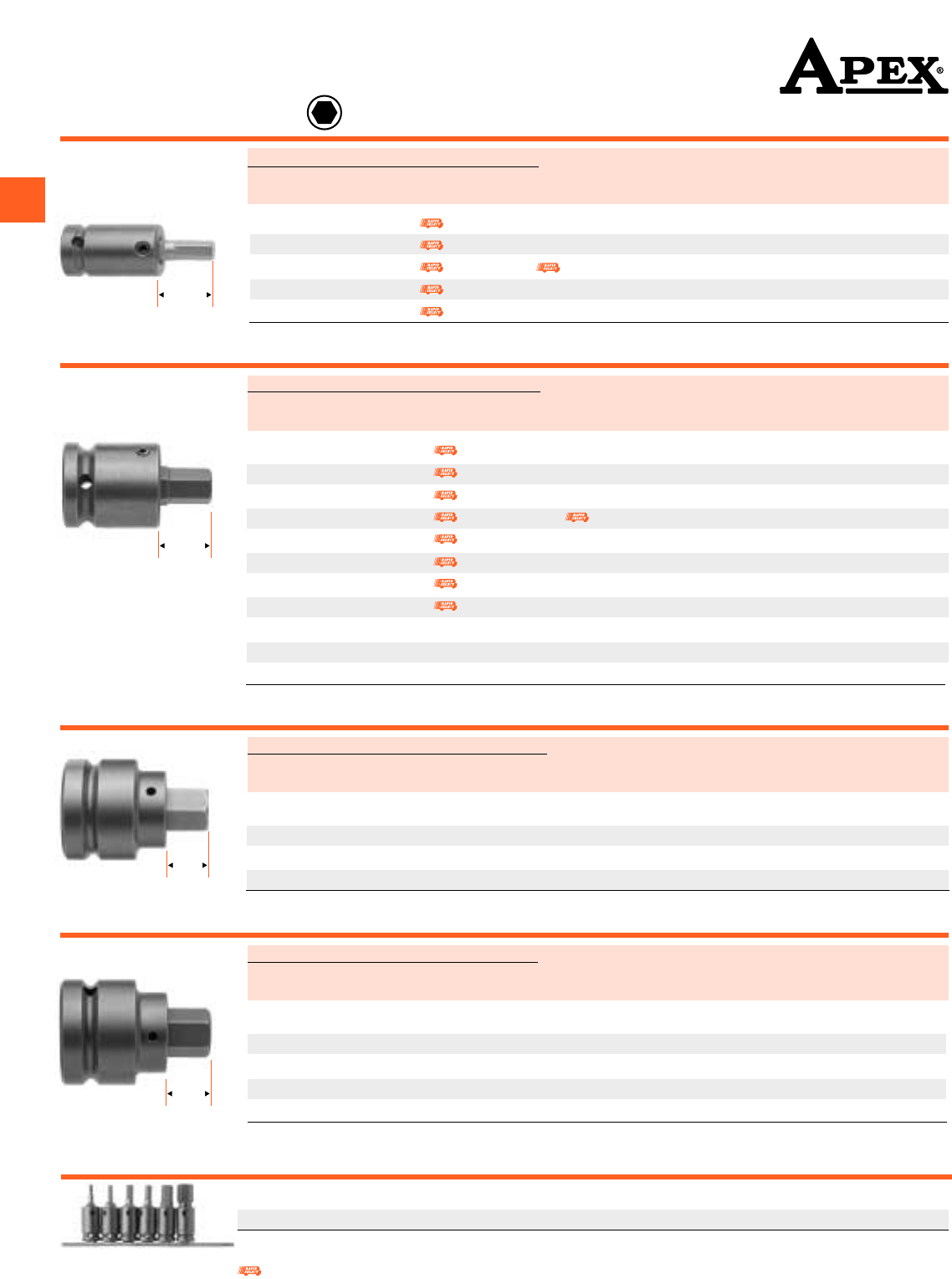

Socket Head Bits with

Square Drive Adapters, SAE

3/4” Square Drive

1” Square Drive

Socket Head Bit and Adapter Sets

APH35M 5 piece, 3/8” square drive: 4mm, 5mm, 6mm, 8mm, 10mm

APH56M 6 piece, 1/2” square drive: 6mm, 8mm, 10mm, 12mm, 14mm, 17mm

Socket Head Adapters & Inserts, Metric

1/2” Square Drive

3/8” Square Drive

Part Number Overall Length Bit

Adapter Insert Hex Length of Insert Length (A)

Complete Only Only Size In. mm In. mm In. mm

SZ-7-10-10mm RP-720 SZ-10-10mm 10mm 2 1/2

1 9/16

29/32

SZ-7-10-12mm RP-720 SZ-10-12mm 12mm 2 1/2

1 9/16

29/32

SZ-7-10-14mm RP-720 SZ-10-14mm 14mm 2 1/2

1 9/16

29/32

SZ-7-10-17mm RP-720 SZ-10-17mm 17mm 2 1/2

1 9/16

29/32

Part Number Overall Length Bit

Adapter Insert Hex Length of Insert Length (A)

Complete Only Only Size In. mm In. mm In. mm

SZ-8-14-17mm RP-828 SZ-14-17mm 17mm 3 5/16

1 1/8

SZ-8-14-19mm RP-828 SZ-14-19mm 19mm 3 5/16

1 1/8

SZ-8-14-22mm RP-828 SZ-14-22mm 22mm 3 5/16

1 1/8

SZ-8-14-24mm RP-828 SZ-14-24mm 24mm 3 5/16

1 1/8

SZ-8-14-27mm RP-828 SZ-14-27mm 27mm 3 5/16

1 1/8

Part Number Overall Length Bit

Adapter Insert Hex Length of Insert Length (A)

Complete Only Only Size In. mm In. mm In. mm

SZ-3-7-4mm SC-314 SZ-7-4mm 4mm 2 1/4 57 1 3/8 35 7/8 22

SZ-3-7-5mm SC-314 SZ-7-5mm 5mm 2 1/4 57 1 3/8 35 7/8 22

SZ-3-7-6mm SC-314 SZ-7-6mm 6mm 2 1/4 57 1 3/8 35 7/8 22

SZ-3-7-8mm SC-314 SZ-7-8mm 8mm 2 1/4 57 1 3/8 35 7/8 22

SZ-3-7-10mm SC-314 SZ-7-10mm 10mm 2 1/4 57 1 3/8 35 7/8 22

Part Number Overall Length Bit

Adapter Insert Hex Length of Insert Length (A)

Complete Only Only Size In. mm In. mm In. mm

SZ-5-7-3mm SC-514 SZ-7-3mm 3mm 2 1/2 63 1 3/8 35 7/8 22

SZ-5-7-4mm SC-514 SZ-7-4mm 4mm 2 1/2 63 1 3/8 35 7/8 22

SZ-5-7-5mm SC-514 SZ-7-5mm 5mm 2 1/2 63 1 3/8 35 7/8 22

SZ-5-7-6mm SC-514 SZ-7-6mm 6mm 2 1/2 63 1 3/8 35 7/8 22

SZ-5-7-8mm SC-514 SZ-7-8mm 8mm 2 1/2 63 1 3/8 35 7/8 22

SZ-5-7-10mm SC-514 SZ-7-10mm 10mm 2 1/2 63 1 3/8 35 7/8 22

SZ-5-7-12mm SC-514 SZ-7-12mm 12mm 2 1/2 63 1 3/8 35 7/8 22

SZ-5-7-14mm SC-514 SZ-7-14mm 14mm 2 1/2 63 1 3/8 35 15/16 24

SZ-5-10-14mm RP-520 SZ-10-14mm 14mm 2 1/2 63 1 9/16 40 29/32 23

SZ-5-10-17mm RP-520 SZ-10-17mm 17mm 2 1/2 63 1 9/16 40 29/32 23

SZ-5-10-19mm RP-520 SZ-10-19mm 19mm 2 1/2 63 1 9/16 40 29/32 23

Refer to Page iv for description of Rapid Select.

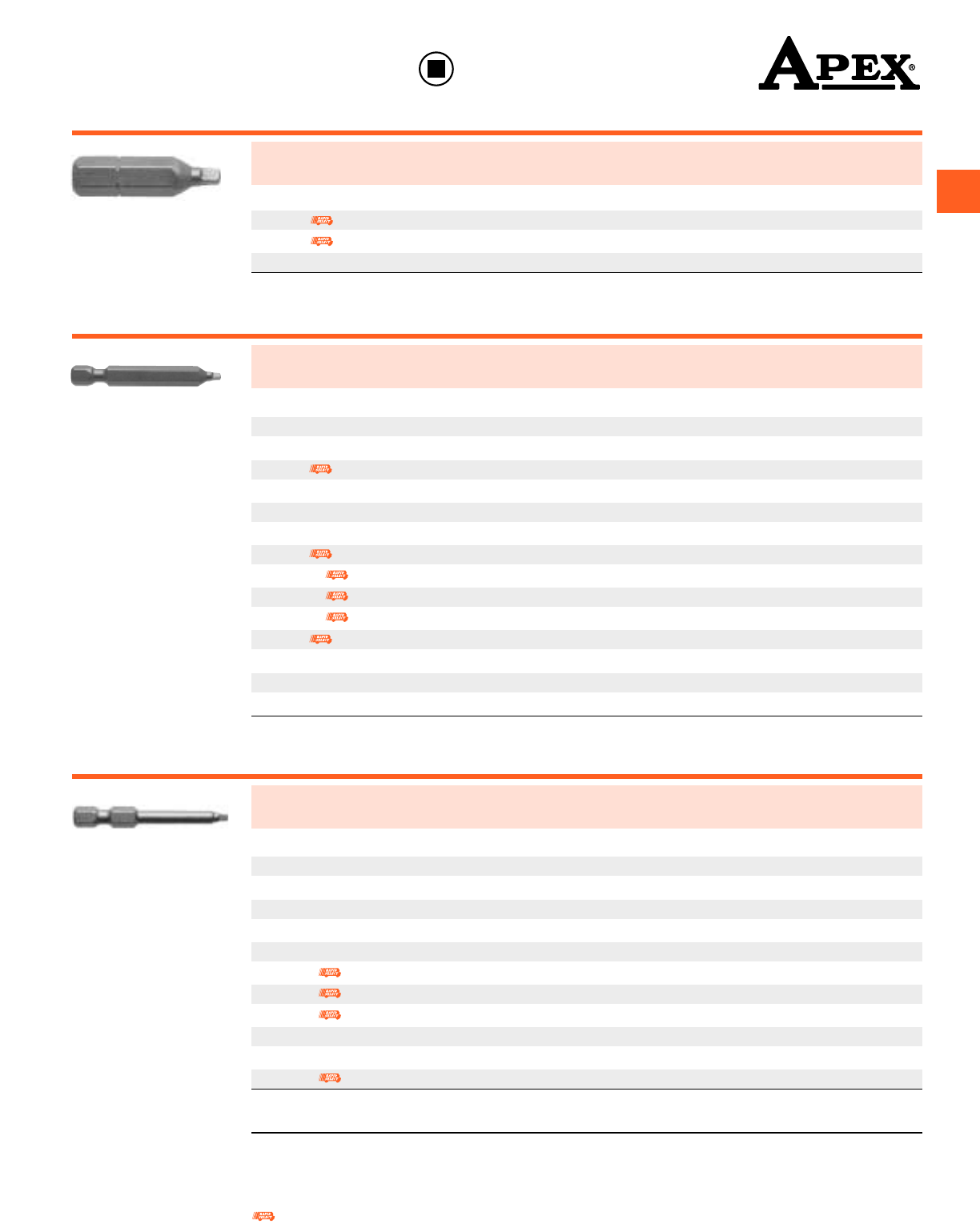

Square Recess Bits

Part Point Nominal Size Overall Length

Number Size In. In. mm

950-0 0 1/16 1 25

950-1X 1 3/32 1 25

950-2X 2 1/8 1 25

950-3 3 9/64 1 25

1/4” Hex Insert Bits

Screw Size 3 & 4 5, 6, 7 8, 9, 10 12-14 1/4

Square Point Size 0 1 2 3

Part Point Nominal Size Overall Length

Number Size In. In. mm

954-0 0 1/16 1 15/16 49

954-A-0 0 1/16 2 3/4 70

954-C-0 0 1/16 6 152

954-1X 1 3/32 1 15/16 49

954-A-1 1 3/32 2 3/4 70

954-B-1 1 3/32 3 1/2 89

954-C-1 1 3/32 6 152

954-2X 2 1/8 1 15/16 49

954-A-2X 2 1/8 2 3/4 70

954-B-2X 2 1/8 3 1/2 89

954-C-2X 2 1/8 6 152

954-3X 3 9/64 1 15/16 49

954-A-3 3 9/64 2 3/4 70

954-B-3 3 9/64 3 1/2 89

954-C-3 3 9/64 6 152

1/4” Hex Power Drive

Part Point Nominal Size Overall Length Turned Length

Number Size In. In. mm In. mm

1950-0 0 1/16 1 15/16 49 1 1/4 32

1951-0 0 1/16 2 3/4 70 2 51

1953-0 0 1/16 3 1/2 89 2 3/4 70

1950-1 1 3/32 1 15/16 49 1 1/4 32

1951-1 1 3/32 2 3/4 70 2 51

1953-1 1 3/32 3 1/2 89 2 3/4 70

1950-2X 2 1/8 1 15/16 49 1 1/4 32

1951-2X 2 1/8 2 3/4 70 2 51

1953-2X 2 1/8 3 1/2 89 2 3/4 70

1950-3 3 9/64 1 15/16 49 1 1/4 32

1951-3 3 9/64 2 3/4 70 2 51

1953-3X 3 9/64 3 1/2 89 2 3/4 70

1/4” Hex Power Drive – Turned Body

Refer to Page iv for description of Rapid Select. Rapid Select bit part numbers have the heat treat code noted.

Quad-rex bits available upon request.

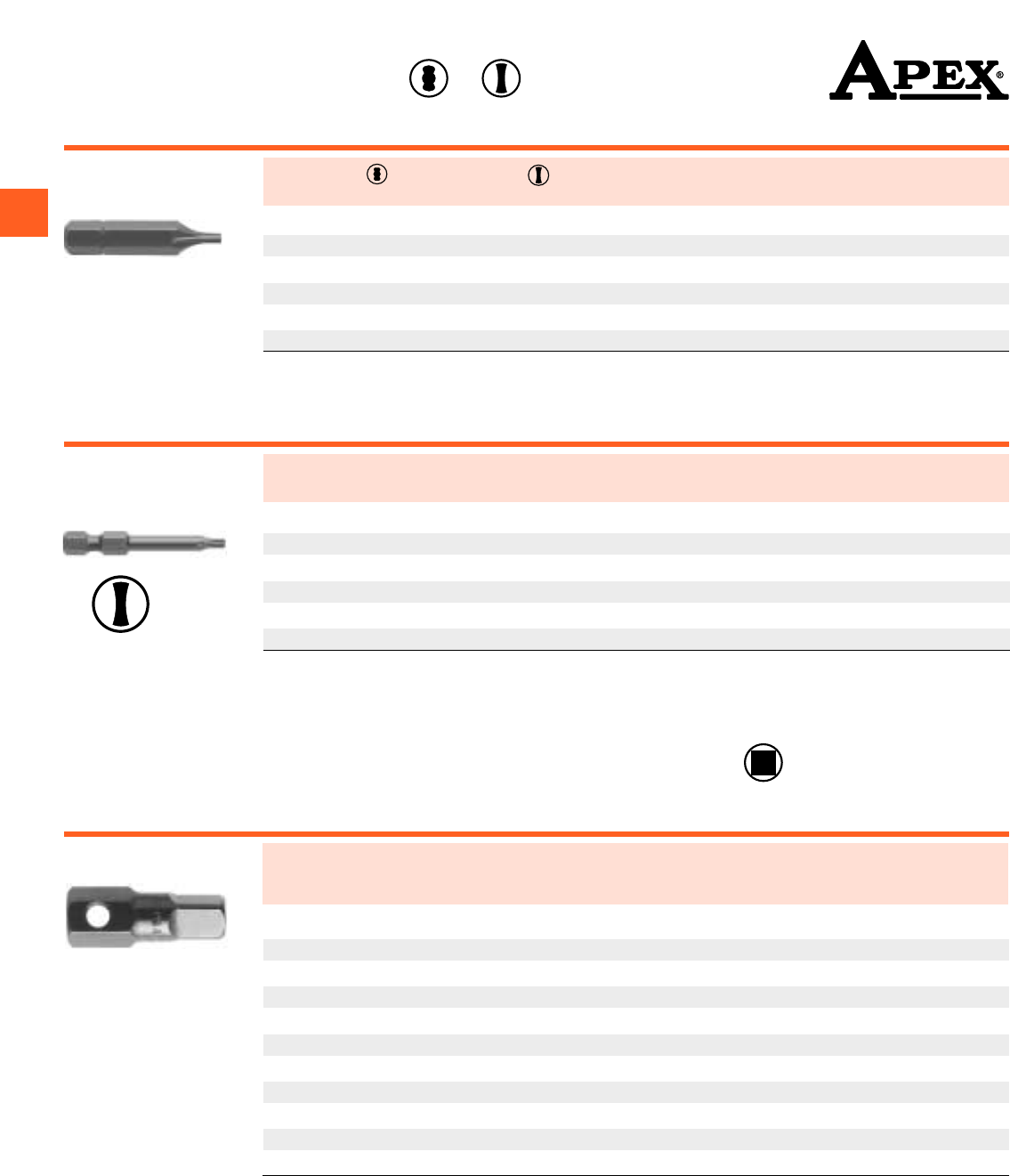

Clutch Head Bits

Standard G-Type Clutch Overall Length

Part Number Part Number Size In. mm

190-1 190-1G 3/32 1 1/4 32

190-2 190-2G 1/8 1 1/4 32

190-3 190-3G 5/32 1 1/4 32

190-4 190-4G 3/16 1 1/4 32

190-5 190-5G 1/4 1 1/4 32

190-7 190-7G 5/16 1 1/4 32

1/4” Hex Insert Bits

Standard Clutch Overall Length

Part Number Size In. mm

2122 1/8 1 15/16 49

2123 5/32 1 15/16 49

2123-A 5/32 2 3/4 70

2123-B 5/32 3 1/2 89

2124 3/16 1 15/16 49

2125 1/4 1 15/16 49

1/4” Hex Power Drive

Type G power bits are

available on request.

Male Male Overall

Part Hex Square Length

Number In. In. In. mm

P-1408 7/16 1/4 1 1/4 32

P-1409 7/16 9/32 1 1/4 32

P-1410 7/16 5/16 1 1/4 32

P-1412 7/16 3/8 1 1/4 32

P-1414 7/16 7/16 1 1/4 32

P-1416 7/16 1/2 1 1/4 32

P-1418 7/16 9/16 1 1/2 38

P-2010 5/8 5/16 1 1/2 38

P-2012 5/8 3/8 1 1/2 38

P-2014 5/8 7/16 1 1/2 38

P-2016 5/8 1/2 1 1/2 38

1/4” to 1/2” Male Square

Note: For pipe plug inserts use SC and RP bit holders found on page 51.

Male Square Inserts for Pipe Plugs

Torq-Set®Bits

Part Point Overall Length

Number Size In. mm

212-0 0 1 25

212-1 1 1 25

212-2 2 1 25

212-3 3 1 25

212-4 4 1 25

212-5 5 1 25

212-6 6 1 25

212-8 8 1 25

212-10 10 1 25

212-1/4 1/4 1 25

1/4” Hex Insert Bits

Part Point Overall Length

Number Size In. mm

212-6-ACR 6 1 1/4 32

212-8-ACR 8 1 1/4 32

212-10-ACR 10 1 1/4 32

212-1/4-ACR 1/4 1 1/4 32

1/4” Hex Insert Bits – ACR®

Part Point Overall Length

Number Size In. mm

212-8A 8 1 1/4 32

212-10A 10 1 1/4 32

212-1/4A 1/4 1 1/4 32

212-5/16A 5/16 1 1/4 32

212-3/8A 3/8 1 1/4 32

5/16” Hex Insert Bits

Part Point Overall Length

Number Size In. mm

212-1/4A-ACR 1/4 1 1/4 32

212-5/16A-ACR 5/16 1 1/4 32

Torq-Set® and ACR® are registered trademarks of the Phillips Screw Company.

Available with ACR®ribs for

removal only

Available with ACR®ribs for

removal only

5/16” Hex Insert Bits – ACR®

Refer to Page iv for description of Rapid Select.

Part Point Overall Length

Number Size In. mm

170-0 0 1 1/4 32

273A-0 0 1 13/16 46

273-0 0 1 15/16 49

273B-0 0 2 3/4 70

265-0 0 3 1/2 89

265A-0 0 6 152

170-1 1 1 1/4 32

273A-1 1 1 13/16 46

273-1 1 1 15/16 49

273B-1 1 2 3/4 70

265-1 1 3 1/2 89

265A-1 1 6 152

170-2 2 1 1/4 32

273A-2 2 1 13/16 46

273-2 2 1 15/16 49

273B-2 2 2 3/4 70

265-2 2 3 1/2 89

265A-2 2 6 152

170-3 3 1 1/4 32

273A-3 3 1 13/16 46

273-3 3 1 15/16 49

273B-3 3 2 3/4 70

265-3 3 3 1/2 89

265A-3 3 6 152

170-4 4 1 1/4 32

273A-4 4 1 13/16 46

273-4 4 1 15/16 49

273B-4 4 2 3/4 70

265-4 4 3 1/2 89

265A-4 4 6 152

170-5 5 1 1/4 32

273-5 5 1 15/16 49

273B-5 5 2 3/4 70

265-5 5 3 1/2 89

265A-5 5 6 152

170-6 6 1 1/4 32

170-6-ACR* 6 1 1/4 32

273A-6 6 1 13/16 46

273-6 6 1 15/16 49

273B-6 6 2 3/4 70

265-6 6 3 1/2 89

265A-6 6 6 152

170-8 8 1 1/4 32

170-8-ACR* 8 1 1/4 32

273A-8 8 1 13/16 46

273-8 8 1 15/16 49

273B-8 8 2 3/4 70

265-8 8 3 1/2 89

265A-8 8 6 152

170-10 10 1 1/4 32

170-10-ACR* 10 1 1/4 32

273A-10 10 1 13/16 46

273-10 10 1 15/16 49

273B-10 10 2 3/4 70

265-10 10 3 1/2 89

265A-10 10 6 152

170-1/4B 1/4 1 1/4 32

170-5/16B 5/16 1 1/4 32

170-3/8B 3/8 1 1/4 32

1/4” Hex Power Drive

*Feature ACR®anti-camout ribs.

Refer to Page iv for description of Rapid Select.

Torq-Set®Bits

Part Point Overall Length

Number Size In. mm

170-8A 8 1 1/4 32

170-10A 10 1 1/4 32

170-1/4A 1/4 1 1/4 32

170-5/16A 5/16 1 1/4 32

170-3/8A 3/8 1 1/4 32

5/16” Hex Power Drive

Torq-Set® and ACR® are registered trademarks of the Phillips Screw Company.

Part Point Overall Length

Number Size In. mm

170-1/4 1/4 1 1/4 32

265-1/4 1/4 3 1/2 89

265A-1/4 1/4 6 152

170-5/16 5/16 1 1/4 32

265-5/16 5/16 3 1/2 89

265A-5/16 5/16 6 152

170-3/8 3/8 1 1/4 32

170-3/8C 3/8 1 1/4 32

265A-3/8 3/8 6 152

170-7/16 7/16 1 1/4 32

170-7/16C 7/16 1 1/4 32

265-7/16 7/16 3 1/2 89

265A-7/16 7/16 6 152

7/16” Hex Power Drive

7/16” Hex Power Drive – ACR®

Part Point Overall Length

Number Size In. mm

170-1/2 1/4 1 1/4 32

170-9/16 9/16 1 1/4 32

170-5/8 5/8 1 1/4 32

5/8” Hex Power Drive

Available with ACR®ribs for

removal only

Part Point Overall Length

Number Size In. mm

170-1/4-ACR 1/4 1 1/4 32

170-5/16-ACR 5/16 1 1/4 32

Refer to Page iv for description of Rapid Select.

Torq-Set®Bits

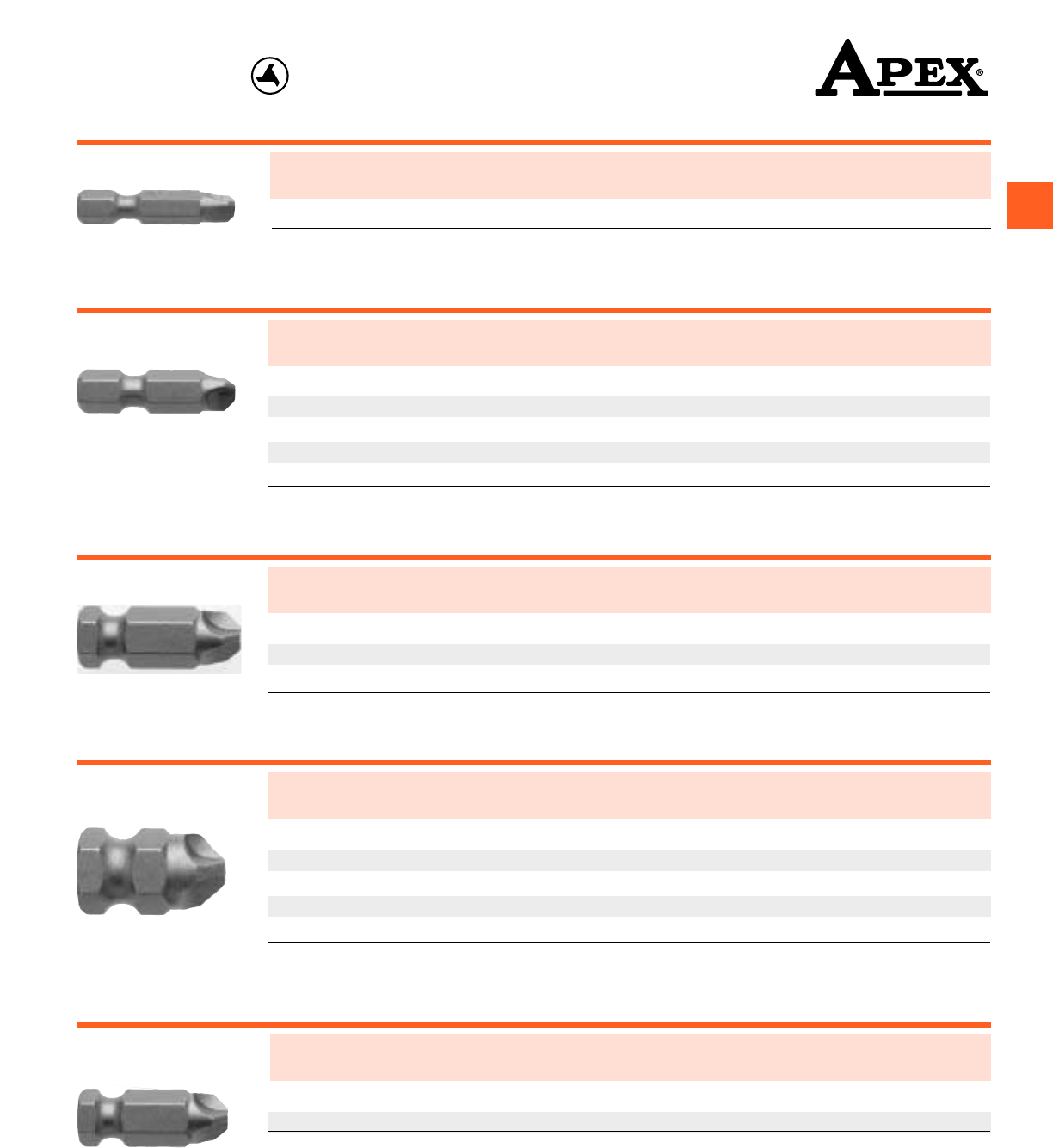

Tri-Wing®

Part Recess Screw Size Screw Size Overall Length

Number Size Tension Head Shear Head In. mm

TWD-0 0 0-80 - 1 25

TWD-1 1 2-56 4-40 1 25

TWD-2 2 4-40 6-32 1 25

TWD-3 3 6-32 8-32 1 25

TWD-4 4 8-32 10-32 1 25

TWD-5 5 10-32 1/4-28 1 25

TWD-6 6 1/4 5/16 1 25

TWD-7 7 5/16 3/8 1 25

1/4” Hex Insert Bits

Tri-Wing®and ACR®are registered trademarks of the Phillips Screw Company.

Part Recess Screw Size Screw Size Overall Length

Number Size Tension Head Shear Head In. mm

TWD-4-ACR 4 8-32 10-32 1 25

TWD-5-ACR 5 10-32 1/4-28 1 25

1/4” Hex Insert Bits – ACR®

Part Recess Screw Size Screw Size Overall Length

Number Size Tension Head Shear Head In. mm

TWE-4 4 8-32 10-32 1 1/4 32

TWE-5 5 10-32 1/4-28 1 1/4 32

5/16” Hex Insert Bit

Part Recess Screw Size Screw Size Overall Length

Number Size Tension Head Shear Head In. mm

TW-0 0 0-80 - 1 1/4 32

TW-1 1 2-56 4-40 1 1/4 32

TW-2 2 4-40 6-32 1 1/4 32

TW-3 3 6-32 8-32 1 1/4 32

TW-4 4 8-32 10-32 1 1/4 32

TW-5 5 10-32 1/4-28 1 1/4 32

TWB-6 6 1/4-28 5/16-24 1 1/4 32

TWB-7 7 5/16-24 3/8-24 1 1/4 32

TWB-8 8 3/8-24 7/16-20 1 1/4 32

1/4” Hex Power Drive

Available with ACR®ribs for

removal only

Refer to Page iv for description of Rapid Select.

Part Recess Screw Size Screw Size Overall Length

Number Size Tension Head Shear Head In. mm

TW-5-ACR 5 10-32 1/4-28 1 1/4 32

1/4” Hex Power Drive – ACR®

Part Recess Screw Size Screw Size Overall Length

Number Size Tension Head Shear Head In. mm

TWA-4 4 8-32 10-32 1 1/4 32

TWA-5 5 10-32 1/4-28 1 1/4 32

TWA-6 6 1/4-28 5/16-24 1 1/4 32

TWA-7 7 5/16-24 3/8-24 1 1/4 32

TWA-8 8 3/8-24 7/16-20 1 1/4 32

5/16” Hex Power Drive

Part Recess Screw Size Screw Size Overall Length

Number Size Tension Head Shear Head In. mm

TW-6 6 1/4-28 5/16-24 1 1/4 32

TW-7 7 5/16-24 3/8-24 1 1/4 32

TW-8 8 3/8-24 7/16-20 1 1/4 32

7/16” Hex Power Drive

Part Recess Screw Size Screw Size Overall Length

Number Size Tension Head Shear Head In. mm

TW-9 9 7/16-20 1/2-20 1 1/4 32

TW-10 10 1/2-20 9/16-18 1 1/4 32

TW-11 11 9/16-18 5/8-18 1 1/4 32

TW-12 12 5/8-18 3/4-16 1 1/4 32

TW-13 13 3/4-16 7/8-14 2 1/2 64

5/8” Hex Power Drive

Part Recess Screw Size Screw Size Overall Length

Number Size Tension Head Shear Head In. mm

TW-14 14 7/8-14 1-12 3 76

TW-15 15 1-12 - 3 76

3/4” Hex Power Drive

Tri-Wing®and ACR®are registered trademarks of the Phillips Screw Company.

Tri-Wing®

Hi-Torque®Bits

1/4” Square Drive Insert Bits

Overall Body Blade Blade

Part Length Diameter Thickness Width

Number Recess In. In. In. In.

HTS-0 0 1 1/2 .029 .167

HTS-1 1 1 1/2 .049 .274

HTS-2 2 1 1/2 .059 .295

HTS-3 3 1 1/2 .059 .377

HTS-4 4 1 1/2 .073 .502

3/8” Square Drive Insert Bits

Overall Body Blade Blade

Part Length Diameter Thickness Width

Number Recess In. In. In. In.

HTS-3A 3 1 3/4 .059 .377

HTS-4A 4 1 3/4 .073 .502

HTS-5 5 1 1/4 3/4 .079 .629

HTS-6 6 1 1/4 3/4 .095 .745

1/2” Square Drive Insert Bits

Overall Body Blade Blade

Part Length Diameter Thickness Width

Number Recess In. In. In. In.

HTS-7 7 1 5/8 1 .112 .884

HTS-8 8 1 5/8 1 .142 .995

HTS-9 9 1 5/8 1 1/4 .162 1.136

HTS-10 10 1 5/8 1 1/4 .182 1.250

HTS-12 12 2 3/8 1 1/4 .216 1.500

1/4” Hex Insert Bits

Overall Body Blade Blade

Part Length Diameter Thickness Width

Number Recess In. In. In. In.

HTN-B-1 1 1 1/4 9/32 .049 .274

HTN-B-2 2 1 1/4 5/16 .059 .295

HTN-B-3 3 1 1/4 3/8 .059 .377

HTN-B-4 4 1 1/4 1/2 .073 .502

Hi-Torque®—Rudy Vaughn, Licensor

Nominal Screw Size 01234568101/45/16 3/8 7/16 1/2 9/16 5/8 3/4

Hi-Torque Recess 0001111234567891012

Refer to Page iv for description of Rapid Select.

Part Point Overall Length

Number Size In. mm

440-TSQ-4M 4mm 1 25

440-TSQ-5M 5mm 1 25

440-TSQ-6M 6mm 1 25

440-TSQ-8M 8mm 1 25

440-TSQ-10M 10mm 1 25

1/4” Hex Insert Bits

Triple Square Bits

Part Point Overall Length

Number Size In. mm

480-TSQ-4M 4mm 1 1/4 32

480-TSQ-5M 5mm 1 1/4 32

480-TSQ-6M 6mm 1 1/4 32

480-TSQ-8M 8mm 1 1/4 32

480-TSQ-10M 10mm 1 1/4 32

480-TSQ-12M 12mm 1 1/4 32

480-TSQ-14M 14mm 1 1/4 32

5/16” Hex Insert Bits

Part Point Overall Length

Number Size In. mm

49-TSQ-4M 4mm 2 50

49-TSQ-5M 5mm 2 50

49-TSQ-6M 6mm 2 50

49-TSQ-8M 8mm 2 50

49-TSQ-10M 10mm 2 50

49-TSQ-12M 12mm 2 50

1/4” Hex Power Drive

Part Point Overall Length

Number Size In. mm

48-TSQ-4M 4mm 3 1/2 88

48-TSQ-5M 5mm 3 1/2 88

48-TSQ-6M 6mm 3 1/2 88

48-TSQ-8M 8mm 3 1/2 88

48-TSQ-10M 10mm 3 1/2 88

48-TSQ-12M 12mm 3 1/2 88

48-TSQ-14M 14mm 3 1/2 88

7/16” Hex Power Drive

Notes

Solutions

Does Apex offer quick release chucks?

Apex has a complete line of quick release

chucks that provide fast and easy power bit

changes.

(See page 56)

Does Apex offer magnetic bit holders?

Bit holders, like this Apex M-490, let you

use a variety of insert bits in power tool ap-

plications. You get economy and flexibility

– and fasteners can be magnetically held

to the bit.

(See page 52)

Do Apex quick-release bit holders

hold bits securely?

A quick-release bit holder allows fast, easy

insert bit changes while assuring that bits

stay securely in the bit holder. Simply pull

back on the knurled sleeve to release the bit.

(See pages 53)

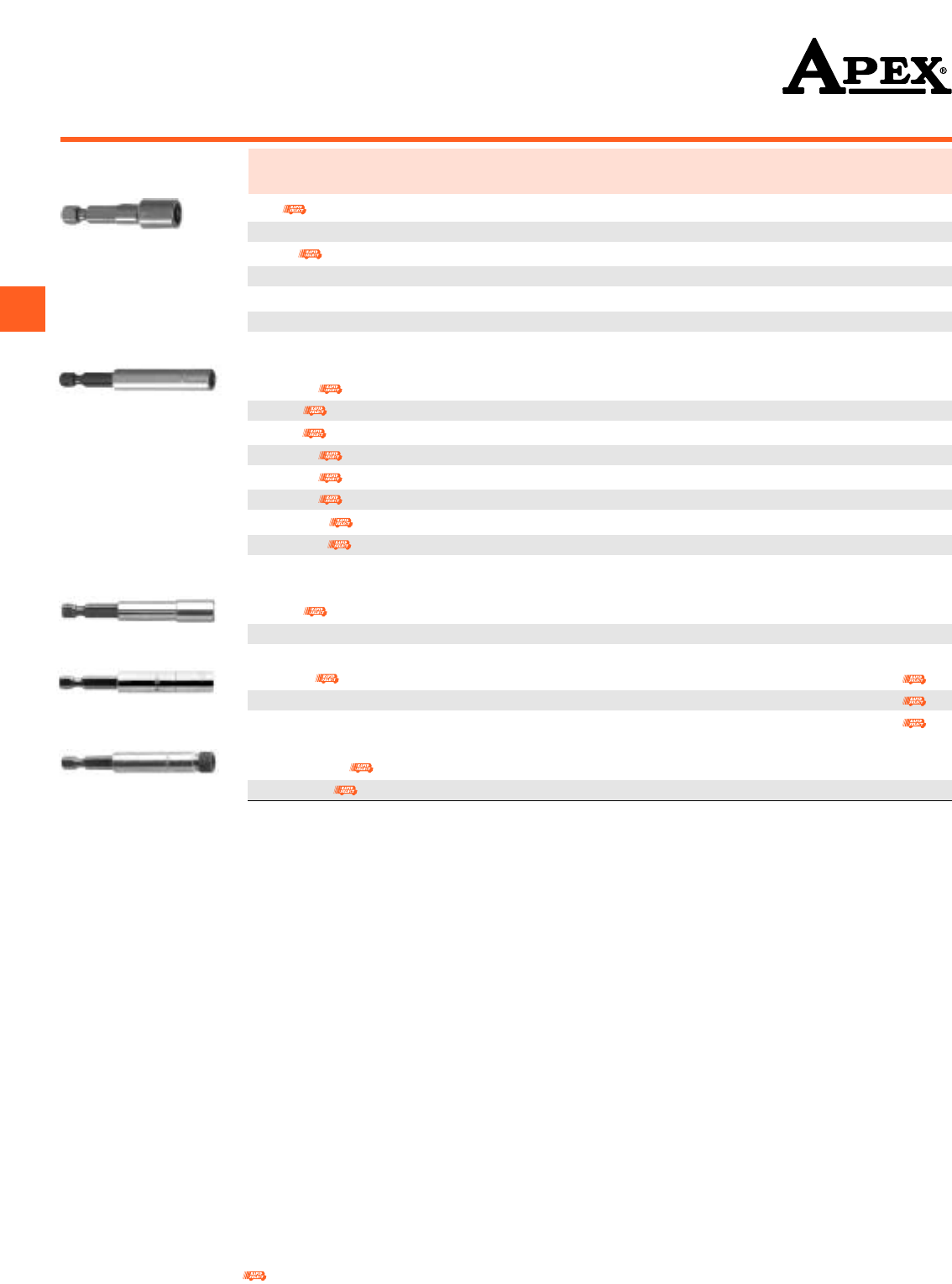

Part Overall Length

Number In. mm

490 2 1/8 54

490-3 3 76

490-4 4 102

490-5 5 127

490-6 6 152

490-8 8 203

490-10 10 254

M-490-2 2 51 Magnetic

M-490 2 31/32 75 Magnetic

M-497 3 3/32 79 Magnetic; 3/8” (9.5mm) reduced diameter

M-490-4 4 102 Magnetic

M-490-6 6 152 Magnetic

M-490-8 8 203 Magnetic

M-490-10 10 254 Magnetic

M-490-12 12 304 Magnetic

M-44-90 3 1/4 83 Magnetic; for Flip-Tip™ reversible bits

M-495 2 7/8 73 Magnetic; 3/8” (9.5mm) turned shank

M-495-5 5 127 Magnetic; 3/8” (9.5mm) turned shank

RM-490 2 7/8 73 Magnetic; nose piece only, #490-RN

RM-490-4 4 102 Magnetic; nose piece only, #490-RN

RM-490-6 6 152 Magnetic; nose piece only, #490-RN

M-490-2-OR 2 51 Magnetic; with O-Ring retainer

M-490-OR 3 76 Magnetic; with O-Ring retainer

Bit Holders

1/4” Hex Drive for 1/4” Hex Inserts

Non-magnetic

Refer to Page iv for description of Rapid Select.

1/4” Hex Drive for 5/16” Hex Inserts

Part Overall Length

Number In. mm

498 2 3/8 60

M-498 3 1/16 78 Magnetic

Part Overall Length

Number In. mm

QR-M-490-2 2 51 Magnetic; quick release

QR-M-490-A 2 29/32 74 Magnetic; quick release

QR-M-490-A6 6 152 Magnetic; quick release

QR-M-490-200M 7 7/8 200 Magnetic; quick release

Bit Holders

1/4” Hex Drive for 1/4” Hex Inserts, Quick Release

5/16” Buckeye-Desoutter for 1/4” Hex Inserts

Part Overall Length

Number In. mm

610 2 51

M-610 3 3/16 81 Magnetic

Part Overall Length

Number In. mm

630 1 13/16 46 For 1/4” hex inserts

M-630 3 76 For 1/4” hex inserts; magnetic

638 2 1/2 64 For 5/16” hex inserts

M-638 3 3/32 79 For 5/16” hex inserts; magnetic

5/16” Hex Drive

Refer to Page iv for description of Rapid Select.

1/4”-24 Screw Shank for 1/4” Hex Inserts

Part Overall Length

Number In. mm

400-BH 1 1/8 29

M-400 2 13/32 61 Magnetic

1/4”-20 Screw Shank for 1/4” Hex Inserts

Part Overall Length

Number In. mm

510 1 1/16 30

M-510 2 11/32 60 Magnetic

Bit Holders

7/16” Hex Drive

Part Overall Length

Number In. mm

488 2 3/4 70 For 1/4” hex inserts

M-488 3 1/16 78 For 1/4” hex inserts; magnetic

480 2 3/4 70 For 5/16” hex inserts

M-480 3 5/16 84 For 5/16” hex inserts; magnetic

M-480-6 6 152 For 5/16” hex inserts; magnetic

9/32” 130-A Yankee Type for 1/4” Hex Inserts

Part Overall Length

Number In. mm

450 2 1/4 57

M-450 3 3/8 86 Magnetic

5/16” 131-A Yankee Type for 1/4” Hex Inserts

Part Overall Length

Number In. mm

460 2 1/4 57

M-460 3 3/8 86 Magnetic

7/32” 135-A Yankee Type for 1/4” Hex Inserts

Part Overall Length

Number In. mm

470 2 1/4 57

M-470 3 3/8 86 Magnetic

Refer to Page iv for description of Rapid Select.

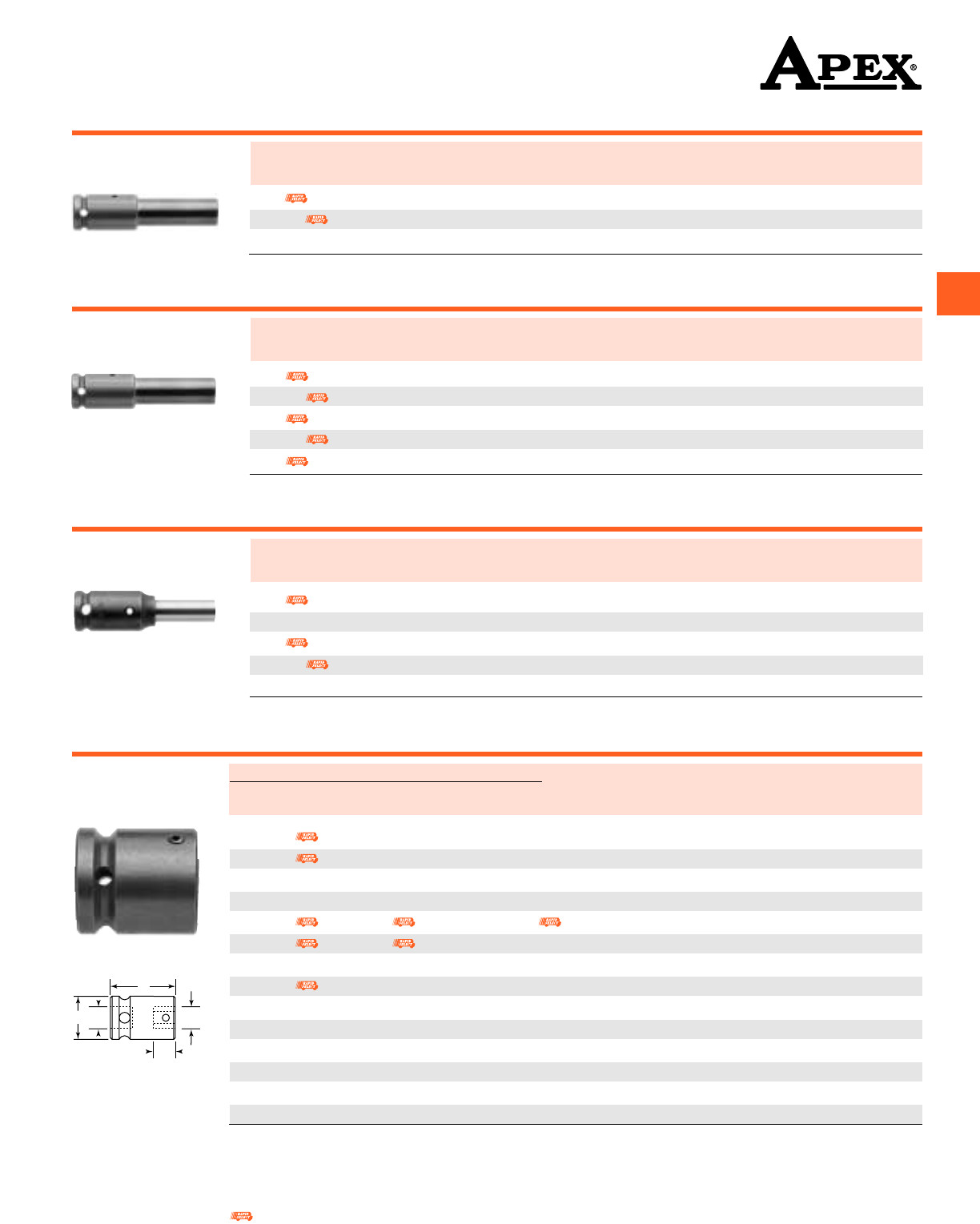

Bit Holders

1/4” Female Square Drive

Part Overall Length

Number In. mm

825 1 25 For 1/4” hex inserts

M-825 2 9/32 58 For 1/4” hex inserts; magnetic

820 23/32 18 For 1/4” square inserts

3/8” Female Square Drive

Part Overall Length

Number In. mm

838 1 1/2 38 For 1/4” hex inserts

M-838 2 23/32 69 For 1/4” hex inserts; magnetic

835 1 1/2 38 For 5/16” hex inserts

M-835 2 3/4 70 For 5/16” hex inserts; magnetic

830 1 1/2 38 For 5/16” square inserts

1/2” Female Square Drive

Part Overall Length

Number In. mm

858 1 3/4 45 For 1/4” hex inserts

M-858 2 3/4 70 For 1/4” hex inserts; magnetic

855 1 3/4 45 For 5/16” hex inserts

M-855 2 3/4 70 For 5/16” hex inserts; magnetic

850 1 3/4 45 For 5/16” square inserts

Bit Holders/Adapters with Set Screw or Thru Hole

Note: Use SC and RP bit holders with socket head inserts (page 36) and pipe plug inserts (page 40). Can be used with power bits.

Part Number Hex Square Overall Body Opening

Set Screw Spring Pin Spring Pin Opening Drive Length (C) Diameter (D) Depth (E)

Lock Retainer Only (A) In. (B) In. In. mm In. mm In. mm

SC-108 - - 1/4 1/4 1 1/4 32 3/4 19 5/8 16

SC-308 - - 1/4 3/8 1 1/2 38 3/4 19 5/8 16

SC-508 - - 1/4 1/2 1 1/2 38 7/8 22 5/8 16

SC-114 - - 7/16 1/4 1 25 3/4 19 17/32 13

SC-314 RP-314 21-S-156-0750 7/16 3/8 1 3/8 35 3/4 19 17/32 13

SC-514 RP-514 21-S-156-0937 7/16 1/2 1 5/8 41 15/16 24 17/32 13

SC-614 RP-614 21-S-156-0375 7/16 5/8 1 3/4 46 1 1/4 32 17/32 13

SC-520 RP-520 21-S-187-1125 5/8 1/2 1 1/2 38 1 1/8 29 11/16 17

SC-620 RP-620 5/8 5/8 1 1/2 38 1 1/4 32 11/16 17

SC-720 RP-720 21-S-187-1500 5/8 3/4 1 11/16 43 1 1/2 38 11/16 17

SC-820 RP-820 21-S-187-1375 5/8 1 2 1/8 54 2 1/8 54 11/16 17

SC-724 RP-724 21-S-187-1500 3/4 3/4 2 51 1 5/8 42 7/8 22

SC-728 RP-728 21-S-187-1625 7/8 3/4 2 51 1 5/8 42 57/64 23

SC-828 RP-828 21-S-187-1625 7/8 1 2 1/8 54 2 1/8 54 5/8 23

Refer to Page iv for description of Rapid Select.

Bit Holders

Female Threaded Drive, Quick Releasing Chucks

Female Square Drive, Quick Releasing Chucks

Part Female Hex Opening Overall Length Overall Diameter Opening Depth

Number Thread In. In. mm In. mm In. mm

QRA-08 3/8”-24 1/4 1 3/4 45 3/4 19 61/64 24

QRA-14 3/8”-24 7/16 2 51 1 1/4 32 1 1/16 27

QRF-08 1/2”-20 1/4 1 3/4 45 3/4 19 61/64 24

QRF-14 1/2”-20 7/16 2 51 1 1/4 32 1 1/16 27

QRF-20 1/2”-20 5/8 2 5/8 67 1 5/8 41 1 1/2 38

Hex Square Overall Body Sleeve Opening

Opening Drive Length Diameter Diameter Depth

Part (A) (B) (C) (D) (E) (F)

Number In. In. In. mm In. mm In. mm In. mm

QR-108 1/4 1/4 1 1/2 38 3/4 19 3/4 19 61/64 24

QR-308 1/4 3/8 1 3/4 45 3/4 19 3/4 19 61/64 24

QR-508 1/4 1/2 2 1/8 54 7/8 22 3/4 19 61/64 24

QR-314 7/16 3/8 2 51 1 25 1 1/4 32 1 3/32 28

QR-514 7/16 1/2 2 1/8 54 1 25 1 1/4 32 1 1/16 27

QR-614 7/16 5/8 2 1/8 54 1 1/4 32 1 1/4 32 1 1/16 27

QR-714 7/16 3/4 2 3/8 60 1 1/2 38 1 1/4 32 1 1/16 27

QR-520 5/8 1/2 2 5/8 67 1 1/2 38 1 5/8 41 1 1/2 38

QR-620 5/8 5/8 2 5/8 67 1 1/2 38 1 5/8 41 1 1/2 38

QR-720 5/8 3/4 3 1/8 79 1 1/2 38 1 5/8 41 1 1/2 38

QR-820 5/8 1 3 1/4 83 2 1/8 54 1 5/8 41 1 1/2 38

QR-824 3/4 1 3 3/4 95 2 51 1 7/8 48 1 5/8 41

Refer to Page iv for description of Rapid Select.

Replaceable Socket Nut Runners

Industrial Bit Kit

Pozidriv®is a registered trademark of the Phillips Screw Co. Torx®is a registered trademark of the Camcar Division of Textron.

Hand Drivers

Drivers with Self-Contained Insert Bits

Replaceable Bit Drivers

Replaceable Bit Drivers – Magnetic

Part Drive Type Overall Length Blade Projection

Number Size Lock. In. mm In. mm

SW-911-P 1/4” Sqr. Pin 7 1/2 191 3 76

SW-911-BP 1/4” Sqr. Ball 7 1/2 191 3 76

SWSC-911-C* 1/4” Sqr. Ball 8 5/16 211 3 5/8 92

*Hollow handle with 3/16, 1/4, 5/16 and 3/8 sockets.

24 Bit Kit Tool kit includes plastic carrying case with:

Magnetic hand driver and magnetic bit holder.

Phillips bits: #1,#2, #3

Slotted bits: 3F-4R, 4F-5R, 6F-8R, 8F-10R, 10F-12R

Torx®bits: T-10. T-15, T-20, T-25, T-27, T-30, T-40

Square Recess bits: 3/32”, 1/8”

Hex bits: 5/64”, 3/32”, 7/64”, 1/8”, 9/64”

Pozidriv®bits: #1, #2

Part Female Overall Length Blade Projection

No. Hex Size In. mm In. mm

M-15-SC 1/4 8 1/2 216 4 3/8 111 Phillips #1, #2, #3; Slotted 4F-5R,

10F-12R; hollow handle.

M-15-SC-A 1/4 8 1/2 216 4 3/8 111 Without bits; hollow handle.

Part Female Overall Length Blade Projection

No. Hex Size In. mm In. mm

1505-P 1/4 1 7/8 48 - -

1510-P 1/4 2 3/4 70 7/8 22

1555-P 5/16 2 7/8 73 7/8 22

1500-P 1/4 7 1/2 191 3 9/32 83

1550-P 5/16 10 1/2 267 6 152

Part Female Overall Length Blade Projection

No. Hex Size In. mm In. mm

M-1505-P 1/4 2 3/8 60 3/8 10

M-1500-P 1/4 8 1/2 216 4 3/8 111

M-1550-P 5/16 10 1/2 267 6 152

Refer to Page iv for description of Rapid Select.

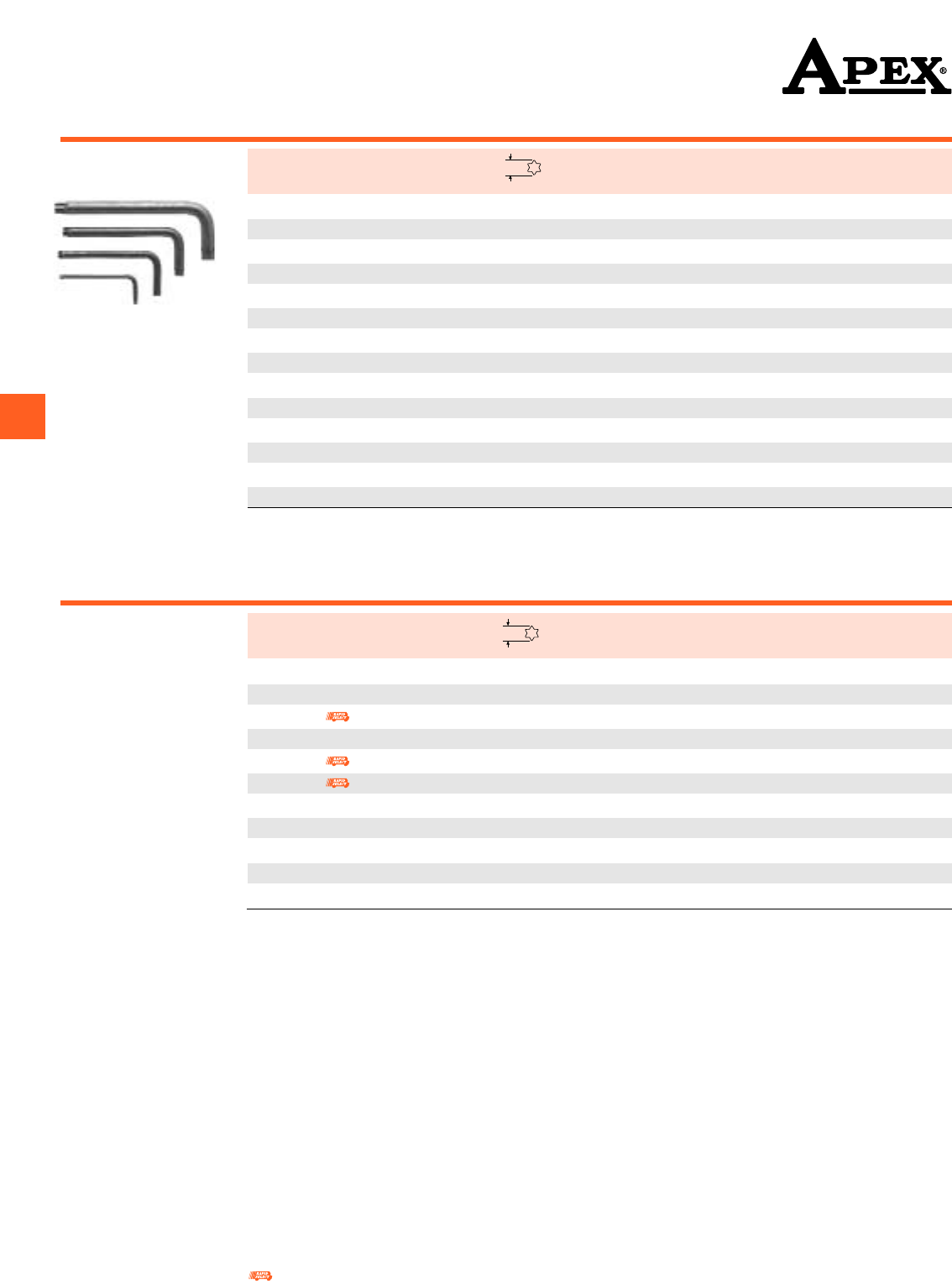

Part Driver A Short Arm Long Arm

Number Size Ref. In. mm In. mm

71-TX-06* T-6 .066 5/8 16 1 11/16 43

71-TX-07 T-7 .077 5/8 16 1 7/8 48

71-TX-08 T-8 .090 5/8 16 1 7/8 48

71-TX-09 T-9 .097 5/8 16 1 7/8 48

71-TX-10 T-10 .107 11/16 18 2 51

71-TX-15 T-15 .128 11/16 18 2 1/8 54

71-TX-20 T-20 .151 3/4 19 2 1/4 57

71-TX-25 T-25 .173 13/16 21 2 3/8 60

71-TX-27 T-27 .195 7/8 22 2 1/2 64

71-TX-30 T-30 .216 15/16 24 2 3/4 70

71-TX-40 T-40 .260 1 1/16 27 3 76

71-TX-45 T-45 .306 1 1/8 28 3 1/4 83

71-TX-50 T-50 .345 1 1/4 32 3 3/4 95

71-TX-55 T-55 .440 1 3/8 35 4 5/16 110

*T-6 key has Torx tip on short arm only.

Hand Drivers

Torx®Keys

Refer to Page iv for description of Rapid Select.

Torx®Hand Drivers

Part Driver A Overall Length Blade Length

Number Size Ref. In. mm In. mm

13-TX-06 T-6 0.066 6 3/4 171 3 76

13-TX-07 T-7 0.077 6 3/4 171 3 76

13-TX-08 T-8 0.090 6 3/4 171 3 76

13-TX-09 T-9 0.097 6 3/4 171 3 76

13-TX-10 T-10 0.107 6 3/4 171 3 76

13-TX-15 T-15 0.128 6 3/4 171 3 76

13-TX-20 T-20 0.151 6 3/4 171 3 76

13-TX-25 T-25 0.173 6 3/4 171 3 76

13-TX-27 T-27 0.195 7 3/4 197 4 102

13-TX-30 T-30 0.216 7 3/4 197 4 102

13-TX-40 T-40 0.260 10 1/8 257 6 152

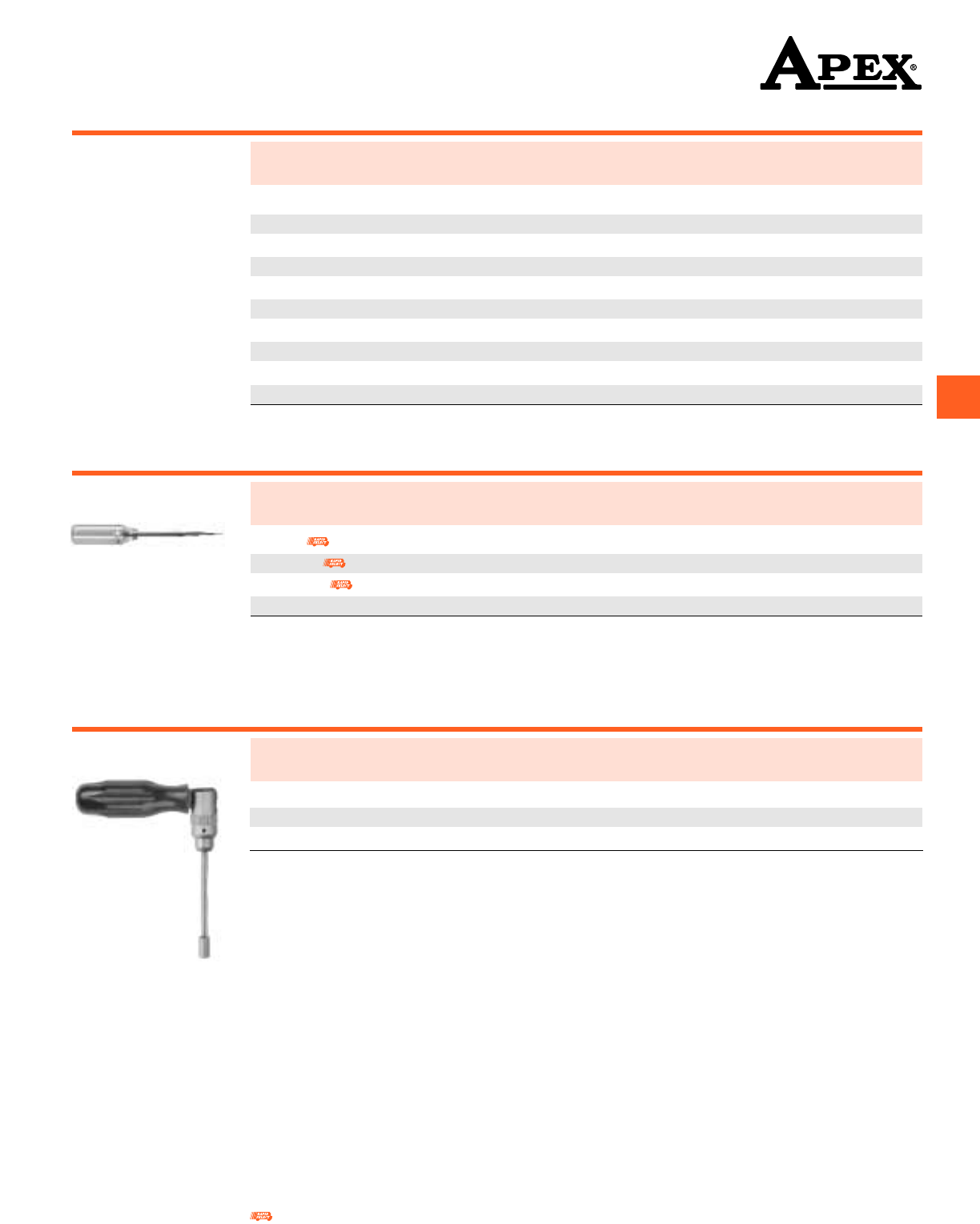

Pivex™Pivot Drivers

Part Overall Length

Number In. mm

MQR-15PV 11.8 298 1/4” Magnetic Quick-Release Bit Holder

M-15PVH* 11.7 296 1/4” Magnetic Bit Holder, Hollow Handle with Bits

M-15PVH-A 11.7 296 1/4” Magnetic Bit Holder, Hollow Handle without Bits

*Includes Phillips #1, 2, 3 and Slotted 4F-5R, 10F-12R bits.

The Apex®Pivex™ replaceable bit hand driver has a jointed shaft that allows the handle to pivot

180°. This lets you apply five times more torque than an ordinary hand driver of the same length.

Hand Drivers

Awls

Part Overall Length Shank Diameter

Number In. mm In. mm

AW-95 7 7/16 189 .307 7.8

AW-95-L 8 203 .307 7.8

AW-95-LL 8 7/8 225 .307 7.8

AW-375 9 228 .375 9.5

Use awls to line up hole and scratch mark surfaces.

Refer to Page iv for description of Rapid Select.

Torq-Set® Hand Drivers

Part Screw Overall Length Blade Length

Number Size In. mm In. mm

268P-0 0 3 76 1 1/4 32

268P-1 1 3 76 1 1/4 32

268P-2 2 6 1/4 159 3 1/8 79

268P-3 3 6 1/4 159 3 1/8 79

268P-4 4 6 1/4 159 3 1/8 79

268P-5 5 6 1/4 159 3 1/8 79

268P-6 6 7 1/2 190 4 102

268P-8 8 7 1/2 190 4 102

268P-10 10 7 1/2 190 4 102

268P-1/4 1/4 10 1/8 257 4 102

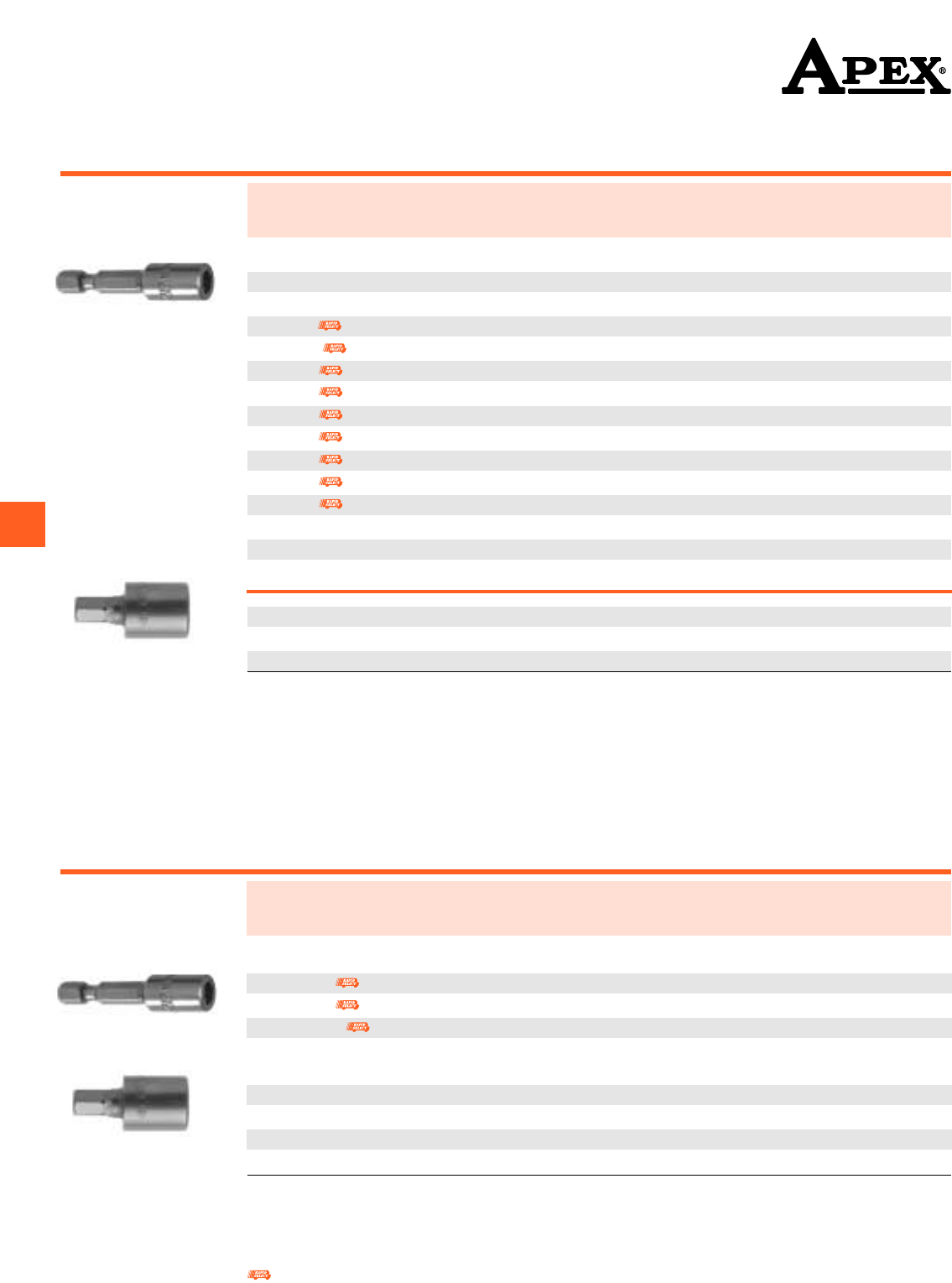

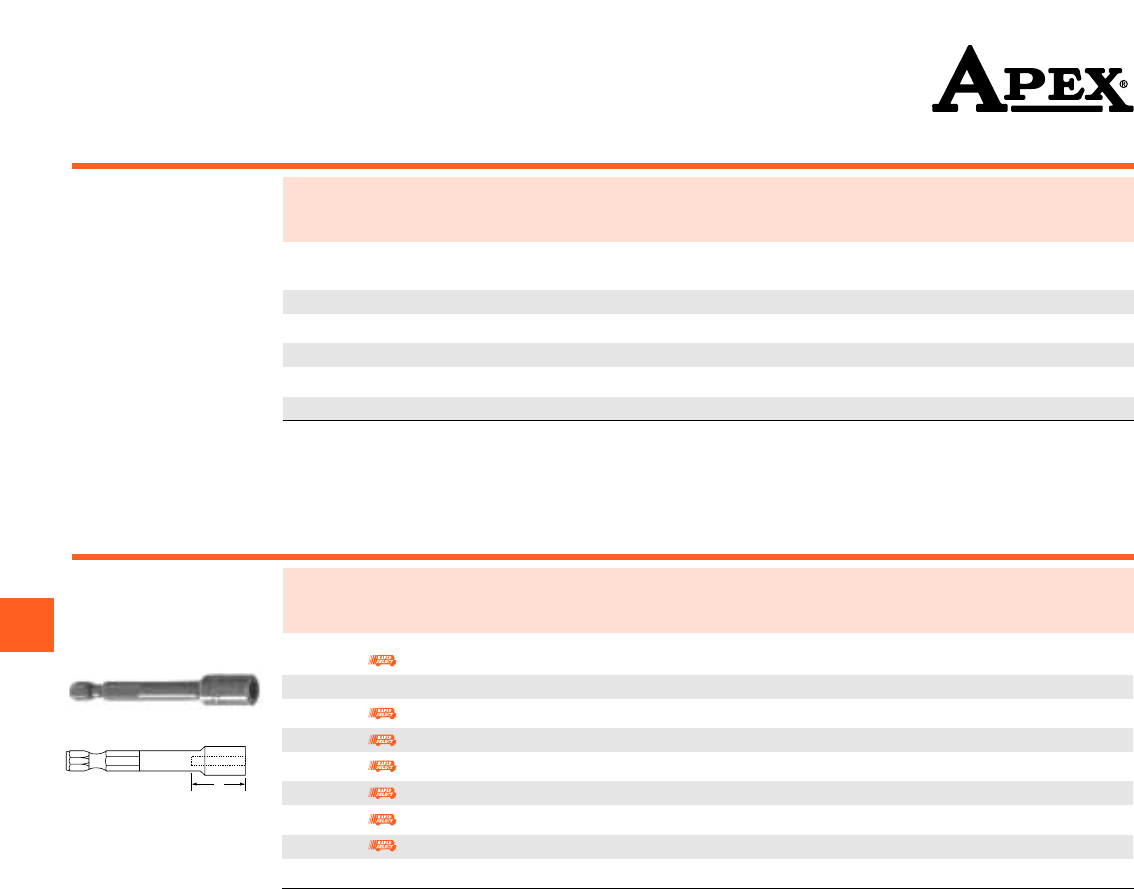

1/4” Hex Drive Nutsetters

for SAE Sheet Metal Screws

1/4” Hex Drive Nutsetters

for Metric Sheet Metal Screws

6 Point

Part Overall Socket Nose

Number Size Length Diameter

6 Point In. In. In.

DB-08 1/4 2 9/16 7/16 Non-magnetic

DB-10 5/16 2 9/16 1/2 Non-magnetic

DB-12 3/8 2 9/16 9/16 Non-magnetic

MDA-08 1/4 1 3/4 7/16 Magnetic

MDAT-08 1/4 1 3/4 3/8 Magnetic

MDA-10 5/16 1 3/4 1/2 Magnetic

MDA-12 3/8 1 3/4 9/16 Magnetic

MDA-14 7/16 2 11/16 Magnetic

MDB-08 1/4 2 9/16 7/16 Magnetic 5/16” Shank Diameter

MDB-10 5/16 2 9/16 1/2 Magnetic 5/16” Shank Diameter

MDB-12 3/8 2 9/16 9/16 Magnetic 5/16” Shank Diameter

MDB-14 7/16 2 9/16 5/8 Magnetic 5/16” Shank Diameter

MDC-08 1/4 2 9/16 7/16 Magnetic 3/8” Shank Diameter

MDC-10 5/16 2 9/16 1/2 Magnetic 3/8” Shank Diameter

MDC-12 3/8 2 9/16 9/16 Magnetic 3/8” Shank Diameter

MHM-2508 1/4 1 1/8 7/16 Magnetic

MHM-1310 5/16 1 1/8 1/2 Magnetic

MHM-1912 3/8 1 3/4 9/16 Magnetic

6 Point

Part Overall Socket Nose

Number Size Length Diameter

6 Point mm mm mm

MDA-6mm 6 44.5 9.5 Magnetic

MDA-7mm 7 44.5 11.1 Magnetic

MDA-8mm 8 44.5 12.7 Magnetic

MDA-10mm 10 44.5 14.3 Magnetic

MDA-10mm-80m 10 80.0 14.3 Magnetic

MHM-6mm 6 31.8 11.1 Magnetic

MHM-7mm 7 31.8 11.1 Magnetic

MHM-8mm 8 31.8 12.7 Magnetic

MHM-10mm 10 31.8 14.3 Magnetic

Power Drive

Insert

Refer to Page iv for description of Rapid Select.

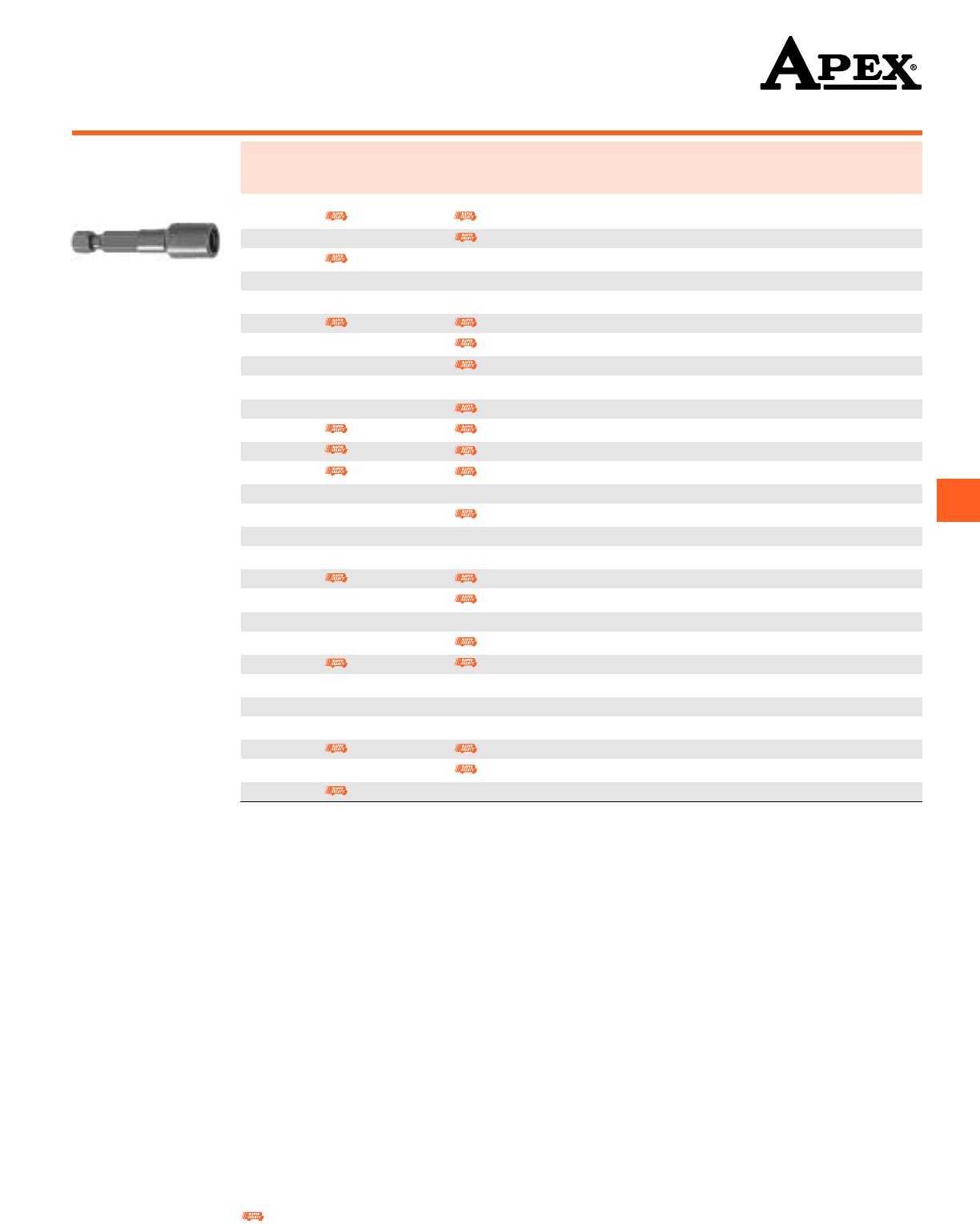

1/4” Hex Drive Nutsetters

6 Point and 6 Point Magnetic

Part Part Overall Socket Nose

Number Number Size Length Diameter

6 Point Magnetic In. In. In.

6N-0806-2 M6N-0806-2 3/16 2 5/16

6N-0806-3 M6N-0806-3 3/16 3 5/16

6N-0806-4 - 3/16 4 5/16

- M6N-0806-5 3/16 5 5/16

6N-0806-6 M6N-0806-6 3/16 6 5/16

6N-0808-2 M6N-0808-2 1/4 2 7/16

6N-0808-3 M6N-0808-3 1/4 3 7/16

6N-0808-4 M6N-0808-4 1/4 4 7/16

6N-0808-5 M6N-0808-5 1/4 5 7/16

6N-0808-6 M6N-0808-6 1/4 6 7/16

6N-0810-2 M6N-0810-2 5/16 2 1/2

6N-0810-3 M6N-0810-3 5/16 3 1/2

6N-0810-4 M6N-0810-4 5/16 4 1/2

6N-0810-5 M6N-0810-5 5/16 5 1/2

6N-0810-6 M6N-0810-6 5/16 6 1/2

6N-0811-2 M6N-0811-2 11/32 2 9/16

6N-0811-3 M6N-0811-3 11/32 3 9/16

6N-0812-2 M6N-0812-2 3/8 2 9/16

6N-0812-3 M6N-0812-3 3/8 3 9/16

6N-0812-4 M6N-0812-4 3/8 4 9/16

6N-0812-6 M6N-0812-6 3/8 6 9/16

6N-0814-2 M6N-0814-2 7/16 2 21/32

6N-0814-3 M6N-0814-3 7/16 3 21/32

6N-0814-4 M6N-0814-4 7/16 4 21/32

6N-0814-6 M6N-0814-6 7/16 6 21/32

6N-0816-2 M6N-0816-2 1/2 2 3/4

6N-0816-3 M6N-0816-3 1/2 3 3/4

6N-0818-2 M6N-0818-2 9/16 2 13/16

Refer to Page iv for description of Rapid Select.

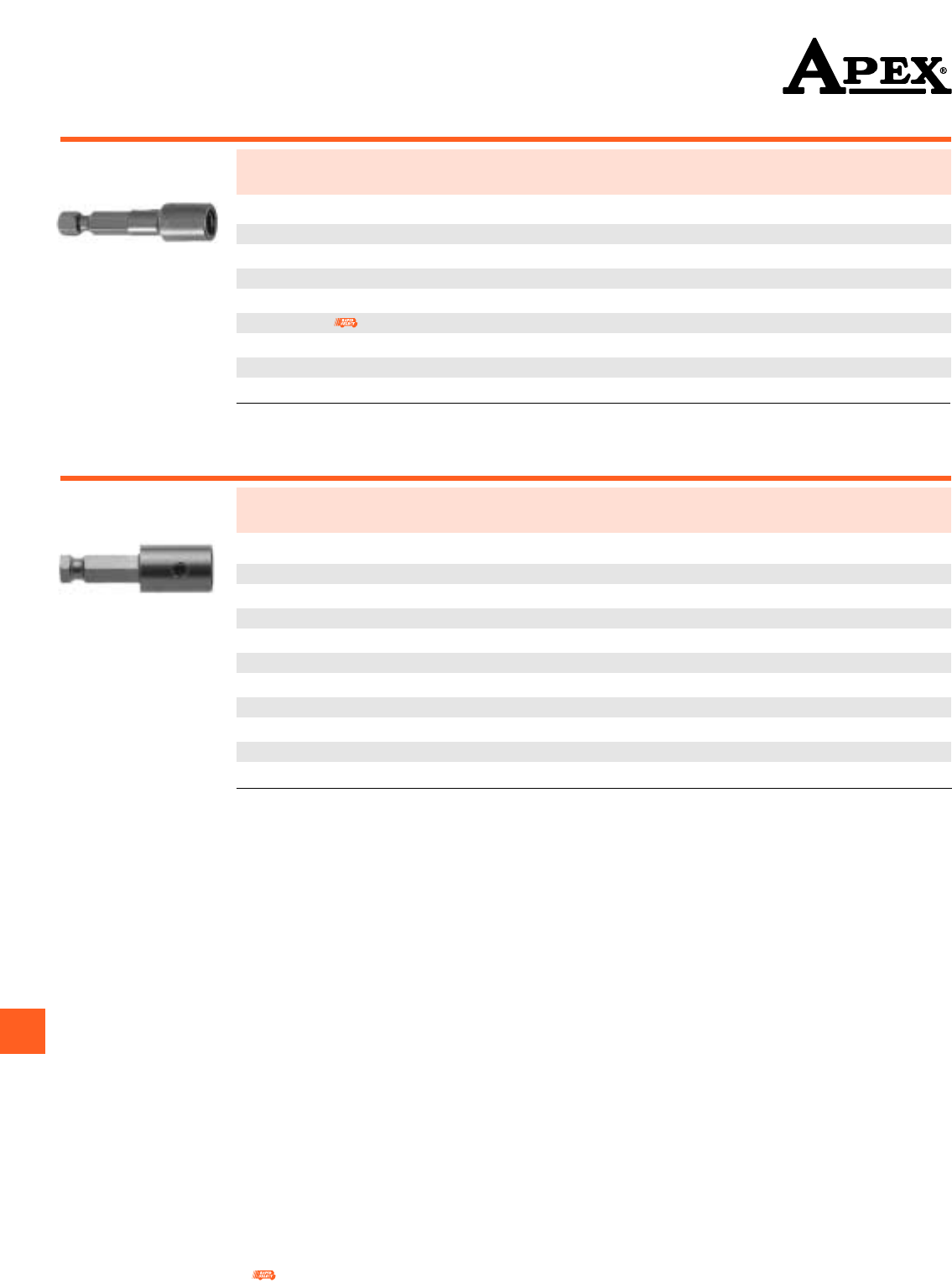

6 Point, Bolt Clearance

Part Overall Socket Nose Depth of

Number Size Length Diameter Clearance (A)

6 Point In. In. In. In.

6B-0808 1/4 3 1/4 7/16 1 3/8

6B-0809 9/32 3 1/4 1/2 1 3/8

6B-0810 5/16 3 1/4 1/2 1 3/8

6B-0811 11/32 3 1/4 9/16 1 3/8

6B-0812 3/8 3 1/4 9/16 1 3/8

6B-0814 7/16 3 1/4 21/32 1 3/8

6B-0816 1/2 3 1/4 3/4 1 3/8

6B-0818 9/16 3 1/4 13/16 1 3/8

6B-0820 5/8 3 1/4 7/8 1 3/8

See bolt clearance Tool Tip page 73.

6 Point Metric

Part Overall Socket Nose

Number Size Length Diameter

6 Point mm mm mm

M6N-08-8M-4 8 102 12.7 Magnetic

M6N-08-8M-6 8 152 12.7 Magnetic

M6N-08-10M-4 10 102 14.3 Magnetic

M6N-08-10M-6 10 152 14.3 Magnetic

M6N-08-12M-4 12 102 19.0 Magnetic

M6N-08-12M-6 12 152 19.0 Magnetic

1/4” Hex Drive Nutsetters

7/16” Hex Drive Nutsetters

6 Point

Part Overall Socket Nose

Number Size Length Diameter

6 Point In. In. In.

6N-1410-3 5/16 3 9/16

6N-1412-2 3/8 2 9/16

6N-1412-3 3/8 3 9/16

6N-1414-3 7/16 3 3/4

6N-1416-3 1/2 3 13/16

6N-1416-4 1/2 4 13/16

6N-1418-3 9/16 3 7/8

6N-1418-4 9/16 4 7/8

6N-1418-6 9/16 6 7/8

6N-1418-8 9/16 8 7/8

6N-1420-3 5/8 3 1

6N-1420-6 5/8 6 1

6N-1424-3 3/4 3 1 1/8

6N-1424-6 3/4 6 1 1/8

5/8” Hex Drive Nutsetters

6 Point

Part Overall Socket Nose

Number Size Length Diameter

6 Point In. In. In.

6N-2028-4 7/8 4 1 3/8

6N-2036-4 1 1/8 4 1 5/8

Refer to Page iv for description of Rapid Select.

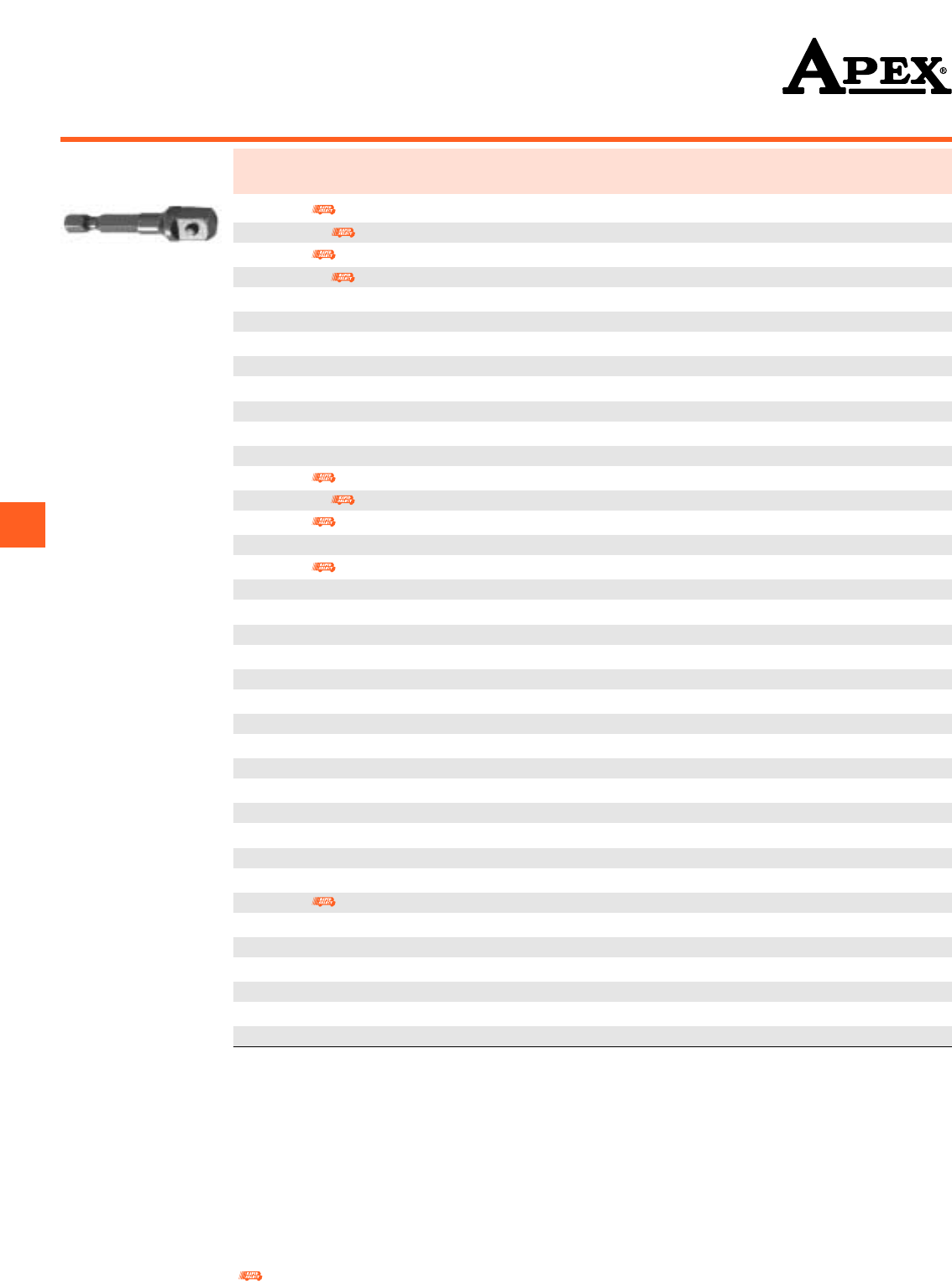

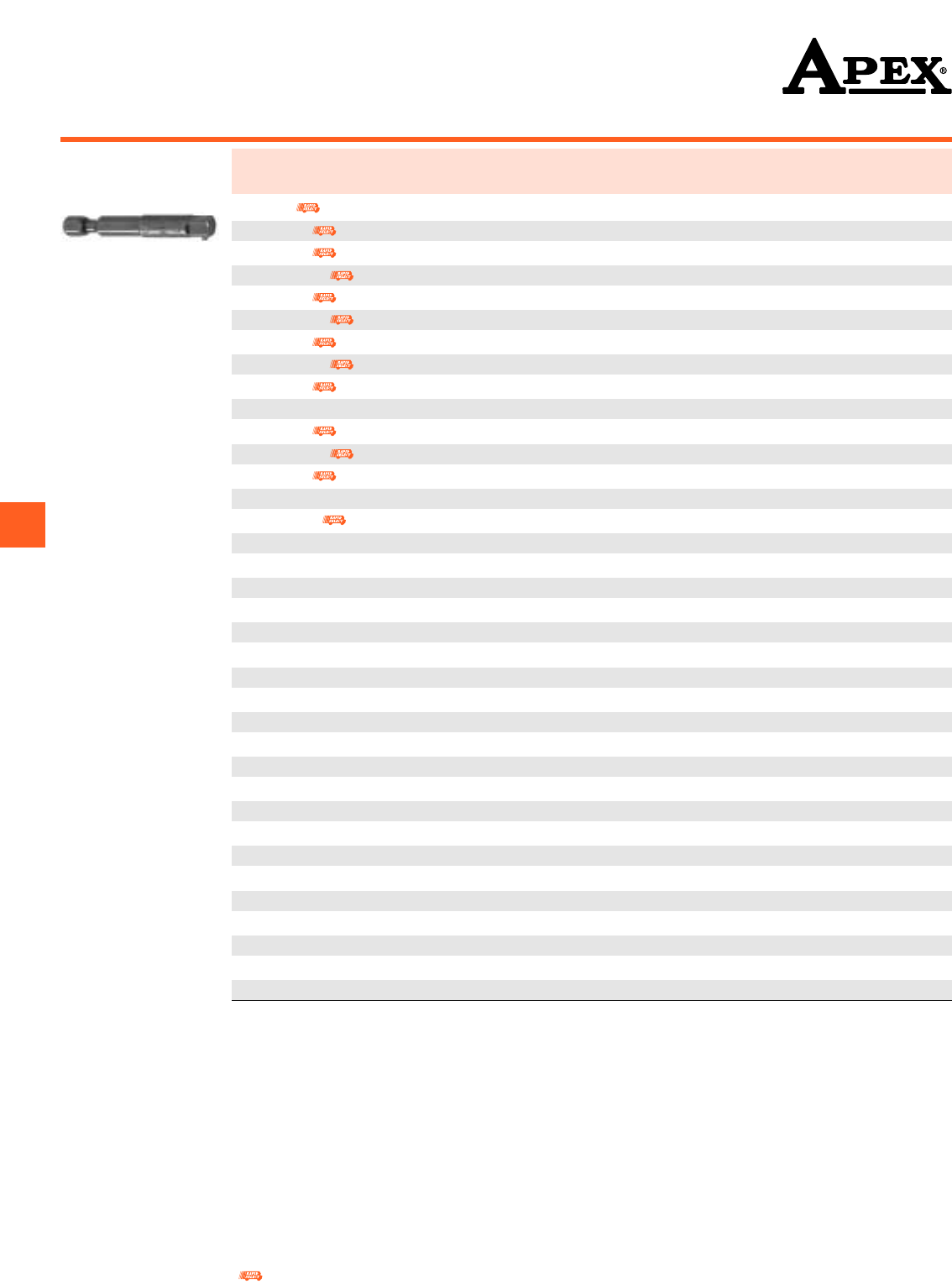

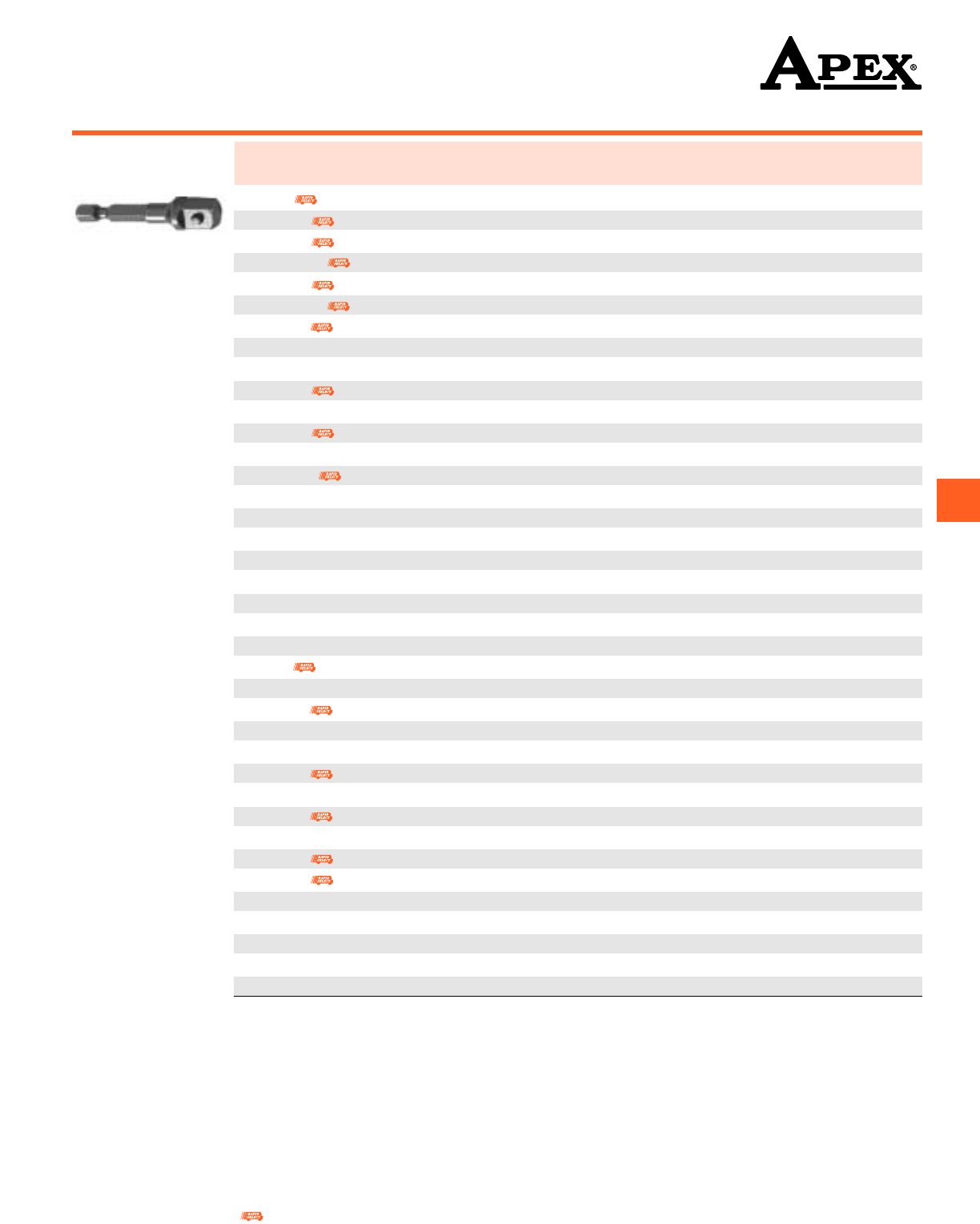

Part Hex Drive Type of Overall Length

Number In. Lock In. mm

EX-250 1/4 Pin 1 3/8 35

EX-250-B 1/4 Ball 1 3/8 35

EX-250-2 1/4 Pin 2 51

EX-250-B-2 1/4 Ball 2 51

EX-250-3 1/4 Pin 3 76

EX-250-B-3 1/4 Ball 3 76

EX-250-4 1/4 Pin 4 102

EX-250-B-4 1/4 Ball 4 102

EX-250-5 1/4 Pin 5 127

EX-250-B-5 1/4 Ball 5 127

EX-250-6 1/4 Pin 6 152

EX-250-B-6 1/4 Ball 6 152

EX-250-8 1/4 Pin 8 203

EX-250-B-8 1/4 Ball 8 203

EX-250-12 1/4 Pin 12 305

EX-250-B-12 1/4 Ball 12 305

EX-262 5/16 Pin 1 1/2 38

EX-262-B 5/16 Ball 1 1/2 38

EX-262-2 5/16 Pin 2 51

EX-262-B-2 5/16 Ball 2 51

EX-262-3 5/16 Pin 3 76

EX-262-4 5/16 Pin 4 102

EX-262-B-4 5/16 Ball 4 102

EX-262-6 5/16 Pin 6 152

EX-262-B-6 5/16 Ball 6 152

EX-251 7/16 Pin 1 3/8 35

EX-251-B 7/16 Ball 1 3/8 35

EX-251-2 7/16 Pin 2 51

EX-251-B-2 7/16 Ball 2 51

EX-251-3 7/16 Pin 3 76

EX-251-B-3 7/16 Ball 3 76

EX-251-4 7/16 Pin 4 102

EX-251-B-4 7/16 Ball 4 102

EX-251-6 7/16 Pin 6 152

EX-251-8 7/16 Pin 8 203

EX-251-10 7/16 Pin 10 254

Male Hex Drive with 1/4” Male Square

Hex Extensions

Refer to Page iv for description of Rapid Select.

Male Hex Drive with 3/8” Male Square

Hex Extensions

Part Hex Drive Type of Overall Length

Number In. Lock In. mm

EX-370 1/4 Pin 1 5/8 41

EX-370-B 1/4 Ball 1 5/8 41

EX-370-2 1/4 Pin 2 51

EX-370-B-2 1/4 Ball 2 51

EX-370-3 1/4 Pin 3 76

EX-370-B-3 1/4 Ball 3 76

EX-370-4 1/4 Pin 4 102

EX-370-B-4 1/4 Ball 4 102

EX-370-5 1/4 Pin 5 127

EX-370-6 1/4 Pin 6 152

EX-370-B-6 1/4 Ball 6 152

EX-370-8 1/4 Pin 8 203

EX-370-B-8 1/4 Ball 8 203

EX-370-10 1/4 Pin 10 254

EX-370-B-10 1/4 Ball 10 254

EX-380 5/16 Pin 1 1/2 38

EX-380-B 5/16 Ball 1 1/2 38

EX-380-2 5/16 Pin 2 51

EX-380-B-2 5/16 Ball 2 51

EX-380-3 5/16 Pin 3 76

EX-380-4 5/16 Pin 4 102

EX-380-6 5/16 Pin 6 152

EX-371 7/16 Pin 1 3/4 45

EX-371-B 7/16 Ball 1 3/4 45

EX-371-2 7/16 Pin 2 51

EX-371-B-2 7/16 Ball 2 51

EX-371-2 3/4 7/16 Pin 2 3/4 70

EX-371-3 7/16 Pin 3 76

EX-371-B-3 7/16 Ball 3 76

EX-371-4 7/16 Pin 4 102

EX-371-B-4 7/16 Ball 4 102

EX-371-5 7/16 Pin 5 127

EX-371-6 7/16 Pin 6 152

EX-371-B-6 7/16 Ball 6 152

EX-371-8 7/16 Pin 8 203

EX-371-10 7/16 Pin 10 254

EX-371-12 7/16 Pin 12 305

EX-371-15 7/16 Pin 15 381

Refer to Page iv for description of Rapid Select.

Male Hex Drive with 1/2” Male Square

Hex Extensions

Part Hex Drive Type of Overall Length

Number In. Lock In. mm

EX-500-2 1/4 Pin 2 51

EX-500-B-2 1/4 Ball 2 51

EX-500-3 1/4 Pin 3 76

EX-500-B-3 1/4 Ball 3 76

EX-500-4 1/4 Pin 4 102

EX-500B-4 1/4 Ball 4 102

EX-500-6 1/4 Pin 6 152

EX-500-B-6 1/4 Ball 6 152

EX-512-2 5/16 Pin 2 51

EX-512-B-2 5/16 Ball 2 51

EX-512-3 5/16 Pin 3 76

EX-512-B-4 5/16 Ball 4 102

EX-501-2 7/16 Pin 2 1/8 54

EX-501-B-2 7/16 Ball 2 1/8 54

EX-501-3 7/16 Pin 3 76

EX-501-B-3 7/16 Ball 3 76

EX-501-4 7/16 Pin 4 102

EX-501-B-4 7/16 Ball 4 102

EX-501-5 7/16 Pin 5 127

EX-501-B-5 7/16 Ball 5 127

EX-501-6 7/16 Pin 6 152

EX-501-B-6 7/16 Ball 6 152

EX-501-8 7/16 Pin 8 203

EX-501-B-8 7/16 Ball 8 203

EX-501-10 7/16 Pin 10 254

EX-501-B-10 7/16 Ball 10 254

EX-501-12 7/16 Pin 12 305

EX-501-B-12 7/16 Ball 12 305

EX-501-15 7/16 Pin 15 381

EX-502 5/8 Pin 2 51

EX-502-B 5/8 Ball 2 51

EX-502-3 5/8 Pin 3 76

EX-502-B-3 5/8 Ball 3 76

EX-502-4 5/8 Pin 4 102

EX-502-B-4 5/8 Ball 4 102

EX-502-5 5/8 Pin 5 127

EX-502-6 5/8 Pin 6 152

EX-502-8 5/8 Pin 8 203

Refer to Page iv for description of Rapid Select.

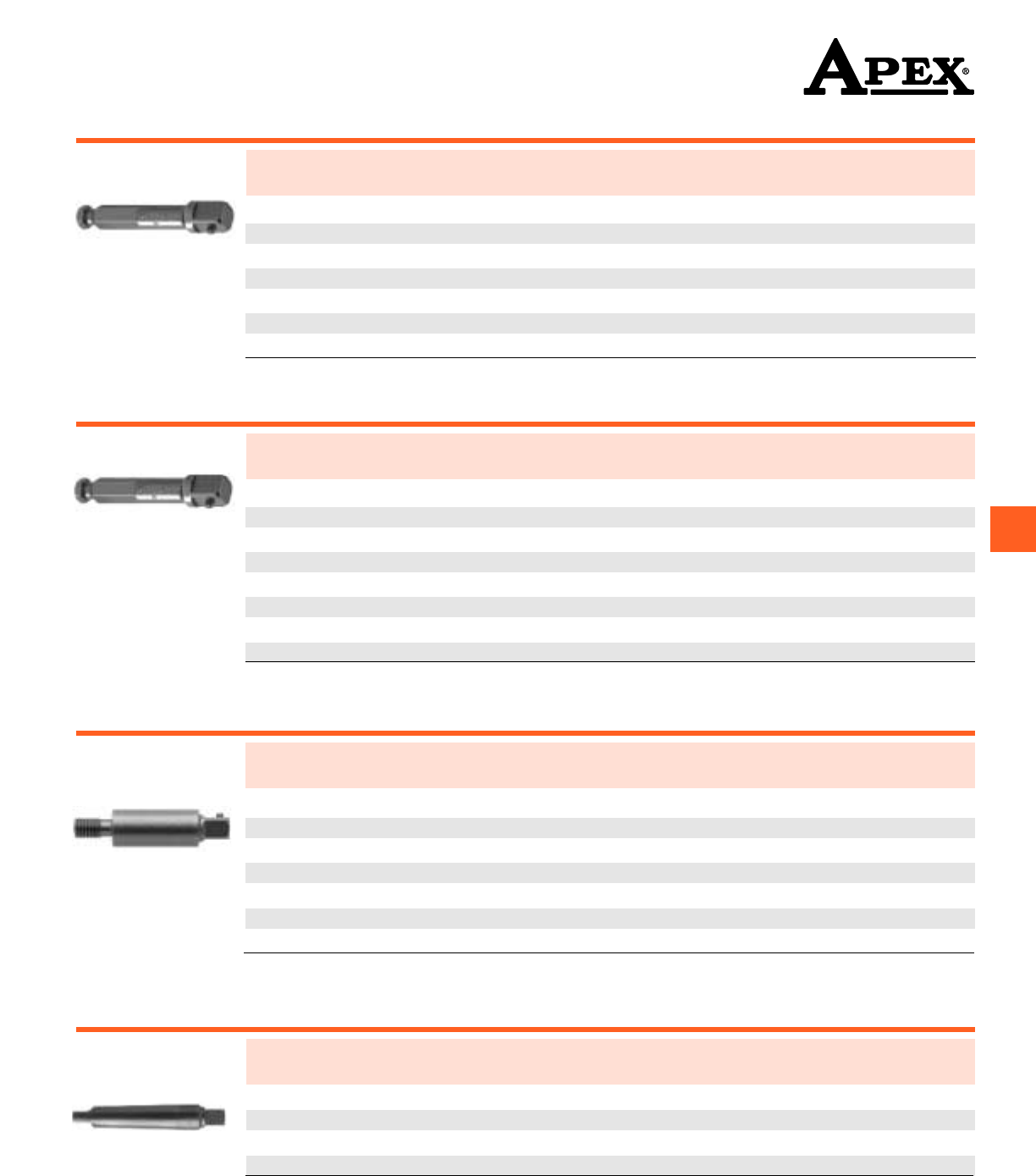

Male Hex Drive with 5/8” Male Square

Extensions

Part Hex Drive Type of Overall Length

Number In. Lock In. mm

EX-620-3 7/16 Pin 3 76

EX-620-6 7/16 Pin 6 152

EX-621-3 5/8 Pin 3 76

EX-621-B-3 5/8 Ball 3 76

EX-621-4 5/8 Pin 4 102

EX-621-6 5/8 Pin 6 152

EX-621-8 5/8 Pin 8 203

Part Hex Drive Type of Overall Length

Number In. Lock In. mm

EX-757-3 7/16 7/32 Drill Hole 3 76

EX-757-B-3 7/16 Ball 3 76

EX-758-4 5/8 7/32 Drill Hole 4 102

EX-758-B-4 5/8 Ball 4 102

EX-758-6 5/8 7/32 Drill Hole 6 152

EX-758-B-6 5/8 Ball 6 152

EX-758-9 5/8 7/32 Drill Hole 9 229

EX-759-4 3/4 7/32 Drill Hole 4 102

Male Hex Drive with 3/4” Male Square

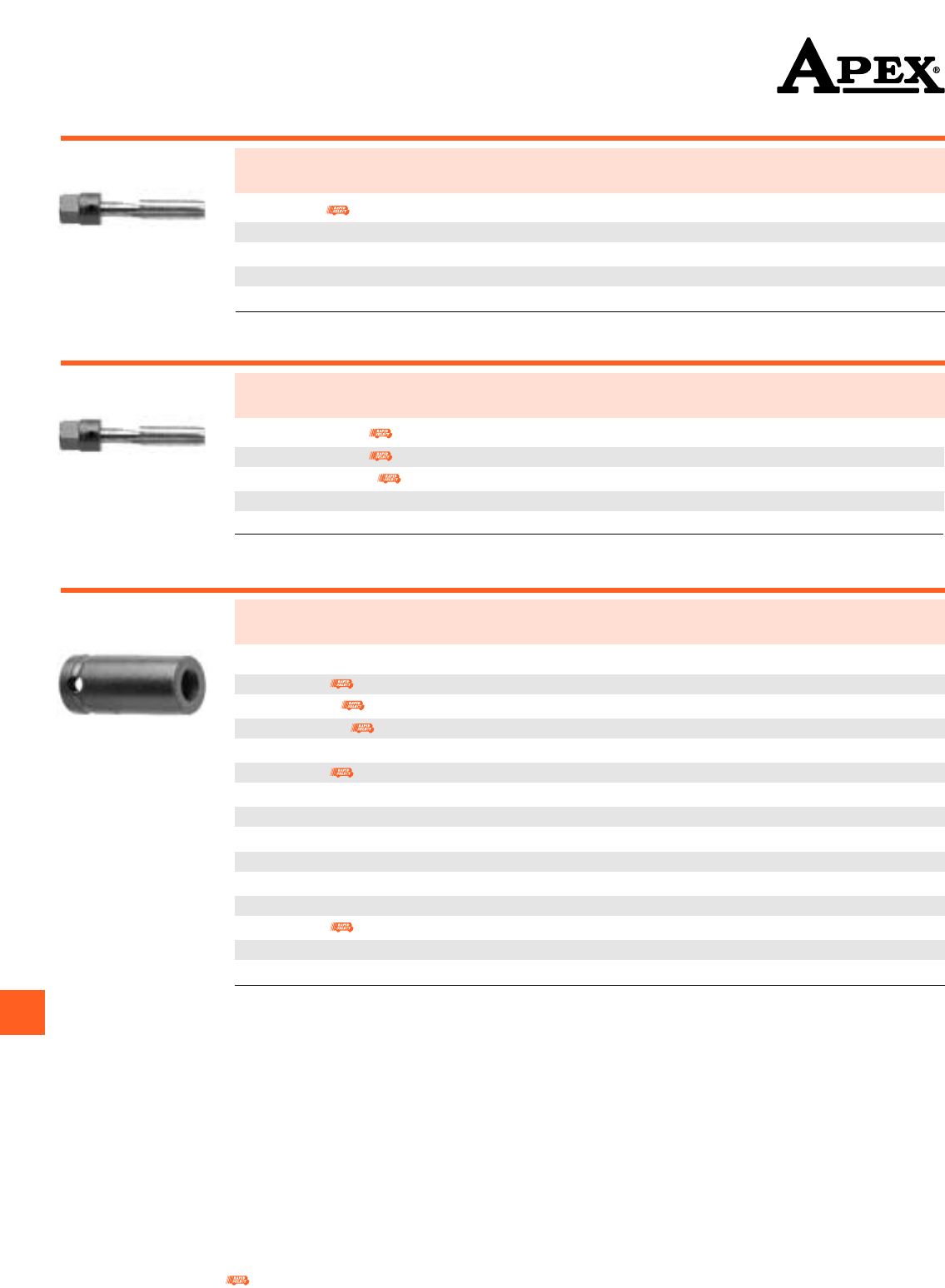

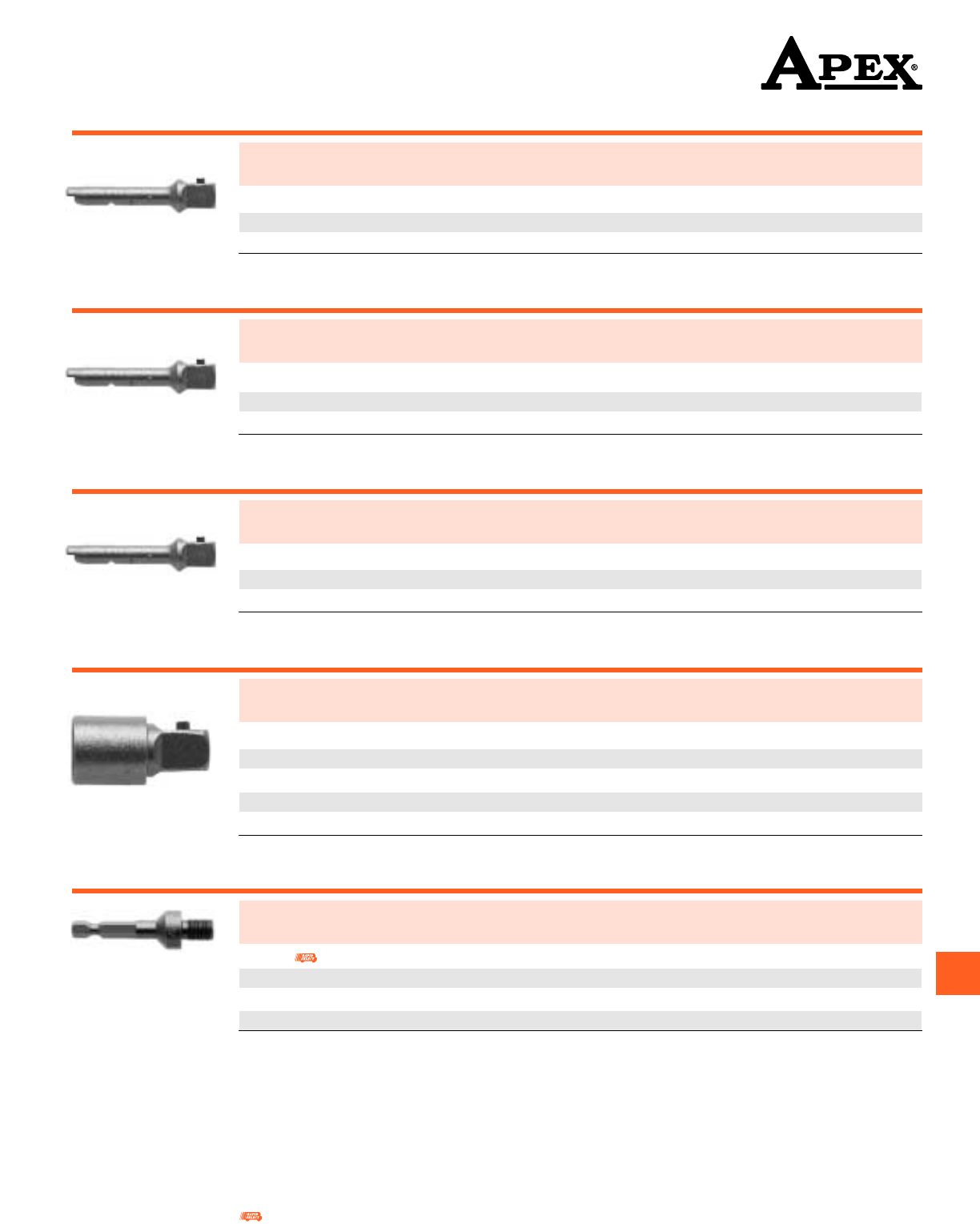

Threaded Screw Shank

Part Male Square Male Thread Overall Length Body Diameter

Number In. In. In. mm In. mm

TH-256 1/4 1/4-28 1 5/8 41 7/16 11

TH-376 3/8 1/4-28 1 5/8 41 1/2 13

TH-250 1/4 1/4-24 1 5/8 41 7/16 11

TH-370 3/8 1/4-24 1 3/4 45 1/2 13

TH-252 1/4 1/4-20 1 3/4 45 7/16 11

TH-372 3/8 1/4-20 1 3/4 45 1/2 13

TH-254 1/4 10-32 1 3/4 45 3/8 10

Morse Taper Shank

Part Male Square Morse Type of Overall Length

Number In. Taper Lock In. mm

MT-503 1/2 3 Pin 6 152

MT-752 3/4 2 7/32 Drill Hole 6 152

MT-753 3/4 3 7/32 Drill Hole 6 152

MT-754 3/4 4 7/32 Drill Hole 7 178

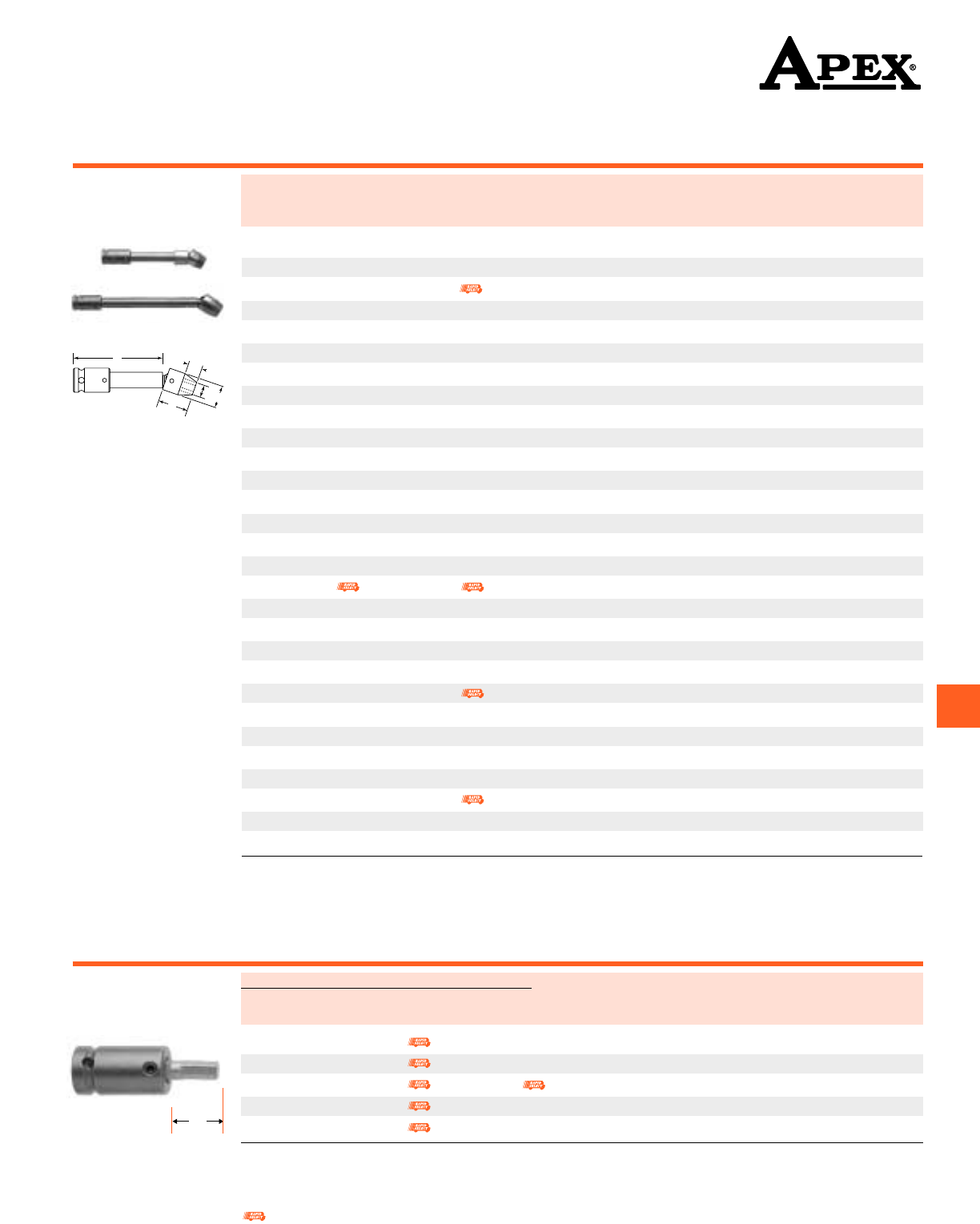

1/4” Male Hex Universal Wrenches, SAE

6 Point, Standard and Tension Type – Extension

Part Part Hex Shank Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension In. (A) In. (B) In. (C) In. (D) In. (E) In.

KC-25-3 - 1/4 3 3/4 5/8 3/8 3/8

KC-25-4 - 1/4 4 3/4 5/8 3/8 3/8

KC-25-6 KS-25-6 1/4 6 3/4 5/8 3/8 3/8

KC-25-9 KS-25-9 1/4 9 3/4 5/8 3/8 3/8

KC-25-12 KS-25-12 1/4 12 3/4 5/8 3/8 3/8

KC-26-3 - 5/16 3 3/4 5/8 7/16 3/8

KC-26-4 - 5/16 4 3/4 5/8 7/16 3/8

KC-26-6 KS-26-6 5/16 6 3/4 5/8 7/16 3/8

KC-26-9 KS-26-9 5/16 9 3/4 5/8 7/16 3/8

KC-26-12 KS-26-12 5/16 12 3/4 5/8 7/16 3/8

KC-100-3 - 5/16 3 3/4 3/4 7/16 5/16

KC-100-6 KS-100-6 5/16 6 3/4 3/4 7/16 5/16

- KS-100-9 5/16 9 3/4 3/4 7/16 5/16

KC-100-12 - 5/16 12 3/4 3/4 7/16 5/16

KC-27-3 - 11/32 3 3/4 5/8 1/2 3/8

KC-27-6 KS-27-6 11/32 6 3/4 5/8 1/2 3/8

KC-27-12 - 11/32 12 3/4 5/8 1/2 3/8

KC-101-3 - 11/32 3 3/4 3/4 15/32 5/16

KC-101-6 KS-101-6 11/32 6 3/4 3/4 15/32 5/16

KC-28-3 - 3/8 3 13/16 5/8 9/16 7/16

KC-28-4 - 3/8 4 13/16 5/8 9/16 7/16

KC-28-6 KS-28-6 3/8 6 13/16 5/8 9/16 7/16

KC-28-9 KS-28-9 3/8 9 13/16 5/8 9/16 7/16

KC-28-12 KS-28-12 3/8 12 13/16 5/8 9/16 7/16

KC-102-3 - 3/8 3 13/16 3/4 9/16 3/8

KC-102-6 KS-102-6 3/8 6 13/16 3/4 9/16 3/8

KC-102-9 KS-102-9 3/8 9 13/16 3/4 9/16 3/8

KC-29-3 - 7/16 3 7/8 5/8 5/8 1/2

KC-29-6 KS-29-6 7/16 6 7/8 5/8 5/8 1/2

- KS-29-9 7/16 9 7/8 5/8 5/8 1/2

KC-29-12 - 7/16 12 7/8 5/8 5/8 1/2

KC-103-3 - 7/16 3 15/16 3/4 5/8 1/2

KC-103-6 KS-103-6 7/16 6 15/16 3/4 5/8 1/2

KC-103-9 KS-103-9 7/16 9 15/16 3/4 5/8 1/2

KC-30-3 - 1/2 3 7/8 11/16 11/16 1/2

KC-30-4 - 1/2 4 7/8 11/16 11/16 1/2

KC-30-6 KS-30-6 1/2 6 7/8 11/16 11/16 1/2

KC-30-9 KS-30-9 1/2 9 7/8 11/16 11/16 1/2

- KS-30-12 1/2 12 7/8 11/16 11/16 1/2

KC-104-3 - 1/2 3 1 3/4 3/4 9/16

KC-104-6 KS-104-6 1/2 6 1 3/4 3/4 9/16

KC-104-9 KS-104-9 1/2 9 1 3/4 3/4 9/16

KC-104-12 - 1/2 12 1 3/4 3/4 9/16

Standard Type

Tension Type

Universal wrenches

must not be used

with impact drivers.

Maximum operating

angle is 30°.

Refer to Page iv for description of Rapid Select.

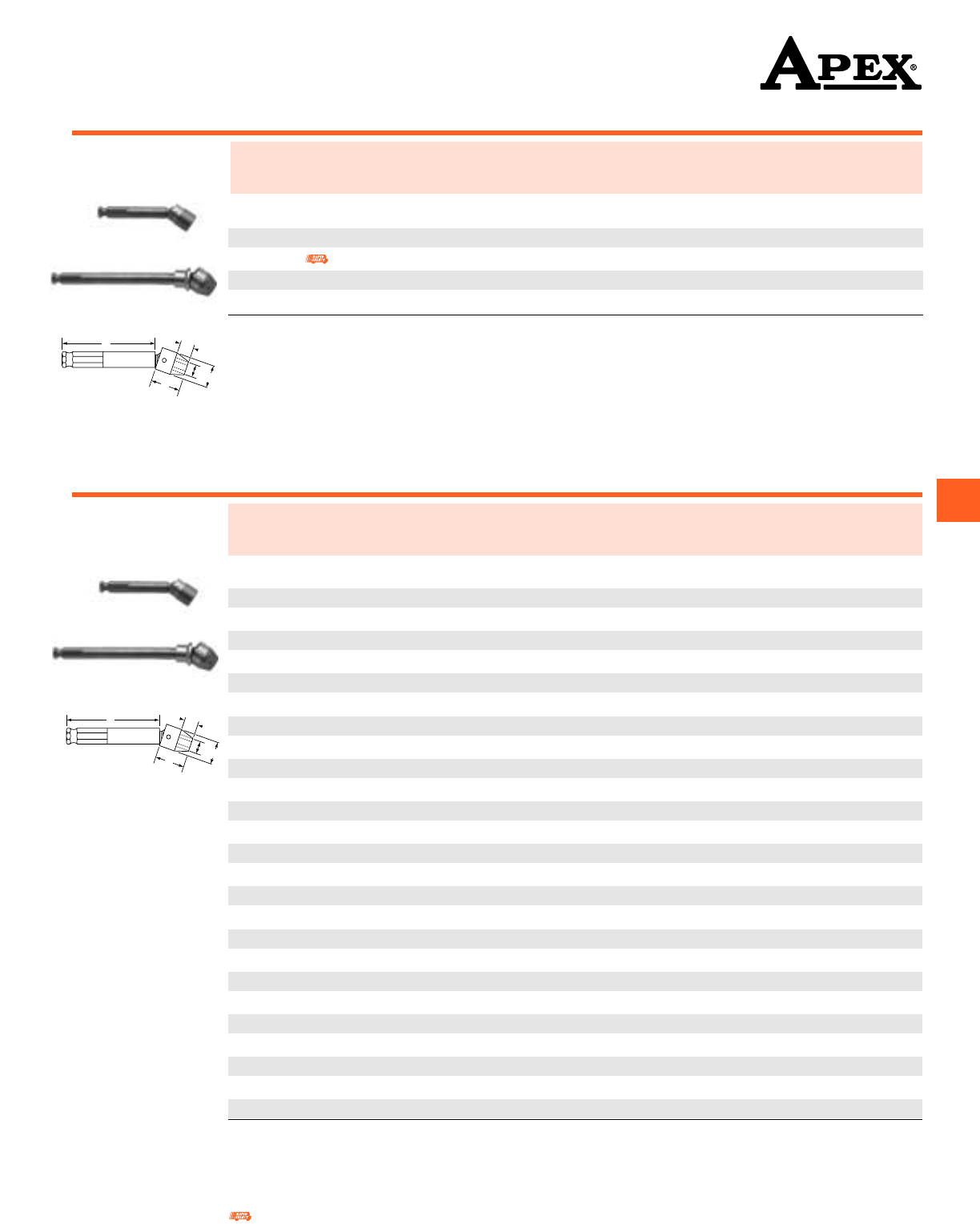

Part Part Hex Shank Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension In. (A) In. (B) In. (C) In. (D) In. (E) In.

KC-105-3 - 9/16 3 1 13/16 13/16 9/16

KC-105-4 - 9/16 4 1 13/16 13/16 9/16

KC-105-6 KS-105-6 9/16 6 1 13/16 13/16 9/16

KC-105-9 KS-105-9 9/16 9 1 13/16 13/16 9/16

KC-105-12 - 9/16 12 1 13/16 13/16 9/16

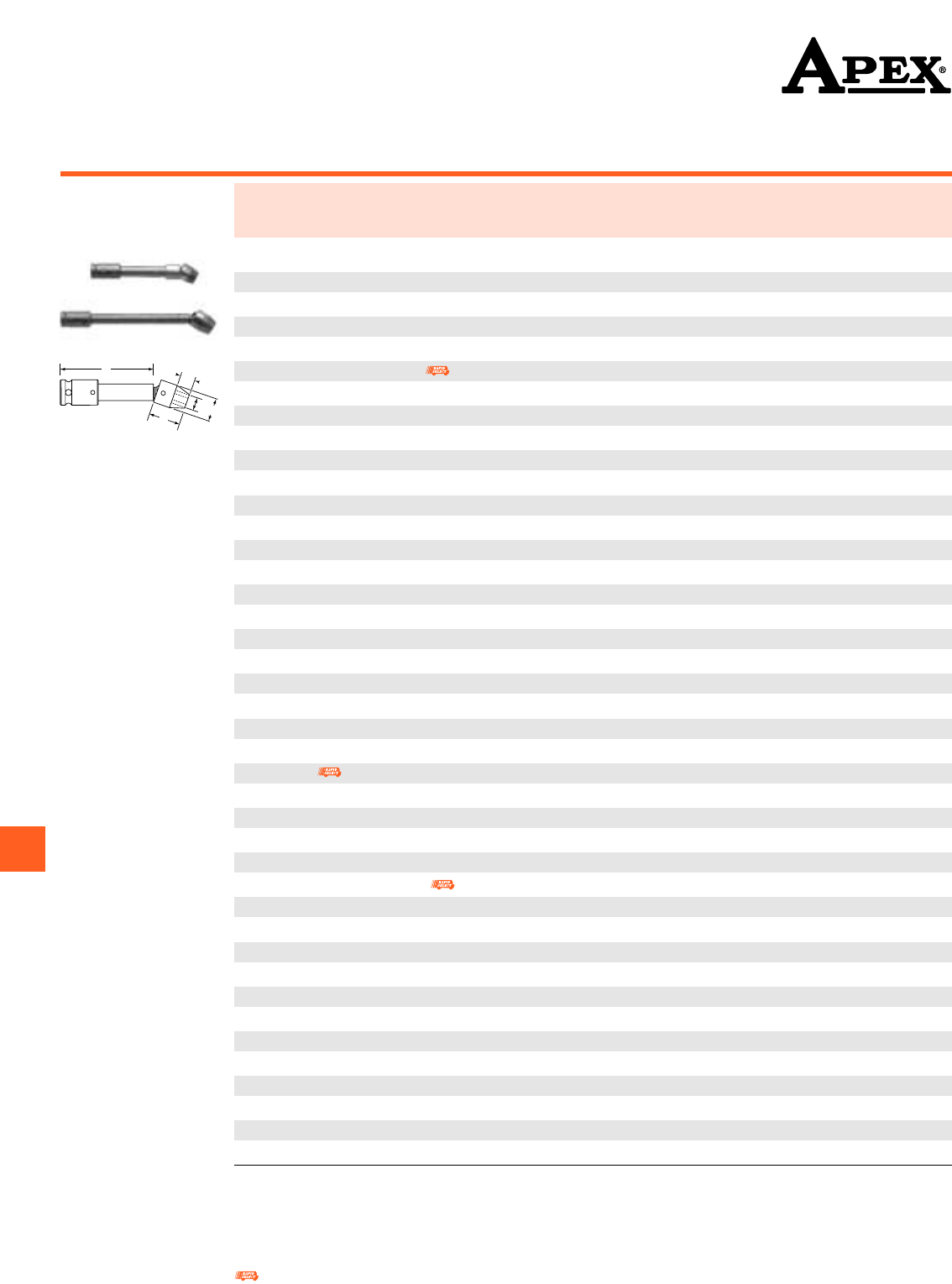

1/4” Male Hex Universal Wrenches, Metric

6 Point, Standard and Tension Type – Extension

Part Part Hex Shank Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension mm (A) mm (B) mm (C) mm (D) mm (E) mm

KC-5-7m-3 - 7 76 19.1 15.9 10.3 9.5

KC-5-7m-4 - 7 102 19.1 15.9 10.3 9.5

KC-5-7m-6 KS-5-7m-6 7 152 19.1 15.9 10.3 9.5

KC-5-7m-9 KS-5-7m-9 7 229 19.1 15.9 10.3 9.5

- KS-5-7m-12 7 305 19.1 15.9 10.3 9.5

KC-6-8m-3 - 8 76 19.1 19.1 11.1 7.9

KC-6-8m-4 - 8 102 19.1 19.1 11.1 7.9

KC-6-8m-6 KS-6-8m-6 8 152 19.1 19.1 11.1 7.9

KC-6-8m-9 KS-6-8m-9 8 229 19.1 19.1 11.1 7.9

KC-6-9m-3 - 9 76 19.1 19.1 12.7 7.9

KC-6-9m-6 - 9 152 19.1 19.1 12.7 7.9

KC-6-10m-3 - 10 76 20.6 19.1 15.1 9.5

KC-6-10m-4 - 10 102 20.6 19.1 15.1 9.5

KC-6-10m-6 KS-6-10m-6 10 152 20.6 19.1 15.1 9.5

KC-6-10m-9 KS-6-10m-9 10 229 20.6 191. 15.1 9.5

KC-6-10m-12 - 10 305 20.6 19.1 15.1 9.5

KC-7-11m-3 - 11 76 23.8 22.2 15.9 10.3

KC-7-11m-6 KS-7-11m-6 11 152 23.8 22.2 15.9 10.3

KC-7-11m-9 KS-7-11m-9 11 229 23.8 22.2 15.9 10.3

KC-7-12m-3 - 12 76 23.8 22.2 17.5 10.3

KC-7-12m-6 - 12 152 23.8 22.2 17.5 10.3

KC-7-12m-9 - 12 229 23.8 22.2 17.5 10.3

KC-7-13m-3 - 13 76 25.4 22.2 17.5 11.9

KC-7-13m-6 KS-7-13m-6 13 152 25.4 22.2 17.5 11.9

KC-7-13m-9 KS-7-13m-9 13 229 25.4 22.2 17.5 11.9

- KS-7-13m-12 13 305 25.4 22.2 17.5 11.9

Standard Type

Tension Type

Standard Type

Tension Type

Universal wrenches

must not be used

with impact drivers.

Maximum operating

angle is 30°.

Refer to Page iv for description of Rapid Select.

1/4” Male Hex Universal Wrenches, SAE

6 Point, Standard and Tension Type – Extension (continued)

7/16” Hex Drive

Universal Wrenches, SAE

6 Point, Standard and Tension Type – Extension

Part Part Hex Shank Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension In. (A) In. (B) In. (C) In. (D) In. (E) In.

KB-40-3 - 1/4 3 3/4 5/8 3/8 3/8

KB-40-4 - 1/4 4 3/4 5/8 3/8 3/8

KB-40-6 KT-40-6 1/4 6 3/4 5/8 3/8 3/8

KB-40-9 KT-40-9 1/4 9 3/4 5/8 3/8 3/8

KB-43-3 - 3/8 3 13/16 5/8 7/32 7/16

KB-43-4 - 3/8 4 13/16 5/8 7/32 7/16

KB-43-6 KT-43-6 3/8 6 13/16 5/8 7/32 7/16

- KT-43-9 3/8 9 13/16 5/8 7/32 7/16

KB-44-3 - 7/16 3 7/8 5/8 5/8 1/2

KB-44-4 - 7/16 4 7/8 5/8 5/8 1/2

KB-44-6 KT-44-6 7/16 6 7/8 5/8 5/8 1/2

KB-44-9 KT-44-9 7/16 9 7/8 5/8 5/8 1/2

KB-44-12 KT-44-12 7/16 12 7/8 5/8 5/8 1/2

KB-45-3 - 1/2 3 7/8 11/16 11/16 1/2

KB-45-4 - 1/2 4 7/8 11/16 11/16 1/2

KB-45-6 KT-45-6 1/2 6 7/8 11/16 11/16 1/2

KB-45-9 KT-45-9 1/2 9 7/8 11/16 11/16 1/2

KB-45-12 KT-45-12 1/2 12 7/8 11/16 11/16 1/2

KB-104-6 KT-104-6 1/2 6 1 3/4 3/4 9/16

KB-104-9 KT-104-9 1/2 9 1 3/4 3/4 9/16

KB-202-4 - 1/2 4 1 7/8 11/16 15/32

KB-202-6 KT-202-6 1/2 6 1 7/8 11/16 15/32

- KT-202-9 1/2 9 1 7/8 11/16 15/32

KB-202-12 KT-202-12 1/2 12 1 7/8 11/16 15/32

KB-317-3 - 1/2 3 1 1 11/16 7/16

KB-317-6 KT-317-6 1/2 6 1 1 11/16 7/16

KB-317-9 KT-317-9 1/2 9 1 1 11/16 7/16

KB-105-3 - 9/16 3 1 13/16 13/16 9/16

KB-105-4 - 9/16 4 1 13/16 13/16 9/16

KB-105-6 KT-105-6 9/16 6 1 13/16 13/16 9/16

- KT-105-9 9/16 9 1 13/16 13/16 9/16

KB-105-12 KT-105-12 9/16 12 1 13/16 13/16 9/16

KB-203-3 - 9/16 3 1 1/16 7/8 3/4 17/32

KB-203-6 KT-203-6 9/16 6 1 1/16 7/8 3/4 17/32

KB-203-9 KT-203-9 9/16 9 1 1/16 7/8 3/4 17/32

KB-203-12 KT-203-12 9/16 12 1 1/16 7/8 3/4 17/32

KB-318-3 KT-318-3 9/16 3 1 1/8 1 3/4 9/16

Standard Type

Tension Type

Universal wrenches

must not be used

with impact drivers.

Maximum operating

angle is 30°.

Refer to Page iv for description of Rapid Select.

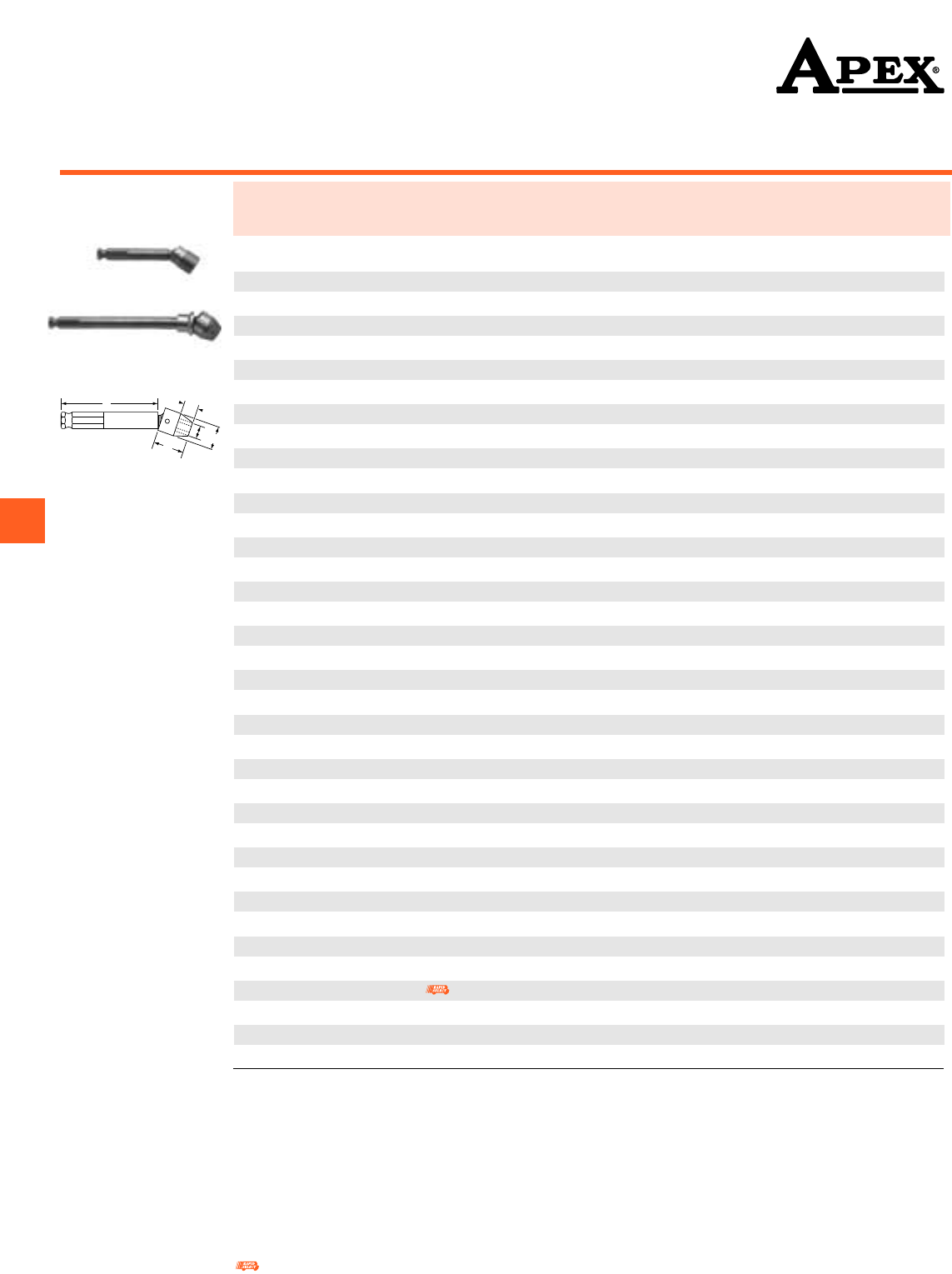

6 Point, Standard and Tension Type – Extension (continued)

Part Part Hex Shank Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension In. (A) In. (B) In. (C) In. (D) In. (E) In.

KB-318-6 KT-318-6 9/16 6 1 1/8 1 3/4 9/16

KB-318-9 KT-318-9 9/16 9 1 1/8 1 3/4 9/16

KB-318-12 KT-318-12 9/16 12 1 1/8 1 3/4 9/16

KB-205-3 - 5/8 3 1 1/8 7/8 7/8 19/32

KB-205-4 - 5/8 4 1 1/8 7/8 7/8 19/32

KB-205-6 KT-205-6 5/8 6 1 1/8 7/8 7/8 19/32

KB-205-9 - 5/8 9 1 1/8 7/8 7/8 19/32

KB-205-12 KT-205-12 5/8 12 1 1/8 7/8 7/8 19/32

KB-320-3 - 5/8 3 1 3/16 1 27/32 5/8

KB-320-4 - 5/8 4 1 3/16 1 27/32 5/8

KB-320-6 KT-320-6 5/8 6 1 3/16 1 27/32 5/8

KB-320-9 KT-320-9 5/8 9 1 3/16 1 27/32 5/8

KB-320-12 KT-320-12 5/8 12 1 3/16 1 27/32 5/8

KB-321-3 - 11/16 3 1 1/4 1 1 11/16

KB-321-6 KT-321-6 11/16 6 1 1/4 1 1 11/16

KB-321-9 KT-321-9 11/16 9 1 1/4 1 1 11/16

KB-321-12 KT-321-12 11/16 12 1 1/4 1 1 11/16

KB-322-3 - 3/4 3 1 1/4 1 1/8 1 1/8 11/16

KB-322-4 - 3/4 4 1 1/4 1 1/8 1 1/8 11/16

KB-322-6 KT-322-6 3/4 6 1 1/4 1 1/8 1 1/8 11/16

KB-322-9 KT-322-9 3/4 9 1 1/4 1 1/8 1 1/8 11/16

KB-322-12 KT-322-12 3/4 12 1 1/4 1 1/8 1 1/8 11/16

7/16” Hex Drive

Universal Wrenches, SAE

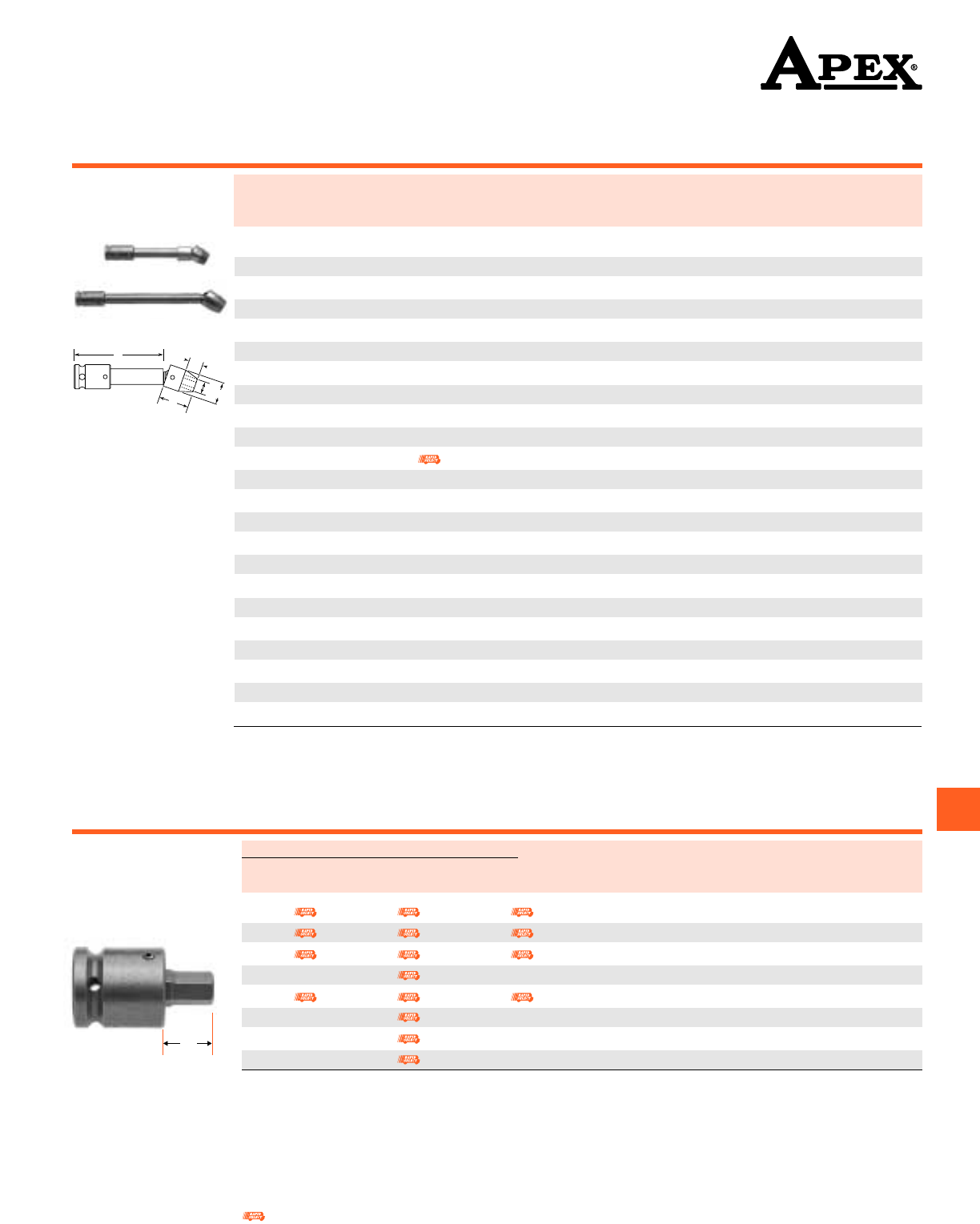

7/16” Hex Drive Universal Wrenches, Metric

6 Point, Standard and Tension Type– Extension

Part Part Hex Shank Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension mm (A) mm (B) mm (C) mm (D) mm (E) mm

KB-6-10m-3 - 10 76 20.6 19.1 15.1 9.5

KB-6-10m-6 KT-6-10m-6 10 152 20.6 19.1 15.1 9.5

KB-6-10m-9 KT-6-10m-9 10 229 20.6 19.1 15.1 9.5

- KT-6-10m-12 10 305 20.6 19.1 15.1 9.5

KB-7-11m-3 - 11 76 23.8 22.2 15.9 10.3

KB-7-11m-4 - 11 102 23.8 22.2 15.9 10.3

KB-7-11m-6 KT-7-11m-6 11 152 23.8 22.2 15.9 10.3

KB-7-11m-12 - 11 305 23.8 22.2 15.9 10.3

Standard Type

Tension Type

Universal wrenches

must not be used

with impact drivers.

Maximum operating

angle is 30°.

Refer to Page iv for description of Rapid Select.

7/16” Hex Drive

Universal Wrenches, Metric

6 Point, Standard and Tension Type – Extension (continued)

Part Part Hex Shank Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension mm (A) mm (B) mm (C) mm (D) mm (E) mm

KB-7-12m-6 - 12 152 23.8 22.2 17.5 10.3

KB-7-12m-9 - 12 229 23.8 22.2 17.5 10.3

KB-7-13m-3 - 13 76 25.4 22.2 17.5 11.9

KB-7-13m-4 - 13 102 25.4 22.2 17.5 11.9

KB-7-13m-6 KT-7-13m-6 13 152 25.4 22.2 17.5 11.9

KB-7-13m-9 KT-7-13m-9 13 229 25.4 22.2 17.5 11.9

KB-7-13m-12 - 13 305 25.4 22.2 17.5 11.9

KB-7-14m-3 - 14 76 27.0 22.2 19.1 13.5

KB-7-14m-4 - 14 102 27.0 22.2 19.1 13.5

KB-7-14m-6 KT-7-14m-6 14 152 27.0 22.2 19.1 13.5

KB-7-14m-9 KT-7-14m-9 14 229 27.0 22.2 19.1 14.3

- KT-7-14m-12 14 305 27.0 22.2 19.1 14.3

- KT-7-15m-6 15 152 27.0 22.2 19.1 14.3

- KT-7-15m-8 15 204 27.0 22.2 19.1 14.3

KB-8-15m-6 KT-8-15m-6 15 152 28.6 25.4 19.8 14.3

KB-8-15m-9 KT-8-15m-9 15 229 28.6 25.4 19.8 14.3

KB-8-15m-12 KT-8-15m-12 15 305 28.6 25.4 19.8 14.3

KB-8-16m-3 - 16 76 30.2 25.4 21.4 15.9

KB-8-16m-6 KT-8-16m-6 16 152 30.2 25.4 21.4 15.9

KB-8-16m-9 KT-8-16m-9 16 229 30.2 25.4 21.4 15.9

KB-8-17m-12 KT-8-16m-12 16 305 30.2 25.4 21.4 15.9

KB-8-17m-3 - 17 76 31.8 25.4 25.4 17.5

KB-8-17m-6 KT-8-17m-6 17 152 31.8 25.4 25.4 17.5

KB-8-17m-9 KT-8-13m-9 17 229 31.8 25.4 25.4 17.5

KB-8-17m-12 KT-8-13m-12 17 305 31.8 25.4 25.4 17.5

KB-8-18m-3 - 18 76 31.8 25.4 25.4 17.5

KB-8-18m-6 KT-8-18m-6 18 152 31.8 25.4 25.4 17.5

KB-8-18m-9 KT-8-18m-9 18 229 31.8 25. 25.4 17.5

KB-8-18m-12 KT-8-18m-12 18 305 31.8 25.4 25.4 17.5

KB-10-19m-3 - 19 76 34.9 31.8 26.2 16.3

KB-10-19m-6 KT-10-19m-6 19 152 34.9 31.8 26.2 16.3

KB-10-19m-9 - 19 229 34.9 31.8 26.2 16.3

- KT-10-19m-12 19 305 34.9 31.8 26.2 16.3

Standard Type

Tension Type

Universal wrenches

must not be used

with impact drivers.

Maximum operating

angle is 30°.

Notes

Solutions

When can I use a universal adapter?

A universal adapter gives all of your sockets

the versatility of a universal wrench.

Universal adapters must not be used with

impact drivers.

(See page 83.)

Does Apex offer bolt clearance nutsetters?

Bolt clearance nutsetters allow the bolt or stud

to recess into the nutsetter body as the nut is

driven down. Bolt clearance nutsetters are

prefixed with the numbers 6B-.

(See page 62.)

Does Apex offer Torx

sockets?

Like Torx®screws, Torx®bolts are becoming

commonplace in a variety of

assembly

applications.

Apex offers a

wide variety of

Torx®sockets.

(See page 82.)

What is the advantage of

surface drive sockets?

Use surface drive sockets if tools are still

running when they engage the fasteners (such

as on this multi-spindle

machine). They’re easier to

engage and will result in

less tool wear.

Does Apex universal wrenches with

longer sockets?

Universal wrenches

are available with

a longer socket to

allow a stud to

recess into the socket

opening.

(Check with your

Apex representative

for details.)

Does Apex offer mar resistant bits

and sockets?

Apex can nylon coat just about any of our

bits or sockets. Nylon offers excellent mar

resistance for assemblies that have

painted, varnished or chromed surfaces.

Nylon also offers some safety benefits by

covering tool junctions. Contact your Apex

distributor or representative for more

information or for a quote.

Tension Type

Standard Type

What is the benefit of a tension sleeve?

A universal wrench with a tension sleeve holds the socket at

the desired driving angle while aligning the tool and fastener.

Other universal wrench sockets can “flop” making

engagement difficult.

Can I use my extensions, adapters

and universals with impact drivers?

Quality design and construction give Apex

universal wrenches a long

service life and durability.

Remember, universal

wrenches, extensions

and adapters are not to

be used with impact

drivers.

What types of magnetic sockets

does Apex offer?

In addition to a fixed magnet socket

(center), Apex offers spring-loaded (left) and

cylindrical (right) magnet styles that allow

the bolt to recess into the socket body as

the nut is driven down. Fixed

magnet sockets are

designated by a

M- part number

prefix, spring-

loaded by MB-

prefix and

cylindrical by a

SM- prefix.

Does Apex offer a complete line of

extensions?

Apex features a wide selection of extension

lengths, styles and sizes.

(See the Table of Contents for a complete listing.)

Does Apex offer thin wall sockets?

Thin wall sockets accommodate countersunk

or limited

clearance nut or

bolt locations.

Many of these

sockets have a

shouldered body

design that can

fit in tight

quarters.

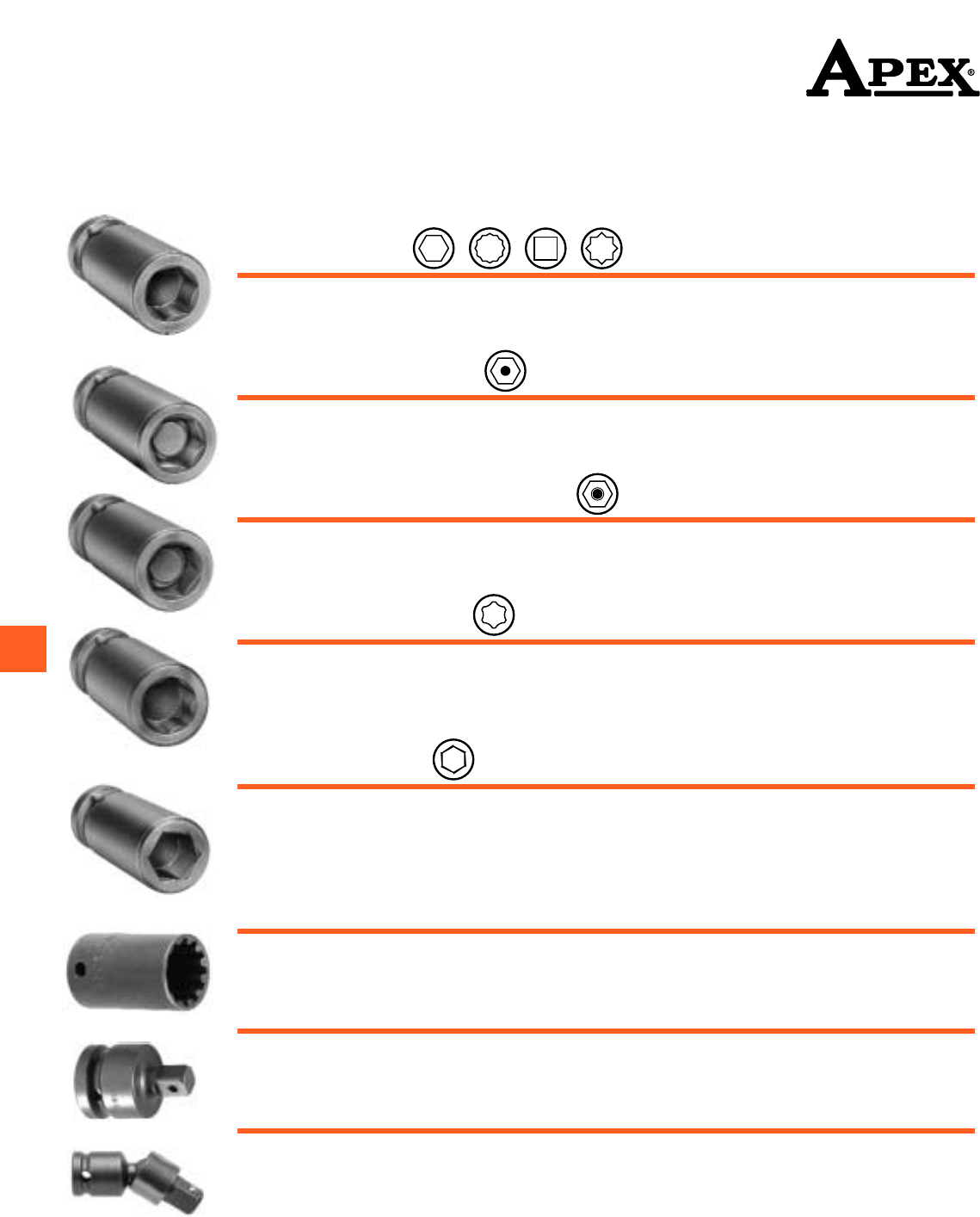

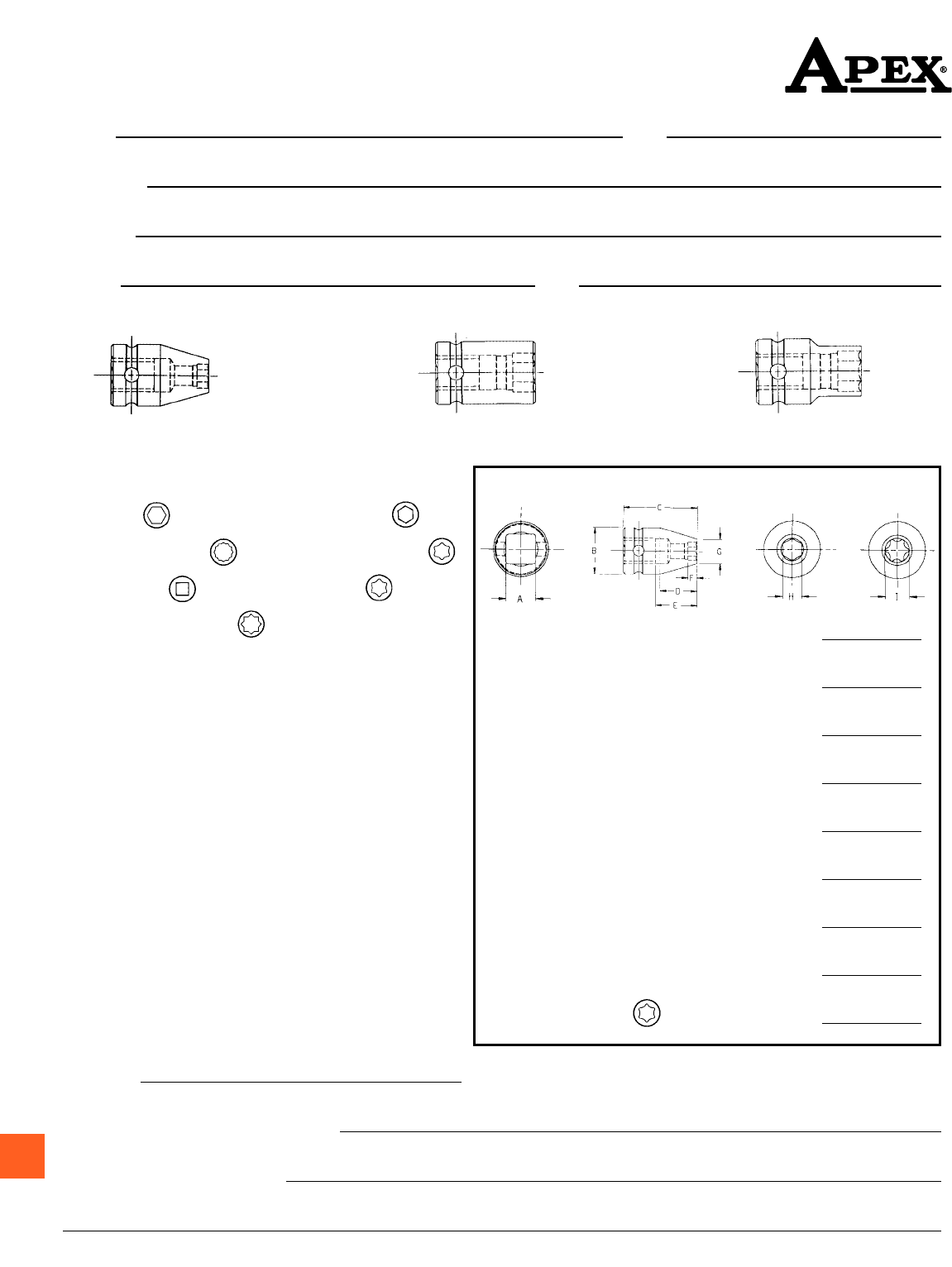

In this section...

Impact Sockets

Apex industrial grade impact sockets are available in a wide range of lengths and wall

thicknesses, and with single or double hex openings. Square openings are available

in select sizes.

Fixed Magnetic Sockets

Magnetic sockets hold the fastener in driving position, even when working straight

down. Time-wasting motions are eliminated when starting fasteners or working in

hard-to-reach areas. These sockets are identified with a M- prefix.

Magnetic Bolt Clearance Sockets

As the nut is run down, a spring-loaded or hollow cylinder magnet allows the bolt or

stud to retract into the socket body. Nuts are held firmly in the socket. These sockets

are identified with a MB- prefix.

Surface Drive Sockets

Large openings on the six corners of the opening create a “floating” action that allows

the socket to slip quickly and easily onto the nut or bolt. Ideal for compensating for

imperfect alignment between the tool and fastener. Not generally recommended for

impact use. These sockets are identified with a SF- prefix.

Fast Lead Sockets

Designed for power tool and multiple spindle power tools, a specially tapered opening

provides complete engagement with the nut almost instantly upon engagement. This

speeds productivity and extends tool life. Engagement is possible without starting and

stopping the tool for each nut. These sockets are identified with a FL- prefix.

Special Sockets

You’ll find Spline, Torx®, tap holding, Budd Wheel, grease fitting and other sockets for

special applications.

Extensions and Adapters

Apex provides the accessories needed to adapt sockets to nearly every tool and

application.

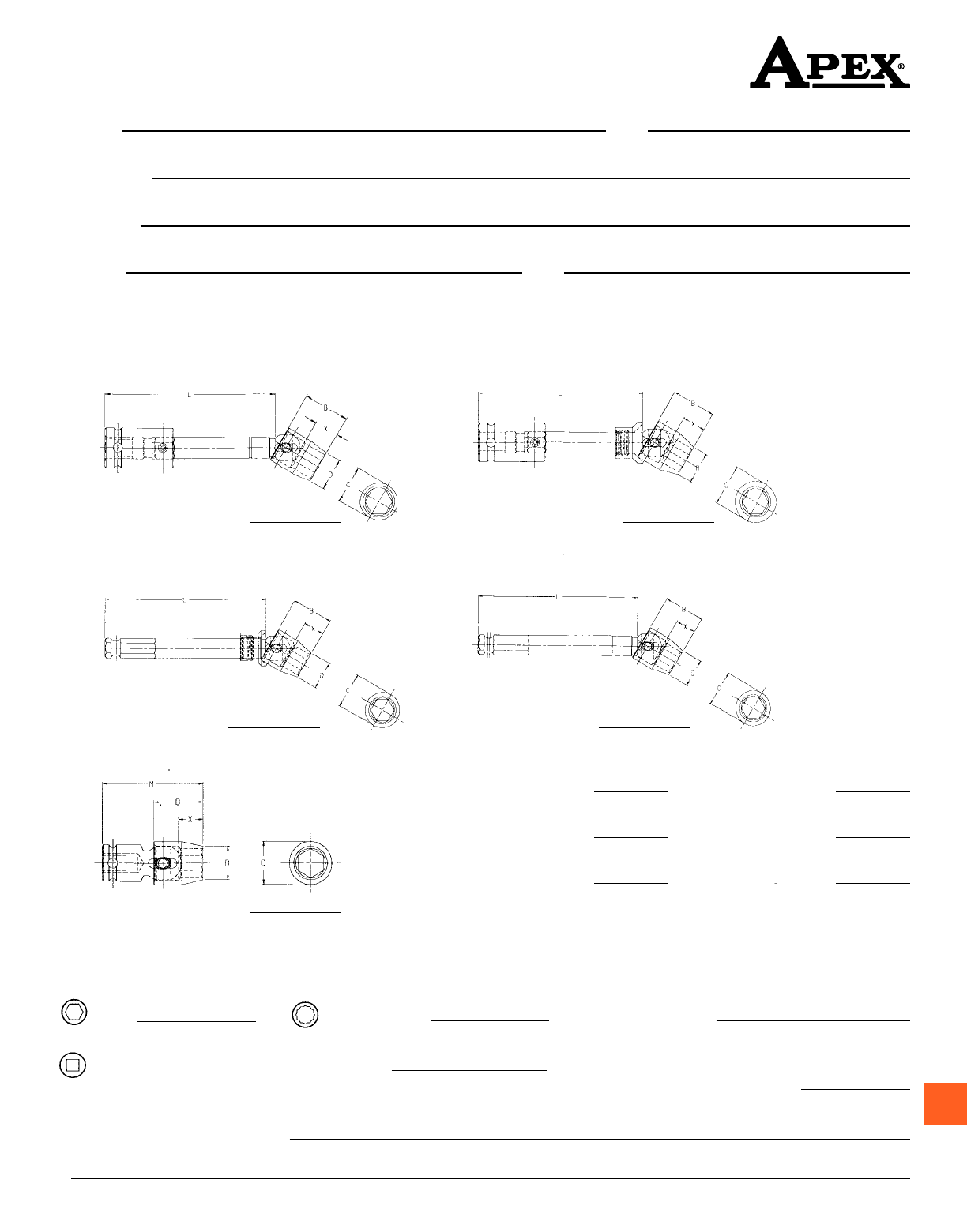

Square Drive Universal Wrenches

Hard-to-reach areas are no problem with Apex’s wide range of universal and

extension universal wrenches.

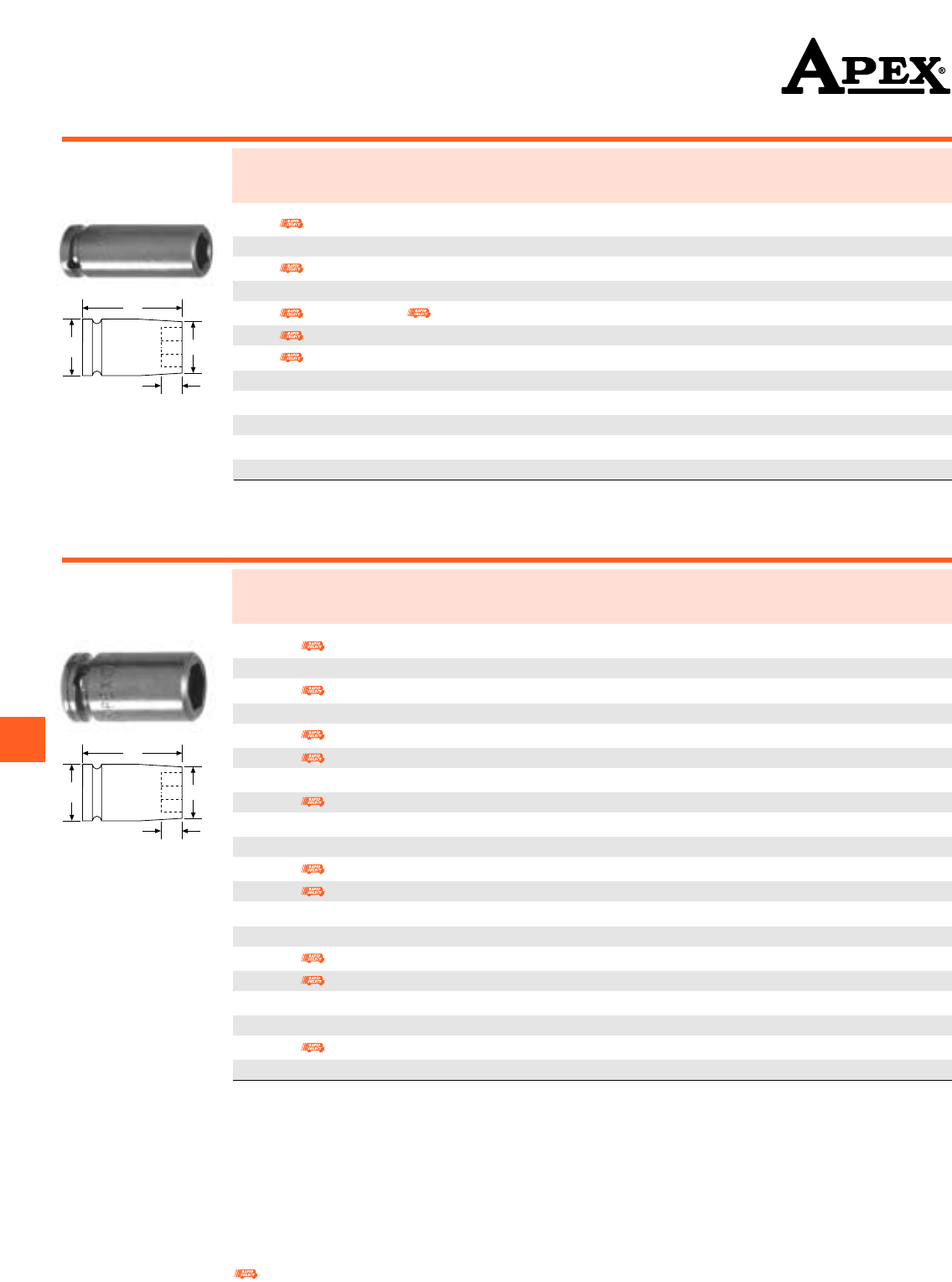

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

1206 1206-D 3/16 1 3/4 5/16 1/2 3/32

1207 1207-D 7/32 1 3/4 3/8 1/2 5/32

1208 1208-D 1/4 1 3/4 3/8 1/2 5/32

1209 1209-D 9/32 1 3/4 7/16 1/2 3/16

1210 1210-D 5/16 1 3/4 1/2 1/2 3/16

1211 1211-D 11/32 1 3/4 1/2 1/2 3/16

1212 1212-D 3/8 1 3/4 9/16 9/16 1/4

1213 - 13/32 1 3/4 5/8 5/8 1/4

1214 1214-D 7/16 1 3/4 5/8 5/8 9/32

1215 - 15/32 1 3/4 11/16 11/16 9/32

1216 1216-D 1/2 1 3/4 11/16 11/16 11/32

1217 - 17/32 1 3/4 3/4 3/4 11/32

1218 1218-D 9/16 1 3/4 13/16 13/16 7/16

1220 - 5/8 2 7/8 7/8 7/16

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

1105 - 5/32 7/8 1/4 1/2 3/32

1106 1106-D 3/16 7/8 5/16 1/2 3/32

1107 1107-D 7/32 7/8 3/8 1/2 5/32

1108 1108-D 1/4 7/8 3/8 1/2 5/32

X-1108* - 1/4 7/8 3/8 1/2 5/32

1109 1109-D 9/32 1 7/16 1/2 3/16

1110 1110-D 5/16 1 1/2 1/2 3/16

X-1110* - 5/16 1 1/2 1/2 3/16

HA-510 - 5/16 7/8 7/16 7/16 3/16

1111 1111-D 11/32 1 1/2 1/2 3/16

1112 1112-D 3/8 1 9/16 9/16 1/4

1113 1113-D 13/32 1 5/8 5/8 1/4

1114 1114-D 7/16 1 5/8 5/8 9/32

1115 - 15/32 1 11/16 11/16 9/32

1116 1116-D 1/2 1 11/16 11/16 11/32

1117 1117-D 17/32 1 3/4 3/4 11/32

1118 1118-D 9/16 1 13/16 13/16 7/16

1119 1119-D 19/32 1 7/8 7/8 7/16

1120 1120-D 5/8 1 7/8 7/8 7/16

* Parts have a harder heat treat.

1/4” Square Drive Sockets, SAE

Long Length, 6 Point and Double Hex

Standard Length, 6 Point and Double Hex

inches

Refer to Page iv for description of Rapid Select.

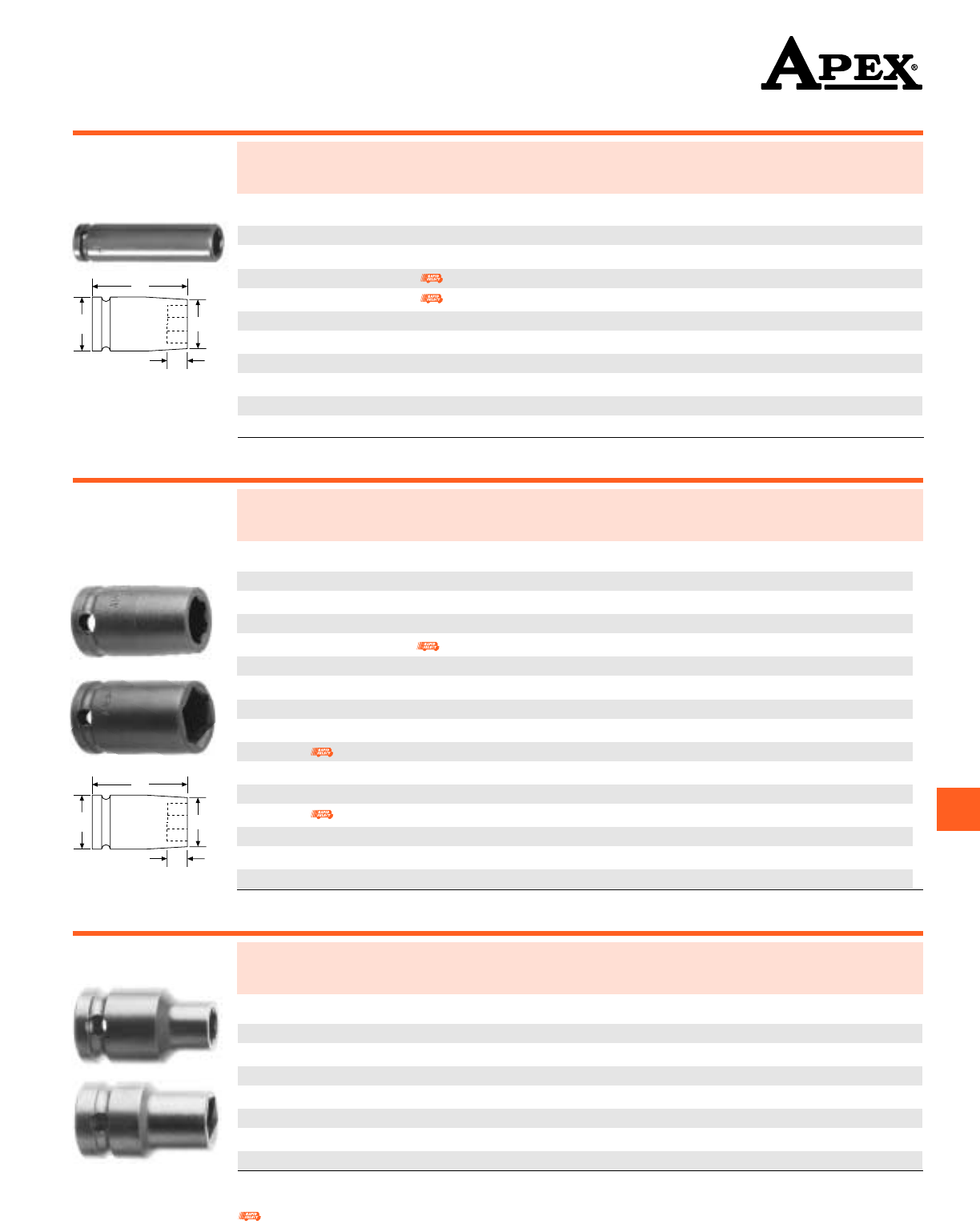

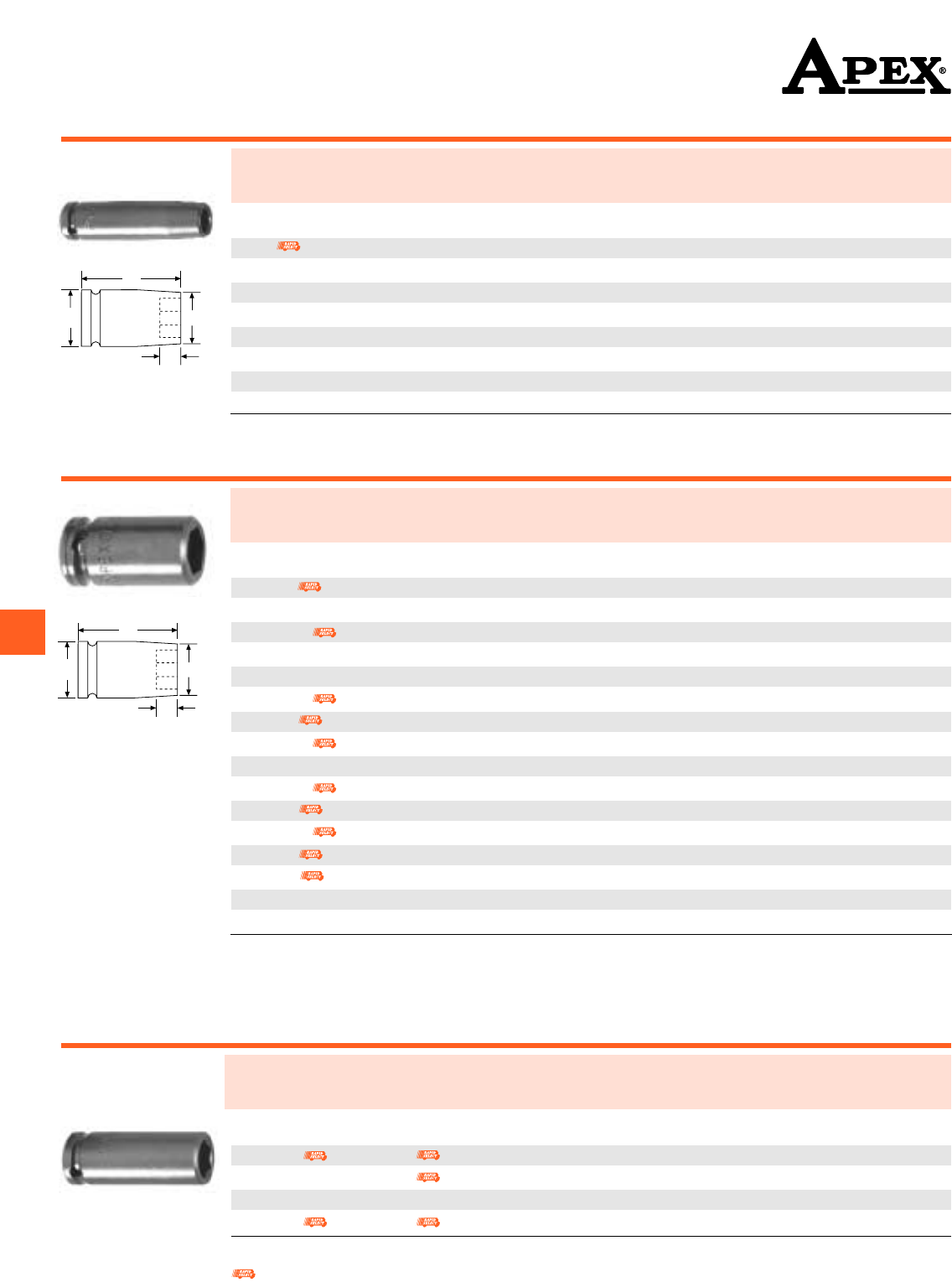

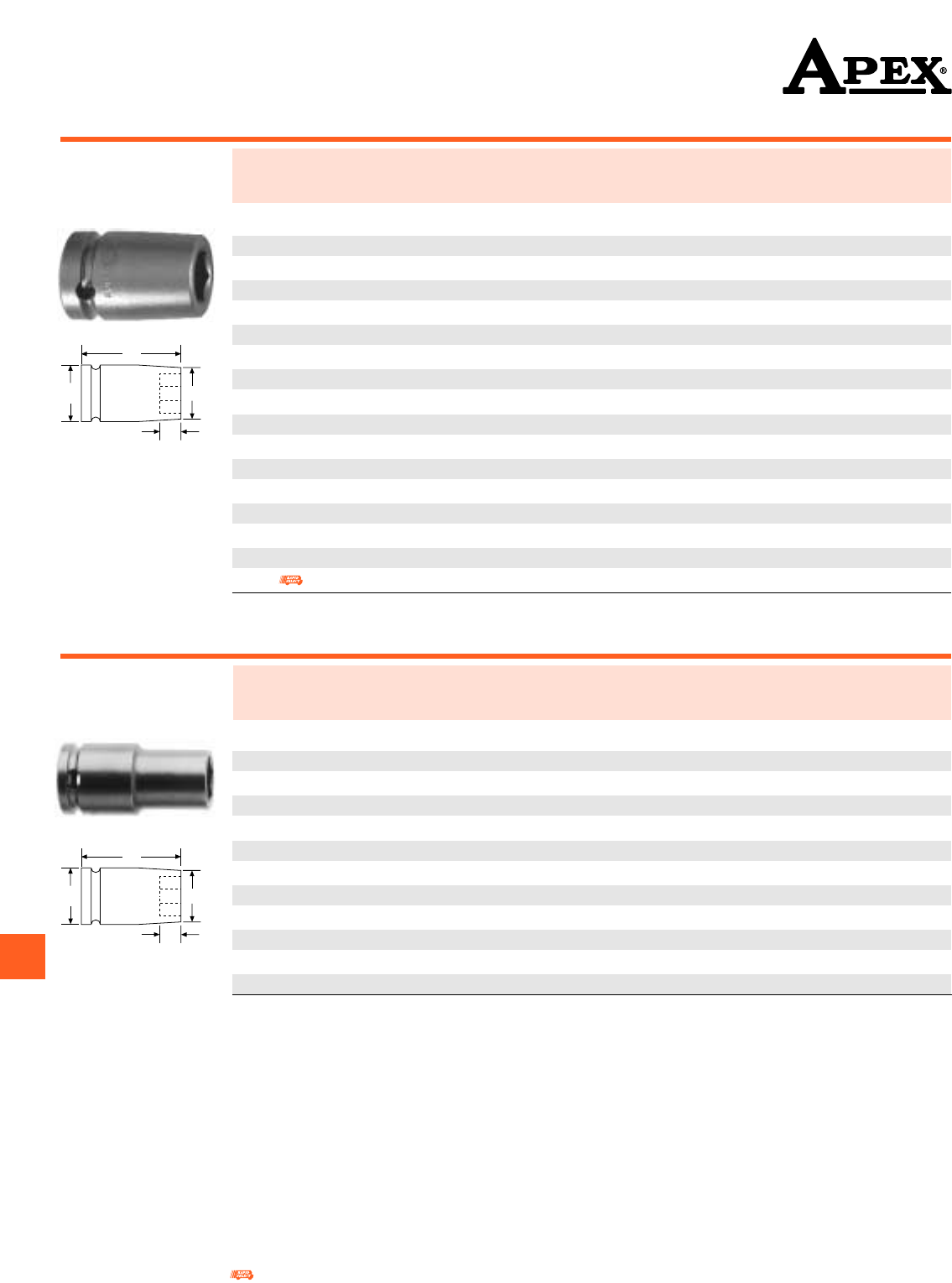

1/4” Square Drive Sockets, SAE

Extra Long Length, 6 Point and Double Hex

Magnetic, Standard Length, 6 Point

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

1308 1308-D 1/4 3 3/8 1/2 5/32

1310 1310-D 5/16 3 1/2 1/2 3/16

1311 1311-D 11/32 3 1/2 1/2 3/16

1312 1312-D 3/8 3 9/16 9/16 1/4

1313 1313-D 13/32 3 9/16 9/16 1/4

1314 1314-D 7/16 3 5/8 5/8 9/32

1316 1316-D 1/2 3 11/16 11/16 11/32

1318 - 9/16 3 13/16 13/16 7/16

1320 1320-D 5/8 3 7/8 7/8 7/16

Magnetic, Long and Extra Long Length, 6 Point

Part No. Part No. Hex Overall Diameter Diameter Opening

Fixed Magnetic Bolt Opening Length Nose End Drive End Depth

Magnet Clearance In. (A) (B) (C) (D)

- MB-1206 3/16 1 3/4 5/16 1/2 5/32

M-1208 MB-1208 1/4 1 3/4 3/8 1/2 5/32

- MB-1308 1/4 3 3/8 1/2 5/32

M-1209 MB-1209 9/32 1 3/4 7/16 1/2 3/16

M-1210 MB-1210 5/16 1 3/4 1/2 1/2 3/16

1/4” Square Drive Sockets, SAE

Part Number Hex Overall Diameter Diameter Opening

Fixed Opening Length Nose End Drive End Depth

Magnet In. (A) (B) (C) (D)

M-1105 5/32 7/8 5/16 1/2 3/32

M-1106 3/16 7/8 5/16 1/2 3/32

M-1107 7/32 7/8 3/8 1/2 5/32

MX-1108* 1/4 7/8 3/8 1/2 5/32

M-1108-E* 1/4 7/8 3/8 1/2 5/32

MX-1109* 9/32 1 7/16 1/2 3/16

MHA-510 5/16 7/8 7/16 7/16 1/8

M-1110 5/16 1 1/2 1/2 3/16

MX-1110* 5/16 1 1/2 1/2 3/16

MX-1111 11/32 1 1/2 1/2 3/16

MHA-510 5/16 7/8 7/16 7/16 3/16

M-1112 3/8 1 9/16 9/16 1/4

MX-1112* 3/8 1 9/16 9/16 1/4

M-1114 7/16 1 5/8 5/8 9/32

M-1116 1/2 1 11/16 11/16 11/32

M-1118 9/16 1 11/16 11/16 11/32

M-1120 5/8 1 11/16 11/16 11/32

*Parts have a harder heat treat; MX-1108-E has no lead-in chamfer.

inches

Refer to Page iv for description of Rapid Select.

(Continued on next page.)

Surface Drive and Fast Lead, Standard and Long Length

Part No. Part No. Hex Overall Diameter Diameter Opening

Surface Number Opening Length Nose End Drive End Depth

Drive Fast Lead In. (A) (B) (C) (D)

- FL-1108 1/4 7/8 3/8 1/2 5/32

- FL-1109 9/32 7/8 3/8 1/2 5/32

- FL-1110 5/16 1 1/2 1/2 3/16

- FL-1111 11/32 1 1/2 1/2 3/16

SF-1112 FL-1112 3/8 1 9/16 9/16 1/4

SF-1212 FL-1212 3/8 1 3/4 9/16 9/16 1/4

SF-1114 FL-1114 7/16 1 5/8 5/8 9/32

- FL-1214 7/16 1 3/4 5/8 5/8 9/32

SF-1116 FL-1116 1/2 1 11/16 11/16 11/32

- FL-1216 1/2 1 3/4 11/16 11/16 11/32

SF-1118 FL-1118 9/16 1 13/16 13/16 7/16

Magnetic, Long Length and Extra Long, 6 Point

Part No. Part No. Hex Overall Diameter Diameter Opening

Fixed Magnetic Bolt Opening Length Nose End Drive End Depth

Magnet Clearance In. (A) (B) (C) (D)

M-1211 MB-1211 11/32 1 3/4 1/2 1/2 3/16

- MB-1311 11/32 3 1/2 1/2 3/16

M-1212 MB-1212 3/8 1 3/4 9/16 9/16 1/4

- MB-1312 3/8 3 9/16 9/16 1/4

M-1214 MB-1214 7/16 1 3/4 5/8 5/8 9/32

- MB-1314 7/16 3 5/8 5/8 9/32

M-1216 MB-1216 1/2 1 3/4 11/16 11/16 11/32

- MB-1218 9/16 1 3/4 13/16 13/16 7/16

* For explanation of magnets, see Tool Tip on page 120.

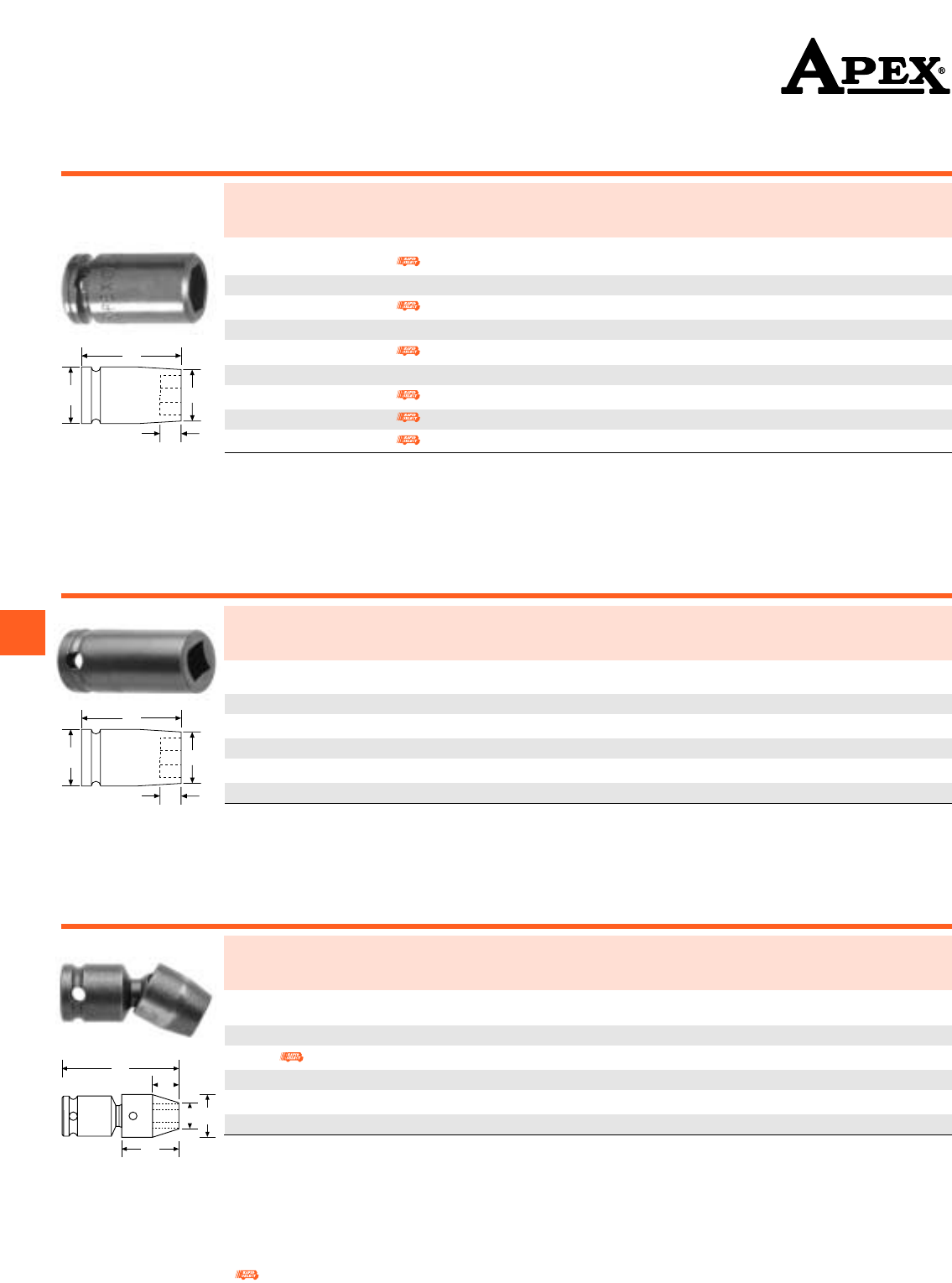

1/4” Square Drive Sockets, SAE

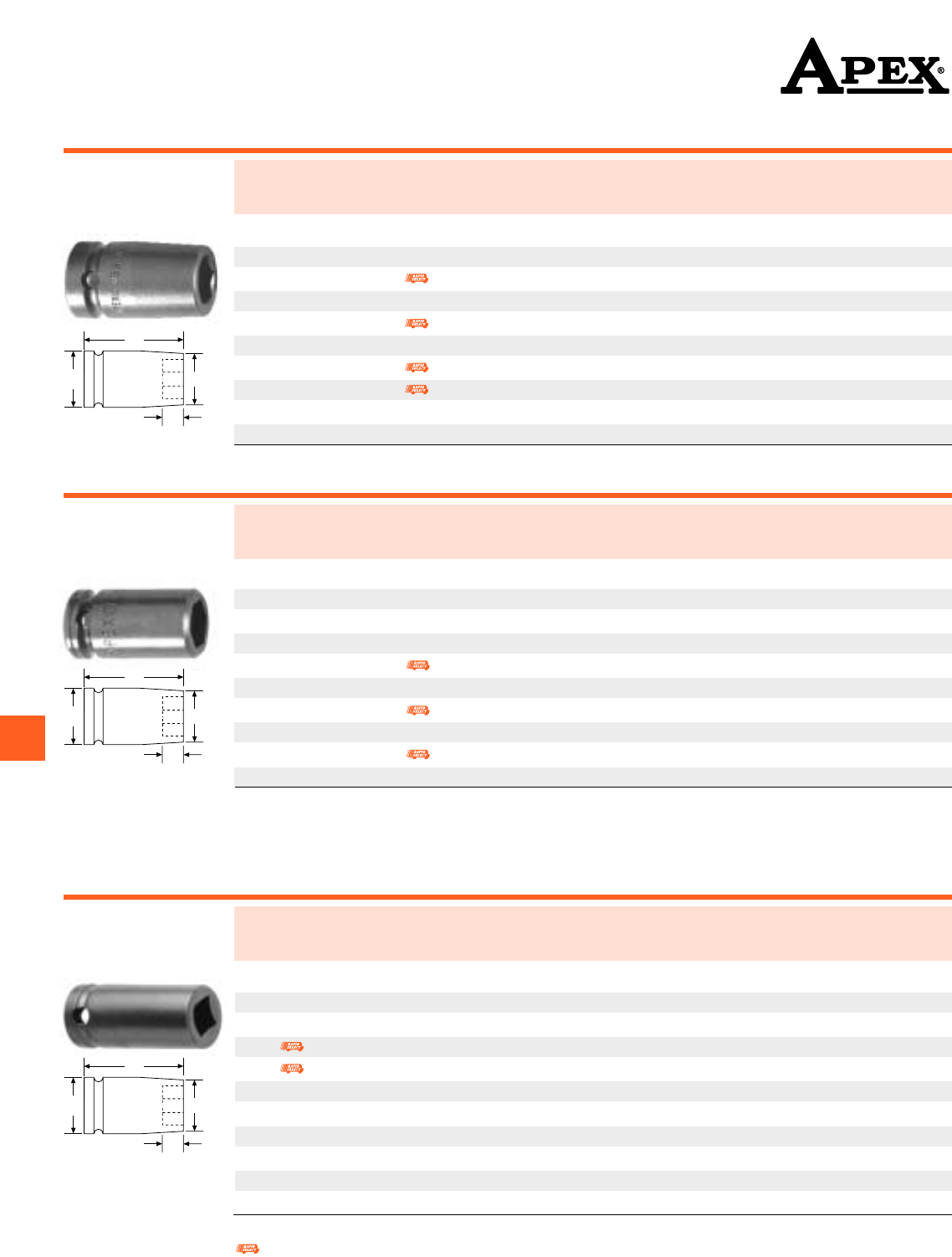

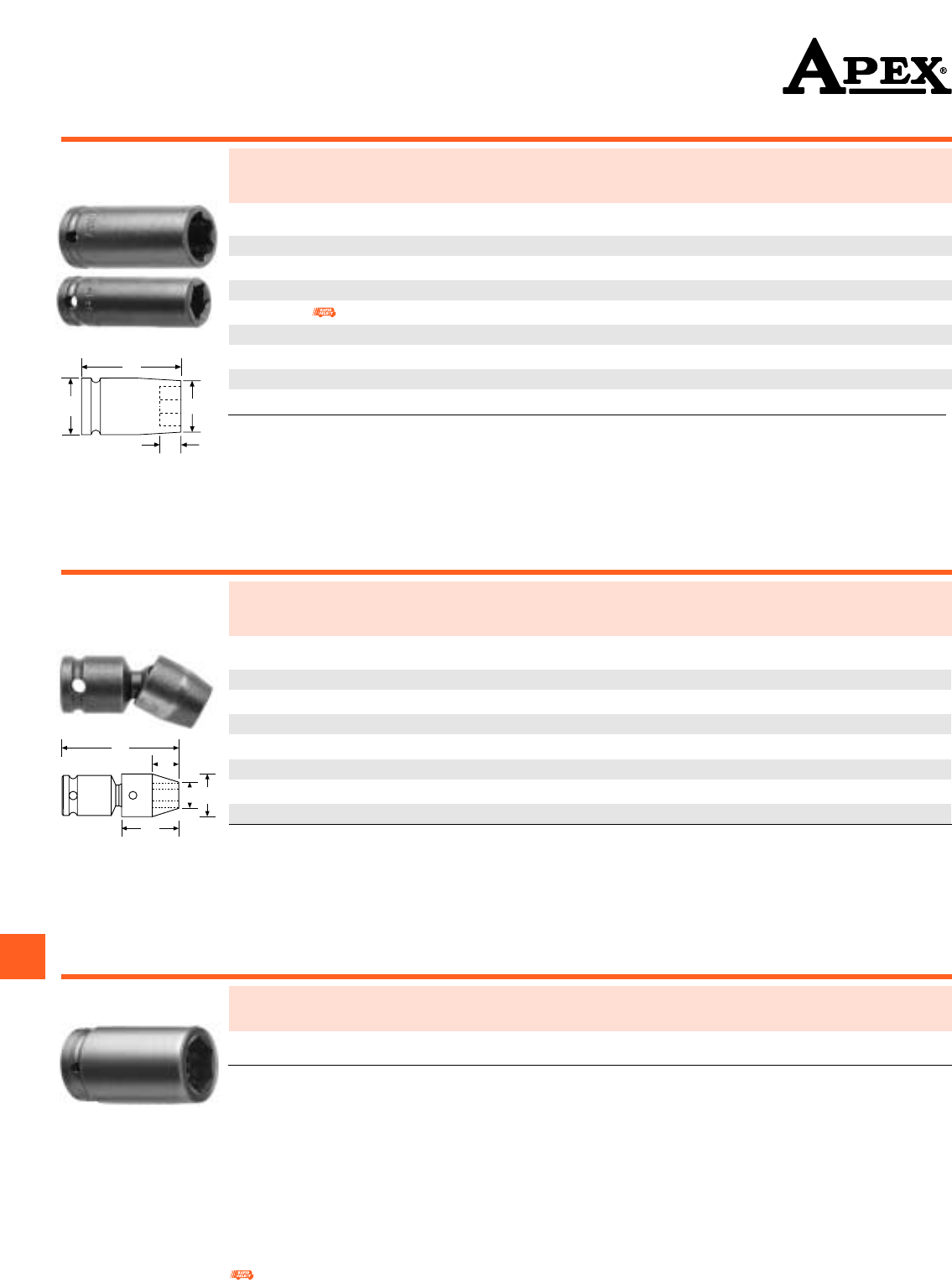

1/4” Square Drive Sockets For

SAE Sheet Metal Screws

6 Point and 6 Point Magnetic, For Predrilled Holes*

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Magnetic In. (A) (B) (C) (D)

1E06 M1E06 3/16 7/8 5/16 1/2 3/32

1E07 M1E07 7/32 7/8 3/8 1/2 5/32

1E08 M1E08 1/4 7/8 3/8 1/2 5/32

1E09 M1E09 9/32 7/8 7/16 1/2 3/16

1E10 M1E10 5/16 7/8 1/2 1/2 3/16

1E11 M1E11 11/32 1 1/2 1/2 3/16

1E12 M1E12 3/8 1 5/8 5/8 1/4

1E14 M1E14 7/16 1 11/16 11/16 9/32

1E16 M1E16 1/2 1 11/16 11/16 11/32

inches

Refer to Page iv for description of Rapid Select.

*Sockets for predrilled holes are intermediate hardness; sockets for self-drilling and tapping screws are maximum hardness.

6 Point and 6 Point Magnetic, for Self-Drilling and Tapping Screws*

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Magnetic In. (A) (B) (C) (D)

1P06 M1P06 3/16 7/8 5/16 1/2 3/32

1P07 M1P07 7/32 7/8 3/8 1/2 5/32

1P08 M1P08 1/4 7/8 7/16 1/2 5/32

M1P09 9/32 7/8 1/2 1/2 3/16

1P10 M1P10 5/16 7/8 1/2 1/2 3/16

1P11 M1P11 11/32 1 1/2 1/2 3/16

1P12 M1P12 3/8 1 5/8 5/8 1/4

1P14 M1P14 7/16 1 11/16 11/16 9/32

1P16 M1P16 1/2 1 11/16 11/16 11/32

*Sockets for predrilled holes are intermediate hardness; sockets for self-drilling and tapping screws are maximum hardness.

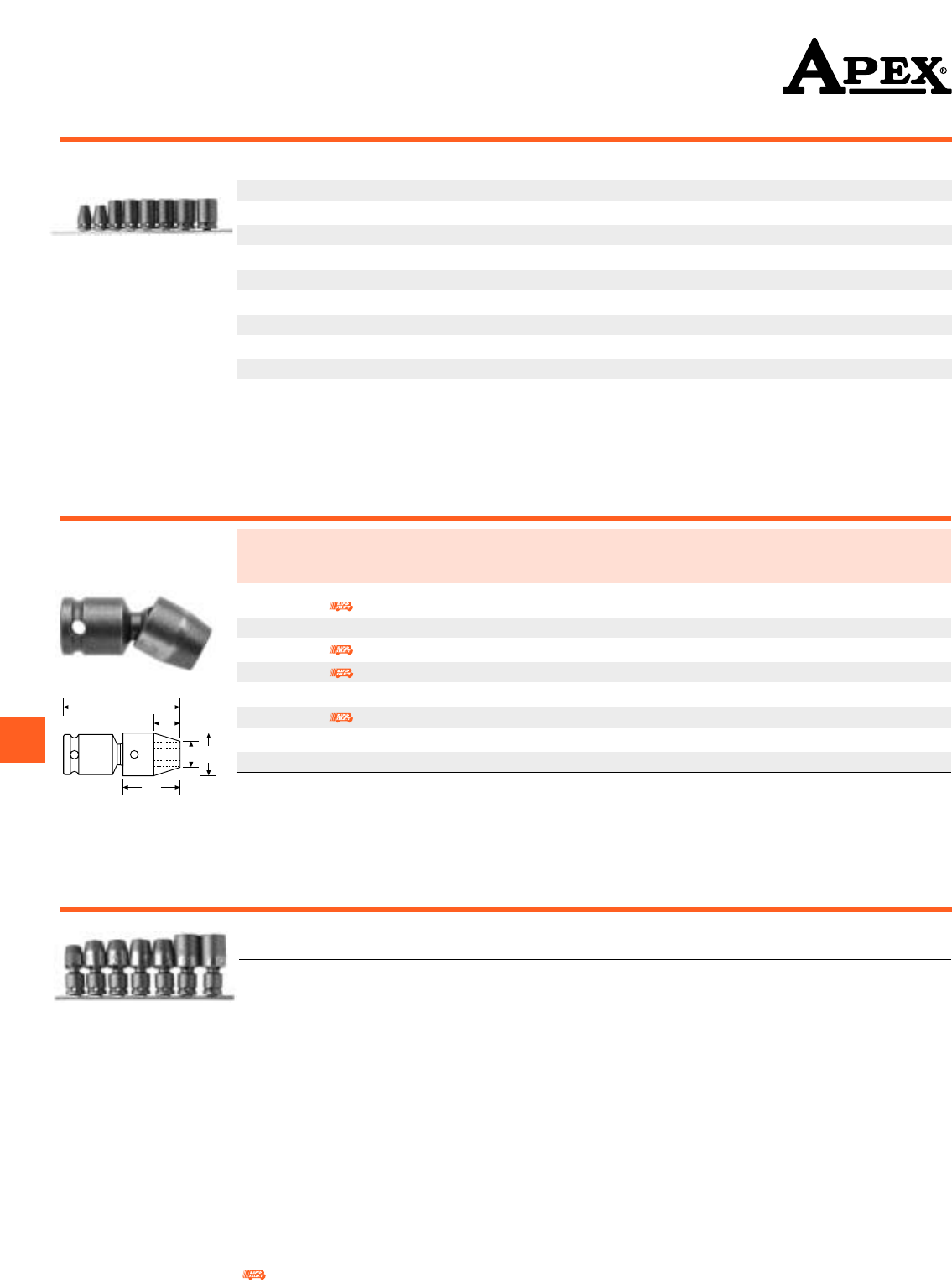

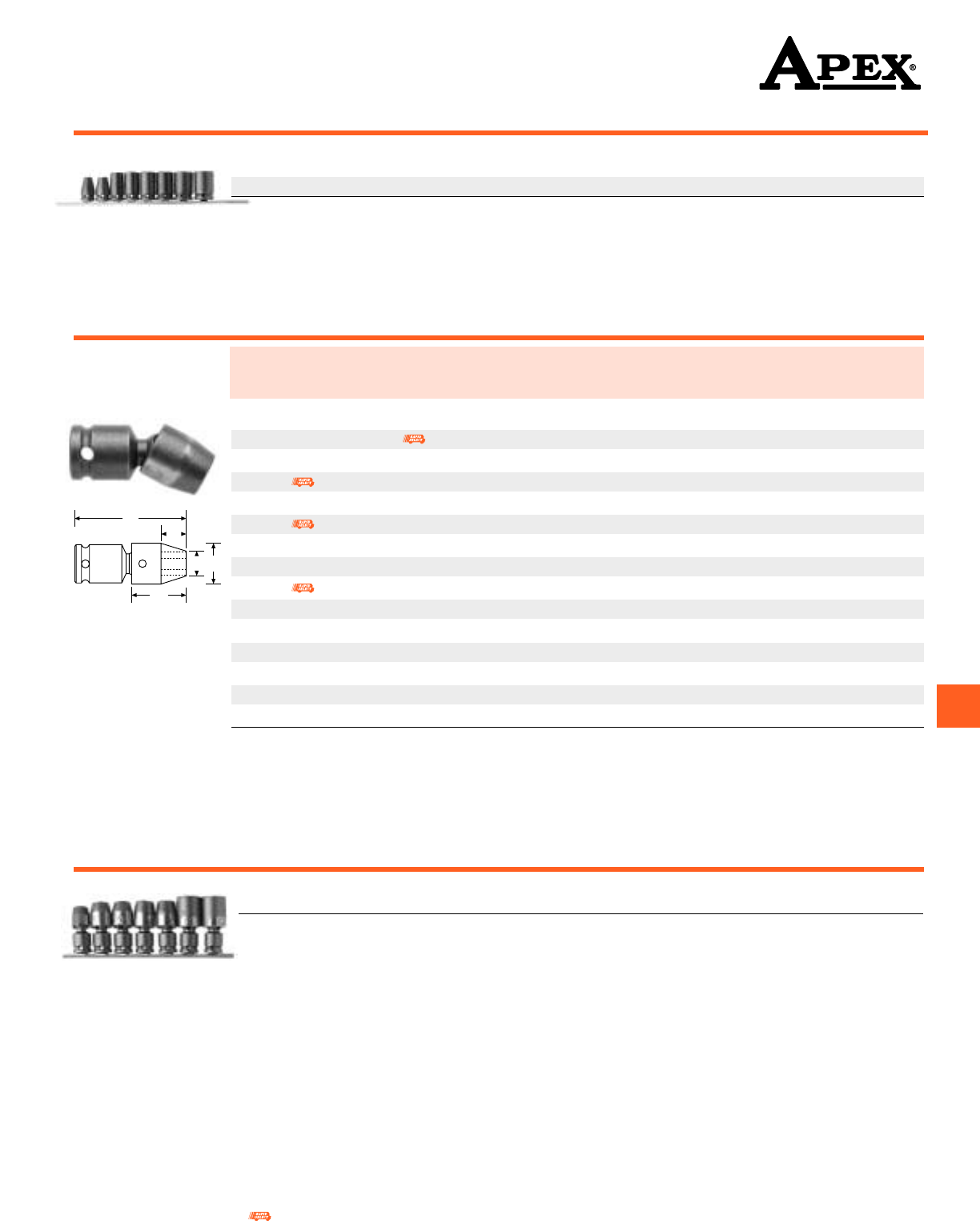

1/4” Square Drive Universal Wrenches, SAE

6 Point and Double Hex

Part Part Hex Overall Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

6 Point Double Hex In. (A) (B) (C) (D) (E)

SA-25 SA-25-D 1/4 1 7/32 3/4 5/8 3/8 3/8

SA-26 SA-26-D 5/16 1 17/32 3/4 5/8 7/16 3/8

SA-28 SA-28-D 3/8 1 19/32 13/16 5/8 17/32 7/16

SA-29 SA-29-D 7/16 1 21/32 7/8 5/8 5/8 1/2

SA-30 SA-30-D 1/2 1 21/32 7/8 11/16 11/16 1/2

SA-65 - 9/16 1 21/32 7/8 11/16 11/16 1/2

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

1/4” Square Drive Sockets For SAE Square Nuts

Single Square and Double Square

Part Part No. Hex Overall Diameter Diameter Opening

Number Double Opening Length Nose End Drive End Depth

Square Square In. (A) (B) (C) (D)

1608 1608-D 1/4 1 1/2 1/2 3/16

1609 1609-D 9/32 1 9/16 9/16 3/16

1610 1610-D 5/16 1 5/8 5/8 1/4

1611 - 11/32 1 3/4 3/4 1/4

1612 1612-D 3/8 1 3/4 3/4 1/4

1614 1614-D 7/16 1 13/16 13/16 9/32

1/4” Square Drive Sockets

For SAE Sheet Metal Screws

inches

Refer to Page iv for description of Rapid Select.

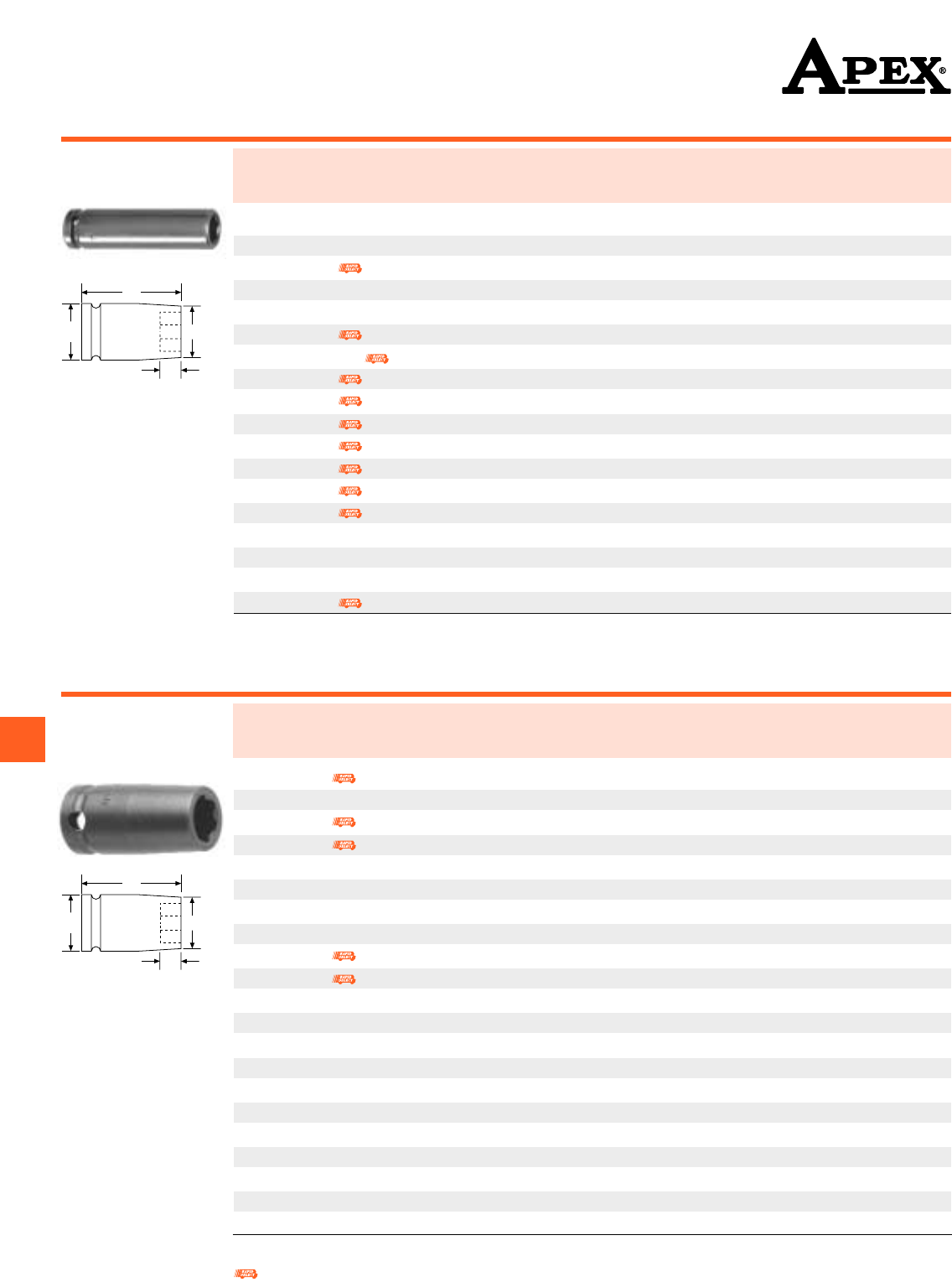

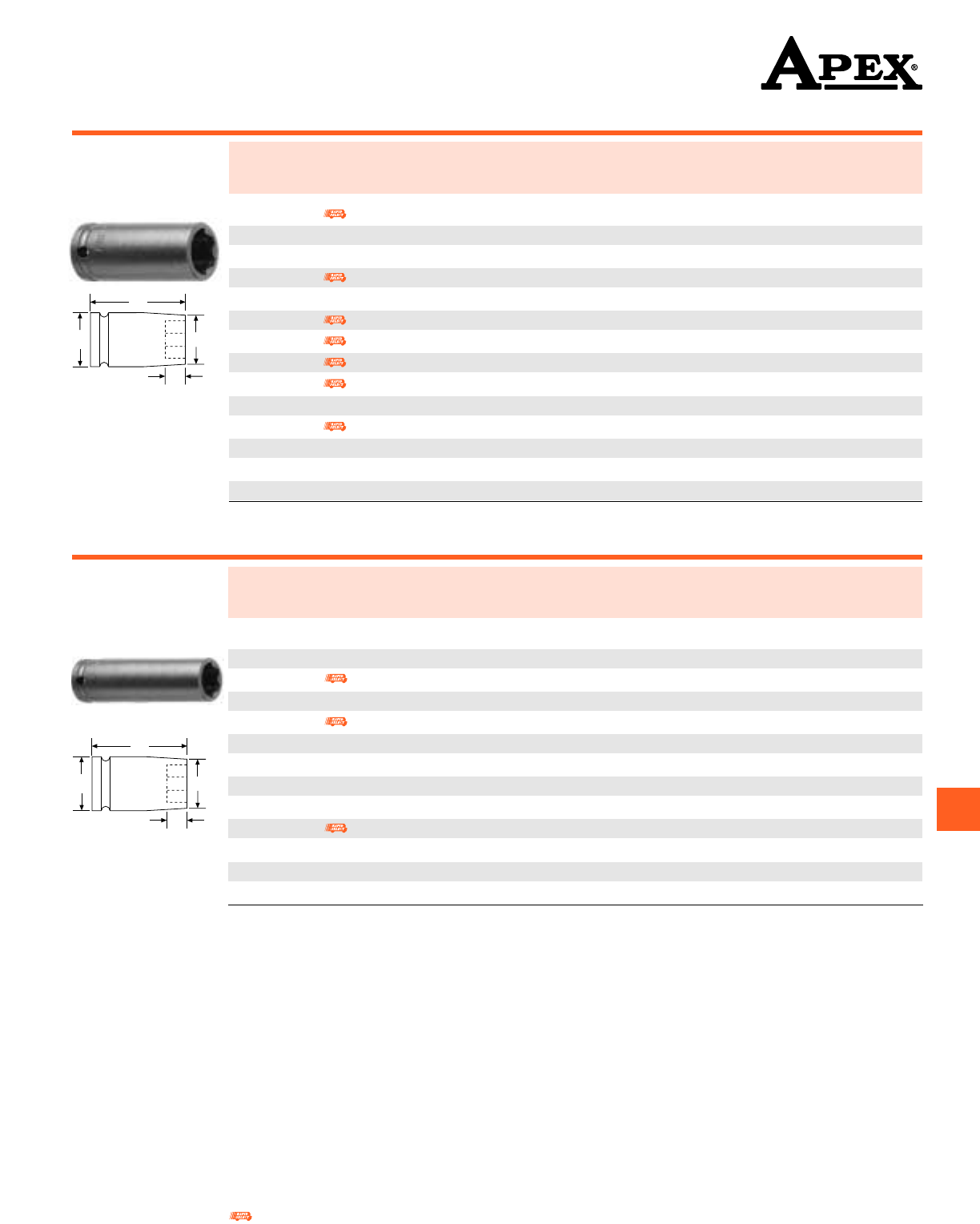

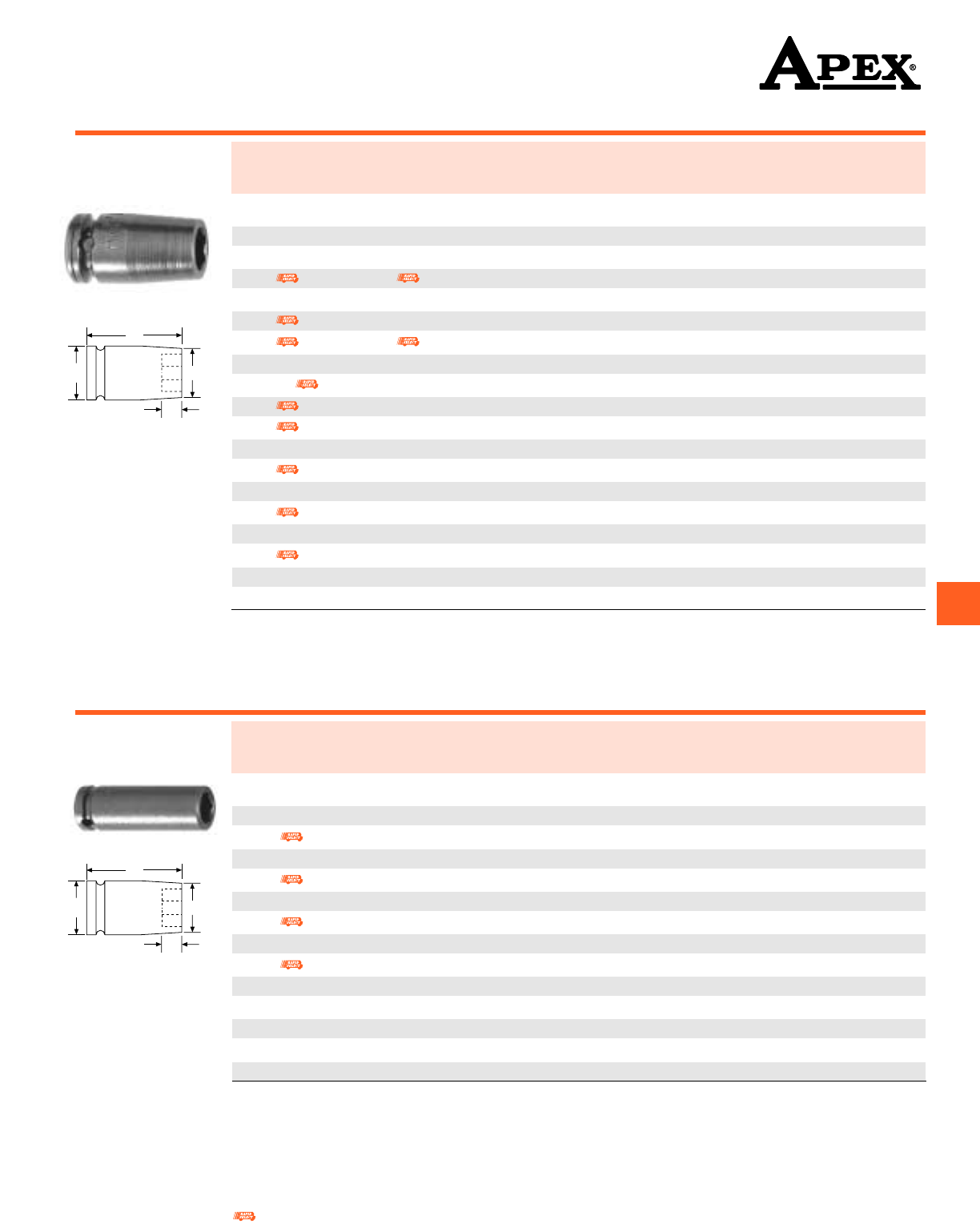

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex mm (A) (B) (C) (D)

5mm21 - 5 44.4 8.7 12.7 3.9

5.5mm21 - 5.5 44.4 9.5 12.7 3.9

6mm21 - 6 44.4 9.5 12.7 3.9

7mm21 7mm21-D 7 44.4 11.1 12.7 4.8

8mm21 8mm21-D 8 44.4 12.7 12.7 4.8

9mm21 9mm21-D 9 44.4 14.3 14.3 4.8

10mm21 10mm21-D 10 44.4 15.9 15.9 6.4

11mm21 11mm21-D 11 44.4 15.9 15.9 7.2

12mm21 12mm21-D 12 44.4 17.5 17.5 7.2

13mm21 13mm21-D 13 44.4 19.1 19.1 8.7

14mm21 - 14 44.4 20.6 20.6 11.1

15mm21 15mm21-D 15 50.8 22.2 22.2 11.1

16mm21 - 16 50.8 22.2 22.2 11.1

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex mm (A) (B) (C) (D)

3.5mm11 - 3.5 22.2 6.4 12.7 2.4

4mm11 - 4 22.2 6.4 12.7 2.4

4.5mm11 - 4.5 22.2 7.9 12.7 2.4

5mm11 - 5 22.2 8.7 12.7 3.9

5.5mm11 - 5.5 22.2 9.5 12.7 3.9

6mm11 6mm11-D 6 22.2 9.5 12.7 3.9

7mm11 7mm11-D 7 22.2 11.1 12.7 4.8

8mm11 8mm11-D 8 25.4 12.7 12.7 4.8

9mm11 9mm11-D 9 25.4 14.3 14.3 4.8

10mm11 10mm11-D 10 25.4 15.9 15.9 6.4

OS-10mm11 - 10 25.4 14.3 14.3 6.4

11mm11 11mm11-D 11 25.4 15.9 15.9 7.2

12mm11 12mm11-D 12 25.4 17.5 17.5 7.2

13mm11 13mm11-D 13 25.4 19.1 19.1 8.7

14mm11 14mm11-D 14 25.4 20.6 20.6 11.1

15mm11 15mm11-D 15 25.4 22.2 22.2 11.1

16mm11 - 16 25.4 22.2 22.2 11.1

1/4” Square Drive Sockets, Metric

Standard Length, 6 Point and Double Hex

Long Length, 6 Point and Double Hex

Refer to Page iv for description of Rapid Select.

Part Number Hex Overall Diameter Diameter Opening

Surface Opening Length Nose End Drive End Depth

Drive mm (A) (B) (C) (D)

SF-8mm11 8 25.4 12.7 12.7 4.7

SF-10mm11 10 25.4 15.9 15.9 6.4

SF-10mm21 10 44.4 15.9 15.9 6.4

SF-11mm11 11 25.4 15.9 15.9 7.2

SF-11mm21 11 44.4 15.9 15.9 7.2

SF-12mm21 11 44.4 17.5 15.9 7.2

SF-13mm11 13 25.4 19.1 19.1 8.7

SF-13mm21 13 44.4 19.1 19.1 8.7

SF-14mm11 14 25.4 20.6 20.6 11.1

SF-14mm21 14 44.4 20.6 20.6 11.1

SF-15mm11 15 25.4 22.2 22.2 11.1

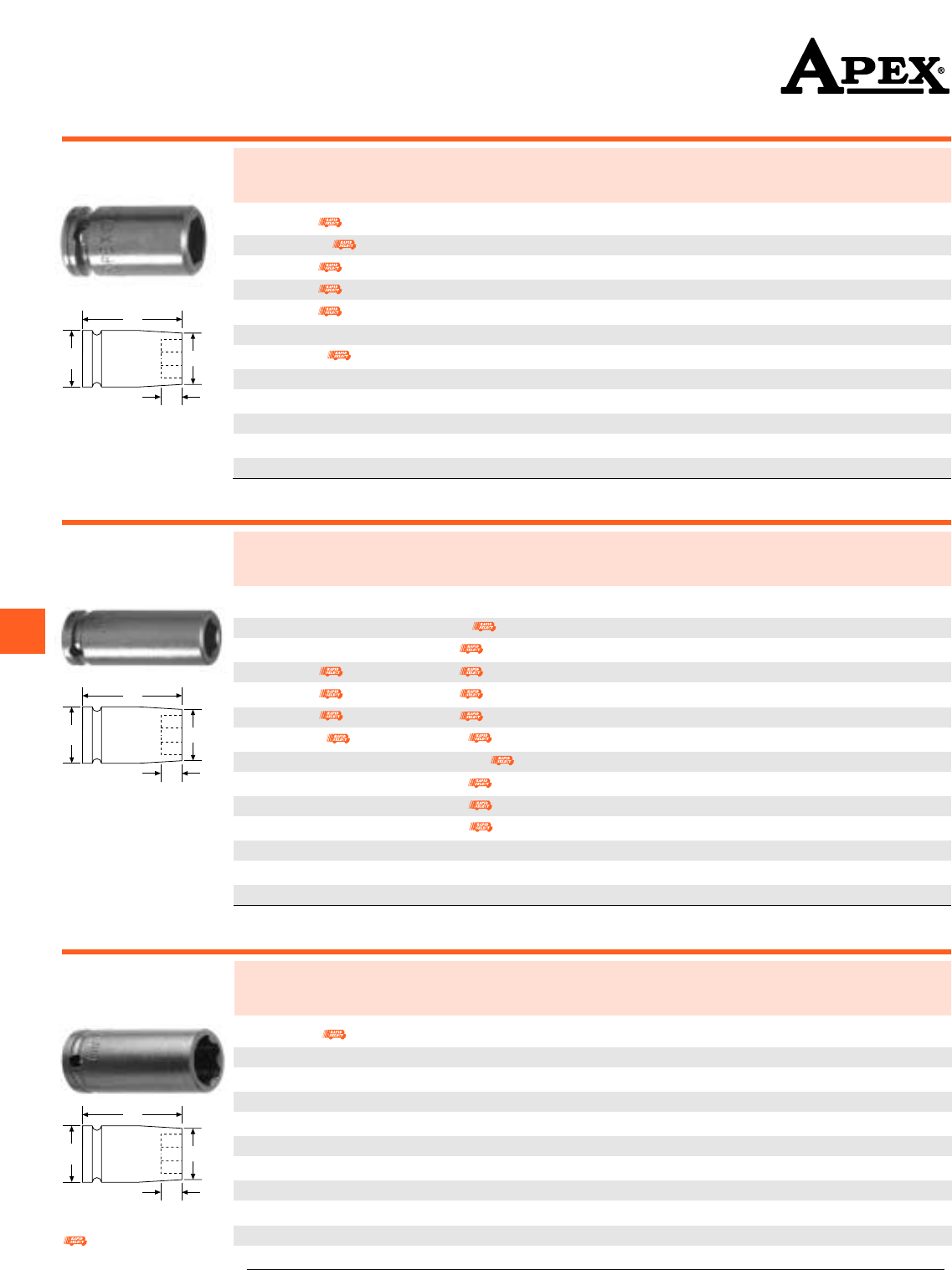

Part Number Hex Overall Diameter Diameter Opening

Fixed Opening Length Nose End Drive End Depth

Magnet mm (A) (B) (C) (D)

M-5mm11 5 22.2 8.7 12.7 3.9

M-5.5mm11 5.5 22.2 9.5 12.7 3.9

M-6mm11 6 22.2 9.5 12.7 3.9

M-7mm11 7 22.2 11.9 12.7 4.8

M-8mm11 8 25.4 12.7 12.7 4.8

M-9mm11 9 25.4 14.3 14.3 4.8

M-10mm11 10 25.4 15.9 15.9 6.4

M-11mm11 11 25.4 15.9 15.9 7.2

M-12mm11 12 25.4 17.5 17.5 7.2

M-13mm11 13 25.4 19.1 19.1 8.7

M-14mm11 14 25.4 20.6 20.6 11.1

M-15mm11 15 25.4 22.2 22.2 11.1

1/4” Square Drive Sockets, Metric

Magnetic, Standard Length, 6 Point

Magnetic, Long Length, 6 Point

Surface Drive, Standard and Long Length

Part No. Part No. Hex Overall Diameter Diameter Opening

Fixed Magnetic Bolt Opening Length Nose End Drive End Depth

Magnet Clearance mm (A) (B) (C) (D)

M-5mm21 MB-5mm21 5 44.4 8.7 12.7 3.9

- MB-5.5mm21 5.5 44.4 9.5 12.7 3.9

M-6mm21 MB-6mm21 6 44.4 9.5 12.7 3.9

M-7mm21 MB-7mm21 7 44.4 11.9 12.7 4.8

M-8mm21 MB-8mm21 8 44.4 12.7 12.7 4.8

M-9mm21 MB-9mm21 9 44.4 14.3 14.3 4.8

M-10mm21 MB-10mm21 10 44.4 15.9 15.9 6.4

- **OSMB-10mm21 10 44.4 14.2 14.2 6.4

M-11mm21 MB-11mm21 11 44.4 15.9 15.9 7.2

M-12mm21 MB-12mm21 12 44.4 17.5 17.5 7.2

M-13mm21 MB-13mm21 13 44.4 19.1 19.1 8.7

M-14mm21 MB-14mm21 14 44.4 20.6 20.6 11.1

- MB-15mm21 15 50.8 22.2 22.2 11.1

- MB-16mm21 16 50.8 22.2 22.2 11.1

* For an explanation of

magnets, see Tool Tip

on page 112.

** No ring groove.

Refer to Page iv for

description of

Rapid Select.

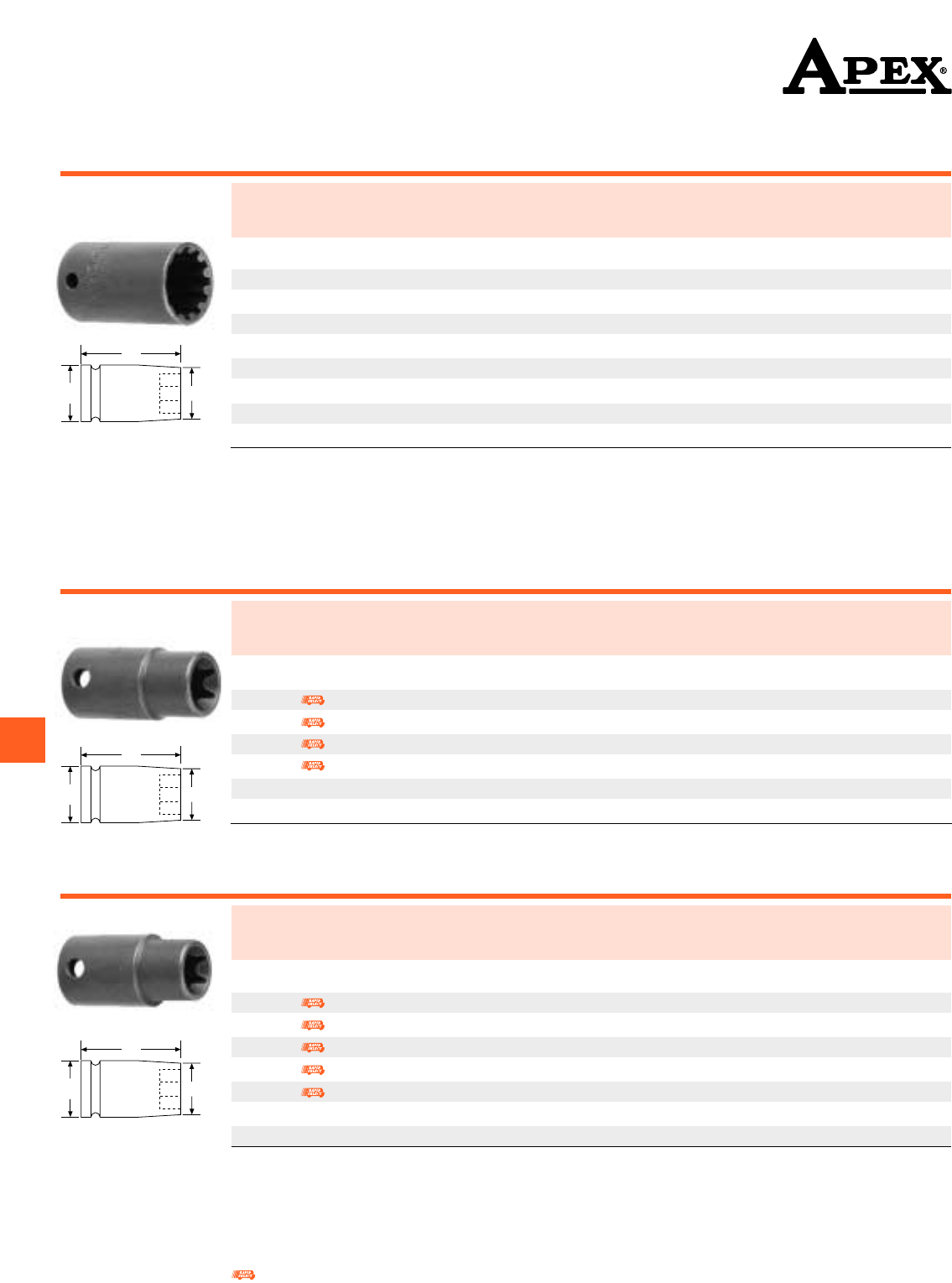

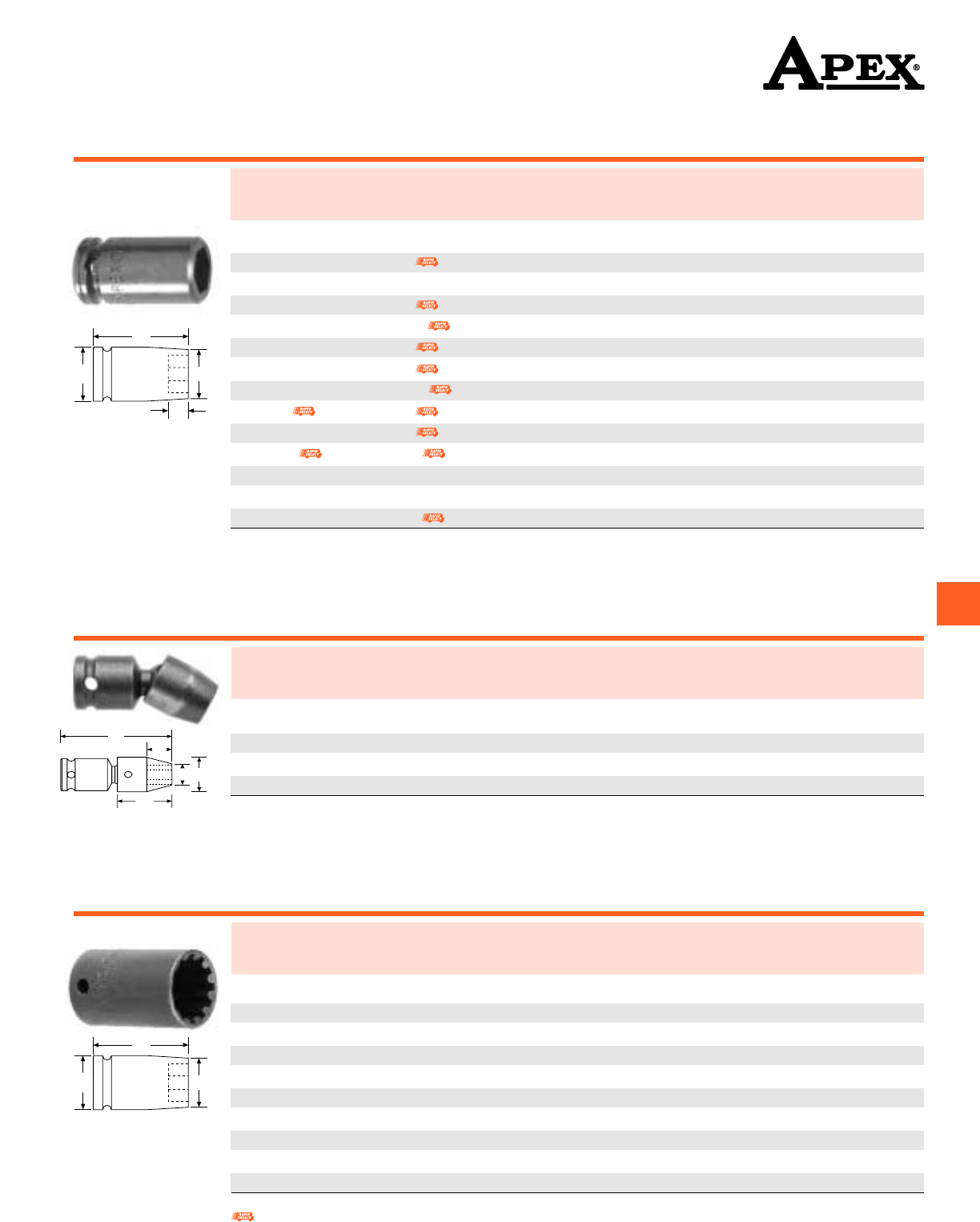

Standard and Long Length

Overall Diameter Diameter

Part Spline Nominal Length (A) Nose End (B) Drive End (C)

Number Size Size In. mm In. mm In. mm

CMS-1407 7 7/32 7/8 22 21/64 8 7/16 11

CMS-1507 7 7/32 2 51 21/64 8 7/16 11

CMS-1408 8 1/4 7/8 22 3/8 10 7/16 11

CMS-1508 8 1/4 2 51 3/8 10 7/16 11

CMS-1409 9 9/32 7/8 22 7/16 11 7/16 11

CMS-1509 9 9/32 2 51 7/16 11 7/16 11

CMS-1410 10 5/16 7/8 22 29/64 12 29/64 12

CMS-1510 10 5/16 2 51 29/64 12 29/64 12

CMS-1412 12 3/8 7/8 22 17/32 14 17/32 14

CMS-1414 14 7/16 1 25 39/64 16 39/64 16

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Magnetic mm (A) (B) (C) (D)

3.5mmE1 M-3.5mmE1 3.5 22.2 6.4 12.7 2.4

4mmE1 M-4mmE1 4 22.2 6.4 12.7 2.4

4.5mmE1 M-4.5mmE1 4.5 22.2 7.9 12.7 2.4

5mm11 M-5mmE1 5 22.2 8.7 12.7 3.9

5.5mmE1 M-5.5mmE1 5.5 22.2 9.5 12.7 3.9

6mmE1 M-6mmE1 6 22.2 9.5 12.7 3.9

7mmE1 M-7mmE1 7 22.2 11.1 12.7 4.8

- MR-7mmE1* 7 22.2 11.1 12.7 4.8

8mmE1 M-8mmE1 8 25.4 12.7 12.7 4.8

9mmE1 M-9mmE1 9 25.4 14.3 14.3 4.8

10mmE1 M-10mmE1 10 25.4 15.9 15.9 6.4

11mmE1 M-11mmE1 11 25.4 17.5 17.5 7.2

12mmE1 M-12mmE1 12 25.4 17.5 17.5 7.2

13mmE1 M-13mmE1 13 25.4 19.1 19.1 8.7

1/4” Square Drive Sockets

For Metric Sheet Metal Screws

6 Point and 6 Point Magnetic

1/4” Square Drive Sockets For Spline Fasteners

*MR-7mmE1 has stronger magnet

Apex spline sockets

conform to military

specifications MS-37787

and MIL-W-8982C.

1/4” Square Drive Universal Wrenches, Metric

6 Point

Part Hex Overall Socket Socket Nose End Opening

Number Opening Length Length Diameter Diameter Depth

6 Point mm (A) (B) (C) (D) (E)

SA-15-6m 6 31 19.1 15.9 9.5 9.5

SA-15-7m 7 31 19.1 15.9 10.3 9.5

SA-16-8m 8 38 19.1 19.1 11.1 7.9

SA-16-10m 10 40 20.6 19.1 15.1 9.5

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

Refer to Page iv for description of Rapid Select.

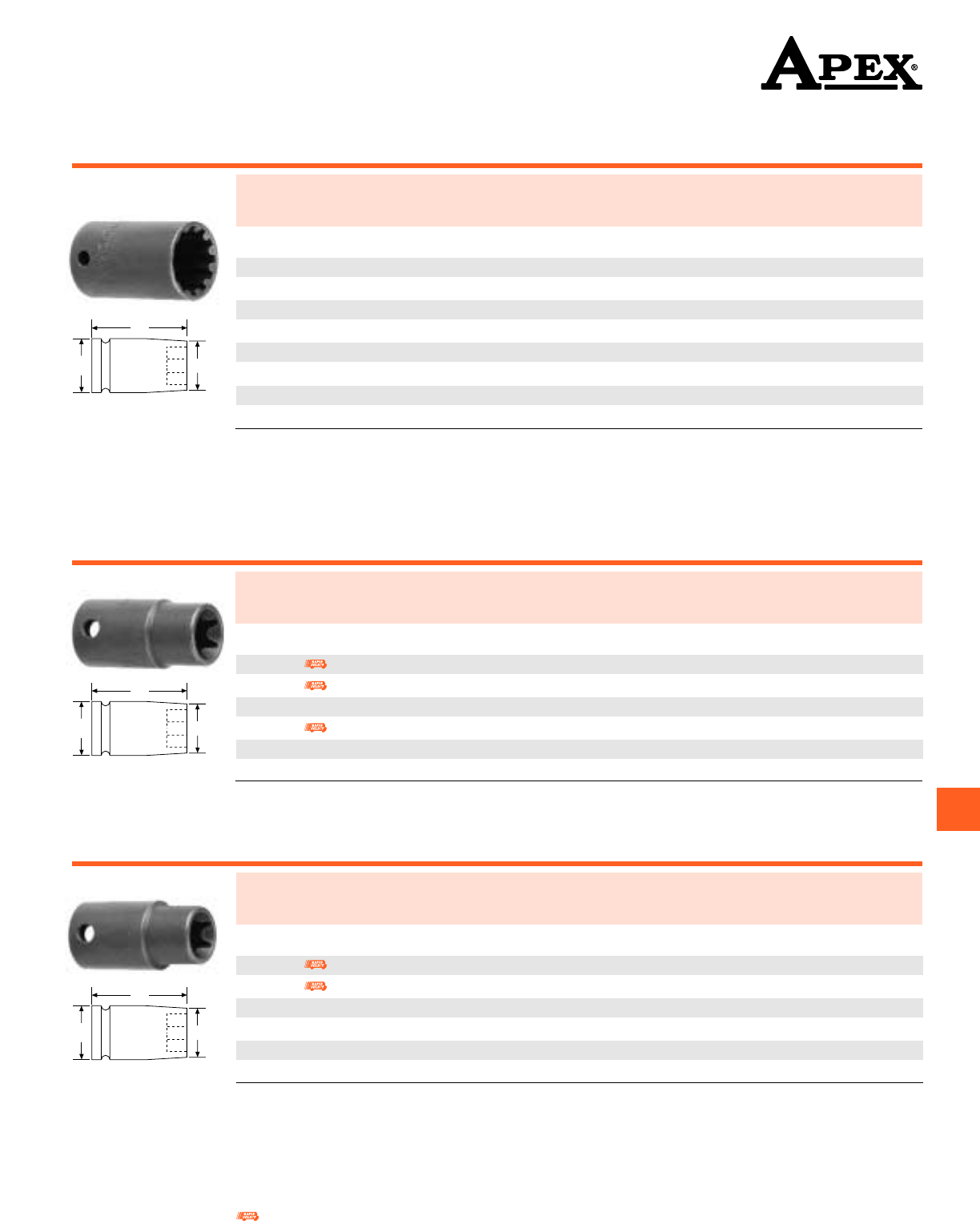

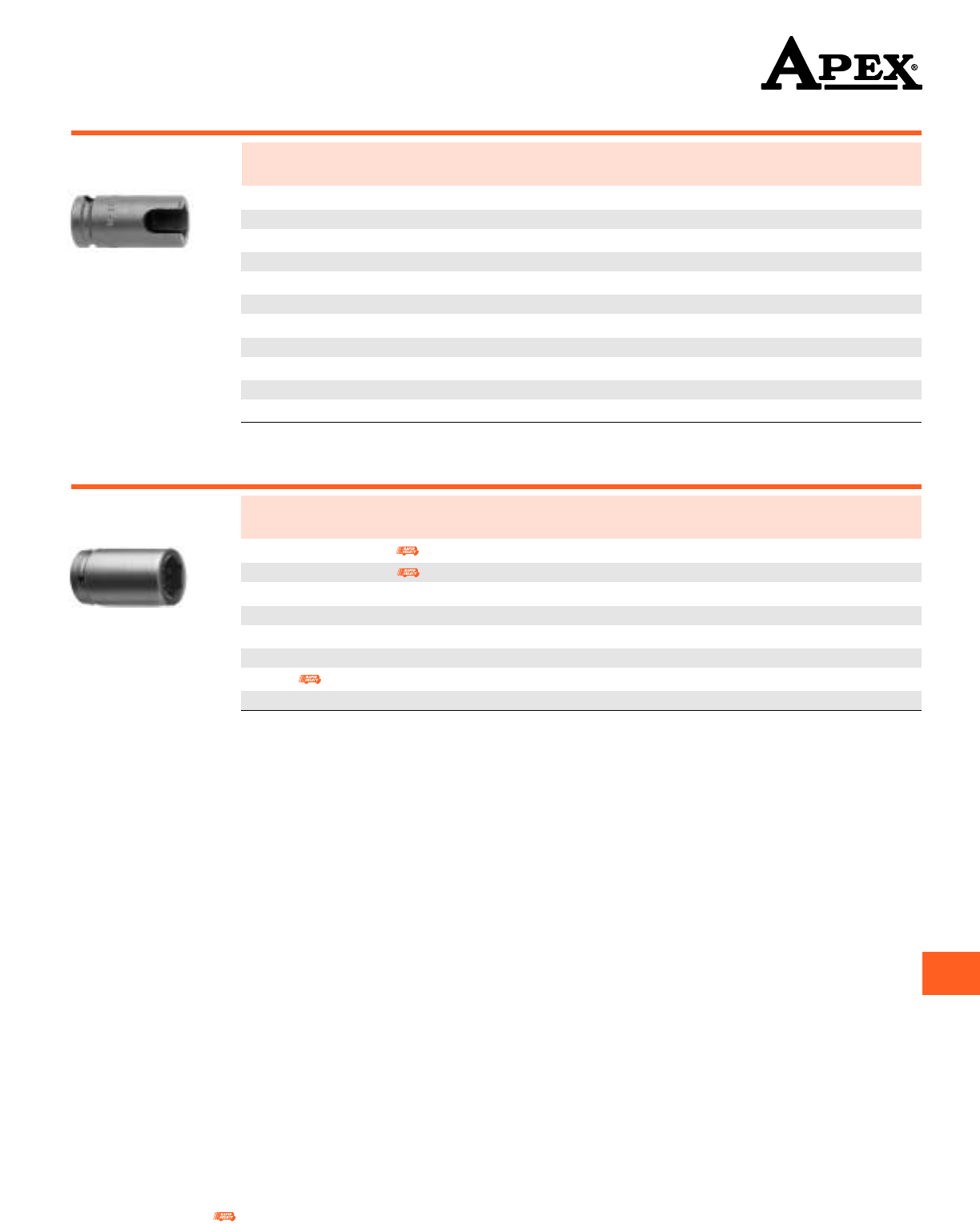

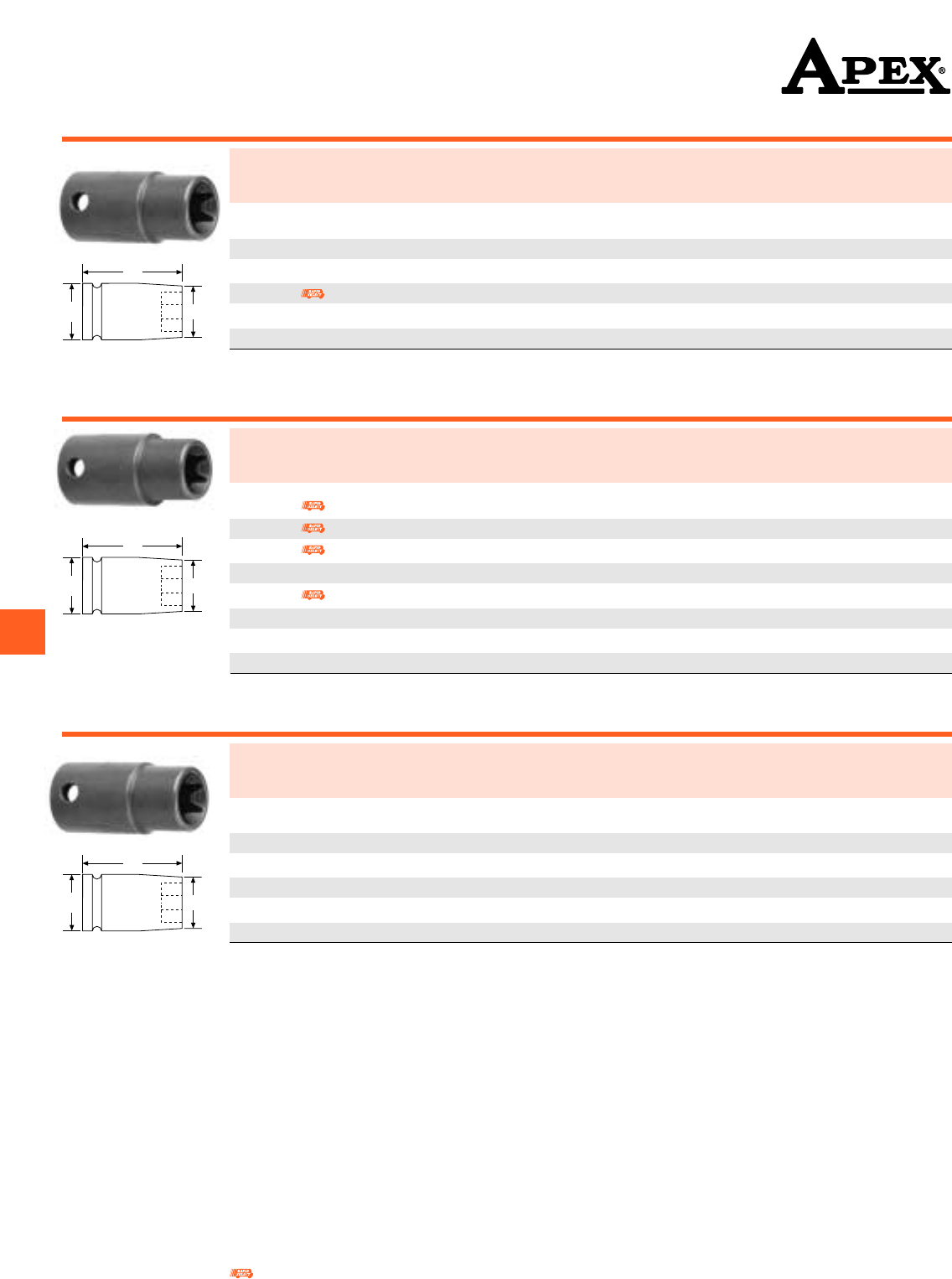

For External Torx Screws

Overall Nose End Drive End

Part Driver Length (A) Diameter (B) Diameter (C)

Number Size In. mm In. mm In. mm

TX-1104 E-4 1 25.4 1/4 6.4 1/2 12.7

TX-1105 E-5 1 25.4 1/4 6.4 1/2 12.7

TX-1106 E-6 1 25.4 5/16 7.9 1/2 12.7

TX-1108 E-8 1 25.4 3/8 9.5 1/2 12.7

TX-1110 E-10 1 25.4 9/16 14.3 9/16 14.3

TX-1112 E-12 1 25.4 5/8 15.9 5/8 15.9

Overall Nose End Drive End

Part Driver Length (A) Diameter (B) Diameter (C)

Number Size In. mm In. mm In. mm

TX-1404 E-4 1 25.4 1/4 6.4 1/2 12.7

TX-1405 E-5 1 25.4 1/4 6.4 1/2 12.7

TX-1406 E-6 1 25.4 5/16 7.9 1/2 12.7

TX-1407 E-7 1 25.4 5/16 7.9 1/2 12.7

TX-1408 E-8 1 25.4 3/8 9.5 1/2 12.7

TX-1410 E-10 1 25.4 1/2 12.7 1/2 12.7

TX-1411 E-11 1 25.4 1/2 12.7 1/2 12.7

TX-1412 E-12 1 25.4 9/16 14.3 9/16 14.3

For External Torx Screws, Thin Wall

1/4” Square Drive Torx®Sockets

Overall Nose End Drive End

Part Driver Length (A) Diameter (B) Diameter (C)

Number Size In. mm In. mm In. mm

TX-1E04 E-4 7/8 22.2 5/16 7.9 1/2 12.7

TX-1E05 E-5 7/8 22.2 3/8 9.5 1/2 12.7

TX-1E06 E-6 7/8 22.2 7/16 11.1 1/2 12.7

TX-1E08 E-8 7/8 22.2 1/2 12.7 1/2 12.7

TX-1E10 E-10 1 25.4 9/16 14.3 9/16 14.3

TX-1E12 E-12 1 25.4 5/8 15.9 5/8 15.9

For Torx Nuts

Sockets for Torx®nuts have a larger lead-in chamfer than sockets for external Torx®screws.

Most Torx®sockets have a DIN (pin and o-ring) groove.

Refer to Page iv for description of Rapid Select.

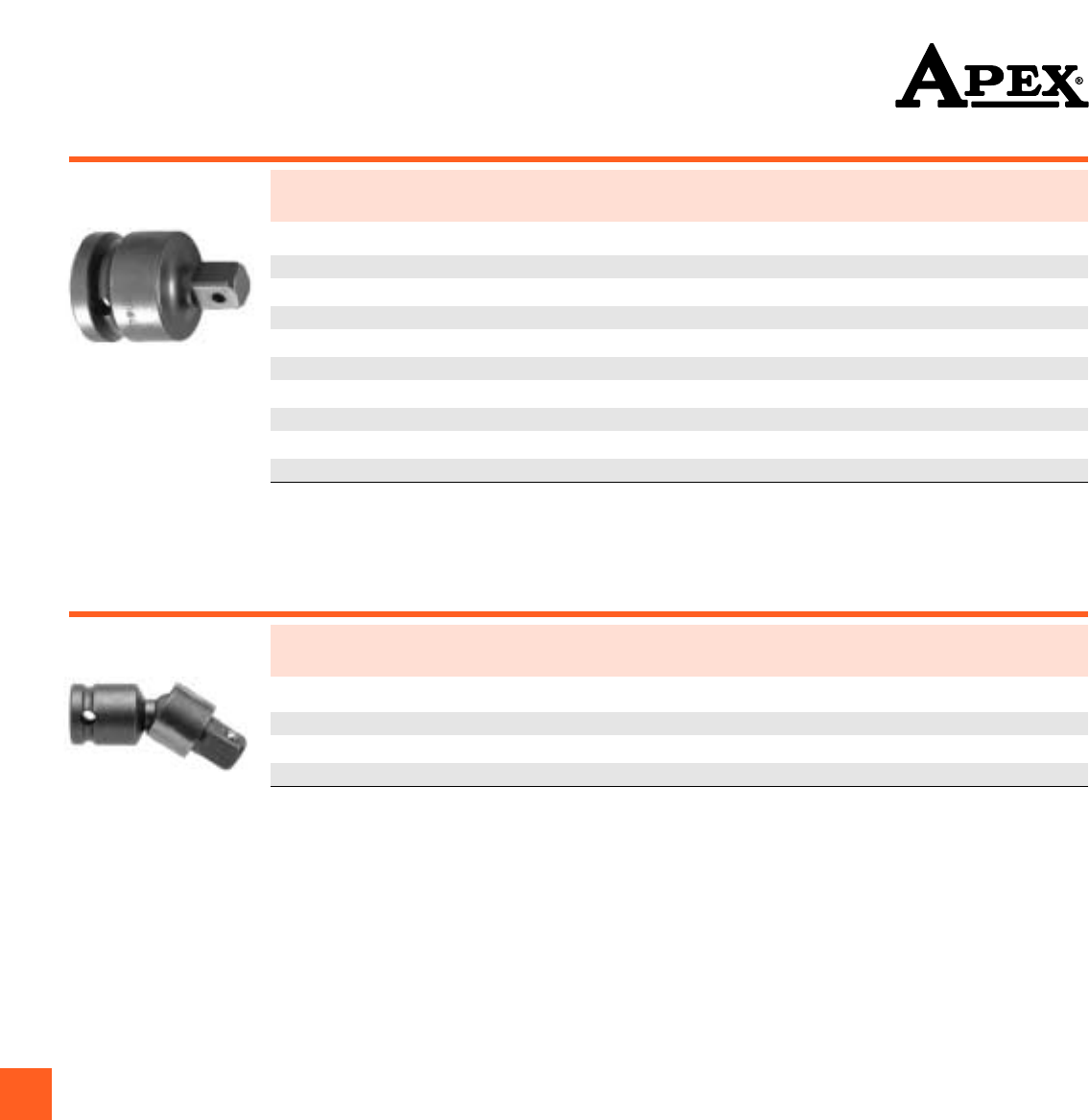

1/4” Square Drive Universal Adapters

Male Square to Female Square

Part Male Female Type of Overall Length Largest Diameter

Number Sq. In. Sq. In. Lock In. mm In. mm

MF-25 1/4 1/4 Pin 1 5/8 41 5/8 16

MF-25B 1/4 1/4 Ball 1 5/8 41 5/8 16

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

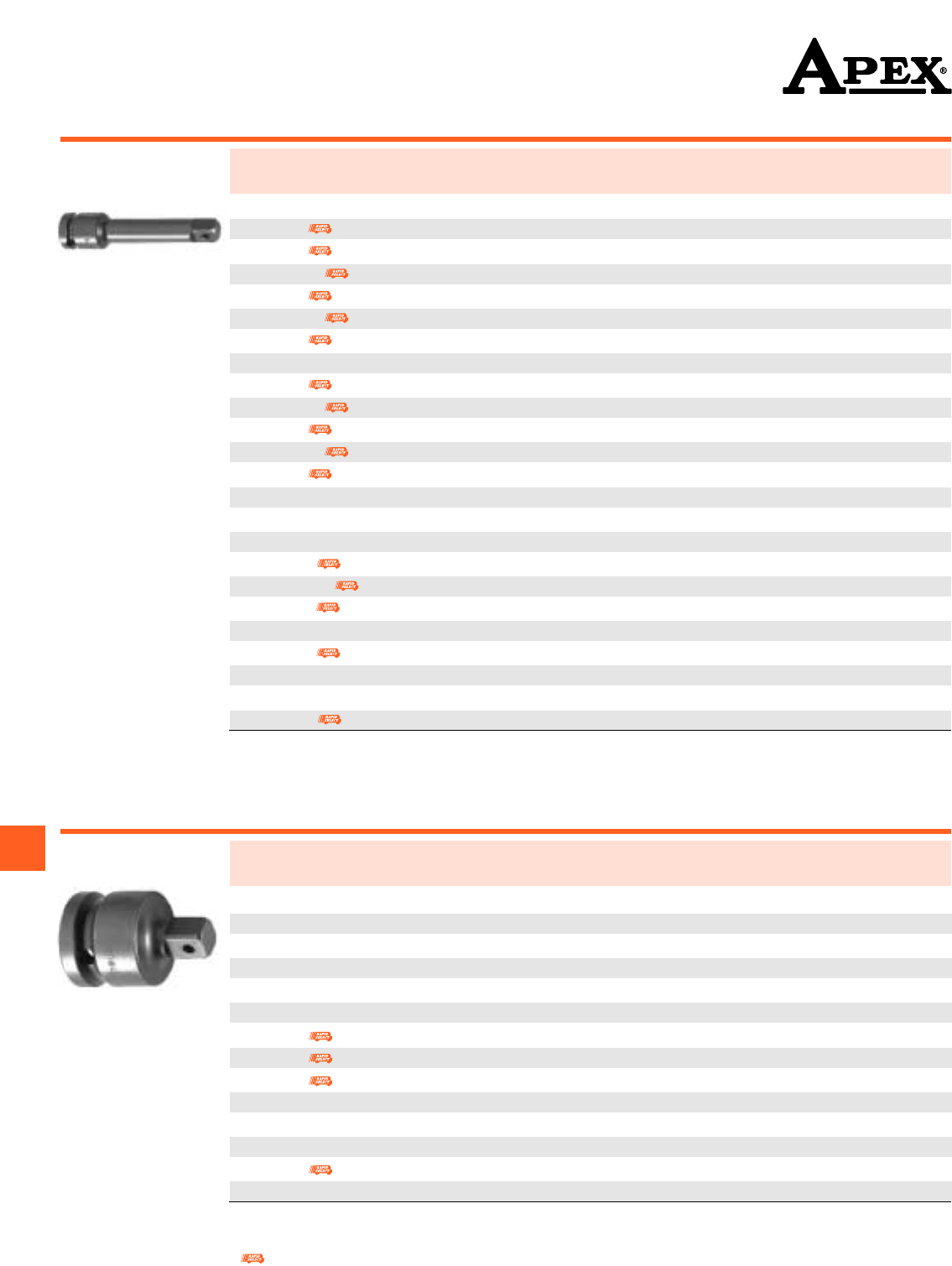

7/8” to 14” (22mm to 356mm) Length

Part Male Square Type of Overall Length

Number In. Lock In. mm

EX-252 1/4 Pin 7/8 22

EX-252-B 1/4 Ball 1 25

EX-255-2 1/4 Pin 2 51

EX-255-B-2 1/4 Ball 2 51

EX-255-3 1/4 Pin 3 76

EX-255-4 1/4 Pin 4 102

EX-255-B-4 1/4 Ball 4 102

EX-255-6 1/4 Pin 6 152

EX-255-B-6 1/4 Ball 6 152

EX-255-8 1/4 Pin 8 203

EX-255-10 1/4 Pin 10 254

EX-255-12 1/4 Pin 12 305

EX-255-14 1/4 Pin 14 356

1/4” Square Drive Extensions

1/4” to 3/8” Male Square

Part Male Female Type of Overall Length

Number Square In. Square In. Lock In. mm

EX-372 3/8 1/4 Pin 1 0

EX-372-B 3/8 1/4 Ball 1 25

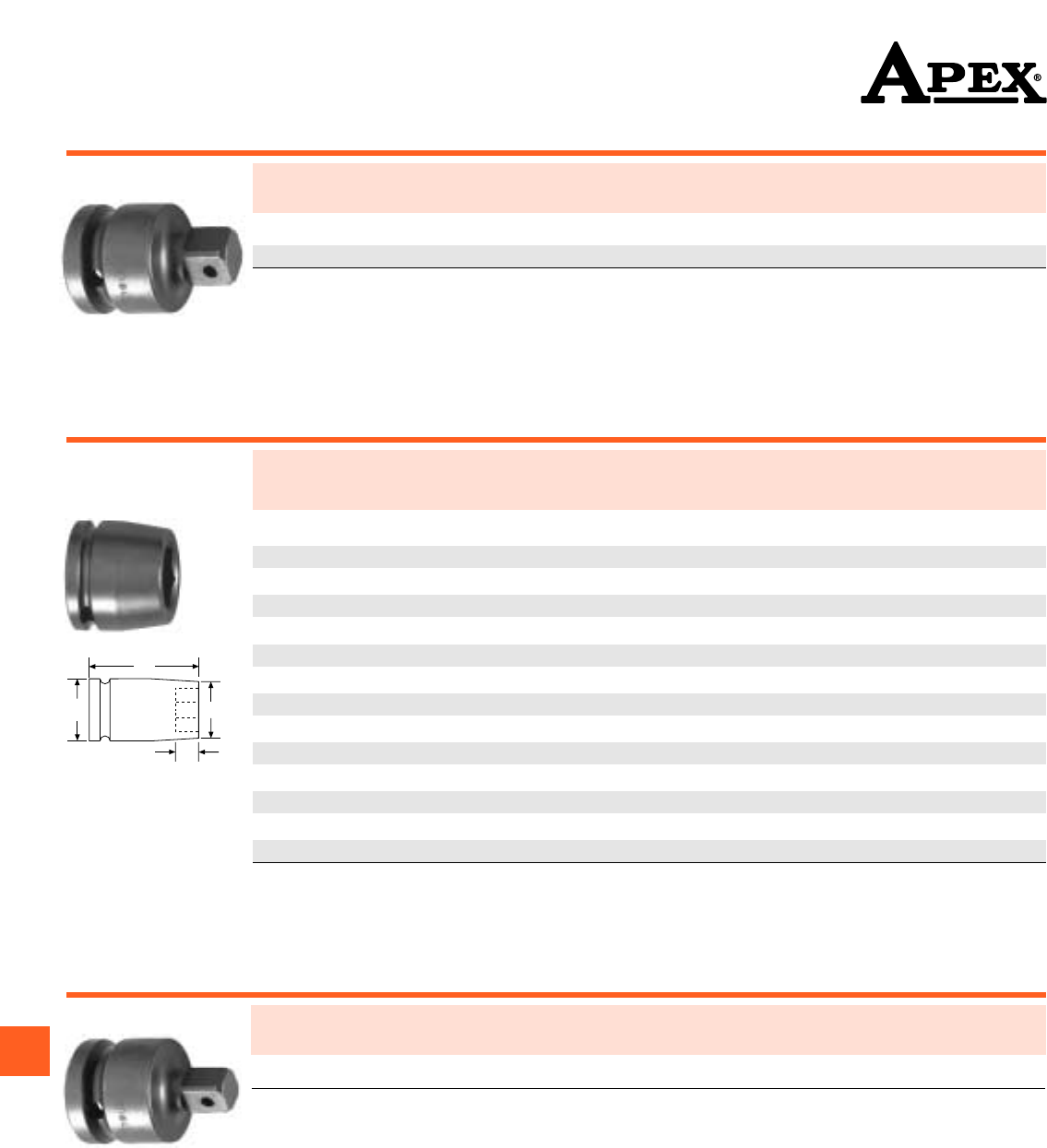

1/4” Square Drive Adapters

Refer to Page iv for description of Rapid Select.

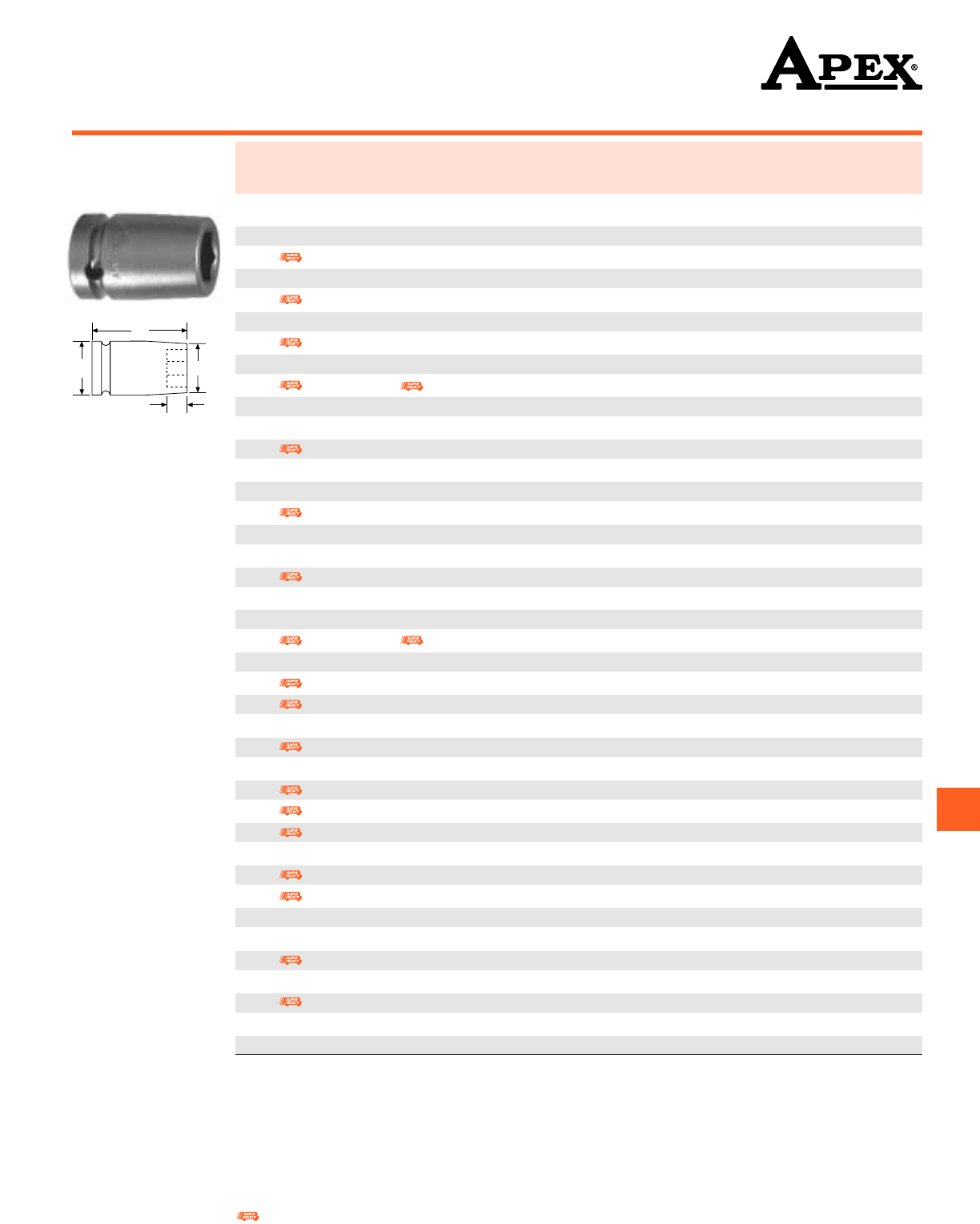

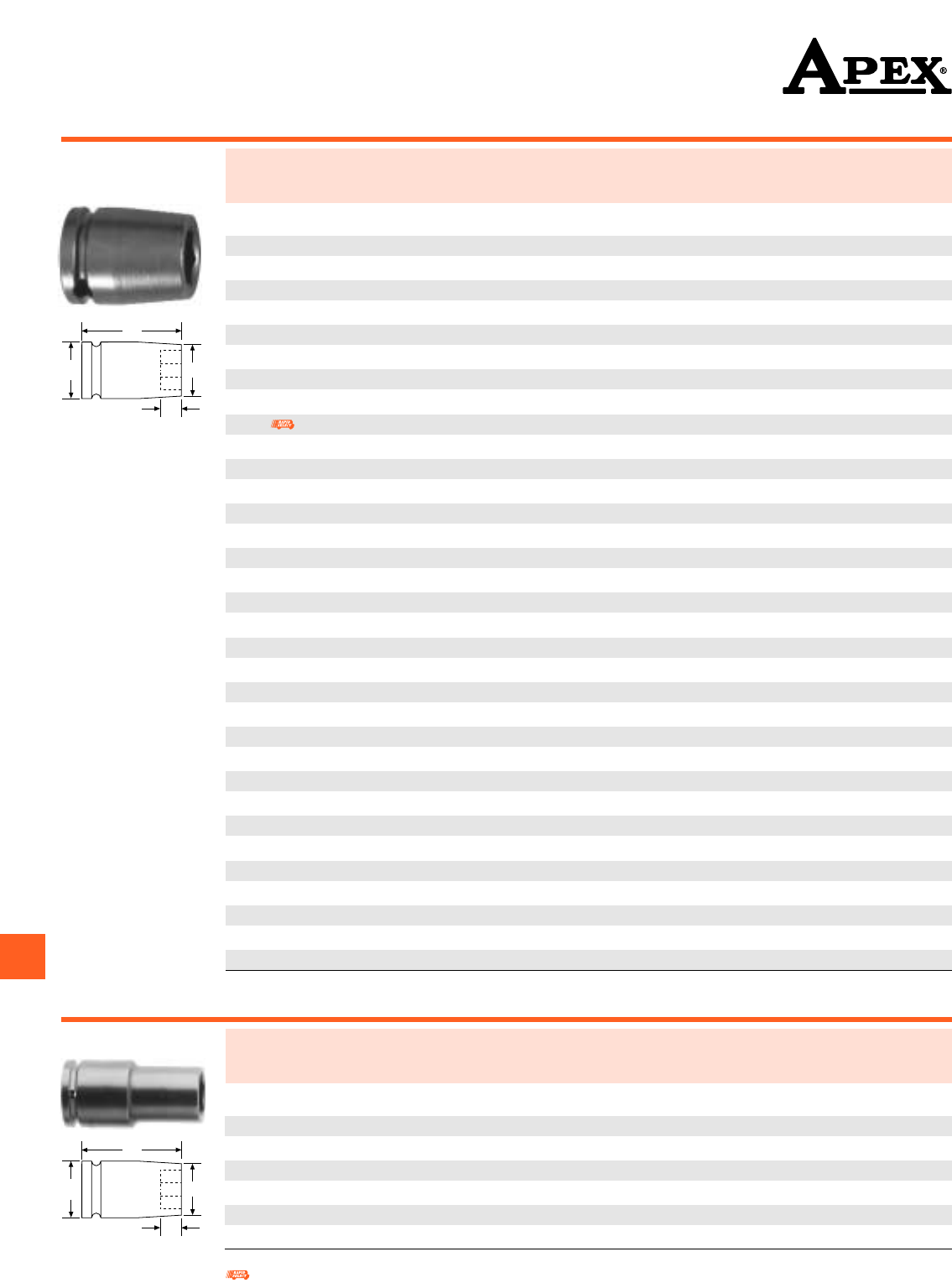

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

3108 3108-D 1/4 1 1/4 7/16 3/4 5/32

3109 3109-D 9/32 1 1/4 7/16 3/4 3/16

3010 - 5/16 7/8 1/2 3/4 3/16

3110 3110-D 5/16 1 1/4 1/2 3/4 3/16

3111 3111-D 11/32 1 1/4 1/2 3/4 3/16

3012 3012-D 3/8 7/8 19/32 3/4 3/16

3112 3112-D 3/8 1 1/4 19/32 3/4 1/4

3113 3113-D 13/32 1 1/2 11/16 3/4 1/4

3014 3014-D 7/16 7/8 11/16 3/4 9/32

3114 3114-D 7/16 1 1/2 11/16 3/4 9/32

SW-604 SW-604-D 7/16 1 1/2 21/32 3/4 9/32

3115 - 15/32 1 1/2 3/4 3/4 9/32

3016 3016-D 1/2 7/8 13/16 13/16 5/16

3116 3116-D 1/2 1 1/2 13/16 13/16 11/32

HC-3816 HC-3816-D 1/2 1 1/2 11/16 11/16 11/32

3117 3117-D 17/32 1 1/2 13/16 13/16 11/32

3018 3018-D 9/16 7/8 7/8 7/8 5/16

3118 3118-D 9/16 1 1/2 7/8 7/8 7/16

SW-343 SW-343-D 9/16 1 1/2 3/4 3/4 7/16

SW-605 SW-605-D 9/16 1 1/2 3/4 13/16 7/16

3119 - 19/32 1 1/2 7/8 7/8 7/16

3020 3020-D 5/8 1 15/16 15/16 7/16

3120 3120-D 5/8 1 1/2 15/16 15/16 7/16

HC-3520* - 5/8 2 3/8 7/8 7/8 7/32

3121 3121-D 21/32 1 1/2 15/16 15/16 7/16

3022 3022-D 11/16 1 1 1 7/16

3122 3122-D 11/16 1 1/2 1 1 7/16

3024 3024-D 3/4 1 1 1/16 1 1/16 7/16

3124 3124-D 3/4 1 1/2 1 1/16 1 1/16 15/32

3026 3026-D 13/16 1 1 1/8 1 1/8 7/16

3126 - 13/16 1 1/2 1 1/8 1 1/8 7/16

3028 3028-D 7/8 1 1 1/4 1 1/4 7/16

6 Point and Double Hex, Short and Standard Length

3/8” Square Drive Sockets, SAE

inches

Refer to Page iv for description of Rapid Select.

*HC-3520 is spark plug socket.

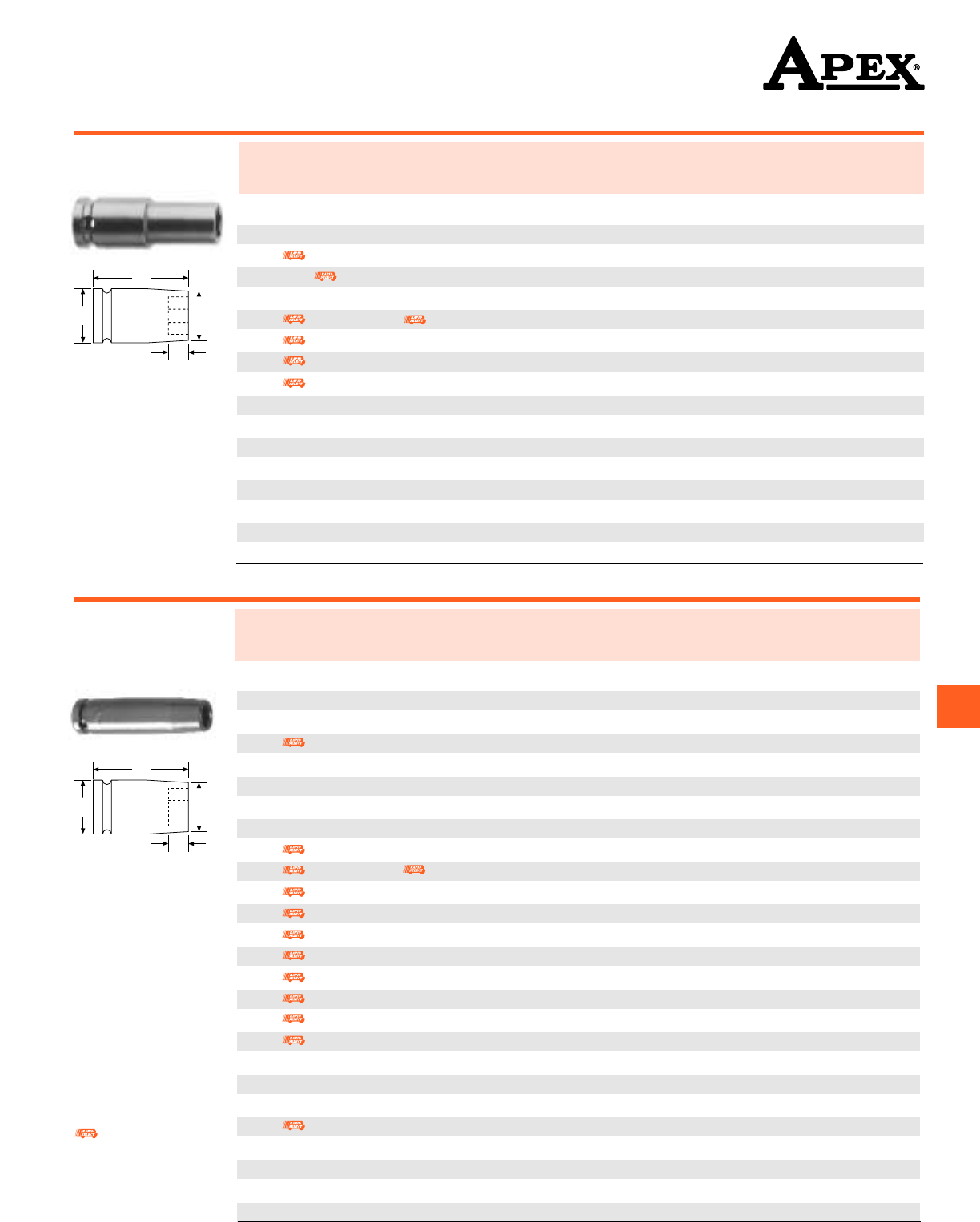

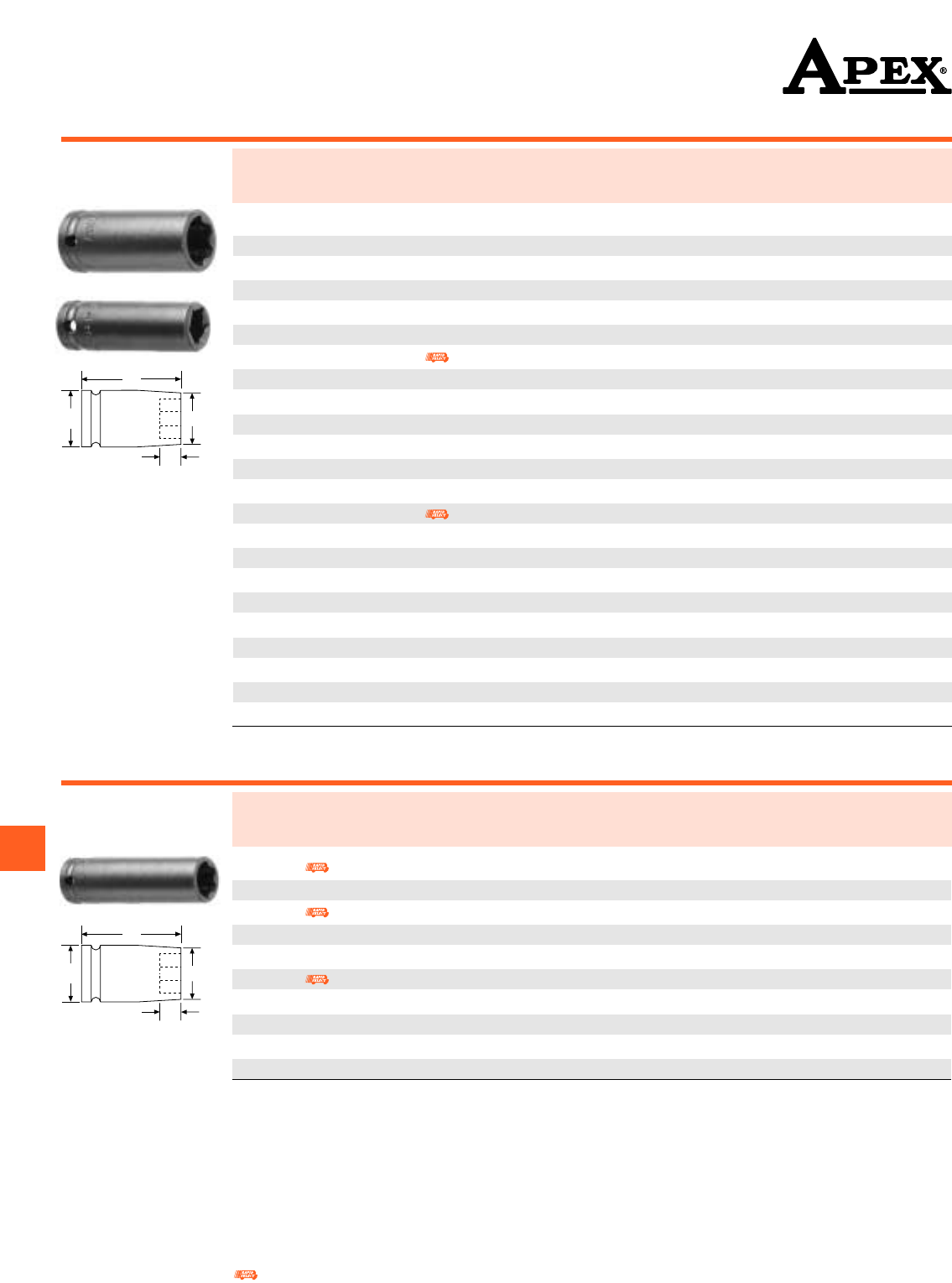

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

3408 3408-D 1/4 1 1/4 7/16 3/4 5/32

3409 - 9/32 1 1/4 7/16 3/4 3/16

3410 3410-D 5/16 1 1/4 1/2 3/4 3/16

OS-3410* - 5/16 1 1/4 7/16 19/32 3/16

3411 - 11/32 1 1/4 1/2 3/4 3/16

3412 3412-D 3/8 1 1/2 19/32 3/4 1/4

3414 3414-D 7/16 1 1/2 5/8 3/4 9/32

3416 3416-D 1/2 1 1/2 3/4 3/4 11/32

3418 3418-D 9/16 1 1/2 25/32 13/16 7/16

3420 3420-D 5/8 1 1/2 7/8 7/8 7/16

3422 3422-D 11/16 1 1/2 15/16 15/16 7/16

3424 3424-D 3/4 1 1/2 1 1 15/32

3426 3426-D 13/16 1 1/2 1 1/8 1 1/8 17/32

3428 3428-D 7/8 1 1/2 1 3/16 1 1/4 9/16

3430 3430-D 15/16 1 1/2 1 5/16 1 5/16 5/8

3432 3432-D 1 1 1/2 1 3/8 1 3/8 5/8

3434 3434-D 1 1/16 1 1/2 1 1/2 1 1/2 11/16

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

3208 3208-D 1/4 2 7/16 3/4 5/32

3308 3308-D 1/4 3 1/2 7/16 3/4 5/32

3209 3209-D 9/32 2 7/16 3/4 3/16

3210 3210-D 5/16 2 1/2 3/4 3/16

3310 3310-D 5/16 3 1/2 1/2 3/4 3/16

OS-3310-D* - 5/16 3 1/2 15/32 5/8 3/16

3211 3211-D 11/32 2 1/2 3/4 3/16

3311 - 11/32 3 1/2 1/2 3/4 3/16

3212 3212-D 3/8 2 19/32 3/4 1/4

3312 3312-D 3/8 3 1/2 19/32 3/4 1/4

3214 3214-D 7/16 2 11/16 3/4 9/32

3314 3314-D 7/16 3 1/2 11/16 3/4 9/32

3216 3216-D 1/2 2 13/16 13/16 11/32

3316 3316-D 1/2 3 1/2 13/16 13/16 11/32

3218 3218-D 9/16 2 7/8 7/8 7/16

3318 3318-D 9/16 3 1/2 7/8 7/8 7/16

3220 3220-D 5/8 2 15/16 15/16 7/16

3320 3320-D 5/8 3 1/2 15/16 15/16 7/16

3222 3222-D 11/16 2 1 1 7/16

3322 3322-D 11/16 3 1/2 1 1 7/16

3224 3224-D 3/4 2 1 1/16 1 1/16 15/32

3324 3324-D 3/4 3 1/2 1 1/16 1 1/16 15/32

3226 3226-D 13/16 2 1 1/4 1 1/4 17/32

3326 3326-D 13/16 3 1/2 1 1/4 1 1/4 17/32

3228 3228-D 7/8 2 1 1/4 1 1/4 9/16

3328 3328-D 7/8 3 1/2 1 1/4 1 1/4 9/16

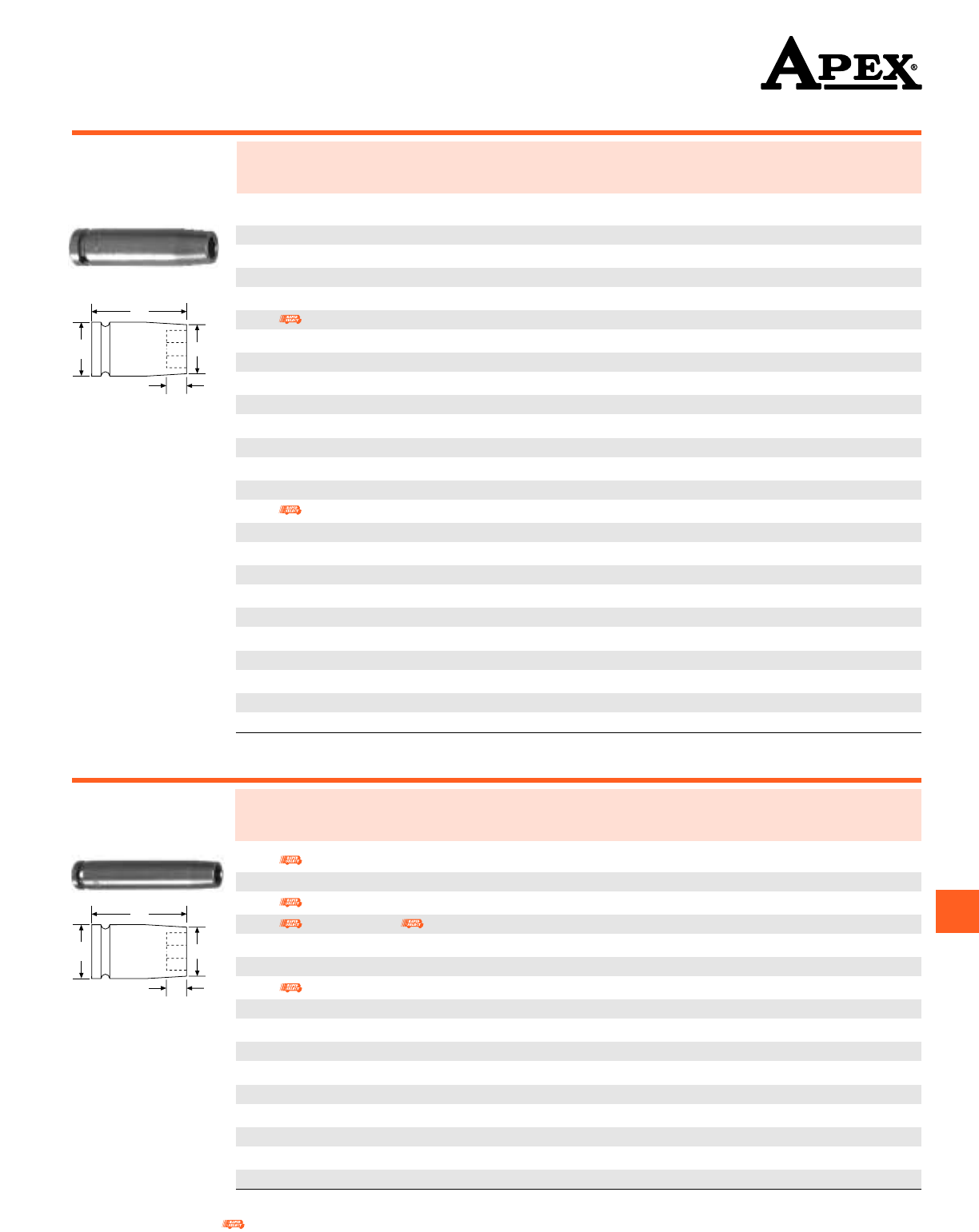

3/8” Square Drive Sockets, SAE

6 Point and Double Hex, Thin Wall, Standard Length

6 Point and Double Hex, Long and Extra Long Length

inches

Refer to Page iv

for description of

Rapid Select.

*No ring groove.

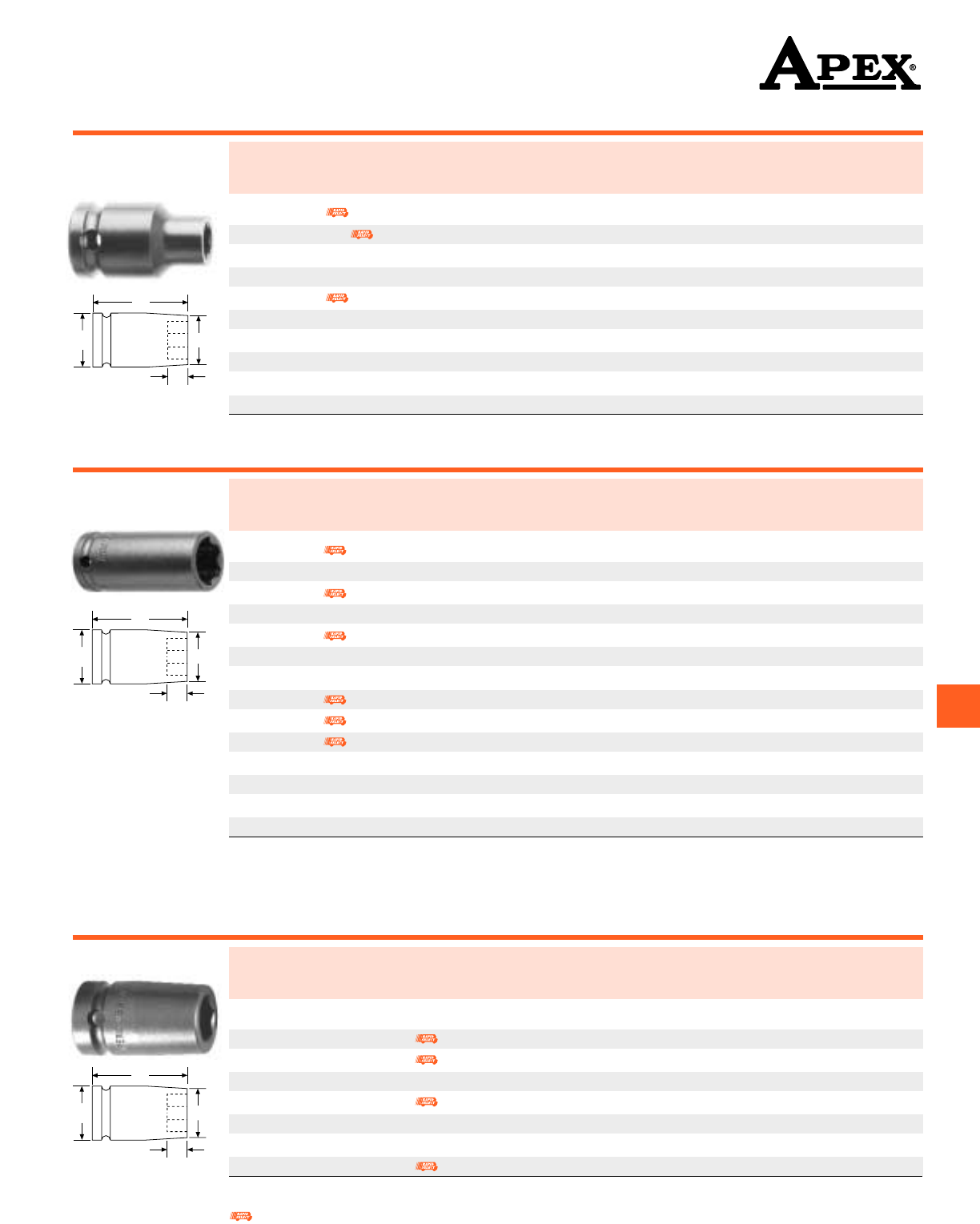

Magnetic, Short and Standard Length

3/8” Square Drive Sockets, SAE

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

3510 - 5/16 2 1/2 3/4 3/16

3511 - 11/32 2 1/2 3/4 3/16

3512 3512-D 3/8 2 19/32 3/4 1/4

3513 - 3/8 2 5/8 3/4 1/4

3514 3514-D 7/16 2 5/8 3/4 9/32

3516 3516-D 1/2 2 3/4 3/4 11/32

3518 3518-D 9/16 2 25/32 13/16 7/16

3522 3522-D 11/16 2 15/16 15/16 7/16

3524 3524-D 3/4 2 1 1 15/32

3530 3530-D 15/16 2 1 5/16 1 5/16 5/8

3532 3532-D 1 2 1 3/8 1 3/8 5/8

3534 - 1 1/16 2 1 1/2 1 1/2 11/16

6 Point and Double Hex, Thin Wall, Long Length

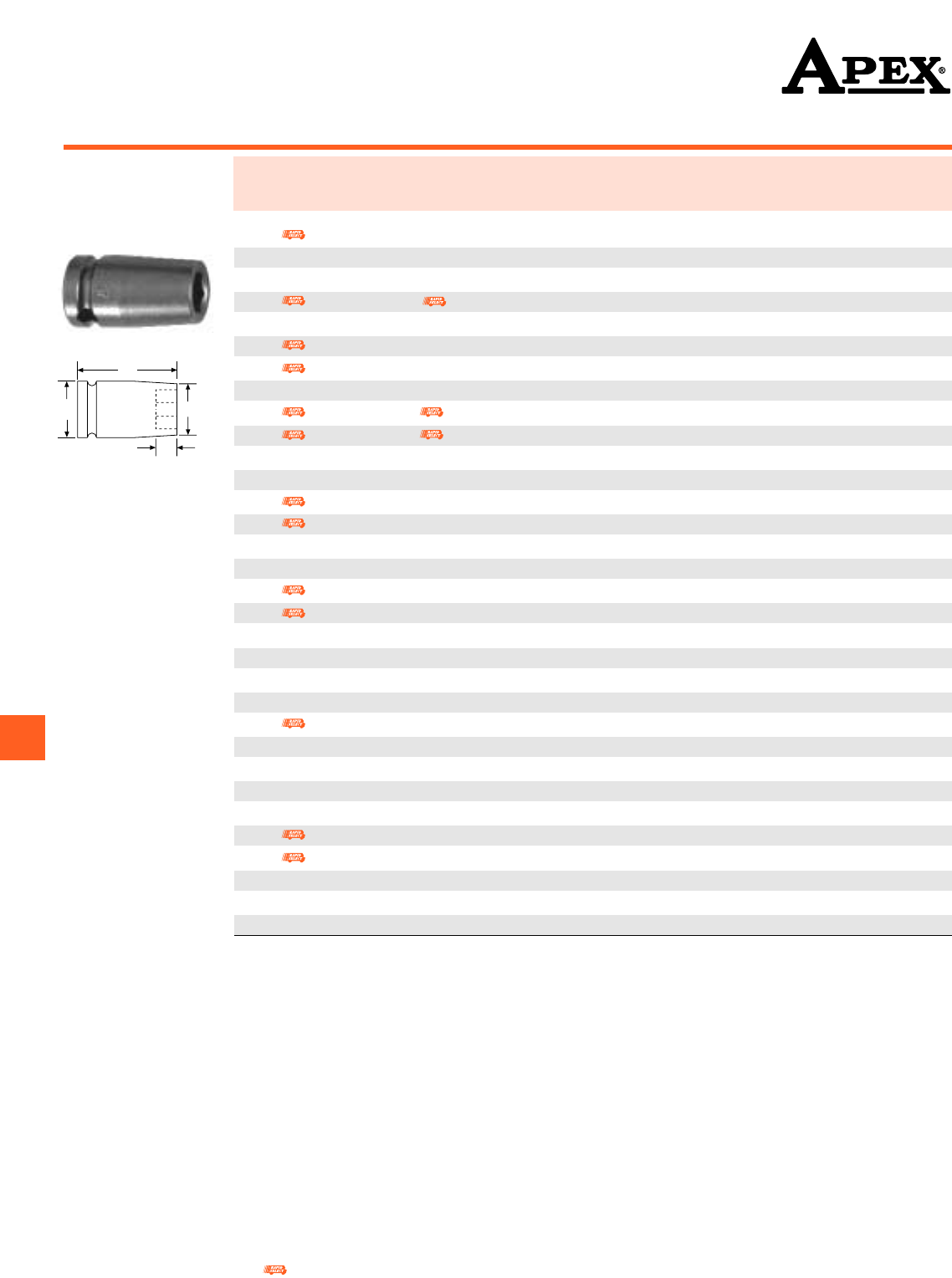

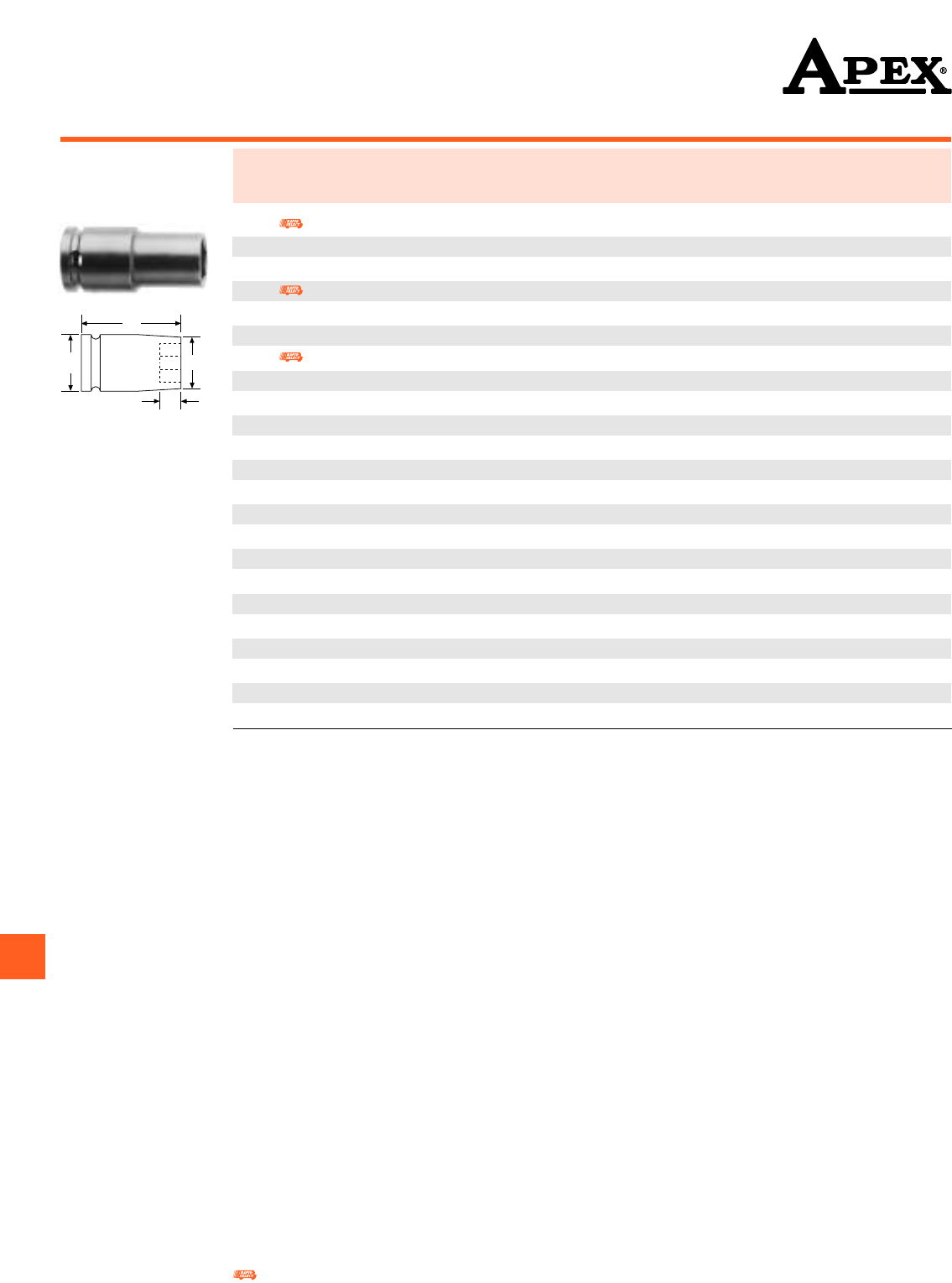

Part Number Hex Overall Diameter Diameter Opening

Fixed Opening Length Nose End Drive End Depth

Magnet In. (A) (B) (C) (D)

M-3108 1/4 1 1/4 7/16 3/4 5/32

M-3109 9/32 1 1/4 7/16 3/4 3/16

M-3110 5/16 1 1/4 1/2 3/4 3/16

M-3111 11/32 1 1/4 1/2 3/4 3/16

M-3012 3/8 7/8 19/32 3/4 3/16

M-3112 3/8 1 1/4 19/32 3/4 1/4

M-3014 7/16 7/8 11/16 3/4 9/32

M-3114 7/16 1 1/2 11/16 3/4 9/32

MSW-604 7/16 1 1/2 21/32 3/4 9/32

M-3115 15/32 1 1/2 3/4 3/4 9/32

M-3016 1/2 7/8 13/16 13/16 5/16

M-3116 1/2 1 1/2 13/16 13/16 11/32

MHC-3816 1/2 1 1/2 11/16 11/16 11/32

M-3117 17/32 1 1/2 13/16 13/16 11/32

M-3018 9/16 7/8 7/8 7/8 5/16

M-3118 9/16 1 1/2 7/8 7/8 7/16

MSW-343 9/16 1 1/2 3/4 3/4 7/16

M-3119 19/32 1 1/2 7/8 7/8 7/16

M-3120 5/8 1 1/2 15/16 15/16 7/16

M-3122 11/16 1 1/2 1 1 7/16

inches

Refer to Page iv for description of Rapid Select.

Part No. Part No. Hex Overall Diameter Diameter Opening

Fixed Magnetic Bolt Opening Length Nose End Drive End Depth

Magnet Clearance In. (A) (B) (C) (D)

- MB-3210 5/16 2 1/2 3/4 3/16

M-3212 MB-3212 3/8 2 19/32 3/4 1/4

M-3214 MB-3214 7/16 2 11/16 3/4 9/32

- MB-3314 7/16 3 1/2 11/16 3/4 9/32

M-3216 MB-3216 1/2 2 13/16 13/16 11/32

M-3218 MB-3218 9/16 2 7/8 7/8 7/16

- MB-3318 9/16 3 1/2 7/8 7/8 7/16

- MB-3220 5/8 2 15/16 15/16 7/16

Part No. Part No. Hex Overall Diameter Diameter Opening

Fixed Magnetic Bolt Opening Length Nose End Drive End Depth

Magnet Clearance In. (A) (B) (C) (D)

- MB-3512 3/8 2 19/32 3/4 1/4

M-3514 MB-3514 7/16 2 5/8 3/4 9/32

- MB-3516 1/2 2 3/4 3/4 11/32

Magnetic, Thin Wall, Long Length

Magnetic, Long Length and Extra Long Length

3/8” Square Drive Sockets, SAE

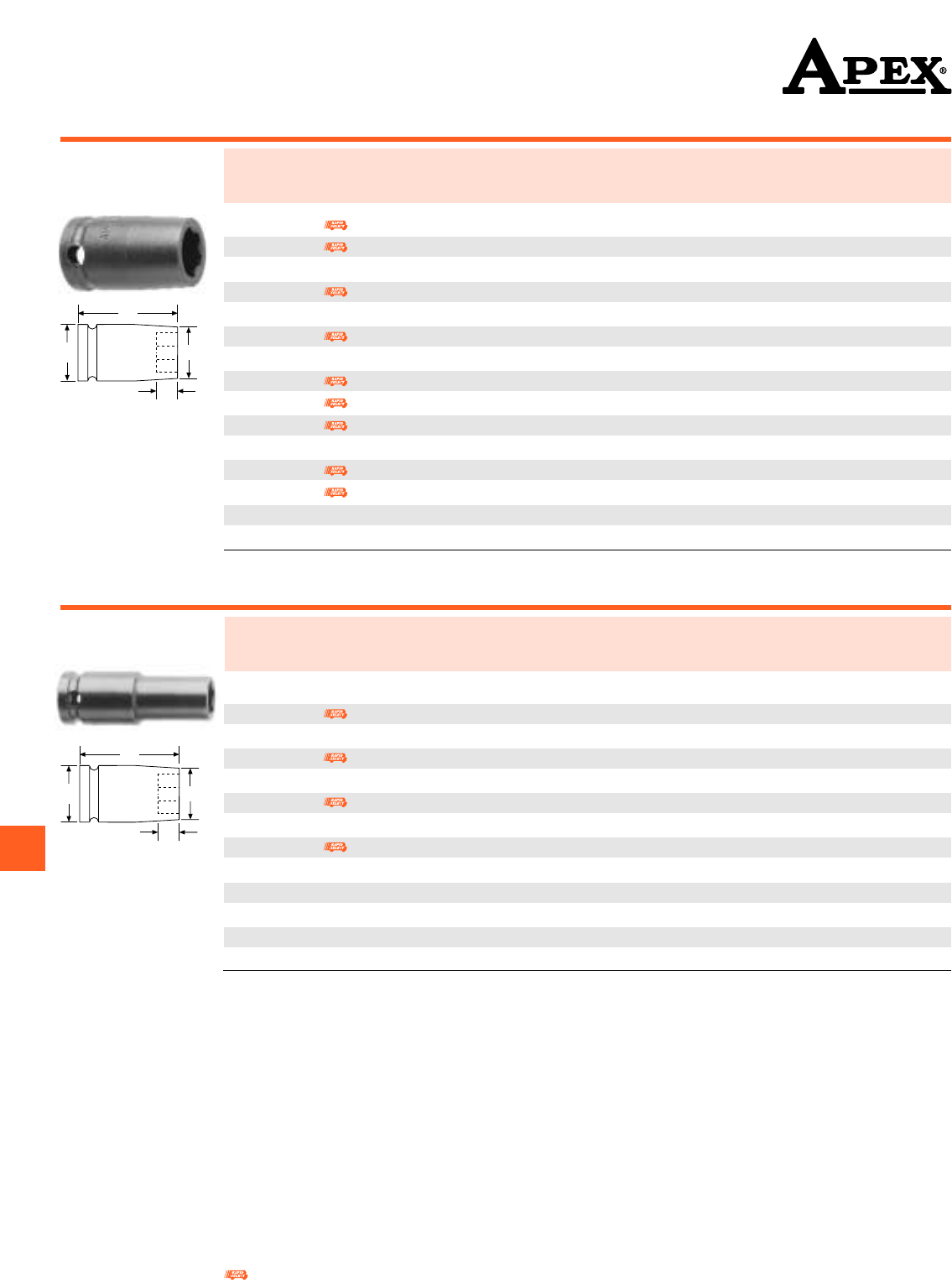

Magnetic, Thin Wall, Standard Length

Part Number Hex Overall Diameter Diameter Opening

Fixed Opening Length Nose End Drive End Depth

Magnet In. (A) (B) (C) (D)

M-3408 1/4 1 1/4 7/16 3/4 5/32

M-3409 9/32 1 1/4 7/16 3/4 3/16

M-3410 5/16 1 1/4 1/2 3/4 3/16

OSM-3410* 5/16 1 1/4 7/16 19/32 3/16

M-3411 11/32 1 1/4 1/2 3/4 3/16

M-3412 3/8 1 1/2 19/32 3/4 1/4

M-3414 7/16 1 1/2 5/8 3/4 9/32

OSM-3414* 7/16 1 1/2 5/8 5/8 9/32

M-3416 1/2 1 1/2 3/4 3/4 11/32

M-3418 9/16 1 1/2 25/32 13/16 7/16

M-3420 5/8 1 1/2 7/8 7/8 7/16

M-3424 3/4 1 1/2 1 1 15/32

M-3426 13/16 1 1/2 1 1/8 1 1/8 17/32

M-3430 15/16 1 1/2 1 5/16 1 5/16 17/32

inches

Refer to Page iv for description of Rapid Select.

*No ring groove.

Part No. Part Hex Overall Diameter Diameter Opening

Surface Number Opening Length Nose End Drive End Depth

Drive Fast Lead In. (A) (B) (C) (D)

SF-3108 FL-3108 1/4 1 1/4 7/16 3/4 5/32

SF-3010 - 5/16 7/8 1/2 3/4 3/16

SF-3110 FL-3110 5/16 1 1/4 1/2 3/4 3/16

SF-3012 FL-3012 3/8 7/8 19/32 3/4 3/16

SF-3112 FL-3112 3/8 1 1/4 19/32 3/4 1/4

SF-3014 FL-3014 7/16 7/8 11/16 3/4 9/32

SF-3114 FL-3114 7/16 1 1/2 11/16 3/4 9/32

SF-3016 FL-3016 1/2 7/8 13/16 13/16 5/16

SF-3116 FL-3116 1/2 1 1/2 13/16 13/16 11/32

SF-HC3816 - 1/2 1 1/2 11/16 11/16 11/32

SF-3018 FL-3018 9/16 7/8 7/8 7/8 5/16

SF-3118 FL-3118 9/16 1 1/2 7/8 7/8 7/16

- FL-3119 19/32 1 1/2 7/8 7/8 7/16

- FL-3020 5/8 1 15/16 15/16 7/16

SF-3120 FL-3120 5/8 1 1/2 15/16 15/16 7/16

- FL-3022 11/16 1 15/16 15/16 7/16

SF-3122 FL-3122 11/16 1 1/2 1 1 7/16

- FL-3024 3/4 1 1 1/16 1 1/16 7/16

SF-3124 FL-3124 3/4 1 1/2 1 1/16 1 1/16 15/32

SF-3028 - 7/8 1 1 1/4 1 1/4 9/16

Surface Drive and Fast Lead, Short and Standard Length

3/8” Square Drive Sockets, SAE

Part No. Part Hex Overall Diameter Diameter Opening

Surface Number Opening Length Nose End Drive End Depth

Drive Fast Lead In. (A) (B) (C) (D)

- FL-3410 5/16 1 1/4 1/2 3/4 3/16

SF-3412 FL-3412 3/8 1 1/2 19/32 3/4 1/4

SF-3414 FL-3414 7/16 1 1/2 5/8 3/4 9/32

SF-3416 - 1/2 1 1/2 3/4 3/4 11/32

SF-3418 - 9/16 1 1/2 25/32 13/16 7/16

SF-3420 - 5/8 1 1/2 7/8 7/8 7/16

SF-3422 - 11/16 1 1/2 15/16 15/16 7/16

SF-3430 - 15/16 1 1/2 1 5/16 1 5/16 7/16

SF-3432 - 1 1 1/2 1 3/8 1 3/8 5/8

Surface Drive and Fast Lead, Thin Wall, Standard Length

inches

Refer to Page iv for description of Rapid Select.

Part No. Part Hex Overall Diameter Diameter Opening

Surface Number Opening Length Nose End Drive End Depth

Drive Fast Lead In. (A) (B) (C) (D)

- FL-3210 5/16 2 1/2 3/4 3/16

SF-3212 FL-3212 3/8 2 19/32 3/4 1/4

SF-3312 FL-3312 3/8 3 1/2 19/32 3/4 1/4

SF-3214 FL-3214 7/16 2 11/16 3/4 9/32

SF-3314 FL-3314 7/16 3 1/2 11/16 3/4 9/32

SF-3216 FL-3216 1/2 2 13/16 13/16 11/32

SF-3316 FL-3316 1/2 3 1/2 13/16 13/16 11/32

SF-3218 FL-3218 9/16 2 7/8 7/8 7/16

SF-3318 FL-3318 9/16 3 1/2 7/8 7/8 7/16

SF-3220 FL-3220 5/8 2 15/16 15/16 7/16

SF-3320 FL-3320 5/8 3 1/2 15/16 15/16 7/16

SF-3222 - 11/16 2 1 1 7/16

SF-3322 - 11/16 3 1/2 1 1 7/16

SF-3224 - 3/4 2 1 1/16 1 1/16 15/32

SF-3324 FL-3324 3/4 3 1/2 1 1/16 1 1/16 15/32

SF-3226 - 13/16 2 1 1/4 1 1/4 17/32

- FL-3326 13/16 3 1/2 1 1/4 1 1/4 17/32

Part No. Hex Overall Diameter Diameter Opening

Surface Opening Length Nose End Drive End Depth

Drive In. (A) (B) (C) (D)

SF-3512 3/8 2 19/32 3/4 1/4

OSSF-3512* 3/8 2 19/32 19/32 1/4

SF-3514 7/16 2 5/8 3/4 9/32

OSSF-3514* 7/16 2 5/8 5/8 9/32

SF-3516 1/2 2 3/4 3/4 11/32

SF-3518 9/16 2 25/32 13/16 7/16

SF-3524 3/4 2 1 1 15/32

Surface Drive and Fast Lead, Long and Extra Long Length

Surface Drive, Thin Wall, Long Length

3/8” Square Drive Sockets, SAE

inches

Refer to Page iv for description of Rapid Select.

*No ring groove.

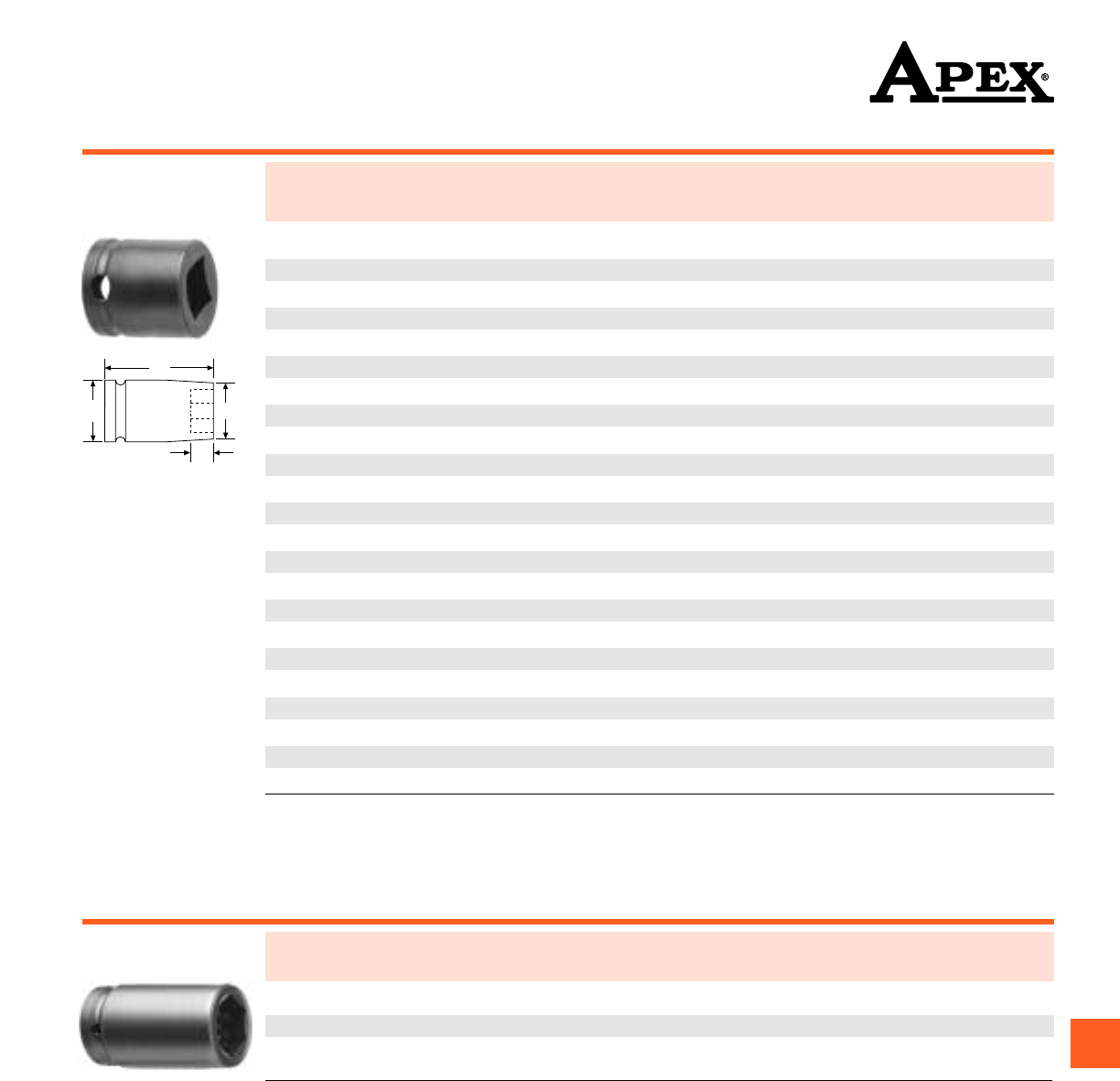

3/8” Square Drive Sockets For SAE Square Nuts

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Magnetic In. (A) (B) (C) (D)

3E06 - 3/16 1 1/4 5/16 3/4 3/32

3E07 - 7/32 1 1/4 3/8 3/4 5/32

3E08 M3E08 1/4 1 1/4 7/16 3/4 5/32

- M3E09 9/32 1 1/4 7/16 3/4 3/16

3E10 M3E10 5/16 1 1/4 1/2 3/4 3/16

3E11 M3E11 11/32 1 1/4 1/2 3/4 3/16

3E12 M3E12 3/8 1 1/4 19/32 3/4 1/4

3E14 M3E14 7/16 1 1/4 11/16 3/4 9/32

3E16 M3E16 1/2 1 1/2 13/16 13/16 11/32

3E18 M3E18 9/16 1 1/2 7/8 7/8 7/16

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Magnetic In. (A) (B) (C) (D)

3P06 M3P06 3/16 1 1/4 5/16 3/4 3/32

3P07 M3P07 7/32 1 1/4 3/8 3/4 5/32

3P08 M3P08 1/4 1 1/4 7/16 3/4 5/32

3P09 M3P09 9/32 1 1/4 7/16 3/4 3/16

3P10 M3P10 5/16 1 1/4 1/2 3/4 3/16

3P11 M3P11 11/32 1 1/4 9/16 3/4 3/16

3P12 M3P12 3/8 1 1/4 5/8 3/4 1/4

3P14 M3P14 7/16 1 1/4 11/16 3/4 9/32

3P16 M3P16 1/2 1 1/2 13/16 13/16 11/32

3P18 M3P18 9/16 1 1/2 7/8 7/8 7/16

*Sockets for predrilled holes are intermediate hardness; sockets for self-tapping screws are maximum hardness.

Part Part No. Square Overall Diameter Diameter Opening

Number Double Opening Length Nose End Drive End Depth

Square Square In. (A) (B) (C) (D)

3607 - 7/32 1 1/2 7/16 3/4 3/16

3608 3608-D 1/4 1 1/2 1/2 3/4 3/16

3609 3609-D 9/32 1 1/2 9/16 3/4 3/16

3610 3610-D 5/16 1 1/2 5/8 3/4 1/4

3612 3612-D 3/8 1 1/2 3/4 3/4 1/4

3614 3614-D 7/16 1 1/2 7/8 7/8 9/32

3616 3616-D 1/2 1 1/2 1 1 11/32

3618 3618-D 9/16 1 1/2 1 1 7/16

3620 - 5/8 1 1/2 1 1/8 1 1/8 7/16

3622 - 11/16 1 1/2 1 1/4 1 1/4 7/16

3624 - 3/4 1 1/2 1 3/8 1 3/8 15/32

6 Point and 6 Point Magnetic, For Predrilled Holes*

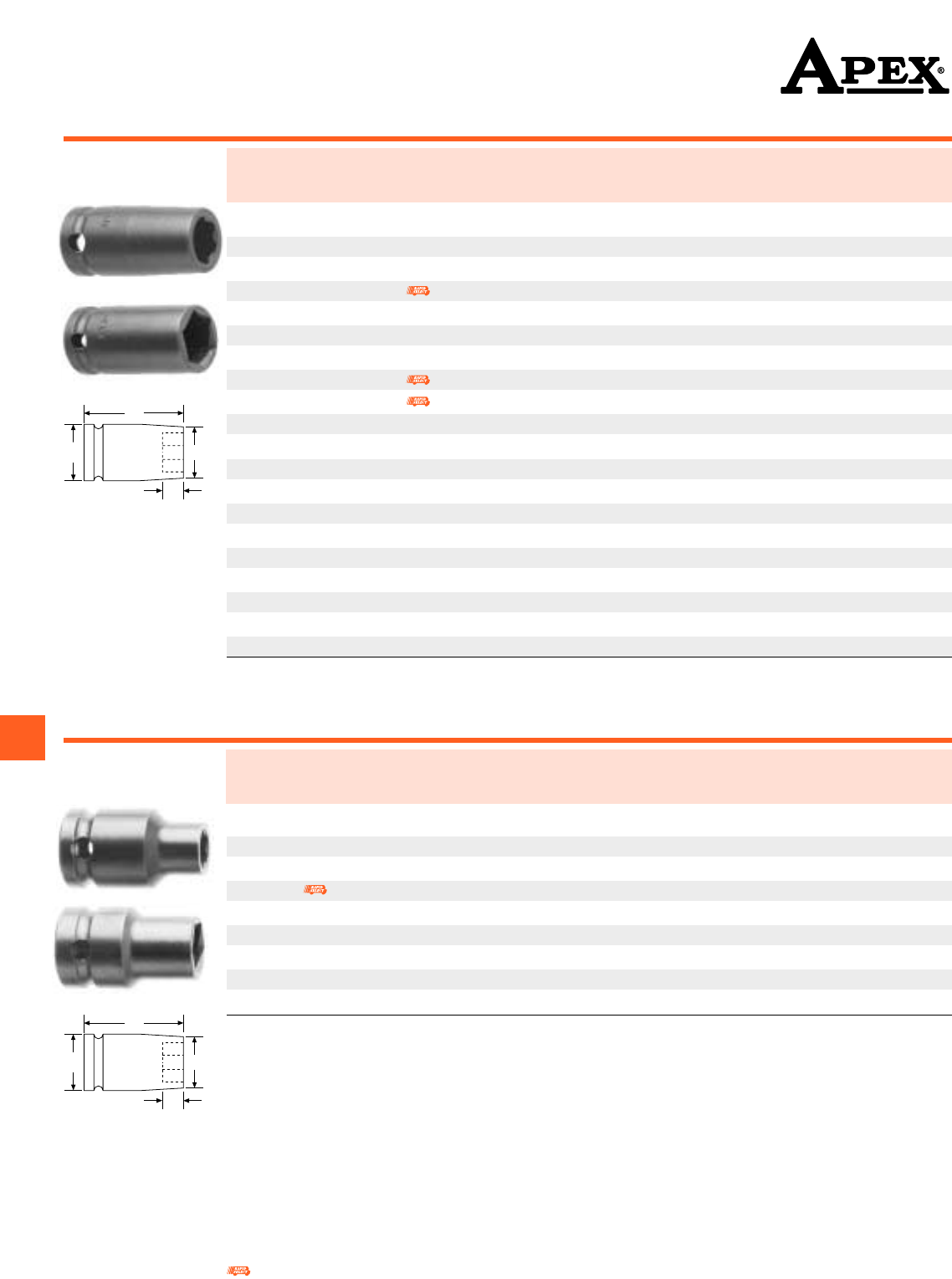

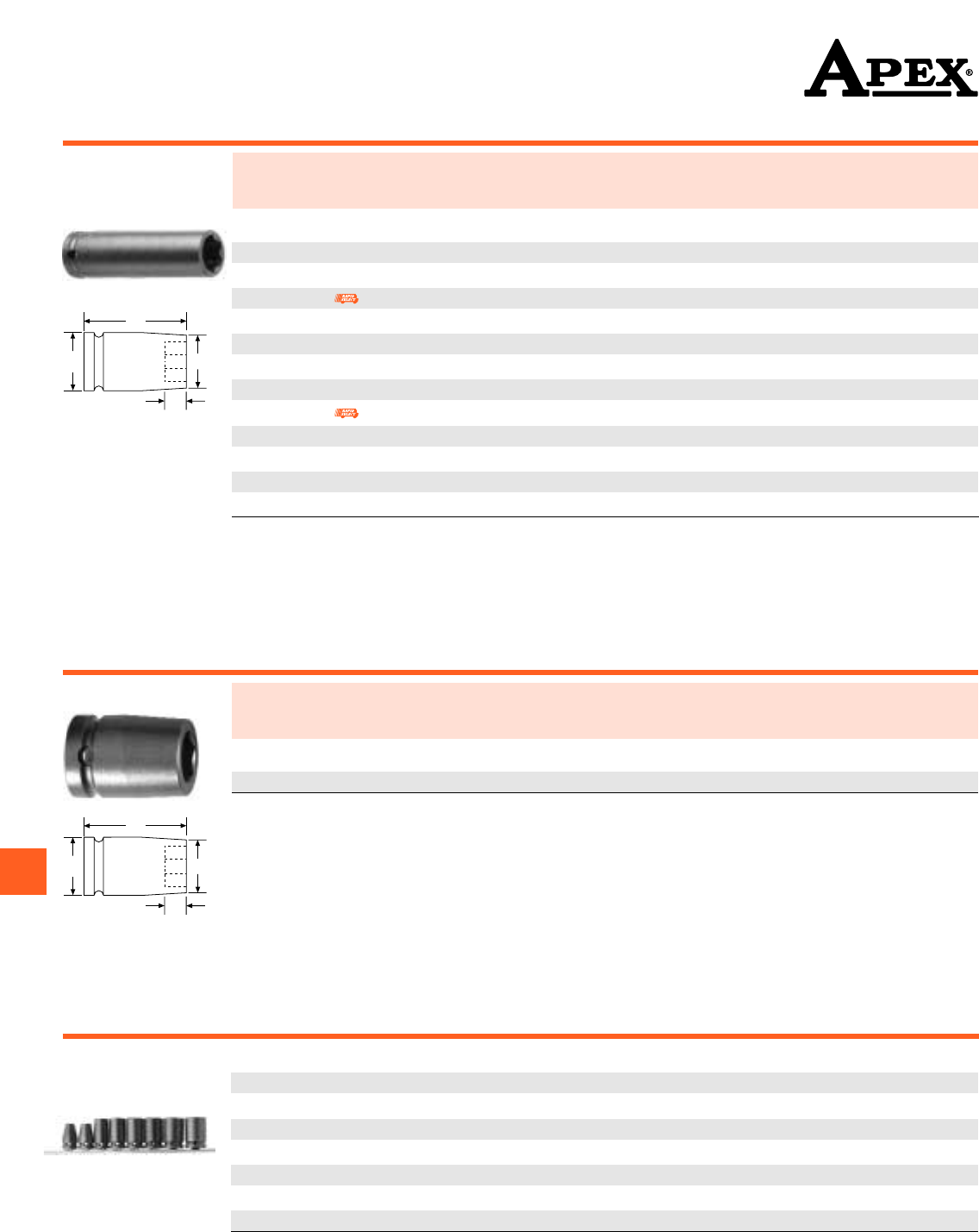

3/8” Square Drive Sockets

For SAE Sheet Metal Screws

6 Point and 6 Point Magnetic, For Self-Tapping Screws*

Single Square and Double Square

inches

Refer to Page iv for description of Rapid Select.

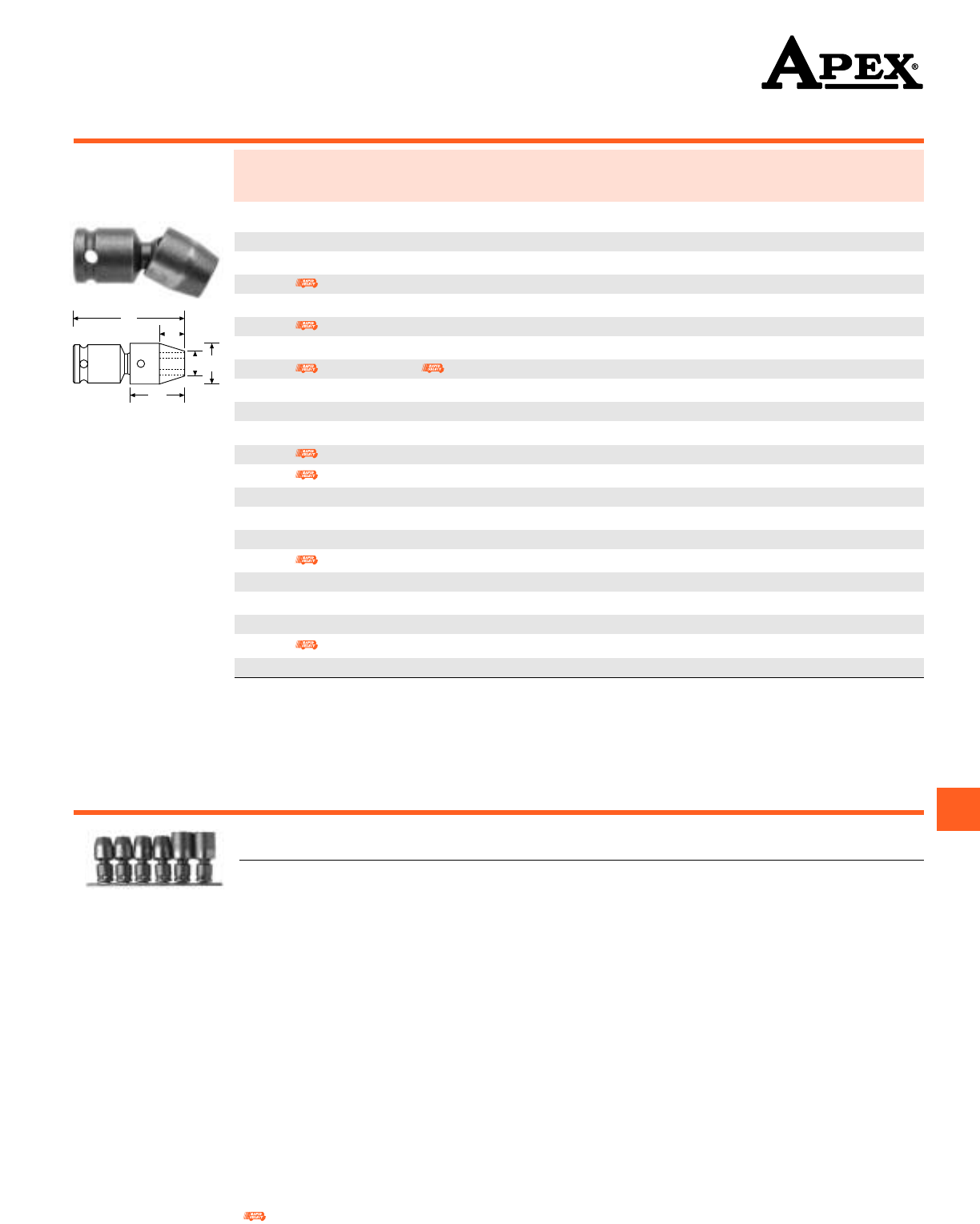

3/8” Square Drive Universal Wrenches, SAE

6 Point and 12 Point

Part Part Hex Overall Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

6 Point 12 Point In. (A) In. (B) In. (C) In. (D) In. (E) In.

SA-120 SA-120-D 5/16 1 53/64 3/4 3/4 7/16 5/16

SA-122 SA-122-D 3/8 1 57/64 13/16 3/4 9/16 3/8

SA-200 - 3/8 1 15/16 7/8 7/8 9/16 11/32

SA-123 SA-123-D 7/16 2 1/64 15/16 3/4 19/32 1/2

SA-201 - 7/16 2 15/16 7/8 5/8 13/32

SA-124 SA-124-D 1/2 2 5/64 1 3/4 3/4 9/16

SA-202 SA-202-D 1/2 2 1/16 1 7/8 11/16 15/32

SA-301 - 1/2 2 1/16 1 1 11/16 7/16

SA-125 SA-125-D 9/16 2 1/8 1 13/16 13/16 9/16

SA-203 SA-203-D 9/16 2 1/16 1 1/16 7/8 3/4 17/32

SA-302 - 9/16 2 1/8 1 1/8 1 3/4 9/16

SA-205 SA-205-D 5/8 2 1/8 1 1/8 7/8 7/8 19/32

SA-304 - 5/8 2 3/16 1 3/16 1 27/32 5/8

SA-305 - 11/16 2 5/16 1 1/4 1 1 11/16

SA-306 SA-306-D 3/4 2 5/16 1 1/4 1 1/8 1 1/8 11/16

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

3/8” Square Drive Universal Wrench Set, SAE

APU37 7 piece, standard length: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4

3/8” Square Drive Socket Sets, SAE

6 Point

APS38 8 piece, standard length: 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4

APS38L 8 piece, long length: 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4

Refer to Page iv for description of Rapid Select.

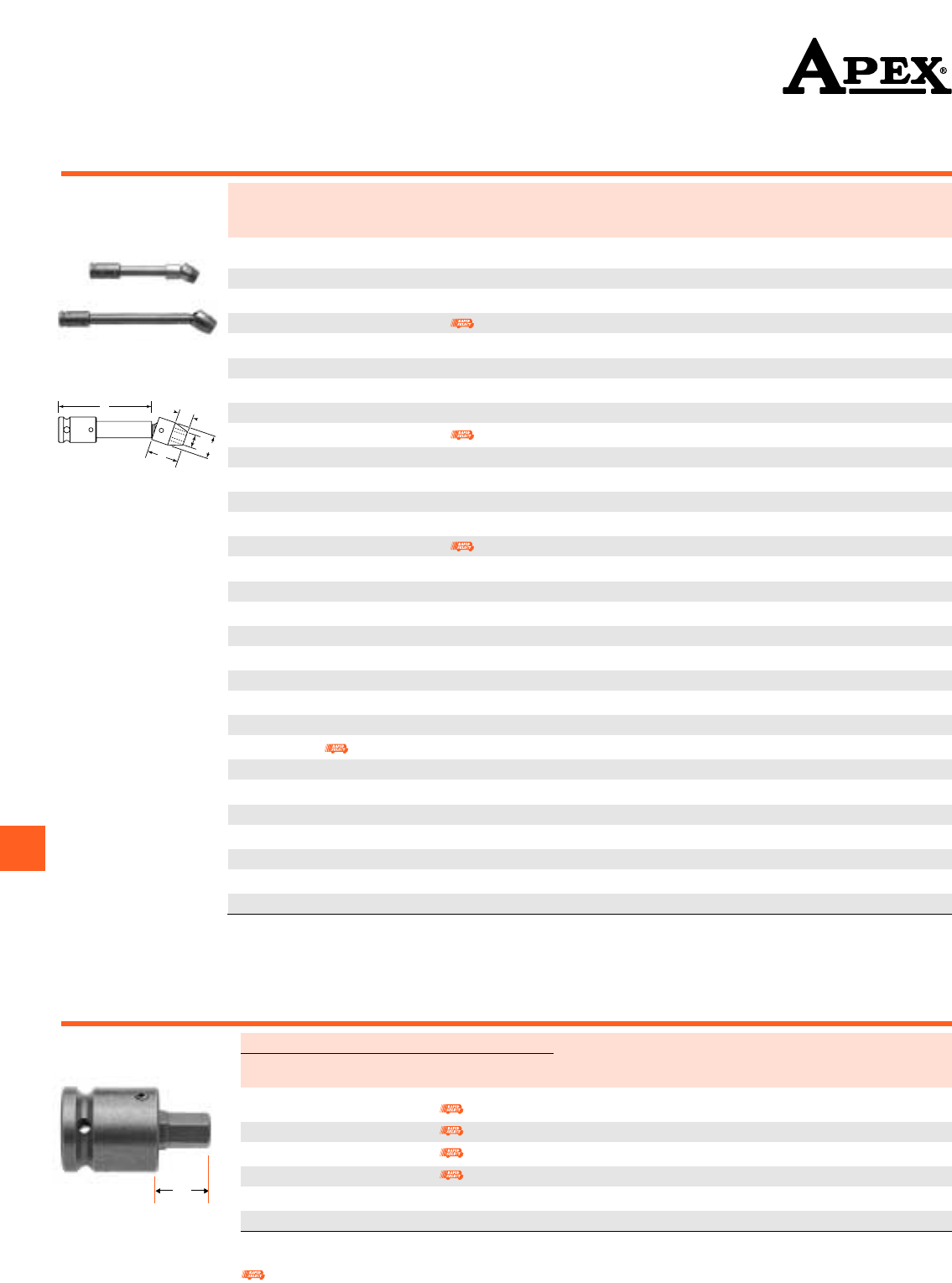

6 Point

6 Point and Double Hex, Standard and Tension Type

Part Part Hex Overall Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension In. (A) In. (B) In. (C) In. (D) In. (E) In.

KA-43-3 - 3/8 3 13/16 5/8 17/32 7/16

KA-43-4 - 3/8 4 13/16 5/8 17/32 7/16

KA-43-6 KD-43-6 3/8 6 13/16 5/8 17/32 7/16

- KD-43-9 3/8 9 13/16 5/8 17/32 7/16

KA-44-3 - 7/16 3 7/8 5/8 5/8 1/2

KA-44-4 - 7/16 4 7/8 5/8 5/8 1/2

KA-44-6 KD-44-6 7/16 6 7/8 5/8 5/8 1/2

- KD-44-9 7/16 9 7/8 5/8 5/8 1/2

- KD-44-12 7/16 12 7/8 5/8 5/8 1/2

KA-103-3 - 7/16 3 15/16 3/4 19/32 1/2

KA-103-4 - 7/16 4 15/16 3/4 19/32 1/2

KA-103-6 KD-103-6 7/16 6 15/16 3/4 19/32 1/2

KA-45-3 - 1/2 3 7/8 11/16 11/16 1/2

KA-45-4 - 1/2 4 7/8 11/16 11/16 1/2

KA-45-6 KD-45-6 1/2 6 7/8 11/16 11/16 1/2

KA-45-9 KD-45-9 1/2 9 7/8 11/16 11/16 1/2

KA-45-12 KD-45-12 1/2 12 7/8 11/16 11/16 1/2

KA-104-3 - 1/2 3 1 3/4 3/4 9/16

KA-104-4 - 1/2 4 1 3/4 3/4 9/16

KA-104-6 KD-104-6 1/2 6 1 3/4 3/4 9/16

KA-104-9 - 1/2 9 1 3/4 3/4 9/16

KA-104-12 KD-104-12 1/2 12 1 3/4 3/4 9/16

KA-105-3 KD-105-3 9/16 3 1 13/16 13/16 9/16

KA-105-4 KD-105-4 9/16 4 1 13/16 13/16 9/16

KA-105-6 KD-105-6 9/16 6 1 13/16 13/16 9/16

KA-105-9 KD-105-9 9/16 9 1 13/16 13/16 9/16

KA-105-12 KD-105-12 9/16 12 1 13/16 13/16 9/16

KA-205-3 - 5/8 3 1 1/8 7/8 7/8 19/32

KA-205-6 KD-205-6 5/8 6 1 1/8 7/8 7/8 19/32

- KD-205-12 5/8 12 1 1/8 7/8 7/8 19/32

3/8” Square Drive Universal

Wrenches, SAE – Extension

Universal wrenches

must not be used

with impact drivers.

Maximum operating

angle is 30°.

Standard Type

Tension Type

3/8” Sq. Dr. Socket Head Bits, SAE

Complete, Adapter Only, Insert Only

See page 35 for more

3/8” drive complete

socket head bits.

Part Number Overall Length

Adapter Insert Hex Length of Insert (A)

Complete Only Only Size In. mm In. mm

SZ-10 SC-314 SZ-10-A 1/8 2 1/4 57 1 3/8 35

SZ-11 SC-314 SZ-11-A 5/32 2 1/4 57 1 3/8 35

SZ-12 SC-314 SZ-12-A 3/16 2 1/4 57 1 3/8 35

SZ-13 SC-314 SZ-13-A 7/32 2 1/4 57 1 3/8 35

SZ-14 SC-314 SZ-14-A 1/4 2 1/4 57 1 3/8 35

SZ-15 SC-314 SZ-15-A 5/16 2 1/4 57 1 3/8 35

SZ-16 SC-314 SZ-16-A 3/8 2 1/4 57 1 3/8 35

Refer to Page iv for description of Rapid Select.

6 Point and 12 Point, Short and Standard Length

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point 12 Point mm (A) (B) (C) (D)

6mm13 - 6 31.7 11.1 19.1 3.9

7mm03 - 7 22.2 11.1 19.1 3.0

7mm13 - 7 31.7 11.1 19.1 4.8

8mm03 - 8 22.2 12.7 19.1 4.8

8mm13 8mm13-D 8 31.7 12.7 19.1 4.8

OS-8mm13* - 8 31.7 11.7 15.7 4.8

9mm03 9mm03-D 9 22.2 15.1 19.1 4.8

9mm13 9mm13-D 9 31.7 15.1 19.1 4.8

10mm03 10mm03-D 10 22.2 16.8 19.1 6.4

OS-10mm03* - 10 22.1 15.7 15.7 6.4

10mm13 10mm13-D 10 31.7 16.8 19.1 6.4

11mm03 11mm03-D 11 22.2 17.5 19.1 7.2

11mm13 11mm13-D 11 31.7 17.5 19.1 7.2

12mm03 12mm03-D 12 22.2 19.1 19.1 7.2

12mm13 12mm13-D 12 38.1 19.1 19.1 7.2

13mm03 13mm03-D 13 22.2 20.6 20.6 7.9

13mm13 13mm13-D 13 38.1 20.6 20.6 8.7

14mm03 14mm03-D 14 22.2 22.2 22.2 7.9

14mm13 14mm13-D 14 38.1 22.2 22.2 11.1

15mm03 15mm03-D 15 23.8 22.2 22.2 9.5

15mm13 15mm13-D 15 38.1 22.2 22.2 11.1

16mm03 16mm03-D 16 25.4 23.8 23.8 11.1

16mm13 16mm13-D 16 38.1 23.8 23.8 11.1

17mm03 17mm03-D 17 25.4 25.4 25.4 11.1

17mm13 17mm13-D 17 38.1 25.4 25.4 11.1

18mm03 18mm03-D 18 25.4 25.4 25.4 11.1

18mm13 18mm13-D 18 38.1 25.4 25.4 11.1

19mm03 19mm03-D 19 25.4 28.6 28.6 11.1

19mm13 19mm13-D 19 38.1 28.6 28.6 11.9

20mm03 - 20 25.4 28.6 28.6 11.1

20mm13 - 20 38.1 28.6 28.6 11.9

21mm03 - 21 25.4 31.7 31.7 11.1

21mm13 - 21 38.1 31.7 31.7 13.5

22mm03 - 22 25.4 31.7 31.7 11.1

22mm13 - 22 38.1 31.7 31.7 14.3

3/8” Square Drive Sockets, Metric

*No ring groove.

Refer to Page iv for description of Rapid Select.Refer to Page iv for description of Rapid Select.

6 Point and Double Hex, Thin Wall, Standard Length

3/8” Square Drive Sockets, Metric

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex mm (A) (B) (C) (D)

6mm43 - 6 31.7 9.5 19.1 3.9

7mm43 7mm43-D 7 31.7 11.1 19.1 4.8

8mm43 8mm43-D 8 31.7 12.7 19.1 4.8

9mm43 9mm43-D 9 31.7 12.7 19.1 4.8

10mm43 10mm43-D 10 31.7 15.1 19.1 6.4

11mm43 11mm43-D 11 38.1 15.9 19.1 7.2

12mm43 12mm43-D 12 38.1 17.5 19.1 7.2

13mm43 13mm43-D 13 38.1 19.1 19.1 8.7

14mm43 14mm43-D 14 38.1 19.8 20.6 11.1

15mm43 15mm43-D 15 38.1 20.6 20.6 11.1

16mm43 16mm43-D 16 38.1 22.2 22.2 11.1

17mm43 17mm43-D 17 38.1 23.8 23.8 11.1

18mm43 18mm43-D 18 38.1 23.8 23.8 11.1

19mm43 19mm43-D 19 38.1 25.4 25.4 11.9

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex mm (A) (B) (C) (D)

6mm23 - 6 50.8 11.1 19.1 3.9

7mm23 - 7 50.8 11.1 19.1 4.8

8mm23 8mm23-D 8 50.8 12.7 19.1 4.8

9mm23 9mm23-D 9 50.8 15.1 19.1 4.8

10mm23 10mm23-D 10 50.8 16.8 19.1 6.4

OS-10mm23* OS-10mm23-D* 10 50.8 14.2 15.9 6.4

10mm33 - 10 88.9 16.8 19.1 6.4

11mm23 11mm23-D 11 50.8 17.5 19.1 7.2

12mm23 12mm23-D 12 50.8 19.1 19.1 7.2

13mm23 13mm23-D 13 50.8 20.6 20.6 8.7

13mm33 - 13 88.9 20.6 20.6 8.7

14mm23 14mm23-D 14 50.8 22.2 22.2 11.1

15mm23 15mm23-D 15 50.8 22.2 22.2 11.1

15mm33 15mm33-D 15 88.9 22.2 22.2 11.1

16mm23 16mm23-D 16 50.8 23.8 23.8 11.1

17mm23 17mm23-D 17 50.8 25.4 25.4 11.1

18mm23 18mm23-D 18 50.8 25.4 25.4 11.1

19mm23 19mm23-D 19 50.8 28.6 28.6 11.9

20mm23 20mm23-D 20 50.8 28.6 28.6 11.9

21mm23 - 21 50.8 31.7 31.7 13.5

22mm23 - 22 50.8 31.7 31.7 14.3

6 Point and Double Hex, Long and Extra Long Length

Refer to Page iv for description of Rapid Select.

*No ring groove.

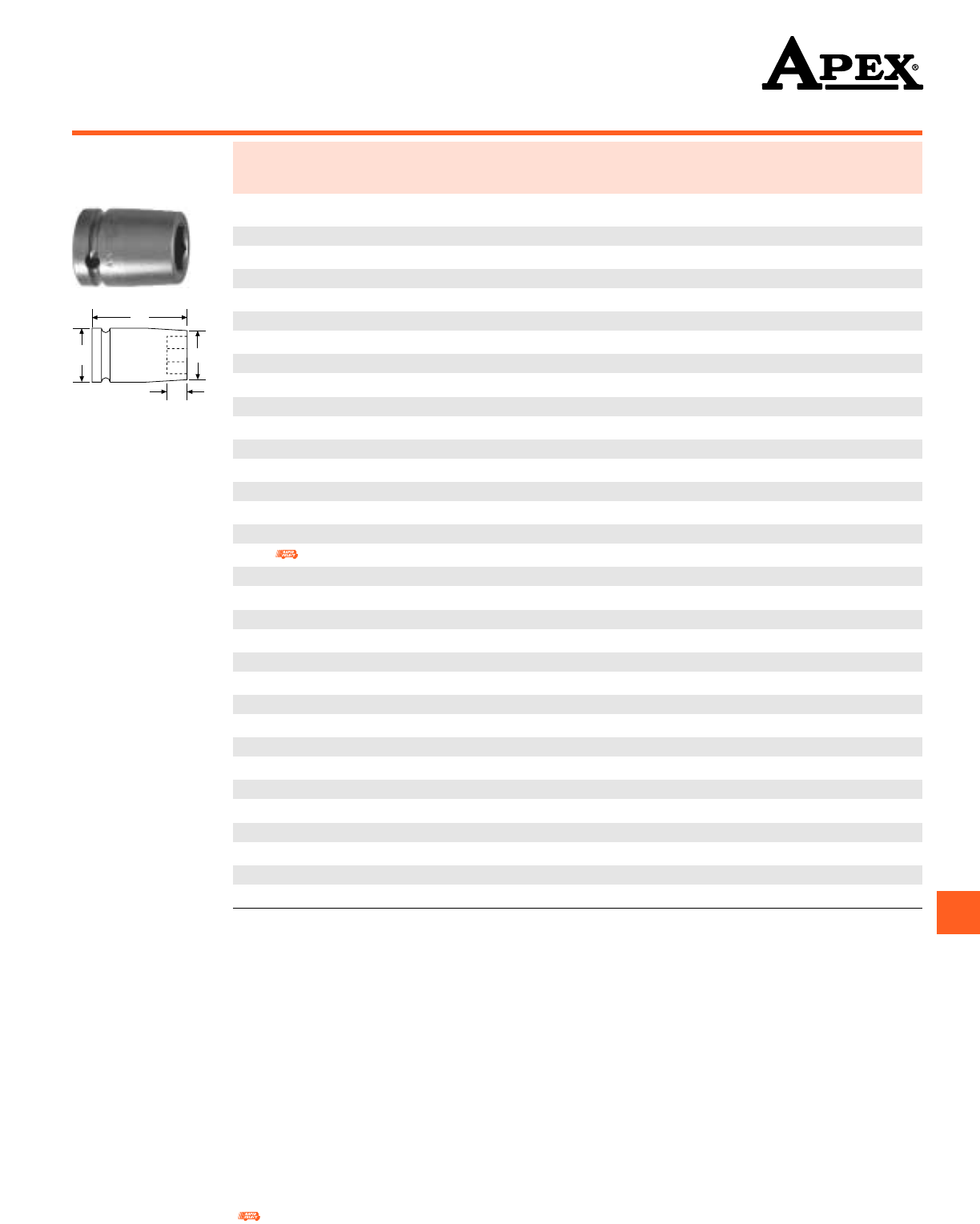

Magnetic, Short and Standard Length

3/8” Square Drive Sockets, Metric

Magnetic, Thin Wall, Standard Length

Part Number Hex Overall Diameter Diameter Opening

Fixed Opening Length Nose End Drive End Depth

Magnet mm (A) (B) (C) (D)

M-6mm13 6 31.8 11.1 19.1 3.9

M-7mm13 7 31.8 11.1 19.1 4.8

M-8mm13 8 31.8 12.7 19.1 4.8

M-9mm13 9 31.8 15.1 19.1 4.8

M-10mm03 10 22.2 16.8 19.1 6.4

M-10mm13 10 31.8 16.8 19.1 6.4

M-11mm03 11 22.2 17.5 19.1 7.2

M-11mm13 11 38.1 17.5 19.1 7.2

M-12mm03 12 22.2 19.1 19.1 7.2

M-12mm13 12 38.1 19.1 19.1 7.2

M-13mm03 13 22.2 20.6 20.6 8.7

M-13mm13 13 38.1 20.6 20.6 8.7

M-14mm13 14 38.1 22.2 22.2 11.1

M-15mm03 15 23.8 22.2 22.2 9.5

M-15mm13 15 38.1 22.2 22.2 11.1

M-16mm13 16 38.1 23.8 23.8 11.1

M-17mm13 17 38.1 25.4 25.4 11.1

M-18mm03 18 25.4 25.4 25.4 11.1

M-18mm13 18 38.1 25.4 25.4 11.1

Part Number Hex Overall Diameter Diameter Opening

Fixed Opening Length Nose End Drive End Depth

Magnet mm (A) (B) (C) (D)

M-6mm43 6 31.7 9.5 19.1 3.9

M-8mm43 8 31.7 12.7 19.1 4.8

M-9mm43 9 31.7 12.7 19.1 4.8

M-10mm43 10 31.7 15.1 19.1 6.4

M-11mm43 11 38.1 15.9 19.1 7.2

M-12mm43 12 38.1 17.5 19.1 7.2

M-13mm43 13 38.1 19.1 19.1 8.7

M-14mm43 14 38.1 19.8 20.6 11.1

M-15mm43 15 38.1 20.5 20.6 11.1

Refer to Page iv for description of Rapid Select.

Part Number Hex Overall Diameter Diameter Opening

Magnetic Opening Length Nose End Drive End Depth

Bolt Clearance mm (A) (B) (C) (D)

MB-6mm23 6 50.8 11.1 19.1 3.9

MB-7mm23 7 50.8 11.1 19.1 4.8

MB-8mm23 8 50.8 12.7 19.1 4.8

OSMB-8mm23* 8 50.8 11.7 15.9 4.8

MB-9mm23 9 50.8 15.1 19.1 4.8

MB-10mm23 10 50.8 16.8 19.1 6.4

OSMB-10mm23* 10 50.8 14.2 15.9 6.4

MB-10mm33 10 88.9 16.8 19.1 6.4

MB-11mm23 11 50.8 17.5 19.1 7.2

MB-12mm23 12 50.8 19.1 19.1 7.2

MB-13mm23 13 50.8 20.6 20.6 8.7

MB-13mm33 13 88.9 20.6 20.6 8.7

MB-14mm23 14 50.8 22.2 22.2 11.1

MB-15mm23 15 50.8 22.2 22.2 11.1

MB-15mm33 15 88.9 22.2 22.2 11.1

MB-16mm23 16 50.8 23.8 23.8 11.1

MB-17mm23 17 50.8 25.4 25.4 11.1

MB-18mm23 18 50.8 25.4 25.4 11.1

Part Number Hex Overall Diameter Diameter Opening

Surface Opening Length Nose End Drive End Depth

Drive mm (A) (B) (C) (D)

SF-8mm13 8 31.7 12.7 19.1 4.8

SF-9mm13 9 31.7 15.1 19.1 4.8

SF-10mm03 10 22.2 16.8 19.1 6.4

SF-10mm13 10 31.7 16.8 19.1 6.4

SF-11mm03 11 22.2 17.5 19.1 7.2

SF-11mm13 11 38.1 17.5 19.1 7.2

SF-12mm03 12 22.2 19.1 19.1 7.2

SF-12mm13 12 38.1 19.1 19.1 7.2

SF-13mm03 13 22.2 20.6 20.6 8.7

SF-13mm13 13 38.1 20.6 20.6 8.7

SF-14mm03 14 22.2 22.2 22.2 11.1

SF-14mm13 14 38.1 22.2 22.2 11.1

SF-15mm03 15 23.8 22.2 22.2 11.1

SF-15mm13 15 38.1 22.2 22.2 11.1

SF-16mm13 16 38.1 23.8 23.8 11.1

SF-17mm03 17 25.4 25.4 25.4 11.1

SF-17mm13 17 38.1 25.4 25.4 11.1

SF-18mm03 18 25.4 25.4 25.4 11.1

SF-18mm13 18 38.1 25.4 25.4 11.1

SF-19mm03 18 25.4 28.6 28.6 11.9

SF-19mm13 18 38.1 28.6 28.6 11.9

Magnetic, Long and Extra Long Length

3/8” Square Drive Sockets, Metric

Surface Drive, Short and Standard Length

Refer to Page iv for description of Rapid Select.

*No ring groove.

3/8” Square Drive Sockets, Metric

Part Number Hex Overall Diameter Diameter Opening

Surface Opening Length Nose End Drive End Depth

Drive mm (A) (B) (C) (D)

SF-10mm43 10 31.7 15.1 19.1 6.4

OSSF-10mm43* 10 31.7 15.1 15.1 6.4

SF-11mm43 11 38.1 15.9 19.1 7.2

SF-12mm43 12 38.1 17.5 19.1 7.2

SF-13mm43 13 38.1 19.1 19.1 8.7

SF-15mm43 15 38.1 20.6 20.6 11.1

SF-16mm43 16 38.1 22.2 22.2 11.1

SF-17mm43 17 38.1 23.8 23.8 11.1

SF-18mm43 18 38.1 23.8 23.8 11.1

SF-19mm43 19 38.1 25.4 25.4 11.9

Part Number Hex Overall Diameter Diameter Opening

Surface Opening Length Nose End Drive End Depth

Drive mm (A) (B) (C) (D)

SF-8mm23 8 50.8 12.7 19.1 4.8

OSSF-8mm23* 8 50.8 11.9 15.9 4.8

SF-10mm23 10 50.8 16.8 19.1 6.4

OSSF-10mm23* 10 50.8 14.2 15.9 6.4

SF-10mm33 10 88.9 16.8 19.1 6.4

SF-11mm23 11 50.8 17.5 19.1 7.2

SF-12mm23 12 50.8 19.1 19.1 7.2

SF-13mm23 13 50.8 20.6 20.6 8.7

SF-13mm33 13 88.9 20.6 20.6 8.7

SF-15mm23 15 50.8 22.2 22.2 11.1

SF-15mm33 15 88.9 22.2 22.2 11.1

SF-17mm23 17 50.8 25.4 25.4 11.1

SF-18mm23 18 50.8 25.4 25.4 11.1

SF-19mm23 19 50.8 28.6 28.6 11.9

Surface Drive, Thin Wall, Standard Length

Surface Drive, Long and Extra Long Length

3/8” Sq. Dr. Sockets For Metric Sheet Metal Screws

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Magnetic mm (A) (B) (C) (D)

6mmE3 M-6mmE3 6 31.7 11.1 19.1 3.9

7mmE3 M-7mmE3 7 31.7 11.9 19.1 4.8

8mmE3 M-8mmE3 8 31.7 12.7 19.1 4.8

9mmE3 M-9mmE3 9 31.7 15.1 19.1 4.8

10mmE3 M-10mmE3 10 31.7 16.8 19.1 6.4

11mmE3 M-11mmE3 11 31.7 17.5 19.1 7.2

12mmE3 M-12mmE3 12 31.7 19.1 19.1 7.2

13mmE3 M-13mmE3 13 38.1 20.6 20.6 8.7

6 Point and 6 Point Magnetic, for Predrilled Holes

Refer to Page iv for description of Rapid Select.

*No ring groove.

100

3/8” Square Drive Universal Wrench Set, Metric

6 Point

APU37M 7 piece, standard length: 10mm, 12mm, 13mm, 14mm, 15mm, 17mm, 18mm

3/8” Square Drive Socket Sets, Metric

6 Point

APS38M

8 piece, standard length: 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm

APS312M

12 piece, standard length: 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm

APS38LM

8 piece, long length: 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm

APS312LM

12 piece, long length: 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm

6 Point

Universal Wrenches 3/8” Square Drive, Metric

Part Hex Overall Socket Socket Nose End Clearance

Number Opening Length Length Diameter Diameter Depth

6 Point mm (A) mm (B) mm (C) mm (D) mm (E) mm

SA-36-10m 10 48 20.6 19.1 15.1 9.5

SA-37-11m 11 51 23.8 22.2 15.9 10.3

SA-37-12m 12 51 23.8 22.2 17.5 10.3

SA-37-13m 13 52 25.4 22.2 17.5 11.9

SA-37-14m 14 54 27.0 22.2 19.1 13.5

SA-38-15m 15 56 28.6 25.4 19.8 14.3

SA-38-17m 17 59 31.8 25.4 25.4 17.5

SA-38-18m 18 59 31.8 25.4 25.4 17.5

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

Refer to Page iv for description of Rapid Select.

101

Refer to Page iv for description of Rapid Select.

3/8” Square Drive Socket Head Bits, Metric

Complete, Adapter Only, Insert Only

Part Number Overall Length

Adapter Insert Hex Length of Insert (A)

Complete Only Only Size In. mm In. mm

SZ-3-7-4mm SC-314 SZ-7-4mm 4mm 2 1/4 57 1 3/8 35

SZ-3-7-5mm SC-314 SZ-7-5mm 5mm 2 1/4 57 1 3/8 35

SZ-3-7-6mm SC-314 SZ-7-6mm 6mm 2 1/4 57 1 3/8 35

SZ-3-7-8mm SC-314 SZ-7-8mm 8mm 2 1/4 57 1 3/8 35

SZ-3-7-10mm SC-314 SZ-7-10mm 10mm 2 1/4 57 1 3/8 35

Standard Type

Tension Type

6 Point, Standard and Tension Type

Part Part Hex Shank Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension mm (A) mm (B) mm (C) mm (D) mm (E) mm

KA-6-10m-3 - 10 76 20.6 19.1 15.1 9.5

KA-6-10m-4 - 10 102 20.6 19.1 15.1 9.5

KA-6-10m-6 KD-6-10m-6 10 152 20.6 19.1 15.1 9.5

KA-6-10m-9 KD-6-10m-9 10 229 20.6 19.1 15.1 9.5

KA-6-10m-12 KD-6-10m-12 10 305 20.6 19.1 15.1 9.5

KA-7-11m-3 - 11 76 23.8 22.2 15.9 10.3

KA-7-11m-6 KD-7-11m-6 11 152 23.8 22.2 15.9 10.3

- KD-7-11m-9 11 229 23.8 22.2 15.9 10.3

KA-7-11m-12 KD-7-11m-12 11 305 23.8 22.2 15.9 10.3

KA-7-12m-3 - 12 76 23.8 22.2 17.5 10.3

KA-7-12m-4 - 12 102 23.8 22.2 17.5 10.3

KA-7-12m-6 KD-7-12m-6 12 152 23.8 22.2 17.5 10.3

KA-7-12m-9 KD-7-12m-9 12 229 23.8 22.2 17.5 10.3

KA-7-12m-12 KD-7-12m-12 12 305 23.8 22.2 17.5 10.3

KA-7-13m-3 - 13 76 25.4 22.2 17.5 11.9

KA-7-13m-4 - 13 102 25.4 22.2 17.5 11.9

KA-7-13m-6 KD-7-13m-6 13 152 25.4 22.2 17.5 11.9

KA-7-13m-9 KD-7-13m-9 13 229 25.4 22.2 17.5 11.9

KA-7-13m-12 KD-7-13m-12 13 305 25.4 22.2 17.5 11.9

KA-7-14m-3 - 14 76 27.0 22.2 19.1 13.5

KA-7-14m-4 - 14 102 27.0 22.2 19.1 13.5

KA-7-14m-6 KD-7-14m-6 14 152 27.0 22.2 19.1 13.5

KA-7-14m-9 KD-7-14m-9 14 229 27.0 22.2 19.1 13.5

KA-7-14m-12 - 14 305 27.0 22.2 19.1 13.5

KA-8-15m-3 - 15 76 28.6 25.4 19.8 14.3

KA-8-15m-4 - 15 102 28.6 25.4 19.8 14.3

KA-8-15m-6 KD-8-15m-6 15 152 28.6 25.4 19.8 14.3

KA-8-15m-9 KD-8-15m-9 15 229 28.6 25.4 19.8 14.3

KA-8-15m-12 KD-8-15m-12 15 305 28.6 25.4 19.8 14.3

3/8” Square Drive Universal Wrenches,

Metric – Extension

Universal wrenches

must not be used

with impact drivers.

Maximum operating

angle is 30°.

102

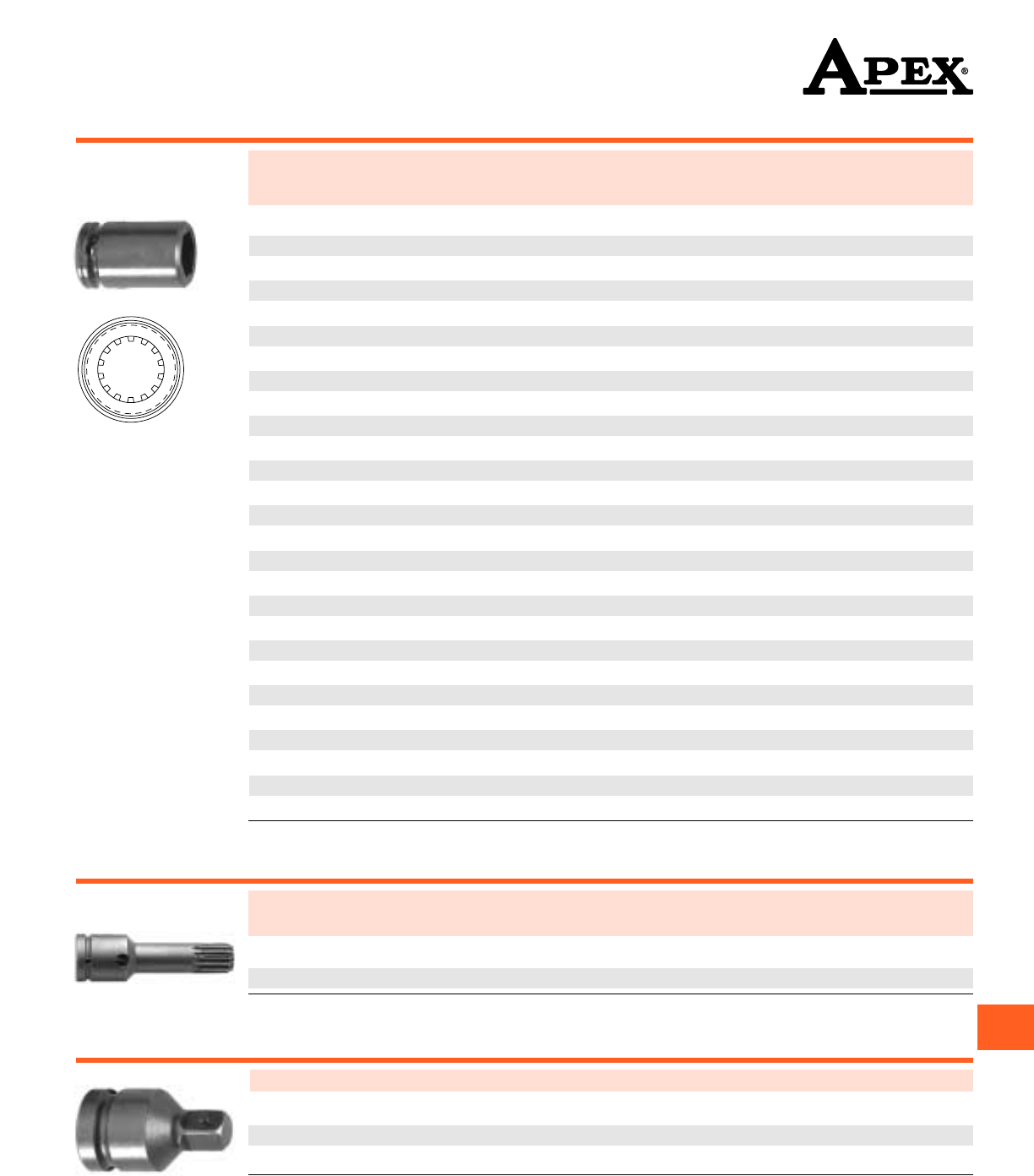

Standard and Long Length

Overall Diameter Diameter

Part Spline Nominal Length (A) Nose End (B) Drive End (C)

Number Size Size In. mm In. mm In. mm

CMS-3412 12 3/8 1 25 17/32 14 21/32 17

CMS-3512 12 3/8 2 1/8 54 17/32 14 21/32 17

CMS-3414 14 7/16 1 1/16 27 5/8 16 11/16 18

CMS-3514 14 7/16 2 1/8 54 5/8 16 11/16 18

CMS-3416 16 1/2 1 1/16 27 23/32 18 23/32 18

CMS-3418 18 9/16 1 1/16 27 13/16 21 13/16 21

CMS-3518 18 9/16 2 3/8 60 13/16 21 13/16 21

CMS-3420 20 5/8 1 3/16 30 7/8 22 7/8 22

CMS-3520 20 5/8 2 3/8 60 7/8 22 7/8 22

Apex spline sockets conform to military specifications MS-37787 and MIL-W-8982C.

3/8” Square Drive Sockets

For Spline Fasteners

3/8” Square Drive Torx®Sockets

For External Torx Screws

Overall Nose End Drive End

Part Driver Length (A) Diameter (B) Diameter (C)

Number Size In. mm In. mm In. mm

TX-3106 E-6 1 1/4 32 3/8 10 3/4 19

TX-3107 E-7 1 1/4 32 3/8 10 3/4 19

TX-3108 E-8 1 1/4 32 7/16 11 3/4 19

TX-3110 E-10 1 1/4 32 1/2 13 3/4 19

TX-3112 E-12 1 1/4 32 5/8 16 3/4 19

TX-3114 E-14 1 1/4 32 11/16 18 3/4 19

TX-3116 E-16 1 1/4 32 13/16 21 13/16 21

Some Torx®sockets have a DIN (pin and o-ring) groove.

Overall Nose End Drive End

Part Driver Length (A) Diameter (B) Diameter (C)

Number Size In. mm In. mm In. mm

TX-3406 E-6 1 1/4 32 5/16 8 5/8 16

TX-3407 E-7 1 1/4 32 11/32 9 5/8 16

TX-3408 E-8 1 1/4 32 3/8 10 5/8 16

TX-3508 E-8 2 51 3/8 10 5/8 16

TX-3410 E-10 1 1/4 32 1/2 13 5/8 16

TX-3412 E-12 1 1/4 32 9/16 14 5/8 16

TX-3414 E-14 1 1/4 32 5/8 16 3/4 19

TX-3416 E-16 1 1/4 32 3/4 19 3/4 19

For External Torx Screws, Thin Wall

Refer to Page iv for description of Rapid Select.

103

Overall Nose End Drive End

Part Driver Length (A) Diameter (B) Diameter (C)

Number Size In. mm In. mm In. mm

TX-3E08 E-8 1 1/4 32 5/8 16 5/8 16

TX-3E10 E-10 1 1/4 32 5/8 16 5/8 16

TX-3E12 E-12 1 1/4 32 11/16 17 11/16 17

TX-3E14 E-14 1 1/4 32 3/4 19 3/4 19

TX-3E16 E-16 1 1/4 32 13/16 21 13/16 21

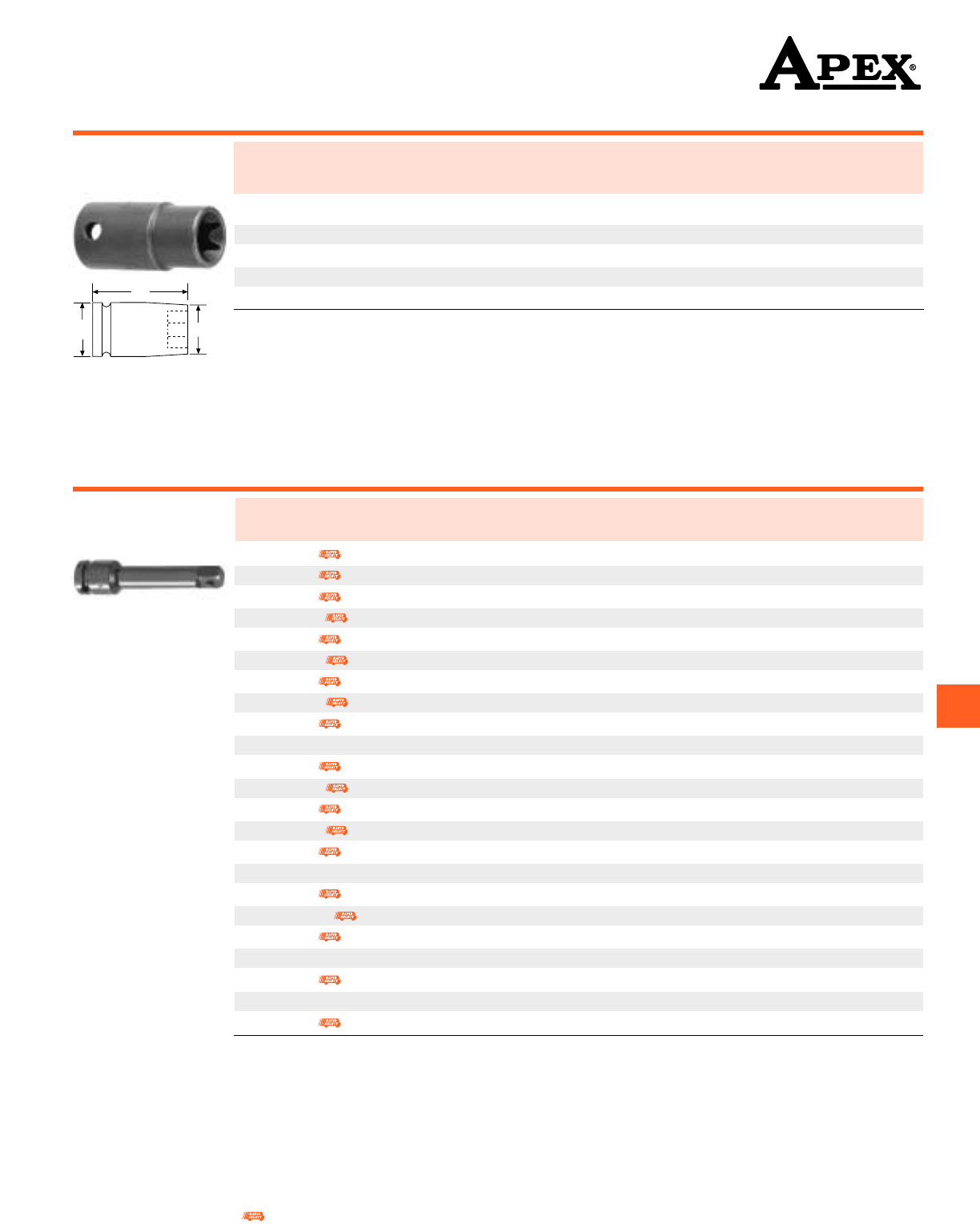

Sockets for Torx®nuts have a larger lead-in chamfer than sockets for external Torx®screws.

Some Torx®sockets have a DIN (pin and o-ring) groove.

For Torx Nuts

3/8” Square Drive Torx®Sockets

Part Male Square Type of Overall Length

Number In. Lock In. mm

EX-374 3/8 Pin 1 3/8 34

EX-374-B 3/8 Ball 1 3/8 34

EX-376-2 3/8 Pin 2 51

EX-376-B-2 3/8 Ball 2 51

EX-376-3 3/8 Pin 3 76

EX-376-B-3 3/8 Ball 3 76

EX-376-4 3/8 Pin 4 102

EX-376-B-4 3/8 Ball 4 102

EX-376-5 3/8 Pin 5 127

EX-376-B-5 3/8 Ball 5 127

EX-376-6 3/8 Pin 6 152

EX-376-B-6 3/8 Ball 6 152

EX-376-8 3/8 Pin 8 203

EX-376-B-8 3/8 Ball 8 203

EX-376-9 3/8 Pin 9 229

EX-376-B-9 3/8 Ball 9 229

EX-376-10 3/8 Pin 10 254

EX-376-B-10 3/8 Ball 10 254

EX-376-12 3/8 Pin 12 305

EX-376-B-12 3/8 Ball 12 305

EX-376-15 3/8 Pin 15 381

EX-376-B-15 3/8 Ball 15 381

EX-376-18 3/8 Pin 18 457

1 1/4” to 18” (32mm to 457mm) Length

3/8” Square Drive Extensions

Refer to Page iv for description of Rapid Select.

104

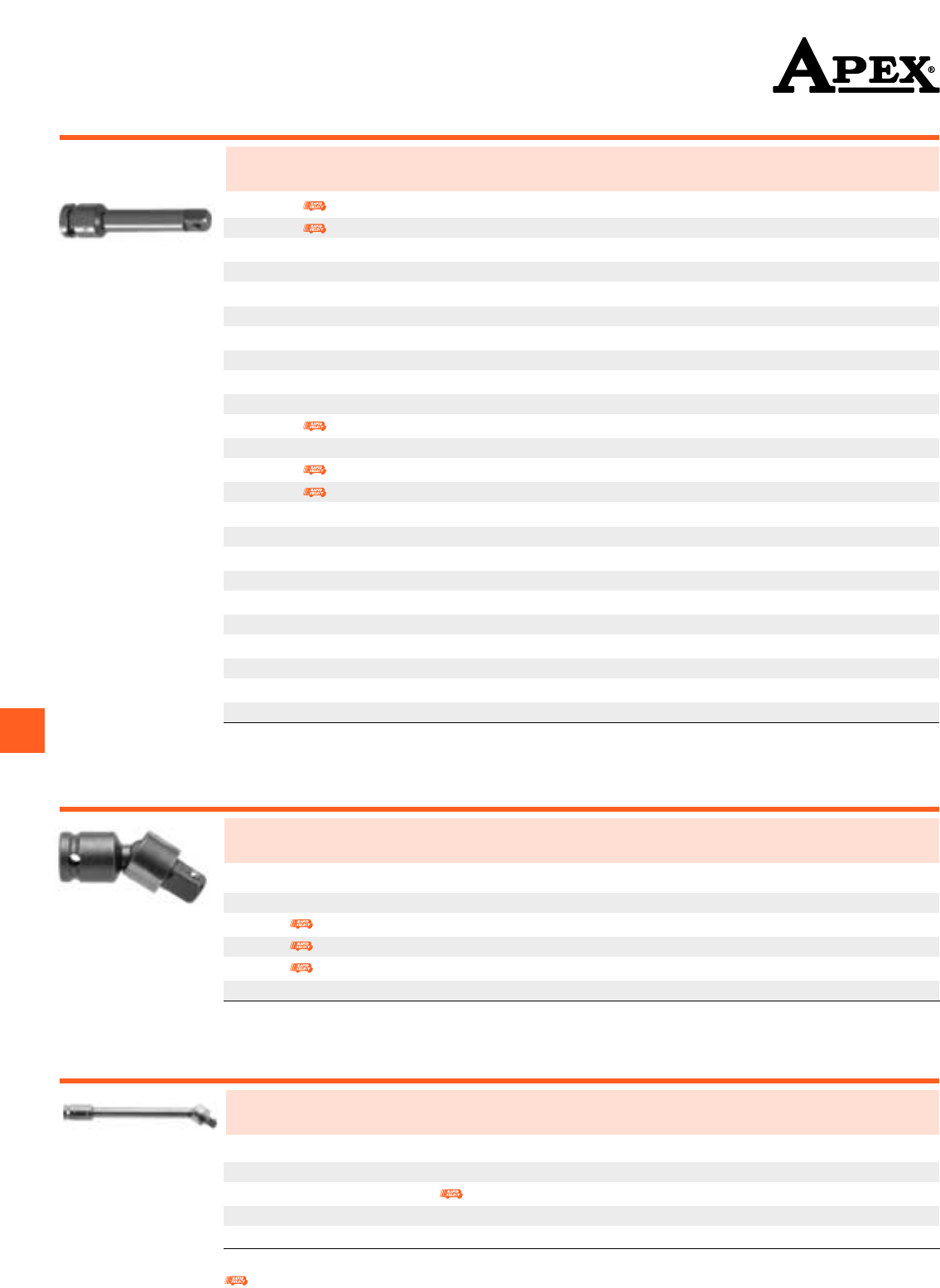

1/4” to 3/4” Male Square

Part Male Female Type of Overall Length

Number Square In. Square In. Lock In. mm

EX-254 1/4 3/8 Pin 1 1/4 32

EX-254-B 1/4 3/8 Ball 1 1/4 32

EX-257-2 1/4 3/8 Pin 2 51

EX-257-B-2 1/4 3/8 Ball 2 51

EX-257-3 1/4 3/8 Pin 3 76

EX-257-B-3 1/4 3/8 Ball 3 76

EX-257-4 1/4 3/8 Pin 4 102

EX-257-B-4 1/4 3/8 Ball 4 102

EX-257-5 1/4 3/8 Pin 5 127

EX-257-B-5 1/4 3/8 Ball 5 127

EX-257-6 1/4 3/8 Pin 6 152

EX-257-B-6 1/4 3/8 Ball 6 152

EX-503 1/2 3/8 Pin 1 1/2 38

EX-503-B 1/2 3/8 Ball 1 1/2 38

EX-507-2 1/2 3/8 Pin 2 51

EX-507-3 1/2 3/8 Pin 3 76

EX-507-B-3 1/2 3/8 Ball 3 76

EX-507-4 1/2 3/8 Pin 4 102

EX-507-B-4 1/2 3/8 Ball 4 102

EX-507-6 1/2 3/8 Pin 6 152

EX-507-B-6 1/2 3/8 Ball 6 152

EX-622 5/8 3/8 Pin 1 1/2 38

EX-750 3/4 3/8 7/32 Drill Hole 1 1/2 38

EX-750-B 3/4 3/8 Ball 1 1/2 38

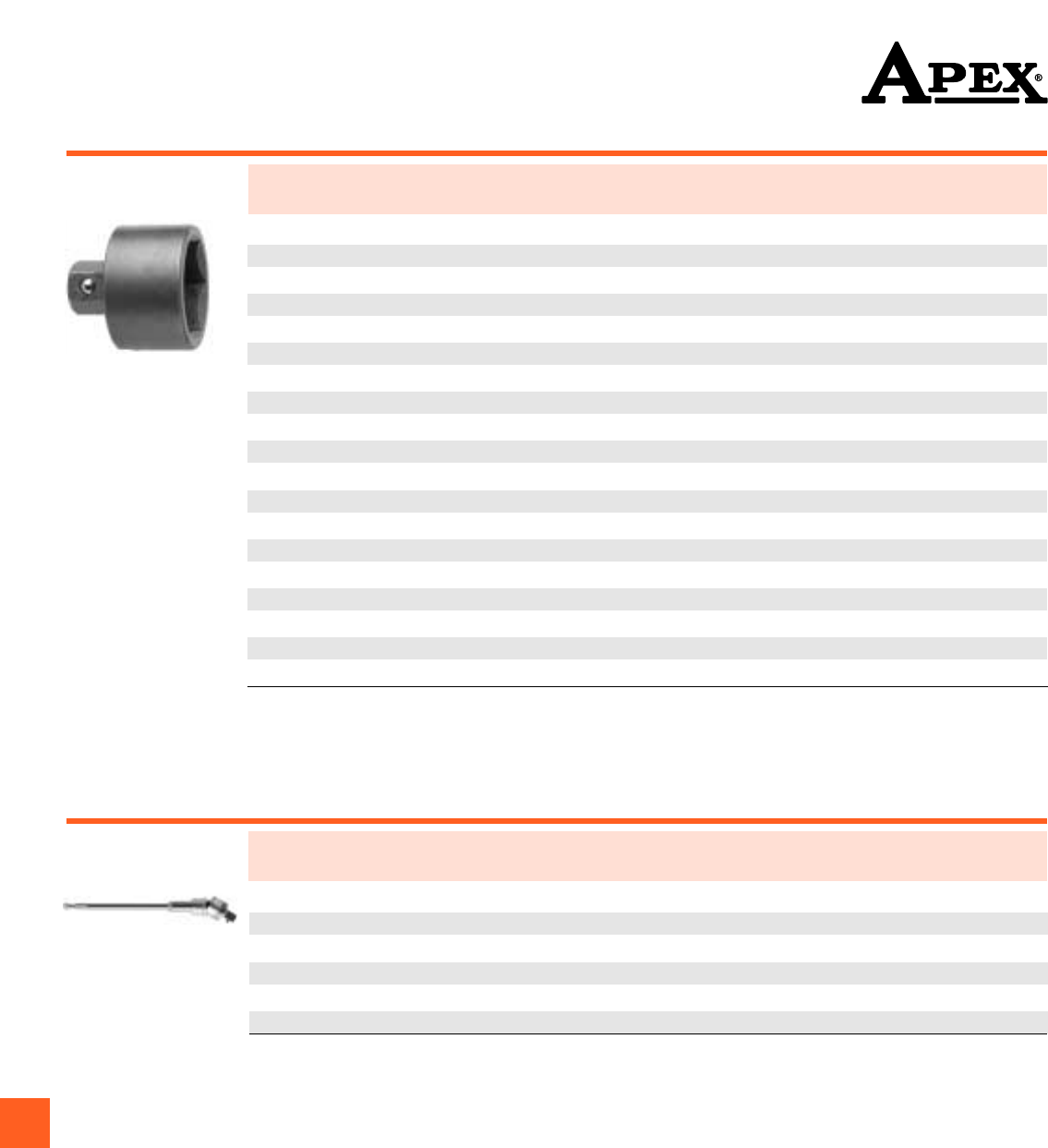

3/8” Square Drive Adapters

3/8” Square Drive Universal Adapters – Extension

Male Square to Female Square

Part Number Male Female Type of Largest Diameter

Standard Tension Square In. Square In. Lock In. mm

KAM-25-3 KDM-25-3 1/4 3/8 Pin 5/8 16

KAM-37-3 KDM-37-3 3/8 3/8 Pin 3/4 19

- KDM-37-6 3/8 3/8 Pin 3/4 19

KAM-37-B-3 KDM-37-B-3 3/8 3/8 Ball 3/4 19

KAM-38-6 KDM-38-6 3/8 3/8 Pin 7/8 22

3/8” Square Drive Universal Adapters

Male Square to Female Square

Part Male Female Type of Overall Length Largest Diameter

Number Square In. Square In. Lock In. mm In. mm

MF-27 1/4 3/8 Pin 1 5/16 49 3/4 19

MF-27B 1/4 3/8 Ball 1 5/16 49 3/4 19

MF-37 3/8 3/8 Pin 2 1/8 54 3/4 19

MF-37B 3/8 3/8 Ball 2 1/8 54 3/4 19

MF-38 3/8 3/8 Pin 2 1/2 64 7/8 22

MF-38B 3/8 3/8 Ball 2 1/2 64 7/8 22

(Standard Type Shown)

Universal wrenches

must not be used

with impact drivers.

Maximum operating

angle is 30°.

Standard lengths are

3”, 6”, 9” and 12”

(76, 152, 229 and 305mm)

Refer to Page iv for description of Rapid Select.

105

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

5108 5108-D 1/4 1 1/2 7/16 15/16 5/32

5109 - 9/32 1 1/2 7/16 15/16 3/16

5110 5110-D 5/16 1 1/2 1/2 15/16 3/16

5111 - 11/32 1 1/2 9/16 15/16 3/16

5112 5112-D 3/8 1 1/2 5/8 15/16 1/4

5113 5113-D 13/32 1 1/2 11/16 15/16 1/4

5114 5114-D 7/16 1 1/2 11/16 15/16 9/32

5115 - 15/32 1 1/2 3/4 15/16 9/32

5116 5116-D 1/2 1 1/2 13/16 15/16 11/32

SH-335 SH-335-D 1/2 1 1/2 45/64 15/16 11/32

5117 - 17/32 1 1/2 7/8 15/16 11/32

5118 5118-D 9/16 1 1/2 7/8 15/16 7/16

SH-336 SH-336-D 9/16 1 1/2 27/32 15/16 7/16

5119 5119-D 19/32 1 1/2 15/16 15/16 7/16

5120 5120-D 5/8 1 1/2 1 1 7/16

SH-338 SH-338-D 5/8 1 1/2 15/16 1 7/16

5121 - 21/32 1 1/2 1 1 7/16

5122 5122-D 11/16 1 1/2 1 1/8 1 1/8 7/16

SH-339 SH-339-D 11/16 1 1/2 1 1/64 1 1/16 7/16

SW-282 SW-282-D 3/4 1 1/2 1 1/4 1 1/4 15/32

5124 5124-D 3/4 1 1/2 1 1/8 1 1/8 15/32

5125 5125-D 25/32 1 1/2 1 1/4 1 1/4 15/32

5126 5126-D 13/16 1 1/2 1 1/4 1 1/4 17/32

5128 5128-D 7/8 1 1/2 1 5/16 1 5/16 9/16

5129 5129-D 29/32 1 1/2 1 3/8 1 3/8 5/8

5130 5130-D 15/16 1 1/2 1 3/8 1 3/8 5/8

5131 5131-D 31/32 1 1/2 1 1/2 1 1/2 5/8

5132 5132-D 1 1 1/2 1 1/2 1 1/2 5/8

5134 5134-D 1 1/16 1 5/8 1 1/2 1 1/2 11/16

5136 5136-D 1 1/8 1 5/8 1 5/8 1 5/8 3/4

5138 5138-D 1 3/16 1 5/8 1 3/4 1 3/4 3/4

5140 5140-D 1 1/4 1 3/4 1 3/4 1 3/4 13/16

5142 5142-D 1 5/16 1 3/4 1 7/8 1 7/8 13/16

5144 5144-D 1 3/8 1 7/8 2 2 13/16

5146 5146-D 1 7/16 2 2 2 15/16

5148 5148-D 1 1/2 2 2 1/8 2 1/8 1

5150 5150-D 1 9/16 2 2 1/4 2 1/4 1

5152 5152-D 1 5/8 2 2 3/8 2 3/8 1 1/8

5154 5154-D 1 11/16 2 2 3/8 2 3/8 1 1/8

5156 5156-D 1 3/4 2 2 1/2 2 1/2 1 1/8

6 Point and Double Hex, Standard Length

1/2” Square Drive Sockets, SAE

inches

Refer to Page iv for description of Rapid Select.

106

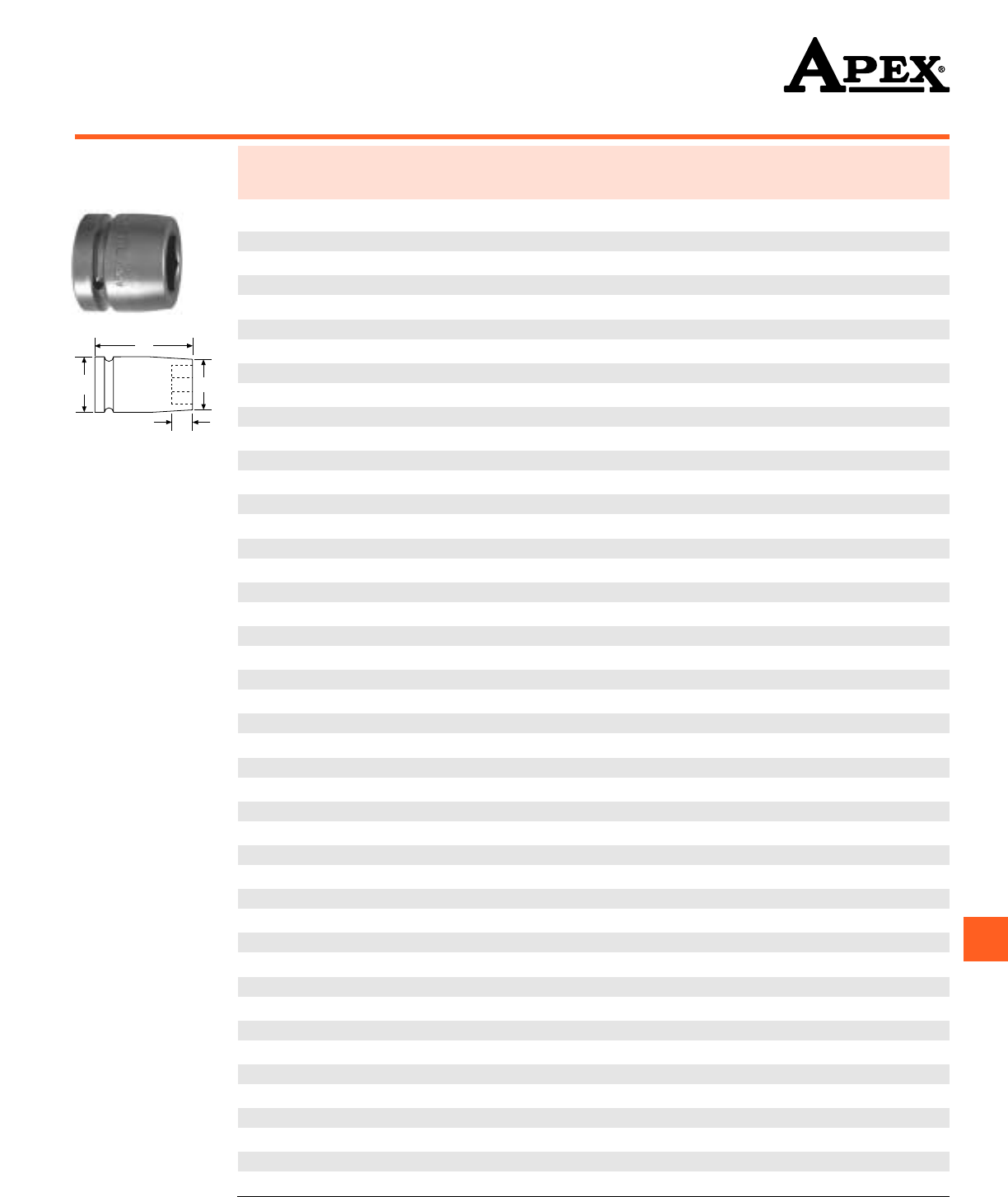

6 Point and Double Hex, Thin Wall, Standard Length

1/2” Square Drive Sockets, SAE

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

5410 - 5/16 1 1/2 19/32 15/16 1/4

5412 5412-D 3/8 1 1/2 19/32 15/16 1/4

5414 5414-D 7/16 1 1/2 21/32 15/16 9/32

5416 5416-D 1/2 1 1/2 23/32 15/16 11/32

5418 5418-D 9/16 1 1/2 13/16 15/16 7/16

5420 5420-D 5/8 1 1/2 7/8 15/16 7/16

5421 5421-D 21/32 1 1/2 29/32 15/16 7/16

HE-2422 HE-2422-D 11/16 1 1/2 1 1 7/16

*5422 *5422-D 11/16 1 1/2 15/16 15/16 7/16

OS-5424** - 3/4 1 1/2 1 1/32 1 1/32 15/32

5424 5424-D 3/4 1 1/2 1 1/32 1 1/8 15/32

5425 5425-D 25/32 1 1/2 1 1/16 1 1/8 15/32

5426 5426-D 13/16 1 1/2 1 1/8 1 1/8 17/32

HE-1028 HE-1028-D 7/8 1 1/2 1 1/4 1 1/4 9/16

*5428 *5428-D 7/8 1 1/2 1 3/16 1 1/4 9/16

HE-530 HE-530-D 15/16 1 1/2 1 5/16 1 5/16 5/8

*5430 *5430-D 15/16 1 1/2 1 1/4 1 1/4 5/8

5432 5432-D 1 1 1/2 1 3/8 1 3/8 5/8

5434 5434-D 1 1/16 1 5/8 1 7/16 1 7/16 11/16

5436 5436-D 1 1/8 1 5/8 1 1/2 1 1/2 3/4

5438 5438-D 1 3/16 1 5/8 1 5/8 1 5/8 3/4

5440 5440-D 1 1/4 1 3/4 1 11/16 1 3/4 13/16

5442 5442-D 1 5/16 1 3/4 1 25/32 1 7/8 13/16

* Extra thin wall

** No ring groove

inches

Refer to Page iv for description of Rapid Select.

107

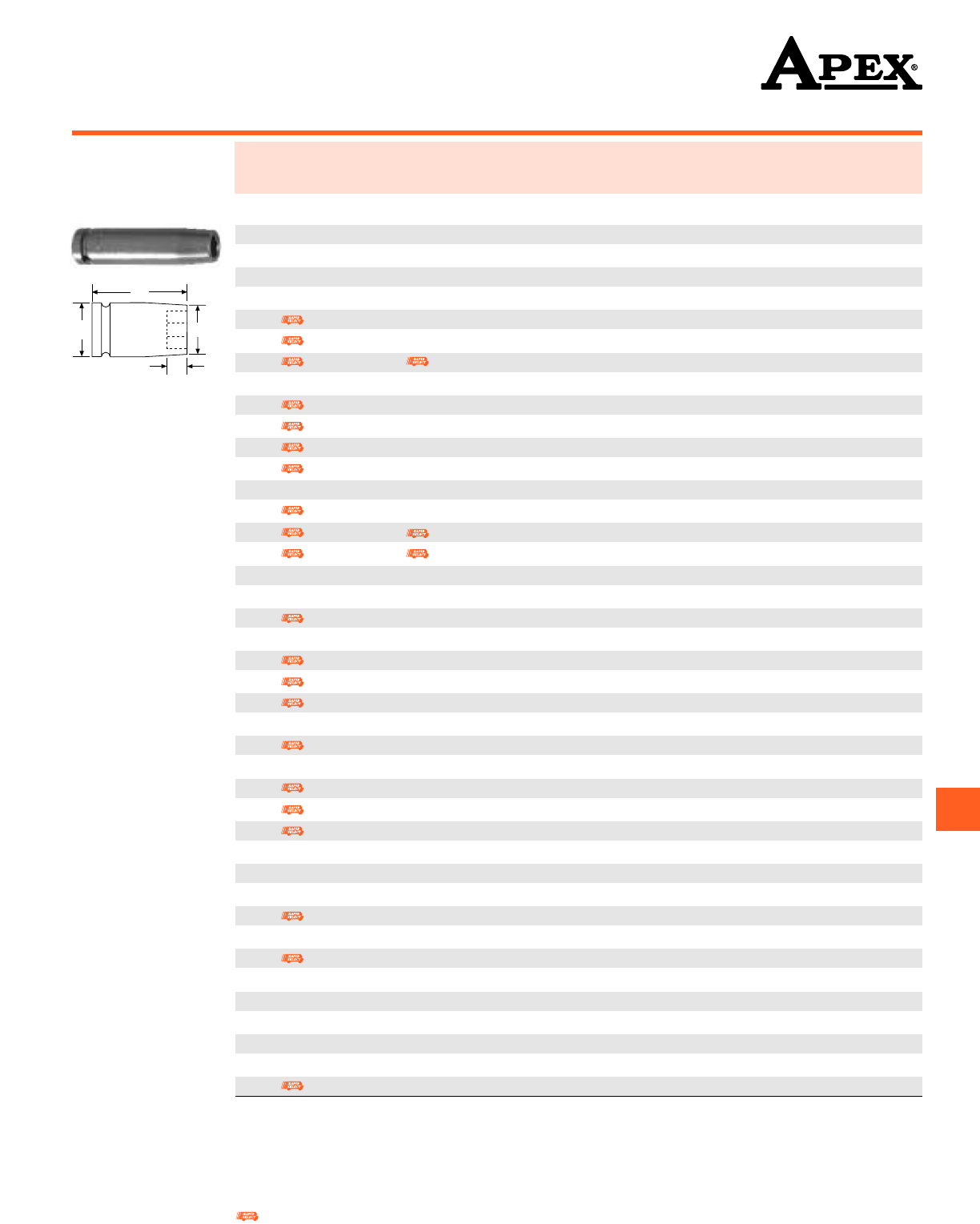

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

5210 - 5/16 2 1/4 1/2 15/16 3/16

5310 - 5/16 3 1/4 1/2 15/16 3/16

5212 5212-D 3/8 2 1/4 5/8 15/16 1/4

5312 5312-D 3/8 3 1/4 5/8 15/16 1/4

5214 5214-D 7/16 2 1/4 11/16 15/16 9/32

5314 5314-D 7/16 3 1/4 11/16 15/16 9/32

5216 5216-D 1/2 2 1/4 13/16 15/16 11/32

5316 5316-D 1/2 3 1/4 13/16 15/16 11/32

HE-9518 HE-9518-D 9/16 2 1/4 7/8 7/8 7/16

5218 5218-D 9/16 2 1/4 7/8 15/16 7/16

5318 5318-D 9/16 3 1/4 7/8 15/16 7/16

5220 5220-D 5/8 2 1/4 1 1 7/16

5320 5320-D 5/8 3 1/4 1 1 7/16

5222 5222-D 11/16 2 1/4 1 1/8 1 1/8 7/16

5322 5322-D 11/16 3 1/4 1 1/8 1 1/8 7/16

5224 5224-D 3/4 2 1/4 1 1/8 1 1/8 15/32

5324 5324-D 3/4 3 1/4 1 1/8 1 1/8 15/32

SW-493 SW-493-D 3/4 2 1/4 1 1/4 1 1/4 15/32

5226 5226-D 13/16 2 1/4 1 1/4 1 1/4 17/32

5326 5326-D 13/16 3 1/2 1 1/4 1 1/4 17/32

5228 5228-D 7/8 2 1/4 1 5/16 1 5/16 9/16

5328 5328-D 7/8 3 1/2 1 5/16 1 5/16 9/16

5230 5230-D 15/16 2 1/4 1 3/8 1 3/8 5/8

5330 5330-D 15/16 3 1/2 1 3/8 1 3/8 5/8

5232 5232-D 1 2 1/4 1 1/2 1 1/2 5/8

5332 5332-D 1 3 1/2 1 1/2 1 1/2 5/8

5234 5234-D 1 1/16 2 3/8 1 1/2 1 1/2 11/16

5334 5334-D 1 1/16 3 1/2 1 1/2 1 1/2 11/16

5236 5236-D 1 1/8 2 3/8 1 5/8 1 5/8 3/4

5336 5336-D 1 1/8 3 1/2 1 5/8 1 5/8 3/4

5238 5238-D 1 3/16 2 3/8 1 3/4 1 3/4 3/4

5338 5338-D 1 3/16 3 1/2 1 3/4 1 3/4 3/4

5240 5240-D 1 1/4 2 1/2 1 3/4 1 3/4 13/16

5340 5340-D 1 1/4 3 1/2 1 3/4 1 3/4 13/16

5242 - 1 5/16 2 1/2 1 7/8 1 7/8 13/16

5342 - 1 5/16 3 1/2 1 7/8 1 7/8 13/16

5244 - 1 3/8 2 1/2 2 2 13/16

5344 - 1 3/8 3 5/8 2 2 13/16

5246 - 1 7/16 2 1/2 2 2 15/16

5346 - 1 7/16 3 5/8 2 2 15/16

5248 - 1 1/2 2 1/2 2 1/8 2 1/8 1

5348 - 1 1/2 3 3/4 2 1/8 2 1/8 1

6 Point and Double Hex, Long and Extra Long Length

1/2” Square Drive Sockets, SAE

inches

Refer to Page iv for description of Rapid Select.

108

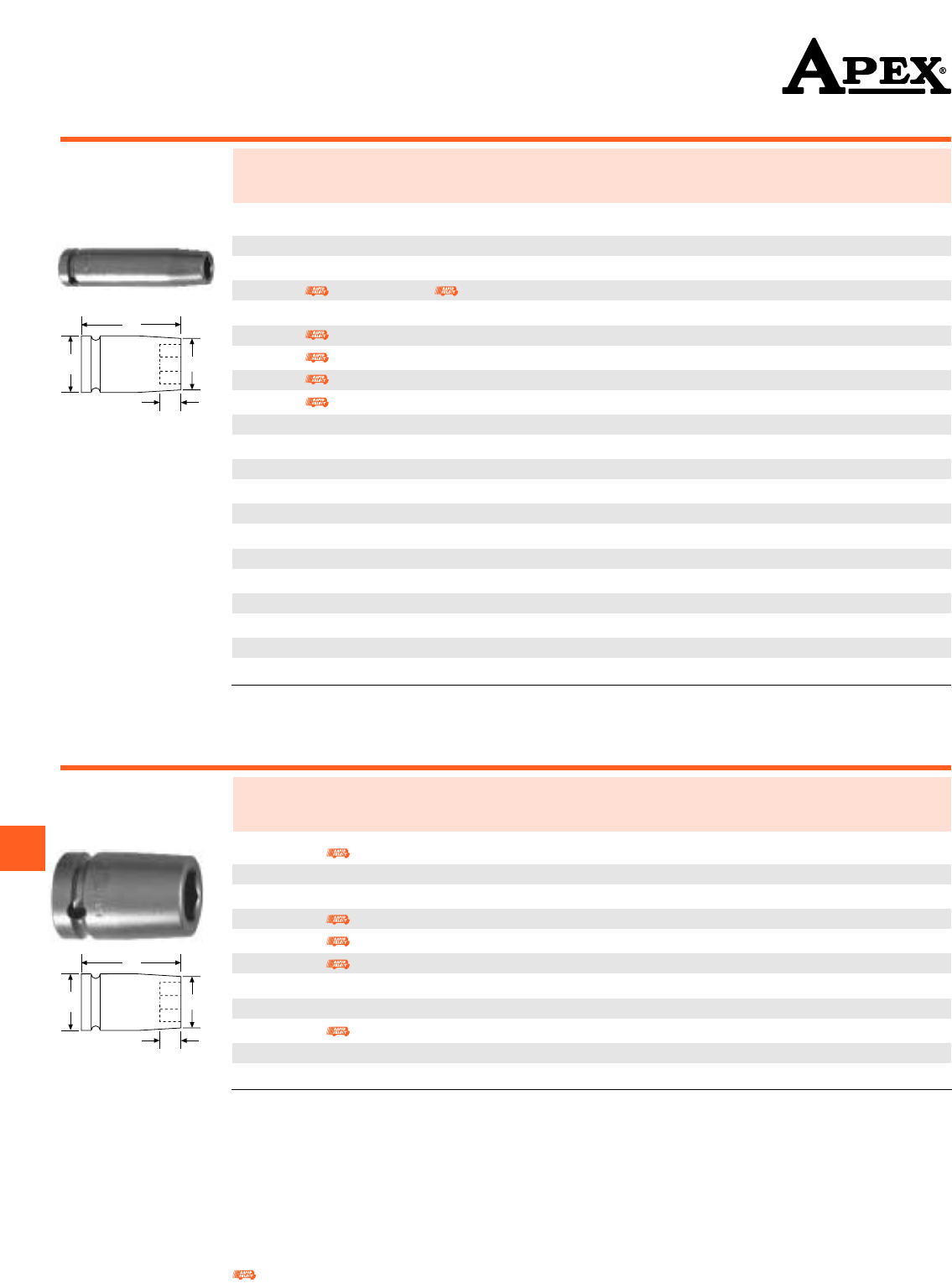

6 Point and Double Hex, Thin Wall, Extra Long Length

1/2” Square Drive Sockets, SAE

Magnetic, Standard Length

Magnetic, Thin Wall, Standard Length

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

5510 - 5/16 3 1/4 1/2 15/16 3/16

5512 5512-D 3/8 3 1/4 19/32 15/16 1/4

5514 5514-D 7/16 3 1/4 21/32 15/16 9/32

5516 5516-D 1/2 3 1/4 23/32 15/16 11/32

OS-5516* - 1/2 3 1/4 47/64 7/8 11/32

5518 5518-D 9/16 3 1/4 13/16 15/16 7/16

OS-5518* - 9/16 3 1/4 13/16 27/32 7/16

5520 5520-D 5/8 3 1/4 7/8 15/16 7/16

5522 5522-D 11/16 3 1/4 15/16 15/16 7/16

5524 5524-D 3/4 3 1/4 1 1/32 1 1/8 15/32

5526 5526-D 13/16 3 1/2 1 1/8 1 1/8 17/32

5528 5528-D 7/8 3 1/2 1 3/16 1 1/4 9/16

5530 5530-D 15/16 3 1/2 1 1/4 1 1/4 5/8

5532 5532-D 1 3 1/2 1 3/8 1 3/8 5/8

5534 5534-D 1 1/16 3 1/2 1 7/16 1 7 /16 11/16

Part Number Hex Overall Diameter Diameter Opening

Fixed Opening Length Nose End Drive End Depth

Magnet In. (A) (B) (C) (D)

M-5108 1/4 1 1/2 7/16 15/16 5/32

M-5110 5/16 1 1/2 1/2 15/16 3/16

M-5112 3/8 1 1/2 5/8 15/16 1/4

M-5114 7/16 1 1/2 11/16 15/16 9/32

M-5116 1/2 1 1/2 13/16 15/16 11/32

MSH-335 1/2 1 1/2 45/64 15/16 11/32

M-5118 9/16 1 1/2 7/8 15/16 7/16

MSH-336 9/16 1 1/2 27/32 15/16 7/16

M-5120 5/8 1 1/2 1 1 7/16

M-5122 11/16 1 1/2 1 1/8 1 1/8 7/16

M-5124 3/4 1 1/2 1 1/8 1 1/8 15/32

M-5126 13/16 1 1/2 1 1/4 1 1/4 17/32

Part Number Hex Overall Diameter Diameter Opening

Fixed Opening Length Nose End Drive End Depth

Magnet In. (A) (B) (C) (D)

M-5412 3/8 1 1/2 19/32 15/16 1/4

M-5414 7/16 1 1/2 21/32 15/16 9/32

M-5416 1/2 1 1/2 23/32 15/16 11/32

M-5418 9/16 1 1/2 13/16 15/16 7/16

M-5420 5/8 1 1/2 7/8 15/16 7/16

inches

Refer to Page iv for description of Rapid Select.

* No ring groove.

109

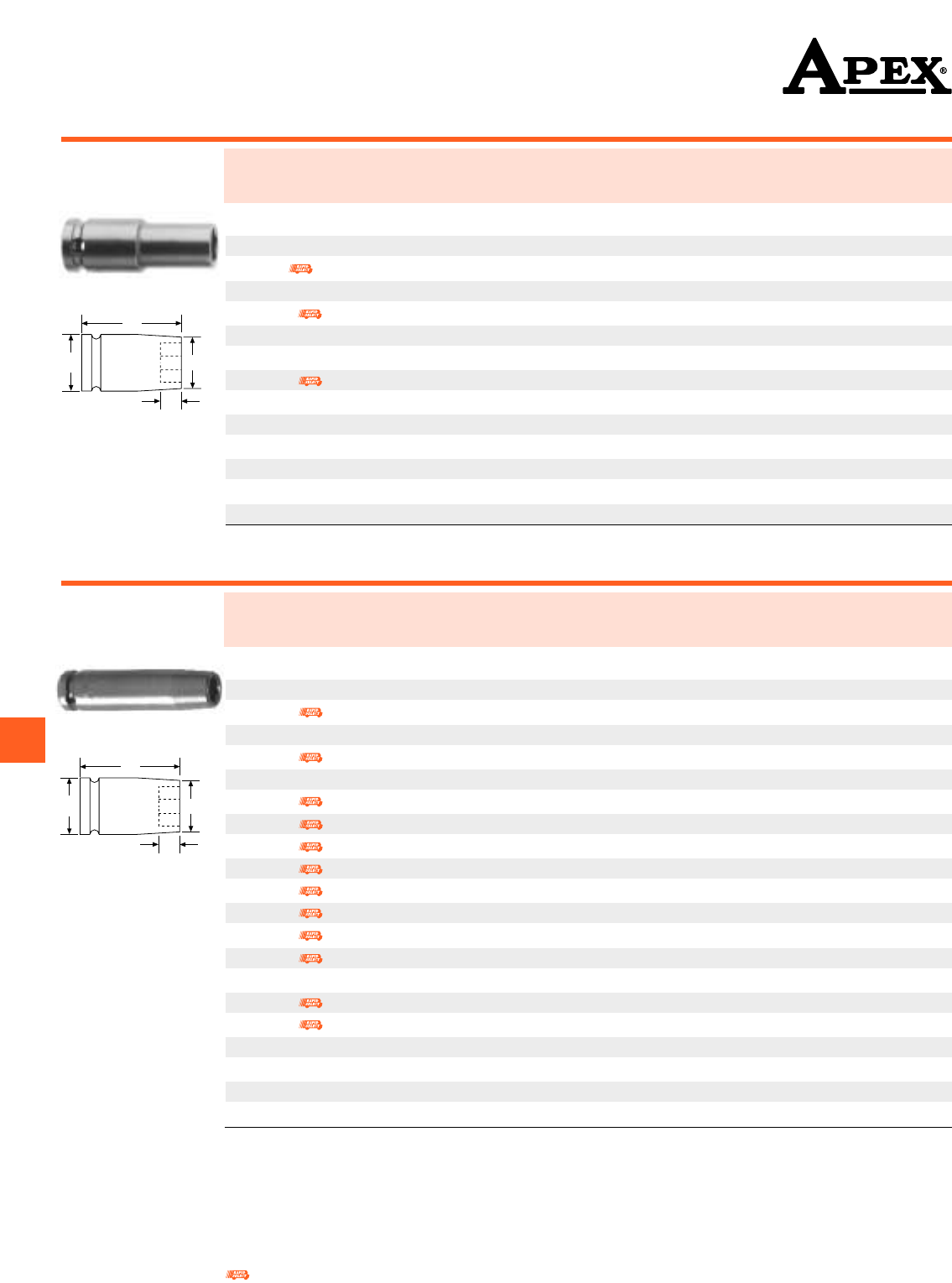

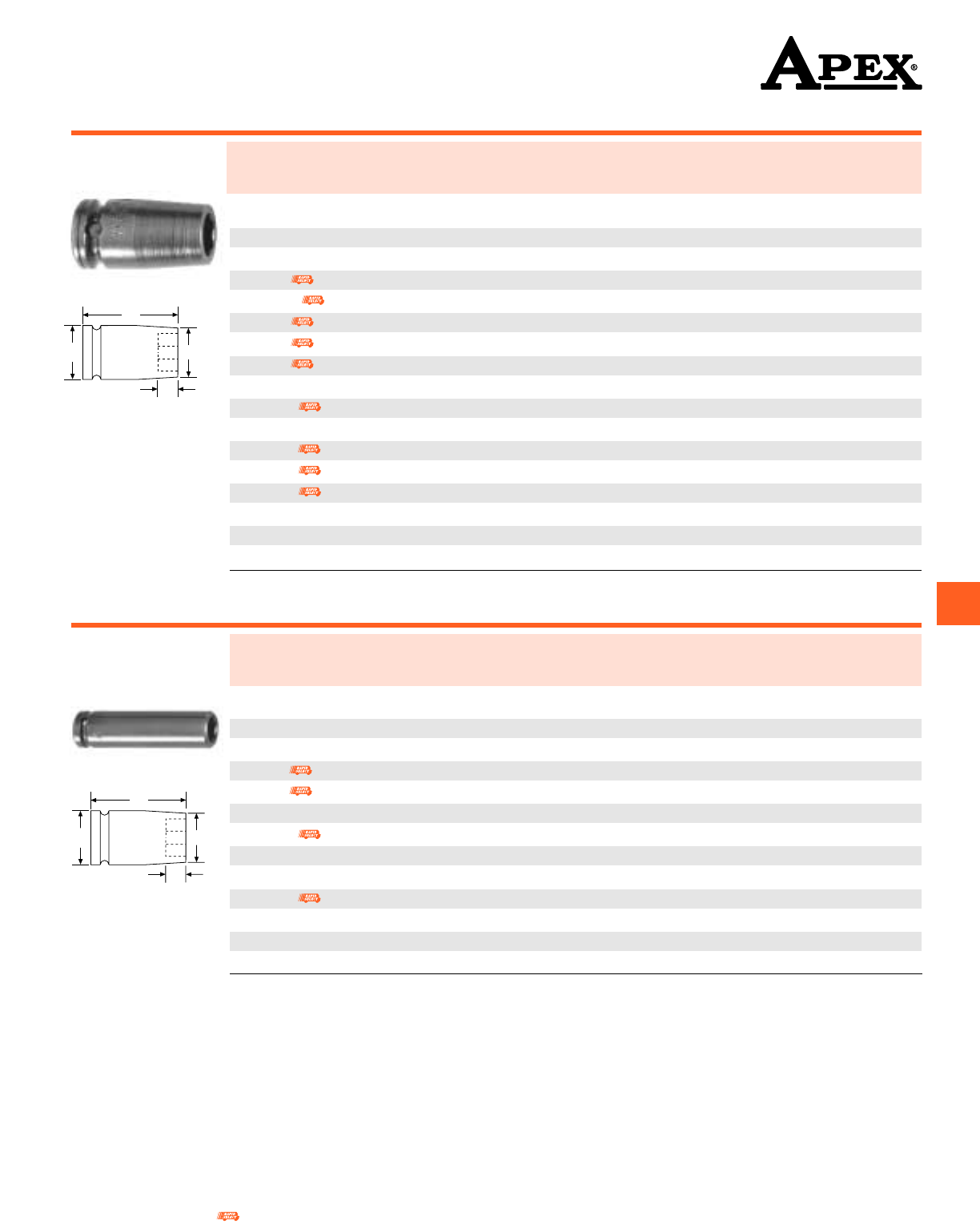

Part Part No. Hex Overall Diameter Diameter Opening

Number Magnetic Bolt Opening Length Nose End Drive End Depth

6 Point Clearance In. (A) (B) (C) (D)

- MB-5210 5/16 2 1/4 5/8 15/16 1/4

- MB-5212 3/8 2 1/4 5/8 15/16 1/4

M-5512* - 3/8 3 1/4 19/32 15/16 1/4

- MB-5214 7/16 2 1/4 11/16 15/16 9/32

M-5216 MB-5216 1/2 2 1/4 13/16 15/16 11/32

M-5316 - 1/2 3 1/4 13/16 15/16 11/32

M-5218 - 9/16 2 1/4 7/8 15/16 7/16

- MB-HE9518 9/16 2 1/4 7/8 15/16 7/16

M-5318 - 9/16 3 1/4 7/8 15/16 7/16

M-5518* - 9/16 3 1/4 13/16 15/16 7/16

M-5220 MB-5220 5/8 2 1/4 1 1 7/16

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Fast Lead In. (A) (B) (C) (D)

SF-5112 FL-5112 3/8 1 1/2 5/8 15/16 1/4

SF-5114 FL-5114 7/16 1 1/2 11/16 15/16 9/32

SF-5116 FL-5116 1/2 1 1/2 13/16 15/16 11/32

SF-SH-335 FL-SH-335 1/2 1 1/2 45/64 15/16 11/32

SF-5118 FL-5118 9/16 1 1/2 7/8 15/16 7/16

SF-SH-336 FL-SH-336 9/16 1 1/2 27/32 15/16 7/16

SF-5120 FL-5120 5/8 1 1/2 1 1 7/16

- FL-SH-338 5/8 1 1/2 15/16 1 7/16

SF-5122 FL-5122 11/16 1 1/2 1 1/8 1 1/8 7/16

SF-5124 FL-5124 3/4 1 1/2 1 1/8 1 1/8 15/32

SF-SW-282 FL-SW-282 3/4 1 1/2 1 1/4 1 1/4 15/32

SF-5126 FL-5126 13/16 1 1/2 1 1/4 1 1/4 17/32

SF-5128 FL-5128 7/8 1 1/2 1 5/16 1 5/16 9/16

SF-5130 FL-5130 15/16 1 1/2 1 3/8 1 3/8 5/8

SF-5132 FL-5132 1 1 1/2 1 1/2 1 1/2 5/8

SF-5134 FL-5134 1 1/16 1 5/8 1 1/2 1 1/2 11/16

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Fast Lead In. (A) (B) (C) (D)

SF-5412 - 3/8 1 1/2 19/32 15/16 1/4

SF-5414 FL-5414 7/16 1 1/2 21/32 15/16 9/32

SF-5416 FL-5416 1/2 1 1/2 23/32 15/16 11/32

SF-5418 FL-5418 9/16 1 1/2 13/16 15/16 7/16

SF-5420 - 5/8 1 1/2 7/8 15/16 7/16

SF-5422 - 11/16 1 1/2 15/16 15/16 7/16

SF-5424 - 3/4 1 1/2 1 1/32 1 1/8 15/32

SF-5426 - 13/16 1 1/2 1 1/8 1 1/8 17/32

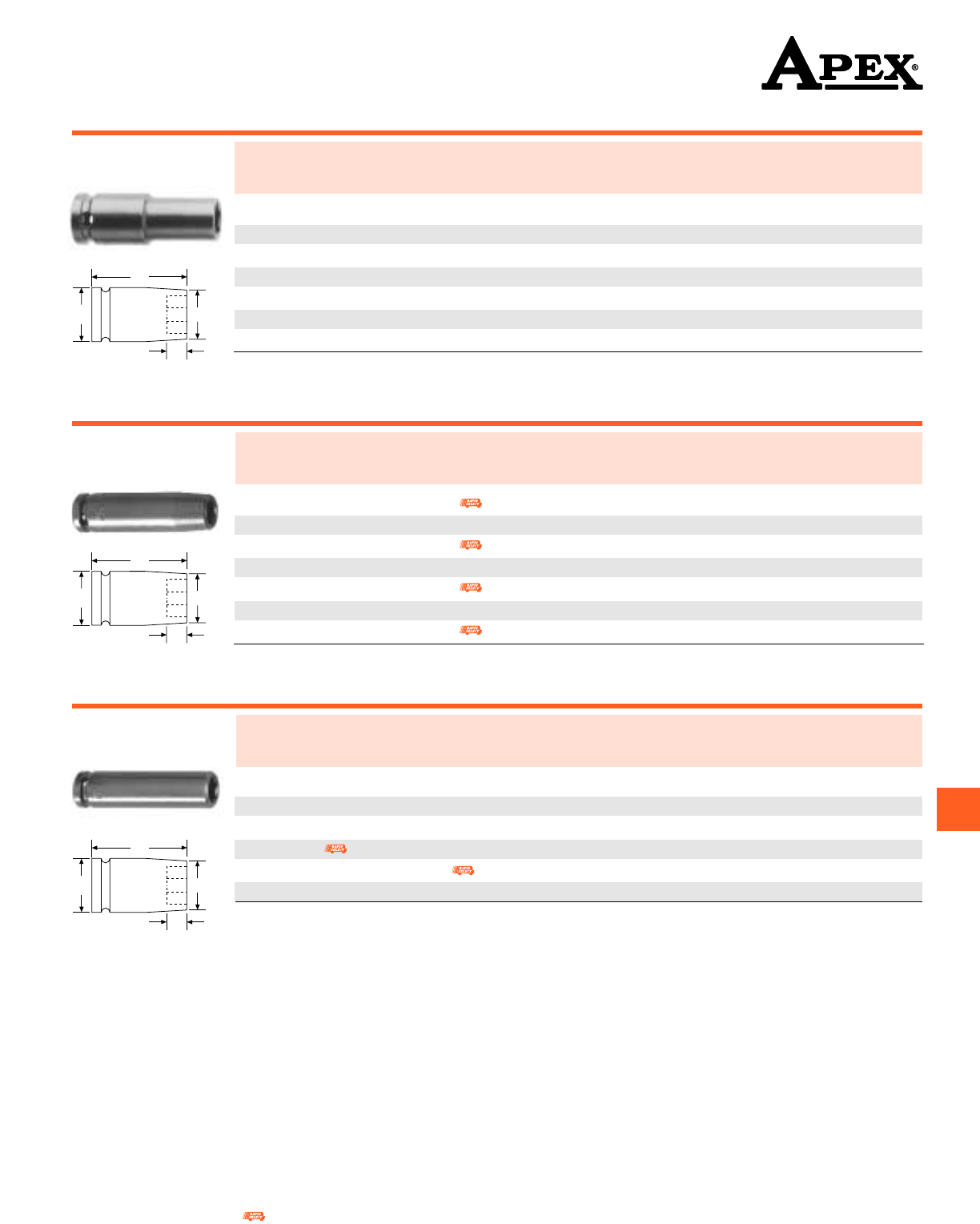

Magnetic, Long Length and Extra Long Length

1/2” Square Drive Sockets, SAE

Surface Drive and Fast Lead, Standard Length

Surface Drive and Fast Lead, Thin Wall, Standard Length

inches

Refer to Page iv for description of Rapid Select.

*Thin Wall

110

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Fast Lead In. (A) (B) (C) (D)

SF-5212 - 3/8 2 1/4 9/16 15/16 9/32

SF-5214 FL-5214 7/16 2 1/4 11/16 15/16 9/32

SF-5216 FL-5216 1/2 2 1/4 13/16 15/16 11/32

SF-5316 FL-5316 1/2 3 1/4 13/16 15/16 11/32

SF-HE9518 FL- HE9518 9/16 2 1/4 7/8 7/8 7/16

SF-5218 FL-5218 9/16 2 1/4 7/8 15/16 7/16

SF-5318 FL-5318 9/16 3 1/4 7/8 15/16 7/16

SF-5220 FL-5220 5/8 2 1/4 1 1 7/16

SF-5320 FL-5320 5/8 3 1/4 1 1 7/16

SF-5222 FL-5222 11/16 2 1/4 1 1/8 1 1/8 7/16

SF-5322 FL-5322 11/16 3 1/4 1 1/8 1 1/8 7/16

SF-5224 FL-5224 3/4 2 1/4 1 1/8 1 1/8 15/32

- FL-SW-493 3/4 2 1/4 1 1/4 1 1/4 15/32

SF-5324 FL-5324 3/4 3 1/4 1 1/8 1 1/8 15/32

SF-5226 FL-5226 13/16 2 1/4 1 1/4 1 1/4 17/32

SF-5326 FL-5326 13/16 3 1/2 1 1/4 1 1/4 17/32

SF-5228 FL-5228 7/8 2 1/4 1 5/16 1 5/16 9/16

SF-5328 - 7/8 3 1/2 1 5/16 1 5/16 9/16

SF-5230 - 15/16 2 1/4 1 3/8 1 3/8 5/8

SF-5330 - 15/16 3 1/2 1 3/8 1 3/8 5/8

SF-5232 - 1 2 1/4 1 1/2 1 1/2 5/8

SF-5332 - 1 3 1/2 1 1/2 1 1/2 5/8

SF-5334 - 1 1/16 3 1/2 1 1/2 1 1/2 11/16

Part Number Hex Overall Diameter Diameter Opening

Surface Opening Length Nose End Drive End Depth

Drive In. (A) (B) (C) (D)

SF-5514 7/16 3 1/4 21/32 15/16 9/32

SF-5516 1/2 3 1/4 23/32 15/16 11/32

SF-5518 9/16 3 1/4 13/16 15/16 7/16

SF-5520 5/8 3 1/4 7/8 15/16 7/16

SF-5522 11/16 3 1/4 15/16 15/16 7/16

SF-5524 3/4 3 1/4 1 1/32 1 1/8 15/32

SF-5526 13/16 3 1/4 1 1/8 1 1/8 17/32

SF-5528 7/8 3 1/2 1 3/16 1 1/4 9/16

SF-5532 1 3 1/2 1 3/8 1 3/8 5/8

SF-5534 1 1/16 3 1/2 1 7/16 1 7/16 11/16

Surface Drive and Fast Lead, Long and Extra Long Length

1/2” Square Drive Sockets, SAE

Surface Drive, Thin Wall, Extra Long Length

inches

Refer to Page iv for description of Rapid Select.

111

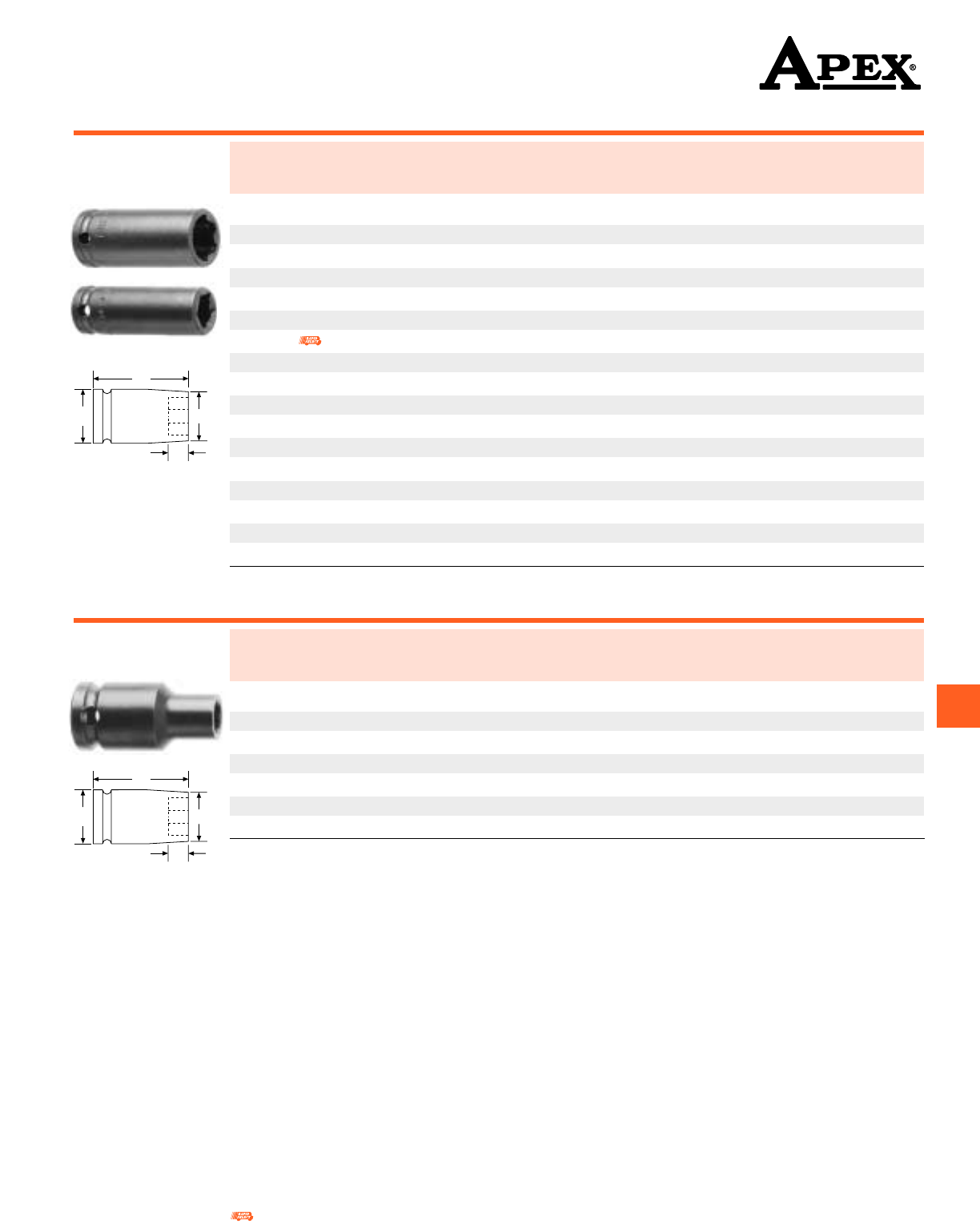

1/2” Square Drive Sockets For SAE Square Nuts

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Magnetic In. (A) (B) (C) (D)

5E08 M5E08 1/4 1 1/2 7/16 15/16 5/32

5E10 M5E10 5/16 1 1/2 1/2 15/16 3/16

5E12 M5E12 3/8 1 1/2 5/8 15/16 1/4

5E14 M5E14 7/16 1 1/2 11/16 15/16 9/32

5E16 M5E16 1/2 1 1/2 13/16 15/16 11/32

5E18 M5E18 9/16 1 1/2 15/16 15/16 7/16

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Magnetic In. (A) (B) (C) (D)

5P08 M5P08 1/4 1 1/2 7/16 15/16 5/32

5P10 M5P10 5/16 1 1/2 1/2 15/16 3/16

5P12 M5P12 3/8 1 1/2 5/8 15/16 1/4

5P14 M5P14 7/16 1 1/2 11/16 15/16 9/32

5P16 M5P16 1/2 1 1/2 13/16 15/16 11/32

5P18 M5P18 9/16 1 1/2 15/16 15/16 7/16

*Sockets for predrilled holes are intermediate hardness; sockets for self-tapping screws are maximum hardness.

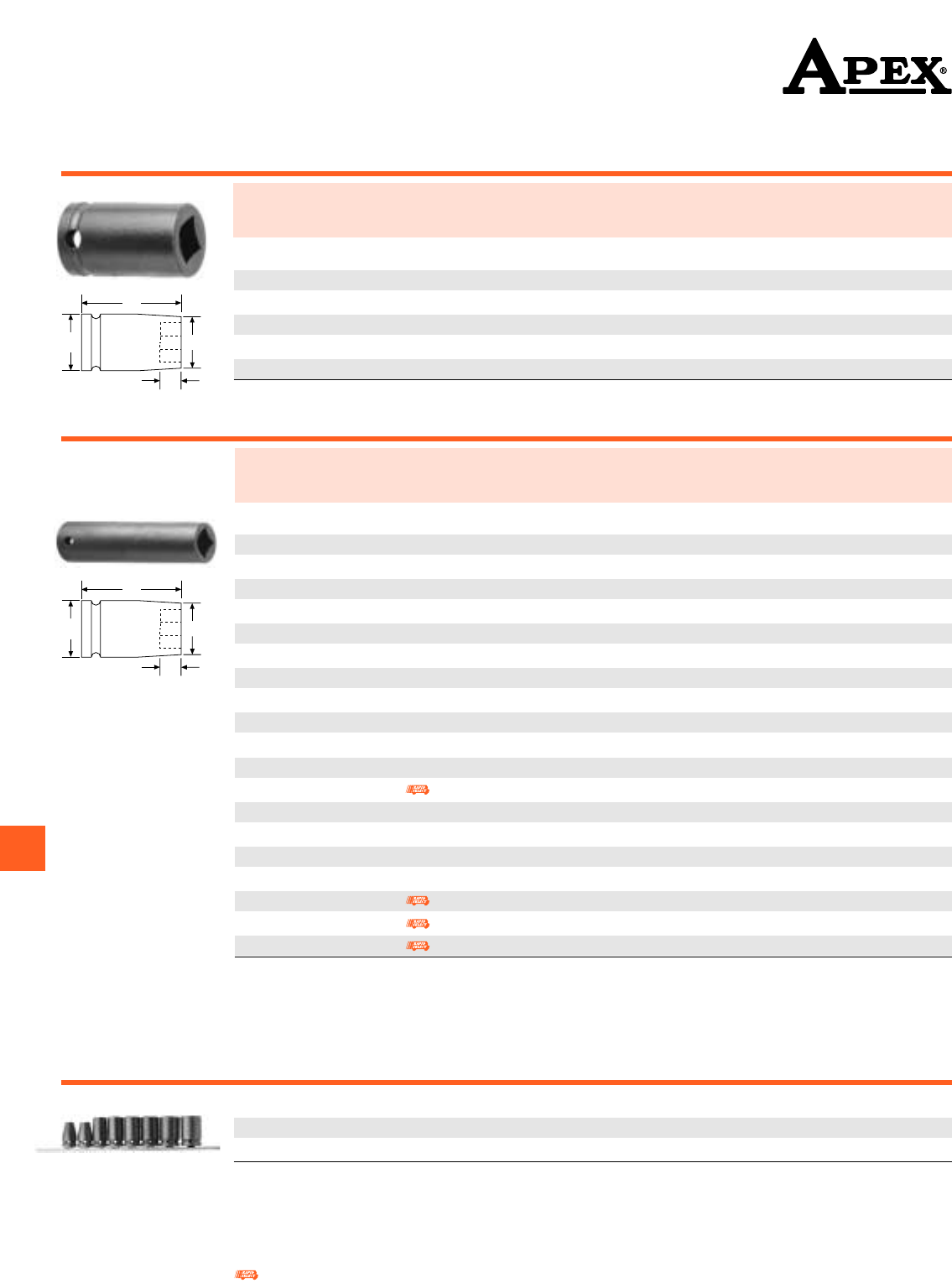

Part Part Square Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Square In. (A) (B) (C) (D)

5608 5608-D 1/4 1 1/2 1/2 15/16 3/16

5609 5609-D 9/32 1 1/2 1/2 15/16 3/16

5610 5610-D 5/16 1 1/2 5/8 15/16 1/4

5612 5612-D 3/8 1 1/2 3/4 15/16 1/4

5614 5614-D 7/16 1 1/2 7/8 15/16 9/32

5616 5616-D 1/2 1 1/2 1 1 11/32

5618 5618-D 9/16 1 1/2 1 1/8 1 1/8 7/16

- 5619-D 19/32 1 1/2 1 1/8 1 1/8 7/16

5620 5620-D 5/8 1 1/2 1 1/4 1 1/4 7/16

5622 5622-D 11/16 1 1/2 1 1/4 1 1/4 7/16

5624 5624-D 3/4 1 1/2 1 3/8 1 3/8 15/32

5626 5626-D 13/16 1 1/2 1 1/2 1 1/2 17/32

5628 5628-D 7/8 1 1/2 1 5/8 1 5/8 5/8

5632 5632-D 1 1 5/8 1 3/4 1 3/4 5/8

5634 5634-D 1 1/16 1 3/4 1 7/8 1 7/8 11/16

5636 5636-D 1 1/8 1 3/4 2 2 3/4

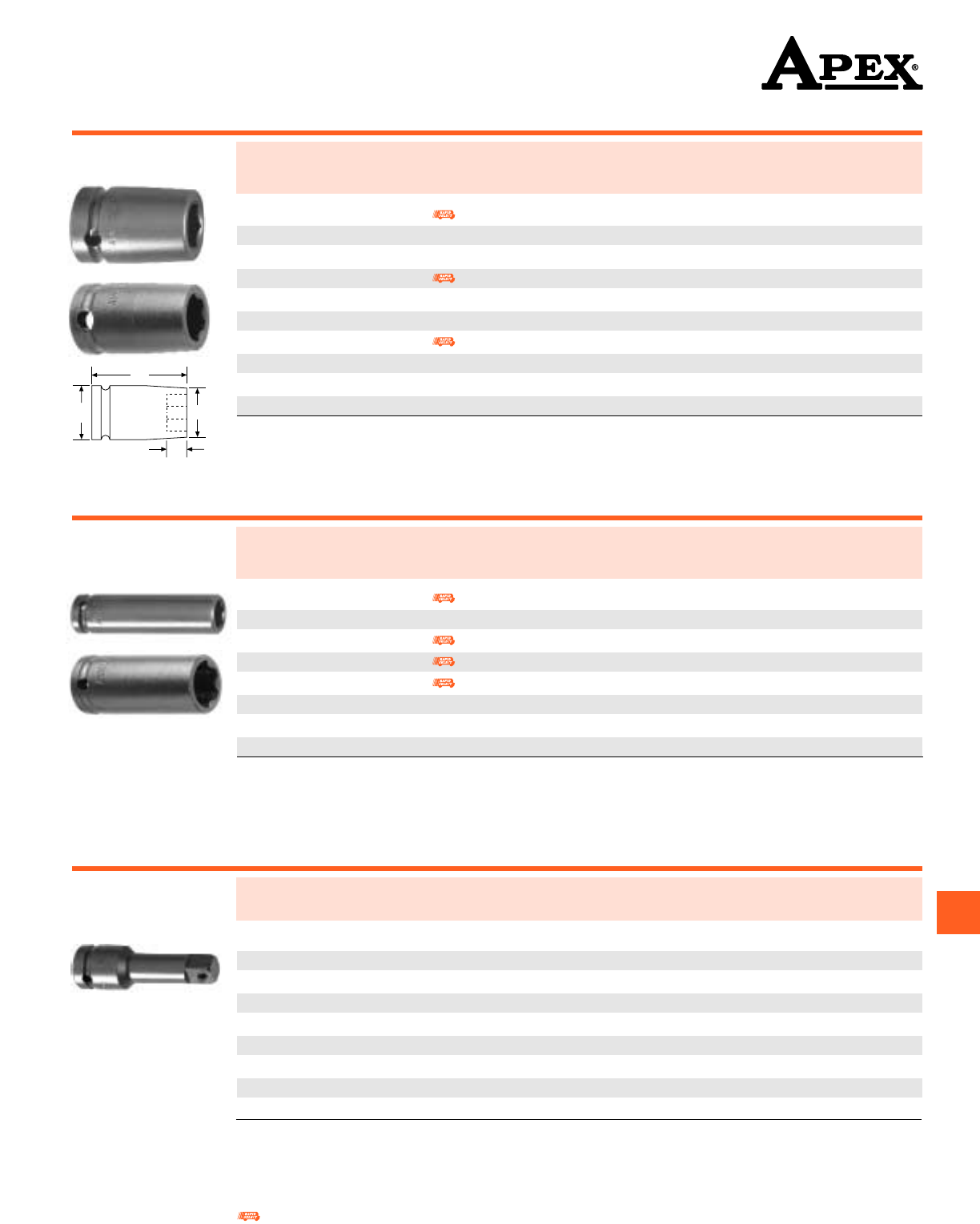

6 Point and 6 Point Magnetic, for Predrilled Holes*

1/2” Square Drive Sockets

For SAE Sheet Metal Screws

6 Point and 6 Point Magnetic, for Self-Tapping Screws*

Single Square and Double Square, Standard Length

inches

Refer to Page iv for description of Rapid Select.

112

1/2” Square Drive Socket Sets, SAE

6 Point

APS58 8 piece, standard length: 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16

APS510 10 piece, standard length: 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1

APS58XL 8 piece, extra long length: 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16

Single Square and Double Square, Thin Wall, Standard Length

1/2” Square Drive Sockets

For SAE Square Nuts

Part Part Square Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

Square Double Square In. (A) (B) (C) (D)

5910 5910-D 5/16 1 1/2 19/32 15/16 1/4

5912 5912-D 3/8 1 1/2 11/16 15/16 1/4

5914 5914-D 7/16 1 1/2 25/32 15/16 9/32

5916 5916-D 1/2 1 1/2 15/16 15/16 11/32

5918 5918-D 9/16 1 1/2 1 1 7/16

5920 5920-D 5/8 1 1/2 1 3 /32 1 1/8 7/16

Part Part Square Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

Square Double Square In. (A) (B) (C) (D)

5712 - 3/8 2 1/4 3/4 15/16 1/4

5812 5812-D 3/8 3 1/4 3/4 15/16 1/4

5714 - 7/16 2 1/4 7/8 15/16 9/32

- 5814-D 7/16 3 1/4 7/8 15/16 9/32

5716 5716-D 1/2 2 1/4 1 1 11/32

- 5816-D 1/2 3 1/4 1 1 7/16

5718 - 9/16 2 1/4 1 1/8 1 1/8 7/16

5818 5818-D 9/16 3 1/4 1 1/8 1 1/8 7/16

5720 - 5/8 2 1/4 1 1/4 1 1/4 7/16

5820 5820-D 5/8 3 1/2 1 1/4 1 1/4 7/16

5822 5822-D 11/16 3 1/2 1 1/4 1 1/4 7/16

5724 5724-D 3/4 2 1/4 1 3/8 1 3/8 15/32

- 5826-D 13/16 3 1/2 1 1/2 1 1/2 17/32

5728 - 7/8 2 1/4 1 5/8 1 5/8 5/8

- 5828-D 7/8 3 1/2 1 5/8 1 5/8 5/8

5732 - 1 2 1/4 1 3/4 1 3/4 5/8

- 5830-D 15/16 3 1/2 1 5/8 1 5/8 5/8

5832 5832-D 1 3 1/2 1 3/4 1 3/4 5/8

- 5834-D 1 1/16 3 1/2 1 7/8 1 7/8 11/16

5836 5836-D 1 1/8 3 1/2 2 2 3/4

Single Square and Double Square, Long and Extra Long Length

inches

Refer to Page iv for description of Rapid Select.

113

Universal Wrenches 1/2” Square Drive, SAE

6 Point and Double Hex

Part Part Hex Overall Socket Socket Nose End

Clearance

Number Number Opening Length Length Diameter Diameter Depth

6 Point Double Hex In. (A) In. (B) In. (C) In. (D) In. (E) In.

SA-216 SA-216-D 3/8 2 11/64 7/8 7/8 9/16 11/32

SA-217 SA-217-D 7/16 2 15/64 15/16 7/8 5/8 13/32

SA-316 - 7/16 2 17/64 15/16 1 5/8 3/8

SA-218 SA-218-D 1/2 2 19/64 1 7/8 11/16 15/32

SA-317 - 1/2 2 31/64 1 1 11/16 7/16

SA-219 SA-219-D 9/16 2 23/64 1 1/16 7/8 3/4 17/32

SA-318 SA-318-D 9/16 2 29/64 1 1/8 1 3/4 9/16

SA-221 SA-221-D 5/8 2 27/64 1 1/8 7/8 7/8 19/32

SA-320 SA-320-D 5/8 2 33/64 1 3/16 1 27/32 5/8

SA-402 SA-402-D 5/8 2 49/64 1 1/4 1 1/4 7/8 33/64

SA-321 SA-321-D 11/16 2 37/64 1 1/4 1 1 11/16

SA-322 SA-322-D 3/4 2 37/64 1 1/4 1 1/8 1 1/8 11/16

SA-404 SA-404-D 3/4 2 57/64 1 3/8 1 1/4 1 1/32 5/8

SA-501 - 3/4 3 1/32 1 5/8 1 1/2 1 1/8 25/32

SA-406 - 13/16 2 57/64 1 3/8 1 1/4 1 1/8 41/64

SA-407 - 7/8 2 57/64 1 3/8 1 3/16 1 5/16 41/64

SA-409 SA-409-D 15/16 2 57/64 1 3/8 1 5/16 1 5/16 41/64

SA-505 - 15/16 3 5/32 1 3/4 1 1/2 1 3/8 29/32

SA-410 - 1 2 61/64 1 7/16 1 1/2 1 1/2 45/64

SA-411 - 1 1/16 3 1/64 1 1/2 1 1/2 1 1/2 49/64

SA-508 - 1 1/8 3 9/32 1 7/8 1 5/8 1 5/8 1 1/32

SA-510 - 1 1/4 3 13/32 2 1 3/4 1 3/4 1 5/32

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

1/2” Square Drive Universal Wrench Set, SAE

6 Point

APU56 6 piece, standard length: 7/16, 1/2, 9/16, 5/8, 11/16, 3/4

Refer to Page iv for description of Rapid Select.

114

Standard Type

Tension Type

Universal Wrenches 1/2” Square Drive,

SAE – Extension

6 Point, Standard and Tension Type

Part Part Hex Shank Socket Socket Nose End Opening

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension In. (A) In. (B) In. (C) In. (D) In. (E) In.

KH-43-3 - 3/8 3 13/16 5/8 17/32 7/16

KH-43-6 KN-43-6 3/8 6 13/16 5/8 17/32 7/16

KH-43-9 KN-43-9 3/8 9 13/16 5/8 17/32 7/16

KH-44-3 - 7/16 3 7/8 5/8 5/8 1/2

KH-44-4 KN-44-4 7/16 4 7/8 5/8 5/8 1/2

KH-44-6 KN-44-6 7/16 6 7/8 5/8 5/8 1/2

KH-44-9 - 7/16 9 7/8 5/8 5/8 1/2

- KN-44-12 7/16 12 7/8 5/8 5/8 1/2

KH-45-3 - 1/2 3 7/8 11/16 11/16 1/2

KH-45-4 - 1/2 4 7/8 11/16 11/16 1/2

KH-45-6 KN-45-6 1/2 6 7/8 11/16 11/16 1/2

- KN-45-9 1/2 9 7/8 11/16 11/16 1/2

KH-104-3 - 1/2 3 1 3/4 3/4 9/16

KH-104-4 - 1/2 4 1 3/4 3/4 9/16

KH-104-6 KN-104-6 1/2 6 1 3/4 3/4 9/16

KH-104-9 KN-104-9 1/2 9 1 3/4 3/4 9/16

KH-104-12 KN-104-12 1/2 12 1 3/4 3/4 9/16

KH-202-3 - 1/2 3 1 7/8 11/16 15/32

KH-202-6 KN-202-6 1/2 6 1 7/8 11/16 15/32

- KN-202-8 1/2 9 1 7/8 11/16 15/32

KH-202-12 KN-202-12 1/2 12 1 7/8 11/16 15/32

KH-105-3 - 9/16 3 1 13/16 13/16 9/16

KH-105-4 - 9/16 4 1 13/16 13/16 9/16

KH-105-6 KN-105-6 9/16 6 1 13/16 13/16 9/16

- KN-105-9 9/16 9 1 13/16 13/16 9/16

KH-105-12 KN-105-12 9/16 12 1 13/16 13/16 9/16

KH-203-3 - 9/16 3 1 1/16 7/8 3/4 17/32

KH-203-4 - 9/16 4 1 1/16 7/8 3/4 17/32

KH-203-6 KN-203-6 9/16 6 1 1/16 7/8 3/4 17/32

KH-203-9 KN-203-9 9/16 9 1 1/16 7/8 3/4 17/32

KH-203-12 KN-203-12 9/16 12 1 1/16 7/8 3/4 17/32

KH-318-3 KN-318-3 9/16 3 1 1/8 1 3/4 9/16

KH-318-4 KN-318-4 9/16 4 1 1/8 1 3/4 9/16

KH-318-6 KN-318-6 9/16 6 1 1/8 1 3/4 9/16

KH-318-9 - 9/16 9 1 1/8 1 3/4 9/16

KH-205-3 - 5/8 3 1 1/8 7/8 7/8 19/32

KH-205-4 - 5/8 4 1 1/8 7/8 7/8 19/32

KH-205-6 KN-205-6 5/8 6 1 1/8 7/8 7/8 19/32

KH-205-9 KN-205-9 5/8 9 1 1/8 7/8 7/8 19/32

KH-205-12 KN-205-12 5/8 12 1 1/8 7/8 7/8 19/32

KH-320-3 - 5/8 3 1 3/16 1 27/32 5/8

Universal wrenches

must not be used

with impact drivers.

Maximum operating

angle is 30°.

Refer to Page iv for description of Rapid Select.

115

Standard Type

Tension Type

Complete, Adapter Only, Insert Only

Part Number Overall Length

Adapter Insert Hex Length of Insert (A)

Complete Only Only Size In. mm In. mm

SZ-22 SC-514 SZ-14-A 1/4 2 1/2 64 1 3/8 35

SZ-23 SC-514 SZ-15-A 5/16 2 1/2 64 1 3/8 35

SZ-24 SC-514 SZ-16-A 3/8 2 1/2 64 1 3/8 35

SZ-25 SC-514 SZ-17-A 1/2 2 1/2 64 1 3/8 35

SZ-42 SC-520 SZ-31-A 1/2 2 1/2 64 1 9/16 35

SZ-43 SC-514 SZ-18-A 9/16 2 1/2 64 1 3/8 35

SZ-44 SC-529 SZ-32-A 9/16 2 1/2 64 1 9/16 35

SZ-26 SC-514 SZ-19-A 5/8 2 1/2 64 1 3/8 35

For a complete listing, see page 36.

Adapters with an “SC” prefix feature a set screw for locking in the bit.

An “RP” prefix indicates adapters with a roll pin that is inserted through the bit.

1/2” Square Drive Socket Head Bits, SAE

Universal Wrenches 1/2” Square Drive,

SAE – Extension

6 Point, Standard and Tension Type (continued)

Part Part Hex Shank Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension In. (A) In. (B) In. (C) In. (D) In. (E) In.

KH-320-6 KN-320-6 5/8 6 1 3/16 1 27/32 5/8

KH-320-9 KN-320-9 5/8 9 1 3/16 1 27/32 5/8

KH-320-12 KN-320-12 5/8 12 1 3/16 1 27/32 5/8

KH-321-3 - 11/16 3 1 1/4 1 1 11/16

KH-321-4 - 11/16 4 1 1/4 1 1 11/16

KH-321-6 KN-321-6 11/16 6 1 1/4 1 1 11/16

KH-321-9 KN-321-9 11/16 9 1 1/4 1 1 11/16

KH-321-12 - 11/16 12 1 1/4 1 1 11/16

KH-322-3 - 3/4 3 1 1/4 1 1/8 1 1/8 11/16

KH-322-4 - 3/4 4 1 1/4 1 1/8 1 1/8 11/16

KH-322-6 KN-322-6 3/4 6 1 1/4 1 1/8 1 1/8 11/16

KH-322-9 KN-322-9 3/4 9 1 1/4 1 1/8 1 1/8 11/16

KH-322-12 KN-322-12 3/4 12 1 1/4 1 1/8 1 1/8 11/16

KH-404-3 - 3/4 3 1 3/8 1 1/4 1 1/32 41/64

KH-404-4 - 3/4 4 1 3/8 1 1/4 1 1/32 41/64

KH-404-6 KN-404-6 3/4 6 1 3/8 1 1/4 1 1/32 41/64

KH-404-9 KN-404-9 3/4 9 1 3/8 1 1/4 1 1/32 41/64

KH-404-12 KN-404-12 3/4 12 1 3/8 1 1/4 1 1/32 41/64

KH-409-3 - 15/16 3 1 3/8 1 5/16 1 5/16 41/64

KH-409-4 - 15/16 4 1 3/8 1 5/16 1 5/16 41/64

KH-409-6 - 15/16 6 1 3/8 1 5/16 1 5/16 41/64

KH-409-9 - 15/16 9 1 3/8 1 5/16 1 5/16 41/64

KH-409-12 - 15/16 12 1 3/8 1 5/16 1 5/16 41/64

Universal wrenches

must not be used

with impact drivers.

Maximum operating

angle is 30°.

Refer to Page iv for description of Rapid Select.

116

6 Point and Double Hex, Standard Length

1/2” Square Drive Sockets, Metric

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex mm. (A) (B) (C) (D)

10mm15 10mm15-D 10 38.1 16.7 23.8 6.4

11mm15 11mm15-D 11 38.1 17.5 23.8 7.2

12mm15 12mm15-D 12 38.1 19.1 23.8 7.2

13mm15 13mm15-D 13 38.1 22.2 23.8 8.7

14mm15 14mm15-D 14 38.1 22.2 23.8 11.1

15mm15 15mm15-D 15 38.1 23.8 23.8 11.1

16mm15 16mm15-D 16 38.1 25.4 25.4 11.1

17mm15 17mm15-D 17 38.1 28.6 28.6 11.1

18mm15 18mm15-D 18 38.1 28.6 28.6 11.1

19mm15 19mm15-D 19 38.1 28.6 28.6 11.9

20mm15 20mm15-D 20 38.1 31.7 31.7 11.9

21mm15 21mm15-D 21 38.1 31.7 31.7 13.5

22mm15 22mm15-D 22 38.1 33.3 33.3 14.3

23mm15 23mm15-D 23 38.1 34.9 34.9 15.9

24mm15 24mm15-D 24 38.1 34.9 34.9 15.9

25mm15 25mm15-D 25 38.1 38.1 38.1 15.9

26mm15 26mm15-D 26 38.1 38.1 38.1 15.9

27mm15 27mm15-D 27 41.3 41.3 41.3 17.5

28mm15 28mm15-D 28 41.3 41.3 41.3 19.1

29mm15 29mm15-D 29 41.3 44.4 44.4 19.1

30mm15 30mm15-D 30 41.3 44.4 44.4 19.1

32mm15 32mm15-D 32 44.4 44.4 44.4 20.6

33mm15 - 33 44.4 47.6 47.6 20.6

34mm15 - 34 47.6 47.5 47.5 20.5

35mm15 - 35 47.6 50.8 50.8 20.6

36mm15 - 36 47.6 50.8 50.8 23.8

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex mm (A) (B) (C) (D)

10mm45 10mm45-D 10 38.1 15.9 23.8 6.4

11mm45 11mm45-D 11 38.1 16.7 23.8 7.2

12mm45 12mm45-D 12 38.1 17.5 23.8 7.2

13mm45 13mm45-D 13 38.1 18.7 23.8 8.7

14mm45 14mm45-D 14 38.1 20.6 23.8 11.1

15mm45 15mm45-D 15 38.1 22.2 23.8 11.1

16mm45 16mm45-D 16 38.1 22.2 23.8 11.1

17mm45 17mm45-D 17 38.1 23.8 23.8 11.1

18mm45 18mm45-D 18 38.1 25.4 25.4 11.1

19mm45 19mm45-D 19 38.1 26.3 26.3 11.9

20mm45 - 20 38.1 27.0 28.6 11.9

21mm45 21mm45-D 21 38.1 28.6 28.6 13.5

22mm45 22mm45-D 22 38.1 30.2 31.7 14.3

6 Point and Double Hex, Thin Wall, Standard Length

Refer to Page iv for description of Rapid Select.

117

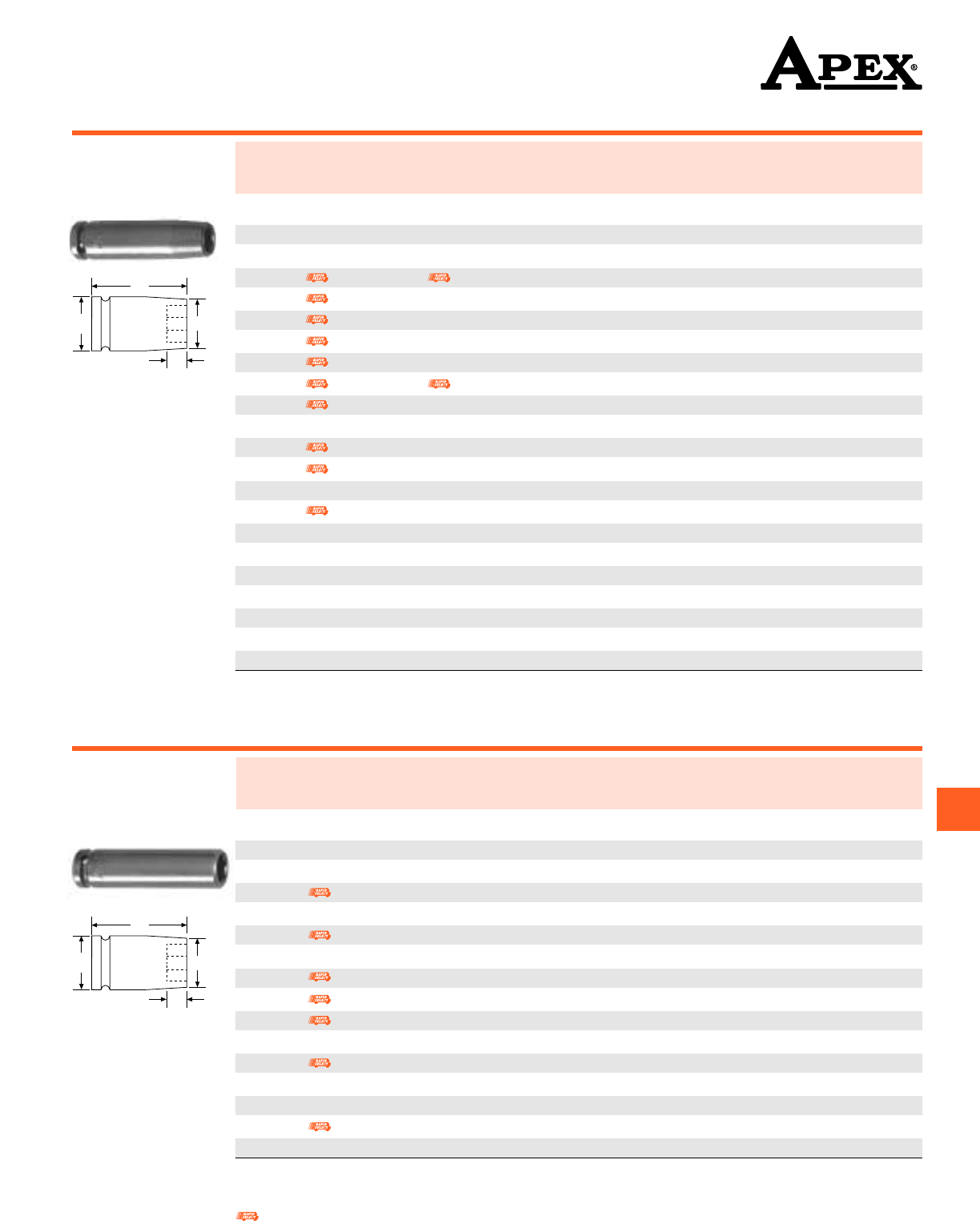

6 Point and Double Hex, Long Length

1/2” Square Drive Sockets, Metric

6 Point and Double Hex, Extra Long Length

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex mm (A) (B) (C) (D)

10mm25 10mm25-D 10 57.1 16.7 23.8 6.4

11mm25 11mm25-D 11 57.1 17.5 23.8 7.2

12mm25 12mm25-D 12 57.1 19.1 23.8 7.2

13mm25 13mm25-D 13 57.1 22.2 23.8 8.7

14mm25 - 14 57.1 22.2 23.8 11.1

15mm25 15mm25-D 15 57.1 23.8 23.8 11.1

16mm25 16mm25-D 16 57.1 25.4 25.4 11.1

17mm25 17mm25-D 17 57.1 28.6 28.6 11.1

18mm25 18mm25-D 18 57.1 28.6 28.6 11.1

19mm25 19mm25-D 19 57.1 28.6 28.6 11.9

20mm25 20mm25-D 20 57.1 31.7 31.7 11.9

21mm25 21mm25-D 21 57.1 31.7 31.7 13.5

22mm25 22mm25-D 22 57.1 33.3 33.3 14.3

23mm25 23mm25-D 23 57.1 34.9 34.9 15.9

24mm25 24mm25-D 24 57.1 34.9 34.9 15.9

25mm25 - 25 57.1 38.1 38.1 15.9

26mm25 - 26 57.1 38.1 38.1 15.9

27mm25 - 27 60.3 41.3 41.3 17.5

28mm25 - 28 60.3 41.3 41.3 19.1

29mm25 29mm25-D 29 60.3 44.4 44.4 19.1

30mm25 30mm25-D 30 60.3 44.4 44.4 19.1

32mm25 - 32 63.5 44.4 44.4 20.6

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex mm (A) (B) (C) (D)

10mm35 10mm35-D 10 82.5 16.7 23.8 6.4

11mm35 11mm35-D 11 82.5 17.5 23.8 7.2

12mm35 12mm35-D 12 82.5 19.1 23.8 7.2

13mm35 13mm35-D 13 82.5 22.2 23.8 8.7

14mm35 14mm35-D 14 82.5 22.2 23.8 11.1

15mm35 15mm35-D 15 82.5 23.8 23.8 11.1

16mm35 16mm35-D 16 82.5 25.4 25.4 11.1

17mm35 17mm35-D 17 82.5 28.6 28.6 11.1

18mm35 18mm35-D 18 82.5 28.6 28.6 11.1

19mm35 19mm35-D 19 82.5 28.6 28.6 11.9

20mm35 20mm35-D 20 88.9 31.7 31.7 11.9

21mm35 21mm35-D 21 88.9 31.7 31.7 13.5

22mm35 22mm35-D 22 88.9 33.3 33.3 14.3

23mm35 - 23 88.9 34.9 34.9 15.9

24mm35 24mm35-D 24 88.9 34.9 34.9 15.9

25mm35 - 25 88.9 38.1 38.1 15.9

Refer to Page iv for description of Rapid Select.

118

Magnetic, Standard Length

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex mm (A) (B) (C) (D)

10mm55 10mm55-D 10 82.5 15.9 23.8 6.4

11mm55 - 11 82.5 16.7 23.8 7.2

12mm55 12mm55-D 12 82.5 17.5 23.8 7.2

13mm55 13mm55-D 13 82.5 18.7 23.8 8.7

14mm55 14mm55-D 14 82.5 20.6 23.8 11.1

15mm55 15mm55-D 15 82.5 22.2 23.8 11.1

16mm55 16mm55-D 16 82.5 22.2 23.8 11.1

17mm55 17mm55-D 17 82.5 23.8 23.8 11.1

18mm55 18mm55-D 18 82.5 25.4 25.4 11.1

19mm55 19mm55-D 19 82.5 26.3 26.3 11.9

20mm55 - 20 82.5 28.6 28.6 11.9

21mm55 21mm55-D 21 88.9 28.6 28.6 13.5

22mm55 22mm55-D 22 88.9 30.2 31.7 14.3

23mm55 - 23 88.9 31.7 31.7 15.9

24mm55 24mm55-D 24 88.9 33.3 33.3 15.9

26mm55 - 26 88.9 34.9 34.9 15.9

27mm55 27mm55-D 27 88.9 36.5 38.1 17.5

28mm55 - 28 88.9 36.5 38.1 19.1

29mm55 - 29 88.9 38.1 38.1 19.1

30mm55 - 30 88.9 39.7 41.1 19.1

32mm55 - 32 88.9 42.9 42.9 20.6

6 Point and Double Hex, Thin Wall, Extra Long Length

1/2” Square Drive Sockets, Metric

Part Number Hex Overall Diameter Diameter Opening

Fixed Opening Length Nose End Drive End Depth

Magnet mm (A) (B) (C) (D)

M-10mm15 10 38.1 16.7 23.8 6.4

M-11mm15 11 38.1 17.5 23.8 7.2

M-12mm15 12 38.1 19.1 23.8 7.2

M-13mm15 13 38.1 22.2 23.8 8.7

M-14mm15 14 38.1 22.2 23.8 11.1

M-15mm15 15 38.1 23.8 23.8 11.1

M-16mm15 16 38.1 25.4 25.4 11.1

M-17mm15 17 38.1 28.6 28.6 11.1

M-18mm15 18 38.1 28.5 28.5 11.1

M-19mm15 19 38.1 28.6 28.6 11.9

M-21mm15 21 38.1 31.7 31.7 13.5

Refer to Page iv for description of Rapid Select.

119

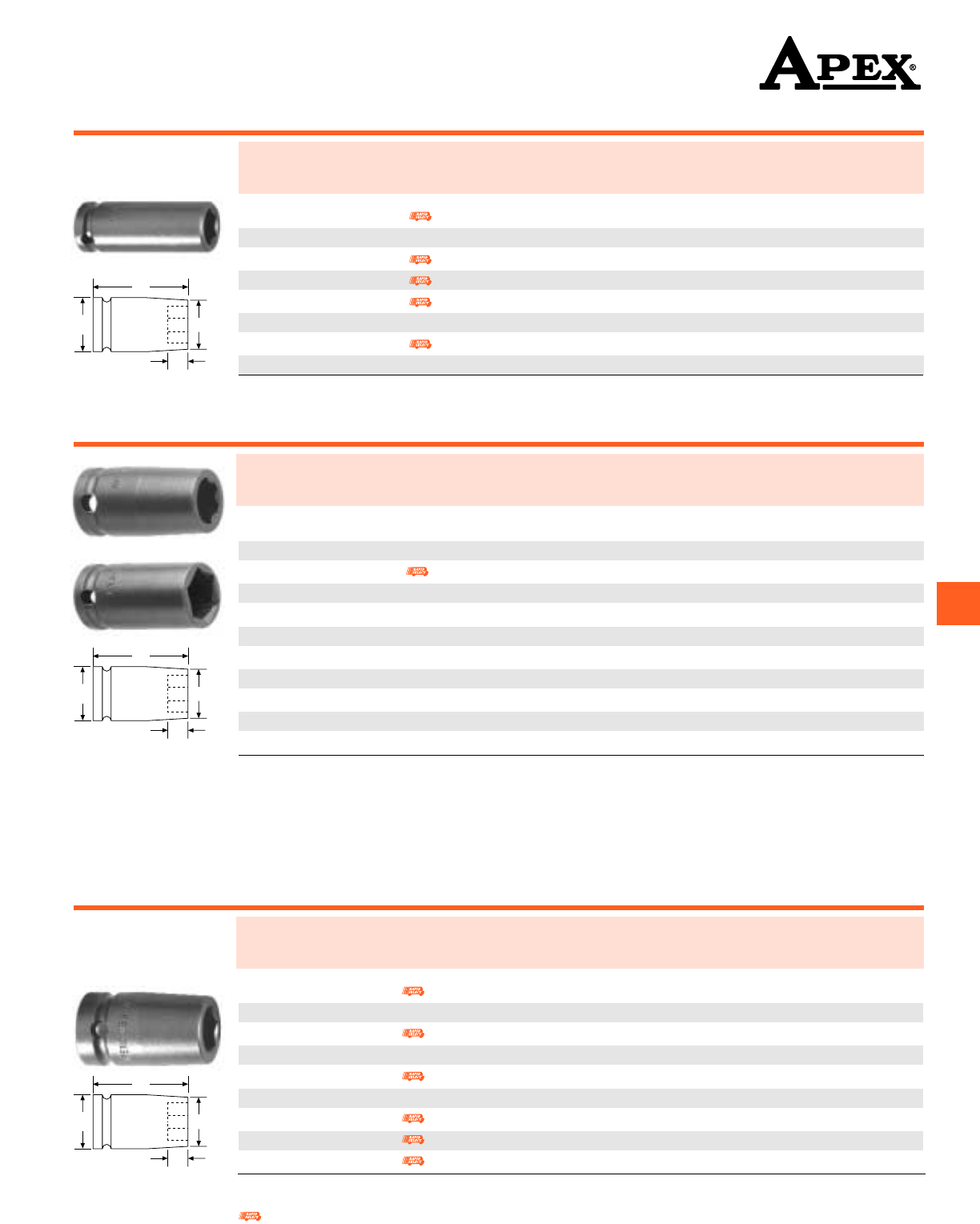

1/2” Square Drive Sockets, Metric

Magnetic, Long Length

Magnetic, Extra Long Length

Part No. Part No. Hex Overall Diameter Diameter Opening

Fixed Magnetic Opening Length Nose End Drive End Depth

Magnet Bolt Clearance mm (A) (B) (C) (D)

- MB-10mm25 10 57.1 16.7 23.8 6.4

- MB-12mm25 12 57.1 19.1 23.8 7.2

M-13mm25 MB-13mm25 13 57.1 22.2 23.8 8.7

- MB-14mm25 14 57.1 22.2 23.8 11.1

M-15mm25 MB-15mm25 15 57.1 23.8 23.8 11.1

- MB-16mm25 16 57.1 25.4 25.4 11.1

M-18mm25 MB-18mm25 18 57.1 28.6 28.5 11.1

Part No. Part No. Hex Overall Diameter Diameter Opening

Fixed Magnetic Bolt Opening Length Nose End Drive End Depth

Magnet Clearance mm (A) (B) (C) (D)

M-12mm35 - 12 82.5 19.1 23.8 7.2

M-13mm35 - 13 82.5 22.2 23.8 8.7

M-13mm55* - 13 82.5 18.7 23.8 8.7

M-15mm35 MB-15mm35 15 82.5 23.8 23.8 11.1

M-18mm35 MB-18mm35 18 82.5 28.6 28.6 11.1

M-18mm55* - 18 82.5 25.4 25.4 11.1

*Thin Wall

Magnetic, Thin Wall, Standard Length

Part Number Hex Overall Diameter Diameter Opening

Fixed Opening Length Nose End Drive End Depth

Magnet mm (A) (B) (C) (D)

M-10mm45 10 38.1 15.9 23.8 6.4

M-11mm45 11 38.1 16.7 23.8 7.2

M-12mm45 12 38.1 17.4 23.8 7.2

M-13mm45 13 38.1 18.7 23.8 8.7

M-14mm45 14 38.1 20.6 23.8 11.1

M-15mm45 15 38.1 22.2 23.8 11.1

M-16mm45 16 38.1 22.2 23.8 11.1

Refer to Page iv for description of Rapid Select.

120

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

Surface Drive mm (A) (B) (C) (D)

SF-10mm15 10 38.1 16.7 23.8 6.4

SF-11mm15 11 38.1 17.5 23.8 7.2

SF-12mm15 12 38.1 19.1 23.8 7.2

SF-13mm15 13 38.1 22.2 23.8 8.7

SF-14mm15 14 38.1 22.2 23.8 11.1

SF-15mm15 15 38.1 23.8 23.8 11.1

SF-16mm15 16 38.1 25.4 25.4 11.1

SF-17mm15 17 38.1 28.6 28.6 11.1

SF-18mm15 18 38.1 28.6 28.6 11.1

SF-19mm15 19 38.1 28.6 28.6 11.9

SF-20mm15 20 38.1 31.7 31.7 11.9

SF-21mm15 21 38.1 31.7 31.7 13.5

SF-22mm15 22 38.1 33.3 33.3 14.3

SF-23mm15 23 38.1 34.9 34.9 15.9

SF-24mm15 24 38.1 34.9 34.9 15.9

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

Surface Drive mm (A) (B) (C) (D)

SF-10mm45 10 38.1 15.9 23.8 6.4

SF-11mm45 11 38.1 16.7 23.8 7.2

SF-12mm45 12 38.1 17.5 23.8 7.2

SF-13mm45 13 38.1 18.7 23.8 8.7

SF-14mm45 14 38.1 20.6 23.8 11.1

SF-15mm45 15 38.1 22.2 23.8 11.1

SF-16mm45 16 38.1 22.2 23.8 11.1

SF-17mm45 17 38.1 23.8 23.8 11.1

SF-18mm45 18 38.1 25.4 25.4 11.1

SF-19mm45 19 38.1 26.3 26.3 11.9

SF-20mm45 20 38.1 27.0 28.6 11.9

SF-21mm45 21 38.1 28.6 28.6 11.9

SF-22mm45 22 38.1 30.2 31.7 11.9

Surface Drive, Standard Length

1/2” Square Drive Sockets, Metric

Surface Drive, Thin Wall, Standard Length

Refer to Page iv for description of Rapid Select.

121

Surface Drive, Long Length

Surface Drive, Extra Long Length

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

Surface Drive mm (A) (B) (C) (D)

SF-10mm25 10 57.1 16.7 23.8 6.4

SF-11mm25 11 57.1 17.5 23.8 7.2

SF-12mm25 12 57.1 19.1 23.8 7.2

SF-13mm25 13 57.1 22.2 23.8 7.2

SF-14mm25 14 57.1 22.2 23.8 11.1

SF-15mm25 15 57.1 23.8 23.8 11.1

SF-16mm25 16 57.1 25.4 25.4 11.1

SF-17mm25 17 57.1 28.6 28.6 11.1

SF-18mm25 18 57.1 28.6 28.6 11.1

SF-19mm25 19 57.1 28.6 28.6 11.9

SF-21mm25 21 57.1 31.7 31.7 13.5

SF-22mm25 22 57.1 33.3 33.3 14.3

SF-23mm25 23 57.1 34.9 34.9 15.9

SF-24mm25 24 57.1 34.9 34.9 15.9

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

Surface Drive mm (A) (B) (C) (D)

SF-10mm35 10 82.5 16.7 23.8 6.4

SF-12mm35 12 82.5 17.5 23.8 7.2

SF-13mm35 13 82.5 19.1 23.8 7.2

SF-14mm35 14 82.5 22.2 23.8 11.1

SF-15mm35 15 82.5 23.8 23.8 11.1

SF-16mm35 16 82.5 25.4 25.4 11.1

SF-17mm35 17 82.5 28.6 28.6 11.1

SF-18mm35 18 82.5 28.6 28.6 11.1

SF-19mm35 19 82.5 28.6 28.6 11.9

SF-21mm35 21 88.9 31.7 31.7 13.5

SF-22mm35 22 88.9 33.3 33.3 14.3

SF-23mm35 23 88.9 34.9 34.9 15.9

SF-24mm35 24 88.9 34.9 34.9 15.9

1/2” Square Drive Sockets, Metric

Refer to Page iv for description of Rapid Select.

122

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

Surface Drive mm (A) (B) (C) (D)

SF-10mm55 10 82.5 15.9 23.8 6.4

SF-11mm55 11 82.5 16.7 23.8 7.2

SF-12mm55 12 82.5 17.5 23.8 7.2

SF-13mm55 13 82.5 18.7 23.8 8.7

SF-14mm55 14 82.5 20.6 23.8 11.1

SF-15mm55 15 82.5 22.2 23.8 11.1

SF-16mm55 16 82.5 22.2 23.8 11.1

SF-17mm55 17 82.5 23.8 23.8 11.1

SF-18mm55 18 82.5 25.4 25.4 11.1

SF-19mm55 19 82.5 26.3 26.3 11.9

SF-21mm55 21 88.9 28.6 28.6 13.5

SF-22mm55 22 88.9 30.2 31.7 15.9

SF-24mm55 24 88.9 33.3 33.3 15.9

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Magnetic mm. (A) (B) (C) (D)

13mmE5 M-13mmE5 13 38.1 22.2 23.8 8.7

15mmE5 M-15mmE5 15 38.1 23.8 23.8 11.1

6 Point and 6 Point Magnetic, For Regular Screws

1/2” Square Drive Sockets

For Metric Sheet Metal Screws

Surface Drive, Thin Wall, Extra Long Length

1/2” Square Drive Sockets, Metric

6 Point

APS58M

8 piece, standard length: 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 21mm

APS511M

11 piece, standard length: 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 21mm

APS58XLM

8 piece, extra long length: 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 21mm

1/2” Square Drive Socket Sets, Metric

123

1/2” Square Drive

Universal Wrenches, Metric

6 Point

Part Hex Overall Socket Socket Nose End Clearance

Number Opening Length Length Diameter Diameter Depth

6 Point mm (A) mm (B) mm (C) mm (D) mm (E) mm

SA-57-13m 13 58 25.4 22.2 17.5 11.9

SA-57-14m 14 60 27.0 22.2 19.1 13.5

SA-58-15m 15 62 28.6 25.4 19.8 14.3

SA-58-16m 16 64 30.2 25.4 21.4 15.9

SA-58-17m 17 66 31.8 25.4 25.4 17.5

SA-58-18m 18 66 31.8 25.4 25.4 17.5

SA-510-19m 19 73 34.9 31.8 26.2 16.3

SA-510-20m 20 73 34.9 31.8 27.0 16.3

SA-510-21m 21 73 34.9 31.8 28.6 16.3

SA-510-22m 22 73 34.9 31.8 31.8 16.3

SA-510-23m 23 73 34.9 31.8 33.3 16.3

SA-510-24m 24 73 34.9 31.8 34.9 16.3

1/2” Square Drive Universal Wrenches,

Metric – Extension

6 Point, Standard and Tension Type

Part Part Hex Shank Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension mm (A) mm (B) mm (C) mm (D) mm (E) mm

KH-7-12m-3 - 12 76 23.8 22.2 17.5 10.3

KH-7-12m-4 - 12 102 23.8 22.2 17.5 10.3

KH-7-12m-6 KN-7-12m-6 12 152 23.8 22.2 17.5 10.3

KH-7-12m-9 KN-7-12m-9 12 229 23.8 22.2 17.5 10.3

KH-7-12m-12 - 12 305 23.8 22.2 17.5 10.3

KH-7-13m-3 - 13 76 25.4 22.2 17.5 11.9

KH-7-13m-4 - 13 102 25.4 22.2 17.5 11.9

KH-7-13m-6 KN-7-13m-6 13 152 25.4 22.2 17.5 11.9

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

Standard Type

Tension Type

1/2” Square Drive Universal Wrench Set, Metric

6 Point

APU56M 6 piece, standard length: 13mm, 14mm, 15mm, 16mm, 17mm, 18mm

Refer to Page iv for description of Rapid Select.

124

1/2” Square Drive Universal Wrenches,

Metric – Extension

6 Point, Standard and Tension Type (continued)

Part Part Hex Shank Socket Socket Nose End Clearance

Number Number Opening Length Length Diameter Diameter Depth

Standard Tension mm (A) mm (B) mm (C) mm (D) mm (E) mm

KH-7-13m-9 KN-7-13m-9 13 229 25.4 22.2 17.5 11.9

KH-7-13m-12 KN-7-13m-12 13 305 25.4 22.2 17.5 11.9

KH-7-14m-4 - 14 102 27.0 22.2 19.1 13.5

KH-7-14m-6 KN-7-14m-6 14 152 27.0 22.2 19.1 13.5

- KN-7-14m-9 14 229 27.0 22.2 19.1 13.5

KH-7-14m-12 - 14 305 27.0 22.2 19.1 13.5

KH-8-15m-3 - 15 76 28.6 25.4 19.8 14.3

KH-8-15m-4 - 15 102 28.6 25.4 19.8 14.3

KH-8-15m-6 KN-8-15m-6 15 152 28.6 25.4 19.8 14.3

KH-8-15m-9 KN-8-15m-9 15 229 28.6 25.4 19.8 14.3

KH-8-15m-12 KN-8-15m-12 15 305 28.6 25.4 19.8 14.3

KH-8-16m-3 - 16 76 30.2 25.4 21.4 15.9

KH-8-16m-4 - 16 102 30.2 25.4 21.4 15.9

KH-8-16m-6 KN-8-16m-6 16 152 30.2 25.4 21.4 15.9

KH-8-16m-9 KN-8-16m-9 16 229 30.2 25.4 21.4 15.9

KH-8-16m-12 KN-8-16m-12 16 305 30.2 25.4 21.4 15.9

KH-8-17m-3 - 17 76 31.8 25.4 25.4 17.5

KH-8-17m-4 - 17 102 31.8 25.4 25.4 17.5

KH-8-17m-6 KN-8-17m-6 17 152 31.8 25.4 25.4 17.5

KH-8-17m-9 KN-8-17m-9 17 229 31.8 25.4 25.4 17.5

KH-8-18m-3 - 18 76 31.8 25.4 25.4 17.5

KH-8-18m-4 - 18 102 31.8 25.4 25.4 17.5

KH-8-18m-6 KN-8-18m-6 18 152 31.8 25.4 25.4 17.5

KH-8-18m-9 KN-8-18m-9 18 229 31.8 25.4 25.4 17.5

- KN-8-18m-12 18 305 31.8 25.4 25.4 17.5

KH-10-19m-3 - 19 76 34.9 31.8 26.2 16.3

KH-10-19m-4 - 19 102 34.9 31.8 26.2 16.3

KH-10-19m-6 - 19 152 34.9 31.8 26.2 16.3

KH-10-19m-9 - 19 229 34.9 31.8 26.2 16.3

KH-10-19m-12 - 19 305 34.9 31.8 26.2 16.3

Complete, Adapter Only, Insert Only

Part Number Overall Length

Adapter Insert Hex Length of Insert (A)

Complete Only Only Size In. mm In. mm

SZ-5-7-8mm SC-514 SZ-7-8mm 8mm 2 1/2 64 1 3/8 35

SZ-5-7-10mm SC-514 SZ-7-10mm 10mm 2 1/2 64 1 3/8 35

SZ-5-7-12mm SC-514 SZ-7-12mm 12mm 2 1/2 64 1 3/8 35

SZ-5-7-14mm SC-514 SZ-7-14mm 14mm 2 1/2 64 1 3/8 35

SZ-5-10-14mm RP-520 SZ-10-14mm 14mm 2 1/2 64 1 9/16 40

SZ-5-10-17mm RP-520 SZ-10-17mm 17mm 2 1/2 64 1 9/16 40

For a complete listing, see page 38.

1/2” Square Drive Socket Head Bits, Metric

Universal wrenches

must not be used

with impact drivers.

Maximum operating

angle is 30°.

Standard Type

Tension Type

Refer to Page iv for description of Rapid Select.

125

Standard and Long Length

Overall Diameter Diameter

Part Spline Nominal Length (A) Nose End (B) Drive End (C)

Number Size Size In. mm In. mm In. mm

CMS-5416 16 1/2 1 1/4 32 23/32 18 7/8 22

CMS-5420 20 5/8 1 1/2 38 7/8 22 7/8 22

CMS-5422 22 11/16 1 1/2 38 31/32 25 31/32 25

CMS-5424 24 3/4 1 1/2 38 1 1/32 26 1 1/32 26

CMS-5426 26 13/16 1 1/2 38 1 1/8 29 1 1/8 29

CMS-5526 26 13/16 3 1/4 83 1 1/8 29 1 1/8 29

CMS-5428 28 7/8 1 1/2 38 1 3/16 30 1 3/16 30

CMS-5430 30 15/16 1 1/2 38 1 1/4 32 1 1/4 32

CMS-5530 30 15/16 3 1/4 83 1 1/4 32 1 1/4 32

Apex spline sockets conform to military specifications MS-37787 and MIL-W-8982C.

1/2” Square Drive Sockets For

Spline Fasteners

1/2” Square Drive Torx®Sockets

For External Torx Screws

Overall Diameter Diameter

Part Driver Length (A) Nose End (B) Drive End (C)

Number Size In. mm In. mm In. mm

TX-5110 E-10 1 1/2 38 9/16 13 1 25

TX-5112 E-12 1 1/2 38 5/8 16 1 25

TX-5114 E-14 1 1/2 38 11/16 18 1 25

TX-5116 E-16 1 1/2 38 13/16 21 1 25

TX-5118 E-18 1 1/2 38 7/8 22 1 25

TX-5120 E-20 1 1/2 38 1 25 1 3/16 30

TX-5124 E-24 1 1/2 38 1 5/16 33 1 5/16 33

Overall Diameter Diameter

Part Driver Length (A) Nose End (B) Drive End (C)

Number Size In. mm In. mm In. mm

TX-5408 E-8 1 1/2 38 3/8 10 7/8 22

TX-5410 E-10 1 1/2 38 1/2 13 7/8 22

TX-5412 E-12 1 1/2 38 9/16 14 7/8 22

TX-5414 E-14 1 1/2 38 5/8 16 7/8 22

TX-5416 E-16 1 1/2 38 7/8 22 7/8 22

TX-5418 E-18 1 1/2 38 15/16 24 15/16 24

TX-5420 E-20 1 1/2 38 1 1/16 27 1 1/16 27

For External Torx Screws, Thin Wall

Refer to Page iv for description of Rapid Select.

126

1 23/32” to 18” (44mm to 457mm) Length

Part Male Square Type of Overall Length

Number In. Lock In. mm

EX-504 1/2 Pin 1 23/32 44

EX-504-B 1/2 Ball 1 23/32 44

EX-508-2 1/2 Pin 2 51

EX-508-B-2 1/2 Ball 2 51

EX-508-3 1/2 Pin 3 76

EX-508-B-3 1/2 Ball 3 76

EX-508-4 1/2 Pin 4 102

EX-508-B-4 1/2 Ball 4 102

EX-508-5 1/2 Pin 5 127

EX-508-B-5 1/2 Ball 5 127

EX-508-6 1/2 Pin 6 152

EX-508-B-6 1/2 Ball 6 152

EX-508-8 1/2 Pin 8 203

EX-508-B-8 1/2 Ball 8 203

EX-508-9 1/2 Pin 9 229

EX-508-B-9 1/2 Ball 9 229

EX-508-10 1/2 Pin 10 254

EX-508-B-10 1/2 Ball 10 254

EX-508-12 1/2 Pin 12 305

EX-508-B-12 1/2 Ball 12 305

EX-508-15 1/2 Pin 15 381

EX-508-B-15 1/2 Ball 15 381

EX-508-16 1/2 Pin 16 406

EX-508-18 1/2 Pin 18 457

1/2” Square Drive Extensions

1/2” Square Drive Adapters

Part Male Female Type of Overall Length

Number Square In. Square In. Lock In. mm

EX-260 1/4 1/2 Pin 1 1/2 38

EX-260-B 1/4 1/2 Ball 1 1/2 38

EX-258-2 1/4 1/2 Pin 2 51

EX-258-B-2 1/4 1/2 Ball 2 51

EX-258-4 1/4 1/2 Pin 4 102

EX-258-6 1/4 1/2 Pin 6 152

EX-375 3/8 1/2 Pin 1 1/2 38

EX-375-B 3/8 1/2 Ball 1 1/2 38

EX-377-2 3/8 1/2 Pin 2 51

EX-377-B-2 3/8 1/2 Ball 2 51

EX-377-3 3/8 1/2 Pin 3 76

EX-377-B-3 3/8 1/2 Ball 3 76

EX-377-4 3/8 1/2 Pin 4 102

EX-377-B-4 3/8 1/2 Ball 4 102

(Continued on next page.)

1/4” to 3/8” Male Square

Refer to Page iv for description of Rapid Select.

127

1/2” Square Drive Adapters

Part Male Female Type of Overall Length

Number Square In. Square In. Lock In. mm

EX-377-5 3/8 1/2 Pin 5 127

EX-377-B-5 3/8 1/2 Ball 5 127

EX-377-6 3/8 1/2 Pin 6 152

EX-377-B-6 3/8 1/2 Ball 6 152

EX-377-8 3/8 1/2 Pin 8 203

EX-377-B-9 3/8 1/2 Ball 9 229

EX-377-10 3/8 1/2 Pin 10 254

EX-377-B-10 3/8 1/2 Ball 10 254

EX-377-12 3/8 1/2 Pin 12 305

EX-377-B-12 3/8 1/2 Ball 12 305

EX-377-15 3/8 1/2 Pin 15 381

EX-623 5/8 1/2 Pin 1 1/2 38

EX-623-B 5/8 1/2 Ball 1 1/2 38

EX-626-3 5/8 1/2 Pin 3 76

EX-626-4 5/8 1/2 Pin 4 102

EX-626-6 5/8 1/2 Pin 6 152

EX-751 3/4 1/2 7/32 Drill Hole 1 13/16 46

EX-751-B 3/4 1/2 Ball 1 13/16 46

3/8” to 3/4” Male Square (continued)

1/2” Square Drive Universal Adapters

3/8” to 3/4” Male Square

Part Male Female Type of Overall Length Largest Diameter

Number Square In. Square In. Lock In. mm in. mm

MF-39 3/8 1/2 Pin 2 9/16 65 7/8 22

MF-39B 3/8 1/2 Ball 2 9/16 65 7/8 22

MF-50 1/2 1/2 Pin 2 11/16 68 1 25

MF-50B 1/2 1/2 Ball 2 11/16 68 1 25

MF-55 1/2 1/2 Pin 3 1/16 78 1 1/4 32

MF-55B 1/2 1/2 Ball 3 1/16 78 1 1/4 32

MF-70 3/4 1/2 7/32 Drill Hole 3 5/8 92 1 1/2 38

MF-70B 3/4 1/2 Ball 3 5/8 92 1 1/2 38

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

1/2” Square Drive Universal Adapters – Extension

1/2” Male Square

Part Number Male Female Type of Largest Diameter

Standard Tension Sq. In. Sq. In. Lock In. mm

KHM-37-6 KNM-37-6 3/8 1/2 Pin 3/4 19

KHM-38-6 KNM-38-6 3/8 1/2 Pin 7/8 22

KHM-50-6 KNM-50-6 1/2 1/2 Pin 1 25

KHM-50-B-6 KNM-50-B-6 1/2 1/2 Ball 1 25

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

Standard lengths are 3”, 6”, 9” and 12” (76, 152, 229 and 305mm)

(Standard Type Shown)

Refer to Page iv for description of Rapid Select.

128

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

6116 6116-D 1/2 1 7/8 13/16 1 1/4 11/32

6118 6118-D 9/16 1 7/8 7/8 1 1/4 7/16

6120 6120-D 5/8 1 7/8 1 1 1/4 7/16

6122 6122-D 11/16 1 7/8 1 1/8 1 1/4 7/16

6124 6124-D 3/4 1 7/8 1 1/4 1 1/4 15/32

6126 - 13/16 1 7/8 1 1/4 1 1/4 17/32

6128 - 7/8 1 7/8 1 3/8 1 3/8 9/16

6130 6130-D 15/16 2 1 1/2 1 1/2 5/8

6132 - 1 2 1 5/8 1 5/8 5/8

6134 - 1 1/16 2 1 5/8 1 5/8 11/16

6136 - 1 1/8 2 1 5/8 1 5/8 3/4

6138 - 1 3/16 2 1 3/4 1 3/4 3/4

6140 - 1 1/4 2 1 7/8 1 7/8 13/16

6142 - 1 5/16 2 2 2 13/16

6144 - 1 3/8 2 1/8 2 2 13/16

6146 - 1 7/16 2 1/8 2 1/8 2 1/8 15/16

6148 - 1 1/2 2 1/4 2 1/8 2 1/8 1

6 Point and Double Hex, Standard Length

5/8” Square Drive Sockets, SAE

6 Point and Double Hex, Thin Wall Standard Length

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

6414 6414-D 7/16 1 7/8 11/16 1 1/4 9/32

6418 - 9/16 1 7/8 7/8 1 1/4 7/16

6420 6420-D 5/8 1 7/8 15/16 1 1/4 7/16

6424 6424-D 3/4 1 7/8 1 1/16 1 1/4 15/32

6426 - 13/16 1 7/8 1 1/8 1 1/4 17/32

6428 6428-D 7/8 1 7/8 1 3/16 1 1/4 9/16

6430 6430-D 15/16 2 1 5/16 1 5/16 5/8

6432 - 1 2 1 3/8 1 3/8 5/8

6434 - 1 1/16 2 1 1/2 1 1/2 11/16

6436 - 1 1/8 2 1 1/2 1 1/2 3/4

6440 - 1 1/4 2 1 3/4 1 3/4 13/16

6444 - 1 3/8 2 1/8 1 7/8 1 7/8 13/16

inches

Refer to Page iv for description of Rapid Select.

129

6 Point and Double Hex, Extra Long Length

5/8” Square Drive Sockets, SAE

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

6320 - 5/8 3 1/2 1 1 1/4 7/16

6322 6322-D 11/16 3 1/2 1 1/8 1 1/4 7/16

6324 6324-D 3/4 3 1/2 1 1/4 1 1/4 15/32

6326 6326-D 13/16 3 1/2 1 1/4 1 1/4 17/32

6328 - 7/8 3 1/2 1 3/8 1 3/8 9/16

6330 6330-D 15/16 3 1/2 1 1/2 1 1/2 5/8

6332 6332-D 1 3 1/2 1 5/8 1 5/8 5/8

6334 6334-D 1 1/16 3 1/2 1 5/8 1 5/8 11/16

6336 6336-D 1 1/8 3 1/2 1 5/8 1 5/8 3/4

6338 - 1 3/16 3 1/2 1 3/4 1 3/4 3/4

6340 6340-D 1 1/4 3 1/2 1 7/8 1 7/8 13/16

6342 - 1 5/16 3 1/2 2 2 13/16

6344 6344-D 1 3/8 3 1/2 2 2 13/16

6346 6346-D 1 7/16 3 1/2 2 1/8 2 1/8 15/16

6348 - 1 1/2 3 1/2 2 1/8 2 1/8 1

6352 6352-D 1 5/8 3 3/4 2 1/4 2 1/4 1 1/8

6 Point and Double Hex, Thin Wall, Extra Long Length

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

6520 6520-D 5/8 3 1/2 15/16 1 1/4 7/16

6522 6522-D 11/16 3 1/2 1 1 1/4 7/16

6524 6524-D 3/4 3 1/2 1 1/16 1 1/4 15/32

6526 - 13/16 3 1/2 1 1/8 1 1/4 17/32

6528 6528-D 7/8 3 1/2 1 3/16 1 1/4 9/16

6530 6530-D 15/16 3 1/2 1 5/16 1 5/16 5/8

Surface Drive and Fast Lead, Standard Length

Part No. Part Hex Overall Diameter Diameter Opening

Surface Number Opening Length Nose End Drive End Depth

Drive Fast Lead In. (A) (B) (C) (D)

SF-6118 - 9/16 1 7/8 7/8 1 1/4 7/16

SF-6418* - 9/16 1 7/8 7/8 1 1/4 7/16

SF-6120 FL-6120 5/8 1 7/8 1 1 1/4 7/16

SF-6122 - 11/16 1 7/8 1 1/8 1 1/4 7/16

SF-6124 FL-6124 3/4 1 7/8 1 1/4 1 1/4 15/32

SF-6424* - 3/4 1 7/8 1 1/16 1 1/4 15/32

SF-6126 - 13/16 1 7/8 1 1/4 1 1/4 17/32

SF-6128 FL-6128 7/8 1 7/8 1 3/8 1 3/8 9/16

SF-6130 - 15/16 2 1 1/2 1 1/2 5/8

- FL-6132 1 2 1 5/8 1 5/8 5/8

*Thin Wall

inches

Refer to Page iv for description of Rapid Select.

130

Part No. Part Hex Overall Diameter Diameter Opening

Surface Number Opening Length Nose End Drive End Depth

Drive Fast Lead In. (A) (B) (C) (D)

SF-6320 FL-6320 5/8 3 1/2 1 1 1/4 7/16

SF-6520* - 5/8 3 1/2 15/16 1 1/4 7/16

SF-6522* - 11/16 3 1/2 1 1 1/4 7/16

SF-6324 FL-6324 3/4 3 1/2 1 1/4 1 1/4 15/32

SF-6524* - 3/4 3 1/2 1 1/16 1 1/4 15/32

SF-6326 FL-6326 13/16 3 1/2 1 1/4 1 1/4 17/32

SF-6526* - 13/16 3 1/2 1 1/8 1 1/4 17/32

SF-6328 FL-6328 7/8 3 1/2 1 3/8 1 3/8 9/16

SF-6330 FL-6330 15/16 3 1/2 1 1/2 1 1/2 5/8

*Thin Wall

5/8” Square Drive Sockets, SAE

Surface Drive and Fast Lead, Extra Long Length

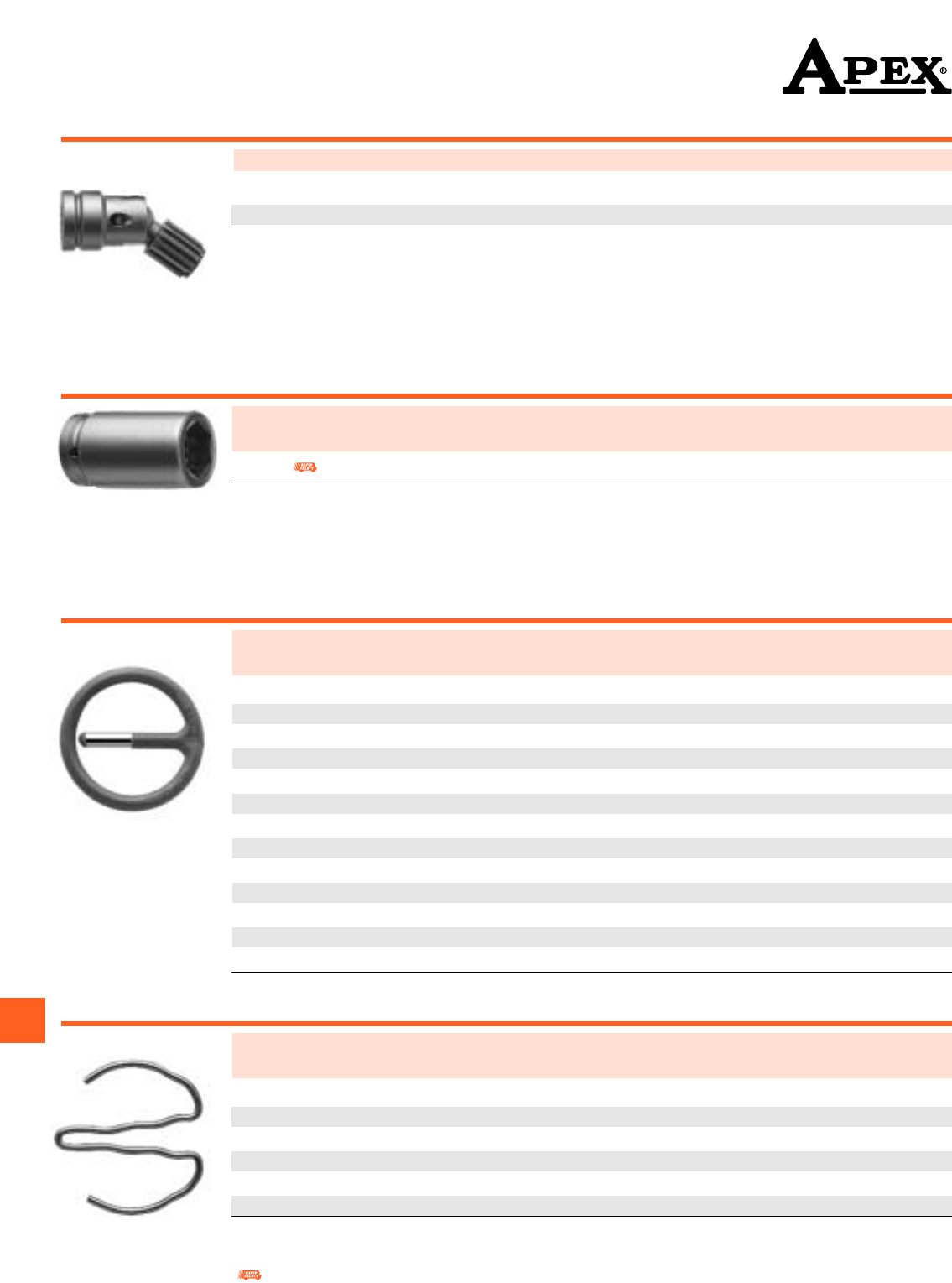

5/8” Square Drive Universal Wrenches, SAE

Part Hex Overall Socket Socket Nose End Clearance

Number Opening Length Length Diameter Diameter Depth

6 Point In. (A) In. (B) In. (C) In. (D) In. (E) In.

SA-430 9/16 2 59/64 1 1/4 1 1/4 2 5/32 33/64

SA-432 5/8 2 59/64 1 1/4 1 1/4 7/8 33/64

SA-434 3/4 3 3/64 1 3/8 1 1/4 1 1/32 41/64

SA-436 13/16 3 3/64 1 3/8 1 1/4 1 1/8 41/64

SA-563 7/8 3 1/8 1 3/4 1 1/2 1 5/16 29/32

SA-439 15/16 3 3/64 1 3/8 1 5/16 1 5/16 41/64

SA-565 15/16 3 1/8 1 3/4 1 1/2 1 3/8 29/32

SA-568 1 1/8 3 1/4 1 7/8 1 5/8 1 5/8 1 1/32

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

6 Point

Combo. 13/16” Square 1 1/2” Hex

Part Overall Length

Number Drive In. mm

BW-648 5/8” Square 3 76

Budd Wheel Socket

inches

Refer to Page iv for description of Rapid Select.

131

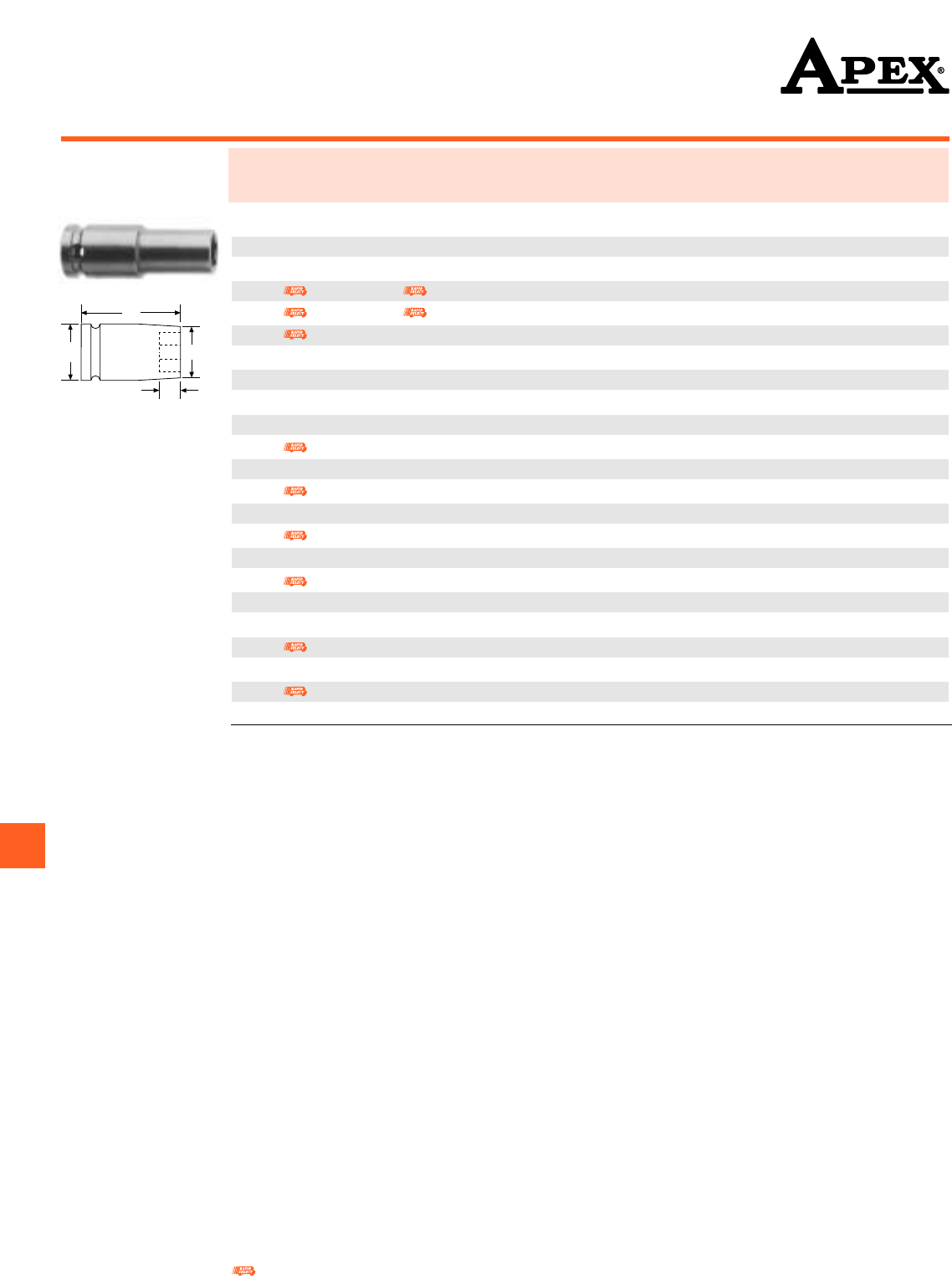

Part Part No. Hex Overall Diameter Diameter Opening

Number Surface Opening Length Nose End Drive End Depth

6 Point Drive mm (A) (B) (C) (D)

15mm36 SF-15mm36 15 89 23.8 31.8 11.1

17mm36 - 17 89 25.4 31.8 11.1

18mm36 SF-18mm36 18 89 28.6 31.8 11.1

19mm36 SF-19mm36 19 89 31.8 31.8 11.9

21mm36 SF-21mm36 21 89 31.8 31.8 13.5

22mm36 SF-22mm36 22 89 34.9 34.9 14.3

23mm36 - 23 89 34.9 34.9 15.9

24mm36 SF-24mm36 24 89 38.1 38.1 15.9

6 Point and Surface Drive, Standard Length

5/8” Square Drive Sockets, Metric

Part Part No. Hex Overall Diameter Diameter Opening

Number Surface Opening Length Nose End Drive End Depth

6 Point Drive mm (A) (B) (C) (D)

15mm16 SF-15mm16 15 48 23.8 31.8 11.1

16mm16 SF-16mm16 16 48 25.4 31.8 11.1

17mm16 SF-17mm16 17 48 28.6 31.8 11.1

18mm16 SF-18mm16 18 48 28.5 31.8 11.1

19mm16 SF-19mm16 19 48 31.8 31.8 11.9

20mm16 - 20 48 31.8 31.8 11.9

21mm16 SF-21mm16 21 48 31.8 31.8 13.5

22mm16 SF-22mm16 22 48 34.9 34.9 14.3

23mm16 - 23 48 34.9 34.9 15.9

24mm16 SF-24mm16 24 51 38.1 38.1 15.9

6 Point and Surface Drive, Extra Long Length

1 7/8” to 15” (48mm to 381mm) Length

Part Male Square Type of Overall Length

Number In. Lock In. mm

EX-624 5/8 Pin 1 7/8 48

EX-624-B 5/8 Ball 1 7/8 48

EX-627-3 5/8 Pin 3 76

EX-627-4 5/8 Pin 4 102

EX-627-6 5/8 Pin 6 152

EX-627-8 5/8 Pin 8 203

EX-627-10 5/8 Pin 10 254

EX-627-12 5/8 Pin 12 305

EX-627-15 5/8 Pin 15 381

5/8” Square Drive Extensions

Refer to Page iv for description of Rapid Select.

132

Part Male Female Type of Overall Length

Number Square In. Square In. Lock In. mm

EX-505 1/2 5/8 Pin 1 7/8 48

EX-505-B 1/2 5/8 Ball 1 7/8 48

EX-509-3 1/2 5/8 Pin 3 76

EX-509-4 1/2 5/8 Pin 4 102

EX-509-5 1/2 5/8 Pin 5 127

EX-509-6 1/2 5/8 Pin 6 152

EX-509-10 1/2 5/8 Pin 10 254

EX-509-12 1/2 5/8 Pin 12 305

EX-752 3/4 5/8 7/32 Drill Hole 1 7/8 48

EX-752-B 3/4 5/8 Ball 1 7/8 48

Part Male Female Type of Overall Length Largest Diameter

Number Square In. Square In. Lock In. mm in. mm

MF-51 1/2 5/8 Pin 3 5/16 84 1 1/4 32

MF-51B 1/2 5/8 Ball 3 5/16 84 1 1/4 32

MF-62 5/8 5/8 Pin 3 1/4 83 1 1/4 32

MF-62B 5/8 5/8 Ball 3 1/4 83 1 1/4 32

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

1/2” to 3/4” Male Square

5/8” Square Drive Adapters

5/8” Square Drive Universal Adapters

1/2” to 5/8” Male Square

133

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

7116 - 1/2 2 13/16 1 1/2 11/32

7118 - 9/16 2 7/8 1 1/2 7/16

7120 7120-D 5/8 2 1 1/16 1 1/2 7/16

7122 7122-D 11/16 2 1 1/8 1 1/2 7/16

7124 7124-D 3/4 2 1 1/4 1 1/2 15/32

7126 7126-D 13/16 2 1 3/8 1 1/2 17/32

7128 7128-D 7/8 2 1 1/2 1 1/2 9/16

7130 7130-D 15/16 2 1 1/2 1 1/2 5/8

7132 7132-D 1 2 1 5/8 1 5/8 5/8

7134 7134-D 1 1/16 2 1 3/4 1 3/4 11/16

7136 7136-D 1 1/8 2 1/8 1 3/4 1 3/4 3/4

7138 7138-D 1 3/16 2 1/8 1 7/8 1 3/4 3/4

7140 7140-D 1 1/4 2 1/8 2 1 3/4 13/16

7142 7142-D 1 5/16 2 1/8 2 1 3/4 13/16

7144 7144-D 1 3/8 2 1/8 2 1/8 2 1/8 13/16

7146 - 1 7/16 2 1/4 2 1/4 2 1/8 15/16

7148 7148-D 1 1/2 2 1/4 2 1/4 2 1/8 1

7150 7150-D 1 9/16 2 1/4 2 3/8 2 1/8 1

7152 7152-D 1 5/8 2 1/4 2 1/2 2 1/8 1 1/8

7154 7154-D 1 11/16 2 1/4 2 1/2 2 1/8 1 1/8

7156 7156-D 1 3/4 2 1/4 2 5/8 2 1/8 1 1/8

7158 7158-D 1 13/16 2 1/4 2 3/4 2 1/8 1 1/4

7160 7160-D 1 7/8 2 1/4 2 3/4 2 1/8 1 1/4

7162 - 1 15/16 2 1/4 2 7/8 2 1/8 1 1/4

7164 7164-D 2 2 3/8 2 7/8 2 1/8 1 3/8

7166 7166-D 2 1/16 2 3/8 3 2 1/8 1 3/8

7168 7168-D 2 1/8 2 3/8 3 1/8 2 1/8 1 3/8

7170 7170-D 2 3/16 2 1/2 3 1/8 2 1/8 1 1/2

7172 7172-D 2 1/4 2 1/2 3 1/4 2 1/8 1 1/2

7174 - 2 5/16 2 1/2 3 3/8 2 1/8 1 1/2

7176 7176-D 2 3/8 2 5/8 3 1/2 2 1/8 1 5/8

7178 - 2 7/16 2 5/8 3 1/2 2 1/8 1 5/8

7180 7180-D 2 1/2 2 5/8 3 1/2 2 1/8 1 5/8

6 Point and Double Hex, Standard Length

3/4” Square Drive Sockets, SAE

inches

Refer to Page iv for description of Rapid Select.

134

6 Point and Double Hex, Thin Wall, Standard Length

3/4” Square Drive Sockets, SAE

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

7424 7424-D 3/4 2 1 1/8 1 3/8 15/32

7426 - 13/16 2 1 1/4 1 3/8 17/32

7428 7428-D 7/8 2 1 5/16 1 3/8 9/16

7430 7430-D 15/16 2 1 3/8 1 3/8 5/8

7432 7432-D 1 2 1 7/16 1 7/16 5/8

7434 7434-D 1 1/16 2 1 1/2 1 1/2 11/16

7436 7436-D 1 1/8 2 1/8 1 5/8 1 5/8 3/4

7438 7438-D 1 3/16 2 1/8 1 5/8 1 5/8 3/4

7440 7440-D 1 1/4 2 1/8 1 3/4 1 3/4 13/16

7442 7442-D 1 5/16 2 1/8 1 7/8 1 3/4 13/16

7444 - 1 3/8 2 1/8 2 1 3/4 13/16

7446 - 1 7/16 2 1/4 2 1 3/4 15/16

7448 7448-D 1 1/2 2 1/4 2 1/8 2 1/8 1

7450 - 1 9/16 2 1/4 2 3/16 2 1/8 1 1/8

7452 - 1 5/8 2 1/4 2 1/4 2 1/8 1 1/8

7454 - 1 11/16 2 1/4 2 3/8 2 1/8 1 1/8

7456 - 1 3/4 2 1/4 2 7/16 2 1/8 1 1/8

7458 - 1 13/16 2 1/4 2 1/2 2 1/8 1 1/4

7460 - 1 7/8 2 1/4 2 5/8 2 1/8 1 1/4

7464 - 2 2 3/8 2 3/4 2 1/8 1 3/8

7466 - 2 1/16 2 3/8 2 13/16 2 5/8 1 3/8

7470 - 2 3/16 2 3/8 3 2 5/8 1 3/8

7472 - 2 1/4 2 3/8 3 2 5/8 1 3/8

inches

Refer to Page iv for description of Rapid Select.

135

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

7320 - 5/8 4 1 1/16 1 1/2 7/16

7322 7322-D 11/16 4 1 1/8 1 1/2 7/16

7324SKT 7324-D 3/4 4 1 1/4 1 1/2 15/32

7326 - 13/16 4 1 3/8 1 1/2 17/32

7328 7328-D 7/8 4 1 7/16 1 1/2 9/16

7330 7330-D 15/16 4 1 1/2 1 1/2 5/8

7332 7332-D 1 4 1 1/2 1 1/2 5/8

7334 7334-D 1 1/16 4 1 5/8 1 5/8 11/16

7336 7336-D 1 1/8 4 1 3/4 1 3/4 3/4

7338 7338-D 1 3/16 4 1 3/4 1 3/4 3/4

7340 - 1 1/4 4 1 7/8 1 3/4 13/16

7342 - 1 5/16 4 2 1 3/4 13/16

7344 - 1 3/8 4 2 1/8 2 1/8 13/16

7346 - 1 7/16 4 2 1/8 2 1/8 15/16

7348 - 1 1/2 4 2 1/4 2 1/8 1

7350 - 1 9/16 4 2 3/8 2 1/8 1

7352 - 1 5/8 4 2 1/2 2 1/8 1 1/8

7354 - 1 11/16 4 2 1/2 2 1/8 1 1/8

7356 - 1 3/4 4 2 5/8 2 1/8 1 1/8

7358 - 1 13/16 4 2 3/4 2 1/8 1 1/4

7360 - 1 7/8 4 2 3/4 2 1/8 1 1/4

7362 - 1 15/16 4 2 3/4 2 1/8 1 1/4

7364 - 2 4 1/8 2 7/8 2 1/8 1 3/8

7372 - 2 1/4 4 1/4 3 1/4 2 1/8 1 1/2

7376 - 2 3/8 4 1/4 3 3/8 2 1/8 1 5/8

6 Point and Double Hex, Extra Long Length

3/4” Square Drive Sockets, SAE

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

7524 - 3/4 4 1 1/8 1 3/8 15/32

7526 - 13/16 4 1 1/4 1 3/8 17/32

7528 - 7/8 4 1 3/8 1 3/8 9/16

7530 7530-D 15/16 4 1 3/8 1 3/8 5/8

7532 7532-D 1 4 1 7/16 1 7/16 5/8

7534 7534-D 1 1/16 4 1 1/2 1 1/2 11/16

7536 7536-D 1 1/8 4 1 5/8 1 5/8 3/4

7538 - 1 3/16 4 1 11/16 1 11/16 3/4

7540 - 1 1/4 4 1 3/4 1 3/4 13/16

7542 - 1 5/16 4 1 7/8 1 3/4 13/16

7544 - 1 3/8 4 2 1 3/4 13/16

7546 - 1 7/16 4 2 1 3/4 15/16

7548 - 1 1/2 4 2 1/8 2 1/8 1

7552 - 1 5/8 4 2 1/4 2 1/8 1 1/8

7556 - 1 3/4 4 2 1/2 2 1/8 1 1/8

7564 - 2 4 1/8 2 3/4 2 1/8 1 3/8

6 Point and Double Hex, Thin Wall, Extra Long Length

inches

Refer to Page iv for description of Rapid Select.

136

3/4” Square Drive Sockets For

SAE Square Nuts

Part No. Part No. Square Overall Diameter Diameter Opening

Single Double Opening Length Nose End Drive End Depth

Square Square In. (A) (B) (C) (D)

7620 - 5/8 2 1 1/4 1 1/2 7/16

7622 - 11/16 2 1 3/8 1 1/2 7/16

7624 7624-D 3/4 2 1 1/2 1 1/2 15/32

7626 7626-D 13/16 2 1 5/8 1 5/8 17/32

7628 7628-D 7/8 2 1 3/4 1 3/4 5/8

7630 7630-D 15/16 2 1/8 1 7/8 1 3/4 5/8

7632 7632-D 1 2 1/8 2 1 3/4 5/8

- 7634-D 1 1/16 2 1/8 2 1 3/4 11/16

7636 7636-D 1 1/8 2 1/8 2 1/8 2 1/8 3/4

- 7638-D 1 3/16 2 1/8 2 1/4 2 1/8 5/8

- 7640-D 1 1/4 2 1/8 2 1/4 2 1/8 5/8

- 7642-D 1 5/16 2 1/8 2 1/2 2 1/8 5/8

Single Square and Double Square, Standard Length

3/4” Square Drive Universal Wrenches, SAE

6 Point

Part Hex Overall Socket Socket Nose End Clearance

Number Opening Length Length Diameter Diameter Depth

6 Point In. (A) In. (B) In. (C) In. (D) In. (E) In.

SA-535 15/16 3 25/32 1 3/4 1 1/2 1 3/8 29/32

SA-601 15/16 4 1/32 1 15/16 1 3/4 1 1/2 29/32

SA-537 1 1/16 3 29/32 1 7/8 1 5/8 1 5/8 1 1/32

SA-603 1 1/16 4 3/32 2 1 3/4 1 5/8 31/32

SA-743 1 1/16 3 31/32 2 2 1 11/16 1 3/16

SA-538 1 1/8 3 29/32 1 7/8 1 5/8 1 5/8 1 1/32

SA-604 1 1/8 4 5/32 2 1/16 1 3/4 1 3/4 1 1/32

SA-606 1 1/4 4 7/32 2 1/8 1 7/8 1 7/8 1 3/32

SA-607 1 5/16 4 7/32 2 1/8 1 7/8 1 7/8 1 3/32

SA-609 1 7/16 4 11/32 2 1/4 2 1/8 2 1/8 1 5/32

SA-610 1 1/2 4 11/32 2 1/4 2 1/4 2 1/4 1 5/32

SA-712 1 5/8 4 11/32 2 3/8 2 3/8 2 3/8 1 3/16

SA-716 1 7/8 4 11/32 2 3/8 2 5/8 2 5/8 1 3/16

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

13/16” Square and Combo. 13/16” Square – 1 1/2” Hex

Part Overall Length

Number Drive In. mm

BW-7626 3/4” Square 2 51 13/16” Square

BW-748 3/4” Square 3 3/8 86 Combo. 13/16 Square – 1 1/2” Hex

3/4” Square Drive Budd Wheel Sockets

inches

Refer to Page iv for description of Rapid Select.

137

3/4” Square Drive Sockets, Metric

6 Point, Standard Length

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

6 Point mm (A) (B) (C) (D)

17mm17 17 51 31.8 38.1 11.2

18mm17 18 51 31.8 38.1 11.2

19mm17 19 51 31.8 38.1 11.9

20mm17 20 51 33.3 38.1 11.9

21mm17 21 51 34.9 38.1 13.5

22mm17 22 51 38.1 38.1 14.3

22mm47* 22 51 33.3 34.9 14.3

23mm17 23 51 38.1 38.1 15.9

24mm17 24 51 38.1 38.1 15.9

24mm47* 24 51 34.9 34.9 15.9

25mm17 25 51 41.3 41.3 15.9

26mm17 26 51 41.3 41.3 15.9

27mm17 27 51 44.4 44.4 17.5

27mm47* 27 51 38.1 38.1 17.5

28mm17 28 54 44.4 44.4 19.1

29mm17 29 54 47.6 44.4 19.1

30mm17 30 54 47.6 44.4 19.1

30mm47* 30 54 41.3 41.3 19.1

32mm17 32 54 50.8 44.4 20.6

32mm47* 32 54 44.4 44.4 20.6

33mm17 33 54 50.8 44.4 20.6

34mm17 34 54 54.0 54.0 20.6

35mm17 35 54 54.0 54.0 20.6

36mm17 36 57 57.1 54.0 23.8

37mm17 37 57 57.1 54.0 23.8

38mm17 38 57 57.1 54.0 25.4

41mm17 41 57 63.5 54.0 31.8

46mm17 46 57 69.9 54.0 31.8

*Thin Wall

3/4” Square Drive Sockets, Metric

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

6 Point mm (A) (B) (C) (D)

21mm37 21 102 34.9 38.1 13.5

21mm57* 21 102 34.9 34.9 13.5

22mm37 22 102 36.5 38.1 14.3

22mm57* 22 102 34.9 34.9 14.3

23mm37 23 102 38.1 38.1 15.9

24mm37 24 102 38.1 38.1 15.9

24mm57* 24 102 34.9 34.9 15.9

25mm37 25 102 38.1 38.1 15.9

26mm37 26 102 41.3 41.3 15.9

27mm37 27 102 41.3 41.3 17.5

*Thin Wall

6 Point , Extra Long Length

Refer to Page iv for description of Rapid Select.

138

3/4” Square Drive Sockets, Metric

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

6 Point mm (A) (B) (C) (D)

27mm57* 27 101.6 38.1 38.1 17.5

28mm37 28 101.6 44.4 44.4 19.1

29mm37 29 101.6 44.4 44.4 19.1

30mm37 30 101.6 44.4 44.4 19.1

30mm57* 30 101.6 42.9 42.9 19.1

32mm37 32 101.6 47.6 44.4 20.6

33mm37 33 101.6 50.8 44.4 20.6

34mm37 34 101.6 54.0 54.0 20.6

35mm37 35 101.6 54.0 54.0 20.6

36mm37 36 101.6 54.0 54.0 23.8

41mm37 41 101.6 63.5 54.0 28.6

*Thin Wall

6 Point , Extra Long Length (continued)

Part Male Square Type of Overall Length

Number In. Lock In. mm

EX-753 3/4 7/32 Drill Hole 2 1/4 57

EX-753-B 3/4 Ball 2 1/4 57

EX-755-4 3/4 7/32 Drill Hole 4 102

EX-755-B-4 3/4 Ball 4 102

EX-755-6 3/4 7/32 Drill Hole 6 152

EX-755-B-6 3/4 Ball 6 152

EX-755-8 3/4 7/32 Drill Hole 8 203

EX-755-B-8 3/4 Ball 8 203

EX-755-10 3/4 7/32 Drill Hole 10 254

EX-755-B-10 3/4 Ball 10 254

EX-755-12 3/4 7/32 Drill Hole 12 305

EX-755-B-12 3/4 Ball 12 305

EX-755-15 3/4 7/32 Drill Hole 15 381

EX-755-B-15 3/4 Ball 15 381

2 1/4” to 15” (57mm to 381mm) Length

3/4” Square Drive Extensions

Overall Diameter Diameter

Part Spline Nominal Length (A) Nose End (B) Drive End (C)

Number Size Size In. mm In. mm In. mm

CMS-7426 26 13/16 1 3/4 45 1 1/8 29 1 3/8 35

CMS-7428 28 7/8 1 13/16 46 1 1/4 32 1 3/8 35

CMS-7430 30 15/16 1 7/8 48 1 3/8 35 1 3/8 35

CMS-7432 32 1 1 15/16 49 1 7/16 37 1 7/16 37

Apex spline sockets conform to military specifications MS-37787 and MIL-W-8982C.

Standard Length

3/4” Square Drive Sockets for Spline Fasteners

139

Part Male Female Type of Overall Length

Number Square In. Square In. Lock In. mm

EX-506 1/2 3/4 Pin 2 51

EX-506-B 1/2 3/4 Ball 2 51

EX-510-3 1/2 3/4 Pin 3 76

EX-510-B-3 1/2 3/4 Ball 3 76

EX-510-4 1/2 3/4 Pin 4 102

EX-510-B-4 1/2 3/4 Ball 4 102

EX-510-B-5 1/2 3/4 Ball 5 127

EX-510-6 1/2 3/4 Pin 6 152

EX-510-B-6 1/2 3/4 Ball 6 152

EX-510-8 1/2 3/4 Pin 8 203

EX-510-B-8 1/2 3/4 Ball 8 203

EX-625 5/8 3/4 Pin 2 51

EX-625-B 5/8 3/4 Ball 2 51

EX-628-3 5/8 3/4 Pin 3 76

EX-1000 1 3/4 9/32 Drill Hole 2 9/16 65

EX-1000-B 1 3/4 Ball 2 9/16 65

1/2” to 1” Male Square

3/4” Square Drive Adapters

3/4” Square Drive Universal Adapters

3/4” Male Square

Part Male Female Type of Overall Length Largest Diameter

Number Sq. In. Sq. In. Lock In. mm In. mm

MF-75 3/4 3/4 7/32 Drill Hole 4 102 1 1/2 38

MF-75B 3/4 3/4 Ball 4 102 1 1/2 38

MF-76 3/4 3/4 7/32 Drill Hole 4 3/8 111 1 3/4 45

MF-76B 3/4 3/4 Ball 4 3/8 111 1 3/4 45

MF-79 3/4 3/4 7/32 Drill Hole 4 1/2 114 2 51

MF-79B 3/4 3/4 Ball 4 1/2 114 2 51

140

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

8124 8124-D 3/4 2 1/8 1 5/16 2 13/16

8126 - 13/16 2 1/8 1 3/8 2 13/16

8128 8128-D 7/8 2 1/8 1 1/2 2 13/16

8130 8130-D 15/16 2 1/8 1 1/2 2 13/16

8132 8132-D 1 2 1/8 1 5/8 2 13/16

8134 8134-D 1 1/16 2 1/8 1 11/16 2 13/1

8136 8136-D 1 1/8 2 1/8 1 3/4 2 13/16

8138 8138-D 1 3/16 2 1/8 2 1/8 2 13/16

8140 8140-D 1 1/4 2 1/8 2 1/8 2 1/8 13/16

8142 8142-D 1 5/16 2 1/8 2 1/8 2 1/8 13/16

8144 8144-D 1 3/8 2 1/8 2 1/8 2 1/8 13/16

8146 8146-D 1 7/16 2 1/4 2 1/4 2 1/8 15/16

8148 8148-D 1 1/2 2 1/4 2 1/4 2 1/8 15/16

- 8150-D 1 9/16 2 1/4 2 3/8 2 1/8 15/16

8152 - 1 5/8 2 3/8 2 1/2 2 1/8 15/16

8154 8154-D 1 11/16 2 3/8 2 1/2 2 1/8 15/16

- 8156-D 1 3/4 2 3/8 2 5/8 2 5/8 1 1/16

8158 - 1 13/16 2 1/2 2 3/4 2 5/8 1 1/16

8160 8160-D 1 7/8 2 1/2 2 3/4 2 5/8 1 1/16

8162 8162-D 1 15/16 2 1/2 2 7/8 2 5/8 1 1/16

8164 8164-D 2 2 5/8 3 2 5/8 1 3/16

8166 - 2 1/16 2 5/8 3 2 5/8 1 3/16

8168 - 2 1/8 2 5/8 3 1/8 2 5/8 1 3/16

8170 - 2 3/16 2 3/4 3 1/4 3 1/4 1 5/16

8172 - 2 1/4 2 3/4 3 1/4 3 1/4 1 5/16

8174 - 2 5/16 2 3/4 3 3/8 3 1/4 1 3/8

8176 - 2 3/8 2 7/8 3 1/2 3 1/4 1 3/8

8178 - 2 7/16 2 7/8 3 1/2 3 1/4 1 3/8

8180 - 2 1/2 2 7/8 3 3/4 3 1/4 1 3/8

8182 - 2 9/16 3 3 3/4 3 1/4 1 1/2

8184 - 2 5/8 3 3 3/4 3 1/4 1 1/2

8186 - 2 11/16 3 4 3 1/4 1 1/2

8188 - 2 3/4 3 1/8 4 3 1/4 1 5/8

8190 - 2 13/16 3 1/8 4 3 1/4 1 5/8

1” Square Drive Sockets, SAE

6 Point and Double Hex , Standard Length

inches

Refer to Page iv for description of Rapid Select.

141

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

6 Point In. (A) (B) (C) (D)

8226 13/16 3 1 3/8 2 1/8 17/32

8228 7/8 3 1 7/16 2 1/8 9/16

8230 15/16 3 1 1/2 2 1/8 5/8

8232 1 3 1 5/8 2 1/8 5/8

8236 1 1/8 3 1 3/4 2 1/8 3/4

8240 1 1/4 3 2 1/8 2 1/8 13/16

8242 1 5/16 3 2 1/8 2 1/8 13/16

8244 1 3/8 3 2 1/8 2 1/8 13/16

8246 1 7/16 3 2 1/4 2 1/8 15/16

8248 1 1/2 3 1/4 2 1/4 2 1/8 15/16

Part Part Hex Overall Diameter Diameter Opening

Number Number Opening Length Nose End Drive End Depth

6 Point Double Hex In. (A) (B) (C) (D)

8430 8430-D 15/16 2 1/8 1 7/16 1 7/8 13/16

8432 8432-D 1 2 1/8 1 1/2 1 7/8 13/16

8434 8434-D 1 1/16 2 1/8 1 9/16 1 7/8 13/16

8436 8436-D 1 1/8 2 1/8 1 5/8 1 7/8 13/16

8438 8438-D 1 3/16 2 1/8 1 3/4 2 13/16

8440 8440-D 1 1/4 2 1/8 1 13/16 2 13/16

8442 8442-D 1 5/16 2 1/8 1 7/8 2 13/16

8444 8444-D 1 3/8 2 1/8 1 15/16 2 13/16

8446 8446-D 1 7/16 2 1/4 2 2 15/16

8448 8448-D 1 1/2 2 1/4 2 1/8 2 1/8 15/16

8452 - 1 5/8 2 3/8 2 5/16 2 1/8 15/16

8454 - 1 11/16 2 3/8 2 3/8 2 1/8 15/16

8456 - 1 3/4 2 3/8 2 7/16 2 1/8 1 1/16

8458 - 1 13/16 2 1/2 2 9/16 2 1/8 1 1/16

8460 - 1 7/8 2 1/2 2 5/8 2 5/8 1 1/16

8464 - 2 2 5/8 2 3/4 2 5/8 1 3/16

8468 - 2 1/8 2 5/8 2 15/16 2 5/8 1 3/16

8472 - 2 1/4 2 3/4 3 1/8 2 5/8 1 5/16

8480 - 2 1/2 2 7/8 3 3/8 3 1/4 1 7/16

6 Point and Double Hex, Thin Wall Standard Length

1” Square Drive Sockets, SAE

6 Point, Long Length

inches

142

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

6 Point In. (A) (B) (C) (D)

8324 3/4 4 1/4 1 1/4 2 1/8 15/32

8326 13/16 4 1/4 1 3/8 2 1/8 17/32

8328 7/8 4 1/4 1 7/16 2 1/8 9/16

8330 15/16 4 1/4 1 1/2 2 1/8 5/8

8332 1 4 1/4 1 9/16 2 1/8 5/8

8334 1 1/16 4 1/4 1 5/8 2 1/8 11/16

8336 1 1/8 4 1/4 1 3/4 2 1/8 3/4

8338 1 3/16 4 1/4 1 7/8 2 1/8 3/4

8340 1 1/4 4 1/4 2 1/8 2 1/8 13/16

8342 1 5/16 4 1/4 2 1/8 2 1/8 13/16

8344 1 3/8 4 1/4 2 1/8 2 1/8 13/16

8346 1 7/16 4 1/4 2 1/4 2 1/8 15/16

8348 1 1/2 4 1/4 2 1/4 2 1/8 1

8350 1 9/16 4 1/4 2 3/8 2 1/8 1

8352 1 5/8 4 1/4 2 1/2 2 1/8 1 1/8

8354 1 11/16 4 1/4 2 1/2 2 1/8 1 1/8

8356 1 3/4 4 1/4 2 5/8 2 5/8 1 1/8

8358 1 13/16 4 1/4 2 3/4 2 5/8 1 1/4

8360 1 7/8 4 1/4 2 3/4 2 5/8 1 1/4

8362 1 15/16 4 1/4 2 7/8 2 5/8 1 1/4

8364 2 4 3/8 2 7/8 2 5/8 1 3/8

8366 2 1/16 4 3/8 3 2 5/8 1 3/8

8368 2 1/8 4 3/8 3 1/8 2 5/8 1 3/8

8370 2 3/16 4 1/2 3 1/8 2 5/8 1 1/2

8372 2 1/4 4 1/2 3 1/4 3 1/4 1 1/2

8374 2 5/16 4 1/2 3 3/8 3 1/4 1 1/2

8376 2 3/8 4 1/2 3 1/2 3 1/4 1 5/8

8378 2 7/16 4 1/2 3 1/2 3 1/4 1 5/8

8380 2 1/2 4 1/2 3 1/2 3 1/4 1 5/8

8382 2 9/16 4 1/2 3 3/4 3 1/4 1 3/4

8384 2 5/8 4 1/2 3 3/4 3 1/4 1 3/4

8386 2 11/16 4 1/2 4 3 1/4 1 3/4

8388 2 3/4 4 5/8 4 3 1/4 1 7/8

8390 2 13/16 4 5/8 4 3 1/4 1 7/8

6 Point, Extra Long Length

1” Square Drive Sockets, SAE

6 Point, Thin Wall, Extra Long Length

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

6 Point In. (A) (B) (C) (D)

8528 7/8 4 1/4 1 7/16 2 1/8 9/16

8530 15/16 4 1/4 1 1/2 2 1/8 5/8

8534 1 1/16 4 1/4 1 9/16 2 1/8 3/4

8536 1 1/8 4 1/4 1 5/8 2 1/8 3/4

8540 1 1/4 4 1/4 1 13/16 2 1/8 13/16

8542 1 5/16 4 1/4 1 7/8 2 1/8 13/16

8548 1 1/2 4 1/4 2 1/8 2 1/8 1

inches

Refer to Page iv for description of Rapid Select.

143

Part No. Part No. Square Overall Diameter Diameter Opening

Single Double Opening Length Nose End Drive End Depth

Square Square In. (A) (B) (C) (D)

8620 - 5/8 2 1/8 1 3/8 2 13/16

- 8622-D 11/16 2 1/8 1 1/2 2 13/16

8624 8624-D 3/4 2 1/8 1 5/8 2 13/16

8626 8626-D 13/16 2 1/8 1 3/4 2 13/16

8628 8628-D 7/8 2 1/8 2 2 13/16

8630 8630-D 15/16 2 1/8 2 1/8 2 1/8 13/16

8632 8632-D 1 2 1/8 2 1/8 2 1/8 13/16

8634 8634-D 1 1/16 2 1/8 2 1/8 2 1/8 13/16

8636 8636-D 1 1/8 2 1/4 2 1/4 2 1/8 15/16

8638 8638-D 1 3/16 2 1/4 2 1/4 2 1/8 15/16

8640 8640-D 1 1/4 2 1/4 2 3/8 2 1/8 15/16

8642 - 1 5/16 2 1/4 2 1/2 2 1/8 15/16

8644 8644-D 1 3/8 2 5/16 2 5/8 2 5/8 1

8646 8646-D 1 7/16 2 3/8 2 5/8 2 5/8 1

8648 8648-D 1 1/2 2 3/8 2 3/4 2 5/8 1 1/16

8650 - 1 9/16 2 3/8 2 3/4 2 5/8 1 1/16

8652 8652-D 1 5/8 2 1/2 2 7/8 2 5/8 1 1/16

8654 8654-D 1 11/16 2 1/2 3 1/4 3 1/4 1 1/8

8656 - 1 3/4 2 1/2 3 1/2 3 1/4 1 1/8

8658 - 1 13/16 2 5/8 3 1/2 3 1/4 1 1/4

8660 - 1 7/8 2 5/8 3 1/2 3 1/4 1 1/4

8662 - 1 15/16 2 5/8 3 3/4 3 1/4 1 1/4

8664 8664-D 2 2 3/4 3 3/4 3 1/4 1 5/16

Single Square and Double Square, Standard Length

1” Square Drive Sockets, SAE

13/16” Square and Combo. 13/16” Square 1 1/2” Hex

Part Overall Length

Number Drive In. mm

BW-8626 1” Square 2 1/8 54 13/16” Square

BW-848 1” Square 3 3/4 95 Combo. 13/16 Square—1 1/2” Hex

BW-848-F 1” Square 3 3/4 95 Combo. 13/16 Square—1 1/2” Hex

for mag. wheels

Budd Wheel Sockets

inches

144

6 Point, Standard Length

1” Square Drive Sockets, Metric

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

6 Point mm (A) (B) (C) (D)

21mm18 21 54 34.9 50.8 13.5

22mm18 22 54 38.1 50.8 14.2

23mm18 23 54 38.1 50.8 20.6

24mm18 24 54 38.1 50.8 20.6

25mm18 25 54 41.3 50.8 20.6

26mm18 26 54 41.3 50.8 20.6

27mm18 27 54 42.9 50.8 20.6

28mm18 28 54 44.4 50.8 20.6

29mm18 29 54 47.6 50.8 20.6

30mm18 30 54 50.8 50.8 20.6

30mm48* 30 54 44.4 54.0 20.6

32mm18 32 54 54.0 54.0 20.6

33mm18 33 54 54.0 54.0 20.6

34mm18 34 54 54.0 54.0 20.6

35mm18 35 54 54.0 54.0 20.6

36mm18 36 57 57.1 54.0 23.9

37mm18 37 57 57.1 54.0 23.9

38mm18 38 57 57.1 54.0 23.9

41mm18 41 60 63.5 54.0 23.9

42mm18 42 60 63.5 54.0 23.9

46mm18 46 64 69.8 66.7 26.9

47mm18 47 64 69.8 66.7 26.9

48mm18 48 64 69.8 66.7 26.9

50mm18 50 66 76.2 66.7 30.2

*Thin Wall

6 Point, Long Length

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

6 Point mm (A) (B) (C) (D)

21mm38 21 108 34.9 54.0 13.5

23mm38 23 108 36.5 54.0 15.9

24mm38 24 108 38.1 54.0 15.9

27mm38 27 108 41.3 54.0 17.5

28mm38 28 108 44.4 54.0 19.1

29mm38 29 108 47.6 54.0 19.1

32mm38 32 108 54.0 54.0 20.6

33mm38 33 108 54.0 54.0 20.6

35mm38 35 108 54.0 54.0 20.6

36mm38 36 108 54.0 54.0 23.8

37mm38 37 108 57.1 54.0 23.8

38mm38 38 108 57.1 54.0 25.4

41mm38 41 108 63.5 54.0 28.6

46mm38 46 108 69.8 66.7 31.8

47mm38 47 108 69.8 66.7 31.8

50mm38 50 111 73.0 66.7 34.9

145

Overall Diameter Diameter

Part Spline Nominal Length (A) Nose End (B) Drive End (C)

Number Size Size In. mm In. mm In. mm

CMS-8432 32 1 2 7/16 62 1 7/16 37 2 51

CMS-8434 34 1 1/16 2 1/2 64 1 17/32 39 2 51

Apex spline sockets conform to military specifications MS-37787 and MIL-W-8982C.

1” Square Drive Sockets

for Spline Fasteners

Standard Length

2 13/16” to 15” (71mm to 381mm) Length

1” Square Drive Extensions

Part Male Square Type of Overall Length

Number In. Lock In. mm

EX-1001 1 9/32 Drill Hole 2 13/16 71

EX-1001-B 1 Ball 2 13/16 71

EX-1003-4 1 9/32 Drill Hole 4 102

EX-1003-B-4 1 Ball 4 102

EX-1003-6 1 9/32 Drill Hole 6 152

EX-1003-B-6 1 Ball 6 152

EX-1003-8 1 9/32 Drill Hole 8 203

EX-1003-B-8 1 Ball 8 203

EX-1003-10 1 9/32 Drill Hole 10 254

EX-1003-B-10 1 Ball 10 254

EX-1003-12 1 9/32 Drill Hole 12 305

EX-1003-B-12 1 Ball 12 305

EX-1003-15 1 9/32 Drill Hole 15 381

EX-1003-B-15 1 Ball 15 381

146

3/4” to 1 1/2” Male Square

1” Square Drive Adapters

Part Male Female Type of Overall Length

Number Square In. Square In. Lock In. mm

EX-754 3/4 1 7/32 Drill Hole 2 13/16 71

EX-754-B 3/4 1 Ball 2 13/16 71

EX-756-4 3/4 1 7/32 Drill Hole 4 102

EX-756-B-4 3/4 1 Ball 4 102

EX-756-6 3/4 1 7/32 Drill Hole 6 152

EX-756-B-6 3/4 1 Ball 6 152

EX-756-8 3/4 1 7/32 Drill Hole 8 203

EX-756-B-8 3/4 1 Ball 8 203

EX-1101 1 1/2 1 3/8 Drill Hole 3 9/16 91

1” Square Drive Universal Adapters

3/4” to 1” Male Square

Part Male Female Type of Overall Length Largest Diameter

Number Sq. In. Sq. In. Lock In. mm In. mm

MF-77 3/4 1 7/32 Drill Hole 4 3/4 121 2 51

MF-77B 3/4 1 Ball 4 3/4 121 2 51

MF-82 1 1 9/32 Drill Hole 5 127 2 51

MF-82B 1 1 Ball 5 127 2 51

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

1” Male Square

1 1/4” Square Drive Adapter

Part Male Female Type of Overall Length

Number Square In. Square In. Lock In. mm

EX-1008 1 1 1/4 9/32 Drill Hole 3 1/4 83

147

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

6 Point In. (A) (B) (C) (D)

9140 1 1/4 2 3/4 2 1/4 3 1 1/4

9142 1 5/16 2 3/4 2 5/16 3 1 1/4

9144 1 3/8 2 3/4 2 3/8 3 1 1/4

9146 1 7/16 2 3/4 2 7/16 3 1 1/4

9148 1 1/2 2 3/4 2 1/2 3 1

9150 1 9/16 2 3/4 2 5/8 3 1

9152 1 5/8 2 7/8 2 3/4 3 1 1/8

9154 1 11/16 2 7/8 2 13/16 3 1 1/8

9156 1 3/4 2 7/8 2 7/8 3 1 1/8

9158 1 13/16 3 3 3 1 3/8

9160 1 7/8 3 3 1/8 3 1 1/4

9162 1 15/16 3 3 1/4 3 1/4 1 1/4

9164 2 3 1/8 3 1/4 3 1/4 1 3/8

9166 2 1/16 3 1/8 3 1/4 3 1/4 1 3/8

9168 2 1/8 3 1/8 3 1/4 3 1/4 1 3/8

9170 2 3/16 3 1/4 3 1/4 3 1/4 1 1/2

9172 2 1/4 3 1/4 3 3/8 3 1/4 1 1/2

9174 2 5/16 3 1/4 3 3/8 3 1/4 1 1/2

9176 2 3/8 3 3/8 3 1/2 3 1/4 1 5/8

9178 2 7/16 3 3/8 3 1/2 3 1/4 1 5/8

9180 2 1/2 3 3/8 3 3/4 3 1/4 1 5/8

9182 2 9/16 3 1/2 3 3/4 3 1/4 1 3/4

9184 2 5/8 3 1/2 4 4 1 3/4

9186 2 11/16 3 1/2 4 4 1 3/4

9190 2 13/16 3 5/8 4 1/4 4 1 7/8

9192 2 7/8 3 5/8 4 1/2 4 1 7/8

9194 2 15/16 3 5/8 4 1/2 4 1 7/8

9196 3 3 5/8 4 1/2 4 1 7/8

9198 3 1/16 3 5/8 4 3/4 4 1 7/8

91100 3 1/8 3 7/8 4 3/4 4 2 1/8

91102 3 3/16 3 7/8 4 3/4 4 2 1/8

91104 3 1/4 4 5 4 2 1/4

91106 3 5/16 4 5 4 2 1/4

91108 3 3/8 4 5 4 2 1/4

91110 3 7/16 4 1/8 5 1/4 4 2 3/8

91112 3 1/2 4 1/4 5 1/4 4 2 1/2

91116 3 5/8 4 1/4 5 1/4 4 2 1/2

91120 3 3/4 4 1/4 5 1/2 4 2 1/2

91124 3 7/8 4 1/4 5 3/4 4 2 1/2

91128 4 4 3/8 5 3/4 4 2 5/8

91132 4 1/8 4 1/2 6 4 2 3/4

91136 4 1/4 4 3/4 6 4 3

91140 4 3/8 4 3/4 6 1/2 4 3

91144 4 1/2 4 7/8 6 1/2 4 3 1/8

91152 4 3/4 5 1/8 6 3/4 4 3 3/8

6 Point, Standard Length

1 1/2” Square Drive Sockets, SAE

inches

148

Part Male Female Type of Overall Length

Number Square In. Square In. Lock In. mm

EX-1005 1 1 1/2 9/32 Drill Hole 3 15/16 100

EX-1005-B 1 1 1/2 Ball 3 15/16 100

1” Male Square

1 1/2” Square Drive Adapters

6 Point, Standard Length

2 1/2” Square Drive Sockets, SAE

Part Hex Overall Diameter Diameter Opening

Number Opening Length Nose End Drive End Depth

6 Point In. (A) (B) (C) (D)

0172 2 1/4 4 1/8 3 3/4 5 1 1/2

0176 2 3/8 4 1/8 3 7/8 5 1 3/4

0180 2 1/2 4 1/8 4 5 1 3/4

0184 2 5/8 4 1/8 4 5 1 7/8

0188 2 3/4 4 1/8 4 1/4 5 1 7/8

0192 2 7/8 4 1/8 4 1/2 5 1 7/8

01100 3 1/8 4 3/8 4 7/8 5 2 1/8

01112 3 1/2 4 3/4 5 1/2 5 1/2 2 1/2

01116 3 5/8 4 3/4 5 1/2 5 1/2 2 1/2

01120 3 3/4 4 3/4 5 3/4 5 3/4 2 1/2

01124 3 7/8 4 3/4 6 6 2 1/2

01128 4 4 7/8 6 6 2 5/8

01136 4 1/4 5 1/4 6 6 3

01144 4 1/2 5 3/8 6 1/2 6 3 1/8

Part Male Female Type of Overall Length

Number Square In. Square In. Lock In. mm

EX-1105 1 1/2 2 1/2 3/8 Drill Hole 5 3/8 137

1 1/2” Male Square

2 1/2” Square Drive Adapter

inches

149149

Solutions

What’s the advantage of a male hex

drive socket?

A male hex drive socket lets you

quickly accommodate a

different nut size without

pulling the primary socket

off the power tool.

(See page 160)

Does Apex offer sockets for the

installation of grease fittings?

Specially designed Apex sockets are the

easy way to install or remove

grease fittings.

(See page 153)

Does Apex offer tap holding sockets?

Apex offers a wide variety of tap holding

adapters. These adapters allow you to easily

convert your power tool into a tap drill.

(See page 152)

What’s the real advantage of using

socket adapters?

Socket adapters are an easy and

economical solution for applications that

require several different nut sizes.

(See pages 158 & 159)

150

Notes

151

Reversible Sockets for

SAE Hex Head Sheet Metal Screws

Standard

Part Number Hex Size Overall Length Outside Diameter Roll Pin Part Number

SW-350 1/4 9/16 3/8 21-S-078-0375

SW-90 1/4 9/16 7/16 21-S-078-0437

SW-90-B* 1/4 9/16 7/16 21-S-078-0437

SW-984 5/16 9/16 9/16 21-S-078-0562

SH-575 11/32 9/16 9/16 21-S-078-0562

SH-400 3/8 11/16 11/16 21-S-078-0687

SH-401 7/16 23/32 3/4 21-S-078-0750

SH-402 13/16 3/4 13/16 21-S-078-0750

Shanks for Reversible Sockets

Part Number Male Hex Power Drive Male Hex Size Overall Length

SH-629 1/4 1/4 2

SH-629-P 1/4 1/4 2 Pin Lock

SH-629-3 1/4 1/4 3

SH-629-4 1/4 1/4 4

SH-629-5 1/4 1/4 5

SH-629-6 1/4 1/4 6

SH-57 1/4 1/4 2 Full Length Hex

SH-57-3 1/4 1/4 3 Full Length Hex

SH-57-4 1/4 1/4 4 Full Length Hex

SH-57-6 1/4 1/4 6 Full Length Hex

SH-57-8 1/4 1/4 8 Full Length Hex

SH-59 1/4 5/16 2

SH-59-3 1/4 5/16 3

SH-59-4 1/4 5/16 4

SH-59-6 1/4 5/16 6

SH-412 1/4 3/8 2

SH-413 1/4 7/16 2

SH-414 1/4 1/2 2

SH-913 7/16 5/16 2

SH-404 7/16 3/8 2

SH-406 7/16 1/2 2

Refer to Page iv for description of Rapid Select.

*Tapered Ends

Magnetic

Part Number Hex Size Overall Length Outside Diameter Spring Pin Part Number

MSW-350 1/4 31/32 3/8 21-S-078-0375

MSW-90 1/4 31/32 7/16 21-S-078-0437

MSW-90-B* 1/4 31/32 7/16 21-S-078-0437

MSW-984 5/16 31/32 9/16 21-S-078-0562

MSW-984-B* 5/16 31/32 9/16 21-S-078-0562

MSH-575 11/32 31/32 9/16 21-S-078-0562

MSH-400 3/8 1 1/8 11/16 21-S-078-0687

MSH-401 7/16 1 5/32 3/4 21-S-078-0750

MSH-402 13/16 1 3/16 13/16 21-S-078-0750

*Tapered Ends

152

Tap Holding Sockets

Male Hex Drive, SAE

Tap Male Socket Length Socket Diameter

Part Number Size Hex In. mm In. mm

SJ-935-1/4 1/4 7/16 15/16 24 5/8 16

SJ-935-5/16 5/16 1/2 15/16 24 5/8 16

SJ-935-3/8FS 3/8 9/16 1 25 21/32 17

SJ-935-7/16 7/16 5/8 1 25 3/4 19

SJ-935-1/2 1/2 3/4 1 1/4 32 7/8 22

Male Hex Drive, Metric

Tap Male Socket Length Socket Diameter

Part Number Size Hex In. mm In. mm

SJ-935-10MXM6 M6 10 15/16 24 5/8 16

SJ-935-12MXM8 M8 12 15/16 24 5/8 16

SJ-935-14MXM10 M10 14 1 25 21/32 17

SJ-935-17MXM8 M8 17 1 25 13/16 21

SJ-935-17MXM12 M12 17 1 25 13/16 21

Tap Female Socket Length Socket Diameter

Part Number Size Square In. mm In. mm

HC-100-10 #10 3/8 1 1/2 38 3/4 19

HC-100-1/4 1/4 3/8 1 1/2 38 3/4 19

HC-100-5/16 5/16 3/8 1 1/2 38 3/4 19

HC-100-3/8FS 3/8 3/8 1 1/2 38 3/4 19

HC-100-7/16 7/16 3/8 1 1/2 38 3/4 19

HC-100-1/2 1/2 3/8 1 1/2 38 3/4 19

HC-100-5/8 5/8 3/8 1 3/4 46 1 25

HC-100-3/4 3/4 3/8 2 51 1 25

HE-100-1/4 1/4 1/2 1 1/2 38 7/8 22

HE-100-5/16 5/16 1/2 1 1/2 38 7/8 22

HE-100-3/8FS 3/8 1/2 1 1/2 38 7/8 22

HE-100-7/16 7/16 1/2 1 1/2 38 7/8 22

HE-100-1/2 1/2 1/2 1 5/8 41 7/8 22

HE-100-5/8 5/8 1/2 1 3/4 46 1 25

HE-100-3/4 3/4 1/2 2 51 1 25

Female Square Drive, SAE

(Tap not included)

Refer to Page iv for description of Rapid Select.

153

Grease Fitting Sockets

For Angled Grease Fittings, Deep and Shallow Broach Depth

Part Number Hex Square Overall Length Broach Depth Magnet Depth

6 Point Magnetic Size Drive In. mm In. mm In. mm

ZA-110 MZA-110 5/16 1/4 1 25 1/8 3 21/64 8

ZA-310 MZA-310 5/16 3/8 1 1/4 32 1/8 3 21/64 8

ZA-510 MZA-510 5/16 1/2 1 1/2 38 1/8 3 19/64 7

ZA-112 - 3/8 1/4 1 25 1/8 3 - -

ZA-312 - 3/8 3/8 1 1/4 32 1/8 3 - -

ZA-512 - 3/8 1/2 1 1/2 38 1/8 3 - -

ZA-314 MZA-314 7/16 3/8 1 1/4 32 3/16 5 23/64 9

ZA-514 MZA-514 7/16 1/2 1 1/2 38 3/16 5 3/8 10

Part Number Hex Square Overall Length Broach Depth Magnet Depth

6 Point Magnetic Size Drive In. mm In. mm In. mm

ZN-112 - 3/8 1/4 1 1/4 32 9/16 14 - -

ZN-312 MZN-312 3/8 3/8 1 1/2 38 9/16 14 7/32 6

ZN-512 - 3/8 1/2 1 1/2 32 9/16 14 - -

ZN-114 - 7/16 1/4 1 1/4 32 7/16 11 - -

ZN-314 MZN-314 7/16 3/8 1 1/2 38 7/16 11 7/16 11

ZN-514 MZN-514 7/16 1/2 1 1/2 38 7/16 11 7/16 11

ZE-112 - 3/8 1/4 1 1/4 32 1/8 3 - -

ZE-312 - 3/8 3/8 1 1/2 38 1/8 3 - -

ZE-512 - 3/8 1/2 1 1/2 32 1/8 3 - -

ZE-314 - 7/16 3/8 1 1/2 38 3/16 5 - -

ZE-514 - 7/16 1/2 1 1/2 38 3/16 5 - -

For Straight Grease Fittings

Refer to Page iv for description of Rapid Select.

154

7/16” Male Hex Drive

Part Drill Overall Length Body Diameter

Number Size In. mm In. mm

WJ-265-1/8 1/8 2 3/8 60 5/8 16

WJ-265-9/64 9/64 2 3/8 60 5/8 16

WJ-265-13/64 13/64 2 3/8 60 3/4 19

WJ-265-5/32 5/32 2 3/8 60 3/4 19

WJ-265-3/16 3/16 2 3/8 60 3/4 19

WJ-265-1/4 1/4 2 3/8 60 3/4 19

WJ-265-5/16 5/16 2 3/8 60 3/4 19

WJ-265-7/16 7/16 2 3/8 60 1 25

WJ-265-3/8 3/8 2 3/8 60 1 25

WJ-265-17/32 17/32 2 3/8 60 1 1/8 29

WJ-265-1/2 1/2 2 3/8 60 1 1/8 29

Drill Holders

1/4” Male Hex Drive

Part Drill Overall Length Body Diameter

Number Size In. mm In. mm

WJ-284-7/64 7/64 2 5/8 67 1/2 13

WJ-284-1/8 1/8 2 5/8 67 5/8 16

WJ-284-9/64 9/64 2 5/8 67 5/8 16

WJ-284-5/32 5/32 2 5/8 67 3/4 19

WJ-284-3/16 3/16 2 5/8 67 3/4 19

WJ-284-1/4 1/4 2 5/8 67 3/4 19

WJ-284-5/16 5/16 2 5/8 67 3/4 19

WJ-284-3/8 3/8 2 5/8 67 1 25

WJ-284-13/32 13/32 2 5/8 67 1 25

Refer to Page iv for description of Rapid Select.

155

Extensions

Overall Length

Part Number In. mm

EXL-8 8 203 Female spline to male spline

EXL-15 15 381 Female spline to male spline

Single Hex Overall Diameter Bolt

Part Opening Length Nose End Clearance

Number In. In. mm In. mm In. mm

SPL-132 1 3 1/4 82 1 3/4 45 1 1/2 38

SPL-134 1 1/16 3 1/4 82 1 7/8 48 1 5/8 41

SPL-136 1 1/8 3 1/4 82 2 51 1 5/8 41

SPL-138 1 3/16 3 1/4 82 2 3/8 60 1 5/8 41

SPL-140 1 1/4 3 1/4 82 2 3/8 60 1 3/4 45

SPL-142 1 5/16 3 1/4 82 2 3/8 60 1 3/4 45

SPL-144 1 3/8 3 1/4 82 2 3/8 60 1 3/4 45

SPL-146 1 7/16 3 1/4 82 2 3/8 60 1 3/4 45

SPL-148 1 1/2 3 3/8 86 2 3/8 60 1 1/2 38

SPL-150 1 9/16 3 3/8 86 2 5/8 67 1 5/8 41

SPL-152 1 5/8 3 3/8 86 2 5/8 67 1 5/8 41

SPL-154 1 11/16 3 1/2 89 2 5/8 67 1 3/4 45

SPL-156 1 3/4 3 1/2 89 2 7/8 73 1 3/4 45

SPL-158 1 13/16 3 1/2 89 3 76 1 3/4 45

SPL-160 1 7/8 3 1/2 89 3 76 1 7/8 48

SPL-162 1 15/16 3 5/8 92 3 1/4 83 2 51

SPL-166 2 1/16 3 5/8 92 3 1/4 83 2 51

SPL-168 2 1/8 3 5/8 92 3 1/4 83 2 51

SPL-170 2 3/16 3 5/8 92 3 1/4 83 2 51

SPL-174 2 5/16 4 102 3 1/2 89 2 1/8 54

SPL-176 2 3/8 4 102 3 3/4 95 2 1/4 57

SPL-178 2 7/16 4 102 3 1/2 89 2 1/4 57

SPL-180 2 1/2 4 102 3 3/4 95 2 1/4 57

SPL-182 2 9/16 4 102 3 3/4 95 2 1/4 57

SPL-184 2 5/8 4 102 4 102 2 1/4 57

SPL-186 2 11/16 4 102 4 102 2 3/8 60

SPL-188 2 3/4 4 1/4 108 4 1/4 108 2 3/8 60

SAE Hex Opening Sockets

#5 (1 5/8”) Spline Drive

Part Number

EXL-750 Female spline to 3/4” male square

EXL-1000 Female spline to 1” male square

EXL-1100 Female spline to 1 1/2” male square

Adapters

156

Combo. 13/16” Square 1 1/2” Hex

Plastic Retaining Ring With Steel Insert

Socket Retaining Rings

#5 (1 5/8”) Spline Drive

Universal Wrenches

Part Number

MFL-250 Female spline to male spline (heavy duty)

MFL-1000 Female spline to 1” male square

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

Part Overall Length

Number Drive In. mm

HT-848 #5 Spline 4 1/4 108

Part Inside Diameter

Number Drive In. mm

10005S 3/4” Square 1 1/4 31.8

10032S 3/4” Square 1 7/16 36.5

10034S 3/4” Square 1 5/8 41.3

10008S 1” Square 1 3/4 44.5

10010S 1” Square 2 50.8

10015S 1” Square 2 1/8 54.0

10016S 1” Square 2 1/4 57.2

10017S 1” Square 2 1/2 63.5

10019S 1” Square 2 5/8 66.7

10020S 1 1/2” Square 2 7/8 73.0

10025S 1 1/2” Square 3 3/8 85.7

10030S 1 1/2” Square 3 7/8 98.4

10035S 1 1/2” Square 4 3/8 111.1

Metal Retaining Ring

Part Inside Diameter

Number Drive In. mm

MET-1301C 3/8” Square .677 17.2

MET-1302C 3/8” Square .771 19.6

MET-1401C 1/2” Square .885 22.5

MET-1402C 1/2” Square 1.086 27.6

MET-1600C 3/4” Square 1.594 40.5

MET-1800C 1” Square 1.948 49.5

#5 (1 5/8”) Spline Drive Budd Wheel Sockets

Refer to Page iv for description of Rapid Select.

157

Male Threaded Adapters

Part Male Hex

Number Thread Drive

TM-24 3/8”-24 1/4

TN-24 3/8”-24 7/16

TM-20 1/2”-20 1/4

TN-20 1/2”-20 7/16

Female Threaded Adapters

Part Female Male Square Type of

Number Thread In. Lock

TH-257 3/8”-24 1/4 Pin

TH-377 3/8”-24 3/8 Pin

TH-501 3/8”-24 1/2 Pin

TH-378 1/2”-20 3/8 Pin

TH-502 1/2”-20 1/2 Pin

Adapters

#130-A Yankee Drive for Spiral Type Driver

Part Male Square Overall Length Shank Diameter

Number In. In. mm In. mm

YK-250 1/4 1 15/16 49 .277 7.0

YK-370 3/8 2 3/16 56 .277 7.0

YK-500 1/2 2 5/16 59 .277 7.0

#131-A Yankee Drive for Spiral Type Driver

Part Male Square Overall Length Shank Diameter

Number In. In. mm In. mm

YK-251 1/4 1 15/16 49 .310 8.0

YK-371 3/8 2 3/16 56 .310 8.0

YK-501 1/2 2 5/16 59 .310 8.0

Part Male Square Overall Length Shank Diameter

Number In. In. mm In. mm

YK-252 1/4 1 15/16 49 .215 5.5

YK-372 3/8 2 3/16 56 .215 5.5

YK-502 1/2 2 5/16 59 .215 5.5

#135-A Yankee Drive for Spiral Type Driver

Refer to Page iv for description of Rapid Select.

158

Adapters

Socket and Ratchet Wrench Adapters, SAE

Part Male Square Male Hex Overall Length

Number In. In. In.

A-108 1/4 1/4 25/32

A-110 1/4 5/16 25/32

A-112 1/4 3/8 25/32

A-114 1/4 7/16 25/32

A-116 1/4 1/2 25/32

A-118 1/4 9/16 25/32

A-120 1/4 5/8 25/32

A-312 3/8 3/8 1 1/64

A-314 3/8 7/16 1 1/64

A-316 3/8 1/2 1 5/64

A-318 3/8 9/16 1 5/64

A-320 3/8 5/8 1 5/64

A-322 3/8 11/16 1 5/64

A-324 3/8 3/4 1 5/64

A-326 3/8 13/16 1 5/64

A-328 3/8 7/8 1 5/64

A-512 1/2 3/8 1 3/32

A-514 1/2 7/16 1 3/32

A-516 1/2 1/2 1 3/32

A-518 1/2 9/16 1 3/32

A-520 1/2 5/8 1 1/8

A-522 1/2 11/16 1 1/8

A-524 1/2 3/4 1 1/8

(Continued on next page.)

Refer to Page iv for description of Rapid Select.

159

Adapters

Socket and Ratchet Wrench Adapters, SAE (continued)

Socket and Ratchet Wrench Adapters, Metric

Part Male Square Male Hex Overall Length

Number In. mm In. mm

A-1-6mm 1/4 6 25/32 20

A-1-7mm 1/4 7 25/32 20

A-1-8mm 1/4 8 25/32 20

A-1-9mm 1/4 9 25/32 20

A-1-10mm 1/4 10 25/32 20

A-1-11mm 1/4 11 25/32 20

A-1-12mm 1/4 12 25/32 20

A-1-13mm 1/4 13 25/32 20

A-3-10mm 3/8 10 15/16 24

A-3-11mm 3/8 11 15/16 24

A-3-12mm 3/8 12 15/16 24

A-3-13mm 3/8 13 15/16 24

A-3-14mm 3/8 14 15/16 24

A-3-15mm 3/8 15 15/16 24

A-3-16mm 3/8 16 15/16 24

A-3-17mm 3/8 17 15/16 24

A-3-18mm 3/8 18 15/16 24

A-3-19mm 3/8 19 15/16 24

A-5-10mm 1/2 10 1 1/8 29

A-5-11mm 1/2 11 1 1/8 29

A-5-12mm 1/2 12 1 1/8 29

A-5-13mm 1/2 13 1 1/8 29

A-5-14mm 1/2 14 1 1/8 29

A-5-15mm 1/2 15 1 1/8 29

A-5-16mm 1/2 16 1 1/8 29

A-5-17mm 1/2 17 1 1/8 29

A-5-18mm 1/2 18 1 1/8 29

A-5-19mm 1/2 19 1 1/8 29

A-5-20mm 1/2 20 1 1/8 29

A-5-21mm 1/2 21 1 1/8 29

A-5-22mm 1/2 22 1 1/8 29

A-5-23mm 1/2 23 1 1/8 29

A-5-24mm 1/2 24 1 1/8 29

A-5-25mm 1/2 25 1 1/8 29

Part Male Square Male Hex Overall Length

Number In. In. In.

A-526 1/2 13/16 1 1/8

A-528 1/2 7/8 1 1/8

A-530 1/2 15/16 1 1/8

A-532 1/2 1 1 1/8

A-534 1/2 1 1/16 1 1/8

A-536 1/2 1 1/8 1 1/8

A-538 1/2 1 3/16 1 1/8

A-540 1/2 1 1/4 1 1/8

Refer to Page iv for description of Rapid Select.

160

(Tension Type Shown)

Adapters

Sockets with Male Hex

Part Female Hex Male Hex Overall Length

Number In. In. In. mm

SJ-375 5/16 3/8 13/16 21

SJ-378 7/16 3/8 15/16 24

SJ-379 1/2 3/8 1 25

SJ-380 9/16 3/8 1 25

SJ-349 3/8 7/16 15/16 24

SJ-350 7/16 7/16 15/16 24

SJ-351 1/2 7/16 1 25

SJ-352 9/16 7/16 1 25

SJ-360 3/8 1/2 15/16 24

SJ-361 7/16 1/2 15/16 24

SJ-241 1/2 1/2 1 25

SJ-362 9/16 1/2 1 25

SJ-363 5/8 1/2 1 1/8 28

SJ-364 11/16 1/2 1 3/16 30

SJ-365 3/4 1/2 1 3/16 30

SJ-55 7/16 9/16 15/16 24

SJ-66 1/2 9/16 1 25

SJ-67 9/16 9/16 1 25

SJ-68 5/8 9/16 1 1/8 28

Male Hex to Male Square – Extension

Hex Drive Universal Adapters

Part Number Male Male Type of Overall Length Largest Diameter

Standard Tension Sq. In. Hex In. Lock In. mm In. mm

KCM-25-3 KSM-25-3 1/4 1/4 Pin 3 76 5/8 15.9

KCM-25-B-6 KSM-25-B-6 1/4 1/4 Ball 6 152 5/8 15.9

KCM-37-6 KSM-37-6 3/8 1/4 Pin 6 152 3/4 19.1

KCM-37-B-6 KSM-37-B-6 3/8 1/4 Ball 6 152 3/4 19.1

KEM-37-B-6 - 3/8 5/16 Ball 6 152 7/8 22.2

KBM-37-6 KTM-37-6 3/8 7/16 Pin 6 152 3/4 19.1

Universal wrenches must not be used with impact drivers. Maximum operating angle is 30°.

Standard lengths are 3”, 6”, 9” and 12” (76, 152, 229 and 305mm).

161

Part Number Index

400-BH 54

401 6

402•6

403 6

440 54

450 54

451 6

452 6

453 6

454 6

460 58

470 58

480 54

482 5

483•5

484 5

488 54

490•52

491•4

492•4

493•4

494 4

498 53

501 6

502•6

503 6

551 6

552•6

553 6

591 7

592•7

610 53

630 53

638 53

820 55

821 7

822 7

825•55

830•55

832•7

833•7

834 7

835•55

838•13

850 55

852 7

853 7

854•7

855•55

858•13

1105 77

1106 77

1107 77

1108•77

1109•77

1110•77

1111•77

1112•77

1113 77

1114•77

1115 77

1116•77

1118•77

1119 77

1120 77

1206 77

1207 77

1208•77

1209 77

1210•77

1211 77

1212•77

1213 77

1214•77

1215 77

1216 77

1217 77

1218 77

1220 8

1308 78

1310•78

1311 78

1312 78

1313 78

1314 78

1316 78

1318 78

1320 78

1608 80

1609 80

1610 80

1611 80

1612 80

1614 80

2122 42

2123 42

2124 42

2125 42

3010 94

3012 86

3014•86

3016•86

3018•86

3020 86

3022 86

3024•86

3026 86

3028 86

3108•86

3109 86

3110•86

3111 86

3112•86

3113 86

3114•86

3115 86

3116•86

3117 86

3118•86

3119 86

3120•86

3121 86

3122 86

3124•86

3126 86

3208 87

3209 87

3210•87

3211 87

3212•87

3214•87

3216•87

3218•87

3220•87

3222 87

3224 87

3226 87

3228 87

3308 87

3310 87

3311 87

3312•87

3314•87

3316•87

3318•87

3320•87

3322 87

3324•87

3326 87

3328 87

3408 87

3409 87

3410•87

3411 87

3412•87

3414•87

3416•87

3418•87

3420 87

3422 87

3424 87

3426 87

3428 87

3430 87

3432 87

3434 87

3510•88

3511 88

3512•88

3513 88

3514•88

3516•88

3518•88

3522 88

3524 88

3530 88

3532 88

3534 88

3607 92

3608 92

3609 92

3610•92

3612•92

3614 92

3618 92

3620 92

3622 92

3624 92

4910•4

4930 4

5108 105

5109 105

5110•105

5111 105

5112•105

5113 105

5114•105

5115 105

5116•105

5117 105

5118•105

5119 105

5120•105

5121 105

5122•105

5124•105

5125 105

5126•105

5128•105

5129 105

5130•105

5131 105

5132•105

5134•105

5136•105

5138 105

5140•105

5142•105

5144 105

5146 105

5148•105

5150 105

5152•105

5154 105

5156 105

5210 107

5212 107

5214 107

5216•107

5218•107

5220•107

5222 107

5224•107

5226 107

5228 107

5230•107

5232 107

5234 107

5236•107

5238 107

5240 107

5242 107

5244 107

5246 107

5248 107

5310 107

5312 107

5314•107

5316•107

5318•107

5320•107

5322•107

5324•107

5326•107

5328•107

5330•107

5332•107

5334•107

5336•107

5338 107

5340•107

5342•107

5344 107

5346 107

5348•107

5410 106

5412 106

5414 106

5416•106

5418•106

5420•106

5421 106

5422 106

5424•106

5426•106

5428•106

5430•106

5432 106

5434 106

5436•106

5438 106

5440•106

5442 106

5510 108

5512•108

5514•108

5516•108

5518•108

5520•108

5522•108

5524•108

5526•108

5528•108

5530•108

5532•108

5534•108

5608 111

5609 111

5610 111

5612•111

5614 111

5616•111

5618 111

5620 111

5622 111

5624 111

5626 111

5628 111

5632 111

5634 111

5636 111

5712 112

5714 112

5716 112

5718 112

5720 112

5724 112

5728 112

5732 112

5812 112

5818 112

5820 112

5822 112

5832 112

5836 112

5910 112

5912 112

5914 112

5916 112

5918 112

5920 112

6116 128

6118 128

6120 128

6122 128

6124 128

6126 128

6128 128

6130 128

6132 128

6134 128

6136 128

6138 128

6140 128

6142 128

6144 128

6146 128

6148•128

6320 129

6322 129

6324•129

6326 129

6328 129

6330 129

6332 129

6334 129

6336 129

6338 129

6340 129

6342 129

6344 129

6346 129

6348 129

6352 129

6414 128

6418 128

6420 128

6424 128

6426 128

6428 128

6430 128

6432 128

6436 128

6440 128

6444 128

6520 129

6522 129

6524 129

6526 129

6528 129

6530 129

7116 133

7118 133

7120 133

7122 133

7124 133

7126 133

7128 133

7130 133

7132 133

7134 133

7136 133

7138 133

7140 133

7142 133

7144 133

7146 133

7148•133

7150 133

7152 133

7154 133

7156 133

7158 133

7160 133

7162 133

7164 133

7166 133

7168 133

7170 133

7172 133

7174 133

7176 133

7180 133

7320 135

7322 135

7324SKT 135

7326 135

7328 135

7330•135

7332 135

7334 135

7336 135

7338 135

7340 135

7342 135

7344 135

7346 135

7348•135

7350 135

7352 135

7354 135

7356 135

7358 135

7360 135

7362 135

7364 135

7372 135

7376 135

7424•134

7426 134

7428 134

7430•134

7432 134

7434 134

7436•134

7438 134

7440 134

7442 134

7444 134

7446 134

7448 134

7450 134

7452 134

7454 134

7456 134

7458 134

7460 134

7464 134

7466 134

7470 134

7472 134

7524•135

7526 135

7528•135

7530•135

7532 135

7534 135

7536•135

7538 135

7540 135

7542 135

7544 135

7546 135

7548 135

7552 135

7556 135

7564 135

7620 136

7622 136

7624 136

7626 136

7628 136

7630 136

7632 136

7636•136

8124 140

8126 140

8128 140

8130 140

8132 140

8134 140

8136 140

8138 140

8140 140

8142 140

8144 140

8146 140

8148 140

8152 140

8154 140

8158 140

8160 140

8162 140

8164 140

8166 140

8168 140

8170 140

8172 140

8174 140

8176 140

8178 140

8180 140

8182 140

8184 140

8186 140

8188 140

8190 140

8226 141

8228 141

8230 141

8232 141

8236 141

8240 141

8242 141

8244 141

8246 141

8248 141

8324 142

8326 142

8328 142

8330 142

8332 142

8334 142

8336 142

8338 142

8340 142

8342•142

8344 142

8346 142

8348 142

8350 142

8352 142

8354 142

8356 142

8358 142

8360 142

8362 142

8364 142

8366 142

8368 142

8370 142

8372 142

8374 142

8376 142

8380 142

8382 142

8384 142

8386 142

8388 142

8390 142

8430 141

8432 141

8434 141

8436 141

8438 141

8440 141

8442 141

8444 141

8446 141

8448 141

8452 141

8456 141

8458 141

8460 141

8464 141

8468 141

8472 141

8480 141

8528 142

8530 142

8534 142

8536 142

8540 142

8542 142

8548 142

8620 143

8624 143

8626 143

8628 143

8630 143

8632 143

8634 143

8636 143

8638 143

8640 143

8642 143

8644 143

8646 143

8648 143

8650 143

8652 143

8654 143

8656 143

Part Page

No. No. Part Page

No. No.

•Denotes a Rapid Select item. Refer to Page iv for description of Rapid Select.

162

8658 143

8660 143

8662 143

9140 147

9142 147

9144 147

9146 147

9148 147

9150 147

9152 147

9154 147

9156 147

9158 147

9162 147

9164 147

9166 147

9168 147

9170 147

9172 147

9174 147

9176 147

9178 147

9180 147

9182 147

9184 147

9186 147

9190 147

9192 147

9194 147

9196 147

9198 147

91100 147

91102 147

91104 147

91106 147

91108 147

91110 147

91112 147

91116 147

91120 147

91124 147

91128 147

91132 147

91136 147

91140 147

91144 147

91152 147

10005S 156

10008S 156

10010S 156

10015S 156

10016S 156

10017S 156

10019S 156

10020S 156

10025S 156

10030S 156

10032S 156

10034S 156

10035S 156

103-0 14

103-00 14

103-000 14

103-1 14

103-2 14

103-3 14

103-4 14

103-5 14

103-6 14

10MM03•95

10MM03-D•95

10MM11•81

10MM11-D 81

10MM13•95

10MM13-D•95

10MM15•116

10MM15-D 116

10MM21•78

10MM21-D 78

10MM23•96

10MM23-D 96

10MM25 117

10MM25-D 117

10MM33•96

10MM35 117

10MM35-D 117

10MM43•96

10MM43-D 96

10MM45 116

10MM45-D 116

10MM55 118

10MM55-D 118

10MME1•83

10MME3 99

1106-D 77

1107-D 77

1108-D•77

1109-D 77

1110-D•77

1111-D 77

1112-D 77

1113-D 77

1114-D 77

1116-D 77

1117-D 77

1118-D 77

1119-D 77

1120-D 77

11MM03 95

11MM03-D 95

11MM11•81

11MM11-D 81

11MM13•95

11MM13-D 95

11MM15 116

11MM15-D 116

11MM21 81

11MM21-D 81

11MM23•96

11MM23-D 96

11MM25 117

11MM25-D 117

11MM35 117

11MM35-D 117

11MM43 96

11MM43-D 96

11MM45 116

11MM45-D 116

11MM55 118

11MME1 83

11MME3 99

1206-D 77

1207-D 77

1208-D 77

1209-D 77

1210-D 77

1211-D 77

1212-D 77

1214-D 77

1216-D 77

1218-D 77

12MM03•95

12MM03-D 95

12MM11•81

12MM11-D 81

12MM13•95

12MM13-D 95

12MM15•116

12MM15-D•116

12MM21 81

12MM21-D 81

12MM23•96

12MM23-D 96

12MM25 117

12MM25-D 117

12MM35 117

12MM35-D 117

12MM43 96

12MM43-D 96

12MM45 116

12MM45-D 116

12MM55 118

12MM55-D 118

12MME1 83

12MME3 99

130-3 15

130-4 15

130-5 15

130-6 15

130-7 15

130-8 15

1308-D 78

1310-D 78

1312-D 78

1313-D 78

1314-D 78

1316-D 78

1320-D 78

13MM03•95

13MM03-D 95

13MM11•81

13MM11-D 81

13MM13•95

13MM13-D 95

13MM15•116

13MM15-D 116

13MM21•81

13MM21-D 81

13MM23•96

13MM23-D 96

13MM25•117

13MM25-D•117

13MM33•96

13MM35•117

13MM35-D 117

13MM43•96

13MM43-D 96

13MM45•116

13MM45-D 116

13MM55•118

13MM55-D•118

13MME1 83

13MME5 121

13-TX-06 58

13-TX-07 58

13-TX-08•58

13-TX-09 58

13-TX-10•58

13-TX-15•58

13-TX-20 58

13-TX-25 58

13-TX-27 58

13-TX-30 58

13-TX-40 58

14MM03 95

14MM03-D 95

14MM11 81

14MM11-D 81

14MM13•95

14MM13-D 95

14MM15•116

14MM15-D•116

14MM21 95

14MM23•96

14MM23-D 96

14MM25•117

14MM35 117

14MM35-D 117

14MM43 96

14MM43-D 96

14MM45•116

14MM45-D 116

14MM55 116

14MM55-D 116

1500-P•57

1505-P 57

1510-P 57

1550-P 57

1555-P 57

15MM03•95

15MM03-D 95

15MM11 81

15MM11-D 81

15MM13•95

15MM13-D 95

15MM15•116

15MM15-D 116

15MM16 131

15MM21 81

15MM21-D 81

15MM23•95

15MM23-D 96

15MM25•117

15MM25-D 117

15MM33•96

15MM33-D 96

15MM35•117

15MM35-D 117

15MM36 131

15MM43 96

15MM43-D 96

15MM45•116

15MM45-D 116

15MM55•118

15MM55-D 118

1608-D 80

1609-D 80

1610-D 80

1612-D 80

1614-D 80

16MM03 95

16MM03-D 95

16MM11 81

16MM13•95

16MM13-D 95

16MM15•116

16MM15-D 116

16MM16 131

16MM21 81

16MM23 96

16MM23-D 96

16MM25•117

16MM25-D 117

16MM35 117

16MM35-D 117

16MM43 96

16MM43-D 96

16MM45 116

16MM45-D 116

16MM55•118

16MM55-D 116

170-0 44

170-1 44

170-1/2 45

170-1/4•45

170-1/4A 45

170-1/4-ACR 45

170-1/4B•44

170-10•44

170-10A 45

170-10-ACR•44

170-2 44

170-3 44

170-3/8 45

170-3/8A 45

170-3/8B 44

170-3/8C 45

170-4•44

170-5•44

170-5/16 45

170-5/16A 45

170-5/16-ACR 45

170-5/16B•44

170-5/8 45

170-5/8D 45

170-6•44

170-6-ACR 44

170-7/16 45

170-7/16C 45

170-8•44

170-8A 45

170-8-ACR 44

170-9/16 45

17MM03 95

17MM03-D 95

17MM13•95

17MM13-D 95

17MM15•116

17MM15-D 116

17MM16 131

17MM17 137

17MM23•96

17MM23-D 96

17MM25•117

17MM25-D 117

17MM35•117

17MM35-D 117

17MM36 131

17MM43 96

17MM43-D 96

17MM45•116

17MM45-D 116

17MM55•118

17MM55-D 118

185-0 33

185-00 33

185-000•33

185-1•33

185-1.5MM 33

185-10•33

185-10MM 33

185-2•33

185-2.5MM 33

185-2MM 33

185-3•33

185-3MM•33

185-4•33

185-4-4 33

185-4MM•33

185-5 33

185-5MM•33

185-6 33

185-6MM 33

185-7 33

185-7MM 33

185-8 33

185-8MM 33

185-9•33

185-9MM 33

18MM03 95

18MM03-D 95

18MM13•95

18MM13-D 95

18MM15•116

18MM15-D 116

18MM16 131

18MM17•137

18MM23•96

18MM23-D 96

18MM25•117

18MM25-D•117

18MM35•117

18MM35-D 117

18MM36 131

18MM43 96

18MM43-D 96

18MM45•116

18MM45-D 116

18MM55•118

18MM55-D 118

190-1 42

190-3 42

190-4 42

190-5 42

190-7 42

1950-0 41

1950-1 41

1950-2•41

1950-3 41

1951-0 41

1951-1 41

1951-2•41

1951-3 41

1953-0 41

1953-1 41

1953-2•41

1953-3•41

19MM03 95

19MM03-D 95

19MM13 95

19MM13-D 95

19MM15•116

19MM15-D 116

19MM16 131

19MM17 137

19MM23 96

19MM23-D 96

19MM25•117

19MM25-D 117

19MM35•117

19MM35-D 117

19MM36 131

19MM43 96

19MM43-D 96

19MM45 116

19MM45-D 116

19MM55 118

19MM55-D 118

1E06 79

1E07 79

1E08 79

1E09 79

1E10 79

1E11 79

1E12 79

1E14 79

1E15 79

1P06 80

1P07 80

1P08 80

1P09 80

1P10 80

1P11 80

1P12 80

1P14 80

1P16 80

20MM03 95

20MM13 95

20MM15 116

20MM15-D 116

20MM16 131

20MM17 136

20MM23 96

20MM23-D 96

20MM25 117

20MM25-D 117

20MM35 117

20MM35-D 117

20MM45 116

20MM55 118

212-0 43

212-1 43

212-1/4•43

212-1/4A•43

212-1/4A-ACR 43

212-1/4-ACR 43

212-10•43

212-10A 43

212-10-ACR•43

212-2•43

212-3•43

212-3/8A 43

2123-A 42

2123-B 42

212-4•43

212-5•43

212-5/16A•43

212-5/16A-ACR 43

212-6•43

212-6-ACR 43

212-8•43

212-8A 43

212-8-ACR•43

21MM03 95

21MM13 95

21MM15•116

21MM15-D 116

21MM16 131

21MM17•137

21MM18 144

21MM23 96

21MM25•117

21MM25-D 117

21MM35•117

21MM35-D 117

21MM36 131

21MM37 137

21MM38 144

21MM45 116

21MM45-D 116

21MM55 118

21MM57 137

21-S-156-0375 55

21-S-156-0750•55

21-S-156-0937 55

21-S-187-1125 55

21-S-187-1375 55

21-S-187-1500 55

21-S-187-1625 55

22MM03 95

22MM13 95

22MM15•116

22MM15-D 116

22MM16 131

22MM17 137

22MM18 144

22MM23 96

22MM25•117

22MM25-D 117

22MM35 117

22MM35-D 117

22MM36 131

22MM37 137

22MM45 116

22MM45-D 116

22MM47 137

22MM55 118

22MM55-D 118

22MM57 137

23MM15 116

23MM15-D 116

23MM16 131

23MM17 137

23MM18 144

23MM25 117

23MM25-D 117

23MM35 117

23MM37 137

23MM38 144

23MM55 118

24BITKIT 57

24MM15•116

24MM15-D 116

24MM16 131

24MM17•137

24MM18 144

24MM25•117

24MM25-D 117

24MM35•117

24MM35-D 117

24MM36 131

24MM37•137

24MM38 144

24MM47•137

24MM55 118

24MM55-D 118

24MM57•137

25MM15 116

25MM15-D 116

25MM17 137

25MM18 144

25MM35 117

25MM37 137

260-1 15

260-2 15

260-3 15

260-4 15

260-5 15

260-7 15

260-8 15

260-9 15

265-0 44

265-1 44

265-1/4 45

265-10 44

265-2 44

265-3 44

265-3/8 45

265-4 44

265-5 44

265-5/16 45

265-6 44

265-7/16 45

265-8 44

265A-0 44

265A-1 44

265A-1/4 45

265A-10 44

265A-2 44

265A-3 44

265A-3/8 45

265A-4 44

265A-5 44

265A-5/16 45

265A-6 44

265A-7/16 45

265A-8 44

268P-0 59

268P-1 59

268P-2 59

268P-3 59

268P-4 59

268P-5 59

268P-6 59

268P-8 59

268P-10 59

268P-1/4 59

26MM15 116

26MM15-D 116

26MM17 137

26MM18 144

26MM25 117

26MM37 137

26MM55 118

273-0 44

273-1 44

273-10•44

273-2 44

273-3 44

273-4 44

273-5 44

273-6 44

273-8•44

273A-0 44

273A-1 44

273A-10 44

273A-2 44

273A-3 44

273A-4 44

273A-6 44

273A-8 44

273B-0 44

273B-1 44

273B-10 44

273B-2 44

273B-3 44

273B-4 44

273B-5 44

273B-6 44

Part Page

No. No. Part Page

No. No.

•Denotes a Rapid Select item. Refer to Page iv for description of Rapid Select.

163

273B-8•44

27MM15•116

27MM15-D 116

27MM17 137

27MM18 144

27MM25 117

27MM37 137

27MM38 144

27MM47 137

27MM55 118

27MM55-D 118

27MM57 138

28MM15 116

28MM15-D 116

28MM17 137

28MM18 144

28MM25 117

28MM37 138

28MM38 144

29MM15 115

29MM15-D 115

29MM17 137

29MM18 144

29MM25 117

29MM25-D 117

29MM37 138

29MM38 144

29MM55 118

3.5MM11 81

3.5MME1 83

3012-D 85

3014-D•85

3016-D 86

3018-D 86

3020-D 86

3022-D 86

3024-D 86

3026-D 86

309-0 15

309-00 15

309-000 15

309-1 15

309-2 15

309-3 15

309-4 15

309-5 15

309-6 15

309-7 15

309-8 15

30MM15•116

30MM15-D 116

30MM17•137

30MM18 144

30MM25 117

30MM25-D 117

30MM37 138

30MM47 137

30MM48 144

30MM55 118

30MM57 138

3108-D 86

3109-D 86

3110-D•86

3111-D 86

3112-D 86

3114-D•86

3116-D 86

3117-D 86

3118-D 86

3120-D 86

3121-D 86

3122-D 86

3124-D 86

315-10MM 34

315-12MM 34

315-14MM 34

315-2.5MM 34

315-3 33

315-3MM 34

315-4 33

315-4MM 34

315-5 33

315-5MM 34

315-6 33

315-6MM 34

315-7 33

315-7MM 34

315-8 33

315-8MM 34

315-9MM 34

320-0 12

320-00 12

320-000 12

320-1•12

320-2•13

320-20 13

320-3•13

320-4•13

320-5•13

320-5 13

320-6 13

3209-D 87

320-L•17

320-M•17

320-P•17

320-R•17

320-S 17

320-T•17

3210-D 87

3211-D 87

3212-D 87

3214-D 87

3216-D 87

3218-D 87

3220-D 87

3222-D 87

3224-D 87

3226-D 87

3228-D 87

322-L 17

322-M 17

322-OL 17

322-OOL 17

322-OOOL 17

322-P 17

322-R 17

323-0 12

323-00 12

323-000 12

323-1 12

323-2 13

323-3 13

323-4 13

323-5 13

323-6 13

324-0 12

324-00 12

324-000 12

324-1 13

324-2 13

324-20 13

324-3 13

324-4 13

324-5 13

324-6 13

325-0 12

325-00 12

325-000 12

325-1 13

325-2 13

325-20 13

325-3 13

325-4 13

325-5 13

325-6 13

326-0 12

326-00 12

326-000 12

326-1 12

326-2 13

326-20 13

326-3 13

326-4 13

326-5 13

326-6 13

327-0 12

327-00 12

327-000 12

327-1 12

327-2 12

327-20 12

327-3 12

327-4 12

327-5 13

327-6 13

328-0 12

328-00 12

328-000 12

328-1 13

328-2 13

328-20 13

328-3 13

328-4 13

328-5 13

328-6 13

328-L 17

328-M 17

328-P 17

328-R 17

328-S 17

328-T 17

32MM15•116

32MM15-D 116

32MM17 137

32MM18 144

32MM25-D 117

32MM37 138

32MM38 144

32MM47 137

32MM55 118

3308-D 87

3310-D 87

3312-D•87

3314-D 87

3316-D 87

3318-D 87

3320-D 87

3322-D 87

3324-D 87

3326-D 87

3328-D 87

33MM15 196

33MM17 137

33MM18 144

33MM37 138

33MM38 144

3408-D 87

3410-D 87

3412-D•87

3414-D 87

3416-D 87

3418-D 87

3420-D 87

3422-D 87

3424-D 87

3426-D 87

3428-D 87

3430-D 87

3432-D 87

3434-D 87

34MM15 116

34MM17 137

34MM18 144

34MM37 138

3512-D 88

3514-D•88

3516-D 8

3518-D 88

3522-D 88

3524-D 88

3530-D 88

3532-D 88

35MM15 116

35MM17 137

35MM18 144

35MM37 138

35MM38 144

3608-D 92

3609-D 92

3610-D 92

3612-D 92

3614-D 92

3616-D 92

3618-D 92

36MM15 116

36MM17•137

36MM18 144

36MM37 138

36MM38 144

37MM17 137

37MM18 144

37MM38 144

38MM17 137

38MM18 144

38MM38 144

3E06 92

3E07 92

3E08 92

3E10 92

3E11 92

3E12 92

3E14 92

3E16 92

3E18 92

3P06 92

3P07 92

3P08 92

3P09 92

3P10 92

3P11 92

3P12 92

3P14 92

3P16 92

3P18 92

4.5MM11 81

4.5MME1 83

401-PZD 27

402-PZD 27

403-PZD 27

41MM17 137

41MM18 144

41MM37 138

41MM38 144

42MM18 144

440-1•1

440-10IP 25

440-115 1

440-12 1

440-125 1

440-125-PZD 26

440-13 1

440-15IP 25

440-1-ACR1 2

440-1-ACR1-D 2

440-1-ACR1-R 2

440-1-PZD 26

440-1-SF 29

440-2•1

440-20IP 25

440-215•1

440-215-PZD 26

440-215-SF 29

440-22 1

440-225•1

440-225-PZD 26

440-225-SF 29

440-22-ACR2 2

440-22-ACR2-D 2

440-22-ACR2-R 2

440-22-PZD 26

440-22-SF 29

440-23 1

440-24 1

440-255 1

440-25IP 25

440-26 1

440-27 1

440-27IP 25

440-2-ACR2•2

440-2-ACR2-D 2

440-2-ACR2-R•2

440-2-PZD•26

440-2-SF 29

440-3•1

440-30IP 25

440-3125 1

440-32 1

440-325 1

440-33 1

440-34 1

440-3-ACR3 2

440-3-ACR3-D 2

440-3-ACR3-R•2

440-3BN•1

440-3-PZD 26

440-3-SF 29

440-4•1

440-40IP 25

440-4-PZD 26

440-4-SF 29

440-F 30

440-TSQ-10M 49

440-TSQ-4M 49

440-TSQ-5M 49

440-TSQ-6M 49

440-TSQ-8M 49

440-TX-05 19

440-TX-06 19

440-TX-07 19

440-TX-07-H 19

440-TX-08 19

440-TX-08-H 19

440-TX-09 19

440-TX-09-H 19

440-TX-10 19

440-TX-10-H 19

440-TX-10-W 19

440-TX-15 19

440-TX-15-125 19

440-TX-15-H 19

440-TX-15-W 19

440-TX-20 19

440-TX-20-2 19

440-TX-20-H 19

440-TX-20-W 19

440-TX-25 19

440-TX-25-H 19

440-TX-25-W 19

440-TX-27 19

440-TX-27-H 19

440-TX-27-W 19

440-TX-30 19

440-TX-30-H 19

440-TX-30-W 19

440-TX-40 19

440-TX-40-H 19

440-TX-40-W 19

440-TX-45 19

440-TX-50 19

445-0 11

445-00 11

445-000 11

445-00-15 11

445-0-15 11

445-1 11

445-10 11

445-10-15 11

445-1-15 11

445-2 11

445-20 11

445-20-15 11

445-2-15 11

445-3 11

445-30 11

445-30-15 11

445-3-15 11

445-4 11

445-4-15 11

445-5 11

445-6 11

446-1 2

446-12 1

446-1-PZD 26

446-1-SF 29

446-2 2

446-215 2

446-215T 2

446-22 2

446-225T 1

446-22-PZD 26

446-22T•2

446-23T 1

446-27 2

446-2-ACR2-D 2

446-2-PZD•26

446-2-SF 29

446-F 30

46MM17 137

46MM18 144

46MM38 144

47MM18 144

47MM38 144

480-1 1

480-1-PZD 26

480-2•3

480-22 3

480-225 3

480-24 3

480-27 3

480-2-ACR2•3

480-2-ACR2-D 3

480-2-ACR2-R 3

480-2-PZD 26

480-2-SF 29

480-3•3

480-325 3

480-3-ACR3 3

480-3-ACR3-D 3

480-3-ACR3-R 3

480-3-PZD 26

480-3-SF 29

480-4•3

480-4-ACR4 3

480-4-ACR4-R 3

480-4BN•3

480-4BN-PZD 26

480-4BN-SF 29

480-4-PZD 26

480-4-SF 29

480-F 30

480-TSQ-10M 49

480-TSQ-12M 49

480-TSQ-14M 49

480-TSQ-4M 49

480-TSQ-5M 49

480-TSQ-6M 49

480-TSQ-8M 49

480-TX-20 20

480-TX-25 20

480-TX-27 20

480-TX-30•20

480-TX-40•20

480-TX-40-4 20

480-TX-40-H 20

480-TX-45•20

480-TX-45-6 20

480-TX-45-H 20

480-TX-50•20

480-TX-50-H 20

480-TX-55•20

480-TX-55-H 20

485-1 12

485-2 12

485-3 12

485-4 12

485-5 12

485-6 12

485-7•12

48MM18 144

48-TSQ-10M 49

48-TSQ-12M 49

48-TSQ-14M 49

48-TSQ-4M 49

48-TSQ-5M 49

48-TSQ-6M 49

48-TSQ-8M 49

48-TX-40 22

48-TX-45 22

48-TX-50•22

48-TX-55 22

490-10 50

490-3 50

490-4•50

490-5 50

490-6 50

490-8 50

4910-A 4

4910-B•4

4910-C 4

49-10IP 25

49-15IP 25

491-A•4

491-ACR1 5

491-ACR1-D 5

491-ACR1-R 5

491-AF 30

491-A-PZD 27

491-A-SF 29

491-B•4

491-BF 30

491-B-PZD 27

491-B-SF 29

491-C•4

491-CC•4

491-CF 30

491-C-SF 29

491-F 30

491-PZD 27

491-SF 29

49-20IP 25

492-200MM 4

492-27 4

49-25IP 25

49-27IP 25

492-A•4

492-A-27 4

492-A-ACR2•5

492-A-ACR2-D 5

492-A-ACR2-R 5

492-ACR2•5

492-ACR2-D 5

492-ACR2-R 5

492-AF 30

492-A-PZD•27

492-A-SF 29

492-B•4

492-B-27 4

492-B-ACR2•5

492-B-ACR2-D 5

492-B-ACR2-R 5

492-BF 30

492-B-PZD•27

492-B-SF 29

492-C•4

492-C-27 4

492-C-ACR2-D 5

492-CC•4

492-CF 30

492-C-SF 29

492-F 30

492-PZD•27

492-SF 29

4930-A 4

4930-B 4

4930-C 4

4930-CC 4

49-30IP 25

493-A•4

493-ACR3•5

493-ACR3-D 5

493-ACR3-R 5

493-AF 30

493-A-PZD 27

493-A-SF 29

493-B•4

493-BF 30

493-B-SF 29

493-C•4

493-CF 30

493-C-SF 29

493-F 30

493-PZD 27

493-SF 29

49-40IP 25

49-A-10IP 25

49-A-15IP 25

49-A-20IP 25

49-A-25IP 25

49-A-27IP 25

49-A-30IP 25

49-A-40IP 25

49-A-TX-05 21

49-A-TX-06 21

49-A-TX-07 21

49-A-TX-08•21

49-A-TX-09 21

49-A-TX-10•21

49-A-TX-10-H 22

49-A-TX-15•21

49-A-TX-15-H 22

49-A-TX-15-W 22

49-A-TX-20•21

49-A-TX-20-H 22

49-A-TX-25•21

49-A-TX-27 21

49-A-TX-30•21

49-A-TX-40 21

49-B-10IP 25

49-B-15IP 25

49-B-20IP 25

49-B-25IP 25

49-B-27IP 25

49-B-30IP 25

49-B-40IP 25

49-B-TX-05 21

49-B-TX-07 21

49-B-TX-08•21

49-B-TX-09 21

49-B-TX-10•21

49-B-TX-15•21

49-B-TX-15-H 22

49-B-TX-15-W 22

49-B-TX-20•21

49-B-TX-20-H 22

49-B-TX-20-W 22

49-B-TX-25•21

49-B-TX-27 21

49-B-TX-30•21

49-B-TX-30-W 22

49-B-TX-40 21

49-C-TX-07 21

49-C-TX-08•21

Part Page

No. No. Part Page

No. No.

•Denotes a Rapid Select item. Refer to Page iv for description of Rapid Select.

164

49-C-TX-09 21

49-C-TX-10•21

49-C-TX-15•21

49-C-TX-20•21

49-C-TX-20-H 22

49-C-TX-25•21

49-C-TX-27 21

49-C-TX-30•21

49-C-TX-40 21

49-TSQ-10M 49

49-TSQ-12M 49

49-TSQ-4M 49

49-TSQ-5M 49

49-TSQ-6M 49

49-TSQ-8M 49

49-TX-05 21

49-TX-06•21

49-TX-07•21

49-TX-08•21

49-TX-08-W 22

49-TX-09 21

49-TX-09-W 22

49-TX-10•21

49-TX-10-H 22

49-TX-10-W 22

49-TX-15•21

49-TX-15-H 22

49-TX-15-W 22

49-TX-20•21

49-TX-20-5 21

49-TX-20-W 22

49-TX-25 21

49-TX-25-W•22

49-TX-27 21

49-TX-27-W 22

49-TX-30•21

49-TX-30-W 22

49-TX-40•21

4MM11 81

4MME1 83

5.5MM11•81

5.5MM21 81

5.5MME1 83

501-A 6

502-A 6

502-ACR2 6

502-PZD 27

50MM18 144

50MM38 144

50-TX-08•23

50-TX-10 23

50-TX-15 23

50-TX-20 23

5108-D 105

510-BH 55

5110-D 105

5112-D 105

5113-D 105

5114-D 105

5116-D•105

5118-D 105

5119-D 105

5120-D 105

5122-D 105

5124-D•105

5125-D 105

5126-D 105

5128-D 105

5129-D 105

5130-D 105

5131-D 105

5132-D 105

5134-D 105

5136-D 105

5138-D 105

5140-D 105

5142-D 105

5144-D 105

5146-D 105

5148-D 105

5150-D 105

5152-D 105

5154-D 105

5156-D 105

5212-D 107

5214-D 107

5216-D 107

5218-D 107

5220-D 107

5222-D 107

5224-D•107

5228-D 107

5230-D 107

5232-D 107

5234-D 107

5236-D 107

5238-D 107

5240-D 107

5312-D 107

5314-D 107

5316-D•107

5318-D 107

5320-D 107

5322-D 107

5324-D•107

5326-D 107

5328-D 107

5330-D 107

5332-D 107

5334-D 107

5336-D 107

5338-D 107

5340-D 107

5412-D 106

5414-D 106

5416-D•106

5418-D•106

5420-D 106

5421-D 106

5422-D 106

5424-D 106

5425-D 106

5426-D 106

5428-D 106

5430-D 106

5432-D 106

5434-D 106

5436-D 106

5438-D 106

5440-D 106

5442-D 106

5512-D 108

5514-D 108

5516-D 108

5518-D•108

5520-D•108

5522-D 108

5524-D•108

5526-D 108

5528-D 108

552-F 31

5530-D•108

5532-D 108

5534-D 108

55-TX-10 23

55-TX-15 23

55-TX-20•23

55-TX-25 23

55-TX-30 23

5608-D 111

5609-D 111

5610-D 111

5612-D 111

5614-D 111

5616-D 111

5618-D 111

5619-D 111

5620-D 111

5622-D 111

5624-D 111

5626-D 111

5628-D 111

5632-D 111

5634-D 111

5636-D 111

5716-D 112

5724-D 112

5812-D 112

5814-D 112

5816-D 112

5818-D 112

5820-D 112

5822-D 112

5826-D•112

5828-D 112

5830-D 112

5832-D•112

5834-D•112

5836-D•112

5910-D 112

5912-D 112

5914-D 112

5916-D 112

5918-D 18

591-PZD 27

5920-D 112

592-27 7

592-PZD 27

5E08 111

5E12 111

5E14 111

5E16 111

5E18 111

5MM11•83

5MM21 81

5MME1 83

5P08 111

5P10 111

5P12 111

5P14 111

5P16 111

5P18 111

6116-D 128

6118-D 128

6120-D 128

6122-D 128

6124-D 128

6130-D 128

6322-D 130

6324-D 130

6326-D 130

6330-D 130

6332-D 130

6334-D 129

6336-D 129

6340-D 129

6344-D 129

635-10 10

6352-D 129

635-3 14

635-4 14

635-5 14

635-6 14

635-7 14

635-8 14

635-9 14

6414-D 128

6420-D 128

6424-D 128

6428-D 128

6430-D 128

6520-D 130

6524-D 130

6528-D 130

6530-D 130

6B-0808•62

6B-0809 62

6B-0810•62

6B-0811•62

6B-0812•62

6B-0814•62

6B-0816•62

6B-0818•62

6B-0820 62

6MM11•81

6MM11-D 81

6MM13 95

6MM21 81

6MM23 96

6MM43 96

6MME1 83

6MME3 99

6N-0806-2•61

6N-0806-3 61

6N-0806-4•61

6N-0806-6 61

6N-0808-2•61

6N-0808-3 61

6N-0808-4 61

6N-0808-5 61

6N-0808-6 61

6N-0810-2•61

6N-0810-3•61

6N-0810-4•61

6N-0810-5 61

6N-0810-6 61

6N-0811-2 61

6N-0811-3 61

6N-0812-2•61

6N-0812-3 61

6N-0812-4 61

6N-0812-6 61

6N-0814-2•61

6N-0814-3 61

6N-0814-4 61

6N-0814-6 61

6N-0816-2•61

6N-0816-3 61

6N-0818-2•61

6N-1410-3 63

6N-1412-2 63

6N-1412-3 63

6N-1414-3 63

6N-1416-3•63

6N-1416-4 63

6N-1416-6 63

6N-1418-3•63

6N-1418-4 63

6N-1418-8 63

6N-1420-3 63

6N-1420-6 63

6N-1424-3•63

6N-1424-6 63

6N-2028-4 63

6N-2036-4 63

7120-D 133

7122-D 133

7124-D 133

7126-D 133

7128-D 133

7130-D 133

7132-D 133

7134-D 133

7136-D 133

7138-D 133

7140-D 133

7142-D 133

7144-D 133

7148-D 133

7150-D 133

7152-D 133

7154-D 133

7156-D 133

7158-D 133

7160-D 133

7164-D 133

7166-D 133

7168-D 133

7170-D 133

7172-D 133

7176-D 133

7180-D 133

71-TX-06 58

71-TX-07 58

71-TX-08 58

71-TX-09 58

71-TX-10 58

71-TX-15 58

71-TX-20 58

71-TX-25 58

71-TX-27 58

71-TX-30 58

71-TX-40 58

71-TX-45 58

71-TX-50 58

71-TX-55 58

7322-D 135

7324-D 135

7328-D 135

7330-D 135

7332-D 135

7334-D 135

7336-D 135

7338-D 135

7424-D 134

7428-D 134

7430-D 134

7432-D 134

7434-D 134

7436-D 134

7438-D 134

7440-D 134

7442-D 134

7448-D 134

7530-D•135

7532-D 135

7534-D 135

7536-D 135

7624-D 136

7626-D 136

7628-D 136

7630-D 136

7632-D 136

7634-D 136

7636-D 136

7638-D 136

7640-D 136

7642-D 136

7MM03 95

7MM11•81

7MM11-D 81

7MM13•95

7MM21•81

7MM21-D 81

7MM23 96

7MM43 96

7MM43-D 96

7MME1 83

7MME3 99

8124-D 140

8128-D 140

8130-D 140

8132-D•140

8134-D 140

8136-D 140

8138-D 140

8140-D 140

8142-D 140

8144-D 140

8146-D 140

8148-D 140

8150-D 140

8154-D 140

8156-D 140

8160-D 140

8162-D 140

8164-D 140

822-F 31

830-1 4

830-2•4

830-27 4

830-3 4

830-4 4

832-F 31

833-F 31

834-F 31

834-TX-25 23

834-TX30-1.62 23

834-TX40-2.95 23

834-TX-45-5 23

834-TX-50 23

834-TX50-1.62 23

8430-D 141

8432-D 141

8434-D 141

8436-D 141

8438-D 141

8440-D 141

8442-D 141

8448-D 141

854-TX-50•23

854-TX55-150M 23

8622-D 143

8624-D 143

8626-D 143

8628-D 143

8630-D 143

8632-D 143

8634-D 143

8636-D 143

8640-D 143

8644-D 143

8646-D 143

8648-D 143

8652-D 143

8654-D 143

8MM03 95

8MM11•81

8MM11-D 81

8MM13•95

8MM13-D•95

8MM21•81

8MM21-D 81

8MM23•96

8MM23-D 96

8MM43•96

8MM43-D 96

8MME1•83

8MME3 99

950-0 41

950-1•41

950-2•41

950-3 41

954-0 41

954-1•41

954-2•41

954-3•41

954-A-0 41

954-A-1 41

954-A-2•41

954-A-3 41

954-B-1 41

954-B-2•41

954-B-3 41

954-C-0 41

954-C-1 41

954-C-2•41

954-C-3 41

9MM03 95

9MM03-D 95

9MM11 81

9MM11-D 81

9MM13 93

9MM21 79

9MM21-D 79

9MM23 96

9MM23-D 96

9MM43 96

9MM43-D 96

9MME1 83

9MME3 99

A-108•158

A-110 158

A-1-10MM•159

A-1-11MM 159

A-112 158

A-1-12MM 159

A-1-13MM 159

A-114 158

A-116 158

A-118 158

A-120 158

A-1-6MM 159

A-1-7MM 159

A-1-8MM 159

A-1-9MM 159

A-3-10MM•159

A-3-11MM 159

A-312 158

A-3-12MM 159

A-3-13MM•159

A-314•158

A-3-14MM 159

A-3-15MM 159

A-316•158

A-3-16MM 159

A-3-17MM 159

A-318•158

A-3-18MM 159

A-3-19MM 159

A-320 158

A-322 158

A-324 158

A-326 158

A-328 158

A-5-10MM 159

A-5-11MM 159

A-512 158

A-5-12MM 159

A-5-13MM 159

A-514 158

A-5-14MM 159

A-5-15MM 159

A-516•158

A-5-16MM 159

A-5-17MM 159

A-518•158

A-5-18MM 159

A-5-19MM 159

A-520 158

A-5-20MM 159

A-5-21MM 159

A-522 158

A-5-22MM 159

A-5-23MM 159

A-524 158

A-5-24MM 159

A-5-25MM 159

A-526 159

A-528 159

A-530 159

A-532 159

A-534 159

A-536 159

A-538 159

A-540 159

AM-02•34

AM-02-3 34

AM-02-A•34

AM-03•34

AM-03-3 34

AM-03-6 34

AM-03-A•34

AM-04•34

AM-04-3 34

AM-04-35 34

AM-04-4•34

AM-04-5 34

AM-04-6 34

AM-04-A 34

AM-05•34

AM-05-3 34

AM-05-35 34

AM-05-4 34

AM-05-5 34

AM-05-6 34

AM-05-8 34

AM-06•34

AM-06-3 34

AM-06-4 34

AM-06-6•34

AM-07 34

AM-08 34

AM-1.5MM 35

AM-10 34

AM-10MM 35

AM-2.5MM•35

AM-2MM•35

AM-3MM•35

AM-3MM-3 35

AM-3MM-4 35

AM-4MM•35

AM-5MM•35

AM-5MM-4 35

AM-6MM•35

AM-6MM-4 35

AM-7MM 35

AM-8MM 35

AN-04 36

AN-04-6 34

AN-04-A 36

AN-05•36

AN-05-6 36

AN-06•36

AN-06-6 36

AN-07 36

AN-07-8 36

AN-08•36

AN-08-8 36

AN-09 36

AN-10•36

AN-10-6 36

AN-10MM 36

AN-12•36

AN-12-6 36

AN-12MM 36

AN-14MM 36

AN-14MM-6 36

AN-16 36

AN-16-6 36

AN-3MM 36

AN-4MM 36

AN-5MM 36

AN-6MM 36

AN-8MM 36

AP-08 37

AP-10 37

AP-12 37

AP-14MM 36

AP-16 37

AP-18 37

AP-20 37

AP-24 37

APH35M 40

APH38 39

APH56 39

APH56M 40

APS312LM 100

APS312M 100

APS38 93

APS38L 93

APS38LM 100

APS38M 100

APS510 112

APS511M 123

APS58 112

APS58M 123

APS58XL 112

APS58XLM 123

Part Page

No. No. Part Page

No. No.

•Denotes a Rapid Select item. Refer to Page iv for description of Rapid Select.

165

APU37 93

APU37M 100

APU56 113

AS-04 35

AS-05 35

AS-06 35

AS-07 35

AS-08 35

AS-10 35

AS-12 35

AW-375 59

AW-95•59

AW-95-L•59

AW-95-LL•59

BNAE-3MM 31

BNAE-4MM 31

BNAE-4MM-ACR31

BNAE-5MM 31

BNAE-5MM-ACR31

BNAE-6MM 31

BNAE-6MM-ACR31

BNAE-8MM 31

BW-648 130

BW-748 136

BW-7626 136

BW-848 143

BW-848-F 143

BW-8626 143

CMS-1407 83

CMS-1408 83

CMS-1409 83

CMS-1410 83

CMS-1412 83

CMS-1414 83

CMS-1507 83

CMS-1508 83

CMS-1509 83

CMS-1510 83

CMS-3412 112

CMS-3414 112

CMS-3416 112

CMS-3418 112

CMS-3420 112

CMS-3512 112

CMS-3514 112

CMS-3518 112

CMS-3520 112

CMS-5416 125

CMS-5420 125

CMS-5422 125

CMS-5424 125

CMS-5426 125

CMS-5428 125

CMS-5430 125

CMS-5526 125

CMS-5530 125

CMS-7426 138

CMS-7428 138

CMS-7430 138

CMS-7432 138

CMS-8432 145

CMS-8434 145

DB-08 60

DB-10 60

DB-12 60

EX-1000 139

EX-1000-B 145

EX-1001 145

EX-1001-B 145

EX-1003-10 145

EX-1003-12 145

EX-1003-15 145

EX-1003-4 145

EX-1003-6 145

EX-1003-8 145

EX-1003-B-10 145

EX-1003-B-12 145

EX-1003-B-15 145

EX-1003-B-4 145

EX-1003-B-6 145

EX-1003-B-8 145

EX-1005 148

EX-1005-B 148

EX-1008 146

EX-1101 146

EX-1105 148

EX-250•64

EX-250-10 64

EX-250-12•64

EX-250-2•64

EX-250-3•64

EX-250-4•64

EX-250-5•64

EX-250-6•64

EX-250-8•64

EX-250-B•64

EX-250-B-12 64

EX-250-B-2•64

EX-250-B-3•64

EX-250-B-4•64

EX-250-B-5 64

EX-250-B-6•64

EX-250-B-8 64

EX-251 64

EX-251-10 64

EX-251-2 64

EX-251-3 64

EX-251-4 64

EX-251-6 64

EX-251-8 64

EX-251-B 64

EX-251-B-2 64

EX-251-B-3 64

EX-251-B-4 64

EX-252 85

EX-252-B 85

EX-254•104

EX-254-B•104

EX-255-10 85

EX-255-12 85

EX-255-14 85

EX-255-2•85

EX-255-3•85

EX-255-4•85

EX-255-6•85

EX-255-8•85

EX-255-B-2 85

EX-255-B-4 85

EX-255-B-6 85

EX-257-2 104

EX-257-3 104

EX-257-4 104

EX-257-5 104

EX-257-6•104

EX-257-B-2 104

EX-257-B-3 104

EX-257-B-4 104

EX-257-B-5 104

EX-257-B-6 104

EX-258-2 126

EX-258-4 127

EX-258-6 126

EX-258-B-2 126

EX-260 126

EX-260-B 126

EX-262 64

EX-262-2 64

EX-262-3 64

EX-262-4 64

EX-262-6 64

EX-262-B 64

EX-262-B-2 64

EX-262-B-4 64

EX-262-B-6 64

EX-370•65

EX-370-10•65

EX-370-2•65

EX-370-3•65

EX-370-4•65

EX-370-5 65

EX-370-6•65

EX-370-8•65

EX-370-B•65

EX-370-B-10 65

EX-370-B-2•65

EX-370-B-3•65

EX-370-B-4 65

EX-370-B-6 65

EX-370-B-8 65

EX-371•65

EX-371-10 65

EX-371-12 65

EX-371-15 65

EX-371-2•65

EX-371-2 3/4 65

EX-371-3•65

EX-371-4•65

EX-371-5•65

EX-371-6•65

EX-371-8 65

EX-371-B 65

EX-371-B-2 65

EX-371-B-3 65

EX-371-B-4 65

EX-371-B-6 65

EX-372•85

EX-372-B•85

EX-374•103

EX-374-B•103

EX-375•126

EX-375-B•126

EX-376-10•103

EX-376-12•103

EX-376-15•103

EX-376-18•103

EX-376-2•103

EX-376-3•103

EX-376-4•103

EX-376-5•103

EX-376-6•103

EX-376-8•103

EX-376-9•103

EX-376-B-10•103

EX-376-B-12 103

EX-376-B-15 103

EX-376-B-2•103

EX-376-B-3•103

EX-376-B-4•103

EX-376-B-5 103

EX-376-B-6•103

EX-376-B-8•103

EX-376-B-9 103

EX-377-10 127

EX-377-12 127

EX-377-15 127

EX-377-2•126

EX-377-3 126

EX-377-4•126

EX-377-5 127

EX-377-6•127

EX-377-8 127

EX-377-B-10 127

EX-377-B-12 127

EX-377-B-2 126

EX-377-B-3 126

EX-377-B-4 126

EX-377-B-5 127

EX-377-B-6 127

EX-377-B-9 127

EX-380 65

EX-380-2 65

EX-380-3 65

EX-380-4 65

EX-380-6 65

EX-380-B 65

EX-380-B-2 65

EX-380-B-3 65

EX-500-2•66

EX-500-3•66

EX-500-4 66

EX-500-6 66

EX-500-B-2•65

EX-500-B-3•66

EX-500-B-4 66

EX-500-B-6 66

EX-501-10 66

EX-501-12 66

EX-501-15 66

EX-501-2•66

EX-501-3•66

EX-501-4•66

EX-501-5 66

EX-501-6 66

EX-501-8 66

EX-501-B-10 66

EX-501-B-12 66

EX-501-B-2•66

EX-501-B-3 66

EX-501-B-4 66

EX-501-B-5 66

EX-501-B-6 66

EX-501-B-8 66

EX-502 66

EX-502-3•66

EX-502-4 66

EX-502-5 66

EX-502-6 66

EX-502-8 66

EX-502-B 66

EX-502-B-3 66

EX-502-B-4 66

EX-503•104

EX-503-B•104

EX-504 126

EX-504-B 126

EX-505 132

EX-505-B 132

EX-506 139

EX-506-B 139

EX-507-2 104

EX-507-3 104

EX-507-4 104

EX-507-6 104

EX-507-B-3 104

EX-507-B-4 104

EX-507-B-6 104

EX-508-10•126

EX-508-12•126

EX-508-15•126

EX-508-16 126

EX-508-18•126

EX-508-2•126

EX-508-3•126

EX-508-4•126

EX-508-5•126

EX-508-6•126

EX-508-8•126

EX-508-9 126

EX-508-B-10•127

EX-508-B-12 127

EX-508-B-15 127

EX-508-B-2 126

EX-508-B-3 126

EX-508-B-4 126

EX-508-B-5•126

EX-508-B-6•126

EX-508-B-8 126

EX-508-B-9 126

EX-509-10 132

EX-509-12 132

EX-509-3 132

EX-509-4 132

EX-509-5 132

EX-509-6 132

EX-510-3 139

EX-510-4 139

EX-510-6 139

EX-510-8 139

EX-510-B-3 139

EX-510-B-4 139

EX-510-B-6 139

EX-510-B-8 139

EX-512-2 66

EX-512-3 66

EX-512-B-2 66

EX-512-B-4 66

EX-620-3 67

EX-620-6 67

EX-621-3 67

EX-621-4 67

EX-621-6 67

EX-621-8 67

EX-621-B-3 67

EX-622 104

EX-623 127

EX-623-B 127

EX-624 131

EX-624-B 131

EX-625 139

EX-625-B 139

EX-626-3 127

EX-626-4 127

EX-626-6 127

EX-627-10 131

EX-627-12 131

EX-627-15 131

EX-627-4 131

EX-627-6 131

EX-627-8 131

EX-628-3 139

EX-750 104

EX-750-B 104

EX-751•127

EX-751-B•126

EX-752 132

EX-752-B 132

EX-753 138

EX-753-B 138

EX-754 146

EX-754-B 146

EX-755-10 138

EX-755-12 138

EX-755-15 138

EX-755-4 138

EX-755-6 138

EX-755-8 138

EX-755-B-10 138

EX-755-B-12 138

EX-755-B-15 138

EX-755-B-4 138

EX-755-B-6 138

EX-755-B-8 138

EX-756-4 146

EX-756-6 146

EX-756-8 146

EX-756-B-4 146

EX-756-B-6 146

EX-756-B-8 146

EX-757-3 67

EX-757-B-3 67

EX-758-4 67

EX-758-6 67

EX-758-9 67

EX-758-B-4 67

EX-758-B-6 67

EX-759-4 67

EXL-1000 155

EXL-1003-15 155

EXL-1003-8 155

EXL-1100 155

EXL-15 155

EXL-750 155

EXL-8 155

FL-1108 79

FL-1109 79

FL-1110•79

FL-1111 79

FL-1112 79

FL-1114 79

FL-1116 79

FL-1118 79

FL-1212 79

FL-1214 79

FL-1216 79

FL-3012•90

FL-3014 90

FL-3016•90

FL-3020 90

FL-3022 90

FL-3024 90

FL-3108 90

FL-3110 90

FL-3112 90

FL-3114 90

FL-3116•90

FL-3118 90

FL-3119 90

FL-3120 90

FL-3122 90

FL-3124 90

FL-3210 91

FL-3212 91

FL-3214 91

FL-3216 91

FL-3218 91

FL-3220 91

FL-3312 91

FL-3314 91

FL-3316 91

FL-3318 91

FL-3320 91

FL-3324 91

FL-3326 90

FL-3410 90

FL-3412 90

FL-3414 90

FL-5112 109

FL-5114 109

FL-5116 109

FL-5118•109

FL-5120 109

FL-5122 109

FL-5124 109

FL-5126 109

FL-5128 109

FL-5130 109

FL-5132 109

FL-5134 109

FL-5214 110

FL-5216 110

FL-5218 110

FL-5220 110

FL-5222 110

FL-5224 110

FL-5226 110

FL-5228 110

FL-5316 110

FL-5318•110

FL-5320 110

FL-5322 110

FL-5324•110

FL-5326 110

FL-5414 109

FL-5416 109

FL-5418 109

FL-6120 129

FL-6124 129

FL-6128 129

FL-6132 129

FL-6320 130

FL-6324 130

FL-6326 130

FL-6328 130

FL-6330 130

FL-HE-9518 130

FL-SH-335 109

FL-SH-336 109

FL-SH-338 109

FL-SW-282 109

FL-SW-493 110

FND-185-3MM 37

FND-185-4MM 37

FND-185-5MM 37

FND-185-8MM 37

FND-1PH 7

FND-1PZD 28

FND-2PH 7

FND-2PH-70M 7

FND-2PZD 28

FND-2PZD-70M 28

FND-320-A 18

FND-320-B 18

FND-320-C 18

FND-320-E 18

FND-320-F 18

FND-320-H 18

FND-320-I 18

FND-3PH 7

FND-3PZD 28

FND-3PZD-70M 28

FND-TX10 24

FND-TX20 24

FND-TX25 24

FND-TX27 24

FND-TX30 24

HA-510 77

HC-100-1/2•152

HC-100-1/4•152

HC-100-10 152

HC-100-3/4 152

HC-100-3/8 FS•152

HC-100-5/16•152

HC-100-5/8 152

HC-100-7/16 152

HC-3520 86

HC-3816 86

HC-3816-D 86

HE-100-1/2•152

HE-100-1/4 152

HE-100-3/4 152

HE-100-3/8 FS 152

HE-100-5/16 152

HE-100-5/8 152

HE-100-7/16 152

HE-1028 106

HE-1028-D 106

HE-2422 106

HE-2422-D 106

HE-530 106

HE-530-D 106

HE-9518 107

HE-9518-D 107

HT-848•156

HT-848-6 1/2 156

HTN-B-1 48

HTN-B-2 48

HTN-B-3 48

HTN-B-4 48

HTS-0 48

HTS-1•48

HTS-10 48

HTS-12 48

HTS-2•48

HTS-3•48

HTS-3A•48

HTS-4•48

HTS-4A•48

HTS-5•48

HTS-6•48

HTS-7 48

HTS-8 48

HTS-9 48

KA-103-3 94

KA-103-4 94

KA-103-6 94

KA-104-12 94

KA-104-3 94

KA-104-4 94

KA-104-6 94

KA-104-9 94

KA-105-12 94

KA-105-3 94

KA-105-4 94

KA-105-6 94

KA-43-3 94

KA-43-4 94

KA-43-6 94

KA-44-3 94

KA-44-4 94

KA-44-6 94

KA-45-3 94

KA-45-4 94

KA-45-6 94

KA-45-9 94

KA-6-10M-12 101

KA-6-10M-3 101

KA-6-10M-6 101

KA-6-10M-9 101

KA-7-11M-12 101

KA-7-11M-3 101

KA-7-11M-6 101

KA-7-12M-12 101

KA-7-12M-3 101

KA-7-12M-4 101

KA-7-12M-6 101

KA-7-12M-9 101

KA-7-13M-12 101

KA-7-13M-3 101

KA-7-13M-4 101

KA-7-13M-6•101

KA-7-13M-9 101

KA-7-14M-12 101

KA-7-14M-3 101

KA-7-14M-4 101

KA-7-14M-6 101

KA-7-14M-9 101

KA-8-15M-12 101

KA-8-15M-4 101

KA-8-15M-6 101

KA-8-15M-9 101

KAM-25-3 104

KAM-37-3 104

KAM-37-B-3 104

KAM-38-3 104

KAM-38-6 104

KB-10-19M-3 72

KB-10-19M-6 72

KB-10-19M-9 72

KB-104-6 70

KB-104-9 70

KB-105-12 70

KB-105-3 70

KB-105-4 70

KB-105-6 70

KB-105-9 70

KB-202-12 70

KB-202-4 70

KB-202-6 70

KB-203-12 70

KB-203-3 70

KB-203-6 70

KB-203-9 70

KB-205-12 71

KB-205-3 71

KB-205-4 71

KB-205-6 71

KB-205-9 71

KB-317-3 70

KB-317-6 70

KB-318-12 71

KB-318-3 70

KB-318-6 71

KB-318-9 71

KB-320-12 71

KB-320-3 71

KB-320-4 71

KB-320-6 71

KB-320-9 71

KB-321-12 71

Part Page

No. No. Part Page

No. No.

•Denotes a Rapid Select item. Refer to Page iv for description of Rapid Select.

166

KB-321-3 71

KB-321-6 71

KB-321-9 71

KB-322-12 71

KB-322-3 71

KB-322-4 71

KB-322-6 71

KB-322-9 71

KB-40-3 70

KB-40-4 70

KB-40-6 70

KB-40-9 70

KB-43-3 70

KB-43-4 70

KB-43-6 70

KB-44-12 70

KB-44-3 70

KB-44-4 70

KB-44-6 70

KB-44-9 70

KB-45-12 70

KB-45-3 70

KB-45-4 70

KB-45-6 70

KB-45-9 70

KB-6-10M-3 71

KB-6-10M-6 71

KB-6-10M-9 71

KB-7-11M-12 71

KB-7-11M-3 71

KB-7-11M-4 71

KB-7-11M-6 71

KB-7-12M-3 72

KB-7-12M-6 72

KB-7-12M-9 72

KB-7-13M-12 72

KB-7-13M-3 72

KB-7-13M-4 72

KB-7-13M-6 72

KB-7-13M-9 72

KB-7-14M-3 72

KB-7-14M-4 72

KB-7-14M-6 72

KB-7-14M-9 72

KB-8-15M-12 72

KB-8-15M-6 72

KB-8-15M-9 72

KB-8-16M-3 72

KB-8-16M-6 72

KB-8-16M-9 72

KB-8-17M-12 72

KB-8-17M-3 72

KB-8-17M-6 72

KB-8-17M-9 72

KB-8-18M-12 72

KB-8-18M-3 72

KB-8-18M-6 72

KB-8-18M-9 72

KBM-37-3 160

KC-100-12 68

KC-100-3 68

KC-100-6 68

KC-101-3 68

KC-101-6 68

KC-102-3 68

KC-102-6 68

KC-102-9 68

KC-103-3 68

KC-103-6 68

KC-103-9 68

KC-104-12 68

KC-104-3 68

KC-104-6 68

KC-104-9 68

KC-105-12 69

KC-105-3 69

KC-105-4 69

KC-105-6•69

KC-105-9 69

KC-25-12 68

KC-25-3 68

KC-25-4 68

KC-25-6•68

KC-25-9 68

KC-26-12 68

KC-26-3 68

KC-26-4 68

KC-26-6 68

KC-26-9 68

KC-27-12 68

KC-27-3 68

KC-27-6 68

KC-28-12 68

KC-28-3 68

KC-28-4 68

KC-28-6 68

KC-28-9 68

KC-29-12 68

KC-29-3 68

KC-29-6•68

KC-30-3 68

KC-30-4 68

KC-30-6•68

KC-30-9 68

KC-5-7M-3 69

KC-5-7M-4 69

KC-5-7M-6 69

KC-5-7M-9 69

KC-6-10M-12 69

KC-6-10M-3 69

KC-6-10M-4 69

KC-6-10M-6 69

KC-6-10M-9 69

KC-6-8M-3 69

KC-6-8M-4 69

KC-6-8M-6 69

KC-6-8M-9 69

KC-6-9M-3 69

KC-6-9M-6 69

KC-7-11M-3 69

KC-7-11M-6 69

KC-7-11M-9 69

KC-7-12M-3 69

KC-7-12M-6 69

KC-7-12M-9 69

KC-7-13M-3 69

KC-7-13M-6 69

KC-7-13M-9 69

KCM-25-3 160

KCM-25-B-3 160

KCM-37-3 160

KCM-37-B-3 160

KD-103-6 94

KD-104-6 94

KD-105-3 94

KD-105-4 94

KD-105-6•94

KD-205-12 94

KD-205-6 94

KD-43-6 94

KD-43-9 94

KD-44-12 94

KD-44-6 94

KD-44-9 94

KD-45-6 94

KD-6-10M-12 111

KD-6-10M-6•111

KD-6-10M-9 111

KD-7-11M-12 111

KD-7-12M-12 111

KD-7-12M-6 111

KD-7-12M-9 111

KD-7-13M-12 111

KD-7-13M-6•111

KD-7-13M-9 111

KD-7-14M-6•111

KD-7-14M-9 111

KD-8-15M-12 111

KD-8-15M-6•111

KD-8-15M-9 111

KDM-25-3 104

KDM-37-3 104

KDM-37-B-3 104

KDM-37-6•104

KDM-38-3 104

KEM-37-B-6 160

KH-10-19M-6 123

KH-104-12 114

KH-104-3 114

KH-104-4 114

KH-104-6 114

KH-104-9 114

KH-105-3 114

KH-105-4 114

KH-105-6•114

KH-202-12 114

KH-202-3 114

KH-202-6 114

KH-203-12 114

KH-203-6 114

KH-203-9 114

KH-205-12 114

KH-205-3 114

KH-205-4 114

KH-205-6 114

KH-205-9 114

KH-318-3 114

KH-318-4 114

KH-318-6 114

KH-318-9 114

KH-320-12 115

KH-320-3 114

KH-320-6 115

KH-320-9 115

KH-321-12 115

KH-321-3 115

KH-321-4 115

KH-321-6 115

KH-321-9 115

KH-322-12 115

KH-322-3 115

KH-322-4 115

KH-322-6 114

KH-322-9 115

KH-404-12 115

KH-404-3 115

KH-404-4 115

KH-404-6 115

KH-404-9 115

KH-409-12 115

KH-409-3 115

KH-409-4 115

KH-409-6 115

KH-409-9 115

KH-43-3 114

KH-43-6 114

KH-43-9 114

KH-44-3 114

KH-44-4 114

KH-44-6 114

KH-44-9 114

KH-45-3 114

KH-45-4 114

KH-45-6 114

KH-7-12M-12 123

KH-7-12M-3 123

KH-7-12M-4 123

KH-7-12M-6 123

KH-7-12M-9 123

KH-7-13M-12 124

KH-7-13M-3 123

KH-7-13M-4 123

KH-7-13M-6 123

KH-7-13M-9 124

KH-7-14M-12 124

KH-7-14M-4 124

KH-7-14M-6 124

KH-8-15M-12 124

KH-8-15M-3 124

KH-8-15M-4 124

KH-8-15M-6 124

KH-8-15M-9 124

KH-8-16M-12 124

KH-8-16M-6 124

KH-8-16M-9 124

KH-8-17M-4 124

KH-8-17M-6 124

KH-8-17M-9 124

KH-8-18M-3 124

KH-8-18M-4 124

KH-8-18M-6•124

KHM-50-3 127

KHM-50-B-3 127

KN-104-12 114

KN-104-6 114

KN-105-6 114

KN-105-9 114

KN-202-12 114

KN-202-6 114

KN-202-8 114

KN-203-12 114

KN-203-6•114

KN-203-9 114

KN-205-12 114

KN-205-6 114

KN-205-9 114

KN-318-3 114

KN-318-4 114

KN-318-6 114

KN-320-12 115

KN-320-6 115

KN-320-9 115

KN-321-6 115

KN-321-9 115

KN-322-12 115

KN-322-6•115

KN-322-9 115

KN-404-12 115

KN-404-6 115

KN-404-9 115

KN-43-6 114

KN-44-12 114

KN-44-6•114

KN-45-6 114

KN-45-9 114

KN-7-12M-6 123

KN-7-12M-9 123

KN-7-13M-6•123

KN-7-13M-9 124

KN-7-14M-6•124

KN-7-14M-9 124

KN-8-15M-12 124

KN-8-15M-6•124

KN-8-15M-9 124

KN-8-16M-12 124

KN-8-16M-6•124

KN-8-16M-9 124

KN-8-17M-6 124

KN-8-17M-9 124

KN-8-18M-12 124

KN-8-18M-6 124

KN-8-18M-9 124

KNM-50-3 127

KNM-50-B-6 127

KS-100-6 68

KS-100-9 68

KS-101-6 68

KS-102-6 68

KS-102-9 68

KS-103-6 68

KS-103-9 68

KS-104-6 68

KS-104-9 68

KS-105-6 69

KS-105-9 69

KS-25-12 68

KS-25-6 68

KS-25-9 68

KS-26-12 68

KS-26-6•68

KS-26-9 68

KS-27-6 68

KS-28-12 68

KS-28-6•68

KS-28-9 68

KS-29-6 68

KS-29-9 68

KS-30-12 68

KS-30-6 68

KS-30-9 68

KS-5-7M-12 69

KS-5-7M-6 69

KS-5-7M-9 69

KS-6-10M-6 69

KS-6-10M-9 69

KS-6-8M-6 69

KS-6-8M-9 69

KS-7-11M-6 69

KS-7-11M-9 69

KS-7-13M-12 69

KS-7-13M-6 69

KS-7-13M-9 69

KSM-25-3 160

KSM-25-B-3 160

KSM-37-3 160

KSM-37-B-4 160

KT-10-19M-12 72

KT-10-19M-6 72

KT-104-6 70

KT-104-9 70

KT-105-12 70

KT-105-6 70

KT-105-9 70

KT-202-12 70

KT-202-6 70

KT-202-9 70

KT-203-12 70

KT-203-6•70

KT-203-9 70

KT-205-12 71

KT-205-6 71

KT-205-9 71

KT-317-6 70

KT-318-12 71

KT-318-3 70

KT-318-6•71

KT-318-9 71

KT-320-12 71

KT-320-6 71

KT-320-9 71

KT-321-12 71

KT-321-6 71

KT-321-9 71

KT-322-12 71

KT-322-6 71

KT-322-9 71

KT-40-6 70

KT-40-9 70

KT-43-6 70

KT-43-9 70

KT-44-12 70

KT-44-6 70

KT-44-9 70

KT-45-12 70

KT-45-6 70

KT-45-9 70

KT-6-10M-12 71

KT-6-10M-6 71

KT-6-10M-9 71

KT-7-11M-6 71

KT-7-13M-12 72

KT-7-13M-6 72

KT-7-13M-9 72

KT-7-14M-12 72

KT-7-14M-6 72

KT-7-14M-9 72

KT-7-15M-6 72

KT-7-15M-8 72

KT-8-13M-9 72

KT-8-15M-12 72

KT-8-15M-6 72

KT-8-15M-9 72

KT-8-16M-12 72

KT-8-16M-6 72

KT-8-16M-9 72

KT-8-17M-6 72

KT-8-18M-12 72

KT-8-18M-6 72

KT-8-18M-9 72

KTM-37-3 160

L•16

L-320•17

L-322 17

L-328 17

M•16

M-10MM03•97

M-10MM11•82

M-10MM13•97

M-10MM15•118

M-10MM21•82

M-10MM43•97

M-10MM45 118

M-10MME1•83

M-10MME3•99

M-1105 78

M-1106•78

M-1107 78

M-1108•78

M-1110•77

M-1112•78

M-1114•78

M-1116•78

M-1118 78

M-1120 78

M-11MM03 97

M-11MM11 83

M-11MM13•97

M-11MM15 118

M-11MM21 83

M-11MM43 97

M-11MM45 118

M-11MME1 83

M-11MME3 99

M-1208•78

M-1209 78

M-1210•78

M-1211 79

M-1212 79

M-1214 79

M-1216 79

M-12MM03 97

M-12MM11 90

M-12MM13•97

M-12MM15 118

M-12MM21 83

M-12MM35 119

M-12MM43•97

M-12MM45 118

M-12MME1 83

M-12MME3 99

M-13MM03•97

M-13MM11 83

M-13MM13•97

M-13MM15•118

M-13MM21 83

M-13MM25 119

M-13MM35 119

M-13MM43•97

M-13MM45 118

M-13MME1•83

M-13MME3•99

M-13MME5 122

M-14MM11 82

M-14MM13•97

M-14MM15•118

M-14MM21 82

M-14MM43 97

M-14MM45 118

M-1500-P•57

M-1505-P 57

M-1550-P 57

M-15MM03•97

M-15MM11 82

M-15MM13•97

M-15MM15•118

M-15MM25 119

M-15MM35•119

M-15MM43 97

M-15MM45 118

M-15MME5 122

M-15PV 59

M-15PVH 59

M-15PVH-A 59

M-15-SC•58

M-15-SC-A•58

M-16MM13 97

M-16MM15 117

M-16MM45 118

M-17MM13•97

M-17MM15 118

M-18MM03 97

M-18MM13•97

M-18MM15•118

M-18MM25 119

M-19MM15 118

M1E06•79

M1E07 79

M1E08•79

M1E09 79

M1E10•79

M1E11 79

M1E12•79

M1E14•79

M1E16•79

M1P06•80

M1P07 80

M1P08•80

M1P10•80

M1P11 80

M1P12•80

M1P14•80

M1P16•80

M-21MM15 118

M-3.5MME1 83

M-3012•88

M-3014 88

M-3016•88

M-3018•88

M-3108 88

M-3109 88

M-3110•88

M-3111 88

M-3112•88

M-3114•88

M-3115 88

M-3116•88

M-3117 88

M-3118•88

M-3119 88

M-3120•88

M-3122 88

M-320*I•17

M-320*R 17

M-320*X 17

M-321*X 18

M-3212•89

M-3214 89

M-3216•89

M-3218 89

M-322*X 17

M-328*X 17

M-32-TX-15 22

M-32-TX-20 22

M-3408 88

M-3409 89

M-3410 89

M-3411 89

M-3412•89

M-3414•89

M-3416•89

M-3418•89

M-3420 89

M-3424 89

M-3426 89

M-3430 89

M-3514 89

M3E08•92

M3E09 92

M3E10•92

M3E11 92

M3E12•92

M3E14•92

M3E16 92

M3E18 92

M3P08 92

M3P09 92

M3P10•92

M3P11 92

M3P12•92

M3P14 92

M3P16•92

M3P18 92

M-4.5MME1 83

M-400 54

M-44-90 52

M-450 54

M-460 54

M-470 54

M-480 54

M-480-6 54

M-488•54

M-490•52

M-490-10•52

M-490-12•52

M-490-2•52

M-490-2-OR•52

M-490-4•52

M-490-6•52

M-490-8•52

M-490-OR 52

M-495•52

M-495-5 52

M-497•52

M-498•53

M-4MME1•83

M-5.5MM11•82

M-5.5MME1•83

M-510 54

M-5108 108

M-5110 108

M-5112 108

M-5114 108

M-5116 108

M-5118 108

M-5120 108

M-5122 108

M-5124 108

M-5126 108

M-5216 109

M-5218 109

M-5220 109

M-5316 109

M-5318 109

M-5412 108

M-5414 108

M-5416 108

M-5418 108

M-5420 108

M-5512 109

M-5518 109

M5E08 111

M5E10 111

M5E12•111

M5E14•111

M5E16•111

M5E18 111

M-5MM11•83

M-5MM21 83

M-5MME1•84

Part Page

No. No. Part Page

No. No.

•Denotes a Rapid Select item. Refer to Page iv for description of Rapid Select.

167

M5P08 111

M5P10 111

M5P12 111

M5P14 111

M5P16 111

M5P18 111

M-610 53

M-630 53

M-638 53

M-6MM11•82

M-6MM13 97

M-6MM21 82

M-6MM43 97

M-6MME1•83

M-6MME3 99

M6N-08-8M-4 62

M6N-08-8M-6 62

M6N-08-10M-4 62

M6N-08-10M-6 62

M6N-08-12M-4 62

M6N-08-12M-6 62

M6N-0806-2•61

M6N-0806-3•61

M6N-0806-5 61

M6N-0806-6 61

M6N-0808-2•61

M6N-0808-3•61

M6N-0808-4•61

M6N-0808-5 61

M6N-0808-6•61

M6N-0810-2•61

M6N-0810-3•61

M6N-0810-4•61

M6N-0810-5 61

M6N-0810-6•61

M6N-0811-2 61

M6N-0811-3 61

M6N-0812-2•61

M6N-0812-3•61

M6N-0812-4 61

M6N-0812-6•61

M6N-0814-2•61

M6N-0814-3 61

M6N-0814-4 61

M6N-0814-6 61

M6N-0816-2•61

M6N-0816-3•61

M6N-0818-2 61

M-7MM11•82

M-7MM13•97

M-7MM21•82

M-7MME1•83

M-7MME3•99

M-825•55

M-835•55

M-838•55

M-855•55

M-858 55

M-8MM11•82

M-8MM13•97

M-8MM21•82

M-8MM43 97

M-8MME1•83

M-8MME3•99

M-9MM11 82

M-9MM13 97

M-9MM21•82

M-9MM43 97

M-9MME1•83

M-9MME3 99

MB-10MM21•83

MB-10MM23•98

MB-10MM25•119

MB-10MM33•98

MB-11MM21•82

MB-11MM23•98

MB-1206 78

MB-1208•78

MB-1209 78

MB-1210•78

MB-1211•79

MB-1212•79

MB-1214•79

MB-1216•79

MB-1218 79

MB-12MM21•82

MB-12MM23•98

MB-12MM25 119

MB-12MM33 98

MB-1308•78

MB-1311 79

MB-1312•79

MB-1314 79

MB-13MM21•82

MB-13MM23•98

MB-13MM25•119

MB-13MM33•98

MB-14MM21 82

MB-14MM23•98

MB-14MM25 119

MB-15MM21 82

MB-15MM23•98

MB-15MM25•119

MB-15MM33 98

MB-15MM35 119

MB-16MM21 82

MB-16MM23 98

MB-16MM25 119

MB-17MM23 98

MB-18MM23•98

MB-18MM25•119

MB-18MM35•119

MB-3210•89

MB-3212•89

MB-3214•89

MB-3216•89

MB-3218•89

MB-3220 89

MB-3314•89

MB-3318 89

MB-3512•89

MB-3514•89

MB-3516 89

MB-5.5MM21•82

MB-5210 109

MB-5212 109

MB-5214•109

MB-5216•109

MB-5220 109

MB-5MM21 82

MB-6MM21•82

MB-6MM23 98

MB-7MM21•82

MB-7MM23 98

MB-8MM21•82

MB-8MM23•98

MB-9MM21•82

MB-9MM23 98

MB-HE-9518 109

MDA-08•60

MDA-10•60

MDA-12•60

MDA-14•60

MDA-6MM 60

MDA-7MM•60

MDA-8MM•60

MDA-10MM•60

MDA-

10MM-80M 60

MDAT-08•60

MDB-08•56

MDB-10•60

MDB-12•60

MDB-14•60

MDC-08 60

MDC-10 60

MDC-12 60

MET-1301C 156

MET-1302C 156

MET-1401C 156

MET-1402C 156

MET-1600C 156

MET-1800C 156

MF-25•82

MF-25-B 82

MF-27 104

MF-27-B 104

MF-37•104

MF-37-B•104

MF-38•104

MF-38-B 104

MF-39 127

MF-39-B 127

MF-50•127

MF-50-B•127

MF-51 132

MF-51-B 132

MF-55•127

MF-55-B 127

MF-62 132

MF-62-B 132

MF-70 127

MF-70-B 127

MF-75 139

MF-75-B 139

MF-76 139

MF-76-B 139

MF-77 146

MF-77-B 146

MF-79 139

MF-79-B 139

MF-82 146

MF-82-B 146

MFL 156

MFL-1000 156

MFL-250 156

MFL-750 156

MHA-510•78

MHC-3816 96

MHM-10MM 69

MHM-1310 69

MHM-1912 69

MHM-2508 69

MHM-6MM 76

MHM-7MM 76

MHM-8MM 76

MQR-15PV 68

MR-7MME1•83

MSH-335 116

MSH-336 116

MSH-400 151

MSH-401 151

MSH-402 151

MSH-575 151

MSW-343 96

MSW-350•151

MSW-604 96

MSW-90•151

MSW-90-B•151

MSW-984 15

MSW-984-B•151

MT-503 78

MT-752 78

MT-753 78

MT-754 78

MX-1108 78

MX-1108-E•78

MX-1109 78

MX-1110•78

MX-1111 78

MX-1112•78

MZA-110•153

MZA-310•153

MZA-314 153

MZA-510 153

MZA-514 153

MZN-312 153

MZN-314 153

MZN-514 153

NOL 16

NOL-320 17

NP-32-TX-25 22

OL-322 17

OOL-322 17

OOOL-322 17

OS-8MM13 95

OS-10MM 81

OS-10MM03 95

OS-10MM23 96

OS-10MM23-D 96

OS-3310-D 87

OS-3410•87

OS-5424 106

OS-5516 108

OS-5518 108

OSM-3410 89

OSM-3414 89

OSMB-10MM21•83

OSMB-10MM23•98

OSSF-8MM23 99

OSSF-10MM23 99

OSSF-10MM43•99

OSSF-3512 91

OSSF-3514 91

P•16

P-1408 42

P-1409 42

P-1410 42

P-1412 42

P-1414 42

P-1416 42

P-320•17

P-321 18

P-322 17

P-328 17

QR-108•56

QR-308•56

QR-314•56

QR-508•56

QR-514•56

QR-520 56

QR-614 56

QR-620 56

QR-714 56

QR-720•56

QR-820 56

QR-824 56

QRA-08•56

QRA-14 56

QRF-08 56

QRF-14•56

QRF-20 56

QR-M-490-2 53

QR-M-490-

200M 53

QR-M-490-A•53

QR-M-490-A6 53

R•16

R-320•17

R-321 18

R-322 17

R-328 17

R-32-TX-27 22

RM-490•52

RM-490-4 52

RM-490-6 52

RP-314•55

RP-514•55

RP-520 55

RP-614 55

RP-620 55

RP-720 55

RP-724 55

RP-728 55

RP-820 55

RP-820-L 56

RP-828 55

S•16

S-320 17

S-321 18

S-328 17

S-32-TX-30 22

SA-120 93

SA-120-D 93

SA-122 93

SA-122-D•93

SA-123•93

SA-123-D 93

SA-124•93

SA-124-D 93

SA-125•93

SA-125-D 93

SA-15-6M 83

SA-15-7M 83

SA-16-10M 83

SA-16-8M 83

SA-200 93

SA-201 93

SA-202 101

SA-202-D 93

SA-203 93

SA-203-D 93

SA-205 93

SA-205-D 93

SA-216 113

SA-216-D 113

SA-217 113

SA-217-D 113

SA-218•113

SA-218-D 113

SA-219•113

SA-219-D 113

SA-221•113

SA-221-D•113

SA-25 80

SA-25-D 80

SA-26 80

SA-26-D 80

SA-28•80

SA-28-D 80

SA-29 80

SA-29-D 80

SA-30 80

SA-301 93

SA-302 93

SA-304 93

SA-305 93

SA-306 93

SA-306-D 93

SA-30-D 80

SA-316 113

SA-317 113

SA-318 113

SA-318-D 113

SA-320 113

SA-320-D 113

SA-321 113

SA-321-D 113

SA-322•113

SA-322-D 113

SA-36-10M•100

SA-37-11M 100

SA-37-12M•100

SA-37-13M•100

SA-37-14M 100

SA-38-15M•100

SA-38-17M 100

SA-38-18M 100

SA-402 113

SA-402-D 113

SA-404•113

SA-404-D 113

SA-406 113

SA-407 113

SA-409•113

SA-409-D 113

SA-410 113

SA-411 113

SA-430 130

SA-432 130

SA-434 130

SA-436 130

SA-439 130

SA-501 113

SA-505 113

SA-508•113

SA-510 113

SA-510-19M 123

SA-510-20M 123

SA-510-21M 123

SA-510-22M 123

SA-510-23M 123

SA-510-24M•123

SA-535 136

SA-537 136

SA-538 136

SA-563 130

SA-565 130

SA-568 130

SA-57-13M•123

SA-57-14M 123

SA-58-15M•123

SA-58-16M 123

SA-58-17M•123

SA-58-18M•123

SA-601 136

SA-603 136

SA-604 136

SA-606 136

SA-607 136

SA-609 136

SA-610 136

SA-65 80

SA-712 136

SA-716 136

SA-743 136

SC-108•55

SC-114 55

SC-308•55

SC-314•55

SC-508 55

SC-514•55

SC-520•55

SC-529•115

SC-614 55

SC-620 55

SC-720 55

SC-724 55

SC-728 55

SC-820 55

SC-828 55

SD-1055-A 2

SD-1342-2•6

SD-1342-2-PZD 29

SD-2052-10 4

SD-2052-8•4

SD-3749 26

SD-4048 25

SD-4064-G 26

SD-4693 21

SD-556 5

SD-556-A 5

SF-10MM03•98

SF-10MM11 82

SF-10MM13•98

SF-10MM15•120

SF-10MM21 82

SF-10MM23•99

SF-10MM25•121

SF-10MM33•99

SF-10MM35 121

SF-10MM43•99

SF-10MM45 120

SF-10MM55 122

SF-1112 79

SF-1114 79

SF-1116 79

SF-1118 79

SF-11MM03 98

SF-11MM11 82

SF-11MM13 98

SF-11MM15•120

SF-11MM21 82

SF-11MM23 99

SF-11MM25 121

SF-11MM43 99

SF-11MM45•120

SF-11MM55 122

SF-1212 79

SF-12MM03 98

SF-12MM13 98

SF-12MM15 120

SF-12MM21 82

SF-12MM23 99

SF-12MM25 121

SF-12MM35 121

SF-12MM43 99

SF-12MM45 120

SF-12MM55 122

SF-13MM03•98

SF-13MM11 82

SF-13MM13•98

SF-13MM15•120

SF-13MM21 82

SF-13MM23•99

SF-13MM25•121

SF-13MM33•99

SF-13MM35•121

SF-13MM43•99

SF-13MM45•120

SF-13MM55•122

SF-14MM03 98

SF-14MM11 82

SF-14MM13 98

SF-14MM15 120

SF-14MM21 82

SF-14MM25 121

SF-14MM35 121

SF-14MM45 120

SF-14MM55 122

SF-15MM03 98

SF-15MM11 82

SF-15MM13 98

SF-15MM15•120

SF-15MM16•131

SF-15MM23•99

SF-15MM25•121

SF-15MM33 99

SF-15MM35•121

SF-15MM36•131

SF-15MM43 99

SF-15MM45•120

SF-15MM55 122

SF-16MM13 98

SF-16MM15 120

SF-16MM16 131

SF-16MM25•121

SF-16MM35 121

SF-16MM43 99

SF-16MM45 120

SF-16MM55 122

SF-17MM03 98

SF-17MM13 98

SF-17MM15•120

SF-17MM16 131

SF-17MM23 99

SF-17MM25•121

SF-17MM35 121

SF-17MM43 99

SF-17MM45•120

SF-17MM55 122

SF-18MM03 98

SF-18MM13 98

SF-18MM15•120

SF-18MM16•131

SF-18MM23 99

SF-18MM25•121

SF-18MM35 121

SF-18MM36•131

SF-18MM43 99

SF-18MM45 120

SF-18MM55•122

SF-19MM03 98

SF-19MM13 98

SF-19MM15•120

SF-19MM16 131

SF-19MM23 99

SF-19MM25 131

SF-19MM35 121

SF-19MM36•131

SF-19MM43 99

SF-19MM45 120

SF-19MM55 122

SF-20MM15 120

SF-20MM45 120

SF-21MM15•120

SF-21MM16•131

SF-21MM25•131

SF-21MM35•131

SF-21MM36•131

SF-21MM45 120

SF-21MM55 122

SF-22MM15•120

SF-22MM16 131

SF-22MM25 121

SF-22MM35 121

SF-22MM36 131

SF-22MM45 120

SF-23MM35 121

SF-24MM15 119

SF-24MM16 131

SF-24MM25 121

SF-24MM35 121

SF-24MM36 131

SF-24MM55 122

SF-3010 90

SF-3012 90

SF-3014 90

SF-3016 90

SF-3018 90

SF-3028 90

SF-3108 90

SF-3110 90

SF-3112 90

SF-3114 90

SF-3116 90

SF-3118 90

SF-3120 90

SF-3122 90

SF-3124 90

SF-3212 91

SF-3214 91

SF-3216 91

SF-3218 91

SF-3220 91

SF-3222 91

SF-3224 91

SF-3226 91

SF-3312 91

SF-3314 91

SF-3316•91

SF-3318 91

SF-3320 90

SF-3322 91

SF-3324 91

SF-3412 90

SF-3414 90

SF-3416•90

SF-3418 90

SF-3420 91

SF-3422 90

SF-3430 90

SF-3432 90

SF-3512 91

SF-3514 91

SF-3516 91

SF-3518 91

Part Page

No. No. Part Page

No. No.

•Denotes a Rapid Select item. Refer to Page iv for description of Rapid Select.

168

SF-3524 91

SF-5112 109

SF-5114 109

SF-5116 109

SF-5118 109

SF-5120 109

SF-5122 109

SF-5124•109

SF-5126 109

SF-5128•109

SF-5130 109

SF-5132 109

SF-5134 109

SF-5212 110

SF-5214 110

SF-5216 110

SF-5218 110

SF-5220 110

SF-5222 110

SF-5224 110

SF-5226 110

SF-5228 110

SF-5230 110

SF-5232 110

SF-5314 110

SF-5316 110

SF-5318 110

SF-5320 110

SF-5322 110

SF-5324 110

SF-5326 110

SF-5328 110

SF-5330 110

SF-5332 110

SF-5334 110

SF-5412 109

SF-5414 109

SF-5416 109

SF-5418 109

SF-5420 109

SF-5422 109

SF-5424 109

SF-5426 109

SF-5514•110

SF-5516 110

SF-5518•110

SF-5520 110

SF-5522 110

SF-5524•110

SF-5526 110

SF-5528 110

SF-5532 110

SF-5534 110

SF-6118 129

SF-6120 129

SF-6122 129

SF-6124 129

SF-6126 129

SF-6128 129

SF-6320 130

SF-6324 130

SF-6326 130

SF-6328 130

SF-6330 139

SF-6418 129

SF-6424•129

SF-6520 130

SF-6522 130

SF-6524•130

SF-6526 130

SF-8MM11•82

SF-8MM13•98

SF-8MM23•99

SF-9MM13 98

SF-HC-3816 90

SF-HE-9518 110

SF-SH-335 110

SF-SH-336 110

SF-SW-282 110

SH-335 105

SH-335-D 105

SH-336 105

SH-336-D 105

SH-338 105

SH-338-D 105

SH-339 105

SH-339-D 105

SH-400 151

SH-401 151

SH-402 151

SH-404 151

SH-406 151

SH-412 151

SH-413 151

SH-414 151

SH-57 151

SH-57-3 151

SH-57-4 151

SH-575 151

SH-57-6 151

SH-57-8 151

SH-59 151

SH-59-3 151

SH-59-4 151

SH-59-6 151

SH-629 151

SH-629P 151

SH-629-3 151

SH-629-4 151

SH-629-5 151

SH-629-6 151

SH-629-P•151

SH-913 151

SJ-241 160

SJ-349 160

SJ-350 160

SJ-351 160

SJ-352 160

SJ-360 160

SJ-361 160

SJ-362 160

SJ-363 160

SJ-364 160

SJ-365 160

SJ-375 160

SJ-379 160

SJ-380 160

SJ-55 160

SJ-66 160

SJ-67 160

SJ-68 160

SJ-935-1/2 152

SJ-935-1/4•152

SJ-935-

10MXM6•152

SJ-935-

12MXM6 152

SJ-935-

12MXM8•152

SJ-935-

14MXM10•152

SJ-935-3/8 FS 152

SJ-935-5/16 152

SJ-935-7/16 152

SPL-132 155

SPL-134 155

SPL-136 155

SPL-138 155

SPL-140 155

SPL-142 155

SPL-144 155

SPL-146 155

SPL-148 155

SPL-150 155

SPL-152 155

SPL-154 155

SPL-156 155

SPL-158 155

SPL-160 155

SPL-162 155

SPL-166 155

SPL-168 155

SPL-170 155

SPL-174 155

SPL-176 155

SPL-178 155

SPL-180 155

SPL-182 155

SPL-184 155

SPL-186 155

SPL-188 155

SW-282 105

SW-282-D 105

SW-343 86

SW-343-D 86

SW-350 151

SW-493 107

SW-493-D 107

SW-604 86

SW-604-D 85

SW-605 86

SW-605-D 86

SW-90 151

SW-90-B 151

SW-911-BP 57

SW-911-P 57

SW-984 151

SWSC-911-C 57

SZ-10•95

SZ-100 39

SZ-100-A 39

SZ-101 39

SZ-10-14MM 124

SZ-10-17MM 124

SZ-101-A 39

SZ-102 39

SZ-102-A 39

SZ-104 39

SZ-10-A•95

SZ-11•95

SZ-11-A•95

SZ-11-A-3 37

SZ-12•95

SZ-12-A•95

SZ-12-A-2 37

SZ-12-A-3 37

SZ-12-A-6 37

SZ-13•95

SZ-13-A•95

SZ-13-A-3 37

SZ-14•95

SZ-14-17MM 40

SZ-14-19MM 40

SZ-14-22MM 40

SZ-14-24MM 40

SZ-14-27MM 40

SZ-14-A•115

SZ-14-A-3 37

SZ-14-A-4 37

SZ-15•95

SZ-15-A•115

SZ-15-A-2 37

SZ-15-A-3 37

SZ-15-A-4 37

SZ-16•95

SZ-16-A•115

SZ-16-A-3 37

SZ-16-A-4 37

SZ-17 38

SZ-17-A 115

SZ-18 38

SZ-18-A 115

SZ-19 38

SZ-19-A 115

SZ-20•38

SZ-21•38

SZ-22•115

SZ-23•115

SZ-24•115

SZ-25 115

SZ-26 115

SZ-27 38

SZ-30 39

SZ-30-A 39

SZ-31 39

SZ-31-A•115

SZ-32 39

SZ-32-A 115

SZ-33 39

SZ-33-A 39

SZ-34 39

SZ-34-A 39

SZ-35 39

SZ-35-A 39

SZ-36 39

SZ-36-A 39

SZ-37 39

SZ-3-7-10MM 40

SZ-3-7-4MM 40

SZ-3-7-5MM 40

SZ-3-7-6MM 40

SZ-3-7-8MM 40

SZ-37-A 39

SZ-38 39

SZ-38-A 39

SZ-39 39

SZ-39-A 39

SZ-40•38

SZ-41•38

SZ-42•115

SZ-43 115

SZ-44 115

SZ-5-10-14MM124

SZ-5-10-17MM124

SZ-5-10-19MM 40

SZ-5-7-10MM 124

SZ-5-7-12MM 124

SZ-5-7-14MM 124

SZ-5-7-3MM 40

SZ-5-7-4MM 40

SZ-5-7-5MM 40

SZ-5-7-6MM 40

SZ-5-7-8MM 124

SZ-7 38

SZ-7-10-10MM 40

SZ-7-10-12MM 40

SZ-7-10-14MM 40

SZ-7-10-17MM 40

SZ-7-10MM 124

SZ-7-12MM 124

SZ-7-14MM 124

SZ-7-3MM 40

SZ-7-4MM 101

SZ-7-5MM 101

SZ-7-6MM•101

SZ-7-8MM 124

SZ-7-A 37

SZ-80 39

SZ-8-14-17MM 40

SZ-8-14-19MM 40

SZ-8-14-22MM 40

SZ-8-14-24MM 40

SZ-8-14-27MM 40

SZ-82 39

SZ-83 39

SZ-84 39

SZ-85 39

SZ-85-A 39

SZ-86 39

SZ-87 39

SZ-88 39

SZ-89 39

SZ-8L-TX-70 24

SZ-9 38

SZ-91 39

SZ-9-A 37

SZ-TX-100 24

SZ-TX-100-A 20

SZ-TX-55-A•20

SZ-TX-60-A 20

SZ-TX-70-A 20

SZ-TX-70-A-3 20

SZ-TX-80-A 20

SZ-TX-90-A 20

T•16

T-320•17

T-321 18

T-328 17

TH-250 67

TH-252 67

TH-254 67

TH-256 67

TH-257 157

TH-370 67

TH-372 67

TH-376 67

TH-377 157

TH-378 157

TH-501 157

TH-502 157

TM-20 157

TM-24•157

TN-20 157

TN-24 157

TW-1 46

TW-10 47

TW-11 47

TW-12 47

TW-13 47

TW-14 47

TW-15 47

TW-2 46

TW-3•46

TW-4•46

TW-5•46

TW-5-ACR 47

TW-6 47

TW-7 47

TW-8 47

TW-9 47

TWA-4 47

TWA-5 47

TWA-6 47

TWA-7 47

TWA-8 47

TWB-6 46

TWB-7 46

TWB-8 46

TWD-1 46

TWD-2•46

TWD-3•46

TWD-4•46

TWD-4-ACR 46

TWD-5•46

TWD-5-ACR 46

TWD-6•46

TWD-7 46

TWE-4 46

TWE-5 46

TX-1104 84

TX-1105 84

TX-1106 84

TX-1108•84

TX-1110 84

TX-1112 84

TX-1404•84

TX-1405•84

TX-1406•84

TX-1407 84

TX-1408•84

TX-1410 84

TX-1411 84

TX-1412 84

TX-1E04 84

TX-1E05 84

TX-1E06 84

TX-1E08 84

TX-1E10 84

TX-1E12 84

TX-3106 102

TX-3107•102

TX-3108•102

TX-3110•102

TX-3112•102

TX-3114 102

TX-3116 102

TX-3406 102

TX-3407•102

TX-3408•102

TX-3410•102

TX-3412•102

TX-3414 102

TX-3416 102

TX-3508•102

TX-3E08 103

TX-3E10 103

TX-3E12 103

TX-3E14 103

TX-3E16 103

TX-5110 125

TX-5112•125

TX-5114•125

TX-5116 125

TX-5118•125

TX-5120 125

TX-5124 125

TX-5408 125

TX-5410•125

TX-5412•125

TX-5414 125

TX-5416 125

TX-5418 125

TX-5420 125

U16

U-321 18

W16

W-321 18

WJ-265-1/2 154

WJ-265-1/4 154

WJ-265-1/8 154

WJ-265-13/64 154

WJ-265-17/32 154

WJ-265-3/16 154

WJ-265-3/8 154

WJ-265-5/16 154

WJ-265-5/32 154

WJ-265-7/16 154

WJ-265-9/64 154

WJ-284-1/4•154

WJ-284-1/8 154

WJ-284-13/32 154

WJ-284-3/16 154

WJ-284-3/8 154

WJ-284-5/16 154

WJ-284-5/32 154

WJ-284-7/64 154

WJ-284-9/64 154

X-1108 77

X-1110 77

Y16

Y-321 18

YK-250 157

YK-251 157

YK-252 157

YK-370 157

YK-371 157

YK-372 157

YK-500 157

YK-501 157

YK-502 157

ZA-110 153

ZA-112 153

ZA-310 153

ZA-312 153

ZA-314•153

ZA-510 153

ZA-512 153

ZA-514 153

ZE-112 153

ZE-312 153

ZE-314 153

ZE-512 153

ZE-514 153

ZN-112 153

ZN-114 153

ZN-312 153

ZN-314 153

ZN-512 153

ZN-514 153

Part Page

No. No. Part Page

No. No.

•Denotes a Rapid Select item. Refer to Page iv for description of Rapid Select.

169

Screwdriver Bit Quotation Worksheet

For quotation only. Not an order.

Name Title

Company

Address

Phone FAX

Style Point Size

❏Phillips

❏Phillips ACR®

❏Sloted

❏Torx®

❏Torx Plus®

❏Pozidriv®

Drive Type Size

❏Hex Insert

❏Hex Power

❏Threaded

❏Female Square

❏Other

Style Point Size

❏Frearson/Reed Prince

❏Socket Head

❏Socket/Robertson

❏Torx-Set®

❏Triple Square

❏Tri-Wing

❏Other

Quantity

APPLIED or DRIVING TORQUE

Additional Specifications

DIMENSIONS

A. Overall B. Body C. Turned

Length Diameter Length

Fill out and Fax to your Apex representative.

170

Sockets Quotation Worksheet

For quotation only. Not an order.

Name Title

Company

Address

Phone FAX

Quantity

APPLIED or DRIVING TORQUE

Additional Specifications

Fill out and Fax to your Apex representative.

DIMENSIONS

Socket Type

Broach Opening

❏Hex ❏Fast Lead

❏Double Hex ❏Surface Drive

❏Square ❏Torx®

❏Double Square ❏Other

Magnetic

❏Magnetic Bolt Clearance (MB)

❏Magnetic Bolt Clearance,

with retaining ring (RMB)

❏Strip Magnet (SM)

❏Fixed Magnet (M)

❏Non-magnetic

Drive Configuration

❏DIN Standard

❏No DIN groove

❏Cross Hole (one wall only)

A. Square drive

B. Drive end diameter

C. Overall length

D. Taper or shoulder length

E. Bolt clearance depth

F. Broach depth

G. Nose end diameter

H. Broach opening

I. Torx®size

❏Type A (tapered) ❏Type B (straight) ❏Type C (shouldered)

171

Universal Wrench Quotation Worksheet

For quotation only. Not an order.

Name Title

Company

Address

Phone FAX

BROACH OPENING STYLE & SIZE

Hex Double Hex Quantity

Male square APPLIED or

DRIVING TORQUE

Additional Specifications

Fill out and Fax to your Apex representative. For assistance, please call your Apex representative.

Universal wrenches are not recommended for impact applications. Maximum operating angle 30°.

DIMENSIONS

❏Female square drive, standard type

Square Drive size

❏Female square drive, (short)

Square Drive size

❏Male hex drive, standard type

Hex Drive size

❏Female square drive, tension type

Square Drive size

❏Male hex drive, tension type

Hex Drive size

B. Socket length C. Socket diameter*

D. Socket nose dia. G. Depth of Clearance

L. Shank length M. Overall length

*Standard diameters are 5/8”, 3/4”, 7/8”, 1”, 11/4”, 1 1/2”, 1 3/4”, 2”

❏Pin lock

❏Ball lock

❏Hole

{

172

1/64 .0156 0.3969

1/32 .0313 0.7938

.0394 1.000

3/64 .0469 1.1906

1/16 .0625 1.5875

5/64 .0781 1.9844

.0787 2.0000

3/32 .0938 2.3813

7/64 .1094 2.7781

.1181 3.0000

1/8 .1250 3.1750

9/64 .1406 3.5719

5/32 .1563 3.9688

.1575 4.0000

11/64 .1719 4.3656

3/16 .1875 4.7625

.1969 5.0000

13/64 .2031 5.1594

7/32 .2188 5.5563

15/64 .2344 5.9531

.2362 6.0000

1/4 .2500 6.3500

17/64 .2656 6.7469

.2756 7.0000

9/32 .2813 7.1438

19/64 .2969 7.5406

5/16 .3125 7.9375

.3150 8.0000

21/64 .3281 8.3344

11/32 .3438 8.7313

.3543 9.0000

23/64 .3594 9.1281

3/8 .3750 9.5250

25/64 .3906 9.9219

.3937 10.0000

13/32 .4063 10.3188

27/64 .4219 10.7156

.4331 11.0000

7/16 .4375 11.1125

29/64 .4531 11.5094

15/32 .4688 11.9063

.4724 12.0000

31/64 .4844 12.3031

1/2 .5000 12.7000

.5118 13.0000

33/64 .5156 13.0969

17/32 .5313 13.4938

35/64 .5469 13.8906

.5512 14.0000

9/16 .5625 14.2875

37/64 .5781 14.6844

.5906 15.0000

19/32 .5938 15.0813

39/64 .6094 15.4781

5/8 .6250 15.8750

.6299 16.0000

41/64 .6406 16.2719

21/32 .6563 16.6688

.6693 17.0000

43/64 .6719 17.0656

11/16 .6875 17.4625

45/64 .7031 17.8594

.7087 18.0000

23/32 .7188 18.2563

47/64 .7344 18.6531

.7480 19.0000

3/4 .7500 19.0500

49/64 .7656 19.4469

25/32 .7813 19.8438

.7874 20.0000

51/64 .7969 20.2406

13/16 .8125 20.6375

.8268 21.0000

53/64 .8281 21.0344

27/32 .8438 21.4313

55/64 .8594 21.8281

.8661 22.0000

7/8 .8750 22.2250

57/64 .8906 22.6219

.9055 23.0000

29/32 .9063 23.0188

59/64 .9219 23.4156

15/16 .9375 23.8125

.9449 24.0000

61/64 .9531 24.2094

31/32 .9688 24.6063

.9843 25.0000

63/64 .9844 25.0031

1 1.0000 25.4000

1.0237 26.0000

1 1/32 1.0313 26.1938

1 1/16 1.0625 26.9875

1.0630 27.0000

1 3/32 1.0938 27.7813

1.1024 28.0000

1 1/18 1.1250 28.5750

1.1418 29.0000

1 5/32 1.1563 29.3688

1.1812 30.0000

1 3/16 1.1875 30.1625

1 7/32 1.2188 30.9563

1.2205 31.0000

1 1/4 1.2500 31.7500

1.2599 32.0000

1 9/32 1.2813 32.5438

1.2993 33.0000

1 5/16 1.3125 33.3375

1.3386 34.0000

1 11/32 1.3438 34.1313

1 3/8 1.3750 34.9250

1.3780 35.0000

1 13/32 1.4063 35.7188

1.4174 36.0000

1 7/16 1.4375 36.5125

1.4568 37.0000

1 15/32 1.4688 37.3063

1.4961 38.0000

1 1/2 1.5000 38.1000

1 17/32 1.5313 38.8938

1.5355 39.0000

1 9/16 1.5625 39.6875

1.5749 40.0000

1 19/32 1.5938 40.4813

1.6143 41.0000

1 5/8 1.6250 41.2750

1.6536 42.0000

1 21/32 1.6563 42.0688

1 11/16 1.6875 42.8625

1.6930 43.0000

1 23/32 1.7188 43.6563

1.7324 44.0000

1 3/4 1.7500 44.4500

1.7717 45.0000

1 25/32 1.7813 45.2438

1.8111 46.0000

1 13/16 1.8125 46.0375

1 27/32 1.8438 46.8313

1.8505 47.0000

1 7/8 1.8750 47.6250

1.8898 48.0000

1 29/32 1.9063 48.4188

1.9292 49.0000

1 15/16 1.9375 49.2125

1.9686 50.0000

1 31/32 1.9688 50.0063

2 2.0000 50.8000

2.0080 51.0000

2 1/32 2.0313 51.5938

2.0473 52.0000

2 1/16 2.0625 52.3875

2.0867 53.0000

2 3/32 2.0938 53.1813

2 1/8 2.1250 53.9750

2.1261 54.0000

2 5/32 2.1563 54.7688

2.1654 55.0000

2 3/16 2.1875 55.5625

2.2048 56.0000

2 7/32 2.2188 56.3575

2.2442 57.0000

2 1/4 2.2500 57.1500

2 9/32 2.2813 57.9450

2.2835 58.0000

2 5/16 2.3125 58.7375

2.3228 59.0000

Conversion Chart

Inch, Fractions Inch, Decimals Millimeters

Inch, Inch,

Fraction Decimal Millimeters

Inch, Inch,

Fraction Decimal Millimeters

Inch, Inch,

Fraction Decimal Millimeters

Inch, Inch,

Fraction Decimal Millimeters

CooperTools is pleased to unveil a complete resource for power

tools on-line. www.coopertools.com offers product information,

service literature, brand catalogs, press releases and more. A

dominant source of information, the CooperTools’ web site is your

source for application solutions on-line.

Making your job easier is our goal!

You can access service literature anytime. Choose a category

such as Assembly Tools or Material Removal Tools from the main

menu and then click on the brand you’re looking for. You’ll be on

your way to any current service literature you need, whether it’s

Apex, Master Power, Cleco, or any of our power tools’ brands.

Up-to-date product catalogs are also available online providing you

with current information on our broad product line.

Even Material

Safety Data Sheets (M.S.D.S.) for Safety and Disposal Information

are available on our website.

It’s simple!

Our Customer Service section provides you with information

such as answers to frequently asked questions or contact

phone numbers and addresses for your area of the country.

You can learn more about CooperTools in the About Us section

or browse through the What’s New information to learn how

CooperTools continues to be your source for solutions.

For even faster

searches, you can

go direct to a brand

site by simply enter-

ing the brand name.

Entering

www.apex-tools.com takes you directly to the brand site.

What is the future of www.coopertools.com? A dynamic site

continuing to focus on your need for up-to-date information on the

latest CooperTools’ offerings that you can access anytime you

need...twenty-four hours a day, seven days a week!

CooperTools Is On The Web!

www.coopertools.com

Apex Operation

P.O. Box 952

Dayton, OH 45401-0952

Phone: (937) 222-7871

Fax: (937) 228-0422

www.cooperindustries.com

AIRETOOL®

APEX®•BUCKEYE®

CAMPBELL

• CLECO

COOPER AUTOMATION

™

•CRESCENT

DGD®• DOLER®• DOTCO®• EREM®

GARDNER-DENVER®• GARDOTRANS™

GETA™• KAHNETICS®• LUFKIN®

MASTER POWER®• METRONIX™

NICHOLSON®•PLUMB®•H.K. PORTER®

QUACKENBUSH™•RECOULES™•ROTOR™

UTICA®• WELLER®• WIRE-WRAP®

WISS®• XCELITE®

DECEMBER 2001

Apex Fastener Tools Catalog (English) TX 10 1673891

Navigation menu

Versions of this User Manual:

Views

Navigation
