Door Entry Direct Ltd
Unit 1, AMC Business park
12 Cumberland Avenue
Park Royal, London
NW10 7QL
t : 0208 621 6210
f : 0208 621 6211
e : sales@doorentrydirect.com
w: www.doorentrydirect.com
audio door entry
audio kits

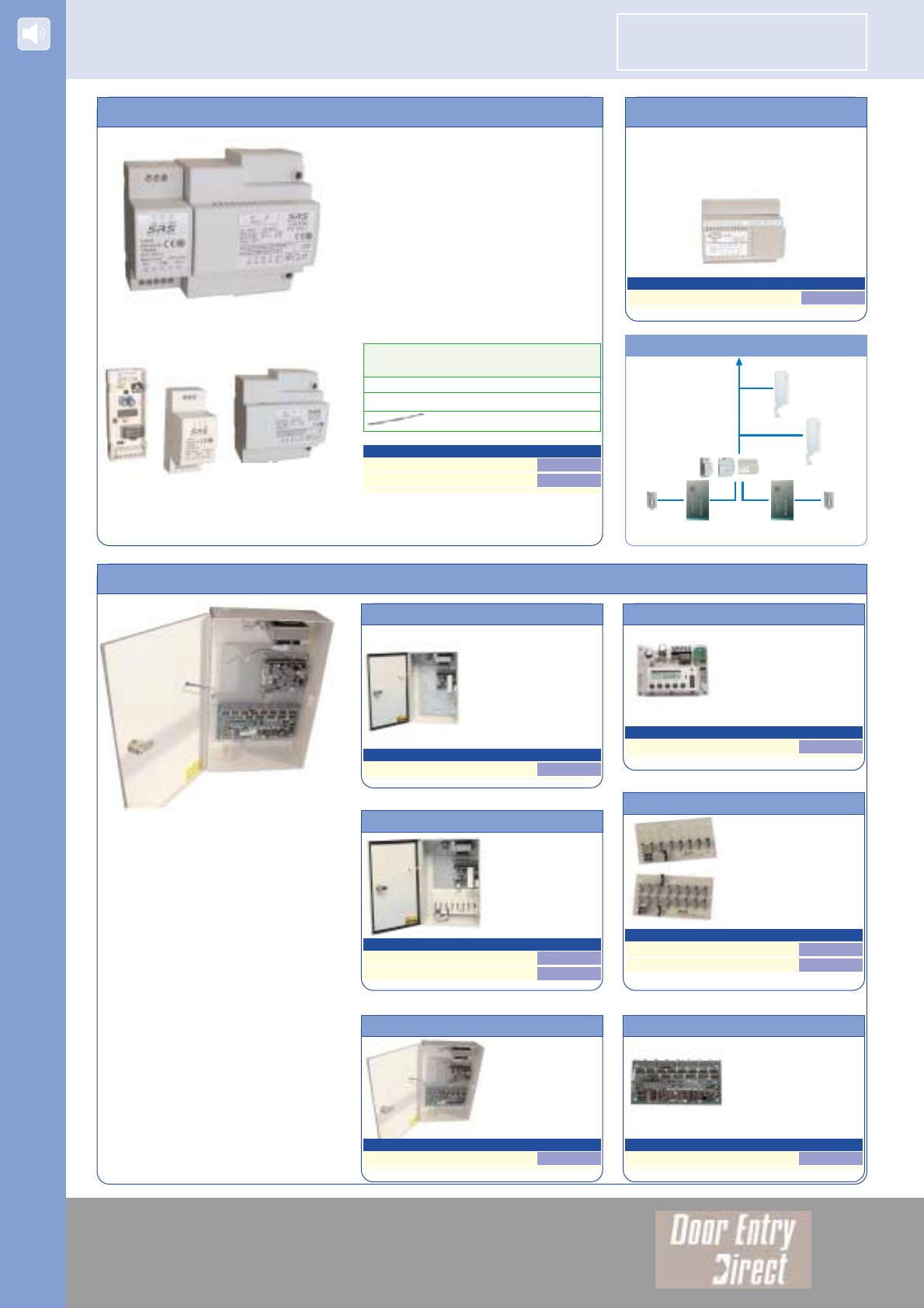

Data Sheet 1S-psu
Date March 2009
SYSTEM LOCKING OPTIONS
(WITHOUT ADDITIONAL EQUIPMENT)
power supply
power supply module (9307.1)
• 12v AC / DC, 500 milli Amp
• tone call generator
• internal intercom impedance output
• 5 DIN with DIN rail included
relay module (9307.2)
• Adjustable lock release timer
• Lock release (change-over) relay
• negative trigger works with most door entry
systems
• 2 DIN with DIN rail included
DESCRIPTION CODE
power supply unit 9307.1
lock timer relay 9307.2
2 entrance relay
Simply add this relay and any panel to any SRS
vandal resistant audio system using the 9307.1
power supply.
You must also add another entrance panel to the
system
DESCRIPTION CODE
two entrance relay AK5343
USE
CW1308 BT
SPEC TWISTED PAIR CABLE
12V AC DC fail open fail secure
•• • • •
alternative power supply
lockable power supply
with telephone connections
as 5141 with 8 way
telephone board (5108)
fitted. Alternative with
16 phone connections
is 514116.
DESCRIPTION CODE
power supply - 8 phone connections 514108
power supply - 16 phone connections 514116
with isolated connections
as 5141 with 5115 iso-
lated line telephone
board fitted. This
means that each tele-
phone cable is ISOLAT-
ED from the system.
DESCRIPTION CODE
power supply - 8 isolated connections 514115
telephone connection boards
each telephone connection is
unpluggable to ease mainte-
nance. This also allows van-
dalised telephones to be
temporarily disconnected.
DESCRIPTION CODE
connection board for 8 telephones 5108
connection board for 16 telephones 5116
isolated connection board
Up to 8 telephones to be
individually connected with
full isolation. That means
that damaged or shorted
phone connection will not
effect the system operation.
DESCRIPTION CODE
8 way isolated connection board 5115
Individual telephone connections
This makes for more reliable installation. Faulty
wiring on a telephone will only effect that phone
and not the whole system
You have a choice of connection systems. Using
an isolated connection system means that ten-
ants cannot listen in on conversations and that
faulty or damaged telephones (or the wiring to
them) will not effect the operation of the rest of
the system.
timed lock release output
You will rarely find a door entry system with
timed lock release, but the SRS system does.
12v dc & 12v ac supply
You will not need to add additional power sup-
plies to control your locking. Also, if the mains
power fails the door entry system will continue to
function (even ac lock releases)
Unpluggable connections throughout
This makes wiring much faster and easier to
check. In addition it is less likely that wiring
errors will be made, since all connections can be
seen in the power supply.
time clock • clips onto 5141 chassis
• 16 adjustable time pat-
terns, 7 day
• 12V AC/DC operation
• Single pole relay
• 1 Amp contacts
DESCRIPTION CODE
time clock module 5200M
DESCRIPTION CODE
boxed power supply 5141
• lockable box
• 12V AC & DC (1A)
• accepts telephone con-
nection boards
• timed lock release
relay
• expandable BUSS
• battery charger circuit
AC or DC
2
5
5
4+n
4+(n-1)
4+(n-2)
7+n 2
AC or DC
7+n
AN9102
9307
AK5343
AN9102
9307.2 x 2
9307.2 timer for the lock release is required for each entrance
unless a keypad is fitted in the panel
wiring layout - 2 entrance panels
