It’s late afternoon, and a few men in fedoras are examining blueprints
in the basement of an Indiana tire company. It’s hot. It’s dusty.
The year is 1927, and these are the humble beginnings of
Electro-Voice. While the history of EV may read like classic
“rags-to-riches” pulp fiction, it is still a real tale of American success.
Over the course of time, EV has grown into one of today’s dominant,
worldwide forces in the design and manufacturing of top-quality
products for broadcast, studio recording, touring sound, perma-
nently installed sound reinforcement and music playback systems.
Recognized the world over as a leader in audio technology, EV is
ubiquitous in performing arts centers, sports facilities, houses of
worship, cinemas, live music and dance clubs, transportation cen-
ters and theatres.
EV’s reputation for providing superior audio product and dedication
to innovation continues today. EV, now a product brand of Telex
Communications, Inc., shares technology with other Telex product
brands: Dynacord, Klark-Teknik, Midas, RTS and TELEX.
1986—EV revolutionizes concert sound
reinforcement by introducing Manifold
Technology®.In each of four bandpasses
covering the entire frequency range, the
output of four loudspeakers is flawlessly
combined – or “manifolded”– into a single
horn or low-frequency enclosure. The result
is – in a physical package a fraction of the
size of conventional concert rigs – four
times the acoustic output without the
drastically uneven coverage of multiple
acoustic sources “stacked” for more output.
1990s—EV invents
RMDtechnology
(Ring-Mode Decoupling),
a revolutionary anodyne
to sonic distortion and
coloration. Speaker
system resolution and
clarity increases by
minimizing fundamental
resonant frequencies.
2000—EV invents VOB
technology (Vocal-Optimized Bass),
an innovative mechanical design
that significantly reduces proximity
effect, allowing for greater vocal
intelligibility and instrumental
clarity. EV also invents ClearScan
,
a revolutionary innovation
in wireless technologies that
enables automatic, frequency agile
selection of the best of ten UHF
channels.
2001 - EV introduces RACE
technology (Realtime Acoustic
Cluster Editor), a synergetic
concept of correlating digital
crossover and filter design
with realworld loudspeaker
behavior. Results are
predictability and precise
control of magnitude, phase
and directivity of complex
loudspeaker arrays.
2002 - EV launches IRIS,
Intelligent Remote & Integrated
Supervision, a system
combining remote amplifier
control and supervision with
digital signal processing built
into the amplifiers. Complex
RACE loudspeaker data is
processed for perfect match of
transducer parameters and
their electrical driving force.
4
CONTENTS
2 - 3 EV milestones
4Table of Contents
5Index
Loudspeakers

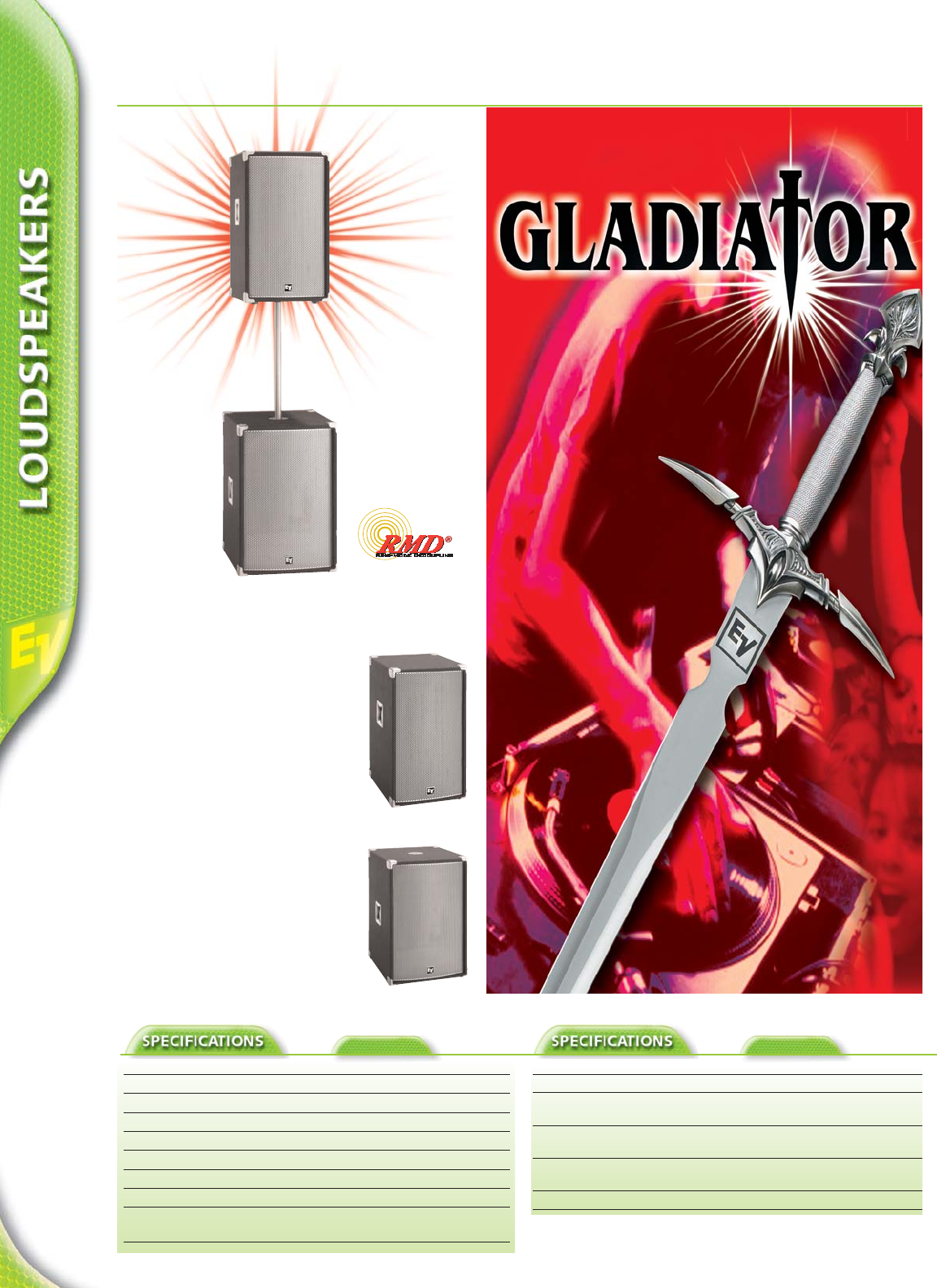

6Gladiator®

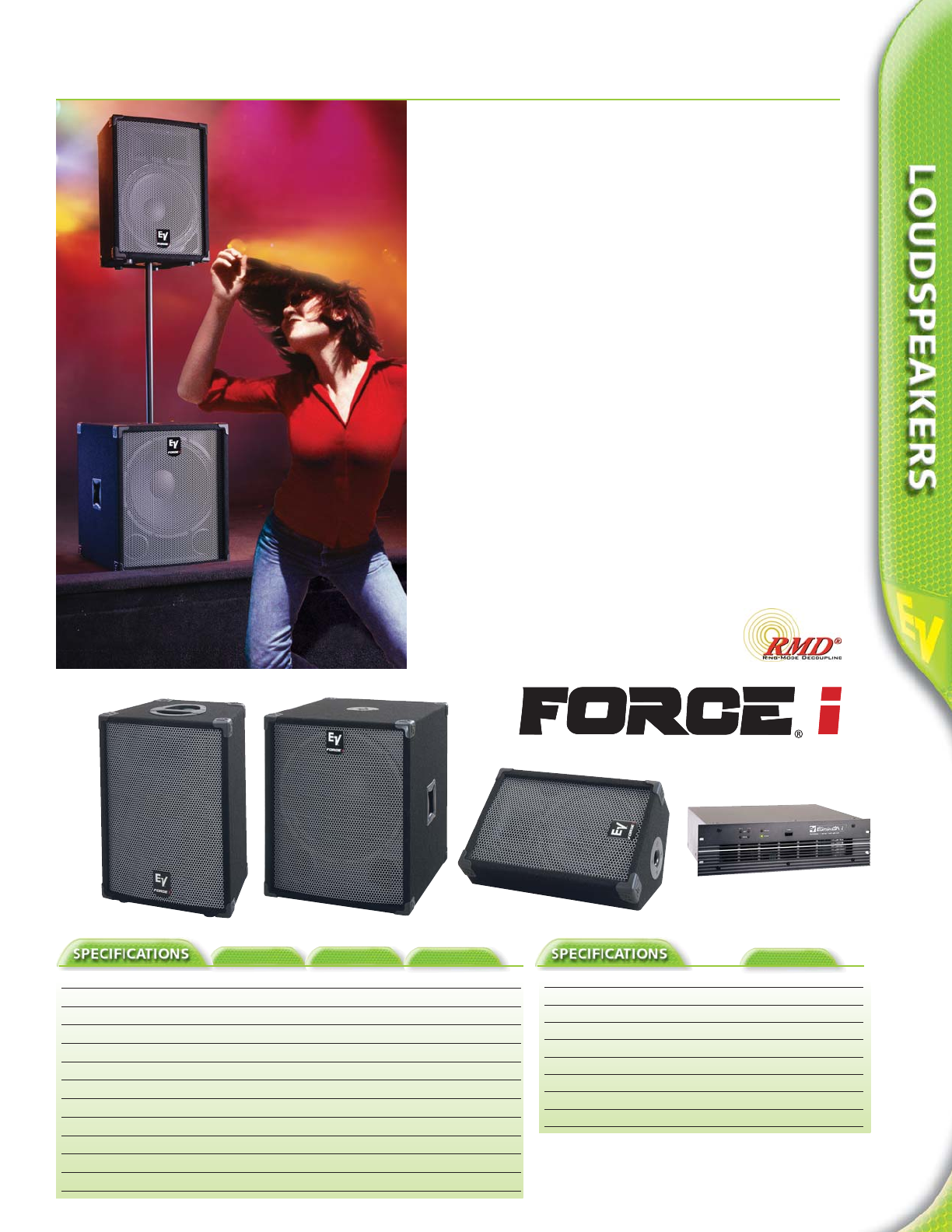

7Force i®

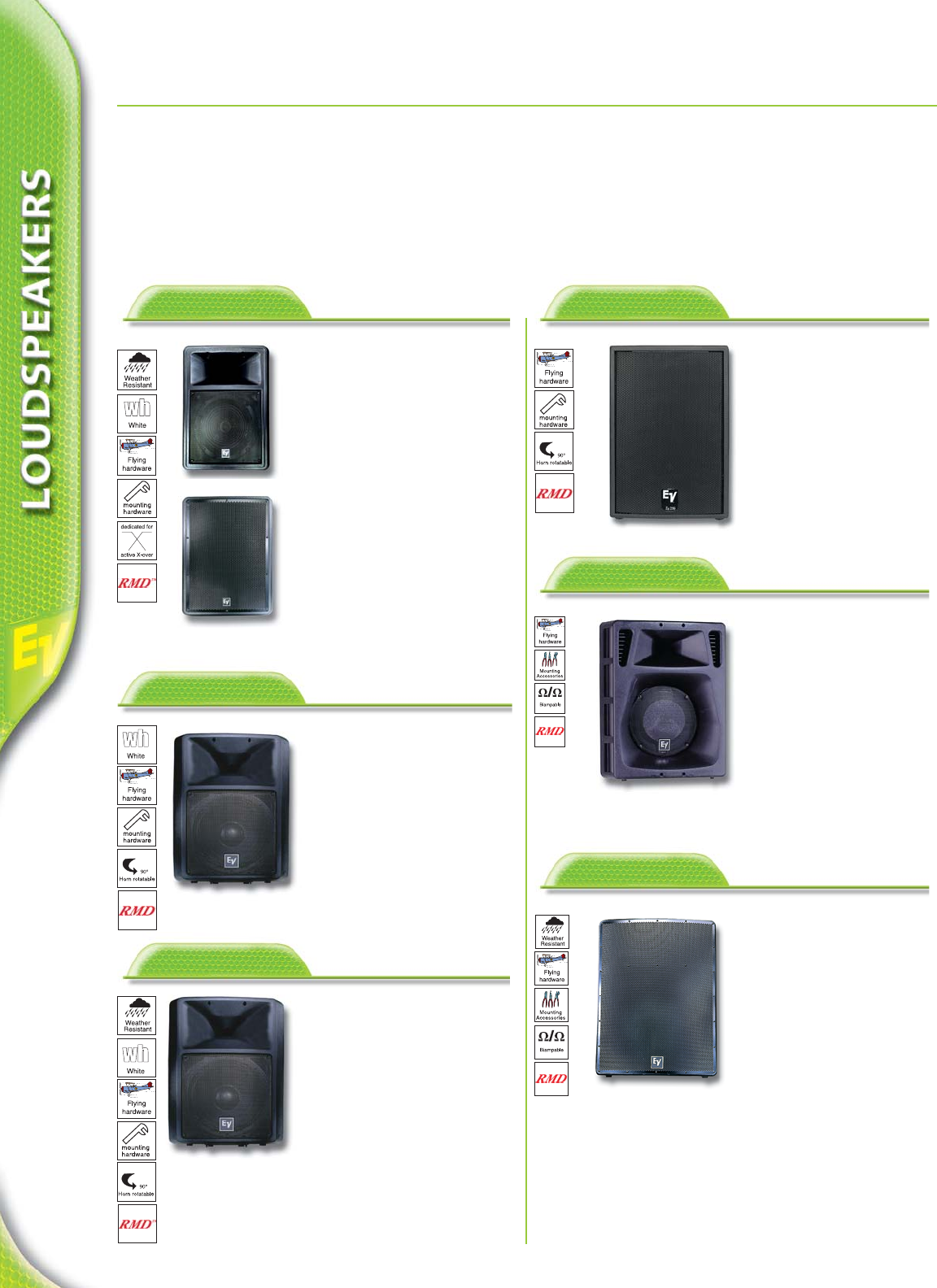

8 - 9 Sx Series
10 SxA Series
11 Eliminator i®
12 - 13 QRx Series
14 T-Series
15 FRi/FRi+ Series
16 FRX+ Systems
17 EVI Vari Intense®
18 - 20 Xi-Series
21 The XLCi System

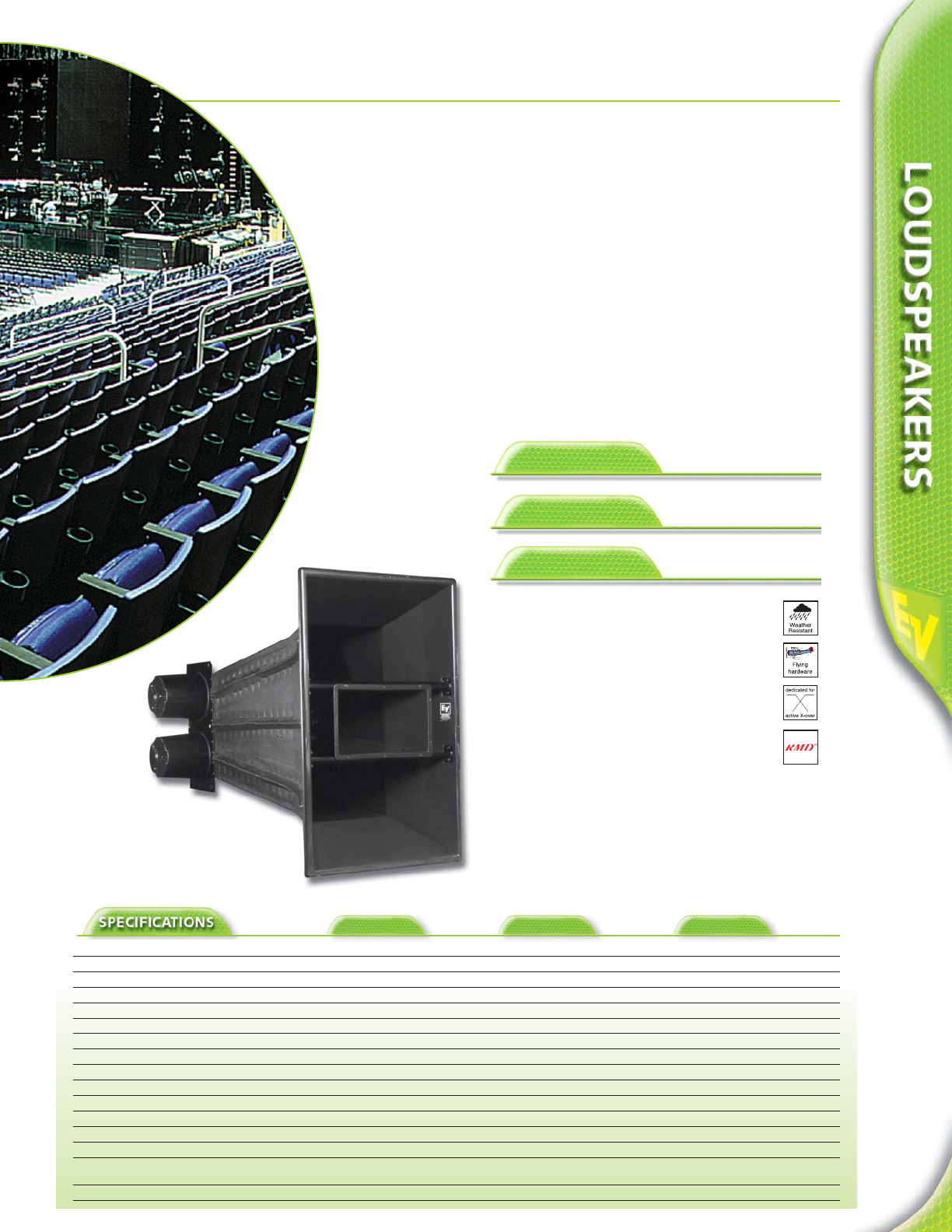

22 - 23 MH-Series Stadium Horns

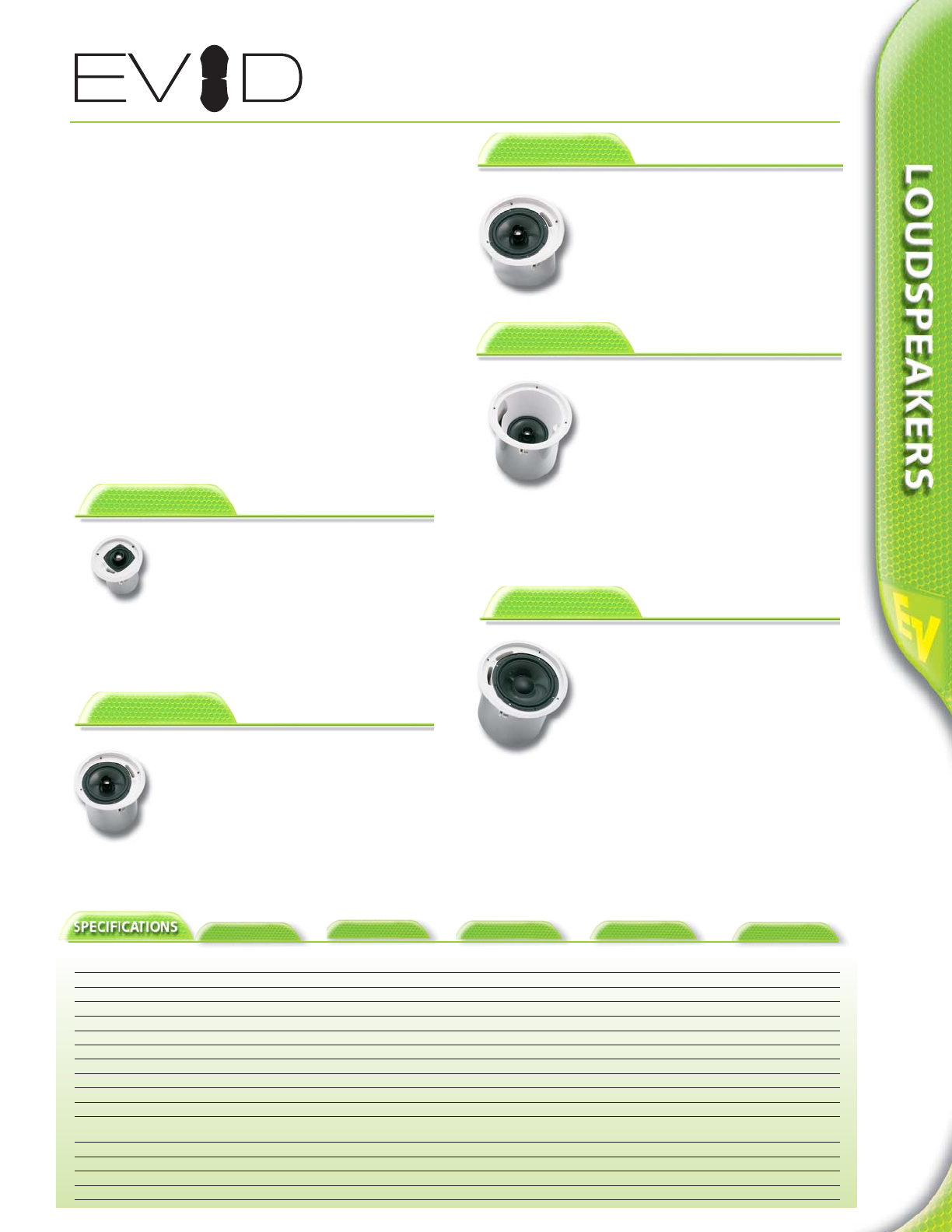

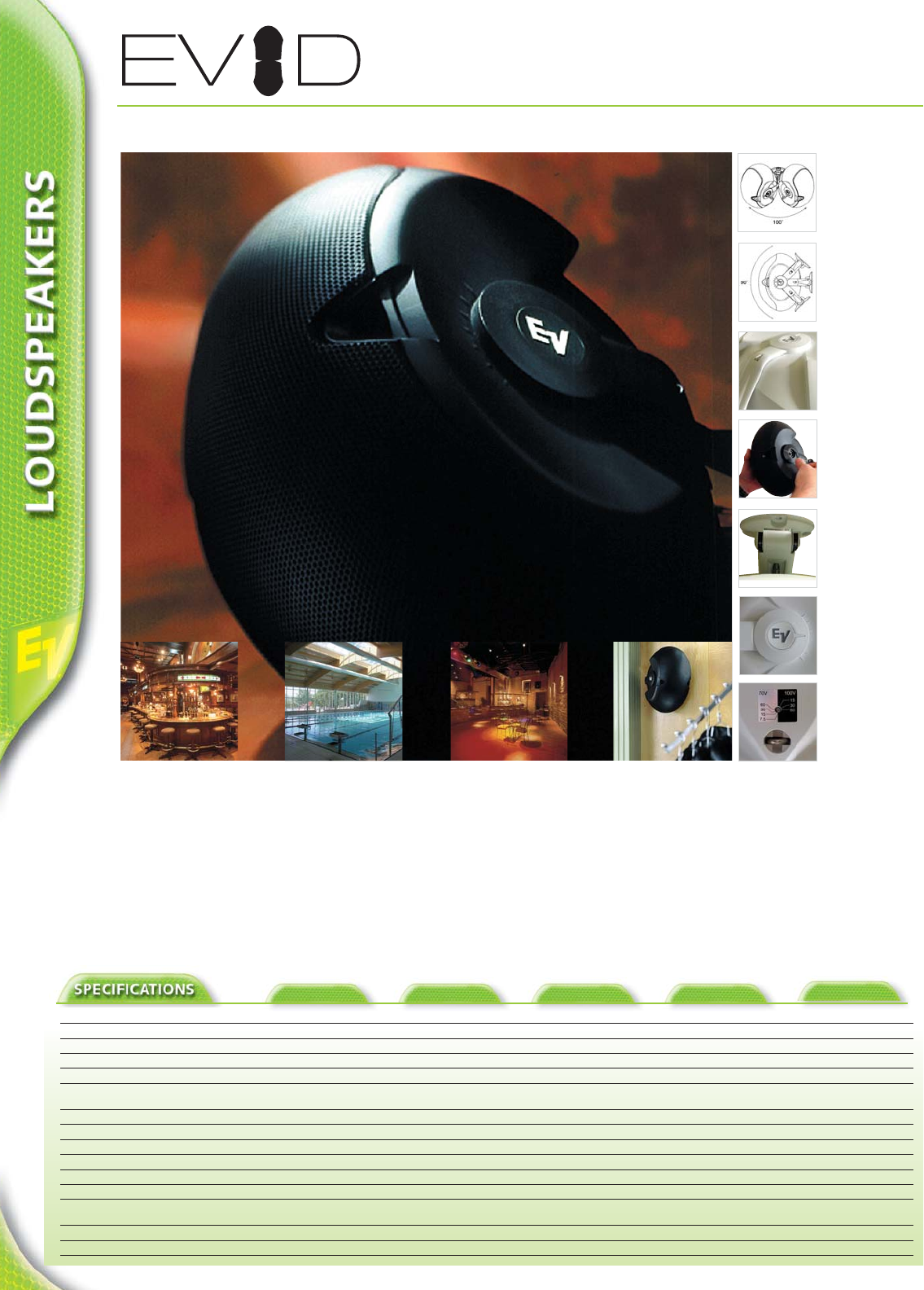

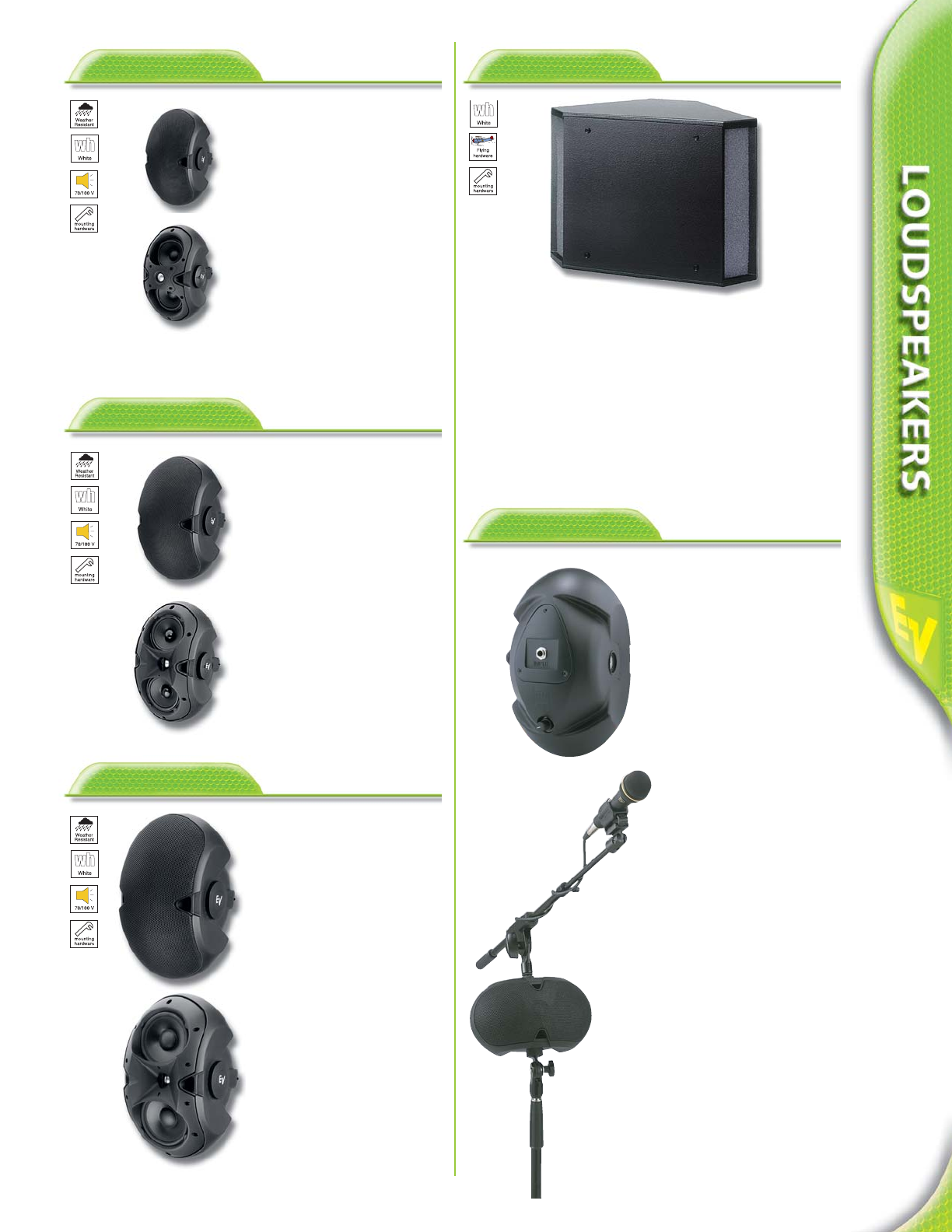

24 - 27 EVID
28 - 29 Outdoor Speakers

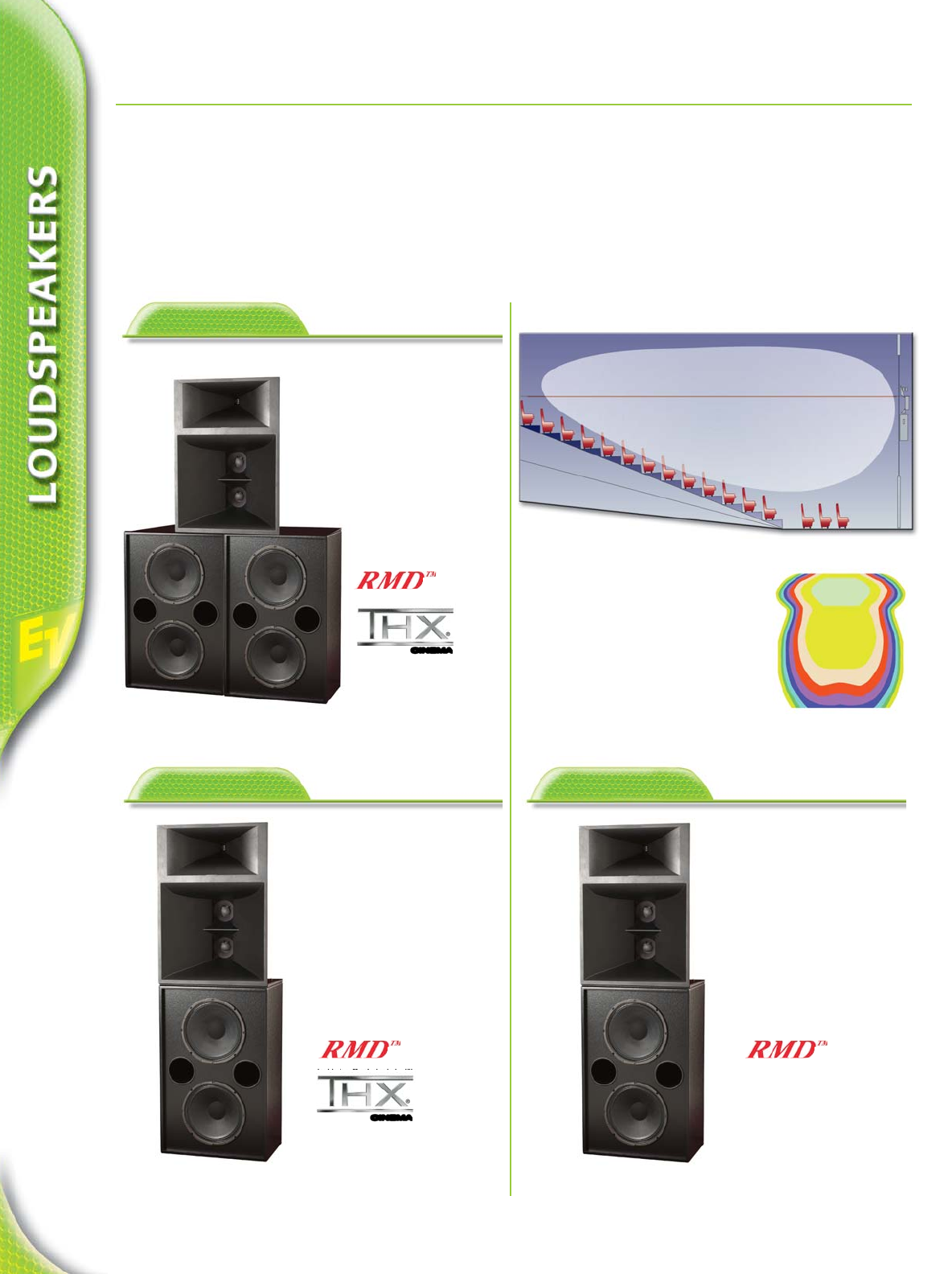

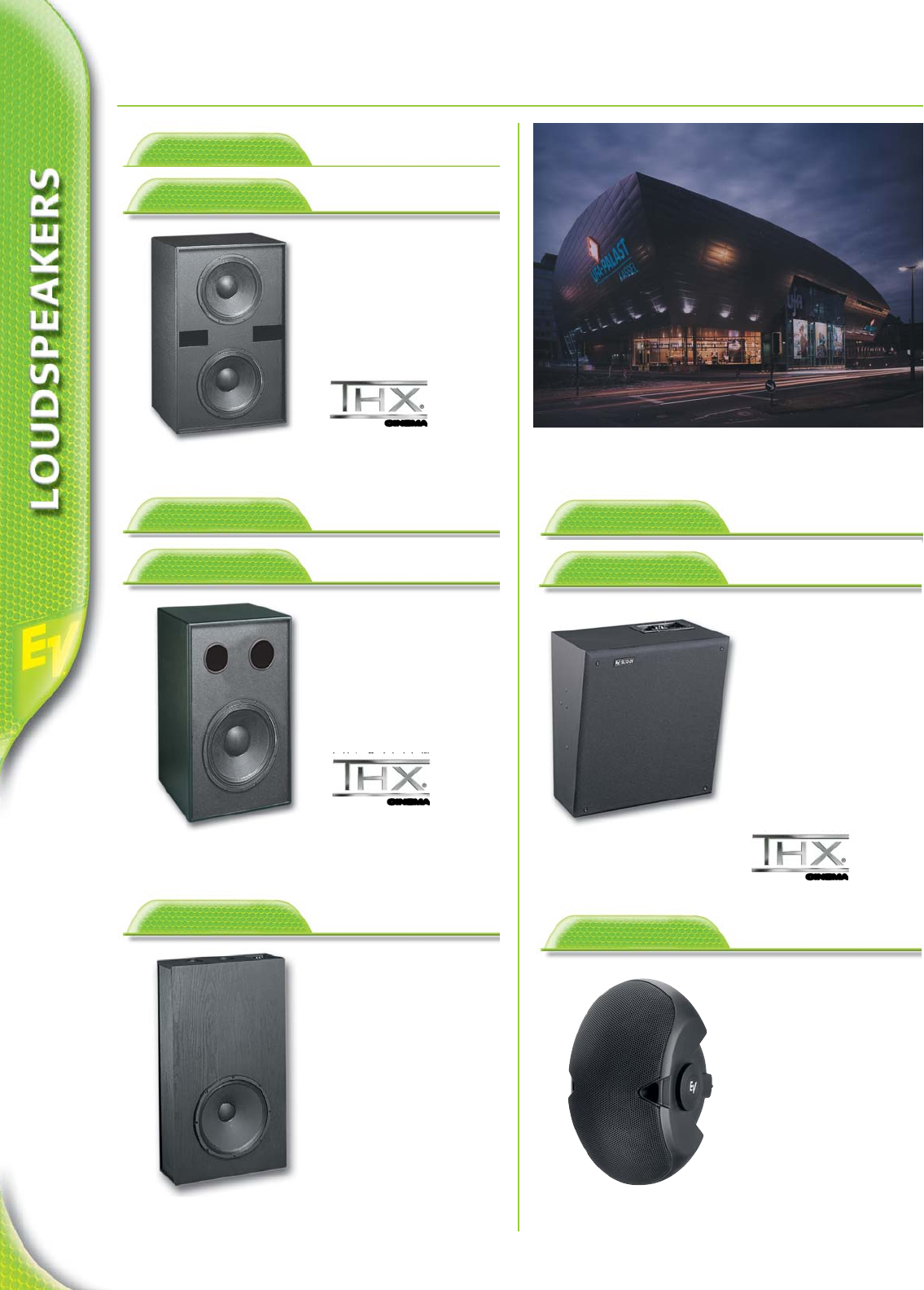

30 - 33 Cinema Systems
34 - 35 X-Array
36 - 37 X-Line
38 - 39 The XLC System

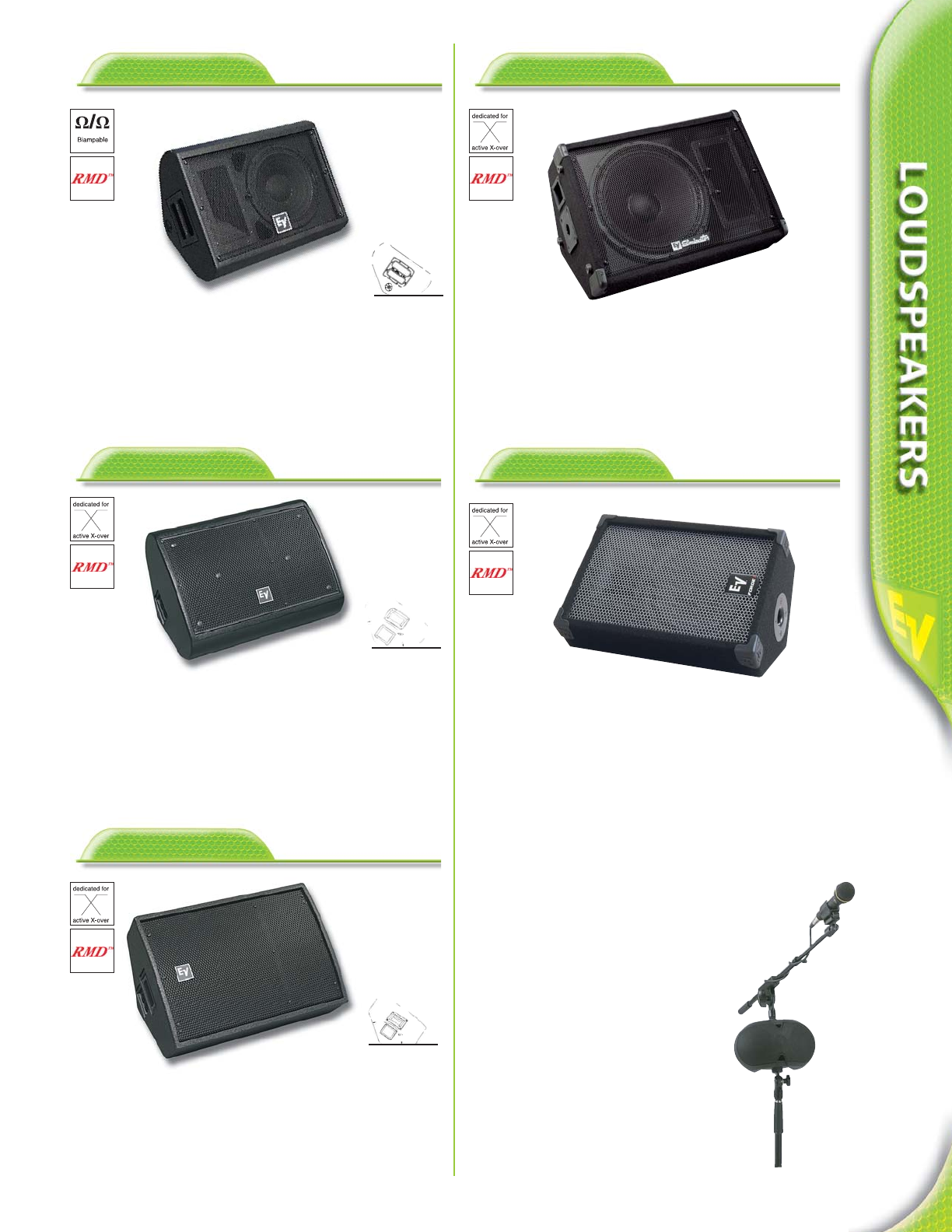

40 - 41 Floor Monitors

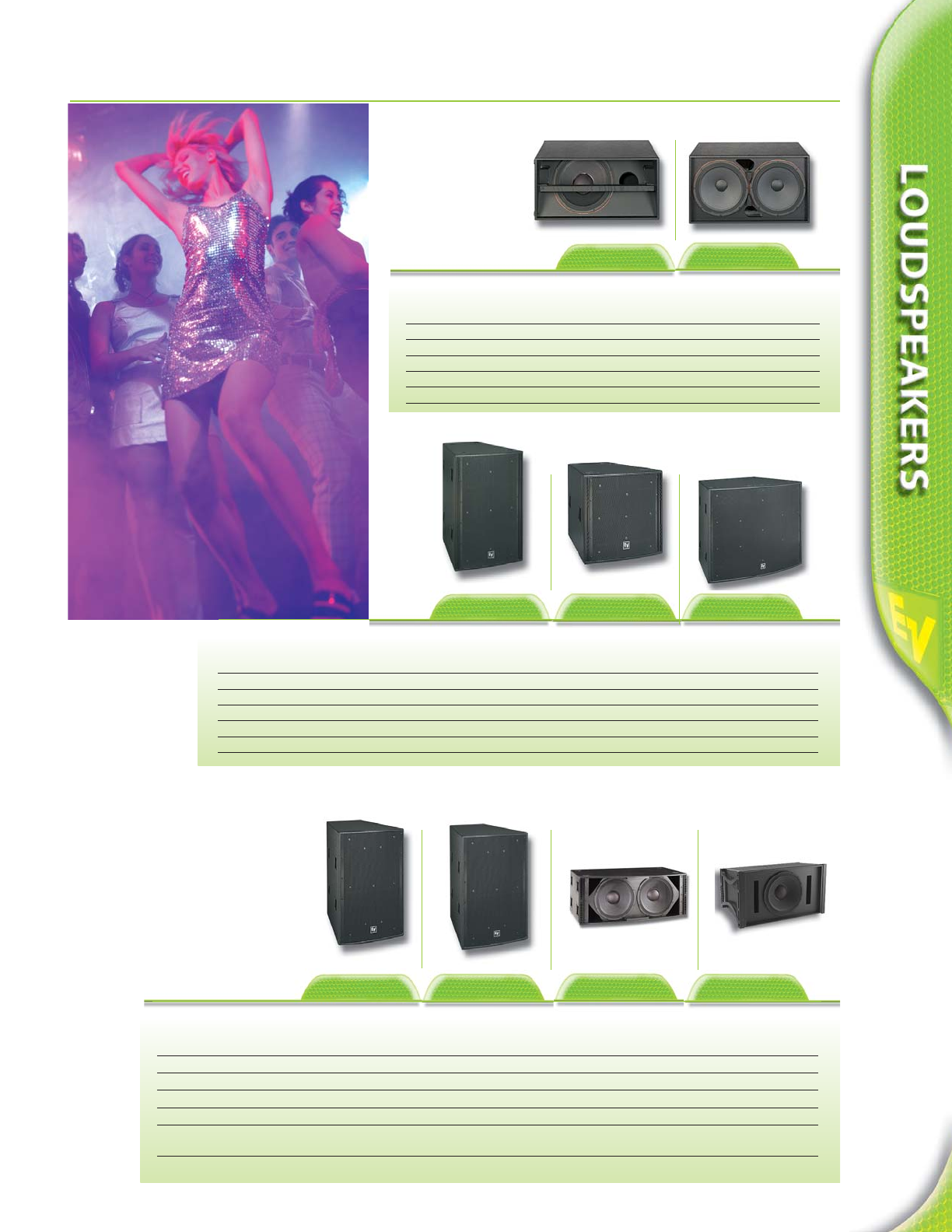

42 - 43 Subwoofers

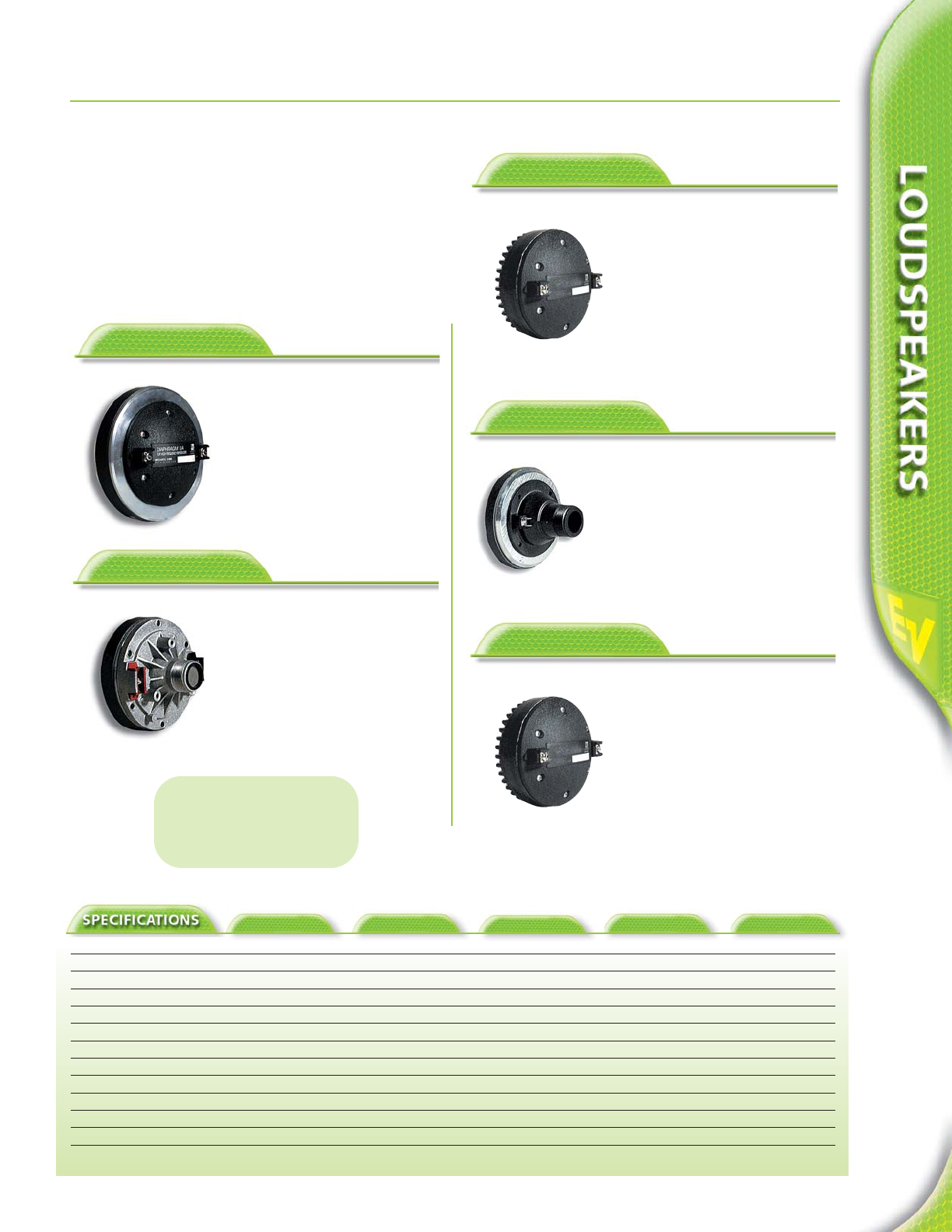

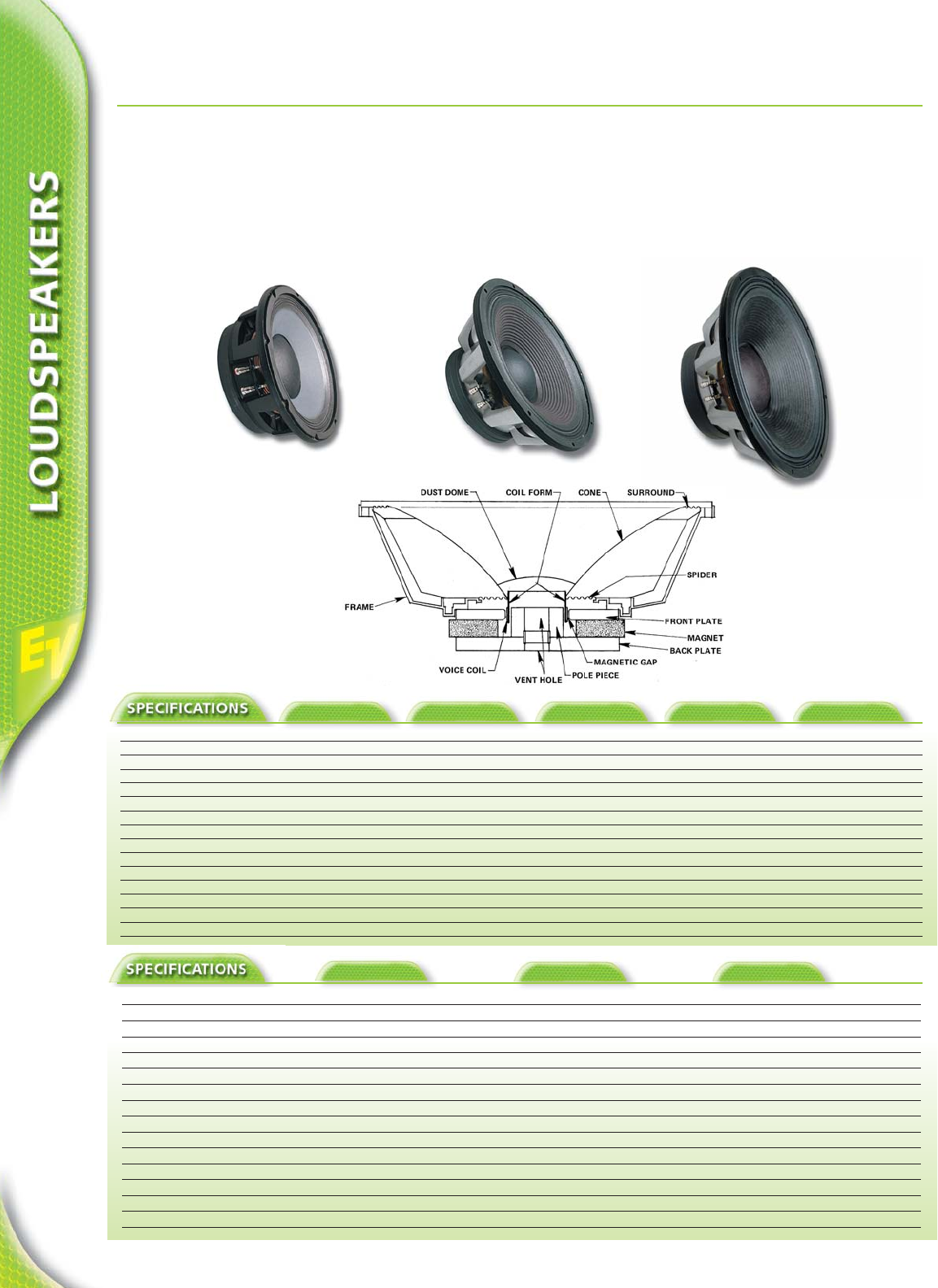

44 - 45 Components

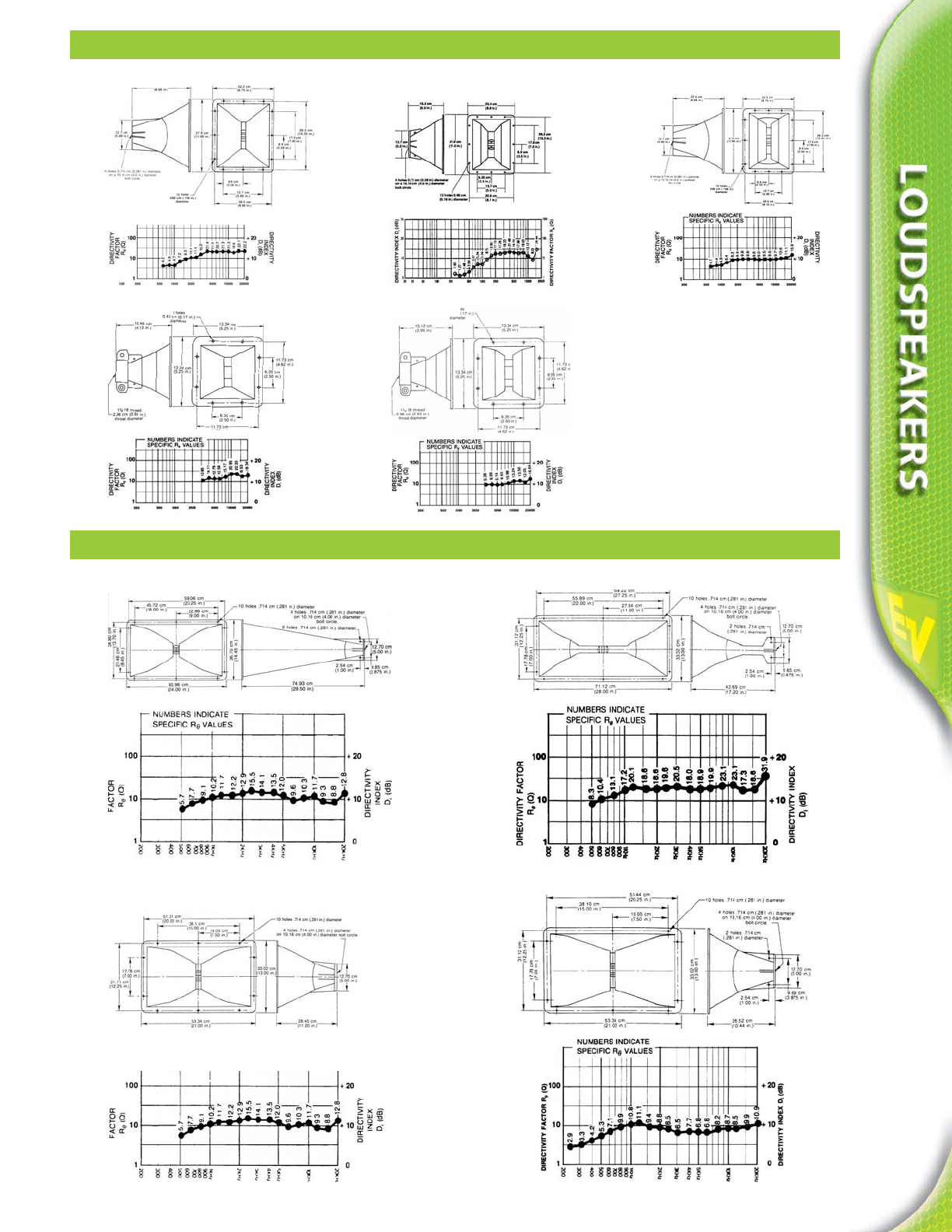

46 - 47 HP Horns

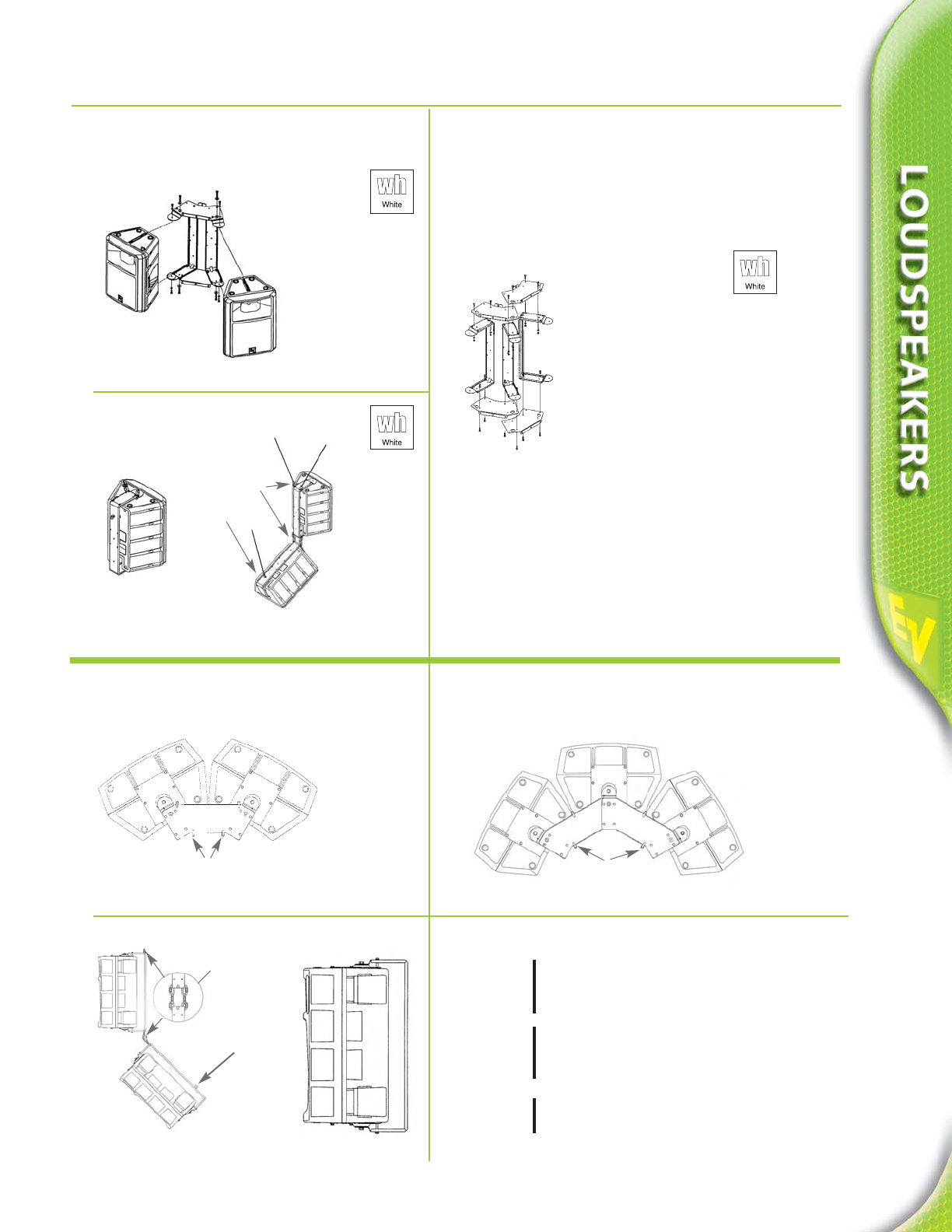

48 - 51 Hardware
Electronics

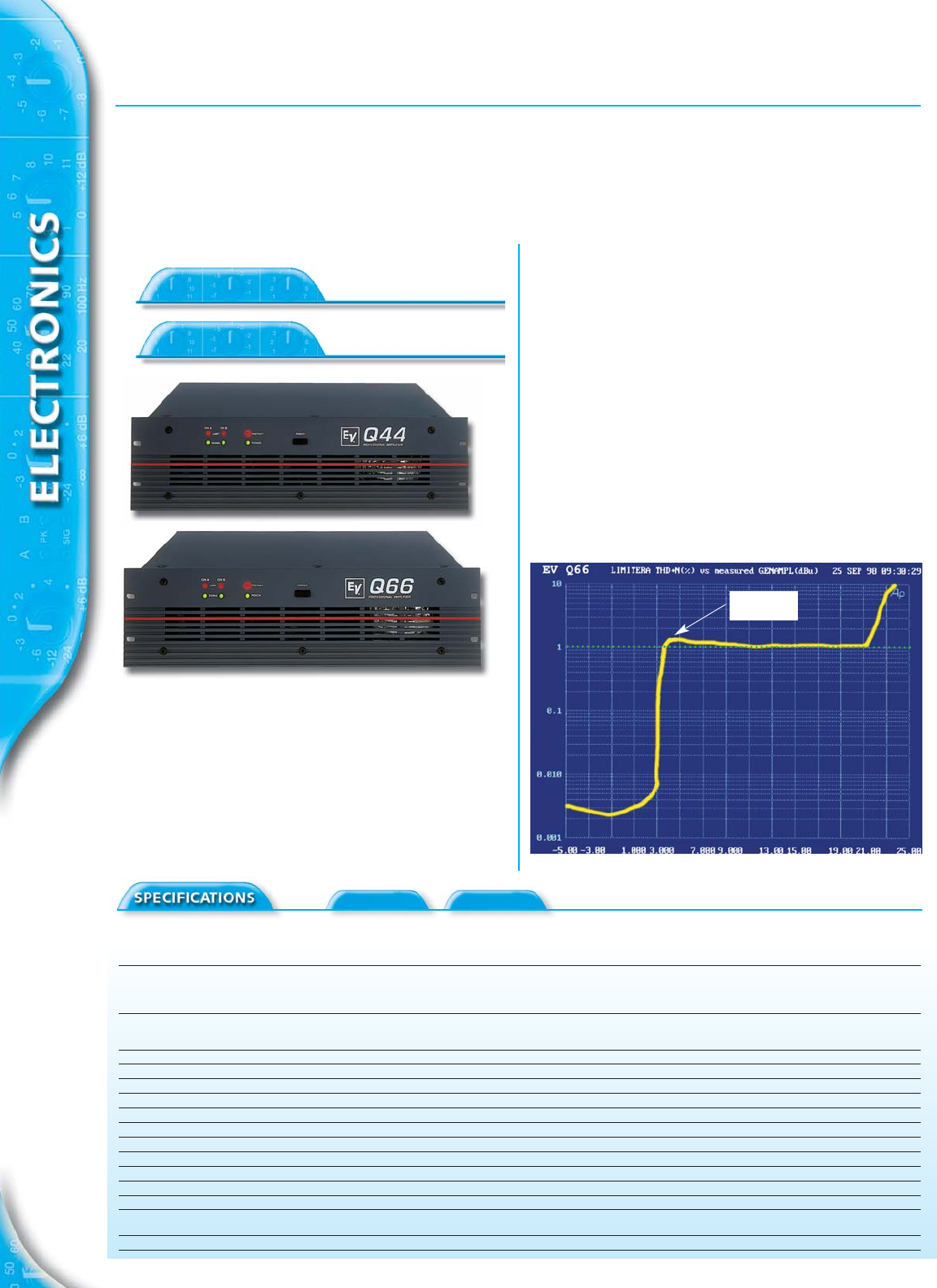

52 Q-Series Amplifiers
53 Contractor Precision Series Amplifiers
54 Precision SeriesLinear Amplifiers
55 Precision SeriesModular Amplifiers
56 Compact Precision Amplifier CP2200
57 - 58 Precision SeriesRemote Amplifiers
59 Signal Processors

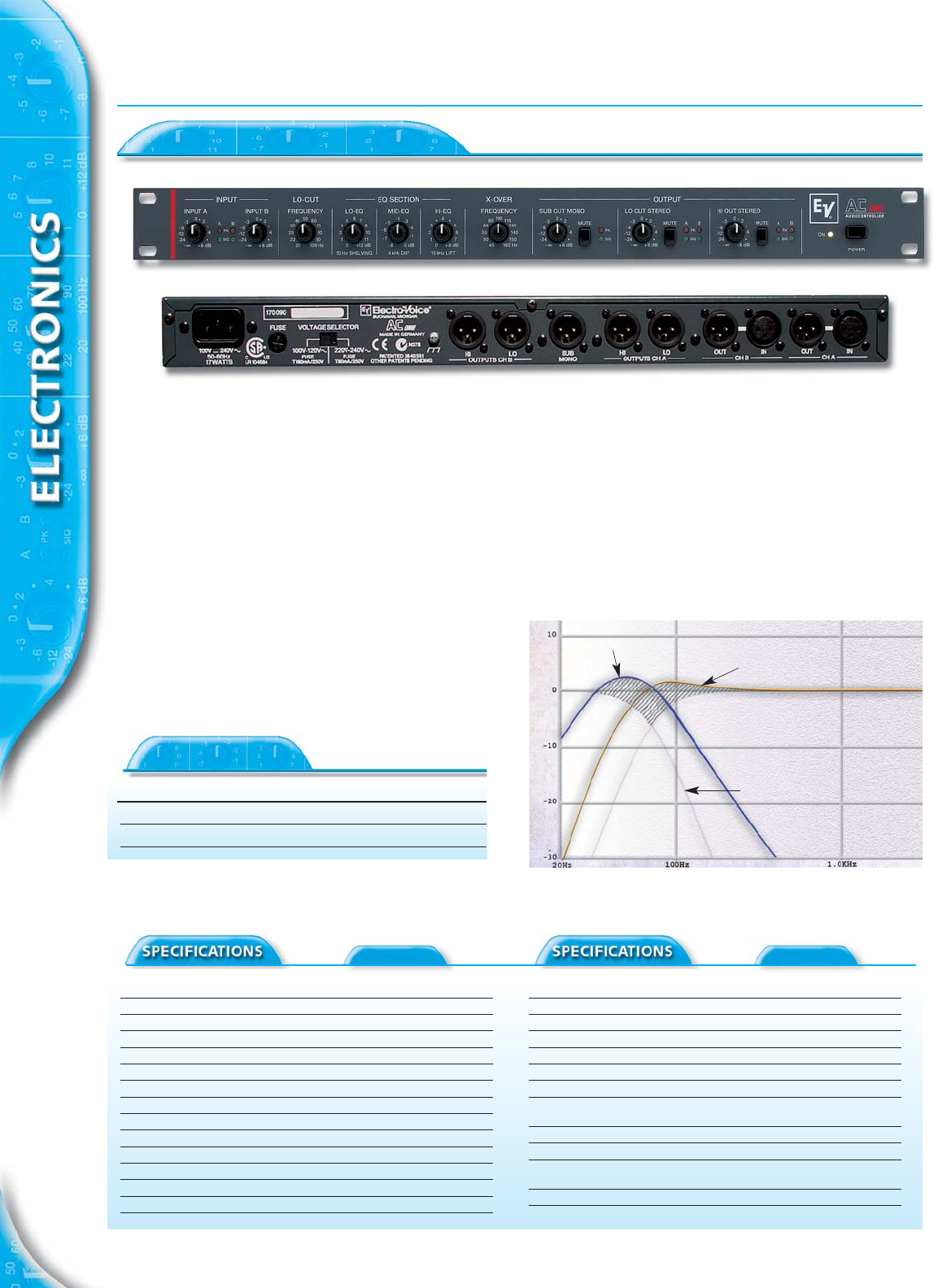

60 AC One Analog Controller

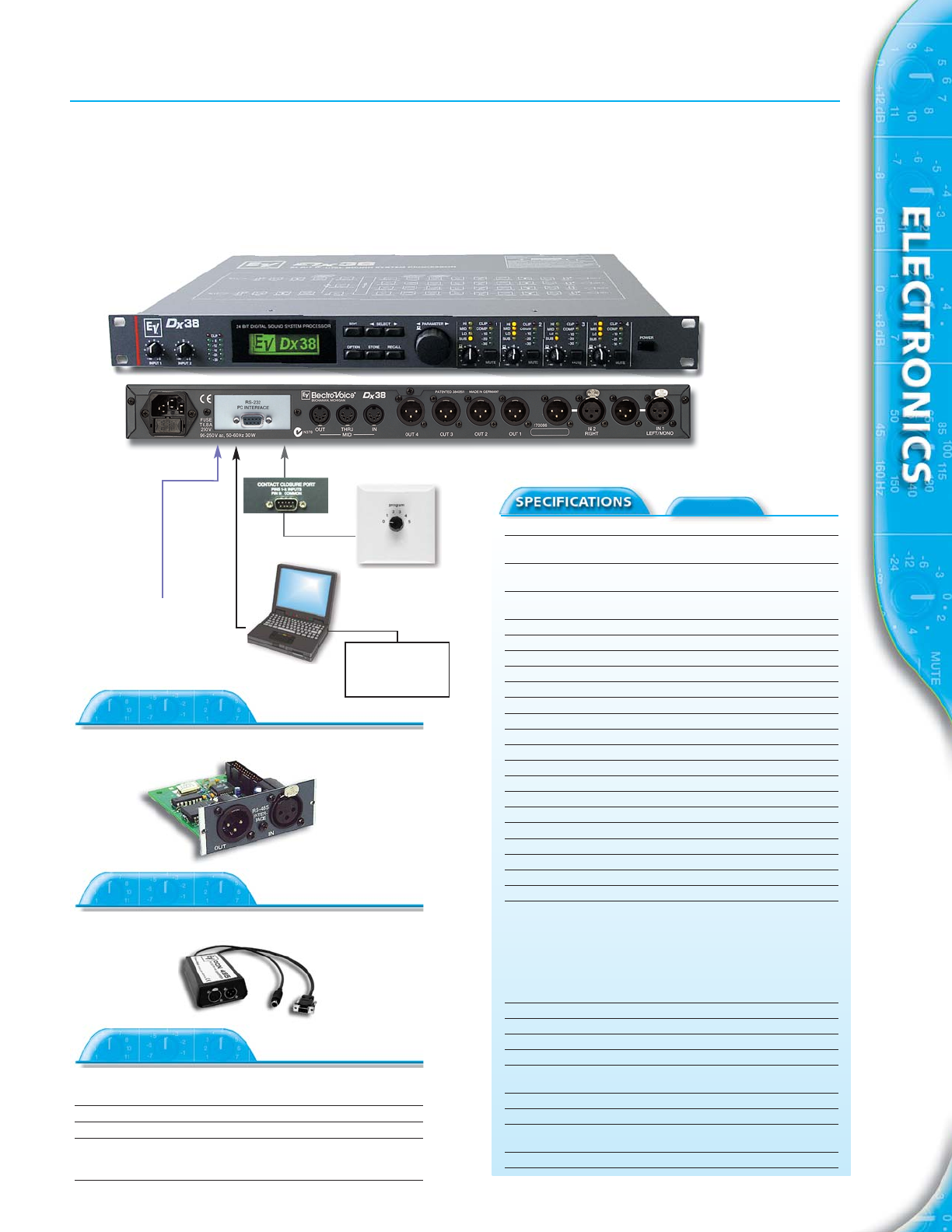

61 Dx38 Digital Sound System Processor

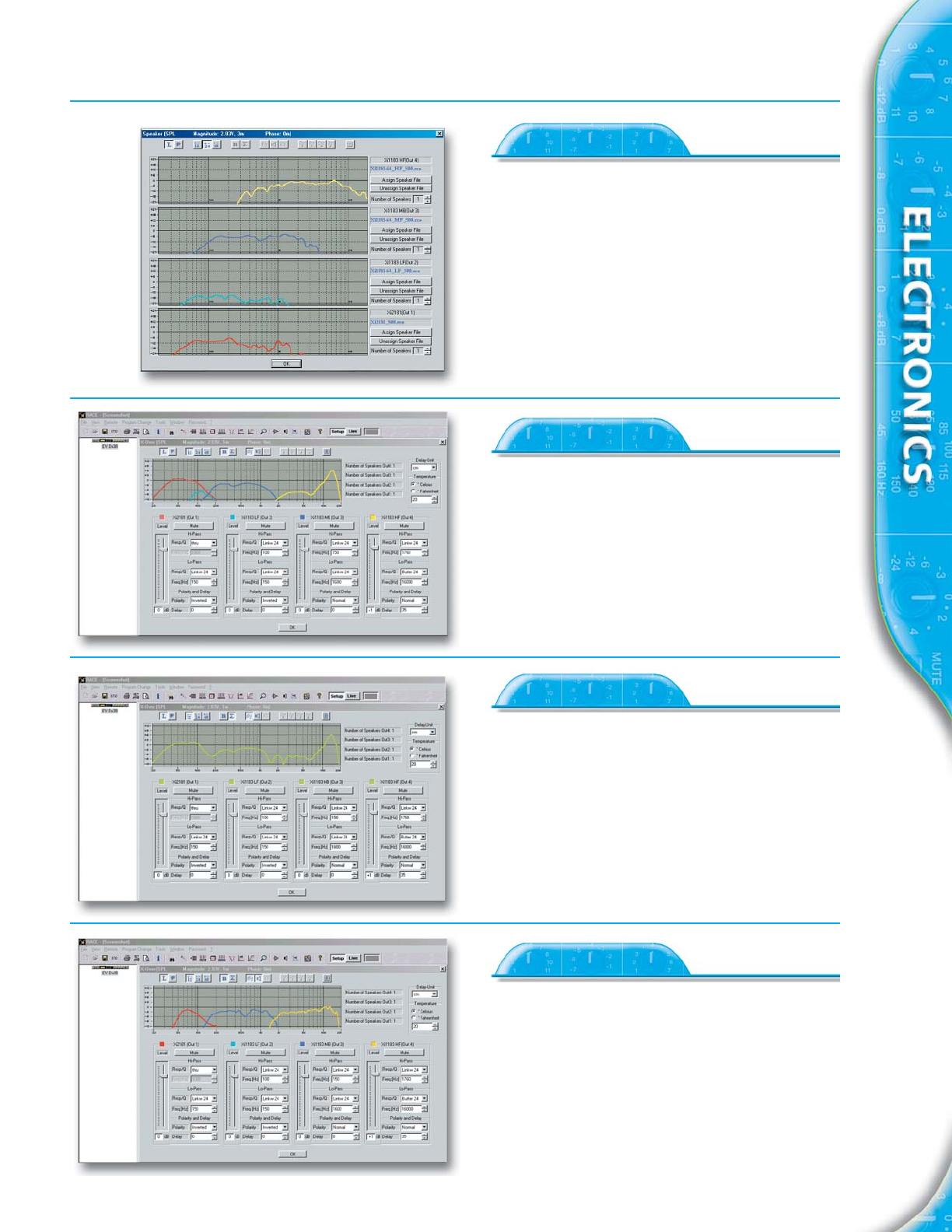

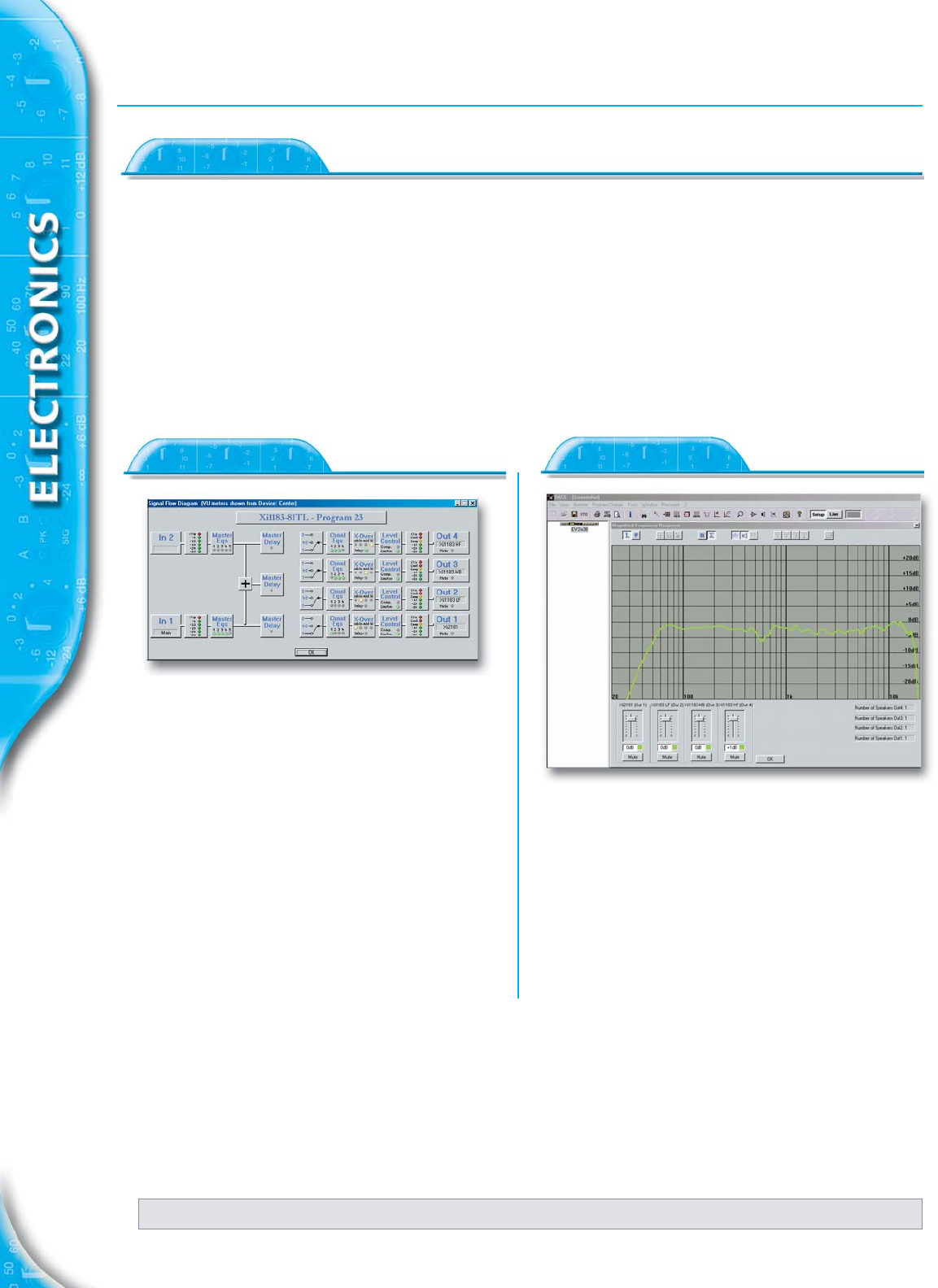

62 - 63 RACE Controller Software

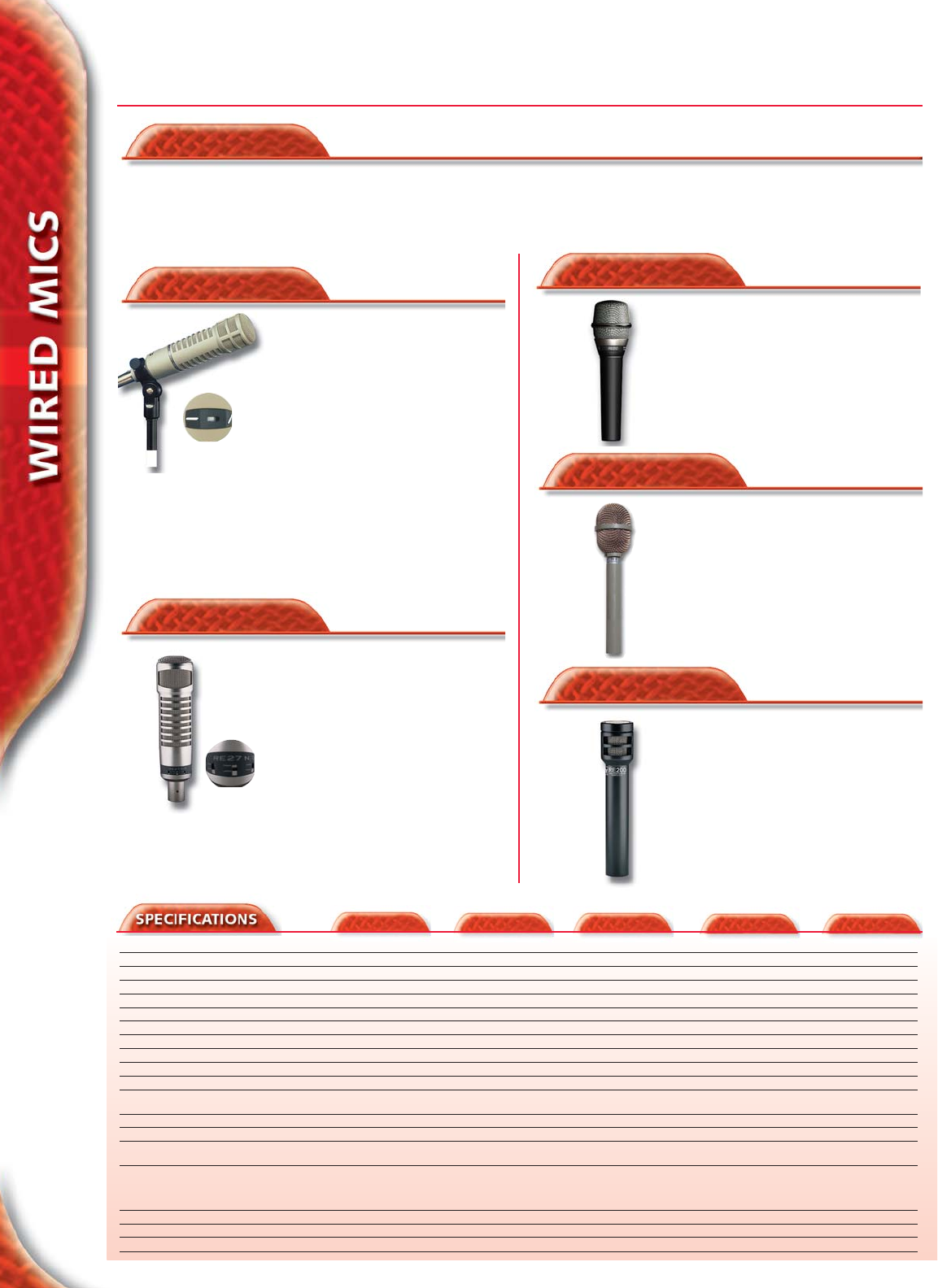

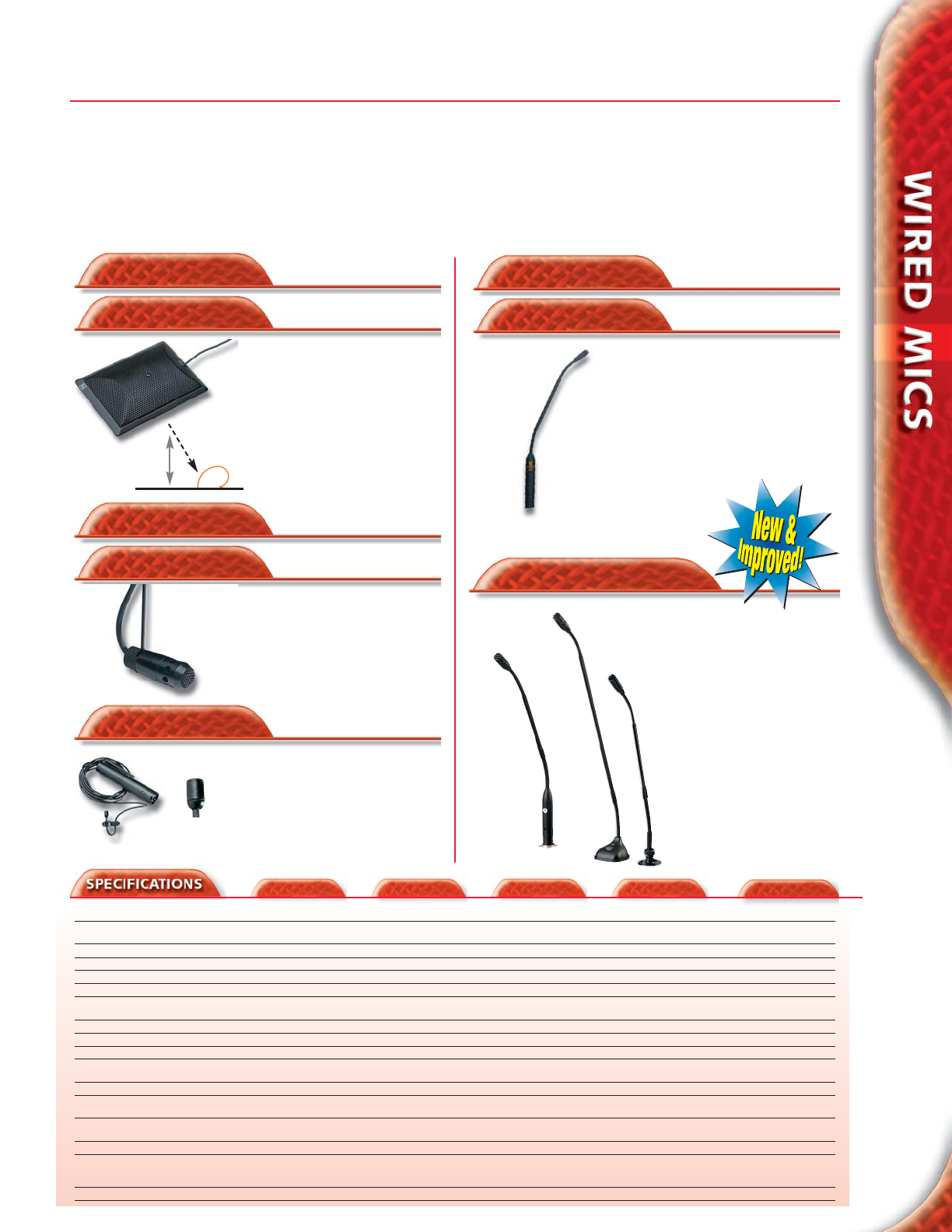

Wired Microphones
64 N/DYM®Series
65 Cobalt Series
65 Live Interview
65 - 67 RE Series
67 PolarChoiceSeries

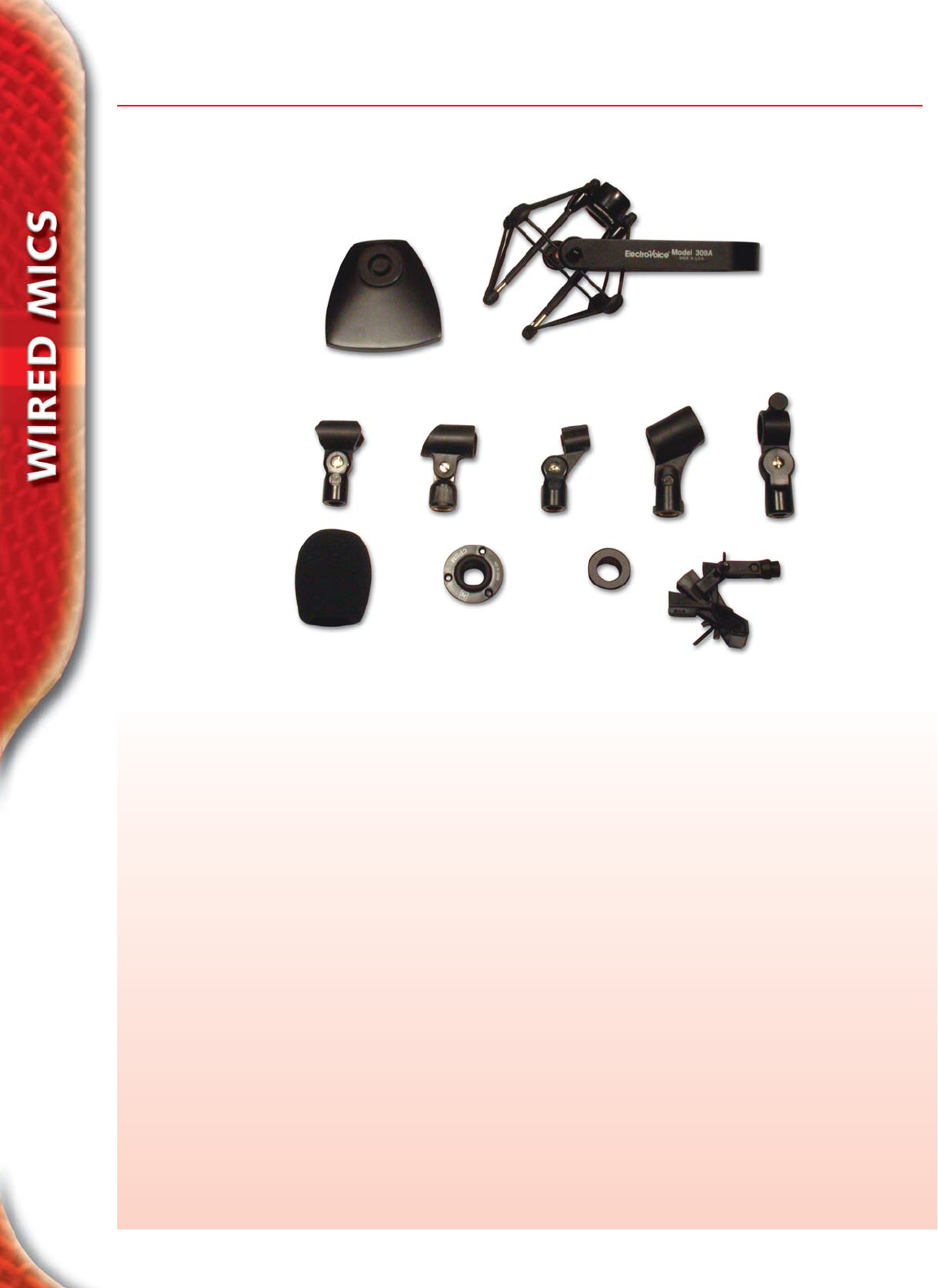

68 - 69 Wired Microphone Accessories

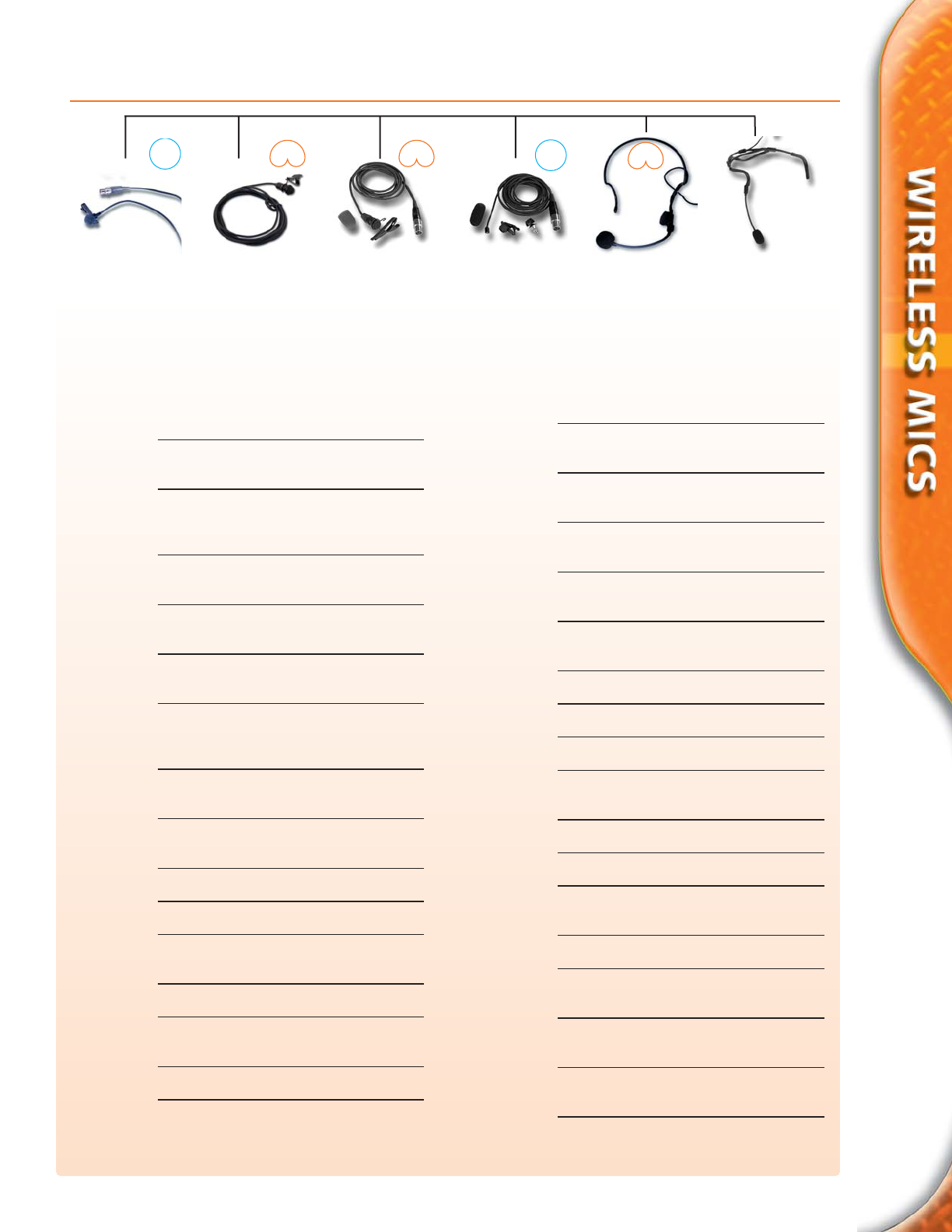

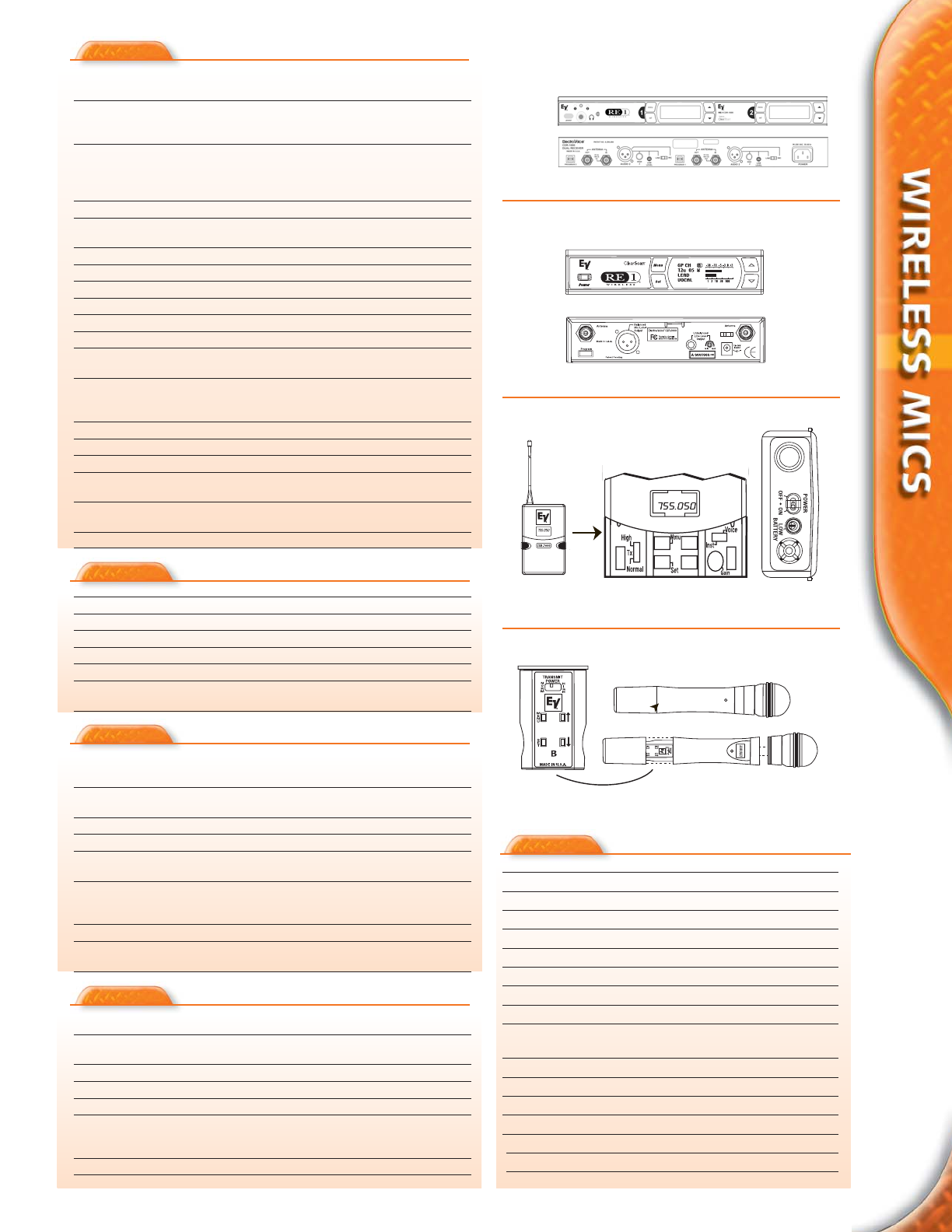

Wireless Microphones
70 - 71 RE-1
72 - 73 N/DYM®Series

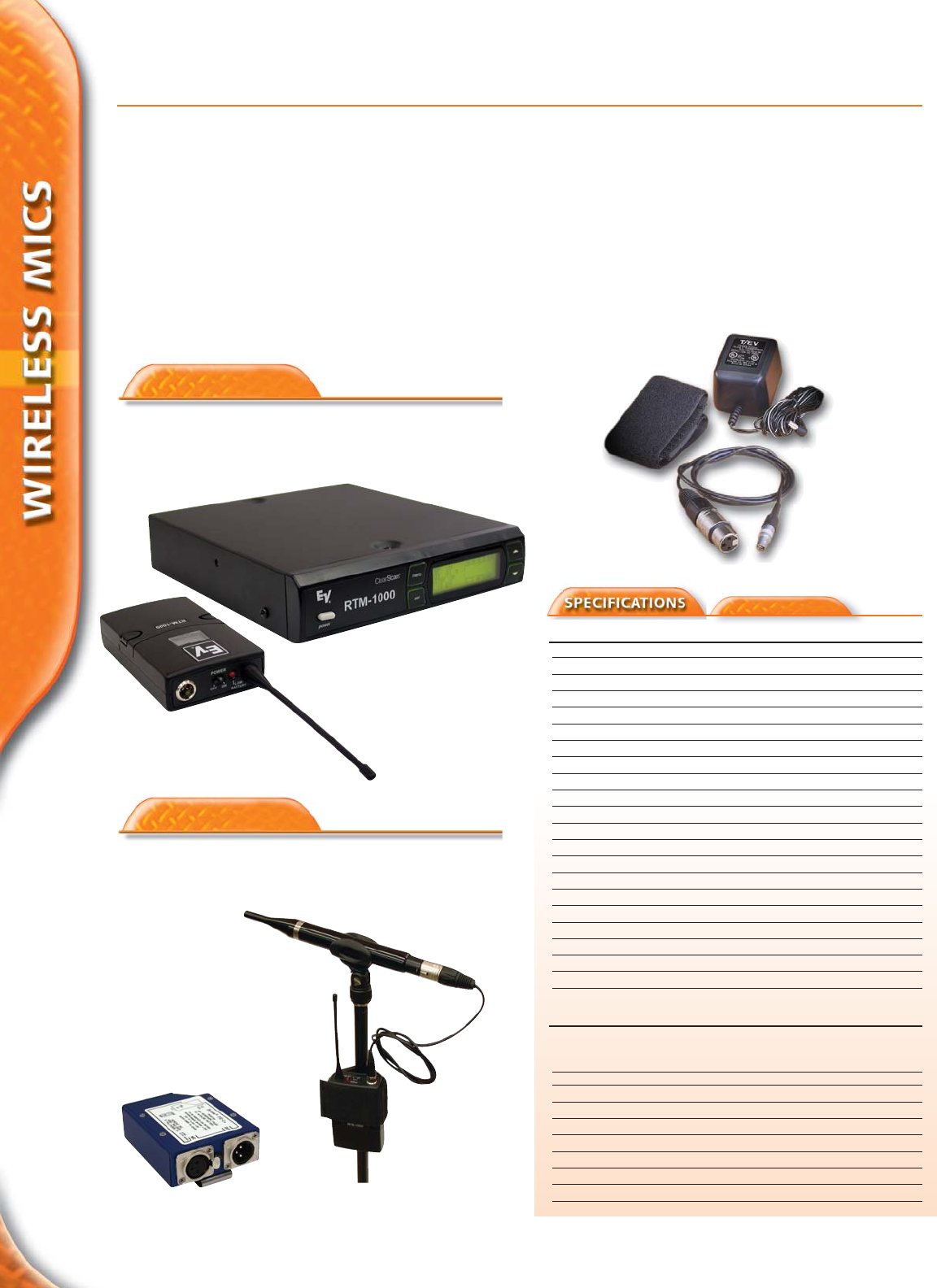

74 RTM-1000 Remote Test Wireless System
75 Cobalt Series

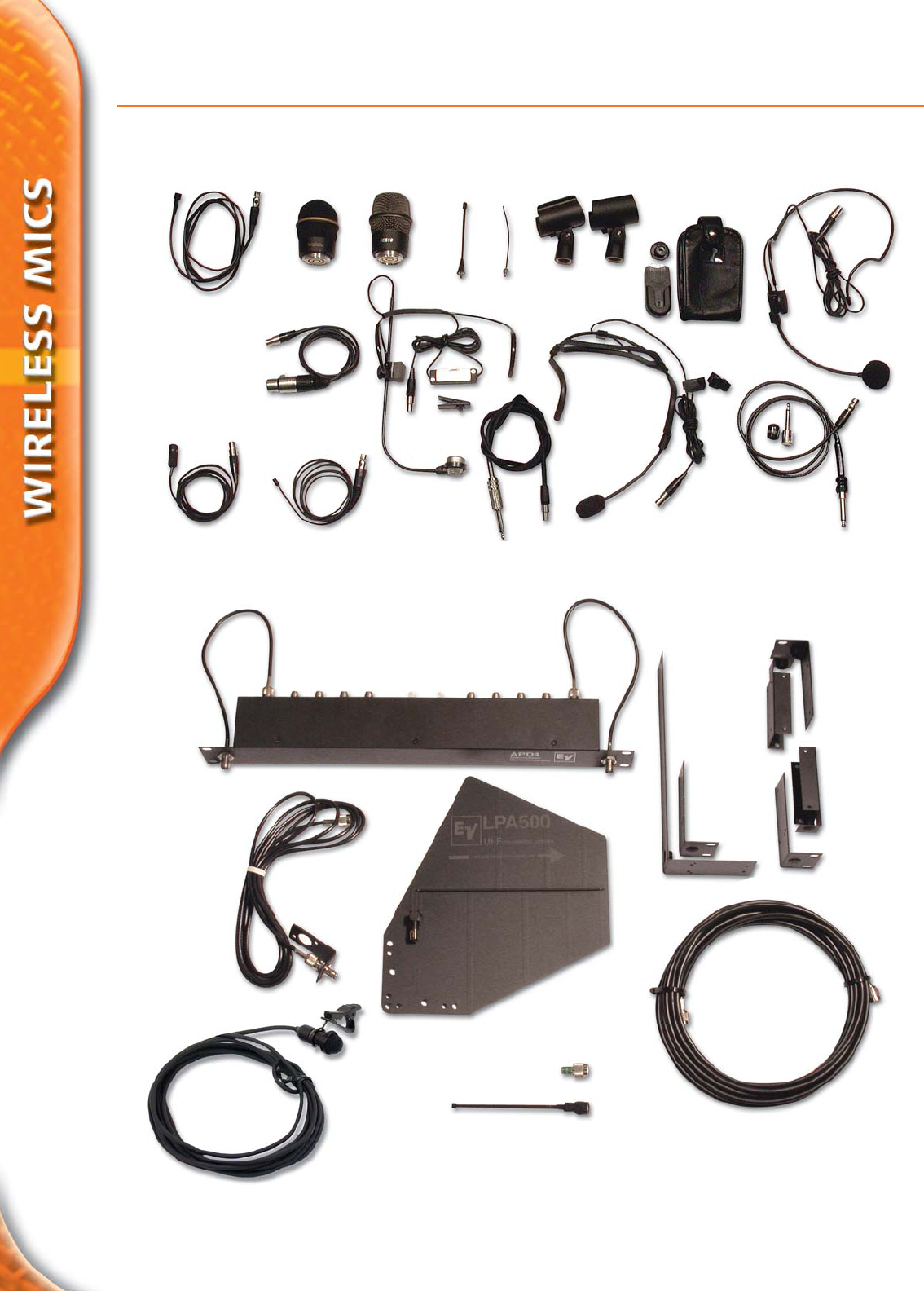

76 - 77 Wireless Microphone Accessories
Applications

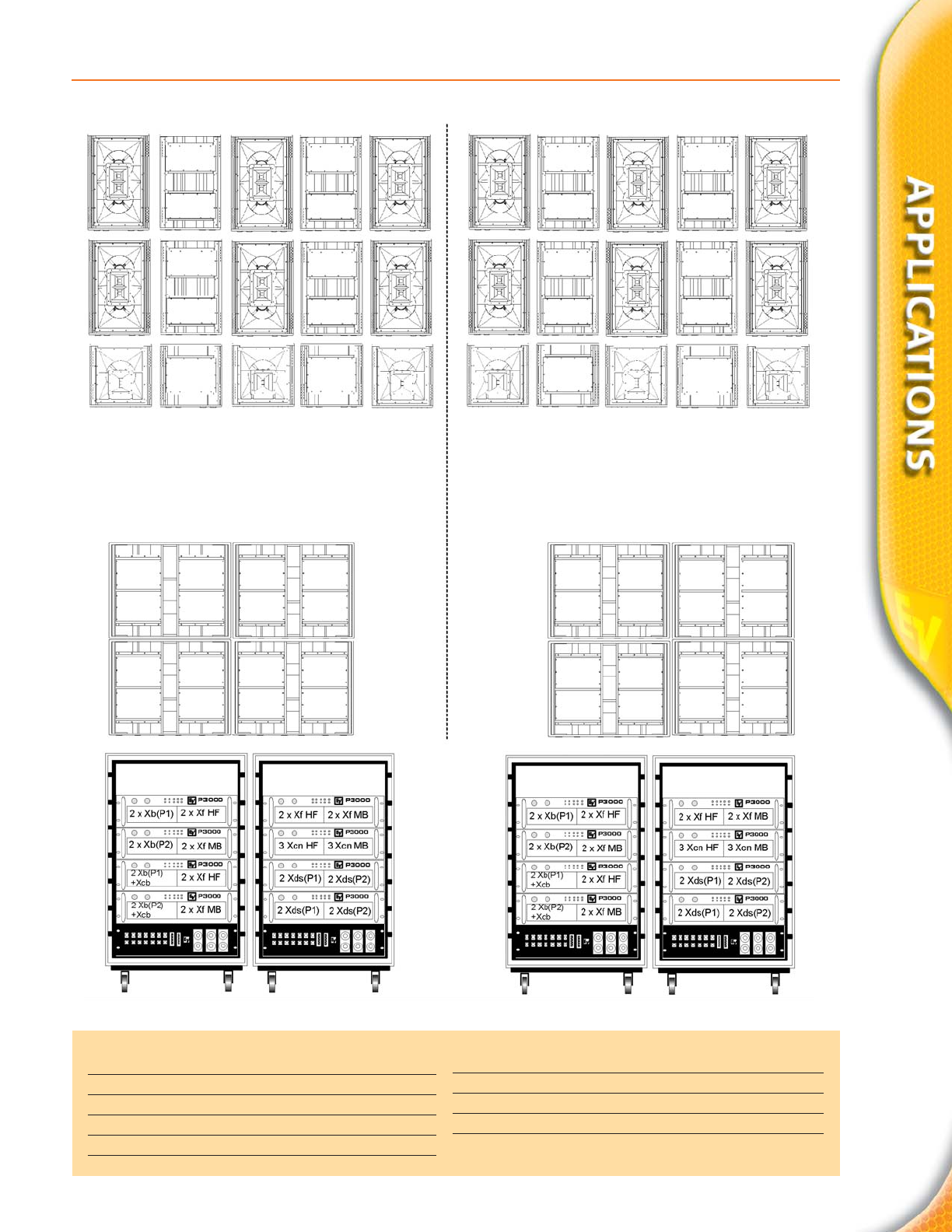

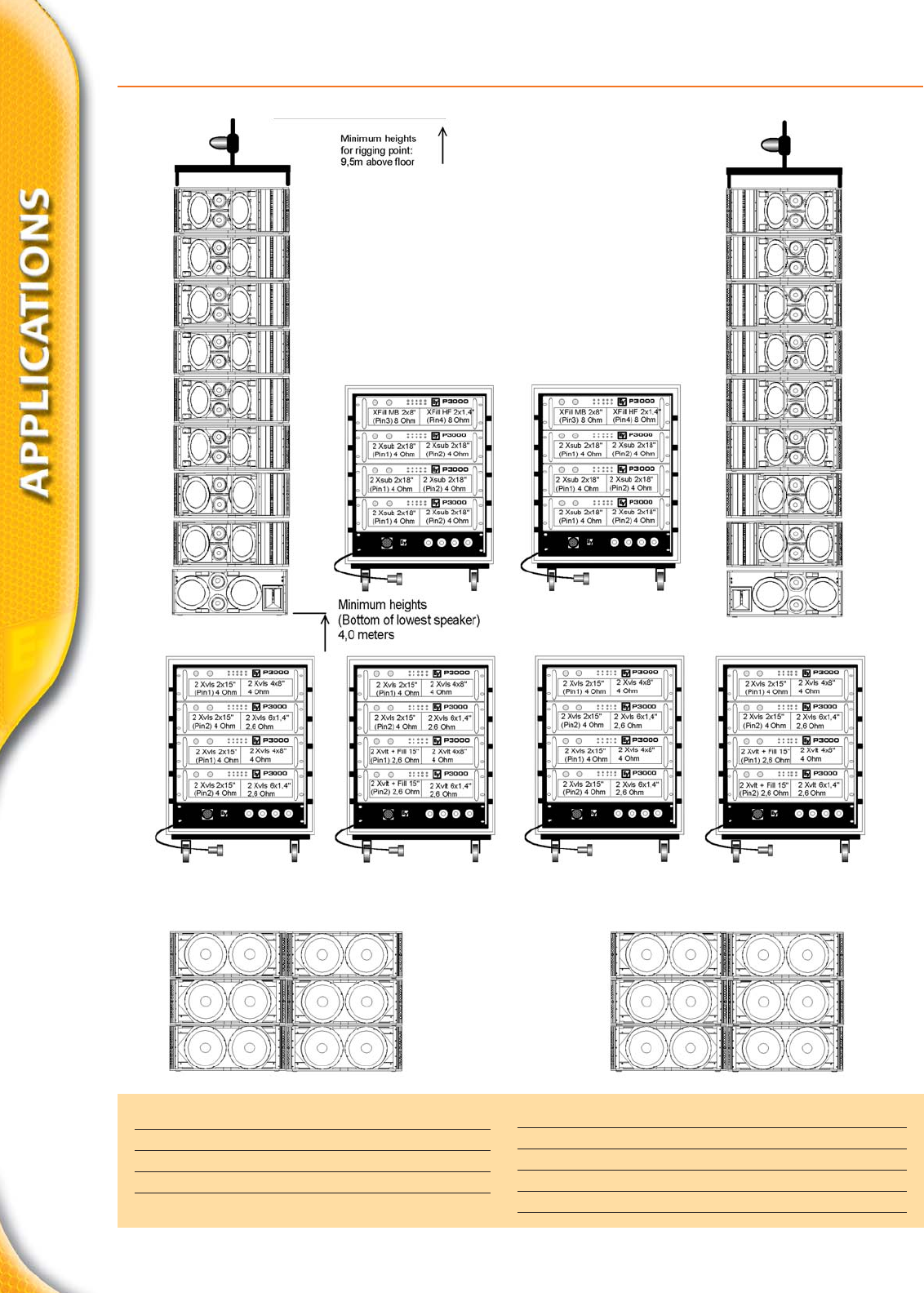

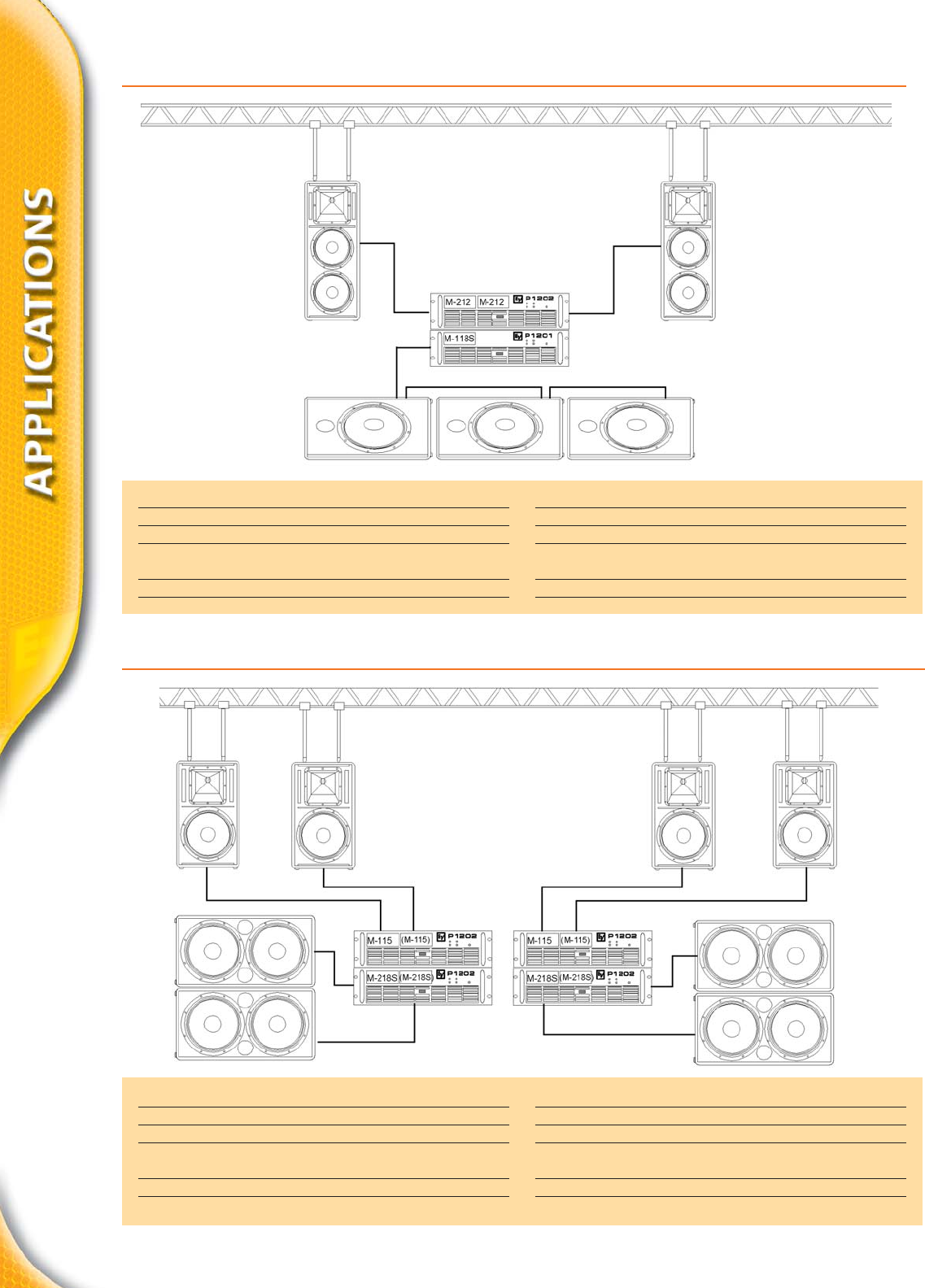

78 - 82 System Applications
83 - 84 Speaker Technologies
85 Speaker, Distances, and Horns
86 Microphone Technologies
86 PIN - Arrangements
Weather-resistant
Also available in white
Available with high-quality 70/100 volt transformer
Speaker can be flown. See product features
and Hardware (pages 48 - 51)
Mounting hardware available or included.
See product features and Hardware (pages 48 - 51)
Passive or biamped operation
Designed for multi-way active operation using EV®
Dx38 digital controller (page 61)
Rotatable constant-directivity horn or identical
horizontal/vertical directivity control (i.e. 65° x 65°)
Ring Mode Decoupling (RMD™) ensures high
performance and vocal clarity at any SPL.
See page 83.
Cardioid
Supercardioid
Hypercardioid
Omnidirectional
Product feature symbols
Microphone polarities
INDEX
5
635A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
635A(B) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
635N/D-B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
AB-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
AB-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
AB-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
AB-62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
AB-64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
AC One Analog Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
ADH3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
ADH5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
ADH6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
AN-Flex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
AN-Sflex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
APD-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
CDR-1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Cinema Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30-33
Co11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Co4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Co5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Co7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Co9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Cobalt™ Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65, 75
Compact Precision Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44-45
Contractor Precision Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Control Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
CP2200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
CPS Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
CPS1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
CPS2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
CPS2T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
CPS3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
CPS4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
CS200TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
CSB-1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
CSH-1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
CSR-1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
CXU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
DH2010A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
DH2T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
DH3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
DH7-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
DH7-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
DL10X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
DL12BFH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
DL12ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
DL15BFH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
DL15ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
DL18MT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Dx38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61-63
Eliminator i Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Eliminator i Sub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 42
Eliminator i® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Eliminator ii . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Eliminator kW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 42
Eliminator Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
EQ-131 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
EQ-215 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
EQ-231 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
EVI-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
EVI-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
EVI-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
EVID 12.1/P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25, 42
EVID 3.2/3.2T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25, 28
EVID 4.2/4.2T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25, 28
EVID 6.2/6.2T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25, 28
EVID C10.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27, 42
EVID C4.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
EVID C8.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
EVID C8.2HC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
EVID C8.2LP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
EVID SOS 3.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25
EVX155 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
EVX180B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
FA-500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Floor Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Force i Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 41
Force i Sub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Force i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
FRi/FRi+ Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FRi+122/64/66/94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FRi+152/64/66/94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FRi+181S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15, 42
FRi-122/64/85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FRi-128LPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
FRi-152/64/85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FRi-2082 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FRX+ Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
FRX+181 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16, 42
FRX+640 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
FRX+660 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
FRX+940 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Gladiator 115 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Gladiator 118 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48-51
HM2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
HM7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
HP Horns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HP1240 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HP4020 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HP420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HP6040 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HP64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HP640 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HP66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HP9040 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HP94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HP940 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HPT64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HPT94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
HS-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Large-Format MH-Horns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Live Interview Mics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
LPA-500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
M-112 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
M-115 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
M-118S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
M-153 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
M-218S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
MAC-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
MAC-G2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Medium-Format MH Horns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
MH4020AC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
MH6040AC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
MH640C/P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
MH660C/P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
MH9040AC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
MH940C/P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
MH-Series Stadium Horns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Microphone Technologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
MSSA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
MTL-1X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
N/D267a/as . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
N/D367s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
N/D468 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
N/D478 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
N/D767a . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
N/D868 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
N/D967 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
N/DYM® Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64, 72-73
NBPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
ND6-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
ND6-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
ND6x-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
NHTU-N2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
NHTU-N7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
NRS 90208 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
NRS 90244 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
NRS 90246 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
NRS 90247 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
NRSCU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
NRU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
OLM 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Outdoor Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
P1200 RL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
P1200 RT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
P1200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
P1201 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
P1202 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
P2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
P3000 RL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
P3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
P900 RL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
P900 RT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
PA 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
PC Plus-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
PC Plus-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
PC-12 XLR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
PC-12FL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
PC-18 XLR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
PC-18FL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
PIN - Arrangements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
PolarChoice™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
PowerMax 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Precision Series™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52-58
P-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52-58
Q44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Q66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
QRx 112/75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13, 40
QRx 115/75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13, 40
QRx 118S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13, 43
QRx 153 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13
QRx 212/75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13
QRx 218S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13, 43
QRx Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13
Q-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
RACE Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61-63
RC510 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
RC767a . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
RCM-24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
RE-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70-71
RE16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
RE20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
RE200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
RE27 N/D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
RE50/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
RE50N/D-B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
RE510 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
RE90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
RE90TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Remote Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57-58
RE-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
RMD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
RS-485 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
S-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Sb121 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9, 42
Sb180 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9, 42
SbA750 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 42
SL10-2V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32, 33
SL12-2V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32, 33
SL6.2M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32, 33
Small format horns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Speaker Technologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83-85
Stadium Horns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22-23
Subwoofers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42-43
Surround Loudspeakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Sx100+E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9, 40
Sx250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9, 40
Sx300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Sx300PI/PIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Sx500+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Sx500PI+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Sx600PI/PIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Sx80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Sx80PI/PIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
SxA Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
SxA100+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 40
SxA180 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 42
SxA250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 40
Sx-Series™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
T-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
T221M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14, 41
T251+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
T252+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
TC Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
TC-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
TC-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
TL18-1ES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32, 33
TL440 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32, 33
TL440D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32, 33
TL880D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32, 33
TL880DM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32, 33
TP-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67, 71
TS550D-LX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31, 33
TS940D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31, 33
TS992E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31, 33
T-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
UHF Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72-73
UHF Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
ULM21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76-77
Underwater loudspeaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
UW 30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Variplex M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30, 33
Variplex XL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30, 33
Variplex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30, 33
VS Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Wireless Microphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70-77
WP1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
X-Array™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-35
Xb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-35, 43
Xcb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-35, 43
Xcn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-35
Xds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-35, 43
Xf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-35
Xfil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36-37
Xfil2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36-37
Xi-1082 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18, 20
Xi-1122/85F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18, 20
Xi-1123/106F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18, 20
Xi-1152/64F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18, 20
Xi-1152/94F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18, 20
Xi-1183/64F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18, 20
Xi-1191 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19, 20, 43
Xi-1191F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19, 20, 43
Xi-2123/106F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19, 20
Xi-2153/64F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19, 20
Xi-2181 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19, 20, 43
Xi-2181F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19, 20, 43
Xi-Series™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-20
XLC 118 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39, 43
XLC 127 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39
XLC 127+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39
XLC System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39
XLCi 118 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
XLCi 127 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
XLCi 127+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
XLCi System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
X-Line™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36-37
Xn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-35
Xsub(F) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36-37, 43
Xvls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36-37
Xvlt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36-37
Xw12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-35, 41
Xw15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-35, 41
6
Gladiator Series 15” Two-Way
and 18” Subwoofer
Key Features
• 3-way system design using one amplifier channel allows 2-way
full-range + sub to run on one amp channel
• 131 dB Max SPL
• RoadWoodEnclosures are rugged
and lightweight
• Steel pole included
• Steel grilles
Gladiator 115 2-Way
• High output EV-15FR 15” woofer
• 60° x 40° controlled coverage
• DH2010 compression driver for extended
HF and reliability
• High sensitivity, 99 dB
400 Watts continuous, 1,600 Watts
peak power rating
Gladiator 118 Sub
• EVS-185 18” woofer with high power
4-layer voice coil
• Extended low-end response to 32 Hz
• Built-in crossover for use as 3-way system
• 400 Watts continuous, 1,600 peak
power rating
• Boosts LF output to 134 dB
Freq. Response (-3 dB)2:46 Hz - 20 kHz/42 Hz - 160 Hz
Freq. Range (-10 dB)2:35 Hz - 20 kHz/32 Hz - 600 Hz
Power Handling, Continuous1:400 W
Power Handling, Peak1:1,600 W
Dispersion: 60° x 40°/Omnidirectional
Sensitivity (SPL 1W/1m): 99 dB
Impedance (Nominal, Min.): 8 /8 , 6.5
Max Calculated SPL: 131 dB
Enclosure: RoadwoodCovered in Heavy
Duty Black Carpet
Connectors: Speakon®NL4
Grille: Powder-Coated Steel
G115 Dimensions (H x W x D): 29.9” x 17.3” x 22.0”
(760mm x 438mm x 559mm)
G118 Dimensions (H x W x D): 29.9” x 20.0” x 23.3”
(760mm x 508mm x 591mm)
Net Weight: 75.0 lbs. (34.1 kg)/80.0 lbs..
(36.3 kg)
Shipping Weight: 80.0 lbs.. (36.3 kg)/85.0 lbs.. (38.6 kg)
G115 / G1183G115 / G1183
1EIA-RS426A
2Frequency response 1/2 space
3All specifications equal for both models, except where noted or split.
G115
G118
Gladiator®
7
Force i®
Frequency Response (-3 dB) 50 Hz–20 kHz 36–210 Hz 85 Hz–17 kHz
Power Handling
Continuous 250 watts 350 watts 200 watts
Peak 1,000 watts 1,400 watts 800 watts
Max. Output Capability 130 dB 131 dB 128 dB
Dispersion 80° x 55° Omnidirectional 55° x 80°
Sensitivity 100 dB 100 dB 99 dB
Impedance 8 8 8
Dimensions
Inches 25.5 x 18.25 x 15.2 25.5 x 20.4 x 23.75 21.5 x 14.2 x 9.7
Millimeters 648 x 465 x 386 648 x 518 x 597 546 x 361 x 246
Net Weight 46 lbs. (20.9 kg) 69 lbs. (31.3 kg) 28 lbs. (12.7 kg)
Force®i Two-Way Force®i Sub Force®i Monitor
MAXIMUM BRIDGED OUTPUT
8 1,200 watts
4 1,700 watts
CONTINUOUS RATED POWER
Dual 4 600 watts per channel
Dual 2 850 watts per channel
Headroom >30% in any mode
Distortion @ rated power <0.03%
Weight 35.2 lbs. (16 kg)
Eliminator®i
Force i is much more than speakers and a power amp. It’s a
professional, live performance sound system with components that
were designed to play together. Consider this: Most lower-priced sound
systems depend on two-way speakers to carry the extra load of providing high,
middle, and low-end frequencies. Force i does what pro concert systems do—
delivers its bass through a dedicated subwoofer—without requiring a separate
amp and crossover. The sound is incredible; with extended, thundering bass that
no system without a sub can beat. The EV Eliminator i power amp features LPN
processing that enhances the performance of the Force i speakers. And all Force
i enclosures were designed with comfortable, ergonomic handles and a very cool
appearance. The features of the individual Force i system components are
impressive enough on their own. But imagine all these great features, all this
innovative engineering and technology, coming together to make your music
sound better than you imagined. That’s what puts Force i ahead of any other
sound “system” in its price range.
Metal stand mounts built into all
Force i speakers help you
assemble an awesome-sounding
system in a small footprint.
Like a compact touring system, Force i gives you concert-proven Electro-Voice
technology that’s used by bands playing stadiums and concert halls around
the world:
EV’s exclusive Ring-Mode Decoupling (RMD®) technology ensures that Force i
speakers deliver smooth vocals and pristine mids with perfect reproduction of overtones. You
can’t see RMD (it’s part of each driver and enclosure) but you’ll hear
the sonic difference it makes with every note.
Pure EV components — titanium compression drivers that have toured the world,
Constant-Directivity horns that maintain their coverage, woofers with four-layer voice coils.
Force i has solid-as-a-vault, precisely-tuned EV enclosures made of patented RoadWood™
that's lighter and stronger than what other systems in Force i's price range use.
ELIMINATOR®i
STEREO POWER
AMPLIFIER
8
Sx Series
• 2-Way Full-range
Vented LF enclosure
1” voice coil (titanium diaphragm)
• PRODriver protection
• HF-horn features Varipath
• Trapezoidal
• Compact dimensions
7 x M6 and 4 x M5 inserts
• Available with Neutrik®Speakon®
connector (Sx80BE), 1/4” connector
(Sx80BP), weather-resistant (Sx80PI),
weather-resistant with transformer
(Sx80PIX), transformer only (Sx80TB), in
white with transformer (Sx80TW), in white
with Neutrik®Speakon®connector
(Sx80WE), and in white with 2/4”
connector (Sx80WP).
• 2-Way Full-range
Vented LF enclosure
1.3” voice coil (titanium diaphragm)
• PRODriver protection circuit
• HF-horn features Varipath
• Trapezoidal (25° per side)
Physical characteristics of Sx300 but
slightly lower sensitivity
4 x M8 x 1.25 attachment inserts
• Neutrik®Speakon®connectors
• 2-Way Full-range
• High Sensitivity
• Ultra-linear frequency response
Vented LF enclosure
1.3” voice coil (titanium diaphragm)
PRO™ Driver protection circuit
• HF-horn features Varipath
•Trapezoidal (25° per side)
4 x M8 x 1.25 attachment inserts
Overview of variants see right spread sheet
Available with Neutrik®Speakon®connector
(Sx300E), weather-resistant (Sx300PI),
weather-resistant with transformer
(Sx300PIX), in white with Neutrik®Speakon®
connector (Sx300WE).
2-Way Full-range
Extended bass response
15” DL-Woofer
1.3” titanium diaphragm
80° x 55° horn pattern
18mm plywood enclosure
Rugged Futurafinish
•Five sided, multi-angle cabinet
Built-in stand mount
Suspendible using optional SK-1 kit
PI version
EV popularized the concept of lightweight high-performance speakers of
compact size, using injection-molded structural-foam enclosures with
rounded, user-friendly contours and featuring molded-in horns and
attachment/rigging points. EV´s structural-foam enclosures produce minimal
resonance. Sx systems (Sx300 and Sx500) have sensitivities as high as 100
dB/1W/1m (Sx300 limited pink noise) and the PI and PIX versions are
especially designed for outdoor use. The horn´s unique Varipaththroat
geometry helps direct driver output to the corners of the room. The Array
brackets – and especially the Unique Mounting Hardware – allows for a
highly flexible and quick install. For a uniform array appearance Sx100,
Sx300 and Sb121 have the same dimensions and attachment points.
The Sx80 is made of injection-molded, high-impact polystyrene and is
designed for the optional stand mount adapter, Sx80 SM, to be retrofitted.
The structured black surface is paintable. The accessories SH Sx300
(Protection Cover) and F200 (Monitor Foot) fit the Sx100/300 and Sb121.
All systems are protected by a perforated powder-coated metal grille. The
front of the PI and PIX variants are covered by a powder-coated, full-face
stainless steel grille backed with foam.
Sx80
Sx100+E
Sx300
Sx250
Sx500+
2-Way High-Output Full-range
• High sensitivity
Short horn-loaded, vented LF
enclosure
Asymmetric CD-horn aimed downward
by 10°
2” voice coil (titanium diaphragm)
• PRODriver protection circuit
• HF-horn features Varipath
Multi angled array housing
8 x M8 x 1.25 attachment points
Performs like Sx500 + yet weather
proofed version for outdoor
applications
Weather-resistant woofer (DL15SxW)
Polyester mesh water shield
Comes with foam part plugs for
increased water resistance
Sx500+PI
• Subwoofer
Direct radiating vented design
• Trapezoidal (25° per side)
• Recommended low-pass between
100 Hz - 200 Hz (12dB/Oct.)
4 x M8 x 1.25 attachment points
Sb121
18" subwoofer
EVX-180B woofer: same as X-Array,
with 4" voice coil and 2" peak excursion
31 Hz useable bass response
Futurafinish
Stand mount (top)
34" pole included
Sb180
Sx80B/W XX XXpush-pins Sx80 SM/UMH
Sx80BE XX XSpeakon®Sx80 SM
Sx80TB/TW XX X1.9/3.8/7.5/ X covered barrier strip Sx80 SM
15/30/60 W
Sx80PI XX XXcovered barrier strip Sx80 SM
Sx80PIX XX 1.9/3.8/7.5/ X X covered barrier strip Sx80 SM
15/30/60 W
Sx100+E/W XX XX X2 Speakon®F200/SH Sx300
Sx300E/EW XX XX X2 Speakon®F200/SH Sx300
Sx300PI XX XX X2 Speakon®F200/SH Sx300
Sx300PIX XX 100/140/200W X X X 2 Speakon®(100V taps F200/SH Sx300
(100V taps) via Pin arrangement)
Sx250 XX X X
Sx500+ XX XX Speakon®
Sx500PI+ XX XXX Speakon®
Sb121 XX XSpeakon®SH Sx300
Sb180 Speakon®
input connectors accessories

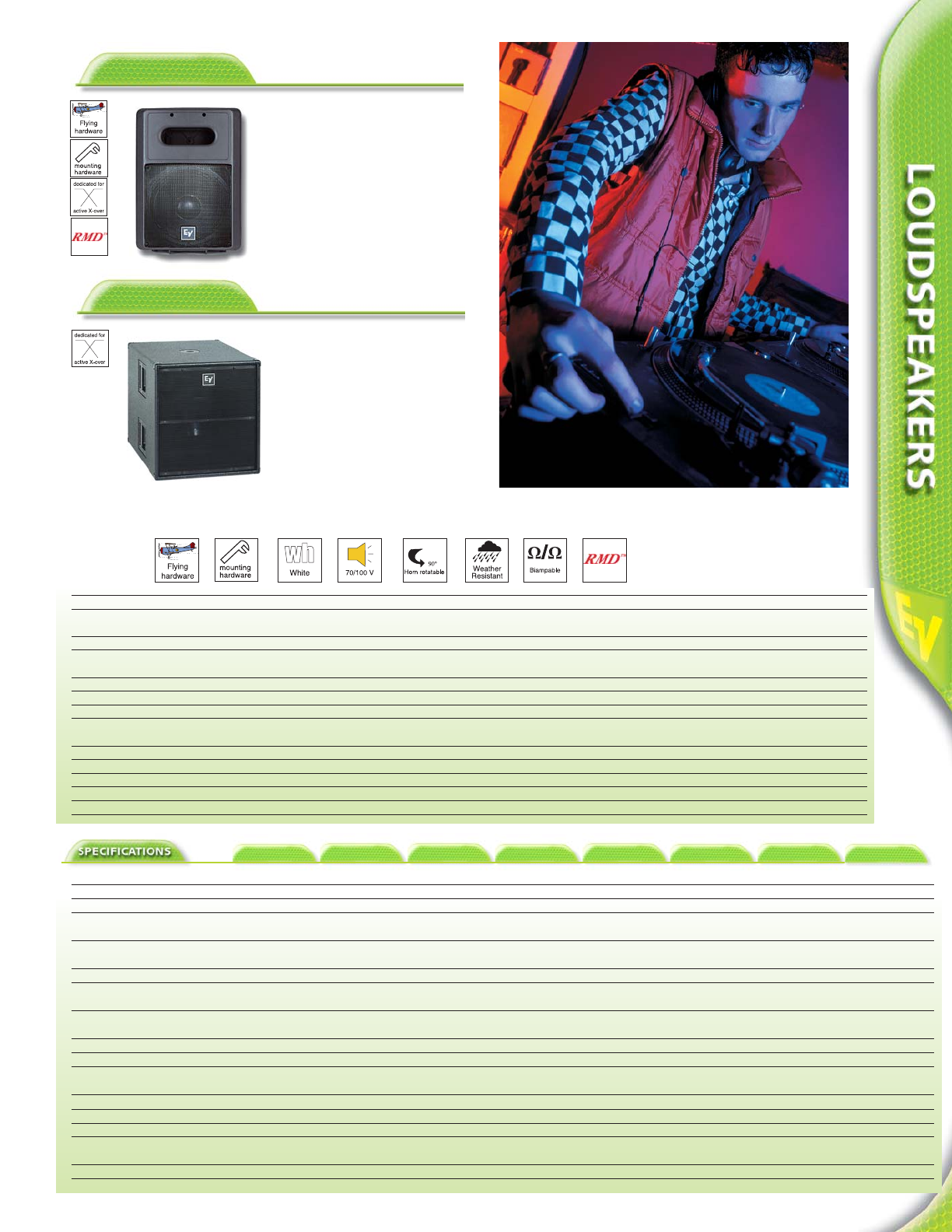

Feature overview for Sx-Series
Frequency Range (-10 dB) 51 Hz - 20 kHz 55 Hz - 20 kHz 55 Hz - 20 kHz 50 Hz - 20 kHz 43 Hz - 16 kHz 100 Hz - 18 kHz 43 - 500 Hz 31 - 250 Hz
Recommended High-Pass Frequency 51 Hz (12 dB/Oct.) 55 Hz (12 dB/Oct.) 55 Hz (12 dB/Oct.) 45 Hz (12 dB/Oct.) 43 Hz (12 dB/Oct.) 80 Hz 43 Hz (12 dB/Oct.) 31 Hz (12 dB/Oct.)
Axial Sensitivity SPL 1W/1m (Biamp mode) 92 dB 98 dB 100 dB 99 dB 100 dB (100/107 dB) 105 dB 95 dB 99 dB
Max. SPL / 1m (calc.); full space 121 dB 127 dB 131 dB 130 dB 132 dB 138 dB 126 dB 126 dB
(100V: 110 dB) (100V: 123 dB)
Continuous Power Handling (low Z) 175 W 200 W 300 W 350 W 400 W 600 W 300 W 600 W
(100V resp. Biamp) (60 W/100V) (200 W/100V)
Peak Power Handling (Peak), low Z 700 W 800 W 1,200 W 1,400 W 1,600 W 2,400 W 1,200 W 2,400 W
Coverage (nominal -6 dB) H° x V° 90° x 65° 65° x 65° 65° x 65° 80° x 55° 75° x 60° 65° x 65° essentially omni essentially omni
(CD Horn) (CD Horn) (CD Horn) (CD Horn) (Asym. CD Horn)
Directivity Index (800 - 16.000 Hz) 9.2 dB 11.1 dB 11.1 dB 9.6 dB 11.6 dB 11.3 dB
(+2.3/-3.9 dB) (+2.4/-4.1 dB) (+2.4/-4.1 dB) (+2.5/-3.5 dB) (+3.0/-6.9 dB)
LF Driver 8" 12" 12" (DL12Sx) 15" (DLH15BFH) 15" (DLX155X) 2 x 12” 12" (DL12Sx) 18”
HF Driver 1" (DH2005) 1" (DH2010A) 1" (DH2010A) 1.25" (DH2010A) 2" (DH2T) 1”
Crossover Frequencies 2,200 Hz 1,500 Hz 1,500 Hz 1,600 Hz 1,600 Hz 1,800 Hz
(slope in Biamp mode) (24 dB/Oct.)
Nominal Impedance (nontransformer) 8 8 8 8 8 4 8 8
Minimum Impedance (nontransformer) 7.2 5.6 6.0 7.5 5.2 3.5 6.0 6.0
Input Connections see above see above 2 Neutrik®NL4 2 Neutrik®NL4 2 Neutrik®NL4 SJO cable/gland nut 2 Neutrik®NL4 2 Neutrik®NL4
Dimensions (H x W at front x D) 400 x 292 x 222 mm 586 x 429 x 312 mm 586 x 429 x 312 mm 625 x 429 x 312 mm 625 x 431 x 330 mm 1163 x 429 x 312 mm 586 x 429 x 312 mm 603 x 576 x 807 mm
15.75” x 11.5” x 8.75” 23.1” x 17” x 12.3” 23.1” x 17” x 12.3” 24.6” x 17” x 12.3” 33” x 26.5” x 17.63” 45.8” x 17” x 12.3” 23.1” x 17” x 12.3” 23.75” x 22.5” x 31.75”
Net Weight 18 lbs.. (8.2 kg [T/PIX: 9.3 kg]) 32 lbs.. (14.5 kg) 39 lbs.. (17.7 kg [PIX: 21.7 kg]) 40 lbs.. (18.2 kg) 69 lbs.. (31.3 kg) 80 lbs. (36.3 kg) 32.2 lbs.. (14.6 kg) 102 lbs.. (46.3 kg)
9
Sx80 Sx100+ Sx300 Sx250 Sx500+ Sx600PI Sb121 Sb180
10

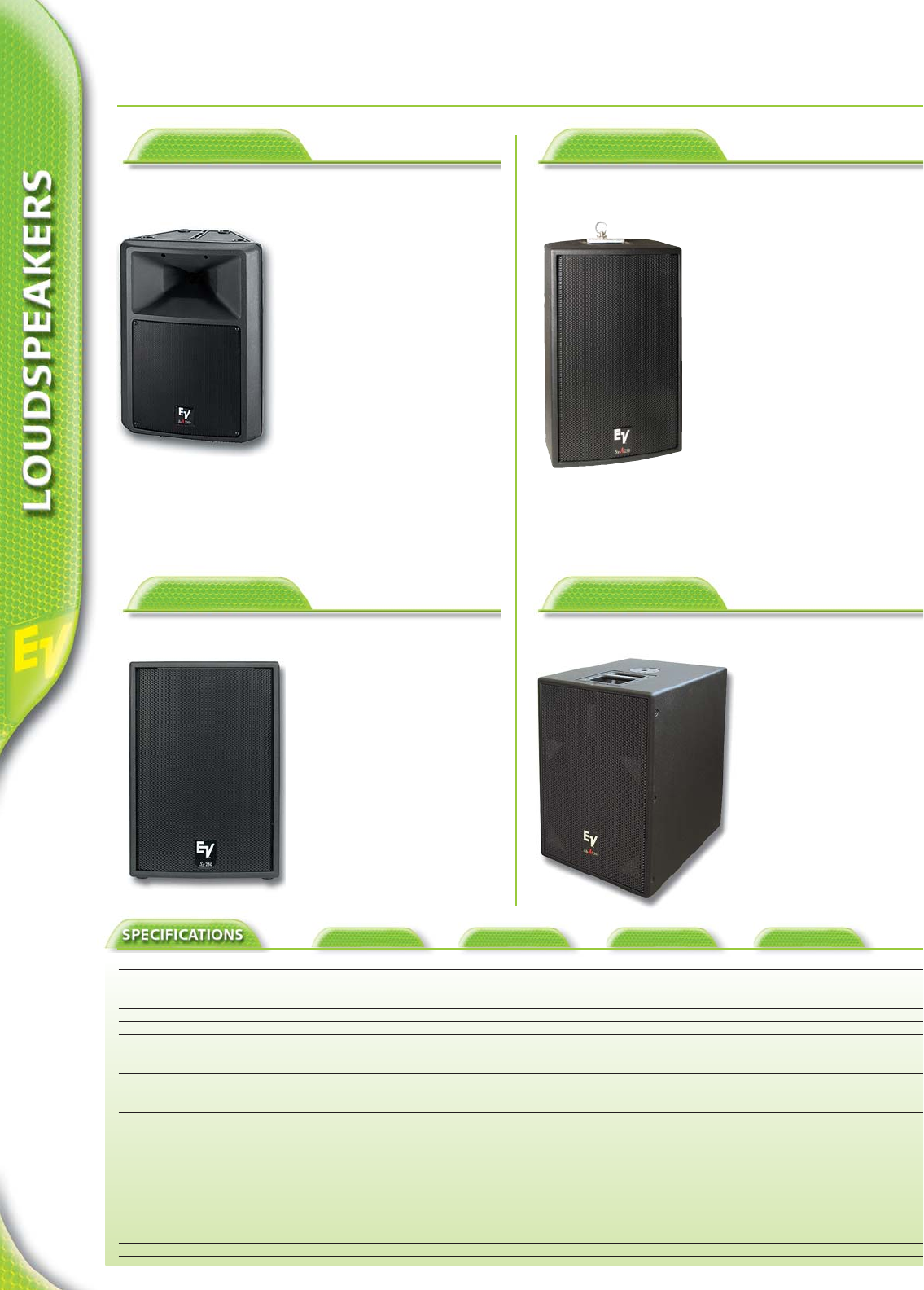

SxA Series
•Very compact, lightweight, and robust
polypropylene enclosure
Full-range 65 Hz – 20 kHz for front-of house or
monitor (with F200 monitor adapter)
• Steel front-grille
Biamped with 350 W + 80 W peak power for a
very dynamic “musical” response
Mixable microphone and line inputs
Line output to connect additional powered
speakers
2-band EQ for customized settings
65° x 65° CD horn from the famous Sx300
for an outstanding acoustic performance,
highest intelligibility even in larger or more
reverberant rooms.
Fully compatible with Sx mounting hardware
and accessories
Pole-mount adapter
SxA carry bag with room for cabling and
accessories (optional)
7-ply plywood enclosure with Futuracover,
extremely scratch resistant
5-side enclosure with 45° monitor angle
Full-range 55 Hz – 20 kHz, for
front-of-house or monitor applications
Elegant closed front grille with foam back
Biamped with 350 W + 80 W peak power for a
very dynamic “musical” response
Mixable microphone and line inputs
Line output to connect additional powered
speakers
2-band EQ for customized settings
EV DL15 woofer
DH2010A 1.25” driver with 80° x 55° CD-Horn
SK1 rigging kit can be retrofitted for handles
for easy suspension
• Pole-mount adapter
750 W amplifier power
Compact ergonomic size for easy
transportation
15” DL woofer
Built-in stereo crossover with
PowerMax12 filter
LPN-filter for extended bass response
Dynamic Limiter and full protection
package
Integrated pole mount
Futuracover cabinet with four wheels
SxA100+ SxA250
SxA180 SbA750
The most versatile 12” 2-way powered speaker Compact 15” 2-way powered speaker
Powered subwoofer
Powered subwoofer
Compact direct-radiating 18-inch woofer
with extended bass response
Includes storage compartment with
removable dolly board and casters to make
transportation easy
650 W dynamic power amp delivers 126 dB
maximum output capability
Built-in crossover with variable frequency
Separate line and high-pass outputs for
filtering output to full-range systems and
easy signal routing
Includes 34-inch pole for elevating EV
full-range speakers without separate stands
Rugged plywood enclosure with Futura
polyurethane finish
Frequency Response (-10 dB) 50 Hz - 20 kHz 55 Hz - 20 kHz 38 - 120 Hz 45 - 150 Hz
Rated Output Power
long term LF150 W/HF 50 W LF150 W/HF 50 W LF 650 W 750 W
10 ms. burst LF350 W/HF 80 W LF350 W/HF 80 W LF 300 W
Max. Sound Pressure Level 124 dB 126 dB 126 dB 128 dB
HF Coverage (nom.) 65° x 65° 80° x 55°
Components
LF 12” woofer DL15BFH 18” (450 mm) DL15Y
HF DH2010A DH2010A —
Inputs Microphone Input (XLR) Microphone Input (XLR) 2 x XLR/jack combo input
Line Level Input (XLR/1/4“) Line Level Input (XLR/1/4”) Line Level Input (XLR) 2 x XLR slave through
XLR out (slave) XLR out (slave) XLR out 2 x XLR Mid/Hi out
Level Controls Mic Level (-35 dBu to 0 dBu Mic Level (-35 dBu to 0 dBu
Master Level (- to 0 dB) Master Level (- to 0dB) - to +10 dB
2-Band EQ LF: +/- 6 dB LF: +/- 6 dB
HF: +/- 4 dB HF: +/- 4 dB
Power Requirement 110-130 VAC, 50-60 Hz 110-130 VAC, 50-60 Hz 110-130 VAC, 50-60 Hz 100 V, 120 V, 230 V, 240 V
or 220-240 VAC, 50-60 Hz 600 W or 220-240 VAC, 50-60 Hz 600 W or 220-240 VAC, 50-60 Hz 700 W
Dimensions (height x width x depth) 23.1” x 16.9” x 12.3” 24.6” x 17.9” x 13.1” 31.5” x 21” x 23.5” 23.7” x 16.9” x 26.2”
586 x 429 x 312 mm 625 x 437 x 333 mm 800 x 533 x 596 mm 603 x 428 x 665 mm
23.7” x 16.9” x 26.2” (w/wheels)
(603 x 428 x 665 mm [w/wheels])
Weight (net) 43 lbs.. (19.5 kg) 49 lbs.. (22.2 kg) 88 lbs.. (44.5 kg) 94.7 lbs. (43 kg)
SxA100 SxA250 SxA180 SbA750
11

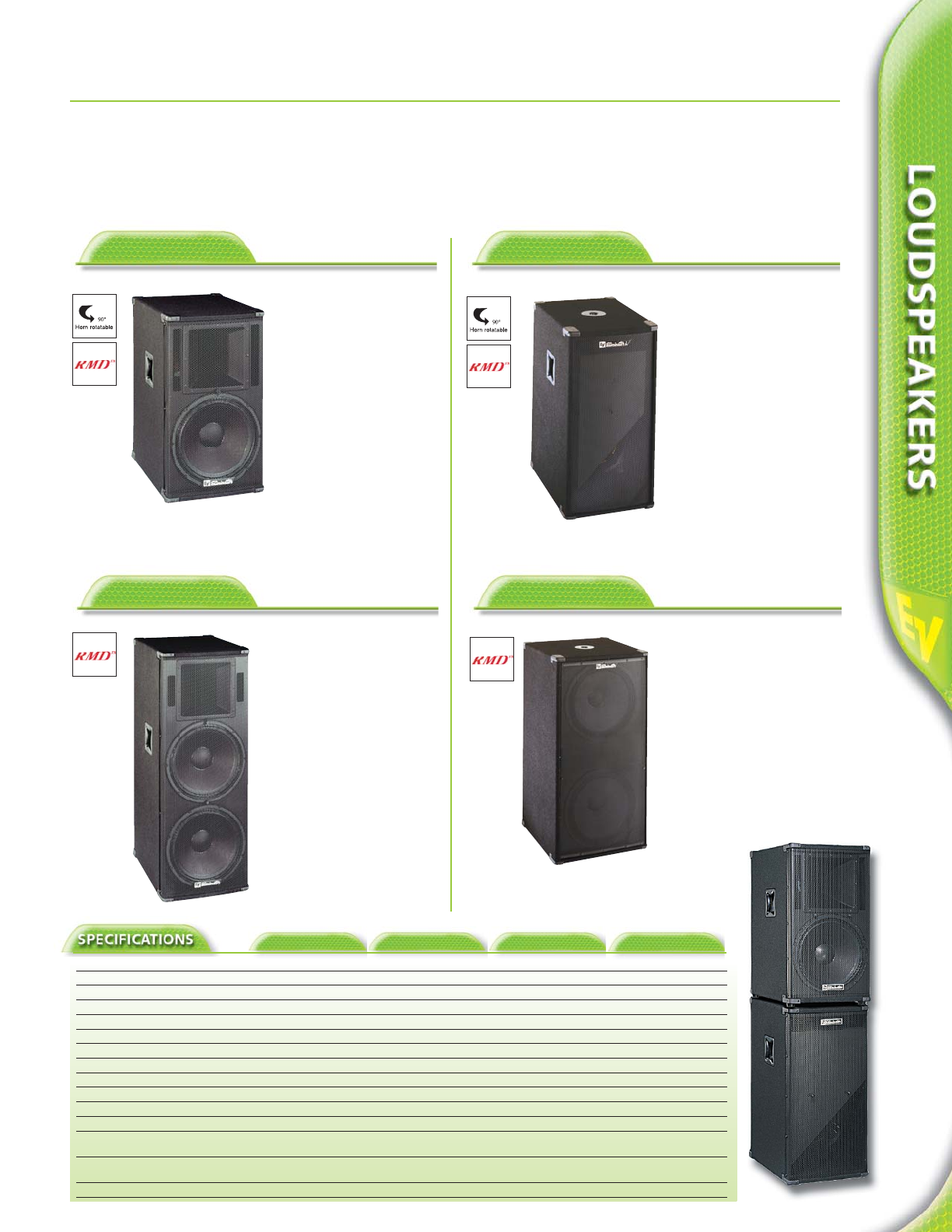

Back in the late 60s, the EV Eliminator started a revolution. In 1999, the
new Eliminator icontinued its success. Eliminator ii has a linear frequency
response below 50 Hz and an overlapped second LF woofer with a cut off
at 700 Hz to avoid acoustical interferences in the midrange.
Eliminator iis black carpet-covered, constructed of EV´s RoadWood. The
Eliminator ifamily, except Eliminator ii,have a 35 mm stand mount,
Eliminator iSub comes with a 45 cm steel pole and contains a combined
electrical/acoustical low-pass filter designed for parallel combinations
especially with the Eliminator i.A well-designed crossover with power-
tracking protection provides great sound with fail-safe operation.
Frequency Range (-10 dB) 45 Hz - 20 kHz 38 - 100 Hz 45 - 20 kHz 35 - 160 Hz
Recommended High-Pass Frequency 40-50 Hz (18 dB/Oct.) 40-50 Hz (18 dB/Oct.) 40 Hz (18 dB/Oct.)
Axial Sensitivity SPL 1 W/1 m 99 dB 100 dB 100 dB 101 dB
Max. SPL /1 m (calc.); full space 99 dB 134 dB 100 dB 137 dB
Continuous Power Handling 350 W 400 W 600 W 1,000 W
Peak Power Handling (Peak) 1,400 W 800 - 1,000 W 2,400 W 4,000 W
Coverage (nominal -6 dB) H° x 60° x 40° (CD horn) Essentially omni 60° x 40° (CD Horn) Essentially omni
LF woofer (transducer) 15” (DL15BFH) 18" (DL18BFH) 2 x 15” (DL15BFH) 2 x 18” (DL18MT)
HF throat diameter (transducer) 1” (DH2010A) 1” (DH2010A)
Crossover Frequencies 1,600 Hz 700/1.600 Hz 160 Hz
Nominal Impedance 8 8 4 4
Minimum Impedance 5.3 5.1 3.3
Input Connections Parallel 1/4” phone jacks 1/4” phone input Parallel Neutrik®NL4 Parallel Neutrik®NL4
1/4” phone output to Elim. i
Dimensions (H x W x D) 30.25” x 16.9” x 24” 33.8” x 17.25” x 24.13” 45.8” x 16.9” x 24.0” 45.7” x 22.5” x 23.7”
768 x 429 x 609 mm 859 x 438 x 610 mm 1,162 x 429 x 609 mm 1160 x 572 x 602 mm
Net Weight 76 lbs.. (34.4 kg) 95 lbs.. (43.1 kg) 48.1 kg 145 lbs.. (65.8 kg)
Eliminator i®
Eliminator i Eliminator i Sub
Eliminator ii Eliminator kW
• Full-range loudspeaker
• Two-way, high-output, 350 watt
stage system
• Features a 15-inch, low-
frequency driver and constant-
directivity high-frequency horn
for clear, up-front sound that cuts
through difficult acoustic
environments
• Black carpeted enclosure
presents minimal front cross
section
• Easy to transport
• Rugged, tour-grade construction,
heavy metal grille, and corner
protection
• Subwoofer
• Single 18-inch high-output woofer
designed to complement Eliminator i
and ii full-range cabinets
• Integral low-pass crossover filter,
combined with unique acoustic design,
allows parallel operation with full-range
systems for tight, punchy bass
• High-output subwoofer
• Dual 18-inch high-excursion drivers
• Designed for mobile DJs and bands
who demand high-output/SPL and
extended base response
• Features oversized vent for greater
output with less cone excursion
• Sealed pocket wheels and
rear-mounted handles make
transportation easy
• Dual full-range loudspeaker
• Two-way, high-output, 600 watt
stage system
• Dual 15-inch drivers provide very
smooth output at lower frequencies
with low distortion
• Constant-directivity
high-frequency horn
• Black carpeted enclosure presents
minimal front cross section
• Easy to transport
• Rugged, tour-grade construction,
heavy metal grille, and corner
protection
Eliminator i Eliminator i Sub Eliminator ii Eliminator kW
12

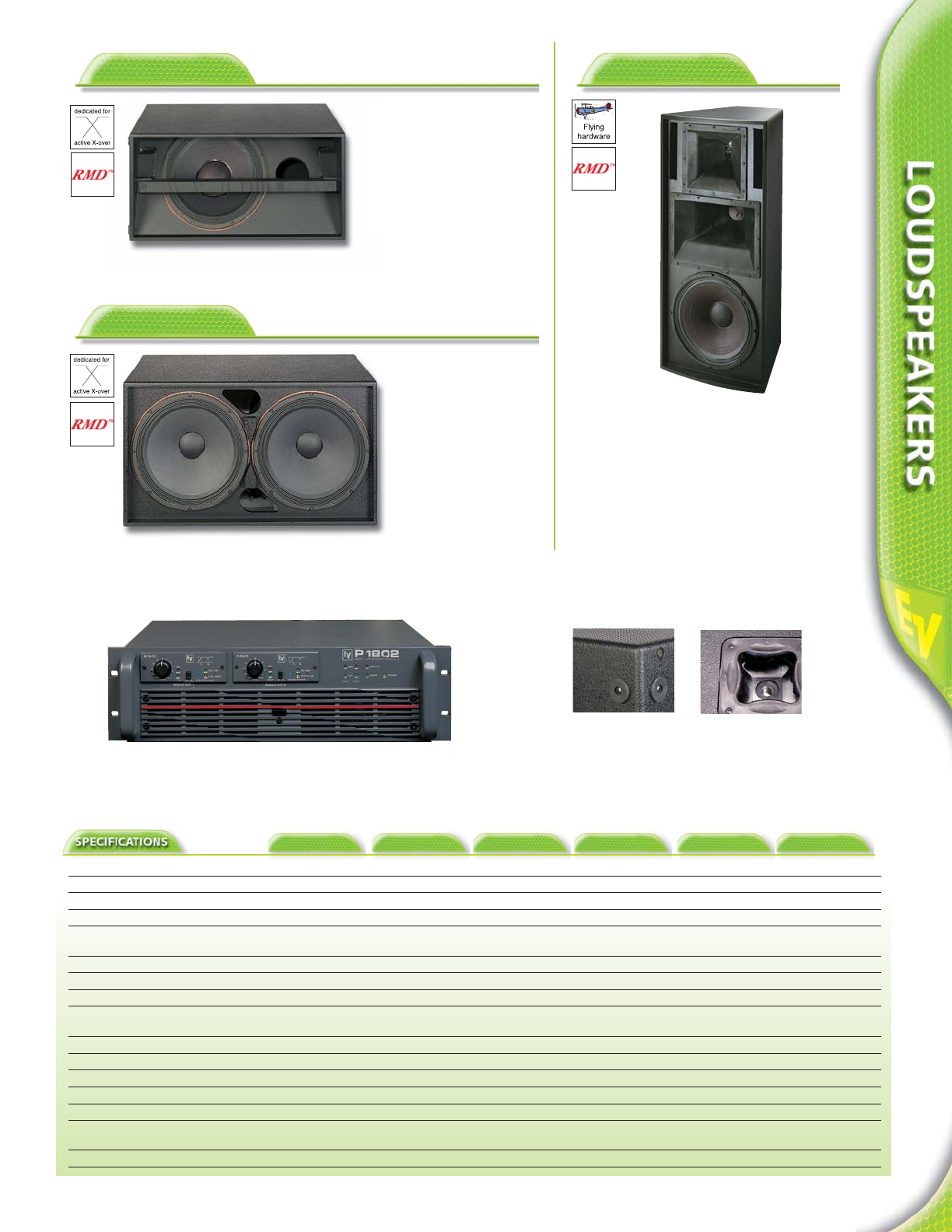

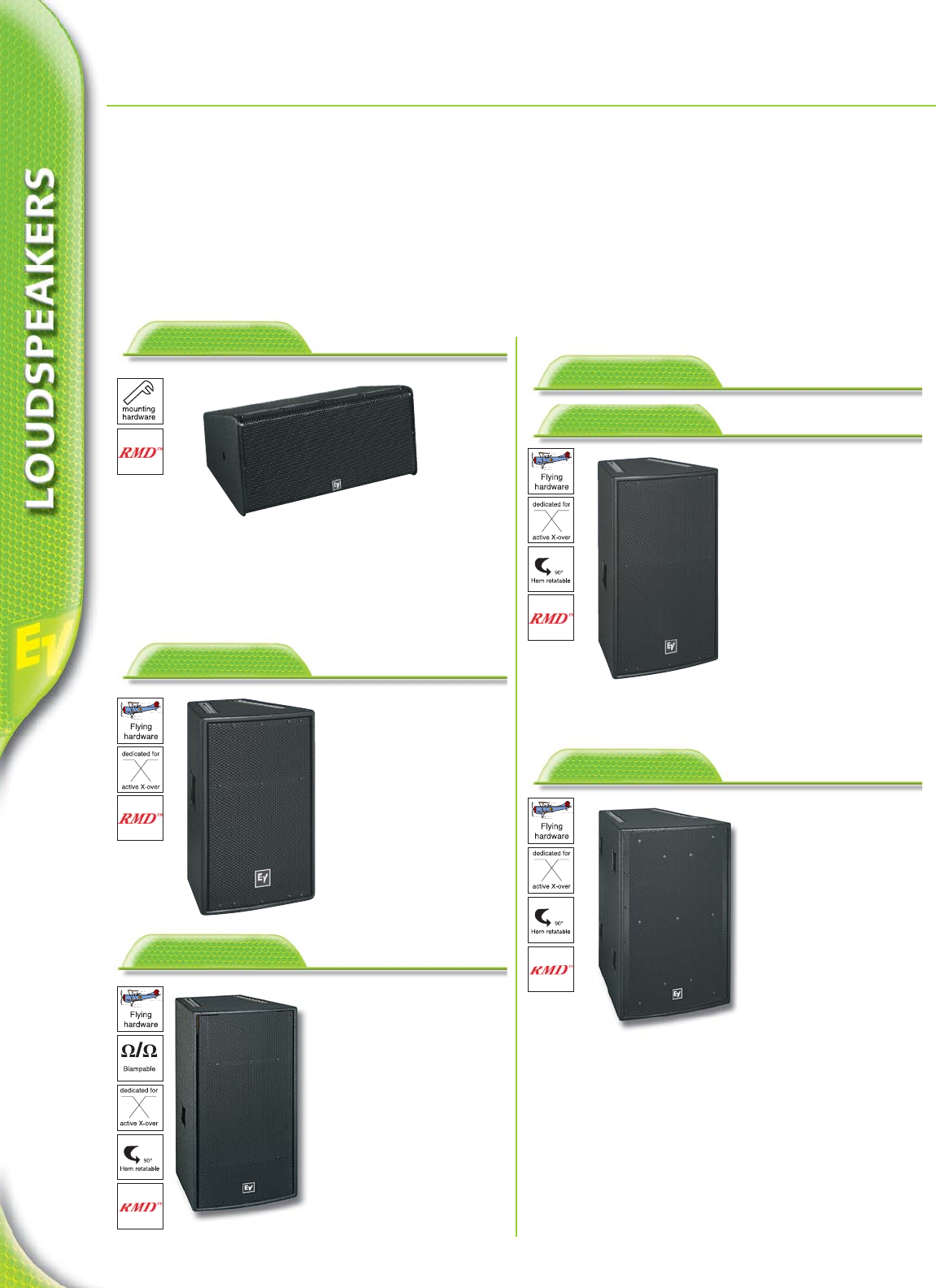

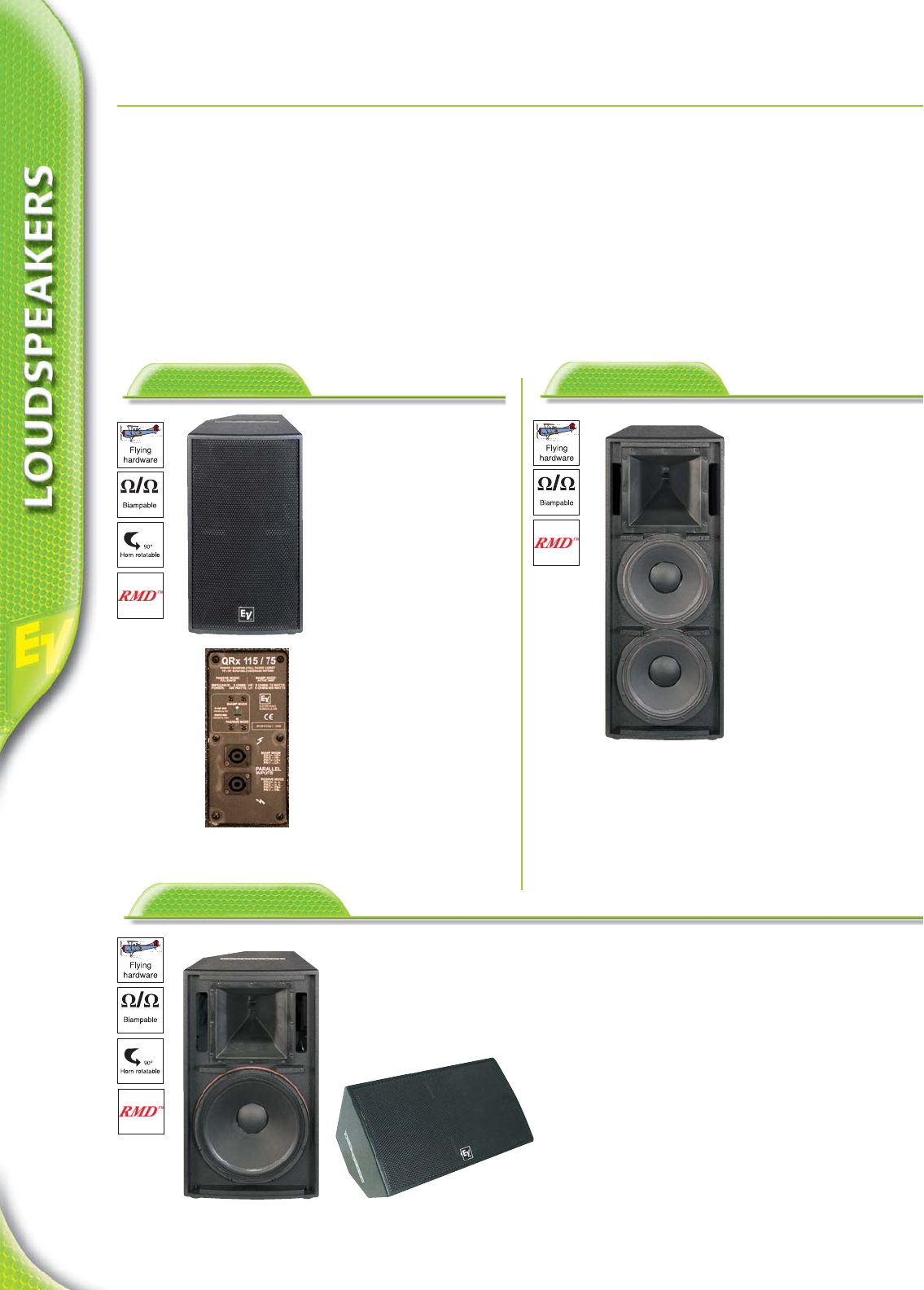

QRx Series
QRx Series is designed from the bottom up as an ultralinear and highly
flexible audio system controlled by P-Series controller amps which are
based on the world-famous Precision Series.QRx Series incorporates
premium EV components, including the DH7 which uses the same 3”
diaphragm as the famous ND-6 driver used in X-Array.There are new
special features which are well-founded. These include the ergonomical
formed safe-grip handle which make handling much more comfortable and
are much safer than standard handles. PrecisionSeries controller amps
are the first choice to power QRx Series. Other high quality amplifiers can
be used to power QRx Series using an external controller such as the
Dx38. QRx Series is the first choice for professional mobile applications or
high-quality Pro Sound permanent installations.
QRx Series are black-painted 18-ply plywood with a black powder-coated
metal grille backed with foam. All subs house a hidden pole-mount in the
top handle. A threaded steel pole is available. All QRx tops and the
QRx218S subwoofer are flyable using L-Track. The L-Track is on the top
and the bottom of QRx 112/75 and QRx115/75. Two L-Tracks fit on the top
of the QRx212/75 and also on the side of the QRx218S. The new
asymmetric and fully rotatable CD horn allows the QRx to be flown
horizontally, upside down or vertically. The operation mode (passive/biamp)
of the tops is easily selected on the external input panel. The QRx112/75
and the QRx115/75 have a polemount and can also be used as
floor monitors.
2-Way High-Output Full-range
High Sensitivity
Ultra-linear frequency response
Solid bass below to 50 Hz (-10 dB)
•Vented LF enclosure
•Asymmetric CD-horn aimed
downward by 10°
•3voice coil (titanium diaphragm)
Protection circuit for HF-driver
Easy external operation mode
selection
5-side multi-angled housing with
monitor slant
• Comes with L-Track hardware and
single-stud Ancra fitting
2-Way High-Output Full-range
High Sensitivity
•Ultra-linear frequency response
Solid bass below to 45 Hz (-10 dB)
•Vented LF enclosure
•Asymmetric CD-horn aimed downward by 10°
•3voice coil (titanium diaphragm)
Protection circuit for HF-driver
Easy external operation mode selection
5-side multi-angled housing with monitor slant
Same front width as QRx118S for unique front appearance
• Comes with L-Track hardware and single-stud Ancra fitting
2-Way Highest-Output Full-range
High Sensitivity
Ultra-linear frequency response
Extended bass response below to
43 Hz (-10 dB)
•Vented LF enclosure
•Asymmetric CD-horn aimed
downward by 10°
•3voice coil (titanium diaphragm)
Protection circuit for HF-driver
Easy external operation mode
selection
•Trapezoidal (10° per side)
• Comes with L-Track hardware and
single-stud Ancra fitting
QRx as monitor
Easy operation
mode selection
QRx112/75
QRx115/75
QRx212/75
13
QRx118S
Three-way, high-output,
full-range loudspeaker
Biamp only
Solid bass to 42 Hz (-10 dB)
•Vented LF enclosure
Asymmetric CD horn aimed
downward by 10°
•3HF voice coil (titanium
diaphragm)
Protection circuit
for HF driver
•Trapezoidal cabinet
(15° per side) for tight-pack
situations
Comes with L-track
hardware and single-stud
Ancra fittings
Subwoofer
Direct radiating vented design
High Sensitivity
Solid bass below to 35 Hz
(-10 dB)
Rectangular
Also perfect in combination
with large HP and MH horns
Equipped with features shown
below
• Optional rigging hardware
available

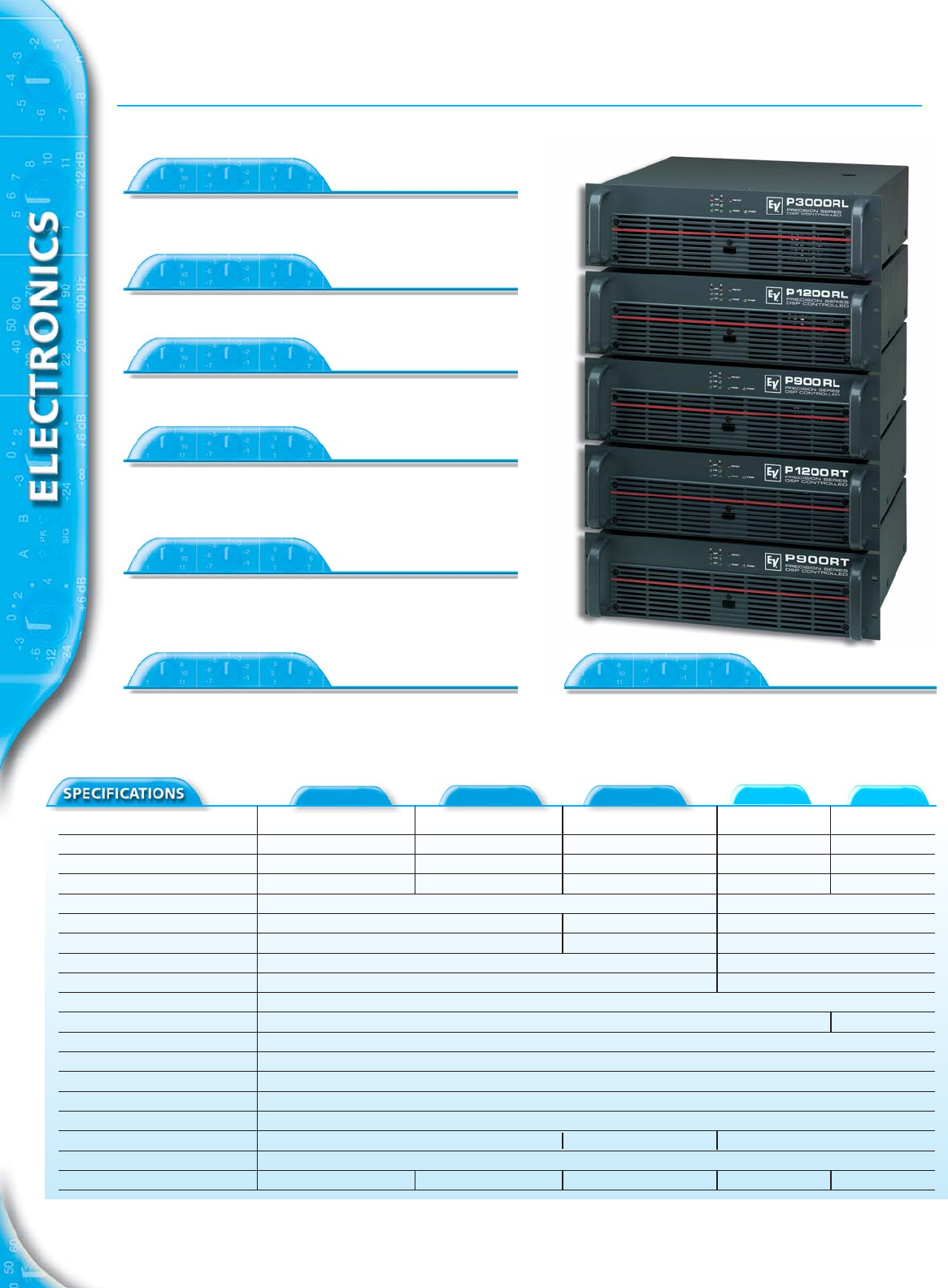

The dedicated amps for QRx series are the Precision Seriescontroller amplifiers. They guarantee maximum performance, ultralinear
frequency response, and optimized operation safety on the strength of EV´s dynamic limiter and VCP (voice coil protection).
Safe grip handle
Rubber feet

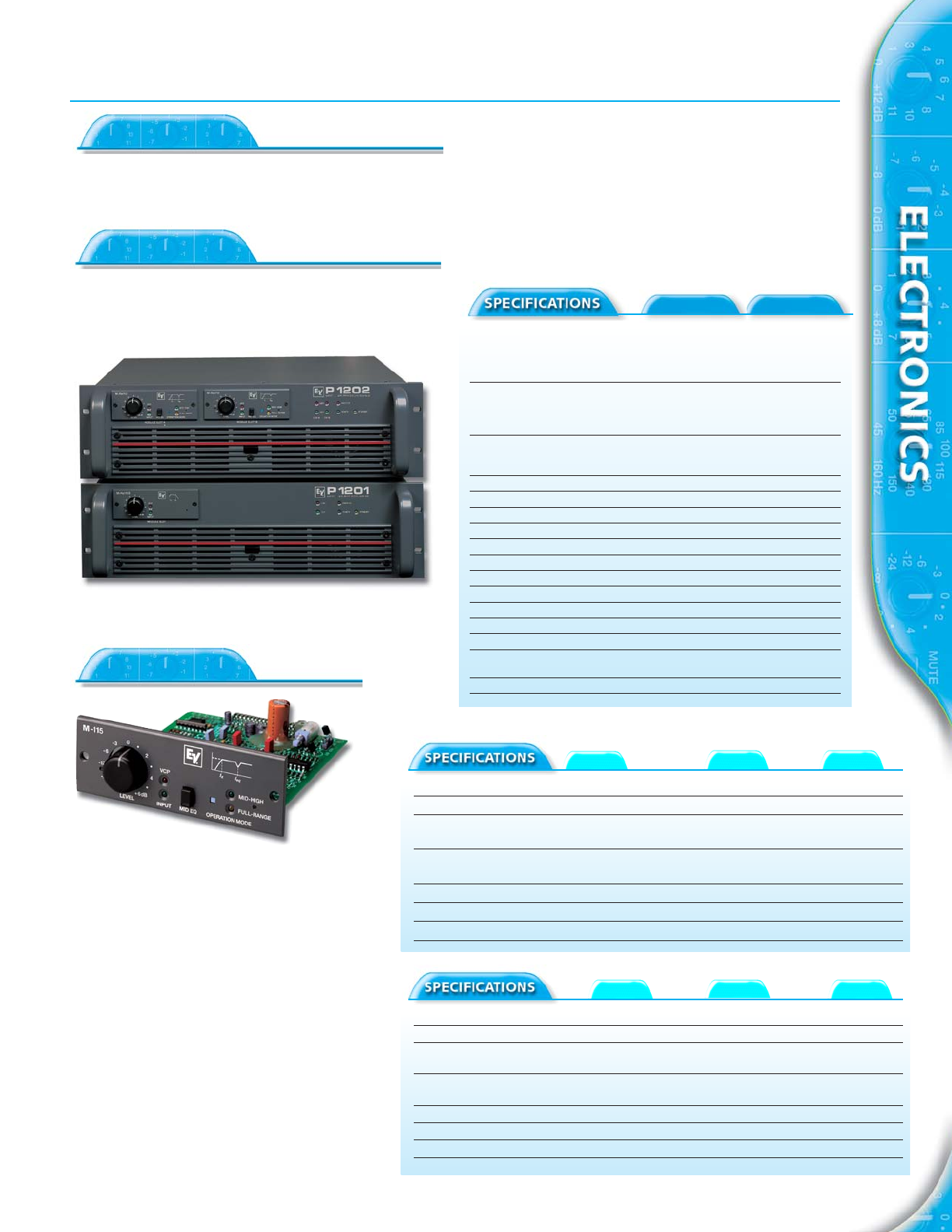

P1202 controller amp configured with QRx modules QRx subwoofer features
Frequency Range (-10 dB) 52 Hz - 18 kHz 45 Hz - 15 kHz 42 Hz - 20 kHz 50 Hz - 15 kHz 38 - 250 Hz 35 - 250 Hz
Frequency Range (-3 dB) with controller amp 46 Hz - 18 kHz 48 Hz - 18 kHz 50 Hz - 161 Hz 43 Hz - 18 kHz 36 - 130 Hz 35 - 135 Hz
Recommended High-pass frequency 45 Hz (12 dB/Oct.) 45 Hz (12 dB/Oct.) 45 Hz (12 dB/Oct.) 36 Hz (12 dB/Oct.) 35 Hz (12 dB/Oct.)
Recommended controller module (P-Series amp) M-112 M-115 M-153 M-212 M-118S M-218S
Axial Sensitivity SPL 1W/1m 98 dB 98 dB 98/105 dB 102 dB 95 dB 102 dB
(Biamp operation) (100/112 dB) (101/112 dB) (102/112 dB)
Max. SPL / 1m (calc.); full space 131 dB 130 dB 130 dB 136 dB 133 dB 139 dB
Continuous Power Handling 300 W (300 W/75 W) 400 W (400 W/75 W) 400 W/150 W/150 W 600 W (600 W/75 W) 600 W 1,200 W
Peak Power Handling (Biamp) 1,200 W (1,200/300 W) 1,600 W (1,600/300 W) 1,600 W/600 W/600 W 2,400 W (2,400/300 W) 2,400 W 4,800 W
Coverage (nominal -6 dB) H° x 75° x 50° 75° x 50° 75° x 50° 75° x 50° essentially essentially
(asym. CD horn) (asym. CD horn) (asym. CD horn) (asym. CD horn) omni omni
LF woofer (transducer) 12” (DL12BFH) 15” (DL15ST) 15” (DL15ST) 2 x 12” (DL12BFH) 18” (EVX-180B) 2 x 18” (DL18MT)
HF throat diameter (transducer) 3” (DH7) 3” (DH7) 8” MF8 MF/ 3” DH7 HF 3” (DH7) --- ---
Crossover Frequencies (slope in Biamp mode) 1,500 Hz (24 dB/Oct.) 1,500 Hz (24 dB/Oct.) 1,200 Hz 1,500 Hz (24 dB/Oct.) 100 Hz (24 dB/Oct.) 100 Hz (24 dB/Oct.)
Nominal Impedance (Biamp mode) 8 (8 /8 )8 (8 /8 )8 /12 /12 4 (4 /8 )8 4/8
Input Connections 2 Neutrik®NL4 2 Neutrik®NL4 2 Neutrik®NL4 2 Neutrik®NL4 2 Neutrik®NL4 2 Neutrik®NL4
Dimensions (H x W at front x D) 26.6” x 15.36” x 14.77” 29.9” 17.72” x 16.02” 41.5” x 18.4” x 19.12” 38.98” x 15.47” x 14.77” 29.9” x 17.74” x 26.63” 40” x 22.05” x 23.6”
675 x 390 x 372 mm 759 x 450 x 407 mm 1,240 x 467 x 485 mm 990 x 390 x 375 mm 760 x 450 x 677 mm 1,015 x 560 x 599
Net Weight (subs without wheel kit) 58 lbs.. (26.0 kg) 71 lbs.. (32.0 kg) 97 lbs.. (47 kg) 80 lbs.. (36.5 kg) 100 lbs.. (47.5 kg) 150 lbs..(68 kg)
QRx112/75 QRx115/75 QRx153 QRx212/75 QRx118 S QRx218S
Subwoofer
Direct radiating vented design
High Sensitivity
Solid bass below to 36 Hz (-10 dB)
Rectangular
Equipped with features shown below
QRx218S
QRx153
14

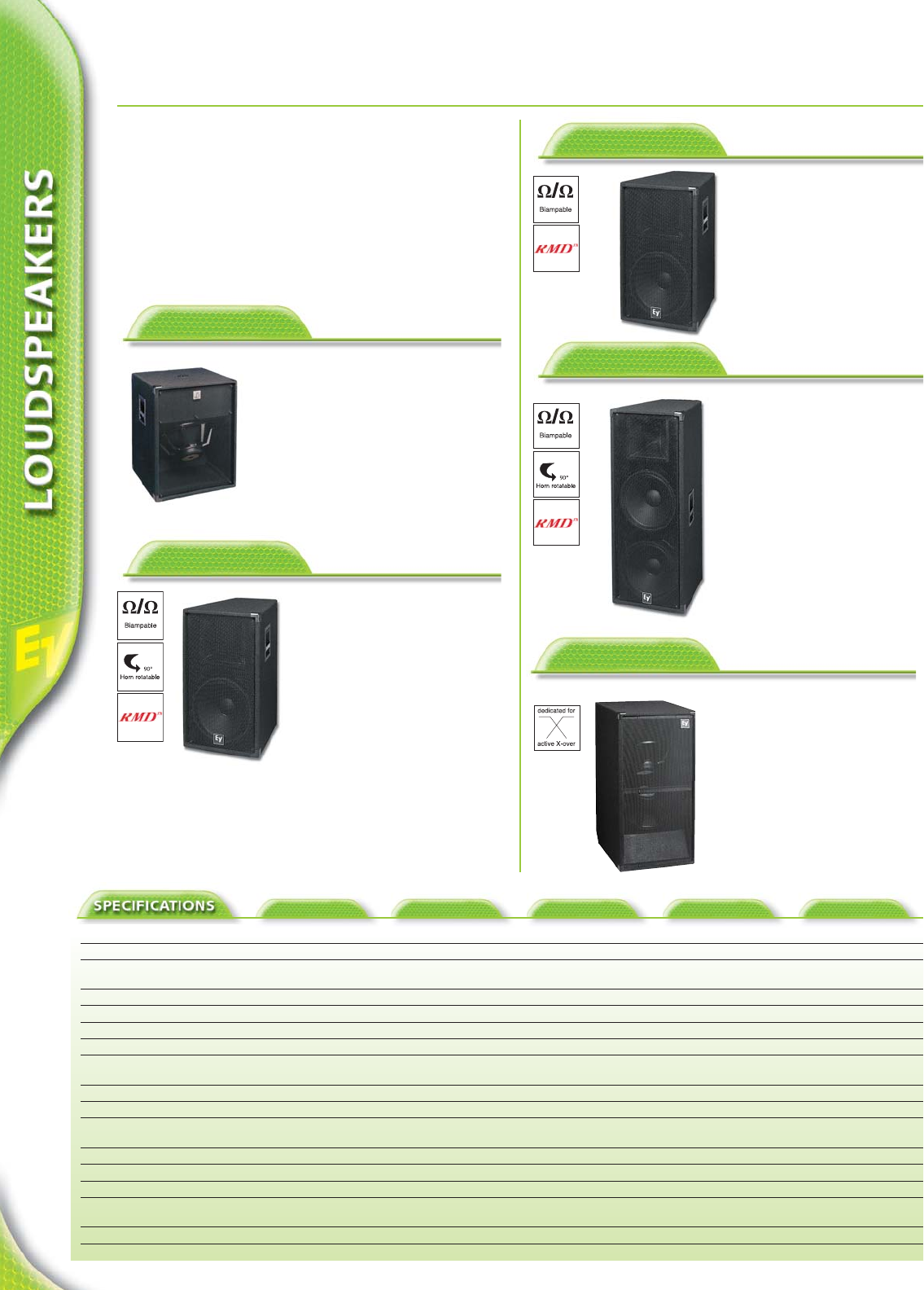

T-Series
T-Series is optimized for the best performance and price for the mobile
audio market. It uses the finest EV components: DL woofers, HP horns and
the DH2T 2” coil compression driver. All HF drivers are protected by the
famous PROcircuit. T221M is made of 13-ply, T251+/T252+ are made
of 7-ply. All cabinets are black-carpet covered except T221M which is
black texture-painted. T251+/T252+ are trapezoidal 10° per side. T251+
features a stand mount. T-Series is protected by a black full-face
perforated heavy-duty metal grille.
MTL-1X
T252+
T251+
T18
T221
18” LF system
DL18MT 18” woofer adds more bass impact to
other T-Seriessystems
Unique SubScoopenclosure combines the
low-frequency extension of a vented box with the
punch and throw of horn loading
Includes mounting socket and 30” steel pole for
full-range satellite systems
•Two-way, 12”, medium-throw,
full-range system
High-performance 12” woofer
Integral stand-mount adapter
accommodates the optional 100BK stand
Biampable
• For T221M floor monitor version,
see page 41
•Two-way, 15” medium-throw,
full-range system
DL15RMD 15” woofer for great
bass and a high degree of
midrange clarity
Integral stand-mount adapter fits
the optional 100BK stand
RMD
Biampable
•Two-way, dual-15”, medium-throw,
full-range system
Dual DL15RMD woofers combine for
powerful bass output and high sensitivity
Frequency shading (roll-off) of the lower
woofer above 400 Hz keeps midrange
output clean and free of interference
lobes
Biampable
Dual-18” low-frequency system
Unique SubScoopenclosure combines
the punch and directionality of a horn with
the extended response of a vented box
EVX-180B ultrahigh-performance 600-watt
woofers for maximum output
Optional HSMT-1 suspension kit
Frequency Range (-10 dB) 33 - 250 Hz 70 Hz - 16 kHz 45 Hz - 16 kHz 44 Hz - 16 kHz 38 - 160 Hz
Recommended High-Pass Frequency 33 Hz (12 dB/Oct.) 80 Hz (12 dB/Oct.) 45 Hz (12 dB/Oct.) 44 Hz (12 dB/Oct.) 38 Hz (12 dB/Oct.)
Axial Sensitivity SPL 1 W/1 m 99 dB 100 dB (100/112 dB) 98 dB (98/112 dB) 101 dB (101/112 dB) 101 dB
(Biamp operation)
Max. SPL /1 m (calc.); full space 132 dB 133 dB 130 dB 136 dB 137 dB
Continuous Power Handling 400 W 400 W (400 W/60 W) 400 W (400 W/60 W) 800 W (800 W/60 W) 1,200 W
Peak Power Handling (Peak) 1,600 W 1,600 W 1,600 W 3,200 W 4,800 W
Coverage (nominal -6 dB) H° x Omnidirectional 60° x 40° (CD Horn) 60° x 40° (CD Horn) 60° x 40° (CD Horn) Omnidirectional
Directivity Index 9.5 dB (+2.0/-1.5 dB) 12.6 dB (+9.4/-9.3 dB) 12.6 dB (+9.4/-9.3 dB)
800 Hz - 16 kHz 500 Hz - 16 kHz 500 Hz - 16 kHz
LF woofer (transducer) 18” (DL18MT) 12” (---) 15” (DL15ST) 2 x 15” (DL15ST) 2 x 18” (EVX-180B)
HF throat diameter (transducer) 1” (DH2T) 1” (DH2T) 1” (DH2T)
Crossover Frequencies 250 Hz or below 2,600 Hz 1,200 Hz 1,200 Hz 160 Hz or below
(slope in Biamp mode) (12 dB/Oct. LP, 18 dB/Oct. HP) (24 dB/Oct.) (24 dB/Oct.)
Nominal Impedance (Biamp mode) 8 8 (8 /8 )8 (8 /8 )4 (4 /8 )4
Minimum Impedance (Biamp mode) 6.6 7 (7 /6.3 )6 (6 /6.3 ) 3.2 (3.2 /6 )3
Input Connections 1/4” 2 four-pin Speakon®2 four-pin Speakon®2 four-pin Speakon®2 four-pin Speakon®
Dimensions (H x W at front x D) 32.8” x 24.8” x 24.5” 28.1” x 16.4” x 18.9” 32.2” x 19.2” x 23.6” 49.0” x 19.2” x 23.6” 45.8” x 22.5” x 29.9”
(in floor position) 833 x 630 x 609 mm 714 x 417 x 480 mm 818 x 488 x 599 mm 1,245 x 488 x 599 mm 1,160 x 572 x 758 mm
Net Weight 109 lbs.. (49.4 kg) 55 lbs.. (22.3 kg) 78.1 lbs.. (35.5 kg) 114 lbs.. (52.0 kg) 165 lbs.. (75 kg)
T18 T221 T251 T252+ MTL-1X
15

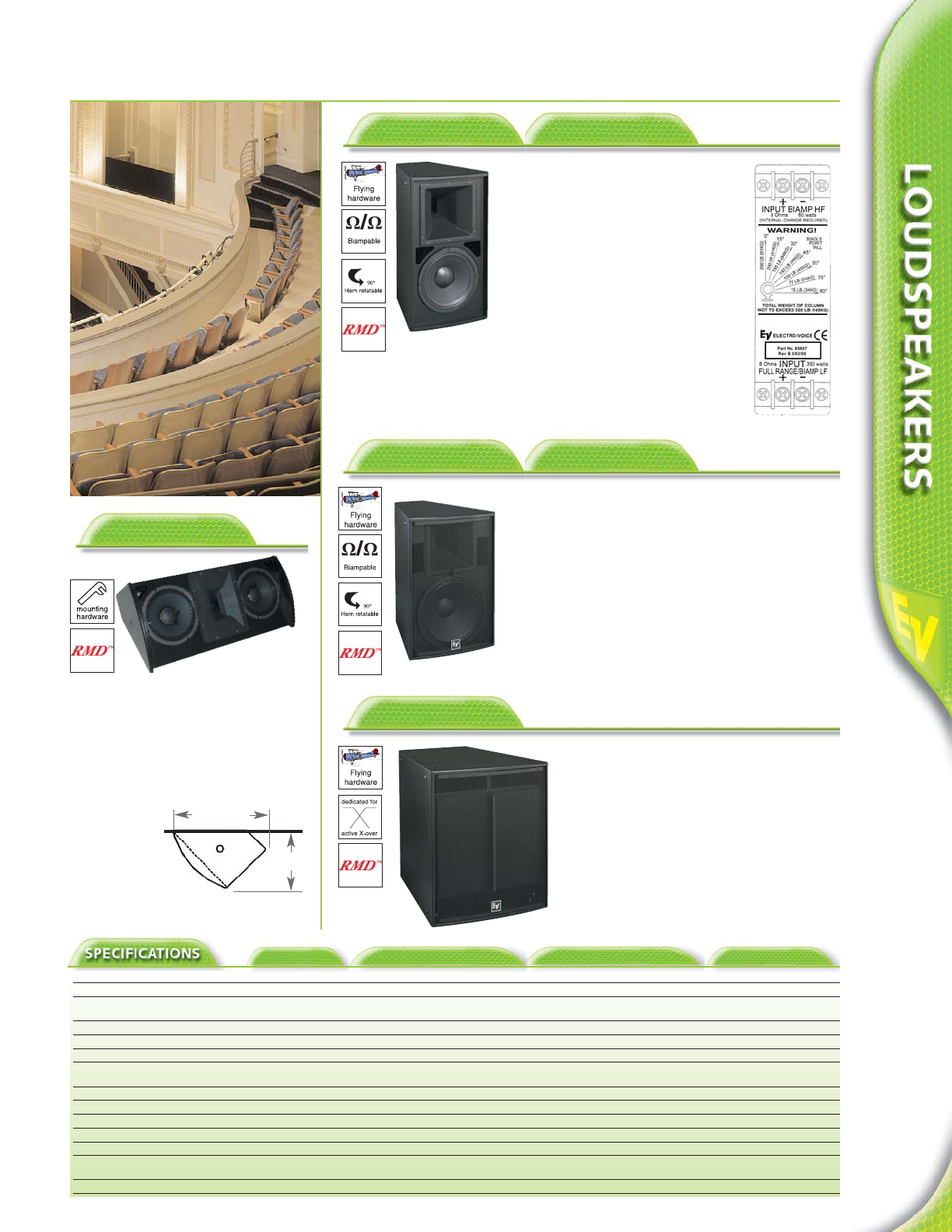

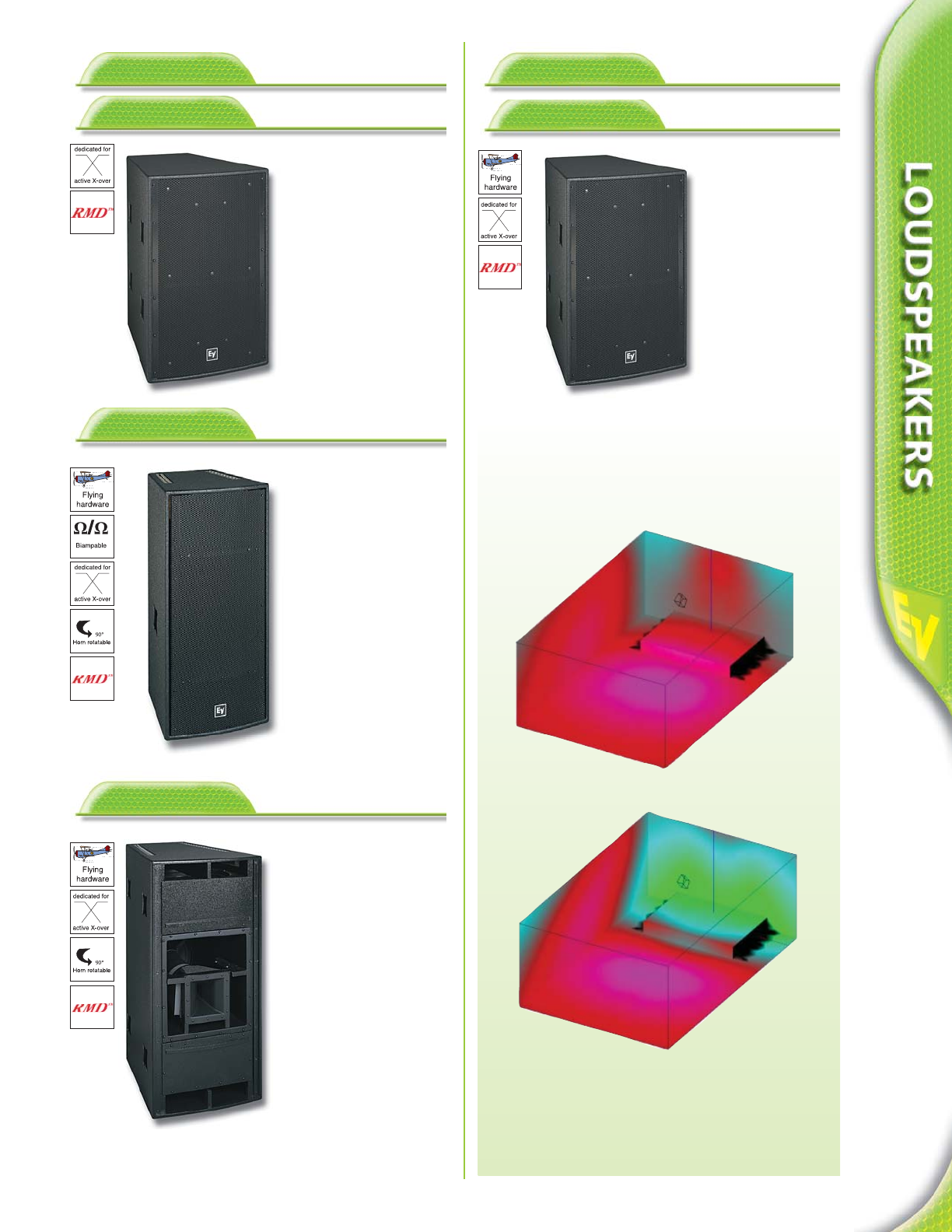

FRi/FRi+ Series
FRi-122/64/85
FRi-2082
Frequency Range (-10 dB) 55 Hz - 20 kHz 50 Hz - 15 kHz 42 Hz - 15 kHz 36 - 160 Hz
Recommended High-Pass Frequency 50 Hz (12 dB/Oct.) 50 Hz (12 dB/Oct.) 40 Hz (12 dB/Oct.) 36 Hz (12 dB/Oct.)
Axial Sensitivity SPL 1W/1m 93 dB 97 dB 98 dB 97 dB
(Biamp mode) (97/112 dB) (98/112 dB)
Max. SPL /1 m (calc.); full space 122 dB 128 dB 129.5 dB 129 dB
Continuous Power Handling (Biamp op.) 200 W 300 W (300 W/60 W) 350 W (350 W/60 W) 400 W
Peak Power Handling (Peak) 800 W 1,200 W 1,400 W 1,600 W
Coverage (nominal -6 dB) H° x 100° x 100° (CD Horn) 60° x 40°/80° x 50° (FRi) 60° x 40°/80° x 50° (FRi) 300° x 270°
60° x 40°/60° x 60°/90° x 40°(FRi+) 60° x 40°/60° x 60°/90° x 40°(FRi+)
LF woofer (transducer) 2 x 8” (---) 12” (DL12BFH) 15” (DL15BFH) 18” (DL18BFH)
HF throat diameter (transducer) 1” (compr. driver) 1” (DH2T)/3” (DH7) (FRi+) 1” (DH2T)/3” (DH7) (FRi+) ---
Crossover Frequencies 2,800 Hz 1,600 Hz 1,600 Hz 130 Hz
Nominal Impedance (Biamp) 8 8 (8 /8 )8 (8 /8 )8
Input Connections Barrier strips Dual barrier strips Dual barrier strips Dual barrier strips
Dimensions (H x W at front x D) 8.75” x 24.5” x 14” 28” x 15.9” x 17.6” 28” x 19” x 23.2” 28” x 23.5” x 30”
222 x 620 x 356 mm 711 x 401 x 445 mm 711 x 483 x 589 mm 711 x 597 x 762 mm
Net Weight 40 lbs.. (18.2 kg) 60 lbs.. (27.3 kg) 70 lbs.. (31.8 kg) 100 lbs.. (45.5 kg)
•Two-way, full-range
•Vented LF enclosure
•1voice coil (titanium
diaphragm)
Low profile slant
design
45° angle allows
underbalcony,
on-wall and stage
monitoring
applications
Comes with mounting
bracket
•2 x 3/8”-16
suspension points
• For FRi-28LPM floor
monitor version,
see page 40
FRi-122/64/85
•Two-way, full-range
•Vented LF enclosure
•2voice coil (titanium
diaphragm)
•Trapezoidal (15° per side)
Comes with 4 eyebolts
12 x 3/8”-16 suspension
points
• 85 pattern horn
not rotatable
FRi+122/64/66/94
•Two-way, full-range
loudspeaker
Switchable between
full range and biamp
•Vented LF enclosure
•3voice coil (titanium
diaphragm)
•Trapezoidal cabinet
(15° per side)
Comes with four eyebolts
•Twelve 3/8”-16
suspension points
FRi-152/64/85
•Two-way, full-range
Solid bass down to 42 Hz (-10 dB)
allows pure full-range performance
•Vented LF enclosure
•2voice coil (titanium diaphragm)
•Trapezoidal (15° per side)
Comes with 4 eyebolts
12 x 3/8”-16 suspension points
• 85 pattern horn not rotatable
FRi+152/64/66/94
•Two-way, full-range loudspeaker
Solid bass to 42 Hz (-10 dB)
allows pure full-range performance
Switchable between full range and
biamp
•Vented LF enclosure
•3voice coil (titanium diaphragm)
•Trapezoidal cabinet (15° per side)
Comes with four eyebolts
•Twelve 3/8”-16 suspension points
FRi+122/64/66/94
FRi-152/64/85 FRi+ 152/64/66/94
FRi+181S
Subwoofer
•Vented slot load design
Built-in low-pass filter (switchable for biamp operation)
•Trapezoidal (7.5° per side)
Comes with 4 eyebolts
16 x 3/8”-16 suspension points
FRi+181S
14” (356 mm)
8.75”
(222 mm)
Input panel for
FRi+122/64 and
FRi+152/64
FRi+ 152/64
FRi-2082 FRi-122/64/85 / FRi+122/64/66/94 FRi-152/64/85 / FRi+152/64/66/94 FRi+181S
FRX+181
16
FRX+ Systems
FRX+ Series loudspeakers are designed for applications in critical reverberant
spaces where excellent directivity control is desired. Typical small-sized
speaker systems are not able to maintain their rated coverage angles below
2000 Hz. Their wide beamwidth in the low mid-band creates serious
degradation of speech intelligibility and clarity of music.
FRX+PI cabinets are weatherized for use in outdoor areas or areas of high
humidity/high moisture. This version features a layered stainless steel grille,
water-resistant foam, treated woofer, aluminum and stainless exterior
hardware, and gasket-sealed terminal cover with gland nut.
EV´s FRX+ systems solve these problems, providing excellent wideband
directivity control.
The all horn-loaded, coaxial design supplies sufficient radiation surface to
enable narrow coverage angles down to 500 Hz with moderate cabinet sizes.
FRX+ 640/660/940 cabinets are texture-painted 7-ply plywood with powder-
coated steel grille backed with foam. FRX-122 has a cloth-covered grille.
A contractor-installable transformer option is available.
Frequency range (-3 dB) 60 Hz - 15 kHz 60 Hz - 15 kHz 60 Hz - 15 kHz 37 Hz - 2.2 kHz
Recommended high-pass frequency 32 Hz (12 dB/Oct.)
Sensitivity (SPL 1 W/1 m) (biamped) 105 dB (109 Hz/105 LF) 105 dB (110 Hz/105 LF) 105 dB (110 Hz/105 LF) 100 dB
Max. SPL/1m (calc.) 134 dB 133 dB 133 dB 132 dB
Continuous power handling (biamped) 400 W (400 W/60 W) 400 W (400 W/60 W) 400 W (400 W/60 W) 400 W
Peak power handling 1,600 W 1,600 W 1,600 W 1,600 W
Coverage (H° x V°) (asym. CD Horn) 60° x 40° 60° x 60° 90° x 40° omni
Directivity Index 14.1 dB (+1.9/-3.5 dB) 13.7 dB (+2.5/3.3 dB) 13.4 dB (+2.9/-3.2 dB) 3.8 dB
500 Hz–16 kHz 500 Hz–16 kHz 500 Hz–16 kHz 50 Hz–200 Hz
LF driver 15” (DL15XT) 15” (DL15XT) 15” (DL15XT) 18” (DL18MT)
HF driver 1” (DH2T) 1” (DH2T) 1” (DH2T)
Crossover frequencies (passive mode) 1,350 Hz 1,350 Hz 1,350 Hz 80 Hz (Linkwitz-Reilly)
Nominal impedance (biamped) 8 (8 /8 )8 (8 /8 )8 (8 /8 )8
Input connections Dual barrier strips Dual barrier strips Dual barrier strips Dual barrier strips
Dimensions (H x W at front x D) 31” x 28.3” 26” 31” x 28.3” 26” 31” x 28.3” 26” 31” x 28.3” 26”
787 x 719 x 660 mm 787 x 719 x 660 mm 787 x 719 x 660 mm 787 x 719 x 660 mm
Net weight 152 lbs.. (68.95 kg) 152 lbs.. (68.95 kg) 152 lbs.. (68.95 kg) 100 lbs.. (45.5 kg)
•Two-way, high-output, full-range
loudspeaker
High sensitivity: 105 dB (passive);
109 HF/105 LF (biamp)
Coaxial horn-loaded
•Vented LF horn enclosure
•2voice coil (titanium diaphragm)
•Trapezoidal cabinet (15° per side)
L-Track hardware (top/bottom)
•Two single-stud Ancra®fittings
included
3/8”-16 suspension point (rear)
Same dimensions as FRX-181
for uniform array appearance
• PRODriver protection circuit
•Time Pathphasing plug
•Pattern control to 500 Hz
Dx38 presets for excellent
directivity control
Available in weatherized version
(FRX+640 PI, FRX+660 PI,
FRX+940 PI)
Subwoofer
Direct-radiating vented design
•Trapezoidal cabinet
(15° per side)
L-Track hardware (top/bottom)
•Two single-stud Ancra®
fittings included
3/8”-16 suspension
point (rear)
Same dimensions as
FRX+640/660/940 for
uniform array appearance
Solid response to 35 Hz
(-10 dB)
Max. crossover point of
800 Hz allows combinations
with HP horns.
Coverage angles are greater
than 100° x 100° at 800 Hz
FRX+640 (60° x 40°)
FRX+660 (60° x 60°)
FRX+940 (90° x 40°)
FRX+640 FRX+660 FRX+940 FRX+181
17

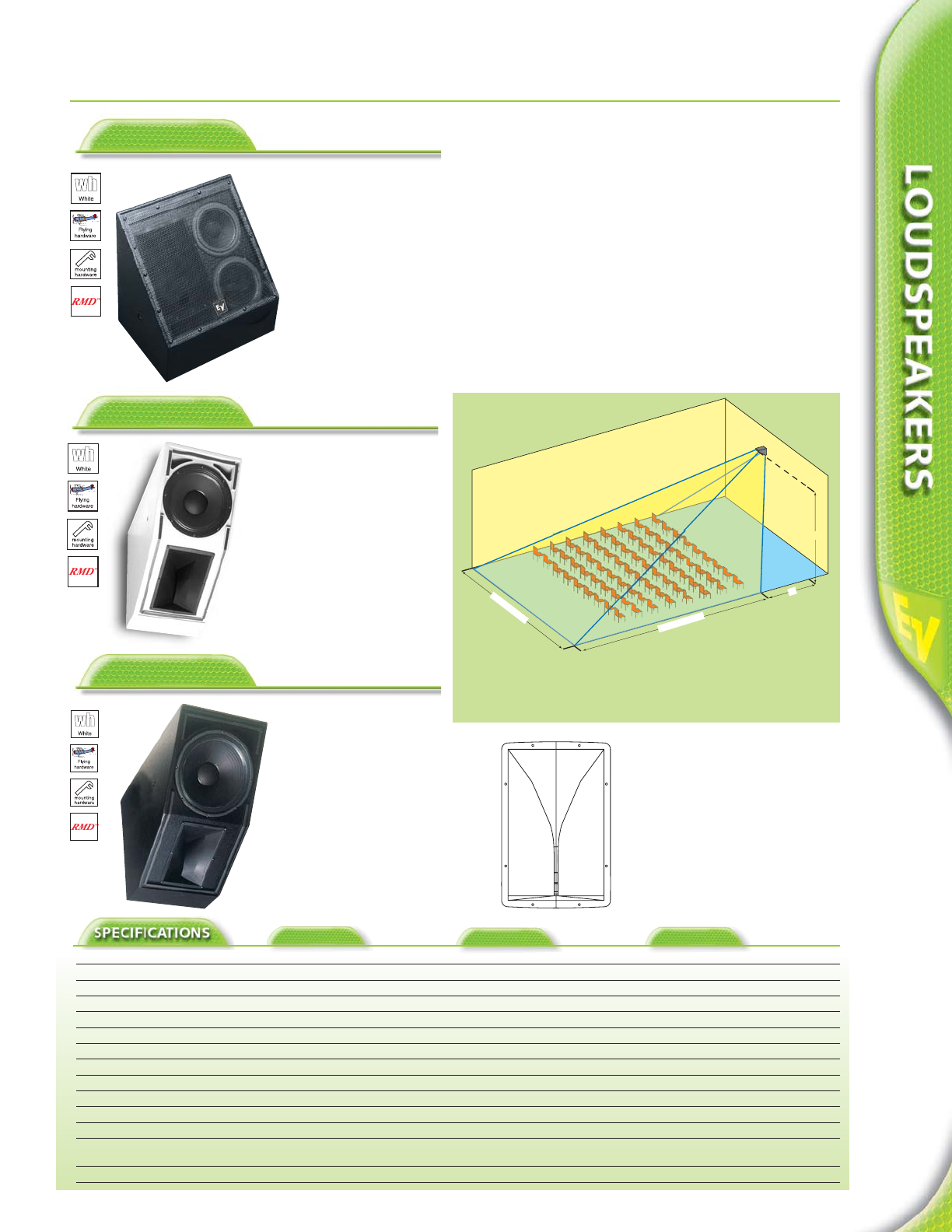

EVI Vari Intense®
Length = 3H
Length = 3H
Width = 2H
Width = 2H
H
H
Electro-Voice®’s unique EVI Vari Intense®(VI) speakers are engineered to
replace additional long-throw horns or delayed sources in many rooms. The
EVI Vari Intense®series provides an economical solution for permanent
installations that require coverage over a rectangular area. In a typical room,
the distance from the loudspeaker to the last row is two or more times that
to the front row, resulting in a substantial loss in level and intelligibility at the
rear. The VI horn delivers 6 to 8 dB more SPL to the back of the room,
overcoming the level loss without resorting to the expense and complexity of
additional speaker systems or components. The problem is old; EV®’s
solution is new. EVI is perfect for conference centers, houses of worship,
halls, and other venues where evenly distributed SPL is essential. EVI
systems are made of 18 mm 13-ply birch plywood (EVI 28: 12 mm
9-ply), texture-painted with a powder-coated metal grille.
A simple 3-2-1 rule-of-thumb applies for determining EVI coverage patterns:
The pattern’s width will equal twice the height of the room, and the pattern’s
length will equal three times the height. See the illustration below.
EVI Vari Intense®coverage pattern (3-2-1 Rule):
If speaker height = H, then coverage length = 3H,
coverage width = 2H, and first row coverage = 1H
EVI-28
•Two-way, full-range loudspeaker
•Vented LF enclosure
1.3” voice coil (titanium
diaphragm)
PRO™ Driver protection circuit
•Time Path™ phasing plug
Multi-angled housing
Stacked, frequency-shaded
woofers maintain vertical coverage
angle down to 500 Hz with 120°
(typical 180°); ideal for
reverberant rooms
Five 3/8”-16 hanging points
EVI-12
•Two-way, full-range loudspeaker
High sensitivity
•Vented LF enclosure
•1voice coil (titanium diaphragm)
PRO™ Driver protection circuit
•Time Path™ phasing plug
Multi-angled housing
Five 3/8”-16 hanging points
EVI-15
•Two-way, full-range loudspeaker
High sensitivity
•Vented LF enclosure
•1voice coil (titanium diaphragm)
PRO™ Driver protection circuit
•Time Path™ phasing plug
Multi-angled housing
Five 3/8”-16 hanging points
VI Horn
Frequency range (-10 dB) 45 Hz – 20 kHz 45 Hz – 20 kHz 62 Hz – 20 kHz
Recommended high-pass frequency
Sensitivity (SPL 1 W/1 m) 100 dB 100 dB 93 dB
Max. SPL/1 m (calc.) 130 dB 130 dB 123 dB
Continuous power handling 250 W 250 W 250 W
Peak power handling 1,000 W 1,000 W 1,000 W
Coverage (H° x V°) 60° x 65° 60° x 65° 65° x 65°
LF driver 12” (SG12) 15” (SG12) 2 x 8”
HF driver 1” (DH2010A) 1” (DH2010A) 1 x 1” (DH2010A)
Crossover frequency 2,000 Hz 2,000 Hz 2,000 Hz
Nominal impedance (minimum) 8 8 8
Input connections screw terminal screw terminal screw terminal
Dimensions (H x W at front x D) 21.8” x 14” x 27.5” 23” x 16.9” x 30.2” 13.9” x 19.5” x 20.6”
554 x 356 x 699 mm 584 x 429 x 766 mm 353 x 496 x 523 mm
Net weight 48 lbs.. (21.8 kg) 53 lbs.. (24.0 kg) 36 lbs.. (16.3 kg)
EVI-12 EVI-15 EVI-28
18
Xi-Series
Premium touring-quality sound. Install it anywhere.
Inspired by the most demanded features of EV’s acclaimed X-Array
touring systems, the Xi-Seriesincorporates a potent combination of very-
high-output short-, medium- and long-throw “cells, in two- and three-way
configurations, all with EV’s unique RMD(Ring-Mode Decoupling). Dual L-
track suspension hardware optimizes Xi for permanent installation and
portable applications of small-to-medium size.

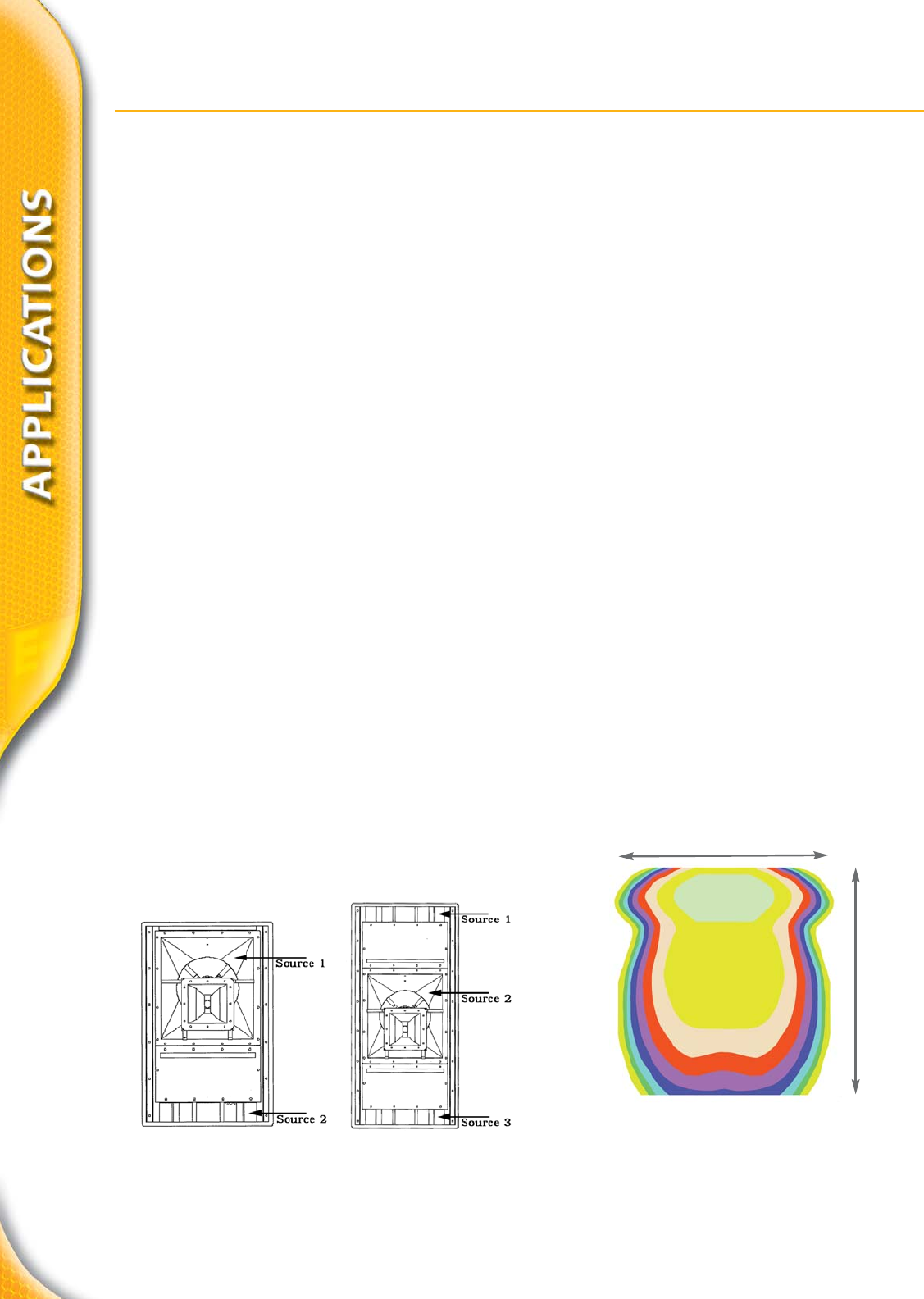

The Xi-Seriesthree-way systems may be “tripole” or “dipole” configured to
extend the vertical coverage-angle control to as low as 125 Hz—well below
that permitted by the mid-bass horn alone (about 800 Hz) and
unprecedented performance in a one-box system. Tripole configuration of
the dual-woofer three-way systems provides the best directivity
improvement, achieved by the vertically spaced low-frequency sources
which flank the mid-bass horn operating alone at low frequencies and by
appropriately overlapping the LF and MB sources in the mid bass, e.g., 125
to 540 Hz. The required signal processing is available in EV Dx38, EV RL
Series amplifiers, and Klark Teknik DN9848 digital processors, which
contain dual all-pass filters required for proper configuration.
The single-woofer three-way systems may be dipole configured. This is
achieved by overlapping the woofer and mid-bass sources in the
appropriate frequency ranges.
Xi-1082
2-Way Full-range
Solid bass below to 50 Hz (-3 dB)
•Vented LF enclosure
•3voice coil (titanium diaphragm)
Integrated stand mount
•Trapezoidal (15° per side)
Xi-1152/94F
(90° x 40°)
Xi-1152/64F
(60° x 40°)
Xi-1123/106F
3-Way High-Output Full-range
•Vented slot load designed LF enclosure
•Horn-loaded MB/HF section fully rotatable
•3voice coil (titanium diaphragm)
Bypassable MB/HF passive X-over
Dipole mode brings vertical directivity
control below to 250 Hz
Excellent directivity 500 Hz – 16 kHz
•Trapezoidal (9° per side)
For Xi-specs, see page 20
Xi-1122/85F
2-Way Full-range
•Vented LF enclosure
•3voice coil
(titanium diaphragm)
Integrated stand mount
•Trapezoidal (15° per side)
Xi-1183/64F
3-Way High-Output Full-range
•Vented slot load designed
LF enclosure
Coaxial horn-loaded MB/HF section
fully rotatable
•3voice coil (titanium diaphragm)
Dipole mode brings vertical
directivity
control below to 200 Hz
(Xi-1153/64)
Excellent directivity control
•Trapezoidal (9° per side)
2-Way Full-range
•Vented LF enclosure
1.3” voice coil (titanium diaphragm)
•Typical under-balcony slant also perfect for
front-stage and near-field use
•2 x 3/8”-16 mounting bracket inserts
• Optional mounting bracket
19
3-Way High-Output Full-range
•Vented slot load designed LF
enclosure
Horn-loaded MB/HF section
fully rotatable
•3voice coil (titanium
diaphragm)
Bypass-able MB/HF
passive X-over
•Tripolemode brings
vertical directivity
control below to 160 Hz
Excellent directivity
160 Hz – 16 kHz
•Trapezoidal (9° per side)
Xi-2153/64F
3-Way High-Output Full-range
•Vented slot load designed LF
enclosure
Coaxial horn-loaded MB/HF
section fully rotatable
•3voice coil (titanium diaphragm)
•Tripolemode brings vertical
directivity control below to 150 Hz
Excellent directivity control
•Trapezoidal (9° per side)
Xi-1191
Subwoofer
•Vented design
Step-down tuning allows
fundamental
low-end below to 28 Hz (-3 dB)
Superior linear excursion
capability
Accurate transient detail
•Trapezoidal (9° per side)
• Xi-1191F includes flying
hardware
• Flying version built to order
Subwoofer
Manifolded, vented design
•Superior linear excursion
capability
Accurate transient detail
•Trapezoidal (9° per side)
• Flying version built to order
Xi-2181F
(flying)
Xi-2181
(non-flying)
For Xi-specs, see page 20
SPL radiation at 250 Hz without tripole configuration
SPL radiation at 250 Hz with tripole configuration
Xi-1191F
Xi-2123/106F
Frequency Range (-3 dB) 50 Hz - 20 kHz 60 Hz - 16 kHz 80 Hz - 16 kHz
Recommended High-Pass Frequency 60 - 80 Hz (12 dB/Oct.) Dx 38 preset Dx 38 preset
Axial Sensitivity SPL 1W/1m 90 dB 99/110 dB 98/109/112 dB
Max. SPL /1m (calc.); full space 118 dB 130/135 dB 129/140/137 dB
Continuous Power Handling 175 W 300/75 W 300/300/75 W
Peak Power Handling (Peak) 700 W 1,200/300 W 1,200/1,200/300 W
Coverage (nominal -6 dB) H° x 90° x 40° (CD Horn) 80° x 55° (CD Horn) 100° x 60° (CD Horn)
Directivity Index 11.2 dB (+1.8/-2.7 dB) 10.9 dB (+1.2/-2.9 dB) 10.3 dB (+1.4/-1.2 dB)
2 - 20 kHz 1.2 - 16 kHz 500 Hz - 16 kHz
LF woofer (transducer) 8” (---) 12" (DL12ST) 12” (DL12ST)
MB woofer (transducer) 10” (DL10X)
HF throat diameter (transducer) 1” (DH3) 1.4" (DH7-16) 1.4 (DH7-16)
Crossover Frequencies 3,500 Hz (passive) Dx 38 preset Dx 38 preset
Nominal Impedance 8
8
/16
12
/16
/16
Minimum Impedance 5.8
8.5
/13.4
8.7
/9.6
/12.4
Input Connections barrier strip Neutrik®NL4 Neutrik®NL8
Dimensions (H x W at front x D) 19.23” x 9.25” x 11.23” 23” x 14.7” x 14” 31.54” x 17.92” x 18.24”
235 x 488 x 285 mm 584 x 375 x 356 mm 801 x 456 x 473 mm
Net Weight 28 lbs. (13.3 kg) 69 lbs. (31.3 kg) 125 lbs. (56.8 kg)
20
Xi-1152/64/94F
Xi-1183/64F Xi-1191/Xi-1191F
Xi-1082 Xi-1122/85F Xi-1123/106F
Frequency Range (-3 dB) 50 Hz - 16 kHz 48 Hz - 16 kHz 37 - 160 Hz
Recommended High-Pass Frequency Dx 38 preset Dx 38 preset Dx 38 preset
Axial Sensitivity SPL 1W/1m 98/113 dB; 98/112 dB 94/107/112 dB 94 dB
Max. SPL /1m (calc.); full space 132 dB 128/138/137 dB 128 dB
Continuous Power Handling 600/75 W 600/300/75 W 600 W
Peak Power Handling (Peak) 2,400/300 W 2,400/1,200/300 W 2,400 W
Coverage (nominal -6 dB) H° x 60° x 40° (CD Horn); 90° x 40° 60° x 40° (CD Horn) essentially omni
Directivity Index 13.4 dB (+1.3/-2.3 dB) 13.3 dB (+1.4/-1.1dB) 2.7 dB (+1.0/-0.6dB)
1,200 - 16,000 Hz 800 - 16,000 Hz 63 - 100 Hz
LF woofer (transducer) 15” (EVX-155) 18” (EVX-180B) 18” (EVX-180B)
MB woofer (transducer) 12” (DL12ST)
HF throat diameter (transducer) 2” (DH7-16) 1.4” (DH7-16)
Crossover Frequencies Dx 38 preset Dx 38 preset Dx 38 preset
Nominal Impedance 8
/16
8
/16
/16
8
Minimum Impedance 6.3
/14.0
7.7
/8.7
/13.1
6.7
Input Connections 2 Neutrik®NL4 2 Neutrik®NL8 2 Neutrik®NL8
Dimensions (H x W at front x D) 29.88” x 17.73” x 16.28” 36” x 23.07” x 29.88” 36” x 23.07” x 29.88”
759 x 450 x 413 mm 914 x 586 x 759 mm 914 x 586 x 759 mm
Net Weight 90 lbs. (40.8 kg) 205 lbs. (93.0 kg) 150 lbs. (68.0 kg)
XI-2123/106F Xi-2153/64F Xi-2181/Xi-2181F
Frequency Range (-3 dB) 80 Hz - 16 kHz 45 Hz - 16 kHz 37 - 200 Hz
Recommended High-Pass Frequency Dx 38 preset Dx 38 preset Dx 38 preset
Axial Sensitivity SPL 1W/1m 101/109/112 dB 96/107/112 dB 99 dB
Max. SPL / 1m (calc.); full space 135/140/137 dB 133/138/137 dB 136 dB
Continuous Power Handling 600/300/75 W 1,200/300/75 W 1,200 W
Peak Power Handling (Peak) 2,400/1,200/300 W 4,800/1,200/300 W 4,800 W
Coverage (nominal -6 dB) H° x 100° x 60° (CD Horn) 60° x 40° (CD Horn) essentially omni
Directivity Index 10.1 dB (+1.6/-3.5 dB) 13.4 dB (+1.4/-1.2 dB) 3.4 dB (+1.4/-0.9dB)
800 Hz - 16 kHz 63 - 100 Hz 63 - 200 Hz
LF woofer (transducer) 2 x 12" (DL12ST) 2 x 15” (EVX-155) 2 x 18” (EVX-180B)
MB woofer (transducer) 10" (DL10X) 12” (DL12ST)
HF throat diameter (transducer) 1.4 (DH7-16) 1.4” (ND6-16)
Crossover Frequencies Dx 38 preset Dx 38 preset Dx 38 preset
Nominal Impedance 6
/16
/16
4
/16
/16
2 x 8
Minimum Impedance 4.7
/10.3
/12.6
3.8
/8.9
/13.1
2 x 6.0
Input Connections 2 Neutrik®NL8 2 Neutrik®NL8 2 Neutrik®NL8
Dimensions (H x W at front x D) 31.54” x 17.92” x 18.24” 48.54” x 23.07” x 29.88” 36” x 23.07” x 29.88”
1,007 x 456 x 463 mm 1,233 x 586 x 759 mm 914 x 586 x 759 mm
Net Weight 125 lbs. (68.0 kg) 250 lbs. (113.4 kg) 184 lbs. (83.5 kg)
Xi-SeriesSpecifications
21

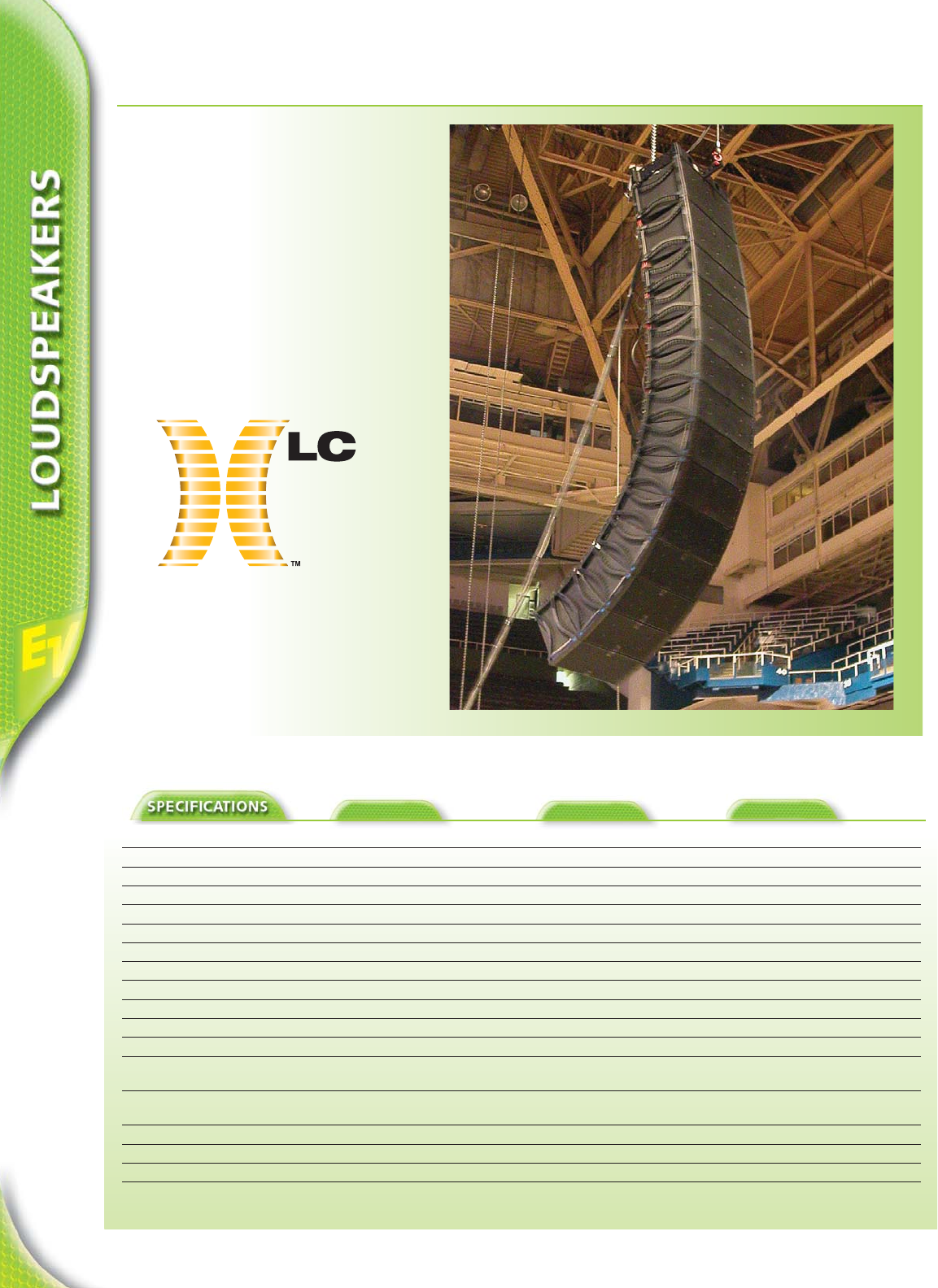

Subwoofer

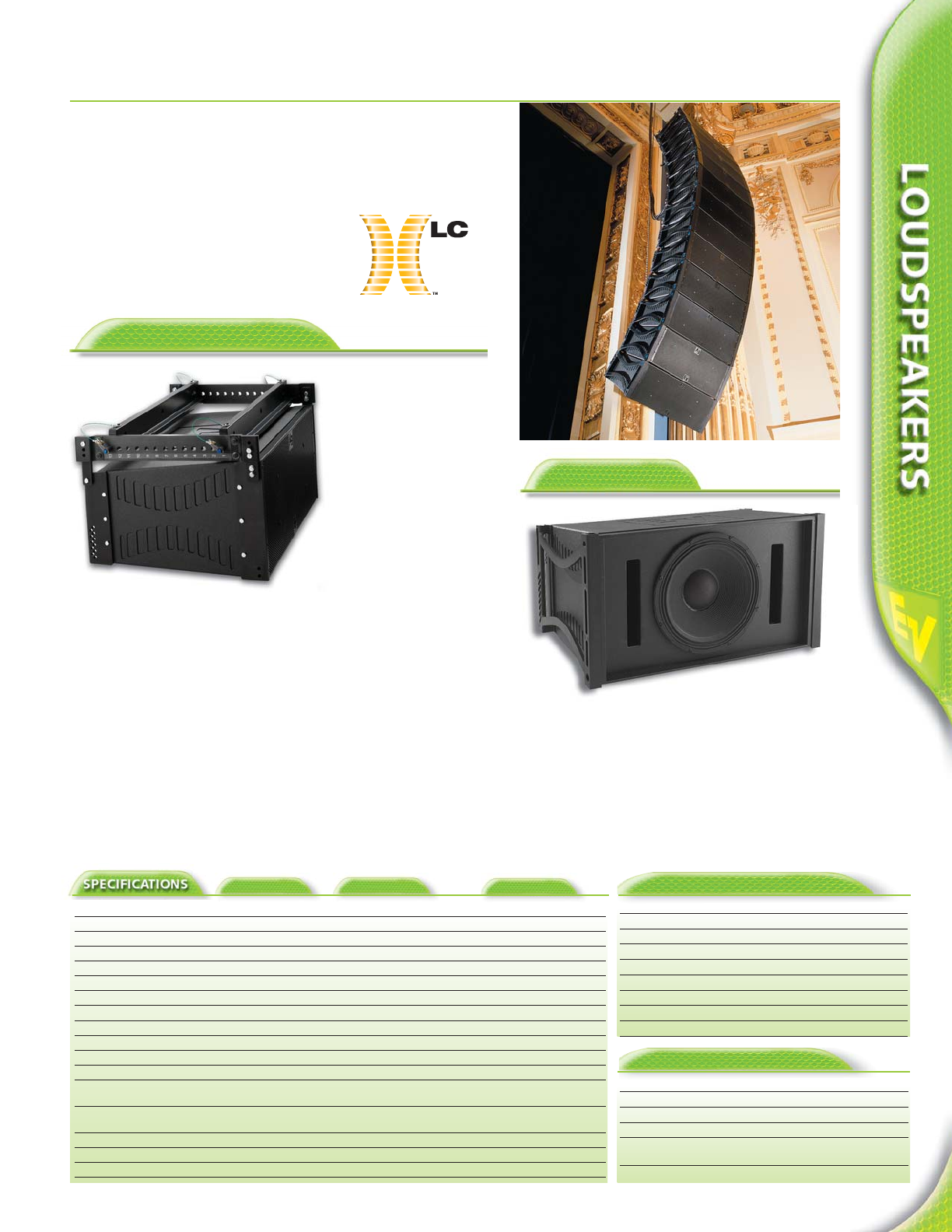

The XLCi 118 is a direct radiating design using the legendary
EVX180B 18-inch woofer. The XLCi 118 utilizes the same rigging
and has 1.5 times the height of the XLCi 127 main cabinet. This
allows a hang of XLCi 118s to be flown adjacent to the main hang
at a 3:2 ratio, maintaining aesthetic requirements for equal hang
heights. Flying subwoofers benefits in a more even front-to-back
SPL distribution.

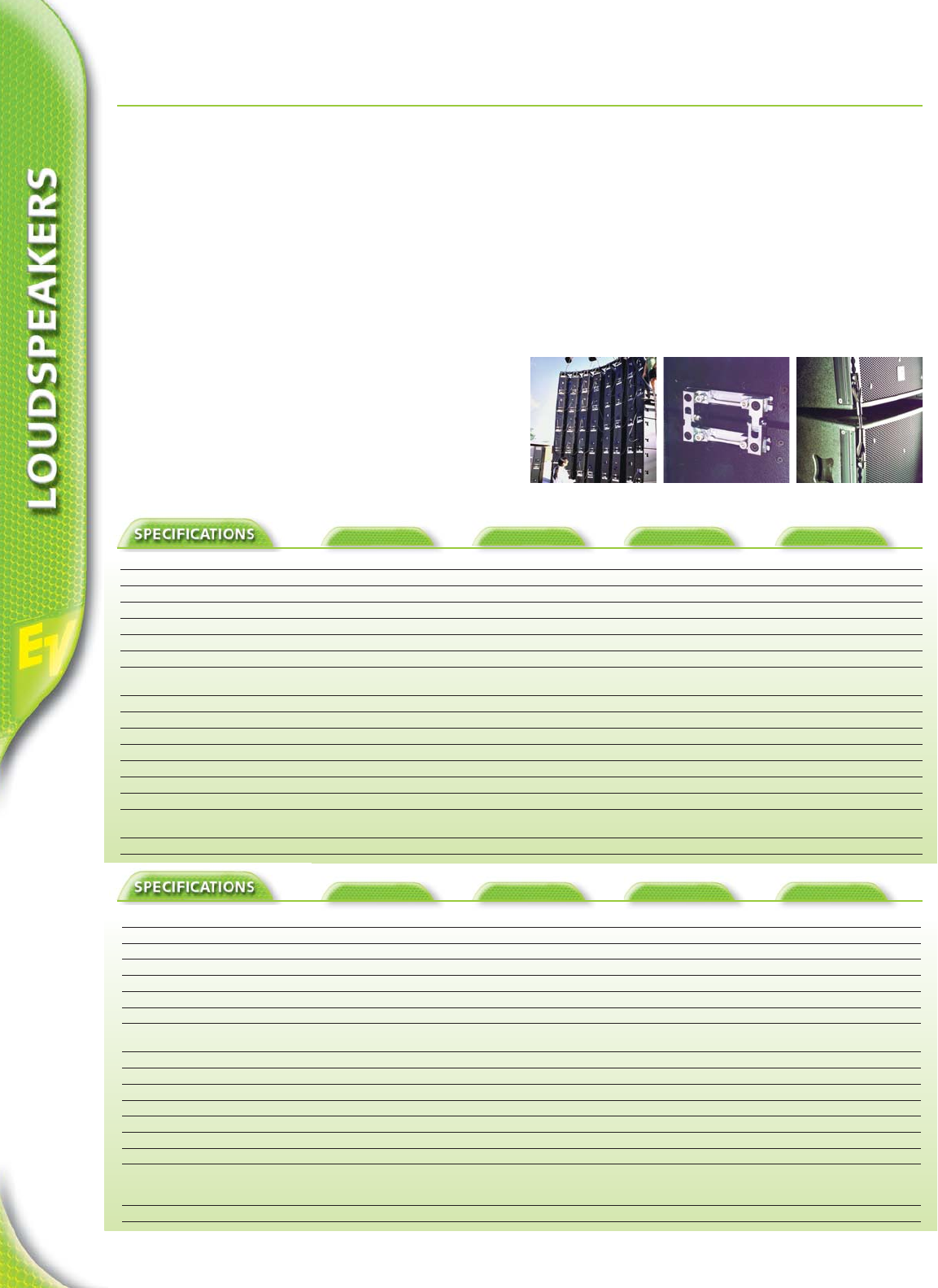

Main Cabinet
This cabinet is the main
component of an XLCi line
array. Starting with a
minimum of four cabinets, a
typical array size uses six to
eight boxes. The three-way
axis-asymmetric design
includes a single EV DL-12
low-frequency/mid-bass
woofer optimized for this
cabinet. Two 6.5” horn-
loaded drivers in a vertical
array comprise the mid-
frequency bandpass.
The XLCi 127+ utilizes two ND6 (3” voice-coil) neodymium compression drivers
loaded on two Hydra™ plane wave generators. With a horizontal coverage of
120°, the XLCi system accurately covers wide areas while maintaining excellent
imaging and lobe-free coverage. The XLCi 127+ is equipped with an internal
crossover for mid-bass and high-frequency to allow for either biamp or triamp
operation.
The 127 is identical to the XLCi 127+, except for the 2 DH2T (2” voice-coil)
compression drivers loaded on two Hydra elements. The XLCi 127 utilizes also an
internal x-over for biamp or triamp use, although it is mainly recommended for
biamp operation. The XLCi 127 should not be combined with the XLCi 127+ in the
same hang.
While big brother X-Line serves all the acoustical needs of the largest venues and
arenas, EV’s compact line array XLCi was designed to match the demands for easy
setup and transportation combined with outstanding sonic results in a variety of
venue sizes.
System features:
Wide constant horizontal coverage pattern of 120°
• Bi-amped or tri-amped
• Concept ensures precise aiming
• Complimentary software aiming package

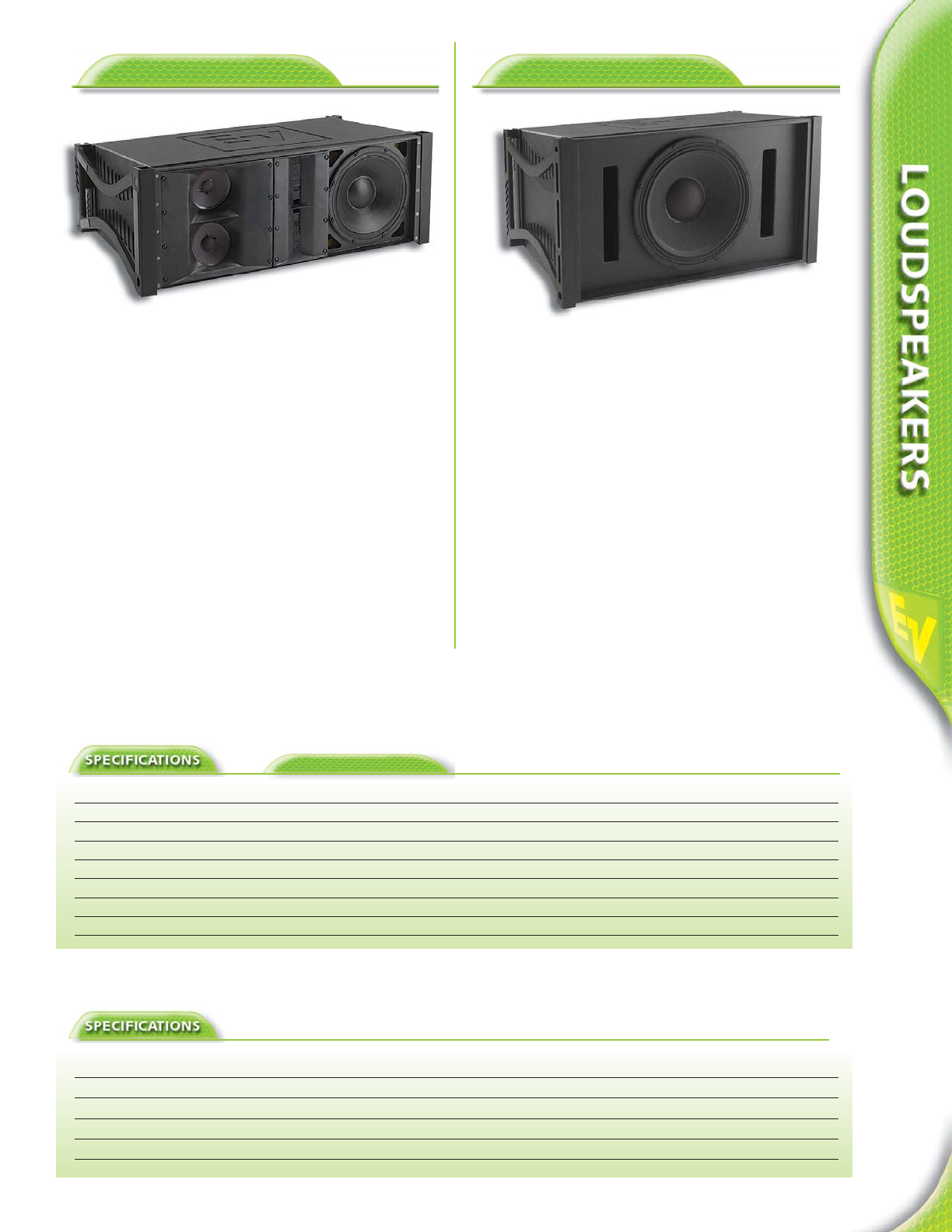

The XLCi System
XLCi 127 / XLCi 127+
XLC i 118
Horizontal Coverage 120° 120° 300°
LF Power Handling 300 W cont./1,200 W peak 300 W cont./1,200 W peak 600 W cont./2,400 W peak
MB Power Handling 200 W cont./800 W peak 200 W cont./800 W peak
HF Power Handling 120 W cont./480 W peak 150 W cont./600 W peak
Sensitivity (LF/MB/HF) 95 dB/101 dB/110 dB 95 dB/101 dB/110 dB 96 dB/102 dB*
Max. SPL (calc.) 126/130/137 dB 126/130/138 dB 130/136 dB*
LF Transducer 1 x 12” DL 12 ST 1 x 12” DL 12 ST 1 x 18” EVX180B
MB Transducer 2 x 6.5” DM 65 2 x 6.5” DM 65
HF Transducer 2 x DH2T -16 2 x ND6-16
Connectors 2 Neutrik®NL8 2 Neutrik®NL8 2 Neutrik®NL8
Enclosure Material Futura®-coated plywood Futura®-coated plywood Futura®-coated plywood
Grille Powder-coated steel Powder-coated steel Powder-coated steel
Environmental Specs IEC 529 IP24 IEC 529 IP24 IEC 529 IP24
MIL STD 810 MIL STD 810 MIL STD 810
Dimensions (H x W x D) 362 x 952.5 x 572 mm 362 x 952.5 x 572 mm 546 x 952.5 x 572 mm
14.25” x 37.5 “ x 22.5” 14.25” x 37.5” x 22.5” 21.5” x 37.5” x 22.5”
Net Weight 116 lbs. (52.7 kg) 111 lbs. (50.4 kg) 120 lbs. (54.5 kg)
Shipping Weight 121 lbs. (55.0 kg) 116 lbs. (63.6 kg) 140 lbs. (63.6 kg)
*Half space environment
Cabinet: XLCi 127, XLCi 127+ XLCi 118
LF: P2000 / P1200 RL
MB: P2000 / P1200 RL
LF: P2000 / P1200 RL P3000 / P3000 RL
System Controller: DN9848, Dx38 or
EV Precision Series Remote Amplifiers (RL)
Recommended System Drive for XLCi
Technical Specifications for Four-Cabinet XLCi127+ Array
Specification 4 x XLCi 127 Array
Frequency Range (-3 dB) 70 Hz–18 kHz
Sensitivity (1 W/1 m) 112.5 dB
Max Calculated SPL (1 W/1 m) 135 dB cont./141 dB peak
Horizontal Coverage 120°
Vertical Coverage Splay dependent
LF Power (recommended) EV®P2000
MB Power (recommended) EV®P2000
HF Power (recommended) EV®P2000
Technical Specifications for XLC Cabinets
XLCi 127 XLCi 127+ XLCi 118
Install hardware shown
Touring hardware shown
MH640C/MH640P (60° x 40°)
MH660C/MH660P (60° x 60°)
MH940C/MH940P (90° x 40°)
•Two-way, extraordinary output mid/high CD horn system
High sensitivity: 107 dB/1 W/1 m
Coaxial horn-loaded
•P version has passive crossover
•Water-resistant Kevlar®epoxy cone
MB horn features Aperiodic Enhancer™ phase plug
•2voice coil (titanium diaphragm)
HF driver protection circuit
Uniform directivity control to 500 Hz
All models have same dimensions for uniform-looking arrays
Integral 4-point hanging hardware in polyester-powder-coated steel
22

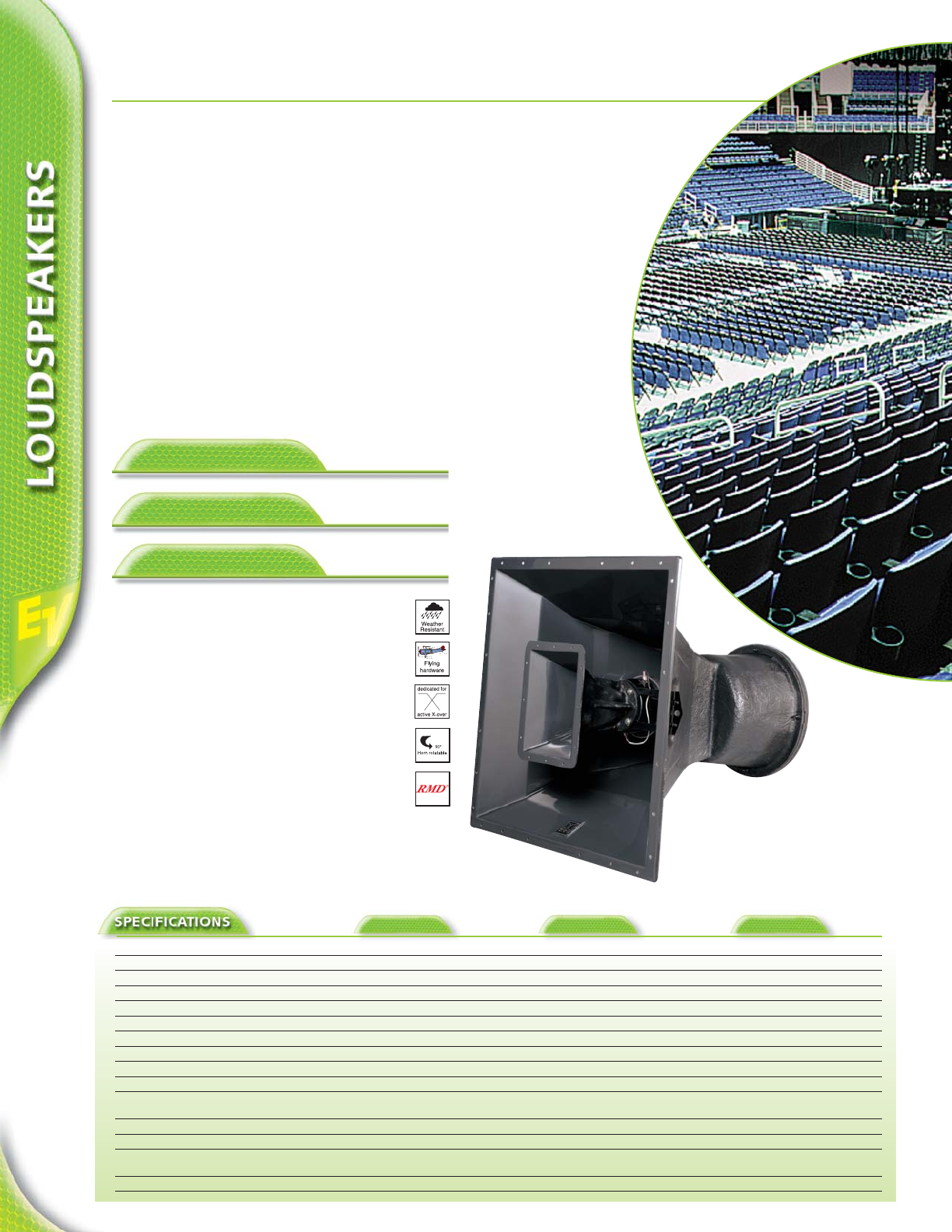

MH-Series Stadium Horns
Frequency range (-10 dB) 150 Hz – 20 kHz 150 Hz – 20 kHz 150 Hz – 20 kHz
Recommended high-pass frequency 160 Hz (24 dB/Oct.) 160 Hz (24 dB/Oct.) 160 Hz (24 dB/Oct.)
Sensitivity (SPL 1 W/1 m) 107/111 dB; 107 dB 107/111 dB; 107 dB 107/111 dB; 107 dB
Max. SPL/1m (calc.) 138 dB 138 dB 138 dB
Continuous power handling 300 W/60 W; 300 W 300 W/60 W; 300 W 300 W/60 W; 300 W
Peak power handling 1,200 W/240 W; 1,200 W 1,200 W/240 W; 1,200 W 1,200 W/240 W; 1,200 W
Coverage (H° x V°) 60° x 40° (CD Horn) 60° x 60° (CD Horn) 90° x 40° (CD Horn)
Directivity Index (500 Hz – 20 kHz) 13.7 dB (+1.6/-2.8 dB) 13.7 dB (+1.6/-2.8 dB) 12.6 dB (+3.8/-4.0 dB)
LF driver 10” (DL10X) 10” (DL10X) 10” (DL10X)
HF driver 2” (DH2T-8) 2” (DH2T-8) 2” (DH2T-8)
Crossover frequencies 1,600 Hz 1,600 Hz 1,600 Hz
(slope in biamp mode) (24 dB/Oct.) (24 dB/Oct.) (24 dB/Oct.)
Nominal impedance 16 /8 ; 8 16 /8 ; 8 16 /8 ; 8
Input connections Dual barrier strips Dual barrier strips Dual barrier strips
Dimensions 27” x 27” x 28” 27” x 27” x 28” 27” x 27” x 28”
(H x W at front x D) 686 x 686 x 711 mm 686 x 686 x 711 mm 686 x 686 x 711 mm
Net weight (Large format: without HF driver) 60 lbs.. (27.2 kg) 60 lbs.. (27.2 kg) 60 lbs.. (27.2 kg)
MH-Series stadium horns are designed for large-scale stadiums and arenas where high-fidelity sound and directivity
control from low mid-bass frequencies and below are absolutely essential. In 1974, EV pioneered the concepts of
constant directivity (horn angles that are constant with frequency) and Manifold® technology (which combines
the outputs of multiple transducers into one source). Large-format MH horns incorporate both in several
horn/driver systems. Medium-format MH horns are excellent for short/medium throw applications or as infills
for large-format MH-horns.
Medium-format MH-Series horns
MH medium-format horns have a high Q and uniform directivity control down to 500 Hz. The mid-
bass section features an Aperiodic Enhancer™ phase plug which extends the high-end output to
blend seamlessly into the coaxial high-frequency section. The HF section contains a small-
format HP horn with EV´s patented Transplanar™ design to provide exceptionally smooth frequency
response. The one-piece main horn bell is a black polyester/fiberglass laminate with composite
reinforcement. Up to three pieces can be paralleled in active or passive mode without a minimum
impedance load at the amplifier.
MH640C/P MH660C/P MH940C/P
23
Large-format MH-horns
MH large-format horns feature Manifold®technology, have a very high Q and uniform directivity control. Because
of their large mouth size, MH horns maintain their beamwidth to very low frequencies – below to 250 Hz –
reducing bass spillover and increasing intelligibility. The HF-section contains an appropriate medium-format
HP-horn that accepts EV two-inch-exit single or dual drivers of the designer´s choice, extending response to
20 kHz. HF drivers and adapters must be ordered separately (see page 45). The dual driver doubles
HF output, important for very long throws. N/DYM®drivers offer the ultimate output in the upper octaves,
important when contemporary music is to be heard over long distances. The large horn size also
provides frequency response to 100 Hz, typically eliminating the need for supplemental low-frequency
systems. The mid-bass section features Aperiodic Enhancer™ phase plug. It is responsible for the
extended high-frequency response of the mid-band section. It makes use of the fact that only the
apex of the cone (near the voice coil) is in motion at higher frequencies, and automatically adjusts
the acoustic loading to maximize acoustic output.
The main horn bell is a one-piece black polyester and fiberglass with fiberglass rib reinforcement.
An integral grille-protection screen built into the manifold chamber protects the mid-bass for
mechanical damage. To get low-frequency extension one octave lower, the recommended
subwoofer is the QRx-218S.
Frequency Range (-10 dB) 100 Hz - 20 kHz 100 Hz - 20 kHz 100 Hz - 20 kHz
Recommended High-Pass Frequency 130 Hz (24 dB/Oct.) 130 Hz (24 dB/Oct.) 130 Hz (24 dB/Oct.)
Axial Sensitivity SPL 1 W/1 m 109 dB 107 dB 105 dB
Max. SPL / 1m (calc.); full space 146 dB 141 dB 139 dB
Continuous Power Handling (Mid-Bass) 1,200 W 600 W 600 W
Peak Power Handling (Peak) (Mid-Bass) 4,800 W 2,400 W 2,400 W
Coverage (nominal -6 dB) H° x 40° x 20° (CD Horn) 60° x 40° (CD Horn) 90° x 40° (CD Horn)
Directivity Index (500 - 20.000 Hz) 18.0 dB (---/---) 13.8 dB (+0.9/-1.1 dB) 10.2 dB (+0.9/-1.1 dB)
LF woofer (transducer) 4 x 10” (DL10X) 2 x 10” (DL10X) 2 x 10” (DL10X)
HF throat diameter (horn type) 2” (HP420A) 2” (HP640) 2” (HP940)
Crossover Frequencies (slope) 1,600 Hz (24 dB/Oct.) 1,250 Hz (24 dB/Oct.) 1,250 Hz (24 dB/Oct.)
Nominal Impedance (mid-bass) 2 x 8 8 8
Minimum Impedance (mid-bass) 2 x 3.1 5.9 5.9
Input Connections heavy-duty copper cable heavy-duty copper cable heavy-duty copper cable
Dimensions (H x W at front x D) 59” x 39” x 73.9” 59” x 39” x 73.9” 59” x 39” x 60.4”
1,500 x 991 x 1,880 mm 1,500 x 991 x 1,873 mm 1,500 x 991 x 1,534 mm
Net Weight (without HF-driver) 237 lbs.. (108 kg) 165 lbs.. (75 kg) 165 lbs.. (75 kg)
MH4020AC (40° x 20°)
MH6040AC (60° x 40°)
MH9040AC (90° x 40°)
2-way extra ordinary output CD-horn
Coaxial horn-loaded
High sensitivity
High maximum SPL
Full-range down to 100 Hz (-10 dB)
Mid-Bass section features Aperiodic Enhancerand
Manifold® Technology
•Water resistant (incl. Kevlar®epoxy cone)
HF-horn with 2-inch throat diameter (Driver is of the
designer´s choice)
Excellent uniform directivity control down to low
frequencies
Same front dimensions for uniform appearance when
used in arrays
Integral 18-point hanging hardware in polyester-
powder-coated steel for flexible mounting
MH4020AC MH6040AC MH9040AC
24

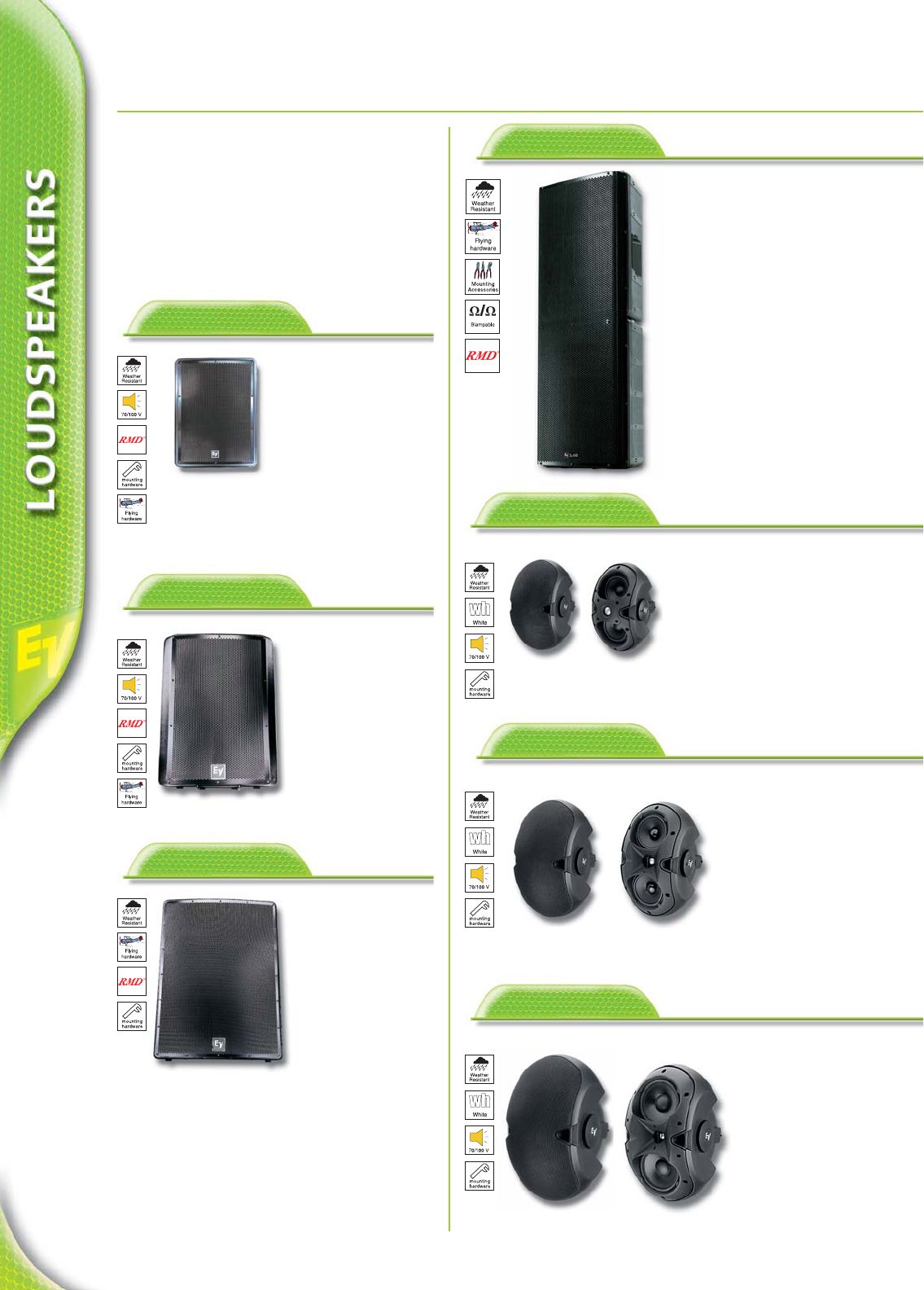

EV Innovative Design
Dual woofers for extended bass, greater power handling and output.
Coherent Coverage Waveguide horn design on models 4.2 and 6.2.
Dual low-frequency ports provide extended bass output.
Treated woofer cones for added weather resistance and
increased reliability.
Durable zinc-plated steel grille.
Cast aluminum Strong-Arm-Mount(SAM) system provides
excellent strength and reliability.
Over 100 degrees of swing and 90 degrees of rotation for
incredible installation flexibility.
Simple keyed hex head adjustments make installations
quick and easy.
Titanium dome tweeters with neodymium magnet structures
provide clean highs and added weather resistance.
One-piece ABS cabinet provides outstanding strength and
acoustic rigidity.
Smooth lines and innovative cosmetic design complement any
décor or environment.
Magnetically shielded transducers allow placement close to
sensitive equipment.
Frequency response (-10 dB) 85 Hz – 20 kHz 65 Hz – 20 kHz 62 Hz – 20 kHz 40 Hz – 140 Hz 85 Hz – 20 kHz
Sensitivity (SPL @ 1 W/1 m) 87 dB 89 dB 94 dB 100 dB 87 dB
Max. SPL/1 m (calc.) 108 dB 113 dB 118 dB 122 dB 108 dB
Continuous power handling 150 W 200 W 300 W 180/180 W 150 W
Peak power handling 600 W 800 W 1,200 W 720/720 W 600 W
Transformer taps 70V: 5 W 70V: 3.75 W 70V: 7.5 W 70V: 5 W
(transformer version only) 100V: 10 W 70V/100V: 7.5 W, 15 W, 30 W 70V/100V:15 W, 30 W, 60 W 100V: 10 W
Coverage (H° x V°) 140° x 100° 120° x 80° 100° x 80° 140° x 100°
LF driver 2 x 3.5” (90 mm) 2 x 4” (100 mm) 2 x 6” (100 mm) 12” (300 mm) 2 x 3.5” (90 mm)
HF driver 0.75” (20 mm) 1” (25 mm) 1” (25 mm) 0.75” (20 mm)
Nominal impedance (non transformer version) 8 8 8 8 (12.1) 8
Minimum impedance (non transformer version) 6 6 6 6 (12.1) 6
Input connections spring terminal spring terminal spring terminal spring terminal (12.1) 1/4” connector
Dimensions (H x W at front x D) 9.2” x 5.1” x 6.5” 12.2” x 6.9” x 8.5” 16.5” x 9” x 11.75” 16.25” x 23” x 12” 9.2” x 5.1” x 6.5”
234 x 127 x 165 mm 310 x 175 x 216 mm 419 x 228 x 298 mm 412 x 584 x 305 mm 234 x 127 x 165 mm
Net weight (incl. mounting bracket) 3.3 lbs.. (1.5 kg) 8.5 lbs.. (3.9 kg) 12 lbs.. (5.3 kg) 40 lbs.. (18.1 kg) 3.3 lbs.. (1.5 kg)
Shipping weight (pair) 8.6 lbs.. (3.9 kg) 19 lbs.. (8.6 kg) 27 lbs.. (12.3 kg) 48 lbs.. (20 kg) 8.6 lbs.. (3.9 kg)
Design goes
audio...
EVID 3.2/T EVID 4.2/T EVID 6.2/T EVID 12.1/P EVID SOS 3.2
25
•Two-way full range
•Vented LF enclosure
0.75” voice coil (titanium diaphragm)
with neodymium magnetic structure
•Full-bandwidth overload protection for
HF and LF
Three-dimensional ellipse
(for compact look)
•Magnetically shielded for video
applications
Comes with Strong Arm Mount
(SAM™) and a hex key
Suspension insert for SAM;
safety point on rear side
S.O.S. version’s volume control, 1/4”
connector, and stand-mount adapters
enable use as mic-stand monitor.
EVID 3.2/3.2T
•Two-way full range
•Vented LF enclosure
•1voice coil (titanium diaphragm) with
neodymium magnetic structure
HF section features Coherent Coverage
Waveguideto minimize interference
Full bandwidth overload protection for
HF and LF
Three-dimensional ellipse
(for compact look)
•Magnetically shielded for video
applications
Comes with Strong Arm Mount (SAM)
and a hex-key
Suspension insert for SAM,
safety point on rear side
EVID 4.2/4.2T
EVID 6.2/6.2T
•Two-way, high-output full range
•Vented LF enclosure
High sensitivity
•1voice coil (titanium diaphragm) with
neodymium magnetic structure
HF section features Coherent Coverage
Waveguideto minimize interference
Full bandwidth overload protection
for HF and LF
Three-dimensional ellipse
(for compact look)
•Magnetically shielded for video
applications
Comes with Strong Arm Mount
(SAM) and a hex key
Suspension insert for SAM;
safety point on rear side
EVID 12.1/12.1P
Subwoofer
Dual-voice-coil, high-excursion
transducer
High sensitivity
Built-in stereo crossover with
high-pass output
•Trapezoidal
Comes with mounting bracket
(passed EIA 636 at a safety factor of
8:1) for on-wall or corner mounting
One safety 3/8”-16 eyebolt included
Suspension inserts and 2 x 3/8”
hanging inserts
Available in powered version
(EVID 12.1P) with 300 W
(continuous) internal amplifier.
EVID SOS 3.2
Mic Stand Personal
Monitor
The EVID SOS 3.2 is a new
approach to personal monitors!
Its unique design enables the use
of only one stand for the
microphone and monitor. It frees
up stage space and puts
the monitor closer to the performer
for additional clarity. The SOS 3.2
handles 75 watts of power and
features a 1/4” input connector for
easy connection to the amplifier. In
addition, the performer can
precisely adjust the speaker
volume level using the L-Pad
adjustment on the back of the unit.
The compact design of the SOS
3.2 makes it unobtrusive on stage
and easy to pack and carry. The
SOS 3.2 package includes the
EVID SOS 3.2 speaker, all stand
mounting adapters and a shock
mount mic clip ready for use
on your favorite boom-mount
mic stand.
26

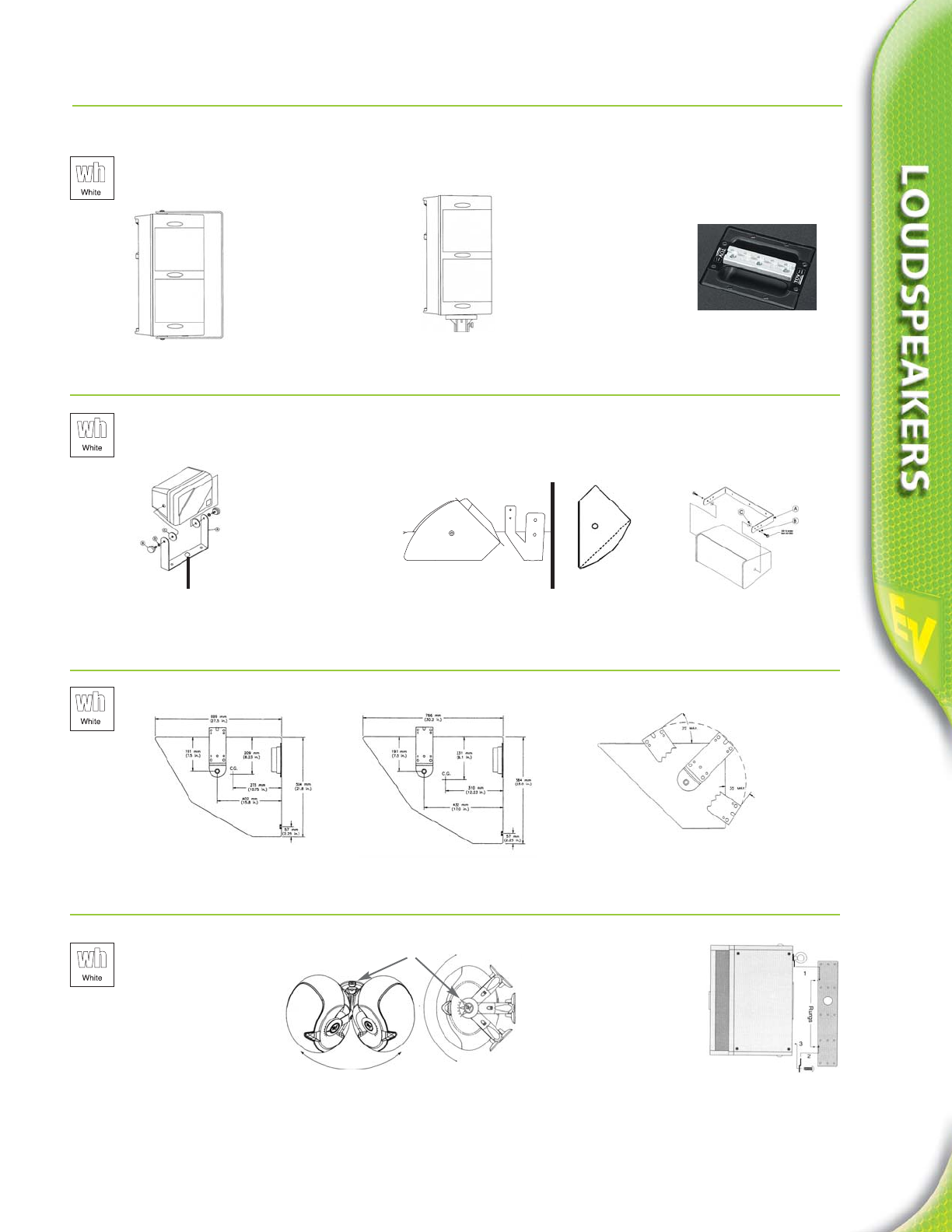

Accessories
Premium Surface-Mount Speakers
Mounting Brackets
AB-34 and AB-64 360-degree Kits
The AB-34 and 64 series kits feature a 4-sided powder-coated steel
mounting assembly allowing 4 EVID speakers to be mounted in an array
to cover a 360-degree pattern. The mount offers additional flexibility in
EVID system designs. The AB-34 works with the EVID 3.2 series and can
be used with a threaded rod for suspension from the ceiling. The AB-64
is used with the EVID 4.2 or 6.2 series speakers and can be used with a
speaker stand tripod or hung from the ceiling using a threaded rod as
shown. All necessary accessories and parts needed for use are included.
AB-32 and AB-62 180-degree Kits
The AB-32 and AB-62 series kits feature a 2 sided powder coated steel
mounting assembly allowing for 2 EVID speakers to be mounted in an
array to cover a 180-degree pattern. The AB-32 works with the EVID 3.2
series and can be used with a threaded rod for suspension from the
ceiling. The speakers can then be positioned on the bracket to cover a
variety of patterns to best serve the installation requirements. The AB-62
allows the EVID 4.2 or 6.2 series speakers to be used with a speaker
stand tripod or hung from the ceiling using a threaded rod as shown.
All necessary accessories and parts needed for use are included.
Tabletop Stands
HS-3 Horizontal Tabletop Stand
The HS-3 horizontal tabletop stand allows the EVID 3.2 or 4.2
orientation on a table, meter bridge, desk, bookshelf or other flat
surface. Ideal for portable applications, the stands are made
of steel for strength and durability and include rubber feet to
protect surfaces. Sold in pairs.
VS Series Vertical Tabletop Stands
The VS series vertical tabletop stands are available for any EVID full-range
model. The stands allow the EVID speakers to be easily used on a table,
desk, bookshelf or other flat surface in a vertical configuration. Ideal for
portable applications, the stands are made of plastic-coated steel for
strength and durability. Sold in pairs.
Other Accessories
TC Series Terminal Covers
The TC-4 and TC-6 terminal covers protect the input connections on the
EVID speakers from the long-term effects of moisture. The
covers are available for the EVID 4.2 and 6.2 series models. The covers
easily attach to the rear input panel of the speaker and include a
weatherproof cable connector.
MA-3 Mic Stand Adapter
The MA-3 is a microphone stand adapter that allows use of the EVID 3.2
with a standard boom mount microphone stand. Two adapter pieces allow
a solid and secure junction between the microphone boom on one side
and the microphone stand side on the other.
27
Ceiling Speakers
Perfect for conventional rooms. Excellent bandwidth in an
esthetically, unobtrusive installation profile. Its compact
design fits in tight areas. Fully rated for use in air handling
spaces. Its 4” woofer and waveguide coupled titanium
coated dome tweeter give smooth, wide frequency
response. The enclosure is ported and tuned to provide
surprising bass response in such a compact package.
Features an easy 3-point mounting system for quick
installations. Comes complete with mounting support ring
and tile rails. No additional accessories needed for most
installations.
EVID C4.2
Never before has a ceiling speaker system delivered such a
full range punch. Its specially tuned enclosure and 8” woofer
provide amazing bass response. The 1” waveguide coupled
tweeter give smooth controlled coverage out to 18 kHz.
Perfect for installations where a flush mount design is
desired but demand for high quality audio exists. Features a
4-point mounting system which makes installations fast and
easy. Comes complete with mounting support ring and tile
rails. No additional accessories needed for most
installations.
EVID C8.2
The EVID C8.2LP is the same as the C8.2, but with a
low-profile back can (3” shorter in depth) for tight-fitting
ceiling spaces.
The C10.1 packs a large 150 W subwoofer in a tuned high
performance enclosure to give amazing low frequency
performance down to 45Hz. The 10.1 is one of the only
quick mount ceiling TRUE subwoofers available on the
market. Flexible installation, and powerful low-end
performance make this an ideal companion to any EVID
model. Features a secure 4-point mounting system which
makes installations fast and easy. Comes complete with
mounting support ring and tile rails. No additional
accessories needed for most installations.
EVID C10.1
The Intelligible Choice
No matter what the installation calls for the new EVID ceiling speaker line can fill
the need. Each model is unique and designed to meet the toughest “problem” job
specifications. Sonically superior and esthetically pleasing, the EVID ceiling
speaker line has no match. From the compact, powerful C4.2 to the exclusive
waveguide coupled design of the C8.2HC (patent pending) for high ceiling
environments; the EVID ceiling line will solve any installation requirement. The
EVID ceiling speaker line was designed with the contractor and listener in mind.
Great sound, simple installation, and exceptional value are all part of every model.
The key features
Acoustically matched to the EVID surface mount speaker line
Regardless of the acoustic and esthetic requirements there is an EVID ceiling
monitor system to fit the requirements
Solves any installation challenge
Either 70V/100V or 8 ohm operation is standard on every model of the EVID
ceiling speaker line. No need to buy or stock special versions!
All installation accessories commonly needed for most jobs are included!
No expensive add-ons are necessary!
LF Transducer 4” (100 mm)” 8” (200 mm) 8” (200 mm) 8” (200 mm) 10” (254 mm)
Polypropylene cone Polypropylene cone Polypropylene cone Polypropylene cone +Waveguide Polypropylene cone
HF Transducer 0.75” (19 mm)” 1” (25 mm) 1” (25 mm) 1” (25 mm) 10” (24 mm) LF
Ti Mylar Laminate Dome Ti Mylar Laminate Dome Ti Mylar Laminate Dome Ti Mylar Laminate Dome
Frequency Response 65 Hz - 20 kHz 50 Hz - 20 kHz 50 Hz - 20 kHz 50 Hz - 20 kHz 45 - 180 Hz
Power Handling(8 )80 W (overload protected) 100 W (overload protected) 100 W (overload protected) 100 W (overload protected) 150 W
Coverage Pattern 130° conical 110° conical 110° conical 75° conical (@ >1 kHz) 180°
Sensitivity (1 W/1 m) 86 dB 91 dB 91 dB 93 dB 94 dB
Input Configuration 8 ,70 V, 100 V 8 ,70 V, 100 V 8 ,70 V, 100 V 8 ,70 V, 100 V 8 ,70 V, 100 V
Transformer Power Taps (W) 1.88, 3.75, 7.5, 15, 30 1.88, 3.75, 7.5, 15, 30 1.88, 3.75, 7.5, 15, 30 7.5, 15, 30, 60 7.5, 15, 30, 60
Dimensions (H x Dia.) 6.9” x 7.1” (176 x 181mm) 10” x 10.6” (178 x 270 mm) 7.0” x 10.6” (255 x 270 mm) 11.9” x 12.8” (303 x 320 mm) 11.9” x 12.8” (303 x 320 mm)
Weight 6 lbs.. (2.7 kg) 11 lbs.. (5.0 kg) 11 lbs.. (5.0 kg) 13.2 lbs.. (6.0 kg) 15.5 lbs.. (7.0 kg)
Acoustic Design Ported cabinet,internally damped Dual ported cabinet,
Two-Way, inc. passive crossover internally damped
Cabinet Construction Steel enclosure and UL94V-0 rated baffle and bezel
Mounting System Integrated 3-point toggle anchors
Grille Construction Powder coated steel
Available Colors White (paintable surface)
EVID C8.2LP
EVID C4.2 EVID C8.2 EVID C8.2LP EVID C8.2HC EVID C10.1
The EVID C8.2HC is ideal for high ceiling and reverberant
“problem” rooms. It’s exclusive ported, waveguide coupled
8” driver provides for excellent intelligibility and definition.
The 8.2HC’s patent pending design provides great
coverage control throughout the voice range and above.
No other speaker system provides the combination of
excellent pattern control, wide bandwidth, high power
handling and compact design like the C8.2HC. Features a
secure 4-point mounting system which makes
installations fast and easy. Comes complete with mounting
support ring and tile rails. No additional accessories
needed for most installations.
EVID C8.2HC
•Two-way, high-output full range
High sensitivity
•1voice coil (titanium diaphragm)
with neodymium magnetic structure
Full bandwidth overload protection
for HF and LF
Three-dimensional ellipse
(for compact look)
Comes with Strong Arm Mount
(SAM) and a hex key
Suspension insert for SAM;
safety point on rear side
EVID 6.2/6.2T
•Two-way full range
•1voice coil (titanium diaphragm) with
neodymium magnetic structure
Full bandwidth overload protection for
HF and LF
Three-dimensional elliptic
(for compact look)
Comes with Strong Arm Mount
(SAM) and a hex-key
Suspension insert for SAM,
safety point on rear side
EVID 4.2/4.2T
28
From the EVID3.2 to the Sx600PI, EV offers excellent
solutions for outdoor speaker needs. EV®’s Sx-Series (PI and
PIX) bring the sound of indoor speakers out into the fresh air,
and can be used for portable and fixed installations such as
major theme parks. The new EVID line provides visual style
and audio substance not only indoors, but also in any outdoor
environment and in humid indoor environments such as
pools and saunas. Both families include transformer options.
Ultra-compact two-way,
8-inch, short-throw system
Black powder-coated
full-face stainless steel
grille, with foam backing
and a polyester mesh
water shield
Paintable, black polystyrene
enclosure
70.7/100-volt 60-watt
transformer option with
selectable taps (Sx80PIX)
Sx80PI/PIX
Sx300PI/PIX
Sx500PI+
•Two element vertical line array package
•Very high sensitivity (105 dB/1W/1m)
•High intelligibility
•Two 12” woofers
DH2T driver on 65° x 65° Varipath horn
All-weather cabinet
• SuperSAMmounting, 60° x 180° adjustable
Waterproof connection by SJO cable with gland nut
Internal 600 Watt transformer available (SX600PIX)
• For specifications, see page 9
Sx600PI/PIX
•Two-way full range
0.75” voice coil (titanium diaphragm)
with neodymium magnetic structure
Full-bandwidth overload protection for
HF and LF
Three-dimensional ellipse
(for compact look)
Comes with Strong Arm Mount (SAM)
and a hex key
Suspension insert for SAM;
safety point on rear side
EVID 3.2/3.2T
Outdoor Speakers
•Two-way, 12-inch,
medium-throw, full-range
system
Black powder-coated
full-face stainless steel grille,
with foam backing and a
polyester mesh water shield
500 Hz directional control
from vented LF horn
Paintable, black polystyrene
enclosure
70.7/100-volt 100-watt
transformer option with
selectable taps (Sx80PIX)
• Two-way, 15-inch, medium-
throw, full-range system
• Paintable black, polystyrene
enclosure
A baseball-stadium favorite
• Weather-resistant woofer
(DL15 5 x W)
• Black powder-coated
full-face stainless steel
grille, with foam backing
and a polyester mesh
water shield
• 500 Hz directional control
from vented LF horn
• Comes with foamport plugs
for increased water
resistance
29

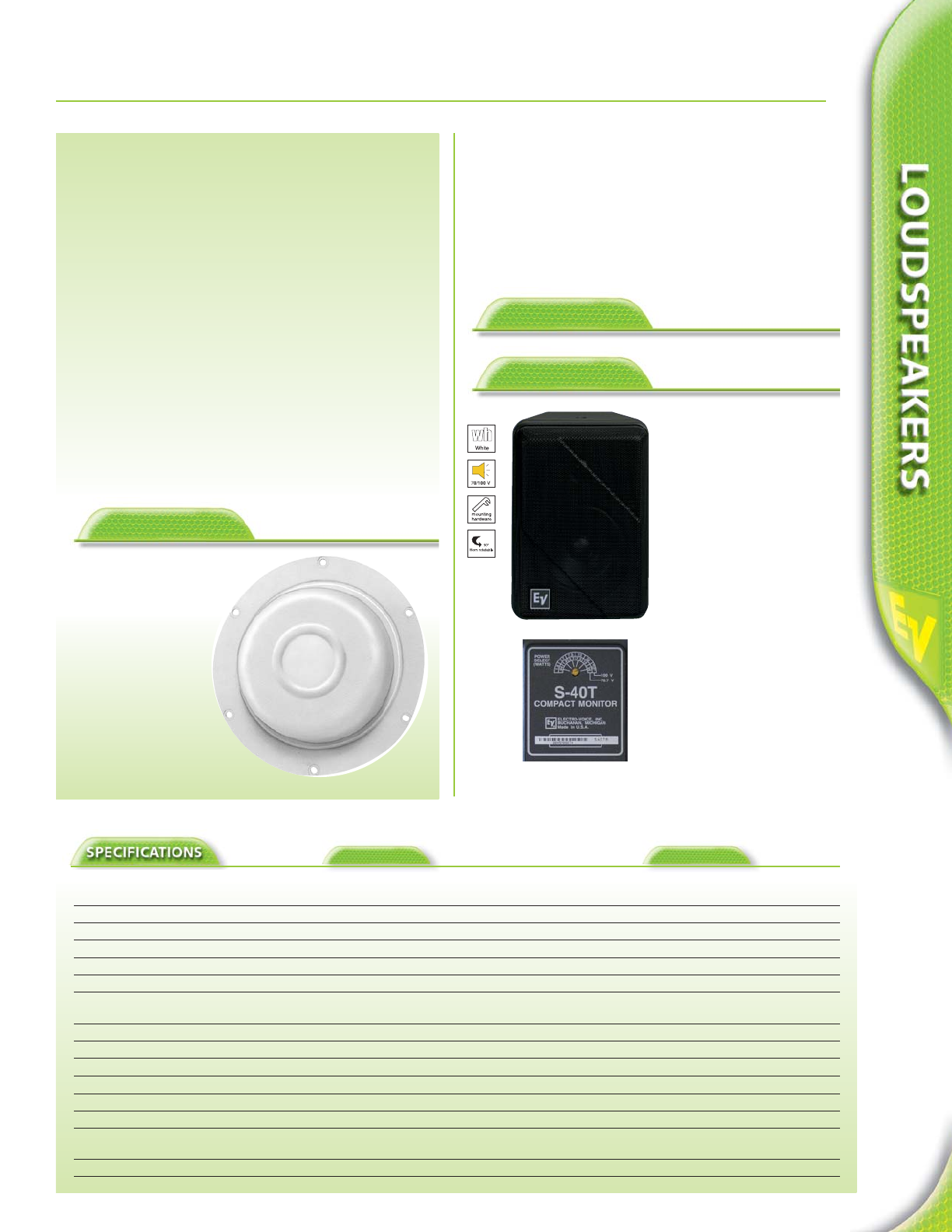

Underwater Loudspeaker
The UW 30 represents a departure in the design of underwater
sound sources. Its unique, patented design uses the case´s structural
enclosure as the sound transducer. Underwater speakers are
required equipment for many activities in commercial, luxury resort
pools and synchronized swimming events or instructions in Olympic
pools. They are used for water ballets and similar water shows.
UW 30 has a high-fidelity sound with low distortion, and the effect of
music played underwater through it is truly enchanting.
The outer case of UW 30 is made of high-impact ABS and is
pool-blue in color. All internal components are sealed inside the
speaker through a “hot-melt” process, allowing it to be used in fresh-
or salt-water pools or ocean environments. Sound dispersion is up to
30 x 30 feet (10 x 10 m) under water. Operating depth is up to
10 feet (3 m), with a recommended depth of 4 feet (1.2 m). Note:
For overload protection, install a 25-ohm, 20-watt resistor in parallel
with a 1.5-amp, fast-blowing fuse in series with the speaker.
Full-range underwater
sound source
Uniform sound throughout
medium-sized pools
•Very high-fidelity sound
Salt-water resistant
Comes with a 50-foot
(15-m), three-conductor
waterproof cable
terminated within the
internal
encapsulation material
UW 30
Ultra-Compact Monitor System
EV®’s S-40 produces maximum frequency response with an extended bass
response. The sensitivity, therefore, is slightly less than with a regularly
tuned box. The S-40 is made of black or white high-impact polystyrene
structural foam protected with a full-size, matching front grille.
The transformer taps of the T-Version are selected externally with a switch,
as shown below.
• Two-way, full-range ultra-compact
• Ultra-linear frequency response
Vented LF enclosure
• Full bandwidth protection circuit for
woofer and tweeter
• Ferrofluid-cooled soft-dome tweeter
• Trapezoidal
• 2 x 1/4”–20 suspension points
Available with transformer (S-40TB),
in white (S-40W), and in white with
transformer (S-40TW).
External tap
selector
S-40 B
S-40 T/B
Frequency range 100 Hz – 10 kHz 85 Hz – 20 kHz (+/- 3dB)
Sensitivity (SPL 1W/1 m) 85 dB (T-version: 84 dB)
Max. SPL/1 m (calc.) 113 dB (T-version: 99 dB)
Continuous power handling 30 W 160 W (T-version: 30 W)
Peak power handling 640 W
Transformer taps (transformer version) 30/15/7.5/3.7/1.9 W (100V)
Coverage (H° x V°) omni (underwater) 100° x 100°
Directivity Index 9.8 dB (+3.8/-3.6 dB)
—2 kHz–20 kHz
LF driver special type 5.25”
HF driver 1” Softdome
Crossover frequencies 3,500 Hz
Nominal impedance (low Z version) 8 4
Minimum impedance (low Z version) 3.7
Input connections waterproof cable spring terminal
Dimensions (H x W at front x D) 7.19” (diameter) x 2.61” (D) 9.8” x 7” x 5.9”
183 mm [diameter] x 66 mm [D] 249 x 178 x 150 mm
Net weight (including mounting bracket) 4 lbs.. (1.8 kg) 5.7 lbs.. (2.6 kg [T-version: 3.3 kg])
UW 30 S-40
Outdoor Speakers
30

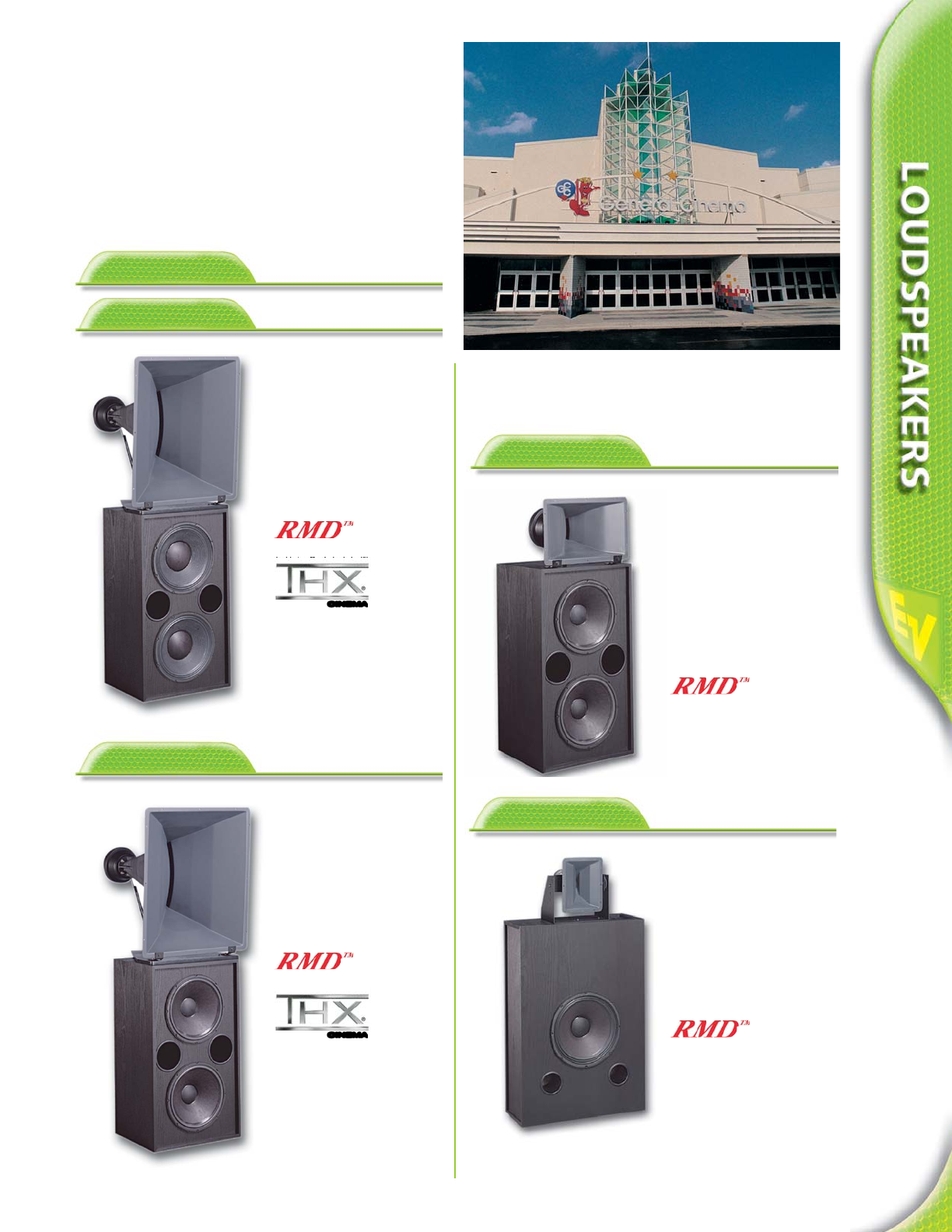

Cinema Systems
Electro-Voice loudspeakers are as much a part of cinema as “going to the
movies” is part of our popular culture. For example, it would be hard to
believe Jurassic Park without those thunderous dinosaur steps, or to
imagine not hearing Judy Garland sing “Somewhere Over the Rainbow” in
the classic film The Wizard of Oz.
For decades, EV has provided theaters worldwide with properly designed
screen channel and surround loudspeakers that meet or exceed Dolby®and
THX™ standards. In the 1970s, Electro-Voice was the first to offer to the
cinema industry Constant Directivity™ horns and smaller, more efficient
low-frequency systems using Thiele-Small parameters. In the 1990s,
EV was the first to bring asymmetrical horns to 3-way systems in our
Variplex line of screen channel loudspeakers. In 2002, we proudly
introduced the first all-passive, 3-way, Variplex screen system, requiring only
one amplifier channel. Technological innovations from the EV Engineering
Group continue strongly today, just as they have since 1927.
We know cinema, from the largest theater chains, to the most prestigious
film festivals, even to being the official sound of ShoWest. Electro-Voice
Cinema Systems provide the highest quality sound to bring the movies
to life.
Three-way stage system
ADC technology provides
uniform MF/HF front-to-back
coverage
Ring-Mode Decouplingimproves
vocal clarity and intelligibility
Passive MB/HF crossover for
biamping
THX®approved
Digital Dynamics Capable
Three-way, high-output
stage system
High-output MB and HF drivers
ADC technology provides uniform
MF/HF front-to-back coverage
Ring-Mode Decoupling
improves vocal clarity
and intelligibility
THX®approved
Digital Dynamics Capable
Variplex II
Variplex II XL
• Matinee Series
• 3-way system designed for
mid-sized rooms
• Provides all benefits of a three-way
design, including the unique
asymmetric directed coverage of all
Variplex systems
• Can be operated passive 3-way,
biamp or triamp.
Variplex M
CINEMA
CINEMA
Vertical Dispersion - projection straight to the audience
Rectangular horizontal
coverage, with even
front-to-back
SPL distribution
© THX Ltd. & TM. All rights are reserved. THX is a registered trademark of THX Ltd. For Cinema specs, see page 33
31
• Large format two-way system
• High power handling capability for
large rooms
THX®approved
• Biamped operation only
Digital Dynamics Capable
•Wide, smooth frequency response
TS550D-LX
Two-Way Systems
Electro-Voice®two-way screen systems offer flexibility in size and high-
quality sound output for a variety of cinema applications. The TS9040D-LX
and the TS550D-LX, both large-format systems, feature very high efficiency
and are THX®-compatible. The medium-format TS940D includes a passive
crossover, and the small-format TS992E’s innovative flat-cabinet
design saves considerable space behind the screen. For efficiency, wide-
ranging application solutions, and incredible sound quality, nothing beats
EV screen systems.
CINEMA
Large-format, two-way screen system
Provides excellent acoustical
performance in large or small rooms
THX®approved
Digital Dynamics Capable
•Wide, smooth frequency response
TS9040D-LX
CINEMA
Two-Way Systems for Large Rooms
Two-Way Systems for Small to
Medium Venues
Medium-format, two-way screen
system
HP940T horn/ND6 driver
XEQ-504 crossover for single-channel
operation
Smooth, accurate sound
Passive crossover for single-channel
operation
Small-format, two-way screen system
DH2T HF driver with HP99C horn
TL15-1ESX LF system
10” depth: low-profile system
(254 mm)
Passive crossover for single-channel
operation
For Cinema specs, see page 33
TS550D
TS992E
TS940D
32
Cinema Systems
TL880D
•Very-low-frequency subwoofer
•Direct radiating vented design
High acoustic output to below
20 Hz (-10 dB) allows real
low end effects (TL88OD only)
THX®approved (TL88OD only)
• Matinee Series:TL880DM
TL880DM
Low-frequency subwoofer
•Direct radiating vented design
38 Hz low end for rich bass
Ultrathin depth designed for use
with TS992E system
SL12-2V
High-output, two-way surround
loudspeaker
•Versatile suspension and
safety options
15° slanted cabinet
Exceptionally wide and smooth
frequency response
• SL12-2V has 12” woofer
SL10-2V model has 10” woofer
THX®compatible
Digital Dynamics Capable
TL6.2M
• Full-Bandwidth overload protection
• Strong-Arm-Mountfor easy,
flexible aiming
• Lightweight, unobtrusive plastic
enclosure
• Easy access input terminals
Surround Loudspeakers
TL440
•Very-low-frequency subwoofer
•Direct radiating vented design
High acoustic output featuring
single EVX180B woofer
(TL440 only)
THX®approved (TL440 only)
• Matinee Series:TL440M
TL18-1ES
TL440M SL10-2V
CINEMA
CINEMA
CINEMA
TL880D TL880DM TL440 TL440M TL18-IES
Frequency Range 34 Hz - 16 kHz 34 Hz - 16 kHz 45 Hz - 18 kHz
Sensitivity, 1W/1 m (LF/MF/HF) 104/109/112 dB 101/109/112 dB 104 dB
Max.SPL/1 m (calc.) (ave./peak) 136/141 dB 130/136 dB 127/133 dB
Crossover Frequency 500 Hz /1,300 Hz 500 Hz /1,300 Hz 500 Hz
Continuous Power Handling (LF/MF/HF) 1,600/400/75 W 800/400/75 W 500/300 W
Peak Power Handling (LF/MF/HF) 6,400/1,600/300 W 3,200/1,600/300 W 2,000/1,200 W
Coverage Horizontal (long axis/short axis) 90° 90° 90°
Coverage Vertical (up/down) 20°/30° 20°/30° 20°/30°
HF driver ND6-8 ND6-8 DH2T
MF driver 2 x EVS-8HP 2 x EVS-8HP 2 x EVS8D
LF driver 4 x DL15ST 2 x DL15ST 2 x EVS-15G
Nominal Impedance 2 x 4/4/8
4/4/8
4/4
Dimensions (Height/Width/Depth) in mm 82.3” x 23.5” x 18.4” 69.5” x 25.5” x 15.6” 69.5” x 25.5” x 15.6”
2,090 x 1,150 x 511 mm 1,765 x 648 x 396 mm 1,765 x 648 x 396 mm
Weight (net) 306 lbs.. (139 kg) 163 lbs.. (74 kg) 160 lbs.. (72.6 kg)
33
Cinema Systems Specifications
Frequency Range 30 Hz - 20 kHz 32 Hz - 20 kHz 30 Hz - 20 kHz
Sensitivity, 1W/1m (LF/HF) 100/111 dB 100 dB 96 dB
Max.SPL/1m (calc.) (ave./peak) 131/137 dB 129/135 dB 122/128 dB
Crossover Frequency 500 Hz 500 Hz, internal 1,200 Hz, internal
Continuous Power Handling (LF/HF) 1,200/75 W 800 W 400 W
Peak Power Handling (LF/HF) 4,800/300 W 3,200 W 1,600 W
Coverage (H x V) 90° x 40° 90° x 40° 90° x 90°
HF driver ND6X-8 ND6- X DH2T
LF driver 2 x EVX155 2 x DL15ST DL15ST
Nominal Impedance 4/8 4 8
Dimensions (H/W/D) in mm 71.5” x 26.8” x 37.3” 53.3” x 22.5” x 17.6” 50.8” x 26.8” x 10”
1,816 x 681 x 947 mm 1,354 x 572 x 447 mm 1,289 x 681 x 254 mm
Weight (net) 165 lbs.. (74.8 kg) 133 lbs.. (60.4 kg) 97 lbs.. (43.9 kg)
Frequency Range 23 Hz - 80 Hz 27 Hz - 80 Hz 33 Hz* - 80 Hz 27 Hz - 80 Hz 38 Hz - 2.0 kHz
Sensitivity, 1 W/1 m (full/half-space) 99/105 dB 99/105 dB 96/102 dB 96/102 dB 96/102 dB
Max.SPL/1 m (calc.) (ave./peak) 136/142 dB 133/139 dB 130/136 dB 127/133 dB 128/134 dB
Continuous Power Handling 1,200 W 700 W 600 W 350 W 400 W
Peak Power Handling 4,800 W 2,800 W 2,400 W 1,400 W 1,600 W
Coverage (<125 Hz) omnidirectional omnidirectional omnidirectional omnidirectional omnidirectional
LF driver 2 x EVX180B 2 x EVS-18S 1 x EVX180B 1 x EVS-18S 1 x DL18-MT
Nominal Impedance 4 4 8 8 8
Dimensions (Height/Width/Depth) 47.6” x 30” x 23.8” 47.5” x 30” x 23.8” 39.5” x 22.5” x 22” 39.5” x 22.5” x 22” 47” x 26.7” x 10”
1,210 x 762 x 605 mm 1,207 x 762 x 605 mm 1,003 x 572 x 559 mm 1,003 x 572 x 559 mm 1,193 x 680 x 254 mm
Weight (net) 160 lbs.. (72.6 kg) 156 lbs.. (70.8 kg) 108 lbs.. (49 kg) 98 lbs.. (44.5 kg) 95 lbs.. (43 kg)
* 24Hz in step-down mode
Frequency Range 70 Hz - 20 kHz 60 Hz - 20 kHz 48 Hz - 20 kHz
Sensitivity, 1 W/1 m 93 dB 93 dB 90 dB
Max.SPL/1 m (calc.) (ave./peak) 116/121 dB 113/119 dB 111/177 dB
Continuous Power Handling 200 W 100 W 125 W
Peak Power Handling 800 W 400 W 500 W
Coverage (H x V) 100° x 90° 100° x 100° 100° x 100°
LF driver 12” woofer 10” woofer 6” woofer
HF driver DH2010A 1” compression dr. 1” driver on waveguide
Nominal Impedance 8 8 8
Dimensions (Height/Width/Depth) 21” x 18.7” x 13” 18.75” x 12.5” x 10.81” 16.5” x 9” c 11.7”
535 x 476 x 335 mm 476 x 318 x 275 mm 419 x 228 x 198 mm
Weight (net) 47 lbs.. (21.4 kg) 23.1 lbs.. (10.5 kg) 10 lbs.. (4.5 kg)
Variplex II XL Variplex II Variplex M
TS550D-LX TS940D TS992E
SL12-2V SL10-2V SL6.2M
34
X-Array
X-Arrayspeaker systems provide world class performance and flexibility
for concert touring systems.
The X-ArrayX-Seriesrepresents important advancements in concert-
sound reinforcement technology. The design goals called for the highest
acoustic output capability with the highest fidelity in a relatively lightweight,
compact enclosures that were easy to array. The individual systems, drivers,
horns, enclosures, rigging hardware and system configurations were
designed from the ground up specifically for this high-performance
application. For additional easier handling special speaker dollies are
available. RMDwas another ingenious development when X-Arraywas
“born”. EV´s traditional top-down development strategy brings this essential
acoustic advantage “down” through other EV products. X-Arrayhas
unprecedented acoustic output and excellent directivity control.
Rigging for big hangs: unique rear-hinge rigging for fast, easy and
secure rigging. A 64-box hang goes up or down in 30 minutes. Front rigging
straps control vertical aiming, rear fixed hinge makes tilting easy. Mating
positioning recesses on cabinet tops and bottoms help to assemble and
disassemble an array on the ground, a layer at a time. A detailed 25-page
“flying manual and structural ratings” handbook is available.
The X-Arrayone-person rigging hardware is TÜV approved.
Neodymium magnetics: for lighter weight and maximum acoustic
output. All 12-inch mid-bass transducers are the ND12A, for a 3-dB
average increase in output. Neodymium in the ND5-16 compression driver
increases output in the upper octaves. The ND5-16 driver features a 3.5”
titanium diaphragm.
Amping and Controller: X-Arrayis powered by EV´s world famous
Precision Seriesand controlled by Klark Teknik DN 9848 digital 4-in/8-out
controller, Electro-Voice Dx38, or Precision Series Remote amplifiers for
flexible and easy configurations. Flyable amp racks are available.
X-Arrayis made of 13-ply birch plywood finished in black textured paint
and protected by a powder-coated steel front grille backed with foam.
Frequency Range (-3 dB) 140 Hz - 20 kHz 48 Hz - 20 kHz 125 Hz - 20 kHz 37 - 200 Hz
Recommended High-Pass Frequency 125 Hz 50 Hz 125 Hz 40 Hz
Axial Sensitivity SPL 1 W/1 m 112/116 dB 95/110/112 dB 110/112 dB 98.5 dB
Max. SPL/1 m (calc.); full space 146/144 dB 123/135/131 dB 135/131 dB 129 dB
Continuous Power Handling 600/150 W 600/300/75 W 300/75 W 1.200 W
Peak Power Handling (Peak) 2,400/600 W 2,400/1,200/300 W 1,200/300 W 4,800 W
Coverage (nominal -6 dB) H° x 40° x 20° (CD Horn) 60° x 40° (CD Horn) 60° x 40° (CD Horn) 240° x 300° (63-200 Hz)
Directivity Index 17.2 dB (+2.0/-2.7 dB) 13.7 dB (+1.4/-1.4 dB) 13.4 dB (+2.0/-1.8 dB) 3.4 dB (+1.4/-0.9 dB)
800 Hz - 16 kHz 800 Hz - 16 kHz 800 Hz - 16 kHz 63 - 200 Hz
LF woofer (transducer) 18” (EVX-180B) 2 x 18” (EVX-180B)
MB woofer (transducer) 2 x 12” (ND12A) 12” (ND12A) 12” (ND12A)
HF throat diameter (transducer) 2 x 1.4” (ND6-16) 1.4” (ND6-16) 1.4” (ND6-16)
Crossover Frequencies 125 Hz 125 Hz 1,760 Hz 125 Hz
Nominal Impedance 8 /8 8 /16 /16 16 /16 2 x 8
Minimum Impedance 4.9 /7.0 6.5 /9.4 /14.0 9.9 /12.9 2 x 6.4
Input Connections 2 Neutrik®NL8 Speakon®2 Neutrik®NL8 Speakon®2 Neutrik®NL8 Speakon®2 Neutrik®NL8 Speakon®
Dimensions (H x W at front x D) 36” x 23” x 29.8” 36” x 23” x 29.8” 23.46” x 23” x 29.8” 36” x 23” x 29.8”
1,067 x 584 x 759 mm 1,067 x 584 x 759 mm 596 x 584 x 759 mm 1,067 x 584 x 759 mm
Net Weight 192 lbs.. (87.1 kg) 192 lbs.. (87.1 kg) 134 lbs.. (60.8 kg) 184 lbs.. (83.5 kg)
Frequency Range (-3 dB) 37 - 200 Hz 32 - 200 Hz 60 Hz - 16 kHz 50 Hz - 16 kHz
Recommended High-Pass Frequency 40 Hz 40 Hz 60 Hz 50 Hz
Axial Sensitivity SPL 1 W/1 m 95 dB 100 dB 99/110 dB 99/110 dB
Max. SPL/1 m (calc.); full space 123 dB 131 dB 130/135 dB 133/135 dB
Continuous Power Handling 600 W 1,200 W 300/75 W 600/75 W
Peak Power Handling (Peak) 2,400 W 4,800 W 1,200/300 W 2,400/300 W
Coverage (nominal -6 dB) H° x 300° x 270° (63-200 Hz) 180° x 200° (63-200 Hz) 55° x 80° (CD Horn) 55° x 80° (CD Horn)
Directivity Index 2.7 dB (+1.0/-0.6 dB) 4.8 dB (+2.1/-1.7 dB) 11.6 dB (+2.3/-2.1 dB) 11.6 dB (+3.0/-3.6 dB)
63 - 200 Hz 63 - 200 Hz 1.2 - 16 kHz 1.2 - 16 kHz
LF woofer (transducer) 18” (EVX-180B) 2 x 18” (EVX-180B) 12” (DL12ST) 15” (EVX-155)
MB woofer (transducer)
HF throat diameter (transducer) 1.4” (DH7-16) 1.4” (DH7-16)
Crossover Frequencies 125 Hz 80 Hz 1,250 Hz 1,250 Hz
Nominal Impedance 8 2 x 8 8 /16 8 /16
Minimum Impedance 5.6 2 x 6.1 8.2 /10.5 7.2 /14.3
Input Connections 2 Neutrik®NL8 Speakon®2 Neutrik®NL8 Speakon®4 Neutrik®NL8 Speakon®2 Neutrik®NL8 Speakon®
Dimensions (H x W at front x D) 23.46” x 23” x 29.8” 36” x 28.9” x 29.8” 14.11” x 23” x 16.1” 18” x 25.36” x 18.13”
596 x 584 x 759 mm 914 x 1,166 x 759 mm 358 x 584 x 409 mm 389 x 644 x 461 mm
(in floor position) (in floor position)
Net Weight 123 lbs.. (55.8 kg) 267 lbs.. (121.0 kg) 62 lbs.. (28.2 kg) 70 lbs.. (31.8 kg)
Xcb Xds Xw12 Xw15
Xf Xn Xcn Xb
35

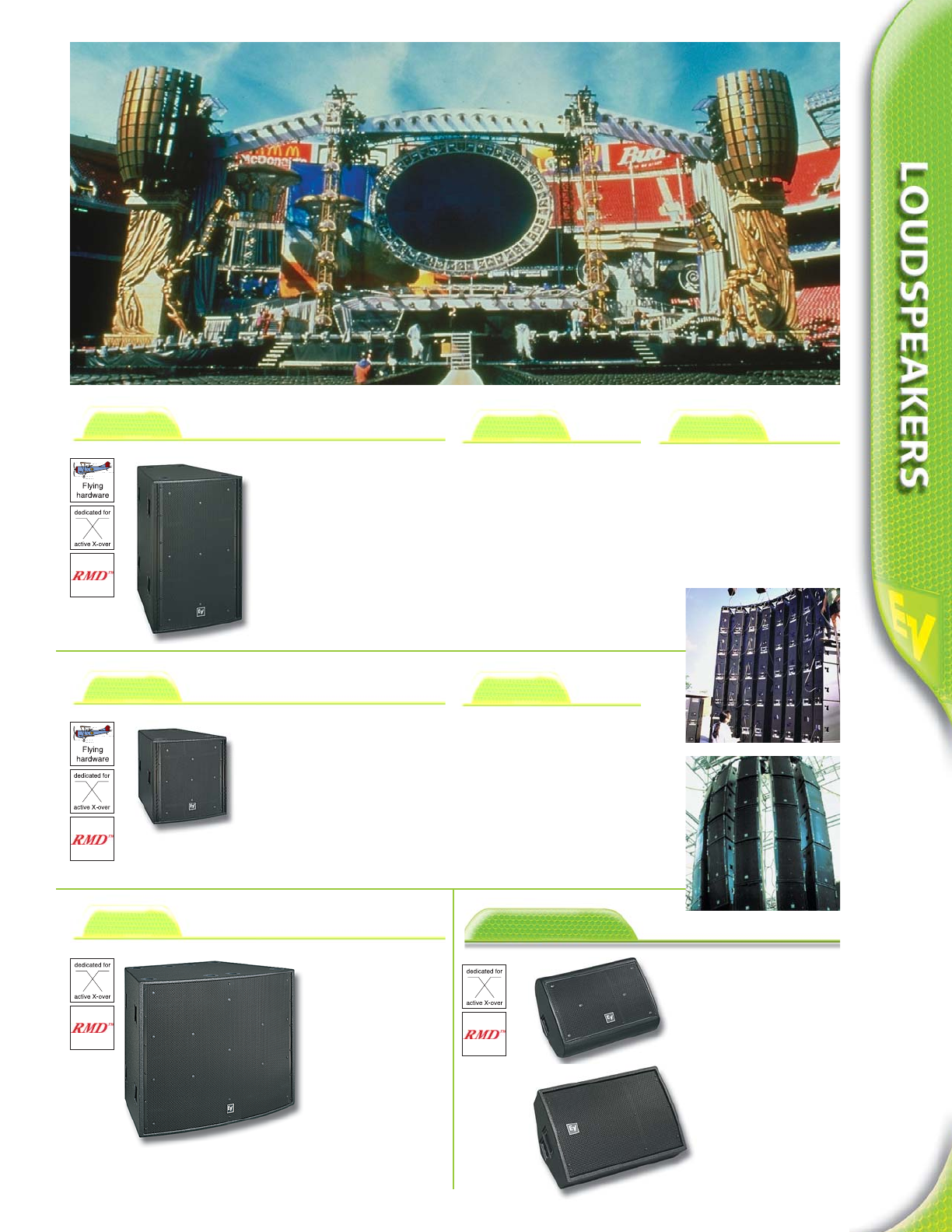

3-way extraordinary output near-field
MB/HF section horn-loaded
and rotatable
Identical height as Xf, Xb
Excellent directivity control
•Trapezoidal (9° per side)
Extraordinary output
low-end sub
Manifolded, vented design
Accurate transient detail
•Trapezoidal (18° per side)
Designed for ground
stacking
2-way high-output floor monitor
•Vented LF enclosure
3.5” voice coil (titanium
diaphragm) for low distortion
•Two symmetrical 55° angles
2-way exceptional output far-field
MB/HF section horn-loaded
Identical height as Xn, Xb
Excellent directivity control
•Trapezoidal (9° per side)
High-output LF cabinet
Manifolded, vented design
Identical height as Xn, Xf
Accurate transient detail
•Trapezoidal (9° per side)
Xf, Xn and Xb look
identical
Xf
2-Way high-level
output near-field
Identical height as Xcb
MB/HF section identical to
Xn and rotatable
Excellent directivity control
•Trapezoidal (9° per side)
Xcn
Xcn and Xcb look
identical
Xn Xb
Xcb
High-output subwoofer
Manifolded, vented design
Identical height as Xcn
Equivalent to half of an Xb
Accurate transient detail
•Trapezoidal (9° per side)
Xds Xw12/Xw15
36

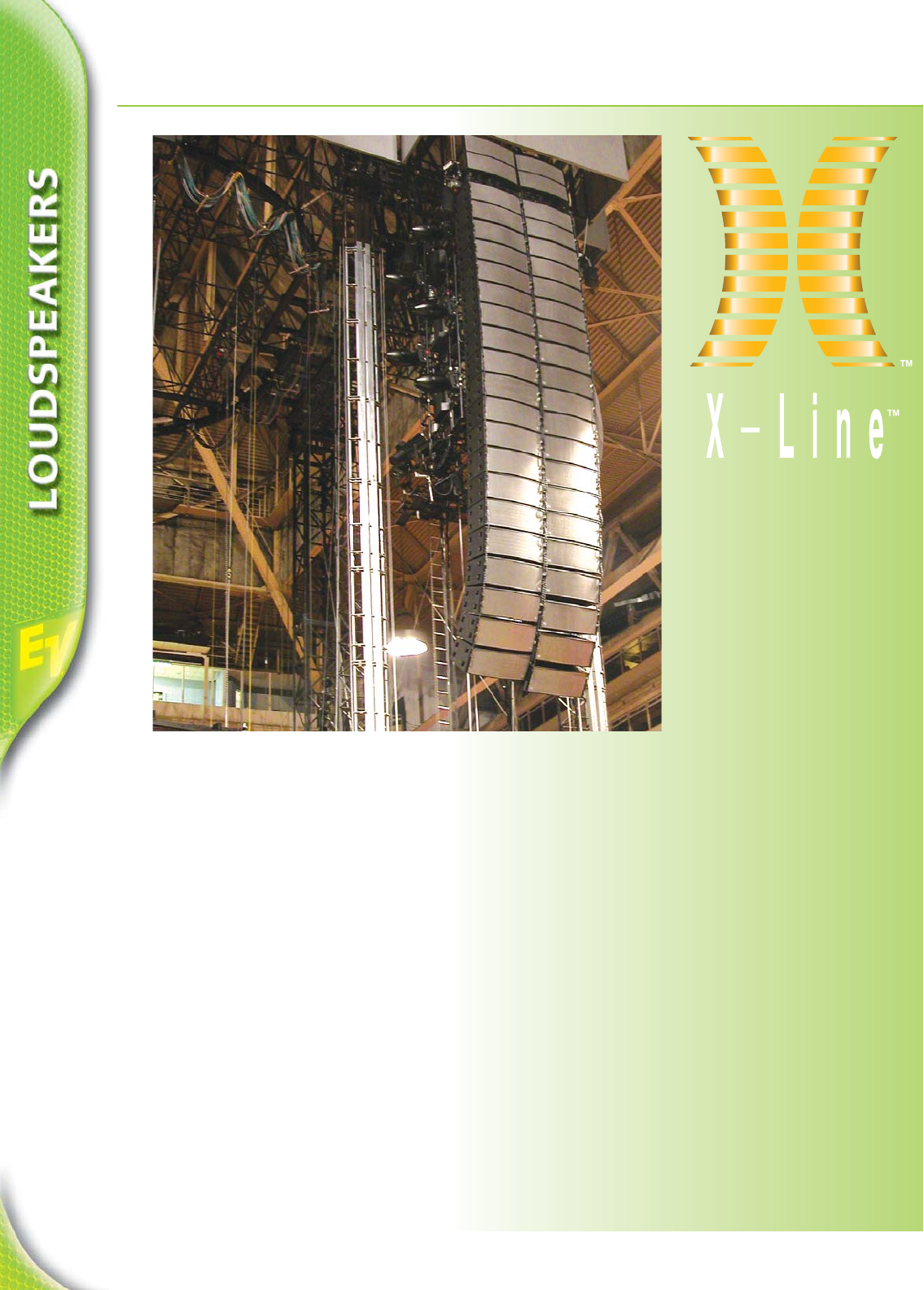

X-Line
Development of the EV®X-Linesystem was driven by
the need for a high-level concert touring enclosure that
combines the sonic impact and vocal intelligibility of the
renowned X-Arraysystem with the uniform, predictable
coverage that only a line-array configuration can deliver.
The EV engineering team set out to develop the next
generation of line-array systems, combining their years
of experience in the development of X-Array with the
absolute latest state-of-the-art technologies. As a matter
of course, X-Line features the essential acoustical
advantage of RMD.
The X-Line system was designed to provide wide
horizontal dispersion (90°) from a single vertical line
array while providing exceptionally coherent wavefront
summing in the vertical plane. At the heart of X-Line is a
newly developed high-frequency wavefront alignment
and summation device – the Hydra– that provides
planar and time-coherent signal addition. The broad
bandwidth vertical planar summing provides uniform
sound field distribution throughout the listening area.
Stereo imaging is improved by the X-Line´s full-
bandwidth mid-bass loading. Extended low-frequency
polar control produces more uniform power response,
further enhancing overall system intelligibility. The overall
power response of the X-Line is very uniform across a
wide frequency spectrum, making possible the system´s
very musical sonic character.
If every performance space conformed to the same
acoustic ideal, any linear loudspeaker array would
suffice. But every arena, concert hall, and stadium is a
unique space, and the one-box, one-dimensional design
of most linear arrays just can´t adapt. X-Line is different.
X-Line lets you match the acoustical solution to the
acoustical environment.
X-Line lets you stack Xvls enclosures at the top of an
array for long throw with a 90° horizontal included angle,
followed by Xvlt enclosures for the shorter throw and
120° horizontal coverage needed at the J-curve of the
array. Beneath the array, Xfil enclosures provide downfill
coverage that maintains the vertical integrity of the array.
Completing the X-Line system are Xsub subwoofers that
can be flown next to the main array or ground stacked.
X-Line is made of 13-ply birch plywood with structural
aluminum reinforcement finished with a rugged foam-
backed steel grille to protect the drivers. A user’s guide
with detailed specifications is available on request.
Electro-Voice recommends using the Klark Teknik
DN9848 or EV’s Dx38 as the system controller, along
with EV P3000 power amplifiers, for amplification.
37
Frequency range (-3 dB) 40 Hz – 18 kHz 40 Hz – 18 kHz 40 Hz – 18 kHz 33 – 400 Hz
Recommended high-pass frequency 50 Hz 50 Hz 50 Hz 33 Hz
Sensitivity (SPL 1 W/1 m) (LF/MB/HF) 101 dB/111 dB/118 dB 101 dB/111 dB/117 dB 101 dB/107 dB/112 dB 100/106 dB*
Max. SPL/1m (calc.) (LF/MB/HF) 132 dB/139 dB/142 dB 132 dB/139 dB/141 dB 132 dB/135 dB/134 dB 131/137 dB*
Continuous power handling (LF/MB/HF) 1,200 W/600 W/225 W 1,200 W/600 W/225 W 1,200 W/600 W/150 W 1,200 W
Peak power handling (LF/MB/HF) 4,800 W/2,400 W/900 W 4,800 W/2,400 W/900 W 4,800 W/2,400 W/600 W 4,800 W
Coverage (H° x V°) 90° x 5° 120° x 9° 120° x 40° 200° x 325°
LF driver 2 x EVX155Plt 2 x EVX155Plt 2 x EVX155Plt 2 x EVX-180B
MB driver 2 x ND08 2 x ND08 2 x ND08
HF driver 3 x ND6-16 3 x ND6-16 2 x ND6-16
Crossover frequencies 220 Hz/1,250 Hz 220 Hz/1,250 Hz 220 Hz/1,250 Hz 80 Hz
Nominal impedance 2 x 8 /8 /5.3 2 x 8 /8 /5.3 2 x 8 /8 /8 2 x 8
Input connections 2 Neutrik®NL8 2 Neutrik®NL8 2 Neutrik®NL8 2 Neutrik®NL8
Dimensions (H [front/rear] x W x D)
19.46”/19.46” x 49” x 29.15” 19.46”/16.92” x 49” x 29.15” 19.46”/16.92” x 49” x 29.15” 19.46”/19.46” x 49” x 29.15”
494.3/494.3 x 1244.6 x 740.4 mm 494.3/429.7 x 1244.6 x 740.4 mm 494.3/429.7 x 1244.6 x 740.4 mm 494.3/494.3 x 1244.6 x 740.4 mm
Net weight 257 lbs. (117 kg) 253 lbs. (115 kg) 253 lbs. (115 kg) 202 lbs. (92 kg)
* 1/2-space
•High-output, three-way line-array
component
Five-degree trapezoidal cabinet design
for lower “J” section of linear array
120° horizontal coverage typical for
medium-throw assignment
EV Hydratime-synchronized HF
vertical plane wave generator provides
excellent far-field summing
Ring Mode Decoupling®(RMD®)
provides level-independent fidelity,
greater midbass clarity, and high
frequency accuracy
•Rigging allows for rapid venue load-in
and load-out (linking hardware
included).
•High-output, two-way line-array
component
Downfill system designed to
complement a line array of Xvls and
Xvlt systems for near-field assignment
with 120º horizontal coverage
Wide 40° vertical coverage with
voicing similar to other X-Linemodels
for smooth transition from near-field to
mid-field
Ring Mode Decoupling®(RMD®)
provides level-independent
fidelity, greater midbass clarity, and
high-frequency accuracy
•Rigging allows for rapid venue load-in
and load-out (linking hardware
included)
Mirror-imaged Xfil1 and Xfil2 models
for left and right sides.
•High-output, line-array subwoofer
component
Rectangular cabinet with footprint
identical to other X-Line systems
Can be flown or ground-stacked with
non-flying version
•Rigging allows for rapid venue load-in
and load-out (linking hardware
included)
•High-output, three-way line-array
component
Rectangular cabinet designed for upper
section of linear array
90° horizontal coverage pattern ideal
for long-throw applications
•EV
®Hydratime-synchronized HF
vertical plane-wave generator provides
excellent far-field summing
Ring Mode Decoupling®(RMD®)
provides level-independent fidelity,
greater midbass clarity, and high
frequency accuracy
•Rigging allows for rapid venue load-in
and load-out (linking hardware
included)

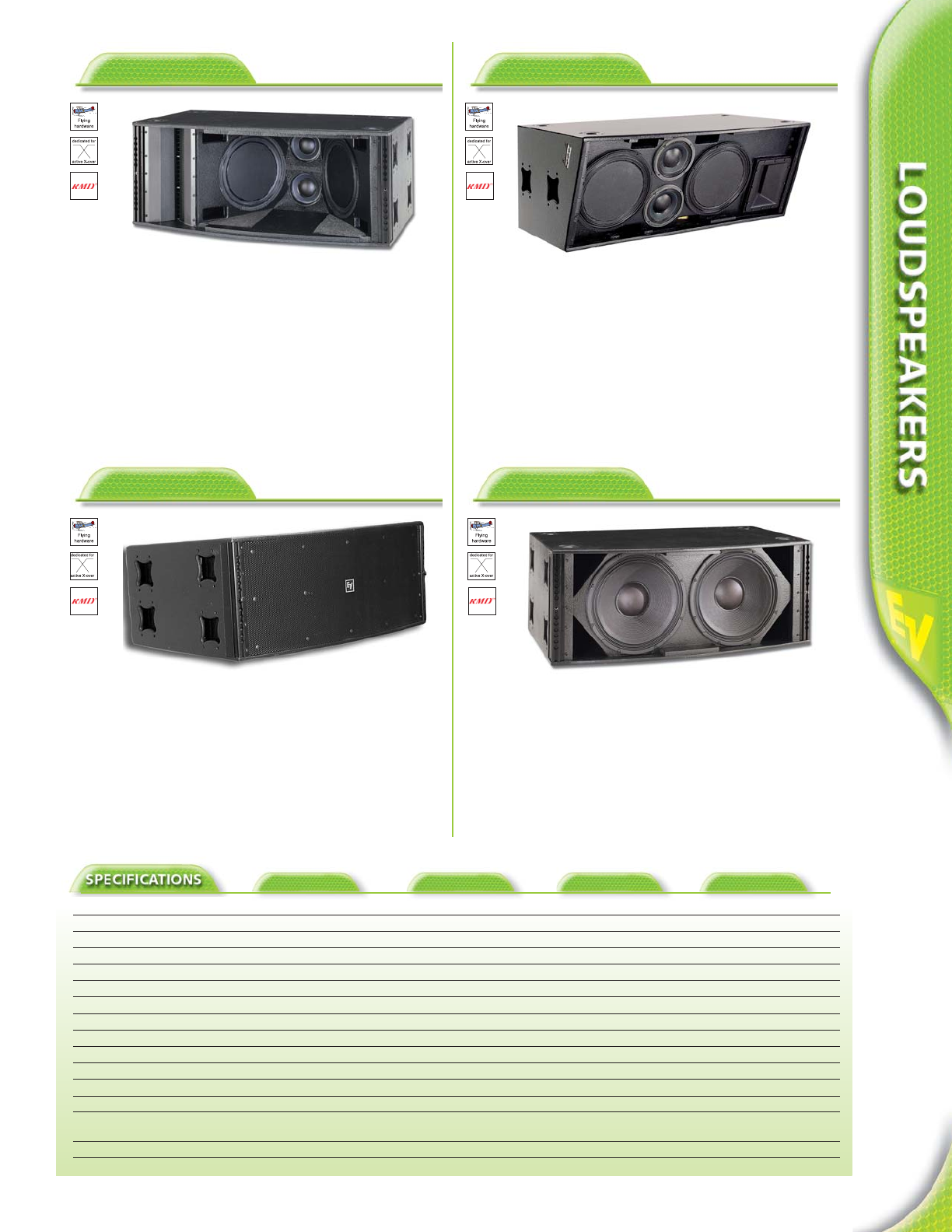

Xvls Xfil1/Xfil2
Xvlt Xsub
Xvls Xvlt Xfil1/Xfil2 Xsub
Xlc 127 Xlc 127+ Xlc 118
38
The XLC System
While big brother X-Line serves the all acoustical
needs of the largest venues and arenas, EV’s full
bandwidth compact line array XLC was designed
to match the demands for easy setup and
transportation combined with outstanding sonic
results in a variety of venue sizes.
System features:
Wide constant horizontal coverage pattern of 120°
• Outstanding imaging; bi- or tri-ampable
Totally integrated rigging hardware
• Rigging concept enables precise control of vertical line
source pattern
Horizontal Coverage 120° 120° 300°
LF Power Handling 300 W cont./1,200 W peak 300 W cont./1,200 W peak 600 W cont./2,400 W peak
MB Power Handling 200 W cont./800 W peak 200 W cont./800 W peak
HF Power Handling 120 W cont./480 W peak 150 W cont./600 W peak
Sensitivity (LF/MB/HF) 95 dB/101 dB/110 dB 95 dB/101 dB/110 dB 96 dB/102 dB*
Max. SPL (calc.) 126/130/137 dB 126/130/138 dB 130/136 dB*
LF Transducer 1 x 12” DL12ST 1 x 12” DL12ST 1 x 18” EVX180B
MB Transducer 2 x 6.5” DM 65 2 x 6.5” DM 65
HF Transducer 2 x DH2T -16 2 x ND6-16
Connectors 2 Neutrik®NL8 2 Neutrik®NL8 2 Neutrik®NL8
Enclosure Material Futura®-coated plywood Futura®-coated plywood Futura®-coated plywood
Grille Powder-coated steel Powder-coated steel Powder-coated steel
Environmental Specs IEC 529 IP24 IEC 529 IP24 IEC 529 IP24
MIL STD 810 MIL STD 810 MIL STD 810
Dimensions (H x W x D) 14.25” x 39 “ x 22.5” 14.25” x 39 “ x 22.5” 21.5” x 39” x 22.5”
362 x 991 x 572 mm 362 x 991 x 572 mm 546 x 991 x 572 mm
Net Weight 116 lbs.. (52,7 kg) 111 lbs.. (50,4 kg) 120 lbs.. (54.5 kg)
Shipping Weight 121 lbs.. (55,0 kg) 116 lbs.. (63,6 kg) 140 lbs.. (63,6 kg)
*Half space environment
Technical Specifications for XLC Cabinets
39
Main Cabinet
This cabinet is the main component of an XLC line array. Starting with a
minimum of four cabinets, a typical array size uses six to eight boxes.
The three-way axis-asymmetric design includes a single EV DL-12
low-frequency/mid-bass woofer optimized for this cabinet. Two 6.5” horn-
loaded drivers in a vertical array comprise the mid-frequency bandpass.
The XLC 127+ utilizes two ND6 (3” voice-coil) neodymium compression
drivers loaded on two Hydraplane wave generators. With a horizontal
coverage of 120°, the XLC system accurately covers wide areas while
maintaining excellent imaging and lobe-free coverage. The XLC 127+ is
equipped with an internal x-over for mid-bass and high-frequency to allow
for either biamp or triamp operation.
The 127 is identical to the XLC 127+, except for the 2 DH2T (2” voice-coil)
compression drivers loaded on two Hydra elements. The XLC 127 also uses
an internal crossover for biamp or triamp use. The XLC 127 should not be
combined with the XLC 127+ in the same hang.
Subwoofer
The XLC 118 is a direct radiating design using the legendary EVX180B
18-inch woofer. The XLC 118 utilizes the same rigging and has 1.5 times the
height of the XLC 127 main cabinet. This allows a hang of XLC 118s to be
flown adjacent to the main hang at a 3:2 ratio, maintaining aesthetic
requirements for equal hang heights. Flying subwoofer benefits include in
a more even front-to-back SPL distribution.
XLC 127+ / XLC 127 XLC 118
Technical Specifications for Four-Cabinet XLC 127+ Array
Recommended System Drive for XLC
4 x XLC 127+ Array
Frequency Range (-3 dB) 70 Hz–18 kHz
Sensitivity (1 W/1 m) 112.5 dB
Max Calculated SPL (1 W/1 m) 135 dB cont./141 dB peak
Horizontal Coverage 120°
Vertical Coverage Splay dependent
LF Power (recommended) EV®P2000
MB Power (recommended) EV®P2000
HF Power (recommended) EV®P2000
Cabinet: XLC 127, XLC 127+ XLC 118
LF: P2000 / P1200 RL -
MB: P2000 / P1200 RL -
LF: P2000 / P1200 RL P3000 / P3000 RL
System Controller: Dx38, DN9848 or DSP Controlled Precision Series Amplifiers (RL)
40
Floor Monitors
The following two pages give you an overview of EV´s professional floor
monitors. All monitors shown have optimized monitor angles and as is
typical with EV, have very low feedback properties. For technical details or
information about recommended high-pass frequencies, refer to the
pages listed below.
350 W (continuous)/
150 W + 50 W
powered
15” / 1”
max. SPL 130 dB/1m
45° monitor angle
Sx250/SxA250
Perfect for high performance
monitoring in concert sound
applications
12”/1.4”
350 W (continuous)
Max. SPL 131 dB/1m (calc.)
55° (approx.) monitor angle
Integrated stand mount allows
flexible usage
Note: in monitor position rotate
the horn so the 35° dispersion is
pointing upwards
Note: enable high-pass (mid/high-
mode) at controller amp module
M-112 when used on floor
QRx 112/75
75° x 50°
FRi-28LPM
100° x 100°
•2 x 8”/1”
200 W (continuous)
Max. SPL 122 dB/1 m (calc.)
45° monitor angle
QRx 115/75
75° x 50°
Perfect for high performance
monitoring in concert sound
applications
15”/1.4”
450 W (continuous)
Max. SPL 133 dB/1 m (calc.)
55° (approx.) monitor angle
Integrated stand mount allows
flexible usage
Note: in monitor position rotate
the horn so the 35° dispersion is
pointing upwards
Note: enable high-pass (mid/high-
mode) at controller amp module M-115
when used on floor
Sx100 and Sx300 (shown with F200)
65° x 65°
Symmetrical horn allows flexible usage
with tripod for floor-monitor
12”/1”
Sx300: 300 W (continuous)
Sx100+: 200W (continuous)
Sx300: Max. SPL 132 dB/1 m (calc.)
50° (approx.) monitor angle
SH SX300 black protection cover
(option)
F200 monitor feet necessary
SxA100+
Built-in 2-way amplifier
(150 W + 50 W cont.;
380 W + 80 W peak)
12” / 1”
max. SPL 124 dB/1 m
50° (approx.) monitor angle
SH SX300 black protection cover (option)
F200 monitor feet necessary
41
Eliminator Monitor
Force i Monitor
T221M
55° x 80°
•Two-way, 12”, medium-throw, full-range system
High-performance 12” woofer
Biampable
Xw12
55° x 80°
Perfect for highest performance
monitoring in concert sound
applications
12”/1.4”
300/75 W (continuous)
Max. SPL 130 dB/1 m (calc.)
•Two 55° angles allows symmetrical
monitor set-ups
Dedicated digital controller is Dx38
Xw15
Perfect for highest performance
monitoring in concert sound
applications
15”/1.4”
600/75 W (continuous)
Max. SPL 133 dB/1 m (calc.)
•Two 55° angles allows symmetrical
monitor set-ups
Dedicated digital controller is Dx38
55° x 80°
• Low profile and compact size for
minimum footprint; even fits on the
smallest stages
• 12-inch woofer has clean,
yet punchy sound
• 150 watts continuous, 300 watts
program, 600 watts peak power
handling
Two projection angles — 50° and
65° — depending on orientation of
enclosure gives you extra placement
flexibility
• Built-in stand mount for front-of-house
or sidefill use
• Lightweight — only 28 pounds
(12.7 kg) — and easy to carry
Available with Neutrik®Speakon®
connector (Force i Monitor E)
• 2-way, 15-Inch Speaker
•Versatile design allows for use as a
floor monitor or stand-mounted main
PA speaker
80° x 55° CD horn provides usable
monitor angles of 50° and 65°
Integral stand-mount adapter
350-watt, continuous power rating
HF driver protection
Available with Neutrik®Speakon®
connector (Eliminator Monitor E)
Mic Stand Personal Monitor
The EVID SOS 3.2 is a new approach to personal
monitors! Its unique design enables the use of
only one stand for the microphone and monitor. It
frees up stage space and puts the monitor closer
to the performer for additional clarity. The SOS
3.2 handles 75 watts of power and features a
1/4” input connector for easy connection to the
amplifier. In addition, the performer can precisely
adjust the speaker volume level using the L-Pad
adjustment on the back of the unit.
The compact design of the SOS 3.2 makes it
unobtrusive on stage and easy to pack and carry.
The SOS 3.2 package includes the EVID SOS 3.2
speaker, all stand mounting adapters and a shock
mount mic clip ready for use on your favorite
boom-mount mic stand.
42

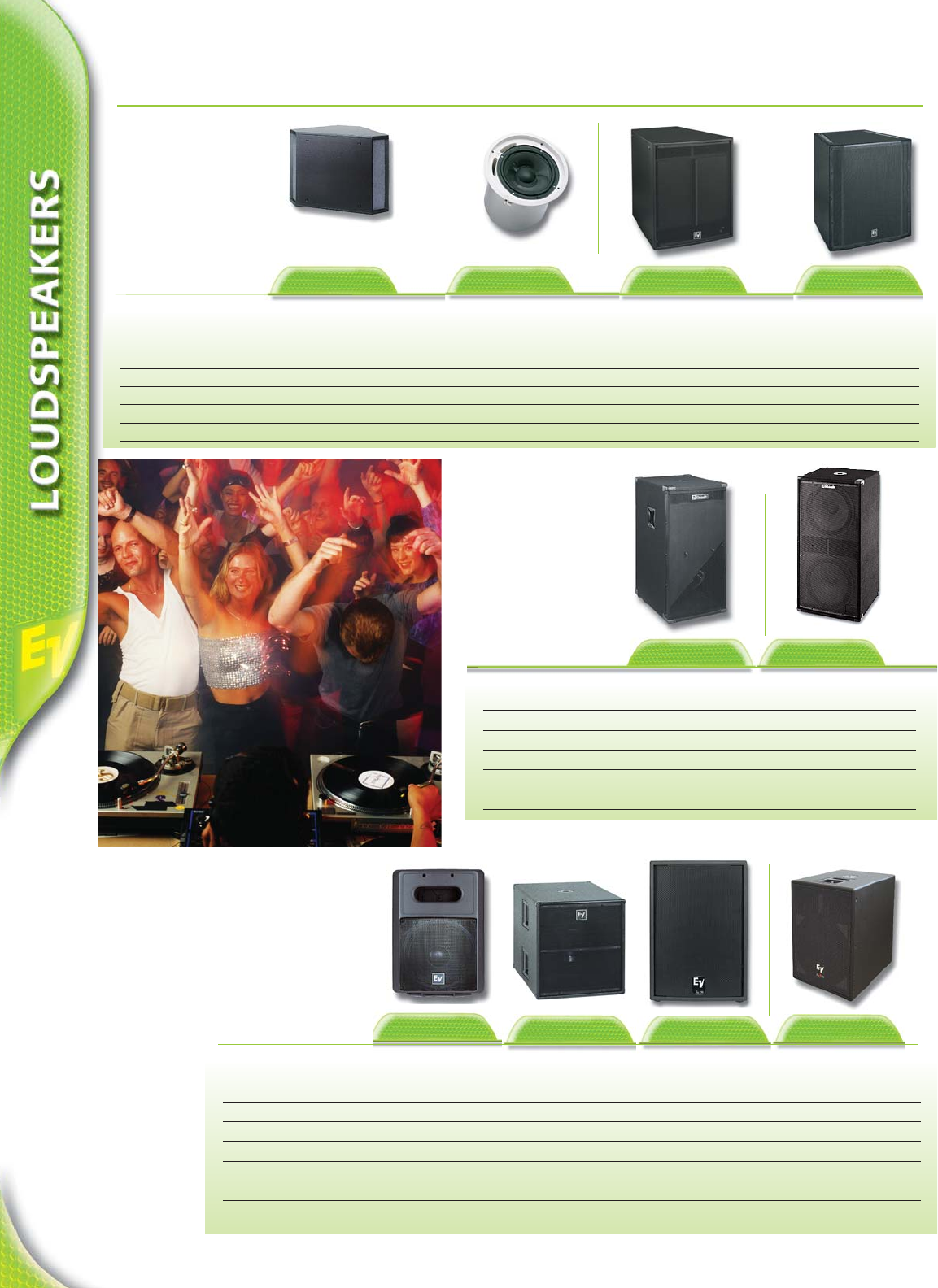

Subwoofers
Application Installation Installation Installation Installation
Ceiling Concert Sound Concert Sound
Woofer Type 1 x 12” slot loaded 1 x 10” 1 x 18” 1 x 18”
Power Handling cont. 2 x 175 W 150 W 400 W 400 W
Sensitivity(1 W/1 m) 100 dB** 94 dB* 97 dB/103 dB* 100 dB/102 dB*
Max. SPL (peak) 125 dB ** 122 dB * 129 dB/135 dB* 132 dB /134 dB*
Internal Crossover stereo w/ hi pass out low pass low pass no
Flying no no eyebolts L-track
EVID 12.1 EVID C10.1 FRi+181S FRX+181
Available in powered version (EVID 12.1P)
with 650 W internal amplifier
Application Installation Pro Music Installation Pro Music
Woofer Type 1 x 18” 2 x 18”
Power Handling cont. 400 W 1,000 W
Sensitivity(1 W/1 m) 100 dB/104 dB* 101 dB/107 dB*
Max. SPL (peak) 98 dB/101 dB* 137 dB/143 dB*
Internal Crossover low pass no
Flying no no
Eliminator i Sub Eliminator KW
Application Installation Installation Installation Installation
Pro Music Pro Music Pro Music Pro Music
Woofer Type 1 x 12” 1 x 18” 1 x 18” 1 x 15”
Power Handling cont. 300 W 600 W 300 W 750 W amplifier
Sensitivity (1 W/1 m) 95 dB/101 dB* 99 dB
Max. SPL (peak) 126 dB/132 dB* 126 dB 128 dB/134 dB*
Internal Crossover no no 80 - 120 Hz built-in active
Flying Optional SX Hardware no eyebolts no
* 1/2-space SPL, ** 1/4-space SPL
Sb121 Sb180 SxA180 SbA750
43
Subwoofers
Application Installation Installation
Pro Music, Concert Sound Pro Music, Concert Sound
Woofer Type 1 x 18” 2 x 18”
Power Handling cont. 600 W 1,200 W
Sensitivity (1 W/1 m) 99 dB /104 dB* 102 dB /105 dB*
Max. SPL (peak) 133 dB /138 dB* 139 dB /140 dB*
Internal Crossover no no
Flying no optional
QRx118S QRx218S
Application Installation Installation Installation
Concert Sound Concert Sound Concert Sound
Woofer Type 2 x 18” 1 x 18” 2 x 18”
Power Handling cont. 1,200 W 600 W 1,200 W
Sensitivity (1 W/1 m) 98.5 dB /104.5 dB* 95 dB /101 dB* 100 dB /106 dB*
Max. SPL (peak) 129 dB / 141 dB* 123 dB /135 dB* 131 dB /143 dB*
Internal Crossover no no no
Flying X-Array rigging X-Array rigging no
Xb Xcb Xds
Application Installation Installation Concert Sound Concert Sound
Concert Sound Concert Sound Installation Installation
Woofer Type 1 x 18” 2 x 18” 2 x 18” 1 x 18”
Power Handling cont. 600 W 1,200 W 1,200 W 600 W
Sensitivity (1 W/1 m) 94 dB /100 dB* 99 dB /105 dB* 103 dB /106 dB* 96 dB /102 dB*
Max. SPL (peak) 128 dB /134 dB* 136 dB /140 dB* 134 dB /143 dB* 130 dB /136 dB*
Internal Crossover no no no no
Flying L-track in F-version L-track in F-version X-Line rigging, F-version. XLC rigging
(built to order) (built to order)
* 1/2-space SPL
Xi-1191(F) Xi-2181(F) Xsub(F) XLC118/XLCi118
44
Components
EV component woofers are high-efficiency designs highly refined from
years of development and field experience. They employ extended-length
voice coils for high-impact reproduction of dynamic low-frequency
program. All woofers feature proprietary heat-transfer systems for
unmatched power capacity and reliability. Kevlar®-fiber-composite cones
are used to provide structural strength to resist collapse during explosive
dynamic peaks and to provide internal mechanical damping to minimize
resonances that can change the character of the sound at high levels. DL
and EVX woofers are made of cast aluminum frames with push terminals,
and all feature Ring-Mode Decoupling(RMD) except for the DL18MT and
the EVX180B.
Woofers
Cone diameter 10” (254 mm) 12” (305 mm) 12” (305 mm) 15” (381 mm) 15” (381 mm)
Coil diameter 2.5” (63.5 mm) 2.5” (63.5 mm) 2.5” (63.5 mm) 2.5” (63.5 mm) 2.5” (63.5 mm)
Impedance 8 8 8 8 8
Frequency range 100 – 2,000 Hz 60 – 2,500 Hz 60 – 2,000 Hz 45 – 2,000 Hz 45 – 2,000 Hz
Long-term power rating (EIA) 300 W 300 W 300 W 900 W 400 W
Short-term power rating 1,200 W 1,200 W 1,200 W 1,400 W 1,600 W
Sensitivity (1 W @ 1 m) 97 dB 96 dB 98 dB 96 dB 95 dB
Maximum SPL 121.8 dB 120.8 dB 122.8 dB 122.0 dB 121.0 dB
Efficiency 4.21% 3.69% 5.60% 3.93% 2.66%
Frame front diameter 10.22” (259.5 mm) 12.19” (309.6 mm) 12.19” (309.6 mm) 15.16” (305.0 mm) 15.16” (305.0 mm)
Magnet diameter 7.50” (190.5 mm) 6.13” (155.6 mm) 7.50” (190.5 mm) 6.13” (155.6 mm) 7.50” (190.5 mm)
Overall depth 4.50” (114.3 mm) 5.25” (133.4 mm) 5.25” (133.4 mm) 6.00” (152.4 mm) 6.25” (158.8 mm)
Mounting bolt circle diameter 9.625” (244.5 mm) 11.563” (293.7 mm) 11.563” (293.7 mm) 14.563” (369.9 mm) 14.563” (369.9 mm)
Baffle cutout diameter 9.063” (230.2 mm) 11.063” (281.0 mm) 11.063” (281.0 mm) 14.063” (357.2 mm) 14.063” (357.2 mm)
Net weight 14.3 lbs. (6.5 kg) 11.1 lbs. (5.0 kg) 14.7 lbs. (6.7 kg) 12.0 lbs. (5.4 kg) 15.2 lbs. (6.9 kg)
Cone diameter 18” (457 mm) 15” (381 mm) 18” (457 mm)
Coil diameter 2.5” (63.5 mm) 4” (101.6 mm) 4” (101.6 mm)
Impedance 8 8 8
Frequency range 35–800 Hz 40–2,000 Hz 30–800 Hz
Long-term power rating (EIA) 400 W 600 W 600 W
Short-term power rating 1,600 W 2,400 W 2,400 W
Sensitivity (1 W @ 1 m) 94 dB 95 dB 95 dB
Maximum SPL 120 dB 122.8 dB 122.8 dB
Efficiency 4.0% 2.49% 2.25%
Frame front diameter 18.13” (460.5 mm) 15.16” (385.0 mm) 18.13” (460.5 mm)
Magnet diameter 7.50” (190.5 mm) 8.25” (209.6 mm) 8.25” (209.6 mm)
Overall depth 7.00” (177.8 mm) 7.25” (184.2 mm) 8.00” (203.2 mm)
Mounting bolt circle diameter 17.375” (441.3 mm) 14.563” (369.9 mm) 17.375” (441.3 mm)
Baffle cutout diameter 16.750” (425.5 mm) 14.063” (357.2 mm) 16.750” (425.5 mm)
Net weight 15.8 lbs. (7.2 kg) 22.8 lbs. (10.3 kg) 23.4 lbs. (10.6 kg)
Speaker Parts
DL18MT EVX155 EVX180B
DL10X DL12BFH DL12ST DL15BFH DL15ST
45
Components
Compression Drivers
Electro-Voice is one of a handful of professional audio companies that can
design high-performance compression drivers. Compression drivers are the
most difficult audio transducers to design. Their unique requirements call
for ultra-precise tolerances, state-of-the-art modeling routines, and
exceptionally talented engineering expertise. Manufacturing techniques are
frequently pushed to process limits, and materials are formed and stabilized
with cutting-edge systems and controls. Each EV compression driver’s
parameters are tightly controlled to ensure world-class performance, thus
putting the drivers at the top of their class in every respect.
Horn Adapters
• from 1.4” bolt-on to 2” bolt-on ADH6
• from 1” screw-on to 2” bolt-on ADH5
• from 1” screw-on to 1.4” bolt-on ADH3
Large-format ceramic compression driver
75-watt power rating
•3titanium diaphragm
1.4” or 2” exit diameter for use on almost
any high-performance horn
Excellent for use with direct-radiator or
horn-loaded LF and MB sections
Large-format neodymium
compression driver
75-watt power rating
•3titanium diaphragm
1.4” or 2” exit diameter for use on almost
any HP horn
EV’s highest-performance compression
driver gives world-class performance in
any application
Use above 1 kHz
One-inch exit screw-on, medium-format
compression driver
40-watt power rating
•2titanium diaphragm
High performance on a wide variety of
thread-on horn designs
One-inch exit screw-on,
small-format compression driver
20-watt power rating
1.25” titanium diaphragm
Excellent extended-bandwidth HF driver for
multi-way loudspeaker systems
Frequency response 1,000 Hz – 20 kHz
1,000 Hz – 20 kHz
1,200 Hz – 20 kHz 1,500 Hz – 20 kHz 500 Hz - 20 kHz
Crossover frequency (minimum) 1,000 Hz 1,000 Hz 1,200 Hz 1,500 Hz 500 Hz
Midband sensitivity* 111 dB 112 dB 112 dB 111 dB
Long-term power rating (AES) 75 W 75 W 40 W 20 W 75 W
Short-term power rating 300 W 300 W 160 W 80 W 300 W
Impedance 8/16
8/16
8
8
16
Throat diameter 1.4”/2.0” adapter (35 mm) 1.4”/2.0” adapter (35 mm) 1.0” (25 mm) 1.0” (25 mm) 1.38” (35 mm)
Diaphragm diameter 3.0” (76 mm) 3.0” (76 mm) 2.0” (50 mm) 1.25” (32 mm) 3.0” (76 mm)
Overall diameter 6.5” (165 mm) 5.2” (132 mm) 5.2” (132 mm) 4.5” (107 mm) 5.2” (132 mm)
Overall depth 2.7” (69 mm) 2.7” (69 mm) 3.5” (89 mm) 3.5” (89 mm) 2.7” (69 mm)
Net weight 10.0 lbs.. (4.54 kg) 5.5 lbs.. (2.5 kg) 5.0 lbs.. (2.27 kg) 3.4 lbs.. (1.5 kg) 5.5 lbs.. (2.5 kg)
Shipping weight 11.0 lbs.. (5 kg) 6.0 lbs.. (2.72 kg) 5.5 lbs.. (2.5 kg) 3.8 lbs.. (1.73 kg) 6.0 lbs.. (2.72 kg)
*Average from 1,000 Hz–5 kHz on HP6040 horn (DH3 average from 1,500 Hz–5 kHz on HPT64 horn)
ND6-8/ND6-16
DH3/DH2010A
DH7-8/DH7-16
DH2T-8/DH2T-16
ND6X-8/ND6x-16
DH7-8/DH7-16 ND6-8/ND6-16 DH2T-8/DH2T-16 DH3/DH2010A ND6X-8/ND6x-16
Large-format neodymium
compression driver
75-watt power rating
•3titanium diaphragm
1.4” or 2” exit diameter for use on almost
any HP horn
EV’s highest-performance compression
driver gives world-class performance in
any application
• Use above 500 Hz
46

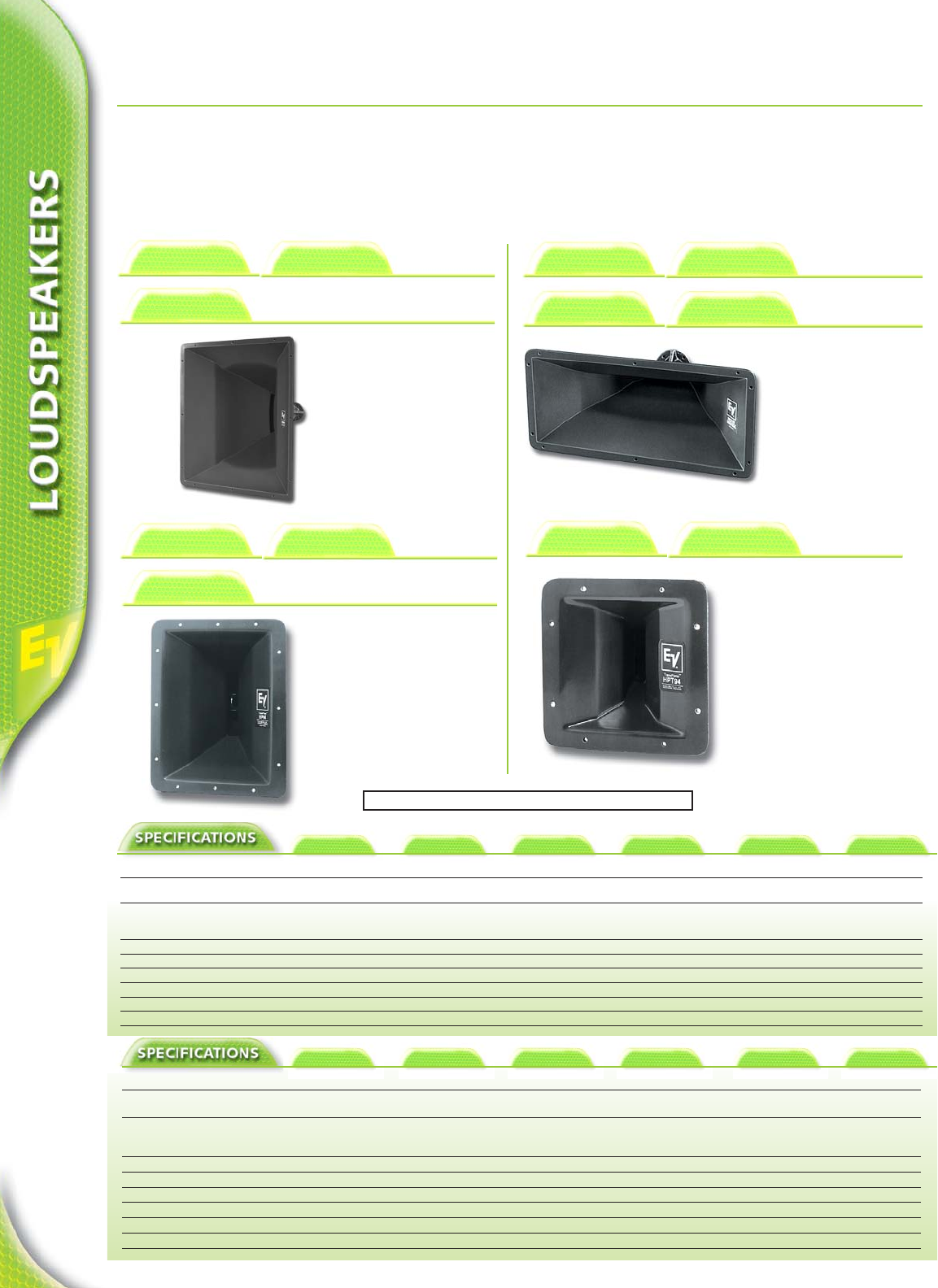

Coverage (H° x V° nominal) 40° x 20° 60° x 40° 90° x 40° 40° x 20° 60° x 40° 90° x 40°
Directivity Factor (average) 45.1 (+12.7, -18.9) 25.8 (+17.9, -5.9) 12.1 (+4.6, -3.7) 47.7 (+25.9, -23.5) 20.6 (+11.3, -3.3) 11.9 (+3.6, -3.0)
(500 Hz – 20 kHz) (500 Hz – 20 kHz) (500 Hz – 20 kHz) (1,250 Hz – 20 kHz) (1,250 Hz – 20 kHz) (1,250 Hz – 20 kHz)
Directivity Index (average) 16.4 dB 14.1 dB 10.8 dB 16.8 dB 13.1 dB 10.7 dB
(+1.2, -2.2) (+2.3, -1.1) (+1.4, -1.6) (+1.9, -3.0) (+1.9, -0.7) (+1.2, -1.2)
(500 Hz – 20 kHz) (500 Hz – 20 kHz) (500 Hz – 20 kHz) (1,250 Hz – 20 kHz) (1,250 Hz – 20 kHz) (1,250 Hz – 20 kHz)
Useable low-frequency limit 200 Hz 500 Hz 400 Hz 400 Hz 400 Hz 400 Hz
Throat entrance 2” bolt-on 2” bolt-on 2” bolt-on 2” bolt-on 2” bolt-on 2” bolt-on
Height 33.0” (838 mm) 32.0” (813 mm) 32.0” (813 mm) 14.4” (367 mm) 13.0” (330 mm) 13.0” (330 mm)
Width32.0” (813 mm) 28.0” (711 mm) 26.75” (679 mm) 24.0” (610 mm) 28.0” (711 mm) 21.0” (533 mm)
Depth 49.3” (1,252 mm) 31.8” (808 mm) 31.8” (808 mm) 29.5” (749 mm) 17.2” (437 mm) 11.2” (285 mm)
Net weight 27.0 lbs.. (12.3 kg) 20.0 lbs.. (9.1 kg) 20.0 lbs.. (9.1 kg) 13.0 lbs.. (5.9 kg) 9.5 lbs.. (4.3 kg) 7.0 lbs.. (3.2 kg)
The HP horn series is a refinement of the concept of “constant directivity,
which, in 1974, EV was the first to introduce. For the first time, horn
coverage angles were truly uniform over a wide frequency range. In the HP
series, unique beamwidth-control vanes within the horn throat form a
waveguide that eliminates the narrowing of coverage angle – beaming –
that occurs in other 2-inch-throat horns. EV’s patented Transplanardesign
provides exceptionally smooth frequency response. HP horns or variants
thereof are used throughout the EV speaker system lines. Each HP horn
features an integral die-cast metal throat encapsulated in the fiberglass
sidewalls. This unitized construction provides very high strength and
low weight.
HP6040
HP640
Note: Horns shown out of proportion to each other
HP Horns
HP4020
HP9040
Large-format two-inch horns
The ultimate in dispersion
control, with control of rated
dispersion angle down to
500 Hz, both horizontally and
vertically
Directivity control to 500 Hz
maximizes vocal intelligibility
and musical clarity in difficult
acoustic environments
Medium-format two-inch
horns
•Vertical dimensions have been
reduced, for use when space
constraints preclude the use
of large-format horns
•Horizontal directional control
maintained to ~500 Hz
•Vertical control to ~1,500 Hz
HP6040 HP420 HP640
HP940 HP1240
HP64
HP94
Small-format two-inch horns
Use as primary HF horns in
compact sound systems
Beamwidth control to ~2,000 Hz
HP66
HP64
HPT64
•Very-small-format one-inch horns
Use in three- and four-way
systems with DH3 driver for tweeter
and supertweeter applications
Directional control to 3,000 Hz
HPT94
Coverage (H° x V° nominal) 120° x 40° 60° x 40° 60° x 60° 90° x 40° 60° x 40° 90° x 40°
Directivity Factor (average) 8.6 (+2.5, -2.1) 18.1 (+4.1, -8.8) 17.9 (+10.5, -9.3) 10.1 (+5.8, -1.8) 15.8 (+5.2, -4.9) 11.6 (+5.0, -2.5)
(1,250 Hz – 20 kHz) (1,600 Hz – 20 kHz) (1,600 Hz – 20 kHz) (1,600 Hz – 20 kHz) (3,150 Hz – 20 kHz) (3,150 Hz – 20 kHz)
Directivity Index (average) 9.34 dB 12.6 dB 12.5 dB 10.0 dB 12.0 dB 10.6 dB
(+1.1, -1.2) (+0.9, -2.9) (+2.0, -3.0) (+2.0, -0.8) (+1.2, -1.6) (+1.6, -1.0)
(1,250 Hz – 20 kHz) (1,600 Hz – 20 kHz) (1,600 Hz – 20 kHz) (1,600 Hz – 20 kHz) (3,150 Hz – 20 kHz) (3,150 Hz – 20 kHz)
Useable low-frequency limit 400 Hz 650 Hz 650 Hz 800 Hz 1,600 Hz 1,600 Hz
Throat entrance 2” bolt-on 2” bolt-on 2” bolt-on 2” bolt-on 1” bolt-on 1” bolt-on
Height 13.0” (330 mm) 11.0” (279 mm) 11.0” (279 mm) 11.0” (279 mm) 5.25” (133 mm) 5.25” (133 mm)
Width 21.0” (533 mm) 8.8” (224 mm) 8.8” (224 mm) 8.75” (222 mm) 5.25” (133 mm) 5.25” (133 mm)
Depth 10.4” (265 mm) 8.7” (220 mm) 6.5” (165 mm) 8.7” (220 mm) 4.1” (104 mm) 4.0” (101 mm)
Net weight 7.0 lbs.. (3.2 kg) 4.5 lbs.. (2.5 kg) 4.8 lbs.. (2.2 kg) 4.5 lbs.. (2.5 kg) 0.8 lbs.. (0.4 kg) 0.8 lbs.. (0.4 kg)
HP1240 HP64 HP66 HP94 HPT64 HPT94
HP4020 HP6040 HP9040 HP420 HP640 HP940
HPT64
47
HP420 HP640
HP940 HP1240
Small format horns
HP 64 HP 66 HP 94
HPT 64 HPT 94
Medium format horns
48
Hardware
MUSIC INDUSTRY
Force i
100BK Speaker stand for EV systems with integral stand mount (or Sx80MB
stand-mount adapter for Sx80) or any system up to 110 lbs.. (1-3/8-inch
shaft diameter), black
Sx Series
100BK Speaker stand for EV systems with integral stand mount (or Sx80MB
stand-mount adapter for Sx80) or any system up to 110 lbs.. (1-3/8-inch
shaft diameter), black
F200 Monitor feet for Sx100, Sx300 and Sx300a (pair)
G500 Full-face steel grille for Sx500, black (for indoor use only)
Mb100 Forged eyebolt attachment kit (set of three) for single sb121, Sx100, or
Sx300
Mb200 Wall/ceiling U-bracket kit for Sb121, Sx100, Sx300 and Sx300a, black
Mb200W Wall/ceiling U-bracket kit for Sb121, Sx100, Sx300 and Sx300a, white
Mb300 Horizontal array kit for side-by-side arraying of two Sb121, Sb121a,
Sx100+, Sx300 or Sx300a (use a second Mb300 to array three systems;
the Mb300 requires one Mb200 U-bracket kit per speaker system), black
Mb300W Horizontal array kit for side-by-side arraying of two Sb121, Sb121a,
Sx100+, Sx300 or Sx300a (use a second Mb300 to array three systems;
the Mb300 requires one Mb200 U-bracket kit per speaker system), white
Mb500 Wall/ceiling U-bracket for Sx500+, black
Mb600 Horizontal array kit for side-by-side array of two Sx500+s (use more
Mb600s to array up to six systems; the Mb600 requires one Mb500 U-
bracket kit per speaker system), black
Mb700 Forged eyebolt attachment kit (set of three) for a single Sx500, black
PD500 Padded case for Sx500+
PDSx Padded case for Sx100, Sb121, Sb121a, Sx300 and Sx300a
Sk1 Suspension kit for SxA250
Sx80MBB Wall/ceiling U-bracket for Sx80, black
Sx80MBW Wall/ceiling U-bracket for Sx80, white
Sx80SM Stand-mount adapter for Sx80
Sxzb Zippered tote bag for SxA100, Sx100+, Sx300, or two Sx80 cabinets
VPC500 Vinyl cover for Sx500+
VPCSx Vinyl cover for Sx100, Sb121, Sb121a, Sx300 and Sx300a
T-Series
100BK Speaker stand for EV systems with integral stand mount (or Sx80MB
stand-mount adapter for Sx80) or any system up to 110 lbs.. (1-3/8-inch
shaft diameter), black
FIXED INSTALL
EVI Vari Intense®
EBK-1 Eyebolt kit of three 3/8-16 forged shoulder bolts
EVI-12MB-BLK Mounting bracket for EVI-12, black
EVI-12MB-WH Mounting bracket for EVI-12, white
EVI-15MB-BLK Mounting bracket for EVI-15, black
EVI-15MB-WH Mounting bracket for EVI-15, white
EVI-28MB-BLK Wall/ceiling U-bracket for EVI-28, black
EVI-28MB-WH Wall/ceiling U-bracket for EVI-28, white
Horns: Throat Adapters
ADH3 1” screw-on entrance to 1.4” bolt-on exit
ADH5 1” screw-on entrance to 2” bolt-on exit
ADH6 1.4” screw-on entrance to 2” bolt-on exit
MTA-22 Manifold horn adapter for two-driver coupling: Two 1.4” bolt-on
entrances to 2” bolt-on exit
Xi Hardware
Mb-1082 Wall/Ceiling mounting bracket for Xi-1082
XLCi Accessories
XLCi Grid A2 Aluminum grid comprises two side arms and two spreader bars.
Supports 16 cabinets at 8:1 safety margin.
COMMERCIAL
EVID Ceiling Speaker Hardware
RPK-42 Rough-in package for new construction (C4.2 only; package of 2).
RPK-82 Rough-in package for new construction (C8.2/C8.2LP only;
package of 2).
RPK-810 Rough-in package for new construction (C8.2HC/C10.1 only;
package of 2).
RR-42 Rough-in mounting plate for new construction (C4.2 only; package of 4).
RR-82 Rough-in mounting plate for new construction (C8.2/C8.2LP only;
package of 4).
RR-810 Rough-in mounting plate for new construction (C8.2HC/C10.1 only)
(package of 4).
S Series
S-40MBB Wall/ceiling/stand U-bracket for S-40, black (pair)
S-40MBW Wall/ceiling/stand U-bracket for S-40, white (pair)
CONCERT
X-ArrayX-Series
Xrhg Grid rigging hinge (attaches rear of top X-Array X-Series to the rear of a
compatible grid)
Xrhl Linking rigging hinge (attaches two X-Array X-Series systems at the rear)
Xrhp Pickup rigging hinge (creates custom assemblies to attach to the rear of
the top X-Array X-Series system when an ATM Fly-Ware™ grid is not
used)
Xrsl Long rigging strap (used at front of two X-Array X-Series systems to
adjust their relative vertical angle)
Xrss Short rigging strap (attach the rear of the top X-Array
X-Series system to the ATM Fly-Ware grid)
X-Line
Xdol/b X-Line bottom dolly
Xdol/f X-Line grille face dolly
Xlgd X-Line grid (steel)
Xvhg Rear grid rigging hinge (joins rear of top X-Line cabinet to compatible
hanging grid; use in pairs)
Xvhl Rear linking hinge (couples two X-Line cabinets at the rear; use in pairs)
Xvsg Front grid rigging chain (joins top X-Line cabinet to compatible hanging
grid; use in pairs)
Xvsl Front linking chain (used to couple X-Line cabinets and adjust their
relative vertical angle; use in pairs)
XLC Hardware
XCOV 118 Weather-resistant cover fits XLC118. Sold only in pairs.
XCOV 127 Weather-resistant cover fits XLC127 or Xlc127+.
Sold only in pairs.
XFD 118 XLC118 grille-face dolly. Sold only in pairs.
XFD 127 XLC127/127+ grille-face dolly. Sold only in pairs.
XLC Grid A1 Aluminum grid comprises two side arms and two spreader bars.
Supports 16 cabinets at 8:1 safety margin.
49
Hardware
Note: Flying and suspending of speakers requires authorized personnel
EVI-12MBB black
EVI-12MBW white
EVI-15MBB black
EVI-15MBW white
EVI-28MBB black
EVI-28MBW white
The radius of
action is 140°.
EVI-12 Ceiling mount EVI-15 Ceiling mount EVI-28 Wall or ceiling mount
S-40 FRi-2082 Xi-1082
Sx80
Wall, ceiling or stand mount
Stand mount
Under balcony or on-wall mount Under balcony or
on-wall mount
S-40 MB/B: black
S-40 MB/W: white
Note: The threat
diameter can be reduced
with a standard 5/8-inch
screw adapter for
different mic stand types.
Sx 80 SM black
For speakers stands
with 35 mm diameter.
Wall or ceiling mount
Sx250/SxA250
RK-2 Rigging Kit
Sx 80 MBB black
Sx 80 MBW white
For cost effective
installation.
MB-1082: black
Optional bracket
The 100° x 100° dispersion angle allows
one to install FRi-2082 vertically on the
wall as well. Mounting bracket comes with
FRi-2082.
on-wall
100° 90°
SAM™ comes with each
EVID™ system and
includes a hex-key-tool.
SAM™ has angle
markers to make
installation easier.
EVID 3.2/4.2/6.2 Angle markers EVID 12.1
Bracket passed EIA 636
at a safety factor of 8:1.
The Bracket for on-wall
or corner mounting and a
safety eyebolt comes
with EVID 12.1.
EBK-1
Optional
eyebolt kit of
three 3/8“-
16 forged
shoulder
eyebolts
EVI 12/15 EBK-1 (Eyebolt Kit)
(3 eyebolts)
Note: Flying and suspending of speakers requires authorized personnel
50
Hardware

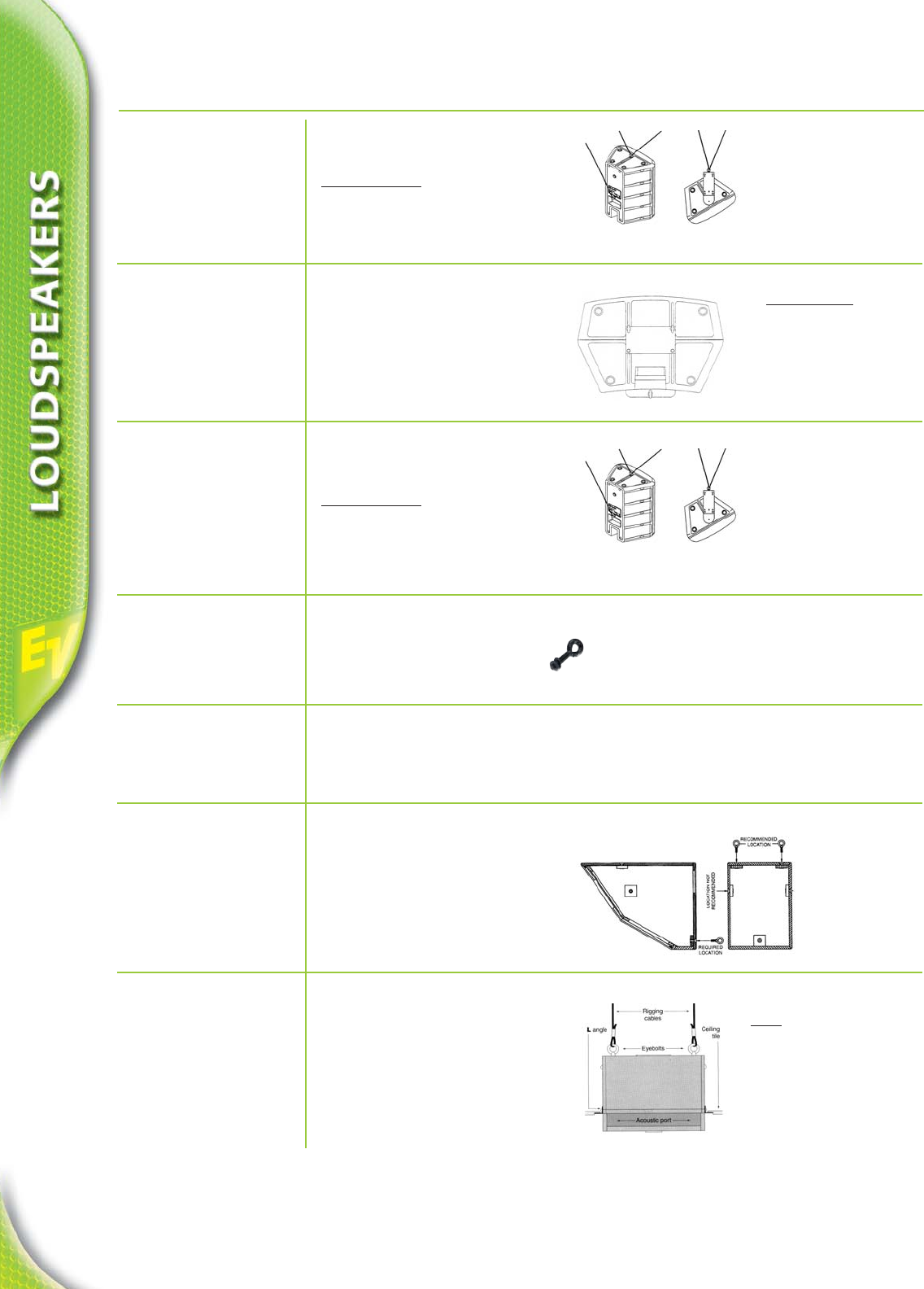

Sx100/300 1) MB 100
2) MB 100 + MB 200
Security advice:
When flown by 90° (figure 2) don’t
use eyebolts only!
1) 2)
Sb121 1) MB 100
2) MB 100 + MB 200
Security advice:
When flown by 90° (figure 2) don’t
use eyebolts only!
1) 2)
Sx500+ MB 700 - Kit contains:
3 lifting eyebolts
1 mounting plate
1 pull-up mounting plate
Security advice:
Do not screw MB 100
directly into M8 thread.
FRX+Systems
FRi 122/152/181 4 Eyebolts included
2 single stud Ancra fittings included
1 bracket and 1 eyebolt is
included for safety tether.
EVID 12.1 Note: One 3/8“-
16-thread forged steel
eyebolt is included for
safety tether.
A second eyebolt is
necessary if suspending
face-down in ceiling.
51
Hardware
Sx100/Sx300/Sb121
Sx500+
Horizontal Cluster 120° (2 systems)
Horizontal Cluster 140° (2 systems)
Vertical Cluster Wall-mount Sx-Series™ hardware overview:
Horizontal Cluster 210° (3 systems)
2 x MB 200 +1 x MB 300 necessary
2 x MB 500 +1 x MB 600 necessary
2 x MB 500 necessary 1 x MB 500 necessary
3 x MB 500 +2 x MB 600 necessary
3 x MB 200 +2 x MB 300 necessary
Wall or ceiling-
mount
Vertical Cluster
Horizontal Cluster 180° (3 systems)
Sx 80 Sx80SM Stand mount black
Sx80 MBB U-bracket black
Sx80 MBW U-bracket white
Sx100+ MB 200 B U-bracket black
Sx300 MB 300 B Array-kit (2 plates) black
Sb121 MB 300 W Array-kit (2 plates) white
Sx500 + MB 500 U-bracket black
MB 600 Array-kit black
Note: Flying and suspending of speakers requires authorized personnel
1 x MB 200
necessary 2 x MB 200
necessary
3/8“ Quick links
necessary
3/8“ Quick links
necessary 3/8“ Quick links
necessary
3/8“ Quick links
necessary
Eyebolt
necessary
Eyebolt
necessary
52
Amplifiers
The Precision Series(P-Series) — EV´s top line of power amplifiers —
has become a world standard in touring business. Their extreme reliability,
high-level sound and durable design made them the amp of choice for the
Rolling Stones´ world concert tour. A two-year tour is torture for any piece
of touring equipment and EV´s speakers and amplifiers did an outstanding
job, and not only from an acoustical point of view. In the two-year period,
one fuse blew in only one of the amplifiers.
All EV amps are equipped with a unrivaled and complete protection and
safety package for maximum sound performance. Their technical specs
represent the highest league of professional power amplifiers. Precision
Series™ guarantees among other things outstanding transient response
for unsophisticated sound reproduction of the original signal and extremely
low dynamic distortion ensuring excellent sound quality. Q-Series and
CPS-Series are based on Precision Series.
All EV-Amplifiers feature:
Dynamic Limiter
1 % THD
Dynamic limiters limit THD to 1% max. for input signals up to 21 dBu gain.
Dynamic audio limiters (shown right)
Switchable limiter time constant
(P-Series)
Peak current limiters
Inrush current limiters
•Turn-on delay (“soft-start”)
Excessive high frequency (RF) protection
Excessive Back-EMF protection
DC fault protection
Shorted loads protection
High temperature protection controls
thermal overload of the power
transistors and the transformer
Low-noise 3-stage resp. 4-stage fans
with front-to-rear airflow
Up to 30% headroom of power
capability
Generous power-supply construction
Flexible Input routing (mono parallel,
stereo)
Stable and safe operation on 2 load
Bridge-mode operation on 4 load
Highest quality standard “Made in
Germany”
High-level sound performance
Extreme reliability
Limiter
in process
Q44
Q66
Q-Series
Q-Series is based on EV´s world famous P-Series. They contain all features
listed above and guarantee the same high quality, in cost effective packages
of 2 x 450 W and 2 x 600 W output power.
Q-Series comes with a stable 3 RU zinc plated steel housing with
rear-mounted dB-scaled level controls.
Q 44 Q 66
Continuous rated power (1 kHz, THD 1 %)
2 650 watts 850 watts
4 450 watts 600 watts
8 280 watts 380 watts
Continuous rated power (20 - 20 kHz, THD < 0,2%)
2 450 watts 650 watts
4 350 watts 550 watts
8 230 watts 300 watts
Max. bridged output
4 1,300 watts 1,700 watts
8 900 watts 1,200 watts
Slew rate > 25 V / µs > 30 V / µs
Total Harmonic Distortion < 0.05 % < 0.05 %
Intermodulation Distortion (SMPTE) < 0.08 % < 0.08 %
DIM 30 < 0.03 % < 0.03 %
Damping factor 100 Hz / 1000 Hz > 300 / > 200 > 300 / > 200
Crosstalk (at 1.000 Hz) < 80 dB < 80 dB
Signal-to-noise ratio (dB A-weighted) > 105 dB > 105 dB
Input Impedance (balanced) 20 k20 k
Input Sensitivity (0 dBu factory setting) 0 dBu / +6 dBu 0 dBu / +6 dBu
Input connectors, parallel out XLR in/out XLR in/out
Output connectors Speakon®(Pin 1) Speakon®(Pin 1)
Dimensions (H x W x D) 5.25” x 19” x 15.17” 5.25” x 19” x 15.17”
133 x 483 x 386 mm 133 x 483 x 386 mm
Net weight 35.2 lbs.. (15 kg) 35.2 lbs.. (15 kg)
53

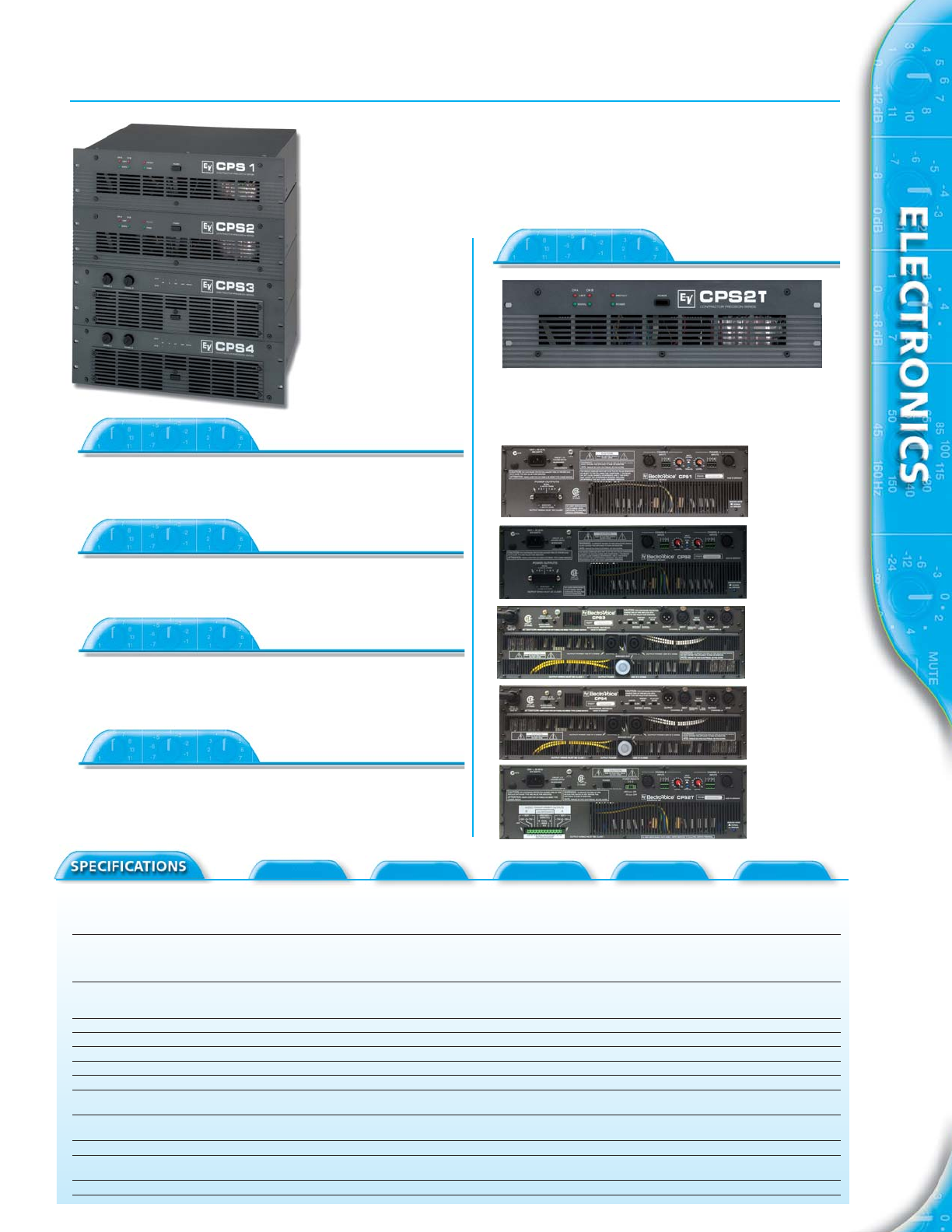

Contractor Precision Series (CPS) Amplifiers
The CPS Series are high-performance amplifiers with unmatched dynamic range capability, ensuring the
most reliable operation favored by sound contractors in all sound reinforcement applications.
The CPS Series achieves its outstanding dynamic range through the use of our unique nonlinear signal
monitor. This feature limits amplifier distortion to less than 1 percent, eliminating the “hard-edged”
clipping which can destroy most speaker systems. The amplifier’s power supply is specifically designed
to deliver high peak signals, proving a burst signal output capability headroom more than 30% over their
average continuous rating.
Maximum power (1k Hz; THD <1%)
2 650 W 850 W 1,200 W 1,800 W 850 W
4 450 W 600 W 900 W 1,300 W 600 W (70V: 500)
8 280 W 350 W 560 W 850 W 380 W
Rated power (20 Hz–20 kHz; THD <0.2%)
2 450 W 650 W 1,000 W 1,500 650 W
4 350 W 500 W 800 W 1,200 W 500 W (70V: 580)
8 230 W 300 W 500 W 750 W 33 W
Maximum bridged output (1,000 Hz; <1% THD)
4 1,300 W 1,700 W 2,400 W 3,600 W 1,700 W
8 900 W 1,200 W 1,800 W 2,600 W 1,200 W (100V: 1,160)
Slew rate 25 V/µs 30 V/µs 35 V/µs 40 V/µs 30 V/µs
Total harmonic distortion <0.05% <0.05% <0.05% <0.05% <0.05% (100V: <0.2%)
Intermodulation distortion (SMPTE) <0.08% <0.08% <0.01% <0.01% <0.08% (100V: <0.3%)
Crosstalk (at 1,000 Hz) <-80 dB <-80 dB <-70 dB <-80 dB <-80 dB
Input impedance (balanced) 20 k20 k20 k20 k20 k
Input Connectors XLR parallel in/out XLR parallel in/out XLR parallel in/out XLR parallel in/out XLR parallel in/out
phoenix type phoenix type phoenix type
Output Connectors 4-pole barrier strip 4-pole barrier strip Neutrik®Speakon®(Pin 1) Neutrik®Speakon®(Pin 1) 12-pole terminal block
(inc. 12-pole removable plug)
Signal-to-noise ratio (dB A-weighted) >105 dB >105 dB >105 dB >105 dB >105 dB
Dimensions (H x W x D) 5.2” x 19” x 15.2” 5.2” x 19” x 15.2” 5.2” x 19” x 15.4” 5.2” x 19” x 15.4” 5.2” x 19” x 15.2”
133 x 483 x 386 mm 133 x 483 x 386 mm 133 x 483 x 390 mm 133 x 483 x 390 mm 133 x 483 x 386 mm
Net weight 33.1 lbs. (15 kg) 35.3 lbs. (16 kg) 59.5 lbs. (27 kg) 63.9 lbs. (29 kg) 49.6 lbs. (22.5 kg)
CPS2T
• High-quality, high-Z output amplifier
• Unique TSP protection circuit, which secures against low-frequency distortion
by measuring the transformer saturation at each power level
• Brings CPS quality and performance to 100/70-volt applications
CPS 1
CPS 2
CPS 3
CPS 4
Rear-mounted, dB-scaled level controls
Retrofit kits available (crossover cards)
THX® approved
Rear-mounted, dB-scaled level controls
Retrofit kits available (crossover cards)
THX®approved
Front-mounted, dB-scaled level controls
Comes with cover knobs for control trims
Dual power supply
THX®approved
Front-mounted, dB-scaled level controls
Comes with cover knobs for control trims
Dual power supply
THX®approved
CPS1 CPS2 CPS3 CPS4 CPS2T
CPS 1 Back
CPS 2 Back
CPS 3 Back
CPS 4 Back
CPS 2T Back
54

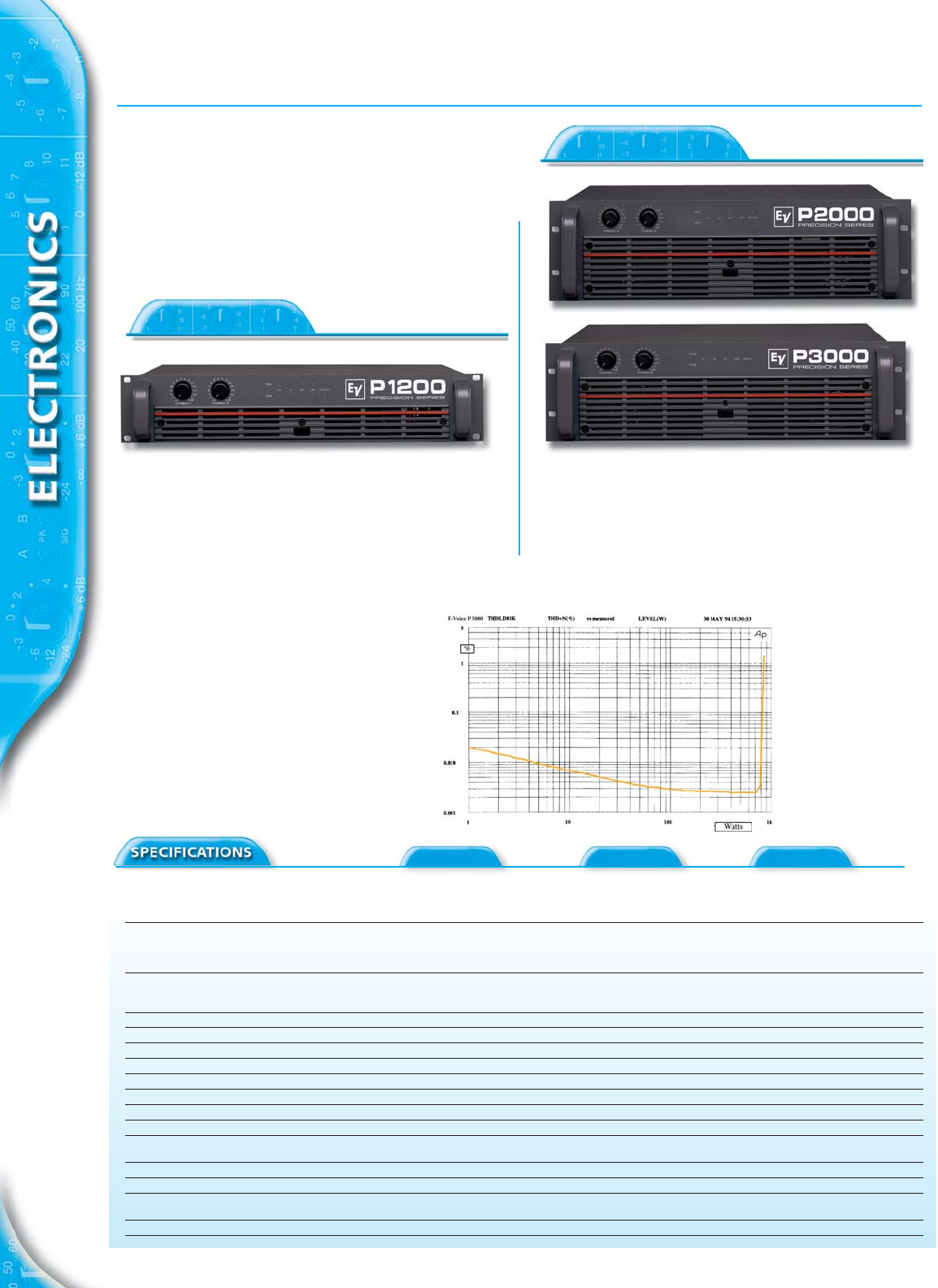

Precision SeriesLinear Amplifiers
The Precision Series(P-Series) is EV´s top line of linear power amplifiers.
Their extreme reliability, high-level sound and durability make them the
professional’s choice among rental companies and musicians.
For flown applications in the touring market, rear rack mount kits are
available to help stabilize the rack frame and ensure safe transportation.
•Compact, 2 RU chassis
Switchable limiter constant (fast/slow)
Switchable Lo- and Hi-cut filter
Input transformer optional (NRS 90176)
Selectable input sensitivity with 26 dB constant gain option (internal)
Dual power-supply
Switchable limiter constant (fast/slow)
Switchable Lo- and Hi-cut filter
Input transformer optional (NRS 90176)
Selectable input sensitivity with 26 dB constant gain option (internal)
Continuous rated power (1 kHz, THD 1 %)
2 800 watts 1,200 watts 1,800 watts
4 550 watts 900 watts 1,300 watts
8 370 watts 560 watts 850 watts
Continuous rated power (20 - 20 kHz, THD < 0,1%)
2 600 watts 1,000 watts 1,500 watts
4 500 watts 800 watts 1,200 watt
8 350 watts 500 watts 750 watts
Max. bridged output
4 1,600 watts 2,400 watts 3,600 watts
8 1,100 watts 1,800 watts 2,600 watts
Slew rate > 30 V / µs > 35 V / µs > 35 V / µs
Total Harmonic Distortion < 0.05 % < 0.05 % < 0.05 %
Intermodulation Distortion (SMPTE) < 0.01 % < 0.01 % < 0.01 %
DIM 30 < 0.01 % < 0.01 % < 0.01 %
Damping factor 100 Hz / 1000 Hz > 400/ > 300 > 400/ > 300 > 400/ > 300
Crosstalk (at 1,000 Hz) < -70 dB < -70 dB < -70 dB
Signal-to-noise ratio (dB A-weighted) > 105 dB > 105 dB > 105 dB
Input Impedance (20-20 kHz, balanced) 20 k20 k20 k
Input Sensitivity (0 dBu factory setting) 0 dBu / +6 dBu / +26 dB 0 dBu / +6 dBu / +26 dB 0 dBu / +6 dBu / +26 dB
constant gain constant gain constant gain
Input connectors, parallel out XLR in/out XLR in/out XLR in/out
Output connectors Neutrik®Speakon®(Pin 1) Neutrik®NL4MP Speakon®Neutrik®NL4MP Speakon®
Dimensions (H x W x D) 3.5” x 18” x 16.8” 5.2” x 19” x 16.8” 5.2” x 19” x 16.8”
88 x 483 x 390 mm 133 x 483 x 390 mm 133 x 483 x 390 mm
Net weight 35.2 lbs.. (17 kg) 57.3 lbs.. (27 kg) 61.7 lbs.. (29 kg)
THD + N versus power output of a P 3000.
P 1200
P 2000 / P 3000
P 1200 P 2000 P 3000
55
Dual channel
Modular controller amp concept
Input transformer optional (NRS 90208)
Without controller cards, useable as linear amp with fixed +6 dBu input sensitivity
The modular P-Series guarantees the same quality and performance
standards as the linear P-Series but they are designed for dedicated EV
systems, e.g. QRx Series. They combine the highest quality signal control,
maximum speaker/operation safety and the extreme reliability of “linear”
Precision-Seriesbut all in a modular-controlled amplifier concept.
All this adds up to maximum flexibility and an economic alternative to
digitally controlled amp racks. Rear rack mount kits are available in a
15.5-inch version (NRS 90235) or 18-inch version (NRS 90223) to help
stabilize the rack frame and ensure safe transportation.
Continuous rated power (1 kHz, THD 1 %)
2 1,600 watts 850 watts
4 1,200 watts 600 watts
8 750 watts 380 watts
Continuous rated power (20 - 20 kHz, THD < 0.2%)
2 1,300 watts 650 watts
4 1,000 watts 500 watts
8 500 watts 300 watts
Max. bridged output
4 N/A 1700 watts
8 (single channel) 1200 watts
Slew rate > 40 V / µs > 30 V / µs
Total Harmonic Distortion < 0.05 % < 0.05 %
Intermodulation Distortion (SMPTE) < 0.08 % < 0.08 %
DIM 30 < 0.03 % < 0.03 %
Damping factor 100 Hz /1,000 Hz > 300/ > 200 > 300/ > 200
Crosstalk (at 1,000 Hz) --- ---
Signal-to-noise ratio (dB A-weighted) > 106 dB > 106 dB
Input Impedance (20-20 kHz, balanced) 20 k20 k
Input Sensitivity (without module) 6 dBu fix 6 dBu fix
Input connectors, parallel out XLR in/out XLR in/out
Output connectors Neutrik®NLMP Speakon®Neutrik®NLMP Speakon®
Dimensions (H x W x D) 5.2” x 19” x 16.8” 5.2” x 19” x 16.8”
133 x 483 x 390 mm 133 x 483 x 390 mm
Net weight (without modules) 37.5 lbs.. (17 kg) 37.5 lbs.. (17 kg)
These controller cards provide customized system
equalization, crossover design, and EV´s unique
voice-coil protection circuit (VCP) for use with EV
loudspeakers (modules for QRx speakers are
currently available). Cards for full-range systems
feature a switchable 3,000 Hz (Q = 1, -3 dB) DIP-
EQ and a flush-mounted operation mode switch.
Each module also includes a “1-in-2” switch on the
PCB board, allowing it to drive both channels of a
P1202 independently while using only one
controller card. Note that when a module is used,
the amplifier’s input sensitivity changes to 0 dBu.
Precision SeriesModular Amplifiers
P 1202
Single channel
Modular controller amp concept
Input transformer optional (NRS 90208)
Without controller cards, useable as linear amp with fixed +6 dBu input sensitivity
P 1201
Control Modules
P 1201 P 1202
Dedicated for QRx-118S QRx-218S QRx-153
Operation function Subwoofer Subwoofer Bi-amp
Frequency Response (-6 dB) 25 Hz - 90 kHz 25 Hz - 90 kHz 27 Hz - 50 kHz
Full-range mode
Frequency Response (-6 dB) --- --- 40 Hz - 50 kHz
Mid-High mode
Adjustable gain-range -85 dB to + 6 dB -85 dB to + 6 dB -85 dB to + 6 dB
S/N Ratio < 108 dB < 108 dB < 105 dB
THD + N < 0.05 % < 0.05 % < 0.05 %
M-118S M-218S M-153
Dedicated for QRx-112/75 QRx-115/75 QRx-212/75
Operation function Full-range / Mid-High Full-range / Mid-High Full-range / Mid-High
Frequency Response (-6 dB) 27 Hz - 50 kHz 25 Hz - 50 kHz 27 Hz - 50 kHz
Full-range mode
Frequency Response (-6 dB) 75 Hz - 50 kHz 75 Hz - 50 kHz 75 Hz - 50 kHz
Mid-High mode
Adjustable gain-range -85 dB to + 6 dB -85 dB to + 6 dB -85 dB to + 6 dB
S/N Ratio < 105 dB < 105 dB < 105 dB
THD + N < 0.05 % < 0.05 % < 0.05 %
M-112 M-115 M-212
M-115
56

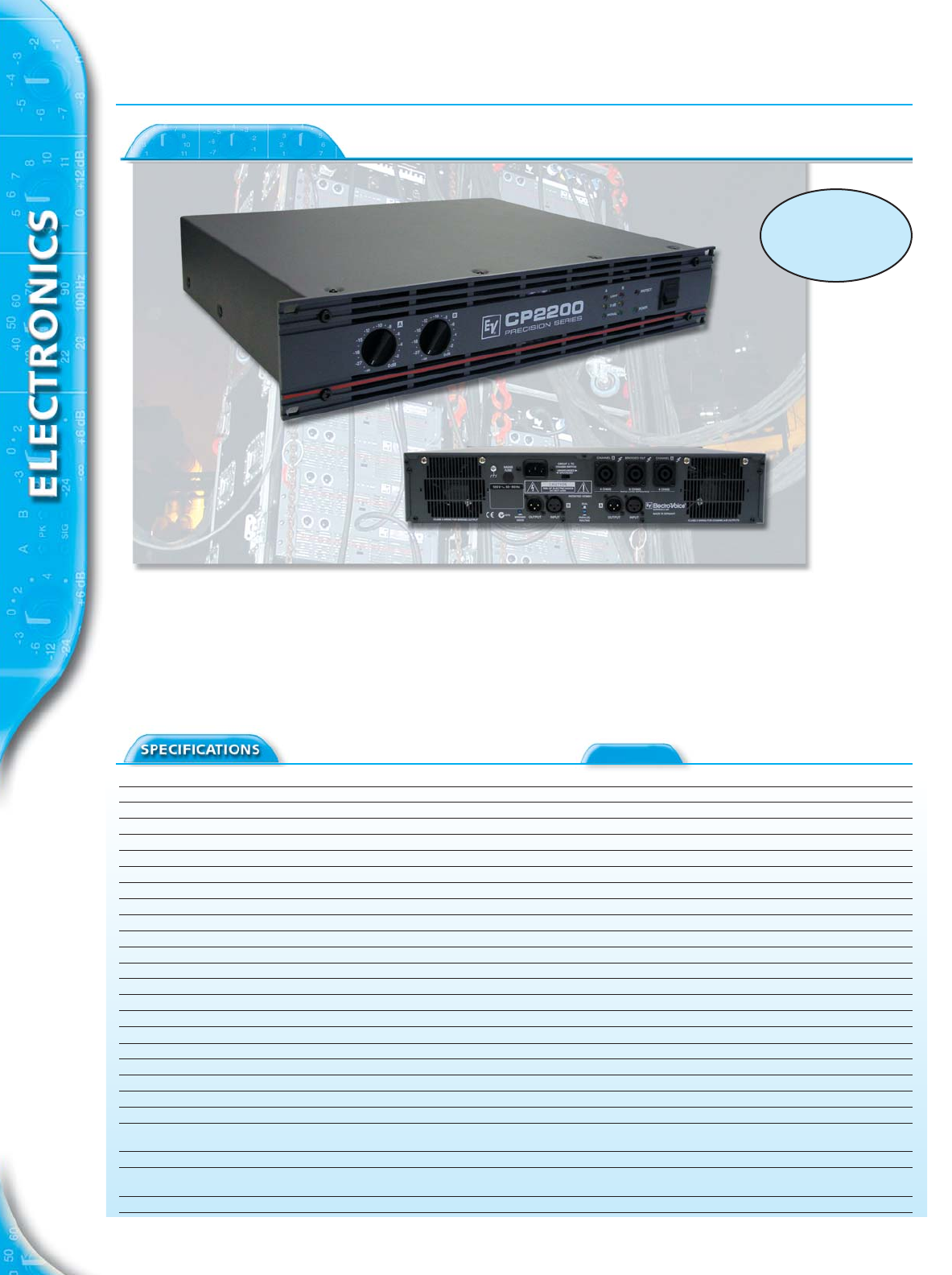

Compact Precision Amplifier CP2200
•2 x 1100 W/2
Class H design
Lightweight: 15 kg
•2 rack units high (3-1/2”)
Introducing the CP2200, EV enters a new era of compact and lightweight
professional amplifiers. Similar to the famous P-Series, the CP2200’s electrical
reliability and mechanical ruggedness are only surpassed by its sonic qualities.
Load Impedance 8 4 2
Maximum Midband Output Power THD = 1%, 1 kHz, Dual Channel 500 W 800 W 1,100 W
Rated Output Power THD < 0.1%, 20 Hz ... 20 kHz 350 W 700 W
Maximum Single Channel Output Power Dynamic-Headroom, IHF-A 625 W 1,200 W 2,200 W
Maximum Single Channel Output Power Continuous, 1 kHz 550 W 950 W 1,500 W
Maximum Bridged Output Power THD = 1%, 1 kHz 1,600 W 2,200 W
Maximum RMS Voltage Swing THD = 1%, 1 kHz 72 V
Power Bandwidth THD = 1%, ref. 1 kHz, half power @ 4 W 10 Hz - 60 kHz
Voltage Gain, ref.1 kHz 32.8 dB
Input Sensitivity at rated power @ 8W, 1 kHz + 4 dBu (1.23 Vrms)
THD at rated output power, MBW = 80 kHz, 1 kHz < 0.05%
IMD-SMPTE 60Hz, 7 kHz < 0.02%
DIM30 3.15 kHz, 15 kHz < 0.01%
Maximum Input Level +22dBu (9.76 Vrms)
Crosstalk ref. 1 kHz, at rated output power < -80dB
Frequency Response ±1 dB, ref. 1 kHz 15 Hz - 40 kHz
Input Impedance active balanced 20 k
Damping Factor 1 kHz > 300
Slew Rate 35 V/µs
Signal to Noise Ratio Amplifier A-weighted, input sensitivity +4 dBu 105 dB
Power Requirements 240, 230 V,120 V or 100 V; 50 Hz ... 60 Hz ( factory configured )
Power Consumption at 1/8 maximum output power @ 4 W, +10% 660 W
Protection Audio limiters, High temperature, DC, HF, Back-EMF,
Peak current limiters, Inrush current limiters, Turn-on delay
Cooling Front-to-rear, 4-stage-fans
Dimensions (W x H x D) 3.5” x 18” x 15.7”
483 x 88.1 x 386.8 mm
Weight 35.2 lbs.. (15 kg)
CP2200
CP2200
Available
May 2003
57

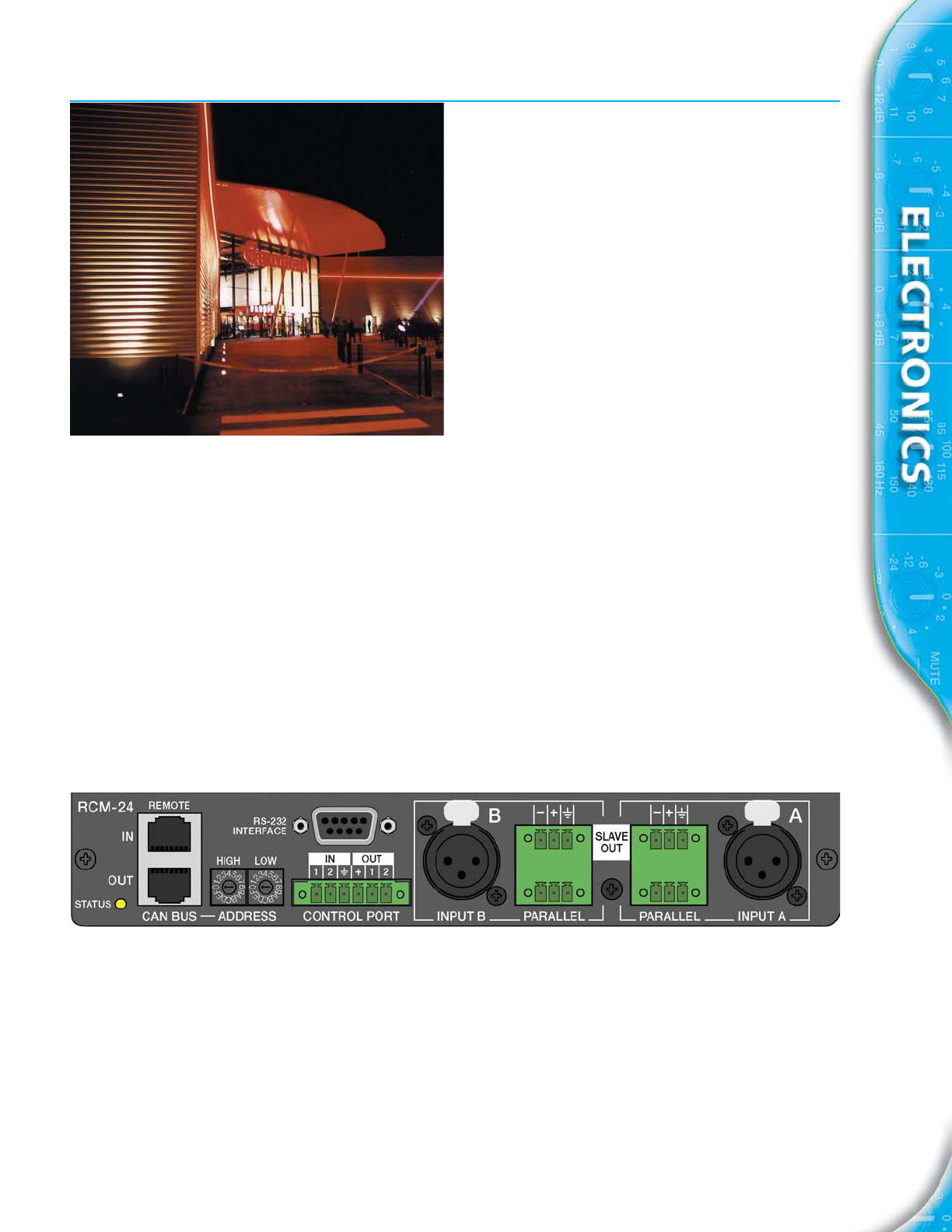

Precision Series Remote Amplifiers
Electro-Voice has 75 years of experience in the design and manufacturing
of loudspeakers and microphones. But many are not aware that
Electro-Voice has 50 years of design experience in power amplifiers and
more than 20 years in digital audio processing.
An unwavering commitment to satisfying customer needs made
Electro-Voice become a leading manufacturer of sound reinforcement
systems for stadiums, arenas, multi-purpose venues, theaters and cinemas
around the globe. Due to their sonic purity and extreme reliability EV's
amplifiers became established with top concert-sound and professional
installation projects worldwide. The Precision Series is the flagship of EV's
amplifier product line. An uncompromising design for the highest level of
demand.
The new DSP Controlled P Series amplifiers combine legendary performance
with an uncompromised remote control and system supervision capability.
Utilizing state-of-the-art technologies from our signal processor
developments (dynamics >114 dB) we guarantee to provide superior audio
performance.
DSP Controlled Precision Series Amplifiers
Remote control and supervision of up to 250 amplifiers via one or multiple PCs.
Central supervision of all amplifiers and connected loudspeakers (system check)
State-of-the-art signal processing (Filter, Delay, Level, Dynamics)
Display of the acoustical response of EV speakers in real-time (RACE)
Integration with life-safety systems and control of external equipment
Exceptional audio performance and extreme reliability
RCM-24:
The Digital Engine with more than 115 dB Dynamics
Remote Control
Remote control of all amplifier parameters
Centralized system configuration
Preset and program change for different applications
Control via one or multiple PC's with discretionary access control
Signal Processing
12 filters, 2 delays, compressor and limiter per channel
RACE Processed Presets for EV speakers available
Total Supervision
•All amplifier operation modes are controlled and monitored
Automated action procedures on critical operation modes are programmable
Full time supervision of loudspeaker lines for short-circuit and interrupt
Full frequency bandwidth measurement of speaker impedance and display of
impedance curve showing tolerances
In and out jacks for CAN bus on RJ45 connectors - CAT-5 cabling (includes
audio monitoring signal) RS-232 interface to connect to media control
systems
Control port with GP in and out termination (0 to 5V) for external control,
free programmable functionality (i.e. integration into life-safety and
evacuation systems). Audio signal input on XLR connector, parallel out and
DSP out on Phoenix connector.
AD/DA-conversion in 24 bit resolution and 128-times oversampling (linear
phase); internal word length 48 bit. This allows the RCM-24 to offer a total
dynamic in exceed of 115 dB, an unequalled value for digital signal
processing in power amplifiers.
58
Precision Series Remote Amplifiers
842842842100 V 70V 100 V 70V
Continuous Output Power (1 kHz, THD 1%) 280 W 450 W 650 W 380 W 600 W 850 W 850 W 1,300 W 1,800 W 410 W 400 W 590 W 580 W
Rated Output Power (20 Hz-20 kHz, THD <0,2%) 230 W 350 W 450 W 300 W 550 W 650 W 750 W 1,200 W 1,500 W 350 W 350 W 500 W 500 W
Maximum Bridged Output (1 kHz, THD 1%) 900 W 1,300 W - 1,200 w 1,700 W - 2,600 W 3,600 W - - - - -
THD @ Rated Output Power < 0.05% <0.1% <0.2% <0.1% <0.2%
DIM 30 <0.03% <0.01% <0.2% <0.3% <0.2% <0.3%
Intermodulation (SMPTE) <0.08% <0.001% <0.1% <0.3% <0.1% <0.3%
Signal to Noise Ratio > 105 dB >100 dB
Frequency Response (-1 dB) 20 Hz - 20 kHz 45 Hz - 20 kHz
Dynamic Audio Limiter
THD < /= 1% (Input signal < /= + 20 dBu
Protections Hi-Temperature, DC, HF, Back EMF, Peak Current Limiter, Inrush Current Limiter, Power On Delay
Cooling 3(4)-stage fan, front-to-rear cooling
Input Sensitivity and Impedance 1.55 V (+6 dBu), 20 k
,XLR Input
Maximum Input Level 8.7 V (+21 dBu)
Serial Interface Network: CAN, 2 RJ45 (CAT-5 Cabling), RS-232 for media control systems
Control Logic in and Outputs 2 x 0V 5V free configurable, Easy-Remote
Loudspeaker Connectors Barrier Strip Neutrik®Speakon®NL4 Barrier Strip
Dimensions (Width x Height x Depth) 52” x 19” x 15.4” (483 x 132,5 x 390 mm) (3Ru)
Net Weight 35.3 lbs.. (16 kg) 37.5 lbs.. (17 kg) 66.2 lbs.. (30 kg) 53 lbs.. (24 kg) 55.1 lbs. (25 kg)
All measurements both channels driven into 8 ohms unless other specified.
Range of Amplifiers for High and Low Impedance Applications
P3000 RL
P1200 RL
R900 RL
P1200 RT
R900 RT
The flagship, with 2 x 1300 watts into 4 and 2 x 1800 watts into 2 ohms, the
digital controlled version of the legendary P3000 amplifier. Speaker outputs on
Speakon® NL4 connectors.
The universal with 2 x 600 watts into 4 and 2 x 850 watts into 2 Ohms.
Speaker outputs on barrier strip.
Featuring 2 x 450 watts into 4 and 2 x 650 watts into 2 ohms the P900RL is
dedicated for HF drive in multi-way systems. Speaker outputs on barrier strip.
High impedance output for 100/70V-lines with 2 x 590 watts.
The dynamic limiter circuit includes the output transformer and limits THD to
1% maximum. Speaker outputs on barrier strip.
High impedance output for 100/70V-lines with 2 x 410 watts.
Speaker output on barrier strip.
P900 RL P1200 RL P3000 RL P900 RT P1200 RT
I.R.I.S. (Intelligent Remote Integrated Supervision) software
allows configuration, control, and monitoring or up to 250 EV
Remote Amplifiers from one central location
IRIS Software UCCI
USB to CAN bus interface for remote controlled amps.
59

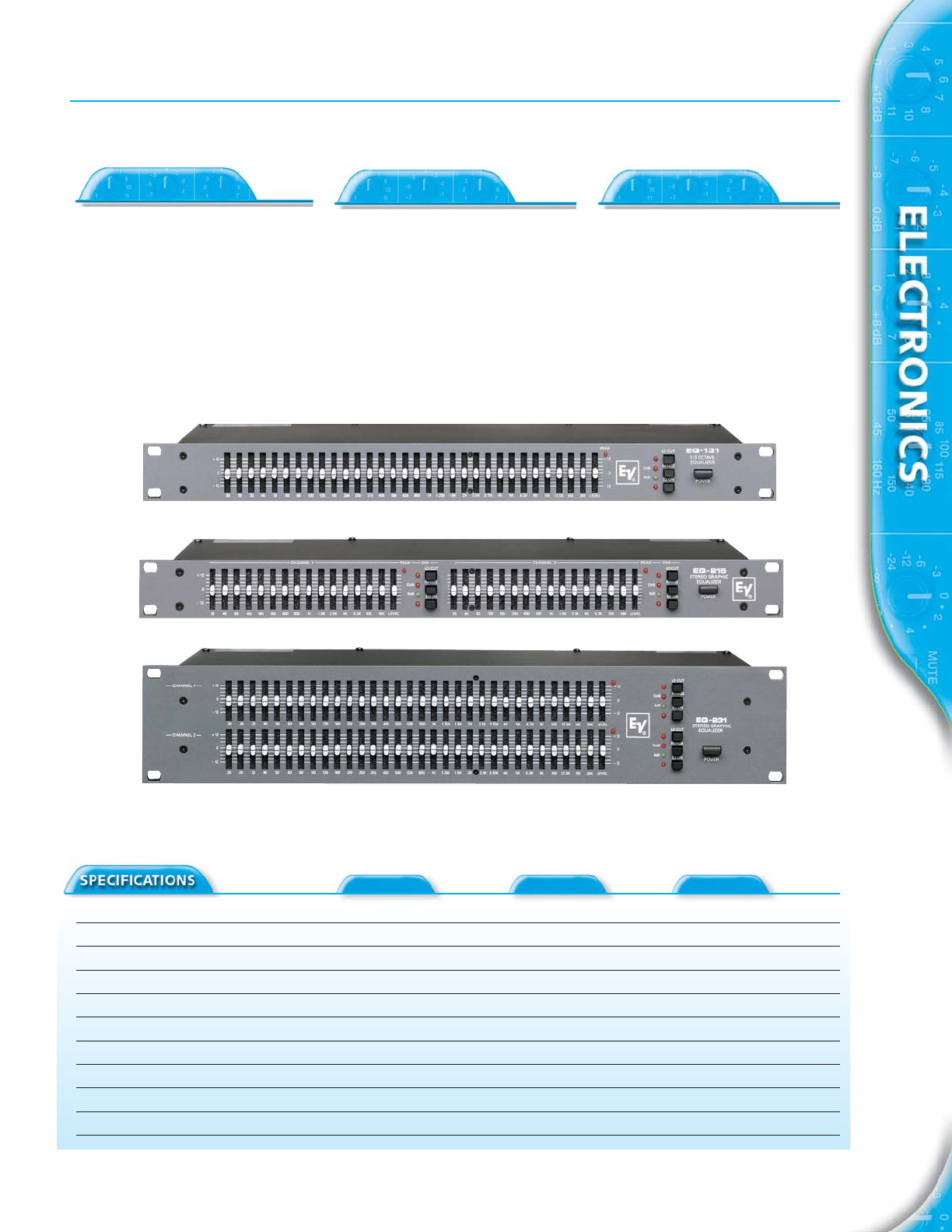

EV supplies the full spectrum of equipment for complete sound reinforcement reliability and performance.
To ensure the best sound possible in your application, consider EV’s innovative signal processing.
EQ-131
EQ-215
EQ-231
Signal Processors
EQ-131 EQ-215 EQ-231
• Boost and cut 1/3-octave graphic EQ
Variable-Q active filter sets allow effective equalization
• Each of the 31 1/3-octave filters provides 12 dB of
boost or cut at ISO frequencies 20-20,000 Hz
• Excellent signal-to-noise ratio
• IEC connector allows compatibility with AC
connections anywhere
• Integral fuseholder doubles as the voltage
selector to for use anywhere
• Boost and cut 1/3-octave graphic EQ
Variable-Q active filter sets allow effective equalization
• Each of the 15 2/3-octave filters provides 12 dB of
boost or cut at ISO frequencies 25-16,000 Hz
• Excellent signal-to-noise ratio
• IEC connector allows compatibility with
AC connections anywhere
• Integral fuseholder doubles as the voltage
selector for use anywhere
• Boost and cut 1/3-octave graphic EQ
Variable-Q active filter sets allow effective equalization
• Each of the 31 1/3-octave filters provides 12 dB of
boost or cut at ISO frequencies 20 -20,000 Hz
• Excellent signal-to-noise ratio
• IEC connector allows compatibility with
AC connections anywhere
• Integral fuseholder doubles as the voltage
selector for use anywhere
Functions Graphic EQ Graphic EQ Graphic EQ
Input/Outputs 1 in/1 out 2 in/2 out 2 in/2 out
Signal-to-Noise >97 dB >97 dB >97 dB
Filter Slope Variable Q Variable Q Variable Q
Connectors Balanced XLR & 1/4-inch Balanced XLR & 1/4-inch Balanced XLR & 1/4-inch
Features Low-cut filter Low-cut filter Low-cut filter
Height 1.73” (44 mm) 1.73” (44 mm) 3.46” (88 mm)
Width 19.0” (483 mm) 19.0” (483 mm) 19.0” (483 mm)
Depth 9.24” (235 mm) 9.24” (235 mm) 9.24” (235 mm)
Net Weight 7.48 lbs.. (3.4 kg) 6.0 lbs.. (2.7 kg) 8.8 lbs.. (4.0 kg)
EQ-131 EQ-215 EQ-231
60
AC One Analog Audio Controller
The AC One analog audio controller has been designed for use in high-
performance applications that employ small- to medium-size full-range
systems with subwoofers. Its excellent audio performance, dynamic
range of 117 dB, extremely low noise level, and outstanding price-
performance ratio make the AC One an advantageous alternative to
conventional crossover and controller solutions. It is possible to meet
the tough demands of modern audio applications – such as high sound
pressure level, coverage, and sound quality – only by using a biamped
loudspeaker system which can fully separate, amplify, and reproduce
the audio signal´s frequency ranges. The PowerMax 12 crossover
function brings the low-frequency performance of bigger systems to
compact systems. The AC One guarantees highly economical system
applications without loss of performance, and helps to save on
application space.
Inputs and outputs are active balanced. The inputs can be fitted with
optional high-quality input transformers (NRS 90208). The outputs
feature output relays which protect against unwanted noise in case of
power failure.
The new PowerMax 12 crossover function (patents pending) makes the best
possible use of amplifier output power and loudspeaker transmission
capacities. Compared to other regular crossover designs on the market,
PowerMax 12 delivers an extra 3 dB SPL at the crossover point, something
which cannot be achieved by normal equalization alone. In addition, speaker
overload and amplifier clipping are dramatically reduced. The PowerMax 12
crossover function silences the oft-heard complaint: “It needs more punch
and definition.” In addition, a 12-dB (Q: 1.0) lo-cut filter and a unique
3-band equalizer featuring the patented LPN filter allows for flexible, easy,
and quick system adjustments.
Part number Option/accessory
PA 1 Clear acrylic cover
NRS 90208 Input transformer
24 dB Linkwitz-Riley crossover curve
PowerMax 12 crossover curve
PowerMax 12 advantage
The PowerMax 12 Advantage and its Unique EQ Section
AC One Analog Audio Controller
Accessories
Crossover type 2-way stereo + sub mono
Crossover frequency (sweepable) 45 –160 Hz
Crossover filter type PowerMax 12
Filter options (adjustable) Lo-cut/3-band EQ
Frequency response (-3 dB @ 1 kHz) 16 Hz–150 kHz
Nominal gain 0 dB
Maximum gain +12 dB
Dynamic range (+20 dBu, a-weighted) 117 dB
THD + N (20 Hz–20 kHz, +6 dBu) <0.02%
THD + N (typical, +6 dBu) 0.003%
Crosstalk attenuation >80 dB
Mute switch rejection >90 dB
Level control attenuation >80 dB
Input impedance 20 k
Maximum level (inputs: A, B) +20 dBu
Rated level (inputs: A, B) +6 dBu
Gain range (inputs: A, B) -to +6 dB
Output impedance (HI, LO, SUB) 75
Maximum level (outputs: HI, LO, SUB) +20 dBu
Rated level (outputs: HI, LO, SUB) +6 dBu
Gain range (outputs: HI, LO, SUB) -to +6 dB
Input/output connectors XLR (active balanced)/
Inputs with parallel out
Power consumption 17 W
Power requirements 50-60 Hz (switchable) 100–120 V/220–240 V
Dimensions (H x W x D) 1.72” x 19” x 8.92”
43.6 x 483 x 226.5 mm (1 RU)
Net weight 7.07 lbs (3.2 kg)
AC One AC One
DCN 485
Accessories
RS-485
61
Dx38 (Digital Sound System Processor)
up to 1000 meters
Available Options and Accessories:
PA 1 Acrylic glass cover 19”/1 RU
NRS 90244 Input transformer
NRS 90247 RS-485 network interface
NRS 90246 Contact Closure interface for external
“User preset” selection; 8 contacts
(pin 1-8: activation, pin 9: common)
Dx Network
(up to 32 Controllers)
Controller type 2 (+1) in / 4 out
Data format 24-bit linear AD/DA conversion
48-bit processing
A/D conversion 24-bit / sigma-delta (linear phase)
128 times oversampling
D/A conversion 24-bit / sigma-delta
128 times oversampling
Sampling rate 48 kHz
DSP type 2 x 24-bit Motorola
Frequency response 20 - 20 kHz (- 0.5 dB)
Dynamic Range (typical) 115 dB
THD (without input transformer) < 0,01 %
THD (with input transformer) < 0,05 %
Input connectors 2 XLR (elec. balanced), parallel out
Input voltage (nominal) 1.55 V / + 6 dBu
Maximum input voltage 24.5 V / + 30 dBu
Input impedance 20k
Common mode rejection > 40 dB
Output connectors 4 XLR (elec. balanced)
Output voltage (nominal) 1.55 V / + 6 dBu
Maximum output voltage 8.7 V / + 21 dBu
Output impedance < 100
Minimum load impedance 600
Frequency crossovers (slopes) 6, 12, 18, 24 dB/oct.
Frequency crossovers (designs) Butterworth, Bessel, Linkwitz-Riley
Filters (In- and Outputs) 26 (full) parametric Equalizers,
Low-Shelving EQ (6, 12 dB slope),
LPN (Lowpass-Notch) switchable,
Hi-Shelving EQ (6, 12 dB slope),
Lo-Cut filter (6 or 12 dB slope),
B6 alignment, Hi-Cut filter
(6 or 12 dB slope), All-Pass filter
(1 st or 2 nd order), Phase invert (180°)
Digital Compressor 4 (1 each output) with graph
Digital Limiter 4 (1 each output) with graph
Delay3 master delays (2 ms - 900 ms) 4 channel delays (0 ms - 900 ms)
Delay-increment 21 µsec.
MIDI in/out/thru Data dump, Master / Slave
operation, Remote Control
Graphic LCD with LED-background light 122 x 32 dots
Locking function via key-lock
Dimensions (WxHxD) 1.72” x 19” x 14.75”
483.0 x 43.6 x 374.0 mm
Weight net 17.03 lbs. (5.0 kg)
Dx 38 sets standards for digital loudspeaker controllers and processors,
providing 48-bit filter algorithms, 24-bit AD/DA conversion and a dynamic
range of 115 dB. Dx38 can be used in networks of up to 31 controllers with
a maximum networking distance of 1,000 meters. Real-time controlling
and configuration is either via the front panel or PC via RS-232, MIDI or
RS-485 bus for networking.
Dx38 is a 2 in / 4 out controller with a virtual third input source. It has a
mono sum of both input channels to maximize flexibility. Two configuration
modes allow clearer handling for different qualified users. 30 user
memories and 50 factory presets can be managed.
The Dx38 comes with a detailed manual plus RACE software including
current EV speaker and amp data.
WWW
Software update
download
RS-485 NRS 90246
Remote panel
RS-232 realtime controlling
Digital Sound System Processor
Dx 38
DCN 485 PC Converter (RS-485 to RS-232)
RS-485 Remote Interface for Dx38
62
RACE Software
RACE is a professional audio tool to generate presets for speaker systems.
In addition to the clear display of all used filters, delay and level settings,
each output can be assigned with the acoustic data (phase and frequency
response) of the individual speaker component.
This pure speaker data has been measured in free space. RACE then
calculates the complex summation of all used filters, level and delay
settings applied to these components. Thus the display on the screen is not
only the electrical filter response but, for the first time, the actual true
acoustic response of the component. Any change of parameter values is
visible and audible in real time.
An additional tool is the SPL dispersion window for lower frequencies.
Presets can even be prepared off-line in advance and need only a little
tweaking once speakers are in place. RACE enables engineers to
seamlessly integrate room influence, speaker positioning and parameter
settings and a RACE Processed Preset is a guarantee for a solid, accurate
basis from which to begin system tuning. EV supplies these presets for all
current EV speaker systems, even if the needed combination is not part of
the 50-factory preset of the Dx38.
Download RACE software for the Dx38 for free from www.electro-voice.de
RACE
Software for Dx38
This example shows the acoustical response of Xi-1183/64 plus Xi-2181
(4-way) using the big Bode-Plot. Any change of parameters like level, filter
or delays is displayed immediately. Even very complex array settings can be
tuned simply and accurately.
Overall Frequency Response
The signal flow diagram provides a clear overview of all available
parameters. Immediately after the input metering there are five master
equalizers per input available. Each of these filters can be set as hi- or
lo-pass (6 dB/12 dB-Peaking), hi- or lo-shelf (6/12 dB) or as a fully
parametric eq. Each activated filter is signaled by a green LED symbol.
Each input, or the sum of both inputs, can be delayed separately up to
900ms with the master delay. The fully flexible routing allows each input as
well as the sum to be routed to any of the four outputs. Four filters per
output are available with same filter functions as the master eq. In addition,
an all-pass filter for phase corrections can be selected. The
crossover section provides a hi- and a lo-pass-filter per channel and an
output delay for alignment. The dynamics sections with independent
compressor and limiter can be used for speaker protection.
The output meter display works like the whole editor in real-time.
Level control and mute are available per channel.
All of these parameters on the Dx38 can easily be edited via the front
control panel without using a pc. Once you try RACE however, you may
never want to work without it!
Signal Flow Diagram Frequency Response
63
Real-Time Acoustical Cluster Editor
Speaker Assignment
Filter Functions
Summation
Acoustical Response
In order to display the acoustical response of the complete system, the
acoustical data of each speaker component (phase and magnitude) is
assigned to the appropriate output. The data is measured in a free field.
All influences of filter functions, levels and delay settings are then
calculated. Thus RACE displays the acoustical response of a speaker
system including all parameters used on the Dx38, but without any
room influence – in real-time. This display is exclusive for EV speaker
systems and helps to determine how to optimize the use of all digital
parameter functions.
This example shows 4-way set-up with Xi-1183 (3-way) plus Xi-2181
(Sub). Clearly displayed are the filter functions of each output including
the master and channel eq settings. The resolution can be switched
between ±12 dB, ±24 dB, or ±48 dB. It’s also possible to change
between frequency or phase response. Outputs of non-relevant
speakers for this system can be removed from view. This example uses
all four outputs. This preset is slightly complex as it uses, in addition
to conventional x-overs, a wide overlap of Sub (Xi-2181) and Lo
(Xi-1183LF).
This example shows for a 4-way set-up with Xi-1183 (3-way) plus Xi-
2181 (Sub). Clearly displayed are the filter functions of each output
including the master and channel eq settings. The resolution can be
switched between ±12 dB, ±24 dB, or ±48 dB. It’s also possible to
change between frequency or phase response. Outputs of non-relevant
speakers for this system can be removed from view. This example uses
all four outputs. This preset is slightly complex as it uses, in addition to
conventional crossovers, a wide overlap of Sub (Xi-2181) and Lo
(Xi-1183LF).
However, adding the acoustical data of the raw components and
amplifiers to this file, the display shows the real acoustical response
caused by the actual parameter settings. Any change of a parameter is
visible and audible immediately. The big advantage of this view is the
independence of any room influence.
RACE is an industry first and unique in that the software shows the true
frequency response of EV components in real-time as they behave in a
free field.
64

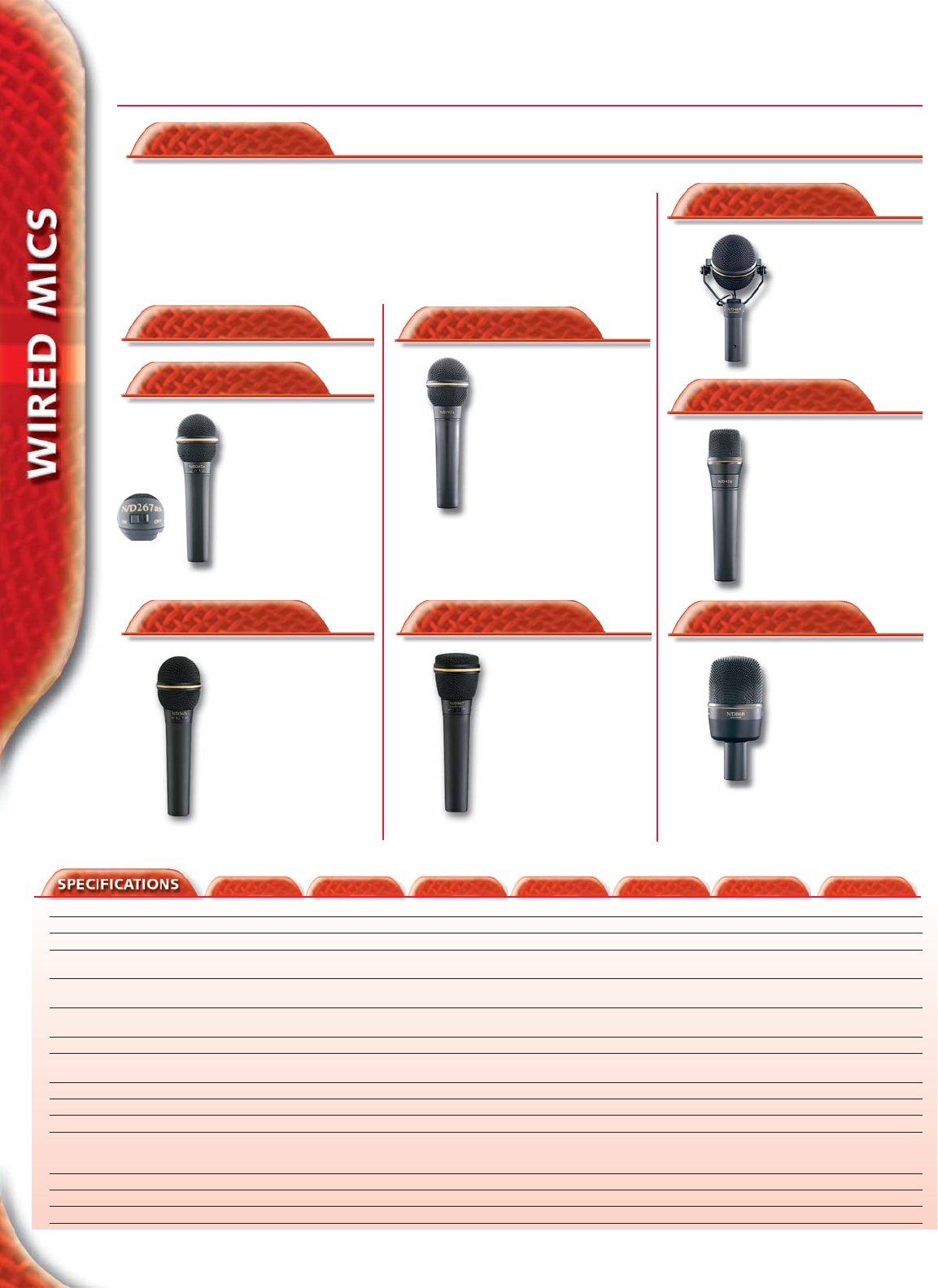

N/DYM®Series
N/DYM®Series is different from other microphones. Excellent and clear sound,
comfortable and safe handling, N/DYM®magnetic structure, EV’s unique VOB
technology and studio sound performance mark EV´s N/DYM®Series.
As part of a fixed installation, in studios, or on the road, EV N/DYM®
microphones outperform any other microphone in their class.
•Vocal and speech
microphone
Entry into the world of
high-performance mics
Includes accessories
On/off-Switch (as
version)
•Instrument microphone
Unique “moving head”
Extreme low self-noise
Accurate response,
even in high SPLs
Includes accessories
Concert sound vocal mic
Highest gain before
feedback
Ultra low handling noise
Includes accessories
Premium vocal
microphone
• Strong low-frequency
response
• Great for female vocals
On/off-Switch
Includes accessories
Element Dynamic Dynamic Dynamic Dynamic Dynamic Dynamic Dynamic
Polar pattern Cardioid Supercardioid Supercardioid Cardioid Supercardioid Cardioid variant Supercardioid
Impedance, Low-Z balanced 300 300 300 150 300 150
Frequency Response (-3 dB),
close response 45 Hz - 15 kHz 25 Hz - 20 kHz 35 Hz - 22 kHz 50 Hz - 13 kHz 30 Hz - 22 kHz 45 Hz - 15 kHz 20 Hz - 10 kHz
Frequency Response (-3 dB),
far response 100 Hz - 15 kHz 55 Hz - 20 kHz 70 Hz - 22 kHz 120 Hz - 13 kz 60 Hz - 22 kHz 100 Hz - 15 kHz
Output Level(0 dB = 1 m W/Pascal)
at 1,000 Hz - 52 dB - 53 dB 51 dB - 52 dB - 51 dB - 52 dB - 52 dB
Open Circuit Voltage (at 1,000 Hz) 2.9 mV/Pascal 2.2 mV/Pascal 3.1 mV/Pascal 4.0 mV/Pascal 3.1 mV/Pascal 2.9 mV/Pascal 1.0 mV/Pascal
Equivalent Noise (0 dB=20 micropascal)
A-weighted < 17 dB SPL < 16 dB SPL < 14 dB SPL < 17 dB SPL
Magnetic Circuit N/DYM®N/DYM®N/DYM®N/DYM®N/DYM®N/DYM®N/DYM®
Case Material Metal Metal Metal Metal Metal Metal Metal
Finish Nonreflecting black Nonreflecting black Nonreflecting black Nonreflecting black Nonreflecting black Nonreflecting black Nonreflecting black
Included accessories Stand adapter, Stand adapter, Stand adapter,Stand adapter, Stand adapter, Stand adapter, Stand adapter,
soft zippered soft zippered soft zippered soft zippered soft zippered soft zippered soft zippered soft zippered
carrying pouch carrying pouch carrying pouch carrying pouch carrying pouch carrying pouch carrying pouch carrying pouch
Connector type 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR
Dimension (Length x max. Diameter) 181 x 52 mm 181 x 52 mm 181 x 52 mm 173 x 52 mm 115 x 52 mm 181 x 52 mm 133 x 60 mm
Weight net 238 g 200 g 260 g 205 g 190 g 247 g 295 g
Wired Microphones
N/D267a
N/D267as
N/D367s
Universal microphone
Ideal to mic drums,
percussion or guitars,
also as vocal “spare” mic
Smooth response
Includes accessories
N/D967
N/D468
N/D767a
•Top-class vocal
microphone
Multi-stage shock mount
for unmatched low-
handling noise
Condenser mic
performance
Includes accessories
N/D868
Designed specifically for
kickdrums
RE20 capsule type
•Extended “lows” to tighten
mixes
Frequency response
typically eliminates the
need of an EQ
Extreme low self-noise
• Includes accessories
N/D267a/as N/D367s N/D767a N/D967 N/D468 N/D478 N/D868
N/D478
65

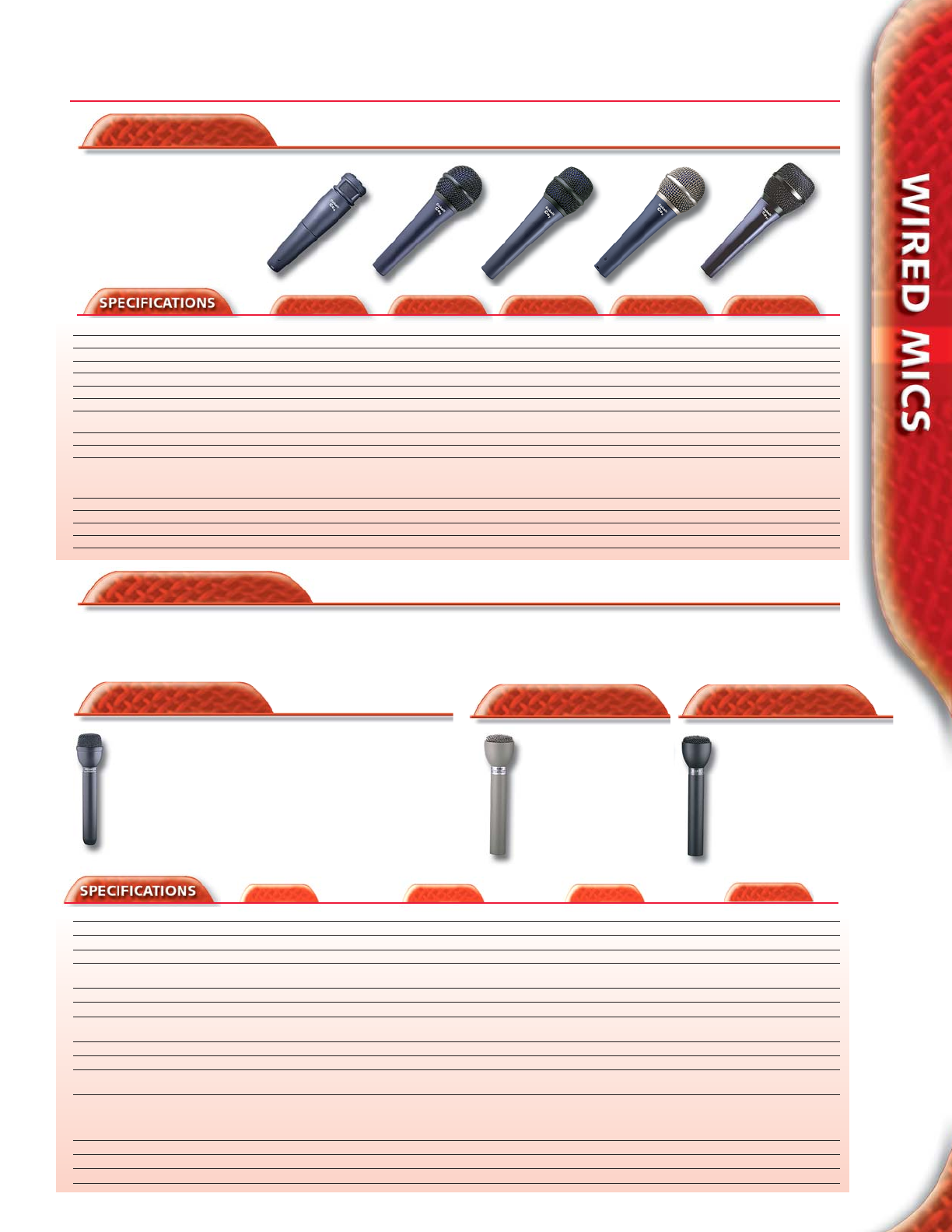

Wired Microphones
Live Interview Mics
EV´s 635 and RE50 microphones are famous in broadcast, television, and
radio OBs (outside broadcasts). These microphones set world standards
especially for ENG (electronic news production) and EFP (electronic field
production). They are extremely rugged, can withstand high humidity,
temperature extremes and corrosive effects such as salt-air yet provide
excellent sound performance.
Element Dynamic Dynamic Dynamic Dynamic Self-biased condenser
Polar pattern Cardioid Cardioid Cardioid Cardioid Cardioid
Impedance, Low-Z balanced 600 600 600 600 Low-Z’balanced (250 )
Frequency Response (-3 dB) 50 Hz - 18 kHz 50 Hz - 18 kHz 50 Hz - 18 kHz 50 Hz - 18 kHz 50 Hz - 20 kHz
Open Circuit Voltage (at 1,000 Hz) 2.2 mV/Pascal 2.8 mV/Pascal 3.2 mV/Pascal 3.2 mV/Pascal 4 mV/Pascal
Magnetic Circuit N/DYM®N/DYM®N/DYM®N/DYM®N/A
Power requirement (Phantom power) N/A N/A N/A N/A 24 to 48 Vdc
Specials Low-noise —
On/off-Switch
Case Material Die cast zinc Die cast zinc Die cast zinc Die cast zinc Die cast zinc
Finish cobalt cobalt cobalt cobalt cobalt
Included accessories Stand adapter, Stand adapter, Stand adapter, Stand adapter, Stand adapter (black)
zippered vinyl zippered vinyl zippered vinyl zippered vinyl gig bag
carrying pouch carrying pouch carrying pouch carrying pouch
hard-shell case hard-shell case hard-shell case hard-shell case
Optional accessories
Connector type 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR
Dimension (Length x max. Diameter) 148 x 23 mm 170 x 53 mm 170 x 53 mm 170 x 53 mm 173 x 53 mm
Weight net 340 g 306 g 332 g 335 g 292 g
Element Dynamic Dynamic Dynamic Dynamic
Polar pattern Omnidirectional Omnidirectional Omnidirectional Omnidirectional
Impedance, Low-Z balanced 150 150 150 150
Frequency Response (-3 dB) 80 Hz - 13 kHz 80 Hz - 13 kHz 80 Hz - 13 kHz 80 Hz - 13 kHz
Power Level (0 dB = 1 mW/Pascal) - 55 dB - 51 dB - 55 dB - 51 dB
at 1,000 Hz
Open Circuit Voltage (at 1,000 Hz) 2.0 mV/Pascal 2.0 mV/Pascal
Magnetic Circuit Alnico N/DYM®Alnico N/DYM®
Specials — Acoustalloy®Dyna-Damp Dyna-Damp
Memraflex
Filters — — —
Case Material Steel Steel Aluminum Aluminum
Finish Fawn beige (A) Semi-gloss Semi-gloss Semi-gloss
Semi-gloss black (A/B) camera black camera black camera black
Included accessories Stand adapter Stand adapter Stand adapter Stand adapter
zippered vinyl zippered vinyl
carrying pouch carrying pouch
hard-shell case hard-shell case
Connector type 3-pin XLR 3-pin XLR
Dimension (Length x max. Diameter) 151 x 36 mm 148 x 36 mm 197 x 49 mm 197 x 49 mm
Weight net 170 g 170 g 269 g 269 g
CobaltSeries
RE50/B, RE50N/D
635A (beige) 635A/B (black)
635N/D-B
• N/DYM
®
for greater output
(RE50 N/D)
• No muddy lows when used near lips
• Dyna-Damp
for extremely effective
handling noise isolation
• On-camera use with 422 A desk stand
Acoustalloy
®
diaphragm material for
very smooth response over a wide
frequency range
Withstands high humidity;
temperature extremes, corrosive
salt air
• Integrated four-stage pop-filter
• Integral windscreen and blast filter
• Comes with accessories
Co4 Co5 Co7 Co9 Co11
• Linear frequency response
• Completely pop-free
performance
• Four-stage pop and dust filter
• Internal effective shock
absorber
• Comes with accessories
• Uniform 80 - 13,000 Hz frequency
response
• N/DYM®magnetic for greater output
• Acoustalloy®diaphragm material for
very smooth response over a wide
frequency range
• Integral windscreen and blast filter
• Comes with accessories
635A(B) 635N/D-B RE50/B RE50N/D-B
66
Wired Microphones
RE Series is the first choice of microphones for smooth and accurate
reproduction. Its unique and famous sound performance makes it a favorite
in the broadcast, studio and touring business. EV´s Variable-D®design used
in the RE20 and RE27 N/D broadcast studio products was developed to
ensure true and accurate response across all frequencies without the up-
close boominess associated with “proximity effect”. As a result, these
microphones have become the industry standard for radio studios
worldwide.
Large diaphragm self-biased condenser microphone
• Clear, natural sound
• Great for vocals or instrument
• Live and studio use
Selectable low-end roll-off
Supercardioid pattern
Excellent off-axis rejection
•Wide dynamic range
RE-Series
Element Dynamic Dynamic Condenser (self-biased) Dynamic True condenser
Polar pattern Cardioid Cardioid Supercardioid Supercardioid Cardioid
Impedance, Low-Z balanced 150 150 150 150 200
Frequency Response (-3 dB) 45 Hz - 18 kHz 45 Hz - 20 kHz 50 Hz - 20 kHz 80 Hz - 15 kHz 50 Hz - 18 kHz
Power Level (0 dB = 1 m W/Pascal) at 1,000 Hz - 57 dB - 51 dB -41 dB -56 dB - 39 dB
Open Circuit Voltage (at 1,000 Hz) 1.5 mV/Pascal 3.1 mV/Pascal 5.6 mV/Pascal 1.4 mV/Pascal 10 mV/Pascal
Equivalent Noise (0 dB=20 micropascal) 18 dB SPL 21 dB SPL
Maximum SPL (1% distortion, 1,000 Hz) 140 dB SPL 150 dB 130 dB
Power requirement (Phantom power) N/A N/A 12 - 52 VDC 12 - 52 VDC
Current Consumption N/A N/A N/A N/A 3.5 mA
Magnetic Circuit N/DYM®N/A N/A N/A
Specials Variable-D®Variable-D®transformerless AcousticDYM,transfor-
output device merless output device
Filters Tilt-down EQ 3 selectable EQs switchable low-freq roll-off
Case Material Steel Steel Metal Steel Metal
Finish Fawn beige Satin nickel Warm-Grip Fawn beige Semi-gloss
black handle micomatte camera black
Included accessories Stand adapter, Stand adapter, Stand adapter, Stand adapter, Stand adapter
zippered vinyl zippered vinyl zippered vinyl zippered vinyl pouch windscreen
carrying pouch, carrying pouch, carrying pouch Model 310A
hard-shell case hard-shell case
Connector type 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR
Dimension (Length x max. Diameter) 217 x 54 mm 217 x 54 mm 180 x 50 mm 187 x 45.2 x 19.1 mm 137 x 28 mm
Weight net 737 g 709 g 215 g 227 g 185 g
RE20
RE27 N/D
RE510
RE16
RE200
• Variable-D®for minimal proximity effect
• N/DYM magnetic circuit brings 6 dB more
sensitivity
• Ultra-flat frequency response
• Studio condenser performance
• Large diaphragm
• 3 selectable filters: -6 dB, 250-100 Hz / gentle
roll-off 12 dB, 1000-100 Hz and a -3 dB high
frequency roll-off
Integral wind and blast filter
• Comes with accessories
• Variable-D®for minimal proximity effect
True cardioid with no coloration at 180° off-axis
• Ultra-flat frequency response
• Studio condenser response
• Large diaphragm
• Hum-bucking coil
• Integral wind and blast filter
• Switchable EQ (-4.5 dB, 400-100 Hz)
• Comes with accessories
• High-end transducer based on world
standard studio microphone RE2000
Very low self-noise
• AcoustiDYMshock-mount system
• Ultralow-mass, gold-laminated diaphragm
Transformerless output device
• Rear response 15 dB below the front axis at
1,000 Hz
• Comes with accessories
•Variable-D Dynamic Supercardioid handheld
Great for podium or handheld use
Unique blast filter makes close-up use possible
without popping
Uniform response independent of angle
Humbucking coil reduces electromagnetic hum pickup
Bass roll-off switch
Memraflex grille means screen keeps its shape
RE20 RE27N/D RE510 RE16 RE200
67
Wired Microphones
The RE90 series brings the famous sound performance of EV´s legendary RE
series to fixed installations. EV´s RE90 microphones are the most natural-
sounding microphones on the market for public speaking, etc. and as a
matter of course for professional theatrical productions. Ergonomically and
architecturally designed, EV has married functionality with aesthetics making
RE series the traditional favorite among sound contractors, architects and
sound engineers. RE90 microphones are designed for the highest-quality
applications with linear frequency response and excellent, high gain-before-
feedback. All microphones guarantee a uniform polar pattern across the
range, high sensitivity, low self-noise and provide a transformerless output
device. The high-quality pre-amps are highly-resistant to electrical noise and
radio frequency interference (RFI). RE90 L and RE90 H have a external pre-
amp housing into the XLR connector. Gooseneck microphones have an all
metal construction to substantially reduce noise from stray magnetic fields
and RFI.
PC-12/XLR
PC Plus-18
PC-12/FL
Element Back electret condenser Back electret condenser Back electret condenser Back electret condenser Back electret condenser
Polar pattern (Half-) Cardioid Cardioid Omnidirectional Cardioid Omni, Cardioid,
Super, or Hypercardioid
Impedance, Low-Z balanced 200 200 100 200 200
Frequency Response (-3 dB) 80 Hz - 15 kHz 75 Hz - 15 kHz 50 Hz - 18 kHz 70 Hz - 15 kHz 50 Hz - 15 kHz
Power Level (0 dB=1 m W/Pascal) at 1,000 Hz - 33 dB - 30 dB - 34 dB - 43 dB - 44 dB
Open Circuit Voltage (at 1,000 Hz) 25 mV/Pascal 27 mV/Pascal 12.6 mV/Pascal 4.5 mV/Pascal 5.6 mV/Pascal
Equivalent Noise (0 dB=20 micropascal) < 25 dB SPL < 25 dB SPL < 29 dB SPL < 28 dB SPL < 26 dB SPL
A-weighted
Maximum SPL (1% distortion, 1,000 Hz) 127 dB 120 dB 130 dB 130 dB 135 dB
Power requirement (Phantom power) 9 - 52 VDC 9 - 52 VDC 9 - 52 VDC 9 - 52 VDC 9 - 52 VDC
Current Consumption 2.5 mA 2.0 mA 1.0 mA 2.5 mA 2.8 mA
Specials transformerless external pre-amp external pre-amp transformerless transformerless
output device output device output device
Case Material Heavy-duty zinc diecast Steel Polycarbonate resin Steel Steel
Finish Nonreflecting black Low-gloss black Nonreflecting black Nonreflecting black Nonreflecting black
or white
Included accessories 180 cm thin 760 cm braided cable Gig bag Windscreen, double-sided Windscreen, and
flexible cable tape shock mount CPSM-Kit mounting hardware
Connector type 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR or hardwired
Dimension 128 L x 94 W x 16 H mm 37 L x 13 D mm 6 L x 5 D mm 12: 281 x 6.4 mm 12: 299 x 6.4 mm
18: 443 x 6.4 mm 18: 461 x 6.4 mm
(gooseneck) (gooseneck)
Weight net 358 g 157 g 34 g 400 g/528 g 411 g/539 g
RE90B (Black)
RE90BW (White)
• Boundary layer
• Ultra-thin profile (16 mm) housing with
rubber nonslip bottom pad and strong
steel screen
• Internal terminal block for disconnecting
cable to insert thru holes
• Integrated pop filter
• Ideal working angle 60° off-axis
• Comes with accessories
RE90H (Black)
RE90HW (White)
• Hanging microphone
• External Pre-amp
Very uniform polar pattern
• Includes an installation guide
• Comes with accessories
RE90L
• Lavaliere microphone
• Sub-miniature capsule design
• Capsule provides superior EMI/RFI shielding
Very light-weight yet extremely reliable
• External pre-amp with very low current
consumption
• Comes with accessories
Actual size
RE90P-12 (281mm)
RE90P-18 (443mm)
• Gooseneck podium microphone
Also perfect for instruments on-stage i.e.
acoustic guitar or choir
• Uniform frequency response and polar pattern
• Strutted (yet flexible) ultra-thin gooseneck
• Integrated two-stage pop-filter
• Comes with accessories
PolarChoiceSeries
• Four selectable polar patterns
• Gooseneck podium microphone
• Consistent on-axis response
• Includes accessories
Mounting options:
— XLR (PC-12/18 XLR); flange
mount (PC-12/18FL); XLR or
flush mount (PC Plus-12/18)
— PC Plus-12/18 includes
programmable mute on/off
switch. Can be either XLR or
flush mounted.
RE90B RE90H RE90L RE90P PolarChoice
60°
68
Wired Microphone Accessories
EV Wired Microphone Accessories
422A Desk stand with rubber shock mount - accepts mic stand clamps, black
309A Suspension shock mount for RE20, RE27, black
323S Mic stand clip for 1.0 inch diameter microphones (RE50, BK-1), black
MSA-NDV Mic stand clip for tapered microphones (N/DYM®), black. Same as MSA-COV
mic stand clamp for Cobalt®microphones (Co5, Co7, Co9. Co11)
311 Mic stand clamp for all EV 3/4-inch diameter microphones
(635A, RE16, RE200, N/D468), black
MSA-COI Stand clamp for Cobalt®Co4 instrument microphone, black
320 Stand clamp for RE20, RE27, N/D868
376/379 Windscreen pop filter, 376 - gray, 379-1 - black, 379-2 - red.
CPSM Shock mount for RE90P and PolarChoiceTM gooseneck mics, black
FMK Flange mount for RE90P and PolarChoiceTM gooseneck mics, black
368 Drum mic mounting clamp (N/D468, N/D478), black
314E (not pictured)
Windscreen pop filter for use with 635 series mics, gray
422A 309A
323S
CPSM FMK 368
379-1
(black)
376
(grey)
379-2
(red)
MSA-NDV/COV 311 MSA-COI 320
69
Wired Microphone Accessories
309A Suspension shock mount for
RE20, RE27N/D, black
311 Stand clamp for all EV 3/4-inch
diameter microphones (635A,
RE16, RE200, N/D468), black
313 Shock-mount for stand clamp
for EV 3/4-inch diameter
microphones (635A, RE16,
RE200)
320 Stand clamp for the RE20,
RE27N/D, black
368 Mic clip for N/D468
422A Desk stand with rubber shock
mount that accepts microphone
stand clamps, black
CPSM Shock mount for RE90P-12,
RE90P-18, PolarChoice12,
PolarChoice™18
FMK Flange mount for RE90P-12,
RE90P-18, PolarChoice12,
PolarChoice18
MSA-COI Stand clamp for Cobalt Co4
instrument microphone
MSA-COV Stand clamp for Cobalt vocal
microphones (Co5, Co7 and
Co9)
MSA-NDV Stand clamp for 1-inch diameter
microphones (BK-1, RE50) and
tapered microphones (N/DYM
series vocal mics), gray
314E Windscreen for 635A, gray
376 Windscreen pop filter for MC
series, RE16, RE50, N/D167B,
N/D267, N/D367, N/D767
379-1 Black windscreen pop filter for
MC series, RE16, RE50,
N/D167B, N/D267, N/D367,
N/D767
379-2 Red windscreen pop filter for
MC series, RE16, RE50,
N/D167B, N/D267, N/D367,
N/D767
MBS-CO5 Replacement ball screen for
Cobalt Co5
MBS-CO7 Replacement ball screen for
Cobalt Co7
MBS-CO9 Replacement ball screen for
Cobalt Co9

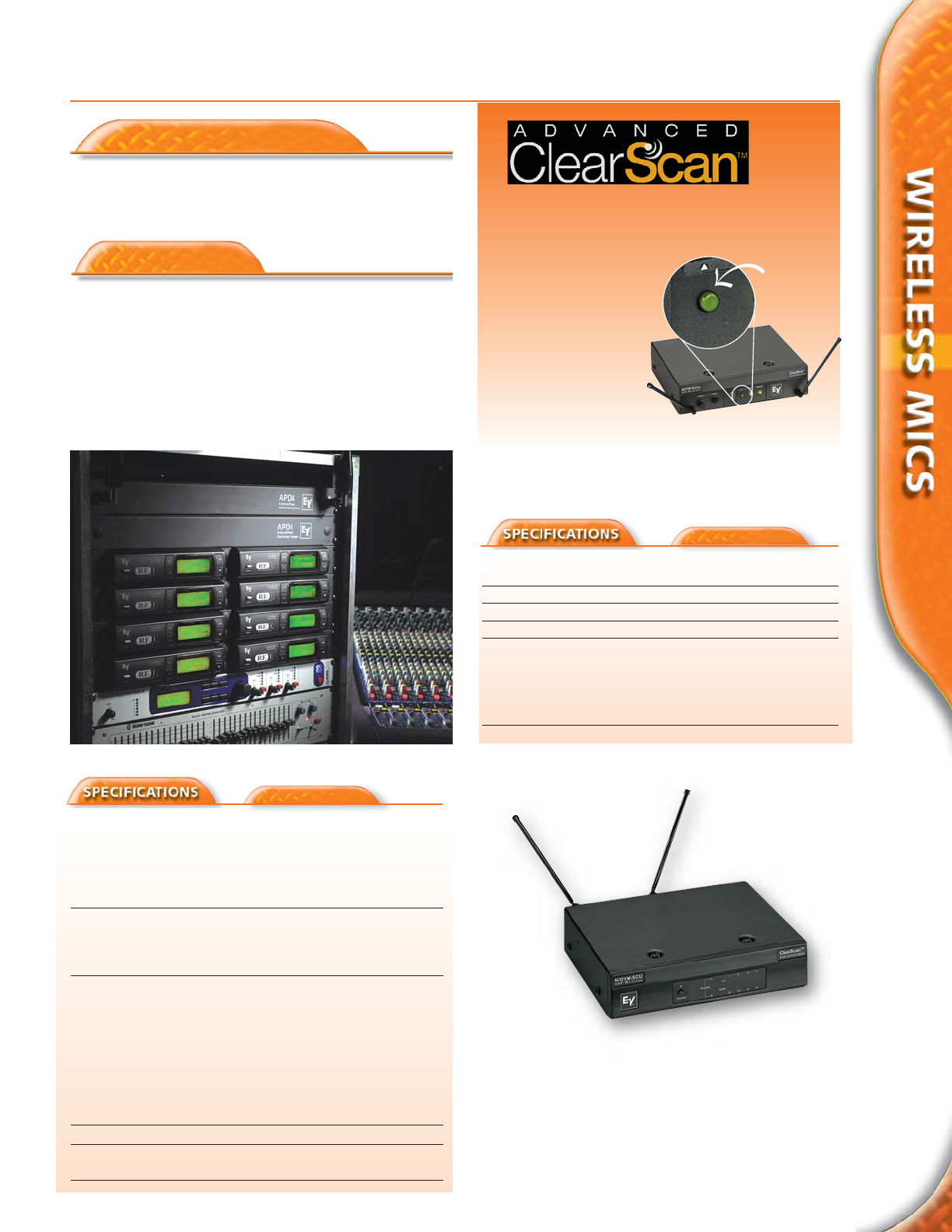

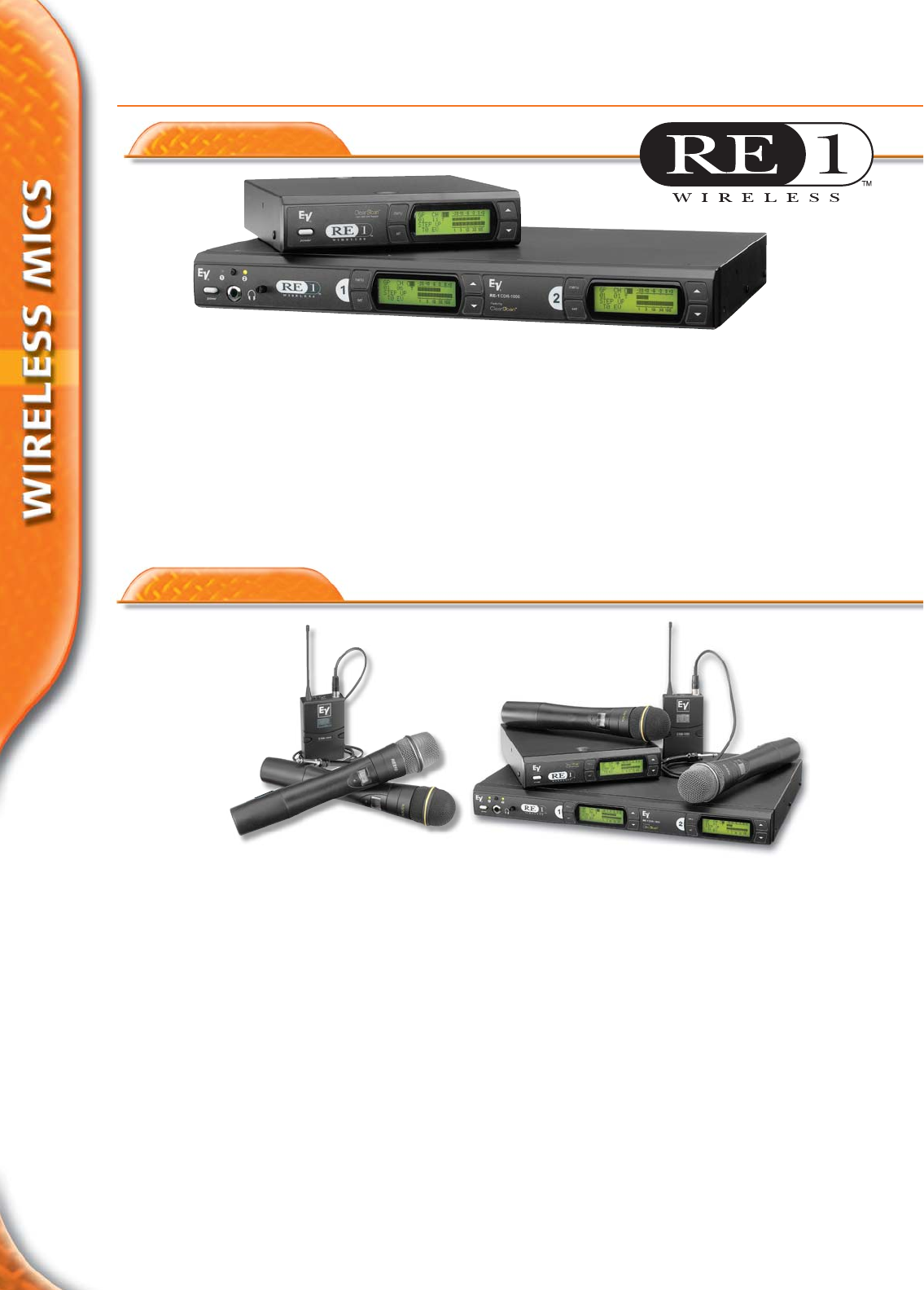

Receiver
Optimized channel groups allow up to 16 systems to operate simultaneously in one
frequency band. For groups larger than 16, EV can help with the coordination and
custom groups are easily programmed.
Programmable in 25 kHz steps across 24 MHz operating bandwidth, there are over
950 possible channels so you can always find a clear channel.
Advanced ClearScan™, automatic group and channel selections, allows quick,
simple setup.
Backlit LCD Display shows the Sound Engineer the Group/Channel, transmitter battery
status, diversity operation, RF and Audio level meters, and space for a custom name
(2 lines, 10 characters each).
Specially designed “Sound Check” mode provides the ability for one person to walk
test the microphone in the performance space with tangible results.
Patented DSP Secure-Phase™ Diversity System for maximum range and
audio quality.
Balanced XLR microphone output and 1/4-inch unbalanced adjustable line-level output
to match the application.
CDR-1000 Dual Receiver includes internal power supply, headphone monitoring jack,
balanced line-level output, antenna pass through, DC power on antenna jacks for
optional RF amplifier, and RE-OneLink™ PC software for remote monitoring and
control.
Rackmount hardware included.
• Three-Year Limited Warranty.
70

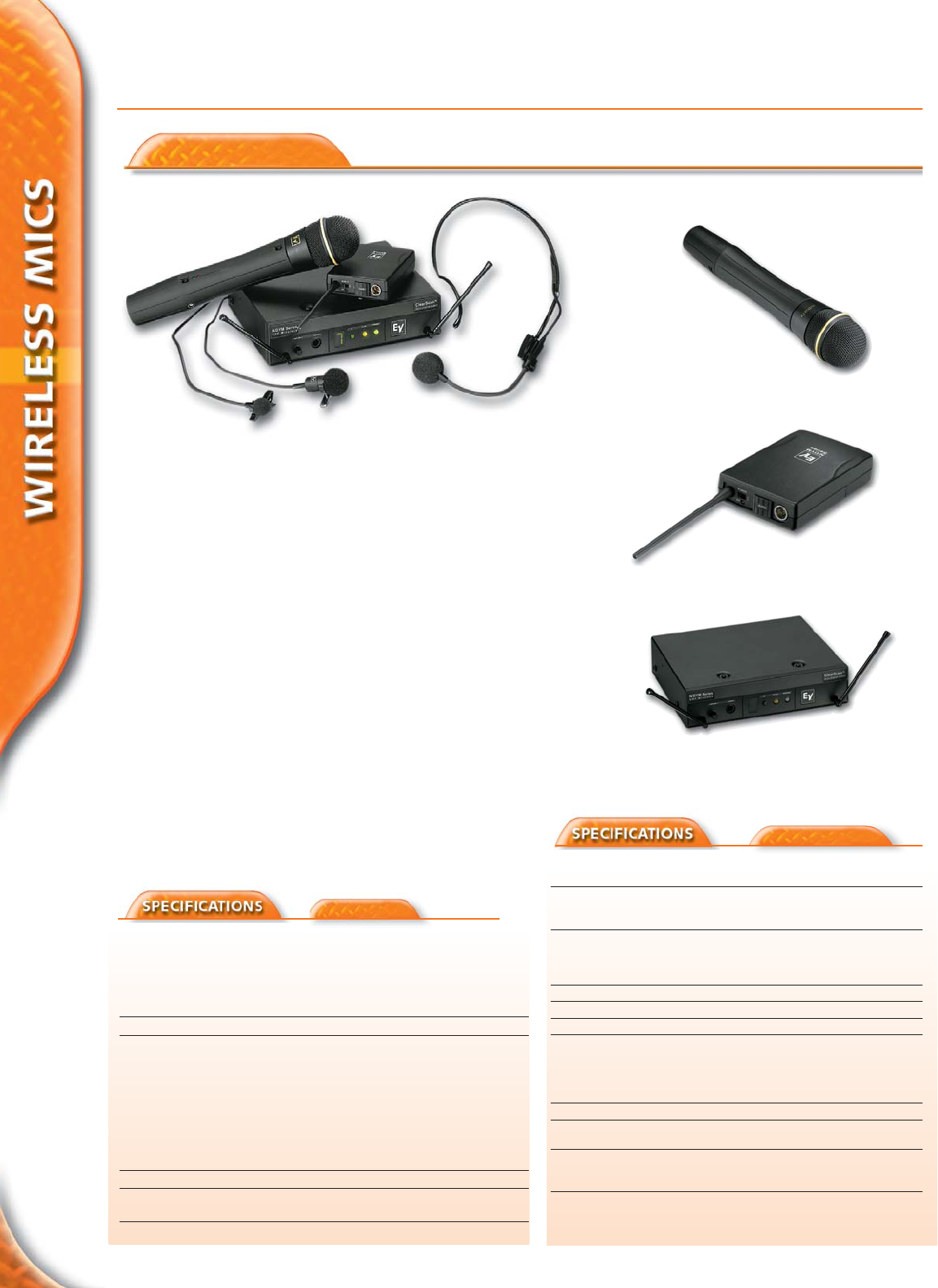

Professional Wireless Microphones
Transmitter Features
Unique “smart” battery circuit in the transmitters means there is no way to put the
battery in wrong.
LCD display and the same four control buttons as the receiver so programming a
channel or frequency is quick and easy.
Low battery LED will light when the battery needs a replacement.
One on/off switch that also acts as a mute, great for pauses in presentations and
worship services.
On/off button can be disabled to prevent accidental turnoffs
during a performance.
Normal and High power transmit means you use just enough power for the application,
which maximizes the number of simultaneous systems and limits RF spill over into
adjacent buildings/theaters.
Handheld Features
Interchangeable microphone head allows a choice of elements to fit the vocalist’s style
and environment.
N/DYM®767a premium dynamic vocal microphone with VOB(Vocal-Optimized Bass),
excellent gain-before-feedback for high SPL stages.
The new RE510 premium condenser vocal microphone for experienced vocalists,
spoken word and quieter stages.
•Internal 1/2-wave antenna for excellent range; stays out of harm’s way.
• An over-molded Warm-Griphandle reduces handling noise and encourages proper
microphone technique for better performances.
Bodypack Features
Cast magnesium housing weighs only ounces but is durable enough to take the
pounding on tour.
Detachable 1/4-wave antenna allows for easy replacement or using different antenna
options.
Cell phone style beltclip included for quick and easy attachment. Optional pouches also
available for wearing under costumes or for more vigorous applications.
EV has a wide selection of lapel and headworn microphones and microphone
accessories to go with the RE-1 bodypack transmitter.
Unique Guitar Bodypack Features
Dual band compander circuit provides the audio bandwidth required to cover the lows of
a bass guitar to the highs of a solid body.
Mic/Instrument switch adds a 20 dB pad in the transmit path so the standard bodypack
can be used for microphone and guitars.
Guitar patch cord featuring George Ls®cable with right angle and straight plugs included
to fit your guitar.
Transmitter
RE-1 Accessories and Parts
Model #
Omnidirectional MicroMiniLapel Mic: RE90TX
Headworn Cardioid Condenser Mic: HM7
1/2 Wave Rx Antenna FA-500
1/2 Wave Antenna Bracket: AB-2
UHF Antenna Amplifier UAA-500
Antenna /Pwr Distribution APD- 4
Termination Plug For APD-4: TP-2
Directional Rx Antenna (450-900 MHz): LPA-500
Low Loss Coaxial Antenna Cable: CXU-25 ft
CXU-50 ft
1/4 Wave Super-Flex Tx Antenna: AN-Sflex
Bodypack Pouch: WP-1000
Guitar Cord: MAC-G2
767a Dynamic Head for CSH-1000: RC767A
RE510 Condenser Head for CSH-1000: RC510
Mic Stand Adapter for CSH-1000: MSA-1000
CSR-1000 Receiver
Controls
Front Panel: On/Off, Menu, Set, Up, Down Buttons
Rear Panel: 1/4 in. output level
Indicators LCD Group, Channel, Diversity, Label, Set-up
Backlit Display: Transmitter Battery Level, Audio Signal
Amplitude and RF Signal Strength, Squelch
Connectors
Back Panel: 1/4 in. unbalanced adjustable line level output
XLR balanced mic level output
USB programming port
Antennas: Detachable 1/4 wave
RF Specifications D Band 798.1 – 821.9 MHz
Frequency Range: E Band 841.1 – 864.9 MHz
Number of Channels: 950 possible (programmable in 25 kHz steps) per band
Diversity: DSP SecurePhase True Diversity
Squelch: Tone Code plus Adjustable Amplitude
Receiver Type: Synthesized PLL Agile UHF
RF Sensitivity: <0.8uV for 12 dB SINAD
FCC Type Acceptance: Approved under Part 15
Audio Specifications 100 Hz – 15 kHz +/- 2 dB Microphone
Frequency Response: 30 Hz – 15 kHz +/- 2 dB Instrument
Audio Output Level:
Line Level 8 mV - 0.775V RMS @ 100 k ohm load
Balanced -10 dBV max (@ 40 kHz deviation)
Distortion: Less that 0.5% (@ 1 kHz, 40 kHz deviation)
Signal to Noise Ratio: > 110 dB (A)
Dynamic Range: >100 dB
General Specifications
Power Supply: External 12 VAC 750mA in-line with cord
Size: 1.72” H x 7.50” W x 8.38” D
43.69 H x 190.50 W x 212.85 D mm
CDR-1000 Features
Additional Audio Output: Adjustable Balance Line Level at XLR/Mic
Additional Controls: 1/4 in. Headset Jack with Selector and Volume Control
Antenna Output: TNC
Powered Antenna Inputs: 12Vdc,15mA
Power Supply: Internal, Universal Cord
USB Monitoring & Control: RE-OneLink Software
Size: 1.72” H x 16” W x 12” D
43.69 H x 406.4 W x 304.8 D mm
CSB-1000 Bodypack Transmitter
Controls: Power On/Off, Audio Gain Adjustment with 40 dB range,
Transmit Power Switch, Microphone/Instrument Switch
(0,-20 dB), Menu, Set, Up, Down Buttons
Indicators: Red LED Low Battery Indicator, LCD displays one of the
following: Channel/Group, Frequency, or Battery Level
Battery Life: 8 hours with 9V alkaline typical
Antenna: External 1/4 wave detachable
Connector: TA4F input for microphone Pin 1 ground, Pin 2 Mic input
Pin 3 +5V Bias, Pin 4 +5V through 3 k
RF Output:
Normal: 5 mW typical
High: 50 mW typical
Case Material: Cast Magnesium
Size: 3.75” H x 2.6” W x 0.9” D
94 H x 66 W x 23 D mm
CSH-1000 Handheld Transmitter
Controls: Power On/Off, Audio Gain Adjustment with 40 dB range
Transmit Power Switch, Menu, Set, Up, Down Buttons
Displays: Red LED Low Battery Indicator, LCD displays one of the
following: Channel/Group, Frequency, or Battery Level
Battery Life: 8 hours with 9V alkaline typical
Antenna: Internal 1/2 wave
Microphone Elements: EV N/D767a Dynamic or RE510 Condenser
RF Output:
Normal: 5 mW typical
High: 50 mW typical
Size: 10.5” (26.8 cm) long
71
Front Panel Top
Under
Battery
Cover
CSB-1000 Bodypack Transmitter
CSH-1000 Handheld Transmitter
Panel Front
Back
CSR-1000 Receiver
Front
Back
CDR-1000 Receiver
Front
Back
72

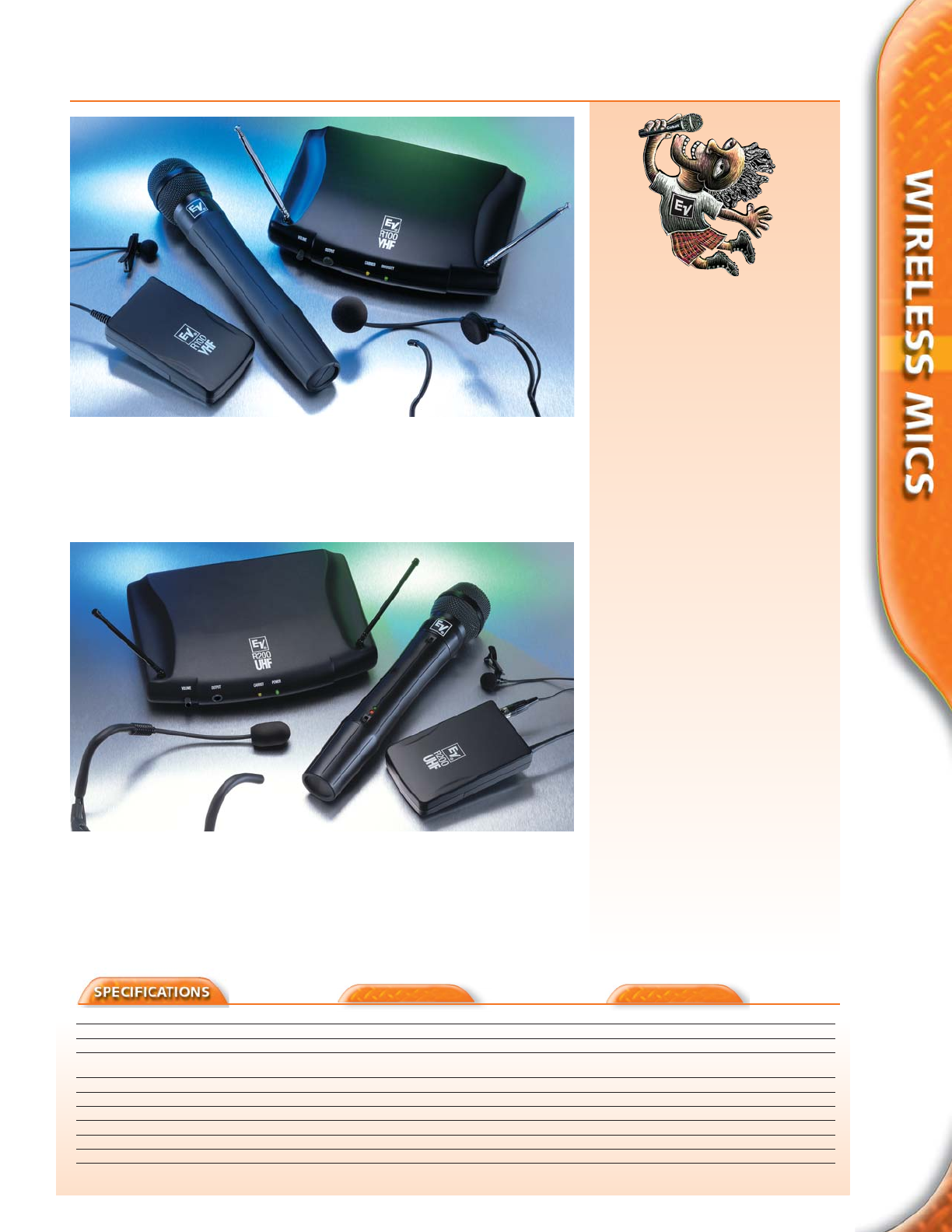

Wireless Microphones
NBPU, NHTU-N7, NHTU-N2
Radiated RF Output 10-15 mW typical
Adjustments and Controls On/off switch, Audio mute switch
Audio gain pot with 40-dB adjustment
range, Rotary channel switch
Displays/Indicators Power on/low battery LED (red LED
flashes upon turn on;) LED stays lit
when low-battery voltage impacts
system performance.
Battery Life 8-10 hours with 9-Volt alkaline
Bodypack Antenna Flexible external 1/4 -wave
Handheld Microphone Antenna Internal 1/2 -wave
TA4 Connector Wiring Pin 1: ground; Pin 2: mic input; Pin 3:
+5-Volt bias;
(on bodypack only) Pin 4: +5-Volt bias fed through a
3,000-ohm resistor for two-wire
electret mics
Size (handheld transmitter) 273 mm (10.75”) long
Size (bodypack transmitter) (hwd) 114 mm (4.5”) x 66 mm (2.6”) x 32 mm
(1.25”) (no antenna)
Handheld Transmitter Microphone Elements:
NHTU-N7 N/D 767a dynamic cardioid
NHTU-N2 N/D 267a dynamic cardioid
Bodypack Transmitter Microphone Elements: Can be used with any compatible microphone elements.
See above for TA4F Pin-out wiring.
Transmitters
N/DYM®wireless transmitters feature adjustable audio gain control, on/off and
mute switches, up to ten hours of battery life on a single 9-volt battery, rotary
channel-select switch and low-battery indicator. Bodypack transmitters feature
a flexible 1/4-wave whip antenna, while the handheld transmitters contain an
internal high efficiency antenna.
Receiver
The N/DYM®wireless receiver is housed in a half-rack-wide metal housing and
features Secure-Phasediversity for clear, drop-out-free audio. Fixed,
front-mount antennas for quick system set-up; balanced, mic-level XLR output;
level adjustable, unbalanced, 1/4” output; a seven-segment, LED channel
display; adjustable squelch control; Transmit and Diversity LED indicators and
channel-change lockout. Single or double rack-mount kits are also available
(RM-S and RM-D).
The N/DYM®Series UHF Wireless is a 10-channel frequency-agile system that
provides professional quality performance at affordable price levels! N/DYM
wireless also features the latest in wireless technical innovations — ClearScan
auto channel select. ClearScan greatly simplifies system set-up by automatically
scanning and selecting a clear channel for trouble-free operation. The handheld
systems feature EV’s famous N/DYM elements for great sound and
performance.
Controls
Front Panel Channel-set button: increments
channel setting by one; also used
to activate ClearScanand
channel-change lockout
Rear Panel Squelch adjust
Antennas 1/4 -wave, fixed front mount
Displays/Indicators Channel set: seven-segment LCD
Diversity LED’s: A or B lights to indicate when
diversity circuitry switches from
one antenna to the other.
Tx On LED: lights when carrier signal is present.
RF Signal Strength: 4 segment LED lights to show
strength of received RF signal.
Audio Signal Strength: 4 segment LED lights to show
audio signal amplitude
Receiver Type Synthesized PLL
Size (receiver housing) 190 mm (7.5”) x 145 mm (5.75”)
x 43 mm (1.7”)
N/DYM®Series
Receiver: NRU
UHF Transmitters:
73
Operating Frequencies D Band: 800.3 – 813.9 MHz
E Band: 854.9 – 861.75 MHz
Number of Selectable Channels 10
Diversity True diversity with Secure-Phase™
RF Sensitivity <0.8 µV for 12 dB SINAD
Audio
Frequency Response 50-15,000 Hz ±2 dB
Audio Output, Balanced (XLR) –20 dBV (600-ohm load)
Distortion Less than 0.5%
Signal/Noise Ratio 94 dB
Dynamic Range 100 dB
Wireless Receiver
Wireless Microphones
The SCU Receiver features detachable rear-panel mount antennas, front
panel RF and Audio level displays, an all metal case, and rack mount
hardware is included.
Controls
Front Panel Channel-set button: increments
channel setting by one; also used
to activate ClearScan™ and
channel-change lockout
Rear Panel Squelch adjust
Antennas 1/4 -wave, detachable on rear
panel. Note: (remote antennas and
antenna splitters can be used with
this product)
Displays/Indicators Channel set: seven-segment LCD
Diversity LED’s: A or B lights to indicate when
diversity circuitry switches from
one antenna to the other.
Tx On LED: lights when carrier signal is present.
RF Signal Strength: 4 segment LED lights to show
strength of received RF signal.
Audio Signal Strength: 4 segment LED lights to show
audio signal amplitude
Receiver Type Synthesized PLL
Size (receiver housing) 190 mm (7.5”) x 145 mm (5.75”)
x 43 mm (1.7”)
Antenna Distribution System
• Drives up to four NRSCU or MS3000 diversity receivers using a single pair of antennas
to conserve rack space and eliminate the “antenna farm.” (8 TNC output and 2 front
mount TNC cables included, 1/2 wave antennas sold separately.)
Supports “cascade” arrangement of multiple APD-4 splitters to allow you to drive up to
16 receivers using just 2 antennas.
Power outputs for up to four receivers help conserve power strip space.
(4 cables included)
ClearScanis the latest
in wireless technical
innovations from EV.
With the simple touch of
a button, ClearScan
automatically scans the
airwaves and quickly
selects the best of 10
UHF channels.
press
here
N/DYM®NRSCU System
APD-4
Receiver: NRSCU
74
RTM-1000 Remote Test Wireless System
Receiver
Controls
Front Panel: Power On/Off
Rear Panel: Group, Channel, Frequency
Indicators
Diversity Lights: Indicates antenna phase relationship
Audio Meter: Shows audio signal level from the transmitter
RF Meter: Shows the RF signal strength
Connectors XLR balanced output
Antennas Detachable 1/4- wave ground independent
RF Specifications
Frequency: 722-746 mHz
Diversity: Full True Diversity
RF Sensitivity: <0.5uV for 12 dB SINAD
FCC type acceptance: Approved under Part 15
Audio Specifications (compander active)
Frequency Response: 30 Hz – 15 kHz ± 1 dB
Audio Output Level: -50 dBm to –10 dBm into 200
Distortion: Less that 0.5%
Dynamic Range: 100 dB
Audio Specifications (compander inactive)
Signal to Noise Ratio: 57 dB typical
Transmitters
Controls Power on/off switch
Transmit Power
Audio gain adjustment with 40 dB range
Indicators Red LED low battery indicator, Group, Channel, Frequency
Battery Life 7 hours with 9-volt alkaline
Antenna 1/4-wave detachable
Connector Microphone input 4-Pin TA4F
Pin 1: ground; Pin 2: Mic input;
Pin 3: +5V bias; Pin 4: +5V through 3k
RF Output 5 mW or 50 mW max
Size 3.75” x 2.6” x .09” (96 mm x 66 mm x 23 mm)
Mounting strap
•TA4F-to-XLR adapter cable
AC Adapter (as pictured at right)
Reduce the hassle and improve the results of your pre-concert
soundchecks with the Electro-Voice®RTM-1000 Remote Test Wireless
System. The RTM-1000 provides a wireless link between your calibrated
measurement microphone and audio analyzer. That means you can quickly
test multiple locations from the front row to the nosebleed seats in the time
it would take to haul long mic cables to just one spot.
Wireless link between test microphone and audio analyzer allows faster, easier
measurement of large performance spaces
Optional 48V phantom power supply works with any measurement microphone
Non-companded transmission does not affect audio quality
The key feature of the RTM-1000 is that it defeats the compander on both
the receiver and bodypack transmitter. Wireless mic systems normally use
companding (compressing/expanding) to stuff more dynamic range
through narrow wireless channels. But companding can also add
coloration or distortion to the signal. The RTM-1000 defeats the
compander circuit, leaving the signal from mic to analyzer unchanged.
The RTM-1000 system includes a bodypack transmitter in a rugged cast
magnesium case with a mic stand mounting strap and a TA4F-to-XLR
adapter cable to accommodate most calibrated microphones. The
RTM-1000 receiver includes two detachable 1/4-wave antennas, and can
be rack-mounted with optional hardware.
RTM-1000 Transmitter is shown with the mounting strap and
cable adapter. (Microphone and mic stand not included)
RTM-1000 System
RTM-1000 Transmitter
RTM-1000
Optional 48V phantom power supply.
Cobalt®Handheld Transmitters
Cobalt handheld systems combine EV’s
classically styled, ergonomically contoured
transmitter with famous EV microphone
transducers. Separate on/off and mute
switches give you operational flexibility and
eliminate popping common in single switch
transmitters. The R100 and R200 systems
feature the Co7 dynamic and Co11
condenser microphones.
Cobalt®Bodypack Transmitters
Cobalt bodypacks have options to fit virtually
any wireless application. Each system
features an oversized switch for easy, silent
muting and a separate on/off switch. R100
systems offer hardwired lavaliere (lapel)
condenser microphones and a 1/4-inch
instrument plug. R100 headworn and all
R200 bodypacks come with TA4 connectors
to allow easy interchangeability of mics. There
is a collection of lavaliere and headworn
microphones for R200 systems to perfectly
meet any requirement.
Cobalt®Instrument Systems
Most wireless guitar systems are just a
microphone bodypack with a 1/4-inch
connector. The Cobalt instrument systems are
designed specifically to bring out the transient
detail and wide dynamics of a guitar. The
companding circuit provides wide dynamic
range and accurately captures the “plugged
in” essence of the instrument's sound.
R200 XTU Universal Plug-On
UHF Transmitter
With EV’s XTU UHF transmitter, you can turn
most any dynamic or electret microphone into
a wireless by simply plugging it into the XLR
connector. The XTU has a gain adjustment
control with wide range to allow optimum
level matching to your microphone.
R200
75
Cobalt Wireless Microphones
VHF Cobalt®Wireless Systems
The R100 VHF systems operate in the frequency band between 174.100 and 185.350 MHz (channels
7-8 in the TV band). With the R100 Series, having EV wireless freedom has never been more
affordable, cost-effective or practical. The R100’s rock-solid RF performance is the result of superior
design and state-of-the-art manufacturing. The R100 receiver can also be rack mounted with the
optional RMR accessory kit.
UHF Cobalt®Wireless Systems
The R200 UHF systems operate in the 710.000-721.350 MHz band (channels 54-55 in the TV band).
The chief advantage of the UHF band is that there are far fewer chances of interference problems since
the frequency range is less crowded. With the R200U systems, there is a wider selection of premium
high-performance microphones for better audio performance plus the receivers have 1/4-inch
unbalanced and balanced mic-level 3-pin XLR-type output connectors. The R200 receiver can also be
rack mounted with the optional RMR accessory kit.
VHF
UHF
RF Frequency Range: 174.100-203.200 MHz (11 stock frequencies) 710.100-721.350 MHz (8 stock frequencies)
Audio Frequency Response: 20 Hz-15 kHz +/- 2 dB 20-15 kHz +/- 2 dB
Harmonic Distortion: <0.5% <0.5%
Radiated RF Output: 35-45 mW typical, 35-45 mW typical,
50 mW maximum 50 mW maximum
Audio Output Level: .775 V rms into 100 kload .775 V rms into 100 kload
Battery Life: 8-12 hours typical 8-12 hours typical
Available Systems: R100VHC7 Electro-Voice Co7 Handheld Dynamic R200UHC7 Electro-Voice Co7 Handheld Dynamic
R100VHC11 Electro-Voice Co11 Handheld Condenser R200UHC11 Electro-Voice Co11 Handheld Condenser
R100VL Electro-Voice OLM10 Lavaliere Condenser R200UL Electro-Voice ULM20 Lavaliere Condenser
R100VE Electro-Voice HM2 Headworn Condenser R200UE Electro-Voice HM2 Headworn Condenser
R100VG Electro-Voice Guitar System R200UG Electro-Voice Guitar System
R200UT Electro-Voice Plug-On System
R100
76
Wireless Microphone Accessories
OLM 10 RC767a RC510
AN-Flex
AN-Sflex
MAC-2
CS200TEX RE90TEX MAC-G
MAC-G2
HM7
HM311
RCSA MSSA
WP1000
BC1000
HM2
APD-4
AB-2
ULM21
TP-2
ANU-14
CXU
LPA-500
RM-D
RM-S
77
Wireless Microphone Accessories
OLM10 Omnidirectional lavaliere condenser mic with
TA4F wired for R200, N/DYM and MS3000 wireless
ULM21 Unidirectional lavaliere condenser mic with TA4F
wired for R200, N/DYM and MS3000 wireless
RE90TX MicroMiniTM omnidirectional condenser lavaliere mic
with TA4F wired for R200, N/DYM, MS3000, and RE-
1 wireless
CS200TEX Cardioid condenser lavaliere mic with TA4F wired for
R200, N/DYM and MS3000 wireless
HM2 Headworn condenser cardioid mic with TA4F wired
for R200, N/DYM and MS3000 wireless
HM7 Headworn condenser cardioid mic with TA4F wired
for R200, N/DYM, MS3000, and RE-1 wireless
HM311 Crown®model CM-311 touring level headworn
condenser cardioid mic with TA4F for R200, N/DYM,
MS3000, and RE-1 wireless
RC767a RC767a dynamic microphone cartridge for the RE-1
series CSH-1000 handheld
RC510 RC510 electret condenser microphone cartridge for
the RE-1 series CSH-1000 handheld
MAC-2 XLR to TA4F adapter cord
MAC-G 3-feet guitar cord, TA4F to 1/4-inch N/DYM NBPU-G
MAC-G2 George L™ guitar cable for the RE-1 bodypack
transmitter
WP-1000 Leather pouch for RE-1 bodypack transmitter
RCSA Stand adapter for handheld transmitter models
N/DYM, MS-3000, R100, and R200 Series
MSSA Deluxe stand adapter for handheld transmitters
MSA-1000 Mic stand adapter for the RE-1 series CSH-1000
handheld
BC-1000 Beltclip with tab and screw for the WT-1000
AN-Flex A 1/4-wave RE-1 bodypack transmitter antenna -
'A' band
AN-Flex B 1/4-wave RE-1 bodypack transmitter antenna -
'B' band
AN-Sflex A 1/4-wave RE-1 bodypack transmit antenna super flex
- 'A' band
AN-Sflex B 1/4-wave RE-1 bodypack transmit antenna super flex
- 'B' band
APD4 Antenna/power distribution system (supplies 4 units)
for use with NRSCU, MS3000, and RE-1 wireless
TP-2 TNC 50 ohm termination plug for APD4
TNC TNC connector for Antenna Cable Connections
FA-500 1/2-wave antenna (300-900 MHz)
AB-2 Universal mounting bracket for 1/2 wave antenna
with 10' coax cable for MS3000 wireless
LPA500 Log periodic antenna with hardware
CXU-25 25-foot volt-loss cable with TNC connector
CXU-50 50-foot (15.24m) volt-loss coax cable with TNC
connector
CXU-75 75-foot volt-loss cable with TNC connector
CXU-100 100-foot (30.4m) volt-loss coax cable with TNC
connector
RM-D Rack-mount kit - double (works with N/DYM, RTM-1,
and MS3000 receivers)
RM-S Rack-mount kit - single (works with N/DYM, RTM-1
and MS3000 receivers)
RMR Rack-mount adapter kit for R100 and R200 receiver
OLM 10
•Lavaliere mic
Includes shown
accessories
ULM 21
•Lavaliere mic
Includes shown
accessories
RE 90 TX
•Lavaliere mic
•Top-class
Ultra-miniature
Includes shown
accessories
CS 200TX
•Lavaliere mic
Hi-Performance
Includes shown
accessories
HM 2
Headset mic
Includes shown
accessories
HM 7
• Headset mic
• Top-class
• Super light
weight
and comfortable
• Includes shown
accessories
78
2-Way Stereo (Mono Sub) Pop Band, or Disco in smaller room
2-Way Stereo Standard PA for Concert & Disco
Cabinets 2 x QRx212/75, 3 x QRx118S
Amplifiers 1 x P1201, 1 x P1202
Controllers 2 x M-212 & 1 x M-118 Module
Cabling 3 x NL4 long, 2 x NL4 short
Accessories 2 x QRx Rigging Kit, 3 x QRx Wheel Kit
Horizontal Coverage 2 x 75°
Typical Distance 15 m to 20 m
Total Amp Power 2 x 600 W + 1,500 W = 2,700 W
Options
Comments
System could be doubled for larger rooms
Cabinets 4 x QRx115/75, 4 x QRx218S
Amplifiers 4 x P1202
Controllers 2 x M-115 & 2 x M-218 Module
Cabling 8 x NL4 long
Accessories 4 x QRx Rigging Kit, 4 x QRx Wheel Kit
Horizontal Coverage 2 x 100° to 150°, or 4 x 75°
Typical Distance 15 m to 20 m
Total Amp Power 2 x 1,900 W = 3,800 W
Options add 2 M-115 & M-218 Modules to split
system into two separate systems
Comments
79
2-Way Stereo Pop/Rock-Band, Medium Dance Floor
4-Way Stereo Compact Hi-Resolution System
Cabinets 4 x QRx212/75, 6 x QRx118S
Amplifiers 2 x P2000, 1 x P3000
Controllers 1 x Dx38
Cabling 6 x NL4 long, 4 x NL4 short
Accessories 4 x QRx Rigging Kit, 6 x QRx Wheel Kit
Horizontal Coverage 2 x 100° to 150°, or 4 x 75°
Typical Distance 20 m to 25 m
Total Amp Power 2 x 3,100 W = 6,200 W
Options
Comments
Cabinets 2 x Xi2123/106, 6 x QRx118S
Amplifiers 2 x P2000, 2 x P3000
Controllers 2 x Dx38
Cabling 2 x NL4 long, 4 x NL4 short, 2 NL8 long
Accessories 4 x Xi-DSK, 6 x QRx Wheel Kit
Horizontal Coverage 2 x 100° (single source no interference!)
Typical Distance 25 m to 30 m
Total Amp Power 2 x 3,000 W = 6,000 W
Options Second Xi2123 per side could be added
for wider or higher coverage
Comments
80
3-Way Stereo Compact Line-Array for mid-sized venues
4-Way Stereo+Sub Compact Line-Array for mid sized venues, higher SPL’s
Cabinets 12 XLC127+, 6 Xsub
Amplifiers 4 P2000 (or CP2200), 2 P3000
Controllers 2 Dx38
Cabling
6 NL8 long, 12 NL8 short, 2 XLC grids,
& Accessories
12 dollies 127 (or 2 bottom dollies), 2 Xline dollies
Horizontal Coverage 2 x 120°
Typical Distance 30 m to 50 m
Total Amp Power 2 x 7,000 W = 14,000 W
Options&Comments
XLC127+ could be triamped using three
CP2200 per side for more headroom
Cabinets 12 XLC127+, 8 XLC118, 4 Xsub
Amplifiers 10 P3000 (or 4 P3000, 6 CP2200)
Controllers 3 Dx38
Cabling
6 NL8 long, 10 NL8 short, 4 XLC grids, 12 dollies 127
& Accessories
8 dollies 118 (or 6 bottom dollies), 1 Xline dolly
Horizontal Coverage 2 x 120°
Typical Distance 30 m to 50 m
Total Amp Power 2 x 12,000 W = 24,000 W
Options&Comments For rock ’n’ roll add more subs
81
5-Way = Sub + In-Fill Arena up to 6000 people, wide
Cabinets: 12 xf, 8 xb, 4 Xcn, 4 Xcb, 8 Xds
Amplifiers: 14 x P3000 (= 4 X-Array System Racks)
Controllers: 4 x Dx-38 / 2 DN9848
Cabling: 10 x NL8 long, 24 NL8 short
Accessories: 10 Grids, 20 Xrhg & Xess, 40 Xrhl & Xesl, 14 Dollies
Horizontal Coverage: 2 x 100° to 120°
Typical Distance: 60m to 70m
Total Amp Power: 2 x 16.950W = 33.900W
Options: x subs could be used instead of xds
82
8-Way Stereo, Line Array Large Venue, Concert Sound
Cabinets: 12 Xvls, 8 Xvlt, 12 Xsub, Xfill 1 & 2
Amplifiers: 12 P3000 (= 6 X-Line Amp Racks)
Controllers: 4 Dx38, or 2 DN9848
Cabling: 16 NL8 long, 16 NL8 short
Horizontal Coverage: 2 x 90° (120° nearfield)
Typical Distance:
50m to 100m (depending on the rigging heights)
Total Amp Power: 2 x 28,800 W = 57,600 W
Options: Number of Xsubs depending on music style
Comments: Use of Xfil depending on array heights
Speaker Technologies
Ring Mode Decoupling®(RMD®)
Electro-Voice pioneered Ring Mode Decoupling (RMD®) as a result of experience
gained through years of high-level concert system design. The acclaimed EV X-
Arraywas the “test bed” for RMD®research. Just as automotive companies use
Formula One racing to develop new technologies, Electro-Voice uses its work in the
concert sound and touring industries to develop new technologies. The goal of that
basic research is to bring those new technologies into all aspects of the sound
reinforcement industry.
All loudspeaker components display unwanted vibrational modes – or resonances –
that produce both frequency and time-domain distortions. A time-domain distortion
is most often described by loudspeaker users as a “ringing” in the system. This
ringing is usually most audible through the vocal fundamental range, and users
commonly attempt to “cure” the ringing mode through equalization. Unfortunately
such attempts remove not only the time-domain distortion, or ringing, but also parts
of the musical signal as well. The net result is that musical information is lost.
RMD®is a series of techniques developed by Electro-Voice engineers to deal with
the time-domain distortion at its source. The basic problem is mechanical in nature.
As a result, the only really effective solution is also mechanical. When acoustic
resonances are encountered, the only effective solution is an acoustic remedy.
The same applies to electrical resonances: The solution must be electrical.
RMD®treatment produces an acoustic signal that is much more free of mechanical
and acoustical ringing modes. The result is a level of fidelity – particularly through
the critical vocal range – that is more coherent and “in your face.” Another benefit
of RMD®technology is a much higher degree of level independence. Many front-of-
house engineers have noted that system equalization needs to change with system
output levels. The louder the system is driven, the more EQ changes become
necessary to maintain system voicing (that is, the system sounds different at higher
power levels). RMD®greatly minimizes the changes in system voicing that occur with
level changes. Systems with RMD®,therefore, display a high degree of level-
independent fidelity and a very audible improvement in vocal clarity as well.
Power handling ratings
Accurately specifying power handling ratings presents a challenge with odds
typically worse than those in a game of chance. Each manufacturer rates its
components in its own particular way. While responsible manufacturers
always qualify their testing methods, this offers little help to users not familiar
with the different test methods.
Electro-Voice has used an EIA-based rating for many years. It offers a
reasonably good combination of mechanical (excursion) and thermal (heat)
stress measurements. The ratings supplied with EV components are very
conservative, and require a full eight-hour test cycle to generate.
However, Electro-Voice does not limit its power testing to EIA methods. Long
term continuous musical testing of rated program limits is typically performed
for 200-hour durations. EV engineers also perform mixed-signal testing, a
combination of continuous noise (EIA- or AES-based shaped spectrum
signals) and low-frequency impulsive signals (such as kick drums). Mixed
signal tests often represent typical program material, and the resulting
measurements relate better to real-world conditions.
The most useful power handling rating is that of the program material
specification. This rating relates well to “in the field” situations for most
musical programs. It should always be remembered that no test method or
rating spec will universally describe every situation. Extreme power levels can
produce either mechanical or thermal failures with any manufacturer’s
components.
Manifold Technology®
In 1986, Electro-Voice revolutionized concert sound reinforcement by
introducing Manifold Technology®.In each of the four bandpasses covering
the entire frequency range, the output of four loudspeakers was flawlessly
combined – or “manifolded” – into a single horn (such as a large-format MH
horn) or low-frequency enclosure. The result was a physical package, a
fraction of the size of conventional concert rigs but with four times the
acoustic output. This eliminated the drastically uneven coverage that occurs
when multiple acoustic sources are stacked to gain more output. Manifold
Technology®came into its own particularly in smaller-sized locations or
installations, where low-frequency output was limited by the space available.
83
84
Speaker Technologies
Dipole and TripoleTechnology
(2- or 3-element line array)
Tripole configuration of the dual-woofer three-way systems of Xi-Series™ provides
the best directivity improvement, achieved by the vertically spaced low-frequency
sources which flank the mid-bass horn operating alone at low frequencies and by
appropriately overlapping the LF and MB sources in the mid bass, e.g., 125 to 540
Hz. The single-woofer three-way systems may be dipole configured, achieved by
overlapping the (single) woofer and mid-bass source in the appropriate frequency
ranges. This physical orientation of three sources, together with appropriate
amplitude shading and filter combinations, produces vertical directivity control to
below 125 Hz.
The resulting interferences of normal overlapped speakers are completely
minimized. The sonic advantages of this combination are significant. Precisely
controlled radiation patterns at low frequencies prevent reverberant energy in the
125- to 600-Hz range from degrading vocal fundamentals. The pattern control
achieved by this three-source, single-enclosure “array” prevents the critical distance
from moving “forward” (toward the source) as wavelengths become significant in
size with respect to the radiation device, and pattern control is lost. This is the case
with conventional system designs. The other primary advantage is that down to 125
Hz, acoustic output under the enclosure is a full 12 dB or more below on-axis levels.
This results in greatly improved gain-before-feedback levels on stage especially in
theaters where lavaliere microphones are traditionally used under center speakers.
In conventional systems where “under enclosure” levels are comparable to on-axis
levels, system intelligibility is even compromised at the source (microphone) because
of poor loudspeaker directivity control and subsequent “spill over”.
Vari Intense®
EV´s unique Vari Intense®(VI) technology has a lot of advantages in most applications
of “typical sized” rooms. Vari Intense®provides a rectangular coverage pattern. The
unique, patented throat and flare structure of the VI horn delivers a 6 to 10 dB hotter
signal to the rear of the room. The resulting even front-to-back SPL eliminates ear-
strain at the back of the sitting area and painful ears at the front. One VI horn
replaces two standard systems that reduce costs and eliminates destructive
interference which occurs between long and short throw horns or multi-sourced
horizontal arrays. The downward aimed horn delivers sound only to the floor plan
where the audience is and provides uniform direct-field SPL and significantly
reduces the amount of sound reverberating off the ceiling. This provides an increase
in mid- to high-frequency intelligibility of 6 dB in most applications.
To plan with Vari Intense®systems is very easy. The height of the room defines the
size of the floor plan covered with one speaker. The area covered would be a width
coverage of two times the height of the ceiling and depth, or throw, three times the
height of the ceiling. Therefore a Vari Intense®speaker mounted centrally, parallel to
the floor, at a height of 3 meters, would cover a room with equal SPL, 6 meters wide
by 9 meters long. Aiming the speaker down by 15 degrees at the same 3 meter
height will produce an even floor plan SPL that is 3 meters wide by 6 meters long
and tilting it back by 15 degrees, at the same height, produces a floor plan SPL of
6 meters wide by 15 meters long. Normally the loudspeaker is mounted
approximately 0.6 to 0.8 times the height back from the first row and has a nominal
angle of the top of the enclosure parallel to the floor or slightly (2 to 3 degrees)
tilted back.
Tripole™
Dipole
2 times height
floor coverage plan of a VI horn
3 times height
This graph should help you to get a feeling of coverage angles, loss in SPL and covered areas.
The following questions can be answered:
1. Question:“What coverage angle is needed to cover a width of X meters by the maximum possible distance to the audience
of Y meters?” Helpful when the install position of the speakers and the area to cover are predetermined.
Solution:Possible distance to the audience is a maximum of 12 meters. Covered width should be approx.
36 meters (2 x 18 meters). A system that provides 120 degrees coverage is needed.
2. Question:“Which system is needed when the distance to the audience and the target SPL is known?”
Helpful when the install position of the speakers is known and a pre-defined SPL is required.
Solution:Inverse square law of a point source (-6 dB when doubling the distance) helps to define the loss in SPL at a distance
of X meters. The pre-determined SPL at listening level (the audience) should be 100 dB. Distance to the speaker is approx. 50
meters (i.e. open-air, arena etc). The loss in SPL after 50 meters is approx. 33 dB, therefore the system has to provide a
continuous SPL of 133 dB/1 m.
3. Question:At what distance is a (i.e.) 75 meters width reached, using different loudspeakers with different coverage angles?
Solution:A 120 degrees system provides a covered width of 75 meters after approx. 22 meters. A 40 degree system provides
same width after approx. 100 meters.
4. Furthermore (based on point 3): “What´s the loss of SPL in both cases?”
Solution:Approx. 25 dB for the 120 degrees and approx. 40 dB for the 40 degrees system. To achieve a pre-determined SPL of
105 dB, when an area of 75 meters needs to be covered, the 120 degrees system has to deliver > 130 dB and the 40 degrees
system > 145 dB. In explanation: A job for MH 4020 which provides 146 dB maximum.
5. And others…
Dispersion angle versus distance for same coverage
-1 -2 -3 -33 -36 dB -39 dB
Inverse square law (point source)
Speaker, Distances, and Horns
75 m
0 m
9 m
18 m
27 m
12.5 M 25 m 50 m 75 m 100 m
85
Microphone Technologies
In 1934, Electro-Voice invented the hum-bucking coil for microphones, still an
industry standard almost 70 years later. The invention was the beginning of EV’s
success in building microphones, but not the end. Electro-Voice continues to set
new standards for microphone design today. Electro-Voice was the first
manufacturer to use neodymium-based magnet structures (N/DYM®) in its
microphones, thus achieving higher output and condenser-like qualities such as
crystal clarity and reliable performance. Electro-Voice’s goals in developing
microphone technologies have always been the same: providing highest sound
quality, achieving better and more comfortable handling for the user, and
continuing the company’s tradition of legendary reliability and warranty support.
Its long list of patents attests to its success in meeting these goals.
Variable-D®
Normal microphones generate increased bottom end when used close up. This is
typically called the “proximity effect.” While some lead vocalists like this effect and
use it to enhance their performance, it is attainable only in closeup situations.
When the distance between the microphone and the source is extended, the
sound quality changes dramatically. Electro-Voice’s patented Variable-D®
eliminates this disadvantage. On the rear side of the diaphragm there is a
perforated pipe (interference duct) with precise sonic slots at set distances. The
duct provides maximum damping which is completely uncolored and undistorted
at 180-degree off-axis, ensuring the same frequency response as if the source
was nearly on-axis.
Variable-D®designed microphones can be used very close to other sound sources
with no loss in clarity or definition. This makes them the preferred choice for tight
vocals and challenging instruments such as brass. Variable-D®microphones like
the RE20 and RE27 are favorites with broadcast show hosts, vocal booths, voice-
over studios, and professional touring or rental companies.
VOB
Electro-Voice’s unique VOB™ technology (Vocal-Optimized Bass) reduces low-
frequency distortion in the microphone’s output. Critical damping of the low-
frequency resonant peak results in a microphone that replaces the “muddiness”
found in competitive models with greater warmth and increased vocal intelligibility.
With a wider range of working distances than other microphones, this intelligibility
ensures a clean, clear, consistent sound that “cuts through the mix.” VOB™
counteracts proximity effect, sibilance, and P-popping, thus assuring maximum
vocal intelligibility and musical clarity.
with VOB™
without VOB™
Normal mic Variable-D®mic
PIN - Arrangements
Electronic
Microphones
TA4F (not shown)
used in N/DYM
wireless
Pin 1: Common
Pin 2: Audio
Pin 3: Bias
Pin 4: Not used
Balanced (XLR)
Pin 1: Shield
Pin 2: Signal +
Pin 3: Signal -
Balanced (XLR)
Pin 1: Shield
Pin 2: Hot
Pin 3: Cold
Pin 5: common
Pin 6: parallel to 1 + 4
Pin 7: parallel to 8
Pin 8: parallel to 7
Full-range Pin 1: LF/HF +/-
Pin 2: Not connected
Biamp Pin 1: LF Section +/-
Pin 2: HF Section +/-
Subwoofer Pin 1: LF input +/-
System
Pin 1 in: LF +/- Pin 2! out
Pin 2 in: LF +/- Pin 1! out
Pin 3 in: MB+/- Pin 3 out
Pin 4 in: HF +/- Pin 4 out
Pin 1: parallel to 4 + 6
Pin 2: TxD
Pin 3: RxD
Pin 4: parallel to 1 + 6
PC interface
(RS 232)
Speakers
male female
86
Female Male Rock Jazz Speech Choir Vocal Speech Kick Snare Toms HiHat/ Guitar Saxophone/ Trumpet/ Piano Accordeon Guitar/ ENG
Drum Overhead Amp Woodwinds Brass Strings
Cobalt Co4 + + + +
Cobalt Co5 ++
Cobalt Co7 ++++
Cobalt Co9 +++
Cobalt Co11 ++ ++ ++ +
N/DYM 367s ++ + + +
N/DYM 267a(s) +++ +
N/DYM 767a ++ ++ + + +
N/DYM 967 ++++
N/DYM 468 ++ ++ ++ + + + +
N/DYM 868 ++
N/DYM 478 ++ + +
RE 200B ++ ++ ++ + ++
RE 20 ++ ++ ++ ++ + ++ ++ ++ ++ ++
RE 27 ++ + ++ ++ ++ + ++ ++ ++ ++ ++
RE 510 ++ ++ ++ + + + + + ++ + + + + + ++
RE 1000RE 90B ++ +
RE 90H ++
RE 90L ++ +++
RE 90P-12/-18 ++
Polarchoice-12/-18 ++ +
RE 50B/NDB ++
635 ++
VOICE SOUND
REINFORCEMENT VOICE
STUDIO INSTRUMENT
BROAD
CAST
MICS APPLICATIONS
EV MICROPHONE APPLICATION TABLE
+recommended
++ optimal
America
USA: Telex Communications Inc. 12000 Portland Ave South, Burnsville, MN 55337, USA, Phone: 1-800-392-3497, Fax: 1-800-955-6831
Canada (East): Acoustik GE Inc. 5715 Kincourt, Montréal, PQ H4W 1Y7, Canada, Phone: 866-369-2864, 514-369-2864, Fax: 514-487-9525
Canada (Ontario): HEK Marketing Inc. 27 Fearn Crescent, Ajax, ON L1S 5L7, Canada. Phone: 800-494 6770, Fax 905-619-0366
Canada (West): KMT Pro Audio. 04-301 Nassau Street North, Winnipeg, MB R3L-2J5, Canada, Phone: 888-850-8811, Fax: 204-489-7614
Mexico: Telex de Mexico S.A. de C.V., Av. Parque Chapultepec 66-202, Col. El Parque, Edo. de Mexico, Phone:+52 (55) 5358-5434, Fax:+52 (55) 5358-5588
Latin America: Telex Communications Inc. 12000 Portland Ave South, Burnsville, MN 55337, USA, Phone: 952-887-5532, Fax: 952-736-4212
Europe, Africa & Middle-East
Germany: Telex EVI Audio GmbH. Hirschberger Ring 45, D 94315, Straubing, Germany, Phone: +49 9421-706 0, Fax: +49 9421-706 265
France: EVI Audio France S.A. Parc de Courcerin, Allée Lech Walesa, F 77185 Lognes, France, Phone: +33 1-6480-0090, Fax: +33 1-6006-5103
UK: Telex Communications Ltd. 4, The Willows Centre, Willow Lane, Mitcham, Surrey CR4 4NX, UK, Phone: +44 208 646 7114, Fax: +44 208 640 7583
Africa & Middle-East: Telex EVI Audio GmbH. Hirschberger Ring 45, D 94315, Straubing, Germany, Phone: +49 9421-706 0, Fax: +49 9421-706 265
Asia & Pacific Rim
Japan: EVI Audio Japan Ltd. 5-3-8 Funabashi, Setagaya-Ku, Tokyo, Japan 156-0055, Phone: +81 3-5316-5020, Fax: +81 3-5316-5031
Australia: EVI Audio (Aust) Pty Ltd. Slough Business Estate, Unit 23, Silverwater, N.S.W. 2128, Australia, Phone: +61 2-9648-3455, Fax: +61 2-9648-5585
China: EVI Audio (HK) Ltd. 7th Floor China Minmetals Tower, No. 79 Chatham Road South, Tsim Sha Tsui, Kowloon, HK, Phone: +852 2351-3628, Fax: +852 2351-3329
Singapore: Telex Pte. Ltd. 3015A Ubi Road 1, 05-10 Kampong Ubi Industrial Estate, Singapore 408705, Phone: +65 6746-8760, Fax: +65 6746-1206
© TELEX COMMUNICATIONS, INC. PRO AUDIO GROUP 03/2003 PRINTED IN U.S.A. SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PA20623
