1934—EV invents the hum-

bucking coil for microphones

(still a standard almost 70 years

later).

1940s—EV introduces noise

cancellation to microphones;

revolutionizes tank and aircraft

communications.

1954—EV introduces Variable-

D®microphone technology, a

means of eliminating the up-

close bass boost of convention-

al, single-D directional micro-

phones—for high vocal intelli-

gibility under the typical vary-

ing conditions of use in church-

es and meeting rooms.

1963—EV receives an award

from the Academy of Motion

Picture Arts and Sciences for

the development of a shotgun

microphone—the 642 Cardiline®

—which significantly advances

the quality of sound on film.

1974—EV develops constant-

directivity (CD) horns. For the

first time, a loudspeaker main-

tains its rated coverage angles

over a wide frequency range,

for significantly more uniform

sound quality and higher

intelligibility throughout the

audience.

Live For Sound

Founded in 1927 as a microphone company,

Electro-Voice®has grown into one of today’s

dominant worldwide forces in design and man-

ufacturing of top-quality products for broadcast,

touring sound, permanently installed sound

reinforcement and music playback systems.

Recognized the world over as a leader in audio

technology, EV®is ubiquitous in performing arts

centers, sport facilities, houses of worship, cine-

mas, dance clubs, transportation centers, theaters,

and, of course, live music.

EV’s reputation for providing superior audio

products and dedication to innovation continues

today. Whether EV microphones, loudspeakers

systems, amplifiers or signal processors, the EV

solution is always step up in performance and

reliability. EV, a product brand of Telex Com-

munications, Inc., shares technology with other

Telex product brands: Dynacord®, Klark-Teknik®,

Midas®, RTS®, and TELEX®.

1986—EV revolutionizes concert

sound reinforcement by introducing

Manifold Technology®.In each of

four bandpasses covering the entire

frequency range, the output of four

loudspeakers is flawlessly combined –

or “manifolded”– into a single horn

or low-frequency enclosure. The

result is – in a physical package a

fraction of the size of conventional

concert rigs – four times the acoustic

output without the drastically

uneven coverage of multiple acoustic

sources “stacked” for moreoutput.

1990s—EV invents

RMD™technology

(Ring-Mode Decou-

pling), a revolution-

ary anodyne to son-

ic distortion and

coloration. Speaker

system resolution

and clarity increases

by minimizing fun-

damental resonant

frequencies.

2000—EV invents VOB™techno-

logy (Vocal-Optimized Bass™), an

innovative mechanical design that

significantly reduces proximity

effect, allowing for greater vocal

intelligibility and instrumental clari-

ty. EV also invents ClearScan™, a

revolutionary innovation in wireless

technologies that enables automat-

ic, frequency agile selection of the

best of ten UHF channels.

2001/2002—EV intro-

duces RACE technology

(Realtime Acoustic Clus-

ter Editor), a synergetic

concept of correlating

digital crossover and filter

design

with real world

loudspeaker

behavior.

2003/2004—IRIS

(Intelligent Remote &

Integrated Supervision)

becomes the new soft-

ware platform to control

&monitor complex audio

systems, including signal

processing, amplifiers and

loudspeakers in realtime.

CONTENTS

2 - 3 EV milestones

4 Table of Contents

5 Index

Loudspeakers

6 - 7 EVI Vari Intense®

8 - 11 EVID™System

12 - 13 FRI / FRI+ System

14 - 15 FRX / FRX+ System

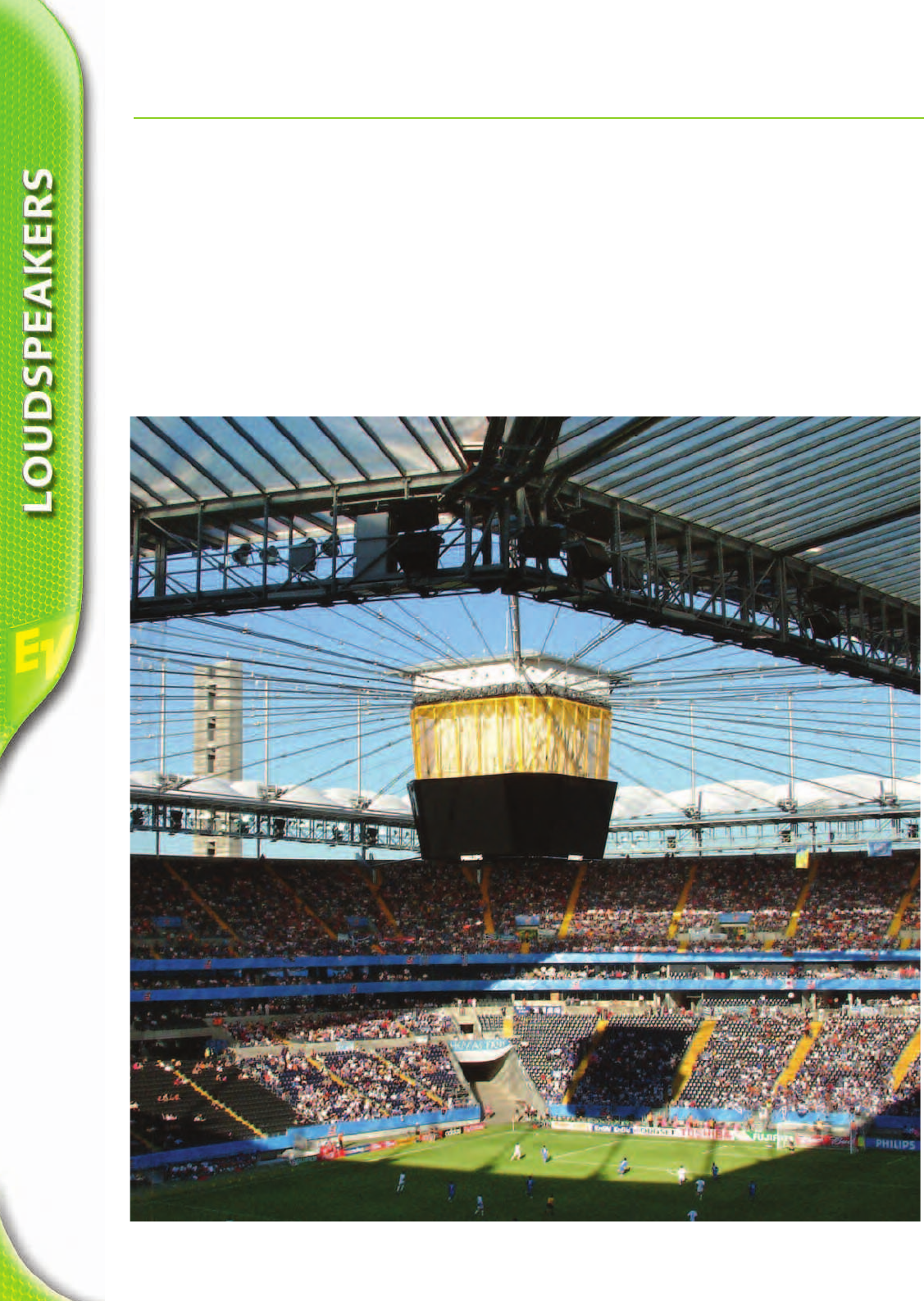

16 MH-Series Stadium Horns

17 PLASMA™Series

18 -19 QRx Series

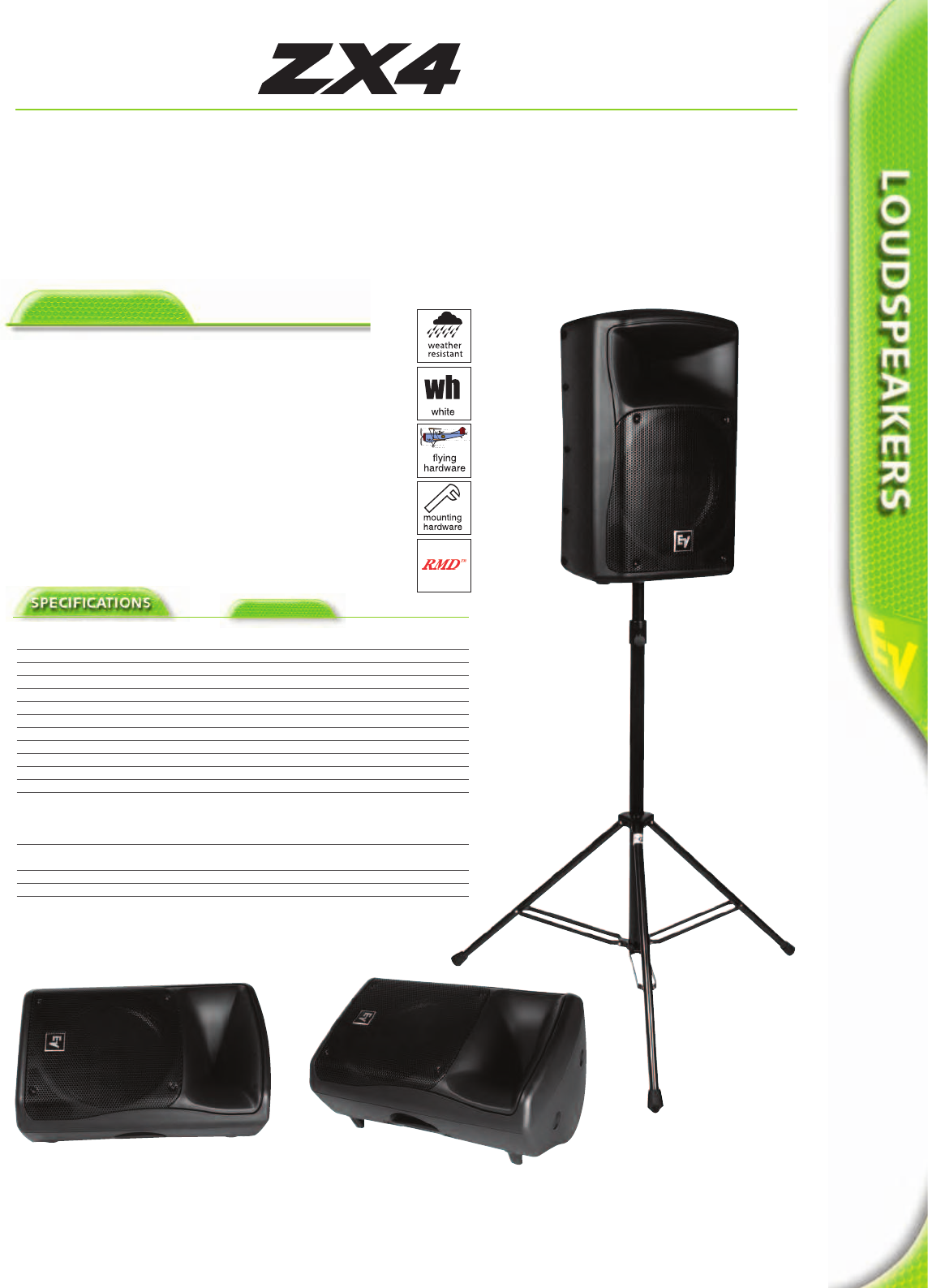

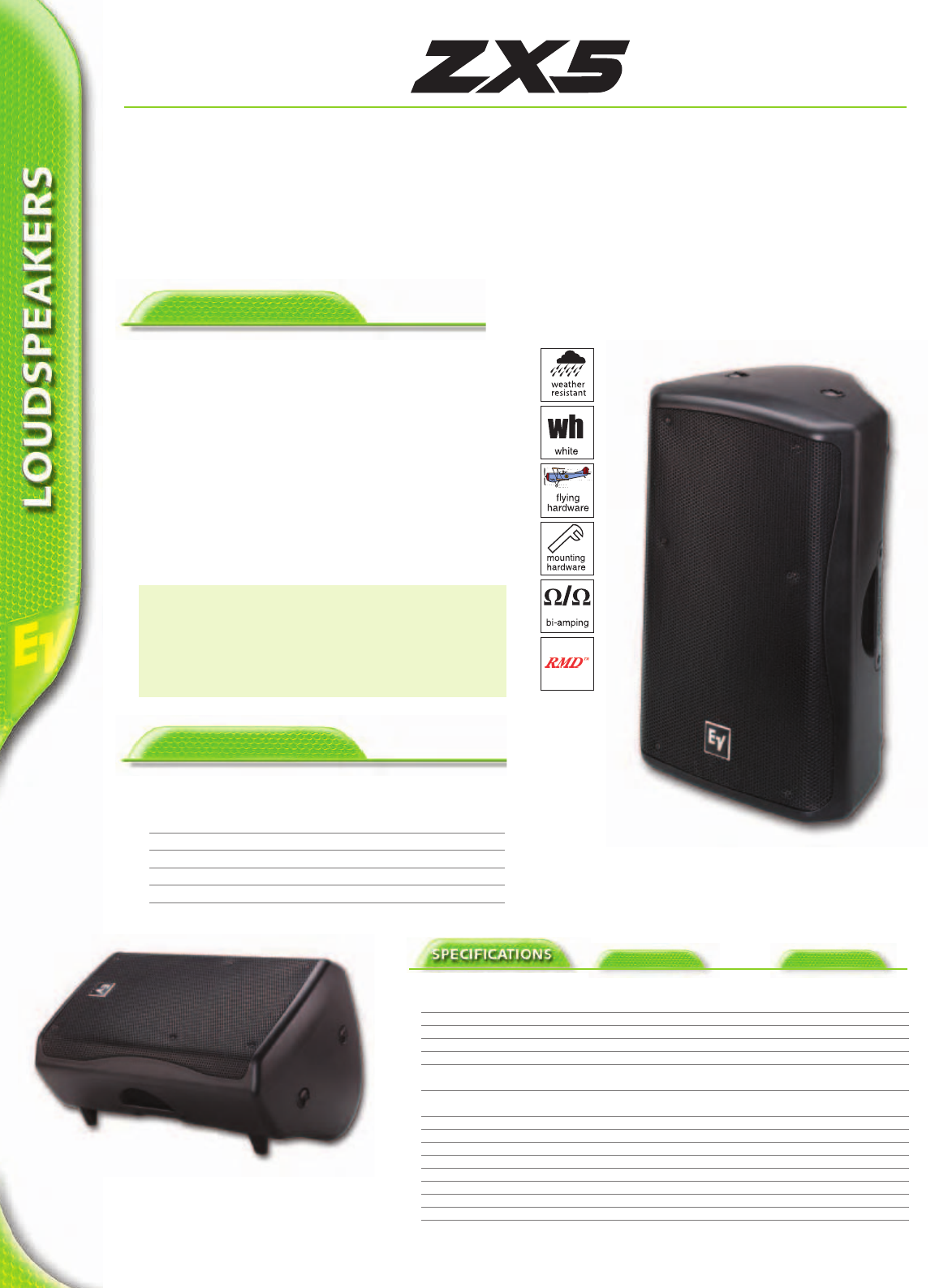

20 - 21 ZX4 / ZX5

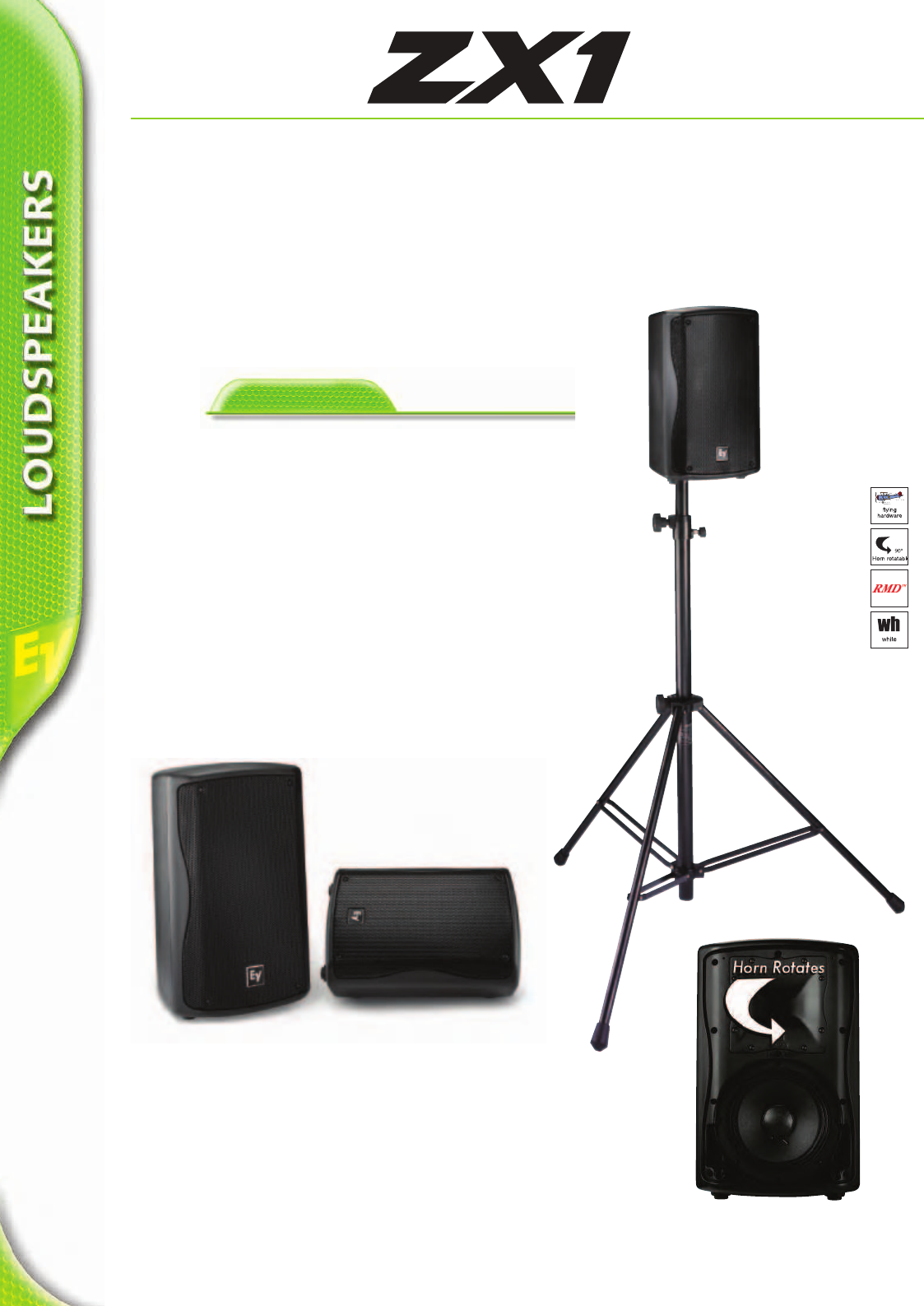

22 - 23 ZX1 / ZX1i

24 - 26 Sx Series™/ SxA Series™

27 T-Series

28 Gladiator

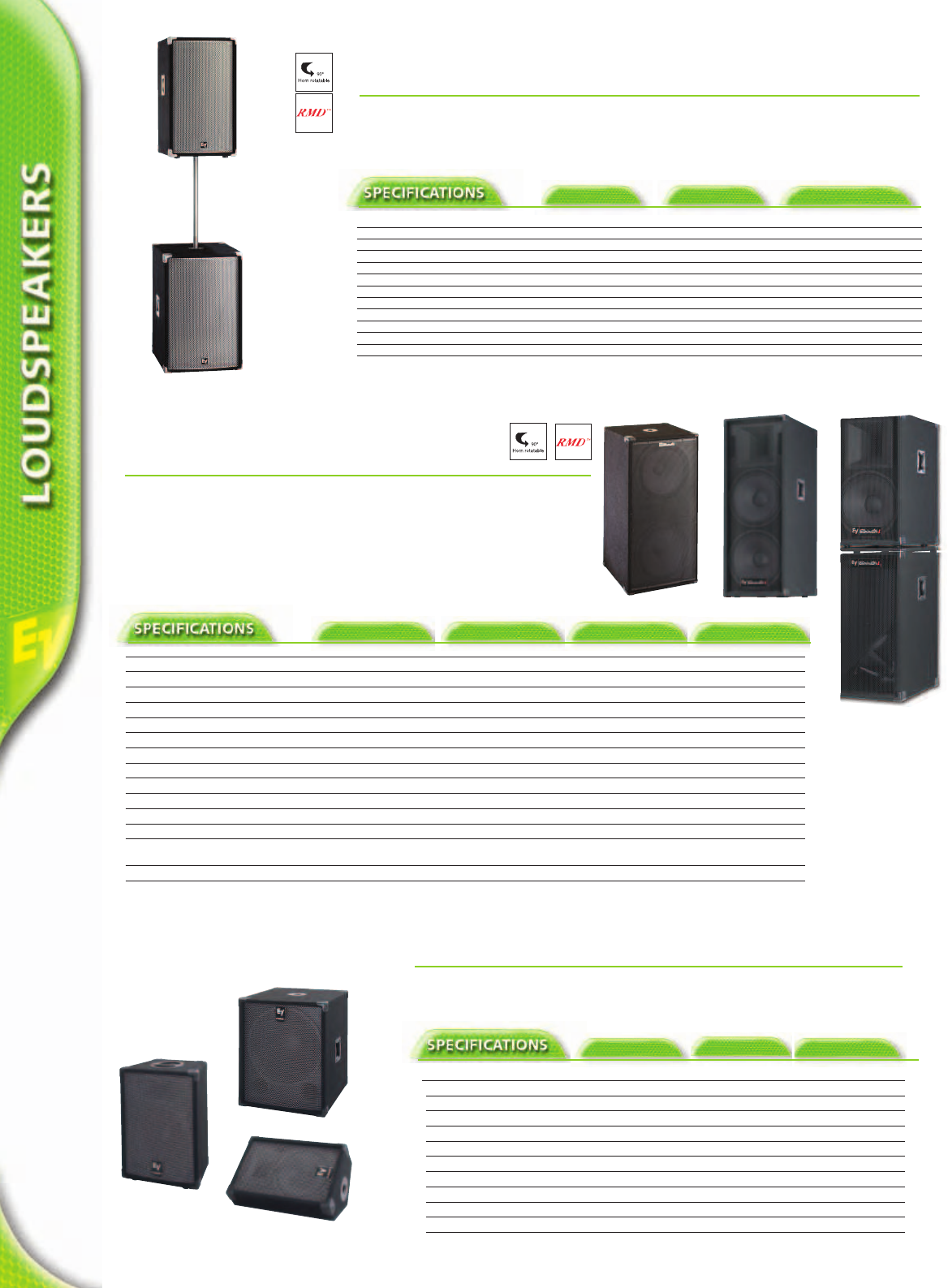

28 Eliminator i®

28 Force i®

29 - 31 Xi Series™

32 - 33 X-Array™

34 - 35 X-Line™

36 - 37 XLC System

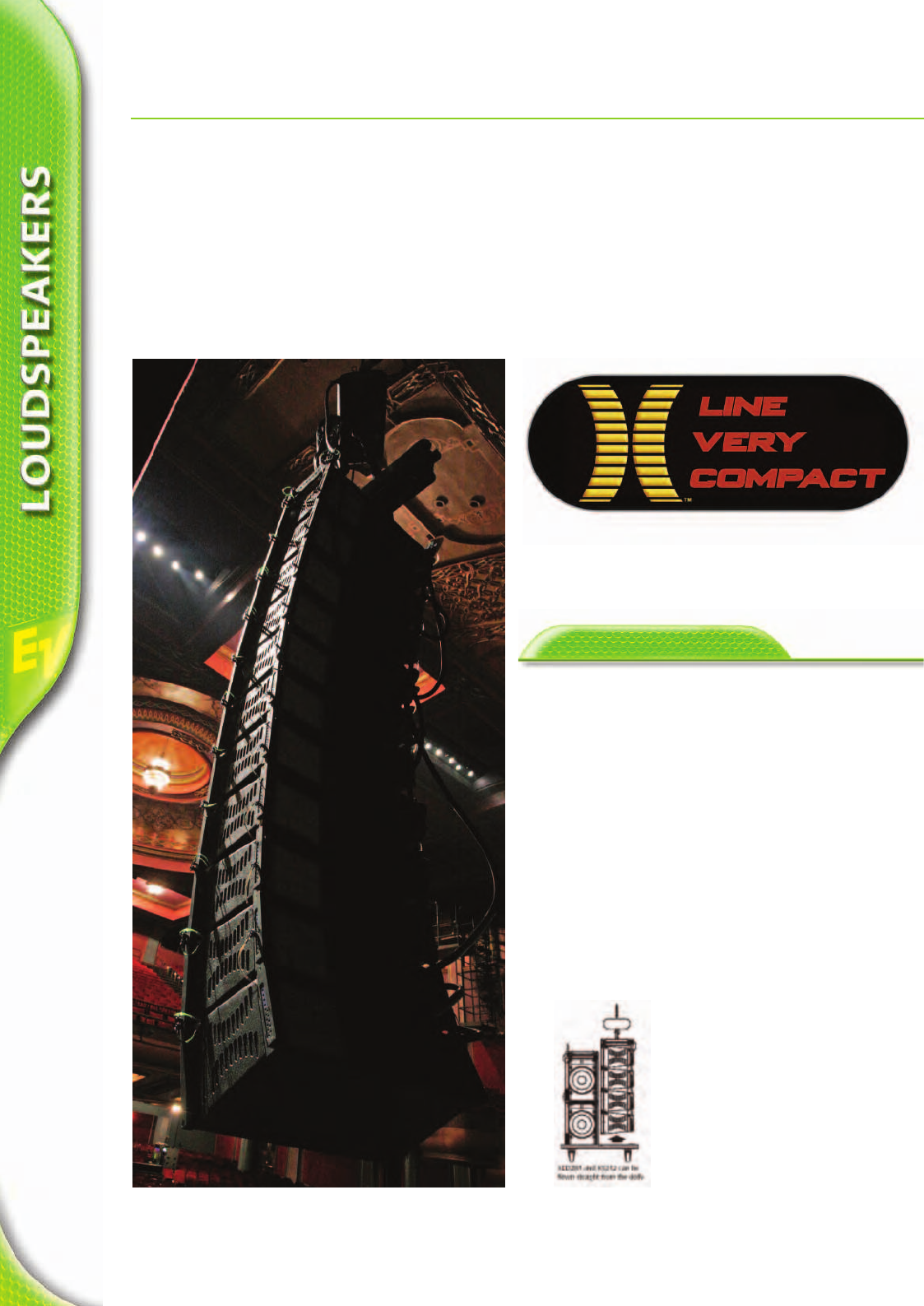

38 - 39 XLVC System

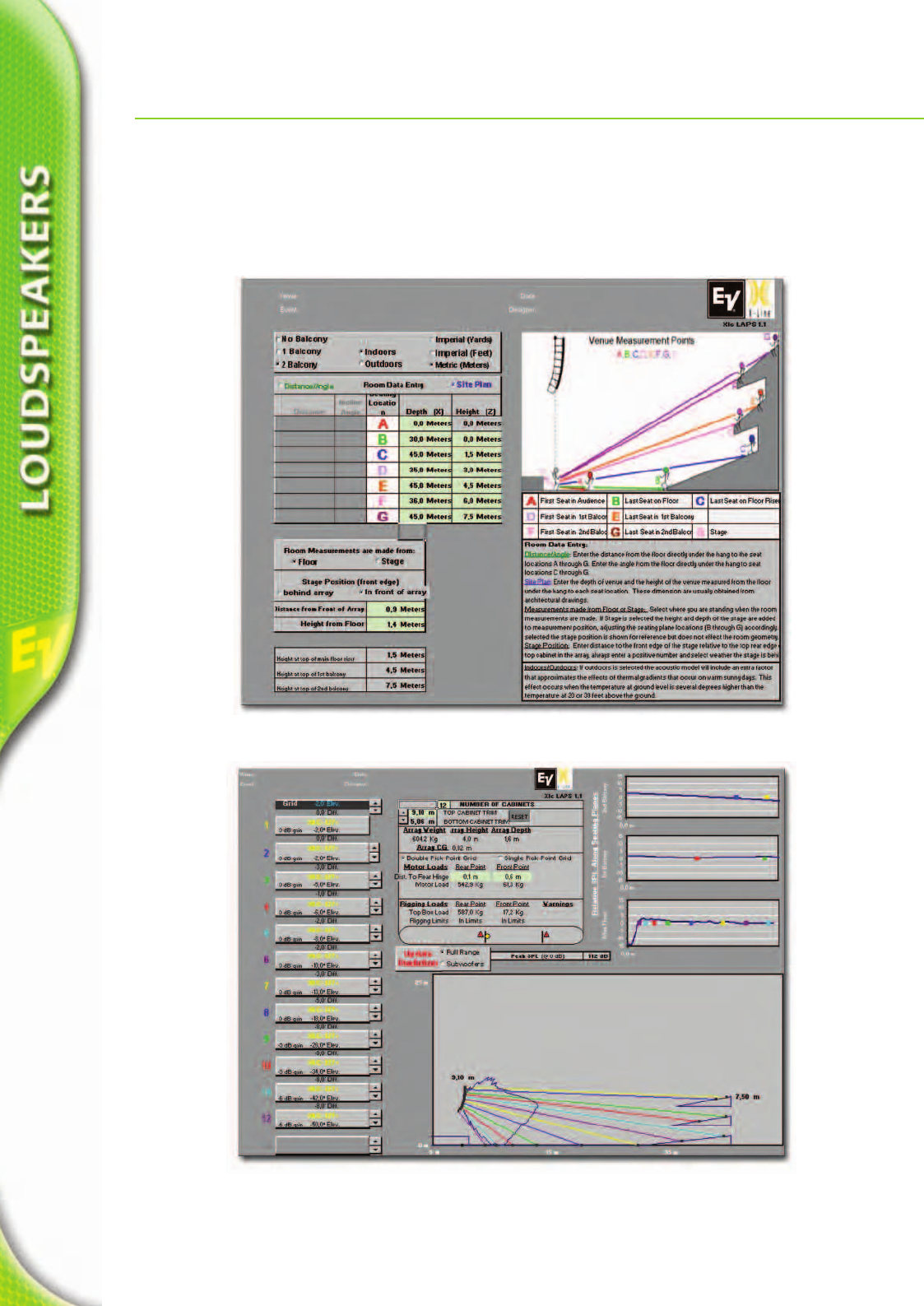

40 LAPS - Line Array Prediction Software

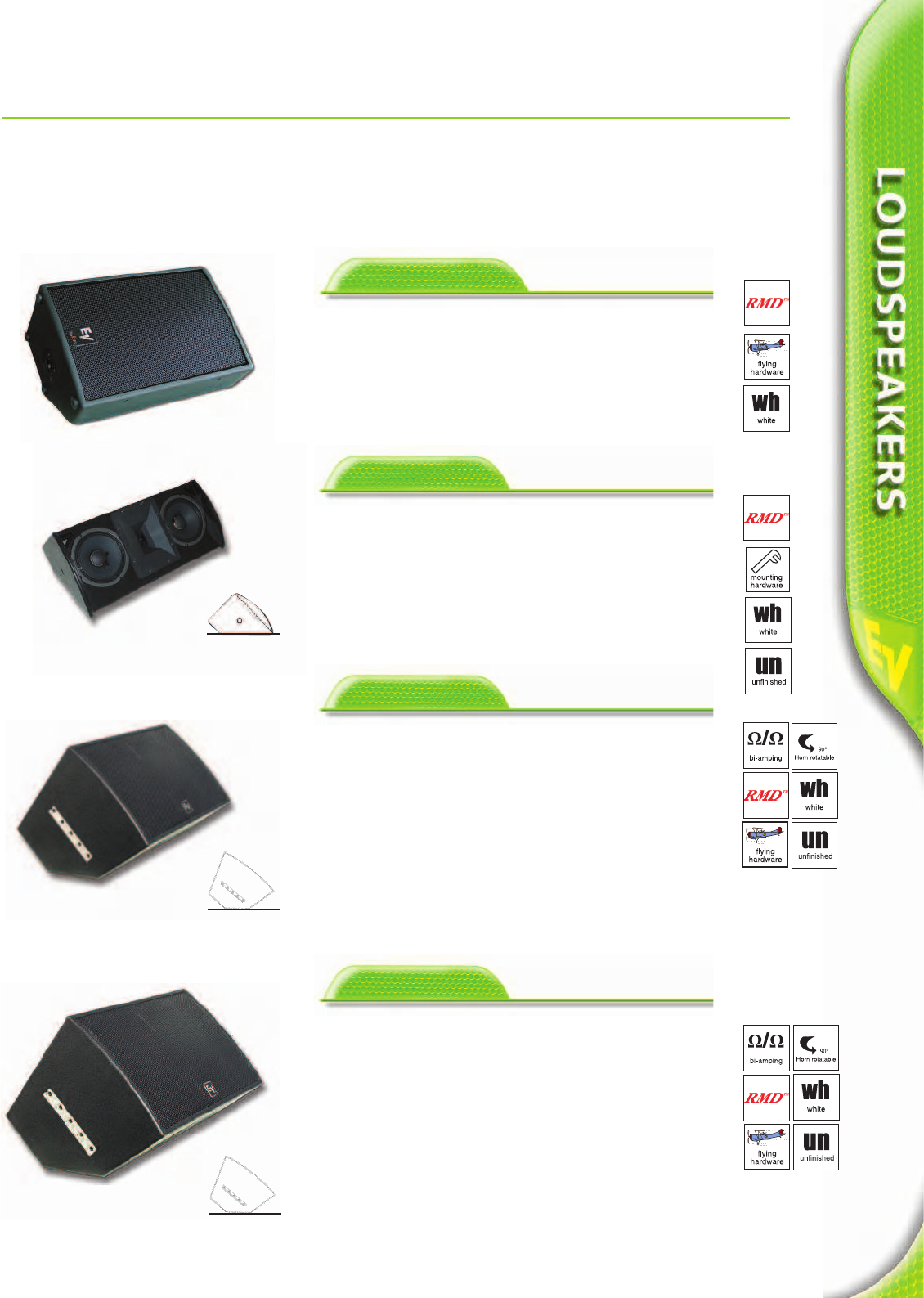

41 - 42 Floor-Monitors (overview)

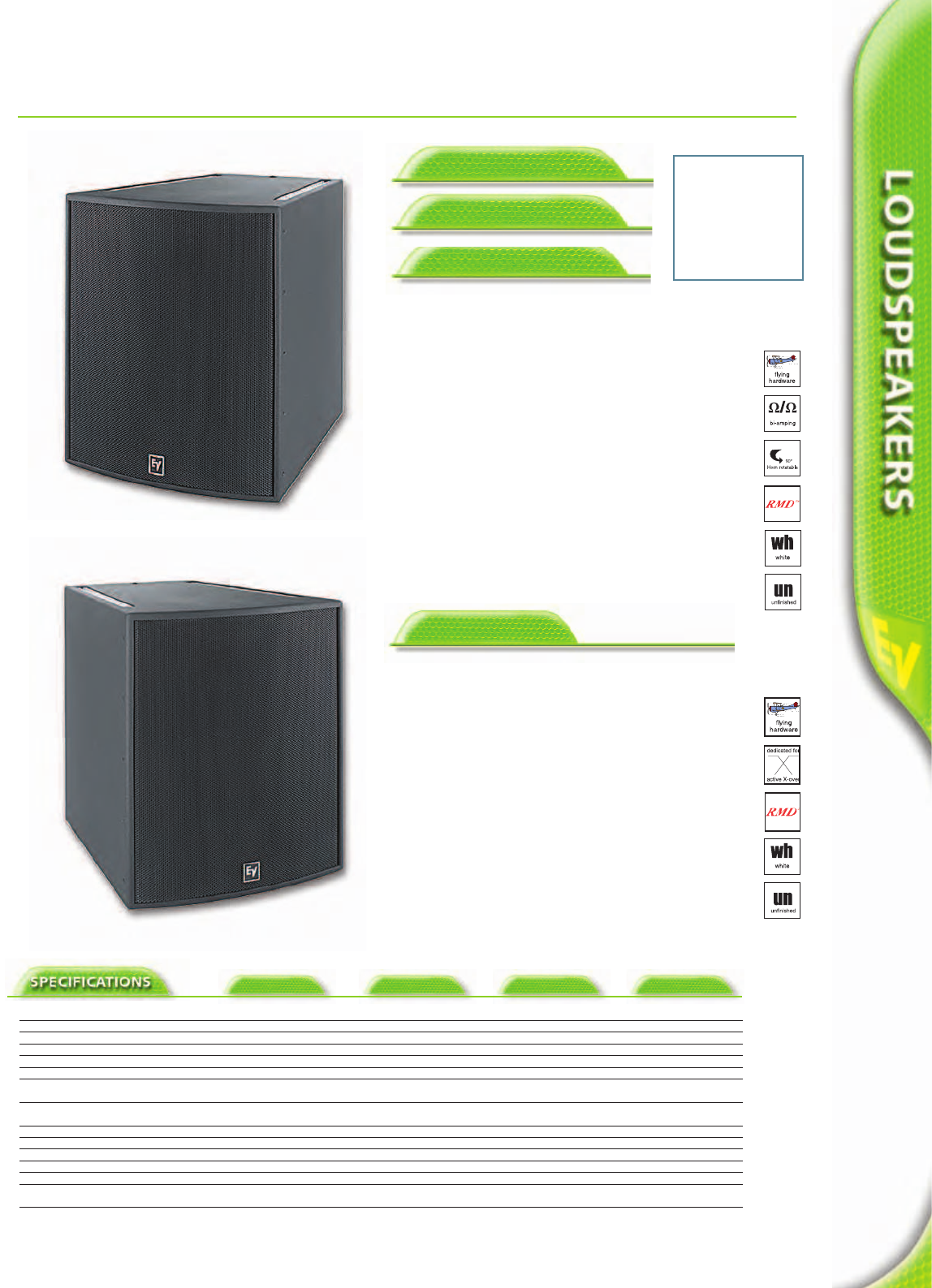

43 - 44 Subwoofers

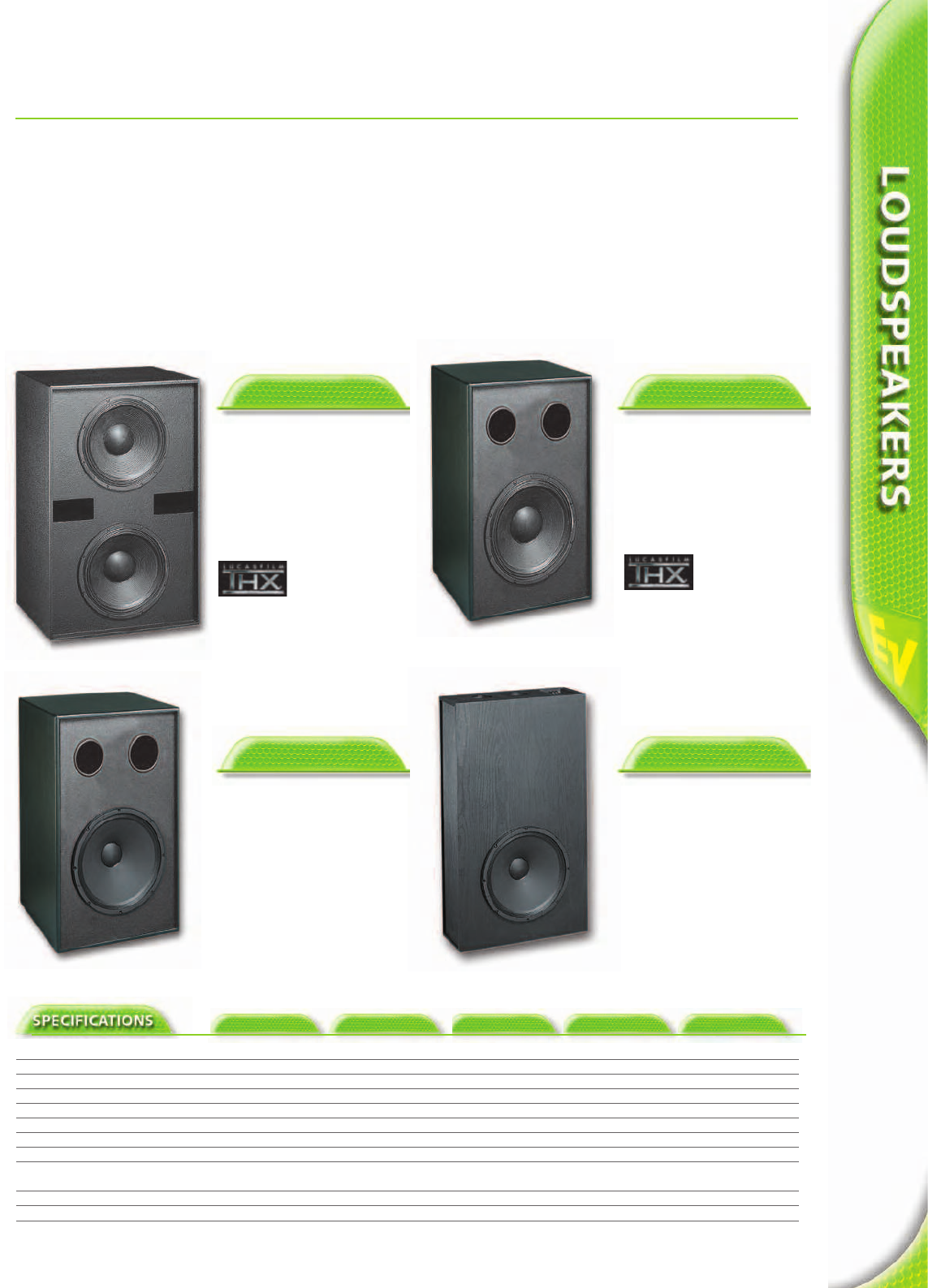

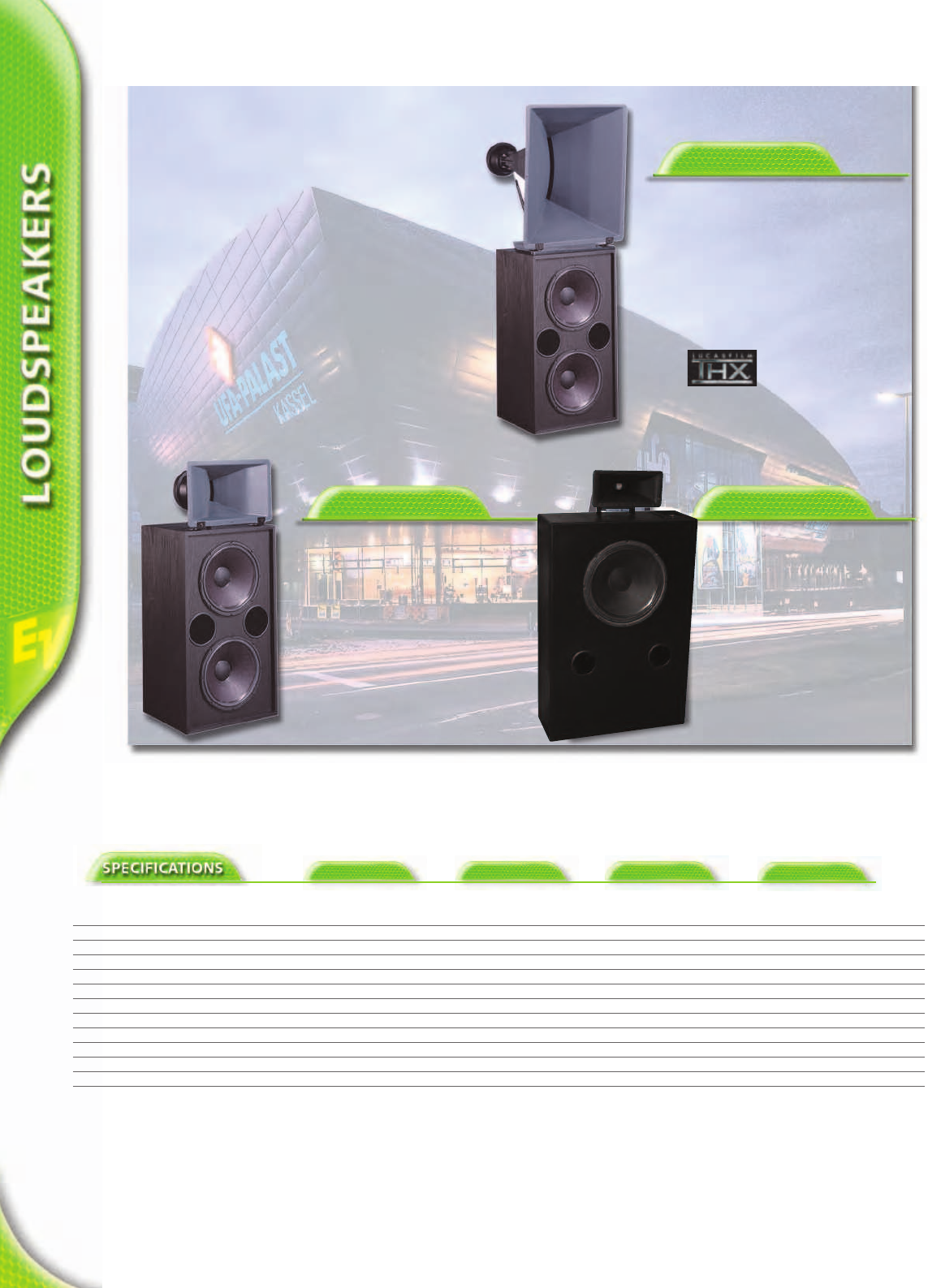

45 - 48 Cinema Systems

49 - 50 Outdoor Speakers

50 S-40 Ultracompact Monitor System

51 - 52 Components

53 HP-Horns

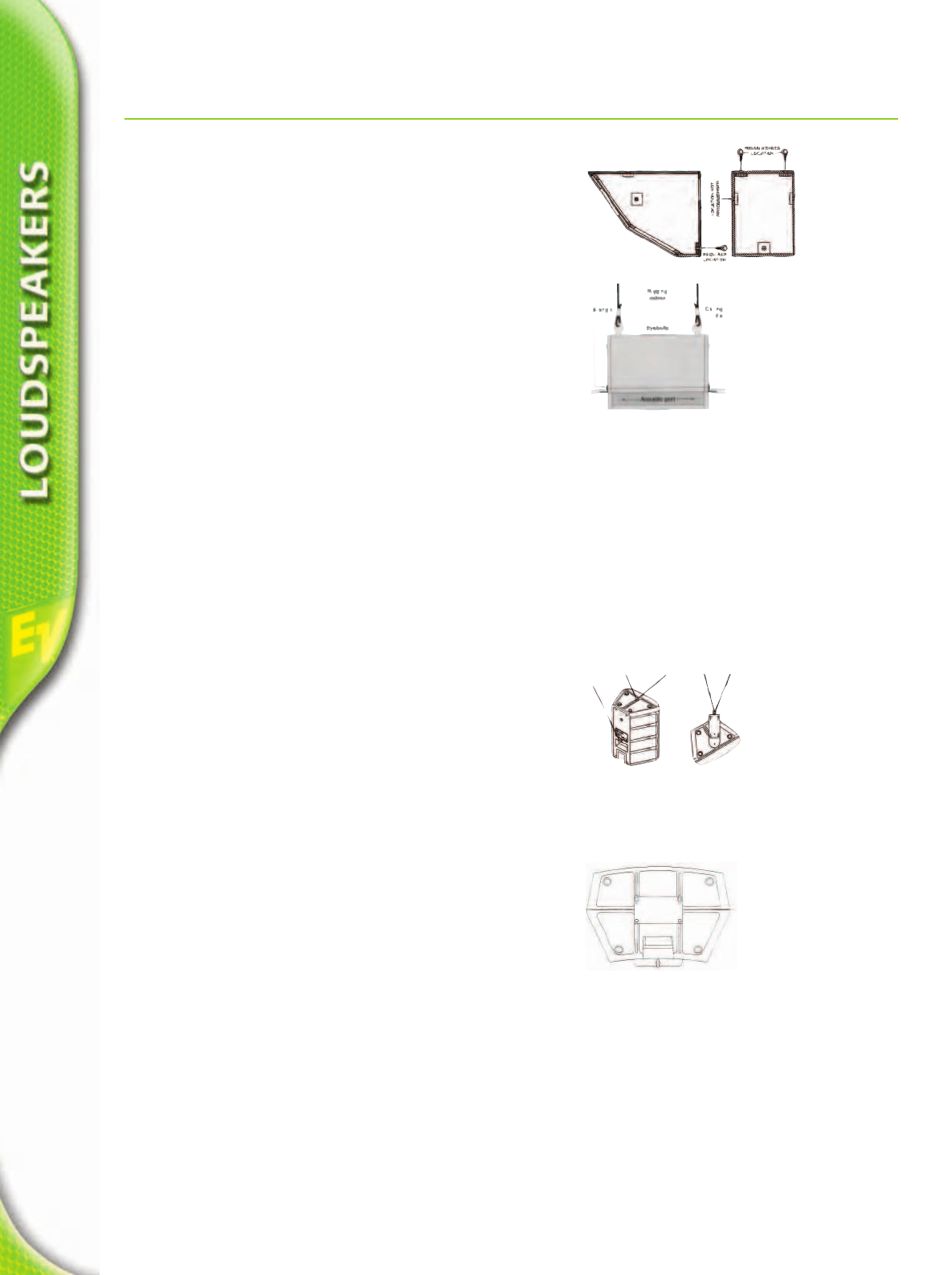

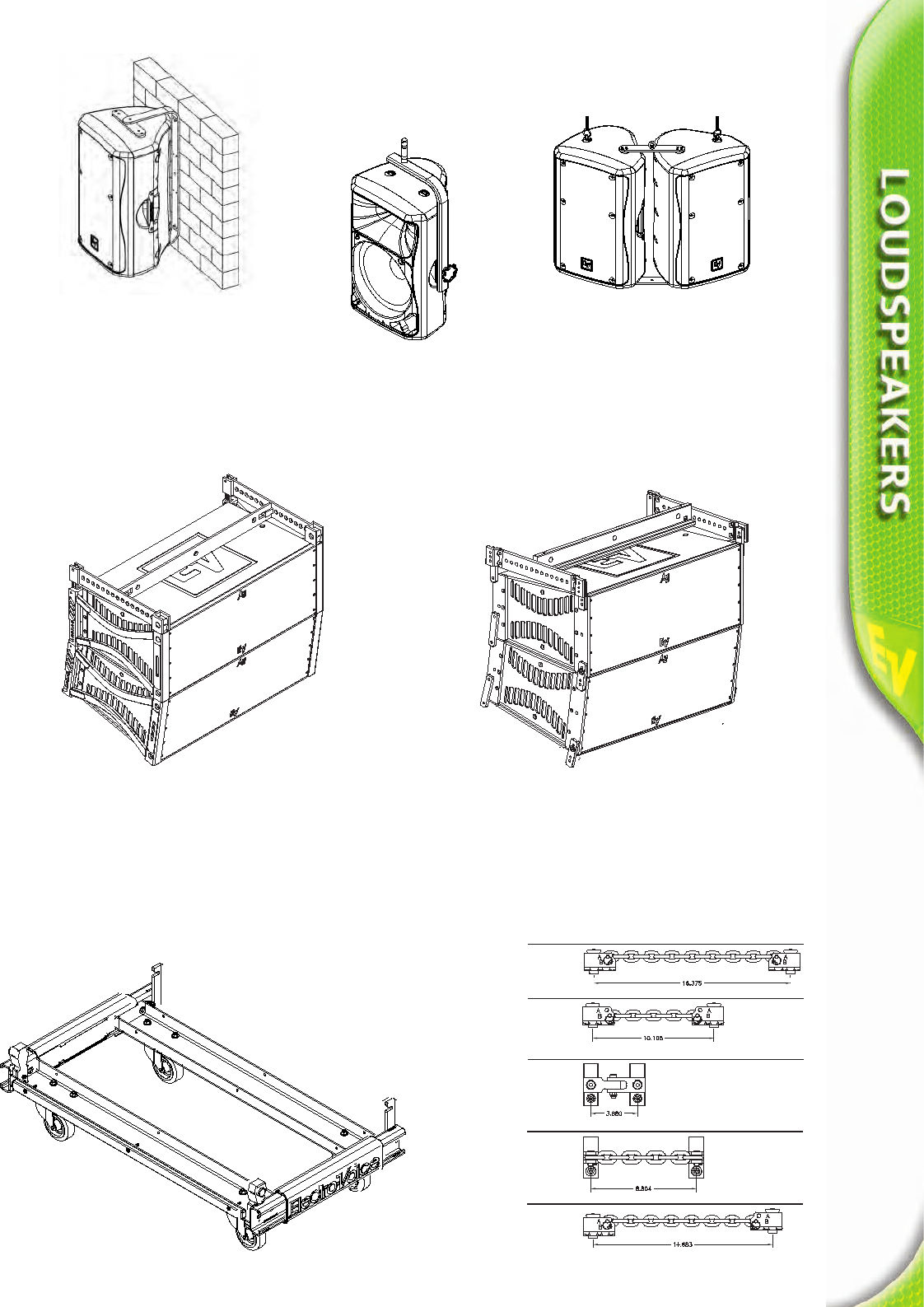

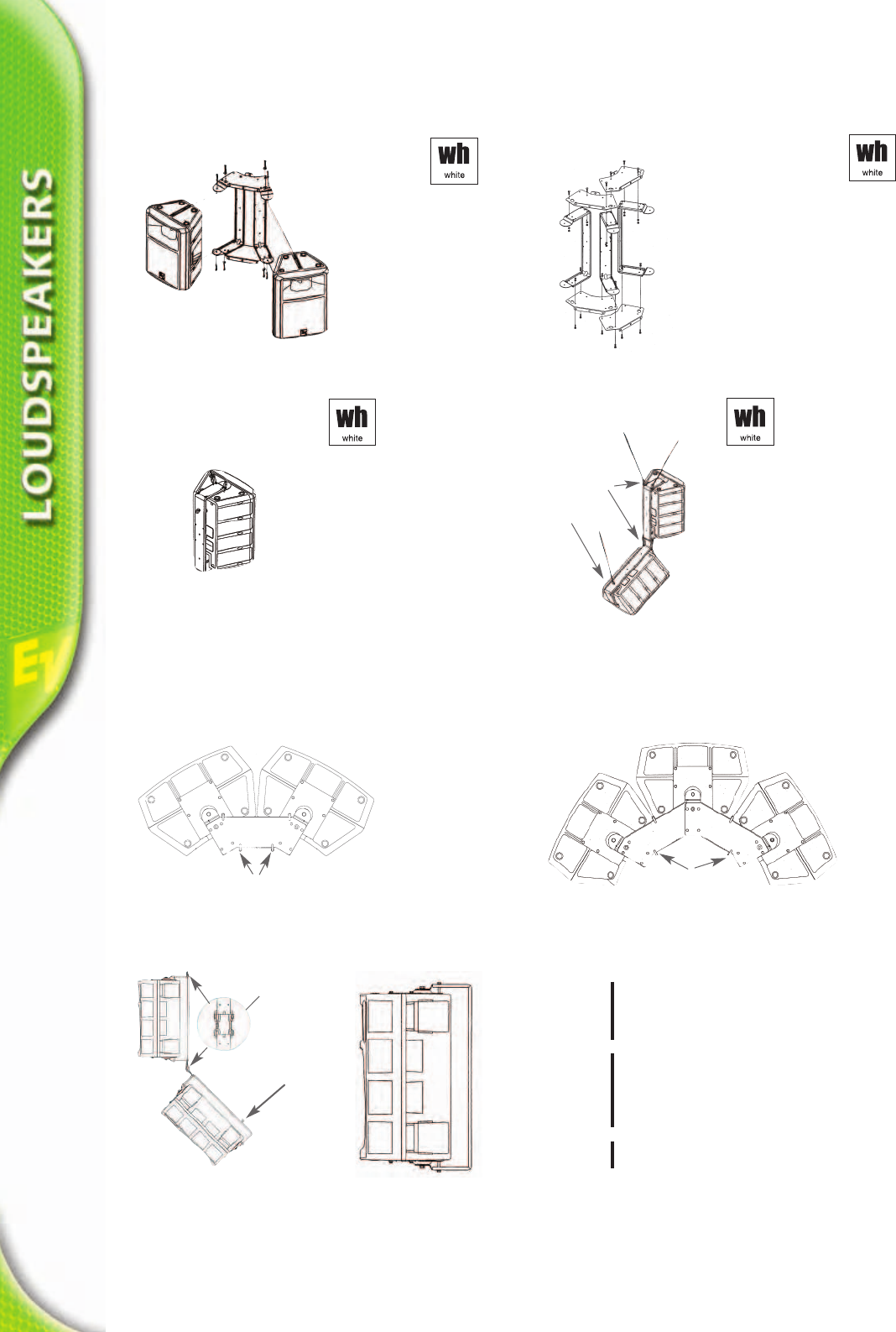

54 -57 Flying & Mounting Hardware

Electronics

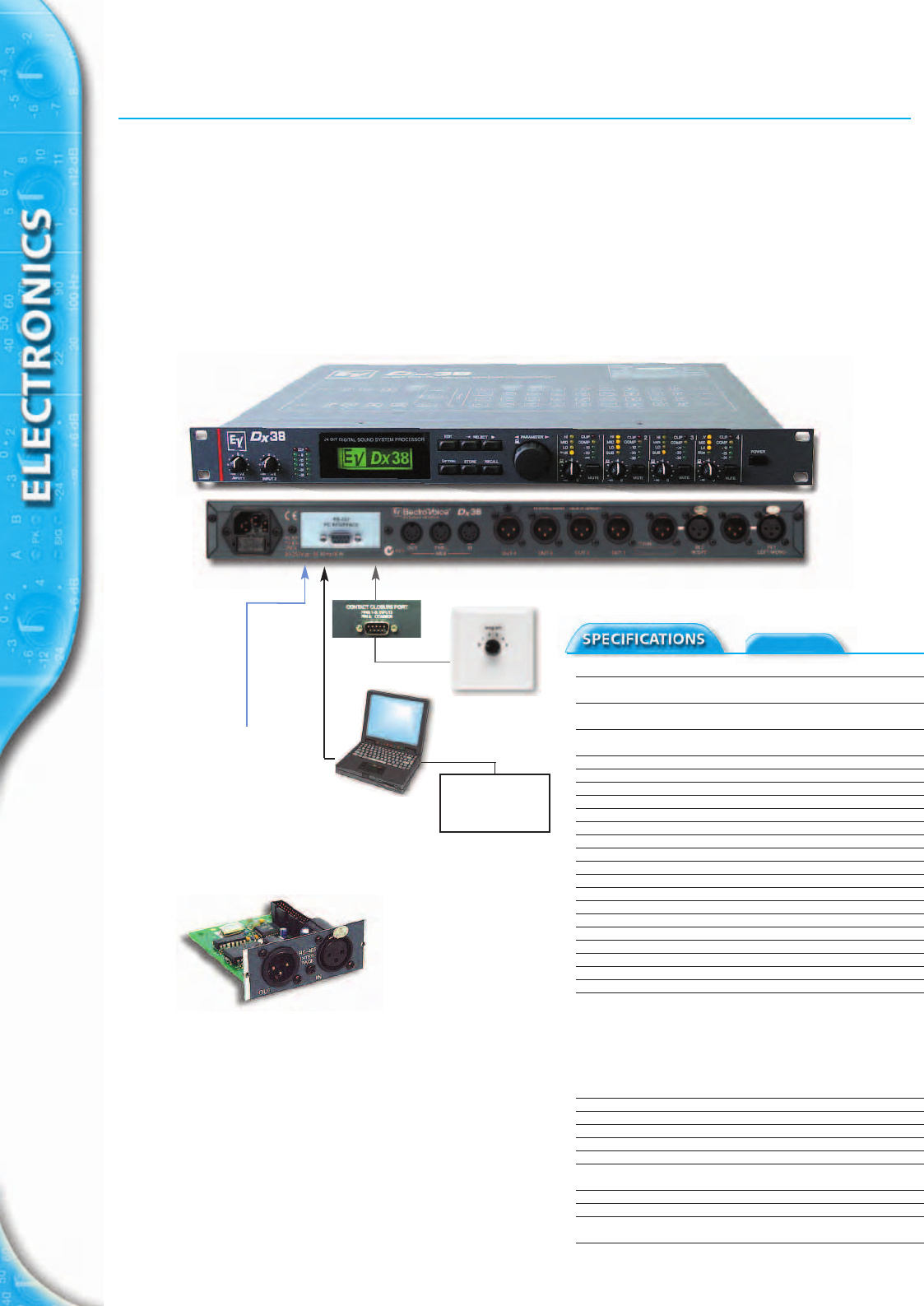

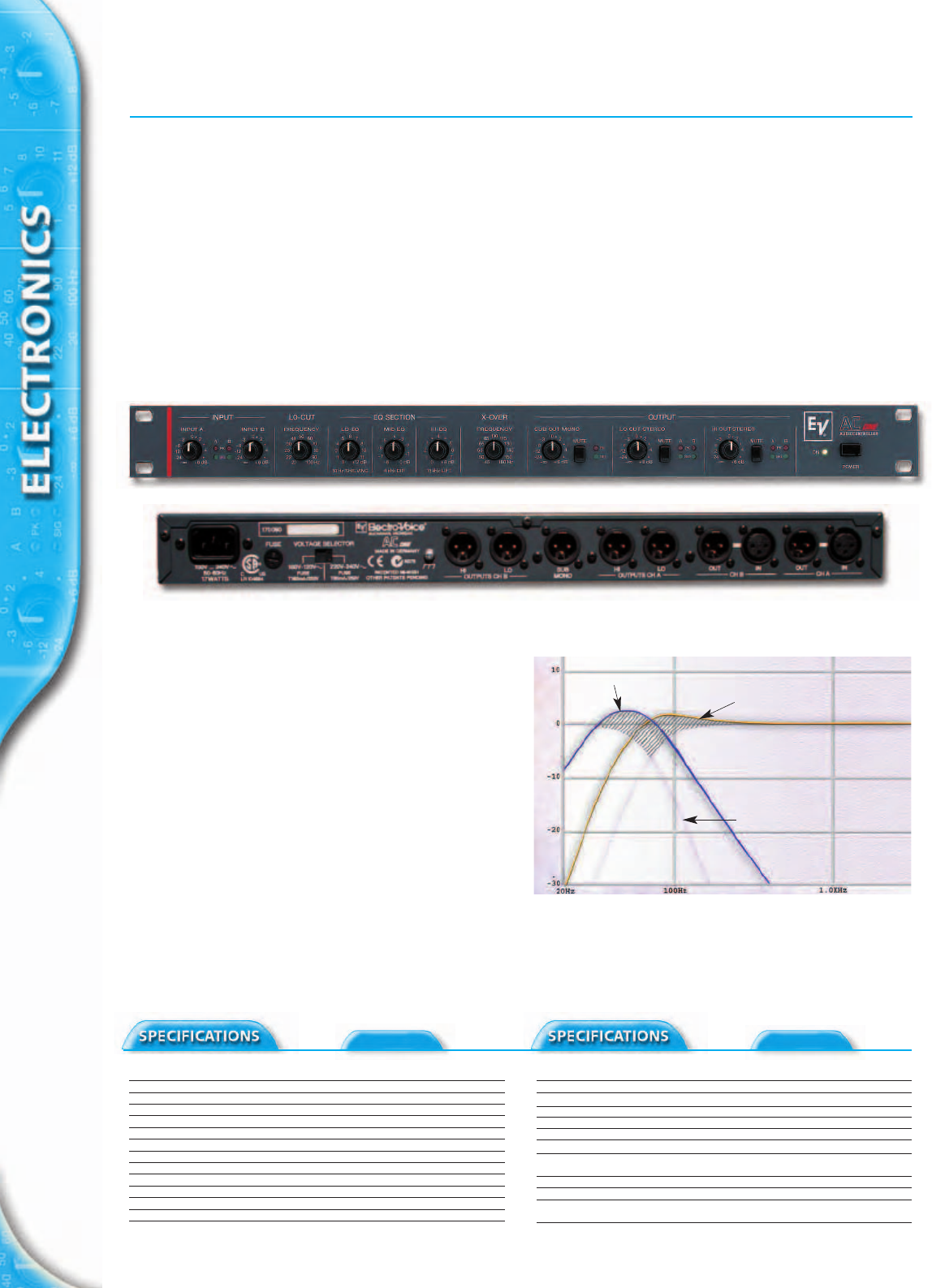

58 DX 38 Digital Sound System Processor

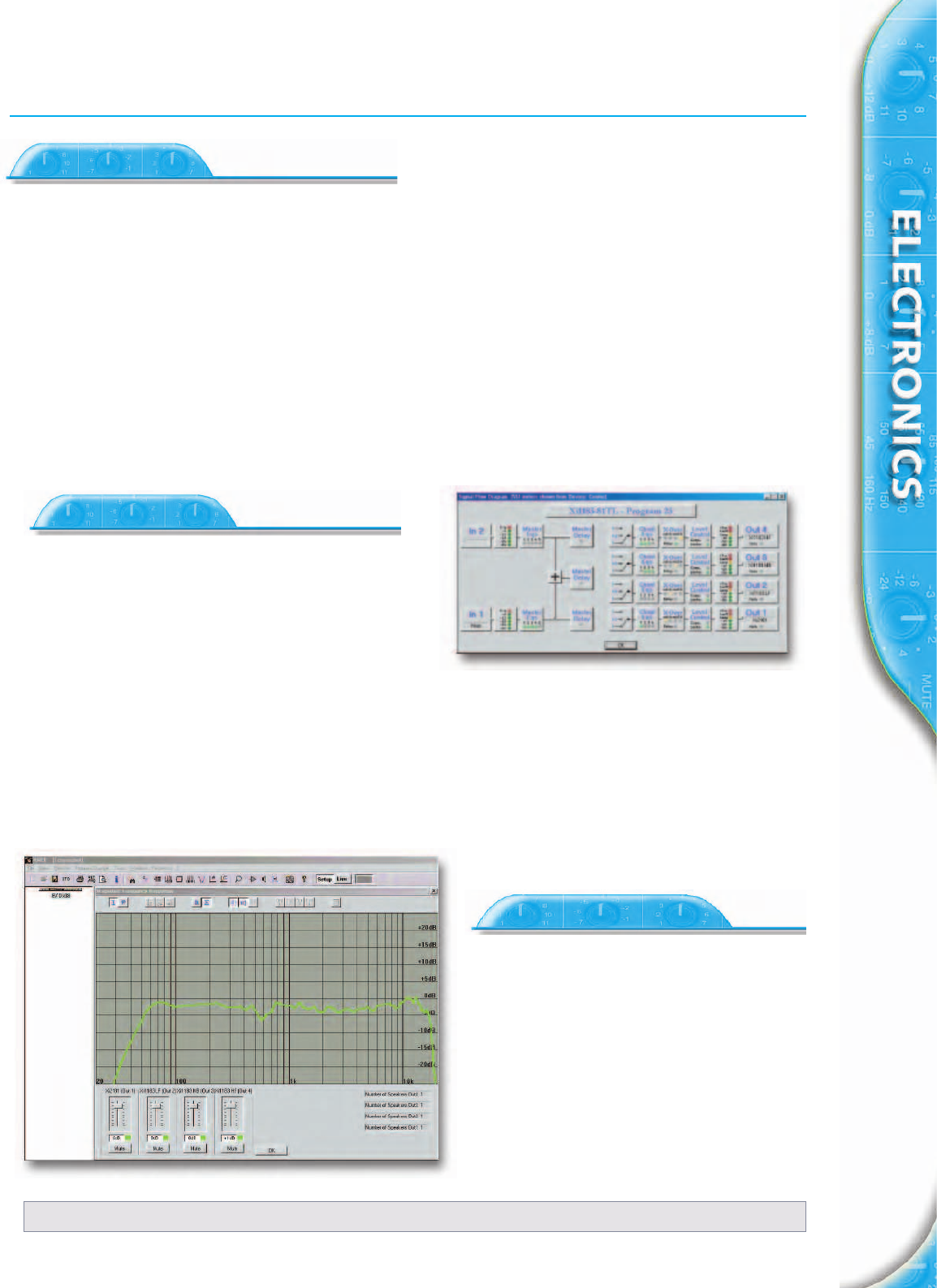

59 RACE Controller Software

60 AC One Analog Controller

61 Q-Series Amplifiers

62 PA Series Amplifiers

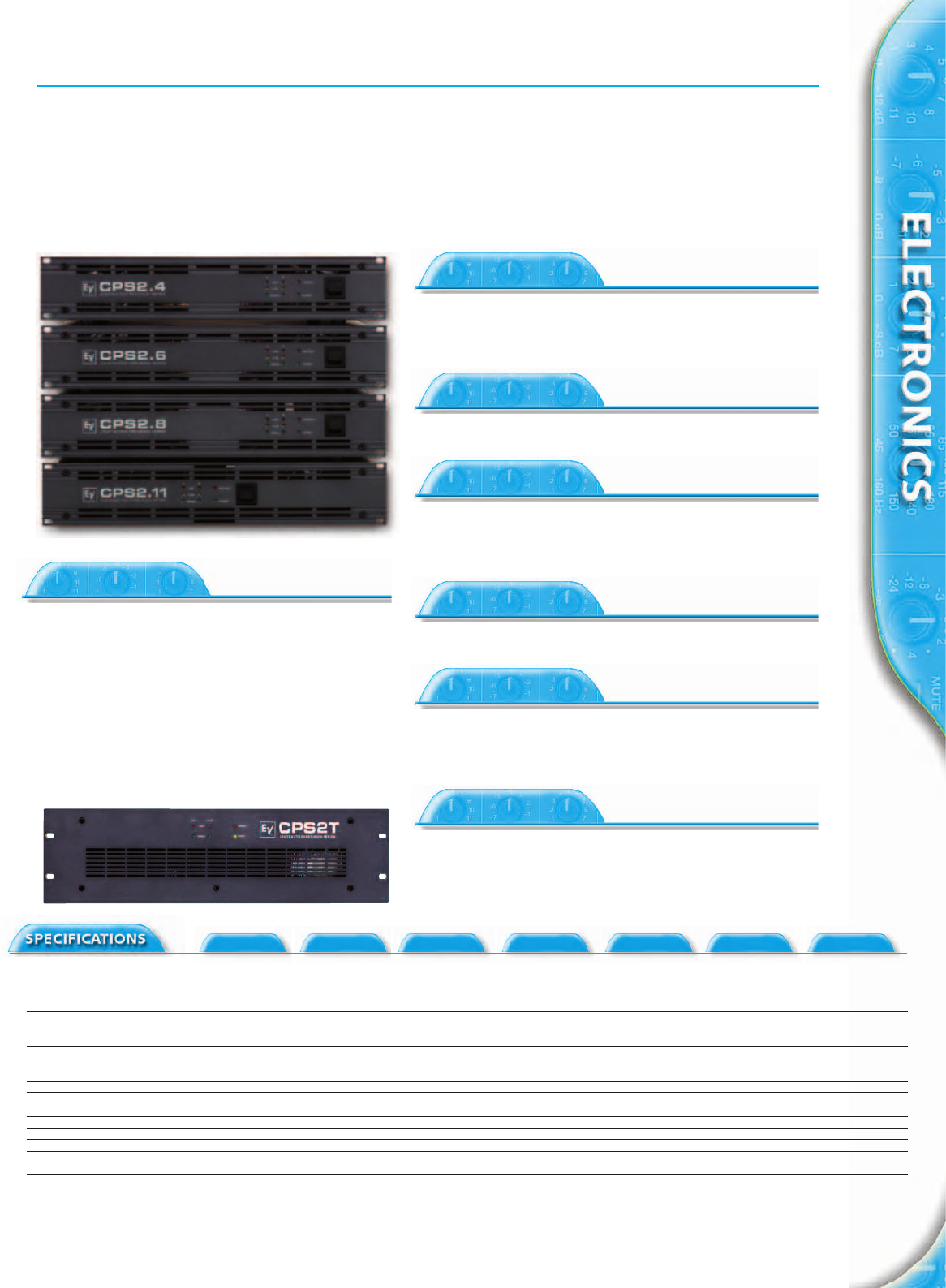

63 Contractor Precision Series Amplifiers

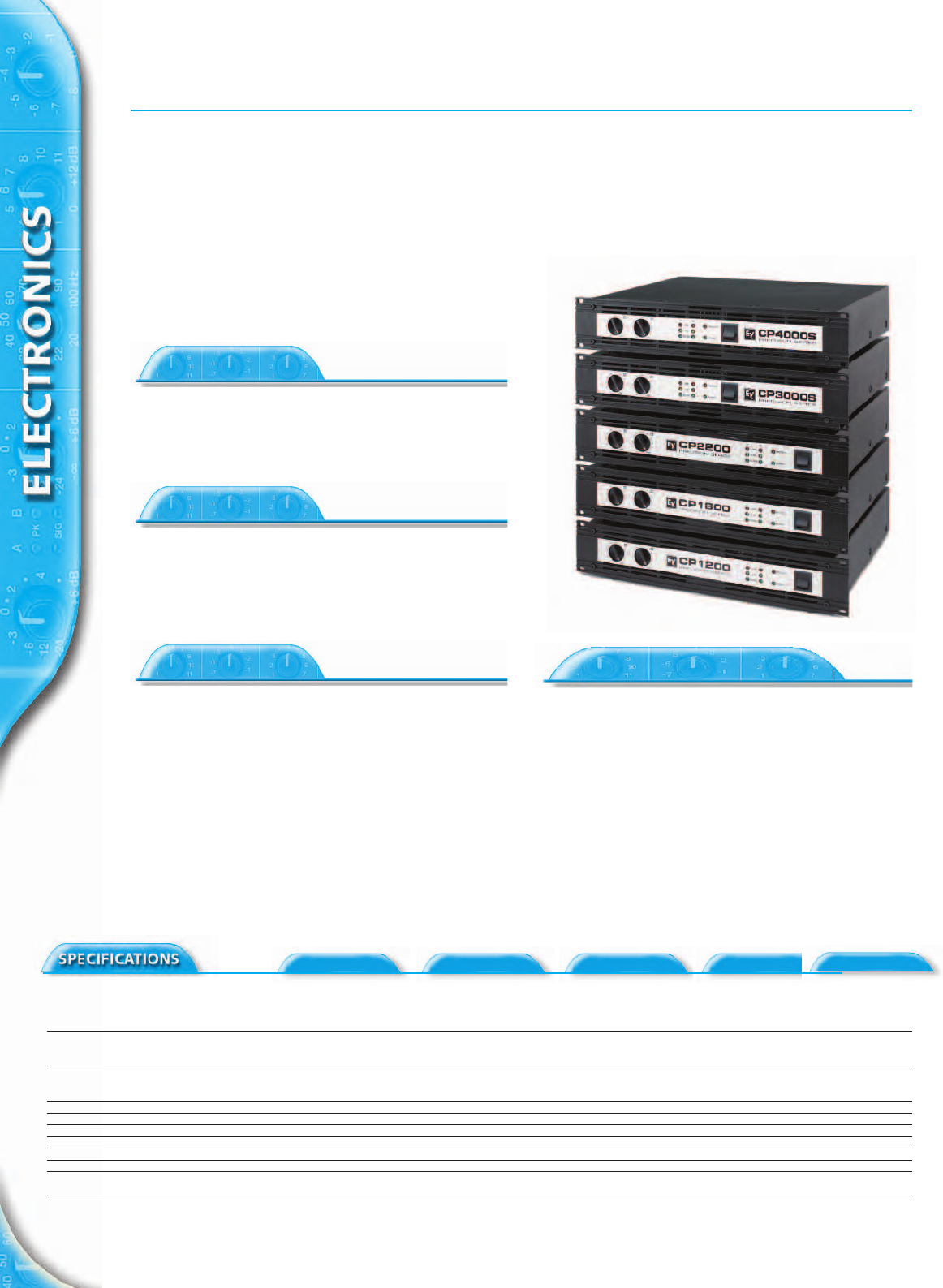

64 Compact Precision Amplifiers

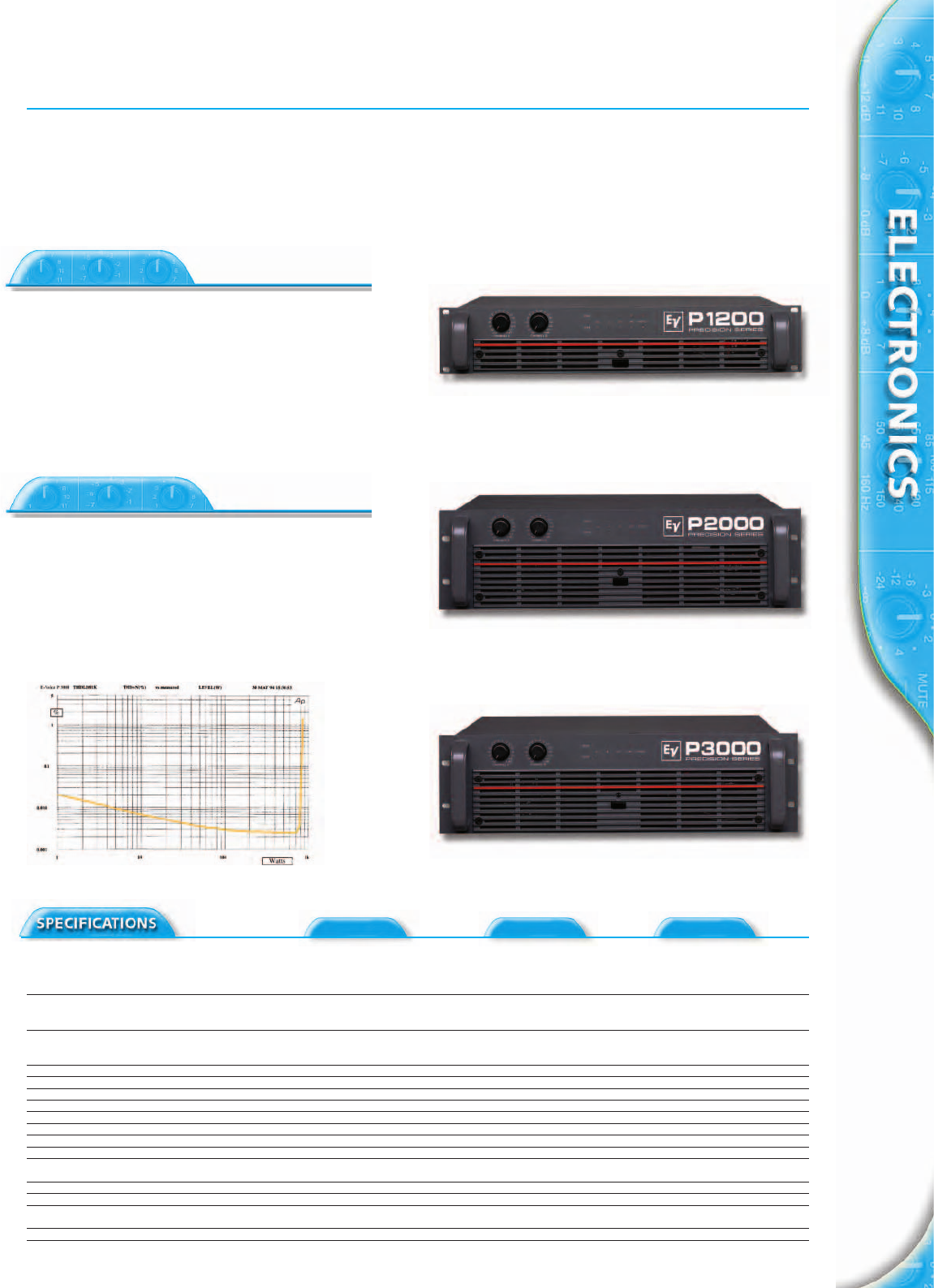

65 Precision Series Linear Amplifiers

66 - 67 IRIS-Net

68 Precision Series Remote Amplifiers

69 Tour Grade Amplifiers

Wired Microphones

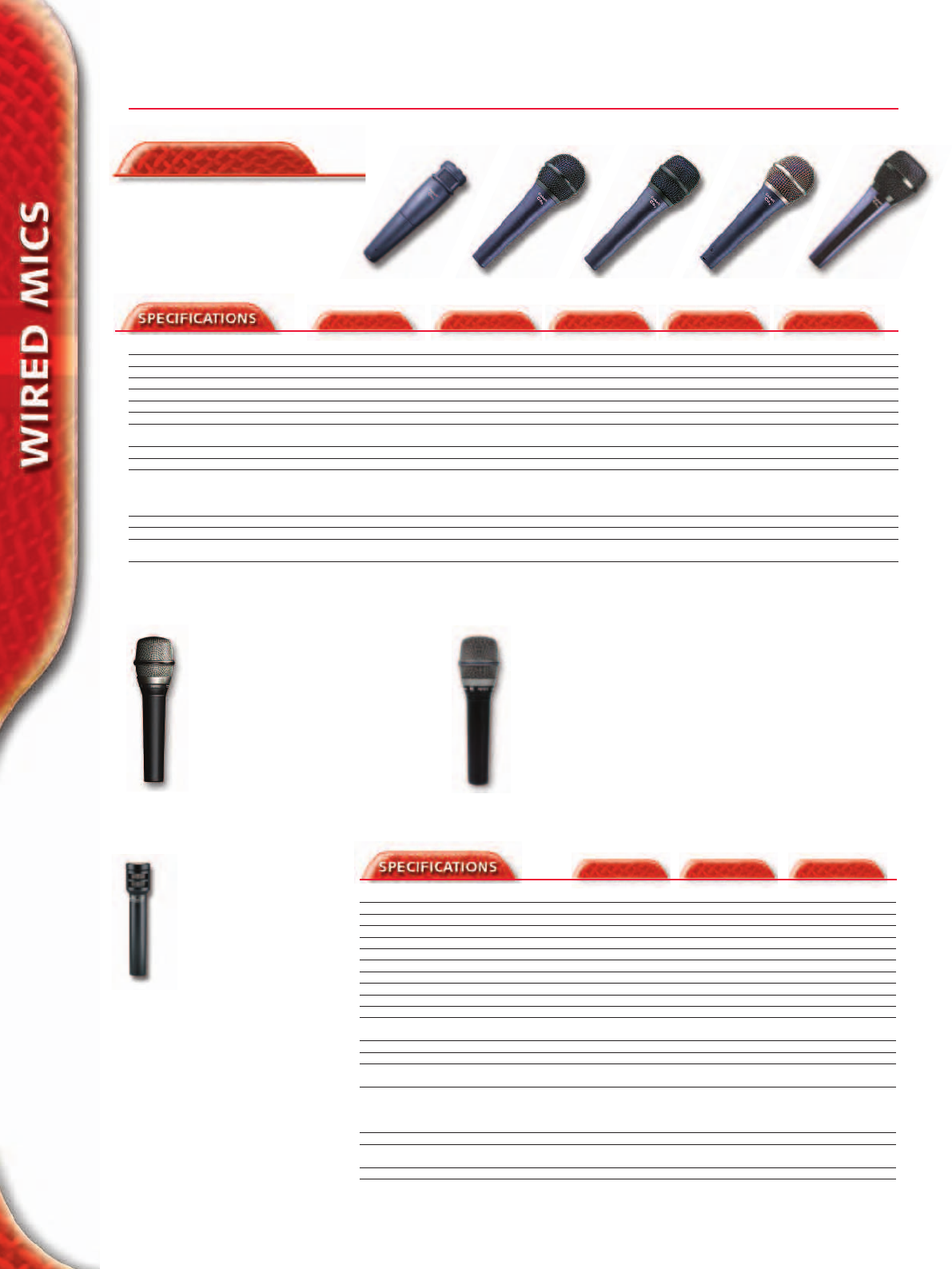

70 Cobalt™Series / Live Performance RE Series

71 N/DYM®Series

72 Broadcast RE-Series / Live Interview Microphones

73 EV Blue Series

74 RE-Series Install Microphones

75 Polar Choice™Series

Wireless Microphones

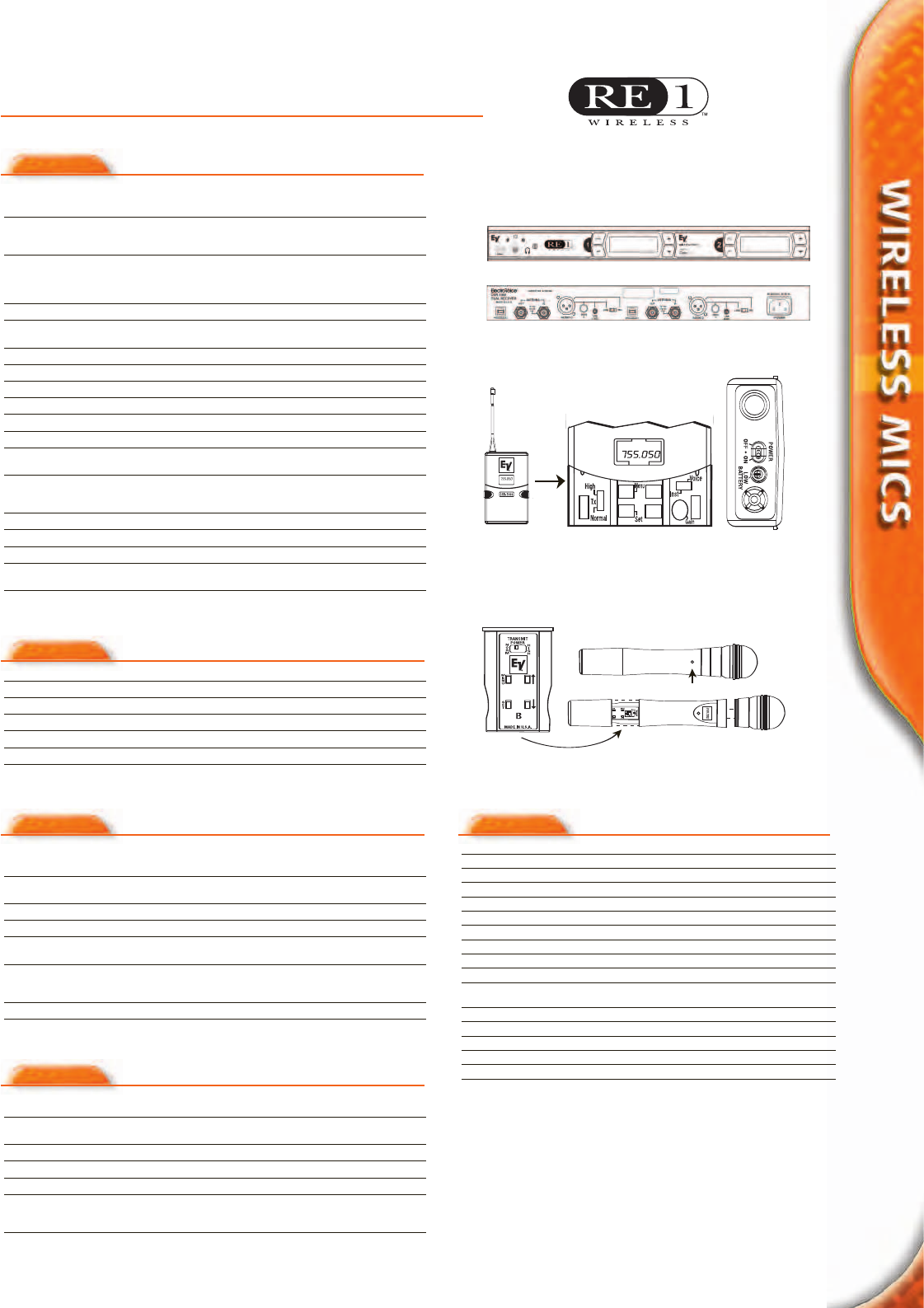

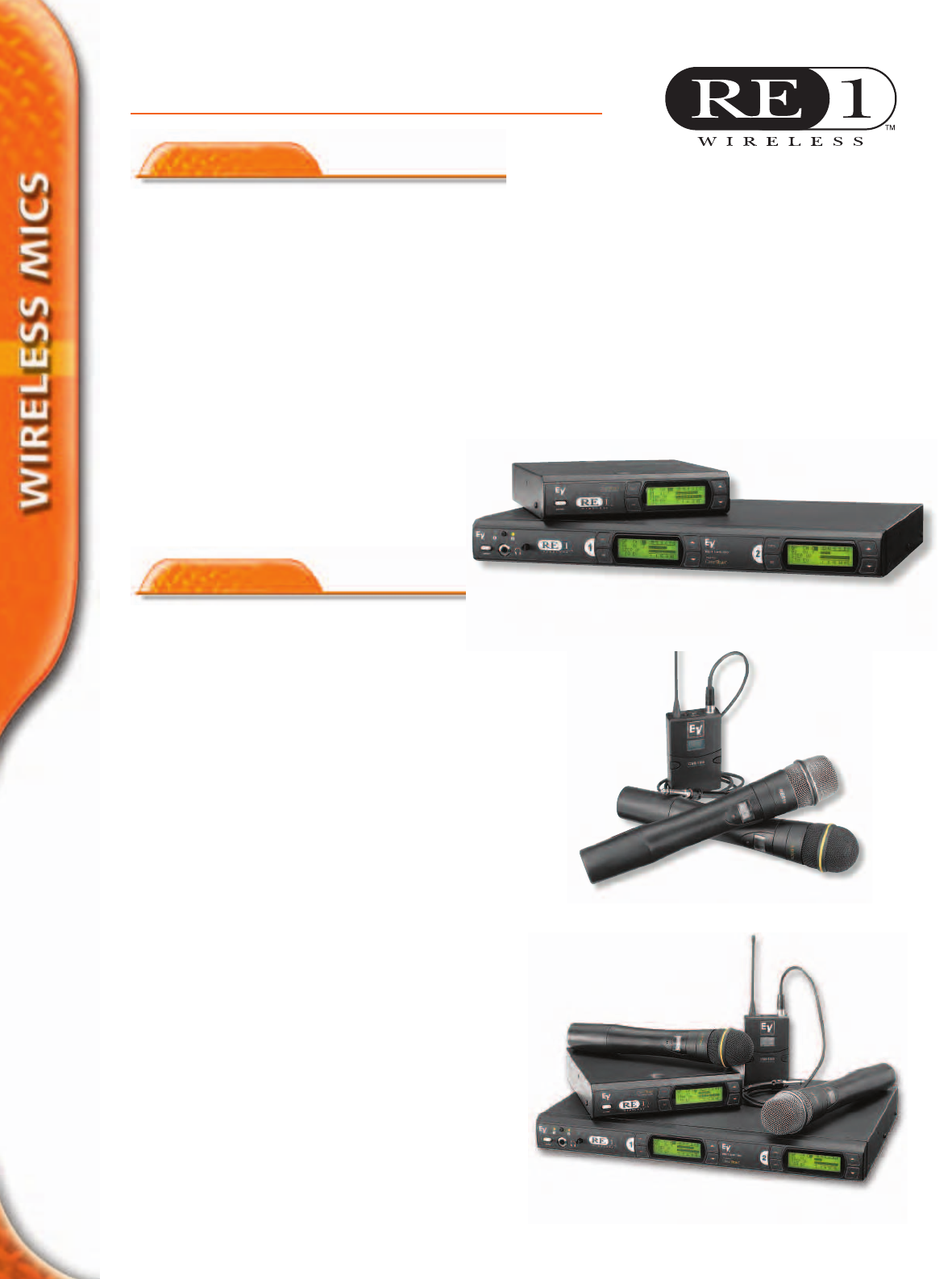

76 - 77 RE-1 Wireless System

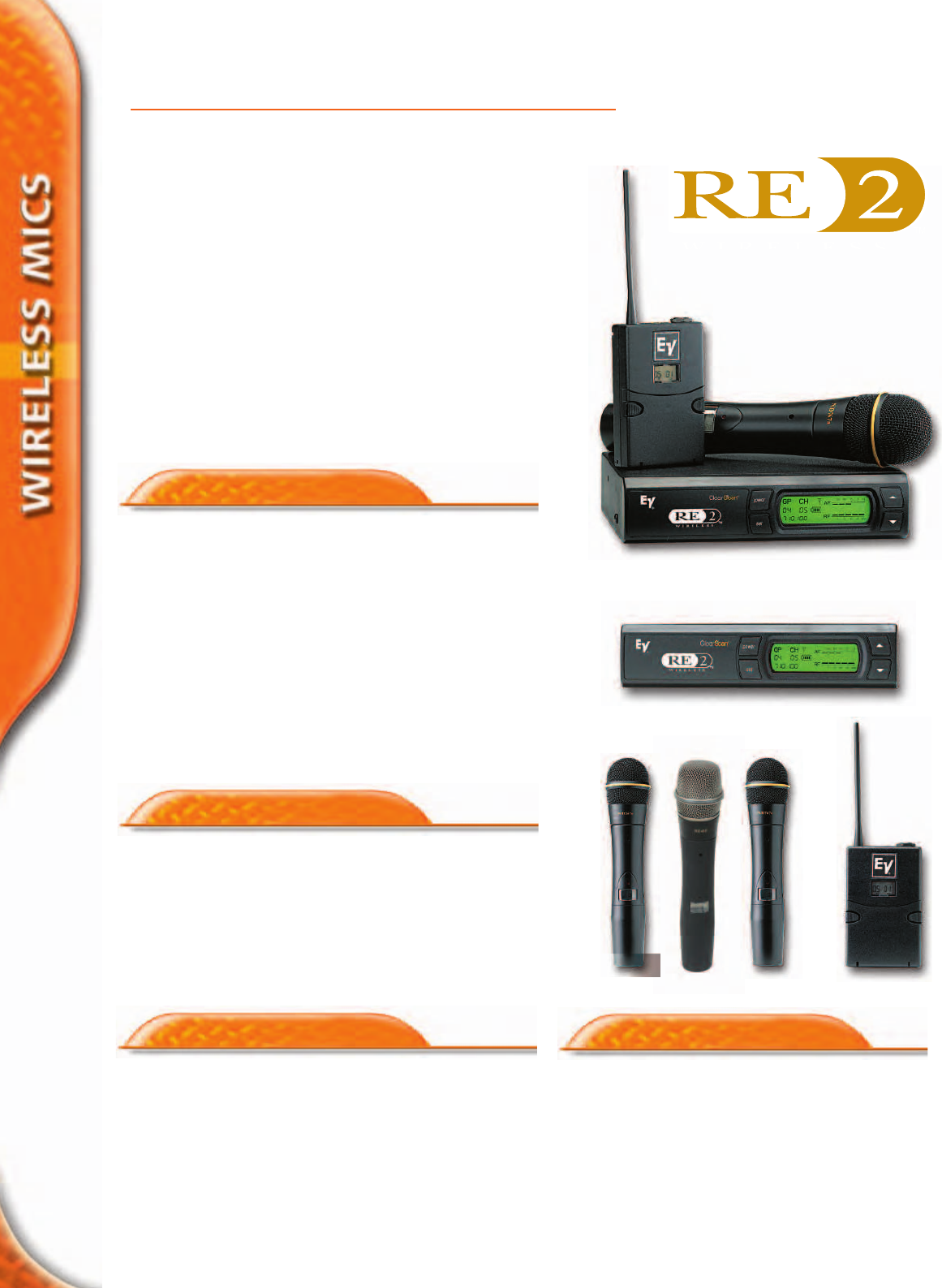

78 - 79 RE-2 Wireless System

80 RE97 headworn / RE920 Instrument mic

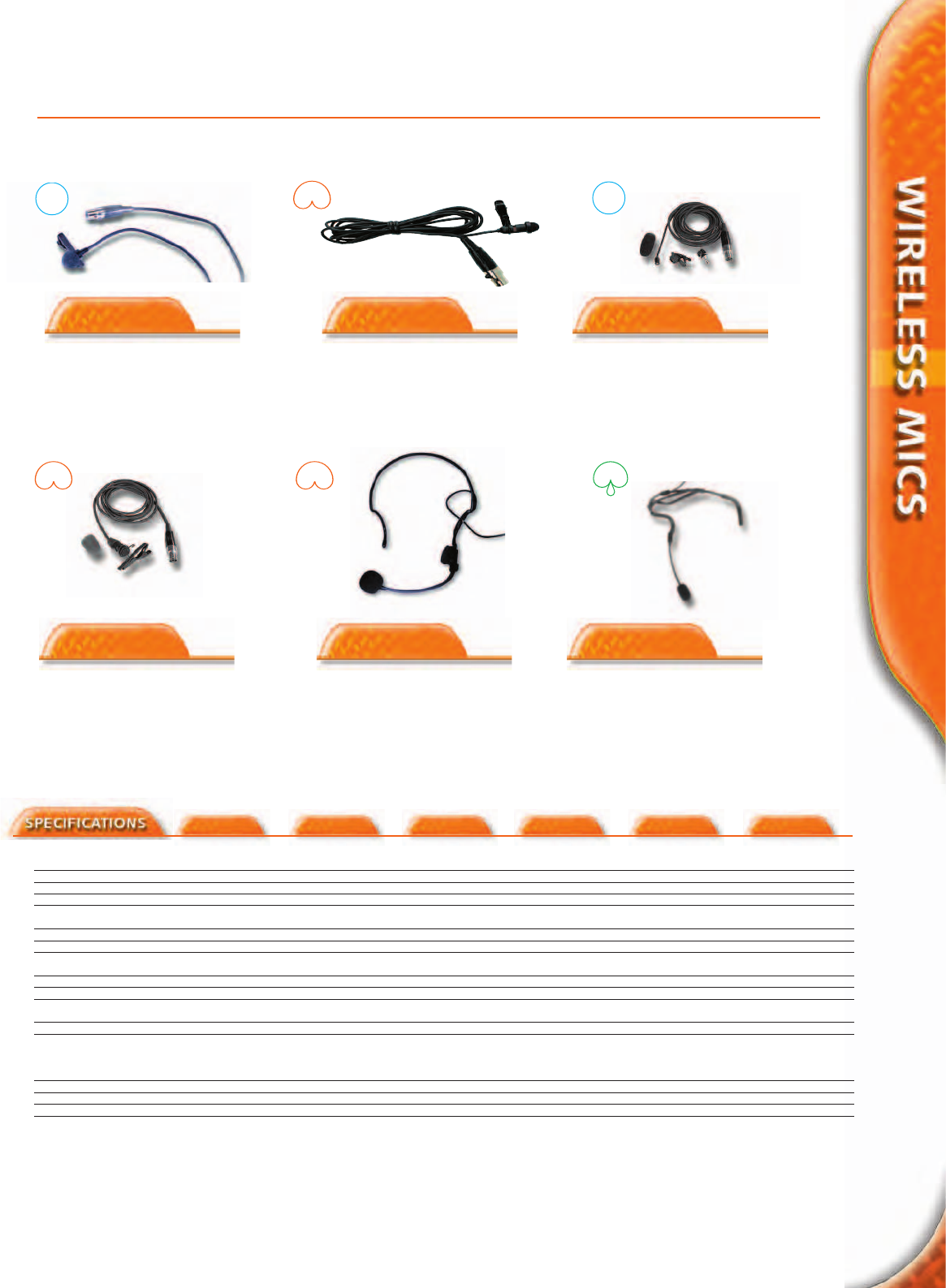

81 Headworn / Lavalier

82 - 83 Wireless Accessories

Applications & Glossary

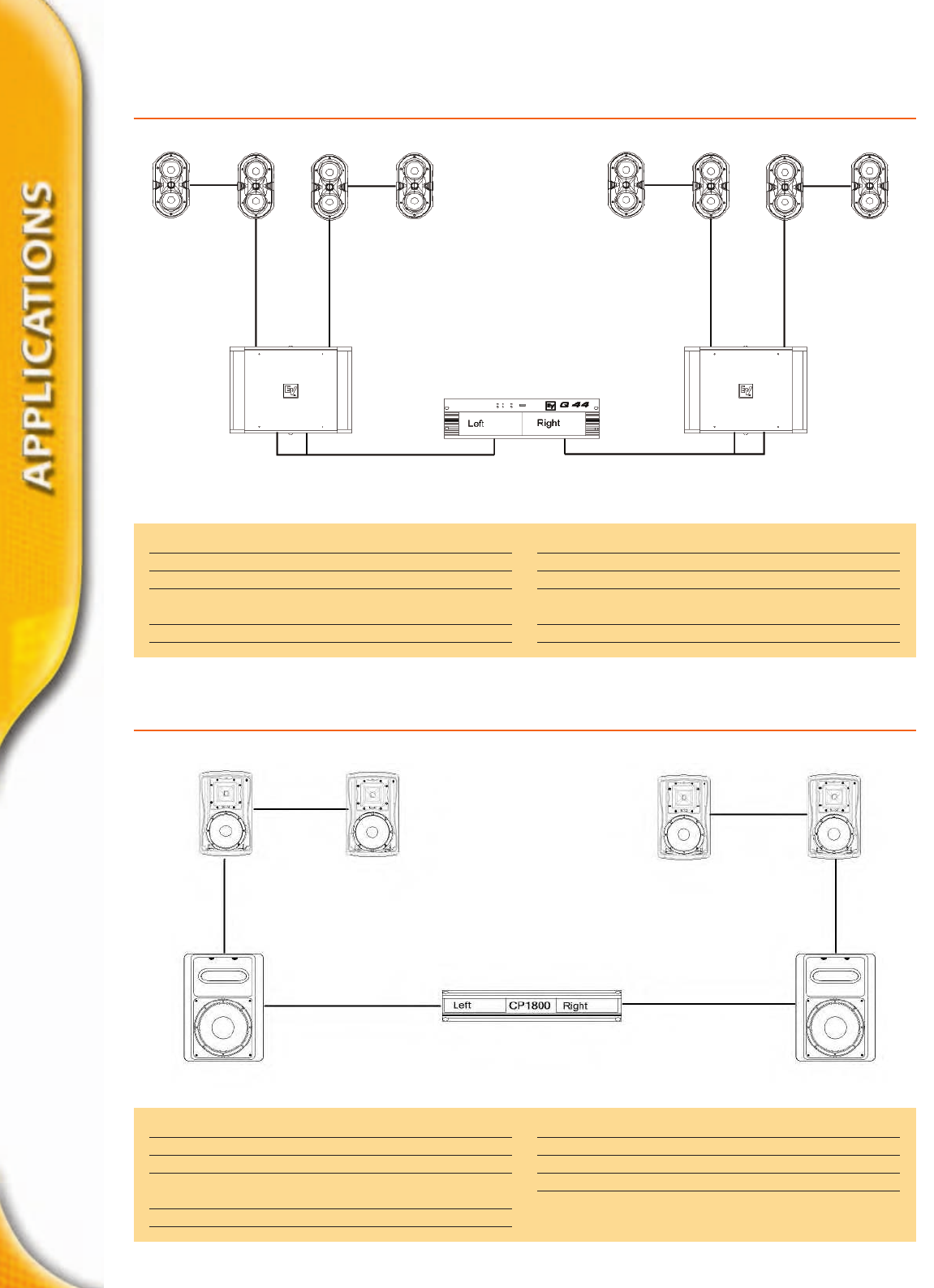

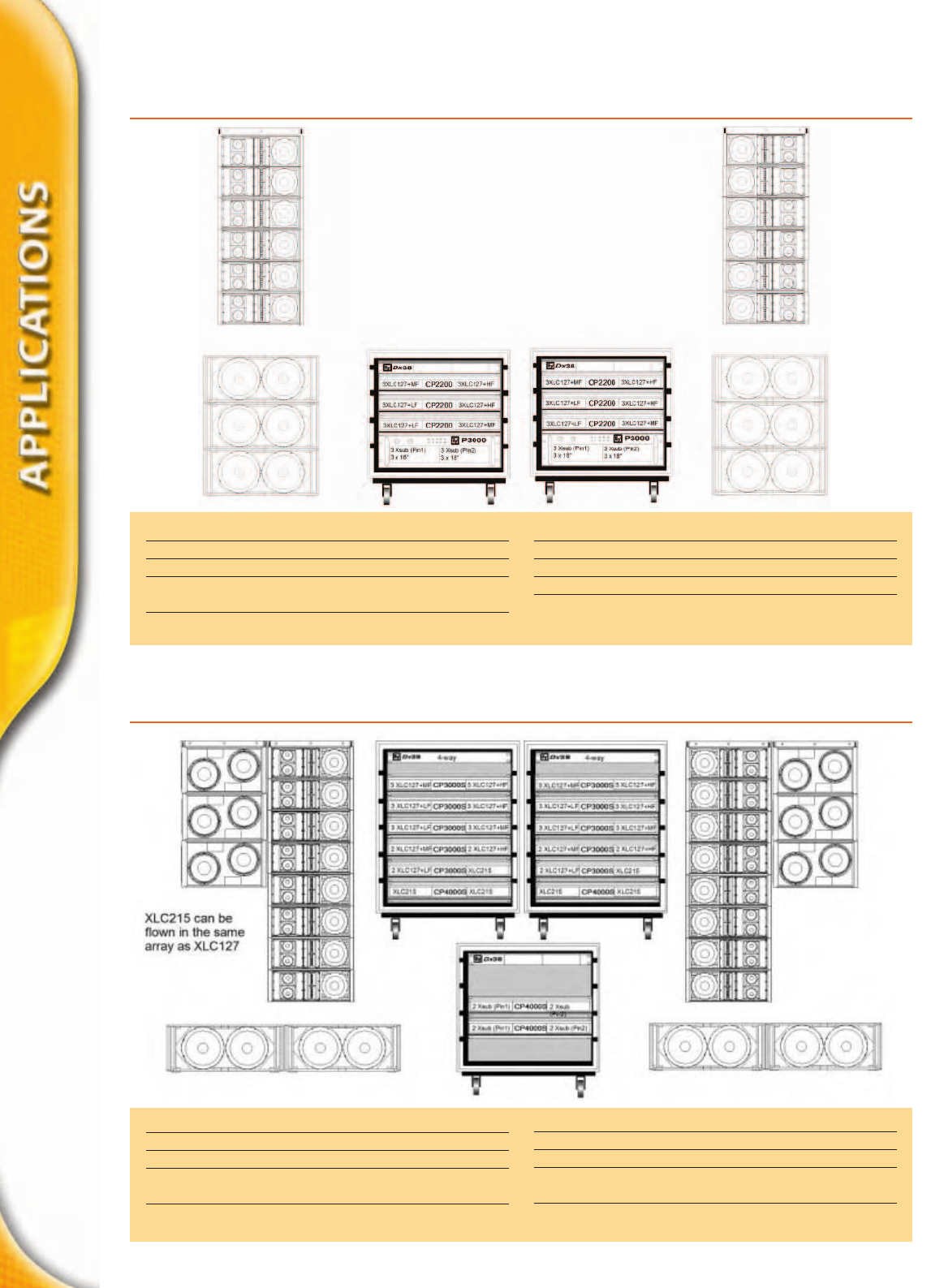

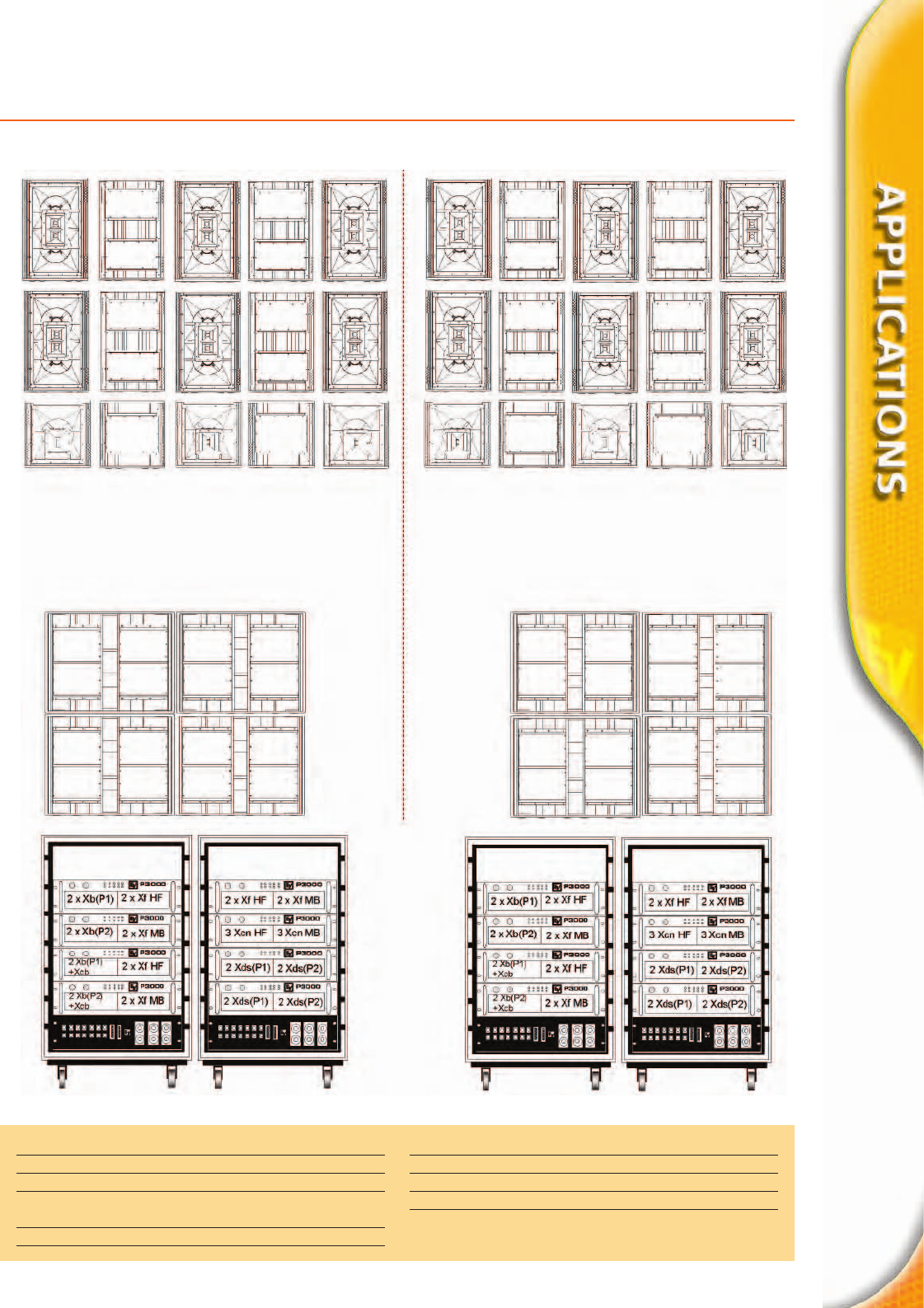

84 - 90 System Applications

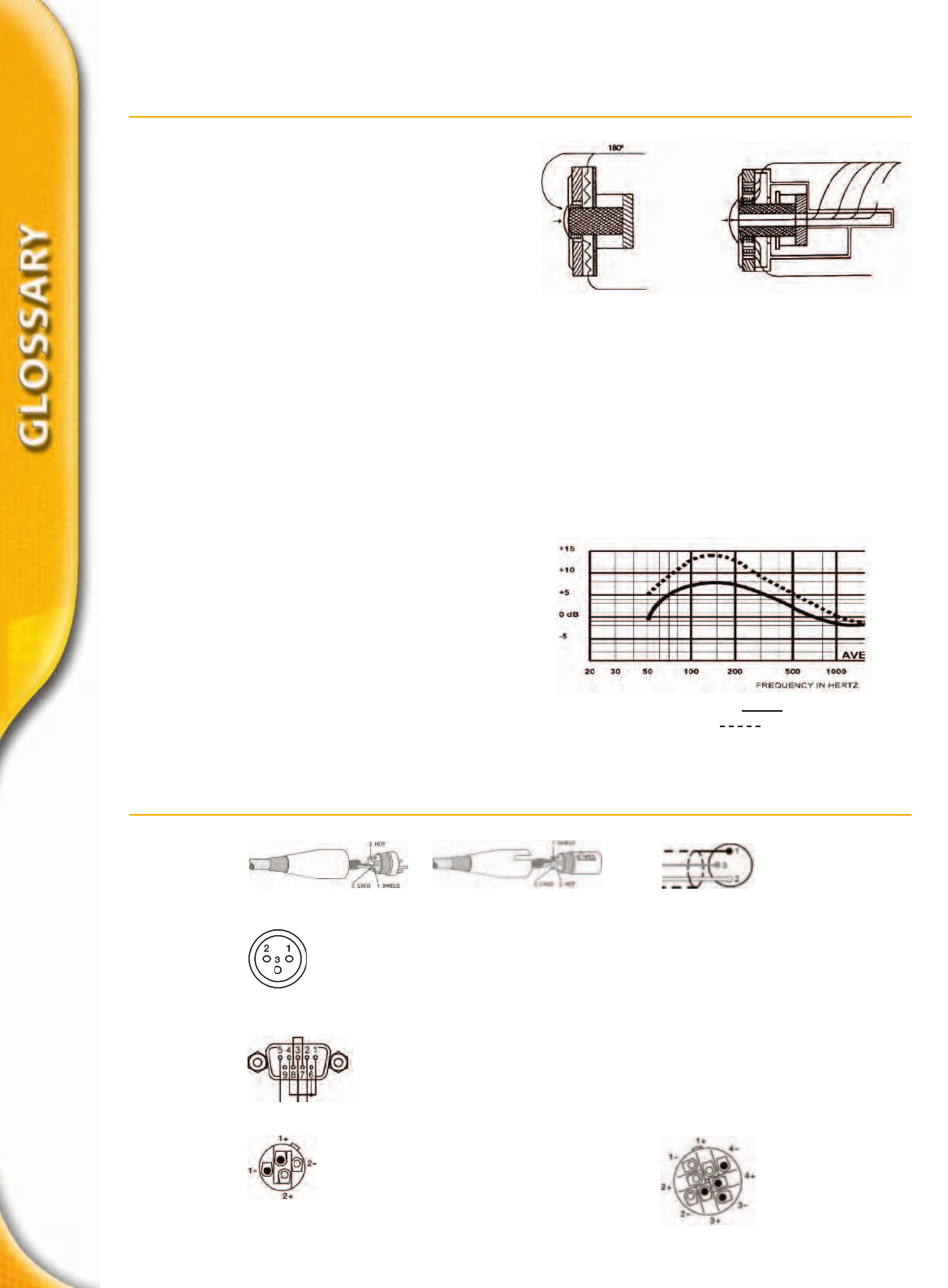

91 - 94 Glossary

INDEX

635A(B) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

635N/D-B . . . . . . . . . . . . . . . . . . . . . . . . . . .72

A-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

A-2 ................................57

AB-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

AB-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

AB-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

AB-62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

AB-64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

ACOne . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

APD-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

CB5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

CDR-1000 . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Co11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Co4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Co5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Co7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Co9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

CP1200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

CP1800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

CP2200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

CP3000 S . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

CP4000 S . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

CPS1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

CPS2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

CPS2.11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

CPS2.4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

CPS2.6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

CPS2.8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

CPS2T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

CSB-1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

CSH-1000 ...........................77

CSR-1000 . . . . . . . . . . . . . . . . . . . . . . . . . . .77

CXU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

DH2T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

DH3/DH2010A . . . . . . . . . . . . . . . . . . . . . . .52

DH7-8/DH7-16 . . . . . . . . . . . . . . . . . . . . . . .52

DL10X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

DL12BFH . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

DL12ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

DL15BFH . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

DL15ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

DL18MT . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Dx 38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

EBK-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Eliminator i E . . . . . . . . . . . . . . . . . . . . . . . . .28

Eliminator i Sub . . . . . . . . . . . . . . . . . . . . .28,43

Eliminator I Sub E . . . . . . . . . . . . . . . . . . . . . .28

Eliminator ii E . . . . . . . . . . . . . . . . . . . . . . . . .28

Eliminator KW . . . . . . . . . . . . . . . . . . . . .28, 43

EVI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

EVI-12 . . . . . . . . . . . . . . . . . . . . . . . . .7, 54, 55

EVI-15 . . . . . . . . . . . . . . . . . . . . . . . . .7, 54, 55

EVI-28 . . . . . . . . . . . . . . . . . . . . . . . . . .6, 7, 55

EVID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

EVID 12.1 . . . . . . . . . . . . . . . . . . .9, 43, 54, 55

EVID 3.2/3.2T . . . . . . . . . . . . . . . . . . . . . .9, 55

EVID 4.2/4.2T . . . . . . . . . . . . . . . . . . .9, 49, 55

EVID 6.2/6.2T . . . . . . . . . . . . . . . . . . .9, 49, 55

EVID C10.1 . . . . . . . . . . . . . . . . . . . . . . .11, 43

EVID C4.2 . . . . . . . . . . . . . . . . . . . . . . . . . . .11

EVID C8.2 . . . . . . . . . . . . . . . . . . . . . . . . . . .11

EVID C8.2HC . . . . . . . . . . . . . . . . . . . . . . . . .11

EVID C8.2LP . . . . . . . . . . . . . . . . . . . . . . . . .11

EVM12L Black Label . . . . . . . . . . . . . . . . . . . .51

EVX 155 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

EVX 180B . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

FA-500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Force i Monitor . . . . . . . . . . . . . . . . . . . . . . . .28

Force i Sub . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Force i Two-Way . . . . . . . . . . . . . . . . . . . . . .28

FRi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

FRi+122/64/66/94 . . . . . . . . . . . . . . . . . .12, 13

FRi+152/64/66/94 . . . . . . . . . . . . . . . . . . . . .13

FRi+181S . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

FRi+181S . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Fri-122/64/85 . . . . . . . . . . . . . . . . . . . . .12, 13

FRi-152/64/85 . . . . . . . . . . . . . . . . . . . . . . . .13

FRi-181S . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

FRi-2082 . . . . . . . . . . . . . . . . . . . . . .12, 13, 54

FRi-28LPM . . . . . . . . . . . . . . . . . . . . . . . . . . .41

FRX+181 . . . . . . . . . . . . . . . . . . . . . . . . .15, 43

FRX+640 . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

FRX+660 . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

FRX+940 . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

G115 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

G118 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Gladiator System . . . . . . . . . . . . . . . . . . . . . .28

HM2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

HM7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

HP64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HP66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HP94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HP1240 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HP4020 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HP420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HP6040 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HP64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HP640 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HP66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HP9040 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HP94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HP940 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HPT64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HPT94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

HS-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

HT94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

IRIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66,67

LAPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

LPA-500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

MA-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

MB5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

MH4020AC . . . . . . . . . . . . . . . . . . . . . . . . . .16

MH6040AC . . . . . . . . . . . . . . . . . . . . . . . . . .16

MH640AC/MH640AP . . . . . . . . . . . . . . . . . .16

MH660AC/MH660AP . . . . . . . . . . . . . . . . . .16

MH9040 AC .........................16

MH940AC/MH940AP . . . . . . . . . . . . . . . . . .16

MTL1X . . . . . . . . . . . . . . . . . . . . . . . . . . .27,44

N/D267 a/as . . . . . . . . . . . . . . . . . . . . . . . . .71

N/D367 s . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

N/D468 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

N/D478 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

N/D767 a . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

N/D868 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

N/D967 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

ND6-8/ND6-16 . . . . . . . . . . . . . . . . . . . . . . .52

OLM 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

P1200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

P2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

P3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

P1200 RL . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

P1200 RT . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

P3000 RL . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

P900 RL . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

P900 RT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Plasma . . . . . . . . . . . . . . . . . . . . . . . . . . .17, 44

PolarChoice Desktop . . . . . . . . . . . . . . . . . . .75

PolarChoice FL . . . . . . . . . . . . . . . . . . . . . . . .75

PolarChoice PLUS . . . . . . . . . . . . . . . . . . . . . .75

PolarChoice Satellite . . . . . . . . . . . . . . . . . . . .75

PolarChoice XLR . . . . . . . . . . . . . . . . . . . . . .75

Q44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Q66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

QRx112/75 . . . . . . . . . . . . . . . . . . . .18, 19, 41

QRx115/75 . . . . . . . . . . . . . . . . . . . .18, 19, 41

QRx118 S . . . . . . . . . . . . . . . . . . . . . . . .19, 44

QRx153/75 . . . . . . . . . . . . . . . . . . . . . . . . . .19

QRx218 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

QRx(H)212/75 . . . . . . . . . . . . . . . . . . . . . . . .19

RACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

RE90TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

RE-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76, 77

RE-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78, 79

RE20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

RE200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

RE27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

RE50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

RE510 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

RE90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

RE92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

RE92TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

RM-D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

S-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50, 55

Sb122 . . . . . . . . . . . . . . . . . . .24, 25,43, 54, 56

SbA760 . . . . . . . . . . . . . . . . . . . . . . . . . .26, 43

Sh-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

SL10-2V . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

SL12-2V . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

SL6.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

SL8.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Sx100 + . . . . . . . . . . . . . . . . . . . . . . . . . .24, 25

Sx250 . . . . . . . . . . . . . . . . . . . . . .24, 25, 41, 55

Sx300 . . . . . . . . . . . . . . . . . . .24, 25, 41, 54, 56

Sx300PI/PIX . . . . . . . . . . . . . . . . . . . . . . . . . .49

Sx500 + . . . . . . . . . . . . . . . . . . . . . . .24, 54, 56

Sx500 PI + . . . . . . . . . . . . . . . . . . . . . . . .24, 49

Sx600PI . . . . . . . . . . . . . . . . . . . . . . . . . .24, 49

Sx600PIX . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Sx80 . . . . . . . . . . . . . . . . . . . . . . . . . .23, 24, 55

SxA100+ . . . . . . . . . . . . . . . . . . . . . . . . .26, 42

SxA250 . . . . . . . . . . . . . . . . . . . . . . .26, 41, 55

SxA360 . . . . . . . . . . . . . . . . . . . . . . . . . .26, 42

Sx-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

T18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

T221 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

T251 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

T251+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

T252+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Terminal Covers . . . . . . . . . . . . . . . . . . . . . . .10

TL18-1ES . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

TL440 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

TL440M . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

TL880D . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

TL880DM . . . . . . . . . . . . . . . . . . . . . . . . . . .47

TP-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

TS550D-LX . . . . . . . . . . . . . . . . . . . . . . . . . .46

TS9040 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

TS992-LX . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

ULM 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

UW 30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Variplex II . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Variplex II XL . . . . . . . . . . . . . . . . . . . . . . . . .45

Variplex M . . . . . . . . . . . . . . . . . . . . . . . . . . .45

X-Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Xb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Xcb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Xcn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Xds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Xf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Xi-1082 . . . . . . . . . . . . . . . . . . . . . . .29, 31, 55

Xi-1122A/85F . . . . . . . . . . . . . . . . . . . . . .29,31

Xi-1122MH64 . . . . . . . . . . . . . . . . . . . . . . . .31

Xi-1122MHA/64F . . . . . . . . . . . . . . . . . . . . .30

Xi-1123A/106F . . . . . . . . . . . . . . . . . . . . .30,31

Xi-1152A/64F . . . . . . . . . . . . . . . . . . . . .29, 31

Xi-1152A/94F . . . . . . . . . . . . . . . . . . . . .29, 31

Xi-1153A/64F . . . . . . . . . . . . . . . . . . . . . . . .30

Xi-1183A/64F . . . . . . . . . . . . . . . . . . . . . .30,31

Xi-1191A . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Xi-2122MHA/42F . . . . . . . . . . . . . . . . . . .30,31

Xi-2123A/106F . . . . . . . . . . . . . . . . . . . . .30,31

Xi-2153A/64 F . . . . . . . . . . . . . . . . . . . . .30,31

Xi-2181(F) . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Xi-2181A (F) . . . . . . . . . . . . . . . . . . . . . . . . .31

XLC 118 . . . . . . . . . . . . . . . . . . . . . . .36, 37, 44

XLC 127DVX . . . . . . . . . . . . . . . . . . . . . . . . .36

XLC 215 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

XLC SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . .36

XLCi 118 . . . . . . . . . . . . . . . . . . . . . . . . .36, 37

XLCi 127DVX . . . . . . . . . . . . . . . . . . . . . . . . .36

XLD 281 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

XLE 181 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

X-Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Xn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

XS 212 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Xsub(F) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

XVHG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

XVHL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Xvls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Xvlt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

XVSD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

XVSG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

XVSL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Xw 12A . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Xw 15A . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

ZX1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

ZX1i . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23,49

ZX4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

ZX5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

ZX5 PI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

EVI Vari Intense®

EVI-28

• Two-way, full-range loudspeaker

• Vented LF enclosure

•1.25" voice coil (titanium diaphragm) HF

• PROTM Driver protection circuit

• Time PathTM phasing plug

• Multi-angled housing

•Stacked, frequency-shaded woofers maintain

vertical coverage angle down to 500 Hz with 120°

(typical 180°); ideal for reverberant rooms

• Five 3/8"-16 hanging points

Electro-Voice®’sunique EVI Vari Intense®(VI) speakers are

engineered to eliminate the need for additional long-throw

horns or delayed sources in many rooms. The EVI Vari

Intense®series provides an economical solution for permanent

installations that require coverage over a rectangular area. In

atypical room, the distance from the loudspeaker to the last

row is two or more times that to the front row, resulting in a

substantial loss in level and intelligibility at the rear. The VI

horn delivers 6 to 8 dB more SPL to the back of the room,

overcoming the level loss without resorting to the expense

and complexity of additional speaker systems or components.

The problem is old; EV®’ssolution is new. EVI is perfect for

conference centers, houses of worship, halls, and other ven-

ues where evenly distributed SPL is essential. EVI systems are

made of 18 mm 13-ply birch plywood (EVI 28: 12 mm 9-ply),

texture-painted with a powder-coated metal grille.

Asimple 3-2-1 rule-of-thumb applies for determining EVI

coverage patterns: The pattern’s width will equal twice the

height of the room, and the pattern’s length will equal three

times the height. See the illustration below.

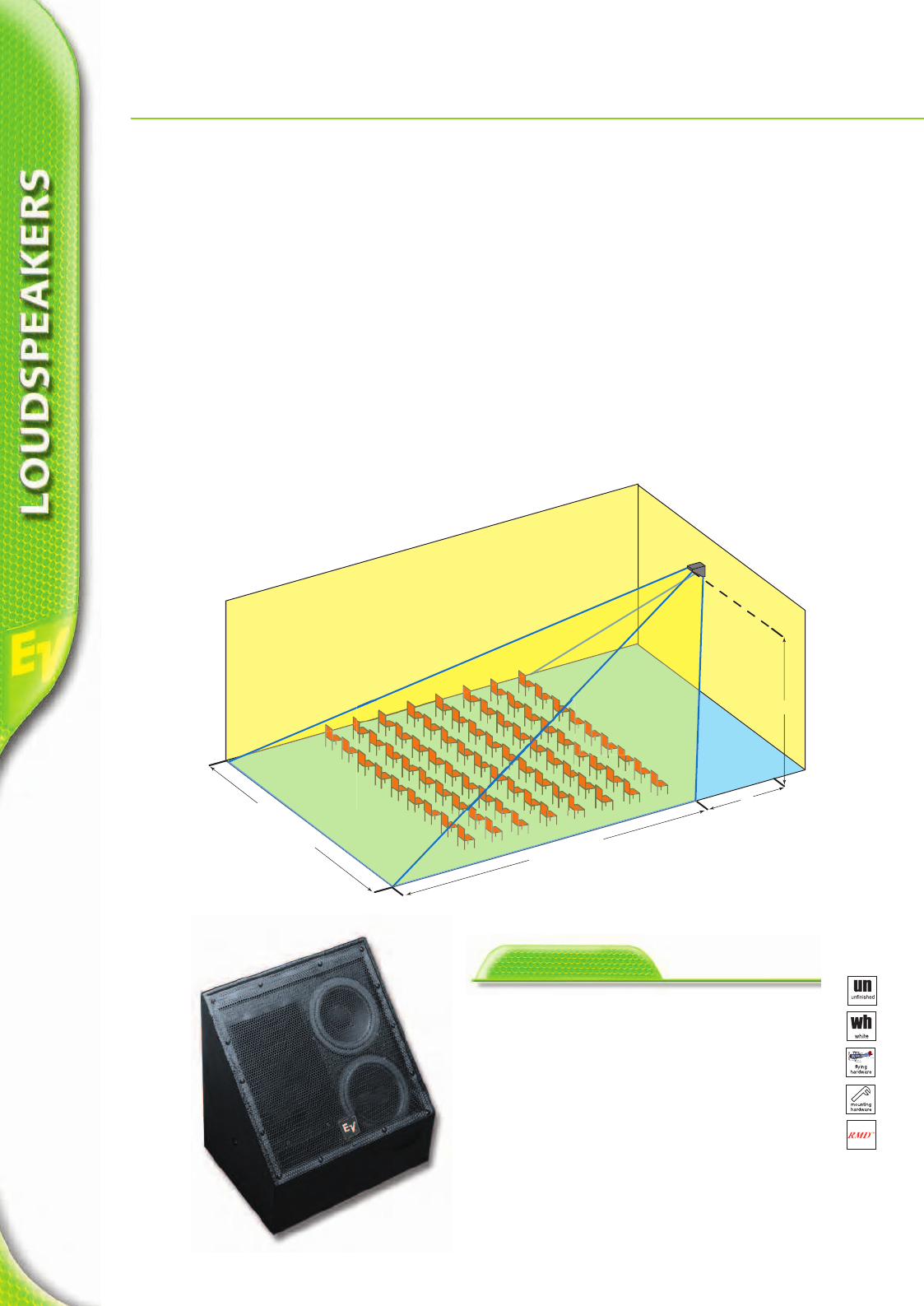

L ng h 3H

Length = 3H

Wid h2H

Width = 2H

EVI Vari Intense®coverage pattern (3-2-1 Rule):

If speaker height = H, then coverage length = 3H, coverage width = 2H, and first row coverage = 1H

EVI Vari Intense®

EVI-12

• Two-way, full-range loudspeaker

• High sensitivity

• Vented LF enclosure

• 1.25" voice coil (titanium diaphragm) HF

• PRO™ Driver protection circuit

• Time Path™ phasing plug

• Multi-angled housing

• Five 3/8"-16 hanging points

EVI-15

• Two-way,full-range loudspeaker

• High sensitivity

• Vented LF enclosure

• 1.25" voice coil (titanium diaphragm) HF

• PRO™ Driver protection circuit

• Time Path™ phasing plug

• Multi-angled housing

• Five 3/8"-16 hanging points

EVI-12 EVI-15 EVI-28

Frequency range (-3 dB) 45 Hz–20 kHz 45 Hz–20 kHz 62 Hz–20 kHz

Recommended high-pass frequency — — —

Sensitivity (SPL 1 W/1 m) 99.5 dB 100 dB 93 dB

Max. SPL/1m (calc.) 129 dB 129.5 dB 123.5 dB

Long-term power handling 250 W 250 W 250 W

Short-term power handling 1,000 W 1,000 W 1,000 W

Coverage (H° x V°) 60° x 65° 60° x 65° 65° x 65°

LF driver 12" 15" 2 x 8"

HF driver (exit) 1” (DH2010A) 1" (DH2010A) 1” (DH2010A)

Crossover frequency 2,000 Hz 2,000 Hz 2,000 Hz

Nominal impedance (minimum) 8 Ω 8Ω8 Ω

Input connections screw terminal screw terminal screw terminal

Dimensions (H x W at front x D) 554 x 356 x 699 mm 584 x 429 x 766 mm 353 x 496 x 523 mm

21.8" x 14" x 27.5" 23" x 16.9" x 30.2" 13.9" x 19.5" x 20.6"

Net weight 21.8 kg (48 lbs) 24.0 kg (53 lbs) 16.3 kg (36 lbs)

VI Horn

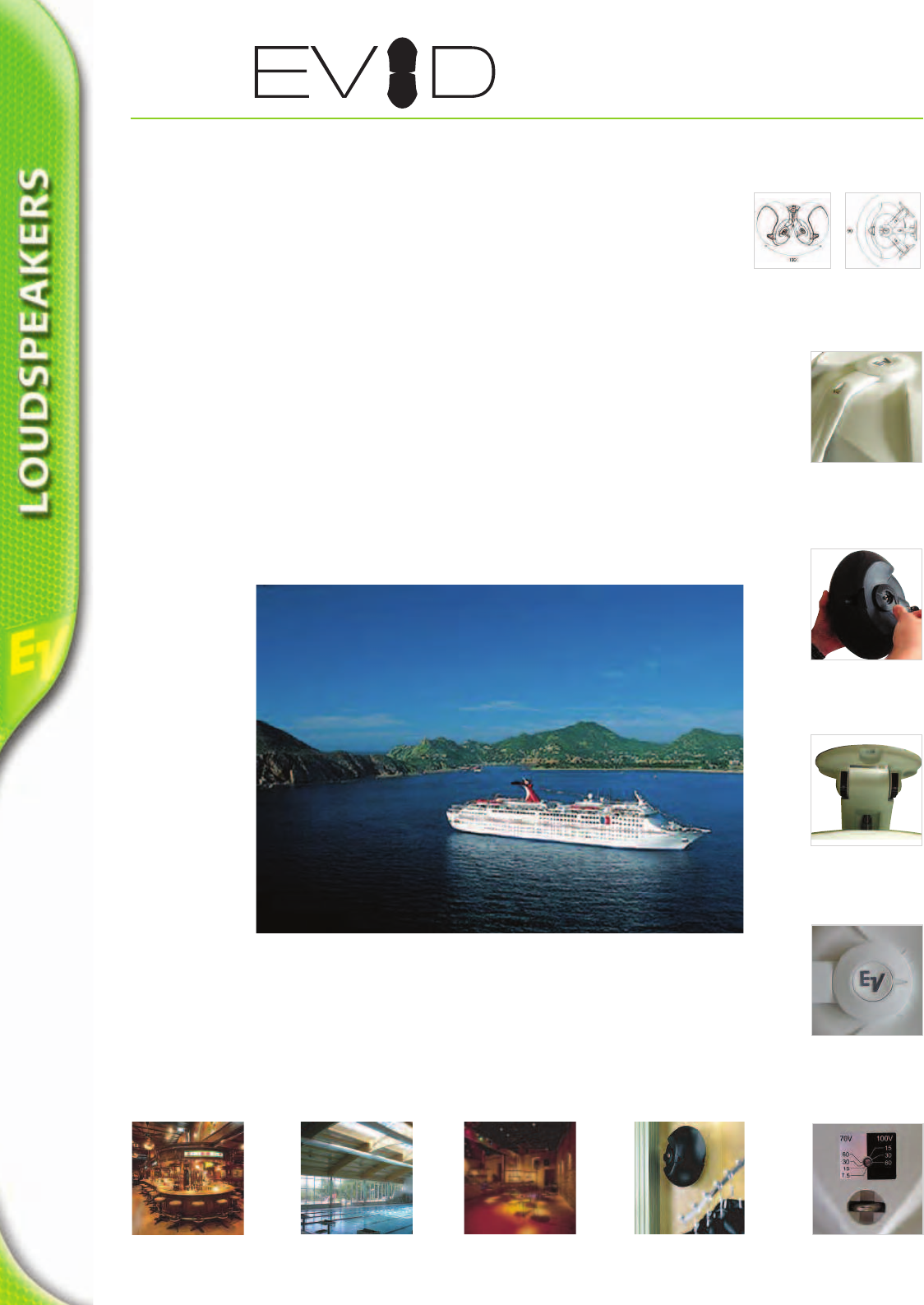

Design goes audio...

EV Innovative Design

•Dual Woofers for extended bass, greater power handling and output.

•Coherent Coverage Waveguide Horn design on models 4.2 and 6.2.

•Dual Low-Frequency Ports provide extended bass output.

•Treated Woofer Cones for added weather resistance and increased reliability.

•Durable Zinc-Plated Steel Grille.

•Cast Aluminum Strong-Arm-Mount™ (SAM™) system provides excellent strength

and reliability.

•Over 100 degrees of swing and 90 degrees of rotation for incredible installation flexibility.

•Simple Keyed Hex Head Adjustments make installations quick and easy.

•Titanium Dome Tweeters with Neodymium Magnet structures provide clean highs

and added weather resistance.

•One-piece ABS Cabinet provides outstanding strength and acoustic rigidity.

•Smooth Lines and Innovative Cosmetic Design complement any décor or environment.

•Magnetically Shielded Transducers allow placement close to sensitive equipment.

“EVID products are an important part of the ‘Fun Ship’ entertainment expe-

rience for our guests. In addition to being visually appealing, EVID offers

great sound and dependable performance, regardless of sea conditions.”

Craig Palcisko, audio supervisor, Carnival Cruse Lines.

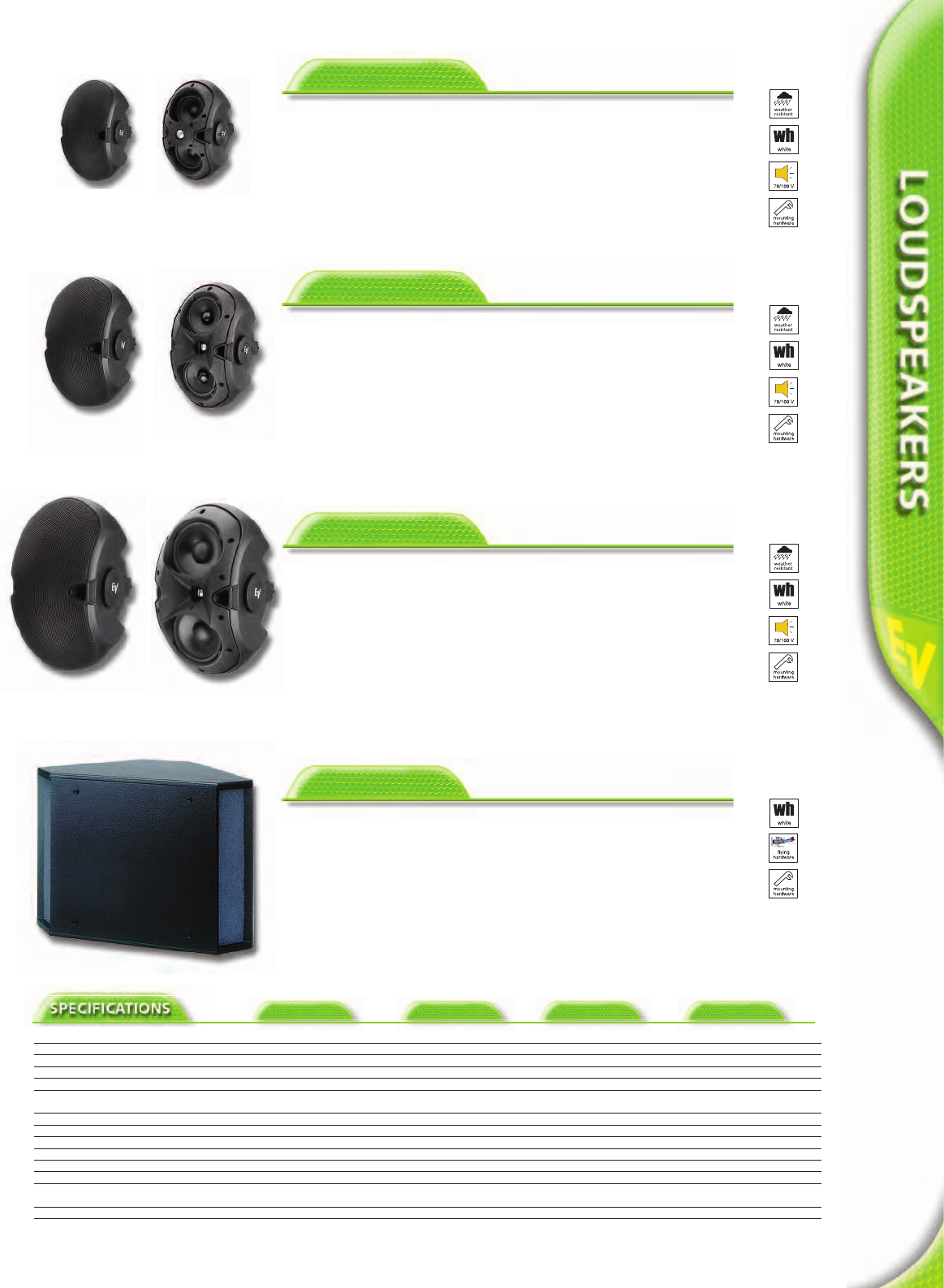

EVID 3.2/3.2T

• Two-way full range

• Vented LF enclosure

• 0.75" voice coil (titanium diaphragm) with Neodymium

magnetic structure

• Full-bandwidth overload protection for HF and LF

• Three-dimensional ellipse (for compact look)

• Magnetically shielded for video applications

• Comes with Strong Arm Mount (SAM™) and a hex key

• Suspension insert for SAM™; safety point on rear side

EVID 6.2/6.2T

• Two-way, high-output full range

• Vented LF enclosure

• High sensitivity

• 1" voice coil (titanium diaphragm) with Neodymium

magnetic structure

• HF section features Coherent Coverage Waveguide™

to minimize interference

• Full bandwidth overload protection for HF and LF

• Three-dimensional ellipse (for compact look)

• Magnetically shielded for video applications

• Comes with Strong Arm Mount (SAM™) and a hex key

• Suspension insert for SAM™; safety point on rear side

EVID 4.2/4.2T

• Two-way full range

• Vented LF enclosure

• 1" voice coil (titanium diaphragm) with Neodymium

magnetic structure

• HF section features Coherent Coverage Waveguide™

to minimize interference

• Full bandwidth overload protection for HF and LF

• Three-dimensional ellipse (for compact look)

• Magnetically shielded for video applications

• Comes with Strong Arm Mount (SAM™) and a hex-key

• Suspension insert for SAM™, safety point on rear side

EVID 12.1

• Subwoofer

• Slot-loaded port design

• Dual-voice-coil, high-excursion transducer

•High sensitivity

• Built-in stereo crossover with high-pass output

• Trapezoidal

• Comes with mounting bracket (passed EIA 636 at

asafety factor of 8:1) for on-wall or corner mounting

• One safety 3/8"-16 eyebolt included

•Suspension inserts and 2 x 3/8" hanging inserts

• Powered version (120v only) available

EVID 3.2/T EVID 4.2/T EVID 6.2/T EVID 12.1

Frequency response (-10 dB) 85 Hz–20 kHz 65 Hz–20 kHz 62 Hz–20 kHz 40 Hz–140 Hz

Sensitivity (SPL 1 W/1 m) 87 dB 89 dB 94 dB 100 dB

Max. SPL/1m (calc.) 112 dB 115 dB 122 dB 128 dB

Long-term power handling 75 W 100 W 150 W 175/175 W

Short-term power handling 300 W 400 W 600 W 700/700 W

Transformer taps 70V: 5 W 70V: 3.75 W 70V: 7.5 W —

(transformer version only) 100V: 10 W 70V/100V: 7.5 W, 15 W, 30 W 70V/100V:15 W, 30 W, 60 W —

Coverage (H° x V°) 140° x 100° 120° x 80° 100° x 80° —

LF driver 2” x 3.5" 2” x 4" 2” x 6" 12"

HF driver 0.75" 1" 1” —

Nominal impedance (non-transformer version) 8 8 8 8

Minimum impedance (non-transformer version) 6 6 6 6

Input connections spring terminal spring terminal spring terminal spring terminal

Dimensions (H x W at front x D) 234 x 127 x 165 mm 310 x 175 x 216 mm 419 x 228 x 298 mm 412 x 584 (at front) x 305 mm

9.2" x 5.1" x 6.5" 12.2" x 6.9" x 8.5" 16.5" x 9" x 11.75" 16.25" x 23" x 12"

Net weight (incl. mounting bracket) 1.5 kg (3.3 lbs) 3.9 kg (8.5 lbs) 5.3 kg (12 lbs) 18.1 kg (40 lbs)

Shipping weight (pair) 3.9 kg (8.6 lbs) 8.6 kg (19 lbs) 12.3 kg (27 lbs) 20 kg (48 lbs)

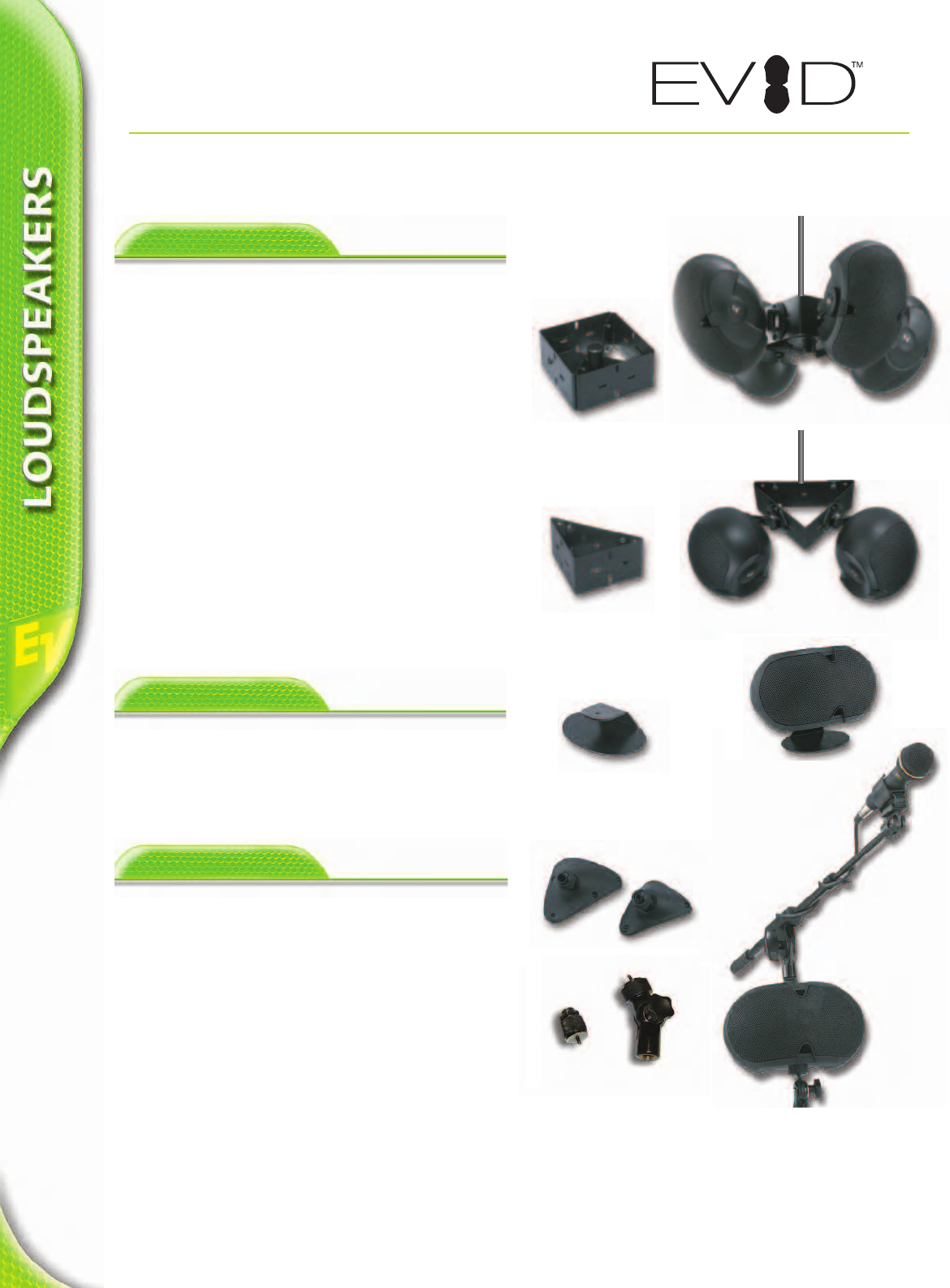

Accessories

Premium Surface-Mount Speakers

Mounting Brackets

AB-34 and AB-64 360-degree Kits

The AB-34 and 64 series kits feature a 4-sided powder-coated steel

mounting assembly that allows 4 EVID speakers to be mounted in an

array to cover a 360-degree pattern. The mount offers additional

flexibility in EVID system designs. The AB-34 works with the EVID

3.2 series and can be used with a threaded rod for suspension from

the ceiling. The AB-64 is used with the EVID 4.2 or 6.2 series and can

be used with a speaker stand tripod or hung from the ceiling using a

threaded rod as shown. All necessary accessories and parts needed

for use areincluded.

AB-32 and AB-62 180-degree Kits

The AB-32 and AB-62 series kits featurea2-sided powder-coated

steel mounting assembly allowing for 2 EVID speakers to be mounted

in an array to cover a 180-degree pattern. The AB-32 works with the

EVID 3.2 series and can be used with a threaded rod for suspension

from the ceiling. The speakers can then be positioned on the brack-

et to cover a variety of patterns to best serve the installation require-

ments. The AB-62 allows the EVID 4.2 or 6.2 series speakers to be

used with a speaker stand tripod or hung from the ceiling using a

threaded rod as shown. All necessary accessories and parts needed

for use areincluded.

Tabletop Stands

HS-3 Horizontal Tabletop Stand

The HS-3 horizontal tabletop stand allows the EVID 3.2 or 4.2

orientation on a table, meter bridge, desk, bookshelf or other flat

surface. Ideal for portable applications, the stands are made

of steel for strength and durability and include rubber feet to

protect surfaces. Sold in pairs.

Other Accessories

TC Series Terminal Covers

The TC-4 and TC-6 terminal covers protect the input connections on

the EVID speakers from the long-term effects of moisture. The

covers are available for the EVID 4.2 and 6.2 series models. The cov-

ers easily attach to the rear input panel of the speaker and include a

weatherproof cable connector.

MA-3 Mic Stand Adapter

The MA-3 is a microphone stand adapter that allows use of the EVID

3.2 with a standard boom mount microphone stand. Two adapter

pieces allow a solid and securejunction between the microphone

boom on one side and the microphone stand side on the other.

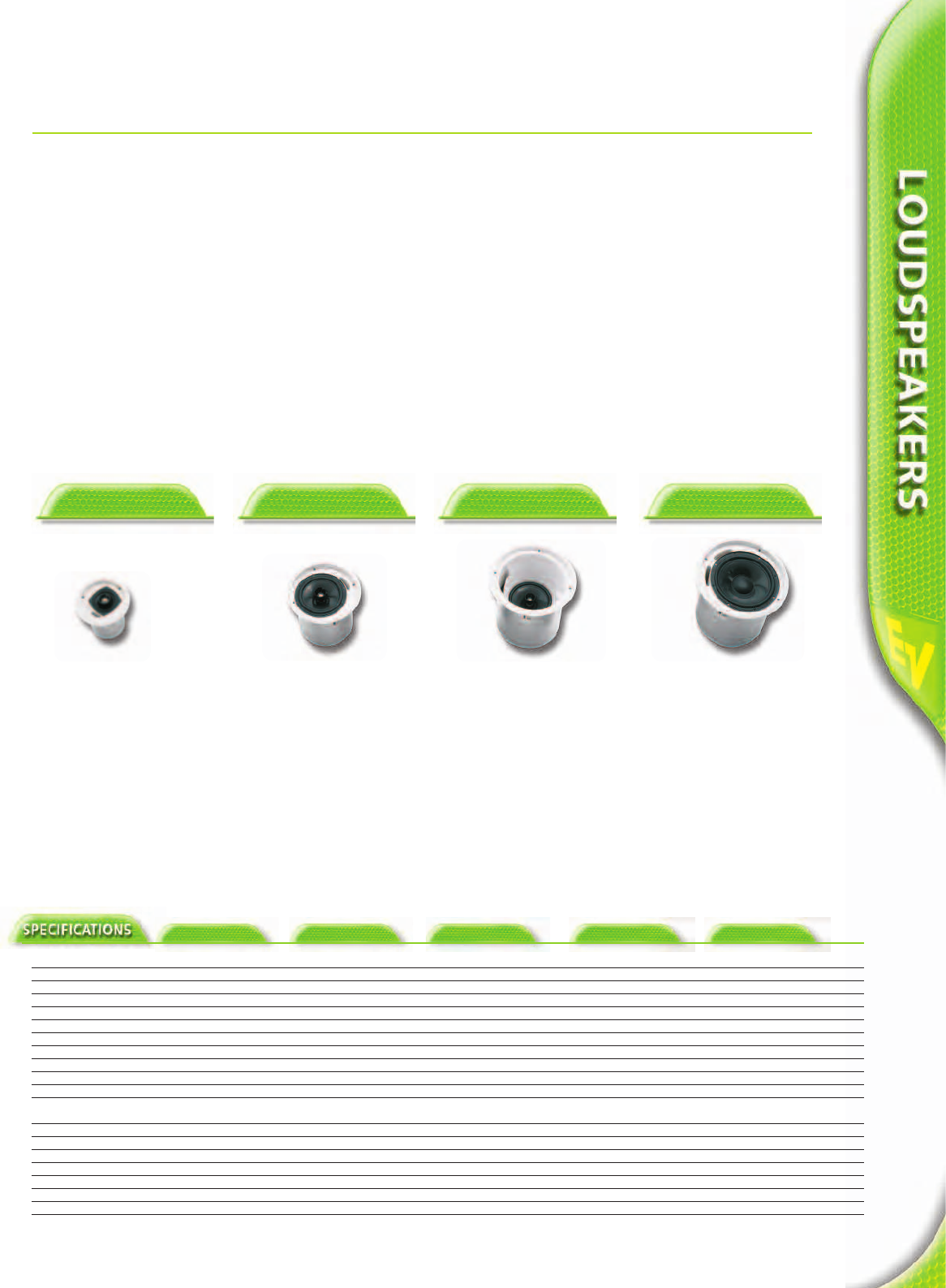

EVID Ceiling Speakers

Perfect for conventional rooms.

Excellent bandwidth in an esthetical-

ly,unobtrusive installation profile. Its

compact design fits in tight areas.

Fully rated for use in air handling

spaces. Its 4” woofer and waveguide

coupled titanium coated dome

tweeter give smooth, wide frequen-

cy response. The enclosure is ported

and tuned to provide surprising bass

response in such a compact package.

Features an easy 3-point mounting

system for quick installations. Comes

complete with mounting support

ring and tile rails. No additional

accessories needed for most installa-

tions.

EVID C4.2

Never before has a ceiling speaker

system delivered such a full range

punch. Its specially tuned enclosure

and 8” woofer provide amazing bass

response. The 1” waveguide coupled

tweeter give smooth controlled cov-

erage out to 18 kHz. Perfect for

installations whereaflush-mount

design is desired but demand for high

quality audio exists. Features a 4-

point mounting system which makes

installations fast and easy. Comes

complete with mounting support ring

and tile rails. No additional acces-

sories needed for most installations.

Alow-profile version (LP) is available

for ceiling spaces with tight clear-

ance.

EVID C8.2

The EVID C8.2HC is ideal for high cei-

ling and reverberant “problem” rooms.

Its exclusive ported, waveguide-coupled

8” driver provides for excellent intelli-

gibility and definition. The C8.2HC’s

patent pending design provides great

coverage control throughout the voice

range and above. No other speaker

system provides the combination of

excellent pattern control, wide band-

width, high power handling and com-

pact design like the C8.2HC. Features

asecure4-point mounting system

which makes installations fast and

easy.Comes complete with mounting

support ring and tile rails. No addition-

al accessories needed for most installa-

tions.

EVID C8.2HC

The C10.1 packs a large 10” subwoofer

in a tuned high-performance enclosure

to give amazing low frequency per-

formance down to 45Hz! The C10.1 is

one of the only quick-mount ceiling

TRUE subwoofers available on the

market. Flexible installation and pow-

erful low-end performance make this

an ideal companion to any EVID model.

Features a secure 4-point mounting

system which makes installations fast

and easy. Comes complete with mount-

ing support ring and tile rails. No addi-

tional accessories needed for most

installations.

EVID C10.1

The Intelligible Choice

Nomatter what the installation calls for, the new EVID ceiling

speaker line can fill the need. Each model is unique and

designed to meet the toughest “problem” job specifications.

Sonically superior and esthetically pleasing, the EVID ceiling

speaker line has no match. From the compact, powerful C4.2

to the exclusive waveguide-coupled design of the C8.2HC

(patent pending) for high-ceiling environments; the EVID cei-

ling line will solve any installation requirement. All models

meet NFPA/UL requirements for air handling spaces so they

will be approved for any specification including emergency

notification applications. The EVID ceiling speaker line was

designed with the contractor and listener in mind. Great

sound, simple installation, and exceptional value are all part of

every model.

The key features

•Acoustically matched to the EVID surface mount

speaker line

•Meets UL and NFPA regulations for air handling spaces

•Regardless of the acoustic and esthetic requirements

there is an EVID ceiling monitor system to fit the require-

ments

•Solves any installation challenge

•Either 70V/100V or 8 ohm operation is standard on

every model of the EVID ceiling speaker line. No need

to buy or stock special versions!

•All installation accessories commonly needed for most

jobs are included! No expensive add-ons are necessary!

EVID C4.2 EVID C8.2LP EVID C8.2 EVID C8.2HC EVID C10.1

LF Transducer 4” 8” 8” 8” 10”

Polypropylene cone Polypropylene cone Polypropylene cone Polypropylene cone Polypropylene cone

+Waveguide

HF Transducer 19 mm (0.75”) 25 mm (1”) 25 mm (1”) 25 mm (1”)

Ti Mylar Laminate Dome Ti Mylar Laminate Dome Ti Mylar Laminate Dome Ti Mylar Laminate Dome

Frequency Response (-10 dB) 65 Hz - 20 kHz 50 Hz - 20 kHz 50 Hz - 20 kHz 50 Hz - 20 kHz 45 - 180 Hz

Power Handling(8 Ohms) 80 W (overload protected) 100 W (overload protected) 100 W (overload protected) 100 W (overload protected) 150 W

Coverage Pattern 130° conical 110° conical 110° conical 75° conical (@ >1 kHz) 180°

Sensitivity (1W/1m) 86 dB 91 dB 91 dB 93 dB 94 dB

Input Configuration 8Ohms, 70 V,100 V 8Ohms, 70 V,100 V 8Ohms, 70 V,100 V 8 Ohms, 70 V, 100 V 8 Ohms, 70 V, 100 V

Transformer Power Taps (W) (1.88*), 3.75, 7.5, 15, 30 (1.88*), 3.75, 7.5, 15, 30 (1.88*), 3.75, 7.5, 15, 30 (7.5*), 15, 30, 60 (7.5*), 15, 30, 60

Dimensions (H x Dia.) 176 x 181mm 178 x 270 mm 255 x 270 mm 303 x 320 mm 303 x 320 mm

6.93” x 7.13” 7.01” x 10.65” 10.04” x 10.63” 11.99” x 12.60” 11.99” x 12.60”

Weight 2.7 kg (6.0 lbs.) 5.0 kg (11.0 lbs.) 5.0 kg (11.0 lbs.) 6.0 kg (13.2 lbs.) 7.0 kg (15.4 lbs.)

Acoustic Design Ported cabinet, internally damped Dual ported cabinet,

Two-Way, inc. passive crossover internally damped

Cabinet Construction Steel enclosure and UL94V-0 rated baffle and bezel

Mounting System Integrated 3-point toggle anchors

Grille Construction Powder-coated steel

Available Colors White (paintable surface)

*70 V only

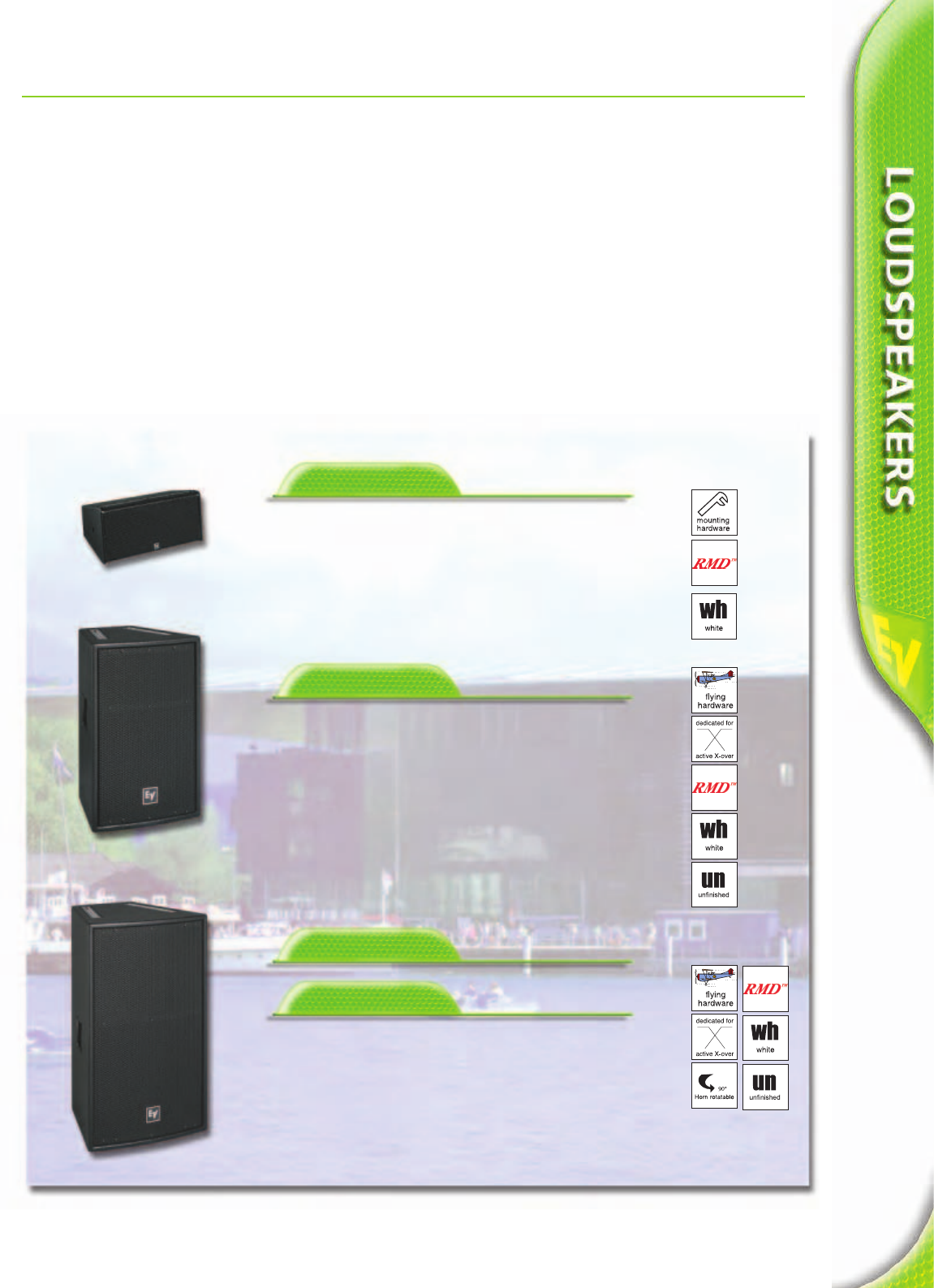

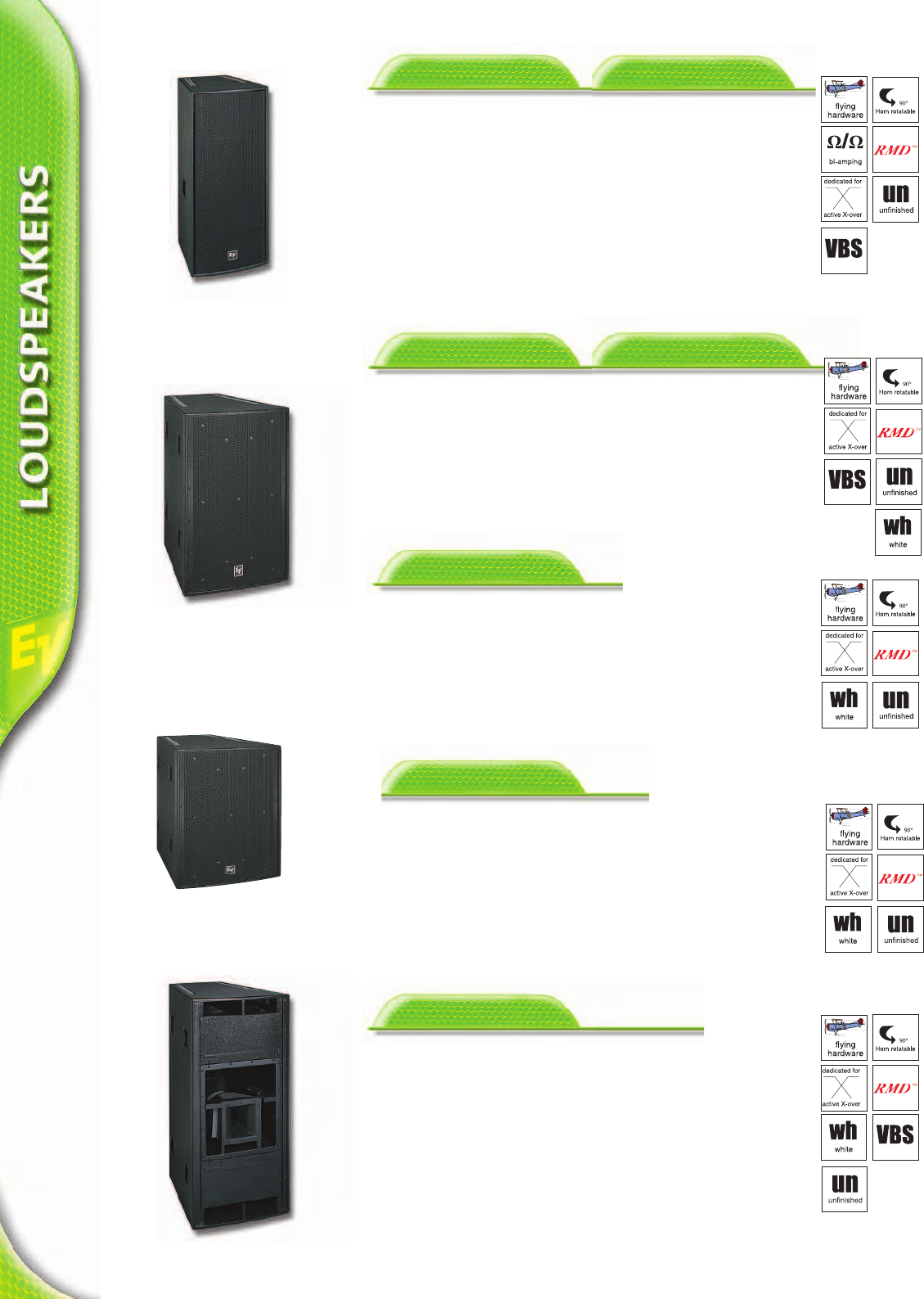

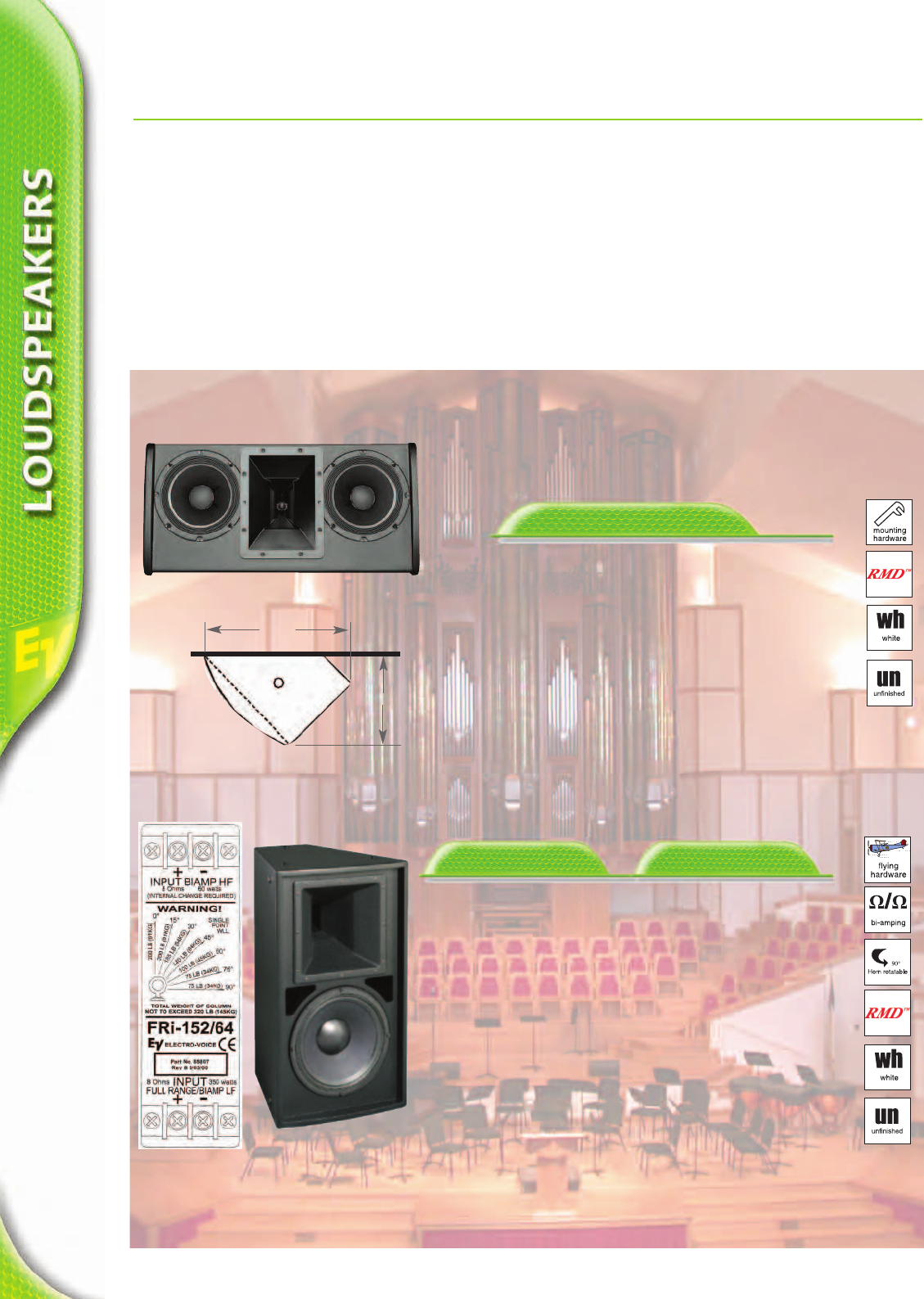

FRi / FRi+ Series

FRi Series brings premium EV components, including the

DH2T compression driver and DL series woofers, to a new

level of affordability. The FRi Series provides exceptional

value where flexibility and performance is required in per-

manent installations. Suspension is achieved by using the

numerous threaded mounting points. These allow flexible

installation in any situation.

FRi systems are finished in black acrylic with 13-ply birch

plywood and have a black powder-coated metal grille.

Designed from the ground up for safe, attractive installa-

tions, FRi-122/64 and FRi-152/64 have the same 28-inch

(711 mm) height as FRi-181S for uniform array appearance.

FRi+ adds the performance of the large-format DH7 driver

and the choice of more coverage pattern.

FRi-2082/28LPM

• 2-Way Full-range

• Vented LF enclosure

• 1” voice coil

• Low-profile slanted design

• 45° angle allows under-balcony,

on-wall and stage monitoring applications

• Only FRi-2082 comes with mounting bracket!

• 2 x 3/8”-16 suspension points

FRi-122/64/85

• 2-Way Full-range

• Vented LF enclosure

•2” voice coil (titanium

diaphragm)

• Trapezoidal(15° per side)

• Comes with 4 eyebolts

•12 x 3/8”-16

suspension points

• Horn not rotatable in

85 version

Input-panel of a

FRi-152/64

356 mm

222 mm

FRi+122/64/66/94

• Two-way full-range

loudspeaker

• Switchable between

full range and biamp

• Vented LF enclosure

•3” voice coil (titanium

diaphragm)

•Trapezoidal cabinet

(15° per side)

•Comes with four eye

bolts

• Twelve 3/8”-16

suspension points

FRi+181S

• Subwoofer

• Vented slot load design

• Built-in low-pass filter (switchable

for biamp operation)

• Trapezoidal (7.5° per side)

• Comes with 4 eyebolts

• 16 x 3/8”-16 suspension points

FRi-152/64/85

• 2-Way Full-range

• Solid bass down to

42Hz (-10 dB) allows

pure full-range

performance

• Vented LF enclosure

• 2” voice coil

(titanium diaphragm) HF

• Trapezoidal (15° per side)

• Comes with 4 eyebolts

• 12 x 3/8”-16 suspension

points

• Horn not rotatable in 85

version

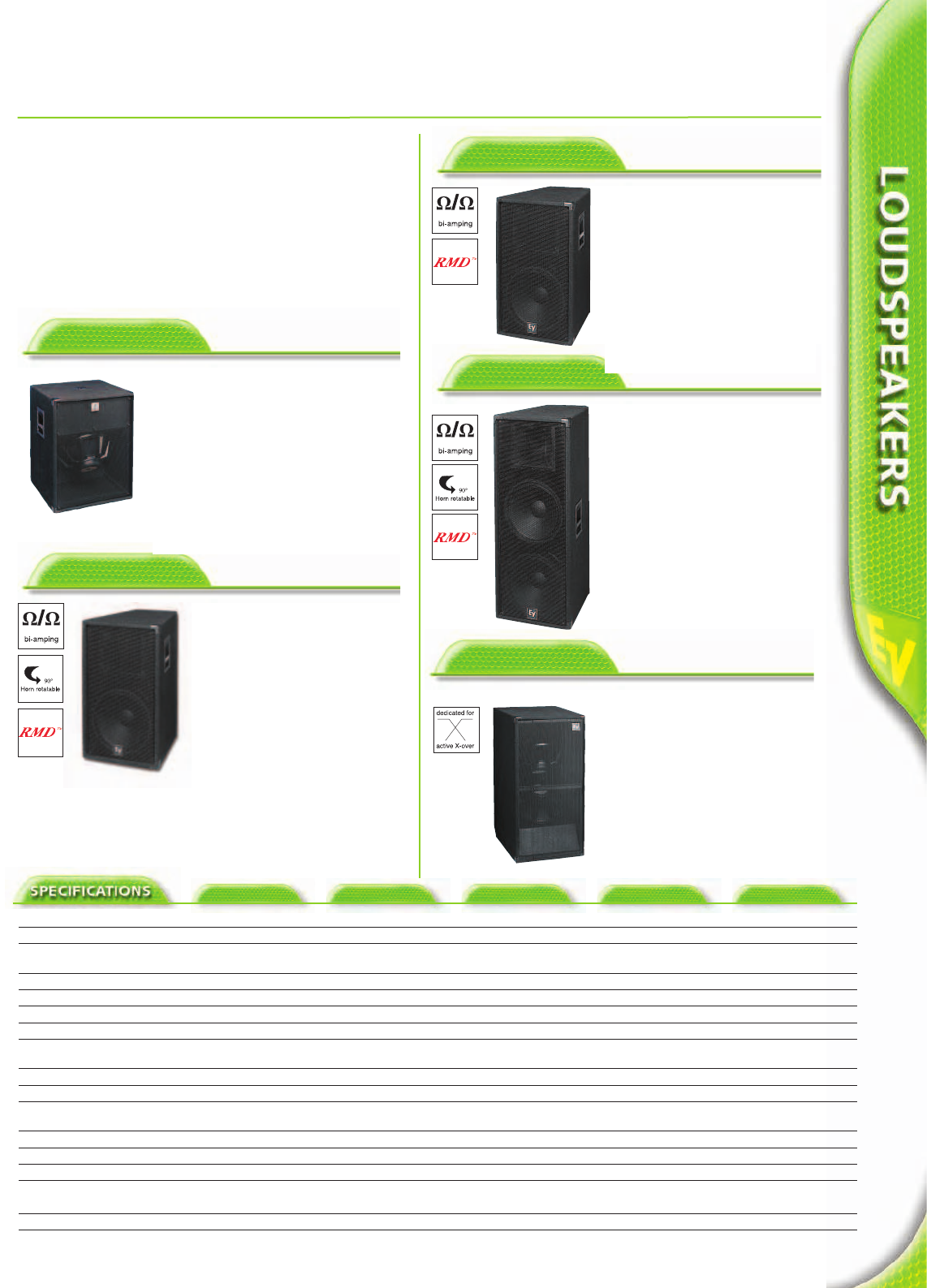

FRi / FRi+ Series

FRi+152/64/66/94

•Two-way, full-range loud

speaker

• Solid bass to 42 Hz (-10 dB)

allows pure full-range

performance

• Switchable between

fullrange and biamp

• Vented LF enclosure

• 3” voice coil

(titanium diaphragm) HF

• Trapezoidal cabinet

(15° per side)

• Comes with four eyebolts

• Twelve 3/8”-16 suspension

points

Frequency Range (-10 dB) 55 Hz - 20 kHz 50 Hz - 15 kHz 42 Hz - 15 kHz 36 - 160 Hz

Recommended High-Pass Frequency 50 Hz (12 dB/Oct.) 50 Hz (12 dB/Oct.) 40 Hz (12 dB/Oct.) 36 Hz (12 dB/Oct.)

Axial Sensitivity SPL 1W/1m 93 dB 97 dB 98 dB 97 dB

(Biamp mode) (97/112 dB) (98/112 dB)

Max. SPL /1 m (calc.); full space 122 dB 128 dB 129.5 dB 129 dB

Continuous Power Handling (Biamp op.) 200 W 300 W (300 W/60 W) 350 W (350 W/60 W) 400 W

Peak Power Handling (Peak) 800 W 1,200 W 1,400 W 1,600 W

Coverage (nominal -6 dB) (H° x V°) 100° x 100° (CD Horn) 60° x 40°/80° x 50° (FRi) 60° x 40°/80° x 50° (FRi) 300° x 270°

60° x 40°/60° x 60°/90° x 40°(FRi+) 60° x 40°/60° x 60°/90° x 40°(FRi+)

LF woofer (transducer) 50mm x 203 mm (2” x 8”)(---) 304mm (12”) (DL12BFH) 1391 mm (5”) (DL15BFH) 457 mm (18”) (DL18MT)

HF throat diameter (transducer) 25 mm (1”) (compr. driver) 25 mm (1”) (DH2T)/1.4” (DH7) (FRi+) 25 mm (1”) (DH2T)/1.4” (DH7) (FRi+) ---

Crossover Frequencies 2,800 Hz 1,600 Hz 1,600 Hz 130 Hz

Nominal Impedance (Biamp) 8Ω8Ω(8 Ω/8 Ω) 8Ω(8 Ω/8 Ω) 8Ω

Input Connections Barrier strips Dual barrier strips Dual barrier strips Dual barrier strips

Dimensions (H x W at front x D) 222 x 620 x 356 mm 711 x 401 x 445 mm 711 x 483 x 589 mm 711 x 597 x 762 mm

8.75” x 24.5” x 14” 28” x 15.9” x 17.6” 28” x 19” x 23.2” 28” x 23.5” x 30”

Net Weight 18.2 kg (40 lbs.) 27.3 kg (60 lbs.)/29.5 kg (65 lbs.) 31.8 kg (70 lbs.)/34 kg (75 lbs.) 45.5 kg (100 lbs.)

FRi-2082 FRi-122/64/85 / FRi+122/64/66/94 FRi-152/64/85 / FRi+152/64/66/94 FRi+181S

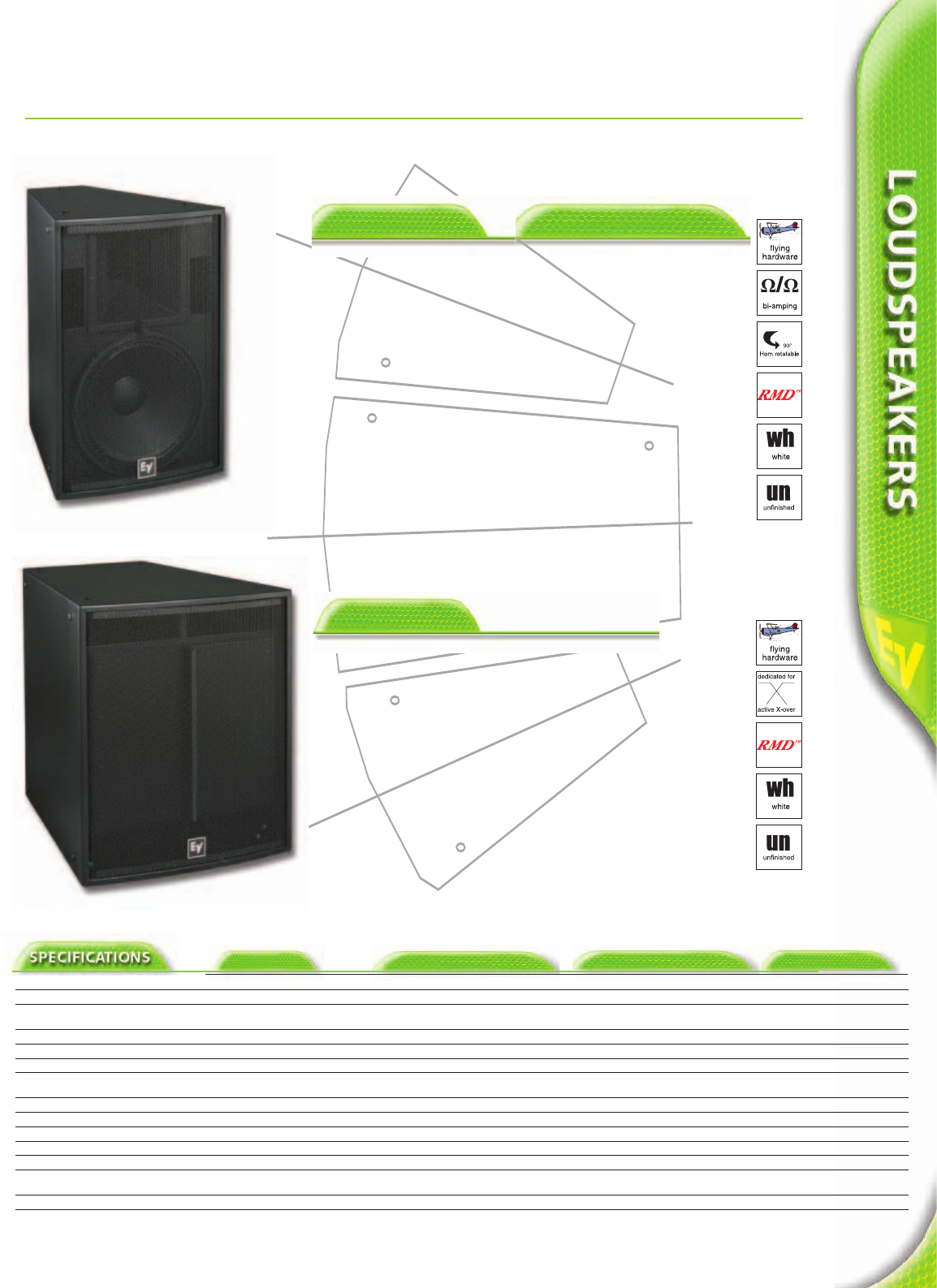

FRX+ & FRX+PI-Systems

FRX+ Series loudspeakers are designed for applications in

critical reverberant spaces where excellent directivity control

is mandatory. Typical small-sized speaker systems are not

able to maintain their rated coverage angles below 2000 Hz.

Their wide beamwidth in the low midband is accompanied

by serious degradation of speech intelligibility and clarity of

music signals in such hostile environments.

EV´s FRX+ systems are troubleshooters concerning these

problems, providing excellent wideband directivity control.

The all-horn-loaded, coaxial design comes up with sufficient

radiation surface to enable narrow coverage angles down to

250 Hz at moderate cabinet sizes.

FRX+ cabinets are texture-painted, 7-ply plywood with

powder-coated steel grille backed with foam.

For outdoor purposes, FRX+ PI models are equipped with

weatherized woofers, powder-coated stainless-steel grilles

backed with multilayer foam and covered glandnut input

panels.

FRX+640 (60° x 40°)

FRX+660 (60° x 60°)

FRX+940 (90° x 40°)

• Two-way, high-output, full-range loudspeaker

• High sensitivity: 101 dB/1W/1m (passive); 109 HF/105 LF

• Coaxial horn-loaded

• Vented LF horn enclosure

• 2" voice coil (titanium diaphragm) HF

• Trapezoidal cabinet (15° per side)

• L-Track hardware (top/bottom)

• Four single-stud Ancra®fittings included

• 3/8"-16 suspension point (rear)

• Same dimensions as FRX-181

for uniform array appearance

• PRO™ Driver protection circuit

• Time Path™ phasing plug

• Directivity to 500 Hz

• DX38 presets for excellent directivity control

FRX+640 FRX+660 FRX+940 FRX+181

Frequency range (-3 dB) 50 Hz–20 kHz 50 Hz–20 kHz 50 Hz–20 kHz 43 Hz–1,000 Hz

Recommended high-pass frequency ———35 Hz (12 dB/Oct.)

Sensitivity (SPL 1 W/1 m) 105 dB 105 dB 105 dB 96 dB

Max. SPL/1m (calc.) 133 dB 133 dB 133 dB 128 dB

Long-term power handling (biamped) 400 W (400 W/60 W) 400 W (400 W/60 W) 400 W (400 W/60 W) 400 W

Short-term power handling 1,600 W 1,600 W 1,600 W 1,600 W

Coverage (H° x V°) 60° x 40° 60° x 60° 90° x 40° omni

Directivity Index 14.1 dB (+1.9/-3.5 dB) 13.7 dB (+2.5/3.3 dB) 13.4 dB (+2.9/-3.2 dB) 3.8 dB

500 Hz–16 kHz 500 Hz–16 kHz 500 Hz–16 kHz 50 Hz–200 Hz

LF driver 15" (DL15) 15" (DL15) 15" (DL15) 18" (DL18MT)

HF driver (exit) 1" (DH2T) 1" (DH2T) 1" (DH2T) —

Crossover frequencies (passive mode) 1,350 Hz 1,350 Hz 1,350 Hz —

Nominal impedance (biamped) 8 Ω (8 Ω/8 Ω) 8 Ω (8 Ω/8 Ω) 8 Ω (8 Ω/8 Ω) 8 Ω

Input connections Dual barrier strips Dual barrier strips Dual barrier strips Dual barrier strips

Dimensions (H x W at front x D) 787 x 719 x 660 mm 787 x 719 x 660 mm 787 x 719 x 660 mm 787 x 719 x 660 mm

31" x 28.3" 26" 31" x 28.3" 26" 31" x 28.3" 26" 31" x 28.3" 26"

Net weight 68.95 kg (152 lbs.) 68.95 kg (152 lbs.) 68.95 kg (152 lbs.) 45.5 kg (105 lbs.)

FRX+181

• Subwoofer

• Direct-radiating vented design

• Trapezoidal cabinet (15° per side)

• L-Track hardware(top/bottom)

• Four single-stud Ancra®fittings included

• 3/8"-16 suspension point (rear)

• Same dimensions as FRX-640/660/940

for uniform array appearance

• Solid response to 35 Hz (-10 dB)

• Maximum crossover point of 800 Hz allows

combinations with HP horns.

•Coverage angles aregreater than

100° x 100° at 800 Hz

FRX+ & FRX+PI-Systems

Available as

weather-

resistant

PI-Version

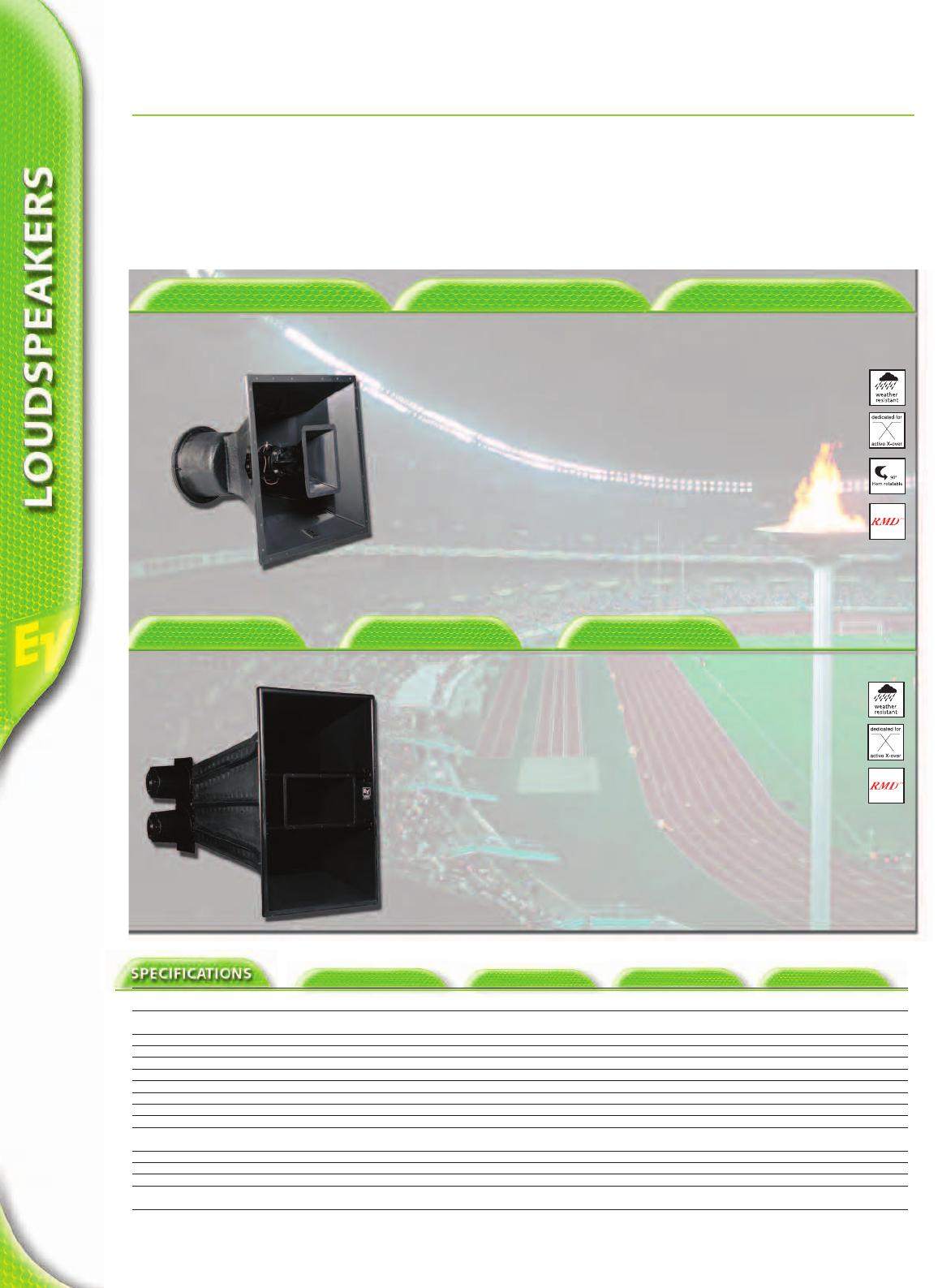

• 2-way coaxial horn-loaded system

• Very high sensitivity

• Very high maximum SPL

• Full-range down to 100 Hz (-10 dB)

• Mid-Bass section features Aperiodic Enhancer™ and Manifold® Technology

• Water resistant (incl. Kevlar® epoxy cone)

• HF-horn with 2-inch throat diameter (Driver is of the designer´s choice)

• Excellent uniform directivity control down to low frequencies

• Same front dimensions for uniform appearance when used in arrays

•18 Integral hanging points

MH 4020 AC MH 6040 AC MH 9040 AC

(40° x 20°) (60° x 40°) (90° x 40°)

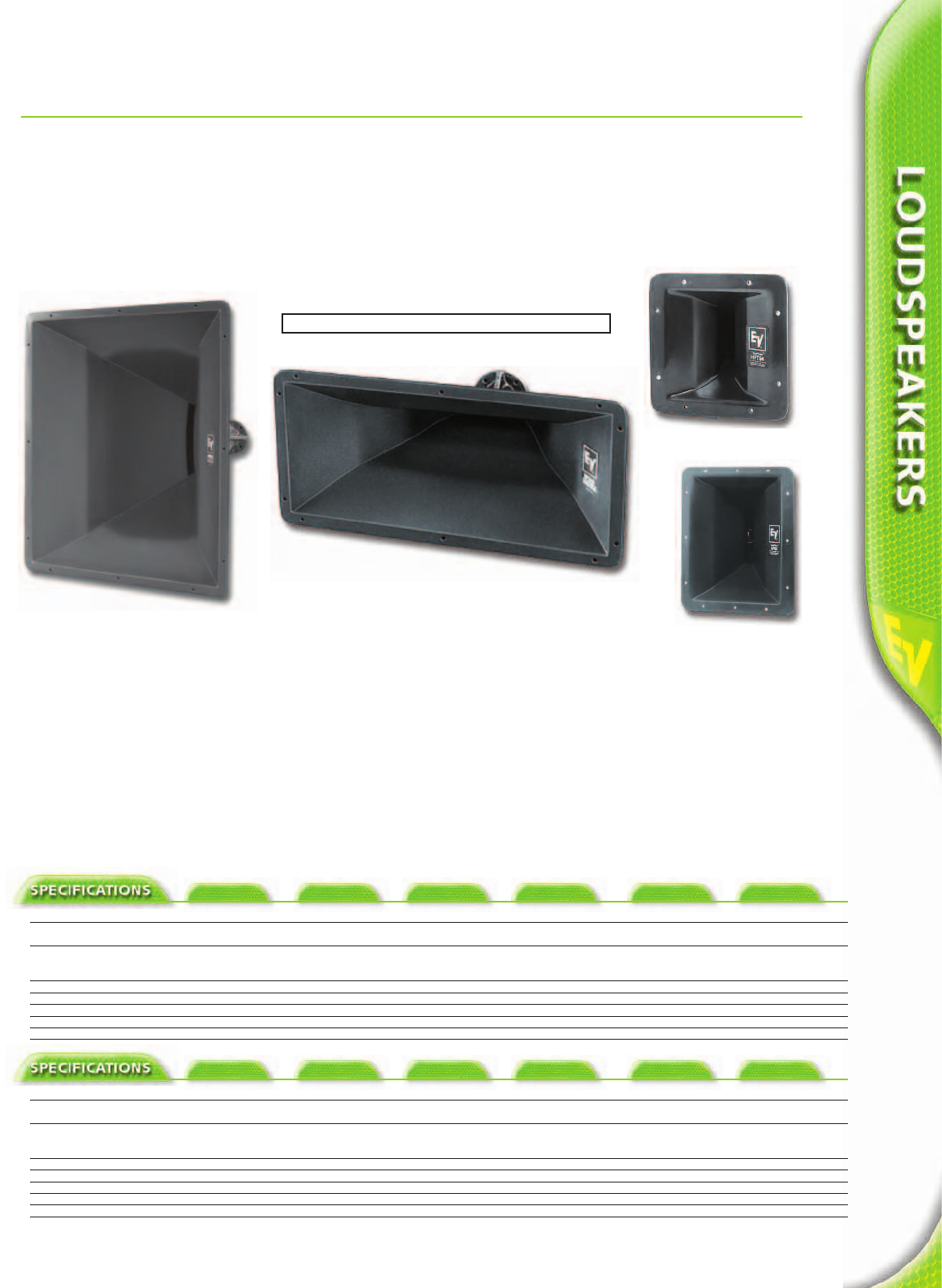

MH-Series Stadium Horns

MH-Series stadium horns are designed for large-scale sta-

diums and arenas where high-fidelity sound and directivity

control from low mid-bass frequencies and below are

absolutely essential. In 1974, EV pioneered the concepts of

constant directivity (horn angles that are constant with fre-

quency) and Manifold®technology (which combines the

outputs of multiple transducers into one source). Large-

format MH horns incorporate both in several horn/

driver systems. Medium-format MH horns are excellent

for short/medium throw applications or as infills for large-

format MH-horns.

MH640AC/MH640AP MH660AC/MH660AP MH940AC/MH940AP

(60° x 40°) (60° x 60°) (90° x 40°)

• Two-way, high output mid/high CD horn system

• High sensitivity: 107 dB/1 W/1 m

• Coaxial horn-loaded

• P version has passive crossover

• Water-resistant Kevlar®epoxy cone

• MB horn features Aperiodic Enhancer™ phase plug

• 2" voice coil (titanium diaphragm)

• HF driver protection circuit

• Uniform directivity control to 500 Hz

• All models have same dimensions for uniform-looking arrays

• 4 Integral hanging points

MH640/660/940AC/AP MH 4020 AC MH 6040 AC MH 9040 AC

Frequency range (-3 dB) 150 Hz–20 kHz 100 - 20.000 Hz 100 - 20.000 Hz 100 - 20.000 Hz

Recommended high-pass 160 Hz (24 dB/Oct.) 130 Hz (24 dB/Oct.) 130 Hz (24 dB/Oct.) 130 Hz (24 dB/Oct.)

frequency

Sensitivity (AC;AP) (SPL 1 W/1 m) 107/111 dB; 107 dB 109 dB 107 dB 105 dB

Max. SPL/1m (calc.) 138 dB 146 dB 141 dB 139 dB

Long-term power handling (AC;AP) 300 W/60 W; 300 W 1.200 W 600 W 600 W

Short-term power handling (AC;AP) 1,200 W/240 W; 1,200 W 4.800 W 2.400 W 2.400 W

Coverage (H° x V°) 60° x 40°/60° x 60°/90° x 40° 40° x 20° 60° x 40° 90° x 40°

Directivity Index (500 Hz–20 kHz) 13.7 dB/13.7 dB/12.6 dB 18.0 dB 13.8 dB (+0.9/-1.1 dB) 10.2 dB (+0.9/-1.1 dB)

LF driver 10" (DL10X) 4 “x 10" (DL10X-SH) 2” x 10" (DL10X-SH) 2” x 10" (DL10X-SH)

HF driver (voice coil) 2"(DH2T) 2" (HP420A) 2" (HP640) 2" (HP940)

Crossover frequencies 1,600 Hz 1.600 Hz 1.250 Hz 1.250 Hz

(slope in biamp mode) (24 dB/Oct.) (24 dB/Oct.) (24 dB/Oct.) (24 dB/Oct.)

Nominal impedance 16 /8 (AC); 8(AP) 2 x 8 8 8

Minimal impedance (mid-bass) - 2 x 3.1 5.9 5.9

Input connections Dual barrier strips heavy-duty copper cable heavy-duty copper cable heavy-duty copper cable

Dimensions 686 x 686 x 711 mm 1500 x 991 x 1880 mm 1500 x 991 x 1873 mm 1500 x 991 x 1534 mm

(H x W at front x D) 27" x 27" x 28" 59’ x 39’ x 73.9” 59” x 39” x 73.9” 59” x 39” x 60.4”

Net weight 27.2 kg (60 lbs.) 108 kg (237 lbs.) 75 kg (165 lbs.) 75 kg (165 lbs.)

(Large format: without HF driver)

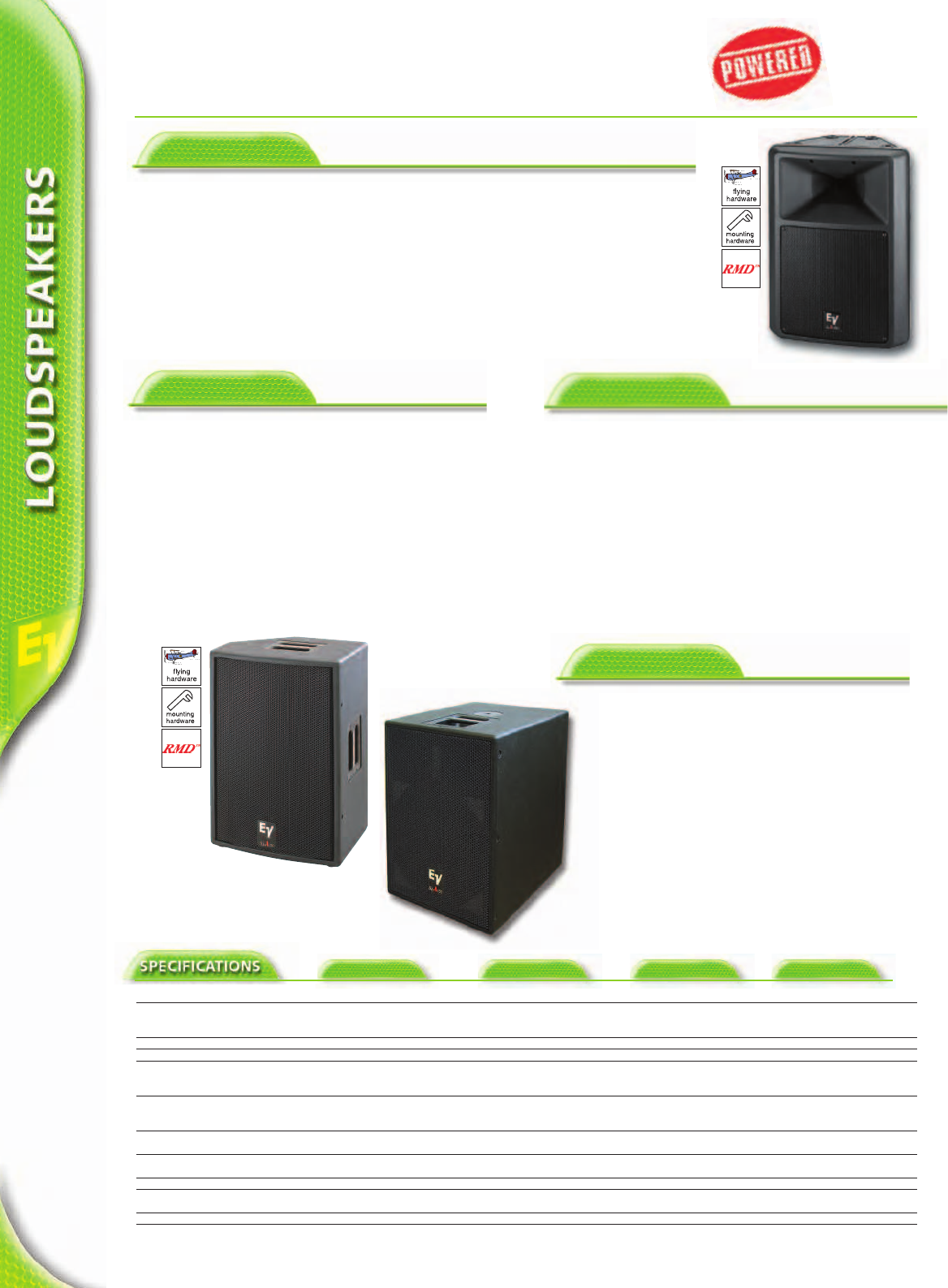

PLASMA P1 & P2

PLASMA™ P1 Plasma P1's compact, ergonomically

designed enclosure houses an EVX155RMD, Kevlar™-rein-

forced 15” LF transducer driven by a 4” voicecoil for well-

defined transients and articulate vocals at all SPLs. The EV

ND-6 neodymium HF compression driver with a 3” voicecoil

coupled to an EV 80° x 55° horn provides extended HF

response with very low distortion. A two-channel class-H

amplifier provides a total of 700 watts of power but requires

NO fan, permitting quiet operation, low maintenance, and

long-term reliability. Coupled with signal processing for lin-

ear acoustic response, Plasma P1 delivers dynamic linearity

to very high SPLs. Equipped with three L-track attachment

points, Plasma can also be used with its proprietary PSA-V™

(Plasma Strong-Arm-Mount-Vertical) mounting system for

easy flying and precise aiming. The multi-angle enclosure is

available in left and right versions, thus allowing a 55° mon-

itor angle onstage and mirror-image monitoring.

PLASMA™ P2 Plasma P2 represents a new generation of

high-powered compact subwoofers. Designed to extend the

very low frequency response of Plasma P1, it uses a class

H-design amplifier driving an EVX180B 18” woofer. The

patented LPN™ (Low-Pass-Notch) filter compensates for

transient distortion in dynamic signals (such as kickdrums) to

achieve a higher acoustic output and more punch than

expected from such a compact enclosure.

PLASMA P1 (80° x 55°)

• 15” 2 - Way Powered

• 80 °x 55° Speaker System

• Compact, ergonomically designed cabinet

• 550 W + 150 W dynamic output power

• 132 dB maximum SPL

• EVX155RMD 15” LF transducer

• ND6 HF compression driver

• Simple, versatile suspensions with PSA-V™

(Plasma Strong-Arm-Mount-Vertical)

PLASMA P2

• 18” powered subwoofer

• Compact, ergonomically designed

cabinet

• 800W dynamic output power

• EVX180B direct radiating 18” woofer

• 132 dB maximum SPL

• Extended bass response

• Integrated heavy-duty casters for

easy transport

PLASMA P1 PLASMA P2

Frequency Response (-3 dB) 45 Hz - 17 kHz 40 Hz - 100 Hz

Frequency Range (-10dB) 38 Hz - 19 kHz 30 Hz - 110 Hz

Calc. Max SPL 132 dB 132 dB

Horizontal Coverage 80° -

Vertical Coverage 55° -

Amplifier Design Class H Class H

THD <0.01% <0.05%

Input Impedance 20 kOhms 20 kOhms

LF Amplifier Power 460W RMS (550W Peak) 550W RMS (800W Peak)

HF Amplifier Power 140W RMS (150W Peak) -

High Pass Crossover 100 Hz

(switchable)

Level Control -∞ to +6 dB -∞ to +6 dB

Input Sensitivity +6dB for full output +6dB for full output

LF Transducer 381mm (15”) EVX155RMD 460mm (18”) EVX180B

HF Transducer 35,6 mm (1.4”) exit ND6 -

compression driver

Connectors:

Balanced Line Inputs XLR and 1/4” phone XLR and 1/4” phone

Combination Combination

Balanced Output XLR XLR

Power Requirement 100, 120, 230 or 240 VAC 100, 120, 230 or 240 VAC

50-60 Hz 50-60 Hz

Enclosure Material 13-ply Birch Plywood 13-ply Birch Plywood

Cabinet Finish EC Coat EV Coat

Grille Powder-Coated Steel Powder-Coated Steel

with cloth with cloth

Dimensions ( H x W x D) : 615 x 475 x 400 mm 910 x 476 x 600 mm

24.2” x 18.8” x 15.7” 25.8” x 18.8” x 23.6”

Net Weight 42,3 kg (93 lbs) 63,6 kg (140 lbs)

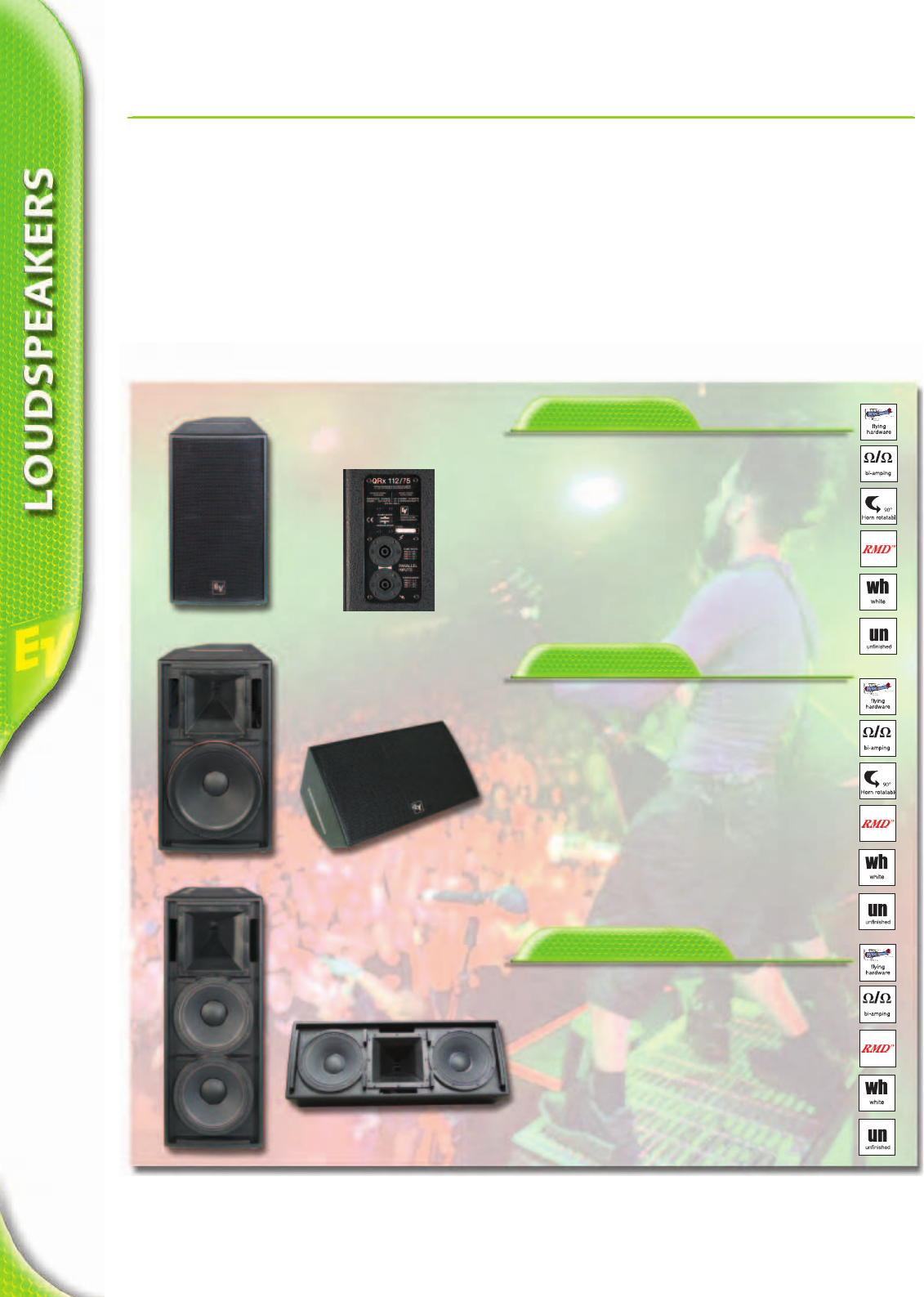

QRx Series

EV’s compact QRx Series loudspeakers have become the

go-to systems for contractors, regional sound companies,

and anyone who wants to step up to high-end pro audio

without blowing the budget. With integrated L-track rig-

ging points on top and bottom, the QRx cabinets are easy

tofly. The unique, asymmetrical, fully rotatable horn pro-

vides a 15-degree down angle to ensure HF coverage

where needed, while avoiding acoustic spill. EV’s power-

house DH7 large-format driver (3” voicecoil, 1.4” exit)

provides the HF engine, while a selection of EV’s DL and

EVX woofers anchor the LF and sub frequencies. EV’s

combination of high-level components and unique design

make the QRx Series one of the best and most versatile

values in the industry.

QRx 112/75

• 2-Way High-Output Full-range

• High Sensitivity

• Ultra-linear frequency response

• Solid bass down to 52 Hz (-10 dB)

• Vented LF enclosure

• Asymmetric CD-horn aimed downward by 10°

• 3” voice coil (titanium diaphragm)

• Protection circuits for HF-driver and LF-woofer

• Easy external operation mode selection

• 5-side multi-angled housing with monitor slant

QRx 115/75

• 2-Way High-Output Full-range

• High Sensitivity

• Ultra-linear frequency response

• Solid bass down to 50 Hz (-10 dB)

• Vented LF enclosure

• Asymmetric CD-horn aimed downwardby 10°

• 3” voice coil (titanium diaphragm)

•Protection circuits for HF-driver and LF-woofer

• Easy external operation mode selection

• 5-side multi-angled housing with monitor slant

•Same front width as QRx 118 S

QRx 212/75 / QRx 212H/75

•2-Way Highest-Output Full-range

• High Sensitivity

• Ultra-linear frequency response

•Extended bass response down to 50 Hz (-10 dB)

• Vented LF enclosure

• Asymmetric CD-horn aimed downward by 10°

• 3” voice coil (titanium diaphragm)

• Protection circuits for HF-driver and LF-woofers

• Easy external operation mode selection

•Trapezoidal (10° per side)

QRx as monitor

Easy operation

mode selection

QRx 118 S

• Subwoofer

• Direct radiating vented design

• High Sensitivity

• Solid bass down to 30 Hz (-10 dB)

• Rectangular

• Equipped with shown features below

QRx 153/75

• Three-way, high-output, full-range loudspeaker

• Biamp only

• Solid bass to 42 Hz (-10dB)

• Vented LF enclosure

•Asymmetrical CD horn aimed downward by 10°

• 3” HF voice coil (titanium diaphram)

• Protection circuit for HF driver

• Trapezoidal cabinet (15° per side) for tight-

pack situations

• Comes with L-track hardware and single-stud

ancra fittings

QRx 218 S

• Subwoofer

• Direct radiating vented design

• High Sensitivity

• Solid bass down to 31 Hz (-10 dB)

• Rectangular

• Also perfect in combination with large HP

and MH horns

• Equipped with shown features below

• Flyable version available

Rubber feet

QRx subwoofer features

QRx 153/75 QRx 218 S

QRx 118 S

Frequency Range (-10 dB) 52 Hz - 18 kHz 45 Hz - 15 kHz 42 Hz - 20 kHz 50 Hz - 15 kHz 38 - 250 Hz 35 - 250 Hz

Frequency Range (-3 dB) with controller amp 46 Hz - 18 kHz 48 Hz - 18 kHz 50 Hz - 16 kHz 43 Hz - 18 kHz 36 - 130 Hz 35 - 125 Hz

Recommended High-pass frequency 45 Hz (12 dB/Oct.) 45 Hz (12 dB/Oct.) — 45 Hz (12 dB/Oct.) 36 Hz (12 dB/Oct.) 35 Hz (12 dB/Oct.)

Axial Sensitivity SPL 1W/1m 98 dB 98 dB 98/105 dB 102 dB 98 dB 99 dB

(Biamp operation) (100/112 dB) (101/112 dB) — (102/112 dB) — —

Max. SPL / 1m (calc.) 131 dB 130 dB 130 dB 136 dB 131 dB 140 dB

Continuous Power Handling 300 W (300 W/75 W) 400 W (400 W/75 W) 400 W/150 W/150 W 600 W (600 W/75 W) 600 W 1,200 W

Peak Power Handling (Biamp) 1,200 W (1,200/300 W) 1,600 W (1,600/300 W) 1,600 W/600 W/600 W 2,400 W (2,400/300 W) 2,400 W 4,800W

Coverage (nominal -6 dB) H° x V° 75° x 50° 75° x 50° 75° x 50° 75° x 50° essentially essentially

(asym. CD horn) (asym. CD horn) (asym. CD horn) (asym. CD horn) omni omni

LF woofer (transducer) 12” (DL12BFH) 15” (DL15ST) 15” (DL15ST) 2 x 12” (DL12BFH) 1x18”(EVX-1808) 2 x 18” (EVX-1808)

VC diameter 3” (DH7) 3” (DH7) 8” MF8 MF/ 3” DH7 HF 3” (DH7) --- ---

Crossover Frequencies (slope in Biamp mode) 1,500 Hz (24 dB/Oct.) 1,500 Hz (24 dB/Oct.) 1,200 Hz 1,500 Hz (24 dB/Oct.) 100 Hz (24 dB/Oct.) 100 Hz (24 dB/Oct.)

Nominal Impedance (Biamp mode) 8Ω(8 Ω/8 Ω) 8Ω(8 Ω/8 Ω) 8Ω/12 Ω/12 Ω 4Ω(4 Ω/8 Ω) 8Ω 4/8 Ω

Input Connections 2 Neutrik®NL4 2 Neutrik®NL4 2 Neutrik®NL4 2 Neutrik®NL4 2 Neutrik®NL4 2 Neutrik®NL4

Dimensions (H x W at front x D) 675 x 390 x 372 mm 759 x 450 x 407 mm 1,240 x 467 x 485 mm 990 x 390 x 375 mm 900 x 450 x 600 mm 11,015 x 560 x 600 mm

26.6” x 15.36” x 16” 29.9” x 17.72” x 16.02” 41.5” x 18.4” x 19.12” 38.98” x 15.47” x 14.77” 35.5” x 17.7” x 23.6” 40” x 22.05” x 23.6”

Net Weight (subs without wheel kit) 26.0 kg (58 lbs.) 32.0 kg. (71 lbs.) 47 kg (97 lbs.) 36.5 kg. (80 lbs.) 47.5 kg (100 lbs.) 68 kg (150 lbs.)

QRx112/75 QRx115/75 QRx153 QRx(H) 212/75 QRx118 QRx218S

ZX5 family features

•DVX-3150 : New high-power 15" woofer

•ND2 : New 2" voicecoil Neodymium compression driver

•New asymmetrically molded polypropylene enclosure

•Internal passive crossover (switchable to biamp)

•10 x metric inserts (M8)

•3Ancra single-stud fittings (5 attachment points)

•Integrated pole-mount adapter

•Powder-coated full-face steel grille backed with foam

•Standard floor monitor angle 45°, adjustable to 55°

with integrated monitor feet

ZX5 is available as 90° x 50° or 60° x 60°, in black or

white finish. Both horn patterns arealso for outdoor

use, these black PI versions come up with powder-

coated stainless steel grilles and waterproof glandnut

input panels with SJO cable.

Founded on more than 20 years of experience in building

professional lightweight loudspeakers based on polypropy-

lene enclosures and high-end components, ZX loudspeakers

comprise a new family that includes all of EV’s expertise in

sound reinforcement for mobile and fixed install business.

Incorporating brand-new, high-power series woofers and

drivers, the new elegant style molded cabinets combine

mechanical solutions for all permanent installation and mobile

stage application demands.

The Advanced Generation of Versatile, High-Performance Lightweight Speakers

Product Matrix

Model Pattern Color Weather-

(H x V) resistant IP44

ZX5-90B 90° x 50° black

ZX5-60B 60° x 60° black

ZX5-90W 90° x 50° white

ZX5-60W 60° x 60° white

ZX5-90PI 90° x 50° black X

ZX5-60PI 60° x 60° black X

ZX5-60 ZX5-90

(B, W & PI Versions) (B, W & PI Versions)

Frequency range (+/-3 dB) 52-16 kHz

Recommended Hi-Pass Frequency 36 Hz

Axial sensitivity SPL 1W/1m 98 dB

Maximum SPL (calc.); full space 132 dB

Long Term Power Handling (LF/HF) 600 W (500W/40W)

Short Term Power Handling 2,400 W (2000W/160W)

(Peak) (LF/HF)

Coverage, H° x V° 60° x 60° 90° x 50°

(nominal -6 dB)

LF transducer 15" DVX-3150

HF transducer 2" ND2

Crossover Frequencies 1.500 Hz

Nominal Impedance (LF/HF) 8 Ohms (8/8 Ohms)

Minimum Impedance 6.5 Ohms

Input Connections 2 x four-pin Speakon / glandnut SJO cable (PI versions)

Dimensions (H x W at front x D) 692 x 446 x 411 mm (27.24” x 17.56” x 16.18”)

Net Weight 22.5 kg (49.6 lbs.)

ZX4 features

• 15-2-Way with EVS15SF woofer

• DH3 1,25" titanium HF driver

• 400 Watt cont. 1600W Peak

• High sensitivity (100dB)

• Adjustable monitor angles 45° and 55°

• Large Format 90° x 50° EV horn

Sharing an enclosure with it's "big brother" the ZX5, the

ZX4 is designed mainly for portable applications such as

performing artist, musicians and small bands. It benefits

from the same large format EV horn design that provides

better throw and better intelligibility then small format

horn, which can only control the higher frequencies, but

not the entire vocal range.

The Advanced Generation of Versatile, High-Performance Lightweight Speakers

ZX4

Frequency Response* (-3 dB) 60 Hz - 20 kHz

Frequency Response* (-10 dB) 42 Hz - 20 kHz

Power Handling (long term/Peak) 400W/1600W

Sensitivity 1W/1m 100 dB

Max SPL (calc.) 132 dB

Low Frequency Driver EVS15SF, 15” woofer

High Frequency driver DH3, 1.25” voice coil compression driver

Box Tuning Frequency 50 Hz

X-over frequency 1500 Hz

Impedance (nom./min.) 8 Ohms / 6.5 Ohms

Dispersion (H x V) 90° x 50°

Input connector Speakon NL4

Suspension: enclosure has locations for 3 single stud

attachment plates and 8 forged steel

eyebolts-2 on top, 2 on side, and 4 on

rear of enclosure

Dimensions H/W/D 686mm x 445mm 406mm

(27.00" x 17.50" x 16.00")

Net Weight 20.2kg (44.5 lbs)

Shipping Weight 23.8kg (52.5 lbs)

*Half Space

Compact Flexibility - Performance - Design

The ElectroVoice ZX1 family of speaker systems is truly an

industry first. Never before has a single speaker design been

soclosely customized to a wide range of audio applications.

Consisting of 8 distinct versions, a ZX1 model is available to

fit the need whether it’s part of a portable PA for a local

band or a large distributed sound system for a major audio

installation.

ZX1 features

• EV8L high performnace 8" woofer

• Exclusive port design for extended LF response

• 200W cont., 400W program power handling,

• Integrated overload protection

• DH2005 true compression driver (1,25" voice coil)

• Rotatable 90 x 50 HF horn

• Integrated monitor angle

• Integrated pole-mount adapter and handle

• 4 metric inserts for additional mounting options

• 2 Neutik NL4 connectors

• Available in black and white

Delivering on this promise for fixed audio installations, the

ZX1i model is the new standard of no compromise audio per-

formance and versatility in an easy to install, lightweight and

compact package. Finally, a compact high performance loud-

speaker system designed exclusively for the professional con-

tractor to use in dozens of different fixed installations. It

doesn’t matter if your requirements are providing a compact

sound reinforcement system in a church, a complex back-

ground music system in a sports bar or other high-energy

environment or fill sound in a large auditorium, the ZX1i can

solve the problem.

ZX1i features

• EV8L weatherized woofer

• DH2005 true compression driver

• 100 x 100 and 90 x 50 coverage pattern

• Weatherized for indoor and outdoor use

• "Clickn' Mount" Quick SAM mounting system for

wide range of motion included

• 4-pin detachable Phoenix-style connector

• Dedicated transformer models with wide range of selectable tabs

ZX1-90 ZX1i-90 ZX1i-100 ZX1i-100t

(Portable Version) (Fixed Install Version) (Fixed Install Version) (70v/100v Version)

Frequency range (-10 dB) 48 Hz - 20 kHz 48 Hz - 20 kHz 48 Hz - 20 kHz 48 Hz - 20 kHz

Recommended Hi-Pass Frequency

Axial sensitivity SPL 1W/1m 94 dB (1W/1m) 94 dB (1W/1m) 92 dB (1W/1m) 92 dB (1W/1m)

Maximum SPL (calc.); full space 123dB 123dB 121dB 121dB

Long Term Power Handling (LF/HF) 200W Continuous 200W Continuous 200W Continuous 200W Continuous

Short Term Power Handling 400W Program 400W Program 400W Program 400W Program

(Peak) (LF/HF)

Coverage, H° x V° 90° or 50° 90° or 50° 100° 100°

(nominal -6 dB)

LF transducer EV8L, 8 in (203mm) EV8L, 8 in (203mm) EV8L, 8 in (203mm) EV8L, 8 in (203mm)

HF transducer DH2005, 1 in. (25.4mm) DH2005, 1 in. (25.4mm) DH2005, 1 in. (25.4mm) DH2005, 1 in. (25.4mm)

Crossover Frequencies

Nominal Impedance (LF/HF) 8Ohms 8Ohms 8Ohms

Minimum Impedance

Input Connections Two NL4 Connectors 4-Pin detachable 4-Pin detachable 4-Pin detachable

Dimensions (H x W at front x D) 17.15”x11.12”x10.35” 17.15”x11.12”x10.35” 17.15”x11.12”x10.35” 17.15”x11.12”x10.35”

451mm x 282mm x 263mm 451mm x 282mm x 263mm 451mm x 282mm x 263mm 451mm x 282mm x 263mm

Net Weight 8.4kg (18.5 lbs) 8.4kg (18.5 lbs) 8.4kg (18.5 lbs) 10.4kg (23.0 lbs)

Sb 122/PI/PIX

•Subwoofer

•Direct radiating

vented design

•Trapezoidal (25° per side)

•Lo-Pass Filter

•4xM8x1.25 attachment

points

• Sb122PI outdoor version

• Sb122PIX fro 70V/100V

Sx 80

•2-Way Full-range

•Vented LF enclosure

•1” voicecoil (titanium

diaphragm)

•PRO™ Driver protection

•HF-horn features Varipath™

•Trapezoidal

•Compact dimensions

•7 x M6 and 4 x M5 inserts

•For overview of variants, see

chart at right

Sx 100 +

•2-Way Full-range

•Vented LF enclosure

•1.25” voice coil

(titanium diaphragm)

•PRO™ Driver protection circuit

•HF-horn features Varipath™

•Trapezoidal (25° per side)

•Physical characteristics of

Sx 300 with slightly lower

sensitivity

•4xM8x1.25 attachment inserts

Sx 300/PI/PIX

•2-Way Full-range

•High Sensitivity

•Ultra-linear frequency response

•Vented LF enclosure

•1.25” voice coil

(titanium diaphragm)

•PRO™ Driver protection circuit

•HF-horn features Varipath™

• Trapezoidal (25° per side)

•4xM8x1.25 attachment inserts

•Overview of variants see

right spread sheet

•Sx300 PI outdoor version

•Sx300 PIX for 70V/100V

•2-Way Full-range

•Extended bass response

•15” DL-Woofer

• 1.25” titanium diaphragm

• 80 x 55 degree horn pattern

•18mm plywood enclosure

• Rugged FUTURATM finish

•Five sided, multi-angle cabinet

• Built-in stand mount

• Suspendable using optional SK-1 kit

Sx 250

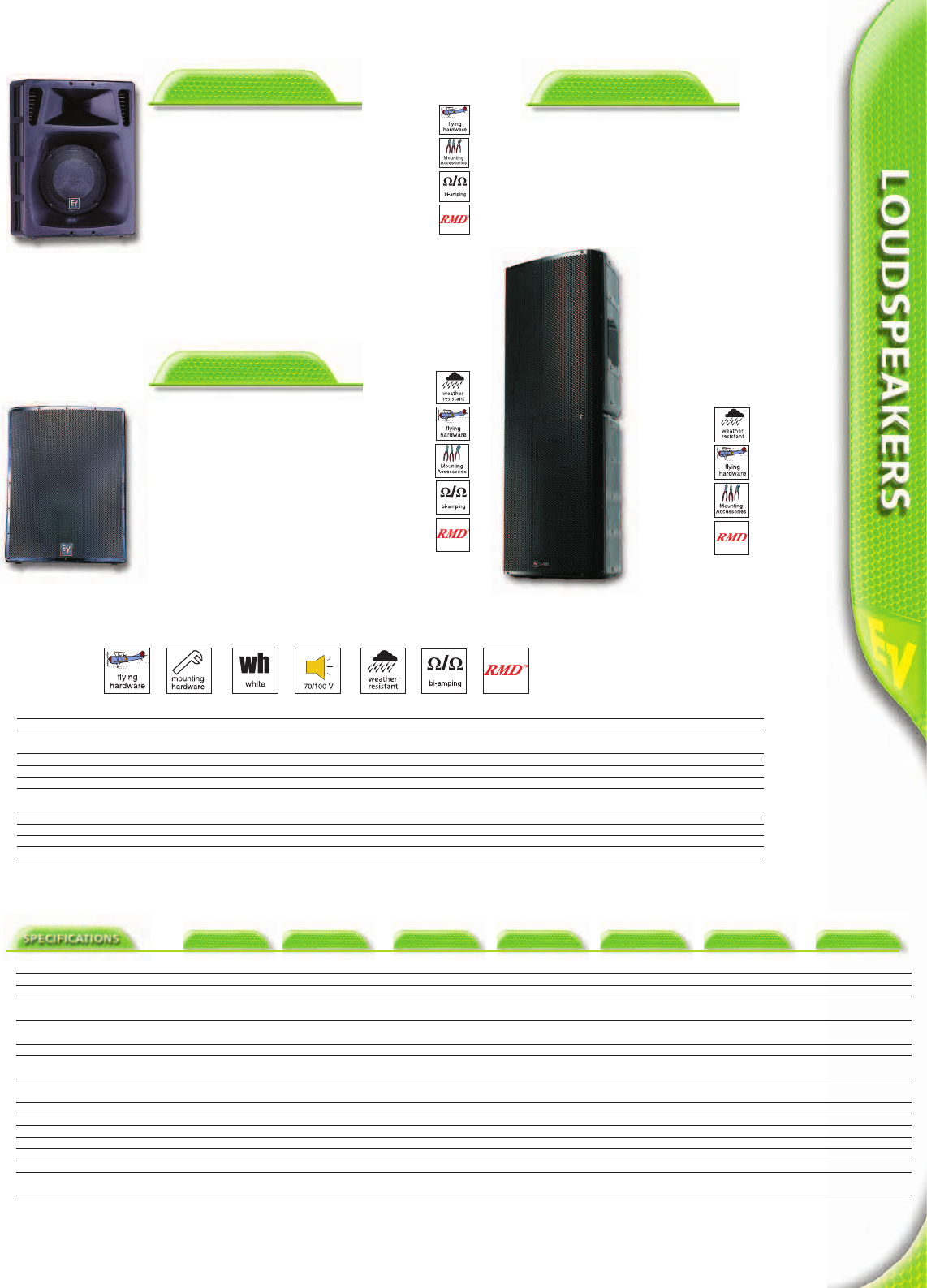

EV’s Sx Series loudspeakers have been the industry stan-

dard for lightweight, high-performance loudspeakers, a

standard against which all others are measured. Their ver-

satility is reinforced by their rich portfolio of accessories,

from wall-mount and array brackets to monitor feet and

transport bags. The Sx series has powered everything

from local wedding bands to the clogs of “Riverdance” to

football games at Notre Dame Stadium, and the new

Sx600 dominated the stadiums at the 2004 Olympic

Summer Games in Athens, Greece.

Sx-SeriesTM

Sx 500 +

•2-Way High-Output Fullrange

•High sensitivity

•Short horn-loaded, vented LF enclosure

•Asymmetric CD horn aimed downward

by 10°

•2” voice coil (titanium diaphragm)

•PRO™ Driver protection circuit

•HF horn features Varipath™

•Operation mode by pin arrangement

•Multi-angled array housing

•8 x M8 x 1.25 attachment points

Sx 500 PI +

•Weatherproofed version of Sx 500+ for

outdoor applications

•Weather-resistant woofer

• Polyester-mesh water shield

• Comes with foam part plugs

for increased water resistance

Sx600 PI/PIX

• Two-element vertical line array

•For highest output outdoors

• Very high sensitivity (105 dB/1W/1m)

• High intelligibility

• Two 12” woofers

• DH2T driver on 65° x 65°Varipath horn

• All-weather cabinet

•SuperSAM mounting,

60° x 180° adjustable

•Waterproof connection

by SJO cable with gland nut

•Internal 600 W transformer

available (SX600PIX)

Sx 80 B/W X X X X push-pins

Sx 80 BE X X X Speakon

Sx 80 TB/TW X X X 1.9/3.8/7.5/ X covered barrier strip

15/30/60 W

Sx 100 + E/W X X X X X 2 Speakon

Sx 300 E/EW X X X X X 2 Speakon

Sx 300 PI X X X X 2 Speakon

Sx 300 PIX X X 100/140/200W X X 2 Speakon (100V taps

(100V taps) via Pin arangement)

Sx 500 + XXXXSpeakon

Sx 500 PI + XXX X X Speakon

Sx600(PI) X X X Connectors (SJO cable with gland nut)

SX600PIX XXX X Connectors (SJO cable with gland nut)

Sb 122 XXXPIX PI X Speakon

input connectors

Feature overview for Sx-Series™

Sx 80 Sx 100 + Sx 300 Sx 250 Sx 500+ Sx600PI Sb 122

Frequency Range (-10 dB) 51 Hz - 20 kHz 60 Hz - 20 kHz 50 Hz - 20 kHz 50 Hz - 20 kHz 43 Hz - 20 kHz

70 Hz - 18 kHz

45 - 600 Hz

Recommended High-Pass Frequency --- --- --- 45 Hz (12 dB/Oct.) 43 Hz (12 dB/Oct.)

90 Hz

48 Hz (12 dB/Oct.)

Axial Sensitivity SPL 1W/1m (Biamp mode) 92 dB 98 dB 99 dB

99 dB 100 dB 105 dB

99 dB*

Max. SPL / 1m (calc.); full space 121 dB 127 dB 131 dB 130 dB

132 dB 138 dB

131 dB*

(100V: 110 dB) (100V: 123 dB)

Long-Term Power Handling (low Z) 175 W 200 W 300 W 350 W

400 W 600 W

400 W

(100V resp. Biamp) (60 W/100V) (200 W/100V)

Short-Term Power Handling (Peak), low Z 700 W 800 W 1,200 W 1,400 W

1,600 W 2,400 W

1,600 W

Coverage (nominal -6 dB) H° x V° 90° x 60° 65° x 65° 65° x 65° 80° x 55° 75° x 60°

x65

° essentially omni

(CD Horn) (CD Horn) (CD Horn)

Directivity Index (800 - 16.000 Hz) 9.2 dB 11.1 dB 11.1 dB 11.6 dB

15.2 dB 11.3 dB

---

(+2.3/-3.9 dB) (+2.4/-4.1 dB) (+2.4/-4.1 dB) (+3.0/-6.9 dB) (+3.0/-6.9 dB)

LF woofer (transducer) 8" (---) 12" (---) 12" (DL12BFH) 15"(DL15BFH) 15"(DL15ST)

2 x 12” (ND12,DL12BFH)

12" (EVS12)

HF throat diameter (transducer) 1" (DH2005) 1" (DH2010A) 1" (DH2010A) 1"(DH2010A) 1"(DH2T)

1”(DH2T)

Crossover Frequencies 2,200 Hz 1,500 Hz 1,500 Hz 1,600 Hz 1,600 Hz

1,800 Hz

160 Hz

Nominal Impedance (non-transformer) 8 Ω 8 Ω 8 Ω 8Ω 8 Ω 4 Ω 8 Ω

Minimum Impedance (non-transformer) 7.2 Ω 5.6 Ω 6.0 Ω 5.2 Ω 5.2 Ω 3.5 Ω 6.0 Ω

Input Connections see above see above 2four-pin Speakon 2four-pin Speakon 2four-pin Speakon

SJO cable/gland nut

2four-pin Speakon

Dimensions (H x W at front x D) 400 x 292 x 222 mm 586 x 429 x 312 mm 586 x 429 x 312 mm

625 x 431 x 330 mm 838 x 673 x 448 mm 1163 x 429 x 312 mm

586 x 429 x 312 mm

15.75” x 11.5” x 8.75” 23.07” x 16.89” x 12.28” 23.07” x 16.89” x 12.28” 24.6” x 16.97” x 12.99” 32.99” x 26.5” x 17.64” 45.79” x 16.89” x 12.28” 23.07” x 16.89” x 12.28”

Net Weight 8.2 kg (T/PIX: 9.3 kg) 14.5 kg 14.5 kg (PIX: 17.7 kg)

18.1 kg 31.3 kg 36.3 kg

14.6 kg

18.1 lbs. (T/PIX: 20.5 lbs.) 32 lbs 30 lbs. (PIX: 49.0 lbs.) 39.9 lbs. 69 lbs. 80 lbs. 32.2 lbs.

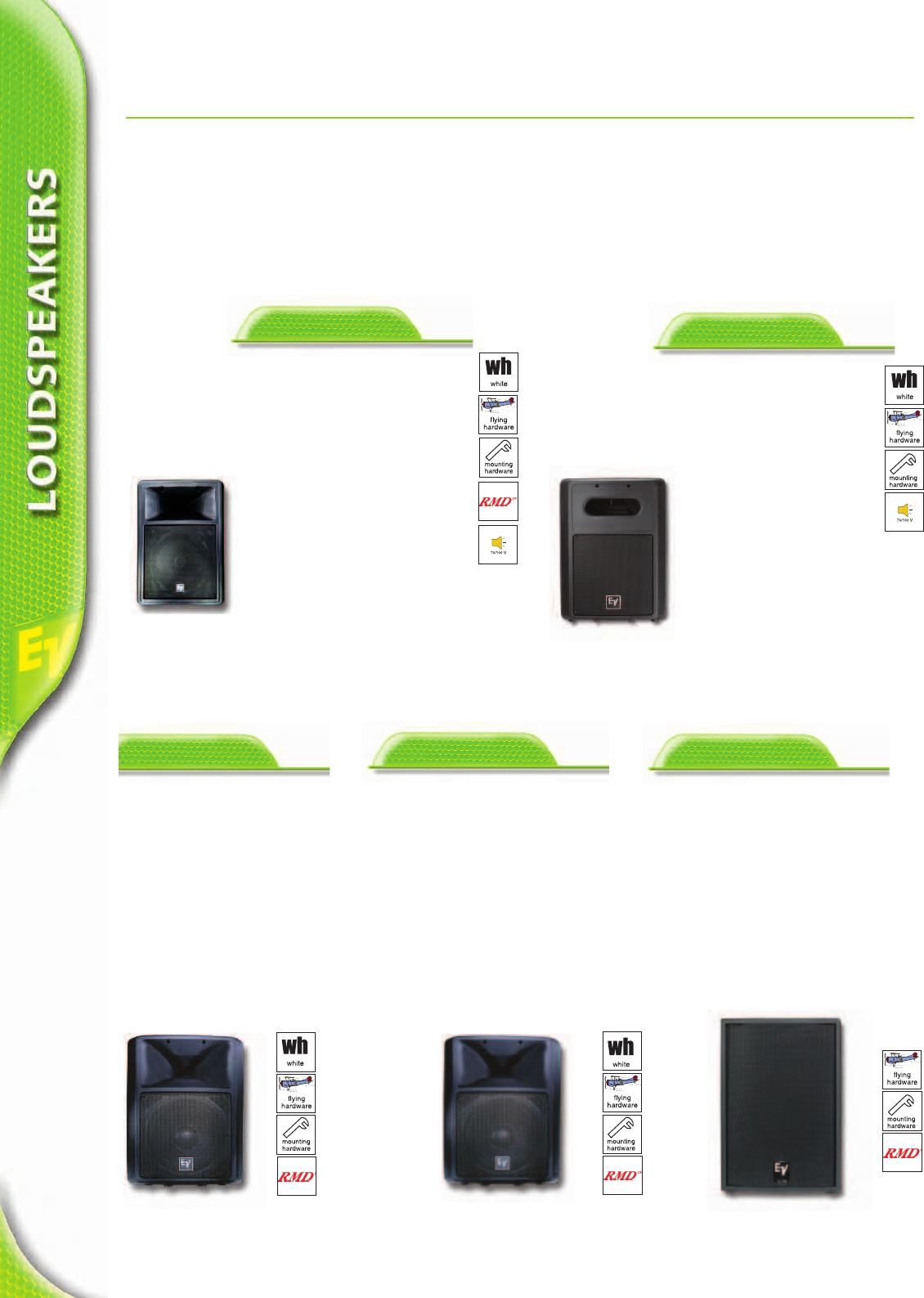

SxA Series

SxA100+

Versatile 12", 2-way powered speaker

• Very compact, lightweight, robust polypropylene enclosure

•Real fullrange 55 Hz – 20k Hz for front-of house or monitor (with F200

monitor adapter)

•Biamped with 350 W plus 80 W peak power for a very dynamic musical response

• Mixable microphone and line inputs with a 2-band EQ

• 65° x 65° CD horn from the famous Sx 300 for an outstanding

acoustic performance

•Fully compatible with Sx mounting hardware and accessories

• Pole-mount adapter

SxA250

Compact 15”, 2-way powered speaker

•7-ply plywood enclosure with EV Coat cover;

extremely scratch resistant

•5-side enclosure with 45° monitor angle

•True fullrange (55Hz – 20kHz) for front-of-house or

monitor applications

•Biamped at 350W plus 80W peak power for a very

dynamic musical response

•Mixable microphone and line inputs and a 2-band EQ

•EV DL15 woofer with cast aluminium frame

•DH2010A 1.25" driver with 80° x 55° CD horn

•Pole-mount adapter

SxA360

The lightweight power package

• 129 dB SPL max. from a 36.6-lb. powered speaker

• 55 Hz - 20 kHz bandwidth for front-of-house or

monitor

• DH2T 2" driver on 65° x 65° CD horn

• Built-in pole-mount adapter

• Built-in two-way amplifier: 350 W(LF)/150 W(HF)

output power

• Fits all Sx300 mounting accessories

• Line in and loop thru via XLR

• PowerCon AC power connector

SbA760

Powered subwoofer

• 760 W amplifier power

• Compact, ergonomic design for easy transportation

• 15” EVS15 woofer

• Built-in stereo crossover with PowerMax12 filter

•LPN filter for extended bass response

• Dynamic Limiter and full protection package

•Integrated pole mount

•EV Coat-covered, four-wheeled cabinet

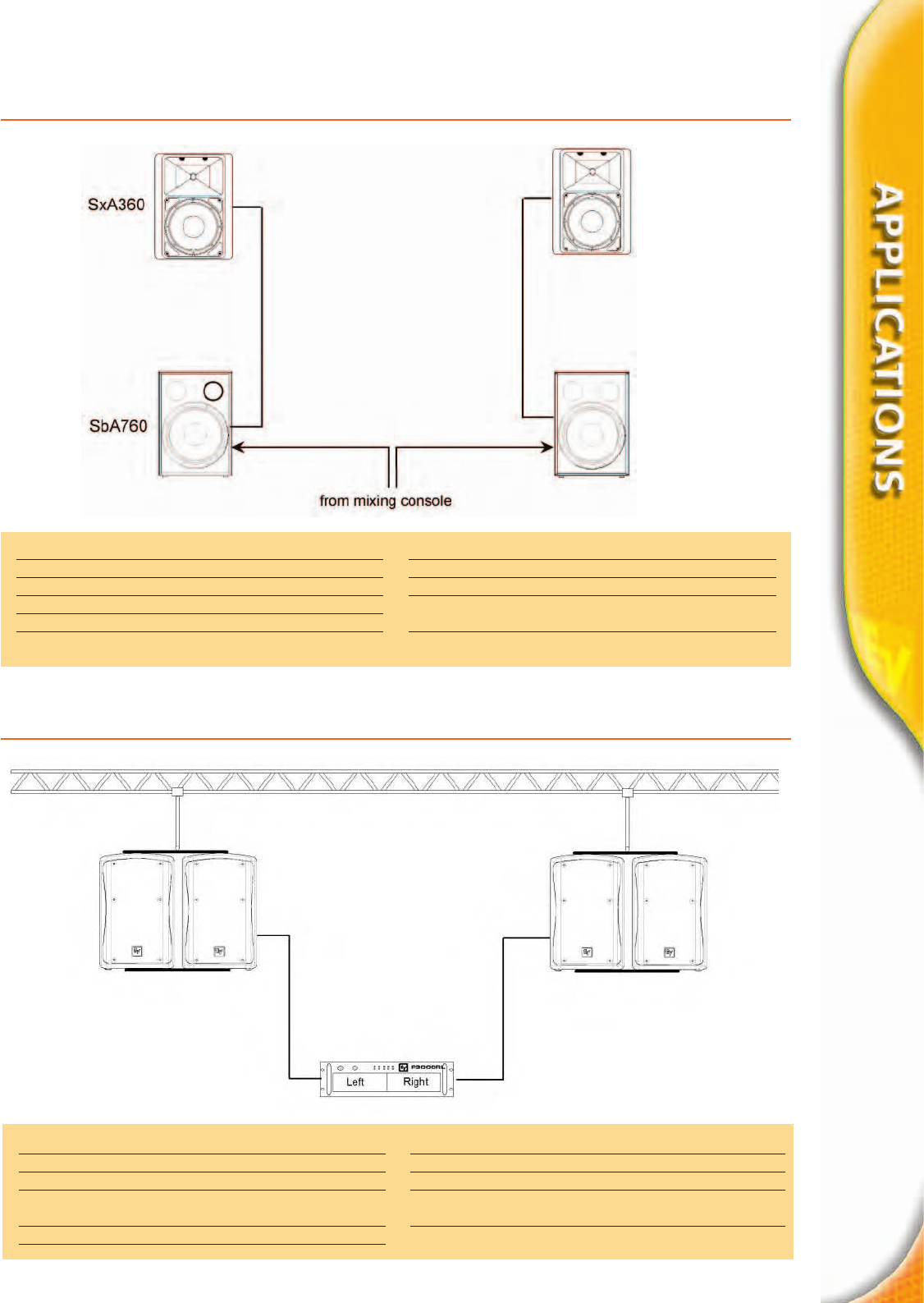

SxA100+ SxA250 SxA360 SbA760

Frequency Response (-10dB) 55Hz to 20kHz 55Hz to 20kHz 60Hz to 18kHz 45 Hz - 150 Hz

Rated Output Power 760 W

long term LF150/HF 50Watts LF150/HF 50Watts LF350W/HF 150Watts

10ms burst LF350W/HF 80W LF350W/HF 80W

Max. Sound Pressure Level 124 dB 126 dB 129 dB 128 dB

HF Coverage (nominal) 65° x 65° 80° x 55° 65° x 65° —

Components

LF 12“ woofer DL15BFH DL12BFH EVS 15 S

HF DH 2010A DH 2010A DH2T

Inputs Microphone Input (XLR) Microphone Input (XLR) XLR and 1/4” phone Combination 2 x XLR/jack combo input

Line Level Input (XLR/1/4“) Line Level Input (XLR/1/4“) 2 x XLR slave through

XLR out (slave) XLR out (slave) XLR 2 x XLR Mid/Hi out

Level Controls Mic Level (-35 dBu to 0 dBu Mic Level (-35dBu to 0dBu Line level

Master Level (- infinity to 0 dB) Master Level (- infinity to 0dB) (-infinity to +6dB) -infinity to +10 dB

2-Band EQ LF: +/- 6dB LF: +/- 6dB —

HF: +/- 4dB HF: +/- 4dB

Power Requirement 120V or 220-240V 50/60Hz 120V or 220-240V 50/60Hz 120V or 220-240V 50/60Hz 120V or 220-240V 50/60Hz

Dimensions 586 x 429 x 312 mm 625 x 437 x 333 mm

586 x 429 x 312 mm

603 x 428 x 665 mm

(heights x width x depth) 23.07” x 16.89” x 12.28” 24.60” x 17.20” x 13.11” 23.07” x 16.89” x 12.28” 23.74” x 16.85” x 26.18”

Weight (net) 19,5 kg (43 lbs.) 22,2 kg (48.94 lbs.) 16,6 kg (36.6 lbs.) 43 kg (94.8 lbs.)

SxA100+ / SXA360

SxA250

Sb760

T - Series

T-Series is optimized for the best performance and price for

the mobile audio market. It uses the finest EV components:

DLwoofers, HP horns and DH2T 2” coil compression driver.

All HF drivers are protected by the famous PRO™circuit.

T221M is made of 13-ply; T251+/T252+ are made of 7-ply.

All cabinets are black carpet covered except T221M which is

black texture painted. T251+/T252+ are trapezoidal 10° per

side. T251+ features a stand mount. T-Series is protected by a

black full-face perforated heavy-duty metal grille.

MTL-1X

T252+

T251+

T18

T221

• 18” LF system

• DL18MT 18” woofer adds more bass

impact to other T-Series™systems

• Unique SubScoop™enclosure combines

the low-frequency extension of a

vented box with the punch and throw

of horn loading

•Includes mounting socket and 30”

steel pole for full-range satellite

systems

• Two-way, 12”, medium-

throw, full-range system

• High-performance 12” woofer

• Integral stand-mount adapter

accommodates the optional

100BK stand

• Biampable

• Two-way, 15” medium-throw,

full-range system

• DL15RMD 15” woofer for

great bass and a high degree

of midrange clarity

• Integral stand-mount adapter

fits the optional 100BK stand

• RMD™

• Biampable

• Two-way, dual-15”, medium-

throw, full-range system

• Dual DL15RMD woofers com-

bine for powerful bass output

and high sensitivity

• Frequency shading (roll-off) of

the lower woofer above 400 Hz

keeps midrange output clean

and free of interference lobes

• Biampable

•Dual-18” low-frequency system

• Unique SubScoop™enclosure

combines the punch and direc-

tionality of a horn with the

extended response of a

vented box

• EVX-180B ultrahigh-performance

600-watt woofers for maximum

output

Frequency Range (-10 dB) 33 - 250 Hz 70 Hz - 16 kHz 45 Hz - 16 kHz 44 Hz - 16 kHz 45 - 160 Hz

Recommended High-Pass Frequency 33 Hz (12 dB/Oct.) 80 Hz (12 dB/Oct.) 45 Hz (12 dB/Oct.) 44 Hz (12 dB/Oct.) 38 Hz (12 dB/Oct.)

Axial Sensitivity SPL 1 W/1 m 99 dB 100 dB (100/112 dB) 98 dB (98/112 dB) 101 dB (101/112 dB) 101 dB

(Biamp operation)

Max. SPL /1 m (calc.); full space 132 dB 133 dB 130 dB 136 dB 137 dB

Continuous Power Handling 400 W 400 W (400 W/60 W) 400 W (400 W/60 W) 800 W (800 W/60 W) 1,200 W

Peak Power Handling (Peak) 1,600 W 1,600 W 1,600 W 3,200 W 4,800 W

Coverage (nominal -6 dB) H° x V° Omnidirectional 60° x 40° (CD Horn) 60° x 40° (CD Horn) 60° x 40° (CD Horn) Omnidirectional

Directivity Index 9.5 dB (+2.0/-1.5 dB) 12.6 dB (+9.4/-9.3 dB) 12.6 dB (+9.4/-9.3 dB)

800 Hz - 16 kHz 500 Hz - 16 kHz 500 Hz - 16 kHz

LF woofer (transducer) 18” (DL18MT) 12” (DL12ST) 15” (DL15ST) 2 x 15” (DL15ST) 2 x 18” (EVX-180B)

HF throat diameter (transducer) — 1” (DH2T) 1” (DH2T) 1” (DH2T) —

Crossover Frequencies 250 Hz or below 2,600 Hz 1,200 Hz 1,200 Hz 160 Hz or below

(slope in Biamp mode) — (12 dB/Oct. LP, 18 dB/Oct. HP)(24 dB/Oct.) (24 dB/Oct.) —

Nominal Impedance (Biamp mode) 8Ω 8 Ω (8 Ω/8 Ω) 8 Ω (8 Ω/8 Ω) 4 Ω (4 Ω/8 Ω) 4 Ω

Minimum Impedance (Biamp mode) 6.6 Ω 7 Ω (7 Ω/6.3 Ω) 6 Ω(6 Ω/6.3 Ω) 3.2 Ω (3.2 Ω/6 Ω) 3 Ω

Input Connections 1/4” 2 four-pin Speakon® 2 four-pin Speakon® 2 four-pin Speakon® 2 four-pin Speakon®

Dimensions (H x W at front x D) 833 x 630 x 609 mm 714 x 417 x 480 mm 818 x 488 x 599 mm 1,245 x 488 x 599 mm 1,160 x 572 x 758 mm

(in floor position) 32.8” x 24.8” x 24.5” 28.1” x 16.4” x 18.9” 32.2” x 19.2” x 23.6” 49.0” x 19.2” x 23.6” 45.8” x 22.5” x 29.9”

Net Weight 49.4 kg (109 lbs.) 22.3 kg (55 lbs.) 35.5 kg (78.1 lbs.) 52.0 kg (114 lbs.) 75 kg (165 lbs.)

T18 T221 T251+ T252+ MTL-1X

Force i Two-Way Force i Sub Force i Monitor

Gladiator

Eliminator i

The Electro-Voice Gladiator G115 Top and G118 Sub are a powerful combination for

modern dance music reproduction. Built-in passive crossovers allow one amplifier channel to

drive both the sub and the full-range speaker, forming a true 3-way system.

Eliminatori®is black carpet covered, made of EV´s Road-Wood.

The Eliminatori®family, except Eliminatorii®,have a 35 mm stand

mount. Eliminatori®-SE comes with a 45 cm steel pole and con-

tains a combined electrical/acoustical low-pass filter designed for

parallel combinations especially with the Eliminatori®-E. The HF

section is protected by a PRO™ circuit.

G115 G118 Gladiator System

Frequency Range (-10 dB) 35 Hz - 20 Hz 32 Hz - 20 kHz 32 Hz - 20 kHz

Power Handling Continuous (EIA) 400 W 400 W 800 W

Power Handling short term 1,600 W 1,600 W 3,200 W

Sensitivity (1W/1m) 99 dB 99 dB 100 dB

Max. SPL / 1m (calc.) 131 dB 131 dB 134 dB

Coverage (nominal -6 dB) H° x V° 60° x 40° essentially omni 60° x 40°

LF woofer (transducer) EVS-15FR EVS-18S EVS-15FR + EVS-18S

HF throat diameter (transducer) 1” DH2010A --- DH2010A

Nominal Impedance 8 Ω 8 Ω 4 Ω

Dimensions (H x W x D) 760 x 438 x 559 mm 760 x 508 x 591 mm 2.160 x 508 x 591 mm

29.92” x 17.24” x 22” 29.92” x 20” x 23.27” 85.04” x 20” x 23.27”

Net Weight 34.1 kg (75.2 lbs.) 36.3 kg ( 80 lbs.) 70.4 kg (155.2 lbs.)

Frequency Response (-3 dB) 50 Hz–20 kHz 36–210 Hz 85 Hz–17 kHz

Power Handling

Continuous 250 watts 350 watts 200 watts

Peak 1,000 watts 1,400 watts 800 watts

Max. Output Capability 130 dB 131 dB 128 dB

Dispersion 80° x 55° Omnidirectional 55° x 80°

Sensitivity 100 dB 100 dB 99 dB

Impedance 8 Ω 8 Ω 8 Ω

Dimensions (Millimeters) 648 x 465 x 386 648 x 518 x 597 546 x 361 x 246

(Inches) 25.5 x 18.25 x 15.2 25.5 x 20.4 x 23.75 21.5 x 14.2 x 9.7

Net Weight 20.9 kg (46 lbs.) 31.3 kg (69 lbs.) 12.7 kg (28 lbs.)

Force i

Force i combines with EV’sQ44 power amplifiers to make a professional

live-performance system with components designed to play together.

Frequency Range (-10 dB) 45 Hz - 20 kHz 38 - 100 Hz 45 - 20 kHz 35 - 160 Hz

Recommended High-Pass Frequency 40-50 Hz (18 dB/Oct.) 40-50 Hz (18 dB/Oct.) 40 Hz (18 dB/Oct.) —

Axial Sensitivity SPL 1 W/1 m 99 dB 98 dB 100 dB 101 dB

Max. SPL /1 m (calc.); full space 99 dB 130 dB 134 dB 137 dB

Continuous Power Handling 350 W 400 W 600 W 1,000 W

Peak Power Handling (Peak) 1,400 W 800 - 1,000 W 2,400 W 4,000 W

Coverage (nominal -6 dB) H° x V° 60° x 40° (CD horn) Essentially omni 60° x 40° (CD Horn) Essentially omni

LF woofer (transducer) 15” (DL15BFH) 18" (DL18MT) 2 x 15” (DL15BFH) 2 x 18” (DL18MT)

HF throat diameter (transducer) 1” (DH2010A) 1” (DH2010A) — —

Crossover Frequencies 1,600 Hz — 700/1,600 Hz 160 Hz

Nominal Impedance 8 Ω 8Ω 4 Ω 4 Ω

Minimum Impedance 5.3 Ω 5.1 Ω 3.3 Ω —

Input Connections Parallel 1/4” phone jacks 1/4” phone input Parallel Neutrik®NL4 Parallel Neutrik®NL4

Dimensions (H x W x D) 768 x 429 x 609 mm 859 x 438 x 610 mm 1,162 x 429 x 609 mm 1140 x 572 x 602 mm

30.25” x 16.9” x 24” 33.8” x 17.25” x 24.13” 45.8” x 16.9” x 24.0” 44.9” x 22.5” x 23.7”

Net Weight 34.4 kg (76 lbs.) 39.5 kg (81 lbs.) 54 kg (110 lbs.) 65.8 kg (145 lbs.)

Eliminator iEEliminator iSub E Eliminator ii E Eliminator kW

G115

G118

Eliminator i

Eliminator ii

Eliminator i Sub

Eliminator KW

Force i Sub

force i Monitor

Force i

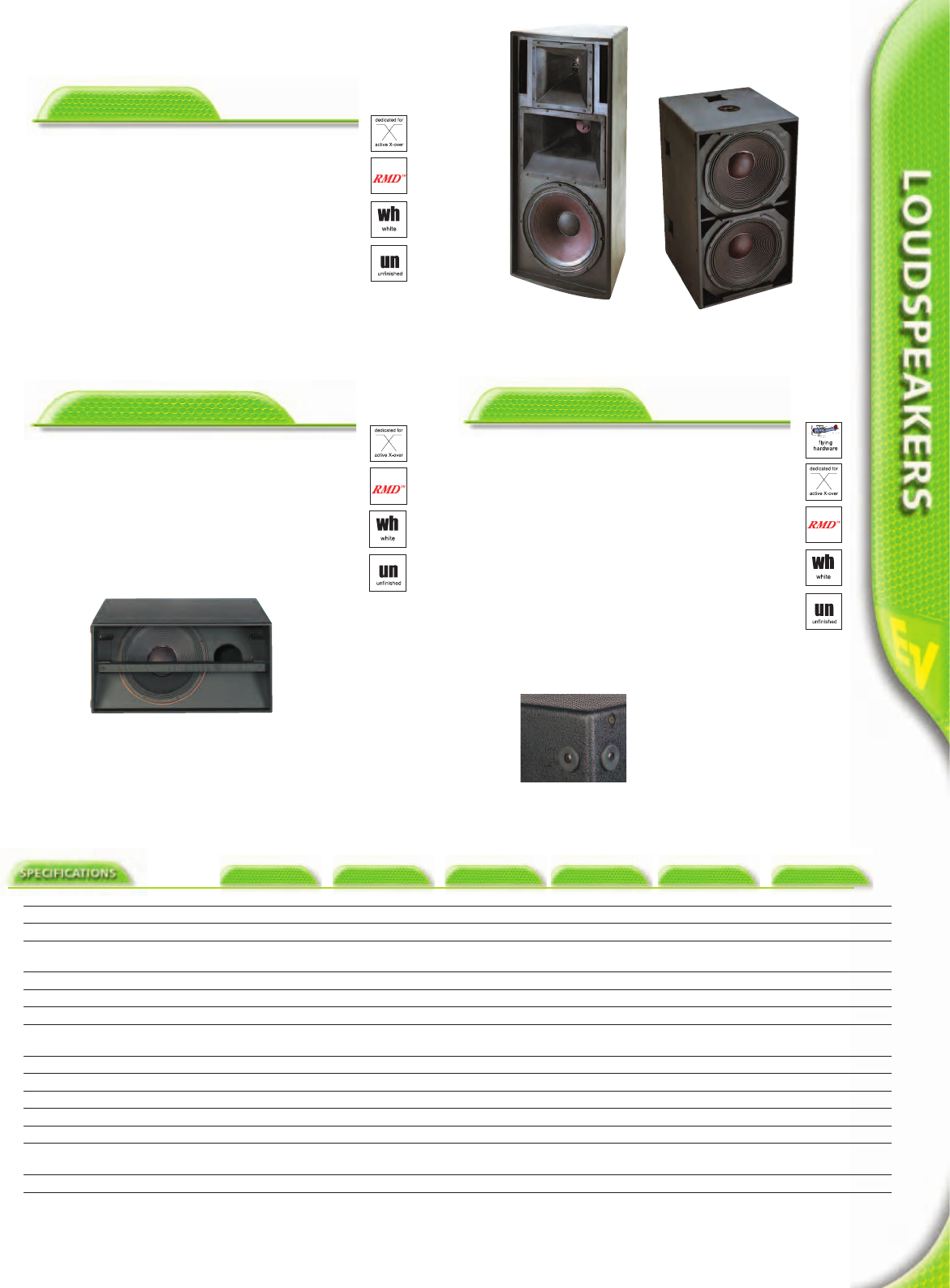

Xi-Series™

Xi-Series™ brings premium touring-quality sound into

installation. Inspired by the features of EV´s acclaimed

X-Array™ touring systems, the Xi-Series™ incorporates a

potent combination of very-high-output and ultra-linear

short-, medium- and long-throw systems, in two-way,

three-way and four-way configurations. Xi-Series™ incorpo-

rates the acoustical advantage of EV´s unique Ring-Mode

Decoupling (RMD™) and features HP horns to secure excel-

lent directivity control and even coverage.

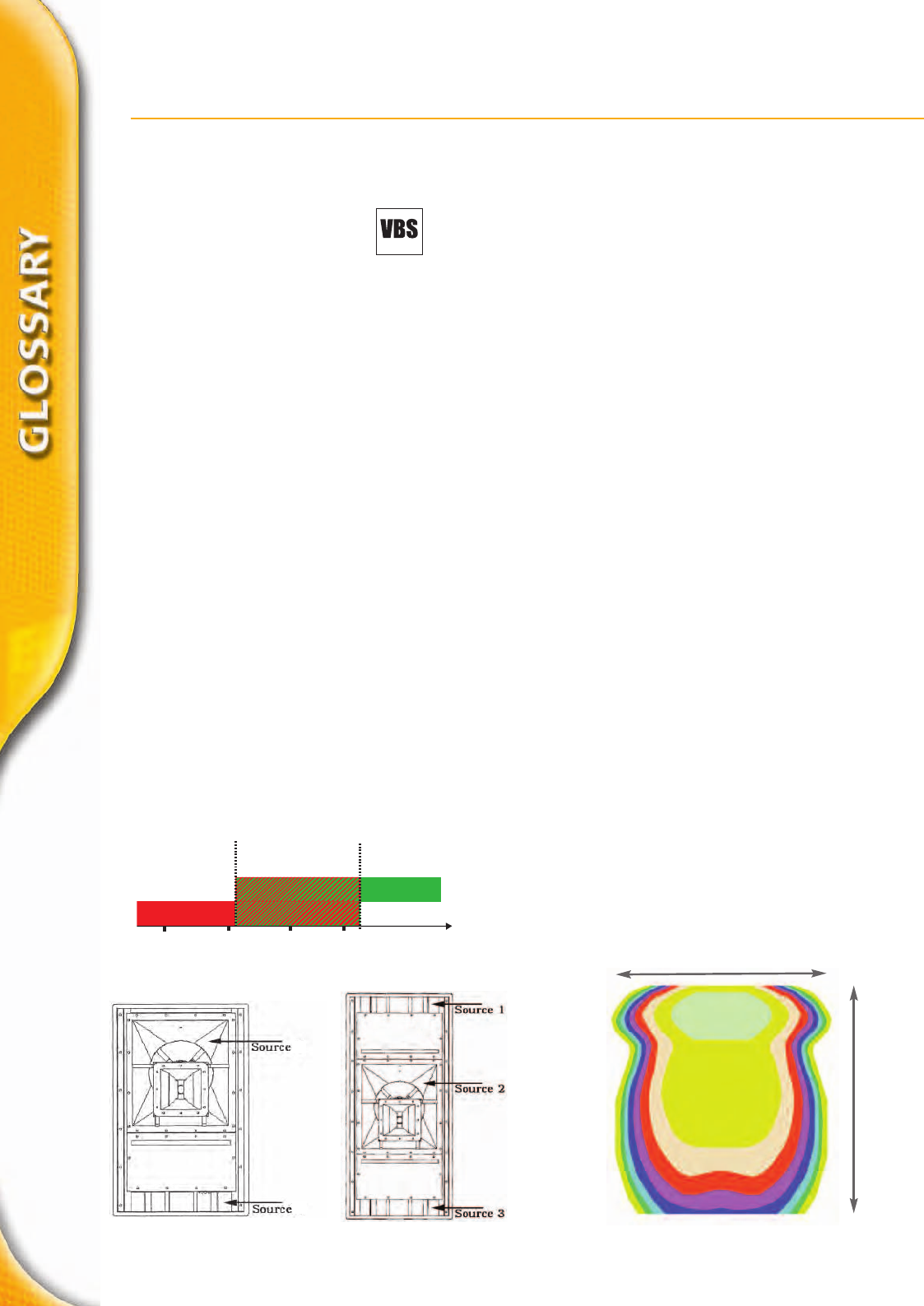

Aunique feature of the three-way systems is Vertical Beam

Shaping (VBS). The three-way systems may be in 2-element

or 3-element configuration to extend the vertical coverage-

angle control to as low as 125 Hz, well below that permitted

by the mid-bass horn alone (which typically has a band fre-

quency of 800 Hz): Unprecedented performance in a one-

box system!

To achieve sound performance without compromises, Xi-

Series™ is designed for multi-way active operation, except

Xi-1082 which contains a passive crossover network.

Xi-1082

• 2-Way Full-range

• Vented LF enclosure

• 1.25” voice coil (titanium diaphragm)

• Typical under-balcony slant also perfect

for front-stage and near-field use

•2 x 3/8”-16 mounting bracket inserts

Xi-1122A/85F

• 2-Way Full-range

• Vented LF enclosure

• 3” voice coil (titanium diaphragm) HF

• Integrated 35 mm stand mount

• Trapezoidal (15° per side)

Xi-1152A/64F

(60° x 40°)

Xi-1152A/94F

(90° x 40°)

•2-Way Full-range

• Solid bass down to 50 Hz (-3 dB)

• Vented LF enclosure

• 3” voice coil (titanium diaphragm) HF

• Integrated 35 mm stand mount

•Trapezoidal (15° per side)

Xi-1123A/106F

•3-Way High-Output Full-range

• Vented slot load designed LF enclosure

• Horn-loaded MB/HF section fully rotatable

• 3” voice coil (titanium diaphragm) HF

• Bypassable MB/HF passive crossover

• VBS mode brings vertical directivity

control down to 250 Hz

• Excellent directivity 500 Hz – 16 kHz

• Trapezoidal (9° per side)

Xi-2123A/106F

Xi-1183A/64F

• 3-Way High-Output Full-range

• Vented slot load designed LF enclosure

•Coaxial horn-loaded MB/HF section fully rotatable

• 3” voice coil (titanium diaphragm) HF

• VBS for vertical directivity control down to 200 Hz

• Excellent directivity control

• Trapezoidal (9° per side)

Xi-2153A/64F

• 3-Way High-Output Full-range

•Vented slot load designed LF enclosure

• Coaxial horn-loaded MB/HF section fully rotatable

• 3” voice coil (titanium diaphragm) HF

• VBS mode brings vertical directivity

control down to 150 Hz

• Excellent directivity control

• Trapezoidal (9° per side)

Xi-2122MHA/42F

Xi-1153A/64F

Xi-1122MHA/64F

• 2-Way output Far-field

• MB/HF section horn-loaded

• Excellent directivity control

• Trapezoidal (9° per side)

• 3” voice coil (titanium diaphragm) HF

•60° x 40° for near and mid field

• MB/HF section horn-loaded

• Excellent directivity control

• Trapezoidal (9° per side)

• 3” voice coil (titanium diaphragm) HF

Xi 2123A

Xi 1183A

Xi 1153A

Xi2122MHA

Xi 1122MHA

Xi 2153A

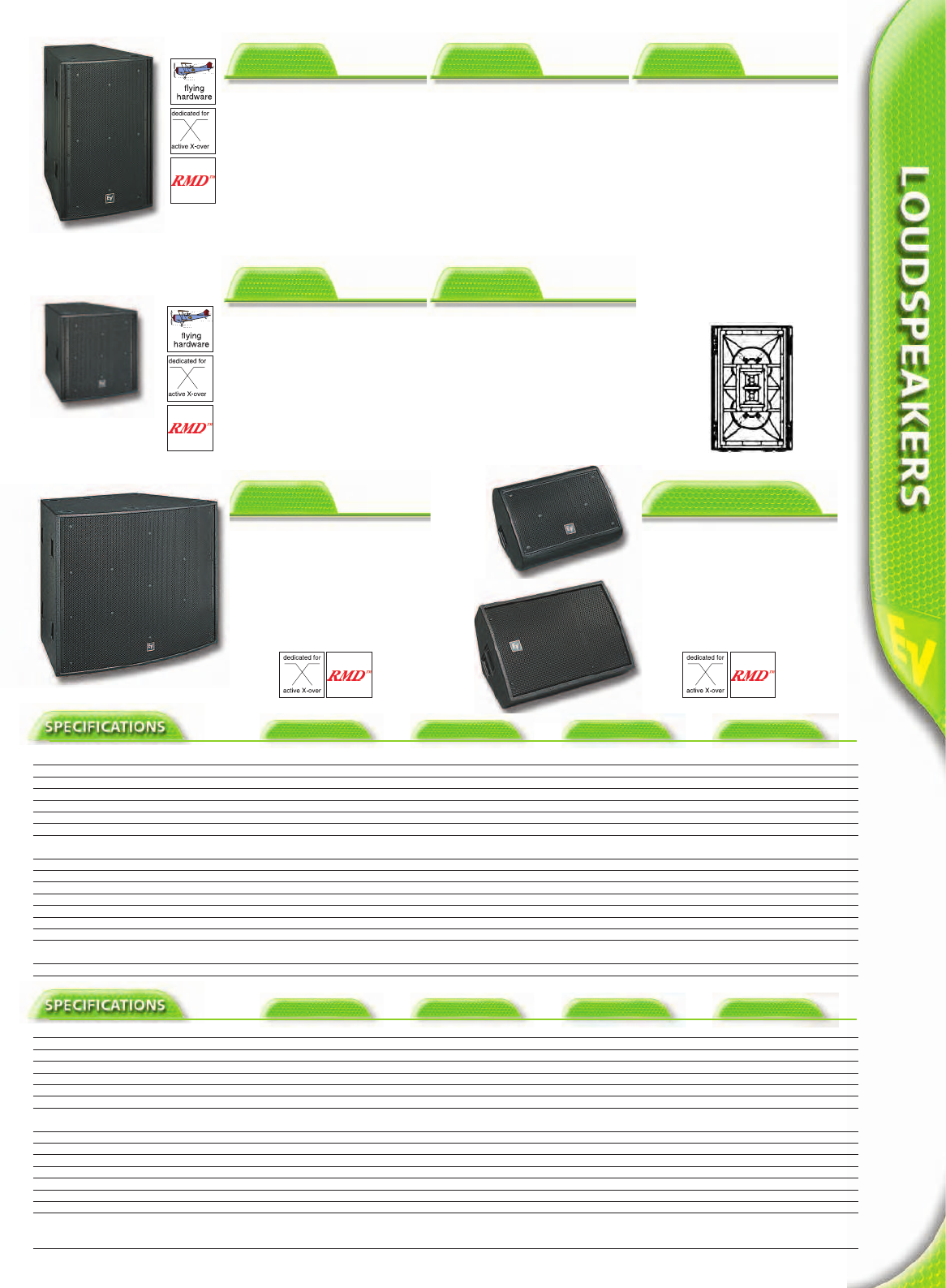

Xi-1191A(F) (F = flying version)

Xi-2181A (F) (F = flying version)

• 1 x 18” Subwoofer 1191 (F)

• 2 x 18” Subwoofer 2181 (F)

• Vented design

• Superior linear excursion capability

• Accurate transient detail

• trapezoidal (9° per side)

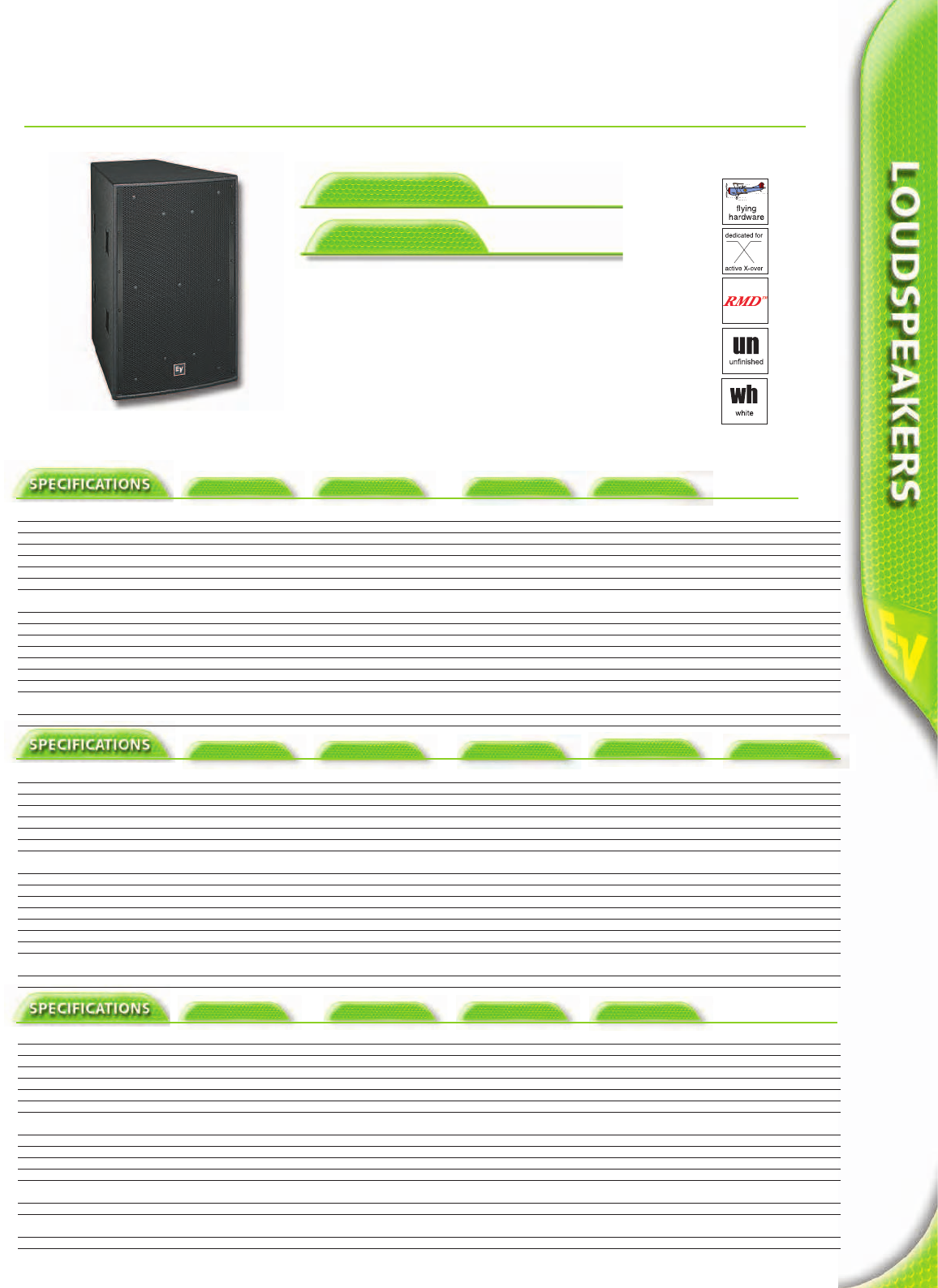

Specification overview

Xi-Series™

Xi-1082 Xi-1122A/85F Xi-1152A/64F Xi-1152A/94F

Frequency Range (-3 dB) 50 Hz - 20 kHz 58 Hz - 17 kHz 50 Hz - 16 kHz 50 Hz - 16 kHz

Recommended High-Pass Frequency 60-80 Hz (12 dB/Oct.) DX 38 preset DX 38 preset DX 38 preset

Axial Sensitivity SPL 1W/1m 90 dB 99/110 dB 98/113 dB 98/112 dB

Max. SPL / 1m (calc.); full space 118 dB 130/135 dB 132/138 dB 132/137 dB

Long-Term Power Handling 175 W 300/75 W 600/75 W 600/75 W

Short-Term Power Handling (Peak) 700 W 1.200/300 W 2.400/300 W 2.400/300 W

Coverage (nominal -6 dB) H° x V° 90° x 40° (CD Horn) 80° x 55° (CD Horn) 60° x 40° (CD Horn) 90° x 40° (CD Horn)

Directivity Index 11.2 dB (+1.8/-2.7 dB) 10.9 dB (+1.2/-2.9 dB) 13.4 dB (+1.3/-2.3 dB) 12.3 dB (+0.7/-1.5 dB)

2.000 - 20.000 Hz 1.200 - 16.000 Hz 1.200 - 16.000 Hz 1.200 - 16.000 Hz

LF woofer (transducer) 8" (---) 12" (DL-type) 15" (EVX-155) 15" (EVX-155)

MB woofer (transducer) --- --- --- ---

HF throat diameter (transducer) 1" (DH3) 1.4" (ND6-16) 1.4" (ND6-16) 1.4" (ND6-16)

Crossover Frequencies 3,500 Hz (passive) DX 38 preset DX 38 preset DX 38 preset

Nominal Impedance 8 Ω 8 Ω/16 Ω 8Ω/16 Ω 8 Ω/16 Ω

Minimum Impedance 5.8 Ω 8.5 Ω/13.4 Ω 6.3 Ω/14.0 Ω 6.3 Ω/12.2 Ω

Input Connections barrier strip 2 four-pin Speakon 2 four-pin Speakon 2 four-pin Speakon

Dimensions (H x W at front x D) 235 x 488 x 285 mm 584 x 375 x 356 mm 759 x 450 x 413 mm 759 x 450 x 413 mm

9.25” x 11.21” x 11.22” 22.99” x 14.76” x 14.01” 29.88” x 17.72” x 16.26” 29.88” x 17.72” x 16.26”

Net Weight 13.3 kg (29.3 lbs.) 31.3 kg (69 lbs.) 40.8 kg (89.9 lbs.) 40.8 kg (89.9 lbs.)

Xi-1123A/106F Xi-2123A/106F Xi-1183A/64F XI-1153A/64F Xi-1122MH64

Frequency Range (-3 dB) 75 Hz - 17 kHz 62 Hz - 18 kHz 66 Hz - 17 kHz 48 Hz - 17 kHz 125 Hz - 20 kHz

Recommended High-Pass Frequency DX 38 preset DX 38 preset DX 38 preset DX 38 preset Dx38 preset

Axial Sensitivity SPL 1W/1m 96/107/112 dB 100/107/112 dB 96/107/112 dB 91.5/107/112 dB 110/112 dB

Max. SPL / 1m (calc.); full space 129/140/137 dB 135/140/137 dB 128/138/137 dB 125/138/137 dB 141/137 dB

Long-Term Power Handling 300/300/75 W 600/300/75 W 600/300/75 W 600/300/75 W 300/75 W

Short-Term Power Handling (Peak) 1.200/1.200/300 W 2.400/1.200/300 W 2.400/1.200/300 W 2.400/1.200/300 W 1.200/300 W

Coverage (nominal -6 dB) H° x V° 100° x 60° (CD Horn) 100° x 60° (CD Horn) 60° x 40° (CD Horn) 60° x 40° (CD Horn) 60° x 40° (CD Horn)

Directivity Index 10.3 dB (+1.4/-1.2 dB) 10.1 dB (+1.6/-3.5 dB) 13.3 dB (+1.4/-1.1dB) 13.3 dB (+1.4/-1.1dB) 13.4 dB (+2.0/-1.8 dB)

500 - 16.000 Hz 160 - 16.000 Hz 800 - 16.000 Hz 800 - 16.000 Hz 800 - 16.000 Hz

LF woofer (transducer) 12" (DL-type) 2 x 12" (DL-type) 18" (EVX-180B) 15" (EVX-155) ---

MB woofer (transducer) 10" (DL-type) 10" (DL-type) 12" (ND-12) 12" (DL12ST) 12" (ND-12)

HF throat diameter (transducer) 1.4 (ND6-16) 1.4 (ND6-16) 1.4" (ND6-16) 1.4" (ND6-16) 1.4" (ND6-16)

Crossover Frequencies DX 38 preset DX 38 preset DX 38 preset DX 38 preset Dx38 preset

Nominal Impedance 12 Ω/16 Ω/16Ω 6 Ω/16 Ω/16Ω 8 Ω/16 Ω/16Ω 8 Ω/16 Ω/16 16 Ω/16

Minimum Impedance 8.7 Ω/9.6 Ω/12.4 Ω 4.7 Ω/10.3 Ω/12.6 Ω 7.7 Ω/8.7 Ω/13.1 Ω 7.5 Ω/8.7 Ω/13.1 9.9 Ω/12.9

Input Connections 2eight-pin Speakon 2 eight-pin Speakon 2 eight-pin Speakon. 2 eight-pin Speakon. 2 eight-pin Speakon

Dimensions (H x W at front x D) 801 x 456 x 473 mm 1007 x 456 x 473 mm 914 x 586 x 759 mm 914 x 586 x 759 mm 596 x 584 x 759 mm

31.54” x 17.95 x 18.62” 39.65” x 17.95” x 18.62” 36” x 23.07” x 29.88” 36” x 23.07” x 29.88” 23.47” x 22.99” x 29.88”

Net Weight 52.2 kg ( 115 lbs.) 68.0 kg (149.9 lbs.) 93.0 kg (205 lbs.) 93.0 kg (205 lbs.) 61 kg (136 lbs.)

Xi-2153A/64 F Xi-1191A Xi-2181A (F) Xi-2122MHA/42F

Frequency Range (-3 dB) 55 Hz - 18 kHz 37 Hz - 160 Hz 38 Hz - 160 Hz 120 Hz - 16 kHz

Recommended High-Pass Frequency DX 38 preset DX 38 preset DX 38 preset Dx38 preset

Axial Sensitivity SPL 1W/1m 100/107/112 dB 94 dB 99 dB 112/116 dB

Max. SPL / 1m (calc.); full space 133/138/137 dB 128 dB 136 dB 146/144 dB

Long-Term Power Handling 1.200/300/75 W 600 W 1.200 W 600/150 W

Short-Term Power Handling (Peak) 4.800/1.200/300 W 2.400 W 4.800 W 2.400/600 W

Coverage (nominal -6 dB) H° x V° 60° x 40° (CD Horn) essentially omni essentially omni 40° x 20°(CD Horn)

Directivity Index 13.4 dB (+1.4/-1.2 dB) 2.7 dB (+1.0/-0.6dB) 3.4 dB (+1.4/-0.9dB) 17.2 dB (+2.0/-2.7 dB)

800 - 16.000 Hz 63 - 100 Hz 63 - 200 Hz 800 - 16.000 Hz

LF woofer (transducer) 2 x 15" (EVX-155) 18" (EVX-180B) 2 x 18" (EVX-180B) ---

MB woofer (transducer) 12" (DL-type) --- --- 2x12" (ND12)

HF throat diameter (transducer) 1.4” (ND6-16) --- --- 2 X 1.4” (ND6-16)

Crossover Frequencies DX 38 preset DX 38 preset DX 38 preset Dx38 preset

Nominal Impedance 4Ω/16 Ω/16Ω 8 Ω 2 x 8 Ω 8 Ω/8Ω

Minimum Impedance 3.8 Ω/8.9 Ω/13.1 Ω 6.7 Ω 2x6.0 Ω 4.9 /7.0

Input Connections 2eight-pin Speakon 2 eight-pin Speakon 2 eight-pin Speakon 2 eight-pin Speakon

Dimensions (H x W at front x D) 1.233 x 586 x 759 mm 914 x 586 x 759 mm 914 x 586 x 759 mm 914 x 584 x 759 mm

48.54” x 23.07” x 29.88” 35.98” x 23.07” x 29.88” 35.98” x 23.07” x 29.88” 35.98” x 22.99” x 29.88”

Net Weight 109 kg (240 lbs.) 68.0 kg (149.9 lbs.) 83.5 kg (184 lbs) 86.3 kg (190 lbs.)

X-Array™

X-Array™ speaker systems provide world-class performance

and flexibility for the ultimate in concert touring systems. It

incorporates unique “one-man“ rigging and neodymium

magnets for very large arrays.

The X-Array™ X-Series™ represents important advance-

ments in concert-sound reinforcement technology. Design

goals called for the highest acoustic output capability with

the highest fidelity in relatively lightweight, compact enclo-

sures that were easy to array. The individual systems, drivers,

horns, enclosures, rigging hardware and system configura-

tions were designed from the ground up specifically for this

high-performance application. For easier handling, special

speaker dollies are available.

RMD™ X-Array™’s design process also resulted in the

development of EV’s most ingenious acoustic technologies,

RMD™. RMD™ gives X-Array™ unprecedented acoustic

output and excellent directivity control.EV´s traditional top-

down development strategy ensured the incorporation of

this essential acoustic advantage into other EV products.

Rigging for Large Arrays:unique rear-hinge system for

fast, easy and secure rigging. A 64-box hang goes up or

down in 30 minutes. Front rigging straps control vertical

aiming, rear fixed hinge makes tilting easy. Mating position-

ing recesses on cabinet tops and bottoms help to assemble

and disassemble an array on the ground, a layer at a time. A

detailed flying manual and structural ratings handbook is

available. The X-Array™ one-person rigging hardware has

earned German TÜV approval.

Neodymium magnetics: for lighter weight and maximum

acoustic output. All 12-inch mid-bass transducers are the

ND12A, for a 3-dB average increase in output. Neodymium

in the ND6-16 compression driver increases output in the

upper octaves. The ND6-16 driver features a 3” titanium

diaphragm.

Amping and Controller: X-Array™ is powered by EV´s

world-famous Precision Series™ amplifiers and controlled by

Klark Teknik DN9848 digital 4-in/8-out controller, DSP con-

trolled Precision Series amplifiers, or the Electro-Voice Dx38

for flexible and easy configurations.

X-Array™ is constructed from 13-ply birch plywood fin-

ished in black textured paint and protected by a powder-

coated steel front grille backed with foam.

• 3-way output near-field

• MB/HF section horn-loaded

and rotatable

• Height same as Xf, Xb

• Excellent directivity control

• Trapezoidal (9° per side)

Xcn

• 2-way output near-field

• Height same as Xcb

• MB/HF section identical to

Xn and rotatable

•Excellent directivity control

• Trapezoidal (9° per side)

Xcb

• High-output LF cabinet

• Vented design

• Height same as Xcn

• Equivalent to half of an Xb

•Accurate transient detail

• Trapezoidal (9° per side)

Xds

• Extraordinary output

low-end sub

• Manifolded, vented design

• Accurate transient detail

• Trapezoidal (18° per side)

• Designed for ground

stacking

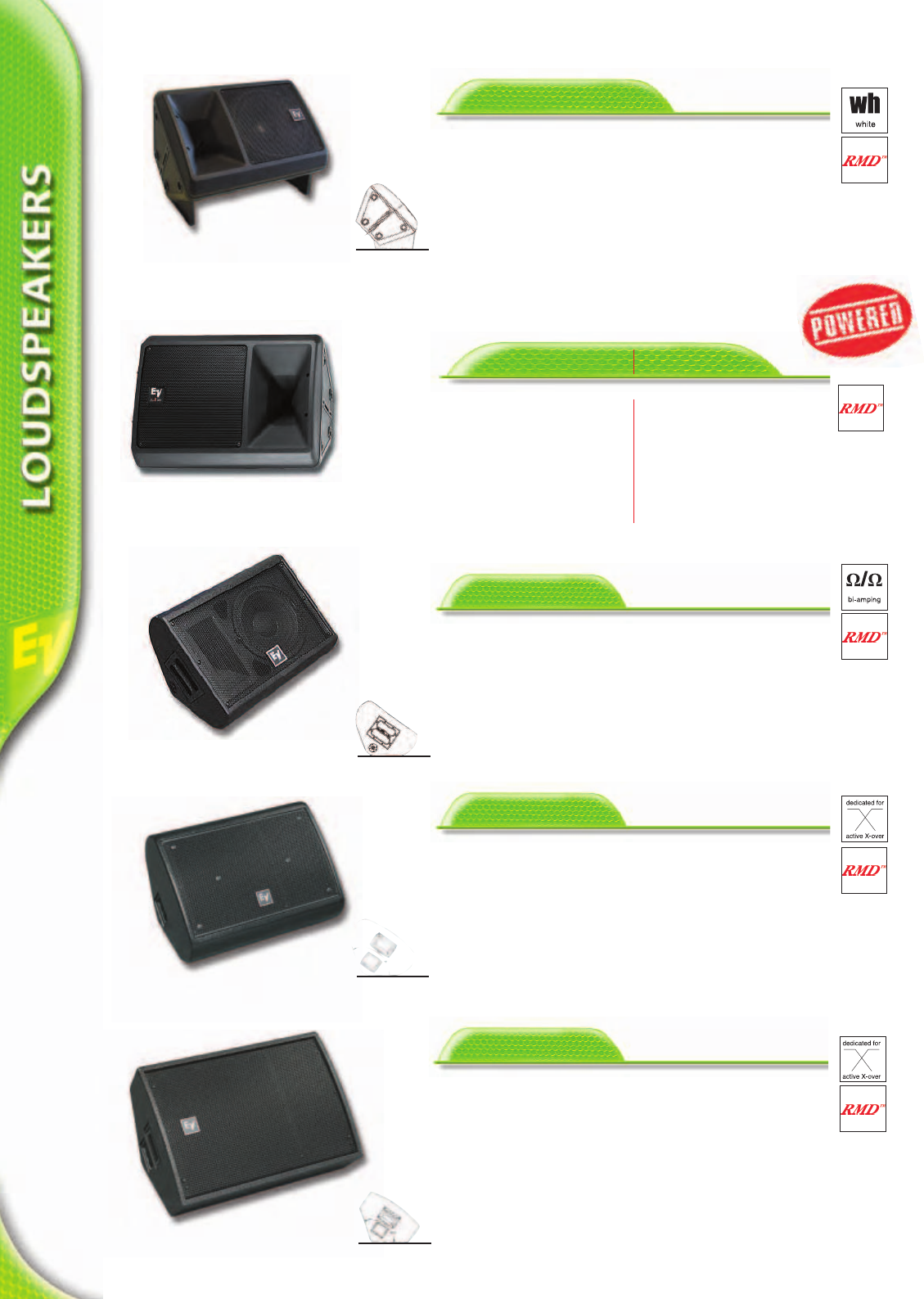

Xw 12A / Xw 15A

• 2-way high-output

Floor monitor

• Vented LF enclosure

• 3” voice coil (titanium

diaphragm) for low distortion

• Two symmetrical 55° angles

• 2-way output far-field

• MB/HF section horn-loaded

• Height same as Xn, Xb

• Excellent directivity control

• Trapezoidal (9° per side)

• High-output LF cabinet

• Manifolded, vented design

• Height same as Xn, Xf

• Accurate transient detail

• Trapezoidal (9° per side)

Xf, Xn and Xb look

identical

Xcn and Xcb look

identical

Sketch of a Xf

Xf Xn Xcn Xb

Frequency Range (-3 dB) 125 Hz - 20 KHz 48 Hz - 20 KHz 125 Hz - 20 KHz 37 Hz - 200 Hz

Recommended High-Pass Frequency Systemcontroller Systemcontroller Systemcontroller Systemcontroller

Axial Sensitivity SPL 1W/1m 112/116 dB 95/110/112 dB 110/112 dB 98.5 dB

Max. SPL / 1m (calc.); full space 146/144 dB 129/141/137 dB 141/137 dB 135 dB

Long-Term Power Handling 600/150 W 600/300/75 W 300/75 W 1.200 W

Short-Term Power Handling (Peak) 2.400/600 W 2.400/1.200/300 W 1.200/300 W 4.800 W

Coverage (nominal -6 dB) H° x V° 40° x 20° (CD Horn) 60° x 40° (CD Horn) 60° x 40° (CD Horn) 240° x 300° (63-200 Hz)

Directivity Index 17.2 dB (+2.0/-2.7 dB) 13.7 dB (+1.4/-1.4 dB) 13.4 dB (+2.0/-1.8 dB) 3.4 dB (+1.4/-0.9 dB)

800 Hz - 16 KHz 800 Hz - 16 KHz 800 Hz - 16 KHz 63 - 200 Hz

LF woofer (transducer) 18" (EVX-180B) 2x18" (EVX-180B)

MB woofer (transducer) 2 x 12" (ND12A) 12" (ND12A) 12" (ND12A) ---

HF throat diameter (transducer) 2 x 1.4" (ND6-16) 1.4" (ND6-16) 1.4" (ND6-16) ---

Crossover Frequencies Dx38 preset Dx38 preset Dx38 preset Dx38 preset

Nominal Impedance 8Ω/8 Ω 8Ω/16 Ω/16 Ω 16 Ω/16 Ω 2 x 8 Ω

Minimum Impedance 4.9 Ω/7.0 Ω 6.5 Ω/9.4 Ω/14.0 Ω 9.9 Ω/12.9 Ω 2 x 6.4 Ω

Input Connections 2eight-pin Speakon 2eight-pin Speakon 2eight-pin Speakon 2eight-pin Speakon

Dimensions (H x W at front x D) 914 x 584 x 759 mm 914 x 584 x 759 mm 596 x 584 x 759 mm 914 x 584 x 759 mm

36” x 22.99” x 29.88” 36” x 22.99” x 29.88” 23.47” x 22.99” x 29.88” 36” x 22.99” x 29.88”

Net Weight 87.1 kg (192 lbs.) 87.1 kg (192 lbs.) 60.8 kg (134 lbs.) 83.5 kg (184 lbs.)

Xcb Xds Xw12A Xw15A

Frequency Range (-3 dB) 37 Hz - 200 Hz 32 Hz - 200 Hz 65 Hz - 16 KHz 55 Hz - 18 KHz

Recommended High-Pass Frequency Systemcontroller Systemcontroller Systemcontroller Systemcontroller

Axial Sensitivity SPL 1W/1m 95 dB 100 dB 98/110 dB 99/110 dB

Max. SPL / 1m (calc.); full space 129 dB 137 dB 129/135 dB 133/135 dB

Long-Term Power Handling 600 W 1.200 W 300/75 W 600/75 W

Short-Term Power Handling (Peak) 2.400 W 4.800 W 1.200/300 W 2.400/300 W

Coverage (nominal -6 dB) H° x V° 300° x 270° (63-200 Hz) 180° x 200° (63-200 Hz) 55° x 80° (CD Horn) 55° x 80° (CD Horn)

Directivity Index 2.7 dB (+1.0/-0.6 dB) 4.8 dB (+2.1/-1.7 dB) 11.6 dB (+2.3/-2.1dB) 11.6 dB (+3.0/-3.6dB)

63 - 200 Hz 63 - 200 Hz 1,200 Hz - 16 KHz 1,200 Hz - 16 KHz

LF woofer (transducer) 18" (EVX-180B) 2 x 18" (EVX-180B) 12" (DL-type) 15" (EVX-155)

MB woofer (transducer) --- --- DL12ST ---

HF throat diameter (transducer) --- --- 1.4" (ND6-16) 1.4" (ND6-16)

Crossover Frequencies Dx38 preset Dx38 preset Dx38 preset Dx38 preset

Nominal Impedance 8 Ω 2 x 8 Ω 8 Ω/16 Ω 8 Ω/16 Ω

Minimum Impedance 5.6 Ω 2 x 6.1 Ω 8.2 Ω/10.5 Ω 7.2 Ω/14.3 Ω

Input Connections 2eight-pin Speakon 2eight-pin Speakon 2four-pin Speakon 2four-pin Speakon

Dimensions (H x W at front x D) 596 x 584 x 759 mm 914 x 1.166 x 759 mm 534 x 449 x 313 mm 644 x 452 x 340 mm

23.47” x 22.99” x 29.88” 35.98” x 45.91” x 29.88” 23” x 17.2” x 12.2” 25.4” x 18” x 13.4”

(in floor position) (in floor position)

Net Weight 55.8 kg (123 lbs.) 121.0 kg (266.8 lbs.) 21.9 kg (48 lbs.) 28.4 kg (62.5 lbs.)

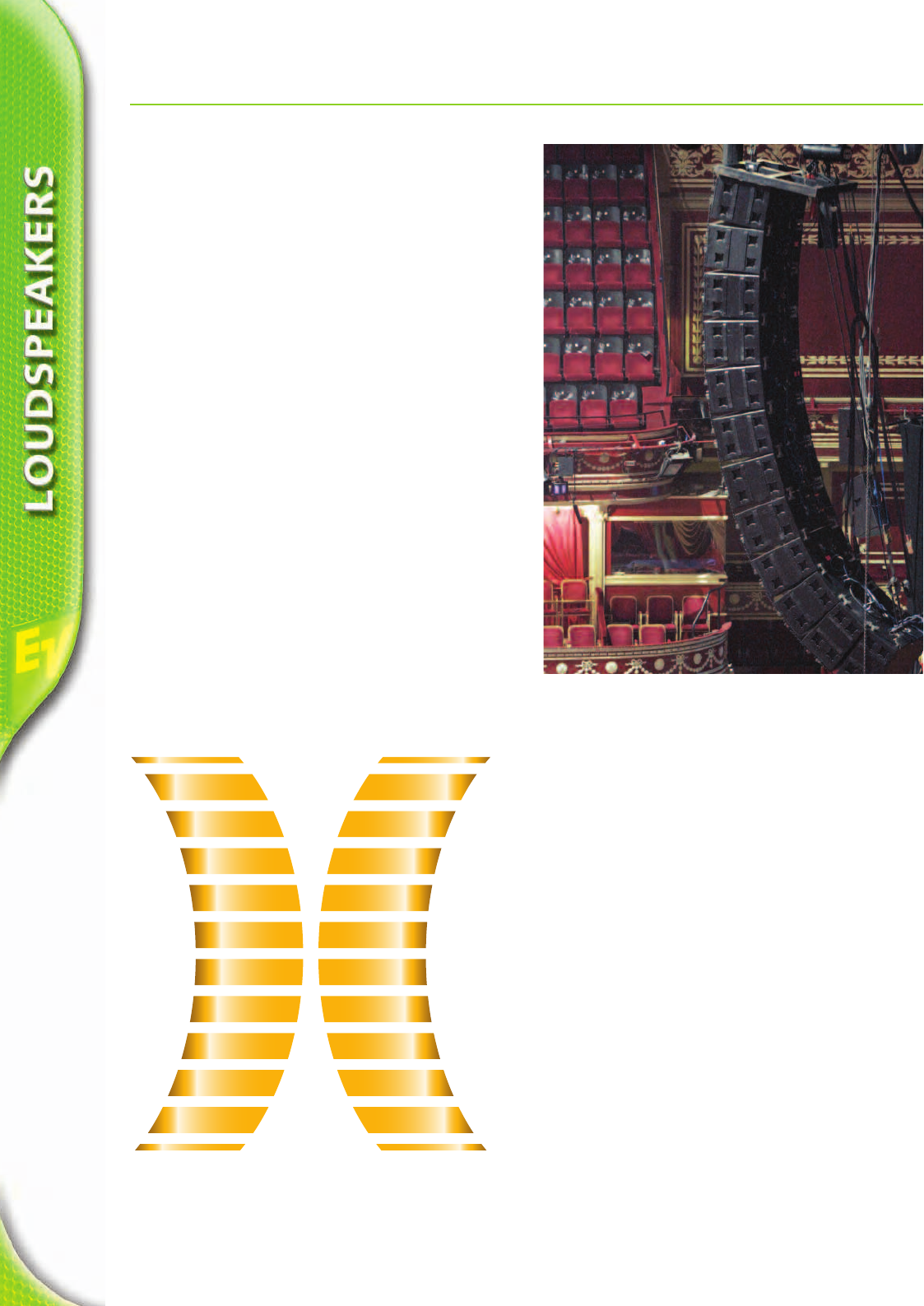

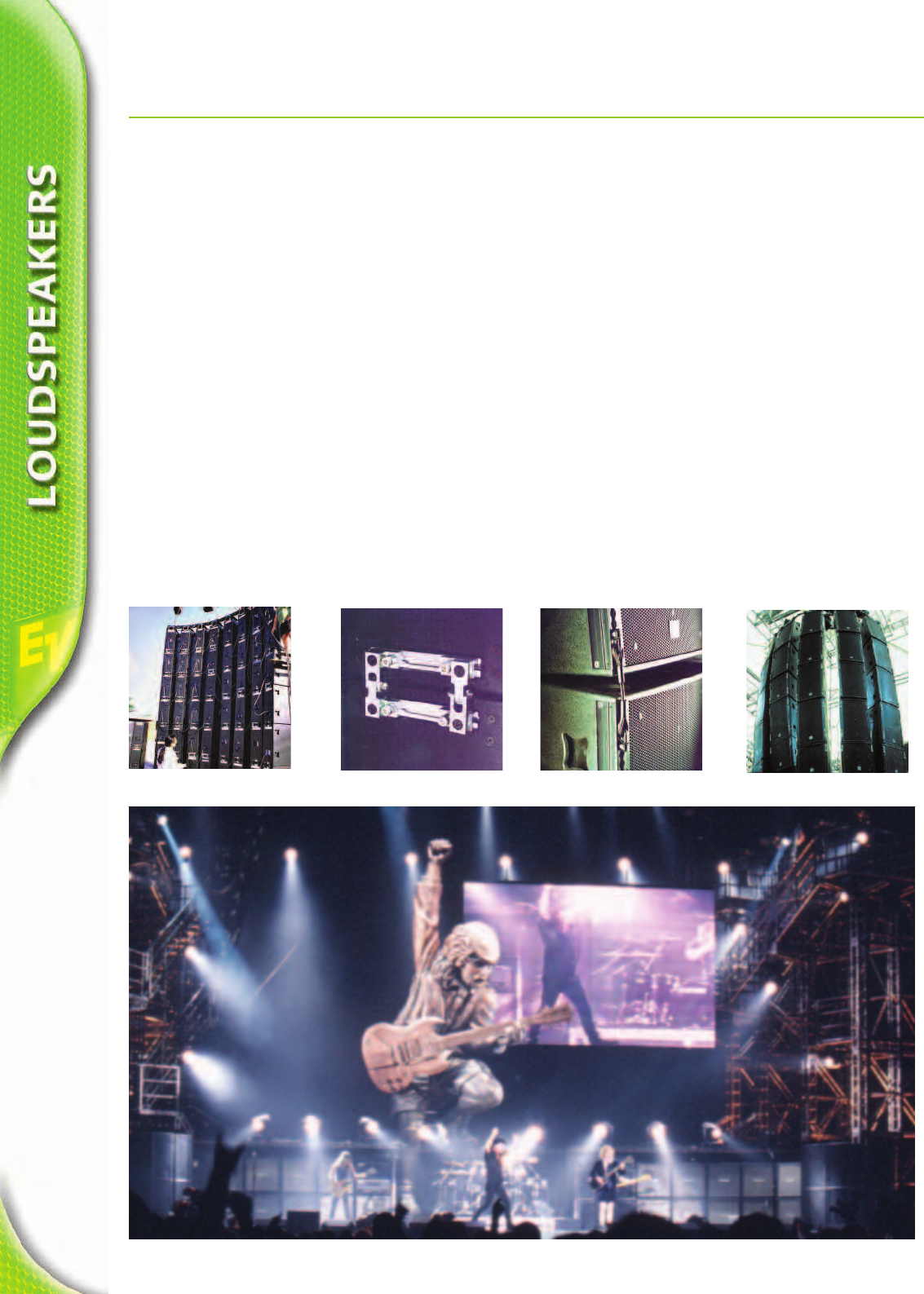

X-Line™

Development of the new EV®X-Line™ system was driven by

the need for a high-level concert touring enclosure that com-

bines the sonic impact and vocal intelligibility of the

renowned X-Array™ system with the uniform, predictable

coverage that only a line-array configuration can deliver. The

EVengineering team set out to develop the next generation

of line-array systems, combining their years of experience in

the development of X-Array™ with the absolute latest state-

of-the-art technologies. As a matter of course, X-Line™ fea-

tures the essential acoustical advantage of RMD™.

The X-Line™ system was designed to provide wide horizon-

tal dispersion (90 degrees) from a single vertical line array

while providing exceptionally coherent wavefront summing

in the vertical plane. At the heart of X-Line™ is a proprietary

high-frequency wavefront alignment and summation device

–the Hydra™ – that provides planar and time-coherent

signal addition. The broad bandwidth vertical planar sum-

ming provides uniform sound field distribution throughout

the listening area.

Stereo imaging is improved by the X-Line™´s full-bandwidth

mid-bass loading. Extended low-frequency polar control pro-

duces more uniform power response, further enhancing over-

all system intelligibility.The overall power response of the X-

Line™ is very uniform across a wide frequency spectrum, thus

enabling the system´s very musical sonic character.

If every performance space conformed to the same acoustic

ideal, any linear loudspeaker array would suffice. But every

arena, concert hall, and stadium is a unique space, and the

one-box, one-dimensional design of most linear arrays just

can´t adapt. X-Line™ is different. X-Line™ combines the

power and vocal clarity of the X-Array™ with a versatile,

fully configurable linear array design, plus the efficiency of

one-person rigging.

X-Line™ lets you stack Xvls enclosures at the top of an array

for long throw with a 90° horizontal included angle,

followed by Xvlt enclosures for the shorter throw and 120°

horizontal coverage needed at the J-curve of the array.

Completing the X-Line™ system areXsub subwoofers that

can be flown next to the main array or ground stacked.

X-Line™ is made of 13-ply birch plywood with structural

aluminum reinforcement and is finished with a rugged

foam-backed steel grille to protect the drivers. A user guide

with detailed specifications is available on request. Electro-

Voice recommends using the Klark Teknik DN9848 or EV’s

Dx38 as the system controller, along with EV®P3000 power

amplifiers. P3000RL or TourGrade DSP-controlled amplifiers

provide the ultimate solution in control throught IRIS-Net™.

Xvls

• High-output, three-way line-array system

• Rectangular cabinet designed for upper section of linear array

• 90° horizontal coverage pattern ideal for long-throw

applications

• New EV®Hydra™ time-synchronized HF vertical plane-wave

generator provides excellent far-field summing

• Ring Mode Decoupling®(RMD®)provides level-

independent fidelity, greater midbass clarity, and high

frequency accuracy

• Proprietary rigging allows for rapid venue load-in and

load-out

Xvlt

• High-output, three-way line-array system

• Five-degree trapezoidal cabinet design for lower "J" section

of linear array

• 120° horizontal coverage typical for medium-throw

assignment

• New EV Hydra™ time-synchronized HF vertical plane wave

generator provides excellent far-field summing

• Ring Mode Decoupling®(RMD®)provides level-independent

fidelity, greater midbass clarity, and high frequency accuracy

• Proprietary rigging allows for rapid venue load-in and

load-out

Xsub/f

• High-output, line-array subwoofer system

• Rectangular cabinet with footprint identical to other X-Line

systems

• Can be flown or ground-stacked with non-flying version

• Proprietary rigging allows for rapid venue load-in and

load-out

Xvls Xvlt Xsub/f

Frequency range (-3 dB) 40 Hz–16 kHz 40 Hz–16 kHz 33–400 Hz

Recommended high-pass frequency 50 Hz 50 Hz 33 Hz

Sensitivity (SPL 1 W/1 m) (LF/MB/HF) 101 dB/111 dB/118 dB 101 dB/111 dB/117 dB 100/106 dB*

Max. SPL/1m (calc.) (LF/MB/HF) 132 dB/139 dB/142 dB 132 dB/139 dB/141 dB 131/137 dB*

Long-term power handling (LF/MB/HF) 1,200 W/600 W/225 W 1,200 W/600 W/225 W 1,200 W

Short-term power handling (LF/MB/HF) 4,800 W/2,400 W/900 W 4,800 W/2,400 W/900 W 4,800 W

Coverage (H° x V°) 90° x 5° 120° x 9° 200° x 325°

LF driver 2 x EVX-155 Plate 2 x EVX-155 Plate 2 x EVX-180B

MB driver 2 x ND08 2 x ND08 —

HF driver 3 x ND6 3 x ND6 —

Crossover frequencies 220 Hz/1,250 Hz 220 Hz/1,250 Hz 80 Hz

Nominal impedance 2 x 8 Ω/8 Ω/5.3 Ω 2 x 8 Ω/8 Ω/5.3 Ω 2 x 8 Ω

Input connections 2 Neutrik®NL8 2 Neutrik®NL8 2 Neutrik®NL8

Dimensions (H [front/rear] x W x D) 494.3/494.3 x 1244.6 x 740.4 mm 494.3/429.7 x 1244.6 x 740.4 mm 494.3/494.3 x 1244.6 x 740.4 mm

19.46"/19.46" x 49" x 29.15" 19.46"/16.92" x 49" x 29.15" 19.46"/19.46" x 49" x 29.15"

Net weight 117 kg (257 lbs.) 115 kg (253 lbs.) 92 kg (202 lbs.)

*1/2-space

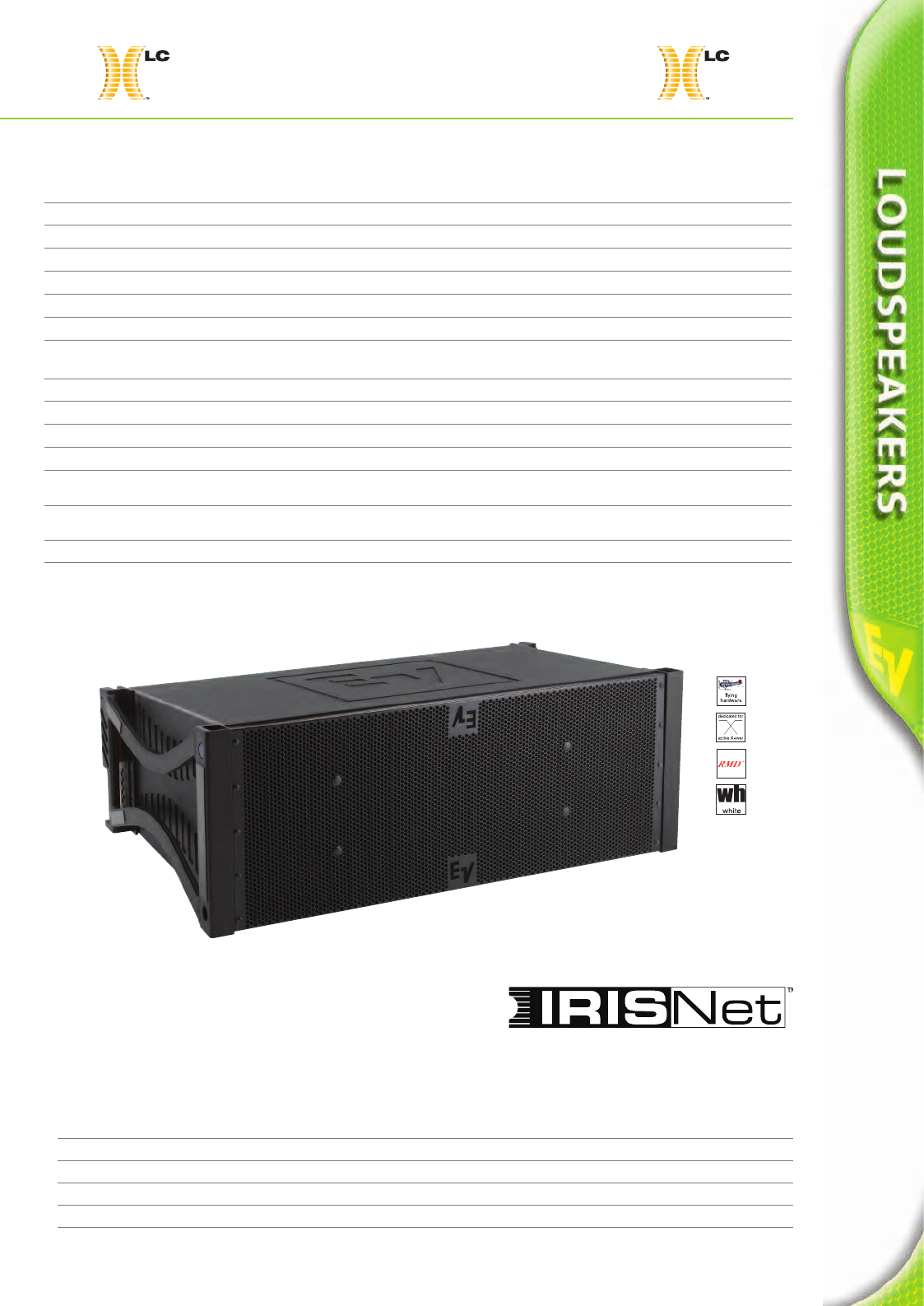

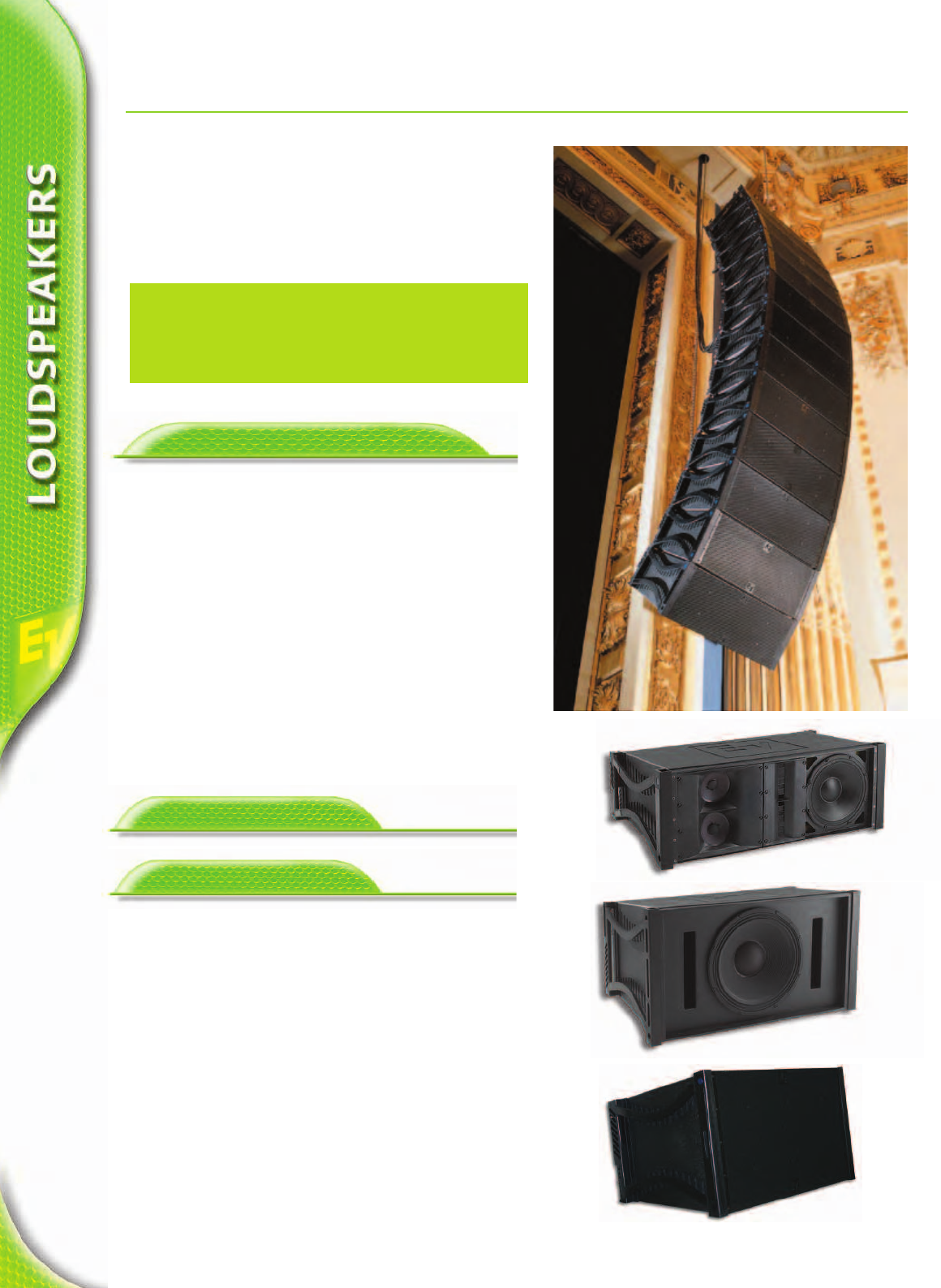

This cabinet is the main component in a XLC line array.

Starting with a minimum of four cabinets, a reasonable array

size uses six to eight boxes, up to a maximum of 16 for larger

arenas. The three-way axis-asymmetric design includes a single

EV DL-12 low-frequency/mid-bass woofer optimized for this

cabinet. Two 6.5” DVN2065 horn-loaded drivers in a vertical

array cover the mid-frequency bandpass.

The XLC127DVX utilizes two ND6 (3” voice-coil) neodymium

compression drivers loaded on two Hydra™ plane wave gener-

ators. With a horizontal coverage of 120°, the XLC system

accurately covers wide areas while maintaining excellent imag-

ing and lobe-free coverage. This cabinet is also available with

dedicated rigging for fixed installations as XLCi 127DVX.

The X

SYSTEM

Subwoofer

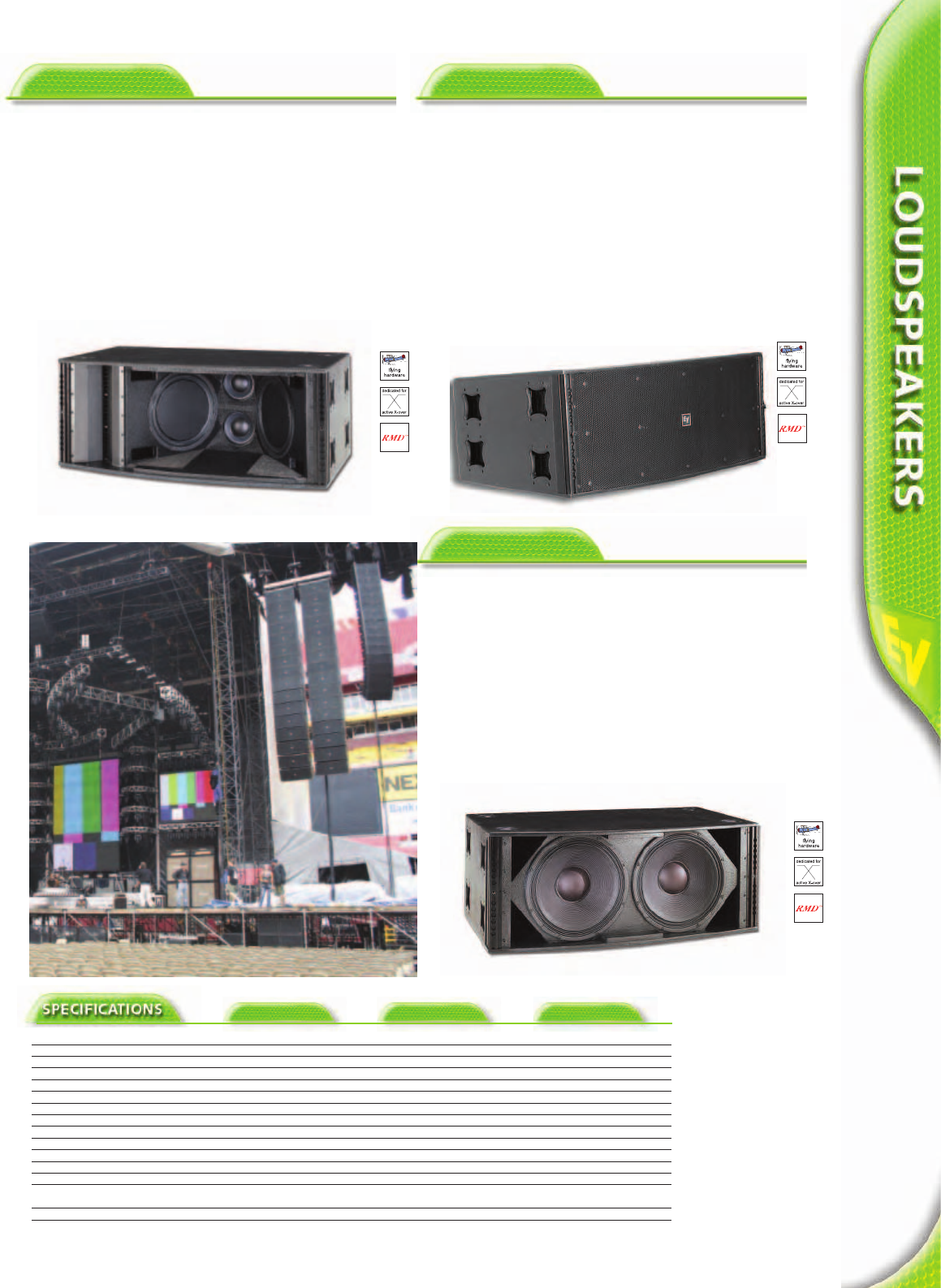

If subwoofers shall be integrated in the array,or flown sepa-

rately, XLC offers two options. The XLC118 is a direct radiating

18" sub using the EVX180B woofer. The XLC215 has the exact

same dimensions, but utilizes two of EV's latest15-inch DVX-

woofers, the DVX3150. Flying subwoofers benefits in a more

even front-to- back SPL distribution. Both cabinets arealso

available as i-versions for installations.

XLC 118 / XLCi 118

XLC 215 / XLCi 215

XLC 127DVX / XLCi 127DVX

Main Cabinet

While the flagship X-Line meets the acoustical needs of the

largest venues and arenas, EV’s compact line-array, XLC, was

designed to match the demands for easy setup and transporta-

tion combined with outstanding sonic results in a large variety

of venue sizes.

SYSTEM FEATURES:

•Wide, constant horizontal coverage pattern of 120°

•Four-way system; bi- or tri-ampable fullrange cabinets

•Rigging hardware totally integrated into cabinets

•Front rigging/rear aiming concept enables precise

control of vertical line source pattern

Specifications

Tecnical Specifications for XLC Cabinets

Specification Xlc 127DVX / Xlci 127DVX Xlc 118 / Xlci 118 Xlci215

Horizontal Coverage 120° 300° 300°

LFPower Handling 500 W cont./2000 W peak 600 W cont./2400 W peak 1000W/4800W

MB Power Handling 300 W cont./1200 W peak — —

HF Power Handling 150 W cont./600 W peak — —

Sensitivity (LF/MB/HF) 95 dB/101 dB/110 dB 102 dB* 103 dB*

Max. SPL (calc.) 126/130/138 dB 130/136 dB* 139 dB

LF Transducer 1x12” DVX3121 EVX180B 2xDVX3150

MBTransducer 2xDVN 2065

HF Transducer 2xND6-16 — —

Connectors 2Neutrik® NL8 2 Neutrik® NL8 2 Neutrik® NL8

Enclosure Material EV®-coated plywood EV®-coated plywood EV®-coated plywood

Grille Powder-coated steel Powder-coated steel Powder-coated steel

Environmental Specs IEC 529 IP24 IEC 529 IP24

MIL STD 810 MIL STD 810

Dimensions (H x W x D) 362 x 991 x 572 mm 546 x 991 x 572 mm 546 x 991 x 572 mm

14.25” x 39 ” x 22.5” 21.5” x 39” x 22.5” 21.5” x 39” x 22.5”

Net Weight 50,4 kg (111 lbs) 54.5 kg (120 lbs) 54.5 kg (120 lbs)

*Half space environment

Recommended System Drive for XLC (in triamp mode)

Cabinet: XLC 127DVX XLC 118 XLC215

HF: CP3000S / P3000 RL / TG5 - -

MB: CP3000S / P3000 RL / TG5 - -

LF: CP3000S / P3000 RL / TG5 CP4000 S / P3000 RL CP4000S/P3000RL/TG5

System Controller: Dx38 or DSP Controlled Precision Series Amplifiers (RL) or Tour Grade

Perfect System Control using

RACE-processed presets for DX38

and P-Series RL Remote Amplifiers

Xlc 127DVX shown

X–Line Very Compact

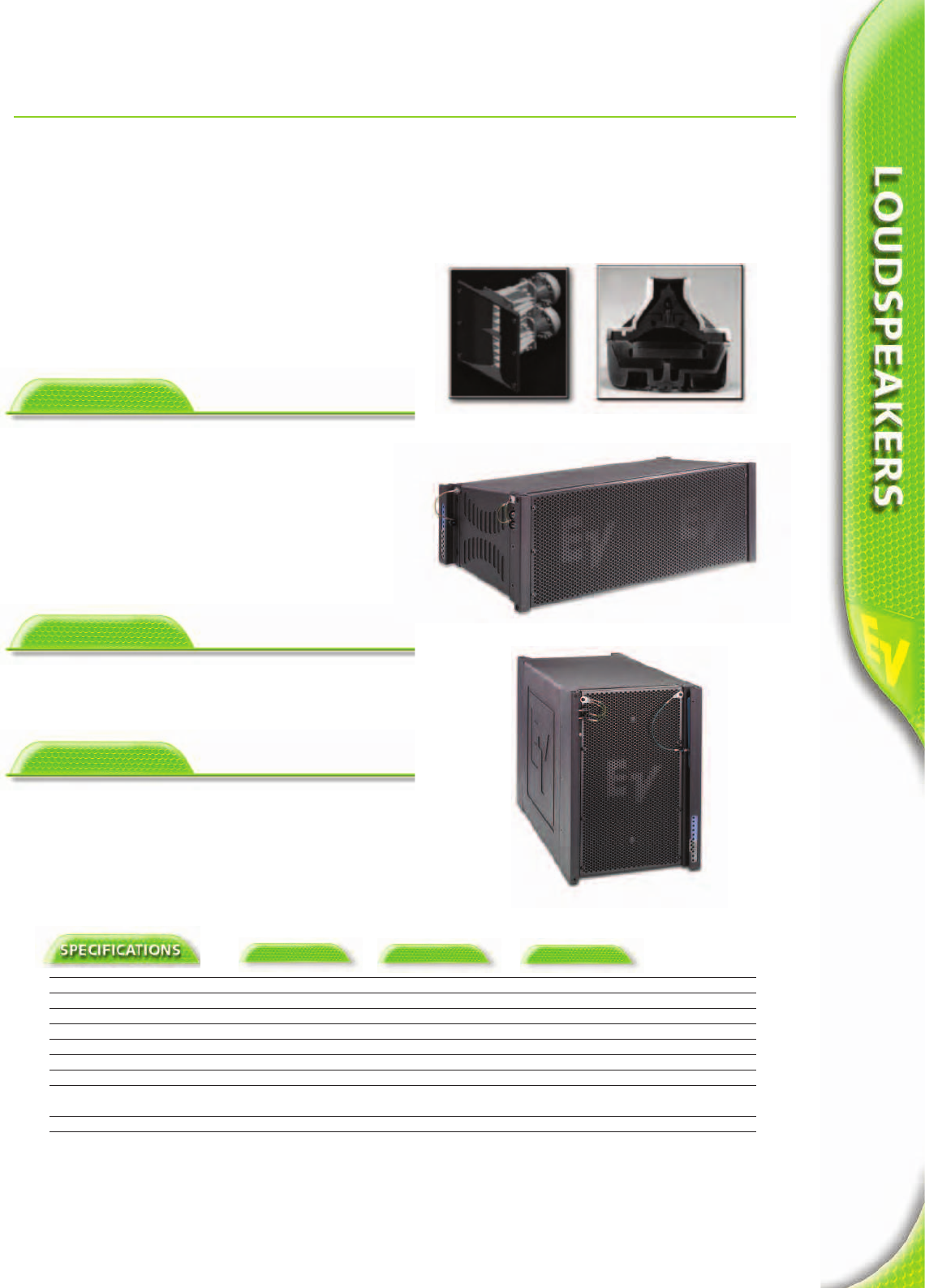

Designed for most demanding audio applications that

require the most compact format, X-Line Very Compact

offers a unrivaled combination of output capability, sonic

performance and size. Combined with the large amount of

accessories like coupler-grids, ground-stack kit and even

adapter grid to the bigger XLC, XLVC is a preferred choice

for concert applications as well as installations. While

expectations of audio performance in terms of SPL, natu-

ral response and uniform coverage have expanded,

demand for smaller and lighter sound systems has

increased. X-Line Very compact offers the best of both

worlds: XLD systems are capable of producing concert SPL

levels on full bandwidth in small to medium sized venues.

Smaller XLE-systems are ideal for critical audio require-

ments where overall cluster size is highest priority.

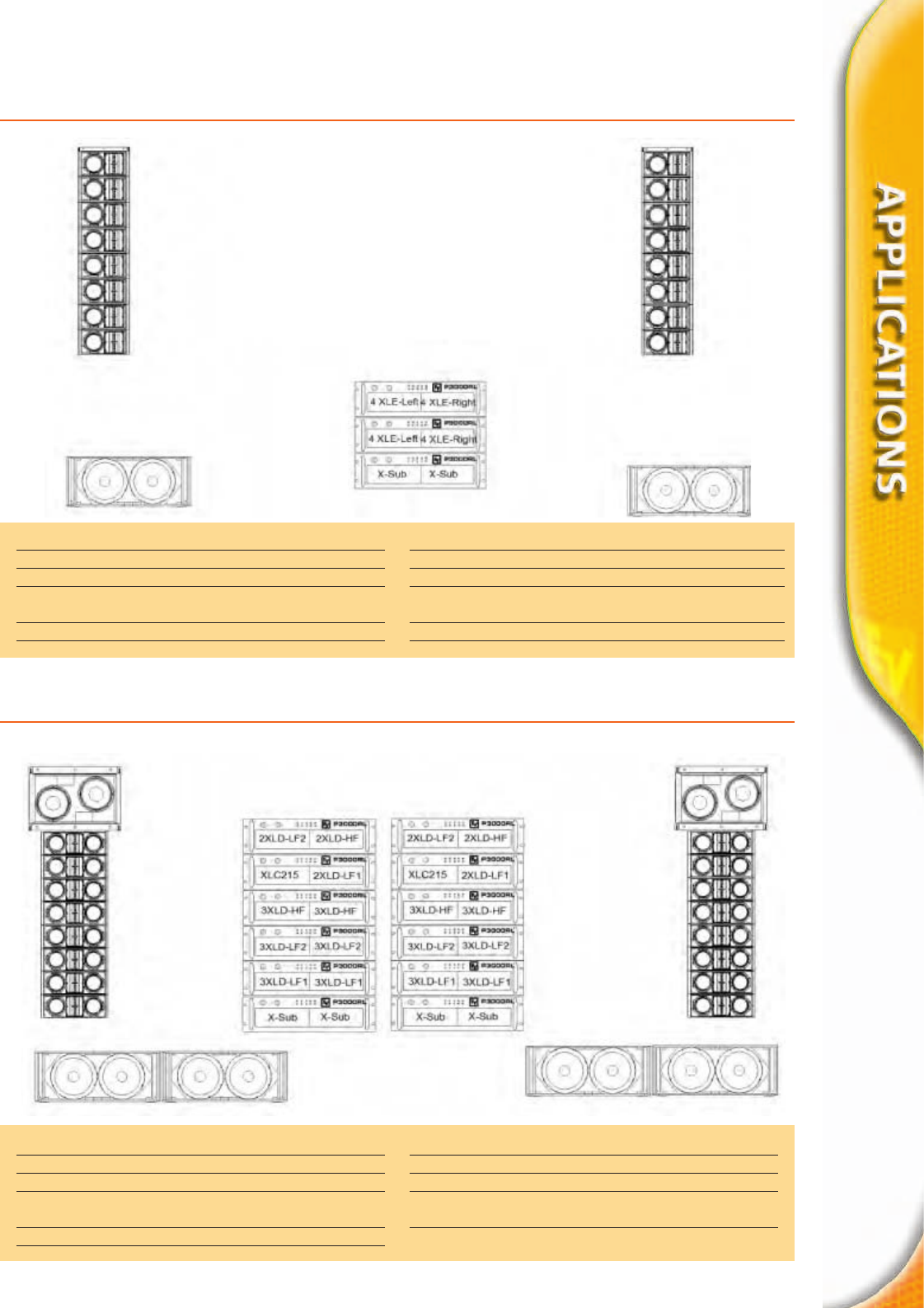

X-Line Very Compact

Two options of size and performance:

XLD or XLE

•Two ND2HF drivers for maximum

output & headroom

•Unrivaled even front-to-back and

side-to-side coverage

•Easy to set-up, transport and operate

•Complete system including DSP,

amplification, and rigging

X–Line Very Compact

XLE181(not shown)

•Full Bandwidth 2-Way Element (75Hz-20kHz)

•Most Compact, Very Lightweight

•Simple, Quick Integrated Rigging

•Bi-Amp or Fullrange Operation

•Neodymium Transducers

•LAPS Aiming and Flying Software

XS212

•2x12” DVX3120 Woofer

•Same Footprint & Compatible Rigging to XLD281

can be flown behind the array with optional C-Beam

EV’s Hydra™ used in X-Line and XLC has an overall height of

7-inches (17.5cm). In order to maintain the extraordinary HF

response, a new 4-inch (10cm) Hydra was developed to

match the DVN2080 8-inch woofer. Each of the two Hydras

is driven by the new ND2S, a 2” neodymium compression

driver. A single waveguide is fed with the plane wave from

the hydras resulting in wide bandwidth, even horizontal cov-

erage, and predictable vertical coverage.

XLD281 XLE181 XS212

HFrequency Range (-3dB) 75 Hz - 18 kHz 90 Hz - 18 kHz Hz - 100Hz

Max SPL (Calc.) Peak 141 dB * 138 dB* 136 dB**

Horizontal Coverage: 120 ° 120 ° –

Power Handling cont. 200/200/80W 200/80W 1000W

Power Handling Peak 800/800/320W 800/320W 4000W

LF Transducer 2xDVN2080 DVN2080 2 x DVX3120

HF Transducer 2xND2-8 2xND2-8 –

Nominal Impedance 16/16/16 Ohms 16/16 Ohms 4 Ohms

Dimensions 726 x 251 x 369mm 516 x 251 x 369 mm 726 x 508 x 378 mm

28.58” x 9.9” x 14.52” 20.3” x 9.9” x 14.52” 28.58” x 20” x 14.9”

Weight 21.8 kg (48 lbs) 17.2 kg (38 lbs) 38.5 kg (85 lbs)

*array for 4 cabinets **half space

XLD281

•Full Bandwidth 3-way Element (60Hz-20kHz)

•Very Compact, Lightweight

•CCT ™ (Coverage Control Technology)

•120° Horizontal Coverage to 250 Hz

•Simple, Quick Integrated Rigging

•Versatile Subwoofer Integration

•Bi-Amp or Tri-Amp Operation

•Neodymium Transducers

•LAPS Aiming and Flying Software XLD281

XS212

Line Array Prediction Software: LAPS

(A) Set up your environmental parameters

(B) Trim your hang for optimum SPL distribution

enjoy excellent sound quality.

Line Array Prediction Software (LAPS) for EV XLC and X-Line systems makes system

behavior predictable. Entire hang setups, including motor loads, cabinet aiming, and

resulting sound pressure distribution, can be calculated before physical hang setup.

Available for free at www.electrovoice.com.

Floor Monitors

QRx 112/75

• Perfect for high performance monitoring

in concert sound applications

• 12”/1.4” exit

• 300 W (long-term)

• Max. SPL 131 dB/1m (calc.)

• 55° (approx.) monitor angle

• Integrated stand mount and optional L-Track

rigging allows flexible usage

• Note: in monitor position rotate the horn with

so the 35° dispersion is pointing upwards.

•Note: press high-pass (mid/high-mode) at

controller amp module M-112 when used on floor

FRi-28LPM

• Low profile ideal for theater front stage

• 2x8”/1” voicecoil

• 200 W (long-term)

• Max. SPL 122 dB/1m (calc.)

• 45° monitor angle

75° x 50°

Sx250/SxA250

• 350 W (longterm) / 150W + 50W powered

• 15” / 1” exit

• max. SPL 130 dB/1m

• 45° monitor angle

QRx 115/75

• Perfect for high -performance monitoring in

concert-sound applications

• 15”/1.4” exit

• 400 W (long-term)

• Max. SPL 110 dB/1m (calc.)

• 55° (approx.) monitor angle

• Integrated stand mount and optional L-Track

rigging allows flexible usage

• Note: in monitor position rotate the horn with

so the 35° dispersion is pointing upwards.

•Note: press high-pass (mid/high-mode) at

controller amp module M-115 when used on floor

The following two pages give you an overview about of EV´s

professional floor monitors. All monitors shown have opti-

mized monitor angles and, as is typical with EV, have very

low feedback properties. For technical details or information

about recommended high-pass frequencies, refer to the

appropriate product pages.

100° x 100°

T221 M

• Perfect for high-performance monitoring in

budget-limited productions

• 12”/1” voicecoil DH2T CD

• 400 W (long-term)

• Two 55° angles allows symmetrical monitor set-ups

55° x 80°

65° x 65°

SxA100+ SxA360

• Built-in 2-way amplifier

(150W+50W cont.; 380W+80W peak)

• 12” / 1”exit

• max. SPL 124 dB/1 m

• 50° (approx.) monitor angle

• F200 included (monitor feet, black)

• 350 W LF + 150 W HF

Output Power

• Only 16.6 kg (43 lbs)

•

2” Voice Coil DH2T Compression Driver

• Dynamic Filters provide Overload

Protection & Linear Response

Sx 100 and Sx 300

(shown with F200)

• Symmetrical horn 65° x 65°

• 12”/1” exit

• Sx 300: 300 W (long-term) Sx 100+: 200W (longterm)

• 50° (approx.) monitor angle

• F200 necessary (monitor feet, black)

Xw 12A

• Perfect for highest-performance monitoring

in concert-sound applications

• 12”/1.4” exit

• 300/75 W (long-term)

•Max. SPL 130 dB/1m (calc.)

•Two 55° angles allows symmetrical monitor set-ups

• Dedicated digital controller is Dx38

Xw 15A

•Perfect for highest-performance monitoring

in concert-sound applications

•15”/1.4” exit

• 600/75 W (long-term)

• Max. SPL 133 dB/1m (calc.)

• Two 55° angles allows symmetrical monitor set-ups

•Dedicated digital controller is Dx38

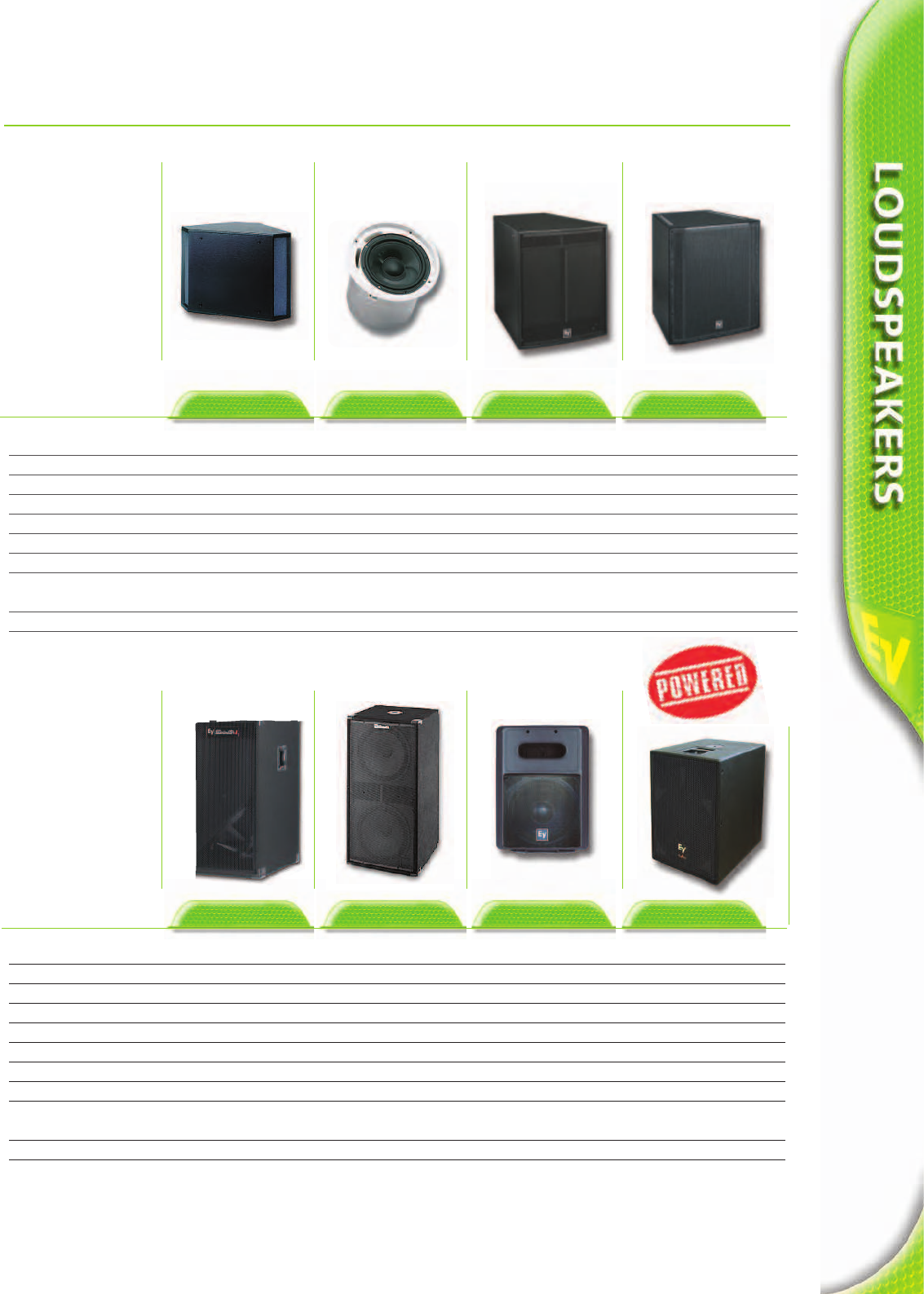

Subwoofers

EVID 12.1 EVID C10.1 FRi + 181S FRX+181

Application Installation Ceiling Installation Installation Installation

Woofer Type 1 x 12” slot loaded 1 x 10” 1 x 18” 1 x 18”

Power Handling cont. 2 x 175 W 150 W 400 W 400 W

Sensitivity(1W1m) 100 dB** 94 dB* 97 dB/103 dB* 96 dB/102 dB*

Max. SPL (peak) 125 dB ** 122 dB * 129 dB/135 dB* 128 dB /134 dB*

Internal X-Over stereo w/ hi-pass out lowpass no no

Flying no no eyebolts L-track

Dimensions H/W/D (mm) 412 x 584 x 305 mm 320 mm diameter 711 x 597 x 762 mm 787 x 719 x 660 mm

16.22” x 23” x 12” 12.6” diameter 28” x 23.5” x 30” 31” x 28.3” x 26”

Weight 18.1 kg (39.9 lbs.) 7 kg (15.4 lbs.) 45.5 kg (100.3 lbs.) 45.5 kg (100.3 lbs.)

Eliminator i Sub

Eliminator KW

Sb 122 SbA 760

Application Pro Music Pro Music Pro Music, Pro Music,

Installation Installation

Woofer Type 1 x 18” 2 x 18” 1 x 12” 1 x 15”

Power Handling cont. 400 W 1000 W AES 400 W 760 W amplifier

Sensitivity(1W1m) 98 dB/104 dB* 101 dB/107 dB* 99 dB*

Max. SPL (peak) 130 dB/136 dB* 137 dB/143 dB* 131 dB* 128 dB/134 dB*

Internal X-Over lowpass no lowpass built-in active X-Over

Flying no no optional SX Hardware no

Dimension H/W/D (mm) 856 x 435 x 609 1140 x 569 x 597 586 x 429 x 312 603 x 428 x 665

33.7” x 17.25” x 24” 44.9” x 22.4” x 23.5” 23.1” x 16.9” x 12.3” 23.7” x 16.9” x 26.2”

Weight 39.5 kg (89 lbs.) 65.8 kg (145 lbs.) 15.0 kg (33 lbs.) 43 kg (94.8 lbs.)

*1/2-space SPL, ** 1/4-space SPL

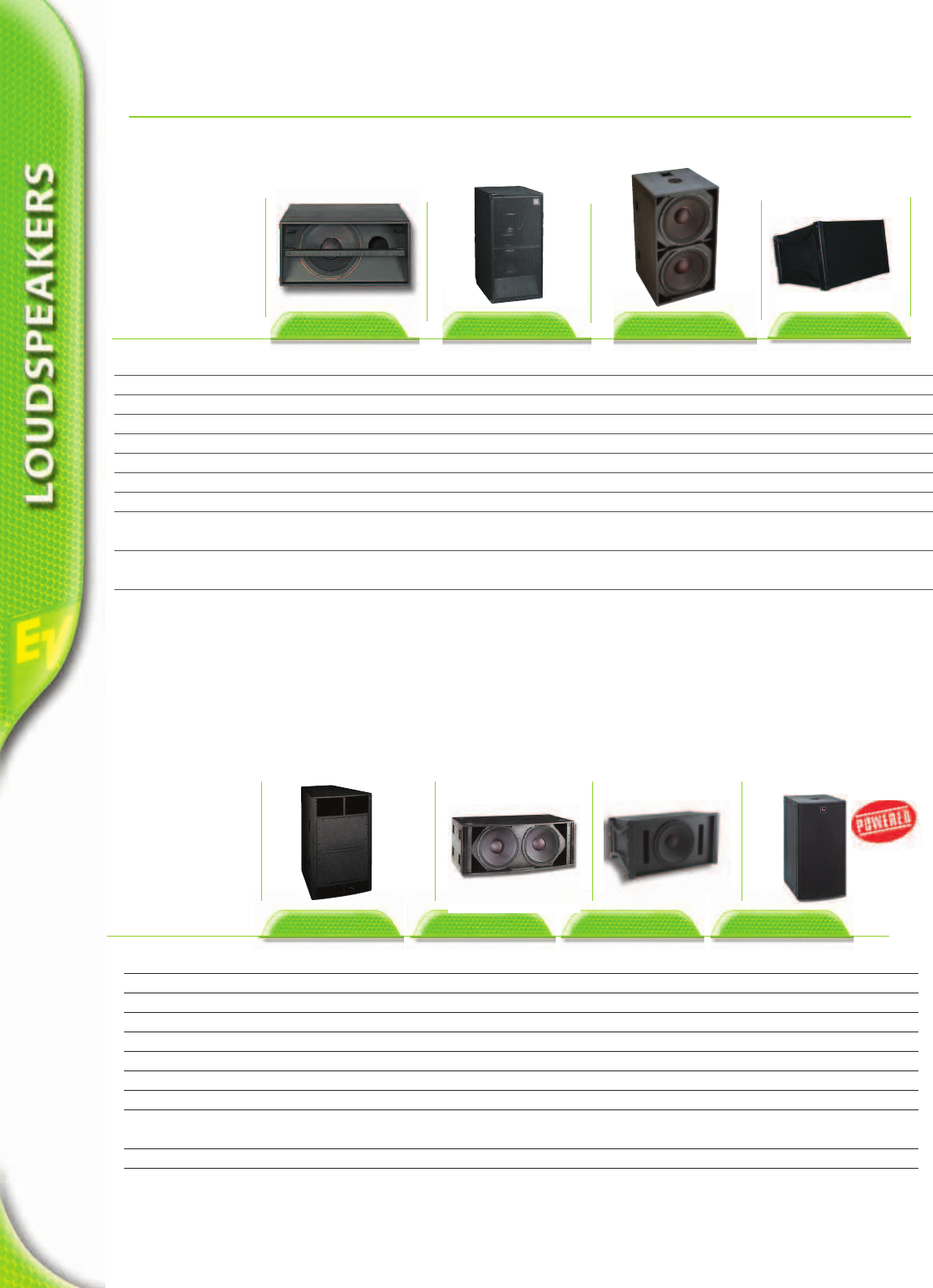

Subwoofers

Xi-1191(F) Xsub(F) XLC 118

Plasma P2

Application Installation Concert Sound Concert Sound Concert Sound

Concert Sound Installation Installation Installation

Woofer Type 1 x 18” 2 x 18” 1 x 18” 1 x 18”

Power Handling cont. 600 W 1200 W 600 W 600 W

Sensitivity(1W1m) 94 dB /100 dB* 100 dB /106 dB* 96 dB /102 dB* built in Amplifier 800W

Max. SPL (peak) 128 dB /134 dB* 137 dB /143 dB* 130 dB /136 dB* 126 dB /132 dB*

Internal X-Over no no no Lowpass 100 Hz

Flying L-track (F-version)

X-Line rigging, (F-vers.)

XLC rigging

Dimension H/W/D 914 x 586 x 759 mm 494.3 x 1245 x 740 mm 546 x 991 x 572 mm 910 x 476 x 600 mm

36” x 23.1” x 29.9” 19.5” x 49” 29.1” 21.5” x 39” x 22.5” 35.8” x 18.7 x 23.6”

Weight 68 kg (150 lbs.) 92 kg (202.8 lbs.) 54.5 kg (120.2 lbs.) 63.6 kg (140.2 lbs.)

*1/2-space SPL

QRx118S MTL1X QRx218S XLC215

Application Pro Music Pro Music Pro Music Concert Sound

Concert Sound Concert Sound Concert Sound Installation

Woofer Type 1 x 18” 2 x 18” 2 x 18” 2 x 15”

Power Handling cont. 600 W 1200 W 1200 W 1000 W

Sensitivity(1W1m) 98 dB /104 dB* 101 dB /107 dB* 99 dB /105 dB* 97 dB /103 dB*

Max. SPL (peak) 131 dB /137 dB* 137 dB / 141 dB* 134 dB /140 dB* 133 dB /139 dB*

Internal X-Over no no no no

Flying no no optional XLC rigging

Dimensions H/W/D 900 x 450 x 600 mm 1160 x 572 x 758 mm 1015 x 560 x 600 mm 546 x 991 x 572 mm

35.4” x 17.7” x 23.6” 45.8” x 22.5” x 29.9” 40” x 22.05” x 23.6” 21.5” x 39” x 22.5”

Weight 47.5 kg (104.7lbs.) 75 kg (165 lbs.) 68 kg (150 lbs.) 54.5 kg (120 lbs.)

Cinema Systems

Cinema. In a medium generally thought of as visual, the

quality of a cinema´s sound system is often what determines

the “cinema experience” for the paying customer. For years

Electro-Voice®has supplied loudspeaker systems to the cine-

ma industry which meet or exceed standards set by THX®

and Dolby®Laboratories. Every summer, with the release of

the latest blockbuster action film, new benchmarks for

acoustic performance are set, and EV continues to meet

these demands with new innovations.

At Electro-Voice we offer the engineering knowledge and

expertise to design and manufacture products “from the

ground up.” EV loudspeakers are conceived at the compo-

nent level and integrated into high-performance screen

channel, surround and subwoofer systems. We are commit-

ted to developing new technologies and achieving new

levels of performance for cinema loudspeaker systems.

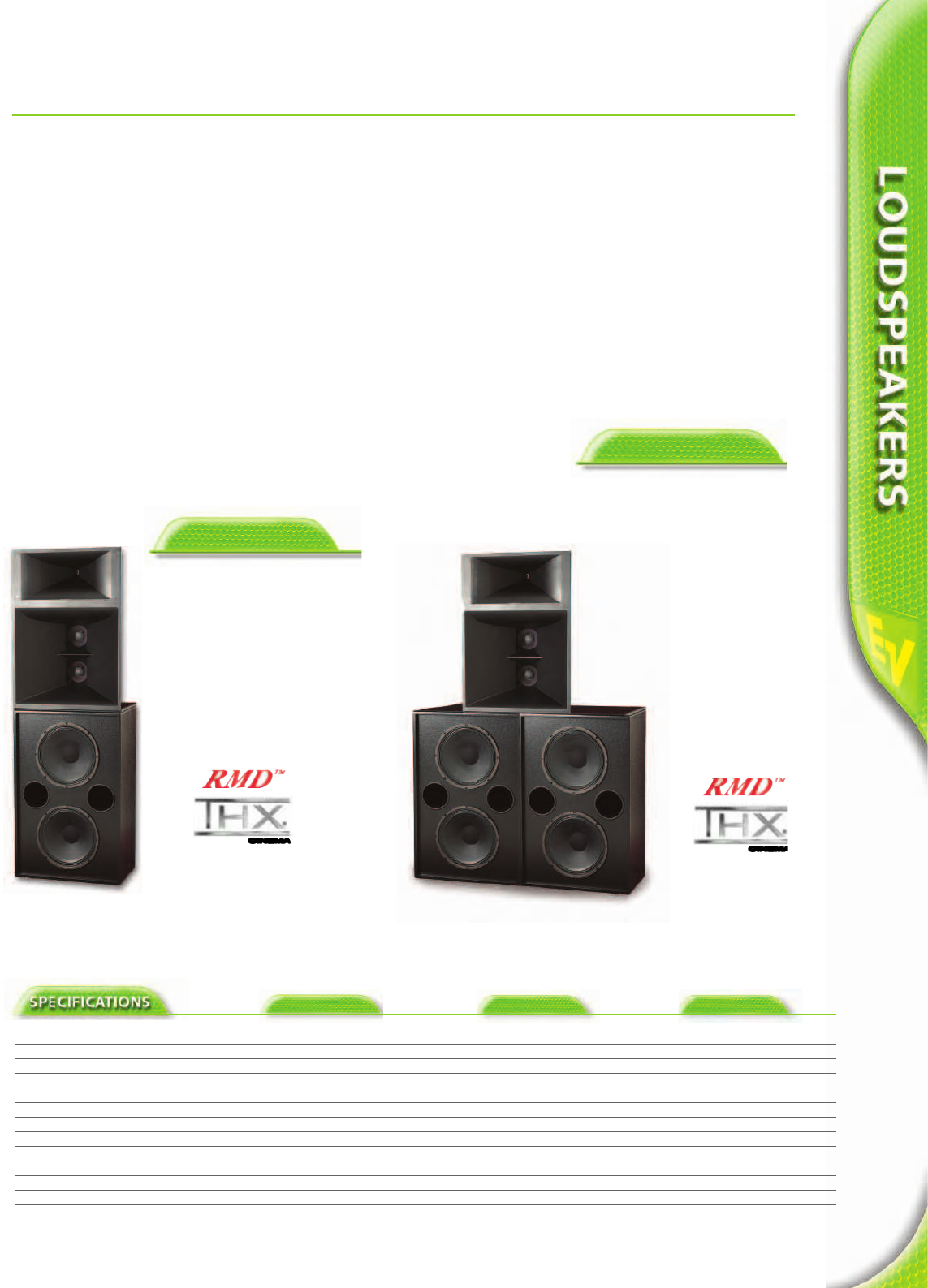

Variplex II™ Systems

The Variplex™ is one example of the many EV systems

which are THX®approved. They join the large, diverse fami-

ly of Electro-Voice cinema products developed for cinemas

both large and small. This wide range of products and time-

proven acoustic excellence means that you can design

systems that “fit” any room, and more importantly, that the

“cinema experience” will be the best your customers have

ever heard. And take note: The THX®-approved, high-quality

CPS Series amplifiers are part of this formula for success.

Variplex II™ XL

• Three-way, high-output

stage system

• High-output MB and HF drivers

• Vari-Intense® technology provides

uniform front-to-back coverage

• Ring-Mode Decoupling™

improves vocal clarity

and intelligibility

• THX® approved

• Digital Dynamics Capable™

(not shown)

Variplex II XL Variplex II Variplex M

Frequency Range 34 Hz - 16 kHz 34 Hz - 16 kHz 45 Hz - 18 kHz

Sensitivity, 1W/1m (LF/MF/HF) 104/109/112 dB 101/109/112 dB 104 dB

Max.SPL/1m (calc.) (ave./peak) 130 / 136 dB 130 / 136 dB 127 / 133 dB

Crossover Frequency 500Hz / 1300 Hz 500Hz / 1300 Hz 500 Hz

Long-term Power Handling (LF/MF/HF) 1600/400/75 W 800/400/75 W 500 / 300 W

Short-term Power Handling (LF/MF/HF) 6400/1600/300 W 3200/1600/300 W 2000 / 1200 W

Coverage Horizontal (long axis/short axis) 90° 90° 90°

Coverage Vertical (up/down) 20°/30° 20°/30° 20°/30°

HF driver ND 6-8 ND6-8 DH2T

MF driver 2 x EV8DH 2 x EV8DH 2 x EV8D

LF driver 4 x DL15ST 2 x DL15ST 2 x EV15G

Nominal Impedance 2 x 4 / 4 / 8 Ohms 4 / 4 / 8 Ohms 4 / 4 Ohms

Dimensions (Height/Width/Depth) 1924 x 1296 x 396 mm 1924 x 648 x 396 mm 1924 x 648 x 396 mm

75.8” x 51” x 15.6” 75.8” x 25.5” x 15.6” 75.8” x 25.5” x 15.6”

Weight (net) 139 kg (306.4 lbs.) 74 kg (163.1 lbs.) 72,6 kg (160.1 lbs.)

CINEMA

Variplex II™

• Three-way stage system

• Vari-Intense®technology provides

uniform front-to-back coverage

• Ring-Mode Decoupling™ improves

vocal clarity and intelligibility

• Variplex™ B model features passive

MB/HF crossover for biamping

• THX®approved

• Digital Dynamics Capable™

CINEMA

Electro-Voice®two-way screen systems offer

flexibility in size and high-quality sound output

for a variety of cinema applications. The

TS9040D-LX and the TS550D-LX, both large-

format systems, feature very high efficiency and

are THX®-compatible. The medium-format

TS940D includes a passive crossover, and the

small-format TS992E’s innovative flat-cabinet

design saves considerable space behind the

screen. For efficiency, wide-ranging application

solutions, and incredible sound quality, nothing

beats EV screen systems.

Two-Way Systems

TS9040D-LX

• Large-format, two-way

screen system

• Provides excellent acoustical

performance in large or small rooms.

• THX® approved

• Digital Dynamics Capable™

• Wide, smooth frequency response

TS940D

• Medium-format, two-way

screen system

• HP940T horn/ND6 driver

• XEQ-504 crossover for

single-channel operation

• Smooth, accurate sound

• Passive crossover for

single-channel operation

TS992M

• Small-format,

two-way screen system

• DH2T HF on 90 x 50 horn

• EV15G LF system

• 10" depth: low-profile

system (254 mm)

TS550D-LX TS9040D-LX TS940D TS992M

Frequency Range 30 Hz - 20 kHz 32 Hz - 20 kHz 32 Hz - 20 kHz 38 Hz - 18 kHz

Sensitivity,1W/1m (LF/HF) 100 / 111 dB 100 / 111 dB 100 dB 100dB

Max.SPL/1m (calc.) (ave./peak) 131 / 137 dB 129 / 135 dB 129 / 135 dB 130 dB

Crossover Frequency 500 Hz 500 Hz 500 Hz, internal 1300 Hz, internal

Long-term Power Handling (LF/HF) 1.200 / 75 W 800 / 75 W 800 W 300 W

Short-term Power Handling (LF/HF) 4.800 / 300 W 3.200 / 300 W 3.200 W 1.200 W

Coverage (H x V) 90° x 40° 90° x 40° 90° x 40° 90° x 50°

HF driver ND6X-8 ND6X-8 ND6-X DH2T

LF driver 2 x EVX155 2 x DL15ST 2 x DL15ST EV15-G

Nominal Impedance 4 / 8 Ohms 4 / 8 Ohms 4 Ohms 8 Ohms

Dimensions (Height/Width/Depth) 1816 x 681 x 947 mm 1816 x 681 x 947 mm 1354 x 572 x 447 mm 1200 x 660 x 254 mm

71.5” x 26.8” x 37.3” 71.5” x 26.8” x 37.3” 53.3” x 22.5” x 17.6” 47.2” x 26” x 10”

Weight (net) 74,8 kg (164.9 lbs.) 74,8 kg (164.9 lbs.) 60.4 kg ( 133.1 lbs.) 35 kg (77.2)

(not shown)

Subwoofers offer a variety of low-frequency solutions for

general fixed installation or additional LF supplementation in

existing installations. Low-frequency systems have f3s (the

point at which response is -3 dB down) as low as 40 Hz. In

general, response below 40 Hz is required for theatrical

effects, full reproduction of pipe organs, and some special

effects in contemporary music such as synthesizers and

down-tuned bass guitars. The TL 880D is especially suited

for this special type of application.

Note: TL subwoofers have unprotected fronts and woofers,

and should be used in inaccessible areas only.

TL18-1ES

• Low-frequency subwoofer

• Direct radiating vented design

• 38 Hz low end for rich bass

• Ultrathin depth

TL440

•Very-low-frequency subwoofer

• Direct radiating vented design

• High acoustic output featuring

single EVX180B woofer

• THX® approved

TL880D

• Very-low-frequency subwoofer

• Direct radiating vented design

• High acoustic output to below

20 Hz (-10 dB) allows real

low end effects

• THX® approved

TL440M

•Very-low-frequency subwoofer

• Direct radiating vented design

Cinema Systems

TL880D TL880DM TL440 TL440M TL18-1ES

Frequency Range 23 Hz - 1.8 kHz 27 Hz - 1.8 kHz 33 Hz• - 3.2 kHz 38 Hz• - 3.2 kHz 38 Hz - 2.0kHz

Sensitivity, 1W/1m (full/half-space) 99 / 105 dB 99 / 105 dB 96 / 102 dB 96 / 102 dB 96 / 102 dB

Max.SPL/1m (calc.) (ave./peak) 136 / 162 dB 133 / 137 dB 130 / 136 dB 128 / 133 dB 128 / 134 dB

Long-term Power Handling 1.200 W 800 W 600 W 350 W 400W

Short-term Power Handling 4.800 W 3.200 W 2.400 W 1.500 W 1.600 W

Coverage (<125 Hz) omnidirectional omnidirectional omnidirectional omnidirectional omnidirectional

LF driver 2 x EVX180B 2 x EVS-18S 1 x EVX 180B EV518S 1 x DL18-MT

Nominal Impedance 4 Ohms 4 Ohms 8 Ohms 8 Ohms 8 Ohms

Dimensions (Height/Width/Depth) in mm 1210 / 762 / 605 1207 / 762 / 605 1003 / 572 / 559 1003 / 572 / 559 1193 / 680 / 254

47.5"x30"x23.8" 47.5"x30"x23.8" 39.5"x22.5"x22" 39.5"x22.5"x22" 47" x 26.75" x 10"

Weight (net) 72,6kg (160 lbs) 70,8kg (156 lbs) 49 kg (108 lbs) 49 kg (98 lbs) 43kg (95 lbs)

•) 24Hz in step-down mode

Subwoofers

(not shown)

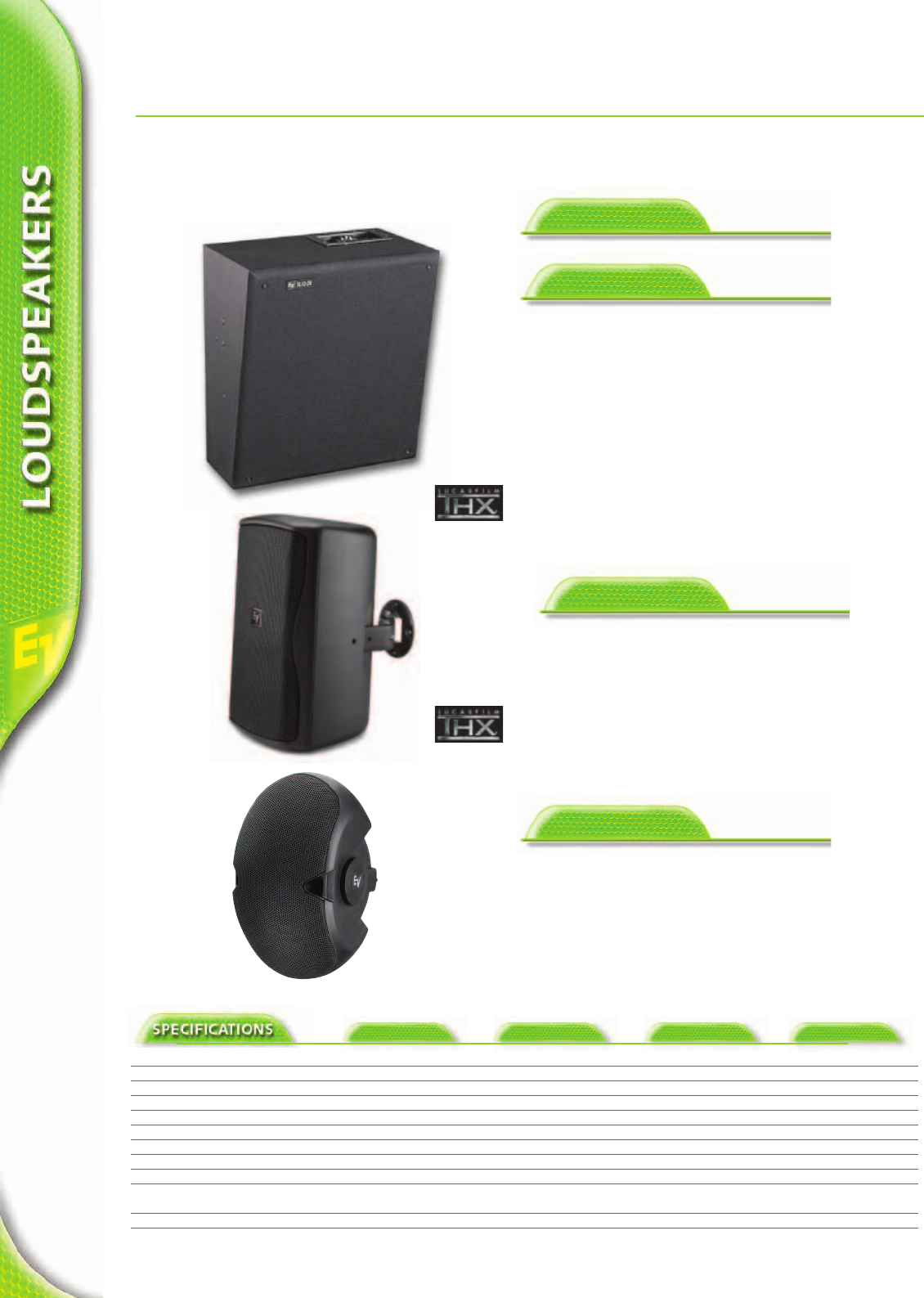

Cinema Systems

SL12-2V

SL10-2V

• High-output, two-way surround

loudspeaker

• Versatile suspension and

safety options

• 15° slanted cabinet

• Exceptionally wide and smooth

frequency response

•SL10-2V model has 10" woofer

• SL10-2V includes wall mounting brackets

• THX®compatible

• Digital Dynamics Capable™

Surround Loudspeakers

SL6.2

• Full-Bandwidth overload protection

•Strong-Arm-Mount™ for easy,flexible aiming

• Lightweight, unobtrusive plastic enclosure

• Easy-access input terminals

SL8.2

• Full-Bandwidth overload protection

• Strong-Arm-Mount™ for easy,flexible aiming

• Lightweight, unobtrusive plastic enclosure

• Easy-access input terminals

• 8-2way with 1,25" compression driver

SL12-2V SL10-2V SL8.2 SL6.2

Frequency Range 70Hz - 20 kHz 60Hz - 20kHz 60 - 20kHz 48Hz - 20 kHz

Sensitivity, 1W/1m 93 dB 93 dB 90 dB

Max.SPL/1m (calc.) (ave./peak) 116 / 121 dB 113 / 119 dB 115/121 dB 111 / 177 dB

Long-term Power Handling 200W 100 W 200 W

Short-term Power Handling 800 W 400 W 800 W

Coverage (H x V) 100° x 90° 100° x 100° 100° x 100° 100° x 100°

LF driver 12" woofer 10" woofer EV8L 2x6" woofer

HF driver DH2010A 1" compression driver DH2005 1" driver on waveguide

Nominal Impedance 8 Ohms 8 Ohms 8 Ohms 8 Ohms

Dimensions (Height/Width/Depth) in mm 535 x 476 x 335 476 x 318 x 275 451 x 282 x 263 419 x 228 x 198 mm

21” x 18.7” x 13” 18.75” x 12.5” x 10.8” 17.75” x 11.12” x 10.35” 61.5” x 9” x 11.7”

Weight (net) 21,4 kg (47 lbs.) 10,5 kg (23.1 lbs.) 8.4 kg (18.5 lbs) 4.5 kg (10 lbs.)

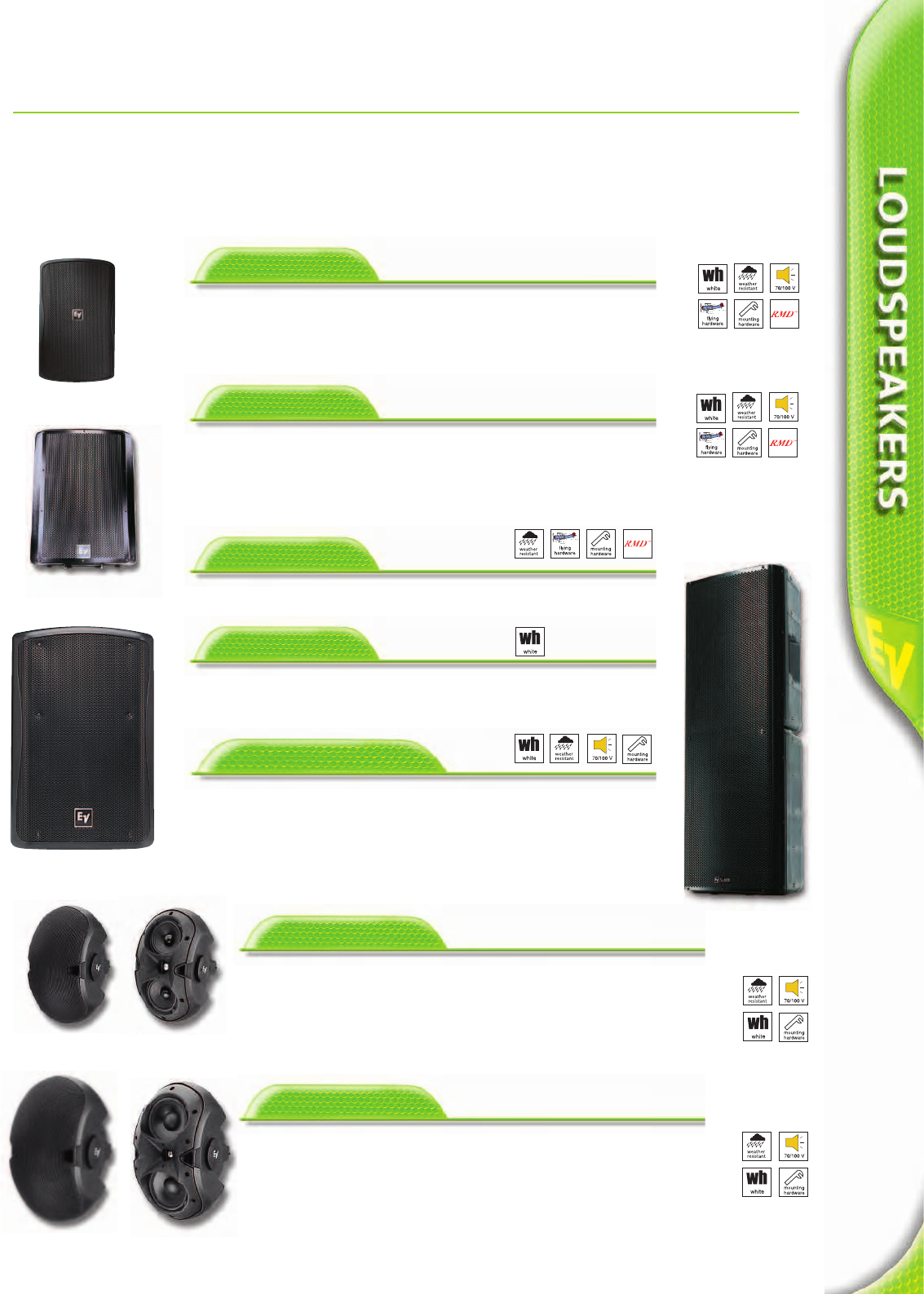

Outdoor Speakers

From the EVID™ 3.2 to the Sx600, EV offers excellent solu-

tions for outdoor speaker needs. EV®’s Sx and ZX1 Series

bring the sound of indoor speakers out into the fresh air, and

can be used for portable and fixed installations such as major

theme parks. The new EVID line provides visual style and

audio substance not only indoors, but also in any outdoor

environment and in humid indoor environments such as

pools and saunas. Both families include transformer options.

Sx500PI+

• Two-way, 15-inch, medium-throw, full-range system

• 500 Hz directional control from vented LF horn

ZX5PI

• 15"-2 way with ND2, 2" compression driver &

• DVX3150 woofer

• 600W cont. power handlig

ZX1i

• 8"-2-way with DH2005 1,25" compression driver

• Integrated Quick SAM foeasy install and aiming

• 2 pattern 90x50 or 100 x 100

• Transformer version availavle (-T)

Sx300PI/PIX

• Compact two-way, 12-inch, medium-throw full-range system

• Full-face, black powder-coated stainless steel grille, backed by a

foam water shield, gives smooth appearance and a high degree of

weather resistance

• 70.7/100-volt 100-watt transformer option with selectable taps (Sx300PIX)

Sx600PI/Sx600PIX

• Tw- element vertical line array

• Very high sensitivity

(105 dB/1W/1m)

•High intelligibility

• Two 12” woofers

• DH2T driver on 65x65

degree Varipath horn

• All weather cabinet

• Super SAM mounting,

60° x 180° adjustable

• Waterproof connection

by SJO cable with glandnut

• Internal 600 Watt transformer

available (SX600PIX)

EVID 6.2/6.2T

• Two-way, high-output full range

• High sensitivity

• 1" voice coil (titanium diaphragm) with Neodymium magnetic structure

• Full bandwidth overload protection for HF and LF

• Three-dimensional ellipse (for compact look)

•Comes with Strong Arm Mount (SAM™) and a hex key

• Suspension insert for SAM™; safety point on rear side

EVID 4.2/4.2T

•Two-way full range

• 1" voice coil (titanium diaphragm) with Neodymium magnetic structure

• Full bandwidth overload protection for HF and LF

• Three-dimensional elliptic (for compact look)

• Comes with Strong Arm Mount (SAM™) and a hex-key

•Suspension insert for SAM™, safety point on rear side

ZX1i

Sx300PI/PIX

ZX5PI

Sx600PI

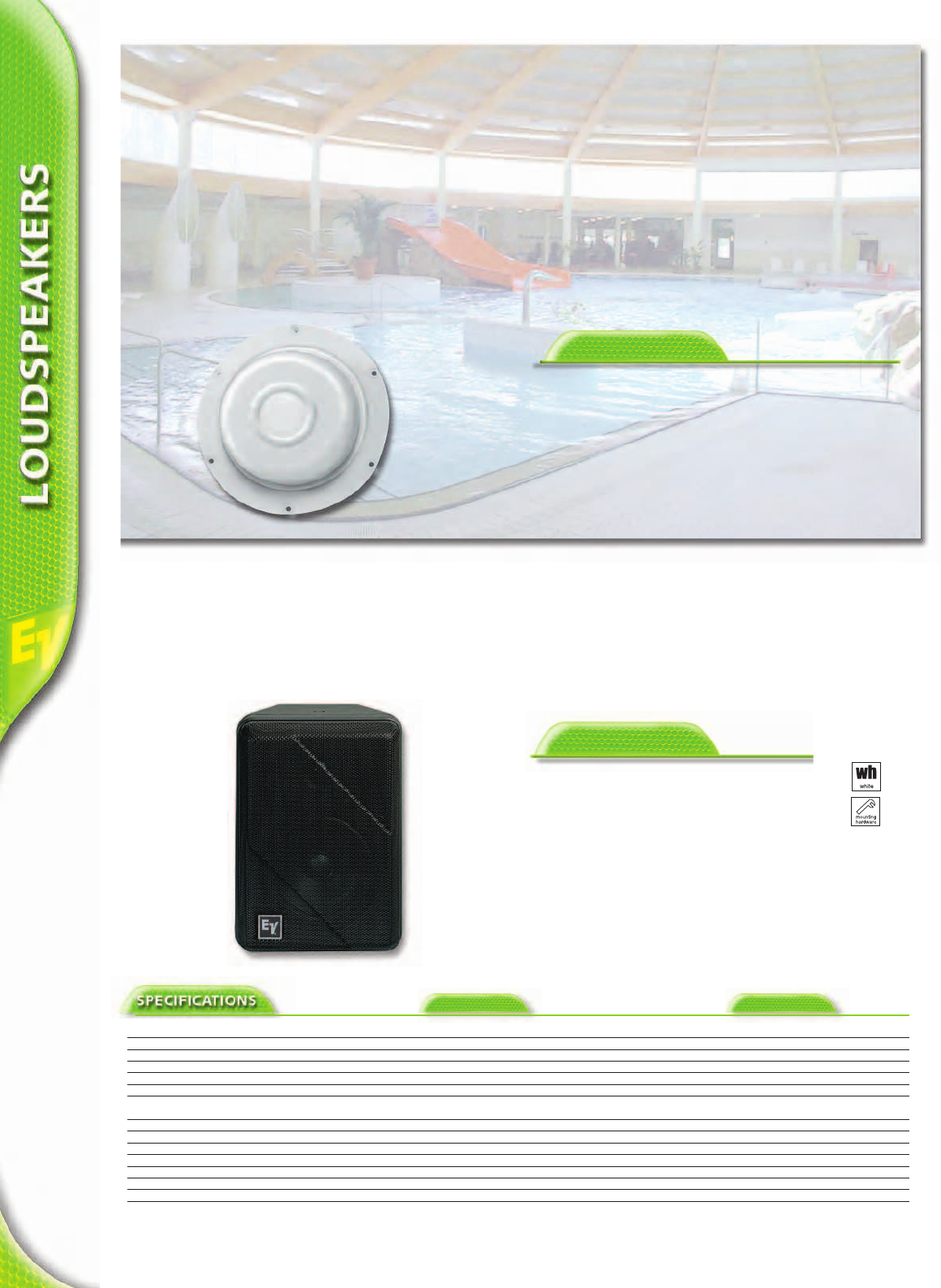

UW 30

• Full-range underwater sound source

•Uniform sound throughout medium-sized pools

• Very high-fidelity sound

• Salt-water resistant

• Comes with a 50-foot (15-m), three-conductor

waterproof cable terminated within the internal

encapsulation material

UW 30 S-40

Frequency range 100 Hz–10 kHz 85 Hz–20 kHz (+/- 3dB)

Sensitivity (SPL 1W/1m) — 85 dB

Max. SPL/1m (calc.) — 113 dB

Long-term power handling 30 W 160 W

Short-term power handling — 640 W

Coverage (H° x V°) omni (underwater) 100° x 100°

Directivity Index 9.8 dB (+3.8/-3.6 dB)

— 2 kHz–20 kHz

LF driver special type 5.25"

HF driver —1" Softdome

Crossover frequencies — 3,500 Hz

Nominal impedance (low Z version) 8 Ω 4 Ω

Minimum impedance (low Z version) — 3.7 Ω

Input connections waterproof cable spring terminal

Dimensions (H x W at front x D) 183 mm [diameter] x 66 mm [D] (7.19" [diameter] x 2.61" [D] ) 249 x 178 x 150 mm (9.8" x 7" x 5.9")

Net weight (including mounting bracket) 1.8 kg (4 lbs.) 2.6 kg (5.7 lbs.)

The UW 30 represents a departure from conventional designs

of underwater sound sources. Its unique, patented design uses

the case´s structural enclosure as the sound transducer. Under-

water speakers are required equipment for many activities in

commercial, luxury resort pools and synchronized swimming

events or instructions in Olympic pools. They are used for

water ballets and similar water shows. UW 30 has a high-

fidelity sound with low distortion, and the effect of music

played underwater through it is truly enchanting.

The outer case of UW 30 is made of high-impact ABS and is

pool-blue in color. All internal components are sealed inside

the speaker through a “hot-melt” process, allowing it to be

used in fresh- or salt-water pools or ocean enviroments.

Sound dispersion is up to 30 x 30 feet (10 x 10 m) under

water. Operating depth is up to 10 feet (3 m), with a recom-

mended depth of 4 feet (1.2 m). Note: For overload protec-

tion, install a 25-ohm, 20-watt resistor in parallel with a 1.5-

amp, fast-blowing fuse in series with the speaker.

S-40 B

•Two-way, full-range ultracompact

• Ultra-linear frequency response

• Vented LF enclosure

•Full bandwidth protection circuit for

woofer and tweeter

• Ferrofluid-cooled soft-dome tweeter

• Trapezoidal

• 2 x 1/4"–20 suspension points

EV®’s S-40 produces maximum frequency response with an

extended bass response. The sensitivity, therefore, is slightly

less than with a regularly tuned box. The S-40 is made of

black or white high-impact polystyrene structural foam pro-

tected with a full-size, matching front grille.

Ultracompact monitor system

Underwater loudspeaker

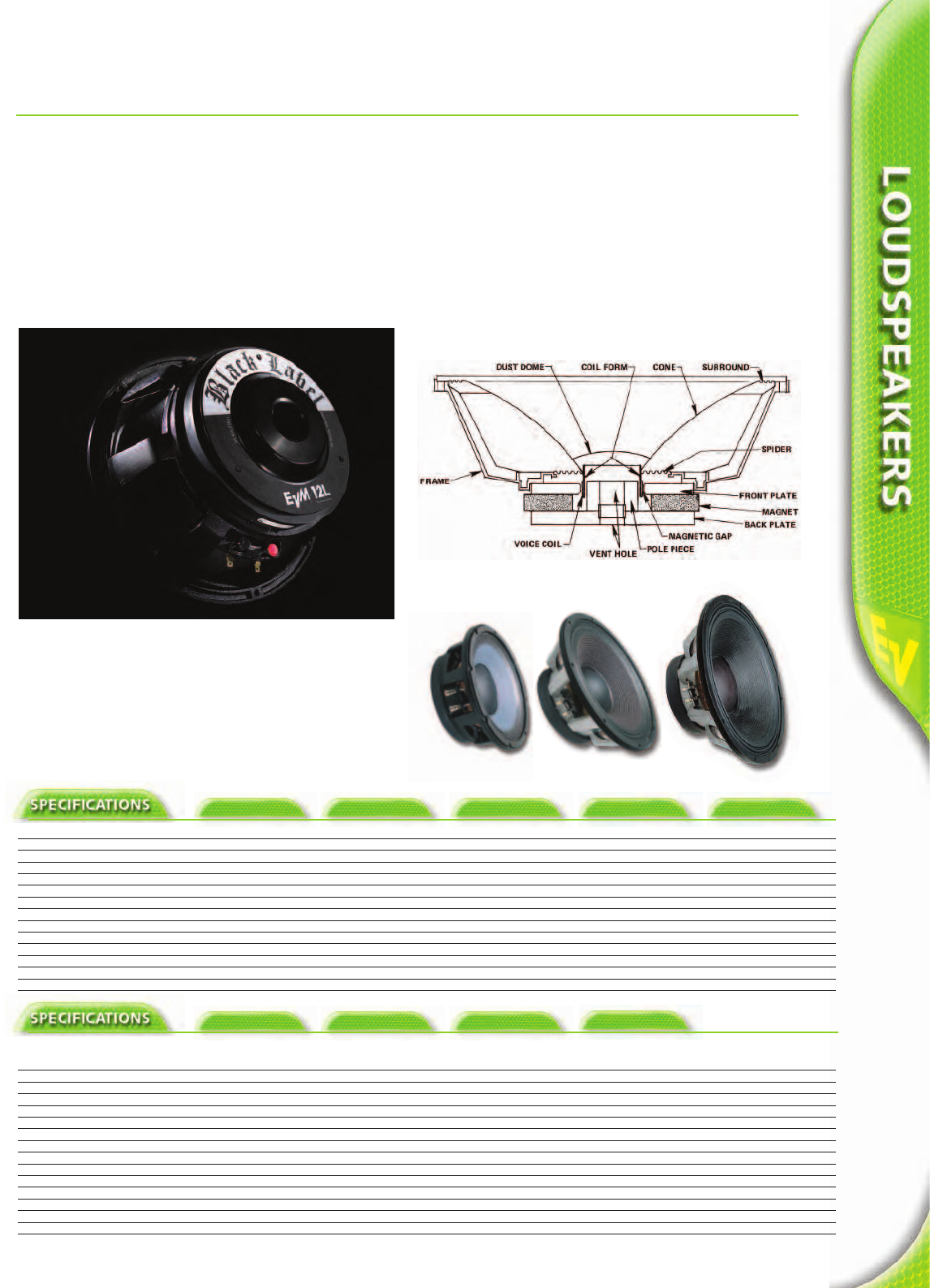

Components

EV component woofers are high-efficiency designs highly

refined from years of development and field experience.

They employ extended-length voice coils for high-impact

reproduction of dynamic low-frequency program. All

woofers feature proprietary heat-transfer systems for

unmatched power capacity and reliability. Kevlar®-fiber-

composite cones are used to provide structural strength to

resist collapse during explosive dynamic peaks and to pro-

vide internal mechanical damping to minimize resonances

that can change the character of the sound at high levels. DL

and EVX woofers are made of cast aluminium frames with

push terminals, and all feature Ring-Mode Decoupling™

(RMD™) except for the DL18MT and the EVX180B.

Woofers

Speaker Parts

DL10X DL12BFH DL12ST DL15BFH DL15ST

Cone diameter 10" (254 mm) 12" (305 mm) 12" (305 mm) 15" (381 mm) 15" (381 mm)

Coil diameter 2.5" (63.5 mm) 2.5" (63.5 mm) 2.5" (63.5 mm) 2.5" (63.5 mm) 2.5" (63.5 mm)

Impedance 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω

Frequency range 100–2,000 Hz 60–2,500 Hz 60–2,000 Hz 45–2,000 Hz 45–2,000 Hz

Long-term power rating (EIA) 300 W 300 W 300 W 350 W 400 W

Short-term power rating 1,200 W 1,200 W 1,200 W 1,400 W 1,600 W

Sensitivity (1 W @ 1 m) 98 dB 96 dB 98 dB 96 dB 95 dB

Maximum SPL 122.8 dB 120.8 dB 122.8 dB 121.4 dB 121.0 dB

Efficiency 5.92% 3.69% 5.60% 3.93% 2.66%

Frame front diameter 259.5 mm (10.22") 309.6 mm (12.19") 309.6 mm (12.19") 305.0 mm (15.16") 305.0 mm (15.16")

Magnet diameter 190.5 mm (7.50") 155.6 mm (6.13") 190.5 mm (7.50") 155.6 mm (6.13") 190.5 mm (7.50")

Overall depth 114.3 mm (4.50") 133.4 mm (5.25") 133.4 mm (5.25") 152.4 mm (6.00") 158.8 mm (6.25")

Mounting bolt circle diameter 244.5 mm (9.625") 293.7 mm (11.563") 293.7 mm (11.563") 369.9 mm (14.563") 369.9 mm (14.563")

Baffle cutout diameter 230.2 mm (9.063") 281.0 mm (11.063") 281.0 mm (11.063") 357.2 mm (14.063") 357.2 mm (14.063")

Net weight 6.5 kg (14.3 lbs.) 5.0 kg (11.1 lbs.) 6.7 kg (14.7 lbs.) 5.4 kg (12.0 lbs.) 6.9 kg (15.2 lbs.)

DL18MT EVX155 EVX180B EVM12L

Black Label

Cone diameter 18" (457 mm) 15" (381 mm) 18" (457 mm) 12” (305mm)

Coil diameter 2.5" (63.5 mm) 4" (101.6 mm) 4" (101.6 mm) 2.5” (63.5 mm)

Impedance 8 Ω 8 Ω 8 Ω 8 or 16 Ohms

Frequency range 35–800 Hz 40–2,000 Hz 30–800 Hz 80Hz–7kHz

Long-term power rating (EIA) 400 W 600 W 600 W 300 W

Short-term power rating 1,600 W 2,400 W 2,400 W 1200 W

Sensitivity (1 W @ 1 m) 96 dB 98 dB 98 dB 100 dB

Maximum SPL 122.0 dB 125.8 dB 125.8 dB 125 dB

Efficiency 2.9% 4.32% 3.4% 5.9%

Frame front diameter 460.5 mm (18.13") 385.0 mm (15.16") 460.5 mm (18.13") 309.6 mm (12.19”)

Magnet diameter 190.5 mm (7.50") 209.6 mm (8.25") 8.25" (209.6 mm) 190.5 mm (7.5”)

Overall depth 177.8 mm (7.00") 184.2 mm (7.25") 203.2 mm (8.00") 133.4 mm (5.25”)

Mounting bolt circle diameter 441.3 mm (17.375") 369.9 mm (14.563") 441.3 mm (17.375") 293.7 mm (11.563”)

Baffle cutout diameter 425.5 mm (16.750") 357.2 mm (14.063") 425.5 mm (16.750") 281.0 mm (11.063”)

Net weight 7.2 kg (15.8 lbs.) 10.3 kg (22.8 lbs.) 10.6 kg (23.4 lbs.) 8.6 kg (19 lbs.)

EVM 12L Black Label: The official guitar loudspeaker of Zakk Wylde

Components

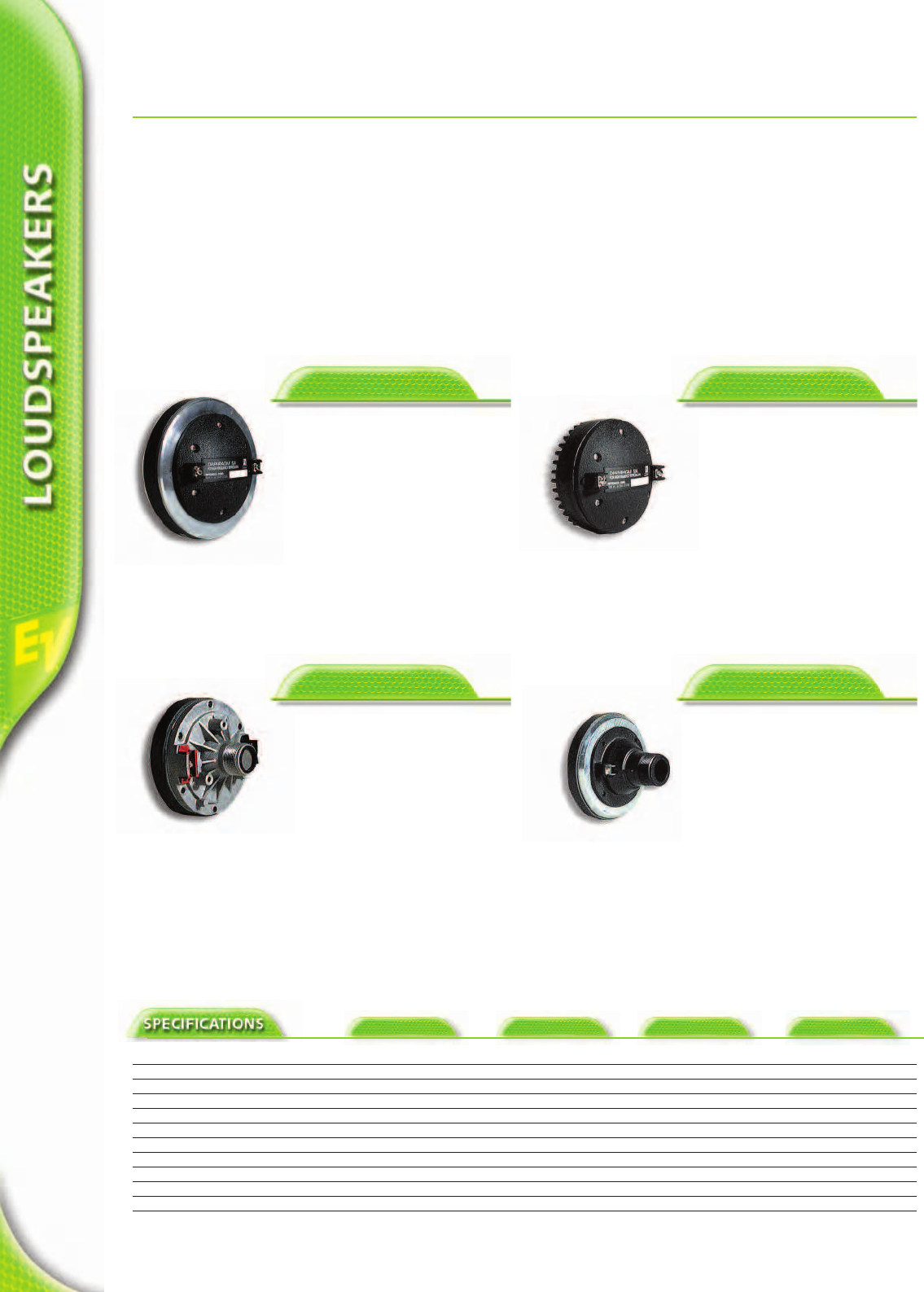

Compression Drivers

Electro-Voice is one of a handful of professional audio com-

panies that can design high-performance compression driv-

ers. Compression drivers are the most difficult audio trans-

ducers to design. Their unique requirements call for

ultraprecise tolerances, state-of-the-art modeling routines,

and exceptionally talented engineering expertise. Manufac-

turing techniques are frequently pushed to process limits,

and materials are formed and stabilized with cutting-edge

systems and controls. Each EV compression driver’s parame-

ters are tightly controlled to ensure world-class performance,

thus putting the drivers at the top of their class in every

respect.

Horn Adaptors from 1.4” bolt-on to 2” bolt-on ADH6

from 1” screw-on to 2” bolt-on ADH5

from 1” screw-on to 1.4” bolt-on ADH3

DH7-8/DH7-16

• Large-format ceramic

compression driver

• 300-watt power rating

• 3" titanium diaphragm

• 1.4" or 2" exit diameter for

use on almost any high-

performance horn

• Excellent for use with direct-

radiator or horn-loaded LF

and MB sections

ND6-8/ND6-16/ND6X

• Large-format neodymium

compression driver

• 300-watt power rating

• 3" titanium diaphragm

• 1.4" or 2" exit diameter for

use on almost any HP horn

• EV’s highest-performance

compression driver gives

world-class performance in

any application

• ND6X from > 500Hz

DH2T

• One-inch exit screw-on,

medium-format compression

driver

• 160-watt power rating

• 2" titanium diaphragm

• High performance on a

wide variety of thread-on

horn designs

DH3/DH2010A

• One-inch exit screw-on,

small-format compression driver

• 80-watt power rating

• 1.25" titanium diaphragm

• Excellent extended-bandwidth

HF driver for multi-way

loudspeaker systems

DH7-8/DH7-16 ND6-8/ND6-16 DH2T DH3/DH2010A

Frequency response 1,000 Hz–20 kHz 1,000 Hz–20 kHz / 500Hz-16kHz (ND6X) 1,200 Hz–20 kHz 1,500 Hz–20 kHz

Crossover frequency (minimum) 1,000 Hz 1,000 Hz 1,200 Hz 1,500 Hz

Midband sensitivity* 111 dB 112 dB 112 dB 111 dB

Long-term power rating (AES) 75 W 75 W 40 W 20 W

Short-term power rating 300 W 300 W 160 W 80 W

Impedance 8/16 Ohms 8/16 Ohms 8 Ohms 8 Ohms

Throat diameter 35 mm adapter (1.4"/2.0") 35 mm adapter (1.4"/2.0") 25 mm () 1.0" (25 mm)

Diaphragm diameter 76 mm (3.0") 76 mm (3.0") 50 mm (2.0") 32 mm (1.25")

Overall diameter 165 mm (6.5") 132 mm (5.2") 132 mm (5.2") 107 mm (4.5")

Overall depth 69 mm (2.7") 69 mm (2.7") 89 mm (3.5") 89 mm (3.5")

Net weight 4.54 kg (10.0 lbs) 2.5 kg (5.5 lbs) 2.27 kg (5.0 lbs) 1.5 kg (3.4 lbs)

*Average from 1,000 Hz–5 kHz on HP6040 horn (DH3 average from 1,500 Hz–5 kHz on HPT64 horn)

HP Horns

HP4020 HP6040 HP9040 HP420 HP640 HP940

Coverage (H° x V° nominal) 40° x 20° 60° x 40° 90° x 40° 40° x 20° 60° x 40° 90° x 40°

Directivity Factor (average) 45.1 (+12.7, -18.9) 25.8 (+17.9, -5.9) 12.1 (+4.6, -3.7) 47.7 (+25.9, -23.5) 20.6 (+11.3, -3.3) 11.9 (+3.6, -3.0)

(500 Hz–20 kHz) (500 Hz–20 kHz) (500 Hz–20 kHz) (1,250 Hz–20 kHz) (1,250 Hz–20 kHz) (1,250 Hz–20 kHz)

Directivity Index (average) 16.4 dB 14.1 dB 10.8 dB 16.8 dB 13.1 dB 10.7 dB

(+1.2, -2.2) (+2.3, -1.1) (+1.4, -1.6) (+1.9, -3.0) (+1.9, -0.7) (+1.2, -1.2)

(500 Hz–20 kHz) (500 Hz–20 kHz) (500 Hz–20 kHz) (1,250 Hz–20 kHz) (1,250 Hz–20 kHz) (1,250 Hz–20 kHz)

Useable low-frequency limit 200 Hz 500 Hz 400 Hz 400 Hz 400 Hz 400 Hz

Throat entrance 2" bolt-on 2" bolt-on 2" bolt-on 2" bolt-on 2" bolt-on 2" bolt-on

Height 838 mm (33.0") 813 mm (32.0") 813 mm (32.0") 367 mm (14.4") 330 mm (13.0") 330 mm (13.0")

Width 813 mm (32.0") 711 mm (28.0") 679 mm (26.75") 610 mm (24.0") 711 mm (28.0") 533 mm (21.0")

Depth 1,252 mm (49.3") 808 mm (31.8") 808 mm (31.8") 749 mm (29.5") 437 mm (17.2") 285 mm (11.2")

Net weight 12.3 kg (27.0 lbs) 9.1 kg (20.0 lbs) 9.1 kg (20.0 lbs) 5.9 kg (13.0 lbs) 4.3 kg (9.5 lbs) 3.2 kg (7.0 lbs)

HP1240 HP64 HP66 HP94 HPT64 HPT94

Coverage (H° x V° nominal) 120° x 40° 60° x 40° 60° x 60° 90° x 40° 60° x 40° 90° x 40°

Directivity Factor (average) 8.6 (+2.5, -2.1) 18.1 (+4.1, -8.8) 17.9 (+10.5, -9.3) 10.1 (+5.8, -1.8) 15.8 (+5.2, -4.9) 11.6 (+5.0, -2.5)

(1,250 Hz–20 kHz) (1,600 Hz–20 kHz) (1,600 Hz–20 kHz) (1,600 Hz–20 kHz) (3,150 Hz–20 kHz) (3,150 Hz–20 kHz)

Directivity Index (average) 9.34 dB 12.6 dB 12.5 dB 10.0 dB 12.0 dB 10.6 dB

(+1.1, -1.2) (+0.9, -2.9) (+2.0, -3.0) (+2.0, -0.8) (+1.2, -1.6) (+1.6, -1.0)

(1,250 Hz–20 kHz) (1,600 Hz–20 kHz) (1,600 Hz–20 kHz) (1,600 Hz–20 kHz) (3,150 Hz–20 kHz) (3,150 Hz–20 kHz)

Useable low-frequency limit 400 Hz 650 Hz 650 Hz 800 Hz 1,600 Hz 1,600 Hz

Throat entrance 2" bolt-on 2" bolt-on 2" bolt-on 2" bolt-on 1" bolt-on 1" bolt-on

Height 330 mm (13.0") 279 mm (11.0") 279 mm (11.0") 279 mm (11.0") 133 mm (5.25") 133 mm (5.25")

Width 533 mm (21.0") 224 mm (8.8") 224 mm (8.8") 222 mm (8.75") 133 mm (5.25") 133 mm (5.25")

Depth 265 mm (10.4") 220 mm (8.7") 165 mm (6.5") 220 mm (8.7") 104 mm (4.1") 101 mm (4.0")

Net weight 3.2 kg (7.0 lbs) 2.5 kg (4.5 lbs) 2.2 kg (4.8 lbs) 2.5 kg (4.5 lbs) 0.4 kg (0.8 lbs) 0.4 kg (0.8 lbs)

The HP horn series is a refinement of the concept of “con-

stant directivity,” which, in 1974, EV was the first to intro-

duce. For the first time, horn coverage angles were truly

uniform over a wide frequency range. In the HP series,

unique beamwidth-control vanes within the horn throat

form a waveguide that eliminates the narrowing of cover-

age angle – beaming – that occurs in other 2-inch-throat

horns. EV’s patented Transplanar™ design provides excep-

tionally smooth frequency response. HP horns or variants

thereof are used throughout the EV speaker system lines.

Each HP horn features an integral die-cast metal throat

encapsulated in the fiberglass sidewalls. This unitized con-

struction provides very high strength and low weight.

HP4020

HP6040

HP9040

• Large-format two-inch horns

• The ultimate in dispersion

control, with control of rated

dispersion angle down to

500 Hz, both horizontally and

vertically

• Directivity control to 500 Hz

maximizes vocal intelligibility

and musical clarity in difficult

acoustic environments

HP420

HP640

HP940

HP1240

• Medium-format two-inch horns

• Vertical dimensions have been

reduced, for use when space

constraints preclude the use

of large-format horns

• Horizontal directional control

maintained to ~500 Hz

•Vertical control to ~1,500 Hz

HP64

HP66

HP94

• Small-format two-inch horns

• Use as primary HF horns in

compact sound systems

•Beamwidth control to ~2,000 Hz

HPT64

HPT94

• Very-small-format one-inch

horns

• Use in three- and four-way

systems with DH3 driver for

tweeter and supertweeter

applications

• Directional control to 3,000 Hz

HP6040

HP64

HPT64

HP640

Note: Horns shown out of proportion to each other

Flying Hardware

EVI 12/15 EBK-1 (Eyebolt-Kit)

1 Eyebolt is included.

FRX Systems

(Except FRX-122)

Sx 500 + MB 700 - Kit contains:

3 lifting eyebolts

1 mounting plate

1 pull-up mounting plate

Security advice:

Do not screw MB 100

directly into M8 thread!

Sx 100/300

Sb 122

1) MB 100

2) MB 100 + MB 200

Security advice:

When flown by 90° (figure 2) don’t

use eyebolts only!

FRi

EVID 12.1

4 Eyebolts included

Single stud kit included

Note: Flying and suspending of speakers requires authorized personnel

1) 2)

Note: One 3/8“-16-

thread forged steel

eyebolt is included. A

second is necessary!

Mounting hardware

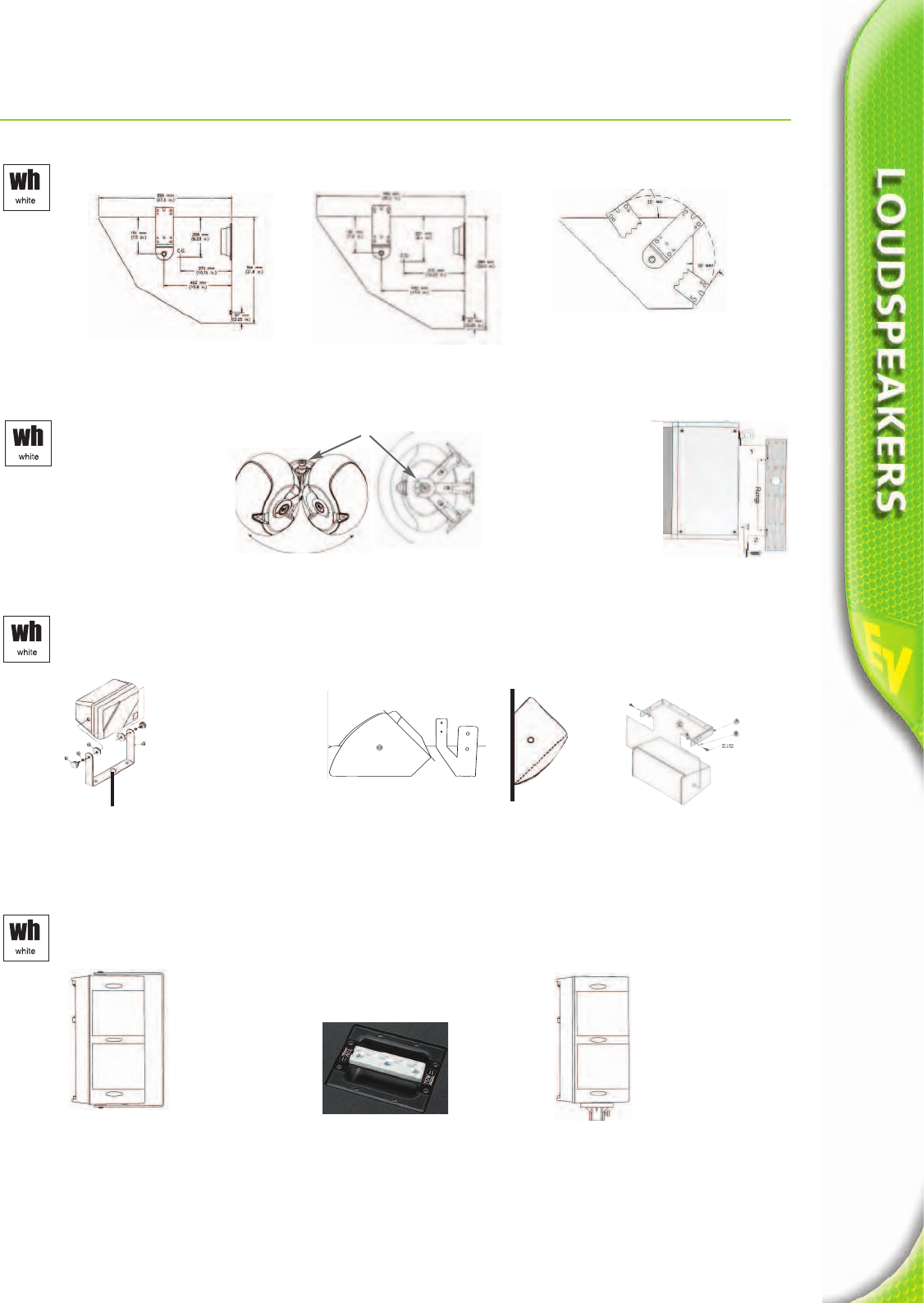

Note: Flying and suspending of speakers requires authorized personnel

EVI-12MBB black

EVI-12MBW white

EVI-15MBB black

EVI-15MBW white

EVI-28MBB black

EVI-28MBW white

The radius

of action is

140°.

EVI-12 Ceiling mount EVI-15 Ceiling mount EVI-28 Wall or ceiling mount

S-40 FRi-2082 Xi- 1082

Sx 80

Wall, ceiling or stand mount

Stand mount

Under balcony or on-wall mount Under balcony or

on-wall mount

S-40 MB/B: black

S-40 MB/W: white

Note: The threat

diameter can be

reduced with a

standard 5/8-inch

screw adapter for

different mic

stands.

Sx 80 SM black

For speakers stands

with 35 mm diameter.

Wall or ceiling mount Sx 250/SxA250

Sk-1 Rigging Kit

Sx 80 MBB black

Sx 80 MBW white

For cost effective

installation.

MB-1082: black

The 100° x 100° dispersion angle allows

one to install FRi-2082 vertically on the

wall as well. Mounting bracket comes with

FRi-2082.

on-wall

100° 90°

SAM™ comes with each

EVID™ system and includes

a hex-key-tool. SAM™ has

angle markers to make

installation easier.

EVID 3.2 / 4.2 / 6.2 Angle markers EVID 12.1

Bracket passes EIA 636 at a

safety factor of 8:1.

The bracket for on-wall or

corner mounting and a safety

eyebolt comes with EVID

12.1.

Sx 100 / Sx 300 / Sb 122

Sx 500 +

Horizontal Cluster 120° (2 systems)

Horizontal Cluster 140° (2 systems)

Vertical Cluster Wall-mount Sx-Series™ hardware-overview:

Horizontal Cluster 210° (3 systems)

2 x MB 200 +1 x MB 300 neccessary

2 x MB 500 +1 x MB 600 neccessary

2 x MB 500 neccessary 1 x MB 500 neccessary

3 x MB 500 +2 x MB 600 neccessary

3 x MB 200 +2 x MB 300 neccessary

Wall or ceiling-mount Vertical Cluster

Horizontal Cluster 180° (3 systems)

Sx 80 Sx 80 SM Stand mount black

Sx 80 MBB U-bracket black

Sx 80 MBW U-bracket white

Sx 100+ MB 200 B U-bracket black

MB 200 W U-bracket white

Sx 300 MB 300 B Array-kit (2 plates) black

Sb 122 MB 300 W Array-kit (2 plates) white

Sx 500 + MB 500 U-bracket black

MB 600 Array-kit black

Note: Flying and suspending of speakers requires authorized personnel

1 x MB 200 neccessary 2 x MB 200

neccessary

3/8“ Quick links

neccessary

3/8“ Quick links

neccessary

3/8“ Quick links

neccessary

3/8“ Quick links

neccessary

Eyebolt nec-

cessary

Eyebolt nec-

cessary

XVSL

XVHL

XVSD

XVHG

XVSG

MB5 Wall/Ceiling mounting

bracket PSA-V using

HA-5

CB5 cluster bracket kit

ZX5

A-1 Grid for XLC

(other rigging hardware included with speaker)

A-2 Grid for XLCi

(other rigging hardware included with speaker)

XLC Rigging

X-Line Rigging Accessories

XLC Bottom Dolly

XLCi Rigging

up to

1000

meters

Available Options and Accessories:

NRS 90244 Input transformer

NRS 90247 RS-485 network interface

NRS 90246 Contact Closure interface for external

“User preset” selection; 8 contacts

(pin 1-8: activation, pin 9: common)

Dx Network

(up to 31 Controllers)

Dx38 (Digital Sound System Processor)

Controller type 2 (+1) in/4 out

Data format 24-bit linear AD/DA conversion

48-bit processing

A/D conversion 24-bit/sigma-delta (linear phase)

128 times oversampling

D/A conversion 24-bit/sigma-delta

128 times oversampling

Sampling rate 48 kHz

DSP type 2 x 24-bit Motorola

Frequency response 20 - 20 kHz (- 0.5 dB)

Dynamic Range (typical) 115 dB

THD (without input transformer) < 0.01%

THD (with input transformer) < 0.05%

Input connectors 2 XLR (elec. balanced), parallel out

Input voltage (nominal) 1.55V/+ 6 dBu

Maximum input voltage 24.5V/+30 dBu

Input impedance 20k ohms

Common mode rejection > 40 dB

Output connectors 4 XLR (elec. balanced)

Output voltage (nominal) 1.55 V/+ 6 dBu

Maximum output voltage 8.7V/+ 21 dBu

Output impedance < 100 ohms

Minimum load impedance 600 ohms

Frequency crossovers (slopes) 6, 12, 18, 24 dB/oct.

Frequency crossovers (designs) Butterworth, Bessel, Linkwitz-Riley

Filters (In- and Outputs) 26 (full) parametric equalizers,

Low-Shelving EQ (6, 12 dB slope),

LPN (Lowpass-Notch) switchable,

Hi-Shelving EQ (6, 12 dB slope),

Lo-Cut filter (6 or 12 dB slope),

B6 alignment, Hi-Cut filter (6 or

12 dB slope), All-Pass filter (1st

or 2nd order), Phase invert (180°)

Digital Compressor 4 (1 each output) with graph

Digital Limiter 4 (1 each output) with graph

Delay 3 master delays (2 ms - 900 ms)

4 channel delays (0 ms - 900 ms)

Delay increment 21 µsec.

MIDI in/out/thru Data dump, Master/Slave

operation, Remote Control

Graphic LCD with LED-background light 122 x 32 dots

Locking function via key-lock

Dimensions mm (WxHxD) 483.0 x 43.6 x 374.0 mm

1.72” x 19” x 14.75”

Weight net 5.0 kg (17.03 lbs.)

Dx38 sets standards for digital loudspeaker controllers and

processors, providing 48-bit filter algorithms, 24-bit AD/DA

conversion and a dynamic range of 115 dB. Dx38 can be

used in networks of up to 31 controllers with a maximum

networking distance of 1.000 meters. Real-time controlling

and configuration is either via the front panel or PC via RS-

232, MIDI or RS-485 bus for networking.

Dx38 is a 2-in/4-out controller with a “virtual” third input

source. It has a mono sum of both input channels to maxi-

mize flexibility. Two configuration modes allow clearer han-

dling for different qualified users. 30 user memories and 50

factory presets can be managed.

The Dx38 comes with a detailed manual plus RACE software

which includes current EV speaker and amp data.

WWW

Software update

download

RS-485 NRS 90246

Remote panel

RS-232 realtime controlling

Digital Sound System Processor

Dx 38

RS-485 Remote Interface for Dx38

RACE Software

RACE is a professional audio tool to generate presets for

speaker systems. In addition to the clear display of all used

filters, delay and level settings, each output can be assigned

with the acoustic data (phase and frequency response) of

the individual speaker component.

This pure speaker data has been measured in free space.

RACE then calculates the complex summation of all used fil-

ters, level and delay settings applied to these components.

Thus the display on the screen is not only the electrical filter

response but, for the first time, the actual true acoustic

response of the component! Any change of parameter val-

ues is visible and audible in real time.

An additional tool is the SPL dispersion window for lower

frequencies. Presets can even be prepared off-line in ad-

vance and need only a little tweaking once speakers are

in place.

RACE enables engineers to seamlessly integrate room influ-

ence, speaker positioning and parameter settings and a

RACE Processed Preset is a guarantee for a solid, accurate

basis from which to begin system tuning. EV is supplying

these presets for all current EV speaker systems, even if the

needed combination is not part of the 50-factory preset of

the Dx38.

Download RACE software for the Dx38 for free from www.electro-voice.com

RACE

Software for Dx38

The acoustical response of Xi1183/64 plus Xi2181

(4-way) using the big Bode-Plot. Any change of

parameters like level, filter or delays is displayed

immediately. Even very complex array settings can be

tuned simply and accurately.

Overall Frequency Response

The signal flow diagram provides a clear overview of all

available parameters. Immediately after the input metering

there are five master equalizers per input available. Each of

these filters can be set as hi- or lo-pass (6dB/12dB-Peaking),

hi- or lo-shelf (6/12dB) or as a fully parametric eq. Each acti-

vated filter is signaled by a green LED symbol.

Each input, or the sum of both inputs, can be delayed sepa-

rately up to 900ms with the master delay. The fully flexible

routing allows each input as well as the sum to be routed to

any of the four outputs. Four filters per output are available

with same filter functions as the master eq. In addition, an

all-pass filter for phase corrections can be selected. The

x-over section provides a hi- and a lo-pass-filter per channel

and an output delay for alignment. The dynamics sections

with independent compressor and limiter can be used for

speaker protection.

The output meter display works like the whole editor in real-

time. Level control and mute are available for each channel.

All of these parameters on the Dx38 can easily be edited via

the front control panel without using a PC. Once you try

RACE however, you may never want to work without it!

Signal Flow Diagram

AC One Analog Controller

The AC One analog audio controller has been designed to

be used in high-performance applications that employ small-

to medium-size full-range systems with subwoofers. Its

excellent audio performance, dynamic range of 117 dB,

extremely low noise level, and outstanding price-perform-

ance ratio make the AC One an advantageous alternative to

conventional crossover and controller solutions. It is possible

to meet the tough demands of modern audio applications –

such as high sound pressure level, coverage, and sound

quality – only by using a biamped loudspeaker system which

can fully separate, amplify, and reproduce the audio signal´s

frequency ranges. The PowerMax 12 crossover function

brings the low-frequency performance of bigger systems to

compact systems. The AC One guarantees highly economi-

cal system applications without loss of performance, and

helps to save on application space.

Inputs and outputs are active balanced. The inputs can be

fitted with optional high-quality input transformers (NRS

90208). The outputs feature output relays which protect

against unwanted noise in case of power failure.

The new PowerMax 12 crossover function (patents pending)

makes the best possible use of amplifier output power and

loudspeaker transmission capacities. Compared to other reg-

ular crossover designs on the market, PowerMax 12 delivers

an extra 3 dB SPL at the crossover point, something which

cannot be achieved by normal EQ´ing alone. In addition,

speaker overload and amplifier clipping are dramatically

reduced. The PowerMax 12 crossover function silences the

oft-heard complaint: “It needs more punch and definition.”

In addition, a 12-dB (Q: 1.0) lo-cut filter and a unique

3-band equalizer featuring the patented LPN filter allows for

flexible, easy, and quick system adjustments.

Part number Option/accessory

PA 1 Clear acrylic cover

NRS 90208 Input transformer

24 dB Linkwitz-Riley crossover curve

PowerMax 12 crossover curve

PowerMax 12 advantage

AC One Analog Audio Controller

The PowerMax 12 Advantage and its Unique EQ Section

AC One Options and Accessories:

AC One

Crossover type 2-way stereo + sub mono

Crossover frequency (sweepable) 45–160 Hz

Crossover filter type PowerMax 12

Filter options (adjustable) Lo-cut / 3-band EQ

Frequency response (-3 dB @ 1 kHz) 16 Hz–150 kHz

Nominal gain 0 dB

Maximum gain +12 dB

Dynamic range (+20 dBu, a-weighted) 117 dB

THD + N (20 Hz–20 kHz, +6 dBu) <0.02%

THD + N (typical, +6 dBu) 0.003%

Crosstalk attenuation >80 dB

Mute switch rejection >90 dB

Level control attenuation >80 dB

Input impedance 20 kΩ

AC One

Maximum level (Inputs: A, B) +20 dBu

Rated level (inputs: A, B) +6 dBu

Gain range (inputs: A, B) -∞ to +6 dB

Output impedance (HI, LO, SUB) 75 Ω

Maximum level (outputs: HI, LO, SUB) +20 dBu

Rated level (outputs: HI, LO, SUB) +6 dBu

Gain range (outputs: HI, LO, SUB) -∞ to +6 dB

Input/output connectors XLR (active balanced)/

Inputs with parallel out

Power consumption 17 W

Power requirements 50-60 Hz (switchable) 100–120V/220–240V

Dimensions (H x W x D) 1.72" x 19" x 8.92"

43.6 x 483 x 226.5 mm (1 RU)

Net weight 7.07 lbs (3.2 kg)

Amplifiers

The Precision Series™ (P-Series), EV´s top line of power am-

plifiers, has become a world standard in touring business.

Their extreme reliability, high-level sound and durable design

make them the amp of choice for the Rolling Stones´ world

concert tours. A two-year tour is torture for any piece of

touring equipment and EV´s speakers and amplifiers did an

outstanding job, not only from an acoustical point of view.

During the two-year period, only one fuse blew on one of

the amplifiers!

All EV amps are equipped with a unrivalled and complete

protection and safety package for maximum sound perform-

ance. Their technical specifications represent the highest

league of professional power amplifiers. Precision Series™

guarantees, among other things, outstanding transient

response for uncomplicated sonic reproduction of the origi-

nal signal, and extremely low dynamic distortion to ensure

excellent sound quality. Q-Series and CPS-Series are based

on Precision Series™.

All EV Amplifiers feature:

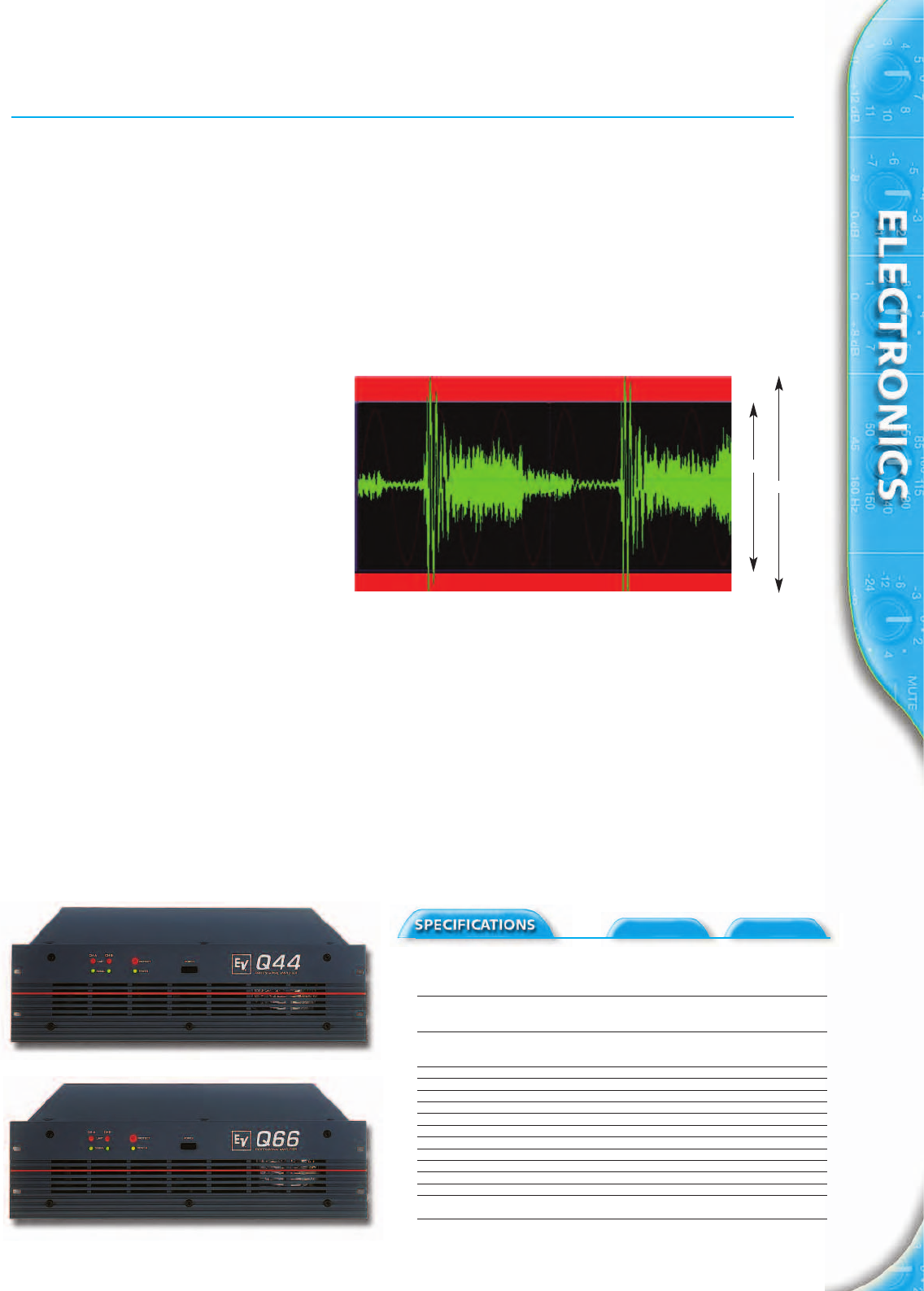

Q-Series

Dynamic Headroom

1 % THD

30% Dynamic headroom of a Q66 amplifier

• Dynamic audio limiters (shown right)

• Switchable limiter time constant (P-Series)

• Peak current limiters

• Inrush current limiters

• Turn-on delay (“soft-start“)

• Excessive high frequency (RF) protection

• Excessive Back-EMF protection

• DC fault protection

• Shorted loads protection

• High temperature protection controls thermal over-

load of the power transistors and the transformer

• Low-noise 3-stage resp. 4-stage fans with

front-to-rear airflow

• Up to 30 % headroom of power capability

• Generous power-supply construction

• Flexible Input routing (mono parallel, stereo)

• Stable and safe operation on 2 ohms load

• Bridge-mode operation on 4 ohms load

• High-level sound performance

• Extreme reliability

• Highest quality standards: German engineering

Q-Series is based on EV´s world famous P-Series. They con-

tain all features listed above and guarantee the same high

quality, in cost-effective packages of 2 x 450 W and 2 x

600 W output power.

Q-Series comes up in a stable 3-RU zinc-plated steel housing

with rear-mounted dB-scaled level controls.

Q 44 Q 66

Continuous rated power (1k Hz, THD 1 %)

2 ohms 650 watts 850 watts

4 ohmsΩ 450 watts 600 watts

8 ohms 280 watts 380 watts

Continuous rated power (20 - 20k Hz, THD < 0,2%)

4 ohms 350 watts 500 watts

8 ohms 230 watts 300 watts

Max. bridged output

4 ohms 1,300 watts 1,700 watts

8 ohms 900 watts 1,200 watts

Slew rate > 25 V / µs > 30 V / µs

Total Harmonic Distortion < 0.05 % < 0.05 %

Intermodulation Distortion (SMPTE) < 0.08 % < 0.08 %

DIM 30 < 0.03 % < 0.03 %

Damping factor 100 Hz / 1000 Hz > 300 / > 200 > 300 / > 200

Crosstalk (at 1.000 Hz) < 80 dB < 80 dB

Signal-to-noise ratio (dB A-weighted) > 105 dB > 105 dB

Input Impedance (balanced) 20k Ω 20k Ω

Input Sensitivity (0 dBu factory setting) 0 dBu / +6 dBu 0 dBu / +6 dBu

Input connectors, parallel out XLR in/out XLR in/out

Output connectors Speakon (Pin 1) Speakon (Pin 1)

Dimensions (H x W x D) 133 x 483 x 386 mm 133 x 483 x 386 mm

5.25” x 19”x 15.7” 5.25” x 19” x 15.7”

Net weight 15 kg (35.2 lbs.) 16 kg (35.2 lbs.)

600W

780W

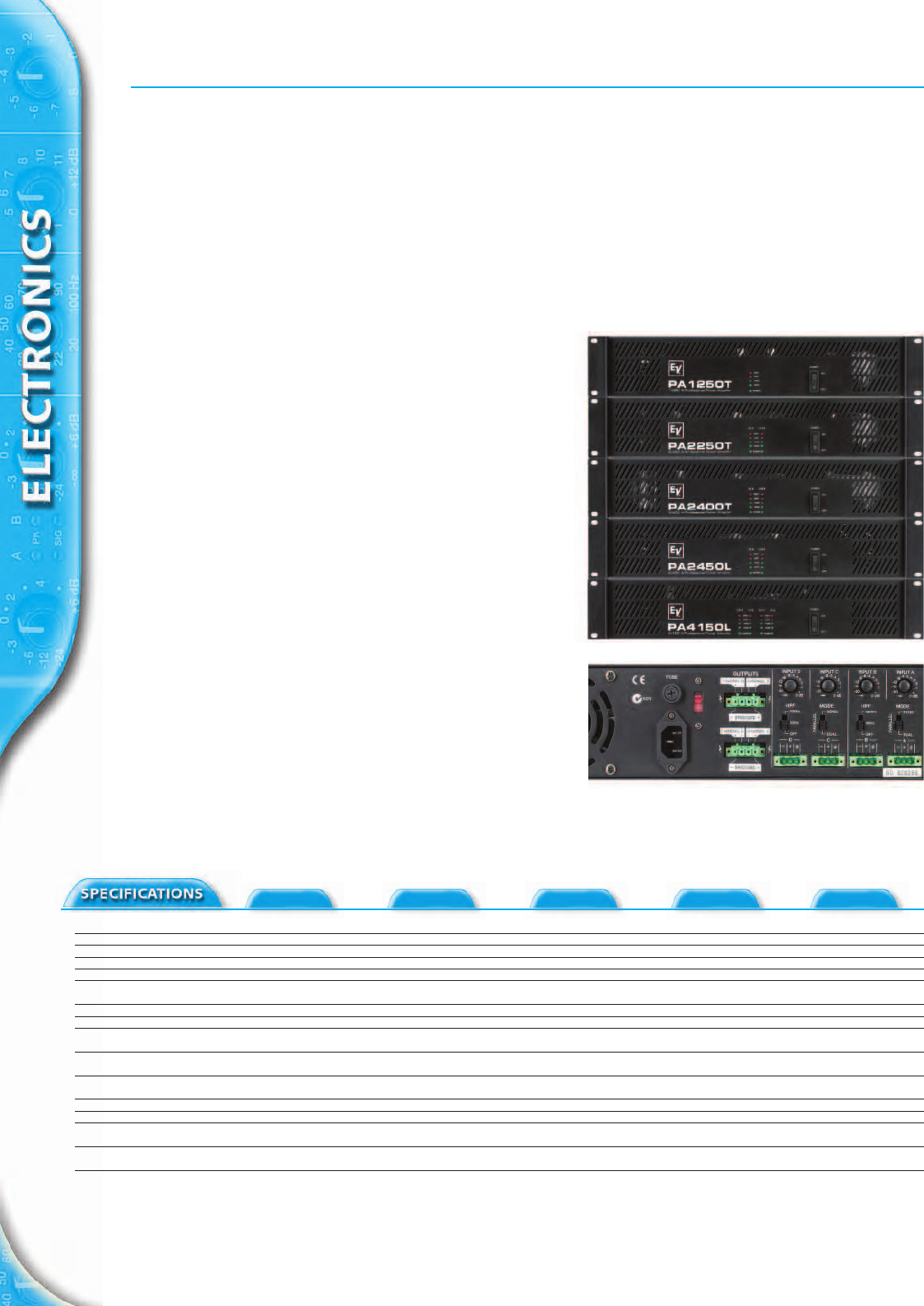

The PA series of compact commercial rack mount power

amplifiers are designed for demanding sound reinforce-

ment, background music/paging and public address sys-

tem installations where long term reliability and flexibility is

the ticket. These units are exceptional values, loaded with

features and are easy to install in a variety of system

designs. The models in the PA series range from 160 to 450

watts of power per channel in a compact 2RU package.

All models have a variety of features which enables them

to be customized to a wide range of demanding commer-

cial sound and audio reinforcement applications. The

PA1250T, PA2250T and PA2400T all provide 70/100V out-

put capability using low distortion output transformers for

wide bandwidth and minimal saturation.

PA Series Amplifiers

• Balanced phoenix style input connectors –

makes installation easy.

• A phoenix style connector block for all

output modes.

• Models available from 160 to 450 watts

per channel into 4 ohms or 70/100V.

• Bridge mode operation on all multi channel

models provide power flexibility.

• Switch selectable hi-pass filter at either

50Hz or 300Hz meets any installation

requirement.

• Independent rear panel level controls

provided for each channel

• All models provide multi-voltage operation

from 110-240vac.

• Integrated “rack ears” allow for rack

mounting without additional accessories.

PA2450L PA4150L PA2400T PA2250T PA1250T

Number of Channels 24221

Load Impedance 8/4 Ohms 8/4 Ohms 8/4 Ohms/100V/70V 8/4 Ohms/100V/70V 100V/70V

Rated output power 220W/450W 100W/160W 215W/430W/430W/430W 135W/270W/270W/270W 270W/270W

(*rated load) THD<1%, 1kHz

Rated output power 200W/400W 75W/150W 200W/400W/400W/400W 125W/250W/250W/250W 250W/250W

(*rated load) THD<0.2%,

20Hz – 20kHz

Slew rate at 1kHz V/µs 28 16 25/25/65/46 18/18/61/41 61/41

Frequency response -1dB, ref. 1kHz <10Hz -40kHz <10Hz -40kHz 65Hz -40kHz/65Hz -20kHz 65Hz -40kHz/65Hz -20kHz 65Hz -20kHz

Input impedance 20Hz – 20kHz, >20kohm >20kohm >20kohm >20kohm >20kohm

balanced

Input sensitivity @ rated output 0dBu (775mV) 0dBu (775mV) 0dBu (775mV) 0dBu (775mV) 0dBu (775mV)

power or voltage, 1kHz

THD @ rated output <0.1% <0.1% <0.1% <0.1% <0.1%

power MBW=80kHz, 1kHz

IMD-SMPTE 60Hz, 7kHz <0.1% <0.1% <0.1% <0.1% <0.1%

DIM30 3.15kHz, 15kHz <0.1% <0.1% <0.1% <0.1% <0.1%

Crosstalk ref. 1kHz, @ 10% rated <-75dB <-75dB <-75dB <-75dB <-75dB

output power

Dimensions (W x H x D) 483mm x 88mm x 406mm 483mm x 88mm x 406mm 483mm x 88mm x 406mm 483mm x 88mm x 406mm 483mm x 88mm x 406mm

(19”x 3.5”x16”) (19”x 3.5”x16”) (19”x 3.5”x16”) (19”x 3.5”x16”) (19”x 3.5”x16”)

Weight 16.5kg (36.34lbs) 18kg(39.65lbs) 26kg(57.27lbs) 23.5kg(51.76lbs ) 16.5kg(36.34lbs)

The CPS Series are high-performance amplifiers with

unmatched dynamic range capability, ensuring the most reli-

able operation favored by sound contractors in all sound

reinforcement applications.

The CPS Series achieves its outstanding dynamic range

through the use of our unique nonlinear signal monitor. This

feature limits amplifier distortion to less than 1 percent, eli-

minating the "hard-edged" clipping which can destroy most

speaker systems. The amplifier’s power supply is specifically

designed to deliver high peak signals, proving a burst signal

output capability headroom more than 30% over their aver-

age continuous rating.

CPS 1

The CPS1 can deliver up to 450 watts of power at 1kHz into 4

ohms. The CPS 1 has been extremely popular in smaller venues

such as houses of worship, retail spaces, and entertainment

venues where background or foreground music is needed.

CPS 2

The CPS2 incorporates all the advanced features of the CPS1

but can deliver up to 600 watts of power at 1kHz into 4 ohms.

CPS 2.4

The CPS2.4 is ideal for smaller full-range systems or larger

mid/high frequency amplification in larger installations. The

CPS2.4 is an ideal companion to the popular EVID line of

premium surface-mount and ceiling speaker systems.

CPS 2.6

The workhorse of the line. Its 600 watts of compact power

is perfect for mid-level full range installs.

CPS 2.8

At 800 watts per channel the CPS2.8 is the best value in the

line. It can power a wide range of speaker cabinets either in

multi-way or full-range modes for a large range of fixed

installation jobs

CPS 2.11

No power amplifier on the market can offer such a high level of

power performance and reliability. At 1100 watts/channel the

CPS2.11 can power large stadium, theater, and auditorium

type installations with ease.

Contractor Precision Series (CPS) Amplifiers

CPS1 CPS2 CPS2.4 CPS2.6 CPS2.8 CPS2.11 CPS2T

Maximum power (1k Hz; THD <1%)

2 Ω 650 W 850 W 600 W 900 W 1,100 W 1,600 W 850 W

4 Ω 450 W 600 W 400 W 600 W 800 W 1,100 W 600 W (100V: 500W)

8 Ω 280 W 350 W 240 W 350 W 500 W 600 W 380 W

Rated power (20 Hz–20 kHz; THD <0.2%)

4 Ω 350 W 500 W 300 W 500 W 700 W 900W 500 W (100V: 580W)

8 Ω 230 W 300 W 150 W 250 W 350 W 450 W 330 W

Maximum bridged output (1,000 Hz; <1% THD)

4 Ω 1,300 W 1,700 W 1,240 W 1,800 W 2,200 W 3,200 W 1,700 W

8 Ω 900 W 1,200 W 800 W 1,200 W 1,600 W 2,200 W 1,200 W (100V: 1,160)

Slew rate 25 V/µs 30 V/µs 35 V/µs 35 V/µs 35 V/µs 35 V/µs 30 V/µs

Total harmonic distortion <0.05% <0.05% <0.05% <0.05% <0.05% <0.05% <0.05% (100V: <0.2%)

Intermodulation distortion (SMPTE) <0.08% <0.08% <0.02% <0.02% <0.02% <0.02% <0.08% (100V: <0.3%)

Crosstalk (at 1,000 Hz) <-80 dB <-80 dB <-80 dB <-80 dB <-80 dB <-80 dB <-80 dB

Input impedance (balanced) 20 kΩ 20 kΩ 20 kΩ 20 kΩ 20 kΩ 20 kΩ 20 kΩ

Signal-to-noise ratio (dB A-weighted) >105 dB >105 dB 103,5 dB 105.5 dB 107 dB 107 dB >100 dB

Dimensions (W x H x D)

483 x 132.5 x 368.8 mm 483 x 132.5 x 368.8 mm 483 x 88.1 x 368.8 mm 483 x 88.1 x 368.8 mm 483 x 88.1 x 368.8 mm 483 x 88.1 x 368.8 mm 483 x 132.5 x 368.8 mm

19" x 5.22" x 15.22" 19" x 5.22" x 15.22" 19" x 3.5" x 15.22" 19" x 3.5" x 15.22" 19" x 3.5" x 15.22" 19" x 3.5" x 15.22" 19" x 5.22" x 15.22"

Net weight 15 kg (33.1 lbs.) 16 kg (35.3 lbs.) 13.5 kg (30.8 lbs.) 15 kg (33 lbs.) 16 kg (35.2 lbs) 8.15 kg (17.96 lbs.) 22.5 kg (49.6 lbs.)

CPS2T

The CPS2T offers all the performance of the CPS2 and adds

the capability of 70v/100v constant voltage operation. It

also features Transformer Saturation Protection (TSP),

which monitors the current demands of the 70v/100v

matching transformer and can protect against overload and

distortion. The exceptional reliability and performance of

the CPS2T has made it the amplifier of choice for a wide

variety of distributed audio installations such as convention

centers, factories, warehouses, stadiums, office buildings,

and the like. Anywhere large amounts of reliable 70v ampli-

fier power is needed, the CPS2T can meet the spec easily.

(not shown)

Compact Precision Amplifiers

• Four models ranging from 2 x 600 W

to 2 x 2000 W

• EV’s legendary Precision Series sound

• 30% dynamic headroom

• Class-H design for less heat dissipation

• Very light and compact format

• High-precision detent front controls

• Dynamic audio limiter

• Robust construction & reliable design

• Unique protection package including

Back-EMF protection

TheCP3000 S & CP4000 S are not only the first Precision Series

amplifier to use a switch-mode power supply, but they are also

the first switch-mode amplifier with EV’s Precision Series sound.

With up to 2 x 2100 watts into 2 Ohms and 2 x 1500 watts into

4 Ohms, they are not only the most powerful in the line, but also

the lightest model at only 17.96 lbs (8.15 kg).

CP4000S CP3000S CP2200 CP1800 CP1200

Maximum power (1k Hz; THD <1%)

2 ohms 2100 W 1600 W 1100 W 900 W 600 W

4 ohms 1500 W 1100 W 800 W 600 W 400 W

8 ohms 900 W 600 W 500 W 350 W 240 W

Rated power (20 Hz–20 kHz; THD <0.2%)

4 ohms 1200 W 900 W 700 W 500 W 300 W

8 ohms 600 W 450 W 350 W 250 W 150 W

Maximum bridged output (1,000 Hz; <1% THD)

4 ohms 4200 W 3200 W 2200 W 1800 W 1200 W

8 ohms 3000 W 2200 W 1600 W 1200 W 800 W

Slew rate 35 V/µs 35 V/µs 35 V/µs 30 V/µs 25 V/µs

Total harmonic distortion <0.05% <0.05% <0.05% <0.05% <0.05%

Intermodulation distortion (SMPTE) <0.02% <0.02% <0.02% <0.02% <0.02%

Crosstalk (at 1,000 Hz) <-80 dB <-80 dB <-80 dB <-80 dB <-80 dB

Input impedance (balanced) 20 kΩ 20 kΩ 20 kΩ 20 kΩ 20 kΩ

Signal-to-noise ratio (dB A-weighted) 108 dB 107 dB 107 dB 105,5 dB 103,5 dB

Dimensions (W x H x D)

483 x 88.1 x 384 mm 483 x 88.1 x 368.8 mm 483 x 88.1 x 368.8 mm 483 x 88.1 x 368.8 mm 483 x 88.1 x 368.8 mm

19" x 3.5" x 15.5" 19" x 3.5" x 15.22" 19" x 3.5" x 15.22" 19" x 3.5" x 15.22" 19" x 3.5" x 15.22"

Net weight 8.70 kg (19.2 lbs) 8.15 kg (17.96 lbs.) 16 kg (35.2 lbs.) 15 kg (33 lbs.) 13.5 kg (30.8 lbs.)

CP3000 S/ CP4000 S

With up to 2 x 1100 watts into 2 Ohms and 2 x 800

watts into 4 Ohms, the CP2200 is not only a perfect

complement to many fullrange speaker cabinets, but also

mid- and hi-frequency components in larger concert-sound

systems. The CP2200 employs a conventional trans-

former power supply.

CP2200

Supplies up to 2 x 900 watts into 2 Ohms and 2 x 600 watts

into 4 Ohms. Dedicated for smaller size full range speaker

systems and hi-frequency components in multiway systems.

The CP1800 uses a conventional transformer power supply.

CP1800

With up to 2 x 600 watts into 2 Ohms and 2 x 400 watts into

4 Ohms dedicated for small fullrange cabinets and individual

hi-frequency components in multiway systems. The CP1200

employs a conventional transformer power supply.

CP1200

Precision Series™Linear Amplifiers

The Precision Series™ (P-Series) is EV´s most popular series

of power amplifiers. Their extreme reliability, high-level

sound, and durability make them the professional’s choice

among rental companies and musicians.

For flown applications in the touring market, rear-rack

mount kits are available to help stabilize the rack frame and

ensure safe transportation.

P 1200

• Compact, 2 RU chassis

• Switchable limiter constant (fast/slow)

• Switchable Lo- and Hi-cut filter

• Input transformer optional (NRS 90176)

• Selectable input sensitivity with 26 dB

constant gain option (internal)

P 2000 / P 3000

• Dual power-supply

• Switchable limiter constant (fast/slow)

• Switchable Lo- and Hi-Cut filter

• Input transformer optional (NRS 90176)

• Selectable input sensitivity with 26 dB

constant gain option (internal)

P1200 P 2000 P 3000

Continous rated power (1k Hz, THD 1 %)

2 ohms 800 watts 1200 watts 1800 watts

4 ohms 550 watts 900 watts 1300 watts

8 ohms 370 watts 560 watts 850 watts

Continous rated power (20 - 20k Hz, THD < 0,1%)

4 ohms 500 watts 800 watts 1200 watts

8 ohms 350 watts 500 watts 750 watts

Max. bridged output

4 ohms 1600 watts 2400 watts 3600 watts

8 ohms 1100 watts 1800 watts 2600 watts

Slew rate > 30 V / µs > 35 V / µs > 40 V / µs

Total Harmonic Distortion < 0.05% < 0.05% < 0.05%

Intermodulation Distortion (SMPTE) < 0.01% < 0.01% < 0.01%

DIM 30 < 0.01% < 0.01% < 0.01%

Damping factor 100 Hz / 1000 Hz > 400 / > 300 > 400 / > 300 > 400 / > 300

Crosstalk (at 1.000 Hz) < -70 dB < -70 dB < -70 dB

Signal-to-noise ratio (dB A-weighted) > 105 dB > 105 dB > 105 dB

Input Impedance (20-20k Hz, balanced) 20k ohms 20k ohms 20k ohms

Input Sensitivity (0 dBu factory setting) 0 dBu / +6 dBu / +26 dB 0 dBu / +6 dBu / +26 dB 0 dBu / +6 dBu / +26 dB

constant gain constant gain constant gain

Input connectors, parallel out XLR in/out XLR in/out XLR in/out

Output connectors Speakon (Pin 1) Speakon (Pin 1) Speakon (Pin 1)

Dimensions mm (H x W x D) 88 x 483 x 390 mm 133 x 483 x 390 mm 133 x 483 x 390 mm

3.5” x 18” x 16.8” 5.2” x 19” x 16.8” 5.2” x 19” x 16.8”

Net weight 17 kg (35.2 lbs.) 27 kg ( 57.3 lbs.) 29 kg (61.7 lbs.)

THD + N versus power output of a P 3000.

From the introduction of the first IRIS (Intelligent Remote

Integrated Supervision) software platform for amplifiers in

2002, EV has been developing a robust audio control proto-

col and new innovative audio hardware.

The first was the RL line of remote controlled amplifier prod-

ucts. These amplifiers offered an amazing level of user con-

trol and monitoring, which brought reliability and ease of use

to a wide range of users. Now EV is introducing the Net-

Max™ N8000, a comprehensive digital audio system con-

troller — the next link in the IRIS-Net audio processing chain.

IRIS-Net is EV’s answer to the ever-increasing complexity of

audio system designs. It is a comprehensive software plat-

form, which encompasses a huge array of control options. All

aspects of the audio chain are under its supervision and con-

trol. The key areas of signal processing, supervision and sig-

nal routing are all manipulated under its shell.

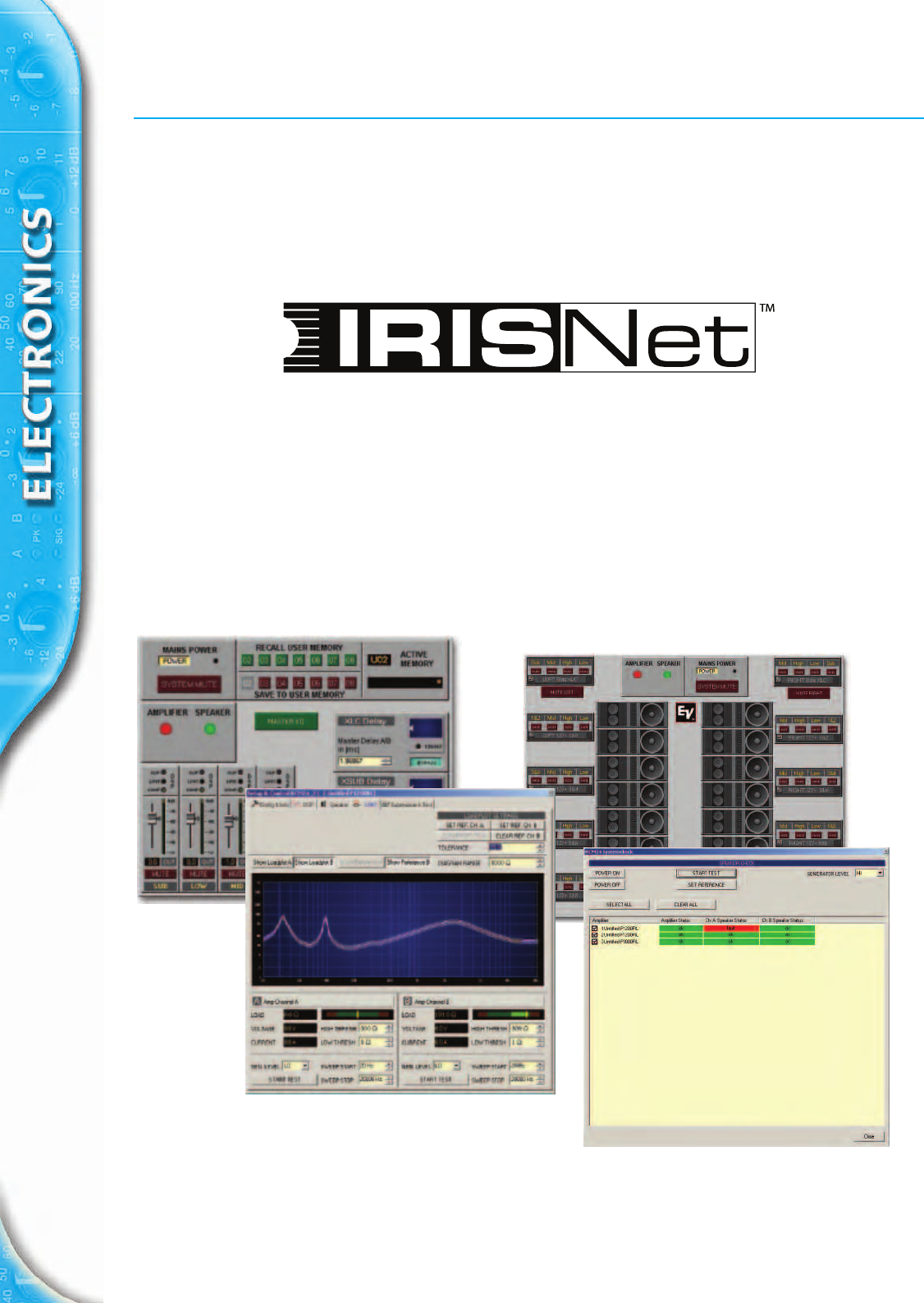

Typical user-accessable control pages

Unrivalled System Supervision

• IRIS (Intelligent Remote & Integrated Supervi-

sion) software for user-programmable, pass-

word-protectable control pages

• Remote control and supervision of up to 250

amplifiers over CAN network

• Built-in state-of-the-art digital signal processing

(Filter, Crossover, Delay, Compressor,Limiter)

•Dynamic Range 115 dB

• RACE-processed presets for EV speakers

available

• Realtime supervision of amplifier operation and

loudspeaker load

•Automated system checks including full band-

width measurement of connected loudspeakers

• Automated action procedures on critical opera-

tion modes are programmable

IRIS-Net

Impedance measurement of individual speaker component allows for comprehensive supervision of all speakers using

system check function.

IRIS-Net / NetMax

Distributed vs. Central processing –

The N8000 and IRIS-Net gives you both!

Now you don’t have to make the choice as to where your

processing power resides. IRIS-Net gives you the ability to

choose BOTH! IRIS-Net enables you to process all or part of

the audio signal in a central component like the NetMax

N8000 or to conduct the processing and supervision remote-

ly at the amplifier. This gives the system designer incredible

flexibility in designing the system. You can now design the

system for the ultimate in reliability or design for efficiency

and value. The IRIS-Net solution gives you all the hardware

and software pieces to accomplish both objectives.

Open Architecture –

Extensively Tested

The IRIS-Net software platform has been extensively tested

in a variety of venues. Even prior to its introduction the sys-

tem hardware and software underwent extensive testing and

scrutiny. The software interface and hardware component

design were made with the user and designer in mind. The

open architecture of the hardware and IRIS-Net user proto-

col allow for the seamless functioning of external devices

within IRIS-Net and its hardware components.

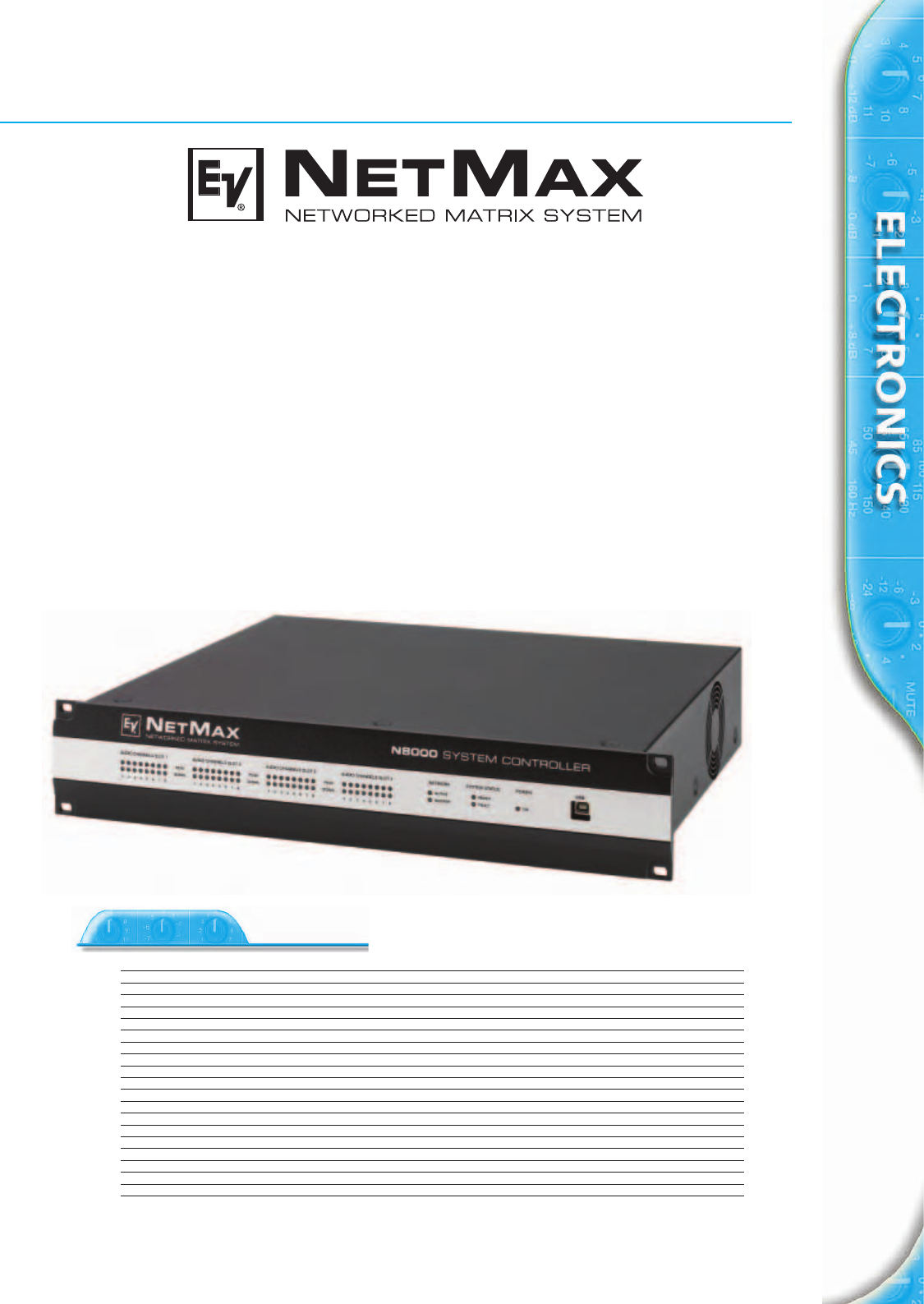

The new NetMax N8000 is the central player in the IRIS-Net

solution. It offers an extremely flexible hardware platform

that allows for field level customization of the unit to nearly

any application. This customization goes far beyond what is

available today from other platforms. Everything from the

matrix size and configuration to the processing power can be

customized in the field, making it easy to design the best

solution value for the customer.

Audio 32 Audio Channels 4 Audio Slots, modular 8-Channel Input and Output cards, analog or digital

Networking Module Slot for optional CobraNet™ Interface 32 I/O Audio and Control

Safety / Redundancy Internal Supervision, System Monitoring, Watchdog, Fault Output, Redundant Audio Network possible

Audio Inputs 8 analog audio inputs per module, line level, electronically symmetric

Audio Outputs 8 analog audio outputs per module, line level, electronically symmetric

Signal to Noise Ratio (A-weighted) AI-1: 117 dB typical AO-1: 118 dB typical N8000 analog In to analog Out: 114 dB typical

Sample Rate 48 kHz internal, 32 kHz - 192 kHz external

Data Format 24 Bit linear A/D and D/A conversion, 48 Bit processing

INTERFACES Ethernet ,CAN , RS-232 ,USB ,GPIO Control Port

Power Supply 100 - 240 V AC, 50/60 Hz

Power Consumption 90 W max. (incl. 2 x AI-1, 2 x AO-1, 1 x CM-1 modules)

Cooling Left-to-right, 3-stage fan

Operating Temperature Range 32°F – 104°F (0 °C – 40 °C)

Dimensions (W x H x D) 19“ x 3.5” x 15” (483 x 88.1 x 381 mm) 2 RU

Modules:

AI-1 Analog Input Module 8 analogue audio inputs, line level, balanced 20kOhms

AO-1 Analog Output Module 8 analogue audio outputs, line level, balanced, 100 Ohms

DI-1 Digital Input Module 8 digital audio inputs (AES/EBU)

DO01 Digital OUtput Module 8 digital audio outputs (AES/EBU)

DSP-1 DSP Extension Module DSP Extension Module (300 MIPS)

MI-1 Microphone Input Module 8 analogue audio mic/line inputs with phantom power

N8000

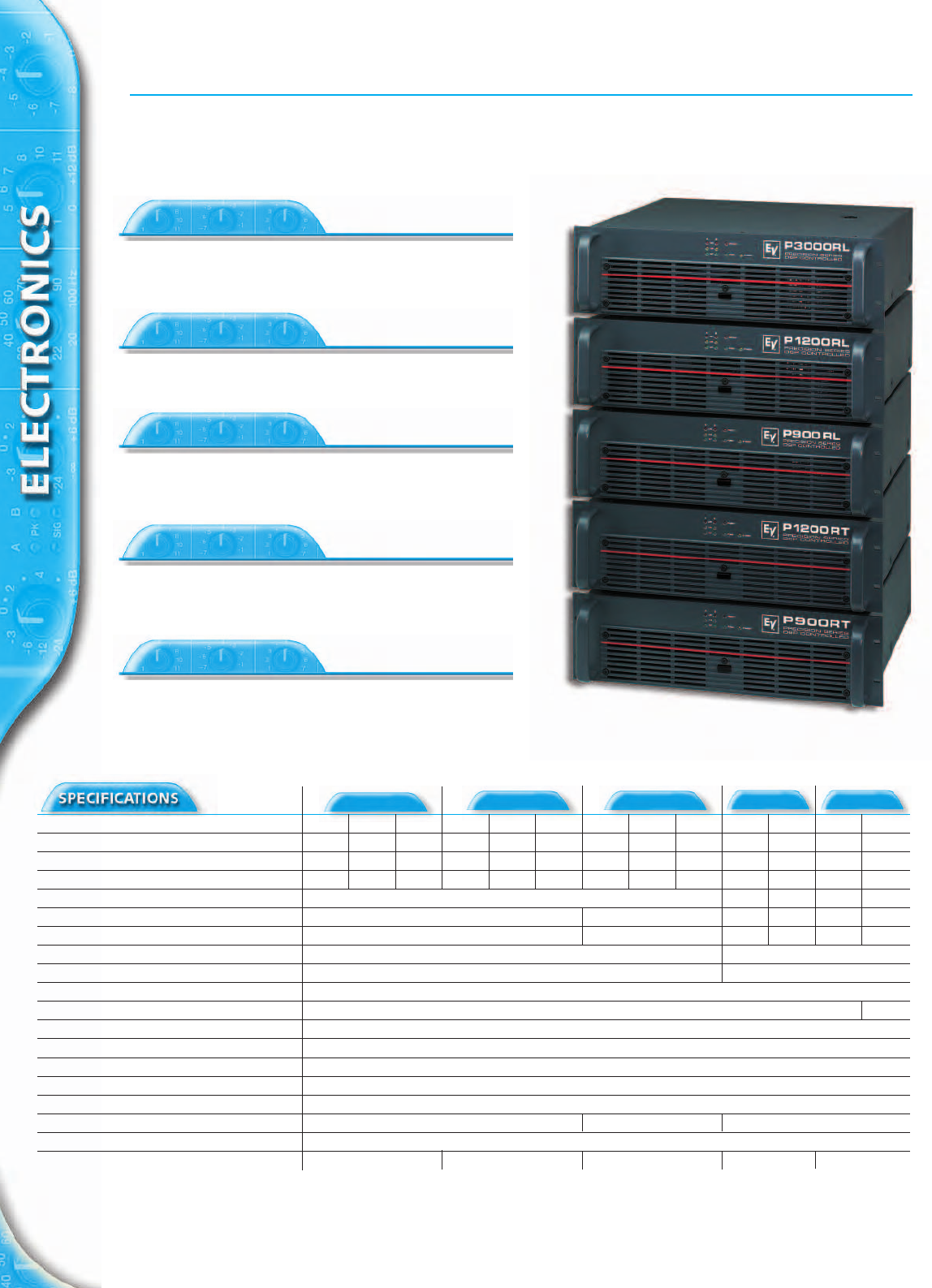

P3000 RL

The flagship, with 2 x 1300 watts into 4 ohms and 2 x 1800 watts

into 2 ohms: the digitally controlled version of the legendary

P3000 amplifier. Speaker outputs on Speakon NL4 connectors.

P1200 RL

The universal, with 2 x 600 watts into 4 ohms and 2 x 850 watts into

2 Ohms. Speaker ouputs on barrier strip.

P1200 RT

High-impedance output for 100/70V-lines with 2 x 590 watts.

The dynamic limiter circuit includes the output transformer and lim-

its THD to 1% maximum. Speaker outputs on barrier strip.

P900 RL

Featuring 2 x 450 watts into 4 and 2 x 650 watts into 2 ohms the

P900RL is dedicated for HF drive in multi-way systems. Speaker

outputs on barrier strip.

P900 RT

High-impedance output for 100/70V-lines with 2 x 410 watts.

Speaker output on barrier strip.

P900 RL P1200 RL P3000 RL P900 RT P1200 RT

8Ω 4Ω 2Ω 8Ω 4Ω 2Ω 8Ω 4Ω 2Ω 100V 70 V 100V 70 V

Continous Output Power (1 kHz, THD 1%) 280 W 450 W 650 W 380 W 600 W 850 W 850 W 1300 W 1800 W 410 W 400 W 590 W 580 W

Rated Output Power (20 Hz-20 kHz, THD <0,2%) 230 W 350 W - 300 W 500 W - 750 W 1200 W - 350 W 350 W 500 W 500 W

Maximum Bridged Output (1 kHz, THD 1%) 900 W 1300 W - 1200 w 1700 W - 2600 W 3600 W - - - - -

THD @ Rated Output Power < 0.05% <0.1% <0.2% <0.1% <0.2%

DIM 30 <0.03% <0.01% <0.2% <0.3% <0.2% <0.3%

Intermodulation (SMPTE) <0.08% <0.001% <0.1% <0.3% <0.1% <0.3%

Signal-to-Noise Ratio > 105 dB >100 dB

Frequency Response (-1 dB) 20 Hz - 20 kHz 45 Hz - 20 kHz

Dynamic Audio Limiter THD </= 1% (Inputsignal </= + 20 dBu

Protections Hi-Temperature, DC, HF, Back EMF, Peak Current Limiter, Inrush Current Liminter, Power On Delay

Cooling 3(4)-stage fan, front-to-rear cooling

Input Sensivity and Impedance 1.55 V (+6dBu), 20 kOhm, XLR Input

Maximum Input Level 8.7 V (+21 dBu)

Serial Interface Network: CAN, 2 RJ45 (CAT-5 Cabling), RS-232 for media control systems

Control Logic In- and Outputs 2 x 0V 5V free configurable, Easy-Remote

Loudspeaker Connectors Barrier Strip Speakon NL4 Barrier Strip

Dimensions (Width x Height x Depth) 483 x 132.5 x 390 mm (52” x 19” x 15.4”) ( 3 U)

Net Weight 16 kg (35.3 lbs.) 17 kg (37.5 lbs.) 30 kg (66.2 lbs.) 24 kg (53 lbs.) 25 kg (55.1 lbs.)

All measurements both channels driven into 8 ohms unless other specified.

Range of Amplifiers for High and Low Impedance Applications

Precision Series Remote Amplifiers

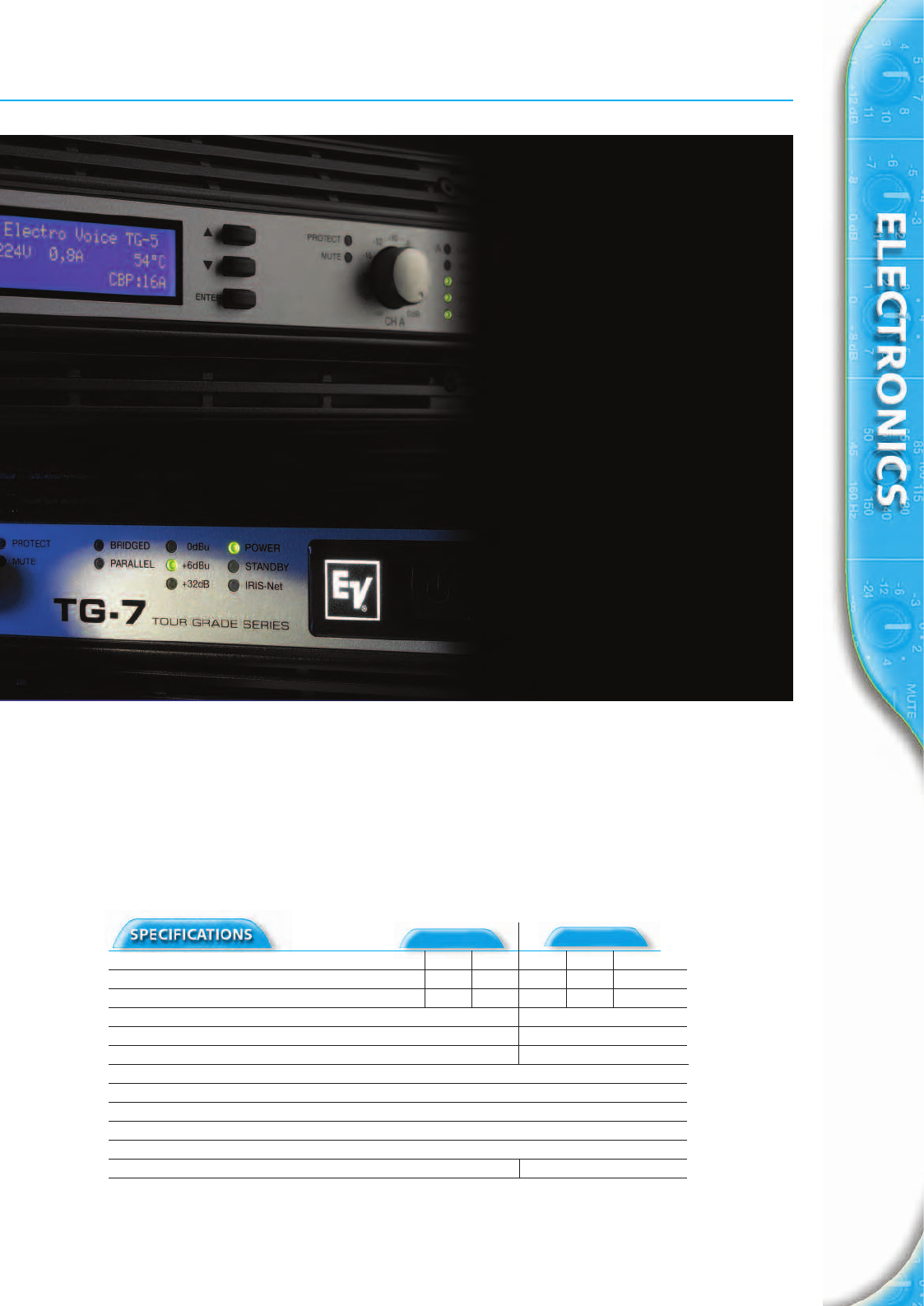

TG5 TG7

8Ω 4Ω 2Ω 8Ω 4Ω 2Ω

Continous Output Power (1 kHz, THD 1%) 850 W 1450 W 1900 W 1500 W 2500 W 3500 W

Rated Output Power (20 Hz-20 kHz, THD <0.2%) 600 W 1200 W - 1050 W 2100 W -

THD @ Rated Output Power < 0.05% < 0.05%

DIM 30 <0.02% <0.02%

Signal-to-Noise Ratio 109 dB 111 dB

Protections Dynamic Audio Limiter, Hi-Temperature,

DC, HF, Short Circuit, Back EMF,

Mains circuit breaker, Mains overvoltage

Power Requirements: 100-240V, 50/60Hz (mains auto detection)

Dimensions (Width x Height x Depth) 483 x 88.1 x 512 mm (19” x 3.46” x 20.9”)

Net Weight 14.4 kg (31.3 lbs.) 14.5 kg (32 lbs.)

Tour Grade Amplifiers

Tour Grade amplifiers are designed for today’s most demand-

ing audio applications. They offer a unique combination of

high output power, sonic excellence, high efficiency, as well as

state-of the art, optional signal processing and system supervi-

sion via the IRIS-Net software suite, in a compact lightweight

format. The switch-mode power supply has lots of headroom

to ensure high dynamic outputs and reliable operation on

extreme low loads.

Optional IRIS-Net™ (Intelligent Remote & Integrated Supervi-

sion-Network ™ ) Modules available for the Tour Grade ampli-

fiers open up a whole world of state-of-the-art DSP, remote

control, networking and unique system supervision – down to

an individual loudspeaker component. There will be several

modules available: RCM-26 (DSP, AES/EBU input, GPIO,

CAN-Bus), RCM-28 (DSP, GPIO, COBRA-Net™), RCM-20

(no DSP

, CAN-Bus) to allow any combination of central control

and supervision with central or decentralized signal processing.

• Up to 2 x 3500W max. cont. output

• High Efficiency and Sonic Excellence

through Grounded-Bridge Class-H

• Design Microprocessor Controlled

- Compound Thermal Protection

- Auto Mains Input Voltage Select

- Mains Circuit Breaker Supervision

• Front LCD-Panel for Operation Mode

• Set-up and Monitoring

• Slot for optional IRIS-Net™ Module

- complete PC control (CAN, Ethernet)

- state-of the art real time DSP (RCM26/28)

- unique system diagnostics and supervision

- compatible with all other IRIS-Net units

• Complete Protection Package

• Only 14.5 kg (32 lbs) for TG-7

• Designed and Made in Germany

Cobalt™Series

Wired Microphones

Co4 Co5 Co7 Co9 Co11

Element Dynamic Dynamic Dynamic Dynamic Self-biased condenser

Polar pattern Cardioid Cardioid Cardioid Cardioid Cardioid

Impedance, Low-Z balanced 600 ohms 600 ohms 600 ohms 600 ohms Low-Z’balanced (250 Ohms)

Frequency Response (-3 dB) 50 - 18,000 Hz 50 - 18,000 Hz 50 - 18,000 Hz 50 - 18,000 Hz 50 - 20,000 Hz

Open Circuit Voltage (at 1,000 Hz) 2.2 mV/Pascal 2.8 mV/Pascal 3.2 mV/Pascal 3.2 mV/Pascal 4 mV/Pascal

Magnetic Circuit N/DYM®N/DYM®N/DYM®N/DYM®N/A

Power requirement (Phantom power) N/A N/A N/A N/A 24 to 48 Vdc

Specials — Low-noise — — —

On/off-Switch

Case Material Die-cast zinc Die-cast zinc Die-cast zinc Die-cast zinc Die-cast zinc

Finish cobalt cobalt cobalt cobalt cobalt

Included accessories Stand adapter, Stand adapter, Stand adapter, Stand adapter, Stand adapter (black)

zippered vinyl zippered vinyl zippered vinyl zippered vinyl gig bag

carrying pouch carrying pouch carrying pouch carrying pouch

hard-shell case hard-shell case hard-shell case hard-shell case

Optional accessories — — — —

Connector type 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR

Dimension (Length x max. Diameter) 148 x 23 mm 170 x 53 mm 170 x 53 mm 170 x 53 mm 173 x 53 mm

(5.8” x 0.9”) (6.7” x 2.1”) (6.7” x 2.1”) (6.7” x 2.1”) (6.7” x 2.1”)

Weight net 340 g (0.75 lbs.) 306 g (0.67lbs.) 332 g (0.73 lbs.) 335 g (0.74 lbs.) 292 g (0.64 lbs)

RE510

•Professional self-biased condenser

vocal microphone

• Selectable low-end roll-off

• Supercardioid pattern

• Excellent off-axis rejection

• Wide dynamic range

RE410

• Versatile handheld condenser microphone

• Ideal for both vocals and spoken word use

• Cardioid pattern for excellent feedback

rejection and acoustic isolation

• Warm-Grip™ handle for comfortable feel

• High-compliance shock mount effectively

eliminates handling noise

RE200

• High-end transducer

based on world standard

studio microphone RE2000

• Very low self-noise

•AcoustiDYM™shock-

mount system

• Ultralow-mass, gold-

laminated diaphragma

• Transformerless

output device

•Rear response 15 dB below

the front axis at 1,000 Hz

• Comes with accessories

RE510 RE410 RE200

Element Condenser (self-biased) Condenser (self-biased) True condenser

Polar pattern Supercardioid Cardioid Cardioid

Impedance, Low-Z balanced 150 ohms 250 Ohms 200 ohms

Frequency Response (-3 dB) 50 - 20,000 Hz 50 - 20,000 Hz 50 - 18,000 Hz

Power Level (0dB = 1 m W/Pascal) at 1.000 Hz -41 dB - 39 dB

Open Circuit Voltage (at 1,000 Hz) 5.6 mV/Pascal 3.2 mV/Pascal 10 mV/Pascal

Equivalent Noise (0 dB=20 micropascal) 18 dB SPL 26 dB SPL 21 dB SPL

Maximum SPL (1% distortion, 1,000 Hz) 140 dB SPL 140 dB SPL 130 dB

Power requirement (Phantom power) 12 - 52 VDC 24 - 48 VDC 12 - 52 VDC

Current Consumption N/A N/A 3.5 mA

Magnetic Circuit N/A N/A N/A

Specials transformerless AcousticDYM, transfor-

output device merless output device

Filters switchable low-freq roll-offswitchable low-freq roll-off —

Case Material Metal Metal Metal

Finish Warm-Grip Warm-Grip Semi-gloss

black handle black handle camera black

Included accessories Stand adapter, Stand adapter, Stand adapter,

zippered vinyl zippered vinyl windscreen

carrying pouch carrying pouch

Connector type 3-pin XLR 3-pin XLR 3-pin XLR

Dimension (Length x max. Diameter) 180 x 50 mm 182 x 51 mm 137 x 28 mm

7.09” x 1.97” 7.10” x 1.99” 5.39” x 1.10”

Weight net 215 g (0.47lbs.) 260 g (0.57lbs.) 185 g (0.41 lbs.)

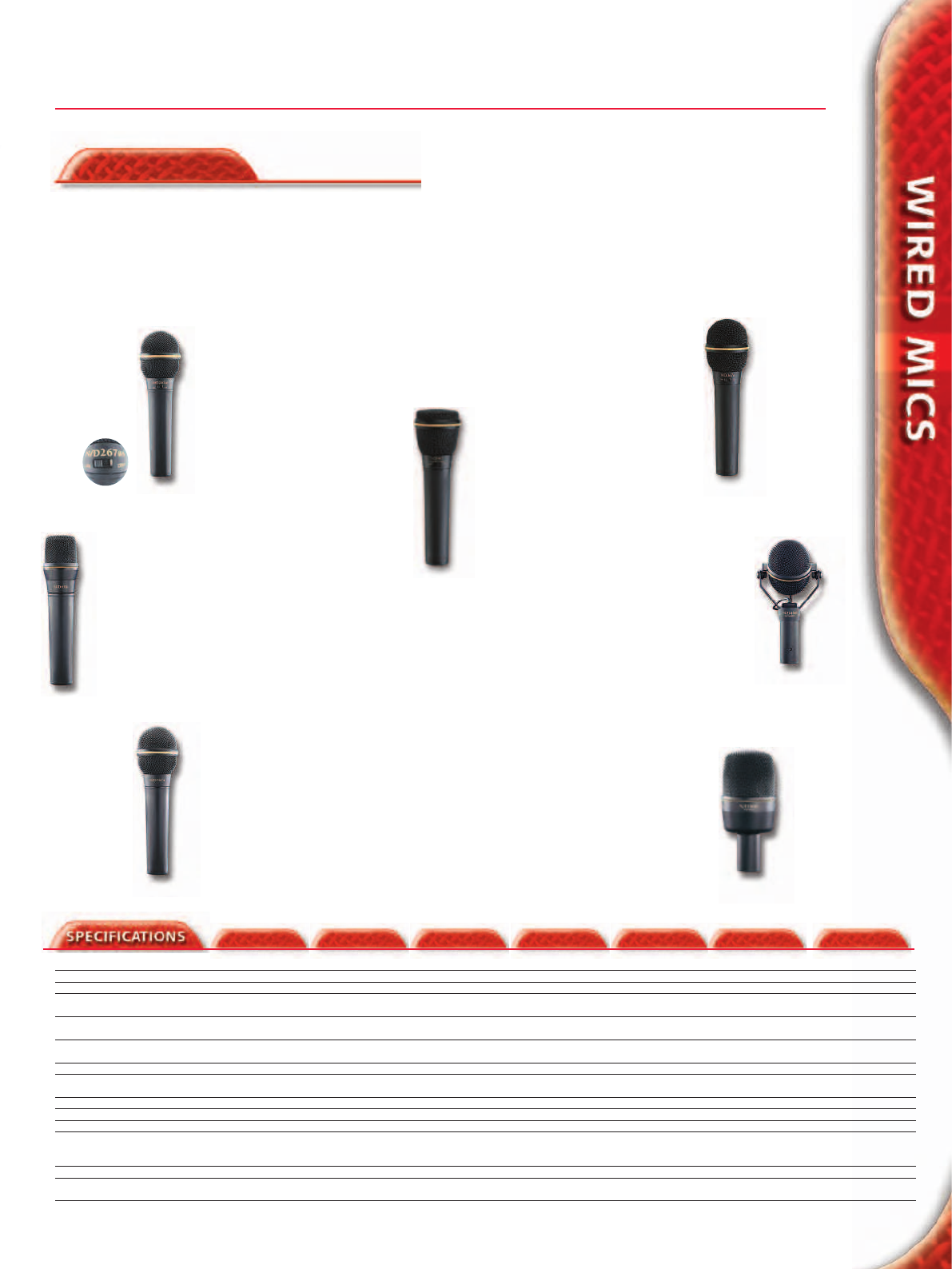

N/DYM®Series

Wired Microphones

N/DYM® Series is different to other microphones. Excellent

and clear sound, comfortable and safe handling, N/DYM®

magnetic structure, EV’s unique VOB™ technology and stu-

dio sound performance mark EV´s N/DYM®Series.

As part of a fixed installation, in studios, or on the road,

EV N/DYM®microphones outperform any other micro-

phone in their class.

N/D267 a/as

• Vocal and speech

microphone

•Entry into the world of

high-performance mics

• Includes accessories

• On/off-Switch

(as version)

N/D468

• Instrument microphone

• Unique “moving head”

• Extreme low self-noise

• Accurate response,

even in high SPLs

• Includes accessories

N/D478

• Universal microphone

• Ideal to mic drums,

percussion or guitars,

also as vocal “spare” mic

• Smooth response

• Includes accessories

N/D767 a

• Top-class vocal microphone

•Multi-stage shock mount

for unmatched low-handling noise

• Condenser mic performance

• Includes accessories

N/D868

• Designed specifically for

kickdrums

• RE20 capsule type

• Extended “lows” to

tighten mixes

• Frequency response typically

eliminating the need of an EQ

• Extremely low self-noise

• Includes accessories

N/D967

• Concert sound vocal mic

• Highest gain before feedback

• Ultra-low handling noise

• Includes accessories

N/D367 s

• Dedicated for female voices

• On/off-switch

(as version)

• Includes accessories

N/D267 a/as

N/D367 s N/D468

Element Dynamic Dynamic Dynamic

Polar pattern Cardioid Cardioid Supercardioid

Impedance, Low-Z balanced 300 ohms 300 ohms 150 ohms

Frequency Response (-3 dB),

close response 45 - 15,000 Hz 25 - 20,000 Hz 30 - 22,000 Hz

Frequency Response (-3 dB),

far response 100 - 15,000 Hz 55 - 20,000 Hz 60 - 22,000 Hz

Output Level(0dB = 1 m W/Pascal)

at 1,000 Hz - 52 dB - 53 dB - 51 dB

Open Circuit Voltage (at 1,000 Hz) 2.9 mV/Pascal 2.2 mV/Pascal 3.1 mV/Pascal

Equivalent Noise (0 dB=20 micropascal)

A-weighted —< 17 dB SPL < 14 dB SPL

Magnetic Circuit N/DYM®N/DYM®N/DYM®

Case Material Metal Metal Metal

Finish Nonreflecting black Nonreflecting black Nonreflecting black

Included accessories Stand adapter, Stand adapter, Stand adapter,

soft zippered soft zippered soft zippered

carrying pouch carrying pouch carrying pouch

Connector type 3-pin XLR 3-pin XLR 3-pin XLR

Dimension (Length x max. Diameter) 181 x 52 mm 181 x 52 mm 115 x 52 mm

7.13” x 2.05 7.13” x 2.05 4.53” x 2.05”

Weight net 238 g (0.52 lbs.) 200 g (0.44 lbs.) 190 g (0.42 lbs)

N/D478 N/D767 a N/D868 N/D967

Dynamic Dynamic Dynamic Dynamic

Cardioid Supercardioid Cardioid variant Supercardioid

300 ohms 300 ohms 150 ohms

45 - 15,000 Hz 35 - 22,000 Hz 20 - 10,000 Hz 50 - 13,000 Hz

100 - 15,000 Hz 70 - 22,000 Hz —120 - 13,000 Hz

- 52 dB - 51 dB - 52 dB - 52 dB

2.9 mV/Pascal 3.1 mV/Pascal 1.0 mV/Pascal 4.0 mV/Pascal

——< 17 dB SPL < 16 dB SPL

N/DYM®N/DYM®N/DYM®N/DYM®

Metal Metal Metal Metal

Nonreflecting black Nonreflecting black Nonreflecting black Nonreflecting black

Stand adapter, Stand adapter, Stand adapter, Stand adapter,

soft zippered soft zippered soft zippered soft zippered

carrying pouch carrying pouch carrying pouch carrying pouch

3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR

181 x 52 mm 181 x 52 mm 133 x 60 mm 173 x 52 mm

7.13” x 2.05” 7.13” x 2.05 5.24” x 2.36” 6.81” x 2.05”

247 g (0.54 lbs.) 260 g (0.57 lbs.) 295 g (0.65 lbs.) 205 g (0.45 lbs.)

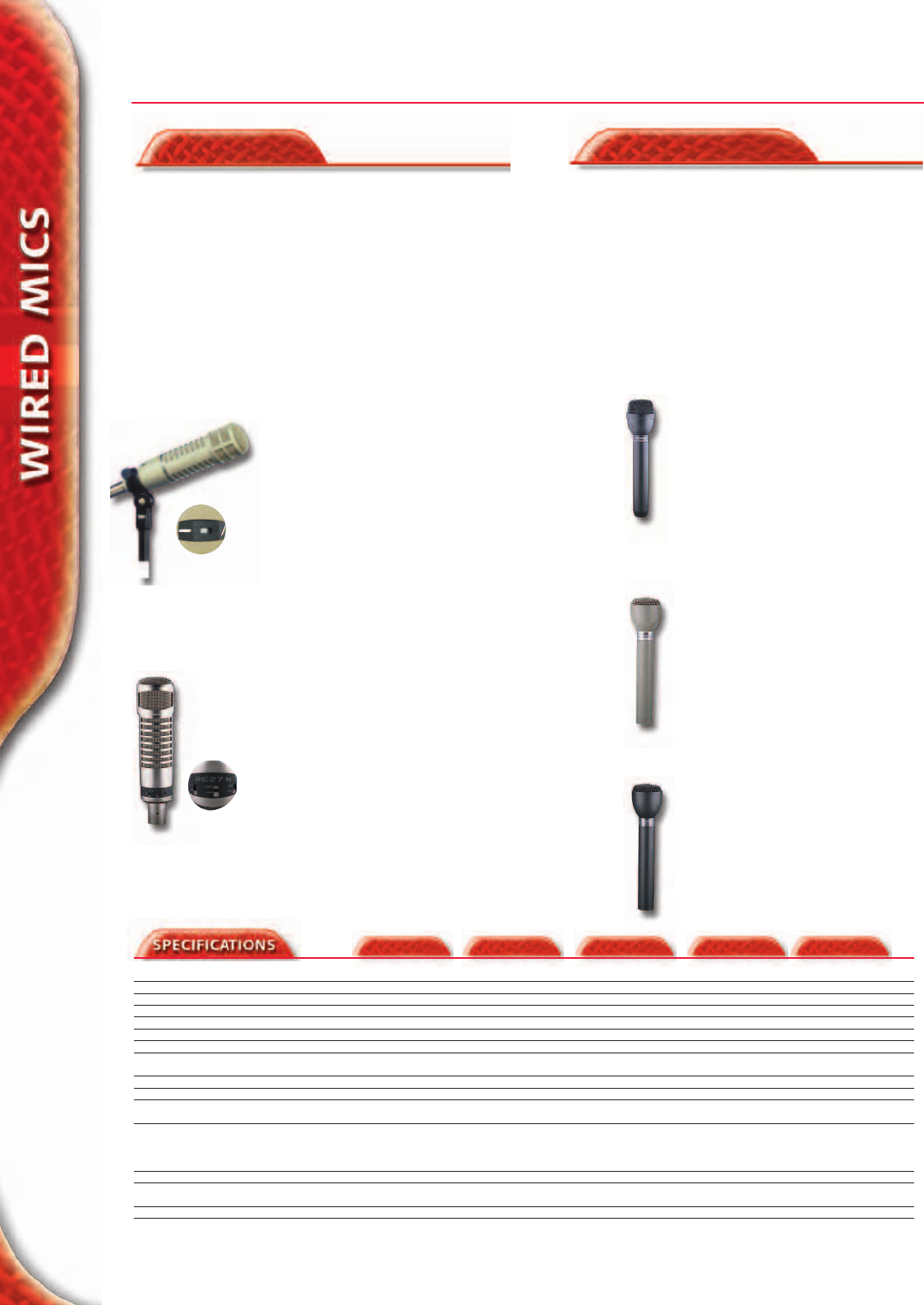

RE Series is the first choice of microphones for smooth and accu-

rate reproduction. Its unique and famous sound performance

makes it a favorite in the broadcast, studio and touring business.

EV´s Variable-D®design used in the RE20 and RE27 N/D broad-

cast studio products was developed to ensure true and accurate

response across all frequencies without the up-close boominess

associated with proximity effect. As a result, these microphones

have become the industry standard for radio studios worldwide.

RE20

• Variable-D®for minimal proximity effect

• True cardioid with no coloration at 180° off-axis

• Ultra-flat frequency response

• Studio condenser response

• Large diaphragm

• Hum-bucking coil

• Integral wind and blast filter

• Switchable EQ (-4.5 dB, 400-100 Hz)

• Comes with accessories

RE27 N/D

• Variable-D®for minimal proximity effect

• N/DYM magnetic circuit brings 6 dB more sensitivity

• Ultra-flat frequency response

• Studio condenser performance

• Large diaphragm

• 3 selectable filters: -6 dB, 250-100 Hz / gentle

roll-off 12 dB, 1000-100 Hz and a -3 dB high

frequency roll-off

• Integral wind and blast filter

• Comes with accessories

RE-Series

Wired Microphones

RE20 RE27 635A(N/D) RE50/B RE50N/D-B

Element Dynamic Dynamic Dynamic Dynamic Dynamic

Polar pattern Cardioid Cardioid Omnidirectional Omnidirectional Omnidirectional

Impedance, Low-Z balanced 150 ohms 150 ohms 150 ohms 150 ohms 150 ohms

Frequency Response (-3 dB) 45 - 18,000 Hz 45 - 20,000 Hz 80 - 13,000 Hz 80 - 13,000 Hz 80 - 13,000 Hz

Power Level (0dB = 1 m W/Pascal) at 1.000 Hz - 57 dB - 51 dB - 55 dB (- 51 dB) - 55 dB - 51 dB

Open Circuit Voltage (at 1,000 Hz) 1.5 mV/Pascal 3.1 mV/Pascal — (2.0 mV/Pascal) — 2.0 mV/Pascal

Magnetic Circuit — N/DYM®Alnico(N/DYM®) Alnico N/DYM®

Specials Variable-D®Variable-D®— (Acoustalloy®)Dyna-Damp Dyna-Damp™

Filters Tilt-down EQ 3 selectable EQs

Case Material Steel Steel Steel Aluminum Aluminum

Finish Fawn beige Satin nickel Fawn beige (A) Semi-gloss Semi-gloss

Semi-gloss black (A/B) camera black camera black

Included accessories Stand adapter, Stand adapter, Stand adapter Stand adapter Stand adapter

zippered vinyl zippered vinyl zippered vinyl zippered vinyl zippered vinyl

carrying pouch, carrying pouch, carrying pouch, carrying pouch, carrying pouch,

hard-shell case hard-shell case hard-shell case hard-shell case hard-shell case

Connector type 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR

Dimension (Length x max. Diameter) 217 x 54 mm 217 x 54 mm 151 x 36 mm 197 x 49 mm 197 x 49 mm

8.54” x 2.13” 8.54” x 2.13” 5.94” x 1.41” 7.76” x 1.92” 7.76” x 1.92”

Weight net 737 g (1.62 lbs.) 709 g (1.56 lbs.) 170 g (0.37 lbs.) 269 g (0.59 lbs.) 269 g (0.59 lbs.)

Live Interview Mics

635A (beige)

635A/B (black)

• Linear frequency response

• Completely pop-free performance

• Four-stage pop and dust filter

• Internal effective shock absorber

• Comes with accessories

635N/D-B

• Uniform 80 - 13,000 Hz

frequency response

• N/DYM® magnetic for greater

output

• Acoustalloy® diaphragm material

for very smooth response over a

wide frequency range

• Integral windscreen and blast filter

• Comes with accessories

EV´s 635 and RE50 microphones are famous in broadcast,

television, and radio OBs (outside broadcasts). These

microphones set world standards especially for ENG (elec-

tronic news production) and EFP (electronic field produc-

tion). They are extremely rugged, can withstand high

humidity, temperature extremes and corrosive effects such

as salt-air yet provide excellent sound performance.

• N/DYM®for greater output (RE50 N/D)

• No muddy lows when used near lips

• Dyna-Damp™for extremely effective

handling noise isolation

• On-camera use with 422 A desk stand

• Acoustalloy®diaphragm material for

very smooth response over a wide

frequency range

• Withstands high humidity; temper-

ature extremes, corrosive salt air

• Integrated four-stage pop-filter

• Integral windscreen and blast filter

• Comes with accessories

RE50/B, RE50 N/D-B

(N/DYM®version)

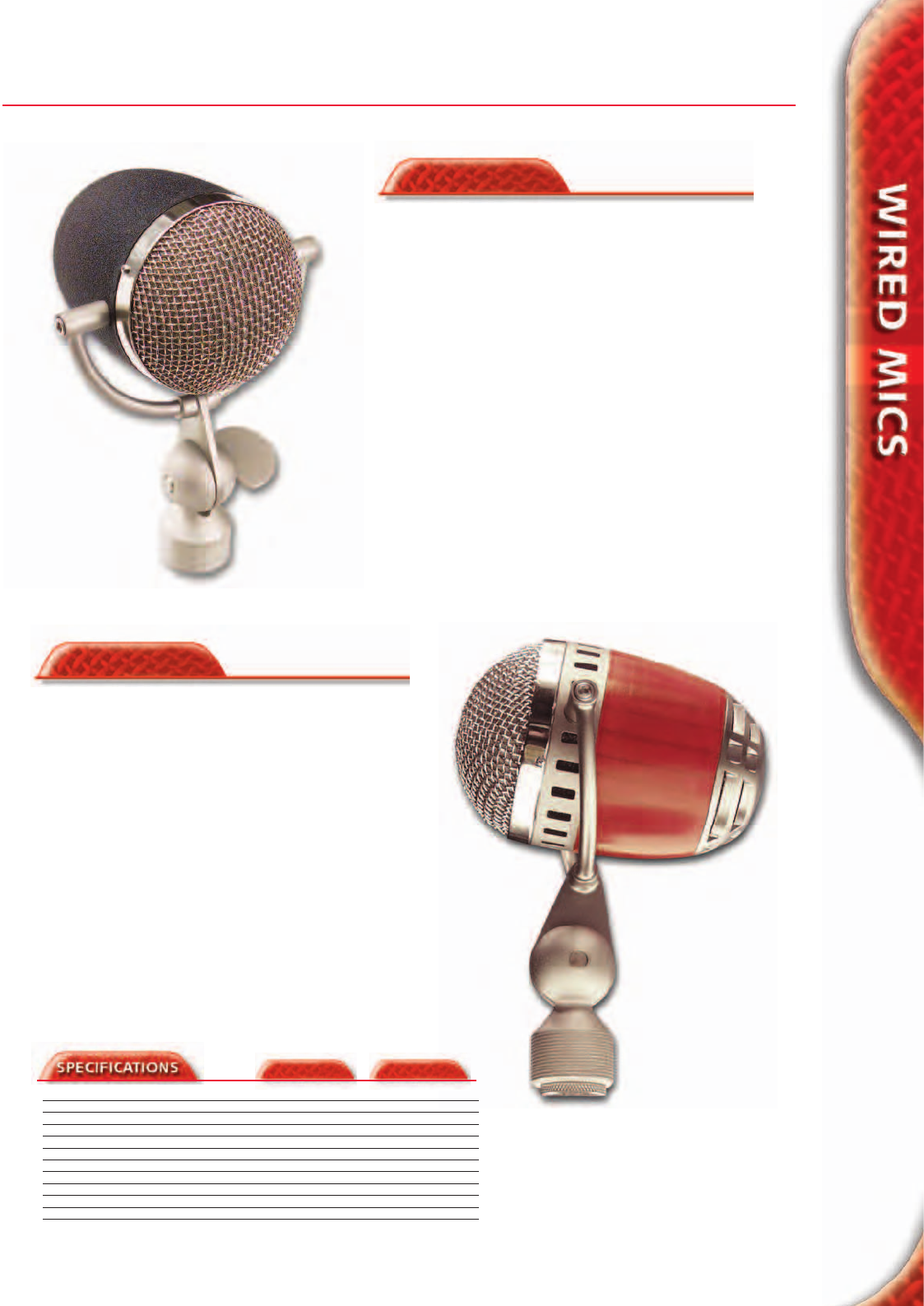

EV®Blue Series

Raven™

Cardinal™

The EV® Blue Series Cardinal™ is a cardioid condenser

designed to capture the detail of both voice and instru-

ment in live sound or studio applications. Employing

Class A, discrete ultra-low noise amplifier circuitry, the

Cardinal’s smooth and detailed performance is sure to

please even the most discerning artists and engineers.

• Pressure gradient cardioid condenser

• Class-A discrete ultra-low noise circuitry

• Unique double swivel-mounted design for

ideal positioning

• Innovative visual design with cherry finish

• Great for voice or instruments

The EV® Blue Series Raven™ is a stylish dynamic micro-

phone designed to capture the character of live and stu-

dio vocals. It is also the perfect microphone for live and

studio instruments. The Raven incorporates the collabo-

rative design work from the top industry microphone

engineers to provide unparalleled performance in a

stunning package.

• Dynamic mic with studio detail and clarity

• Cardioid pattern with excellent off-axis rejection

• Unique double swivel-mounted design for

ideal positioning

• Great for voice or instrument

• Innovative visual design

Raven Cardinal

Element Dynamic Condenser (self-biased)

Polar pattern Cardioid Cardioid

Impedance, Low-Z balanced 335 ohms 50 Ohms

Frequency Response (-3 dB) 45 - 16,000 Hz 35 - 20,000 Hz

Open Circuit Voltage (at 1,000 Hz) 3.2 mV/Pascal 10 mV/Pascal

Equivalent Noise (0 dB=20 micropascal) N/A -25 dB SPL

Maximum SPL (1% distortion, 1,000 Hz) 162 dB SPL 148 dB SPL

Power requirement (Phantom power) N/A 48 VDC

Current Consumption N/A 1.8mA

Finish Black Cherry Wood

Connector type 3-pin XLR 3-pin XLR

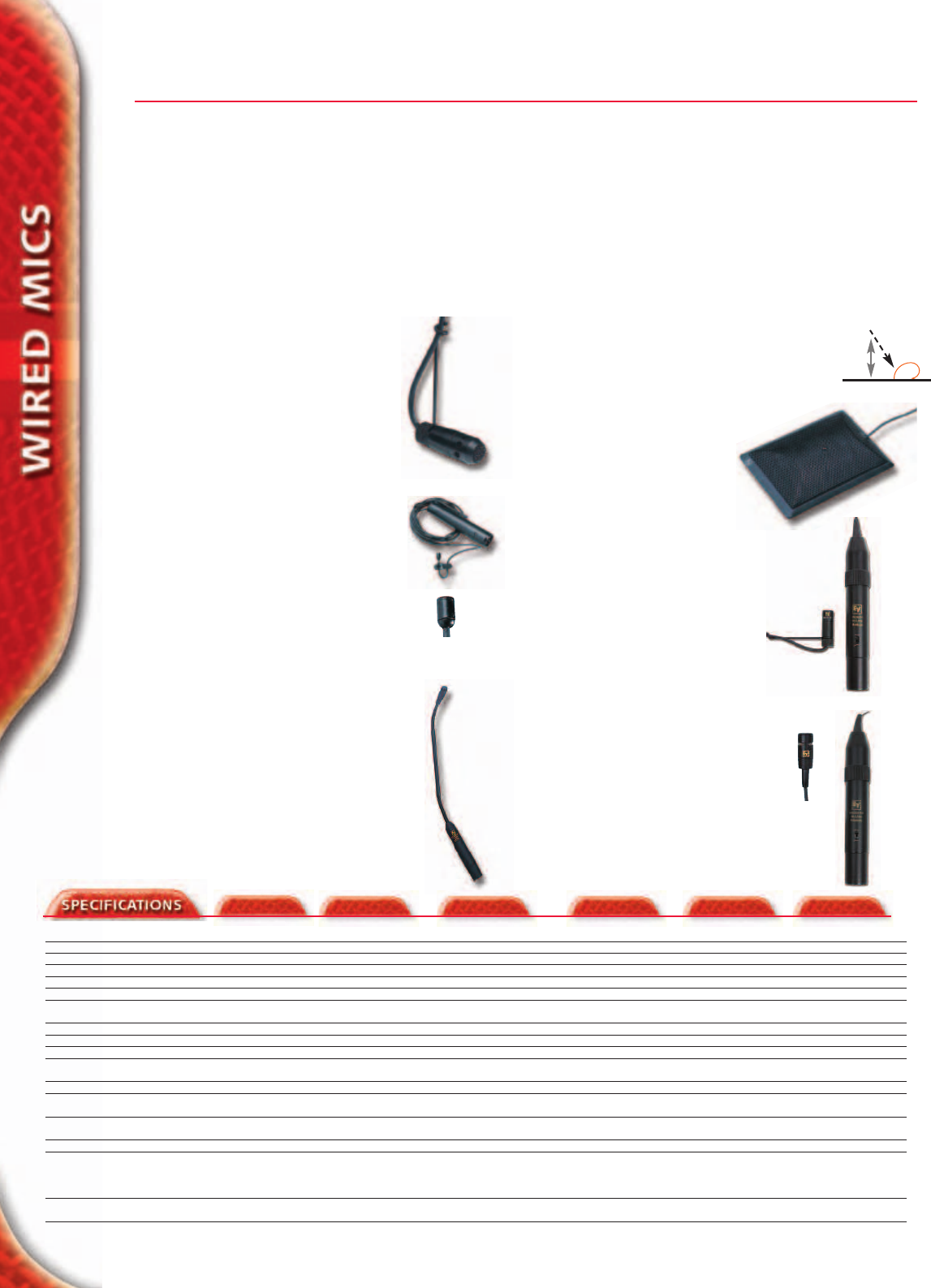

The RE90 series brings the famous sound performance of EV´s

legendary RE series to fixed installations. EV´s RE90 micro-

phones are the most natural-sounding microphones on the

market for public speaking, etc. and as a matter of course for

professional theatrical productions. Ergonomically and archi-

tecturally designed, EV has married functionality with aes-

thetics making RE series the traditional favorite among sound

contractors, architects and sound engineers. RE90 micro-

phones are designed for the highest-quality applications with

linear frequency response and excellent, high gain-before-

feedback. All microphones guarantee a uniform polar pattern

across the range, high sensitivity, low self-noise and provide a

transformerless output device. The high-quality pre-amps are

highly-resistant to electrical noise and radio frequency inter-

ference (RFI). RE90 L and RE90 H have a external pre-amp

housing into the XLR connector. Gooseneck microphones

have an all-metal construction to substantially reduce noise

from stray magnetic fields and RFI.

RE90 H (Black)

RE90 HW (White)

• Hanging microphone

• External Pre-amp

• Very uniform polar pattern

• Includes an installation guide

• Comes with accessories

RE90 L

• Lavalier microphone

• Sub-miniature capsule design

• Capsule provides superior EMI/RFI shielding

• Very light-weight yet extremely reliable

• External pre-amp with very low

current consumption

• Comes with accessories Actual

size

RE90 P-12 (281mm)

RE90 P-18 (443mm)

• Gooseneck podium microphone

• Also perfect for instruments on-stage, such as

acoustic guitar or choir

• Uniform frequency response and polar pattern

• Strutted (yet flexible) ultra-thin gooseneck

• Integrated two-stage pop-filter

• Comes with accessories

RE92 H (Black)

RE92 HW (White)

• Hanging microphone

• External Pre-amp

• Very uniform polar pattern

• Includes an installation guide

• Comes with accessories

RE92 L

• Premium quality lavalier

cardioid microphone

• Sub-miniature capsule design

• Capsule provides superior EMI/RFI shielding

• Very light-weight yet extremely reliable

• External pre-amp with very low

current consumption

• Comes with accessories

Wired Microphones

RE90 B RE90 HRE90 L RE90 P RE92 H RE92 L

Element Back electret condenserBack electret condenser Back electret condenser Back electret condenser Back electret condenser Back electret condenser

Polar pattern (Half-) Cardioid Cardioid Omnidirectional Cardioid Cardioid Cardioid

Impedance, Low-Z balanced 200 ohms 200 ohms 100 ohms 200 ohms 250 ohms 250 ohms

Frequency Response (-3 dB) 80 - 15,000 Hz 75 - 15,000 Hz 50 - 18,000 Hz 70 - 15,000 Hz 40 - 20,000 Hz 40 - 20,000 Hz

Power Level (0dB=1 m W/Pascal) at 1kHz

- 33 dB - 30 dB - 34 dB - 43 dB

Open Circuit Voltage (at 1,000 Hz) 25 mV/Pascal 27 mV/Pascal 12.6 mV/Pascal 4.5 mV/Pascal 5,6mV 5,6mV

Equivalent Noise < 25 dB SPL < 25 dB SPL < 29 dB SPL < 28 dB SPL < 30 dB SPL < 30 dB SPL

(0 dB=20 micropascal)A-weighted

Maximum SPL (1% distortion, 1kHz) 127 dB 120 dB 130 dB 130 dB >135 dB >135 dB

Power requirement (Phantom power) 9 - 52 VDC 9 - 52 VDC 9 - 52 VDC 9 - 52 VDC

24 to 52 Volt Phantom 24 to 52 Volt Phantom

Current Consumption 2.5 mA 2.0 mA 1.0 mA 2.5 mA 6 mA 6 mA

Specials transformerless external pre-amp external pre-amp transformerless external preamp external preamp

output device output device

Case Material Heavy-duty zinc diecast Steel Polycarbonate resin Steel

Finish Nonreflecting black Low-gloss black Nonreflecting black Nonreflecting black nonreflective black nonreflective black

or white or white or white or white

Included accessories 180 cm thin and 760 cm braided cable Gig bag Windscreen, double-sided mounting hardware mounting hardware

flexible cable tape

Connector type 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR 3-pin XLR

Dimension (length x diameter) 128 L x 94 W x 16 H mm 37 x 13 mm 6 x 5 mm P-12: 281 x 6.4 mm 32.1 x 10.5mm 24.1 x 10.5mm

5.04” x 3.70” x 6.30” 1.46” x 0.51” 0.24” x 0.20” P-12: 11.06” x 0.25” 1.26” x 0.41” 0.95” x 0.41”

(gooseneck) P-18: 443 x 6.4 mmP-18:

17.44” x 0.25”(mic only)

Weight net 358 g (0.79 lbs.) 157 g (0.35 lbs.) 34 g (0.07 lbs) P-12: 400 g (0.88 lbs.) 240 g (0.53lbs.) total 160 g (0.35 lbs.) total

P-18: 528 g (1.16 lbs.)

RE90 B (Black) RE90 BW (White)

• Boundary layer

• Ultra-thin profile (16 mm) housing

with rubber nonslip bottom pad and strong steel screen

• Internal terminal block for disconnecting

cable to insert thru holes

• Integrated pop filter

• Ideal working angle 60° off-axis

• Comes with accessories

All PolarChoice microphones feature dual capsule design for user-selectable polar

pattern: omnidirectional, cardioid, supercardioid and hypercardioid - all in one mic!

The PolarChoice Desktop is a free-standing podium style

microphone, firmly anchored in place by its elegantly

designed base. Select one of four polar patterns (omni, car-

dioid, super-cardiod or hyper-cardioid), via the easy to

access switch. All patterns feature identical voicing, eliminat-

ing the need to retune the sound system. The PC-Desktop

can also be interfaced to an auto-mixer for use in those large

and difficult, multiple microphone installations.

The free standing and movable PolarChoice Desktop can

be used anywhere a gooseneck or podium style mic is

needed, but a permanent installation is not possible,

required or desired. Whether it’s a boardroom conference

table, videoconference facility, training room, house-of-

worship altar, or even on a podium - with the PolarChoice

Desktop, anything is possible.

The PolarChoice satellite brings the benefits of wireless to

the boardroom, conference center, or podium. The Polar-

Choice Satellite is a free-standing gooseneck-style micro-

phone, firmly anchored in place by its elegantly designed

base. This low-profile foundation hides PolarChoice Satel-

lite’s most powerful feature: space for a wireless transmitter.

Turn the base over to reveal the specially designed compart-

ment for housing a Telex or Electro-Voice bodypack trans-

mitter. Connect the microphone to the bodypack, set up the

wireless channel, and place PC Satellite anywhere an easy-

to-use microphone is required. No longer do you have to cut

holes in tables, run long cables, or compromise the architec-

tural integrity of an installation. With the PolarChoice Satel-

lite, anything is possible.

PolarChoice Desktop PolarChoice Satellite PolarChoice™

Element type Back electret condenser Back electret condenser Back electret condenser

Selectable Polar Patterns Omni,Cardioid,Supercardioid,Hypercardioid Omni,Cardioid,Supercardioid,Hypercardioid Omni, Super-, Hyper, Cardioid

Impedance 200 Ohms 200 Ohms 200 ohms

Frequency Response 50 Hz - 20 kHz(mic system) 50 Hz - 20 kHz(mic system) 75 - 15,000 Hz

Open Circuit Voltage 5,6 mV/Pascal 5,6 mV/Pascal(mic system) 5.6 mV/Pascal

Equivalent Noise < 26 dB SPL(A-weighted) < 26 dB SPL(A-weighted, mic system) < 28 dB SPL

Max. SPL >135 dB >135 dB(mic system) 130 dB

Power requirement 24 to 52 Volt Phantom Power 5 V DC from Beltpack 9 - 52 VDC

Current Consumption 3 mA 3 mA 2.8 mA

Finish Nonreflective Black Nonreflective Black Steel-Nonreflecting black

Included Accessories Multiport Windscreen Multiport Windscreen Windscreen, two-piece shock mount CPSM-Kit

Connector Type 3-pin XLR TA4F depends on version

Dimensions 45 x 114 x 178 mm(HWD) excl.gooseneck 45 x 114 x 178 mm(HWD) excl.gooseneck PC-12: 299 x 6.4 mm (11.77” x 0.25”)

1.77” x 4.49” x 7.01”(HWD) excl.gooseneck 1.77” x 4.49” x 7.01”(HWD) excl.gooseneck PC-18: 461 x 6.4 mm (18.15” x 0.25”)(gooseneck)

Weight 690 g (1.52 lbs.) 690 g (1.52 lbs.) + beltpack PC-12: 411 g (0.91 lbs.) PC-18: 539 g (1.19 lbs.)

XLR-12 | PLUS-12 | PLUS-18 | FL-12

PolarChoiceTM

• Flange mounting, available with 12" & 18" gooseneck

XLR

• 3-pin XLR, available with 12" & 18" gooseneck

PLUS

• Shipped with both XLR and flange mount accessory plus

configurable ON/OFF switch, 5”, 12" & 18" gooseneck versions

Desktop

• Integrated deskstand and configurable switch, for use with

standard XLR cables 5", 12" & 18" gooseneck versions

Satellite

• Integrated deskstand and configurable switch for use with

plug-in EV wireless beltpacks, 5", 12" & 18" gooseneck versions

Professional Wireless Microphones

Transmitter Features

• Unique “smart” battery circuit in the transmitters means there is

no way to put the battery in wrong.

• LCD display and the same four control buttons as the receiver so

programming a channel or frequency is quick and easy.

•

Low battery LED lights when the battery needs a replacement.

• One on/off switch that also acts as a mute (great for pauses in

presentations and worship services).

• On/off button can be disabled to prevent accidental turnoffs

during a performance.

• Normal and High power transmit means you use just enough

power for the application, which maximizes the number of

simultaneous systems and limits RF spill over into adjacent

buildings/theaters.

Handheld Features

• Interchangeable microphone head allows a choice of elements

to fit the vocalist’s style and environment.

• N/DYM® 767a premium dynamic vocal microphone with

VOB™ (Vocal-Optimized Bass), excellent gain-before-feedback

for high SPL stages.

• The new RE510 premium condenser vocal microphone for expe-

rienced vocalists, spoken word and quieter stages.

• Internal 1/2-wave antenna for excellent range; stays out of

harm’s way.

• An over-molded Warm-Grip™ handle reduces handling noise

and encourages proper microphone technique for better per-

formances.

Receiver

Transmitter

• Optimized channel groups allow up to 16 systems to operate

simultaneously in one frequency band. For groups larger than

16, EV can help with the coordination and custom groups are

easily programmed.

• Programmable in 25 kHz steps across 24 MHz operating band-

width, there are over 950 possible channels so you can always

find a clear channel.

• Advanced ClearScan™, automatic group and channel selections,

allows quick, simple setup.

• Backlit LCD Display shows the Sound Engineer the Group/

Channel, transmitter battery status, diversity operation, RF and

Audio level meters, and space for a custom name (2 lines, 10

characters each).

• Specially designed “Sound Check” mode provides the ability for

one person to walk-test the microphone in the performance

space with tangible results.

• Patented DSP Secure-Phase™ Diversity System for maximum

range and audio quality.

• Balanced XLR microphone output and 1/4-inch unbalanced

adjustable line-level output to match the application.

• CDR-1000 Dual Receiver includes internal power supply, head-

phone monitoring jack, balanced line-level output, antenna pass

through, DC power on antenna jacks for optional RF amplifier, and

RE-OneLink™ PC software for remote monitoring and control.

• Rackmount hardware included.

• Three-Year Limited Warranty.

CSR-1000 Receiver

Controls

Front Panel: On/Off, Menu, Set, Up, Down Buttons

Rear Panel: 1/4 in. output level

Indicators LCD Group, Channel, Diversity, Label, Set-up

Backlit Display: Transmitter Battery Level, Audio Signal

Amplitude and RF Signal Strength, Squelch

Connectors

Back Panel: 1/4 in. unbalanced adjustable line level output

XLR balanced mic level output

USB programming port

Antennas: Detachable 1/4 wave

RF Specifications A Band 680 - 709 MHz D Band 798.1 – 821.9 MHz

Frequency Range: B Band 722 - 746 MHz E Band 841.1 – 864.9 MHz

Number of Channels: 950 possible (programmable in 25kHz steps) per band

Diversity: DSP SecurePhase True Diversity

Squelch: Tone Code plus Adjustable Amplitude

Receiver Type: Synthesized PLL Agile UHF

RF Sensitivity: <0.8uV for 12 dB SINAD

FCC Type Acceptance: Approved under Part 15

Audio Specifications 100 – 15 kHz +/- 2 dB Microphone

Frequency Response: 30 – 15 kHz +/- 2 dB Instrument

Audio Output Level:

Line Level 8 mV - 0.775V RMS @ 100 kohm load

Balanced -10 dBV max (@ 40kHz deviation)

Distortion: Less that 0.5% (@ 1kHz, 40 kHz deviation)

Signal to Noise Ratio: > 110 dB (A)

Dynamic Range: >100 dB

General Specifications

Power Supply: External 12 VAC 750mA in-line with cord

Size: 1.72 in. H x 7.50 in. W x 8.38 in. D

43.69 mm H x 190.50 mm W x 212.85 mm D

CDR-1000 Features

Additional Audio Output: Adjustable Balance Line Level at XLR

Additional Controls: 1/4 in. Headset Jack with Selector and Volume Control

Antenna Output: TNC

Powerered Antenna Inputs: 12Vdc,15mA

Power Supply: Internal, Universal Cord

USB Monitoring & Contol: RE-OneLink Software

Size: 1.72 in. H x 16 in. W x 12 in. D

43.69 mm H x 406.4 mm W x 304.8 mm D

CSB-1000 Bodypack Transmitter

Controls: Power On/Off, Audio Gain Adjustment with 40 dB range,

Transmit Power Switch, Microphone/Instrument Switch

(0,-20 dB), Menu, Set, Up, Down Buttons

Indicators: Red LED Low Battery Indicator, LCD displays one of the

following: Channel/Group, Frequency, or Battery Level

Battery Life: 8 hours with 9V alkaline typical

Antenna: External 1/4 wave detachable

Connector: TA4F input for microphone Pin 1 ground, Pin 2 Mic input

Pin 3 +5V Bias, Pin 4 +5V through 3k ohm

RF Output:

Normal: 5 mW typical

High: 50 mW typical

Case Material: Cast Magnesium

Size:

3.75 in. H x 2.6 in. W x 0.9 in. D

94 mm H x 66 mm W x 23 mm D

CSH-1000 Handheld Transmitter

Controls: Power On/Off, Audio Gain Adjustment with 40 dB range

Transmit Power Switch, Menu, Set, Up, Down Buttons

Displays: Red LED Low Battery Indicator, LCD displays one of the

following: Channel/Group, Frequency, or Battery Level

Battery Life: 8 hours with 9V alkaline typical

Antenna: Internal 1/2 wave

Microphone Elements: EV N/D 767a Dynamic or RE-510 Condenser

RF Output:

Normal: 5 mW typical

High: 50 mW typical

Size: 10.5 in. (26.8 cm) long

Professional Wireless Microphones

Front Panel Top

Under

Battery

Cover

CSB-1000 Bodypack Transmitter

CSH-1000 Handheld Transmitter

Panel Front

Back Gain

CSR-1000 Receiver

Front

Back

RE-1 Accessories and Parts

Model #

Omnidirectional MicroMini™ Lapel Mic: RE90TX

Unidirectional Lapel Mic: RE92TX

Headworn Cardiod Condenser Mic: HM7

1/2 Wave Rx Antenna: FA-1

1/2 Wave Antenna Bracket: AB-2

UHF Antenna Amplifier: UAA-500

Antenna /Pwr Distribution: APD- 4+

Termination Plug For APD-4: TP-2

Directional Rx Antenna (450-900 MHz): LPA-500

Low Loss Coaxial Antenna Cable: CXU-25 ft

CXU-50 ft

1/4 Wave Super-Flex Tx Antenna: AN-Sflex

Bodypack Pouch: WP-1000

Guitar Cord: MAC-G2

767a Dynamic Head for CSH-1000: RC767A

RE510 Condenser Head for CSH-1000: RC510

Mic Stand Adapter for CSH-1000: MSA-1000

UHF Wireless Microphone System

RE-2 Receiver

RE-2 UHF Transmitter

RE-2 UHF Handheld RE-2 UHF Bodypack

• One-touch Auto-ClearScan

• Programmable in 25kHz steps across 28 MHz

operating bandwidth

• Backlit LCD displays the Group, Channel, Frequency, transmitter bat-

tery level, diversity operation, and RF and Audio signal level meters

• Balanced XLR audio output for Microphone or Line level signals and a

/4-inch line level jack

• Fourth-generation Posi-phase™ diversity and advanced audio circuits

• Unique “Guitar” setting

• Detachable 1

/4 wave antennas

RE-2 UHF systems provide groups of up to 10 simultanous, harmo-

nized channels per frequency bands.

Besides individual components, following complete sets, including

transmitter and receiver are available :

RE2-N2 Receiver + N/D267a handheld transmitter

RE2-N7 Receiver + N/D767a handheld transmitter

RE2-410 Receiver + RE410 handheld transmitter

RE2-G Receiver + bodypack transmitter + MAC-G3 guitar cord

RE2-BP Receiver + bodypack transmitter

RE2-L10 Receiver + bodypack transmitter + OLM10 lavalier mic

RE2-L21 Receiver + bodypack transmitter + ULM21 lavalier mic

RE2 Combo Receiver + N/D267a handheld

+bodypack transmitter + ULM21 lav.mic

• Unique “smart” battery

• LCD Displays Group and Channel, Frequency, or Battery Level

• Low battery LED

• One On/Off button that also acts as a mute

• On/Off button can be disabled

• Available with four different microphone elements

• N/DYM 267a Dynamic element

• RE 410 Condenser

• NDYM®767a Dynamic premium vocal microphone

with VOB™(Vocal-Optimized-Bass)

• Internal 1

/2-wave antenna

• Cell phone style beltclip

• Optional pouches available

• A wide selection of lapel and headworn

microphone accessories are available

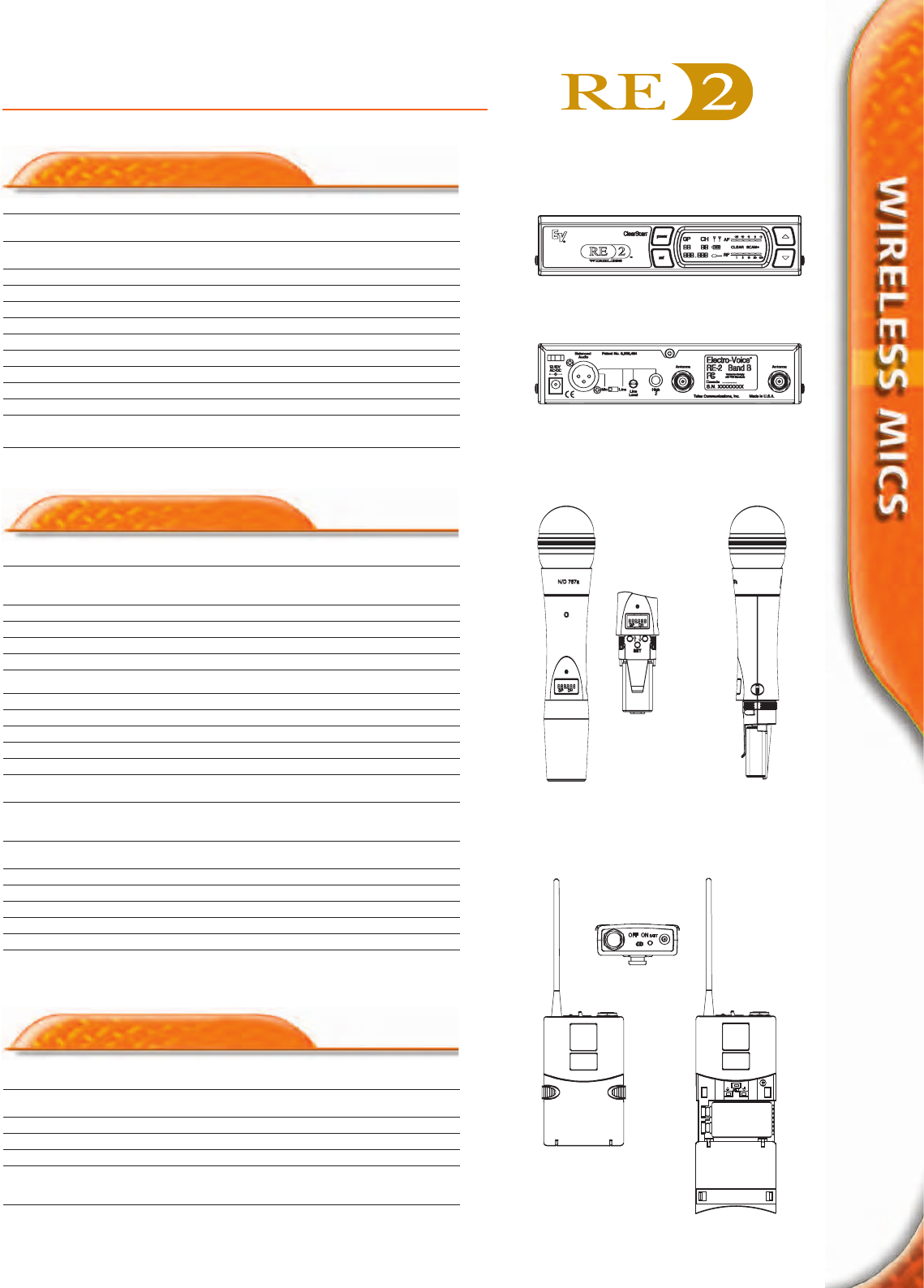

UHF Wireless Microphone System

RE-2 Receiver

Audio Parameters

Transmitters, Bodypack

RECEIVER

Front

Back

HANDHELD

Front

BODYPACK

Side

Top

Front

Receiver Type Synthesized PLL

Frequency Range (RF) A Band 648 – 676 MHz B Band 696 – 724 MHz

D Band 798 – 822 MHz E Band 841 – 865 MHz

Number of Channels 1112 possible channels

Programmable in 25 kHz steps

Modulation +/- 40 kHz

Diversity Digital Posi-Phase™ True Diversity

RF Sensitivity < 1.0 mV for 12 dB SINAD

Image Rejection > 60 dB

Squelch Tone Code plus Amplitude

Ultimate Quieting > 100 dB

FCC Certification Approved under Part 15

Power Requirements 12 V AC/DC 300 mA

Antennas Detachable 1/4 wave

Dimensions 43.69 cm H x 190.50 mm W x 150 mm D

1.72” H x 7.50” W x 5.9” D

Radiated Output Normal 5 mW typical

High 50 mW typical

Interchangeable Microphone Heads 767a Supercardioid N/DYM Dynamic

RE 510 Supercardioid Condenser

Bodypack Antenna Detachable Flexible external 1/4 wave

Handheld Antenna Internal 1/2 wave

Dimensions (Handheld) 26.8 cm (10.5 in.) Long

Dimensions (Bodypack) Cast Magnesium

96.5 mm H x 66 mm W x 23.4 mm

D3.8 in. H x 2.6 in. W x 0.92 in. D

Frequency Response 50 – 15 kHz +/- 2 dB

Balanced Output (max @ 40 kHz deviation)

Mic Position -10 dBV

Line Position Adjustable 10 mV-2V RMS

Unbalanced Output Adjustable 10 mV-1V RMS

Distortion <1.0%, 0.5% typical (ref 1 kHz, 40 kHz deviat)

Signal-to-Noise Ratio >100 dB A Weighted

Dynamic Range >100 dB

Transmitters, Bodypack (BPU-2) and handheld (HTU-2)

Radiated Output 30 mW typical

Microphone Head Electro-Voice 767a N/D 767a Supercardioid N/DYM Dynamic

Microphone Head Electro-Voice 267a N/D 267a Versatile Cardioid Dynamic

Microphone Head Electro-Voice RE 410 RE 410 Classic Cardioid condenser

Microphone Head Electro-Voice RE 510 RE 410 Supercardioid condenser

Standard Lavalier Microphone EV RE 90Tx MicroMini™

Omni-Directional Condenser

TA4 Connector Wiring Pin 1: Ground; Pin 2 Mic Input;

Pin 3: +5V bias; Pin 4: +5V bias through a 3kW resis-

tor

Audio Gain Adjustment 40 dB (handheld 26 dB)

Power Requirements 9 Volt Alkaline Battery

Battery Life (Typical) > 8 hours with 9-Volt Alkaline Typical

Bodypack Antenna Flexible external 1/4 wave

Handheld Antenna Internal 1/2 wave

Dimensions (Handheld) 24.0 cm (9.4 in.) Long

Dimensions (Bodypack) 96.5 mm H x 66 mm W x 23.4 mm D

3.8 in. H x 2.6 in. W x 0.92 in. D

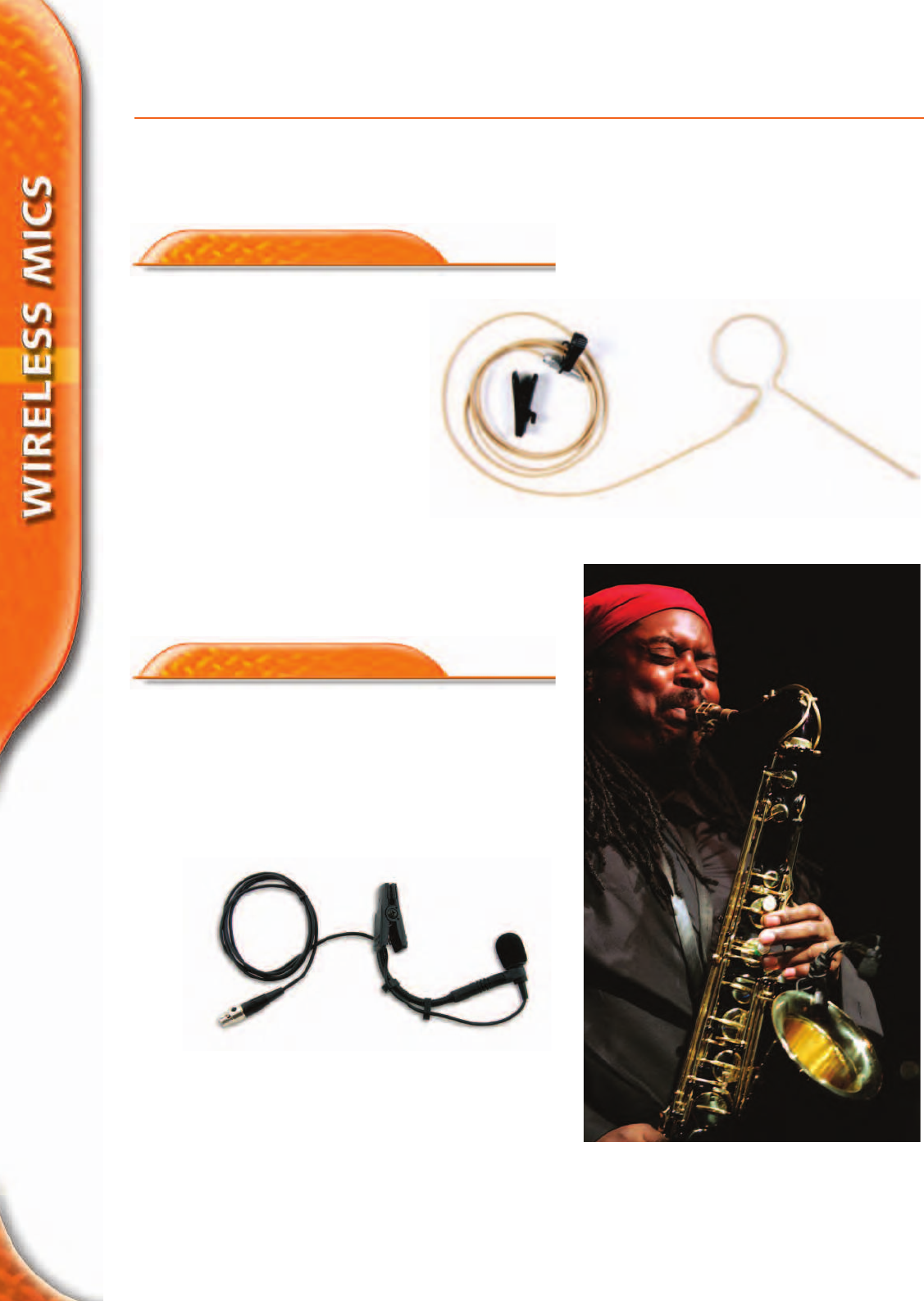

RE97Tx & RE920Tx

RE97 Tx Mini Mic

• Extremely lightweight

earworn microphone

• Almost invisible

• Available in beige, brown

and black

• Wear on left or right ear

• Omnidirectional for smooth,

natural sound

RE920Tx Horn Mic

• Unidirectional

horn mic

• High SPL handling

• Custom clip for

mounting

Lavalier & Headset Mics

OLM 10

• Lavalier mic

• Includes shown

accessories

ULM 21

• Lavalier mic

• Includes shown

accessories

RE 90 TX

• Lavalier mic

• Top-class

• Ultra-miniature

•Includes shown

accessories

RE92 TX

• Lavalier mic

• Hi-Performance

• Includes shown

accessories

HM 2

• Headset mic

• Includes shown

accessories

HM 7

• Headset mic

• Top-class

• Super lightweight

and comfortable

• Includes shown

accessories

OLM 10 ULM 21 RE 90 TX RE92 TX HM 2 HM 7

Element Back electret Back electret Back electret Back electret Back electret Back electret

condenser condenser condenser condenser condenser condenser

Polar pattern Omnidirectional Cardioid Omnidirectional Cardioid Cardioid Supercardioid

Impedance, Low-Z balanced --- 80 - 16.000 Hz --- --- --- ---

Frequency Response (-3 dB) t.b.a. t.b.a. 50 - 18.000 Hz t.b.a. 30 - 18.000 Hz (12mm) 100 - 15.000 Hz

Output Level (0dB = 1mW/Pascal) --- --- --- --- --- ---

1.000 Hz)

Open Circuit Voltage (at 1.000 Hz) t.b.a. 2.5 mV/Pascal 12.6 mV/Pascal t.b.a. 4.0 mV/Pascal 7.0 mV/Pascal

Maximum SPL (THD) t.b.a. 120 dB (1% THD) 130 dB (1% THD) t.b.a. 120 dB (1% THD) 120 dB (3% THD)

Power requirement from Bodypack from Bodypack from Bodypack from Bodypack from Bodypack from Bodypack

(Phantom power)

Current Consumption t.b.a. t.b.a. --- t.b.a. max. 0.5 mA @ 9 VDC ---

Specials --- --- Sub-miniature --- --- Ultra-lightweight

Case Material Plastic Plastic Polycarbonate resin Metal Plastic Plastic

(Capsule enclosure)

Finish Nonreflecting black Nonreflecting black Nonreflecting black Nonreflecting black Nonreflecting black Nonreflecting black

Included accessories approx. 180 cm approx. 180 cm approx. 180 cm approx. 180 cm approx. 120 cm approx. 120 cm

permanently attached permanently attached permanently attached permanently attached permanently attached permanently attached

cable, windscreen, cable, windscreen, cable, windscreen, cable, windscreen, cable, windscreen, cable, windscreen,

universal tie clip universal tie clip universal tie clip, tie tac universal tie clip cable clip cable clip

Optional Accessories --- --- --- --- --- ---

Connector type 4-pin TA4F 4-pin TA4F 4-pin TA4F 4-pin TA4F 4-pin TA4F 4-pin TA4F

Dimension (Length x Diameter) t.b.a. 0.71 in. x 0.29 in. .025 in. x 0.19 in. 0.948 in. x 0.412 in. --- ---

Weight net t.b.a. t.b.a. 34 g t.b.a. 25 g 70 g

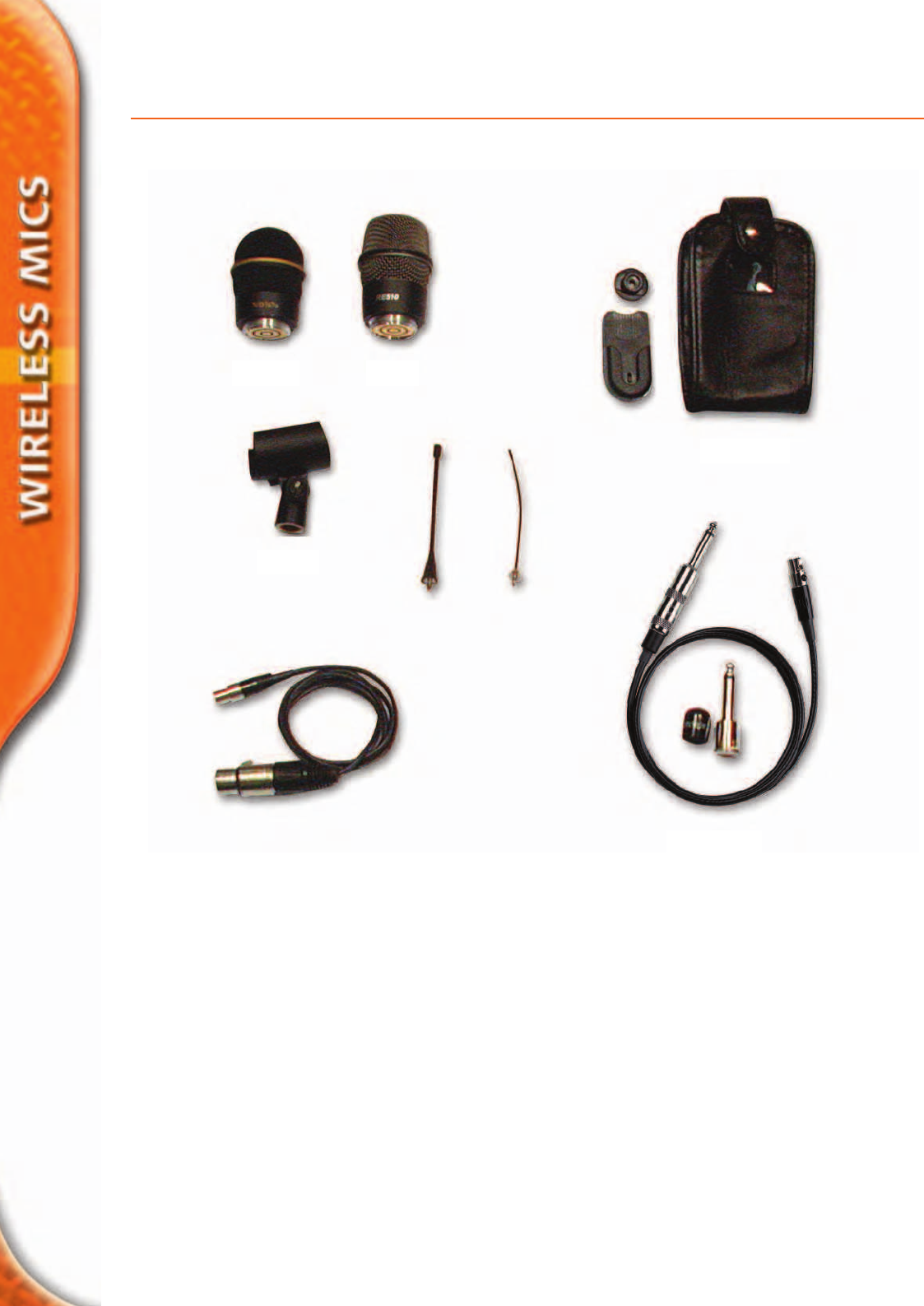

Accessories

RC767a RC510

AN-Flex AN-Sflex

MAC-2 MAC-G2/G3

MSSA

WP1000BC1000

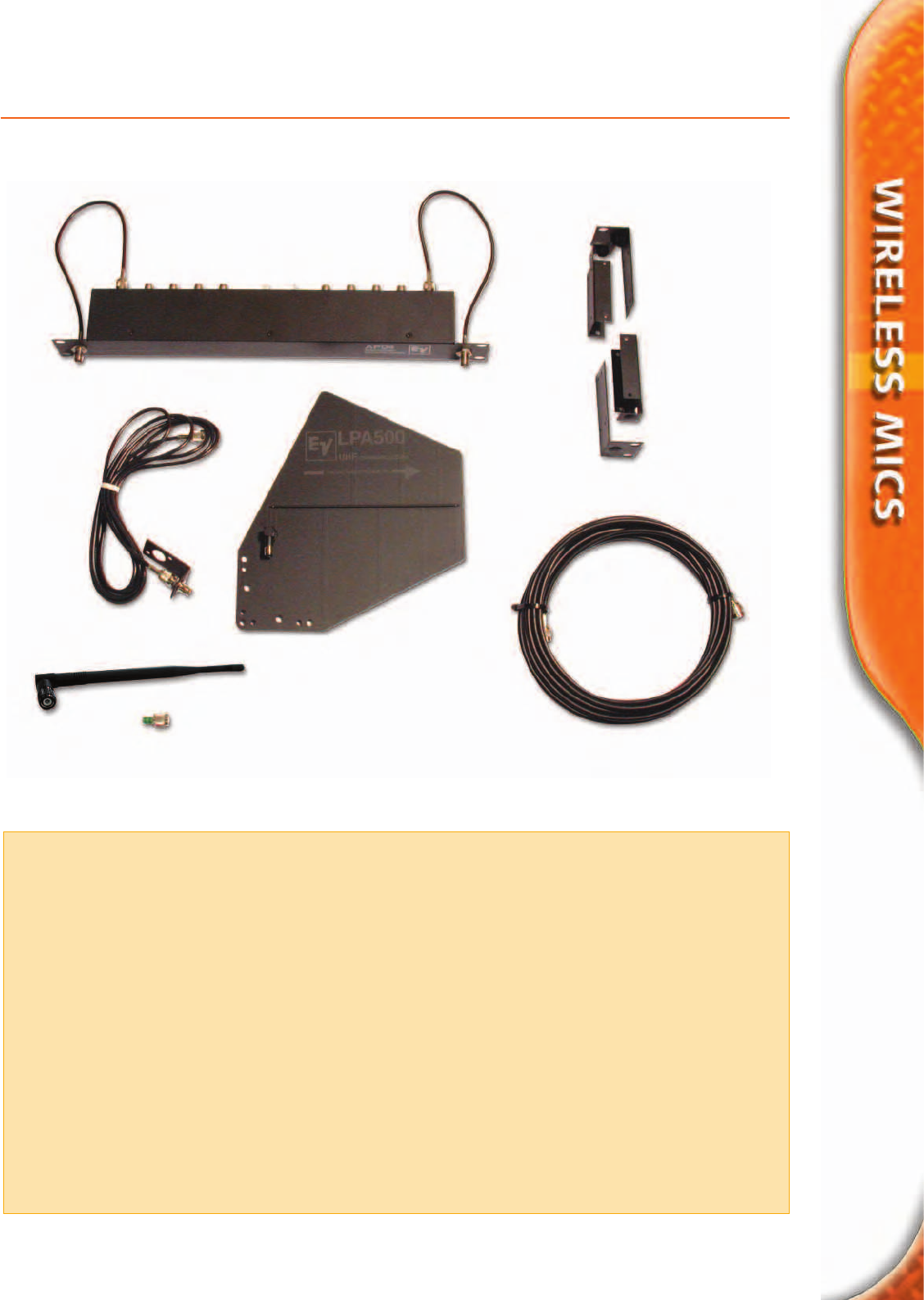

Accessories

APD-4

AB-2

FA-500

TP-2

CXU

LPA-500

RM-D

Electro-Voice Wireless Accessories - Antennas etc.

APD-4 UHF Antenna/power distribution system (provides power and RF signals

for 4 units) for use with RE-2 & RE-1

RM-D Rack-mount kit - double (for two receivers) works with RE-2, RTM-1000

and RE-1 receivers

AB-2 Universal mounting bracket for 1/2-wave antennas, with 10-foot coax cable

LPA-500 Directional log periodic antenna with mounting hardware and 10-foot coax

FA-500 1/2-wave UHF antenna

TP-2 50 ohm TNC termination plug for use with APD-4

CXU-X Low-loss coax cable (X designates length, 25ft = 8 m, 50ft = 16 m)

Single-Amp Drive – Stereo Music Pub, Cafe (Foreground Music)

Full Range with sub Music Bar, Cafe, Small Disco

Cabinets 8 EVID 4.2, 2 EVID 12.1

Amplifiers 1 Q44 or CPS1

Controllers –

Cabling 10 2-wire long, 4 2-wire short

Accessories (AB-62 for 180°, or AB64 for 360° Array)

Horizontal Coverage 8 x 90°, or 4 x 180°, or 2 x 360°

Typical Distance 8 to 15 m

Total Amp Power 900 W

Options

could also be used with only two 4.2’s per side

for smaller rooms, but high sub level requirement

Comments inputs on 12.1 in parallel

Cabinets 4 x ZX1i, 2 x Sb122

Amplifiers 1 x CP1800 (or Q66/CPS2)

Controllers none

Cabling 6x 2-wire

Accessories none (bracket included in ZX1i)

Horizontal Coverage 4 x 90° or 4x 100°

Typical Distance 10 m to 15 m

Total Amp Power 2 x 800W = 1600W

Options

Comments available in black or white, SB122 can be

mounted with MN-200 bracket

3-Way Stereo Ultracompact Hi-Power System

Fullrange Cluster Small to Medium Club

Cabinets 2 x SxA360, 2 SbA760

Amplifiers none (included in cabinets)

Controllers none (included in cabinets)

Cabling 2 x XLR-XLR

Accessories 2 x 100BK, 2 x MB200 + TC04

Horizontal Coverage 2 x 65°

Typical Distance 15 m to 20 m

Total Amp Power 2 x 150W + 350W + 760W = 2520W

Options

Expandable with 2 SbA760 for more

Sub-Bass, and/or 2 SxA360 for wider coverage

Comments most compact, very powerful system

Cabinets 4 x ZX5-60

Amplifiers 1 x P3000RL

Controllers internal (RCM24) with IRIS-Net™ Remote

Cabling 2 x NL4 long, 2 x NL2 short

Accessories 2x CV-5

Horizontal Coverage 2 x 120°

Typical Distance 20 m to 25 m

Total Amp Power 2 x 1,200W = 2,400W

Options Add-on Subwoofer(P2, QRx218

&P3000RL)

Comments Full remote & Supervision through

IRIS-Net

2-Way Stereo •• Club, Disco Dance Floor- lower ceiling

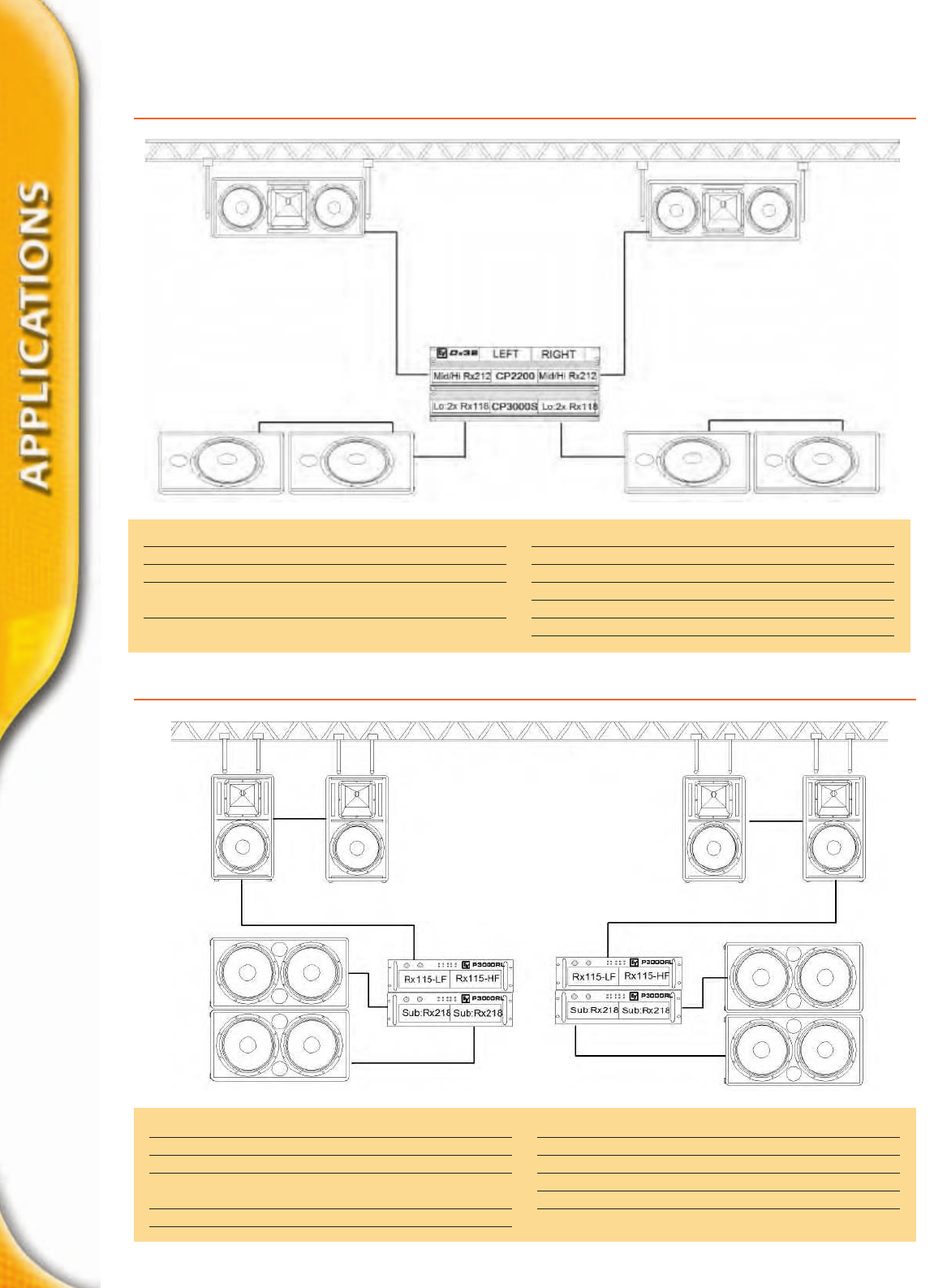

3-Way Stereo Standard PA for Concert & Disco

Cabinets 4 x QRx115/75, 4 x QRx218S

Amplifiers 4 x P3000RL/TG5

Controllers internal (RCM24)

Cabling 8 x NL4 long

Accessories 4 x QRx Rigging Kit, 4 x QRx Wheel Kit

Horizontal Coverage 2 x 100° to 150°, or 4 x 75°

Typical Distance 15 m to 20 m

Total Amp Power 2 x 4,200W = 8,400W

Options 2 way stereo operation with 3 P3000RL

Comments Full Remote & Supervision with IRIS-Net

Cabinets 2 x QRxH212/75, 4 x QRx118S

Amplifiers 1 x CP2200, 1 x CP3000S

Controllers 1 x Dx38

Cabling 4 x NL4 long, 2x NL4 short

Accessories 2 x QRx Rigging Kit

Horizontal Coverage 2 x 75°

Typical Distance 15 m to 20 m

Total Amp Power 2 x 1,900W = 3,800W

Options 3-Way stereo operation with 2 P3000RL

& 1 P1200RL

Comments Double up amps and cabinets for

larger rooms

2-Way Stereo Line Array Medium Size Venues for Music and Speech

4-Way Stereo + Sub Very Compact Line Array System

Cabinets 16 x XLE181, 2 x X-Sub

Amplifiers 3 x P3000RL

Controllers internal (PCM24)

Cabling 6 x NL4 long, 4 x NL4 short

Accessories 2 x XLE-Grid, UCC-1

Horizontal Coverage 2 x 120°

Typical Distance 25 m to 30 m (see LAPS for details)

Total Amp Power 2 x 14,400W = 28,800W

Options 12 TG5 or TG7 amps, 12

CP3000S/4000S + 4 Dx38

Comments very powerful, compact system, expandable

Cabinets 16 x XLD281, 2 x XLC215, 4 x X-Sub

Amplifiers 12 x P3000RL

Controllers Internal (RCM24) IRIS-Net™

Cabling 12 x NL4 short, 8 x NL8 long

Accessories 2 x Xi-DSK, 6 x QRx Wheel Kit

Horizontal Coverage 2 x 120°

Typical Distance 25 m to 30 m

Total Amp Power 2 x 14,400W = 28,800W

Options 12 TG5 or TG7 amps, 12

CP3000S/4000S +4 Dx38

Comments

Very powerful, compact system, expandable

4-Way Stereo Compact Line-Array for mid-sized venues

4-Way Stereo+ Sub Compact Line-Array for mid sized venues, higher SPL’s

Cabinets 12 XLC127+, 6 Xsub

Amplifiers 6 CP2200, 2 P3000

Controllers 2 Dx38

Cabling

6 NL8 long, 12 NL8 short, 2 XLC grids,

& Accessories

12 dollies 127 (or 2 bottom dollies), 2 Xline dollies

Horizontal Coverage 2 x 120°

Typical Distance 30 m to 50 m

Total Amp Power 2 x 7,000W = 14,000W

Options&Comments

Cabinets 16 XLC127+/DVX, 6 XLC215, 4 Xsub

Amplifiers 10 CP3000S, 4 CP4000S

Controllers 3 Dx38

Cabling

6 NL8 long, 14 NL8 short, 4 XLC grids,

6 XLC bottom dollies, 1 Xline dolly

Horizontal Coverage 2 x 120°

Typical Distance 30 m to 50 m

Total Amp Power 2 x 17,100W = 34,200W

Options&Comments XLC127+ can be driven also with P1200RL

Xsub with P3000RL

could use 14 CP4000S or 14 P3000RL or

14 TG5/7

5-Way + Sub + In-Fill Arena up to 6000 people, wide

Cabinets 12 Xf, 8 Xb, 4 Xcn, 4 Xcb, 8 Xds

Amplifiers 14 x P3000 (= 4 X-Array System Racks)

Controllers 4 x Dx-38 / 2 DN9848

Cabling 10 x NL8 long, 24 NL8 short

Accessories

10 grids, 20 Xrhg & Xess, 40 Xrhl & Xesl, 14 dollies

Horizontal Coverage 2 x 100° to 120°

Typical Distance 60 m to 70 m

Total Amp Power 2 x 16.950W = 33.900W

Options Xsubs can be used instead of Xds

8-Way Stereo, Line Array Large Venue, Concert Sound

Cabinets: 12 Xvls, 8 Xvlt, 12 Xsub

Amplifiers: 24 P3000 (= 6 X-Line Amp Racks)

Controllers: 4 DX38, or 2 DN9848(or RCM24/26-IRIS-Net™)

Cabling: 16 NL8 long, 16 NL8 short

Accessories:

Horizontal Coverage: 2 x 90° (120° nearfield)

Typical Distance:

50m to 100m (depending on the rigging heights)

Total Amp Power: 2 x 28,800 W = 57,600 W

Options: Full Remote & Supervision through

IRIS-Net™ with 24 P3000RL or TG7 amplifiers

Comments: Number of subs depending on music style

Ring Mode Decoupling®(RMD®)

Electro-Voice pioneered Ring Mode Decoupling (RMD®) as a

result of experience gained through years of high-level concert

system design. The acclaimed EV X-Array™ was the “test bed”

for RMD®research. Just as automotive companies use Formula 1

racing to develop new technologies, Electro-Voice uses its work in

the concert sound and touring industries to do the same. The goal

of that basic research is to bring those new technologies into all

aspects of the sound reinforcement industry.

All loudspeaker components display unwanted vibrational modes

– or resonances – that produce both frequency and time-domain

distortions. A time-domain distortion is most often described by

loudspeaker users as a “ringing” in the system. This ringing is usu-

ally most audible through the vocal fundamental range, and users

commonly attempt to “cure” the ringing mode through equaliza-

tion. Unfortunately such attempts remove not only the time-

domain distortion, or ringing, but also parts of the musical signal

as well. The net result is that musical information is lost.

RMD®is a series of techniques developed by Electro-Voice engi-

neers to deal with the time-domain distortion at its source.

The basic problem is mechanical in nature. As a result, the only

really effective solution is also mechanical. When acoustic

resonances are encountered, the only effective solution is an

acoustic remedy. The same applies to electrical resonances:

The solution must be electrical.

RMD®treatment produces an acoustic signal that is much freer of

mechanical and acoustical ringing modes. The result is a level of

fidelity – particularly through the critical vocal range – that is more

coherent and “in your face.” Another benefit of RMD®technolo-

gy is a much higher degree of level independence. Many front-of-

house engineers have noted that system equalization needs to

change with system output levels. The louder the system is driven,

the more EQ changes become necessary to maintain system voic-

ing (that is, the system sounds different at higher power levels).

RMD®greatly minimizes the changes in system voicing that occur

with level changes. Systems with RMD®, therefore, display a high

degree of level-independent fidelity and a very audible improve-

ment in vocal clarity as well.

Power handling ratings

Accurately specifying power handling ratings presents a challenge

with odds typically worse than those in a game of chance. Each

manufacturer rates its components in its own particular way.

While responsible manufacturers always qualify their testing

methods, this offers little help to users not familiar with the differ-

ent test methods.

Electro-Voice has used an EIA-based rating for many years. It

offers a reasonably good combination of mechanical (excursion)

and thermal (heat) stress measurements. The ratings supplied

with EV components are very conservative, and require a full

eight-hour test cycle to generate.

However, Electro-Voice does not limit its power testing to EIA

methods. Long term continuous musical testing of rated program

limits is typically performed for 200-hour durations. EV engineers

also perform mixed-signal testing, a combination of continuous

noise (EIA- or AES-based shaped spectrum signals) and low-fre-

quency impulsive signals (such as kick drums). Mixed signal tests

often represent typical program material, and the resulting meas-

urements relate better to real-world conditions.

The most useful power handling rating is that of the program

material specification. This rating relates well to “in the field” sit-

uations for most musical programs. It should always be remem-

bered that no test method or rating spec will universally describe

every situation. Extreme power levels can produce either mechan-

ical or thermal failures with any manufacturer’s components.

Manifold Technology®

In 1986, Electro-Voice revolutionized concert sound reinforce-

ment by introducing Manifold Technology®. In each of the four

bandpasses covering the entire frequency range, the output of

four loudspeakers was flawlessly combined – or “manifolded” –

into a single horn (such as a large-format MH horn) or low-fre-

quency enclosure. The result was a physical package, a fraction of

the size of conventional concert rigs but with four times the

acoustic output. This eliminated the drastically uneven coverage

that occurs when multiple acoustic sources are stacked to gain

more output. Manifold Technology®came into its own particular-

ly in smaller-sized locations or installations, where low-frequency

output was limited by the space available.

Speaker Technologies

Vertical Beam Shaping

(2- or 3-element line array)

Verticl Beam Shaping (VBS) is a frequency overlap configuration of

the dual-woofer three-way systems of Xi-Series™. It provides the

best directivity improvement, achieved by the vertically spaced low-

frequency sources which flank the mid-bass horn operating alone at

low frequencies and by appropriately overlapping the LF and MB

sources in the mid bass, e.g., 125 to 540 Hz.

The single-woofer three-way systems may be configured for VBS,

achieved by overlapping the (single) woofer and mid-bass source in

the appropriate frequency ranges. This physical orientation of three

sources, together with appropriate amplitude shading and filter

comibinations, produces vertical directivity control to below 125 Hz.

The resulting interferences of normal overlapped speakers are com-

pletely minimised. The sonic advantages of this combination are

significant. Precisely controlled radiation patterns at low frequencies

prevent reverberant energy in the 125- to 600-Hz range from

degrading vocal fundamentals. The pattern control achieved by this

three-source, single-enclosure “array” prevents the critical distance

from moving “forward” (toward the source) as wavelengths

become significant in size with respect to the radiation device, and

pattern control is lost. This is the case with conventional system

designs. The other primary advantage is that down to 125 Hz,

acoustic output under the enclosure is a full 12 dB or more below

on-axis levels.

This results in greatly improved gain-before-feedback levels on

stage especially in theatres where lavalier microphones are tradi-

tionally used under centre speakers. In conventional systems where

“under enclosure” levels are comparable to on-axis levels, system

intelligibility is even compromised at the source (microphone)

because of poor loudspeaker directivity control and subsequent

“spill over”.

Vari Intense®

EV´s unique Vari Intense®(VI) technology has a lot of advantages in

most applications of “typical sized” rooms. Vari Intense®provides a

rectangular coverage pattern. The unique, patented throat and flare

structure of the VI horn delivers a 6 to 10 dB hotter signal to the

rear of the room.

The resulting even front-to-back SPL eliminates ear strain at the

back of the sitting area and ear pain at the front. One VI horn

replaces two standard systems that reduce costs and eliminates

destructive interference which occurs between long- and short-

throw horns or multi-sourced horizontal arrays.

The downward-aimed horn delivers sound only to the floor plan

where the audience is and provides uniform direct-field SPL and sig-

nificantly reduces the amount of sound reverberating off the ceiling.

This provides an increase in mid- to high-frequency intelligibility of

6 dB in most applications.

To plan with Vari Intense®systems is very easy. The height of the

room defines the size of the floor plan covered with one speaker.

The area covered would be a width coverage of two times the

height of the ceiling and depth, or throw, three times the height of

the ceiling. Therefore a Vari Intese®speaker mounted centrally, par-

allel to the floor, at a height of 3 meters, would cover a room with

equal SPL, 6 meters wide by 9 meters long. Aiming the speaker

down by 15 degrees at the same 3 meter height will produce an

even floor plan SPL that is 3 meters wide by 6 meters long and tilt-

ing it back by 15 degrees, at the same height, produces a floor plan

SPL of 6 meters wide by 15 meters long. Normally the loudspeaker

is mounted approximately 0.6 to 0.8 times the height back from

the first row and has a nominal angle of the top of the enclosure

parallel to the floor or slightly (2 to 3 degrees) tilted back.

3-ELEMENT

2-ELEMENT

2 times height

covered floor plan of a VI horn

3 times height

Speaker Technologies

100 hz 200 400 hz

Overlap Zone

For VBS

LF - SOURCE 1 + 3LF - SOURCE 1 + 3

MB - SOURCE 2MB - SOURCE 2

Dispersion Angle distance for same coverage

Inverse Square law (point source)

- 22 db - 28 dB - 34 dB - 37.5 dB - 40 dB

(246.1 ft)

12.5m 25m 50m 75m 100m

(41.01’) (82.02’) (164’) (246.1’) (328.1’)

This graph should help you to get a feeling of coverage angles, loss in SPL and covered areas.

The following questions can be answered:

1. Question: “What coverage angle is needed to cover a width of X meters by the maximum possible distance to the audience

of Y meters?” Helpful when the install position of the speakers and the area to cover are predetermined.

Solution: Possible distance to the audience is a maximum of 12 meters. Covered width should be approx. 36 meters

(2 x 18 meters). A system that provides 120 degrees coverage is needed.

2. Question: “Which system is needed when the distance to the audience and the target SPL is known?” Helpful when the

install position of the speakers is known and a pre-defined SPL is required.

Solution: Inverse square law of a point source (-6dB when doubling the distance) helps to define the loss in SPL at a distance

of X meters. The pre-determined SPL at listening level (the audience) should be 100 dB. Distance to the speaker is approx. 50

meters (I.E. open-air, arena etc). The loss in SPL after 50 meters is approx. 33 dB, therefore the system has to provide a

continuous SPL of 133 dB/1m.

3. Question: “At what distance is a (i.e.) 75 meters width reached, using different loudspeakers with different coverage angles?

Solution: A 120 degrees system provides a covered width of 75 meters after approx. 22 meters. A 40 degree system provides

same width after approx. 100 meters.

4. Furthermore (based on point 3): “What´s the loss of SPL in both cases?”

Solution: Approx. 25 dB for the 120 degrees and approx. 40 dB for the 40 degrees system. To achieve a pre-determined SPL of

105 dB, when an area of 75 meters needs to be covered, the 120 degrees system has to deliver > 130 dB and the 40 degrees

system > 145 dB. In explanation: A job for MH 4020 which provides 146 dB maximum.

5. And others…

Dispersion angle versus distance for same coverage

Inverse square law (point source)

Speaker, Distances and Horns

In 1934, Electro-Voice invented the hum-bucking coil for micro-

phones, still an industry standard almost 70 years later. The inven-

tion was the beginning of EV’s success in building microphones,

but not the end. Electro-Voice continues to set new standards for

microphone design today. Electro-Voice was the first manufacturer

to use neodymium-based magnet structures (N/DYM®) in its

microphones, thus achieving higher output and condenser-like

qualities such as crystal clarity and reliable performance. Electro-

Voice’s goals in developing microphone technologies have always

been the same: providing highest sound quality, achieving better

and more comfortable handling for the user, and continuing the

company’s tradition of legendary reliability and warranty support.

Its long list of patents attests to its success in meeting these goals.

Variable-D®

Normal microphones generate increased bottom end when used

close up. This is typically called the “proximity effect.” While some

lead vocalists like this effect and use it to enhance their perform-

ance, it is attainable only in closeup situations. When the distance

between the microphone and the source is extended, the sound

quality changes dramatically. Electro-Voice’s patented Variable-D®

eliminates this disadvantage. On the rear side of the diaphragm

there is a perforated pipe (interference duct) with precise sonic slots

at set distances. The duct provides maximum damping which is

completely uncoloured and undistorted at 180-degree off-axis,

ensuring the same frequency response as if the source was nearly

on-axis.

Variable-D®designed microphones can be used very close to other

sound sources with no loss in clarity or definition. This makes them

the preferred choice for tight vocals and challenging instruments

such as brass. Variable-D®microphones like the RE20 and RE27 are

favorites with broadcast show hosts, vocal booths, voice-over stu-

dios, and professional touring or rental companies.

VOB™

Electro-Voice’s unique VOB™ technology (Vocal-Optimized Bass)

reduces low-frequency distortion in the microphone’s output. Critical

damping of the low-frequency resonant peak results in a microphone

that replaces the “muddiness” found in competitive models with

greater warmth and increased vocal intelligibility. With a wider range

of working distances than other microphones, this intelligibility

ensures a clean, clear, consistent sound that “cuts through the mix.”

VOB™ counteracts proximity effect, sibilance, and P-popping, thus

assuring maximum vocal intelligibility and musical clarity.

with VOB™

without VOB™

Normal mic Variable-D®mic

Microphone Technologies

PIN - Arrangements

Electronic

Microphones

TA4F (not shown)

used in N/DYM

wireless

Pin 1: Common

Pin 2: Audio

Pin 3: Bias

Pin 4: Not used

Balanced (XLR)

Pin 1: Shield

Pin 2: Signal +

Pin 3: Signal -

Balanced (XLR)

Pin 1: Shield

Pin 2: Hot

Pin 3: Cold

Pin 5: common

Pin 6: parallel to 1 + 4

Pin 7: parallel to 8

Pin 8: parallel to 7

Fullrange Pin 1: LF/HF +/-

Pin 2: Not connected

Biamp Pin 1: LF Section +/-

Pin 2: HF Section +/-

Subwoofer Pin 1: LF input +/-

System

Pin 1 in: LF +/- Pin 2! out

Pin 2 in: LF +/- Pin 1! out

Pin 3 in: MB+/- Pin 3 out

Pin 4 in: HF +/-Pin 4 out

Pin 1: parallel to 4 + 6

Pin 2: TxD

Pin 3: RxD

Pin 4: parallel to 1 + 6

PC interface

(RS 232)

Speakers

male female

Female Male RockJazz SpeechChoirVocalSpeechKickSnareTomsHiHat/GuitarSaxophone/ Trumpet/Piano AccordionGuitar/ ENG

DrumOverheadAmpWoodwinds Brass Strings

CobaltCo5 ++

CobaltCo7 ++ + +

CobaltCo9 ++ +

CobaltCo11 ++++ + + +

N/D367s ++++++

N/D267a(s)+ + + +

N/D767a++ +++++

N/D967++++

Raven+ + + + +++++ + + ++ +

Cardinal+++++ ++ + +++++++ + + +++

N/D468++ ++++ + +++

N/D868++++

N/D478++++

CobaltCo4 +++ + +

RE 200++ ++++ +++

RE 20 +++++++ +++ ++++++ ++ ++

RE 27 +++ ++++ +++ ++++++ ++ ++

RE410 ++ +++++ + + + +

RE 510++ +++++ + + ++ ++ +++++++

RE 50B/NDB++

635A (B) / NDB++

RE16++ + ++

VOICESOUND

REINFORCEMENTVOICE

STUDIOINSTRUMENT

BROAD

CAST

MICSAPPL I C A T I O NS

EVMICROPHON E A P P L I C A T I ONT A BLE

+recommended

++ optimal

Weather-resistant

Also available in white

Available with high-quality 70/100 volt transformer

Speaker can be flown. See product features

and Speaker Hardware/Accessories

Mounting hardware available or included.

See product features and Speaker Hardware/

Accessories

Passive or biamped operation

Designed for multi-way active operation

using EV®Dx38 digital controller

Rotatable constant-directivity horn or identical

horizontal/vertical directivity control (i.e. 65° x 65°)

Ring Mode Decoupling (RMD™) ensures high

performance and vocal clarity at any SPL.

Unfinished version available

Product Feature Symbols

Microphone Polar Patterns

Cardioid

Supercardioid

Hypercardioid

Omnidirectional
