Designer Floodlight DF7 Submittal Data Sheet VPZ210AT 210 G Cut
User Manual: VPZ210AT
Open the PDF directly: View PDF
.
Page Count: 3
DF7
Enter the order code into the appropriate box above. Note: Philips Gardco reserves the right to refuse a configuration. Not all combinations
and configurations are valid. Refer to notes below for exclusions and limitations. For questions or concerns, please consult the factory.
Job:
Type:
Notes:
Designer Floodlight
DF7 - 7"
Page 1 of 3

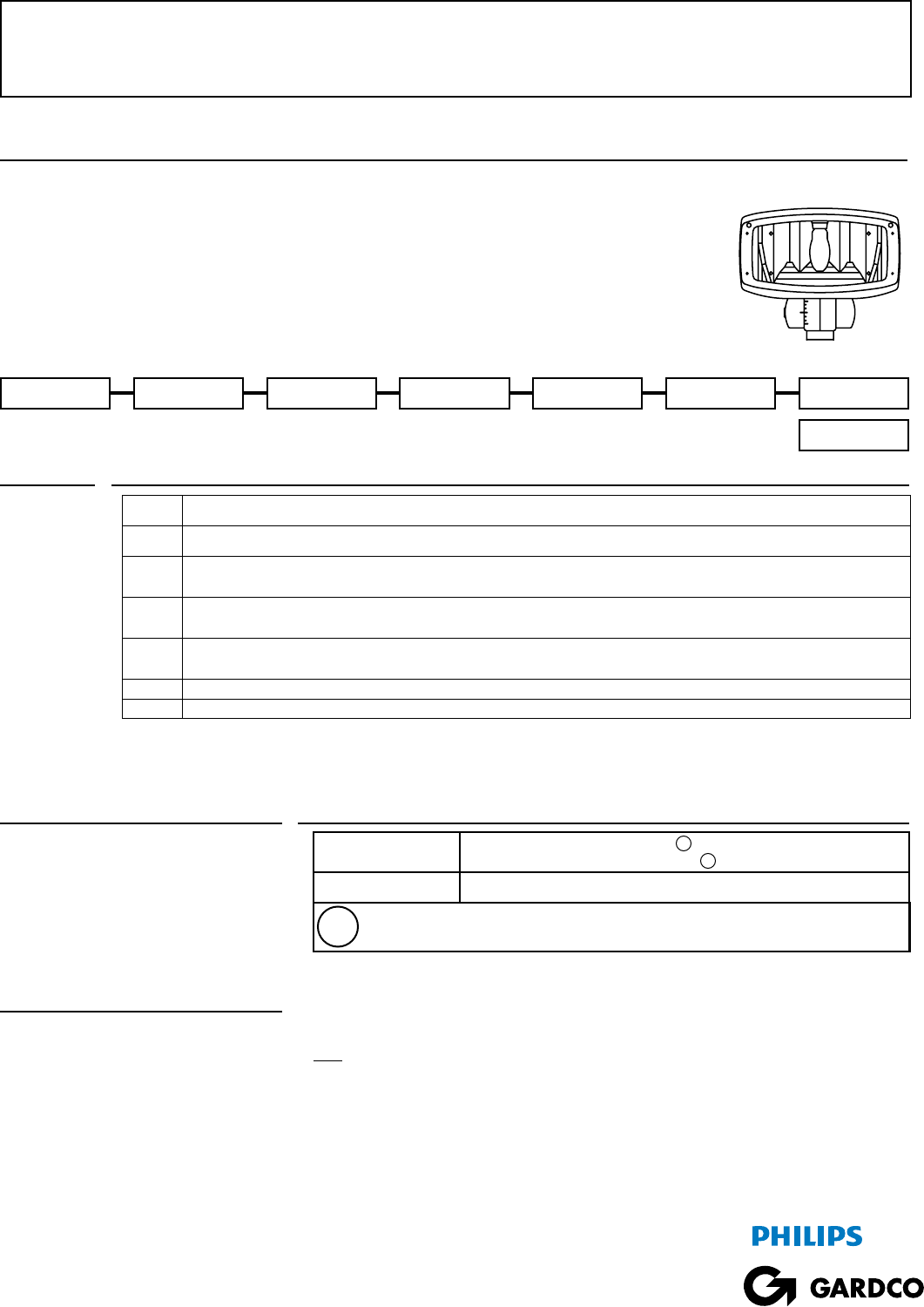

The Philips Gardco Designer Floodlight DF7 is a flood luminaire with a choice of (5) precision faceted optical
systems. Each is designed to provide a specific distribution and sharp cutoff of stray light. The contemporary
soft form diecast housing is available in a variety of finishes creating compatibility with most architectural
and landscape elements. The high strength diecast aluminum knuckle features an integral splice compartment
eliminating the need for a supplementary junction box and thereby permitting closer to grade mounting.
PREFIX MOUNTING
PREFIX MOUNTING WATTAGEDISTRIBUTION VOLTAGE FINISH OPTIONS
CStub-up Conduit Mount. For direct mounting to (2) 1/2" (1.27cm) or 3/4" (1.91cm) GRC or IMC conduits. No j-box required. Must use factory supplied
mounting insert when setting stub-ups.
JJ-Box Mount. For mounting into 1/2" (1.27cm) hub. Also suitable for direct surface mount to walls or ceilings when fed by EMT, BX, SJO, NM, etc.
(For surface mount over outlet box, specify W or W90 mount).
WWall/Ceiling Canopy Mount. For mounting over (not to) a 4" recessed outlet box. When mounted on vertical surface, provides vertical aiming from
straight down to 100° up from nadir. When mounted on a vertical surface, long axis of luminaire must be horizontal (+/-30°). Mounts directly to wall or
ceiling. The surface structure must be suitable to support the luminaire. Only suitable for use on non-combustable surfaces.
WMB Wall Mount Bullhorn. For mounting over (not to) a 4" (10.16cm) recessed outlet box. Provides full axial 180° vertical and 358° rotational aiming.
Mounts direct to wall. Surface structure must be suitable to support the assembly. Outer end of WMB must be in the “straight up” position, as
shown in diagram on opposite page. Luminaire mounts with the knuckle below the body of the luminaire only.
W90 Wall Arm Mount. For mounting over (not to) a 4" (10.16cm) recessed outlet box. Provides full axial 180° vertical and 358° rotational aiming range.
Mounts direct to wall. Surface structure must be suitable to support the luminaire. When mounted in wet locations, luminaire must be mounted as
shown in diagrams on page 2. In damp or dry locations, arm assembly may be inverted.
ST Stanchion Mount. 18" (45.72cm) stanchion for in-ground concrete burial mounting.
SM Surface Mount Stanchion. For mounting to 18" (45.72cm) stanchion pole assembly.
DISTRIBUTION
HFL Horizontal Flood
VFL Vertical Flood
HSP Horizontal Spot
NSP Narrow Spot
WATTAGE
Pulse Start MH
Magnetic Ballast
70MH 200MH1
100MH3175PSMH1,2
High Pressure Sodium
Magnetic Ballast 70HPS 100HPS 150HPS
Wattages marked
with Circle “E”
meet federal energy efciency standards applicable to 150 watt
through 500
watt metal halide luminaires only.
Notes:
1.
Utilizes mogul based lamps (T15, E18 or E28). Available with VFL, HSP, and NSP distributions only.
Not available with PCB, POLY, F or ESB options.
2. Not available in 347V.
120
208
240
277
347
UNIV3
VOLTAGE
79115-73/0511
© 2016 Philips Lighting Holding B.V. All rights reserved. Philips reserves the right to make
changes in specications and/or to discontinue any product at any time without notice or
obligation and will not be liable for any consequences resulting from the use of this publication.
philips.com/luminaires
E
E
E
3. Not available in 480V.
DF7 Splice
Compartment
Capacity
Standard
Units
Extended
Splice Box
175PSMH
and 200MH
Units
#12 AWG Conductors12 5 9 5
#10 AWG Conductors12 3 7 3
Designer Floodlight
DF7 - 7"
Page 2 of 3
ADDITIONAL MOUNTING ACCESSORIES
PTA Pole top 2 3/8" (6.03cm) tenon adapter
TAB Twin arm bracket for use with ST or PTA
PT2 Pole top 2 3/8" (6.03cm) tenon adapter for twin back to back luminaire mounting.
12. Including ground.
DF7 Pole Loading Data EPA
Single Luminaire on PTA Adapter 1.3 ft2/.12m2
Twin Luminaires on PTA Adapter 1.9 ft2/.18m2
Twin Luminaires on TAB Adapter 2.8ft2/.26m2
HOUSING: A single-piece aluminum housing is die cast in a soft barrel form.
A one piece extruded gasket mates with door frame.
DOOR/LENS ASSEMBLY: A heat and impact resistant 3/16” (.48cm)
tempered glass lens and one piece silicone gasket are mechanically secured to
door frame.
KNUCKLE: The die cast aluminum knuckle features an integral splice
compartment. A single captive 3/16” (.48cm) stainless steel allen-head bolt
and stainless steel nut securely lock the knuckle aiming teeth in 5° increments.
An opposite cover plate is removable for access to splices. The knuckle
assembly is fully gasketed.
OPTICAL SYSTEM:
The wide flood, vertical flood and horizontal
spot optical systems are homogenous sheet and extruded aluminum,
electrochemically brightened, anodized and sealed. The narrow spot reflector is
hydroformed faceted Alzak® aluminum.
ELECTRICAL: HID UNITS: Each high power factor ballast is the separate
component magnetic type capable of providing reliable lamp starting to
-20°F/-29°C.
LAMPHOLDER: The pulse rated socket is glazed porcelain with nickle
plated screw shell. All sockets are medium base except 175PSMH and
200MH units.
FINISH: Each luminaire receives a fade and abrasion resistant,
electrostatically applied, thermally cured textured, polyester powdercoat finish.
LABELS:
All luminaires bear UL or CUL (where applicable) Wet
Location labels.
WARRANTY: Philips Gardco luminaires feature a 5 year limited
warranty. See Warranty Information on www.sitelighting.com for complete
details and exclusions. Polycarbonate lenses carry a 1 year warranty only.
SPECIFICATIONS
Notes:
5. Not Available with 175PSMH or 200MH.
6. Barn Doors (BD) and Cutoff Hoods (CH) are painted to match the luminaire.
Either can be used concurrently with the POLY option.
7. Not Available with WG option.
8. 120V through 277V only.
9. Supplied standard with 175PSMH and 200MH luminaires. Not available for use as
additional splicing volume with175PSMH or 200MH luminaires.
10. Not Available with BD, CH and POLY options. Field Installable.
11. Polycarbonate lenses carry a 1 year warranty only.
FINISH
BRP Bronze Paint
BLP Black Paint
WP White Paint
NP Natural Aluminum Paint
BGP Beige Paint
VP Verde Green Paint
OC Optional Color Paint
Specify RAL designation
ex: OC-RAL7024.
SC Special Color Paint
Specify. Must supply color chip
.
OPTIONS
PCB5 Button Type Photocontrol
BD6 Barn Doors
CH6 Cutoff Hood
POLY5,7,11 Polycarbonate Shield
F5,8 Fusing
ESB9 Extended Splice Box
WG10 Wire Guard
79115-73/0511
© 2016 Philips Lighting Holding B.V. All rights reserved. Philips reserves the right to make
changes in specications and/or to discontinue any product at any time without notice or
obligation and will not be liable for any consequences resulting from the use of this publication.
philips.com/luminaires
Page 3 of 3
Designer Floodlight
DF7 - 7"

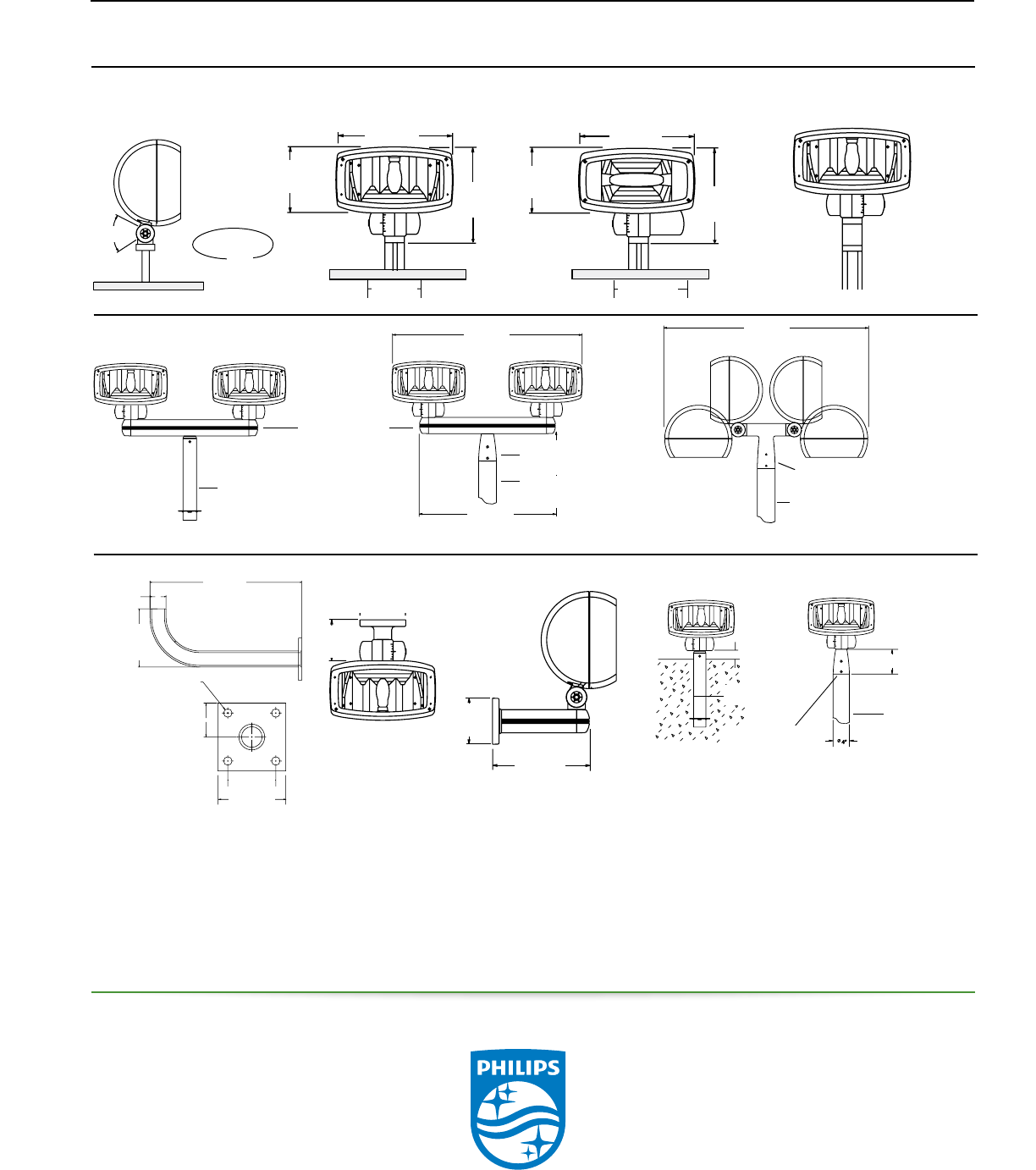

DIMENSIONS AND MOUNTING
180°
358°
16.00"
40.64cm
16.00"
40.64cm
9.00"
22.86cm 9.00"
22.86cm
13.38"
33.99cm 13.38"
33.99cm
DF7-C DF7-J
70-150w
units
175PSMH and
200MH units
7.00"
17.78cm
(2) DF7 (Luminaires only)*
TAB - Twin Arm
Bracket*
ST-18" Stanchion*
PTA - Pole Top
Adaptor*
RSA4 Pole with 2 3/8"X 4" Tenon
(6.03cm X 10.16cm) (Specify Height)
36.00"
66.04cm
29.19"
74.14cm
PT2 - Twin Pole Top
Adaptor*
RSA4 Pole with 2 3/8"X 4" Tenon
(6.03cm X 10.16cm) (Specify Height)
24.00"
60.96cm
9.50"
24.13cm
* Order mounting accessories separately.
DF7-W
DF7-W90
ø 7.00"
17.78cm
ø 7.00"
17.78cm
3.00"
7.62cm
11.88"
30.18cm
DF7-ST
2.00" -12.00"
5.08cm - 30.48cm
ST-18" Stanchion*
6.00" 16.24cm
PTA - Pole Top
Adaptor*
DF7-
WMB
18".00
45.72cm
6.90"
17.53cm
1.9"
4.826cm
2.50"
6.35cm
5.00"
12.70cm
0.63"
1.60cm RSA4 Pole with
2 3/8"X 4" Tenon
(6.03cm X
10.16cm)
(Specify Height)
4"
10.16cm
3.54"
8.99cm
© 2016 Philips Lighting Holding B.V. All rights reserved.
Philips reserves the right to make changes in specications
and/or to discontinue any product at any time without notice
or obligation and will not be liable for any consequences
resulting from the use of this publication.
philips.com/luminaires
79115-151/0511 12/16 page 3 of 3
Philips Lighting, North America Corporation
200 Franklin Square Drive, Somerset, NJ 08873
Tel. 855-486-2216
Philips Lighting Canada Ltd.
281 Hillmount Rd, Markham, ON, Canada L6C 2S3
Tel. 800-668-9008
