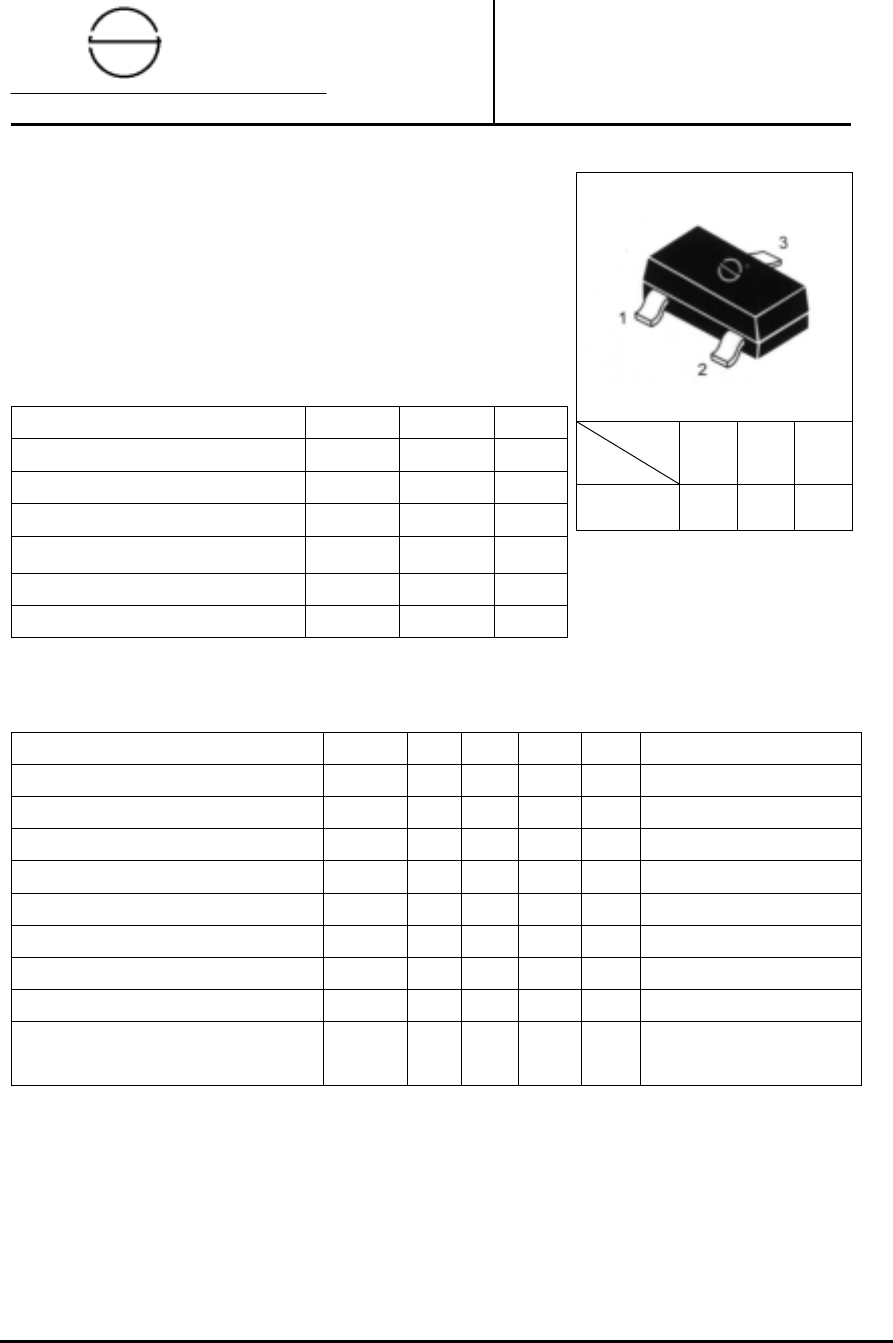

SEMICONDUCTOR 2SB1197K
Shandong Yiguang Electronic Joint stock Co., Ltd TECHNICAL DATA PNP EPITAXIAL SILICON TRANSISTOR
LOW FREQUENCY TRANSISTOR
* Feature:
(1) Low Vce(sat)
Vce≤-0.5V
(Ic/Ib= -0.5A/-50mA)
(2) Ic= -0.8A
(3) Complements the 2SD1781K
ABSOLUTE MAXIMUM RATINGS at Ta=25℃
Characteristic Symbol Rating Unit
Collector-Emitter Voltage Vceo -32 V
Collector-Base Voltage Vcbo -40 V
Collector Current Ic -0.8 A
Collector Dissipation Ta=25℃* PD 200 mW
Junction Temperature Tj 150 ℃
Storage Temperature Tstg -55-150 ℃
ELECTRICAL CHARACTERISTICS at Ta=25℃
Characteristic Symbol Min Typ Max Unit Test Conditions
Collector-Base Breakdown Voltage BVcbo -40
V Ic= -50uA
Collector-Emitter Breakdown Voltage# BVceo -32
V Ic= -1mA
Emitter-Base Breakdown Voltage BVebo -5
V Ie= -50uA
Collector-Base Cutoff Current Icbo -0.5 uA Vcb= -20V
Emitter-Base Cutoff Current Iebo -0.5 uA Veb= -4V
DC Current Gain Hfe 120 390 Vce= -3V Ic= -100mA
Collector-Emitter Saturation Voltage Vce(sat) -0.5 V Ic= -500mA Ib= -50mA
Output Capacitance Cob 12 30 PF Vcb= -10V Ie=0 f=1MHz
Current Gain-Bandwidth Product fT 50 200 MHz Vce= -5V Ie= 50mA
f=100MHZ
* Total Device Dissipation : FR=1X0.75X0.062in Board,Derate 25℃.
# Pulse Test: Pulse Width ≤300uS,Duty cycle ≤2%
DEVICE MARKING:
2SB1197K=AHR
Package:SOT-23
PIN:
STYLE
1 2 3
NO.1 B E C
SEMICONDUCTOR 2SB1197K
Shandong Yiguang Electronic Joint stock Co., Ltd TECHNICAL DATA PNP EPITAXIAL SILICON TRANSISTOR

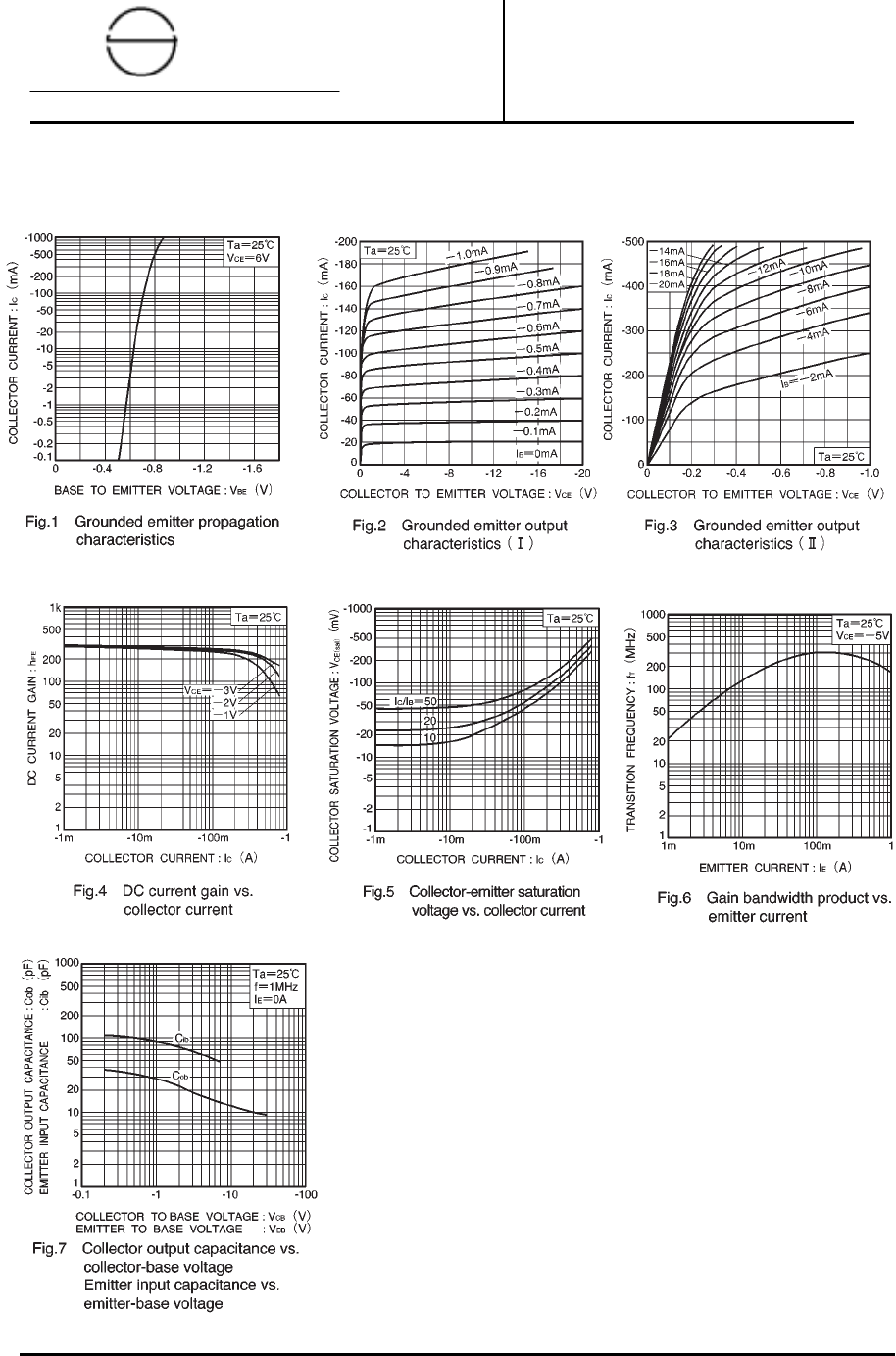

2SB1197K
