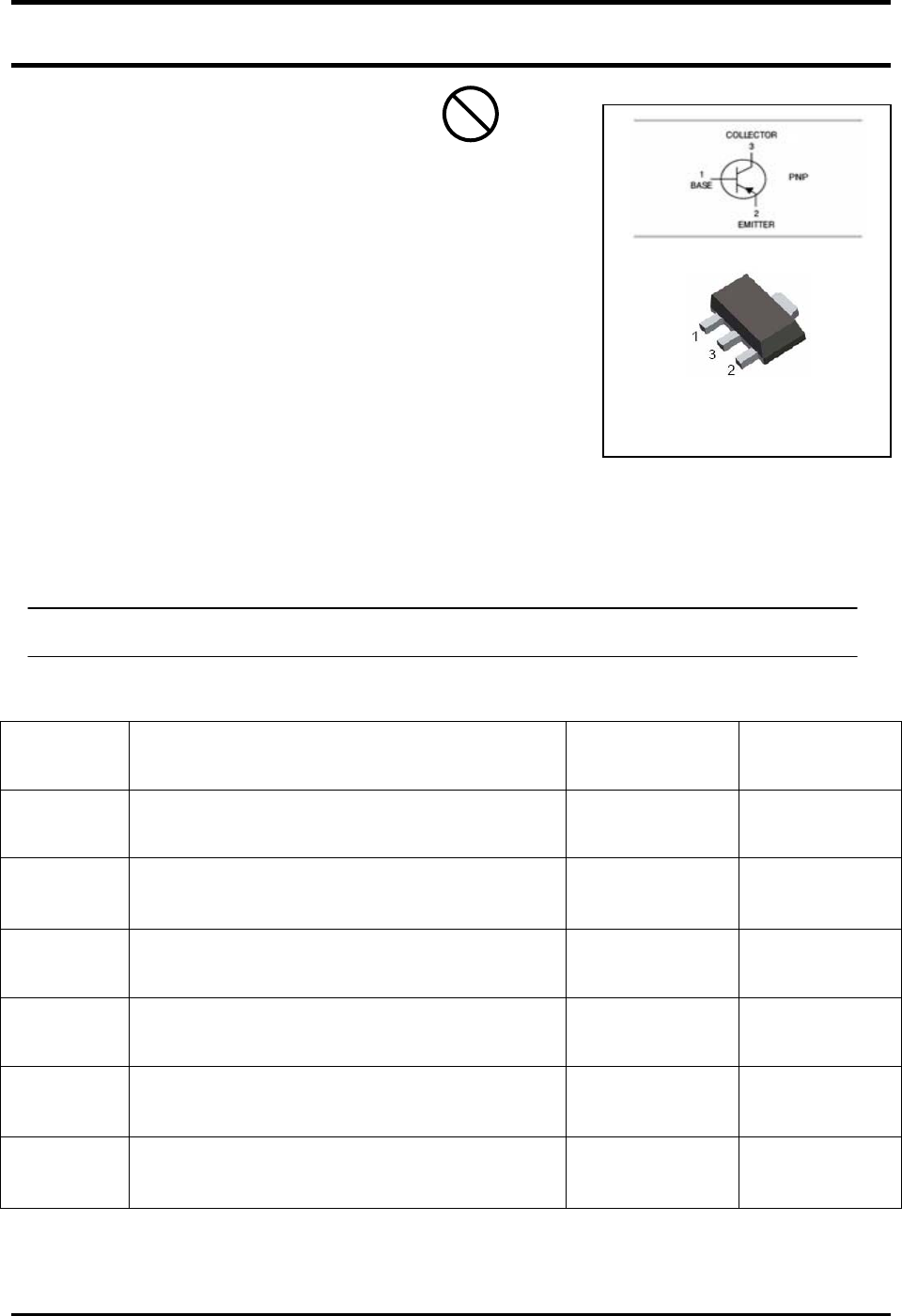

BL Galaxy Electrical Production specification
Power Transistor(-80V,-1A) 2SB1260
Document number: BL/SSSTG045 www.galaxycn.com
Rev.A 1
FEATURES
z High breakdown voltage and
high current.
BVCEO=-80V,IC=-1A
z Good hFEVLinearity.
z Low VCE(sat).
z Complements the 2SD1898.
APPLICATIONS
z Epitaxial planar type PNP silicon transistor SOT-89
ORDERING INFORMATION
Type No. Marking Package Code
2SB1206 ZL SOT-89
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol Parameter Value Unit
VCBO Collector-Base Voltage -80 V
VCEO Collector-Emitter Voltage -80 V
VEBO Emitter-Base Voltage -5 V
IC
Collector Current –DC
-Pulse
-1
-2 mA
PD Total Device Dissipation 500 mW
Tj,Tstg Junction and Storage Temperature -55 to+150 ℃
Pb
Lead-free
BL Galaxy Electrical Production specification
Power Transistor(-80V,-1A) 2SB1260
Document number: BL/SSSTG045 www.galaxycn.com
Rev.A 2
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Parameter Symbol Test conditions MIN MAX UNIT
Collector-base breakdown voltage V(BR)CBO IC=-50μA IE=0 -80 V
Collector-emitter breakdown voltage V(BR)CEO IC=-1mA IB=0 -80 V
Emitter-base breakdown voltage V(BR)EBO IE=-50μA IC=0 -5 V
Collector cut-off current ICBO VCB=-60V IE=0 -1 μA
Emitter cut-off current IEBO VEB=-4V,IC=0 -1 μA
DC current gain hFE VCE=-3V IC=-100μA 82 390
Collector-emitter saturation voltage VCE(sat) IC=-500mA IB=-50mA -0.4 V
Transition frequency fT
VCE=-5V,IC=-50mA,
f=30MHz 100 MHz
Output Capacitance Cobo VCB=-10V f=1.0MHz IE=0 - 25 pF

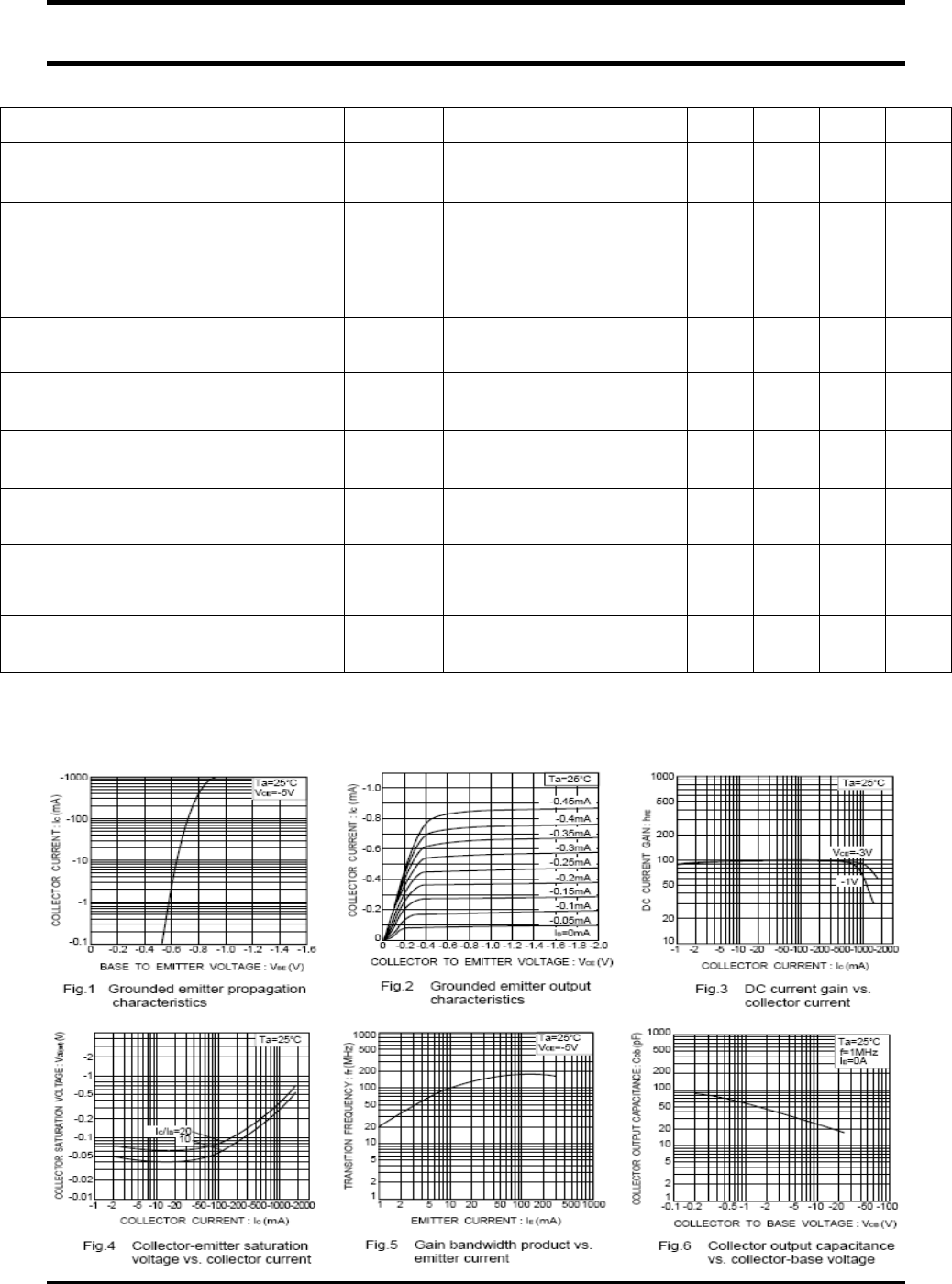

TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
BL Galaxy Electrical Production specification
Power Transistor(-80V,-1A) 2SB1260
Document number: BL/SSSTG045 www.galaxycn.com
Rev.A 3

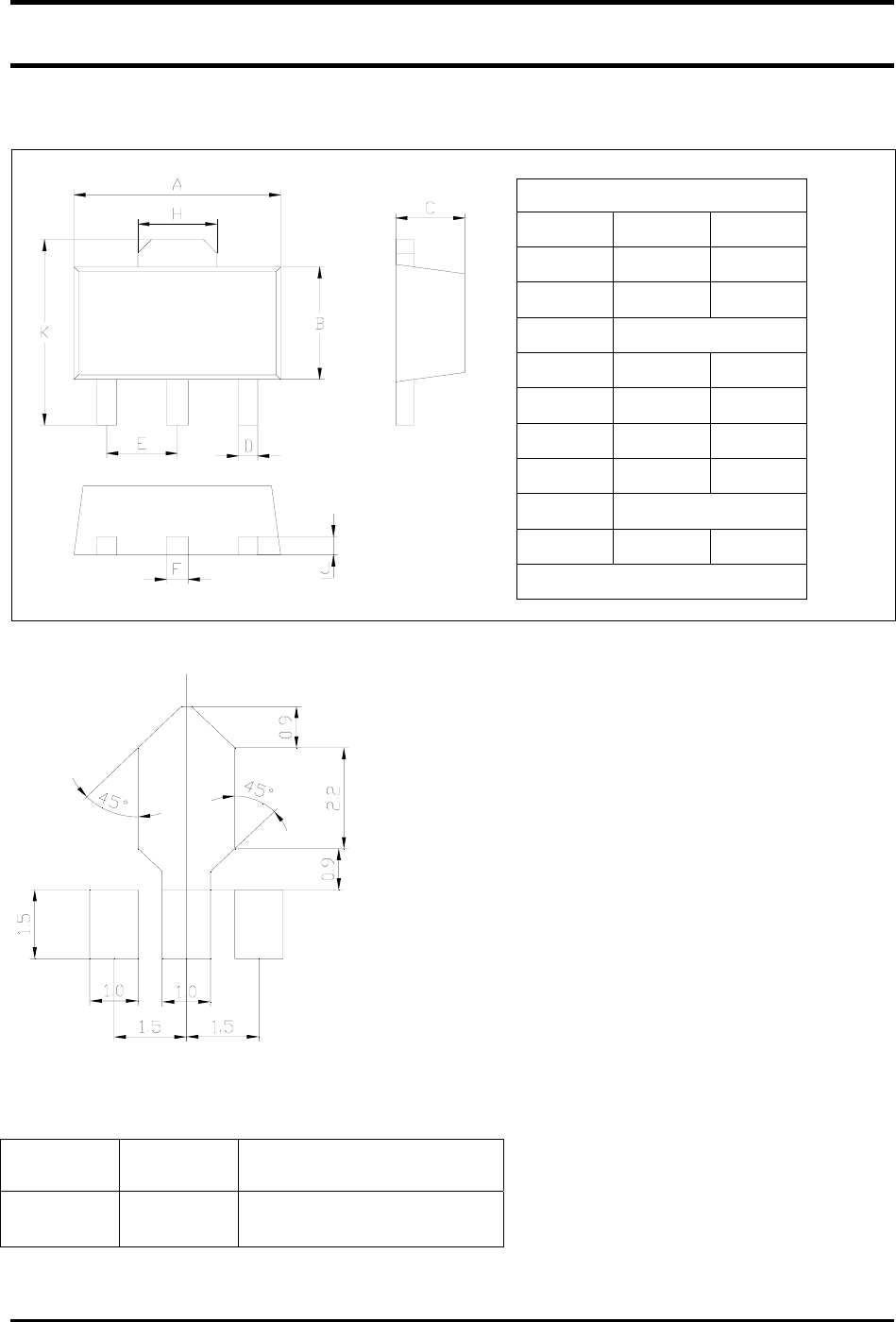

PACKAGE OUTLINE
Plastic surface mounted package SOT-89
SOLDERING FOOTPRINT
Unit:mm
PACKAGE INFORMATION
SOT-89
Dim Min Max
A 4.5 4.7
B 2.3 2.7
C 1.5Typical
D 0.35 0.55
E 1.4 1.6
F 0.4 0.6
H 1.55 1.75
J 0.4Typical
K 4.15 4.25
All Dimensions in mm
Device Package Shipping
2SB1260 SOT-89 1000/Tape&Reel
