Automatic Lubrication Pumps

A Complete Family of Air, Electric and Hydraulic

Grease and Oil Pumps

[]

Pumps for Any Application

With Graco automatic lubrication systems you get:

• Increased productivity—longer machine life and reduced downtime

• Reduced operating costs—reduced repair labor and component costs

• More efficient lubrication—small, carefully controlled amounts when needed

Graco Automatic Lubrication Systems apply the correct amount of lubrication in the right place at the right time

The Ultimate in

Centralized Lubrication Pumps

From your smallest jobs to your largest machines, Graco

pumps are at the heart of any centralized lubrication system.

Add a wide variety of quality metering devices, controllers

and accessories to get a complete system for nearly any

performance, input power or mounting requirement.

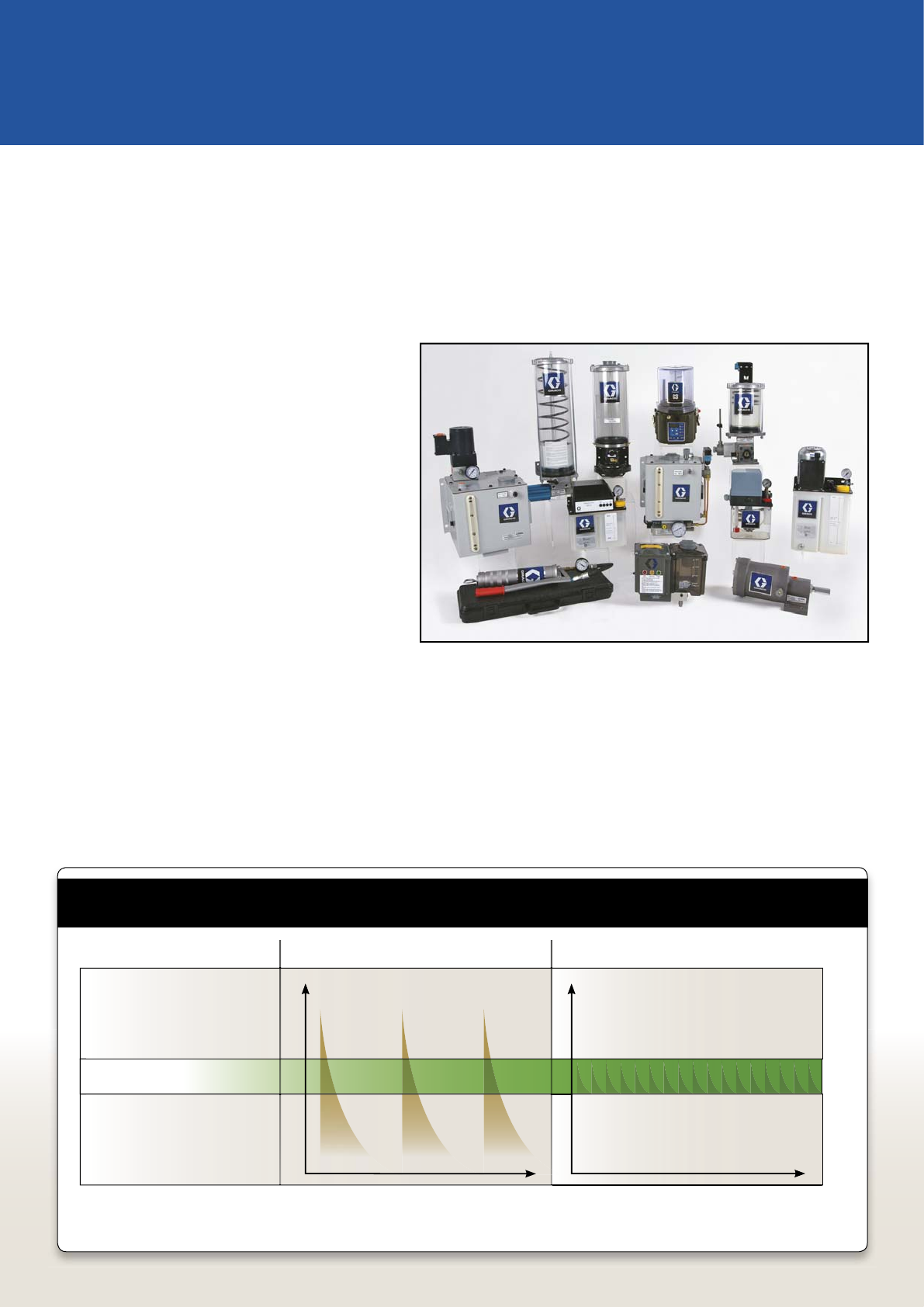

EXAMPLE: Infrequent ﬁ lling of the bearing results in

periods of over and under lubrication

EXAMPLE: Maintain optimal lubrication by replenishing only

the lubricant that is used, with small amounts at

frequent intervals

Automatic LubricationManual Lubrication

Amount

Time

Optimal Lubrication

Under Lubrication

• More component wear

• Higher energy usage

• Increased operating costs

Over Lubrication

• Excess heat build-up

• Wasted lubricant

• Unnecessary labor cost

Amount

Time

With Graco you can be sure every piece

of equipment in your plant gets the right

amount of lubrication

where and when it needs it.

SLP

SLR

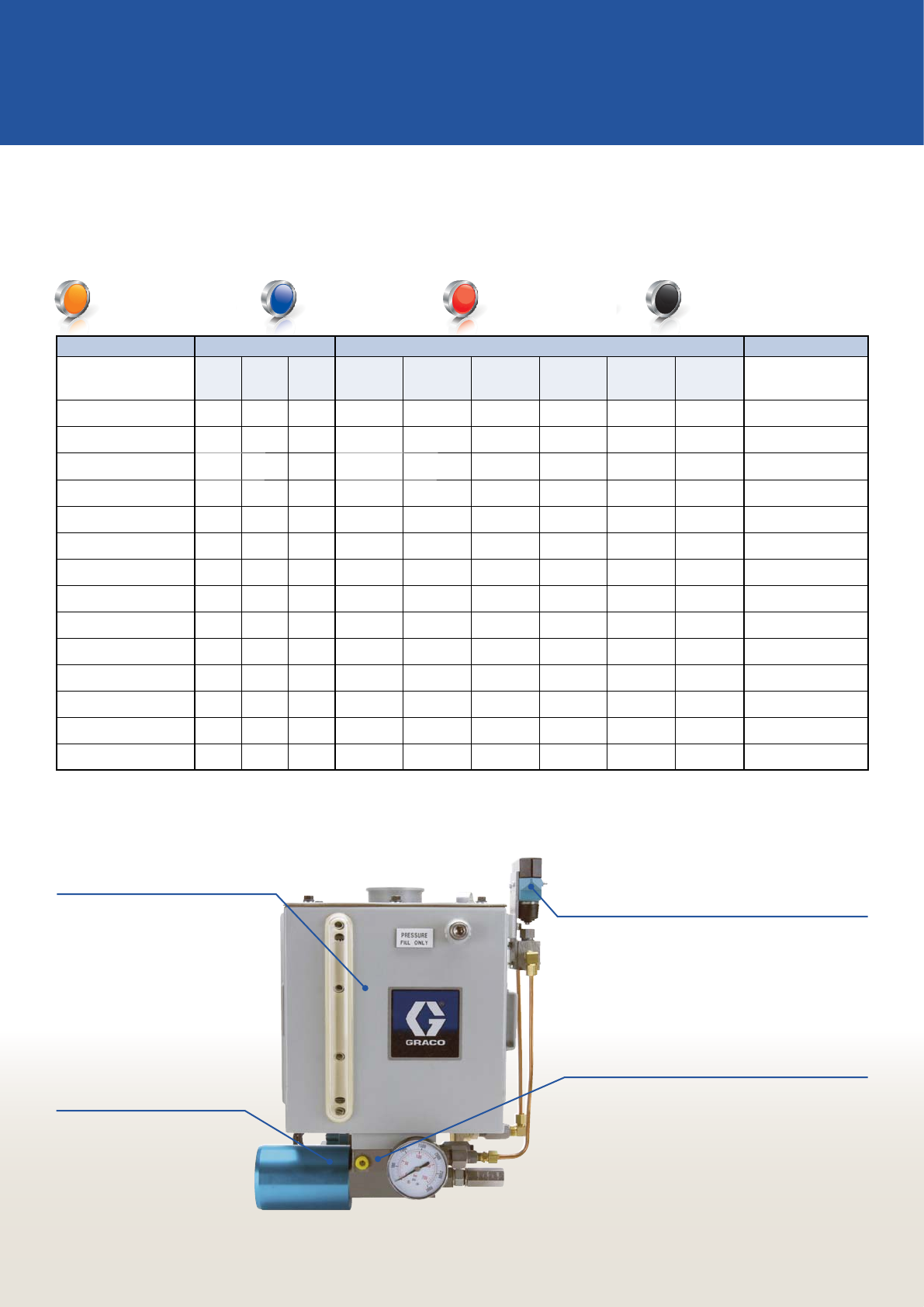

Graco Pumps-at-a-Glance

Selecting the Right Pump is Easy!

Choose your pump based on the system injector/metering device, power source and ﬂ uid type.

Pump Package Example:

= Series Progressive

Reservoir

A variety of reservoirs are available

to ﬁ t your speciﬁ c needs. Choose

from cylindrical or rectangular,

metal or plastic with sizes up to 30

pounds for grease and 40 pints for

oil.

Pump

Choose your pump from the

chart above. Graco offers a wide

variety to satisfy virtually any

application.

Manifold (available on Modu-Flo)

Manifolds connect the pump and reservoir.

Select a package with a built-in manifold, or

for more control over your system, select each

component separately with a Graco Modu-Flo

system. A Modu-Flo system includes a manifold,

which allows all reservoirs to ﬁ t onto all pumps.

Lubrication Management Accessories

Choose from a variety of devices to manage your

system including low level- and pressure sensors,

cycle indicators and more! (Accessories vary by pump

family)

Graco Pump Metering Device Power Source Fluid Type

SP SLP SLR AC DC Pneumatic Hydraulic Manual Mechanical

E-Series • • Oil or grease

G3™•• • • Oil or grease

Injecto-Flo®•• • • Oil

Injecto-Flo II • • Oil or ﬂ uid grease

LubeMaster®•• •

Oil or grease

LubriSystem™•••

Oil or grease

Manual Grease Gun • • • • Oil or grease

Maxi-Flo®•• Oil

Meter-Flo®•• Oil

Miniature Meter-Flo®•• Oil

Modu-Flo®• •••• Oil or grease

MSA • • Oil or grease

PH Pump • • • • Oil or grease

Thrif-T Luber®•• Oil

= Single Line Parallel = Dual Line = Single Line Resistive

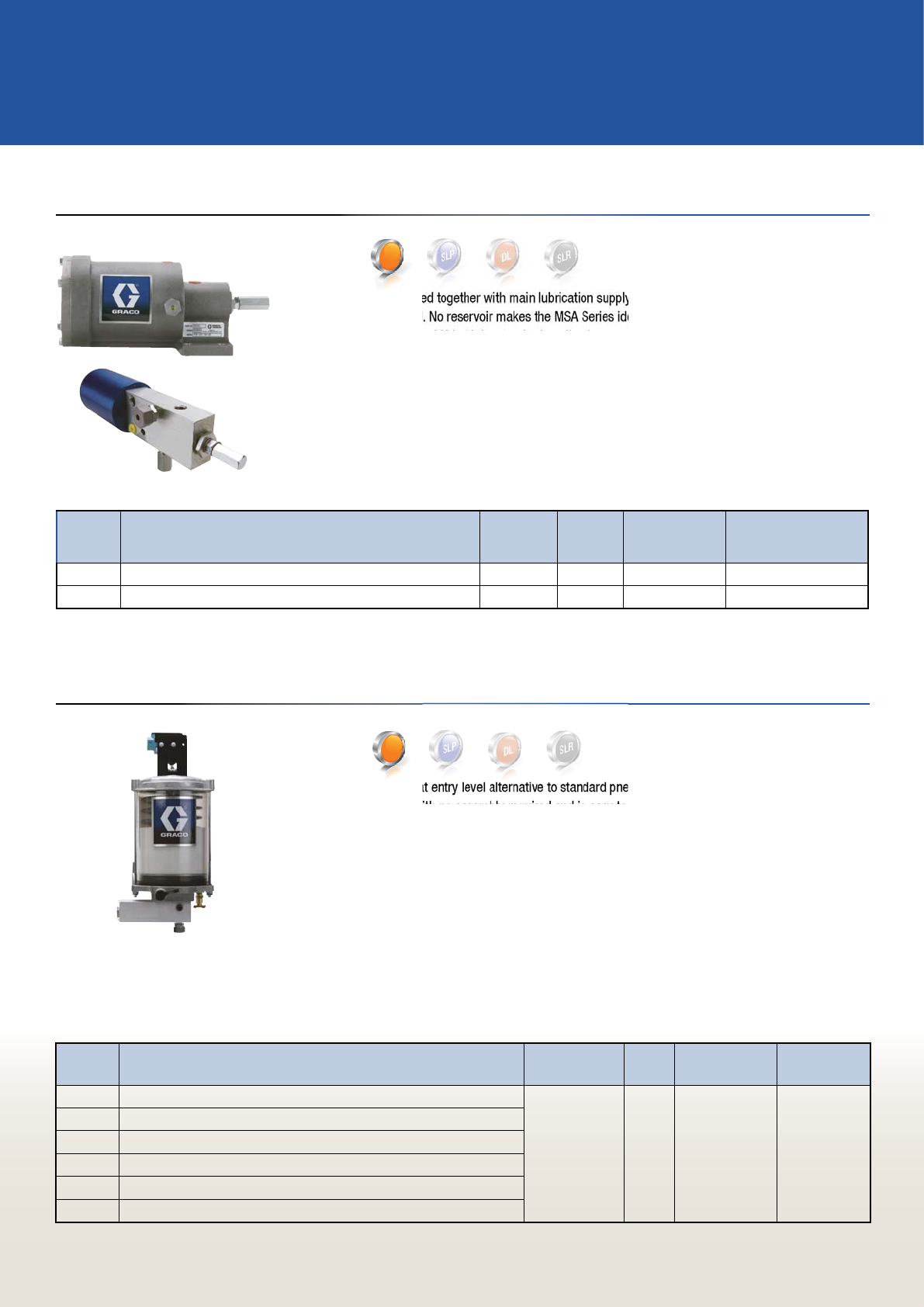

MSA-10

✓

MSA-100

✓

Pneumatic Pumps

MSA-10 and MSA-100

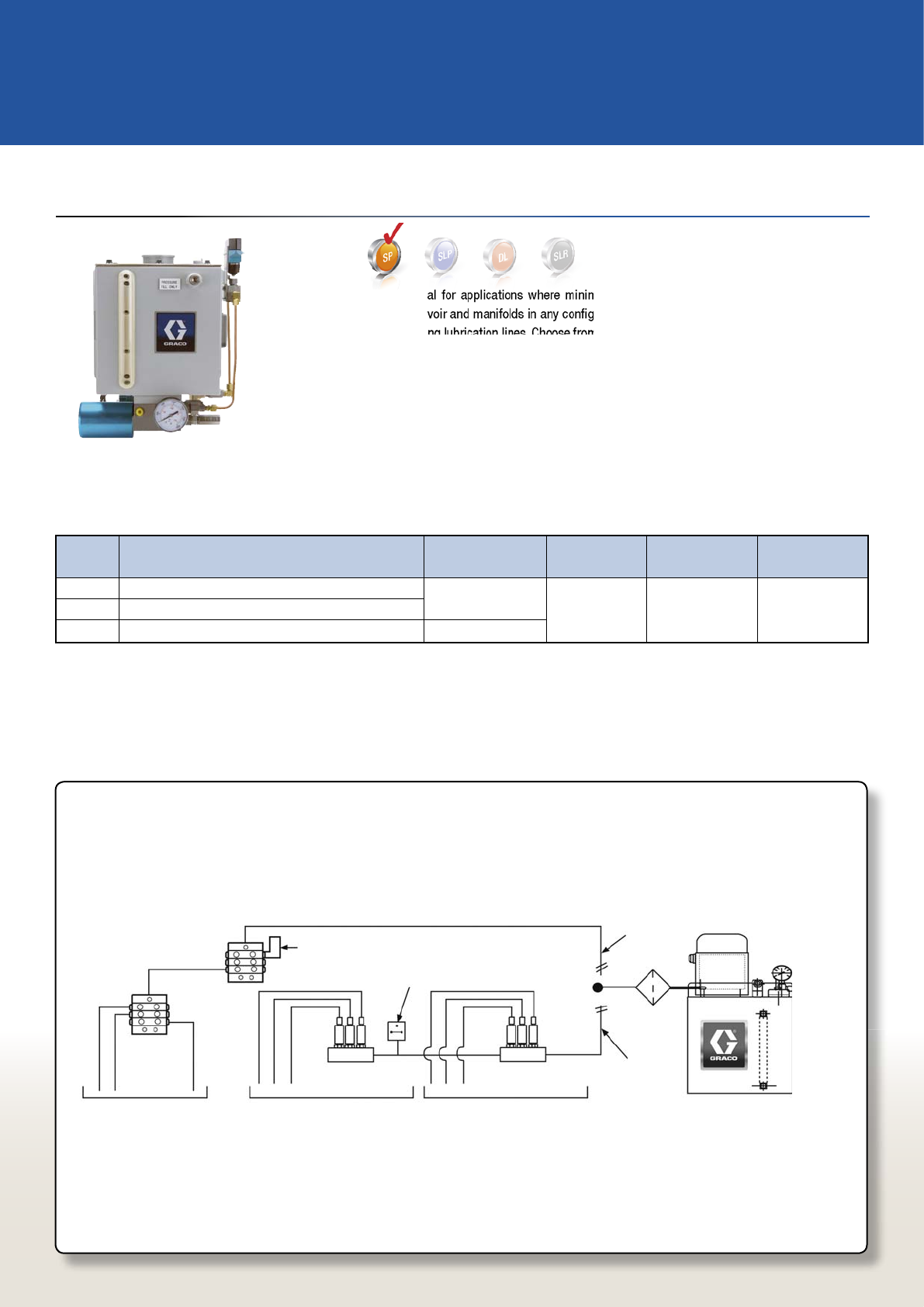

Lubrication Pumps

Works With:

Part No. Model Description

Max Pump

Output/Stroke

cm3 (in3)

Ratio Max. Lube Output

Pressure, bar (psi) Lubrication Type

562855 MSA-100 pneumatic pump assembly (no reservoir) 13.1 (.80 ) 25:1 207 (3000)** Oil or grease up to NLGI #2

562854 MSA-10 pneumatic pump assembly (no reservoir) 1.97 (0.12) 25:1 100 (1450) Oil or grease up to NLGI #2

*MSA pumps can be used with standard Trabon reservoirs if desired

**NOTE: Supplied with rupture-to-atmosphere indicator rated to 1450 psi (standard)

MSA Series products are used together with main lubrication supply lines where the pump is fed directly with no

additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difﬁ cult to reach or

undesirable to enter.* Use the MSA-10 for standard applications and the MSA-100 when high operating pressures

and larger outputs are required.

Key Features

• Ideal for applications where space is at a premium

• Handles high pressure lubricant feed for direct line intake

• Used with or without a reservoir for the ultimate flexibility

Ordering Information and Technical Speciﬁ cations

For more details see Technical Bulletin #L12850 (MSA 10) and #L12851 (MSA 100) on www.graco.com - Instruction Manuals

Part No. Model Description Max Pump Output

Per Stroke, cm3 (in3)Ratio Max. Lube Output

Pressure, bar (psi) Lubrication Type

563365 E-pump with 3 lb plastic cylindrical grease reservoir, low level and pressure gauge

0.49 (0.03) 20:1 138

(2000)

Oil or grease up to

NLGI #2

563363 E-pump with 6 lb plastic cylindrical grease reservoir

563364 E-pump with 6 lb plastic cylindrical grease reservoir, low level

563361 E-pump with 4 pint plastic rectangular oil reservoir

563362 E-pump with 4 pint plastic rectangular oil reservoir, low level

563358 E-pump only

E-Series

Lubrication Pumps

Works With:

The E-Series pump is a great entry level alternative to standard pneumatic pump products. This all-in-one pump

package comes complete with no assembly required and is easy to install. All pump packages include high-

pressure rupture disc assembly and lube outlet check valve. The E-Series offers many reservoir options for either

grease or oil. Great for any application where price is a concern and installation time is at a premium.

Key Features

• Fast and easy installation–keeps costs at a minimum

• Modular design allows field installation of accessories without disturbing existing plumbing

• Smart pump design with few moving parts ensures long-lasting dependability

For more details see Technical Bulletin #L13126 on www.graco.com - Instruction Manuals

Ordering Information and Technical Speciﬁ cations

#563365 Shown

SLP

✓✓

✓

SLP

Works With:

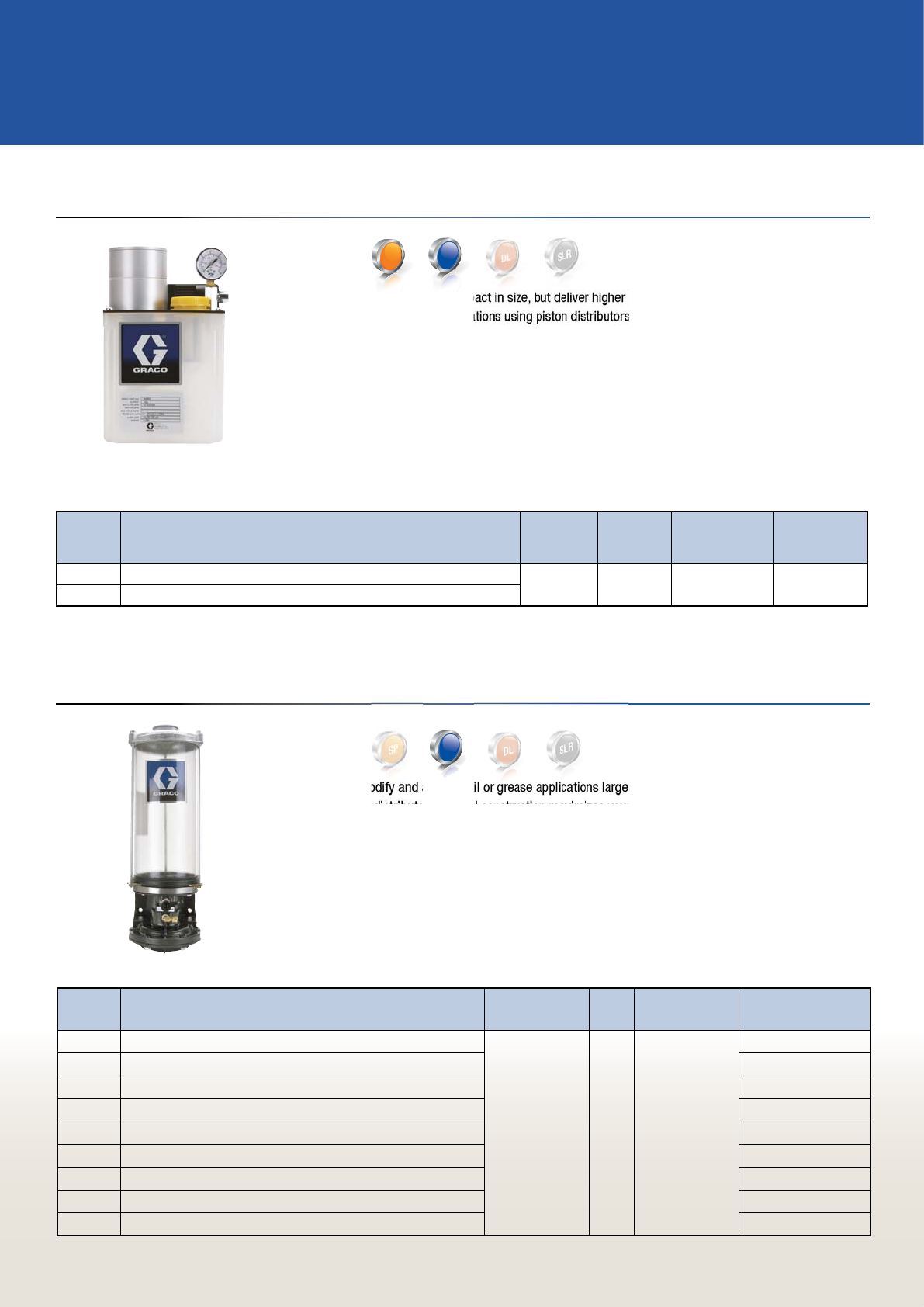

Injecto-Flo™ AO-1

Lubrication Pumps

Ordering Information and Technical Speciﬁ cations

The AO-1 pneumatic pumps are compact in size, but deliver higher pump output rates with its short pump off

time between cycles. Great for applications using piston distributors for oil lubrication. Several reservoir sizes and

materials to choose from.

Key Features

• Compact design easily fits into any application

• Built–in vent valve gets you up and working with piston distributors fast–no kits to purchase

or assemble

Part No. Model Description

Max Pump

Output/Stroke

cm3 (in3)

Ratio Max. Lube Output

Pressure, bar (psi) Lubrication Type

562846 Pump with 10.5 pint metal rectangular reservoir 13 (0.80) 4.5:1 31

(450)

Oil

(250-5000 SUS)

562845 Pump with 4.2 pint plastic rectangular reservoir

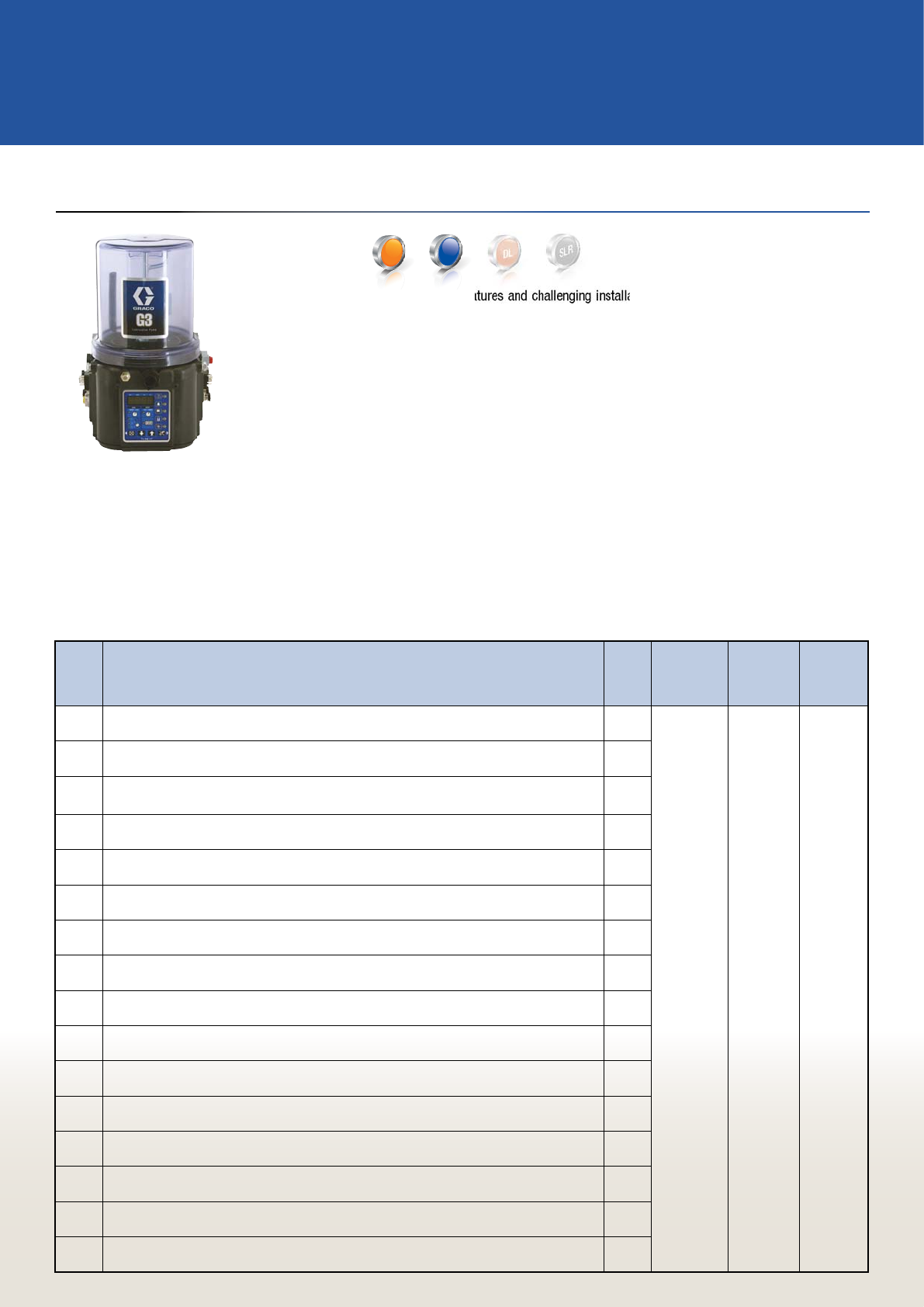

Works With:

LubriSystem™

Lubrication Pumps

Part No. Model Description Max Pump Output/

Stroke cm3 (in3)Ratio Max. Lube Output

Pressure, bar (psi) Lubrication Type

563571 Pump, 6 lb. plastic cylindrical grease reservoir

24.6 (1.5) 9:1

25-93

(360-1350)

Grease up to NLGI #1

563572 Pump, 6 lb. plastic cylindrical grease reservoir and low level Grease up to NLGI #1

563573 Pump, 12 lb. plastic cylindrical grease reservoir and low level Grease up to NLGI #1

563574 Pump, 6 pint plastic cylindrical oil reservoir Oil

563575 Pump, 12 pint plastic cylindrical oil reservoir Oil

563576 Pump, 20 pint plastic cylindrical oil reservoir Oil

563578 Pump, 12 pint plastic cylindrical oil reservoir and 10 watt low level Oil

563577 Pump, 6 pint plastic cylindrical oil reservoir and 10 watt low level Oil

563579 Standard air operated pump body, (no reservoir) Oil or grease up to NLGI #1

Easy to design, modify and adjust to oil or grease applications large or small! Great for operation with

injectors or piston distributors. Rugged construction maximizes your productivity–upgrading to the internal timer

control completely automates the system. All packages include internal pressure relief, so no need to install extra

parts with additional costs. Combine with LubriSystem injectors for easy, low cost system design solutions.

Key Features

• Ablility to serve large systems–up to 100 lube points or more!

• Efficient design promotes increased productivity and less downtime

• Several reservoir choices for both oil and grease applications

Pneumatic Pumps

For more details see technical bulletin #L12601 on www.graco.com - Instruction Manuals

Ordering Information and Technical Speciﬁ cations

For more details see Technical Bulletin #L12100 on www.graco.com - Instruction Manuals

✓

Pneumatic Pumps

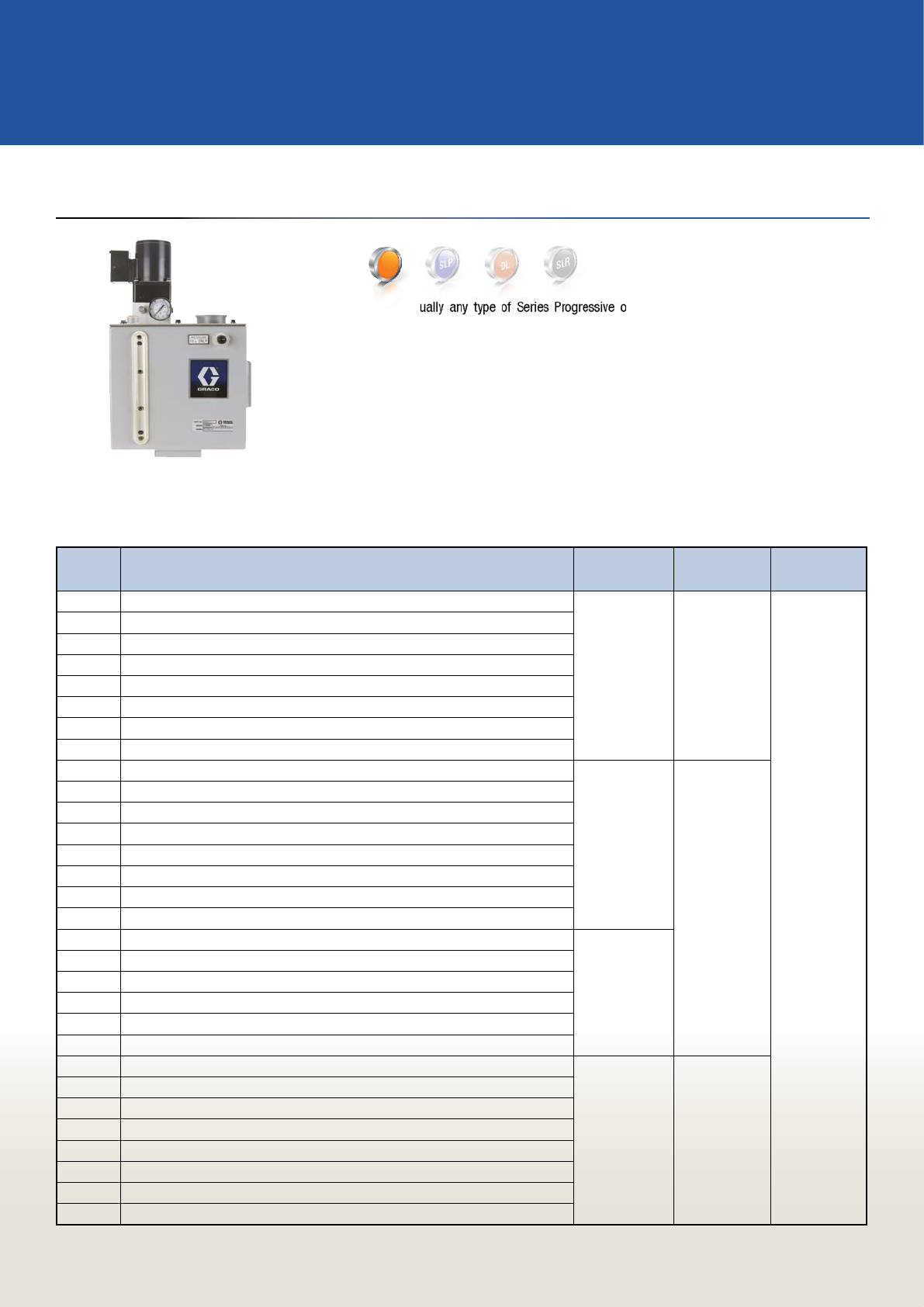

Pneumatic Modu-Flo

Lubrication Pumps

Works With:

Part No. Model Description Max Pump Output/Stroke

cm3 (in3)Ratio Max. Lube Output

Pressure, bar (psi) Lubrication Type

563304 ALS-5 pump, single or double acting (no reservoir) 0.16-0.49 (0.01-0.03) 30:1 241

(3500)

Oil or

grease up to NLGI #2

563306 ALS-25 pump, single or double acting (no reservoir)

563308 ALS-50 pump, single or double acting (no reservoir) 0.98-3.93 (0.06-0.24)

NOTE: Single- and double-acting pneumatic pumps (AL) have the same part number.

Ordering Information and Technical Speciﬁ cations

GRACO ADVANTAGE

While critical bearings are hard at work on your machine tool, press and production equipment, Graco’s line of centralized and automatic

lubrication systems are delivering precise amounts of lubricant at frequent intervals to every lube point–even if they’re hard to reach.

You’ll also get better end results and a higher quality product with the consistent shot accuracy of Graco’s metering systems.

Accurate and Dependable Lubrication Systems

Graco lubrication products help to increase production, reduce downtime

and maintenance costs.

The Modu-Flo system is ideal for applications where minimizing downtime is critical. Customizing is easy–just

mix and match pumps, reservoir and manifolds in any conﬁ guration to meet any application. Replace the pump or

reservoir without disconnecting lubrication lines. Choose from a wide variety of pneumatic pump conﬁ gurations for

both oil and grease applications.

Key Features

• Modular system design allows configurations to work in all applications

• Easy to standardize on components and reduce inventory

• Adjustable pump output for fast, convenient customization

For more details see Technical Bulletin #L12000 on www.graco.com - Instruction Manuals

TO BEARING POINTS TO BEARING POINTS TO BEARING POINTS

CYCLE SWITCH

PRESSURE SWITCH

SINGLE LINE SERIES SYSTEM

SINGLE

LINE

PARALLEL

SYSTEM

SLP

✓✓

Electric Pumps

Lubrication Pumps

Works With:

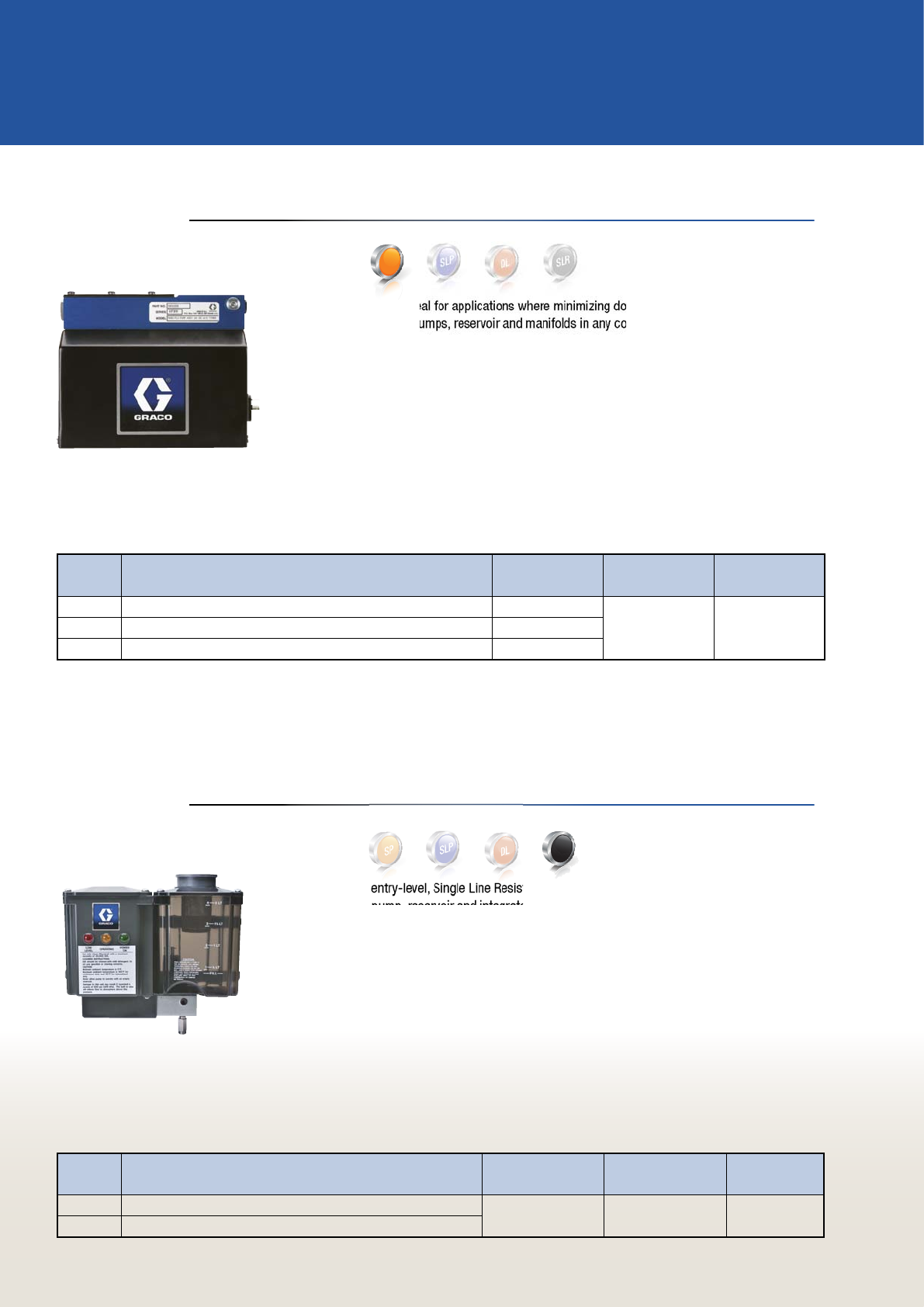

Part

No. Model Description Control

Type

Max Pump

Output Volume

cm3 (in3)

Max. Operating

Pressure,

bar (psi)

Lubrication

Type

96G002 90-240 VAC, wiper arm, DIN power connector, 2 l reservoir No

control

Adjustable

2 (0.12)

3 (0.18)

4 (0.25)

352 (5100) Grease

Up to NLGI

96G003 12 VDC, wiper arm, external low level, 3 pin CPC power connector, 2 l reservoir No

control

96G005 24 VDC, wiper arm, external low level, 3 pin CPC power connector, 2 l reservoir No

control

96G007 90-240 VAC, wiper arm, external low level, DIN power connector, 2 l reservoir No

control

96G033 12 VDC, wiper arm, low level alarm, 3 pin CPC power connector, 2l reservoir Pro

96G011 24 VDC, low level, manual run input, wiper arm, 3 pin CPC power connector, 2l reservoir Pro

96G012 24 VDC, low level, manual run input, follower plate, 3 pin CPC power connector, 2 l reservoir Pro

96G013 90-240 VAC, low level, wiper arm, DIN power connector, 2 l reservoir Pro

96G035 12 VDC, wiper arm, low level, 5 pin CPC power connector , single sensor input (cycle/pressure), vent valve,

2l reservoir

Max

96G031 24 VDC, low level, single sensor input (cycle/pressure), wiper arm, 3 pin CPC power connector, manual run

input, 2l reservoir

Max

96G018 24 VDC, low level, single sensor input (cycle/pressure), vent valve output, manual run input, follower plate,

3 pin CPC power connector, 2 l reservoir

Max

96G032 90-240 VAC, low level, single sensor input (cycle/pressure), wiper arm, DIN power connector, 2 l reservoir Max

96G020 90-240 VAC, low level, single sensor input (cycle/pressure), vent valve output, follower plate, DIN power

connector, 2 l reservoir

Max

96G021 12 VDC, low level, three sensor inputs (combination cycle/pressure), machine count, vent valve output, alarm

output, manual run input, wiper arm, DIN power connector, 2 l reservoir

Max

96G024 24 VDC, low level, three sensor inputs (combination cycle/pressure), machine count, vent valve output, alarm

output, manual run input, follower plate, DIN power connector, 2 l reservoir

Max

96G025 90-240 VAC, low level, three sensor inputs (combination cycle/pressure), machine count, vent valve output,

alarm output, manual run input, wiper arm, DIN power connector, 2 l reservoir

Max

Ordering Information and Technical Speciﬁ cations

Part of conﬁ guration offering. For complete packages, items & accessories see: G3 Selection Guide n° 340706

Changing grease types, changing temperatures and challenging installation requirements are no problem for the G3

electric lubrication pump. With its ﬂ exible design, including adjustable pump elements and an ability to work with both

injector-based and series progressive systems, G3 is a rugged, cost-effective pump designed to serve multiple markets

and applications. The new pump features three control choices, which means added ﬂ exibility for easy lube system set-

up, operation and troubleshooting. The pump extends machinery life, reduces operating costs and increases productivity

for usage in a wide variety of markets, including in-plant manufacturing, mobile on-road and off-road, and wind turbines.

Key Features

• Powerful pumping performance – can be used with your grease of choice, NLGI #000 - #2 and oil

• Advanced flow dynamics – helps to prevent grease separation

• Load minimizing drive – for longer life

• Adjustable stroke pump – ensures a custom fit

• Five reservoir sizes to select from – provides a custom fit

• The most advanced user controls in its class – allows you to customize for your unique needs

• Follower Plate Option

• Available with 2,4,8,12 and 16L reservoirs.

For more details see Form # 340574 on www.graco.com - Instruction Manuals

✓

Electric Pumps

Ordering Information and Technical Speciﬁ cations

LubeMaster

Lubrication Pumps

Part No. Model Description* Max Pump Output/

Stroke cm3 (in3)

Max Pump Output

Volume cm3 (in3)

Max. Lube Output

Pressure, bar (psi)

Lubrication

Type

LM2323 115/230 VAC, 1 PH, 1725 RPM, 20 pint plastic cylindrical oil reservoir, low level, 10:1

0.16 – 0.82

(0.01 – 0.05)

0.16 - 143.41

(0.01 - 8.62)

340 psi

(5000 bar)

Oil or grease up

to NLGI #2

LM4523 115/230 VAC, 1 PH, 1725 RPM, 20 pint metal cylindrical oil reservoir, low level, 60:1

LM4533 230/460 VAC, 3 PH, 1725 RPM, 20 pint metal cylindrical oil reservoir, low level, 60:1

LM5331 230/460 VAC, 3 PH, 1725 RPM, 12 lb plastic cylindrical grease reservoir, low level, 10:1

LM5521 115/230 VAC, 1 PH, 1725 RPM, 12 lb plastic cylindrical grease reservoir, no low level, 60:1

LM5544 115/230 VAC, 1PH, 1140 RPM, 12 lb plastic cylindrical grease reservoir, low level, 60:1

LM5644 115/230 VAC, 1PH, 1140 RPM,, 12 lb plastic cylindrical grease reservoir, low level,

60:1-wall mount

LM6334 115/230 VAC, 11PH, 1140 RPM, 20 lb plastic cylindrical grease reservoir, low level, 10:1

LM6344 115 VAC/1140 RPM, 12 lb plastic cylindrical grease reservoir, 10:1

LM6524 115/230 VAC, 1 PH, 1725, 20 b plastic cylindrical grease reservoir, low level, 60:1

LM6534 230/460 VAC, 3 PH, 1725 RPM, 20lb plastic cylindrical grease reservoir, low level, 60:1

LM6544 115/230 VAC, 11PH, 1140 RPM, 20 lb plastic cylindrical grease reservoir, low level, 60:1

LM7344 115/230 VAC, 11PH, 1140 RPM,, 12 lb metal cylindrical grease reservoir, low level, 10:1

LM7654 230/460 VAC, 3PH, 1140 RPM, 12 lb metal cylindrical grease reservoir, low level,

60:1, wall mount

LM8334 230/460 VAC, 3 PH,1725 RPM, 20 lb metal cylindrical grease reservoir, low level, 10:1

LM8454 230/460 VAC, 3PH, 1140 RPM, 20 lb metal cylindrical grease reservoir, low level,

10:1, wall mount

LM8531 230/460 VAC, 3PH, 1725 RPM, 20 lb metal cylindrical grease reservoir, no low level 60:1

LM8534 115/230 VAC, 1 PH, 1725 RPM , power prime reservoir assembly, no low level, 60:1

LM9521 115 VAC/1725 RPM, power prime reservoir assembly, 60:1

*All pumps are ﬂ oor-mounted unless noted

Works With:

For more details see Technical Bulletin #L12715 on www.graco.com - Instruction Manuals

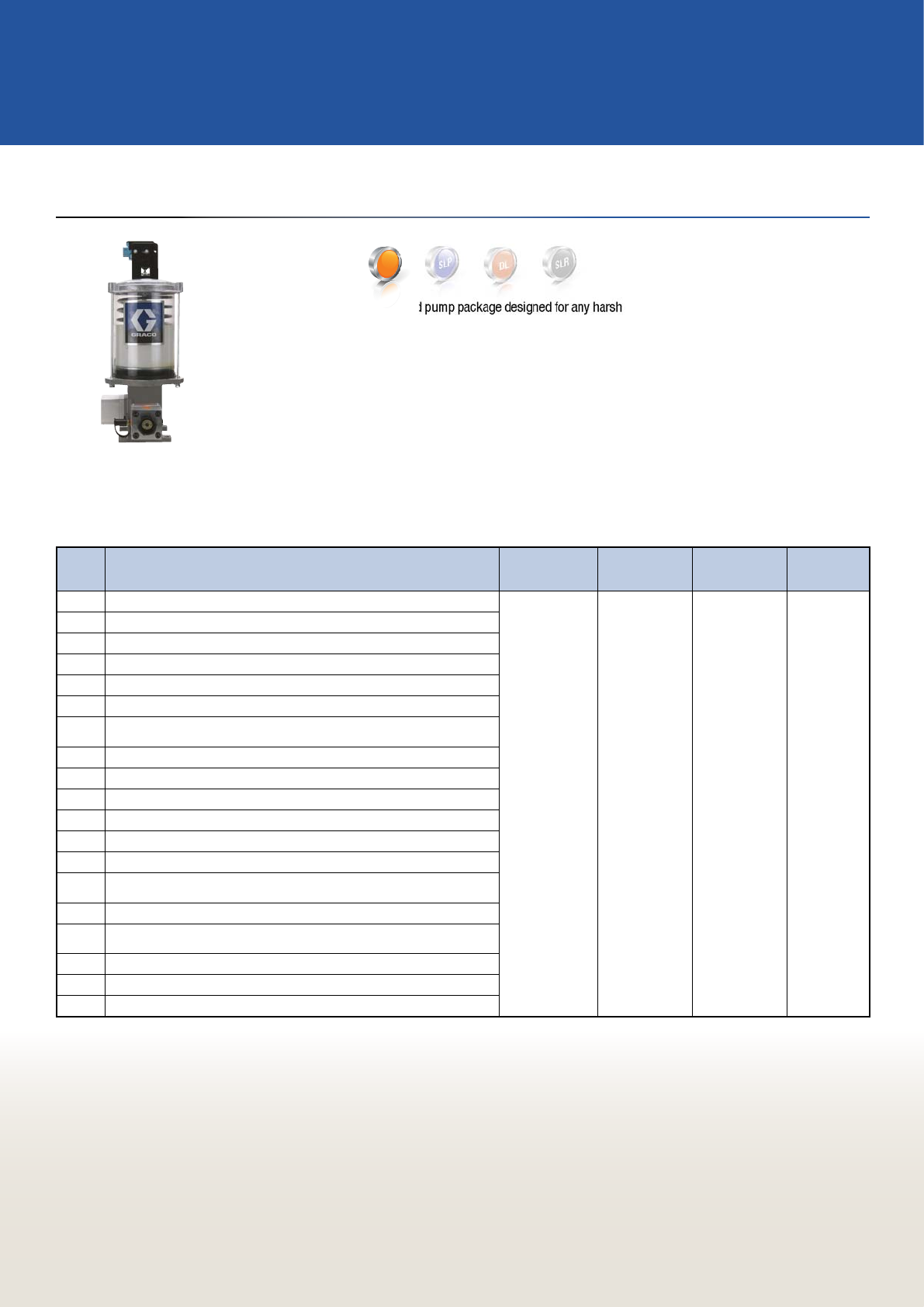

The LubeMaster is a rugged pump package designed for any harsh duty application. The adjustable output and anti-

friction drive bearings make it both reliable and efﬁ cient. With several reservoir choices and accessories to choose

from, the LubeMaster pump can be easily customized to meet virtually all application needs.

Key Features

• Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh

applications

• Reliable design includes anti-friction bearings for years of trouble-free operation

✓

Electric Pumps

Miniature Meter-Flo

Lubrication Pumps

Part No. Model Description Max Pump Output

Volume cm3 (in3)

Max. Lube Output

Pressure, bar (psi) Lubrication Type

MM1111 115 VAC, 12 pint metal rectangular reservoir

16 (1) 0-69 (0-1000)

Oil

(160-15000 SUS)

MM1112 115 VAC, 12 pint metal rectangular reservoir (with level switch)

MM1121 115 VAC, 12 pint metal rectangular reservoir (with pressure Switch)

MM1122 115 VAC, 12 pint metal rectangular reservoir (with pressure & level switches)

MM2112 115 VAC, 24 pint metal rectangular reservoir (with level switch)

MM2122 115 VAC, 24 pint metal rectangular reservoir (with pressure & level switches)

MM3112 115 VAC, 40 pint metal rectangular reservoir (with level switch)

MM3122 115 VAC, 40 pint metal rectangular reservoir (with pressure & level switches)

MM1212 115 VAC, 12 pint metal rectangular reservoir (with level switch)

82 (5)

0-138 (0-2000)

MM1222 115 VAC, 12 pint metal rectangular reservoir (with pressure & level switches)

MM2211 115 VAC, 24 pint metal rectangular reservoir (with level switch)

MM2212 115 VAC, 24 pint metal rectangular reservoir (with level switch)

MM2221 115 VAC, 24 pint metal rectangular reservoir (with pressure switch)

MM2222 115 VAC, 24 pint metal rectangular reservoir (w/pressure & level switches)

MM3211 115 VAC, 40 pint metal rectangular reservoir

MM3212 115 VAC, 40 pint metal rectangular reservoir (with level switch)

MM1311 115 VAC, 12 pint metal rectangular reservoir

131 (8)

MM1312 115 VAC, 12 pint metal rectangular reservoir (with level switch)

MM1322 115 VAC, 12 pint metal rectangular reservoir (with pressure & level switches)

MM2312 115 VAC, 24 pint metal rectangular reservoir (with level switch)

MM2322 115 VAC, 24 pint metal rectangular reservoir (with pressure & level switches)

MM3322 115 VAC, 40 pint metal rectangular reservoir (with pressure & level switches)

MM1411 115 VAC, 12 pint metal rectangular reservoir

229 (14) 0-103 (0-1500)

MM1412 115 VAC, 12 pint metal rectangular reservoir (with level switch)

MM1422 115 VAC, 12 pint metal rectangular reservoir (with pressure & level switches)

MM2411 115 VAC, 24 pint metal rectangular reservoir

MM2412 115 VAC, 24 pint metal rectangular reservoir (with level switch)

MM3411 115 VAC, 40 pint metal rectangular reservoir

MM3412 115 VAC, 40 pint metal rectangular reservoir (with level switch)

MM3422 115 VAC, 40 pint metal rectangular reservoir (with pressure & level switches)

Ordering Information and Technical Speciﬁ cations

Works With:

Designed for use with virtually any type of Series Progressive or Single Line Resistive oil lubrication system.

The Miniature Meter-Flo’s rugged steel reservoir and motor assembly withstand the toughest applications. Capable

of high volumetric output (up to 14 in3/minute) operating continuously at pressures up to 1000 psi (69 bar).

Key Features

• Ideal for smaller series progressive systems requiring continuous lubrication

• Compact and rugged for years of dependable operation in any application

• Several options available to create a complete system using feedback and control

For more details see Technical Bulletin #L12600 on www.graco.com - Instruction Manuals

SLP

✓✓

SLP

✓✓

Works With:

Ordering Information and Technical Speciﬁ cations

Injecto-Flo EO-3

Lubrication Pumps

Injecto-Flo EO-1

Lubrication Pumps

For more details see Technical Bulletins #L12605 and #L12606 on www.graco.com - Instruction Manuals

Works With:

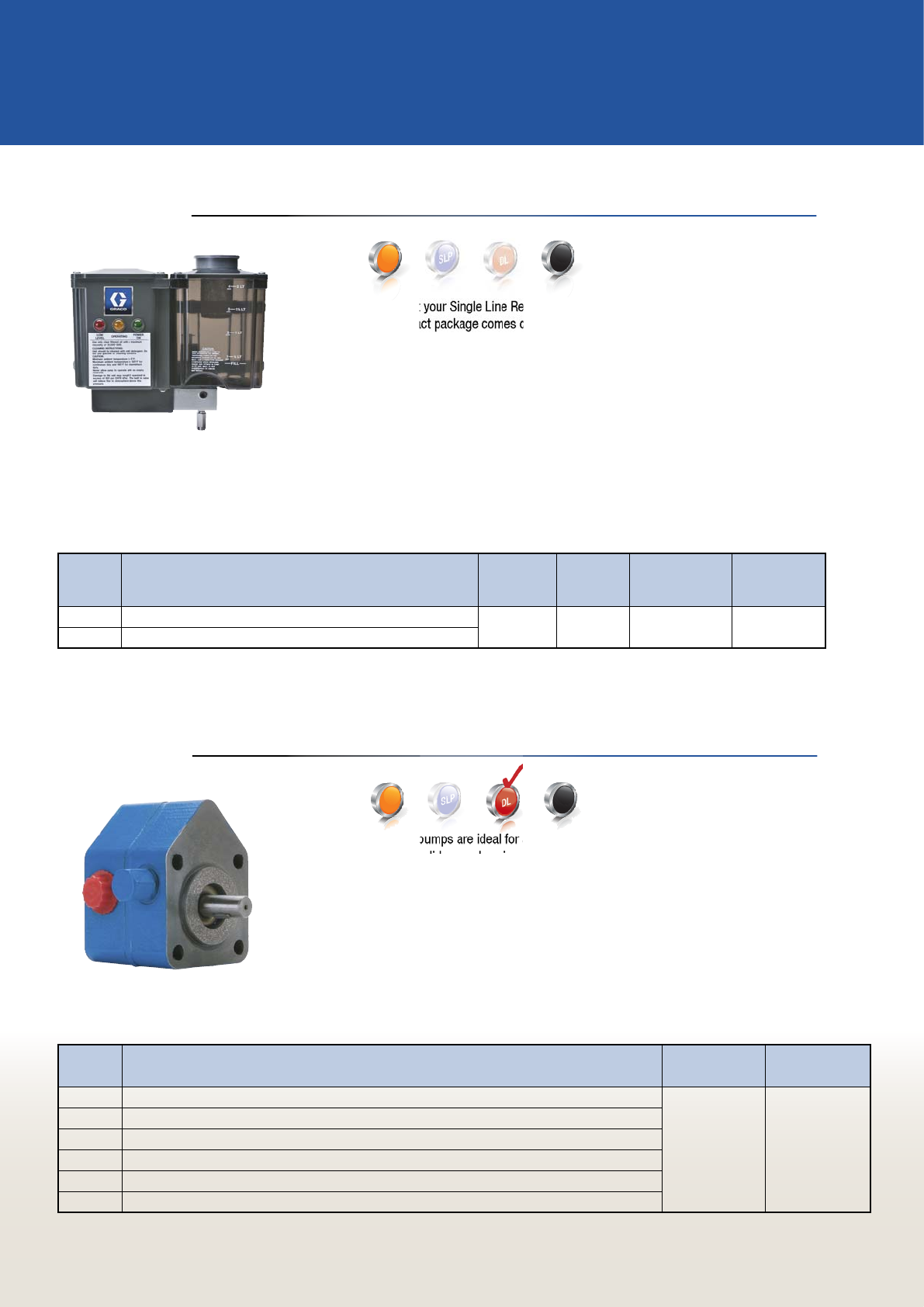

A cost effective, low pressure oil solution designed for use with any high volume, intermittent lubrication system.

EO-3 packages have a standard integrated controller with LED indicators for a completely automated system.

Use with any piston distributor metering devices for easy to install, custom solutions.*

Key Features

• Compact design with integrated control and bright LED's to verify system operation

• Built–in vent valve gets you up and working with piston distributors fast–no kits to purchase

and assemble

The EO-1 series electric pump package is designed for any low-pressure, intermittent oil lubrication system

where high volume rates are required. Use with any piston distributor metering device for easy-to-install, custom

solutions.*

Key Features

• Compact design easily fits into applications where space is limited

• Built–in vent valve gets you up and working with piston distributors fast–no kits to purchase

and assemble

Part No. Model Description

Max Pump

Output Volume

cm3 (in3)

Max. Lube Output

Pressure, bar (psi) Lubrication Type

562850 115 VAC, 1 PH, 7.6 pint plastic rectangular reservoir (integrated timer, pressure switch, low level) 12 (200) 350 (25)

Oil ISO VG68 -

ISO VG460

or 50-1000 cSt

562847 115 VAC, 1 PH, 12.6 pint plastic rectangular reservoir (no timer, pressure switch, low level) 12 (200) 320 (22)

562852 115 VAC, 1 PH, 7.6 pint plastic rectangular reservoir (no timer, pressure switch, low level = N.C.) 12 (200) 350 (25)

562851 115 VAC, 1 PH, 7.6 pint plastic rectangular reservoir (no timer, pressure switch, low level) 12 (200) 350 (25)

258294 230 VAC, 1 PH, 7.6 pint plastic rectangular reservoir (integrated timer, pressure switch, low level) 24 (400) 435 (30)

564254 24 VDC, 1 PH, 7.6 pint plastic rectangular reservoir (integrated timer, pressure switch, low level) 12 (200) 350 (25)

24B430 230 VAC, 1 PH, 7.6 pint plastic rectangular reservoir (no timer, pressure switch, low level)

All pumps are Low Level N.O. (Normally Open) unless noted above as N.C. (Normally Closed)

*Can be used with Injecto-Flo II series piston distributor products

Ordering Information and Technical Speciﬁ cations

Part No. Model Description Max Pump Output

Volume cm3 (in3)

Max. Lube Output

Pressure, bar (psi) Lubrication Type

562837 EO-1 pump, 115VAC,1PH, 6.3 pint plastic rectangular oil reservoir

200 (12) 40 (580) Oil ISO VG68 - ISO

VG460 or 50-1000 cSt

562839 EO-1 pump, 115VAC, 1PH, 12.6 pint plastic rectangular oil reservoir

562843 EO-1 pump, 115VAC, 1PH, 12.6 pint plastic rectangular oil reservoir

562844 EO-1 pump, 115VAC, 1PH, 25.3 pint plastic rectangular oil reservoir

562849 EO-1 pump, 230/400 VAC, 3PH, 6.3 pint plastic rectangular oil reservoir

562838 EO-1 pump, 115VAC, 1PH, 7.6 pint plastic rectangular oil reservoir

562841 EO-1 pump, 230VAC, 1PH, 12.6 pint plastic rectangular oil reservoir

562842 EO-1 pump, 230VAC, 1PH, 12.6 pint plastic rectangular oil reservoir, return port

562840 EO-1 pump, 230VAC, 1PH, 15.8 pint plastic rectangular oil reservoir

NOTE: Motor voltages are 50/60 Hz and single phase.

*Can be used with Injecto-Flo II series piston distributor products

For more details see Technical Bulletins #L12605 and #L12606 on www.graco.com - Instruction Manuals

SLP

✓

Part No. Model Description Max Pump Output

Volume cm3 (in3)

Max. Lube Output

Pressure, bar (psi) Lubrication Type

122547 230 VAC, 6.3 pint plastic rectangular oil reservoir ( no low level, screw cap)

500 (30.51)

30 (435) Oil

(30-1500 cSt)

122551 230 VAC, 6.3 pint plastic rectangular oil reservoir (low level, 1-din, screw cap)

15U858 230 VAC, 6.3 pint plastic rectangular oil reservoir (low level, 2-m12, 10mm cap)

122565 230 VAC, 12.7 pint plastic rectangular oil reservoir (no low level, screw cap)

564138 230 VAC, 12.7 pint plastic rectangular oil reservoir (low level, 1-din, screw cap)

122576 230 VAC, 12.7 pint plastic rectangular oil reservoir (low level, 2-din, screw cap)

15U860 230 VAC, 12.7 pint plastic rectangular oil reservoir (low level, 2-m12, 10mm cap)

122898 230 VAC, 12.7 pint plastic rectangular oil reservoir with control (low level, pressure, two strain relief

wiring points, screw cap)

200 (12.20)

15U859 230 VAC, 6.3 pint plastic rectangular oil reservoir (low level, 1-m12, 10mm cap)

563301 230 VAC, 6.3 pint plastic rectangular grease reservoir (no low level, 10mm cap)

40 (580) Fluid grease

up to NLGI 000

122582 230 VAC, 6.3 pint plastic rectangular grease reservoir (low level, 1-din, screw cap)

557547 230 VAC, 6.3 pint plastic rectangular grease reservoir (low level, 2-m12, 10mm cap)

122591 230 VAC, 12.7 pint plastic rectangular grease reservoir (low level, 1-din, screw cap)

Ordering Information and Technical Speciﬁ cations

Simple Installation–Dependable Operation

Injecto-Flo II

Lubrication Pumps

Works With:

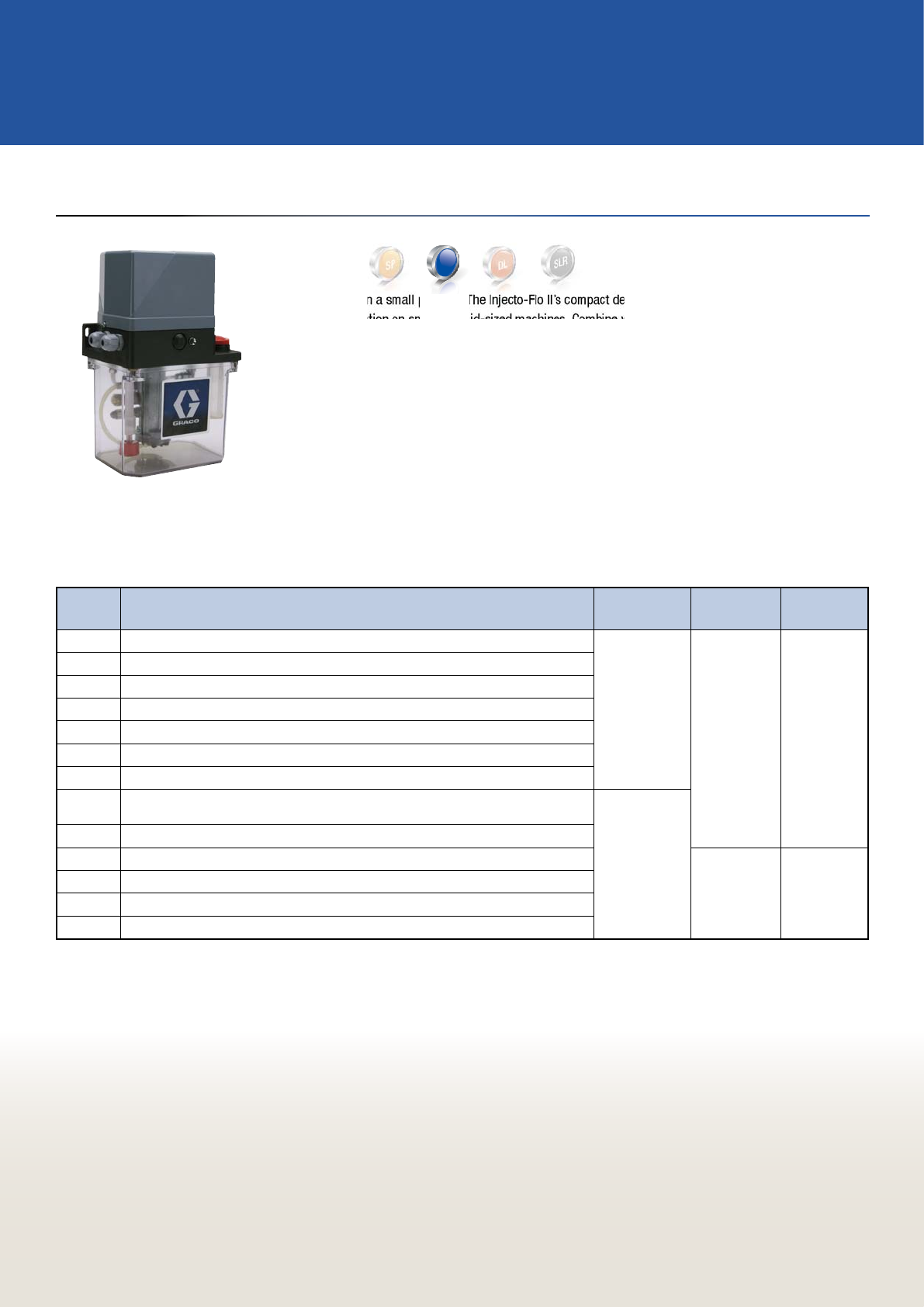

Great versatility in a small package! The Injecto-Flo II’s compact design is the ideal solution for

automatic lubrication on small and mid-sized machines. Combine with Injecto-Flo II piston

distributor metering devices for a complete oil or ﬂ uid grease lubrication system. Internal controller

with LED alarms is easy to program for any application.

Key Features

• Many control options to choose from to fully automate your lube system

• Use with Graco piston distributors to complete your system

• Dependable high-quality gear pump for years of trouble-free operation

For more details see Technical Bulletin #L12121 on www.graco.com - Instruction Manuals

SLR

✓✓

SLR

✓✓✓

Electric Pumps

Maxi-Flo

Lubrication Pumps

Works With:

Ordering Information and Technical Speciﬁ cations

Part No. Model Description

Max Pump

Output/Stroke

cm3 (in3)

Max Pump

Output Volume

cm3 (in3)

Max. Operating

Pressure, bar (psi) Lubrication Type

563379 115 VAC, 4 pint plastic rectangular oil reservoir, solid state timer control 0.165 (0.01) 1.64 (0.1) 34 (500) Oil

(60-30,000 SUS)

563376 115 VAC, 4 pint plastic rectangular oil reservoir, remote control

For more details see Technical Bulletin #L13110 on www.graco.com - Instruction Manuals

Meter-Flo

Lubrication Pumps

Works With:

Everything you need to get your Single Line Resistive Oil lubrication system installed and running

quickly. A standard, compact package comes complete with reservoir, pump, gear motor, and

choice of internal or remote control. Simple slide switches allow for easy setup of pump run cycle

time. Bright LED indicators for low level and power allow for easy troubleshooting and veriﬁ cation.

Key Features

• Integrated control with manual run button for easy setup

• Compact design ﬁ ts anywhere

• 500 psi rating for using with various oriﬁ ce metering devices

The Meter-Flo direct drive pumps are ideal for applications requiring continuous oil delivery to up to 1000

lubrication points. With its solid pump housing and reservoir, these rugged gear pumps are designed for

dependable operation in high demand applications. The gear pump is available with a direct-coupled 1/2

horsepower motor capable of 1725 RPM’s with output volumes of 245 cubic inches per minute. Eleven

different pump models to choose from.

Key Features

• Pump packages for even the largest applications–up to 1000 lube points!

• Rugged design for dependable service in high-demand applications

Part No. Model Description Max. Lube Output

Pressure, bar (psi) Lubrication Type

557814 9 cu. In./min @ 1140 RPM - 14 cu. In./min @ 1725 RPM

21-104 (300-1500*) Oil (300-3,000 SUS)

557813 18 cu. In./min @ 1140 RPM - 30 cu. In./min @ 1725 RPM

557815 56 cu. In./min @ 1140 RPM - 84 cu. In./min @ 1725 RPM

557816 76 cu. In./min @ 1140 RPM - 117 cu. In./min @ 1725 RPM

557817 111 cu. ln./min @ 1140 RPM - 168 cu. ln./min @ 1725 RPM

557820 161 cu. In./min @ 1140 RPM - 245 cu. In./min @ 1725 RPM

* NOTE: Internal pressure relief to 1200 psi

Ordering Information and Technical Speciﬁ cations

For more details see Technical Bulletin #L12611 and L12608 on www.graco.com - Instruction Manuals

✓

SLR

✓

Electric Pumps

Lubrication Pumps

For more details see Technical Bulletin #L12011 on www.graco.com - Instruction Manuals

Works With:

Part No. Model Description Max Pump Output

Volume cm3 (in3)

Max. Lube Output

Pressure, bar (psi) Lubrication Type

564067 115 VAC pump, 4 pint plastic rectangular oil reservoir, remote control 6.9 (0.42) 10 (150)

Oil

(100-10,000 SUS)

564068 115VAC pump, 4 pint plastic oil reservoir, timer control

Thrif-T Luber

Lubrication Pumps

Works With:

The Modu-Flo system is ideal for applications where minimizing downtime is critical. Customizing is

easy–just mix and match pumps, reservoir and manifolds in any conﬁ guration to meet any application.

Replace the pump or reservoir, without disconnecting lubrication lines. Electric pumps available for

use with AC or DC supply voltage make Modu-Flo the right solution for any automated electric

lubrication system.

Key Features

• Modular system design allows conﬁ gurations to work in all applications

• Easy to standardize on components and reduce inventory

• Adjustable pump output for fast, convenient customization

The perfect ﬁ t for entry-level, Single Line Resistive oriﬁ ce lubrication systems. A complete electric

package includes pump, reservoir and integrated control (remote version optional) for fast and easy

installation. Can pay for itself right away!

Key Features

• Use with Thrif-T Luber oriﬁ ce dispensers for a complete system

• Big on features–low on price!

• Compact, turnkey system solution

Ordering Information and Technical Speciﬁ cations

Modu-Flo

Part No. Model Description Max Pump Output

Volume cm3 (in3)

Max. Lube Output

Pressure, bar (psi) Lubrication Type

563356 24 VDC with 20 ft cable (no reservoir) 0.29 (4.7)

172 (2500)

Oil or Grease

Up to NLGI #2

563346 115 VAC with 20 ft cable (no reservoir) 0.58 (9.5)

564371 115 VAC without 20 ft cable (no reservoir) 0.58 (9.5)

For more details see Technical Bulletin #LTL400 on www.graco.com - Instruction Manuals

✓

SLR

✓

Hydraulic Pumps

Thrif-T Luber

Lubrication Pumps

Works With:

Part No. Model Description Max Pump Output/

Stroke cm3 (in3)Ratio Max. Hydraulic

Pressure, bar (psi) Lubrication Type

563305 HLJ-5 pump, double acting (no reservoir) 0.16-0.49 (0.01-0.03) 5.5:1 13.8-137.9

(200-2000)

Oil or grease up to

NLGI #2

563345 HLJ-5X pump, double acting (no reservoir) 0.49-1.5 (0.03-.09) 2.2:1 13.8-207

(200-3000)

563307 HLJ-25 pump, double acting (no reservoir) .49-2.0 (0.03-0.12) 5.5:1 13.8-137.9

(200-2000)

Ordering Information and Technical Speciﬁ cations

Modu-Flo

Lubrication Pumps

Works With:

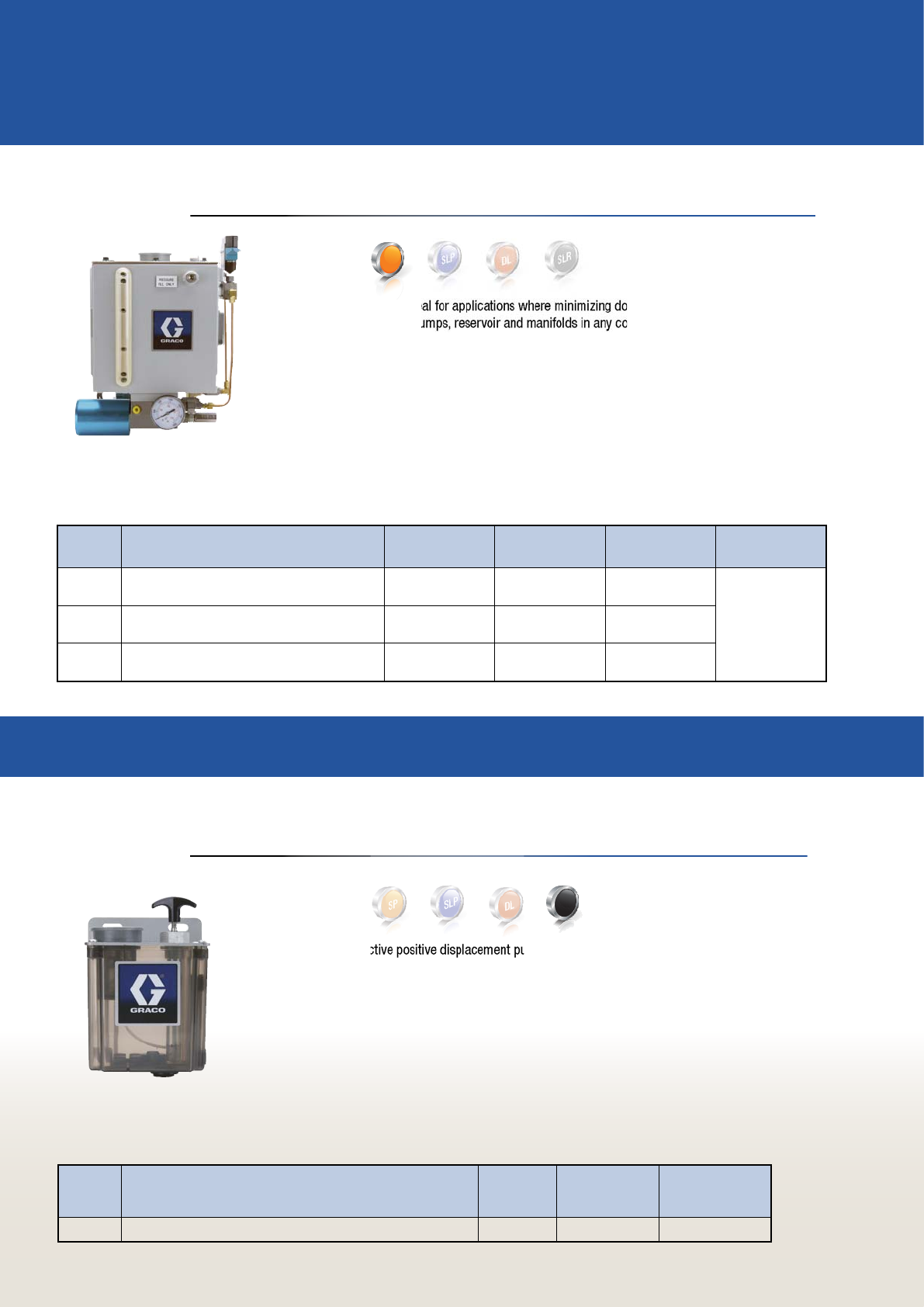

Manual Pumps

A simple and effective positive displacement pump that delivers up to 0.50 in3 per stroke. Compact

design easily mounts on any piece of equipment. A spring return drives the piston for controlled

lubrication delivery.

Key Features

• Cost-effective solution with centralized system beneﬁ ts

• Compact design ﬁ ts anywhere

• Easy to setup and use

The Modu-Flo system is ideal for applications where minimizing downtime is critical. Customizing is

easy–just mix and match pumps, reservoir and manifolds in any conﬁ guration to meet any application.

Replace the pump or reservoir without disconnecting lubrication lines. Choose from a wide variety of

hydraulic pumps that operate with grease or oil.

Key Features

• Modular system design allows conﬁ gurations to work in all applications

• Easy to standardize on components and reduce inventory

• Adjustable pump output for fast, convenient customization

Ordering Information and Technical Speciﬁ cations

For more details see Technical Bulletin #LTL400 on www.graco.com - Instruction Manuals

Part No. Model Description

Max Pump

Output/Stroke

cm3 (in3)

Max. Operating

Pressure, bar (psi) Lubrication Type

564012 Hand pump, 4 pint plastic rectangular oil reservoir 8.2 (0.5) 5 (75) (100-10,000 SUS)

For more details see Technical Bulletin #L12000 on www.graco.com - Instruction Manuals

SLR

✓✓✓

✓✓✓✓

SLR

SLP

Manual Pumps

PH Pump

Lubrication Pumps

Part No. Model Description Max Pump Output/

Stroke cm3 (in3)

Max. Lube Output

Pressure, bar (psi) Lubrication Type

563393 Pump (w/out reservoir)

2.46 (0.15) 207 (3000) Oil, Grease

up to NLGI #2

564378 Pump w/5 pint plastic cylindrical oil reservoir

564379 Pump w/5 lb. plastic cylindrical grease reservoir

564381 Pump w/5 lb. metal cylindrical grease reservoir

564389 Pump w/6 lb. plastic cylindrical grease reservoir

564383 Pump w/12 lb. plastic cylindrical grease reservoir

564386 Pump w/20 lb. plastic cylindrical grease reservoir

564385 Pump w/20 pint plastic cylindrical oil reservoir

564384 Pump w/12 lb. metal cylindrical grease reservoir

564387 Pump w/6 pint plastic cylindrical oil reservoir

Works With:

Ordering Information and Technical Speciﬁ cations

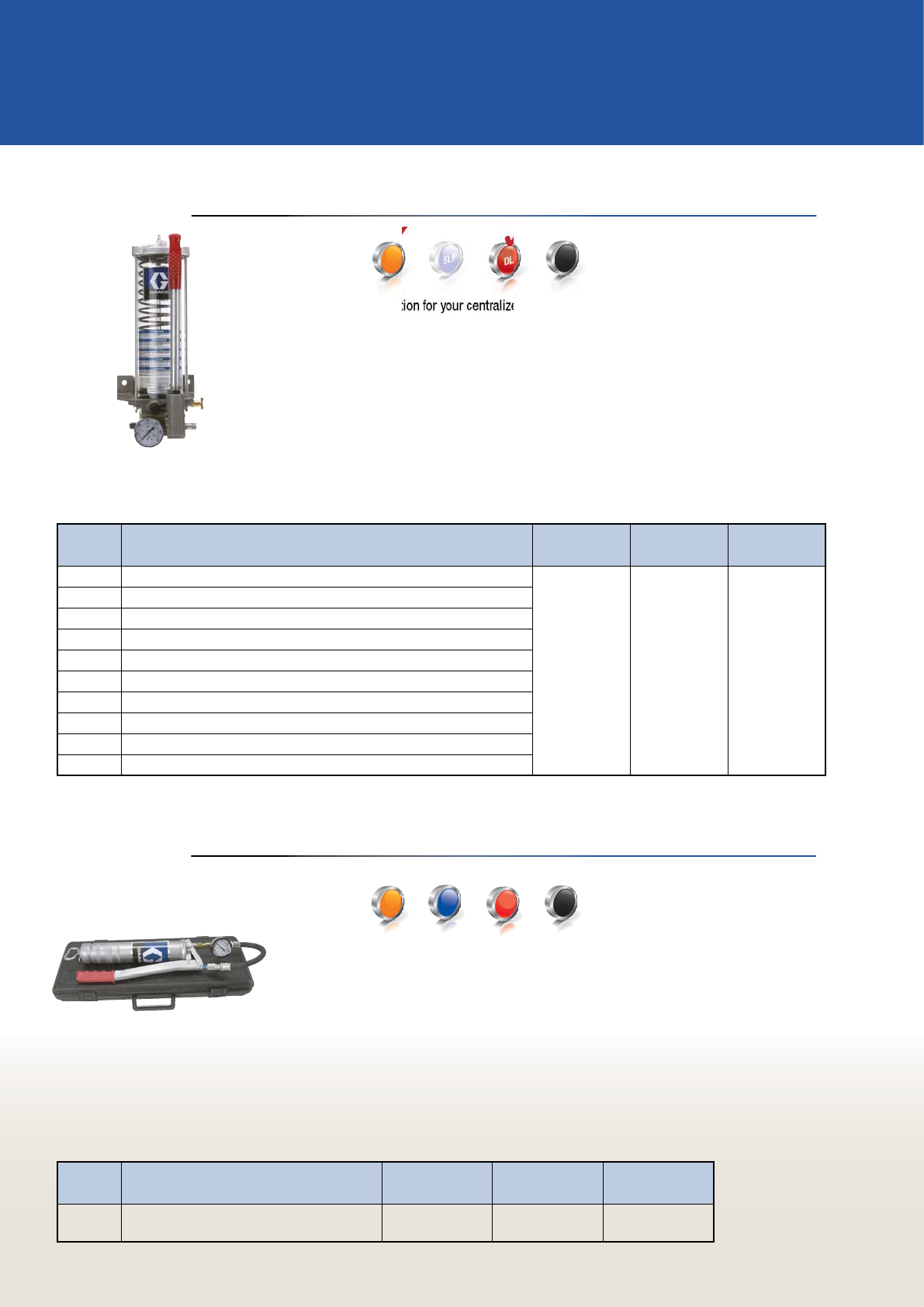

Manual Grease Gun

Lubrication Pumps

Part No. Model Description Max Pump Output/

Stroke cm3 (in3)

Max. Output

Pressure, bar (psi) Lubrication Type

562857 Pump package with carrying case 1.5 (0.09) 345 (5000) Oil or grease up to

NLGI #2

Works With:

A great entry-level solution for your centralized lubrication system, the PH Pump gives you manual

lubrication delivery when you need it. An easy-to-operate lever arm delivers up to 0.15 in3 with one full

stroke, while sturdy construction is designed for years of use.

Key Features

• Cost-effective solution with centralized system beneﬁ ts

• Great entry-level solution!

• Works with any type of centralized system

• Two outlet valve options for use with dual line systems

A simple, compact, cost-effective way to deliver oil or grease. Ideal for purging existing

centralized systems when changing lubrication or performing maintenance. The Manual Grease Gun is

also a troubleshooting tool for locating leaks or plugged lines, or for priming your new lubrication system

upon start-up.

Key Features

• Cost-effective solution with centralized system beneﬁ ts

• Ideal for troubleshooting and system testing

• Handy carrying case for easy portability

For more details see Technical Bulletin #L12415 on www.graco.com - Instruction Manuals

For more details see Technical Bulletin #L12405 on www.graco.com - Instruction Manuals

SLP

✓

Manual Pumps

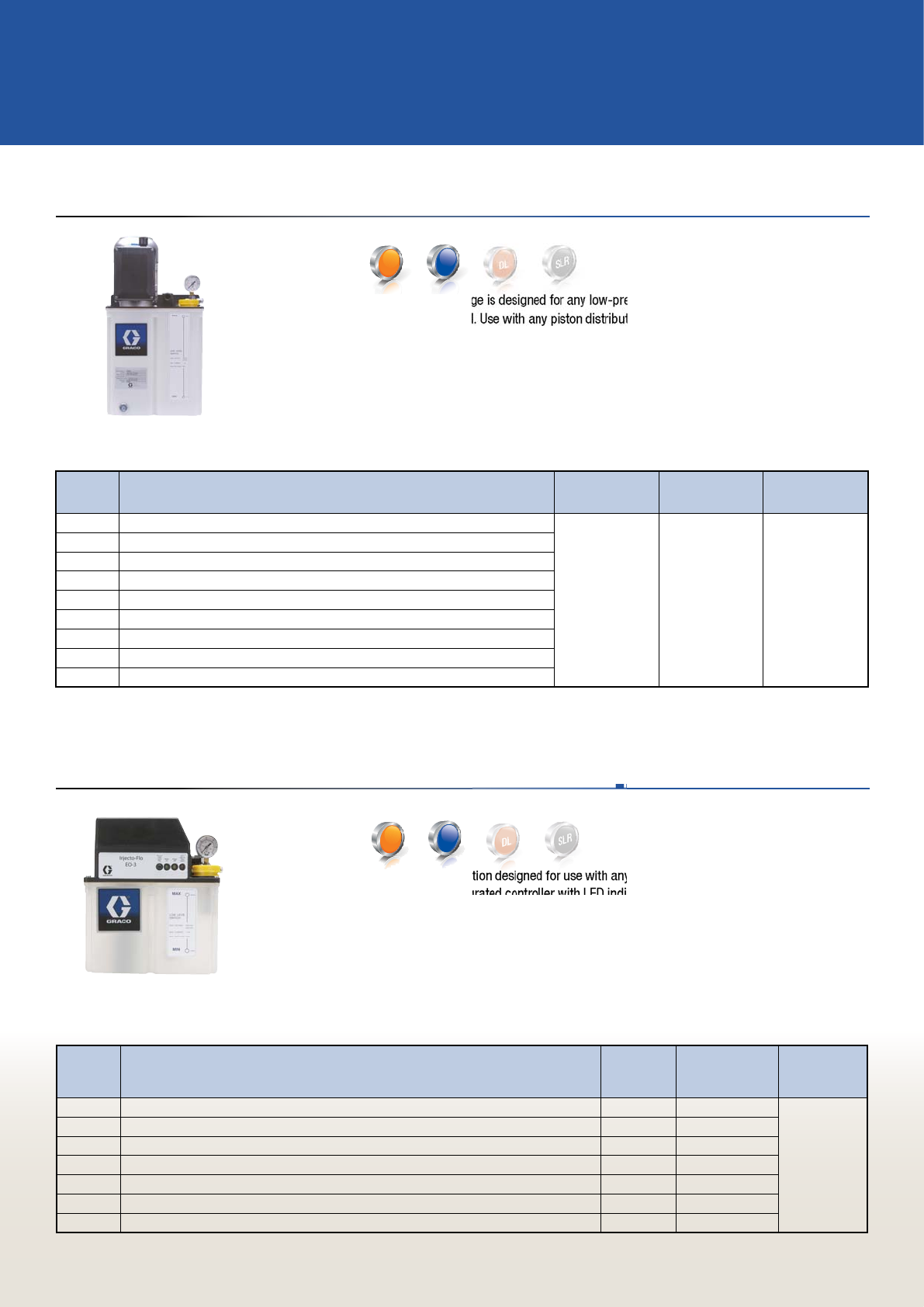

LubriSystem

Lubrication Pumps

Works With:

Ordering Information and Technical Speciﬁ cations

LubeMaster Ratchet Pump

Lubrication Pumps

Works With:

Mechanical Pumps

The LubriSystem hand pump package offers versatility for use in any application, large or small!

Great for operation with Injectors or Piston Distributors, with oil or grease. Sturdy construction of

aluminum and steel to provide years of service. Compact design can be used in areas where space

is limited. Rugged bracket allows the pump package to be mounted in place in any application.

Key Features

• Bracket-mount design for easy installation

• Rugged design for years of operation

• Built-in pressure venting for use with injectors

Lubricates only while the machine is running! The Lubemaster Clutch Drive is a rugged,

reliable pump powered mechanically by the machine using the lubrication. This pump is ideal for applica-

tions where lubrication cycles vary and are unpredictable.

The TRABON Clutch Drive Lubemaster is a rugged, reliable

pump designed to be driven mechanically by the machine being

lubricated. The Lubemaster can be used with Series Progressive,Reversible or Bi-Flo systems.

For more details see Technical Bulletin #L12100 on www.graco.com - Instruction Manuals

Ordering Information and Technical Speciﬁ cations

Part No. Model Description Max Pump Output/

Stroke cm3 (in3)

Max. Output

Pressure, bar (psi) Lubrication Type

564421 Hand pump, 6 lb. plastic cylindrical grease reservoir, 3000 psi gauge

2 (0.13) 207 (3000)

Grease up to NLGI #1

564422 Hand pump, 12 lb. plastic cylindrical grease reservoir, 3000 psi gauge Grease up to NLGI #1

564423 Hand pump, 20 lb. plastic cylindrical grease reservoir, 3000 psi gauge Grease up to NLGI #1

564419 Hand pump, 12 Pint plastic cylindrical oil reservoir, 3000 psi gauge Oil

564420 Hand pump, 20 Pint plastic cylindrical oil reservoir, 3000 psi gauge Oil

563580 Hand pump body (no reservoir) Grease up to NLGI #1

For more details see Technical Bulletin #L12405 on www.graco.com - Instruction Manuals

Degrees of

Throw Effetive Ratio Impulses per minute Pump strokes per hour

Output per hour

Minimum Maximum

12° 30:1 5 min 10 .100 cu. in. (1.639 cu.cm) .500 cu. in. (8.195 cu.cm)

60° 6:1 150 Max. 1500 15.00 cu. in. (245.85 cu.cm) 75.00 cu. in. (1229.25 cu.cm)

Ordering Information

Accessories

Modu-Flo and E-Series Reservoirs

563359 4 pint rectangular plastic oil reservoir

562891 5 pint cylindrical plastic oil reservoir

562904 6 pint cylindrical plastic oil reservoir

562889 12 pint cylindrical plastic oil reservoir

562890 20 pint cylindrical plastic oil reservoir

563320 24 pint rectangular metal oil reservoir

563319 12 pint rectangular metal oil reservoir

563321 40 pint rectangular metal oil reservoir

562910 3 lb cylindrical plastic grease reservoir

562888 5 lb cylindrical plastic grease reservoir

562905 6 lb cylindrical plastic grease reservoir

562884 12 lb cylindrical plastic grease reservoir

562885 20 lb cylindrical plastic grease reservoir

562906 6 lb cylindrical metal grease reservoir

562886 12 lb cylindrical metal grease reservoir

562887 20 lb cylindrical metal grease reservoir

Modu-Flo Manifolds (Baseplates)

563333 Pump to reservoir manifold, NPT with liquid ﬁ lled gauge, ﬁ ll

check, outlet check, & blowout

563329 Pump to reservoir manifold, NPT (no hardware or ﬁ ttings)

563355 Pump to reservoir manifold, SAE, with dry gauge, ﬁ ll check,

outlet check, and blowout

563324 Pump to reservoir manifold, NPT, with dry gauge, ﬁ ll check,

outlet check, & blowout

563331 Pump to reservoir manifold, NPT, with dry gauge, ﬁ ll check,

outlet check, & tubed blowout

563323 Remote pump manifold, NPT, with ﬁ ll, check, outlet check, and

blowout

563330 Remote pump manifold, NPT, with ﬁ ll, check, outlet check, and

tubed blowout

Modu-Flo and E-Pump Spare Parts and Accessories

563378 Low level switch kit, 10 watt, 4 pint rectangular oil

reservoir

557826 Replacement switch for P/N 563378

563014 Low level switch, 10 watt, for 6 pint cylindrical oil reservoirs

563015 Low level switch, 10 watt, for 5 and 20 pint cylindrical oil

reservoir

557825 Replacement switch for P/N’s 563014, 563015,563016

563322 Low level switch, 15 amp, for all grease reservoirs

(except 3 lb)

557781 Replacement switch for P/N 563322

563316 Low level switch, 15 amp, for 5 and 12 pint cylindrical oil

reservoirs

563318 Low level switch, 15 amp, for 6 pint cylindrical oil reservoir

563317 Low level switch, 15 amp, for 20 pint cylindrical oil

reservoir

563016 Low level switch, 10 watt, for 20 pint cylindrical oil

reservoir

563909 E-pump spare part repair kit (contains O-rings, gaskets, springs,

and retainers)

563328 Pressure switch for all reservoirs

563326 1,450 psi blowout switch 6, 12, 20 pint/pound

cylindrical reservoir

563179 1,450 psi standard blowout disk

563325 1,450 psi blowout switch 5 pt/lb cylindrical reservoir

563327 1,450 psi blowout switch for all tanks

563315 115 VAC, 2-position, 3-way pneumatic solenoid valve

563312 Replacement solenoid valve for 563315

563332 24 VDC, 2-position, 3-way pneumatic solenoid valve

563349 24 VDC, 2-position, 3-way pneumatic solenoid valve, with

Hirschman connection

563339 115 VAC timer kit for all tanks

563340 115 VAC timer kit for 5 pt/lb cylindrical reservoirs

563342 115 VAC timer kit for 6, 12, 20 pt/lb cylindrical reservoirs

563341 115 VAC timer kit for 6, 12, 20 pt/lb cylindrical reservoirs

563902 AL-5M seal kit

563903 AL-25M seal kit

563904 AL-50M seal kit

563905 HL-5M seal kit

563906 HL-25M seal kit

563925 HL-5X seal kit

563337 Pump mounting kit (contains mounting screws and

O-rings)

562901 5 pt/lb plastic replacement reservoir assembly

(4 in O.D. x 13 in long)

562909 6 pt/lb plastic replacement reservoir assembly

(6 in O.D. x 8.5 in long)

562902 12 pt/lb plastic replacement reservoir assembly

(6 in O.D. x 13 in long)

562903 20 pt/lb plastic replacement reservoir assembly

(6 in O.D. x 20 in long)

564270 12 lb metal replacement reservoir assembly

(6 in O.D. x 13 in long)

564271 20 lb metal replacement reservoir assembly

(6 in O.D. x 20 in long)

G3 Accessories

571061 Vent Valve Kit, 12 VDC - vent valve, adjustable pressure relief

(500-5000 psi, 35-345 bar), pressure gauge, zerk ﬁ tting

571029

Vent Valve Kit, 24 VDC/90-240 VAC - vent valve, adjustable pres-

sure relief (500-5000 psi, 35-345 bar), pressure gauge, zerk

ﬁ tting. Also for G3 Max control AC pumps

Complete Your System

Modu-Flo and E-Series Reservoirs

563359 4 pint rectangular plastic oil reservoir

562891 5 pint cylindrical plastic oil reservoir

562904 6 pint cylindrical plastic oil reservoir

562889 12 pint cylindrical plastic oil reservoir

562890 20 pint cylindrical plastic oil reservoir

563320 24 pint rectangular metal oil reservoir

563319 12 pint rectangular metal oil reservoir

563321 40 pint rectangular metal oil reservoir

562910 3 lb cylindrical plastic grease reservoir

562888 5 lb cylindrical plastic grease reservoir

562905 6 lb cylindrical plastic grease reservoir

562884 12 lb cylindrical plastic grease reservoir

562885 20 lb cylindrical plastic grease reservoir

562906 6 lb cylindrical metal grease reservoir

562886 12 lb cylindrical metal grease reservoir

562887 20 lb cylindrical metal grease reservoir

Modu-Flo Manifolds (Baseplates)

563333 Pump to reservoir manifold, NPT with liquid ﬁ lled gauge, ﬁ ll

check, outlet check, & blowout

563329 Pump to reservoir manifold, NPT (no hardware or ﬁ ttings)

563355 Pump to reservoir manifold, SAE, with dry gauge, ﬁ ll check,

outlet check, and blowout

563324 Pump to reservoir manifold, NPT, with dry gauge, ﬁ ll check,

outlet check, & blowout

563331 Pump to reservoir manifold, NPT, with dry gauge, ﬁ ll check,

outlet check, & tubed blowout

563323 Remote pump manifold, NPT, with ﬁ ll, check, outlet check, and

blowout

563330 Remote pump manifold, NPT, with ﬁ ll, check, outlet check, and

tubed blowout

Modu-Flo and E-Pump Spare Parts and Accessories

563378 Low level switch kit, 10 watt, 4 pint rectangular oil

reservoir

557826 Replacement switch for P/N 563378

563014 Low level switch, 10 watt, for 6 pint cylindrical oil reservoirs

563015 Low level switch, 10 watt, for 5 and 20 pint cylindrical oil

reservoir

557825 Replacement switch for P/N’s 563014, 563015,563016

563322 Low level switch, 15 amp, for all grease reservoirs

(except 3 lb)

557781 Replacement switch for P/N 563322

563316 Low level switch, 15 amp, for 5 and 12 pint cylindrical oil

reservoirs

563318 Low level switch, 15 amp, for 6 pint cylindrical oil reservoir

563317 Low level switch, 15 amp, for 20 pint cylindrical oil

reservoir

563016 Low level switch, 10 watt, for 20 pint cylindrical oil

reservoir

563909 E-pump spare part repair kit (contains O-rings, gaskets, springs,

and retainers)

563328 Pressure switch for all reservoirs

563326 1,450 psi blowout switch 6, 12, 20 pint/pound

cylindrical reservoir

563179 1,450 psi standard blowout desk

563325 1,450 psi blowout switch 5 pt/lb cylindrical reservoir

563327 1,450 psi blowout switch for all tanks

563315 115 VAC, 2-position, 3-way pneumatic solenoid valve

563312 Replacement solenoid valve for 563315

563332 24 VDC, 2-position, 3-way pneumatic solenoid valve

563349 24 VDC, 2-position, 3-way pneumatic solenoid valve, with

Hirschman connection

563339 115 VAC timer kit for all tanks

563340 115 VAC timer kit for 5 pt/lb cylindrical reservoirs

563342 115 VAC timer kit for 6, 12, 20 pt/lb cylindrical reservoirs

563341 115 VAC timer kit for 6, 12, 20 pt/lb cylindrical reservoirs

563902 AL-5M seal kit

563903 AL-25M seal kit

563904 AL-50M seal kit

563905 HL-5M seal kit

563906 HL-25M seal kit

563925 HL-5X seal kit

563337 Pump mounting kit (contains mounting screws and

O-rings)

562901 5 pt/lb plastic replacement reservoir assembly

(4 in O.D. x 13 in long)

562909 6 pt/lb plastic replacement reservoir assembly

(6 in O.D. x 8.5 in long)

562902 12 pt/lb plastic replacement reservoir assembly

(6 in O.D. x 13 in long)

562903 20 pt/lb plastic replacement reservoir assembly

(6 in O.D. x 20 in long)

564270 12 lb metal replacement reservoir assembly

(6 in O.D. x 13 in long)

564271 20 lb metal replacement reservoir assembly

(6 in O.D. x 20 in long)

G3 Accessories

571061 Vent Valve Kit, 12 VDC - vent valve, adjustable pressure relief

(500-5000 psi, 35-345 bar), pressure gauge, zerk ﬁ tting

571029

Vent Valve Kit, 24 VDC/90-240 VAC - vent valve, adjustable

pressure relief (500-5000 psi, 35-345 bar), pressure gauge, zerk

ﬁ tting. Also for G3 Max control AC pumps

571028 Adjustable return to reservoir pressure kit (500-5000 psi, 35-

345 bar)

571041 G3 pump element kit (adjustable output)

G3 Accessories (continued)

571032 Remote manual run kit, 12 VDC

571033 Remote manual run kit, 24 VDC/90-240 VAC

Injecto-Flo (EO-1, AO-1, EO-3) Spare Parts and Accessories

556013 EO-1 gear pump

556011 115 VAC replacement motor for Injecto-Flo pumps

556012 230 VAC replacement motor for Injecto-Flo pumps

556016 Low level switch assembly for all 6 and 12 liter Injecto-Flo pump

assemblies

556014 Suction strainer for Injecto-Flo pump

563332 24 VDC, 2 Position, 3-Way Pneumatic Solenoid Valve

Injecto-Flo II Reservoirs

122911 3 Liter plastic oil reservoir (no cover)

15X748 6 Liter plastic oil reservoir (no cover)

LubeMaster Reservoirs

562892 12 pint plastic oil reservoir

562893 20 pint plastic oil reservoir

562894 12 pint metal oil reservoir

562896 12 lb plastic grease reservoir

562897 20 lb plastic grease reservoir

562899 20 lb metal grease reservoir

562895 20 pint metal oil reservoir

562898 12 lb metal grease reservoir

LubeMaster Spare Parts and Accessories

557271 Replacement motor - 1/2 HP, 115/230 VAC, single phase, 60 Hz,

1725 RPM

557270 Replacement motor - 1/2 HP, 230/460 VAC, 3-phase, 60 Hz,

1725 RPM

557272 Replacement motor - 1/2 HP, 115/230 VAC, single phase, 60 Hz,

1140 rpm

557273 Replacement motor - 1/2 HP, 230/460 VAC, 3-phase, 60 Hz,

1140 RPM

563380 Replacement pump (no reservoir)

Accessories

563921 LubeMaster seal repair kit

563916 LubeMaster output manifold kit

563915 LubeMaster drive repair kit

557713 Pressure gauge; 0-3,000 psi liquid ﬁ lled

563179 Standard blowout oil; 1,450 psi

563184 Standard blowout grease; 2,350 psi

563384 High pressure blowout switch oil; 1,450 psi

563385 High pressure blowout switch grease; 2,350 psi

563316 Low level switch, 15 amp, SPDT, for 12 pint oil reservoir

563317 Low level switch, 15 amp, SPDT, for 20 pint oil reservoir

563322 Low level switch, SPDT, for 12/20 lb. grease reservoir

563016 Low level switch, 10 watt, SPST, for 20 pint oil reservoir

564377

Low level switch, 15 amp, SPDT, for 12/20 lb grease

reservoir, explosion proof, class 1 groups C & D, class 2 groups

E, F, and G

563015 Low level switch, 10 watt, SPST, for 12 pint oil reservoir

563383 Mechanical clutch drive with arm

563388 Mounting Base with 10:1 drive reduction, ﬂ oor mounting

563386 Mounting Base with 10:1 drive reduction, wall mounting

563389 Mounting Base with 60:1 drive reduction, ﬂ oor mounting

563387 Mounting Base with 60:1 drive reduction, wall mounting

LubriSystem Reservoirs: Pneumatic/Electric

564265 6 pint plastic oil reservoir

562892 12 pint plastic oil reservoir

562893 20 pint plastic oil reservoir

562907 6 lb plastic grease reservoir

562896 12 lb plastic grease reservoir

562897 20 lb plastic grease reservoir

562898 12 lb metal grease reservoir

562899 20 lb metal grease reservoir

LubriSystem Reservoirs: Hand Pumps

562904 6 pint plastic oil reservoir

562889 12 pint plastic oil reservoir

562890 20 pint plastic oil reservoir

562905 6 lb plastic grease reservoir

562884 12 lb plastic grease reservoir

562885 20 lb plastic grease reservoir

LubriSystem Spare Parts and Accessories

563014 Low level switch for LubriSystem 6 pt oil reservoir, 10 watt

563015 Low level switch for LubriSystem 12 pt oil reservoir, 10 watt

563322 Low level switch for any LubriSystem grease reservoir

563016 Low level switch for LubriSystem 20 pt oil reservoir, 10 watt

563315 115 VAC solenoid valve, for LubriSystem

563332 24 VDC solenoid valve, for LubriSystem

563579 LubriSystem standard air operated pump body, 9:1 ratio

(no reservoir)

563580 LubriSystem hand pump body (no reservoir)

Maxi-Flo Reservoirs

563930 Electric Maxi-Flo replacement reservoir kit

Maxi-Flo Spare Parts/Accessories

557826 Replacement switch, low level

563375 Maxi-Flo relief valve, 600 psi

Meter-Flo Reservoirs

564340 30 gallon metal oil reservoir

Meter-Flo Replacement Pumps

558949 56 cu. In./min @ 1140 RPM - 84 cu. In./min @ 1725 RPM

557816 76 cu. In./min @ 1140 RPM - 117 cu. In./min @ 1725 RPM

558950 76 cu. In./min @ 1140 RPM - 117 cu. In./min @ 1725 RPM

Meter-Flo Replacement Pumps (continued)

558951 111 cu. In./min @ 1140 RPM - 168 cu. In./min @ 1725 RPM

557818 26 cu. In./min @ 1140 RPM - 40 cu. In./min @ 1725 RPM

557819 9 cu. In./min @ 1140 RPM - 14 cu. In./min @ 1725 RPM

557820 161 cu. In./min @ 1140 RPM - 245 cu. In./min @ 1725 RPM

558955 161 cu. In./min @ 1140 RPM - 245 cu. In./min @ 1725 RPM

558289 Replacement Motor, 1/4 HP, 115/230VAC, single-phase, 60Hz,

1725 RPM, TENV

563557 Meter-Flo Paddle Base w/ pump P/N 557814 (no Motor, no

Reservoir)

564411 Meter-Flo Paddle Base w/ pump P/N 557813 (no Motor, no

Reservoir)

558290 Replacement Motor, 1/4 HP, 230/460VAC, 3-phase, 60Hz, 1725

RPM, TENV

Meter-Flo Spare Parts and Accessories

561063 Meter-Flo paddle base

561067 Mounting bracket, for Meter-Flo paddle base and pump

563303 Coupling for, Meter-Flo paddle base and pump

557067 Coupling guard, for Meter-Flo paddle base and pump

563303 Meter-Flo conversion coupling kit

Miniature Meter-Flo Spare Parts and Accessories

564415 Gear motor reduction assembly, 14 cu in/min. ﬂ ow rate (with

pump)

564412 Gear motor reduction assembly, 1 cu in/min. ﬂ ow rate

(with pump)

564413 Gear motor reduction assembly, 5 cu in/min. ﬂ ow rate

(with pump)

557828 High pressure switch, moisture resistant, 324 bar (4700 psi) max

557825 Low level switch

557810 Replacement suction strainer

563558 Relief valve

PH Pump Reservoirs

562891 5 pint plastic oil reservoir

562904 6 pint plastic oil reservoir

562889 12 pint plastic oil reservoir

562890 20 pint plastic oil reservoir

562888 5 lb plastic grease reservoir

562905 6 lb plastic grease reservoir

562884 12 lb plastic grease reservoir

562885 20 lb plastic grease reservoir

564264 5 lb metal grease reservoir

562886 12 lb metal grease reservoir

PH Pump Spare Parts and Accessories

563160 Automatic 2,500 psi relief valve, for PH pump

563924 PH manual pump body repair kit

557864 Pressure gauge (3000 psi)

Thrif-T Luber Reservoirs

564439 Replacement reservoir kit for 115 VAC Thrif-T Luber

Thrif-T Luber Spare Parts and Accessories

564065 Replacement Thrif-T Luber pump

557641 Replacement motor for 115 VAC Thrif-T Luber electric pumps

558031 Replacement timer board for 115 VAC Thrif-T Luber timers

564066 Thrif-T Luber low level switch kit

557826 Replacement low level switch

558296 Thrif-T Luber pressure gauge

564053 Thrif-T Luber ﬁ lters

563162 Thrif-T Luber relief valve, 150 psi

556677 Rubber plug for Thrif-T luber reservoir

561143 TLTP-25, Thrif-T Luber 5/32 in plastic tubing (25 ft)

MSA Spare Parts and Accessories

563912 MSA-10 repair kit

563072 Air inlet restrictor valve

563913 MSA-100 repair kit

Founded in 1926, Graco is a world leader in fluid handling systems and components. Graco products

move, measure, control, dispense and apply a wide range of fluids and viscous materials used

in vehicle lubrication, commercial and industrial settings.

The company’s success is based on its unwavering commitment to technical excellence, world-class

manufacturing and unparalleled customer service. Working closely with qualified distributors, Graco

offers systems, products and technology that set the quality standard in a wide range of fluid handling

solutions. Graco provides equipment for spray finishing, protective coating, paint circulation, lubrication,

and dispensing sealants and adhesives, along with power application equipment for the contractor

industry. Graco’s ongoing investment in fluid management and control will continue to provide

innovative solutions to a diverse global market.

ABOUT GRACO

Europe

+32 89 770 700

FAX +32 89 770 777

WWW.GRACO.COM

Graco is certified ISO 9001.

All written and visual data contained in this document are based on the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

CONTACT

MAILING ADDRESS

P.O. Box 1441

Minneapolis, MN 55440-1441

Tel: 612.623.6000

Fax: 612.623.6777

ASIA PACIFIC

JAPAN

Graco K.K.

1-27-12 Hayabuchi

Tsuzuki-ku

Yokohama City, Japan 2240025

Tel: 81.45.593.7300

Fax: 81.45.593.7301

AMERICAS

MINNESOTA

Worldwide Headquarters

Graco Inc.

88-11th Avenue N.E.

Minneapolis, MN 55413

ASIA PACIFIC

CHINA

Graco Hong Kong Ltd.

Shanghai Representative Office

Building 7

1029 Zhongshan Road

South Huangpu District

Shanghai 200011

The People’s Republic of China

Tel: 86 21 649 50088

Fax: 86 21 649 50077

ASIA PACIFIC

KOREA

Graco Korea Inc.

Choheung Bank Building

4th Floor #1599

Gwanyang-Dong, Dongan-Ku,

Anyang-Si, Gyunggi-Do,

Korea 431-060

Tel: 82(Korea).31.476.9400

Fax: 82(Korea).31.476.9801

GRACO LOCATIONS

EUROPE

BELGIUM

European Headquarters

Graco N.V.

Industrieterrein-Oude Bunders

Slakweidestraat 31

3630 Maasmechelen,

Belgium

Tel: 32.89.770.700

Fax: 32.89.770.777

All other brand names or marks are used for identification purposes and are trademarks of their respective owners.

340379ENEU Automatic Lubrication Pumps MSA Series B

Navigation menu

Versions of this User Manual:

Views

Navigation
