38CKC 50 Hz

Air Conditioner

38CKC Sizes 018 thru 060

Model 38CKC 50 Hertz Energy-

Efﬁcient Air Conditioner incorporates

innovative technology to provide

reliable summer cooling performance.

Built into these units are the features

most desired by customers today,

including EER ratings of up to 10.0

when used with components

designated by manufacturer.

FEATURES/BENEFITS

Electrical Range

— Single phase units

are available in 018, 024, and 036 sizes in

220-240v. Three-phase units are available

in 036, 048, and 060 sizes in 400v.

Wide Range of Sizes

— The 38CKC

is available in nominal sizes 018, 024,

036, 048, and 060 to meet the needs of

residential and light commercial

applications.

Weather Armor II Cabinet

— The

steel is protected with a heavy galvanize

coating, and treated with a layer of zinc

phosphate. A modiﬁed polyester

powder coating is then applied and

baked on, providing each unit with a

hard, smooth ﬁnish that will last for

many years.

All screws on cabinet exterior are

coated for a long-lasting, rust-resistant,

quality appearance.

Totally Enclosed Fan Motor

—

Means greater reliability under adverse

weather conditions and dependable

performance for many years.

Permanent-split-capacitor-type

motors provide more economical

operation.

Unit Design

— Copper tube, enhanced

sine wave aluminum ﬁn coil is

designed for optimum heat transfer.

Vertical air discharge carries sound and

hot condenser air up and away from

adjacent patio areas and foliage. Heat

pump style drain pan allows for easy

removal of water, dirt, and leaves.

Application Versatility

— The unit

can be combined with a wide variety of

evaporator coils and blower packages

to provide quiet, dependable comfort.

Unit can be installed on a roof or at

ground level.

External Service Valves

— Both

service valves are brass, front seating

type. The 38CKC has sweat ﬁeld

connections. Valves are externally

located so refrigerant tube connections

can be made quickly and easily. Each

valve has a service port for ease of

checking operating refrigerant

pressures.

Easy Serviceability

— One access

panel provides access to electrical

control box. Removal of top allows

access to fan motor, compressor, and

coil.

Pressure Switches

— All units are

equipped with high and low pressure

switches.

Additional Compressor

Protection

— Each compressor is

protected with internal temperature-

and current-sensitive overloads. The

048 and 060 sizes have a short cycle

protector standard.

Safety

— All units are designed and

manufactured in accordance with

Underwriters Laboratories (UL 1995)

safety standard for heating and cooling

equipment.

Sound Hood

— 38CKC Sizes 036

through 060 have a compressor sound

hood for noise attenuation.

The data in this publication is displayed for all series, however, every series may not be available from manufacturer.

Model number nomenclature

38CKC 018

Electric Air Conditioner

Nominal Capacity

018 — 18,000 Btuh (5.3 Kw) 048 — 48,000 Btuh (14.1 Kw)

024 — 24,000 Btuh (7.0 Kw) 060 — 60,000 Btuh (17.6 Kw)

036 — 36,000 Btuh (10.6 Kw)

743

Packaging

Series

Electrical

7 — 240-1-50

9 — 400-3-50

Quality Assurance

REGISTERED QUALITY SYSTEM

Physical data

* Tube sizes are for runs up to 50 ft (15.24m). For tube set over 50 ft (15.24m), consult Residential Split-System Long-Line Application Guideline.

NOTE:

See unit Installation Instructions for proper installation.

ACCURATER® PISTON CHART

* Piston listed is for any approved non-capillary tube coil combination.

Piston is shipped with outdoor unit and must be installed in an

approved indoor coil.

UNIT SIZE / SERIES 018-74 024-74 036-74, 94 048-94 060-94

OPERATING WT (Lb/Kg)

122 / 55.3 131 / 59.4 148 / 67.1 209 / 94.8 220 / 99.8

COMPRESSOR

Manufacturer & Type

Copeland & Recip Copeland & Recip Copeland & Recip Copeland & Scroll Copeland & Scroll

REFRIGERANT

Control

Charge (Lb/Kg) @ 15 ft / 4.6m

AccuRater® (Bypass Type)

3.76 / 1.71 3.4 / 1.5 4.8 / 2.2 6.25/2.8 9.75/4.4

COND FAN

Air Discharge

Air Qty (CFM / L/S)

Propeller Type, Direct Drive

Vertical

1550 / 724 2600 / 1214 3300 / 1541

COND COIL

Face Area (Sq ft / m

)

6.2 / 0.574 7.5 / 0.697 10.8 / 1.003 14.9 / 1.384 22.4 / 2.081

VALVE CONNECT. (In./mm ID)

Vapor

Liquid

Sweat

5/8 / 15.875 3/4 / 19.05 7/8 / 22.225

3/8 / 9.525

REFRIG TUBES* (In./mm OD)

Vapor

Liquid

5/8 / 15.875 3/4 / 19.05 7/8 / 22.225 1-1/8 / 28.575

3/8 / 9.525

UNIT SIZE PISTON

IDENTIFICATION NO.*

018-74

024-74

036-74, 94

048-94

060-94

101

Accessories

* Do not use hard shutoff TXV with liquid solenoid valve.

N/A — Not Applicable

PART NO. DESCRIPTION

KSAHS0301AAA

Start Assist–Capacitor/Relay — Sizes 018; 024; 036 (74)

KAACS0101PTC

Start Assist — PTC — Sizes 018; 024

KAACS0201PTC

Start Assist — PTC — Sizes 036 (74)

KAALS0101LLS*

Liquid Solenoid Valve — All Sizes

KSACY0101AAA

Cycle Protector — Sizes 018; 024; 036 (74)

Standard

Cycle Protector — Sizes 036(94); 048; 060

KAAWS0201AAA

Winter Start Control — All Sizes

KAAFT0101AAA

Evaporator Freeze Thermostat — All Sizes

KAATD0101TDR

Time-Delay Relay — All Sizes

KSASF0101AAA

Support Feet — All Sizes

KAACH1001AAA

Crankcase Heater — Sizes 018; 024; 036 (74)

KAACF0701SML

Coastal Filter — Size 018

KAACF1001MED

Coastal Filter — Sizes 024; 036

KAACF1101LRG

Coastal Filter — Sizes 048; 060

KAATX0201RPB

Thermostatic Expansion Valve (RPB) — Size 018

KAATX0301RPB

Thermostatic Expansion Valve (RPB) — Size 024

KAATX0501RPB

Thermostatic Expansion Valve (RPB) — Size 036

KAATX0601RPB

Thermostatic Expansion Valve (RPB) — Size 048

KAATX0701RPB

Thermostatic Expansion Valve (RPB) — Size 060

KAATX0601HSO*

Thermostatic Expansion Valve (Hard Shutoff) — Sizes 018; 024; 036

KAATX0701HSO*

Thermostatic Expansion Valve (Hard Shutoff) — Sizes 048; 060

P251-0083 (RCD)

Low-Ambient Controller — 024-060

KSALA0201R22

Low-Ambient Kit (R22) — All Sizes

32LT66004 (RCD)

MotorMaster® Control — 024, 036, (74)

32LT66005 (RCD)

MotorMaster® Control — 036, (94); 048; 060

P504–8083S

Filter Drier — 018-036

P504–8163S

Filter Drier — 048; 060

KSADG0101MIC

Discharge Grille — Size 018

KSADG0201SML

Discharge Grille — Sizes 024; 036

KSADG0301MED

Discharge Grille — Sizes 048; 060

THERMOSTAT DESCRIPTION

TSTATCCNAC01-B

Thermostat, Auto Changeover, Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool

TSTATCCPAC01-B

Thermostat, Auto Changeover, 7-Day Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool

TSTATCCBAC01

Builder’s Thermostat, Manual Changeover, Non-Programmable, °F/°C,-Stage Heat, 1-Stage Cool

TSTATCCPRH01-B

Thermidistat, Programmable/Non-Programmable Thermostat with Humidity Control

TSTATXXCNV10

Thermostat Conversion Kit (4 to 5 Wire) — 10 Pack

TSTATXXSEN01-B

Outdoor Air Temperature Sensor

TSTATXXNBP01

Backplate for Non-Programmable Thermostat

TSTATXXPBP01

Backplate for Programmable Thermostat

TSTATXXBBP01

Backplate for Builder’s Thermostat

Accessory usage guideline

* For tubing line sets between 50 (15.24m) and 175 ft (53.34m), refer to Residential Split System Long-Line Application Guideline.

† Only when low-pressure switch is used.

Accessory description and usage (Listed alphabetically)

1. Coastal Filter

A mesh screen inserted under the top cover and inside the base pan to protect the condenser coil from salt damage without restricting airﬂow.

SUGGESTED USE: In geographic areas where salt damage could occur.

2. Compressor Start Assist — Capacitor/Relay Type

Start capacitor and start relay gives ‘‘hard’’ boost to compressor motor at each start-up.

SUGGESTED USE: Installations where interconnecting tube length exceeds 50 ft (15.24m).

Installations where outdoor design temperature exceeds 105°F (40.6°C).

Replacement installations with hard shutoff expansion valve on indoor coil.

3. Compressor Start Assist — PTC Type

Solid-state electrical device which gives a ‘‘soft’’ boost to the compressor at each start-up.

SUGGESTED USE: Installations with marginal power supply.

Replacement installations with rapid pressure balance (RPB) expansion valve on indoor coil.

4. Crankcase Heater

An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on

restart and minimizes chance of refrigerant slugging. May or may not include a thermostat control.

SUGGESTED USE: When interconnecting tube length exceeds 50 ft (15.24m).

When unit will be operated below 55°F (12.8°C) outdoor air temperature. (Use with low-ambient controller.)

All commercial installations.

5. Cycle Protector

Solid-state timing device which prevents compressor rapid recycling. Control provides an approximate 5-minute delay after power to the compressor has been

interrupted for any reason, including normal room thermostat cycling.

SUGGESTED USE: Installations in areas where power interruptions are frequent.

Where user is likely to ‘‘play’’ with the room thermostat.

All commercial installations.

Installations where interconnecting tube length exceeds 50 ft (15.24m).

High-rise applications.

6. Evaporator Freeze Thermostat

A SPST temperature actuated switch which stops unit operation when evaporator reaches freeze-up conditions.

SUGGESTED USE: All units where winter start control has been added.

7. Liquid Solenoid Valve (LSV)

An electrically operated shutoff valve to be installed at the outdoor or indoor unit (depending on tubing conﬁguration) which stops and starts refrigerant liquid

ﬂow in response to compressor operation. Maintains a column of refrigerant liquid ready for action at next compressor operation cycle.

NOTE

: Compressor start assist–capacitor/relay type must also be used.

SUGGESTED USE: For improved system performance in air conditioners for certain combinations of indoor and outdoor units. (Refer to ARI Unitary Directory.)

In certain long-line applications. Refer to Residential Split System Long-Line Application Guideline.

8. Low-Ambient Controller

Head pressure controller is cycle control device activated by a temperature sensor mounted on a header tube of the outdoor coil. It is designed to cycle the

outdoor fan motor in order to maintain condensing temperature within normal operating limits (approximately 100°F [37.8°C] high and 60°F [15.6°C] low).

The control will maintain working head pressure a low-ambient temperatures down to 0°F (–17.8°C) when properly installed.

SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).

9. MotorMaster® Control

A fan speed control device activated by a temperature sensor.Designed to control condenser fan motor speed n response to the saturated, condensing

temperature during operation in cooling mode only. For outdoor temperatures down to –20°F (–28.9°C), it maintains condensing temperature at

100°F±10°F (37.8°C ± –12.2°C).

SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).

All commercial installations

10. Support Feet

Four stick-on plastic feet which raise the unit 4 in. (10.16cm) above the mounting pad. This allows sand, dirt, and other debris to be ﬂushed from the unit base;

minimizes corrosion

SUGGESTED USE: Coastal installations.

Windy areas or where debris is normally circulating.

Rooftop installations

ACCESSORY

REQUIRED FOR

LOW-AMBIENT

APPLICATIONS

(Below 55°F) (12.8°C)

REQUIRED FOR

LONG-LINE

APPLICATIONS*

(Over 50 Ft) (15.24m)

REQUIRED FOR

SEA COAST

APPLICATIONS

(Within 2 Mi) (3.2km)

Crankcase Heater

Yes Yes No

Evaporator Freeze Thermostat

Yes No No

Winter Start Control

Yes†No No

Accumulator

No No No

Compressor Start Assist

Capacitor and Relay

Yes Yes No

Low Ambient Controller

MotorMaster® Control

Yes No No

Wind Bafﬂe

See Low-Ambient

Instructions No No

Coastal Filter

No No Yes

Support Feet

Recommended No Recommended

Liquid-Line Solenoid Valve

Hard Shutoff TXV

See

Long-Line

Application Guideline No

Accessory description and usage (Listed alphabetically) continued

11. Thermostatic Expansion Valve (TXV)

A modulating ﬂow-control valve which meters refrigerant liquid ﬂow rate into the evaporator in response to the superheat of the refrigerant gas leaving the

evaporator. Kit includes valve, adapter tubes, and external equalizer tube. Both hard shutoff and RPB valves are available.

SUGGESTED USE: For improved system performance in cooling mode for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.

12. Time-Delay Relay

A SPST delay relay which brieﬂy continues operation of the indoor blower motor to provide additional cooling after the compressor

cycles off.

SUGGESTED USE: For improved efﬁciency ratings for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.

13. Winter Start Control

A SPST delay relay which bypasses the low-pressure switch for approximately 3 minutes to permit start-up for cooling operation under low-load conditions.

SUGGESTED USE: All air conditioners where low-ambient controller has been added.

Electrical data

* Permissible limits of the voltage range at which unit will operate satisfactorily. Operation outside these limits may result in unit failure.

† Time-delay fuse.

‡ Length shown is as measured 1 way along wire path between the unit and service panel for a voltage drop not to exceed 2%.

** If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70).

The ampacity of nonmetallic-sheathed cable (NM), trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70)

Article 336-26. If other than uncoated (non-plated), 60 or 75°C (140 or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded

wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).

FLA

— Full Load Amps

LRA

— Locked Rotor Amps

MCA

— Minimum Circuit Amps

RLA

— Rated Load Amps

NOTES:

1. Control circuit is 24v on all units and requires external power source.

2. Copper wire must be used from service disconnect to unit.

3. All motors/compressors contain internal overload protection.

UNIT

SIZE-SERIES V/PH

OPER VOLTS* COMPRESSOR FAN

FLA MCA

MIN

WIRE

SIZE

C/75

C**

MAX

LENGTH

(Ft)

C/75

C‡

MAX

LENGTH

(m)

C/75

C‡

MAX FUSE†

CKT BKR

AMPSMax Min LRA RLA

018-74

230-1 253 207

55.0 9.9 0.8 13.2 14 59/56 18.0/17.1 20

024-74

68.0 11.6 0.65 15.2 14 53/50 16.2/15.2 25

036-74

94.0 17.7 0.65 22.8 12 55/52 16.8/15.8 35

036-94

400-3 440 360

42.0 6.4 0.4 8.4 14 202/192 61.8/58.7 15

048-94

63.0 7.95 0.7 10.7 14 165/157 50.3/47.9 15

060-94 74.0 8.97 0.7 11.9 14 152/144 46.4/44 20

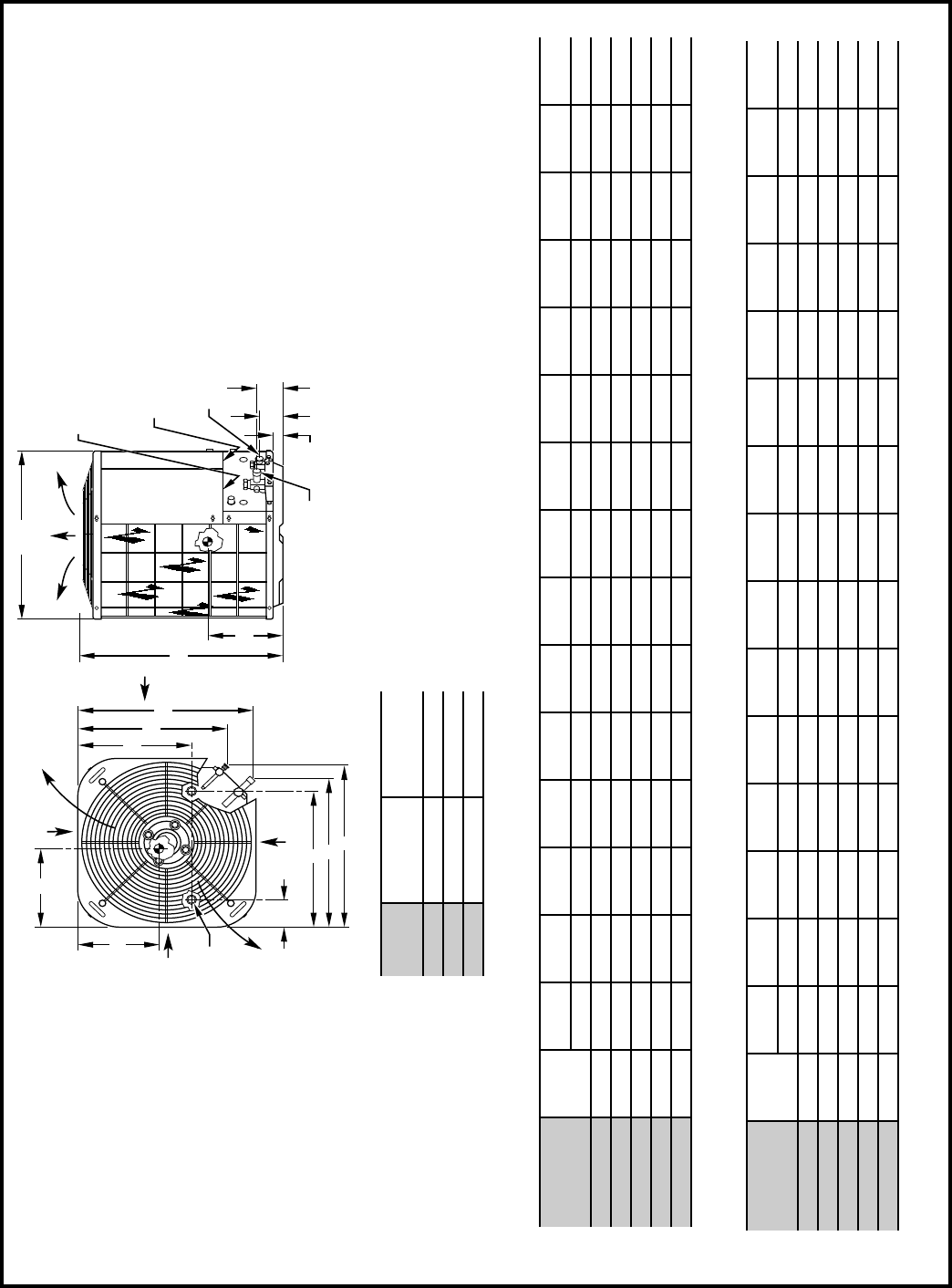

Dimensions

AIR DISCHARGE

AIR IN

IN.

(9.5mm) DIA

TIEDOWN

KNOCKOUTS

(2) PLACES

″

(73.0mm)

″

(31.8mm)

FIELD CONTROL SUPPLY 

CONN

IN.

(22.2mm) DIA 

HOLE

FIELD POWER SUPPLY CONN

IN.

(22.2mm) DIA HOLE WITH 

IN.

(28.6mm) DIA KNOCKOUT 

AND 1

IN.

(34.9mm) DIA 

KNOCKOUT

IN.

(9.5mm) DIA LIQUID 

LINE CONN

DIA VAPOR LINE CONN

AIR IN

AIR DISCHARGE

AIR IN

AIR DISCHARGE

NOTES:

1. Allow 30 In. (762.0mm) clearance to service side of unit, 48 In.

(1219.2mm) above unit, 6 In. (152.4mm) on one side, 12 In. (308.8mm)

on remaining side, and 24In. (609.6mm) between units for proper

airﬂow.

2. Minimum outdoor operating abient in cooing mode is 55°F(13°C), max

125°F(52°C).

3. Series designation is the 13th position of the unit model number.

4. Center of gravity.

UNIT SIZE

MINIMUM

MOUNTING PAD

DIMENSIONS (mm)

MINUMUM

MOUNTING PAD

DIMENSIONS (In.)

018 457.2 x 457.2 18 x 18

024, 036 571.5 x 571.5 22. 1/2 x 22 1/2

048, 060 762.0 x 762.0 30 x 30

A97007

S.I.

UNIT SERIES

ABCDEFGHJKLMNP

SHIPPING

WEIGHT

mm mm mm mm mm mm mm mm mm mm mm mm mm mm kg

38CKC018 4 457.2 608.8 81.0 15.9 76.2 381.0 414.3 450.9 258.8 409.6 446.1 200.2 212.7 257.2 54.1

38CKC024 4 571.5 557.2 81.0 15.9 93.7 460.4 501.7 565.2 365.1 496.9 560.4 263.5 206.4 273.1 59.4

38CKC036 4 571.5 760.4 81.0 19.1 93.7 460.4 501.7 565.2 365.1 496.9 560.4 263.5 273.1 273.1 64.9

38CKC048 4 762.0 709.6 82.6 22.2 165.1 596.9 692.2 755.7 508.0 687.4 750.9 381.0 330.2 368.3 98.6

38CKC060 4 762.0 1014.4 82.6 22.2 165.1 596.9 692.2 755.7 508.0 687.4 750.9 393.7 374.7 381.0 101.4

ENGLISH

UNIT SERIES

ABCDEFGHJKLMNP

SHIPPING

WEIGHT

In. In. In. In. In. In. In. In. In. In. In. In. In. In. Lb.

38CKC018 4 18 23 15/16 3 3/16 5/8 3 15 16 5/16 17 3/4 10 3/16 16 1/8 17 9/16 7 7/8 8 3/8 10 1/8 119

38CKC024 4 22 1/2 21 15/16 3 3/16 5/8 3 11/16 18 1/8 19 3/4 22 1/4 14 3/8 19 9/16 22 1/16 10 3/8 10 1/4 10 3/4 131

38CKC036 4 22 1/2 29 15/16 3 3/16 3/4 3 11/16 18 1/8 19 3/4 22 1/4 14 3/8 19 9/16 22 1/16 10 3/8 10 3/4 10 3/4 143

38CKC048 4 30 27 5/16 3 1/4 7/8 6 1/2 23 1/2 27 1/4 29 3/4 20 27 1/16 29 9/16 15 13 14 1/2 217

38CKB060 4 30 39 15/16 3 1/4 7/8 6 1/2 23 1/2 27 1/4 29 3/4 20 27 1/16 29 9/16 15 1/2 14 3/4 15 223

Combination ratings

* Tested combination.

NOTES: 1. Ratings are net values reﬂecting the effects of circulating fan motor heat. Supplemental electric heat is not included.

2. Tested outdoor/indoor combinations have been tested in accordance with DOE test procedures for central air conditioners. Ratings for

other combinations are determined under DOE computer simulation procedures.

3. Determine actual CFM values obtainable for your system by referring to fan performance data in fan coil or furnace coil literature.

4. Minimum outdoor operating ambient in cooling mode is 55°F (12.8°C), maximum 125°F (51.7°C).

Sound power

OUTDOOR

UNIT

SIZE-SERIES INDOOR UNIT

NOMINAL AIRFLOW

COOLING CAP @ 95°F (35°C) COOLING CAP@115°F (46°C)

Rated Capacity Power

KW Rated

EER

Rated Capacity Power

KWCFM L/S BTUH KW BTUH KW

018-74 F(A,B)4ASF018*

F(A,B)4ASF024

FG3ASA024

600

280

18,000

19,000

18,500

5.3

5.6

5.4

1.96

2.00

2.04

9.80

10.00

9.80

15,700

16,800

16,276

4.6

4.9

4.8

2.14

2.19

2.22

024-74 F(A,B)4ASF024*

F(A,B)4ASF030

FG3ASA024

800

380

23,000

23,600

22,000

6.7

6.9

6.4

2.75

2.74

2.79

9.00

9.10

8.70

19,900

19,948

19,271

5.8

5.6

3.03

3.02

3.07

036-74, 94 F(A,B)4ASF036*

F(A,B)4AS(F,B)042

FG3ASA036

1200

550

35,000

35,500

34,000

10.3

10.4

10.0

3.91

3.94

3.92

8.50

8.00

30,500

31,020

29,521

8.9

9.1

8.6

4.32

4.35

4.33

048-94

F(A,B)4AS(F,B)048*

F(A,B)4AS(F,B)060

FG3ASA048

FG3ASA060

1600

750

46,500

47,500

45,500

46,500

13.6

13.9

13.3

13.6

5.07

5.12

5.06

5.11

9.00

9.30

9.00

41,500

42,794

40,475

41,525

12.2

12.5

11.9

12.2

5.50

5.56

5.49

5.54

060-94 F(A,B)4AS(F,B)060*

FB4ASB070

FG3ASA060

1850

850

57,000

58,000

56,000

16.7

14.1

16.4

6.30

6.28

6.30

9.00

51,200

52,183

50,365

15.0

15.3

14.8

7.50

7.47

7.49

UNIT

SIZE

SOUND

RATING

(dBA)

A-WEIGHTED SOUND POWER LEVELS WITHIN OCTAVE BAND SHOWN

125 250 500 1000 2000 4000 8000

018-74 77 59.0 66.0 69.0 71.5 70.0 65.0 58.5

024-74 77 52.0 65.5 67.0 69.0 68.0 68.5 63.0

036-74 75 54.0 65.0 66.5 69.5 67.0 66.5 60.5

036-94 78 59.0 68.0 68.0 72.5 73.0 71.0 67.0

048-94 77 52.0 64.0 69.5 70.5 68.5 66.5 63.0

060-94 76 54.5 61.0 66.5 69.5 68.5 68.0 63.5

Detailed cooling capacities* (S.I.)

See notes on pg. 10.

EVAP

AIR

CONDENSER ENTERING AIR TEMPERATURES °C

28 32 36 40 44 48 52

L/S (C)

EWB

Capacity†

(KW) Sys.

Power

KW**

Capacity†

(KW) Sys.

Power

KW**

Capacity†

(KW) Sys.

Power

KW**

Capacity†

(KW) Sys.

Power

KW**

Capacity†

(KW) Sys.

Power

KW**

Capacity†

(KW) Sys.

Power

KW**

Capacity†

(KW) Sys.

Power

KW**

Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

38CKC018-74 Outdoor Section With F(A,B)4ASF018 Indoor Section

240

22 6.05 3.00 1.84 5.82 2.91 1.92 5.58 2.81 1.99 5.33 2.72 2.06 5.09 2.63 2.13 4.83 2.53 2.20 4.58 2.44 2.27

20 5.64 3.48 1.80 5.42 3.39 1.87 5.19 3.30 1.94 4.96 3.20 2.01 4.72 3.11 2.08 4.48 3.01 2.14 4.23 2.91 2.20

18 5.25 3.96 1.76 5.04 3.87 1.82 4.82 3.77 1.89 4.61 3.67 1.96 4.38 3.57 2.02 4.15 3.46 2.08 3.90 3.35 2.14

16 4.92 4.38 1.72 4.73 4.27 1.79 4.53 4.15 1.85 4.33 4.03 1.91 4.13 3.91 1.98 3.91 3.78 2.03 3.68 3.64 2.09

14 4.70 4.67 1.70 4.54 4.51 1.76 4.38 4.36 1.83 4.21 4.20 1.90 4.04 4.03 1.96 3.86 3.85 2.02 3.66 3.66 2.09

280

22 6.20 3.15 1.89 5.96 3.05 1.96 5.71 2.96 2.04 5.45 2.87 2.11 5.19 2.77 2.18 4.93 2.68 2.25 4.67 2.58 2.31

20 5.79 3.70 1.84 5.55 3.61 1.92 5.32 3.51 1.99 5.07 3.41 2.05 4.83 3.32 2.12 4.58 3.22 2.18 4.32 3.12 2.25

18 5.39 4.24 1.80 5.17 4.14 1.87 4.95 4.04 1.94 4.72 3.94 2.00 4.49 3.82 2.07 4.26 3.70 2.13 4.02 3.56 2.19

16 5.08 4.68 1.77 4.88 4.56 1.83 4.68 4.44 1.90 4.47 4.31 1.96 4.27 4.17 2.03 4.05 4.01 2.09 3.84 3.84 2.15

14 4.92 4.90 1.75 4.75 4.74 1.82 4.58 4.57 1.89 4.41 4.40 1.95 4.23 4.22 2.02 4.04 4.03 2.09 3.84 3.84 2.15

320

22 6.32 3.29 1.93 6.07 3.19 2.00 5.81 3.10 2.08 5.55 3.00 2.15 5.28 2.91 2.22 5.01 2.81 2.29 4.73 2.71 2.36

20 5.90 3.91 1.88 5.66 3.81 1.96 5.41 3.71 2.03 5.16 3.61 2.10 4.91 3.51 2.16 4.65 3.41 2.23 4.39 3.31 2.29

18 5.51 4.50 1.84 5.28 4.40 1.91 5.05 4.29 1.98 4.82 4.17 2.05 4.59 4.04 2.11 4.36 3.90 2.17 4.13 3.74 2.24

16 5.22 4.95 1.81 5.01 4.82 1.88 4.80 4.68 1.94 4.60 4.54 2.01 4.39 4.38 2.08 4.19 4.19 2.14 3.99 3.99 2.21

14 5.12 5.10 1.80 4.94 4.93 1.87 4.76 4.75 1.94 4.57 4.57 2.01 4.39 4.38 2.08 4.19 4.19 2.14 3.99 3.99 2.21

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Cooling Indoor

Section Size

Cooling

Capacity Power Capacity Power

F(A,B)4ASF 018 1.00 1.00 FG3ASA 024 1.04 1.04

024 1.07 1.02 — — —

38CKC024-74 Outdoor Section With F(A,B)4ASF024 Indoor Section

340

22 7.82 3.93 2.62 7.49 3.81 2.73 7.16 3.68 2.84 6.83 3.56 2.95 6.49 3.43 3.06 6.15 3.31 3.16 5.81 3.19 3.26

20 7.31 4.61 2.54 7.00 4.48 2.65 6.69 4.35 2.76 6.37 4.22 2.86 6.05 4.10 2.96 5.73 3.97 3.05 5.41 3.84 3.15

18 6.82 5.27 2.46 6.53 5.13 2.57 6.24 5.00 2.67 5.95 4.87 2.77 5.65 4.73 2.87 5.35 4.59 2.96 5.05 4.43 3.05

16 6.43 5.82 2.40 6.17 5.67 2.51 5.90 5.51 2.61 5.64 5.35 2.71 5.37 5.19 2.80 5.10 5.01 2.90 4.83 4.81 2.99

14 6.20 6.17 2.37 5.98 5.96 2.48 5.76 5.74 2.58 5.54 5.52 2.69 5.31 5.30 2.79 5.07 5.06 2.89 4.82 4.82 2.99

380

22 7.97 4.08 2.66 7.63 3.96 2.78 7.28 3.83 2.89 6.94 3.71 3.00 6.59 3.58 3.11 6.24 3.46 3.21 5.89 3.33 3.30

20 7.45 4.83 2.58 7.13 4.70 2.69 6.80 4.57 2.80 6.47 4.44 2.91 6.14 4.31 3.01 5.81 4.19 3.10 5.48 4.06 3.19

18 6.96 5.56 2.51 6.66 5.42 2.62 6.36 5.28 2.72 6.06 5.14 2.82 5.76 4.99 2.92 5.46 4.82 3.01 5.17 4.64 3.11

16 6.59 6.13 2.45 6.32 5.96 2.56 6.05 5.80 2.66 5.77 5.63 2.76 5.51 5.44 2.86 5.24 5.23 2.96 4.98 4.98 3.06

14 6.43 6.40 2.43 6.20 6.18 2.54 5.96 5.95 2.65 5.73 5.72 2.75 5.48 5.48 2.86 5.24 5.24 2.96 4.98 4.98 3.06

420

22 8.08 4.23 2.71 7.73 4.11 2.82 7.38 3.98 2.93 7.02 3.85 3.05 6.67 3.72 3.15 6.31 3.60 3.25 5.95 3.47 3.35

20 7.56 5.05 2.63 7.23 4.92 2.74 6.90 4.79 2.84 6.56 4.65 2.95 6.22 4.52 3.05 5.88 4.39 3.15 5.54 4.26 3.24

18 7.08 5.83 2.55 6.77 5.69 2.66 6.46 5.54 2.76 6.16 5.38 2.87 5.86 5.20 2.97 5.56 5.01 3.07 5.27 4.81 3.16

16 6.73 6.41 2.50 6.45 6.24 2.61 6.17 6.06 2.71 5.90 5.86 2.81 5.64 5.63 2.92 5.38 5.38 3.02 5.12 5.12 3.12

14 6.62 6.60 2.48 6.38 6.37 2.59 6.13 6.13 2.70 5.88 5.88 2.81 5.63 5.63 2.92 5.38 5.38 3.02 5.12 5.12 3.12

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Cooling Indoor

Section Size

Cooling

Capacity Power Capacity Power

F(A,B)4ASF 024 1.00 1.00 FG3ASA 024 0.97 1.01

030 1.00 1.00 — — —

38CKC036-74, 94 Outdoor Section With F(A,B)4ASF036 Indoor Section

500

22 11.9 5.99 3.68 11.4 5.81 3.85 10.9 5.62 4.01 10.4 5.43 4.17 9.92 5.25 4.32 9.42 5.07 4.47 8.92 4.89 4.61

20 11.1 7.05 3.58 10.6 6.86 3.74 10.2 6.67 3.89 9.70 6.48 4.04 9.23 6.30 4.19 8.76 6.11 4.33 8.28 5.93 4.46

18 10.3 8.09 3.48 9.92 7.89 3.64 9.48 7.69 3.79 9.05 7.50 3.93 8.62 7.29 4.07 8.18 7.07 4.20 7.74 6.84 4.34

16 9.76 8.93 3.41 9.37 8.70 3.56 8.98 8.47 3.71 8.59 8.23 3.85 8.20 7.99 3.99 7.81 7.71 4.12 7.41 7.41 4.26

14 9.46 9.41 3.37 9.13 9.09 3.53 8.80 8.77 3.68 8.47 8.45 3.83 8.13 8.11 3.97 7.77 7.77 4.12 7.41 7.41 4.26

560

22 12.1 6.22 3.76 11.6 6.04 3.92 11.1 5.85 4.09 10.6 5.67 4.25 10.1 5.48 4.40 9.54 5.30 4.55 9.03 5.12 4.69

20 11.3 7.40 3.66 10.8 7.21 3.81 10.3 7.02 3.97 9.85 6.83 4.12 9.36 6.64 4.27 8.87 6.45 4.41 8.39 6.26 4.54

18 10.5 8.54 3.56 10.1 8.34 3.71 9.65 8.13 3.87 9.21 7.91 4.01 8.78 7.68 4.16 8.35 7.42 4.30 7.92 7.14 4.43

16 10.0 9.41 3.49 9.60 9.16 3.64 9.19 8.91 3.79 8.79 8.65 3.94 8.41 8.35 4.08 8.03 8.02 4.23 7.65 7.65 4.37

14 9.79 9.76 3.46 9.44 9.42 3.62 9.10 9.08 3.78 8.74 8.73 3.93 8.39 8.39 4.08 8.03 8.03 4.23 7.65 7.65 4.37

640

22 12.3 6.53 3.85 11.8 6.34 4.02 11.3 6.15 4.18 10.7 5.96 4.34 10.2 5.77 4.50 9.67 5.59 4.65 9.13 5.40 4.79

20 11.5 7.85 3.75 11.0 7.66 3.91 10.5 7.46 4.07 10.0 7.26 4.22 9.50 7.07 4.37 9.00 6.88 4.51 8.50 6.69 4.64

18 10.8 9.10 3.66 10.3 8.88 3.81 9.86 8.64 3.97 9.41 8.37 4.12 8.98 8.08 4.27 8.55 7.79 4.41 8.11 7.49 4.55

16 10.3 9.98 3.59 9.86 9.70 3.75 9.45 9.40 3.90 9.06 9.06 4.06 8.68 8.68 4.21 8.30 8.30 4.36 7.91 7.91 4.51

14 10.2 10.2 3.58 9.80 9.80 3.74 9.43 9.43 3.90 9.06 9.06 4.06 8.68 8.68 4.21 8.30 8.30 4.36 7.91 7.91 4.51

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Cooling Indoor

Section Size

Cooling

Capacity Power Capacity Power

F(A,B)4ASF 036 1.00 1.00 FG3ASA 036 0.97 1.00

F(A,B)4AS(F,B) 042 1.02 1.01 — — —

Detailed cooling capacities* (S.I.) continued

* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation and connected by 7.62m of tubing. If other than 7.62m of

tubing is used and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur.

† Total and sensible capacities are net capacities. Blower motor heat has been subtracted.

‡ Sensible capacities shown are based on 27°C entering air at the indoor coil. For sensible capacities at other than 27°C, deduct 245 kw per 480

L/S of indoor coil air for each degree below 27°C, or add 245 kw per 480 L/S of indoor coil air per degree above 27°C.

When the required data falls between the published data, interpolation may be performed.

** Unit kw is total of indoor and outdoor unit kilowatts.

EWB — Entering Wet Bulb

EVAP

AIR

CONDENSER ENTERING AIR TEMPERATURES °C

28 32 36 40 44 48 52

L/S (C)

EWB

Capacity†

(KW) Comp.

Power

KW**

Capacity†

(KW) Comp.

Power

KW**

Capacity†

(KW) Comp.

Power

KW**

Capacity†

(KW) Comp.

Power

KW**

Capacity†

(KW) Comp.

Power

KW**

Capacity†

(KW) Comp.

Power

KW**

Capacity†

(KW) Comp.

Power

KW**

Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

38CKC048-94 Outdoor Section With F(A,B)4AS(F,B)048 Indoor Section

650

22 15.4 7.80 4.09 14.9 7.62 4.35 14.4 7.44 4.63 13.9 7.25 4.91 13.4 7.07 5.22 12.9 6.88 5.55 12.4 6.69 5.90

20 14.4 9.23 4.01 14.0 9.05 4.26 13.5 8.87 4.53 13.0 8.68 4.81 12.6 8.49 5.11 12.1 8.30 5.43 11.6 8.11 5.77

18 13.5 10.6 3.92 13.1 10.5 4.17 12.7 10.3 4.43 12.2 10.1 4.71 11.8 9.87 5.01 11.3 9.66 5.32 10.9 9.45 5.64

16 12.8 11.8 3.86 12.4 11.6 4.11 12.1 11.3 4.36 11.7 11.1 4.64 11.3 10.9 4.94 10.8 10.6 5.24 10.4 10.3 5.56

14 12.5 12.4 3.83 12.1 12.1 4.08 11.8 11.8 4.34 11.5 11.5 4.62 11.1 11.1 4.92 10.8 10.8 5.23 10.4 10.4 5.56

750

22 15.7 8.18 4.19 15.2 8.01 4.45 14.7 7.82 4.72 14.1 7.64 5.01 13.6 7.45 5.32 13.1 7.26 5.65 12.5 7.07 5.99

20 14.7 9.81 4.10 14.2 9.62 4.35 13.7 9.44 4.62 13.3 9.25 4.90 12.8 9.05 5.21 12.3 8.86 5.53 11.8 8.67 5.86

18 13.8 11.4 4.02 13.4 11.2 4.27 12.9 11.0 4.53 12.5 10.8 4.81 12.0 10.5 5.11 11.6 10.3 5.43 11.2 9.98 5.76

16 13.2 12.5 3.96 12.8 12.3 4.21 12.4 12.1 4.47 12.0 11.8 4.74 11.6 11.5 5.05 11.2 11.2 5.37 10.8 10.8 5.70

14 13.0 12.9 3.94 12.6 12.6 4.19 12.3 12.3 4.46 11.9 11.9 4.74 11.5 11.5 5.04 11.2 11.2 5.37 10.8 10.8 5.70

850

22 15.9 8.56 4.28 15.4 8.38 4.54 14.9 8.20 4.81 14.3 8.01 5.10 13.8 7.82 5.41 13.2 7.62 5.74 12.7 7.43 6.09

20 14.9 10.4 4.18 14.4 10.2 4.44 13.9 10.0 4.71 13.4 9.81 4.99 12.9 9.61 5.30 12.4 9.41 5.62 11.9 9.21 5.95

18 14.1 12.1 4.10 13.6 11.8 4.35 13.2 11.6 4.62 12.7 11.3 4.90 12.3 11.0 5.21 11.8 10.7 5.53 11.4 10.4 5.87

16 13.5 13.2 4.05 13.1 12.9 4.30 12.7 12.6 4.56 12.3 12.3 4.85 11.9 11.9 5.16 11.5 11.5 5.48 11.1 11.1 5.82

14 13.4 13.4 4.04 13.0 13.0 4.30 12.7 12.7 4.56 12.3 12.3 4.85 11.9 11.9 5.16 11.5 11.5 5.48 11.1 11.1 5.82

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Cooling Indoor

Section Size

Cooling

Capacity Power Capacity Power

F(A,B)4AS(F,B) 048 1.00 1.00 FG3ASA 048 0.98 1.00

060 1.03 1.01 060 1.00 1.01

38CKC060-94 Outdoor Section With F(A,B)4AS(F,B)060 Indoor Section

750

22 18.8 9.45 5.47 18.2 9.23 5.88 17.6 9.01 6.31 17.0 8.78 6.77 16.4 8.54 7.27 15.7 8.30 7.81 15.0 8.06 8.37

20 17.7 11.2 5.33 17.1 11.0 5.73 16.6 10.7 6.15 16.0 10.5 6.61 15.4 10.2 7.12 14.8 10.0 7.64 14.1 9.76 8.19

18 16.6 12.9 5.20 16.1 12.6 5.60 15.5 12.4 6.02 15.0 12.2 6.48 14.4 11.9 6.97 13.9 11.6 7.49 13.2 11.4 8.01

16 15.7 14.3 5.10 15.2 14.0 5.50 14.8 13.7 5.92 14.3 13.4 6.38 13.8 13.1 6.87 13.2 12.8 7.38 12.7 12.5 7.89

14 15.2 15.1 5.05 14.8 14.7 5.45 14.4 14.4 5.88 14.0 14.0 6.34 13.6 13.5 6.84 13.1 13.1 7.36 12.6 12.6 7.88

850

22 19.1 9.86 5.60 18.5 9.63 6.00 17.9 9.41 6.43 17.3 9.17 6.89 16.6 8.93 7.40 15.9 8.69 7.94 15.2 8.44 8.50

20 18.0 11.8 5.46 17.4 11.6 5.85 16.8 11.3 6.28 16.2 11.1 6.74 15.6 10.8 7.24 14.9 10.6 7.77 14.3 10.3 8.32

18 16.9 13.7 5.33 16.3 13.4 5.72 15.8 13.2 6.14 15.2 12.9 6.60 14.7 12.6 7.10 14.1 12.3 7.62 13.5 12.0 8.16

16 16.1 15.1 5.23 15.6 14.8 5.63 15.1 14.5 6.05 14.6 14.2 6.51 14.1 13.8 7.01 13.6 13.5 7.53 13.0 13.0 8.06

14 15.7 15.7 5.20 15.3 15.3 5.60 14.9 14.9 6.03 14.5 14.4 6.49 14.0 14.0 7.00 13.5 13.5 7.52 13.0 13.0 8.06

950

22 19.4 10.2 5.72 18.8 10.0 6.12 18.1 9.79 6.55 17.5 9.55 7.01 16.8 9.31 7.52 16.1 9.07 8.06 15.4 8.82 8.62

20 18.2 12.4 5.57 17.6 12.1 5.97 17.0 11.9 6.40 16.4 11.7 6.85 15.7 11.4 7.36 15.1 11.2 7.88 14.4 10.9 8.43

18 17.1 14.4 5.44 16.6 14.1 5.84 16.0 13.9 6.26 15.5 13.6 6.72 14.9 13.2 7.23 14.3 12.9 7.75 13.8 12.5 8.30

16 16.4 15.8 5.36 15.9 15.5 5.75 15.4 15.2 6.18 14.9 14.8 6.64 14.4 14.4 7.15 13.9 13.9 7.68 13.4 13.4 8.22

14 16.2 16.2 5.34 15.8 15.8 5.74 15.3 15.3 6.17 14.9 14.9 6.64 14.4 14.4 7.15 13.9 13.9 7.68 13.4 13.4 8.22

1000

22 19.5 10.4 5.77 18.9 10.2 6.18 18.2 9.97 6.60 17.5 9.74 7.07 16.8 9.50 7.57 16.1 9.25 8.11 15.4 9.00 8.67

20 18.3 12.6 5.63 17.7 12.4 6.02 17.1 12.2 6.45 16.5 11.9 6.91 15.8 11.7 7.41 15.2 11.4 7.94 14.5 11.2 8.49

18 17.2 14.7 5.50 16.7 14.5 5.90 16.1 14.2 6.32 15.6 13.8 6.78 15.0 13.5 7.29 14.4 13.1 7.82 13.9 12.7 8.37

16 16.5 16.2 5.42 16.0 15.8 5.81 15.6 15.5 6.24 15.1 15.0 6.71 14.6 14.5 7.22 14.0 14.0 7.75 13.5 13.5 8.30

14 16.4 16.4 5.40 16.0 16.0 5.81 15.5 15.5 6.24 15.0 15.0 6.71 14.6 14.6 7.22 14.0 14.0 7.75 13.5 13.5 8.30

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Cooling Indoor

Section Size

Cooling

Capacity Power Capacity Power

F(A,B)4AS(F,B) 060 1.00 1.00 FG3ASA 060 0.98 0.96

FB4ASB 070 1.02 1.03 — — —

Detailed cooling capacities* (English)

See notes on pg. 12.

INDOOR

COIL AIR

OUTDOOR COIL ENTERING AIR TEMPERATURES °F

75 85 95 105 115 125

CFM (F)

EWB

Gross

Capacity†

(MBtuh) Comp.

Power

KW**

Gross

Capacity†

(MBtuh) Comp.

Power

KW**

Gross

Capacity†

(MBtuh) Comp.

Power

KW**

Gross

Capacity†

(MBtuh) Comp.

Power

KW**

Gross

Capacity†

(MBtuh) Comp.

Power

KW**

Gross

Capacity†

(MBtuh) Comp.

Power

KW**

Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

38CKC018-74 Outdoor Section With F(A,B)4ASF018 Indoor Section

525

72 21.7 10.4 1.78 20.6 10.0 1.89 19.5 9.58 1.99 18.3 9.15 2.09 17.1 8.71 2.19 15.9 8.26 2.28

67 19.7 12.8 1.72 18.7 12.4 1.82 17.6 11.9 1.92 16.5 11.5 2.01 15.4 11.0 2.10 14.2 10.6 2.18

62 17.8 15.2 1.67 16.9 14.7 1.76 15.9 14.2 1.85 14.9 13.7 1.94 13.9 13.2 2.02 12.7 12.6 2.10

57 16.7 16.7 1.63 15.9 15.9 1.73 15.2 15.2 1.82 14.4 14.4 1.92 13.6 13.6 2.00 12.6 12.6 2.10

600

72 22.2 10.9 1.82 21.1 10.4 1.92 19.9 10.0 2.03 18.7 9.56 2.13 17.4 9.12 2.23 16.1 8.66 2.32

67 20.2 13.5 1.76 19.1 13.1 1.86 18.0 12.6 1.96 16.9 12.2 2.05 15.7 11.7 2.14 14.5 11.2 2.23

62 18.3 16.1 1.70 17.3 15.7 1.80 16.3 15.2 1.89 15.3 14.6 1.98 14.2 14.0 2.06 13.2 13.2 2.15

57 17.4 17.4 1.68 16.6 16.6 1.78 15.8 15.8 1.87 15.0 15.0 1.97 14.1 14.1 2.06 13.2 13.2 2.15

675

72 22.6 11.3 1.85 21.4 10.8 1.96 20.2 10.4 2.06 18.9 9.94 2.17 17.7 9.50 2.27 16.4 9.04 2.36

67 20.5 14.2 1.79 19.4 13.8 1.90 18.3 13.3 1.99 17.1 12.8 2.09 15.9 12.4 2.18 14.7 11.9 2.26

62 18.7 17.0 1.74 17.6 16.5 1.84 16.6 16.0 1.93 15.6 15.4 2.02 14.6 14.6 2.11 13.6 13.6 2.20

57 18.0 18.0 1.72 17.2 17.2 1.82 16.4 16.4 1.92 15.5 15.5 2.02 14.6 14.6 2.11 13.6 13.6 2.20

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Cooling Indoor

Section Size

Cooling

Capacity Power Capacity Power

F(A,B)4ASF 018 1.00 1.00 FG3ASA 024 1.04 1.04

024 1.07 1.02 — — —

38CKC024-74 Outdoor Section With F(A,B)4ASF024 Indoor Section

700

72 27.9 13.5 2.49 26.4 12.9 2.66 24.8 12.3 2.82 23.2 11.7 2.97 21.6 11.1 3.11 20.0 10.5 3.25

67 25.4 16.6 2.39 24.0 16.0 2.54 22.5 15.4 2.69 21.1 14.8 2.84 19.6 14.2 2.97 18.1 13.6 3.10

62 23.1 19.7 2.29 21.8 19.0 2.44 20.4 18.4 2.58 19.1 17.7 2.72 17.8 17.1 2.84 16.4 16.3 2.97

57 21.7 21.7 2.24 20.7 20.7 2.39 19.7 19.7 2.54 18.6 18.6 2.68 17.5 17.5 2.82 16.4 16.4 2.96

800

72 28.5 14.1 2.55 26.9 13.5 2.71 25.3 12.9 2.87 23.7 12.3 3.02 22.0 11.7 3.17 20.3 11.1 3.31

67 26.0 17.6 2.44 24.5 17.0 2.60 23.0 16.4 2.75 21.5 15.7 2.89 19.9 15.1 3.03 18.4 14.5 3.15

62 23.7 21.0 2.35 22.3 20.4 2.50 20.9 19.7 2.64 19.6 19.0 2.78 18.3 18.2 2.91 17.0 17.0 3.05

57 22.6 22.6 2.31 21.6 21.6 2.46 20.5 20.5 2.61 19.4 19.4 2.76 18.2 18.2 2.91 17.1 17.1 3.04

900

72 29.0 14.6 2.60 27.4 14.0 2.76 25.7 13.4 2.92 24.0 12.8 3.08 22.3 12.2 3.22 20.6 11.6 3.36

67 26.5 18.6 2.49 25.0 17.9 2.65 23.4 17.3 2.80 21.8 16.7 2.94 20.2 16.0 3.08 18.6 15.4 3.21

62 24.2 22.3 2.40 22.8 21.6 2.55 21.4 20.8 2.69 20.1 20.0 2.83 18.8 18.8 2.98 17.6 17.6 3.12

57 23.5 23.5 2.37 22.3 22.3 2.53 21.2 21.2 2.68 20.0 20.0 2.83 18.8 18.8 2.98 17.6 17.6 3.12

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Cooling Indoor

Section Size

Cooling

Capacity Power Capacity Power

F(A,B)4ASF 024 1.00 1.00 FG3ASA 024 0.97 1.01

030 1.00 1.00 — — —

38CKC036-74, 94 Outdoor Section With F(A,B)4ASF036 Indoor Section

1050

72 42.5 20.6 3.51 40.2 19.7 3.75 37.9 18.9 3.98 35.6 18.0 4.20 33.2 17.1 4.41 30.8 16.3 4.61

67 38.6 25.6 3.38 36.5 24.7 3.60 34.4 23.8 3.82 32.2 22.9 4.03 30.0 22.0 4.22 27.8 21.2 4.40

62 35.0 30.5 3.26 33.1 29.6 3.47 31.1 28.6 3.67 29.2 27.6 3.87 27.3 26.6 4.06 25.3 25.3 4.24

57 33.2 33.2 3.20 31.7 31.7 3.42 30.2 30.2 3.63 28.6 28.6 3.84 27.0 27.0 4.04 25.3 25.3 4.24

1200

72 43.4 21.5 3.61 41.0 20.6 3.84 38.6 19.8 4.07 36.2 18.9 4.29 33.7 18.0 4.50 31.2 17.1 4.70

67 39.5 27.2 3.47 37.2 26.3 3.69 35.0 25.3 3.91 32.7 24.4 4.12 30.5 23.5 4.32 28.2 22.6 4.50

62 35.9 32.6 3.35 33.9 31.6 3.56 31.9 30.6 3.77 29.9 29.5 3.97 28.1 28.1 4.17 26.3 26.3 4.37

57 34.7 34.7 3.31 33.1 33.1 3.53 31.4 31.4 3.75 29.7 29.7 3.96 28.1 28.1 4.17 26.3 26.3 4.37

1350

72 44.1 22.4 3.69 41.7 21.5 3.92 39.2 20.6 4.15 36.6 19.7 4.37 34.1 18.8 4.59 31.5 18.0 4.79

67 40.1 28.7 3.55 37.9 27.7 3.77 35.5 26.8 3.99 33.2 25.9 4.20 30.8 24.9 4.40 28.5 24.0 4.59

62 36.6 34.6 3.43 34.6 33.5 3.65 32.6 32.3 3.86 30.7 30.7 4.07 28.9 28.9 4.28 27.1 27.1 4.49

57 35.9 35.9 3.41 34.2 34.2 3.63 32.5 32.5 3.86 30.7 30.7 4.07 28.9 28.9 4.29 27.1 27.1 4.49

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Cooling Indoor

Section Size

Cooling

Capacity Power Capacity Power

F(A,B)4ASF 036 1.00 1.00 FG3ASA 036 0.97 1.00

F(A,B)4AS(F,B) 042 1.02 1.01 — — —

Detailed cooling capacities* (English) continued

* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240-94. If additional tubing length

and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur.

† Total and sensible capacities are net capacities. Blower motor heat has been subtracted.

‡ Sensible capacities shown are based on 80°F (27°C) entering air at the indoor coil. For sensible capacities at other than 80°F (27°C), deduct

835 Btuh (245 kw) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kw) per 1000 CFM (480

L/S) of indoor coil air per degree above 80°F (27°C).

When the required data falls between the published data, interpolation may be performed.

** Unit kw is total of indoor and outdoor unit kilowatts.

EWB — Entering Wet Bulb

INDOOR

COIL AIR

OUTDOOR COIL ENTERING AIR TEMPERATURES °F

75 85 95 105 115 125

CFM (F)

EWB

Gross

Capacity†

(MBtuh) Comp.

Power

KW**

Gross

Capacity†

(MBtuh) Comp.

Power

KW**

Gross

Capacity†

(MBtuh) Comp.

Power

KW**

Gross

Capacity†

(MBtuh) Comp.

Power

KW**

Gross

Capacity†

(MBtuh) Comp.

Power

KW**

Gross

Capacity†

(MBtuh) Comp.

Power

KW**

Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

38CKC048-94 Outdoor Section With F(A,B)4AS(F,B)048 Indoor Section

1400

72 54.5 26.8 3.86 52.3 26.0 4.20 50.0 25.1 4.58 47.6 24.2 4.98 45.2 23.4 5.41 42.7 22.5 5.89

67 49.9 33.7 3.75 47.8 32.9 4.08 45.7 32.0 4.44 43.6 31.1 4.82 41.3 30.2 5.25 39.0 29.3 5.71

62 45.6 40.5 3.64 43.8 39.6 3.96 41.9 38.6 4.32 39.9 37.6 4.70 37.9 36.6 5.11 35.8 35.4 5.55

57 43.8 43.8 3.60 42.3 42.3 3.92 40.7 40.7 4.28 39.1 39.1 4.67 37.5 37.5 5.09 35.7 35.7 5.54

1600

72 55.5 28.0 3.95 53.2 27.2 4.29 50.8 26.3 4.67 48.4 25.4 5.07 45.8 24.5 5.50 43.2 23.6 5.99

67 50.8 35.7 3.83 48.7 34.9 4.16 46.5 34.0 4.53 44.2 33.1 4.92 41.9 32.2 5.34 39.6 31.3 5.80

62 46.6 43.2 3.73 44.8 42.3 4.05 42.8 41.2 4.41 40.8 40.1 4.79 38.8 38.8 5.22 37.0 37.0 5.67

57 45.5 45.5 3.70 43.9 43.9 4.03 42.2 42.2 4.39 40.5 40.5 4.78 38.8 38.8 5.22 37.0 37.0 5.67

1800

72 56.3 29.1 4.03 53.9 28.3 4.38 51.5 27.4 4.75 48.9 26.6 5.15 46.3 25.6 5.59 43.6 24.7 6.07

67 51.6 37.7 3.91 49.4 36.9 4.24 47.1 36.0 4.61 44.8 35.0 5.00 42.3 34.1 5.43 40.0 33.1 5.89

62 47.5 45.7 3.81 45.6 44.6 4.14 43.6 43.4 4.49 41.7 41.7 4.89 39.8 39.8 5.32 37.9 37.9 5.79

57 46.9 46.9 3.80 45.2 45.2 4.13 43.5 43.5 4.49 41.7 41.7 4.89 39.9 39.9 5.32 37.9 37.9 5.79

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Cooling Indoor

Section Size

Cooling

Capacity Power Capacity Power

F(A,B)4AS(F,B) 048 1.00 1.00 FG3ASA 048 0.98 1.00

060 1.03 1.01 060 1.00 1.01

38CKC060-94 Outdoor Section With F(A,B)4AS(F,B)060 Indoor Section

1600

72 66.7 32.4 5.11 64.0 31.4 5.63 61.2 30.4 6.21 58.2 29.3 6.86 55.2 28.1 7.57 51.9 27.0 8.35

67 61.0 40.6 4.92 58.5 39.6 5.43 56.0 38.5 6.01 53.3 37.4 6.64 50.4 36.3 7.35 47.5 35.1 8.10

62 55.8 48.7 4.75 53.6 47.6 5.26 51.3 46.5 5.83 48.8 45.3 6.46 46.3 44.0 7.15 43.5 42.6 7.86

57 53.2 53.2 4.67 51.4 51.4 5.19 49.6 49.6 5.76 47.6 47.6 6.41 45.5 45.5 7.12 43.2 43.2 7.84

1850

72 68.1 34.0 5.26 65.2 32.9 5.78 62.3 31.9 6.36 59.2 30.8 7.00 56.0 29.6 7.72 52.6 28.4 8.50

67 62.3 43.3 5.06 59.7 42.3 5.58 57.0 41.2 6.15 54.1 40.0 6.79 51.2 38.8 7.49 48.2 37.6 8.25

62 57.1 52.4 4.90 54.8 51.2 5.41 52.4 50.0 5.97 49.9 48.7 6.61 47.4 47.1 7.31 44.9 44.9 8.05

57 55.5 55.5 4.85 53.6 53.6 5.37 51.6 51.6 5.95 49.5 49.5 6.59 47.3 47.3 7.31 44.9 44.9 8.05

2000

72 68.7 34.9 5.34 65.8 33.8 5.86 62.8 32.7 6.44 59.6 31.6 7.09 56.3 30.5 7.80 52.9 29.3 8.58

67 62.9 44.8 5.14 60.3 43.8 5.66 57.5 42.7 6.23 54.6 41.5 6.87 51.6 40.3 7.57 48.5 39.1 8.33

62 57.8 54.4 4.98 55.4 53.2 5.49 53.0 51.8 6.06 50.5 50.3 6.69 48.1 48.1 7.41 45.7 45.7 8.17

57 56.7 56.7 4.94 54.7 54.7 5.46 52.6 52.6 6.04 50.4 50.4 6.69 48.1 48.1 7.41 45.7 45.7 8.17

2150

72 69.3 35.7 5.42 66.3 34.7 5.94 63.2 33.6 6.52 60.0 32.5 7.17 56.7 31.3 7.88 53.2 30.1 8.66

67 63.4 46.3 5.22 60.7 45.3 5.73 57.9 44.1 6.31 54.9 43.0 6.94 51.9 41.8 7.65 48.8 40.5 8.41

62 58.4 56.3 5.06 56.0 55.0 5.57 53.7 53.4 6.14 51.3 51.3 6.79 48.9 48.9 7.51 46.4 46.4 8.27

57 57.8 57.8 5.04 55.7 55.7 5.56 53.5 53.5 6.14 51.3 51.3 6.79 48.9 48.9 7.51 46.4 46.4 8.27

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Cooling Indoor

Section Size

Cooling

Capacity Power Capacity Power

F(A,B)4AS(F,B) 060 1.00 1.00 FG3ASA 060 0.98 0.96

FB4ASB 070 1.02 1.03 — — —

Condenser only ratings (S.I.)

See notes on pg. 14.

SST

°C

CONDENSER ENTERING AIR TEMPERATURES °C

20 24 28 32 36 40 44 48 52

38CKC018-74

–2 TCG 4.80 4.52 4.22 3.92 3.62 3.32 3.04 2.76 2.50

KW 1.24 1.30 1.34 1.38 1.41 1.44 1.46 1.48 1.49

SDT 28.5 33.1 37.6 41.9 46.2 50.4 54.6 58.7 62.8

0TCG 5.22 4.93 4.63 4.32 4.01 3.70 3.40 3.11 2.83

KW 1.27 1.33 1.38 1.42 1.46 1.49 1.52 1.54 1.55

SDT 28.4 33.1 37.6 41.9 46.2 50.4 54.6 58.7 62.8

2TCG 5.64 5.34 5.03 4.72 4.40 4.08 3.77 3.46 3.15

KW 1.30 1.36 1.41 1.46 1.51 1.55 1.58 1.60 1.62

SDT 28.4 33.1 37.6 42.0 46.2 50.4 54.6 58.7 62.8

4TCG 6.07 5.77 5.45 5.13 4.81 4.48 4.15 3.82 3.50

KW 1.32 1.39 1.45 1.50 1.55 1.60 1.63 1.66 1.69

SDT 28.4 33.2 37.7 42.1 46.4 50.6 54.7 58.8 62.8

6TCG 6.53 6.22 5.89 5.56 5.23 4.89 4.55 4.21 3.87

KW 1.35 1.42 1.48 1.54 1.60 1.65 1.69 1.73 1.76

SDT 28.4 33.3 37.9 42.3 46.6 50.8 54.9 59.0 63.0

8TCG 6.99 6.67 6.34 6.00 5.65 5.30 4.95 4.60 4.25

KW 1.37 1.45 1.52 1.58 1.65 1.70 1.75 1.79 1.83

SDT 28.4 33.4 38.1 42.5 46.9 51.1 55.2 59.3 63.3

10 TCG 7.47 7.14 6.80 6.45 6.09 5.73 5.37 5.01 4.64

KW 1.40 1.48 1.55 1.62 1.69 1.75 1.81 1.85 1.90

SDT 28.3 33.5 38.2 42.8 47.2 51.4 55.5 59.6 63.6

38CKC024-74

–2 TCG 6.03 5.69 5.34 5.00 4.66 4.33 4.00 3.67 3.36

KW 1.77 1.85 1.92 1.98 2.03 2.07 2.10 2.12 2.13

SDT 35.1 38.9 42.7 46.5 50.3 54.0 57.7 61.4 65.1

0TCG 6.52 6.16 5.80 5.44 5.09 4.74 4.39 4.05 3.71

KW 1.82 1.91 1.98 2.05 2.11 2.16 2.20 2.23 2.25

SDT 35.9 39.7 43.5 47.3 51.1 54.8 58.5 62.2 65.9

2TCG 7.02 6.64 6.26 5.89 5.51 5.15 4.78 4.43 4.07

KW 1.88 1.97 2.05 2.13 2.19 2.25 2.30 2.33 2.36

SDT 36.7 40.5 44.3 48.1 51.9 55.6 59.3 62.9 66.6

4TCG 7.53 7.14 6.74 6.35 5.96 5.58 5.20 4.82 4.45

KW 1.93 2.03 2.12 2.20 2.27 2.34 2.39 2.44 2.47

SDT 37.5 41.4 45.2 48.9 52.7 56.4 60.1 63.7 67.4

6TCG 8.07 7.65 7.24 6.83 6.42 6.02 5.62 5.23 4.84

KW 1.98 2.09 2.19 2.27 2.36 2.43 2.49 2.54 2.59

SDT 38.4 42.3 46.1 49.8 53.5 57.2 60.9 64.6 68.2

8TCG 8.62 8.18 7.75 7.32 6.90 6.47 6.06 5.65 5.24

KW 2.04 2.15 2.25 2.35 2.44 2.52 2.59 2.65 2.70

SDT 39.3 43.2 47.0 50.7 54.4 58.1 61.8 65.4 69.0

10 TCG 9.19 8.74 8.29 7.84 7.39 6.95 6.52 6.08 5.65

KW 2.10 2.21 2.32 2.43 2.52 2.61 2.69 2.76 2.82

SDT 40.3 44.1 47.9 51.7 55.4 59.1 62.7 66.3 69.9

38CKC036-74, 94

–2 TCG 8.75 8.26 7.78 7.30 6.83 6.36 5.88 5.41 4.95

KW 2.48 2.60 2.70 2.80 2.88 2.95 3.00 3.04 3.07

SDT 30.9 35.1 39.1 43.1 47.1 51.0 55.0 58.9 62.9

0TCG 9.48 8.97 8.47 7.97 7.47 6.98 6.49 6.00 5.51

KW 2.55 2.68 2.79 2.89 2.99 3.07 3.13 3.19 3.23

SDT 31.4 35.6 39.6 43.6 47.6 51.5 55.4 59.3 63.2

2TCG 10.2 9.68 9.16 8.63 8.11 7.60 7.09 6.58 6.07

KW 2.62 2.76 2.88 2.99 3.10 3.19 3.27 3.33 3.38

SDT 31.9 36.1 40.1 44.1 48.1 52.0 55.8 59.7 63.5

4TCG 11.0 10.4 9.88 9.33 8.78 8.24 7.71 7.18 6.66

KW 2.69 2.83 2.97 3.09 3.21 3.31 3.40 3.47 3.54

SDT 32.4 36.6 40.7 44.7 48.7 52.6 56.4 60.2 64.0

6TCG 11.8 11.2 10.6 10.0 9.48 8.91 8.36 7.80 7.25

KW 2.76 2.91 3.06 3.19 3.32 3.43 3.53 3.62 3.69

SDT 32.9 37.1 41.2 45.3 49.3 53.2 57.0 60.8 64.6

8TCG 12.6 12.0 11.4 10.8 10.2 9.60 9.02 8.44 7.87

KW 2.83 2.99 3.15 3.29 3.43 3.55 3.66 3.76 3.85

SDT 33.5 37.7 41.8 45.9 49.9 53.8 57.6 61.4 65.2

10 TCG 13.4 12.8 12.2 11.6 11.0 10.3 9.72 9.11 8.51

KW 2.90 3.07 3.24 3.39 3.54 3.68 3.80 3.90 4.00

SDT 34.0 38.3 42.5 46.5 50.5 54.5 58.3 62.1 65.8

Condenser only ratings (S.I.) continued

SST — Saturated Temperature Entering Compressor (°C)

TCG — Gross Cooling Capacity (Kw)

KW — Total Power (Kw)

SDT — Saturated Temperature Leaving Compressor (°C)

SST

°C

CONDENSER ENTERING AIR TEMPERATURES °C

20 24 28 32 36 40 44 48 52

38CKC048-94

–2 TCG 11.7 11.3 10.9 10.5 10.0 9.58 9.15 8.76 8.42

KW 3.18 3.41 3.64 3.89 4.15 4.42 4.71 5.02 5.34

SDT 33.9 38.1 42.2 46.4 50.4 54.5 58.6 62.5 66.3

0TCG 12.7 12.2 11.8 11.4 10.9 10.4 9.99 9.56 9.17

KW 3.25 3.48 3.73 3.98 4.24 4.52 4.83 5.14 5.47

SDT 34.7 38.9 43.0 47.2 51.2 55.3 59.4 63.3 67.2

2TCG 13.6 13.2 12.8 12.3 11.8 11.3 10.8 10.4 9.93

KW 3.32 3.56 3.81 4.07 4.34 4.63 4.94 5.26 5.60

SDT 35.5 39.7 43.8 48.0 52.0 56.1 60.2 64.2 68.0

4TCG 14.6 14.2 13.7 13.2 12.7 12.2 11.7 11.2 10.7

KW 3.40 3.64 3.90 4.16 4.44 4.74 5.05 5.38 5.73

SDT 36.3 40.5 44.6 48.8 52.9 56.9 61.0 65.0 68.9

6TCG 15.6 15.1 14.6 14.1 13.6 13.0 12.5 12.0 11.4

KW 3.47 3.71 3.98 4.25 4.54 4.84 5.17 5.51 5.86

SDT 37.1 41.3 45.4 49.6 53.7 57.7 61.8 65.8 69.7

8TCG 16.6 16.1 15.6 15.0 14.5 13.9 13.3 12.8 12.2

KW 3.54 3.79 4.06 4.35 4.64 4.95 5.28 5.63 5.99

SDT 37.8 42.1 46.2 50.4 54.5 58.5 62.6 66.6 70.6

10 TCG 17.6 17.1 16.5 16.0 15.4 14.8 14.2 13.6 12.9

KW 3.61 3.87 4.15 4.44 4.74 5.06 5.39 5.75 6.12

SDT 38.6 42.9 47.0 51.2 55.3 59.3 63.4 67.4 71.4

38CKC060-94

–2 TCG 15.4 14.9 14.4 13.8 13.3 12.8 12.2 11.7 11.1

KW 3.48 3.78 4.12 4.49 4.88 5.29 5.72 6.17 6.63

SDT 34.6 38.7 42.9 47.0 51.2 55.3 59.3 63.2 67.0

0TCG 16.4 15.9 15.3 14.8 14.2 13.6 13.1 12.5 11.9

KW 3.56 3.86 4.21 4.58 4.97 5.39 5.83 6.29 6.76

SDT 35.3 39.5 43.6 47.8 51.9 56.0 60.0 64.0 67.9

2TCG 17.4 16.9 16.3 15.8 15.2 14.5 13.9 13.3 12.7

KW 3.64 3.95 4.30 4.67 5.06 5.49 5.94 6.41 6.89

SDT 36.0 40.2 44.4 48.5 52.6 56.8 60.8 64.8 68.7

4TCG 18.5 18.0 17.4 16.7 16.1 15.5 14.8 14.2 13.5

KW 3.73 4.04 4.39 4.77 5.16 5.59 6.06 6.54 7.02

SDT 36.8 41.0 45.1 49.3 53.4 57.5 61.6 65.6 69.5

6TCG 19.7 19.1 18.4 17.8 17.1 16.5 15.8 15.1 14.4

KW 3.83 4.14 4.49 4.87 5.27 5.71 6.18 6.67 7.16

SDT 37.6 41.8 46.0 50.1 54.2 58.3 62.4 66.5 70.4

8TCG 20.9 20.2 19.6 18.9 18.2 17.5 16.7 16.0 15.2

KW 3.93 4.25 4.60 4.98 5.39 5.82 6.30 6.80 7.31

SDT 38.5 42.6 46.8 50.9 55.1 59.2 63.3 67.3 71.3

10 TCG 22.1 21.4 20.7 20.0 19.3 18.5 17.7 16.9 16.1

KW 4.04 4.36 4.72 5.10 5.51 5.95 6.43 6.93 7.46

SDT 39.3 43.5 47.7 51.8 55.9 60.0 64.1 68.1 72.2

Condenser only ratings (English)

See notes on pg. 16.

SST

°F

CONDENSER ENTERING AIR TEMPERATURES °F

55 65 75 85 95 105 115 125

38CKC018-74

30 TCG 18.7 17.4 16.1 14.6 13.2 11.8 10.4 9.11

KW 1.15 1.23 1.31 1.38 1.43 1.47 1.50 1.52

SDT 67.5 79.8 91.4 103.0 113.0 124.0 134.0 144.0

35 TCG 20.7 19.4 18.0 16.6 15.1 13.6 12.1 10.6

KW 1.18 1.27 1.35 1.43 1.49 1.54 1.58 1.61

SDT 66.9 79.6 91.4 103.0 113.0 124.0 134.0 144.0

40 TCG 22.8 21.5 20.0 18.5 17.0 15.4 13.9 12.3

KW 1.20 1.30 1.39 1.48 1.55 1.62 1.67 1.70

SDT 66.2 79.5 91.6 103.0 114.0 124.0 134.0 145.0

45 TCG 25.1 23.7 22.2 20.6 19.0 17.4 15.7 14.1

KW 1.23 1.33 1.43 1.53 1.61 1.69 1.75 1.80

SDT 65.2 79.4 91.8 103.0 114.0 125.0 135.0 145.0

50 TCG 27.3 25.9 24.4 22.8 21.1 19.4 17.7 15.9

KW 1.26 1.37 1.47 1.58 1.68 1.76 1.83 1.89

SDT 65.4 79.1 92.0 104.0 115.0 126.0 136.0 146.0

55 TCG 29.7 28.3 26.7 25.0 23.3 21.5 19.7 17.9

KW 1.29 1.40 1.52 1.63 1.73 1.83 1.91 1.99

SDT 65.6 78.6 92.3 104.0 116.0 127.0 137.0 147.0

38CKC024-74

30 TCG 23.5 21.8 20.2 18.5 16.8 15.2 13.6 12.1

KW 1.64 1.76 1.87 1.97 2.05 2.12 2.16 2.18

SDT 83.2 92.9 103.0 112.0 121.0 131.0 140.0 149.0

35 TCG 26.0 24.2 22.4 20.6 18.9 17.2 15.5 13.8

KW 1.69 1.83 1.96 2.07 2.17 2.24 2.30 2.34

SDT 85.1 94.9 105.0 114.0 123.0 133.0 142.0 151.0

40 TCG 28.6 26.7 24.8 22.9 21.0 19.2 17.4 15.6

KW 1.75 1.90 2.04 2.17 2.28 2.37 2.44 2.50

SDT 87.3 97.0 107.0 116.0 125.0 135.0 144.0 153.0

45 TCG 31.3 29.3 27.2 25.2 23.2 21.3 19.3 17.4

KW 1.81 1.97 2.12 2.26 2.39 2.50 2.58 2.65

SDT 89.5 99.3 109.0 118.0 128.0 137.0 146.0 155.0

50 TCG 34.1 32.0 29.8 27.7 25.6 23.5 21.4 19.4

KW 1.87 2.05 2.21 2.36 2.50 2.62 2.73 2.81

SDT 91.8 102.0 111.0 121.0 130.0 139.0 148.0 157.0

55 TCG 37.1 34.8 32.6 30.3 28.1 25.8 23.6 21.5

KW 1.93 2.12 2.30 2.47 2.62 2.75 2.87 2.97

SDT 94.3 104.0 114.0 123.0 132.0 142.0 151.0 160.0

38CKC036-74, 94

30 TCG 34.0 31.7 29.3 27.0 24.7 22.4 20.1 17.9

KW 2.28 2.46 2.63 2.78 2.91 3.01 3.09 3.14

SDT 74.2 84.9 95.3 105.0 115.0 125.0 135.0 145.0

35 TCG 37.6 35.2 32.7 30.2 27.7 25.3 22.9 20.5

KW 2.36 2.55 2.74 2.91 3.06 3.18 3.28 3.35

SDT 75.3 86.1 96.6 107.0 117.0 126.0 136.0 146.0

40 TCG 41.4 38.8 36.2 33.6 30.9 28.4 25.8 23.3

KW 2.43 2.65 2.85 3.04 3.21 3.35 3.47 3.57

SDT 76.4 87.3 97.9 108.0 118.0 128.0 137.0 147.0

45 TCG 45.4 42.7 39.9 37.1 34.3 31.6 28.9 26.2

KW 2.51 2.74 2.96 3.17 3.35 3.52 3.66 3.78

SDT 77.5 88.6 99.3 110.0 120.0 129.0 139.0 148.0

50 TCG 49.6 46.8 43.8 40.9 37.9 34.9 32.1 29.2

KW 2.59 2.83 3.07 3.30 3.50 3.69 3.86 4.00

SDT 78.7 90.0 101.0 111.0 121.0 131.0 141.0 150.0

55 TCG 54.1 51.0 47.9 44.8 41.7 38.5 35.4 32.4

KW 2.67 2.93 3.18 3.43 3.66 3.87 4.05 4.21

SDT 79.9 91.4 102.0 113.0 123.0 133.0 142.0 152.0

38CKC048-94

30 TCG 43.7 41.9 40.0 38.1 35.9 33.8 31.7 30.0

KW 2.84 3.12 3.43 3.77 4.12 4.50 4.92 5.37

SDT 80.0 90.5 101.0 111.0 122.0 132.0 142.0 152.0

35 TCG 48.5 46.6 44.6 42.5 40.2 37.9 35.6 33.6

KW 2.92 3.21 3.54 3.89 4.26 4.65 5.08 5.55

SDT 81.9 92.5 103.0 113.0 124.0 134.0 144.0 154.0

40 TCG 53.3 51.3 49.1 46.9 44.4 42.0 39.5 37.2

KW 3.00 3.31 3.65 4.01 4.39 4.80 5.25 5.73

SDT 83.8 94.5 105.0 115.0 126.0 136.0 146.0 156.0

45 TCG 58.1 55.9 53.7 51.3 48.7 46.1 43.3 40.7

KW 3.09 3.41 3.75 4.13 4.53 4.95 5.41 5.91

SDT 85.6 96.4 107.0 117.0 128.0 138.0 148.0 158.0

50 TCG 62.8 60.6 58.2 55.7 53.0 50.1 47.2 44.3

KW 3.17 3.50 3.86 4.25 4.66 5.10 5.57 6.09

SDT 87.5 98.4 109.0 119.0 130.0 140.0 150.0 160.0

55 TCG 67.9 65.5 63.0 60.3 57.4 54.4 51.3 48.2

KW 3.26 3.60 3.97 4.37 4.80 5.26 5.75 6.28

SDT 89.5 100.0 111.0 122.0 132.0 142.0 152.0 162.0

Condenser only ratings (English) continued

SST — Saturated Temperature Entering Compressor (°F)

TCG — Gross Cooling Capacity (1000 Btuh)

KW — Total Power (Kw)

SDT — Saturated Temperature Leaving Compressor (°F)

System Design Summary

1. Intended for outdoor installation with free air inlet and outlet.Outdoor an external static pressure available is less than 0.01-in. wg.

2. Minimum outdoor operating air temperature without low-ambient operation accessory is 55°F (12.8°C).

3. Maximum outdoor operating air temperature is 125°F (51°C).

4. For reliable operation, unit should be level in all horizontal planes.

5. Maximum elevation of indoor coil above or below base of outdoor unit is: indoor coil above + 50 ft (15.24m), indoor coil below = 150 ft

(45.72m). (See items 6 and 7 following.)

6. For interconnecting refrigerant tube lengths between 50 ft (15.24m) and 175 ft (53.3m), consult Residential Split-System Long-Line Appli-

cation Guideline available from equipment distributor.

7. Crankcase heater required when interconnection refrigerant tube length exceeds 50 ft (15.24m)

8. If any refrigerant tubing is buried, provide a minimum 6 in. (152mm) vertical rise to the valve connections at the unit. Refrigerant tubing

lengths up to 36 in. (912mm) may be buried without further consideration. For buried lines longer than 3 ft. (912mm) consult your local dis-

tributor.

9. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided.

SST

°F

CONDENSER ENTERING AIR TEMPERATURES °F

55 65 75 85 95 105 115 125

38CKC060-94

30 TCG 57.0 54.7 52.3 49.8 47.3 44.6 41.9 39.2

KW 3.02 3.39 3.81 4.28 4.81 5.39 6.00 6.65

SDT 81.1 91.7 102.0 112.0 123.0 133.0 143.0 153.0

35 TCG 62.2 59.7 57.1 54.4 51.7 48.8 45.9 43.0

KW 3.12 3.50 3.93 4.41 4.94 5.53 6.17 6.83

SDT 82.9 93.5 104.0 114.0 125.0 135.0 145.0 155.0

40 TCG 67.6 64.9 62.2 59.3 56.3 53.2 50.1 46.9

KW 3.25 3.63 4.06 4.54 5.08 5.68 6.34 7.01

SDT 84.9 95.4 106.0 116.0 127.0 137.0 147.0 157.0

45 TCG 73.3 70.5 67.5 64.4 61.2 57.9 54.5 51.0

KW 3.38 3.76 4.20 4.69 5.23 5.84 6.51 7.21

SDT 86.9 97.5 108.0 118.0 129.0 139.0 149.0 159.0

50 TCG 79.3 76.3 73.1 69.8 66.3 62.8 59.1 55.3

KW 3.52 3.91 4.35 4.85 5.40 6.01 6.68 7.42

SDT 89.0 99.7 110.0 121.0 131.0 141.0 151.0 161.0

55 TCG 85.6 82.3 78.8 75.3 71.6 67.8 63.9 59.8

KW 3.67 4.07 4.51 5.01 5.57 6.19 6.87 7.62

SDT 91.3 102.0 112.0 123.0 133.0 143.0 153.0 164.0

Guide speciﬁcations

GENERAL

System Description

Outdoor-mounted, air-cooled, split-system air conditioner

unit suitable for ground or rooftop installation. Unit consists

of a hermetic compressor, an air-cooled coil, propeller-type

condenser fan, and a control box. Unit will discharge supply

air upward as shown on contract drawings. Unit will be used

in a refrigeration circuit to match up to a packaged fan coil

or coil unit.

Quality Assurance

Unit shall be manufactured in a facility registered to

ISO9001/BS5750 Part II, International Standard for quality

systems.

Unit will be rated in accordance with the latest edition of

ARI Standard 210.

Unit construction will comply with latest edition of ANSI/

ASHRAE and with NEC (U.S.A. Standard).

Unit will be constructed in accordance with UL standards.

Unit cabinet will be capable of withstanding Federal Test

Method Standard No. 141 (Method 6061) 500-hr salt spray

test (U.S.A. Standard).

Air-cooled condenser coils will be leak tested at 150 psig

(1034 KPa) and pressure tested at 300 psig (2068 KPa).

Delivery, Storage, and Handling

Unit will be shipped as single package only and is stored

and handled per unit manufacturer’s recommendations.

PRODUCTS

Equipment

Factory assembled, single piece, air-cooled condensing

unit. Contained within the unit enclosure is all factory

wiring, piping, controls, compressor, refrigerant charge

(R-22), and special features required prior to ﬁeld start-up.

Unit Cabinet

Unit cabinet will be constructed of galvanized steel,

bonderized, and coated with a powder coat paint.

Fans

Condenser fan will be direct-drive propeller type,

discharging air upward.

Air-Cooled, Split-System

Air Conditioner

38CKC

1-1/2 to 5 Tons Nominal

(5.2 to 17.5 Kw)

Condenser fan motors will be totally enclosed, 1-phase

type with class B insulation and permanently lubricated

bearings.

Shafts will be corrosion resistant.

Fan blades will be statically and dynamically balanced.

Condenser fan openings will be equipped with PVC-coated

steel wire safety guards.

Compressor

Compressor will be hermetically sealed.

Compressor will be mounted on rubber vibration isolators.

Condenser Coil

Condenser coil will be air cooled.

Coil will be constructed of aluminum ﬁns mechanically

bonded to copper tubes which are then cleaned, dehydrated,

and sealed.

Refrigeration Components

Refrigeration circuit components will include liquid line

shutoff valve with sweat connections, suction shutoff valves

with sweat connections, system charge of refrigerant R-22,

and compressor oil.

Operating Characteristics

The capacity of the unit will meet or exceed _____ Btuh

(kw) at a suction temperature of _____ °F (°C). The power

consumption at full load will not exceed _____ kw.

Combination of the unit and the evaporator or fan coil unit

will have a total net cooling capacity of _____ Btuh (kw)

or greater at conditions of _____ CFM (L/S) entering air

temperature at the evaporator at _____ °F (°C) wet bulb

and _____ °F (°C) dry bulb, and air entering the unit at

_____ °F (°C).

Electrical Requirements

Nominal unit electrical characteristics will be _____ v,

__ phase, 50 hertz. The unit will be capable of satisfactory

operation within voltage limits of _____ v to _____ v.

Unit electrical power will be single point connection.

Control circuit will be 24v.

Special Features

Refer to section of this literature identifying accessories

and descriptions for speciﬁc features and available

enhancements.

Carrier Corporation • Indianapolis, IN 46231 1-99

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 1 2 4 Page 20 Catalog No. 003-839 Printed in U.S.A. PC 101 Form 38CKC-C3PD

Tab 3a 1a 2a Replaces: 38CKC-C2PD

A94328

SERVICE TRAINING

Packaged Service Training programs are an excellent way to increase your

knowledge of the equipment discussed in this manual, including:

 • Unit Familiarization • Maintenance

 • Installation Overview • Operating Sequence

A large selection of product, theory, and skills programs is available, using popular

video-based formats and materials. All include video and/or slides, plus companion

book.

Classroom Service Training plus "hands-on" the products in our labs can mean

increased confidence that really pays dividends in faster troubleshooting, fewer

callbacks. Course descriptions and schedules are in our catalog.

CALL FOR FREE CATALOG 1-800-962-9212

[ ] Packaged Service Training [ ] Classroom Service Training

38CKC036 Air 38CKC

Navigation menu

Versions of this User Manual:

Views

Navigation
