Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003 Model 1199
www.rosemount.com
FOR MODELS 3051C, 3051T, 1151, AND
2088 TRANSMITTERS
EXPANDED TRANSMITTER USE
• Extreme hot and cold temperatures
• Corrosive applications
• Clogging
• Sanitary requirements
APPLICATIONS
• Level, Flow, Pressure, Interface, Density
Contents
“Specifications” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page Pressure-282
“General Purpose Seals Selection Overview” . . . . . . . . . . . . . . . . . . . . page Pressure-286
“Ordering Information” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page Pressure-290
“Diaphragm Seal Connections” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page Pressure-291
“General Purpose Seal Assemblies” . . . . . . . . . . . . . . . . . . . . . . . . . . . page Pressure-294
“Sanitary Diaphragm Seal Systems” . . . . . . . . . . . . . . . . . . . . . . . . . . . page Pressure-328
“General Information” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page Pressure-339

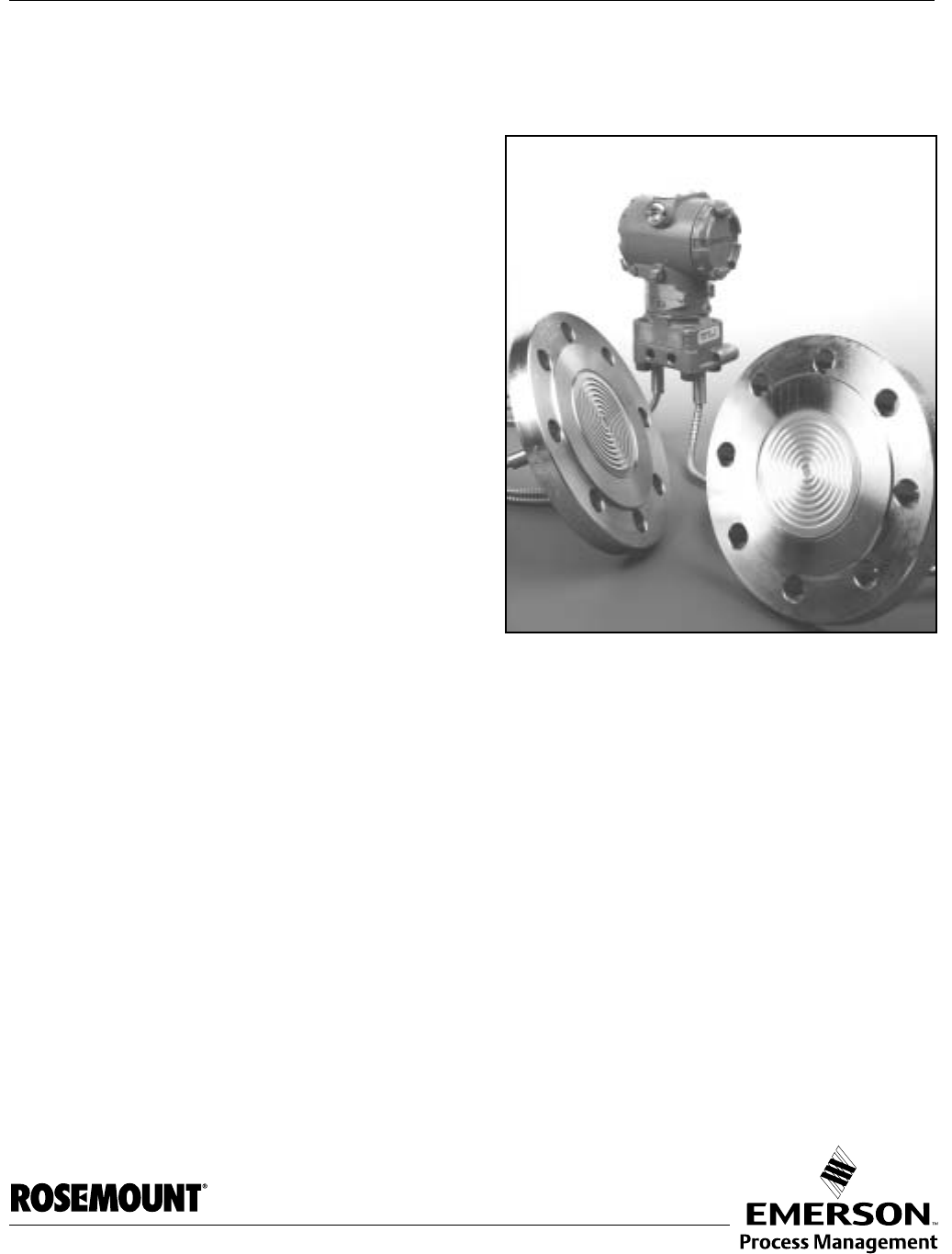

Model 1199 Diaphragm Seal Systems
(European Offering)
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-282
Specifications
FILL FLUID SPECIFICATIONS
MINIMUM SPAN RECOMMENDATIONS
Table 2 lists minimum span recommendations in mbar for
Rosemount pressure transmitters as a function of the diameter of
the diaphragm seal. Contact your Rosemount representative for
minimum calibrated span recommendation for all in-line seal
designs or seals with diameter less than 25mm.
These recommendations are based on the following:
• Stainless steel diaphragm; standard thickness.
• Single-sided capillary length up to 5 m.
• The diameter of the pressure sensor smaller than the diameter
of the diaphragm seal.
• Differential pressure systems are balanced.
Consult Instrument ToolKit™ software or contact your Rosemount
representative for a more detailed performance evaluation of
diaphragm seal systems.
TABLE 1. Fill Fluid Specifications
Temperature Limits(1)
Specific
Gravity
Coeff. of Therm.
Exp. (cc/cc/°C)
Viscosity at 25 °C
centistokes
Recommended
Capillary I. D.
Fill Fluid Pabs < 1 bara Pabs > 1 bara
General Purpose Silicone Oil –45 to 100 °C –45 to 205 °C 0,93 0,00108 9,5 All
Inert –45 to 80 °C –45 to 175 °C 1,85 0,000864 6,5 All
Low Temperature Silicone Oil NA –75 to 150 °C 0,85 0,001199 1,6 All
Sanitary Oil(2) –15 to 120 °C –15 to 205 °C 0,90 0,001008 9,8 All
High Temperature
Silicone Oil(3)
0 to 200 °C 0 to 315 °C 1,07 0,00095 44,0 2 mm
Vegetable, Sanitary Oil –10 to 120 °C –10 to 250 °C 0,91 0,0008 63,0 2 mm
(1) Temperature unit of system based on lowest temperature option.
(2) Select sanitary fill fluid for sanitary applications requiring faster response times.
(3) Upper temperature limit is for capillary seal systems mounted away from the transmitter. Contact your Rosemount® representative for temperature limits
above 315 °C.
TABLE 2. Minimum Span Recommendations (mbar) F.A. = Factory Approval required
Differential Pressure Gauge Pressure Absolute Pressure
dm (mm) 2 mm Cap ID 1 mm Cap ID 2 mm Cap ID 1 mm Cap ID 2 mm Cap ID 1 mm Cap ID
25 F.A. F.A. 10000 10000 F.A. F.A.
32 F.A . F. A . 2500 2000 F.A. F.A.
40 750 500 1500 1000 F.A. F.A.
57 100 75 500 300 1000 750
76 25 20 150 100 500 350
89 4 3 20 20 20 20
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-283
Model 1199
INDUSTRY STANDARDS
Tables 3 and 4 list industry standards and their descriptions for
General Purpose and Sanitary Seals.
GASKET SPECIFICATIONS
Table 5 refers to the gaskets supplied with the diaphragm seal.
TABLE 3. Available Industry Standards for General Purpose Diaphragm Seals
Standard Description
DIN 2512 Form F Tongue
DIN 2512 Form N Groove
DIN 2513 Form R-13 Large female face
DIN 2513 Form V-13 Large male face
DIN 2514 Form V-14 Male face
DIN 2514 Form R-14 Female face
DIN 2526 Form C, D or E Raised face
DIN 2696 Form L 'Linsen” gasket face
ANSI /ASME B16.5 Raised face
ANSI /ASME B16.5 Ring type joint
ANSI /ASME B16.5 Large male tongue
ANSI /ASME B16.5 Large female groove
ANSI /ASME B16.5 Large or small tongue face
ANSI /ASME B16.5 Large or small groove face
ANSI /ASME B16.5 Large or small male face
ANSI /ASME B16.5 Large or small female face
TABLE 4. Available for Sanitary Diaphragm Seals Industry Standards(1)
Standard Description
SMS: Swedish Milk Standard Female or male thread
IDF: International Dairy Federation Female or male thread
RJT: Ring Joint Type Female or male thread
DIN 11851 Female or male thread
Tri-Clamp®Sanitary
Tuchenhagen Varivent®Sanitary
Homogenizer Clamping Flange Sanitary
(1) Other standards are available upon request.
TABLE 5. Gasket Specifications
Gasket Temperature Limit (°C)
PTFE(1)
(1) Temperature limits are in standard circumstances.
–160 to 230 °C
98% Graphite(1) –200 to 500 °C
Viton®(2)
(2) Temperature limit in oxidizing atmosphere.
–20 to 200 °C
Ethylene Propylene –55 to 150 °C
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-284
TRANSMITTER SPECIFICATIONS
Functional Specifications
For complete functional, performance, and physical specifications
for the Model 3051C, Model 3051T, Model 1151, and Model 2088
transmitters, refer to the respective product data sheets listed in
this section.
The transmitter pressure ranges and ordering codes for use with
diaphragm seals are located in Section 4 of this document.
Hazardous Locations Certifications
Adding seals to the transmitter does not change the approval
ratings of the individual transmitters. For complete approval
listings, see the respective product data sheet for the pressure
transmitter.
Maximum Working Pressure of
Transmitter–Seal System
The maximum working pressure (MWP) of the transmitter–seal
system is a function of the MWP of the transmitter and the remote
seal. To determine the MWP of the transmitter–seal system,
simply select the lesser value of the two. For safe operation, the
MWP of the transmitter–seal system must not be exceeded.
NACE Standard
NACE (National Association of Corrosion Engineers) standard
MR–01–75 defines metallic material requirements for resistance to
sulfide stress cracking when exposed to sour environments.
Contact your Rosemount representative to aid in selecting the
proper materials in order for Rosemount diaphragm seals to meet
the NACE standard.
Zero Elevation and Suppression
Output Codes S, E, and G
Zero elevation and suppression must be such that the lower
range value is greater than or equal to the (–URL) and the
upper range value is less than or equal to the (+URL). The
calibrated span must be greater than or equal to the minimum
span.
PHYSICAL SPECIFICATIONS
Materials of Construction
Transmitters
Isolating Diaphragm
Model 3051C: 316L SST
Model 3051T: 316L SST
Model 1151: 316L SST
Model 2088: 316L SST
Process Flange or Connector
Model 3051C: 316 SST
Model 3051T: 316L SST
Model 1151: CF-8M
(Cast Version of 316 SST, material per ASTM-A743)
Model 2088: 316L SST
O-ring
Model 3051C: Glass-filled TFE
Model 3051T: None
Model 1151: Viton or Buna N
Model 2088: None
Sensor Module Fill Fluid
Silicone Oil
Bolts (Models 3051C and 1151 only)
Plated Carbon Steel or 316 SST
Electronics Housing
Low-copper aluminum or CF-8M (cast version of 316 SST,
material per ASTM-A743), NEMA 4X, IP66
Paint
Polyurethane
Cover O-rings
Buna-N
TABLE 6. Transmitter Temperature Limits Summary.
Models 3051C,
3051T
Model
1151 Model 2088
Ambient –40 to 85 °C S Electronics
–40 to 85 °C
–40 to 85 °C
E,G Electronics
–30 to 95 °C
Storage –45 to 110 °C S Electronics
–50 to 85 °C
–45 to 85 °C
E,G Electronics
–50 to 120 °C
Process
Silicone
Sensor
–40 to 120 °C –40 to 105 °C –40 to 120 °C
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-285
Model 1199
Electrical Connection
Model 3051C, 3051T, and Model 2088
1/2–14 NPT, PG 13.5, G1/2 Female
(PF1/2 Female, or M20 ⫻ 1.5 Female (CM20) conduit entry)
Model 1151
1/2–14 NPT conduit with screw terminals and integral test
jacks compatible with miniature banana plugs (Pomona 2944,
3690, or equivalent)
Model 3051C, 3051T, and Model 1151 Smart
The HART®-based communicator connections are fixed to the
terminal block.
Transmitter Weight
The transmitter/seal system weight depends on the type of
capillary and seal:
Model 3051C
2,5 kg without options
Model 3051T
1,4 kg without options
Model 1151
5,5 kg without options
Model 2088
1,0 kg without options
Standard Accessories
All models are shipped with flange adapters, drain/vent valves,
and one instruction manual per shipment.
Tagging
The pressure transmitter will be tagged, at no charge, in
accordance with customer requirements. All tags are stainless
steel. The standard tag is wired to the transmitter. Tag is 0,051 cm
thick with 0,318 cm high letters. A permanently attached tag is
available upon request.
Calibration
Transmitters are factory calibrated to customer’s specified range.
If calibration is not specified, then the transmitters are calibrated at
maximum range. Calibration is performed at ambient temperature
and pressure. Four and 20 mA points must be the same unit of
measure. Available units of measure:
inH2O mmH2Obar kg/cm
2torr
inHg mmHg mbar Pa atm
ftH2O psi g/cm2kPa
Custom Configurations
Model 3051C (Option Code C1)
If code C1 is ordered, the customer may specify the following
data in addition to the standard configuration parameters.
Refer to Configuration Data Sheet 00806-0100-4001.
Model 1151 (Option Code C9)
If Options Code C9 is ordered, the customer may specify the
following data in addition to the standard configuration
parameters. Refer to Configuration Data Sheet
00806-0100-4593.
Descriptor: 16 alphanumeric characters
Message: 32 alphanumeric characters
Date: Day, month, year
Damping: Sec.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-286

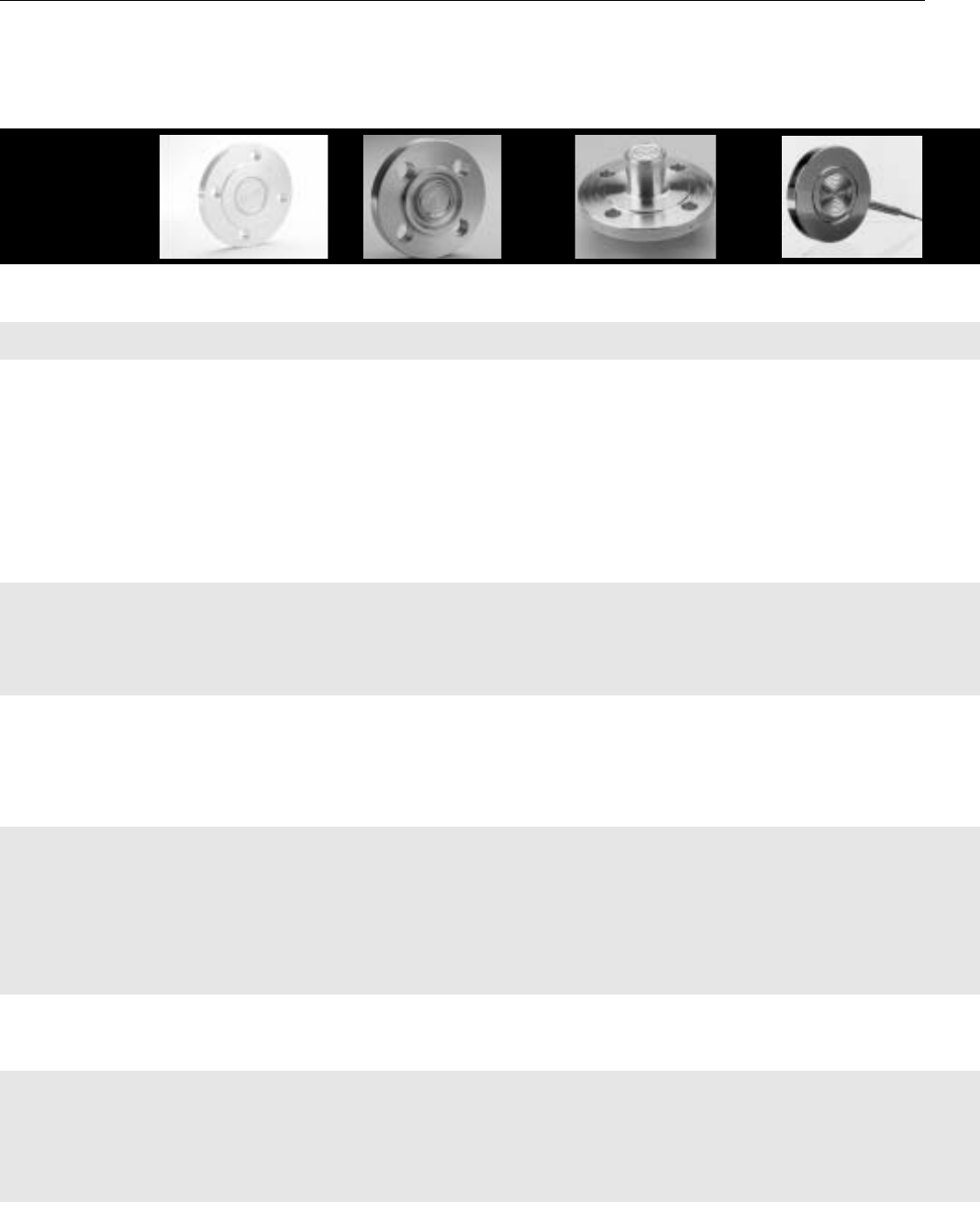

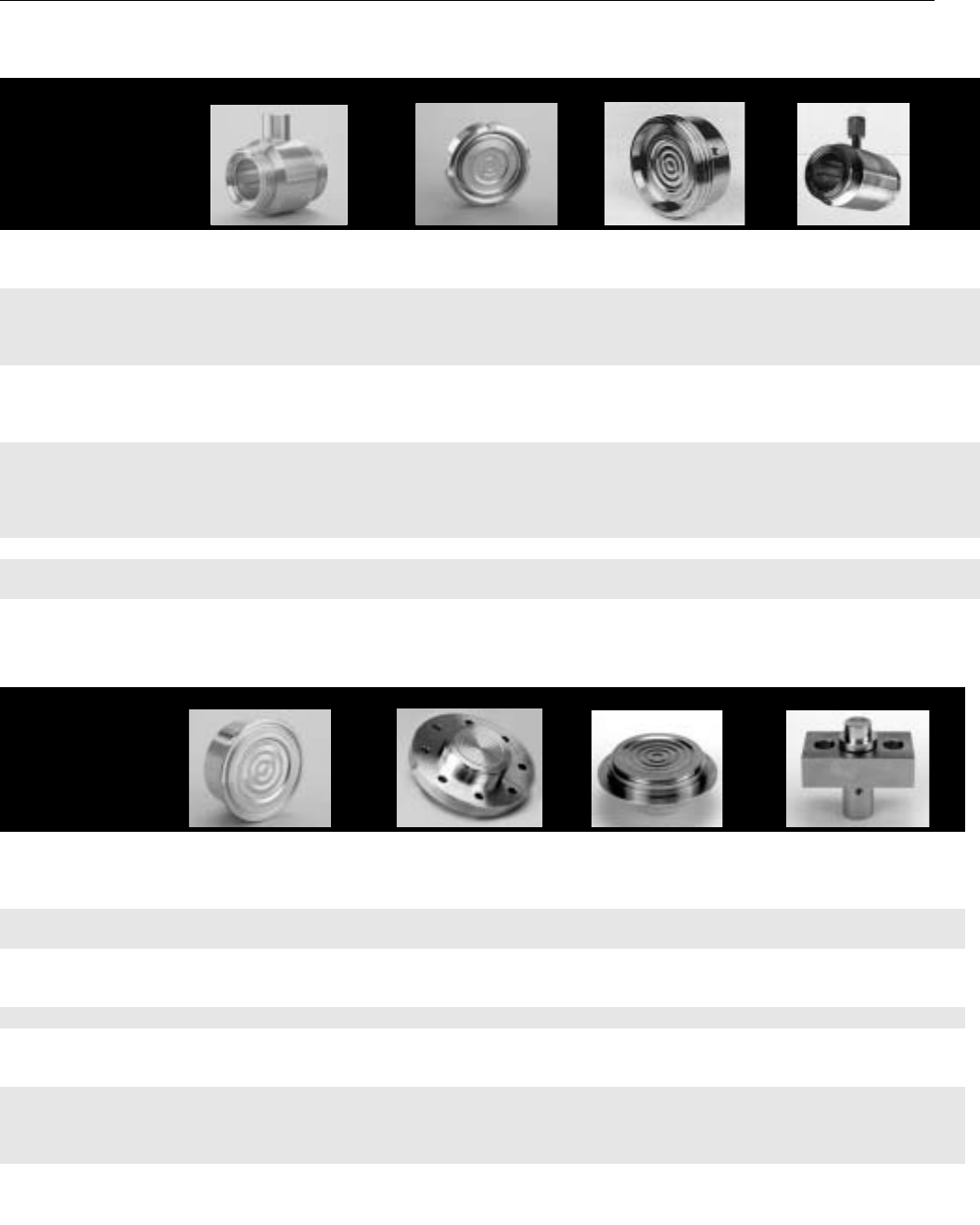

General Purpose Seals Selection Overview
Diaphragm Seal Selection Guides
Diaphragm
Seal
Selection
Guide

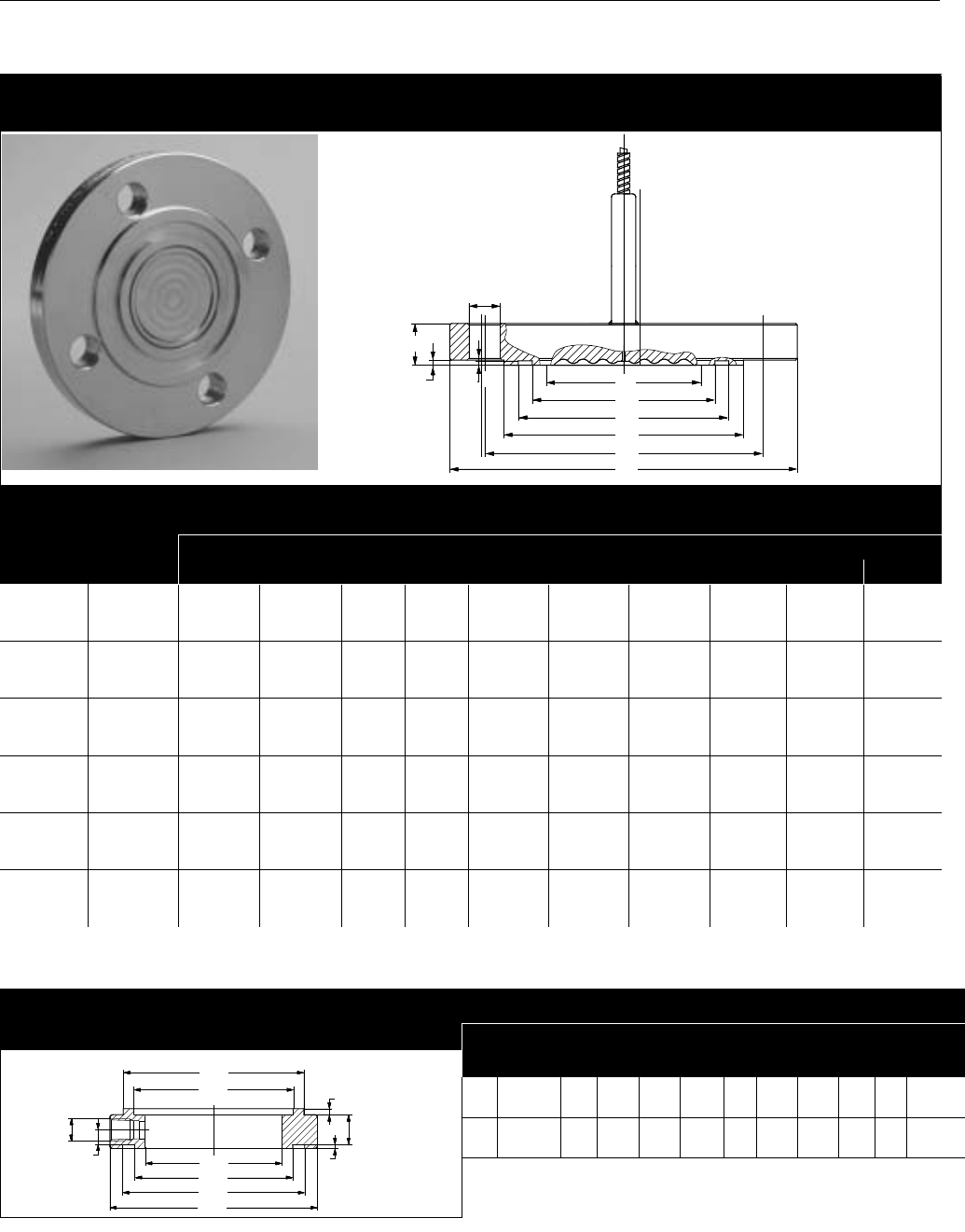

Seal Type Flush Flanged Type
(FFS, FUS)
(see page Pressure-294)
RTJ Flush Flanged Type (FCS)
(see page Pressure-301)

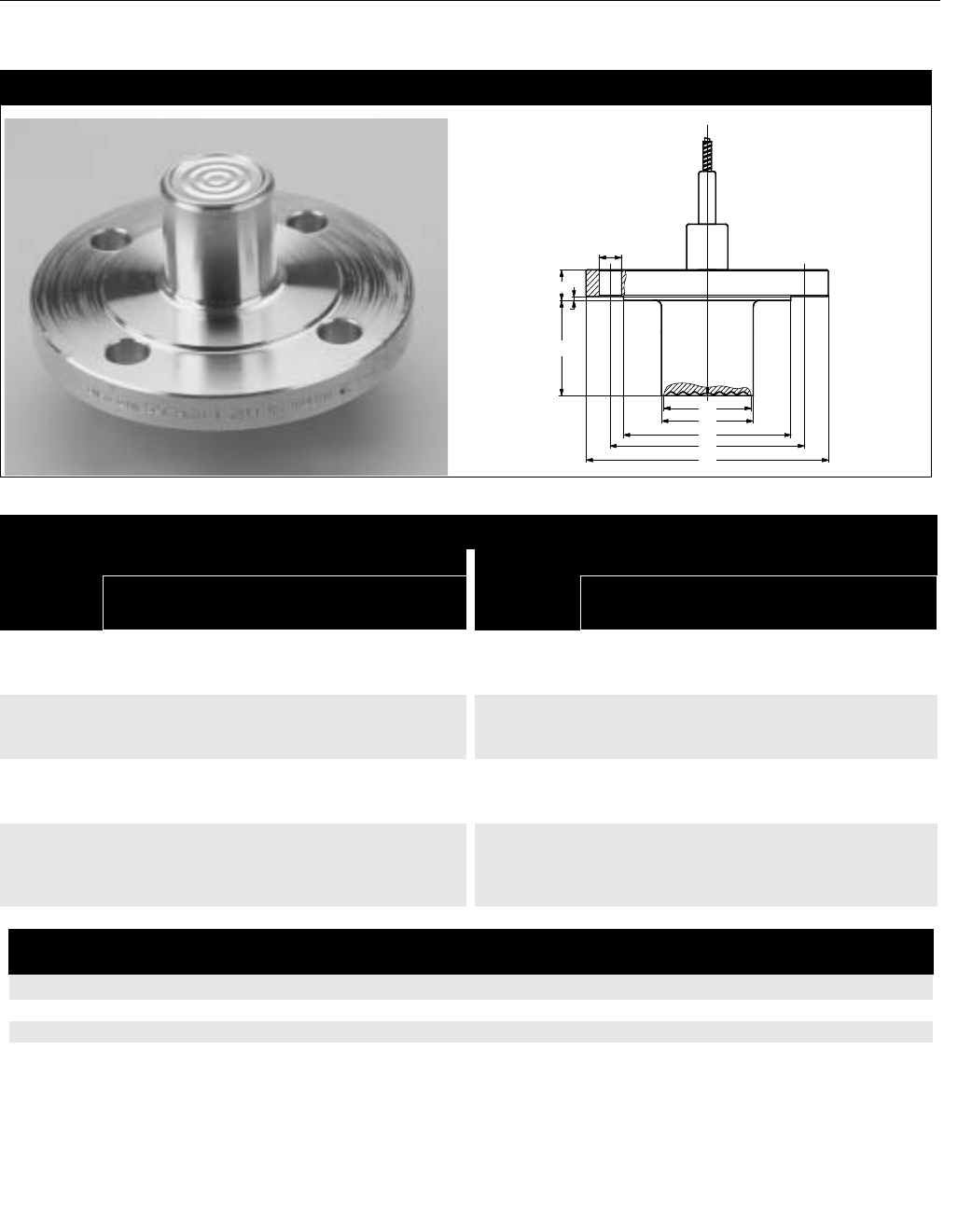

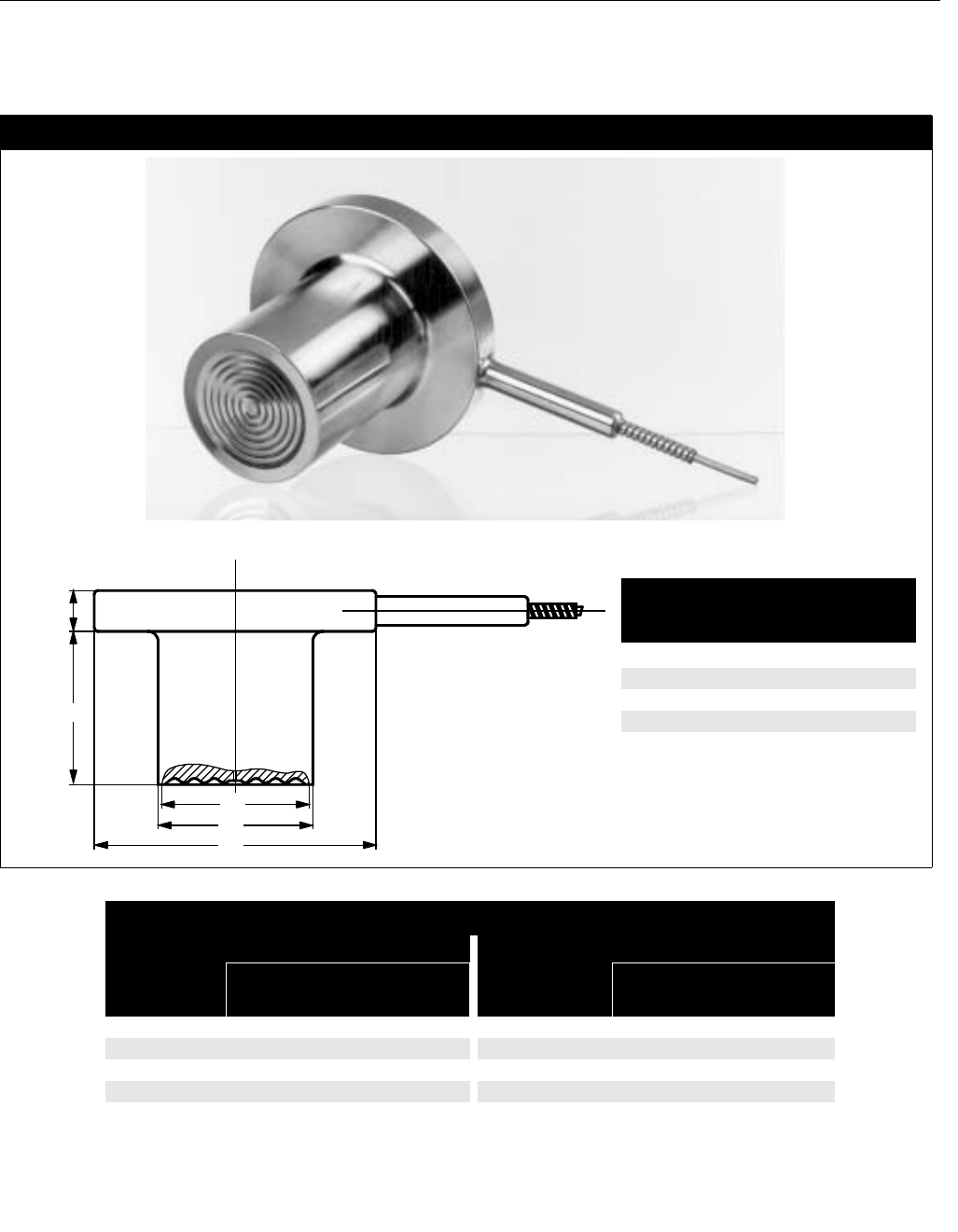

Extended Flanged Type
(EES, EFS)
(see page Pressure-303)
Flush Pancake (Cell) Type
(PFS)
(see page Pressure-308)
Usual Application
and Type of Service
General Applications High Pressure Applications Insulated Processes General Applications
Gasket Surface Type DIN 2526 Form D
DIN 2526 Form E
ANSI/ASME B16.5
Serrated Finish
ANSI/ASME B16.5
Smooth Finish
DIN 2512 Form F
DIN 2512 Form N
DIN 2513 Form V-13
DIN 2513 Form R-13
DIN 2514 Form V-14
DIN 2514 Form R-14
RTJ DIN 2526 Form D
DIN 2526 Form E
ANSI/ASME B16.5
Serrated Finish
ANSI/ASME B16.5
Smooth Finish
DIN 2526 Form D
DIN 2526 Form E
ANSI/ASME B16.5
Serrated Finish
ANSI/ASME B16.5
Smooth Finish
Process
Connection Size
DN 25 1 in.
DN 40 11/2 in.
DN 50 2 in.
DN 80 3 in.
DN 100 4 in.
DN 125 5 in.
1in.
11/2 in.
2 in.
3 in.
4 in.
5 in.
DN 50 2 in.
DN 80 3 in
DN 100 4 in.
DN 125 5 in.
DN 25 1 in.
DN 40 11/2 in.
DN 50 2 in.
DN 80 3 in.
DN 100 4 in.
DN 125 5 in.
Flange
Pressure Rating
PN 16 Class 150
PN 40 Class 300
PN 64 Class 400
PN 100 Class 600
PN 160 Class 900
PN 250 Class 1500
PN 400 Class 2500
Class 150
Class 300
Class 400
Class 600
Class 900
Class 1500
Class 2500
PN 16 Class 150
PN 40 Class 300
PN 64 Class 400
PN 100 Class 600
PN 160 Class 900
PN 250 Class 1500
PN 400 Class 2500
PN 16-400
Class 150–2500
Diaphragm and
Wetted Parts
Material/ Upper
Housing Material
316LSST
Monel® 400®
316Ti SST (WNr 1.4571)
Titanium Gr2
Hastelloy® C-276®,B-2®,C-22
Zirconium
Inconel 600®
Tantalum
Nickel 201
316LSST
316Ti SST (WNr 1.4571)
Hastelloy C-276
Duplex 1.4462
316LSST
Nickel 201
316Ti SST (WNr 1.4571)
Monel 400
Hastelloy C-22, C-276, B-2
Inconel 600
Tantalum
Titanium Gr2
316LSST
Nickel 201
316Ti SST (WNr 1.4571)
Titanium Gr2
Hastelloy C-276, B-2, C-22
Monel 400
Zirconium
Tantalum
Inconel 600
Flushing Ring
Material
316L SST
316Ti SST (WNr 1.4571)
Hastelloy C-276
Duplex 1.4462
316L SST
316Ti SST (WNr 1.4571)
Hastelloy C-276
Duplex 1.4462
Not Applicable 316L SST
316Ti SST (WNr 1.4571)
Hastelloy C-276
Duplex 1.4462
Options Direct Mount Connection
Material Traceability
Gold-coated 5 m
Teflon®-coated Diaphragm
Cold Temperature Fill
50 m Diaphragm Thickness
150 m Diaphragm Thickness
Direct Mount Connection
Material Traceability
Teflon-coated Diaphragm
Cold Temperature Fill
50 m Diaphragm Thickness
150 m Diaphragm Thickness
Direct Mount Connection
Material Traceability
Custom Extension Lengths
Cold Temperature Fill
50 m Diaphragm Thickness
150m Diaphragm Thickness
Material Traceability
Cold Temperature Fill
Gold-coated 5 m
Teflon-coated Diaphragm
50 m Diaphragm Thickness
150m Diaphragm Thickness
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-287
Model 1199
Diaphragm Seal
Selection Guide
Seal Type Extended Pancake (Cell) Type
(DES, DFS)
(see page Pressure-311)
Internal Flanged Type
(RFS)
(see page Pressure-316)
Internal Threaded Type
(RTS)
(see page Pressure-319)
Usual Application and
Type of Service
Insulated Processes Small Process Connections Small Process Connections
High Pressures
Gasket Surface Type DIN 2526 Form D
DIN 2526 Form E
ANSI/ASME B16.5 Serrated Finish
ANSI/ASME B16.5 Smooth Finish
DIN 2512 Form N
DIN 2512 Form F
DIN 2513 Form V-13
DI 2513 Form R-13
DIN 2514 Form V-14
DIN 2514 Form R-14
DIN 2526 Form D
DIN 2526 Form E
ANSI/ASME B16.5 Serrated Finish
ANSI/ASME B16.5 Smooth Finish
Not Applicable
Process Connection
Size
DN 50 2 in.
DN 80 3 in.
DN 100 4 in.
DN 125 5 in.
DN 15 1 in.
DN 20 1/2 in.
DN 25 3/4 in.
DN 32 11/4 in.
DN 40 11/2 in.
Parallel Thread: G1/2A DIN 16288
Tapered Thread: R1/2A per ISO 7/1
1/2–14 NPT
1–11.5 NPT
Flange Pressure Rating PN 16–400
Class 150–2000
PN 40 Class 150
PN 64 Class 300
PN 100 Class 600
PN 160
PN 40
PN 100
PN 250
Diaphragm and Wetted
Parts Material
316LSST
Nickel 201
316Ti SST (WNr 1.4571)
Monel 400
Inconel 600
Tantalum
Titanium Gr2
Hastelloy C-276, C-22, B-2
316LSST
Nickel 201
316Ti SST (WNr 1.4571)
Monel 400
Inconel 600
Tantalum
Hastelloy C-276, C-22, B-2
Titanium Gr 2
316LSST
Monel 400
316Ti SST (WNr 1.4571)
Tantalum
Inconel 600
Nickel 201
Hastelloy C-276, C-22, B-2
Titanium Gr 2
Lower Housing (Flushing)
Material
Not Applicable Hastelloy C-276
316L SST
316Ti SST (WNr 1.4571)
Hastelloy C-276
316L SST
316Ti SST (WNr 1.4571)
Options Material Traceability
Teflon-coated Diaphragm
Cold Temperature Fill
50 m Diaphragm Thickness
150 m Diaphragm Thickness
Custom Extension Lengths
Direct Mount Connection
Material Traceability
Gold-coated 5 m
Teflon-coated Diaphragm
Cold Temperature Fill
50 m Diaphragm Thickness
150 m Diaphragm Thickness
Teflon-lined Lower Housing
Direct Mount Connection
Material Traceability
Teflon-coated Diaphragm
Cold Temperature Fill
50 m Diaphragm Thickness
150 m Diaphragm Thickness
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-288
Diaphragm Seal
Selection Guide

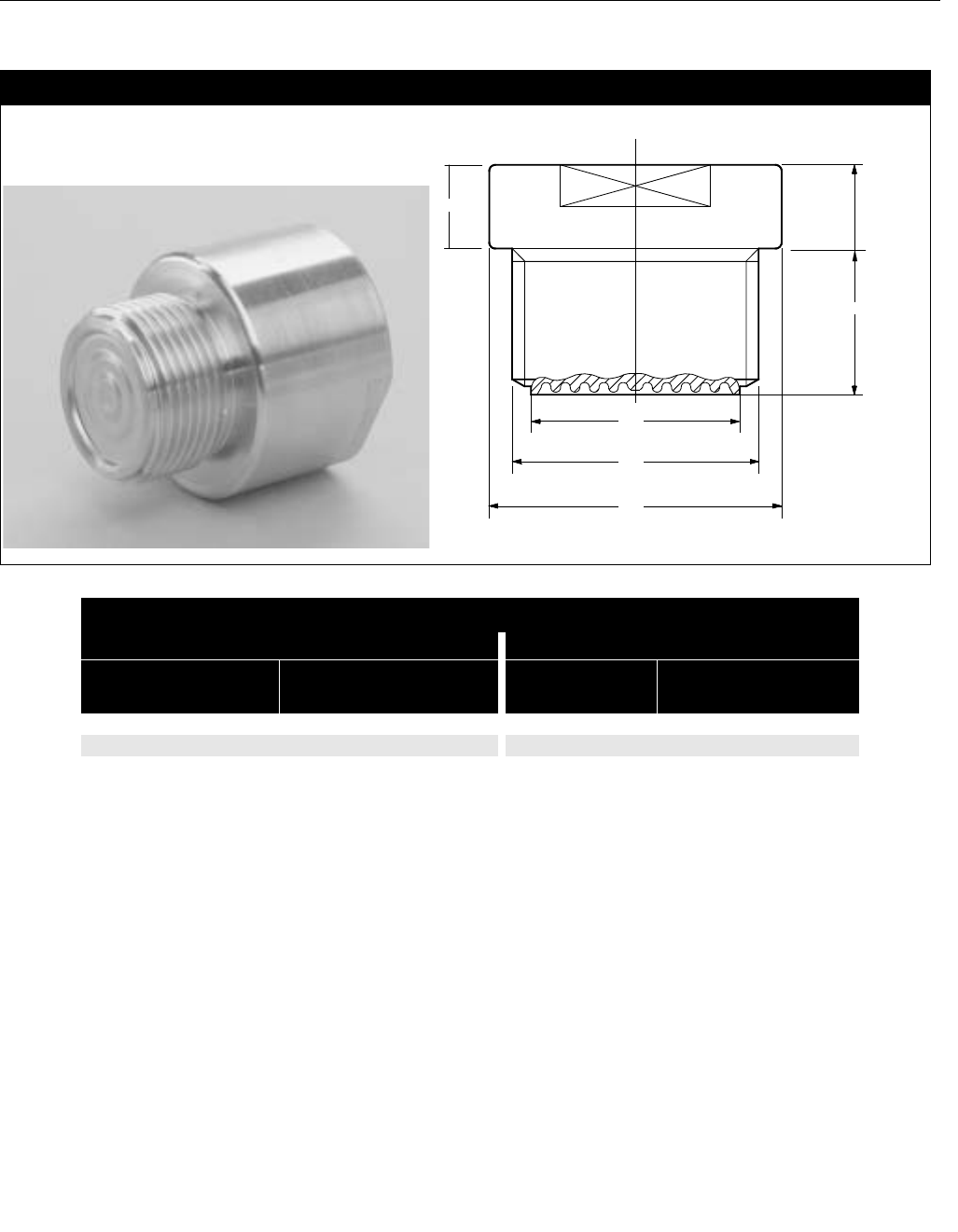

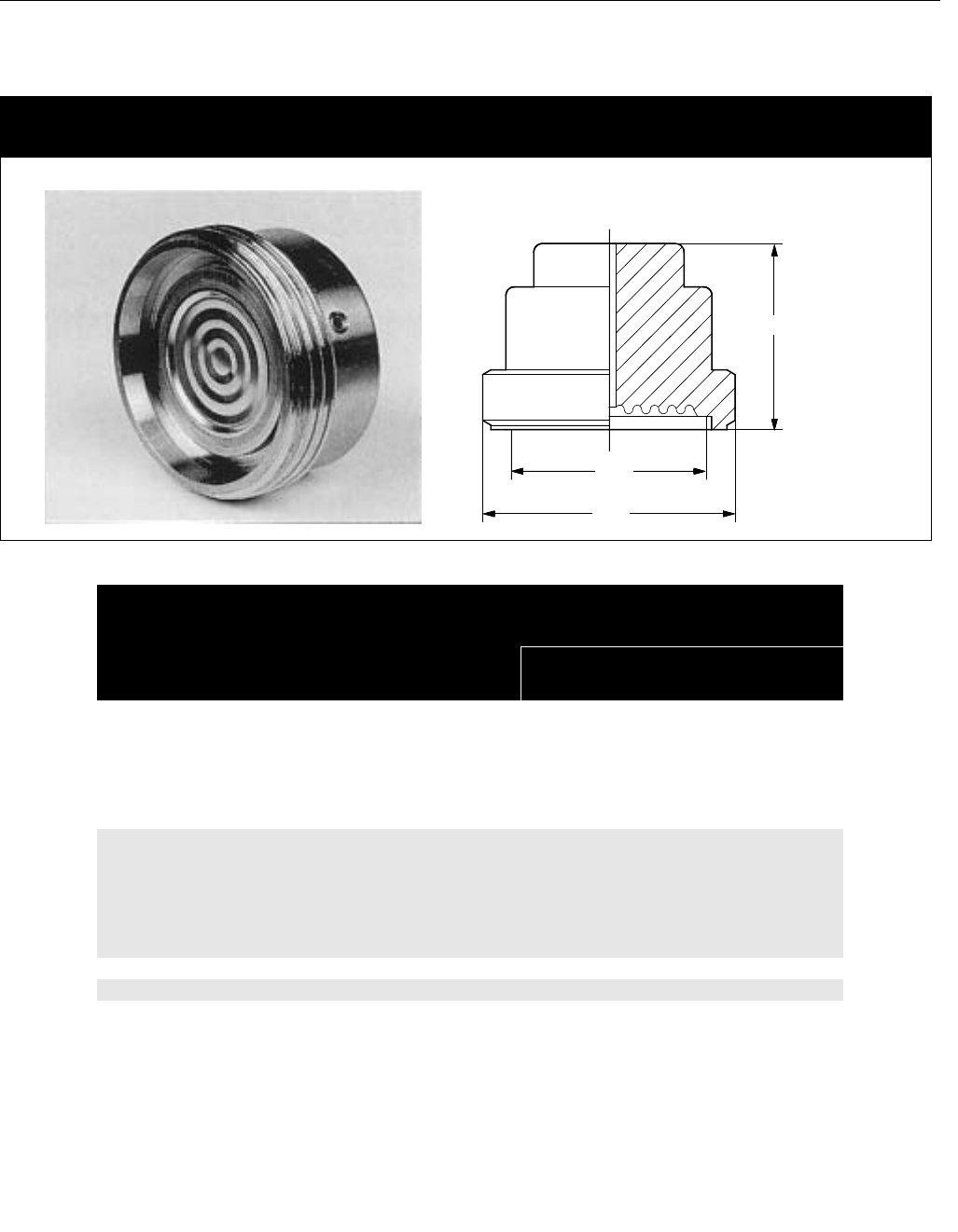

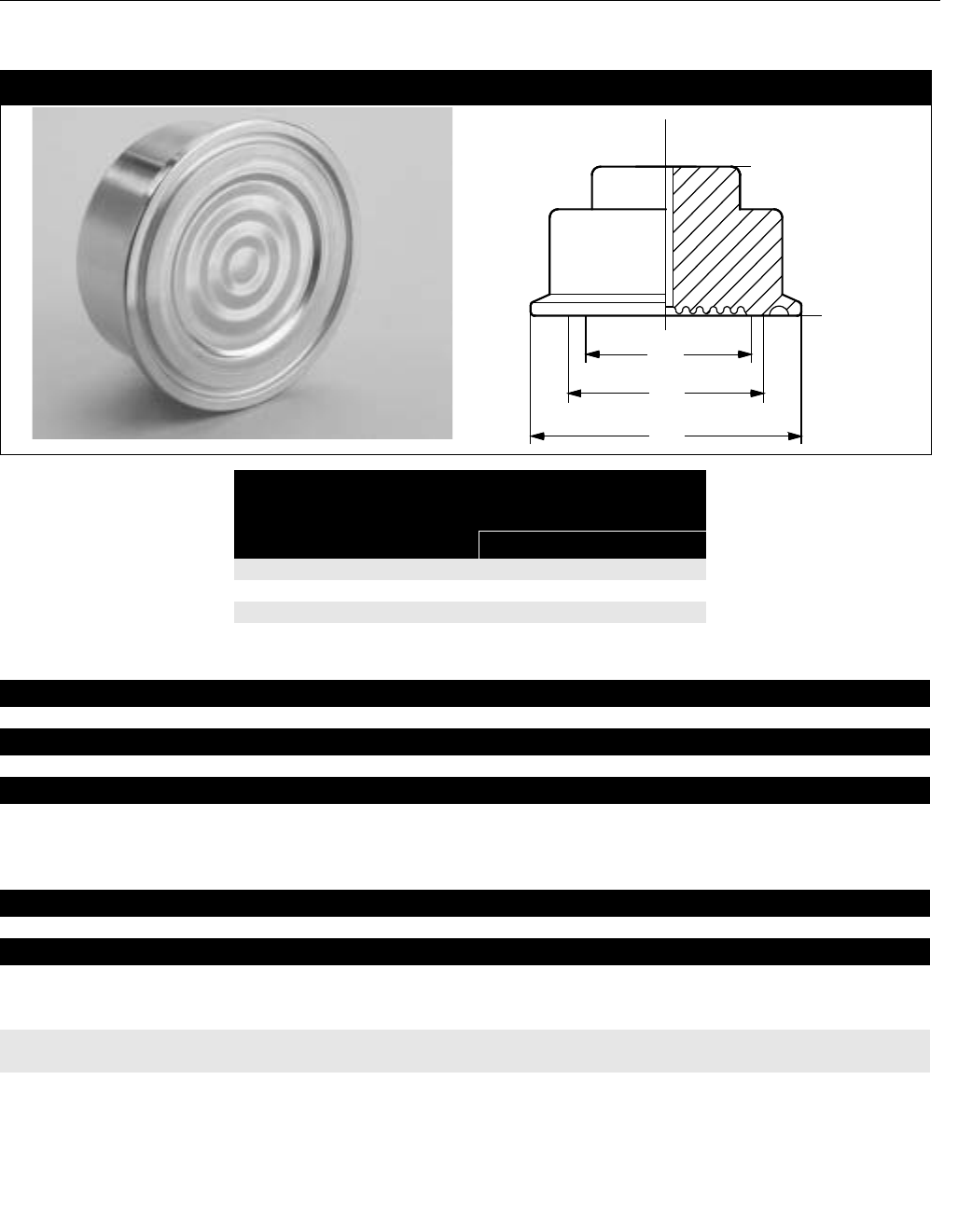

Seal Type Threaded Flush Type
(HTS)
(see page Pressure-322)

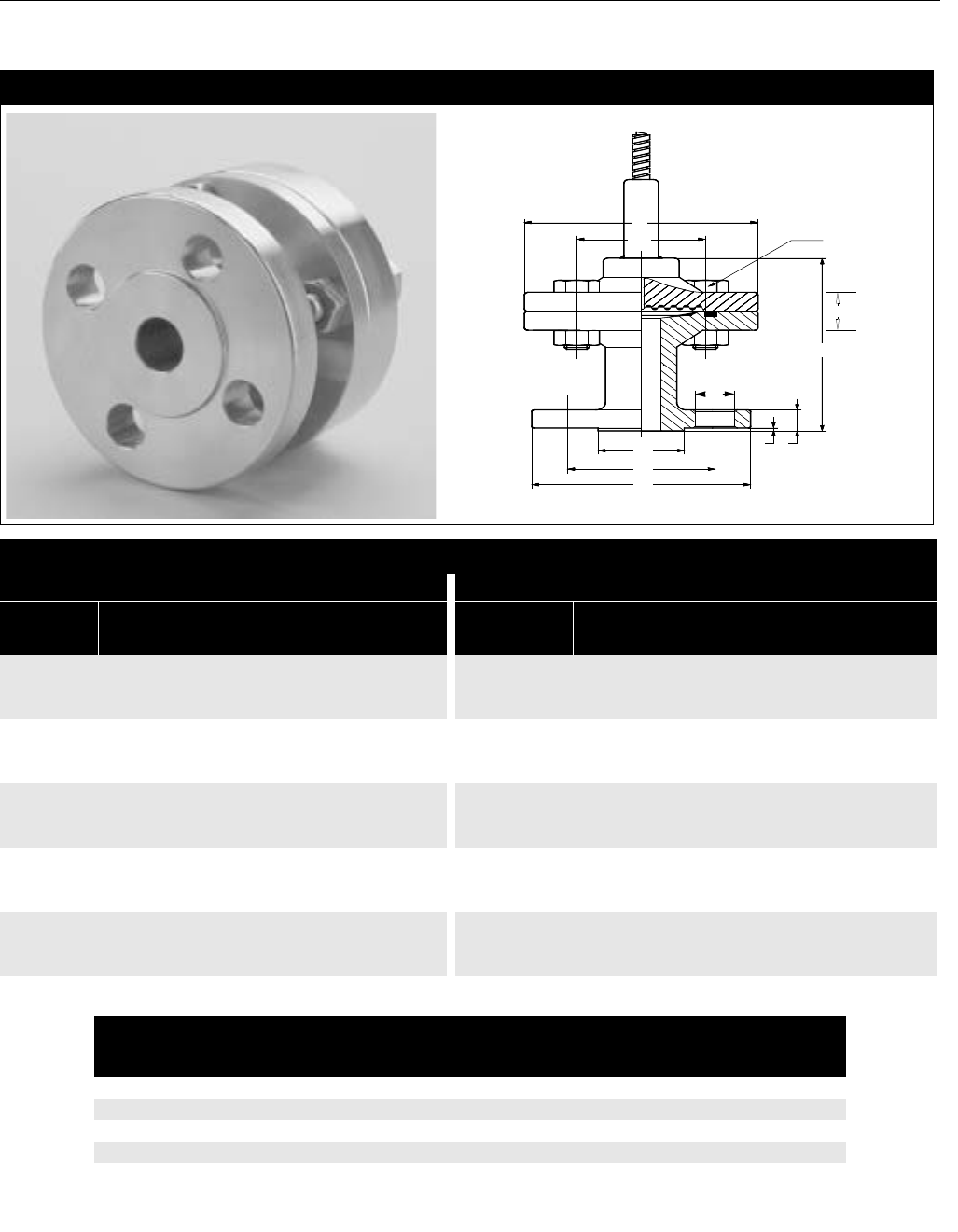

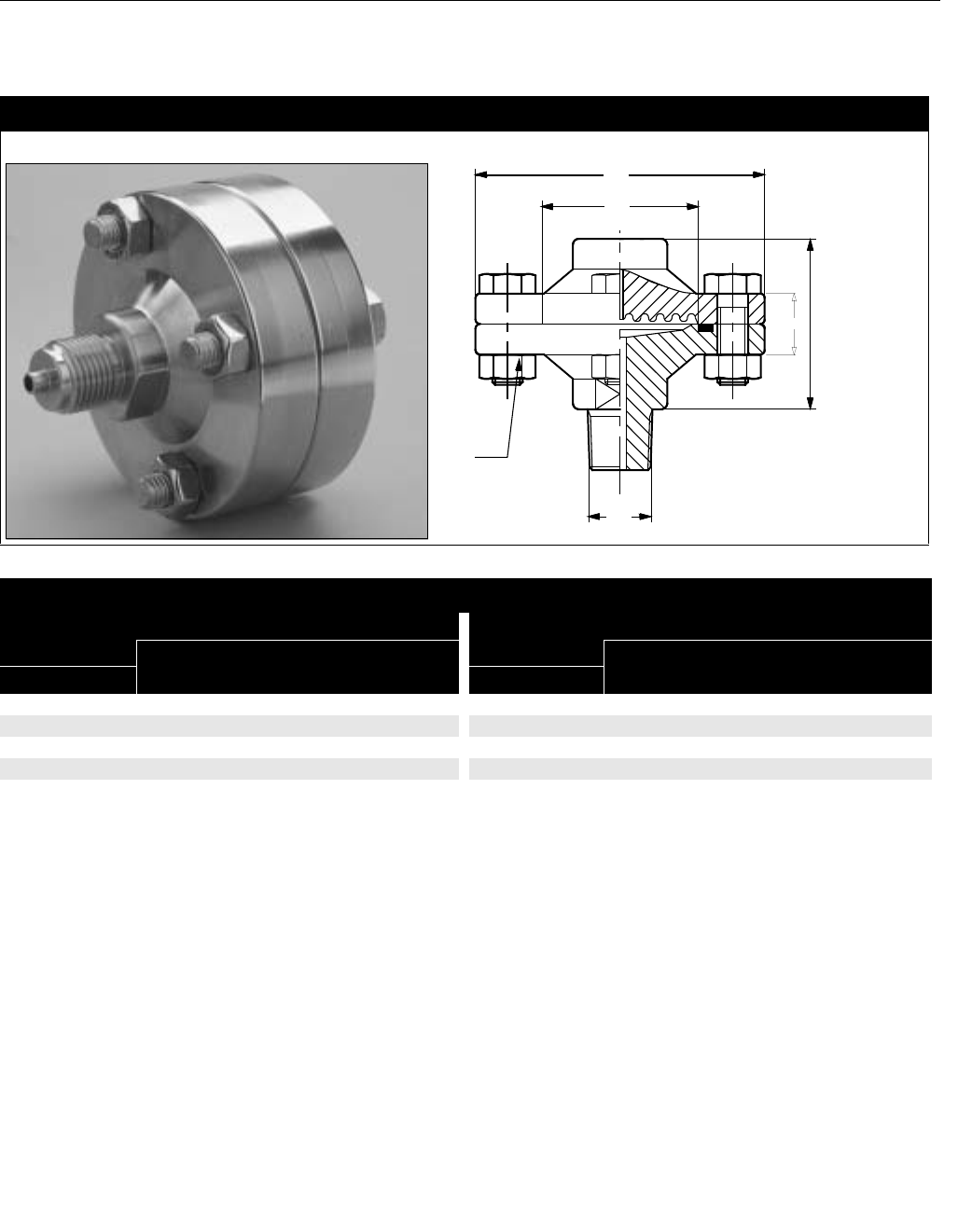

In-Line Cell Type
(TFS)
(see page Pressure-324)
Extruder Flanged Type
(JES)
(see page Pressure-326)
Usual Application and Type of
Service
High Process Pressures
Chemical, Food, Paint, Pulp and
Paper Industries
Eliminate Process Dead Ends
High Viscosity Fluids
Plastic Extrusion
High Temperature
Gasket Surface Type Dependent on Thread Type DIN 2526 Form D
DIN 2526 Form E
ANSI/ASME B16.5 Smooth
Finish
Extrusion Clamping Flange
Process Connection Size G1 1-11.5 NPT
G11/211/2-11.5 NPT
G2 2-11.5 NPT
DN 25 1 in.
DN 40 11/2 in.
DN 50 2 in.
DN 80 3 in.
DN 100 4 in.
Special for Extruders
Pressure Rating 600 Bar PN 16-400
Class 150-2500
400 bar
Diaphragm and Wetted Parts
Material/ Upper Housing
Material
316L SST
316Ti SST (WNr 1.4571)
316L SST
316Ti SST (WNr 1.4571)
316L SST
316Ti SST (WNr 1.4571)
Options Material Traceability
Cold Temperature Fill
50 m Diaphragm Thickness
150 m Diaphragm Thickness
Direct Mount
Material Traceability
Integral Flange Construction
Direct Mount to Model 3051T or
Model 2088
Material Traceability
150 m Diaphragm Thickness
Custom Extension Lengths
Jock Screws
Direct Mount
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-289
Model 1199
Sanitary Seal Selection Overview
Sanitary Seal
Selection Guide

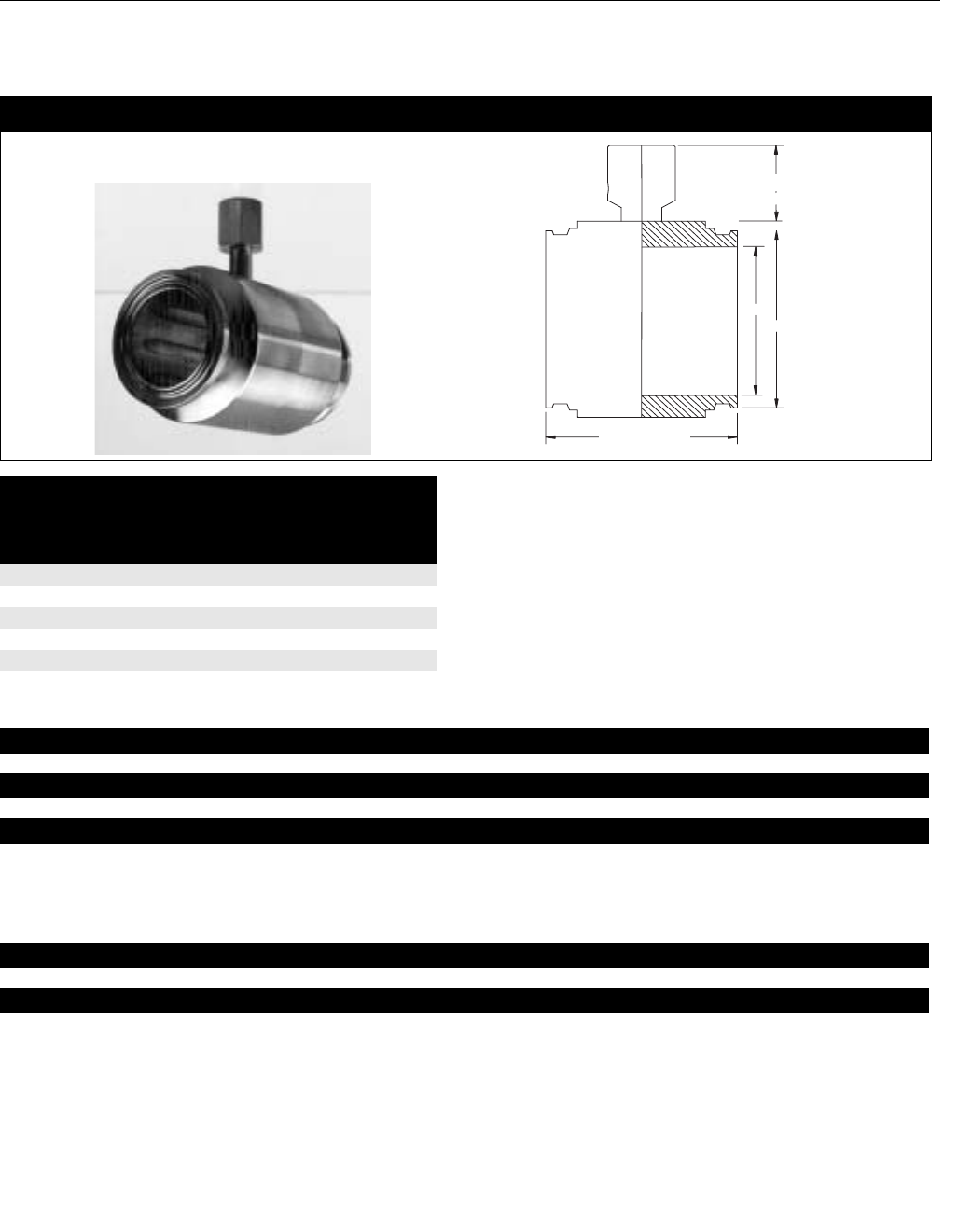

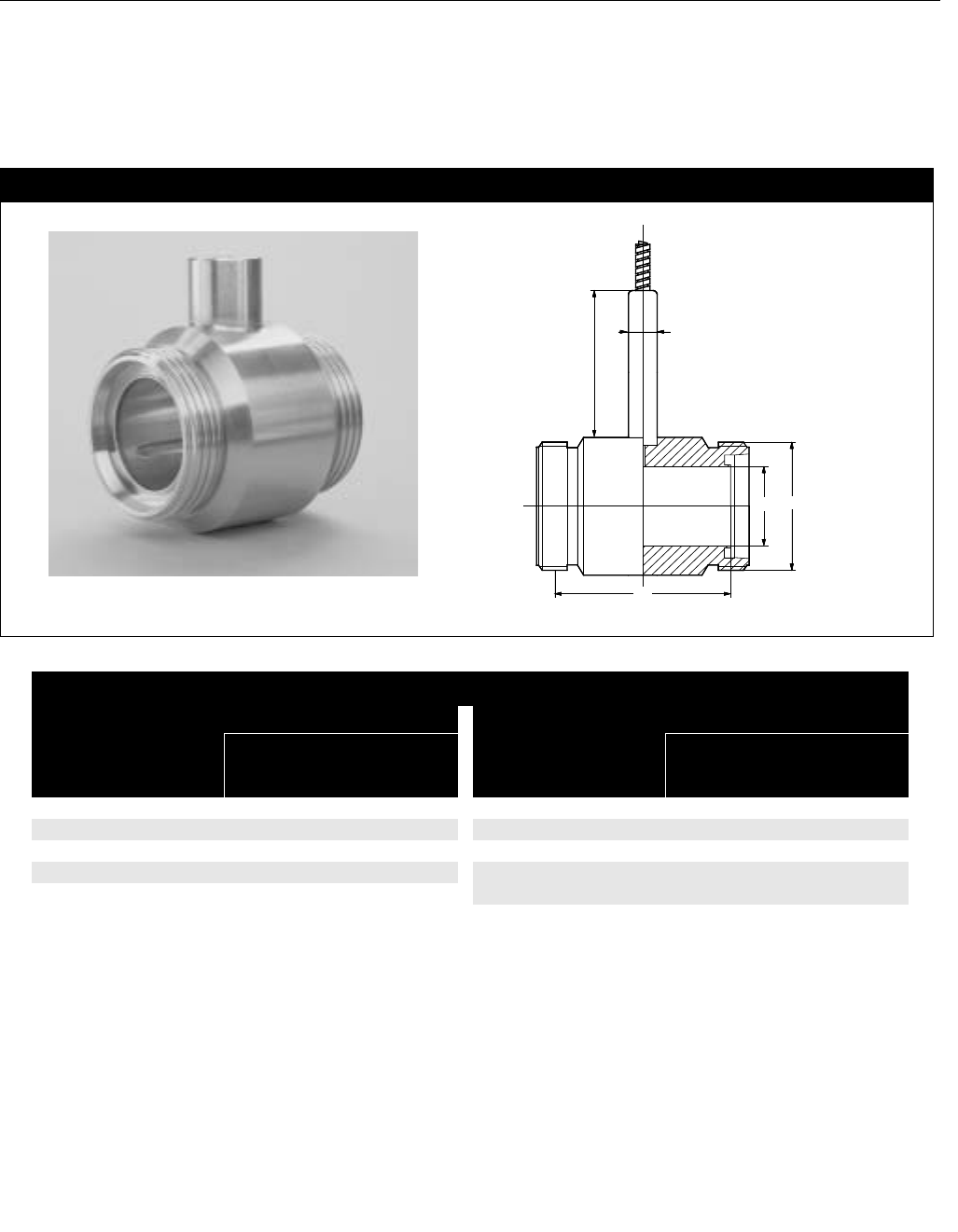

Seal Type In-Line Sanitary Type
(VLS, VMS)
(see page Pressure-328)

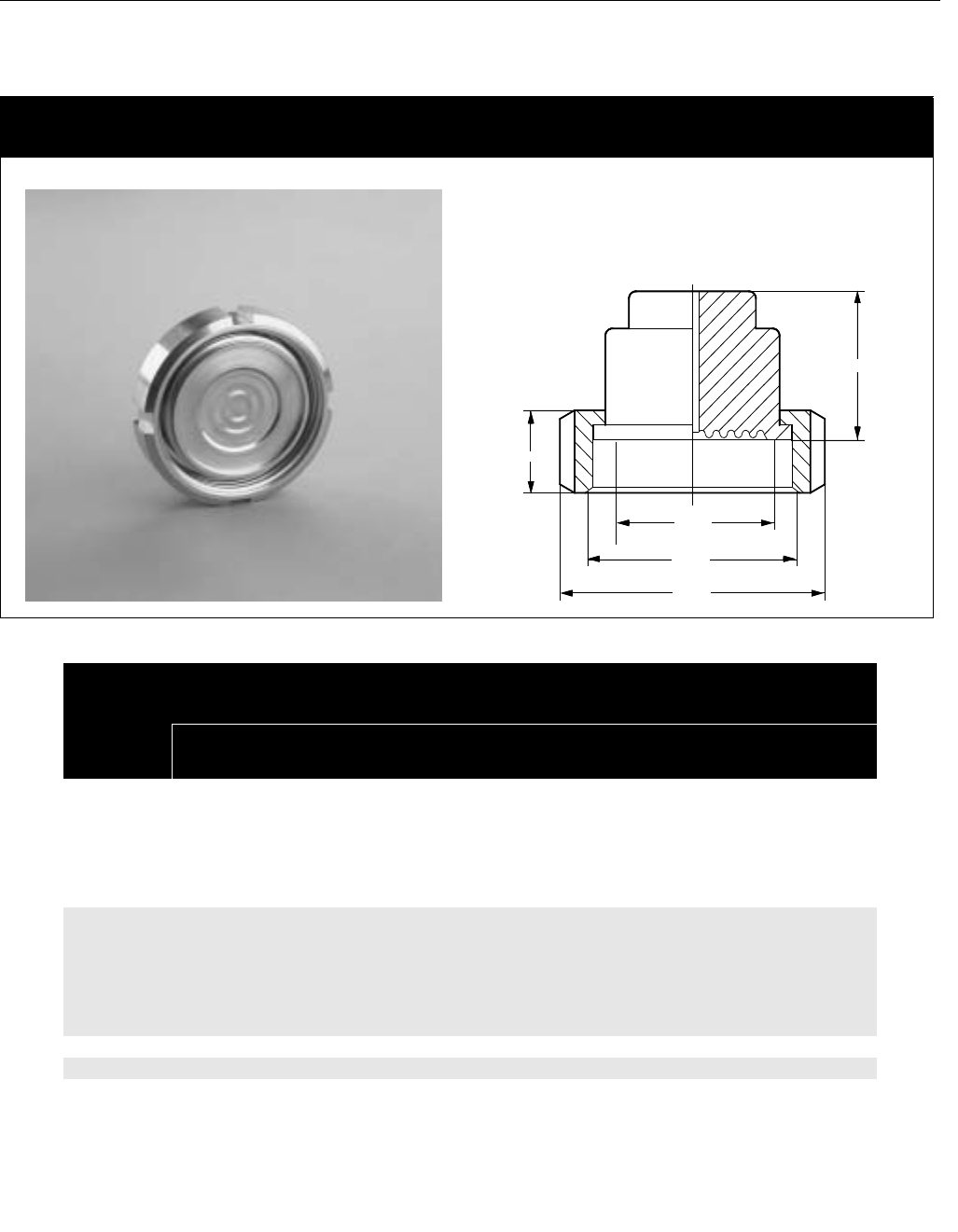

Dairy Type
(SLS, SMS, SFS, SRS)
(see page Pressure-330)
Dairy Type
(MLS,MMS, MFS, MRS)
(see page Pressure-332)
In-Line Sanitary Tri-Clamp
(VCS)
(see page Pressure-334)
Usual Application and
Type of Service
Food and Pharmaceutical
Industries
High Viscosity Fluids
Eliminate Process Dead Ends
Sanitary and Food
Industry
Sanitary and Food
Industry
Food and Pharmaceutical
Industries
High Viscosity Fluids
Eliminate Process Dead Ends
Connection Type DIN 11851 Male
SMS Male
DIN 11851 Female
SMS Female
IDF Female
RJT Female
DIN 11851 Male
SMS Male
IDF Male
RJT Male
Tri-Clamp
Process Connection Size DN 25 1 in.
DN 40 11/2 in.
DN 50 2 in.
DN 80 3 in.
DN 100 4 in.
DN 25 DN 65
DN 32 DN 80
DN 40 DN 100
DN 50
DN 25 DN 65
DN 32 DN 80
DN 40 DN 100
DN 50
DN 25 1 in.
DN 40 11/2 in.
DN 50 2 in.
DN 80 3 in.
DN 100 4 in.
Pressure Rating 40 bar 40 Bar 40 Bar 40 Bar
Diaphragm Material 316L SST
316Ti SST (WNr 1.4571)
316L SST
316Ti SST (WNr 1.4571)
316L SST
316Ti SST (WNr 1.4571)
316L SST
316Ti SST (WNr 1.4571)
Options Electro-polished Diaphragm
Material Traceability
Electro-polished
Diaphragm
Material Traceability
Electro-polished
Diaphragm
Material Traceability
Material Traceability
Electro-polished Diaphragm
Sanitary
Seal
Selection
Guide
Seal Type Sanitary Tri-Clamp Type
(SCS)
(see page Pressure-335)
Sanitary Tank Spud Type
(EES)
(see page Pressure-336)
Tuchenhagen
Varivent Compatible
Connection
(see page Pressure-337)
Homogenizer Clamping
Flange (CHS)
(see page Pressure-338)
Usual Application
and Type of Service
Sanitary and Food Industry Sanitary and Food
Industry
Sanitary and Food
Industry
Homogenizers
Process
Connection Size
Tri-Clamp Spud-Ring with Ethylene-
Propylene O-ring
Standard
Tuchenhagen Varivent Special for Homogenizers
Pressure Rating 40 bar 40 bar 40 bar 600 bar
Diaphragm Material 316L SST
316Ti SST (WNr 1.4571)
316L SST
316Ti SST (WNr 1.4571)
Hastelloy C-276
316L SST
316Ti SST (WNr 1.4571)
316L SST
Options Electro-polished Diaphragm
Material Traceability
Counterpiece, Gasket and Clamp
Electro-polished
Diaphragm
Material Traceability
Counterpiece and Gasket
Electro-polished
Diaphragm
Material Traceability
Counterpiece and Gasket
Material Traceability
150 m Diaphragm Thickness
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-290
Ordering Information
HOW TO ORDER A ROSEMOUNT
SEAL/TRANSMITTER SYSTEM
The following steps outline the transmitter/seal
system ordering process. Please review the entire
procedure before specifying a transmitter/seal
system model number.
Step 1. Select a Pressure Transmitter
Model Number
Refer to the Pressure Transmitters product data
sheets below to select a transmitter model number.
For additional transmitter information, see the
following product data sheets:
Model 3051S Series: PDS 00813-0100-4801
Model 3051C and 3051T: PDS 00813-0100-4001
Model 2088: PDS 00813-0100-4690
Model 1151: PDS 00813-0100-4360
Step 2. Select a Seal Assembly Model
Number
1. Use Table 1 on page 282 or Table 8 on
page 293 to specify a Capillary or Direct Mount
Fill Fluid code (nine characters).
Example: Using: “1199MD256...” is typical of the
first half of a seal assembly model number.
• Include a code from each section of the table.
2. Use the Seal tables beginning on
page Pressure-291 to specify the Diaphragm Seal
Configuration.
Example: Using Table 9 on page 295(FFS
Flanged Type Seals): “...DFFSJGLA00” is
typical of the second half of a seal assembly
model number.
• Include a code from each section of the table.
• Include as many options as desired from the
Options (Multiple Selections) section.
Example: The customer wants to add a
vacuum resistant gasket and material
traceability per DIN EN10204 3.1.B to his
order. The model string becomes
DFFSJGLA00 AZ.
3. Combine the two sets of model numbers to
create one model number string. This completes
a valid seal assembly model number.
Example: Combine the model strings in steps A and
B above for a complete seal assembly model number
string: “1199MD256 DFFSJGLA00 AZ.”

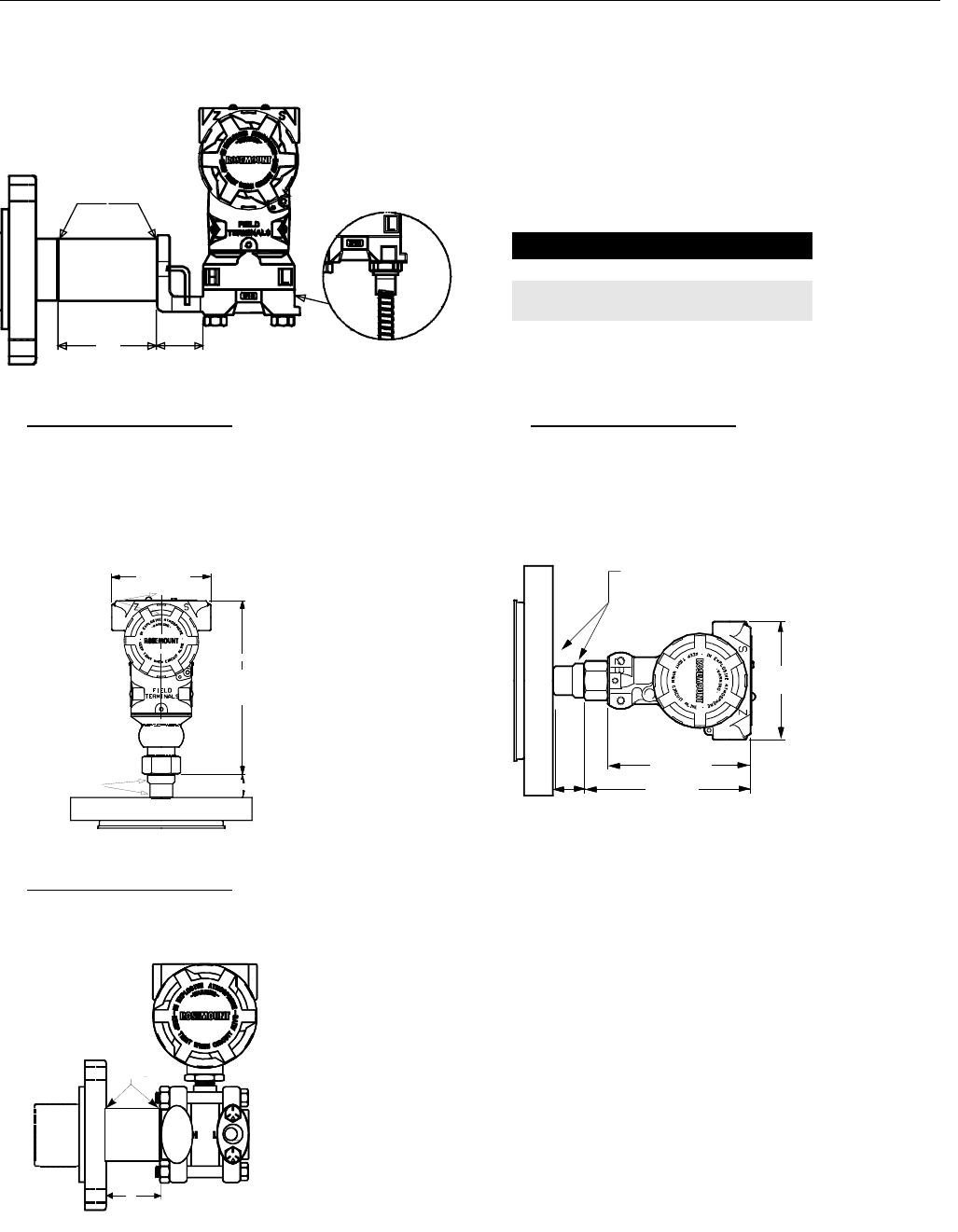

NOTE FOR SPECIAL CONFIGURATIONS
It is possible to order two different seal assemblies
for one transmitter. Use the seal location code to
specify the attachment location for both the high and
low side seals.
For example, suppose a direct mount seal is required
on the high pressure side of the Model 3051
All-Welded System and a seal with a 3 m capillary is
required for the low pressure side. In this example,
the order may look like the following:
CAUTION
While it is possible to combine different types of
seals, fill fluid and capillary lengths, be aware that
performance may be more affected by some
combinations than others. Consult with your local
Rosemount representative for assistance in seal
selection.
Quantity Model Number
1 3051CD4A22A1AS9 (From Step 1)
11199WDAD6 DFFSJGLA00 (From Step 2)
1 1199MD356 DFFSJGLA00 (From Step 2)
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-291
Model 1199
Diaphragm Seal Connections
(NOTE: Use Table 7 to order Capillary type connections. Use Table 8 to order Direct Mount type connections.)
Capillary/Fill Fluid
TABLE 7. Capillary/Fill Fluid Ordering Information(1)
Model Type
1199 Diaphragm Seal
Code Seal Location
Capillary
Connections Transmitter Type
PSeal on High Pressure Side of Transmitter All welded system Models 3051S2T, 3051T, 2088
R Seal on High Pressure Side of Transmitter All welded system Model 3051S2C
(option code B11)
S Seal on Low Pressure Side of Transmitter
(use with Model 1199T)
All welded system Model 3051S2C
(option code B12)
T Seal on High Pressure Side of Transmitter
(requires Model 1199S on low side)
All welded system Model 3051S2C
(option code B12)
DSame Seal on Both High and Low Pressure Sides of Transmitter Welded Differential Transmitters
WSeal on High Pressure Side of Transmitter Welded All Transmitters
MSeal on Low Pressure Side of Transmitter Welded Differential Transmitters
Code Fill Fluid
Temperature Limits
Pabs < 1 bara Pabs > 1 bara Specific Gravity
D
C(2)
A
H
N
4
General Purpose Silicone Oil
D.C. 704
Low Temperature Silicone Oil
Inert
Sanitary Oil
Vegetable, Sanitary Oil
–45 to 100 °C
0 to 200 °C
N/A
–45 to 80 °C
–15 to 120 °C
–10 to 120 °C
–45 to 205 °C
0 to 315 °C
–75 to 150 °C
–45 to 175 °C
–15 to 205 °C
–10 to 250 °C
0,93
1,07
0,85
1,85
0,90
0,91
Code Capillary Inside Diameter (mm) Material
21 mm SST Armored Sleeving and Support Tubes
32 mm SST Armored Sleeving and Support Tubes
51 mm SST Armored Polyethylene Sleeving and Support Tubes
62 mm SST Armored Polyethylene Sleeving and Support Tubes
Code Capillary Connection Length
51 0,5 m
52 1,0 m
53 1,5 m
54 2,0 m
55 2,5 m
56 3,0 m
57 3,5 m
58 4,0 m
59 5,0 m
60 6,0 m
61 7,0 m
62 8,0 m
63 9,0 m
64 10,0 m
65 11,0 m
66 12,0 m
67 13,0 m
68 14,0 m
69 15,0 m
Table continued on next page
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-292
Code Capillary Connection Length
70(3) 16 m
71(3) 17 m
72(3) 18 m
73(3) 19 m
74(3) 20 m
75(3) 21 m
76(3) 22 m
77(3) 23 m
78(3) 24 m
79(3) 25 m
80(3) 26 m
81(3) 27 m
82(3) 28 m
83(3) 29 m
84(3) 30 m
(1) Shaded Areas indicate special orders. Consult your Rosemount representative for configuration availability, performance effect, and lead time.
(2) Not available with seal connection code M.
(3) Consult your Rosemount representative to perform performance effect calculation.
TABLE 7. Capillary/Fill Fluid Ordering Information(1)
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-293
Model 1199
Direct Mount Connection Type/Fill Fluid
TABLE 8. Direct Mount/Fill Fluid Ordering Information(1)
Model Type
1199 Diaphragm Seal
Code Seal Location Connection Type Transmitter Type
W Seal on High Pressure Side of Transmitter Welded All Transmitters
P Seal on High Pressure Side of Transmitter All welded system Models 3051T, 2088, and 3051S2T
R Seal on High Pressure Side of Transmitter All welded system Model 3051S2C (option code B11)
T Seal on High Pressure Side of Transmitter All welded system Model 3051S2C (option code B12)
Code Fill Fluid
Temperature Limits(2)
Pabs < 1 bara Pabs > 1 bara Specific Gravity
DGeneral Purpose Silicone Oil –45 to 100 °C –45 to 205 °C 0,93
CHigh Temperature Silicone Oil 0 to 200 °C 0 to 260 °C 1,07
ALow Temperature Silicone Oil N/A –75 to 150 °C 0,85
HInert –45 to 80 °C –45 to 175 °C 1,85
NSanitary Oil –15 to 120 °C –15 to 205 °C 0,90
4Vegetable, Sanitary Oil –10 to 120 °C –10 to 250 °C 0,91
Code Connection Type
ADirect Mount Connection
Code Direct Mount Connection Type
WELDED CONNECTION TYPE: Models 3051C and 3051S Transmitters (use with seal code W)
Attachment of One Diaphragm Seal, Model 3051C Transmitter Option Code S1 or Model 3051S2C with B11 process connection code.
B3 One Diaphragm Seal System, 50 mm Connection
D3 One Diaphragm Seal System, 100 mm Connection
ALL WELDED CONNECTION TYPE: Models 3051C and 3051S all welded system (use with seal codes R or T)
Attachment of One Diaphragm Seal, Model 3051C Transmitter Option Code S0 or Model 3051S2C with B11 process connection code
B7 One Diaphragm Seal System, 50 mm Connection
D7 One Diaphragm Seal System, 100 mm Connection
Attachment of Two Diaphragm Seals, Model 3051C (use with seal code W)
Transmitter Option Code S2 or Model 3051S2C with B12 process connection code
B4 Two Diaphragm Seal System, 50 mm Direct Mount Connection and Capillary Connection
D4 Two Diaphragm Seal System, 100 mm Direct Mount Connection and Capillary Connection
Attachment of Two Diaphragm Seals, Model 3051C Transmitter Option Code S9 or Model 3051S2C with B12 process connection code
B6 Two Diaphragm Seal System, 50 mm Direct Mount Connection and Capillary Connection
D6 Two Diaphragm Seal System, 100 mm Direct Mount Connection and Capillary Connection
WELDED OR ALL WELDED CONNECTION TYPE: Model 3051T Transmitter
95 One Diaphragm Seal System, 25 mm Connection, all welded (use with code P) or welded (use with code W)
A5 One Diaphragm Seal System, 50 mm Connection
WELDED CONNECTION TYPE: Model 1151 Transmitter (use with seal code W)
92 One or Two Diaphragm Seal System. One Direct Mount, One Direct Mount and One Capillary Mount, or
Two Capillary Mount Configuration Available
WELDED OR ALL WELDED CONNECTION TYPE: Model 2088 Transmitter
95 One Diaphragm Seal System, 25 mm Connection, all welded (use with code P) or welded (use with code W)
A5 One Diaphragm Seal System, 50 mm Connection
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) Fill fluid maximum operating temperature is limited by heat transfer to transmitter electronics. Teckperature limit for Model 3051C 100 mm Direct Mount
system is 260 °C and 205 °C for all other direct mount connection types at 21 °C ambient temperature. The temperature limit for the Model 1151 and 2088
Direct Mount systems is 205 °C.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-294

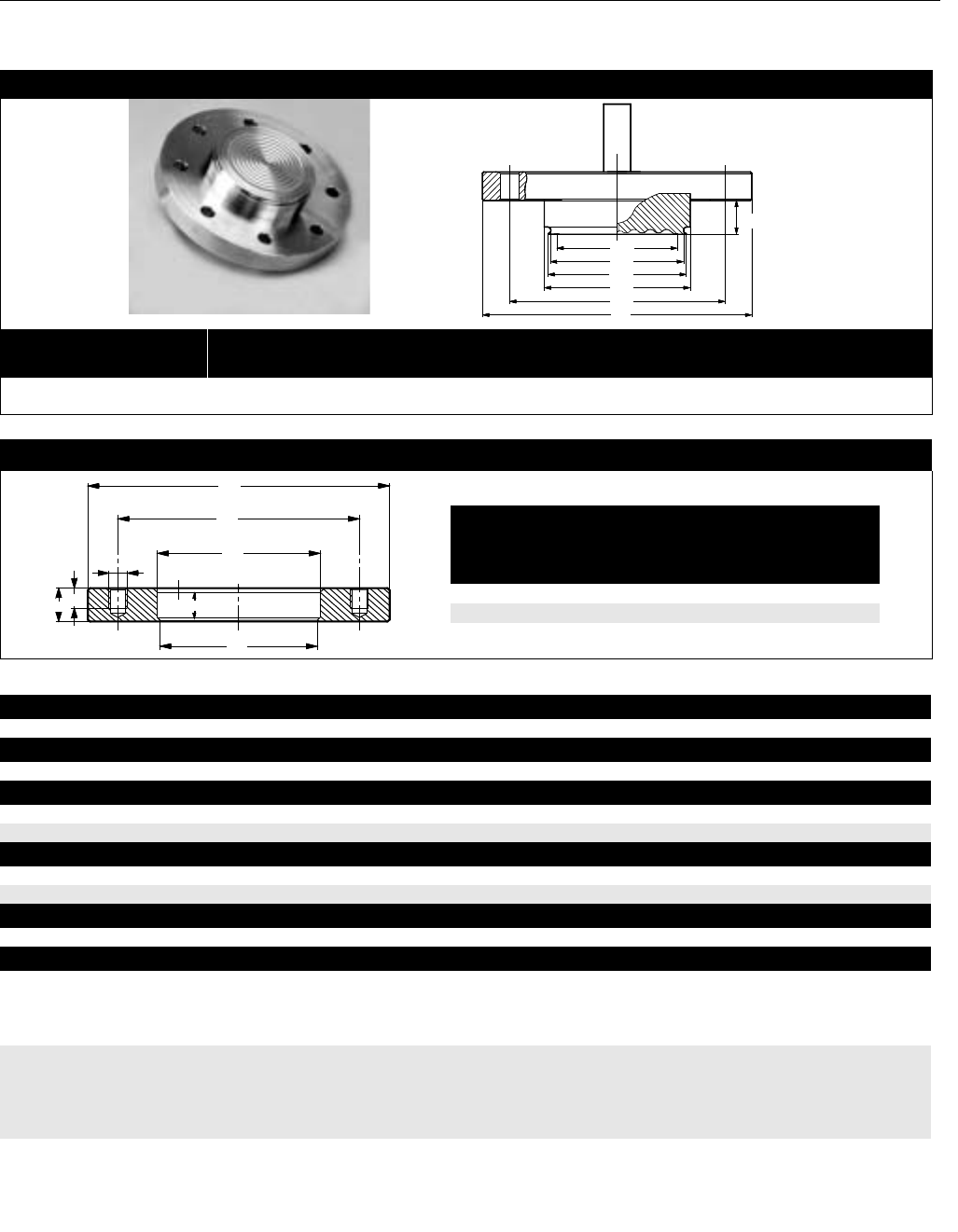

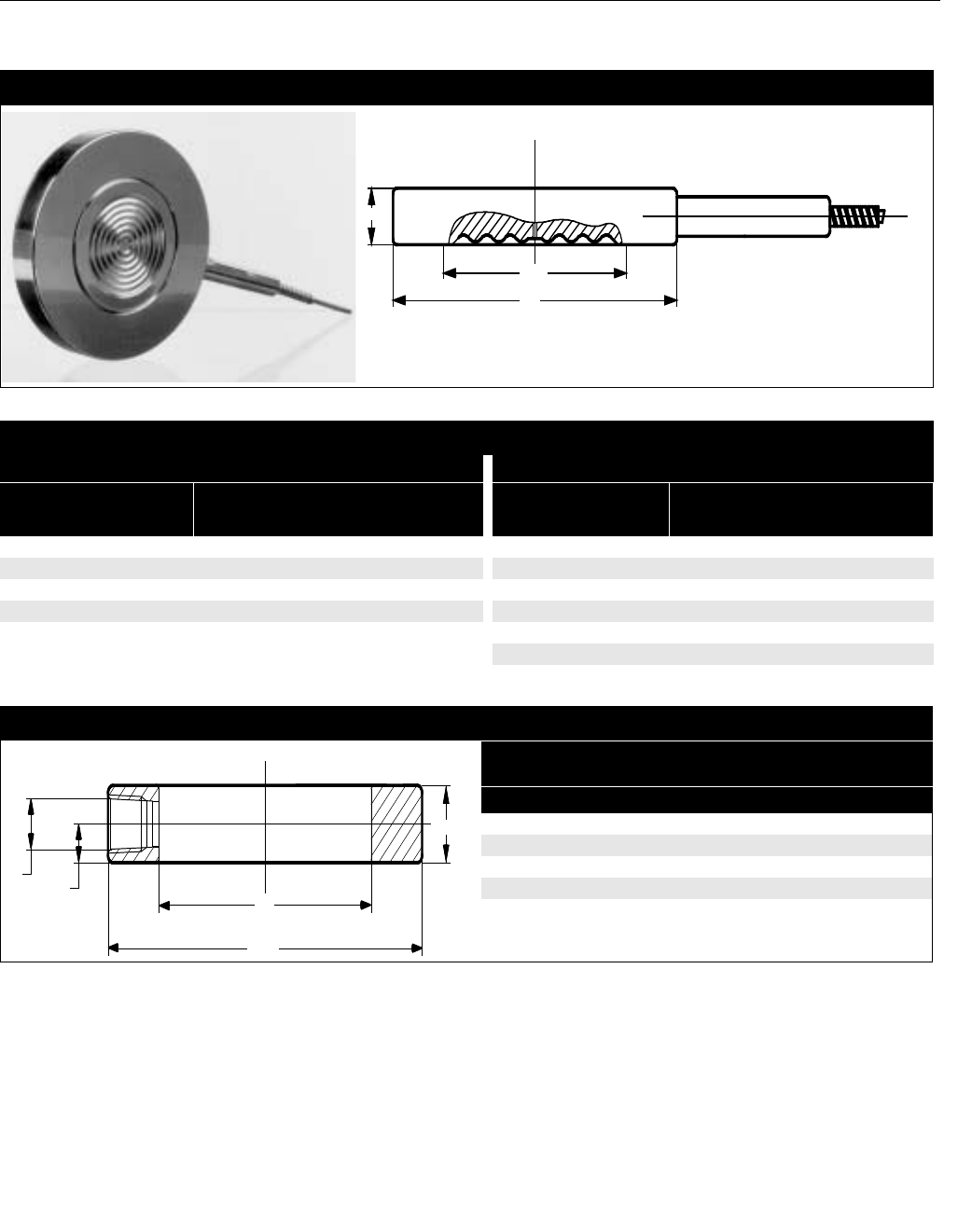

General Purpose Seal Assemblies

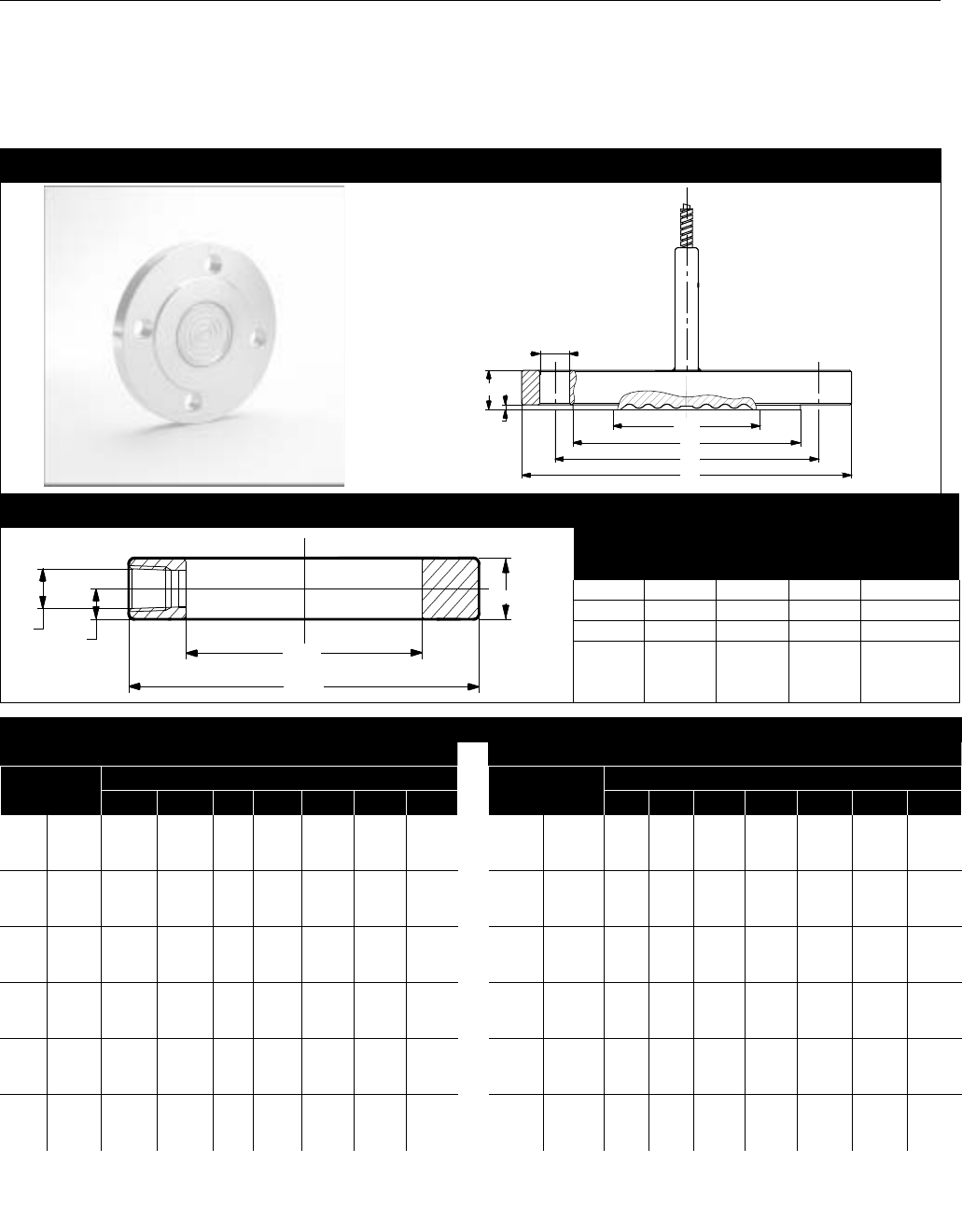

FFS Flanged Type: Flush Diaphragm Seals
Dimensional Drawing for FFS Flanged Type: Flush Diaphragm Seals
Dimensional Drawing for FFS Flushing Connection Ring
Flushing Ring Dimensions (mm)
DN d40 d4 b G
50 59 102 20 ¼-18 NPT
80 91 138 20 ¼-18 NPT
2 in. 59 92 20 ¼-18 NPT
3 in. 91 127 20 ¼-18 NPT
FFS Process Connection Dimensions
DIN 2501 ANSI/ASME B16.5 RF
DN PN(1)
Dimensions (mm)
DN CL(1)
Dimensions (mm)
dm D b d2 k f d4 dm D b d2 k f d4 (2)
25 40 25 115 18 4x14 85 2 68 1 in. 150 25 108 14 4x16 79 1,5 51
100 25 140 24 4x18 100 2 68 300 25 124 18 4x19 89 1,5 51
160 25 140 24 4x18 100 2 68 600(3) 25 124 18 4x19 89 6,3 51
40 40 40 150 18 4x18 110 2 88 1.5 in. 150 40 127 17 4x16 98 1,5 73
100 40 170 28 4x22 125 3 88 300 40 155 21 4x22 114 1,5 73
160 40 170 28 4x22 125 3 88 600(3) 40 155 22 4x22 114 6,3 73
50 40 57 165 20 4x18 125 3 102 2 in. 150 57 152 19 4x19 121 1,5 92
64 57 180 26 4x22 135 3 102 300 57 165 22 8x19 127 1,5 92
100 57 195 28 4x26 145 3 102 600(3) 57 165 25 8x19 127 6,3 92
80 40 89 200 24 8x18 160 3 138 3 in. 150 89 190 24 4x19 152 1,5 127
64 89 215 28 8x22 170 3 138 300 89 210 28 8x22 168 1,5 127
100 89 230 32 8x26 180 3 138 600(3) 89 210 32 8x22 168 6,3 127
100 16 89 220 20 8x18 180 3 158 4 in. 150 89 229 24 8x19 190 1,5 157
40 89 235 24 8x22 190 3 162 300 89 254 32 8x22 200 1,5 157
64 89 250 30 8x26 200 3 162 400 89 254 35 8x25 200 6,3 157
125 16 124 250 22 8x18 210 3 188 5 in. 150 124 254 24 8x22 216 1,5 186
40 124 270 26 8x26 220 3 188 300 124 279 35 8x22 235 1,5 186
64 124 295 34 8x30 240 3 188 400 124 279 38 8x25 235 6,3 186
(1) Dimensions for other flange ratings are available upon request.
(2) d4 dimensions only valid for full 316 SST execution.
(3) Class 600 flanges add 0.63 mm to flange thickness dimension for raised face.
dm
d4
k
D
1199-067AB 1199-0FDFA01A
d2
b
f
1199-HSAB01A
Gb/2 d40
d4
b
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-295
Model 1199
TABLE 9. FFS Flanged Type: Flush Diaphragm Seal – DIN Ordering Information(1)
Code Industry Standard
D DIN 2501 (Deutsches Institut für Normung)
Code Process Connection Style
F Flanged Type: Flush Diaphragm Seal
Code Gasket Surface Type(2)
FS DIN 2526 Form D
Code Process Connection Size
GDN 50
JDN 80
DDN 25
FDN 40
KDN 100
MDN 125
Code Flange Pressure Rating
GPN 40
EPN 16
HPN 64
JPN 100
KPN 160
Code Diaphragm and Wetted Parts Material(3) Upper Housing Material (includes flange)
LA 316L SST 316 SST
LB Hastelloy C-276 316 SST
LC Tantalum 316 SST
WW 316Ti SST (WNr 1.4571) 316Ti SST (WNr 1.4571)
WB Hastelloy C-276 316 SST (WNr 1.4571)
LM Titanium GR.2 316 SST (Only available with a smooth gasket surface)
LJ Hastelloy B-2 316 SST
LP Nickel 201 316 SST
L4 Hastelloy C-22 316 SST
LV Monel 400 316 SST
LZ Zirconium 316 SST
LE Inconel 600 316 SST
Table continued on next page
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-296
Code Flushing Ring Material
0No Flushing Ring required
L316L SST
W316Ti SST (WNr 1.4571)
BHastelloy C-276
Code Flushing Options
0No Flushing Ring required
1One 1/4–18 NPT Flushing Connection
3Two 1/4–18 NPT Flushing Connection
7One 1/2-–14 NPT Flushing Connection
9Two 1/2–14 NPT Flushing Connection
Code Options (Multiple Selections)
0None
VTeflon Coated Diaphragm for nonstick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
GSST Plug(s) for Flushing Connections(s)
HSST Vent/Drain for Flushing Connection(s)
ZMaterial Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
2Radial Capillary Connection
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 µm Diaphragm Thickness - 316L SST or Hastelloy C-276 Materials
(Hastelloy C-276 is only available with a smooth gasket surface)
UGold Coated 5 micron
BExtra Fill for Cold Temperature Applications
DHastelloy Plug(s) for Flushing Connection(s)
1Zone 0 Execution PTB Nr. III B/S 2415
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) Other gasket surfaces are possible; consult factory for coding and availability.
(3) When ordering special diaphragm materials, the standard housing material is 316L SST unless otherwise noted. Consult your Rosemount representative
for use with spiral wound gaskets.
TABLE 9. FFS Flanged Type: Flush Diaphragm Seal – DIN Ordering Information(1)
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-297
Model 1199
TABLE 10. FFS Flanged Type: Diaphragm Seal — ANSI/ASME Ordering Information(1)
Code Industry Standard
AANSI/ASME B 16.5 (American Standards Institute/American Society of Mechanical Engineers)
Code Process Connection Style
FFlanged Type: Flush Diaphragm Seal
Code Gasket Surface Type (2)
FS Serrated Finish
Code Process Connection Size
G2 in.
73 in.
21 in.
411/2 in.
94 in.
B5 in.
Code Flange Pressure Rating
1Class 150
2Class 300
3Class 400
4Class 600
5Class 900
6Class 1500
7Class 2500
Code Diaphragm and Wetted Parts Material (3) Upper Housing Material (include flange)
LA 316L SST 316 SST
LB Hastelloy C-276 316 SST
LC Tantalum 316 SST
WB Hastelloy C-276 316 SST (WNr 1.4571)
LM Titanium GR.2 316 SST (Only available with a smooth gasket surface)
LJ Hastelloy B-2 316 SST
LP Nickel 201 316 SST
L4 Hastelloy C-22 316 SST
LV Monel 400 316 SST
LZ Zirconium 316 SST
LE Inconel 600 316 SST
Table continued on next page
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-298
Code Flushing Ring Material
0No Flushing Ring required
L316L SST
W316Ti SST (WNr 1.4571)
BHastelloy C-276
Code Flushing Options
0No Flushing Ring required
1One 1/4–18 NPT Flushing Connection
3Two 1/4–18 NPT Flushing Connection
7One 1/2-–14 NPT Flushing Connection
9Two 1/2–14 NPT Flushing Connection
Code Options (Multiple Selections)
0None
VTeflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
GSST Plug(s) for Flushing Connections(s)
HSST Vent/Drain for Flushing Connection(s)
ZMaterial Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
2Radial Capillary Connection
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 µm Diaphragm Thickness - 316L SST or Hastelloy C-276 Diaphragm Material
(Hastelloy C-276 is only available with a smooth gasket surface)
UGold Coated 5 micron
BExtra Fill for Cold Temperature Applications
DHastelloy Plug(s) for Flushing Connection(s)
1Zone 0 Execution PTB Nr. III B/S 2415
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) Other gasket surfaces are possible; consult factory for coding and availability.
(3) When ordering special diaphragm materials, the standard housing material is 316L SST unless otherwise noted.
Consult your Rosemount representative for use with spiral wound gaskets.
TABLE 10. FFS Flanged Type: Diaphragm Seal — ANSI/ASME Ordering Information(1)
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-299
Model 1199
FUS Flanged Type: Flush Diaphragm Seal—DIN 2512 Form N Gasket Surface
Dimensional Drawing for FUS Flanged Type: Flush Diaphragm Seals—
DIN 2512 Form N Gasket Surface
FUS Process Connection Dimensions
DIN 2512 Form N(1)
Dimensions (mm)
DN PN dm D b d2 k f f2 d4(2) d41 d44
25 40 25 115 18 4x14 85 23, 0 68 42 58
100 25 140 24 4x14 100 23, 0 68 42 58
160 25 140 24 4x14 100 23, 0 68 42 58
40 40 40 150 18 4x18 110 23, 0 88 60 76
100 40 170 26 4x22 125 33, 0 88 60 76
160 40 170 28 4x26 125 33, 0 88 60 76
50 40 57 165 20 4x18 125 33, 0 102 72 88
64 57 180 26 4x22 135 33, 0 102 72 88
160 57 195 28 4x26 145 33, 0 102 72 88
40 89 200 24 4x18 160 33, 0 138 105 121
80 64 89 215 28 4x22 170 33, 0 138 105 121
100 89 230 32 4x26 180 33, 0 138 105 121
16 89 220 20 4x18 180 33, 5 158 128 150
100 40 89 235 24 4x22 190 33, 5 162 128 150
64 89 250 30 4x26 200 33, 5 162 128 150
16 124 250 22 8x18 210 33, 5 188 154 176
125 40 124 270 26 8x26 220 33, 5 188 154 176
64 124 295 34 8x30 240 33, 5 188 154 176
(1) Dimensions for other flange ratings are available upon request.
(2) d4 dimensions only valid for full stainless steel 316 execution.
dm
d41
d4
d44
k
D
f
b
d2
f2
1199-068AB 1199-FDFB01A

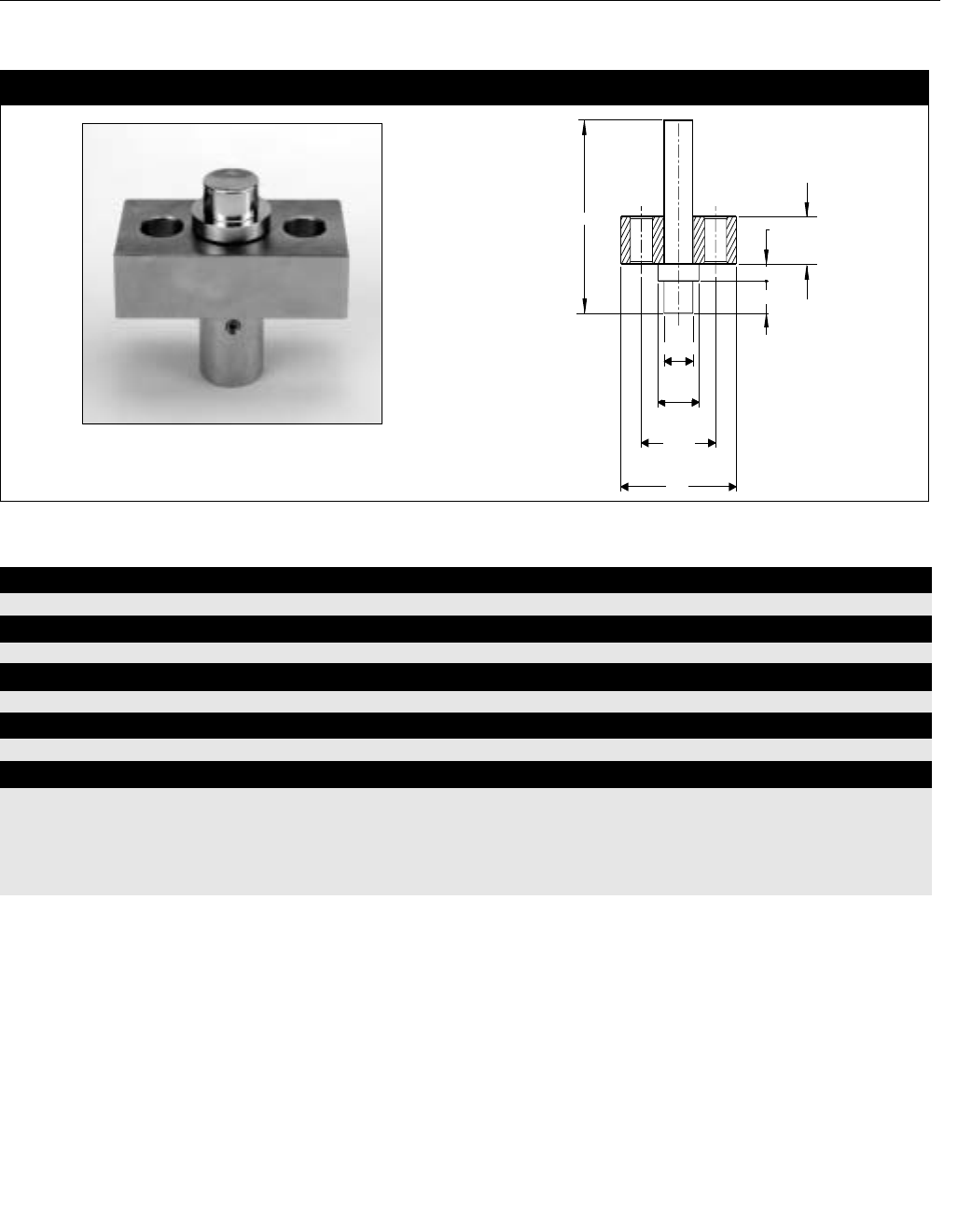

Dimensional Drawing for FUS Flushing Connection Ring
Flushing Ring Dimensions (mm)
DN PN d40 d4 d42 d43 f1 d41 d44 f2 b g
50 10-100 59 102 73 87 4 72 88 2.5 20 1/4-18
NPT
80 10-100 91 138 106 120 4 105 121 2.5 20 1/4-18
NPT
g
f1
f2
d43
d42
d40
d41
d44
b
d4
b/2
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-300
TABLE 11. FUS Flanged Type: Flush Diaphragm Seal – DIN Ordering Information(1)
Code Industry Standard
DDIN 2501 (Deutsches Institut für Normung)
Code Process Connection Style
FFlanged Type: Flush Diaphragm Seal
Code Gasket Surface Type
US DIN 2512 Form N Contact Surface–up to PN 160
VS DIN 2512 Form F Contact Surface–up to PN 160
GS DIN 2513 Form V-13 Contact Surface–up to PN 100
HS DIN 2513 Form R-13 Contact Surface–up to PN 100
JS DIN 2514 Form V-14 Contact Surface–up to PN 40
KS DIN 2514 Form R-14 Contact Surface–up to PN 40
Code Process Connection Size Diaphragm Diameter
GDN 50 57 mm
JDN 80 89 mm
DDN 25 32 mm
FDN 40 40 mm
KDN 100 89 mm
MDN 125 124 mm
Code Flange Pressure Rating
GPN 40
EPN 16
HPN 64
JPN 100
KPN 160
Code Diaphragm and Wetted Parts Material(2) Upper Housing Material (includes flange)
LA 316L SST 316 SST
LB(3) Hastelloy-C 276 316 SST
LC(3) Tantalum 316 SST
LV(3) Monel 400 316 SST
Code Flushing Ring Material
0No Flushing Ring required
L316L SST
W316Ti SST (WNr 1.4571)
Code Flushing Options
0No Flushing Ring required
1One 1/4–18 NPT Flushing Connection
3Two 1/4–18 NPT Flushing Connection
7One 1/2–14 NPT Flushing Connection
9Two 1/2–14 NPT Flushing Connection
Code Options (Multiple Selections)
0None
VTeflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
GSST Plug(s) in Flushing Connection(s)
HSST Vent/Drain in Flushing Connection(s)
ZMaterial Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
2Radial Capillary Connection
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 µm Diaphragm Thickness - 316L SST or Hastelloy C-276 Diaphragm Material only
UGold Coated 5 Micron
BExtra Fill for Cold Temperature Applications
DHastelloy Plug(s) for Flushing Connection(s)
1(4) Zone 0 Execution PTB Nr. III B/S 2415
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise.
(3) Requires selecting DIN 2512 Form N contact surface type (Option Code US).
(4) Only available for DFUS.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-301
Model 1199
FCS Flanged Type: Flush Diaphragm
Seal—RTJ Gasket Surface
Dimensional Drawing for FCS Flanged Type: Flush Diaphragm Seal—RTJ Gasket
Surface
FCS Process Connection Dimensions
ASME B16.5 RTJ(1)
DN CL
Dimensions (mm)
dM D b d2 kd4 E F P
1-in. 600 32 124 18 4x19 89 70 6,3 8,7 51
1500 32 149 28 4x25 102 70 6,3 8,7 51
2500 32 159 35 4x25 108 83 6,3 8,7 60
1½-in. 600 40 155 22 4x22 114 90 6,3 8,7 68
1500 40 178 32 4x28 124 92 6,3 8,7 68
2500 40 205 44 4x32 146 114 6,3 12 83
2-in. 600 57 165 25 8x19 127 108 7,9 12 83
1500 57 216 38 8x25 165 124 7,9 12 95
2500 57 235 51 8x28 171 133 7,9 12 102
3-in. 600 89 210 32 8x22 168 146 7,9 12 124
900 89 241 38 8x25 190 155 7,9 12 124
1500 89 267 48 8x32 203 168 7,9 12 136
2500 89 305 67 8x35 229 168 9,5 13,5 127
(1) Dimensions for other flange ratings are available upon request
Dimensional Drawing for FCS Flushing Connection Ring
1) Dimensions will be provided upon request.
b
d2
F
k
dm
P
d4
D
E
1
199–069AB 1199-0000C04A
R
b
2d40
Kmin
b
P
G
1199-0000A09A
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-302
TABLE 12. FCS Flanged Type: Flush Diaphragm Seal - ANSI/ASME Ordering Information(1) • = Available - = Not Available
Code Industry Standard
AANSI/ASME B16.5 (American National Standards Institute/American Society of Mechanical Engineers)
Code Process Connection Style
FFlanged Type: Flush Diaphragm Seal
Code Gasket Surface Type
CS ASME B16.5 RTJ: Ring Type Joint Facing
Code Process Connection Size
G2 in.
7 3 in.
21 in.
411/2 in.
94 in.
B5 in.
Code Flange Pressure Rating 1 in. 11/2 in. 2 in. 3 in. 4 in. 5 in.
4 Class 600 ••••- -
5 Class 900 - - - • - -
6 Class 1500 ••••- -
7 Class 2500 ••••- -
1Class 150 ••••• •
2Class 300 ••••• •
3Class 400 - - - - • •
Code(2) Diaphragm Wetted Parts Material Upper Housing Material
LA 316L SST 316L SST 316 SST
LB Hastelloy C-276 316L SST 316 SST
BB Hastelloy C-276 Hastelloy C-276 316 SST
VI Hastelloy C-276 Duplex 1.4462 Duplex 1.4462
VB Hastelloy C-276 Hastelloy C-276 Duplex 1.
Code Flushing Ring Material
0 No Flushing Ring required
L 316L SST
W 316Ti SST (WNr 1.4571)
BHastelloy C-276
2Duplex 1.4462
Code Flushing Options
0 No Flushing Ring required
1 One 1/4-18 NPT Flushing Connection
3 Two 1/4-18 NPT Flushing Connection
7 One 1/2--4 NPT Flushing Connection
9 Two 1/2--4 NPT Flushing Connection
Code Options (Multiple Selections)
0 None
2 Radial Capillary Connection - Available with 316L SST or 316Ti SST (WNr 1.4571) diaphragms only
V Teflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C-276 diaphragm only)
G SST Plug(s) in Flushing Connection(s)
H SST Vent/Drain in Flushing Connection(s)
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
550 mm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 mm Diaphragm Thickness - 316L SST or Hastelloy C-276 Diaphragm Material only
BExtra Fill for Cold Temperature Applications
DHastelloy Plug(s) for Flushing Connection(s)
TNACE MR-01-75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and
l
ead time.
(2) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-303
Model 1199
EFS Flanged type: Extended Diaphragm Seals

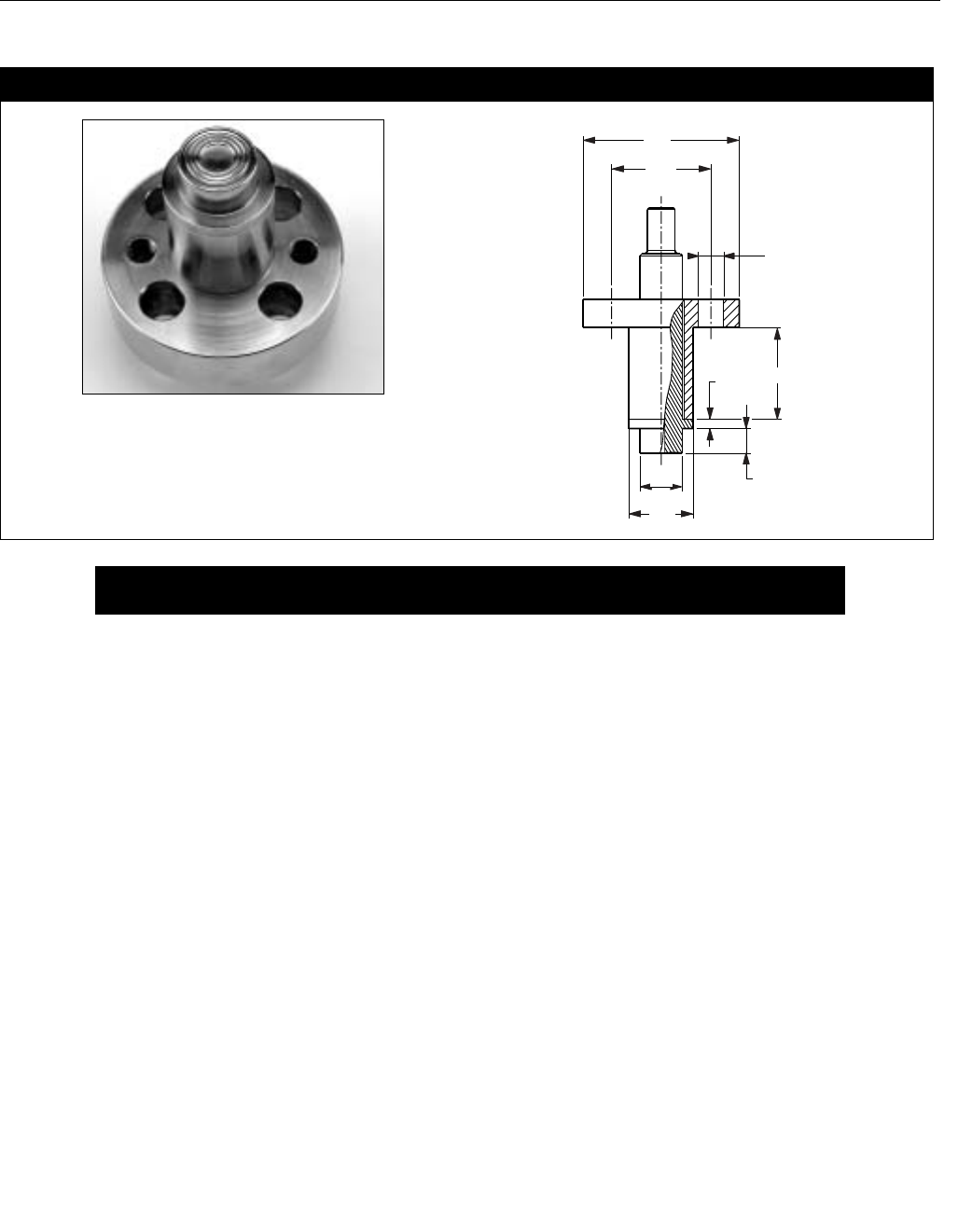

Dimensional Drawing for EFS Flanged Type: Extended Diaphragm Seal
EFS Process Connection Dimensions
DIN 2501 ANSI/ASME B16.5
DN PN(1)
(1) Dimensions for other flange ratings are available upon request.
Dimensions (mm)
DN CL(2)
(2) Other extension lengths and diameter are available upon request.
Dimensions (mm)
dm D b d2 k f d4 d5 dm D b d2 k f d4 d5
50 40 40 165 20 4x18 125 3 102 48 2 in. 150 40 152 19 4x19 121 1,5 92 48
64 40 180 26 4x22 135 3 102 48 300 40 165 22 8x19 127 1,5 92 48
100 40 195 28 4x26 145 3 102 48 600(3)
(3) Class 600 flanges add 0.63 mm to flange thickness dimension for raised face.
40 165 25 8x19 127 6,3 92 48
80 40 72 200 24 8x18 160 3138 76 3 in. 150 72 190 24 4x19 152 1,5 127 76
64 72 215 28 8x22 170 3138 76 300 72 210 28 8x22 168 1,5 127 76
100 72 230 32 8x26 180 3138 76 600(3) 72 210 32 8x22 168 6,3 127 76
100 16 89 220 20 8x18 180 3 158 94 4 in. 150 89 229 24 8x19 190 1,5 157 94
40 89 235 24 8x22 190 3 162 94 300 89 254 32 8x22 200 1,5 157 94
64 89 250 30 8x26 200 3 162 94 400 89 254 35 8x25 200 6,3 157 94
125 16 124 250 22 8x18 210 3188 125 5 in. 150 124 254 24 8x22 216 1,5 186 125
40 124 270 26 8x26 220 3188 125 300 124 279 35 8x22 235 1,5 186 125
64 124 295 34 8x30
2
240 3188 125 400 124 279 38 8x25 235 6,3 186 125
b
d2
f
d
d5
d4
k
D
1199-0000A02A
1199-070AB
x
Standard Extension
Lengths x (2)
DIN Standard Extension
Lengths x(1)
ANSI/ASME Standard
Extension Lengths x (1)
(1) Other extension lengths are available upon request.
50 mm 50 mm 2 in
100 mm 100 mm 4 in.
150 mm 150 mm 6 in.
200 mm 200 mm 8 in.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-304
TABLE 13. EES and EFS Flanged Type: Extended Diaphragm Seal – DIN Ordering Information(1)
Code Industry Standard
D DIN 2501 (Deutsches Institut für Normung)
Code Process Connection Style
E Flanged Type: Extended Diaphragm Seal
Code Gasket Surface Type
FS DIN 2526 Form D
Code Process Connection Size
G DN 50
JDN 80
KDN 100
MDN 125
Code Flange Pressure Rating
EPN 16
G PN 40
HPN 64
JPN 100
KPN 160
Code Diaphragm Material(2) Extension/Gasket Surface Material Flange/ Upper Housing Material
LA 316L SST 316L SST 316 SST
LB Hastelloy C-276 Hastelloy C-276 316 SST
LM Hastelloy C-276 316L SST 316 SST
LC Tantalum
(Only available with smooth gasket surface)
Tantalum 316 SST
LD Tantalum 316L SST 316 SST
LR Titanium GR.2
(Only available with smooth gasket surface)
Titanium GR.2 316 SST
LJ Hastelloy B-2 Hastelloy B-2 316 SST
LP Nickel 201 Nickel 201 316 SST
L4 Hastelloy C-22 Hastelloy C-22 316 SST
LV Monel 400 Monel 400 316 SST
LE Inconel 600 Inconel 600 316 SST
Code Extension Length (3)
2 50 mm
4 100 mm
6 150 mm
8 200 mm
00 mm
125 mm
375 mm
5125 mm
7175 mm
9225 mm
Code Extension Length (Amount to Add) (3)
0 Add 0 mm
8Add 20 mm
1Add 2,5 mm
2Add 5 mm
3Add 7,5 mm
4Add 10 mm
5Add 12,5 mm
6Add 15 mm
7Add 17,5 mm
9Add 22,5 mm
Continued on next page
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-305
Model 1199
Code Options (Multiple Selections)
0None
6 Add 250 mm Extension Length
7 Add 500 mm Extension Length
VTeflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
Z Material Traceability per EN10204 DIN 3.1.B (Requires Selection of Transmitter Code Q8)
2Radial Capillary Connection - Available with 316L SST or 316Ti SST (WNr 1.4571) Diaphragm Material only
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 µm Diaphragm Thickness - 316L SST or Hastelloy C-276 Diaphragm Material only
BExtra Fill for Cold Temperature Applications
1(4) Zone 0 Execution PTB Nr. III B/S 2415
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time
(2) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise. Consult your Rosemount representative
for use with spiral wound gaskets.
(3) DIN extension lengths are specified in millimeters as offered. Additional lengths are available as special orders. Consult factory.
(4) Only available for DEFS
TABLE 13. EES and EFS Flanged Type: Extended Diaphragm Seal – DIN Ordering Information(1)
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-306
TABLE 14. EES and EFS Flanged Type: Extended Diaphragm Seal –ANSI Ordering Information(1)
Code Industry Standard
A ANSI/ASME B16.5 (American National Standards Institute/American Society of Mechanical Engineers)
Code Process Connection Style
E Flanged Type: Extended Diaphragm Seal
Code Gasket Surface Type
FS Serrated Finish
ES Smooth Finish (2)
Code Process Connection Size
G2 in.
73 in.
94 in.
B5 in.
Code Flange Pressure Rating
1 Class 150
2 Class 300
3Class 400
4Class 600
5Class 900
6Class 1500
7Class 2500
Code Diaphragm Material(3) Extension/Gasket Surface Material Flange/Upper Housing Material
LA 316L SST 316L SST 316 SST
LB Hastelloy C-276 Hastelloy C-276 316 SST
LM Hastelloy C-276 316L SST 316 SST
LC Tantalum
(Only available with smooth gasket surface)
Tantalum 316 SST
LD Tantalum 316L SST 316 SST
LR Titanium GR.2
(Only available with smooth gasket surface)
Titanium GR.2 316 SST
LJ Hastelloy B-2 Hastelloy B-2 316 SST
LP Nickel 201 Nickel 201 316 SST
L4 Hastelloy C-22 Hastelloy C-22 316 SST
LV Monel 400 Monel 400 316 SST
LE Inconel 600 Inconel 600 316 SST
Code Extension Length(4)
2 2 in.
4 4 in.
6 6 in.
8 8 in.
00 in.
11 in.
33 in.
55 in.
77 in.
99 in.
Code Extension Length (Amount to Add)
0Add 0 in.
1Add 1/8 in.
2Add 1/4 in.
3Add 3/8 in.
4Add 1/2 in.
5Add 5/8 in.
6Add 3/4 in.
7Add 7/8 in.
Continued on next page
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-307
Model 1199
Code Options (Multiple Selections)
0 None
VTeflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
Z Material Traceability per EN10204 DIN 3.1.B (Requires Selection of Transmitter Code Q8)
2Radial Capillary Connection - Available with 316L SST or 316Ti SST (WNr 1.4571) Diaphragms only
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
6Add 10-in. Extension Length
7Add 20-in. Extension Length
8150 µm Diaphragm Thickness - 316L or Hastelloy C-276 Diaphragm Material only
BExtra Fill for Cold Temperature Applications
1(5) Zone 0 Execution PTB Nr. III B/S 2415
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) Select for Tantalum wetted parts only.
(3) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise. Consult your Rosemount representative
for use with spiral wound gaskets.
(4) ANSI extension lengths are in inches as offered. Additional lengths are available as special orders. Consult factory.
(5) Only available for AEFS.
TABLE 14. EES and EFS Flanged Type: Extended Diaphragm Seal –ANSI Ordering Information(1)
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-308
PFS Pancake (Cell) Type: Flush Diaphragm Seals
Dimensional Drawing for PFS Pancake (Cell) Type: Flush Diaphragm Seal
1199-FDFD01A, 0004ab
d4
b
dm
PFS Process Connection Dimensions
DIN 2501 ANSI/ASME B16.5
DN PN
Dimensions (mm)
DN PN
Dimensions (mm)
dm bd4 dm bd4
25 16–400 25 20 68 1 in. 150-2500 25 20 51
50 16-400 57 20 102 11/2 in. 150-2500 40 20 73
80 16-400 89 20 138 2 in. 150-2500 57 20 92
100 16-400 89 20 158 3 in. 150-2500 89 20 127
125 16-400 124 20 188 4 in. 150-2500 89 20 157
5 in. 150-2500 124 20 186
Dimensional Drawing for PFS Flushing Connection Ring
Flushing Ring
Dimensions (mm)
DN d40 d4 b G
50 59 102 20 ¼–18 NPT
80 91 138 20 ¼–18 NPT
2 in. 59 92 20 ¼–18 NPT
3 in. 91 127 20 ¼–18 NPT
G
b/2
d4
d40
b
HSAB01A
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-309
Model 1199
TABLE 15. PFS Pancake (Cell) Type: Flush Diaphragm Seal – DIN Ordering Information(1)
Code Industry Standard
DDIN 2501 (Deutsches Institut für Normung)
Code Process Connection Style
P Pancake (Cell) Type: Flush Diaphragm Seal
Code Gasket Surface Type(2)
FS DIN 2526 Form D
Code Process Connection Size Diaphragm Diameter
GDN 50 57 mm
J DN 80 89 mm
DDN 25 25 mm
FDN 40 40 mm
KDN 100 89 mm
MDN 125 124 mm
Code Pressure Rating
0 Flanged not supplied. Seal rated to PN 16-400 or flange ratings or as indicated
Code Diaphragm and Wetted Parts Material(3) Upper Housing Material
LA 316L SST 316 SST
LB Hastelloy C-276 316 SST
LC Tantalum 316 SST
LE Inconel 600 316 SST
LM Titanium GR.2 316 SST (Only available with a smooth gasket surface)
LJ Hastelloy B-2 316 SST
LP Nickel 201 316 SST
L4 Hastelloy C-22 316 SST
LV Monel 400 316 SST
LZ Zirconium 316 SST
Code Flushing Ring Material
0 No Flushing Ring
L 316L SST
W 316Ti SST (WNr 1.4571)
BHastelloy C-276
Code Flushing Options
0 No Flushing Ring
1 One 1/4–18 NPT Flushing Connection
3Two
1/4–18 NPT Flushing Connection
7 One 1/2–14 NPT Flushing Connection
9Two
1/2–14 NPT Flushing Connection
Code Options (Multiple Selections)
0 None
VTeflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
G SST Plug(s) in Flushing Connection(s)
H SST Vent/Drain in Flushing Connection(s)
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 µm Diaphragm Thickness - 316L or Hastelloy C-276 Diaphragm Material only
(Hastelloy C-276 is only available with a smooth gasket surface)
BExtra Fill for Cold Temperature Applications
DHastelloy Plug(s) for Flushing Connection(s)
1Zone 0 Execution PTB Nr. III B/S 2415
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) Other gasket surfaces are possible; consult factory for coding and availability.
(3) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise. Consult your Rosemount representative
for use with spiral wound gaskets.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-310
TABLE 16. PFS Pancake (Cell) Type: Flush Diaphragm Seal – ANSI/ASME Ordering Information(1)
Code Industry Standard
A ANSI/ASME B16.5 (American National Standards Institute/American Society of Mechanical Engineers)
Code Process Connection Style
P Pancake (Cell) Type: Flush Diaphragm Seal
Code Gasket Surface Type(2)
FS Serrated Finish
Code Process Connection Size Diaphragm Diameter
G 2 in. 57 mm
7 3 in. 89 mm
9 4 in. 89 mm
B 5 in. 124 mm
21 in. 25 mm
4 11/2 in. 40 mm
Code Flange Pressure Rating
0 Flange not supplied; seal rated to Class 150–2500 or
flange rating
Code Diaphragm and Wetted Parts Material(3) Upper Housing Material
LA 316L SST 316 SST
LB Hastelloy C-276 316 SST
LC Tantalum 316 SST
LE Inconel 600 316 SST
LM Titanium GR.2 316 SST (Only available with a smooth gasket surface)
LJ Hastelloy B-2 316 SST
LP Nickel 201 316 SST
L4 Hastelloy C-22 316 SST
LV Monel 400 316 SST
LZ Zirconium 316 SST
Code Flushing Ring Material
0 No Flushing Ring
L 316L SST
W 316Ti SST (WNr 1.4571)
BHastelloy C-276
Code Flushing Options
0 No Flushing Ring
1 One 1/4-18 NPT Flushing Connection
3Two
1/4-18 NPT Flushing Connection
7 One 1/2-14 NPT Flushing Connection
9Two
1/2-14 NPT Flushing Connection
Code Options (Multiple Selections)
0 None
VTeflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
G SST Plug(s) in Flushing Connection(s)
H SST Vent/Drain in Flushing Connection(s)
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 µm Diaphragm Thickness - 316L SST or Hastelloy C-276 Diaphragm Material only
(Hastelloy C-276 is only available with a smooth gasket surface)
BExtra Fill for Cold Temperature Applications
DHastelloy Plug(s) for Flushing Connection(s)
1Zone 0 Execution PTB Nr. III B/S 2415
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) Other gasket surfaces are possible; consult factory for coding and availability.
(3) When ordering special diaphragm materials, the standard housing material is 316L SST unless otherwise noted. Consult your Rosemount representative
for use with spiral wound gaskets.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-311
Model 1199
DES and DFS Pancake (Cell) Type:
Extended Diaphragm Seals
Dimensional Drawing for DES and DFS Pancake Type: Extended Diaphragm Seals
1199-0006AB
DIN Standard
Extension
Lengths x(1)
ANSI/ASME
Standard Extension
Lengths x (1)
(1) Other extension lengths are available
upon request.
50 mm 2 in
100 mm 4 in.
150 mm 6 in.
200 mm 8 in.
b
dm
d5
d4
1199-EDB01A
x
DES and DFS Pancake (Cell) Process Connection Dimensions
DIN 2501 ANSI/ASME B16.5
DN PN
Dimensions (mm)
DN CL
Dimensions (mm)
dm bd4 d5 dm bd4 d5
50 16-400 40 20 102 48 2 in. 150-2500 40 20 92 48
80 16-400 72 20 138 76 3 in. 150-2500 72 20 127 76
100 16-400 89 20 162 94 4 in. 150-2500 89 20 157 94
125 16-400 124 20 188 125 5 in. 150-2500 124 20 186 125
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-312
TABLE 17. DES and DFS Pancake (Cell) Type: Extended Diaphragm Seal – DIN Ordering Information(1)
Code Industry Standard
DDIN 2501 (Deutsches Institut für Normung)
Code Process Connection Style
DPancake (Cell) Type: Extended Diaphragm Seal
Code Gasket Surface Type
FS DIN 2526 Form D
ES DIN 2526 Form E (2)
Code Process Connection Size
G DN 50
J DN 80
K DN 100
MDN 125
Code Pressure Rating
0Flange not supplied; seal rated to PN 16-400 or flange rating
Code Diaphragm Material(3) Extension/Gasket Surface Material Upper Housing Material
LA 316L SST 316L SST 316 SST
LB Hastelloy C-276 Hastelloy C-276 316 SST
LC Tantalum
(Only available with smooth gasket surface)
Tantalum 316 SST
LE Inconel 600 Inconel 600 316 SST
LR Titanium GR.2
(Only available with smooth gasket surface)
Titanium GR.2 316 SST
LJ Hastelloy B-2 Hastelloy B-2 316 SST
LP Nickel 201 Nickel 201 316 SST
L4 Hastelloy C-22 Hastelloy C-22 316 SST
LV Monel 400 Monel 400 316 SST
LD Tantalum 316L SST 316 SST
LM Hastelloy C-276 316L SST 316 SST
Code Extension Length(4)
2 50 mm
4 100 mm
6 150 mm
8 200 mm
00 mm
125 mm
375 mm
5125 mm
7175 mm
9225 mm
Code Extension Length (Amount to Add)(3)
0Add 0 mm
1Add 2,5 mm
2Add 5 mm
3Add 7,5 mm
4Add 10 mm
5Add 12,5 mm
6Add 15 mm
7Add 17,5 mm
8Add 20 mm
9Add 22,5 mm
Continued on next page
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-313
Model 1199
Code Options (Multiple Selections)
0 None
VTeflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 µm Diaphragm Thickness - 316L SST or Hastelloy C-276 Diaphragm Material only
6Add 250 mm Extension Length
7Add 500 mm Extension Length
BExtra Fill for Cold Temperature Applications
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) Select for Tantalum wetted parts only.
(3) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise. Consult your Rosemount representative
for use with spiral wound gaskets.
(4) DIN extension lengths are specified in millimeters, as offered. Other extension lengths are available as special offers on request.
TABLE 17. DES and DFS Pancake (Cell) Type: Extended Diaphragm Seal – DIN Ordering Information(1)
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-314
TABLE 18. DES and DFS Pancake (Cell) Type: Extended Diaphragm Seal – ANSI/ASME Ordering Information(1)
Code Industry Standard
AANSI/ASME B16.5 (American National Standards Institute/American Society of Mechanical Engineers)
Code Process Connection Style
DPancake (Cell) Type: Extended Diaphragm Seal
Code Gasket Surface Type
FS Serrated Finish
ES Smooth Finish (2)
Code Process Connection Size
G2 in.
7 3 in.
9 4 in.
B 5 in.
Code Pressure Rating
0Flange not supplied; seal rated to Class 150–2500 or flange rating
Code Diaphragm Material (3) Extension/Gasket Surface Material Upper Housing Material
LA 316L SST 316L SST 316 SST
LB Hastelloy C-276 Hastelloy C-276 316 SST
LC Tantalum
(Only available with smooth gasket surface)
Tantalum 316 SST
LE Inconel 600 Inconel 600 316 SST
LR Titanium GR.2
(Only available with smooth gasket surface)
Titanium GR.2 316 SST
LJ Hastelloy B-2 Hastelloy B-2 316 SST
LP Nickel 201 Nickel 201 316 SST
L4 Hastelloy C-22 Hastelloy C-22 316 SST
LV Monel 400 Monel 400 316 SST
LD Tantalum 316L SST 316 SST
LM Hastelloy C-276 316L SST 316 SST
Code Extension Length(4)
22 in.
44 in.
66 in.
88 in.
00 in.
11 in.
33 in.
55 in.
77 in.
99 in.
Code Extension Length (Amount to Add)
0 Add 0 in
1Add 1/8 in
2Add 1/4 in.
3Add 3/8 in.
4Add 1/2 in.
5Add 5/8 in.
6Add 3/4 in.
7Add 7/8 in.
Continued on next page
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-315
Model 1199
Code Options (Multiple Selections)
0 None
VTeflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 µm Diaphragm Thickness - 316L or Hastelloy C-276 Diaphragm Material Only
6Add 10-in. Extension Length
7Add 20-in. Extension Length
BExtra Fill for Cold Temperature Applications
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) Select for Tantalum wetted parts only.
(3) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise.
Consult your Rosemount representative for use with spiral wound gaskets.
(4) ANSI extension lengths are specified in inches as offered. Other extension lengths are available as special offers on request.
TABLE 18. DES and DFS Pancake (Cell) Type: Extended Diaphragm Seal – ANSI/ASME Ordering Information(1)
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-316
RFS Flanged Type: Internal Diaphragm Seals
Dimensional Drawing for RFS Flanged Type: Internal Diaphragm Seal
RFS Dimensions for Process Flange to Lower Housing Connection
DIN 2501 ANSI/ASME B16.5
DN PN(1)
(1) Dimensions for other flange ratings are available upon request.
Dimensions (mm)
DN CL(1)
Dimensions (mm)
D b f d2 k d4H ca. D b f d2 kd4 H ca.
15 40 95 16 24x14 65 45 94 1/2-in. 150 89 11 1,5 4x16 60 35 104
100 105 20 24x14 75 45 101 300 95 14 1,5 4x16 66 35 108
160 105 20 24x14 75 45 101 600 95 14 6,3 4x16 66 35 108
20 3/4-in. 150 98 13 1,5 4x16 70 43 108
40 105 18 2 4x14 75 58 96 300 117 16 1,5 4x19 83 43 113
600 117 16 6,3 4x19 83 43 113
25 40 115 18 24x14 85 68 96 1-in. 150 108 14 1,5 4x16 79 51 112
100 140 24 24x18 100 68 114 300 124 18 1,5 4x19 89 51 118
160 140 24 24x18 100 68 114 600 124 18 6,3 4x19 89 51 118
32 11/4-in
.
150 117 16 1,5 4x16 89 64 113
40 140 18 2 4x18 100 78 98 300 133 19 1,5 4x19 99 64 121
600 133 21 6,3 4x19 99 64 123
40 40 150 18 34x18 110 88 101 11/2-in
.
150 127 18 1,5 4x16 99 73 118
100 170 26 34x22 125 88 118 300 155 21 1,5 4x22 114 73 124
160 170 28 34x22 125 88 120 600 155 22 6,3 4x22 114 73 126
RFS Dimensions for Upper Housing to Lower Housing Connection
PN Bdm n h
40 138 89 8xM10 42
100(1)
(1) Factory standard upper housing dimensions. Other upper housing dimensions optional. Contact your local Rosemount
representative for additional information.
95 57 4xM10 42
100 124 72 8xM10 42
160 95 57 8xM10 42
1199–IDFB01A
d2
fb
n
B
h
d4
k
D
1199-071AB
H
dm
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-317
Model 1199
TABLE 19. RFS Flanged Type: Internal Diaphragm Seal — DIN Ordering Information(1)
Code Industry Standard
DDIN 2501 (Deutsches Institut für Normung)
Code Process Connection Type
RFlanged Type: Internal Diaphragm Seal
Code Gasket Surface Type(2)
FS DIN 2526 Form D
Code Process Connection Size Diaphragm Size
BDN 15 57 mm
CDN 20 57 mm
DDN 25 57 mm
EDN 32 57 mm
FDN 40 57 mm
Code Flange Pressure Rating
GPN 40
JPN 100 (n/a with DN 20 or DN 32)
KPN 160
Code(3) Diaphragm Material Upper and Lower Housing Material
LA 316L SST 316 SST
LB Hastelloy C-276 316 SST
LC Tantalum 316 SST
LE Inconel 600 316 SST
LJ Hastelloy B-2 316 SST
LP Nickel 201 316 SST
L4 Hastelloy C-22 316 SST
LV Monel 400 316 SST
LZ Zirconium 316 SST
WC Tantalum 316 SST (WNr 1.4571)
WB Hastelloy C-276 316 SST (WNr 1.4571)
Code(4) Lower Housing Material (Supplied with Viton Gasket)(5)
L316L SST
W316Ti SST (WNr 1.4571)
BHastelloy C-276
Code Flushing Options
1One 1/4-18 NPT Flushing Connection
3Two 1/4-18 NPT Flushing Connection
5No Flushing Connection
Code Options (Multiple Selections)
0None
298% Graphite Gasket
VTeflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
DHastelloy Plug(s) for flushing connection(s)
GSST Plug(s) for flushing connection(s)
HSST Vent/Drain for flushing connection(s)
ZMaterial Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
JTeflon Gasket
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 µm Diaphragm Thickness - 316L or Hastelloy C-276 Diaphragm Material only
UGold Coated Diaphragm (5 microns)
BExtra Fill for Cold Temperature Applications
672 mm Diaphragm Diameter (up to PN 100)
789 mm Diaphragm Diameter (PN 40 only)
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) Other gasket surfaces are possible; consult factory for coding and availability.
(3) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise.
(4) Other gasket materials are available upon request.
(5) Limited to a process temperature of 200 °C.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-318
TABLE 20. RFS Internal Flanged Diaphragm Seal — ANSI/ASME Ordering Information(1)
Code Industry Standard
AANSI /ASME B16.5 (American National Standards Institute/American Society of Mechanical Engineers)
Code Process Connection Type
RFlanged Type: Internal Diaphragm Seal
Code Gasket Surface Type(2)
FS Serrated Finish
Code Process Connection Size Diaphragm Size
11/2 in. 52 mm
A3/4 in. 52 mm
21 in. 52 mm
31 ¼in. 52 mm
41 ½ in. 52 mm
Code Flange Pressure Rating
1Class 150
2Class 300
3Class 600
Code(3) Diaphragm Material Upper and Lower Housing Material
LA 316L SST 316 SST
LB Hastelloy C-276 316 SST
LC Tantalum 316 SST
LE Inconel 600 316 SST
LJ Hastelloy B-2 316 SST
LP Nickel 201 316 SST
L4 Hastelloy C-22 316 SST
LV Monel 400 316 SST
WC Tantalum 316 SST (WNr 1.4571)
WB Hastelloy C-276 316 SST (WNr 1.4571)
Code(4) Lower Housing Material (Supplied with Viton Gasket)(5)
L316L SST
W316Ti SST (WNr 1.4571)
BHastelloy C-276
Code Flushing Options
1One 1/4-18 NPT Flushing Connection
3Two 1/4-18 NPT Flushing Connection
5No Flushing Connection
Code Options (Multiple Selections)
0None
298% Graphite Gasket for chloride applications
VTeflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
DHastelloy Plug(s) for flushing connection(s)
GSST Plug(s) for flushing connection(s)
HSST Vent/Drain for flushing connection(s)
ZMaterial Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 µm Diaphragm Thickness - 316L or Hastelloy C-276 Diaphragm Material only
UGold Coated Diaphragm (5 microns)
BExtra Fill for Cold Temperature Applications
672 mm Diaphragm Diameter (up to Class 600)
789 mm Diaphragm Diameter (up to Class 300)
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) Other gasket surfaces are possible; consult factory for coding and availability.
(3) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise.
(4) Other gasket materials are available upon request.
(5) Limited to a process temperature of 200 °C.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-319
Model 1199
RTS Threaded Type: Internal Diaphragm
Seal
Dimensional Drawing for RTS Threaded Type: Internal Diaphragm Seal
h
dm
G1
B
n
1199-0000A11A 1199-060AB
RTS Threaded Process Connection Dimensions
Parallel Thread Tapered Thread
Dimensions (mm) Dimensions (mm)
PN G1(1) dm B n h PN G1(1) dm B n h
100 1/2 in. 57 95 4xM10 42 100 1/2 in. 57 95 4xM10 42
250 1/2 in. 57 95 8xM10 42 250 1/2 in. 57 95 8xM10 42
100 1/2 in. 72 124 8xM10 42 100 1/2 in. 72 124 8xM10 42
40 1/2 in. 89 138 8xM10 42 40 1/2 in. 89 138 8xM10 42
(1) Others available upon request (1/2-14NPT male shown).
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-320
TABLE 21. RTS Threaded Type: Internal Diaphragm Seal — Ordering Information(1)
Code Process Connection Style
DRTS Threaded (Standard thread is male; for female, see options
below)
Code(2) Process Connection Size
C Parallel thread: G1/2A DIN 16288
N Tapered thread: R1/2 per ISO 7/1
Code Pressure Rating Diaphragm Size
1 PN 100 57 mm
2 PN 250 57 mm
4PN 40 89 mm
Code(3) Diaphragm Material Upper Housing Material
LA 316L SST 316 SST
LB Hastelloy C-276 316 SST
LC Tantalum 316 SST
LE Inconel 60 316 SST
LJ Hastelloy B-2 316 SST
LP Nickel 201 316 SST
L4 Hastelloy C-22 316 SST
LV Monel 400 316 SST
WC Tantalum 316 SST (WNr 1.4571)
WB Hastelloy C-276 316 SST (WNr 1.4571)
EM Titanium Gr.2 Titanium Gr.2
Code Lower Housing Material (Supplied with Viton Gasket)(4)
L 316L SST
W 316Ti SST (WNr 1.4571)
BHastelloy C-276
Code Flushing Options
1 One ¼–18NPT Flushing Connection
3 Two ¼–18 NPT Flushing Connection
5 No Flushing Connection
Code Options (Multiple Selections)
0 None
VTeflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
JTeflon Gasket
2 98% Graphite Gasket for chloride applications
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 µm Diaphragm Thickness - 316L SST or Hastelloy C-276 Diaphragm Material only
9Female Threads (Internal parallel thread G1/2A–DIN 16288, internal tapered thread R1/2–ISO 7/1)
HSST Drain/Vent for flushing connection(s)
GSST Plug(s) for flushing connection(s)
BExtra Fill for Cold Temperature Applications
DHastelloy Plugs for Flushing Connections
672 mm Diaphragm Diameter
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) For special process connection sizes, contact your Rosemount representative.
(3) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise.
(4) Limited to a process temperature of 200 °C.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-321
Model 1199
TABLE 22. RTS Threaded Type: Internal Diaphragm Seal — Ordering Information(1)
Code Process Connection Style
ARTS Tapered Threaded (Standard thread is female, for male, see options below)
Code(2) Process Connection Size
31/2–14 NPT
5 1–14 NPT
Code Pressure Rating Diaphragm Size
1 PN 100 57 mm
2 PN 250 57 mm
4PN 40 89 mm
Code(3) Diaphragm Material Upper Housing Material
LA 316L SST 316 SST
LB Hastelloy C-276 316 SST
LC Tantalum 316 SST
LE Inconel 60 316 SST
LJ Hastelloy B-2 316 SST
LP Nickel 201 316 SST
L4 Hastelloy C-22 316 SST
LV Monel 400 316 SST
WC Tantalum 316 SST (WNr 1.4571)
WB Hastelloy C-276 316 SST (WNr 1.4571)
EM Titanium Gr.2 Titanium Gr.2
Code Lower Housing Material (Supplied with Viton Gasket)(4)
L 316L SST
W 316Ti SST (WNr 1.4571)
BHastelloy C-276
P(5) PVDF
Code Flushing Options
1 One ¼–18NPT Flushing Connection
3 Two ¼–18 NPT Flushing Connection
5 No Flushing Connection
Code Options (Multiple Selections)
0 None
VTeflon Coated Diaphragm for non-stick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
JTeflon Gasket
2 98% Graphite Gasket for chloride applications
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 µm Diaphragm Thickness - 316L SST or Hastelloy C-276 Diaphragm Material only
1NPT Male Threads
HSST Drain/Vent for flushing connection(s)
GSST Plug(s) for flushing connection(s)
BExtra Fill for Cold Temperature Applications
DHastelloy Plugs for Flushing Connections
672 mm Diaphragm Diameter
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) For special process connection sizes, contact your local Rosemount representative.
(3) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise.
(4) Limited to a process temperature of 200 °C.
(5) Pressure rating reduced. Contact your Rosemount representative for details.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-322
HTS Threaded Type: Flush Diaphragm Seal
Dimensional Drawing for HTS Threaded Type: Flush Diaphragm Seal
1199-0000A05A
L
b
dm
G1
d
1199-073AB
HTS Process Connection Dimensions
ISO 228/1 Parallel Thread NPT: Tapered Thread
G1 PN
Dimensions (mm)
G1 PN
Dimensions (mm)
dm L b d dm Lbd
1 in. 600 25 21 30 47 1 in. 600 25 23 30 47
1½ in. 600 32 30 30 60 1½ in. 600 32 32 30 60
2 in. 600 40 35 30 70 2 in. 600 40 37 30 70
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-323
Model 1199
TABLE 23. HTS Threaded Type: Flush Diaphragm Seal — DIN Ordering Information(1)
Code Process Connection Style
DHTS(2) Parallel Thread
Code Process Connection Size Diaphragm Diameter
EG1 25 mm
GG1
1/2 32 mm
JG2 40 mm
Code Pressure Rating
6600 bar
Code Diaphragm and Wetted Parts Material Housing Material
LA00 316L SST 316 SST
Code Options (Multiple Selections)
0None
ZMaterial Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy C-276)
8150 µm Diaphragm Thickness - 316L SST or Hastelloy C-276 Diaphragm Material only
BExtra Fill for Cold Temperature Applications
TNACE MR–01–75
(1) Consult your Rosemount representative for use with low calibrated spans. Shaded areas indicate special orders, consult your Rosemount representative
for availability, performance effects, and lead time.
(2) Gasket available upon request; contact your Rosemount representative.
TABLE 24. HTS Threaded Type: Flush Diaphragm Seal —NPT Ordering Information (1)
Code Process Connection Style
AHTS Tapered Thread
Code Process Connection Size Diaphragm Diameter
51-11,5 NPT 25 mm
7 1½-11,5 NPT 32 mm
9 2-11,5 NPT 40 mm
Code Pressure Rating
6600 bar
Code Diaphragm and Wetted Parts Material Housing Material
LA00 316L SST 316L SST
Code Options (Multiple Selections)
0None
ZMaterial Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
550 µm Diaphragm Thickness (available in 316L SST or Hastelloy C-276)
8150 µm Diaphragm Thickness - 316L SST or Hastelloy C-276 Diaphragm Material only
BExtra Fill for Cold Temperature Applications
TNACE MR–01–75
(1) Consult your Rosemount representative for use with low calibrated spans. Shaded areas indicate special orders, consult your Rosemount representative
for availability, performance effects, and lead time.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-324
TFS Cell Type: In-Line Diaphragm Seal
Dimensional Drawings for TFS Cell Type: In-Line Diaphragm Seal
LD
DN
1199-000A012A, RWIB01A 1199-0074AB
TFS Process Connection Dimensions
DIN 2501 ANSI/ASME B16.5
Process
Connection
Size PN
Dimensions (mm) Process
Connection
Size CL
Dimensions (mm)
DN D L DN D L
25 16-400 27 68 90 1 in. 150-2500 27 51 90
40 16-400 41,0 88 90 1½ in. 150-2500 41,0 73 90
50 16-400 50 102 90 2 in. 150-2500 50 92 90
80 16-400 78,0 138 90 3 in. 150-2500 78,0 127 90
100 16-400 107 162 90 4 in. 150-2500 101 157 90
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-325
Model 1199
TABLE 25. TFS Cell Type: In-Line Diaphragm Seal —DIN Ordering Information(1)
Code Industry Standard
D DIN 2501 (Deutsches Institut für Normung)
Code Process Connection Style
T Flanged Type: In-Line Diaphragm Seal
Code Gasket Surface
FS DIN 2526 Form D
Code Process Connection Size
D DN 25
F DN 40
G DN 50
J DN 80
K DN 100
Code Pressure Rating
0 Flange not supplied; seal rated to PN 16-400 or flange rating
Code Diaphragm and Wetted Parts Material(2) Housing Material
LA00 316L SST 316 SST
LB00 Hastelloy C-276 316 SST
Code(3) Options (Multiple Selections)
0 None
Z Material Traceability per EN10204 DIN 3.1.B (Requires
selection of transmitter Code Q8)
TNACE MR–01–75
(1) Consult your Rosemount representative for use with low calibrated spans. Shaded areas indicate special orders, consult your Rosemount representative
for availability, performance effects, and lead time.
(2) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise.
(3) Other lengths and integral flange construction available. Consult the factory.
TABLE 26. TFS Cell Type: In-Line Diaphragm Seal —ANSI/ASME Ordering Information(1)
Code Industry Standard
A ANSI/ASME B16.5 (American National Standards Institute/American Society of Mechanical Engineers)
Code Process Connection Style
T Flanged Type: In-Line Diaphragm Seal
Code Gasket Surface
FS Serrated Finish
Code Process Connection Size
21 in.
41½ in.
G2 in.
73 in.
94 in.
Code Pressure Rating
0 Flange not supplied; seal rated to Class 2500 or flange rating
Code Diaphragm and Wetted Parts Material(2) Housing Material
LA00 316L SST 316L SST
LB00 Hastelloy C-276 316L SST
Code(3) Options (Multiple Selections)
0None
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
TNACE MR–01–75
(1) Consult your Rosemount representative for use with low calibrated spans. Shaded areas indicate special orders, consult your Rosemount representative
for availability, performance effects, and lead time.
(2) When ordering special diaphragm materials, the standard housing material is 316L SST unless noted otherwise.
(3) Other lengths and integral flange construction available. Consult factory.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-326
JES Extruder Flanged Type
Dimensional Drawings for JES Extruder Flanged Type
13.4
35
RL
dM
5
d2
K
D
1199-1199004B, 1199-NCESA01C
JES Process Connection Dimensions (mm) Flange
Thickness
PN dM D K d2 RL
400 bar 23 85 54 4x14 See Table 27 25 mm
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-327
Model 1199
TABLE 27. JES Extruder Flanged Type — Ordering Information(1)
Code Process Connection Style
NJES Plastics Extrusion Clamping Flange
Code Process Connection Size
B23 mm (minimum span 60 bar)
Code Pressure Rating
P(2) 400 bar
Code Diaphragm and Wetted Parts Material Upper Housing Material
LA 316L SST 316 SST
Code Extension Length
0Add 0 mm
1Add 10 mm
2Add 20 mm
3Add 30 mm
4Add 40 mm
5Add 50 mm
6Add 60 mm
7Add 70 mm
8Add 80 mm
9Add 90 mm
Code Extension Length (Amount to Add)
0Add 0 mm
1Add 1 mm
2Add 2 mm
3Add 3 mm
4Add 4 mm
5Add 5 mm
6Add 6 mm
7Add 7 mm
8Add 8 mm
9Add 9 mm
Code Options (Multiple Selections)
0None
550 mm Diaphragm Thickness (available in 316L SST or
Hastelloy)
8150 mm Diaphragm Thickness (316L SST or Hastelloy C-276 Diaphragm Material Only)
6Add 100 mm extension length
7Add 200 mm extension length
ZMaterial Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter Code Q8)
TNACE MR–01–75
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
(2) Minimum range is 100 bar.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-328
Sanitary Diaphragm Seal Systems
VLS and VMS Sanitary In-Line Diaphragm Seals—
DIN 11851 or SMS Process Connections
Dimensional Drawing for VLS and VMS Sanitary In-Line Diaphragm Seals
G1
DN
1199-RWIC01A, 1199-075AB
L
VLS and VMS Process Connection Dimensions(1)
DIN 11851(1) SMS
Process
Connection
Size PN
Dimensions (mm) Process
Connection
Size PN
Dimensions (mm)
DN G1 LDN G1 L
25 40 25,0 Rd52x1/6 90 25 40 25,0 Rd40x1/6 90
40 40 38,1 Rd65x1/6 90 38 40 38,1 Rd60x1/6 90
50 40 50 Rd78x1/6 90 51 40 50 Rd70x1/6 90
80 40 81,0 Rd110x1/4 90 76 40 76,0 Rd98x1/6 90
100 40 100,0 Rd130x1/4 90
(1) RJT and IDF dimensions available upon request.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-329
Model 1199
TABLE 28. VLS Sanitary In-Line Diaphragm Seal—DIN Ordering Information(1)
Code Industry Standard
SSanitary
Code Process Connection Style(2)
VLS Sanitary In Line Seal per DIN 11851 (maximum working pressure: 40 bar)
Code Process Connection Size
D0 DN 25
F0 DN 40
G0 DN 50
J0 DN 80
K0 DN 100
Code Diaphragm Material(3)
LA00 316L SST
Code Options (Multiple Selections)
0None
6Electrolytical polishing of diaphragm material
ZMaterial Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
(1) Consult your Rosemount representative for use with low calibrated spans. Shaded areas indicate special orders, consult your Rosemount representative
for availability, performance effects, and lead time.
(2) Other industry standards such as IDF and RJT available upon request.
(3) When ordering optional diaphragm materials, the standard housing material is 316L SST, unless noted otherwise.
TABLE 29. VMS Sanitary In-Line Diaphragm Seal—SMS Ordering Information(1)
Code Industry Standard
SSanitary
Code Process Connection Style(2)
VMS Sanitary In Line Seal per SMS (maximum working pressure: 40 bar)
Code Process Connection Size
20 DN 25
30 DN 38
50 DN 51
70 DN 76
Code Diaphragm Material(3)
LA00 316L SST
Code Options (Multiple Selections)
0None
6Electrolytical polishing of diaphragm material
ZMaterial Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
(1) Consult your Rosemount representative for use with low calibrated spans. Shaded areas indicate special orders, consult your Rosemount representative
for availability, performance effects, and lead time.
(2) Other industry standards such as IDF and RJT available upon request.
(3) When ordering optional diaphragm materials, the standard housing material is 316L SST, unless noted otherwise.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-330
SLS, SMS, SFS and SRS Sanitary Seals:
Dairy Process Connections—Female Thread
Dimension Drawing for SLS, SMS, SFS and SRS:
Dairy Process Connections—Female Thread
dm
G1
A
D
b
1199-0000B07A,
SLS, SMS, SFS and SRS Process Connection Dimensions
Female Thread
STANDARD
DIMENSIONS (mm)
DN PN A b dmG1 D
DIN 11851 25 40 21 45 25 Rd52⫻1/6 63
32 40 21 40 32 Rd58⫻1/6 70
40 40 21 45 40 Rd65⫻1/6 78
50 40 22 46 57 Rd78⫻1/6 92
65 40 25 47 57 Rd95⫻1/6 112
80 40 30 47 72 Rd110⫻1/4 127
SMS 25 40 20 38 25 Rd40⫻1/6 51
32 40 22 40 32 Rd48⫻1/6 60
38 40 25 40 32 Rd60⫻1/6 74
51 40 26 40 57 Rd70⫻1/6 84
63,5 40 30 40 57 Rd85⫻1/6 100
76 40 32 40 72 Rd98⫻1/6 114
IDF(1)
RJT(1)
(1) Contact factory for dimensions.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-331
Model 1199
TABLE 30. SLS Sanitary Seals: Dairy Process Connection—Female Thread Ordering Information(1)
Code Industry Standard
S Sanitary
Code Process Connection Style
SLS Female Thread per DIN 11851
Code Process Connection Size Pressure Rating(2)
D0 DN 25 40 bar
F0 DN 40 40 bar
G0 DN 50 40 bar
J0 DN 80 40 bar
E0 DN 32 40 bar
H0 DN 65 40 bar
Code Diaphragm Material
LA00 316L SST
Code Options (Multiple Selections)
0None
6 Electrolytical polishing of diaphragm material
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
2Counterpiece (tank/pipe spud) and Gasket (ethylene propylene standard gasket material)
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lea d time.
(2) Maximum working pressure is dependent on the pressure rating of the connection.
TABLE 31. SMS, SFS and SRS Sanitary Seals: Dairy Process Connection—Female Thread Ordering Information(1)
Code Industry Standard
S Sanitary
Code Process Connection Style
SMS Female Thread per SMS Standard
SFS Female Thread per IDF Standard
SRS Female Thread per RJT Standard
Code Process Connection Size Pressure Rating(2)
30 DN 38 (11/2 in.) 40 bar
50 DN 51 (2 in.) 40 bar
20 DN 25 40 bar
60 DN 63.5 40 bar
70 DN 76 40 bar
Code Diaphragm Material
LA00 316L SST
Code Options (Multiple Selections)
0None
6 Electrolytical polishing of diaphragm material
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
2Counterpiece (tank/pipe spud) and Gasket (ethylene propylene standard gasket material)
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lea d time.
(2) Maximum working pressure is dependent on the pressure rating of the connection.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-332
MLS, MMS, MFS and MRS Sanitary Seal:
Dairy Process Connections—Male Thread
Dimensional Drawing for MLS, MMS, MFS and MRS:
Dairy Process Connections—Male Thread
G1
dm
b
1199-057AB
1199-0000A07A
MLS, MMS, MFS and MRS Process Connection Dimensions
STANDARD
Male Thread
DN PN
DIMENSIONS (mm)
b dmG1
DIN 11851 25 40 46 25 Rd52⫻1/6
32 40 47 32 Rd58⫻1/6
40 40 46 32 Rd65⫻1/6
50 40 46 40 Rd78⫻1/6
65 40 46 57 Rd95⫻1/6
80 40 47 72 Rd110⫻1/4
SMS 25 40 47 25 Rd40⫻1/6
32 40 47 32 Rd48⫻1/6
38 40 47 32 Rd60⫻1/6
51 40 47 40 Rd70⫻1/6
63,5 40 47 57 Rd85⫻1/6
76 40 47 72 Rd98⫻1/6
IDF(1)
RJT(1)
(1) Consult the factory for dimensions.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-333
Model 1199
TABLE 32. MLS Sanitary Seal: Dairy Process Connections—Male Thread Ordering Information(1)
Code Industry Standard
S Sanitary
Code Process Connection Style
MLS Male Thread per DIN 11851
Code Process Connection Size Pressure Rating(2)
F0 DN 40 40 bar
G0 DN 50 40 bar
J0 DN 80 40 bar
D0 DN 25 40 bar
E0 DN 32 40 bar
H0 DN 65 40 bar
Code Diaphragm Material
LA00 316L SST
Code Options (Multiple Selections)
0 None
6 Electrolytical polishing of diaphragm material
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
2Counterpiece (tank/pipe spud) and gasket (standard gasket material ethylene propylene)
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lea d time.
(2) Maximum working pressure is dependent on the pressure rating of the connection.
TABLE 33. MMS, MFS, and MRS Sanitary Seals: Dairy Process Connections—Male Thread Ordering Information(1)
Code Industry Standard
S Sanitary
Code Process Connection Style
MMS Male Thread per SMS Standard
MFS Male Thread per IDF Standard
MRS Male Thread per RJT Standard
Code Process Connection Size Pressure Rating(2)
30 DN 38 (11/2 in.) 40 bar
50 DN 51 (2 in.) 40 bar
20 DN 25 40 bar
60 DN 63.5 40 bar
70 DN 76 40 bar
Code Diaphragm Material and Wetted Parts
LA00 316L SST
Code Options (Multiple Selections)
0 None
6 Electrolytical polishing of diaphragm material
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
2Counterpiece (tank/pipe spud) and gasket (standard gasket material ethylene propylene)
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lea d time.
(2) Maximum working pressure is dependent upon the pressure rating of the connection.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-334
VCS Sanitary In-Line Diaphragm Seal—
Tri-Clamp Process Connection
Dimensional Drawing for VCS Sanitary In-Line Diaphragm Seal
C20240A
O
d
OD
1.5 (38,1)
3.54 (90,0)
VCS Process Connection Dimensions
Max. Working
Pressure DN Dimensions (mm)
OdOD A
40 bar 1 in. 22,1 50,5 60,5
40 bar 1 1/2 in. 34,8 50,5 60,5
40 bar 2 in. 47,5 64,0 73,2
40 bar 2 1/2 in. 60,20 77,4 85,9
40 bar 3 in. 72,9 90,9 98,6
40 bar 4 in. 97,4 119,1 126,5
TABLE 34. VCS Sanitary In-Line Diaphragm Seal Ordering Information(1)
Code Industry Standard
S Sanitary
Code Process Connection Style
VCS(2) In Line Tri-Clamp Seal (Maximum Working Pressure: 40 bar)
Code(3) Process Connection Size
20 1 in.
30 1½ in.
50 2 in.
70 3 in.
90 4 in.
Code Diaphragm Material(4)
LA00 316L SST
Options (Multiple Selections)
0 None
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
(1) Consult a Rosemount representative for minimum calibrated spans. Shaded areas indicate special orders, consult your Rosemount representative for
availability, performance effects, and lead time.
(2) Gasket and clamp are furnished by the user. The maximum working pressure is dependent upon the pressure rating of the connection.
(3) DIN Tri-Clamp dimensions available on request.
(4) When ordering optional diaphragm materials, the standard housing material is 316L SST, unless otherwise noted.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-335
Model 1199
SCS Sanitary Tri-Clamp® Diaphragm Seal
Dimensional Drawing for SCS Sanitary Tri-Clamp Diaphragm Seal
SCS Process Connection Dimensions
DN PN
Dimensions (mm)
dMD
1½ in. 40 32 50,5
2 in. 40 40 64
2½ in. 40 57 77,5
3 in. 40 72 91
TABLE 35. SCS Sanitary Tri-Clamp Diaphragm Seal Ordering Information(1)
(1) Consult a Rosemount representative for minimum calibrated spans. Shaded areas indicate special orders, consult your Rosemount representative for
availability, performance effects, and lead time.
Code Industry Standard
S Sanitary
Code Process Connection Style
SCS(2)
(2) Gasket and clamp furnished by user. The maximum working pressure is dependent upon the pressure rating of the connection.
Tri-Clamp Seal (maximum working pressure: 40 bar)
Code(3)
(3) DIN Tri-Clamp sizes available on request.
Process Connection Size
30 1½ in.
50 2 in.
60 2½ in.
70 3 in.
Code Diaphragm Material(4)
(4) When ordering optional diaphragm materials, the standard housing material is 316L SST unless noted otherwise.pper
LA00 316L SST
Code Options (Multiple Selections)
0 None
6 Electrolytical polishing of diaphragm material
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
BExtra Fill for Cold Temperature Applications
2Counterpiece (tank/pipe spud) and gasket (standard gasket material ethylene propylene)
D
DN
dm
1199-0000A06A, 1199-077AB
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-336
EES Sanitary Tank Spud: Extended Diaphragm Seal
Dimensional Drawing for EES Sanitary Tank Spud Type: Extended Diaphragm Seal
DN PN
Dimensions (mm)
A B C D E F G
50 40 72 73 76 82.3 125 165 25
80 40 89 98 102 107.2 160 200 25
Flanged Type Tank Spud
TABLE 36. EES Sanitary Tank Spud Type: Extended Diaphragm Seal Ordering Information(1)
(1) Shaded areas indicate special orders. Consult your Rosemount representative for availability, performance effects, and lead time.
Code Industry Standard
S Sanitary
Code Process Connection Style
EES Flanged Tank Spud Seal Type: Extended Diaphragm Seal (Supplied with ethylene propylene gasket)
Code Process Connection SizeFlange Pressure Rating
JG DN 80 40 bar
GG DN 50 40 bar
Code Diaphragm and Wetted Parts Material(2)
(2) When ordering optional diaphragm materials, the standard housing material is 316L SST unless noted otherwise.
LA 316L SST
LB Hastelloy C-276
Code Extension Length(3)
(3) Other extension lengths are available upon request.
10 25 mm
Code Options (Multiple Selections)
0 None
1Viton O-ring
2 Tank spud counterpiece to be welded on tank: includes Ethylene-Propylene O-ring, stainless steel bolts, and washers
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
550 m Diaphragm Thickness (available in 316L SST or Hastelloy)
8150 m Diaphragm Thickness (316L SST or Hastelloy C-276 Diaphragm Material Only)
BExtra Fill for Cold Temperature Applications
6Electrolytical Polishing of Diaphragm Material
7Blind Plug for Tank Spud Counterpiece
G
A
B
C
D
E
F
1199-0000A03A, 1199-056AB
C
D
E
F
G
AB
Flanged Type Tank Spud Dimensions
Dimensions (mm)
DN A B C D E F G
50 25 15 76 82.5 125 165 22
80 25 15 103 108 160 200 22
1199-0000B14B
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-337
Model 1199
Varivent® Compatible Connection
Dimensional Drawing for Varivent Compatible Connection
dm
D
D’
1199-1199_02A, 1199-1199003B
Varivent Compatible Process Connection Dimensions
dm PN Dimensions (mm)
DD’
52 mm 40 84 68
TABLE 37. Varivent Compatible Sanitary Seal Ordering Information(1)
Code Industry Standard
S Sanitary
Code Process Connection Style
SVS Off-line Varivent compatible (maximum working pressure: 40 bar)
Code Process Connection Size
V0 Varivent compatible standard connection only
Code Diaphragm Material
LA00 316L SST
Code Options (Multiple Selections)
0 None
6 Electrolytical polishing of diaphragm material
B Extra Fill for Cold Temperature Applications
Z Material Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
2 Counterpiece and (Varivent Type U) Gasket (standard gasket material ethylene propylene)
(1) Varivent is a registered trademark of Tuchenhagen Nederland B.V.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-338
CHS Homogenizer Clamping Flange Type
Dimensional Drawings for CHS Homogenizer Clamping Flange Type
33.5
95
60.5
7
23.5
93
30
13.5
1199-NCHSA01A,
TABLE 38. CHS Homogenizer Clamping Flange Type–Ordering Information(1)
Code Process Connection Style
NCHS Homogenizer Clamping Flange
Code Process Connection Size
C23,5 mm
Code(2) Pressure Rating
R600 bar
Code Diaphragm and Wetted Parts Material(3)
LA00 316L SST
Code Options (Multiple Selections)
0None
550 m Diaphragm Thickness (available in 316L SST or Hastelloy)
VTeflon Coated Diaphragm for nonstick purposes only (available with 316L SST and Hastelloy C–276 diaphragm only)
BExtra Fill for Cold Temperature Applications
ZMaterial Traceability per EN10204 DIN 3.1.B (Requires selection of transmitter code Q8)
(1) Shaded areas indicate special orders. Please consult your Rosemount representative for availability, performance effects, and lead time.
(2) Minimum range is 100 bar.
(3) When ordering special diaphragm materials, the standard housing material is 316L SST, unless noted otherwise.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-339
Model 1199
General Information
WHAT IS A DIAPHRAGM SEAL SYSTEM?
A diaphragm seal system consists of a pressure
transmitter, a diaphragm seal, a fill fluid, and either a
direct-mount or capillary-style connection.
During operation, the flexible diaphragm and fill fluid
separate the pressure sensitive element of the
transmitter from the process medium. The capillary
tubing or direct mount flange connects the
diaphragm to the transmitter.
When process pressure is applied, the diaphragm
transfers the measured pressure through the filled
system and capillary tubing to the transmitter
element. This transferred pressure displaces the
sensing diaphragm in the pressure-sensitive element
of the transmitter. The displacement is proportional to
the process pressure and is electronically converted
to an appropriate current, voltage, or digital HART
(Highway Addressable Diaphragm Transducer)
output signal.
WHY USE DIAPHRAGM SEALS?
Seal systems provide a reliable process pressure
measurement and prevent the process medium from
contacting the transmitter diaphragm.
Transmitter/diaphragm seal systems should be
considered when:
• The process temperature is outside of the
normal operating ranges of the transmitter and
cannot be brought into those limits with
impulse piping.
• The process is corrosive and would require
frequent transmitter replacement or unusual
materials of construction.
• The process contains suspended solids or is
viscous and may plug the impulse piping.
• The application requires the use of sanitary
connections.
• There is a need for easier cleaning of the
process from the connections to avoid
contamination between batches.
• There is a need to replace wet legs to reduce
maintenance on applications where the wet
leg is not stable or often needs to be refilled.
• There is a need to make density or interface
measurements.
• The process medium may freeze or solidify in
the transmitter or impulse piping.
SPECIAL ORDERS
Many other special-order transmitter/diaphragm seal
materials, configurations, and fill fluids are available
that are not covered in this document. Contact your
Rosemount representative or consult the factory for
special order information.
ADDITIONAL INFORMATION
This product data sheet provides information on
Rosemount transmitter/diaphragm seal systems.
Model 1199 diaphragm seals can be assembled to
Model 3051, 1151, and 2088 differential, gage, and
absolute pressure transmitters, and liquid level
transmitters. For additional information, refer to the
following product data sheets:
Model 3051S Series of Instrumentation
PDS 00813-0100-4801
Model 3051 Smart Pressure Transmitter Family
PDS 00813-0100-4001
Model 1151 Pressure Transmitters
PDS 00813-0100-4360
Model 2088 Gage and Absolute Pressure Transmitter
PDS 00813-0100-4690
PERFORMANCE CONSIDERATIONS
Temperature Effects
Temperature effect errors occur when the fill fluid
expands or contracts with fluctuations in the process
or ambient temperature, thus causing a change in
the internal pressure of the transmitter/seal system.
Two primary factors affect the temperature
performance of a diaphragm seal system: the
diaphragm stiffness and the characteristics of the fill
fluid.
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-340
Diaphragm Stiffness
Diaphragm stiffness is a critical parameter affecting
temperature performance. As the fill fluid expands
and contracts, due to temperature changes, a flexible
diaphragm will exert less back pressure than a stiff
diaphragm (for equal changes in fill volume). Back
pressure causes a measurement error as it acts
upon the sensing diaphragm of the transmitter.
Therefore, the more flexible diaphragm seal can
accommodate changes in fill volume and minimize
errors resulting from temperature changes.
Diaphragm stiffness is affected by the diaphragm
surface diameter, material of construction, thickness,
and convolution pattern. Of these factors, the most
significant is the diaphragm seal diameter. Each
diaphragm has its own characteristic stiffness curve.
Generally, smaller diameter diaphragms are more
stiff than larger diameter diaphragms, and thus have
stiffness curves that are less vertical. A more vertical
stiffness curve helps to minimize the amount of
pressure error that can occur when the fill fluid
expands or contracts with temperature changes.
Figure 1 shows that large-diameter diaphragms,
which are less stiff, have smaller errors caused by
changes in the fill fluid volume. This is a result of a
more vertical stiffness curve. The small-diameter
diaphragms have a less vertical stiffness curve,
resulting in larger errors with changes in
temperature.
Fill Fluid
The expansion characteristics and the volume of the
fill fluid affect seal performance.
All fill fluids expand and contract with changes in
temperature. The coefficient of thermal expansion
defines the amount of change and is represented in
cubic centimeters of expansion per cubic centimeter
of fluid per degree Celsius (cc/cc/°C). The amount of
expansion varies between fill fluids, as shown in
Figure 2. Selecting a fill fluid with a smaller coefficient
of thermal expansion will help minimize temperature
error. Table 1 on page 282 provides the coefficients
of thermal expansion for all available fill fluids.
A larger volume of fill fluid increases the potential for
volume expansion. By minimizing the capillary length
and inside diameter, fill volumes can be kept as low
as possible to reduce temperature error.
Time Response
Use of diaphragm seals increases the overall
response time of transmitter/diaphragm seal
systems. Time response varies with temperature,
pressure, capillary length, inside diameter (ID), fill
fluid, viscosity, and transmitter type.
Capillary ID: A smaller capillary inside diameter (ID)
creates more restrictions and slows down the
pressure transport. The larger capillary ID provides a
faster response time.
Fill Fluid Viscosity: Viscosity of the fill fluid is a
measure of its fluidity and is temperature dependent.
Choosing a less viscous fill fluid enhances time
response, especially when using longer capillaries in
colder conditions.
FIGURE 1. Diaphragm Stiffness Curves FIGURE 2. Effect of Fill Fluid Expansion on Fill Volume
1199-0051A
Centimeters
3
Initial
Volume
@ 25 °C
5 °C
increase
10 °C
increase
15°C
increase
20°C
increase
Expansion of Oil Fluids in 1.0 Meters of 1 mm
ID Capillary with Increasing Temperature
KEY: Fill Fluids
Low Temp. Silicone Oil
Gen. Purpose Silicone Oil
Inert
A change in the fill fluid volume causes a smaller
error for the larger diameter diaphragm than for
the smaller diameter diaphragm.
1199-0048A
Error associated
with large
diameter Large diameter seal
stiffness curve
Error associated
with small
diameter
Error
Volume
Small diameter seal
stiffness curve
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-341
Model 1199
Capillary Length: A longer capillary provides a
greater distance for the pressure signal to travel, thus
increasing the response time.
Applications with large tanks and slow changes in
level, may not be hindered by a longer response
time. Yet, a small, narrow tank may be subject to
measurement difficulties if the response time is too
slow. Applications that change rather quickly, such as
flow, also require faster response times.
Summary
Adding seals to a transmitter can affect overall
system performance. Selecting the most appropriate
diaphragm seals, capillaries, and fill fluid can
minimize these effects, maximize assembly
performance, and still meet or exceed process
demands.
Consider the following when selecting a diaphragm
seal system:
• Use larger diameter diaphragms to minimize
temperature effects.
• Keep capillary length as short as possible to
reduce temperature effects and response
time.
• Select larger ID capillaries to improve time
response or select smaller ID capillaries to
improve temperature performance.
• Select fill fluid that is the least viscous and has
the smallest coefficient of thermal expansion
while satisfying the most extreme process
conditions.
Refer to Figure 3 for a summary of temperature effect
and time response properties of various seal
systems. In-line seal designs, diaphragm seal
designs with diameters less than 50 mm and various
other design configurations can result in significant
temperature effect errors. Consult Instrument ToolKit
or contact a Rosemount representative for a detailed
performance evaluation of a specific diaphragm seal
system configuration.
DIRECT MOUNT SEAL CONNECTION
TYPES
Model 3051, 1151, and 2088 transmitters with the
Model 1199 direct mount style seals are flange
mounted directly to the vessel. They provide precise
level and specific gravity measurements and are
available in a wide variety of configurations.
The direct-mount connection is welded at the seal
and the “L” bracket on Model 3051C transmitters and
at the seal and the transmitter flange for Model 1151
and 2088 transmitters. Figure 4, 5, and 6 illustrate
the various direct mount seal assembly
configurations and weld locations.

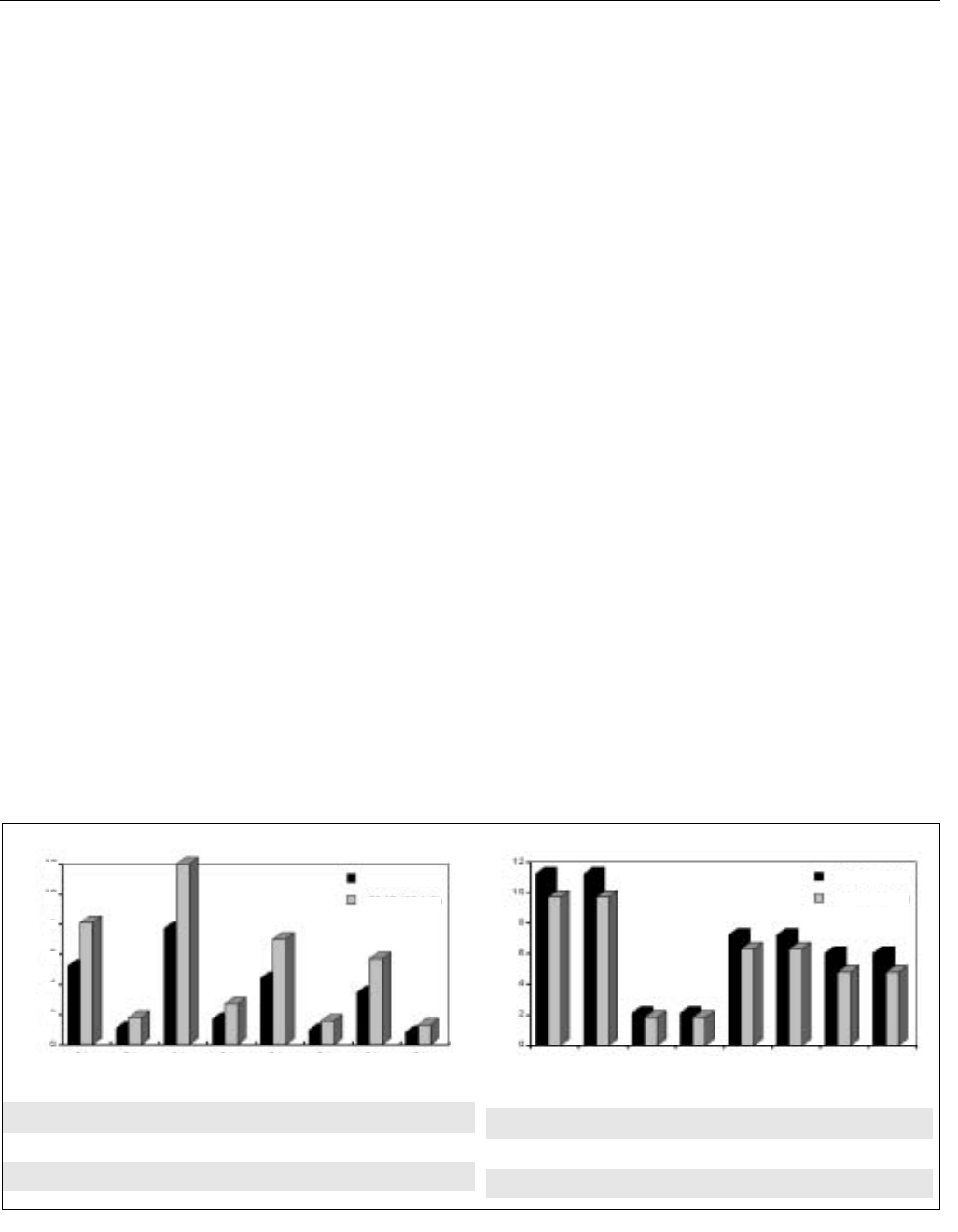

FIGURE 3. Summary of Temperature Effect and Time Response with Various Seal, Capillary, and Fill Fluid Combinations
Seconds
15 °C
30 °C
Diaphrag
m
Diameter
50 mm 80 mm 50 mm 80 mm 50 mm 80 mm 50
mm
80
mm
Fill Fluid General
Purpose
General
Purpose
General
Purpose
General
Purpose
General
Purpose
General
Purpose
Inert Inert
Capillary
Length
5 m5 m5 m5 m3 m3 m3 m3 m
Inside
Diameter
1 mm 1 mm 2 mm 2 mm 1 mm 1 mm 1 mm 1 mm
mbar
5
15
10
25
20
30 15 °C
30 °C
Diaphrag
m
Diameter
50 mm 80 mm 50 mm 60 mm 50 mm 80 mm 50
mm
80
mm
Fill Fluid General
Purpose
General
Purpose
General
Purpose
General
Purpose
General
Purpose
General
Purpose
Inert Inert
Capillary
Length
5 m 5 m 5 m 5 m 3 m 3 m 3 m 3 m
Inside
Diameter
1 mm 1 mm 2 mm 2 mm 1 mm 1 mm 1 mm 1 mm
1199-0138 1199-0139
Temperature Effect Time Response
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Model 1199
Pressure-342
Direct Mount Option Code Index
FIGURE 4. Model 3051 Direct Mount Connection Type
Model 3051T (Option Code S1)
Direct Mount Connection
One Seal Connection =
Option Code 95 (L = 25 mm)
One Seal Connection =
Option Code A5 (L = 50 mm)
FIGURE 5. Model 3051T Direct Mount Connection Type
Model 1151 (Option Code S1 or S2)
Direct Mount Connection
One or Two Seal Connection = Option Code 92
FIGURE 6. Model 1151 Direct Mount Connection Type
Model 2088 (Option Code S1)
Direct Mount Connection
One Seal Connection =
Option Code 95 (L = 25 mm)
One Seal Connection =
Option Code A5 (L = 50 mm)
FIGURE 7. Model 2088 Direct Mount Connection Type
Weld
40
mm
1199-0517A
X
Low
Capillary
Side
Model 3051C
Direct-Mount Connections
Standard (Option Code S1 or S2)
All-Welded System
(Option Code S0 or S9)
Connection X = 50 mm X = 100 mm
One Seal (S1) B3 D3
Two Seals
(S2)
B4 D4
One Seal
All-Welded
(S0)
B7 D7
104mm
182
mm
Weld
1199-3051C06B
L
Weld
40
mm
1199-0517B
98
118mm
138mm
Weld
L
1199-2088C07C
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003
Pressure-343
Model 1199
VACUUM APPLICATIONS
There are three parameters to consider when
selecting a transmitter/seal system for vacuum
applications: fill fluid compatibility, configuration, and
installation.
Fill Fluid Compatibility
The fill fluid must be able to withstand the highest
temperature and lowest process pressure conditions
under which the transmitter will be operating.
Therefore, the fill fluid must have a vapor pressure
that is compatible with the most extreme process
conditions. (Be sure to consider temperature and
pressure conditions during start-up and system
cleaning operations).
Temperature limits of fill fluids, as shown in Table 6
on page 284, are stated for positive and vacuum
pressure conditions. Figure 8 provides the vapor
pressure curves for general purpose, high
temperature, and sanitary fill fluids.
Configuration
Transmitter Connections
For moderate to high vacuum applications, the Model
1151 transmitter is available with a vacuum resistant
gasket, to ensure extra reliability.
For full vacuum applications, the Model 3051C All
Welded System is available. This transmitter/seal
system welds the following four connection points, as
shown in Figure 8:
4. Capillary-to-transmitter flange connection
5. Module-to-capillary connection
6. Transmitter fill screw
7. 316 SST bolts on the module-to-flange
connection
Installation
For vacuum applications, to ensure positive
pressure at the transmitter, mount the
transmitter so that it is level with, or below the
lowest tap.
Under the following conditions, the transmitter fill
fluid may start to vaporize, at which point, the
transmitter will cease to make appropriate
readings:
• The transmitter is mounted above
the lower tap (causing a negative head effect)
• The process pressure is less than the head
pressure exerted by the
fill fluid.
• This puts the transmitter fill fluid under a
vacuum, thereby degrading the maximum
operating temperature
If the operating temperature and vacuum
pressure exceed the vapor pressure point of the
transmitter fill fluid, the fill fluid is likely to
vaporize.

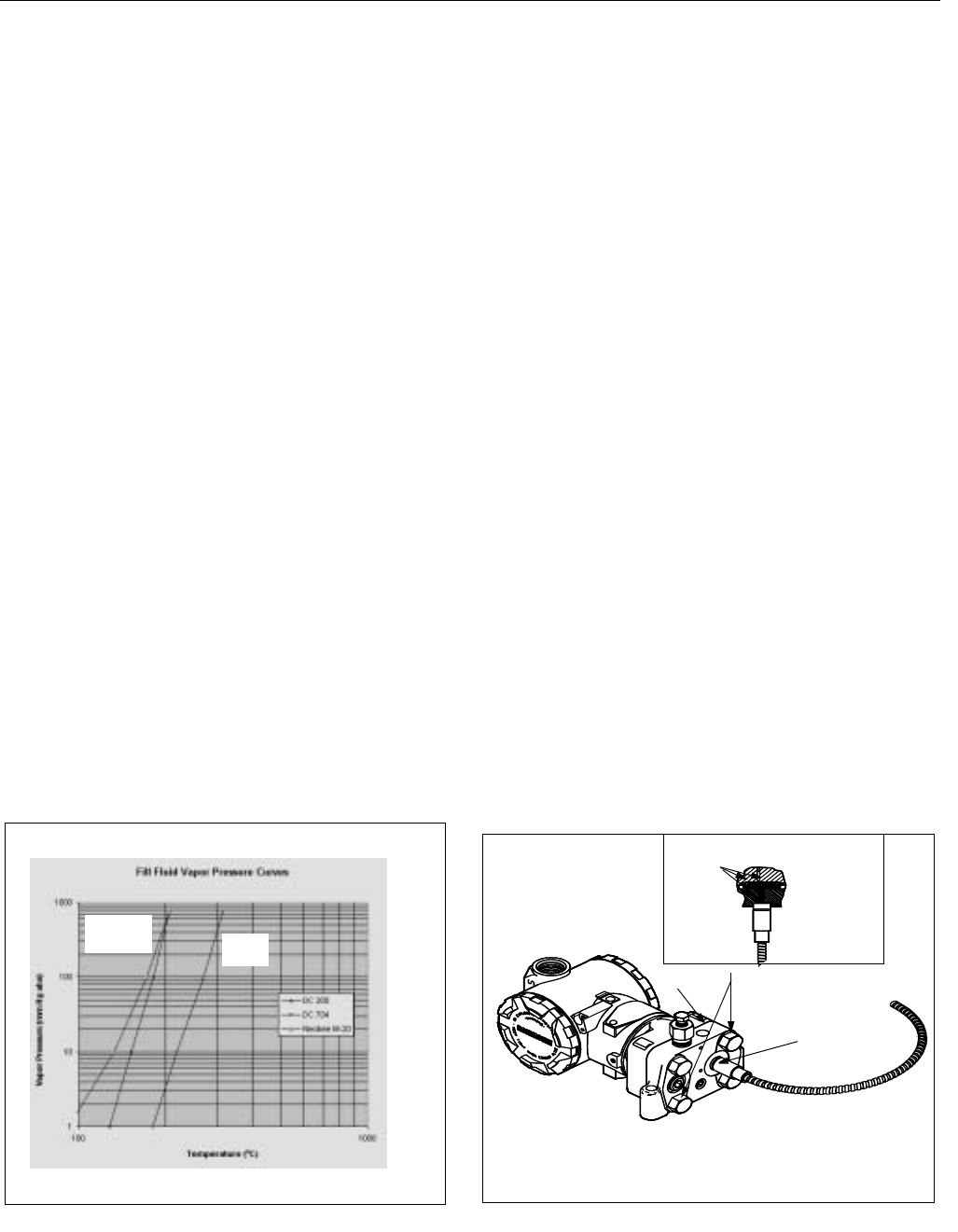

FIGURE 8. Fill Fluid Vapor Pressure Curves and Model 3051C All-Welded System
3
2
4
1
Detail of
Welded Cap
Assembly
Liquid
Phase Vapor
Phase
FILL_VP_CURVE_A
1199-
3051B28A
Product Data Sheet
00813-0201-4016, Rev EA
Catalog 2002 – 2003 Model 1199
Emerson Process Management
© 2002 Rosemount Inc. All rights reserved.
¢00813-0201-4016?¤
The Model 3051C Pressure Transmitter may be protected by one or more of the following U.S. Pat. No.: 4,370,890: 4,612,812; 4,791,352;
4,798,089; 4,818,994; 4,833,922; 4,866,435; 4,926,340; 4,988,990; 5,028,746. MEXICO PATENTADO NO. 154,961. May Depend on Model.
Other U.S. and Foreign Patents Issued and Pending.
The Model 1151 Pressure Transmitter may be protected by one or more of the following U.S. Pat. Nos.: 3,854,039; 3,975,719; 4,339,750; and
Re. 30.603. May Depend on Model. Other U.S. and Foreign Patents Issued and Pending,
Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc.
HART is a registered trademark of the HART Communication Foundation.
Instrument Toolkit is a trademark of Rosemount Inc.
Hastelloy, Hastelloy B-2, Hastelloy C, Hastelloy C–4, and Hastelloy C–276 are registered trademarks of the Cabot Corp.
Viton and Teflon are registered trademarks of E.I. duPont de Nemours & Co.
Tri-Clamp is a registered trademark of Tri-Clover, Inc. of the Alfa-Laval Group.
Monel, Inconel, and Incoloy are registered trademarks of International Nickel Co.
Varivent is a registered trademark of Tuchenhagen Nederland B.V.
All other marks are the property of their respective owners.
Cover Photo: 1199-063AB
Rosemount Inc.
8200 Market Boulevard
Chanhassen, MN 55317 USA
T (U.S.) 1-800-999-9307
T (International) (952) 906-8888
F (952) 949-7001
www.rosemount.com
Fisher-Rosemount GmbH & Co
Shipping address:
Argelsrieder Feld 3
82234 Wessling
Germany
Tel 49 (8153) 9390
Fax 49 (8153) 939172
Fisher-Rosemount Singapore Pte Ltd.
1 Pandan Crescent
Singapore 128461
Tel (65) 777-8211
Fax (65) 777-0947
AP.RMT-Specialist@emersonprocess.com
