Catalog 457377

2014

Supercedes 457377, Dated 2011

Torque specication guide

Front & rear axle nut torque specifications

for FWD, RWD & 4WD vehicles

For catalog related questions, please email:

vsm.updates@skf.com

The Power of Knowledge Engineering

SKF is your source for a wide range of products c

various industries. From automotive to heav

industrial applications, SKF offers a solution to k

machines operating and your business protable.

View detailed technical and product videos

at www.skfpartsinfo.tv

on top of all the latest technical and product

information.

www.vsm.skf.com

Download literature, access technical tips

and view product information

® SKF is a registered trademark of the SKF Group.

The contents of this publication are the copyright of the publisher and may not

be reproduced (even extracts) unless permission is granted. Every care has been

taken to ensure the accuracy of the information contained in this publication but

no liability can be accepted for any loss or damage whether direct, indirect or

consequential arising out of the use of the information contained herein.

Publication 457377 (rev. 02/14)

Printed in U.S.A.

One of the most common mistakes during installation is improper torque of the Axle nut. To guarantee the (Bearing,

Spindle or Hub) is torqued correctly, follow the manufacture’s installation procedure. Ignoring these important details will

reduce the life of your (Bearing, Spindle or Hub).

Use a qualied, calibrated torque wrench. Do not use an impact gun to install the axle nut. The impact gun will damage the

axle nut. It will also leave your spindle nut under or over torque resulting in hub assembly failure.

To ensure that you have the correct torque for the application refer to this guide or contact the vehicle manufactures

dealer. It is important that you properly torque the spindle nut to ensure optimum bearing life. Under torque of an axle

nut will allow excessive movement causing uneven loading and excessive wear. Over torque of the axle nut will cause

excessive load and cause the bearing to overheat, this is one of the most common causes for failures.

Instructions

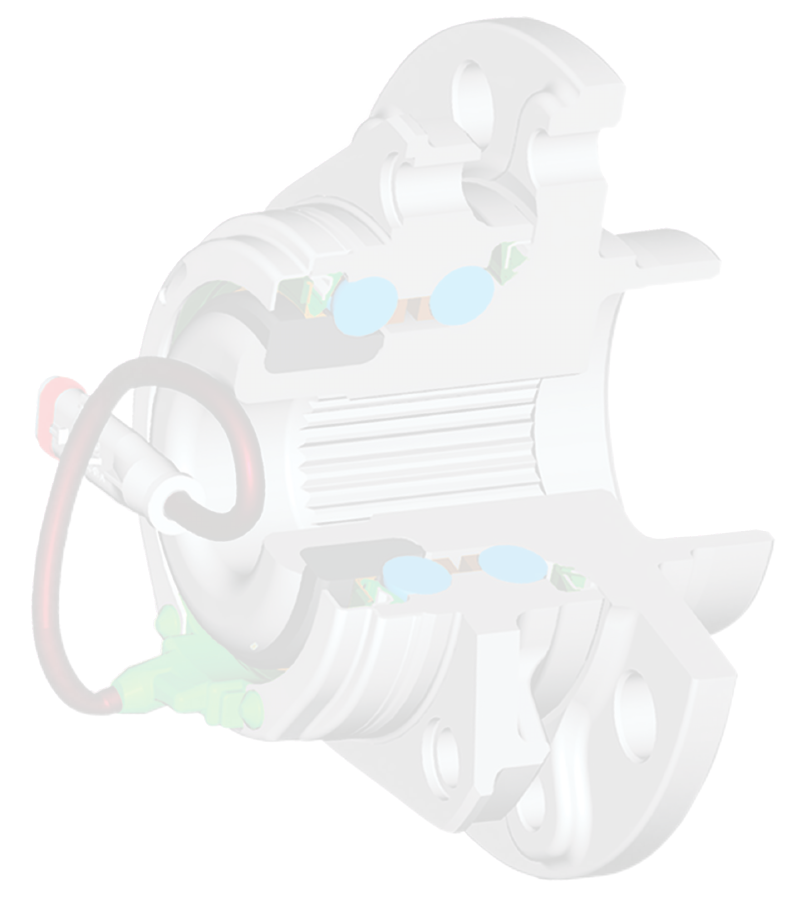

All replacement hub units

are not created equal

SKF premium

quality hubs

• Engineered to meet or exceed

OE specications

• Life expectancy of 100,000+ miles

• OE sensors assure correct ABS functions

• Premium seals, both inboard and

outboard, protect the bearing

• Precision bearing preload and correct

application of advanced manufacturing

techniques such as orbital rolling

• 100% tested to the actual OE

specications per part number for t,

form and function

• High quality steel and surface nishes

• Proper implementation of heat treatment

• Precise assembly tolerances

“Value” grade hubs

• Reverse engineered to generic

specications

• Typically last about 25% to 35% as long

as the OE hub (25,000 to 35,000 miles)

• Low quality reproduction sensors can

cause ABS system malfunctions

• Reproduction seals selected for price,

not performance, quickly subject

the bearing to contamination

• Imprecise bearing preload and

inconsistent manufacturing techniques

may lead to poor performance and

shortened bearing life

• Tests not performed on all critical

areas – defective return rates run 6 to

12 times higher than premium hubs

• Inferior quality steel and surface

nishes will lead to bearing noise and

premature failure

• Heat treatment improperly applied

and/or poorly controlled can result in

safety issues like a wheel off condition

• Inconsistent and imprecise assembly

tolerances may lead to wheel pulsation

Don’t compromise your customer’s vehicle safety.

Always install SKF premium quality hubs!

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

[ ] Footnote codes, see pages 26-28 • Adjustment procedure codes, see pages 29-33

Acura

1.6EL ..................................... 1997-2005 ........134/182 —

2.2CL, 2.3CL, 3.0CL .........1997-1999 .......181/245 134/181

2.5TL ....................................1995-1998 .......181/245 134/181

3.2CL ....................................2001-2003 .......181/245 134/181

3.2TL ....................................1996-2007 .......181/245 134/181

3.5RL ...................................1996-2004 ........ 181/245 181/245

Integra .................................1986-2001 ........134/181 134/181

IXL 1.5L,2.0L .......................2013 .................... 133/181 —

IXL 2.4L ................................2013 .................... 181/245 —

Legend ................................. 1991-1995 ........ 242/335 206/285

1986-1990 ........180/244 180/244

MDX ....................................... 2007-2013 ........ 242/329 181/245

2003-2006 ........210/285 181/245

2001-2002 ........181/245 181/245

NSX........................................1991-2005 ........ — 242/329

RDX ......................................2013 .................... 242/329 133/181

2007-2012 ........242/329 181/245

RL .........................................2009-2012 ........242/329 181/245

2005-2007 ........242/329 181/245

RSX ....................................... 2002-2006 ........134/181 134/181

RSX Type S .......................... 2002-2006 ........ 181/245 134/181

SLX .......................................1996-1999 ........ IUA —

TL FWD ................................2009-2013 ........ 242/329 —

TL AWD ................................2009-2013 ........ 242/329 181/245

TL ........................................... 2008 .................... 181/245 134/181

2005-2008 ........181/245 134/181

TSX .......................................2009-2013 ........242/329 —

2004-2008 ........181/245 —

Vigor ..................................... 1992-1994 ........181/245 134/181

ZDX ........................................2010-2013 ........242/329 181/245

AM General

H2 ..........................................2003-2009 ........173/235 —

H3 ..........................................2006-2010 ........191/260 —

American Motors

AMX .......................................1978-1980 ........AMB —

Concord .................................1978-1983 ........ AMB —

Eagle......................................1980-1988 ........— —

Gremlin .................................1977-1978 ........AMB —

Matador ................................1977-1978 ........ AMB —

Pacer .....................................1977-1980 ........AMB —

Spirit ......................................1979-1983 ........AMB —

Audi

100 ........................................1992-1994 ........147/200[30] AIA

100, 200 ..............................1989-1991 ........147/200[30] AIA

100 Quattro ......................... 1989-1991 ........ 147/200[30] 147/200[30]

200 Quattro ......................... 1989-1991 ........ 147/200[30] 147/200[30]

4000 .....................................1980-1987 ........167/226 AIA

4000 Quattro ......................1984-1987 ........203/280 203/280

Audi - cont.

5000 .....................................1978-1988 ........202/280 AIA

5000 Quattro ......................1984-1988 ........202/280 —

80 ..........................................1988-1991 ........195/265 AIA

80 Quattro ...........................1988-1991 ........195/265 236/320

90 FWD ................................1992-1995 ........ 147/200[30] AIA

90 AWD ................................1992-1995 ........81/110[30] 89/120[30]

90 ..........................................1988-1991 ........195/265 AIA

90 Quattro ...........................1992-1995 ........147/200[30] 177/240

1988-1991 ........195/265 236/320

Allroad Quattro ....................2013 ....................[50] [50]

2001-2005 ........[31] [31]

A3, A3 Quattro ....................2006-2013 ........ VWH VWH

A4, A4 Quattro ....................2008-2013 ........ [50] [50]

2006-2007 ........[51] 147/200[45]

A4 ..........................................1996-2005 ........[31] AIA

A4 Quattro ...........................1996-2005 ........[31] 85/115[32]

A5 ..........................................2010-2013 ........[50] [50]

A5 Quattro ...........................2008-2013 ........[50] [50]

A6 ..........................................2005-2013 ........[50] —

1998-2004 ........[31] —

1995-1997 ........147/200[30] AIA

A6 Quattro ...........................2005-2013 ........[50] [50]

1998-2004 ........[31] [31]

1995-1997 ........147/200[30] 147/200[30]

A7 Quattro ...........................2012-2013 ........[50] [50]

A8 ..........................................1997-1999 ........140/190[32] —

A8 Quattro ...........................2006-2013 ........147/200[45] 147/200[45]

A8 Quattro ...........................1997-2005 ........140/190[32] 140/190[32]

Cabriolet ...............................1994-1998 ........147/200[30] AIA

Coupe ....................................1990-1991 ........ 195/265 AIA

1981-1987 ........167/226 AIA

Fox .........................................1976-1979 ........ 167/226 AIA

Q5 ..........................................2009-2013 ........[50] [50]

Q7 ..........................................2007-2013 ........[53] [53]

RS4 ........................................2007-2008 ........[51] [50]

RS5 ........................................2013 .................... [50] [50]

RS6 ........................................2003-2004 ........[31] [31]

R8 ..........................................2008-2013 ........[111] [50]

S4 ..........................................2008-2013 ........[50] [50]

2006-2007 ........[51] 147/200[45]

2000-2005 ........[31] AIA

S4 Quattro ...........................2000-2005 ........[31] 85/115[32]

S4 FWD ................................1992-1994 ........ 147/200[30] AIA

S4 AWD ................................1992-1994 ........147/200[30] 147/200[30]

S5 ..........................................2008-2013 ........[50] [50]

S6 ..........................................2007-2013 ........[50] [50]

S6 Quattro ...........................2002-2013 ........[31] [31]

S6 FWD ................................1995 .................... 147/200[30] AIA

S6 AWD ................................1995-1997 ........147/200[30] 147/200[30]

S7 ..........................................2013 ....................[50] [50]

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

[ ] Footnote codes, see pages 26-28 • Adjustment procedure codes, see pages 29-33

Audi - cont.

S8 ..........................................2013 ....................147/200[45] 147/200[45]

2007-2009 ........[50] [50]

2001-2003 ........140/190[32] 140/190[32]

S7 ..........................................2013 ....................[50] [50]

TT AWD ................................2007-2013 ........ VWH VWH

2000-2005 ........[33] [33]

TT FWD ................................2007-2010 ........VWH

2000-2005 ........[33] 129/175

V8 Quattro ...........................1990-1994 ........147/200[30] 147/200[30]

BMW

Active Hybrid 3 .................... 2013 ....................— 107/145

[114]

Active Hybrid 5 .................... 2013 ....................— 74/100

[84][114]

Active Hybrid 7 .................... 2013 ....................— 74/100

[84][114]

M Coupe, Roadster ............1998-2002 ........ — [40]

M3 ........................................2008-2013 ........ — 221/300[92]

1995-2006 ........— [40]

1988-1991 ........ 147/200

M5 ........................................2013 .................... — [115]

2006-2010 ........— 310/420

2000-2003 ........— 221/300

1991-1993 ........— 214/290

M6 .......................................2012-2013 ........— [115]

M6 Coupe, Convertible ..... 2006-2010 ........— 310/420

X1 ...........................................2013 ....................— 155/210

[44][113]

X3 .........................................2011-2013 ........ 155/210 74/100

[44][113] [55][114]

2004-2010 ........310/420 221/300

X5 .........................................2000-2013 ........ 310/420 310/420

X6 ...........................................2008-2013 ........310/420 310/420

Z3 ..........................................1997-2002 ........ — [40]

Z4 ..........................................2009-2013 ........ — 184/250

2003-2008 ........— 221/300

Z8 ..........................................2000-2003 ........ — 221/300

1 Series ................................2012-2013 ........— [92][101]

2008-2011 ........— [54][92]

1M Series ............................. 2011 .................... — [92][101]

3 Series AWD (E92,E93) ..2012-2013 ........ 310/420 [101]

3 Series AWD (F30) ...........2012-2013 ........ 155/210[44] 107/145[27]

3 Series RWD (E92,E93) ..2012-2013 ........ — [101]

3 Series RWD (F30) ........... 2012-2013 ........ — 107/145[27]

3 Series AWD .....................2008-2011 ........ 310/420 [46]

2006-2007 ........310/420 [46]

2000-2005 ........310/420 [40]

1985-1992 ........184/250 [40]

BMW - cont.

3 Series RWD .....................2008-2011 ........ — [54][92]

2006-2007 ........— [46]

1985-2005 ........214/290 [40]

5 Series AWD (F07/F10) ..2010-2013 ........155/210[44] 74/100[84]

5 Series AWD (E60) ...........2004-2010 ........ 221/300 310/420

5 Series AWD (E61) ...........2006-2010 ........ 310/420 310/420

5 Series RWD (F07/F10) ..2010-2013 ........ — [115]

5 Series RWD (E60) ...........2004-2010 ........ — 310/420

5 Series RWD (E61) ...........2006-2010 ........ — 310/420

5 Series RWD .....................1997-2003 ........ — 221/300

1988-1995 ........— 214/290

1985-1987 ........— 188/260

6 Series AWD ......................2012-2013 ........155/210 74/100

[44][113] [55][114]

6 Series RWD ......................2012-2013 ........— [115]

6 Series ................................2004-2010 ........— 310/420

7 Series AWD ......................2010-2013 ........155/210 74/100

[44][92] [55][92]

7 Series RWD ......................2009-2013 ........— [115]

2002-2008 ........— 310/420

1988-1994 ........— 214/290

1985-1987 ........— 188/260

7 Series ...............................2002-2007 ........— 310/420

1995-2001 ........— 221/300

8 Series ...............................1994-1997 ........— 214/290

Buick

Allure .................................... 2005-2009 ........118/160 —

Century ................................2001-2005 ........ 118/160 —

1998-2000 ........159/216 —

1997 .................... 151/205 —

1996 .................... 107/145 —

1992-1995 ........103/140[4] —

1983-1991 ........185/260 —

1982 .................... 225/290 —

1976-1981 ........GMA —

Electra ..................................1985-1990 ........ 185/260 —

1980-1984 ........GMA —

Enclave..................................2008-2013 ........ 173/235 151/205

Encore ................................... 2013 ....................37/50[82] —

Estate Wagon .....................1980-1990 ........ GMA —

LaCrosse AWD .....................2010-2013 ........GMS GMS

LaCrosse FWD.....................2010-2013 ........GMS —

LaCrosse .............................. 2005-2009 ........118/160 —

LeSabre ...............................1998-2005 ........ 118/160 —

1992-1997 ........107/145 —

1986-1991 ........185/260 —

1980-1985 ........GMA —

Lucerne ................................2006-2011 ........118/160 —

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

[ ] Footnote codes, see pages 26-28 • Adjustment procedure codes, see pages 29-33

Buick - cont.

Park Avenue ........................1998-2005 ........118/160 —

1992-1997 ........107/145 —

1991 .................... 185/260 —

Rainer ..................................2004-2007 ........ 103/140 —

Reatta ...................................1988-1991 ........180/244 —

Regal ....................................2011-2013 ........GMS —

2001-2004 ........118/160 —

1998-2000 ........159/215 —

1995-1997 ........151/205 —

1988-1994 ........184/250 —

1980-1987 ........GMA —

Rendezvous ........................2007 .................... 192/260 —

2002-2006 ........192/260 192/260

Riviera .................................. 1999 .................... 118/160 —

1995-1998 ........107/145 —

1986-1993 ........183/248 —

1980-1985 ........175/240 —

Roadmaster ........................1991-1996 ........GMA —

Skyhawk ..............................1982-1988 ........185/260 —

1980 .................... GMA —

Skylark .................................1998 .................... 74/100[3] —

1983-1997 ........185/260 —

1980-1982 ........225/290 —

Somerset .............................1985-1987 ........ 185/260 —

Terraza .................................2005-2007 ........ 118/160 —

Verano ...................................2012-2013 ........ GMS —

Cadillac

Allante ..................................1993 .................... 110/145 —

1987-1992 ........183/245 —

ATS ........................................2013 .................... 184/250 184/250

Brougham ...........................1977-1992 ........ GMA —

Calais .....................................1976 .................... GMC —

Catera ...................................1997-2001 ........ 236/320 —

Cimarron .............................1982-1988 ........ 185/260 —

CTS, CTS Sport Wagon

RWD w/o RPOJ56 ...........2010-2013 ........ — 170/230

CTS, CTS Sport Wagon

RWD w/ RPOJ56 .............2010-2013 ........— 158/215

CTS, CTS Sport Wagon

AWD ...................................2010-2013 ........158/215 158/215

CTS RWD .............................2008-2009 ........ — 158/215

CTS AWD .............................. 2008-2009 ........ 158/215 158/215

CTS .......................................2003-2007 ........ — 118/160

Concours Deville .................1997-1999 ........ 118/160 —

1994-1996 ........107/145 —

Cadillac - cont.

Deville ..................................2000-2005 ........[5] —

1997-1999 ........118/160 —

1992-1996 ........107/145 —

1985-1991 ........180/244 —

1980-1984 ........GMA —

1977-1984 ........GMA —

1976 .................... GMC —

DTS .......................................2008-2011 ........[56] [79]

2006-2007 ........[5] [79]

Eldorado ..............................1997-2002 ........118/160 —

1993-1996 ........107/145 —

1992 .................... 110/145 —

1986-1991 ........180/244 —

1979-1985 ........176/238 —

1976-1978 ........110/145 —

Escalade 2WD .................... 2007-2013 ........— —

2002-2006 ........177/240 GMQ[15]

Escalade AWD ....................2007-2013 ........ 177/240 —

2002-2006 ........177/240 GMQ[15]

Escalade 4WD .................... 1999-2000 ........165/225 GMD[15]

Escalade ESV ...................... 2007-2013 ........177/240 —

2003-2006 ........177/240 GMQ[15]

Escalade EXT 2WD ...........2007 .................... — —

2002-2006 ........— GMQ[15]

Escalade EXT 4WD ...........2007-2013 ........177/240 —

2002-2006 ........177/240 GMQ[15]

Fleetwood ............................1993-1996 ........ GMA —

1992 .................... 107/145 —

1985-1991 ........180/244 —

1977-1984 ........GMA —

1976 .................... GMC —

Limousine ...........................1977-1984 ........ GMA —

Seville ................................... 1997-2004 ........ 118/160 —

1993-1996 ........107/145 —

1992 .................... 110/145 —

1986-1991 ........180/244 —

1980-1985 ........176/238 —

1977-1979 ........GMA —

SRX ........................................2012-2013 ........184/250 GMS

2010-2011 ........184/250 184/250

2008-2009 ........159//215 170/230

2004-2007 ........118/160 118/160

STS RWD ............................2005-2011 ........118/160 118/160

STS AWD .............................2005-2011 ........— 118/160

XLR .......................................2004-2009 ........ — 151/205

XTS ........................................2013 ....................GMS GMS

Chevrolet

Aveo, Aveo 5 ........................ 2004-2011 ........221/300 148/190

Bel Air ....................................1980 .................... GMA —

Beretta ................................. 1987-1996 ........185/260 —

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

[ ] Footnote codes, see pages 26-28 • Adjustment procedure codes, see pages 29-33

Chevrolet - cont.

Camaro ................................2010-2013 ........— 199/270

1993-2002 ........— —

1980-1992 ........GMA —

Caprice .................................2012-2013 ........— 100

1980-1996 ........GMA —

Cavalier ................................2002-2005 ........148/200 —

1998-2001 ........144/195 —

1982-1997 ........185/260 —

Celebrity ...............................1983-1990 ........ 185/260 —

1982 .................... 225/290 —

Chevette ..............................1980-1987 ........GMA —

Citation .................................1983-1985 ........185/260 —

1980-1982 ........225/290 —

Classic....................................2004-2005 ........[57] —

Cobalt ...................................2009-2010 ........ [58] —

2005-2008 ........155/210 —

Corsica .................................1987-2006 ........185/260 —

Corvette ...............................2006-2013 ........— 151/205

1997-2005 ........— 118/160

1984-1996 ........— 164/223

1980-1983 ........GMA 100/130

Cruze .....................................2011-2013 ........ [70] —

HHR ....................................... 2006-2011 ........ 155/210 —

El Camino ............................1980-1987 ........GMA —

Impala ..................................2003-2013 ........ 155/210 —

2001-2002 ........118/160 —

2000 .................... 159/215 —

1980-1996 ........GMA —

Lumina .................................1998-2001 ........ 159/216 —

1995-1997 ........151/205 —

1990-1994 ........184/250 —

Lumina APV ........................ 1995-1996 ........104/145 —

1990-1994 ........185/260 —

Malibu ...................................2013 .................... GMS —

2004-2012 ........159/215 —

1997-2003 ........[34] —

1980-1983 ........GMA —

Malibu Maxx .......................2004-2007 ........159/215 —

Metro ...................................1998-2001 ........ 129/175 —

Monte Carlo ........................2003-2007 ........118/160 —

2001-2002 ........118/160 —

1998-2000 ........159/215 —

1995-1997 ........151/205 —

1980-1988 ........GMA —

Monza ..................................1980 .................... GMA —

Nova ..................................... 1985-1988 ........137/186 90/123

Orlando .................................2013 .................... GMS —

Prizm .................................... 1998-2000 ........166/225 —

Spark .....................................2013 ....................177/240 140/190

Spectrum ............................1985-1988 ........137/186 IUC

Chevrolet - cont.

Sprint ...................................1989-1991 ........125/179 125/179

1985-1988 ........151/210 62/100

Sonic .....................................2012-2013 ........[48] —

Uplander .............................. 2008-2009 ........ 118/160 —

2005-2007 ........118/160 192/260

Venture ................................2002-2005 ........118/160 192/260

1998-2001 ........118/160 —

1997 .................... 151/205 —

Volt ......................................... 2011-2013 ........[70] —

Chevrolet / GMC Trucks

Acadia FWD ........................2007-2013 ........173/235 —

Acadia AWD ........................2007-2013 ........173/235 118/160

Astro ......................................1985-1989 ........ GMA —

Astro AWD ...........................1996-2005 ........147/200 —

Astro 2WD ..........................2003-2005 ........— —

1990-2002 ........GMA —

Astro 4WD ..........................1990-1995 ........180/244 —

Avalanche 2WD .................2002-2013 ........— —

Avalanche 4WD .................2002-2013 ........177/240 —

Blazer 2WD .........................1992-1994 ........GMA —

1980-1987 ........GMA —

1976-1978 ........GMA —

Blazer R/V 2WD .................1988-1991 ........GMA —

Blazer 4WD .........................1992-1994 ........165/225 —

1988-1991 ........GMM[12] —

GML[13] —

1980-1987 ........GMM[12] —

GML[13]

1979 .................... GMN —

1976-1978 ........GMN —

Caballero ...............................1980-1987 ........ GMA —

Canyon 2WD ......................2004-2012 ........— —

Canyon 4WD ......................2004-2012 ........191/260 —

Captiva Sport ....................... 2012-2013 ........151/205[75] 151/205[75]

Colorado 2WD .................... 2004-2012 ........ — —

Colorado 4WD .................... 2004-2012 ........ 191/260 —

C10, C1500 2WD

Pickup ...............................1976-1986 ........GMA —

C1500 2WD Pickup ..........1997-2000 ........GMA —

1988-1996 ........GMA —

C20, C2500 2WD

Pickup ...............................1979-1986 ........GMA GMI[15]

GMJ[11]

C2500 2WD Pickup ..........1997-2000 ........GMA GMD

1988-1996 ........GMA GMF

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

[ ] Footnote codes, see pages 26-28 • Adjustment procedure codes, see pages 29-33

Chevrolet / GMC Trucks - cont.

C3500 2WD Pickup ..........1997-2000 ........GMA GMD[15]

GME[14]

1994-1996 ........GMA GMF[15]

GME[14]

1991-1993 ........GMA GMF[15]

GMG[7]

1988-1990 ........GMA GMF[15]

GMG[7]

C30, C3500 2WD

Pickup ...............................1979-1986 ........GMA GMI[15]

GMJ[11]

1976-1978 ........GMA GMJ

Denali ................................... 2007 .................... 177/240 —

2004-2006 ........173/235 GMQ[15]

Denali 2WD ........................2001-2003 ........— GMQ[15]

1999-2000 ........GMA GMD[15]

Denali 4WD ........................2001-2003 ........155/210 GMQ[15]

1999-2000 ........165/225 GMD[15]

El Camino .............................1980-1987 ........GMA —

Envoy 2WD .......................... 2002-2007 ........103/140 —

Envoy 4WD .......................... 1999-2007 ........103/140 —

Equinox ................................. 2007-2013 ........151/205 151/205

2005-2006 ........151/205 81/110

G10, G1500 Van ................. 1992-1996 ........GMA —

1988-1991 ........GMA —

1979-1987 ........GMA —

G1500 Van ........................... 2003-2012 ........— —

2001-2002 ........GMA —

1998-2000 ........GMA —

1996-1997 ........GMA —

G1500 Van AWD .................2007 .................... 155/210 —

2003-2006 ........173/235 —

G20, G2500 Van ................. 1992-1996 ........GMA —

1988-1991 ........GMA —

1976-1987 ........GMA —

G2500 Van ........................... 2003-2013 ........— GMQ[15]

2001-2002 ........GMA GMQ[15]

1998-2000 ........GMA GMD

1996-1997 ........GMA GMF

G30, G3500 Van ................. 1992-1996 ........GMA GMF

1988-1991 ........GMA GMG[7]

GMI[8]

1983-1987 ........GMA GMI[15]

GMG[7]

GMJ[11]

1979-1982 ........GMA GMJ[15]

GMH[7]

GMJ[11]

Chevrolet / GMC Trucks - cont.

G3500 Van ........................... 2003-2013 ........— GMQ[15]

2001-2002 ........GMA GMQ[15]

1998-2000 ........GMA GMD

1996-1997 ........GMA GMF

G4500 Van ........................... 2012-2013 ........— GMQ[15]

H1500,H2500 Van AWD ..2003-2013 ........ 155/210 —

HHR ....................................... 2006-2007 ........ 155/210 —

Jimmy 2WD ......................... 1988-1991 ........ GMA —

1979-1987 ........GMA —

1976-1978 ........GMA —

Jimmy 4WD ......................... 1988-1991 ........ GMM[12] —

GML[13] —

1980-1987 ........GMM[12] —

GML[13] —

1979 .................... GMN —

1976-1978 ........GMN —

K10, K1500 4WD

Pickup ................................1980-1986 ........ GMM[12] —

GML[13]

K1500 4WD Pickup ...........1991-2000 ........ 165/225 —

1988-1990 ........175/235 —

K20, K2500 4WD

Pickup ................................1980-1986 ........ GMM[12] GMI[15]

GML[13] GMJ[11]

K2500 4WD Pickup ...........1997-2000 ........ 165/225 GMD

1991-1996 ........165/225 GMF

1988-1990 ........175/235 GMF

K3500 4WD Pickup ...........1997-2000 ........ 165/225 GMD[15]

GME[14]

1994-1996 ........165/225 GMF[15]

GME[14]

1991-1993 ........165/225 GMF[15]

GME[14]

1988-1990 ........175/235 GMF[15]

GME[14]

K30, K3500 4WD

Pickup ................................1983-1986 ........ GMM[12] GMI[15]

GML[13] GMG[7]

GMJ[11]

1980-1982 ........GMM[12] GMI[15]

GML[13] GMH[7]

GMJ[11]

LUV Pickup 2WD ................1976-1982 ........GMA —

LUV Pickup 4WD ................1980-1982 ........— —

R10, R1500 2WD

Pickup ................................1987-1991 ........ GMA GMI

R20, R2500 2WD

Pickup ................................1987-1991 ........ GMA GMI

R30, R3500 2WD

Pickup ................................1987-1991 ........ GMA GMG[7]

GMI[8]

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

[ ] Footnote codes, see pages 26-28 • Adjustment procedure codes, see pages 29-33

Chevrolet / GMC Trucks - cont.

S Blazer, Jimmy 2WD ........1982-2003 ........GMA —

S Blazer, Jimmy 4WD ........1997-2005 ........103/140 —

S Blazer, Jimmy,

Typhoon, Syclone 4WD .. 1986 .................... 181/245 —

S Blazer, Jimmy 4WD ........1982-1985 ........174/235 —

S10, Sonoma, S15 2WD .. 1982-2004 ........ GMA —

S10, Sonoma, S15 4WD .. 1997-2004 ........ 103/140 —

1986-1996 ........180/244 —

1982-1985 ........174/235 —

Safari ....................................1985-1989 ........ GMA —

Safari 2WD .........................2003-2005 ........— —

1990-2002 ........GMA —

Safari AWD .........................1996-2005 ........ 147/200 —

Safari 4WD .........................1990-1995 ........180/244 —

Sierra, Silverado 2WD ....... 2010-2013 ........— GMQ[15]

1999-2009 ........— GMQ[15]

Sierra, Silverado 4WD ....... 2010-2013 ........188/255 GMQ[15]

1999-2009 ........177/240 GMQ[15]

SSR ........................................ 2004-2006 ........ — —

Suburban 2WD ................... 2000-2013 ........— GMQ[15]

1997-1999 ........GMA GMD

1992-1996 ........GMA GMF

1988-1991 ........GMA GMI

1979-1987 ........GMA GMI[15]

Suburban 4WD ................... 2000-2013 ........177/240 GMQ[15]

1997-1999 ........165/225 GMD

1992-1996 ........165/225 GMF

1988-1991 ........GMM[12] GMI

GML[13]

1980-1987 ........GMM[12] GMI[15]

GMM[13] GMJ[11]

Tahoe, Yukon 2WD ............1998-2013 ........— GMQ[15]

1997 .................... GMA —

1995-1996 ........GMA —

Tahoe, Yukon 4WD ............1998-2013 ........177/240 GMQ[15]

1997 .................... 165/225 —

1995-1996 ........165/225 —

Terrain ................................... 2010-2013 ........151/205 151/205

Tracker .................................1999-2004 ........ 159/216 —

1998 .................... 155/210 —

TrailBlazer 2WD ................. 2002-2009 ........— —

TrailBlazer 4WD ................. 2002-2009 ........103/140 —

Traverse FWD ...................... 2009-2013 ........173/235

Traverse AWD ......................2009-2013 ........173/235 151/205

V10, V1500 4WD

Pickup ...............................1987-1991 ........GMM[12] GMI

GML[13]

V20, V2500 4WD

Pickup ...............................1987-1991 ........GMM[12] GMI

GML[13]

Chevrolet / GMC Trucks - cont.

V30, V3500 4WD

Pickup ...............................1987-1991 ........GMM[12] GMG[7]

GMM[13] GMI[8]

Yukon XL 2WD ...................2001-2013 ........— GMQ[15]

2000 .................... — GMD

Yukon XL 4WD ...................2001-2013 ........177/240 GMQ[15]

2000 .................... 177/240 GMD

Chrysler

All ..........................................1980-1981 ........ CRA —

200 ........................................2011-2013 ........118/160 —

300 RWD ............................2005-2013 ........— 157/213

300 AWD .............................2005-2013 ........ 157/213 157/213

300M ...................................2001-2004 ........ 105/142 124/168

1999-2000 ........120/163 124/168

Aspen RWD .........................2007-2009 ........ — —

Aspen 2WD ........................2007 .................... — —

Aspen 4WD ........................2007-2009 ........185/251 —

Cirrus ....................................2000 .................... 105/142 185/250

1995-1999 ........180/244 185/250

Concorde .............................2001-2004 ........105/142 124/168

1995-2000 ........120/163 124/168

1993-1994 ........80/108 125/170

Conquest .............................1987-1989 ........CRB —

Cordoba ...............................1982-1983 ........CRA —

Crossre ................................ 2004-2008 ........— 164/220

Daytona ...............................1984-1993 ........180/244 CRC

Dynasty ................................1988-1993 ........180/244 CRC

E Class ..................................1983-1984 ........180/244 CRC

Fifth Ave ...............................1990-1993 ........180/244 CRC

1982-1989 ........CRA —

Imperial ...............................1990-1993 ........ 180/244 CRC

1982-1983 ........CRA —

Intrepid .................................2001-2004 ........ 105/142 124/168

1995-2000 ........120/163 124/168

1993-1994 ........80/108 125/170

Laser ....................................1984-1986 ........180/244 CRC

LeBaron ............................... 1982-1995 ........ 180/244 CRC

LHS ......................................2001 .................... 105/142 124/168

1995-2000 ........120/163 124/168

1994 .................... 80/108 125/170

New Yorker .......................... 1995-1996 ........ 120/163 124/168

1994 .................... 80/108 125/170

1983-1993 ........180/244 CRC

1982 .................... CRA —

Newport ..............................1982-1987 ........CRA —

Pacica .................................2004-2008 ........180/244 180/244

PT Cruiser ...........................2001-2010 ........180/244 160/217

Prowler ................................2001-2002 ........— 105/141

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

[ ] Footnote codes, see pages 26-28 • Adjustment procedure codes, see pages 29-33

Chrysler - cont.

Sebring Convertible ..........2008-2010 ........97/132 181/245

2001-2006 ........110/150 185/250

2000 .................... 105/142 185/250

1996-1999 ........180/244 185/250

Sebring Coupe ...................1995-2005 ........ 167/226 —

Sebring Sedan ...................2007-2010 ........97/132 —

2001-2006 ........110/150 185/250

TC .......................................... 1989-1991 ........180/244 —

Town & Country .................2008-2013 ........ 118/244 —

2005-2007 ........180/244 —

Town & Country AWD .......1999-2004 ........180/244 180/244

1990-1998 ........180/244 —

Town & Country FWD .......1999-2004 ........180/244 —

1990-1998 ........180/244 CRC

Voyager AWD .....................2000-2003 ........180/244 180//244

Voyager FWD .....................2000-2003 ........180/244 —

Daewoo

Lanos ...................................2000-2002 ........ DAA DAB

1999 .................... DAA DAC

Leganza ...............................2001-2002 ........DAE 207/280

1999-2000 ........DAA 210/285

Nubira .................................. 2001-2002 ........DAA DAD

1999-2000 ........DAA DAD

Daihatsu

Charade ................................1988-1992 ........148/201 144/106

Rocky ..................................... 1990-1992 ........DHA —

Dodge / Plymouth

024, TC3 .............................1980-1982 ........180/244 CRC

400 ........................................1982-1983 ........180/244 CRC

600 ........................................1982-1988 ........180/244 CRC

Aries ......................................1981-1989 ........180/244 CRC

Arrow ....................................1976-1980 ........ CRB —

Aspen ....................................1978-1980 ........CRA —

Avenger ...............................2009-2013 ........118/160 —

1995-2000 ........167/226 —

Avenger AWD ......................2008 ....................118/160 118/160

Breeze ..................................2000 .................... 105/142 185/250

1996-1999 ........180/244 185/250

Caliber ...................................2010-2012 ........180/244 —

Caliber AWD ........................ 2007-2009 ........ 181/245 181/245

Caliber FWD ........................2007-2009 ........181/245 —

Caravan AWD ......................1999-2004 ........180/244 180/244

1990-1998 ........180/244 —

Caravan FWD .....................1999-2007 ........ 180/244 —

1990-1998 ........180/244 CRC

Caravan, Voyager ...............1984-1989 ........180/244 CRC

Caravelle ...............................1982-1988 ........ 180/244 CRC

Cargo Van .............................2012 ....................118/160 —

Dodge / Plymouth - cont.

Challenger ...........................2008-2013 ........ 184/250 157/213

1978-1983 ........CRB —

Champ...................................1979-1982 ........ 167/226 CRB

Charger AWD ......................2007-2013 ........ 157/213 157/213

Charger RWD .....................2007-2013 ........152/207 157/213

Charger ................................2006 .................... 184/250 157/213

1982-1987 ........180/244 CRC

1978-1979 ........CRA —

Colt ........................................1993-1994 ........167/226 130/180

1989-1992 ........167/226 127/175

1985-1988 ........167/226 90/125

1979-1984 ........167/226 CRB

1976-1980 ........CRB —

Conquest .............................1984-1986 ........CRB —

Dart .......................................2013 .................... 148/200[95] 129/175

Daytona ...............................1984-1993 ........180/244 CRC

Diplomat ...............................1977-1989 ........ CRA —

Dynasty ................................1988-1993 ........180/244 CRC

Grand Caravan ....................2008-2013 ........118/160 —

2005-2007 ........180/244 —

Grand Caravan,

Grand Voyager AWD .......1999-2004 ........ 180/244 180/244

1990-1998 ........180/244 —

Grand Caravan,

Grand Voyager FWD .......1999-2004 ........ 180/244 —

1990-1998 ........180/244 CRC

Grand Caravan,

Grand Voyager CRC .........1988-1989 ........ 180/244

Grand Fury ........................... 1977-1989 ........CRA —

Horizon .................................1978-1990 ........ 180/244 CRC

Intrepid ................................2001-2004 ........ 105/142 124/168

1995-2000 ........120/163 124/168

1993-1994 ........80/108 125/170

Journey AWD ......................2009-2013 ........97/132 181/245

Journey FWD ......................2009-2013 ........ 97/132

Lancer .................................. 1985-1989 ........180/244 CRC

Laser 4WD ..........................1990-1994 ........ 167/226 138/190

Laser FWD ..........................1990-1994 ........ 167/226 166/225

Magnum AWD ....................2005-2008 ........157/213 157/213

Magnum RWD ...................2005-2008 ........ 184/250 157/213

Magnum ...............................1978-1979 ........CRA —

Mini Ram Van ......................1984-1988 ........180/245 —

Mirada ..................................1980-1983 ........CRA —

Monaco ................................ 1990-1992 ........181/245 123/167

Neon ....................................2000-2005 ........ 180/244 160/217

1996-1998 ........135/183 160/217

1995 .................... 150/203 160/217

Neon SRT-4 .......................2003-2005 ........180/244 160/217

Omni ......................................1980-1990 ........180/244 CRC

Prowler ................................1997-2000 ........— 105/141

Rampage, Scamp ..............1982-1984 ........180/244 —

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

[ ] Footnote codes, see pages 26-28 • Adjustment procedure codes, see pages 29-33

Dodge / Plymouth - cont.

Shadow, Sundance ...........1987-1994 ........ 180/244 CRC

Spirit ......................................1989-1995 ........180/244 CRC

St. Regis ..............................1980-1981 ........ CRA —

Stealth AWD .......................1991-1996 ........166/225 203/280

Stealth FWD .......................1991-1996 ........166/225 166/225

Stratus Coupe ....................2001-2005 ........167/226 —

Stratus Sedan .................... 2001-2006 ....... 110/150 185/250

2000 .................... 105/142 185/250

1995-1999 ........180/244 185/250

TC3 ........................................1980-1982 ........ 180/244 CRC

Turismo ................................. 1982-1987 ........180/244 CRC

Viper ..................................... 1997-2006 ........— 190/258

Vista ......................................1992-1994 ........167/226 166/225

Vista 4WD ...........................1984-1991 ........165/224 —

Vista FWD ...........................1984-1991 ........165/224 CRB

Volare ....................................1978-1980 ........ CRA —

Voyager AWD ....................... 1999-2000 ........ 180/244 180/244

1990-1998 ........180/244 CRC

Voyager FWD.......................1999-2000 ........ 180/244 —

1990-1998 ........180/244 —

Voyager ................................. 1984-1989 ........180/244 CRC

Dodge / Plymouth Trucks

Arrow 2WD ..........................1979-1980 ........ CRD —

Arrow 4WD ..........................1979-1980 ........ DTF —

B100 Van ............................1980 .................... DTB DTE[17]

DTD[18]

B150 Van ............................1985-1993 ........ DTB DTD

B150 Van ............................1981-1984 ........ DTB DTE[17]

DTD[18]

B1500 Van ..........................2002-2003 ........ DTK DTC

1994-2001 ........DTB DTC

B200 Van ............................1980 .................... DTB DTE[17]

DTD[18]

B250 Van ............................1985-1993 ........ DTB DTD

1981-1984 ........DTB DTE[17]

DTD[18]

B2500 Van ..........................2002-2003 ........ DTK DTC

1994-2001 ........DTB DTC

1994-1998 ........DTB DTC

B300 Van ............................1980 .................... DTB DTE[17]

DTD[18]

B350 Van ............................1985-1993 ........ DTB DTD

1981-1984 ........DTB DTE[17]

DTD[18]

B3500 Van ..........................2002-2003 ........ DTK DTC

1994-2001 ........DTB DTC

D100, D150

2WD Pickup .....................1985-1993 ........ DTB DTD

1980-1984 ........DTB DTE[17]

DTD[18]

Dodge / Plymouth Trucks - cont.

D200 2WD Pickup ............1980 .................... DTB DTE[17]

DTD[18]

D250 2WD Pickup ............1985-1993 ........DTB DTD[18]

1981-1984 ........DTB DTE[17]

DTD[18]

D300 2WD Pickup ............1980 .................... DTB DTE[17]

DTD[18]

D350 2WD Pickup ............1985-1993 ........DTB DTD

1981-1984 ........DTB DTD

DTE

Dakota 2WD ........................2005-2011 ........ — —

1997-2004 ........185/251 —

1987-1996 ........DTB —

Dakota 4WD ........................2005-2011 ........ 185/251 —

1997-2004 ........173/235 —

1987-1996 ........190/258 —

Durango 2WD .....................2011-2013 ........— —

1997-2010 ........— —

Durango 4WD .....................2011-2013 ........229/310 —

1997-2010 ........185/251 —

Nitro 2WD ............................ 2007-2011 ........— —

Nitro 4WD ............................ 2007-2011 ........100/135 —

Raider ....................................1987-1989 ........DTF —

Ram 1500 Pickup ..............2006-2013 ........

2WD w/Indep Susp ........................................ — —

4WD w/Indep Susp ........................................ 185/251 —

2003-2007 ........

2WD w/Link/Coil Susp .................................. — —

4WD w/Link/Coil Susp .................................. 263/356 —

2003-2005 ........

2WD w/Indep Susp ........................................ — DTL[9]

4WD w/Indep Susp ........................................ 185/251 DTL[9]

2000-2002 ........— —

2WD ..................................................................185/251 DTC

4WD ..................................................................180/244[16] DTC

1996-1999 ........DTA DTC

2WD ..................................................................— —

4WD ..................................................................175/237[16] DTC

1994-1995 ........DTA DTC

2WD ..................................................................— —

4WD ..................................................................180/244[16] DTC

Ram 2500 Pickup ..............2013 ....................

4WD w/Link/Coil Susp .................................. [38] DTL[9]

2010-2012 ........

2WD w/Link/Coil Susp .................................. — DTL[9]

2WD w/Link/Coil Susp .................................. — DTM[2]

4WD w/Link/Coil Susp .................................. [38] DTL[9]

4WD w/Link/Coil Susp .................................. [38] DTM[2]

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

Front proc. Rear proc.

Make/ or torque or torque

Model Year ft-lbs/Nm ft-lbs/Nm

[ ] Footnote codes, see pages 26-28 • Adjustment procedure codes, see pages 29-33

Dodge / Plymouth Trucks - cont.

Ram 2500 Pickup - cont.

2008-2009 ........

2WD w/Indep Susp ........................................ — DTL[9]

2WD w/Indep Susp ........................................ — DTM[2]

2WD w/Link/Coil Susp .................................. — DTL[9]

2WD w/Link/Coil Susp .................................. — DTM[2]

4WD w/Indep Susp ........................................ 185/251 DTL[9]

4WD w/Indep Susp ........................................ 185/251 DTM[2]

4WD w/Link/Coil Susp .................................. 263/356 DTL[9]

4WD w/Link/Coil Susp .................................. 263/356 DTM[2]

2006-2007 ........

2WD w/Link/Coil Susp .................................. — DTL[9]

2WD w/Indep Susp ........................................ — DTL[9]

4WD w/Link/Coil Susp .................................. 263/356 DTL[9]

4WD w/Indep Susp ........................................ 185/251 DTL[9]

2003-2005 ........

2WD w/Link/Coil Susp .................................. — DTL[9]

2WD w/Indep Susp ........................................ — DTL[9]

4WD w/Link/Coil Susp .................................. [38] DTL[9]

4WD w/Indep Susp ........................................ 185/251 DTL[9]

2000-2002 ........280/380 DTC

2WD ..................................................................280/380 DTC

4WD ..................................................................180/244[16] DTC

1996-1999 ........DTA DTC

2WD ..................................................................DTA DTC

4WD ..................................................................175/237[16] DTC

1994-1995 ........DTA DTC

2WD ..................................................................DTA DTC

4WD ..................................................................180/244[16] DTC

Ram 3500 Pickup ..............2013 ....................
