Cisco Unified IP Phone
Administration Guide for Cisco
Unified CallManager 5.0 (SIP)
Cisco Unified IP Phones 7905G/7912G
Text Part Number: OL-8131-01
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT
NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT
ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR
THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION
PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO
LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate
radio-frequency energy. If it is not installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television
reception. This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in
part 15 of the FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular installation.
Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class
A or Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct
any interference to radio or television communications at your own expense.
You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco
equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by
using one or more of the following measures:
• Turn the television or radio antenna until the interference stops.
• Move the equipment to one side or the other of the television or radio.
• Move the equipment farther away from the television or radio.
• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television
or radio are on circuits controlled by different circuit breakers or fuses.)
Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as
part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE
PROVIDEDAS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL
DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR
INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
CCSP, CCVP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We
Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, ASIST, BPX, Catalyst,
CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco
Systems Capital, the Cisco Systems logo, Cisco Unity, Empowering the Internet Generation, Enterprise/Solver, EtherChannel, EtherFast,
EtherSwitch, Fast Step, FormShare, GigaDrive, GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness
Scorecard, LightStream, Linksys, MeetingPlace, MGX, the Networkers logo, Networking Academy, Network Registrar, Packet, PIX, Post-Routing,
Pre-Routing, ProConnect, RateMUX, ScriptShare, SlideCast, SMARTnet, StrataView Plus, TeleRouter, The Fastest Way to Increase Your Internet
Quotient, and TransPath are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply
a partnership relationship between Cisco and any other company. (0502R)
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones 7905G/7912G
Copyright © 2000-2006 Cisco Systems, Inc. All rights reserved.
v
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
CONTENTS
Preface xi
Overview xi
Audience xi
Objectives xii
Organization xii
Related Documentation xiii
Obtaining Documentation xiv
Cisco.com xiv
Product Documentation DVD xiv
Ordering Documentation xv
Documentation Feedback xv
Cisco Product Security Overview xvi
Reporting Security Problems in Cisco Products xvii
Obtaining Technical Assistance xviii
Cisco Technical Support & Documentation Website xviii
Submitting a Service Request xix
Definitions of Service Request Severity xix
Obtaining Additional Publications and Information xx
Document Conventions xxi
CHAPTER
1An Overview of the Cisco Unified IP Phone 1-1
Understanding the Cisco Unified IP Phone 7905G and 7912G 1-2
What Networking Protocols Are Used? 1-5
Contents
vi
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
What Features are Supported on the Cisco Unified IP Phone 7905G and
7912G? 1-7
Feature Overview 1-8
Configuring Telephony Features 1-8
Configuring Network Features Using the Cisco Unified IP Phone 1-9
Providing Users with Feature Information 1-10
Understanding Security Features for Cisco Unified IP Phones 1-10
Understanding the Requirements for Installing and Configuring the
Cisco Unified IP Phone 7905G and 7912G 1-11
CHAPTER
2Preparing to Install the Cisco Unified IP Phone on Your Network 2-1
Understanding Interactions with Other Cisco Unified Communications
Products 2-2
Understanding How the Cisco Unified IP Phone Interacts with Cisco
Unified CallManager 2-2
Understanding How the Cisco Unified IP Phone Interacts with the
Cisco Catalyst Family of Switches 2-3
Understanding the Phone Startup Process 2-4
Understanding Phone Configuration Files and Profile Files 2-8
Providing Power to the Cisco Unified IP Phone 2-9
Power Outage 2-10
Power Source Design 2-10
Redundancy Feature 2-11
Determining the MAC Address of a Cisco Unified IP Phone 2-12
Adding Phones to the Cisco Unified CallManager Database 2-12
Adding Phones with Auto-Registration 2-13
Adding Phones with Cisco Unified CallManager Administration 2-14
Adding Phones with BAT 2-15
Creating a SIP Profile 2-15
Using Cisco Unified IP Phones with Different Protocols 2-17
vii
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Contents
Converting a New Phone from SCCP to SIP 2-18
Converting an In-Use Phone from SCCP to SIP 2-18
Converting an In-Use Phone from SIP to SCCP 2-19
Deploying a Phone in an SCCP and SIP Environment 2-19
CHAPTER
3Setting Up the Cisco Unified IP Phone 3-1
Before You Begin 3-1
Network Requirements 3-2
Cisco Unified CallManager Configuration 3-2
Safety 3-3
Understanding the Cisco Unified IP Phone Components 3-5
Network and Access Ports 3-5
Handset 3-6
Speaker 3-6
Installing the Cisco Unified IP Phone 3-6
Mounting the Phone to the Wall 3-10
Verifying the Phone Startup Process 3-11
Configuring Startup Network Settings 3-11
CHAPTER
4Configuring Settings on the Cisco Unified IP Phone 4-1
Accessing Network Configuration Settings through the Network Configuration
Menu on the Phone 4-2
Displaying the Network Configuration Menu 4-3
Unlocking and Locking Options on the Network Configuration Menu 4-3
Editing Settings in the Network Configuration Menu 4-5
Verifying Network Settings 4-6
Configuring IP Settings 4-7
Configuring the Encryption Key 4-7
Configuring Encryption Key Using LCD screen on the Phone 4-8
Contents
viii
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Configuring Encryption Key Using Phone Configuration Web Page 4-9
Network Configuration Menu Parameter Descriptions 4-10
SIP Configuration Menu Parameter Descriptions 4-19
Viewing Network Settings through a Phone Configuration Web Page 4-22
CHAPTER
5Configuring Telephony Features 5-1
CHAPTER
6Viewing Model and Status Information on the Cisco Unified IP Phone 6-1
Viewing Model Information 6-2
Viewing Status Messages 6-2
CHAPTER
7Troubleshooting the Cisco Unified IP Phone 8-1
Resolving Startup Problems 8-2
Symptom: The Cisco Unified IP Phone Does Not Go Through its Normal Start
Up Process 8-2
Symptom: The Cisco Unified IP Phone Does Not Register with Cisco
Unified CallManager 8-3
Registering the Phone with Cisco Unified CallManager 8-4
Checking Network Connectivity 8-4
Verifying TFTP Server Settings 8-4
Verifying IP Addressing and Routing 8-5
Verifying DNS Settings 8-5
Verifying Cisco Unified CallManager Settings 8-6
Cisco Unified CallManager and TFTP Services Are Not Running 8-6
Creating a New Configuration File 8-7
Cisco Unified IP Phone Resets Unexpectedly 8-8
Verifying Physical Connection 8-8
Identifying Intermittent Network Outages 8-8
Verifying DHCP Settings 8-9
ix
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Contents
Checking Static IP Address Settings 8-9
Verifying Voice VLAN Configuration 8-9
Verifying that the Phones Have Not Been Intentionally Reset 8-9
Eliminating DNS or Other Connectivity Errors 8-10
General Troubleshooting Tips for the Cisco Unified IP Phone 8-11
Logging Information for Troubleshooting 8-12
Using the nptcap Tool 8-14
Resetting the Cisco Unified IP Phone 8-15
Erasing the Local Configuration 8-15
Where to Go for More Troubleshooting Information 8-17
Cleaning the Cisco Unified IP Phone 8-17
APPENDIX
AReference List of Parameters A-1
Accessing the Web Page for a Phone A-2
Device Information A-3
Network Configuration A-4
Network Statistics A-6
Device Logs A-7
Configuration Parameters A-8
Network Parameters A-8
SIP Parameters A-15
Call Preference Parameters A-22
Tone Parameters A-28
Audio Parameters A-32
APPENDIX
BProviding Information to Users Via a Website B-1
How Users Obtain Support for the Cisco Unified IP Phone B-1
How Users Get Copies of Cisco Unified IP Phone Manuals B-2
Contents
x
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
How Users Access Voice Messages B-3
APPENDIX
CSupporting International Users C-1
APPENDIX
DTechnical Specifications D-1
Physical and Operating Environment Specifications D-1
Cable Specifications D-2
Network Port Pinouts D-2
APPENDIX
EFeature Support by Protocol for Cisco Unified IP Phone 7905G/7912G E-1
I
NDEX
xi
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Preface
Overview
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0
(SIP), Cisco Unified IP Phones 7905G and 7912G, provides the information you
need to understand, install, configure, and manage the Cisco Unified IP Phone
7905G and 7912G on your network. This guide is intended to be used to
administer phones running in a Cisco Unified CallManager Release 5.0 or higher
environment.
Audience
Network engineers, system administrators, or telecom engineers should review
this guide to learn the steps required to properly set up the Cisco Unified IP Phone
on the network.
The tasks described are considered to be administration-level tasks and are not
intended for end-users of the phones. Many of the tasks involve configuring
network settings and affect the phone’s ability to function in the network.
Because of the close interaction between the Cisco Unified IP Phone and
Cisco Unified CallManager, these tasks require familiarity with
Cisco Unified CallManager.
Preface
Objectives
xii
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Objectives
This guide provides the required steps to get the Cisco Unified IP Phone up and
running on a Voice-over-IP (VoIP) network. Because of the complexity of an IP
telephony network, this guide does not provide complete and detailed information
for procedures that you need to perform on the Cisco Unified CallManager
application or other network devices.
Organization
This guide is organized as follows:
Chapter Description
Chapter 1, “An Overview of the Cisco Unified IP
Phone” Provides a conceptual overview and description of
the Cisco Unified IP Phone
Chapter 2,Preparing to Install the
Cisco Unified IP Phone on Your Network” Describes how the IP Phone interacts with other
key IP telephony components, and provides an
overview of the tasks required prior to installation
Chapter 3, “Setting Up the
Cisco Unified IP Phone” Describes how to properly and safely install and
configure the Cisco Unified IP Phone on your
network
Chapter 4, “Configuring Settings on the Cisco
Unified IP Phone” Describes how to configure network settings,
verify status, and make global changes to the
Cisco Unified IP Phone
Chapter 5, “Configuring Telephony Features Provides an overview of procedures for
configuring telephony features, setting up phone
services, and adding users to
Cisco Unified CallManager
Chapter 6, “Viewing Model and Status
Information on the Cisco Unified IP Phone” Explains how to view model information, status
messages, network statistics, and firmware
information from the Cisco Unified IP Phone
Chapter 7, “Troubleshooting the Cisco Unified IP
Phone” Provides tips for troubleshooting the
Cisco Unified IP Phone
xiii
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Preface
Related Documentation
Related Documentation
For more information about Cisco Unified IP Phones, refer to the following
publications, which are available at this location:
http://www.cisco.com/univercd/cc/td/doc/product/voice/c_ipphon/index.htm
Cisco Unified IP Phone Guide 7905G/7912G for Cisco Unified CallManager
5.0 (SIP)
Regulatory Compliance and Safety Information for the Cisco Unified IP
Phone 7900 Series
Installing the Universal Wall Mount Kit for the Cisco Unified IP Phone
For more information about Cisco Unified CallManager, refer to the following
publications, which are available at this location:
http://www.cisco.com/univercd/cc/td/doc/product/voice/c_callmg/5_0/index.htm
Cisco Unified CallManager Administration Guide
Cisco Unified CallManager Features and Services Guide
Cisco Unified CallManager System Guide
Cisco Unified CallManager Serviceability Administration Guide
Appendix A, “Reference List of Parameters Describes configuration parameters for the
Cisco Unified IP Phone
Appendix B, “Providing Information to Users Via
a Website” Provides suggestions for setting up a website for
providing users with important information about
their Cisco Unified IP Phones
Appendix C, “Supporting International Users” Provides information about locating translated
documents
Appendix D, “Technical Specifications” Provides technical specifications of the
Cisco Unified IP Phone
Appendix E, “Feature Support by Protocol for
Cisco Unified IP Phone 7905G/7912G” Provides information about feature support for the
Cisco Unified IP Phone 7905G and 7912G using
the SCCP or SIP protocol with
Cisco Unified CallManager Release 5.0(1).
Chapter Description
Preface
Obtaining Documentation
xiv
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Cisco Unified CallManager Serviceability System Guide
Cisco Unified IP Phones and Services Application Developers Guide
Cisco Unified CallManager Troubleshooting Guide
Cisco Unified CallManager Bulk Administration Guide
Obtaining Documentation
Cisco documentation and additional literature are available on Cisco.com. Cisco
also provides several ways to obtain technical assistance and other technical
resources. These sections explain how to obtain technical information from Cisco
Systems.
Cisco.com
You can access the most current Cisco documentation at this URL:
http://www.cisco.com/techsupport
You can access the Cisco website at this URL:
http://www.cisco.com
You can access international Cisco websites at this URL:
http://www.cisco.com/public/countries_languages.shtml
Product Documentation DVD
Cisco documentation and additional literature are available in the Product
Documentation DVD package, which may have shipped with your product. The
Product Documentation DVD is updated regularly and may be more current than
printed documentation.
The Product Documentation DVD is a comprehensive library of technical product
documentation on portable media. The DVD enables you to access multiple
versions of hardware and software installation, configuration, and command
guides for Cisco products and to view technical documentation in HTML. With
xv
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Preface
Documentation Feedback
the DVD, you have access to the same documentation that is found on the Cisco
website without being connected to the Internet. Certain products also have .pdf
versions of the documentation available.
The Product Documentation DVD is available as a single unit or as a subscription.
Registered Cisco.com users (Cisco direct customers) can order a Product
Documentation DVD (product number DOC-DOCDVD=) from Cisco
Marketplace at this URL:
http://www.cisco.com/go/marketplace/
Ordering Documentation
Beginning June 30, 2005, registered Cisco.com users may order Cisco
documentation at the Product Documentation Store in the Cisco Marketplace at
this URL:
http://www.cisco.com/go/marketplace/
Nonregistered Cisco.com users can order technical documentation from 8:00 a.m.
to 5:00 p.m. (0800 to 1700) PDT by calling 1 866 463-3487 in the United States
and Canada, or elsewhere by calling 011 408 519-5055. You can also order
documentation by e-mail at tech-doc-store-mkpl@external.cisco.com or by fax at
1 408 519-5001 in the United States and Canada, or elsewhere at 011 408
519-5001.
Documentation Feedback
You can rate and provide feedback about Cisco technical documents by
completing the online feedback form that appears with the technical documents
on Cisco.com.
You can send comments about Cisco documentation to bug-doc@cisco.com.
Preface
Cisco Product Security Overview
xvi
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
You can submit comments by using the response card (if present) behind the front
cover of your document or by writing to the following address:
Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883
We appreciate your comments.
Cisco Product Security Overview
This product contains cryptographic features and is subject to United States and
local country laws governing import, export, transfer and use. Delivery of Cisco
cryptographic products does not imply third-party authority to import, export,
distribute or use encryption. Importers, exporters, distributors and users are
responsible for compliance with U.S. and local country laws. By using this
product you agree to comply with applicable laws and regulations. If you are
unable to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found
at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html
If you require further assistance please contact us by sending email to:
export@cisco.com
Cisco provides a free online Security Vulnerability Policy portal at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.ht
ml
From this site, you can perform these tasks:
Report security vulnerabilities in Cisco products.
Obtain assistance with security incidents that involve Cisco products.
Register to receive security information from Cisco.
A current list of security advisories and notices for Cisco products is available at
this URL:
http://www.cisco.com/go/psirt
xvii
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Preface
Cisco Product Security Overview
If you prefer to see advisories and notices as they are updated in real time, you
can access a Product Security Incident Response Team Really Simple Syndication
(PSIRT RSS) feed from this URL:
http://www.cisco.com/en/US/products/products_psirt_rss_feed.html
Reporting Security Problems in Cisco Products
Cisco is committed to delivering secure products. We test our products internally
before we release them, and we strive to correct all vulnerabilities quickly. If you
think that you might have identified a vulnerability in a Cisco product, contact
PSIRT:
Emergenciessecurity-alert@cisco.com
An emergency is either a condition in which a system is under active attack
or a condition for which a severe and urgent security vulnerability should be
reported. All other conditions are considered nonemergencies.
Nonemergenciespsirt@cisco.com
In an emergency, you can also reach PSIRT by telephone:
1 877 228-7302
1 408 525-6532
Tip We encourage you to use Pretty Good Privacy (PGP) or a compatible product to
encrypt any sensitive information that you send to Cisco. PSIRT can work from
encrypted information that is compatible with PGP versions 2.x through 8.x.
Never use a revoked or an expired encryption key. The correct public key to use
in your correspondence with PSIRT is the one linked in the Contact Summary
section of the Security Vulnerability Policy page at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.ht
ml
The link on this page has the current PGP key ID in use.
Preface
Obtaining Technical Assistance
xviii
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Obtaining Technical Assistance
Cisco Technical Support provides 24-hour-a-day award-winning technical
assistance. The Cisco Technical Support & Documentation website on Cisco.com
features extensive online support resources. In addition, if you have a valid Cisco
service contract, Cisco Technical Assistance Center (TAC) engineers provide
telephone support. If you do not have a valid Cisco service contract, contact your
reseller.
Cisco Technical Support & Documentation Website
The Cisco Technical Support & Documentation website provides online
documents and tools for troubleshooting and resolving technical issues with Cisco
products and technologies. The website is available 24 hours a day, at this URL:
http://www.cisco.com/techsupport
Access to all tools on the Cisco Technical Support & Documentation website
requires a Cisco.com user ID and password. If you have a valid service contract
but do not have a user ID or password, you can register at this URL:
http://tools.cisco.com/RPF/register/register.do
Note Use the Cisco Product Identification (CPI) tool to locate your product serial
number before submitting a web or phone request for service. You can access the
CPI tool from the Cisco Technical Support & Documentation website by clicking
the Tools & Resources link under Documentation & Tools. Choose Cisco
Product Identification Tool from the Alphabetical Index drop-down list, or click
the Cisco Product Identification Tool link under Alerts & RMAs. The CPI tool
offers three search options: by product ID or model name; by tree view; or for
certain products, by copying and pasting show command output. Search results
show an illustration of your product with the serial number label location
highlighted. Locate the serial number label on your product and record the
information before placing a service call.
xix
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Preface
Obtaining Technical Assistance
Submitting a Service Request
Using the online TAC Service Request Tool is the fastest way to open S3 and S4
service requests. (S3 and S4 service requests are those in which your network is
minimally impaired or for which you require product information.) After you
describe your situation, the TAC Service Request Tool provides recommended
solutions. If your issue is not resolved using the recommended resources, your
service request is assigned to a Cisco engineer. The TAC Service Request Tool is
located at this URL:
http://www.cisco.com/techsupport/servicerequest
For S1 or S2 service requests or if you do not have Internet access, contact the
Cisco TAC by telephone. (S1 or S2 service requests are those in which your
production network is down or severely degraded.) Cisco engineers are assigned
immediately to S1 and S2 service requests to help keep your business operations
running smoothly.
To open a service request by telephone, use one of the following numbers:
Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553-2447
For a complete list of Cisco TAC contacts, go to this URL:
http://www.cisco.com/techsupport/contacts
Definitions of Service Request Severity
To ensure that all service requests are reported in a standard format, Cisco has
established severity definitions.
Severity 1 (S1)—Your network is “down,” or there is a critical impact to your
business operations. You and Cisco will commit all necessary resources around
the clock to resolve the situation.
Severity 2 (S2)—Operation of an existing network is severely degraded, or
significant aspects of your business operation are negatively affected by
inadequate performance of Cisco products. You and Cisco will commit full-time
resources during normal business hours to resolve the situation.
Preface
Obtaining Additional Publications and Information
xx
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Severity 3 (S3)—Operational performance of your network is impaired, but most
business operations remain functional. You and Cisco will commit resources
during normal business hours to restore service to satisfactory levels.
Severity 4 (S4)—You require information or assistance with Cisco product
capabilities, installation, or configuration. There is little or no effect on your
business operations.
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is
available from various online and printed sources.
Cisco Marketplace provides a variety of Cisco books, reference guides,
documentation, and logo merchandise. Visit Cisco Marketplace, the company
store, at this URL:
http://www.cisco.com/go/marketplace/
Cisco Press publishes a wide range of general networking, training and
certification titles. Both new and experienced users will benefit from these
publications. For current Cisco Press titles and other information, go to Cisco
Press at this URL:
http://www.ciscopress.com
Packet magazine is the Cisco Systems technical user magazine for
maximizing Internet and networking investments. Each quarter, Packet
delivers coverage of the latest industry trends, technology breakthroughs, and
Cisco products and solutions, as well as network deployment and
troubleshooting tips, configuration examples, customer case studies,
certification and training information, and links to scores of in-depth online
resources. You can access Packet magazine at this URL:
http://www.cisco.com/packet
iQ Magazine is the quarterly publication from Cisco Systems designed to
help growing companies learn how they can use technology to increase
revenue, streamline their business, and expand services. The publication
identifies the challenges facing these companies and the technologies to help
xxi
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Preface
Document Conventions
solve them, using real-world case studies and business strategies to help
readers make sound technology investment decisions. You can access iQ
Magazine at this URL:
http://www.cisco.com/go/iqmagazine
or view the digital edition at this URL:
http://ciscoiq.texterity.com/ciscoiq/sample/
Internet Protocol Journal is a quarterly journal published by Cisco Systems
for engineering professionals involved in designing, developing, and
operating public and private internets and intranets. You can access the
Internet Protocol Journal at this URL:
http://www.cisco.com/ipj
Networking products offered by Cisco Systems, as well as customer support
services, can be obtained at this URL:
http://www.cisco.com/en/US/products/index.html
Networking Professionals Connection is an interactive website for
networking professionals to share questions, suggestions, and information
about networking products and technologies with Cisco experts and other
networking professionals. Join a discussion at this URL:
http://www.cisco.com/discuss/networking
World-class networking training is available from Cisco. You can view
current offerings at this URL:
http://www.cisco.com/en/US/learning/index.html
Document Conventions
This document uses the following conventions:
Convention Description
boldface font Commands and keywords are in boldface.
italic font Arguments for which you supply values are in italics.
[ ] Elements in square brackets are optional.
Preface
Document Conventions
xxii
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Note Means reader take note. Notes contain helpful suggestions or references to
material not covered in the publication.
Caution Means reader be careful. In this situation, you might do something that could
result in equipment damage or loss of data.
{ x | y | z } Alternative keywords are grouped in braces and separated by vertical bars.
[ x | y | z ] Optional alternative keywords are grouped in brackets and separated by
vertical bars.
string A nonquoted set of characters. Do not use quotation marks around the string
or the string will include the quotation marks.
screen font Terminal sessions and information the system displays are in screen font.
boldface screen font Information you must enter is in boldface screen font.
italic screen font Arguments for which you supply values are in italic screen font.
^ The symbol ^ represents the key labeled Control—for example, the key
combination ^D in a screen display means hold down the Control key while
you press the D key.
< > Nonprinting characters, such as passwords are in angle brackets.
Convention Description
xxiii
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Preface
Document Conventions
Warnings use the following conventions:
Warning
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause
bodily injury. Before you work on any equipment, be aware of the hazards
involved with electrical circuitry and be familiar with standard practices for
preventing accidents. Use the statement number provided at the end of each
warning to locate its translation in the translated safety warnings that
accompanied this device.
Statement 1071
SAVE THESE INSTRUCTIONS
Waarschuwing
BELANGRIJKE VEILIGHEIDSINSTRUCTIES
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die
lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat
werken, dient u zich bewust te zijn van de bij elektrische schakelingen
betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken
om ongelukken te voorkomen. Gebruik het nummer van de verklaring
onderaan de waarschuwing als u een vertaling van de waarschuwing die bij
het apparaat wordt geleverd, wilt raadplegen.
BEWAAR DEZE INSTRUCTIES
Varoitus
TÄRKEITÄ TURVALLISUUSOHJEITA
Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia
vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien
käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin
ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen
mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta
varoitusten lopussa näkyvien lausuntonumeroiden avulla.
SÄILYTÄ NÄMÄ OHJEET
Preface
Document Conventions
xxiv
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Attention
IMPORTANTES INFORMATIONS DE SÉCURITÉ
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une
situation pouvant entraîner des blessures ou des dommages corporels. Avant
de travailler sur un équipement, soyez conscient des dangers liés aux circuits
électriques et familiarisez-vous avec les procédures couramment utilisées
pour éviter les accidents. Pour prendre connaissance des traductions des
avertissements figurant dans les consignes de sécurité traduites qui
accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la
fin de chaque avertissement.
CONSERVEZ CES INFORMATIONS
Warnung
WICHTIGE SICHERHEITSHINWEISE
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die
zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit
den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur
Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung
angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den
übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät
ausgeliefert wurden.
BEWAHREN SIE DIESE HINWEISE GUT AUF.
Avvertenza
IMPORTANTI ISTRUZIONI SULLA SICUREZZA
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe
causare infortuni alle persone. Prima di intervenire su qualsiasi
apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti
elettrici e conoscere le procedure standard per la prevenzione di incidenti.
Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per
individuare le traduzioni delle avvertenze riportate in questo documento.
CONSERVARE QUESTE ISTRUZIONI
xxv
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Preface
Document Conventions
Advarsel
VIKTIGE SIKKERHETSINSTRUKSJONER
Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade
på person. Før du begynner å arbeide med noe av utstyret, må du være
oppmerksom på farene forbundet med elektriske kretser, og kjenne til
standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver
advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som
fulgte med denne enheten.
TA VARE PÅ DISSE INSTRUKSJONENE
Aviso
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você está em uma situação que poderá
ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer
equipamento, tenha conhecimento dos perigos envolvidos no manuseio de
circuitos elétricos e familiarize-se com as práticas habituais de prevenção de
acidentes. Utilize o número da instrução fornecido ao final de cada aviso para
localizar sua tradução nos avisos de segurança traduzidos que acompanham
este dispositivo.
GUARDE ESTAS INSTRUÇÕES
¡Advertencia!
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
Este símbolo de aviso indica peligro. Existe riesgo para su integridad física.
Antes de manipular cualquier equipo, considere los riesgos de la corriente
eléctrica y familiarícese con los procedimientos estándar de prevención de
accidentes. Al final de cada advertencia encontrará el número que le ayudará
a encontrar el texto traducido en el apartado de traducciones que acompaña
a este dispositivo.
GUARDE ESTAS INSTRUCCIONES
Preface
Document Conventions
xxvi
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Varning!
VIKTIGA SÄKERHETSANVISNINGAR
Denna varningssignal signalerar fara. Du befinner dig i en situation som kan
leda till personskada. Innan du utför arbete på någon utrustning måste du vara
medveten om farorna med elkretsar och känna till vanliga förfaranden för att
förebygga olyckor. Använd det nummer som finns i slutet av varje varning för
att hitta dess översättning i de översatta säkerhetsvarningar som medföljer
denna anordning.
SPARA DESSA ANVISNINGAR
xxvii
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Preface
Document Conventions
Preface
Document Conventions
xxviii
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
CHAPTER
1-1
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
1
An Overview of the Cisco Unified IP
Phone
The Cisco Unified IP Phone provides voice communication over an Internet
Protocol (IP) network. It functions much like a traditional analog telephone,
allowing you to place and receive phone calls and to access features such as mute,
hold, transfer, and speed dial. In addition, because the phone is connected to your
data network, it offers enhanced IP telephony features, including access to
network information and customizeable features.
This manual describes the Cisco Unified IP Phone 7905G and 7912G. The Cisco
Unified IP Phone 7905G and 7912G include softkeys and an LCD screen. The
Cisco Unified IP Phone 7912G adds an internal Ethernet switch.
These phones encode G.711a, G.711u, G.729a, G.729ab, and decode all variants
of G.711 and G.729.
A Cisco Unified IP Phone must be configured and managed like other network
devices.
This chapter includes the following topics:
Understanding the Cisco Unified IP Phone 7905G and 7912G, page 1-2
What Networking Protocols Are Used?, page 1-5
What Features are Supported on the Cisco Unified IP Phone 7905G and
7912G?, page 1-7
Understanding Security Features for Cisco Unified IP Phones, page 1-10
Understanding the Requirements for Installing and Configuring the
Cisco Unified IP Phone 7905G and 7912G, page 1-11
Chapter 1 An Overview of the Cisco Unified IP Phone
Understanding the Cisco Unified IP Phone 7905G and 7912G
1-2
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Caution Using a cell, mobile, or GSM phone, or two-way radio in close proximity to a
Cisco Unified IP Phone might cause interference. For more information, refer to
the manufacturer’s documentation of the interfering device.
Understanding the Cisco Unified IP Phone 7905G and
7912G
The Cisco Unified IP Phone 7905G and 7912G are basic IP phones that address
the voice communication needs of employees who engage in low to medium
telephone use. The phones provide a pixel display and dynamic softkeys for easy
access to a core set of business features. They support a maximum of two calls
and one directory number, and inline power for receiving power through and
Ethernet connection. The Cisco Unified IP Phone 7912G includes an integrated
10/100 Ethernet switch for connecting a PC.
Note The hardware updated version of the Cisco Unified IP Phone 7912G
(CP-7912G-A) offers IEEE 802.1Q VLAN-based switching of packets received
from the attached PC and from the network port (upstream switch). This allows
the phone to operate more efficiently in networks which may be subject to large
amounts of broadcast, multicast and/or unknown unicast traffic.
Figure 1-1 shows the main components of the Cisco Unified IP Phone 7905G and
7912G.
1-3
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 1 An Overview of the Cisco Unified IP Phone
Understanding the Cisco Unified IP Phone 7905G and 7912G

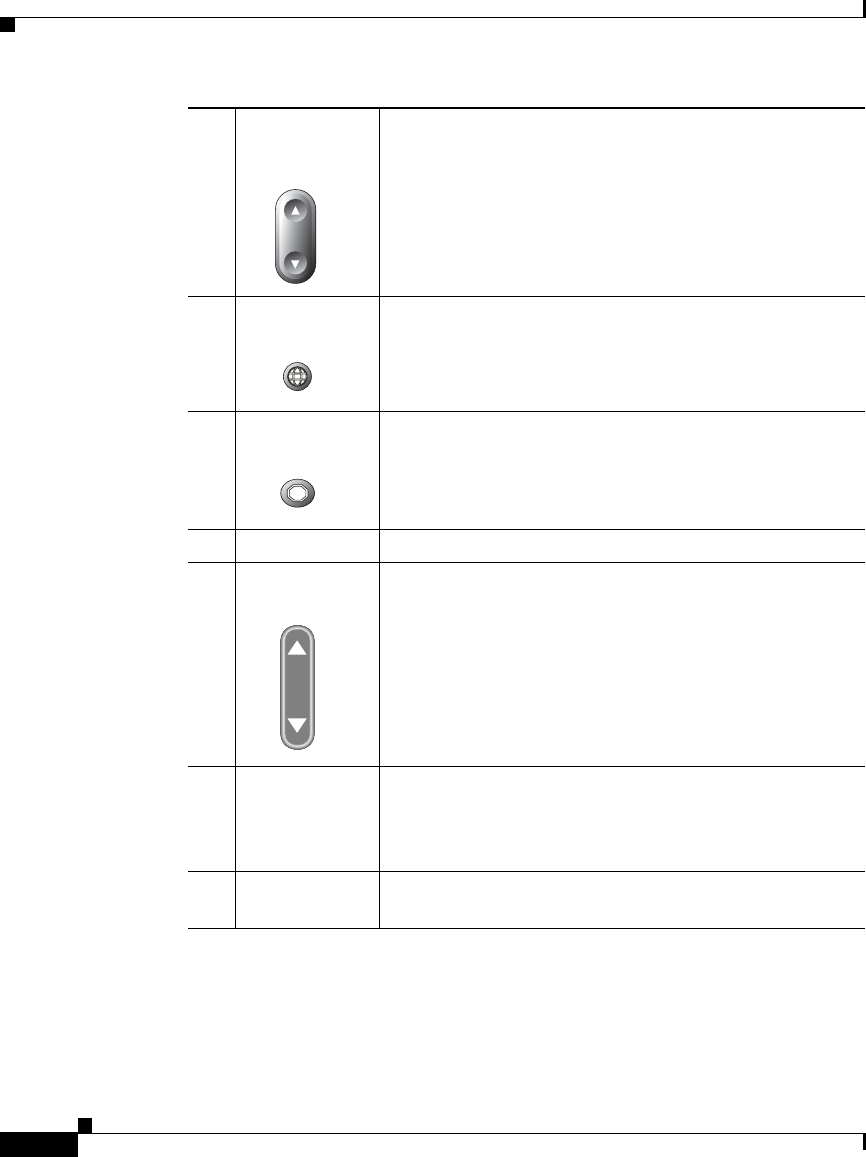

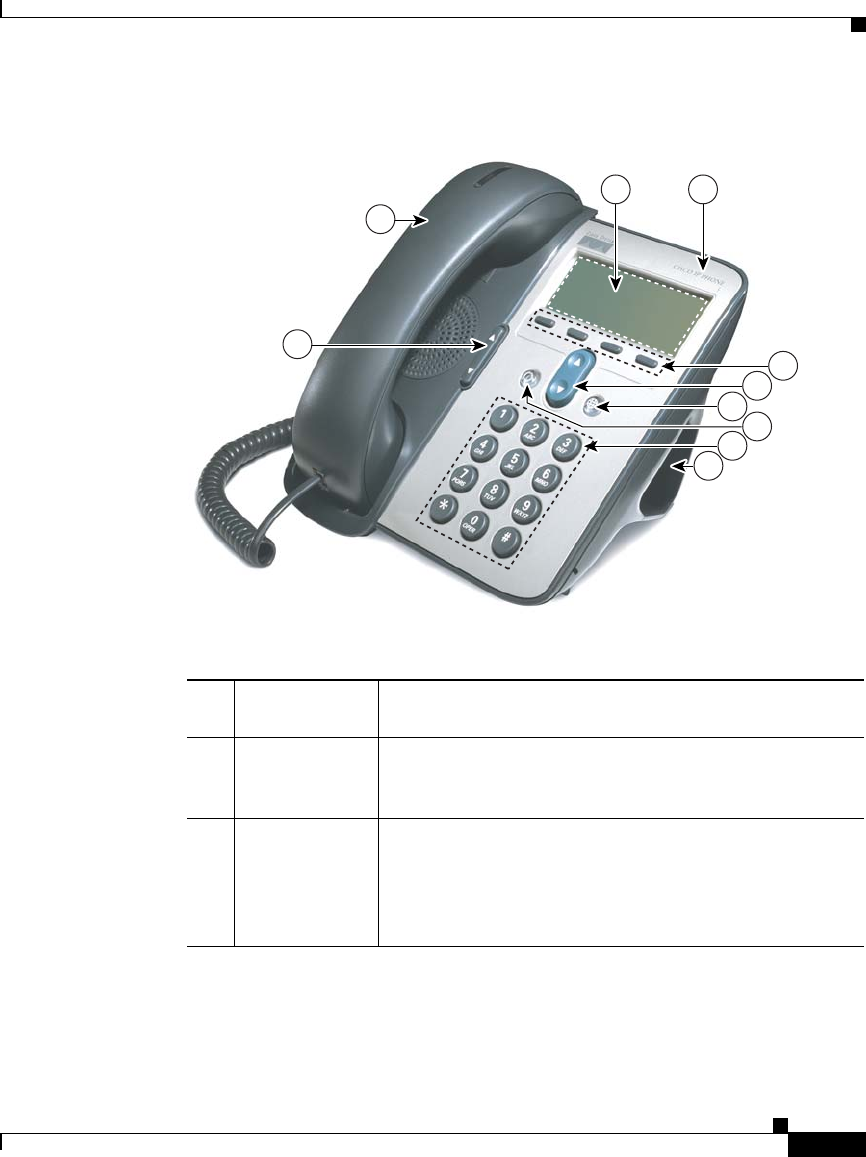

Figure 1-1 Cisco Unified IP Phone 7905G and 7912 Features
1LCD screen Displays features such as the time, date, phone number,
caller ID, call status, and softkey tabs.
2Cisco Unified
IP Phone series
type
Indicates the Cisco Unified IP Phone series to which the
phone belongs.
3Softkeys Enable you to engage any of the functions displayed on
the corresponding LCD screen tabs. Softkeys point to
feature options that are displayed along the bottom of the
LCD screen. Softkey functions change depending on the
status of the phone.
9
83
4
6
5
7
10
1 2
91031
Chapter 1 An Overview of the Cisco Unified IP Phone
Understanding the Cisco Unified IP Phone 7905G and 7912G
1-4
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
4Navigation
button Enables you to scroll through text and select features
displayed on the LCD screen. Also provides access to
speed dial numbers when there are no text or features to
scroll through.
5Menu button Displays a menu that provides access to a voice
messaging system, phone logs and directories, and
settings.
6Hold button Puts a current call on hold or takes a call off hold.
7Keypad Works exactly like the keypad on a traditional telephone.
8Volume button Increases or decreases volume for the handset and
speaker. Also controls the ringer volume (if on-hook).
9Handset Functions like a traditional handset. The light strip at the
top of the handset blinks when the phone rings and
remains lit to indicate a new voice message (depending
on your voice messaging system).
10 Footstand Allows the phone to stand at a convenient angle on a desk
or table.
1-5
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 1 An Overview of the Cisco Unified IP Phone
What Networking Protocols Are Used?
What Networking Protocols Are Used?
Cisco Unified IP Phones support several industry-standard and Cisco networking
protocols for voice communication. Table 1-1 provides an overview of the
networking protocols that the Cisco Unified IP Phone 7905G and 7912G support.
Table 1-1 Supported Networking Protocols on the Cisco Unified IP Phone
Networking Protocol Purpose Usage Notes
Cisco Discovery
Protocol (CDP) CDP is a device-discovery protocol
that runs on all Cisco-manufactured
equipment.
Using CDP, a device can advertise its
existence to other devices and receive
information about other devices in
the network.
The Cisco Unified IP Phone uses
CDP to communicate information
such as auxiliary VLAN ID, per-port
power management details, and
Quality of Service (QoS) configuration
information with the Cisco Catalyst
switch.
Dynamic Host
Configuration Protocol
(DHCP)
DHCP dynamically allocates and
assigns an IP address to network
devices.
DHCP enables you to connect an
IP phone into the network and have
the phone become operational
without you needing to manually
assign an IP address or configure
additional network parameters.
DHCP is enabled by default. If
disabled, you must manually
configure the IP address, subnet
mask, gateway, and an TFTP server
on each phone locally.
Cisco recommends that you use
DHCP custom option 150. With this
method, you configure the TFTP
server IP address as the option value.
For additional supported DCHP
configurations, refer to Cisco
Unified CallManager System Guide.
HyperText Transfer
Protocol (HTTP)
HTTP is the standard way of
transferring information and moving
documents across the Internet and the
World Wide Web.
The Cisco Unified IP Phones use
HTTP for the XML services and for
troubleshooting purposes.
Chapter 1 An Overview of the Cisco Unified IP Phone
What Networking Protocols Are Used?
1-6
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Internet Protocol (IP) IP is a messaging protocol that
addresses and sends packets across
the network.
To communicate using IP, network
devices must have an assigned IP
address, subnet, and gateway.
IP addresses, subnets, and gateways
identifications are automatically
assigned if you are using the
Cisco Unified IP Phone with
Dynamic Host Configuration
Protocol (DHCP). If you are not
using DHCP, you must manually
assign these properties to each phone
locally.
Real-Time Transport
(RTP) RTP is a standard for transporting
real-time data, such as interactive
voice and video, over data networks.
Cisco Unified IP Phones use the RTP
protocol to send and receive
real-time voice traffic from other
phones and gateways.
Session Description
Protocol (SDP) SDP is the portion of the SIP that
determines which parameters are
available during a connection
between two endpoints. Conferences
are established using only the SDP
capabilities that are supported by all
endpoints in the conference.
SDP capabilities, such as codec
types, DTMF detection and comfort
noise, are normally configured on a
global basis by the Cisco Unified
CallManager or the Media Gateway
in operation. Some SIP endpoints
may allow these parameters to be
configured on the endpoint itself.
Transmission Control
Protocol (TCP) TCP is a a connection-oriented
transport protocol. Cisco Unified IP Phones use TCP to
connect to
Cisco Unified CallManager.
Trivial File Transfer
Protocol (TFTP) TFTP allows you to transfer files
over the network.
On the Cisco Unified IP Phone,
TFTP enables you to obtain a
configuration file specific to the
phone type.
TFTP requires a TFTP server in your
network, which can be automatically
identified from the DHCP server. If
more than one TFTP server is
running in your network, you must
manually assign a TFTP server to
each phone locally.
Table 1-1 Supported Networking Protocols on the Cisco Unified IP Phone (continued)
Networking Protocol Purpose Usage Notes
1-7
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 1 An Overview of the Cisco Unified IP Phone
What Features are Supported on the Cisco Unified IP Phone 7905G and 7912G?
Related Topics
Understanding the Phone Startup Process, page 2-4
Understanding Interactions with Other Cisco Unified Communications
Products, page 2-2
Network Configuration Menu Parameter Descriptions, page 4-10
What Features are Supported on the Cisco Unified IP
Phone 7905G and 7912G?
The Cisco Unified IP Phone 7905G and 7912G function much like traditional
analog phones, allowing you to place and receive telephone calls. In addition to
traditional telephony features, the Cisco Unified IP Phones include features that
enable you to administer and monitor the phone as a network device.
This section includes the following topics:
Feature Overview, page 1-8
Configuring Telephony Features, page 1-8
Session Initiation
Protocol (SIP) SIP is the Internet Engineering task
Force (IETF) standard for
multimedia conferencing over IP. SIP
is an ASCII-based, application-layer
control protocol that can be used to
establish, maintain, and terminate
calls between two or more endpoints.
The
Cisco Unified IP Phone 7905G/7912
G support UDP-based SIP signalling.
Like other VoIP protocols, SIP is
designed to address the functions of
signaling and session management
within a packet telephony network.
Signaling allows call information to
be carried across network
boundaries. Session management
provides the ability to control the
attributes of an end-to-end call.
User Datagram Protocol
(UDP) UDP is a connectionless messaging
protocol for delivery of data packets. Cisco Unified IP Phones receive and
process UDP messages.
Table 1-1 Supported Networking Protocols on the Cisco Unified IP Phone (continued)
Networking Protocol Purpose Usage Notes
Chapter 1 An Overview of the Cisco Unified IP Phone
What Features are Supported on the Cisco Unified IP Phone 7905G and 7912G?
1-8
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Configuring Network Features Using the Cisco Unified IP Phone, page 1-9
Providing Users with Feature Information, page 1-10
Feature Overview
Cisco Unified IP Phones provide traditional telephony functionality, such as call
forwarding and transferring, redialing, speed dialing, conference calling, and
voice messaging system access. Cisco Unified IP Phones also provide a variety of
other features. For an overview of the telephony features that the Cisco Unified IP
Phone 7905G and 7912G support, see Chapter 5, “Configuring Telephony
Features.”
Like other network devices, you must configure the Cisco Unified IP Phones to
prepare them to access Cisco Unified CallManager and the rest of the IP network.
Using DHCP, you have fewer settings to modify, but you can choose to assign a
static IP if your network requires it. For instructions on configuring the network
settings on the Cisco Unified IP Phones, see Chapter 4, “Configuring Settings on
the Cisco Unified IP Phone.”
Because the Cisco Unified IP Phone is a network device, you can obtain detailed
status information about it. This information can assist you in troubleshooting
problems that users might encounter when using their IP phones. See Chapter 7,
“Troubleshooting the Cisco Unified IP Phone” for tips on using this information.
Related Topics
Configuring Settings on the Cisco Unified IP Phone, page 4-1
Configuring Telephony Features, page 5-1
Troubleshooting the Cisco Unified IP Phone, page 7-1
Configuring Telephony Features
You can modify additional settings on the Cisco Unified IP Phone from the
Cisco Unified CallManager Administration application. Use this web-based
application to set up phone registration criteria and calling search spaces, among
other tasks. For more information, see Chapter 5, “Configuring Telephony
Features.”
1-9
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 1 An Overview of the Cisco Unified IP Phone
What Features are Supported on the Cisco Unified IP Phone 7905G and 7912G?
In some places, this manual provides partial instructions for procedures that
involve Cisco Unified CallManager Administration. These instructions are
intended to point you to the appropriate page in the Cisco Unified CallManager
application and to provide some initial guidance.
For more information about the Cisco Unified CallManager Administration
application, refer to Cisco Unified CallManager documentation, including
Cisco Unified CallManager Administration Guide. You can also use the
context-sensitive help that is available within the application. Access
context-sensitive help by choosing Help > For this screen from the main menu
bar.
You can access the complete Cisco Unified CallManager documentation suite at
this location:
http://www.cisco.com/univercd/cc/td/doc/product/voice/c_callmg/index.htm
Related Topic
Chapter 5, “Configuring Telephony Features”
Configuring Network Features Using the Cisco Unified IP Phone
You can locally configure features such as DHCP, TFTP, and IP settings on the
phone itself. You can also obtain statistics about a current call or firmware
versions on the phone.
For more information about configuring features and viewing statistics from the
phone, see Chapter 4, “Configuring Settings on the Cisco Unified IP Phone” and
see Chapter 6, “Viewing Model and Status Information on the Cisco
Unified IP Phone.”
Related Topics
Configuring Settings on the Cisco Unified IP Phone, page 4-1
Troubleshooting the Cisco Unified IP Phone, page 7-1
Chapter 1 An Overview of the Cisco Unified IP Phone
Understanding Security Features for Cisco Unified IP Phones
1-10
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Providing Users with Feature Information
If you are a system administrator, you are likely the primary source of information
for Cisco Unified IP Phone users in your network or company. To ensure that you
distribute the most current feature and procedural information, familiarize
yourself with Cisco Unified IP Phone documentation. Make sure to visit the
Cisco Unified IP Phone web site:
http://www.cisco.com/univercd/cc/td/doc/product/voice/c_ipphon/index.htm
From this site, you can view and order various user guides, including wallet cards.
For complete ordering information, see the “Obtaining Documentation” section
on page xiv.
In addition to providing documentation, it is important to inform users of
available Cisco Unified IP Phone features—including features specific to your
company or network—and of how to access and customize those features, if
appropriate.
For a summary of some of the key information that phone users need their system
administrators to provide, see Appendix B, “Providing Information to Users Via
a Website.”
Related Topic
Providing Information to Users Via a Website, page B-1
Understanding Security Features for Cisco Unified IP
Phones
The Cisco Unified IP Phone 7905G/7912G provides the following security:
Image authentication—Signed binary files (with the extension .sbn) prevent
tampering with the firmware image before it is loaded on a phone. Tampering
with the image causes a phone to fail the authentication process and reject the
new image.
Encrypted configuration files—This ensures the privacy of phone configuration
files. For more information, see the “Configuring the Encryption Key” section on
page 4-7.
1-11
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 1 An Overview of the Cisco Unified IP Phone
Understanding the Requirements for Installing and Configuring the Cisco Unified IP Phone 7905G and 7912G
Note For more information about these features and about Cisco Unified CallManager
and Cisco Unified IP Phone security, refer to Cisco Unified CallManager Security
Guide.
Understanding the Requirements for Installing and
Configuring the Cisco Unified IP Phone 7905G and
7912G
To install and configure the Cisco Unified IP Phone 7905G and 7912G, you must
configure some network settings, set up Cisco Unified CallManager, and make
changes locally on the phone.
See Table 1-2 for an overview of required procedures. For detailed information
about these procedures, refer to the sources shown.
Note You can specify additional configuration settings using profile files stored on the
TFTP server. For more information, see Appendix A, “Reference List of
Parameters.
Chapter 1 An Overview of the Cisco Unified IP Phone
Understanding the Requirements for Installing and Configuring the Cisco Unified IP Phone 7905G and 7912G
1-12
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Table 1-2 Overview of Configuration Procedures for the Cisco Unified IP Phone
Required Task Purpose For More Information
1. Gather the following
information about the phone for
use in Cisco Unified CallManager
Administration:
Information requested in
the Device Information
fields, if applicable, such
as the device pool and
calling search space.
The
Cisco Unified CallManag
er user to associate with
the phone.
The number of lines and
associated directory
numbers to assign to the
phone.
Features to be added and
configured for the phone.
You will refer to this information
when using the
Cisco Unified CallManager
Administration Phone
Configuration web page to
configure a phone.
The Device Information fields on
this page will auto-populate if
information is relevant and
available. Edit fields if you want to
override system settings on a
per-device basis.
See the Adding Phones to
the Cisco Unified
CallManager Database”
section on page 2-12.
See the Chapter 5,
“Configuring Telephony
Features.
Refer to
Cisco Unified CallManager
System Guide.
Refer to
Cisco Unified CallManager
Administration Guide.
2. Configure routers, gateways,
and switches to handle voice
communication.
Establishes the infrastructure for
the IP telephony network. See the “Understanding
How the Cisco Unified IP
Phone Interacts with the
Cisco Catalyst Family of
Switches” section on
page 2-3 and the
documentation included
with these devices.
1-13
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 1 An Overview of the Cisco Unified IP Phone
Understanding the Requirements for Installing and Configuring the Cisco Unified IP Phone 7905G and 7912G
3. Decide how you want to add
phones to the
Cisco Unified CallManager
database:
With auto-registration
With Cisco Unified
CallManager
Administration only
With the
Bulk Administration Tool
(BAT) only
With BAT and the Tool for
Auto-Registered Phones
Support (TAPS)
How you add the phones to
Cisco Unified CallManager
determines how the directory
number is assigned and whether
you need to obtain a MAC address
first, among other things.
See the Adding Phones
to the Cisco Unified
CallManager Database
section on page 2-12.
Refer to Cisco Unified
CallManager
Administration Guide.
Refer to Cisco
Unified CallManager
Bulk Administration
Guide.
4. Obtain the MAC address from
the IP phone. Not necessary if you plan to add
phones to the Cisco
Unified CallManager database
using auto-registration only or in
conjunction with the Tool for
Auto-Registered Phones Support
(TAPS).
See the “Determining the
MAC Address of a Cisco
Unified IP Phone” section
on page 2-12.
5. Choose to power through the
Cisco AC adapter or
Cisco Catalyst switch.
Determines whether the phone
receives power from an external
power source over a power cord or
from the in-line power source over
the Ethernet cable.
See the “Providing
Power to the Cisco
Unified IP Phone
section on page 2-9.
Refer to the
documentation included
with the Cisco Catalyst
switch.
6. Install the phone in the network. Adds the phone to the network. See Chapter 3, “Setting Up
the
Cisco Unified IP Phone.”
Table 1-2 Overview of Configuration Procedures for the Cisco Unified IP Phone (continued)
Required Task Purpose For More Information
Chapter 1 An Overview of the Cisco Unified IP Phone
Understanding the Requirements for Installing and Configuring the Cisco Unified IP Phone 7905G and 7912G
1-14
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
7. Configure network settings on
the Cisco Unified IP Phone. Sets IP settings (if not using DHCP
in the network) and assigns a TFTP
server.
See the “Configuring IP
Settings” section on
page 4-7.
See the “Network
Configuration Menu
Parameter
Descriptions” section
on page 4-10.
8. Configure the phone features
such as call waiting, call forward,
call park, and call pickup.
Provides enhanced telephony
functionality.
See Chapter 5,
“Configuring
Telephony Features.”
Refer to Cisco Unified
CallManager
Administration Guide.
9. Add users to
Cisco Unified CallManager. Associates a user with a phone. Refer to Cisco
Unified CallManager
Administration Guide.
10. Provide information to end
users about how to use their phones
and how to configure their phone
options.
Ensures that users have adequate
information to successfully use
their Cisco Unified IP Phones.
See the Appendix B,
“Providing Information to
Users Via a Website.”
Table 1-2 Overview of Configuration Procedures for the Cisco Unified IP Phone (continued)
Required Task Purpose For More Information
CHAPTER
2-1
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
2
Preparing to Install the
Cisco Unified IP Phone on Your
Network
Cisco Unified IP Phones enable you to communicate using voice over a data
network. To provide this capability, the Cisco Unified IP Phones depend upon and
interact with several other key Cisco Unified Communications Products,
including Cisco Unified CallManager.
This chapter provides you with an important overview of the interaction between
the Cisco Unified IP Phone 7905G and 7912G and other key components of the
Voice over IP (VoIP) network.
This chapter includes the following topics:
Understanding Interactions with Other Cisco Unified Communications
Products, page 2-2
Understanding the Phone Startup Process, page 2-4
Understanding Phone Configuration Files and Profile Files, page 2-8
Providing Power to the Cisco Unified IP Phone, page 2-9
Determining the MAC Address of a Cisco Unified IP Phone, page 2-12
Adding Phones to the Cisco Unified CallManager Database, page 2-12
Creating a SIP Profile, page 2-15
Using Cisco Unified IP Phones with Different Protocols, page 2-17
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Understanding Interactions with Other Cisco Unified Communications Products
2-2
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Understanding Interactions with Other Cisco Unified
Communications Products
To function in the IP telephony network, the Cisco Unified IP Phone must be
connected to a networking device, such as a Cisco Catalyst switch. You must also
register the Cisco Unified IP Phone with a Cisco Unified CallManager system
before sending and receiving calls.
This section covers the following topics:
Understanding How the Cisco Unified IP Phone Interacts with Cisco
Unified CallManager, page 2-2
Understanding How the Cisco Unified IP Phone Interacts with the
Cisco Catalyst Family of Switches, page 2-3
Understanding How the Cisco Unified IP Phone Interacts with
Cisco Unified CallManager
Cisco Unified CallManager is an open and industry-standard call processing
system. Cisco Unified CallManager software runs on a Windows 2000 or Linux
server and sets up and tears down calls between phones, integrating traditional
PBX functionality with the corporate IP network. Cisco Unified CallManager
manages the components of the IP telephony system—the phones, access
gateways, and the resources necessary for such features as call conferencing and
route planning.
For information about configuring Cisco Unified CallManager to work with the
IP devices described in this chapter, refer to Cisco Unified CallManager
Administration Guide and Cisco Unified CallManager System Guide.
Related Topic
Chapter 5, “Configuring Telephony Features,
2-3
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Understanding Interactions with Other Cisco Unified Communications Products
Understanding How the Cisco Unified IP Phone Interacts with the
Cisco Catalyst Family of Switches
The Cisco Unified IP Phone 7912G has an internal Ethernet switch, enabling it to
switch incoming traffic to the phone, to the access port, or to the network port.
The Cisco Unified IP Phone 7905G do not include an internal Ethernet switch or
an access port.
If a computer is connected to the access port, the computer and the phone share
the same physical link to the switch and share the same port on the switch. This
shared physical link has the following implications for the VLAN configuration
on the network:
The current VLANs may be configured on an IP subnet basis. However,
additional IP addresses may not be available to assign the phone to the same
subnet as other devices connected to the same port.
Data traffic present on the VLAN supporting phones may reduce the quality
of Voice-over-IP traffic.
You can resolve these issues by isolating the voice traffic onto a separate VLAN
on each of the ports connected to a phone. The switch port configured for
connecting a phone would have separate VLANs configured for carrying:
Voice traffic to and from the IP phone (auxiliary VLAN)
Data traffic to and from the PC connected to the switch through the access
port of the IP phone (native VLAN)
Isolating the phones on a separate, auxiliary VLAN increases the quality of the
voice traffic and allows a large number of phones to be added to an existing
network where there are not enough IP addresses.
For more information, refer to the documentation included with the
Cisco Catalyst switch.
Related Topics
Network and Access Ports, page 3-5
Understanding the Phone Startup Process, page 2-4
Network Configuration Menu Parameter Descriptions, page 4-10
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Understanding the Phone Startup Process
2-4
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Understanding the Phone Startup Process
When connecting to the VoIP network, the Cisco Unified IP Phone goes through
a standard startup process composed of the steps described in Table 2-1.
Depending on your specific network configuration, not all of these steps may
occur on your Cisco Unified IP Phone.
Table 2-1 Cisco Unified IP Phone Startup Process
Step Configuration Related Topics
1. Obtaining Power
from the Switch You can connect the Cisco Unified IP Phone to a
Cisco Catalyst switch with one of the modules that
provides power to the phone (WS-X6348-RJ45V).
See the “Providing Power to the Cisco Unified IP
Phone” section on page 2-9 for details.
If you use this optional configuration, the phone
receives phantom power and powers up when you
connect the Cisco Unified IP Phone to the switch.
The phone then sends Cisco Discovery Protocol
(CDP) notifications to the switch indicating that it
is ready to receive CDP packets and indicating the
power requirement for the phone. The switch
allocates power and sends it over the network
cable.
Understanding the
Phone Startup
Process, page 2-4
Providing Power to
the Cisco Unified
IP Phone, page 2-9
Resolving Startup
Problems, page 7-2
2. Loading the Stored
Phone Image The Cisco Unified IP Phone has non-volatile Flash
memory in which it stores firmware images and
user-defined preferences. At startup, the phone
runs a bootstrap loader that loads a phone image
stored in Flash memory. Using this image, the
phone initializes its software and hardware.
Understanding the
Phone Startup
Process, page 2-4
Resolving Startup
Problems, page 7-2
2-5
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Understanding the Phone Startup Process
3. Configuring VLAN If the Cisco Unified IP Phone is connected to a
Cisco Catalyst switch, the switch next informs the
phone of the voice VLAN defined on the switch.
The phone needs to know its VLAN membership
before it can proceed with the Dynamic Host
Configuration Protocol (DHCP) request for an IP
address.
“Understanding the
Phone Startup
Process” section on
page 2-4
“Network
Configuration
Menu Parameter
Descriptions”
section on
page 4-10
“Resolving Startup
Problems” section
on page 7-2
4. Obtaining an IP
Address If the Cisco Unified IP Phone is using DHCP to
obtain an IP address, the phone queries the DHCP
server to obtain one. If you are not using DHCP in
your network, you must assign a static IP address
to each phone locally.
“Understanding the
Phone Startup
Process” section on
page 2-4
“Network
Configuration
Menu Parameter
Descriptions”
section on
page 4-10
“Configuring IP
Settings” section on
page 4-7
“Resolving Startup
Problems” section
on page 7-2
Table 2-1 Cisco Unified IP Phone Startup Process (continued)
Step Configuration Related Topics
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Understanding the Phone Startup Process
2-6
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
5. Accessing a TFTP
Server In addition to assigning an IP address, the DHCP
server directs the Cisco Unified IP Phone to a
TFTP Server. If the phone has a statically defined
IP address, you must configure the TFTP server
locally on the phone; the phone then contacts the
TFTP server directly.
“Understanding the
Phone Startup
Process” section on
page 2-4
“Network
Configuration
Menu Parameter
Descriptions”
section on
page 4-10
“Resolving Startup
Problems” section
on page 7-2
Table 2-1 Cisco Unified IP Phone Startup Process (continued)
Step Configuration Related Topics
2-7
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Understanding the Phone Startup Process
6. Requesting the
Configuration File and
the Profile File
The TFTP server has configuration files and
profile files. A configuration file includes
parameters for connecting to
Cisco Unified CallManager and information about
which image load a phone should be running. A
profile file contains various parameters and values
for phone and network settings.
“Understanding
Phone
Configuration Files
and Profile Files”
section on page 2-8
“Resolving Startup
Problems” section
on page 7-2
7. Contacting
Cisco Unified CallMan
ager
The configuration file defines how the
Cisco Unified IP Phone communicates with
Cisco Unified CallManager. After obtaining the
file from the TFTP server, the phone attempts to
make a TCP connection to the highest priority
Cisco Unified CallManager on the list.
If the phone was manually added to the database,
Cisco Unified CallManager identifies the phone.
If the phone was not manually added to the
database and auto-registration is enabled in
Cisco Unified CallManager, the phone attempts to
auto-register itself in the
Cisco Unified CallManager database.
Cisco Unified CallManager informs devices,
using the following configuration file formats, of
their load ID. Note that mac is the hexadecimal
representation of the MAC address of the phone:
For
Cisco Unified IP Phone 7905G—ld<mac> or
ld<mac>.x
For
Cisco Unified IP Phone 7912G—gk<mac> or
gk<mac>.x
“Understanding the
Phone Startup
Process” section on
page 2-4
“Resolving Startup
Problems” section
on page 7-2
Table 2-1 Cisco Unified IP Phone Startup Process (continued)
Step Configuration Related Topics
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Understanding Phone Configuration Files and Profile Files
2-8
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Understanding Phone Configuration Files and Profile
Files
Configuration files for a phone are stored on the TFTP server and define
parameters for connecting to Cisco Unified CallManager. In general, any time
you make a change in Cisco Unified CallManager that requires the phone to be
reset, a change is made to the phone’s configuration file automatically.
Configuration files also contain information about which image load the phone
should be running. If this image load differs from the one currently loaded on a
phone, the phone contacts the TFTP server to request the new image file.
The phone first requests the following configuration file, where mac is the
hexadecimal representation of the MAC address of the phone:
For Cisco Unified IP Phone 7905G—ld<mac> or ld<mac>.x
For Cisco Unified IP Phone 7912G—gk<mac> or gk<mac>.x
If the phone cannot find a file of this naming convention, the phone then looks for
the following file:
For Cisco Unified IP Phone 7905G—lddefault.cfg or lddefault.cfg.x
For Cisco Unified IP Phone 7912G—gkdefault.cfg or gkdefault.cfg.x
After the phone finds one of the profile files, or if it cannot find a profile file, it
continues with its startup process.
Note For information on using your phone in a secure Cisco Unified CallManager
environment, see the “Configuring the Encryption Key” section on page 4-7.
Related Topics
Understanding the Phone Startup Process, page 2-4
Resolving Startup Problems, page 7-2
2-9
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Providing Power to the Cisco Unified IP Phone
Providing Power to the Cisco Unified IP Phone
You can power a Cisco Unified IP Phone by the following sources:
External power—optional Cisco AC adapter and power cord for connecting
to a standard wall receptacle.
Inline power—inline power provider to the Cisco Unified IP Phone when
connected to a Cisco Catalyst switch capable of providing inline power.
Note Only the network port supports inline power from the Cisco Catalyst
switches.
WS-X6348-RJ45V 10/100 switching module—Inline power provider to the
Cisco Unified IP Phone when connected to a Catalyst 6000 family
10/100BaseTX switching module.
This module sends power on pins 1 & 2 and 3 & 6, which are also used to
transmit Ethernet signals. Before the switch sends power, it tests for the
presence of a Cisco Unified IP Phone, avoiding damage to other Ethernet
devices.
Note Only the network port supports inline power from the Cisco Catalyst
switches.
WS-PWR-PANEL—power patch panel that allows the Cisco Unified IP
Phone to be connected to existing Catalyst 4000, 5000, and 6000 family
10/100BaseTX switching modules.
This module sends power on pins 4, 5, 7, & 8, which are not used for Ethernet
signaling. The power patch panel also attempts to verify that the attached
device is a Cisco Unified IP Phone before providing power.
Related Topics
Understanding Interactions with Other Cisco Unified Communications
Products, page 2-2
Power Outage, page 2-10
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Providing Power to the Cisco Unified IP Phone
2-10
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Power Source Design, page 2-10
Redundancy Feature, page 2-11
Installing the Cisco Unified IP Phone, page 3-6
Power Outage
Your accessibility to emergency service through the phone is dependent on the
phone being powered. If there is an interruption in the power supply, Service and
Emergency Calling Service dialing will not function until power is restored. In the
case of a power failure or disruption, you may need to reset or reconfigure
equipment before using the Service or Emergency Calling Service dialing.
Power Source Design
The phone and switch automatically determine which power source the phone
uses. If the power has to be switched to a different source, the phone user will
experience different results based on which power source is being used by the
phone.
Use the following information to choose a power source for the phone:
If you plug a phone into the optional power supply before plugging it into the
network, the phone is powered by the power supply.
If you then unplug the phone from the power supply, the phone resets. If the
switch port is configured for 10/100 Mbps, the switch recognizes the loss of
power and brings the phone back up.
If the switch port is configured for 10 Mbps only, then you must unplug the
network connection and plug it back into the phone for the switch to
recognize the phone’s loss of power.
If, however, you plugged the network connection into the phone before you
plugged in the power cord, the phone receives power through the switch, and
unplugging the power cord will not bring down the phone. If the switch
reboots, the phone will then be powered by the power cord.
2-11
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Providing Power to the Cisco Unified IP Phone
Related Topics
Understanding Interactions with Other Cisco Unified Communications
Products, page 2-2
Providing Power to the Cisco Unified IP Phone, page 2-9
Installing the Cisco Unified IP Phone, page 3-6
Redundancy Feature
For redundancy, you can use the Cisco AC adapter even if you are using inline
power from the Cisco Catalyst switches. The Cisco Unified IP Phone can share
the power load being used from the inline power and external power source. If
either the inline power or the external power goes down, the phone can switch
entirely to the other power source.
To use this redundancy feature, follow these steps:
Procedure
Step 1 Set the inline power mode to auto on the Cisco Catalyst switch.
Step 2 Connect the unpowered Cisco Unified IP Phone to the network.
Step 3 Connect the external power supply to the phone after the phone powers up.
Related Topics
Understanding Interactions with Other Cisco Unified Communications
Products, page 2-2
Providing Power to the Cisco Unified IP Phone, page 2-9
Installing the Cisco Unified IP Phone, page 3-6
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Determining the MAC Address of a Cisco Unified IP Phone
2-12
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Determining the MAC Address of a Cisco Unified IP
Phone
There are several procedures that require you to determine and enter the MAC
address of a Cisco Unified IP Phone. These procedures include adding phones the
the Cisco Unified CallManager database using Cisco Unified CallManager
Administration or using BAT.
Table 2-2 describes the methods that you can use to determine the MAC address
of a phone.
Adding Phones to the Cisco Unified CallManager
Database
Before installing the Cisco Unified IP phone, you must choose a method for
adding phones to the Cisco Unified CallManager database. The following
sections describe these methods:
Adding Phones with Auto-Registration, page 2-13
Adding Phones with Cisco Unified CallManager Administration, page 2-14
Adding Phones with BAT, page 2-15
Table 2-2 Determining the MAC Address of a Phone
Cisco Unified
IP Phone Method Reference
7905G and
7912G Choose Menu > Settings >
Network Configuration and
look at the MAC Address field
See Chapter 4, “Configuring
Settings on the Cisco
Unified IP Phone.”
7905G and
7912G Display the Phone
Configuration Web Page and
look for the MAC address;
enter:
http://PHONE_IPAddress>
See Appendix A, “Reference
List of Parameters.”
2-13
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Adding Phones to the Cisco Unified CallManager Database
Table 2-3 provides an overview of these methods for adding phones to the
Cisco Unified CallManager database.
Adding Phones with Auto-Registration
You can add phones with auto-registration without first gathering MAC addresses
from the phones.
When auto-registration is enabled, Cisco Unified CallManager begins the
automatic startup process to obtain a directory number. During auto-registration,
Cisco Unified CallManager automatically assigns the next available sequential
directory number to the phone.
When you use this method, Cisco Unified CallManager automatically assigns
directory numbers to new phones as they register with Cisco Unified
CallManager.
Table 2-3 Methods for Adding Phones to the Cisco Unified CallManager
Database
Method
Requires MAC
Address? Notes
Auto-registration No Results in automatic
assignment of directory
numbers
Auto-registration with TAPS No Requires auto-registration and
the Bulk Administration Tool
(BAT); updates information in
the Cisco Unified IP Phone
and in
Cisco Unified CallManager
Administration
Using the Cisco Unified
CallManager Administration
only
Yes Requires phones to be added
individually
Using BAT Yes Allows for simultaneous
registration of multiple phones
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Adding Phones to the Cisco Unified CallManager Database
2-14
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
You can use auto-registration to quickly enter phones into the
Cisco Unified CallManager database. You can then modify any settings, such as
the directory numbers, from Cisco Unified CallManager. Additionally, you can
move auto-registered phones to new locations and assign them to different device
pools without affecting their directory numbers.
Auto-registration is enabled by default if Cisco Unified CallManager is operating
in non-secured mode.
For information about enabling and configuring auto-registration, refer to Cisco
Unified CallManager Administration Guide.
Related Topics
Adding Phones with Cisco Unified CallManager Administration, page 2-14
Adding Phones with BAT, page 2-15
Adding Phones with Cisco Unified CallManager Administration
You can add phones individually to the Cisco Unified CallManager database
using Cisco Unified CallManager Administration web pages. To do so, you first
need to obtain the MAC address for each phone. See the “Determining the MAC
Address of a Cisco Unified IP Phone” section on page 2-12 for instructions.
After you have collected MAC addresses, choose Device > Phone > Add New in
Cisco Unified CallManager Administration to begin.
For additional instructions and conceptual information about Cisco Unified
CallManager, refer to Cisco Unified CallManager Administration Guide and to
Cisco Unified CallManager System Guide.
Related Topics
Determining the MAC Address of a Cisco Unified IP Phone, page 2-12
Adding Phones with Auto-Registration, page 2-13
Adding Phones with BAT, page 2-15
2-15
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Creating a SIP Profile
Adding Phones with BAT
The Cisco Unified Bulk Administration Tool (BAT) is a plug-in application for
Cisco Unified CallManager that enables you to perform batch operations,
including registration, on multiple phones.
To add phones using BAT only (not in conjunction with TAPS), you first need to
obtain the appropriate MAC address for each phone. See the “Determining the
MAC Address of a Cisco Unified IP Phone” section on page 2-12 for instructions.
For detailed instructions about using BAT, refer to Cisco Unified CallManager
Administration Guide and to Cisco Unified CallManager Bulk Administration
Guide.
Related Topics
Determining the MAC Address of a Cisco Unified IP Phone, page 2-12
Adding Phones with Auto-Registration, page 2-13
Adding Phones with Cisco Unified CallManager Administration, page 2-14
Adding Phones with Cisco Unified CallManager Administration, page 2-14
Creating a SIP Profile
Each SIP IP phone on the network must be associated with a SIP profile. To create
a SIP profile, navigate from Cisco Unified CallManager Administration to Device
> Device Settings > SIP Profile. Most fields on the SIP Profile Configuration
screen contain default values that you can use. However, some fields require
configuration.
For complete information about SIP profiles and the SIP Profile Configuration
screen, refer to the Cisco Unified CallManager Administration Guide.
To create a unique SIP profile for a phone on your network, follow these steps:
Procedure
Step 1 Click Copy to the right of the screen containing an existing SIP Profile.
Step 2 Make changes in the applicable fields that are specific to your new SIP profile.
Step 3 Name the unique SIP profile with a descriptive name.
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Creating a SIP Profile
2-16
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Step 4 Click Save.
Note You must assign a SIP profile to each phone after you have configured and named
your SIP profiles.
2-17
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Using Cisco Unified IP Phones with Different Protocols
To select the applicable device profile, follow these steps:
Procedure
Step 1 From Cisco Unified CallManager Administration, navigate to Device > Phone.
Step 2 Click on the name of the phone you are configuring to bring up the Phone
Configuration screen.
Step 3 In the Protocol Specific Information portion of the screen, use the arrow keys in
the SIP Profile field to select the profile name you want.
Step 4 Click Save.
Using Cisco Unified IP Phones with Different
Protocols
The Cisco Unified IP Phone can operate with SCCP (Skinny Client Control
Protocol) or SIP (Session Initiation Protocol). You can convert a phone that is
using one protocol for use with the other protocol.
This section includes these topics:
Converting a New Phone from SCCP to SIP, page 2-18
Converting an In-Use Phone from SCCP to SIP, page 2-18
Converting an In-Use Phone from SIP to SCCP, page 2-19
Deploying a Phone in an SCCP and SIP Environment, page 2-19
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Using Cisco Unified IP Phones with Different Protocols
2-18
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Converting a New Phone from SCCP to SIP
A new, unused phone is set for SCCP by default. To convert this phone to SIP,
perform these steps:
Procedure
Step 1 Take one of these actions:
To auto-register the phone, set the Auto Registration Phone Protocol
parameter in Cisco Unified CallManager Administration to SIP.
To provision the phone using the Bulk Administration Tool (BAT), choose the
appropriate phone and choose SIP from the BAT.
To provision the phone manually, make the appropriate changes for SIP on
the Phone Configuration page in Cisco Unified CallManager Administration.
Refer to Cisco Unified CallManager Administration Guide for detailed
information about Cisco Unified CallManager configuration. Refer to Cisco
Unified CallManager Bulk Administration Guide for detailed information about
using the BAT.
Step 2 If you are not using DHCP in your network, configure the network parameters for
the phone.
See the “Configuring Startup Network Settings” section on page 3-14.
Step 3 Power cycle the phone.
Converting an In-Use Phone from SCCP to SIP
You can use the Bulk Administration Tool (BAT) to convert a phone that is in use
in your network from SCCP to SIP. To access BAT from Cisco Unified
CallManager Administration, choose Bulk Administration > Phones > Migrate
Phones > SCCP to SIP. For detailed information, refer to the “Migrating Phones”
chapter in the Cisco Unified CallManager Bulk Administration Guide.
2-19
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Using Cisco Unified IP Phones with Different Protocols
Converting an In-Use Phone from SIP to SCCP
To convert a phone that is in use in your network from SIP to SCCP, perform these
steps. For more information, Cisco Unified CallManager Administration Guide.
Procedure
Step 1 In Cisco Unified CallManager Administration, delete the existing SIP phone from
the Cisco Unified CallManager database.
Step 2 In Cisco Unified CallManager Administration, create the phone as an SCCP
phone.
Step 3 Power cycle the phone.
Deploying a Phone in an SCCP and SIP Environment
To deploy Cisco Unified IP Phones in an environment that includes SCCP and SIP
and in which the Cisco Unified CallManager Auto-Registration parameter is
SCCP, perform these general steps:
Procedure
Step 1 Set the Cisco Unified CallManager Auto Registration Phone Protocol parameter
to SCCP.
To do so, from Cisco Unified CallManager Administration, choose System >
Enterprise Parameters.
Step 2 Install the phones.
Step 3 Change the auto_registration_protocol parameter to SIP.
Step 4 Auto-register the SIP phones.
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Using Cisco Unified IP Phones with Different Protocols
2-20
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
CHAPTER
3-1
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
3
Setting Up the Cisco Unified IP Phone
This chapter describes how to install the Cisco Unified IP Phone on an IP
telephony network, and includes these topics:
Before You Begin, page 3-1
Understanding the Cisco Unified IP Phone Components, page 3-5
Installing the Cisco Unified IP Phone, page 3-6
Mounting the Phone to the Wall, page 3-10
Verifying the Phone Startup Process, page 3-11
Configuring Startup Network Settings, page 3-11
Note Before you install a Cisco Unified IP Phone, you must make some critical
decisions about how to configure the phone in your network. You can then safely
install the phone and verify its functionality. For information on preparing to
install, see Chapter 2, “Preparing to Install the Cisco Unified IP Phone on Your
Network.”
Before You Begin
Before installing the Cisco Unified IP Phone, review the requirements in these
sections:
Network Requirements, page 3-2
Cisco Unified CallManager Configuration, page 3-2
Chapter 3 Setting Up the Cisco Unified IP Phone
Before You Begin
3-2
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Safety, page 3-3
Network Requirements
For the Cisco Unified IP Phone to successfully operate as a Cisco Unified IP
Phone endpoint in your network, your network must meet these requirements:
Working VoIP Network
Voice over IP (VoIP) configured on your Cisco routers and gateways
Cisco Unified CallManager Release 5.0 or higher installed in your
network and configured to handle call processing
IP network that supports DHCP or manual assignment of IP address, gateway,
and subnet mask
Cisco Unified CallManager Configuration
The Cisco Unified IP Phone requires Cisco Unified CallManager to handle call
processing. Refer to Cisco Unified CallManager Administration Guide or
context-sensitive help in the Cisco Unified CallManager Administration
application to ensure that Cisco Unified CallManager is set up properly to
manage the phone and to properly route and process calls.
Table 3-1 explains and provides references for many of the configuration
activities for which you use Cisco Unified CallManager Administration.
3-3
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 3 Setting Up the Cisco Unified IP Phone
Before You Begin
Safety
Review the following warnings before installing the Cisco Unified IP Phone. To
see translations of these warnings, refer to the Regulatory Compliance and Safety
Information for the Cisco Unified IP Phone 7900 Series document that
accompanied this device.
Warning
Read the installation instructions before you connect the system to its power
source.
Warning
Only trained and qualified personnel should be allowed to install, replace, or
service this equipment.
Table 3-1 Configuration Activities
Activity Explanation Reference
Auto-registration. If you plan to use auto-registration,
verify that it is enabled and properly
configured in
Cisco Unified CallManager before
connecting any Cisco Unified IP Phone
to the network.
See the Adding Phones to the
Cisco Unified CallManager
Database” section on page 2-12.
Configure and assign
telephony features. You must use
Cisco Unified CallManager
Administration to configure and assign
telephony features to the Cisco Unified
IP Phones.
See the Chapter 5, “Configuring
Telephony Features.”
Add and associate
users. In Cisco Unified CallManager
Administration, you can add users to
the database and associate them with
specific phones. In this way, users gain
access to web pages that allow them to
configure phone options such as call
forwarding and speed dialing.
See the Cisco
Unified CallManager
Administration Guide.
Chapter 3 Setting Up the Cisco Unified IP Phone
Before You Begin
3-4
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Warning
Ultimate disposal of this product should be handled according to all national
laws and regulations.
Warning
Do not work on the system or connect or disconnect cables during periods of
lightning activity.
Warning
To avoid electric shock, do not connect safety extra low voltage (SELV) circuits
to telephone network voltage (TNV) circuits. LAN ports contain SELV circuits,
and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45
connectors. Use caution when connecting cables.
Caution Only use the proper Cisco approved external power supply. Reference the
installation manual provided with the phone.
The following warnings apply when you use an external power supply.
Warning
This product relies on the building's installation for short-circuit (overcurrent)
protection. Ensure that a fuse or circuit breaker no larger than 120 VAC, 15 A U.S.
(240 VAC, 10 A international) is used on the phase conductors (all
current-carrying conductors).
Warning
The device is designed to work with TN power systems.
Warning
The plug-socket combination must be accessible at all times because it serves
as the main disconnecting device.
3-5
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 3 Setting Up the Cisco Unified IP Phone
Understanding the Cisco Unified IP Phone Components
Understanding the Cisco Unified IP Phone
Components
The Cisco Unified IP Phone 7905G and 7912G includes these components on the
phone or as accessories for the phone:
Network and Access Ports, page 3-5
Handset, page 3-6
Speaker, page 3-6
Network and Access Ports
The back of the Cisco Unified IP Phone 7912G has two RJ-45 ports. The network
port is labelled “10/100SW” and the access port is labeled “10/100PC.” The back
of the Cisco Unified IP Phone 7905G has one RJ-45 network port.
The two ports on the Cisco Unified IP Phone 7912G each support 10/100 Mbps
half- or full-duplex connections to external devices. The speed and connection
type are set through auto-negotiation. The single port on the Cisco Unified IP
Phone 7905G supports 10 Mbps half-duplex connections to external devices. You
can use either Category 3 or 5 cabling for 10-Mbps connections, but you must use
Category 5 for 100 Mbps connections.
Use the network port to connect the phone to the network. You must use a
straight-through cable on this port. The phone can also obtain inline power from
the Cisco Catalyst switch over this connection. See the “Providing Power to the
Cisco Unified IP Phone” section on page 2-9 for details.
Use the access port to connect a network device, such as a computer, to the phone.
You must use a straight-through cable on this port.
See Figure 3-1 for the connection ports available on the back of the
Cisco Unified IP Phone 7905G. See Figure 3-2 for the connection ports available
on the back of the Cisco Unified IP Phone 7912G.
Chapter 3 Setting Up the Cisco Unified IP Phone
Installing the Cisco Unified IP Phone
3-6
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Handset
The handset is designed especially for use with a Cisco Unified IP Phone. It
includes a light that indicates incoming calls and voice messages waiting.
Speaker
This Cisco Unified IP Phone 7905G and 7912G include a speaker that you can use
to monitor calls.
Installing the Cisco Unified IP Phone
Note Before you install a phone, even if it is new, upgrade the phone to the current
firmware image.
To install the Cisco Unified IP Phone, perform the steps shown in Table 3-2. Also,
see Figure 3-1 and Figure 3-2 for graphical overviews of these steps.
Table 3-2 Installation Steps
Procedure Notes Reference
Step 1 Connect a Category 3 or 5
straight-through Ethernet cable
from the switch to the network
port on the phone.
Each
Cisco Unified IP Phone
ships with one Ethernet
cable in the box.
See the “Network and
Access Ports” section on
page 3-5 for guidelines.
Step 2 Connect the handset to the
Handset port. ——
3-7
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 3 Setting Up the Cisco Unified IP Phone
Installing the Cisco Unified IP Phone
Step 3 Connect a Category 3 or 5
straight-through Ethernet cable
from another network device,
such as a desktop computer, to
the access port on the
Cisco Unified IP Phone 7912G.
Optional. You can connect
another network device later
if you do not connect one
now.
See the “Network and
Access Ports” section on
page 3-5 for guidelines.
Step 4 Connect the power supply to the
Cisco DC Adapter port. Optional. See the “Providing Power to
the Cisco Unified IP Phone”
section on page 2-9 for
guidelines.
Procedure Notes Reference
Chapter 3 Setting Up the Cisco Unified IP Phone
Installing the Cisco Unified IP Phone
3-8
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01

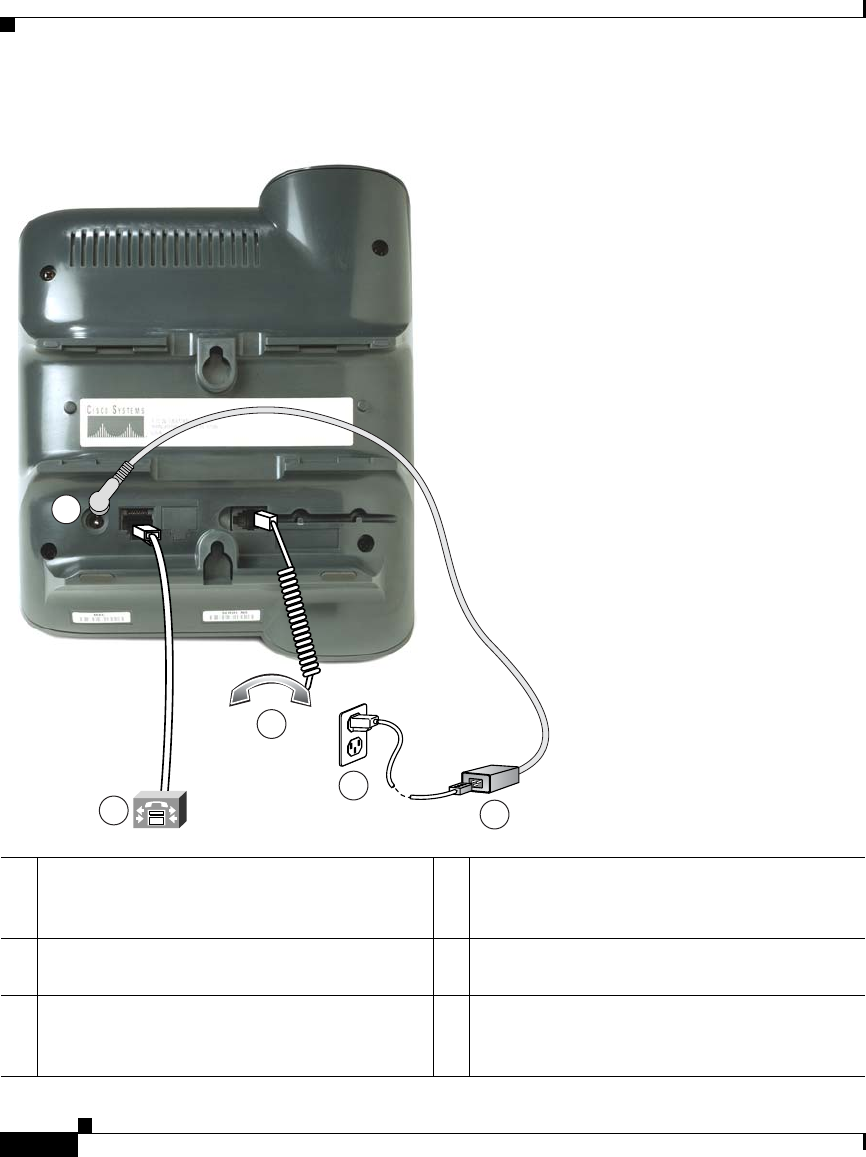

Figure 3-1 Cisco Unified IP Phone 7905G Cable Connections
1Network (Ethernet) port (10BASE-T) 4Power supply with AC plug. (Optional.
Required only if power is not supplied
through an Ethernet connection.)
2Handset port for connecting the handset 5Power cable with wall socket plug for
connecting to power.
3AC/DC adapter port (DC48) for power
connector (for phones not provided with
inline power)
2
3
5
4
1
7
9976
3-9
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 3 Setting Up the Cisco Unified IP Phone
Installing the Cisco Unified IP Phone

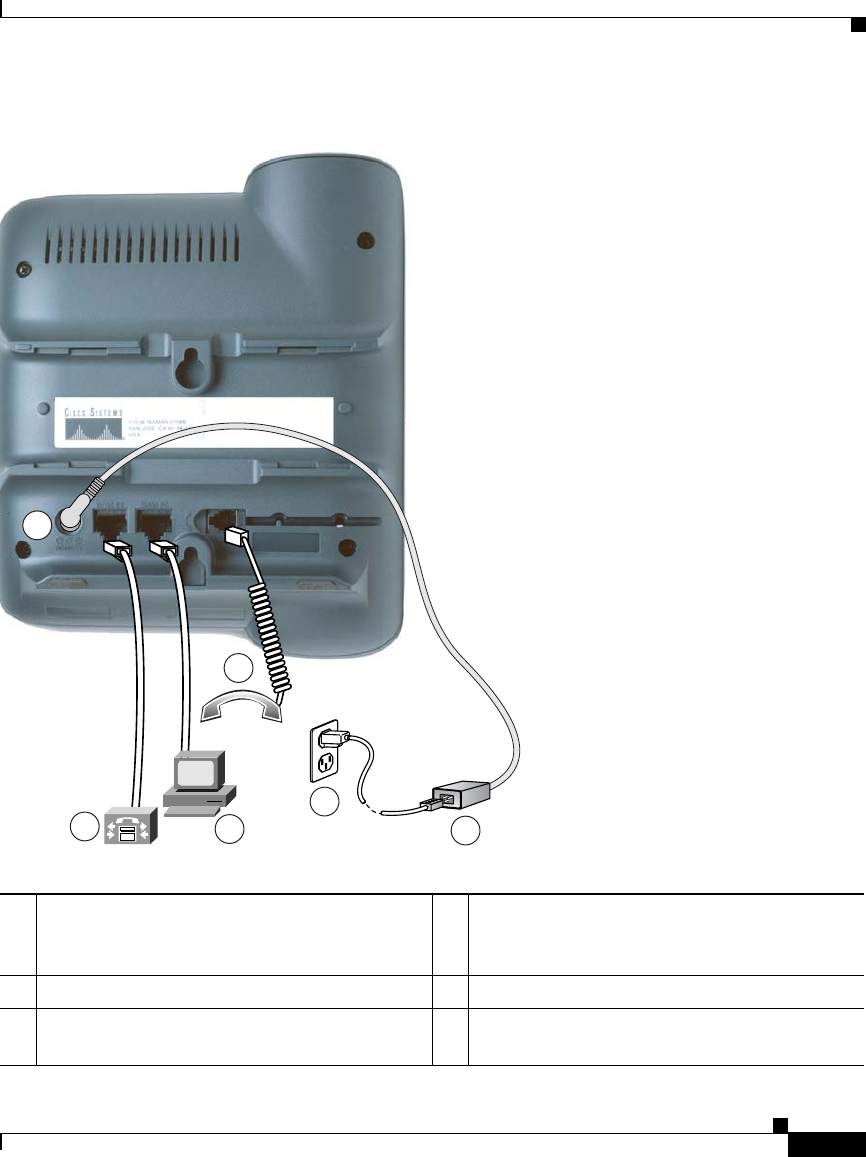

Figure 3-2 Cisco Unified IP Phone 7912G Cable Connections
1Network port (10BASE-T, 100BASE-T) 4AC/DC adapter port (DC48) for power
connector (for phones not provided with
inline power)
2Access port (10BASE-T, 100BASE-T) 5Power supply with AC plug (if included)
3Handset port for connecting the handset 6Power cable with wall socket plug for
connecting to power (if included)
3
2
4
6
5
1
9
1032
Chapter 3 Setting Up the Cisco Unified IP Phone
Mounting the Phone to the Wall
3-10
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Mounting the Phone to the Wall
You can mount the Cisco Unified IP Phone on the wall by removing the footstand
and using the mounting bracket on the back of the phone, or you can use special
brackets available in a Cisco Unified IP Phone wall mount kit. (Wall mount kits
must be ordered separately from the phone.) If you attach the
Cisco Unified IP Phone to the wall using the standard footstand and not the wall
mount kit, you need to supply the following tools and parts:
Screwdriver
Screws to secure the Cisco Unified IP phone to the wall
To mount the phone on the wall using its mounting bracket, follow these steps.
Before You Begin
To ensure that the handset attaches securely to a wall-mounted phone, remove the
handset wall hook from the handset rest, rotate the hook 180 degrees, and reinsert
the hook. Turning the hook exposes a lip on which the handset catches when the
phone is vertical. For an illustrated procedure, refer to Installing the Universal
Wall Mount Kit for the Cisco Unified IP Phone.
Procedure
Step 1 Remove the footstand from the phone.
Step 2 Modify the handset rest so that the handset remains on the ear-piece rest when the
phone is vertically placed.
a. Remove the handset from the ear-piece rest.
b. Locate the tab (handset wall hook) at the base of the ear-piece rest.
c. Slide this tab out, rotate it 180 degrees (left to right), and reinsert it.
d. Place the handset on the ear-piece rest.
Step 3 Insert two screws into a wall stud, matching them to the two screw holes on the
back of the phone.
The keyholes fit standard phone jack mounts.
Step 4 Hang the phone on the wall.
3-11
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 3 Setting Up the Cisco Unified IP Phone
Verifying the Phone Startup Process
Verifying the Phone Startup Process
After the Cisco Unified IP Phone has power connected to it, the phone begins its
startup process by cycling through these steps.
1. The handset light strip, Hold button, and Menu button flash on and off
simultaneously.
2. The LCD screen displays the Cisco Systems, Inc., copyright screen.
3. The LCD screen displays Configuring IP as the phone starts up.
4. The main LCD screen displays:
Current date and time
Primary directory number
Softkeys
If the phone successfully passes through these stages, it has started up properly.
Otherwise, see to the “Resolving Startup Problems” section on page 7-2.
Configuring Startup Network Settings
If you are not using DHCP in your network, you must configure these network
settings on the Cisco Unified IP Phone after installing the phone on the network:
IP address
IP subnet mask
Default gateway IP address
DNS server IP address
TFTP server IP address
To do this, you must collect information about these network settings, and follow
the procedures defined in Chapter 4, “Configuring Settings on the Cisco
Unified IP Phone.”
Chapter 3 Setting Up the Cisco Unified IP Phone
Configuring Startup Network Settings
3-12
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
CHAPTER
4-1
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
4
Configuring Settings on the Cisco
Unified IP Phone
The Cisco Unified IP Phone includes various configurable network and SIP
settings that you may need to modify before the phone is functional for your users.
The following sections provide details about configuring and verifying these
network settings:
Accessing Network Configuration Settings through the Network
Configuration Menu on the Phone, page 4-2
Verifying Network Settings, page 4-6
Configuring IP Settings, page 4-7
Configuring the Encryption Key, page 4-7
Network Configuration Menu Parameter Descriptions, page 4-10
SIP Configuration Menu Parameter Descriptions, page 4-19
Viewing Network Settings through a Phone Configuration Web Page,
page 4-22
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Accessing Network Configuration Settings through the Network Configuration Menu on the Phone
4-2
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Accessing Network Configuration Settings through
the Network Configuration Menu on the Phone
You can view and set most network configuration parameters for the
Cisco Unified IP Phone 7905G and 7912G using the Network Configuration
menu on the phone.
For a description of the parameters that appear on the Network Configuration
menu, see Table 4-1 on page 4-10.
This section includes the following topics:
Displaying the Network Configuration Menu, page 4-3
Unlocking and Locking Options on the Network Configuration Menu,
page 4-3
Editing Settings in the Network Configuration Menu, page 4-5
4-3
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Accessing Network Configuration Settings through the Network Configuration Menu on the Phone
Displaying the Network Configuration Menu
To display the Network Configuration menu on a Cisco Unified IP Phone 7905G
or 7912G, follow these steps:
Procedure
Step 1 Press the Menu button.
Step 2 Choose Settings > Network Configuration.
To exit the Network Configuration menu, take one of these actions:
Press the Back softkey to return to the Settings menu.
Press the Menu button to return to the main screen.
Related Topics
Unlocking and Locking Options on the Network Configuration Menu,
page 4-3
Editing Settings in the Network Configuration Menu, page 4-5
Unlocking and Locking Options on the Network Configuration
Menu
Configuration options (or parameters) in the Network Configuration menu are
locked by default to prevent users from making changes that could affect the
operation of a phone. You must unlock these options before you can change them.
When options are inaccessible for modification, a locked padlock icon appears on
the Network Configuration screen. When options are unlocked and accessible for
modification, an unlocked padlock icon appears on this menu, as shown below.
This unlocked padlock icon appears in the margins of this chapter to indicate
procedures that require you to unlock settings before modifying them.
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Accessing Network Configuration Settings through the Network Configuration Menu on the Phone
4-4
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
If a password has been specified for the phone, you must enter the password when
unlocking network configuration options.
To unlock network settings on the Cisco Unified IP Phone 7905G and 7912G,
perform the following steps. Network settings are locked again automatically
when you return to the main screen.
Procedure
Step 1 Press the Menu button.
Step 2 Choose Settings > Network Configuration.
Step 3 From the Network Configuration menu, press **#.
Step 4 If the phone displays “Enter Admin Password,” enter your password and then
press the Accept softkey.
For information about entering a password, see the “Editing Settings in the
Network Configuration Menu” section on page 4-5.
Step 5 Look at the icon in the upper-right portion of the LCD.
When options are locked, the icon appears as a locked padlock.
When options are unlocked, the icon appears as an unlocked padlock.
Related Topics
Displaying the Network Configuration Menu, page 4-3
Editing Settings in the Network Configuration Menu, page 4-5
4-5
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Accessing Network Configuration Settings through the Network Configuration Menu on the Phone
Editing Settings in the Network Configuration Menu
When you edit the value of an parameter on the Network Configuration menu,
follow these guidelines:
Use the keys on the telephone keypad to enter numbers and letters.
To enter letters using the keypad, use a corresponding number key. Press the
key one or more times to display a particular letter. For example, press the 2
key once for “a,” twice quickly for “b,” and three times quickly for “c.” After
you pause, the cursor automatically advances to allow you to enter the next
letter.
If an parameter can accept either numbers or letters, the Number or Alpha
softkey will appear. Press the Number softkey to enter numbers. Press the
Alpha softkey to enter letters.
To enter a period (for example, in an IP address), press the * (asterisk) key.
To correct a mistake, press the << softkey to delete the character to the left of
the cursor.
Press the Cancel softkey before pressing the Validate softkey or the Save
softkey to discard any changes you have made.
Related Topics
Displaying the Network Configuration Menu, page 4-3
Unlocking and Locking Options on the Network Configuration Menu,
page 4-3
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Verifying Network Settings
4-6
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Verifying Network Settings
On Cisco Unified IP Phone 7905G and 7912G, you can view detailed information
about the current network settings of the phone. Use this information to
troubleshoot or to make modifications.
To display current network settings for the Cisco Unified IP Phone by using the
Phone Configuration web page, follow these steps:
Procedure
Step 1 Display the Phone Configuration web page.
For instructions, see the “Viewing Network Settings through a Phone
Configuration Web Page” section on page 4-22.
Step 2 In the pane on the left:
a. Select Network Configuration to review network configuration information.
b. Select Network Statistics to view network statistics.
To display current network settings for the Cisco Unified IP Phone by using the
buttons on the phone, follow these steps:
Procedure
Step 1 Display the Network Configuration menu.
For instructions, see the “Displaying the Network Configuration Menu” section
on page 4-3.
Step 2 Scroll through the parameters to display the settings described in Table 4-1 on
page 4-10.
4-7
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Configuring IP Settings
Configuring IP Settings
Use these guidelines when manually configuring the IP settings:
You can use 0.0.0.0 for the subnet mask only if the default gateway is also
0.0.0.0.
Ensure the TFTP server has an IP address.
Ensure the default gateway IP address is on the same subnet as the host IP
address.
Note Procedures involved in configuring IP settings or TFTP parameters cannot be
completed when DHCP is enabled in your network.
Configuring the Encryption Key
Cisco Unified Call Manager can operate in secure or non-secure mode. When
operating in secure mode, Cisco Unified Call Manager generates encrypted
configuration files that can be decrypted only with the same encryption key.
If you are operating your phone in a secure environment, you must manually
configure the encryption key that the phone will use to decrypt the configuration
file downloaded from Cisco Unified Call Manager. You may configure the
encryption key by using either the LCD screen on the phone or by using the Phone
Configuration Web page.
The instructions in the following encryption-related sections assume a network
environment in which a DHCP server provides the applicable TFTP IP address,
and the Cisco Unified IP Phone has been pre-configured on the
Cisco Unified CallManager to run SIP.
This section contains the following topics:
Configuring Encryption Key Using LCD screen on the Phone, page 4-8
Configuring Encryption Key Using Phone Configuration Web Page, page 4-9
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Configuring the Encryption Key
4-8
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Configuring Encryption Key Using LCD screen on the Phone
Procedure
Step 1 Connect your Cisco Unified IP Phone to the network.
Your Cisco Unified IP Phone should upgrade automatically to a SIP image.
Step 2 Press the MENU key on your phone.
Step 3 Go to Settings > Network Configuration > Profile EncryptKeyEx
Step 4 Press **# to unlock the menu.
You may be prompted to enter a password to unlock the menu. Enter cisco and
press Accept.
Step 5 Press Edit.
Step 6 Use the keypad to enter an encryption key.
Step 7 Press Validate when finished.
Step 8 Press Save to save all values.
Step 9 Press MENU to exit the configuration menu.
Step 10 Reboot the Cisco Unified IP Phone.
The phone contacts the TFTP server and download its configuration file. When
the idle screen is displayed along with a telephone number, the phone is ready for
use.
4-9
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Configuring the Encryption Key
Configuring Encryption Key Using Phone Configuration Web
Page
Procedure
Step 1 Connect your Cisco Unified IP Phone to the network.
Your Cisco Unified IP phone should upgrade automatically to a SIP image.
Step 2 Determine the IP address of the phone:
a. Press the MENU key
b. Go to Settings > Network Configuration > IP Address, and make a note of
the IP address because you will need to enter this address later.
Step 3 Start two instances of a web browser.
You will use one browser to access the Phone Configuration Web Page and the
other browser to access the Cisco Unified CallManager Administration pages.
Step 4 Do the following to access the Phone Configuration Web Page:
a. Enter the URL:
http://PHONE_IP_ADDRESS/dev
b. Enter cisco in the UIPassword field if prompted.
c. Click Apply.
The Network Parameters page (which is one of the Phone Configuration Web
pages) displays.
Step 5 Do the following to access the Cisco Unified CallManager Administration pages.
a. Enter the following URL:
http://<CALL_MANAGER_IP_ADDRESS>
b. Click on Cisco Unified CallManager Administration link.
If you are prompted to accept or cancel a security certificate, you must accept
the certificate to continue.
c. Enter the User Name and Password to access Cisco Unified CallManager.
The Cisco Unified CallManager Administration main page displays.
d. Click on Device > Phone.
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Network Configuration Menu Parameter Descriptions
4-10
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
e. Click the Find button to display a list of devices.
f. Click on the device name corresponding to your Cisco Unified IP phone.
Cisco Unified Call Manager displays the Phone Configuration
Administration page.
g. Scroll down to the Symmetric Key Information box for the phone.
Step 6 Copy the Symmetric Key value (if this value is not already present, click the
Generate String button) from the Cisco Unified CallManager Phone
Configuration Administration page and paste it into the EncryptKeyEx field on
the Cisco Unified IP Phone Network Parameters page.
Step 7 Click Apply on the Phone Configuration Web Page to save the values.
The phone will automatically reboot and request its encrypted configuration file
from the TFTP server. When the idle screen is displayed along with a telephone
number, the phone is ready for use.
Network Configuration Menu Parameter
Descriptions
Table 4-1 describes all network configuration parameters that exist in the Network
Configuration menu of the Cisco Unified IP Phone 7905G/7912G.
Table 4-1 Network Configuration Menu Parameters
Parameter Description To Change
DHCP Server IP address of the Dynamic Host
Configuration Protocol (DHCP)
server from which the phone
obtains information such as its IP
address, its subnet mask, and the IP
addresses of the network gateway
and the DNS, NTP, and TFTP
servers.
Display only—cannot configure.
MAC Address Unique Media Access Control
(MAC) address of the phone. Display only—cannot configure.
4-11
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Network Configuration Menu Parameter Descriptions
Host Name Unique host name of the phone. Display only—cannot configure.
Domain Name (not
applicable when used
with
Cisco Unified CallM
anager)
Network domain in which the
phone resides. You can change this
value if the Alternate Domain
parameter is set to Yes.
1. Unlock configuration parameters.
2. Set the Alternate Domain parameter
to Yes.
3. Scroll to the Domain Name
parameter, press the Edit softkey,
and then enter a new domain name.
4. Press the Validate softkey, and then
press the Save softkey.
IP Address Internet Protocol (IP) address of
the phone. You can use this
parameter to assign the IP address
if DHCP does not provide it.
If you assign an IP address with
this parameter, you must also
assign a subnet mask and network
gateway (default router). See the
Subnet Mask and the Default
Router parameters in this table.
1. Unlock configuration parameters.
2. Set the DHCP Enabled parameter to
No.
3. Scroll to the IP Address parameter,
press the Edit softkey, and then enter
a new IP Address.
4. Press the Validate softkey, and then
press the Save softkey.
Subnet Mask Subnet mask used by the phone.
You can use this parameter to
assign a subnet mask if DHCP does
not provide it.
If you assign a Subnet Mask with
this parameter, you must also
assign an IP address and a network
gateway (default router) for the
phone. See the IP Address and the
Default Router parameters in this
table.
1. Unlock configuration parameters.
2. Set the DHCP Enabled parameter to
No.
3. Scroll to the Subnet Mask parameter,
press the Edit softkey, and then enter
a new subnet mask.
4. Press the Validate softkey, and then
press the Save softkey.
Table 4-1 Network Configuration Menu Parameters (continued)
Parameter Description To Change
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Network Configuration Menu Parameter Descriptions
4-12
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
TFTP Server1 (This
parameter is shown as
TFTP Server 1 when
the phone is
configured to operate
in a standard
Cisco Unified
CallManager
environment; in a
standard SIP
environment the
parameter is TFTP
Server.)
IP address or URL of the TFTP
server from which a phone obtains
a profile. Required if the DHCP
server does not provide the TFTP
server address.
If you set the Alternate TFTP
parameter to Yes, you must enter a
non-zero value for the TFTP
Server1 parameter.
1. Unlock configuration parameters.
2. Set the TFTP Enabled parameter to
Yes.
3. Set the Alternate TFTP parameter to
Yes.
4. Scroll to the TFTP1 Server
parameter, press the Edit softkey,
and then enter a new TFTP server IP
address or URL.
5. Press the Validate softkey, and then
press the Save softkey.
TFTP Server 2 This parameter is read-only and the
value displayed, if any, is the
backup TFTP server specified in
DHCP Parameter 150.
Display only—cannot configure.
Default Router IP address of the network gateway
used by the phone. You can use this
parameter to assign this address if
DHCP does not provide it.
If you assign a network gateway
address with this parameter, you
must also assign an IP address and
a subnet mask for the phone. See
the IP Address and the Subnet
Mask parameters in this table.
1. Unlock configuration parameters.
2. Set the DHCP Enabled parameter to
No.
3. Scroll to the Default Router
parameter, press the Edit softkey,
and then enter a new network
gateway IP address.
4. Press the Validate softkey, and then
press the Save softkey.
Table 4-1 Network Configuration Menu Parameters (continued)
Parameter Description To Change
4-13
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Network Configuration Menu Parameter Descriptions
DNS Server 1,
DNS Server 2 IP addresses of the Primary
Domain Name System (DNS)
server (DNS Server 1) and
secondary DNS server (DNS
Server 2) used by the phone.
1. Unlock configuration parameters.
2. Set the Alternate DNS parameter to
Yes.
3. Scroll to the DNS Server 1 parameter
or the DNS Server 2 parameter, press
the Edit softkey, and then enter a new
DNS server IP address.
4. Press the Validate softkey, and then
press the Save softkey.
NTP Server 1,
NTP Server 2 (not
applicable when used
with
Cisco Unified CallM
anager)
IP addresses of the Primary
Network Time Protocol (NTP)
server (NTP Server 1) and
secondary NTP server (NTP Server
2) used by the phone.
1. Unlock configuration parameters.
2. Set the Alternate NTP parameter to
Yes.
3. Scroll to the NTP Server 1 parameter
or the NTP Server 2 parameter, press
the Edit softkey, and then enter a new
NTP server IP address.
4. Press the Validate softkey, and then
press the Save softkey.
Table 4-1 Network Configuration Menu Parameters (continued)
Parameter Description To Change
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Network Configuration Menu Parameter Descriptions
4-14
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Time Zone (not
applicable when used
with Cisco Unified
CallManager)
Offset to apply to the Greenwich
Mean Time (GMT) returned by an
NTP server to determine local time
(to use for the screen display, for
example).
Local time is generated as follows:
Local time =
GMT + Time Zone,
if Time Zone <= 12.
Local time =
GMT + Time Zone – 25,
if Time Zone > 12.
For example, Time Zone = 17 for
Pacific Standard Time.
Note You must update this
parameter manually when
daylight savings time goes
into effect and ends.
1. Unlock configuration parameters.
2. Scroll to the Time Zone parameter,
press the Edit softkey, and then enter
a new time zone offset value.
3. Press the Validate softkey, and then
press the Save softkey.
Operational VLAN
ID Auxiliary Virtual Local Area
Network (VLAN) configured on a
Cisco Catalyst switch in which the
phone is a member.
If the phone has not received an
auxiliary VLAN, this parameter
indicates the Administrative
VLAN.
If neither the auxiliary VLAN nor
the Administrative VLAN are
configured, this parameter is blank.
The phone obtains its Operational VLAN
ID via Cisco Discovery Protocol (CDP)
from the switch to which the phone is
attached. To assign a VLAN ID manually,
use the Admin VLAN ID parameter.
Table 4-1 Network Configuration Menu Parameters (continued)
Parameter Description To Change
4-15
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Network Configuration Menu Parameter Descriptions
Admin. VLAN ID Auxiliary VLAN in which the
phone is a member.
Overrides the value specified by
the Operation VLAN ID
parameter.
1. Unlock configuration parameters.
2. Scroll to the Admin. VLAN ID
parameter, press the Edit softkey,
and then enter a new Admin VLAN
value.
3. Press the Validate softkey, and then
press the Save softkey.
VLAN Enabled Indicates whether VLAN is
enabled for the phone.
1. Unlock configuration parameters.
2. Scroll to the VLAN Enabled
parameter and press the No softkey to
disable VLAN, or press the Yes
softkey to enable VLAN.
3. Press the Save softkey.
CDP Enabled Indicates whether Cisco Discovery
Protocol (CDP) is enabled for the
phone. CDP allows the phone to be
discovered by the CiscoWorks
network management system.
For more information about
CiscoWorks2000, refer to the
documentation available at this
URL:
http://www.cisco.com/univercd/cc
/td/doc/product/rtrmgmt/cw2000/i
ndex.htm
1. Unlock configuration parameters.
2. Scroll to the CDP Enabled parameter
and press the No softkey to disable
CDP, or press the Yes softkey to
enable CDP.
3. Press the Save softkey.
Table 4-1 Network Configuration Menu Parameters (continued)
Parameter Description To Change
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Network Configuration Menu Parameter Descriptions
4-16
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
DHCP Enabled
(enabled by default) Specifies whether to use the DHCP
server to obtain information such
as its IP address, its subnet mask,
and the IP addresses of the network
gateway and the DNS, NTP, and
TFTP servers.
If this parameter is 0, you must
manually specify the IP address of
the phone, and the subnet mask and
the network gateway (default
router) used by the phone.
1. Unlock configuration parameters.
2. Scroll to the DHCP Enabled
parameter and press the No softkey to
disable DHCP, or press the Yes
softkey to enable DHCP.
3. Press the Save softkey.
TFTP Enabled Enables or disables downloading
of a profile from a TFTP server. If
you set this parameter to Yes and
subsequently make changes using
the web interface, you must set this
parameter to No before saving
those changes; otherwise, the
changes will be overwritten by the
profile obtained from a TFTP
server.
If you set this parameter to Yes and
do not specify a TFTP server, the
phone will use the TFTP IP address
or URL obtained from the DHCP
server to contact the TFTP server.
If you set this parameter to Yes, set
the Alternate TFTP parameter to
Yes, and specify a value for the
TFTP Server parameter, the phone
will use the server that you specify.
1. Unlock configuration parameters.
2. Scroll to the TFTP Enabled
parameter and press the No softkey to
disable TFTP, or press the Yes
softkey to enable TFTP.
3. Press the Save softkey.
Table 4-1 Network Configuration Menu Parameters (continued)
Parameter Description To Change
4-17
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Network Configuration Menu Parameter Descriptions
Alternate TFTP Indicates whether the phone
obtains the IP address or URL of
the TFTP server from the DHCP
server (No) or uses the IP address
or URL specified by the TFTP
Server parameter (Yes).
If you set the Alternate TFTP
server to Yes, you must specify a
value for the TFTP Server
parameter.
1. Unlock configuration parameters.
2. Scroll to the Alternate TFTP
parameter and press the Yes softkey
if the phone should use an alternative
TFTP server. Press the No softkey
otherwise.
3. Press the Save softkey.
Alternate DNS Indicates whether the phone
obtains the IP address of the DNS
server from the DHCP server (No)
or uses the IP addresses specified
by the DNS Server 1 and,
optionally, the DNS Server 2
parameters (Yes).
If you set the Alternate DNS server
to Yes, you must specify a value for
the DNS Server 1 parameter. You
may also specify a value for the
DNS Server 2 parameter.
1. Unlock configuration parameters.
2. Scroll to the Alternate DNS
parameter and press the Yes softkey
if the phone should use an alternative
DNS. Press the No softkey otherwise.
3. Press the Save softkey.
Alternate NTP (not
applicable in a
Cisco Unified
CallManager
environment)
Indicates whether the phone
obtains the IP address of the NTP
server from the DHCP server (No)
or uses the IP addresses specified
by the NTP Server 1 and,
optionally, the NTP Server 2
parameters (Yes).
If you set the Alternate NTP server
to Yes, you must specify a value for
the NTP Server 1 parameter. You
may also specify a value for the
NTP Server 2 parameter.
1. Unlock configuration parameters.
2. Scroll to the Alternate NTP
parameter and press the Yes softkey
if the phone should use an alternative
NTP server. Press the No softkey
otherwise.
3. Press the Save softkey.
Table 4-1 Network Configuration Menu Parameters (continued)
Parameter Description To Change
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Network Configuration Menu Parameter Descriptions
4-18
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Related Topics
Verifying Network Settings, page 4-6
Configuring IP Settings, page 4-7
Alternate Domain Indicates whether the phone is
using an alternative domain name.
If you set this parameter to Yes,
you must specify a value for the
Domain Name parameter.
1. Unlock configuration parameters.
2. Scroll to the Alternate Domain
parameter and press the Yes softkey
if the phone should use an alternative
domain name. Press the No softkey
otherwise.
3. Press the Save softkey.
Symmetric Key (This
parameter is shown as
Symmetric Key when
the phone is
configured to operate
in a standard
Cisco Unified
CallManager
environment; in a
standard SIP
environment the
parameter is Profile
Encrypt Key Ex.)
Specifies an encryption key used to
decrypt the profile that the phone
downloads from the TFTP server.
1. Unlock configuration parameters.
2. Scroll to the Symmetric Key
parameter, press the Edit softkey,
and then enter a new encryption key.
3. Press the Validate softkey, and then
press the Save softkey.
Erase Configuration Changes these settings to their
default values: Network
Configuration menu settings
(including password), SIP
Configuration menu settings, Call
Preferences menu settings, volume
settings, and contrast settings.
1. Unlock configuration parameters.
2. Scroll to the Erase Configuration
parameter, press the Yes softkey, and
then press the Save softkey.
Table 4-1 Network Configuration Menu Parameters (continued)
Parameter Description To Change
4-19
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
SIP Configuration Menu Parameter Descriptions
SIP Configuration Menu Parameter Descriptions
Table 4-2 describes SIP configuration parameters. To access the SIP
Configuration menu, choose SIP Configuration from the Settings menu.
Note The Edit, Yes, or No softkeys for changing SIP configuration parameters appear
only if options are unlocked as described in the “Unlocking and Locking Options
on the Network Configuration Menu” section on page 4-3. For information about
the keys you can use to edit parameters, see the “Editing Settings in the Network
Configuration Menu” section on page 4-5.
Table 4-2 SIP Configuration Menu Parameters
Parameter Description To Change
SIP Proxy 1
SIP Proxy 2
SIP Proxy 3
SIP Proxy 4
SIP Proxy 1 and SIP Proxy 2
accept either the IP address or URL
of the SIP proxy server used by the
phone.
SIP Proxy 3 and SIP Proxy 4
accept only the IP address used by
the phone.
1. Unlock configuration parameters.
2. Scroll to the SIP Proxy parameter, press
the Edit softkey, and then enter the IP
address or URL of a SIP proxy server.
3. Press the Accept softkey, and then press
the Save softkey.
User ID User ID for registration and
authentication of the phone.
1. Unlock configuration parameters.
2. Scroll to the User ID parameter, press the
Edit softkey, and then enter a user ID.
3. Press the Accept softkey, and then press
the Save softkey.
Password Password for authentication of the
phone.
1. Unlock configuration parameters.
2. Scroll to the Password parameter, press
the Edit softkey, and then enter a
Password.
3. Press the Accept softkey, and then press
the Save softkey.
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
SIP Configuration Menu Parameter Descriptions
4-20
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Use Login ID Indicates whether to use the value
specified with the Login ID
parameter instead of the value
specified with the User ID
parameter for authentication of the
phone.
1. Unlock configuration parameters.
2. Scroll to the Use Login ID parameter, and
then press the Yes softkey to use the value
specified with the Login ID parameter for
authentication.
3. Press the Save softkey.
Login ID Alternate ID used for
authentication of the phone.
1. Unlock configuration parameters.
2. Set the Use Login ID parameter to Yes.
3. Scroll to the Login ID parameter, press
the Edit softkey, and then enter a login
ID.
4. Press the Accept softkey, and then press
the Save softkey.
Local SIP Port Port where the phone listens for
incoming requests and sends
outgoing requests.
1. Unlock configuration parameters.
2. Scroll to the Local SIP Port parameter,
press the Edit softkey, and then enter a
SIP port from 5060 to 65535.
3. Press the Accept softkey, and then press
the Save softkey.
Local RTP Port Port from which the phone
transmits and receives media
streams.
1. Unlock configuration parameters.
2. Scroll to the Local RTP Port parameter,
press the Edit softkey, and then enter a
SIP port, which must be an even number
from 0 to 65535.
3. Press the Accept softkey, and then press
the Save softkey.
Table 4-2 SIP Configuration Menu Parameters (continued)
Parameter Description To Change
4-21
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
SIP Configuration Menu Parameter Descriptions
Backup Proxy
Timeout (not
displayed in
Cisco Unified
CallManager
environment).
Timeout, in seconds, for switching
from backup proxy server to
primary proxy server.
The value can range from 0 to
4294967295.
1. Unlock configuration parameters.
2. Scroll to the Backup Proxy Timeout
parameter, press the Edit softkey, and
then enter a timeout value.
3. Press the Accept softkey, and then press
the Save softkey.
Outbound Proxy
(not displayed in
Cisco Unified
CallManager
environment).
IP address or URL of the SIP
outbound proxy server used by the
phone.
1. Unlock configuration parameters.
2. Scroll to the Outbound Proxy parameter,
press the Edit softkey, and then enter the
IP address or URL of the outbound proxy
server.
3. Press the Accept softkey, and then press
the Save softkey.
Register Expires SIP registration interval, in
seconds, between each registration
renewal to the SIP proxy server.
The value can range from 1 to
86400.
1. Unlock configuration parameters.
2. Scroll to the Register Expires parameter,
press the Edit softkey, and then enter the
SIP registration interval.
3. Press the Accept softkey, and then press
the Save softkey.
Register with
Proxy Indicates whether to enable SIP
registration. This parameter is
ignored if a SIP proxy server is not
specified.
1. Unlock configuration parameters.
2. Scroll to the Register with Proxy and
press the Yes softkey to enable SIP
registration, or press the No softkey to
disable SIP registration.
3. Press the Save softkey.
NAT WAN IP
Address (not
displayed in
Cisco Unified
CallManager
environment).
External Network Address
Translation (NAT) IP address
where other SIP user agents can
communicate with the phone.
1. Unlock configuration parameters.
2. Scroll to the NAT WAN IP Address
parameter, press the Edit softkey, and
then enter the NAT IP address.
3. Press the Accept softkey, and then press
the Save softkey.
Table 4-2 SIP Configuration Menu Parameters (continued)
Parameter Description To Change
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Viewing Network Settings through a Phone Configuration Web Page
4-22
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Viewing Network Settings through a Phone
Configuration Web Page
You can view (but not set) network configuration parameters for a
Cisco Unified IP Phone 7905G and 7912G from the Phone Configuration Web
Page.
To access the Phone Configuration Web Page for a phone, follow these steps:
Procedure
Step 1 Open a web browser and enter the following URL, where IPaddress is the IP
address of your phone:
Step 2 http://IPaddress
On the Cisco Unified IP Phone 7905G and 7912G, you can determine the IP
address by pressing the Menu button, choosing Settings > Network
Configuration, and then scrolling to IP Address.
For example, the Phone Configuration Web Page for a Cisco Unified IP Phone
with the IP address 192.168.3.225 is http://192.168.3.225
Step 3 Press Enter.
The Phone Configuration Web Page appears.
For a complete list of parameters and descriptions of each parameter, see
Appendix A, “Reference List of Parameters.”
CHAPTER
5-1
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
5
Configuring Telephony Features
After you install Cisco Unified IP Phones in your network, configure their
network settings, and add them to Cisco Unified CallManager, you must use the
Cisco Unified CallManager Administration application to configure telephony
features.
This chapter provides an overview of these configuration and set-up procedures.
Cisco Unified CallManager documentation provides detailed instructions for
these procedures.
For suggestions about how to provide users with information about features, and
what information to provide, see Appendix B, “Providing Information to Users
Via a Website.”
After you add Cisco Unified IP Phones to Cisco Unified CallManager, you can
add functionality to the phones. Table 5-1 includes a list of supported telephony
features, many of which you can configure using Cisco Unified CallManager
Administration. The Reference column lists Cisco Unified CallManager
documentation that contains configuration procedures and related information.
Note For information about additional features available on you phone and information
about using all features on your phone, refer to the Cisco Unified IP Phone
7905G/7912G Phone Guide for Cisco Unified CallManager 5.0 (SIP). For more
information about service parameters and the functions that they control, refer to
Cisco Unified CallManager Administration Guide.
Chapter 5 Configuring Telephony Features
5-2
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Table 5-1 Configuring Telephony Features for Cisco Unified IP Phone 7905G/7912G Using Cisco
Unified CallManager Administration
Feature Description Reference
Block
Anonymous
Calls
Rejects incoming calls that contain the
Anonymous called ID. For more information refer to the
Cisco Unified CallManager
Administration Guide, SIP Profile
Configuration chapter.
Call Forward Forwards all calls to the designated directory
number. For more information, refer to:
Cisco Unified CallManager
Administration Guide,
Configuring Directory
Numbers” chapter.
Cisco Unified CallManager
System Guide, “Cisco Unified
IP Phones” chapter.
Block Outgoing
Caller ID Outgoing called ID will be designated as
Anonymous.For more information refer to the
Cisco Unified CallManager
Administration Guide, SIP Profile
Configuration chapter.
Call
Hold/Resume Places an active call on hold. Requires no configuration, unless
you want to use music on hold.
Call Waiting Indicates (and allows users to answer) an
incoming call that rings while on another call.
Displays incoming call information on the
phone screen.
For more information, refer to:
Cisco Unified CallManager
Administration Guide, “Cisco
Unified IP Phone
Configuration” chapter.
Cisco Unified CallManager
System Guide, “Cisco Unified
IP Phones” chapter.
5-3
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 5 Configuring Telephony Features
Caller ID Displays the telephone number and the name
of the caller. For more information, refer to:
Cisco Unified CallManager
Administration Guide,
Configuring Cisco Unified IP
Phones” chapter.
Cisco Unified CallManager
System Guide,
Understanding Route Plans”
chapter.
Cisco Unified CallManager
Features and Services Guide,
“Call Display Restrictions”
chapter.
Conference Allows a user to talk simultaneously with
multiple parties by calling each participant
individually.
For more information, refer to
Cisco Unified CallManager System
Guide, “Cisco Unified IP Phones”
chapter.
Direct transfer Connects two established calls (calls that are
on hold or in connected state) into one call and
drops the feature initiator from the call. Does
not initiate a consultation call and does not put
the active call on hold.
Refer to Cisco Unified
CallManager System Guide.
Table 5-1 Configuring Telephony Features for Cisco Unified IP Phone 7905G/7912G Using Cisco
Unified CallManager Administration (continued)
Feature Description Reference
Chapter 5 Configuring Telephony Features
5-4
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Do Not Disturb Allows a user to block incoming calls on the
phone with a busy tone. Valid values include:
User controlled (default): a user can turn
DND on and off on the phone.
Administrator controlled: a user can not
turn DND on or off on the phone.
For more information refer to the
Cisco Unified CallManager
Administration Guide, “SIP Profile
Configuration” chapter.
Shared Line Shared line allows a user to have multiple
phones that share the same phone number or
allows a user to share a phone number with a
coworker.
For more information, refer to
Cisco Unified CallManager System
Guide, “Cisco Unified IP Phones”
chapter.
Note For the Cisco Unified IP
Phone 7905G/7912G, this
feature has limited
support—A phone on a
shared line will ring even if
the other phones on the line
are in use, but the phone
cannot perform any of the
other functions associated
with the shared-line feature.
Table 5-1 Configuring Telephony Features for Cisco Unified IP Phone 7905G/7912G Using Cisco
Unified CallManager Administration (continued)
Feature Description Reference
CHAPTER
6-1
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
6
Viewing Model and Status Information
on the Cisco Unified IP Phone
On a Cisco Unified IP Phone or from a phone’s web page, you can obtain model
and status information about the phone.
This chapter describes how to obtain such information from menus available on
the Cisco Unified IP Phone 7905G and 7912G.
You can also obtain much of this information, and additional related information,
for any Cisco Unified IP Phone from the Phone Configuration web page. For more
information, see the “Device Information” section on page A-3.
This chapter includes these topics:
Viewing Model Information, page 6-2
Viewing Status Messages, page 6-2
Chapter 6 Viewing Model and Status Information on the Cisco Unified IP Phone
Viewing Model Information
6-2
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Viewing Model Information
You can verify the model and serial number of Cisco Unified IP Phones 7905G
and 7912G by viewing the Model Information screen.
To view this screen, follow these steps:
Procedure
Step 1 Press the Menu button.
Step 2 Choose Settings > Model Information.
Step 3 Use the Navigation button to display the information in the Model Information
screen.
Table 6-1 describes the information that appears in this screen.
To exit the Model Information screen, press the Exit softkey.
Viewing Status Messages
To access the Status menu, choose Status from the Settings menu.
The Status menu contains the following options, which provide information about
the phone and its operation:
Status Messages—Reserved for future use.
Table 6-1 Model Information Screen Items
Item Description
Model Number Model number of the phone
MAC Address MAC address of the phone
AppLoadID Identifier of the firmware running on the phone
Boot Load ID Identifier of the factory-installed load running on the
phone
Serial Number Serial number of the phone
6-3
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 6 Viewing Model and Status Information on the Cisco Unified IP Phone
Viewing Status Messages
Network Statistics—Displays Ethernet traffic statistics.
Firmware Versions—Displays this information about the software and
firmware running on the phone:
Application Load ID—Identifier of the firmware.
Boot Load ID—Identifier of the factory-installed load.
Version—Software version number.
Chapter 6 Viewing Model and Status Information on the Cisco Unified IP Phone
Viewing Status Messages
6-4
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
CHAPTER
7-1
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
7
Troubleshooting the Cisco Unified IP
Phone
Cisco Unified IP Phones provide information that can assist you in
troubleshooting problems with your Cisco Unified IP Phone or in your IP
telephony network.
This chapter includes the following sections:
Resolving Startup Problems, page 7-2
Cisco Unified IP Phone Resets Unexpectedly, page 7-8
General Troubleshooting Tips for the Cisco Unified IP Phone, page 7-11
Logging Information for Troubleshooting, page 7-12
Resetting the Cisco Unified IP Phone, page 7-15
Using the nptcap Tool
Where to Go for More Troubleshooting Information, page 7-17
Cleaning the Cisco Unified IP Phone, page 7-17
Chapter 7 Troubleshooting the Cisco Unified IP Phone
Resolving Startup Problems
7-2
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Resolving Startup Problems
After installing a Cisco Unified IP Phone on your network and adding it to
Cisco Unified CallManager, the phone should start up as described in the
“Verifying the Phone Startup Process” section on page 3-11. If the phone does not
start up properly, see the following sections for troubleshooting information:
Symptom: The Cisco Unified IP Phone Does Not Go Through its Normal
Start Up Process, page 7-2
Symptom: The Cisco Unified IP Phone Does Not Register with Cisco
Unified CallManager, page 7-3
Cisco Unified IP Phone Resets Unexpectedly, page 7-8
Note Any procedures that refer to an LCD screen display problem apply only to the
Cisco Unified IP Phone 7905G and 7912G.
Symptom: The Cisco Unified IP Phone Does Not Go Through its
Normal Start Up Process
When you connect a Cisco Unified IP Phone into the network port, the phone
should go through its normal startup process and the LCD screen should display
information. If the phone does not go through the startup process, the cause may
be faulty cables, bad connections, network outages, lack of power, and so on. Or,
the phone may not be functional.
To determine whether the phone is functional, follow these suggestions to
systematically eliminate these other potential problems:
1. Verify that the network port is functional:
Exchange the Ethernet cables with cables that you know are functional.
Disconnect a functioning Cisco Unified IP Phone from another port and
connect it to this network port to verify that the port is active.
Connect the Cisco Unified IP Phone that will not start up to a different
network port that is known to be good.
Connect the Cisco Unified IP Phone that will not start up directly to the
port on the switch, eliminating the patch panel connection in the office.
7-3
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 7 Troubleshooting the Cisco Unified IP Phone
Resolving Startup Problems
2. Verify that the phone is receiving power:
Verify that the electrical outlet is functional.
If you are using in-line power, try using the external power supply
instead.
If you are using the external power supply, switch with a unit that you
know to be functional.
If, after attempting these solutions, the phone still does not start up, contact a
Cisco technical support representative for additional assistance.
Symptom: The Cisco Unified IP Phone Does Not Register with
Cisco Unified CallManager
If a phone proceeds past the first stage (LED buttons flashing on and off), and, on
a Cisco Unified IP Phone 7905G and 7912G, continues to cycle through the
messages displaying on the LCD screen, the phone is not starting up properly. The
phone cannot successfully start up unless it is connected to the Ethernet network
and it has registered with a Cisco Unified CallManager server.
These sections can assist you in determining the reason the phone is unable to start
up properly:
Registering the Phone with Cisco Unified CallManager, page 7-4
Checking Network Connectivity, page 7-4
Verifying TFTP Server Settings, page 7-4
Verifying IP Addressing and Routing, page 7-5
Verifying DNS Settings, page 7-5
Verifying Cisco Unified CallManager Settings, page 7-6
Cisco Unified CallManager and TFTP Services Are Not Running, page 7-6
Creating a New Configuration File, page 7-7
Chapter 7 Troubleshooting the Cisco Unified IP Phone
Resolving Startup Problems
7-4
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Registering the Phone with Cisco Unified CallManager
A Cisco Unified IP Phone can register with a Cisco Unified CallManager server
only if the phone has been added to the server or if auto-registration for SIP is
enabled. Review the information and procedures in the Adding Phones to the
Cisco Unified CallManager Database” section on page 2-12 to ensure that the
phone has been added to the Cisco Unified CallManager database.
To verify that the phone is in the Cisco Unified CallManager database, choose
Device > Phone > Find from Cisco Unified CallManager Administration to
search for the phone based on its MAC Address. (To determine the MAC address
of a phone, see the “Determining the MAC Address of a Cisco Unified IP Phone”
section on page 2-12.)
If the phone is already in the Cisco Unified CallManager database, its
configuration file may be damaged. See the “Creating a New Configuration File”
section on page 7-7 for assistance.
Checking Network Connectivity
If the network is down between the phone and the TFTP server or
Cisco Unified CallManager, the phone cannot start up properly. Ensure that the
network is currently running.
Verifying TFTP Server Settings
The Cisco Unified IP Phone uses the TFTP server setting to identify the primary
TFTP server used by the phone. If this setting is incorrect, the Cisco Unified IP
Phone may continually cycle while attempting to contact the identified TFTP
Server.
If you have assigned a static IP address to the phone, you must manually enter this
setting.
If you are using DHCP, the phone obtains the address for the TFTP server from
the DHCP server. Check the IP address configured in Option 150.
You can also enable the phone to use an alternate TFTP server. Such a setting is
particularly useful if the phone was recently moved from one location to another.
For information about determining and changing TFTP server settings, see
Chapter 4, “Configuring Settings on the Cisco Unified IP Phone,” or
Appendix A, “Reference List of Parameters.”
7-5
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 7 Troubleshooting the Cisco Unified IP Phone
Resolving Startup Problems
Verifying IP Addressing and Routing
You should verify the IP addressing and routing settings for the Cisco Unified IP
Phone. If you are using DHCP, the DHCP server should provide these values. If
you have assigned a static IP address to the phone, you must enter these values
manually.
Check for the following problems:
DHCP Server—If you have assigned a static IP address to the phone, you do
not need to enter a value for the DHCP Server option. However, if you are
using a DHCP server, this option must have a value. If it does not, check your
IP routing and VLAN configuration. Refer to Troubleshooting Switch Port
Problems, available at this URL:
http://www.cisco.com/warp/customer/473/53.shtml
IP Address, Subnet Mask, Default Router—If you have assigned a static IP
address to the phone, you must manually enter settings for these options. See
Table 4-2 on page 4-19.
If you are using DHCP, check the IP addresses distributed by your DHCP server.
Refer to Understanding and Troubleshooting DHCP in Catalyst Switch or
Enterprise Networks, available at this URL:
http://www.cisco.com/warp/customer/473/100.html#41
For information about determining and changing IP addressing and routing
settings, see Chapter 4, “Configuring Settings on the Cisco Unified IP Phone,” or
Appendix A, “Reference List of Parameters.”
Verifying DNS Settings
If you are using a fully qualified domain name (FQDN) to refer to the TFTP server
or to Cisco Unified CallManager, you must ensure that you have specified a DNS
server. You should also verify that there is a CNAME entry in the DNS server for
the TFTP server and for the Cisco Unified CallManager system.
For information about determining and changing DNS settings, see Chapter 4,
“Configuring Settings on the Cisco Unified IP Phone,” or Appendix A,
“Reference List of Parameters.”
Chapter 7 Troubleshooting the Cisco Unified IP Phone
Resolving Startup Problems
7-6
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Verifying Cisco Unified CallManager Settings
The Cisco Unified IP Phone attempts to open a TCP connection to all the
Cisco Unified CallManager servers that are part of the assigned
Cisco Unified CallManager group. Take one of these actions to verify
Cisco Unified CallManager settings:
On the Cisco Unified IP Phone 7905G or 7912G, choose Settings > SIP
Configuration and look at the SIP Proxy 14 options. (See Chapter 4,
“Configuring Settings on the Cisco Unified IP Phone.”)
On any phone model, display the Network Configuration area of the
Cisco Unified IP Phone web page and look at the SIP Proxy 14 options.
(See Appendix A, “Reference List of Parameters.”)
If none of the Cisco Unified CallManager options contain IP addresses or show
Active or Standby, the phone is not properly registered with
Cisco Unified CallManager. See the “Registering the Phone with Cisco
Unified CallManager” section on page 7-4 for tips on resolving this problem.
Cisco Unified CallManager and TFTP Services Are Not Running
If the Cisco Unified CallManager or TFTP services are not running, phones may
not be able to start up properly. However, in such situations, it is likely that you
are experiencing a system-wide failure and that other phones and devices are
unable to start up properly.
If the Cisco Unified CallManager service is not running, all devices on the
network that rely on it to make phone calls will be affected. If the TFTP service
is not running, many devices will not be able to start up successfully.
To determine the status of a service, perform the following steps:
Procedure
Step 1 From Cisco Unified CallManager Administration, choose Cisco CallManager
Serviceability from the Navigation pull-down menu located in the upper-right
portion of the main administration screen.
Step 2 Choose Tools > Control Center—Feature Services.
7-7
Cisco Unified IP Phone Administration Guide for Cisco Unified CallManager 5.0 (SIP), Cisco Unified IP Phones
OL-8131-01
Chapter 7 Troubleshooting the Cisco Unified IP Phone
Resolving Startup Problems
Step 3 From the Servers pull-down menu, choose the primary
Cisco Unified CallManager server.
The page displays the service names for the server that you chose, the status of
the services, and a service control panel to stop or start a service.
Step 4 If a service has stopped, click the service radio button and then click the Start
button.
Creating a New Configuration File
If you continue to have problems with a particular phone that other suggestions in
this chapter do not resolve, the configuration file might be corrupted.
To create a new configuration file, follow these steps:
Procedure
Step 1 From Cisco Unified CallManager Administration, select Device > Phone > Find
to locate the phone experiencing problems.
Step 2 Check the box corresponding to the phone, then click Delete Selected to remove
the phone from the Cisco Unified CallManager database.
Step 3 Add the phone back to the Cisco Unified CallManager database. See the Adding
Phones to the Cisco Unified CallManager Database” section on page 2-12 for
details.
Step 4 Power cycle the phone.
Note When you remove a phone from the Cisco Unified CallManager database, its
configuration file is deleted from the Cisco Unified CallManager TFTP server.
The phone’s directory number remains in the Cisco Unified CallManager
database. Such a directory number is called an “unassigned DNs and can be used
for other devices. If unassigned DNs are not used by other devices, delete them
from the Cisco Unified CallManager database. You can use the
