Cisco AS5350XM Universal Gateway Chassis Installation Guide
© 2005 Cisco Systems, Inc. All rights reserved.
CCSP, CCVP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and
iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, ASIST, BPX, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco
Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Empowering the Internet Generation,
Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, FormShare, GigaDrive, GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ
Net Readiness Scorecard, LightStream, Linksys, MeetingPlace, MGX, the Networkers logo, Networking Academy, Network Registrar, Packe t , PIX, Post-Routing, Pre-Routing,
ProConnect, RateMUX, ScriptShare, SlideCast, SMARTnet, StrataView Plus, TeleRouter, The Fastest Way to Increase Your Internet Quotient, and TransPath are registered
trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (0502R)
iii
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
CONTENTS
Preface vii
Document Organization vii
Document Conventions viii
Warning Definition ix
Obtaining Documentation xiv
Cisco.com xiv
Product Documentation DVD xiv
Ordering Documentation xv
Documentation Feedback xv
Cisco Product Security Overview xvi
Reporting Security Problems in Cisco Products xvi
Obtaining Technical Assistance xvii
Cisco Technical Support & Documentation Website xvii
Submitting a Service Request xvii
Definitions of Service Request Severity xviii
Obtaining Additional Publications and Information xviii
CHAPTER
1Overview 1-1
Chassis Components 1-1
Product Serial Number Location 1-2
Cisco Product Identification Tool 1-3
Dial Feature Cards (DFCs) 1-3
Power Supply 1-4
Chassis Specifications 1-4
CHAPTER
2Preparing to Install the Cisco AS5350XM Universal Gateway 2-1
Safety Recommendations 2-1
Maintaining Safety with Electricity 2-1
Preventing Electrostatic Discharge Damage 2-2
Required Tools and Equipment 2-3
Preparing to Connect to a Network 2-3
Ethernet Connections 2-4
Console and Auxiliary Ports 2-4
Contents
iv
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
2T Serial Ports 2-5
Alarm Port 2-5
BITS Port 2-5
Power Supply Considerations 2-6
CHAPTER
3Installing the Cisco AS5350XM Universal Gateway 3-1
Setting Up the Chassis 3-1
Setting the Chassis on a Desktop 3-2

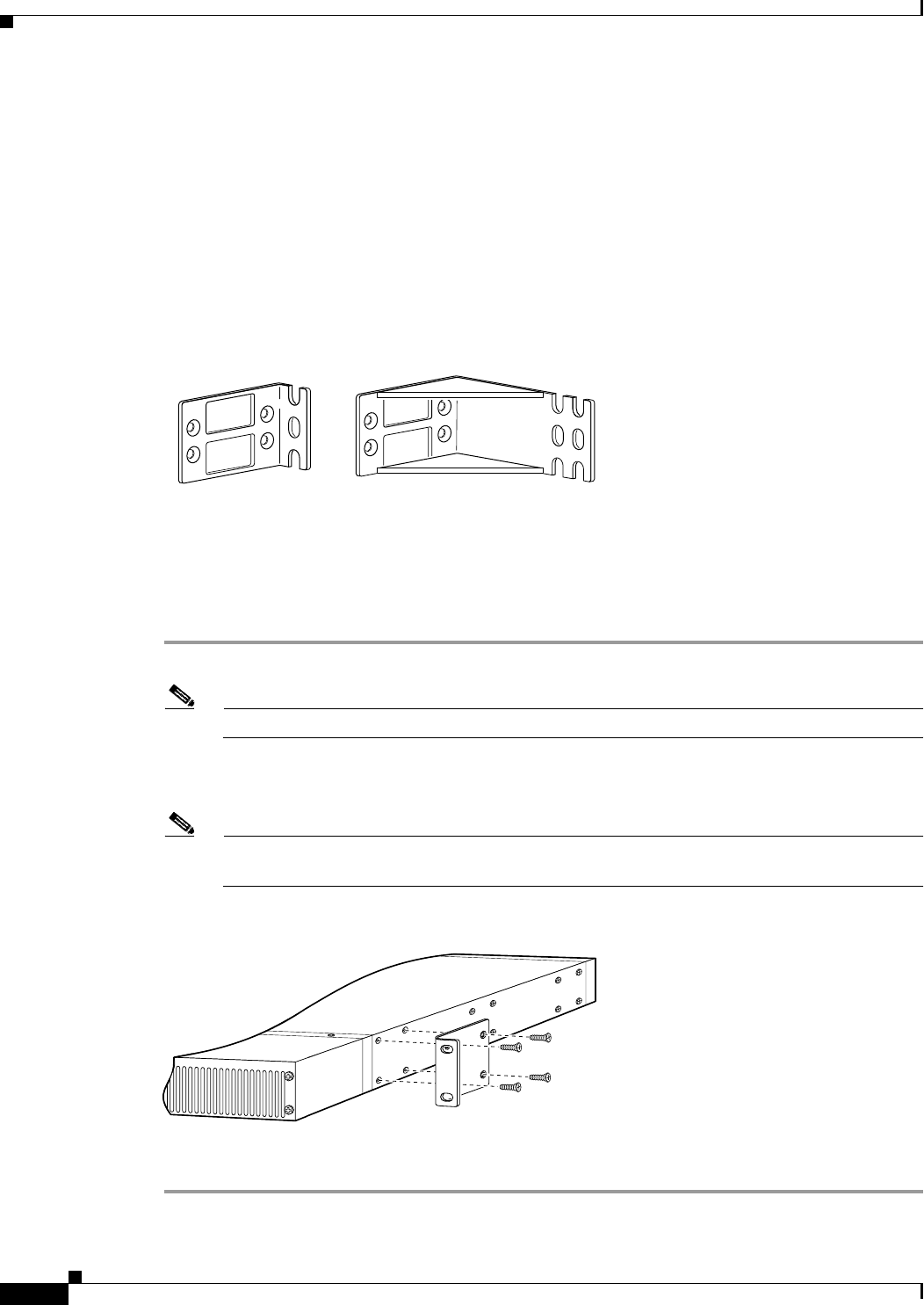

Rack-Mounting the Chassis 3-3
Connecting to the Network 3-6

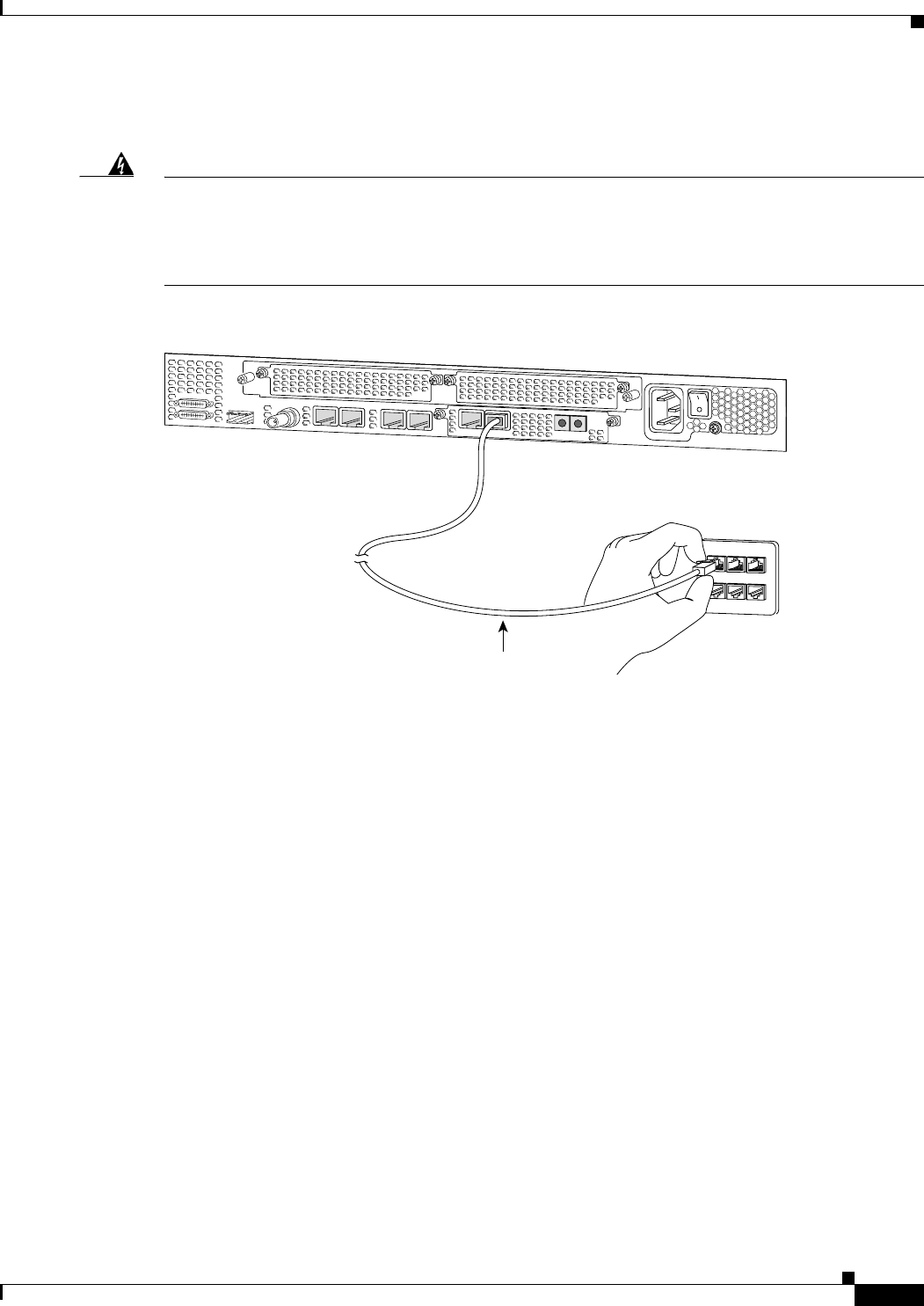

Connecting to an Ethernet Network 3-6

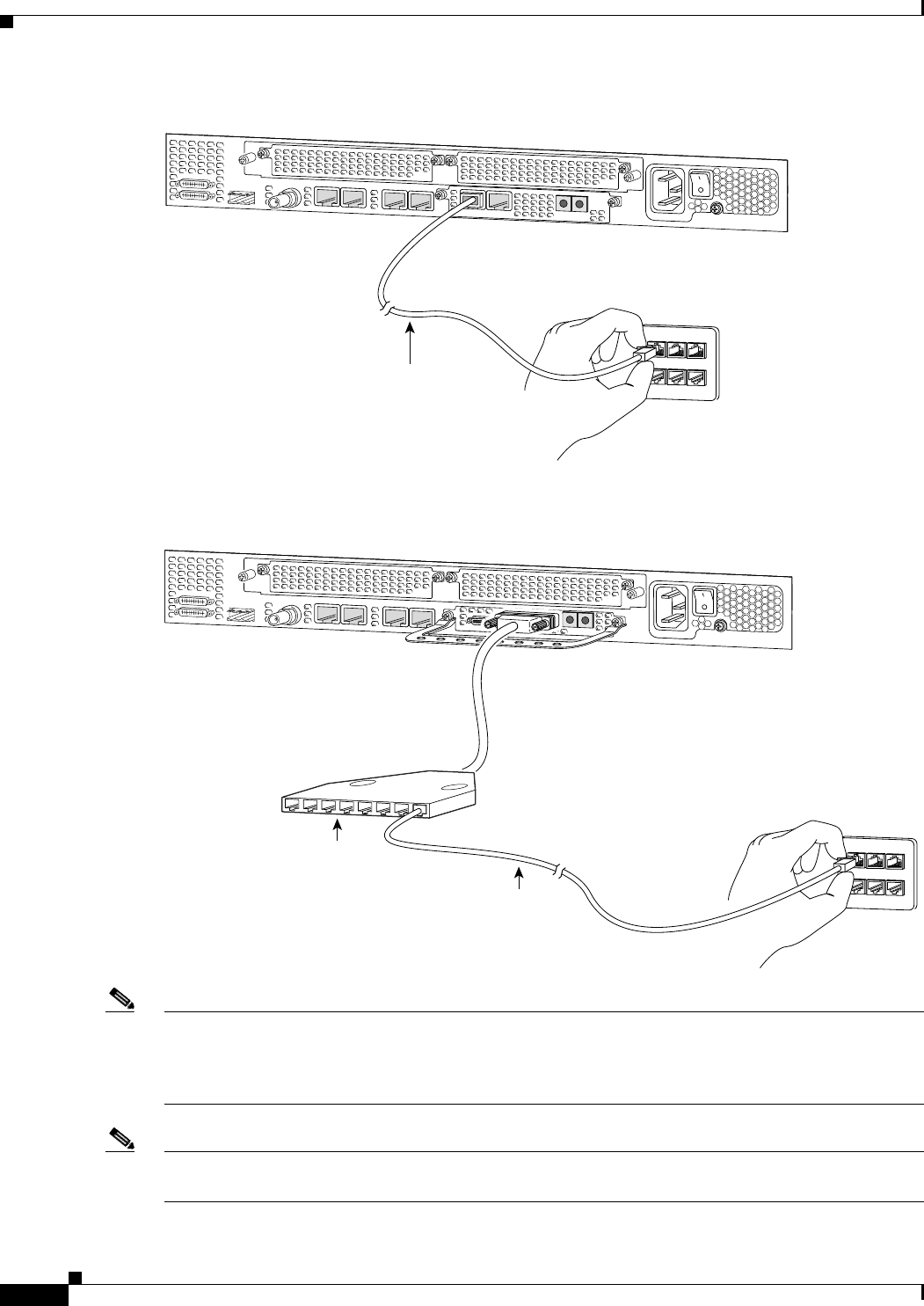

Connecting to a WAN 3-7
Connecting to the Console and Auxiliary Ports 3-11
Connecting to the Console Port 3-11
Connecting a Modem to the Auxiliary Port 3-12
Connecting a Signal Generator to the BITS Port 3-12
Connecting an Alarm to the Alarm Port 3-13
Supplying Power 3-13

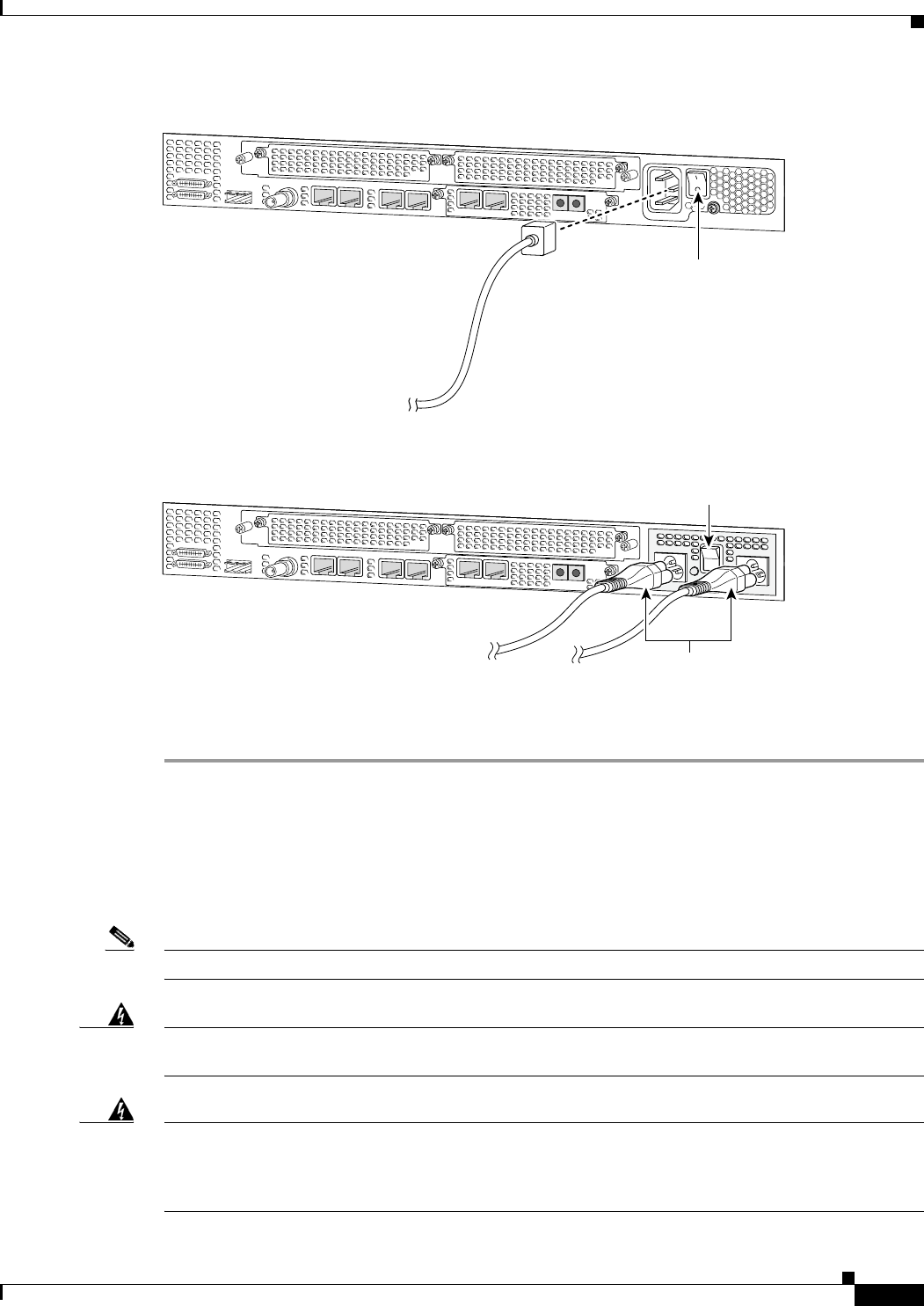

Connecting the AC Power Cord 3-14

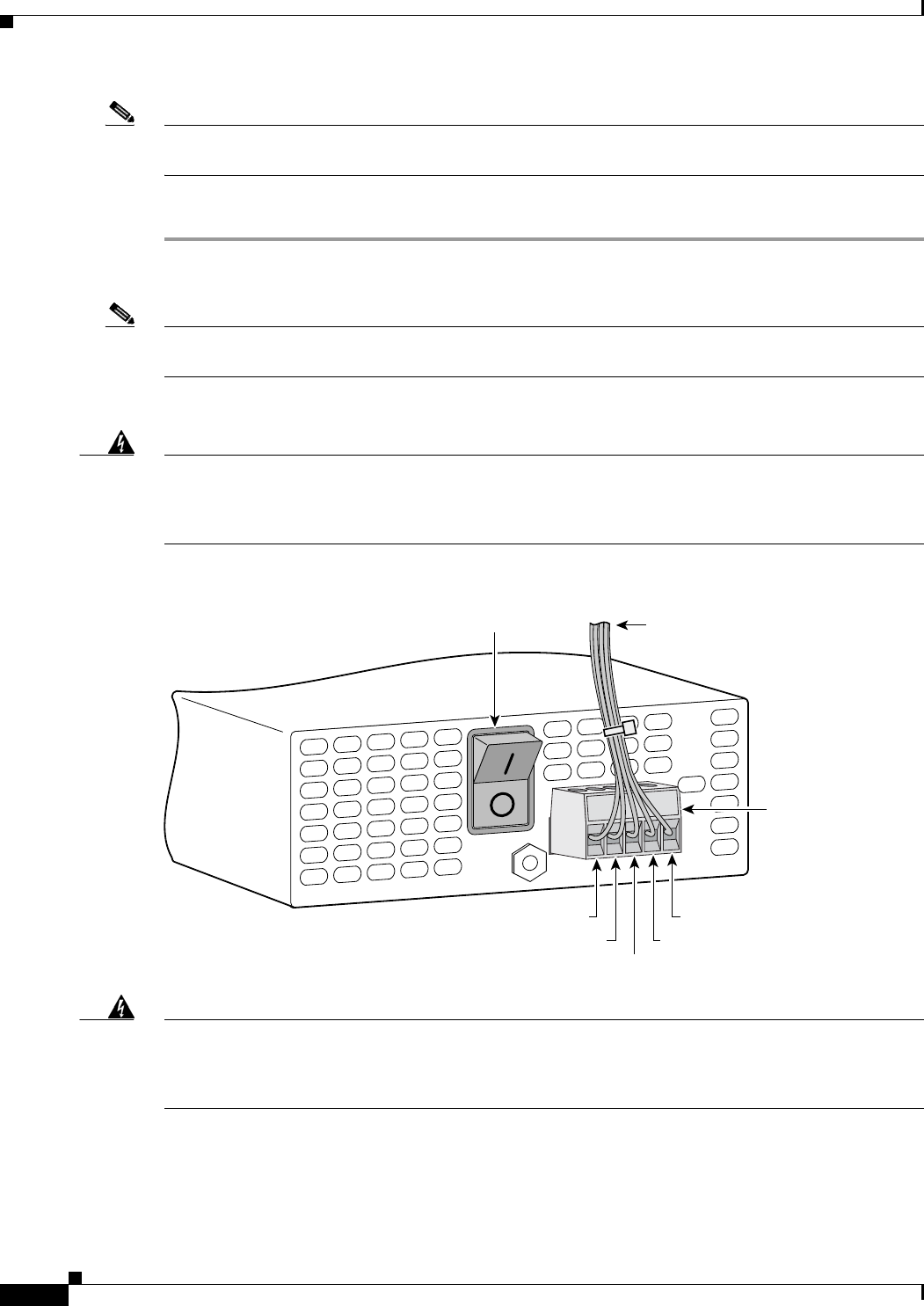

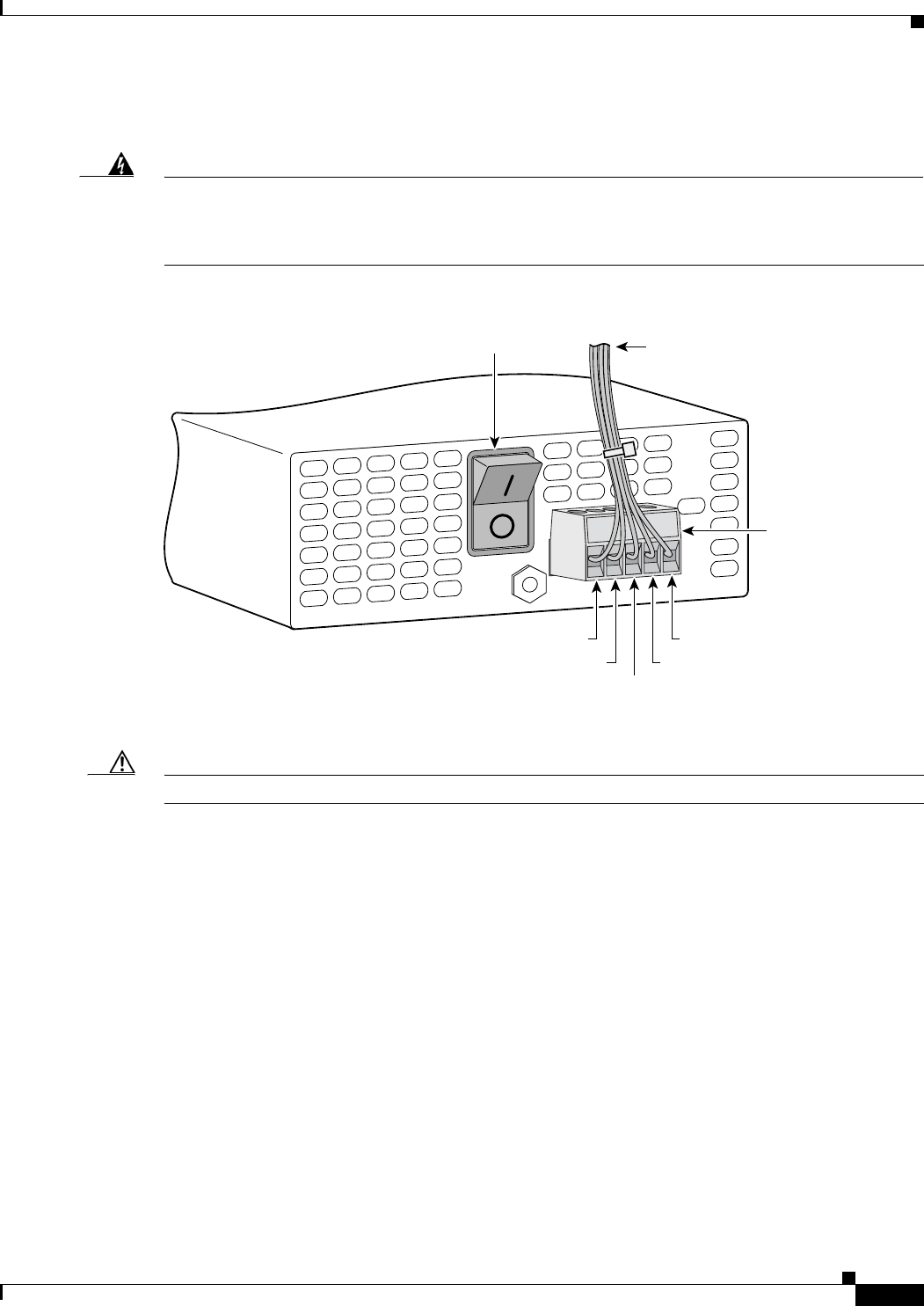

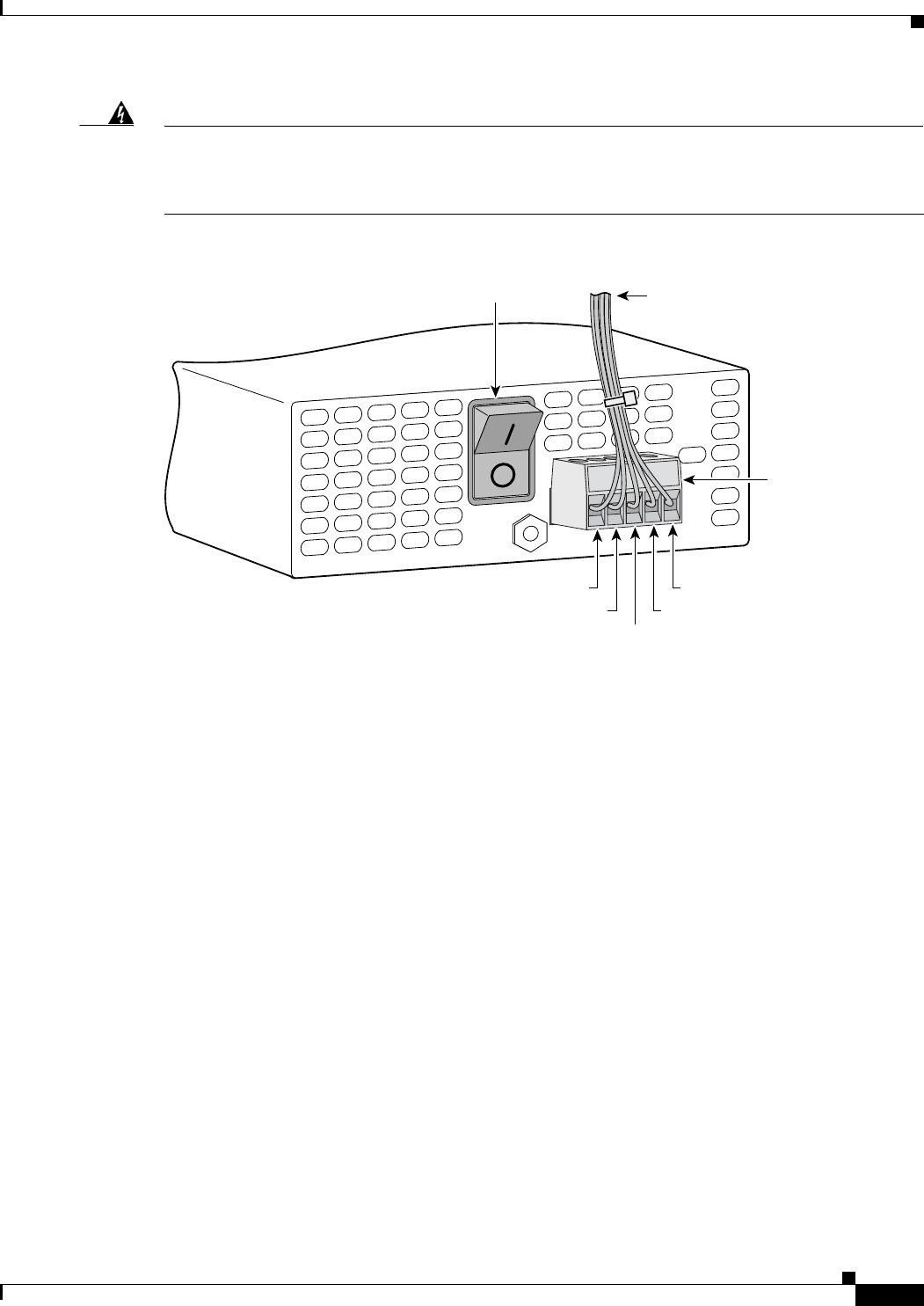

Wiring the DC Power Supply 3-15
Where to Go Next 3-18
CHAPTER
4Troubleshooting 4-1
LEDs 4-1
Monitoring the Environment 4-2
Displaying the Environment Status 4-3
Troubleshooting Network Interfaces 4-5
Replacing the Fan Tray 4-5

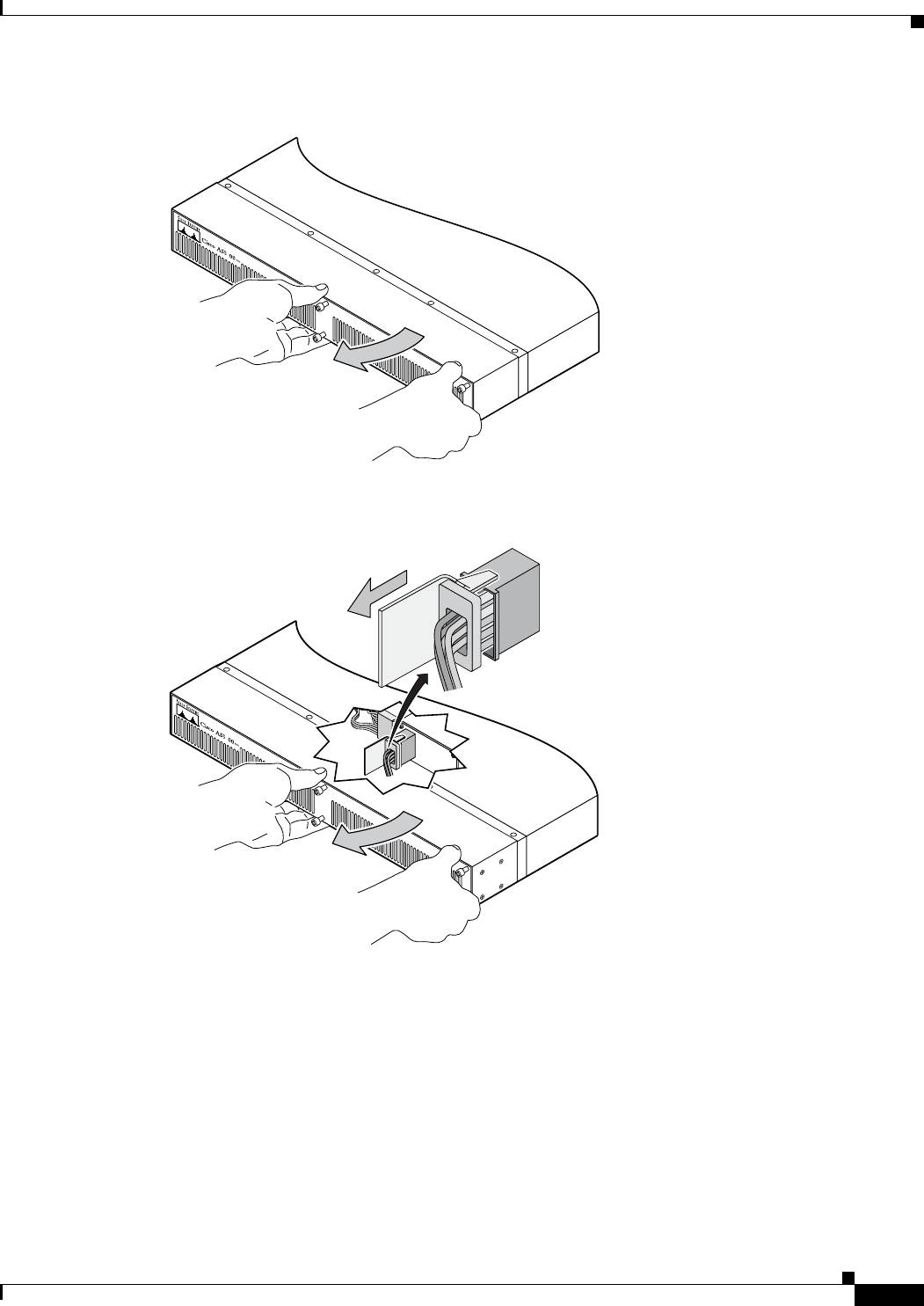

Removing the Fan Tray 4-5

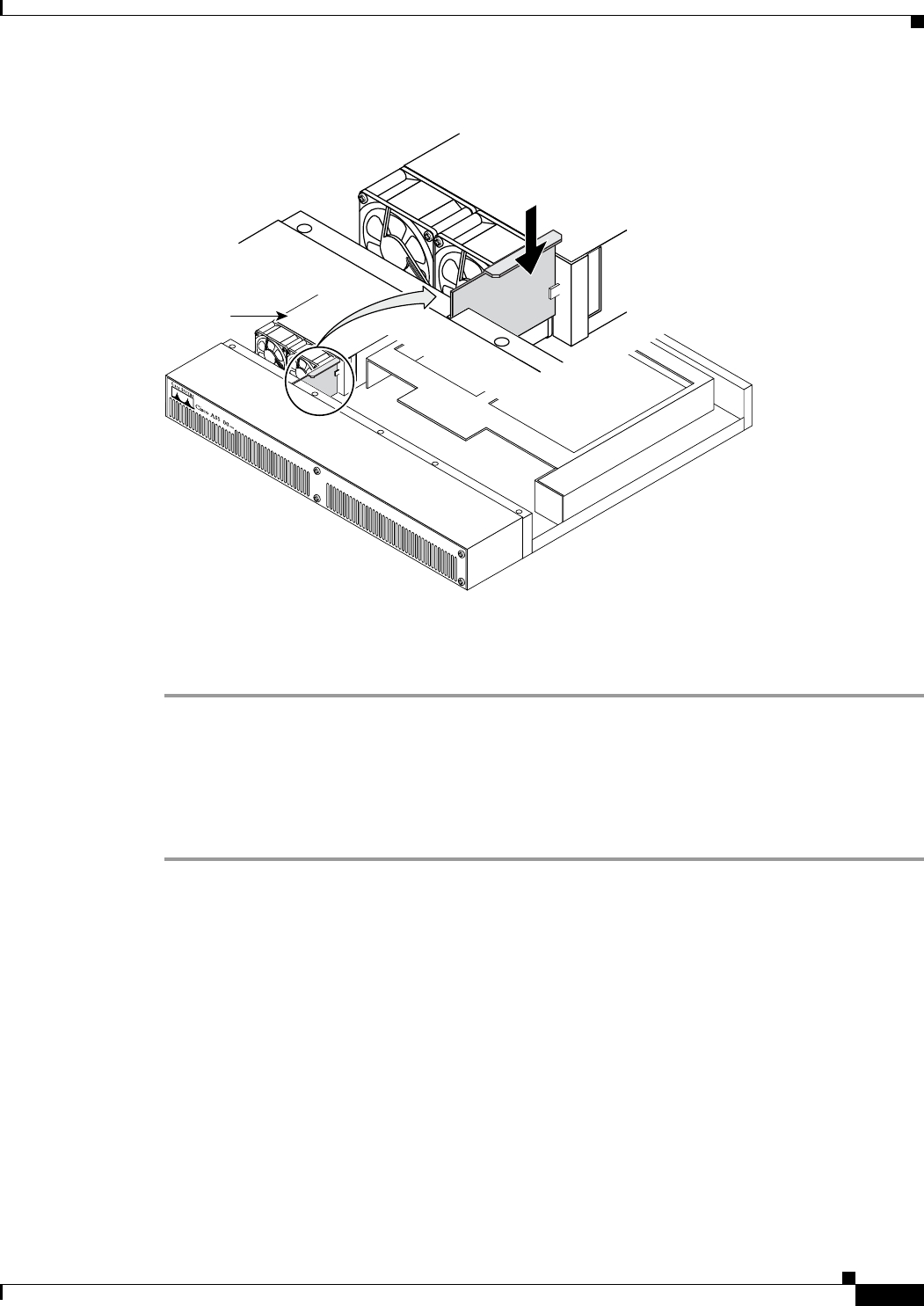

Installing the Fan Tray 4-8
Getting Help 4-10
APPENDIX
AReplacing Memory Components A-1
Removing the Chassis Cover A-1
Required Tools A-1
Safety Recommendations A-1

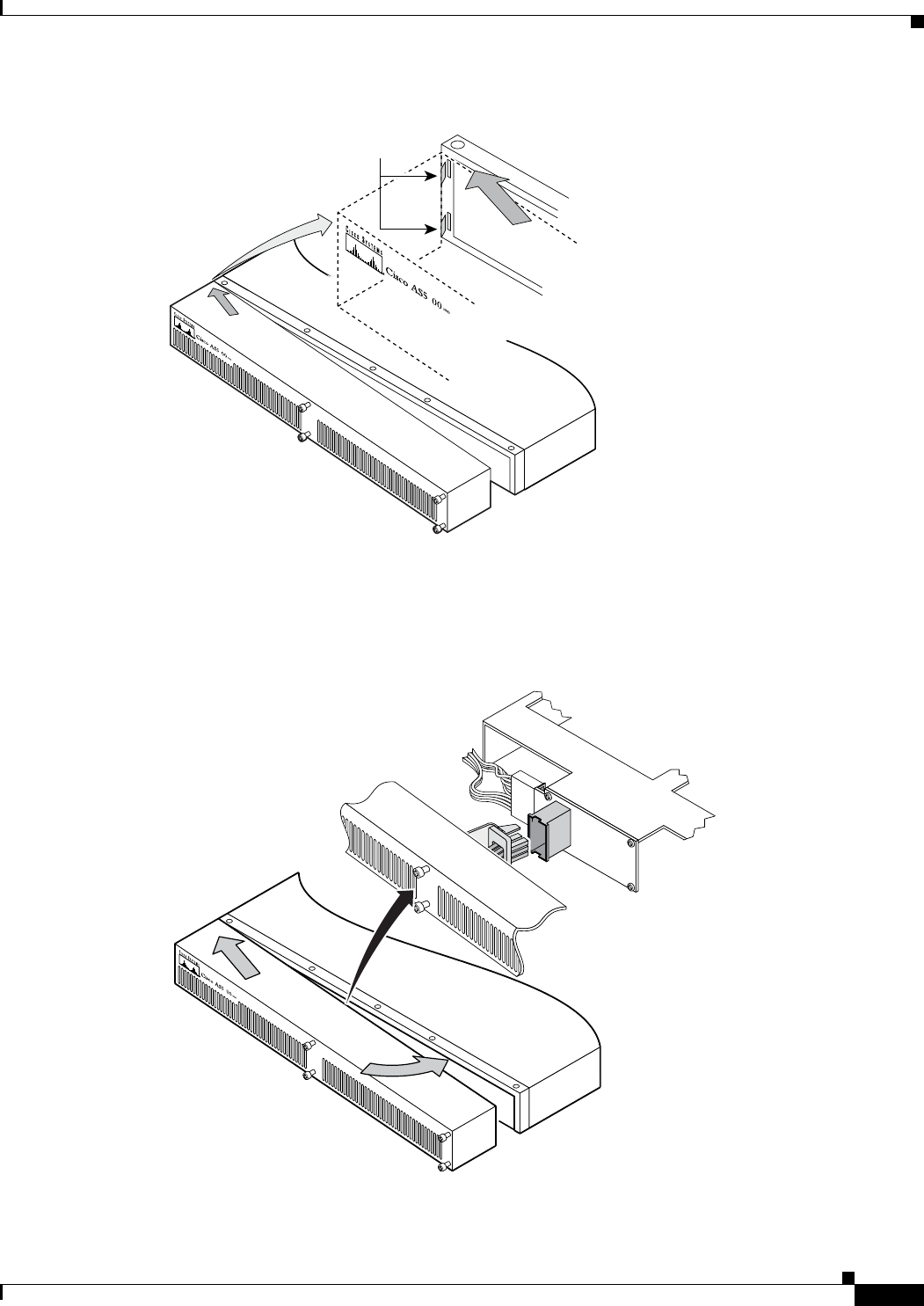

Chassis Cover Removal A-2
Replacing the Compact Flash A-4
Contents
v
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Replacing DIMMs A-6
Required Tools and Equipment A-6
Replacing the DIMM A-6
Replacing the Chassis Cover A-8
Required Tools and Equipment A-8
Chassis Cover Replacement A-9
APPENDIX
BReplacing the Power Supply B-1
Overview B-1
Safety Recommendations B-1
Required Tools and Equipment B-2
Removing the Chassis Cover B-2

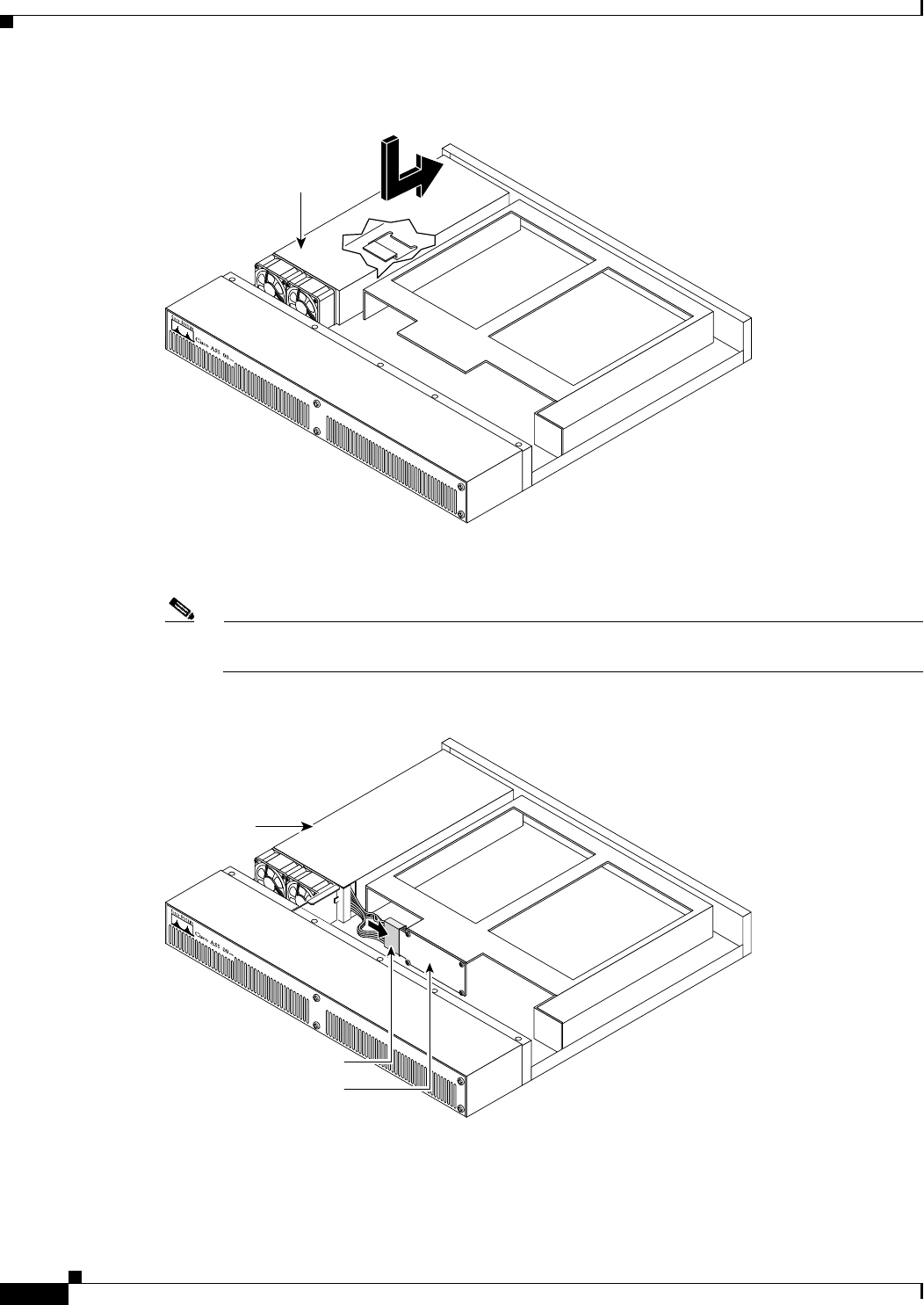

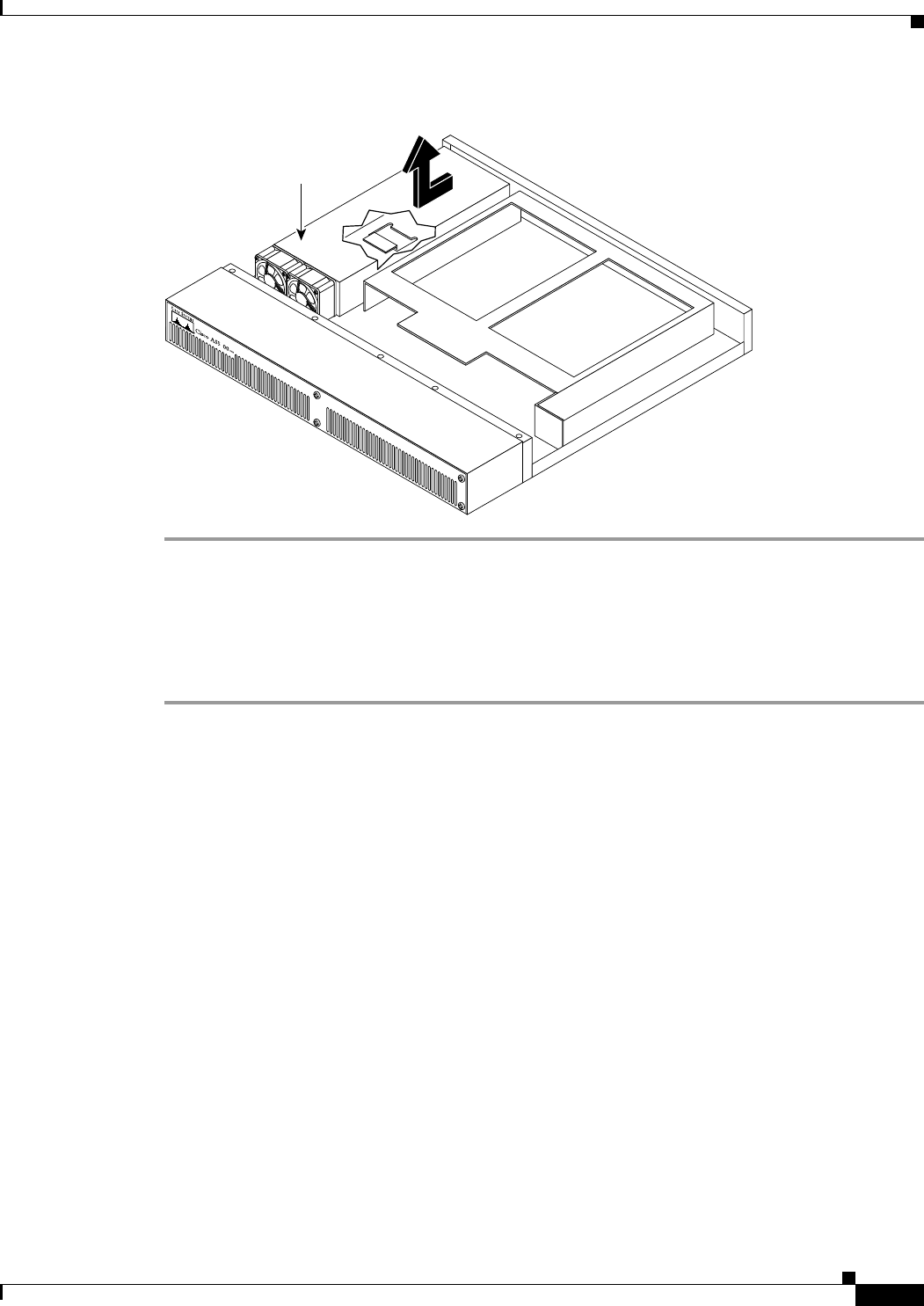

Removing the Old Power Supply B-6
Installing the Power Supply B-9
Replacing the Chassis Cover B-11
APPENDIX
CCabling Specifications C-1
Console and Auxiliary Port Cables and Pinouts C-1
Identifying a Rollover Cable C-2

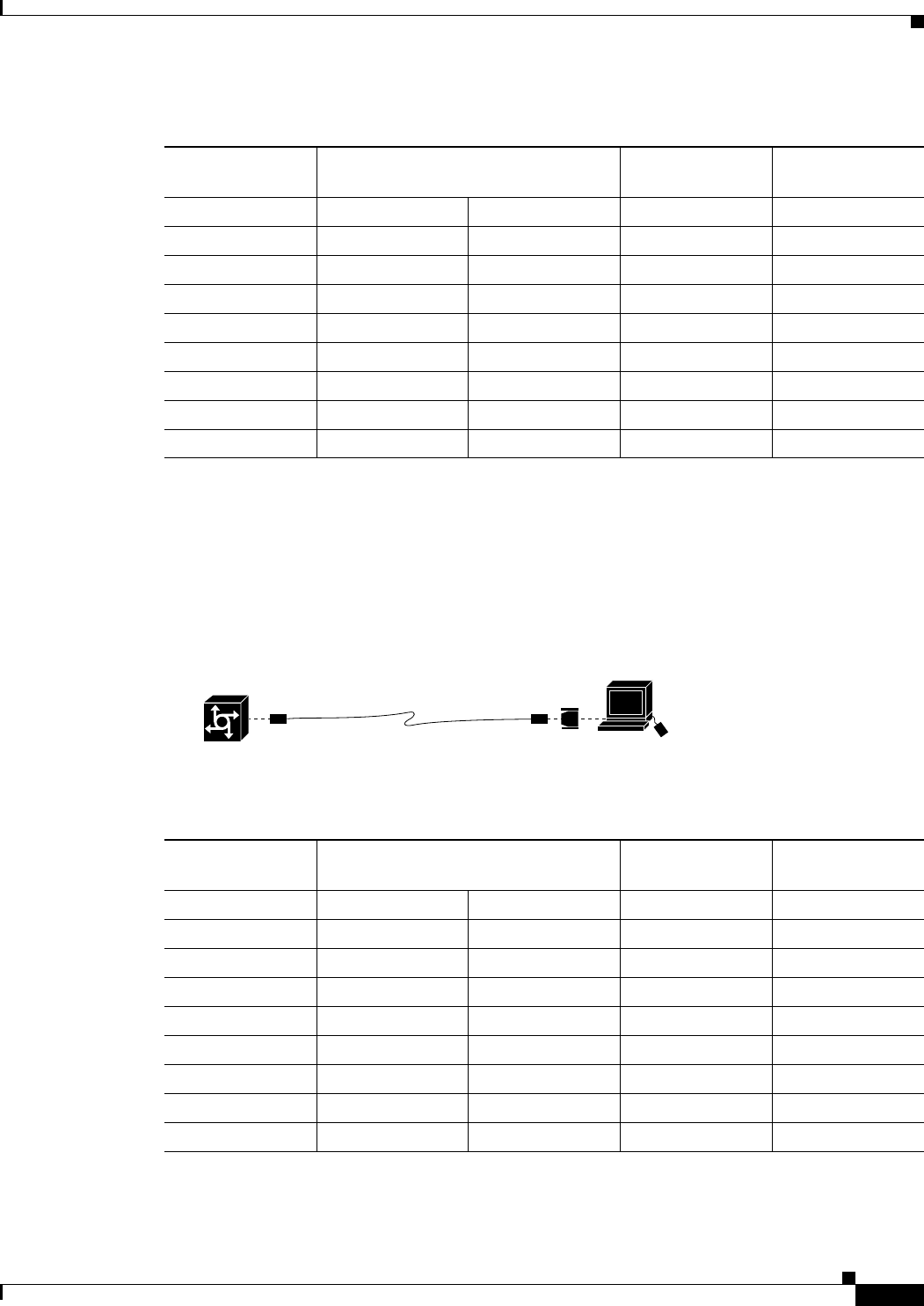

Console Port Cables and Pinouts C-2
Auxiliary Port Cables and Pinouts C-4
Ethernet Port Pinouts C-4
BITS Port Pinouts C-5
Alarm Port Pinouts C-5
Bantam Jack Port Pinouts C-5
I
NDEX
Contents
vi
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
vii
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Preface
This preface describes the objectives and organization of this document and explains how to find
additional information on related products and services. This preface contains the following sections:
•Document Organization, page vii
•Document Conventions, page viii
•Obtaining Documentation, page xiv
•Documentation Feedback, page xv
•Cisco Product Security Overview, page xvi
•Obtaining Technical Assistance, page xvii
•Obtaining Additional Publications and Information, page xviii
Document Organization
This publication is designed for people who have some experience installing networking equipment such
as routers, hubs, servers, and switches. The person installing the universal gateway should be familiar
with electronic circuitry and wiring practices and have experience as an electronic or electromechanical
technician.
This table describes the contents of each chapter in this document.
Table 1 Document Organization
Chapter Title Description
Chapter 1 Overview Overview of the Cisco AS5350XM universal gateway.
Chapter 2 Preparing to Install the
Cisco AS5350XM
Universal Gateway
Describes the tasks you must perform before you begin to
install the chassis.
Chapter 3 Installing the
Cisco AS5350XM
Universal Gateway
Describes the tasks you must perform to install the
Cisco AS5350XM chassis.
Chapter 4 Troubleshooting Describes how to troubleshoot the chassis by referring to
the chassis LEDs.
Appendix A Replacing Memory
Components
Describes how to replace memory chips in the chassis
field-replaceable units.
viii
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Document Conventions
Document Conventions
This publication uses the following conventions to convey instructions and information.
Note This symbol means reader take note. Notes contain helpful suggestions or references to additional
information and material.
Timesaver This symbol means the described action saves time. You can save time by performing the action
described in the paragraph.
Caution This symbol means reader be careful. In this situation, you might do something that could result in
equipment damage or loss of data.
Tip This symbol means the following information will help you solve a problem. The tips information might
not be troubleshooting or even an action, but could be useful information, similar to a Timesaver.
Appendix B Replacing the Power Supply Describes how to replace the power supply.
Appendix C Cabling Specifications Describes cabling and pinout information for the chassis.
Table 1 Document Organization (continued)
Chapter Title Description
Table 2 Document Conventions
Convention Description
boldface font Commands and keywords.
italic font Variables for which you supply values.
[ ] Keywords or arguments that appear within square brackets are optional.
{x | y | z} A choice of required keywords appears in braces separated by vertical bars. You
must select one.
screen font Examples of information displayed on the screen.
boldface screen
font
Examples of information you must enter.
< > Nonprinting characters, for example passwords, appear in angle brackets in
contexts where italic font is not available.
[ ] Default responses to system prompts appear in square brackets.
ix
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Document Conventions
Warning Definition
Warning
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Use the statement number provided at the end of
each warning to locate its translation in the translated safety warnings that accompanied this
device.
SAVE THESE INSTRUCTIONS
Waarschuwing
BELANGRIJKE VEILIGHEIDSINSTRUCTIES
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan
veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij
elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard
praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de
waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt
raadplegen.
BEWAAR DEZE INSTRUCTIES
Varoitus
TÄRKEITÄ TURVALLISUUSOHJEITA
Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin
käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu
onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen
mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien
lausuntonumeroiden avulla.
SÄILYTÄ NÄMÄ OHJEET
Attention
IMPORTANTES INFORMATIONS DE SÉCURITÉ
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant
entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez
conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures
couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des
avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil,
référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.
CONSERVEZ CES INFORMATIONS
x
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Document Conventions
Warnung
WICHTIGE SICHERHEITSHINWEISE
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen
führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen
und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder
Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten
Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
BEWAHREN SIE DIESE HINWEISE GUT AUF.
Avvertenza
IMPORTANTI ISTRUZIONI SULLA SICUREZZA
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle
persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli
relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti.
Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le
traduzioni delle avvertenze riportate in questo documento.
CONSERVARE QUESTE ISTRUZIONI
Advarsel
VIKTIGE SIKKERHETSINSTRUKSJONER
Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du
begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med
elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten
av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne
enheten.
TA VARE PÅ DISSE INSTRUKSJONENE
Aviso
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de
lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos
perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de
prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para
localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.
GUARDE ESTAS INSTRUÇÕES
¡Advertencia!
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular
cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los
procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el
número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña
a este dispositivo.
GUARDE ESTAS INSTRUCCIONES
xi
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Document Conventions
Varning!
VIKTIGA SÄKERHETSANVISNINGAR
Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada.
Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och
känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av
varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna
anordning.
SPARA DESSA ANVISNINGAR
xii
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Document Conventions
Aviso
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões
corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os
circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o
número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de
segurança traduzidos que acompanham o dispositivo.
GUARDE ESTAS INSTRUÇÕES
Advarsel
VIGTIGE SIKKERHEDSANVISNINGER
Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for
legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de
involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til
undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de
oversatte advarsler, der fulgte med denne enhed.
GEM DISSE ANVISNINGER
xiii
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Document Conventions
xiv
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Obtaining Documentation
Obtaining Documentation
Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several
ways to obtain technical assistance and other technical resources. These sections explain how to obtain
technical information from Cisco Systems.
Cisco.com
You can access the most current Cisco documentation at this URL:
http://www.cisco.com/techsupport
You can access the Cisco website at this URL:
http://www.cisco.com
You can access international Cisco websites at this URL:
http://www.cisco.com/public/countries_languages.shtml
Product Documentation DVD
Cisco documentation and additional literature are available in the Product Documentation DVD package,
which may have shipped with your product. The Product Documentation DVD is updated regularly and
may be more current than printed documentation.
xv
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Documentation Feedback
The Product Documentation DVD is a comprehensive library of technical product documentation on
portable media. The DVD enables you to access multiple versions of hardware and software installation,
configuration, and command guides for Cisco products and to view technical documentation in HTML.
With the DVD, you have access to the same documentation that is found on the Cisco website without
being connected to the Internet. Certain products also have .pdf versions of the documentation available.
The Product Documentation DVD is available as a single unit or as a subscription. Registered Cisco.com
users (Cisco direct customers) can order a Product Documentation DVD (product number
DOC-DOCDVD=) from the Ordering tool or Cisco Marketplace.
Cisco Ordering tool:
http://www.cisco.com/en/US/partner/ordering/
Cisco Marketplace:
http://www.cisco.com/go/marketplace/
Ordering Documentation
Beginning June 30, 2005, registered Cisco.com users may order Cisco documentation at the Product
Documentation Store in the Cisco Marketplace at this URL:
http://www.cisco.com/go/marketplace/
Cisco will continue to support documentation orders using the Ordering tool:
•Registered Cisco.com users (Cisco direct customers) can order documentation from the
Ordering tool:
http://www.cisco.com/en/US/partner/ordering/
•Instructions for ordering documentation using the Ordering tool are at this URL:
http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm
•Nonregistered Cisco.com users can order documentation through a local account representative by
calling Cisco Systems Corporate Headquarters (California, USA) at 408 526-7208 or, elsewhere in
North America, by calling 1 800 553-NETS (6387).
Documentation Feedback
You can rate and provide feedback about Cisco technical documents by completing the online feedback
form that appears with the technical documents on Cisco.com.
You can send comments about Cisco documentation to bug-doc@cisco.com.
You can submit comments by using the response card (if present) behind the front cover of your
document or by writing to the following address:
Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883
We appreciate your comments.
xvi
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Cisco Product Security Overview
Cisco Product Security Overview
Cisco provides a free online Security Vulnerability Policy portal at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html
From this site, you can perform these tasks:
•Report security vulnerabilities in Cisco products.
•Obtain assistance with security incidents that involve Cisco products.
•Register to receive security information from Cisco.
A current list of security advisories and notices for Cisco products is available at this URL:
http://www.cisco.com/go/psirt
If you prefer to see advisories and notices as they are updated in real time, you can access a Product
Security Incident Response Team Really Simple Syndication (PSIRT RSS) feed from this URL:
http://www.cisco.com/en/US/products/products_psirt_rss_feed.html
Reporting Security Problems in Cisco Products
Cisco is committed to delivering secure products. We test our products internally before we release them,
and we strive to correct all vulnerabilities quickly. If you think that you might have identified a
vulnerability in a Cisco product, contact PSIRT:
•Emergencies— security-alert@cisco.com
An emergency is either a condition in which a system is under active attack or a condition for which
a severe and urgent security vulnerability should be reported. All other conditions are considered
nonemergencies.
•Nonemergencies—psirt@cisco.com
In an emergency, you can also reach PSIRT by telephone:
•1 877 228-7302
•1 408 525-6532
Tip We encourage you to use Pretty Good Privacy (PGP) or a compatible product to encrypt any sensitive
information that you send to Cisco. PSIRT can work from encrypted information that is compatible with
PGP versions 2.x through 8.x.
Never use a revoked or an expired encryption key. The correct public key to use in your correspondence
with PSIRT is the one linked in the Contact Summary section of the Security Vulnerability Policy page
at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.htm
The link on this page has the current PGP key ID in use.
xvii
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Obtaining Technical Assistance
Obtaining Technical Assistance
Cisco Technical Support provides 24-hour-a-day award-winning technical assistance. The Cisco
Technical Support & Documentation website on Cisco.com features extensive online support resources.
In addition, if you have a valid Cisco service contract, Cisco Technical Assistance Center (TAC)
engineers provide telephone support. If you do not have a valid Cisco service contract, contact your
reseller.
Cisco Technical Support & Documentation Website
The Cisco Technical Support & Documentation website provides online documents and tools for
troubleshooting and resolving technical issues with Cisco products and technologies. The website is
available 24 hours a day, at this URL:
http://www.cisco.com/techsupport
Access to all tools on the Cisco Technical Support & Documentation website requires a Cisco.com user
ID and password. If you have a valid service contract but do not have a user ID or password, you can
register at this URL:
http://tools.cisco.com/RPF/register/register.do
Note Use the Cisco Product Identification (CPI) tool to locate your product serial number before submitting
a web or phone request for service. You can access the CPI tool from the Cisco Technical Support &
Documentation website by clicking the Tools & Resources link under Documentation & Tools. Choose
Cisco Product Identification Tool from the Alphabetical Index drop-down list, or click the Cisco
Product Identification Tool link under Alerts & RMAs. The CPI tool offers three search options: by
product ID or model name; by tree view; or for certain products, by copying and pasting show command
output. Search results show an illustration of your product with the serial number label location
highlighted. Locate the serial number label on your product and record the information before placing a
service call.
Submitting a Service Request
Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3
and S4 service requests are those in which your network is minimally impaired or for which you require
product information.) After you describe your situation, the TAC Service Request Tool provides
recommended solutions. If your issue is not resolved using the recommended resources, your service
request is assigned to a Cisco engineer. The TAC Service Request Tool is located at this URL:
http://www.cisco.com/techsupport/servicerequest
For S1 or S2 service requests or if you do not have Internet access, contact the Cisco TAC by telephone.
(S1 or S2 service requests are those in which your production network is down or severely degraded.)
Cisco engineers are assigned immediately to S1 and S2 service requests to help keep your business
operations running smoothly.
To open a service request by telephone, use one of the following numbers:
Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553-2447
xviii
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Obtaining Additional Publications and Information
For a complete list of Cisco TAC contacts, go to this URL:
http://www.cisco.com/techsupport/contacts
Definitions of Service Request Severity
To ensure that all service requests are reported in a standard format, Cisco has established severity
definitions.
Severity 1 (S1)—Your network is “down,” or there is a critical impact to your business operations. You
and Cisco will commit all necessary resources around the clock to resolve the situation.
Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your
business operation are negatively affected by inadequate performance of Cisco products. You and Cisco
will commit full-time resources during normal business hours to resolve the situation.
Severity 3 (S3)—Operational performance of your network is impaired, but most business operations
remain functional. You and Cisco will commit resources during normal business hours to restore service
to satisfactory levels.
Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or
configuration. There is little or no effect on your business operations.
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online
and printed sources.
•Cisco Marketplace provides a variety of Cisco books, reference guides, documentation, and logo
merchandise. Visit Cisco Marketplace, the company store, at this URL:
http://www.cisco.com/go/marketplace/
•Cisco Press publishes a wide range of general networking, training and certification titles. Both new
and experienced users will benefit from these publications. For current Cisco Press titles and other
information, go to Cisco Press at this URL:
http://www.ciscopress.com
•Packet magazine is the Cisco Systems technical user magazine for maximizing Internet and
networking investments. Each quarter, Packet delivers coverage of the latest industry trends,
technology breakthroughs, and Cisco products and solutions, as well as network deployment and
troubleshooting tips, configuration examples, customer case studies, certification and training
information, and links to scores of in-depth online resources. You can access Packet magazine at
this URL:
http://www.cisco.com/packet
•iQ Magazine is the quarterly publication from Cisco Systems designed to help growing companies
learn how they can use technology to increase revenue, streamline their business, and expand
services. The publication identifies the challenges facing these companies and the technologies to
help solve them, using real-world case studies and business strategies to help readers make sound
technology investment decisions. You can access iQ Magazine at this URL:
http://www.cisco.com/go/iqmagazine
or view the digital edition at this URL:
http://ciscoiq.texterity.com/ciscoiq/sample/
xix
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Obtaining Additional Publications and Information
•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering
professionals involved in designing, developing, and operating public and private internets and
intranets. You can access the Internet Protocol Journal at this URL:
http://www.cisco.com/ipj
•Networking products offered by Cisco Systems, as well as customer support services, can be
obtained at this URL:
http://www.cisco.com/en/US/products/index.html
•Networking Professionals Connection is an interactive website for networking professionals to share
questions, suggestions, and information about networking products and technologies with Cisco
experts and other networking professionals. Join a discussion at this URL:
http://www.cisco.com/discuss/networking
•World-class networking training is available from Cisco. You can view current offerings at
this URL:
http://www.cisco.com/en/US/learning/index.html
xx
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Obtaining Additional Publications and Information
CHAPTER
1-1
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
1
Overview
This chapter provides an overview of the Cisco AS5350XM universal gateway, a versatile data and voice
communications platform that provides high performance, high density, and hot-swap capability in only
one rack unit. (See Figure 1-1 and Figure 1-2)
The Cisco AS5350XM universal gateway is intended for small- to medium-size companies who require
dense and scalable solutions to create new multiservice access networks, replace existing gateway
hardware, or expand and enhance their current access offering. The Cisco AS5350XM universal gateway
provides you with a cost-effective platform for deploying the widest range of IP-based services.
This chapter includes the following sections:
•Chassis Components, page 1-1
•Dial Feature Cards (DFCs), page 1-3
•Power Supply, page 1-4
•Chassis Specifications, page 1-4
Chassis Components
The chassis consists of the following components:
•One modular chassis with motherboard, high-speed backplane, and three slots for dial feature cards
(DFCs) or voice feature cards (VFCs).
•Building integrated timing system (BITS) interface port
•Two Gigabit Ethernet (GE) LAN ports
•Two T serial ports for backhaul WAN support
•Fast console auxiliary ports for local administrative access
•An integral AC or DC power supply
•Replaceable fan tray
1-2
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 1 Overview
Product Serial Number Location
Figure 1-1 Cisco AS5350XM Universal Gateway Front Panel
Figure 1-2 Cisco AS5350XM Universal Gateway Rear Panel
Product Serial Number Location
The serial number label for the Cisco AS5350XM universal gateway is located on the rear of the chassis,
on the right side. (See Figure 1-3.)
122114
Cisco AS5400XM
SERIES
35665
1-3
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 1 Overview
Cisco Product Identification Tool
Figure 1-3 Serial Number Location
Note The serial number for the Cisco AS5350XM universal gateway is 11 characters long.
Cisco Product Identification Tool
The Cisco Product Identification (CPI) tool provides detailed illustrations and descriptions showing
where to locate serial number labels on Cisco products. It includes the following features:
•A search option that allows browsing for models using a tree-structured product hierarchy
•A search field on the final results page making it easier to look up multiple products
•End-of-sale products are clearly identified in results lists
The tool streamlines the process of locating serial number labels and identifying products. Serial number
information expedites the entitlement process and is important for access to support services.
The Cisco Product Identification tool can be accessed at the following URL:
http://tools.cisco.com/Support/CPI/index.do
Dial Feature Cards (DFCs)
The dial feature card (DFC) is a 5.1- by 13-inch (12.9- by 33-cm) Peripheral Component Interconnect
(PCI)-based interface board that allows online insertion and removal (OIR) without rebooting or
powering off the system.
The chassis includes one backplane slot that accepts a DFC carrier card. The DFC carrier card accepts
two DFCs, which allow OIR. The motherboard accepts one DFC in its own dedicated slot.
135342, 781-00409-01
SN: XXXNNNNXXXX
SN: XXXNNNNXXXX
1-4
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 1 Overview
Power Supply
Note For details on cards, installation, and troubleshooting, see the Cisco AS5350XM and Cisco AS5400XM
Universal Gateways Card Installation Guide. This document is available on Cisco.com. (See the
“Obtaining Documentation” section on page xiv.)
Power Supply
The power system consists of a single input AC or DC power supply or a dual input (redundant) AC or
DC power supply. Cooling is provided by two self-contained fans.
Each power module is capable of supplying a maximum DC load of 150 watts, and is composed of four
independent output voltages: 3.3V, 5V, 12V, and –12V. AC input units have power factor correction, and
low total harmonic distortion. Power failures are reported through environmental monitoring software.
Check the power at your site to ensure that you are receiving “clean” power (free of spikes and noise).
Install a power conditioner if necessary.
Note The grounding architecture for the Cisco AS5350XM universal gateway is isolated DC return (DC-I).
Chassis Specifications
Table 1-1 Chassis Specifications
Description Specification
Dimensions (H x W x D) 1.7 x 17.5 x 20.5 in. (4.39 x 44.45 x 52.07 cm)
Weight 22 lb maximum (10 kg)
Processor 250 MHz
Operating temperature 32 to 104°F (0 to 40°C)
Operating humidity 5 to 95%, noncondensing
Noise level 55 dB1 @ 3 ft (0.914 m)
Input voltage, AC power supply
Current
Frequency
Power factor
Input AC power
100 to 240 VAC2; –10%, +6% tolerance
2.0 to 1.0 A; dependent on load
50/60 Hz
0.80 to 0.90
140 to 170W; dependent on load
Input voltage, DC power supply
Maximum input current
Input DC power
–48/-60 VDC, –10%, +10% tolerance
3 A (1.5-2.0 A typical)
150 W (maximum)
WAN interface options T1 and E1 dial feature cards
Serial interfaces (for backhaul WAN support) 2 serial line interfaces
LAN interface options 2 Gigabit Ethernet 10/100/1000BASE-T
(RJ-45) ports
1-5
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 1 Overview
Chassis Specifications
Console and auxiliary ports Asynchronous serial (RJ-45)
Regulatory compliance See the Regulatory Compliance and Safety
Information document that shipped with your
universal gateway. This document is available on
Cisco.com. (See the “Obtaining Documentation”
section on page xiv.)
1. dB = decibels.
2. VAC = volts alternating current.
Table 1-1 Chassis Specifications (continued)
Description Specification
1-6
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 1 Overview
Chassis Specifications
CHAPTER
2-1
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
2
Preparing to Install the Cisco AS5350XM
Universal Gateway
This chapter describes the tasks you must perform before you begin to install the Cisco AS5350XM
universal gateway and includes the following sections:
•Safety Recommendations, page 2-1
•Required Tools and Equipment, page 2-3
•Preparing to Connect to a Network, page 2-3
Safety Recommendations
Any device that uses electricity must be handled carefully; follow these guidelines to ensure general
safety:
•Keep the chassis area clear and dust-free during and after installation.
•Put the removed chassis cover in a safe place.
•Keep tools away from walk areas where you and others could fall over them.
•Do not wear loose clothing that could get caught in the chassis. Fasten your tie or scarf and roll up
your sleeves.
•Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
•Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Warning
Ultimate disposal of this product should be handled according to all national laws and regulations.
Statement 1040
Maintaining Safety with Electricity
Warning
Before working on equipment that is connected to power lines, remove jewelry (including rings,
necklaces, and watches). Metal objects will heat up when connected to power and ground and can
cause serious burns or weld the metal object to the terminals.
Statement 43
Follow these guidelines when you work on equipment powered by electricity.
2-2
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 2 Preparing to Install the Cisco AS5350XM Universal Gateway
Safety Recommendations
•Locate the emergency power-OFF switch for the room in which you are working. Then, if an
electrical accident occurs, you can act quickly to turn OFF the power.
•Before working on the system, unplug the power cord.
•Disconnect all power before doing the following:
–
Installing or removing a chassis
–
Working near power supplies
Warning
When installing or replacing the unit, the ground connection must always be made first and
disconnected last.
Statement 1046
•Never assume that power is disconnected from a circuit. Always check.
Warning
Read the installation instructions before connecting the system to the power source.
Statement 1004
•Look carefully for possible hazards in your work area, such as moist floors, ungrounded power
extension cables, frayed power cords, and missing safety grounds.
•If an electrical accident occurs, proceed as follows:
–
Use caution; do not become a victim yourself.
–
Turn OFF power to the system.
–
If possible, send another person to get medical aid. Otherwise, assess the condition of the victim
and then call for help.
–
Determine if the person needs rescue breathing or external cardiac compressions; then take
appropriate action.
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that
a fuse or circuit breaker no larger than 120 VAC, 15A U.S. (240 VAC, 10A international) is used on the
phase conductors (all current-carrying conductors).
Statement 13
Preventing Electrostatic Discharge Damage
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs
when electronic components are improperly handled and can result in complete or intermittent failures.
Always follow ESD-prevention procedures when you remove and replace components. Ensure that the
chassis is electrically connected to earth ground. Wear an ESD-preventive wrist strap, ensuring that it
makes good skin contact. Connect the grounding clip to an unpainted surface of the chassis frame to
safely ground unwanted ESD voltages. To guard against ESD damage and shocks, the wrist strap and
cord must operate properly. If no wrist strap is available, ground yourself by touching the metal part of
the chassis.
Caution For safety, periodically check the resistance value of the antistatic strap, which should be between 1 and
10 megohm (Mohm).
2-3
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 2 Preparing to Install the Cisco AS5350XM Universal Gateway
Required Tools and Equipment
Required Tools and Equipment
The following items are included with the universal gateway:
•19- (48.26-) and 24-inch (60.96-cm) rack-mount kits
•Rubber feet for desktop installation
•RJ-45-to-DB-9 female DTE adapter (labeled TERMINAL)
•RJ-45-to-DB-25 female DTE adapter (labeled TERMINAL)
•RJ-45-to-DB-25 male DCE adapter (labeled MODEM)
•RJ-45-to-RJ-45 rollover console cable
•ESD-preventive wrist strap
•Nylon cable tie
•Cable tie holder
•Grounding lug
You might need the following equipment, which is not included:
•Straight-through RJ-45-to-RJ-45 cable for an Ethernet connection
Caution To comply with the intra-building lightning surge requirements of GR-1089-CORE, Issue III, October
2002, you must use a shielded cable when connecting to either of the Cisco AS5350XM universal
gateway Ethernet ports. The cable must consist of shielded cable terminated by shielded connectors on
both ends, with the cable shield material tied to both connectors.
•Straight-through RJ-45-to-RJ-45 cables for T1 connections (one for each connection)
•E1 cables for E1 connections (one for each connection)
•Ethernet hub or PC with a network interface card for Ethernet LAN connections
•PC running terminal emulation software for local administrative access
•Modem for remote administrative access
Preparing to Connect to a Network
When you set up your universal gateway, consider distance limitations and potential electromagnetic
interference (EMI) as defined by the Electronic Industries Association (EIA).
Warning
Hazardous network voltages are present in WAN ports regardless of whether power to the router is
OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching
cables, detach the end away from the router first.
Statement 77
2-4
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 2 Preparing to Install the Cisco AS5350XM Universal Gateway
Preparing to Connect to a Network
Warning
The ISDN connection is regarded as a source of voltage that should be inaccessible to user contact.
Do not attempt to tamper with or open any public telephone operator (PTO)-provided equipment or
connection hardware. Any hardwired connection (other than by a nonremovable,
connect-one-time-only plug) must be made only by PTO staff or suitably trained engineers.
Statement 23
Ethernet Connections
Two Gigabit Ethernet (GE) RJ-45 ports are located on the rear panel of the universal gateway: GE0 and
GE1 (selectable). To configure the Ethernet ports, see the Cisco AS5350XM and Cisco AS5400XM
Universal Gateways Software Configuration Guide. Both ports use unshielded twisted-pair (UTP) cable
and require Category 5 cable. The maximum segment distance is 328 feet (100 meters).
Note UTP cables look like the cables used for ordinary telephones; however, UTP cables meet certain
electrical standards that telephone cables do not. Cables are not included.
Console and Auxiliary Ports
The Cisco AS5350XM universal gateway includes an asynchronous serial console port and an auxiliary
port. The console and auxiliary ports provide access to the universal gateway either locally (with a
console terminal) or remotely (with a modem). This section discusses important cabling information to
consider before connecting a console terminal (an ASCII terminal or PC running terminal emulation
software) to the console port, or a modem to the auxiliary port.
Console Port
The Cisco AS5350XM universal gateway includes an EIA/TIA-232 asynchronous serial console port
(RJ-45). Depending on the cable and the adapter used, this port will appear as a data terminal equipment
(DTE) or data communications equipment (DCE) device at the end of the cable. Your universal gateway
arrives with cables and adapters to connect a console terminal (an ASCII terminal or PC running terminal
emulation software) to the console port. To connect an ASCII terminal to the console port, use the RJ-45
rollover cable with the female RJ-45-to-DB-25 adapter (labeled TERMINAL).
To connect a PC running terminal emulation software to the console port, use the RJ-45 rollover cable
with the female RJ-45-to-DB-9 adapter (labeled TERMINAL). The default parameters for the console
port are 9600 baud, 8 data bits, no parity, and 2 stop bits. The console port does not support hardware
flow control.
For detailed information about installing a console terminal, see Chapter 3, “Installing the
Cisco AS5350XM Universal Gateway.” See Appendix C, “Cabling Specifications,” for cable and port
pinouts.
2-5
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 2 Preparing to Install the Cisco AS5350XM Universal Gateway
Preparing to Connect to a Network
Auxiliary Port
The Cisco AS5350XM universal gateway includes an EIA/TIA-232 asynchronous serial auxiliary port
(RJ-45) that supports flow control. Depending on the cable and the adapter used, this port will appear as
a DTE or DCE device at the end of the cable. Your universal gateway arrives with a cable and an adapter
to connect a modem to the auxiliary port. To connect a modem to the auxiliary port, use the RJ-45
rollover cable with the male RJ-45-to-DB-25 adapter (labeled MODEM).
For detailed information about connecting devices to the auxiliary port, see Chapter 3, “Installing the
Cisco AS5350XM Universal Gateway.” See Appendix C, “Cabling Specifications,” for cable and
port pinouts.
2T Serial Ports
Two high-speed 12-in-1 serial ports on the rear panel of the Cisco AS5350XM universal gateway provide
backhaul WAN and IP support.
The following types of serial interface standards (in DTE or DCE devices) are supported:
•EIA/TIA-232
•EIA/TIA-449
•EIA/TIA-530
•EIA/TIA-530A
•EIA/TIA-X.21
•ITU-T V.35
Each interface supports up to 8 Mbps.
Alarm Port
The three pins on the alarm port are connected to the output of a relay. This relay is controlled by system
software. To configure the alarm port, see the Cisco AS5350XM and Cisco AS5400XM Universal
Gateways Software Configuration Guide. This document is available on Cisco.com. (See the “Obtaining
Documentation” section on page xiv.)
With the alarm port connected and configured, Cisco IOS software polls the universal gateway every one
second to detect the failure events that occur and turns on the alarm when it detects any failure event.
See Appendix C, “Cabling Specifications,” for pinouts and cable specifications.
BITS Port
The BITS port is a coaxial interface that provides external synchronized clocking through a timing signal
generator (TSG). To configure the BITS port, see the Cisco AS5350XM and Cisco AS5400XM Universal
Gateways Software Configuration Guide. This document is available on Cisco.com. (See the “Obtaining
Documentation” section on page xiv.) See Appendix C, “Cabling Specifications,” for pinouts and cable
specifications.
2-6
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 2 Preparing to Install the Cisco AS5350XM Universal Gateway
Preparing to Connect to a Network
Power Supply Considerations
Check the power at your site to ensure that you are receiving “clean” power (free of spikes and noise).
Install a power conditioner if necessary.
Warning
The device is designed to work with TN power systems.
Statement 19
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that
a fuse or circuit breaker no larger than 120 VAC, 15A U.S. (240 VAC, 10A international) is used on the
phase conductors (all current-carrying conductors).
Statement 13
The universal gateway AC power supply includes the following features:
•The full range of operation is—100 to 240 VAC.
•All units include a 6-foot (1.8-m) electrical power cord. (A label near the power inlet indicates the
correct voltage, frequency, and current draw for the unit.)
Note The redundant AC power supply has a non-standard connector. Use the electrical power cord
that came with your universal gateway.
The universal gateway DC power supply includes the following features:
•150-W output.
•Dual input connections for power source redundancy.
•Removable DC connector. (A label near the power inlets indicates the correct voltage, current draw,
and power dissipation for the unit.)
•Double-hole grounding lug for reliable grounding to the chassis.
CHAPTER
3-1
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
3
Installing the Cisco AS5350XM Universal
Gateway
This chapter guides you through the installation of the Cisco AS5350XM universal gateway and includes
the following sections:
•Setting Up the Chassis, page 3-1
•Connecting to the Network, page 3-6
•Connecting to the Console and Auxiliary Ports, page 3-11
•Connecting a Signal Generator to the BITS Port, page 3-12
•Connecting an Alarm to the Alarm Port, page 3-13
•Supplying Power, page 3-13
•Where to Go Next, page 3-18
Warning
Only trained and qualified personnel should be allowed to install or replace this equipment.
Statement 49
Warning
This equipment is intended to be grounded. Ensure that the host is connected to earth ground during
normal use.
Statement 39
Warning
Incorrect connection of this or connected equipment to a general purpose outlet could result in a
hazardous situation.
Statement 87
Setting Up the Chassis
You can set the chassis on a desktop or install it in a rack. Use the procedure in this section that best
meets the needs of your network:
•Setting the Chassis on a Desktop
•Rack-Mounting the Chassis
3-2
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Setting Up the Chassis
Warning
When installing or replacing the unit, the ground connection must always be made first and
disconnected last.
Statement 1046
Warning
This unit is intended for installation in restricted access areas. A restricted access area can be
accessed only through the use of a special tool, lock and key, or other means of security.
Statement 1017
Setting the Chassis on a Desktop
The location of the chassis is extremely important for proper operation. Equipment placed too close
together, inadequate ventilation, and inaccessible panels can cause malfunctions and shutdowns, and can
make maintenance difficult. The following information will help you plan the location of the chassis:
•Plan for access to both front and rear panels of the chassis.
•Ensure that the room where the chassis operates has adequate ventilation. Remember that electrical
equipment generates heat. Ambient air temperature may not cool equipment to acceptable operating
temperatures without adequate ventilation.
Attaching the Rubber Feet
To attach the rubber feet to the chassis, follow this procedure:
Step 1 Carefully turn the chassis over so you can see the four small depressions made for attaching the rubber
feet. (See Figure 3-1.) The rubber feet are included in the accessory kit that shipped with your universal
gateway.
Step 2 Remove the wax paper from the bottom of each rubber foot and press the foot into the small depression
on the bottom of the chassis. (See Figure 3-1.)
3-3
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Setting Up the Chassis
Figure 3-1 Attaching the Rubber Feet
Rack-Mounting the Chassis
This section describes how to rack-mount the chassis. The universal gateway arrives with 19-inch
(48.26-cm) rack-mount brackets and larger brackets for use with a 23- (58.429-) or 24-inch (60.96-cm)
rack (See Figure 3-2).
The following information will help you plan your equipment rack configuration:
•Enclosed racks must have adequate ventilation. Ensure that the rack is not congested, because each
unit generates heat. An enclosed rack should have louvered sides and a fan to provide cooling air.
Heat generated by equipment near the bottom of the rack can be drawn upward into the intake ports
of the equipment above.
•When mounting a chassis in an open rack, ensure that the rack frame does not block the intake or
exhaust ports. If the chassis is installed on slides, check the position of the chassis when it is seated
in the rack.
•Baffles can isolate exhaust air from intake air, which also helps to draw cooling air through the
chassis. The best placement of the baffles depends on the airflow patterns in the rack, which can be
found by experimenting with different configurations.
Warning
Before working on a chassis or working near power supplies, unplug the power cord on AC units;
disconnect the power at the circuit breaker on DC units.
Statement 12
37208
Universal gateway
chassis bottom
3-4
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Setting Up the Chassis
Required Tools and Equipment
You need the following tools and equipment to rack-mount the chassis:
•Number 2 Phillips screwdriver (not included)
•Medium flat-blade screwdriver (not included)
•Screws for attaching the chassis to the rack (not included)
•Standard rack-mount brackets (included)
•Screws for attaching the brackets to the chassis (included)
Figure 3-2 Standard Rack-Mount Brackets
Attaching the Brackets
To attach the mounting brackets to the chassis, follow this procedure:
Step 1 Set the chassis on a flat surface. (See Figure 3-3.)
Note The chassis may be installed with either the front or rear panel facing forward.
Step 2 Attach the standard 19- (48.26-) or 23-inch (58.42-cm) rack brackets to the sides of the chassis. Use the
screws provided with the mounting brackets. (See Figure 3-3.)
Note There are three sets of mounting holes on the sides of the chassis. Attach the brackets for front,
rear, or middle mounting.
Figure 3-3 Standard Bracket Installation—Front Panel Forward
36012
Bracket for 23-inch rackBracket for 19-inch rack
35669
Note: The second bracket attaches to the other side of the chassis.
The chassis can also be installed with the rear panel forward.
3-5
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Setting Up the Chassis
Installing in a Rack
Caution Do not use the handles on the dial feature cards to assist in lifting the chassis.
To install the chassis into the equipment rack, follow this procedure:
Step 1 With the mounting brackets attached to the chassis, support the chassis and align the holes in the brackets
with the screw holes in the rack. (See Figure 3-4.)
Step 2 Attach the chassis to the rack with the screws you have provided. (See Figure 3-4.)
Figure 3-4 Attaching the Chassis to a 19-Inch Rack—Rear Panel Forward
Connecting the Chassis Ground
You must connect the chassis to a reliable earth ground using the ground lug (provided) and size AWG 6
(13 mm2) wire.
To attach the chassis ground, take the following steps:
Step 1 Strip one end of the ground wire to expose approximately 0.75 in. (20 mm) of conductor.
Step 2 Crimp the ground wire to the ground lug, using a crimp tool of the appropriate size.
Step 3 Attach the ground lug to the chassis. (See Figure 3-5.) Use a medium flat-blade screwdriver and the
screws supplied with the ground lug. Tighten the screws to a torque of 8 to 10 in-lb (0.9 to 1.1 N-m).
Step 4 Connect the other end of the ground wire to a suitable grounding point at your site.
35659
Note: The second bracket attaches to the rack at the other side
of the chassis. The chassis can also be installed with the
front panel forward.
3-6
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Connecting to the Network
Figure 3-5 Cisco AS5350XM Universal Gateway Ground Lug Attachment
Connecting to the Network
This section describes how to connect the Cisco AS5350XM universal gateway to your network. The
cables required to connect the universal gateway to a network are not provided. For ordering information,
contact customer service. See the “Obtaining Technical Assistance” section on page xvii, or see
Appendix C, “Cabling Specifications,” for cable and port pinouts.
Warning
To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network
voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some
LAN and WAN ports both use RJ-45 connectors. Use caution when connecting cables.
Statement 1021
Warning
Do not work on the system or connect or disconnect cables during periods of lightning activity.
Statement 1001
Caution If the universal gateway is configured with fewer than three DFCs, make sure that a blank slot cover is
installed over each open slot to ensure proper airflow.
Note The Cisco AS5350XM universal gateway arrives with all carrier cards and DFCs already installed,
unless you order a card separately as a spare. See the Cisco AS5350XM and Cisco AS5400XM Universal
Gateways Card Installation Guide for card installation instructions. This document is available on
Cisco.com. (See the “Obtaining Documentation” section on page xiv.)
Connecting to an Ethernet Network
Connect an Cisco AS5350XM universal gateway Gigabit Ethernet port to an Ethernet hub using a
straight-through, RJ-45-to-RJ-45 Ethernet cable. (See Figure 3-6.)
82735
Ground lug
attachment
3-7
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Connecting to the Network
Caution To comply with the intra-building lightning surge requirements of GR-1089-CORE, Issue III, October
2002, you must use a shielded cable when connecting to either of the Cisco AS5350XM universal
gateway Ethernet ports. The cable must consist of shielded cable terminated by shielded connectors on
both ends, with the cable shield material tied to both connectors.
Figure 3-6 Connecting to an Ethernet Hub (10/100BASE-T Shown)
Connecting to a WAN
Warning
The telecommunications lines must be disconnected 1) before unplugging the main power connector
and/or 2) while the housing is open.
Statement 89
Warning
Hazardous network voltages are present in WAN ports regardless of whether power to the router is
OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching
cables, detach the end away from the router first.
Statement 77
Warning
This equipment is to be installed and maintained by service personnel only as defined by AS/NZS 3260
Clause 1.2.14.3 Service Personnel.
Statement 88
Warning
To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.
Statement 1023
You can connect the Cisco AS5350XM universal gateway to a WAN in the following ways:
•Connect each T1/PRI port to an RJ-45 jack with a straight-through RJ-45 to RJ-45 cable. (See
Figure 3-7 and Figure 3-8.)
1GE1 10/100/1000BASE-T port 2Ethernet hub
3Straight-through Ethernet cable
871
122115
2
1
3
3-8
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Connecting to the Network
Figure 3-7 Connecting a 2-Port or 4-Port DFC to an RJ-45 (T1) Jack
Figure 3-8 Connecting an 8-Port DFC to an RJ-45 (T1) Jack
Note Use software commands to choose a specific port and the line termination on that port. For information
about software commands, see the Cisco AS5350XM and Cisco AS5400XM Universal Gateways
Software Configuration Guide. This document is available on Cisco.com. (See the “Obtaining
Documentation” section on page xiv.)
Note If you choose a port with 75-ohm input impedance, use an RJ-45-to-75-ohm coaxial cable adapter and
plug it into that port.
35672
RJ-45 jack
Straight-through
RJ-45-to-RJ-45 cable
56057
T1/E1 8 PRI
connector
RJ-45 jack
P1
P2
P3
P4
P5
P6
P7
P0
Straight-through
RJ-45-to-RJ-45 cable
3-9
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Connecting to the Network
•Connect each E1/PRI port to an RJ-45 jack with a straight-through RJ-45 to RJ-45 cable. (See
Figure 3-9 and Figure 3-10.)
Warning
The E1 interface card may only be installed in an ACA-permitted customer equipment or a Data
Terminal Equipment (DTE) that is exempted from ACA’s permit requirements. The customer equipment
must only be housed in a cabinet that has screw-down lids to stop user access to overvoltages on the
customer equipment. The customer equipment has circuitry that may have telecommunications
network voltages on them.
Statement 90
Figure 3-9 Connecting a 2-Port or 4-Port DFC to an RJ-45 Jack
35673
E1 cable
RJ-45 jack
3-10
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Connecting to the Network
Figure 3-10 Connecting an 8-Port DFC to an RJ-45 Jack
•Connect a synchronous serial port to a modem or a CSU/DSU with a serial transition cable. (See
Figure 3-11.)
Figure 3-11 Connecting to a CSU/DSU
56058
T1/E1 8 PRI
connector
P1
P2
P3
P4
P5
P6
P7
P0
E1 cable RJ-45 jack
35675
Serial
transition
cable
CSU/DSU or
other DCE or DTE
Synchronous serial
port (DB-26)
EIA/TIA-232, EIA/TIA-449, EIA/TIA-530A,
EIA/TIA-530, V.35, or X.21 connector
Internet
3-11
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Connecting to the Console and Auxiliary Ports
Connecting to the Console and Auxiliary Ports
Use the console terminal for local administrative access to the universal gateway. You can only connect
a terminal to the console port. You can use the auxiliary port to connect a terminal or a modem for remote
access to the universal gateway.
Connecting to the Console Port
To connect a terminal (an ASCII terminal or a PC running terminal emulation software) to the console
port on the Cisco AS5350XM universal gateway, follow this procedure:
Step 1 Connect the terminal to the console port using an RJ-45 rollover cable and an RJ-45-to-DB-25 or
RJ-45-to-DB-9 adapter. The adapters provided are labeled TERMINAL. The adapters and the rollover
cable are included in the accessory kit that comes with the universal gateway. (See Figure 3-12.)
Note For additional information on rollover cable pinouts, see Appendix C, “Cabling Specifications.”
Step 2 Configure your terminal or PC terminal emulation software for 9600 baud, 8 data bits, no parity, and
2 stop bits.
Step 3 Configure the console port. See the Cisco AS5350XM and Cisco AS5400XM Universal Gateways
Software Configuration Guide. This document is available on Cisco.com. (See the “Obtaining
Documentation” section on page xiv.)
Figure 3-12 Connecting the Console Terminal
35676
RJ-45-to-RJ-45
rollover cable
PC (laptop)
RJ-45
Console port
(RJ-45)
3-12
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Connecting a Signal Generator to the BITS Port
Connecting a Modem to the Auxiliary Port
To connect a modem to the auxiliary port, use an RJ-45 rollover cable with an RJ-45-to-DB-25 adapter.
The adapter provided is labeled MODEM. The adapter and the rollover cable are included in the
accessory kit that comes with the universal gateway. (See Figure 3-13.)
Note Make sure that your modem and the auxiliary port on the Cisco AS5350XM universal gateway
are configured for the same transmission speed (38400 baud is typical) and hardware flow
control with Data Carrier Detect (DCD) and Data Terminal Ready (DTR) operations.
Figure 3-13 Connecting a Modem to the Auxiliary Port
Connecting a Signal Generator to the BITS Port
Use a coaxial cable to connect a timing signal generator (TSG) to the BITS port. The BITS port is used
for external clocking. (See Figure 3-14.)
Figure 3-14 Connecting to the BITS Port
35677
Modem
RJ-45-to-DB-25 adapter
(labeled MODEM)
Auxiliary port
(RJ-45)
RJ-45-to-RJ-45
rollover cable
35841
BITS port
connector
To timing signal
generator
Coaxial cable
3-13
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Connecting an Alarm to the Alarm Port
Connecting an Alarm to the Alarm Port
To connect an alarm device to the alarm port, follow this procedure:
Note The alarm connector is a 3-wire connector that plugs into a receptacle in the rear of the chassis. The
connector is provided in the accessory kit that ships with the Cisco AS5350XM universal gateway.
Step 1 Insert the 3-pin alarm port connector (included in the accessory kit) into the alarm port terminal block.
Step 2 Strip a minimum of 1/4 in. (0.625 cm) off the wire insulation to connect the stranded wires to the alarm
connector. The maximum insulation strip length is 0.31 in. (0.78 cm).
Note Connect the alarm port only to a safety extra-low voltage (SELV) source using 22 AWG or
thicker copper wire. SELV ratings are maximum 30 volts AC (RMS), maximum 60 volts DC,
and maximum 50 VA power. The alarm port is rated for 2.0 amp maximum current.
Step 3 Secure the wires to the alarm connector with the screws on the connector. See Appendix C, “Cabling
Specifications,” for alarm port pinouts.
Caution The maximum tightening torque on the screws is 7 in.-lb (0.79 N-m).
Step 4 Attach two cable ties to the chassis and connect the wires to the cable ties. (See Figure 3-15.)
Step 5 Attach the alarm wires to the alarm device.
Figure 3-15 Connecting to the Alarm Port
Supplying Power
The power system consists of a single input AC or DC power supply or a dual input (redundant) AC or
DC power supply. For more information about the power system, see the “Power Supply” section on
page 1-4 and the “Power Supply Considerations” section on page 2-6.
35967
Alarm port
connector
To alarm device
Cable ties #1
#2
#3
3-14
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Supplying Power
Note The grounding architecture for the Cisco AS5350XM universal gateway is isolated DC return (DC-I).
Warning
Do not touch the power supply when the power cord is connected. For systems with a power switch,
line voltages are present within the power supply even when the power switch is off and the power
cord is connected. For systems without a power switch, line voltages are present within the power
supply when the power cord is connected.
Statement 4
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that
a fuse or circuit breaker no larger than 120 VAC, 15A U.S. (240 VAC, 10A international) is used on the
phase conductors (all current-carrying conductors).
Statement 13
Warning
The device is designed to work with TN power systems.
Statement 19
Connecting the AC Power Cord
To connect the power cord, follow these steps:
Note The redundant AC power supply has a non-standard connector. Use the electrical power cord that
came with your universal gateway.
Step 1 Connect one end of the AC power cord to the power connector on the rear panel of the Cisco AS5350XM
universal gateway (See Figure 3-16 or Figure 3-17.)
Step 2 Connect the other end of the AC power cord to the power outlet.
Warning
The plug-socket combination must be accessible at all times, because it serves as the main
disconnecting device.
Statement 1019
3-15
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Supplying Power
Figure 3-16 Connecting the AC Power Cord
Figure 3-17 Connecting the AC Power Cord to the Redundant Power Supply
Step 3
Step 4 Power up the universal gateway.
The internal power supply fan should power up.
Wiring the DC Power Supply
If you ordered the Cisco AS5350XM universal gateway with a DC power supply, follow the procedure
in this section to wire the terminal block.
Note The grounding architecture for the Cisco AS5350XM universal gateway is isolated DC return (DC-I).
Warning
Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning
Before connecting or disconnecting ground or power wires to the chassis, ensure that power is
removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel
board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch
handle of the circuit breaker in the OFF position.
Statement 140
35678
Power switch
82079
Power cables
3-16
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Supplying Power
Note This product is intended for installation in restricted access areas and is approved for connection using
12 or 14 AWG copper conductors only. The installation must comply with all applicable codes.
See Figure 3-18 or Figure 3-19 and follow these steps to wire the terminal blocks:
Step 1 Note the orientation of the DC power supply. The power supply cord should have three wires: 48 VDC
Return, –48 VDC, and a safety ground (green wire).
Note If you are installing a redundant power supply, you should attach appropriate-sized spade terminals to
the stripped ends of the ground and input wires.
Step 2 Strip off 1/4 in. (0.625 cm) of insulation on the safety ground, +48 VDC, and –48 VDC input wires.
Warning
The illustration shows the DC power supply terminal block. Wire the DC power supply using the
appropriate lugs at the wiring end, or with no lugs, as illustrated. The proper wiring sequence is
ground to ground, positive to positive, and negative to negative. Note that the ground wire should
always be connected first and disconnected last.
Statement 197
Figure 3-18 DC Power Supply Connections—Single Power Supply
Warning
The illustration shows the DC power supply terminal block. Wire the DC power supply using the
appropriate lugs at the wiring end, or with no lugs, as illustrated. The proper wiring sequence is
ground to ground, positive to positive, and negative to negative. Note that the ground wire should
always be connected first and disconnected last.
Statement 197
56022
Power switch
Source A - NEG
Source A - RTN
Source B - NEG
Source B - RTN
Ground
To DC source
DC connector
3-17
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Supplying Power
Figure 3-19 DC Power Supply Connections—Redundant Power Supply
Caution Do not overtorque the terminal block contact screws. The recommended torque is 4.5 lb-in (0.50 N-m).
Step 3 Insert the safety ground (green wire) into the DC connector ground connector and tighten the locking
screws. Ensure that no bare wire is exposed.
Step 4 Insert the 48 VDC Return wires into the DC connector positive connectors (+) and tighten the locking
screws. Ensure that no bare wire is exposed.
Step 5 Insert the –48 VDC wires into the DC connector negative connectors (–) and tighten the locking screws.
Ensure that no bare wire is exposed.
Step 6 Make sure that the power supply wires are secured to cable strain-relief clamps with cable ties.
Warning
After wiring the DC power supply, remove the tape from the circuit breaker switch handle and
reinstate power by moving the handle of the circuit breaker to the ON position.
Statement 8
Step 7 Power up the universal gateway.
The internal power supply fan should power up.
A- A+ B- B+
82637
Power switch
Source A - NEG
Source A - RTN
Source B - NEG
Source B - RTN
Ground
To DC source
DC connector
3-18
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 3 Installing the Cisco AS5350XM Universal Gateway
Where to Go Next
Where to Go Next
When you power up the Cisco AS5350XM universal gateway for the first time, messages begin to appear
on your console screen. See the Cisco AS5350XM and Cisco AS5400XM Universal Gateways Software
Configuration Guide for configuration instructions. This document is available on Cisco.com. (See the
“Obtaining Documentation” section on page xiv.)
The remaining chapters of this guide include reference material for replacing spare parts,
troubleshooting, and creating your own cables:
•Chapter 4, “Troubleshooting”
•Appendix A, “Replacing Memory Components”
•Appendix B, “Replacing the Power Supply”
•Appendix C, “Cabling Specifications”
CHAPTER
4-1
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
4
Troubleshooting
This chapter describes troubleshooting techniques for the Cisco AS5350XM universal gateway and
contains the following sections:
•LEDs, page 4-1
•Monitoring the Environment, page 4-2
•Troubleshooting Network Interfaces, page 4-5
•Replacing the Fan Tray, page 4-5
•Getting Help, page 4-10
LEDs
The LEDs indicate the current operating condition of the Cisco AS5350XM universal gateway. You can
observe the LEDs, note any fault condition that the product is encountering, and then contact your
system administrator or a customer service representative (see the “Obtaining Technical Assistance”
section on page xvii) if necessary. See Figure 4-1 for a diagram illustrating the rear panel LEDs and
Table 4-1 for a description of the LEDs.
For information about LEDs and troubleshooting Cisco AS5350XM universal gateway dial feature
cards, see the Cisco AS5350XM and Cisco AS5400XM Universal Gateways Card Installation Guide.
This document is available on Cisco.com. (See the “Obtaining Documentation” section on page xiv.)
Figure 4-1 Rear Panel LEDs
T0
T1 ACTIVITY (ACT)
LNK
BITS BOARD OK
LED
ACTIVITY (ACT)
LNK
35679
4-2
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 4 Troubleshooting
Monitoring the Environment
Monitoring the Environment
The Cisco AS5350XM universal gateway contains temperature sensors to detect abnormal temperature
conditions during system operation. The three levels of sensor detection are as follows:
•If the operating temperature of the system exceeds 45°C (104°F), the system reaches a warning state.
A warning message appears on the console. When the operating temperature of the system drops
below 45°C (104°F), another message is displayed on the console indicating a recovery. At this level
of sensor detection, there is no disruption in system operation.
•When the operating temperature of the system continues to rise above 45°C (104°F) and reaches a
temperature of 60°C (140°F), the system reaches a critical state. Cisco IOS software gracefully
shuts down the first DFC. If the operating temperature continues to be critical after 10 minutes,
Cisco IOS software shuts down another DFC.
Note DFC slot numbering starts from the motherboard and works up from left to right. Slot 0 is
reserved for the motherboard. The DFC slots are numbered sequentially from 1 to 3. (See
Figure 4-2.)
Table 4-1 Chassis LEDs
Function LED State Description
Alarm Alarm On An alarm error is detected.
Gigabit Ethernet Activity (ACT) Flickering The Gigabit Ethernet LAN connection is transmitting and receiving
data normally.
Off The Gigabit Ethernet LAN connection is not transmitting or receiving
data.
Link (LNK) On The Gigabit Ethernet cable is connected properly.
Off The Gigabit Ethernet port is not connected.
Console/Auxiliary Activity (ACT) Flickering The console or auxiliary connection is transmitting and receiving data
normally.
Off The console or auxiliary connection is not transmitting or receiving
data.
Link (LNK) On The console or auxiliary cable is connected properly.
Off The console or auxiliary port is not connected.
System Board
Status (Located to
right of
Console/Auxiliary
ports)
OK On The system board is operating normally.
Off Power is off or the system has not booted.
Blinking A memory failure occurred.
Serial Ports T0, T1 Flickering The serial ports are transmitting and receiving data normally.
Off The serial port connection is not transmitting or receiving data.
BITS Port BITS ON There is a valid signal on the BITS port.
4-3
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 4 Troubleshooting
Monitoring the Environment
Figure 4-2 Cisco AS5350XM Universal Gateway Slot Numbering
This process is repeated at 10-minute intervals until the final DFC is shut down. The console
displays the slot number of the DFC and the type of DFC that was shut down.
If the operating temperature cools down to 45°C (104°F), Cisco IOS software powers on the first
DFC, repeating the process for each DFC at 10 minute intervals.
•When the operating temperature of the system rises above 65°C, Cisco IOS software shuts down all
DFCs immediately.
Displaying the Environment Status
You can use the command-line interface (CLI) to check environment monitoring status of the
Cisco AS5350XM universal gateway.
To check environment monitoring, enter the show environment command in privileged EXEC mode, as
follows:
Router# show environment
•The display shown below appears on your console during normal operating conditions. The slot
number corresponds to the DFC in that slot. The outlet and inlet sensors read the temperature of the
air circulating inside the chassis.
Router# show environment
Temperature:
Temperature Reading:
Temperature at inlet is measured as 22C/71F.
Temperature at outlet is measured as 27C/80F.
Temperature State:
Temperature is in normal state.
Fans:
Fans temperature delta is measured as 5C.
All fans are running well.
Power Supply:
Redundant Power System is present.
•The display below appears on your console when the system reaches a warning state:
Router# show environment
Temperature:
Temperature Reading:
Temperature at inlet is measured as 52C/125F.
Temperature at outlet is measured as 64C/147F.
Temperature State:
Temperature is in warning state.
Fans:
Fans temperature delta is measured as 6C.
All fans are running well.
Power Supply:
Redundant Power System is present.
RPS Input Voltage status: normal
36006
Slot 2 Slot 0 Slot 1 Slot 3
4-4
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 4 Troubleshooting
Monitoring the Environment
RPS Output Voltage status: normal
RPS Fan status: normal
RPS Thermal status: normal
RPS OverVoltage status: normal
Environmental monitor experienced the following events:
Temperature:sensor failed.
Fans:monitor dropped.
Temperature:warning.
Temperature:sensor recovered.
Fans:monitor recovered.
Fans:normal.
•The display below appears on your console when the system reaches a critical state:
Router# show environment
Temperature:
Temperature Reading:
Temperature at inlet is measured as 62C/143F.
Temperature at outlet is measured as 74C/165F.
Temperature State:
Temperature is in critical state.
DFC Busyout/Power-down:
A DFC is powered down. Slot:1, Type:NP108 DFC
A DFC is busyout. Slot:2, Type:T1 8 PRI DFC
A DFC is busyout. Slot:3, Type:NP108 DFC
Fans:
Fans temperature delta is measured as 6C.
All fans are running well.
Power Supply:
Redundant Power System is present.
RPS Input Voltage status: normal
RPS Output Voltage status: normal
RPS Fan status: normal
RPS Thermal status: normal
RPS OverVoltage status: normal
Environmental monitor experienced the following events:
Temperature:sensor failed.
Fans:monitor dropped.
Temperature:warning.
Temperature:sensor recovered.
Fans:monitor recovered.
Fans:normal.
Temperature:critical.
•The display below appears on your console when the system reaches a shutdown state:
Router# show environment
Temperature:
Temperature Reading:
Temperature at inlet is measured as 70C/158F.
Temperature at outlet is measured as 82C/179F.
Temperature State:
Temperature is in shutdown state.
DFC Busyout/Power-down:
A DFC is powered down. Slot:1, Type:NP108 DFC
A DFC is powered down. Slot:2, Type:T1 8 PRI DFC
A DFC is powered down. Slot:3, Type:NP108 DFC
Fans:
Fans temperature delta is measured as 6C.
All fans are running well.
Power Supply:
Redundant Power System is present.
RPS Input Voltage status: normal
RPS Output Voltage status: normal
4-5
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 4 Troubleshooting
Troubleshooting Network Interfaces
RPS Fan status: normal
RPS Thermal status: normal
RPS OverVoltage status: normal
Environmental monitor experienced the following events:
Temperature:sensor failed.
Fans:monitor dropped.
Temperature:warning.
Temperature:sensor recovered.
Fans:monitor recovered.
Fans:normal.
Temperature:critical.
Temperature:shutdown.
Troubleshooting Network Interfaces
For information about isolating problems with the network connections to your Cisco AS5350XM
universal gateway, see the Internetwork Troubleshooting Guide publication available on Cisco.com. For
more information, see the section “Obtaining Documentation” section on page xiv.
Replacing the Fan Tray
Warning
Before working on a system that has an on/off switch, turn OFF the power and unplug the power cord.
Statement 1
Caution Before you remove the fan tray, read the “Safety Recommendations” section on page 2-1.
Removing the Fan Tray
To remove the fan tray, follow this procedure:
Step 1 Use the power switch on the chassis to power down the chassis.
Caution The fan tray is not hot-swappable. You must power down the system before removing the fan tray.
Step 2 Position the chassis with the front panel facing you. (See Figure 4-3.) The front panel contains the fan
tray.
4-6
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 4 Troubleshooting
Replacing the Fan Tray
Figure 4-3 Cisco AS5350XM Front Panel
Step 3 Loosen the four screws securing the fan tray to the chassis. (See Figure 4-4.)
Figure 4-4 Loosen Fan Tray Screws
Step 4 Grasp the edge of the fan tray near the two end-screws and carefully pull it towards you. (See
Figure 4-5.) The fan tray power connector disconnects from its receptacle. (See Figure 4-6.)
122114
Cisco AS5400XM
SERIES
3
35703
4-7
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 4 Troubleshooting
Replacing the Fan Tray
Figure 4-5 Pulling the Edge of the Fan Tray
Figure 4-6 Fan Tray Power Connector Disconnecting from the Receptacle
Step 5 Slide the metal tabs located at the other end of the fan tray out of their slots. (See Figure 4-7.)
3
35704
3
35941
4-8
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 4 Troubleshooting
Replacing the Fan Tray
Figure 4-7 Slide Metal Tabs out of the Slots
Installing the Fan Tray
To install the fan tray, follow this procedure:
Step 1 Insert the metal tabs located at the end of the fan tray into their slots. (See Figure 4-8.) Use your left
hand to hold that end of the fan tray against the chassis to ensure that the metal tabs do not slip out of
their slots.
35705
3
3
Tabs
4-9
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 4 Troubleshooting
Replacing the Fan Tray
Figure 4-8 Inserting the Metal Tabs into the Slots
Step 2 Use your right hand to rotate the other end of the fan tray towards the front panel of the chassis. Make
sure the fan tray power connector slides into the receptacle. (See Figure 4-9.)
Figure 4-9 Sliding the Fan Tray Power Connector into the Receptacle
35706
3
3
Tabs
35942
3
4-10
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Chapter 4 Troubleshooting
Getting Help
Step 3 Carefully slide the fan tray connector into its receptacle until the fan tray touches the front panel. (See
Figure 4-9.)
Step 4 Tighten the four screws to secure the fan tray to the chassis. (See Figure 4-10.)
Figure 4-10 Tightening Fan Tray Screws
Getting Help
For information about technical support, onsite service, and exchange and repair services, see the
“Obtaining Technical Assistance” section on page xvii.
3
35709
A-1
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
APPENDIX
A
Replacing Memory Components
This appendix contains procedures on how to replace memory components in the Cisco AS5350XM
universal gateway field-replaceable units. The appendix contains the following sections:
•Removing the Chassis Cover, page A-1
•Replacing the Compact Flash, page A-4
•Replacing DIMMs, page A-6
•Replacing the Chassis Cover, page A-8
Removing the Chassis Cover
This section describes how to open the chassis by removing the chassis cover.
Required Tools
You need the following tools:
•Medium Phillips screwdriver
•Small or medium flat-blade screwdriver
Safety Recommendations
Note the following safety recommendations:
Warning
Before opening the unit, disconnect the telephone-network cables to avoid contact with
telephone-network voltages.
Statement 1041
Warning
Do not work on the system or connect or disconnect cables during periods of lightning activity.
Statement 1001
A-2
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix A Replacing Memory Components
Removing the Chassis Cover
Warning
Before working on a chassis or working near power supplies, unplug the power cord on AC units;
disconnect the power at the circuit breaker on DC units.
Statement 12
NVRAM in the universal gateway uses an internal lithium battery to maintain data. Although this is not
a field-serviceable component, we are required to provide the following safety warnings:
Warning
There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with
the same or equivalent type recommended by the manufacturer. Dispose of used batteries according
to the manufacturer’s instructions.
Statement 1015
Warning
Before working on equipment that is connected to power lines, remove jewelry (including rings,
necklaces, and watches). Metal objects will heat up when connected to power and ground and can
cause serious burns or weld the metal object to the terminals.
Statement 43
Chassis Cover Removal
You must open the universal gateway chassis to gain access to its interior components: boot read-only
memory (ROM) software, synchronous dynamic random-access memory, dual in-line memory (SDRAM
DIMMs) modules. (When you replace the boot ROM, you must also remove all feature cards in the
chassis.)
To remove the chassis cover, follow this procedure:
Step 1 Turn the power switch on the universal gateway off and disconnect site power.
Step 2 Remove all interface cables from the rear panel of the universal gateway.
Step 3 Place the gateway so that the front panel is facing you.
Step 4 Remove the five screws on the chassis cover, as shown in Figure A-1.
A-3
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix A Replacing Memory Components
Removing the Chassis Cover
Figure A-1 Removing the Chassis Cover Screws
Step 5 Gently pry the cover off with a flat-blade screwdriver. Lift the chassis cover upward, as shown in
Figure A-2, and pull it away from the tabs on the rear of the chassis.
Figure A-2 Removing the Chassis Cover
35660
3
35661
3
Chassis bottom
Front panel
Chassis cover
A-4
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix A Replacing Memory Components
Replacing the Compact Flash
Replacing the Compact Flash
To replace the compact flash, follow these steps:
Step 1 Turn the power switch off and disconnect site power.
For DC-powered units, note the following warnings:
Warning
Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning
Before connecting or disconnecting ground or power wires to the chassis, ensure that power is
removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel
board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch
handle of the circuit breaker in the OFF position.
Statement 140
Warning
Before opening the unit, disconnect the telephone-network cables to avoid contact with
telephone-network voltages.
Statement 1041
Step 2 Remove all interface cables from the DFCs.
Step 3 Attach an ESD-preventive wrist strap.
Step 4 Remove the chassis cover. (See the instructions in the “Removing the Chassis Cover” section on
page A-1.)
Step 5 Locate the compact flash on the system board. (See Figure A-3.)
A-5
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix A Replacing Memory Components
Replacing the Compact Flash

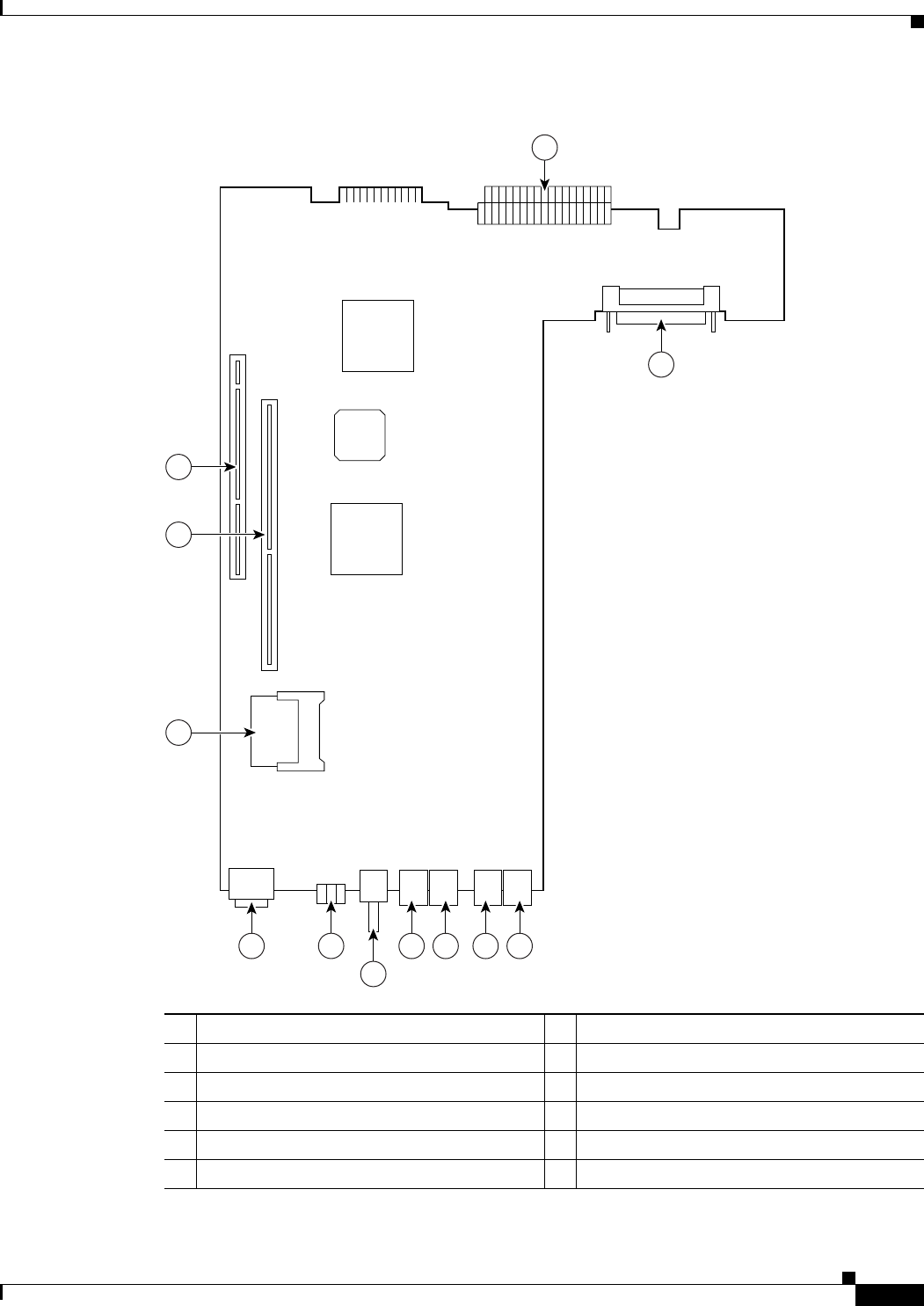

Figure A-3 Memory Locations
1Backplane connector 2System board DFC connector
3AUX 4CON
5GE1 6GE0
7BITS port 8Alarm port
92T serial interface 10 Compact flash
11 DIMM slot 12 32-bit PCI interface
122110
12
11
10
1
2
98
7
6 5 4 3
A-6
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix A Replacing Memory Components
Replacing DIMMs
Step 6 Using your fingers, gently extract the old compact flash and set it on a nonconductive surface. Do not
use excessive force, because the socket might break.
Step 7 Insert the new compact flash into the socket. Be careful not to bend or crush any of the bottom pins. If
necessary, use needlenose pliers to straighten out any bent pins.
Step 8 Replace the chassis cover. (See the instructions in the “Replacing the Chassis Cover” section on
page A-8.)
Step 9 Power up the universal gateway. If error messages relating to memory are displayed, remove the new
compact flash and reinstall it, taking care to seat the compact flash firmly in the socket.
Replacing DIMMs
This section describes how to replace a DIMM on the Cisco AS5350XM universal gateway. The
universal gateway has a single DIMM (see Figure A-4). The default factory configuration is a 512 MB
double data rate (DDR1) SDRAM DIMM.
You might need to upgrade the DIMM for the following reasons:
•You have upgraded to a new Cisco IOS feature set or release that requires more memory.
•You are using very large routing tables or many protocols (for example, when the universal gateway
is set up as a connection device between large external networks and your internal network).
Required Tools and Equipment
You need the following tools and equipment:
•ESD-preventive wrist strap
•Appropriate DIMM
Replacing the DIMM
To replace the DIMM, follow this procedure:
Step 1 Power down the universal gateway and disconnect site power.
For DC-powered units only, note the following warning.
Warning
Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning
Before connecting or disconnecting ground or power wires to the chassis, ensure that power is
removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel
board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch
handle of the circuit breaker in the OFF position.
Statement 140
A-7
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix A Replacing Memory Components
Replacing DIMMs
Warning
Before opening the unit, disconnect the telephone-network cables to avoid contact with
telephone-network voltages.
Statement 1041
Step 2 Remove all interface cables from the rear panel of the universal gateway.
Step 3 Attach an ESD-preventive wrist strap.
Step 4 Remove the chassis cover. (See the instructions in the “Removing the Chassis Cover” section on
page A-1.)
Step 5 Use Figure A-3 to locate the DIMM you are replacing.
Step 6 Pull the socket latches away from the DIMM, and then pull the DIMM out of the socket. (See
Figure A-4.) The latches hold the DIMM tightly, so be careful not to break the socket.
Caution To prevent damage, do not press on the center of the DIMM. Handle the DIMM carefully.
Figure A-4 Removing and Replacing the DIMM
Step 7 Position the new DIMM so that the polarization notch is located at the right end of the DIMM socket.
35685
A-8
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix A Replacing Memory Components
Replacing the Chassis Cover
Step 8 Insert the new DIMM by sliding the end with the metal fingers into the DIMM socket, as shown in
Figure A-5.
Figure A-5 Inserting the New DIMM into the Socket
Step 9 Snap the latches into place. Do not use excessive force, because the socket might break.
Step 10 Replace the gateway chassis cover. (See the “Replacing the Chassis Cover” section on page A-8.)
Step 11 Power on the universal gateway. If error messages relating to memory are displayed, remove the DIMM
and reinstall it, taking care to seat the DIMM firmly in its socket.
Replacing the Chassis Cover
This section describes the procedure for replacing the chassis cover.
Required Tools and Equipment
•Medium Phillips screwdriver
•Five screws
35688
A-9
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix A Replacing Memory Components
Replacing the Chassis Cover
Chassis Cover Replacement
To replace the chassis cover, follow this procedure:
Step 1 Place the chassis bottom so that the front panel is facing you. (See Figure A-6.)
Figure A-6 Replacing the Chassis Cover
Step 2 Hold the chassis cover over the chassis bottom, and align each of the cover tabs with the chassis tabs at
the top rear of the chassis.
Step 3 Lower the front of the top cover to close the chassis, and ensure the following:
•The chassis cover tabs fit under the edge of the chassis rear panel so that they are not exposed.
•The chassis tabs fit under the chassis cover so that they are not exposed.
•The chassis cover side tabs on both sides fit inside the chassis side panels so that they are not
exposed.
When the chassis cover is properly assembled, no tabs are visible. (See Figure A-7.)
35662
3
Chassis bottom
Front panel
Chassis cover
A-10
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix A Replacing Memory Components
Replacing the Chassis Cover
Figure A-7 Cisco AS5350XM Chassis
Step 4 Secure the chassis cover with five screws.
Step 5 Reinstall the chassis on a rack, desktop, or table.
Step 6 Reinstall all interface cables.
Step 7 Reconnect the AC power cord to the power supply.
Step 8 Power up the universal gateway.
The internal power supply fan should power up.
122114
Cisco AS5400XM
SERIES
B-1
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
APPENDIX
B
Replacing the Power Supply
This appendix includes information on how to replace the power supply for the Cisco AS5350XM
universal gateway and contains the following sections:
•Safety Recommendations, page B-1
•Required Tools and Equipment, page B-2
•Removing the Chassis Cover, page B-2
•Removing the Old Power Supply, page B-6
•Installing the Power Supply, page B-9
•Replacing the Chassis Cover, page B-11
Overview
The power system consists of a single input AC or DC power supply or a dual input (redundant) AC or
DC power supply. For more information about the power system, see the “Power Supply” section on
page 1-4 and the “Power Supply Considerations” section on page 2-6.
Safety Recommendations
Note the following safety recommendations:
Warning
Before opening the unit, disconnect the telephone-network cables to avoid contact with
telephone-network voltages.
Statement 1041
Warning
Do not work on the system or connect or disconnect cables during periods of lightning activity.
Statement 1001
Warning
Before working on a chassis or working near power supplies, unplug the power cord on AC units;
disconnect the power at the circuit breaker on DC units.
Statement 12
B-2
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Required Tools and Equipment
Warning
Before working on equipment that is connected to power lines, remove jewelry (including rings,
necklaces, and watches). Metal objects will heat up when connected to power and ground and can
cause serious burns or weld the metal object to the terminals.
Statement 43
Warning
Only trained and qualified personnel should be allowed to install or replace this equipment.
Statement 49
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that
a UL Listed and Certified fuse or circuit breaker no larger than 60 VDC, 15 A is used on all
current-carrying conductors.
Statement 96
Caution Before opening the chassis, ensure that you have discharged all static electricity from your body and that
the chassis is powered down.
Required Tools and Equipment
You need the following tools and equipment:
•Medium-size Phillips screwdriver
•Small or medium flat-blade screwdriver
•ESD-preventive wrist strap
•Tie-wraps (optional)
•Antistatic bag (optional)
Removing the Chassis Cover
You must open the universal gateway chassis to gain access to its interior components.
To open the chassis cover, follow this procedure:
Step 1 Turn the power switch on the universal gateway off and disconnect site power.
Note Note that the power switch is part of the power supply.
Step 2 If you are using a DC-powered unit, refer to Figure B-1 or Figure B-2 and complete the Step a through
Step d.
Warning
Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
B-3
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Removing the Chassis Cover
Warning
Before connecting or disconnecting ground or power wires to the chassis, ensure that power is
removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel
board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch
handle of the circuit breaker in the OFF position.
Statement 140
Figure B-1 DC Power Supply Connections—Single Power Supply
56022
Power switch
Source A - NEG
Source A - RTN
Source B - NEG
Source B - RTN
Ground
To DC source
DC connector
B-4
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Removing the Chassis Cover
Figure B-2 DC Power Supply Connections—Redundant Power Supply
a. Loosen the five locking screws for the negative, return, and ground connectors on the DC connector.
b. Remove the +48 VDC return wires from the DC connectors.
c. Remove the -48 VDC wires into the DC negative connectors.
d. Remove the safety ground wire from the DC connector.
Step 3 Remove all interface cables from the rear panel of the universal gateway.
Step 4 Place the universal gateway so that the front panel is facing you.
Step 5 Remove the five screws on the chassis cover. (See Figure B-3.)
A- A+ B- B+
82637
Power switch
Source A - NEG
Source A - RTN
Source B - NEG
Source B - RTN
Ground
To DC source
DC connector
B-5
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Removing the Chassis Cover
Figure B-3 Removing the Chassis Cover Screws
Step 6 Gently pry the cover off with a flat-blade screwdriver. Lift the chassis cover upward, as shown in
Figure B-4, and pull it away from the tabs on the rear of the chassis.
Figure B-4 Removing the Chassis Cover
Step 7 Continue with the “Removing the Old Power Supply” section on page B-6.
35660
3
35661
3
Chassis bottom
Front panel
Chassis cover
B-6
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Removing the Old Power Supply
Removing the Old Power Supply
This section describes how to remove the power supply. Note the following safety warnings before you
remove the power supply:
Warning
Ultimate disposal of this product should be handled according to all national laws and regulations.
Statement 1040
Warning
Only trained and qualified personnel should be allowed to install or replace this equipment.
Statement 49
Warning
Read the installation instructions before connecting the system to the power source.
Statement 1004
Warning
Before working on a system that has an on/off switch, turn OFF the power and unplug the power cord.
Statement 1
Warning
Before working on equipment that is connected to power lines, remove jewelry (including rings,
necklaces, and watches). Metal objects will heat up when connected to power and ground and can
cause serious burns or weld the metal object to the terminals.
Statement 43
To remove the power supply, follow this procedure:
Step 1 Place the universal gateway so that the rear panel is facing you.
Step 2 Remove the mounting screw that secures the power supply to the chassis and set it aside. (See Figure B-5
or Figure B-6.)
Note Although the following illustrations show only the AC power supply, the procedures are the
same for the DC power supply.
Figure B-5 Removing the Mounting Screw on the Single AC Power Supply
35664
Mounting
screw
Power supply
B-7
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Removing the Old Power Supply
Figure B-6 Removing the Mounting Screw on the Redundant AC Power Supply
Step 3 Turn the universal gateway so that the front panel is facing you.
Step 4 Lift the air separator out of the chassis. (See Figure B-7.)
Figure B-7 Removing the Air Separator
Note There are two power connectors on the power supply. One connects to the backplane and the
other to the system board. (See Figure B-8.)
82078
Mounting
screw
Power
supply
35692
3
Chassis bottom
Front panel
B-8
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Removing the Old Power Supply
Figure B-8 Power Supply Connectors
Step 5 Disconnect both power supply connectors. Disconnect the backplane connector first, followed by the
system board connector. (See Figure B-9.)
Note The system board connector is located on the system board, below and to the left of the
backplane connector.
Figure B-9 Disconnecting the Power Connectors from the Backplane
Step 6 Slide the power supply toward the front panel to disengage the power supply from the chassis hooks.
(See Figure B-10.) Remove the power supply from the chassis.
Power
supply
Backplane
connector
System board
connector
36016
Power
supply
35693
3
Chassis bottom
Front panel
Power connector
Backplane
B-9
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Installing the Power Supply
Figure B-10 Lifting the Power Supply Out of the Chassis
Installing the Power Supply
To install the power supply, follow this procedure:
Step 1 Place the power supply as shown in Figure B-11, and then slide it toward the rear panel. You will be able
to feel the chassis hooks engage with the slots on the bottom of the power supply. The same procedure
applies to both AC and DC power supplies.
Power
supply
35694
3
Chassis bottom
Front panel
B-10
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Installing the Power Supply
Figure B-11 Inserting the Power Supply in the Chassis
Step 2 Connect the two power connectors to the system board and backplane. (See Figure B-8.) Connect the
system board connector first, followed by the backplane connector. (See Figure B-12.)
Note The system board connector is located on the system board, below and to the left of the
backplane connector.
Figure B-12 Reconnecting the Power Cables to the Backplane
Step 3 Replace the air separator, holding all cables to the right of the separator as you slip it into the chassis.
(See Figure B-13.)
Power
supply
35695
3
Chassis bottom
Front panel
Power
supply
35696
3
Chassis bottom
Front panel
Power connector
Backplane
B-11
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Replacing the Chassis Cover
Figure B-13 Replacing the Air Separator
Step 4 Reinstall the power supply mounting screw.
Step 5 Replace the chassis cover using the procedures in the “Replacing the Chassis Cover” section on
page B-11.
Replacing the Chassis Cover
To replace the chassis cover, follow this procedure:
Step 1 Place the chassis bottom so that the front panel is facing you.
Step 2 Hold the chassis cover over the chassis bottom, and align each of the cover tabs with the chassis tabs at
the top rear of the chassis, as shown in Figure B-14.
Power
supply
36007
3
Chassis bottom
Front panel
B-12
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Replacing the Chassis Cover
Figure B-14 Replacing the Chassis Cover
Step 3 Lower the front of the top cover to close the chassis, and ensure the following:
•The chassis cover tabs fit under the edge of the chassis rear panel so that they are not exposed.
•The chassis tabs fit under the chassis cover so that they are not exposed.
•The chassis cover side tabs on both sides fit inside the chassis side panels so that they are not
exposed.
When the chassis cover is properly assembled, no tabs are visible.
Step 4 Secure the chassis cover with five screws.
Step 5 If you installed a different type of power supply (AC or DC) than was originally installed in the universal
gateway, place one of the power ratings labels that came in the plastic bag with the documentation
directly over the power ratings information on the rear panel. For example, if the original chassis came
with an AC power supply and you replaced it with a DC power supply, place the DC power ratings label
over the ratings stamped on the rear panel of the chassis. This will ensure that the correct power ratings
information appears on the rear panel. (See Figure B-15 and Figure B-16.)
Figure B-15 Power Ratings Label for DC Power Supply
Figure B-16 Power Ratings Label for AC Power Supply
Figure B-17
Step 6 Reinstall the chassis on a rack, desktop, or table.
Step 7 Reinstall all interface cables.
35662
3
Chassis bottom
Front panel
Chassis cover
INPUT -48/-60V == 3A 150VA
INPUT 100 – 240V~ 50/60Hz 2 – 1A
B-13
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Replacing the Chassis Cover
Step 8 Reconnect the AC power cord. Or, if you are using a DC-powered unit, refer to Figure B-18 or
Figure B-19, and complete Step a through Step e for each power supply.
Warning
The illustration shows the DC power supply terminal block. Wire the DC power supply using the
appropriate lugs at the wiring end, or with no lugs, as illustrated. The proper wiring sequence is
ground to ground, positive to positive, and negative to negative. Note that the ground wire should
always be connected first and disconnected last.
Statement 197
Figure B-18 Connecting DC Power Supply—Single Power Supply
a. Connect the DC connector to the rear of the power supply.
Caution Do not overtorque the terminal block contact screws. The recommended torque is 4.5 lb-in (0.50 N-m).
56022
Power switch
Source A - NEG
Source A - RTN
Source B - NEG
Source B - RTN
Ground
To DC source
DC connector
B-14
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Replacing the Chassis Cover
Figure B-19 Connecting DC Power Supply—Redundant Power Supply
Note This product is intended for installation in restricted access areas and is approved for connection
using 12 or 14 AWG copper conductors only. The installation must comply with all applicable
codes.
Note For central office installations, we recommend using a 6 AWG green ground wire with one end
connected to reliable earth. The other end of the wire should be crimped onto the double-hole
lug provided in the installation pack. The lug should be secured to the mating holes on the side
of the chassis with the two screws included in the accessory pack.
Note If you are installing a redundant power supply, you should attach appropriate-sized spade
terminals to the stripped ends of the ground and input wires.
b. Insert the safety ground (green wires) into the DC connector ground connector and tighten the
locking screw. Ensure that no bare wire is exposed.
c. Insert the +48 VDC return wires into the DC connectors (+) and tighten the locking screws. Ensure
that no bare wire is exposed.
d. Insert the –48 VDC wires into the DC negative connectors (–) and tighten the locking screws. Ensure
that no bare wire is exposed.
A- A+ B- B+
82637
Power switch
Source A - NEG
Source A - RTN
Source B - NEG
Source B - RTN
Ground
To DC source
DC connector
B-15
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Replacing the Chassis Cover
e. Make sure that the power supply wires are secured to cable strain-relief clamps with cable ties.
Warning
After wiring the DC power supply, remove the tape from the circuit breaker switch handle and
reinstate power by moving the handle of the circuit breaker to the ON position.
Statement 8
Step 9 Power up the universal gateway.
The internal power supply fan should power up.
B-16
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix B Replacing the Power Supply
Replacing the Chassis Cover
C-1
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
APPENDIX
C
Cabling Specifications
This appendix provides the following cabling and pinout information for the Cisco AS5350XM
universal gateway:
•Console and Auxiliary Port Cables and Pinouts, page C-1
•Ethernet Port Pinouts, page C-4
•BITS Port Pinouts, page C-5
•Alarm Port Pinouts, page C-5
•Bantam Jack Port Pinouts, page C-5
Note This appendix provides cabling information for chassis connections only. For cabling information for
the Cisco AS5350XM dial feature cards, see the Cisco AS5350XM and Cisco AS5400XM Universal
Gateways Card Installation Guide.
Note This appendix specifies pinouts only for the pins used. Pins not listed in the tables in this appendix are
not connected.
Console and Auxiliary Port Cables and Pinouts
The universal gateway arrives with a console and auxiliary cable kit, which contains the cable and
adapters you need to connect a console (an ASCII terminal or PC running terminal emulation software)
or modem to your universal gateway. The console and auxiliary cable kit includes:
•RJ-45-to-RJ-45 rollover cable. (See the next section, “Identifying a Rollover Cable,” for more
information.)
•RJ-45-to-DB-9 female DTE adapter (labeled TERMINAL).
•RJ-45-to-DB-25 female DTE adapter (labeled TERMINAL).
•RJ-45-to-DB-25 male DCE adapter (labeled MODEM).
For console connections, proceed to the “Console Port Cables and Pinouts” section on page C-2. For
modem connections, proceed to the “Auxiliary Port Cables and Pinouts” section on page C-4.
C-2
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix C Cabling Specifications
Console and Auxiliary Port Cables and Pinouts
Identifying a Rollover Cable
You can identify a rollover cable by comparing the two modular ends of the cable. Holding the cables
side by side, with the tab at the back, the wire connected to the pin on the outside of the left plug should
be the same color as the wire connected to the pin on the outside of the right plug. (See Figure C-1.) If
your cable was purchased from Cisco Systems, pin 1 will be white on one connector, and pin 8 will be
white on the other connector (a rollover cable reverses pins 1 and 8, 2 and 7, 3 and 6, and 4 and 5).
Figure C-1 Identifying a Rollover Cable
Console Port Cables and Pinouts
Use the RJ-45-to-RJ-45 rollover cable and RJ-45-to-DB-9 female DTE adapter (labeled TERMINAL) to
connect the console port to a PC running terminal emulation software. Figure C-2 shows how to connect
the console port to a PC. Table C-1 lists the pinouts for the asynchronous serial console port, the
RJ-45-to-RJ-45 rollover cable, and the RJ-45-to-DB-9 female DTE adapter (labeled TERMINAL).
Figure C-2 Connecting the Console Port to a PC
Pin 1 Pin 8
35697
Pin 1 and pin 8
should be the
same color
PC
37209
RJ-45-to-RJ-45
rollover cable
RJ-45-to-DB-9 adapter
(labeled TERMINAL)
Universal gateway
C-3
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix C Cabling Specifications
Console and Auxiliary Port Cables and Pinouts
Use the RJ-45-to-RJ-45 rollover cable and RJ-45-to-DB-25 female DTE adapter (labeled TERMINAL)
to connect the console port to a terminal. Figure C-3 shows how to connect the console port to a terminal.
Table C-2 lists the pinouts for the asynchronous serial console port, the RJ-45-to-RJ-45 rollover cable,
and the RJ-45-to-DB-25 female DTE adapter (labeled TERMINAL).
Figure C-3 Connecting the Console Port to a Terminal
Table C-1 Console Port Signaling and Cabling Using a DB-9 Adapter
Console Port (DTE) RJ-45-to-RJ-45 Rollover Cable
RJ-45-to-DB-9
Terminal Adapter Console Device
Signal RJ-45 Pin RJ-45 Pin DB-9 Pin Signal
RTS 11
1. Pin 1 is connected internally to pin 8.
88CTS
DTR276DSR
TxD362RxD
GND 4 5 5 GND
GND 5 4 5 GND
RxD633TxD
DSR724DTR
CTS 8117RTS
Table C-2 Console Port Signaling and Cabling Using a DB-25 Adapter
Console Port
(DTE)1
1. You can use the same cabling to connect a console to the auxiliary port.
RJ-45-to-RJ-45 Rollover Cable
RJ-45-to-DB-25
Terminal Adapter Console Device
Signal RJ-45 Pin RJ-45 Pin DB-25 Pin Signal
RTS 12
2. Pin 1 is connected internally to pin 8.
85CTS
DTR276DSR
TxD363RxD
GND 4 5 7 GND
GND 5 4 7 GND
RxD632TxD
DSR7220DTR
CTS 8114RTS
Terminal
RJ-45-to-RJ-45
rollover cable
RJ-45-to-DB-25 adapter
(labeled TERMINAL)
37210
Universal gateway
C-4
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix C Cabling Specifications
Ethernet Port Pinouts
Auxiliary Port Cables and Pinouts
Use the RJ-45-to-RJ-45 rollover cable and RJ-45-to-DB-25 male DCE adapter (labeled MODEM) to
connect the auxiliary port to a modem. Figure C-4 shows how to connect the auxiliary port to a modem.
Table C-3 lists the pinouts for the asynchronous serial auxiliary port, the RJ-45-to-RJ-45 rollover cable,
and the RJ-45-to-DB-25 male DCE adapter (labeled MODEM).

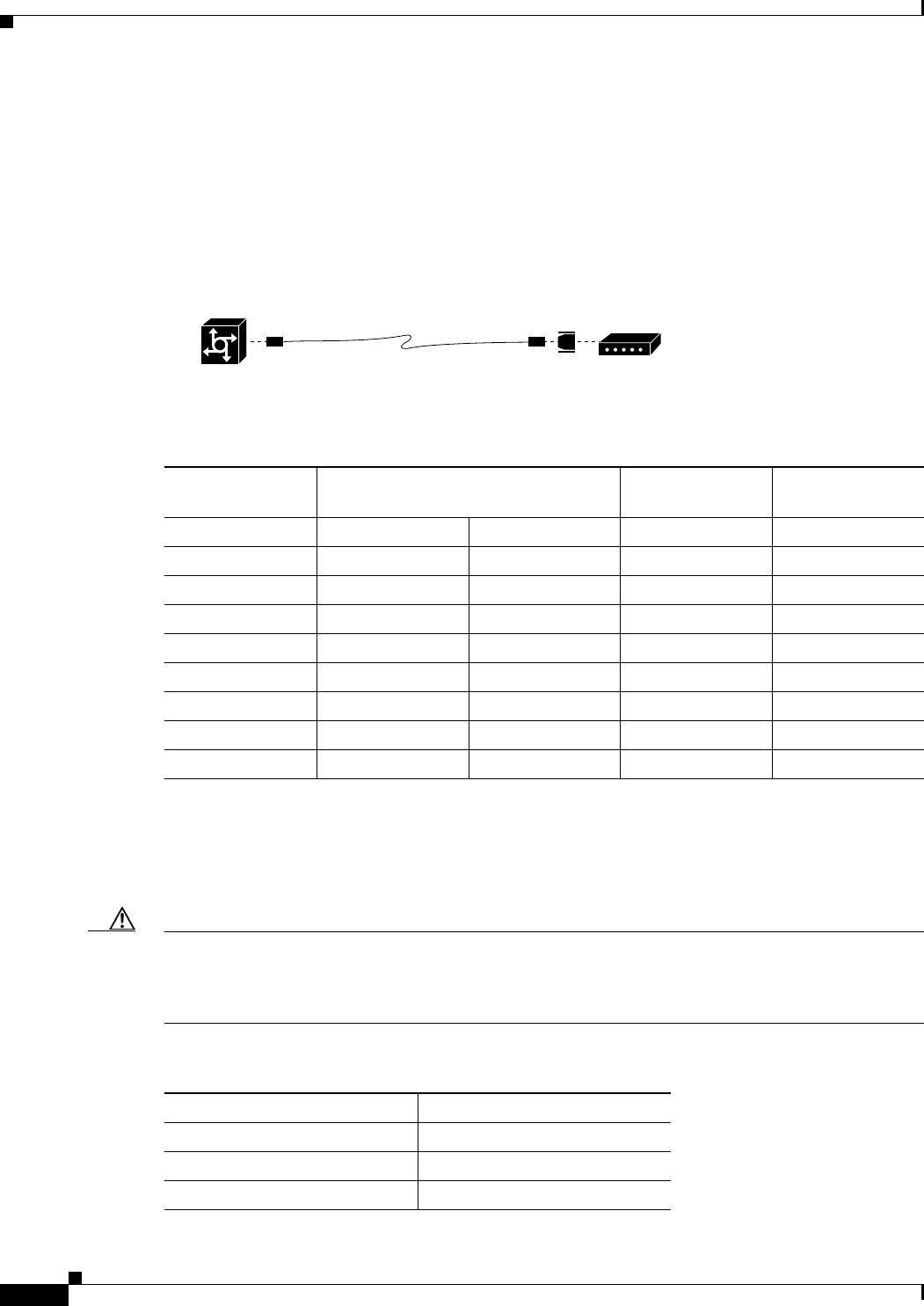

Figure C-4 Connecting the Auxiliary Port to a Modem
Ethernet Port Pinouts
Table C-4 lists the pinouts for the Ethernet ports.
Caution To comply with the intra-building lightning surge requirements of GR-1089-CORE, Issue III, October
2002, you must use a shielded cable when connecting to either of the Cisco AS5350XM universal
gateway Ethernet ports. The cable must consist of shielded cable terminated by shielded connectors on
both ends, with the cable shield material tied to both connectors.
Table C-3 Auxiliary Port Signaling and Cabling Using a DB-25 Adapter
AUX Port (DTE) RJ-45-to-RJ-45 Rollover Cable
RJ-45-to-DB-25
Modem Adapter Modem
Signal RJ-45 Pin RJ-45 Pin DB-25 Pin Signal
RTS184RTS
DTR2720DTR
TxD363TxD
GND 4 5 7 GND
GND 5 4 7 GND
RxD632RxD
DSR728DCD
CTS815CTS
RJ-45-to-RJ-45
rollover cable
RJ-45-to-DB-25 adapter
(labeled MODEM)
Modem
37211
Universal gateway
Table C-4 10/100BASE-T Port Pinouts
RJ-45 Pin Description
1 TXD+
2 TXD–
3RXD+
C-5
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix C Cabling Specifications
BITS Port Pinouts
BITS Port Pinouts
Table C-5 lists the pinouts for the BITS port.
Alarm Port Pinouts
Table C-6 lists the pinouts for the alarm port.
Bantam Jack Port Pinouts
Table C-7 lists the port pinouts for the bantam jacks on the 8-port T1 or E1 DFC and T3 DFC.
4–
5–
6RXD–
7–
8–
Table C-4 10/100BASE-T Port Pinouts (continued)
RJ-45 Pin Description
Table C-5 BITS Port Pinouts
Pin Description
1 BITS signal
2 Ground
Table C-6 Alarm Port Pinouts
Pin Description
1 Normally open
2Pole
3 Normally closed
Table C-7 Bantam Jack Port Pinouts
Pin Description
1Tip
2Ring
C-6
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Appendix C Cabling Specifications
Bantam Jack Port Pinouts
IN-1
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
INDEX
Numerics
10BASE-T port pinouts (table) C-4
A
AC power supply specifications 1-4
alarm port, connecting 3-13
alarm port, description 2-5
alarm port connection (figure) 3-13
alarm port pinouts C-5
alarm port pinouts (table) C-5
attaching rack brackets 3-4
attaching the chassis to a 19-inch rack (figure) 3-5
attaching the rubber feet (figure) 3-3
Auxiliary Port
adapter C-3
connecting 3-12
connecting a DTE or DCE device 2-5
pinouts C-4
specification 1-5
auxiliary port signaling and cabling using a DB-25 adapter
(table) C-4
B
Bantam Jack pinouts C-5
Bantam Jack port pinouts (table) C-5
BITS port, connecting to 3-12
BITS port, description 2-5
BITS port pinouts C-5
BITS port pinouts (table) C-5
blank slot covers, caution 3-6
C
Cables
console port C-2
rollover cable C-2
cabling specifications C-1
Caution
alarm port screw torque 3-13
blank slot covers 3-6
DIMM handling A-7
ESD wrist-strap safety 2-2
removing the fan tray 4-5
static electricity B-2
caution symbol, meaning of viii
Chassis
components 1-1
opening A-2
rack-mounting 3-1
removing the cover A-1, B-2
replacing cover A-8
replacing the cover B-11
safety recommendations A-1
setting on the desktop 3-1
specifications 1-4
chassis ground connection 3-5
chassis LEDs, descriptions 4-2
Cisco AS5350, installation 3-1
Cisco AS5350 Chassis (figure) A-10
Cisco AS5350 ground lug attachment (figure) 3-6
Cisco AS5350 overview 1-1
compact flash, replacing A-4
connecting a modem to the auxiliary port 2-5, 3-12
connecting a modem to the auxiliary port (figure) 3-12
Index
IN-2
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
connecting an alarm to the alarm port 3-13
connecting a PC to console port 2-4
connecting a signal generator to the BITS port 3-12
connecting the auxiliary port to a modem (figure) C-4
connecting the console port to the PC (figure) C-2
connecting the console port to the terminal (figure) C-3
connecting the console terminal (figure) 3-11
connecting the DC power supply, single power
supply B-13
connecting to a CSU/DSU (figure) 3-10
connecting to an E1 CSU/DSU (figure) 3-9
connecting to an Ethernet hub (figure) 3-7
connecting to a WAN 3-7
connecting to the auxiliary port 2-5
connecting to the BITS port (figure) 3-12
connecting to the network 3-6
Connections
preparing for network connections 2-3
T1 interface ports 3-7
WAN 3-7
connections, redundant power supply 3-17, B-4
connections, single power supply 3-16, B-3
console and auxiliary port pinouts and cables C-1
Console Port
adapter C-3
connections 3-11
default settings 2-4
description 2-4
pinouts C-3
specification 1-5
console port cables and pinouts C-2
console port description 2-4
console port signaling and cabling using a DB-25 adapter
(table) C-3
console port signaling and cabling using a DB-9 adapter
(table) C-3
conventions, document viii
D
DC power supply
wiring 3-15
DC power supply connections (figure) 3-16
description, slot numbering 4-2
dial feature card (DFC), description 1-3
dimensions, Cisco AS5350 chassis 1-4
disconnecting fan tray power connector (figure) 4-7
disconnecting the power connectors from the backplane
(figure) B-8
displaying environment status 4-3
document conventions viii
DTE device, connecting to the console port 2-4
E
electrostatic discharge (ESD), preventing 2-2
environment monitoring 4-2
environment status, displaying 4-3
equipment racks 3-3
error messages, compact flash A-6
Ethernet connections 2-4, 3-6
Ethernet port pinouts C-4
F
Fan Tray
caution 4-5
disconnecting power connector 4-7
installing 4-8
replacing 4-5
tightening screws 4-10
fan tray metal tabs (figure) 4-8
fan tray power connector (figure) 4-9
Figures
Attaching the Chassis to a 19-inch Rack 3-5
Attaching the Rubber Feet 3-3
Cisco AS5350 Chassis A-10
Index
IN-3
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
Cisco AS5350 Front Panel 1-2, 4-6
Cisco AS5350 ground lug attachment 3-6
Cisco AS5350 Rear Panel 1-2
Cisco AS5350 Slot Numbering 4-3
Connecting a Modem to the Auxiliary Port 3-12
Connecting the Auxiliary Port to a Modem C-4
Connecting the Console Port to the PC C-2
Connecting the Console Port to the Terminal C-3
Connecting the Console Terminal 3-11
Connecting the DC power supply, redundant power
supply B-14
Connecting the DC power supply, single power
supply B-13
Connecting to a CSU/DSU 3-10
Connecting to an E1 CSU/DSU 3-9
Connecting to an Ethernet Hub 3-7
Connecting to an RJ-45 (T1) Jack 3-8
Connecting to the Alarm Port 3-13
Connecting to the BITS Port 3-12
DC Power Supply Connections 3-16
Disconnecting the Power Connectors from the
Backplane B-8
Fan Tray Power Connector Disconnecting From
Receptacle 4-7
Inserting the Metal Tabs into Slots 4-9
Inserting the New SDRAM DIMM into the Socket A-8
Inserting the Power Supply in the Chassis B-10
Lifting the Power Supply Out of the Chassis B-9
Loosen Fan tray screws 4-6
Power Ratings Label for AC Power Supply B-12
Power Ratings Label for DC Power Supply B-12
Power supply connections, redundant power
supply B-4
Power supply connections, single power supply B-3
Power Supply Connectors B-8
Pulling the Edge of the Fan Tray 4-7
Rear Panel LEDs 4-1
Reconnecting the Power Cables to the Backplane B-10
Redundant power supply connections 3-17
Removing and Replacing the SDRAM DIMM A-7
Removing the Air Separator B-7
Removing the Chassis Cover A-3
Removing the Chassis Cover Screws A-3
Removing the Power Supply Mounting Screws B-6
Replacing the air separator B-11
Replacing the Chassis Cover A-9, B-12
rollover cable C-2
Slide Metal Tabs out of Slots 4-8
Sliding the Fan Tray Power Connector into
Receptacle 4-9
Standard Bracket Installation 3-4
Standard Rack-Mount Brackets 3-4
System Board Layout A-5
Tightening Fan Tray Screws 4-10
front panel (figure) 4-6
front panel illustration (figure) 1-2
G
grounding lug 3-5
H
handling DIMMs, caution A-7
help, getting 4-10
humidity specification 1-4
I
inserting fan tray into slots (figure) 4-9
inserting the new SDRAM DIMM (figure) A-8
inserting the power supply in the chassis (figure) B-10
installation 3-1
installation, tools and equipment required 2-3
installing in a rack 3-5
installing the fan tray 4-8
installing the power supply B-9
interface options, LAN and WAN 1-4
Index
IN-4
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
L
LAN connections 3-6
LAN interface options 1-4
LEDs
alarm (description) 4-2
BITS port (description) 4-2
chassis (table) 4-2
console/Auxiliary (description) 4-2
descriptions 4-1
Fast Ethernet (description) 4-2
rear panel (figure) 4-1
serial ports (description) 4-2
system board status (description) 4-2
troubleshooting 4-1
LEDs, descriptions 4-1
lifting the power supply from the chassis (figure) B-9
M
Memory
replacing SDRAM A-6
memory components, replacing A-1
modem, connecting to the auxiliary port 2-5
monitoring, temperature 4-2
N
Network Connections
Ethernet 2-4
LAN 3-6
WAN 3-7
network connections 3-6
network interfaces, troubleshooting 4-5
noise level specification 1-4
note symbol, meaning of viii
O
opening the chassis A-1, A-2, B-2
opening the fan tray (figure) 4-7
operating temperature 4-2
organization (table) vii
organization, document vii
overview, Cisco AS5350 1-1
P
Pinouts
alarm port C-5
auxiliary port C-4
Bantam Jack C-5
BITS port C-5
console and auxiliary ports C-1
console port C-3
Ethernet port C-4
Power Ratings Label for AC Power Supply (figure) B-12
Power Ratings Label for DC Power Supply (figure) B-12
Power Supply
description 1-4
installing B-9
power requirements 2-6
removing from the chassis B-6
specifications 1-4
power supply
connecting the redundant power supply B-14
power supply connectors (figure) B-8
preparing to connect to a network 2-3
preventing electrostatic discharge 2-2
processor specification 1-4
R
rack-mounting, required tools 3-4
rack-mounting the chassis 3-1
racks, equipment 3-3
Index
IN-5
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
rear panel illustration (figure) 1-2
rear panel LEDs (figure) 4-1
reconnecting the power cables to the backplane
(figure) B-10
regulatory compliance 1-5
removing and replacing the SDRAM DIMM (figure) A-7
removing the air separator (figure) B-7
removing the chassis cover A-1, B-2
removing the chassis cover (figure) A-3
removing the chassis cover screws (figure) A-3
removing the power supply mounting screws (figure) B-6
replacing memory components A-1
replacing SDRAM A-6
replacing the air separator (figure) B-11
replacing the chassis cover A-8, B-11
replacing the chassis cover (figure) A-9, B-12
replacing the compact flash A-4
replacing the fan tray 4-5
replacing the power supply, required tools B-2
required tools, rack-mounting 3-4
required tools, replacing the power supply B-2
required tools, SDRAM replacement A-6
rollover cable (figure) C-2
rollover cable, identifying C-2
S
Safety
general guidelines 2-1
with electricity 2-1
safety recommendations A-1
screws, loosen fan tray screws (figure) 4-6
SDRAM, replacing A-6
SDRAM replacement, required tools A-6
serial interfaces 1-4
serial ports, supported standards 2-5
service and support 4-10
setting up the chassis 3-1
single power supply 3-16
sliding fan tray out of slots (figure) 4-8
slot numbering (figure) 4-3
slot numbering, description 4-2
specifications, cabling C-1
specifications, Cisco AS5350 (table) 1-4
standard bracket installation (figure) 3-4
standard rack-mount brackets (figure) 3-4
static electricity, caution B-2
static electricity, preventing 2-2
support, getting technical 4-10
supported standards, serial ports 2-5
Symbols
Caution viii
Note viii
Timesaver viii
Tips viii
system board (figure) A-5
T
T1 card, connections 3-7
Tables
10BASE-T Port Pinouts C-4
Alarm Port Pinouts C-5
Auxiliary Port Signaling and Cabling using a DB-25
Adapter C-4
Bantam Jack Port Pinouts C-5
BITS Port Pinouts C-5
Chassis LEDs 4-2
Chassis Specifications 1-4
Console Port Signaling and Cabling Using a DB-25
Adapter C-3
Console Port Signaling and Cabling using a DB-9
Adapter C-3
Organization vii
technical support 4-10
temperature, monitoring 4-2
temperature specification 1-4
tightening fan tray screws (figure) 4-10
Index
IN-6
Cisco AS5350XM Universal Gateway Chassis Installation Guide
OL-6417-02
timesaver symbol, meaning of viii
tips symbol, meaning of viii
Tools Required
for installation 2-3
troubleshooting 4-1
troubleshooting, using LEDs 4-1
troubleshooting network interfaces 4-5
W
WAN connections 3-7
WAN connection to RJ-45c (figure) 3-8
WAN interface options 1-4
weight, Cisco AS5350 chassis 1-4
wiring, DC power supply 3-15
