Manual For The 69669 1.8 Horsepower, 26 Gallon, 150 PSI Oilless Air Compressor

User Manual: Manual for the 69669 1.8 Horsepower, 26 Gallon, 150 PSI PSI Oilless Air Compressor 26 gal. 1.8 HP 150 PSI Oilless Air Compressor

Open the PDF directly: View PDF .
Page Count: 48

!"#"$%&'(%)*+#"$*%,$-%.$$/-00)))1.,(+&(2(*"3.$14&5

65,"7%&'(%$*4.8"4,7%#'//&($%,$-%/(&9'4$#'//&($:.,(+&(2(*"3.$14&5

GAL oilless

air compressor

GAL oilless

air compressor

Owner’s Manual & Safety Instructions

Save This Manual%Keep this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the

back of the manual near the assembly diagram (or month and year of purchase if product has no number).

Keep this manual and the receipt in a safe and dry place for future reference. 17f

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-888-866-5797 as soon as possible.

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein.

Tools required for assembly an d se rv ic e may n ot b e in cl uded.

;*,9%$."#%5,$*(",7%+*2&(*%'#"83%$."#%/(&9'4$1%

<,"7'(*%$&%9&%#&%4,8%(*#'7$%"8%#*("&'#%"8='(>1%

?@!6%ABC?%D@EF@G1

Page 2 <&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1 Item 69666 69669

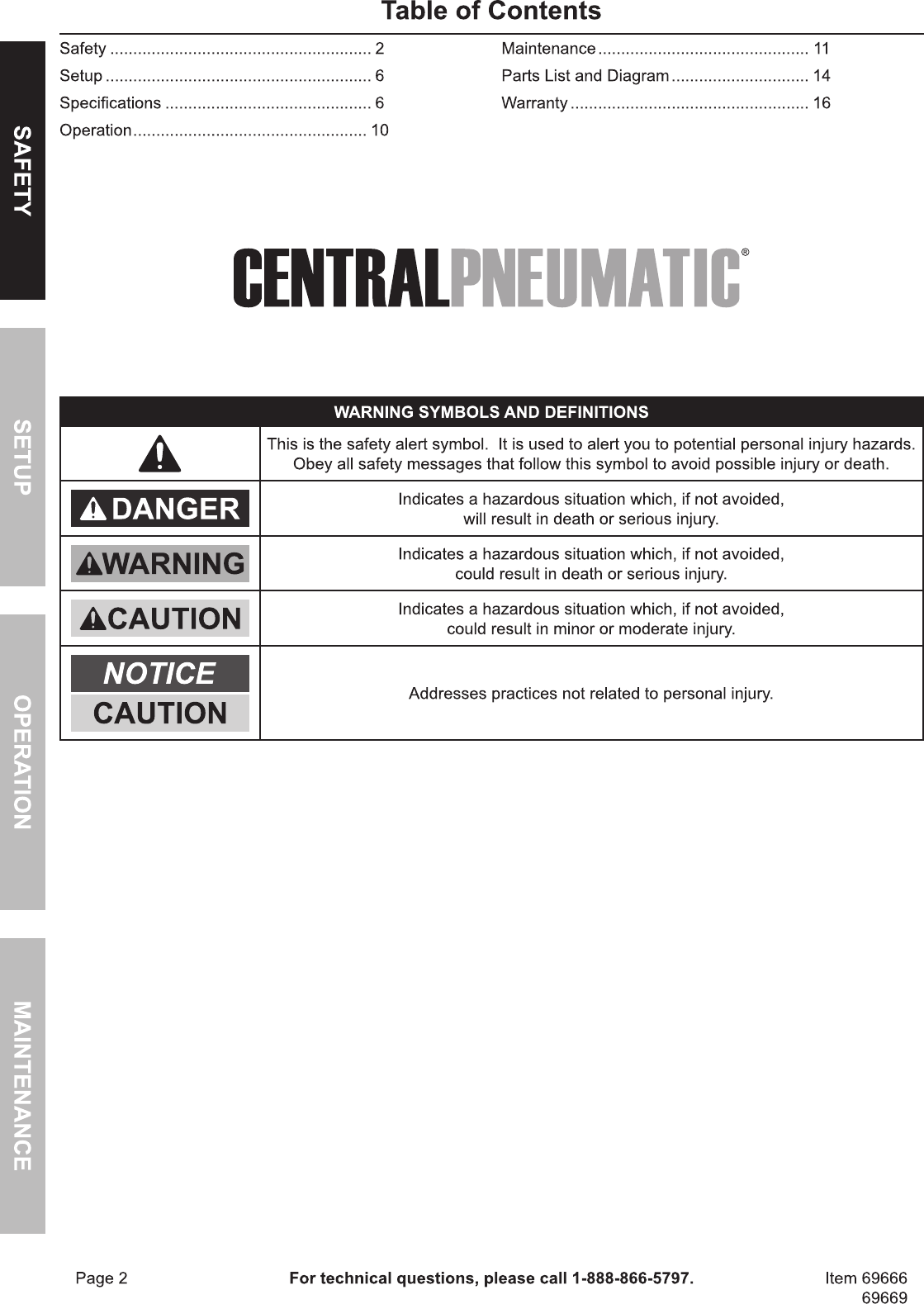

?@<6AQ RS6;@ACRE D@CEA6E@ET6?6AFS

A,+7*%&2%T&8$*8$#

Safety ......................................................... 2

Setup .......................................................... 6

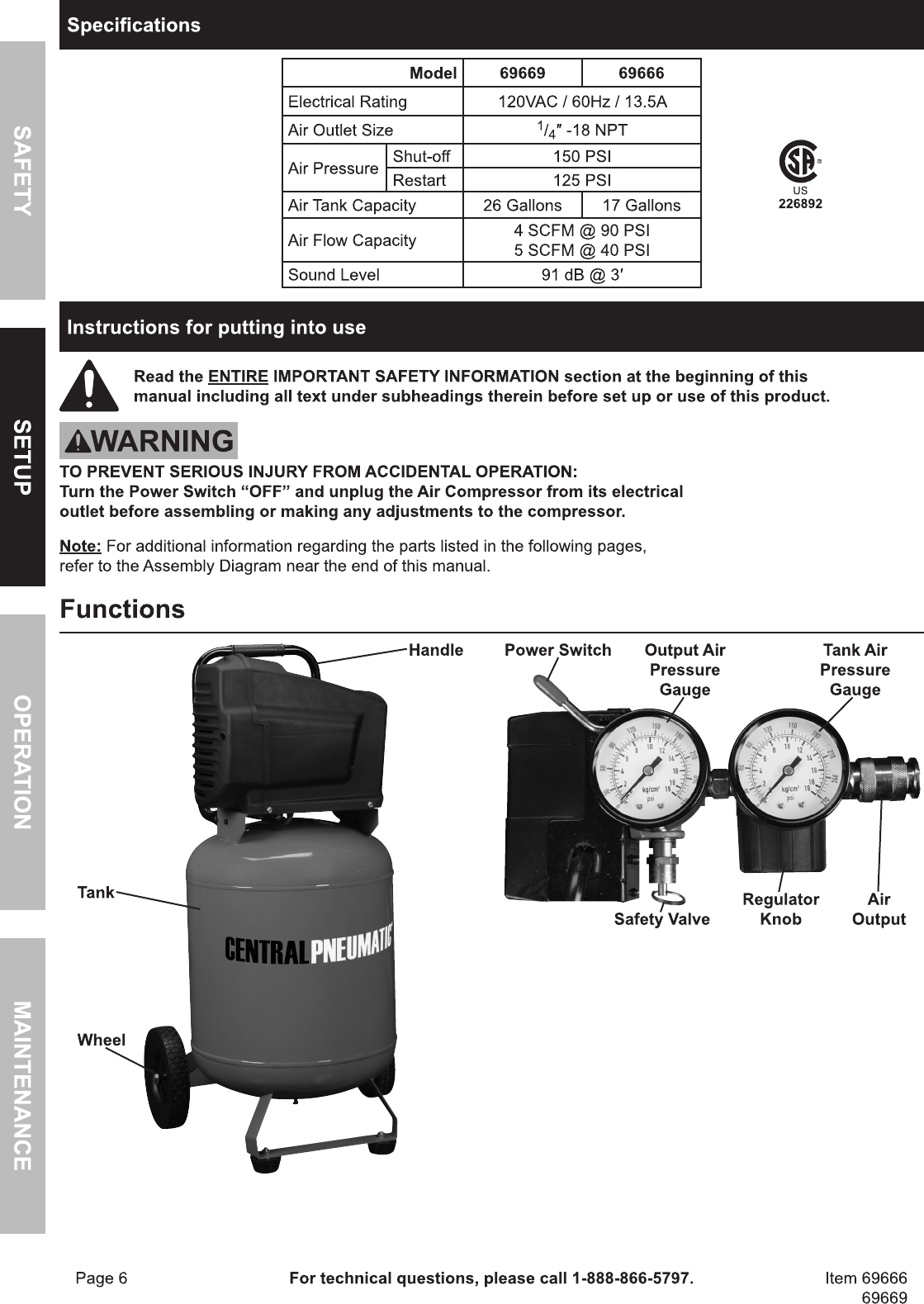

Specifications ............................................. 6

Operation ................................................... 10

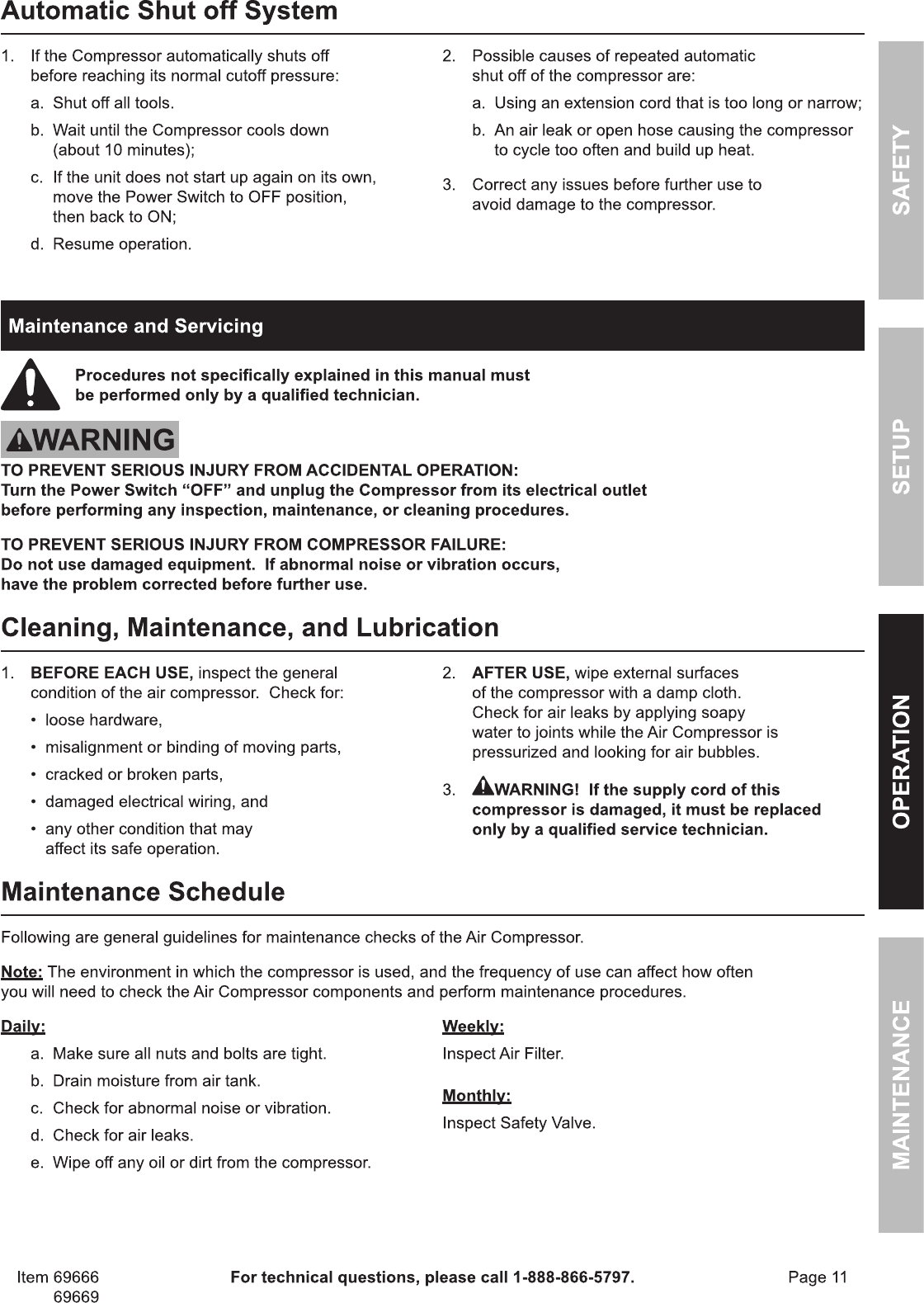

Maintenance .............................................. 11

Parts List and Diagram .............................. 14

Warranty .................................................... 16

U@;ECEV%?QDWRG?%@EX%X6<CECACRE?

This is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messages that

follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

Page 3<&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1Item 69666 69669

?@<6AQRS6;@ACRED@CEA6E@ET6 ?6AFS

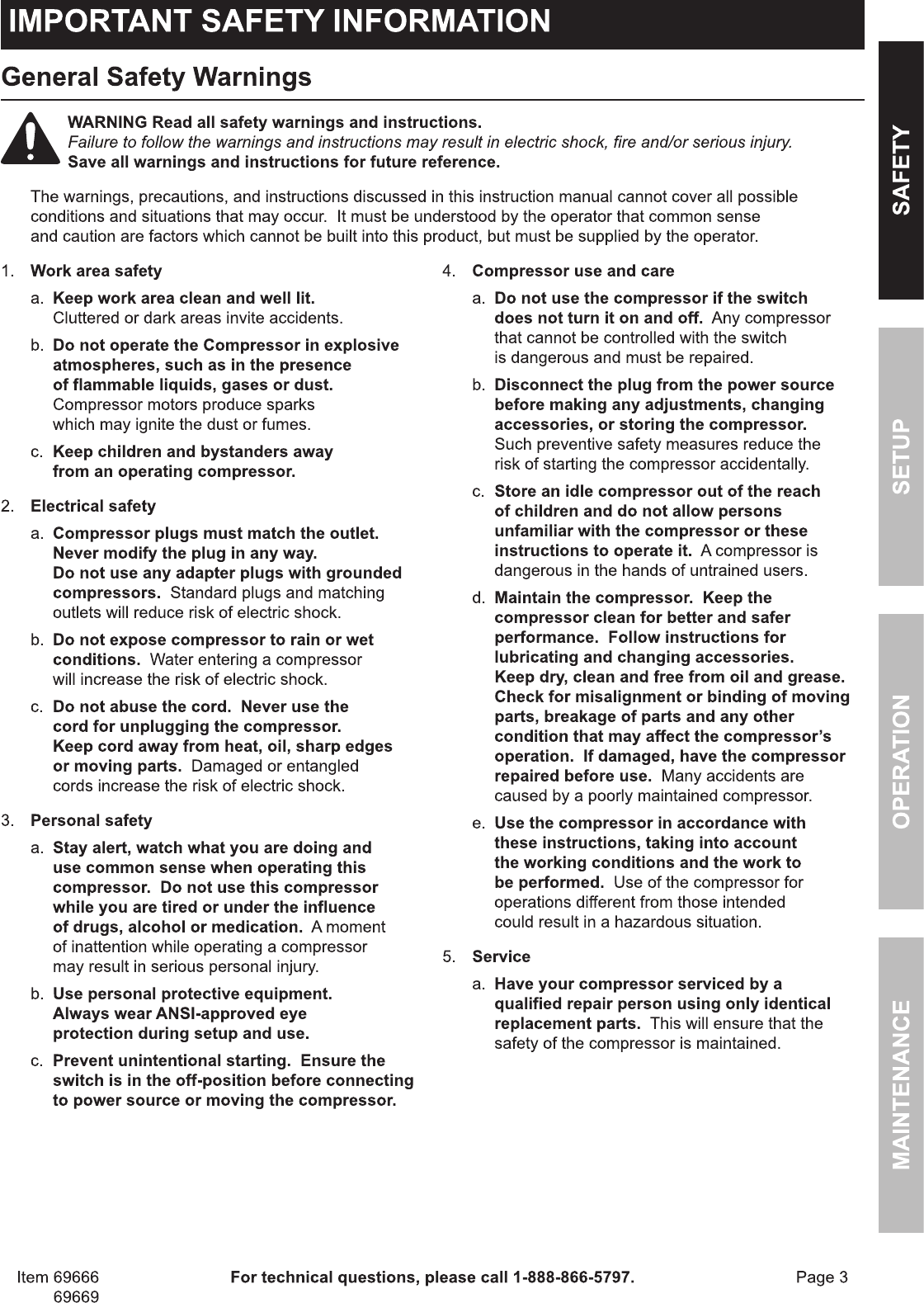

CDSR;A@EA%?@<6AQ%CE<R;D@ACRE

V*8*(,7%?,2*$>%U,(8"83#

% U@;ECEV%;*,9%,77%#,2*$>%),(8"83#%,89%"8#$('4$"&8#1%%%

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

?,Y*%,77%),(8"83#%,89%"8#$('4$"&8#%2&(%2'$'(*%(*2*(*84*1

The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible

conditions and situations that may occur. It must be understood by the operator that common sense

and caution are factors which cannot be built into this product, but must be supplied by the operator.

1. U&(Z%,(*,%#,2*$>

a. [**/%)&(Z%,(*,%47*,8%,89%)*77%7"$1

Cluttered or dark areas invite accidents.

b. X&%8&$%&/*(,$*%$.*%T&5/(*##&(%"8%*\/7&#"Y*%

,$5&#/.*(*#I%#'4.%,#%"8%$.*%/(*#*84*%

&2%27,55,+7*%7"H'"9#I%3,#*#%&(%9'#$1

Compressor motors produce sparks

which may ignite the dust or fumes.

c. [**/%4."79(*8%,89%+>#$,89*(#%,),>%

2(&5%,8%&/*(,$"83%4&5/(*##&(1

2. 67*4$("4,7%#,2*$>

a. T&5/(*##&(%/7'3#%5'#$%5,$4.%$.*%&'$7*$1%%

E*Y*(%5&9"2>%$.*%/7'3%"8%,8>%),>1%%

X&%8&$%'#*%,8>%,9,/$*(%/7'3#%)"$.%3(&'89*9%

4&5/(*##&(#1 Standard plugs and matching

outlets will reduce risk of electric shock.

b. X&%8&$%*\/&#*%4&5/(*##&(%$&%(,"8%&(%)*$%

4&89"$"&8#1 Water entering a compressor

will increase the risk of electric shock.

c. X&%8&$%,+'#*%$.*%4&(91%%E*Y*(%'#*%$.*%

4&(9%2&(%'8/7'33"83%$.*%4&5/(*##&(1%%

[**/%4&(9%,),>%2(&5%.*,$I%&"7I%#.,(/%*93*#%

&(%5&Y"83%/,($#1%%Damaged or entangled

cords increase the risk of electric shock.

3. S*(#&8,7%#,2*$>

a. ?$,>%,7*($I%),$4.%).,$%>&'%,(*%9&"83%,89%

'#*%4&55&8%#*8#*%).*8%&/*(,$"83%$."#%

4&5/(*##&(1%%X&%8&$%'#*%$."#%4&5/(*##&(%

)."7*%>&'%,(*%$"(*9%&(%'89*(%$.*%"827'*84*%

&2%9('3#I%,74&.&7%&(%5*9"4,$"&81 A moment

of inattention while operating a compressor

may result in serious personal injury.

b. F#*%/*(#&8,7%/(&$*4$"Y*%*H'"/5*8$1%%

@7),>#%)*,(%@E?CK,//(&Y*9%*>*%

/(&$*4$"&8%9'("83%#*$'/%,89%'#*1

c. S(*Y*8$%'8"8$*8$"&8,7%#$,($"831%%68#'(*%$.*%

#)"$4.%"#%"8%$.*%&22K/&#"$"&8%+*2&(*%4&88*4$"83%

$&%/&)*(%#&'(4*%&(%5&Y"83%$.*%4&5/(*##&(1

4. T&5/(*##&(%'#*%,89%4,(*

a. X&%8&$%'#*%$.*%4&5/(*##&(%"2%$.*%#)"$4.%

9&*#%8&$%$'(8%"$%&8%,89%&221 Any compressor

that cannot be controlled with the switch

is dangerous and must be repaired.

b. X"#4&88*4$%$.*%/7'3%2(&5%$.*%/&)*(%#&'(4*%

+*2&(*%5,Z"83%,8>%,9='#$5*8$#I%4.,83"83%

,44*##&("*#I%&(%#$&("83%$.*%4&5/(*##&(1

Such preventive safety measures reduce the

risk of starting the compressor accidentally.

c. ?$&(*%,8%"97*%4&5/(*##&(%&'$%&2%$.*%(*,4.%

&2%4."79(*8%,89%9&%8&$%,77&)%/*(#&8#%

'82,5"7",(%)"$.%$.*%4&5/(*##&(%&(%$.*#*%

"8#$('4$"&8#%$&%&/*(,$*%"$1 A compressor is

dangerous in the hands of untrained users.

d. D,"8$,"8%$.*%4&5/(*##&(1%%[**/%$.*%

4&5/(*##&(%47*,8%2&(%+*$$*(%,89%#,2*(%

/*(2&(5,84*1%%<&77&)%"8#$('4$"&8#%2&(%

7'+("4,$"83%,89%4.,83"83%,44*##&("*#1%%

[**/%9(>I%47*,8%,89%2(**%2(&5%&"7%,89%3(*,#*1%%

T.*4Z%2&(%5"#,7"385*8$%&(%+"89"83%&2%5&Y"83%

/,($#I%+(*,Z,3*%&2%/,($#%,89%,8>%&$.*(%

4&89"$"&8%$.,$%5,>%,22*4$%$.*%4&5/(*##&(]#%

&/*(,$"&81%%C2%9,5,3*9I%.,Y*%$.*%4&5/(*##&(%

(*/,"(*9%+*2&(*%'#*1 Many accidents are

caused by a poorly maintained compressor.

e. F#*%$.*%4&5/(*##&(%"8%,44&(9,84*%)"$.%

$.*#*%"8#$('4$"&8#I%$,Z"83%"8$&%,44&'8$%

$.*%)&(Z"83%4&89"$"&8#%,89%$.*%)&(Z%$&%

+*%/*(2&(5*91 Use of the compressor for

operations different from those intended

could result in a hazardous situation.

5. ?*(Y"4*

a. B,Y*%>&'(%4&5/(*##&(%#*(Y"4*9%+>%,%

H',7"2"*9%(*/,"(%/*(#&8%'#"83%&87>%"9*8$"4,7%

(*/7,4*5*8$%/,($#1 This will ensure that the

safety of the compressor is maintained.

Page 4 <&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1 Item 69666 69669

?@<6AQ RS6;@ACRE D@CEA6E@ET6?6AFS

@"(%T&5/(*##&(%?,2*$>%U,(8"83#

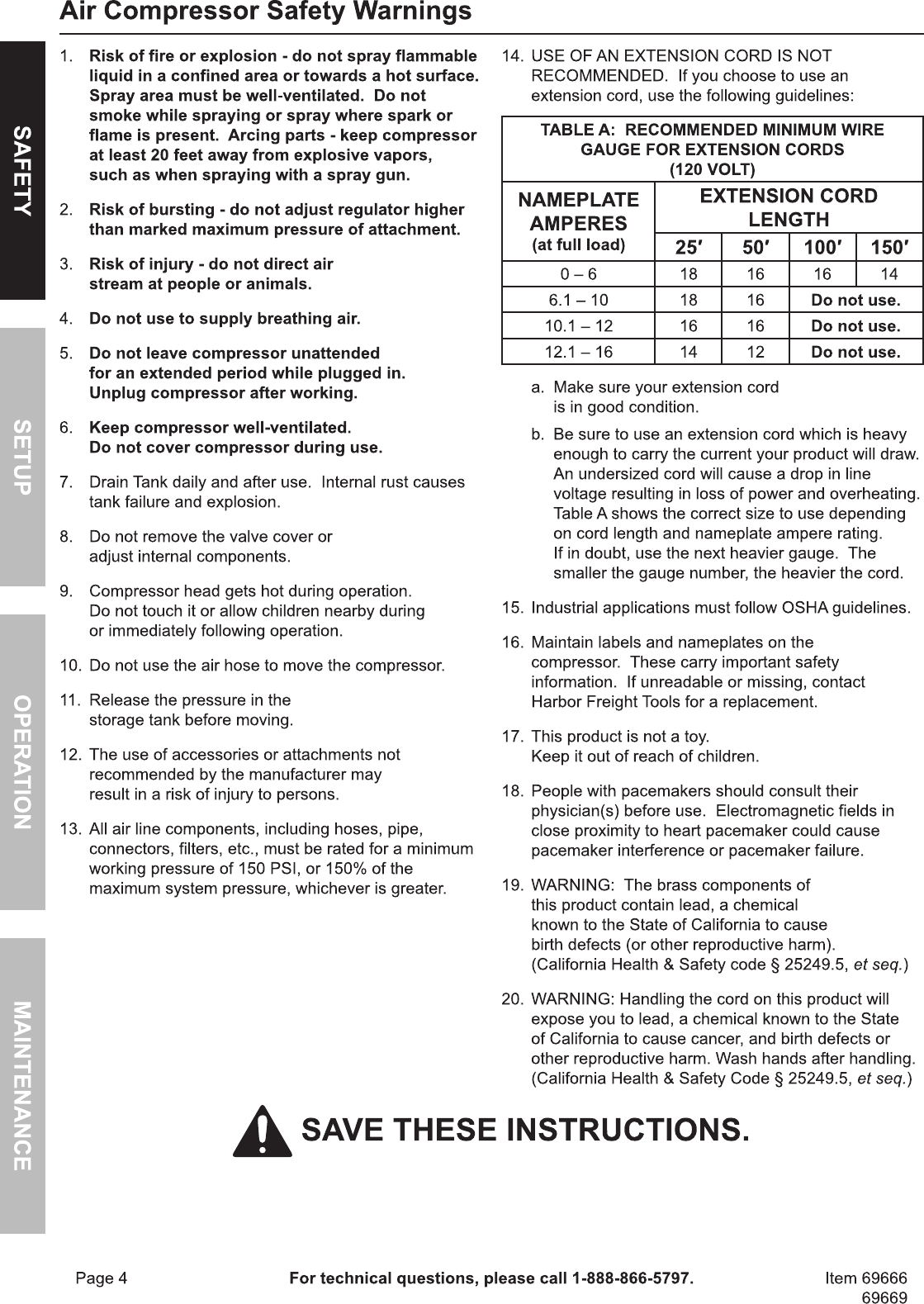

1. ;"#Z%&2%2"(*%&(%*\/7&#"&8%K%9&%8&$%#/(,>%

27,55,+7*%7"H'"9%"8%,%4&82"8*9%,(*,%&(%$&),(9#%,%

.&$%#'(2,4*1%%?/(,>%,(*,%5'#$%+*%)*77KY*8$"7,$*91%%

X&%8&$%#5&Z*%)."7*%#/(,>"83%&(%#/(,>%).*(*%

#/,(Z%&(%27,5*%"#%/(*#*8$1%%@(4"83%/,($#%K%Z**/%

4&5/(*##&(%,$%7*,#$%^_%2**$%,),>%2(&5%*\/7&#"Y*%

Y,/&(#I%#'4.%,#%).*8%#/(,>"83%)"$.%,%#/(,>%3'81

2. ;"#Z%&2%+'(#$"83%K%9&%8&$%,9='#$%(*3'7,$&(%."3.*(%

$.,8%5,(Z*9%5,\"5'5%/(*##'(*%&2%,$$,4.5*8$1

3. ;"#Z%&2%"8='(>%K%9&%8&$%9"(*4$%,"(%

#$(*,5%,$%/*&/7*%&(%,8"5,7#1

4. X&%8&$%'#*%$&%#'//7>%+(*,$."83%,"(1

5. X&%8&$%7*,Y*%4&5/(*##&(%'8,$$*89*9%

2&(%,8%*\$*89*9%/*("&9%)."7*%/7'33*9%"81%%

F8/7'3%4&5/(*##&(%,2$*(%)&(Z"831

6. [**/%4&5/(*##&(%)*77KY*8$"7,$*91%%

X&%8&$%4&Y*(%4&5/(*##&(%9'("83%'#*1

7. Drain Tank daily and after use. Internal rust causes

tank failure and explosion.

8. Do not remove the valve cover or

adjust internal components.

9. Compressor head gets hot during operation.

Do not touch it or allow children nearby

during or immediately following operation.

10. Do not use the air hose to move the compressor.

11. Release the pressure in the

storage tank before moving.

12. The use of accessories or attachments not

recommended by the manufacturer may

result in a risk of injury to persons.

13. All air line components, including hoses, pipe,

connectors, filters, etc., must be rated for a minimum

working pressure of 150 PSI, or 150% of the

maximum system pressure, whichever is greater.

14. USE OF AN EXTENSION CORD IS NOT

RECOMMENDED. If you choose to use an

extension cord, use the following guidelines:

A@WG6%@-%%;6TRDD6EX6X%DCECDFD%UC;6%

V@FV6%<R;%6`A6E?CRE%TR;X?%

aJ^_%!RGAb

E@D6SG@A6%

@DS6;6?

a,$%2'77%7&,9b

6`A6E?CRE%TR;X%

G6EVAB

25′ 50′ 100′ 150′

0 – 6 18 16 16 14

6.1 – 10 18 16 X&%8&$%'#*1

10.1 – 12 16 16 X&%8&$%'#*1

12.1 – 16 14 12 X&%8&$%'#*1

a. Make sure your extension cord

is in good condition.

b. Be sure to use an extension cord which

is heavy enough to carry the current your

product will draw. An undersized cord will

cause a drop in line voltage resulting in loss

of power and overheating. Table A shows the

correct size to use depending on cord length

and nameplate ampere rating. If in doubt,

use the next heavier gauge. The smaller

the gauge number, the heavier the cord.

15. Industrial applications must follow OSHA guidelines.

16. Maintain labels and nameplates on the

compressor. These carry important safety

information. If unreadable or missing, contact

Harbor Freight Tools for a replacement.

17. This product is not a toy.

Keep it out of reach of children.

18. People with pacemakers should consult their

physician(s) before use. Electromagnetic fields in

close proximity to heart pacemaker could cause

pacemaker interference or pacemaker failure.

%?@!6%AB6?6%CE?A;FTACRE?1

Page 5<&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1Item 69666 69669

?@<6AQRS6;@ACRED@CEA6E@ET6 ?6AFS

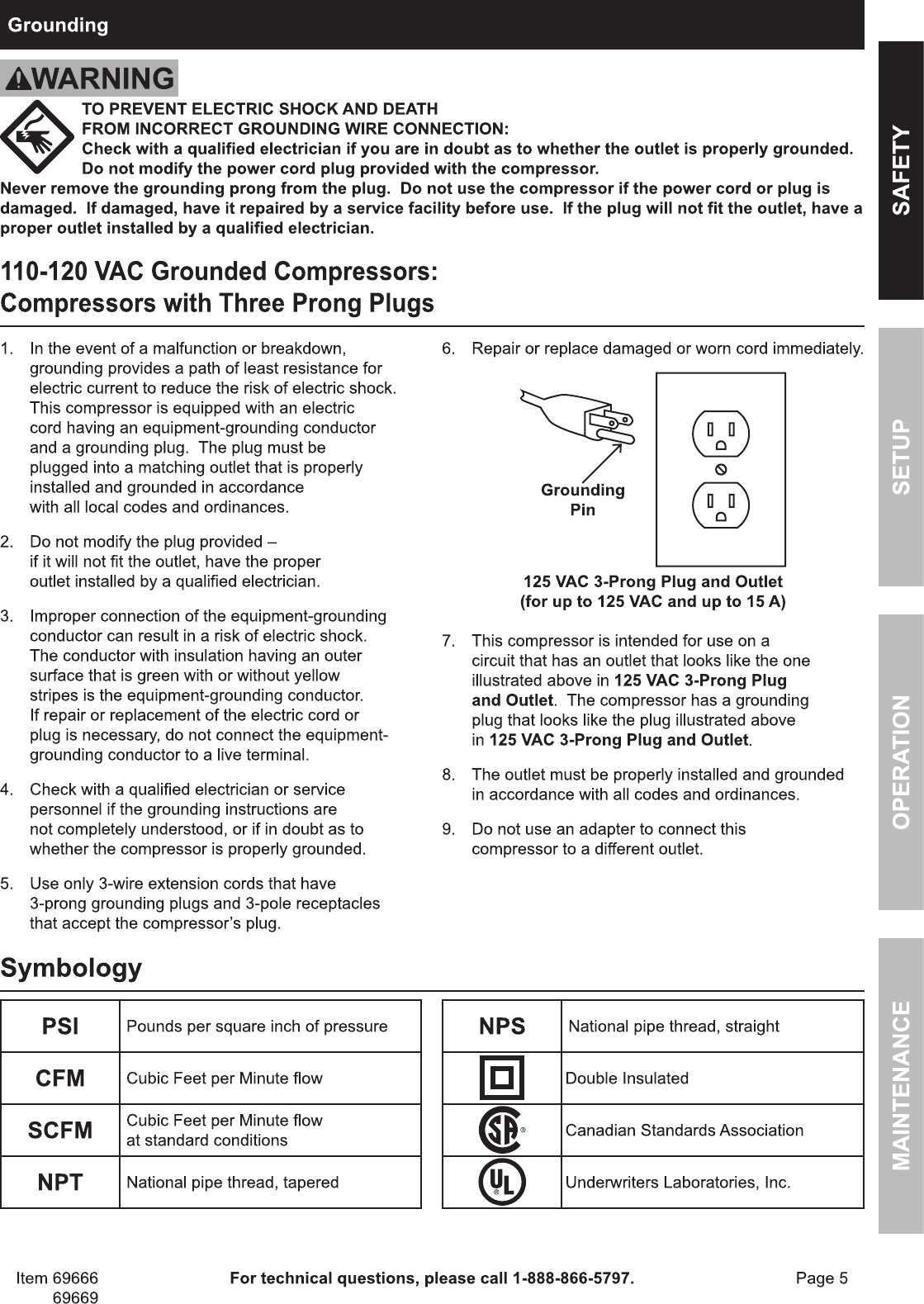

V(&'89"83

AR%S;6!6EA%6G6TA;CT%?BRT[%@EX%X6@AB%%

<;RD%CETR;;6TA%V;RFEXCEV%UC;6%TREE6TACRE-%

T.*4Z%)"$.%,%H',7"2"*9%*7*4$("4",8%"2%>&'%,(*%"8%9&'+$%,#%$&%).*$.*(%$.*%&'$7*$%"#%/(&/*(7>%

3(&'89*91%%X&%8&$%5&9"2>%$.*%/&)*(%4&(9%/7'3%/(&Y"9*9%)"$.%$.*%4&5/(*##&(1%%%

E*Y*(%(*5&Y*%$.*%3(&'89"83%/(&83%2(&5%$.*%/7'31%%X&%8&$%'#*%$.*%4&5/(*##&(%"2%$.*%/&)*(%4&(9%&(%/7'3%"#%

9,5,3*91%%C2%9,5,3*9I%.,Y*%"$%(*/,"(*9%+>%,%#*(Y"4*%2,4"7"$>%+*2&(*%'#*1%%C2%$.*%/7'3%)"77%8&$%2"$%$.*%&'$7*$I%.,Y*%

,%/(&/*(%&'$7*$%"8#$,77*9%+>%,%H',7"2"*9%*7*4$("4",81

JJ_KJ^_%!@T%V(&'89*9%T&5/(*##&(#-%

T&5/(*##&(#%)"$.%A.(**%S(&83%S7'3#

1. In the event of a malfunction or breakdown,

grounding provides a path of least resistance for

electric current to reduce the risk of electric shock.

This compressor is equipped with an electric

cord having an equipment-grounding conductor

and a grounding plug. The plug must be

plugged into a matching outlet that is properly

installed and grounded in accordance

with all local codes and ordinances.

2. Do not modify the plug provided –

if it will not fit the outlet, have the proper

outlet installed by a qualified electrician.

3. Improper connection of the equipment-grounding

conductor can result in a risk of electric shock.

The conductor with insulation having an outer

surface that is green with or without yellow

stripes is the equipment-grounding conductor.

If repair or replacement of the electric cord or

plug is necessary, do not connect the equipment-

grounding conductor to a live terminal.

4. Check with a qualified electrician or service

personnel if the grounding instructions are

not completely understood, or if in doubt as to

whether the compressor is properly grounded.

5. Use only 3-wire extension cords that have

3-prong grounding plugs and 3-pole receptacles

that accept the compressor’s plug.

6. Repair or replace damaged or

worn cord immediately.

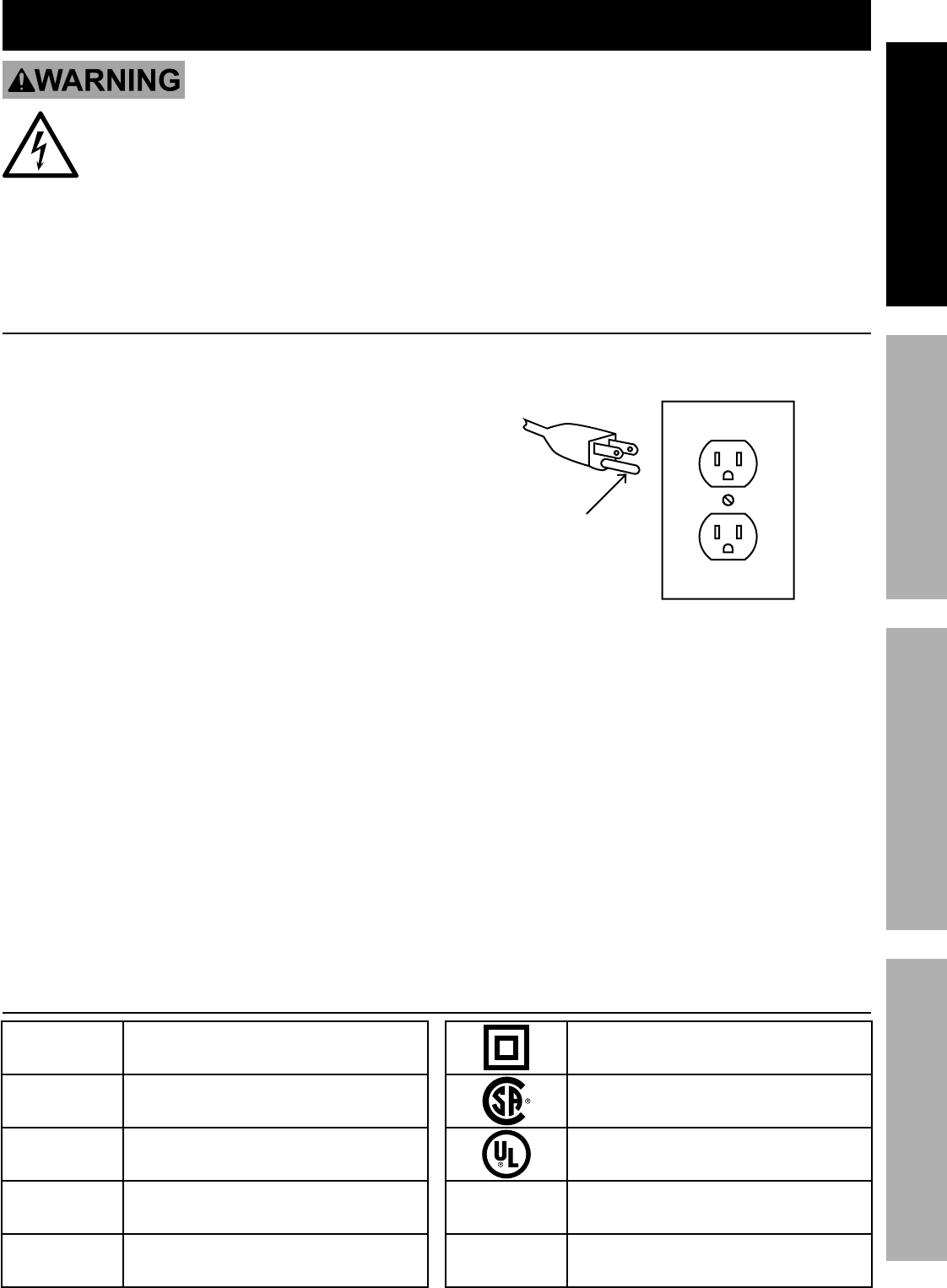

J^N%!@T%cKS(&83%S7'3%,89%R'$7*$

a2&(%'/%$&%J^N%!@T%,89%'/%$&%JN%@b

V(&'89"83%

S"8

7. This compressor is intended for use on a

circuit that has an outlet that looks like the one

illustrated above in J^N%!@T%cKS(&83%S7'3%

,89%R'$7*$. The compressor has a grounding

plug that looks like the plug illustrated above

in J^N%!@T%cKS(&83%S7'3%,89%R'$7*$.

8. The outlet must be properly installed and grounded

in accordance with all codes and ordinances.

9. Do not use an adapter to connect this

compressor to a different outlet.

?>5+&7&3>

S?C Pounds per square inch of pressure

T<D Cubic Feet per Minute flow

?T<D Cubic Feet per Minute flow

at standard conditions

ESA National pipe thread, tapered

ES? National pipe thread, straight

Double Insulated

Canadian Standards Association

Underwriters Laboratories, Inc.

!@TVolts Alternating Current

@Amperes

Page 6 <&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1 Item 69666 69669

?@<6AQ RS6;@ACRE D@CEA6E@ET6?6AFS

?/*4"2"4,$"&8#

D&9*7 MPMMP MPMMM

Electrical Rating 120VAC / 60Hz / 13.5A

Air Outlet Size 1/4″ -18 NPT

Air Pressure Shut-off 150 PSI

Restart 125 PSI

Air Tank Capacity 26 Gallons 17 Gallons

Air Flow Capacity 4 SCFM @ 90 PSI

5 SCFM @ 40 PSI

Sound Level 91 dB @ 3′

C8#$('4$"&8#%2&(%/'$$"83%"8$&%'#*

% ;*,9%$.*%6EAC;6%CDSR;A@EA%?@<6AQ%CE<R;D@ACRE%#*4$"&8%,$%$.*%+*3"88"83%&2%$."#%

5,8',7%"847'9"83%,77%$*\$%'89*(%#'+.*,9"83#%$.*(*"8%+*2&(*%#*$%'/%&(%'#*%&2%$."#%/(&9'4$1

AR%S;6!6EA%?6;CRF?%CEdF;Q%<;RD%@TTCX6EA@G%RS6;@ACRE-%

A'(8%$.*%S&)*(%?)"$4.%eR<<f%,89%'8/7'3%$.*%@"(%T&5/(*##&(%2(&5%"$#%*7*4$("4,7%

&'$7*$%+*2&(*%,##*5+7"83%&(%5,Z"83%,8>%,9='#$5*8$#%$&%$.*%4&5/(*##&(1

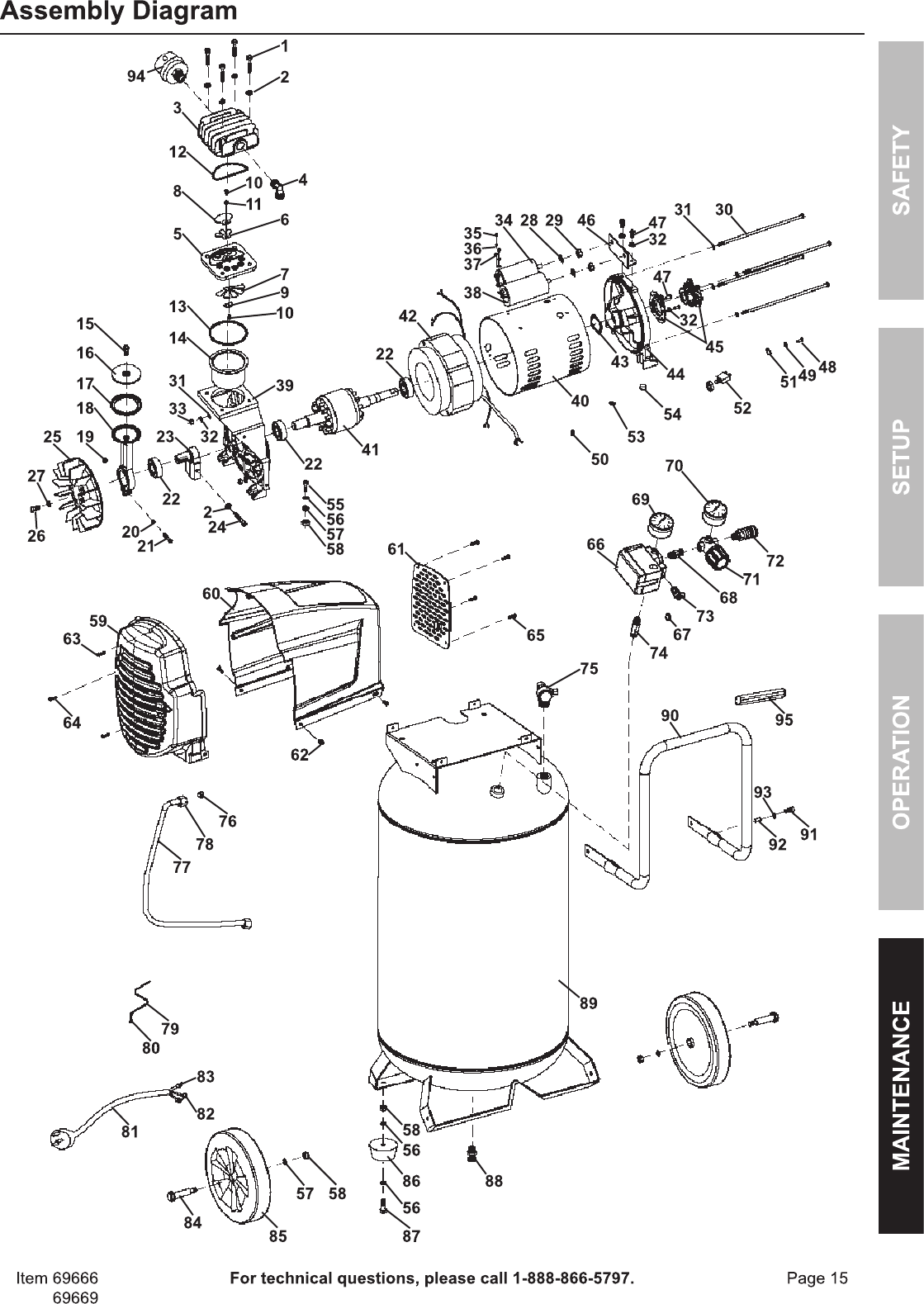

E&$*- For additional information regarding the parts listed in the following pages,

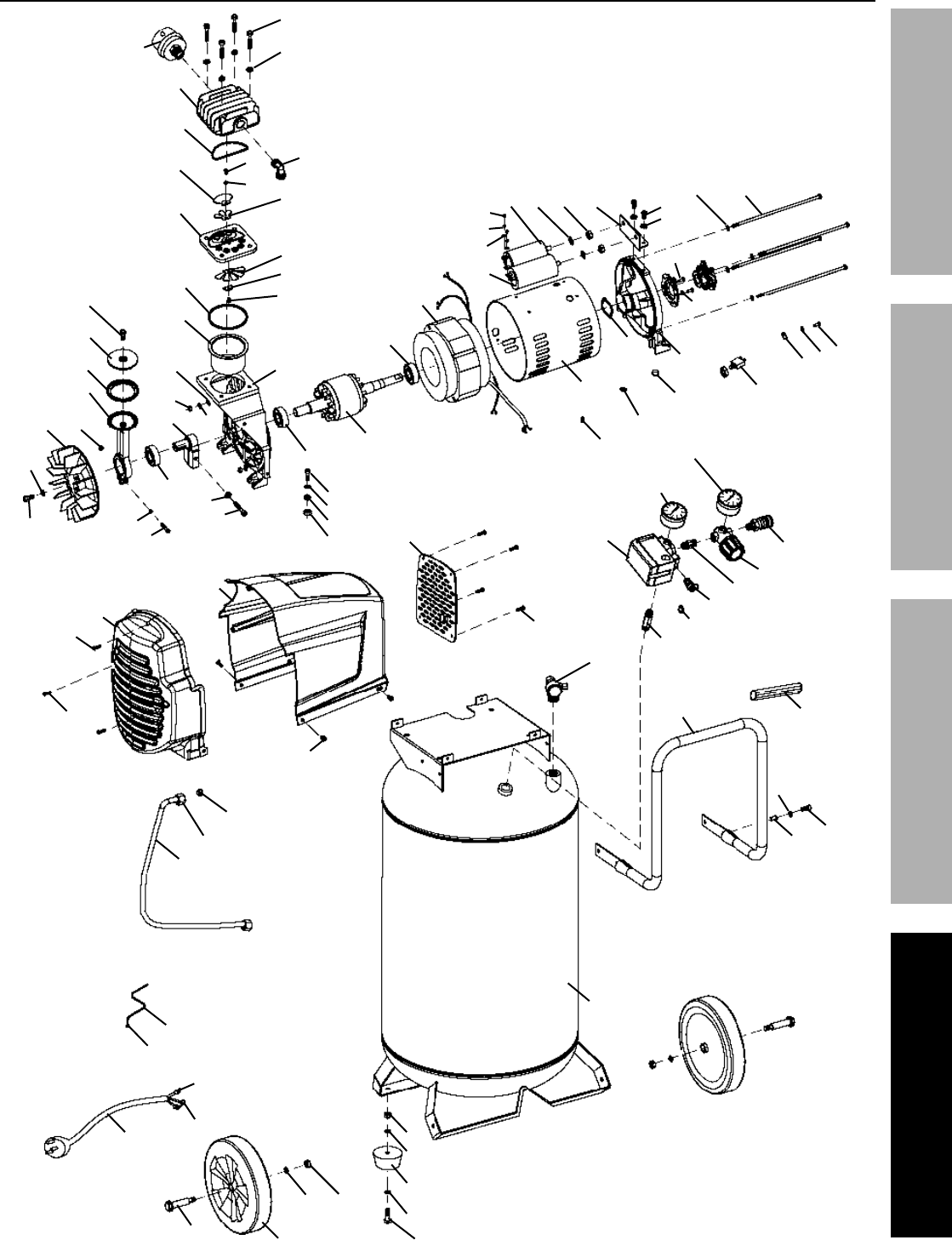

refer to the Assembly Diagram near the end of this manual.

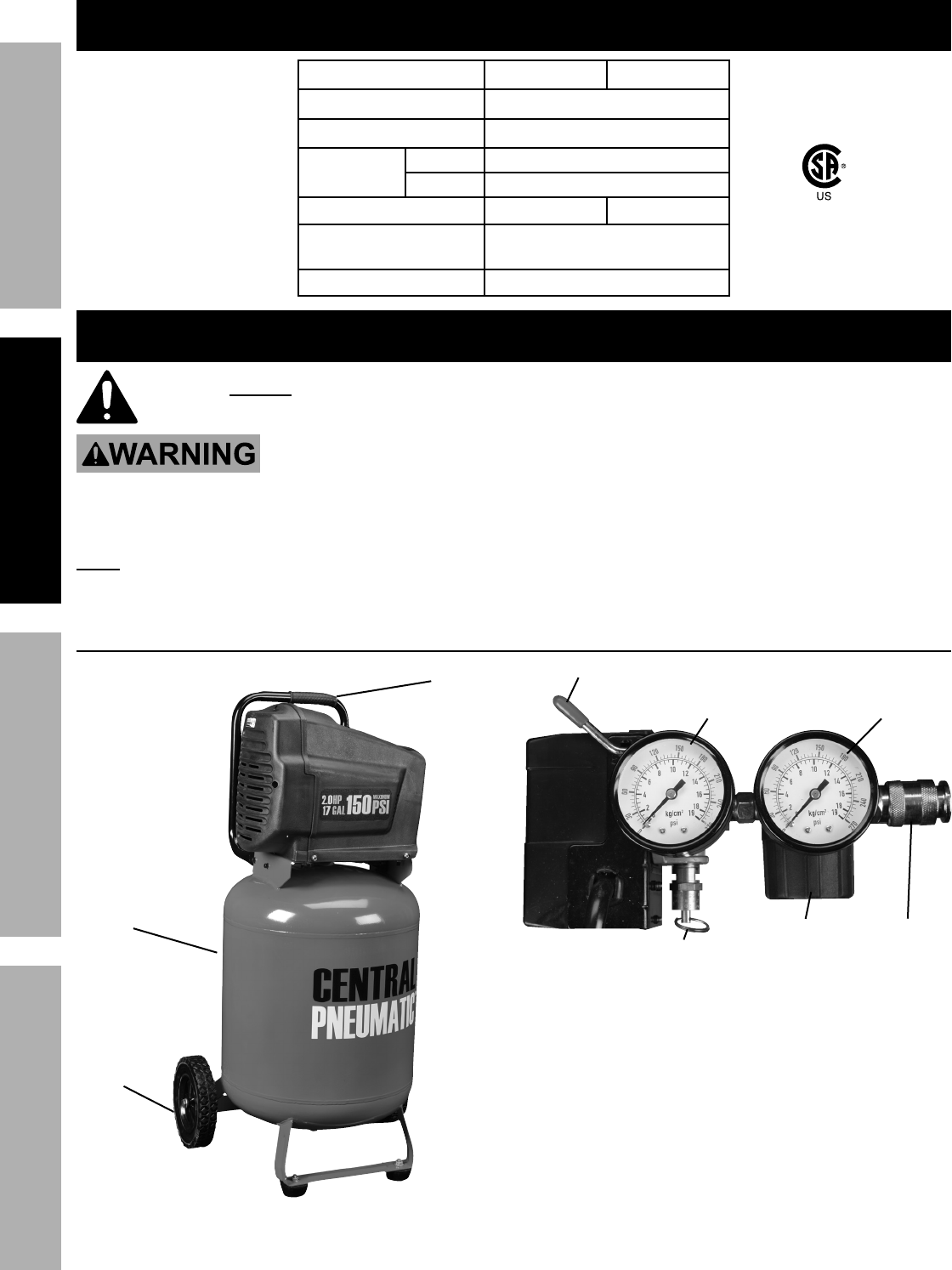

<'84$"&8#

S&)*(%?)"$4.

@"(%

R'$/'$

;*3'7,$&(%

[8&+?,2*$>%!,7Y*

A,8Z%@"(%

S(*##'(*%

V,'3*

R'$/'$%@"(%

S(*##'(*%

V,'3*

^^MLP^

U.**7

A,8Z

B,897*

Page 7<&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1Item 69666 69669

?@<6AQRS6;@ACRED@CEA6E@ET6 ?6AFS

?*$'/

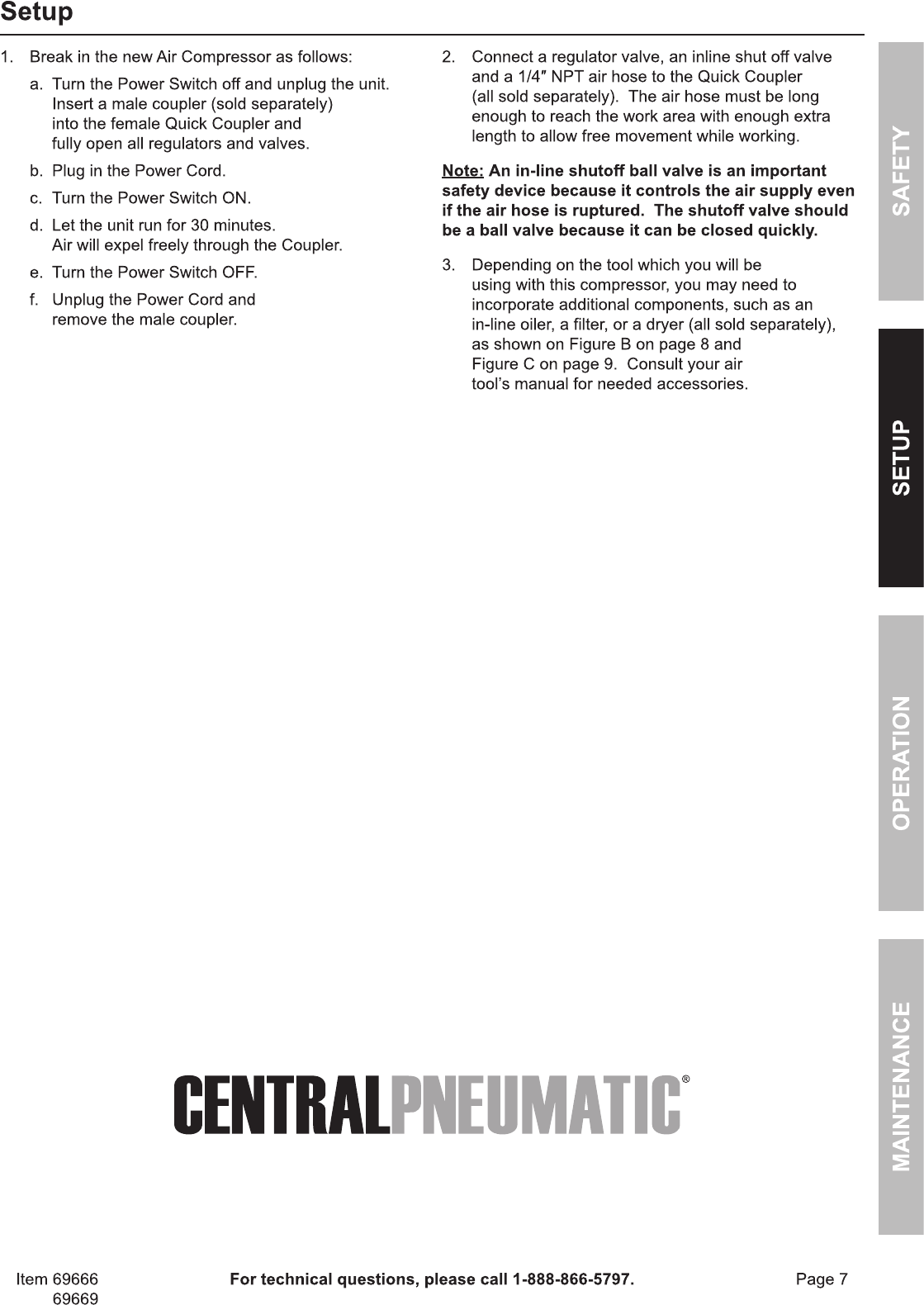

1. Break in the new Air Compressor as follows:

a. Turn the Power Switch off and unplug the unit.

Insert a male coupler (sold separately)

into the female Quick Coupler and

fully open all regulators and valves.

b. Plug in the Power Cord.

c. Turn the Power Switch ON.

d. Let the unit run for 30 minutes.

Air will expel freely through the Coupler.

e. Turn the Power Switch OFF.

f. Unplug the Power Cord and

remove the male coupler.

2. Connect a regulator valve, an inline shut off valve

and a 1/4″ NPT air hose to the Quick Coupler

(all sold separately). The air hose must be long

enough to reach the work area with enough extra

length to allow free movement while working.

E&$*- @8%"8K7"8*%#.'$&22%+,77%Y,7Y*%"#%,8%"5/&($,8$%

#,2*$>%9*Y"4*%+*4,'#*%"$%4&8$(&7#%$.*%,"(%#'//7>%*Y*8%

"2%$.*%,"(%.&#*%"#%('/$'(*91%%A.*%#.'$&22%Y,7Y*%#.&'79%

+*%,%+,77%Y,7Y*%+*4,'#*%"$%4,8%+*%47&#*9%H'"4Z7>1

3. Depending on the tool which you will be

using with this compressor, you may need to

incorporate additional components, such as an

in-line oiler, a filter, or a dryer (all sold separately),

as shown on Figure B on page 8 and

Figure C on page 9. Consult your air

tool’s manual for needed accessories.

Page 8 <&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1 Item 69666 69669

?@<6AQ RS6;@ACRE D@CEA6E@ET6?6AFS

<"3'(*%W-%%S&($,+7*%@"(%?'//7>%?*$'/

E H

Non-lubricated

Tools

Lubricated

Tools

X*#4("/$"&8 <'84$"&8

A Air Hose Connects air to tool

B Filter Prevents dirt and condensation from damaging tool or workpiece

C Regulator Adjusts air pressure to tool

D Lubricator (optional) For air tool lubrication

E Coupler and Plug Provides quick connection and release

F Leader Hose (optional) Increases coupler life

G Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece

H Air Adjusting Valve (optional) For fine tuning airflow at tool

Page 9<&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1Item 69666 69669

?@<6AQRS6;@ACRED@CEA6E@ET6 ?6AFS

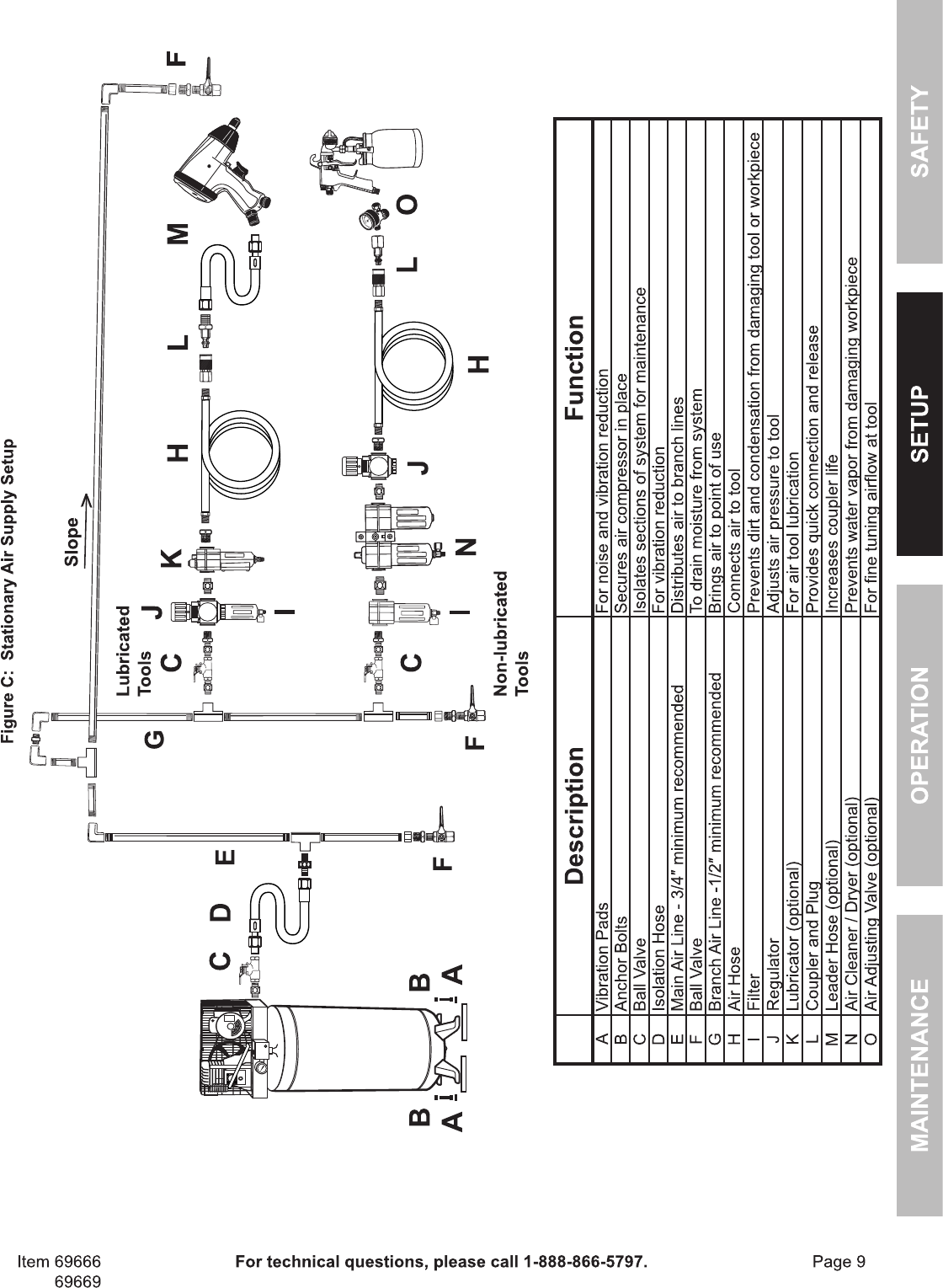

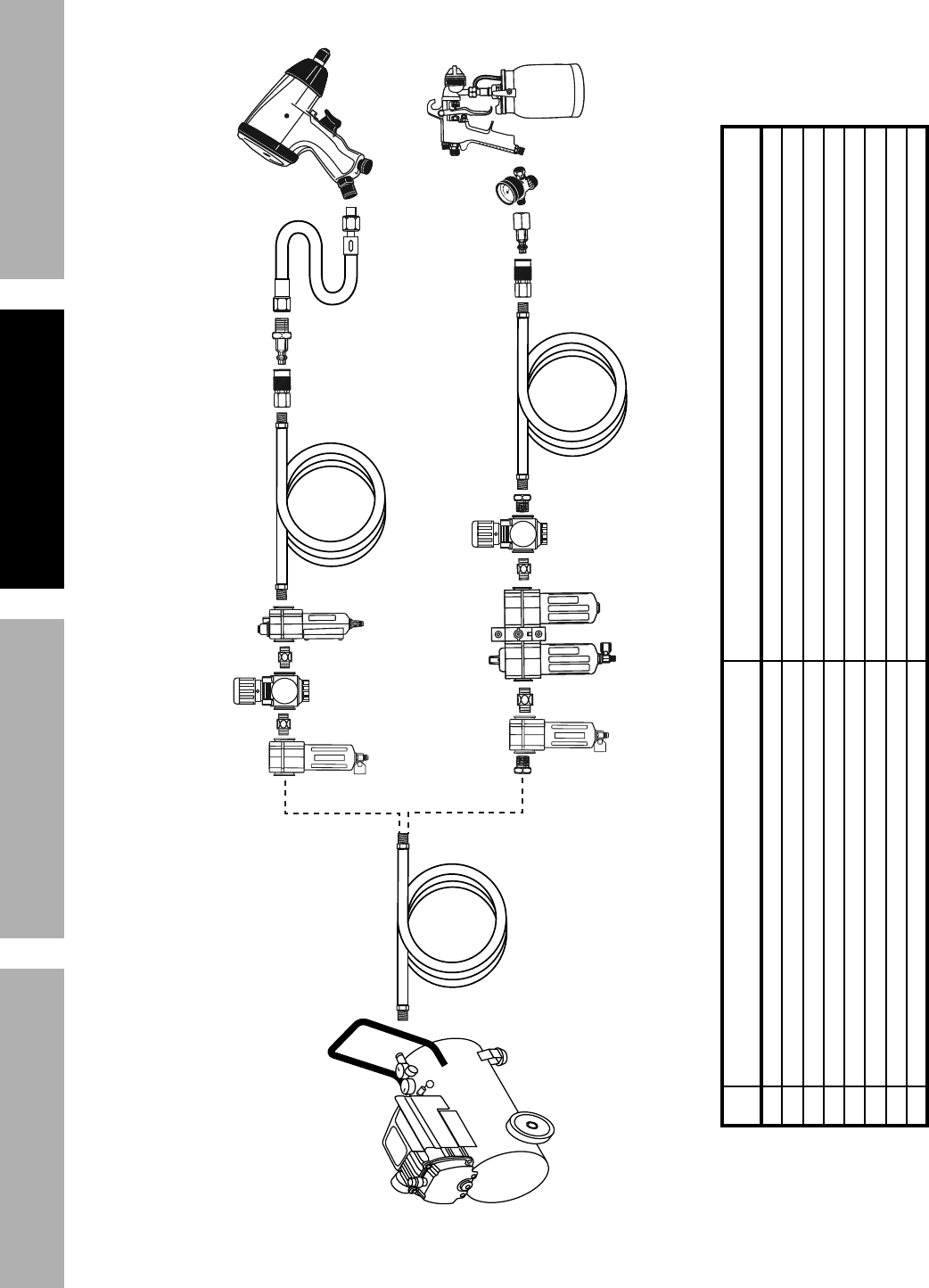

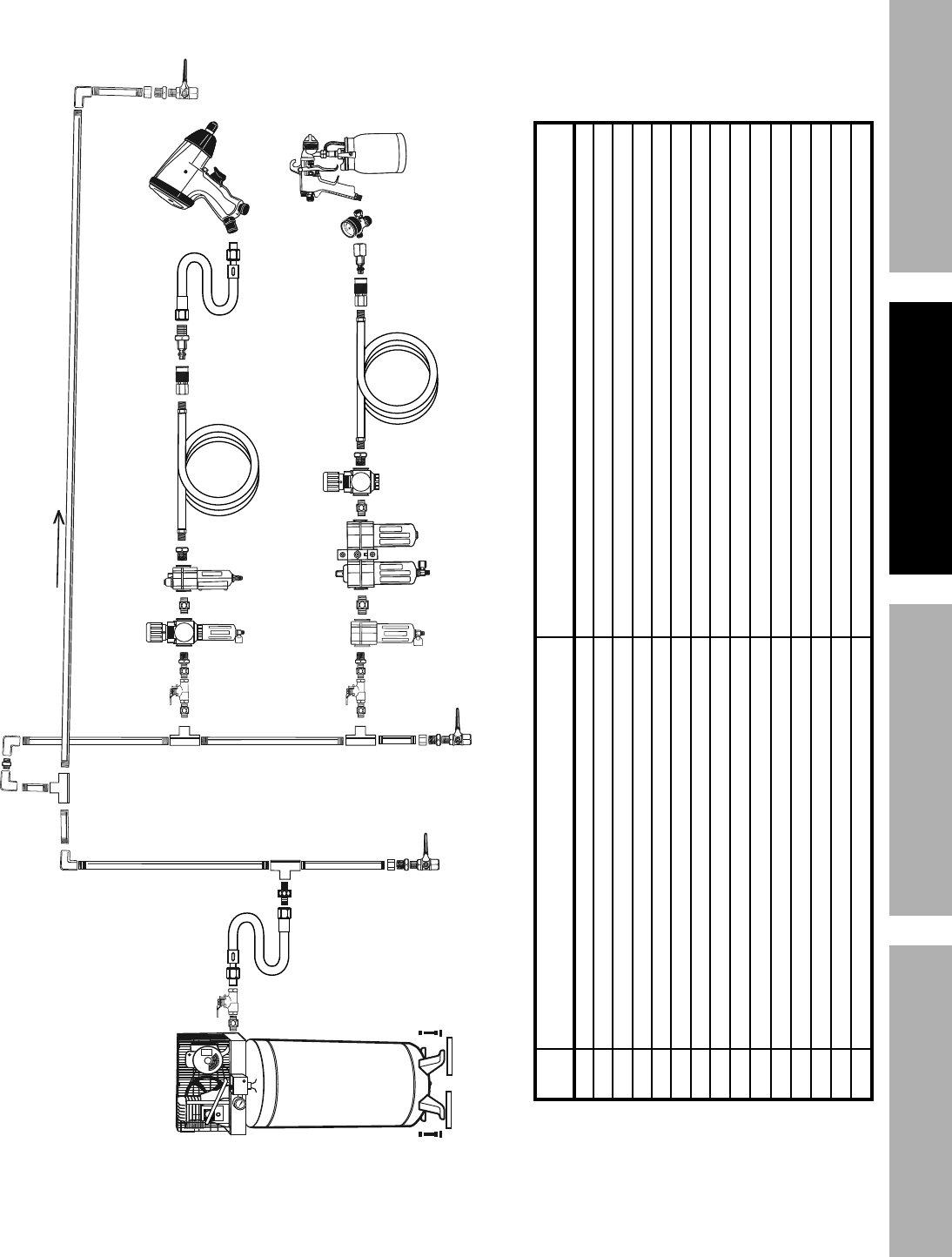

<"3'(*%T-%%?$,$"&8,(>%@"(%?'//7>%?*$'/

L O

Non-lubricated

Tools

Lubricated

Tools

JKH

Slope

B B

X*#4("/$"&8 <'84$"&8

A Vibration Pads For noise and vibration reduction

B Anchor Bolts Secures air compressor in place

C Ball Valve Isolates sections of system for maintenance

D Isolation Hose For vibration reduction

EMain Air Line - 3/4″ minimum recommended Distributes air to branch lines

F Ball Valve To drain moisture from system

GBranch Air Line -1/2″ minimum recommended Brings air to point of use

H Air Hose Connects air to tool

I Filter Prevents dirt and condensation from damaging tool or workpiece

J Regulator Adjusts air pressure to tool

K Lubricator (optional) For air tool lubrication

L Coupler and Plug Provides quick connection and release

M Leader Hose (optional) Increases coupler life

N Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece

O Air Adjusting Valve (optional) For fine tuning airflow at tool

Page 10 <&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1 Item 69666 69669

?@<6AQ RS6;@ACRE D@CEA6E@ET6?6AFS

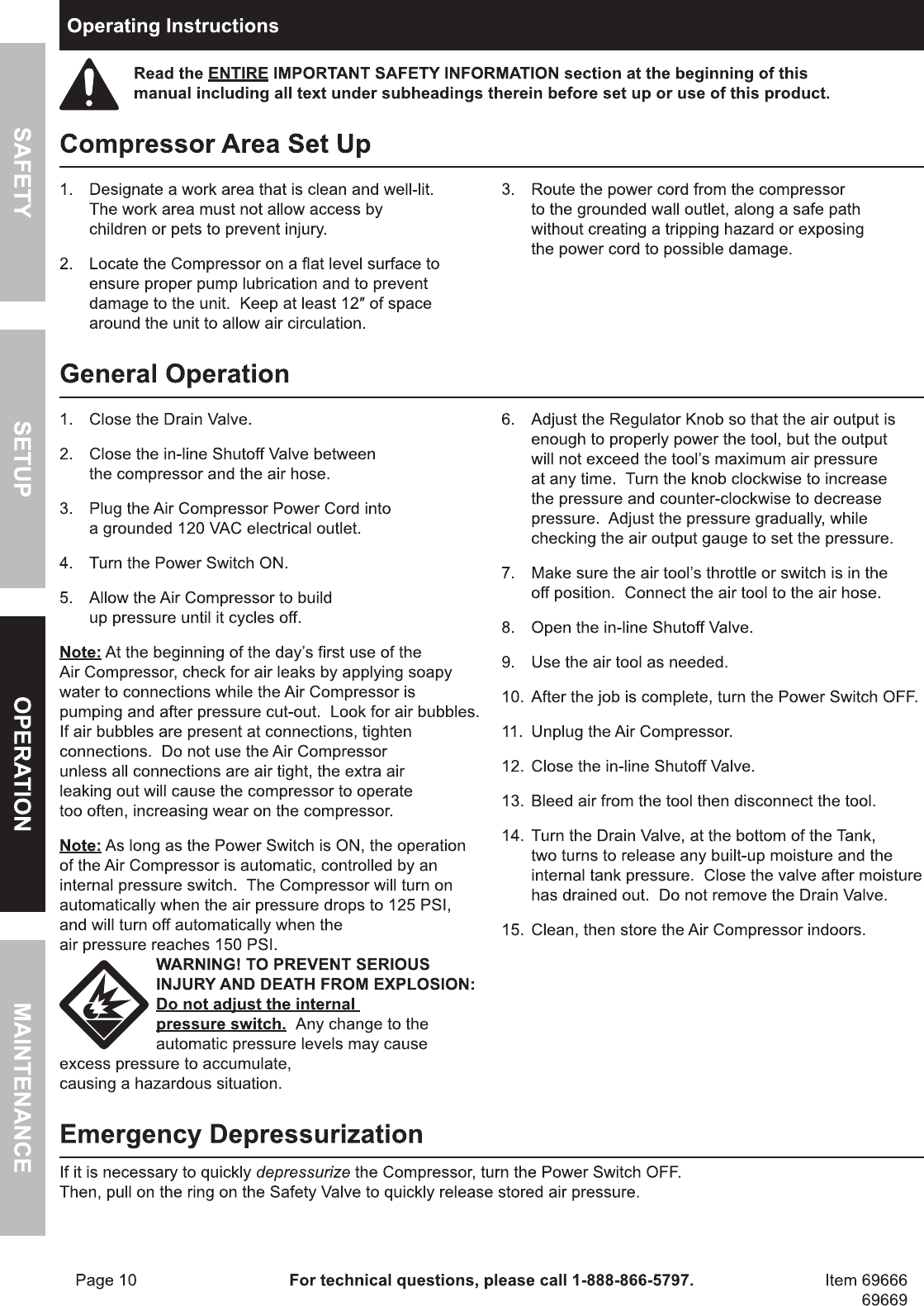

R/*(,$"83%C8#$('4$"&8#

% ;*,9%$.*%6EAC;6%CDSR;A@EA%?@<6AQ%CE<R;D@ACRE%#*4$"&8%,$%$.*%+*3"88"83%&2%$."#%

5,8',7%"847'9"83%,77%$*\$%'89*(%#'+.*,9"83#%$.*(*"8%+*2&(*%#*$%'/%&(%'#*%&2%$."#%/(&9'4$1

T&5/(*##&(%@(*,%?*$%F/

1. Designate a work area that is clean and well-lit.

The work area must not allow access by

children or pets to prevent injury.

2. Locate the Compressor on a flat level surface to

ensure proper pump lubrication and to prevent

damage to the unit. Keep at least 12″ of space

around the unit to allow air circulation.

3. Route the power cord from the compressor

to the grounded wall outlet, along a safe path

without creating a tripping hazard or exposing

the power cord to possible damage.

V*8*(,7%R/*(,$"&8

1. Close the Drain Valve.

2. Close the in-line Shutoff Valve between

the compressor and the air hose.

3. Plug the Air Compressor Power Cord into

a grounded 120 VAC electrical outlet.

4. Turn the Power Switch ON.

5. Allow the Air Compressor to build

up pressure until it cycles off.

E&$*- At the beginning of the day’s first use

of the Air Compressor, check for air leaks by

applying soapy water to connections while the

Air Compressor is pumping and after pressure cut-

out. Look for air bubbles. If air bubbles are present

at connections, tighten connections. Do not use the

Air Compressor unless all connections are air tight,

the extra air leaking out will cause the compressor to

operate too often, increasing wear on the compressor.

E&$*- As long as the Power Switch is ON, the operation

of the Air Compressor is automatic, controlled by an

internal pressure switch. The Compressor will turn on

automatically when the air pressure drops to 125 PSI,

and will turn off automatically when the

air pressure reaches 150 PSI.

U@;ECEVg%AR%S;6!6EA%?6;CRF?%

CEdF;Q%@EX%X6@AB%<;RD%

6`SGR?CRE-

X&%8&$%,9='#$%$.*%"8$*(8,7%

/(*##'(*%#)"$4.1%%Any change to the automatic

pressure levels may cause excess pressure to

accumulate, causing a hazardous situation.

6. Adjust the Regulator Knob so that the air output is

enough to properly power the tool, but the output

will not exceed the tool’s maximum air pressure

at any time. Turn the knob clockwise to increase

the pressure and counter-clockwise to decrease

pressure. Adjust the pressure gradually, while

checking the air output gauge to set the pressure.

7. Make sure the air tool’s throttle or switch is in the

off position. Connect the air tool to the air hose.

8. Open the in-line Shutoff Valve.

9. Use the air tool as needed.

10. After the job is complete, turn the Power Switch OFF.

11. Unplug the Air Compressor.

12. Close the in-line Shutoff Valve.

13. Bleed air from the tool then disconnect the tool.

14. Open the Drain Valve lever, at the bottom of the Tank

to release any built-up moisture and the internal

tank pressure. Close the valve after moisture has

drained out. Do not remove the Drain Valve.

15. Clean, then store the Air Compressor indoors.

65*(3*84>%X*/(*##'("h,$"&8

If it is necessary to quickly depressurize the Compressor, turn the Power Switch OFF.

Then, pull on the ring on the Safety Valve to quickly release stored air pressure.

Page 11<&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1Item 69666 69669

?@<6AQRS6;@ACRED@CEA6E@ET6 ?6AFS

@'$&5,$"4%?.'$%&22%?>#$*5

1. If the Compressor automatically shuts off

before reaching its normal cutoff pressure:

a. Shut off all tools.

b. Wait until the Compressor cools down

(about 10 minutes);

c. If the unit does not start up again on its own,

move the Power Switch to OFF position,

then back to ON;

d. Resume operation.

2. Possible causes of repeated automatic

shut off of the compressor are:

a. Using an extension cord that

is too long or narrow;

b. An air leak or open hose causing the compressor

to cycle too often and build up heat.

3. Correct any issues before further use to

avoid damage to the compressor.

D,"8$*8,84*%,89%?*(Y"4"83

%S(&4*9'(*#%8&$%#/*4"2"4,77>%*\/7,"8*9%"8%$."#%5,8',7%5'#$%

+*%/*(2&(5*9%&87>%+>%,%H',7"2"*9%$*4.8"4",81

AR%S;6!6EA%?6;CRF?%CEdF;Q%<;RD%@TTCX6EA@G%RS6;@ACRE-%

A'(8%$.*%S&)*(%?)"$4.%eR<<f%,89%'8/7'3%$.*%T&5/(*##&(%2(&5%"$#%*7*4$("4,7%&'$7*$%

+*2&(*%/*(2&(5"83%,8>%"8#/*4$"&8I%5,"8$*8,84*I%&(%47*,8"83%/(&4*9'(*#1

AR%S;6!6EA%?6;CRF?%CEdF;Q%<;RD%TRDS;6??R;%<@CGF;6-%

X&%8&$%'#*%9,5,3*9%*H'"/5*8$1%%C2%,+8&(5,7%8&"#*%&(%Y"+(,$"&8%&44'(#I%

.,Y*%$.*%/(&+7*5%4&((*4$*9%+*2&(*%2'($.*(%'#*1

T7*,8"83I%D,"8$*8,84*I%,89%G'+("4,$"&8

1. W6<R;6%6@TB%F?6I inspect the general

condition of the air compressor. Check for:

• loose hardware,

• misalignment or binding of moving parts,

• cracked or broken parts,

• damaged electrical wiring, and

• any other condition that may

affect its safe operation.

2. @<A6;%F?6I wipe external surfaces

of the compressor with a damp cloth.

Check for air leaks by applying soapy

water to joints while the Air Compressor is

pressurized and looking for air bubbles.

3. U@;ECEVg%%C2%$.*%#'//7>%4&(9%&2%$."#%

4&5/(*##&(%"#%9,5,3*9I%"$%5'#$%+*%(*/7,4*9%

&87>%+>%,%H',7"2"*9%#*(Y"4*%$*4.8"4",81

D,"8$*8,84*%?4.*9'7*

Following are general guidelines for maintenance checks of the Air Compressor.

E&$*- The environment in which the compressor is used, and the frequency of use can affect how often

you will need to check the Air Compressor components and perform maintenance procedures.

X,"7>-

a. Make sure all nuts and bolts are tight.

b. Drain moisture from air tank.

c. Check for abnormal noise or vibration.

d. Check for air leaks.

e. Wipe off any oil or dirt from the compressor.

U**Z7>-

Inspect Air Filter.

D&8$.7>-

Inspect Safety Valve.

Page 12 <&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1 Item 69666 69669

?@<6AQ RS6;@ACRE D@CEA6E@ET6?6AFS

X(,"8"83%D&"#$'(*%2(&5%$.*%A,8Z

The Drain Valve is located under the Tank. It must be used daily to release all trapped air and

moisture from the Tank. This will eliminate condensation which can cause tank corrosion.

1. Turn the Power switch of the compressor off.

2. Place a collection pan under the Drain Valve.

3. Turn Drain Valve lever downward

to release air inside.

4. When all the pressure and moisture is released,

close the Drain Valve.

@"(%<"7$*(%D,"8$*8,84*

Check the Air Filter weekly to see if it needs replacement.

If working in dirty environments, you may need to replace the filter more often.

1. Remove the Cover.

2. Remove the Air Filter.

3. Replace with a new Air Filter.

4. Replace the Cover.

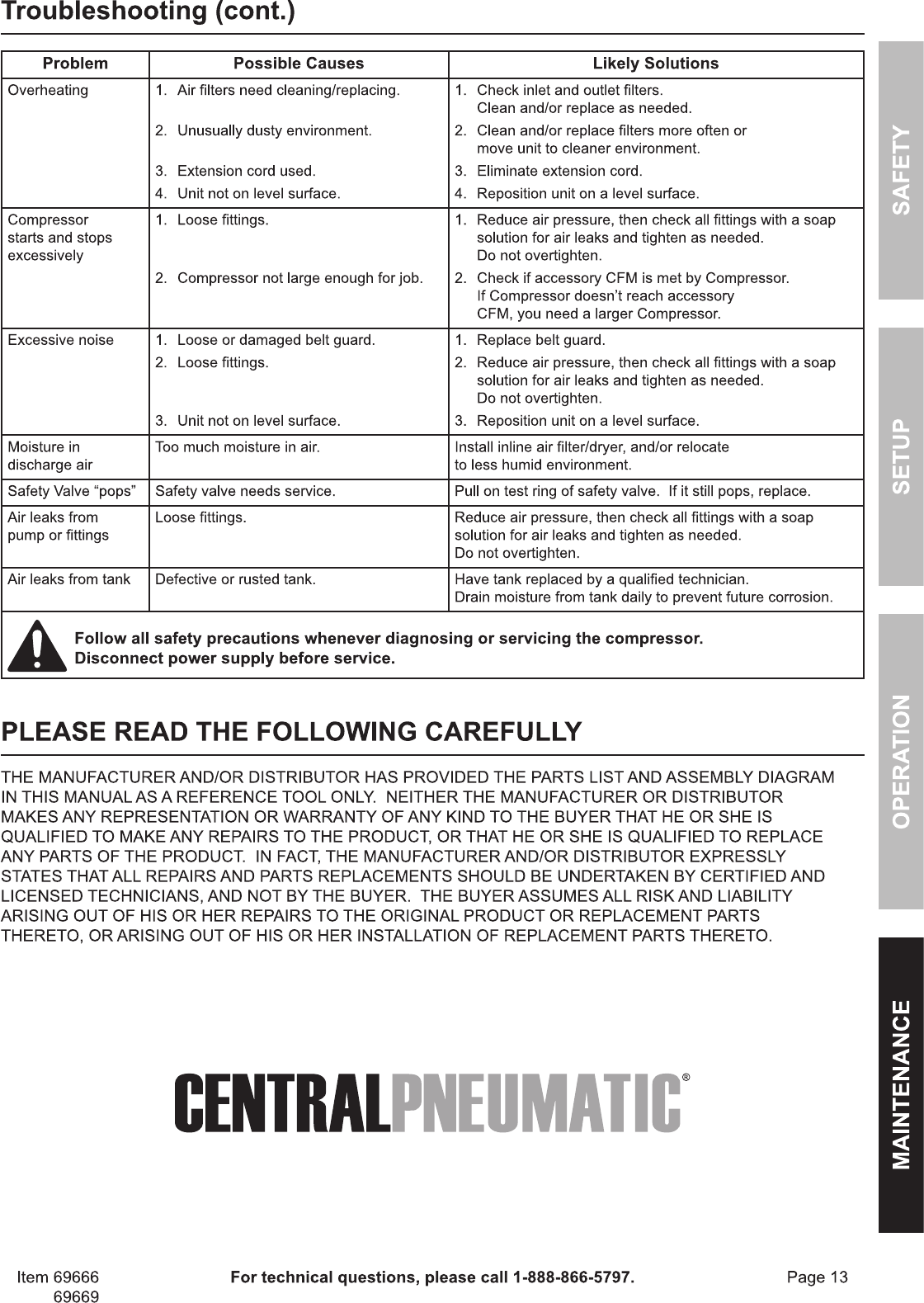

A(&'+7*#.&&$"83

S(&+7*5 S&##"+7*%T,'#*# G"Z*7>%?&7'$"&8#

Compressor does

not start or restart

1. Tank(s) already pressurized.

2. Power cord not plugged in properly.

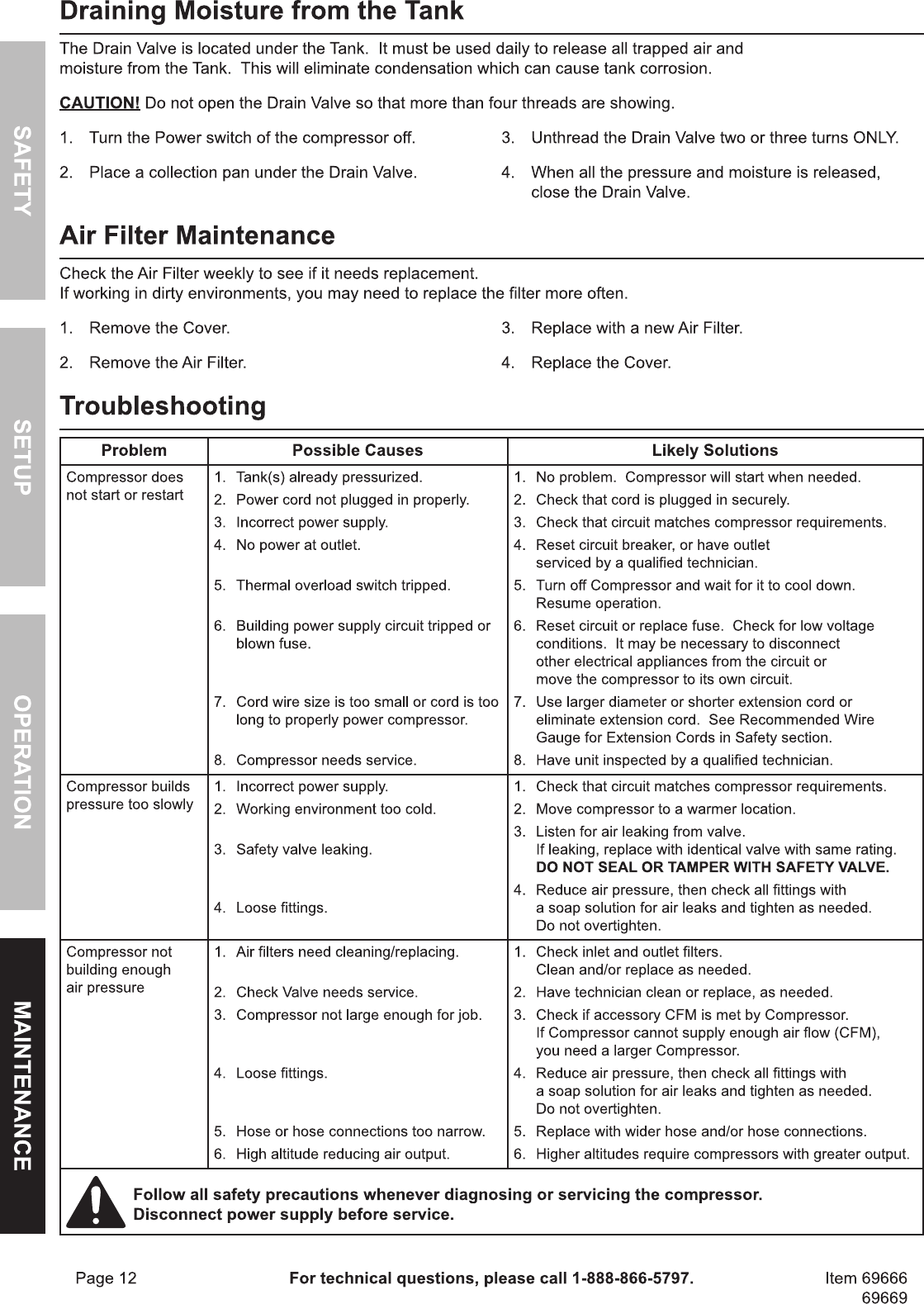

3. Incorrect power supply.

4. No power at outlet.

5. Thermal overload switch tripped.

6. Building power supply circuit tripped or

blown fuse.

7. Cord wire size is too small or cord is too

long to properly power compressor.

8. Compressor needs service.

1. No problem. Compressor will start when needed.

2. Check that cord is plugged in securely.

3. Check that circuit matches compressor requirements.

4. Reset circuit breaker, or have outlet

serviced by a qualified technician.

5. Turn off Compressor and wait for it to cool down.

Resume operation.

6. Reset circuit or replace fuse. Check for low voltage

conditions. It may be necessary to disconnect

other electrical appliances from the circuit or

move the compressor to its own circuit.

7. Use larger diameter or shorter extension cord or

eliminate extension cord. See Recommended Wire

Gauge for Extension Cords in Safety section.

8. Have unit inspected by a qualified technician.

Compressor builds

pressure too slowly

1. Incorrect power supply.

2. Working environment too cold.

3. Safety valve leaking.

4. Loose fittings.

1. Check that circuit matches compressor requirements.

2. Move compressor to a warmer location.

3. Listen for air leaking from valve.

If leaking, replace with identical valve with same rating.

XR%ERA%?6@G%R;%A@DS6;%UCAB%?@<6AQ%!@G!61

4. Reduce air pressure, then check all fittings with

a soap solution for air leaks and tighten as needed.

Do not overtighten.

Compressor not

building enough

air pressure

1. Air filters need cleaning/replacing.

2. Check Valve needs service.

3. Compressor not large enough for job.

4. Loose fittings.

5. Hose or hose connections too narrow.

6. High altitude reducing air output.

1. Check inlet and outlet filters.

Clean and/or replace as needed.

2. Have technician clean or replace, as needed.

3. Check if accessory CFM is met by Compressor.

If Compressor cannot supply enough air flow (CFM),

you need a larger Compressor.

4. Reduce air pressure, then check all fittings with

a soap solution for air leaks and tighten as needed.

Do not overtighten.

5. Replace with wider hose and/or hose connections.

6. Higher altitudes require compressors

with greater output.

% <&77&)%,77%#,2*$>%/(*4,'$"&8#%).*8*Y*(%9",38&#"83%&(%#*(Y"4"83%$.*%4&5/(*##&(1%%%

X"#4&88*4$%/&)*(%#'//7>%+*2&(*%#*(Y"4*1

Page 13<&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1Item 69666 69669

?@<6AQRS6;@ACRED@CEA6E@ET6 ?6AFS

A(&'+7*#.&&$"83%a4&8$1b

S(&+7*5 S&##"+7*%T,'#*# G"Z*7>%?&7'$"&8#

Overheating 1. Air filters need cleaning/replacing.

2. Unusually dusty environment.

3. Extension cord used.

4. Unit not on level surface.

1. Check inlet and outlet filters.

Clean and/or replace as needed.

2. Clean and/or replace filters more often or

move unit to cleaner environment.

3. Eliminate extension cord.

4. Reposition unit on a level surface.

Compressor

starts and stops

excessively

1. Loose fittings.

2. Compressor not large enough for job.

1. Reduce air pressure, then check all fittings with a soap

solution for air leaks and tighten as needed.

Do not overtighten.

2. Check if accessory CFM is met by Compressor.

If Compressor doesn’t reach accessory

CFM, you need a larger Compressor.

Excessive noise 1. Loose or damaged belt guard.

2. Loose fittings.

3. Unit not on level surface.

1. Replace belt guard.

2. Reduce air pressure, then check all fittings with a soap

solution for air leaks and tighten as needed.

Do not overtighten.

3. Reposition unit on a level surface.

Moisture in

discharge air

Too much moisture in air. Install inline air filter/dryer, and/or relocate

to less humid environment.

Safety Valve “pops” Safety valve needs service. Pull on test ring of safety valve. If it still pops, replace.

Air leaks from

pump or fittings

Loose fittings. Reduce air pressure, then check all fittings with a soap

solution for air leaks and tighten as needed.

Do not overtighten.

Air leaks from tank Defective or rusted tank. Have tank replaced by a qualified technician.

Drain moisture from tank daily to prevent future corrosion.

% <&77&)%,77%#,2*$>%/(*4,'$"&8#%).*8*Y*(%9",38&#"83%&(%#*(Y"4"83%$.*%4&5/(*##&(1%%%

X"#4&88*4$%/&)*(%#'//7>%+*2&(*%#*(Y"4*1

SG6@?6%;6@X%AB6%<RGGRUCEV%T@;6<FGGQ

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR

MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS

QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE

ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY

STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY

ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS

THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 14 <&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1 Item 69666 69669

?@<6AQ RS6;@ACRE D@CEA6E@ET6?6AFS

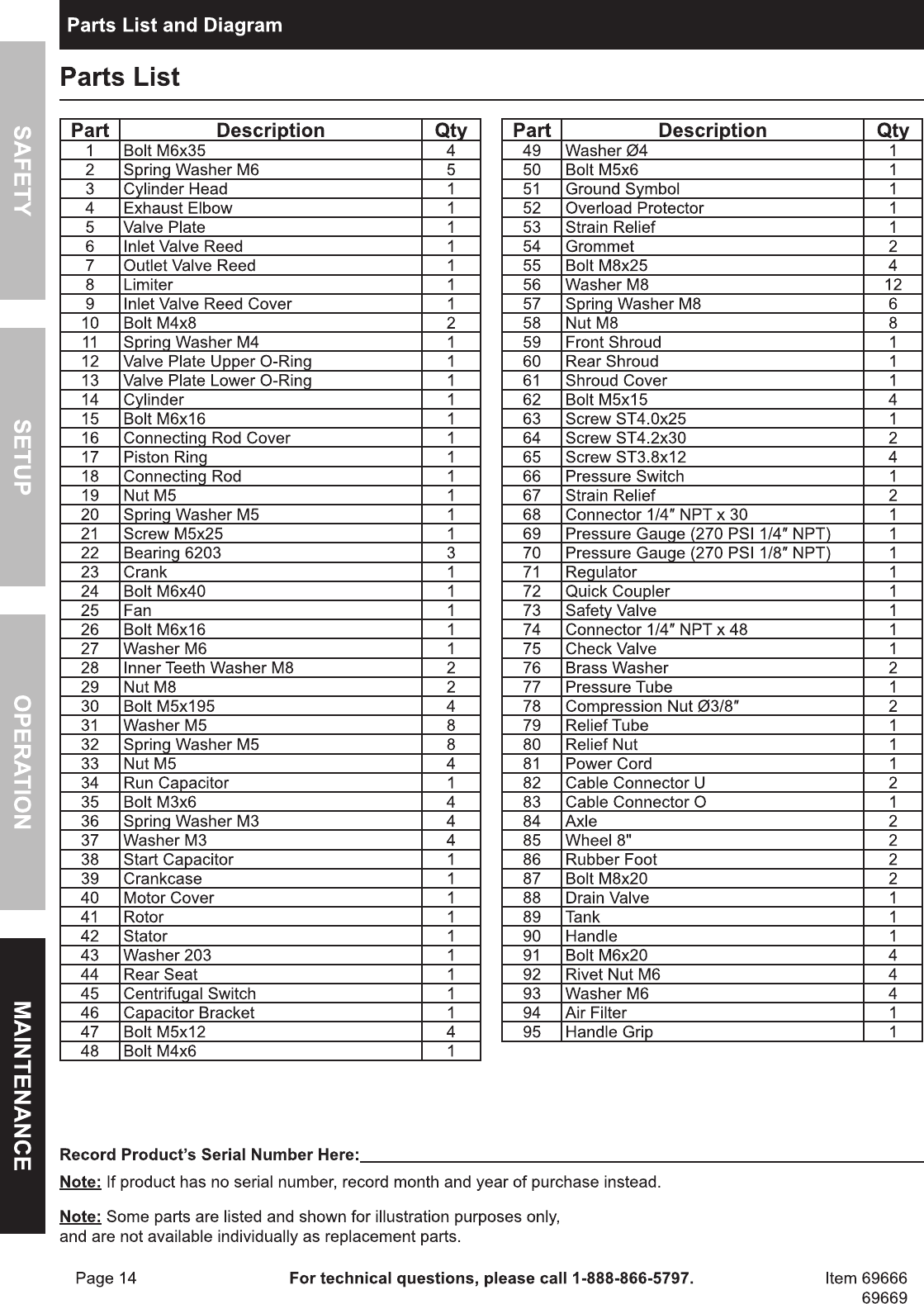

;*4&(9%S(&9'4$]#%?*(",7%E'5+*(%B*(*-%

E&$*- If product has no serial number, record month and year of purchase instead.

E&$*- Some parts are listed and shown for illustration purposes only, and are not available individually

as replacement parts. Parts may not be interchangeable. Specify number when ordering.

S,($ X*#4("/$"&8 i$>

1 Bolt M6x35 4

2 Spring Washer M6 5

3 Cylinder Head 1

4 Exhaust Elbow 1

5 Valve Plate 1

6 Inlet Valve Reed 1

7 Outlet Valve Reed 1

8 Limiter 1

9 Inlet Valve Reed Cover 1

10 Bolt M4x8 2

11 Spring Washer M4 1

12 Valve Plate Upper O-Ring 1

13 Valve Plate Lower O-Ring 1

14 Cylinder 1

15 Bolt M6x16 1

16 Connecting Rod Cover 1

17 Piston Ring 1

18 Connecting Rod 1

19 Nut M5 1

20 Spring Washer M5 1

21 Screw M5x25 1

22 Bearing 6203 3

23 Crank 1

24 Bolt M6x40 1

25 Fan 1

26 Bolt M6x16 1

27 Washer M6 1

28 Inner Teeth Washer M8 2

29 Nut M8 2

30 Bolt M5x195 4

31 Washer M5 8

32 Spring Washer M5 8

33 Nut M5 4

34 Run Capacitor 1

35 Bolt M3x6 4

36 Spring Washer M3 4

37 Washer M3 4

38 Start Capacitor 1

39 Crankcase 1

40 Motor Cover 1

41 Rotor 1

42 Stator 1

43 Washer 203 1

44 Rear Seat 1

45 Centrifugal Switch 1

46 Capacitor Bracket 1

47 Bolt M5x12 4

48 Bolt M4x6 1

S,($ X*#4("/$"&8 i$>

49 Washer Ø4 1

50 Bolt M5x6 1

51 Ground Symbol 1

52 Overload Protector 1

53 Strain Relief 1

54 Grommet 2

55 Bolt M8x25 4

56 Washer M8 12

57 Spring Washer M8 6

58 Nut M8 8

59 Front Shroud 1

60 Rear Shroud 1

61 Shroud Cover 1

62 Bolt M5x15 4

63 Screw ST4.0x25 1

64 Screw ST4.2x30 2

65 Screw ST3.8x12 4

66 Pressure Switch 1

67 Strain Relief 2

68 Connector 1/4″ NPT x 30 1

69 Pressure Gauge (270 PSI 1/4″ NPT) 1

70 Pressure Gauge (270 PSI 1/8″ NPT) 1

71 Regulator 1

72 Quick Coupler 1

73 Safety Valve 1

74 Connector 1/4″ NPT x 48 1

75 Check Valve 1

76 Brass Washer 2

77 Pressure Tube 1

78 Compression Nut Ø3/8″ 2

79 Relief Tube 1

80 Relief Nut 1

81 Power Cord 1

82 Cable Connector U 2

83 Cable Connector O 1

84 Axle 2

85 Wheel 8" 2

86 Rubber Foot 2

87 Bolt M8x20 2

88 Drain Valve (Not shown) 1

89 Tank 1

90 Handle 1

91 Bolt M6x20 4

92 Rivet Nut M6 4

93 Washer M6 4

94 Air Filter 1

95 Handle Grip 1

S,($#%G"#$%,89%X",3(,5

S,($#%G"#$

Page 15<&(%$*4.8"4,7%H'*#$"&8#I%/7*,#*%4,77%JKLLLKLMMKNOPO1Item 69666 69669

?@<6AQRS6;@ACRED@CEA6E@ET6 ?6AFS

@##*5+7>%X",3(,5

JP^N

^M ^_

Lj LN

NO NL

P^ PJ

Nj N^

NJjPjL

jO c_cJ

jM^P^Lcj

NL MJ

^c c^

G"5"$*9%P_%X,>%U,((,8$>

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,

and warrants to the original purchaser that this product is free from defects in materials and workmanship for the

period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,

to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper

installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries

to persons or property, or for incidental, contingent, special or consequential damages arising from the use of

our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges

prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.

If our inspection verifies the defect, we will either repair or replace the product at our election or we may

elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will

return repaired products at our expense, but if we determine there is no defect, or that the defect resulted

from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

cjPJ%D"##"&8%R,Z#%W7Y91%%k%%SR%W&\%M__P%%k%%T,5,("77&I%T@%Pc_JJ%%k%%JKLLLKLMMKNOPO

Manual For The 69669 1.8 Horsepower, 26 Gallon, 150 PSI Oilless Air Compressor

Navigation menu

Versions of this User Manual:

Views

Navigation
