HOME-CINEMA TELEVISION

MODELS

738 Series

838 Series

BASIC OWNER’S GUIDE

®

This manual provides basic connection, setup, and operating instructions. Please visit our website at

www.Mitsubishi-tv.com to view or download a detailed owner’s guide that fully describes the features

of this TV. Follow the Support link to the Product Documents page.

For questions:•

Visit our website at www.mitsubishi-tv.com. -

E-mail us at MDEAservice@mdea.com. -

Call Consumer Relations at - 800-332-2119 for operational or connection assistance.

For information on • System Reset, please see the back cover.

To order replacement or additional remote controls, visit our website at www.mitsuparts.com or call •

800-553-7278.

838 Series.• IR emitter cables for NetCommand home-theater control are available for purchase from

Mitsubishi.

Call 800-553-7278 and

request either part number 242D483020 (two-ended cable) or part

number 299P254020 (four-ended cable).

For assistance call 1(800) 332-2119

FCC Declaration of Conformity

Product: Projection Television Receiver

Models: WD-60738, WD-65738, WD-73738,

WD-82738

WD-65838, WD-73838, WD-82838

Responsible

Party:

Mitsubishi Digital Electronics

America, Inc.

9351 Jeronimo Road

Irvine, CA 92618-1904

Telephone: (800) 332-2119

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1)

This device may not cause harmful interference,

and

(2) This device must accept any interference

received, including interference that may cause

undesired operation.

Note: This equipment has been tested and found

to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential instal-

lation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may

cause harmful interference to radio communica-

tions. However, there is no guarantee that interfer-

ence will not occur in a particular installation. If this

equipment does cause harmful interference to radio

or television reception, which can be determined

by turning the equipment off and on, the user is

encouraged to try to correct the interference by one

or more of the following measures:

Reorient or relocate the receiving antenna. -

Increase the separation between the equip- -

ment and the receiver.

Connect the equipment into an outlet on -

a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/ -

TV technician for help.

Changes or modifications not expressly

approved by Mitsubishi could cause harmful

interference and would void the user’s authority

to operate this equipment.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

TV WEIGHT: This TV is heavy. Exercise extreme care

when lifting or moving it. Lift or move the TV with a

minimum of two adults. To prevent damage to the TV,

avoid jarring or moving it while it is turned on. Always

power off your TV, unplug the power cord, and discon-

nect all cables before moving it.

WARNING: To reduce the risk of fire or electric shock,

do not expose this apparatus to rain or moisture.

This apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such as

vases, shall be placed on the apparatus.

MAINS DISCONNECTION: The mains plug is used

as the disconnect device. The mains plug shall remain

readily operable.

WARNING: This product contains chemicals known

to the State of California to cause cancer and/or birth

defects or other reproductive harm.

Note: Features and specifications described in this

owner’s guide are subject to change without notice.

St and Requirement

CAUTION: Use these Mitsubishi TV models only with

the Mitsubishi stand models shown here. Other stands

can result in instability and possibly cause injury.

TV Model Stand Model

WD-60738, WD-65738

WD-65838 MB-S60/65A

WD-73738

WD-73838 MB-S73A

82-inch TVs. Mitsubishi does not design, manufac-

ture, or sell matching bases for 82-inch televisions

(WD-82738, WD-82838). When selecting a stand, base,

or other furniture to support the TV, please make sure it

is designed with the appropriate dimensions for stabil-

ity and to support the TV’s total weight as well as the

weight of any additional equipment you plan to store.

The lightning flash with arrowhead symbol

within an equilateral triangle is intended to

alert the user of the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to consti-

tute a risk of electric shock to persons.

The exclamation point within an equilat-

eral triangle is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the product.

For assistance call 1(800) 332-2119

Contents

1 Basic Setup and Operation

Remote Control ......................... 6

The STATUS Indicator ..................... 7

Setting Up and Using TV Inputs .............. 7

Basic TV Operation....................... 9

2 T V Connecti ons

Main Connection Panel ................... 10

838 Series Side Inputs ................... 10

Connection Types and Audio/Video Quality .... 10

H

DMI Device .............................11

DVI Video Device ....................... 11

Y Pb Pr Component Video Device ........... 11

Composite Video Device .................. 11

Antenna or Cable TV Service ............... 12

VCR or DVD Recorder to an Antenna or

Wall Outlet Cable ...................... 12

A/V Receiver .......................... 13

A/V Receiver with HDMI Output ............. 13

3 T V Feature s

FAV (Favorites) ......................... 14

ChannelView Channel Listings .............. 15

Photos and Moving Video as Composite Video .. 15

3D Video ............................. 16

Sound Projector ........................ 18

StreamTV™ Internet Media ................ 19

Wireless Audio Playback .................. 20

4 T V Menus

Picture............................... 21

Sound ............................... 22

Captions ............................. 23

Setup ............................... 24

Inputs ............................... 25

Lock ................................ 26

Appendices

Appendix A: TV Care

Lamp-Cartridge Replacement and Cleaning . 27

Cleaning Recommendations ............ 29

Appendix B: Programming the Remote Control . 30

Appendix C: Troubleshooting .............. 31

Mitsubishi TV Software .................... 34

Warranty .............................. 38

Network Service Disclaimer ................ 39

Custom cabinet installation must allow for proper

air circulation around the television.

NOTE TO CATV SYSTEM INSTALLER: THIS REMINDER

IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER’S

ATTENTION TO ARTICLE 820-40 OF THE NEC THAT PRO-

VIDES GUIDELINES FOR THE PROPER GROUNDING AND,

IN PARTICULAR, SPECIFIES THAT THE CABLE GROUND

SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF

THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY

AS PRACTICAL.

Internal Fans

Internal cooling fans maintain proper operating tem-

peratures inside the TV. It is normal to hear the fans

when you first turn on the TV, during quiet scenes

while viewing the TV, and for a short time after shutting

off the TV. You may notice louder fan noise about 30

seconds after shutting off the TV and while using the

Bright Lamp Energy setting.

Lamp Replacement

For lamp-replacement instructions, see Appendix A .

To Order a Replacement Lamp Under Warranty

Call (800) 553-7278. Please have model number, serial

number, and TV purchase date available.

Important: All lamps replaced under warranty

must be returned to Mitsubishi where they will be

inspected to verify failure defects.

To Purchase a Replacement Lamp After Warranty

Visit our website at www.mitsuparts.com or call (800)

553-7278. Order new lamp part number 915B441001.

TV Software

Do not attempt to update the software of this TV with

software or USB drives not provided by or authorized

by Mitsubishi Digital Electronics America, Inc. Non-

authorized software may damage the TV and will not be

covered by the warranty.

Children and TV Viewing

The American Academy of Pediatrics discourages

television viewing for children younger than two years of

age.

For Your Records

Record the model number, serial number, and

purchase date of your TV. The model and serial

numbers are on the back of the TV. Refer to this

page when requesting assistance with the TV.

MODEL NUMBER

SERIAL NUMBER

PURCHASE DATE

RETAILER NAME

LOCATION

4

For assistance call 1(800) 332-2119

Important Safety Instructions

Please read the following safeguards for your TV and

retain for future reference. Always follow all warnings

and instructions marked on the television.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are

provided for your safety. If the provided plug does

not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10) Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

11) Only use attachments/accessories specified by the

manufacturer.

12) Use only with the cart,

stand, tripod, bracket,

or table specified

by the manufacturer,

or sold with the

apparatus. When

a cart is used, use

caution when moving

the cart/apparatus

combination to avoid

injury from tip-over.

13) Unplug this apparatus

during lightning storms or when unused for long

periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not operate

normally, or has been dropped.

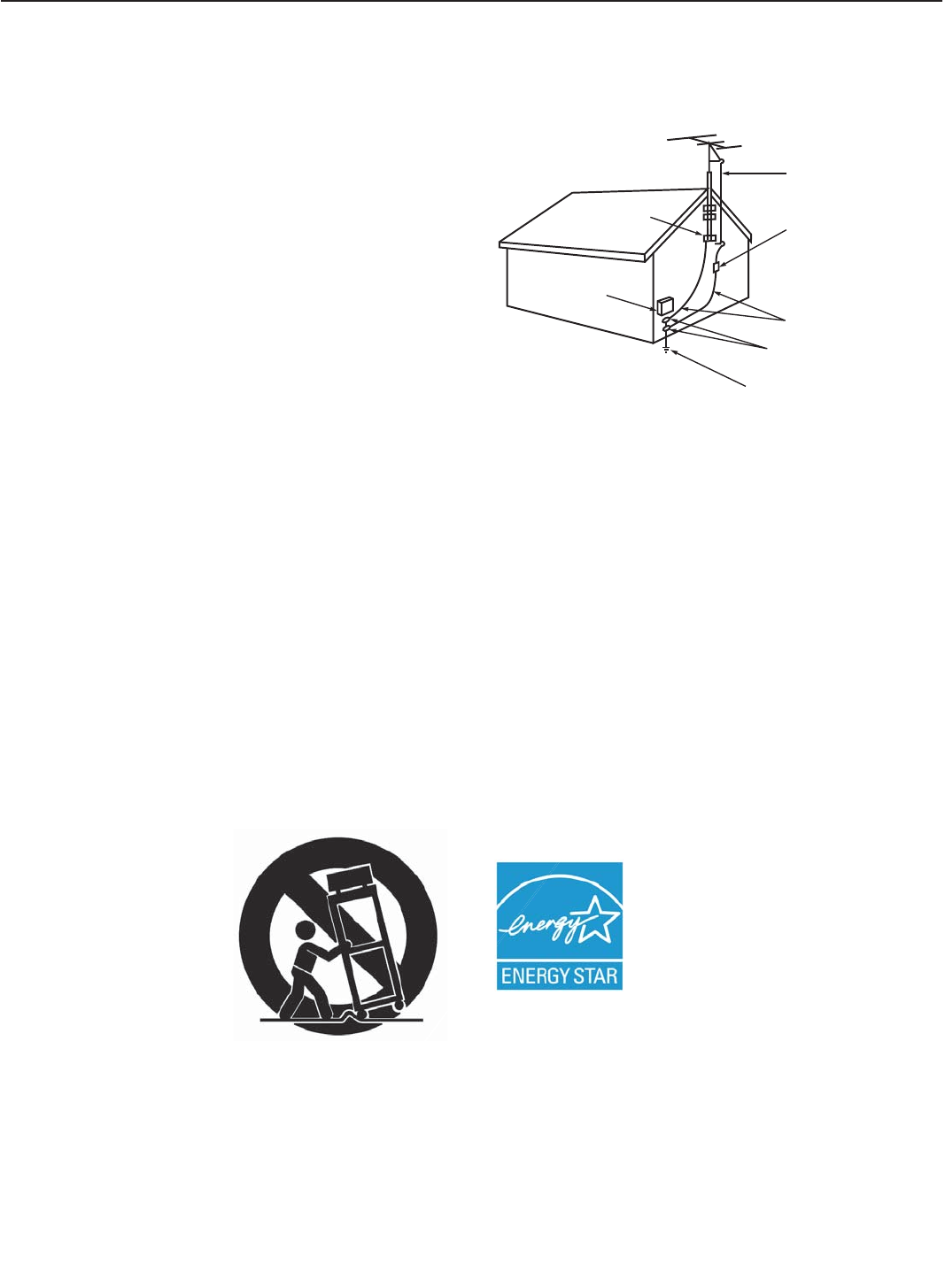

ANTE NNA

LEAD IN WIRE

ANTE NNA

DISCHAR G E UNIT

(NE C AR TIC LE 810-20)

GROUNDING

CONDUCTORS

(NEC ARTICLE 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NE C AR T 250, PAR T H)

GROUND CLAMP

ELECTRIC

SERVICE

EQUIPMENT

NEC — NATIONAL ELECTRICAL CODE

EXAMPLE OF ANTENNA GROUNDING

Outdoor Antenna Grounding

If an outside antenna or cable system is connected

to the TV, be sure the antenna or cable system is

grounded so as to provide some protection against

voltage surges and built-up static charges.

Replacement Parts

When replacement parts are required, be sure the

service technician has used replacement parts speci-

fied by the manufacturer or have the same character-

istics as the original part. Unauthorized substitutions

may result in fire, electric shock or other hazards.

The following TV models are

ENERGY STAR® qualified:

WD-65738, WD-73738, WD-82738

WD-65838, WD-73838, WD-82838

Products that earn the ENERGY

STAR prevent greenhouse gas

emissions by meeting strict energy

efficiency guidelines set by the U.S.

Environmental Protection Agency

and the U.S. Department of Energy.

5

For assistance call 1(800) 332-2119

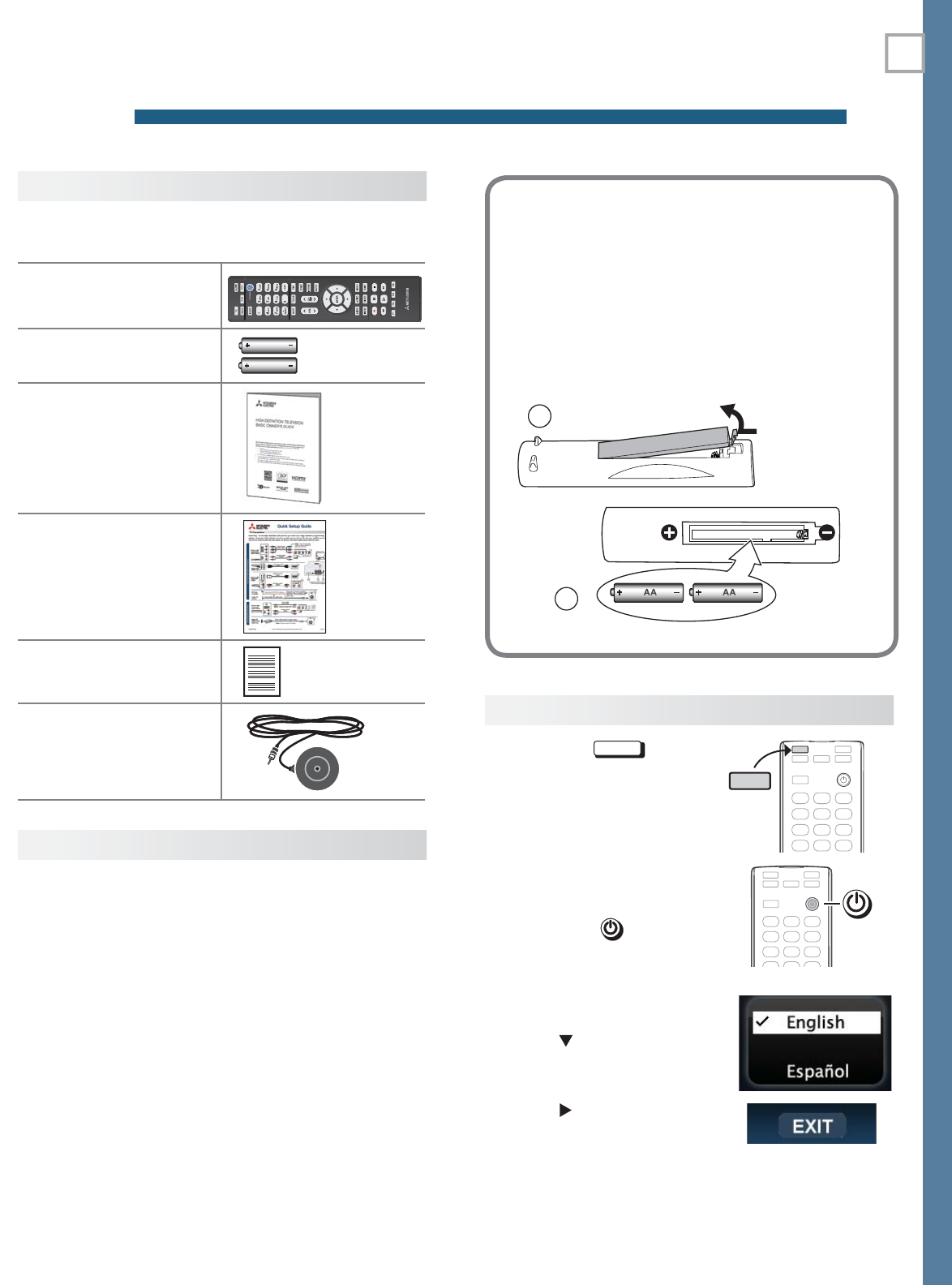

Basic Setup and Operation

1

Remote Control

Two AA Batteries AA

AA

Basic Owner’s Guide

HDTV Quick Setup

Guide

Product Registration

Card

838 Series. Calibration

Microphone

Package Contents

Please take a moment to review the following list of

items to ensure that you have received everything.

Installing the R emote Control

Batteries

Remove the remote control’s back cover by

1.

gently pressing in the tab and lifting off the cover.

Load the batteries, making sure the polarities

2.

(+) and (-) are correct. For best results, insert

the negative (-) end first.

Snap the cover back in place.

3.

2

1The remote

control requires

two AA

batteries.

First-Time Power-On

Press the

1.

TV

key to

ensure that the remote

control is in

TV

mode.

TV

TV

Aim the emitter (bulb)

2.

end of the remote control

at the TV and press the

POWER

key . Wait for the

Welcome screen.

If you wish to change the

3.

menu language to Español,

press .

Press

4.

to highlight EXIT.

Press

ENTER

to clear the

menu.

Before You Begin

Review the important safety, installation, and oper-

1.

ating information at the beginning of this book.

Choose a location for your TV.

2.

• Allow at least four inches of space on all sides

of the TV to help prevent overheating. Over-

heating may cause premature failure of the TV

as well as shortened lamp life.

• Avoid locations where light may reflect off the

screen.

• See the stand requirements on page 2 .

Install the batteries in the remote control.

3.

Plug the TV into an AC power outlet.

4.

6 1. Basic Setup and Operation

For assistance call 1(800) 332-2119

Re mote Control

Powers TV on or off.

Number/letter keys

Channel tuning, page 8

Pass code entry, page 26

Sleep Timer

Emitter End

TV CAB/SAT DVD AUDIO VCR

P

ress the key for the device type to

control. Leave in TV mode for normal

TV viewing.

The TV’s remote control can operate other

audio/video devices using any of these

methods:

• Program the remote control for the device ( page

30 ).

• Set up HDMI Control for HDMI devices compat-

ible with the TV.

• 838 Series. Perform Net Command setup for

device keys.

See the detailed owner’s guide at

www.mitsubishi-tv.com for information.

GUIDE

ChannelView listings, page 15

.

INFO

TV status

or TV help.

(

PAUSE

)

Freezes a broadcast TV picture.

Record/Playback controls for external

devices. Additional setup is required.

MUTE

Mutes the TV speakers.

TOOLS

Displays shortcuts for the number keys.

Press to check if shortcuts are available

for the current device.

VOL

Controls volume of TV speakers.

CH

PAGE

Changes channels; moves to another

page in a menu or list.

Adds a separator in digital channel

numbers. Clears some menu entries.

AUDIO

Audio adjustments, page 22

VIDEO

Video adjustments, page 21

MENU

Displays or clears the TV main

menu ( page 21 ).

Also steps

back one menu.

EXIT

Clears all menus.

LAST

Returns to the previous channel.

838 Series. Special keys for use

with NetCommand IR control.

See the detailed owner’s guide at

www.mitsubishi-tv.com.

ENTER

Selects a channel number or menu item.

Navigation and adjustment

controls

FAV

Displays up to nine favorite

sources. See page 14 .

FORMAT

Changes picture shape,

page 14

INTERNET

Connects to internet content

provided by VUDU™. See

page 19 .

INPUT

Press to select a TV input.

See page 8 .

If You Turn Off the TV by Mistake

Press •

POWER

again, within about 60 seconds, to

have the TV come back on immediately.

If the •

STATUS

indicator is green and blinking rapidly,

(about 60 seconds after you shut off power), wait a

few moments for the indicator to stop blinking and

press

POWER

to turn the TV on again.

1. Basic Setup and Operation 7

For assistance call 1(800) 332-2119

The STATUS Indicator

Key Off Steady On

Slow Blinking Fast Blinking

LED Color TV Condition

None TV is powered off. Normal operation.

Green TV is powered on. Normal operation.

Green TV powered off, auto-on TV Timer is

set.

Normal operation. TV can be turned on

at any time.

Green TV just powered off and lamp is

cooling.

Sixty seconds after turning off TV, LED

will start to blink. TV can be turned back

on before blinking starts or after blink-

ing stops, but not while the indicator is

blinking. Normal operation.

Yellow TV is too hot.

The TV will display a

warning message and shut off if it over-

heats.

• Ambient room temperature may be

too high. Turn off the TV and let the

room temperature drop.

• Clear blocked air vents. Ensure at

least a four-inch clearance on all

sides of the TV.

Yellow Lamp access door is not secure or no

lamp installed.

TV will not operate until lamp access

door is secured. See Appendix A .

Red Lamp failure. Replace the lamp. See

Appendix A .

Red/

Yellow

TV may require service.

Hold power button on front panel for •

10 seconds to reset TV.

If LED continues to flash red and •

yellow after reset, turn off the TV and

unplug it from the AC power source.

Wait one minute and then plug the

set back in.

If LED continues to flash red and •

yellow,

go to www.mitsubishi-tv.com

or call 1-800-332-2119 to receive

Authorized Service Center informa-

tion.

You may be asked to count how

many times the LED flashes each

color to aid in troubleshooting.

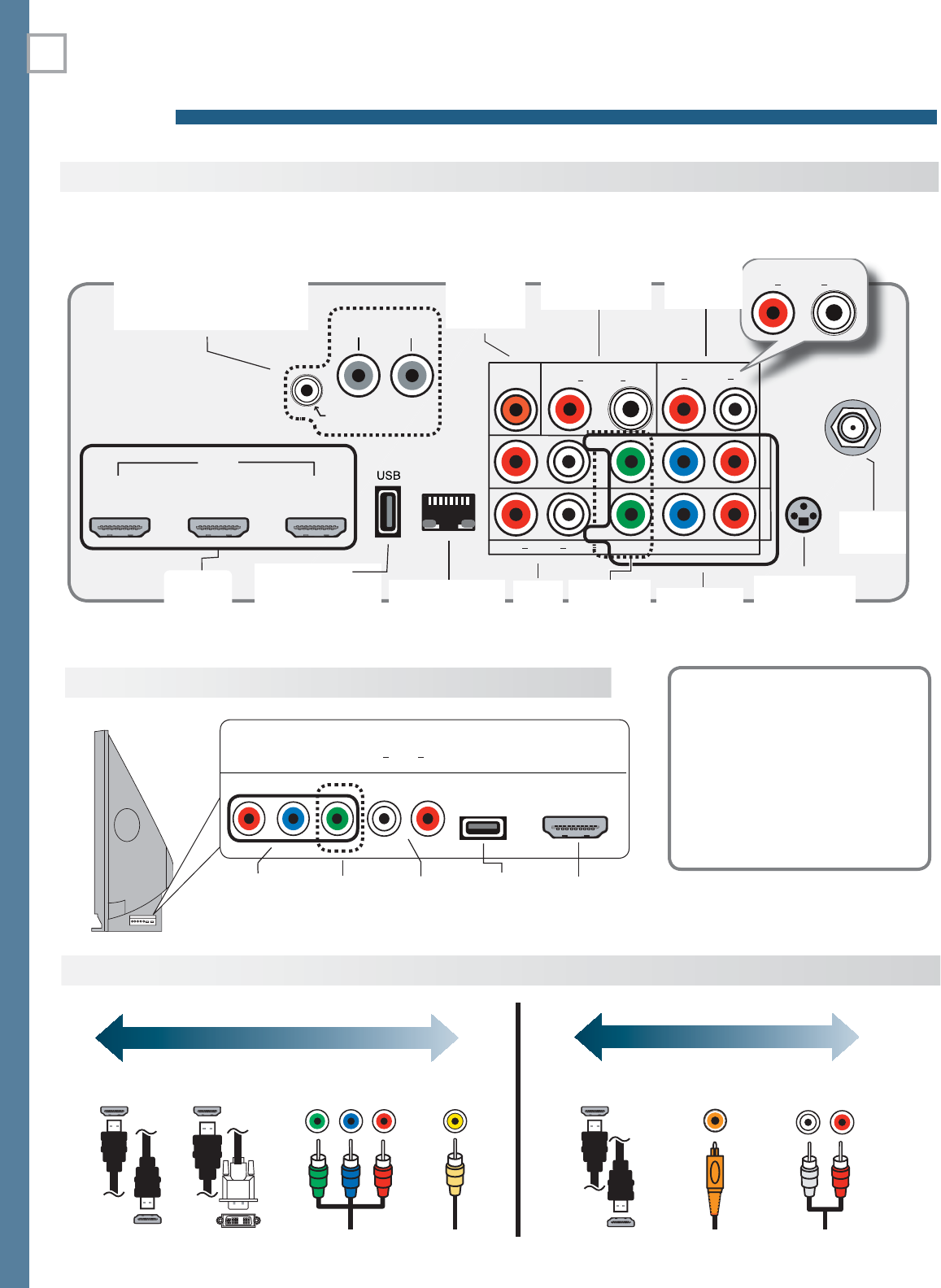

Using the ANT (Antenna) Input

If using an antenna or direct cable service (no cable

box), connect the incoming coaxial cable to the TV’s

ANT

input. Refer to page 12 .

You must perform a channel scan to enable recep-

tion of digital channels. If you skip this step, the TV

will receive only analog channels. The channel scan

will search for high-definition and standard-definition

channels available in the local area.

M emorizing Channels with Channel Scan

For the ANT input

To start channel memorization

Power on the TV.

1.

Press

2.

MENU

and open the Setup > Channel menu.

First press to navigate to the Setup icon, then

use to highlight the Channel icon.

Start channel memorization from the Setup > Channel

menu.

Press

3.

to enter the menu.

Highlight

4.

Ant Air if connected to an

over-the-air antenna. Highlight Ant

Cable for service over direct cable

(no cable box). Press

ENTER

to add a

check.

For first-time setup, highlight

5.

All

channels. To scan for channels not

already in memory, highlight New

only. Press

ENTER

to add a check.

Highlight

6.

Scan and press

ENTER

.

Channel memorization may take up

to 15 minutes to complete.

To stop channel memorization before completion,

press

CANCEL

.

Settin g Up and Using TV Inputs

8 1. Basic Setup and Operation

For assistance call 1(800) 332-2119

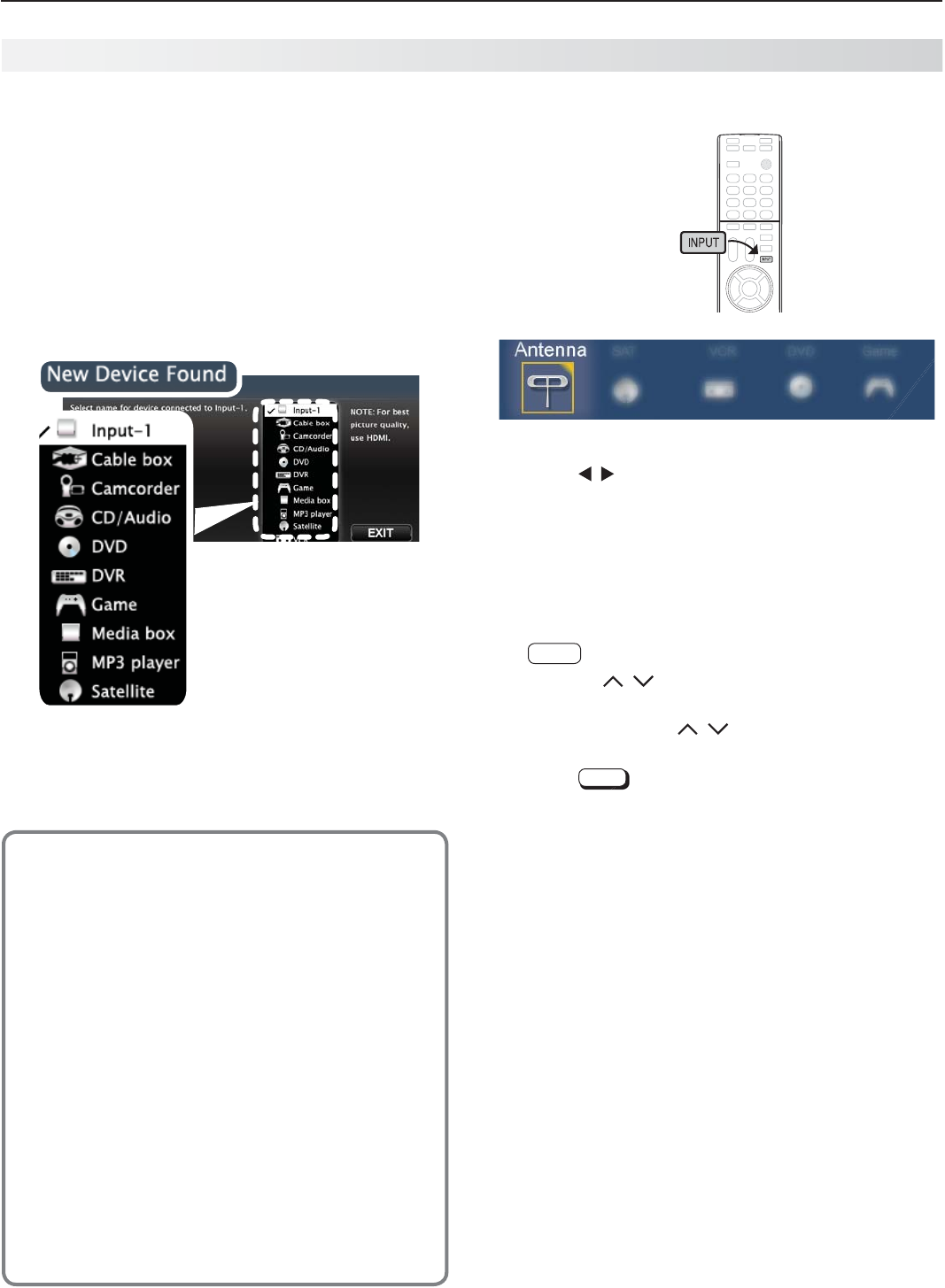

Setting Up Other Inputs

Power on the TV.

1.

Power on the devices to ensure detection.

2.

Connect one device to the TV, making note of the

3.

TV input jack.

The TV will display the New Device Found screen if

the connection type is detectable.

Highlight the device type in the on-screen list and

4.

press

ENTER

. The name you select here will appear

in the Input Selection menu.

Sample New Device

Found screen.

Press

5.

EXIT

to close the New Device Found screen.

Repeat steps 3 through 5 for each additional device

6.

you want to add.

About Auto Input S ensing

This TV’s Easy Connect™ Auto Input Sensing

feature detects most input connections automati-

cally. Some exceptions are:

A connection on the •

ANT

input

TV audio outputs (analog and digital)•

An HDMI-equipped device that is powered off. •

Power on the device first to ensure detection.

Ethernet•

Auto Input Sensing for Most Devices

When you first connect a device, the TV will:

a. Detect the connected device and auto-

matically switch to it.

b. Prompt you to identify the device type.

c. Repeat these steps for other newly

detected devices.

Setting Up and Using TV Inputs, continued

Selectin g an Input to Watch

Press

1.

INPUT

.

Sample Input Selection menu, antenna input selected

Press

2.

to highlight an input icon.

Press

3.

ENTER

to switch to the input.

Tun ing to Channels on the Antenna Input

Enter the channel number using the number keys •

on the remote control and press

ENTER

.

For a two-part digital channel, such as 3-1, press •

3

—

CANCEL

.

Press •

CH

/ to change channels one channel at

a time.

Press and hold •

CH

/ to speed through chan-

nels.

Press •

LAST

to return to the previous channel.

Use the Fav (Favorites) feature to tune to up to nine •

favorite channels. See page 14 .

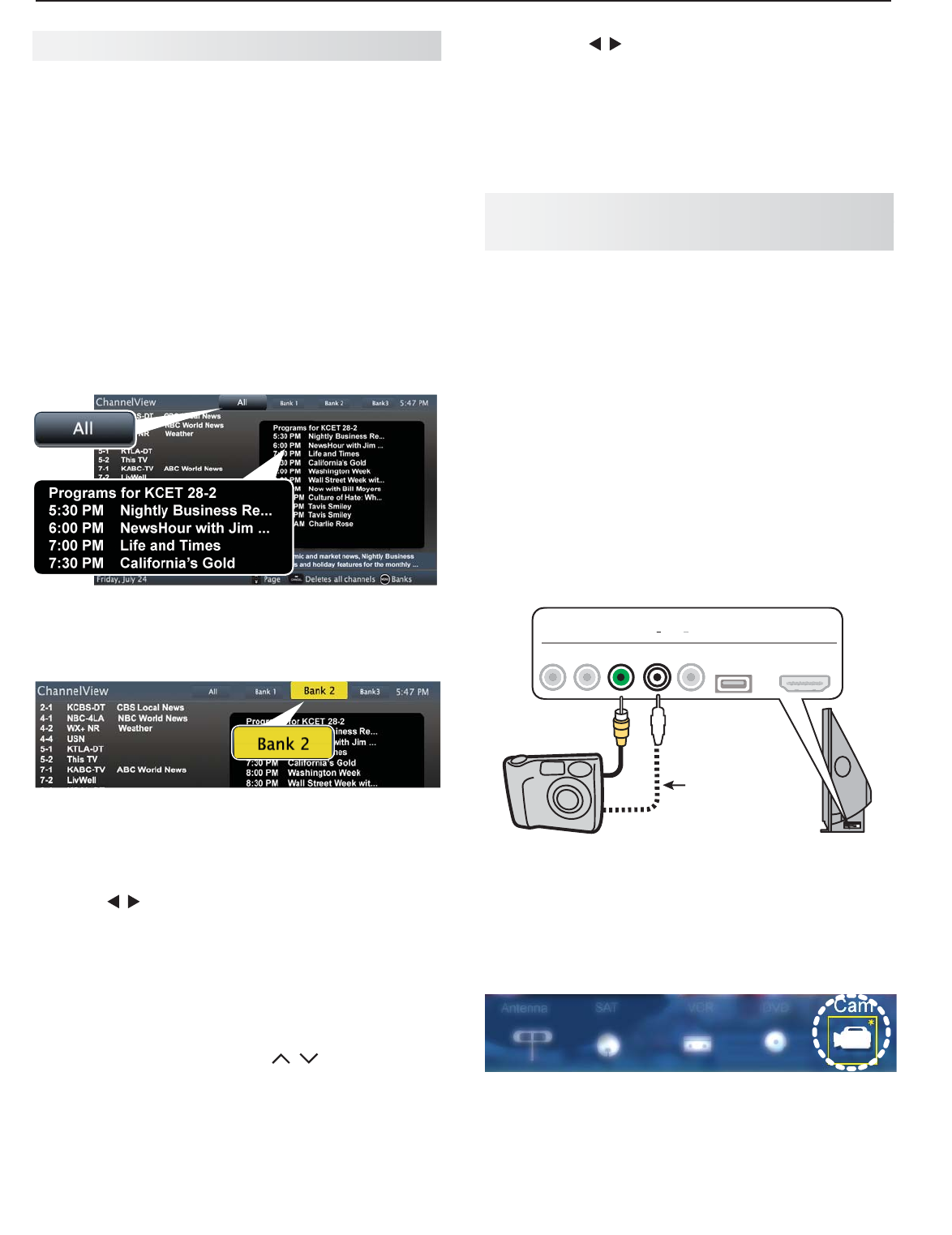

Press • GUIDE to display ChannelView channel listings,

highlight a channel number, and press ENTER to tune.

1. Basic Setup and Operation 9

For assistance call 1(800) 332-2119

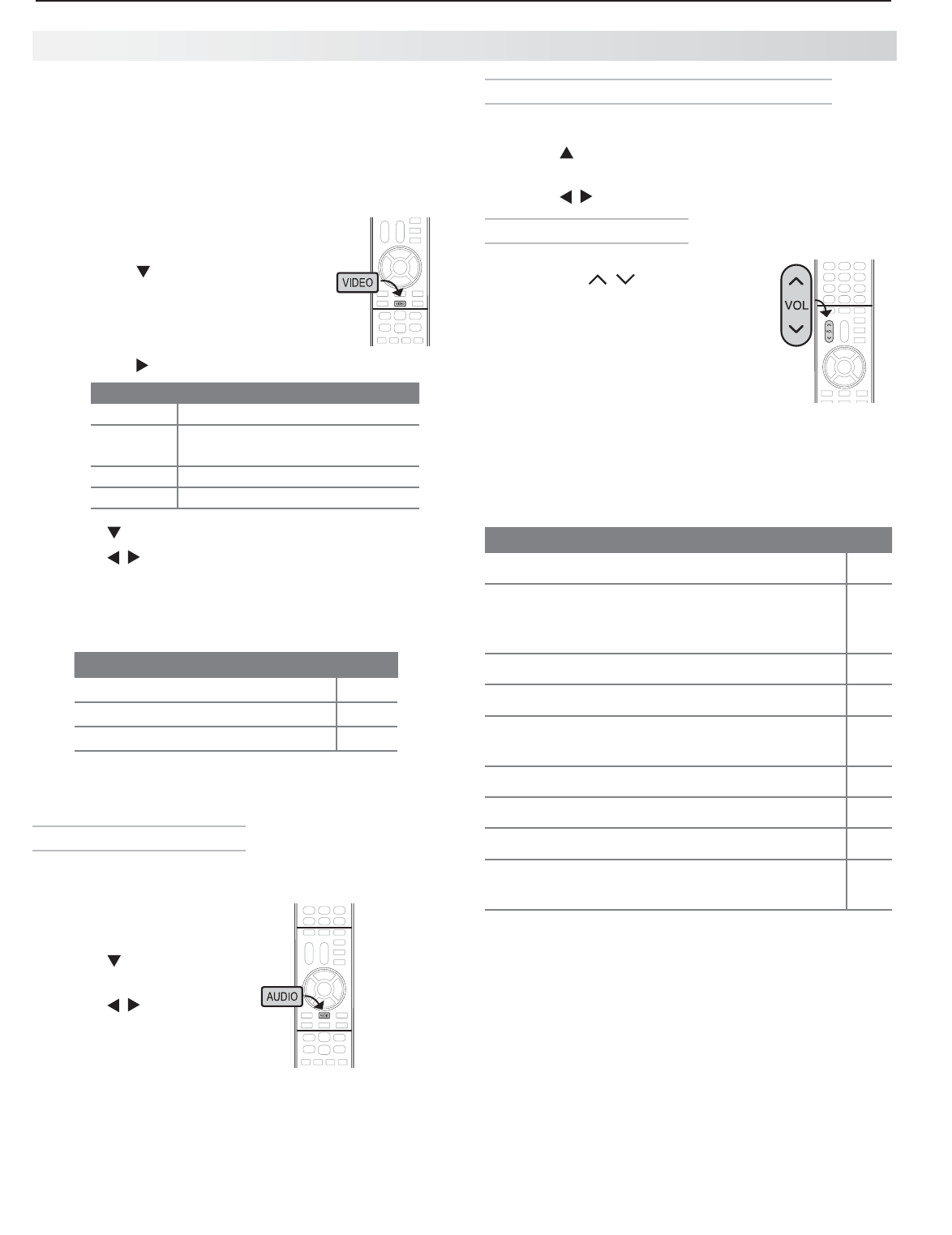

Picture Settings

To get the best picture under different viewing con-

1.

ditions, set the Picture Mode first before changing

other video settings. See page 21 for a description

of the options.

a. Press

VIDEO.

b. Press until the Picture Mode

option displays.

c. Press to make one of these selections:

Name When to Use

Brilliant

Under bright light

Game

With gaming consoles (inputs

named

Game

or

PC

only)

Bright For most daytime viewing

Natural For most nighttime viewing

Press

2.

to display the name of another adjustment.

Press

3.

to make the adjustment.

Wait a few seconds and

4.

the display will clear.

Additional picture options are available through the fol-

lowing menus:

Menu Page

Picture > Picture Plus

21

Picture > Perfect (838 series) 22

Picture > 3D Mode 16

Audio Controls

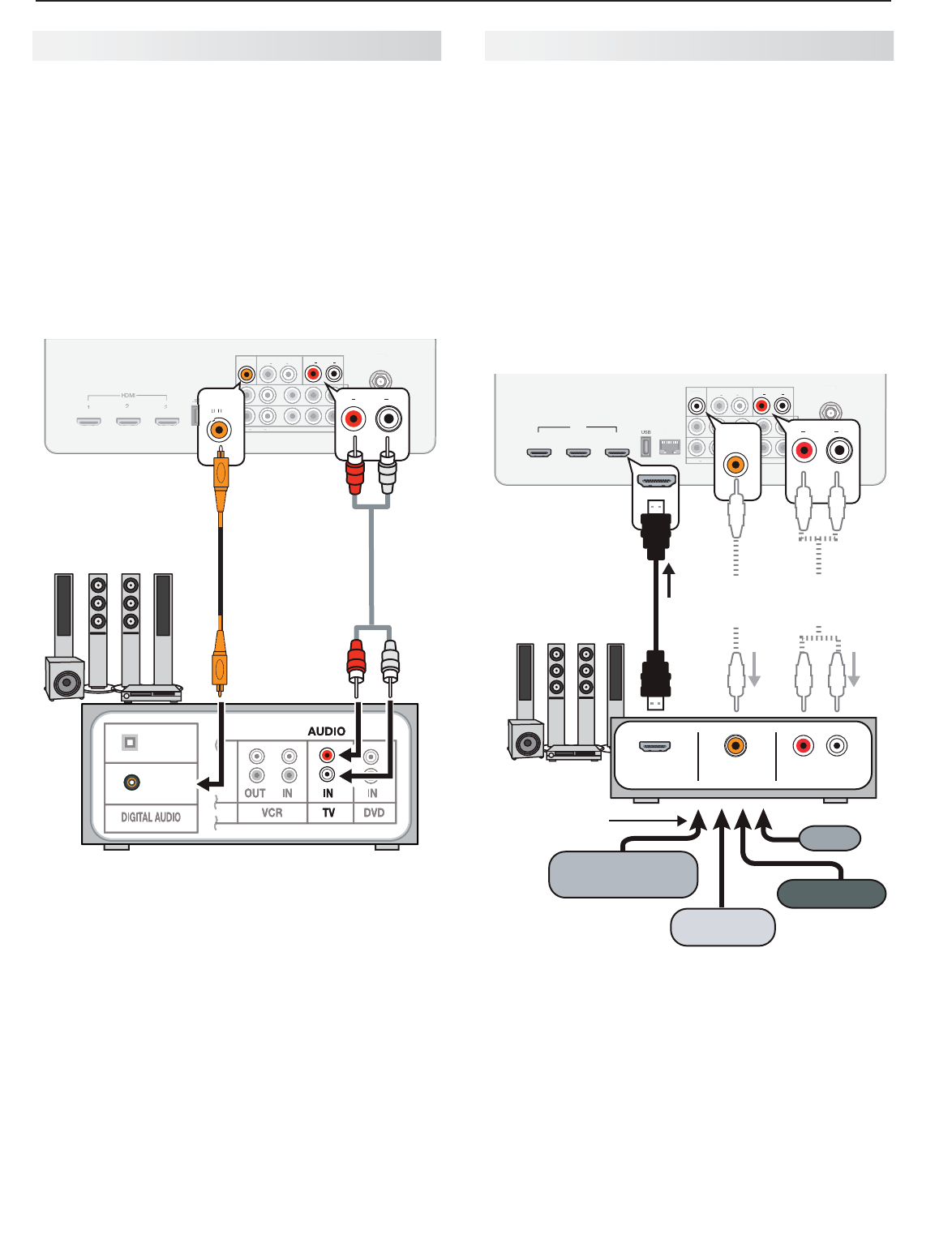

Changing the Audio Output

To switch from the internal TV speakers to an external

sound system:

Press

1.

AUDIO

.

Press

2.

to display the

TV Speakers option.

Press

3.

to change.

Basic TV Operation

More TV Features

Features covered in this Basic Owner’s Guide include:

Feature

Page

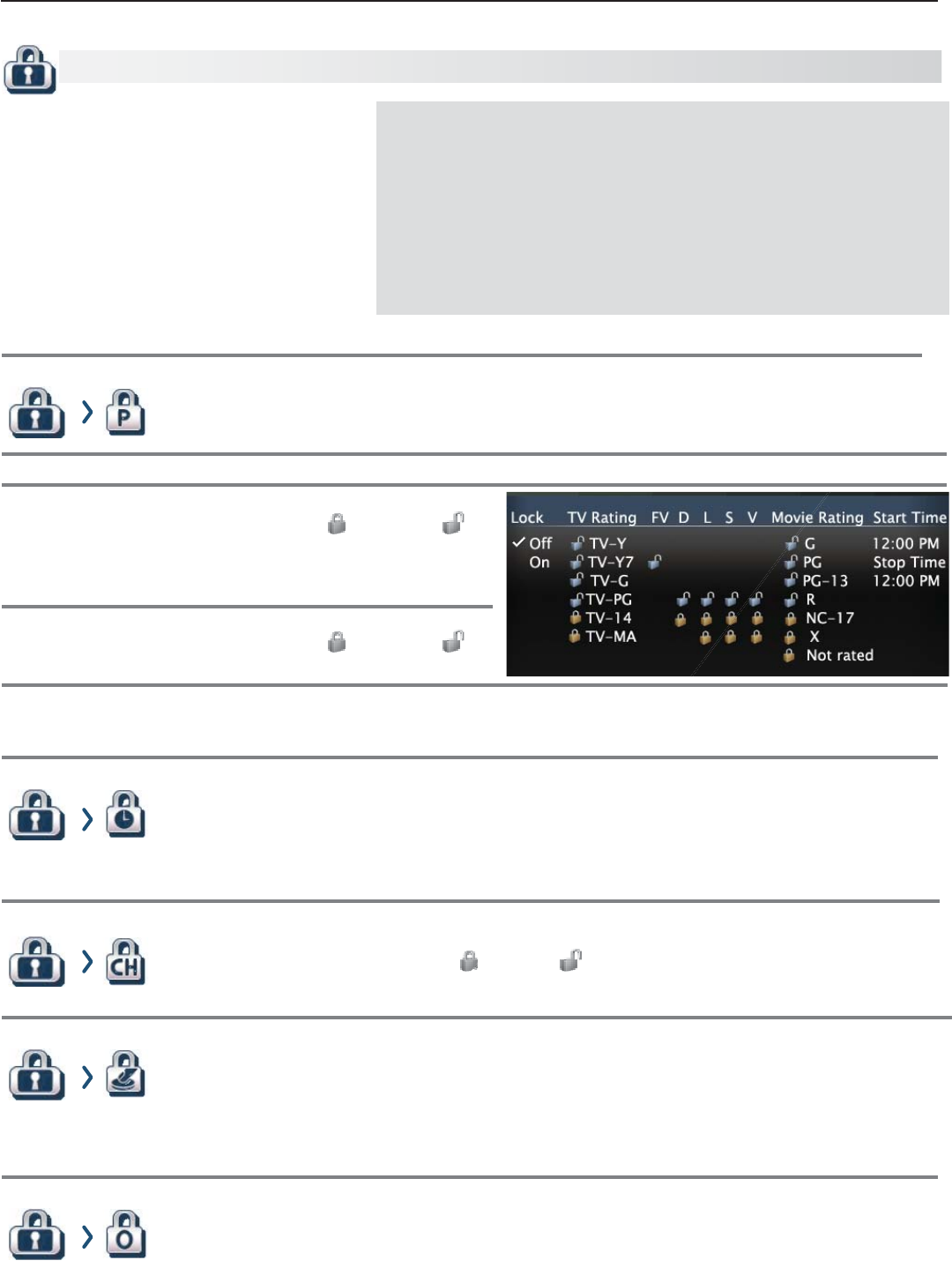

Parental controls (Lock menu) 26

TV Clock. Set the TV Clock if you plan to use

the TV Timer ( page 24 ) or ChannelView ( page

15 ).

24

Favorite sources 14

ChannelView and custom channel collections 15

Changing the input names that appear in the

Input Selection menu (Inputs > Name menu)

25

3D Video 16

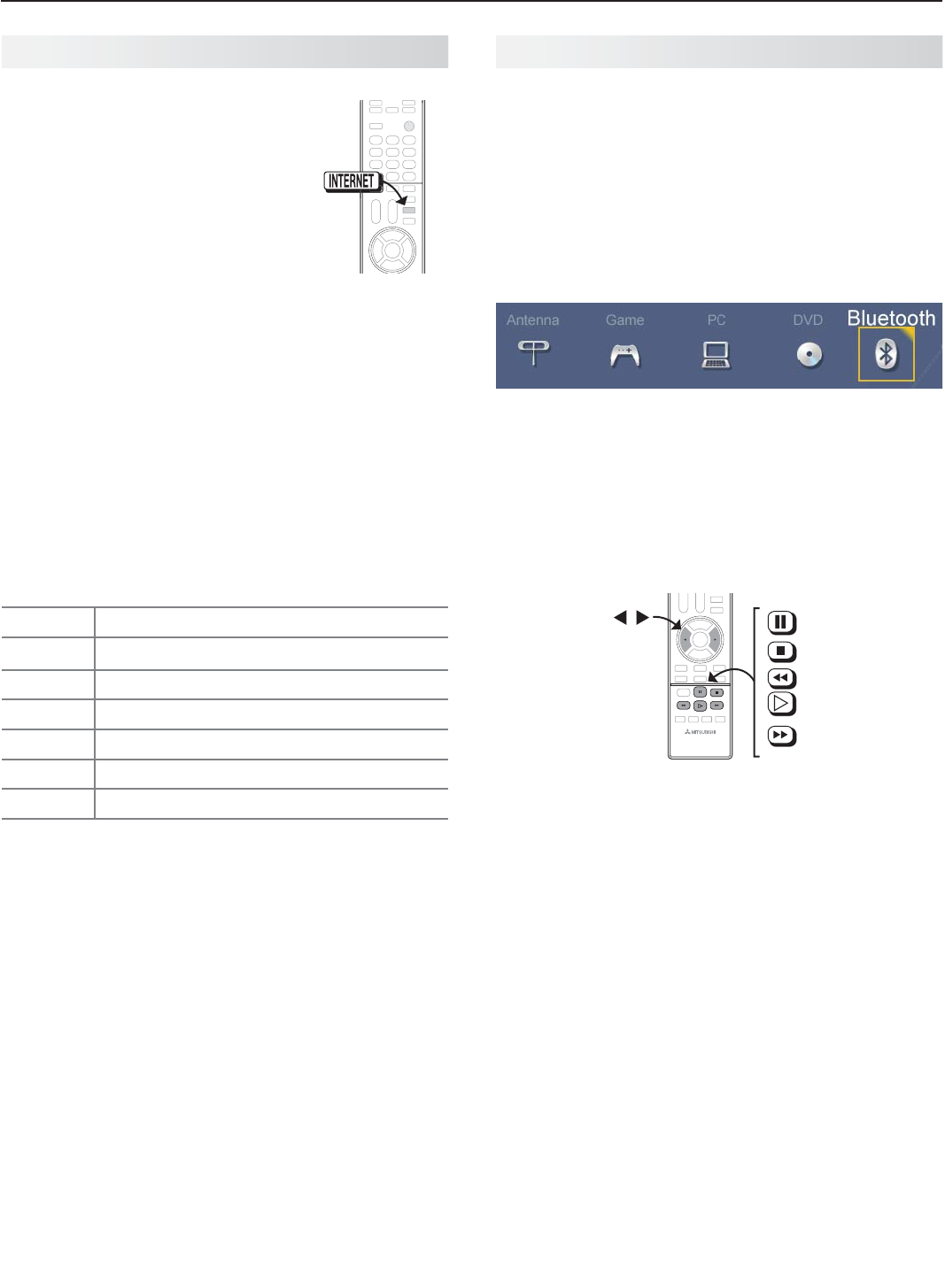

Internet video streaming with VUDU 19

Digital camera images as composite video 15

838 Series. Listening to a wireless audio

device with the TV speakers

20

See the detailed Owner’s Guide at

www.mitsubishi-tv.com for more on the features

described here and to learn about other features,

including:

HDMI control (CEC) of other A/V devices•

838 Series.• NetCommand IR control of other A/V

devices. Use of NetCommand requires purchase of

IR emitter cables available from Mitsubishi.

838 Series.• Center and rear channel audio output

838 Series.• Using an external subwoofer.

838 Series.• Viewing photo files from a USB device.

Changing Audio Settings (TV Speakers Only)

Press

1.

AUDIO

.

Press

2.

to display the name of the adjustment you

want. See page 22 for descriptions.

Press

3.

to change.

Controlling Sound Volume

Press •

VOL

/ to adjust the

sound level of the TV speakers.

See the full owner’s guide at •

www.mitsubishi-tv.com for

methods of controlling A/V receiver

volume.

10

For assistance call 1(800) 332-2119

2TV C onnections

Auto Input Sensing

The TV’s Auto Input Sensing

feature automatically recog-

nizes many connections and

prompts you to identify the

type of device connected.

See page 8 for more on Auto

Input Sensing.

Component

GOODBEST GOODBEST

VIDEO QUALITY AUDIO QUALITY

HDMI-to-DVIHDMI Video Video

Composite L/R Analog

AudioAudio

Digital

HDMI

Connection Types and Audio/Video Quality

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

IR-NetCommand

Output/EXTERNAL

CONTROLLER INPUT

CENTER

INPUT

SUB

WOOFER

OUTPUT

LAN

AN

AN

T

T

AUDIO/SURROUND

OUTPUT

LR

838 Series Side Inputs

HDMI

page 11

AUDIO

OUTPUT

( page 13 )

AUDIO/SURROUND

OUTPUT

(838 series, page 23)

DVI/PC AUDIO

INPUT

page 11

DIGITAL

AUDIO

OUTPUT

( page 13 )

838 Series Jacks. See

the full owner’s guide at

www.mitsubishi-tv.com.

R & L

Analog

Audio

Input

R & L

Analog

Audio

Input

Y Pb Pr

(component

video)

ANT

page 12

3D GLASSES

EMITTER

( page 16 )

Main Connection Panel

USB

(Accessory power

on all models;

738 Series, wireless

adapter, page 19 )

HDMI

USB

(

page 19

)

VIDEO

(

composite

video)

Y Pb Pr

(component

video)

USB HDMI 4

INPUT 3

AUDIO

LR

Pb

Y/ VIDEO

Pr

LAN

(Ethernet, port

page 19 )

VIDEO

(composite

video)

2. TV Connections 11

For assistance call 1(800) 332-2119

H

D MI Device

Mitsubishi recommends using high-speed HDMI

cables to connect newer devices incorporating HDMI

technology.

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

A

U

DI

O

O

UTPU

T

P

b

P

r

I

NPUT 2

INPUT

1

DIGITA

L

A

UDIO

O

UTPU

T

D

VI/PC

(480i / 480p / 720p / 1080i

)

L

R

INP

UT

A

UDI

O

Y/ VIDE

O

P

b

P

r

DE

O

3D

G

LASSE

S

EMITTER

ANT

L

R

1

HDMI

23

Any HDMI device

HDMI-to-HDMI

cable

TV main panel

HDMI and Digital Surround Sound

738 Series. The TV’s HDMI inputs can receive

digital stereo audio signals only when using the TV

speakers.

838 Series. The TV’s HDMI inputs can receive

digital surround sound from an HDMI device. Use an

HDMI connection if you want to hear digital surround

sound from the TV’s internal speaker array.

Y Pb Pr Co mponent Video Device

Required:

RCA-type component video cables•

Left/right analog audio cables.•

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

LAN

HDM

I

AUDI

O

OUTPU

T

P

b

P

r

I

NP

U

T

2

I

NP

U

T

1

DI

G

ITA

L

A

U

DI

O

OU

TP

UT

D

VI/PC

(

480i / 480p / 720p / 1080i)

L

R

INPUT

AUDI

O

Y/

VID

E

O

P

b

P

r

Y

/ VID

E

O

3

D

GLASSE

S

E

MITTE

R

AN

T

A

UDIO

L

R

L

R

LAN

Pb Pr

Y/ VIDEO

– AUDIO –

L

R

Pb Pr

Y/ VIDEO

AUDIO

LR

PbYPr

AUDIO

LR

Incoming from

cable service or

satellite dish

Component video

device

TV main panel

Audio

cables

Component

video cables

CABLE IN or

SATELLITE IN

DV I Video Device

Required:

DVI-to-HDMI cable or DVI/HDMI adapter and •

HDMI cable

Left/right analog audio cables•

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

LAN

AUDIO

OU

TP

U

T

P

b

P

r

I

NP

U

T

2

I

NP

U

T

1

D

I

G

ITAL

A

UDIO

O

UTPU

T

DVI/P

C

(480i / 480p / 720p / 1080i

)

L

R

INPUT

A

UDIO

Y/

VIDEO

P

b

P

r

Y/

VIDEO

3D

G

LA

SS

E

S

EMITTER

ANT

L

L

R

DVI/PC LR INPUT

AUDIO

L

L

DVI/PC

R INPUT

AUDIO

3

HDMI

DVI OUT

AUDIO

R

L

Digital DVI

device

TV main panel

DVI-to-HDMI

cable Audio

cables

Comp osite Video Device

Required:

Composite video cable (usually yellow)•

Analog stereo audio cables.•

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

LAN

HDMI

A

U

DI

O

OU

TP

UT

P

b

P

r

I

NPUT

2

I

NPUT 1

D

IGITA

L

A

U

DI

O

OUTPUT

D

VI

/

P

C

(

480i / 480p / 720p / 1080i

)

L

R

INPUT

AU

DI

O

Y

/

VID

E

O

P

b

P

r

Y

/

VID

E

O

3

D

G

LASSE

S

EMITTE

R

ANT

A

UDIO

L

R

L

R

LAN

Y/ VIDEO

– AUDIO –

L

R

Y/ VIDEO

AUDIO

LR

AUDIO OUT

COMPOSITE

VIDEO OUT

L

R

TV main panel

Audio

cables

VCR or other device with

composite video output

Composite

video cable

12 2. TV Connections

For assistance call 1(800) 332-2119

Ante nna or Cable TV Service

Connect the incoming cable to the TV’s

ANT

input.

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

LAN

AUDIO

OU

TP

U

T

P

b

P

r

INPUT

2

I

NPUT

1

D

IGITA

L

AUDI

O

O

UTPU

T

D

VI/PC

(

480i

/

480p

/

720p

/

1080i

)

L

R

INP

U

T

AUDIO

Y

/

VIDE

O

P

b

P

r

Y/ VIDE

O

3D

GLASSE

S

E

MITTER

ANT

AUDI

O

L

R

L

R

LAN

ANT

ANT

IN OUT

Cable TV

service

Antenna

TV main panel

Not recommeded. Other

connection types provide

better quality audio and video.

Direct cable (no cable box)

or

or

Older cable box

VCR or DVD Recorder to an

Antenna or Wall Outlet Cable

Required:

1. Video cables

1a. Component video cables (red/blue/green)

or

1b. Composite video cable (usually yellow)

2. Left/right analog audio cables.

3. Two-way RF splitter

4. Two coaxial cables

Note: If your recording device has an analog-only

tuner, you must use a digital converter box to

enable recording of digital broadcasts.

AUDIO OUT COMPOSITE

VIDEO OUT COMPONENT

VIDEO OUT

L

R

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

LAN

AUDI

O

OUTPUT

P

b

P

r

INPUT

2

INPUT

1

D

IGITAL

AUDI

O

O

UTPUT

D

VI

/

P

C

(

480i

/

480p

/

720p

/

1080i

)

L

R INPU

T

AUDIO

Y

/ VID

E

O

P

b

P

r

Y/

VID

E

O

3

D

G

LA

SS

E

S

EMITTER

ANT

AUDI

O

L

R

L

R

LAN

Pb Pr

Y/ VIDEO

Y/ VIDEO

Y/

VIDE

O

Pb Pr

Y/ VIDEO

AUDIO

LR

ANT

ANT

ANTENNA

IN

1a.

2.

3. 4.

4.

1b.

or

TV main panel

Incoming cable

RF Splitter

DVD Recorder or VCR

Composite

video cable

2. TV Connections 13

For assistance call 1(800) 332-2119

A/ V Receiver

Most setups require either a digital audio cable or

analog stereo audio cables. To send audio from TV

channels received on the

ANT

input or devices con-

nected directly to the TV, you must use one of the con-

nections shown below.

The TV makes all audio available in digital and analog

formats:

Analog audio coming into the TV is available as •

output in digital stereo format on the

DIGITAL

AUDIO OUTPUT

jack.

Digital incoming audio is available as analog output •

on the

AUDIO OUTPUT L

and

R

jacks.

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

(480i / 480p / 720p / 1080i)

Y/ VIDEO

Pb Pr

Y/ VIDEO

DVI/PC LR INPUT

AUDIO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LAN

P

b

P

r

INPUT 2

INPUT

1

D

IGITAL

AUDIO

OUTPUT

(480i / 480p / 720p / 1080i

)

Y/

VID

E

O

P

b

P

r

Y/

VID

E

O

D

VI/PC

L

R

INPUT

A

UDIO

3

D

G

LA

SS

E

S

EMITTER

ANT

A

UDIO

L

R

L

A

N

DIGITAL

AUDIO

OUTPUT

AUDIO

OUTPUT

LR

DIGITAL

AUDIO

OUTPUT

AUDIO

OUTPUT

LR

COAXIAL

INPUT

OPTICAL

INPUT

C

OAXIAL

INPUT

O

PTI

C

AL

INPUT

COAXIAL

INPUT

or

TV main panel

Digital coaxial

cable (for a digital

A/V receiver)

Stereo analog

cables (for an

analog A/V

receiver)

A/V receiver back panel

Note:

On rare occasions, an HDMI signal may be •

copy-restricted and cannot be output from

the TV as a digital signal. To hear these copy-

protected signals through the A/V receiver, use

the connection for an analog A/V receiver.

Check the A/V receiver’s Owner’s Guide for •

information concerning use of the digital input

and switching between digital sound and

analog stereo sound from the TV.

A/ V Receiver with HDMI Output

Required: One HDMI-to-HDMI cable

This option allows you to view content from devices

connected to an A/V receiver. The A/V receiver can

send audio and video to the TV over a single HDMI

cable. You can use an HDMI connection as described

here in addition to an audio connection from the TV’s

audio output. The optional audio connection allows you

to hear, through the A/V receiver, devices connected to

the TV only, e.g., an antenna on the

ANT

input.

838 Series:

This setup allows you to use Net-

Command-controlled audio and video switching

over the HDMI cable. See the full owner’s guide at

www.mitsubishi-tv.com for details.

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

(480i / 480p / 720p / 1080i)

Y/ VIDEO

Pb Pr

Y/ VIDEO

DVI/PC LR INPUT

AUDIO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LAN

P

b

P

r

INPUT 2

INPUT

1

D

IGITAL

AUDI

O

OUTPUT

(480i / 480p / 720p / 1080i

)

Y

/

VID

E

O

P

b

P

r

Y/ VID

E

O

DVI/PC

L

R

INPUT

AUDI

O

3

D

G

LA

SS

E

S

EMITTER

ANT

A

UDIO

L

R

L

A

N

DIGITAL

AUDIO

OUTPUT

123

HDMI

HDMI cable

DIGITAL

AUDIO

OUTPUT

AUDIO

OUTPUT

LR

AUDIO

OUTPUT

LR

HDMI OUT

DIGITAL

AUDIO IN

ANALOG AUDIO IN

LR

High-definition

DVD player DVD player

Cable box

VCR

TV

A/V receiver with

HDMI output

Any connection

types

Optional

analog or

digital audio

connection

14

For assistance call 1(800) 332-2119

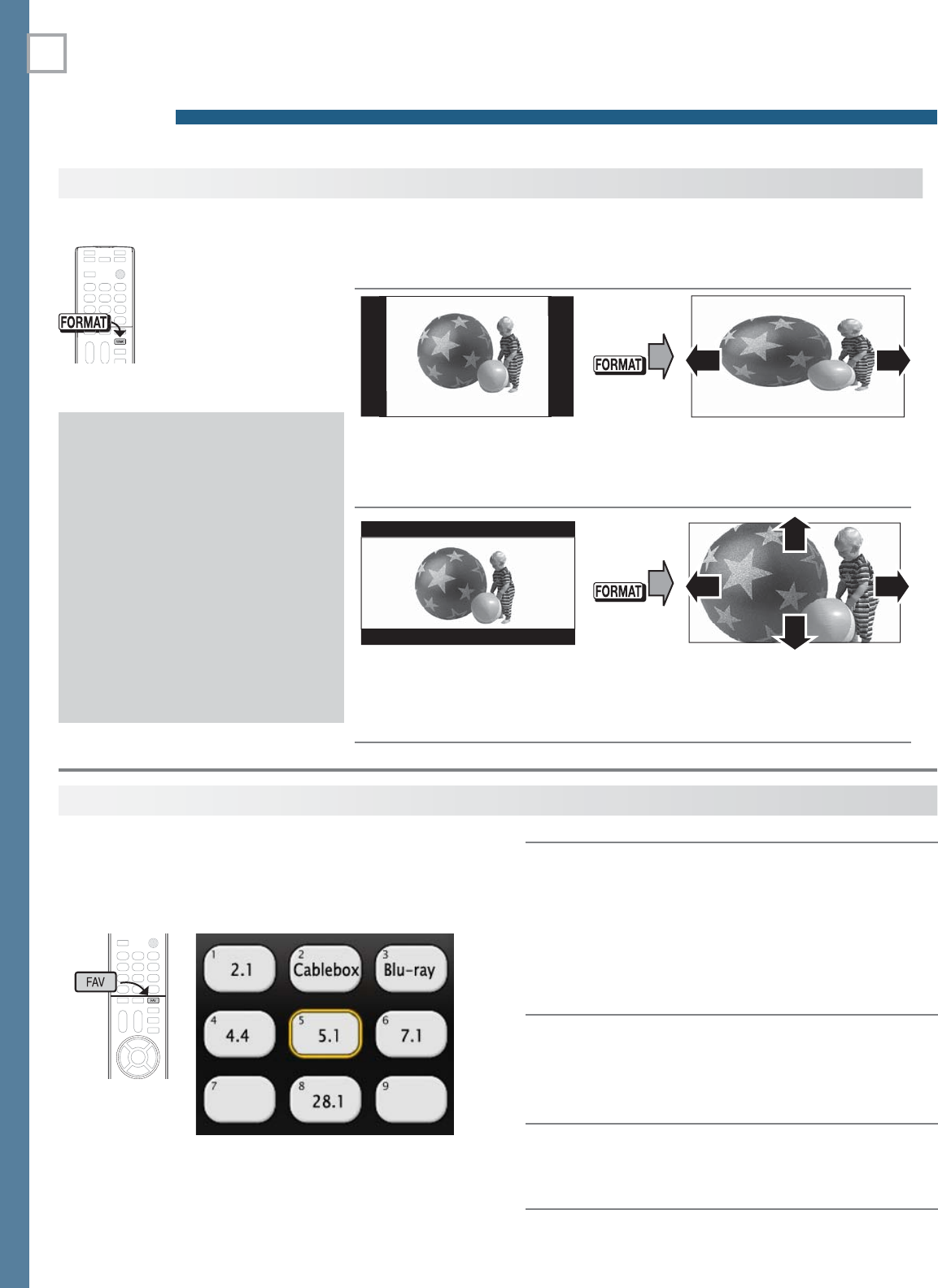

TV Features

3

FA V ( Favorites)

The FO RMAT Key and Picture Shape

Important

Black bars at the edges of the

picture are common in HD

pictures. Black bars are not a

defect of the TV.

Black bars are added by broad-•

casters to fill the 16:9 screen

area while preserving the original

aspect ratio of the picture.

Your cable box or satellite •

receiver may also be altering

the broadcast picture. If your

receiver offers output in native

format, try using it with Mitsubi-

shi’s picture formats.

Sample Uses of the

FORMAT

Key

You can use the

FORMAT

key to reduce or eliminate black areas at the

edges of the picture.

Press

Squarish 4:3 image is

narrower than the 16:9

screen; unused areas at the

sides are filled with black.

Wide Expand mode stretches

the picture sideways to fill the

screen.

Press

Wide 2.35:1 anamorphic DVD

image; unused areas at the

top and bottom are filled with

black (letterbox effect).

Zoom mode. The picture fills

the screen. All four edges are

cropped in this mode.

Repeatedly press the

FORMAT

key to cycle

through displays avail-

able for the current

program. The TV will

remember the format

you last used on each

input.

Adding

Press 1.

INPUT

and switch the TV to the input

you want to add. If adding a channel, switch

to the

ANT

input and tune to the channel.

Press the 2.

FAV

key.

Move the highlight to the number position 3.

you want to assign to the channel or input.

Press 4.

ENTER

.

Removing

While watching TV, press the 1.

FAV

key.

In the 2. Favorites menu, highlight the channel

or input you want to remove.

Press 3.

CANCEL

.

Selecting

While watching TV, press the 1.

FAV

key.

Press the number key for the channel or 2.

input you want.

The

FAV

key gives you quick access to favorite program

sources. Sources can be channels from the

ANT

input

or devices connected to the TV. You can store up to

nine favorites.

Sample Favorites menu. Switch to favorite channels or

inputs using number keys.

3. TV Features 15

For assistance call 1(800) 332-2119

ChannelView, “All” tab. Programs for the tuned channel

are listed on the right.

Chann elView Custom Channel Banks

Select a channel bank to customize.

Press

1.

GUIDE

to display ChannelView.

Press

2.

MENU

to move the highlight to the bank

header.

Press

3.

to select Bank 1, 2, or 3.

With the bank name highlighted, press

4.

ENTER

to

enter setup mode where you can select channels to

include in the bank.

Press

5.

EXIT

when finished with setup.

Using Custom Channel Banks

While watching TV, press •

CH

/ . The TV will

tune only to channels stored in the current bank.

To • change to a different channel bank:

Press 1.

GUIDE.

Press 2.

MENU.

ChannelView displays program descriptions sent by

broadcasters. This information may be unavailable

in some areas.

About ChannelView

ChannelView™ shows memorized channels on the ANT

input. It displays channel names and program information

for digital channels. No program information is displayed

for analog channels.

ChannelView allows you to set up three banks of custom

channels for convenient access. You can save groups of

channels by content (e.g., news, sports, children’s program-

ming) or by TV user.

Note: You must fi rst set the TV Clock ( page 24 )

t

o

receive ChannelView listings.

Ch annelView Channel Listings

Phot os and Moving Video as

Composite Video

Note: 838 series TVs can display photos and play mu-

sic from a USB drive. See the detailed owner’s

guide at www.mitsubishi-tv.com.

Connect the camera to the TV using a composite video

cable and control the slide show or movie through the

camera. The display resolution will be standard-defini-

tion (480i).

Refer to the owner’s manual supplied with the

1.

camera for instructions needed for this setup.

Set the camera’s output signal type to

2.

NTSC and

put the camera into playback mode.

With the camera still turned on, connect your digital

3.

camera’s composite video cable (usually yellow) to

the TV’s

Y/VIDEO

jack. To hear audio, connect the

camera’s audio output cable to the

AUDIO

L

jack.

Optional

Audio Cable

USB HDMI 4

INPUT 3

AUDIO

LR

Pb

Y/ VIDEO

Pr

US

B

HDMI 4

INPUT

3

A

U

DI

O

L

R

P

b

Y

/

VID

E

O

P

r

INPUT 3

AUDIO

L

Y/ VIDEO

Camera connection using a composite video cable

When the

4.

New Device Found screen displays,

assign the name Camcorder.

Press

5.

EXIT

to close the New Device Found screen.

Highlight the icon for the camera input and press

6.

ENTER

.

If viewing photos, control the slideshow from the

7.

camera. Advance through the images manually or

check if the camera can advance automatically.

Press 3. to highlight a bank.

Press 4.

MENU

to see channels in the bank.

To allow tuning to any channel in memory, select •

the All bank.

16 3. TV Features

For assistance call 1(800) 332-2119

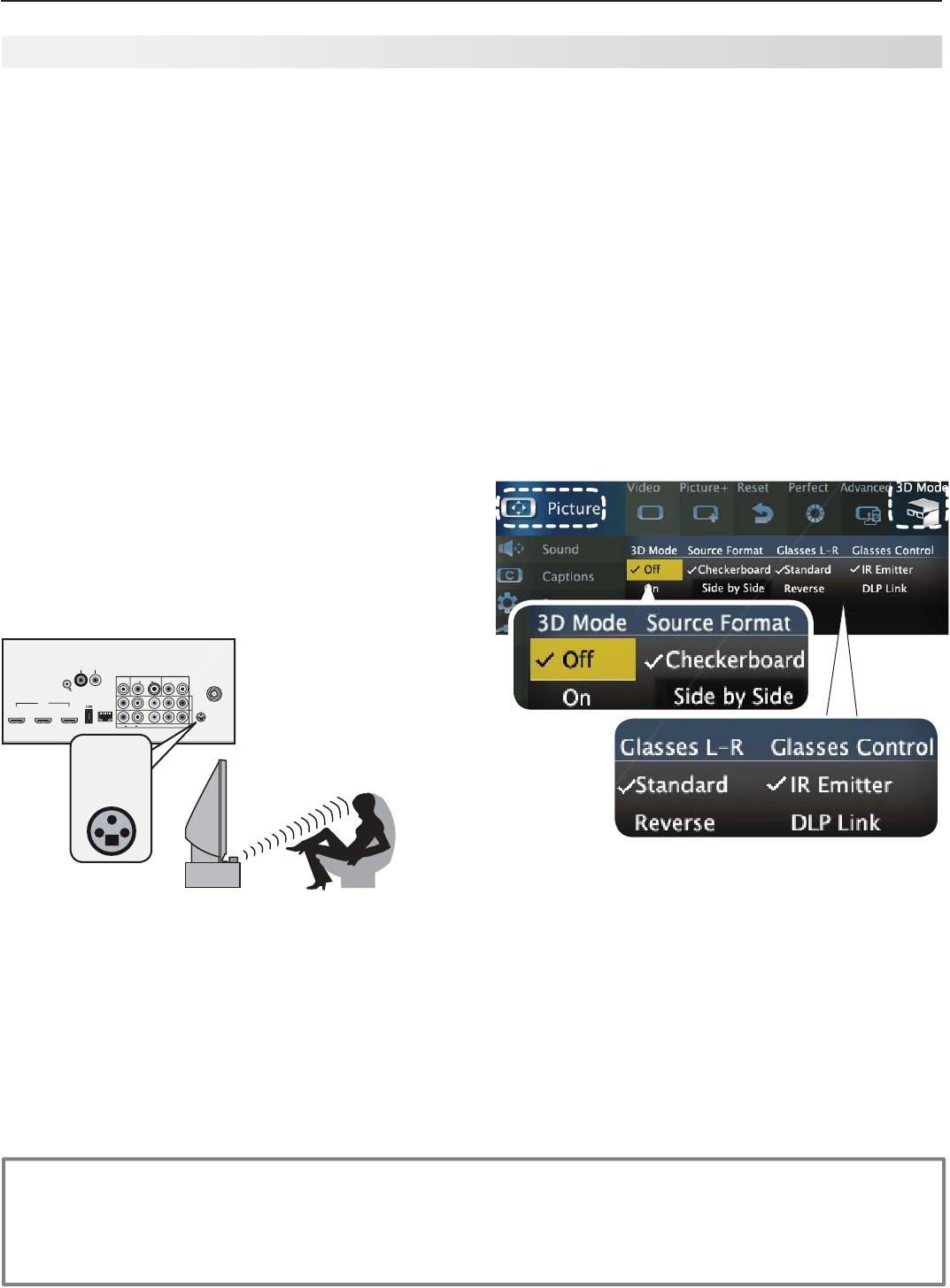

To display 3D gaming or 3D cinema content, your

Mitsubishi TV requires:

A compatible 3D source device outputting a 3D •

signal in one of these formats:

Checkerboard format, 1080p, 60-Hz; (lower -

resolutions may be supported but will not fill the

screen)

Side-by-Side format, 1080p, 24/30/60 Hz; 720p, -

60 Hz

Active-shutter 3D glasses, DLP link type or IR •

emitter type with matching emitter

Please visit our website at www.mitsubishi-tv.com for infor-

mation about future TV software updates that will broaden

3D signal compatibility.

Initial Setup

If your 3D glasses came with an emitter box,

1.

connect the emitter box to the

3D GLASSES

EMITTER

jack. Place the box in front of the TV

where there is a clear path to the glasses.

Note: If your glasses are marked DLP Link, skip this

step; no emitter box is required with DLP Link

technology.

123

HDMI

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

DVI/PC

(480i / 480p / 720p / 1080i)

LR INPUT

AUDIO

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

IR-NetCommand

Output/EXTERNAL

CONTROLLER INPUT

CENTER

INPUT

SUB

WOOFER

OUTPUT

LAN

3D

GLASSES

EMITTER

Power on the TV and the source device.

2.

Connect the source device to the TV’s HDMI input.

3.

When the

4.

New Device Found screen displays,

name the input.

Press

5.

EXIT

to close the New Device Found screen.

Watching 3D Video

Note: Active 3D glasses are required.

Press

1.

INPUT

.

Highlight the icon for the 3D video device and press

2.

ENTER

.

Press

3.

MENU

and select the Picture > 3D Mode

menu.

Select

4.

On

for 3D Mode

. The On setting will be

memorized for the current input when you exit this

menu.

Select the

5.

Source Format. If your source device

outputs an unsupported signal format see “Notice

Concerning Format Compatibility” on this page .

For

6.

Glasses Control, select the control type for

your 3D glasses, either IR Emitter or DLP Link.

Use the Picture > 3D Mode menu to enable 3D video.

Press

7.

EXIT

to close the menu.

If the image does not appear correct

8.

(e.g., objects

appear to be moving in instead of out),

open the

Picture > 3D Mode menu and set Glasses L-R to

Reverse.

To Watch Regular (non-3D) Video

The 3D Mode setting is memorized for each input.

When you want to watch non-3D video on the input

selected above, open the Picture > 3D Mode menu

and set 3D Mode to Off.

3 D Video

Notice Concerning Format Co mpatibility

Mitsubishi 3DTVs (738 and 838 series) currently support

the side-by-side 3D signal format. For support of other 3D

formats, such as top-bottom and frame packing (3D Blu

Ray standard), Mitsubishi 3DTVs will require the use of a 3D

source device that outputs the 3D checkerboard format or

a 3D source device coupled with the Mitsubishi 3D adapter.

In all cases an emitter and matching 3D active shutter

glasses or DLP Link active shutter glasses are required in

order to view 3D content.

3. TV Features 17

For assistance call 1(800) 332-2119

3 D Video, continued

3D Glasses are NOT designed as sunglasses or •

safety glasses and do not provide protection. 3D

glasses should be worn only when viewing 3D

material.

Do not wear the wireless glasses in any situations •

that require unimpaired visual perception.

Chi• ldren under the age of 5 should not view 3D

programming.

Under normal conditions, 3D viewing is safe for your

movies or games. Some people may experience dis-

comfort, however. To minimize the potential for experi-

encing visual problems or any adverse symptoms:

Read and follow any and all safety warnings that •

accompany your 3D glasses or 3D source devices.

Maintain a distance of no less than 2 to 2.5 times •

the screen height measurement away from the

display. Viewing from too short a distance can

strain your eyes.

Take regular breaks, at least 5 minutes after every •

hour of 3D viewing.

If you experience any of the following symptoms, dis-

continue 3D viewing until the symptoms go away:

nausea, dizziness, or queasiness, •

headache, or eyestrain, •

blurry vision,•

d• ouble vision that lasts longer than a few seconds,

Do not engage in any potentially hazardous activity

(for example, driving a vehicle) until your symptoms

have completely gone away. If symptoms persist,

discontinue use and do not resume 3D viewing without

discussing your symptoms with a physician.

Do not use the glasses where loss of balance or limit-

ing your field of vision may be dangerous to you.

Do not use near staircases, ledges or balconies. You

may risk falling during or after use.

Epilepsy

WARNING! IF YOU OR ANY MEMBER OF YOUR

FAMILY HAS A HISTORY OF EPILEPSY, CONSULT

A PHYSICIAN BEFORE USING 3D VIDEO OR GAME

PRODUCTS.

A small percentage of the population may experience

epileptic seizures when viewing certain types of TV

images or video games that contain flashing patterns of

light.

The following people should consult a physician before

viewing 3D Games or Video:

Any• one with a history of epilepsy, or who has a

family member with a history of epilepsy

Anyone who has ever experienced epileptic sei-•

zures or sensory disturbances triggered by flashing

light effects.

WARNING! SOME LIGHT PATTERNS MAY INDUCE

SEIZURES IN PERSONS WITH NO PRIOR HISTORY

OF EPILEPSY. DISCONTINUE 3D VIEWING IF YOU

EXPERIENCE ANY OF THE FOLLOWING SYMP-

TOMS:

Invol• untary movements, eye or muscle twitching

Muscle cramps•

Nausea, dizziness, or queasiness•

Convulsions•

Diso• rientation, confusion, or loss of awareness of

your surroundings

Do not engage in any potentially hazardous activity (for

example, driving a vehicle) until your symptoms have

completely gone away.

Do not resume 3D viewing without discussing the

symptoms with your physician.

3D Safety Requirements

18 3. TV Features

For assistance call 1(800) 332-2119

838 Series

The TV’s built-in speaker array can be set up to reflect

sound off the room walls to create a surround sound effect.

Positioning the TV

Center the seating area in front of the TV and at •

least six feet away.

Arrangements that give good results:•

If the room is an odd shape, locate the TV to take •

best advantage of wall reflections.

Avoid locations that may distort sound reflections.•

Connecting the TV

To hear digital surround sound, the TV must be con-

nected to a digital surround sound source. The surround

sound source can be on an HDMI input or the

ANT

input

(for some digital broadcasts). Other stereo connections

will provide Dolby Pro Logic surround sound.

Auto Se tup

Auto setup uses the included calibration micro-

phone. For manual setup, see the full owner’s guide at

www.mitsubishi-tv.com.

Power on the TV and external subwoofer, if any.

1.

Plug the microphone cable into the TV’s

2. INPUT 3

left audio jack.

AUDIO

LR

AUDIO

L

Soun d Projector

Place the microphone as described in the guide-

3.

lines.

Press

4.

MENU

and go to Sound > AutoSP.

Highlight

5.

START and press

ENTER

.

Quietly exit the room right away. The calibration

6.

sequence may be loud.

Wait for completion of setup

before returning to the room.

Play some sample audio material to check the

7.

sound quality.

Note: Do not perform manual adjustments after run-

ning auto setup as doing so will delete all auto-

setup results.

Store the microphone out of direct sunlight and

8.

away from heat.

Micropho ne Placement

Be sure the

height of the

microphone is

within three feet

of the speaker

height.

Center the micro-

phone in front of

the TV.

Set the microphone

on a level surface at

ear height at least

six feet from the TV.

Use a seat backrest

or tripod so as to

pick up sound from

all directions.

Maximum height above speakers

Microphone

TV

6 ft. minimum

Microphone

Height of TV

speakers

3 ft.

3. TV Features 19

For assistance call 1(800) 332-2119

StreamTV™ Internet Media

Internet services provided by VUDU™ Apps let you

access many popular on-line applications. In addition to

free content, VUDU’s movie service lets you buy and rent

movies through the TV. Visit www.VUDU.com to learn

more about available movie titles, prices, and services

offered. For a list of recommended routers and switches,

see the Support > FAQ section at VUDU.com.

Required for StreamTV internet media:

Broadband internet service (at least 2 Mbps for SD, 4 Mbps •

for HD, and 8 Mbps for 1080p HDX)

Ethernet cable • or an Azurewave AW-NU231 USB

wireless adapter.

Computer access to the VUDU.com website (required •

for initial account activation).

A credit card for rental and purchase transactions •

from VUDU’s movie service.

Home N etwork Setup

Before using StreamTV internet media, you must connect

the TV to the internet using one of these methods.

Ethernet Connection

DHCP (automatic)

Connect the TV to your network router with a Cat-

1.

egory-5 Ethernet cable

(not supplied).

AUDIO

OUTPUT

Pb Pr

INPUT 2

INPUT 1

DIGITAL

AUDIO

OUTPUT

(480i / 480p / 720p / 1080i)

Y/ VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

ANT

AUDIO

LR

LR

AUDIO/SURROUND

OUTPUT

LR

IR-NetCommand

Output/EXTERNAL

CENTER

INPUT

SUB

WOOFER

OUTPUT

LAN

A

U

DI

O

OUTPUT

P

b

P

r

INPUT

2

INPUT

1

D

I

G

ITAL

AU

DI

O

OUTPUT

(

480i / 480

p

/ 720

p

/ 1080i

)

(pp)

Y/ VIDE

O

P

b

P

r

Y

/

VIDE

O

3

D

G

LA

SS

E

S

E

MITTE

R

ANT

A

UDIO

L

R

L

R

AUDIO/SURROUN

D

O

UTPUT

L

R

I

R-Net

C

omman

d

O

ut

p

ut

/

EXTERNA

L

C

ENTER

INPUT

SUB

W

OO

FE

R

OUTPU

T

LAN

LAN

LAN

Ethernet

cable

Router or modem

providing high-speed

internet service

Incoming

internet

cable

TV Main Panel

Open the

2.

Setup > Network menu to review settings.

Press

3.

EXIT

to clear the menu.

Manual

Connect the TV to your network router with a Cat-

1.

egory-5 Ethernet cable

(not supplied).

In the

2.

Setup > Network menu, highlight Manual and

press

ENTER

.

Press

3.

to move to the Connection Data area.

Input the connection data.

4.

After entering connection data, press

5.

ENTER

to

connect.

Change any of the following if needed:

6.

Default Gateway•

DNS•

Subnet Mask•

Setup > Network menu

Highlight the desired network and press

4.

ENTER

to

connect. A check will appear next to the connected

network.

Setup > Network menu after connecting. The active

network is checked and connection data displays.

If connecting to a secure network, enter the

5.

network key or password on the remote control

when prompted.

2

HDMI

Pb P

r

INPUT 2

INPUT 1

(480i / 480p / 720p / 1080i)

Y/

VIDEO

Pb Pr

Y/ VIDEO

3D

GLASSES

EMITTER

AUDIO

LR

LAN

2

HDMI

P

b

P

r

INPUT 2

INPUT 1

(

480i

/

480

p

/

720

p

/

1080i

)

(pp)

Y/

VIDE

O

P

b

P

r

Y

/ VID

E

O

3

D

G

LA

SS

E

S

EMITTER

AU

DI

O

L

R

LA

N

USB HDMI 4

INPUT 3

AUDIO

LR

Pb

Y/ VIDEO

Pr

A

UDIO

L

R

P

b

Y/

VID

E

O

P

r

H

DMI 4

Wireless

adapter

Wireless

adapter

Back of 738

Series TV

IEEE 802.11n-compliant

wireless network router

providing

high-speed

internet service

Incoming

internet

cable

838 Series

TV

OR

Connecting the USB wireless adapter

Wire less Connection

Disconnect the Ethernet cable if present.

1.

Connect an Azurewave AW-NU231 USB wireless

2.

adapter to the TV’s USB port.

Open the

3.

Setup > Network menu. After a few

seconds, detected networks will appear listed on

the screen in order of signal strength.

20 3. TV Features

For assistance call 1(800) 332-2119

StreamTV™ Internet Media, continued

Wir eless Audio Playback

838 Series. The TV’s built-in speaker array can play

audio from a handheld device using Bluetooth® A2DP

(stereo audio) wireless technology.

Pairing the TV with an Audio Device

Turn on the wireless device you wish to use for

1.

play-

back. Turn off all other wireless devices in the area as

the TV can pair with only one device at a time.

Press

2.

INPUT

to display the Input Selection menu.

Bluetooth® icon in Input Selection Menu

Highlight the

3.

Bluetooth icon and press

ENTER

.

Pair your device with the TV and then connect.

4.

Some devices pair and connect automatically,

while others require you to enter the TV pass code

displayed.

Use keys on the TV’s remote control to control play-

5.

back. Not all keys work for all devices.

(

PAUSE

)

(

STOP

)

(

REVERSE

)

(

PLAY

)

(

FORWARD

)

Skip a track

Resetting Bluetooth Pairing or Connection

Perform this reset if the audio device does not connect

properly to the TV.

If the audio device has been previously paired with

1.

the TV, delete the TV from the device’s paired list.

Go to the TV’s

2.

Inputs > Name menu and highlight

the Bluetooth icon. Press

ENTER

to select Off.

Press

3.

EXIT

.

Go to the

4.

Inputs > Name menu and highlight the

Bluetooth icon. Press

ENTER

to select On.

Press

5.

EXIT

.

Tips for Wireless Playback

Selecting the • Bluetooth icon at a later time will

reconnect the TV to the paired device.

If the paired device is not available, the TV will •

accept pairing from a different device.

Once connection is lost, the TV will power off after •

five minutes without receiving a signal.

To clear a paired device, turn off the • Bluetooth icon

(Inputs > Name menu) or pair the TV with a differ-

ent device.

Using StreamTV Internet Media

After establishing internet connectiv-

ity, press the

INTERNET

key to display

services from VUDU Apps. Press

ENTER

to launch an application.

Getting Started with V UDU

Movies

After establishing internet connectivity, press

1.

INTERNET

to display offerings from VUDU.

Select the VUDU movie service.

2.

Browse the VUDU movie catalog and offerings.

3.

When you are ready to rent or buy a movie, you

4.

will be prompted to activate your VUDU account.

Follow the on-screen instructions and use a com-

puter to go to www.VUDU.com/activation. A

credit card is required for activation.

Once your account is activated, you can rent and buy

movies using only the TV and the TV’s remote control.

Specialized Keys for VUDU

INTERNET

Displays the VUDU internet menu.

GUIDE

VUDU

HOME

key

INFO

VUDU

MORE

key

LAST

VUDU

BACK

key (goes to previous menu)

CANCEL

VUDU backspace (in text-entry screens)

F2

VUDU System menu

EXIT

Exit VUDU

Troubleshooting

If You Are Unable to Connect to the Internet

Check all power and data connections.•

If you can reach the internet with a computer or •

other device on the same internet service used by

the TV, consult the router or modem owner’s guide

for reset instructions.

If you cannot reach the internet, contact your •

service provider. You may be asked for network

information such as the TV’s IP address. Go to the

Setup > Network menu to see connection data.

For Further Assistance

If you are having trouble connecting your TV or •

accessing internet applications, contact Mitsubishi

Customer Care at 1-800-332-2119.

If you are having difficulty with your VUDU •

account, contact VUDU Customer Care at

www.VUDU.com/support.

See more troubleshooting tips in • Appendix C .

INTERNET

21

For assistance call 1(800) 332-2119

4TV Menus

Press

MENU

on the remote control to open the m ain menu and access these settings.

Picture Vide o Settings in this menu are saved for the current input only.

To make picture adjustments:

From the Picture > Video menu

Press 1. to highlight an option

Press 2. to adjust.

While watching TV

Press the 1.

VIDEO

key.

Press 2. to select a video option.

Press 3. to change the setting.

P icture

Mode

Brilliant

For use under bright light.

Set the Picture Mode

before changing other

video settings, Use Picture

Modes to get the best

image under different

viewing conditions.

Game

Optimizes picture and video processing for game consoles.

Available only when the input name is

Game

or

PC

.

Bright For most daytime viewing

Natural For most nighttime viewing

Advanced Modes. Contact your professional installer for setup.

Contrast In most home lighting situations, medium contrast looks best. Stored for each Picture Mode.

Brightness

Adjusts overall picture brightness. Stored for each Picture Mode.

Color Adjusts overall color intensity from monochromatic to fully saturated. Saved by input.

Tint Adjusts the red-to-green ratio. Saved by input.

Sharpness Adjusts picture detail and clarity. Saved by input.

Color Temp

)

High

gives white a cool cast.

Low gives white a warm cast. Stored for each Picture Mode.

Video Noise

Reduces minor noise (graininess) in the picture. Saved by input.

EdgeEnhance

EdgeEnhance™ makes the image appear sharper. Saved by input.

DeepField

Imager

Provides strong contrast with detail over mixed screen content. Demo displays a split picture to

show On (right side) and Off (left side). Saved by input.


Pi cture+

(Picture Plus)

Screensaver

Displays a screensaver pattern while playing an audio-only source.

Film Mode 480i and 1080i signals only.

In

Auto

, the TV automatically detects and applies film-decoding correc-

tion to movies filmed at 24 frames per second. Try the

Off

setting if images show many jagged edges.

Setting saved by input.

Smooth 120

Smooth 120 reduces motion blur in action scenes but may show pixel structure during slower motion or in still

images. Works in conjunction with Film Mode.

Test


Displays a test picture.

Pi cture

22 4. TV Menus

For assistance call 1(800) 332-2119

Picture Reset

Resets sound and picture adjustments for the current input. Highlight the • Reset icon

and press

ENTER

twice to perform reset

.

Reset• has no effect on universal settings (Balance, Listen To, Language) or on

Advanced picture settings.

Picture Pe rfect

(PerfectColor/PerfecTint) 838 Series. Sliders let you adjust the saturation (intensity) and

hues of six separate colors for the current image source.


Adv anced

Advanced Modes. Contact your professional installer for setup.

738 Series. Special/ADV.

838 Series. ISF Day/ADV1, ISF Night/ADV2

Picture 3 D Mode

See page 16 .

TV Speakers

(sound source)

On Turns on the internal TV speakers.

Off

Turns off the internal TV speakers so you hear sound only through a connected device

(A/V receiver or headphones).

Center 838 Series.

Makes the TV’s speaker array act as a center channel. See the

detailed owner’s guide at www.mitsubishi-tv.com for use of this feature.

Sound Au dio Settings in this menu are saved for the current input only. To make audio adjustments:

From the Sound > Audio menu

Press 1. to highlight an option

Press 2. to adjust.

While watching TV

Press the 1.

AUDIO

key.

Press 2. to select an audio option.

Press 3. to change the setting.

S ound

Picture, continued

Sub woofer

[Subwoofer

level adjust-

ment]

838 Series. Adjusts the volume level of a connected subwoofer. Set Sound >

Global > Subwoofer to On to make this adjustment available.

Bass Controls bass sound from the TV speakers.

Treble Controls high-pitched sound from the TV speakers.

Balance Controls audio balance between the right and left TV speakers (Sound Mode Stereo only)

Sou nd Mode Stereo No special audio effects from the TV speakers

Surround Modifies audio from the TV speakers.

• For monaural (non-stereo) programs, creates a simulated stereo effect.

• For stereo programs, creates a simulated surround sound effect.

• 838 Series. The TV’s speaker array plays surround sound if available.

Music 838 Series. Optimizes the TV’s speaker array for music listening.

Night 838 Series. Focuses the TV’s speaker array to a single point to limit sound heard

by others outside the room. Press

ENTER

to adjust the focal point (Night Angle).

4. TV Menus 23

For assistance call 1(800) 332-2119

Sound Glo bal

838 Series. Settings in this menu apply to all inputs.

An alog Audio

Out

These settings affect audio from the AUDIO/SURROUND OUTPUT jacks.

Fixed Use with an analog A/V receiver.

Variable Use with headphones; adjust headphone volume using the TV’s remote control.

Re ar

838 Series. Use when supplementing the TV’s speaker array with external rear speakers.

Subwoofer Select On to turn on audio to a connected subwoofer. Set to Off if no subwoofer is connected.

Center Channel On allows the TV’s speakers to complement your external sound system as a center channel. Set

to Off if not in use.

Sound Auto Sp

838 Series. See page 18 for setup instructions.

Sound

SoundPro

838 Series. Lets you set up the Sound Projector speaker array manually. See the

detailed owner’s guide at www.mitsubishi-tv.com.

Sound, continued

C aptions

Captions

Services

Service On if Mute: Displays digital closed-caption signal Caption 1 (digital) or CC1 (analog) when audio from the

TV speakers is muted. While watching TV, press

MUTE

to turn closed captions on/off.

Digital

Caption 1–Caption 6:

Caption signals sent by the broadcaster.

Analog

CC 1–CC 4.• Standard closed-caption signals

Tex t 1–Text 4. • Text-service signals

Captions

Font

As Broadcast changes settings to those selected by the captions provider, or, if none, to

the TV’s own caption defaults.

Captions

Color

A white font on a black translucent background makes an easy-to-read combination.

Level Sound On, Off Reduces differences in sound volume between programming segments.

Analog Li sten To

(For

antenna

analog channels)

Stereo The TV plays stereo broadcasts in stereo and mono broadcasts in mono.

SAP Second Audio Program. Selects an additional monaural sound track.

Mono Reduces background noise. Use when receiving a weak stereo audio signal.

24 4. TV Menus

For assistance call 1(800) 332-2119

Setup

Setup

La nguage

Select either English or Spanish for on-screen menus.•

Select the language for a digital program from the •

ANT

input (if available).

Setup Cl ock

Set the TV clock to:

Use the TV Timer to power on the TV automatically at a preset time•

Receive correct updates to ChannelView listings•

Note: When the Daylight Savings Time change occurs, you must open this menu and set the TV’s clock ahead or back.

Setup T imer

The Timer tells the TV to power on automatically at a time you set. Use this menu to set a day,

time, input, and channel for the Timer. If the TV is already on at the set time, the TV will auto-

matically change to the designated channel or input.

• The TV clock must be set before you can use the Timer feature.

• As a reminder that the TV Timer is set, the TV

POWER

indicator flashes slowly while the TV is powered off.

•

When the Timer turns on the TV, press any key on the remote control to keep it from turning off after five minutes.

Setup

Cha nnel

See “Memorizing Channels with Channel Scan” on page 7 to scan for all available channels

on the

ANT

input.

E dit

After channel scan, Edit lets you add and delete memorized channels.

• Press

PAGE

/ to jump to the next or previous page of channel numbers.

• Press

to move through all channel numbers, one at a time.

Adding/Deleting Channels Using the Channel Edit Menu

Channels marked with a check are in memory.•

To add or delete a channel from • memory, highlight the channel number and press

ENTER

.

To add a single digital channel not in the list, see the full owner’s guide at www.mitsubishi-tv.com.•

Setup Energy

La mp

Energy

Standard,

Bright

Standard is for most viewing conditions. Use Bright in brightly lit rooms. You may

notice increased fan noise when using the Bright setting.

Blue Glow

(838 series)

On, Off Select On to see blue accent lighting when the TV is powered on.

Setup

Home

Network

Ethernet Connection

Wireless Connection

See “Home Network Setup,” page 19 .

4. TV Menus 25

For assistance call 1(800) 332-2119

Input s

Inputs N ame

Lets you assign or • change names of inputs appearing in the Input Selection menu.

Highlight the input and press •

ENTER

to see the name choices.

Lets you turn the • Ant input On/Off (to display or hide it in the Input Selection menu).

838 Series.• Lets you turn the Bluetooth input On/Off (to display or hide it in the Input

Selection menu); a paired device is cleared from memory when the Bluetooth icon is

turned off.

Lets you delete unused HDMI inputs from the • Input Selection menu.

Inputs Learn

838

Series.

Sets up or changes Net Command IR control of the current device.

See the full owner’s guide at www.mitsubishi-tv.com.

Inputs AVR 838

Series.

Sets up or changes Net Command IR control of an A/V receiver.

See the detailed owner’s guide at www.mitsubishi-tv.com.

Inputs

HDMI

Control

On, Off Select On or Off to enable or disable the TV’s control of a CEC-enabled device.

See the detailed owner’s guide at www.mitsubishi-tv.com for use of this feature.

Inputs O rder

Lets you rearrange icons in the Input Selection menu.

Inputs Demo

See demonstrations showcasing selected TV features.

26 4. TV Menus

For assistance call 1(800) 332-2119

P arental Menu

The TV comes from the factory with the rating

locks turned off and with pre-set U.S. ratings

TV-PG and movie rating PG. You must turn

on blocking for U.S. ratings to activate these

rating restrictions. You will be prompted to

enter a pass code when you select Lock on

the main menu.

L ock

Important Notes on Rating Locks

• Parental menu rating locks apply only to channels and signals received

on the ANT and composite VIDEO jacks.

• Other menu rating locks apply only to digital channels received on ANT.

• When viewing a cable box, satellite receiver, or other device connected

to the component Y Pb Pr or HDMI inputs, check the device’s owner’s

guide for parental locks.

• When accessing VUDU’s internet movie service, use the parental con-

trols provided by VUDU.

Lock

Par ental

Lock

Disables or enables blocking based on V-Chip signals and the U.S. rating system.

TV

Rating

Highlight the rating level you wish to change

and press

ENTER

to block it (

(

) or allow it (

(

).

You can apply supplemental content block-

ing to the age-based ratings by using the TV

content categories. (FV, D, L, S, V)

Movie

Rating

Highlight the rating level you wish to change

and press

ENTER

to block it (

(

) or allow it (

(

).

Start Time/

Stop Time

Sets the time of day for enforcement of rating restrictions set in the Parental menu.

Note: To make rating restrictions active 24 hours a day, make Start Time and Stop Time the same.

Lock Time

Blocks all use of the TV during the time period you specify. Once a lock time is set, it goes

into effect immediately and you must enter a pass code to use the TV during the lock period.

To reactivate the time lock, power the TV off and then back on. T

o make

Lock by Time

active 24 hours a day, make Start Time and Stop Time the same.

Lock

Channel

The Channel Lock menu lists channels currently in memory (see page 24 ). Highlight a

channel and press

ENTER

to lock (

(

) or allow (

(

) the channel. Channels locks will be

cleared the next time you perform a channel scan.

Lock Panel

Use this option if small children try to press TV buttons.

To • release the Panel Lock from the TV’s control panel, press and hold the

INPUT

button for

ten seconds. If the TV is powered off, press

POWER

after the lock releases to power on the

TV.

To reactivate the lock, return to this menu and change the setting to • On.

Lock Other

Other Menu Options (alternate rating system)

This TV can recognize new rating systems that may come into effect in the future. Such alter-

nate rating systems will apply only to digital programming received on the ANT input.

Appendices 27

For assistance call 1(800) 332-2119

CAUTION

BURN DANGER! HOT SURFACES INSIDE!

Touch lamp cartridge handle only. Do not touch lamp or lamp car-

tridge housing. Keep lamp cartridge horizontal during removal. Do

not tilt as glass may come out and cause injury. Replace lamp car-

tridge only with the same part number 915B441001.

CAUTION: If the television is on, press POWER to turn it off. Unplug the television and

allow it to cool for at least one hour before attempting to replace the lamp cartridge.

Lamp

The light source for this television is a

lamp, which is part of a lamp cartridge

assembly. The life of the lamp can

vary, based on the lamp itself, the air

temperature around the TV while it is

operating, the selected lamp mode, and

your viewing patterns. Warmer air or

poor ventilation shorten the lamp life, as

does setting

Lamp Energy

to

Bright

and turning the television on and off

frequently.

Mitsubishi warrants the lamp for one (1) year from the date of original

TV purchase at retail.

To Order a New Lamp

To Receive a Replacement Lamp Under Warranty

Visit our website at www.mitsuparts.com.•

Call (800) 553-7278. Please have model number, serial number, •

and TV purchase date available.

Important: All lamps replaced under warranty must be returned to

Mitsubishi where they will be inspected to verify failure defects.

To Purchase a Replacement Lamp After Warranty

Visit our website at www.mitsuparts.com or call (800) 553-7278. Order the following:

Lamp Part Number 915B441001

La mp-Cartridge Replacement and Cleaning

WARNING

• Do not remove the lamp cartridge immediately after turning off the television. You may get burned because the

lamp is very hot. Allow the television to cool for at least one hour before replacing the lamp cartridge.

• Do not remove the lamp cartridge except when replacing it. Careless treatment can result in injury or fire.

• Do not touch the lamp glass element. It may be very hot and break, causing injuries or burns.

•

Be sure not to insert any metal or flammable object into the lamp cartridge opening, as it may cause fire or electrical

shock. If a foreign object is inserted into the opening, unplug the AC cord of the TV and contact your dealer for service.

• Install the lamp cartridge securely. Failure to do so may cause a fire.

• Do not touch the lamp glass elements. Oils from your fingers may cause premature lamp failure.

Hg = MERCURY

THE LAMP INSIDE THIS PRODUCT CONTAINS MERCURY AND MUST BE RECYCLED OR DIS-

POSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. For disposal or recycling infor-

mation, please contact your local authorities or the Electronic Industries Alliance at www.eiae.org

WARNING

THE ACCESS PANEL IS

PROVIDED WITH AN INTERLOCK

TO REDUCE THE RISK OF

EXCESSIVE ULTRAVIOLET

RADIATION. DO NOT DEFEAT

ITS PURPOSE OR ATTEMPT TO

SERVICE WITHOUT REMOVING

PANEL COMPLETELY.

Lamp-Substitution Alert

MDEA recommends that you use only genuine Replacement Lamp Assemblies purchased directly from Mitsubishi or a

Mitsubishi Authorized Dealer or Mitsubishi Authorized Service Center. MDEA advises that replacement lamps obtained

separately from the Lamp Cartridge and/or Lamp Assemblies obtained from unauthorized sellers may be incorrect for

your television, may not fit or perform properly and may even damage your television. MDEA can not be responsible

for the performance, reliability or safety of any replacement lamps that are obtained from unauthorized sources.

Appendix A: TV Care

28 Appendices

For assistance call 1(800) 332-2119

Lamp-Cartridge Replacement

Removing the Old Lamp Cartridge

Turn off TV power and unplug the TV. Allow the

1.

lamp to cool for at least one hour before proceed-

ing.

After the lamp has cooled, remove the cover of the

2.

lamp compartment, located on the back of the TV.

Refer to figures 1 and 2. Use a #2 (medium) Phillips

screwdriver to loosen the screw securing the cover.

Keep the screw and cover for re-installation

Wi

3.

th a medium Phillips screwdriver, loosen the two

screws securing the lamp cartridge until they dis-

engage from the mating threads. These are captive

screws and cannot be separated from the lamp

cartridge.

Fully open the bag supplied with the replacement

4.

lamp and set the opened bag aside.

Gently grasp the handle of the lamp cartridge and

5.

pull the old cartridge straight out. See figure 3.

CAUTION: Do not tilt or rotate the cartridge, as

small glass fragments may fall out.

Without tilting or putting down the lamp cartridge,

6.

insert it into the opened bag. Close the bag while

being careful not to let any glass particles fall out.

Installing the New Lamp Cartridge

Do not touch the glass parts of the new lamp car-

1.

tridge. Insert the new cartridge into the TV in the

same orientation as the old cartridge. Push on the

cartridge housing until it is fully seated.

Gently tighten the screws with the screwdriver.

2.

AVOID OVERTIGHTENING!

Replace the plastic cover and retaining screws.

3.

WASH YOUR HANDS THOROUGHLY, AS THIS

4.

LAMP CONTAINS MERCURY.

Figure 3

Use only replacement lamp part number

915B441001.

Figure 2

Figure 1

Appendix A: TV Care, continued

Disposal of the Old Lamp Cartridge

Lamp under warranty: All lamps replaced under war-

ranty must be returned to Mitsubishi. Use the return

shipping label provided and send to Mitsubishi Digital

Electronics, America, 625 Braselton Parkway, Suite 200,

Braselton, GA 30517.

IMPORTANT: Lamps found without defects will be

returned and charged back to the sender.

Lamp no longer under warranty:

Contact your

local authorities or the Electronic Industries Alliance at

www.eiae.org for lamp-disposal or recycling instructions.

Do not dispose of the old lamp with common trash.

Appendices 29

For assistance call 1(800) 332-2119

Cl eaning Recommendations

Normally, light dusting with a dry, non-scratching duster

will keep your TV clean. If cleaning beyond this is

needed, please use the following guidelines:

First, turn off the TV and unplug the power cord from the

power outlet.

Occasionally clean dust build-up from the air-intake

grilles on the back and sides of the TV. Clean using a

vacuum cleaner with a brush attachment.

Top and Sides of the TV

Gently wipe down your TV with a soft, non-abrasive •

cloth such as cotton flannel, microfiber, or a clean

cloth diaper, lightly moistened with water. Dry with a

second dry, soft, non-abrasive cloth.

For oily dirt, add a few drops of mild liquid detergent, •

such as dishwashing detergent, to the water used

to moisten the cloth. Rinse with a second cloth

moistened only with water. Dry with a third dry, soft,

non-abrasive cloth.

Screen

Follow the instructions for the top and sides, wiping •

gently in an up and down motion.

Clean the entire screen evenly, not just sections of •

the screen.

Do not allow liquid to drip down the screen, as some •

liquid may enter the TV through the gap between the

screen and screen frame.

You may purchase Mitsubishi Screen Cleaner, part •

number CLEANER-VSS, by calling (800) 553-7278.

General Cleaning Precautions

DO NOT allow liquid to enter the TV through the •

ventilation slots or any crevice.

DO NOT use any strong or abrasive cleaners, as •

these can scratch the surfaces.

DO NOT use any cleaners containing ammonia, •

bleach, alcohol, benzene, or thinners, as these can

dull the surfaces.

DO NOT spray liquids or cleaners directly on the •

TV’s surfaces.

DO NOT scrub or rub the TV harshly. Wipe it gently.•

Appendix A: TV Care, continued

30 Appendices

For assistance call 1(800) 332-2119

Enter the first five-digit code listed for your equip-

3.

ment.

Point the remote control at the equipment and press

4.

POWER

. If the product has no power on/off function,

press a different key, such as (

PLAY

), (

STOP

),

VOLUME UP

, or

MUTE.

If the equipment does not respond, repeat the pre-

5.

ceding two steps using the next five-digit code.

Once you have found the correct code, write it in the

6.

space below for future reference.

Mode

Device Type Code

CABLE/SAT

VCR

DVD

AUDIO

Programming the Remote Control

Change the control mode to match the device type.

1.

CAB/SAT DVD

TV AUDIO

VCR

CAB/SAT DVD

TV AUDIO

VCR

Mode Affected Device

CAB/SAT

Cable Box, DTV Receiver, Satellite Receiver

VCR

VCR, DVR, DVD Player/Recorder

DVD

DVD Player/Recorder, DVR, VCR

AUDIO

A/V Receiver, Audio Amplifier, CD Player

Press and hold

2.

POWER

on the remote control for

several seconds until the key blinks twice and goes off

.

Appendix B: Programming the Remote Control

This is an abbreviated list showing

the most popular codes. For a full

list, see the detailed owner’s guide at

www.mitsubishi-tv.com.

Cable Boxes

General Instrument

Jerrold

10476

Motorola 11376, 11187, 10476

Pace 11982, 11877, 11376

Pioneer 11877, 10877

Scientific Atlanta 11877, 10877

A/V Receivers

Bose 41933, 41841, 41629, 41253,

41229, 40639

Denon 42857, 42279

Harman/Kardon 42443, 42241, 41306, 41304,

40891

Integra 41805, 41320, 41298

JVC 42331, 42239, 42040,

41495, 41374

Kenwood 41570, 41569, 41313

Mitsubishi 41957, 41922, 41921, 41920,

41393

Onk yo 41805, 41531, 41320, 41298,

40842

Panasonic 41763, 41633, 41548, 41518,

41316, 41308, 41288, 41275,

42967, 42452, 42221, 41764

Pioneer 41935, 41384, 41023, 40630

Sony 41759, 41758, 41658, 41622,

41558, 41441, 41258, 41058,

42522, 42216, 42172, 41858,

41822

Technics 41518, 41308

Yamaha 41476, 41376, 41375, 41331,

41276, 41176, 40376, 40176

42471, 42467, 42061, 41815

Satellite Receivers

DirecTV 11749, 11377, 11142, 10749,

10639, 10566, 10392, 10247

11856, 11609, 114 42, 11414,

1110 9, 11076

Dish Network

System

10775, 11505, 11775

Hughes Network

Systems

1174 9, 11442, 11142, 10749

Mitsubishi 10749

RCA 10566, 10392, 10143

Sa msung 116 0 9, 114 42, 11377, 11276,

1110 9

VCRs

Hitachi 20042, 20000

JVC 20067

Magnavox 21593, 20593, 20081, 20039,

20035, 20000

Matsushita 20162, 20035

MGA 20043

Mitsubishi 20173, 20067, 20043

Panasonic 21062, 20616, 20614, 20162,

20035

RCA 20880, 20060, 20042

Sony 21972, 21032, 20636, 20035,

20033, 20032, 20000

Tivo 20739, 20636, 20618

Toshiba 21972, 21008, 20045, 20043

Zenith 21139, 20039, 20037, 20033,

20000

DVD Players

Apex Digital 31061, 31056, 31020, 31004,

30797, 30796, 30794, 30755,

30672

Coby 31628, 31351, 31177, 31165,

31107, 31086, 30852, 30778

Denon 32258, 30634, 30490

DVD Players

Funai 30675

Hitachi 30664, 30573

Insignia 32596, 32428, 32095, 30675

Integra 32147, 31769, 30627, 30571

JVC 32365, 31602, 31550, 31275,

31164, 30867, 30623, 30558

LG 31602, 30869, 30741, 30591

Magnavox 31506, 31472, 31354, 31177,

30675, 30646, 30539, 30503

Mitsubishi 31521, 30521

Onkyo 32147, 31769, 30627, 30503

Panasonic 31762, 31641, 31579, 30703,

30632, 30503, 30490

Philips 32084, 32056, 31340,,

31267, 30675, 30646, 30539,

30503, 32434, 31506, 31354

Pioneer 31571, 31512, 31460, 30632,

30631, 30571, 30525, 30142

32442

RCA 32213, 31769, 30822, 30790,

30571, 30522

Samsung 32069, 31470, 31075, 31044,

30820, 30573, 30490, 30199

32556, 32489, 32369, 32329

Sharp 32250, 31256, 30752, 30675,

30630

Sony 31633, 31536, 31516, 31431,

31070, 31033, 30864, 30533

Sylvania 30675

Tivo 31512, 31503

Yamaha 32558, 32298, 30817, 30646,

30545, 30539, 30490

Zenith 30869, 30741, 30591, 30503

Appendices 31

For assistance call 1(800) 332-2119

Reset Name When to Use How to Use Resulting Action

Format If the picture shape

seems incorrect, use

the

FORMAT

key to

change the picture

shape.

Press

FORMAT

to cycle through the

picture shapes available for the

signal.

The last-used format for a signal

type will be recalled on the input.

Note: Also check the aspect

ratio feature on your cable box or

satellite receiver as this may be

altering the picture.

PerfectColor™/

PerfecTint™

Reset (838

Series)

(for the single

input currently

being watched)

When the color

intensities seem out

of balance, use the

PerfectColor/PerfecTint

reset to reset the color

balances to the original

factory settings.

Both PerfectColor and

PerfecTint are reset at

the same time.

While viewing the input to be 1.

reset, press

MENU

and go to

Picture > Perfect.

Press 2.

ENTER

to display the

PerfectColor adjustment screen.

Press 3.

CANCEL

to reset the colors.

All PerfectColor/PerfecTint

sliders are reset to the original

center position. The PefectColor/

PerfecTint settings for other

inputs remain unchanged.

A/V Memory

Reset

(for the single

current input)

When audio and/

or video settings for

a single input seem

incorrect, use A/V

Memory Reset to

return the input to

the original factory

settings.

While viewing the input to reset, 1.

press

MENU

and go to Picture >

Reset.

Press 2.

ENTER

to highlight Reset.

Press 3.

ENTER

again to reset.

All Audio and Video settings for

the individual input are reset

except for the global settings

for audio Balance, Listen To,

Language, Video Mute, Smooth

120.

TV Re set Comparison Guide

You can resolve many common TV problems using the

reset functions described in the following table. .

IMPORTANT

Before you change sound or picture settings: If

picture or sound settings seem wrong for a broadcast

channel (a channel from the

ANT

input, a cable box,

or satellite receiver), first check other channels from

the same input before changing settings. If most other

channels from the same input seem correct, there is

likely a problem with the broadcast rather than with the

TV. Use care in this case, as changes you make to fix

problems on individual channels also affect all other

channels on the same input.

Appendix C: Troubleshooting

Service and Customer Support

Service

If you are unable to correct a problem with your TV,

consult your Mitsubishi dealer or Mitsubishi Con-

sumer Relations at (800) 332-2119.

• DO NOT adjust any controls other than those

described in this Owner’s Guide.

• DO NOT remove the protective back cover of

your TV.

Customer Support

• To order replacement or additional remote con-

trols or lamp cart

ridges,

visit our website at www.

mitsuparts.com or call (800) 553-7278.

• For questions:

Call Consumer Relations at 800-332-2119.

E-mail: MDEAservice@mdea.com

Website: www.mitsubishi-tv.com

Important

All lamps replaced under warranty must be returned

to Mitsubishi where they will be inspected to verify

failure defects.

32 Appendices

For assistance call 1(800) 332-2119

Reset Name When to Use How to Use Resulting Action

A/V Reset

(for all inputs)

To reset audio and

video adjustments for

all inputs to the original

factory settings.

While viewing the TV, press the

control-panel buttons

INPUT

and

VOLUME DOWN

at the same time for at

least two seconds.

All Audio and Video settings are

returned to the original factory

settings, including global settings

not affected by Picture > Reset.

Channel

Memorization

To erase and

re-memorize channels

on the

ANT

input.

Press 1.

MENU

and go to Setup >

Channel.

Highlight the reception mode, 2.

e.g. Ant Air, and press

ENTER

.

Highlight 3. All Channels and

press

ENTER

.

Highlight 4. Scan.

Press 5.

ENTER

to start channel

memorization.

All previously memorized chan-

nels for the antenna input are

erased and a new set of memo-

rized channels is created. To

add or delete individual channels,

see the Setup > Channel > Edit

menu instructions on page 24 .

Lock Menu

Pass Code

To change your Lock

menu pass code

See the detailed owner’s guide at www.mitsubishi-tv.com for instructions.

Control-Panel

Lock Release

To re-enable the

control-panel buttons

after activation of the

Control-Panel Lock

Press and hold the

INPUT

button on

the control panel for ten seconds. If

the TV is powered off, you can now

press the

POWER

button to turn it on.

Allows the control panel to be

unlocked if the remote control is

misplaced.

System Reset If the TV does not turn

on or off, does not

respond to the remote

control or control-

panel buttons, or has

audio but no video.

Press and hold the

POWER

button on

the control panel for ten seconds.

The TV will turn off. Power on the

TV and the green LED will flash

quickly for about one minute. The

changes you made most recently,

before using

SYSTEM RESET

, may

be lost.

TV Reset

IMPORTANT:

Use this reset

only if other

troubleshooting

has been unsuc-

cessful.

To reset all consumer-

accessible settings

and all memories to

the original factory

defaults.

Use TV Reset if the TV

can respond to con-

trols but TV behavior is

abnormal.

CAUTION: All owner-

performed setups and

adjustments will be

erased.

While viewing the TV, press 1.

MENU

to display the TV main

menu.

With the main menu displayed, 2.

press number keys 1 2 3 to

display the Reset menu.

READ THE ON-SCREEN 3.

WARNING AND INSTRUC-

TIONS.

If you do not wish to use this •

reset, press

EXIT

or

MENU

to

back out.

If you wish to continue, •

press

ENTER

to erase all

memories and settings.

The TV will start the initialization

process and then turn off.

Power on the TV and the front

green LED will start flashing. All

memory and settings outlined in

this Owner’s Guide will need to

be set again.

VUD U

Reset VUDU

Account Pass-

word

You have forgotten

your account pass-

word.

Using a computer, go to

www.VUDU.com.

Reset your account password

from the VUDU website (requires

access to e-mail).

VUDU

Reset Parental

Controls Pass

code

You have forgotten

your pass code.

Call VUDU Customer Care at

1-888-554-VUDU (8838).

VUDU Customer Care will reset

your pass code.

Appendix C: Troubleshooting, continued

Appendices 33

For assistance call 1(800) 332-2119

Appendix C: Troubleshooting, continued

Common Picture Problems

Symptom Remarks

1. Picture does not look like a high-defi-

nition picture.

Compare the picture to the TV’s test picture (Picture > Picture+ >

Test Picture) to check if the source signal is supplying a lesser-quality

image.

Not all signals are high-definition signals. To receive high-definition

programming from your cable or satellite provider, you must subscribe

to the provider’s high-definition service. Some over-the-air broadcasts

are in high-defi nition and can be received with a high-quality antenna

suited to your location.

2. TV has sound but no picture. Press •

MENU

on the remote control. If the menu displays, then there

is a problem with the incoming signal.

Check that all video inputs are plugged in firmly to the correct input •

jacks.

Press and hold the •

POWER

button on the control panel for ten

seconds to perform System Reset.

3. Picture has become dimmer. • The lamp is nearing the end of its life. Order a new lamp.

• Adjust picture brightness and contrast to maximum levels.

• Change Lamp Energy from Standard to Bright.

4. A color program appears as a black

and white image, or the colors are

dim, or the screen is black.

If using component video, check that the red, green, and blue input •

cables are correctly connected to the red, green, and blue compo-

nent video jacks.

If using composite video, check that the incoming cable is con-•

nected the TV’s green

Y/VIDEO

jack.

838 Series. The PerfectColor color balance has been incorrectly •

set. Reset the PerfectColor balance.

5. Picture from an HDMI input is noisy

(poor quality).

C• ompare the picture to the TV’s test picture (Picture > Picture+ >

Test Picture) to check if the noise is internal or external to the TV.

Upgrade a Category 1 (unmarked) HDMI cable to a newer type of •

high-speed HDMI cable.

Home Network

Symptom Remarks

1. I cannot connect the TV to the

network.

Go to the Setup > Network menu. Obtain the TV MAC address and

provide it to the router.

2. I plugged in a wireless USB adapter,

but the wireless connection is not

working.

The network may be locked. Go to Setup > Network. Highlight the

network name and supply the pass code.

3. The INTERNET key only goes to

VUDU.

Normal operation. The TV receives all internet services through VUDU.

The TV does not provide full internet access as does a web browser on

a computer.

34 Trademark and License Information

For assistance call 1(800) 332-2119

Mitsubishi TV Software

END-USER LICENSE AGREEMENT FOR EMBEDDED SOFTWARE

IMPORTANT – READ CAREFULLY: This License Agreement is a legal agreement between you (either an individual or an entity) and

Mitsubishi Digital Electronics America, Inc. (MDEA) for all software pre installed and/or provided along with this television (“Software”). By

utilizing this television and Software, you agree to be bound by the terms of this License Agreement.

The Software is protected by United States copyright laws and international treaty provisions, as well as other intellectual property laws

and treaties. The Software is licensed, not sold.

1. LICENSE GRANT. MDEA grants you a non-exclusive, non-transferable, limited right and license to use one copy of the Software

only with the Mitsubishi television model that included this owner’s guide and owned by you.

2. RIGHTS AND LIMITATIONS.

Software Not for Resale. You may not resell or otherwise transfer for value the Software, except in conjunction with a sale of the TV that

Software has been pre installed.

Prohibition on Reverse Engineering, Decompilation and Disassembly. The Software contains trade secrets or other proprietary material

in its human perceivable form and to protect them, you may not reverse engineer, decompile, or disassemble, or otherwise reduce the

Software to any human perceivable form, except to the extent that the foregoing restriction is expressly prohibited by applicable law.

Separation of Components. The Software is licensed as a single product. Its component parts may not be separated for use on more

than one TV.

No Rental. You may not rent, lease, lend, or sublicense the Software.

Trademarks. This License Agreement does not grant you any rights to any trademarks of MDEA.

3. VIOLATIONS. You understand that any use, copying or transfer of the Software, except as permitted pursuant to this License,

may subject you to serious criminal and civil penalties including damages and an award to MDEA of attorneys’ fees in connection with any

violation of this License. You further understand that you may be held legally responsible for any copyright infringement or other violation

of intellectual property rights that is caused, encouraged, or induced by your failure to abide by the terms of the License. This license

is effective until terminated, and will terminate immediately without notice from MDEA or judicial resolution if you fail to comply with any

provision of this License.

4. COPYRIGHT. All title and intellectual property rights in and to the Software (including but not limited to any images, photographs,

animations, video, audio, music, text, and “applets” incorporated into the Software), and any accompanying printed materials are owned

by or licensed to MDEA. All title and intellectual property rights in and to the content which may be accessed through use of the Software

is the property of the respective content owner and may be protected by applicable copyright or other intellectual property laws and

treaties. This License Agreement grants you no rights to use such content, except that you own the media on which the Software is

recorded, but MDEA and its licensors retain ownership of the Software itself. All rights not expressly granted are reserved by MDEA.

5. EXPORT RESTRICTIONS. MDEA is licensing the Software for use within the United States. You agree that you will not

export or re-export the Software. You specifically agree not to export or re-export the Software: (i) to any country to which the U.S. has

embargoed or restricted the export of goods or services, which currently include, but are not necessarily limited to Cuba, Iran, Iraq, Libya,

North Korea, Sudan, and Syria, or to any national of any such country, wherever located, who intends to transmit or transport the Software

back to such country; (ii) to any person or entity who you know or have reason to know will utilize the Software in the design, development,

or production of nuclear, chemical, or biological weapons; or (iii) to any person or entity who has been prohibited from participating in

U.S. export transactions by any federal agency of the U.S. government. You warrant and represent that neither the BXA nor any other U.S.

federal agency has suspended, revoked, or denied your export privileges.

6. DISCLAIMER OF WARRANTY. EXCEPT AS OTHERWISE PROVIDED IN THIS LICENSE OR IN THE LIMITED WARRANTY

APPLICABLE TO THE TV, MDEA MAKES NO OTHER WARRANTIES OF ANY KIND WHATSOEVER REGARDING THE SOFTWARE

AND HEREBY EXPRESSLY DISCLAIMS ALL WARRANTIES OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, WITH

RESPECT TO THE SOFTWARE. ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXPRESSLY DISCLAIMED BY MDEA. IN

NO EVENT SHALL MDEA BE LIABLE TO YOU OR ANY THIRD PARTIES, IN CONTRACT, IN TORT OR OTHERWISE, FOR ANY

DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE. BECAUSE SOME

JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES, THE ABOVE LIMITATION MAY

NOT APPLY TO YOU.

7. LIMITATION OF LIABILITY. MDEA SHALL NOT, UNDER ANY CIRCUMSTANCES BE LIABLE TO YOU OR ANY THIRD

PARTIES FOR ANY DAMAGES OF ANY NATURE, WHETHER INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR

OTHERWISE, INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOST PROFITS, LOSS OF GOOD WILL OR EXPENDITURES

MADE OR COMMITTED FOR IN RELIANCE ON THE CONTINUATION OF THIS LICENSE. YOU AGREE THAT NEITHER MDEA’S

BREACH OF THIS LICENSE NOR ITS FAILURE TO REPAIR A DEFECT, ERROR OR BUG SHALL CONSTITUTE A FAILURE OF THE

ESSENTIAL PURPOSE OF THIS LICENSE. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION

OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. MDEA’s

liability to you for direct damages for any cause whatsoever and regardless of the form of the action, will be limited to the money

paid by you for the TV (based on fair market value of the TV) that caused the damages.

8. GENERAL. This License Agreement will be governed by the laws of the State of California.

WARNING: This product contains chemicals known to the State of California to cause cancer and/or birth defects

or other reproductive harm.

Trademark and License Information 35

For assistance call 1(800) 332-2119

GNU General Public License

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc.

675 Mass Ave, Cambridge, MA 02139, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to s

hare and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and

change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors

commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for

this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you

distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source

code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we

want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program

proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all.

The precise terms and conditions for copying, distribution and modifi cation follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”,

below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion

of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is

covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate

copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along

with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above,

provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties

under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an

announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these

conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program

is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in them-

selves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on

the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works

based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other

work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the follow-

ing:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software

interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable

copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the

program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any

associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that

is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompa-

nies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of

the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and

will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties

remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are

prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its

terms and conditions for copying, distributing or modifying the Program or works based on it.
