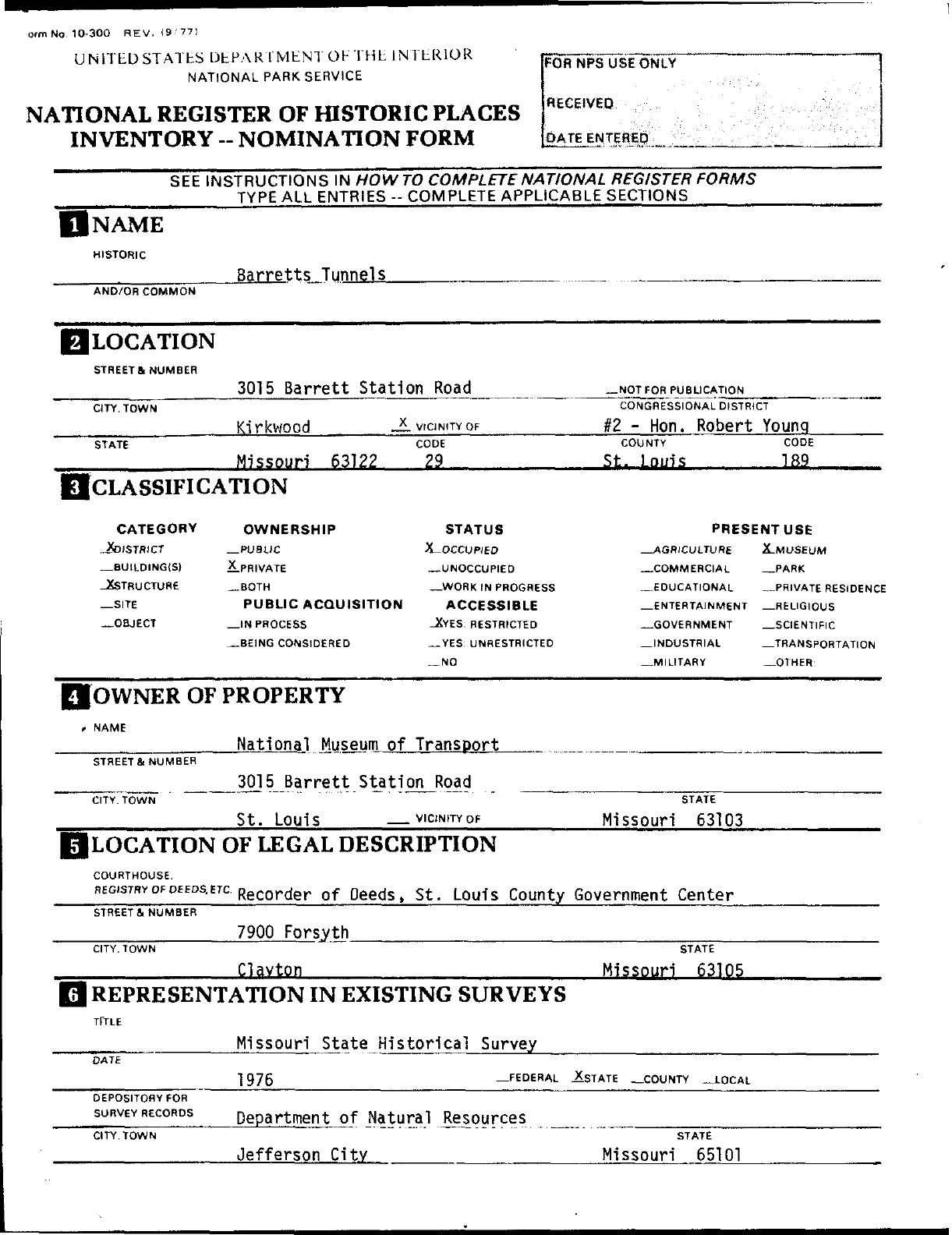

ormNo
10-300
REV.
19
771
UNITED
STATES
DEPARTMENT
01-THE
INTERIOR
NATIONAL
PARK
SERVICE
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
-
NOMINATION
FORM
FOR
NPS USE
ONLY
RECEIVED
DATE
ENTERED
DNAME
SEE
INSTRUCTIONS
IN
HOWTO
COMPLETE
NATIONAL
REGISTER
FORMS
TYPE
ALL
ENTRIES
--
COMPLETE
APPLICABLE
SECTIONS_____
Jiarretts
Tunnels
AND/OR
COMMON
0
LOCATION
STREET
&
NUMBER
CITY.
TOWN
STATE
3015
Barrett
Station
Road
Kirkwood
Missouri
X
VICINITY
OF
CODE
63122
29
_NOT
FOR
PUBLICATION
CONGRESSIONAL
DISTRICT
#2
-
Hon.
Robert
Younq
COUNTY
St.
Louis
CODE
189
[CLASSIFICATION
CATEGORY
JfolSTRICT
_
BUILDING(S)
-^STRUCTURE
—SITE
—OBJECT
OWNERSHIP
—PUBLIC
^.PRIVATE
—BOTH
PUBLIC
ACQUISITION
_
IN
PROCESS
_
BEING
CONSIDERED
STATUS
X-OCCUPIED
—UNOCCUPIED
—WORK
IN
PROGRESS
ACCESSIBLE
-XYES:
RESTRICTED
_
YES
UNRESTRICTED
_NO
PRESENTUSE
—AGRICULTURE
—COMMERCIAL
—EDUCATIONAL
—ENTERTAINMENT
_
GOVERNMENT
—INDUSTRIAL
_
MILITARY
X..MUSEUM
_
PARK
__PHIVATE
RESIDENCE
—RELIGIOUS
—SCIENTIFIC
—TRANSPORTATION
—OTHER
I
OWNER
OF
PROPERTY
NAME
STREET &
NUMBER
CITY.
TOWN
National
Museum
of
Transport
_3015__Banrett
.Statlonjtoad
________________
STATE
St.
Louis____—
VICINITY
OF________Missouri
63103
LOCATION
OF
LEGAL
DESCRIPTION
iTC
Recorder
of
Deeds,
St.
Louis
County
Government
Center
COURTHOUSE
REGISTRY
OF
I
STREETS
NUMBER
CITY.
TOWN
7900
Forsyth
Clavton
STATE
Missouri
63105
REPRESENTATION
IN
EXISTING
SURVEYS
Missouri
State Historical
Survey
1976
—FEDERAL
-X.STATE
_COUNTY
_LOCAL
DEPOSITORY
FOR
SURVEY
RECORDS
Department
of
Natural
Resources
CITY,
TOWN
Jefferson
City
STATE
Missouri
65101

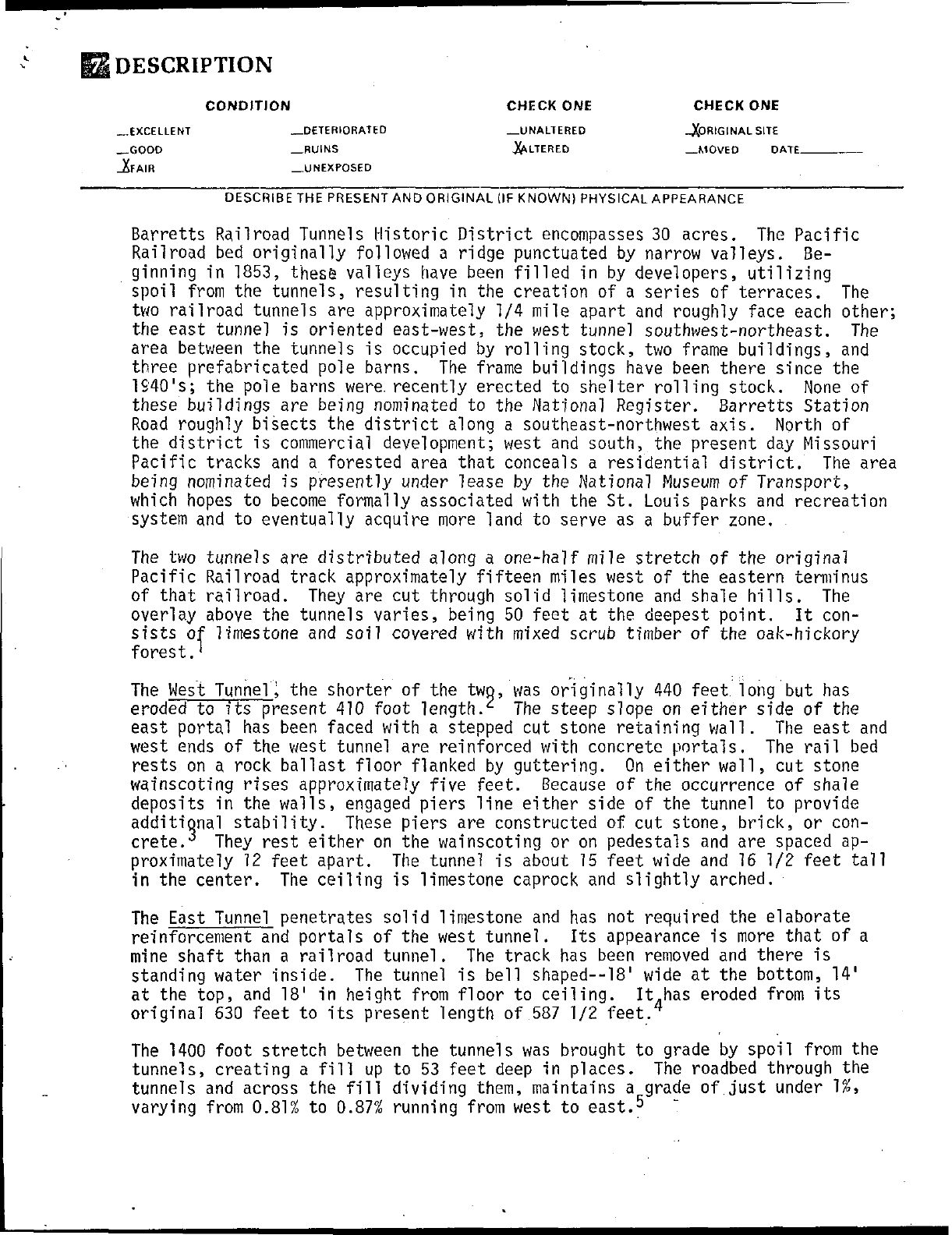

[DESCRIPTION
CONDITION
CHECK
ONE.
CHECK
ONE
EXCELLENT
_DETERIORATED
_UNALTERED
_XoRIGlNAL
SITE
_GOOD
_RUINS
ALTERED
_MOVED
DATE_____
_XFAIR
_UNEXPOSED
DESCRIBE
THE
PRESENT
AND
ORIGINAL
(IF
KNOWN)
PHYSICAL APPEARANCE
Barretts Railroad
Tunnels
Historic
District
encompasses
30
acres.
The
Pacific
Railroad
bed
originally
followed
a
ridge
punctuated
by
narrow
valleys.
Be
ginning
in
1853,
these
valleys
have
been
filled
in
by
developers,
utilizing
spoil
from
the
tunnels,
resulting
in
the
creation
of
a
series
of
terraces.
The
two
railroad
tunnels
are
approximately
1/4
mile apart
and
roughly
face
each
other;
the
east
tunnel
is
oriented
east-west,
the
west
tunnel
southwest-northeast.
The
area between
the
tunnels
is
occupied
by
rolling
stock, two
frame
buildings,
and
three
prefabricated
pole
barns.
The
frame
buildings
have been
there
since
the
1940's;
the
pole
barns
were,
recently
erected
to
shelter
rolling
stock.
None
of
these
buildings
are
being
nominated
to
the
National
Register.
Barretts
Station
Road
roughly
bisects
the
district
along
a
southeast-northwest
axis.
North
of
the
district
is
commercial
development;
west
and
south,
the
present
day
Missouri
Pacific
tracks
and
a
forested
area that
conceals
a
residential
district.
The
area
being
nominated
is
presently
under
lease
by
the
National
Museum
of
Transport,
which
hopes
to
become
formally
associated
with
the
St.
Louis parks
and
recreation
system
and
to
eventually
acquire more
land
to
serve
as
a
buffer
zone.

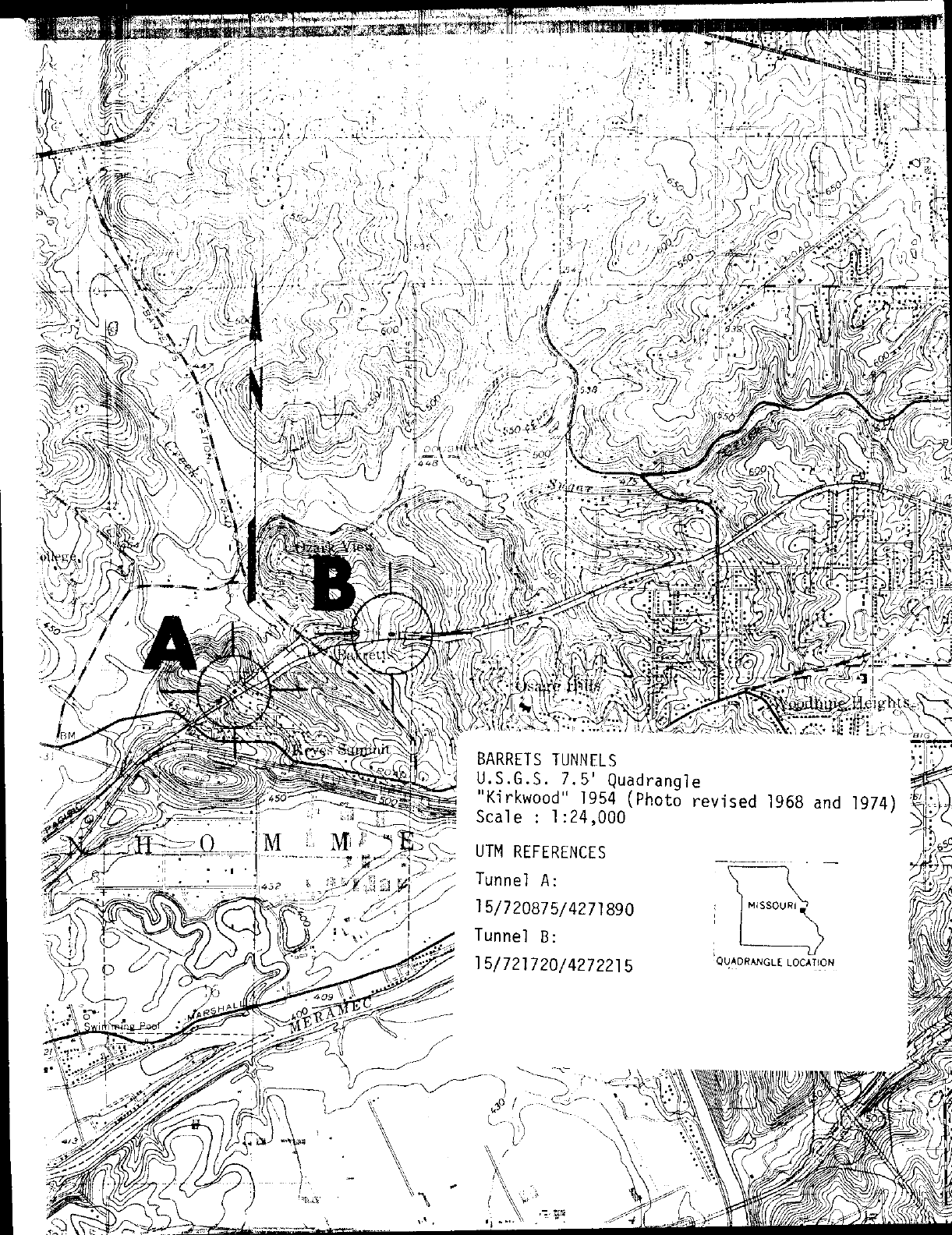

The two tunnels are
distributed
along
a
one-half mile
stretch
of the
original
Pacific
Railroad track
approximately
fifteen miles
west
of
the
eastern
terminus
of
that
railroad.
They
are
cut
through
solid
limestone
and
shale
hills.
The
overlay
above
the
tunnels varies,
being
50
feet
at
the
deepest
point.
It
con
sists
of
limestone
and
soil
covered
with
mixed
scrub
timber
of
the
oak-hickory
forest.
1
The
West
Tunnel
',
the
shorter
of
the
twg,
was
originally
440
feet
long
but
has
eroded
to
its
present
410 foot
length/
The steep
slope
on
either
side of
the
east
portal
has
been
faced with
a
stepped
cut
stone
retaining
wall.
The east
and
west
ends
of
the
west
tunnel
are
reinforced
with
concrete
portals.
The
rail
bed
rests
on
a
rock
ballast
floor flanked
by
guttering.
On
either
wall, cut
stone
wainscoting
rises
approximately
five
feet.
Because
of
the
occurrence of
shale
deposits
in
the
walls,
engaged
piers
line
either
side
of
the
tunnel
to
provide
additional
stability.

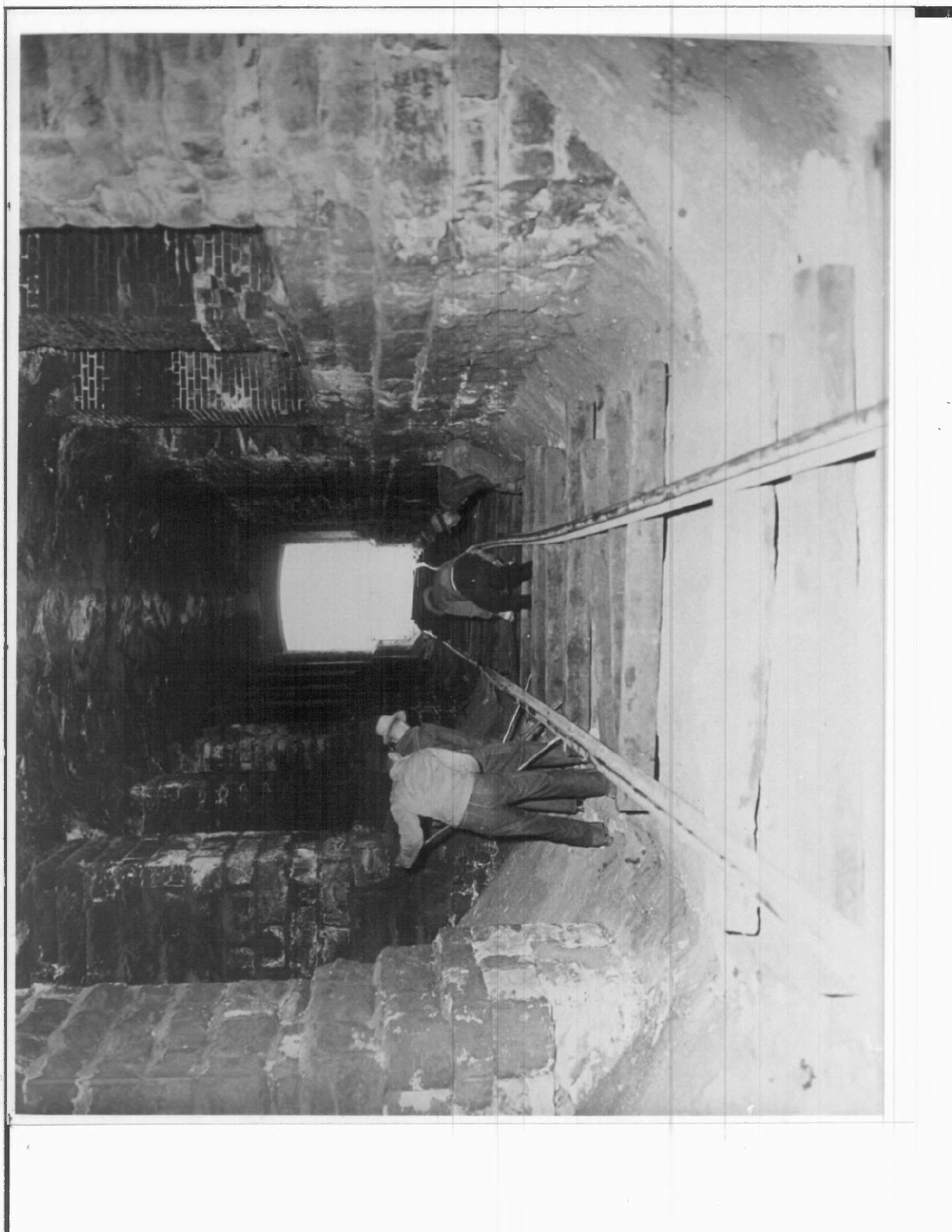

These
piers
are
constructed
of
cut stone, brick,
or
con
crete.
They
rest
either
on
the
wainscoting
or
on
pedestals
and
are
spaced
ap
proximately
12
feet
apart.
The
tunnel
is
about
15
feet
wide
and
16
1/2
feet
tall
in
the
center.
The
ceiling
is
limestone
caprock
and
slightly
arched.
The
East Tunnel
penetrates
solid
limestone
and
has
not
required
the
elaborate
reinforcement
and
portals
of
the
west
tunnel.
Its
appearance
is
more
that
of
a
mine shaft
than
a
railroad
tunnel.
The
track
has
been
removed
and
there
is
standing
water
inside.
The
tunnel
is
bell
shaped--18'
wide
at
the
bottom,
14'
at
the
top,
and
18'
in
height
from
floor
to
ceiling.
It
has
eroded
from
its
original
630
feet
to
its
present
length of
587
1/2
feet.
4
The
1400 foot
stretch
between
the
tunnels
was
brought
to
grade
by
spoil
from
the
tunnels,
creating
a
fill up to
53
feet
deep
in
places.
The
roadbed through
the
tunnels
and
across
the
fill
dividing
them,
maintains
a
grade
of.just
under
1%,
varying
from
0.81%
to
0.87%
running
from west
to
east.^
Form
No.
10-300a
(Rev.
10-74)
FOR
NFS
USE
ONLY
DATE
ENTERED
UNITbD
STATES
DEPARTMENT
Ol
;
THE
INTERIOR
NATIONAL
PARK
SERVICE
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
BARRETTS
TUNNELS
CONTINUATION
SHEET
ITEM
NUMBER
7
PAGE
1

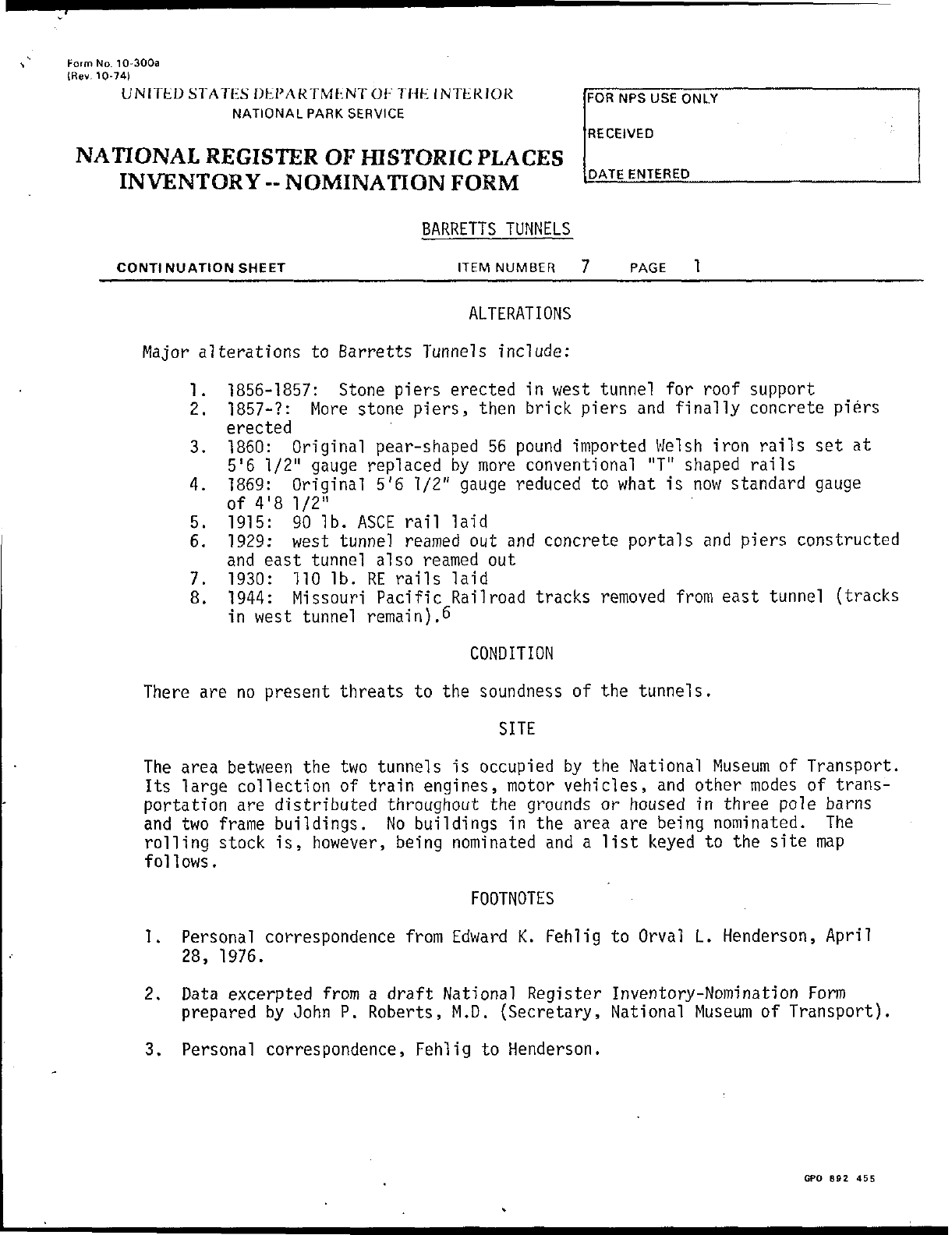

ALTERATIONS
Major
alterations
to
Barretts
Tunnels
include:
1.
1856-1857:
Stone piers
erected
in
west
tunnel
for
roof
support
2.
1857-?:
More
stone
piers,
then
brick piers
and
finally
concrete
piers
erected
3.
1860:
Original
pear-shaped
56
pound
imported
Welsh
iron
rails
set
at
5'6
1/2"
gauge
replaced
by
more
conventional
"T"
shaped
rails
4.
1869:
Original
5'6
1/2"
gauge
reduced
to
what
is
now
standard
gauge
of
4'8
1/2"
5.
1915: 90
Ib.
ASCE
rail
laid
6.
1929:
west
tunnel
reamed out
and
concrete
portals
and
piers
constructed
and
east
tunnel
also
reamed
out
7.
1930:
110
Ib.
RE
rails
laid
8.
1944:
Missouri
Pacific
Railroad
tracks
removed from east
tunnel
(tracks
in
west
tunnel
remain).6
CONDITION
There
are
no
present
threats
to
the
soundness of
the
tunnels.
SITE
The
area
between
the two
tunnels
is
occupied
by
the
National
Museum
of Transport.
Its
large
collection
of
train
engines,
motor
vehicles,
and
other modes
of
trans
portation
are
distributed
throughout
the
grounds
or
housed
in
three pole
barns
and two
frame
buildings.
No
buildings
in
the
area
are
being nominated.

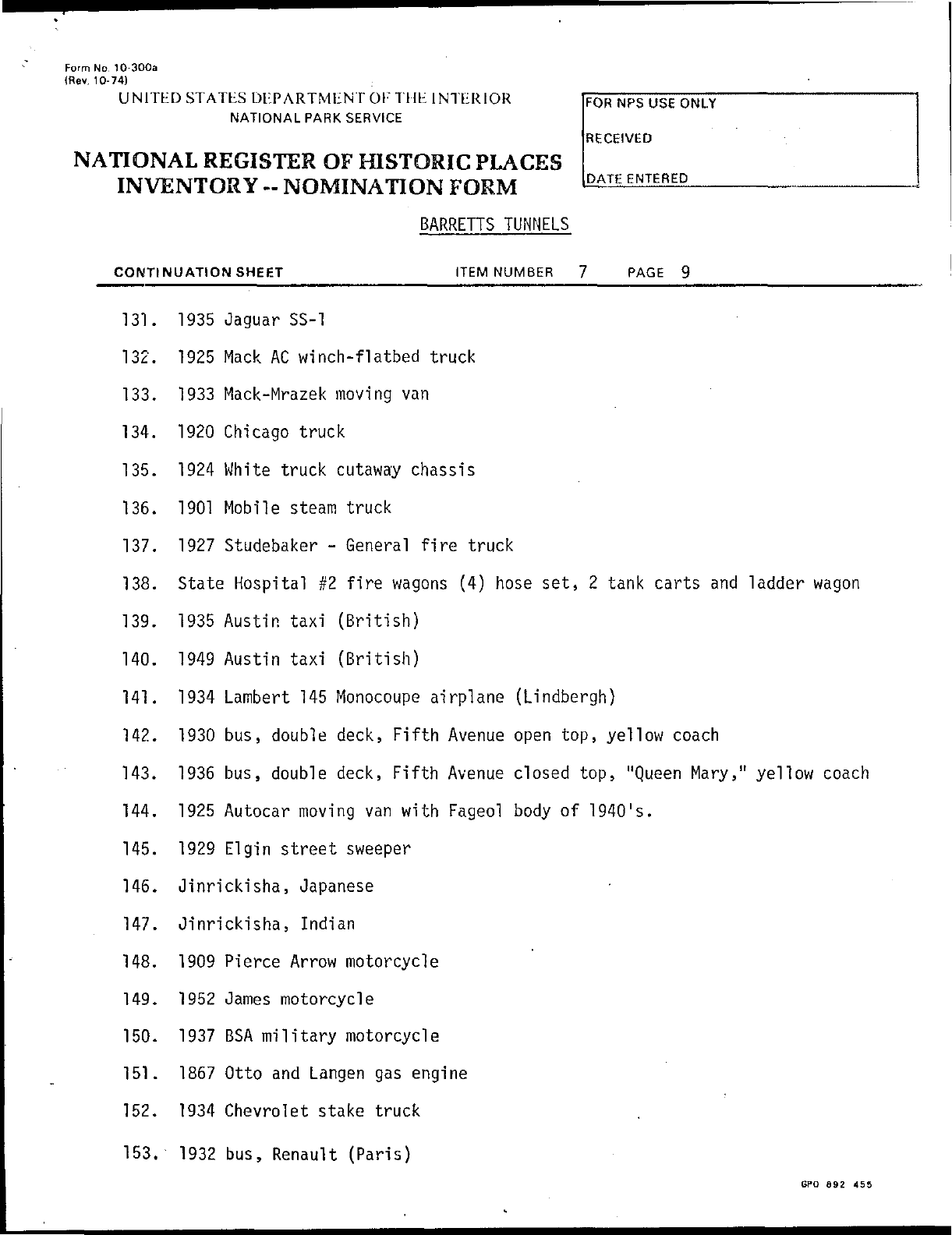

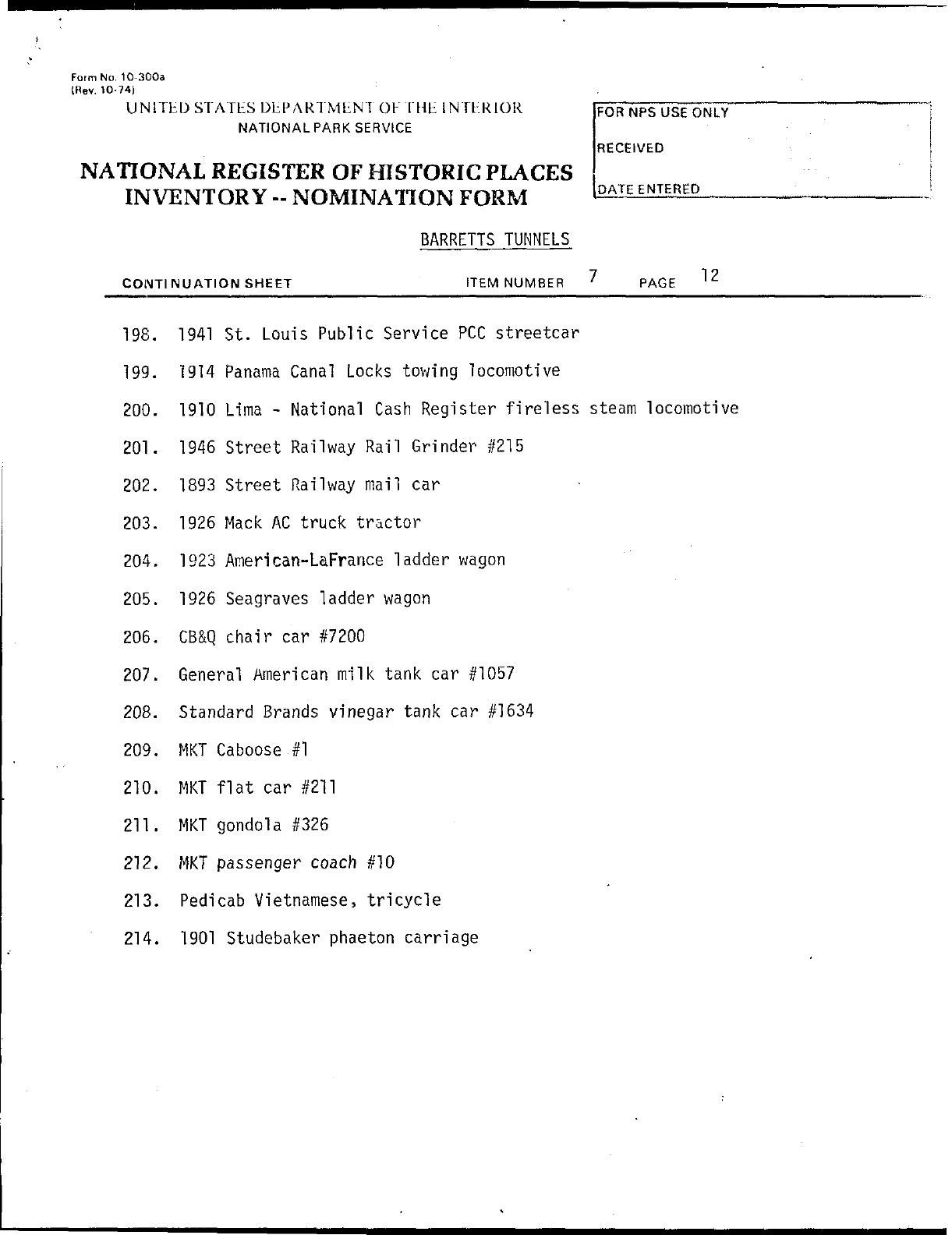

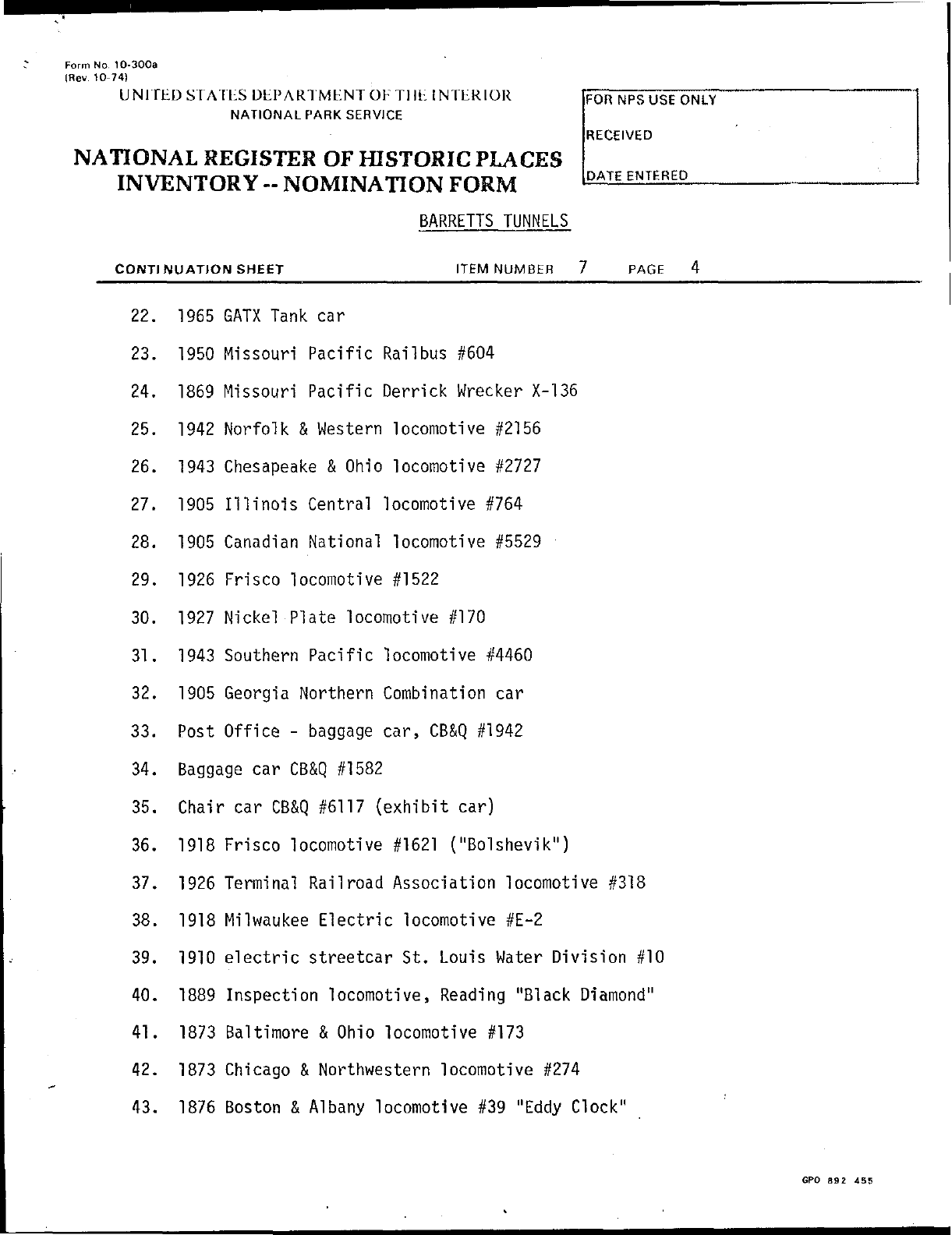

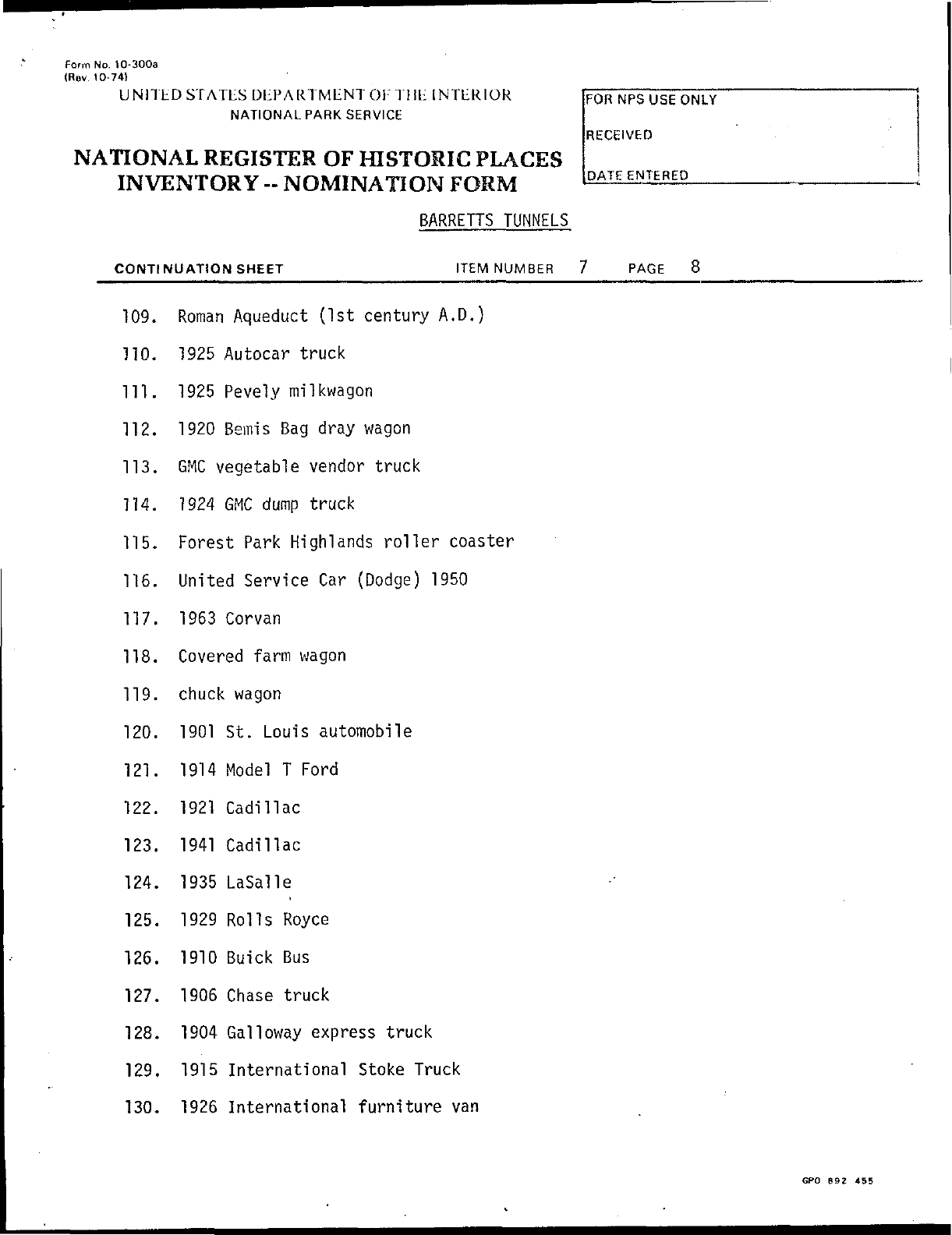

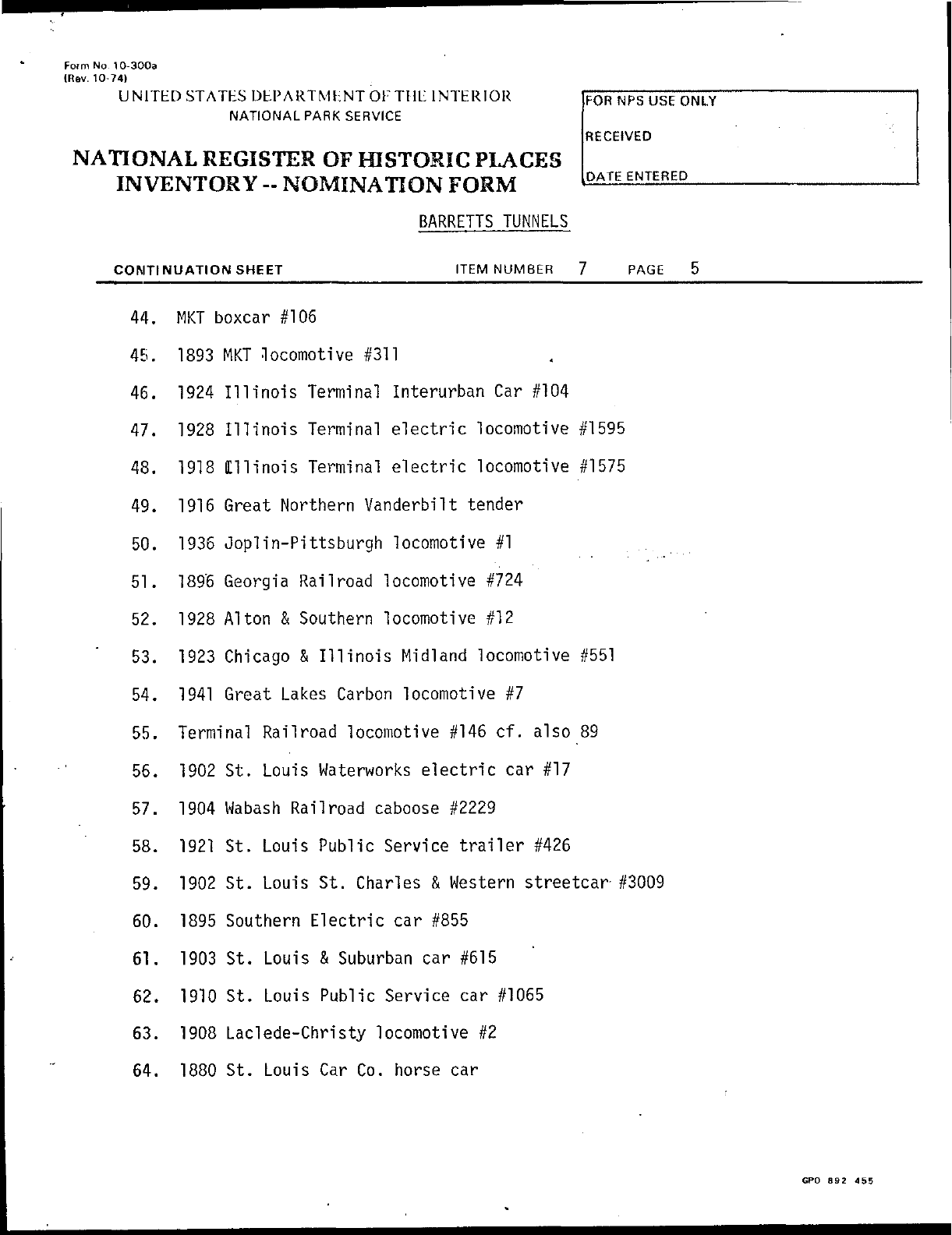

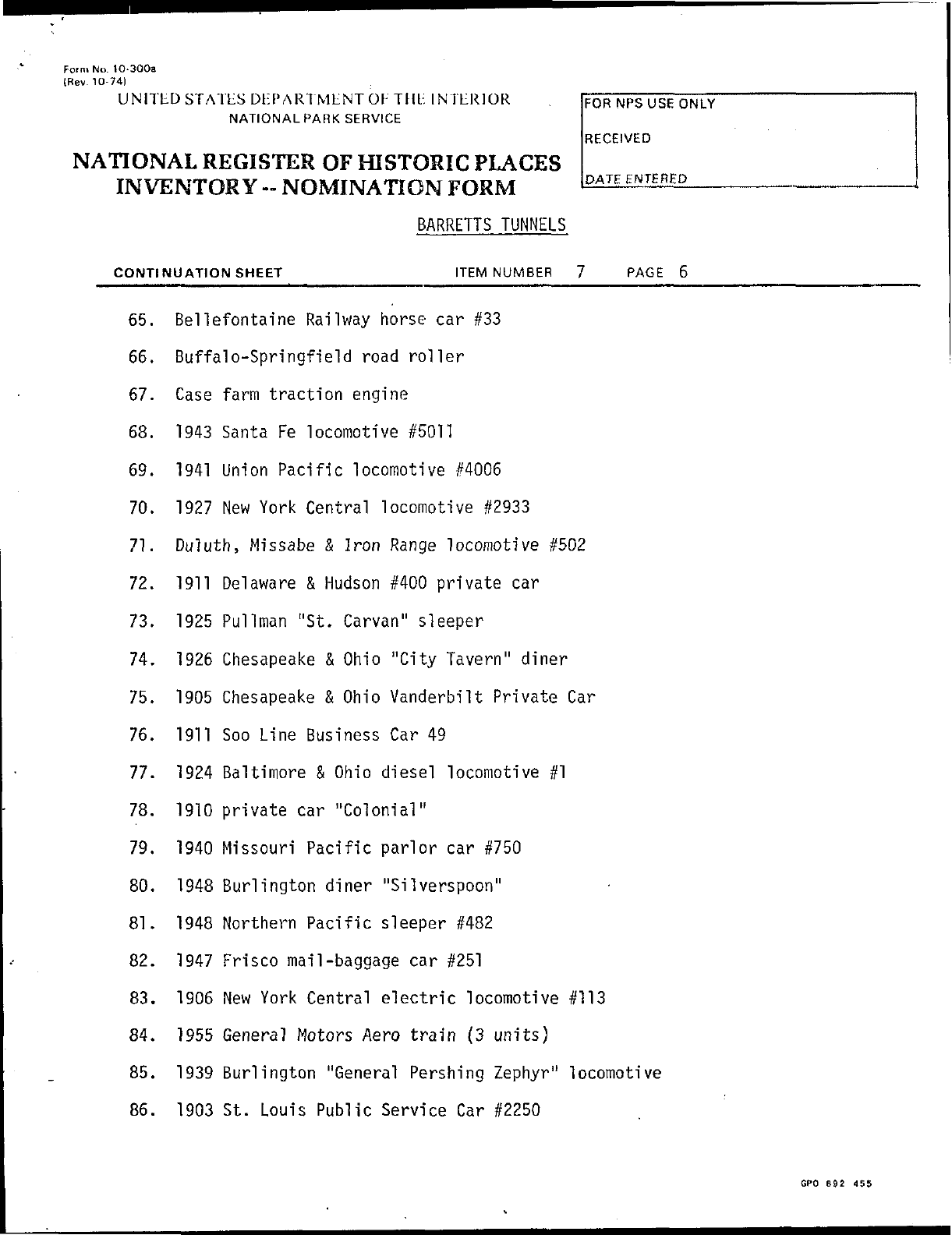

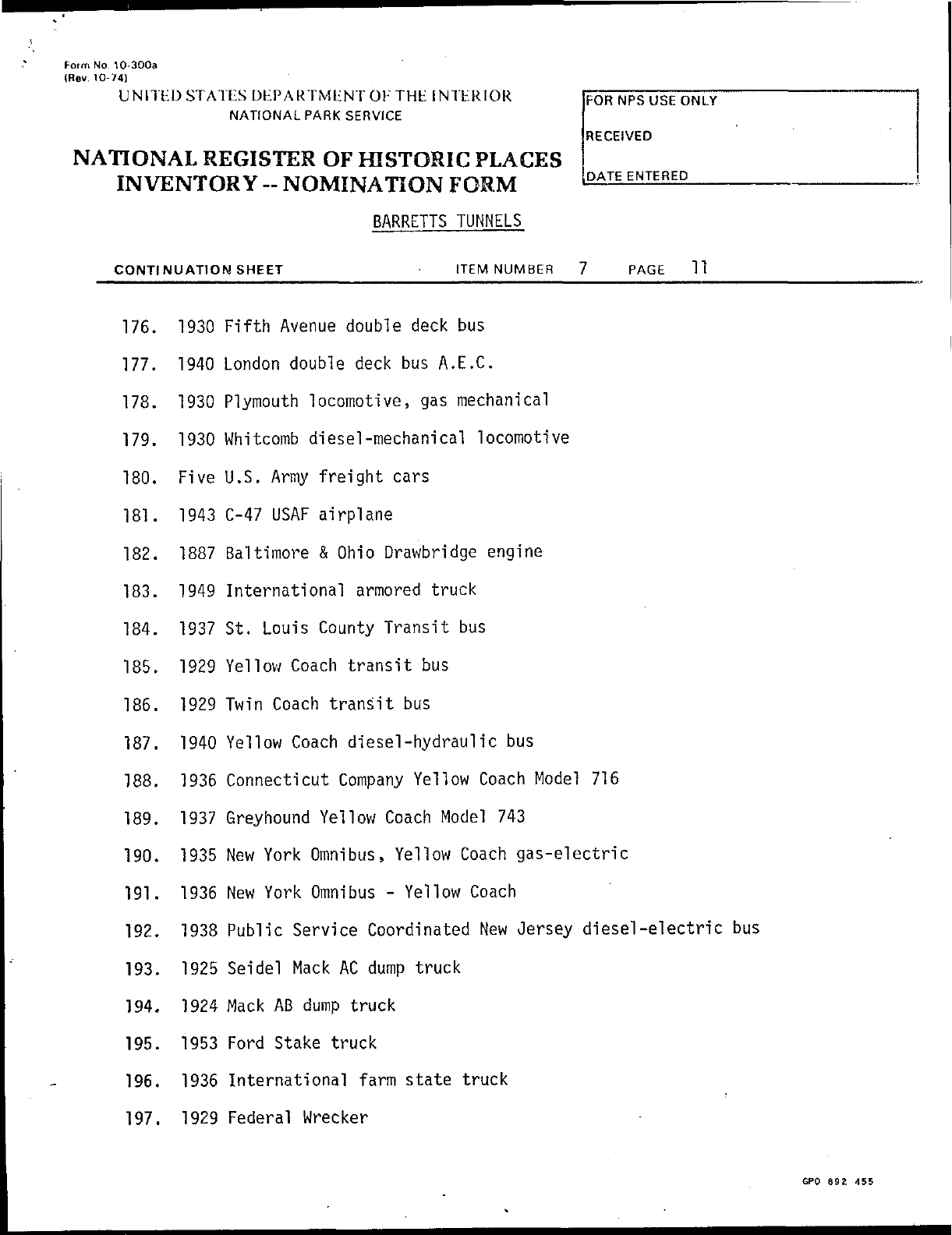

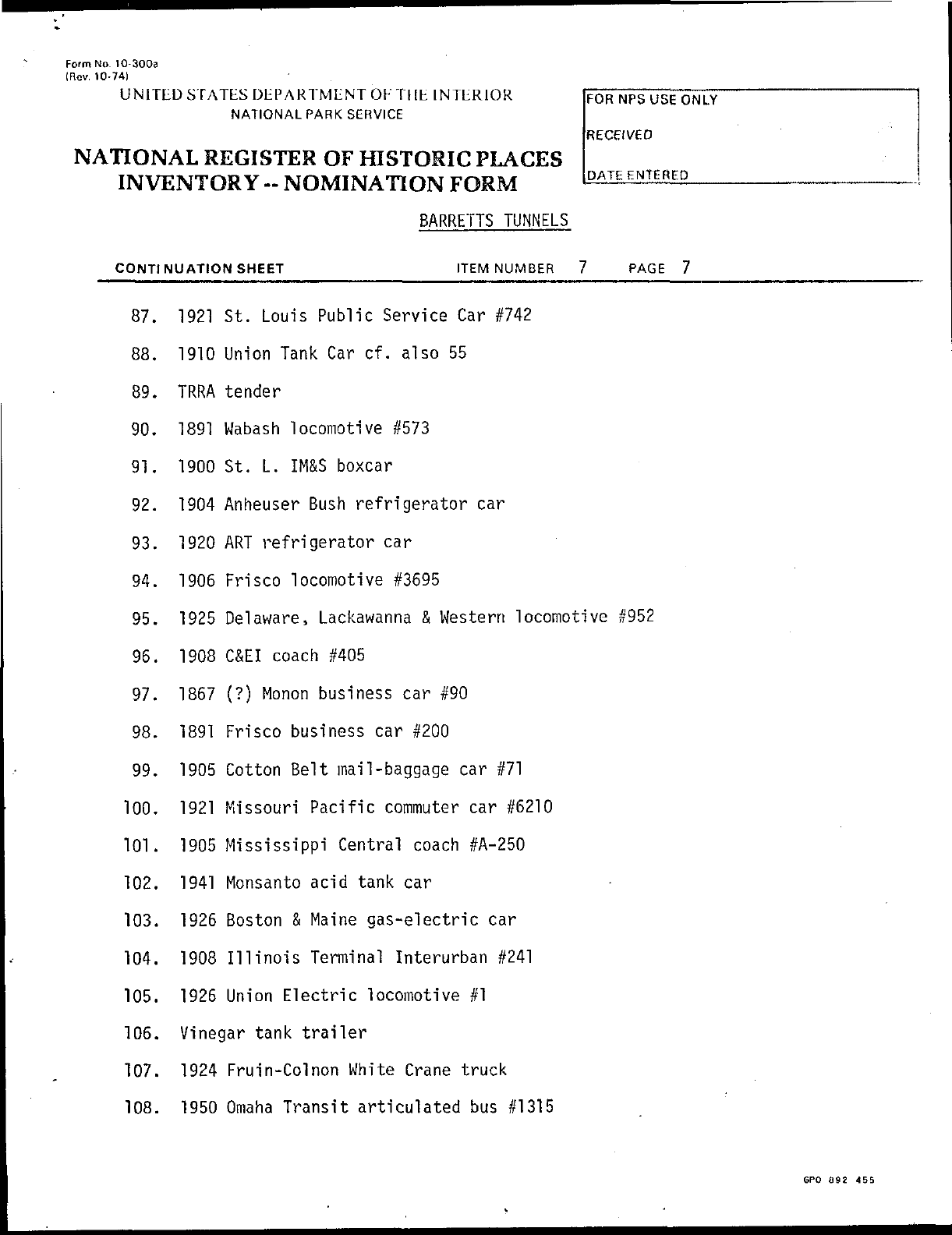

The
rolling
stock
is,
however,
being
nominated
and

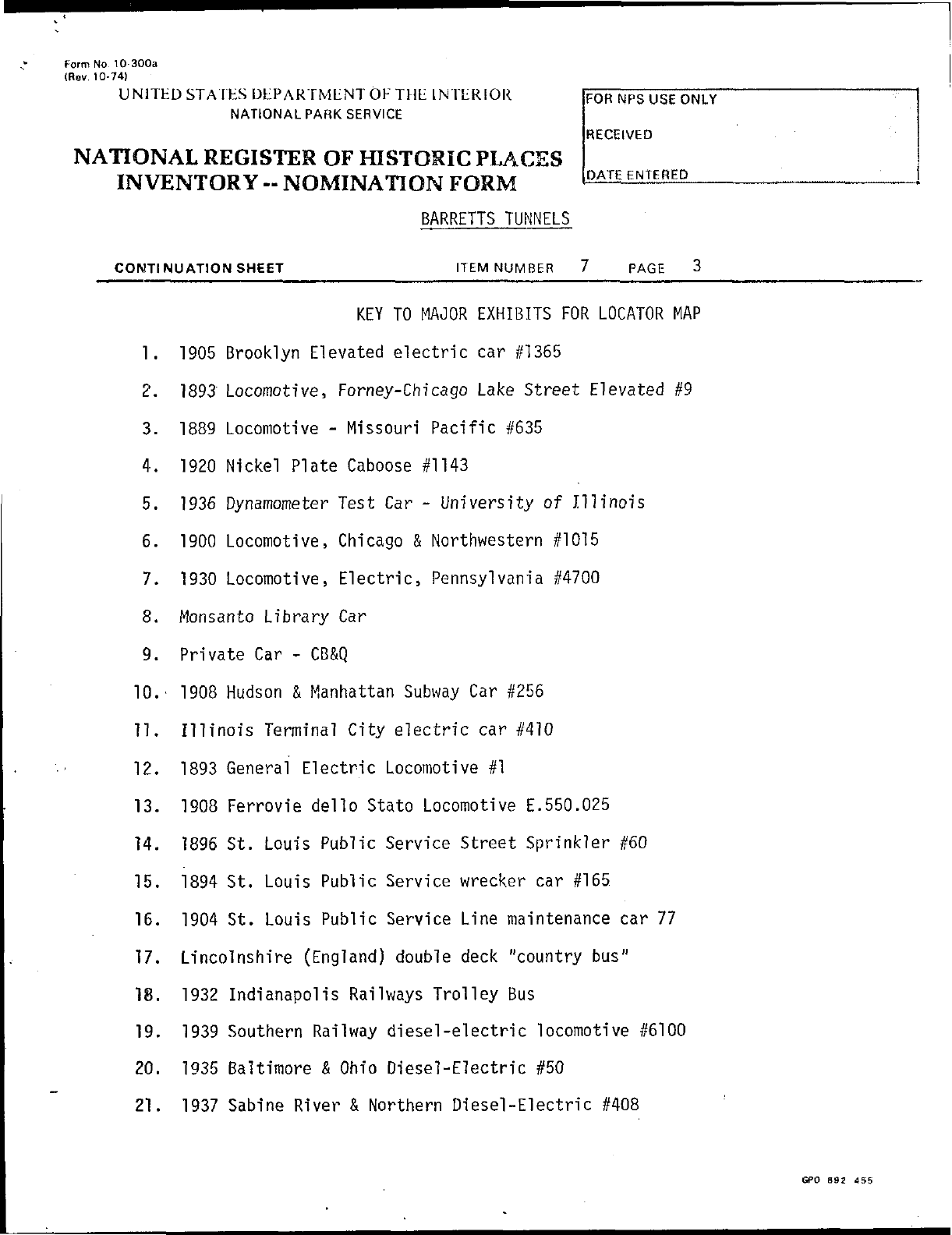

a
list
keyed
to
the

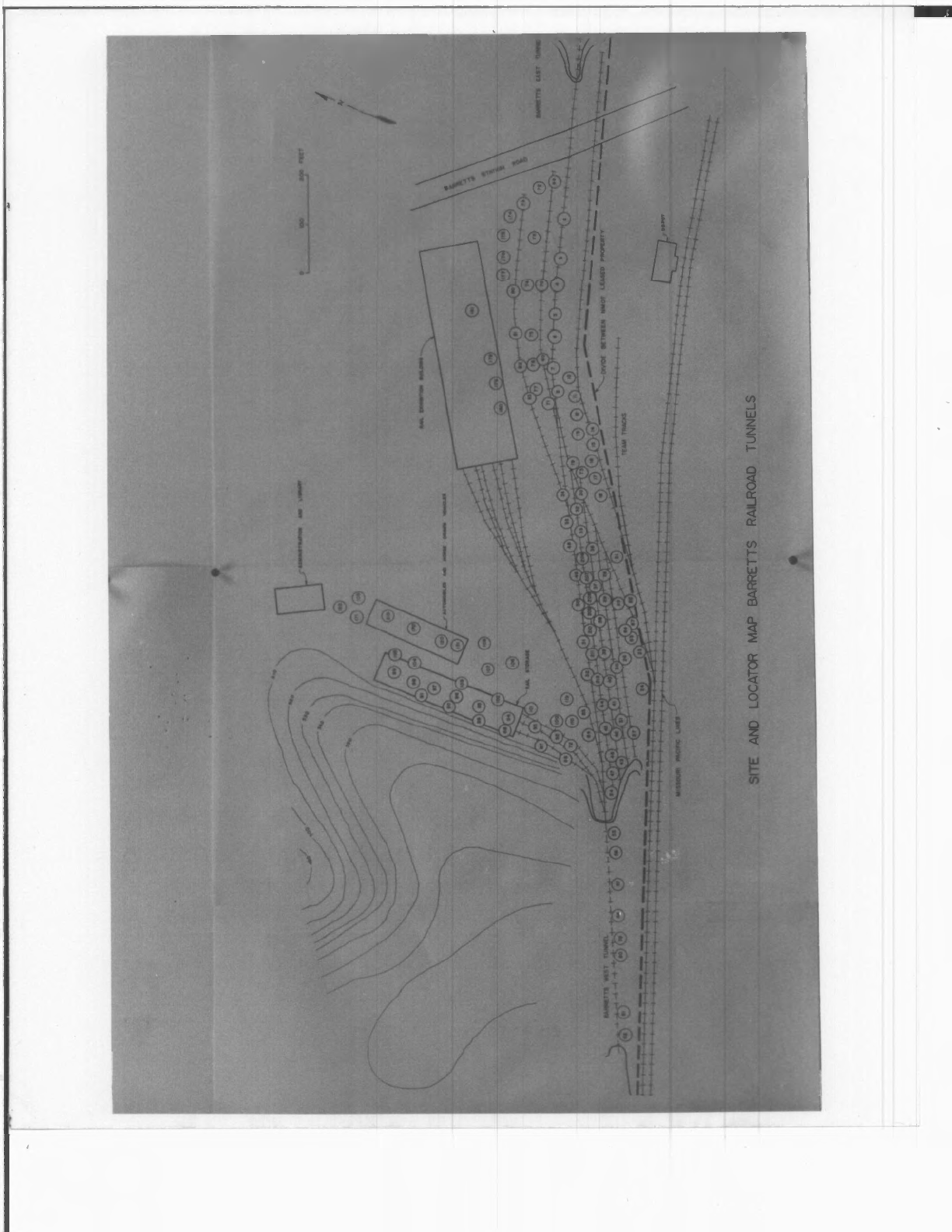

site
map
follows.
FOOTNOTES
1.
Personal
correspondence
from
Edward
K.
Fehlig
to
Orval
L.
Henderson,
April
28,
1976.
2.
Data
excerpted
from
a
draft
National
Register
Inventory-Nomination
Form
prepared
by
John
P.
Roberts,
M.D.
(Secretary,
National
Museum
of
Transport).
3.
Personal
correspondence,
Fehlig
to
Henderson.
GPO
692 455
Form
No
10-3003
(Rev.
10-74)
UN1TLDSTATLS DEPARTMENT
Or
THE
INTERIOR
FORNPSUSE
ONLY
NATIONAL
PARK
SERVICE
RECEIVED
NATIONAL
REGISTER
OF
HISTORIC
PLACES
DATE
ENTERED
INVENTORY
--
NOMINATION
FORM
BARRETTS
TUNNELS
CONTI
NUATION
SHEET_________________ITEM
NUMBER
7
PAGE
2____________________

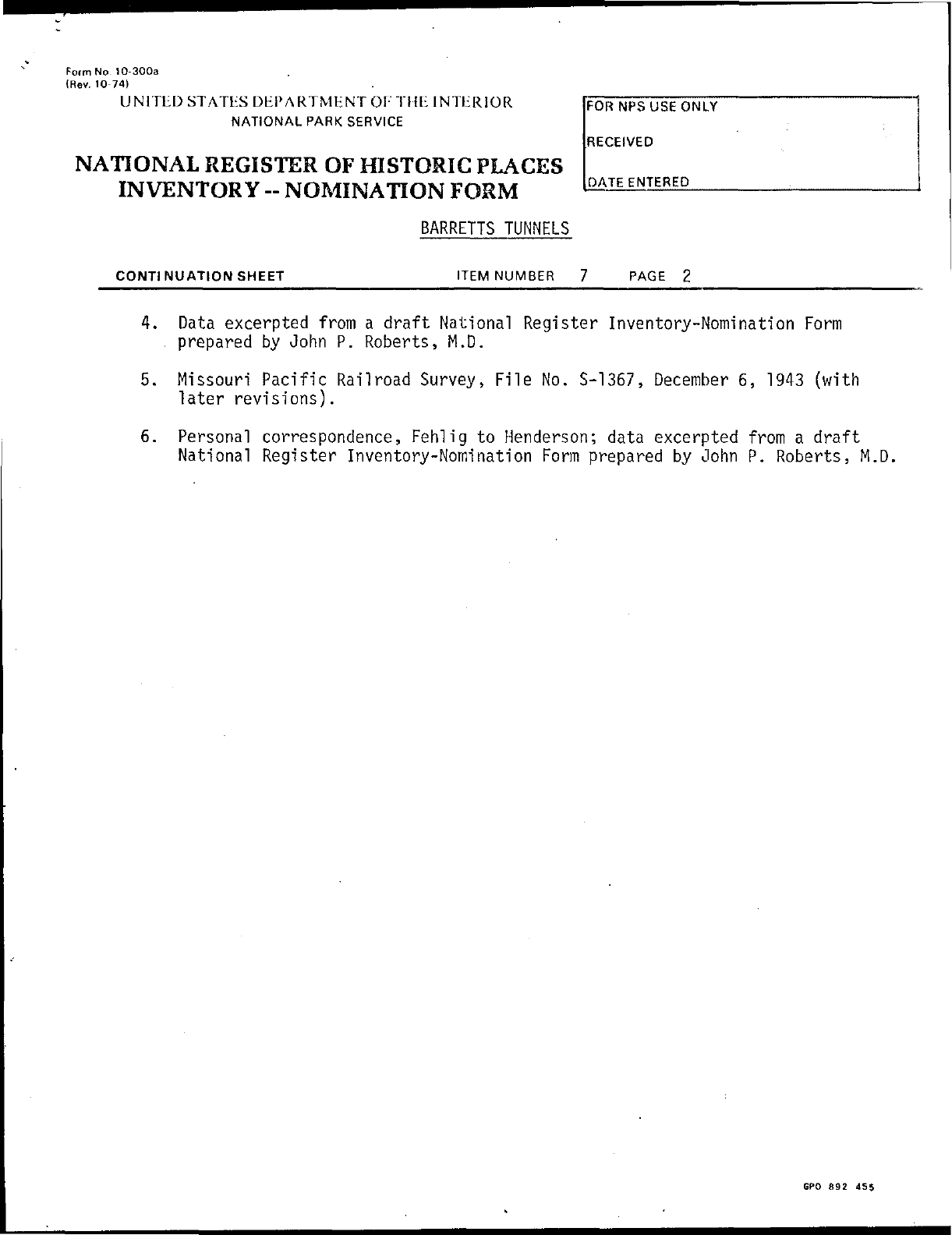

4.
Data
excerpted
from
a
draft
National
Register
Inventory-Nomination
Form
prepared
by
John
P.
Roberts,
M.D.
5.
Missouri
Pacific Railroad
Survey,
File
No.
S-1367,
December
6,
1943
(with
later
revisions).
6.
Personal
correspondence,
Fehlig
to
Henderson;
data
excerpted
from
a
draft
National
Register Inventory-Nomination
Form
prepared
by John
P.
Roberts,
M.D.
GPO
892 455
Form
No
10-300a
(Rev.
10-74)
UNITED
STATES
DEPARTMENT
OF
THE
INTERIOR
FOR
NPS USE
ONLY
NATIONAL
PARK
SERVICE
RECEIVED
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
°~-
ENTEREC1
BARRETTS
TUNNELS
CONTINUATION
SHEET
_________________ITEM
NUMBER
7
PAGE
3______________
KEY
TO
MAJOR
EXHIBITS
FOR
LOCATOR
MAP
1.
1905
Brooklyn
Elevated
electric
car
#1365
2.
1893
Locomotive,
Forney-Chicago
Lake
Street
Elevated
#9
3.
1889
Locomotive
-
Missouri
Pacific
#635
4.
1920
Nickel
Plate
Caboose #1143
5.
1936
Dynamometer
Test
Car
-
University
of
Illinois
6.
1900
Locomotive,
Chicago
&
Northwestern
#1015
7.
1930
Locomotive,
Electric,
Pennsylvania
#4700
8.
Monsanto
Library
Car
9.
Private
Car
-
CB&Q
10.
1908
Hudson
&
Manhattan
Subway
Car
#256
11.
Illinois Terminal
City electric
car
#410
12.
1893
General
Electric
Locomotive
#1
13.
1908
Ferrovie
dello
Stato
Locomotive
E.550.025
14.
1896
St.
Louis
Public
Service
Street
Sprinkler
#60
15.
1894
St.
Louis
Public
Service
wrecker
car
#165
16.
1904
St.
Louis
Public Service
Line
maintenance
car
77
17.
Lincolnshire
(England)
double
deck
"country
bus"
18.
1932
Indianapolis Railways
Trolley
Bus
19.
1939
Southern
Railway
diesel-electric
locomotive
#6100
20.
1935
Baltimore
&
Ohio
Diesel-Electric
#50
21.
1937
Sabine
River
&
Northern
Diesel-Electric
#408
GPO
892
455
Form
No
10-300a
[Rev.
10-74)
UNITED
STATES
DEPARTMENT
OF
THE
INTERIOR
NATIONAL
PARK
SERVICE
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
BARRETTS
TUNNELS
FOR
MRS
USE
ONLY
RECEIVED
DATE
ENTERED
CONTINUATION
SHEET
ITEM
NUMBER
PAGE
22.
1965
GATX
Tank
car
23.
1950
Missouri
Pacific
Railbus
#604
24.
1869
Missouri
Pacific
Derrick
Wrecker
X-136
25.
1942
Norfolk
&
Western
locomotive
#2156
26.
1943
Chesapeake
&
Ohio
locomotive
#2727
27.
1905
Illinois
Central
locomotive
#764
28.
1905
Canadian
National
locomotive
#5529
29.
1926
Frisco
locomotive
#1522
30.
1927
Nickel
Plate
locomotive
#170
31.
1943
Southern
Pacific
locomotive
#4460
32.
1905
Georgia
Northern
Combination
car
33.
Post Office
-
baggage
car,
CB&Q
#1942
34.
Baggage car CB&Q
#1582
35.
Chair
car
CB&Q
#6117
(exhibit
car)
36.
1918
Frisco
locomotive
#1621
("Bolshevik")
37.
1926
Terminal
Railroad
Association
locomotive
#318
38.
1918
Milwaukee
Electric
locomotive
#E-2
39.
1910
electric
streetcar
St.
Louis
Water
Division
#10
40.
1889
Inspection
locomotive,
Reading
"Black
Diamond"
41.
1873
Baltimore
&
Ohio
locomotive
#173
42.
1873
Chicago
&
Northwestern
locomotive
#274
43.
1876
Boston
&
Albany
locomotive
#39
"Eddy
Clock"
GPO
892 455
Form
No
10-300a
(Rev.
10-74)
UNITED
STATES
DEPARTMENT
OF
Tl
IE
INTERIOR
NATIONAL
PARK
SERVICE
RECEIVED
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
FOR
NFS
USE
ONLY
.DATE
ENTERED
BARRETTS
TUNNELS
CONTINUATION
SHEET
______
ITEM
NUMBER
7
PAGE
44.
MKT
boxcar
#106
45.
1893
MKT
locomotive
#311
46.
1924
Illinois Terminal
Interurban
Car
#104
47.
1928 Illinois Terminal
electric
locomotive
#1595
48.
1918
Illinois
Terminal
electric
locomotive
#1575
49.
1916
Great
Northern
Vanderbilt
tender
50.
1936
Joplin-Pittsburgh
locomotive
#1
51.
1896
Georgia Railroad
locomotive
#724
52.
1928
Alton
&
Southern
locomotive
#12
53.
1923
Chicago
&
Illinois
Midland
locomotive
#551
54.
1941
Great
Lakes
Carbon
locomotive
#7
55.
Terminal
Railroad
locomotive
#146
cf.
also
89
56.
1902
St.
Louis
Waterworks
electric
car
#17
57.
1904
Wabash
Railroad
caboose #2229
58.
1921
St.
Louis
Public
Service
trailer
#426
59.
1902
St.
Louis
St.
Charles
&
Western
streetcar
#3009
60.
1895
Southern
Electric car
#855
61.
1903
St.
Louis
&
Suburban
car
#615
62.
1910
St.
Louis
Public
Service
car #1065
63.
1908
Laclede-Christy
locomotive
#2
64.
1880
St.
Louis
Car
Co.
horse
car
GPO
B92
455
Form
No.
10-300a
(Rev
10-74)
UNITED
STATES
DEPARTMENT
OE
THE
INTERIOR
NATIONAL
PARK
SERVICE
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
BARRETTS
TUNNELS
FOR
NPS
USE
ONLY
RECEIVED
DATE
ENTERED
CONTINUATION
SHEET
ITEM
NUMBER
PAGE
6
65.
Bellefontaine
Railway
horse
car
133
66.
Buffalo-Springfield
road
roller
67.
Case farm
traction
engine
68.
1943
Santa
Fe
locomotive
#5011
69.
1941
Union
Pacific
locomotive
#4006
70.
1927
New
York
Central
locomotive
#2933
71.
Duluth,
Hissabe
&
Iron
Range
locomotive
#502
72.
1911
Delaware
&
Hudson
#400
private
car
73.
1925
Pullman
"St.
Carvan"
sleeper
74.
1926
Chesapeake
&
Ohio
"City
Tavern"
diner
75.
1905
Chesapeake
&
Ohio
Vanderbilt
Private Car
76.
1911
Soo
Line
Business
Car
49
77.
1924
Baltimore
&
Ohio
diesel
locomotive
#1
78.
1910
private
car
"Colonial"
79.
1940
Missouri
Pacific
parlor
car
#750
80.
1948
Burlington
diner
"Silverspoon"
81.
1948
Northern
Pacific sleeper
#482
82.
1947
Frisco
mail-baggage
car
#251
83.
1906
New
York
Central
electric
locomotive
#113
84.
1955
General
Motors
Aero
train
(3
units)
85.
1939
Burlington
"General
Pershing
Zephyr"
locomotive
86.
1903
St.
Louis
Public
Service
Car
#2250
GPO B92
455
Form
No.
10-300a
(Rev
10-74)
UNITED
STATES
DEPARTMENT
OE
THE
INTERIOR
NATIONAL
PARK
SERVICE
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
BARRETTS
TUNNELS
FOR
NPS USE
ONLY
RECEIVED
DATE
ENTERED
CONTINUATION
SHEET
ITEM
NUMBER
PAGE
7
87.
1921
St.
Louis
Public
Service
Car
#742
88.
1910
Union
Tank
Car
cf.
also
55
89.
TRRA
tender
90.
1891
Wabash
locomotive
#573
91.
1900
St.
L.
IM&S
boxcar
92.
1904
Anheuser
Bush
refrigerator
car
93.
1920
ART
refrigerator
car
94.
1906
Frisco
locomotive
#3695
95.
1925
Delaware,
Lackawanna
&
Western
locomotive
#952
96.
1908
C&EI
coach
#405
97.
1867
(?)
Monon business car
#90
98.
1891
Frisco business car
#200
99.
1905
Cotton
Belt
mail-baggage
car
#71
100.
1921
Missouri
Pacific
commuter
car
#6210
101.
1905
Mississippi
Central
coach
#A-250
102.
1941
Monsanto
acid
tank
car
103.
1926
Boston
&
Maine
gas-electric
car
104.
1908 Illinois Terminal
Interurban
#241
105.
1926
Union
Electric
locomotive
#1
106.
Vinegar
tank
trailer
107.
1924
Fruin-Colnon
White
Crane
truck
108.
1950
Omaha
Transit
articulated
bus
#1315
GPO
892 455
Form
No.
10-300a
(Rev.
10-74)
UNITED
STATLS
DEPARTMENT
Or
1
111:
INTERIOR
FOR
NPS USE
ONLY
NATIONAL
PARK
SERVICE
RECEIVED
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
DATE
ENTERED
BARRETTS
TUNNELS
CONTINUATION
SHEET
ITEM
NUMBER
7
PAGE
8
109.
Roman
Aqueduct
(1st
century
A.D.)
110.
1925
Autocar
truck
111.
1925
Pevely
milkwagon
112.
1920
Bemis
Bag
dray
wagon
113.
GMC
vegetable
vendor
truck
114.
1924
GMC
dump truck
115.
Forest
Park
Highlands
roller
coaster
116.
United
Service
Car
(Dodge)
1950
117.
1963
Corvan
118.
Covered farm
wagon
119.
chuck
wagon
120.
1901
St.
Louis
automobile
121.
1914
Model
T
Ford
122. 1921
Cadillac
123. 1941
Cadillac
124.
1935
LaSalle
125.
1929
Rolls
Royce
126.
1910
Buick
Bus
127.
1906
Chase
truck
128.
1904
Galloway
express truck
129.
1915
International
Stoke
Truck
130.
1926
International
furniture
van
GPO
692 455
Form
No
10-300a
(Rev.
10-74)
UN1TLD
STATLS
DEPARTMENT
Ol
;
Tilt
INI
LRIOR
NATIONAL
PARK
SERVICE
RECEIVED
NATIONAL
REGISTER
OF
HISTORIC
PLACES
'DATE
ENTERED
FOR
NPS
USE
ONLY
INVENTORY
--
NOMINATION
FORM
BARRETTS
TUNNELS
CONTINUATION
SHEET
_________________ITEM
NUMBER
7
PAGE
9__________________
131.
1935
Jaguar
SS-1
132.
1925
Mack
AC
winch-flatbed
truck
133.
1933
Mack-Mrazek
moving
van
134.
1920
Chicago
truck
135.
1924
White
truck
cutaway
chassis
136. 1901
Mobile
steam
truck
137.
1927
Studebaker
-
General
fire
truck
138.
State
Hospital
#2
fire
wagons
(4)
hose
set,
2
tank
carts
and
ladder
wagon
139.
1935
Austin
taxi
(British)
140.
1949
Austin
taxi
(British)
141.
1934
Lambert
145
Monocoupe
airplane
(Lindbergh)
142.
1930
bus,
double
deck, Fifth
Avenue
open
top,
yellow
coach
143.
1936
bus,
double
deck,
Fifth
Avenue
closed
top,
"Queen
Mary,"
yellow
coach
144.
1925
Autocar
moving
van
with
Fageol
body
of
1940's.
145.
1929
Elgin
street
sweeper
146.
Jinrickisha,
Japanese
147.
Jinrickisha,
Indian
148.
1909
Pierce
Arrow
motorcycle
149.
1952
James
motorcycle
150.
1937
BSA
military
motorcycle
151.
1867
Otto
and
Langen
gas
engine
152.
1934
Chevrolet
stake truck
153.
1932
bus,
Renault
(Paris)
GPO
892 455
Form
No
10-300a
(Rev.
10-741
UNITED
STATES
DEPARTMENT
OE
THE
INTERIOR
NATIONAL
PARK
SERVICE
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
BARRETTS
TUNNELS
FOR
NFS
USE
ONLY
RECEIVED
DATE
ENTERED
CONTINUATION
SHEET
ITEM
NUMBER
PAGE
10

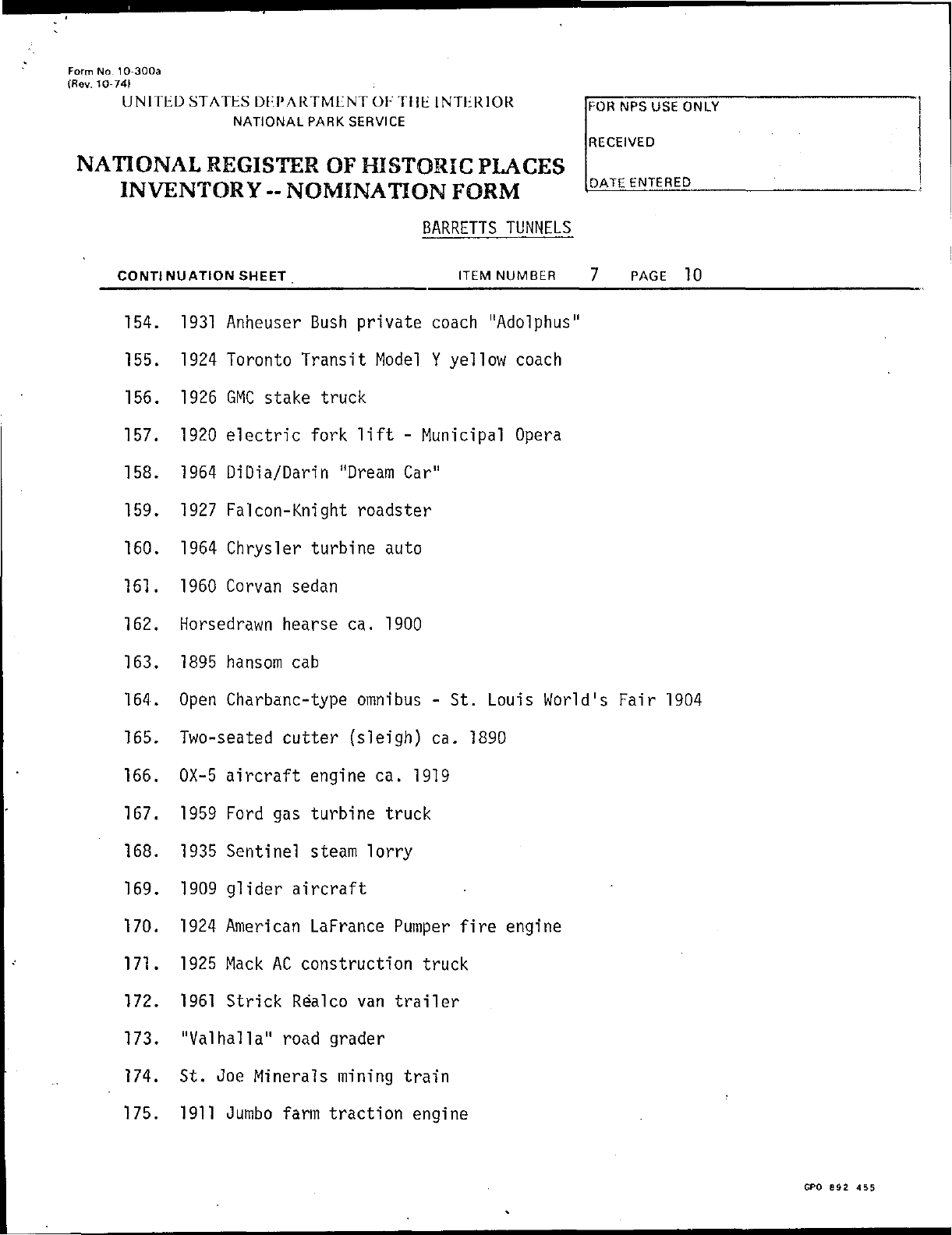

154.
1931
Anheuser
Bush
private
coach
"Adolphus"
155.
1924
Toronto
Transit
Model
Y
yellow
coach
156.
1926
GMC
stake
truck
157.
1920
electric
fork lift
-
Municipal
Opera
158.
1964
DiDia/Darin
"Dream
Car"
159.
1927
Falcon-Knight
roadster
160.
1964
Chrysler
turbine
auto
161.
1960
Corvan
sedan
162.
Horsedrawn
hearse
ca.
1900
163.
1895
hansom
cab
164.
Open
Charbanc-type
omnibus
-
St.
Louis
World's
Fair 1904
165.
Two-seated
cutter
(sleigh)
ca.
1890
166.
OX-5
aircraft
engine
ca.
1919
167.
1959 Ford
gas
turbine
truck
168.
1935
Sentinel
steam
lorry
169.
1909
glider
aircraft
170.
1924
American
LaFrance
Pumper
fire
engine
171.
1925
Mack
AC
construction
truck
172.
1961
Strick
Re'alco
van
trailer
173.
"Valhalla"
road
grader
174.
St.
Joe
Minerals
mining
train
175.
1911
Jumbo farm
traction
engine
GPO
892
455
Form
No
10-300a
(Rev.
10-74)
UNITED
STATES
DEPARTMENTS
THE
INTERIOR
NATIONAL
PARK
SERVICE
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY-
NOMINATION
FORM
BARRETTS
TUNNELS
FOR
NFS
USE
ONLY
RECEIVED
DATE
ENTERED
CONTINUATION
SHEET
ITEM
NUMBER
11
176.
1930
Fifth
Avenue double
deck
bus
177.
1940
London double
deck
bus
A.E.G.
178.
1930
Plymouth locomotive,
gas
mechanical
179.
1930
Whitcomb
diesel-mechanical
locomotive
180.
Five
U.S.
Army
freight
cars
181.
1943 C-47
USAF
airplane
182.
1887
Baltimore
&
Ohio
Drawbridge
engine
183.
1949
International
armored
truck
184.
1937
St.
Louis
County
Transit
bus
185.
1929
Yellow
Coach
transit
bus
186.
1929
Twin Coach
transit
bus
187.
1940
Yellow
Coach
diesel-hydraulic
bus
188.
1936
Connecticut
Company
Yellow
Coach
Model
716
189.
1937
Greyhound Yellow
Coach
Model
743
190.
1935
New York Omnibus,
Yellow
Coach
gas-electric
191.
1936
New
York Omnibus
-
Yellow
Coach
192.
1938
Public
Service
Coordinated
New
Jersey
diesel-electric
bus
193.
1925
Seidel
Mack
AC
dump
truck
194.
1924
Mack AB
dump truck
195.
1953
Ford
Stake
truck
196.
1936
International
farm
state
truck
197.
1929
Federal
Wrecker
GPO
692
455
Form
No
10-300a
(Rev.
10-74)
UNITED
STATHS
DLPARTMtNT
Ol
THE
INTliRlOR
FOR
NPS
USE
ONLY
NATIONAL
PARK
SERVICE
RECEIVED
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
BARRETTS
TUNNELS
CONTINUATION
SHEET
ITEM
NUMBER
DATE
ENTERED
198. 1941
St.
Louis
Public
Service
PCC
streetcar
199.
1914
Panama
Canal
Locks
towing
locomotive
200.
1910
Lima
-
National
Cash
Register
fireless
steam locomotive
201.
1946
Street
Railway
Rail
Grinder
#215
202.
1893
Street
Railway
mail
car
203.
1926
Mack
AC
truck
tractor
204.
1923
Amerlcan-LaFrance
ladder
wagon
205.
1926
Seagraves
ladder
wagon
206.
CB&Q chair
car
#7200
207.
General
American
milk
tank
car
#1057
208.
Standard
Brands
vinegar
tank car
#1634
209.
MKT
Caboose
#1
210.
MKT flat car
#211
211.
MKT
gondola
#326
212.
MKT
passenger
coach #10
213.
Pedicab
Vietnamese,
tricycle
214.
1901
Studebaker
phaeton
carriage

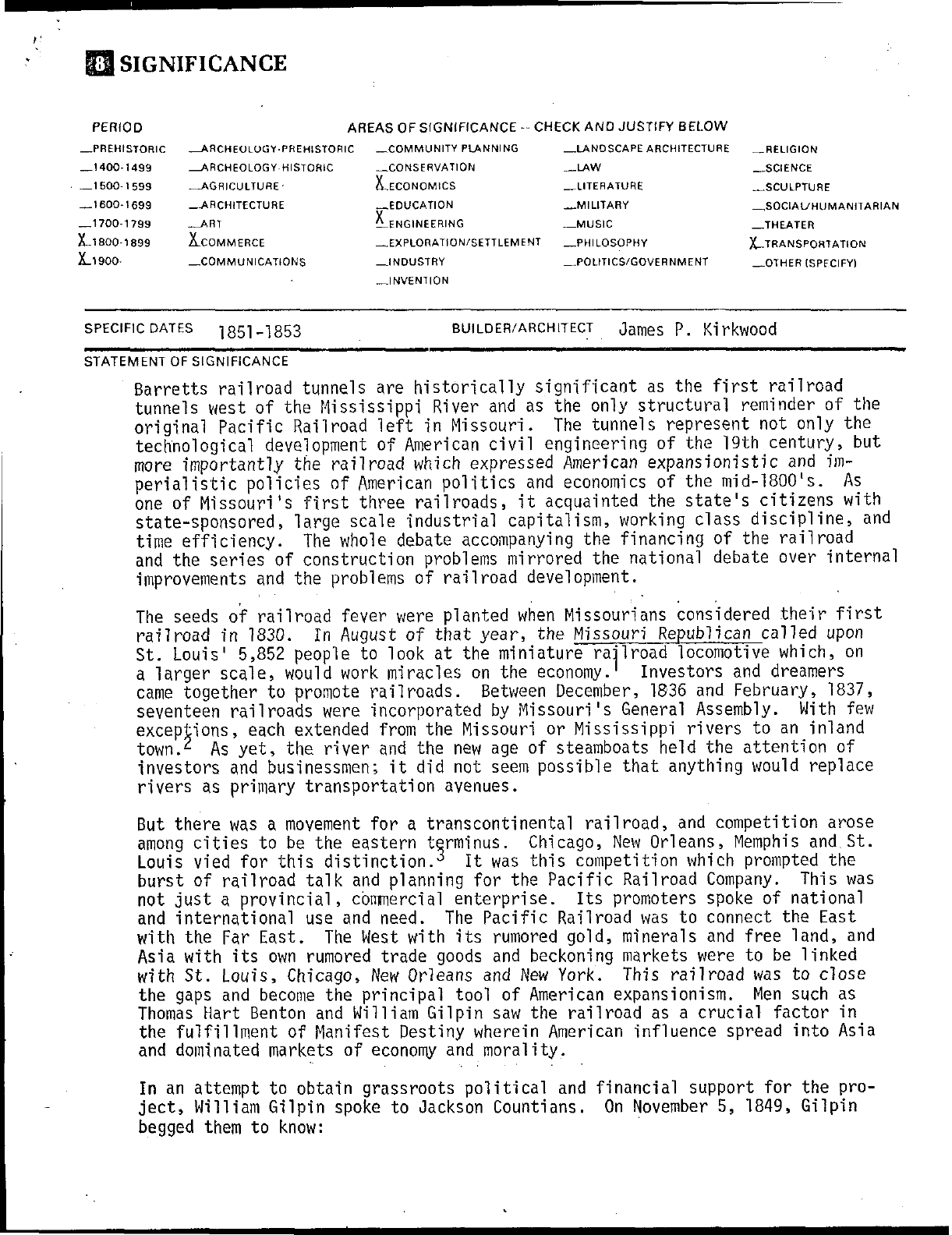

SIGNIFICANCE
PERIOD
—PREHISTORIC
—1400-1499
_1
500-
1599
_
1600-1699
—1700
1799
X_1
800-
1899
X_1900-
AREAS
OF
SIGNIFICANCE
-
CHECK
AND
JUSTIFY
BELOW
_
ARCHEOLOGY-PREHISTORIC
_
ARCHEOLOGY-HISTORIC
_
AGRICULTURE-
—ARCHITECTURE
__ART
^.COMMERCE
—COMMUNICATIONS
—.COMMUNITY
PLANNING
--CONSERVATION
JLECONOM1CS
—EDUCATION
^.ENGINEERING
—.EXPLORATION/SETTLEMENT
—.INDUSTRY
—.INVENTION
—.LANDSCAPE
ARCHITECTURE
_LAW
—LITERATURE
_
MILITARY
_
MUSIC
—PHILOSOPHY
—POLITICS/GOVERNMENT
__RELIGION
__SCIENCE
^SCULPTURE
—SOCIAL/HUMANITARIAN
—THEATER
X-TRANSPORTATION
—OTHER
(SPECIFY)
SPECIFIC
DATES
1851-1853
BUILDER/ARCHITECT
James
P.
Kirkwood
STATEMENT
OF
SIGNIFICANCE
Barretts
railroad
tunnels
are
historically
significant
as
the
first
railroad
tunnels
west
of
the
Mississippi
River
and
as
the
only
structural
reminder
of
the
original
Pacific
Railroad
left
in
Missouri.
The
tunnels
represent
not
only
the
technological
development
of
American
civil
engineering
of
the
19th
century,
but
more
importantly
the
railroad
which
expressed
American
expansionistic
and
im
perialistic
policies of
American
politics
and
economics
of
the
mid-1800's.
As
one
of
Missouri's
first three
railroads,
it
acquainted
the
state's
citizens
with
state-sponsored,
large scale
industrial
capitalism,
working
class
discipline,
and
time
efficiency.
The
whole
debate
accompanying
the
financing
of
the
railroad
and the
series
of
construction
problems
mirrored
the
national
debate
over
internal
improvements
and
the
problems of
railroad
development.
The
seeds
of
railroad
fever
were
planted
when
Missourians
considered
their
first
railroad
in
1830.
In
August of
that
year, the Missouri
Republican
called
upon
St.
Louis'
5,852
people
to
look
at
the
miniature
railroad
locomotive
which,
on
a
larger
scale,
would
work
miracles
on
the
economy.
1
Investors
and
dreamers
came
together
to
promote
railroads.
Between December,
1836
and
February,
1837,
seventeen railroads
were incorporated
by
Missouri's
General
Assembly.
With
few
exceptions,
each
extended
from
the
Missouri
or
Mississippi
rivers
to
an
inland
town.
As
yet,
the
river
and
the
new
age
of
steamboats
held
the
attention
of
investors
and
businessmen;
it
did
not
seem
possible
that
anything
would
replace
rivers
as
primary
transportation
avenues.
But
there
was
a
movement
for
a
transcontinental
railroad,
and
competition
arose
among
cities
to be
the
eastern
terminus.
Chicago,
New
Orleans,
Memphis
and
St.
Louis
vied
for
this
distinction.
3
It
was
this
competition
which
prompted
the
burst
of
railroad
talk
and
planning
for
the
Pacific
Railroad
Company. This
was
not
just
a
provincial,
commercial
enterprise.
Its
promoters
spoke
of
national
and
international
use
and
need.
The Pacific Railroad
was
to
connect
the
East
with
the Far
East.
The
West with
its
rumored
gold,
minerals
and
free
land,
and
Asia with
its
own
rumored
trade
goods
and
beckoning
markets
were
to
be
linked
with
St.
Louis,
Chicago,
New
Orleans
and New
York.
This
railroad
was
to
close
the
gaps
and
become
the
principal
tool
of
American
expansionism.
Men
such
as
Thomas
Hart
Benton
and
William
Gil
pin
saw
the
railroad
as
a
crucial
factor
in
the
fulfillment
of
Manifest
Destiny
wherein
American
influence
spread
into
Asia
and
dominated
markets
of
economy
and
morality.
In
an
attempt
to
obtain
grassroots
political
and financial
support
for
the pro
ject,
William
Gilpin
spoke
to
Jackson
Countians.
On
November
5,
1849,
Gilpin
begged
them
to know:
Form
No
10-300a
(Rev
10-74)

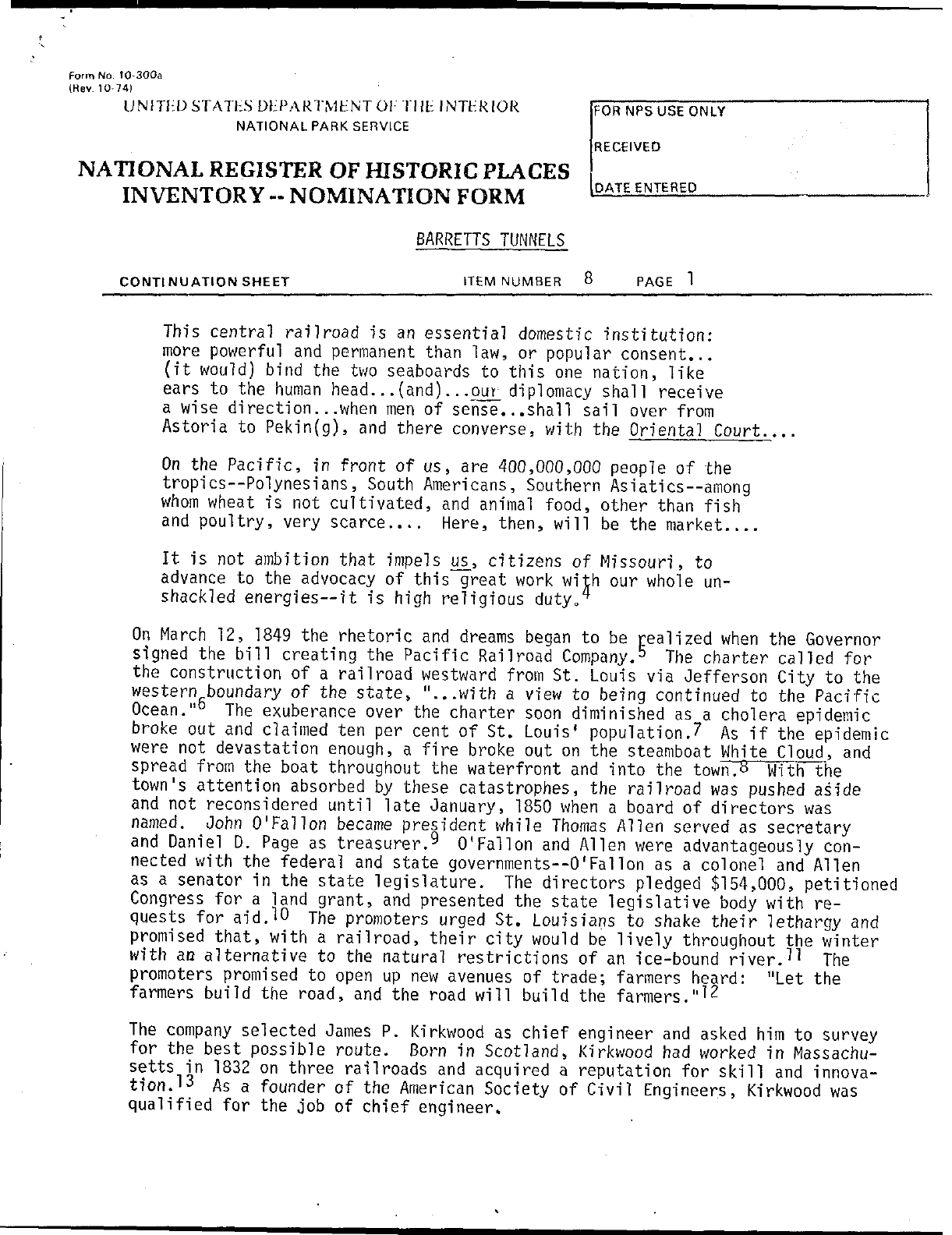

UNITED
STATES
DEPARTMENT
OI
THE
INTERIOR
FOR
NPS
USE
ONLY
NATIONAL
PARK
SERVICE
RECEIVED
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
DATE
ENTERED
BARRETTS
TUNNELS
CONTINUATION
SHEET
ITEM
NUMBER
8
PAGE
1
This
central
railroad
is
an
essential
domestic
institution:
more
powerful
and
permanent
than
law,
or
popular
consent...
(it
would)
bind
the two
seaboards
to
this
one
nation,
like
ears
to
the
human
head.,
.(and)...our_
diplomacy
shall
receive
a
wise
direction...when
men
of
sense...shall
sail
over
from
Astoria
to
Pekin(g),
and
there
converse,
with
the
Oriental
Court.
On
the
Pacific,
in
front of
us,
are
400,000,000
people
of
the
tropics Polynesians,
South
Americans,
Southern
Asiatics among
whom
wheat
is
not
cultivated,
and
animal
food,
other
than fish
and
poultry, very
scarce....
Here,
then,
will
be
the
market....
It
is
not
ambition
that
impels
us_,
citizens
of
Missouri,
to
advance
to
the
advocacy
of
this
great
work with
our
whole
un
shackled
energies it
is
high
religious
duty.
4
On
March
12,
1849
the
rhetoric
and
dreams
began
to be
realized
when
the
Governor
signed
the
bill
creating
the
Pacific
Railroad
Company.
5
The
charter
called for
the
construction
of
a
railroad
westward
from
St.
Louis
via
Jefferson
City
to
the
western
boundary
of
the
state,
"...with
a
view
to
being
continued
to
the
Pacific
Ocean."
0
The
exuberance
over
the
charter
soon
diminished
as
a
cholera
epidemic
broke out and
claimed
ten
per
cent
of
St.
Louis'
population.7
As
if
the
epidemic
were
not
devastation
enough,
a
fire
broke
out
on
the
steamboat
White
Cloud,
and
spread
from
the
boat
throughout
the
waterfront
and
into
the
townT
5
With
the
town's
attention
absorbed
by
these
catastrophes,
the
railroad
was
pushed
aside
and not
reconsidered
until
late
January,
1850
when
a
board of
directors
was
named.
John
0'Fall
on
became
president
while
Thomas
Alien
served
as
secretary
and
Daniel
D.
Page
as
treasurer.
9
O'Fallon
and
Alien
were
advantageously
con
nected
with
the
federal
and
state
governments--0'Fallon
as
a
colonel
and
Alien
as
a
senator
in
the
state
legislature.
The
directors
pledged
$154,000,
petitioned
Congress
for
a
land
grant, and
presented
the
state
legislative
body
with
re
quests
for
aid.10
The
promoters
urged
St.
Louisians
to
shake their
lethargy
and
promised
that,
with
a
railroad,
their
city
would
be
lively
throughout
the
winter
with
an
alternative
to
the
natural
restrictions
of
an
ice-bound
river.
11
The
promoters
promised
to
open
up
new
avenues
of
trade;
farmers
heard:
"Let
the
farmers build
the
road,
and
the
road
will
build
the
farmers."
12
The
company
selected
James
P.
Kirkwood
as
chief
engineer
and
asked
him
to
survey
for
the
best
possible
route.
Born
in
Scotland,
Kirkwood
had
worked
in
Massachu
setts
in
1832
on
three
railroads
and
acquired
a
reputation
for
skill
and
innova
tion.
IJ
As
a
founder
of
the
American
Society
of
Civil
Engineers,
Kirkwood
was
qualified
for
the
job
of
chief
engineer.
Form
No
10-300a
(Rev.
10-74)
UNITED
STATES
DEPARTMENT
Oh
THE
INTERIOR
FOR
NPS
USE
ONLY
NATIONAL
PARK
SERVICE
RECEIVED
NATIONAL
REGISTER
OF
HISTORIC
PLACES
DATE
ENTERED
INVENTORY
--
NOMINATION
FORM
BARRETTS
TUNNELS
CONTINUATION
SHEET
ITEM
NUMBER
8
PAGE
2

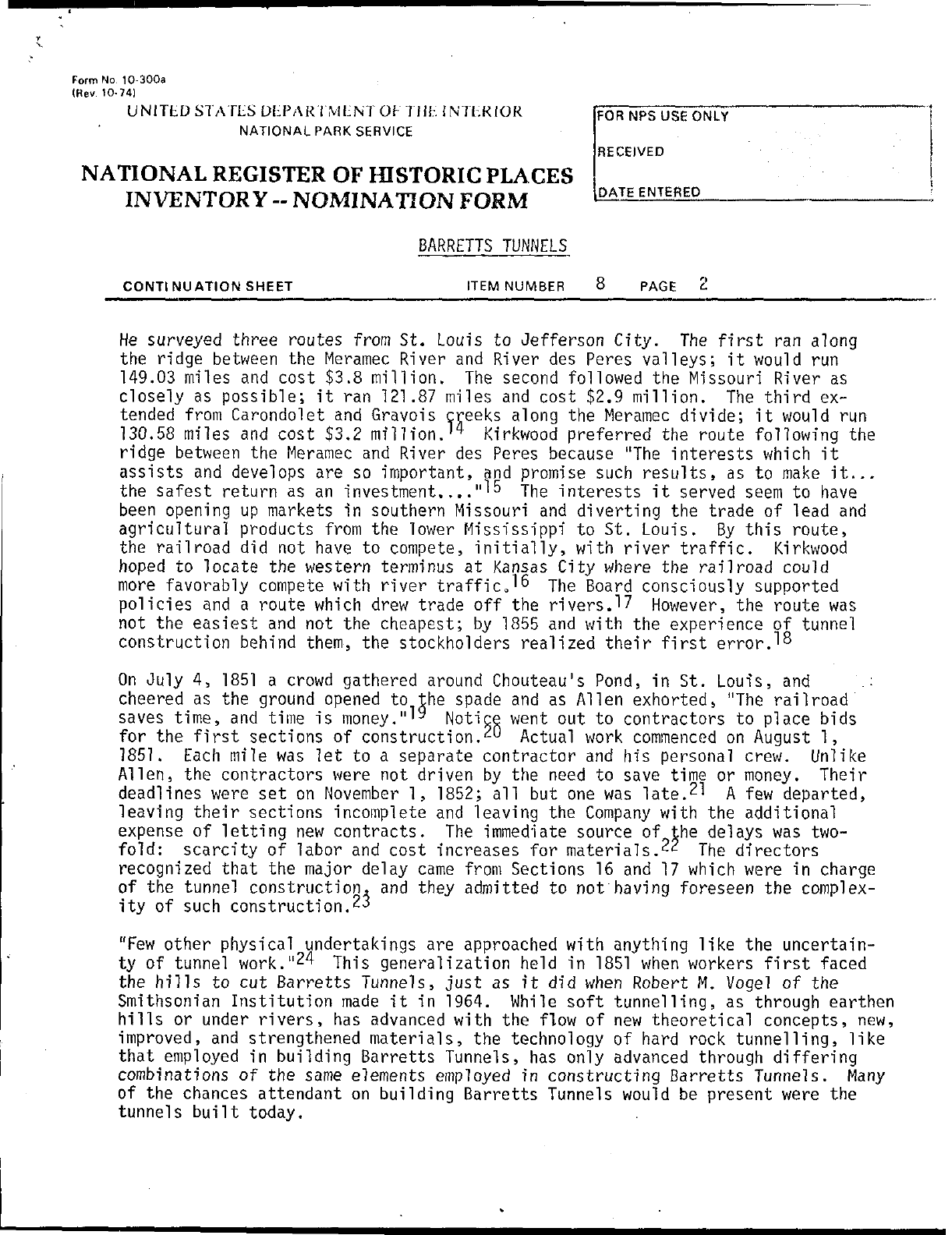

He
surveyed
three
routes
from
St.
Louis
to
Jefferson
City.
The first
ran
along
the
ridge
between
the
Meramec
River
and
River
des
Peres
valleys;
it
would
run
149.03
miles
and
cost
$3.8
million.
The
second
followed
the
Missouri
River
as
closely
as
possible;
it
ran
121.87
miles
and
cost
$2.9
million.
The
third
ex
tended
from
Carondolet
and
Gravois
creeks
along
the
Meramec
divide;
it
would
run
130.58
miles
and
cost
$3.2
million.
Kirkwood
preferred
the
route
following
the
ridge
between
the
Meramec
and
River
des
Peres
because
"The
interests
which
it
assists and
develops
are
so
important, and
promise
such
results,
as
to
make
it...
the
safest
return
as
an
investment...."^
The
interests
it
served
seem
to
have
been
opening
up
markets
in
southern
Missouri
and
diverting
the
trade
of lead
and
agricultural
products
from
the
lower
Mississippi
to
St.
Louis.
By
this
route,
the
railroad
did
not
have
to
compete,
initially,
with
river
traffic.
Kirkwood
hoped
to
locate
the
western
terminus
at
Kansas
City
where
the
railroad
could
more
favorably
compete
with
river
trafficj^
j
ne
Board
consciously
supported
policies
and
a
route
which
drew
trade
off
the
rivers.17
However,
the
route
was
not the
easiest
and not
the
cheapest;
by
1855
and
with
the
experience
of
tunnel
construction
behind
them,
the
stockholders
realized
their
first
error.18
On
Ouly
4,
1851
a
crowd
gathered
around
Chouteau's
Pond,
in
St.
Louis,
and
.:
cheered
as
the
ground opened
to
the
spade
and
as
Alien
exhorted,
"The
railroad
saves time,
and
time
is
money."!"
Notice
went
out
to
contractors
to
place
bids
for the
first sections
of
construct!on.20
Actual
work
commenced
on
August
1,
1851.
Each
mile
was
let
to
a
separate
contractor
and
his
personal
crew.
Unlike
Alien,
the
contractors
were
not
driven
by
the
need
to
save time
or
money.
Their
deadlines
were
set
on
November
1,
1852;
all
but one was
late.^1
A few
departed,
leaving their sections
incomplete
and
leaving
the
Company
with
the
additional
expense
of
letting
new
contracts.
The
immediate
source
of
the
delays was
two
fold:
scarcity
of labor and cost increases
for
materials."
The
directors
recognized
that
the
major
delay
came
from Sections
16
and
17
which
were
in
charge
of
the
tunnel
construction,
and they
admitted
to
not
having
foreseen
the
complex
ity
of
such
construction.23
"Few
other
physical
undertakings
are
approached
with
anything
like
the
uncertain
ty
of
tunnel
work."24
This
generalization
held
in 1851
when
workers
first faced
the
hills
to
cut
Barretts
Tunnels,
just
as it
did
when
Robert
M.
Vogel
of
the
Smithsonian
Institution
made
it
in
1964.
While soft
tunnelling,
as
through earthen
hills
or
under
rivers,
has
advanced with
the
flow of
new
theoretical
concepts,
new,
improved,
and
strengthened
materials,
the
technology
of
hard rock
tunnelling,
like
that
employed
in
building
Barretts Tunnels,
has
only
advanced
through
differing
combinations
of
the
same
elements
employed
in
constructing
Barretts
Tunnels.
Many
of
the
chances
attendant
on
building
Barretts
Tunnels
would
be
present
were
the
tunnels
built
today.
Form No
10
300a
(Rev.
10-74)
UNITED
STATUS
DhPARTMENI
Ol
THE
INTERIOR
FOR
NFS
USE
ONLY
NATIONAL
PARK
SERVICE
RECEIVED
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
^
TE
ENTEREO
————————————
BARRETTS
TUNNELS
CONTINUATION
SHEET
_________________ITEM
NUMBER
8
PAGE
3__________________

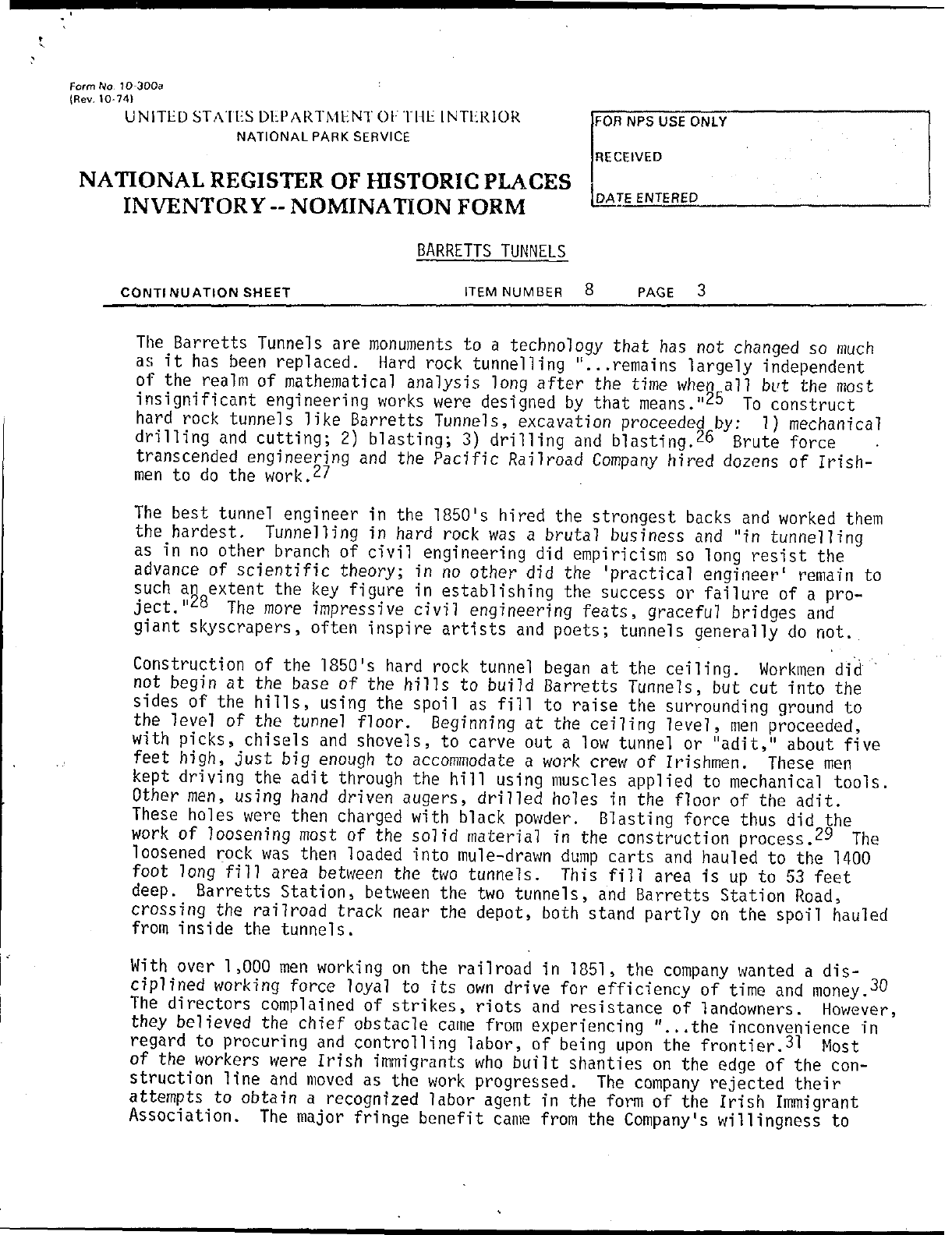

The
Barretts
Tunnels
are
monuments
to
a
technology
that
has
not
changed
so
much
as
it
has
been
replaced.
Hard rock
tunnelling
"...remains
largely
independent
of
the
realm
of
mathematical
analysis
long
after
the
time
when
all
but the
most
insignificant
engineering
works
were designed
by
that
means."
25
To
construct
hard
rock tunnels
like
Barretts
Tunnels,
excavation
proceeded
by:
1)
mechanical
drilling
and
cutting;
2)
blasting;
3)
drilling
and
blasting.
25
Brute
force
transcended engineering
and
the
Pacific
Railroad
Company
hired
dozens
of
Irish
men
to
do the
work.
27
The
best
tunnel
engineer
in
the
1850's
hired
the
strongest
backs
and
worked
them
the_hardest.
Tunnelling
in
hard
rock was
a
brutal
business
and
"in
tunnelling
as in
no
other
branch of
civil
engineering
did
empiricism
so
long
resist
the
advance
of
scientific
theory;
in
no
other
did the
'practical
engineer
1
remain
to
such
an
extent
the key
figure
in
establishing
the
success
or
failure
of
a
pro
ject.""
The
more
impressive
civil
engineering
feats,
graceful
bridges
and
giant
skyscrapers,
often
inspire
artists
and
poets;
tunnels
generally
do
not.
Construction
of
the
1850's hard rock
tunnel
began
at the
ceiling.
Workmen
did
not
begin at
the
base
of
the
hills
to
build
Barretts
Tunnels, but
cut
into
the
sides
of
the
hills,
using
the
spoil
as
fill
to
raise
the
surrounding
ground
to
the
level
of
the
tunnel
floor.
Beginning
at
the
ceiling
level,
men
proceeded,
with
picks,
chisels
and
shovels,
to
carve
out
a
low
tunnel
or
"adit,"
about
five
feet
high,
just
big
enough
to
accommodate
a
work
crew
of
Irishmen.
These
men
kept
driving
the
adit
through
the
hill
using
muscles applied
to
mechanical
tools.
Other
men,
using
hand
driven
augers,
drilled
holes
in
the
floor
of
the
adit.
These
holes
were
then
charged with
black
powder.
Blasting
force
thus
did
the
work
of
loosening
most
of
the
solid material
in
the
construction
process.
29
The
loosened
rock
was
then
loaded
into
mule-drawn
dump
carts
and
hauled
to
the
1400
foot
long
fill
area
between
the
two
tunnels.
This
fill
area
is
up
to
53
feet
deep.
Barretts
Station,
between
the
two
tunnels,
and
Barretts Station
Road,
crossing
the
railroad
track near
the
depot,
both
stand
partly
on
the
spoil
hauled
from inside
the
tunnels.
With
over
1,000
men
working
on
the
railroad
in
1851,
the
company
wanted
a
dis
ciplined
working
force
loyal
to
its
own
drive
for
efficiency
of
time
and
money.
30
The
directors
complained
of
strikes,
riots
and
resistance
of
landowners. However,
they
believed
the
chief
obstacle
came
from
experiencing
"...the
inconvenience
in
regard
to
procuring
and
controlling
labor,
of being
upon
the
frontier.
31
Most
of
the
porkers
were
Irish
immigrants
who
built
shanties
on
the
edge
of
the con
struction
line
and
moved
as
the
work
progressed.
The
company
rejected
their
attempts
to
obtain
a
recognized
labor agent
in
the
form
of
the
Irish
Immigrant
Association.
The
major
fringe
benefit
came
from
the
Company's
willingness
to
Form
No
10
300a
(Rev.
10-74)
UNITED
STATES
DEPARTMENT
OE
THE
INTERIOR
FOR
NFS
USE
ONLY
NATIONAL
PARK
SERVICE
RECEIVED
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
DATE
ENTERED
BARRETTS
TUNNELS
CONTINU
ATION
SHEET
_______
ITEM
NUMBER
8
PAGE
4____________________

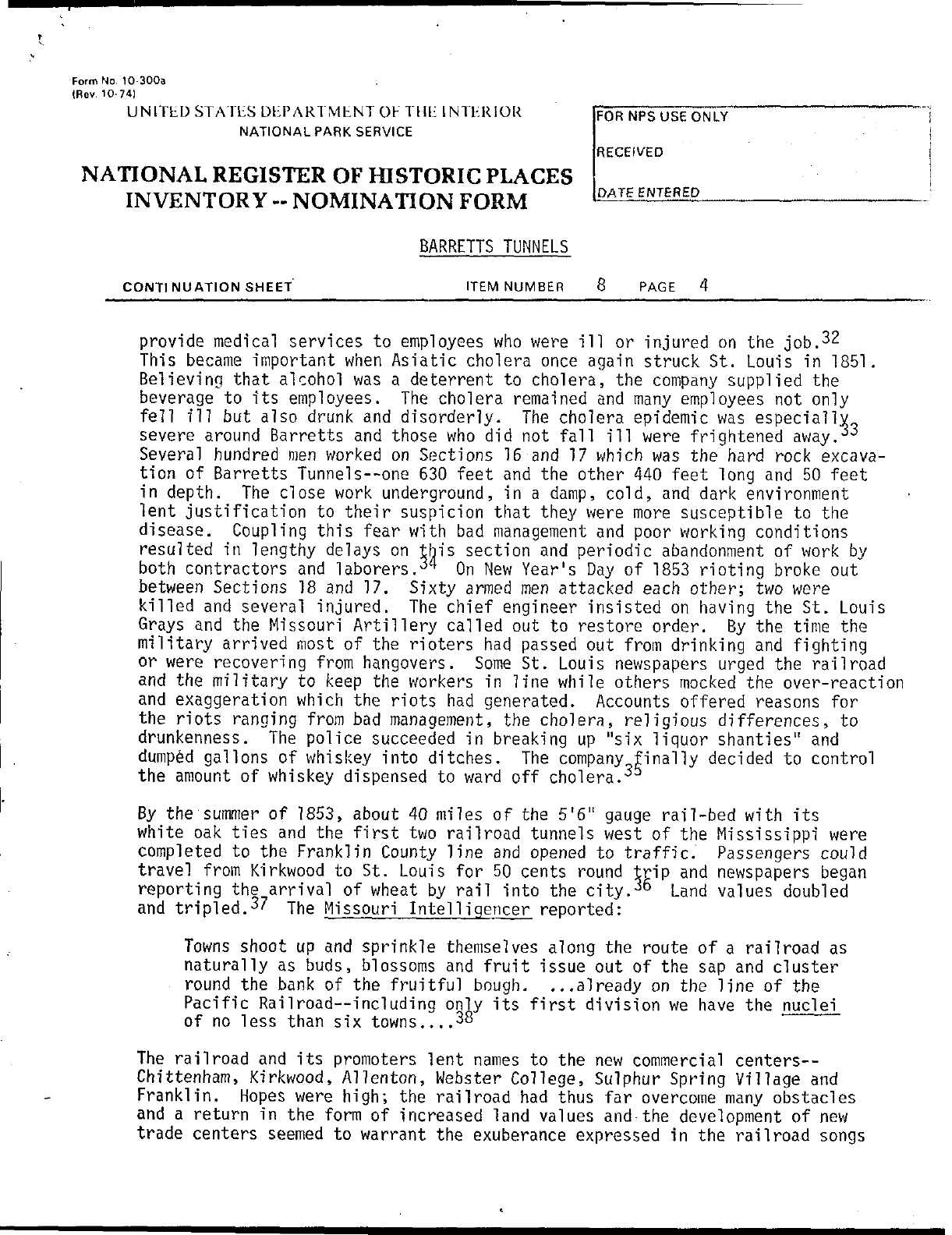

provide
medical
services
to
employees
who
were
ill
or
injured
on
the
job.32
This
became
important
when
Asiatic
cholera
once
again
struck
St.
Louis
in
1851.
Believing
that
alcohol
was
a
deterrent
to
cholera,
the
company
supplied
the
beverage
to
its
employees.
The
cholera
remained
and
many
employees
not
only
fell
ill
but also
drunk
and disorderly.
The
cholera
epidemic
was
especially
severe around
Barretts
and
those
who
did
not
fall
ill
were
frightened
away."
Several
hundred
men
worked
on
Sections
16
and
17
which
was
the
hard
rock
excava
tion of
Barretts
Tunnels one
630
feet
and
the
other
440
feet
long
and
50
feet
in
depth.
The
close
work
underground,
in
a
damp,
cold,
and
dark
environment
lent
justification
to
their
suspicion
that
they were
more
susceptible
to
the
disease.
Coupling
this
fear
with
bad
management
and
poor
working
conditions
resulted
in
lengthy
delays
on
this
section and
periodic
abandonment
of
work
by
both
contractors
and
laborers.
34
On
New
Year's
Day
of
1853
rioting broke
out
between
Sections
18
and
17.
Sixty armed
men
attacked
each
other;
two
were
killed
and
several
injured.
The
chief
engineer
insisted
on
having
the
St.
Louis
Grays
and
the
Missouri
Artillery
called
out
to
restore
order.
By
the
time
the
military
arrived
most
of
the
rioters
had
passed
out
from
drinking
and
fighting
or
were
recovering
from
hangovers.
Some
St.
Louis
newspapers
urged
the
railroad
and the
military
to keep
the
workers
in
line
while
others
mocked
the
over-reaction
and
exaggeration
which
the
riots
had
generated.
Accounts
offered
reasons
for
the
riots
ranging
from
bad
management,
the
cholera, religious
differences,
to
drunkenness.
The
police
succeeded
in
breaking
up
"six
liquor shanties"
and
dumped
gallons
of
whiskey
into
ditches.
The
company
finally
decided
to
control
the
amount
of
whiskey
dispensed
to
ward off
cholera.
By
the
summer
of
1853,
about
40
miles
of
the
5'6"
gauge
rail-bed
with
its
white
oak
ties
and
the
first
two
railroad
tunnels
west
of
the
Mississippi
were
completed
to
the
Franklin
County
line
and
opened
to
traffic.
Passengers could
travel
from
Kirkwood
to
St.
Louis
for
50
cents
round
trip
and
newspapers
began
reporting
the
arrival
of
wheat
by
rail
into
the
city.3
Land
values
doubled
and
tripled.
3
'
The
Missouri
Intelligencer
reported:
Towns
shoot
up
and
sprinkle
themselves along
the
route
of
a
railroad
as
naturally
as
buds,
blossoms
and
fruit
issue
out
of
the
sap
and
cluster
round
the
bank
of
the
fruitful
bough.
...already
on
the
line
of
the
Pacific
Railroad including
only
its
first
division
we
have
the nuclei
of
no less
than
six
towns....38
The
railroad
and
its
promoters
lent
names
to
the
new
commercial
centers--
Chittenham,
Kirkwood,
Allenton,
Webster
College,
Sulphur
Spring
Village
and
Franklin.
Hopes
were
high;
the
railroad
had
thus
far
overcome many
obstacles
and
a
return
in
the
form
of
increased
land
values
and
the
development
of
new
trade centers seemed
to
warrant
the
exuberance
expressed
in
the
railroad
songs
Form
No
10-300a
(Rev
10-74)
UNITtD
STATES
DtPARTMLNT
Ol-'
THL
INTERIOR
NATIONAL
PARK
SERVICE
RECEIVED
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
BARRETTS
TUNNELS
CONTINUATION
SHEET
ITEM
NUMBER
FOR
NFS
USE
ONLY
.DATE
ENTERED
!P-

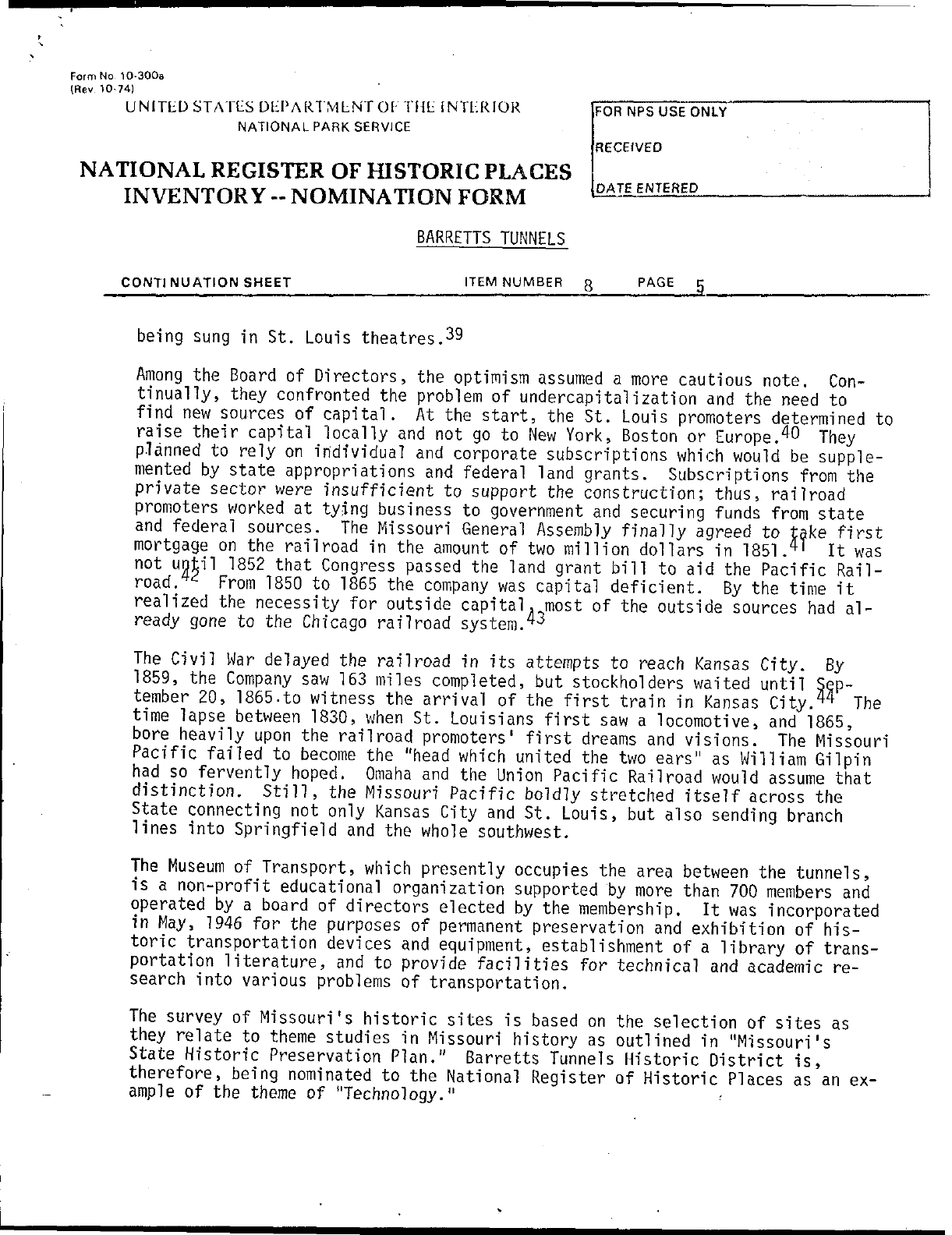

The
being
sung
in
St.
Louis
theatres.
39
Among
the
Board
of
Directors,
the
optimism
assumed
a
more cautious
note.
Con
tinually,
they
confronted
the
problem
of
undercapitalization
and the
need
to
find
new sources
of
capital.
At
the
start,
the
St.
Louis
promoters
determined
to
raise
their
capital
locally
and not
go
to
New
York,
Boston
or
Europe.
40
They
planned
to
rely
on
individual
and
corporate
subscriptions
which
would
be
supple
mented
by
state
appropriations
and
federal
land
grants.
Subscriptions
from
the
private
sector
were
insufficient
to
support
the
construction;
thus,
railroad
promoters
worked
at
tying business
to
government
and
securing
funds
from state
and
federal
sources.
The
Missouri
General
Assembly
finally
agreed
to
take
first
mortgage
on
the
railroad
in
the
amount of
two
million
dollars
in
1851.
4T
It
was
not
until
1852
that
Congress
passed
the
land
grant
bill
to
aid
the
Pacific
Rail
road.
From
1850
to
1865
the
company
was
capital
deficient.
By
the
time
it
realized
the
necessity
for
outside
capital,
most
of
the
outside
sources
had
al
ready gone
to
the
Chicago
railroad
system.
43
The
Civil
War
delayed
the
railroad
in
its
attempts
to
reach
Kansas
City.
By
1859,
the
Company
saw
163
miles
completed,
but
stockholders
waited
until
Sep
tember
20,
1865.to
witness
the
arrival
of
the
first train
in
Kansas
City.
44
time
lapse
between
1830,
when
St.
Louisians
first
saw
a
locomotive,
and
1865,
bore
heavily
upon
the
railroad
promoters'
first
dreams
and
visions.
The
Missouri
Pacific
failed
to
become
the
"head
which
united
the
two
ears"
as
William
Gil
pin
had
so
fervently
hoped.
Omaha
and
the
Union
Pacific
Railroad
would
assume
that
distinction.
Still,
the
Missouri
Pacific
boldly
stretched
itself
across
the
State
connecting
not
only
Kansas
City
and
St.
Louis,
but
also
sending
branch
lines
into
Springfield
and the
whole
southwest.
The
Museum
of
Transport, which
presently
occupies
the
area
between
the
tunnels,
is
a
non-profit
educational
organization
supported
by
more
than
700
members
and
operated
by
a
board
of
directors
elected
by
the
membership.
It
was
incorporated
in
May,
1946
for
the
purposes
of
permanent
preservation
and
exhibition
of
his
toric
transportation
devices
and
equipment,
establishment
of
a
library
of
trans
portation
literature,
and
to
provide
facilities
for technical and
academic
re
search
into
various
problems
of
transportation.
The
survey
of
Missouri's
historic
sites
is
based
on
the
selection
of
sites
as
they
relate
to
theme studies
in
Missouri
history
as
outlined
in
"Missouri's
State
Historic
Preservation
Plan."
Barretts
Tunnels
Historic District
is,
therefore,
being
nominated
to
the
National
Register
of
Historic
Places
as an
ex
ample
of
the
theme
of
"Technology."
Form
No
10-300a
(Rev.
10-741
UNITED
STATUS
DEPARTMENT
OF
THE
INTERIOR
NATIONAL
PARK
SERVICE
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
BARRETTS
TUNNELS
CONTINUATION
SHEET
ITEM
NUMBER
FOR NPS
USE
ONLY
RECEIVED
DATE
ENTERED
PAGE

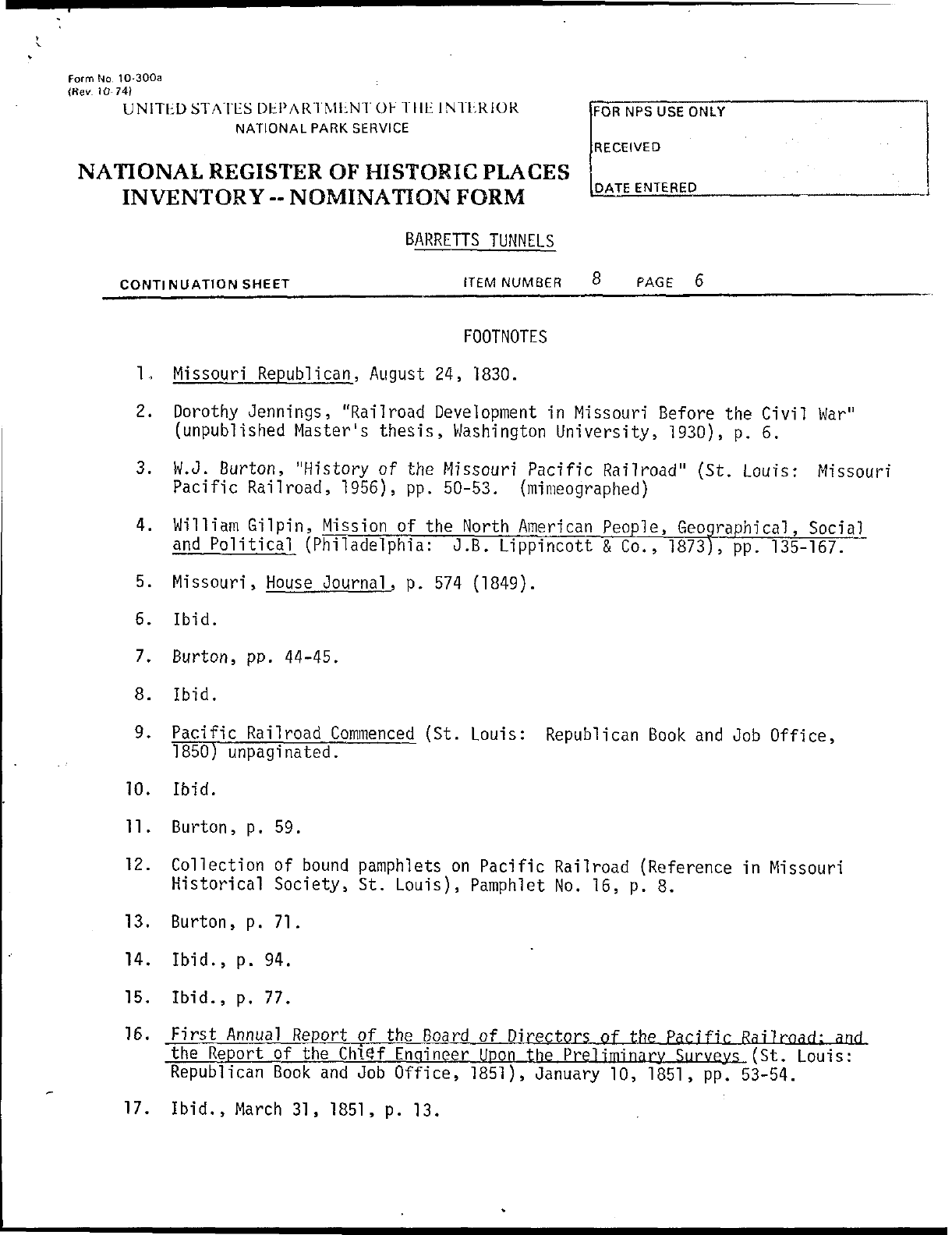

FOOTNOTES
1.
Missouri
Republican,
August
24,
1830.
2.
Dorothy
Jennings, "Railroad
Development
in
Missouri
Before
the
Civil
War"
(unpublished
Master's
thesis,
Washington
University,
1930),
p. 6.
3.
W.J.
Burton,
"History of
the
Missouri
Pacific
Railroad"
(St.
Louis:
Missouri
Pacific
Railroad,
1956),
pp.
50-53.
(mimeographed)
4.
William
Gil
pin,
Mission
of
the
North
American
People,
Geographical,
Social
and
Political
(Philadelphia:J.B.
Lippincott
&
Co.,
1873)7
pp.
135-167.
5.
Missouri,
House
Journal,
p.
574
(1849).
6.
Ibid.
7.
Burton,
pp.
44-45.
8.
Ibid.
9.
Pacific
Railroad
Commenced
(St.
Louis:
Republican
Book
and Job
Office,
1850)
unpaginated.
10.
Ibid.
11.
Burton,
p.
59.
12.
Collection
of
bound pamphlets
on
Pacific
Railroad
(Reference
in
Missouri
Historical
Society,
St.
Louis),
Pamphlet
No.
16,
p. 8.
13.
Burton,
p.
71.
14.
Ibid.,
p.
94.
15.
Ibid.,
p.
77.
16.
First
Annual
Report
of
the
Board of
Directors
of
the
Pacific
Railroad:
and
the
Report
of the
ChlQf
Engineer
Upon
the
Preliminary
Surveys
(St.
Louis:
Republican
Book
and Job
Office,
1851),
January
10,
1851,
pp.
53-54.
17.
Ibid.,
March
31,
1851,
p.
13.
Form
No
10-300a
IRev
10-74)
UNlTCDSTATLSDIil'ARTML.NTOITHE
INTERIOR
FOR
NPS USE
ONLY
NATIONAL
PARK
SERVICE
RECEIVED
NATIONAL
REGISTER
OF
HISTORIC
PLACES
INVENTORY
--
NOMINATION
FORM
BARRETTS
TUNNELS
CONTINUATION
SHEET_________________ITEM
NUMBER
8
PAGE
7___________________
18.
Burton,
p.
72.
19.
Missouri
Republican,
July
6,
1851.
20. St.
Louis
Intelligencer
(Missouri),
July
7,
1851.
21.
Third
Annual
Report
of the
Board
of
Directors
of
the
Pacific
Railroad
(St.
Louis:
Republican
Book
and
Job
Office,
1853),
March
28,
1853,
p.
7.
22.
Ibid.
23.
Ibid.
24.
Robert
M.
Vogel,
Tunnel
Engineering,
A
Museum
Treatment
(Washington:
Smithsonian
Institution,
1964),
passim.
25.
Ibid.
26.
Karoly
Szechy,
The
Art
of
Tunnelling
(Budapest:
Akademiai
Kiado,
1973),
pp.
614-615.
27.
Missouri Republican, January
3,
1853;
St.
Louis
Intelligencer,
September
22,
1851,
December
15,
1851.
28.
Vogel,
Tunnel
Engineering,
p.
204.
29.
Ibid.,
p.
209.
"The
top-heading
plan
was
followed
so
that
the
bulk of
the
rock
could
be
removed
in
the
form
of
a
bottom
bench,
and the
majority
of
drilling
would
be
downward,
obviously
the
most
effective
direction.
Blasting
was
with
black
powder and
its
commercial
variants."
30.
St.
Louis
Intelligencer,
December
15, 1851.
31.
Third
Annual
Report
of
the
Board
of
Directors
of
the
Pacific
Railroad.
32.
Papers
on
Railroads
(MSS
in
Missouri
Historical
Society,
St.
Louis),
see
account
records
with
James
M.
Ward,
May
12
through July
11,
1853
and
with
R.
and
J.
Adams,
June
1,
1850.
33.
Burton,
p.
105.
34.

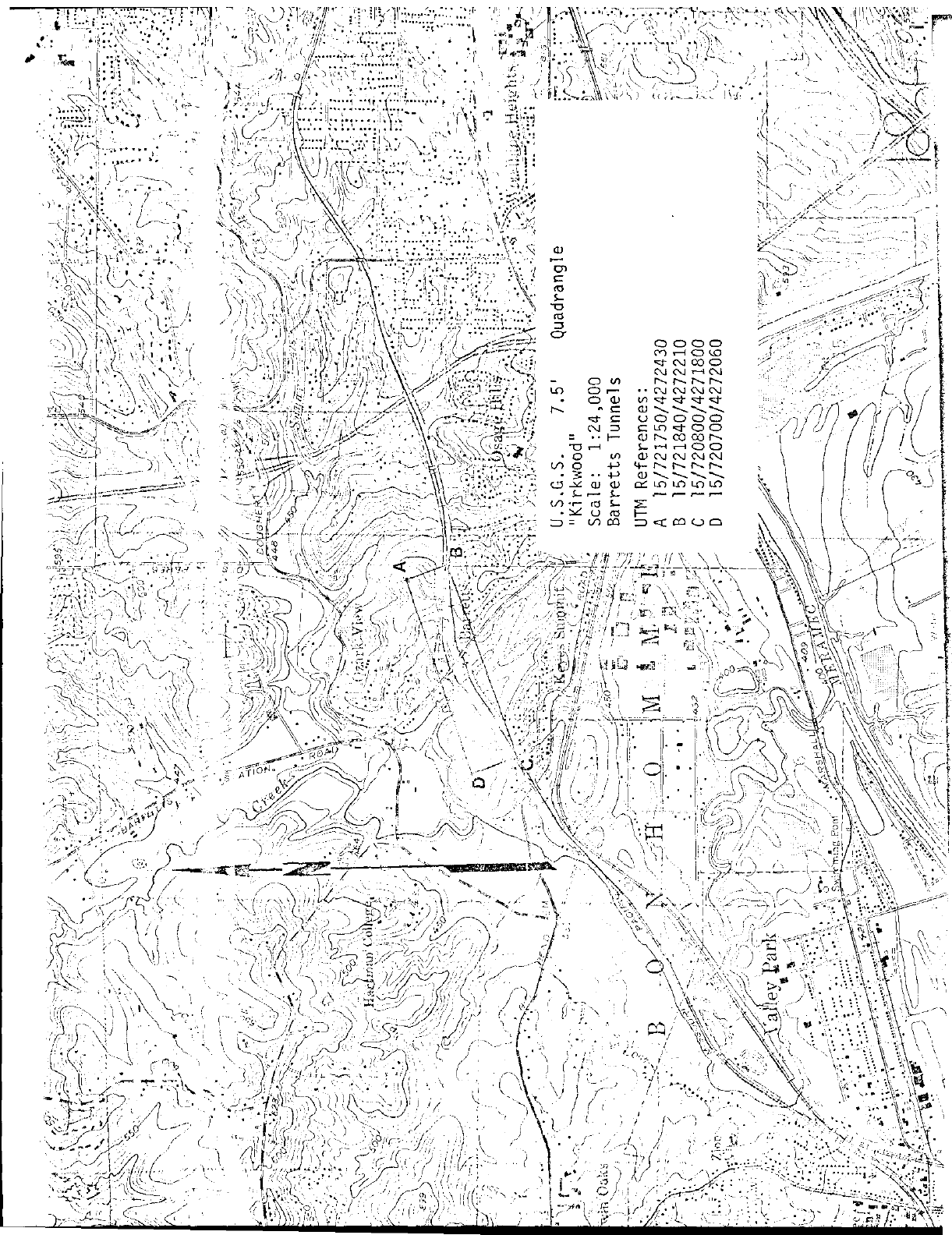

Ibid.
