K14175V1 C_7847i Ii 7847i Honeywell Internet Alarm Communicator Installation And Setup Guide

User Manual: 7847i-honeywell-internet-alarm-communicator-installation-and-setup-guide

Open the PDF directly: View PDF .
Page Count: 64

t









-E

With Remote Services

Installation and Setup Guide

K14175V1 9/10 Rev C

Requires

Compass Version

1.5.8.54A (or higher)

for IP Downloading

Table of Contents

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

SECTION 1: General Information ........................................................................................................... 1-1

Introduction ............................................................................................................................................................... 1-1

System Features ......................................................................................................................................................... 1-1

About Private Network Application .......................................................................................................................... 1-1

About AlarmNet-i Internet Application..................................................................................................................... 1-2

Encryption ................................................................................................................................................................. 1-2

Enterprise Encryption Related Functions .................................................................................................................. 1-2

Installation Key (for Private LAN) ............................................................................................................................ 1-2

Recovery Mode ......................................................................................................................................................... 1-3

Remote Services ........................................................................................................................................................ 1-3

Modes of Operation ................................................................................................................................................... 1-3

ECP Mode ................................................................................................................................................... 1-3

Zone Trigger Mode ..................................................................................................................................... 1-3

4204 Mode and Two-4204 Mode ................................................................................................................ 1-4

Module Supervision Features .................................................................................................................................... 1-4

Specifications ............................................................................................................................................................ 1-4

Mechanical .................................................................................................................................................. 1-4

Electrical ..................................................................................................................................................... 1-4

Ethernet ....................................................................................................................................................... 1-4

Environmental ............................................................................................................................................. 1-4

ULC Compatibility .................................................................................................................................................... 1-5

SECTION 2: Mounting and Wiring .......................................................................................................... 2-1

Mounting the 7847i/7847i-E ..................................................................................................................................... 2-1

Wiring the 7847i/7847i-E .......................................................................................................................................... 2-2

Wiring for ECP, 4204 and Two-4204 Modes ............................................................................................. 2-2

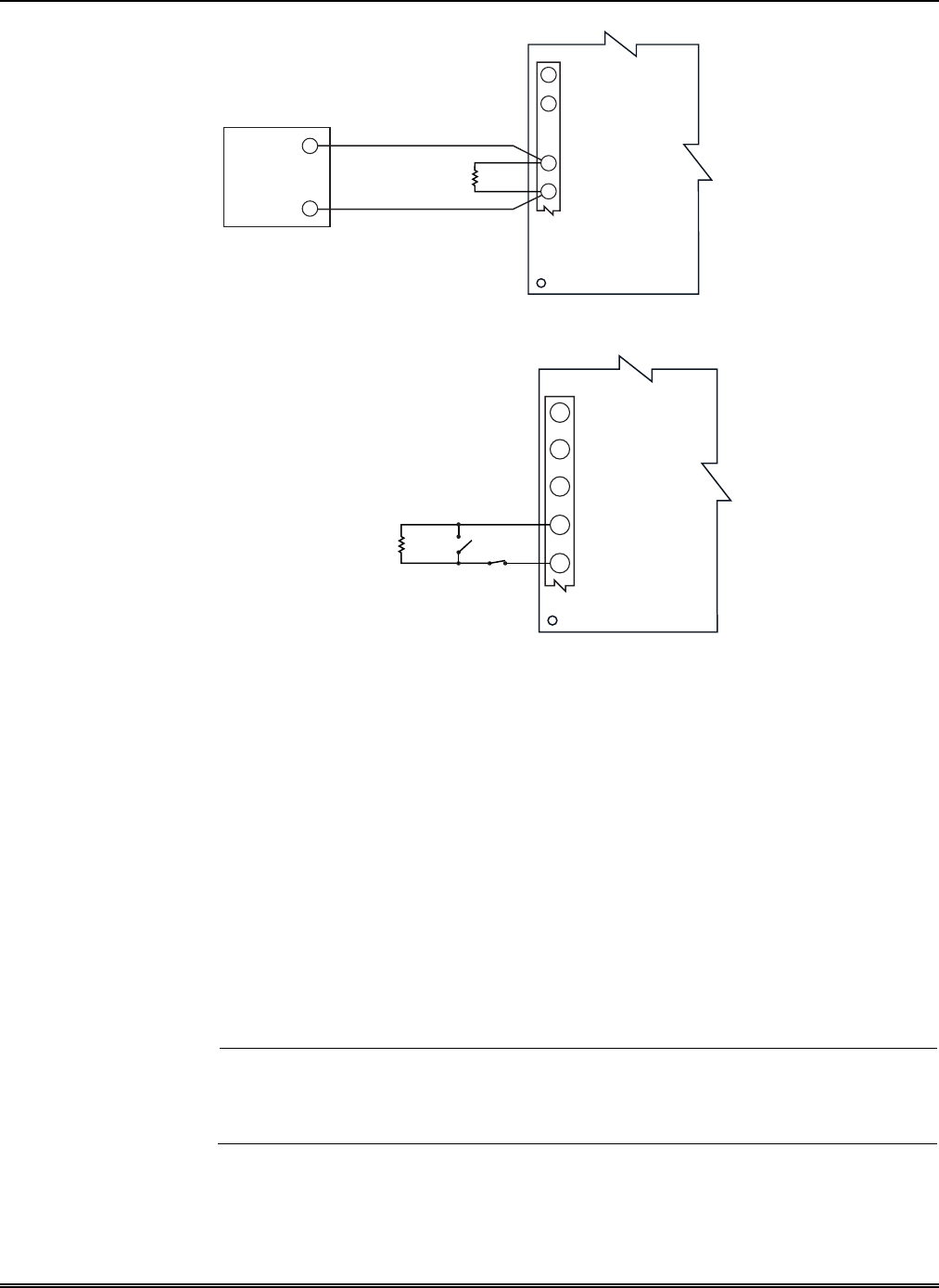

Wiring for Zone Trigger Mode ................................................................................................................... 2-3

Power Connections and Options ................................................................................................................................ 2-4

Ethernet Connections................................................................................................................................................. 2-4

Initial Power-Up Sequence.......................................................................................................................... 2-5

SECTION 3: Programming the 7847i/7847i-E ....................................................................................... 3-1

General Information .................................................................................................................................................. 3-1

Using the AlarmNet Direct Website ........................................................................................................... 3-1

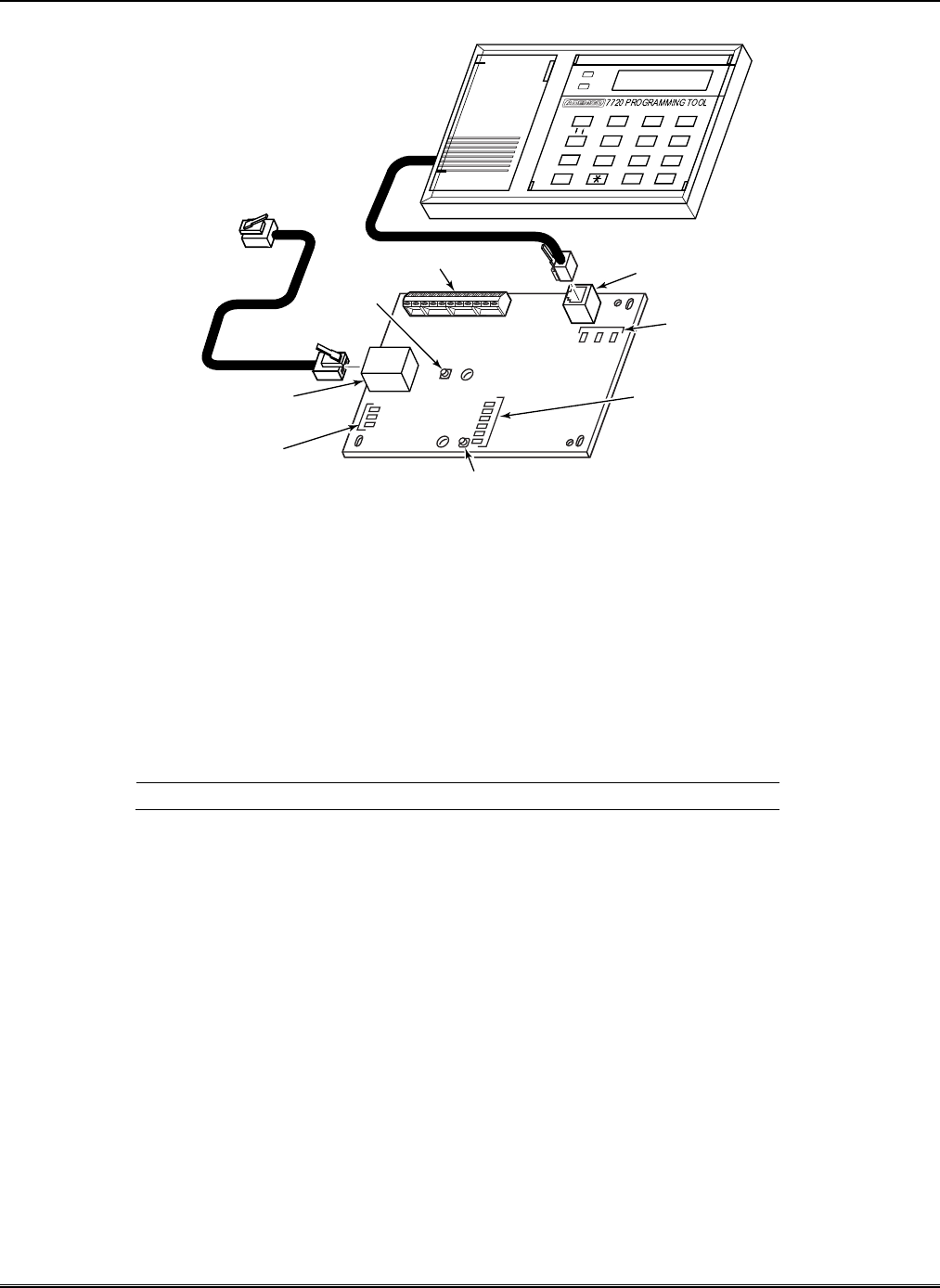

Using a 7720P Programming Tool .............................................................................................................. 3-2

Using the Control Panel Programming Mode ............................................................................................. 3-2

Programming Conventions .......................................................................................................................... 3-2

ECP Mode Programming .......................................................................................................................................... 3-3

ECP Status Codes ................................................................................................................................................ 3-9

Alternative Modes (Zone Trigger, 4204 and Two-4204) .......................................................................................... 3-9

Zone Trigger Mode ..................................................................................................................................... 3-9

4204 Emulation Mode ................................................................................................................................. 3-9

4204 Emulation Mode Options ................................................................................................................... 3-9

Alternative Mode Programming .............................................................................................................................. 3-10

Exiting Programming Mode .................................................................................................................................... 3-20

Setting Factory Defaults .................................................................................................................................... 3-20

SECTION 4: Registration .......................................................................................................................... 4-1

Registering the 7847i/7847i-E ................................................................................................................................... 4-1

7847i/7847i-E Installation and Setup Guide

Registering through AlarmNet Direct Website (does not apply if using Private LAN) .............................. 4-1

Using the Tamper Switch ............................................................................................................................ 4-2

Using the Programming Tool ...................................................................................................................... 4-2

Register by Phone ....................................................................................................................................... 4-4

SECTION 5: Programmer Keyboard Commands ................................................................................. 5-1

Programmer Keyboard Commands ........................................................................................................................... 5-1

System Status Displays ............................................................................................................................... 5-2

SECTION 6: Network Diagnostics ........................................................................................................... 6-1

Running Network Diagnostics on the 7847i/7847i-E using AlarmNet ..................................................................... 6-1

Possible Errors Running Network Diagnostics ........................................................................................... 6-2

Running Network Diagnostics on the 7847i-E using a Private LAN ........................................................................ 6-3

Possible Errors Running Network Diagnostics using a Private LAN ......................................................... 6-4

Appendices ................................................................................................................................................... A-1

Appendix A : Summary of LED Operation ............................................................................................................... A-1

Status Display Operation ............................................................................................................................. A-1

Network Connectivity Display .................................................................................................................... A-3

Mode and Status LED Display .................................................................................................................... A-4

Mode and Status Indicator Switch............................................................................................................... A-4

Appendix B : Central Station Messages .................................................................................................................... B-1

Appendix C : IP Downloading .................................................................................................................................. C-1

General Information .................................................................................................................................... C-1

Direct Wire Setup ........................................................................................................................................ C-1

Appendix D : Glossary .............................................................................................................................................. D-1

Summary of Connections Diagram…………………………………………………………..……….Inside Back Cover

1-1

S E C T I O N 1

General Information

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

In This Section

♦ Introduction

♦ System Features

♦ About Private Network Application

♦ About AlarmNet-i Internet Application

♦ Encryption

♦

Enterprise Related Encryption Functions

♦ Installation Key

♦ Recovery Mode

♦ Remote Services

♦ Modes of Operation

♦ Specifications

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Introduction

AlarmNet’s 7847i Internet Communication Module and 7847i-E Internet/Intranet Communi-

cation Module were developed to transport alarm signals via the Internet or Private LAN

(7847i-E only). These easy-to-install devices provide sophisticated data security and

communicate with all AlarmNet central stations through AlarmNet’s server, or directly to a

7810PC or 7810iR-ent Internet/Intranet receiver in a private network application (7847i-E).

In addition to alarm reporting, the 7847i and 7847i-E provide upload/downloading capability

via the internet or a Private LAN (7847i-E only).

The 7847i-E is not UL Listed.

System Features

Basic features of the 7847i and 7847i-E include:

• Easy CAT-5 10 BaseT connection to a hub or router

• Installs behind firewalls without compromising network security

• Supports dynamic or static IP addressing

• Quick connection to compatible Honeywell series control panels

• Simple programming using a 7720P programming tool or AlarmNet Direct website

• Reports fire, burg, and status messages via the Internet (or Intranet for 7847i-E)

• Allows uploading and downloading of control panel data over the Internet (or Intranet for

7847i-E)

• Supports remote control of alarm systems via Remote Access feature, and email notification

of events via Multi-Mode feature (Web Service)

About Private Network Application

The 7847i-E may be configured to transmit signals within a private network application to a

7810PC or 7810iR-ent receiver. Up to 300 7847i-E Internet/Intranet Communication

Modules may be routed to a single 7810PC or 7810iR-ent receiver. In a private network

application, the signals are not routed to the AlarmNet Control Center (see Figure 1).

7847i/7847i-E Installation and Setup Guide

1-2

MAS

7847i-E

ALARMNETROUTER

LAN

(CENTRAL STATION,

BANK, ETC.)

7810iR-ent ETHERNET PORT INTERNET ALARMNET - i

CELL

INTERNET

INTRANET

7847i-E-031-V0

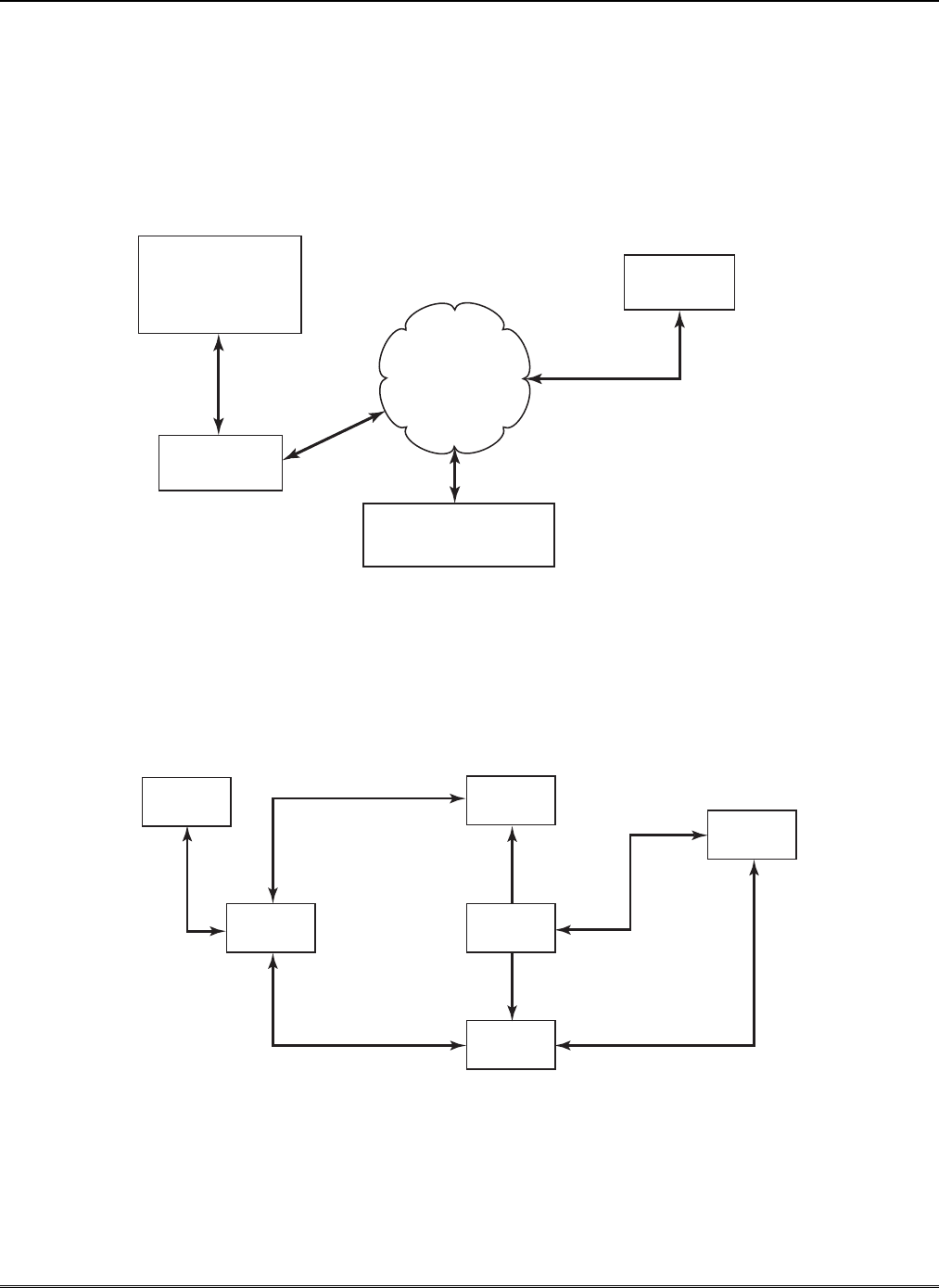

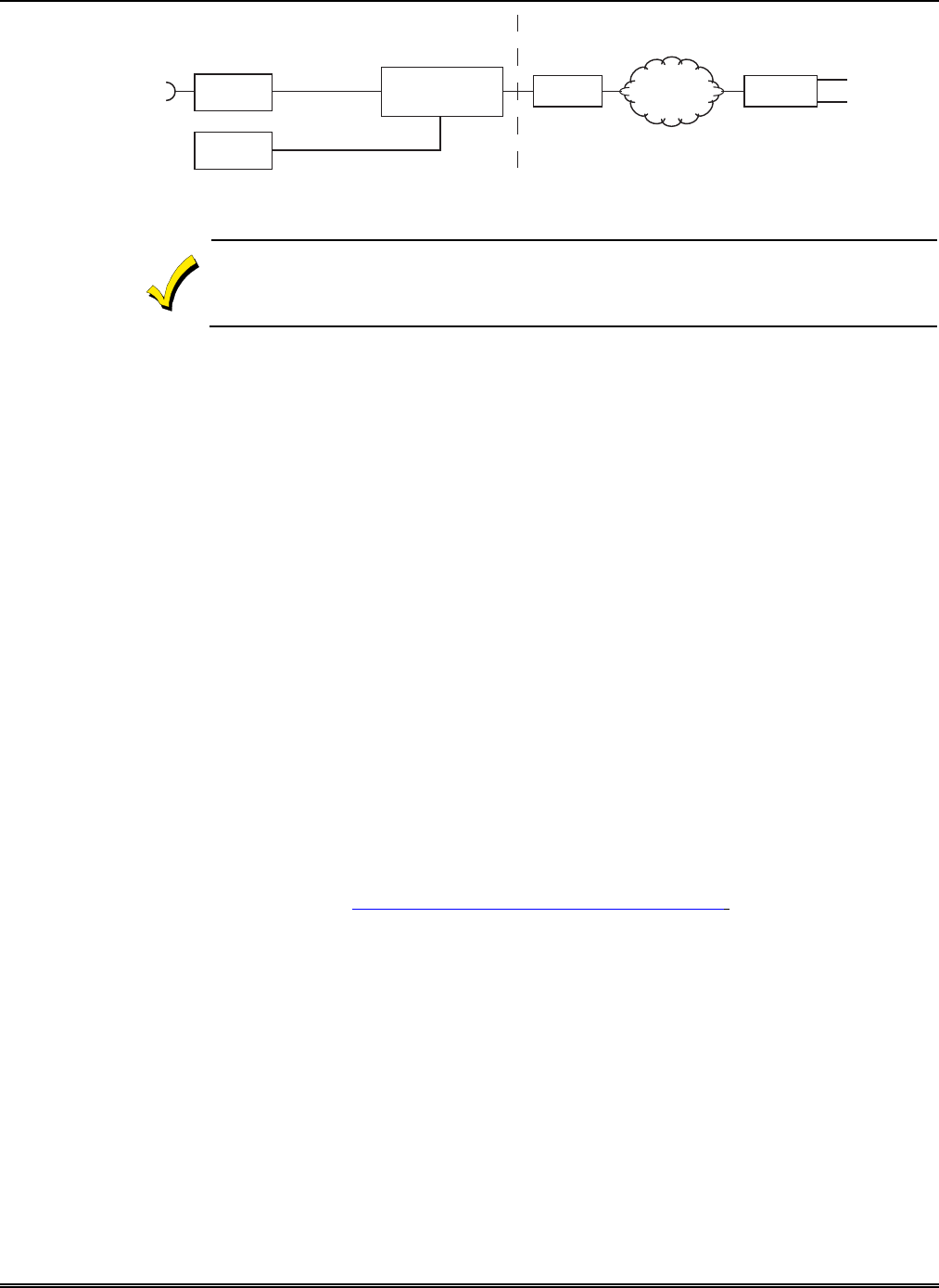

Figure 1. 7810PC or 7810iR-ent/7847i-E Intranet/Internet Block Diagram

The 7847i/7847i-E module requires an AlarmNet–i account. For new installations, please

obtain the account information from the central station prior to programming this module.

For replacement installations, the AlarmNet-i account is created automatically when the

module is registered (based on the existing account).

About AlarmNet-i Internet Application

AlarmNet-i is a fully encrypted, secure method of delivering alarm messages from a

protected premise to an AlarmNet equipped central station. An Internet Communicator

Module transmits status, supervisory, and alarm messages to the AlarmNet Control Center

using a broadband Internet connection (see Figure 1).

The AlarmNet Control Center identifies, validates, and forwards the messages to the

appropriate AlarmNet central station. An Internet receiver, 7810PC or 7810iR-ent, is

required when receiving Internet signals from the AlarmNet Control Center. AlarmNet-i

has an unlimited account capacity.

Encryption

The 7847i/7847i-E and 7810PC or 7810iR-ent support private key encryption. Private key

encryption means that both the sender and the receiver know the KEY used to encrypt the

data. Each device produced by Honeywell is loaded with a globally unique identifier called a

MAC number, and a large random number or KEY. This KEY and MAC number are also

stored in the AlarmNet servers. When a device contacts AlarmNet it sends the MAC number

in the clear followed by the message that is encrypted using the KEY data. The server looks

up its copy of the KEY based on the MAC number and uses that KEY to decrypt the

message.

The communication devices use 256 bit AES (Rijndael) encryption (which is required for

certain government installations). The AlarmNet-i AES Encryption Software Module

Version 1.0 contained in the Honeywell products has NIST approval. Listings for this

approval can be found at http://csrc.nist.gov/cryptval/aes/aesval.html Certification

number 127.

Enterprise Encryption Related Functions

The previous paragraph described general encryption, and how it functions with AlarmNet.

When used in a Private closed network or Enterprise installations, some additional processes

are required to support encryption. In an enterprise installation the 7810PC or 7810iR-ent

takes on the server function that exists in the AlarmNet Internet installation and has a

process to learn the MAC numbers and KEYs for which it will be responsible.

Installation Key (for Private LAN)

At installation a 10-digit installation key needs to be programmed into every device in the

network. This 10-digit key should be the same for all devices used in the Private LAN mode.

The purpose of this key is to encrypt the private KEY of each subscriber device as it is

registered to the 7810PC or 7810iR-ent so this sensitive data is never sent in the clear. This

KEY is only used for registration purposes and is not used for supervision or alarm

Section 1: General Information

1-3

transmission. Once a device is registered the 7810iR-ent will have a copy of the 7847i-E’s

factory KEY. From this point on the unique factory key is used for communications.

Recovery Mode

Recovery Mode is only available when in Private LAN mode. In the event of a failure of the

7810PC or 7810iR-ent requiring the replacement of the hardware or the erasure of its

memory, the 7810PC or 7810iR-ent supports a Recovery Mode. In Recovery Mode, the

7810PC or 7810iR-ent is programmed with the same 10-digit installation key. When a

7847i-E communicates with the 7810PC or 7810iR-ent and is found not to exist in its

database, a special response is sent back to the 7847i-E requesting it to re-register itself.

The 7847i-E then registers using the 10-digit installation key. When all accounts have been

recovered, Recovery Mode can be turned off to provide better control of registration.

Remote Services

UL Remote Access and Multi-Mode have not been evaluated by UL.

Honeywell now offers a new series of web based services that provides consumers with the

ability to communicate with their security system remotely in a number of ways. These new

web services will allow users to:

• Access their security system from a computer via a website (Remote Access feature)

• Receive email and text message notifications of system events (Multi-Mode feature)

• Perform system functions and receive confirmations using text messages (SMS feature)

Dealers will initially enroll their customers for web services during account programming

through the AlarmNet Direct website. The features that can be enabled include Remote

Access and Multi-Mode. Once enabled, the specific programming fields associated with these

features can be programmed into the communications device either remotely using the

AlarmNet Direct website or locally using the 7720P programming tool.

Modes of Operation

ULC

Only ECP Mode has been approved for ULC installations.

The 7847i and 7847i-E provide four modes of operation so they can be used with various

types of control panels, as summarized below:

ECP Mode

• This mode is for use with Honeywell controls that support LRR-ECP communication

• The module connects to the control’s keypad terminals and provides 2-way communication

with the control using ECP messaging

• The control treats the module as a Long Range Radio (LRR) device, so program the control

accordingly, including setting the module’s proper LRR device address

• Panel-generated reports are sent in Contact ID format

• The module also supports two hardwire zone trigger inputs (zones 6 and 7) – these report in

ADEMCO High-Speed format

Zone Trigger Mode

• This mode is for use with controls that do not support LRR-ECP communication nor 4204

Relay Modules

• The module provides six input zones

• Each zone can be configured for +V, -V, or EOLR triggering

• Each zone can be programmed for inverted operation, delayed reporting, and restoral

reporting

7847i/7847i-E Installation and Setup Guide

1-4

• Zone 1 and 2 inputs can distinguish between pulsed and steady signals and report fire or

burglary alarms respectively

• Zone 1 and 2 inputs can also be programmed to report LYNX panic (if used with LYNX

control)

• Reports are sent in ADEMCO High-Speed format

4204 Mode and Two-4204 Mode

• This mode is for use with Honeywell controls that do not support LRR-ECP communication,

but that do support 4204 Relay Modules

• The module connects to the control’s keypad terminals

• The control treats the module as 4204 Relay Module(s), so program the control accordingly,

including setting the module’s proper 4204 device address

• 4204 mode provides up to four zone inputs, plus two optional trigger zones, depending on

options programmed

• Two-4204 mode provides up to eight zone inputs, depending on options programmed

• Each 4204 zone can be programmed for delayed reporting and restoral reporting

• Reports are sent in ADEMCO High-Speed format

Module Supervision Features

The 7847i/7847i-E provides the following types of supervision and module fault detection:

• Network communication failure: In the event the AlarmNet network does not hear a

supervisory message from the module within a specified time (“Supervision” option),

AlarmNet notifies the central station of a communication failure.

• Fault output: Terminal 11 can serve as a fail-safe trigger for module fault conditions.

If used, the fault relay will trip when the following conditions occur; tamper*, loss of network

connectivity*, the device is not registered and the device is remotely disabled by AlarmNet.

* Alarm reporting for the noted condition must be enabled for it to trigger the fault relay.

• Cover tamper condition (“Tamper Rpt” option).

Specifications

Mechanical

Dimensions: 8.4" x 8.0" x 1.5"

Weight: 1 lb.

Electrical

Input Power: 12VDC

Current Drain: 20mA average standby, 75mA peak transmit

Radio Fault Output: Open collector

Input Trigger Levels: (V+) 2V – 14V, (V-) 0V – 1V

Ethernet

Network Standard: IEEE 802.3u compliant

Data Rate: 10Base-T / 100Base-T with auto detect

Ethernet Cable: Cat. 5 (min.), MDI/MDI-X auto crossover

Environmental

Operating temperature: –20º to +55ºC

Storage temperature: –40º to +70ºC

Humidity: 0 to 95% relative humidity, non-condensing

Altitude: to 10,000 ft. operating, to 40,000 ft. storage

Section 1: General Information

1-5

ULC Compatibility

Model 7847i has only been evaluated for communication with Listed Model 7810PC or

7810iR-ENT internet receiver in combination with Listed Honeywell Model MX8000 or

Silent Knight Model 9500 central station receiver.

7847i/7847i-E Installation and Setup Guide

1-6

2-1

S E C T I O N 2

Mounting and Wiring

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

In This Section

♦ Mounting the 7847i/7847i-E

♦

Wiring the 7847i/7847i-E

♦ Power Connections and Options

♦

Ethernet Connections

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Mounting the 7847i/7847i-E

The 7847i/7847i-E must be mounted indoors. To mount the unit, see Figure 2 and complete

the following steps:

1. Unpack the unit and detach the case back by pushing up into the two tabs located at the

bottom of the 7847i/7847i-E module with the blade of a screwdriver while pulling the

case back and case front apart.

2. Locate the case back over the mounting surface such that the opening in the case back is

aligned with the wire/cable access opening (in the mounting surface) while passing the

wires/cable through the opening in the case back, or through the removable knockouts

located on the bottom of the back cover.

3. Secure the case back to the mounting surface using four screws (supplied).

4. When all wiring is completed, attach the case front of the unit to the case back. Attach

the top first then press the bottom section inward until it snaps into place securely.

Secure bottom using cover securing screw (supplied) as shown below, (required for UL

installations).

5. Twist and remove cap from handle (supplied) and discard handle. Insert cap in top hole

of case back, as shown.

7847i-E-022-V1

MOUNTING

SCREW (4)

(TYP)

CAP

(TWIST OFF)

TAB

COVER SECURING SCREW

OPTIONAL WIRING

KNOCKOUT

OPTIONAL WIRING

KNOCKOUTS

TAB

CASE

FRONT

PRESS CAP

INTO PLACE

CASE

BACK

Figure 2. Mounting the 7847i/7847i-E

7847i/7847i-E Installation and Setup Guide

2-2

Wiring the 7847i/7847i-E

Unshielded, 22 AWG cable is recommended for 7847i/7847i-E power/data wires.

ULC For ULC Household Fire and Burglary installations, use ECP wiring only.

Wiring for ECP, 4204 and Two-4204 Modes

Most Honeywell ADEMCO control panels support LRR-ECP data communication, (e.g.,

VISTA-10P, VISTA-15P, VISTA-20P, LynxR-I, VISTA-128BP/250BP and the

VISTA-128FBP/250FP). However, there are some panels that do not. Check the Installation

and Setup Guide for the control panel you are using to see if it supports ECP communication.

Connect the 7847i/7847i-E to a compatible Honeywell VISTA control panel's ECP terminals,

in parallel with keypads and other peripheral devices, VIP module, etc. Wire length/gauge

limitations are the same for the module as they are for keypads and other peripheral devices.

To wire the module for ECP communication, see Figure 3 and do the following:

Table 1. Wiring connections for ECP or 4204 modes

7847i/7847i-E Control

Terminal 3 V+ +12 V Aux

Terminal 4 GND Ground

Terminal 5 Data In Data Out

Terminal 6 Data Out Data In

7847i / 7847i-E

CONTROL PANEL

7847i-E-019-V0

GND

ECP DATA OUT

ECP DATA IN

V+

RED

BLK

YEL

GRN

GND

DATA IN

DATA OUT

+12 V

TB1

Figure 3. Wiring a Vista for ECP Mode or 4204 Modes

To install a 7847i/7847i-E with a LynxR-I Security System, wire the devices as shown in

Figure 4 below. Refer to LynxR-I Installation and Setup Guide.

Section 2: Mounting and Wiring

2-3

LYNXR-I CONTROL PANEL

7847i-E-018-V0

GND

ECP DATA OUT

ECP DATA IN

V+

RED

BLK

GRN

YEL

RED

BLK

GRN

YEL

+12 VDC

GND

DATA IN

DATA OUT

4-WIRE CABLE (N4632-4) TB1

7847i / 7847i-E

Figure 4. Wiring a LynxR-I for ECP Mode

Wiring for Zone Trigger Mode

To trip the zone on the 7847i/7847i-E in V+ trigger mode, the positive triggering voltage from

the control panel must be within 2.0V-14V.

Trigger levels above this range may cause permanent damage to the unit.

Trigger levels below this range result in unreliable operation.

To trip the zone on the 7847i/7847i-E in V- trigger mode, the negative triggering voltage

must be less than 1.0V.

NOTE: LynxR and LynxR-EN have a designated trigger for V- trigger.

Connect a wire from the triggering source (bell output, voltage trigger, etc.) of the control

panel to the zone input of the module, and connect a common ground between the module

and control panel.

UL The configurations shown in Figures 5a and 5b have not been evaluated by UL.

Examples of zone connections are shown below:

CONTROL PANEL

7847i-E-020-V0

GND

BELL (+)

+12 V

GND

ZONE INPUT Z1/Z2

V+

( ) (+)

TB1

7847i / 7847i-E

Figure 5a. Wiring the 7847i/7847i-E Zone 1 Input for a Positive (+) Triggered Bell Output

CONTROL PANEL

7847i-E-021-V0

GND

BELL ( )

+12 V

GND

ZONE INPUT Z1/Z2

V+

( ) (+)

TB1

7847i / 7847i-E

Figure 5b. Wiring the 7847i/7847i-E Zone 1 Input for a Ground (-) Triggered Bell Output

7847i/7847i-E Installation and Setup Guide

2-4

LYNXR/LYNXR-EN

CONTROL PANEL

7847i-E-024-V0

2K EOL

RESISTOR

LRR / AAV

TRIGGER

7847i / 7847i-E

GND

ZONE INPUT Z1/Z2

TB1

NOT USED

Figure 6. Wiring the 7847i/7847i-E Zone 1 Input to a LynxR Trigger Output

7847i-E-028-V0

2K EOL

RESISTOR

GND

ZONE INPUT Z1/Z2

TB1

NOT USED

ECP (+) VOLTAGE INPUT

NOT USED

N.C.

N.O.

7847i / 7847i-E

Figure 7. Wiring the 7847i/7847i-E Zone 1 Input for EOL Supervised N.O./N.C. Triggers

Power Connections and Options

Primary power for the 7847i/7847i-E is provided by the auxiliary power output of the control

panel 9.6V –13.8V, typical, or other external power source.

When calculating the total load on the auxiliary power output of the control panel, 20mA

must be budgeted for the 7847i/7847i-E. Under normal operating conditions, the unit will

not pull more than 20mA; however, it will draw 75mA during a transmission.

Connect the wires from the (+) and (–) terminals of the DC power source to terminals V+ and

GND on TB1 of the 7847i/7847i-E. Observe Polarity!

If using an external power source, connect GND from power supply to GND of the control

panel.

Ethernet Connections

1. For UL installations, the Cat. 5 Ethernet connections between the 7847i/7847i-E

and the router cannot exceed 12 feet with both the 7847i/7847i-E and the router

located within the same room.

2. Use a Listed cable/DSL router suited for the application.

• Connect one end of the Ethernet cable (Category 5) to the 7847i-E's RJ45 Ethernet

connector and the other end to the cable/DSL router.

Section 2: Mounting and Wiring

2-5

TO

ROUTER

NETWORK

CONNECTIVITY

LED DISPLAY

RJ45

ETHERNET

PORT

TB1

MODE AND STATUS

LED DISPLAY

STATUS

LED

DISPLAY

7720P

PROGRAM

CONNECTOR

7847i-E-016-V0

ABC

D E F

STX

1 2 3

456

Xmit

Shift

Space Enter

Shift

N / Y

BS / ESC

MODE AND STATUS

INDICATOR SWITCH

TAMPER

SWITCH/

IB SERVICE

Figure 8. Ethernet Connections

Initial Power-Up Sequence

Before connecting power, check that the following have been completed:

• Terminal block TB1 V+ and GND terminals are connected to the control panel's auxiliary

power output: 12 VDC nominal.

• Power up the control panel.

Initially, all 7847i/7847i-E programming options are set to the factory default settings.

NOTE: Refer to Appendix A for detailed information on LED functions.

7847i/7847i-E Installation and Setup Guide

2-6

3-1

S E C T I O N 3

Programming the 7847i/7847i-E

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

In This Section

♦

General Information

♦

ECP Mode Programming

♦

Alternative Modes (Zone Trigger, 4204 and

Two-4204)

♦ Alternative Mode Programming

♦ Exiting Programming Mode

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

General Information

To the control panel, the 7847i/7847i-E Internet/Intranet Communication Modules, when in

ECP Mode, is treated as a long-range radio device.

The 7847i/7847i-E can be configured to deliver alarms via the Internet to an AlarmNet

central station or via a Private LAN (7847i-E only) directly to a 7810PC or 7810iR-ent

receiver. Both methods of communication are encrypted to ensure security. The 7847i and

7847i-E use 256-bit AES (Rijndael) encryption (which is required for certain government

installations).

The 7847i/7847i-E modules require an AlarmNet–i account, except when Private LAN is

enabled on the 7847i-E. Obtain the account information from the central station prior to

programming this module.

You can program a 7847i/7847i-E by one of the following methods:

• Through the AlarmNet Direct website

• Through use of a 7720P Programming Tool

• Through a programming mode in control panel, on panels that support this option (e.g., Vista-

128BP and FBP)

Using the AlarmNet Direct Website

To program the module via the website (if you are already signed up for this service), go to:

https://services.alarmnet.com/AlarmNetDirect/userlogin.aspx.

If you are not signed up for this service, click on “Dealer Sign-Up".

Please have the following information available when programming the module:

1. Primary City ID (two-digit hexadecimal number)

2. Primary Central Station ID (two-digit number)

3. Primary Subscriber ID (four-digit number)

4. MAC ID and MAC CRC number (located on the outside of box and on label inside

module)

After programming is complete, you must transfer the data to the module and the module

must be registered. Refer to Section 4: Registration, for further instructions.

7847i/7847i-E Installation and Setup Guide

3-2

Using a 7720P Programming Tool

Connect the 7720P Programming Tool; refer to Figure 8 in Section 2. The 7847i and 7847i-E

power the 7720P Programming Tool via the programming jack, and automatically senses the

presence of the 7720P when it is plugged in.

Each key of the 7720P has two possible functions: a normal function and a Shift function.

To perform a normal key function, simply press the desired key. To perform a Shift function,

press the [shift] key, and then press the appropriate key.

The prompts in this document reflect use of the 7720P Programming Tool. Table 2 below

lists each normal and shift key function.

Table 2. 7720P Normal and Shift Key (shift LED lit) Functions

KEY NORMAL KEY FUNCTION SHIFT KEY FUNCTION

BS/ESC [BS]: Press to delete entry [ESC]: Press to quit program mode; also can reset

programming defaults*

↓/↑ [↓]: Scroll down programming [↑]: Scroll up programming

N/Y [N]: Press for "NO" answer [Y]: Press SHIFT-Y for "YES" answer

SHIFT Press before pressing a SHIFT key function. Will light SHIFT LED. LED goes out once a key

is pressed. Press again for each SHIFT function desired.

1/A [1]: For entering the number 1 [A]: For entering letter A

2/B [2]: For entering the number 2 [B]: For entering letter B

3/C [3]: For entering the number 3 [C]: For entering letter C

4/D [4]: For entering the number 4 [D]: For entering letter D

5/E [5]: For entering the number 5 [E]: For entering letter E

6/F [6]: For entering the number 6 [F]: For entering letter F

7/S [7]: For entering the number 7 [S]: For entering letter S

8/T [8]: For entering the number 8 [T]: For entering letter T

9/X [9]: For entering the number 9 [X]: For entering letter X

SPACE [SPACE]: For scrolling option list No SHIFT function

0 [0]: For entering the number 0 No SHIFT function

#/ENTER [#/ENTER]: Press to accept entries No SHIFT function

* Active only when the "Exit Programming Mode" prompt is displayed.

Using the Control Panel Programming Mode

Some control panels support programming of the 7847i/7847i-E through the control panel

programming mode (e.g., Vista-128BP). If programming through the control panel, only the

ECP Mode programming options are available. The "mode" questions will not be displayed,

and the mode cannot be changed. For a description of key functions on the control panel

keypad, and how they map to the 7720P Programming tool, refer to the control panel's

Programming Guide.

Programming Conventions

Programming is accomplished by answering a series of prompts (questions). Most prompts

require only a [Y]es or [N]o response, while others require a numerical response (ID

numbers, etc.).

The current value is displayed on the second line in parentheses ( ). A "?" indicates an

invalid entry.

Use the [ENTER] key to accept the current entry and proceed to the next prompt. If the

current value is invalid, pressing [ENTER] re-displays the prompt; the next prompt is not

displayed until a valid answer is entered.

Use the up/down arrow keys to scroll through the programming questions without changing

any values. Press the [ESC] key to go to the end of the list of questions.

Section 3: Programming the 7847i/7847i-E

3-3

ECP Mode Programming

Press the [ENTER] key to begin programming.

NOTE: The central station can remotely block access to local device

programming. If this has been done, the following prompt

appears:

Access to Prog

Mode Denied

NOTE: The default programming values for ECP mode are listed in each prompt below.

Table 3: Programming a 7847i-E for ECP mode only.

PROMPTS

PROMPTSPROMPTS

PROMPTS

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

Strt Prog Mode?

(Y/N)_

[Y], [N] Enters programming mode.

Enter Password:

[0-9, A-F, N, S,

T, X, Y]

If a password has been previously assigned, this

prompt appears.

Enter a 4-digit password (0-9, A-F, N, S, T, X, Y).

The next prompt appears.

Program Device?

(Y/N)_

[Y], [N] To begin programming the module, press [Y] and go to

Prompt 9: "Device Mode."

To create a password if none has been assigned, press

[N] and go to Prompt 4: "Create Password."

To change an existing password, press [N] and go to

Prompt 5: "Change Password."

4 Create Password?

(Y/N)_

[Y], [N] Passwords can be used to protect account and

programming information.

If no password has been assigned, this prompt appears

after pressing [N] at the "Program Device?" prompt.

If a password is desired, press [Y] and go to Prompt 6:

"Enter Password."

5 Change Password?

(Y/N)_

[Y], [N] If a password has already been assigned, this prompt

appears after pressing [N] at the "Program Device?"

prompt. Press [Y] if you want to change the password.

NOTE: To clear an existing password, without entering

a new one, answer [Y] to the "Change Password?"

prompt, then press the [Enter] key when prompted for

the new password and its confirmation.

6 Enter Password

[0-9, A-F, N, S,

T, X, Y]

This prompt is displayed if [Y] was pressed in Prompt 4

or 5.

Enter a 4-digit password (0-9, A-F, N, S, T, X, Y).

7 Verify Password

[0-9, A-F, N, S,

T, X, Y]

Re-enter the password as confirmation.

If the password doesn't match the first entry, the

following is displayed followed by the "Exit Prog.

Mode?" prompt:

Verify Not OK

PSWD not created

Otherwise, the "Exit Prog. Mode?" prompt is displayed

directly.

8 Exit Prog. Mode?

(Y/N)_

[Y], [N]

[ESC]

Exits program mode.

Press [N] to go back to Prompt 3.

Press [ESC] to load factory defaults.

Refer to the Exiting Programming Mode paragraph in

this section.

7847i/7847i-E Installation and Setup Guide

3-4

PROMPTS

PROMPTSPROMPTS

PROMPTS

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

Device Mode

(ECP)_

• ECP

• Zone Triggers

• 4204 Emu

• Two 4204s

Press the [space] key to scroll through the modes of

operation. Press [ENTER] to select ECP mode.

See Table 5 if programming other modes.

Important Information Regarding Multi-Mode Options

Users can receive email notification of system events by using the Multi-Mode feature. In ECP mode, this is

accomplished through emulation of a 4204 relay module, or two 4204 relay modules. When “4204-Sourced” is

selected, the user can be notified of up to four events, plus two additional events if using the optional communication

device zones of 6 and 7. When “2-4204-Sourced” is selected, the user can be notified of up to eight system events.

The Multi-Mode address must match the address of a relay module enabled in the control panel (although you don’t

actually connect a module). If using “2-4204-Sourced,” the address of the second module is automatically assigned

the next device address after the first 4204. Make sure that address is also enabled in the control panel. Program

outputs to trigger on system events the user would like to be notified of through Output Device (Relay) programming

in the control panel. Outputs 1-4 on the first 4204 Device Address map to events 1-4. Outputs 1-4 on the second 4204

Device Address map to events 5-8.

For LynxR-I/ReadyGuardR-I series controls (when available), if "4204 Sourced" is selected, you must enable Multi-

Mode Address 6 or 7 in the control panel. If "2-4204" Sourced is selected, you must enable both (program field *86.

These events are configured at the AlarmNet Total Connect website at: https://services.alarmnet.com/TotalConnect

Multi-Mode (email notification) is intended as a convenience for the user, and does not replace Central Station

reporting of critical events (alarms, troubles, etc.).

NOTE: The Multi-Mode option is not available, and will not be displayed, when Private LAN is enabled on the 7847i-E.

10 Multi Mode

(Disabled)_

• Disabled

• 4204 Sourced

• 2-4204 Sourced

Enable if you want specific events sent by email to the

user.

Select "4204 Sourced" to send up to four events or "2-

4204 Sourced" to send eight events.

Disable for normal alarm processing and go to Prompt

21: "Primary City ID".

11 Multi Mode Addr

(12)_

[01-30]

This address must be programmed if using the Multi-

Mode feature. The device address must be unique from

the normal LRR Device Address (Prompt 28), and the

Keypad Address used for Remote Access or Direct Wire

downloading. The address used must also be enabled

as a 4204 relay module in Vista and First Alert control

panels. See Important Information above.

Important Information Regarding Private LAN mode (7847i-E only).

1. Prompts 13-20 apply only if Private LAN was selected in Prompt 12.

2. Prompts 16-18 apply only if Prompt 15: Alarm Delivery is set to “Fail to CS IP2".

En.Priv.LAN: Y/N

(N)

[Y], [N]

Applies only to 7847i-E. Press [Y] to enable alarm

delivery via a Private LAN to a 7810PC or 7810iR-ent

receiver.

Press [N] to enable alarm delivery over the internet or if

you have a 7847i, and go to Prompt 21: Primary City ID.

CS IP:

255.255.255.255

12 digit:

xxx.xxx.xxx.xxx

Enter the four part primary CS IP address of the

7810PC or 7810iR-ent receiver at the reporting center

to which this device will report. The four parts of the

address must be separated by spaces.

NOTE:

This entry CANNOT be left as 255.255.255.255”.

It MUST be programmed with a valid IP address.

CS Port:

(80)

[80] Enter the Central Station Port Number.

NOTE: The CS Port number must match the "Listening

Port" question of the 7810PC or 7810iR-ent.

Alarm Delivery:

Only One CS IP_

[Only One CS

IP]

[Fail to CS IP2]

Select the "Only One CS IP" option, if only one Central

Station IP address is desired and go to Prompt 18:

Verify Inst. Key. Select the "Fail to CS IP2" option, if a

secondary Central Station IP address is desired.

Section 3: Programming the 7847i/7847i-E

3-5

PROMPTS

PROMPTSPROMPTS

PROMPTS

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

Secondary CS IP:

255.255.255.255

12 digit:

xxx.xxx.xxx.xxx

Enter the four part secondary CS IP address of the

7810PC or 7810iR-ent receiver at the reporting center

to which this device will report. The four parts of the

address must be separated by spaces.

NOTE: This entry CANNOT be left as “255.255.255.255”

if using the Secondary CS IP. It MUST be programmed

with a valid IP address.

Second CS Port:

(80)

[80] Enter the Central Station Port Number.

NOTE: The CS Port number must match the "Listening

Port" question of the 7810PC or 7810iR-ent.

18 IP2 Supervision

30 Day_

• 30 Day

• Daily

• Full Rate

• None

Sets the supervision timing for the secondary internet

receiver to send a test alarm if set to Daily or 30 Day,

or to send a status message to the 7810PC or 7810iR-

ent if the interval is set to Full Rate. Selecting Full

Rate means secondary supervision will be the same as

primary.

NOTE: The second 7810PC or 7810iR-ent must be

programmed to supervise subscribers in order to

generate a communication failure.

Press the [space] key to scroll through the choices.

Installation Key:

**********_

[0-9] Enter the 10-digit Installation Key necessary for

communication with 7810PC or 7810iR-ent. If the key

entry is invalid, the prompt is repeated. See the

Installation Key paragraph in Section 1 for more

information.

Verify Inst. Key:

**********_

[0-9] Re-enter the 10-digit Installation Key to verify key.

If verification fails, “Verify NOT OK” will be displayed

for one second and the display will return to the entry

of the installation key.

Important Information Regarding Primary and Secondary Accounts (Questions 21-27)

Account information is provided by the central station administrator. If the control supports secondary

account reporting, you will need secondary account information, unless using a Private LAN (7847i-E). The

City ID, CS ID or Subscriber ID of the secondary account must differ from that of the primary account. If

Private LAN (7847i-E) is enabled, Prompts 24-27 will not be displayed.

21 Primary City ID

(??)_

[01-99]

Enter the 2-digit primary city ID, 01-99 (decimal).

Primary CS ID

(??)

[01-FE] Enter the 2-digit primary central station ID number,

01-FE (HEX).

Primary Sub ID

(????)

[0001-9999] Enter the 4-digit subscriber account number for the

primary central station, 0001-9999 (decimal).

En. 2nd CS Y/N

(N)_

[Y], [N] Applicable only if control supports Central Station #1

and #2 Category Enable reporting for the LRR device

(e.g., VISTA-128BP, FA1660C, etc.).

Used if reporting to a second central station is desired.

Press [N], go to Prompt 28: "Device Address."

2nd City ID

(??)_

[01-99] Enter the 2-digit secondary city ID, 01-99 (decimal).

2nd CS ID

(??)_

[01-FE] Enter the 2-digit second central station's ID number,

01-FE (HEX).

2nd Sub ID

(????)_

[0001-9999] Enter the 4-digit subscriber account number for the

second central station, 0001-9999.

7847i/7847i-E Installation and Setup Guide

3-6

PROMPTS

PROMPTSPROMPTS

PROMPTS

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

Device Address

(03)_

[01-30]

In ECP mode, the 7847i/7847i-E communicates with

the panel as a Long Range Radio (LRR) device. Enter

the appropriate ECP device address. For VISTA-10

and VISTA-20 series control panels, use address 03.

For other controls, see the control panel’s Installation

and Setup Guide.

NOTES:

1. When programming the control, enable the LRR

output.

2. The device address must be unique from the "Keypad

Address" entered in Prompt 31, and the Multi-Mode

Address entered in Prompt 11.

NOTE: The Remote Access option is not available, and will not be displayed, when Private LAN is enabled on the 7847i-E.

Remote Access Y/N

(N)_

[Y], [N] Press [Y] to allow the end user to access their system

via a website. Availability of this service is controlled

by the dealer via the web-based programming tool on

the AlarmNet Direct website.

30 Direct Wire Y/N

(N)_

[Y], [N] Applies only to VISTA-128BP/250BP and FBP series

controls, and FA1600C and FA1700C series controls.

Enables Direct Wire Downloading over IP.

If [N], and if Prompt 29: Remote Access is disabled,

skip to Prompt 32: "Supervision."

Keypad Address

(28)_

[01-30] Must be programmed if using either the Remote Access

feature or Direct Wire downloading. Enter the

appropriate device address.

NOTES:

1. This address must also be programmed as an alpha

keypad in the control panel or an AUI (Advanced

User Interface) type device, if a full enhanced graphic

interface to the system is desired and the control

panel supports it. DO NOT connect an actual keypad

(or any other device) assigned to this address.

2. If using a compatible LynxR-I series control (when

available), this address must be set to “1.”

3. This address must be unique from the "Device

Address" entered in Prompt 28.

Supervision

(24 Hours)_

• 24 Hours

• 1 Hour

• US UL Line

(6 Min)

• CN UL Line

Lvl 3 (3 Min)

• US UL Line

(90 Sec)

• CN UL Line

Lvl 4 (90 Sec)

• CN UL Line

Lvl 5 (75 Sec)

• None

• 30 Day

The AlarmNet network must hear at least one

supervisory message from the module during this

supervision period; otherwise, AlarmNet notifies the

central station that a communication failure has

occurred. (If the supervision period is changed after

registration, you must re-register the module.)

Press the [space] key to scroll through choices.

Section 3: Programming the 7847i/7847i-E

3-7

PROMPTS

PROMPTSPROMPTS

PROMPTS

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

Old Alarm Time

10 Minutes_

•10 Minutes

• 15 Minutes

• 30 Minutes

• 1 Hour

• 2 Hours

• 4 Hours

• 8 Hours

• 12 Hours

• 24 Hours

Sets how long an undeliverable alarm is retried for

delivery to the central station. If the message is not

validated, it is retried until the old alarm time is

reached or the message is validated.

Press the [space] key to scroll through choices.

UL NOTE: Must be 10 minutes.

IP Flt Time

(60 mins)_

[00-99] Enter the time delay (01-99) in minutes before the

7847i/7847i-E notifies the control panel that there is

loss of contact with the network, or enter 00 if you do

not want the unit to alert the control panel of loss of

contact with the network. The 7847i/7847i-E will alert

the control panel of the loss of contact via a dedicated

status message.

NOTE: Cannot be less than two (02) minutes if Private

LAN is enabled on the 7847i-E and the Supervision

interval is greater than 90 seconds.

UL NOTE: Must be one (01) minute.

Flt Rel ON Y/N

(N)_

[Y], [N] If enabled, the fault open collector output is normally

energized to ground, and de-energizes (open circuit) in

the event of a module fault.

Set to [Y] if fail-safe mode is desired.

NOTE: If used, the fault relay will trip when the

following conditions occur: tamper*, loss of network

connectivity*, message communication failure, the

device is not registered and the device is remotely

disabled by AlarmNet.

* Alarm reporting for the noted condition must be

enabled for it to trigger the fault relay.

UL NOTE: Must be set to "Y."

Tamper Rpt Y/N

(Y)_

[Y], [N] Sends a tamper report on zone 6 when the module

detects a tamper condition. A tamper restore is

automatically sent when the tamper condition clears.

Important Information Regarding Zone Input Options

ECP mode supports two optional hardwire zone input triggers by making connections to the module’s zone 6 and/or

zone 7 terminals and programming the appropriate zone trigger options below.

Each zone input can be programmed to cause an alarm under one of the following conditions:

• (V+), where a positive voltage causes an alarm for normally low connections (voltage trigger, NO, NC)

• (V–), where a ground trigger causes an alarm for normally high connections (open collector, NO, NC)

• (EOLR) End of Line Resistor, where the input is supervised by a 2K EOL resistor. The zone can be triggered

by open collector, voltage trigger, NO, NC.

In addition to the above, zones can be programmed for an Inverted Trigger, where the alarm and normal states of the

zones are inverted; this can serve a fail-safe supervisory purpose for certain installations.

These zone inputs can also be programmed for restore reporting, and for delayed reporting, which allows time for the

user to abort false alarms.

NOTE: Optional hardwire zones report in ADEMCO High-Speed format.

Enable Zn6 Y/N

(N)_

[Y], [N] Enables alarm reporting for zone 6.

If [N], skip to Prompt 42: "Enable Zn7."

Zn6 Trigger Type

(V+)_

• (V+)

• (V–)

• (EOLR)

Selects the triggering method for this zone input.

Press the [space] key to scroll through choices.

Invert Zn6 Y/N

(N)_

[Y], [N] Inverts the alarm and normal states of the zone 6

trigger; otherwise uses normal input signal.

7847i/7847i-E Installation and Setup Guide

3-8

PROMPTS

PROMPTSPROMPTS

PROMPTS

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

Restore Zn6 Y/N

(Y)_

[Y], [N] Enables restore reporting for zone 6.

Delay Zn6 (secs)

(00)_

[01-15]

[00] = no delay

Defines the reporting delay in seconds for zone 6.

Enable Zn7 Y/N

(N)_

[Y], [N] Enables alarm reporting for zone 7.

If [N], skip to Prompt 47: "Use DHCP."

Zn7 Trigger Type

(V)_

• (V+)

• (V–)

• (EOLR)

Selects the triggering method for this zone input.

Press the [space] key to scroll choices.

Invert Zn7 Y/N

(N)_

[Y], [N] Inverts the alarm and normal states of the zone 7

trigger; otherwise, uses normal input signal.

Restore Zn7 Y/N

(Y)_

[Y], [N] Enables restore reporting for zone 7.

Delay Zn7 (secs)

(00)_

[01-15]

[00] = no delay

Defines the reporting delay in seconds for zone 7.

Use DHCP Y/N

(Y)_

[Y], [N] Dynamically allocates the IP addresses (recommended);

then skip to Prompt 53: "Review?"

If [N], uses fixed IP addresses.

NIC IP Address:

255.255.255.255_

12 digit:

xxx.xxx.xxx.xxx

Enter the 4-part address for this device. The four parts

of the address must be separated by spaces (displayed

as periods in Review mode).

Subnet Mask:

255.255.255.255_

12 digit:

xxx.xxx.xxx.xxx

Enter the 32-bit address mask used to indicate the

portion (bits) of the IP address that is being used for

the subnet address. The four parts of the address must

be separated by spaces (displayed as periods in Review

mode).

Gateway IP Addr:

255.255.255.255_

12 digit:

xxx.xxx.xxx.xxx

Enter the 4-part address assigned to the Gateway. The

four parts of the address must be separated by spaces

(displayed as periods in Review mode).

DNS Serv IP Addr:

255.255.255.255_

12 digit:

xxx.xxx.xxx.xxx

Enter the 4-part IP address assigned to the DNS

(Domain Name System) server. The four parts of the

address must be separated by spaces (displayed as

periods in Review mode).

NOTE: The "Enable Pwr Save" option is not available, and is not displayed, if Private LAN is enabled on the 7847i-E.

52 Enable Pwr Save

(Y)_

[Y], [N] For 24 hour UL Battery Backup requirement, this

feature must be enabled, or the unit must be powered

by an appropriate UL listed UPS. If connectivity

problems occur with certain routers or switches disable

this option.

This option is forced to [N] when Private LAN is

enabled.

Review? Y/N

[Y] = review

[N] = exit

Reviewing Programming Mode Entries

To review the programming options (to ensure that the

correct entries have been made), press [Y]. The

programming prompts are displayed again. Use the

up/down arrow keys to scroll through the program

fields without changing any of the values. If a value

requires change, simply type in the correct value. When

the last field is displayed, the “REVIEW?” prompt

again appears.

To exit the programming mode, press [N] in

response to the "REVIEW?" prompt, and refer to

Exiting Programming Mode at the end of this section.

Section 3: Programming the 7847i/7847i-E

3-9

ECP Status Codes

When the 7847i/7847i-E is configured for ECP mode, it sends status messages to the control

panels (e.g., VISTA-10P, VISTA-15P and VISTA-20P series), for tamper, and network

connectivity failures. Some of the control panels display these on the keypad as "LngRng

Radio" followed by a 4-digit code (listed in table 4). In addition, the Contact ID codes (listed

in Appendix B) for these conditions are sent to the central station by the module.

Table 4. Common ECP Keypad Displays Status Codes

STATUS CODE DESCRIPTION

0000 Control panel lost communication with 7847i/7847i-E.

0880 Tamper detected (cover removed).

0005 Lost Ethernet connectivity.

000F Not registered; account not activated.

0019 Shutdown.

0400 Power on reset AND the control panel lost communications with

7847i/7847i-E.

0C80 Power on reset AND tamper detected.

0C8F Power on reset AND tamper detected AND not registered.

Alternative Modes (Zone Trigger, 4204 and Two-4204)

Zone Trigger Mode

There are six input zones available on the 7847i/7847i-E. Zones 1 and 2 are located on TB1

pin 5 and are selectable for +V, –V, or EOLR modes, which can detect both pulsed and steady

signals. The pulsed signal is reported as an alarm on zone 1 (Fire); the steady signal is

reported as an alarm on zone 2 (Burg). The implied pulse count for zone 1 is fixed to 3

pulses. The unit can be programmed to detect a single pulse on the input, characteristic of a

Panic indication on the Lynx Control Panel. If the programming option “Lynx Panic” is

enabled, the unit reports an alarm on zone 3 when it detects this single pulse. No restores

are reported for this zone.

Zones 3, 4, 5, 6 and 7 are voltage trigger inputs located on TB1 pins 6-10. If the Lynx Panic

feature is being used, do not connect zone 3.

4204 Emulation Mode

In the 4204 Emulation Mode, the 7847i/7847i-E communicates with a compatible Honeywell

VISTA series or First Alert control panel as though it were a 4204 Relay Module. If the Two

4204 Mode is enabled in the module, it acts as two 4204s at consecutive device addresses.

The control panel must be configured to recognize one or two 4204 relay modules accordingly.

On VISTA-32FB (or higher) control panels and First Alert equivalents, addresses 6 and 13

should not be used when the secondary 4204 is enabled. Messages are sent in Honeywell

High-Speed format.

NOTE: See your control panel Installation and Setup Guide for the number of 4204 modules

supported. The LynxR-I does not support 4204 mode.

4204 Emulation Mode Options

For control panels that do not support ECP communication, the 4204 Emulation modes

provide a means of sending up to eight unique reports based on defined system conditions.

In 4204 mode, the 7847i/7847i-E functions as a logical 4204 Relay Module, where each relay

number, referred in the module as zone number, can be programmed to send a report based

on the output function programmed in the control for that relay. Each relay-zone can also be

programmed to send a restore message of the reported condition, can be set to delay

transmission of messages, and can be programmed to send reports only when a conditional

zone is triggered (armed), (see Zone Input Options later in this section).

7847i/7847i-E Installation and Setup Guide

3-10

In single 4204 mode, the unit supports up to four relay-zones. In two-4204 mode, the unit

functions as two 4204 modules, supporting up to eight relay-zones.

4204 Relay Outputs map to 7847i/7847i-E zones as follows:

First 4204 Zones

(device address entered in Prompt 23):

Second 4204 Zones

(device address entered in Prompt 23, plus 1):

Relay 1 = Zone 1

Relay 2 = Zone 2

Relay 3 = Zone 3

Relay 4 = Zone 4 or conditional zone trigger if

“report only if armed” is selected in

any zone 1-3 when using single 4204

mode.

NOTE: Zone 4 status is not reported when

being used as the conditional (armed) trigger

zone.

Relay 1 = Zone 5

Relay 2 = Zone 6

Relay 3 = Zone 7

Relay 4 = Zone 8 or conditional zone trigger if

“report only if armed” is selected in

any zone 1-7 when using two-4204

mode.

NOTE: Zone 8 status is not reported when

being used as the conditional (armed) trigger

zone or if tamper reporting is enabled.

When using the 7847i/7847i-E in 4204 Emulation Mode, DO NOT enable the Long-Range

Radio module in control panel programming. Instead, enable 4204 relay module address(es)

and program the appropriate relay activation functions for the relay-zones being used. In

some control panels, it is called “relay programming” and in others it is called “output device

programming.” It is recommended that the “close and stay closed” (usually choice 2) action is

selected. Selection of momentary activation will cause the unit to generate an alarm and

NOT a restore, even if the unit is programmed to send a restore for the given zone.

In 4204 mode, messages are reported in ADEMCO High-Speed format. Zone alarms (status

7) are reported with “1” (alarm) or “3” (restore) displayed in the zone position for the respec-

tive zone (e.g. alarm on zone 2: 5155 5555 7; restore 5355 5555 7). A supervision fault

trouble message is automatically sent if the module detects no activity on its connection to

the control. The message is: 5555 5515 5; restore message is: 5555 5535 5.

Refer to Table 5 for 4204 Emulation Mode programming and follow the prompts that pertain

to 4204 or Two-4204 mode. A check mark ( ) indicates whether the prompt applies to that

mode.

Alternative Mode Programming

Press the [ENTER] key to begin programming and follow the prompts for the mode of

operation being programmed.

NOTE: The central station can remotely block access to

local device programming. If this has been done,

the following prompt appears:

Access to Prog

Mode Denied

Table 5: Programming a 7847i/7847i-E for Zone Trigger, 4204 Emulation, or Two-4204 Emulation modes.

PROMPTS

PROMPTSPROMPTS

PROMPTS

ZONE

ZONE ZONE

ZONE

TRIG.

TRIG.TRIG.

TRIG.

4204/

4204/4204/

4204/

-4204

42044204

4204

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

Strt Prog Mode?

Y/N_



 [Y], [N] Enters programming mode.

Enter Password

  [0-9, A-F, N,

S, T, X, Y]

If a password has been previously assigned, this

prompt appears.

Enter a 4-digit password (0-9, A-F, N, S, T, X, Y).

The next prompt appears.

Program Device?

Y/N_

  [Y], [N] To begin programming the module, press [Y] and

go to Prompt 9: "Device Mode."

To create a password if none has been assigned,

press [N] and go to Prompt 4: Create Password.

To change an existing password, press [N] and go

to Prompt 5: "Change Password."

Section 3: Programming the 7847i/7847i-E

3-11

PROMPTS

PROMPTSPROMPTS

PROMPTS

ZONE

ZONE ZONE

ZONE

TRIG.

TRIG.TRIG.

TRIG.

4204/

4204/4204/

4204/

-4204

42044204

4204

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

4 Create Password?

Y/N_

  [Y], [N] Passwords can be used to protect account and

programming information.

If no password has been assigned, this prompt

appears after pressing [N] at the "Program

Device?" prompt.

If a password is desired, press [Y] and go to

Prompt 6: "Enter Password."

5 Change

Password?

Y/N_

  [Y], [N] If a password has already been assigned, this

prompt appears after pressing [N] at the

"Program Device?" prompt.

Press [Y] if you want to change the password.

NOTE: To clear an existing password, without

entering a new one, answer [Y] to the "Change

Password?" prompt, then press the [Enter] key

when prompted for the new password and its

confirmation.

6 Enter Password

  [0-9, A-F, N,

S, T, X, Y]

This prompt is displayed if [Y] was pressed in

Prompt 4 or 5.

Enter a 4-digit password (0-9, A-F, N, S, T, X, Y).

7 Verify Password

  [0-9, A-F, N,

S, T, X, Y]

Re-enter the password as confirmation.

If the password doesn't match the first entry, the

following is displayed followed by the "Exit Prog.

Mode?" prompt:

Verify Not OK

PSWD not created

Otherwise, the "Exit Prog. Mode?" prompt is

displayed directly.

8 Exit Prog. Mode?

Y/N_

  [Y], [N]

[ESC]

Exits program mode.

Press [N] to go back to Prompt 3.

Press [ESC] to load factory defaults.

Refer to the Exiting Programming Mode

paragraph in this section.

Device Mode

(ECP)_

  • ECP

• Zone Trig.

• 4204 Emu

• Two 4204s

Press the [space] key to scroll through the modes

of operation.

Press [ENTER] to select mode.

See Table 3 for ECP mode programming.

Important Information Regarding Multi-Mode

In Zone Trigger mode, the options for Multi-Mode are "Enabled" or "Disabled." If enabled, whenever a zone on the

communication device is triggered, a corresponding email message is sent INSTEAD of normal central station reports.

Cover tamper will send email event 8. All communication device system events (such as power loss, etc.) are still sent

to AlarmNet.

Events used to send email messages are defined on the Honeywell Total Connect web site, and must correspond to

events triggering the hardwired zones.

Multi-Mode (email notification) is intended as a convenience for the user, and does not replace Central Station

reporting of critical events (alarms, troubles, etc.).

NOTE: The Multi-Mode option is not available, and will not be displayed, when Private LAN is enabled on the 7847i-E.

10 Multi Mode

(Disabled)_

 • Enabled

• Disabled

Enable if you want system events sent by email to

the user.

Disable for normal alarm processing and go to

Prompt 20: "Primary City ID".

Important Information Regarding Private LAN mode (7847i-E only).

1. Prompts 12-18 apply only if Private LAN was selected in Prompt 11.

2. Prompts 14-16 apply only if Prompt 14: Alarm Delivery is set to “Fail to CS IP2".

7847i/7847i-E Installation and Setup Guide

3-12

PROMPTS

PROMPTSPROMPTS

PROMPTS

ZONE

ZONE ZONE

ZONE

TRIG.

TRIG.TRIG.

TRIG.

4204/

4204/4204/

4204/

-4204

42044204

4204

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

En.Priv.LAN: Y/N

(N)

  [Y], [N]

Applies only to 7847i-E. Press [Y] to enable alarm

delivery via a Private LAN to a 7810PC or

7810iR-ent receiver.

Press [N] to enable alarm delivery through

AlarmNet and go to Prompt 20: Primary City ID.

CS IP:

255.255.255.255

  12 digit:

xxx.xxx.xxx.xxx

Enter the 4-part primary CS IP address of the

7810iR-ent receiver at the reporting center to

which this device will report. The four parts of

the address must be separated by spaces.

NOTE: This entry CANNOT be left as

“255.255.255.255”. It MUST be programmed with

a valid IP address.

CS Port:

(80)

  [80] Enter the Central Station Port Number.

NOTE: The CS Port number must match the

"Listening Port" question of the 7810PC or

7810iR-ent.

Alarm Delivery:

Only One CS IP_

  [Only One CS

IP]

[Fail to CS

IP2]

Select the "Only One CS IP" option, if only one

Central Station IP address is desired and go to

Prompt 18: "Installation Key".

Select the "Fail to CS IP2" option, if a secondary

Central Station IP address is desired.

Secondary CS IP:

255.255.255.255

  12 digit:

xxx.xxx.xxx.xxx

Enter the 4-part secondary CS IP address of the

7810PC or 7810iR-ent receiver at the reporting

center to which this device will report. The 4-

parts of the address must be separated by spaces.

NOTE: This entry CANNOT be left as

“255.255.255.255” if using the Secondary CS IP.

It MUST be programmed with a valid IP address.

Second CS Port:

(80)

  [80] Enter the Central Station Port Number.

NOTE: The CS Port number must match the

"Listening Port" question of the 7810PC or

7810iR-ent.

17 IP2 Supervision

30 Day_

  • 30 Day

• Daily

• Full Rate

• None

If 30 Day or Daily is selected, the 7847i-E will

send a test alarm to the second CS IP within that

interval.

If Full Rate is selected, a status message is sent to

the second CS IP at the same rate as the regular

Supervision Interval (Prompt 27).

NOTE: The second 7810PC or 7810iR-ent must

be programmed to supervise subscribers in order

to generate the communication failure.

Press the [space] key to scroll through the choices.

Installation Key:

**********_

  [0-9] Enter the 10-digit Installation Key necessary for

communication with 7810PC or 7810iR-ent. If

the key entry is invalid, the prompt is repeated.

See the Installation Key paragraph in Section 1

for more information.

Verify Inst. Key:

**********_

 

[0-9] Re-enter the 10-digit Installation Key to verify key.

If verification fails, “Verify NOT OK” will be

displayed for one second and the display will

return to the entry of the installation key.

Important Information Regarding Primary (Questions 20-22)

Account information is provided by the central station administrator.

Section 3: Programming the 7847i/7847i-E

3-13

PROMPTS

PROMPTSPROMPTS

PROMPTS

ZONE

ZONE ZONE

ZONE

TRIG.

TRIG.TRIG.

TRIG.

4204/

4204/4204/

4204/

-4204

42044204

4204

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

20 Primary City ID

(??)_

  [01-99]

Enter the 2-digit primary city ID, 01-99 (decimal).

Primary CS ID

(??)

  [01-FE] Enter the 2-digit primary central station ID

number, 01-FE (HEX).

Primary Sub ID

(????)

  [0001-9999] Enter the 4-digit subscriber account number,

0001-9999 (decimal).

Device Address

(12)_

 [01-15]

The 7847i/7847i-E communicates with the control

panel as a 4204 relay module. Enter the

appropriate address. For VISTA-10P, and

FA130CP series control panels, this must be

address 12. For other controls, see the control

panel’s Installation and Setup Guide.

NOTES:

1. The 4204 protocol limits address range to 01-15.

If using 2-4204 mode, the 7847i/7847i-E assigns

the second 4204 to the next higher device

address (e.g., if entering address 12 for the first

4204, then address 13 is automatically assigned

to the second 4204 module). Program the control

panel accordingly.

2. The device address(es) must be unique from the

"Keypad Address" entered in Prompt 26 and any

other address used on the control panel.

NOTE: The Remote Access option is not available, and will not be displayed, when Private LAN is enabled on the 7847i-E.

Remote Access

Y/N

(N)_

 [Y], [N] Press [Y] to allow the end user to access their

system via a website. Availability of this service

is controlled by the dealer via the web-based

programming tool on the AlarmNet Direct

website.

Direct Wire Y/N

(N)_

 [Y], [N] Applies only to VISTA-128BP/250BP and FBP

series controls, and FA1600C and FA1700C series

controls.

Enables Direct Wire Downloading over IP.

If [N], and if Prompt 24: Remote Access is

disabled, skip to Prompt 27: "Supervision."

Keypad Address

(28)_

 [01-30] Must be programmed if using either the Remote

Access feature or Direct Wire downloading. Enter

the appropriate device address.

NOTES:

1. This address must also be programmed as an

alpha keypad in the control panel. If a full

enhanced graphic interface to the system is

desired, the keypad must also be enabled as an

AUI (Advanced User Interface) device. DO NOT

connect to an actual keypad (or any other

device) assigned to this address.

2. If using a compatible LynxR-I series control

(when available), this address must be set to “1.”

3. This address must be unique from the "Device

Address" entered in Prompt 23, and cannot

equal that device address plus 1 (one) if using 2-

4204 mode.

7847i/7847i-E Installation and Setup Guide

3-14

PROMPTS

PROMPTSPROMPTS

PROMPTS

ZONE

ZONE ZONE

ZONE

TRIG.

TRIG.TRIG.

TRIG.

4204/

4204/4204/

4204/

-4204

42044204

4204

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

Supervision

(24 Hours)_

  • 24 Hours

• 1 Hour

• US UL

Line

6 Min

•

CN UL Line

Lvl 3 (3 Min)

• US UL

Line 90 Sec

• CN UL Line

Lvl 4 (90 Sec)

• CN UL Line

Lvl 5 (75 Sec)

• None

• 30 Day

The AlarmNet network or the 7810PC or 7810iR-

ent if Private LAN is enabled on the 7847i-E, must

hear at least one supervisory message from the

module during this supervision period; otherwise,

AlarmNet or the 7810PC or 7810iR-ent if Private

LAN is enabled on the 7847i-E, notifies the central

station that a communication failure has occurred.

If the supervision period is changed after

registration, you must re-register the module.

Press the [space] key to scroll through choices.

Old Alarm Time

10 Minutes_

  •10 Min.

• 15 Min.

• 30 Min.

• 1 Hr

• 2 Hrs

• 4 Hrs

• 8 Hrs

• 12 Hrs

• 24 Hrs

Sets how long an undeliverable alarm is retried

for delivery to the central station. If the message

is not validated, it is retried until the old alarm

time is reached or the message is validated.

Press the [space] key to scroll through choices.

UL NOTE: Must be 10 minutes.

IP Flt Time

(60 mins)_

  [00-99] Enter the time delay (01-99) in minutes before the

7847i/7847i-E notifies the control panel that there

is loss of contact with the network, or enter 00 if

you do not want the unit to alert the control panel

of loss of contact with the network. The unit will

alert the control panel of the loss of contact via a

dedicated status message.

NOTE: Cannot be less than two (02) minutes if

Private LAN is enabled on the 7847i-E and the

Supervision interval is greater than 90 seconds.

UL NOTE: Must be one (01) minute.

Flt Rel ON Y/N

(N)_

  [Y], [N] If enabled, the fault open collector output is

normally energized to ground, and de-energizes

(open circuit) in the event of a module fault.

Set to [Y] if fail-safe mode is desired.

NOTE: If used, the fault relay will trip when the

following conditions occur: tamper*, loss of

network connectivity*, message communication

failure, the device is not registered and the device

is remotely disabled by AlarmNet.

* Alarm reporting for the noted condition must be

enabled for it to trigger the fault relay.

UL NOTE: Must be set to "Y."

Tamper Rpt Y/N

(Y)_

  [Y], [N] Sends a tamper report on zone 8 when the module

detects a tamper condition. A tamper restore is

automatically sent when the tamper condition

clears.

Section 3: Programming the 7847i/7847i-E

3-15

PROMPTS

PROMPTSPROMPTS

PROMPTS

ZONE

ZONE ZONE

ZONE

TRTR

TR IG.

IG.IG.

IG.

4204/

4204/4204/

4204/

-4204

42044204

4204

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

Lynx Panic Y/N

(N)_

 [Y], [N] Applies only if used with a Lynx, LynxR or

LynxR-EN control LRR trigger connected to the

module's zone terminal.

Reports a Panic alarm on zone 3 when the module

detects a single pulse on zone 1.

No restores are generated for a Panic alarm.

Important Information Regarding Zone Input Options

If desired, 4204 mode supports two optional hardwire zone input triggers by making connections to the module’s zone

6 and/or zone 7 terminals and programming the appropriate zone trigger options below.

NOTE: These triggers are not available when using 2-4204 mode.

Zone Trigger Mode provides six hardwire zone input triggers by making connections to the module’s zone terminals

and programming the appropriate zone trigger options below. Zones are numbered 1-7, with zone 2 serving as a

reporting zone only (see Bell Output Zone below).

Bell Output Zone 1 (and 2): The zone 1 and 2 terminal can detect both pulsed and steady signals. If connecting the

bell output to the 7847i/7847i-E zone causes a bell fault on the control panel, enable the "Trip Inputs 1or2" option. The

7847i/7847i-E reports an alarm on zone 1 (fire) when it detects a pulsed signal and an alarm on zone 2 (burglary) when

it detects a steady signal.

Telco Zone and Open/Close Zone: Dedicated zones can be assigned as the Telco fault zone and/or an open/close

(arm/disarm) reporting zone. When triggered, these zones report a Telco line fault or open/close report respectively, in

ADEMCO High-Speed format. Connect the appropriate trigger from the control to the selected zone input for each of

these options.

Input Trigger Types: Triggering of each zone input can be programmed to cause an alarm under one of the following

conditions:

• (V+), where a positive voltage causes an alarm for normally low connections (voltage trigger, NO, NC)

• (V–), where a ground trigger causes an alarm for normally high connections (open collector, NO, NC)

• (EOLR) End of Line Resistor, where the input is supervised by a 2K EOL resistor. The zone can be triggered by

open collector, voltage trigger, NO, NC.

Inverted Trigger: Zones can be programmed for inverted trigger, where the alarm and normal states of the zones are

inverted; this can serve a fail-safe supervisory purpose for certain installations.

Restore and Delayed Reports: Zone inputs can be programmed for restore reporting, and for delayed reporting

(allowing time for the user to abort false alarms).

UL NOTE: Zone restoral must be enabled.

Report Only if Armed option: To help eliminate redundant reports, zone alarms can be restricted to report only if a

conditional zone is triggered (armed). If this feature is desired, the conditional zone is automatically used as the

“arming” zone. Connect the appropriate control panel trigger to the conditional (arming) zone. The trigger must be

programmed as necessary in the control panel. The conditional (arming) zone on the module is a different dedicated

zone for each programming mode, as follows:

Mode Conditional (Arming) Zone

Zone Trigger 7

4204 4

2-4204 8

IMPORTANT: If any zone (zones 1-6 in zone trigger mode, zones 1-3 in 4204 mode, zones 1-7 in 2-4204 mode) is set for

Report Only if Armed, the conditional (arming) zone becomes unavailable for reporting (as it is reserved for the

“arming” trigger connection).

Trip Inputs 1or2

w/Bell Out (N)_

[Y], [N]

Use if the zone 1 and 2 connection to the control's

bell output causes a bell fault on the control

panel.

NOTES:

1. If used, EOLR trigger type is not available

for zones 1, 2 and 3.

2. Do not use with Lynx controls.

7847i/7847i-E Installation and Setup Guide

3-16

PROMPTS

PROMPTSPROMPTS

PROMPTS

ZONE

ZONE ZONE

ZONE

TRIG.

TRIG.TRIG.

TRIG.

4204/

4204/4204/

4204/

-4204

42044204

4204

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

Telco Zone

(0)_

  Zone Trig:

[3-7]

4204: [1-4]

2-4204: [1-8]

[0] = not used

See Important Information Regarding Zone Input

Options on previous page.

Enter the zone number to be used for Telco line

fault reports. This zone assignment must be

unique from the Open/Close Zone selected in

Prompt 35.

Zone Trigger Mode: If any zone is programmed

for "report only if armed," zone 7 cannot be used.

If Lynx Panic is enabled, zone 3 cannot be used.

4204 Mode: If any zone is programmed for

"report only if armed," zone 4 cannot be used.

2-4204 Mode: If any zone is programmed for

"report only if armed," or if tamper is enabled,

zone 8 cannot be used.

NOTE: Connect the Telco line fault output (or

relay output programmed for "Telco line fault") to

the Telco zone.

Open/Close Zone

(0)_

  Zone Trig:

[3-7]

4204: [1-4]

2-4204: [1-8]

[0] = not used

Enter the zone number to be used for open/close

(arm/disarm) reports.

This zone assignment must be unique from the

Telco Zone selected in Prompt 34.

Zone Trigger Mode: If any zone is programmed

for "report only if armed," zone 7 cannot be used

as an open/close zone. If Lynx Panic is enabled,

zone 3 cannot be used.

4204 Mode: If any zone is programmed for

"report only if armed," zone 4 cannot be used as

an open/close zone.

2-4204 Mode: If any zone is programmed for

"report only if armed," or if tamper is enabled,

zone 8 cannot be used as an open/close zone.

NOTE: Connect an open/close (arm/disarm)

trigger (or relay output) from the control panel to

the open/close zone.

Zn1 Trigger Type

(V+)_

 • (EOLR)

• (V+)

• (V–)

Selects the triggering method for this zone input.

Press the [space] key to scroll through choices.

Invert Zn1 Y/N

(N)_

 [Y], [N] Inverts the alarm and normal states of the zone 1

trigger; otherwise uses normal input signal.

Restore Zn1 Y/N

(Y)_



 [Y], [N] Enables restore reporting for zone 1.

Delay Zn1 (secs)

(00)_

  [01-15]

[00]=no delay

Defines the reporting delay in seconds for zone 1.

Rpt Zn1 ONLY if

Armed (N)_

  [Y], [N]

Report alarms on zone 1 ONLY if the conditional

zone (zone 7 in zone trigger mode; zone 4 in 4204

mode; or zone 8 in 2-4204 mode) is triggered

(armed).

If [N], always reports alarms on zone 1.

Invert Zn2 Y/N

(N)_

[Y], [N] Inverts the alarm and normal states of the zone 2

trigger; otherwise uses normal input signal.

Restore Zn2 Y/N

(Y)_

 [Y], [N] Enables restore reporting for zone 2.

Section 3: Programming the 7847i/7847i-E

3-17

PROMPTS

PROMPTSPROMPTS

PROMPTS

ZONE

ZONE ZONE

ZONE

TRIG.

TRIG.TRIG.

TRIG.

4204/

4204/4204/

4204/

-4204

42044204

4204

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

Delay Zn2 (secs)

(00)_

  [01-15]

[00]=no delay

Defines the reporting delay in seconds for zone 2.

Rpt Zn2 ONLY if

Armed (N)_

  [Y], [N] Reports alarms on zone 2 ONLY if the conditional

zone (zone 7 in zone trigger mode; zone 4 in 4204

mode; zone 8 in 2-4204 mode) is triggered

(armed).

If [N], always reports alarms on zone 2.

If Lynx Panic is enabled, then skip to Prompt 49: "Rpt Zn3 ONLY if Armed."

Zn3 Trigger Type

(V+)_

 • (EOLR)

• (V+)

• (V–)

Selects the triggering method for this zone input.

Press the [space] key to scroll through choices.

Invert Zn3 Y/N

(N)_



[Y], [N] Inverts the alarm and normal states of the zone 3

trigger; otherwise uses normal input signal.

Restore Zn3 Y/N

(Y)_



 [Y], [N] Enables restore reporting for zone 3.

Delay Zn3 (secs)

(00)

  [01-15]

[00] = no delay

Defines the reporting delay in seconds for zone 3.

Rpt Zn3 ONLY if

Armed (N)_

  [Y], [N]

Reports alarms on zone 3 ONLY if the conditional

zone (zone 7 in zone trigger mode; zone 4 in 4204

mode; zone 8 in 2-4204 mode) is triggered

(armed).

If [N], always reports alarms on zone 3.

4204 mode: If any zone is programmed to "Report

Only if Armed," skip to Prompt 60: "Enable Zn6."

Zn4 Trigger Type

(V+)_

 • (EOLR)

• (V+)

• (V–)

Selects the triggering method for this zone input.

Press the [space] key to scroll through choices.

Invert Zn4 Y/N

(N)_



[Y], [N] Inverts the alarm and normal states of the zone 4

trigger; otherwise uses normal input signal.

Restore Zn4 Y/N

(Y)_



 [Y], [N] Enables restore reporting for zone 4.

Delay Zn4 (secs)

(00)

  [01-15]

[00] = no delay

Defines the reporting delay in seconds for zone 4.

Rpt Zn4 ONLY if

Armed (N)_

 2-

4204

only

[Y], [N]

Reports alarms on zone 4 ONLY if the conditional

zone (zone 7 in zone trigger mode; zone 8 in 2-

4204 mode) is triggered (armed).

If [N], always reports alarms on zone 4.

Zn5 Trigger Type

(V+)_

 • (EOLR)

• (V+)

• (V–)

Selects the triggering method for this zone input.

Press the [space] key to scroll through choices.

Invert Zn5 Y/N

(N)_

 [Y], [N] Inverts the alarm and normal states of the zone 5

trigger; otherwise uses normal input signal.

Restore Zn5 Y/N

(Y)_

 2-

4204

only

[Y], [N] Enables restore reporting for zone 5.

Delay Zn5 (secs)

(00)_

 2-

4204

only

[01-15]

[00] = no delay

Defines the reporting delay in seconds for zone 5.

7847i/7847i-E Installation and Setup Guide

3-18

PROMPTS

PROMPTSPROMPTS

PROMPTS

ZONE

ZONE ZONE

ZONE

TRIG.

TRIG.TRIG.

TRIG.

4204/

4204/4204/

4204/

-4204

42044204

4204

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

Rpt Zn5 ONLY if

Armed (N)_

 2-

4204

only

[Y], [N]

Reports alarms on zone 5 ONLY if the conditional

zone (zone 7 in zone trigger mode; zone 8 in 2-

4204 mode) is triggered (armed).

If [N], always reports alarms on zone 5.

Enable Zn6 Y/N

(N)_

4204

only

[Y], [N] Enables alarm reporting for zone 6.

If [N], skip to Prompt 66: "Enable Zn7."

Zn6 Trigger Type

(V+)_

 4204

only

• (EOLR)

• (V+)

• (V–)

Selects the triggering method for this zone input.

Press the [space] key to scroll through choices.

Invert Zn6 Y/N

(N)_



4204

only

[Y], [N] Inverts the alarm and normal states of the zone 6

trigger; otherwise uses normal input signal.

Restore Zn6 Y/N

(Y)_



 [Y], [N] Enables restore reporting for zone 6.

Delay Zn6 (secs)

(00)_

  [01-15]

[00] = no

delay

Defines the reporting delay in seconds for zone 6.

Rpt Zn6 ONLY if

Armed (N)_

  [Y], [N]

Reports alarms on zone 6 ONLY if the conditional

zone (zone 7 in zone trigger mode; zone 4 in 4204

mode; zone 8 in 2-4204 mode) is triggered (armed).

If [N], always reports alarms on zone 6.

Enable Zn7 Y/N

(N)_

4204

only

[Y], [N] Enables alarm reporting for zone 7.

If [N], skip to Prompt 73: "Use DHCP."

Zn7 Trigger Type

(V+)_

 4204

only

• (EOLR)

• (V+)

• (V–)

Selects the triggering method for this zone input.

Press the [space] key to scroll through choices.

Invert Zn7 Y/N

(N)_



4204

only

[Y], [N] Inverts the alarm and normal states of the zone 7

trigger; otherwise uses normal input signal.

Restore Zn7 Y/N

(Y)_

  [Y], [N] Enables restore reporting for zone 7.

Zone Trigger mode: This question will only be

displayed if zone 7 is not used as the conditional

(arming) trigger zone.

Delay Zn7 (secs)

(00)_

  [01-15]

[00] = no

delay

Defines the reporting delay in seconds for zone 7.

Zone Trigger mode: This question will only be

displayed if zone 7 is not used as the conditional

(arming) trigger zone.

Rpt Zn7 ONLY if

Armed (N)_

 [Y], [N]

Reports alarms on zone 7 ONLY if the conditional

zone (zone 4 in 4204 mode; zone 8 in 2-4204 mode)

is triggered (armed).

If [N], always reports alarms on zone 7.

2-4204 mode: If any zone is programmed to

"Report Only if Armed," or if tamper is enabled,

skip to Prompt 73: "Use DHCP."

Delay Zn8 (secs)

(00)_

4204

only

[01-15]

[00] = no

delay

Defines the reporting delay in seconds for zone 8.

Use DHCP Y/N

(Y)_

  [Y], [N] Dynamically allocates the IP addresses

(recommended).

If Private LAN is enabled, skip to Prompt 79:

"Review." Otherwise, skip to Prompt 78: "Enable

Pwr Save."

If [N], uses fixed IP addresses.

Section 3: Programming the 7847i/7847i-E

3-19

PROMPTS

PROMPTSPROMPTS

PROMPTS

ZONE

ZONE ZONE

ZONE

TRIG.

TRIG.TRIG.

TRIG.

4204/

4204/4204/

4204/

-4204

42044204

4204

ENTRY

ENTRYENTRY

ENTRY

OPTIONS

OPTIONSOPTIONS

OPTIONS

DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION

NIC IP Address:

255.255.255.255_

  12 digit:

xxx.xxx.xxx.x

Enter the 4-part address for this device. The four

parts of the address must be separated by spaces

(displayed as periods in Review mode).

Subnet Mask:

255.255.255.255_

  12 digit:

xxx.xxx.xxx.x

Enter the 32-bit address mask used to indicate the

portion (bits) of the IP address that is being used

for the subnet address. The four parts of the

address must be separated by spaces (displayed as

periods in Review mode).

Gateway IP Addr:

255.255.255.255_

  12 digit:

xxx.xxx.xxx.x

Enter the 4-part address assigned to the Gateway.

The four parts of the address must be separated

by spaces (displayed as periods in Review mode).

DNS Serv IP

Addr:

255.255.255.255_

  12 digit:

xxx.xxx.xxx.x

Enter the 4-part IP address assigned to the DNS

(Domain Name System) server. The four parts of

the address must be separated by spaces

(displayed as periods in Review mode).

NOTE: The "Enable Pwr Save" option is not available, and is not displayed, if Private LAN is enabled on the 7847i-E.

78 Enable Pwr Save

(Y)_

  [Y], [N]

For 24 hour UL Battery Backup requirement, this

feature must be enabled, or the unit must be

connectivity problems occur with certain routers

or switches disable this option.

This option is forced to [N] when Private LAN is

enabled.

Review? Y/N

  [Y] = review

[N] = exit

Reviewing Programming Mode Entries

To review the programming options (to ensure

that the correct entries have been made), press

[Y]. The programming questions are displayed

again. Use the up/down arrow keys to scroll

through the program fields without changing any

of the values. If a value requires change, simply

type in the correct value. When the last field is

displayed, the “REVIEW?” question again

appears.

To exit the programming mode, press [N] in

response to the "REVIEW?" question, and refer to

Exiting Programming Mode below.

7847i/7847i-E Installation and Setup Guide

3-20

Exiting Programming Mode

To exit the programming mode, press [N] in response to the "REVIEW?" question. Then

press [Y] to the "Exit Prog Mode?" question. Upon exiting, the root file is updated to log the

changes made. A message is displayed telling the user that this step is being executed.

When complete, the message "DONE" is displayed to indicate the file was successfully

uploaded.

If critical configuration changes were made, such as the mode of operation, the

7847i/7847i-E will reset to ensure that the programmed features are enabled.

Setting Factory Defaults

To reset the programming options to factory-default values, press [ESC] at the "Exit Prog

Mode?" prompt.

Set Default?

Y/N_

Press [Y] to reset factory default values.

Press [N] to cancel this function.

If you press [Y], all programmed values are reset to the original factory settings. PLEASE

NOTE THAT THIS WILL ERASE ANY PASSWORD THAT MAY HAVE BEEN ENTERED.

After pressing [Y], the Create Password prompt appears (see Prompt 4).

4-1

S E C T I O N 4

Registration

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

In This Section

♦

Registering the 7847i/7847i-E

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Registering the 7847i/7847i-E

Once you have initialized and programmed the 7847i/7847i-E, it must be registered to enable

the account. An unregistered unit is indicated on the Status Display LEDs as: Status lit,

Message slow blinking, and Fault not lit. The Internet Link may be lit or blinking. Refer to

Appendix A for a detailed discussion of LED operation.

FAULT, RED

MESSAGE, YELLOW

STATUS, GREEN

Figure 9. Unregistered 7847i/7847i-E Status Display In Normal Operation

Throughout this document, the following key is used to describe LED state:

ON OFF FAST BLINK SLOW BLINK

Figure 10. LED Key

To complete the registration process, a 7847i/7847i-E transmits a registration message and

receives a registration validation indicating that the account is now enabled.

You can register the 7847i/7847i-E by one of the following methods:

• Through the AlarmNet Direct website

• Through use of the Tamper Switch

• Through use of a 7720P Programming Tool

• By phone.

Registering through AlarmNet Direct Website (does not apply if using Private LAN)

If you have programmed the module through AlarmNet Direct, you must then transfer the

data to the module, and register the module.

To do this, please go to: https://services.alarmnet.com/AlarmNetDirect/userlogin.aspx.

Please have the following information available when programming the device:

1. Primary City ID (two-digit number)

2. Primary Central Station ID (two-digit hexadecimal number)

3. Primary Subscriber ID (four-digit number)

4. MAC ID and MAC CRC number (located on outside of box and on label inside

module)

5. Once module is registered, you may log out of the AlarmNet Direct website.

7847i/7847i-E Installation and Setup Guide

4-2

Using the Tamper Switch

Initiate the registration sequence by clicking the Tamper Switch three times.

You can monitor the registration process by viewing the Status Display. The Message

(yellow) LED and the Status (green) LED will blink slowly in unison while the registration is

in progress.

Once the registration has been completed successfully, the 7847i/7847i-E enters normal

operating mode; the Status (green) LED goes out and the Message (yellow) LED is lit to

indicate that the power-on / reset message is waiting to be sent. This message will appear at

the receiving station as “E339 8xx”, where “xx” is the ECP device address. The description

may read “Trouble – Exp. Mod. Reset”. If registration is not validated within 90 seconds, the

unit times out, and the (green) LED will be lit (solid).

If repeated registration attempts time out, check your Internet connection and verify that

7847i/7847i-E account information has been entered correctly.

The power-on/reset message will be sent in ADEMCO High-Speed format if the module is

programmed for zone trigger, 4204 or 2x4204 modes.

Using the Programming Tool

The interactive registration feature allows the installer to register the 7847i/7847i-E through

a series of keyboard commands on the 7720P Programming Tool. This method of registration

lets the installer monitor the registration process.

Registering …

Once the installation is complete, press the [↑] key on the 7720P.

The registration message is sent and the unit waits for the

acknowledgment.

Registration

SUCCESS

If this is a new installation and the city, central station, and

customer numbers have been correctly entered, the 7847i/7847i-E is

registered and this message is displayed. The unit is now in full

service and available for alarm reporting to the central station.

Possible Errors When Configured for Private LAN

Function

Unavailable

The Installation Key MUST be programmed in order to initiate the

Registration process.

This message will be displayed if the key is invalid.

No Registration

Account Disabled

Account was disabled at the 7810iR-ent prior to the registration

attempt or while registration was in progress.

Registration BAD

Timed Out

If the Registration Key entered is invalid, this message is displayed.

Registration BAD

Account Exists!

This prompt is displayed if the account number programmed in the

7847i-E is already being used for a different 7847i-E in the system.

If a replacement is desired, enable Substitution Mode in the 7810PC

or 7810iR-ent.

Registration BAD

CS Database FULL

This prompt is displayed if the 7810PC or 7810iR-ent receiver has

reached its maximum capacity for accounts. Its database is limited

to 300 subscribers.

Registration BAD

This prompt is displayed if a general problem occurred when the

7847i-E tried to register with the 7810PC or 7810iR-ent.

Section 4: Registration

4-3

Possible Errors When Configured for AlarmNet-i

Registration BAD

Timed Out

Displayed if no response to the registration request is received.

Registration BAD

Pri Sub ID BAD

Indicates the city, central station, or customer number for the

Primary account(s) is not accepted. The ID information was either

entered in error, or the central station failed to pre-authorize

programmed ID numbers with AlarmNet customer service.

Registration BAD

2nd Sub ID BAD

Indicates the city, central station, or customer number for the

Secondary account is not accepted. The ID information was either

entered in error, or the central station failed to pre-authorize

programmed ID numbers with AlarmNet customer service.

Registration BAD

Pri&Sec IDs BAD

Displayed when both Primary and Secondary subscriber IDs are

invalid.

Registration BAD

Pri ID – Need PIN

Displayed if this is a repair/replacement, or an error was made in

programming the Primary account information of 7847i/7847i-E for

an existing account. This prompt appears for 2 seconds. See the

Replacing an existing module section below for further displays.

Registration BAD

2nd ID – Need PIN

Displayed if this is a repair/replacement, or an error was made in

programming the Secondary account information of 7847i/7847i-E

for an existing account. This prompt appears for 2 seconds. See the

Replacing an existing module section below for further displays.

Registration BAD

Pri&2nd – Need PIN

Displayed if this is a repair/replacement, or an error was made in

programming BOTH the Primary and Secondary account

information of 7847i/7847i-E for an existing account. This prompt

appears for 2 seconds. See the Replacing an existing module section

below for further displays.

Replacing an existing module using the programming tool

Enter PIN#

This prompt appears after pressing the down arrow [↓

↓↓

↓] on the

7720P.

NOTE: If it is necessary to exit registration mode, press ESC from

the 7720P programming tool.

Enter a 4-digit alphanumeric PIN number provided by an

authorized AlarmNet representative.

Press the [ENTER] key.

Registering …

The registration message is sent and the unit waits for

acknowledgement.

Registration

SUCCESS

If the PIN is valid, the new 7847i/7847i-E is registered and the old

unit unregistered. Additionally, AlarmNet sends a substitution

alarm to the central station.

Registration BAD

If you entered an invalid PIN, the appropriate message is displayed

depending on which account number is being replaced (see above for

exact wording). The registration process is repeated.

NOTE: Each attempt causes a substitution alarm to be sent to the

central station.

7847i/7847i-E Installation and Setup Guide

4-4

You can register the module by calling the AlarmNet Technical Assistance Center (TAC) at

1-800-222-6525.

You will need the following information:

• MAC number (found on the label).

• Subscriber information (provided by the central station), including a city code, CSID,

and a subscriber ID.

• When instructed to do so, triple-click the tamper switch to complete the registration.

5-1

S E C T I O N 5

Programmer Keyboard Commands

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Programmer Keyboard Commands

Programmer keyboard commands can be used to quickly view your Internet connectivity

settings and options. Most commands require you to press the [shift] key and then the

designated command key. (See the keys designated in red on the 7720P Programming Tool.)

[A]

7847i-e

x.x.xx mm/dd/yy

Software Revision

Depending on unit being programmed, either "7847i" or

"7847i-e" will be displayed.

"x.x.xx" indicates the installed software Revision.

Mm/dd/yy indicates month, day and year of the

revision.

[B]

MAC xxxxxxxxxxxx

MAC CRC xxxx

MAC Address

“xxxxxxxxxxxx” indicates the 7847i/7847i-E's unique

identification number.

"xxxx" indicates the MAC CRC number. This number is

also found on the label on the module, as well as the

label on the box.

[C]

Mon 23 Jul 2007

03:45:23 am

Time

Retrieves the current date and time from the AlarmNet

network in Greenwich Mean Time (GMT). This display

confirms that the module is in sync with network.

[D]

Physical Link:

GOOD

Network Diagnostics Display

Indicates whether device has detected a physical

connection to the internet.

Press the [space] key to go to the next field.

NIC IP Address:

xxx.xxx.xxx.xxx

IP Information Display

Displays the IP address assigned to this device.

Press the [space] key to go to the next field.

Subnet Mask:

xxx.xxx.xxx.xxx

Displays the 32-bit address mask used to indicate the

portion (bits) of the IP address that is being used for

the subnet address.

Press the [space] key to go to the next field.

Press the [backspace] key to go to the previous field.

Gateway IP Address:

xxx.xxx.xxx.xxx

Displays the IP address assigned to the Gateway.

Press the [space] key to go to the next field.

Press the [backspace] key to go to the previous field.

DNS Server IP:

xxx.xxx.xxx.xxx

Displays the IP address assigned to the DNS (Domain

Name System) server.

Press the [space] key to go to the next field.

Press the [backspace] key to go to the previous field.

Encryption Test:

AES Passed!

Performs a self-test of the chosen encryption algorithm.

Press the [space] key to go to the next field.

Press the [backspace] key to go to the previous field.

7847i/7847i-E Installation and Setup Guide

5-2

DHCP

OK/BAD

DHCP (Dynamic Host Configuration Protocol) indicates

server is performing satisfactorily.

Press the [space] key to go to the Physical Link display.

[F]

Testing Gateway

Run Network Diagnostic Test

Performs a set of network diagnostics that tests the

integrity of the links between the unit and the various

connection points (Redirs) to AlarmNet. Refer to

Section 6: Network Diagnostics.

System Status Displays

[S]

ECP 67 Tm Flt

xx 5 OK

ECP Mode

Displays the zone and system fault status.

Press the [space] key to go to the next field.

Press the [backspace] key to go to the previous field.

1234 67 Tm Flt

5555 xx 5 OK

4204 Emulation Mode

Displays the zone and system fault status.

Press the [space] key to go to the next field.

Press the [backspace] key to go to the previous field.

12345678 Tm Flt

5555555x 5 OK

Two-4204 Emulation Mode

Displays the zone and system fault status.

Press the [space] key to go to the next field.

Press the [backspace] key to go to the previous field.

1234567 Tm Flt

5555555 5 OK

Zone Trigger Mode

The status of the unit can be viewed on the 7720P. The

status display includes:

• Zone input status (1234567) - the numbers 1-

7 represent the 7 mappings of the zone

input, and follow Honeywell's ADEMCO

high-speed format codes:

1 = New Event

5 = Normal

X = Not Enabled

• Tm – Tamper status follows high-speed format

codes above.

• Flt – Represents radio faults:

OK = Normal ; No fault

I – No network connectivity over IP and

fault time has expired

i – No network connectivity over IP and

fault time has NOT yet expired.

NOTE: The 7720P will not operate if the power line

voltage is removed.

[T]

Test Msg Sent

Test Alarm

Sends a test alarm to AlarmNet only if Private LAN is

not enabled; otherwise, it is sent the Primary CS IP and

the Secondary if it is enabled.

Section 5: Programmer Keyboard Commands

5-3

[X]

Reset CPU Y/N

Reset the 7847i/7847i-E

Pressing [N] returns to diagnostic mode (blank screen =

enter next command or escape).

Pressing [Y] resets the module (blank screen = reset

complete).

[↑

↑↑

↑]

(UP arrow)

Registering …

Registration

Registers a programmed 7847i-E with the 7810PC or

7810iR-ent if it is configured to report on the Private

LAN. If it is configured to report to AlarmNet, the

7847i/7847i-E will register with AlarmNet. Refer to

Section 4: Registration.

[↓

↓↓

↓]

(DN arrow)

Enter PIN#

Registration with PIN for Replacement Module

Registers a replacement unit with AlarmNet, once

programmed, using the existing PIN #.

If Private LAN is enabled, down arrow is not applicable.

[0]

Force Server Update?

Y/N_

Force Upload of Configuration File to Server

Pressing [Y] will force the device to upload its entire

configuration file to the server.

Pressing [N] cancels the operation.

NOTE: If Private LAN is enabled, "Function

Unavailable" is displayed.

[ENTER]

Strt Prog Mode?

Y/N_

Enter Program Mode

Press [Y] to enter program mode; otherwise, press [N].

7847i/7847i-E Installation and Setup Guide

5-4

6-1

S E C T I O N 6

Network Diagnostics

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

In This Section

♦

Running Network Diagnostics on the

7847i/7847i-E using AlarmNet

♦

Running Network Diagnostics on the 7847i-E

using a Private LAN

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Running Network Diagnostics on the 7847i/7847i-E using AlarmNet

The network diagnostic process tests the integrity of the links between the unit and the

various connection points of AlarmNet Control that are known as "Redirects" (Redirs or

RDR).

To initiate the network diagnostics, press the [F] key on the 7720P.

NOTE: The test is performed ONLY if a physical link is detected. If no physical link is

detected, the test is aborted and the following is displayed:

No Physical Link

If a physical link is detected, the diagnostics are performed. The following shows the

progression of the test:

Testing Redir 1

The first step of the test traces the connection to Redir 1 at

AlarmNet Control.

Testing Redir 1

Reached Redir 1

A successful trace to Redir 1 is indicated here. See below for

possible errors that may occur at this stage of testing.

Reached Redir 1

Testing Service

After a successful trace to Redir 1, a test of the service at Redir 1 is

performed. That is, the first test determines if a message can reach

AlarmNet Control; this test determines if the connection point

(Redir) at AlarmNet Control knows what to do with the message

once it receives it.

Redir 1

Service OK

The service at AlarmNet Control on Redir 1 is functioning. See

below for possible errors that may occur at this stage of testing.

Testing Redir 2

The first step of the test traces the connection to Redir 2 at

AlarmNet Control.

Testing Redir 2

Reached Redir 2

A successful trace to Redir 2 is indicated here. See below for

possible errors that may occur at this stage of testing.

Reached Redir 2

Testing Service

After a successful trace to Redir 2, a test of the service at Redir 2 is

performed. That is, the first test determines if a message can reach

AlarmNet Control; this test determines if the connection point

(Redir) at AlarmNet Control knows what to do with the message

once it receives it.

Redir 2

Service OK

The service at AlarmNet Control on Redir 2 is functioning. See

below for possible errors that may occur at this stage of testing.

7847i/7847i-E Installation and Setup Guide

6-2

Testing Redir 3

The first step of the test traces the connection to Redir 3 at

AlarmNet Control.

Testing Redir 3

Reached Redir 3

A successful trace to Redir 3 is indicated here. See below for

possible errors that may occur at this stage of testing.

Reached Redir 3

Testing Service

After a successful trace to Redir 3, a test of the service at Redir 1 is

performed. That is, the first test determines if a message can reach

AlarmNet Control; this test determines if the connection point

(Redir) at AlarmNet Control knows what to do with the message

once it receives it.

Redir 3

Service OK

The service at AlarmNet Control on Redir 3 is functioning. See

below for possible errors that may occur at this stage of testing.

RDR1 RDR2 RDR3

OK OK OK

A summary of the tests is displayed after Redir 3 is tested. The

example shows that the tests of all three connection points, or

Redirs, were successful. If an error occurred at any point, the

summary will display “FAIL” under the faulty Redir.

Possible Errors Running Network Diagnostics

Errors may occur at either while tracing the connection to a given Redir or while testing the

service at a given Redir. The following list highlights the most common errors. Please

contact the AlarmNet Technical Assistance Center (TAC) for help regarding any errors NOT

listed below:

Possible Errors

Testing Redir x

FAIL before Gtwy

While tracing the connection to Redir x, the trace fails before ever

reaching the local gateway (router).

Testing Redir x

FAIL at Gtwy

While tracing the connection to Redir x, the trace fails after

reaching the local gateway (router).

Testing Redir x

FAIL at Pvt IP

While tracing the connection to Redir x, the trace fails after

reaching the private IP.

Testing Redir x

FAIL on IP Addr

While tracing the connection to Redir x, the trace fails after

reaching the public IP.

Redir x

ERR:Proxy 18

After a successful trace to Redir x, the test of the service timed out

without a response.

Section 6: Network Diagnostics

6-3

Running Network Diagnostics on the 7847i-E using a Private LAN

The network diagnostic process tests the integrity of the links between the 7847i-E and the

7810PC or 7810iR-ent to which it should report.

To initiate the network diagnostics, press the [F] key on the 7720P.

NOTE: The test is performed ONLY if a physical link is detected. If no physical link is

detected, the test is aborted and the following is displayed:

No Physical Link

If a physical link is detected, the diagnostics are performed. The following shows the

progression of the test:

Testing CSIP 1

The first step of the test traces the connection to CS IP 1.

Testing CSIP 1

Reached CSIP 1

A successful trace to CS IP 1 is indicated here. See below for

possible errors that may occur at this stage of testing.

Reached CSIP 1

Testing Service

After a successful trace to CS IP 1, a test of the service at CS IP 1 is

performed. That is, the first test determines if a message can reach

7810PC or 7810iR-ent; this test determines if the connection point

(CSIP) at the 7810PC or 7810iR-ent knows what to do with the

message once it receives it.

CSIP 1

Service OK

The service at the 7810PC or 7810iR-ent on CS IP 1 is functioning.

See below for possible errors that may occur at this stage of testing.

Testing CSIP 2

The first step of the test traces the connection to CS IP 2 at the

7810PC or 7810iR-ent.

Testing CSIP 2

Reached CSIP 2

A successful trace to CS IP 2 is indicated here. See below for

possible errors that may occur at this stage of testing.

Reached CSIP 2

Testing Service

After a successful trace to CS IP 2, a test of the service at CS IP 2 is

performed. That is, the first test determines if a message can reach

the 7810PC or 7810iR-ent; this test determines if the connection

point (CSIP) at the 7810PC or 7810iR-ent knows what to do with the

message once it receives it.

CSIP 2

Service OK

The service at the 7810PC or 7810iR-ent on CS IP 2 is functioning.

See below for possible errors that may occur at this stage of testing.

Testing CSIP 3

The first step of the test traces the connection to CS IP 3 at the

7810PC or 7810iR-ent.

Testing CSIP 3

Reached CSIP 3

A successful trace to CS IP 3 is indicated here. See below for

possible errors that may occur at this stage of testing.

Reached CSIP 3

Testing Service

After a successful trace to CS IP 3, a test of the service at CS IP 1 is

performed. That is, the first test determines if a message can reach

the 7810PC or 7810iR-ent; this test determines if the connection

point (CSIP) at the 7810PC or 7810iR-ent knows what to do with the

message once it receives it.

CSIP 3

Service OK

The service at the 7810PC or 7810iR-ent on CS IP 3 is functioning.

See below for possible errors that may occur at this stage of testing.

7847i/7847i-E Installation and Setup Guide

6-4

Testing CSIP 2

Does Not Exist

If CS IP 2 and/or CS IP 3 are not programmed, display will read.

CIP1 CIP2 CIP3

OK/Fail N/A N/A

A summary of the tests is displayed after CS IP 3 is tested. The

example shows that CS IP 2 and/or CS IP 3 are not programmed.

Possible Errors Running Network Diagnostics using a Private LAN

Errors may occur at either while tracing the connection to a given 7810PC or 7810iR-ent or

while testing the service at a given 7810PC or 7810iR-ent. The following list highlights the

most common errors. Please contact the AlarmNet Technical Assistance Center (TAC) for

help regarding any errors NOT listed below:

Possible Errors

Testing CSIP x

FAIL before Gtwy

While tracing the connection to CS IP x, the trace fails before ever

reaching the local gateway (router).

Testing CSIP x

FAIL at Gtwy

While tracing the connection to CS IP x, the trace fails after

reaching the local gateway (router).

Testing CSIP x

FAIL on IP Addr

While tracing the connection to CS IP x, the trace fails after

reaching the CS IP.

A-1

Appendices

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Appendix A: Summary of LED Operation

Status Display Operation

The 7847i/7847i-E Status Display has three LEDs used to indicate message and device

status:

• STATUS, green

• MESSAGE, yellow

• FAULT, red

7847i-E-025-V0

YELLOW

(MESSAGE)

RED

(FAULT)

GREEN

(STATUS)

Figure 11. 7847i/7847i-E Status Display LEDs with Front Cover Installed

Each LED can have four different states - ON, OFF, FAST BLINK and SLOW BLINK.

Throughout this document, the following key is used to describe LED state:

7847i-E-033-V0

OFF FAST BLINK SLOW BLINK

Figure 12. LED Key

7847i/7847i-E Installation and Setup Guide

A-2

Table 6. Status Display Operation

LED COLOR LED LABEL DESCRIPTION

GREEN STATUS ON – 7847i/7847i-E is NOT registered with AlarmNet or

7810PC or 7810iR-ent if Private LAN is enabled.

OFF – 7847i/7847i-E is registered with AlarmNet or 7810PC or

7810iR-ent if Private LAN is enabled.

FAST BLINK – Download session with Compass in progress.

SLOW BLINK – In unison with yellow LED – registration in

progress.

YELLOW MESSAGE ON – Message transmission pending.

QUICK PERIODIC BLINK – Normal.

FAST BLINK – Message waiting for network ACK.

SLOW BLINK – Idle, power abnormal.

– In unison with green LED , registration in

progress.

RED FAULT ON – No contact with the network.

OFF– Normal.

SLOW BLINK – Loss of communication with the panel (ECP fault).

FAST BLINK – No network contact AND loss of communication

with the panel.

FAULT, RED

MESSAGE, YELLOW

STATUS, GREEN

FAULT, RED

MESSAGE, YELLOW

STATUS, GREEN

Figure 13. A Registered 7847i/7847i-E Status Display (A) and

an Unregistered 7847i/7847i-E Status Display in Normal Operating State(B)

The sequence below illustrates LED operation when 7847i/7847i-E transmits a message.

FAULT, RED

MESSAGE, YELLOW

STATUS, GREEN

4321

Figure 14. LED Sequence for a Registered 7847i/7847i-E Message Transmission

Appendices

A-3

Network Connectivity Display

The Network Connectivity display can only be viewed with the cover removed. It is used as a

visual indication of 7847i/7847i-E network activity.

7847i-E-032-V0

NETWORK CONNECTIVITY

LED DISPLAY

NETWORK COLLISION (YEL)

LINK SPEED (GRN)

ETHERNET LINK/ACTIVITY (GRN)

Figure 15. 7847i/7847i-E Network Connectivity Display

The Network Connectivity Display consists of three LEDs. They function as follows:

LED COLOR LED LABEL DESCRIPTION

YELLOW NETWORK

COLLISION

BLINKING – Network collision detected.

OFF – Normal.

GREEN LINK SPEED ON – 100 MB/S link to Internet.

OFF – 10 MB/S link to Internet.

GREEN ETHERNET

LINK /

ACTIVITY

ON – Ethernet link detected.

OFF – No Ethernet link detected.

FAST BLINK – Transmitting/Receiving data.

NOTE: When "Enable Pwr Save" is enabled, LED status is displayed once every 15 seconds.

7847i/7847i-E Installation and Setup Guide

A-4

Mode and Status LED Display

The Mode and Status LED Display consists of 4 LEDs. LED 1 (red LED on the left) will be

off, LED 2 and 3 (yellow LEDs) indicate operation mode. LED 4 (1st green LED) displays Web

connection status; LEDs 5 and 6 are not used.

Mode and Status Indicator Switch

Press and hold the Mode and Status Indicator Switch to change the LED functions in order

to view the mode of operation and network carrier status. When the switch is held down,

LED 1 (red LED on the left) will be off, and the LEDs from left to right have the following

meanings:

Table 7. LED Functions with Mode and Status Indicator Switch Depressed

LED 1

(red)

LED 2

yellow)

LED 3

yellow)

LED 4

green)

OFF in combination

with LED 3

in combination

with LED 2

Web

Connection

Table 7a. Operation Modes

OPERATION

MODE

LED 2

yellow)

LED 3

yellow)

ECP OFF OFF

Zone ON OFF

4204 OFF ON

2 – 4204 ON ON

Table 7b. Status Indications

STATUS LED 4

green)

OFF No Web connection

SLOW BLINK Trying to connect

NORMAL BLINK –

FAST BLINK Web communication

ON Connected to Web

B-1

Appendix B: Central Station Messages

The following messages are sent by the 7847i/7847i-E module for the conditions listed below.

Table 8. Central Station Messages

Alarm Condition

ECP Mode

Alarm Code

ECP Mode

Restore Code

Zone and 4204

Modes

Alarm Code

Zone and 4204

Modes

Restore Code

Power On Reset E339 C08xx* 5551 5555 6

Tamper E341 C08xx* R341 C08xx* 5555 5551 7 5555 5553 7

ECP Supervision E355 C0000 R355 C0000 5555 5515 5 5555 5535 5

Communication Path

Supervision

(7847i and 7847i-e in

AlarmNet Mode) R350** C0951 5555 5553 6

Primary CS IP

Supervision

(7847i-E, Private LAN ONLY)

E954 C0951

R954 C0951 5555 5551 5 5555 5553 5

Secondary CS IP

Supervision

(7847i-E, Private LAN ONLY)

E954 C0952 R954 C0952 5555 5551 1 5555 5553 1

Swinger Suppression 0D00 0005 0

Telco 5555 5155 6 5555 5355 6

Open/Close

2 sent in

selected zone

4 sent in

selected zone

Test 5555 5555 9 5555 5555 9

* xx = 7847i/7847i-E Device Address

** R350 is generated ONLY if Ethernet was not available for at least a duration of the Fault Time period.

The control panel sends its own general code (E353) for a trouble condition.

7847i/7847i-E Installation and Setup Guide

B-2

C-1

Appendix C: IP Downloading

General Information

The 7847i/7847i-E can be used to provide high-speed up/downloading to Honeywell VISTA

and LynxR-I control panels. This allows site maintenance independent of central station

monitoring, and modification to sites through an Intranet or globally via the Internet.

Residential panels that support IP downloading (e.g., Vista-20P and LynxR-I) are connected

to the unit through the ECP bus. Currently, commercial controls such as VISTA-128BP and

FBP support IP downloading through use of a Direct Wire connection (using the trigger

cable).

Downloading may only be performed if a technician is at the site.

Direct Wire Setup

To perform IP up/downloading using Direct Wire, the unit requires that Direct Wire

downloading over IP programming is enabled (Direct Wire Y/N), and that the ECP Device

Address on which the unit communicates with the control panel as a keypad is entered

(Keypad Address). Additionally, the 7847i/7847i-E must be connected by cable as shown

below to the panels listed.

NOTES:

1. For Direct Wire IP downloading on Commercial Fire panels (e.g. VISTA-128FBP,

FA1700C), Program Field 3*19 Enable J2 Header Printer Port must be set to "1".

2. This feature is not available if device is set for zone trigger mode.

3. If using the RS232 Home Automation features, you cannot use Direct Wire Downloading.

This includes customers using WinpakSE and ProWatch.

1 2 3 4 5 6 7 8 9

VISTA-128BP/250BP

FA1660C

J8 CONNECTOR

VIOLET

GREY

YELLOW

RED

GREEN

BROWN

BLUE

WHITE

BLACK

IN 2

IN 3

GROUND

OUT 5

OUT 6

GROUND

PRINTER DTR

K4668WH

RJ 11 CABLE

7847i-E-026-V0

TB 1

PROGRAMMER

PORT

4142 TR CABLE

PARTS SUPPLIED WITH DOWNLOADER KIT P/N VBPCOMKIT

7847i / 7847i-E

1 2 3 4 5 6 7 8 9

7847i-E-027-V0

INPUT 1

GROUND

OUT 1

OUT 4

OUT 7

OUT 3

OUT 6

OUT 2

OUT 5

VISTA-128FBP/250FBP

FA1670C /FA1700C

J2 CONNECTOR

VIOLET

GRAY

YELLOW

WHITE

RED

GREEN

BROWN

BLUE

BLACK

+ PWR

- (GND)

RXD

not used

TXD

not used

BLUE WHITE

+ (TO TERM 11)

- (TO TERM 12)

RED

TO

AUX PWR 1

OUTPUT

TB 1

PROGRAMMER

PORT

4142 TR CABLE

4100SM

K14394LF 25-PIN TO RJ11 CABLE

PARTS SUPPLIED WITH DOWNLOADER KIT P/N VFBPCOMKIT

7847i / 7847i-E

Figure 16. Cable Connections for IP Downloading

7847i/7847i-E Installation and Setup Guide

C-2

Prior to IP up/downloading over an Intranet (Private LAN), setup of the Honeywell Compass

Connect Server and Honeywell Compass downloader is required. Refer to the Compass

Connect Server Installation and Setup Guide (K10178V1) and the Compass IP Downloading

Supplement (K10441V1) for setup instructions.

The figures below show data flow depending on whether the system is set up for use with the

Internet or Intranet.

INTERNET

ALARMNET

ROUTING CENTER

COMPASS

VISTA PANEL

7847i / 7847i-E

Figure 17. Internet Flow Diagram

VISTA

PANELS

CONTROL

SERVER

COMPASS

7847i-E

DATA

SERVER

7810iR-ent

Figure 18. Private LAN (Intranet) Flow Diagram

D-1

Appendix D: Glossary

AES – Advanced Encryption Standard

DHCP – Dynamic Host Configuration Protocol. Provides a mechanism for allocating IP

addresses dynamically so that addresses can be reused when hosts no longer need them.

DNS – Domain Name System. A distributed hierarchical naming system used to resolve

domain names (e.g., www.yahoo.com) into numerical IP addresses (e.g., 204.17.25.1.).

DSL – Digital Subscriber Line

Gateway IP Address – A gateway (sometimes called a router) is a computer and/or software

used to connect two or more networks (including incompatible networks) and translates

information from one network to the other. The Gateway IP address is the IP address for the

gateway.

IP – Internet Protocol

IP Address – A unique number consisting of four parts separated by periods, sometimes

called a "dotted quad.," for example: 204.17.29.11, assigned to every computer/workstation

connected to the Internet. IP numbers can be "static" (assigned and unchanging) or

"dynamic," assigned via DHCP at each and every startup.

ISP – Internet Service Provider

LAN – Local Area Network

MAC Address – The hardware address of a device connected to a network.

NAT – Network Address Translation

PPP – Point-to-Point Protocol

PPPoE – Point-to-Point Protocol over Ethernet

Subnet Mask – A Subnet is a portion of a network that shares a network address with other

portions of the network, and is distinguished by a subnet number. The Subnet Mask is a 32-

bit address mask used in IP to indicate the bits of an IP address that are being used for the

subnet address.

TCP/IP – Transmission Control Protocol / Internet protocol

7847i/7847i-E Installation and Setup Guide

D-2

NOTES:

7847i/ 7847i-E Summary of Connections

7847i-E-015-V0

NETWORK

CONNECTIVITY

LED DISPLAY

RJ45

ETHERNET

PORT

MESSAGE LED

FAULT LED

STATUS LED

MOUNTING HOLE

7720P PROGRAMMER PORT/

PANEL DOWNLOAD PORT

ZONE INPUT Z5 or NOT USED

ZONE INPUT Z4 or NOT USED

ZONE INPUT Z3 or ECP OUTPUT

ZONE INPUT Z1/Z2 or ECP INPUT

OPEN COLLECTOR FAULT OUTPUT

ZONE INPUT Z7 or NOT USED

ZONE INPUT Z6 or NOT USED

GND

12V DC IN

NOT USED

NOT USED MODE AND

STATUS

LED DISPLAY

MODE AND

STATUS

INDICATOR

SWITCH

TB 1

TAMPER

SWITCH

(FUTURE USE)

TB1 Wiring for 7847i/7847i-E Internet/Intranet Communication Module

TB1 2 x 4204 Mode 4204 Mode Zone Mode ECP Mode Wire Color

1 --- --- --- ---

2 --- --- --- ---

3 12VDC 12VDC 12VDC 12VDC RED

4 GND GND GND GND BLK

5 ECP IN ECP IN Z1/Z2 ECP IN YEL

6 ECP OUT ECP OUT Z3 ECP OUT GRN

7 NOT USED NOT USED Z4 NOT USED

8 NOT USED NOT USED Z5 NOT USED

9 NOT USED Z6 Z6 Z6

10 NOT USED Z7 Z7 Z7

11 FLT OUT FLT OUT FLT OUT FLT OUT

WARRANTY INFORMATION

For the latest warranty information, please go to:

www.honeywell.com/security/hsc/resources/wa

2 Corporate Center Drive, Suite 100

P.O. Box 9040, Melville, NY 11747

www.honeywell.com/security.com

ÊK14175V1BŠ

K14175V1 9/10 Rev C

K14175V1 C_7847i Ii 7847i Honeywell Internet Alarm Communicator Installation And Setup Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
