RM6 7897073uk

instructions for

use

MV distribution

factory built assemblies

at your service

RM6

ENGLISH

07897073EN01 revision : 11 1

foreword 3.......................................................................

symbols and conventions 3....................................

distribution rules 4............................................

safety rules 4................................................

maintenance rules 4..........................................

general description 5............................................................

circuit breaker and switch function 5............................

fuse- switch and switch function 5..............................

”switchboard coupling” switch and circuit breakers 6.............

cable connection function 6....................................

metering cubicle 6............................................

single- line diagramms 7......................................

instructions for putting the RM6 into operation 9...................................

prior to energising 9..........................................

pressure check of unit in operation 9...........................

unit with pressure switch 10....................................

position of the VPIS or VDS voltage indicator units (optional) 12.....

phase concordance unit 13.....................................

rules for the use of phase concordance unit 13....................

RM6 equipped with VDS voltage detection units 16................

choosing the HV fuses 17......................................

sealing of DE- Mt cubicle 20....................................

instructions for putting into operation the protection relay for circuit- breaker 23......

VIP400 / VIP410 presentation 23.................................

presentation of VIP40/45 27....................................

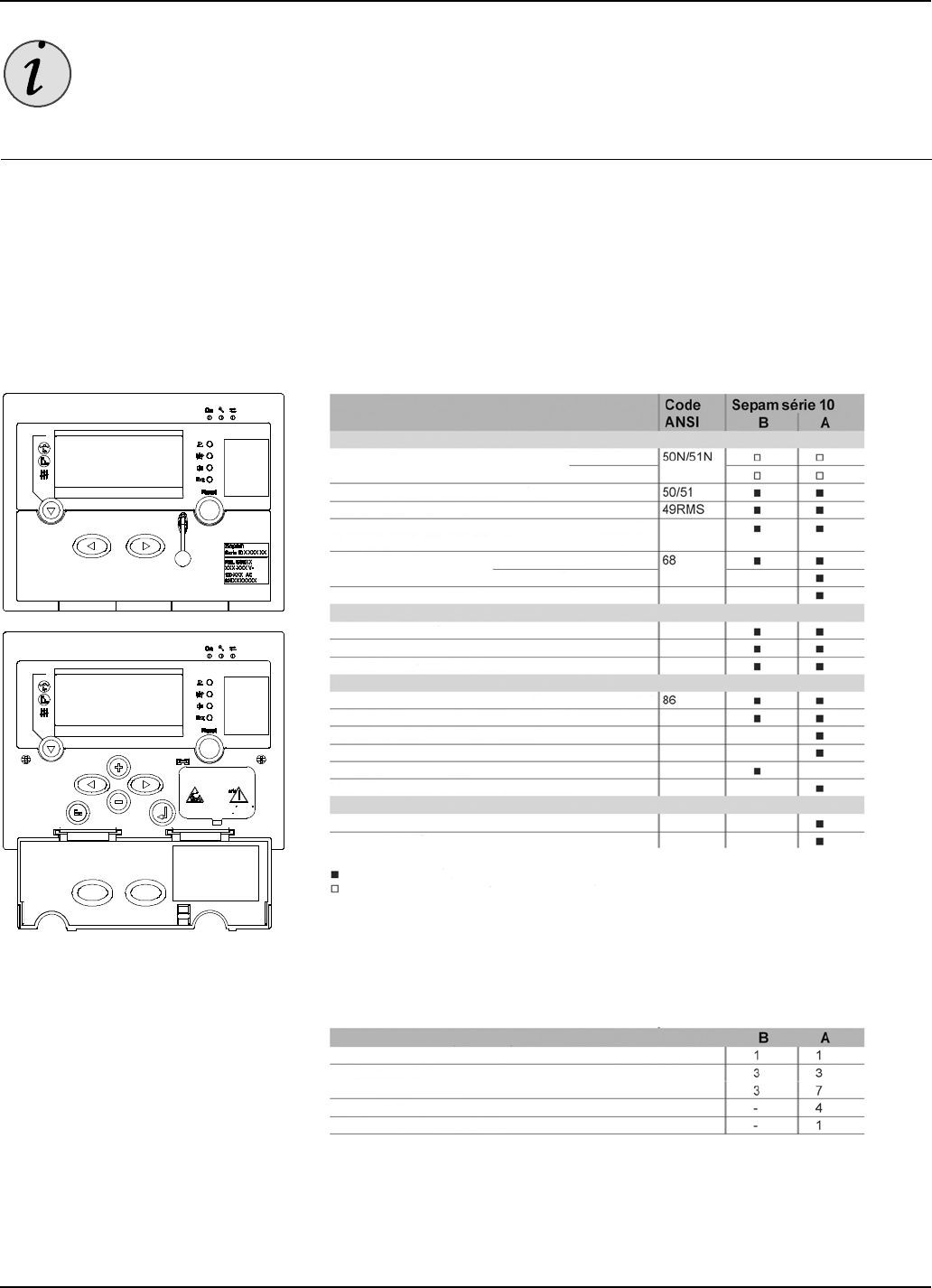

Sepam series 10 31............................................

standard assignment of inputs/outputs and customised configuration 35

human- machine interface 36...................................

identification 38...............................................

operating instructions 38.......................................

operating instructions 43..........................................................

operating and viewing substation condition 43....................

operating safety 45............................................

key- locking (optional) 45......................................

padlocking 45.................................................

overcurrent indicator 47........................................

LV connection indicator Flair 2xD 48.............................

detector pending fault 48.......................................

ammeter 53...................................................

standard operating 53..........................................

connection of Cts to the 3 MV cables 54..........................

voltage detection relay 55......................................

detection sequence 55.........................................

configuration of thresholds and time delays 56....................

suggested choice for VD23 settings 56...........................

access to the cable compartments 57............................

access to the MV compartment of the DE- Mt cubicle 58...........

preventive maintenance 59........................................................

standard operating conditions 59................................

harsh operating conditions 60...................................

corrective maintenance 61.........................................................

foreword 61...................................................

maintenance summarising table 61..............................

replacing a fuse 65............................................

access to the LV compartment 68...............................

replacing a motor 68...........................................

replacing the LV contacts 69....................................

207897073EN01 revision : 11

processing when dismantling the equipment 70.....................................

processing of SF6 gas when dismantling the equipment 70.........

INFORMATION- ADVICE

We draw your attention to this specific point.

as per iso 3864- 2

DANGER: failure to follow this

instruction will result in death or serious injury.

WARNING: failure to follow this instruction may

result in death or serious injury.

CAUTION: failure to follow this instruction may

result in injuries.

This alert signal can also be used to indicate

practices that could damage the SM6 unit.

DANGER

AVERTISSEMENT

ATTENTION

Call your sales representative who will put you in contact

with the closest SCHNEIDER- ELECTRIC service centre.

You can log on to:

WWW.SCHNEIDER- ELECTRIC.COM

07897073EN01 revision : 11 3

symbols and

conventions Caution:

you will find all the symbols

below throughout the document,

indicating the hazard levels

depending on the different types

of situation.

contact the Schneider

Electric service unit for

diagnosis and advice

foreword

Eyeprotectionmust

be worn Safety overalls must be

worn Safety boots must be worn

Safety gloves mustbe

worn Safetyhelmetmustbe

worn Ear protection must

be worn

NEVER USE SOLVENTS AND ALCOHOL

WE DRAW YOUR ATTENTION TO THE RISK

OF USING HIGH PRESSURE CLEANING

PROCESSES

407897073EN01 revision : 11

distribution rules CAUTION

The aim of this publication

is to enable the RM6 unit

to be installed correctly.

CAUTION

This document is not a commercial

document.It is a strictly technical

document drawn up by

Schneider Electric.

safety rules CAUTION

All the operations described below

must be performed in compliance

with applicable safety standards,

under the responsibility

of a competent authority.

WARNING

The contractor must be certified

and authorised to manipulate and

perform work on the RM6 unit.

WARNING

Only undertake the work after

having read and understood

all the explanations given in this

document.

If you have any difficulty complying

with these rules, please contact

Schneider Electric.

protective equipment

For each operation, it is mandatory

to use safety equipment

appropriate:

-Personal Protective Equipment

(PPE)

-Collective Protection Equipment

(CPE)

maintenance rules

C DK EFG

B

A

M

H

L

P

N

IDI

G

H

EF

D

C

B

J

A

P

N

IQI

07897073EN01 revision : 11 5

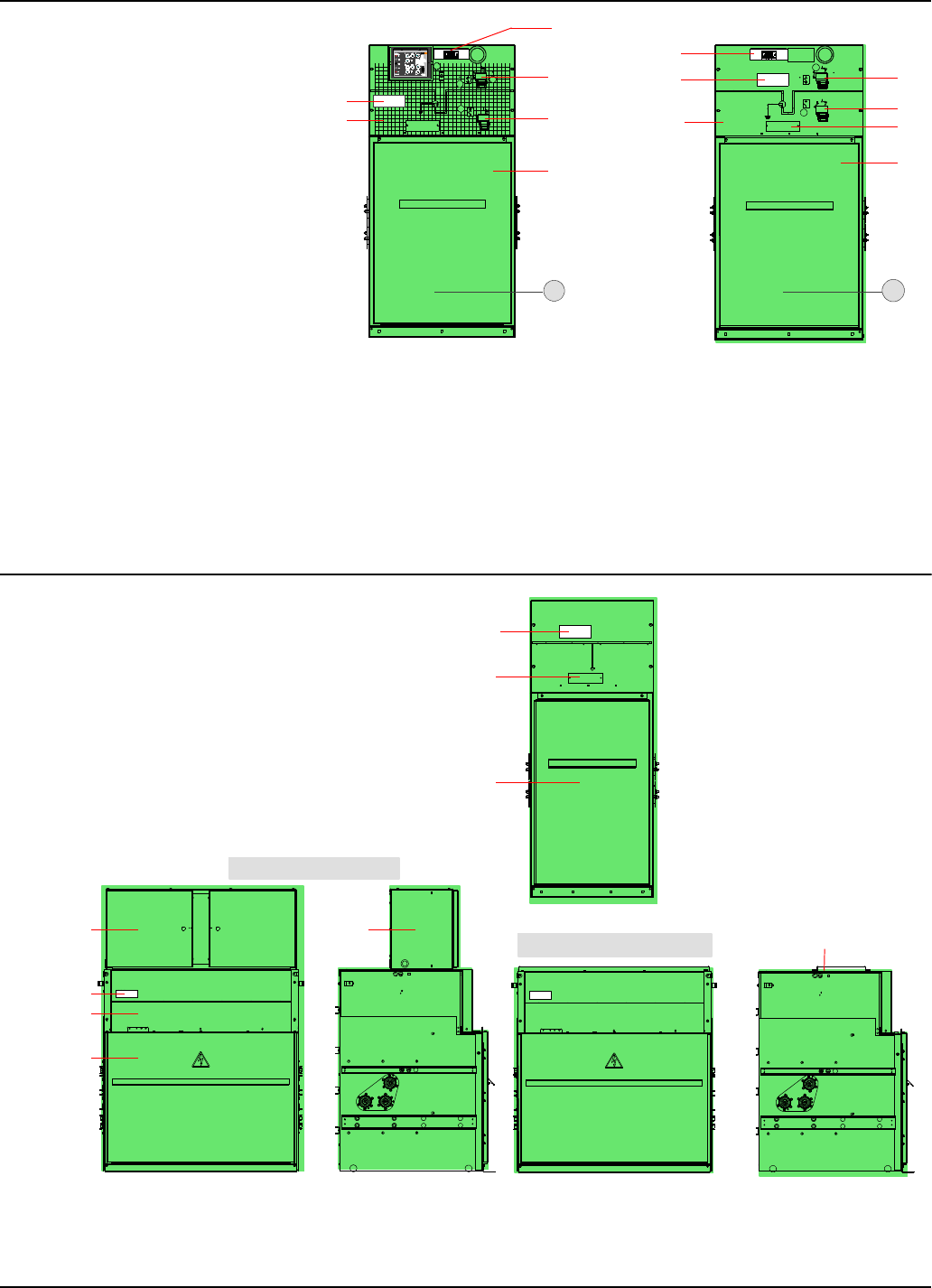

circuit breaker and switch

function

A: operating mechanism front

plate comprising the mimic

diagram

B: information plates

C: earthing switch operating

shaft

D: switch operating shaft

E: function position indicator

F: voltage indicator

G: LV connection access trunking

H: connection bushing access

panel

K:VIP30/35 and VIP300

protection relays

L:D function opening

pushbutton

M:ratingplate

N: pressure switch or gauge

label

P: pressure switch or gauge

fuse- switch and switch

function

A: operating mechanism front

plate comprising the mimic

diagram

B: information plate

C: earthing switch operating shaft

D: switch operating shaft

E: function position indicator

F: voltage indicator

G: LV connection access trunking

H: connection bushing access

panel

J:ratingplate

N: pressure switch or gauge

label

P: pressure switch or gauge

general description

A

B

C

D

E

1

FA

B

C

2

E

D

F

G

A

B

C

1

3

2

4

15

with LV compartment

without LV compartment

607897073EN01 revision : 11

”switchboard coupling”

switch and circuit

breakers

Example presented :

1:DE- BC station with earthing

switch

2:DE- IC station with earthing

switch

A: control panel

featuring the mimic panel

B: earthing switch operating

shaft

C: switch operating shaft

D: voltage indicator

E: connection bushing access

panel

F:ratingplate

G: characteristics plates

A: control panel

featuring the mimic panel

B: earthing switch operating

shaft

C: switch operating shaft

D: voltage indicator

E: connection bushing access

panel

F: plate characteristics

cable connection

function

Exemple presented : DE- O

A: characteristics plate

B:ratingplate

C: connection bushing access

panel

metering cubicle

1: LV compartment

2: voltage transformer access

panel

3: characteristics plate

4: access panel to current

transformer

5:LVcompartment

NE = No Extensible

DE = Double Extensible LE = Left Extensible

RE = Right Extensible

NE- D

NE- IDI

DE- IIBI

NETWORK ’SWITCH ’

LINE PROTECTION BY ’CIRCUIT- BREAKER’

DE- III NE- IQI

RE- DIDI

TRANSFORMER PROTECTION BY ’CIRCUIT- BREAKER’

DE- DD

TRANSFORMER PROTECTION

TRANSFORMER PROTECTION BY’ CIRCUIT- BREAKER’

TRANSFORMER PROTECTION BY ’FUSE- SWITCH COMBINAISON’

BY ’CIRCUIT- BREAKER’

TRANSFORMER PROTECTION BY ’CIRCUIT- BREAKER ’ TRANSFORMER PROTECTION BY ’CIRCUIT- BREAKER’

DE- IDD DE- IIBc

SWITCHBOARD COUPLING ’CIRCUIT- BREAKER’

07897073EN01 revision : 11 7

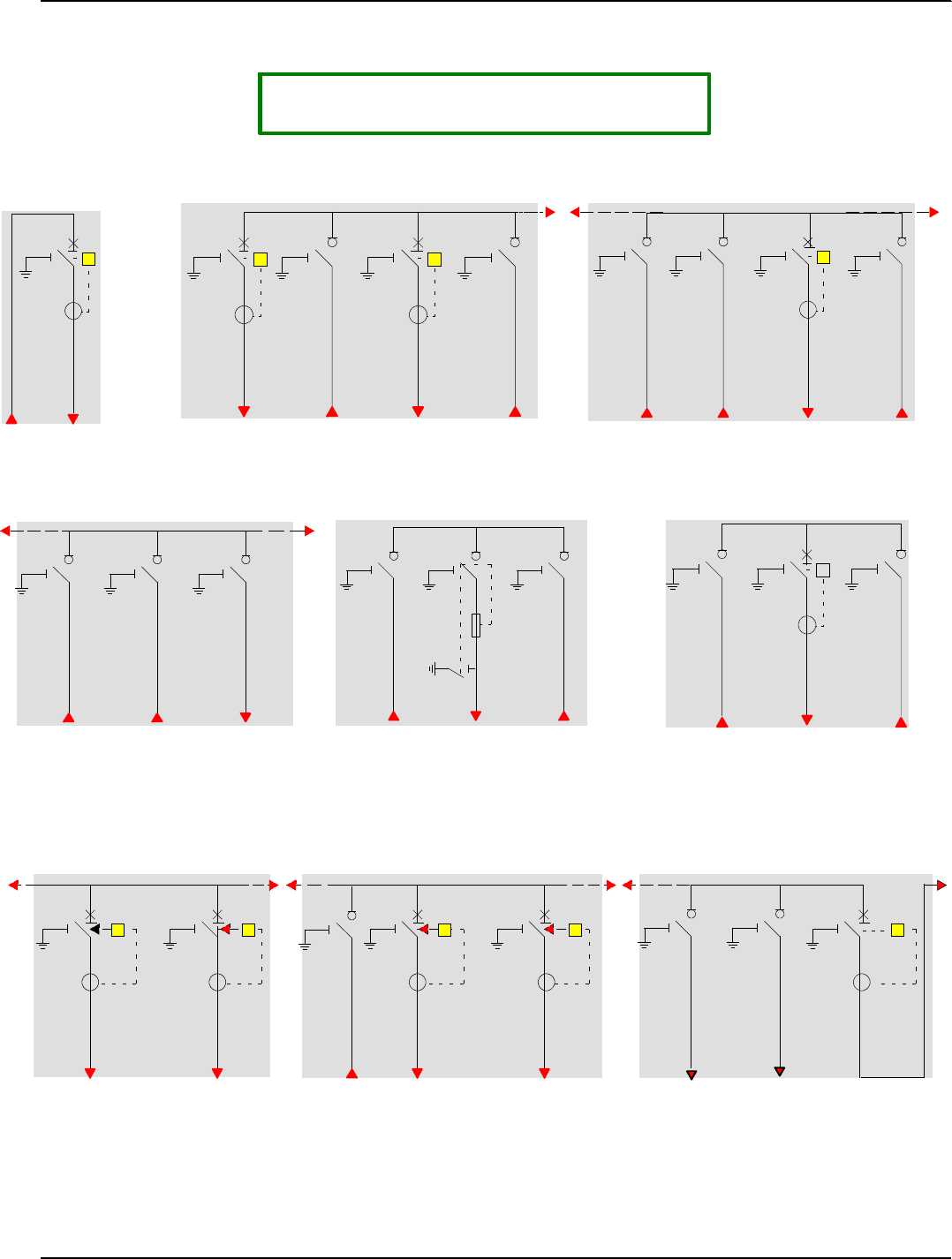

single- line diagramms

807897073EN01 revision : 11

.....................................................................................................................................................................

07897073EN01 revision : 11 9

prior to energising

Check that the connection

bushings are fitted with connectors

or with insulating caps.

Check that the RM6 is connected

to the substation earth.

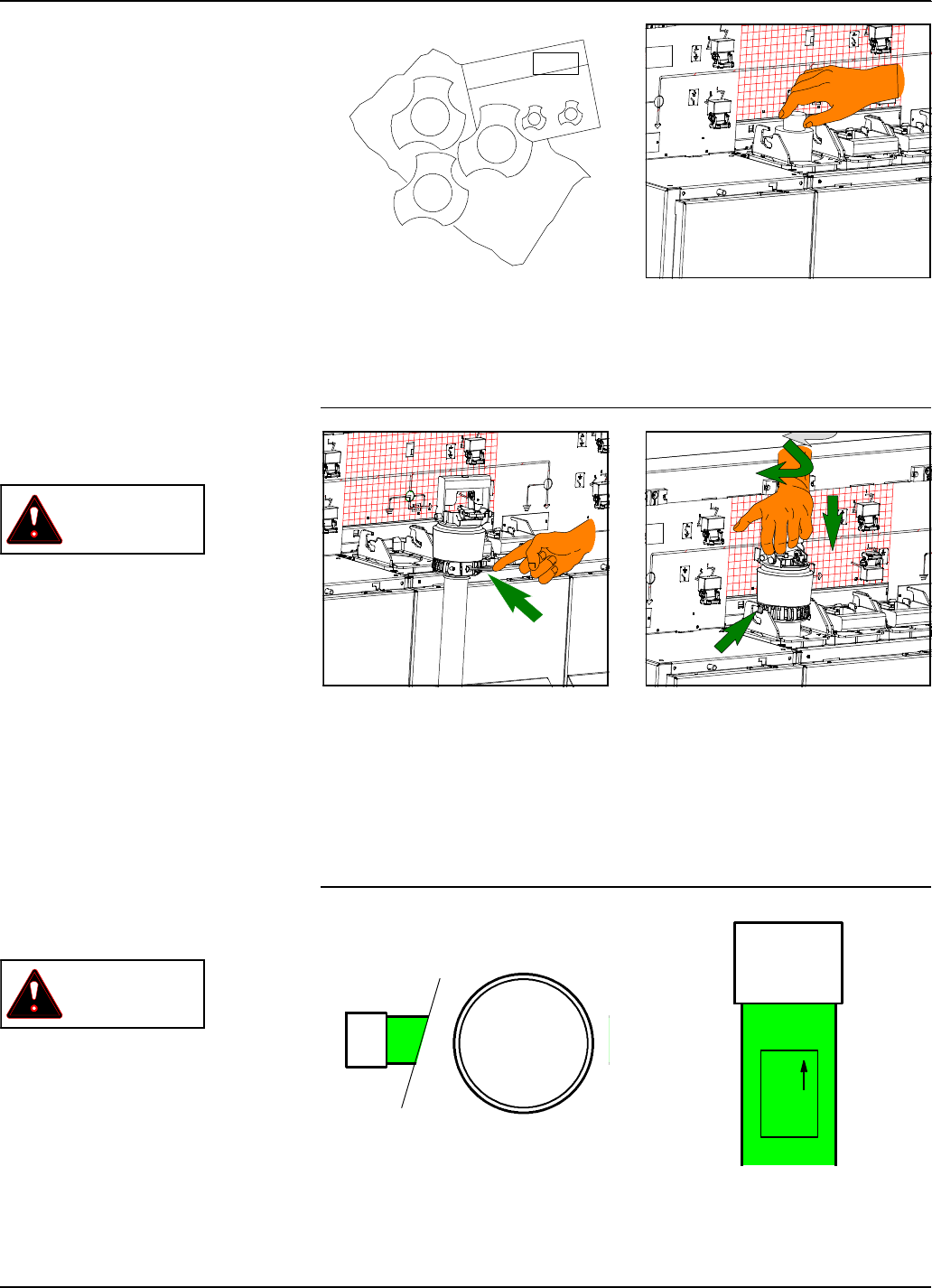

pressure check of unit

in operation

CAUTION ENERGISED RM6 UNIT

unit with manometer

Case 1:

needle in green zone

HThe RM6 unit is operating nor-

mally.

Case 2:

WARNING

needle in red zone

HThe RM6 unit must be replaced

urgently.

HIt can remain energised until

replacement.

HAll opening or closing opera-

tions are forbidden.

HTo replace the RM6, power off

the unit.

instructions for putting

the RM6 into operation

10 07897073EN01 revision : 11

warning label

recalls the safety rules

unit with pressure

switch

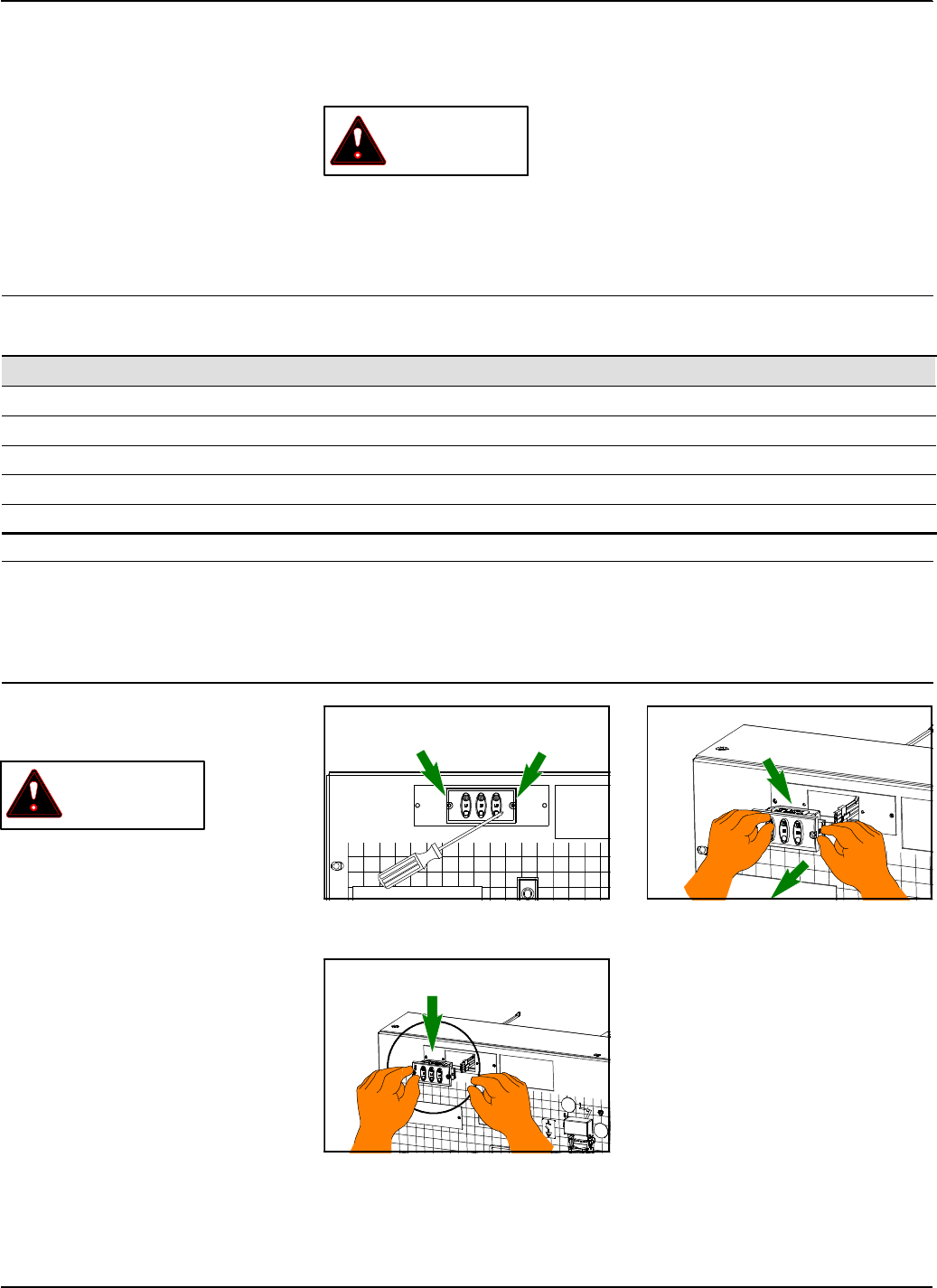

LCD display check

Press the “TEST” button. The LCD

screen should display:

HIf nothing is displayed, check

that the 8- point connector on the

pressure switch wiring harness at

the rear of the LCD display is cor-

rectly connected.

HContact the after sales service.

www.schneider- electric.com

Note: The LCD display is self-

powered by piezoelectric buttons

(“TEST” and “DENSITY SWITCH”).

Pressing on one of these buttons

will turn on the display for a few

seconds.

pressure check

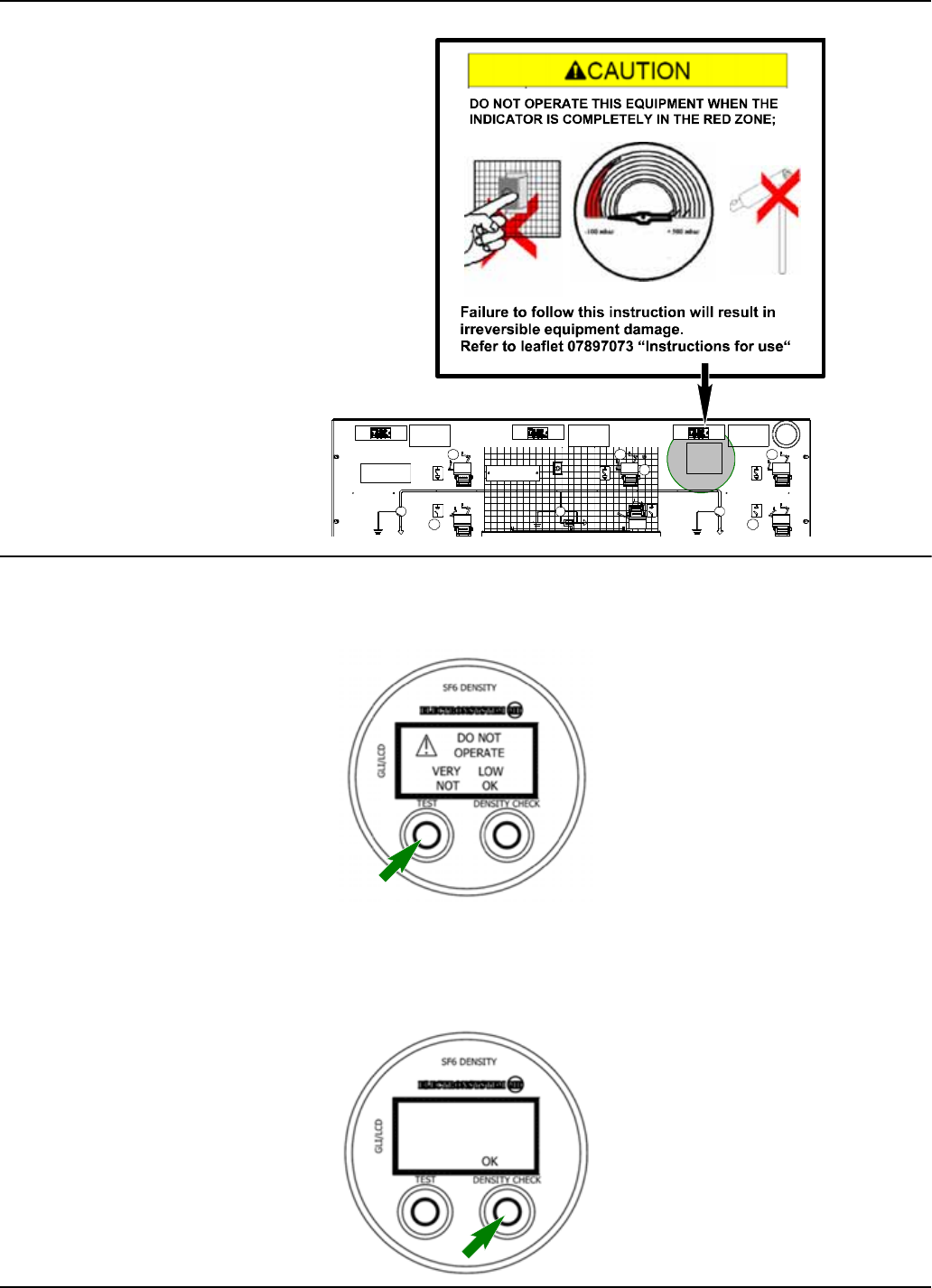

Press the “DENSITY CHECK”but-

ton. The LCD screen displays:

Case 1: OK HThe RM6 unit is operating nor-

mally.

07897073EN01 revision : 11 11

Cas n°2 : LOW / OK

CAUTION

HThe RM6 unit must be replaced.

HIt can remain energised until

replacement.

HAll operations can be performed

while energised.

Case 3: VERY LOW / NOT OK

WARNING

HThe RM6 unit must be replaced

urgently.

HIt can remain energised until

replacement.

HAll opening or closing opera-

tions are forbidden.

HTo replace the RM6, power off

the unit.

warning label

recalls the safety rules

1 2 3

12 07897073EN01 revision : 11

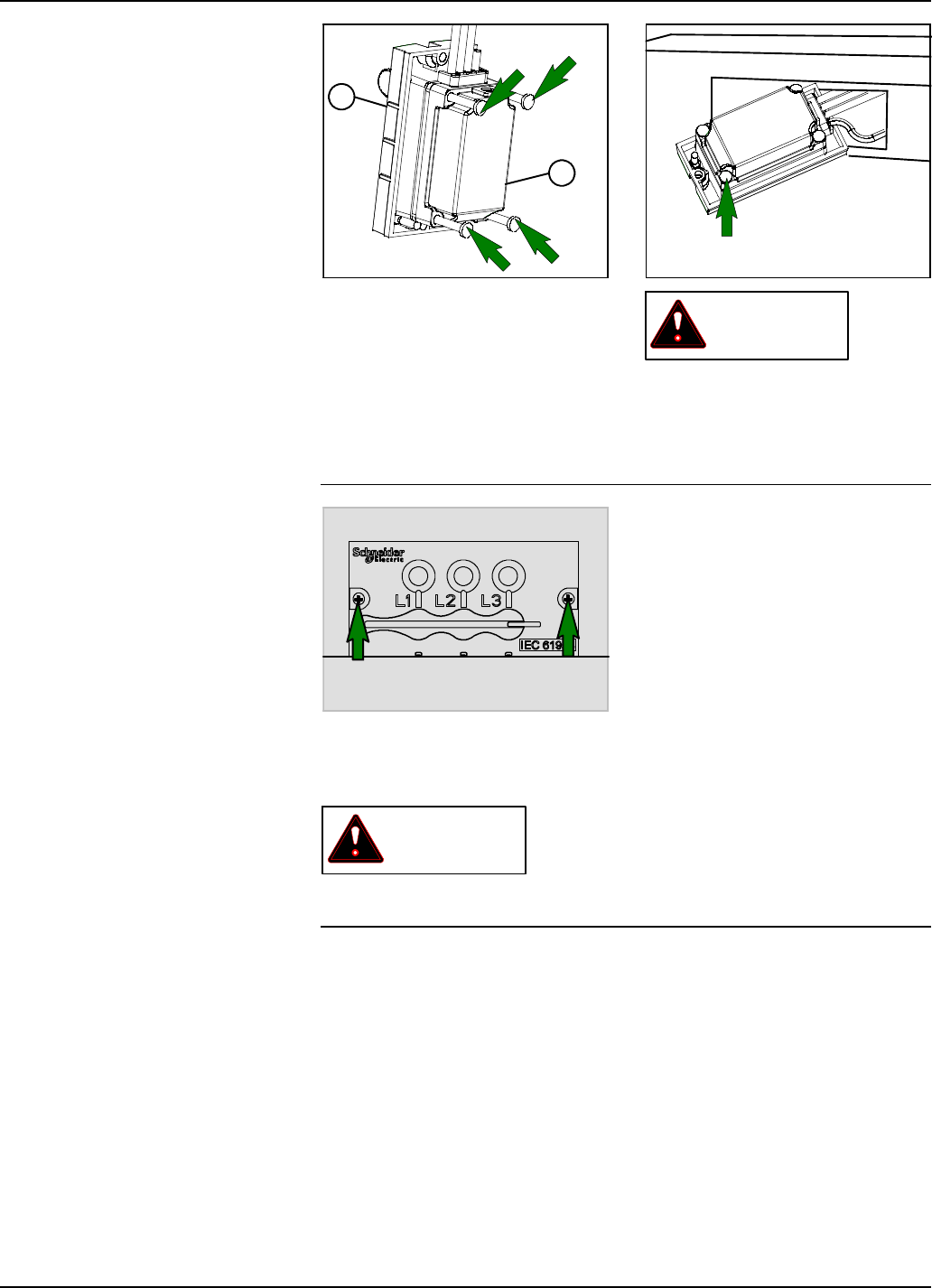

position of the VPIS or

VDS voltage indicator

units (optional)

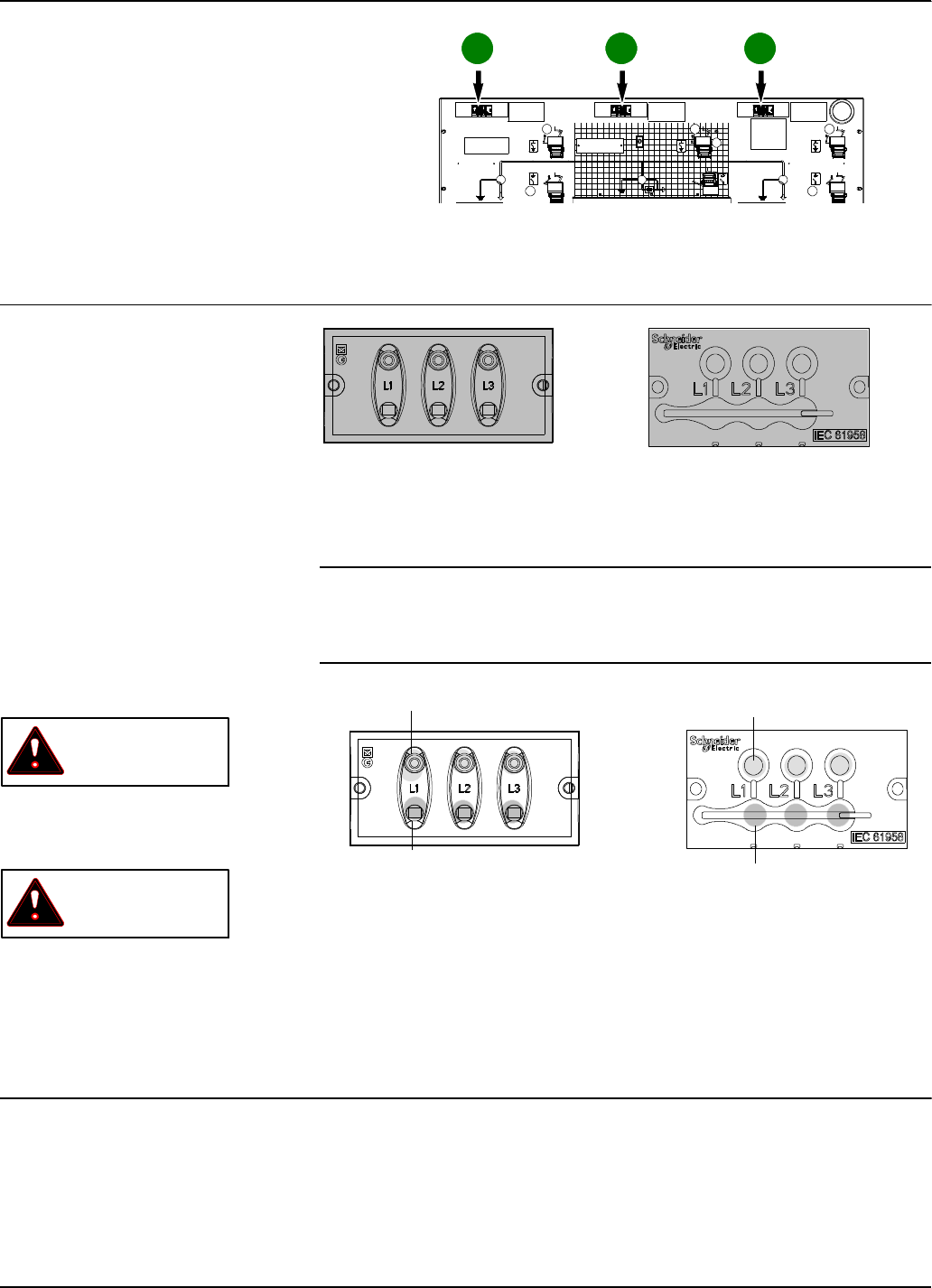

1and3:voltage presence on

network cables. 2: voltage presence downstream

of fuses for a switch combination

or on the outgoing cable

for a circuit- breaker.

VPIS

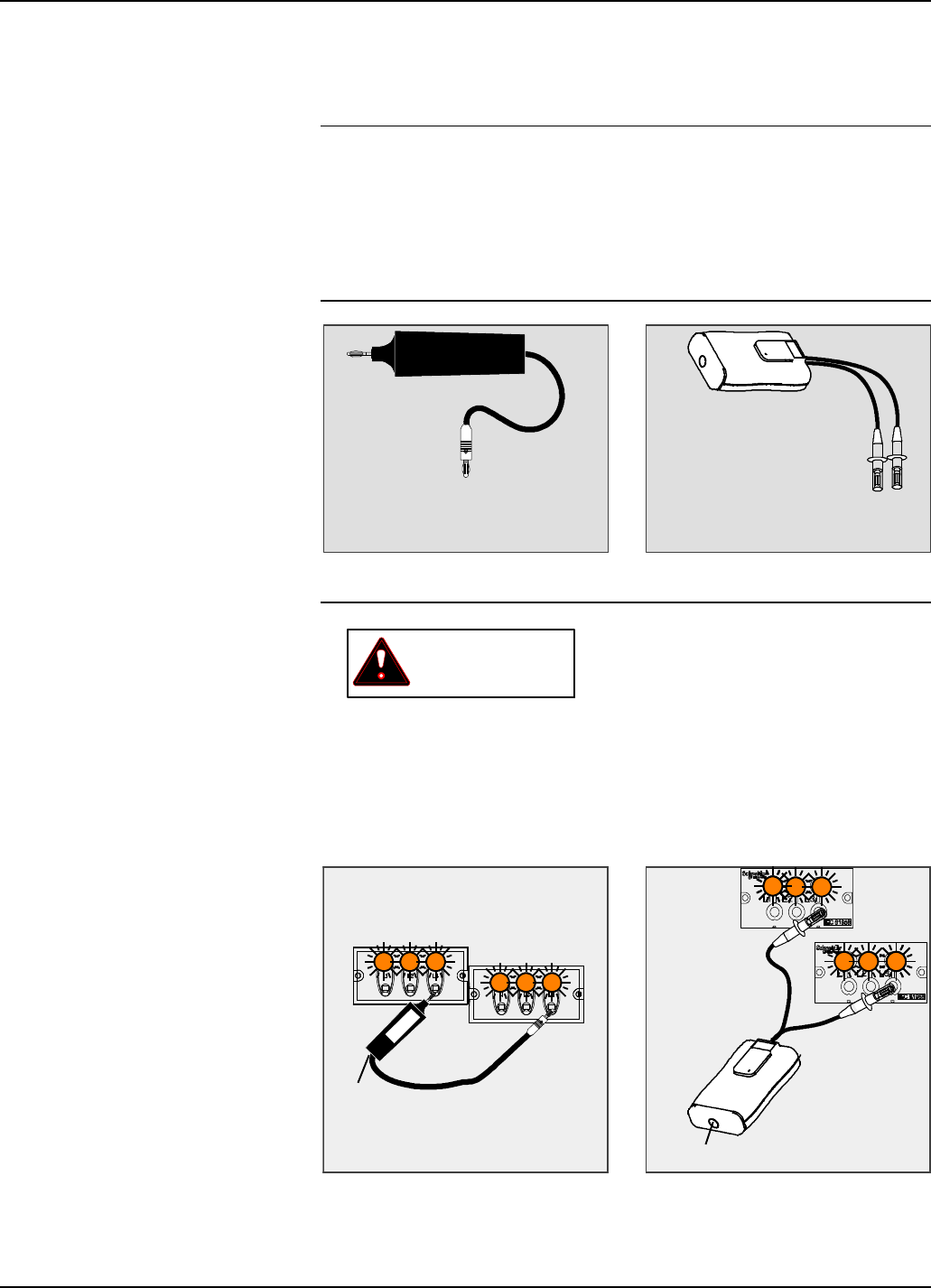

presentation of VPIS- V1

and VPIS- V2

VPIS :Voltage Presence Indicating

System, a case with 3 built- in

lights. VPIS- V1 : production until

February 2009. VPIS- V2 : production starting

from March 2009.

characteristics Conforming to IEC 61958,relative

to voltage presence.

operating instructions

WARNING

The indication provided by a

VPIS- V1 or V2 alone is not suffi-

cient to ensure that the system is

de- energised.

INFORMATION

When the ambient lighting is parti-

cularly bright, it may be necessary

to improve visibility by protecting

the indication.

A

B

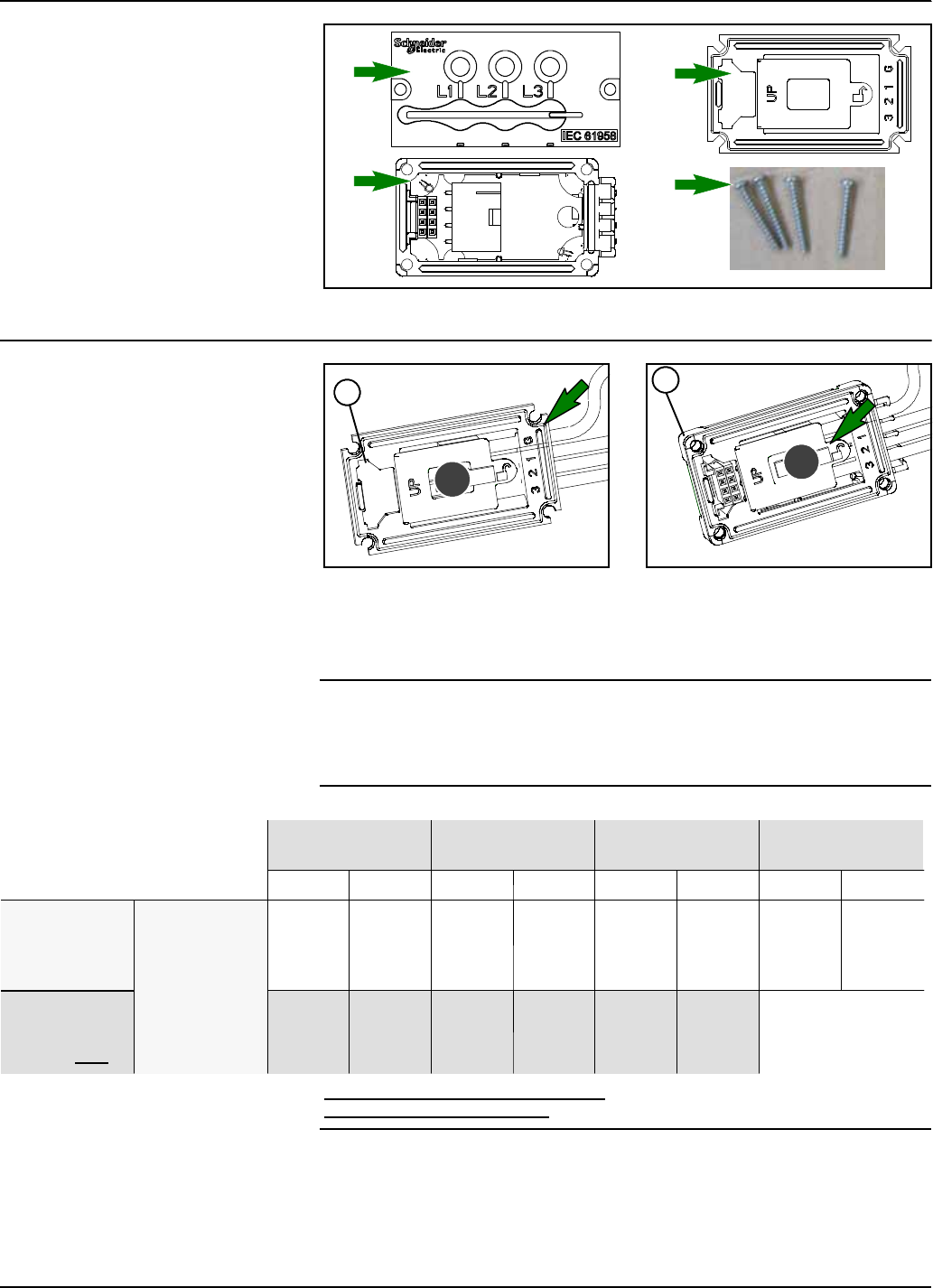

A: voltage presence indicator

light (one for each phase)

B: connection point designed for

the connection of a phase

concordance unit (one for

each phase)

A

B

07897073EN01 revision : 11 13

phase concordance

unit Phase concordance testing for

VPIS- V1 and VPIS- V2 must be

carried out each time a cable is

connected to a functional unit.

It is a way of making sure that all

three cables are each connected

to the corresponding phase of

the substation.

principle Theprincipleofthephase

concordance unit is that it allows

a check of the phase concor-

dance between 2 energised

functional input units on the

same substation.

reminder of accessories that

can be used for phase

concordance test

Phase concordance unit V1.

(51191954FA) Phase concordance unit V2.

(VPI62421

rules for the use of

phase concordance

unit WARNING

IT IS IMPOSSIBLE TO CARRY

OUT A PHASE CONCORDANCE

TEST WITH 2 VPIS OF

DIFFERENT TYPES

Balanced phases :

- the phase concordance unit light

(1) is untit.

Unbalanced phases :

- the phase concordance unit light

(1) is lit.

1

12

functional unit 1functional unit 2

14 07897073EN01 revision : 11

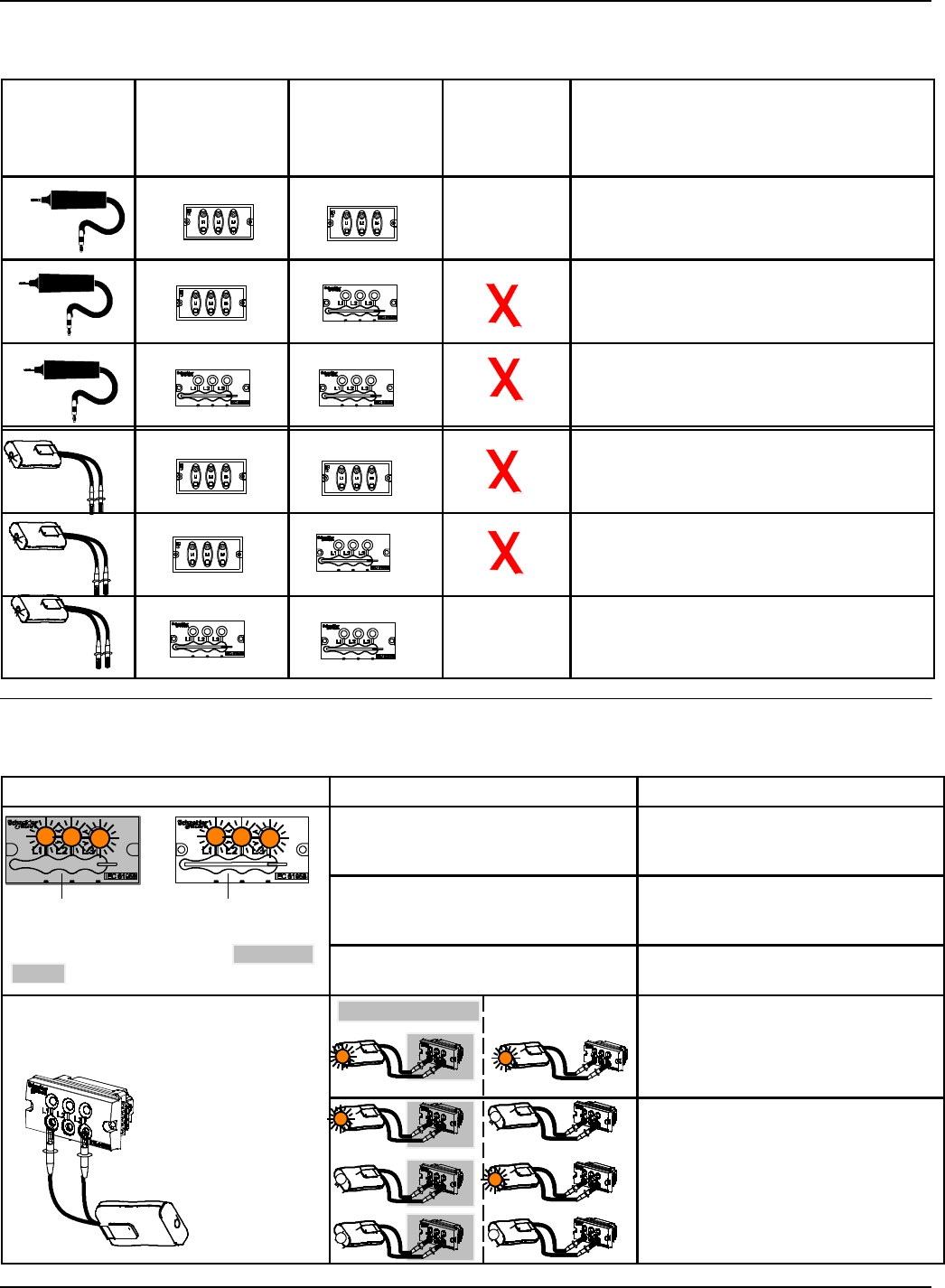

rules for choosing phase

concordance unit

phase

concordance

unit

functional unit

1functional unit

2compatibility

result corrective actions

V1 V1 OK

V1 V2 OK Replace VPIS- V1 by VPIS- V2.

UseaphaseconcordanceunitV2.

V2 V2 OK UseaphaseconcordanceunitV2.

V1 V1 OK Replace VPIS- V1 units by VPIS- V2 units

OR test with 1 phase concordance unit

V1.

V1 V2 OK Replace VPIS- V1 with VPIS- V2.

V2 V2 OK

check before phase

concordance test Please refer to the previous chapters

in the event of test malfunctioning.

TEST RESULT ACTION

Visual checking of the indicator

lights on the VPIS units of functional

unit 1and of functional unit 2

The 3 indicator lights of each VPIS

are on. The 2 functional units are energi-

sed, the VPIS units are operating

and the check can continue.

The 3 indicator lights of the VPIS

are off. The functional unit is not

energised or the VPIS is defective.

Apply power to the functional unit.

If VPIS- V1 remains unlit, replaced

it by a VPIS- V2.

One or 2 indicator lights unlit. The VPIS is probably defective.

Replace by a VPIS- V2.

Phase concordance unit

check choice On each

functional

unit test

phases 1

and 3.

You can test.

Youcannottestthem.

Thechoiceofthephaseconcor-

dance unit is wrong or it is not

functionning correctly.

phase concordance unit LED lit LED unlit

lexique

or

07897073EN01 revision : 11 15

phase condordance test

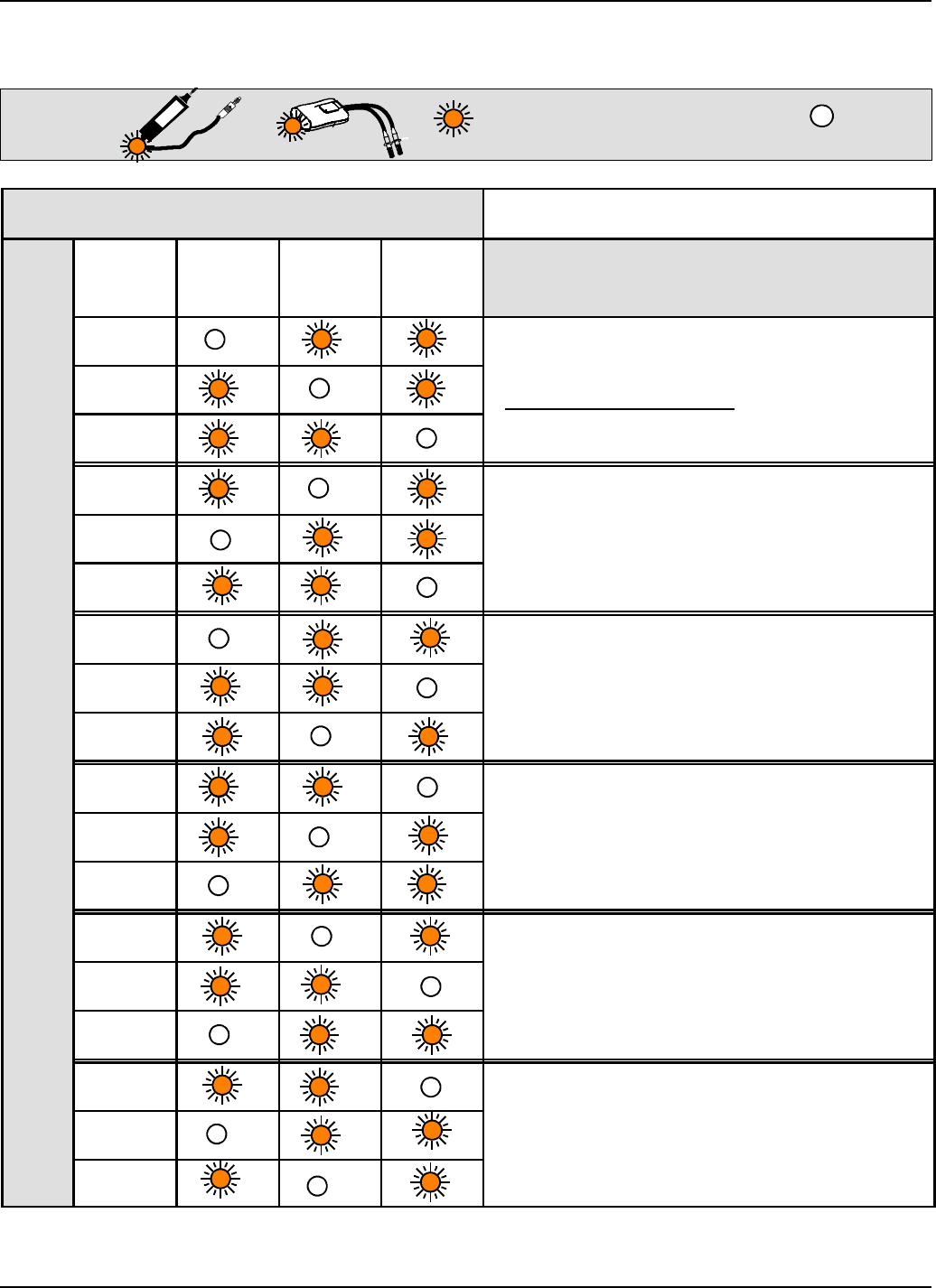

The 3 indicator lights of the 2 VPIS are lit and the phase concordance unit is correct, meaning that phase concor-

dance test can be performed.

Functional unit n° 2

Functional unit n°1

L1 L2 L3 Conclusion regarding phase concordance

L1

Connection is satisfactory.

L2

L3

L1 Reverse the MV cables connected to L1 and L2

on one of the 2 functional units

L2

L3

L1

Reverse the MV cables connected to L2 and L3

on one of the 2 functional units

L2

L3

L1 Reverse the MV cables connected to L1 and L3

on one of the 2 functional units

L2

L3

L1 Change the position of each MV cable on one of

the 2 functional units

L2

L3

L1 Change the position of each MV cable on one of

the 2 functional units

L2

L3

B

BB

B

AAA

16 07897073EN01 revision : 11

RM6 equipped with

VDS voltage detection

units

VDS:Voltage Detecting System,

unit with connectors used to plug

in individual indicators.

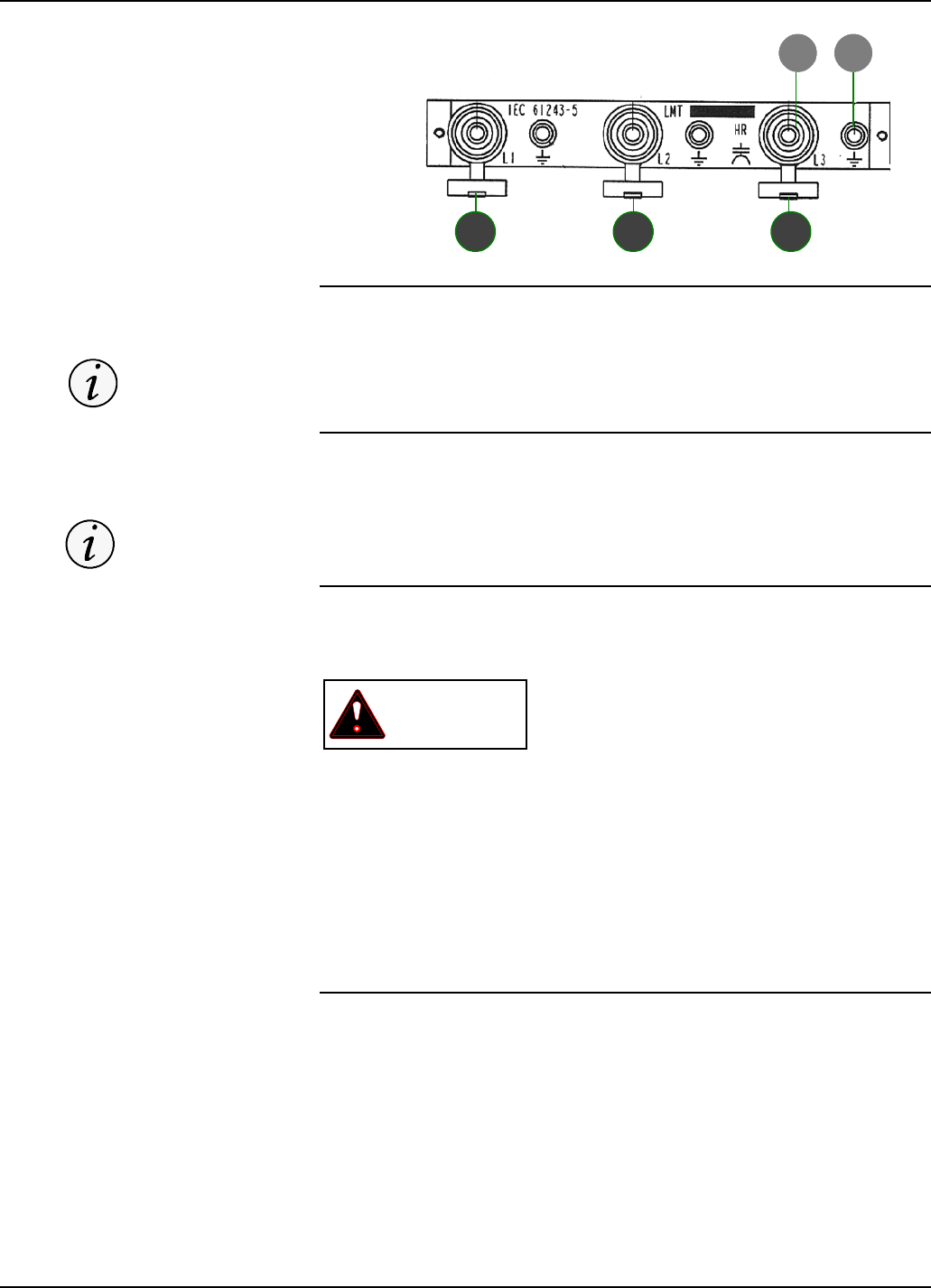

A:protectivecovers.

B: connections points used

to connect an individual

indicator.

characteristics The voltage detector system

equipping your RM6 is of the

separate VDS type, HR system.

It complies with standard

IEC 61243- 5.

instructions

for using the interface Each time the interface is used,

put back the protective covers. Do not use connectors enabling

short- circuiting of the interface,

in networks with unearthed or

earthed neutral by resonant circuit.

accessories usable

at the interface Individual voltage indicator for HR

system.

Universal phase concordance unit.

CAUTION

The reliability of the information

provided is guaranteed only by

use of accessories conform to

standard IEC 61243- 5:touse

them, follow the instructions of the

accessory manufacturer.

Other devices must only be used

at the interface if they exhibit the

same dielectric strength as an

indicator.

07897073EN01 revision : 11 17

choosing the HV fuses

Theratingofthefusestobefitted

in the RM6 protection function

depends on the following factors

(among others):

Hoperating voltage.

Htransformer rating.

Hfuse technology (manufacturer).

HVarious fuse types with striker

with average energy can be fitted :

-asperstandardUTENFC

13.100, UTE NFC 64.210

of the Soléfuse type.

- as per recommendation

IEC 282.1 and dimensions

DIN 43.625 of the Fusarc CF type.

Example: general case for

protection of a 400 kVA – 10 kV

transformer, 63 A Soléfuse fuses or

50A Fusarc CF fuses will be

chosen.

For installation of fuses of other

manufacturers, please consult

us.

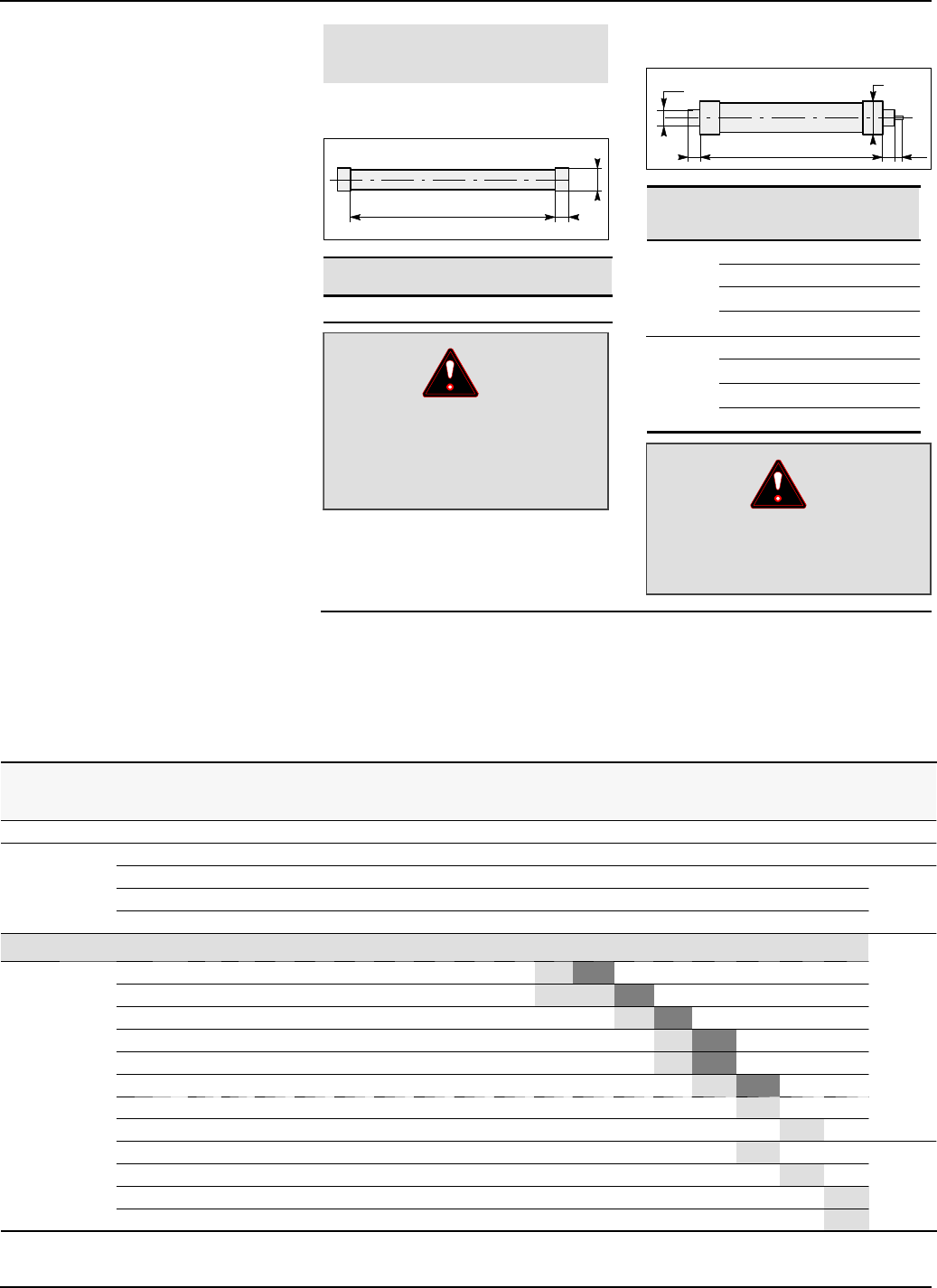

Dimensions of the Soléfuse

fuses (UTE)

Ø55

450 35

rated voltage rating

(kV) rating to (A)

7,2 à 24 6,3 à 63

Our products are guaranteed only with

the fuses mentioned in this document.

To install fuses of other brands, please

ask “Schneider Electric” support.

Dimensions of the Fusarc CF

fuses (DIN)

33 .

L3327

Ø

Ø45

rating

voltage

(kV)

rating to

(A) lenght

(mm) diamater

to (mm)

12 10 à 20 292 50,5

25 à 40 292 57

50 à 100 292 78,5

125 442 86

24 10 à 20 442 50,5

25 à 40 442 57

50 à 63 442 78,5

80 à 100 442 86

IEC & UTE standards require that all

3 fuses are to be replaced after the

fusion of one fuse.

selection table

(rating in A, use without overload

at –25C<<40C).

(*)SIBA types fuses at 160A/12kV

reférence 30- 020- 13.

(”) In the case of an external trip system

(eg.:overcurrent relay).

A calculation must be carried out to

guarantee coordination of fuse

fuse- switches.

Please consult us.

For any values inclued in the table, please

consult us.

In this case of an overload beyond 40°C,

please consult us.

fuse type operating

voltage

(kV)

Transformer rating (kvA) Rated

voltage

(kV)

50 75 100 125 160 200 250 315 400 500 630 800 1000 1250 1600 2000

Solefuse (norme UTE NFC : 130.100, 64.210)

5,5 16 31,5 31,5 63 63 63 63 63 7,2

10 16 16 31,5 31,5 31,5 63 63 63 63 24

15 16 16 16 16 16 43 43 43 43 43 63

20 16 16 16 16 16 16 43 43 43 43 43 63

Fusarc CF et SIBA (*) (General case, IEC 60282- 1, standard CEI62271- 105 (to replace IEC 60420)andDIN 43625 standard)

12

320 31,5 40 50 50 63 80 100 125* 160”

3,3 20 25 40 40 40 63 80 80 125* 125* 160“

4,2 20 25 25 40 50 50 63 80 80 100 125* 160“

5,5 16 20 25 25 40 40 50 63 80 80 100 125* 160”

616 20 25 25 31,5 40 50 50 63 80 100 125* 160”

6,6 10 20 25 25 31,5 40 50 50 63 63 80 100 125* 160”

10 10 10 16 20 25 25 31,5 40 50 50 63 80 100 125*

11 10 10 16 20 20 25 25 40 40 50 50 63 80 100 125*

13,8 10 10 10 16 16 20 25 31,5 40 40 50 50 63 100* 24

15 10 10 10 10 16 20 25 31,5 31,5 40 50 50 63 80 100*

20 10 10 10 10 16 16 20 25 25 31,5 40 40 63 63 80 100*

22 10 10 10 10 10 16 16 20 25 31,5 40 40 50 63 80 100*

18 07897073EN01 revision : 11

fitting HV fuses CAUTION

Before performing these

operations, close the earthing

switch.

CAUTION

Repeat the operations below for

all 3 fuses.

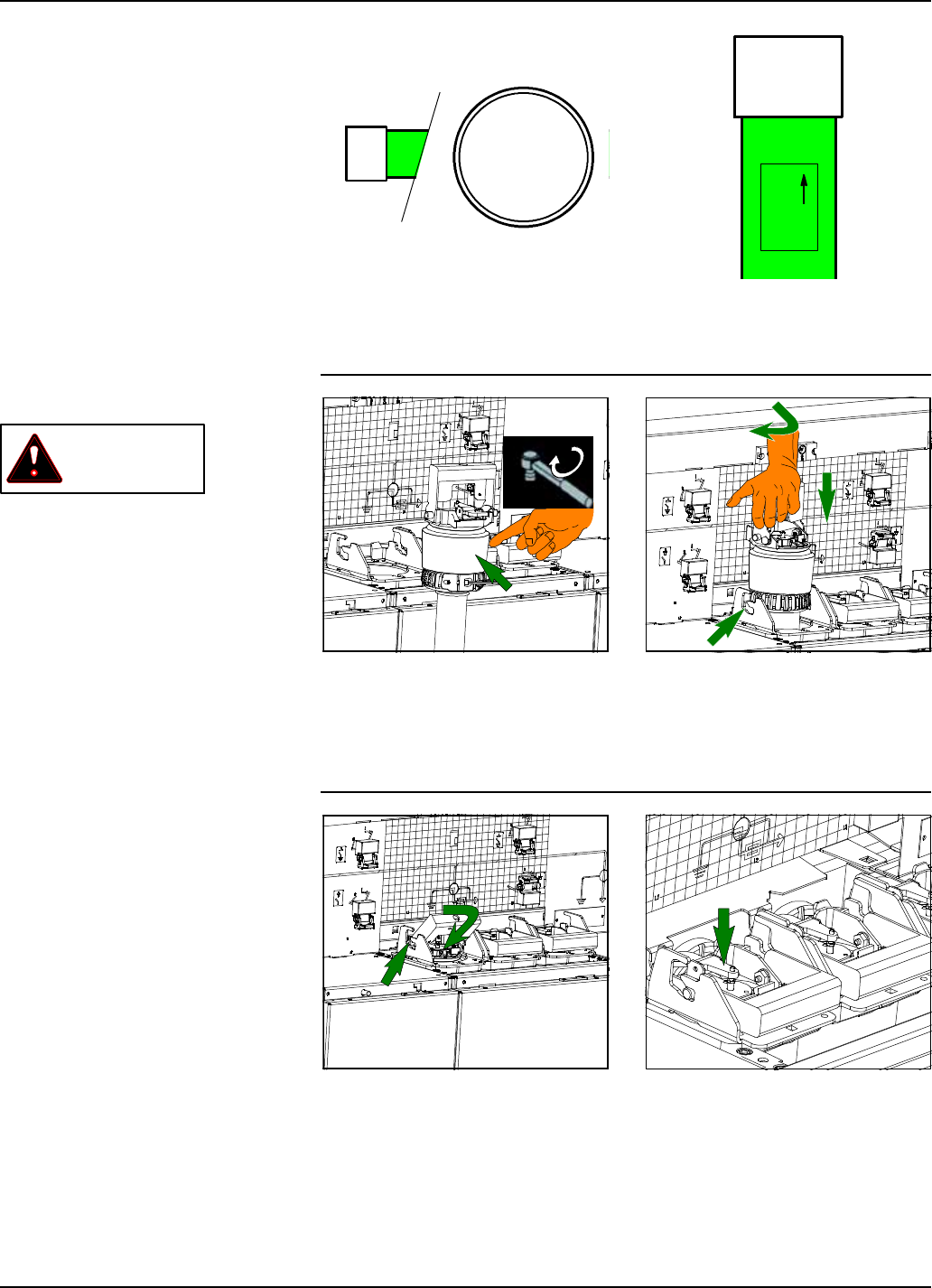

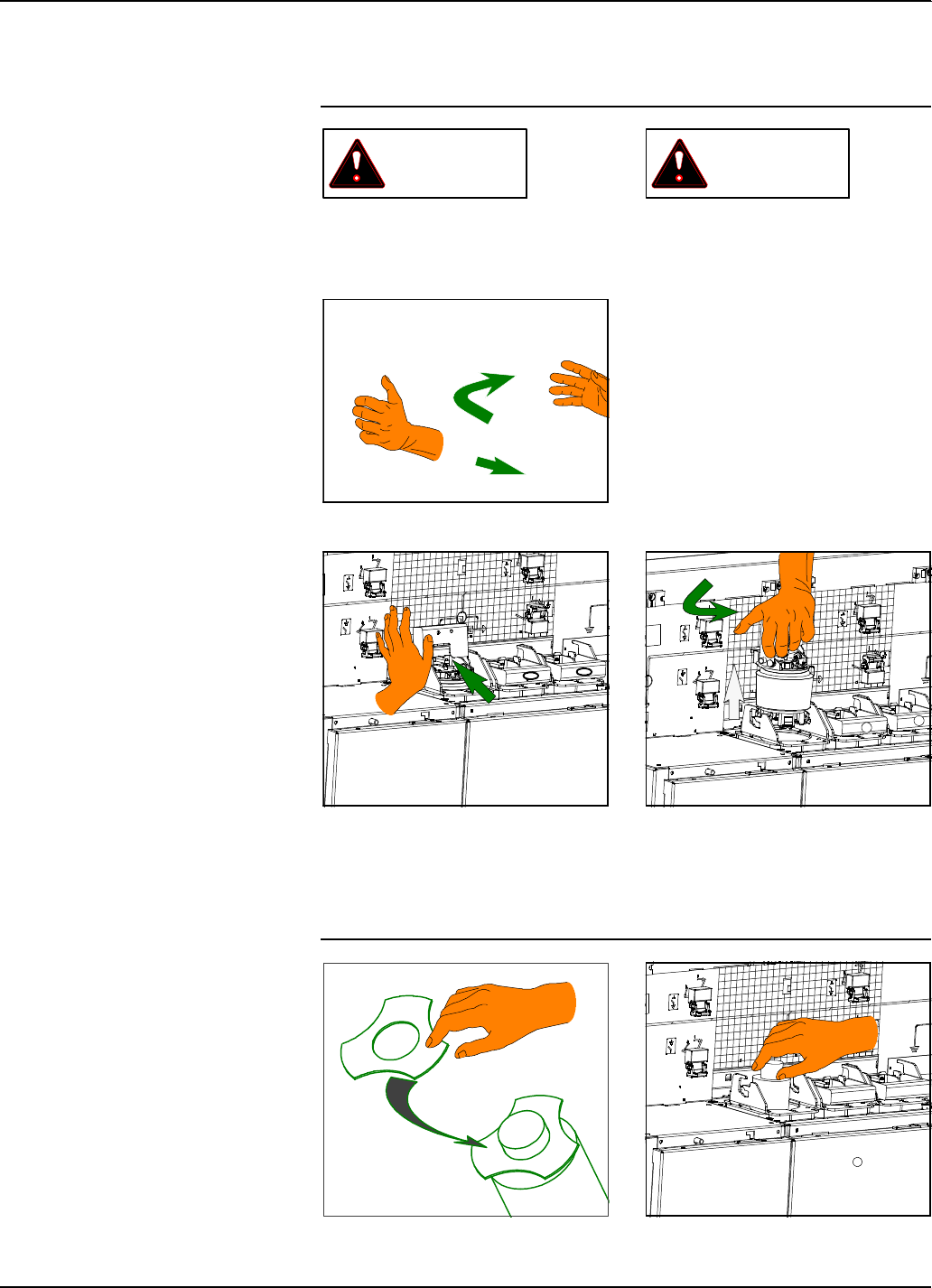

Toremovethecover:liftitandpull

it towards you.

The instructions are visible

on the cover.

Release the plug and push the

extraction handle manually to

release the plug (tap with the palm

of your hand to detach the plug

seal if necessary).

Fit the plug as far as it will go and

swivel it to the left to extract it.

To clean the plugs, consult the

preventive maintenance section.

Let the plug hang.

Ensuretheplugsarecleanbefore

fitting them.

07897073EN01 revision : 11 19

fitting a DIN fuse

(Fusarc CF)

On no account must a fuse that

has been knocked be installed.

A test prior to installation using

a monitor is recommended.

rm6

Recover the centring devices in the

bag supplied with the substation. Insertthefuseinthe

compartment.Fit the centring

device on the fuse.

Insert the plug pins in the plinth

and swivel it round to the right.

fitting an UTE fuse

(Solefuse)

CAUTION

On no account must a fuse that

has been knocked be installed.

A test prior to installation using

a monitor is recommended.

Fix the fuse on the plug using a

torque wrench with end BTR no. 5

and insert the fuse in the

compartment.

Tightening torque: 15 Nm.

Insert the plug and fuse assembly

in the compartment.Insert the plug

pins in the plinth and swivel it

round to the right.

Press to insert the assembly in the

downstream clamp.

direction for mounting

a fuse with striker

CAUTION

Fuse blowing releases a striker

that causes three- phase opening

of the switch and prevents it from

reclosing.

Percuteur

Striker pin

Schlagstift

Percussore

Theendofthefuseequippedwith

the striker is marked. The technical data and mounting

direction of the fuse are printed on

the body.(striker facing upwards).

A

B

A

C

A

20 07897073EN01 revision : 11

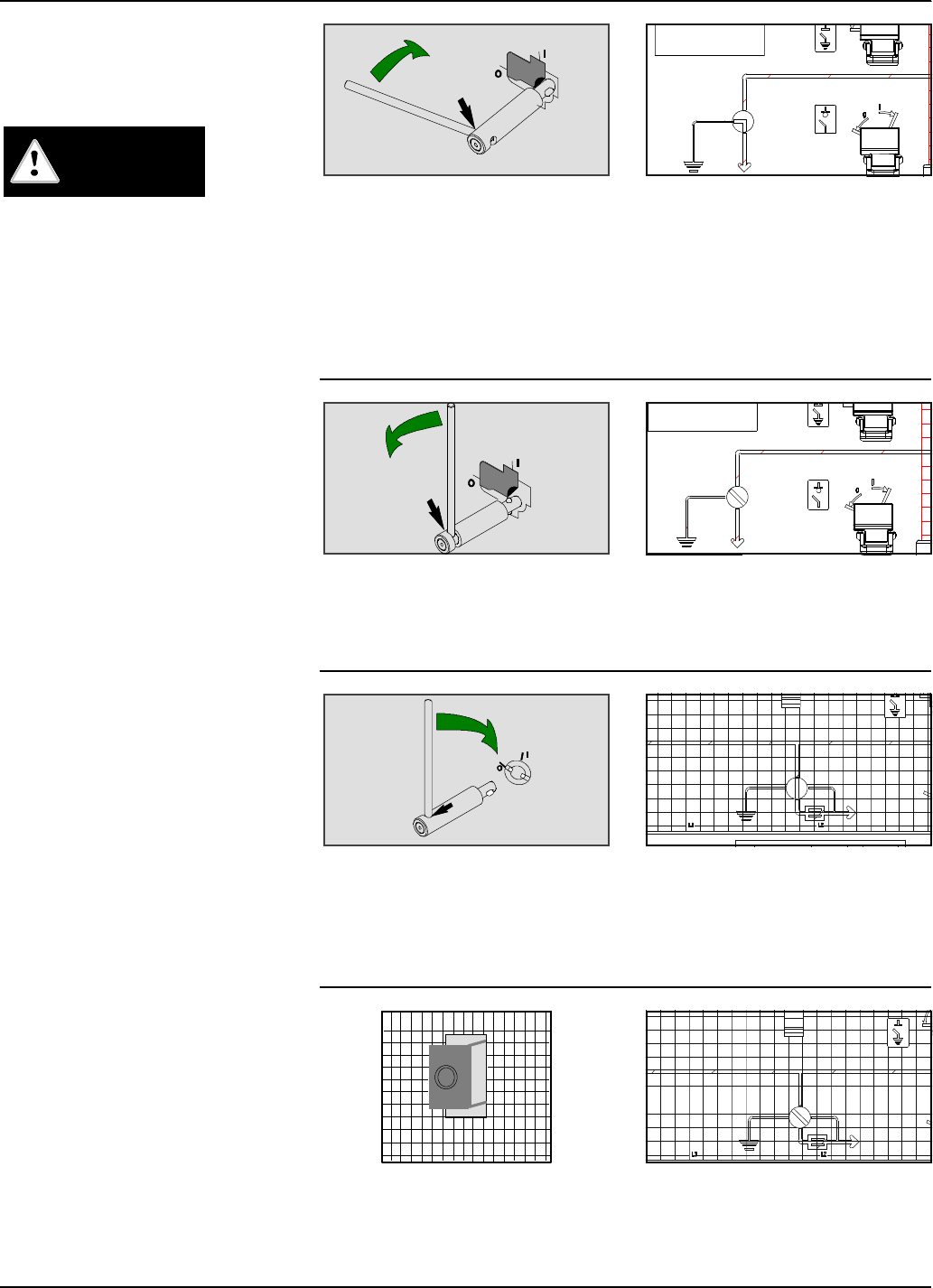

locking the plug

Make sure that the handle

trunnions are inserted in the plinth

slots and lock the plug manually

by folding down the operating

handle.

Plug with fuse blowing release,

used to cause three- phase

opening of the switch.

Press the switch to position it.

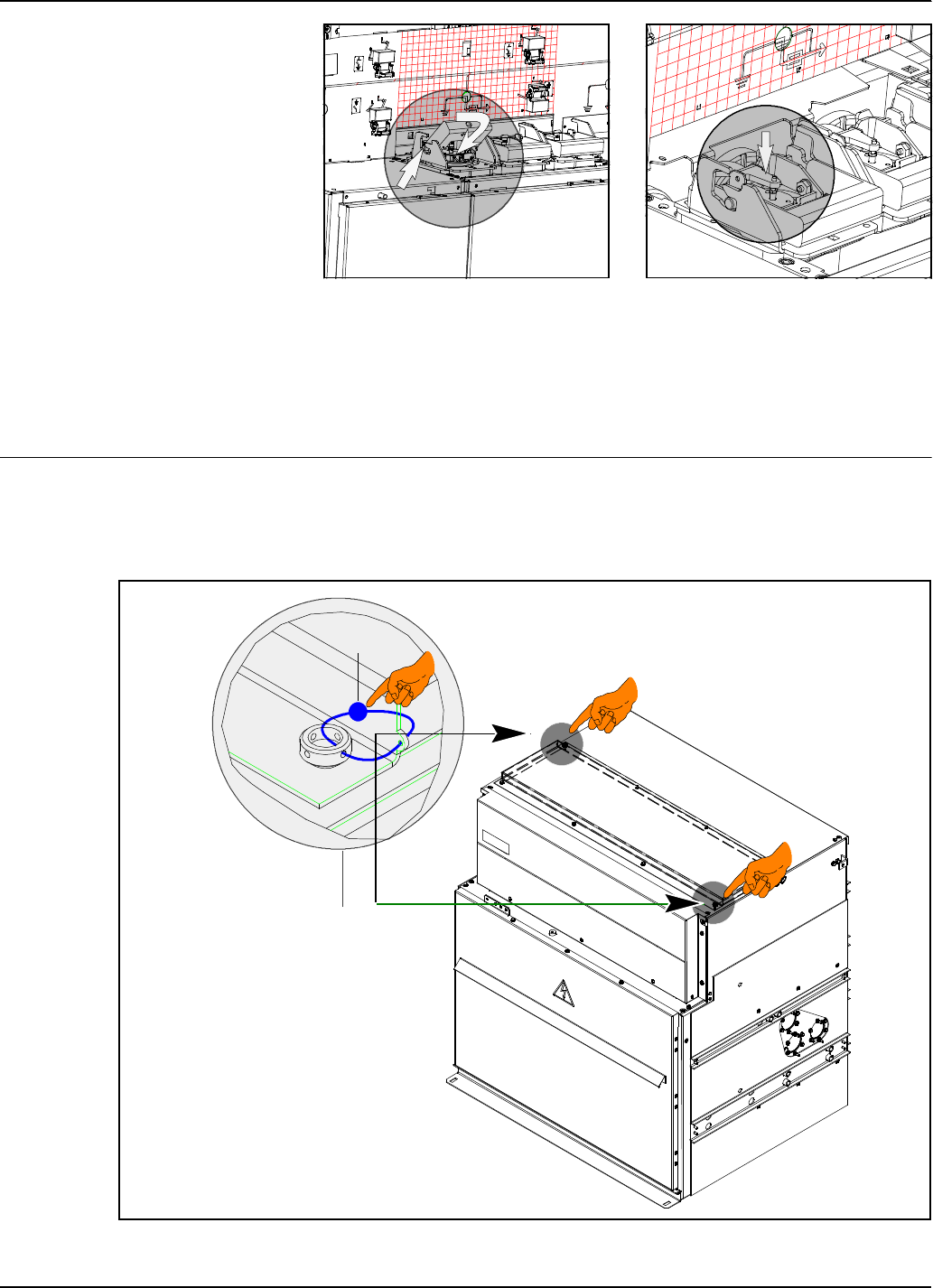

sealing of DE- Mt

cubicle

without LV compartment

A: rear sealing

B:frontsealing

C: seal + wire; steel

B

07897073EN01 revision : 11 21

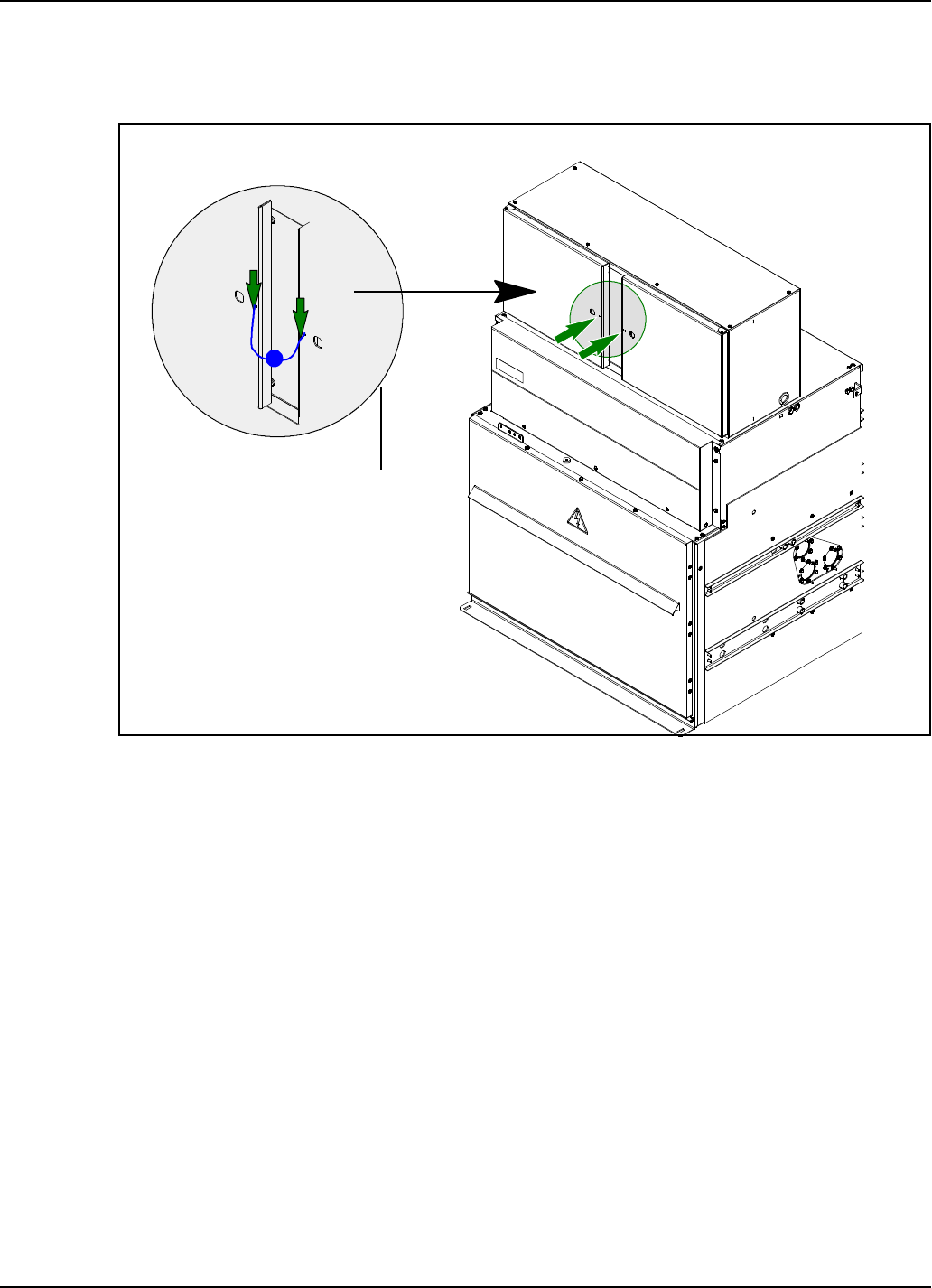

with LV compartment A: sealing of the LV compartment

B: seal + wire steel

22 07897073EN01 revision : 11

.....................................................................................................................................................................

Flap closed

Flap open

NRJED311206EN : reference manual is available on :

INFORMATION- ADVICE

www.schneider- electric.com

or call your sales representative who will put you in contact with the closet SCHNEIDER- ELECTRIC

service center

07897073EN01 revision : 11 23

CAUTION The VIP parameters must be set

correctly in order for the circuit

breaker function well.

VIP400 / VIP410

presentation

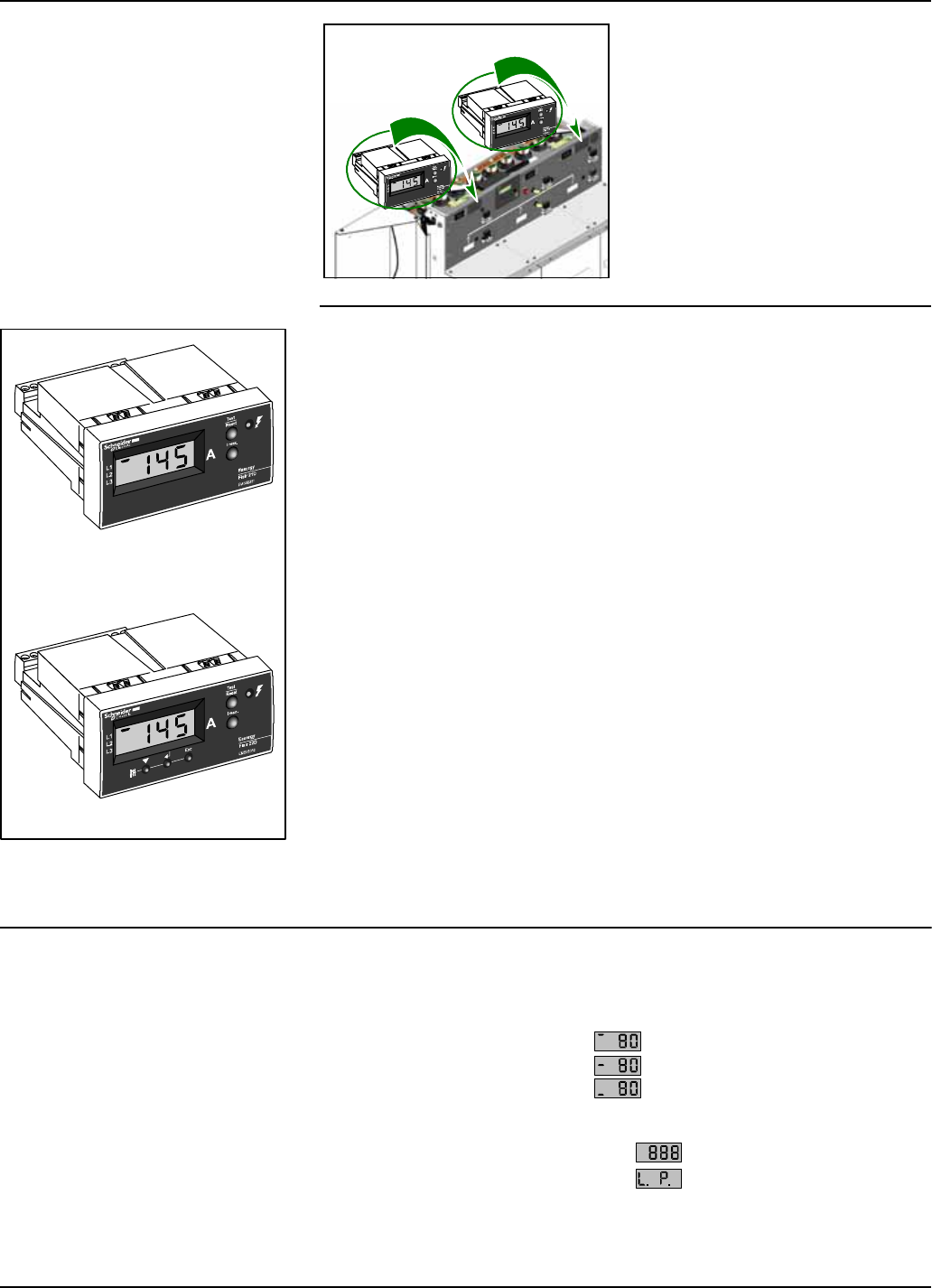

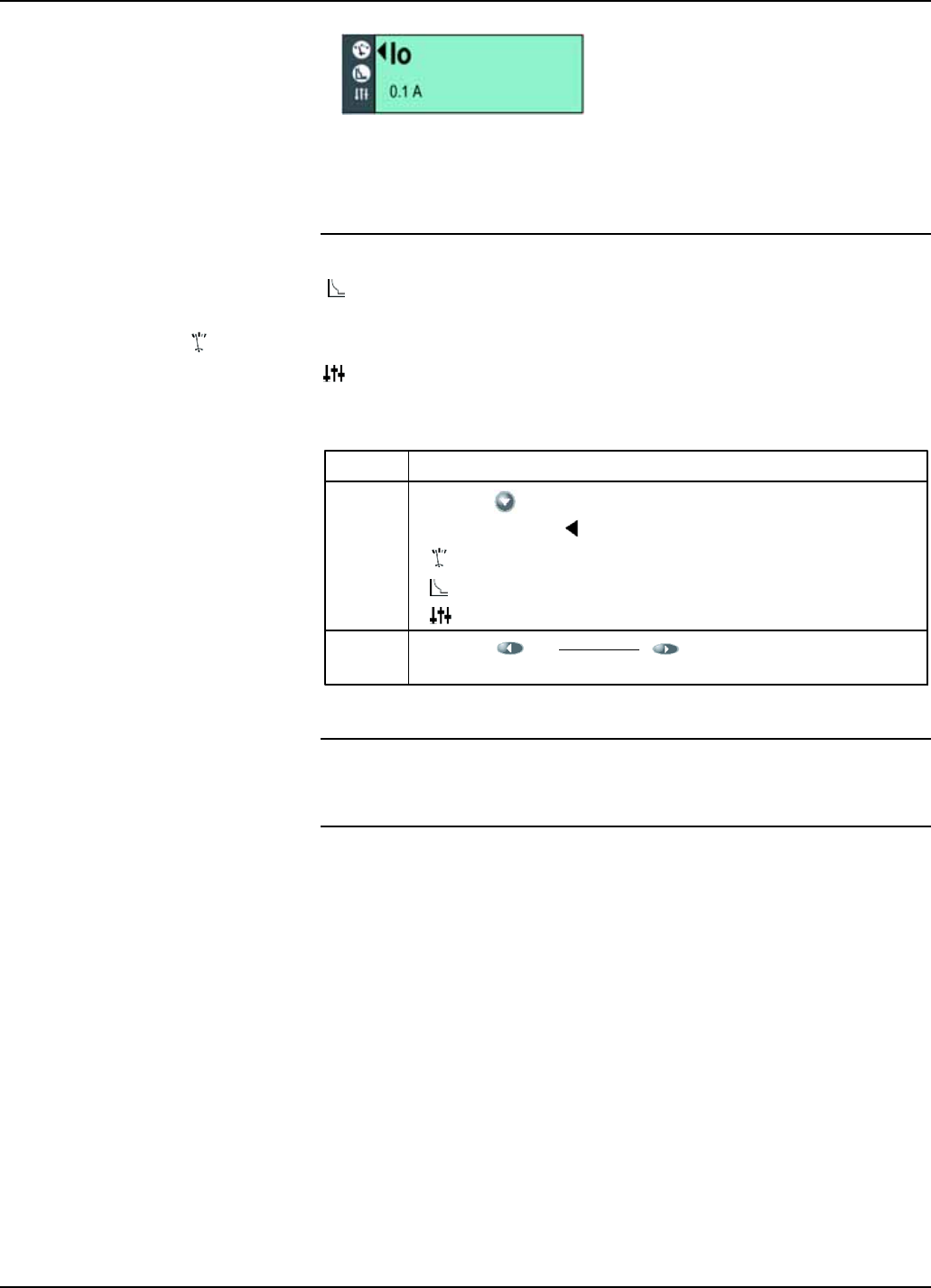

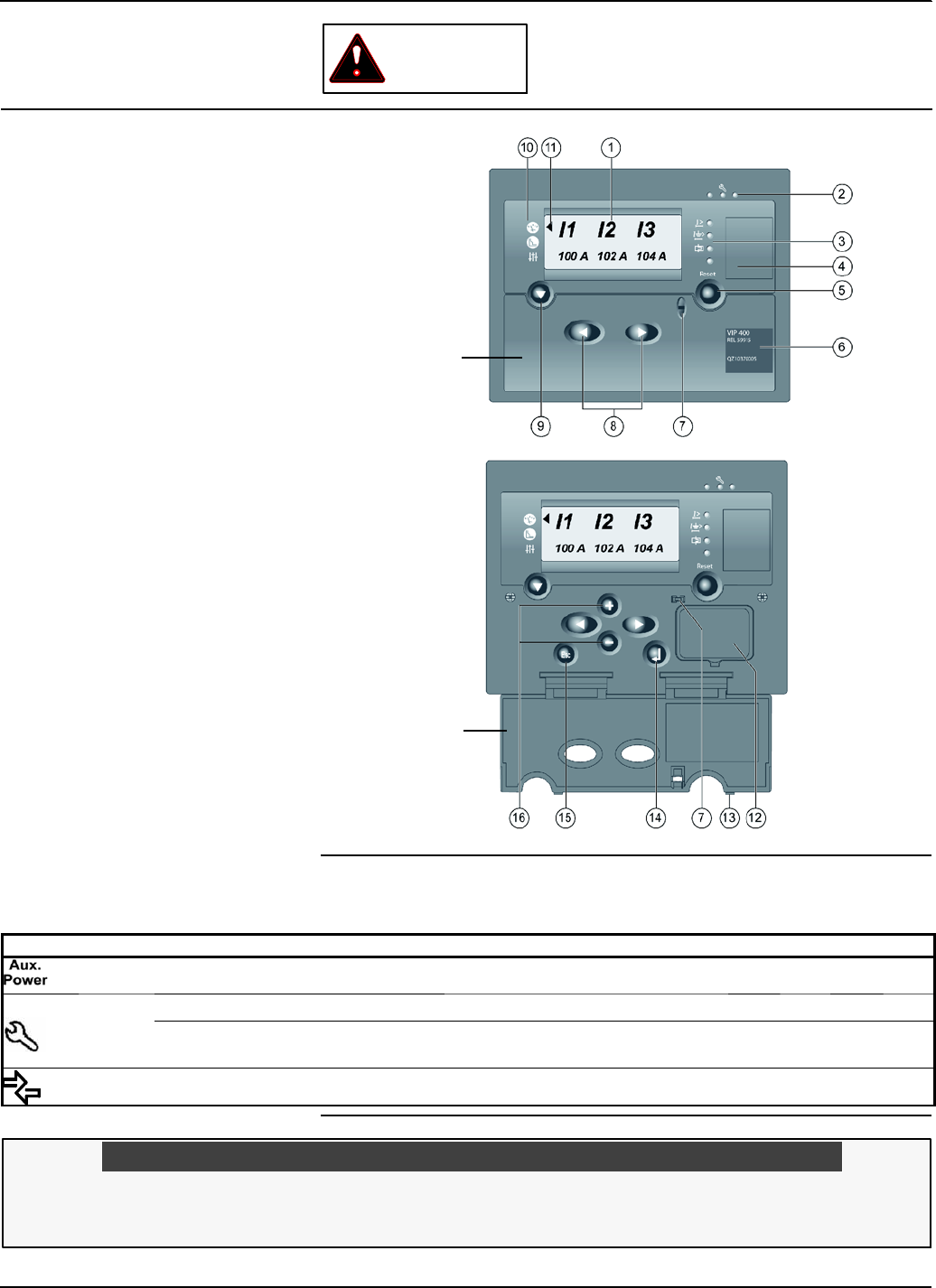

TheUser-MachineInterface(UMI)

on the front panel of VIP relays

consists of a display, LEDs and

keys. A sealable pivoting flap can

prevent access to the setting keys

by unauthorized persons.

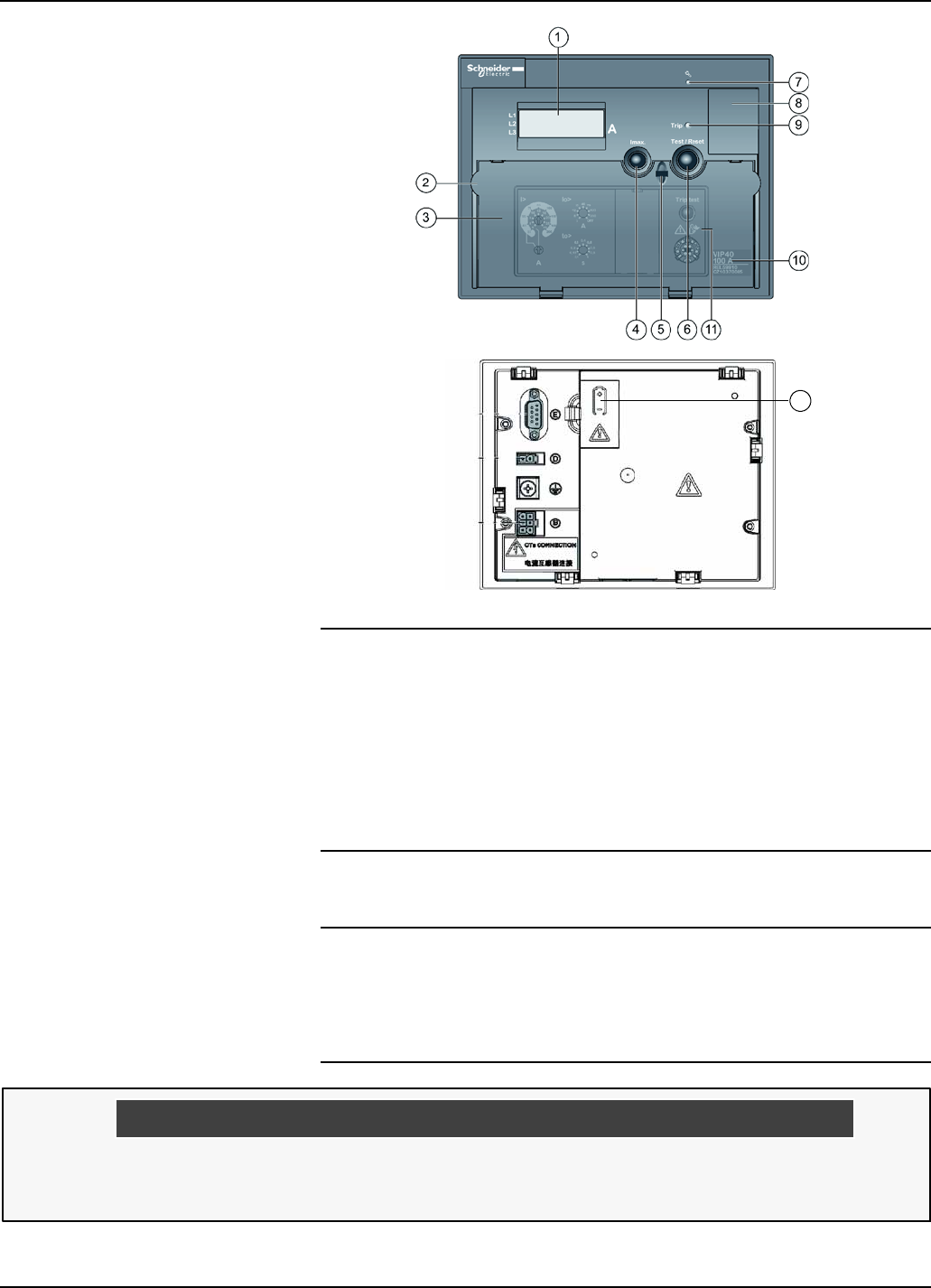

1: Display

2: Status LEDs

3: Fault indication LEDs

4: Zone for a user- customizable

label with pictograms of the

fault indication LEDs

5: Acknowledgement key

6: Identification label

7: Sealing ring

8: Selection keys

9: Key for selecting menus and

testing LEDs. When the VIP is

not supplied with power, this

key can also be used to

start the VIP from the battery

in order to enter settings

10: Menu pictograms

11: Menu selection pointer

12: Battery compartment and

socket for connecting the

pocket battery module

13: Settings protective flap

14: Confirm entry key

15: Abort entry key

16: Setting keys

status LEDs HThe status LEDs provide

information about the VIP general

status:

Pictogram Function VIP400 VIP410

Green LED: auxiliary power supply present -H

Red LED permanently on: VIP unavailable (VIP in the fail- safe position). H H

Red LED flashing: a failure has been detected but does not involve the VIP

going into the fail- safe position. H H

Yellow LED flashing: communication active -H

instructions for putting into operation

the protection relay for circuit- breaker

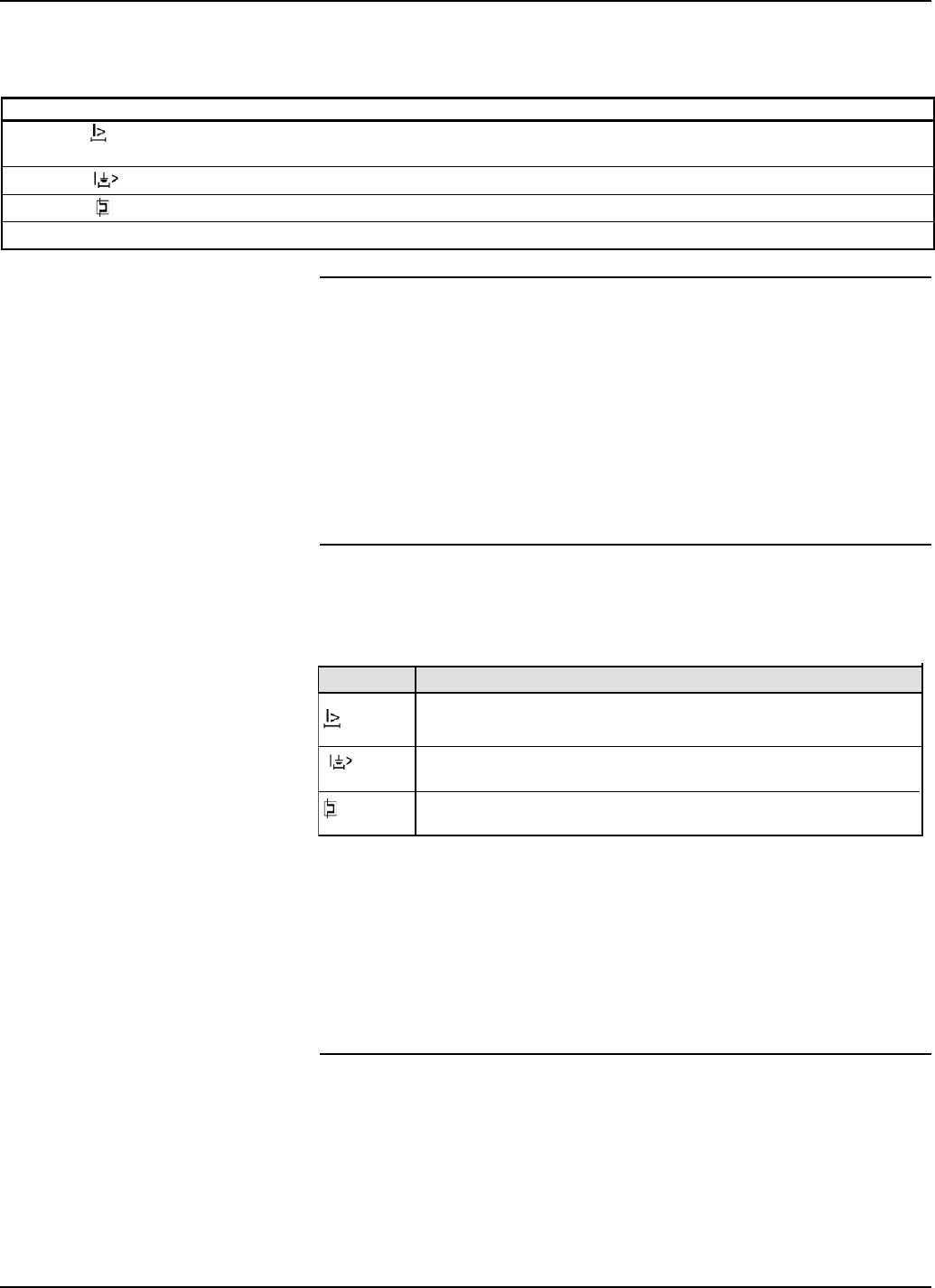

Pictogram Overshoot

Overshoot of the instantaneous set point for phase

overcurrent protection (I> or I>> or I>>> pickup outputs

Overshoot of the instantaneous set point for earth fault

protection (Io> or Io>> pick- up outputs)

Overshoot of the alarm set point for thermal overload

protection

24 07897073EN01 revision : 11

operation

Fault Indication LEDs

VIP relays have fault indication

LEDs. They flash to indicate a fault,

asshowninthetable below :

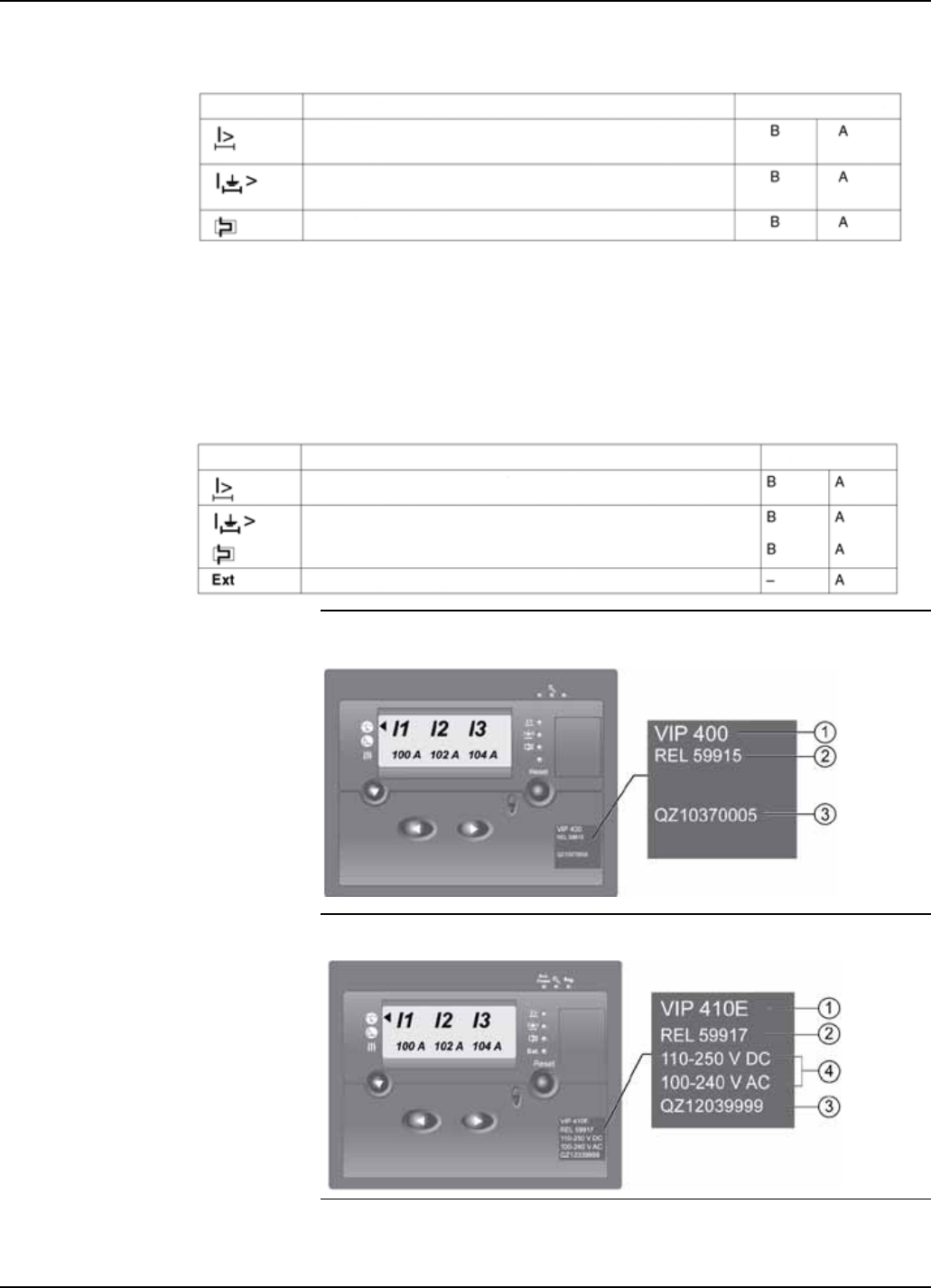

Pictogram Fault VIP400 VIP410

Detection of a fault by the phase overcurrent protection or in the event of

tripping by the temporary test mode H H

Detection of a fault by the earth fault protection H H

Detection of a fault by the thermal overload protection H H

Ext. Tripping by a volt- free contact connected to the external trip input -H

After a trip, the fault indication

LEDs are powered by the battery

embedded in the VIP or by the

VIP410 auxiliary power supply.

Fault indication by the LEDs can

be stopped:

Hby pressing the Reset key

Hautomatically by the reappea-

rance of a current in the network

higher than the pick- up current

Hautomatically after 24 hours

Hby remote control order via the

communication (VIP410)

Forthefirst3LEDs,fasterflashing

may occur before the protection

trips, to indicate the following

information :

note In custom mode, the protection set

points may not be assigned to the

Mitop trip unit output.

In this case, the fault indication

LED may be active, without being

associated with the circuit breaker

trip.

Depending on the application, this

can indicate the presence of a fault

without tripping the circuit breaker

The fault indication LED picto-

grams can be customized by sti-

cking a label to the right of the

LEDs.

Etape Action

1Press the key to select one of the 3 menus

The menu pointer indicates the selected menu :

: Metering menu

: Protection menu

: Parameters menu

2Press the or keys to scroll through

the screens in the select menu, until the desired screen diplayed

07897073EN01 revision : 11 25

display

The display is an LCD unit.

It is only back- lit on the VIP410,

when the auxiliary power supply is

present. Each VIP function is presented in a

screen consisting of the following

items:

HFirst line: symbols for electrical

values or function name

HSecond line:displaysthe

values of measurements or

parameters associated with the

function

HA menu pointer, on the left, it is

pointing to the pictogram for the

selected menu

menu organization

All the data available in the VIP

relay is divided between 3 menus:

HThe metering menu contains

the current measurements, peak

demand currents, load history,

event records, fault trip counter

and the breaking current history.

HThe protection menu

contains the essential settings

for setting up the protection func-

tions

HThe parameters menu

contains the parameters that

are used to adapt VIP operation to

particular applications.

When a VIP is new, all the parame-

ters in this menu have a default

value.

The protection functions are opera-

tional even with the parameters

menu default values.

selecting a screen

in a menu

default screen A default screen is displayed auto-

matically 3 minutes after the last

keystroke.

This default screen is the

screen displaying the phase

currents.

operation according to the

power supply mode

(VIP400)

The VIP400 is a stand- alone pro-

tection relay powered by its cur-

rent sensors.

When current is present in the

medium- voltage (MV) network,

the protections and the display

work and it is possible to enter set-

tings and view measurements.

The current in the MV network on

which the VIP operates is called

the ’pick- up current’.

When no current is flowing through

the circuit breaker (for example cir-

cuit breaker open), or when the

current in the MV network is too

low, the VIP is off and nothing

appears on its display.

If current appears, the protection

functions are activated and trip the

circuit breaker - or not - accor-

ding to their settings.

The additional time taken by the

VIP to start when current appears

is called the ’pick- up time’.

More information on the value of

the pick- up current and the pick-

up time are available in the VIP

Function Characteristics

Please consult the reference

NRJED311207EN.

LV434206

26 07897073EN01 revision : 11

operation according to the

power supply mode

(VIP410)

TheVIP410isarelaywithadual

power supply. It is powered both

autonomously by its sensors and

by the auxiliary power supply.

Like for the VIP400, the

self- powered supply allow the

protection functions to work even if

the auxiliary power supply fails.

The auxiliary power supply is used

to power functions that do not

depend on the current being

present in the MV network. These

functions are marked in the

function table (Please consult the

reference NRJED311207EN). The

auxiliary power supply must be

present in order them to work.

integral battery The VIP has an integral battery. It

is used to:

Hactivate the user- machine

interface in order to enter settings

when the VIP is not supplied with

power

Hilluminate the fault indication

LEDs when the VIP is no longer

supplied with power after giving

theopening order to the circuit

breaker

Hpower the internal calendar

When the VIP is not supplied with

power:

Pressing and holding down the

key will activate battery- powered

operation of the user- machine

interface. It is then possible to

access the menus in order to enter

settings.

In this case, the display

turns off automatically after 3

minutes of inactivity on the key-

pad.

HThe protection functions are

activated automatically if the cur-

rent reappears.

The integral battery plays no part

in operating the protection func-

tions. The protection functions

work even when there is no bat-

tery.

NOTE :

Hin battery operation mode, the

VIP processor runs with a reduced

clock frequency to ensure the bat-

tery life is maintained. As a result,

theuser-machineinterfacemay

be slower to react.

Hduring a setting operation with

the VIP powered by its internal

battery alone, the clock display is

not refreshed on screen. However

the internal clock increments nor-

mally.

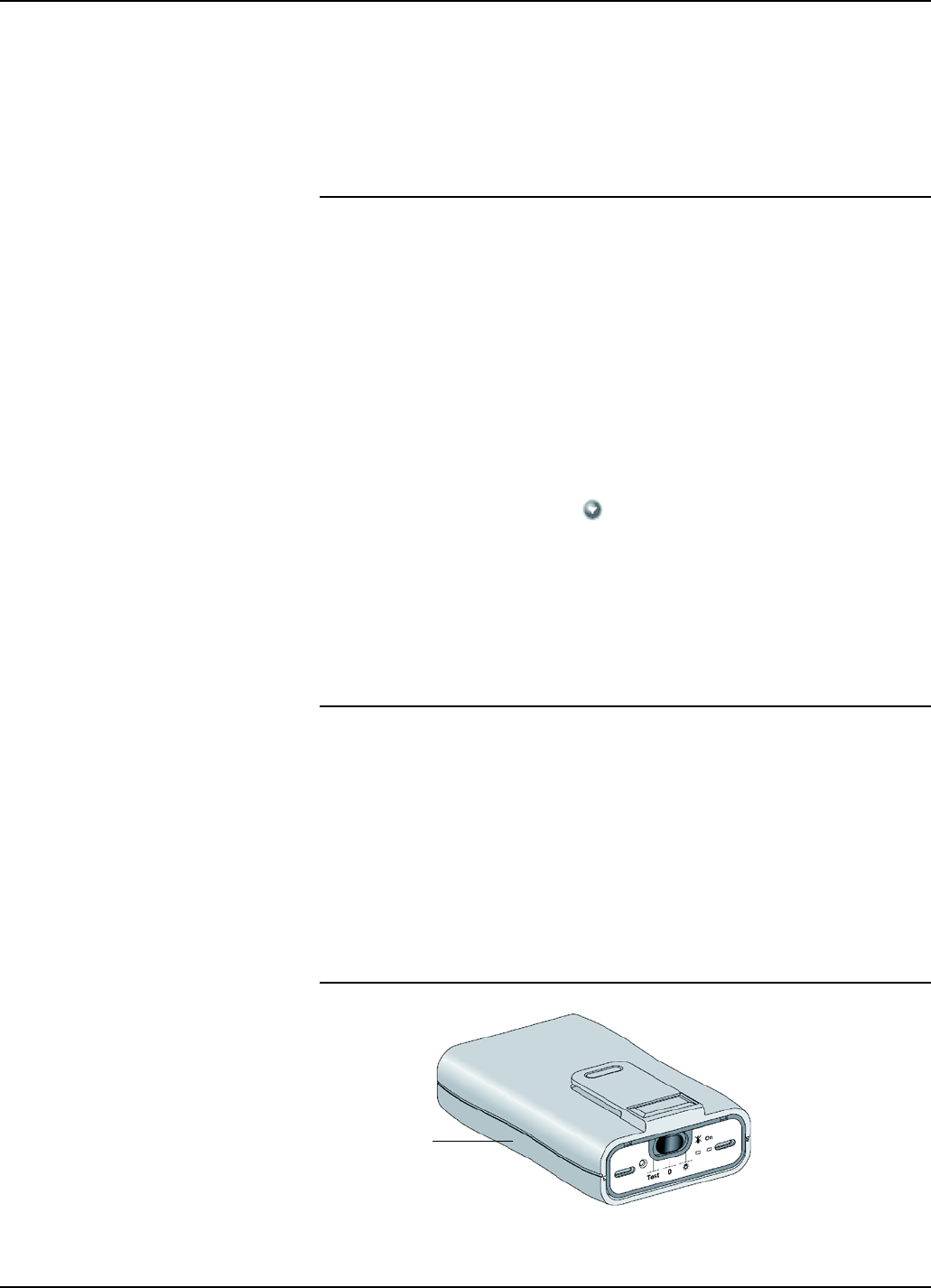

pocket battery module The pocket battery module is an

accessory that can be connected

to the front panel of VIP relays. It

contains a battery that can be

used to power the VIP in order to:

Henter settings if the integral bat-

tery is missing and if the VIP is not

powered by the current sensors

Htest the VIP, please consult the

reference NRJED311207EN.

Hdisplay the cause of the last trip

bytheVIP’pleaseconsulttherefe-

rence NRJED311207EN.

Hmore information on connecting

the pocket battery module to the

VIP is available in the Connection

to the VIP ’ please consult the refe-

rence NRJED311207EN.

battery module

The pocket battery module should

only be used during maintenance

or commissioning by qualified per-

sonnel and must never be left

permanently connected to a run-

ning VIP.

12

INFORMATION- CONSEIL

NRJED311207EN : reference manual is available on :

INFORMATION- ADVICE

www.schneider- electric.com

or call your sales representative who will put you in contact with the closet SCHNEIDER- ELECTRIC

service center

07897073EN01 revision : 11 27

presentation

of VIP40/45

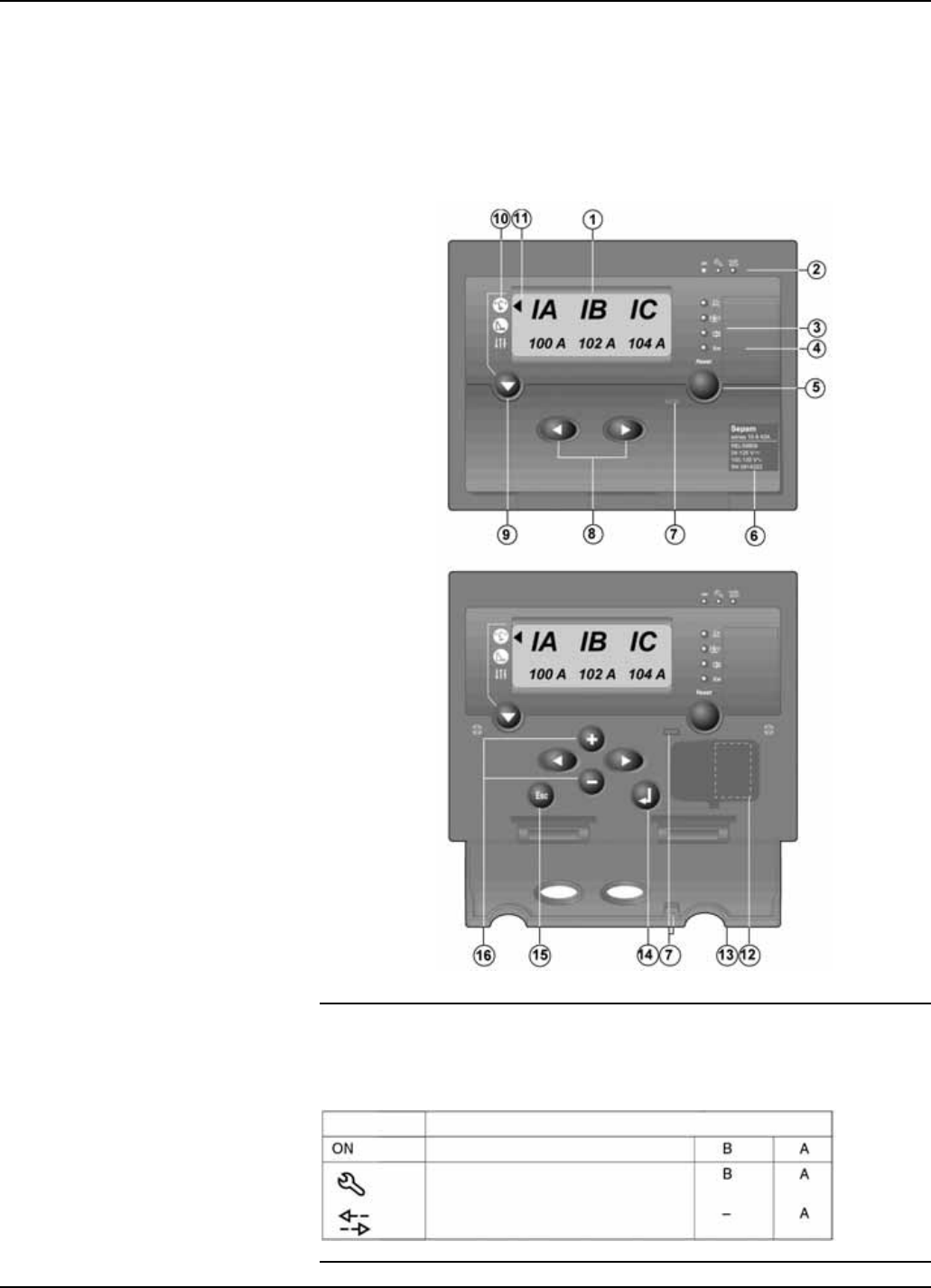

1: Display

2: Lugs for opening the

transparent protective flap

3: Transparent protective flap

4: Imax. peak demand display

button

5: Sealing ring

6: Test/Reset button

7: Status LED

8: Space for a user- customizable

label

9: Trip fault indication LED

10: Identification label

11: Symbol indicating that it is

necessary to read the manual

12: Battery

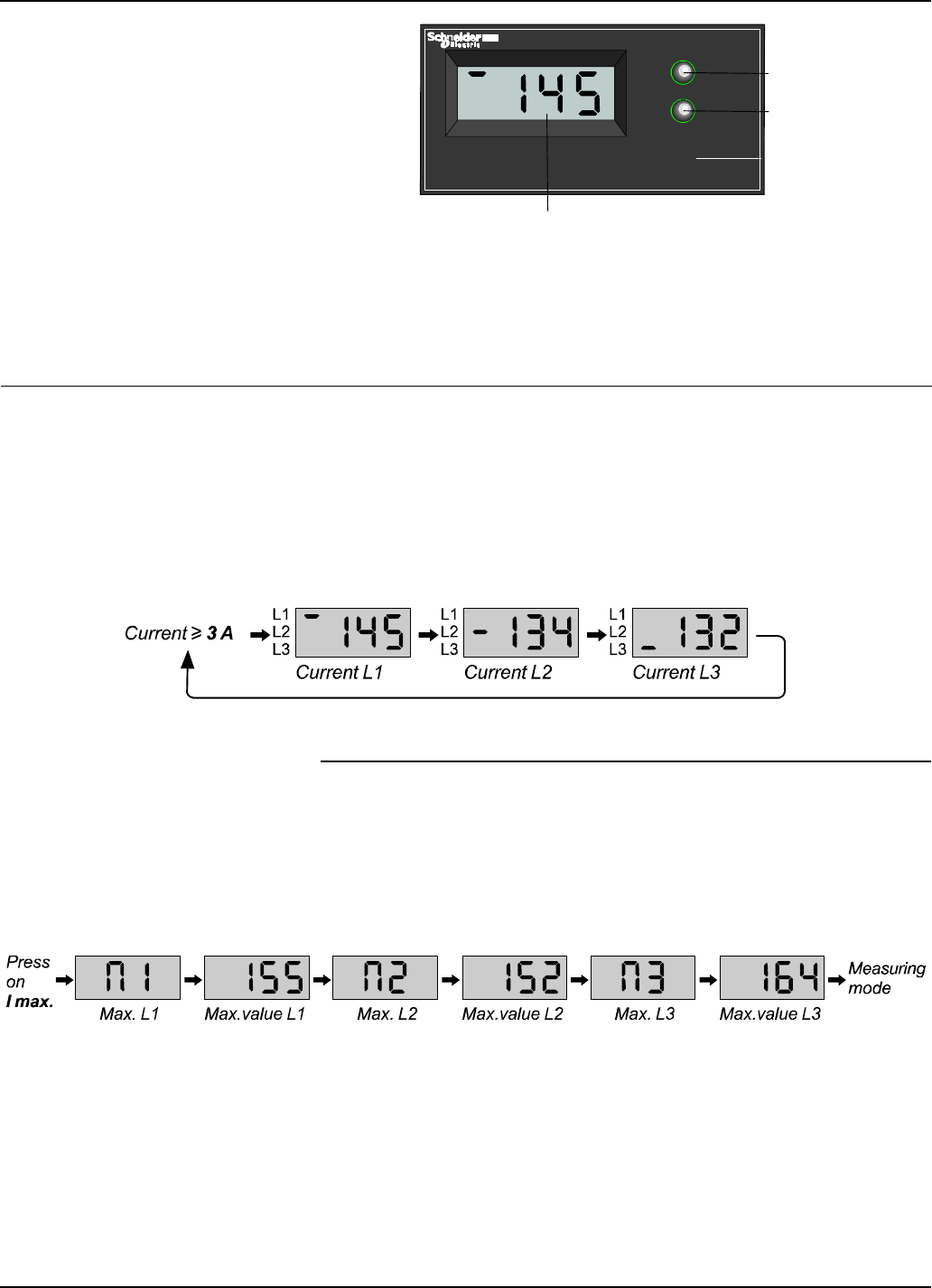

display HThe display is an LCD unit

HDuring operation, the display

indicates the value of the current

on each phase in succession

Each phase remains displayed for

3 seconds before automatically

changing to the next. The display

is in amps, on three digits.

The display is in amps, on three

digits.

NOTE: If the phase current is less

than the pick- up current (Please

you consult the reference

NRJED311207EN), the VIP is not

activated and the display is off.

lugs for opening the trans-

parent protective flap To open the flap, pull both lugs

simultaneously. Theflappivotsopenonits2bot-

tom hinges.

Imax. button: peak demand

display Pressing the Imax. button triggers

a sequence displaying the peak

demand currents for all 3 phases

in succession.

After this sequence, the VIP auto-

matically returns to displaying the

phase currents.

Pictogram Color Event

Red LED permanently on: the VIP has gone into the fail- safe position following detec-

tion by the embedded self- tests of the failure of one of its internal components,

involving a risk of nuisance tripping. In this case, the VIP is no longer operational

NOTE: This LED may light up briefly when the VIP is energized: this is normal and

does not indicate a failure.

LED flashing: the VIP has detected a failure not involving a risk of nuisance tripping.

In this case, the VIP has not gone into the fail- safe position.Intervention is required

as soon as possible (Please you consult the reference NRJED311207EN.)TheLED

stops flashing as soon as the failure disappears.

28 07897073EN01 revision : 11

Test/Reset button After a trip, pressing this button

stops the flashing trip indication.

This button can also be used to:

Htest the built- in battery. When

pressing the Test/Reset button, the

fault indication LED lights up

immediately to indicate that the

battery is OK.

Hperform the ’lamp test’ if the

relay is supplied with power. Pres-

sing the Test/Reset button for

5 seconds causes all the display

segments and the status LED to

light up, and displays the software

version number.

voyant d’état

space for user- customiza-

ble label There is a special space for a

user- customizable label for the

Trip LED.

Trip LED: fault Indication The fault indication LED flashes to

indicate that the VIP has sent a trip

order to the circuit breaker.

Aftercircuit breaker opening, when

the VIP is no longer supplied with

power by its sensor, the built- in

battery makes the LED flash.

The LED stops flashing:

Hautomatically after 24 hours

Hwhen the current returns, on

circuit breaker closing (if the cur-

rent is higher than the pick- up

current)

Hwhen the Test/Reset button is

pressed

Hwhen the pocket battery module

is connected then disconnected

NOTE:TheVIP built- in battery

only supplies power to the fault

indication LED and displays the

type of fault.

It has no role in operating the pro-

tection functions.

identification Label The identification label on the front

panel is used to identify the VIP:

Hproduct name

Hproduct reference

Hserial number

symbol : necessary reading

of manual The symbol indicates that it

is necessary to read the VIP refe-

rence manual before working on

the product.

1

2

3

4

5

1

2

3

4

5

6

7

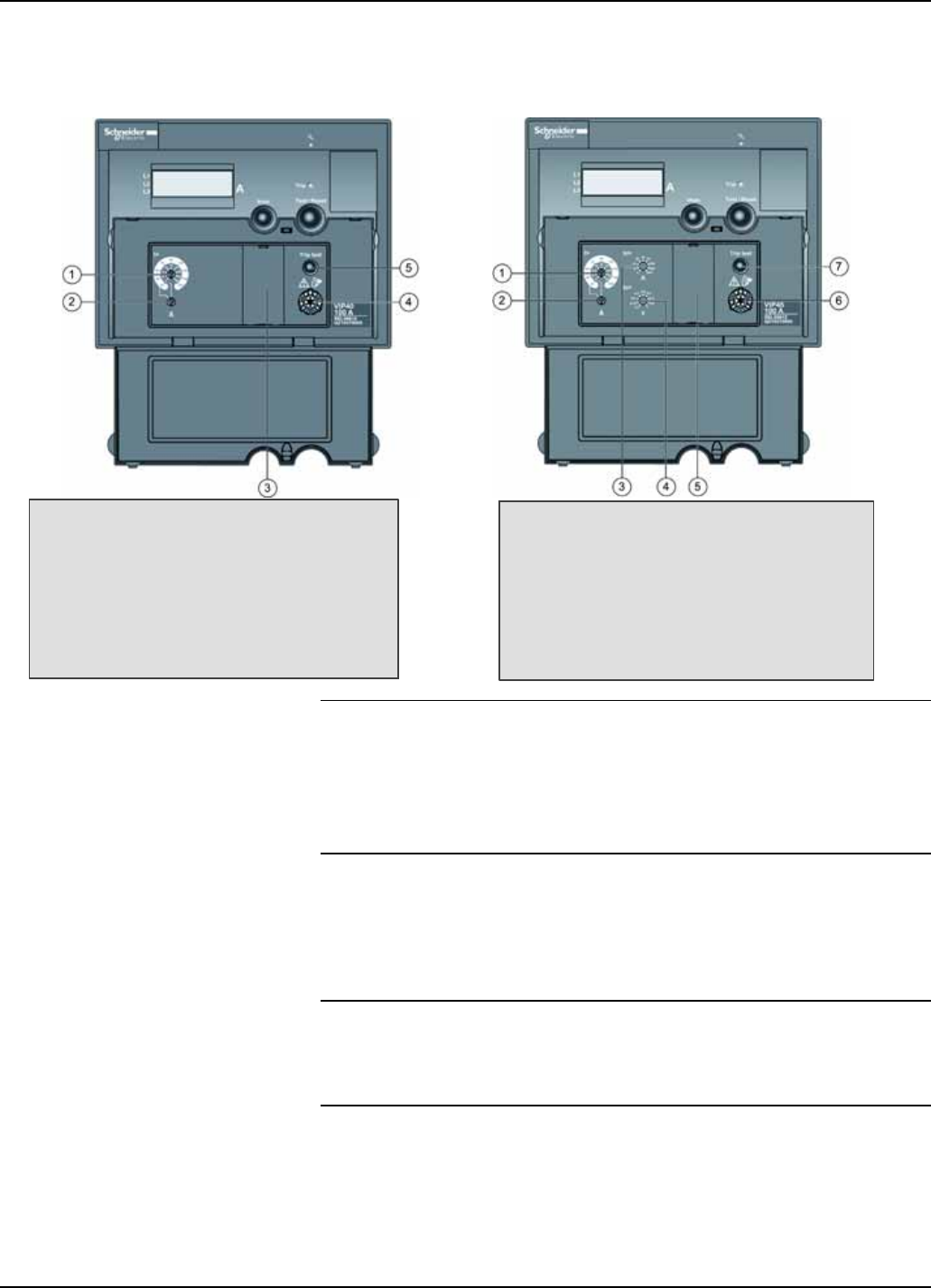

VIP40 VIP45

Phase overcurrent protection adjustment dial

Setting range selector switch

Advanced settings protective cover

Connection port for the pocket battery module

Trip test button

Phase overcurrent protection adjustment dial

Setting range selector switch

Earth fault protection set point adjustment dial

Earth fault protection time delay adjustment dial

Advanced settings protective cover

Connection port for the pocket battery module

Trip test button

07897073EN01 revision : 11 29

VIP40/45 settings

front panel

Whentheprotectiveflapisope-

ned, you can enter the protection

settings by means of the rotary

switches.

To do this, use a 3 mm flat blade

screwdriver

phase overcurrent protec-

tion adjustment dial The setting is entered directly in

Amps using the 9- position

switch.(I>)

The selector switch has 2 gradua-

ted rings.

The range is selected using the

setting range selector switch.

earth fault protection

adjustment dial The set point is set directly in

Amps using the 9- position

switch..(Io>)

The time delay setting is entered

directly in seconds using the

9- position switch.(to>)

NOTE: the earth fault protection

adjustment dials are only found on

the VIP45.

temporary display of the

changed setting When VIP relays are energized,

they display temporarily the value

of the setting after a switch has

changed position.

advanced settings To access the advanced settings,

remove the advanced settings pro-

tective cover.

Both settings can be entered using

a single selector switch:

Hdiscrimination with the LV CB

Hearth fault protection inrush cur-

rent delay

30 07897073EN01 revision : 11

connection port for the

pocket battery module The connector is used to connect

the pocket battery module so that

the VIPs can be energized and

tested.

Please consult the reference

NRJED311207EN

NOTE:the pocket battery module

should only be used during

maintenance or commissioning by

qualified personnel and must

never be left permanently connec-

ted to a running VIP.

Trip test button TheTriptestbuttonisusedfor

testing VIPs.

A 5 mm diameter pointed tool is

needed to activate it.

More information is available in the

section describing Commissioning.

Please consult the reference

NRJED311207EN

frequency The network frequency (50 Hz or

60 Hz) is a parameter that must be

known for operation of the VIP40

and VIP45 signal processing algo-

rithms.

They therefore have an automatic

frequency recognition system.

The recognized value

(50Hzor60Hz)is stored and the

VIP works permanently with this

value.

This stored value will be used each

time the VIP starts

For the VIP to recognize the net-

work frequency and store it, it has

to detect a current on phase 1 for

a minimum period of 5 seconds in

the range 50 Hz +/- 2 Hz or 60

Hz +/- 2 Hz.

This detection happens when

the VIP starts.

Functions

Protection types

Earth current maximum protection Standard

Very sensitive

Phase current maximum protection

Thermal overload protection

Cold load pickup (low sensitivity of phase and

earth current maximum protection settings)

Logic discrimination Await logic emission

Await logic reception

External tripping

Measurements

Measurement of earth current

Measurement of phase currents

Phase current maximum readings

Control and monitoring

Circuit breaker tripping and rearmament locking

Trip signalling

Tripping circuit monitoring

Circuit breaker remote control

Recording of last fault

Recording of last 5 events

Communication

Modbus

IEC 60870- 5- 103

Function available

Function available depending of Sepam model

Inputs / Outputs (Number)

Earth current inputs

Phase current inputs

Relay logic outputs

Logic inputs

RS 485 communication port

07897073EN01 revision : 11 31

For further information on the

Sepam series10, download the

reference manual from our web-

site:

www.schneider- electric.com

Sepam series 10

protection of HV/LV trans-

formers

protection of HV networks

Sepam 10 relays fitted to RM6 cir-

cuit breakers require an auxiliary

power supply.

Sepam 10A:

- provides protection against

overloads (thermal overload pro-

tection), phase- phase faults and

phase- earth faults.

It has:

- 4 logic inputs and 7 configura-

ble relay outputs

- a communication port

Sepam 10B:

- provides protection against over-

loads (thermal overload protec-

tion), phase- phase faults and

phase- earth faults.

It has:

- 3 configurable relay outputs

32 07897073EN01 revision : 11

earth current (ANSI

50N- 51N) Earth current maximum protection

enables overcurrents due to

phase- to- earth faults to be

detected. It makes use of the mea-

surement of the earth current’s

fundamental component.

2 independent thresholds (Io>

and Io>>)

Hthe lower threshold (Io>)can

be set to either a definite time (DT)

or an inverse time (IDMT) curve,

with the choice of standardised

curve (IEC, IEEE, RI) and the pos-

sibility of activating an inverse time

duration.

Hthe upper threshold (Io>>) has

only a definite time (DT) setting.

The minimum setting gives instan-

taneous operation (ANSI 50 func-

tion).

Depending on the level of sensiti-

vity required, there are 2 types of

Sepam:

Sensitivity Sensor

Standard 3 CT CRa 200/1 or CRb 1250/1

Very sensitive CSH200 core balance CT

phase current maximum

protection (ANSI 50- 51) Phase current maximum protection

enables overcurrents due to

phase- to- phase faults to be

detected. It makes use of the mea-

surement of the fundamental com-

ponent of the currents from the 3

phase CTs.

2 independent thresholds (I>

and I>>)

Hthe lower threshold (I>) can be

set to either a definite time (DT) or

an inverse time (IDMT) curve, with

the choice of standardised curve

(IEC, IEEE, RI) and the possibility

of activating an inverse time dura-

tion.

Hthe upper threshold (I>>) has

only a definite time (DT) setting.

The minimum setting gives instan-

taneous operation (ANSI 50 func-

tion).

thermal overload protection

(ANSI 49RMS) This protection enables cables and

HV/LV transformers to be protec-

ted against overloads based on

the measurement of absorbed cur-

rent.

This protection uses a thermal

model based on current measure-

ments to evaluate temperature

rise. The current used for this pro-

tection is a 3- phase RMS current

that takes into account up to 13th

order harmonics.

This protection has 2 settings:

Hmaximum allowable continuous

current, which corresponds to the

maximum thermal withstand of the

equipment to be protected (this

allowable continuous current cor-

responds to a temperature rise of

100%)

Hheating/cooling time constant of

the equipment.

07897073EN01 revision : 11 33

low sensitivity of phase and

earth current maximum

protection settings (Cold

Load Pick- Up)

Thecoldloadpickupfunction

avoids nuisance tripping when the

equipment is powered- up, espe-

cially after a long break in opera-

tion. It allows the protection thres-

holds to be temporarily increased.

High currents at cold load pic-

kup may be due to:

Hsimultaneous powering- up of

all the loads in an installation.

Hpower transformer magnetising

currents.

Hmotor starting currents.

Protection concerned Operating means

Phase current maximum protection After circuit breaker closing, the tripping thresholds (I> or I>>) are

increased or blocked for the set duration.

Earth current maximum protection After circuit breaker closing, the tripping thresholds (Io> or Io>>) are

increased or blocked for the set duration.

Or

The protection is restrained by the detection of sensor saturation (measu-

rement of 2nd order harmonic level).

logic discrimination

(ANSI 68) This function achieves:

Htripping discrimination in the

event of a short- circuit between

phases, or from phase to earth, for

all network types

Hreduced tripping time of the cir-

cuit breaker that is closest to the

source.

All Sepam series 10B and 10A

areabletoemitanawaitlogic

order should a fault be detected

by the phase and earth current

maximum protection functions.

Only the Sepam series 10A is

able to receive an await logic

order that blocks its tripping

signal. A safety mechanism ensu-

res the protection operates in the

event of a fault with the blocking

signal wiring.

external tripping The Sepam series 10A enables,

via a logic input, a tripping order

from an external protection means

to be taken into account.

earth current measurement This measurement enables the

value of the fundamental compo-

nent of the earth current to be dis-

played.

phase current measure-

ments These measurements enable the

RMS value of the phase currents to

be displayed; it takes into account

up to 13th order harmonics.

This function displays the 3 phase

currents.

phase current maximum

readings This function enables the largest

average current value of each of

the 3 phases to be displayed, as

well as giving the highest absor-

bed current during load peaks.

34 07897073EN01 revision : 11

latching / resetting ANSI 86 Output relay latching can be confi-

gured. Latch tripping orders are

memorised and must be reset in

order to put the equipment back

into service.

Resetting can be done:

- by pressing the Reset button;

-viatheSepam 10A communica-

tion port.

circuit breaker remote

control - Sepam 10A This function enables remote ope-

ration of the circuit breaker via the

communication. A Sepam logic

input allows the operating mode

(local or remote) to be selected.

recording of the last fault -

Sepam 10B This function enables the characte-

ristics of the last fault to be dis-

played. The Sepam indicates the

cause of the fault, the value of the

phase currents and the earth cur-

rent when the fault occurred, and

the time and date of the fault.

This information is memorised until

the next fault occurs.

Cause of faults recorded: I>,

I>>, Io>, Io>> and thermal pro-

tection.

recording of the last 5

events - Sepam 10A This function enables the characte-

ristics of the last 5 events to be dis-

played. For each event, the Sepam

indicates its cause, the value of the

3 phase currents and the earth

current when the event occurred,

and the time and date of the event.

Events are numbered in the order

they occur and the last 5 can be

displayed.

The following events are recor-

ded:

Htripping due to I>, I>>, Io> or

Io>>, thermal protection

Htripping by external input

Htripping circuit fault

Hcircuit breaker opening and clo-

sing via the communication

Htripping due to logic discrimina-

tion safety protection.

communication -

Sepam 10A One RS 485 communication port.

2 protocols available, chosen by

configuration: Modbus, IEC

60870- 5- 103.

Communication enables the follo-

wing functions to be carried out

remotely:

Hmeasurement readings,

Hstatus readings

Hevent readings and time- stam-

pedmeasurements(2tablesof

100 events available)

Htime setting and synchronisa-

tion

Hremote control orders.

operating language When delivered, the default lan-

guage is English. The following

languages can be selected: UK

English, US English, Spanish,

French,Italian,German,Turkish,

Portuguese.

07897073EN01 revision : 11 35

standard assignment of

inputs/outputs and cus-

tomised configuration

The configuration is customised

using the Sepam human-

machine interface, without the

need for a PC.

Sepam 10A

Logic inputs Standard assignment Configurable

I1 Circuit breaker open No

I2 Circuit breaker closed No

I3 External tripping Yes

I4 Local- Remote Yes

Relay outputs Standard assignment Configurable

O1 Circuit breaker tripping Yes

O2 Locking of circuit breaker latching Yes

O3 Trip signalling Yes

O4 Circuit breaker remote closing Yes

O5 Await logic emission Yes

O6 Trip circuit fault signalling Yes

O7 Watchdog No

Sepam 10B

Relay outputs Standard assignment Configurable

O1 Circuit breaker tripping Yes

O2 Locking of circuit breaker latching Yes

O3 Trip signalling Yes

Pictogram Function Sepam series 10

Green lamp: Sepam powered- up

Red lamp: Sepam unavailable

(Sepam in fall- back position)

Yellow lamp: communication active

36 07897073EN01 revision : 11

human- machine

interface

front panel

The Human- Machine Interface on

the Sepam front panel is made up

of a display, indicator lamps and

buttons.

Access to the setting buttons by

unauthorised personnel can be

prohibited using the pivoting and

lead- sealable cover. The illustra-

tions below show the 2 positions of

this cover.

1: Display

2: Status indicator lamps

3: Fault indicator lamps

4: Zone for a customised

pictogram label of fault

indicator lamps

5: Button for resetting the

Sepam and the maximum

value readings

6: Identification zone

7: Lead sealing ring

8: Selection buttons

9: Menu selection and indicator

lamp test button

10: Menu pictograms

11: Menu selection pointer

12: Battery compartment

(Sepam series 10A)

13: Settings protection cover

14: Entry validation button

15: Entry abort button

16: Setting buttons

status indicator lamps The status indicator lamps provide

information on the Sepam status.

Pictogram FThreshold exceeded Sepam series 10

Phase current maximum protection instantaneous threshold

exceeded (I> or I>> pickup output)

Earth current maximum protection instantaneous threshold

exceeded (Io> or Io>> pickup output)

Thermal protection alarm threshold exceeded

Fault Sepam series 10

Detection of a fault by the phase current maximum protection

Detection of a fault by the earth current maximum protection

Detection of a fault by the thermal protection

External tripping

Pictogram

07897073EN01 revision : 11 37

fault indicator lamps The fault indicator lamps flash as

described in the table below to

signal a fault:

The fault indicator lamp is latched

in standard operating mode.

If, when customising the operating

mode (at the time of commissio-

ning), the latching of a fault indica-

tor lamp has been cancelled, the

fault indicator lamp goes out as

soon as the fault is no longer pre-

sent.

For the first 3 lamps, they may

flash at a faster rate before the pro-

tection trips to signal the following

information:

identification zone

The identification zone on the front

panel enables a Sepam to be iden-

tified:

1: Identification code

2: Reference

3: Supply voltage

4: Serial number

VIP400

VIP410

Refer to the Identification section

for the identification code key.

Sepam 10 family

Model

B: phase and earth current maximum protection

settings

A: phase and earth current maximum protection

settings, logic inputs and communication port

Number of current inputs

4: 3 phase current inputs + 1 earth current input

Sensitivity of earth current maximum protec-

tion

1: standard (0.1...24 In) CT

3: very sensitive (0.2...24 A and 2...240 A)

CSH200

Supply voltage

A: 24...125 V DC and 100...120 V AC

E: 110...250 V DC and 100...240 V AC

1. Press to select one of the 3

menus.

2. The pointer shows the selec-

ted menu:

Measurements

Protection types

Parameters

3. Press and to select

the information to be displayed.

38 07897073EN01 revision : 11

identification

identification code

The identification code of a Sepam

series10 is an alphanumeric code

that defines the main functions of

the Sepam. It is made up of seve-

ral fields:

operating instructions

accessing information

During operation, when the set-

tings protection cover is closed,

the user has access to the follo-

wing:

Hreading of measurements, set-

tings, protection types and para-

meters.

Hlocal fault signalling.

Hlast fault resetting.

Hreading of last recorded faults.

Hresetting of maximum values.

Htesting of indicator lamps and

the display.

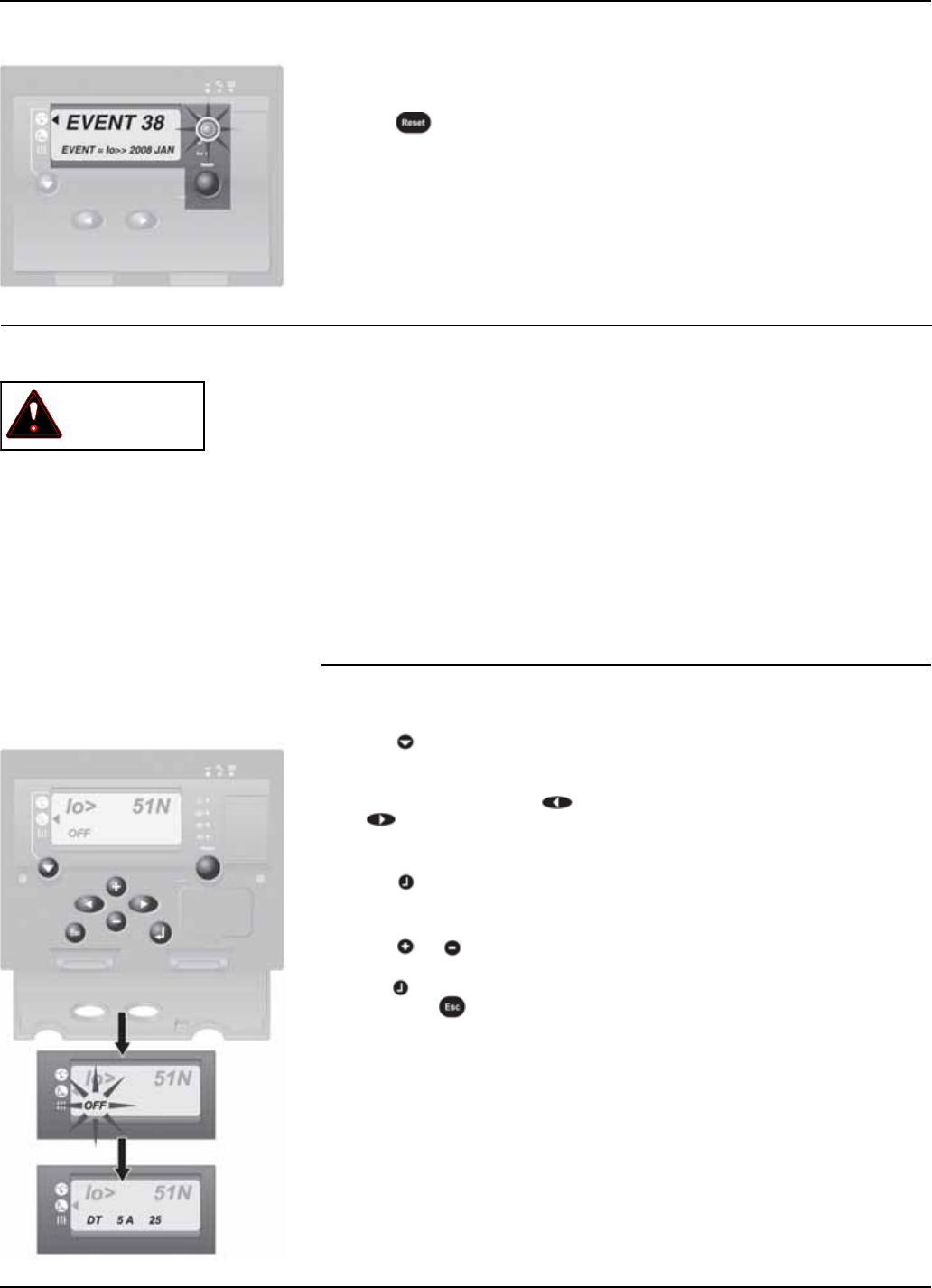

display

1. A fault detected by the Sepam

is signalled by:

- a message on the display

- a flashing indicator lamp

2. Press to reset the fault.

3. The indicator lamp goes out

and the message disappears

1. Open the settings protection

cover.

2. Press to select the protec-

tion or parameter menu.

3. Select the protection type or

parameter to be set using

and .

4. Enter the password if reques-

ted.

5. Press to select the value to

be modified.

6. The selected value flashes.

7. Press or to increment or

decrement the value.

8. Press to validate the new

value or press to cancel.

9. The value stops flashing.

07897073EN01 revision : 11 39

resetting

setting instructions

CAUTION

Knowledge of electrical network

protection is required for choosing

appropriate settings.

Onlythosepeoplewiththerequi-

red skills are authorised to set the

Sepam.

Not abiding by this instruction

may cause injury and damage to

equipment and property.

All protection is inhibited by

default. To make the protection

operational, it must be activated

andset-upwhencommissioning

the RM6.

accessing parameters and

settings

40 07897073EN01 revision : 11

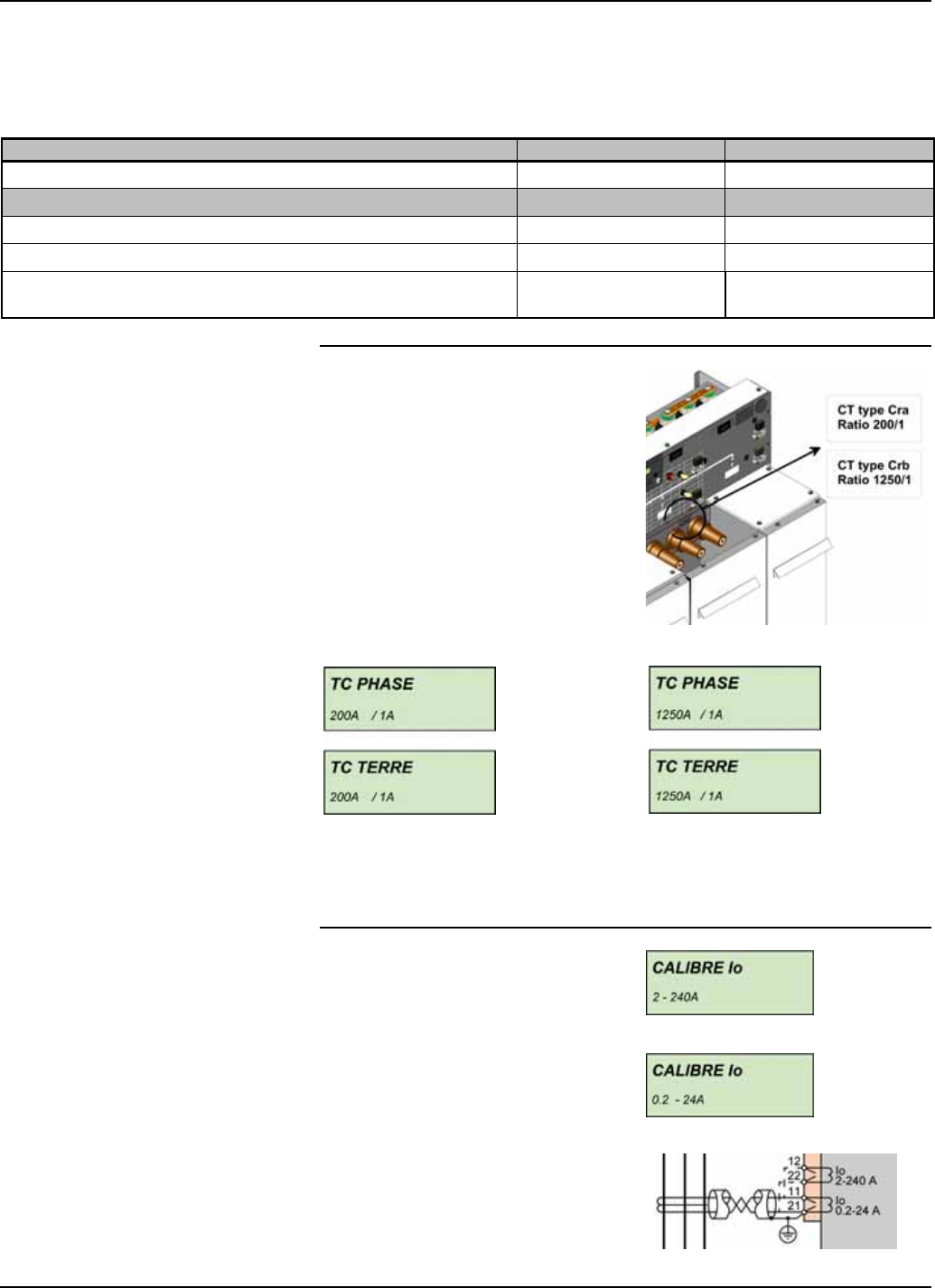

setting ranges The setting ranges that can be

used for the lower threshold

depend on the circuit breaker type:

Dor B,andthetypeofsensorsfit-

ted to the RM6.

Circuit breaker type D B

Type of sensors Cra 200/1 CRb 1250/1

Functions Code ANSI

Phase current 50- 51 20- 200A 125- 630A

Earth current 50N- 51N 20- 200A 125- 630A

Very sensitive earth current 50G- 51G 2- 240A

0,2- 24A 2- 240A

0,2- 24A

factory set parameters

Sepam 10A and 10B standard

earth

The transformer ratios of the phase

and earth CTs (Io by summing) are

factoryset.Ifbyerroryouhave

deleted the settings, you can find

thetypeofCTfittedtoyourRM6in

the inspection report supplied with

the equipment and on the CT sup-

port, where a label with the infor-

mation can be found (see image

aside).

Sepam 10A and 10B

very sensitive earth The factory set measurement

range is 2- 240A; this can be

changed.

To change to the 0.2- 24A range,

you should:

1- Bring up Io 0.2- 24A in the

RATING screen.

2- Change the wiring at the CSH

input, terminals 11- 21 on the

Sepam connector marked B.

07897073EN01 revision : 11 41

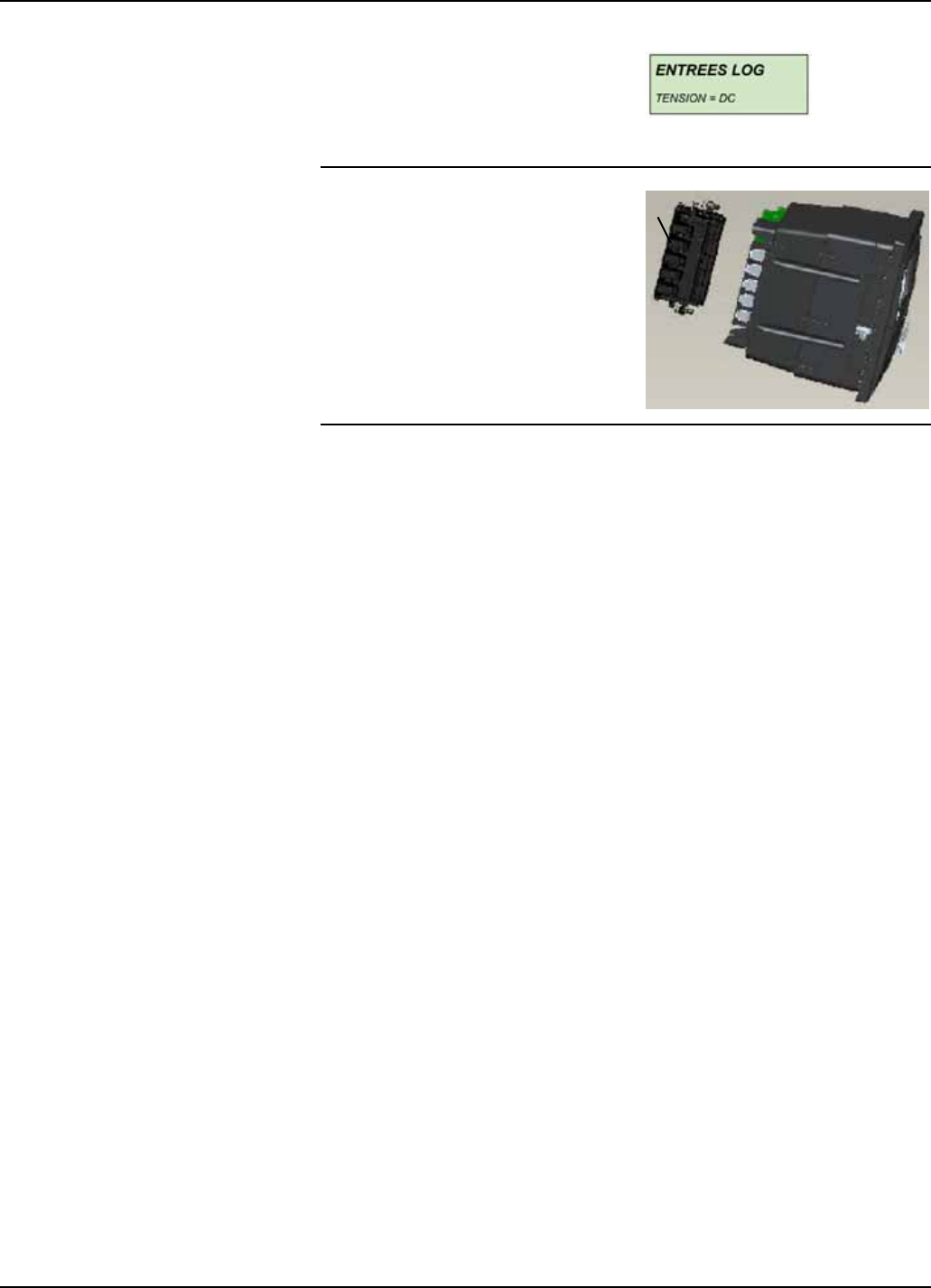

configuring the logic inputs For the Sepam series10 A, logic

input operation must be adapted

to the type of voltage: AC or DC.

Thetypeofvoltagemustbeconfi-

gured in the LOG INPUTS screen

of the parameter menu. The

default value is DC.

accessing phase current

inputs Connector Bfor connecting the

current sensors is a short- circui-

ting connector. It can be discon-

nected on- load; disconnecting it

does not open the sensors’ secon-

dary circuit. Remove the short- cir-

cuiting connector without discon-

necting the wires connected to it.

Use another connector to connect

your generator.

B

42 07897073EN01 revision : 11

.....................................................................................................................................................................

EA

D

BC

F

07897073EN01 revision : 11 43

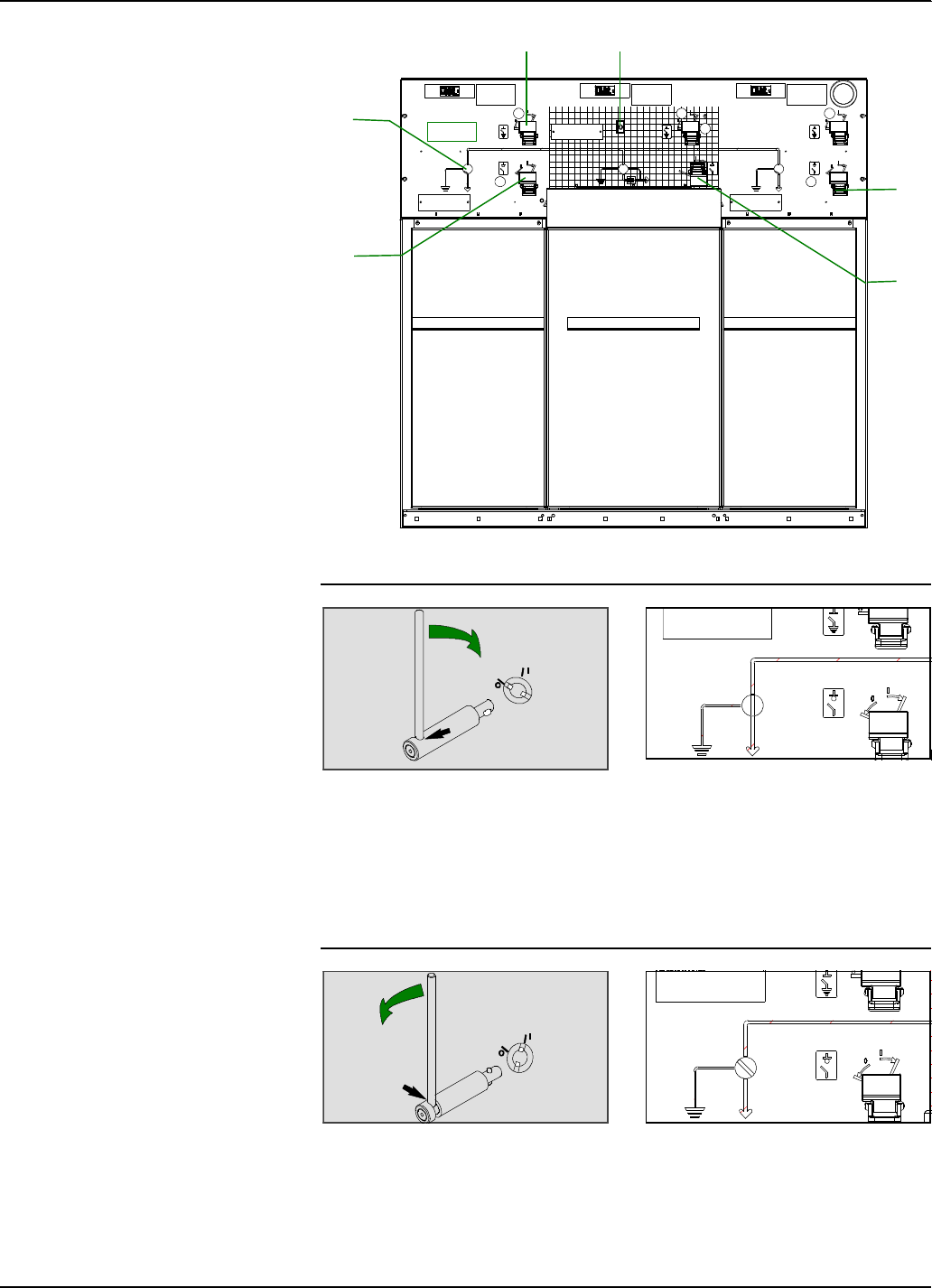

operating and viewing

substation condition

description

A: earthing switch operating

shaft

B: switch function operating

shaft

C: fuse- switch combination

function operating shaft

D: position indicator

E: fuse- switch combination

function opening pushbutton

F:padlockinghandle

closing a switch

Initial state:

Hswitch open

Hearthing switch open

Left the operating shaft protective

cover.

Activate the switch operating

mechanism to the right.

The indicator moves to the closed

position, and access to the

earthing switch operating shaft is

blocked.

opening a switch

Initial state

Hswitch closed

Hearthing switch open

Activate the switch operating

mechanism to the left. The indicator moves to the open

position, and access to the

earthing switch operating shaft is

freed.

operating instructions

44 07897073EN01 revision : 11

closing an earthing switch

Initial state:

Hearthing switch open

Hswitch or circuit- breaker open

DANGER

If the incoming line is powered

on, do not close the earthing

switch.

Lift the operating shaft protective

cover.

Separate the pallet with the end of

the lever, then activate the

earthing switch operating

mechanism to the right.

The indicator moves to the earth

position and access to the earthing

switch operating shaft is

blocked.

opening an earthing switch

Initial state :

Hearthing switch closed

Hswitch or circuit- breaker open

Separate the pallet with the end of

the lever, then activate the switch

operating mechanism to the left.

The indicator moves to the open

position, and access to the switch

or circuit- breaker operating shaft

is freed.

closing a circuit- breaker

or fuse- switch

combination

Initial state :

Hcircuit-breakerorfuse-switch

open

Hearthing switch open

Lift the operating shaft protective

cover.

Activate the switch operating

mechanism to the right.

The indicator moves to the closed

position, and access to the

earthing switch is blocked.

opening a circuit- breaker

or fuse- switch

combination

Initial state :

Hcircuit-breakerorfuse-switch

open

Hearthing switch open

Press the opening pushbutton of

the circuit- breaker or fuse- switch

combination.

The indicator moves to the open

position, and access to the

earthing switch is freed.

07897073EN01 revision : 11 45

operating safety

Switch or circuit- breaker closed... ...the earthing switch is blocked.

Earthing switch closed... ...the switch or circuit- breaker

is blocked.

key- locking (optional) The switches and the

circuit- breaker are locked

in the open position. The earthing

switches are locked in position :

Hopen

Hopen/closed

There are various possible locking

diagrams.

Hnetwork switch and network

outgoing circuit- breaker

- semi- crossed locking

- crossed locking

HTransformer outgoer :

-RM6/ transformer

-RM6/lowvoltage

-RM6/ ransformer/low voltage

padlocking

operating shaft padlocking

handle

Switch and earthing switch with

a degree of protection IP3X,

fit a padlock

6mm < handle diameter < 8 mm.

ON

OFF

B

C

A

NEUTRALIZED VERSION

COFF

C

ON : AUTHORIZED ENGINE

OFF : LOCKED ENGINE

A

B

A

B

46 07897073EN01 revision : 11

padlocking the opening

pushbutton

Fit the padlock on the opening

pushbutton

6mm < handle diameter < 8 mm.

A: fuse- switch combined function

or circuit breaker opening push

botton.

with motorization lock

option

B: circuit- breaker motorized

C: position of the switch

padlocking the operating

shafts of the switch with the

operating mechanism front

plate removed

fit a padlock

6mm < handle diameter < 8 mm.

in one of the 2 marked holes.

A: padlocking the earthing switch

in the open or closed position

B: padlocking the switch in the

open or closed position

padlocking the operating

shafts of the

circuit- breaker with the

operating mechanism front

plate removed

fit a padlock

6mm < handle diameter < 8 mm.

in one of the 2 marked holes.

A: padlocking the earthing switch

in the open or closed position

B: padlocking the switch in the

open or closed position

12

1

2

3

07897073EN01 revision : 11 47

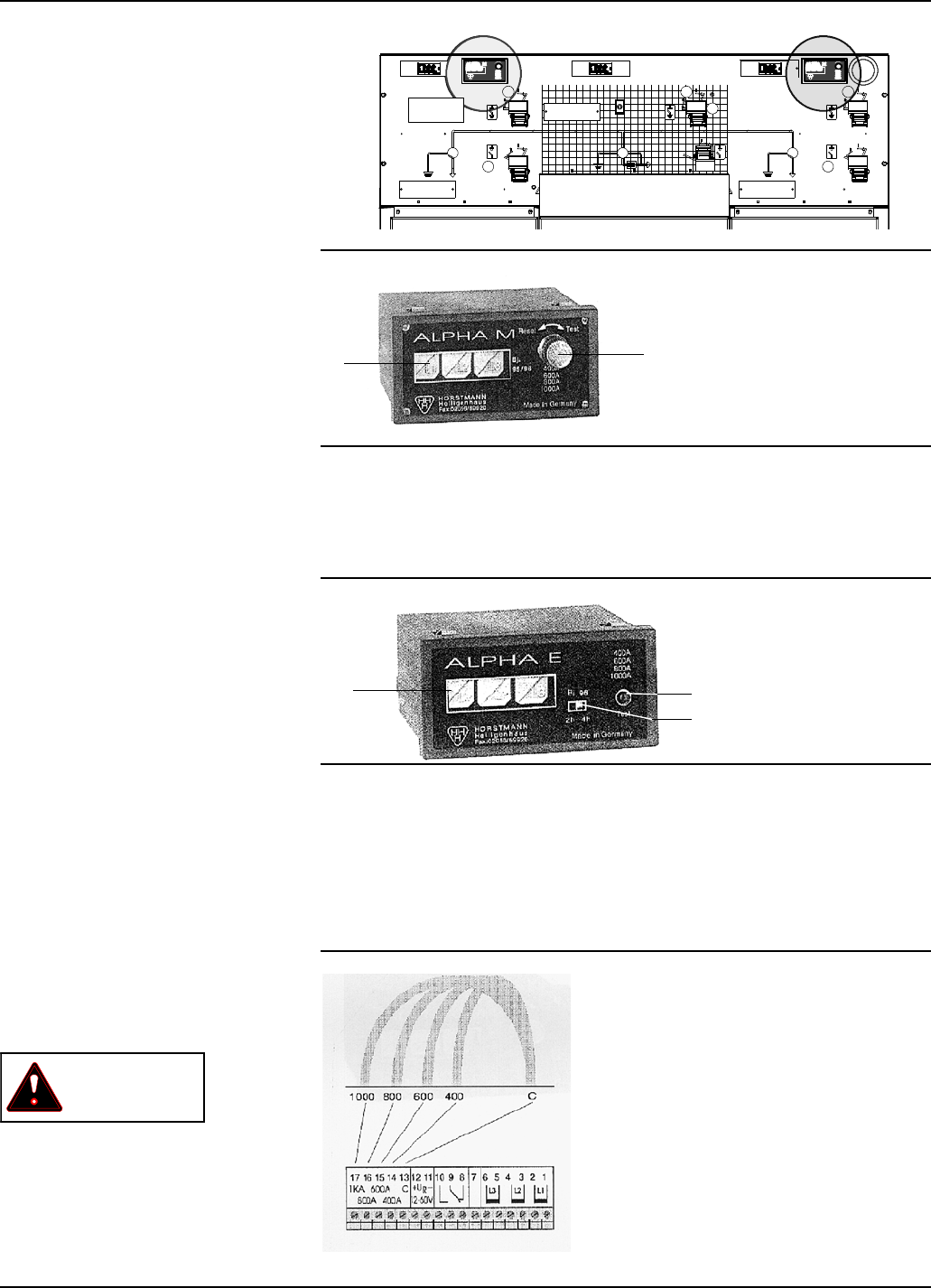

overcurrent indicator

An overcurrent indicator of the

Alpha M or Alpha E type can be

optionally fitted one of the line

switch.

4 detection thresholds are possible

– 400 A, 600 A, 800 A, 1000 A.

Alpha M type indicator

operation If the reaction current exceeds the

pre- set threshold, the indicator

will send an optical signal on the

faulty phase. The signal will remain

visible until it is manually reset.

1) Threshold overshoot optical

signal, one for each phase.

2) Rotary resetting and operating

test button (turn quickly).

Alpha E type indicator

operation If the reaction current exceeds the

pre- set threshold, the indicator

will send an optical signal on the

faulty phase. The signal will remain

visibleforatimethatcanbe

pre- set.

2 hours or 4 hours.

Manual resetting is possible.

1) Threshold overshoot optical

signal, one for each phase.

2) Time during which the signal

remains visible.

Resetting is automatic.

3) Resetting and operating test

pushbutton.

threshold change for Alpha

M and Alpha E type

indicator

CAUTION

To change threshold, cable

appropriately according to the

diagram opposite. The terminal

blockisplacedbehindthedevice.

In the absence of a fault, a load current indication is displayed.

The amperage of each phase L1 - L2 - L3 is displayed in succession

with its reference on the left of the display.

Example,

Foraloadcurrentof80A: forL1

then for L2

and for L3

When Flair 22D/23DV is provided with an earth CT (B type mounting),

display of M2 and M3 only.

For each phase: if I>720A display:

if I±2A display: (Low Power).

48 07897073EN01 revision : 11

LV connection indicator

Flair 2xD

FLAIR 21D

FLAIR 22D, et 23DV

The Flair 21D,22D and 23DV fault

passage indicator is self- powered

by the measurement sensors.

A minimum 2A current is required

in the MV cable to start up the

Flair 21D display, an energy sto-

rage guarantees a 4 hours mini-

mum autonomy.

TheFlairdeviceshaveanoutput

contact for interfacing with a

SCADA system.

Flair 22D/23DV can be connected

to a voltage presence indicating

system (VPIS) provided with a vol-

tage output (VPIS- VO). In this

case, for greater reliability, fault

detection is confirmed by voltage

absence without taking into

account the current.

Flair 23DV has to be supplied

from 24Vdc to 48 Vdc for a perma-

nent display operating and for the

outdoor lamp supply.(With a single

zero sequence CT, self powering is

not possible).

detector pending fault

ammeter mode

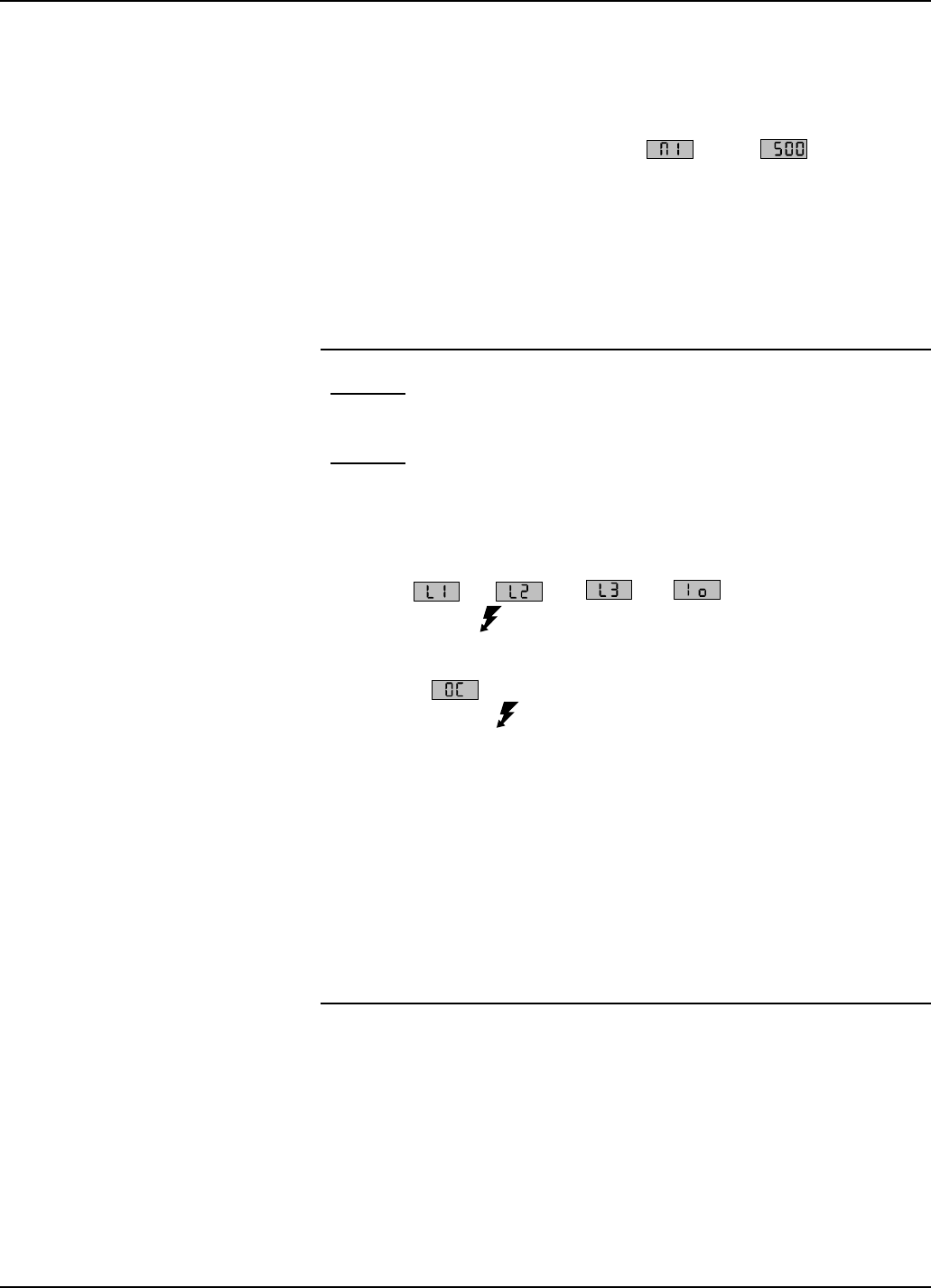

To access the maximeter function, press once the “Imax.” button.

For each phase, an indication of the maximum load currents since the

last reset is displayed.

Example:

for a max. current of 500 A in phase 1: then ,

followed by M2 and M3.

The maximeters scroll only once.

All the maximeter values are reset by simultaneous actuation of the

“Test/Reset” and “Imax.” buttons during scrolling.

When Flair 22D is provided with an earth CT (B type mounting), display

of M2 and M3 only.

Event A:

the current exceeds one of the thresholds set for

aperiod²acknowledge time.

Event B:

the line current disappears (or absence of U with VPIS- VO option, on

Flair 22D/23DV)

Fault indication is active when Ais followed by Bwithin a lapse of time of

less than 70 s.

HPhase- to- earth fault detected :

displayoforor,(or ifearthCT).

the indicator lamp flashes (1 flash every 3 s) and the output contact is

activated.

HPhase- to- phase fault detected:

display of (Over current),

the indicator lamp flashes (2 flashes every 6 s) and the output

contact is activated.

For these 2 types of faults, the indicator lamp remains flashing until it is

reset (Reset), which can be achieved by:

Hcurrent recovery > 70 s, configurable time delay on Flair 22D/23DV

(Reset active if “Automatic reset” is not on “OFF”)

HU recovery, if VPIS- VO option on Flair 22D/23DV (Reset active if

“Automatic reset” is not on “OFF”)

Hend of the time delay, (4 hours on Flair 21D, configurable on Flair

22D/23DV)

Ha press on external Reset

Hmanual actuation of the “Test/Reset” button.

HThe Flair 21D

f

ault passage indicator requires no maintenance (no

electric cells or batteries to be changed regularly)

HThe lithium battery of the Flair 22D indicator should be changed about

every 15 years. (for the battery replacement process, call your sales

representative who will put you in contact with the closest :

SCHNEIDER- ELECTRIC group service centre. You can log on to :

www.schneider- electric.com)

HThe lithium battery of the BVP option (external indicator unit with

incorporated battery) is to be changed every 15 years.

07897073EN01 revision : 11 49

maximeter mode

detector in fault indication

maintenance

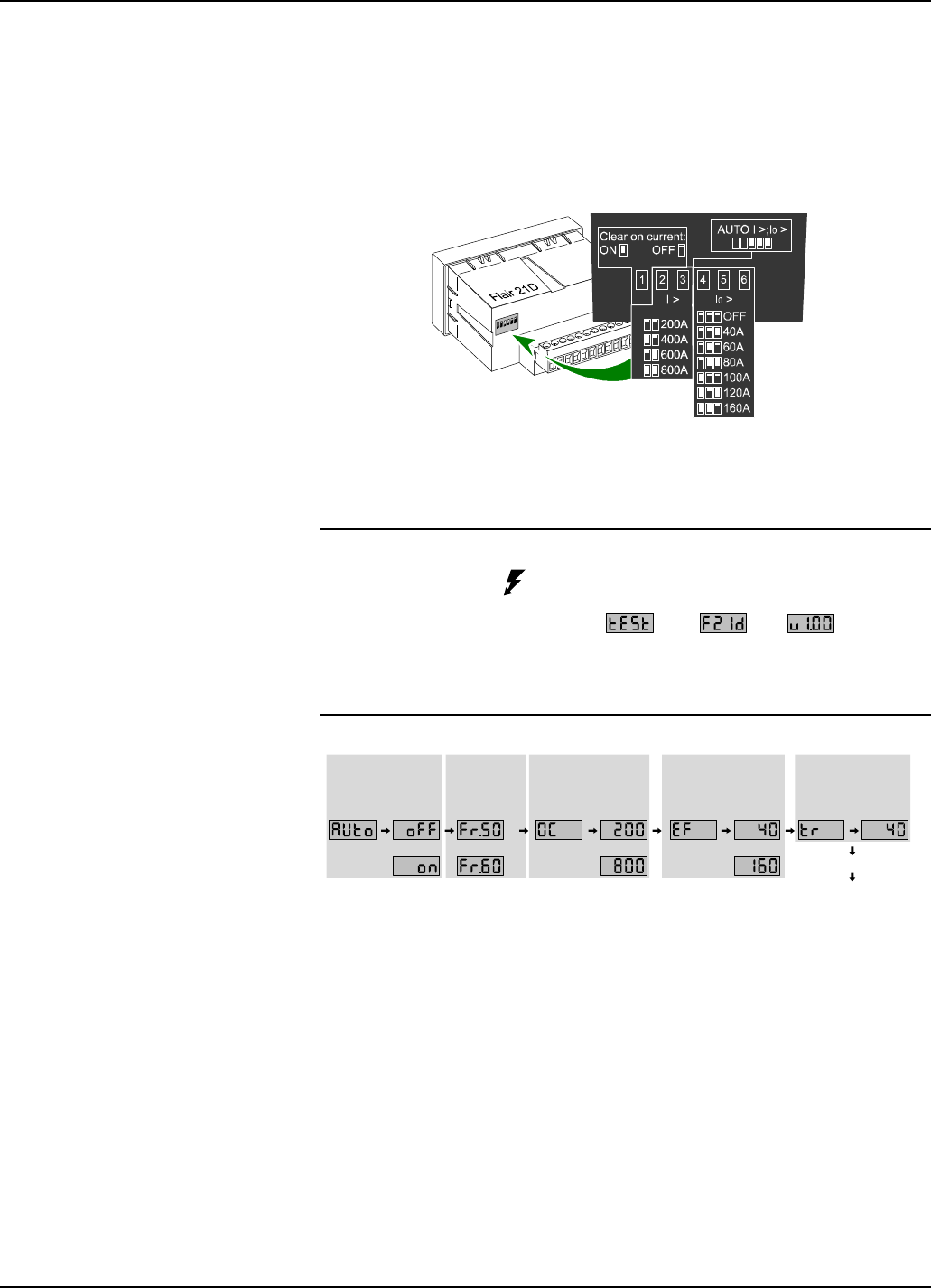

The Flair devices (>2010) are a fault passage indicator without settings

(automatic mode).

However, it is possible to perform specific override settings.

In manual mode, settings are made :

Husing the 3 buttons located under the display, (Flair 22D/23DV).

Hby micro- switches (drawing opposite).(Flair 21D) The changes are

taken into account after a press on the “Test/Reset” button.

In AUTO mode I>; I0>, the manual settings are not active.

HA press on the “Test/Reset” button activates Test mode.

HThe indicator lamp flashes, and the BVP and the “OUT” output are

activated until the end of the test.

HThe display successively shows and and (software

version)

Setting of

automatic fault

detection (*)

Network

frequency Imax threshold

“I >”

(Over Current)

(A)

Zero sequence

threshold “Io>“

(Earth Fault) (A)

timer reset

When ”Auto” is ”ON”:

Flair 21D uses the following values for fault detection:

Hfrequency = self- detection

Hzero sequence threshold = automatic fault detection for any fault > 20 A

HImax threshold = automatic fault detection for any fault > 200 A

Hacknowledgetime=40ms

HInrush= 3s

HCT type = CT1 ( can be changed to CT2 by actualing the buttoms)

HAutomatic reset = 70s (if automatic reset =on)

HTimer reset= 4h

ammeter mode

10s or “Test/Reset”

or or to to

50 07897073EN01 revision : 11

settings

Test mode

setting parameter scrolling

sequence in Test mode for

Flair 21D (automatic on test

mode)

During the Test mode, a press on the button provides access to

Settings mode (display ).

1) A press on the button displays the first parameter to be set

2) Several presses on the button scroll the parameters in a loop.

At this stage, with no actuation of or during 10 s,

the indicator returns to ammeter mode.

3) Press the button to display the current value of the

selected parameter

4) Press the button again to activate setting of this value:

the display flashes for 5 s

5) During flashing, press successively to display the desired value

6) Confirm by pressing the button; without confirmation within a

period of 15 s, return to display of the parameters without change

in the value.

Each press on the “Esc“ (Return) button takes you back to the preceding

stage.

07897073EN01 revision : 11 51

settings mode (Flair 22D

and Flair 23DV)

VPIS- Vo

Flair 22D and Flair 23DV CTs connexion

BVP:

External indicator

unit with

incorporated battery

CTs connection

SCADA

output

Common

point

6- wire mounting

CTR2200 or MF1 CTs 4- wire mounting

MF1 CTs

BVE:

External indicator

unit

SCADA

output

Common

point

6- wire mounting 4- wire mounting

Type A

MF1 CTs Type A

CTR2200 CTs Type B

MF1/MFH CTs

Type A

MF1 CTs

Type C mouting ’single zero sequence CT’possible only with flair 23DV

52 07897073EN01 revision : 11

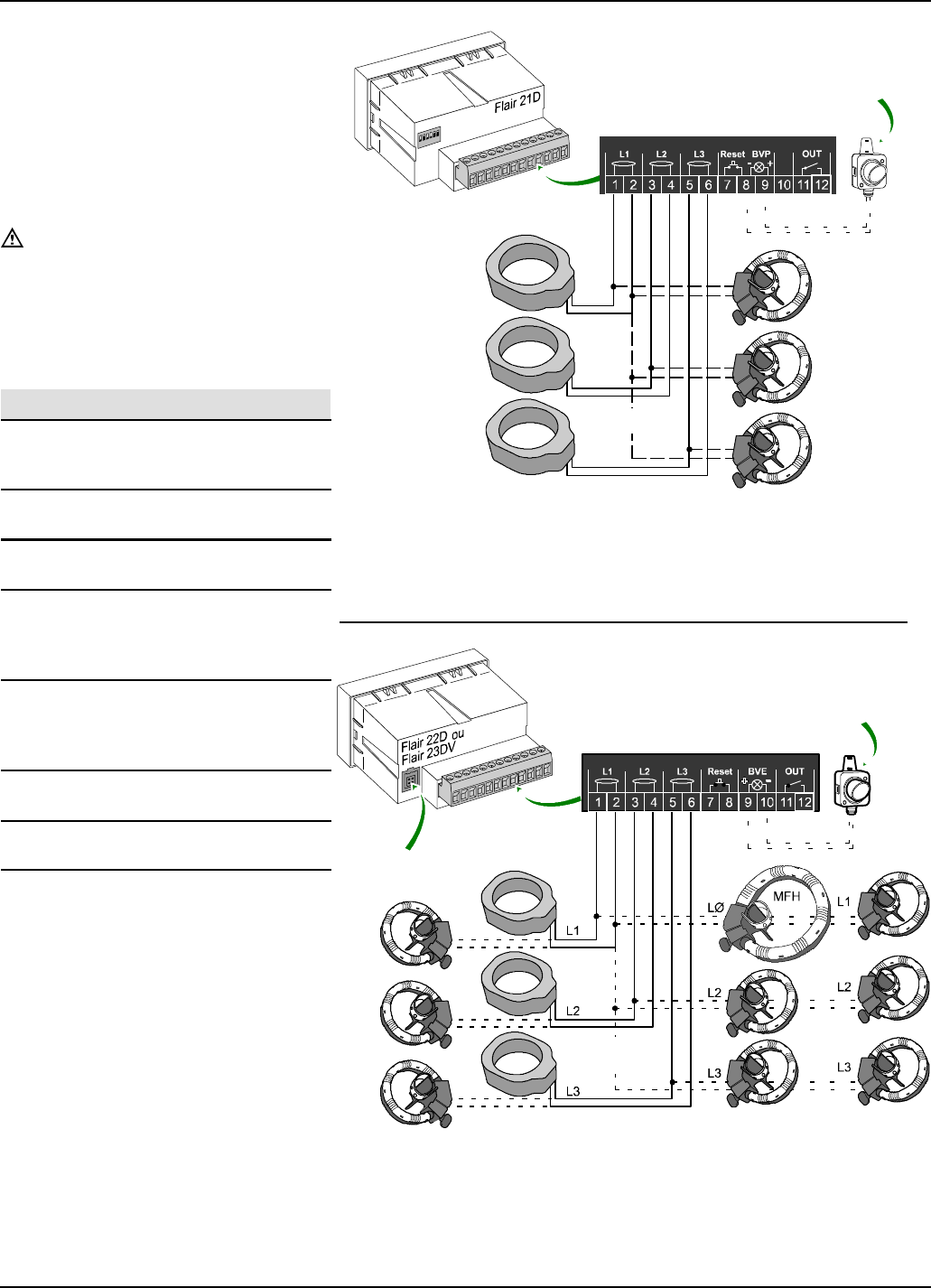

connection

Connection of CTs to the 3 MV

cables

HCable Length : 3 m max.

HCross section: max. 1.5 mm2

HCTR2200 : mounting without

common point (6 wires)

HMF1 : mounting with or without

common point (4 or 6 wires)

Important note

(for MF1 split core CTs):

HMount the 3 CTs facing in the

same direction

HRun the screen earth braid of

the MV cable back inside the CT.

Type Réf. Product Description

EMS58351

EMS58352

EMS58353

Flair 21D

Flair 22D

Flair 23DV

Fault passage

indicator

CT1 59925 CTR2200 Phase CT for RM6

cubicle bushing

CT2 59963 MF1 Phase CT for cable

(split toroidal core)

59928 MFC3

(pour MF1)

3crimp-on

connectors for

6- wire mounting

(wires not supplied)

59962 Faisceau MF1

or MFH

CT connector cable

for 4- wires

mounting (A or B

type)

59922

59988

Flair 21D BVP

Flair 22D BVE

External indicator unit

59927 MFH2200 Earth CT

(split toroidal core)

Amp21D

Easergy

L1

L2

L3

Test

I max.

EMS58401

ATest button

Imax.button

Load current indication

07897073EN01 revision : 11 53

ammeter

The Amp 21D is an ammeter, for

cubicle, automatic and self-

powered.

The Amp 21D comes into

operation whenever the current is

greater than 3 A on the network.

standard operating

measuring mode

Equipment’s standard operating

mode.

The AMP 21D ammeter displays in

succession, by scrolling, the cur-

rents on phases L1,

L2andL3,andsavestomemory

the maximum values.

maximeter mode Maximeter mode (I max.) A press

on the “I max.” button activates the

Maximeter mode.

This mode allows display of the I

maximum values occurring on the

three network phases since the

previous initialization.

At the end of the maximeters’dis-

play cycle, the Amp 21D automati-

cally returns to Measuring mode.

The maximeter is reset by simulta-

neously pressing the “Test” and “I

max.” buttons.

CT connection

Assembly 6 wires

CTR2200 or MF1

phase CTs Assembly 4 wires

MF1 phase CTs

Common

point

54 07897073EN01 revision : 11

Test mode

Choice of CT type:

HThe CT1 option corresponds to

( ref.59925) phase CTs

HThe CT2 option corresponds to

( ref.59963) phase CTs

HFactory setting: CT1.

connection of CTs

to the 3 MV cables

HCable length: max. 3 m

HCross section: max. 1.5 mm2

H3 phase CTs without common

point on a screw- on terminal

block (6 wires)

HMF1: mounting with or without

common point (4 or 6 wires)

IMPORTANT

(for MF1 split core CTs)

HMount the 3 CTs facing in the

same direction

HRun the earth braid of the MV

cable screen back inside the CT.

references

Type Ref. Product Description

EMS58401 Amp21D MV ammeter

CT1 59925 CTR2200 Phase CT for RM6 cubicle

CT2 59963 MF1 Phase CT for cable (split toroid)

59928 Set of 3 connectors for MF1 3 crimp- on connectors (wires not

supplied)

59962 CONNECTING HARNESS FOR MF1 Connecting harness for MF1 for

assembly 4 wires (A or B type)

: automatic frequency detection

: calibration performed

3s 3s 3s 3s

Line- to- neutral voltages

3s 3s 3s 3s

Line- to- line voltages

threshold paramater

indicator

07897073EN01 revision : 11 55

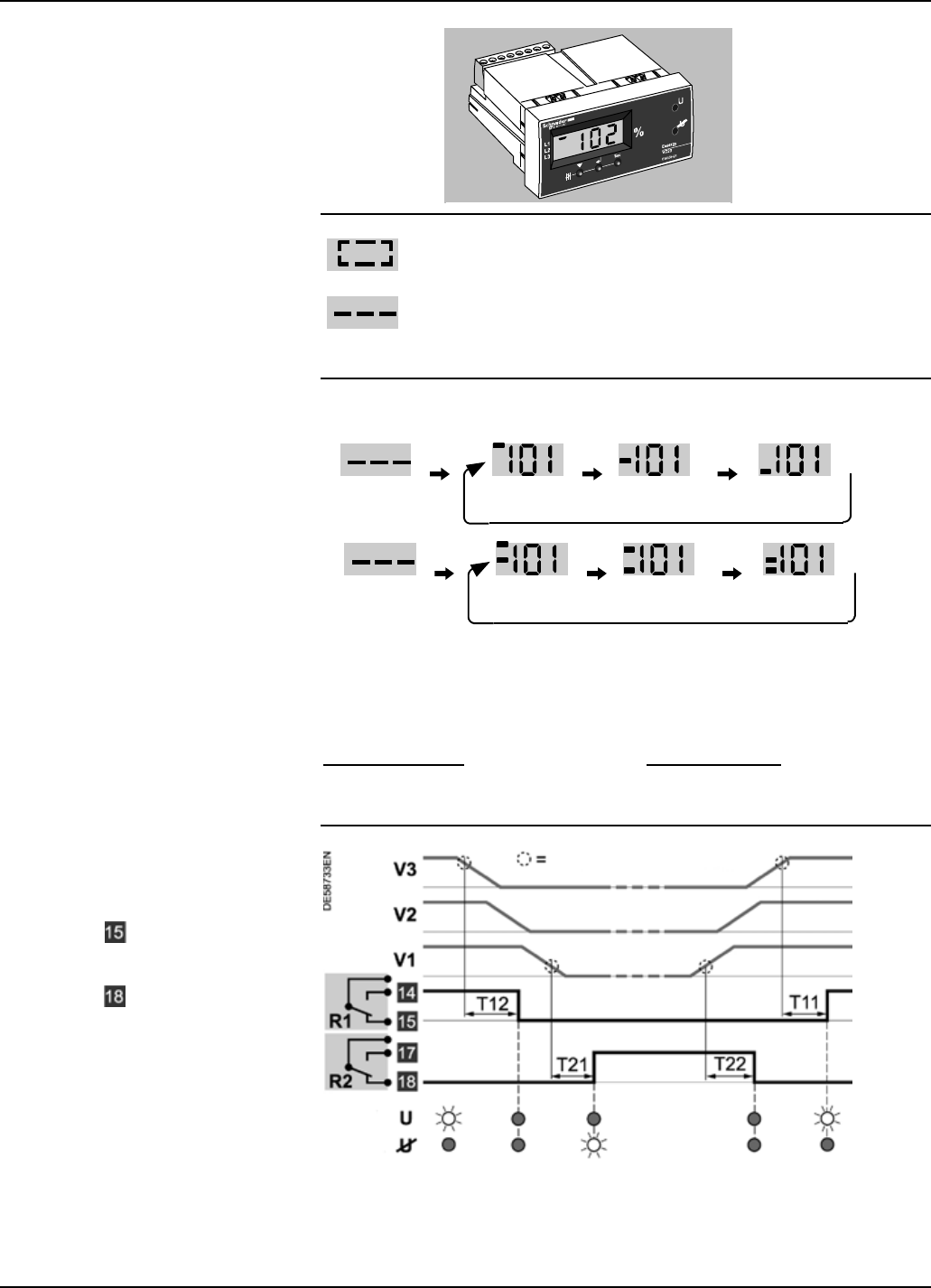

voltage detection relay

The VD23 is a voltage presence

and absence detection relay.

It uses the VPIS V2- V0 as sensor,

and operates with a 24 or 48 Vdc

external power supply.

operation

Calibration:

At power up, the VD23 automati-

cally detects voltage presence and

the network frequency, and then

performs self- calibration.

Measuring mode:

3 seconds after calibration, the

VD23 displays, by scrolling, the

percentages of the nominal

voltage detected on each phase

Detection of Voltage presence:

When the voltage percentage

becomes greater than the set thre-

shold for all the configured

phases, then the VD23 lights the

voltage presence indicator and

activates (or releases in inverted

mode) relay R1.

Detection of Voltage absence:

When the voltage percentage

becomes less than the set thre-

shold for all the configured

phases, then the VD23 lights the

voltage absence indicator and

activates (or releases in inverted

mode) relay R2.

detection sequence

Configuration: voltages V1,V2,V3,

direct mode

R1: terminal = relay rest posi-

tion: voltage loss on at least one of

the phases

R2: terminal =relayrest

position: voltage presence on at

least one of the phases

Aconfigurabletimedelayis

applied for control of R1

and R2:T12 = time delay for R1

changeover upon voltage loss

T11 = time delay for R1

changeover upon voltage recovery

T21 = time delay for R2

changeover upon voltage lossT22

= time delay for R2 changeover

upon voltage recovery

Mode selection Measuring

mode

Test mode

Configuration mode

Parameters defined

by micro switches

Parameters setup

mode

To set the parameter

values, see the

section below

Calibration mode

Product

name Software

version Network frequency Digits

test

Type of

measurement Relay

output Phase

1Phase

3

Phase

2Residual

voltage

line- to- line inverted measured measured measured measured

line- to- neutral direct not

measured not

measured

Voltage

presence

Voltage

absence

Phase voltage

threshold

Residual voltage

threshold

Activation time

delay R1 (direct)

Releasetimedelay

R1 (direct)

% of nominal voltage

(10% increments)

% of nominal voltage

(10% increments)

0 to 1 s (0.1s increments)

1to21s(2sincrements)

% of nominal voltage

(10% increments)

0 to 1 s (0.1s increments)

1 to 3 s (0.5s increments)

0 to 1 s (0.1s increments)

1to21s(2sincrements)

0 to 1 s (0.1s increments)

1 to 3 s (0.5s increments)

Phase voltage

threshold

Activation time

delay R2 (direct)

Releasetimedelay

R2 (direct)

Automatic

calibration

Forced

calibration

Set to OFF to retain the last calibration

performed

Calibration performed normally

Error in calibration:

voltage levels too low

to

or

1s

or

EARTH FAULT DETECTION

SW 1

SW 2

SW 1

SW 2

3456

V1.V2.V3.V0

V1+V2+V3+V0

R1

3456

R1

U12+U13+U23

U12.U13.U23.

3456 U12+U13+U23

U12.U13.U23.

EARTHED OR IMPEDANT

GROUNDING ISOLATED NEUTRAL COMPENSATED NEUTRAL

VOLTAGE

DETECTOR

56 07897073EN01 revision : 11

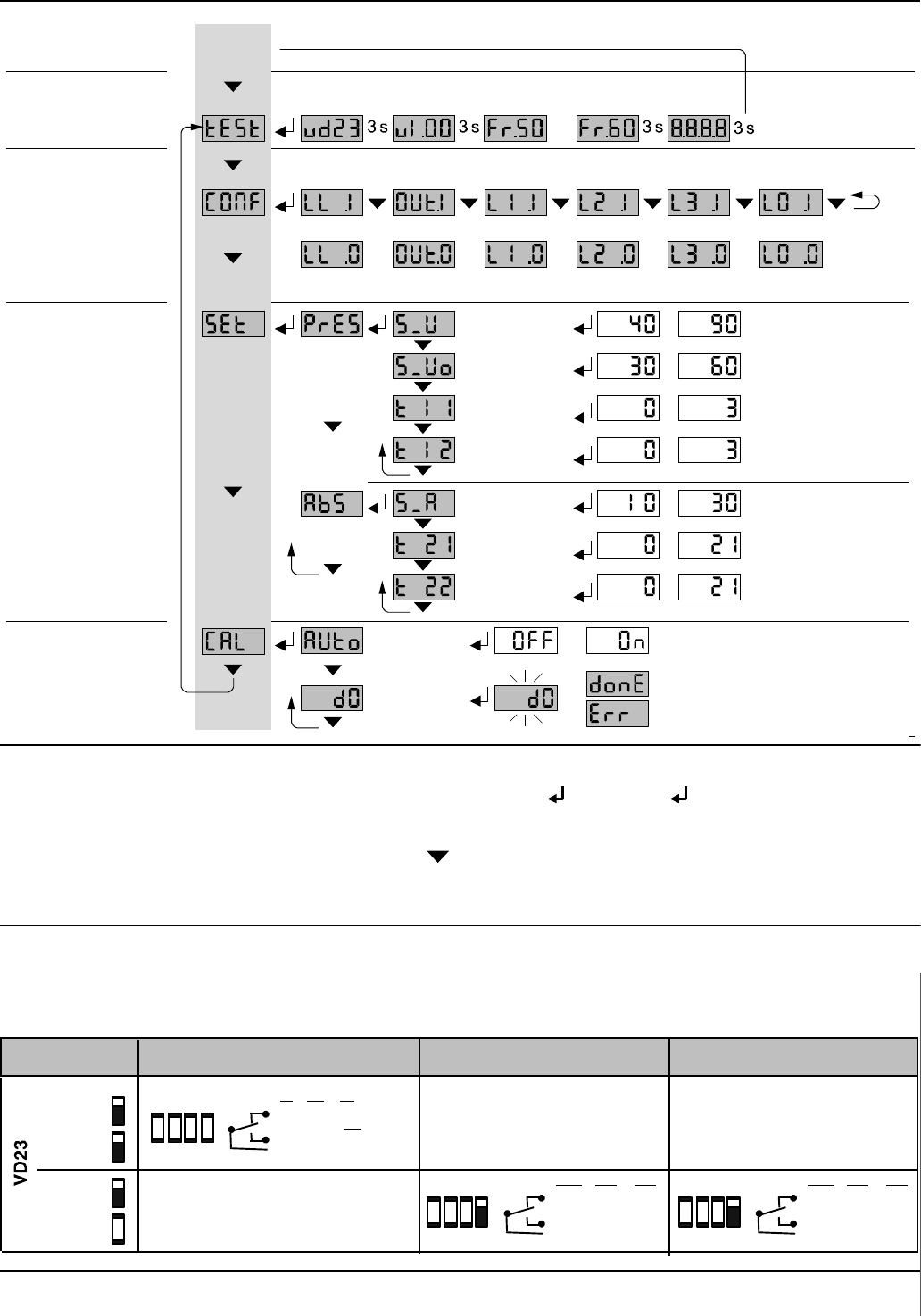

configuration of

thresholds and time

delays

The parameter values (white

screen in the above diagram) can

be modified as follows:

Hwhen the value of the parameter

is displayed, a press on the key

causes the display to flash for 5 s

Hduring flashing, press

successively to display the

desired value

Hconfirm this value by pressing

the button; without confirmation

within a period of 15 s, return

to display of the parameters

without change in the value. Each

pressonthe“Esc”buttontakes

you back to the preceding stage.

suggested choice for VD23

settings

WARNING THE COMPETE SWITCHBOARD

(ALL THE RM6 CONNECTED TOGETHER)

OPEN ALL SWITCHES CONNECTED TO THE BUSBAR

CLOSE ALL ASSOCIATED EARTHING SWITCHES

MUST BE DE- ENERGISED

07897073EN01 revision : 11 57

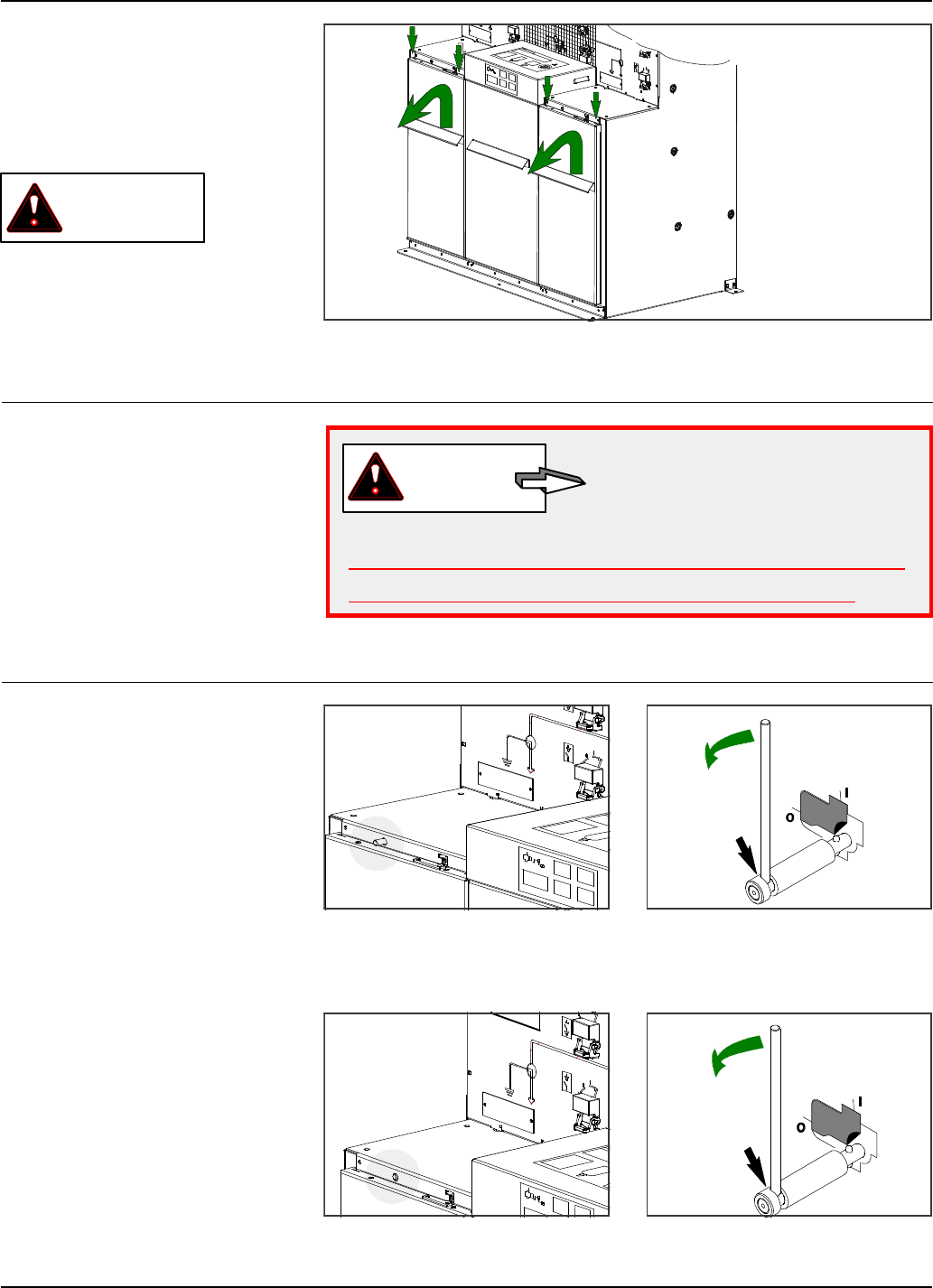

access to the cable

compartments

access to the cable

connection compartments

without interlocking

CAUTION

The HV cables must be

de- energised for access

to the compartments.

Open the switch and close the

earthing switch.To remove an access panel,

remove the 2 upper screws, lift

and pull towards you.

connection on busbar (O

function and T function)

access to the cable

connection compartments

with interlocking

(optional)

Functional unit in operation,

switch closed.

The access panel is locked.

Open the switch.

The access panel remains locked.

Optionally

Switch and circuit- breaker closing

is inhibited if the access panel

is removed.

Close the earthing switch.

The access panel is released. Access panel removed,

the earthing switch can now

be re- opened.

(A)

En optional:

(B)

a key lock exists

(example B)

To remove the access panel (A),

remove the 3 upper screws,

then raise and pull toward yourself.

58 07897073EN01 revision : 11

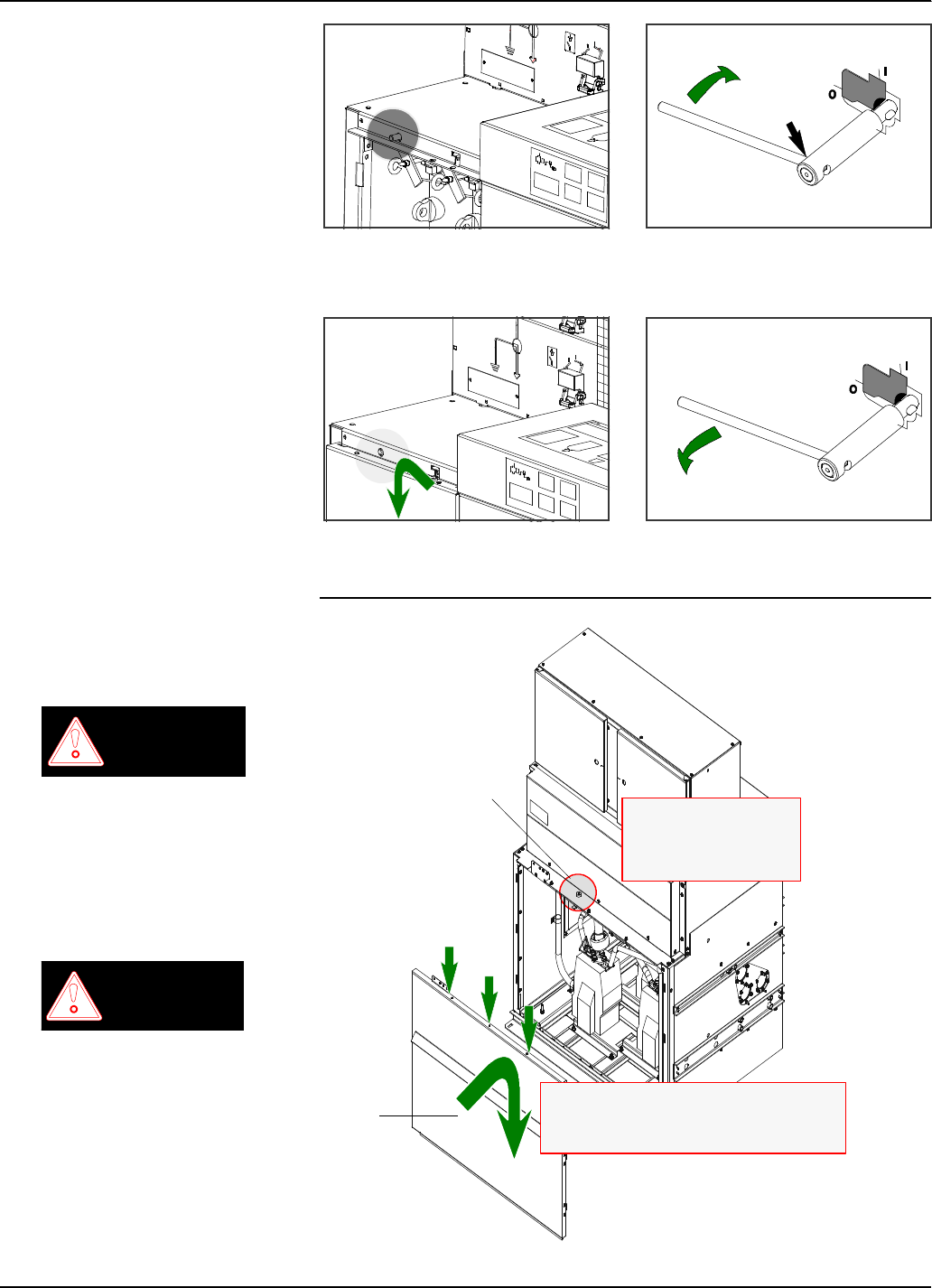

Earthing switch open: the access

panel cannot be put back.

If the connectors so allow,

DC current can be injected to

monitor cable insulation or search

for faults.

Close the earthing switch.

Put back the access panel. Open the earthing switch.

access to the MV

compartment of the

DE- Mt cubicle

HOpening of panel (A)

authorized only if :

- all upstream connection(s)

locked- out in OPEN position

- all downstream connection(s)

locked- out in OPEN position.

Intervention inside the DE- Mt

cubicle is authorised only if:

the 3 busbars are grounded,

via a temporary connection or via

an earthing switch (upstream or

downstream).

DANGER

07897073EN01 revision : 11 59

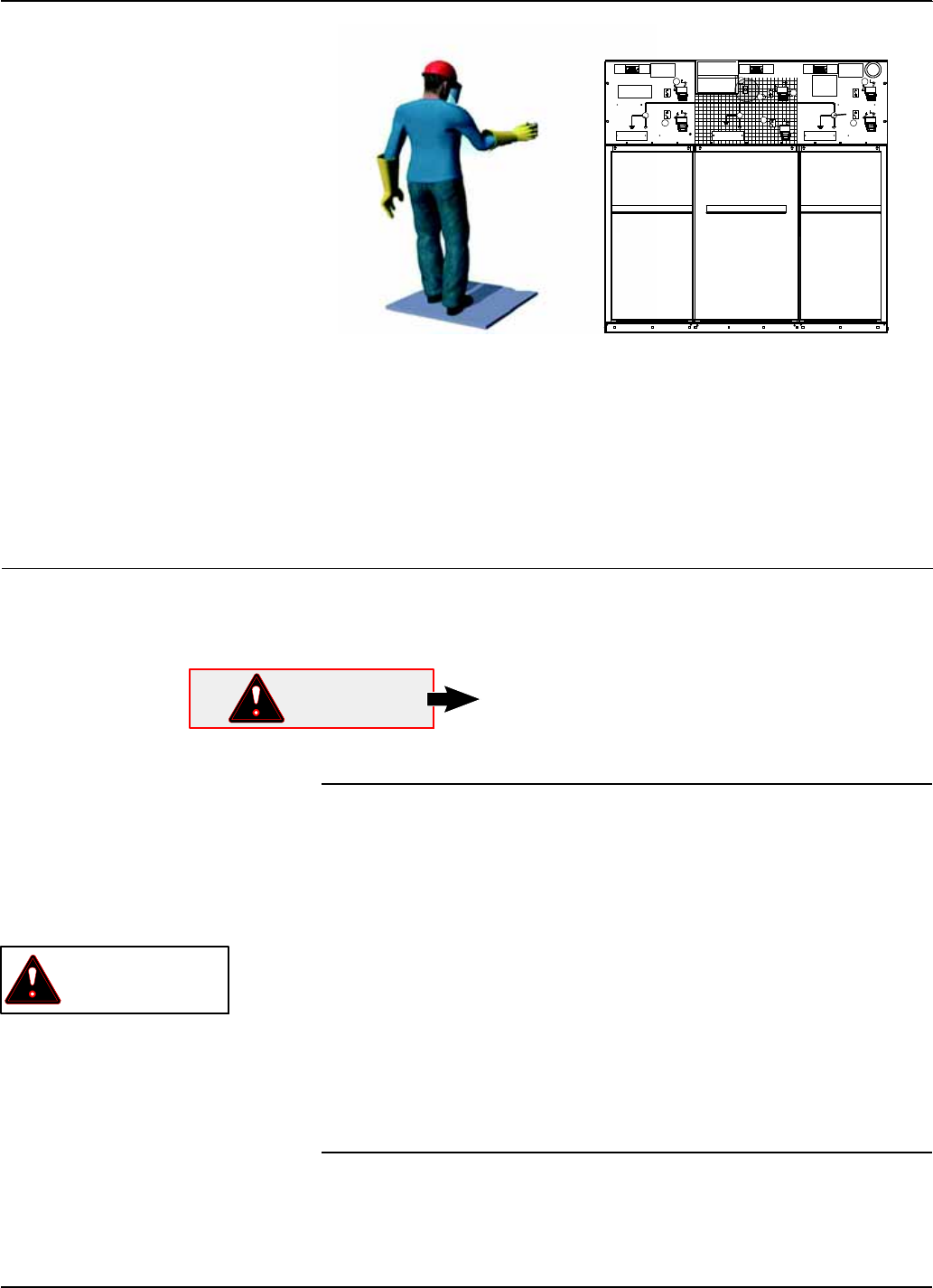

standard operating

conditions

maintenance summarising

table

CAUTION

description operation material

panelling

cleaning cloth

earthing covers

cleaning sponge, clear water

device panelling

CAUTION

We draw your attention to the risk

of using high pressure cleaning

processes.

Schneider Electric cannot

therefore guarantee the

reliability of equipment that have

been cleaned in this manner,

even if cleaning was followed by

lubrication.

The main drawbacks of this

process are:

Hdeterioration due to jet pressure

and impossibility of relubricating

theinaccessiblefixingpoints

Hrisk of overheating due to

presence of solvent on the contact

zones.

Helimination of special

protections.

Clean using a dry cloth.

earthing covers

CAUTION

This operation can be performed

in event of excessive soiling.

Clean using a sponge and clear

water. Do not use alcohol or other

solvents to clean.

maintenance cycle and

operations This device is designed to operate

for 30 years or for 1000 operations

in normal conditions of use as per

standard IEC 62271- 1.

Thefollowingarerecommended:

- anO/Coperationevery6years

for motorised functional units

and/or functional units with

a latching mechanism

(Q and D/B function)

- replacement of batteries is

recommended every 4 years

- inspection every 5 years of the

condition of the mechanisms (pol-

lution, corossion) and the cleanli-

ness of the earthing covers (pollu-

tion).

preventive maintenance

60 07897073EN01 revision : 11

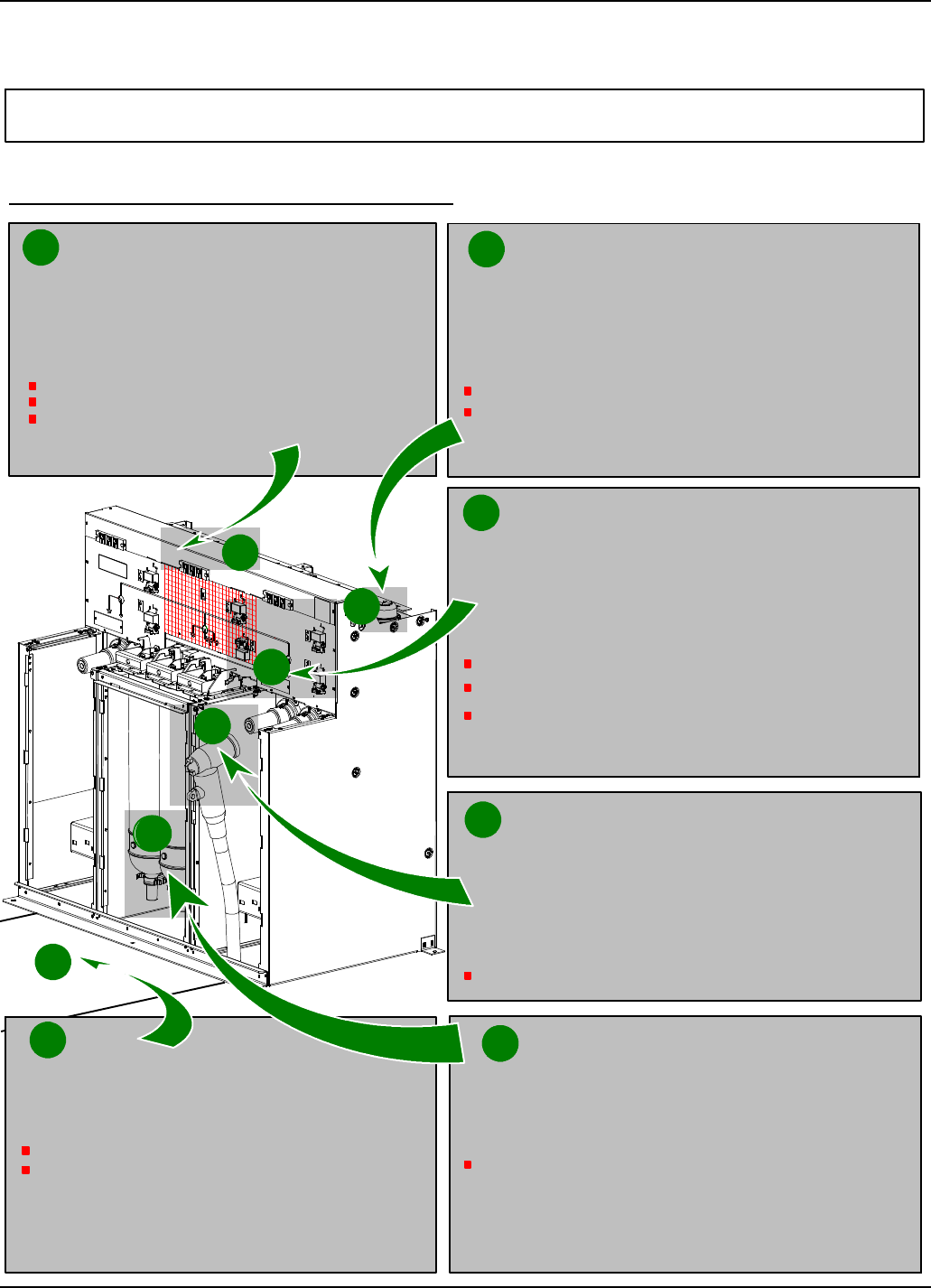

harsh operating conditions

To ensure proper operation of the RM6 in harsh operating conditions, we strongly recommend regular

maintenance of the cubicle and its installation.

symptoms:

check:

presence of corona discharge

or odours

1

connections (may be damaged)

1

3

5

1

symptoms: condensation, presence of humidity

check: for rust on the LV electric and electronic

parts

solutions:

dry the environment

replace the damaged parts

earthing covers

symptoms:humidity, dust

check:

solutions:

dry the environment

clean using a clean cloth and water

(no alcohol or solvent)

mechanical operating mechanisms

symptoms: humidity, condensation on live parts

check: for red rust on moving parts

solutions:

replace the operating mechanism if required

MV socket and cable

fuse compartments

symptoms: humidity + dust

check:

fit new sockets

proper operation of the VPIS

solutions:

clean the outside surface of the fuse compartments

using a cloth and clear water

solutions:

trench

check: forpresenceofwaterinthetrench

pump out water

solutions:

drain the trench

LV compartment

surface cleanliness

find and treat the origin of condensation phenomena

follow up the damage

symptoms:

fit heating resistances (optional)

humidity

(if necessary add sand)

Recommended inspection frequency: at least once a year

During the inspection, check the 6 following points:

In case sand is added in the trench, take care

that the cables are still fixed correctly and that no

additional stress is added to the bushings

(refer to reference: 07897270)

3

12

4

55

6

1

2

3

4

6

5

07897073EN01 revision : 11 61

foreword

Thecorrectivemaintenance

operations enable replacement of

subassemblies.

The operations quoted in the

following summarising table can

be performed by the customer or

by Schneider Electric’s

after- sales representatives.

Foranyothermaintenance

operations, contact the

representatives of your nearest

Groupe Schneider.

After each operation, perform

the electrical tests according to

current standards.

CAUTION

On replacement, all the

accessories below must be

replaced with new equipment.

- Nylstop (self- locking nut)

- Contact washer

- Locking rings

-Mechanicalpin

To access the various devices:

Hopen the switches

Hclose the earthing switches

Hcut the supply to the LV circuits

maintenance summarising table

description réalisation

replacing a voltage indicator SCHNEIDER ELECTRIC or Customer

replacing a fuse (MV) SCHNEIDER ELECTRIC or Customer

replacing the charging motor SCHNEIDER ELECTRIC or Customer

replacing a printed circuit SCHNEIDER ELECTRIC or Customer

replacing the indicating contact SCHNEIDER ELECTRIC or Customer

replacement of the voltage

presence unit (VPIS) type

VPIS- V1 by type VPIS- V2

VPIS- V1: production until

February 2009 VPIS- V2: production from March

2009 onwards

removing the VPIS- V1

voltage presence unit

CAUTION

The screws (A) must be retained.

A

Unscrew the 2 self- tapping

screws (A).

B

Remove the VPIS 1 voltage pre-

sence box (B).

B

Disconnect the VPIS1 voltage pre-

sence unit (B).

corrective maintenance

12

34

62 07897073EN01 revision : 11

contents of the kit

VPIS- V2

1: indicator unit

2: cable gland seals

3: surge arrestor

4:screws(x4)

The screws removed earlier are

reused. (2 self- tapping screws)

mounting the voltage

presence unit (VPIS- V2) 2

5

Position the cable gland seal (2)

on the voltage presence connec-

tion (5). Check that the seal is in

the correct position.

3

5

Clip the cable harness connector

(5) onto the VPIS protection (3)

and fit the seal

checks to be made before

continuing with the opera-

tion

Check the condition of the wiring

harness (5)andtheVPIS 2 rating

using the optional diagnostic

tool (VPI62420) (not included in

the kit) or see correspondence

table below.

RM6 VPI62403

7,4 AVPI62404

10,7 AVPI62406

22,4 AVPI62408

47,2 A

Min Max Min Max Min Max Min Max

RM6 50- 60Hz

standard

Un : network

voltage

2,5 kV 3,2 kV 3,3 kV 7,7 kV 8,8 kV 16,0 kV 16,1 kV 23,0 kV

RM6 50- 60Hz

BUSHING

WELL only 5.3 kV 10.6 kV 7.6 kV 15.4 kV 16 kV 32.5 kV

Key Minimum and maximum network

voltage in 50Hz and 60Hz.

07897073EN01 revision : 11 63

Pleaserefertothechapterentit-

led ”contents of the kit”

1

3

Screw the indicator unit (1)onto

the VPIS surge arrestor (3)using

the 4 screws. CAUTION

Tighten the screws to exert slight

pressure on the cable gland seal

without distorting it.

Install the voltage presence unit in

the correct position using the 2

self- tapping screws removed ear-

lier.

ATTENTION

The screws removed earlier are

reused.

64 07897073EN01 revision : 11

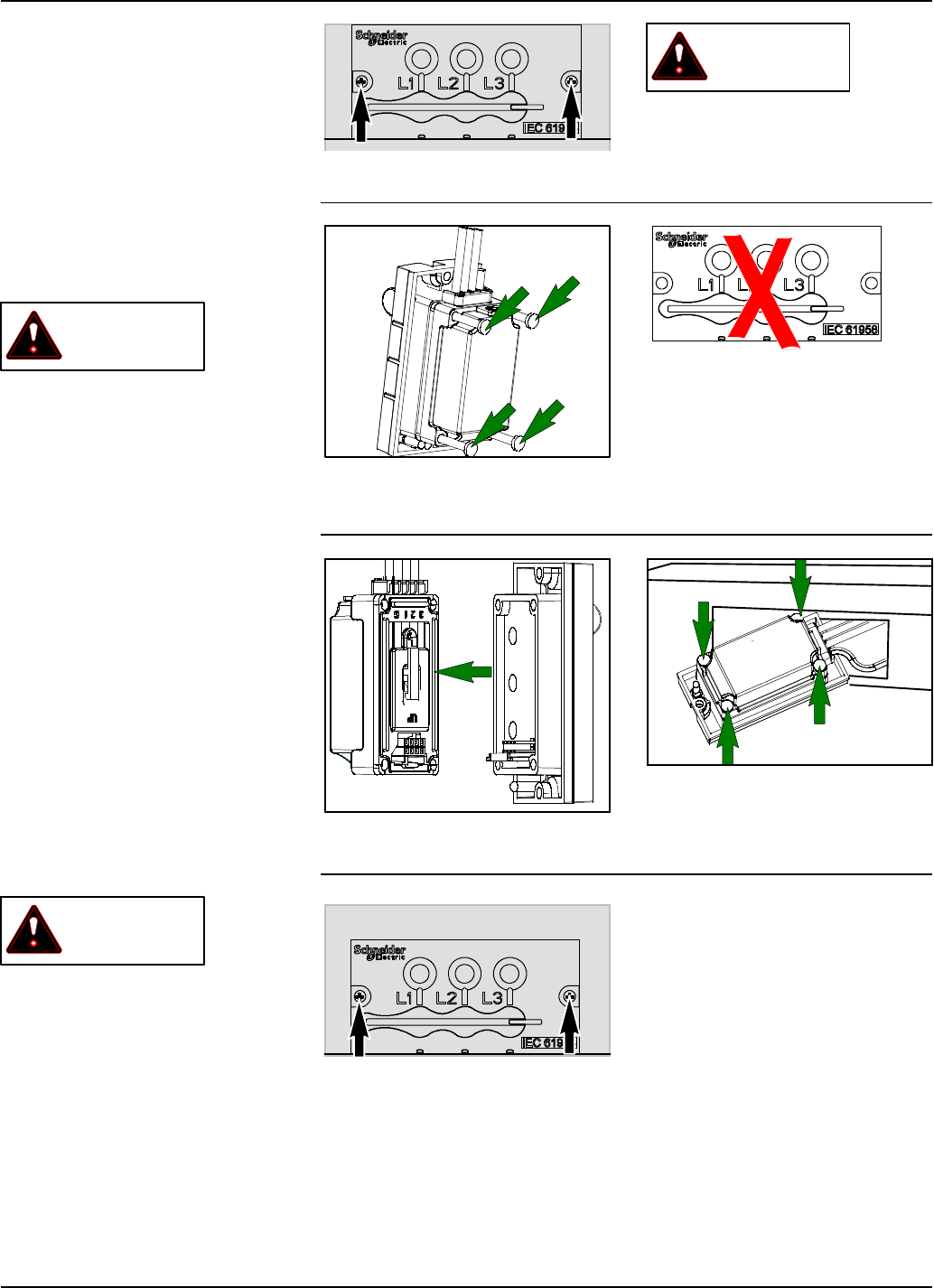

replacement of the voltage

presence unit (VPIS) type

VPIS- V2 by type VPIS- V2

removing the VPIS 2

voltage presence unit

Remove the 2 screws from the

front panel.

CAUTION

Thescrewsmustberetained.

mounting the new

VPIS 2 voltage presence

unit

ATTENTION

Only the indicator unit is to be

changed.

Contact the Schneider Electric

administration for recycling pro-

ducts at the end of their service

life. Remove the unit.

Remove the 4 screws from the

indicator unit.

Discard the faulty indicator unit.

Leave the existing surge arrestor

and seal.

Install the new voltage presence

indicator unit.

Screw up the 4 screws.

Tighten the screws to exert slight

pressure on the cable gland seal

without distorting it.

CAUTION

The screws removed earlier are

reused.

Install the voltage presence unit in

the correct position using the 2

self- tapping screws removed ear-

lier.

07897073EN01 revision : 11 65

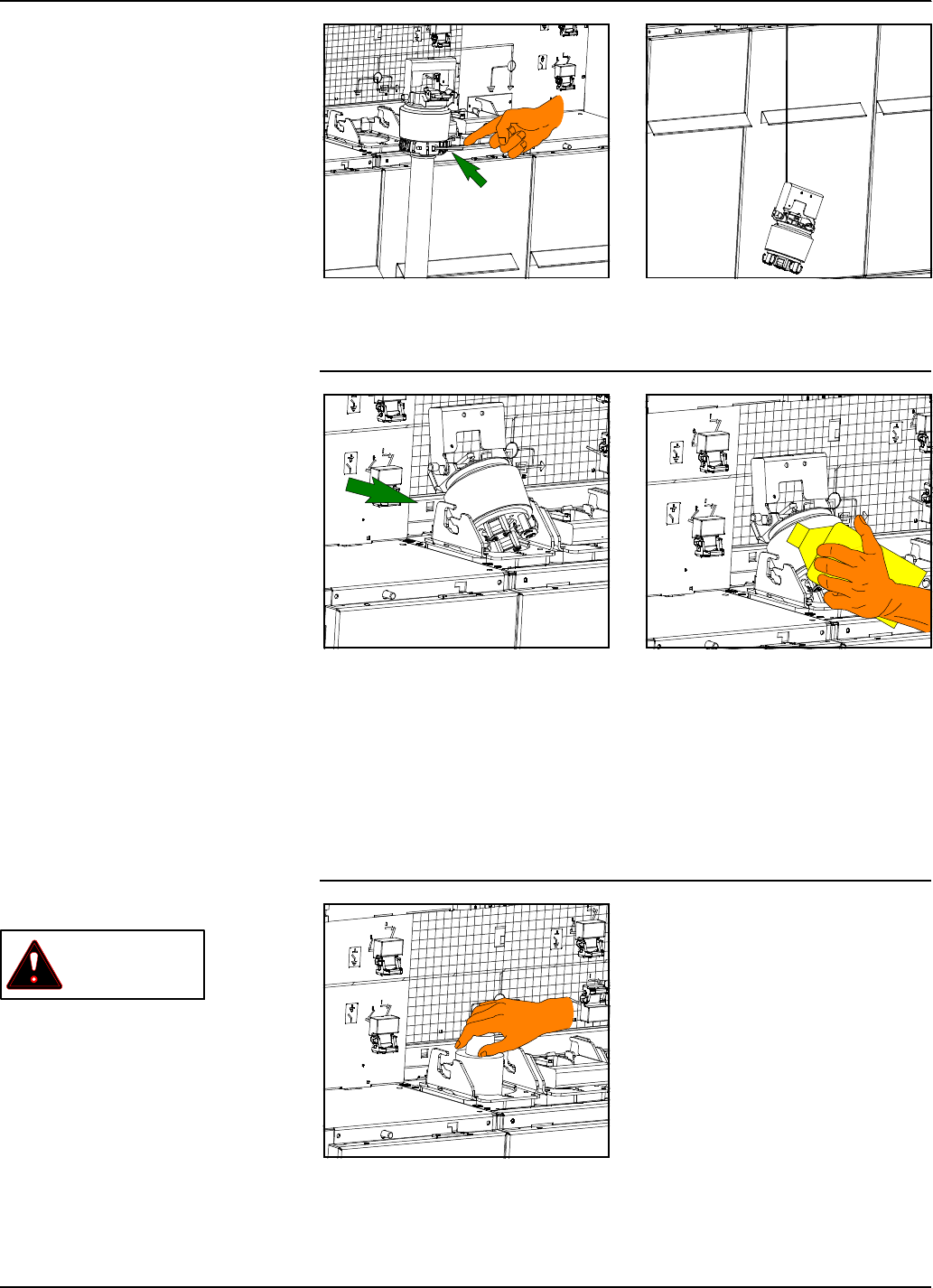

replacing a fuse Standard IEC 252 paragraph 23.2

recommends replacement of

the 3 HV fuses after blowing

of one of the fuses.

removal CAUTION

Before performing these

operations, remember that you

close the earthing switch.

CAUTION

Repeat the following operations

for all 3 fuses.

Toremovethecover:liftitandpull

it towards you.

The instructions are visible on the

cover.

Release the plug and push the

extraction handle manually to

unlock the plug (tap with the palm

of your hand to separate the seal

from the plug if necessary).

Move the plug up to the limit stop,

swivel it towards the left to remove it.

removing a DIN fuse

(Fusarc CF)

Recover the centring device at the

top of the fuse. Extract the fuse.

66 07897073EN01 revision : 11

removing a UTE fuse

(Solefuse)

Loosen the fuse using a wrench

with end BTR n°. 5. Let the plug hang down from

its supporting string.

cleaning the plugs

Ifthefuseplugsaredirty,cleanthe

conical surface using silicon oil.

Then wipe it down with a clean

cloth to dry it.

Huile Rhodorsil 47V50.

Distributed by Rhone Poulenc

(chimie Lyon) FRANCE

Talc the clean surface with natural

talc to avoid clinging between the

plug and fuse compartment.

The surface must appear smooth

without lumps.

TALC : westmin 8.

Distributed by Ets Ledoux

Bordeaux FRANCE

fitting a DIN fuse

CAUTION

On no account must a fuse that

has been knocked be installed.

A test prior to installation using

a monitor is recommended.

Insertthefuseinthecompartment.

Fit the centring device on the fuse.

Insert the plug pins in the plinth

and swivel it round to the right.

07897073EN01 revision : 11 67

fitting a fuse with striker

Fuse blowing releases a striker

that causes three- phase opening

of the switch and prevents it from

reclosing. Percuteur

Striker pin

Schlagstift

Percussore

Theendofthefuseequippedwith

the striker is marked. The technical data and mounting

direction of the fuse are printed on

the body.

(striker facing upwards).

fitting a UTE fuse

CAUTION

On no account must a fuse that

has been knocked be installed.

A test prior to installation using

a monitor is recommended.

15 Nm

Fix the fuse on the plug using

atorquewrenchwithend

BTR n°. 5 and insert the fuse

in the compartment.

Insert the plug and fuse assembly

in the compartment.

Insert the plug pins in the plinth

and swivel it round to the right.

locking the plug

Make sure that the handle

trunnions are inserted in the plinth

slots and lock the plug.

Never use the operating lever to

lock the plug.

For replacement of a fuse that has

struck, press the switch to put it

back in position.

13

2

3

1

68 07897073EN01 revision : 11

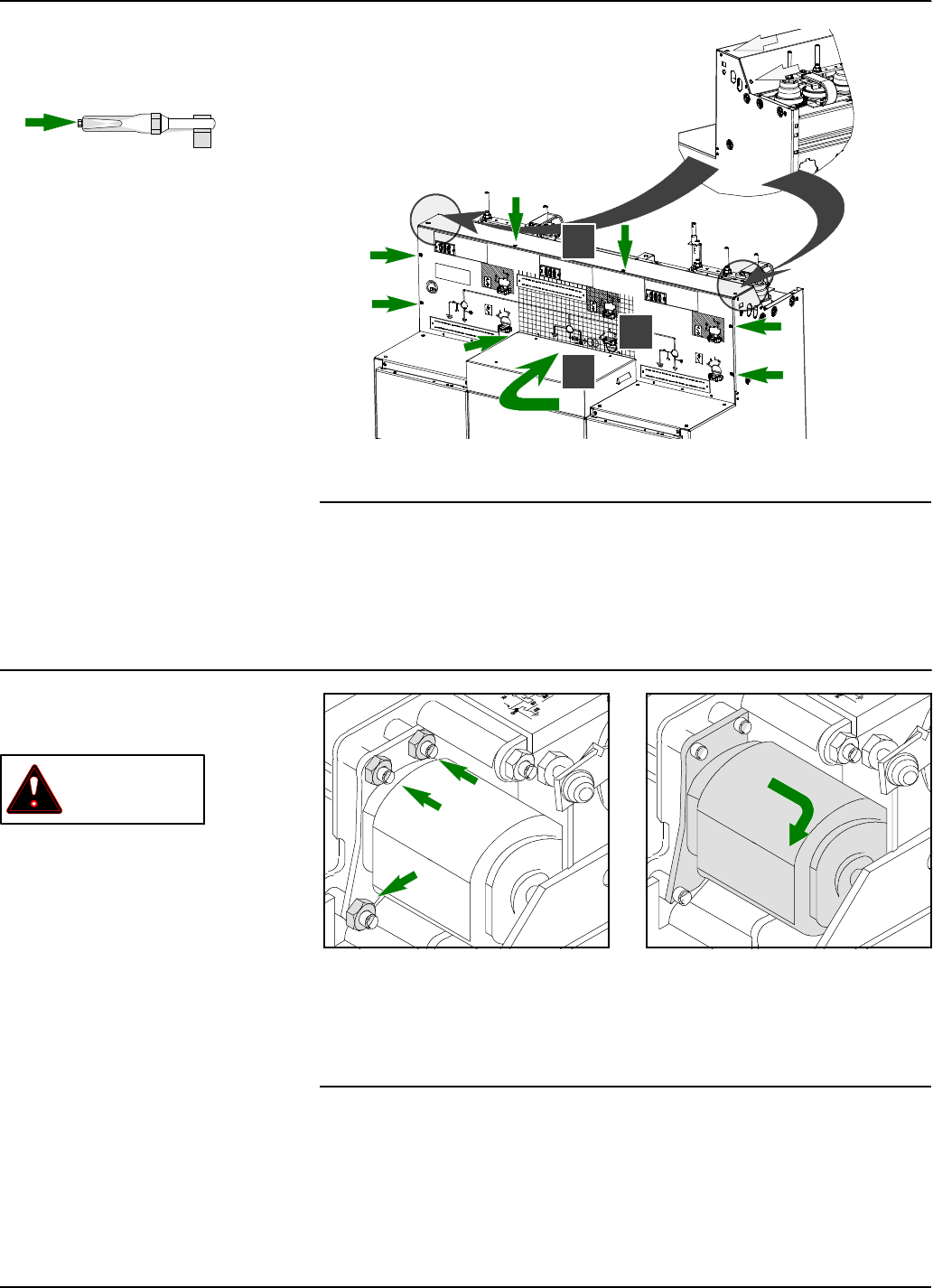

access to the LV compartment

dismantling

1- Remove the fuse compartment

cover

(pull towards you)

2-RemovetheLVcabletrough

6 screws (HM6x16)

3- Remove the self- cutting

screws

reassembling HReassemble in opposite order

to disassembly.

replacing a motor

removal

CAUTION

LV circuit de- energized.

Remove the 3 nuts fixing

the motor support.

Disconnect the motor

supply wiring.

Remove the motor support by

pulling it backwards.

fitting Fit the new motor in the opposite

order to removal.

Tightening torque: 28 Nm.

Fit the trunking and the cover.

13 Nm

S1

07897073EN01 revision : 11 69

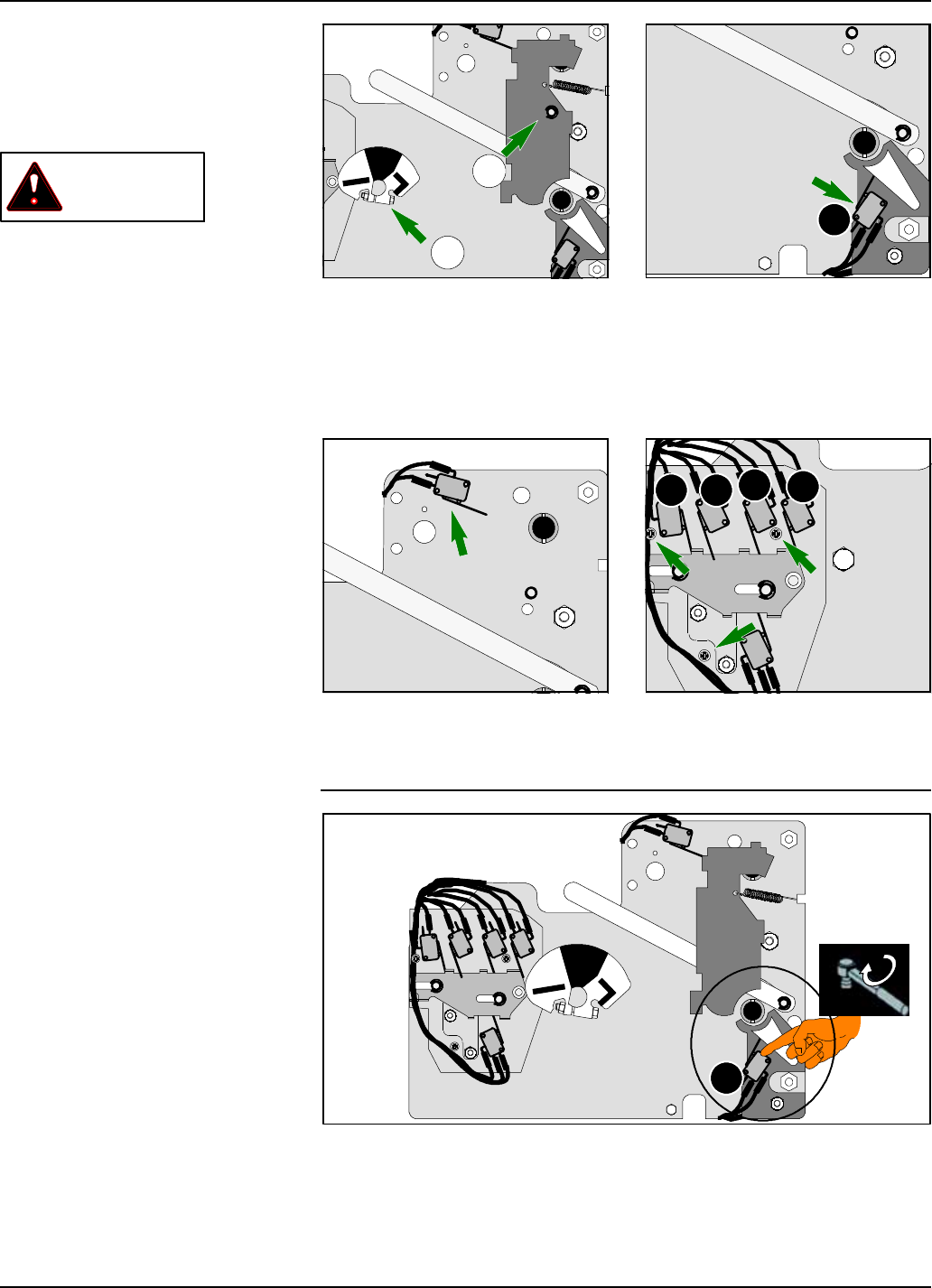

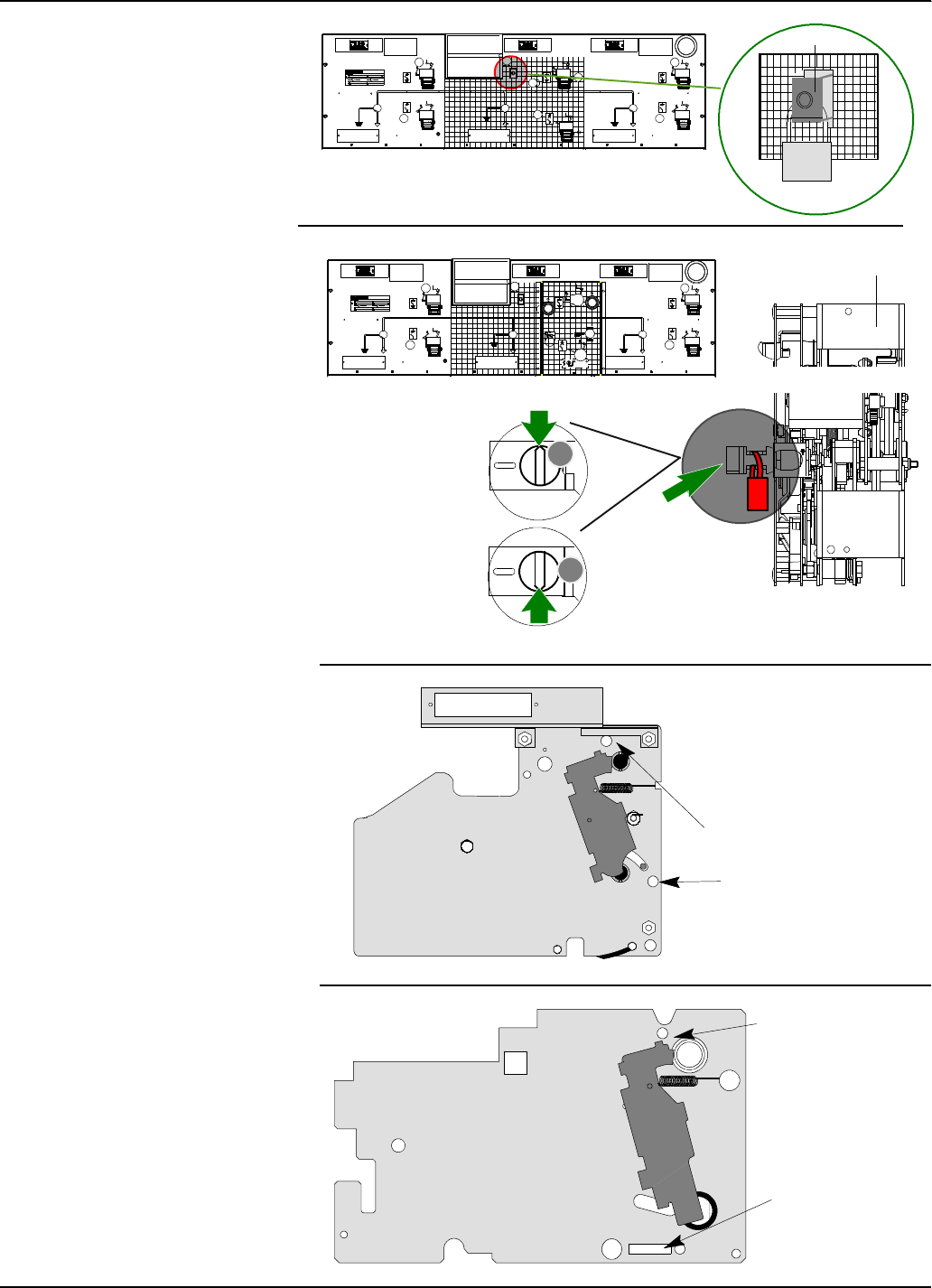

replacing the LV

contacts

Disassemble the pilot light

support.

removal

CAUTION

LV circuit de- energized AA

B

Remove the position indicator A.

Remove interlocking B.

(elastic ring and spring)

S1

Remove contact support S1

without disconnecting the wiring.

Remove contact S3 without

disconnecting the wiring.

S2 S3 S41 S5

Remove the contact support

S2, S4, S5, S6 and S7 without

disconnecting the wiring.

fitting the contacts and

wiring connection

FitcontactsS1toS7toreplacethe

former contacts.

Fit the position indicator and

interlocking.

Disconnect the contact wiring

S1 disassembled, and connect

it to the new contact.

Repeat this operation for all

the contacts (S2 to S7).

70 07897073EN01 revision : 11

processing of SF6 gas

when dismantling the

equipment

conformity rules

TheSF6gasmustberemoved

before any dismantling operation

can be carried out, according to

the procedures described in

IEC 61634 and according to the

following instructions. The remo-

ved gas must be processed in

compliance with IEC 60480.

The after sales of SCHNEIDER

ELECTRIC can propose a com-

plete offer.

- dismantling and recycling of the

RM6 units

-treatmentoftheSF6gas.

Finally a certificate will be provied

to you.

processing when

dismantling the equipment

07897073EN01 revision : 11 71

.....................................................................................................................................................................

72 07897073EN01 revision : 11

.....................................................................................................................................................................

group Schneider Electric service

centers are there for:

engineering and technical

assistance

start-up

training

preventive and corrective

maintenance

adaptation work

spare parts

Call your sales representative

who will put you in touch with

your nearest group Schneider

Electric service centers.

Conception, rédaction: Service Documentation

Technique T&D

Edition du : 12/2014

07897073EN01 revision : 11

As standards, specifications and designs change from time

to time, please ask for confirmation of the information given

in this publication.

Schneider Electric Industries SAS

89, boulevard Franklin Roosevelt

F- 92500 Rueil- Malmaison (France)

Tel:+33(0)141298500

http://www.schneider- electric.com

RM6 7897073uk

Navigation menu

Versions of this User Manual:

Views

Navigation
