DTV735 Digital Television Processor (Fox Version) User's Manual 800021 01B
User Manual: 800021-01B
Open the PDF directly: View PDF
.
Page Count: 40
- Title
- Table of Contents
- Chapter 1 General Information
- Chapter 2 Installation
- Chapter 3 Operation
- Chapter 4 Maintenance and Troubleshooting
- Chapter 5 Customer Service
DTV 735 User’s Manual
800021-01 Rev. B 2 wegener.com
Data, drawings, and other material contained herein are proprietary to Wegener
Communications, Inc., and may not be reproduced or duplicated in any form
without the prior written permission of Wegener Communications, Inc.
The information contained herein is subject to change without notice. Revi-
sions may be issued to advise of such changes and/or additions.
Correspondence regarding this publication (800021-01B) should be forwarded
to:
Wegener Communications, Inc.
Technology Park/Johns Creek
11350 Technology Circle
Duluth, GA 30097-1502
Phone: 770-814-4000
Fax: 770-497-0411
DTV735 and COMPEL are trademarks of WEGENER Communications, Inc.
All Rights Reserved.
All other trademarks are the property of their respective owners.
The Wegener DTV735 is approved under FCC Part 15B Class A, UL1950, and
CSA.
DTV 735 User’s Manual
wegener.com 3 800021-01 Rev. B
Table of Contents
Chapter 1 General Information
1.1 Manual Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 DTV735 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Physical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 DTV735 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4 Safety Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.5 Glossary of Terms and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . 9
Chapter 2 Installation
2.1 Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.2 Location and Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.3 DTV735 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Terminal I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Chapter 3 Operation
3.1 Operation Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.2 Ethernet/Web Browser Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Directly connected PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
LAN Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using the Web Browser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

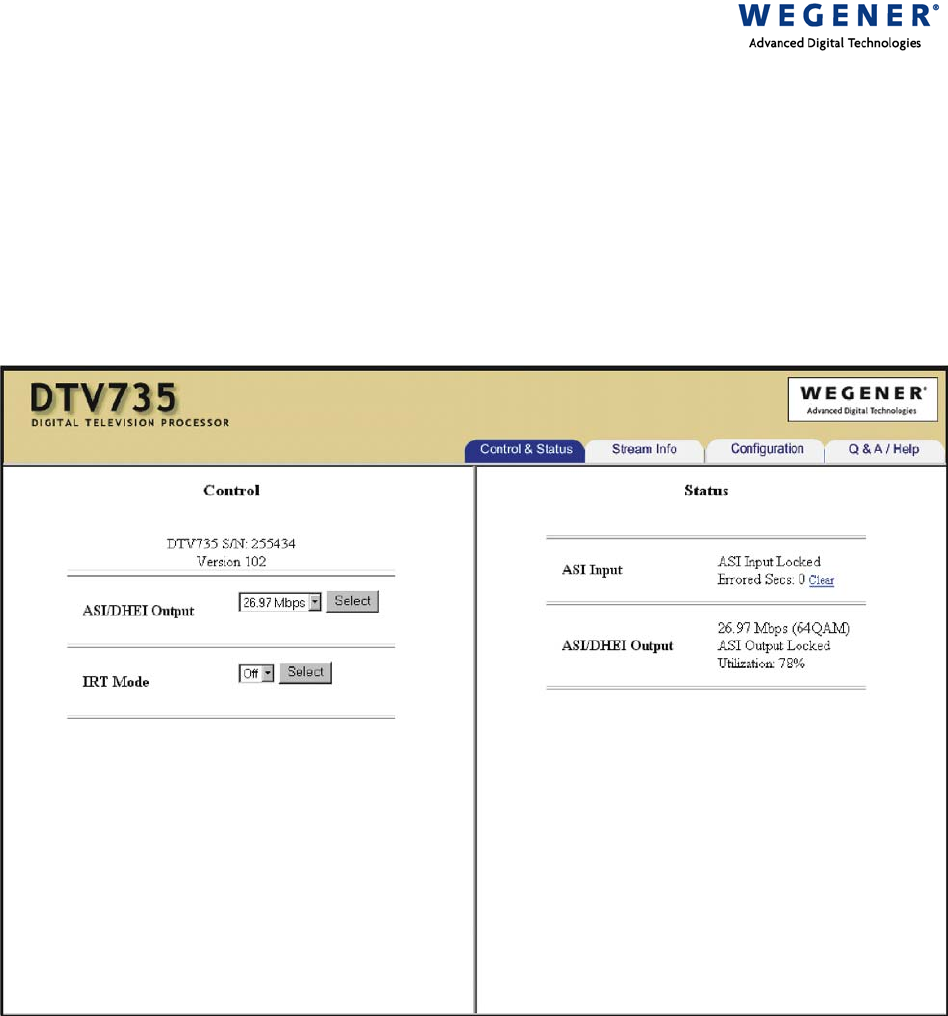

Control and Status Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

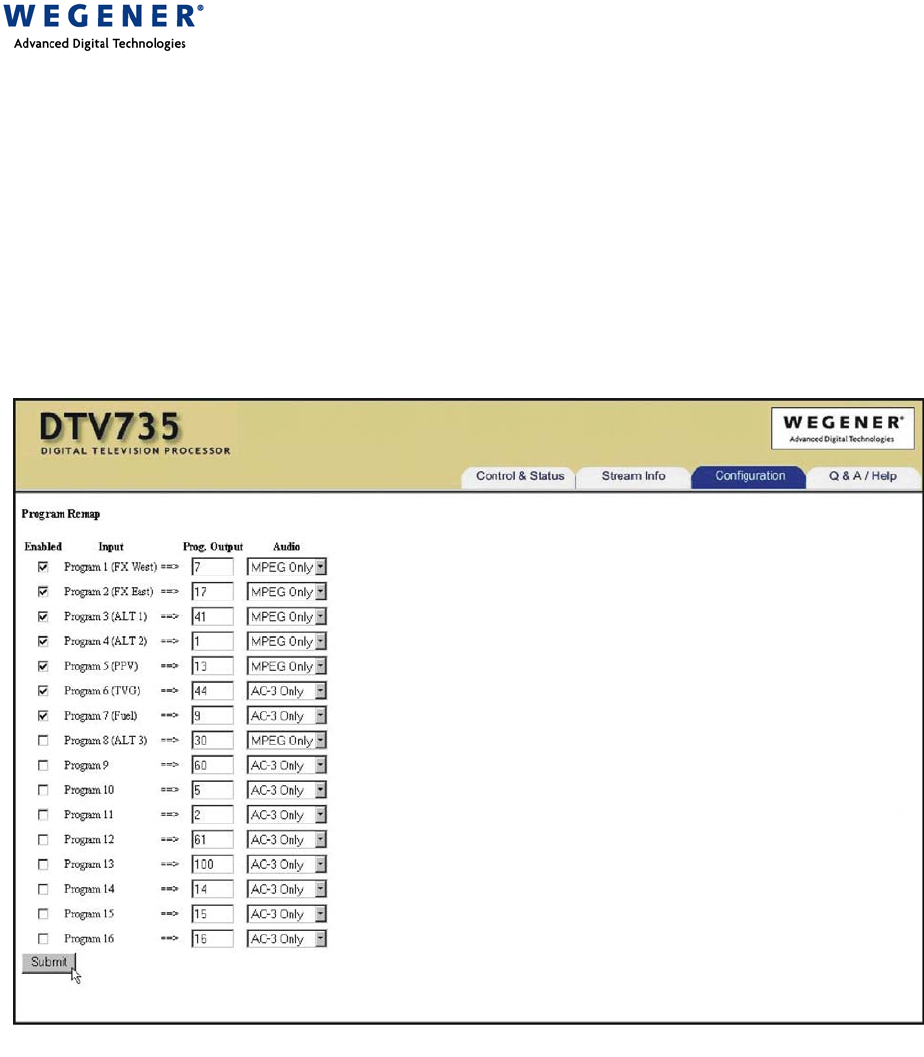

Configuration Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Stream Information Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

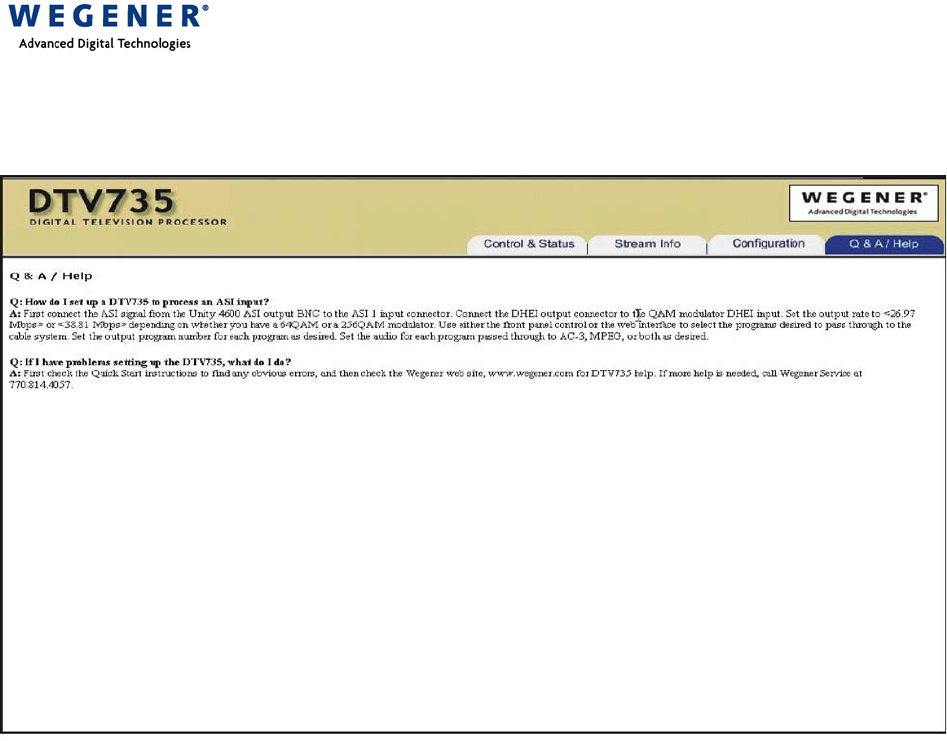

Q&A/Help Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.3 DTV735 Controls and Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Liquid-crystal Display(LCD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Push buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Front-panel LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Rear-panel indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.4 Front-panel Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Alarms/Warnings screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Clear Errored Seconds screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Program Setup screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Program Status screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Output Rate Selection screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Pass PID 0x0ffe Selection screen . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
IP Setup screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Reset Unit screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
DTV 735 User’s Manual
800021-01 Rev. B 4 wegener.com
Unit Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.5 Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Software Code Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Initialization Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Initialization Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.6 Transport Stream Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Input to Output Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
PSIP Structure and Program Selection . . . . . . . . . . . . . . . . . . . . . . . 33
IRT Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.7 Alarm System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Alarm Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.8 Software Downloads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Chapter 4 Maintenance and Troubleshooting
4.1 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.2 General Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
No functions at all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.3 Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
ALARM: ASI Input Unlocked . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
ALARM: Unit Over-subscribed . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
ALARM: PAT or PMT Missing. . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
4.4 Trouble with Browser Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Chapter 5 Customer Service
5.1 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.2 Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
wegener.com 5 800021-01 Rev. B
Chapter 1 General Information
1.1 Manual Overview
This manual provides instructions and reference information for the proper
installation and operation of the Wegener Model DTV735 Digital Television
Processor, referred to throughout the manual as the DTV735.
NOTE: User interface details in this manual are based on application software
version 102.
The manual is divided into the following chapters:
1 General Information - a description of your DTV735, its functions and
specifications, and a glossary of terms
2 Installation - procedures and information for the correct and safe instal-
lation of your DTV735.
3 Operation - instructions on starting and operating your DTV735
4 Maintenance and Troubleshooting - information on maintaining your
DTV735 and resolving possible operating difficulties
5 Customer Service - Our warranty and information on obtaining help
Please E-mail any suggestions or comments concerning this manual to
manuals@wegener.com. If you prefer to post them through the mail, please
send your comments to the address below. If you have substantial or complex
changes to recommend, our preference is that you copy the page(s) in question,
mark your changes on that copy, and fax or mail us the copy. We always
appreciate constructive criticism.
Our Address:
Attn: Manuals
Wegener Communications, Inc.
Technology Park / Johns Creek
11350 Technology Circle
Duluth, GA 30097-1502
Our Fax Number:(770) 497-0411
DTV 735 User’s Manual
800021-01 Rev. B 6 wegener.com
1.2 DTV735 Overview
The DTV735 Digital Television Processor (see Figure 1.1) receives an input
ASI MPEG Transport Stream and provides an output DHEI stream for connec-
tion to cable system transmission equipment. Programs may be remapped or
selected for removal from the output stream. The Transport Stream that is out-
put on the DHEI connector is also available on the two ASI output BNC con-
nectors.
Physical
Description
The DTV735 is housed in a standard, rack-mountable chassis. Its front panel
provides a user interface through an LCD, eight LEDs, and six push buttons
(see section 3.3 DTV735 Controls and Indicators on page 23). The rear panel
holds the ports that allow connection to power, incoming signal, and peripheral
devices.

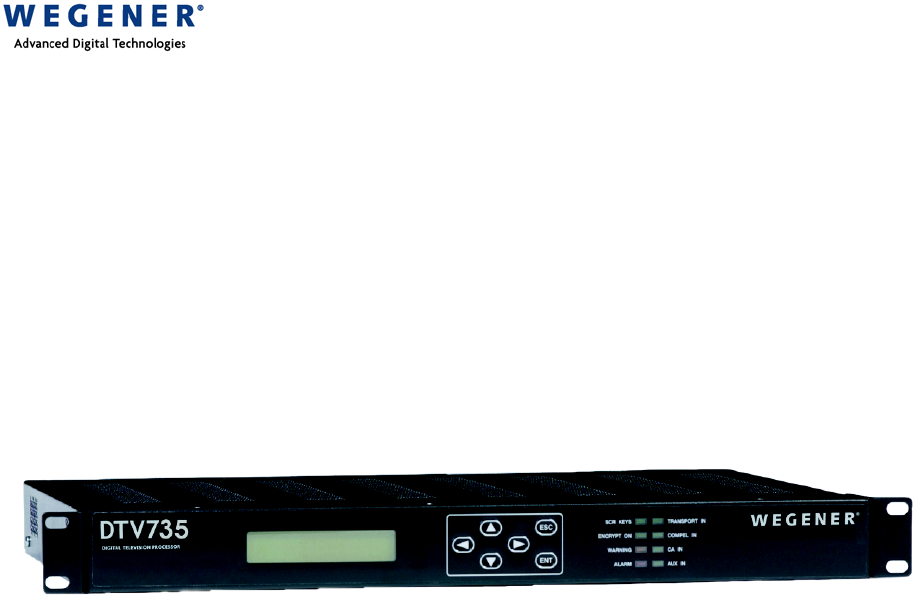

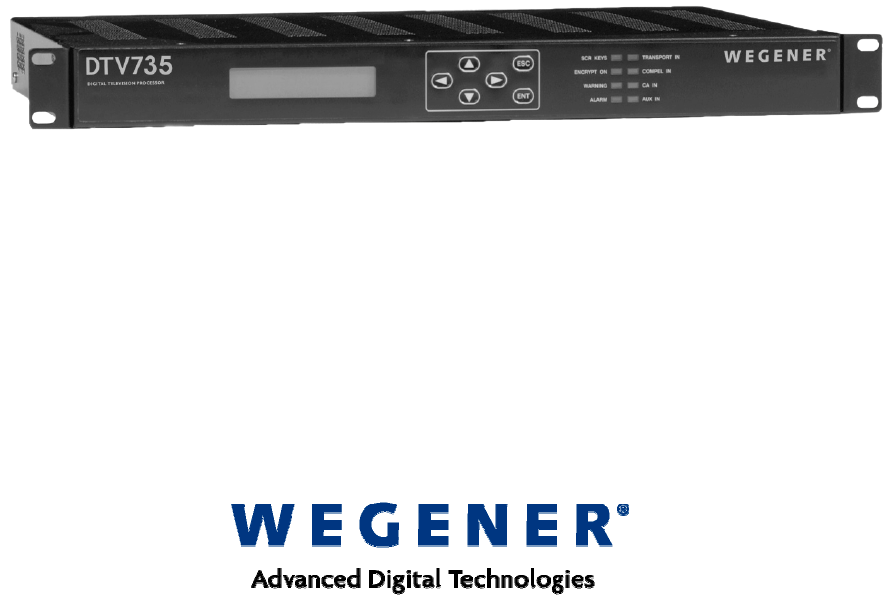

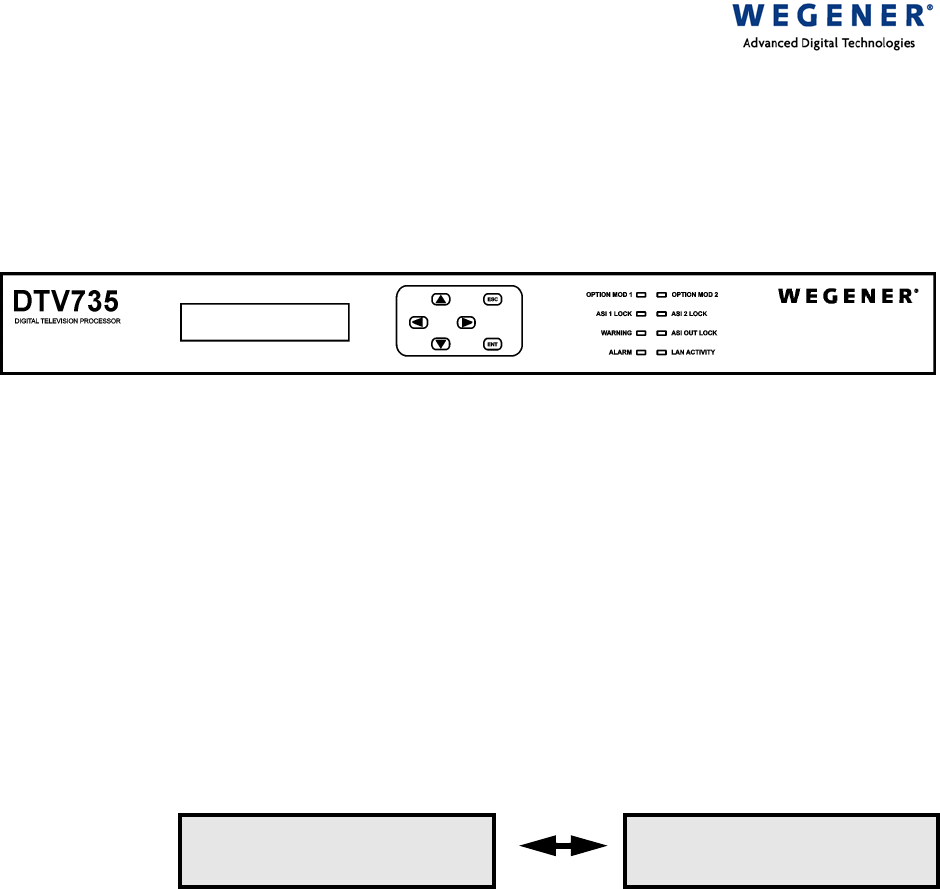

Figure 1.1 DTV735 Digital Television Processor
Features Your DTV735 has the following features:
• Two ASI MPEG Transport Stream inputs – ASI-1 is active, ASI-2 may
be used for future expansion (BNC connectors)
• Two duplicate ASI MPEG Transport Stream outputs (BNC connectors),
• DHEI Output Module,
• Time re-stamping of PCR, PTS, and DTS information,
• User selection of input programs to be included in the output stream,
• User selection of output program numbers and audio mode,
• One Ethernet TCP/IP control interface (RJ-45 connector), and
• One asynchronous data input/output (DB-9 connector).
DTV 735 User’s Manual
wegener.com 7 800021-01 Rev. B
1.3 DTV735 Specifications
Table 1: Technical Specifications
Characteristic Specification
ENVIROMENTAL
Use Indoor
Altitude Up to 2000 meters
Temperature Range +10° C to +40° C Operating
-20° C to +70° C Storage
Cooling Internal fan
Relative Humidity (max.) 80% for temperatures up to 31° C decreasing linearly to
50% relative humidity at 40° C.
INPUT AC POWER
Voltage 90 to 132 Vac and 175 to 264 Vac
Frequency 50/60 Hz ± 2%
Power Consumption 43 Watt
MECHANICAL
Height 1 std. RU (1.75 inches nominal) (44.5 mm)
Width EIA std. 19-inch mounting (482.6 mm)
Depth 13.5 inches (342.9 mm)
Weight 10.5 lb (4.81 kg)
Expansion Module Slots 3 - each 2.5"W x 1.375"H x 7"D on rear panel
SERIAL PORTS
Standard RS-232
Handshaking None
Service Software download
Baud Rates 115.2 kbps
Formatting 8 data-bits, 1 start, 1 stop-bit, no parity
DTV 735 User’s Manual
800021-01 Rev. B 8 wegener.com
1.4 Safety Summary
The DTV735 is designed for safe use with few special precautions required of
the user. The following items are basic precautions to use when installing and
working with your DTV735:
Do not open the DTV735’s chassis cover.
ETHERNET PORT
Physical Layer 10BaseT/100BaseT (twisted pair) on RJ-45 jack
Media Access and Link Layer Per IEEE 802.3 (Ethernet)
ALARM RELAYS
Alarm Function Contact closure for main power off, loss of input signal
Type Form C, Normally Open and Normally Closed
Rating 30Vdc open circuit, 500 mA max current closed
EXPANSION MODULE SLOT Allowable expansion modules:
· DHEI transport stream output
· 8VSB tuner module
Table 1: Technical Specifications
Characteristic Specification
DTV 735 User’s Manual
wegener.com 9 800021-01 Rev. B
1.5 Glossary of Terms and Abbreviations
Table 2: Glossary of Terms
Term Definition
AC Alternating current
Alarm A condition or notification of a condition that prevents your DTV735 from performing
properly
Application Soft-
ware
The main host software which sets up the unit hardware, runs the process of acquiring
Transport Stream sources, sets up and monitors the multiplexing processes, monitors
unit operations, and provides interfaces with the network and local users.
ASI (or DVB-ASI) An “asynchronous” bit-serial physical interface for Transport Streams. Transmitting
and receiving functions are designed such that the time relationships between all pack-
ets and their timing references are unchanged.
ATSC Advanced Television Systems Committee - sets standards for standard definition and
high definition television in the U.S. Sometimes used to mean the HDTV standards.
Boot loader Software residing in non-writable zone of flash which executes at unit reset.
Carrier An RF signal containing coded audio, video, and/or other data
DVB-ASI see ASI
EIA Electronic Industries Association
Ethernet The widely-used LAN technology specified by IEEE standard 802.3
Flash memory A memory dedicated to storing the unit’s software and an image of some hardware pro-
gramming code.
IEEE Institute of Electrical and Electronics Engineers
LAN Local area network. Your DTV735 may be connected to an Ethernet LAN.
LCD Liquid crystal display. The front-panel text screen on your DTV735 is a liquid crystal
display.
LED Light-emitting diode. The front-panel indicator lights on your DTV735 are LEDs.
Mbps, kbps Megabits per second or kilobits per second - units of data transport rate.
MPEG Moving Picture Experts Group - refers to the method of video compression established
by this group.
NVRAM Non-volatile memory. A memory dedicated to storing the unit’s setup parameters. This
memory retains its contents through power outages.
PAT Program Allocation Table. Master table which identifies all the Programs in the Trans-
port Stream. It associates Program numbers to the PIDs bearing the associated Pro-
gram’s PMT.
DTV 735 User’s Manual
800021-01 Rev. B 10 wegener.com
PCR Program Clock Reference. Time-base signal used to synchronize transport stream data.
PID Packet Identifier. The unique Transport Stream packet identifier assigned to each con-
stituent data stream within the Transport Stream. Also, in this document, “PID” is used
to designate the stream itself.
PMT Program Map Table. Table for a given Program identifying all the PIDs for its PCR,
video, audio, and user data streams.
Program In the MPEG hierarchy, a grouping of related audio, video, or generic data PIDs sharing
a common PCR time base and (usually) sharing a common schedule. See PMT.
PSI Tables Program-Specific Information Tables. A group of information-bearing tables, each
borne by well-known PIDs, regularly transmitted in the Transport Stream. See also
“PAT” and “PMT”. Also, ISO 13818-1 gives a thorough description of these and other
Tables.
PSIP Program and System Information Protocol - a method for transporting digital television
system information and electronic program guide data.
RAM Random access memory. A general term for all memory volatile memory types out of
which application software executes and into which its variables, state information, and
messages are stored. RAM is also used to designate the volatile storage used by the
Transport Demux and decompression devices.
RF Radio frequency
TMRA Maximum Recommended Ambient Temperature, the highest operating temperature for
which the unit is rated
Transport Stream
(or MPEG Trans-
port Stream)
A multiplex of several data streams, each of which is borne in Transport packets, 188-
byte blocks containing a sync word, header information (including a PID), and payload
data. This multiplex includes PSI data tables, Programs, and padding in the form of null
packets.
Table 2: Glossary of Terms
Term Definition
wegener.com 11 800021-01 Rev. B
Chapter 2 Installation
This chapter provides instructions on unpacking, mounting, and connecting
your DTV735 as well as connector information including detailed pinouts.
2.1 Unpacking and Inspection
Carefully unpack the unit and its ac power cord and inspect for obvious signs
of physical damage that might have occurred during shipment. Any damage
claims must be reported to the carrier immediately. Be sure to check the pack-
age contents carefully for important documents and materials.
NOTE: Please save the packing materials and original shipping containers in
case you must later return the unit for repair. Packing these units in other
containers in such a way that they are damaged will void your warranty.
2.2 Location and Mounting
The DTV735 should be located indoors and may be mounted in a standard,
19-inch equipment rack within one standard RU.
WARNING
This is a Class A product. In a domestic environment this product may cause
radio interference for which the user may need to take mitigating action.
DTV 735 User’s Manual
800021-01 Rev. B 12 wegener.com
DANGER
To avoid damage to this and other equipment, or personal injury, the following
items should be strictly observed.
Elevated Operating Ambient
When equipment is installed in a closed or multi-unit rack assembly, the
operating ambient of the rack environment may be greater than the room
ambient. Therefore, consideration should be given to the ambient air
temperature within the rack, and not just inside the room, when deciding if the
maximum recommended ambient operating temperature (TMRA) is being met
or exceeded.
Reduced Air Flow
Equipment should be installed such that airflow required for safe operation of
the equipment is not compromised.
Mechanical Loading
Mounting of the equipment in a rack should be such that a hazardous
condition is not produced by uneven loading. This unit is not very heavy, but
total rack loading must be considered. Also, do not rest any unsupported
equipment on your DTV735.
Circuit Overloading
Consideration should be given to the connection of the equipment to the
supply circuit and the effect that overloading of circuits could have on
overcurrent protection and supply wiring. Ensure that the total rack or breaker
power consumption does not exceed the limits of the ac branch circuit.
Appropriate consideration of equipment ratings should be used when
addressing this concern.
Reliable Earthing
Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections
to the branch circuit (use of power strips, chassis ground lugs, etc.).
DTV 735 User’s Manual
wegener.com 13 800021-01 Rev. B
Rack
Mounting
Your DTV735 is sized to fit in an EIA-standard, 19-inch-wide equipment rack.
a) First install angle brackets or cross-supports capable of supporting both
the unit and its connecting cables. Screw or bolt the supports securely
to the equipment rack.
b) Place the DTV735 on its supports and use four anchor screws or bolts
and nuts to secure the unit’s front brackets to the rack.
c) Connect the chassis grounding screw to an earth ground before
connecting the power cord to the unit.
WARNING
The front brackets must be secured to the rack. If front brackets are left
unsecured, the unit may shift forward and fall from the rack during installation
or operation. Failure to secure the front brackets may result in personal injury
and/or damage to the equipment.
WARNING
Locate the DTV735 and its cables to avoid impacts, spills, and pulling cables
and to ensure sufficient air flow. Failure to locate the DTV735 in a proper
environment may result in damage to the equipment.
DTV 735 User’s Manual
800021-01 Rev. B 14 wegener.com
2.3 DTV735 Connections

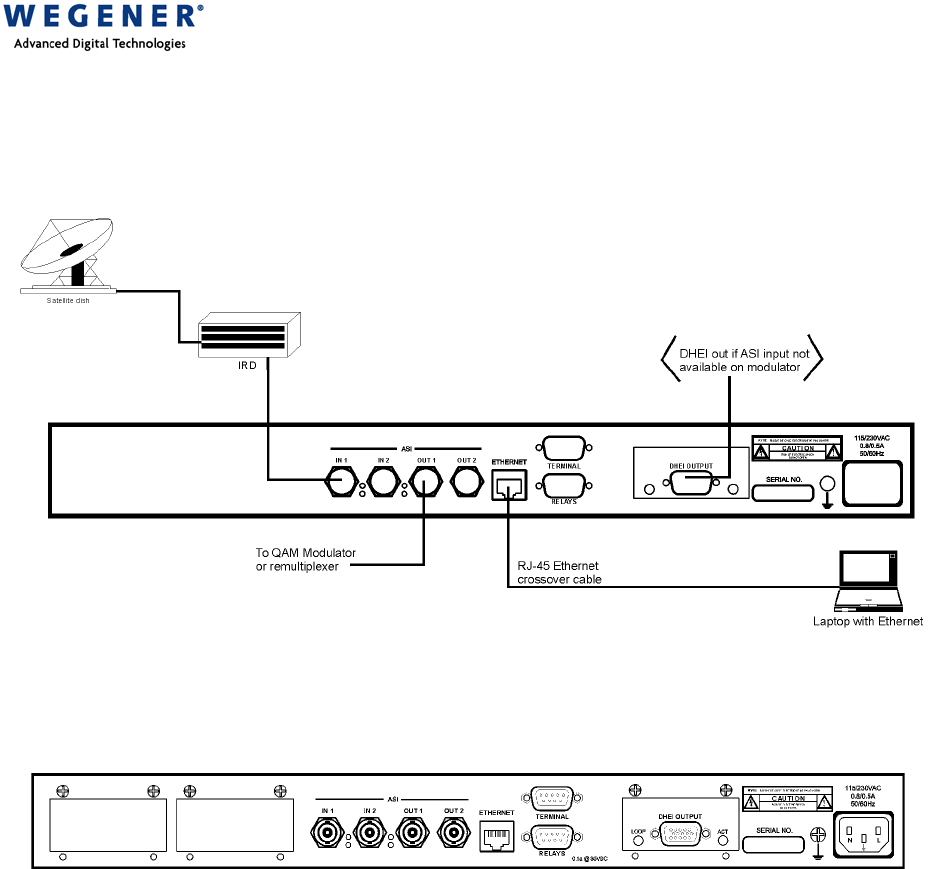

Figure 2.1 DTV735 System Setup below shows placement of the DTV735 in a
typical cable headend. Figure 2.2 DTV735 Rear Panel illustrates details of the
DTV735’s rear panel.
Figure 2.1 DTV735 System Setup
Figure 2.2 DTV735 Rear Panel
Before applying power, make the following connections to your DTV735
(refer to Table 3 for connector details):
a) Connect the chassis grounding screw to an earth ground before
connecting the power cord to the unit.
b) Connect the ASI Output signal from your Unity 4600 receiver to the
DTV735’s ASI IN 1 port.
c) Connect the DHEI output connector to the cable headend DHEI
equipment using a 15-pin to 26-pin DHEI cable. Be sure to use the
correct cable depending upon whether you are connecting to the DHEI
Expansion Input or the DHEI Expansion Output connector.
DTV 735 User’s Manual
wegener.com 15 800021-01 Rev. B
d) Connect other transmission or monitoring equipment to the ASI OUT 1
and ASI OUT 2 ports as desired.
e) Connect your LAN line to the DTV735’s Ethernet port.
f) If desired, connect the Relays port to your equipment to provide contact
closures during alarms.
g) Finally, connect the supplied ac power cord to the DTV735’s IEC
receptacle and to a 90-to-132 Vac source.
Table 3: DTV735 Connector Details
Designation Connector Type Pin
Number Signal Name
115/230 Vac Power Male IEC receptacle AC LINE IN
ASI In 1 female BNC ASI IN 1
ASI In 2 female BNC ASI IN 2
ASI Out 1 female BNC ASI OUT 1
ASI Out 2 female BNC ASI OUT 2
DHEI Out D subminiature 15-pin 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
RESERVED
RESERVED
RESERVED
RESERVED
SIGND
SENSEOL
PSYNCO+
PDATAO+
PCLKO+
REFCLKO+
SENSEOR
PSYNCO-
PDATAO-
PCLKO-
REFCLKO-
Ethernet LAN female RJ-45 1
2
3
4
5
6
7
8
EN OUT +
EN OUT -
EN IN +
NC
NC
EN IN -
NC
NC
DTV 735 User’s Manual
800021-01 Rev. B 16 wegener.com
Ethernet An Ethernet 10BaseT/100BaseT port is included and is the primary user inter-
face using an HTML browser-based interface. The unit has an URL which is
assigned via the front panel. The “home” page is then accessed by users via the
Ethernet port. From this page, the desired channel selections may be performed
and status monitored.
Terminal I/O The Terminal serial port is configured to 115.2k, N, 8, 1. The Terminal device
is used for command and control of the DTV735. This I/O is a basic, VT100-
like emulation. User input text strings terminated in carriage-returns prompt all
I/O. The terminal should be set to local echo ON because the DTV735 only
echoes a carriage-return/linefeed and then a ‘>’ prompt after entry of a com-
mand-line terminated in carriage-return.
Serial Async I/O DB-9 1
2
3
4
5
6
7
8
9
DCD (+5V, 4.7 kΩ)
RxD (output)
TxD (input)
NC
GND
DSR (+5V, 4.7 kΩ)
NC
CTS (+5V, 4.7 kΩ)
RI (+5V, 33 Ω)
Alarm Relay male DB-9 1
2
3
4
5
6
7
8
9
Not used
Not used
Not used
ALARM COM
GND
Not used
Open on ALARM
Not used
Close on ALARM
Table 3: DTV735 Connector Details
Designation Connector Type Pin
Number Signal Name
wegener.com 17 800021-01 Rev. B
Chapter 3 Operation
3.1 Operation Overview
This chapter contains detailed operating instructions for your DTV735. The
following sections address:
• Ethernet/Web Browser Control
• DTV735 Controls and Indicators
• Front-panel Operation
• Initialization
• Transport Stream Processing
• Alarm System
• Software Downloads
Local user control is from a LAN via RJ-45 Ethernet or the front-panel LCD/
keypad. All settings may be presumed to be retained through power cycling
unless otherwise specified. This means that they are still in effect through
resets, whether by power outage, commanded reset, or failure-recovery resets.
3.2 Ethernet/Web Browser Control
The DTV735’s primary user interface is from a web browser using the rear-
panel Ethernet LAN connection. An HTML script interface allows a user to
control and monitor the unit using a standard web browser. Each unit contains
a user-defined quad URL address, subnet mask, and gateway address (See
Table 4: DTV735 IP Setup).
There are two basic methods of using the Ethernet connection – with a directly
connected PC or with a PC connected through a LAN.
Directly
connected PC
For control from a local PC, attach the DTV735’s Ethernet port to the Ethernet
network connector on the PC using a crossover RJ-45 cable (8 pins).
Before using this Ethernet connection, the appropriate IP address, netmask,
and gateway must be selected via the front-panel interface.
DTV 735 User’s Manual
800021-01 Rev. B 18 wegener.com
Perform the DTV735 IP Setup as shown in Table 4 and the PC IP Setup as
shown in Table 5:
LAN
Connection
For LAN connection, attach the DTV735’s Ethernet port to the LAN using a
normal, straight-through, RJ-45 cable (8 pins). Set the DTV735 IP Address,
Netmask, and Gateway as directed by your network administrator. Use any PC
on the LAN to connect to the DTV735 using the web browser instructions
below.
NOTE: Each unit on the network must have a unique address.
Using the
Web Browser
To begin monitor and control functions from a PC or LAN connection:
a) Open the current internet browser of your choice from the local PC or
computer on the LAN attached to your DTV735.
b) Set the browser's address field to http://nnn.nnn.nnn.nnn where
nnn.nnn.nnn.nnn is the IP address of the unit to be controlled (set from
the DTV735’s front-panel, IP Address screen).
NOTE: For IP addresses which include subfields with leading zeros, you must
omit those zeros when entering the address in your browser. For example, IP
address 128.092.050.004 must be entered as 128.92.50.4.
The DTV735 Control and Status screen will appear. You may select either the
Stream Information, Configuration, or Q&A/Help pages at any time by click-
ing on their respective tabs at the top of the screen.
Normally you will first select the Control & Status screen to select the output
data rate and then select the Configuration screen. Use the Configuration
Table 4: DTV735 IP Setup
Parameter Setting
IP Address 172.016.100.020
Netmask 255.255.000.000
Gateway 000.000.000.000
Table 5: PC IP Setup
Parameter Setting
IP Address 172.016.100.001
Subnet Mask 255.255.000.000
DTV 735 User’s Manual
wegener.com 19 800021-01 Rev. B
screen to select the included programs for output, assign new program numbers
if desired, and select the audio to be included in each program’s output. Finally,
select the Stream Info screen to verify the input and output data processed.
Control and
Status Page
The Control side of this screen gives the serial number of the DTV735 unit and
the version number of the application software installed in the unit. The ASI
Output box allows the user to set the output data rate to either 26.97 Mbps or
38.81 Mbps. The IRT Mode box allows the user to enable or disable functions
needed for use in systems with the Motorola IRT product. This is normally set
to OFF. (Refer to IRT Mode on page 34 for more details.)
The Status side provides the unit input and output signal status. The ASI Input
part of Status indicates the presence or lack of an ASI input signal on ASI
Input 1. The Errored Secs indicates the number of seconds in which errors
occurred since the last time the error counter was cleared. ASI/DHEI Output
lists the output stream’s data transport rate as well as the output lock status.
(The QAM modulator associated with the data rate is shown after the data rate,
64 QAM for 26.97 Mbps or 256 QAM for 38.81 Mbps.) Utilization indicates
the percentage of the output Transport Stream’s data rate that is occupied with
actual data (not null packets). This indicator may be used to determine whether
additional programs may be enabled for output.
DTV 735 User’s Manual
800021-01 Rev. B 20 wegener.com
Configuration
Page
The Configuration screen shown below allows the selection of programs to be
included in the output. In the example shown, programs 1 through 7 have been
selected by placing a check in the boxes next to the input program number.
Program reassignments have been selected by placing the new output numbers
in the corresponding Prog. Output boxes. For example, Input Program 1 is
mapped to Output Program 7, Input Program 2 to Output Program 17, etc. The
Audio selection boxes allow MPEG audio, AC-3 audio, or both to be selected
for output on each program. You should ensure that the selected audio format is
available on the input program. If you select MPEG only and the input has AC-
3 only, you will receive video but no audio for that program. If in doubt, select
both.
DTV 735 User’s Manual
wegener.com 21 800021-01 Rev. B
Stream
Information
Page

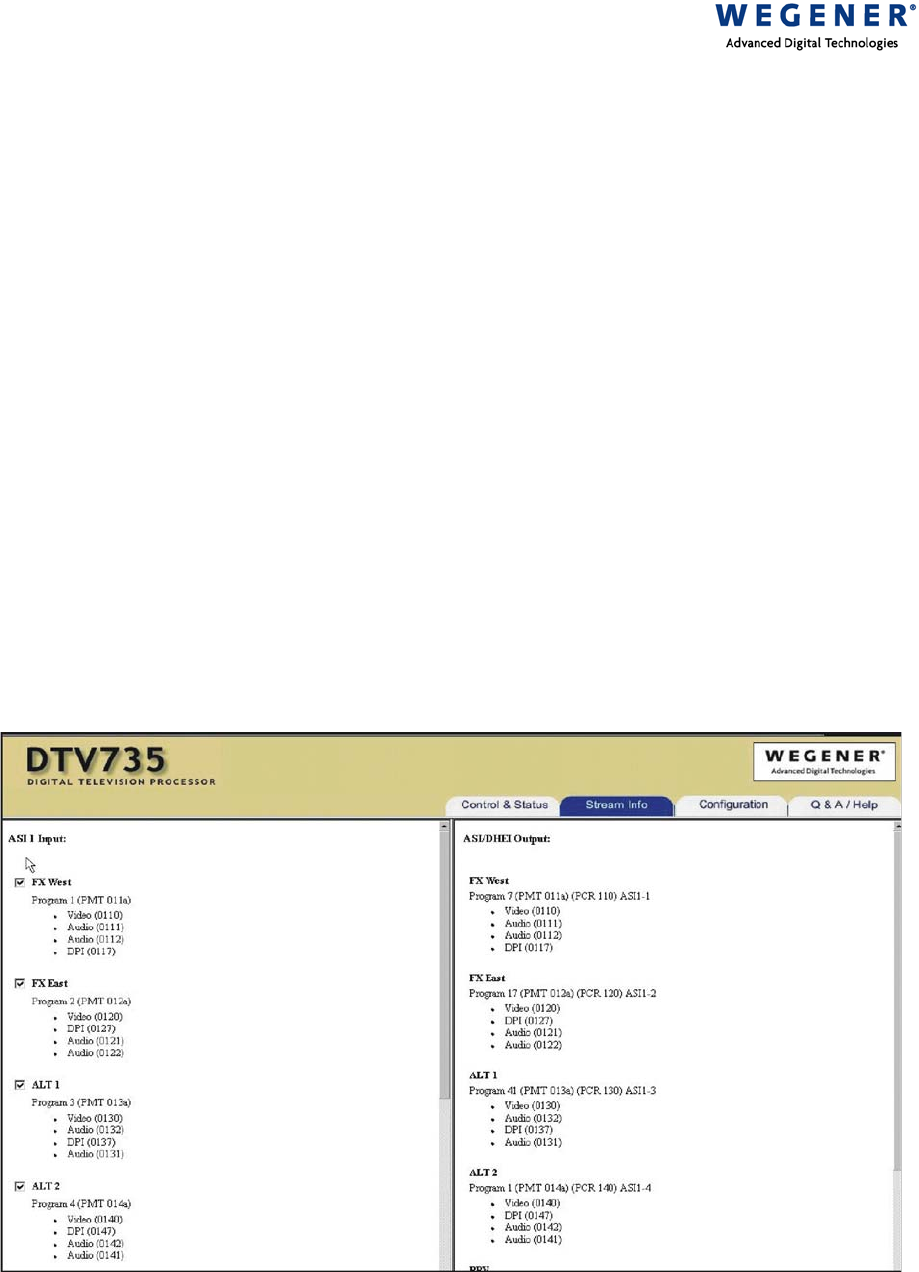

The Stream Info screen shown below allows additional control and monitoring
of the input and output streams. The ASI 1 Input side shows all the programs
present in the ASI input. The number in parentheses after the program number
is the PID number (in hexadecimal form) of that program’s PMT. All streams
included in the program are listed below the program number with their PID
locations indicated in parentheses (in hexadecimal form). For example, in the
screen below, Program 3 has its PMT located in PID 0x3a and its video is
located in PID 0x0130 with audio located in PIDs 0x0131 and 0x0132. Check
boxes allow you to select the program streams that you wish to include in the
output. Click the box to the left of a program to check that program and add it
to the output and then click the Update Selected Programs bar at the bottom of
the screen. Click the Uncheck All hyperlink if you wish to remove checks from
all input check boxes.
Program numbers may be changed by entering the desired values in the pro-
gram number boxes before clicking on the Update Selected Programs box. Pro-
gram numbers must be unique. If you attempt to assign the same program num-
ber to more than one program, an error message will appear and no change will
be made.
NOTE: Program numbers are unique. Do not attempt to assign two input
programs to the same output program number.
DTV 735 User’s Manual
wegener.com 23 800021-01 Rev. B
3.3 DTV735 Controls and Indicators
There are three major parts of your DTV735’s front-panel controls and indica-
tors: the liquid-crystal display (LCD), the six push buttons, and the eight LED
indicators. Essentially all control available through the terminal is also avail-
able via the front panel (shown below in Figure 3.1).
Figure 3.1 DTV735 Front Panel
Liquid-
crystal
Display(LCD)
The DTV735’s 2-line by 20-character LCD indicates unit status and prompts
for and reflects user input. Here, you will see your DTV735’s "home screen"
which shows the Transport Stream ID (TSID) and the output data rate. Infor-
mation in the bottom row alternates between showing the number of errored
seconds since signal acquisition (or since error reset) and the occupied band-
width of the output data stream. No matter which front panel screen is cur-
rently shown, holding in the ESC button returns the display to the home
screen. From this home screen, press the ENT button to display the unit’s serial
number and the version number of the application software. Using the adjacent
push buttons, you can navigate the DTV735’s various screens and edit input
fields (see section 3.4 Front-panel Operation on page 26).
The default front panel screen is this "home screen". No matter where a user
may be in the screen hierarchy, if no front-panel key press is made for more
than five minutes, then the screen reverts to the “home screen”.
TSID:XXXX RATE:YY.YY
Errored Sec:ZZZZ
TSID:XXXX RATE:YY.YY
Occupied BW: NN%
DTV 735 User’s Manual
800021-01 Rev. B 24 wegener.com

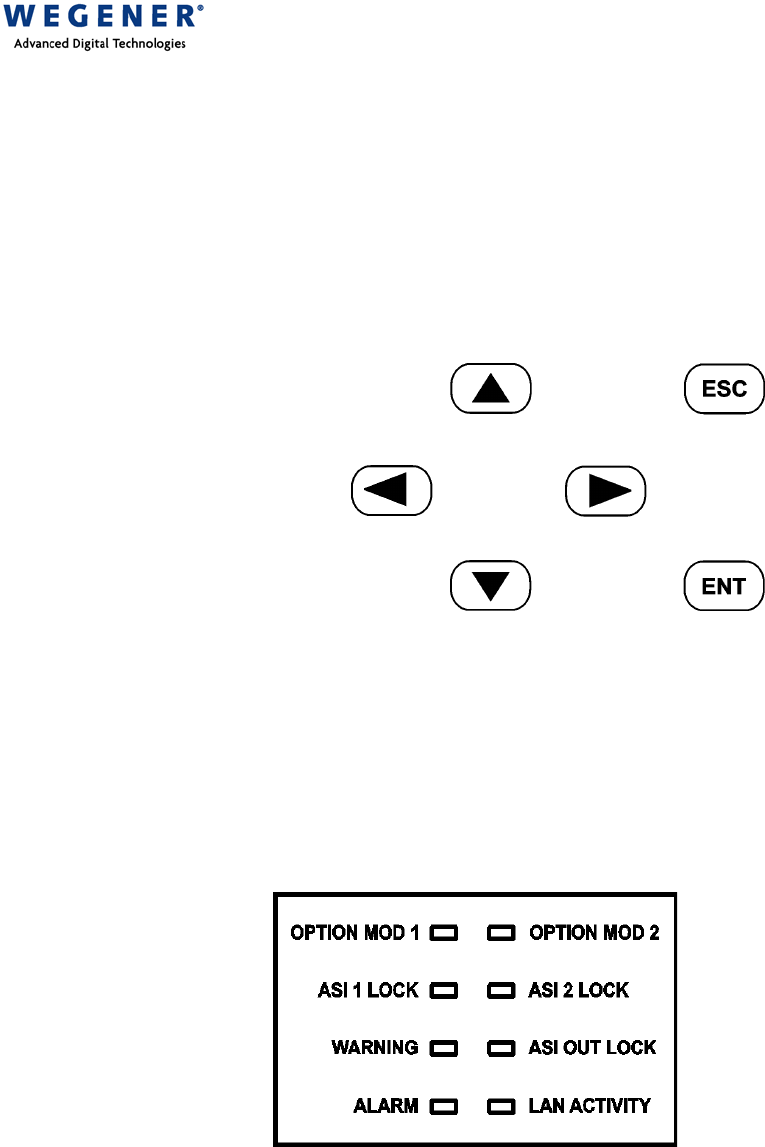

Push buttons These six push buttons (shown below in Figure 3.2) are your means of com-
manding the DTV735 from the front panel. The four arrow buttons allow navi-
gation through the menu screens and character selection when editing user-
input fields. The Enter (ENT) button serves to select menu options (downward
navigation), to open user-input fields, or to commit user input to the DTV735.
The Escape (ESC) button allows exit from user-input fields without saving the
entry or selection. ESC also provides upward navigation through the menu
structure to the home screen. The arrow buttons also provide navigation
through user-input screens and switching between user-selectable options.
Figure 3.2 DTV735 Push Buttons
Front-panel
LED
Indicators

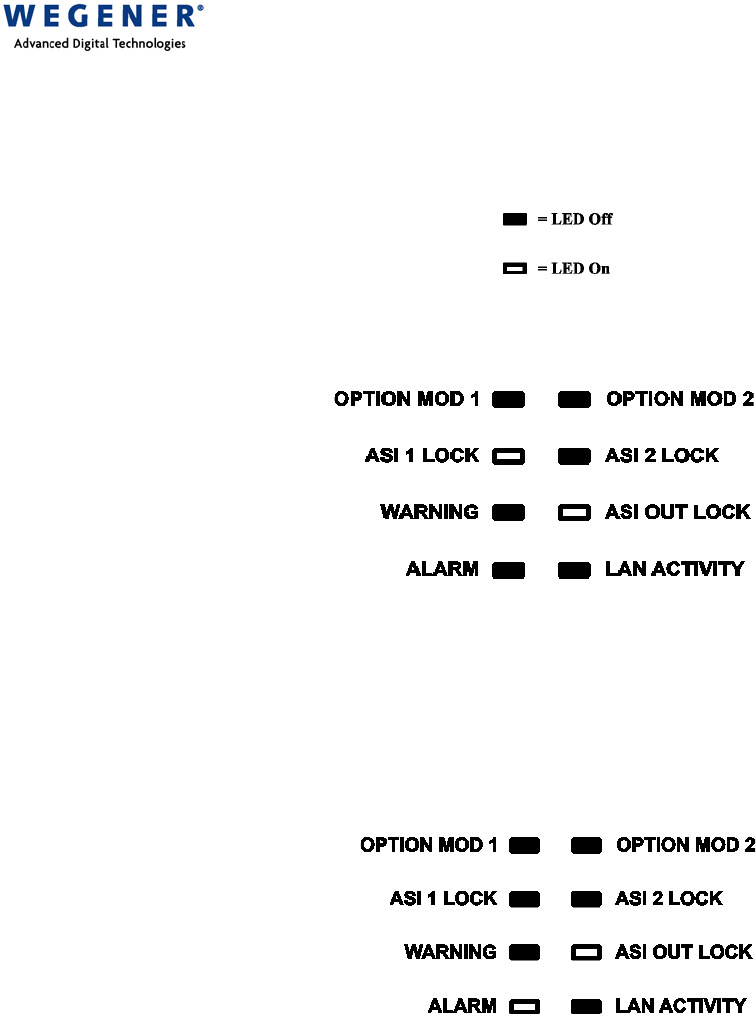

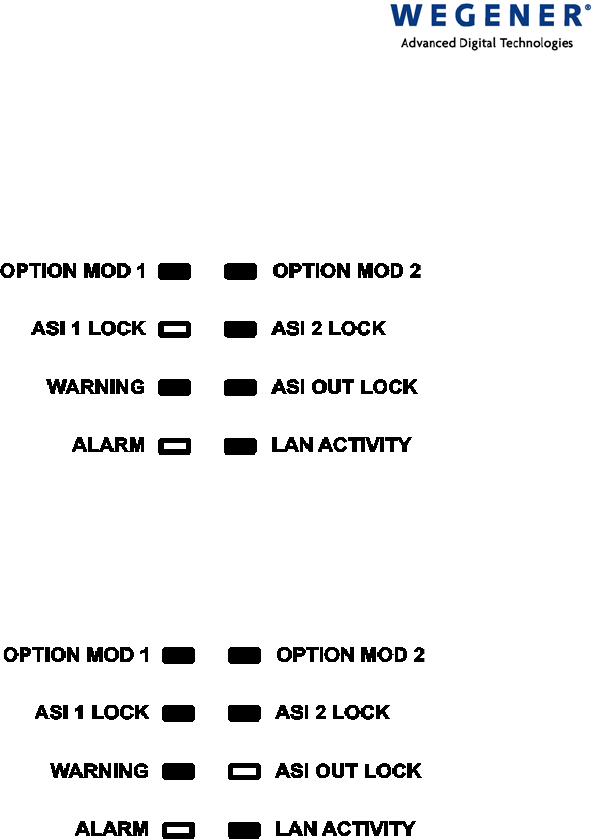

Figure 3.3 below shows the eight light-emitting diodes (LEDs) that provide
status information about your DTV735 and its processes. Table 6: LED Indi-
cator Descriptions on page 25 provides the meaning of the color and state of
each LED.
Figure 3.3 DTV735 LED Indicators
DTV 735 User’s Manual
wegener.com 25 800021-01 Rev. B
Table 6: LED Indicator Descriptions
Indicator
Label and Color Indicator State Indicator Meaning
OPTION MOD 1 Constant Option module 1 installed and operating
GREEN Off Option module 1 not installed or not operating
OPTION MOD 2
GREEN
Constant Option module 2 installed and operating
Off Option module 2 not installed or not operating
ASI 1 LOCK
GREEN
Constant ASI 1 input has Transport Stream synchronization
present
Off ASI 1 input does not have Transport Stream
synchronization present
ASI 2 LOCK
GREEN
Constant ASI 2 input has Transport Stream synchronization
present
Off ASI 2 input does not have Transport Stream
synchronization present
WARNING Constant Warning condition(s) exists
(The Fox version of the DTV735 does not have any
Warning conditions.)
YELLOW Off No Warning condition exists
ASI OUT LOCK Constant ASI Output is active
GREEN Off ASI Output is inactive
ALARM Constant Alarm condition(s) exists
RED Off No Alarm condition exists
LAN ACTIVITY
GREEN
Flash LAN activity present. Only lights when data is
transferred to the DTV735. This is not a continu-
ous monitor of LAN communications.
Off No transfer of LAN data to the unit
DTV 735 User’s Manual
800021-01 Rev. B 26 wegener.com
Rear-panel
indicators
Three LED indicators on the rear panel give Ethernet and ASI Input status:
ACT – LED: Ethernet activity blinks OFF and ON for activity detected
LAN – LED: Ethernet rate indicator, OFF for 10baseT and ON for 100baseT
ASI Input – Red/Green LED: OFF for not selected, RED for no input signal,
GREEN for input signal detected
3.4 Front-panel Operation
The DTV735 may be set up and controlled from the front panel as follows:
NOTE: From any screen, pressing the ESC key twice will return you to the
Home Screen.
Home screen The Home screen alternates between the following two modes every four sec-
onds:
(A)
TSID:XXXX RATE:YY.YY
Errored Sec:ZZZZ
Where XXXX is the hexadecimal transport stream identifier, YY.YY is the
current output rate in Mbps, and ZZZZ is the number of errored seconds
since the last reset of the counter.
(B)
TSID:XXXX RATE:YY.YY
Occupied BW: NN%
Where NN is the percentage of the unit's output bandwidth currently occu-
pied by selected programs.
Press the ENT key to view the second-level Serial Number and Application
Software Version Number screen.
Press the key to go to Alarms/Warnings.
DTV 735 User’s Manual
wegener.com 27 800021-01 Rev. B
Second-level Screen
Alarms/
Warnings
screen
Second-level Screen
Clear
Errored
Seconds
screen
Serial Number and Application Software Version Number Screen
S/N: XXXXXX
VER: YYY
Where XXXXXX is the unit's six-digit serial number and YYY is the version
number of the unit's currently installed application software.
Press the ESC key to return to the Home Screen.
View Alarms/Warnings
Press the ENT key to view any active alarms or warnings on the second-
level Alarms/Warnings Message screen.
Press the key to go to Clear Errored Seconds (if counter is non-zero) or
Program Setup.
Press the ESC key to go to the Home Screen.
Alarms/Warnings Message Screen
No Alarms
Any active alarms or warnings are described here.
Press the key to view the next alarm or warning (if more than one).
Press the ESC key to return to the Alarms/Warnings screen.
Clear Errored Secs
Press<ENT>
This screen only appears if the errored seconds counter is non-zero. Other-
wise the next screen, Program Setup is displayed.
Press the ENT to clear the errored seconds counter.
Press the key to go to the Program Setup screen.
Press the key to go to Alarms/Warnings.
Press the ESC key to go to the Home Screen.
DTV 735 User’s Manual
800021-01 Rev. B 28 wegener.com
Program
Setup screen
Second-level screens
Program Setup...
Select? Press<ENT>
Press the ENT key to bring up the second-level Program Input screen.
Press the key to go to Program Status.
Press the key to go to Clear Errored Seconds (if counter is non-zero).
Press the ESC key to go to the Home Screen.
Program Input Screen
ProgIn XXXXX
ABCDEF
Where XXXXX is the program number and ABCDEF is the service descriptor
for that program.
Press the key to go to the next program on the input stream.
Press ENT and use the or keys to select <ON> or <OFF>, adding or
removing this program to or from the output stream. Press ENT again to
confirm.
Press the key to go to the Output Remap screen.
Press the ESC key to return to the Program Input screen.
Press the ESC key again to return to the main-level Program Setup screen.
Output Remap Screen
Output Remap:
XXXXX
Where XXXXX is the output program number.
Press the ENT key to edit the output program number.
Press the key to go to the Audio Stream Selection screen.
Press the key to go to the Program Input screen.
Press the ESC key to return to the Program Input screen.
Press the ESC key again to return to the main-level Program Setup screen.
DTV 735 User’s Manual
wegener.com 29 800021-01 Rev. B
Program
Status screen
Second-level screens
Audio Stream Selection Screen
Audio Stream:
XXXX
Where XXXX is the currently selected audio stream.
Press ENT and use the or keys to select <AC-3>, <MPEG>, or <MPG/
AC3>. Press ENT again to confirm.
Press the key to go to the Output Remap screen.
Press the ESC key to return to the Program Input screen.
Press the ESC key again to return to the main-level Program Setup screen.
Program Status...
Select? Press<ENT>
Press the ENT key to view the second-level program status screens.
Press the key to go to Output Rate Selection.
Press the key to go to Program Setup.
Press the ESC key to go to the Home Screen.
2nd-level Program Status Screen
ProgIn XXXXX AAAAAAA
ProgOutYYYY BBBBBBB
where XXXXX is the program number at input, AAAAAAA is the service
descriptor for the program, YYYY is the decimal program number at output,
and BBBBBBB is the available audio on the input for the program (AC-3,
MPEG, or MPG/AC3).
Press the key to view the status of the next program (all programs present
may be viewed but only programs 1 through 16 may be selected for output).
Press the ESC key to return to the Program Status screen.
DTV 735 User’s Manual
800021-01 Rev. B 30 wegener.com
Output Rate
Selection
screen
IRT Mode
Selection
screen
Select ON to enable the DTV 735’s IRT mode. See IRT Mode on page 34 for
more details.
IP Setup
screen
Output Rate...
38.81 Mbps
Press the ENT key and then the or key to select 26.97 Mbps (64QAM)
or 38.81 Mbps (256QAM). Press the ENT key to confirm the selection.
Press the key to go to IRT Mode Selection.
Press the key to go to Program Status.
Press the ESC key to go to the Home Screen.
IRT Mode
OFF
Press the ENT key and then the or key to select OFF or ON. Press the
ENT key to confirm the selection.
Press the key to go to IP Setup.
Press the key to go to Output Rate Selection.
Press the ESC key to go to the Home Screen.
IP Setup...
Press the ENT key to go to IP Address Selection.
Press the key to go to Reset Unit Screen.
Press the key to go to IRT Mode Selection.
Press the ESC key to go to the Home Screen.
DTV 735 User’s Manual
wegener.com 31 800021-01 Rev. B
Second-level screens
IP Address Selection Screen
IP Address:
000.000.000.000
Press the ENT key and then press the arrow keys to change the IP address.
Press the ENT key to confirm the selection.
Press the key to go to the Netmask Selection.
Press the ESC key to go to IP Setup.
Netmask Selection Screen
Netmask:
255.255.0.0
Press the ENT key and then press the arrow keys to change the Netmask.
Press the ENT key to confirm the selection.
Press the key to go to Gateway Selection.
Press the key to go to IP Address Select.
Press the ESC key to go to IP Setup.
Gateway Selection Screen
Gateway:
0.0.0.0
Press the ENT key and then press the arrow keys to change the Gateway.
Press the ENT key to confirm the selection.
Press the key to go to Netmask Selection.
Press the ESC key to go to IP Setup.
DTV 735 User’s Manual
800021-01 Rev. B 32 wegener.com
Reset Unit
screen
Second-level screens
Unit
Shutdown
Simply remove power to the unit to shut down your DTV735. No special pro-
cedure is required.
3.5 Initialization
Software
Code
Structure
The DTV735 Processor contains the following unit software: A boot loader
and one version of operating application software. Before power-up, these
components are stored in non-volatile memory. The boot loader resides in a
portion of the memory that may only be written at the factory while the appli-
cation is stored in a portion of memory that can be over-written with down-
loads of new software. The boot code has the responsibility of deciding if the
resident application software image should be allowed to execute.
Reset Unit...
Press the ENT key to go to the second level Reset Unit Entry screen.
Press the key to go to the Home Screen.
Press the key to go to IP Setup.
Press the ESC key to go to the Home Screen.
Reset Unit Entry Screen
Reset Unit...
Press <ENT>
Press the ENT key to reset the unit and start the boot loader.
Press the ESC key to go to the Reset Unit Screen.
DTV 735 User’s Manual
wegener.com 33 800021-01 Rev. B
Initialization
Sequence
At power up, the boot loader software executes first. It performs a test of RAM
and then relocates itself for further execution from there. During boot-up, the
following screens appear in sequence on the LCD:
Following normal boot-up, the "home" screen will appear as described in sec-
tion 3.4 Front-panel Operation on page 26 and the LEDs reflect the actual
state of the unit.
Initialization
Failure
When in Initialization Failure mode, the unit is essentially dead. There is no
ASI output, the alarm relay is de-energized (alarm state), the alarm LED is ON,
and the unit does not attempt acquisition of input streams. Call Wegener Cus-
tomer Service.
3.6 Transport Stream Processing
Refer to ISO 13818-1 for supporting details on the structure of MPEG Trans-
port Streams.
Input to
Output
Processing
The basic DTV735 has an ASI input and two duplicate ASI outputs. The unit
processes the input, selects programs based on user input, and provides an out-
put signal on the DHEI and ASI outputs. The processing includes program
number changes as selected. Based on user selection, certain programs may be
selected and then passed to the ASI output with time stamping updated.
PSIP
Structure and
Program
Selection
Within the transport stream there are PIDs carrying tabular information on that
stream. The PAT describes all the programs available. The program number
identifies each program in the transport stream. When a source of data is
acquired, the stream is passed to the internal transport demultiplexer. This cir-
cuit then extracts the PAT and PMT information and provides this information
to the user via the Stream Info and Configuration pages of the web interface.
The user may then select programs to be included in the ASI output as
described in section 3.2 Ethernet/Web Browser Control.
FPCon v001 All front-panel LEDs light are
OFF during boot process.
Hit key to stop boot
Booting in 2
Booting System
Bootloader Ver 101
Done Booting
Bootloader Ver 101
DTV 735 User’s Manual
800021-01 Rev. B 34 wegener.com
IRT Mode With systems using the Motorola IRT product, certain additional elements
must be included in the output transport stream. In such systems, be sure to
enable the DTV 735’s IRT Mode by selecting IRT Mode ON from the web
browser interface or front panel (see Control and Status Page on page 19).
When the IRT Mode is on, the DTV735 performs the actions listed here.
•A CAT (Conditional Access Table) PID (0x0001) is included and a CA
system descriptor is added in this packet pointing to a reserved location
(PID 0x0ff9) for the EMM (Encryption Management Message).
•For each program in the stream, a CA descriptor pointing to itself is added
in the PMT. This is a null ECM (Encryption Control Message).
•To the PAT, Program 0 (NIT) is added, pointing to PID 0x0ffe which
carries the STT (System Time Table) clock information.
•The NIT (Network Information Table) must also be present in the
transport stream. This PID (0x0ffe) is created at the uplink and is passed
through.
3.7 Alarm System
The alarm and warning system is intended to provide indications to local user
of a critical failure or imminent failure. See Table 6: LED Indicator Descrip-
tions on page 25 for actual indications.
Alarm
Conditions
Generally, if the unit is unable (or presumed to be unable) to present output
from a selected transport stream, then that is an alarm state. The following list
defines all alarms during normal operation (also see Initialization Failure on
page 33).
1. ASI Input Unlocked – A valid ASI stream is not present on ASI Input 1.
2. Unit oversubscribed – The combined data rate of the input programs
selected exceeds the output data rate selected.
3. PAT missing – The Transport Steam on the input does not have a PAT
present (should be located in PID 0x01.
4. PMT missing – The Transport Steam on the input does not have a PMT
present (should be located in PIDs as shown in the PAT).
3.8 Software Downloads
The DTV735 may be field upgraded with new application software. Contact
Wegener Customer Service for more information.
wegener.com 35 800021-01 Rev. B
Chapter 4 Maintenance and Troubleshooting
4.1 Maintenance
Maintenance of the DTV735 is limited to keeping the chassis clean and ensur-
ing that cables remain firmly connected. Occasionally wipe the exterior with a
soft, damp cloth to remove any accumulated dust and dirt and check that cables
are securely attached.
The DTV735 incorporates security labels over some of the screws. There are
no user-serviceable components within the DTV735. Tampering with the secu-
rity labels or opening the unit will void your warranty. If you have any ques-
tions, contact Wegener’s Customer Service Department at the address or
numbers listed under Customer Service.
4.2 General Troubleshooting
This section is not an intended as an exhaustive list of all possible situations.
Please contact us as directed in Chapter 5 Customer Service on page 39, with
any problems you cannot resolve independently.
If you are experiencing any difficulties, first check the LCD and LED indica-
tors on the DTV735 to determine if any warnings or alarms are active. See
Table 6: LED Indicator Descriptions on page 25 for descriptions of LED
states. If operating over the Ethernet interface, check the Control and Status tab
on your browser for Warning messages.
No functions
at all
If the unit is not functioning at all and neither the LCD nor any LEDs are
active, there may be a loss of ac power. Do the following:
a) Check that ac power cord is firmly connected at both ends.
b) Check that your ac power source is supplying ac power.
DTV 735 User’s Manual
800021-01 Rev. B 36 wegener.com
4.3 Alarms
In the following sections, LEDs are illustrated as black (off) or white (on) to
represent actual LED appearance.
Normal
Operation
ASI Input and ASI Output Locked - The LEDs are shown here reflecting
the DTV735 in normal operation with no Alarms:
ALARM: ASI
Input
Unlocked
Video is lost when the incoming signal is lost. When the ASI IN LOCK LED is
inactive or unlit (shown below), the ASI transport stream sync has been lost.
The WARNING LED will light if both ASI input (1 or 2) and RF input are
selected and RF CARRIER LOCK remains. Check ASI source and input con-
nection.
DTV 735 User’s Manual
wegener.com 37 800021-01 Rev. B
ALARM:
Unit Over-
subscribed
An oversubscription alarm means that the total rate of the selected ASI inputs
is greater than the selected output rate. A corrupt signal is output from the
DTV735. Oversubscription results in errors in the video output. On the front
panel, this is indicated by a lit ALARM LED and an unlit ASI OUT LOCK
LED (shown below). Solve the problem by reducing the number of input pro-
grams to fit the combined input data rate within the selected output data rate.
ALARM:
PAT or PMT
Missing
Video is lost when the incoming signal is missing either the PAT or PMT.
When the ALARM LED is lit and both the ASI 1 LOCK and the ASI OUT
LOCK LEDs are lit then the transport stream does not have sufficient PSI
information included. Check with the service provider to insure that the source
is correct.
4.4 Trouble with Browser Interface
If the unit appears to be functioning normally with no alarm or warning condi-
tions, but you cannot use the web browser interface, first check the LED on the
rear panel next to the Ethernet connector. It will illuminate and blink as LAN
data are detected. If this LED is off check the cabling to the LAN. If the LED
remains off after verifying the LAN connection, contact Customer Service. If
the Ethernet LED is illuminated, check that you are using the correct IP
address. (See “Ethernet/Web Browser Control” on page 17.)
If the address is correct, but the interface still does not function, check your
computer’s IP settings and consult your network administrator for additional
help.
wegener.com 39 800021-01 Rev. B
Chapter 5 Customer Service
5.1 Warranty
The following warranty applies to all Wegener Communications products
including the DTV735 Digital Television Processor:
All Wegener Communications products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Wegener
Communications' obligation under this warranty is limited to repairing or, at Wegener
Communications' option, replacing parts, subassemblies, or entire assemblies. Wegener
Communications shall not be liable for any special, indirect, or consequential damages.
This warranty does not cover parts or equipment which have been subject to misuse,
negligence, or accident by the customer during use. All shipping costs for warranty repairs
will be prepaid by the customer. There are no other warranties, express or implied, except
as stated herein.
5.2 Technical Support
In the event that the unit should fail to perform as described, or if you need
help resolving problems with your DTV735, contact Wegener Communica-
tions Customer Service at (770) 814-4057, FAX (678) 624-0294, or E-mail ser-
vice@wegener.com.
To return a product for service:
a) Obtain a Return Material Authorization (RMA) number by completing
and faxing a copy of the RMA Request Form to (678) 624-0294. You
may E-mail the same information instead to: service@wegener.com
b) To help us identify and control returned units, plainly write the RMA
number on the outside of the product-shipping container. This will help
us return your unit to you as quickly as possible.
c) Return the product, freight prepaid, to the address below:
Service Department RMA# ________
Wegener Communications, Inc.
359 Curie Drive
Alpharetta, GA 30005
NOTE:All returned material must be shipped freight prepaid. C.O.D.
Shipments will not be accepted.
Please contact Customer Service at the number above if you have any ques-
tions about obtaining service for your DTV735.
