Happy Energy for the Future!
Hyundai Solar Inverters
Internationally Recognized Clean Energy Solution
Transformer-less Type >
HPC-004SL HPC-100HL-E HPC-125HL-E HPC-250HL-E HPC-500HL-E
HYUNDAI; Leading Green Company
Hyundai is designing and developing Solar Inverters. We focus on researching, designing, developing and
manufacturing Solar Inverters for world market.
We will continuously try to give customers full satisfaction with high level of service and product performance.
HYUNDAI Solar Inverter; Global Standard Application
Hyundai’s marketing and sales target are worldwide. We acquired variety of certificates for major European
and Asian countries.
Customers can experience global standard Solar Inverter performance by choosing Hyundai Solar Inverter.
Total Solar Solution; Full Line-Up
Hyundai is providing total solution for solar power plant including Solar Inverter, Solar Module
and Solar Monitoring System.
Customers can experience the utmost solar power plant performance through Hyundai's
optimized total solar solution.
HYUNDAI HEAVY INDUSTRIES
www.hyundaisolar.com
< Low-Frequency Transformer Type
HPC-050HT-E HPC-100HT-E HPC-250HT-E Solar Station 500 kW Solar Station 1 MW
HYUNDAI Solar Inverters
Power Conversion System (Inverter) converts DC power
produced by solar arrays into AC power.
Solar Inverters are consisted of three parts: DC/DC Converter,
Power Stack, and Controller.
Grid-Tied Solar Inverters have been developed using the most
advanced technology and design techniques.
Clean, Renewable,
Reliable Solar Energy
• Compact design, lightweight, and easy to install
• Maximum efficiency with high performance MPPT control
• Increased flexibility due to a wide range of MPPT tracking
• Remote and local data monitoring
• LCD display of operating status
• Anti-islanding protection
• Issued CE and TÜV certificate, ENEL 2009 certificate,
MEA & PEA (Thailand) certificate, RD1663 certificate
(50 kW, 100 kW and 250 kW class)
• Support 5 year standard warranty + 20 year extended warranty
▶
Features
Technical Specifications & Product Overview
| Transformer-less Type |
Model
Specifications
HPC-004SL
(for Japan) HPC-100HL-E HPC-125HL-E HPC-250HL-E HPC-500HL-E
System Overview
Phase 1-Phase 3-Phase 3-Phase 3-Phase 3-Phase
Output Operating
Method Grid-Tied
Inverter
Grid-Tied
Inverter
Grid-Tied
Inverter
Grid-Tied
Inverter
Grid-Tied
Inverter
Design Concept Transformer-less
Input Data
Max. Input Voltage 380 Vdc 880 Vdc 880 Vdc 900 Vdc 900 Vdc
Nominal Voltage 250 Vdc 635 Vdc 635 Vdc 650 Vdc 650 Vdc
MPPT Voltage Range 100~380 Vdc 450~820 Vdc 450~820 Vdc 450~820 Vdc 450~820 Vdc
Max. Input Current 25 Adc 234 Adc 292 Adc 625 Adc 1,140 Adc
Output Data
Nominal AC Power 4 kW 100 kW 125 kW 250 kW 500 kW
Nominal AC Voltage 202 V, ±12 V 290 V, +10 %/-12 % 270 V, +10 %/-12 %
Nominal AC Current 19.8 A 199 A 249 A 540 A 1,070 A
Nominal AC Frequency 50 Hz/60 Hz
THD of AC Current < 5 % Total (< 3 % Individual) at rated power
System Specications
Max. Eciency 95.6 % 98.5 % 98.5 % 98.5 % 98.5 %
European Eciency 94.9 % 97.7 % 97.7 % 97.6 % 98.2 %
Power Factor > 0.99 > 0.99 > 0.99 > 0.99 > 0.99
Protection Degree IP20 IP20 IP20 IP20 IP20
Operating Temperature -10˚C~ 40˚C -10˚C~ 40˚C -10˚C~ 40˚C -20˚C~ 45˚C -20˚C~ 45˚C
Dimensions
Width/Depth/
Height [mm] 480/120/280 1,000/800/2,095 1,000/800/2,095 1,800/750/2,150 2,600/800/2,080
Weight 14 kg 620 kg 620 kg 1,120 kg 1,550 kg
Protective Functions DC Over-/Under-Voltage, AC Line Over-/Under-Voltage, AC Line Frequency Failure,
AC Line Failure, Anti-Islanding Protection, Overheating
※ Specifications subject to change without prior notice.
98.6 %
Technical Specifications & Product Overview
| Low-Frequency Transformer Type |
Model
Specifications
HPC-050HT-E HPC-100HT-E HPC-250HT-E Solar Station
HPS-500MT-E HPS-1000MT-E
System Overview
Phase 3-Phase 3-Phase 3-Phase 3-Phase 3-Phase
Output Operating
Method
Grid-Tied
Inverter
Grid-Tied
Inverter
Grid-Tied
Inverter
Grid-Tied
Inverter
Grid-Tied
Inverter
Design Concept Low-Frequency Transformer Medium Voltage Transformer
[△-Y] [△-Y] [Y-△]
Input Data
Max. Input Voltage 650 Vdc 650 Vdc 880 Vdc 900 Vdc 900 Vdc
Nominal Voltage 450 Vdc 450 Vdc 635 Vdc 650 Vdc 650 Vdc
MPPT Voltage Range 300~600 Vdc 300~600 Vdc 450~820 Vdc 450~820 Vdc 450~820 Vdc
Max. Input Current 175 Adc 350 Adc 580 Adc 2 x 625 Adc 2 x 1,140 Adc
Output Data
Nominal AC Power 50 kW 100 kW 250 kW 500 kW 1,000 kW
Nominal AC Voltage 400 V, +10 % /-12 % 20 kV, +10 %/-12 %
Nominal AC Current 72 A 144 A 361 A 14.4 A 28.9 A
Nominal AC Frequency 50 Hz / 60 Hz
THD of AC Current < 5 % Total (< 3 % Individual) at rated power
System Specications
Max. Eciency 95.8 % 96.7 % 96.9 % 97.0 % 97.0 %
European Eciency 95.0 % 96.3 % 96.2 % 96.5 % 96.5 %
Power Factor > 0.99 > 0.99 > 0.99 > 0.99 > 0.99
Protection Degree IP20 IP20 IP20 IP54 IP54
Operating Temperature -10˚C~40˚C -10˚C~40˚C -20˚C~40˚C -20˚C~45˚C -20˚C~45˚C
Dimensions
Width/Depth/
Height [mm] 800/700/1,994 1,000/800/2,095 2,200/850/2,215 5,300/3,000/3,100 5,600/3,000/3,100
Weight 800 kg 1,250 kg 2,350 kg Approx. 28 t Approx. 32 t
Protective Functions DC Over-/ Under-Voltage, AC Line Over-/ Under-Voltage, AC Line Frequency Failure,
AC Line Failure, Anti-Islanding Protection, Overheating
※ Specifications subject to change without prior notice.

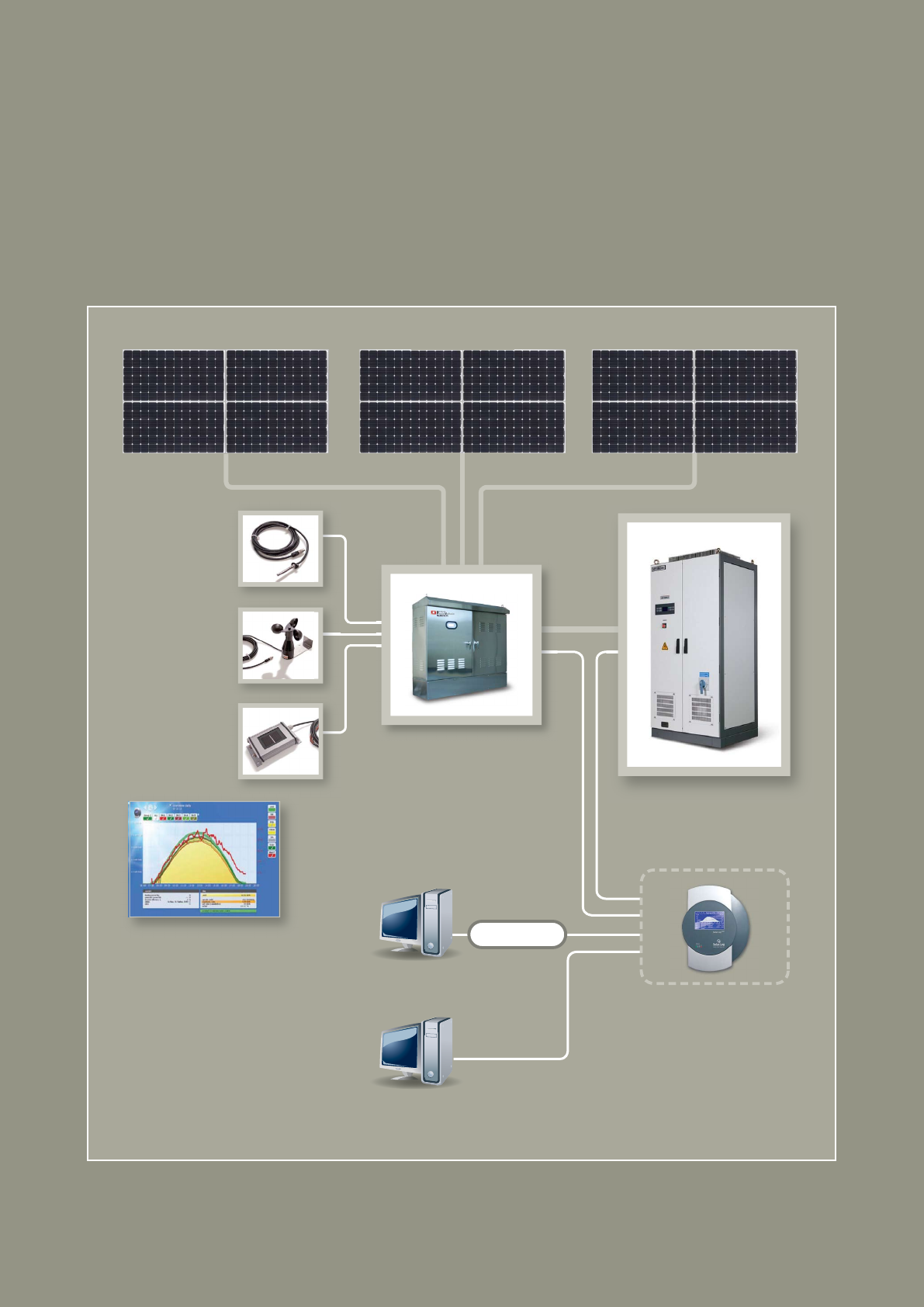

Monitoring System
Clients can monitor the Hyundai solar system through proposed monitoring system (optional).
Environments, Solar inverter status, Solar module status, Power generating system status can be monitored.
Remote Monitoring
Local Monitoring
- Identify faults
- Damage scope analysis
- Reporting:
system comparison
fault-overview
- Alerts: email or SMS
- Languages:
English, German, Spanish,
Italian, French, Czech,
Polish, Hebrew
Internet
String Connection Box
- Solar array status monitoring
- Error Analysis
- Ambient Temperature
- Module Temperature
Temperature
Sensor
- Wind Speed
Wind Sensor
- Radiation Intensity
Radiation
Sensor
Communication Box
- Failure monitoring
- Reporting
- Messaging: email/SMS
- Data logging
- Large data volume
- Error analysis
Si CiB
Solar Inverter
- Power Conversion
- Protective Functions
Web Application
A/S Network
