Parts Catalog
HomeSite Power 5500 and 6500 Portable Generator Sets
Printed in U. S. A. 06-2006 914-0201
FORWARD
This parts catalogue is compiled all service parts for models Onan 5500, Onan 6500.
1. recension
When modifications or additions to this parts catalogue are made, a revised edition will be issued at an appropriate time.
We recommend obtaining such revisions in order to keep your parts catalogue up-to-date at all times. To check whether
a parts catalogue revision has been issued, please contact your LONCIN distributor.
2.Abbreviations
ASSY. ……Assenbly COMP. ……Complete R. ……Right L. ……Left A. C. ……Alternating current
D. C. ……Direct current IN. ……Inlet EX. ……Exhaust FR. ……Front RR. ……Rear
HEX. ……Hexagonal
3.Required quantity
The number given in the “Reqd. No.” column indicates the quantity of parts used in the section described in that block.
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0556 HEAD-CYLINDER 11
20181-0010 SCREW-HEX FLG HD 11
30181-0011 COVER-VALVE 11
40181-0481 STUD (INT) 22
50181-0482 STUD (EXH) 22
60181-0248 SPARKPLUG 11
70181-0015 GASKET-COVER 11
80181-0557 GASKET-CYLINDER HEAD 1-
80181-0018 GASKET-CYLINDER HEAD -1
90181-0436 SCREW-HEX FLG HD (M10 X 80) 44
10 0181-0414 HOSE-BREATHER 11
11 0181-0484 PIN-DOWEL (M12 X 20) 22
Description Reqd. No.
Cylinder Head
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0558 BLOCK-CYLINDER 1-
10181-0026 BLOCK-CYLINDER -1
20181-0027 SWITCH-LEVEL (OIL) 11
30181-0266 SCREW-HEX FLG HD 33
40181-0485 BEARING-BALL 11
50181-0486 WASHER (8mm) 11
60181-0487 CLIP-SPRING 11
70181-0030 SHAFT-GOVERNOR 11
80181-0488 SEAL-OIL (8 X 14 X 5) 11
90181-0489 WASHER-SEALING (12mm) 22
10 0181-0490 PLUG-DRAIN 22
11 0181-0491 SEAL-OIL (35 X 52 X 8) 11
12 0181-0036 SWITCH-LEVEL 11
14 0181-0266 SCREW-HEX FLG HD 11
Reqd. No.
Crankcase
Description
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0038 DUCT-AIR 11
20181-0474 SCREW-HEX FLG HD 33
30181-0039 CAP-OIL FILL 11
40181-0041 GOVERNOR 11
50181-0043 HOUSING-GENERATOR 11
60181-0045 GASKET-CRANKCASE 11
70181-0437 PIN-DOWEL 22
80181-0491 SEAL-OIL (35 X 52 X 8) 11
90181-0496 SCREW-HEX FLG HD (M8 X 35) 77
10 0181-0497 BEARING-BALL 11
11 0181-0498 BEARING-BALL 11
Reqd. No.
Crankcase Cover
Description
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0049 CRANKSHAFT 11
20181-0055 WEIGHT-ROTOR BALANCE 11
Crankshaft
Description Reqd. No.
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0559 PISTON RING KIT 1-
10181-0058 PISTON RING KIT -1
20181-0560 PISTON 1-
20181-0061 PISTON -1
30181-0063 CONNECTING ROD 11
40181-0561 PIN-PISTON 1-
40181-0065 PIN-PISTON -1
50181-0067 RETAINER-PISTON PIN 22
Piston/Connecting Rod
Descripition Reqd. No.
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0562 NUT (ROCKER ARM ADJUST) 22
20181-0563 NUT (ROCKER ARM PIVOT) 22
30181-0499 ARM-ROCKER 22
40181-0564 STUD (ROCKER ARM PIVOT) 22
50181-0071 PUSHROD 22
60181-0072 TAPPET 22
70181-0565 CAMSHAFT 1-
70181-0075 CAMSHAFT -1
80181-0076 ROTATOR-VALVE 22
90181-0077 RETAINER-VALVE SPR (EXHAUST) 22
10 0181-0078 SPRING-VALVE 22
11 0181-0566 WASHER-VALVE SPRING 22
12 0181-0079 VALVE-EXHAUST 11
13 0181-0084 VALVE-INTAKE 11
14 0181-0500 SEAL-VALVE STEM 11
15 0181-0158 GUIDE-PUSHROD 11
Camshaft
Description Reqd. No.
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0448 STARTER-RECOIL (REEL) 11
20181-0266 SCREW-HEX FLG HD 66
30181-0178 BAFFLE-AIR 11
40181-0179 CLIP-WIRING 22
Reqd. No.
Starter
Description
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0567 CARBURETOR 1-
10181-0182 CARBURETOR -1
20181-0184 BRACKET-CHOKE 11
30181-0192 VALVE-CHECK 11
40181-0502 CLIP-WIRING 11
50181-0461 CLIP-RETAINING 44
60181-0504 GASKET-MANIFOLD 11
70181-0568 INSULATOR (CARBURETOR) 1-
70181-0198 INSULATOR (CARBURETOR) -1
80181-0569 GASKET-CARBURETOR 1-
80181-0505 GASKET-CARBURETOR -1
90181-0506 GROMMET-(BREATHER TUBE) 11
10 0181-0507 GASKET-AIR CLEANER 11
Description
Carburetor
Reqd. No.
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0570 FLYWHEEL 1-
10181-0205 FLYWHEEL -1
20181-0207 FAN ASSY 11
30181-0209 STARTER-RECOIL 11
40181-0508 NUT-HEX FLG (Special 18mm) 11
Flywheel
Description Reqd. No.
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0212 COIL-IGNITION 11
20181-0511 GROMMET-(GEN TO ENGINE) 11
30181-0213 COIL ASSY (CHARGE) -1
40181-0328 SCREW-HEX FLG HD -2
50181-0510 CLIP-WIRING -1
60181-0266 SCREW-HEX FLG HD -1
70181-0338 SCREW-HEX FLG HD 22
Ignition Comp.
Description Reqd. No.
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0513 CONTROL ASSY 11
20181-0266 SCREW-HEX FLG HD 22
30181-0514 SPRING-EXTENSION (GOVERNOR A) 11
40181-0232 SPRING-EXTENSION (GOVERNOR B) 11
50181-0234 ROD-GOVERNOR 11
60181-0344 NUT-HEX FLG 11
70181-0452 SCREW-GOVERNOR 11
80181-0236 LEVER-GOVERNOR 11
Reqd. No.
Speed Control
Description
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0512 AIR CLEANER 11
20181-0344 NUT-HEX FLG 22
30181-0507 GASKET-AIR CLEANER 11
Air Cleaner
Description Reqd. No.
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0411 SCREW-HEX FLG HD 44
20181-0266 SCREW-HEX FLG HD 77
30181-0237 BRACKET-MUFFLER 11
40181-0238 SEAL-AIR 11
50181-0239 HEAT SHIELD-EXH 11
60181-0571 HEAT SHIELD-EXH 1-
60181-0516 HEAT SHIELD-EXH -1
70181-0572 MUFFLER 1-
70181-0089 MUFFLER -1
80181-0090 HEAT SHIELD-EXH 11
90181-0091 GASKET-EXHAUST 11
10 0181-0092 MANIFOLD-EXHAUST 11
11 0181-0093 SCREW-HEX FLG HD 22
12 0181-0455 NUT-HEX 22
13 0181-0095 GASKET-EXHAUST 22
13 0181-0454 ARRESTOR-SPARK 11
14 0181-0456 WASHER-SPR LK 22
Reqd. No.
Muffler
Description
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0096 TANK-FUEL 11
20181-0367 CAP-FILLER 11
30181-0368 FILTER-FUEL 11
40181-0457 VALVE-FUEL 11
50181-0372 GAUGE-LEVEL 11
60181-0458 WASHER 44
70181-0374 SLEEVE-TUBE 44
80181-0459 ISOLATOR-VIBRATION (FUEL TANK) 44
90181-0460 SCREW-FLAT HD SLTD 22
10 0181-0373 SCREW-HEX FLG HD 44
11 0181-0461 CLIP-RETAINING 22
12 0181-0525 HOSE-FUEL 11
13 0181-0463 ISOLATOR (FUEL TUBE) 11
Reqd. No.
Fuel tank
Description
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0106 STARTER MOTOR -1
20181-0391 SCREW-HEX FLG HD -2
30181-0496 SCREW-HEX FLG HD (M8 X 35) -2
40181-0107 SOLENOID -1
Starter Motor
Description Reqd. No.
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0553 PANEL-CONTROL (CASE) 11
20181-0603 TERMINAL-SOCKET (12V) 1 1
30181-0604 TERMINAL-SOCKET (12V) 1 1
40181-0605 SCREW 6 6
50181-0606 LUG-CABLE (GROUND) 1 1
60181-0574 WASHER 12 12
70181-0575 WASHER-SPR LK 66
80181-0480 NUT-HEX FLG 66
90181-0607 SCREW (GROUND) 1 1
10 0181-0608 LABEL (CONTROL PANEL) 1 1
11 0181-0609 PANEL-CONTROL 1 1
12 0181-0610 BEZEL-SWITCH 2 2
13 0181-0611 SWITCH-ROCKER 1 1
14 0181-0612 WASHER 3 3
15 0181-0613 WASHER-SPR LK 3 3
16 0181-0614 SCREW 1 1
Description
Control Panel
Reqd. No.
Onan Item
No. Part No. Onan 5500 Onan 6500
17 0181-0615 RECTIFIER ASSY 2 2
18 0181-0616 CIRCUIT BREAKER (10A) 11
19 0181-0617 CIRCUIT BREAKER (20A) 11
20 0181-0618 CIRCUIT BREAKER (30A) 11
21 0181-0619 RECEPTACLE-DUPLEX (GFCI) 11
22 0181-0620 RECEPTACLE (120V) 1 1
23 0181-0621 SWITCH-ROCKER(VOLTAGE) 1 1
24 0181-0622 SCREW 2 2
25 0181-0623 RECEPTACLE (240V) 1 1
26 0181-0624 CIRCUIT BREAKER (25A) 1 1
27 0181-0625 METER-VOLTAGE 1 1
28 0181-0626 WASHER 4 4
29 0181-0627 WASHER-SPR LK 4 4
30 0181-0628 NUT-HEX 4 4
31 0181-0639 COVER-CONTROL 11
32 0181-0629 HARNESS-GENSET 1 1
Control Panel
Description Reqd. No.
Onan Item
No. Part No. Onan 5500 Onan 6500
33 0181-0630 FUSE 1 1
34 0181-0631 WASHER 3 3
35 0181-0632 WASHER-SPR LK 1 1
36 0181-0633 NUT-HEX 2 2
Control Panel
Description Reqd. No.
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0576 BATTERY -1
20181-0403 STUD-FASTENER -2
30181-0549 TRAY-BATTERY -1
40181-0550 CABLE-ELECTRICAL (NEG) -1
50181-0551 CABLE-STARTER -1
60181-0344 NUT-HEX FLG -2
Reqd. No.
Battery tray
Description
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0577 FRAME-GENERATOR 1-
10181-0532 FRAME-GENERATOR -1
20181-0533 FRAME-GENERATOR 11
30181-0535 ISOLATOR-VIBRATION (LEFT) 22
40181-0536 ISOLATOR-VIBRATION (RIGHT) 22
50181-0534 WASHER-VALVE SPRING 44
60181-0128 BRACKET-AIR CLEANER 11
70181-0122 NUT-HEX FLG 44
80181-0114 NUT-HEX FLG 44
90181-0252 SCREW-HEX FLG HD 44
10 0181-0344 NUT-HEX FLG 44
11 0181-0344 NUT-HEX FLG 11
12 0181-0266 SCREW-HEX FLG HD 44
13 0181-0411 SCREW-HEX FLG HD 22

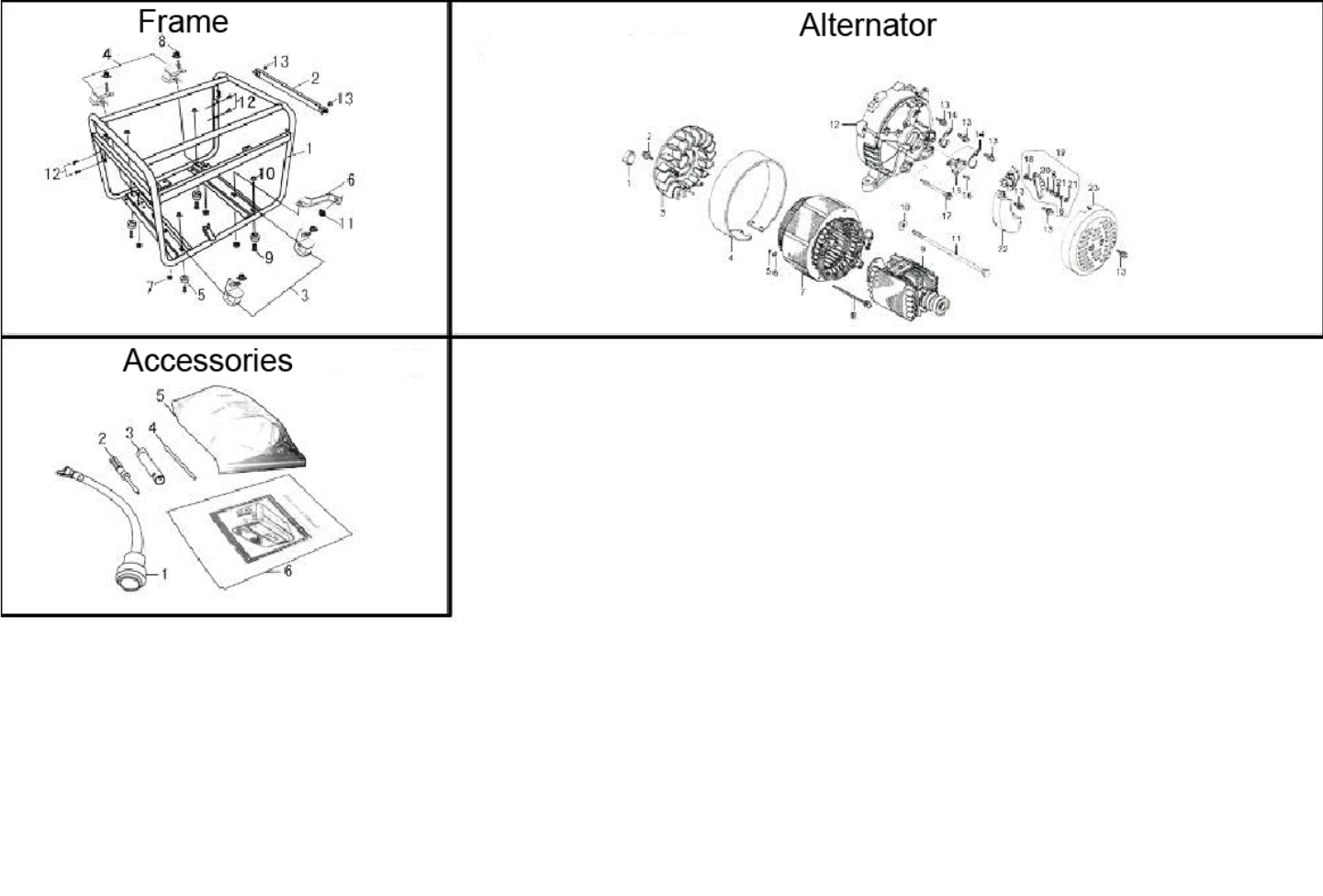

Description Reqd. No.
Frame
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0130 GROMMET 11
20181-0538 NUT-HEX FLG (M5) 22
30181-0539 WASHER-SPR LK 22
40181-0579 SCREW 2-
40181-0540 SCREW -2
50181-0541 WASHER 11
60181-0580 SCREW-HEX HD 1-
60181-0542 SCREW-HEX HD -1
70181-0150 HOUSING-GENERATOR 11
80181-0474 SCREW-HEX FLG HD 99
10 0181-0545 SCREW-HEX FLG HD 11
11 0181-0581 SCREW-HEX FLG HD 4-
11 0181-0546 SCREW-HEX FLG HD -4
Reqd. No.
Alternator
Description
Onan Item
No. Part No. Onan 5500 Onan 6500
12 0181-0638 REGULATOR-VOLTAGE 1-
12 0181-0156 REGULATOR-VOLTAGE -1
13 0181-0548 HOUSING-GENERATOR 11
14 0181-0471 GENERATOR 1-
14 0181-0578 GENERATOR -1
Reqd. No.
Alternator
Description
Onan Item
No. Part No. Onan 5500 Onan 6500
10181-0582 CAP-FILLER (BOTTLE) 11
20181-0583 TOOL (SCREWDRIVER) 11
30181-0584 TOOL (SPARKPLUG SOCKET) 11
40181-0585 TOOL (SOCKET ARM) 11
50181-0642 LABEL (SET) 1-
50181-0641 LABEL (SET) -1
60914-0103 MANUAL (OPERATOR) 11
Accessories
Description Reqd. No.
