Parts Manual
RV Generator Set
BGE
BGEL
English 10−2008 965−0231 (Issue 1)
The following symbols are used in Onan manuals
to alert users to the potentially dangerous condi-
tions relating to maintenance of equipment and re-
placement of parts. Please read and observe.
This symbol warns of immedi-
ate hazards which will result in
severe personal injury or death.
This symbol refers to a hazard
or unsafe practice which can re-
sult in severe personal injury or
death.
This symbol refers to a hazard
or unsafe practice which can re-
sult in severe personal injury or
product or property damage.
To avoid errors or delay in filling your parts order,
always give the MODEL, SPEC NO. and SERIAL
NO. from the Onan nameplate.
For handy reference, insert your nameplate infor-
mation in the spaces below.
MODEL AND SPEC NO.
SERIAL NO.
DIGITAL CONTROL SOFTWARE VERSION
AND DATE (IF APPLICABLE)
Contact with USED ENGINE OILS has been identified by a United States federal agency and some USA
state agencies as causing CANCER or REPRODUCTIVE TOXICITY. When checking or changing engine
oils take all necessary precautions not to ingest, breathe the fumes or contact the used oil.
Contact with ASBESTOS has been identified by a United States federal agency and some USA state
agencies as causing CANCER or REPRODUCTIVE TOXICITY. When handling engine gaskets take all
necessary precautions not to ingest, breathe or contact the dust from the gaskets! Use adequate ven-
tilation and wear protective gloves, masks and clothing!
Contact with BENZINE and LEAD, found in gasoline, fuel additives and solvents has been identified
by a United States federal agency and some USA state agencies as causing CANCER or REPRODUC-
TIVE TOXICITY. When checking, draining or adding gasoline and fuel additives or using solvents take
all necessary precautions not to ingest, breathe the fumes or contact the liquids. Use adequate ventila-
tion and wear protective gloves, masks and protective clothing!
PSP-1
Service and repair of Onan equipment must be performed by trained, experienced personnel only. Im-
proper service or repair may result in property damage, severe personal injury or death. Do not use this
catalog as a guide to servicing your equipment. Read and follow the IMPORTANT SAFETY IN-
STRUCTIONS in the Service Manual appropriate for the equipment you are working on.
1
Introduction
This parts catalog applies to the standard generator sets listed below. Parts are arranged in groups of related items
and each illustrated part is defined by a reference number corresponding to the same reference number in the parts
list. Parts illustrations are typical. Using the model and specification number from your generator set nameplate,
select parts that apply to your set. Right and left sides are detemined by facing the engine end (front ) of the set.
Generator Set Data Table
Model Identification Rating Fuel Voltage Hertz Phase
3.5BGEL 53CR 31813 3,500 Watts LP Liquid 120/240 50 1
3.5BGEL 53CR 31814E 3,500 Watts LP Liquid 120/240 50 1
3.5BGE 53CR 29236F 3,500 Watts Gasoline 120/240 50 1
3.5BGE 53CR 29237F 3,500 Watts Gasoline 120/240 50 1
3.5BGE FN 31813 3,500 Watts LP Liquid 115/230 50 1
3.5BGE FN 31814 3,500 Watts LP Liquid 115/230 50 1
3.5BGE FR 31813P 3,500 Watts LP Liquid 115/230 50 1
3.5BGE FR 31814P 3,500 Watts LP Liquid 115/230 50 1
4.0BGEL 1R 26110E 4,000 Watts LP Liquid 120 60 1
4.0BGEL 1R 26111E 4,000 Watts LP Liquid 120 60 1
4.0BGE 1R 26100 4,000 Watts Gasoline 120 60 1
4.0BGE 1R 26101 4,000 Watts Gasoline 120 50 1
4.0BGE 1R 26109 4,000 Watts Gasoline 120 50 1
4.0BGE FN 29236 4,000 Watts Gasoline 115/230 50 1
4.0BGE FN 29237 4,000 Watts Gasoline 115/230 50 1
4.0BGE FN 37593 4,000 Watts Gasoline 115/230 50 1
4.0BGE FA 11500P 4,000 Watts LP Vapor 120 60 1
4.0BGE FA 26100P 4,000 Watts Gasoline 120 60 1
4.0BGE FA 26101P 4,000 Watts Gasoline 120 60 1
4.0BGE FA 26109P 4,000 Watts Gasoline 120 60 1
4.0BGE FA 26110A−P 4,000 Watts LP Liquid 120 60 1
4.0BGE FA 26111A−P 4,000 Watts LP Liquid 120 60 1
4.0BGE FA 55215A−P 4,000 Watts Gasoline 120 60 1
4.0BGE FR 26103A−P 4,000 Watts Gasoline 100 60 1
4.0BGE FR 26104A−P 4,000 Watts Gasoline 100 60 1
4.0BGE FR 29236P 4,000 Watts Gasoline 115/230 50 1
4.0BGE FR 29237P 4,000 Watts Gasoline 115/230 50 1
5.0BGE FA 730P 5,000 Watts Gasoline 120 60 1
5.0BGE FA 11579P 5,000 Watts Gasoline 120 60 1
5.0BGE FA 26100A−P 5,000 Watts Gasoline 120 60 1
5.0BGE FA 26101A−P 5,000 Watts Gasoline 120 60 1
* − The specification number denotes customer requested options or deviations from a stan-
dard (1A, 1B, etc.) model. The specification letter advances (A, to B, to C, etc.) with major
manufacturing changes.
Index
2
Adapter, Carburetor, 30
Adapter, Cleaner − Air, 17, 21
Adapter, Exhaust, 35
Adapter, Filter − Oil, 14
Adapter, Generator, 45
Adapter, Hose − Fuel, 17
Adapter, Preheater, 17
Adapter, Reducer, 21
Arm, Governor, 15
Assy, Choke Shaft, 23
Backplate, Scroll, 33
Baffle, Valve − Breather, 7
Ball, Bearing, 15
Ball, Governor, 10
Base, Box − Breaker, 27

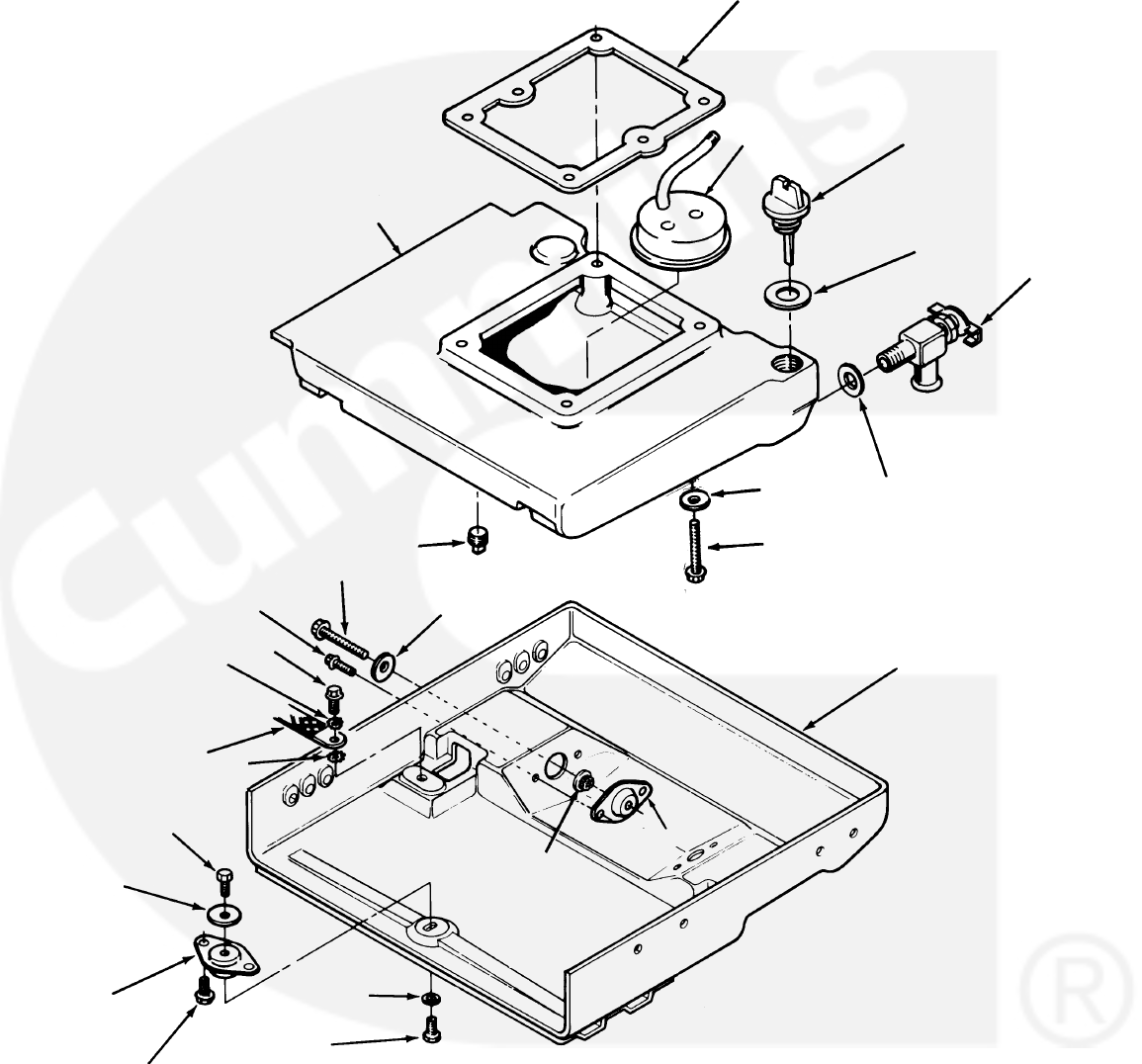

Base, Oil, 13
Bearing, Camshaft, 7
Bearing, Crankshaft, 7
Bearing, Needle, 15
Bearing, Ring − Collector, 45
Bimetal, Choke, 17
Block, Brush, 45

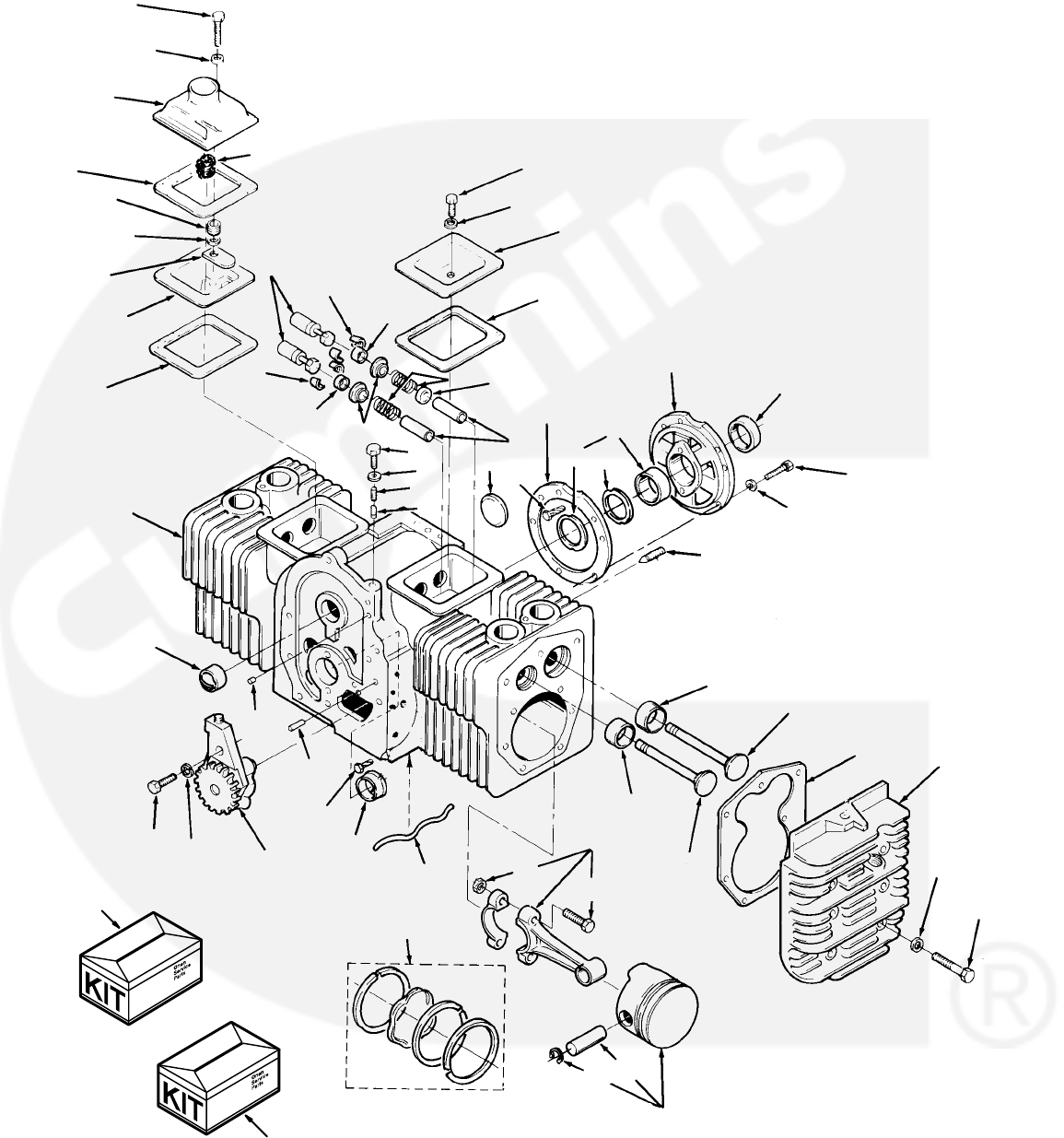

Block, Cylinder, 7
Board, Circuit − Printed, 47
Bowl, Fuel, 24
Box Assy, Breaker, 27
Brace, Rear, 38, 39, 40, 41
Brace, Side, 38, 39, 40
Bracket, 40
Bracket, Cable − Governor Adjust, 22
Bracket, Coil − Ignition, 25
Bracket, Control − Ignition, 25
Bracket, Exhaust, 35
Bracket, Gas Regulator, 31
Bracket, Governor, 22
Bracket, Holder − Fuse, 47
Bracket, Housing, 38, 39, 41
Bracket, Lifting, 33
Bracket, Line − Fuel, 21
Bracket, Manifold − Exhaust, 35, 37
Bracket, Mounting − Diaphragm, 17
Bracket, Mounting − Filter, 21
Bracket, Mounting − Housing, 17, 21
Bracket, Regulator − Gas, 30
Breaker, Circuit, 47
Bridge, Rectifier, 45
Brush, Block, 45
Bushing, Governor, 10
Bushing, Reducer, 21
Cable, Adjust − Governor, 22
Cable, Plug − Spark, 25, 26

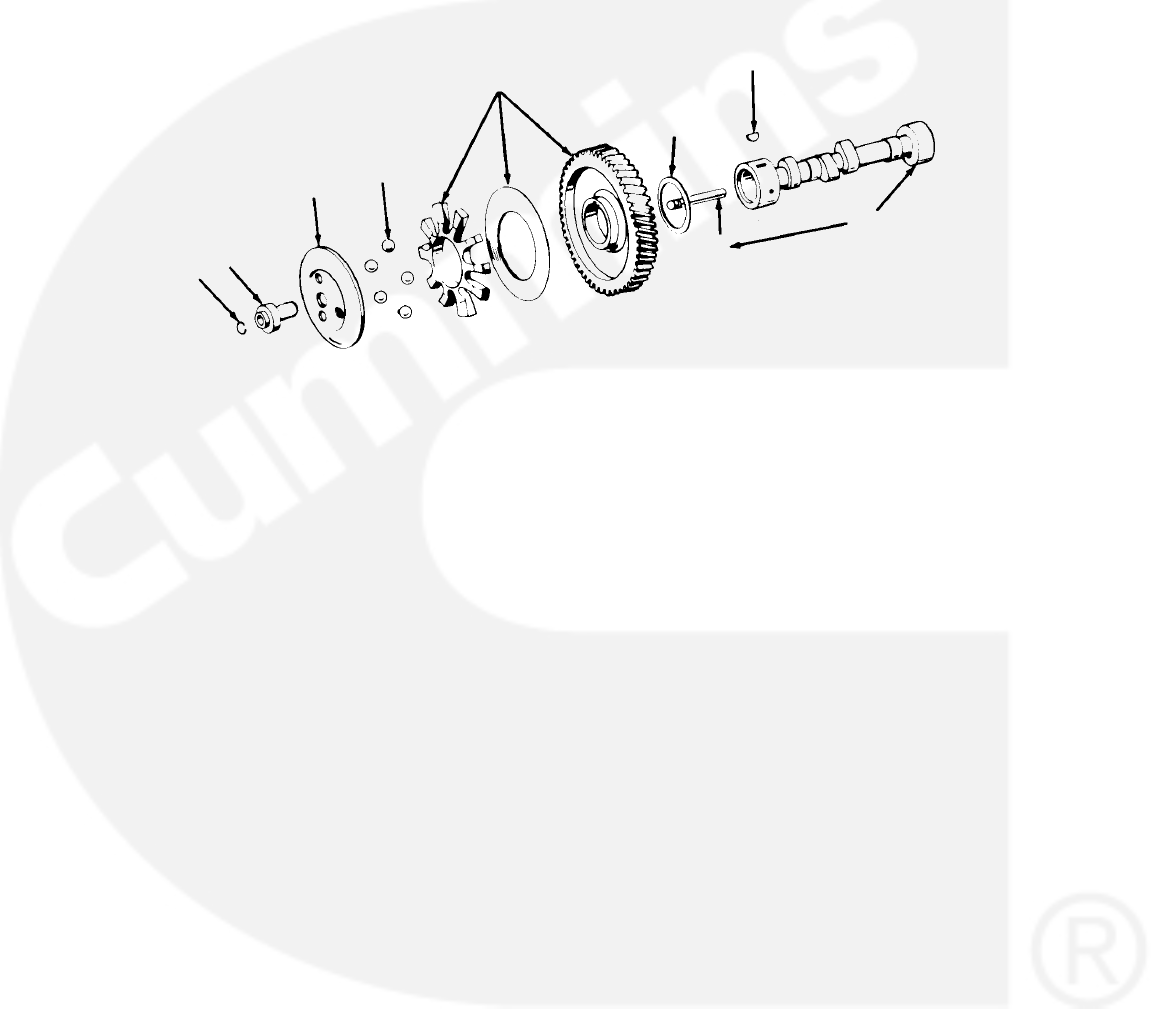

Camshaft, 10
Cap, Drive, 29
Cap, End, 29
Cap, End − Drive, 29
Cap, Fill − Oil, 13
Cap, Valve, 7
Cap, Vinyl, 17
Carburetor, 17, 21

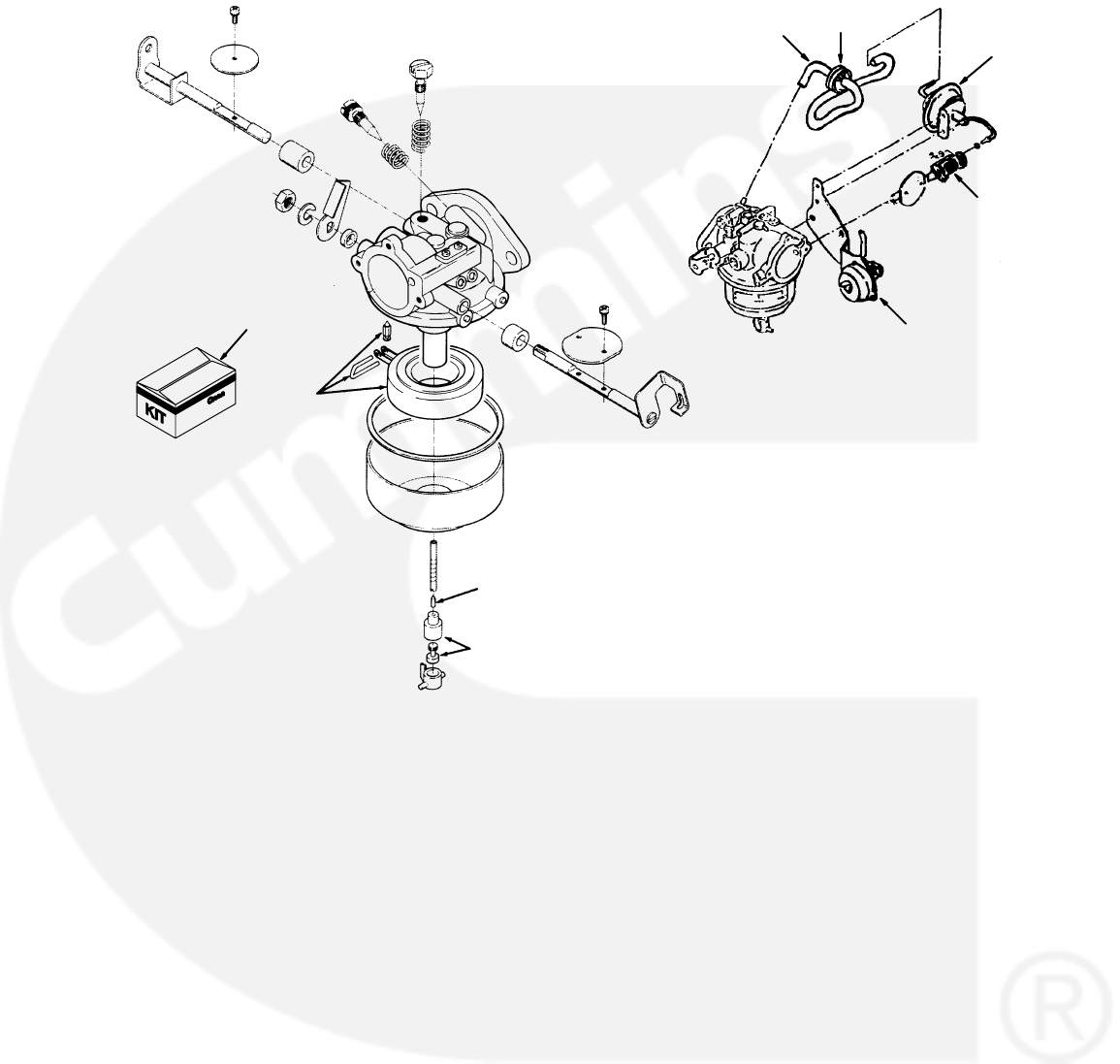

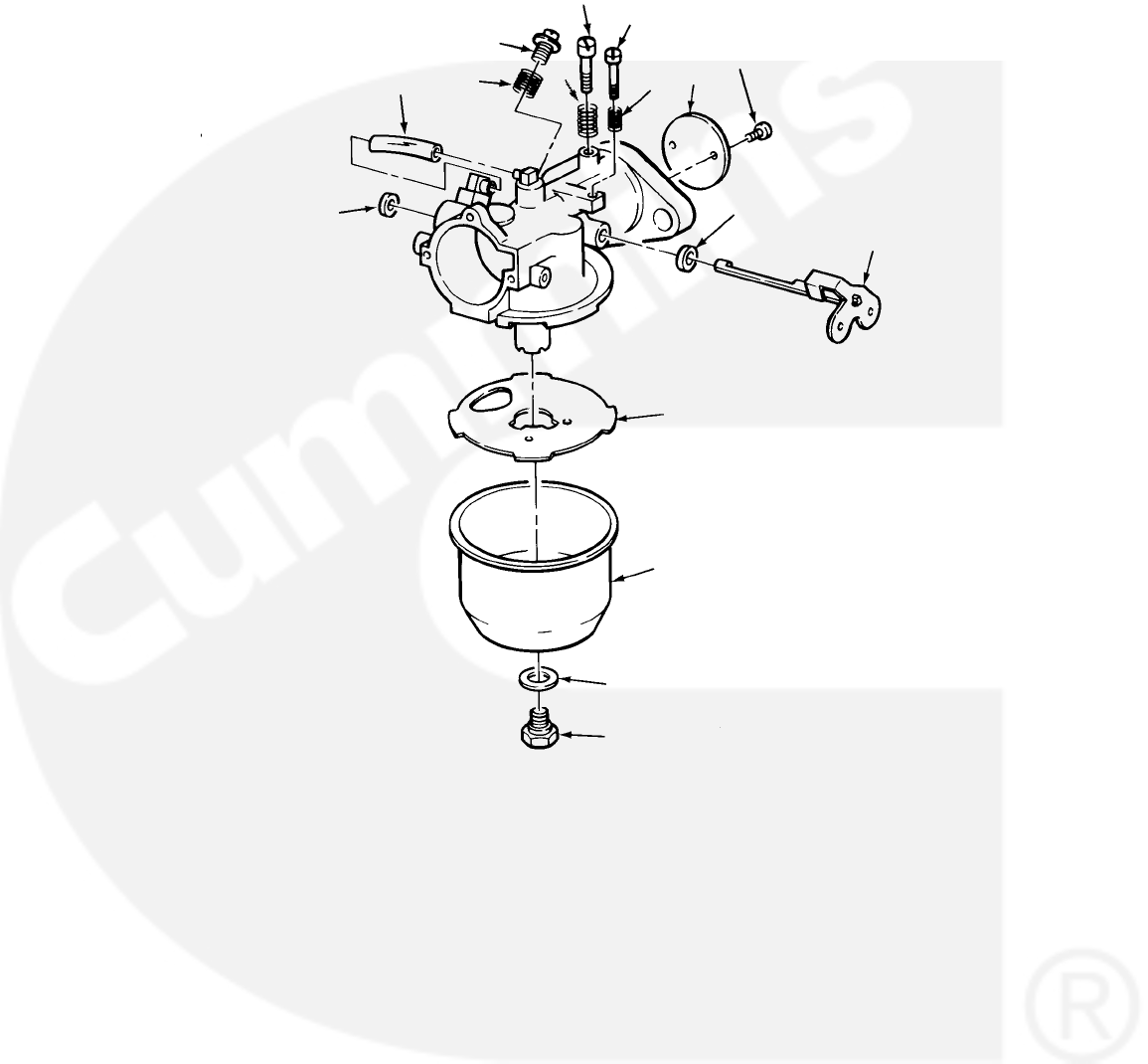

Carburetor (Gasoline), 23
Carburetor (LP), 24
Carburetor Kits, 52
Carburetor, LPG (Emissions), 31
Coil, Ignition, 25, 26
Condenser, Ignition, 26, 27
Connector, 25
Connector, Conduit, 45
Connector, Hose, 30
Connector, Housing (8 Pin), 42
Connector, Receptacle, 45
Connector, Tab, 45

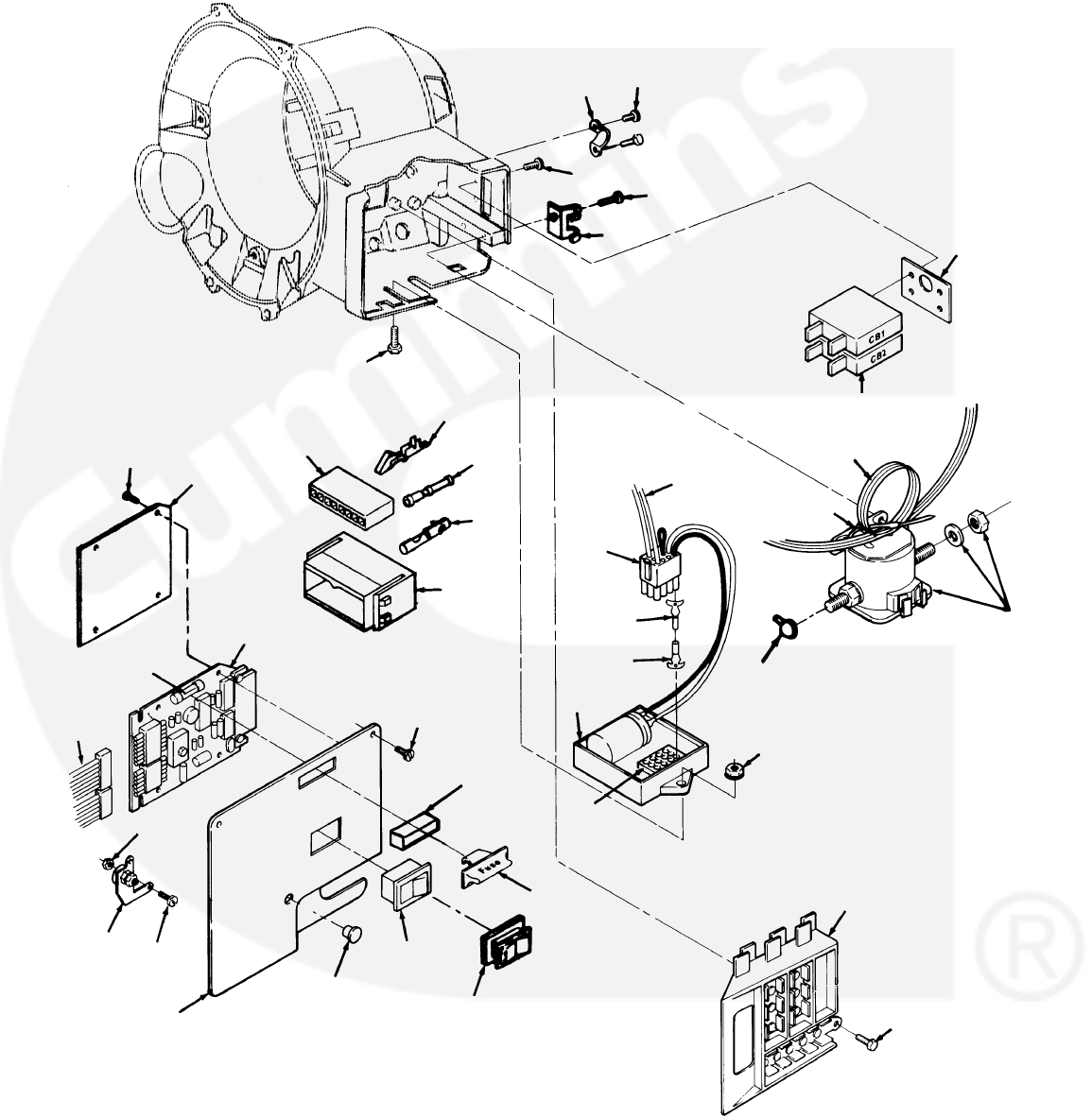

Control, 47
Control, Ignition, 25
Control, Start − Remote, 42, 43
Cover, Block − Brush, 45
Cover, Box − Breaker, 27
Cover, Choke, 17
Cover, Control, 47
Cover, Housing − Choke, 17
Cover, Inlet − Air, 17
Cover, Switch − Rocker, 47
Cover, Valve − RH, 7
Crankshaft, 11
Cup, Governor, 10
Cup, Intake − Oil Pump, 13
Drain, Filter − Oil, 14
Elbow, 21, 48
Elbow, Inlet, 17
Elbow, Inverted, 19
Elbow, Male, 21
Elbow, Male − Inverted, 17
Elbow, Reducing, 21
Elbow, Street, 21, 30
Element, Choke, 17
Element, Cleaner − Air, 17, 21
Element, Filter − Fuel, 21

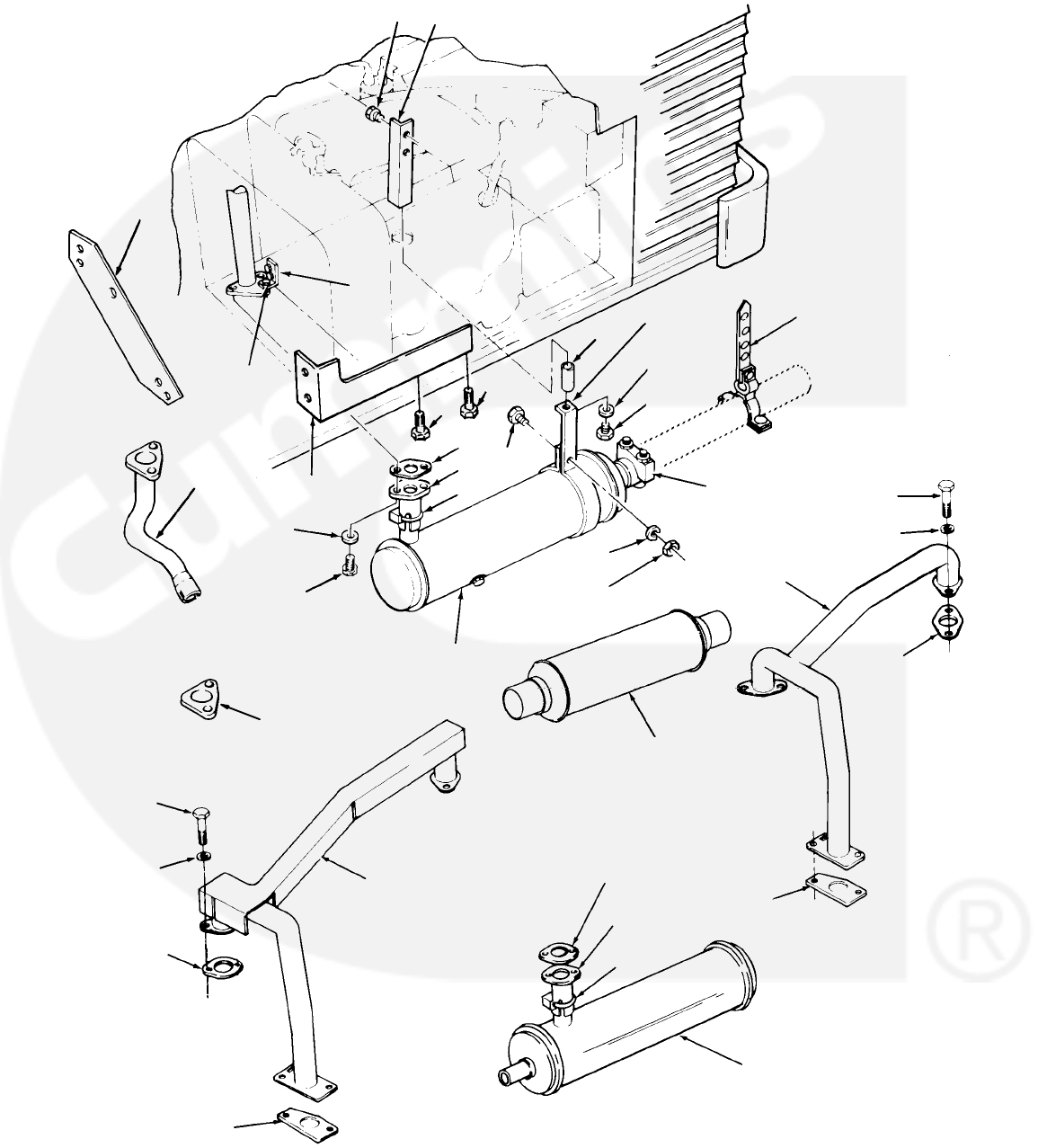

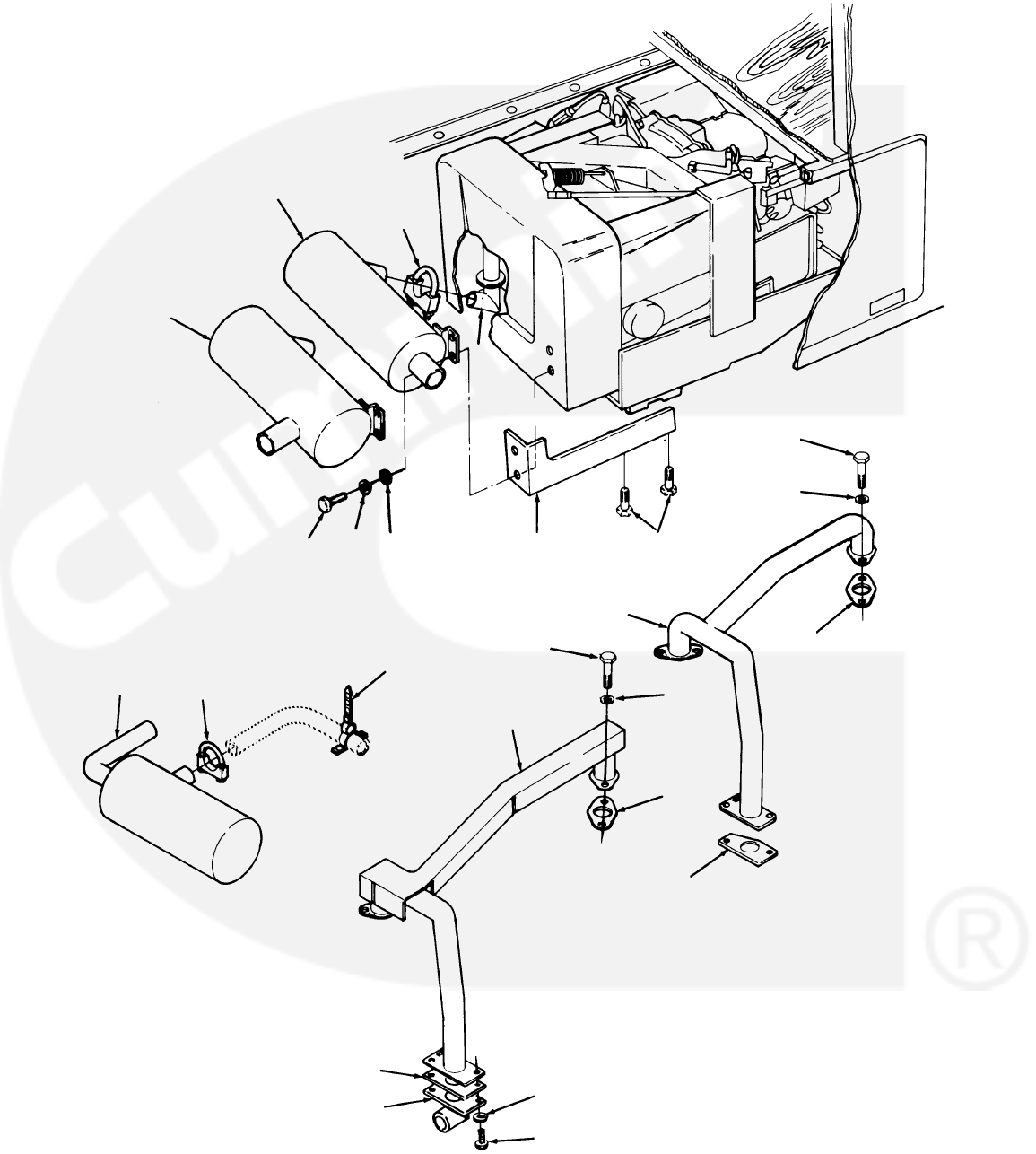

Exhaust System, 35, 37
Fan, Armature, 45
Filter, Fuel, 17
Filter, Oil, 14
Filter, Tube − Breather, 9
Fitting, Vacuum − Intake, 17
Flange, Exhaust Manifold, 35

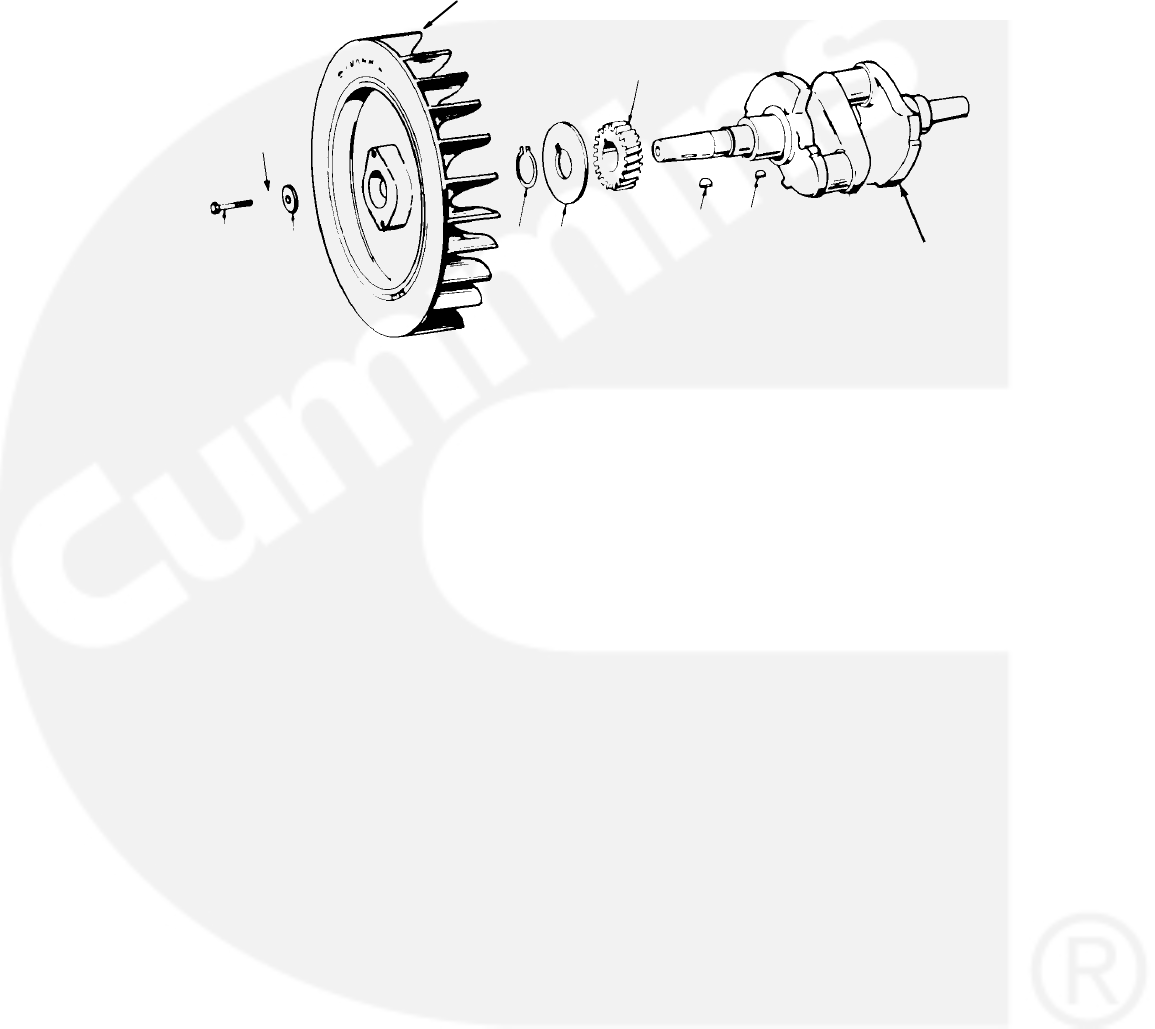

Flywheel, 11

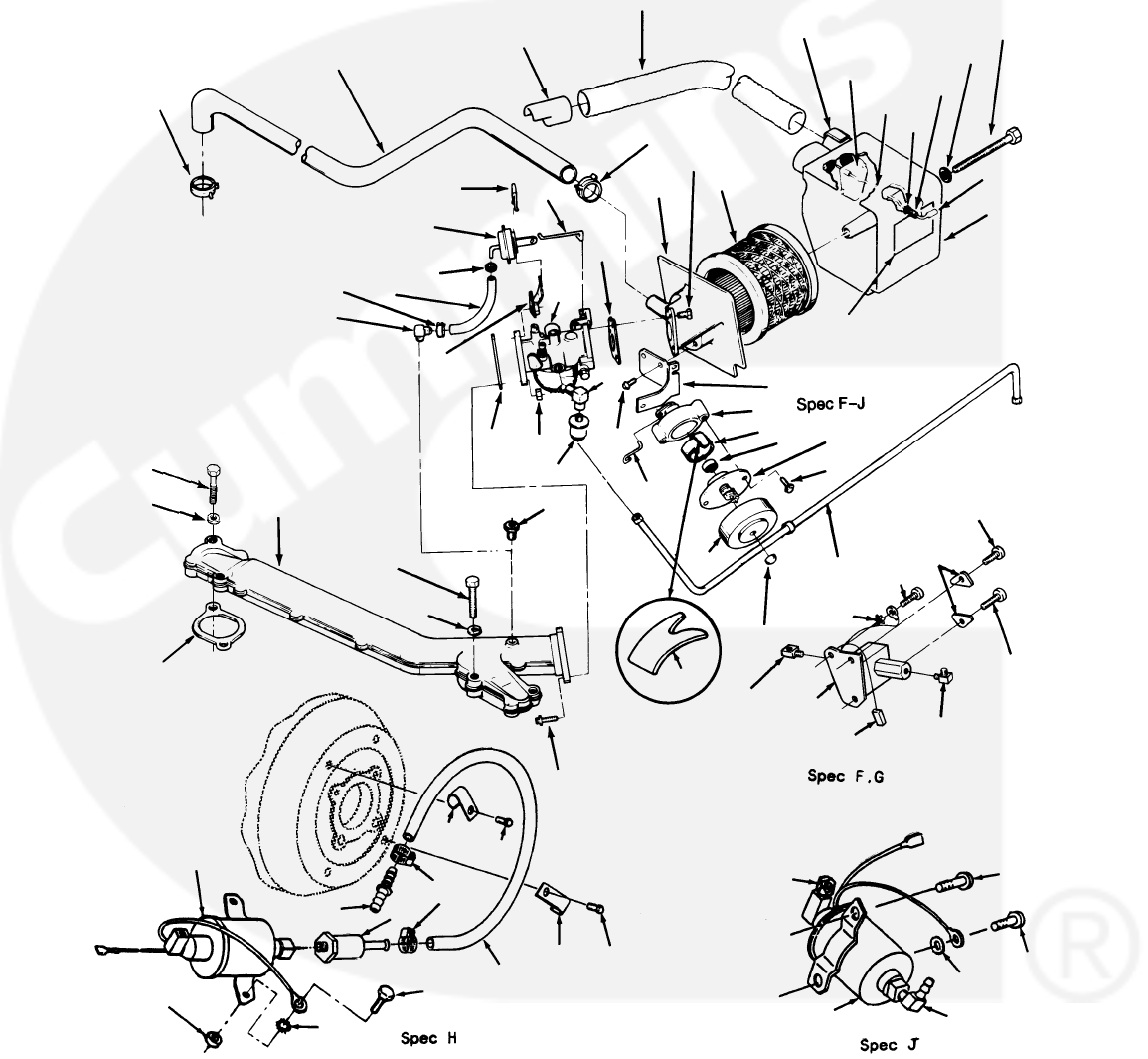

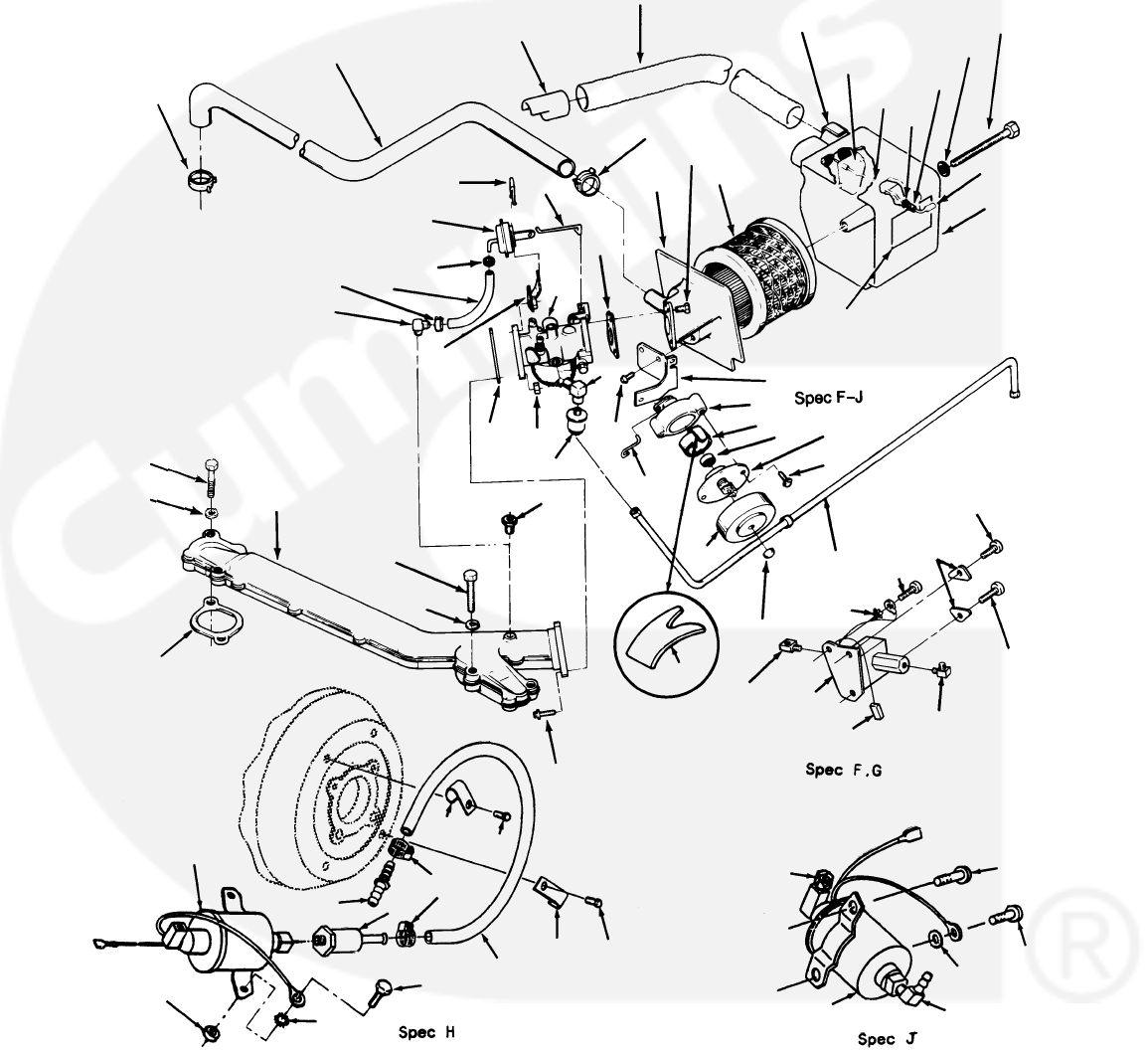

Fuel System (Gasoline), 17, 19

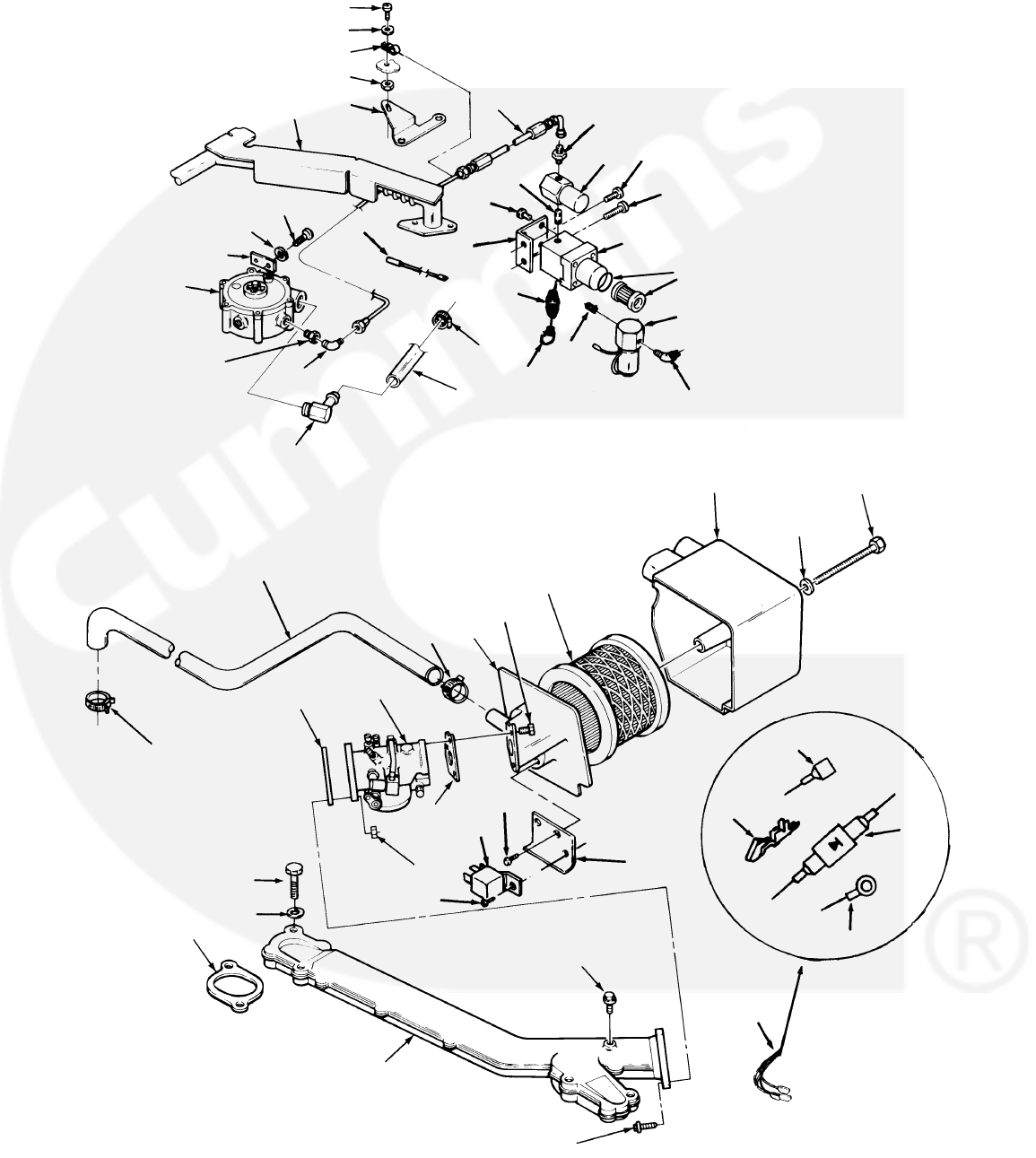

Fuel System (LP Liquid), 21

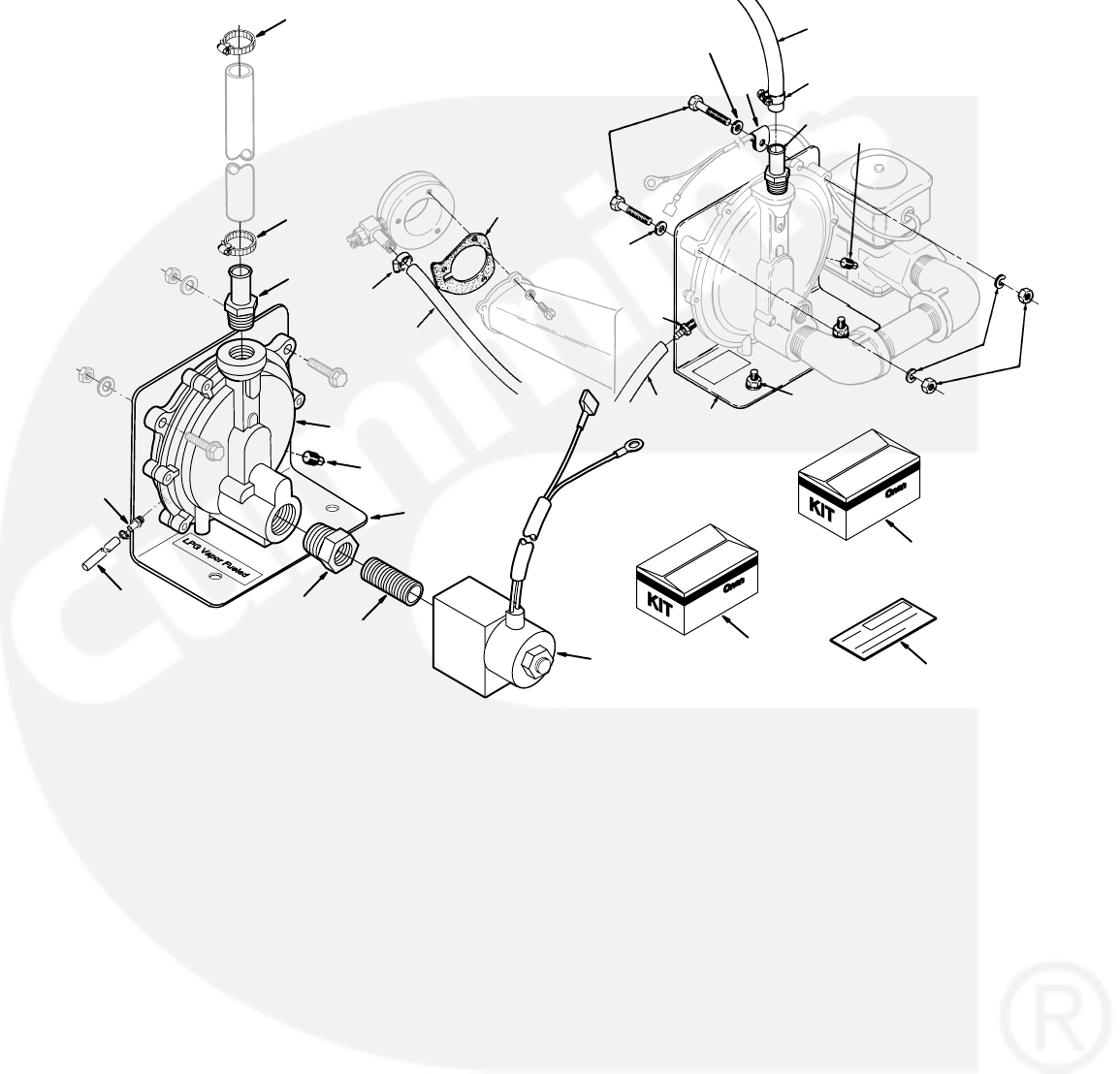

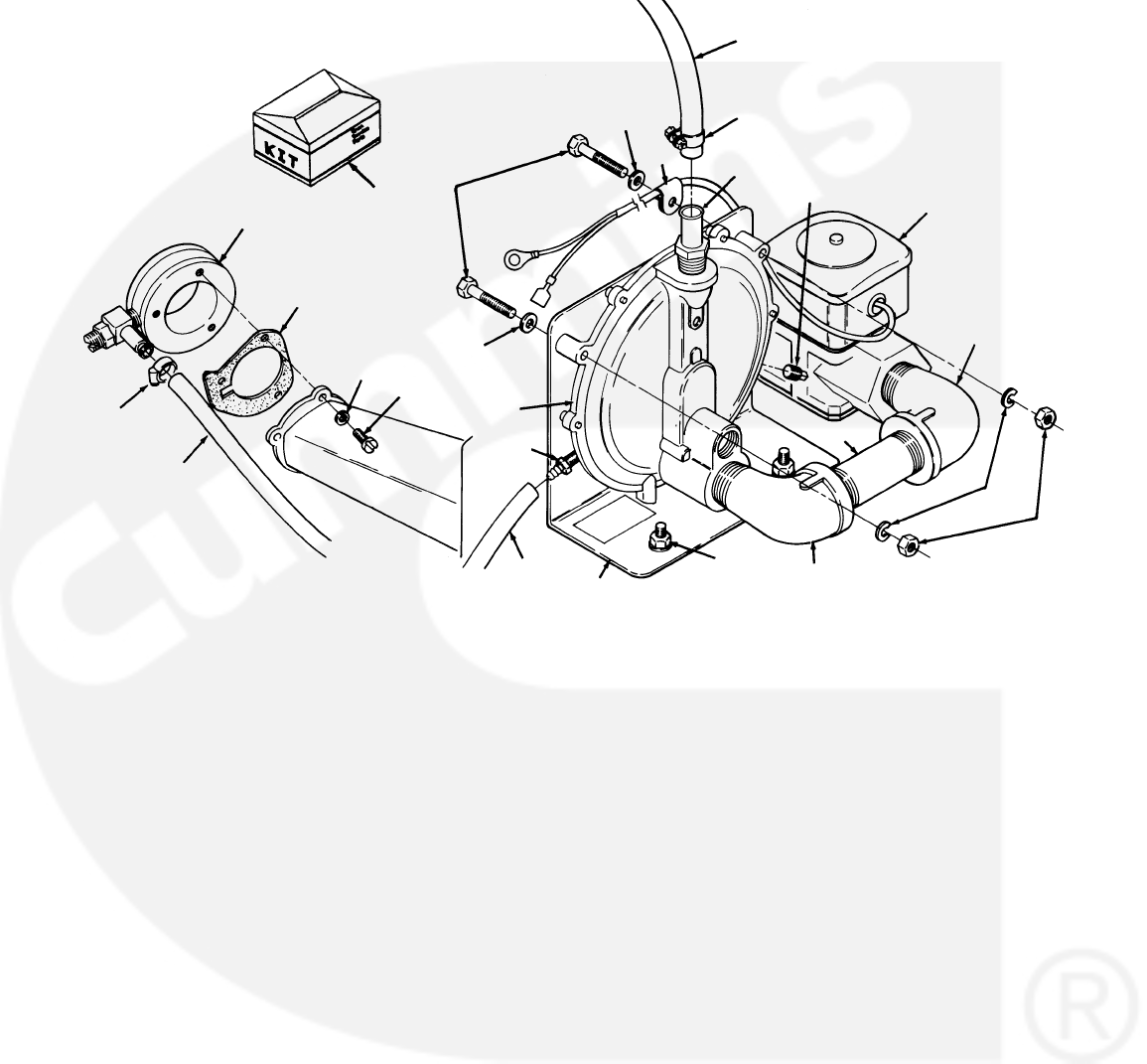

Fuel System (LPG) Field Conversion, 30, 31
Fuse, 47, 51
Gasket Kits, 52
Gasket, Adapter − Air Intake, 30
Gasket, Adapter − Oil Filter, 14
Gasket, Airhorn, 31
Gasket, Base − Oil, 13
Gasket, Bowl, 24
Gasket, Box − Breaker, 27
Gasket, Carburetor, 31
Gasket, Exhaust, 35, 37
Gasket, Filter − Oil, 13, 14
Gasket, Head − Cylinder, 7
Gasket, Horn − Air, 17, 21
Gasket, Manifold − Exhaust, 35, 37
Gasket, Manifold − Intake, 17, 21
Gasket, Mounting − Carburetor, 17, 21
Gasket, Mounting − Gearcase, 15
Gasket, Plate, 25
Gear, Armature, 45
Gear, Camshaft, 10
Gear, Crankshaft, 11

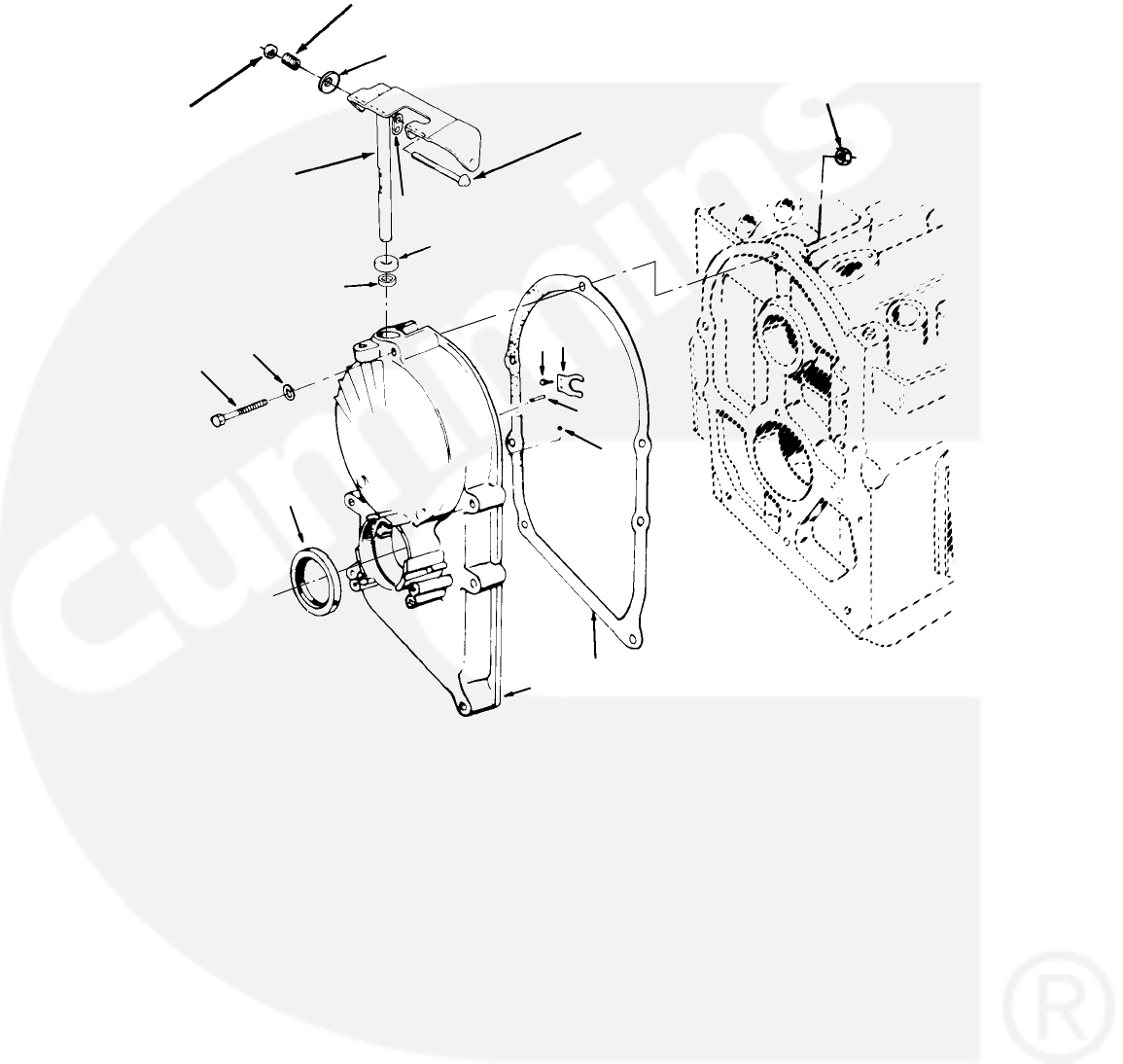

Gearcase, 15

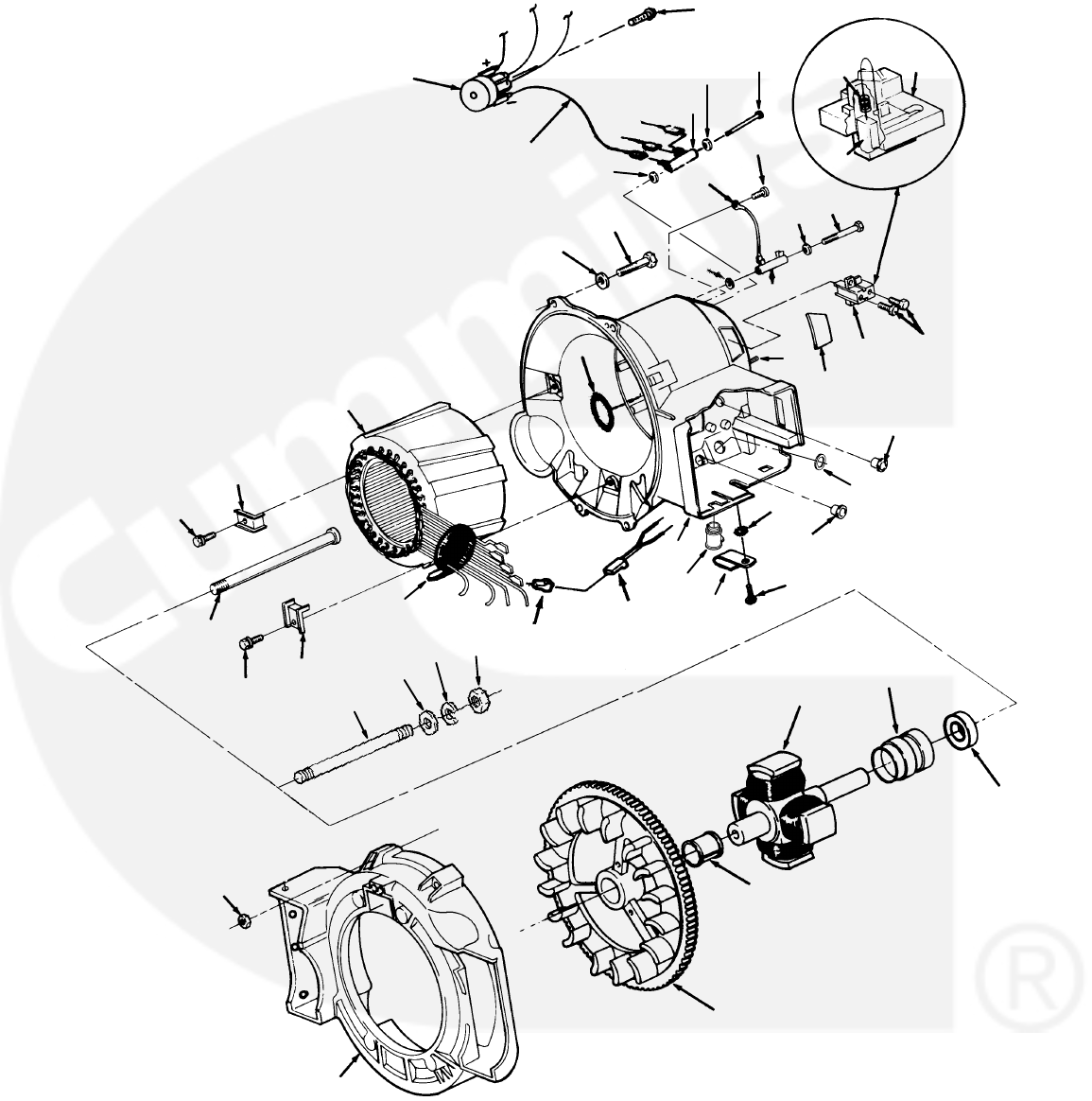

Generator, 45
Index
3

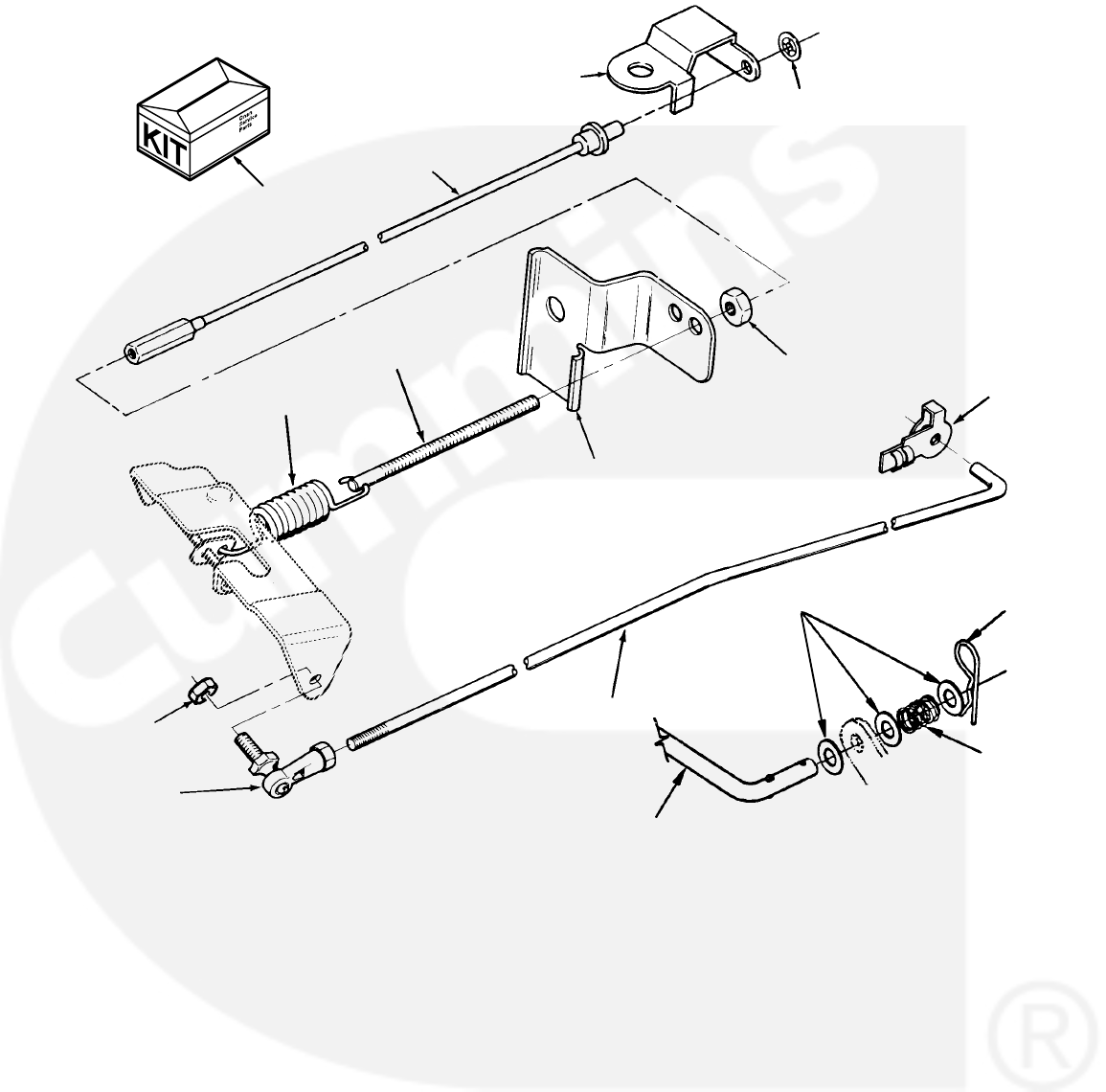

Governor, 22
Grommet, Rubber, 38, 39, 40, 41
Guard, Breaker − Circuit, 47
Guard, Scroll, 33
Guide, Valve, 7
Hanger, Exhaust, 35
Hanger, Pipe − Exhaust, 37
Harness, Charger − Battery, 45

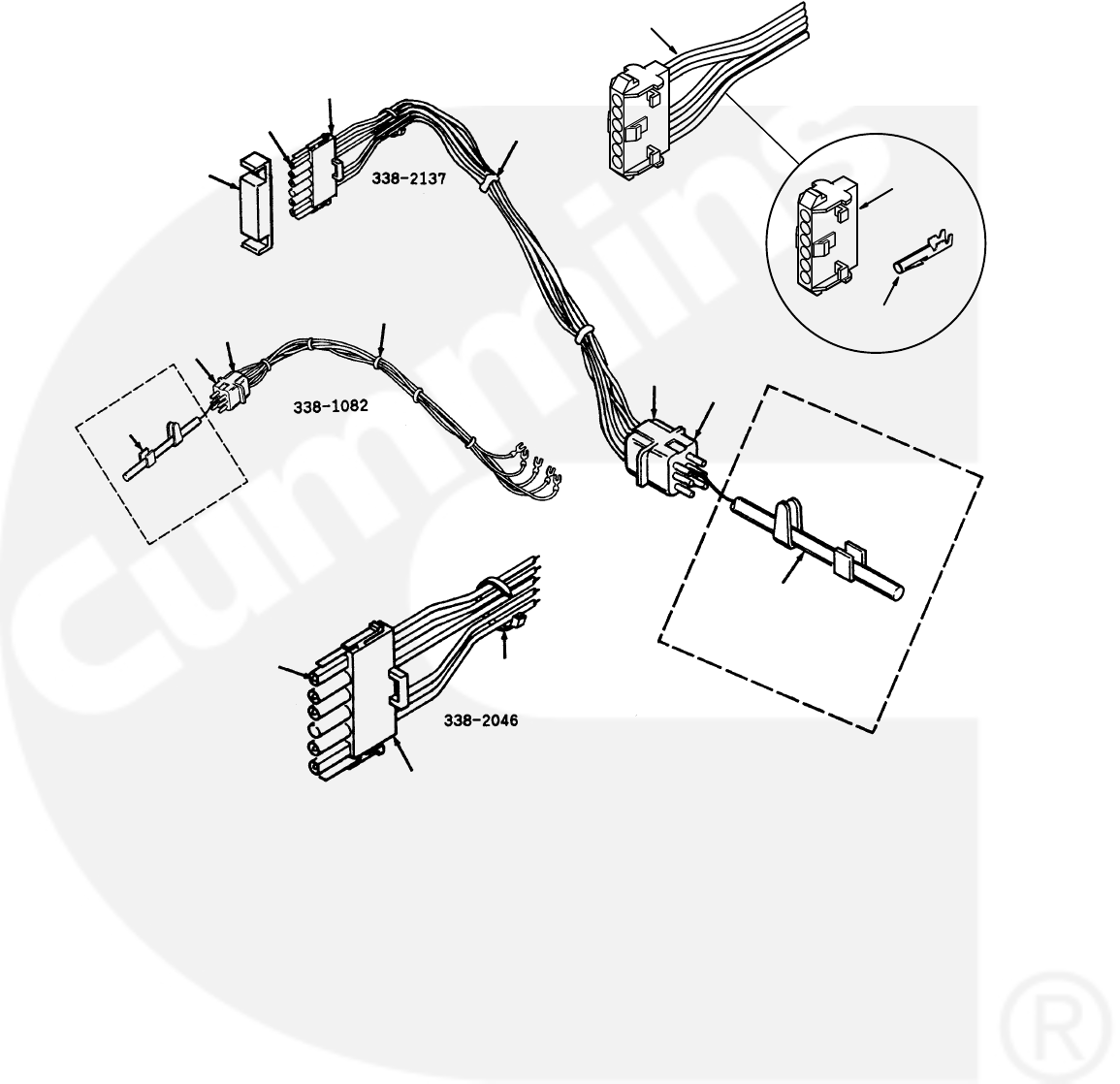

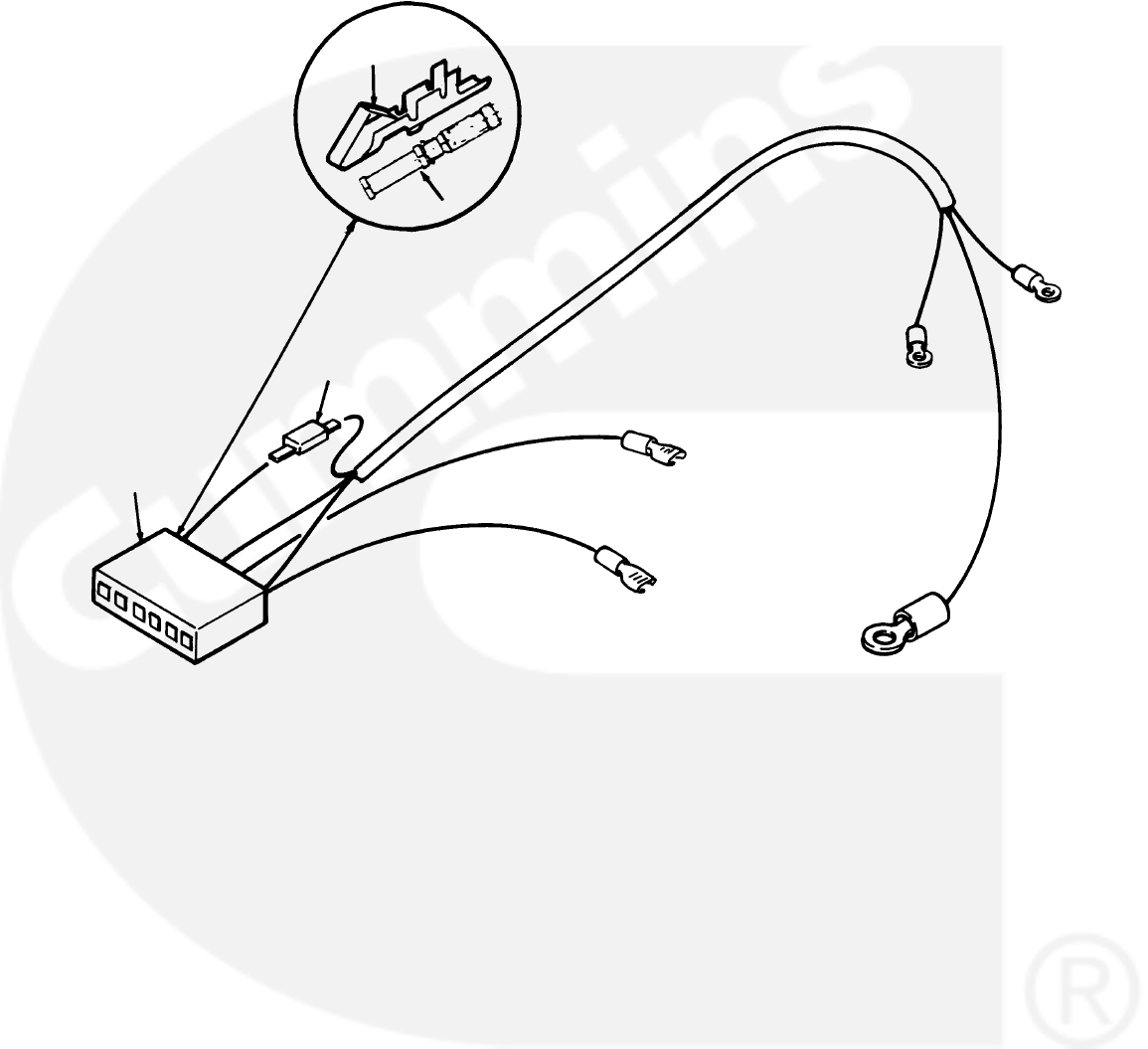

Harness, Wiring, 14, 42, 49, 51
Harness, Wiring − AC Outlet, 47
Harness, Wiring − Fuel Pump, 17
Harness, Wiring − Ignition Relay, 21
Harness, Wiring − PCB #1, 47
Harness, Wiring − PCB #3, 49
Harness, Wiring − Remote, 50
Harness, Wiring − Voltage Regulator, 47
Head, Cylinder, 7
Holder, Fuse, 47, 51
Hose, Fuel, 17, 21, 30, 31
Hose, Oil (Vent), 30, 31
Hose, Preheater, 17
Hourmeter, 43

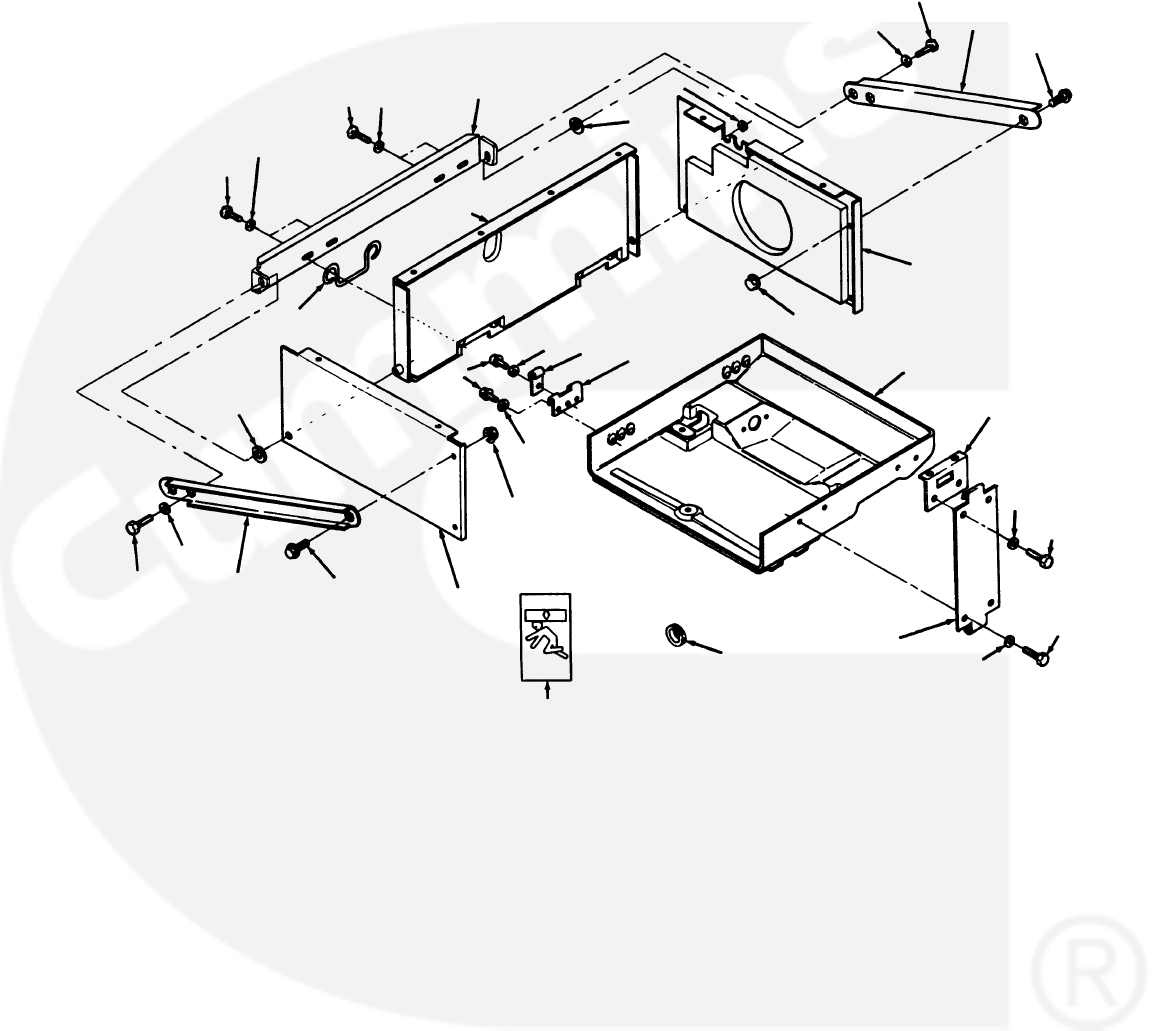

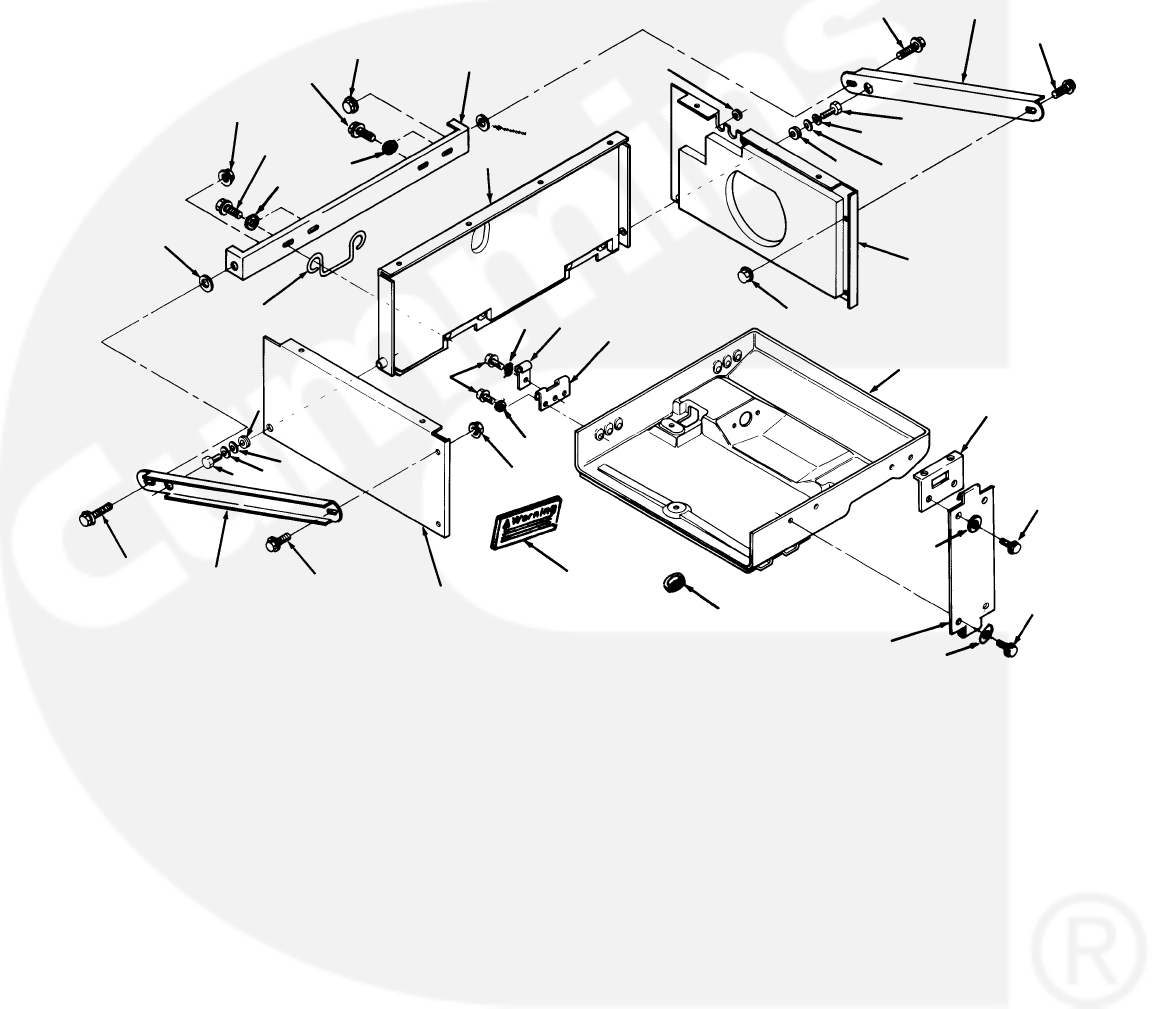

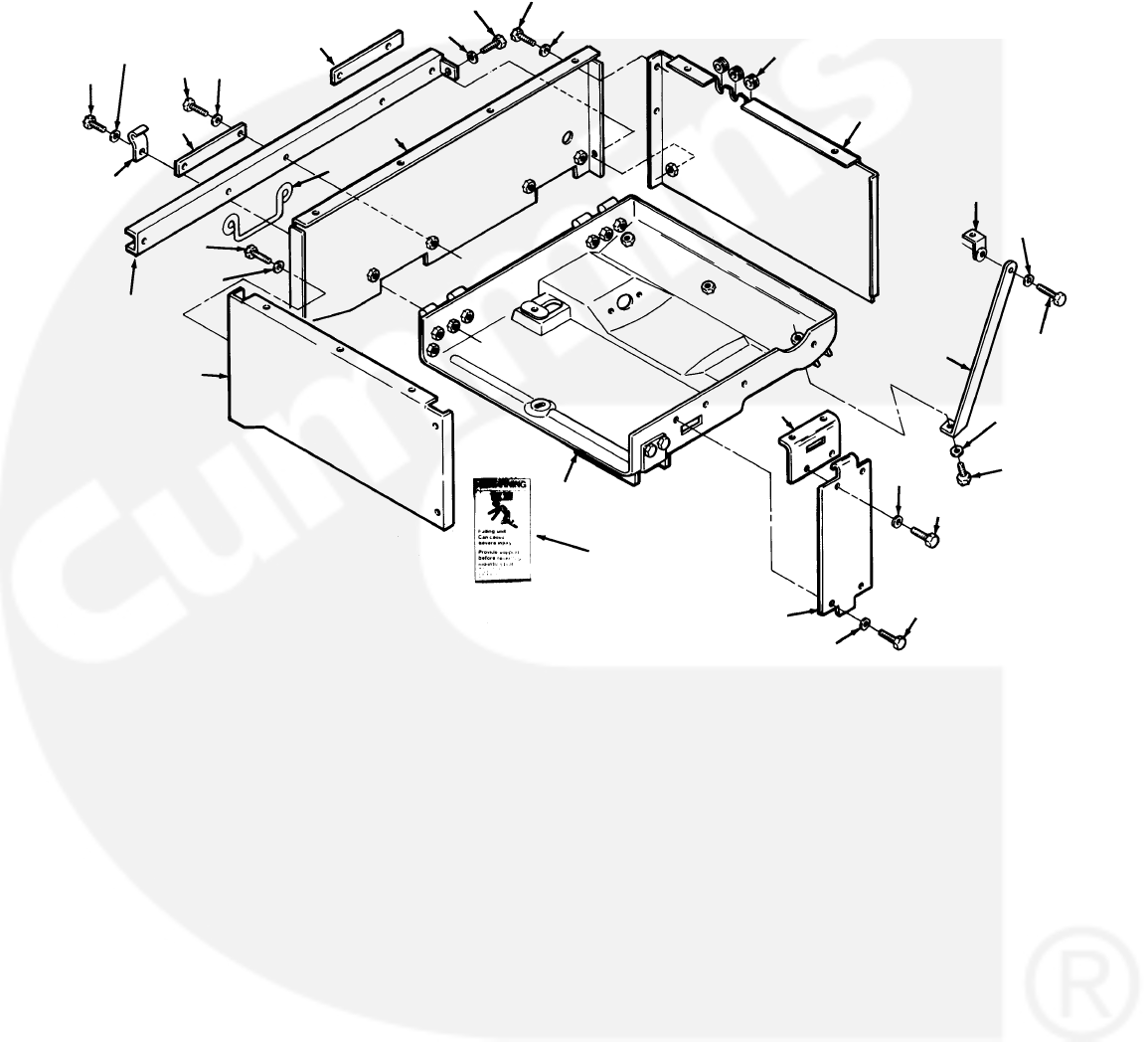

Housing − Below Floor, (Specs 26109, 37593), 40

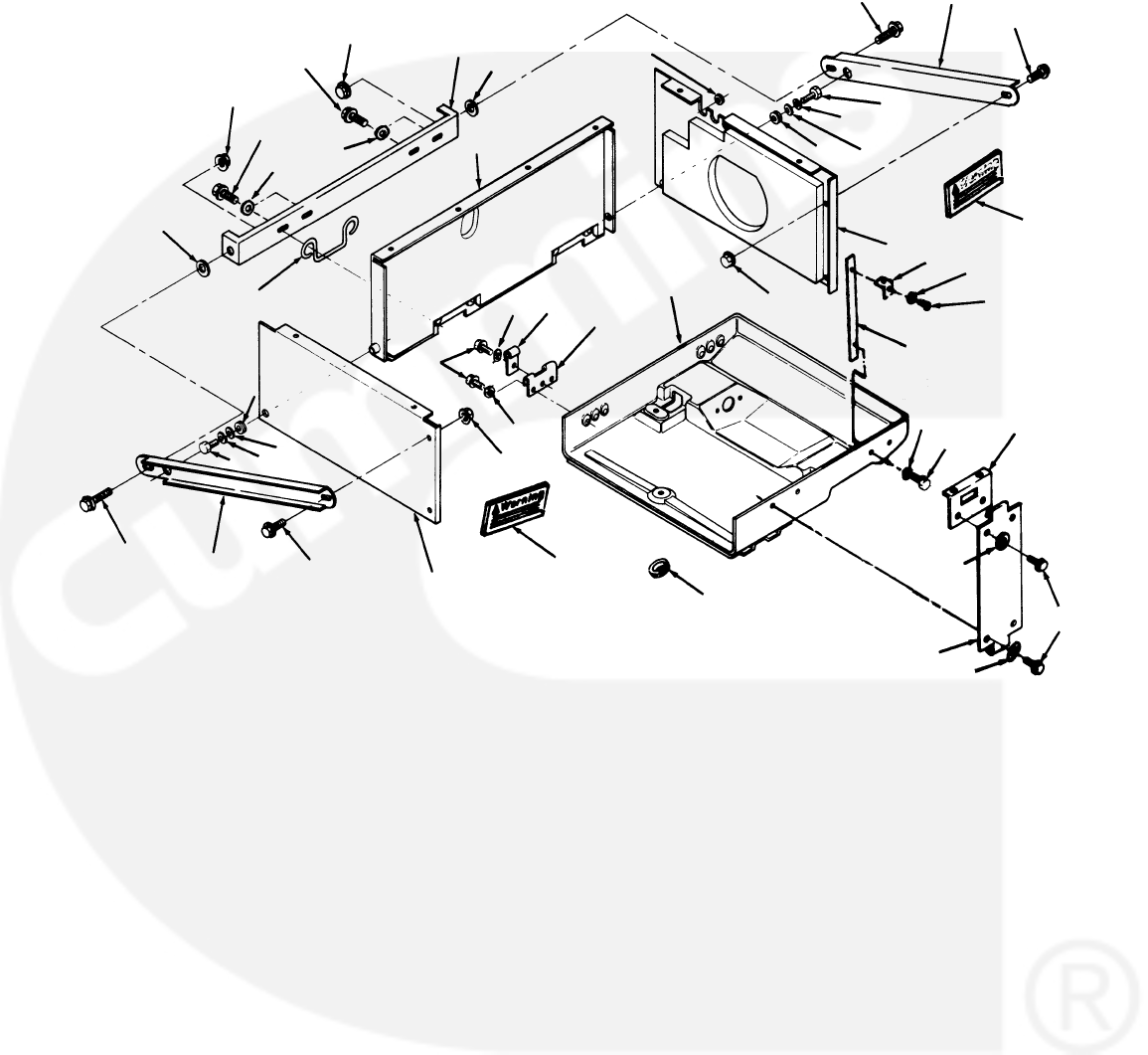

Housing − Below Floor Models
(1985−1992), (Specs 26101, 26104, 26111, 29237,
31814), 38
(Begin 1992), (Specs 26101, 26104, 26111, 29237,
31814), 39
(Commercial Applications), 41

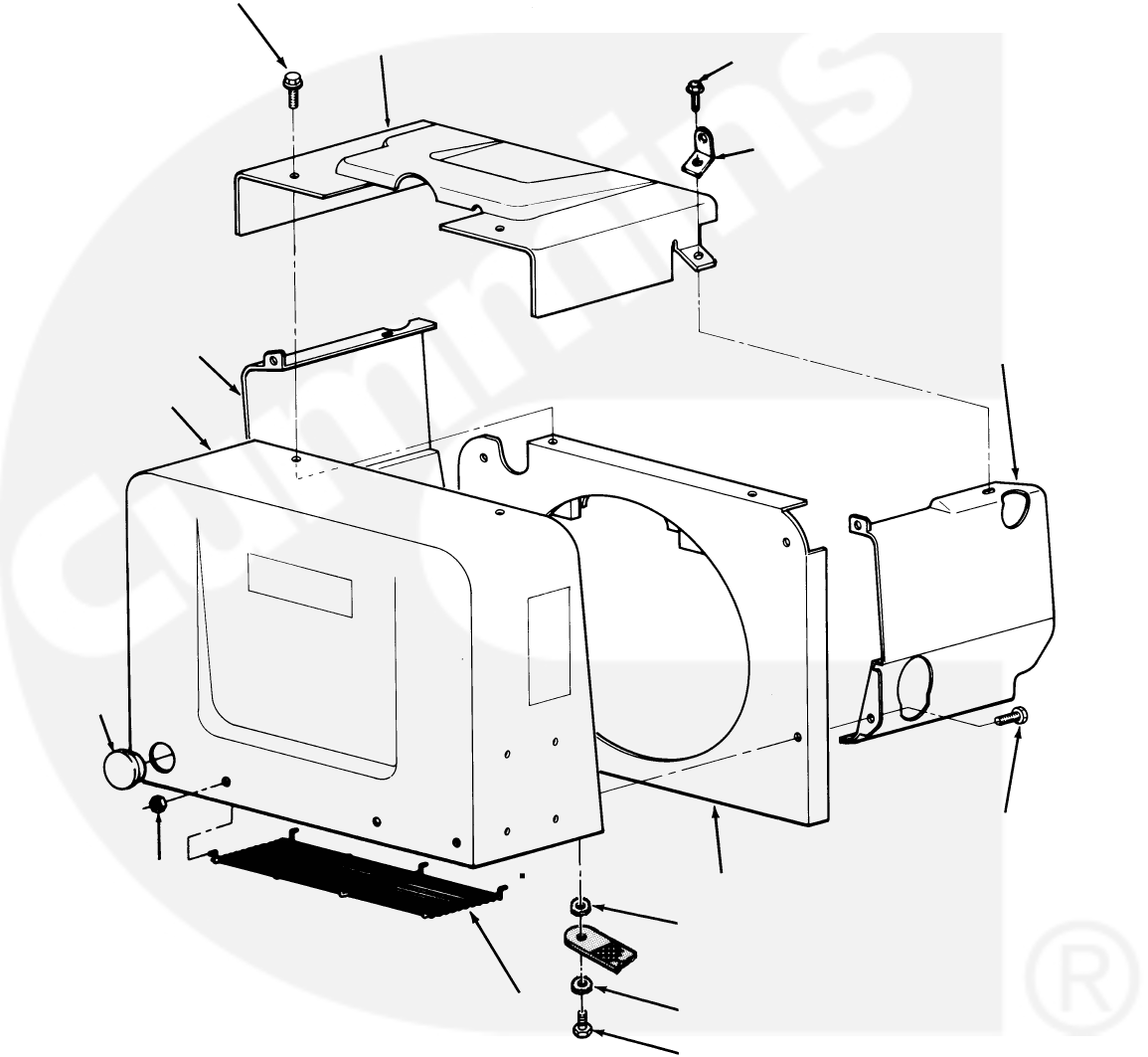

Housing, Air, 33
Housing, Breather, 7
Housing, Choke, 17
Housing, Cleaner − Air, 17, 21
Housing, Cylinder − Air, 33
Housing, Cylinder − Air, 33
Housing, Stator, 45
Hub, Cup − Governor, 10

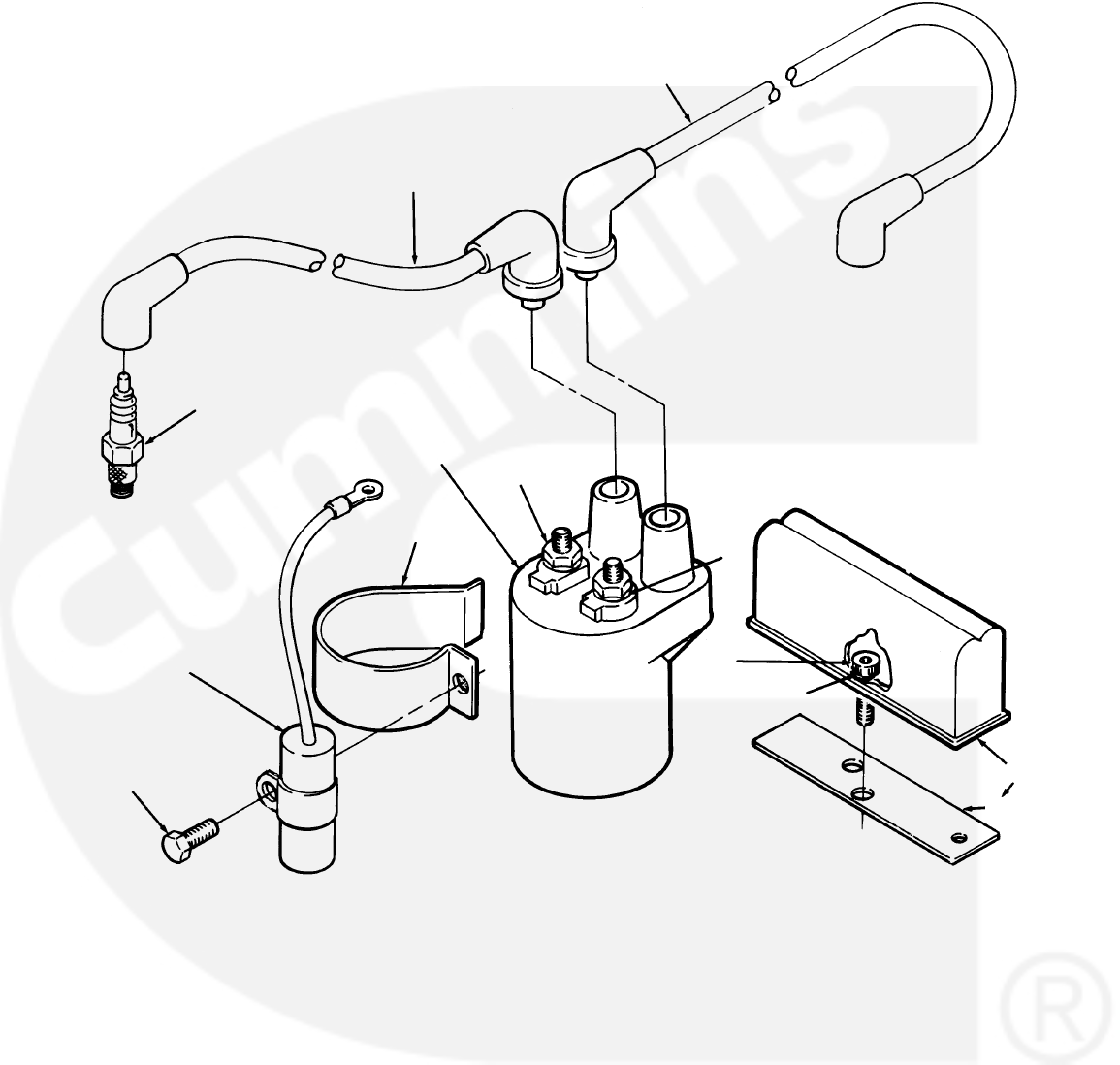

Ignition System, 26

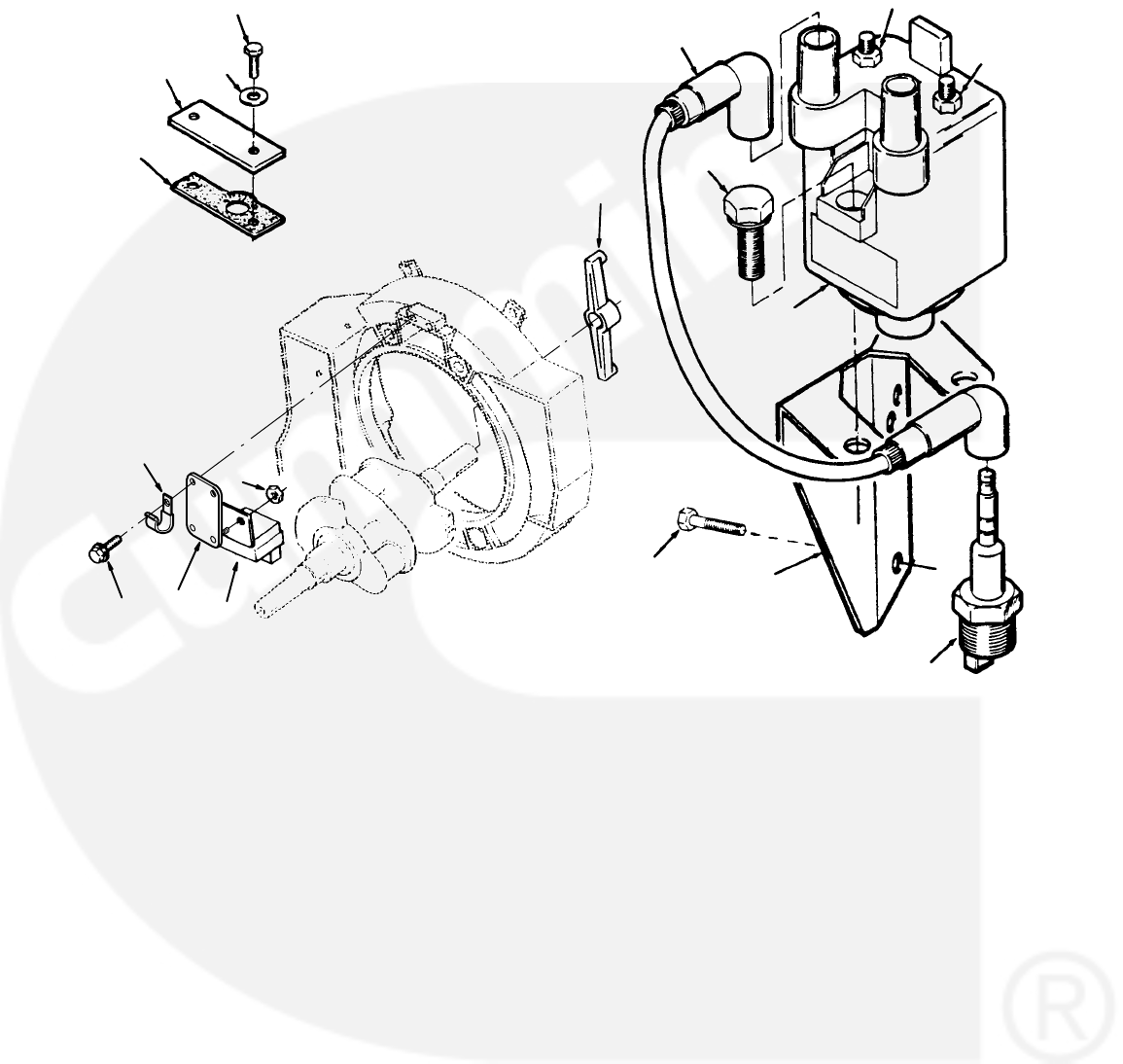

Ignition, Electronic, 25
Insert, Seat − Valve, 7
Insert, Valve Seat, 7
Insulator, Board − PC, 47
Insulator, Fuse, 47
Insulator, Terminal − Start, 47
Isolator, Vibration − Engine End, 13
Isolator, Vibration − Generator End, 13
Jet, Idle, 23
Jet, Power, 23
Joint, Ball, 22
Key, Gear − Crankshaft, 11
Key, Woodruff, 10
Kit Assembly, Drive, 29
Kit, Choke Bimetal, 23
Kit, Choke Pulloff Breaker, 23
Kit, Conversion, 31
Kit, Conversion − LP, 30
Kit, Damper − Governor, 22

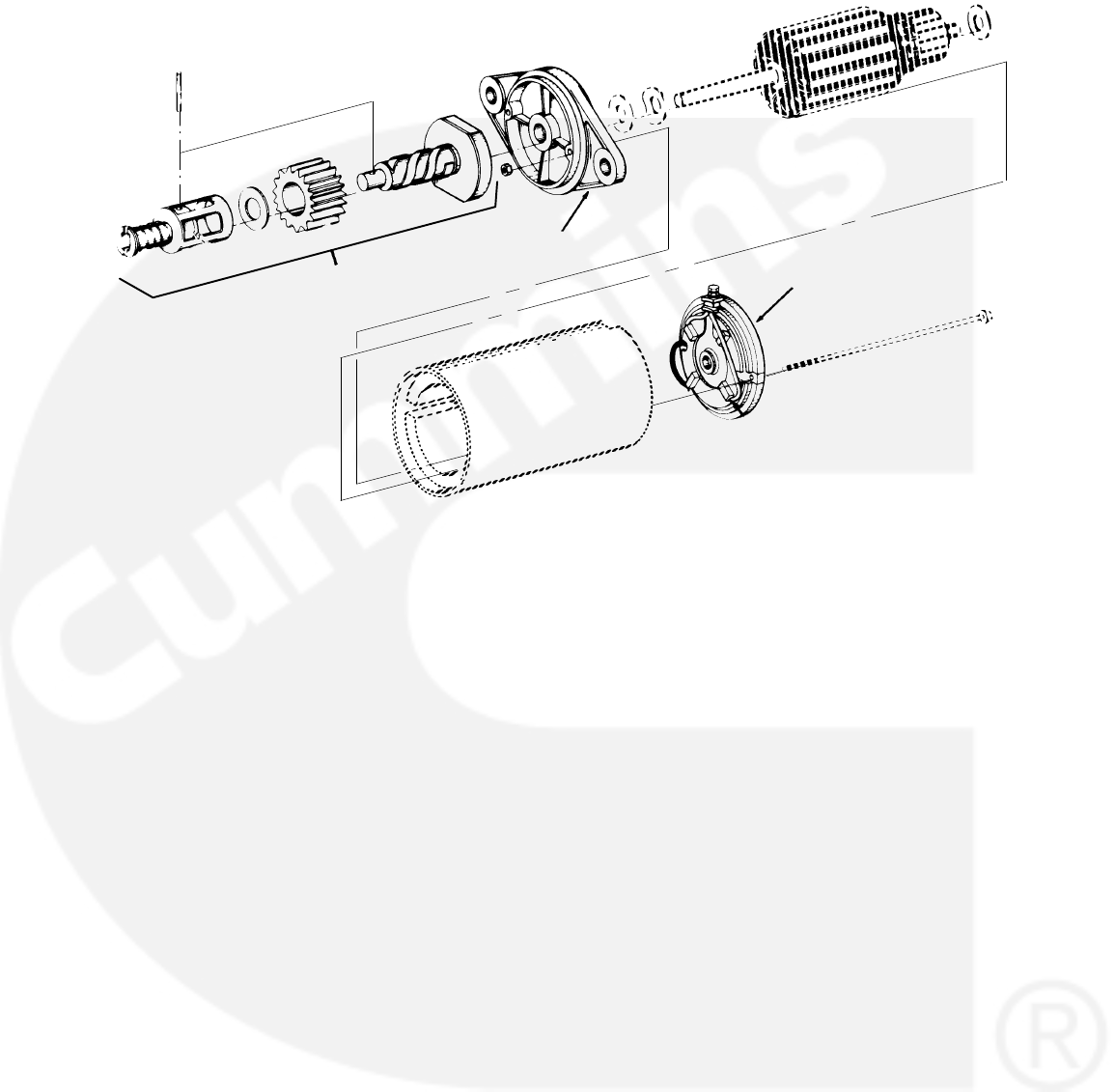

Kit, Drive − Starter, 29
Kit, Float − Carburetor, 23
Kit, Gasket − Engine, 7
Kit, Gasket − Oil Pump, 7
Kit, Key − Blower Wheel, 11
Kit, LP Accessory, 31
Kit, Remote Control, 42, 43
Kit, Repair − Carburetor, 23
Kit, Ring − Piston, 9
Kit, Vacuum Sustain Valve, 23
Kit, Vacuum Valve Hose, 23
Label, Kit Number, 31
Label, Caution, 40
Label, LP Kit, 31
Label, Preheat, 17
Label, Warning, 38, 39, 40, 41
Labels, 52
Lead, Box − Breaker, 27
Lead, Bracket − Filter Mounting, 21
Lead, Resistor, 45

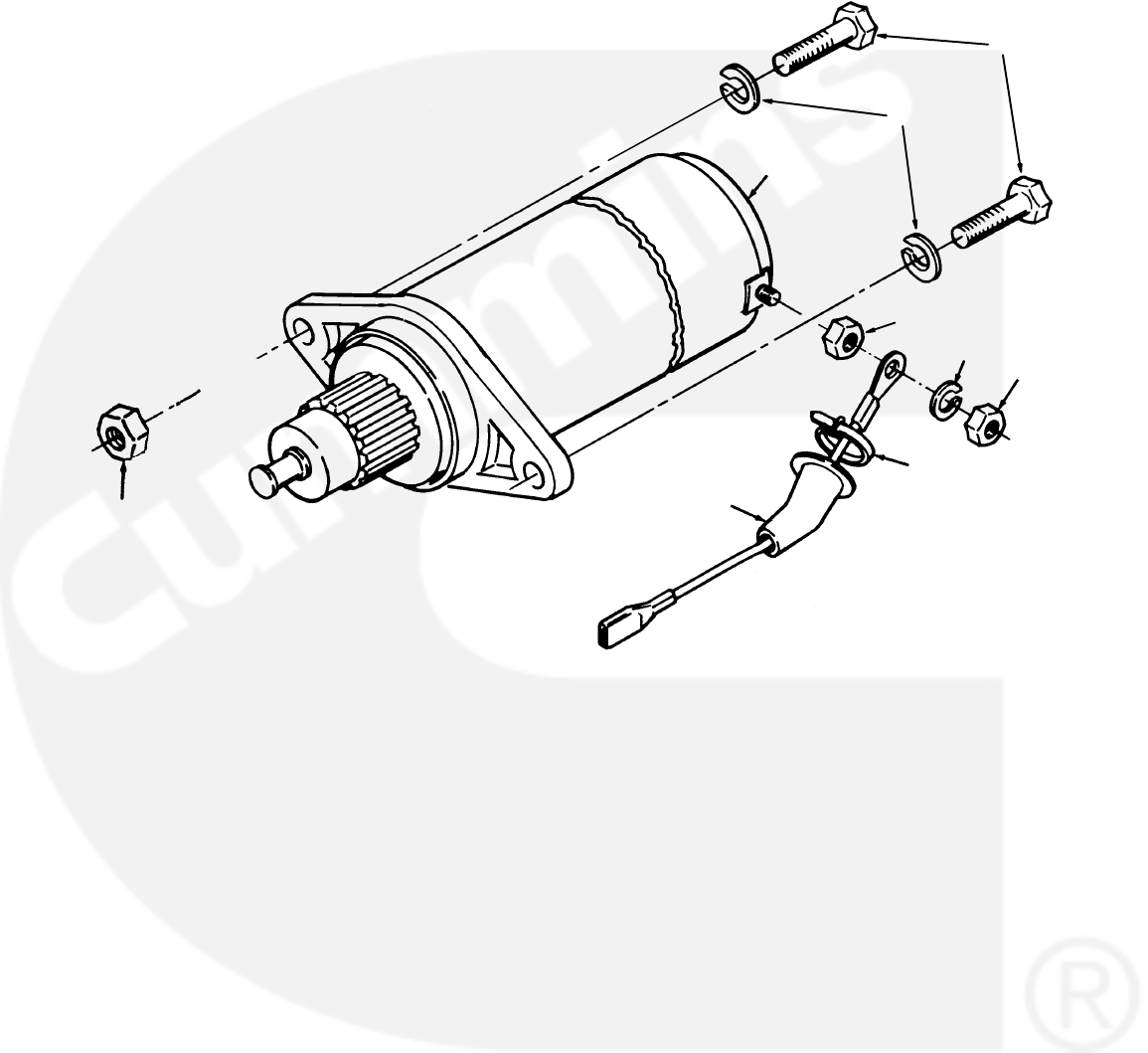

Lead, Starter, 28
Lever, Shaft − Throttle, 24
Line, Fuel, 17, 21
Link, Spring − Governor, 15
Linkage, Choke, 17
Linkage, Choke − Pull−off, 17
Lock, Spring − Valve, 7
Manifold, Exhaust, 21, 35, 37
Manifold, Intake, 17, 21
Muffler, Arrester − Spark, 35
Muffler, Arrestor − Spark, 37
Needle, Adjust − Idle, 24
Nipple, Close, 21
Nipple, Pipe, 30
O’Ring, Cap − Oil Fill, 13
O’Ring, Housing − Stator, 45
Paint, 52
Pan, Drip, 13, 38, 39, 40, 41
Panel Rear, 40

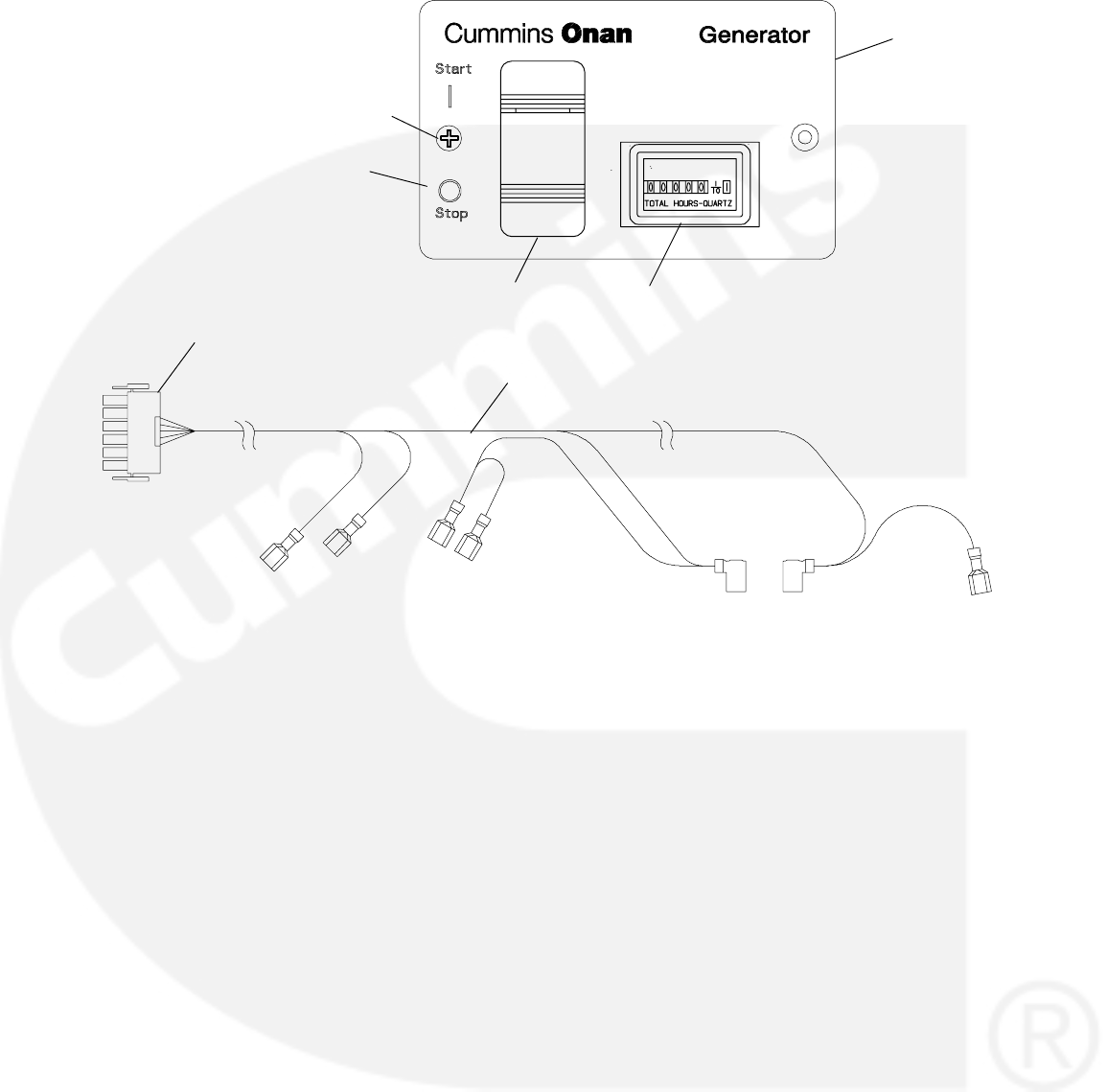

Panel, Control, 42, 43
Panel, Housing, 38, 39, 41
Panel, Left Hand, 40
Panel, Right Hand, 40
Pin, Alignment − Gear Cover, 7
Pin, Center − Camshaft, 10
Pin, Dowel − Governor Cup Stop, 15
Pin, Drive − Bearing Stop, 7
Pin, Hinge, 38, 39, 40, 41
Pin, Piston, 7
Piston, 7
Plate, Bearing − Rear, 7
Plate, Cover − Ignition Plunger, 25
Plate, Hinge, 38, 39, 40
Plate, Throttle, 24
Plug, Bowl, 24
Plug, Button − Dot, 33
Plug, Cap, 48
Plug, Drain − Oil, 13
Plug, Head − Square, 30
Plug, Hole, 47
Plug, Hole − Core, 7
Plug, Pipe − Hex, 19, 21
Plug, Spark, 25, 26
Plug, Welch − Camshaft, 7
Plunger, Point − Breaker, 27
Plunger, Valve − Bypass, 7
Points, Breaker, 27
Potentiometer, 47
Pull−off, Choke, 17
Pump, Fuel − Electric, 17
Index
4
Pump, Oil, 7
Rectifier, 21, 49
Reed, Valve − Breather, 7
Regulator, Gas, 30, 31
Regulator, LP, 21
Regulator, Voltage, 47
Relay (K4), 51
Relay, Ignition, 21
Resistor, Charger − Battery, 45
Resistor, Pump − Fuel, 45
Resonator, Exhaust, 35
Retainer − Push−on, 22
Ring, Collector − Armature, 45
Ring, Retainer − Choke Housing, 17
Ring, Retaining − Camshaft, 10
Ring, Retaining − Crankshaft, 11
Ring, Retaining − Piston, 7
Ring, Tolerance, 45
Rod, Arm − Governor, 22
Rod, Connecting, 9
Rod, Inlet − Air, 17
Rod, Throttle, 22
Rotor Assembly, Ignition, 25
Rotor, Generator, 45
Scroll, 33
Seal, Dust, 24
Seal, Dust − Rubber, 24
Seal, Oil − Crankshaft Front, 15
Seal, Oil − Crankshaft Rear, 7
Seal, Oil − Governor Shaft, 15
Seal, Valve − Intake, 7
Shaft, Governor, 15
Shield, Noise, 33
Snubber, Isolator, 13
Solenoid, Liquid − LP, 21
Solenoid, Start, 47
Solenoid, Vapor − LP, 30
Spacer, Brace, 41
Spacer, Mounting − Pump, 17
Spacer, Muffler, 35
Spring, Brush − Generator, 45
Spring, By−pass, 17
Spring, Compression, 22
Spring, Governor, 22
Spring, Needle − Idle, 15, 24
Spring, Screw − Main Jet, 24
Spring, Stop − Throttle, 24
Spring, Valve, 7
Spring, Valve − Breather, 7
Spring, Valve − Bypass, 7
Starter, 28
Starter Components, 29
Stator, Generator, 45
Strap, Ground, 13
Strap, Muffler, 35
Stud, Adjustment − Speed, 22
Stud, Grounding, 45
Stud, Long Extended Shaft, 45
Support, 40
Support, Hinge, 38, 39, 40, 41
Support, Housing, 38, 39, 41
Switch, Pressure − Low Oil, 14
Switch, Rocker, 42, 43, 47
Tappet, Valve, 7
Thread Sealant, 52
Tie, Cable, 28, 45, 47
Tube, Breather, 17, 21, 48
Tube, Bypass − Breather, 48
Tube, Exhaust, 35, 37
Tube, Housing − Choke, 17
Tube, Idle, 24
Tube, Oil − Cylinder Block, 7
Valve, Exhaust, 7
Valve, Fuel Shutoff, 31
Valve, Intake, 7
Valve, Shut−off − Fuel, 21
Valve, Shut−off − Oil Base, 13
Wheel, Blower, 11
Yoke, Governor, 15
5
7
Cylinder Block
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Block, Cylinder (See Short
Block Catalog #932−0109)
2 517−0048−01 1 Plug, Welch − Camshaft
3 Screw, Cap
800−0575 5 Spec F−H, Flanged Head
(3/8−16 x 1−1/8”)
800−0051 5 Begin Spec J, Hex Head
(3/8−16 x 1−1/4”)
4 104−0776 1 Shim, End Play − Crankshaft
5 Bearing, Crankshaft − Rear
(Includes Thrust Washer)
101−0804 1 Standard
101−0804−02 1 .002” Undersize
101−0804−10 1 .010” Undersize
101−0804−20 1 .020” Undersize
101−0804−30 1 .030” Undersize
6 104−0575 2 Washer, Thrust
7 101−0809 1 Gasket, Plate − Bearing
8 101−0439−01 1 Plate, Bearing − Rear
9 101−0405 2 Bearing, Camshaft
10 509−0041 1 Seal, Oil − Crankshaft Rear
11 516−0072 4 Pin, Drive − Bearing Stop
12 120−1320 1 Tube, Oil − Cylinder Block
13 Insert, Valve Seat − Exhaust
110−1824 2 Standard
110−1824−02 2 .002” Oversize
110−1824−05 2 .005” Oversize
110−1824−10 2 .010” Oversize
110−1824−25 2 .025” Oversize
14 Insert, Valve Seat − Intake
110−0197 2 Standard
110−0197−10 2 .010” Oversize
15 Bearing, Crankshaft − Front
101−0805 1 Standard
101−0805−02 1 .002” Undersize
101−0805−10 1 .010” Undersize
101−0805−20 1 .020” Undersize
101−0805−30 1 .030” Undersize
16 Guide, Valve
110−3527 2 Exhaust
110−3526 2 Intake
17 114−0392 4 Bolt, Rod − Connecting
18 870−0533 4 Nut, Self−Locking (5/16−24)
19 Washer
850−0050 5 Spec F−H, Lock (3/8”)
526−0402 5 Begin Spec J, Flat (3/8”)
20 516−0141 2 Pin, Alignment − Gear Cover
21 123−1175 1 Reed, Valve − Breather
22 123−1173 1 Baffle, Valve − Breather
23 123−1174 1 Spring, Valve − Breather
24 110−1879−01 1 Cover, Valve − Right Hand
25 123−1649 1 Housing, Breather
26 110−3709 3 Gasket, Cover − Valve
27 Tappet, Valve
115−0006 4 Standard
115−0006−02 4 .002” Oversize
115−0006−05 4 .005” Oversize
28 110−3479 2 Valve, Intake
29 Valve, Exhaust
110−3480 2 Stellite
110−3515 2 Standard
30 800−0010 2 Screw, Cap − Hex Head
(1/4−20 x 1−3/4”)
31 110−3485 4 Spring, Valve
32 110−3511 8 Lock, Spring − Valve
33 509−0289 2 Seal, Valve − Intake
34 803−0071 2 Screw, Set − Socket
(3/8−16 x 5/8”)
35 110−3181 2 Gasket, Head − Cylinder
36 Head, Cylinder
110−3509 1 Right Side
110−3508 1 Left Side
37 110−3487 4 Washer, Retaining − Valve
Spring
38 526−0018 1 Washer, Flat (1/4”)
39 526−0122 18 Washer, Flat (5/16”)
40 800−0571 18 Screw, Cap − Hex Head
(5/16−18 x 2−1/4”)
41 526−0063 2 Washer, Flat − Copper (1/4”)
42 517−0067 1 Plug, Hole − Core
43 110−3510 4 Cap, Valve
44 Kit, Gasket
168−0189 1 Carbon Removal/Valve Grind
168−0192 1 Engine, Complete
45 120−0491 1 Pump, Oil
46 120−0161 1 Kit, Gasket − Oil Pump
47 740−1004 2 Washer, Flat (M6)
48 800−0007 2 Screw, Cap − Hex Head
(1/4−20 x 1”)
49 801−0049 1 Screw, Cap − Hex Head
(3/8−24 x 7/8”)
50 526−0066 1 Washer, Flat − Copper (3/8”)
51 120−0140 1 Spring, Valve − Bypass
52 120−0398 1 Plunger, Valve − Bypass
53 Piston (Includes Pin and
Retaining Rings)
112−0264 2 Standard
112−0264−05 2 .005” Oversize
112−0264−01 2 .010” Oversize
112−0264−02 2 .020” Oversize
112−0264−03 2 .030” Oversize
54 112−0229 2 Pin, Piston
55 518−0311 4 Ring, Retaining
9
Cylinder Block
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
56 Kit, Ring − Piston
Specs E−H
113−0314 2 Standard
113−0314−05 2 .005” Oversize
113−0314−10 2 .010” Oversize
113−0314−20 2 .020” Oversize
113−0314−30 2 .030” Oversize
Begin Spec J
113−0310 2 Standard
113−0310−05 2 .005” Oversize
113−0310−01 2 .010” Oversize
113−0310−02 2 .020” Oversize
113−0310−03 2 .030” Oversize
57 Rod, Connecting
(Includes Bolt and Nut)
114−0397 2 Standard
114−0397−10 2 .010” Undersize
114−0397−20 2 .020” Undersize
114−0397−30 2 .030” Undersize
58 123−1871 1 Filter, Tube − Breather
10
Camshaft
12
34
5
6
7
8
9
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 150−0078 1 Ring, Retaining
2 150−1519 1 Hub, Cup − Governor
3 150−1520 1 Cup and Bushing, Governor
4 510−0015 10 Ball, Governor
5 515−0001 1 Key, Woodruff
6 105−0637 1 Camshaft (Includes Center Pin)
7 105−0700 1 Gear, Camshaft (Includes Gear,
Spacer and Plate)
8 105−0541 1 Washer, Thrust
9 150−0075 1 Pin, Center − Camshaft
11
Crankshaft and Flywheel
1
2
3
4
56
7
89
10
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 104−0170 1 Screw, Cap − Hex Head
2 526−0356 1 Washer, Flat (7/16”)
3 526−0017 1 Washer, Flat (7/16”)
4 134−4342 1 Wheel, Blower
5 518−0014 1 Ring, Retaining
6 104−0043 1 Washer, Gear
7 104−0032 1 Gear, Crankshaft
8 515−0263 1 Kit, Key − Blower Wheel
9 515−0001 1 Key, Gear − Crankshaft
10 104−1735 1 Crankshaft (Includes Keys)
13
Oil Base and Mounting Hardware
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Base, Oil
102−1493 1 Spec F−P
102−1458 1 Begin Spec N
2 102−1387 1 Gasket, Base − Oil
3 Pan, Drip
403−2557−02 1 Above Floor Models
−1 Below Floor Models (See
Below Floor Housing
Pages)
403−2218−01 1 Begin Spec J
4 402−0597 2 Isolator, Vibration − Generator
End
5 821−0010 4 Screw, Hex Washer Head −
Self−Locking (1/4−20 x 1/2”)
6 526−0325 2 Washer, Flat (3/8”)
7 815−0657 2 Screw, Hex Head − Thread
Form (3/8−16 x 2−3/4”)
8 402−0549 1 Isolator, Vibration − Engine
End
9 821−0016 2 Screw, Hex Washer Head − Self
Locking (5/16−18 x 3/4”)
10 821−0031 2 Screw, Hex Washer Head − Self
Locking (3/8−16 x 3/4”)
11 526−0324 1 Washer, Flat (5/16”)
12 526−0240 1 Washer, Flat (3/8”)
13 337−2311 1 Strap, Ground
14 821−0014 1 Screw, Hex Washer Head − Self
Locking (5/16−18 x 1/2”)
15 856−0008 2 Washer, Lock − EIT (5/16”)
16 123−1616 1 Cup, Intake − Oil Pump
(Includes Pipe And Cup)
17 504−0150 1 Valve, Drain − Oil
18 800−0058 4 Screw, Cap − Hex Head
(3/8−16 x 3”)
19 526−0251 4 Washer, Flat (3/8”)
20 123−1961 1 Cap, Fill − Oil
21 509−0096 1 O’Ring, Cap − Oil Fill
22 505−0266 1 Plug, Drain − Oil (3/8”)
23 102−0743 1 Gasket, Drain − Oil
24 402−0547 2 Snubber, Isolator
14
Oil Filter
1
2
3
4
5
6
7
8
9
10
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 122−0814 1 Adapter, Filter − Oil (Includes
Screws)
2 526−0065 2 Washer, Flat − Copper
(5/16”)
3 800−0028 2 Screw, Cap − Hex Head
(5/16−18 x 1”)
4 122−0360−50 1 Drain, Filter − Oil
5 815−0340 2 Screw, Cap − Hex Washer Head
− Thread Forming
(#10−32 x 3/8”)
6 122−0771 1 Gasket, Adapter − Oil Filter
7 122−0645 1 Filter, Oil
8 309−0322 1 Switch, Pressure − Low Oil
9 122−0502 1 Gasket, Filter − Oil
10 Harness, Wiring (See Separate
Page for Components)
Gasoline
338−2041 1 Spec F−G
338−2634 1 Begin Spec H
LP
338−2086 1 Spec F−G
338−2635 1 Begin Spec H
15
Gearcase
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 103−0772 1 Gearcase Assy (Includes Parts
Marked*)
2 150−2002−04 1 *Arm and Shaft, Governor
3 509−0008 1 *Seal, Oil − Governor Shaft
4 510−0013 1 *Bearing, Needle
5 510−0014 1 *Ball, Bearing
6 516−0130 1 *Pin, Stop − Governor Cup
7 150−1187 1 *Yoke, Governor
8 815−0046 2 *Screw, Machine − Pan Head
(#8−32 x 3/8”)
9 509−0040 1 *Seal, Oil − Crankshaft Front
10 103−0810 1 Gasket, Gearcase
11 526−0065 5 Washer, Flat − Copper
(5/16”)
12 Screw, Cap − Hex Head
114−0022 4 1−3/4” Long
800−0545 1 2−3/4” Long
13 150−1998 1 *Link, Spring − Governor
14 870−0328 1 *Nut, Self−Lock (#10−32)
15 141−0710 1 *Spring, Needle − Idle
16 820−1077 1 *Screw, Pan Head
(#10−32 x 2−1/2”)
17 851−0031 1 *Washer, Spring − Conical Disc
(#10)
18 870−0257 1 Nut, Hex − Self−Locking
(5/16−18)
* − Parts Included In Gearcase Assy.
17
Fuel System
(Gasoline)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 154−2447 1 Manifold, Intake
2 815−0587 2 Screw, Hex Washer Head
3 Gasket, Mounting − Carburetor
141−0950 1 Spec F−J
141−0958 1 Begin Spec K
4 862−0015 1 Nut, Hex (5/16−18)
5 Carburetor (Includes Mounting
Gasket) (See Separate Page
for Components)
146−0455 1 Spec F−J
146−0577 Begin Spec K
146−0630 1 Begin Spec L & Up
6 Elbow, Male − Inverted 90°
502−0002 1 Spec F
502−1108 1 Begin Spec G
7 153−0555 1 Element and Cover, Choke
(Spec F−J)
8 140−2308 1 Gasket, Horn − Air
9 815−0590 3 Screw, Cap − Hex Head
(#10−32 x 1/2”)
10 153−0556 1 Housing, Choke (Includes
Choke Shaft) (Spec F−J)
518−0387 1 Ring, Retainer− Choke Housing
(Not Shown)
11 815−0592 2 Screw, Head − Hex Washer
(#8−32 x 1−3/8”) (Spec F−J)
12 153−0561 1 Bracket, Mounting − Diaphragm
(Spec F−J)
13 518−0450 1 Clip, U (Spec F−J)
14 Pump, Fuel − Electric (Includes
Mounting Bracket)
149−2140 1 Spec F,G
149−2269 1 Spec H
149−2331 1 Begin Spec J
149−2331−02 1 Begin Spec K
15 153−0554 1 Bimetal, Choke (Spec F−J)
16 153−0557 1 Bracket, Mounting − Housing
(Spec F−J)
17 815−0591 2 Screw, Head − Hex Washer
(1/4−10 x 3/4”) (Spec F−J)
18 800−0017 1 Screw, Cap − Hex Head
(1/4−20 x 3−1/2”)
19 526−0021 1 Washer, Flat (1/4”)
20 140−2379 1 Element, Cleaner − Air
21 Housing, Cleaner − Air
140−1894 1 Spec F−K
140−2962 1 Spec L
22 153−0558 1 Linkage, Choke (Spec F−J)
23 Adapter, Cleaner − Air
140−2782 1 Spec F−K
140−3093 1 Spec L
24 153−0577 1 Linkage, Pull−off − Choke
(Spec F−J)
25 153−0576 1 Pull−off, Choke (Spec F−J)
26 503−1252 1 Hose, Vacuum (Spec F−J)
(3/16” ID x 3” Long)
27 502−1105 1 Fitting, Vacuum − Intake 90°
28 502−0313 1 Elbow, 90°
29 815−0664 1 Screw, Thread Form
Torx (1/4−20 x 3/8”)
30 Line, Fuel (Includes 2 Inverted
Nuts)
149−2080 1 Spec F
149−2293 1 Spec G
149−2319 1 Spec H
149−2334 1 Begin Spec J (Four Bends)
149−2335 1 Begin Spec J (Three Bends)
31 98−6105−01 1 Label, Preheat
32 Screw
815−0692−01 1 Hex, Machine − 60 Hz
(1/4−20 x 1/2”)
815−0692−02 1 Pan Head − 50 Hz
(1/4−20 x 1”)
Gasket, Manifold − Intake
33 154−2495 2 Spec F−H
34 800−0033 4 Screw, Cap − Hex Head
(5/16−18 x 2”)
35 740−1006 4 Washer, Flat (M8)
36 503−0813 2 Clamp, Hose
37 140−1919−50 1 Adapter, Preheater
38 123−1615 1 Tube, Breather
39 149−2226 2 Washer, Pump − Fuel
40 503−1133 1 Clamp, Hose − Breather Tube
41 503−0183 1 Clamp, Hose − Breather Tube
42 338−2285 1 Harness, Wiring − Fuel Pump
(Includes Rectifier)
43 153−0578 1 Tube, Housing − Choke
(Spec F−J)
44 517−0223 1 Cap, Vinyl
45 526−0002 1 Washer, Flat (#6 Screw)
46 120−0140 1 Spring, By−pass
Rod, Inlet − Air
47 145−0667 1 Spec F−J
145−0704 1 Used on Spec K
48 145−0561 1 Cover, Inlet − Air
49 503−1351 1 Hose, Preheater
50 153−0579 1 Cover, Housing − Choke
(Spec F−J)
51 870−0421 1 Nut, Cap (#6−32) (Spec F−J)
52 518−0466 1 Clip, Housing − Choke
(Spec F−J)
53 518−0459 1 Clip, Hose − Preheater
(Spec F−J)
54 815−0290 2 Screw, Torx − Thread Form
(1/4−20 x .62”)
55 853−0013 1 Washer, ET (1/4”) 50 Hz
56 1 Filter, Fuel
149−2279 1 Spec F−G
149−2333 1 Begin Spec J
57 149−1353 1 Filter, Fuel (Spec H)
58 370−4052 2 Spacer, Mounting − Pump
(Begin Spec H)
59 503−1313 1 Hose, Fuel (Begin Spec H)
60 502−1164 1 Adapter, Hose − Fuel
(Begin Spec H)
19
Fuel System
(Gasoline)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
61 518−0515 2 Clip, Wire (Begin Spec H)
62 503−0170 2 Clamp, Hose (Begin Spec H)
63 815−0782 1 Screw, Pan Head − Torx (Begin
Spec J)
64 502−0028 1 Plug, Pipe − Hex Head (Begin
Spec K)
65 502−0065 1 Elbow, Inverted − 45° (Begin
Spec J)
66 740−1006 4 Washer, Flat (M8)
67 800−0033 4 Screw, Hex Head Cap
21
Fuel System
(LP Liquid)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Manifold, Intake
154−2447 1 Spec F−K
154−3026 1 Begin Spec L
2 815−0587 2 Screw, Head − Hex Washer
(5/16−18 x 1”)
3 141−0281 1 Gasket, Mounting − Carburetor
4 862−0015 2 Nut, Hex (5/16−18)
5 Carburetor (See Separate Page
For Components)
141−0932 1 Spec F−K
146−0723 1 Begin Spec L (LPG Liquid)
6 505−1426 1 Plug, Pipe (1/8”) (Spec F−K)
7 307−1886 1 Relay, Ignition
8 140−2308 1 Gasket, Horn − Air
9 815−0590 3 Screw, Cap − Hex Head
(#10−32 x 1/2”)
10 815−0261 2 Screw, Head −Hex Washer
(1/4−20 x 1/2”)
11 821−0005 1 Screw, Cap − Hex Washer
(#10−32 x 1/2”)
12 503−0183 2 Clamp, Hose
(9/16 to1−1/16”)
13 Hose, Fuel
503−1365 1 Spec F−K (8” Long)
503−0633 1 Spec L & Up (7−1/4” Long)
14 Regulator
148−0893 1 Spec F−K
148−1020 1 Begin Spec L (LPG Vapor)
541−0532 1 Begin Spec L (LPG Liquid)
15 502−0927−01 1 Bushing, Reducer (3/8 x 1/4”)
16 307−2559−01 1 Bracket, Mounting − Zinc Plated
17 815−0591 2 Screw, Head − Hex Washer
(1/4−10 x 3/4”)
18 800−0017 1 Screw, Cap − Hex Head
(1/4−20 x 3−1/2”)
19 526−0021 1 Washer, Flat (1/4”)
20 140−2379 1 Element, Cleaner − Air
21 140−1894 1 Housing, Cleaner − Air
22 502−0838 1 Elbow, Reducing − 90°
23 140−2782 1 Adapter, Cleaner − Air
24 815−0647 2 Screw, Hex Washer Head
(1/4−20 x 5/8”)
25 850−0040 2 Washer, Lock (1/4”)
26 502−0935 1 Elbow, 90‘
27 Bracket, Mounting − Filter
148−0896 1 Bottom Outlet Exhaust
148−0903 1 Front Outlet Exhaust
28 148−0890 1 Filter, LPG (Includes Element
and O−Rings)
29 148−0898 1 Element, Filter − Fuel
30 815−0692−01 1 Screw, Head − Pan
(1/4−20 x 1/2”))
31 502−0932−01 1 Elbow, Street − 45°(Front
Outlet, Exhaust Manifold)
32 Elbow, Male − 90°
502−0933−01 1 Front Outlet, Exhaust
Manifold − LP Liquid
502−0054 1 Bottom Outlet, Exhaust
Manifold
33 307−2478 1 Solenoid, Lock − Fuel (Front
Outlet − Exhaust Manifold) −
LP Liquid
34 154−2495 2 Gasket, Manifold − Intake
35 502−0928−01 1 Adapter, Reducer (Front
Outlet − Exhaust Manifold)
36 501−0525 1 Line, Fuel
37 336−9679 1 Lead
38 815−0664 1 Screw, Torx − Thread Form
(1/4−20 x 3/8”)
39 1 Manifold, Exhaust (See Exhaust
System Pages)
40 502−0965−01 1 Elbow, Reducing − 45° (Bottom
Outlet, Exhaust Manifold) − LP
Gas
41 502−0929−01 1 Nipple, Close (Bottom Outlet,
Exhaust Manifold)
42 307−2501 1 Valve, Fuel Shut−off − LP Gas
(Bottom Outlet, Exhaust
Manifold)
43 815−0176 1 Screw, Machine − Hex Head
(#8−32 x 1/2”)
44 870−0221 1 Nut, Hex (#8−32)
45 503−1190 1 Clamp, Hose
46 526−0003 1 Washer, Flat (#8)
47 800−0033 4 Screw, Cap − Hex Head
(5/16−18 x 2”)
48 740−1006 4 Washer, Flat (M8)
49 123−1615 1 Tube, Breather
50 503−0183 1 Clamp, Hose − Breather
Tube (9/16 to 1−1/16”)
51 503−1133 1 Clamp, Hose − Breather
Tube (Fits Hose O.D. .875”)
52 148−0897 1 Washer, Mounting − Regulator
53 149−2032−01 1 Bracket, Fuel Line − Zinc Plated
54 Harness, Wiring − Ignition
Relay
BGE
338−2317 1 Spec F−G (Includes Parts
Marked *)
338−2644 1 Begin Spec H (Includes
Parts Marked +)
338−2317 1 BGEL (Includes Parts
Marked *)
55 357−0067 1 *+Rectifier, Silicon
56 Pin, Contact
323−1440 1 * Brass, Gold Plated
323−1486 1 + 13 Ampere
57 Terminal, Ring
332−0147 1 * #10 − Red
332−0806 1 + #8 − Blue
58 Terminal, Receptacle
332−1992 2 * Red
332−1993 2 + Blue
* − Parts Included in Wiring Harness.
+ − Parts Included in Wiring Harness.
22
Governor
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
1
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 870−0131 2 Nut, Hex − Self−Locking
(#10−32)
2 150−0096 1 Stud, Adjustment − Speed
3 150−1612 1 Spring, Governor
4 Bracket, Governor − Zinc Plated
150−1958−02 1 Gasoline
150−2298−01 1 LP Liquid
5 518−0006 1 Clip, Retaining − BGE (Spec H)
6 Rod, Governor
BGE
150−1957 1 Gasoline
150−2079 1 LP
150−2493 1 BGEL
7 150−0939 1 Joint, Ball
8 150−2294 1 Cable, Adjust − Governor
(Begin Spec H)
9 150−2295 1 Bracket, Cable − Governor
Adjust
10 518−0582 1 Retainer − Push On
11 150−2421 1 °*Spring, Compression (Begin
Spec H)
12 Rod, Throttle
150−2428 1 * Gasoline
150−2468 1 °LP Liquid/Vapor
13 150−2589 3 °*Washer, Friction (Begin
Spec H)
14 518−0606 1 °*Clip, Linkage (Begin Spec H)
15 Kit, Damper
150−2454 1 Gasoline (Includes Parts
Marked *)
150−2493 1 LP (Includes Parts Marked °)
* − Included in Gasoline Damper Kit.
° − Included in LP Damper Kit.
23
Carburetor Components
(Gasoline)
1
2
3
45
7
8
9
10
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Carburetor, Complete
(Includes Mounting Gaskets)
146−0455 1 Spec F−J (Includes
Carb 146−0443)
146−0577 1 Begin Spec K
146−0630 1 Begin Spec L (Emission
Carb)
1 146−0449 1 Jet, Idle (Not EMSN Part)
2 146−0450 1 Jet, Power (Not EMSN Part)
3 146−0453 1 Kit, Float (Includes Float,
Pin and Valve and Set Screw)
4 146−0457 1 Kit, Repair (Includes Repair
Package and Gaskets Used
on Pre Spec L only)
5 146−0588 1 Kit, Choke Bimetal (Includes
Holder, Thermostat Cover,
Set Plate and Case Set
Screw)
6 146−0663 1 Kit, Auto Choke (Includes
Carb and Gaskets after
Spec L)
7 146−0589 1 Kit, Choke Breaker (Includes
Piston Rod, Link Washer,
Snap Pin and Breaker)
8 146−0590 1 Kit, Vacuum Sustain Valve
(Includes Body, Jet and Filter)
9 146−0591 1 Kit, Vacuum Valve Hose
(Includes Valve and Hoses)
10 146−0592 1 Assy, Choke Shaft (Includes
Choke Shaft, Collar, Arm
Return Spring, Valve, Set
Screw and Lever)
*−Carburetors beginning with Spec L are emission
Carbureators and can’t be rebuilt.
24
Carburetor Components
(LP)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Carburetor, Complete
141−0932 1 Spec F−K
146−0723 1 Spec L & Up (LPG Liquid)
146−0727 1 Spec L & Up (LPG Vapor)
1 141−0708 1 Bowl, Fuel
2 141−0906 2 Screw, Head − Round Washer
3 141−0919 1 Plate, Throttle
4 141−0940 1 Seal, Dust
5 141−0935 1 Spring, Needle − Idle
6 Tube, Idle − Rubber
141−0938 1 Spec F−K
141−0978 1 Begin Spec L
7 141−0701 1 Gasket, Bowl
8 141−0700 1 Screw, Stop − Throttle
9 141−0711 1 Spring, Stop − Throttle
10 141−0736 1 Plug, Bowl
11 141−0077 1 Washer, Plug − Bowl
12 141−0934 1 Screw, Adjust − Main Jet
13 141−0936 1 Lever, Shaft − Throttle
14 141−0939 1 Spring, Screw − Main Jet
15 141−0937 1 Needle, Adjust − Idle
16 141−0924 1 Seal, Rubber − Dust
25
Electronic Ignition
Begin Spec G
1
2
3
4
5
6
7
89
10
11 12
13
14
15
16
18
17
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 160−1368 1 Gasket, Plate
2 160−1345−01 1 Plate, Cover − Ignition Plunger
− Zinc Plated
3 Coil, Ignition (Includes Nuts)
166−0761 1 Through S/N G923938483
During Spec J
166−0820 1 Begin S/N G923938484
During Spec J
4 815−0290 2 Screw, Head − Hex Washer
Thread Form (1/4−20 x 5/8”)
5 166−0842 1 Rotor Assembly, Ignition
(Includes Rotor and Magnet)
6 167−0263−01 2 Plug, Spark
7 Cable, Plug − Spark
167−1615−01 1 9” Long
167−1602 1 23” Long
8 740−1004 2 Washer, Flat (M6)
9 166−0770 1 Nut, Flange − Hex (M4)
(Positive Terminal)
10 166−0793 1 Bracket, Control − Ignition
11 800−0004 2 Screw, Cap − Hex Head
(1/4−20 x 5/8”)
12 166−0771 1 Nut, Flange − Hex (M5)
(Negative Terminal)
13 Control, Ignition
166−0821 1 15.0” Lead
166−0821−01 1 28.5” Lead
14 815−0650 2 Screw, Head − Hex Washer
(1/4−20 x 1”)
15 870−0328 2 Nut, Self−Lock (10−32)
16 Bracket, Coil − Ignition
166−0789−01 1 Through S/N G923938483
During Spec J
166−0747 1 Begin S/N G923938484
During Spec J
17 815−0770 2 Screw, Head − Hex Washer
Thread Form
18 332−3198 1 Connector
26
Ignition System
Spec E, F
1
2
3
4
5
6
7
8
9
10
11
12
3
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 166−0772 1 Coil, Ignition (Includes Nuts and
Washers)
2 166−0747 1 Clamp, Coil
3 1 Cable, Plug − Spark
167−1602 1 9” Long
167−1602 1 26” Long
4 815−0261 1 Screw, Head − Hex Washer
Thread Cutting (1/4−20 x 1/2”)
5 312−0249 1 Condenser, Ignition
6 850−2005 2 Washer, Lock (M8)
7 160−1325 1 Box, Breaker (See Separate
Page For Components)
(Includes Mounting Gasket)
8 160−1368 1 Gasket, Mounting − Breaker
Box
9 167−0272 2 Plug, Spark
10 802−0034 2 Screw, Cap − Socket Head
(1/4−20 x 3/4”)
11 850−0038 2 Washer, Lock − Spring (1/4”)
12 166−0554 2 Nut, Hex (8 MM)
27

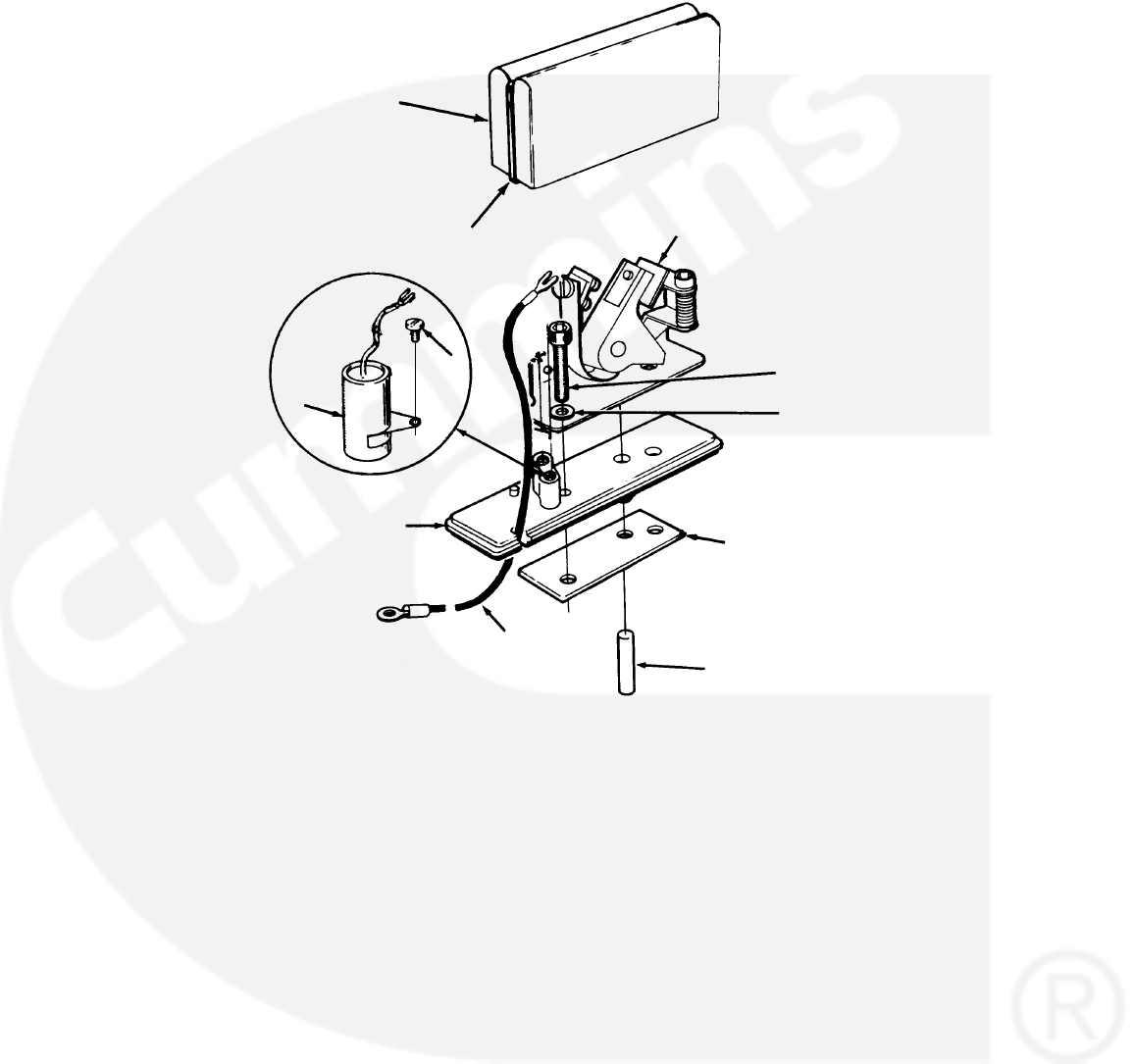

Breaker Box
Spec E, F
1
2
3
4
5
6
7
8
9
10
11
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
160−1325 1 Box Assy, Breaker (Includes
Parts Marked *)
1 160−1317 1 *Clip, Cover − Breaker Box
2 160−1316 1 *Cover, Box − Breaker
3 Condenser, Ignition
312−0246 1 Units Built Prior to 9/87 −
Mounts Inside Breaker Box
312−0256 1 Units Built Beginning 9/87 −
Mounts Remote Attached to
Generator Adapter
4 160−1151 1 Plunger, Points − Breaker
5 802−0034 2 *Screw, Cap − Socket Head
(1/4−20 x 3/4”)
6 850−0038 2 *Washer, Lock − Spring (1/4”)
7 160−1183 1 *Points, Breaker
8 160−1314 1 *Base, Box − Breaker
9 160−1368 1 *Gasket, Box − Breaker
10 336−2378 1 Lead, Box − Breaker
11 *Screw, Hex Head − Slotted
Thread Form (#8−32 x 5/16”)
815−0358 1 Use Prior to 9/87
815−0340 1 Begin 9/87
* − Parts Included In Breaker Box.
28
Starter
1
2
3
4
5
6
7
8
7
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 191−1667 1 Starter, 12 Volt (See Separate
Page For Components)
2 226−3457 1 Lead, Starter (Includes Tube)
3 800−0052 2 Screw, Hex Head − Cap
(3/8−16 x 1−1/2”)
4 850−0050 2 Washer, Lock (3/8”)
5 332−0942 1 Tie, Cable
6 850−0040 1 Washer, Lock (1/4”)
7 862−0001 2 Nut, Hex (1/4−20)
8 862−0003 2 Nut, Hex (3/8−16)
29
Starter Components
1
2
3
4
5
,
,
REF PART QTY PART
NO. NO. USED DESCRIPTION
191−1667 1 Starter, 12 Volt (Spec F−K Thru S/N
1933079632 During Spec K) (Includes
Parts Marked*)
191−2158 1 Starter, 12 Volt (Begin S/N 1933079633
During Spec K) (Includes Parts
Marked #)
1 191−1781 1 *Cap, End (Includes Brushes)
2 191−1776 1 *Cap, End − Drive
3 191−2187 1 *Kit, Drive − Starter (Includes
Spring Cover, Clutch Retainer,
Clutch, Spline, Gear, Roll Pin
and Hardware)
4 191−2186 1 #Cap, Drive
5 191−2187 1 #Kit Assembly, Drive (Includes Washers,
Retainers, Spring, Cover, Roll Pin, Pinion
Gear, and Drive Clutch)
* − Parts Included in Starter Units Thru S/N 1933079632 During Spec K.
# − Parts Included in Starter Units That Begin S/N 1933079633 During Spec K.
30
LP Vapor Fuel System
Field Conversion Kit 148−0913 (Spec F−L)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15 16
17
18
19
20
21
22
23
7
6
11
19
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 148−0913 1 Kit, LP Conversion (Spec F−L)
(Includes all Parts on this
Page)
2 148−0843 1 Bracket, Regulator − Gas
3 148−0311 1 Regulator, Gas
4 518−0350 1 Clamp, Insulated (1/4” OD)
5 503−1016 1 Hose, Oil (Vent ) − 12” Long
6 503−1048 1 Hose, Fuel − 30” Long
7 503−0183 2 Clamp, Hose (#4)
8 502−0238 1 Connector, Hose
9 862−0001 2 Nut, Hex (1/4−20)
10 502−0395 1 Connector, Hose
11 505−0051 2 Elbow, Street − 90°
12 505−0332 1 Nipple, Pipe (3/4 x 3.00 Lg)
13 307−1881 1 Solenoid and Terminal
14 505−0057 1 Plug, Head − Square
15 854−0010 3 Washer, Lock − IT (#10)
16 813−0117 3 Screw, Machine − Round Head
(#10−32 x 1−5/8”)
17 140−2308 2 Gasket, Adapter − Air Intake
18 850−0040 2 Washer, Lock (1/4”)
19 526−0018 2 Washer, Flat (1/4”)
20 114−0023 2 Screw, Cap − Hex Head
(1/4−20 x 1−1/4”)
21 800−0028 2 Screw, Cap − Hex Head
(5/16−18 x 1”)
22 870−0257 2 Nut, Hex − Self Locking
(5/16−18)
23 148−0912 1 Adapter, Carburetor
31
LP Vapor Fuel System
Field Conversion Kit 148−1057−01 & 148−1108−01 (Begin Spec M)
1
3
4
7
9
11
12
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
,
23
23
24
22
23
21
27
16
17
29
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Kit, Conversion
148−1057−01 1 LPG Vapor (Begin Spec M)
(Includes Parts Marked #)
148−1108−01 1 LPG Vapor (Begin Spec M)
(Includes Parts Marked <)
2G−267 1 #<Instruction Sheet (Not Shown)
398−7315−08 1 #<Label, Kit Number (Emissions)
4 140−2308 2 #<Gasket, Airhorn
5 141−0958 1 #<Gasket, Carburetor
(Not Shown)
6 146−0727 1 #<Carburetor, LPG (Emissions)
(Not Shown)
7 148−1107 1 #< Kit, LP Accessory (Includes
Parts Marked *)
8G−328 1 *Instruction Sheet (Not Shown)
998−6455 1 * Label, LP Kit
10 505−0120 1 *Elbow, Street (3/8”) (Not Shown)
11 800−0028 2 *Screw, Hex Head Cap
(5/16−18 x 1”)
12 870−0257 2 *Nut, Self Locking Hex
(5/16−18)
13 853−0013 1 *Washer, ET Lock (1/4”)
(Not Shown)
14 821−0009 1 *Screw, Self Locking Hex Head
(1/4−20 x 3/8”) (Not Shown)
15 518−0350 1 *Clamp, Insulated
16 503−1016 1 *Hose, Oil (Vent) − 12” Long
17 502−0395 1 *Connector, Hose
18 505−0101 1 *Nipple, Close (3/8”)
19 505−0131 1 *Bushing, Reducer
20 307−2880 1 *Valve, Fuel Shutoff
21 505−0057 1 *Plug, Square Head
22 503−1048 1 *Hose, Fuel
23 503−0183 2 *Clamp, Hose
24 502−0238 1 *Connector, Hose
25 862−0001 2 *Nut, Hex (1/4−20)
26 850−0040 2 *Washer, Lock (1/4”)
27 526−0018 2 *Washer, Flat (1/4”)
28 800−0008 2 *Screw, Hex Head Cap
(1/4−20 x 1−1/4”)
29 148−0843 1 *Bracket, Gas Regulator
30 148−1020 1 *Regulator, Gas
# − Parts Included in 148−1057−01 LPG Vapor Conversion Kit.
< − Parts Included in 148−1108−01 LPG Vapor Conversion Kit.
* − Parts Included in 148−1107 LP Accessory Kit.
33
Air Housing
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 821−0010 2 Screw, Head − Hex Washer
Self−locking (1/4−20 x 1/2”)
2 134−4463 1 Scroll (Includes Baffle)
3 815−0759 2 Screw, Hex Head − Flanged
Self−Locking (5/16−18 x 1”)
4 134−4354 1 Backplate, Scroll
5 815−0261 4 Screw, Hex Head −
Self−Tapping (1/4−20 x 1/2”)
6 134−4353 1 Housing, Air − Cylinder (Lt)
7 134−4352 1 Housing, Air − Cylinder (Rt)
8 134−4348 1 Guard, Scroll
9 Shield, Noise (BGE Sets Only)
155−2579 1 Spec F−G
155−2555−51 1 Begin Spec H
10 856−0010 3 Washer, Lock − EIT (3/8”)
11 517−0283 1 Plug, Button − Dot
12 800−0048 1 Screw, Cap − Hex Head
(3/8−16 x 3/4”)
13 403−1523−01 2 Bracket, Lifting
14 870−0415 6 Nut, Self−Tapping (1/8”)
821−0009 11 Screw, Head − Hex Washer
Self−Locking (1/4−20 x 3/8”)
Not Shown
35
Exhaust System
Above Floor Models
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 154−2551 1 Manifold, Exhaust − Gasoline
2 154−2627 1 Manifold, Exhaust − LP
(Includes Fuel Line and Heat
Shield)
3 740−1006 7 Washer, Lock (5/16”)
4 Bracket, Exhaust
155−2049 1 Spec F−J
155−2049−02 1 Begin Spec K
5 154−2542 1 Gasket, Exhaust
6 Adapter, Exhaust (Flange
Type)
154−2540 1 4−1/4” Long
154−2683 1 6−1/4” Long
154−2718 1 8” Long
7 155−2025−02 1 Strap, Muffler (5.77” Long)
8 800−0730 2 Screw, Cap − Hex Head
(5/16−18 x 1”)
9 800−0007 1 Screw, Cap − Hex Head
(1/4−20 x 1”)
10 Screw, Cap − Hex Head
800−0026 1 Use without Spacer
(5/16−18 x 3/4”)
800−0036 1 Use with Spacer
(5/16−18 x 2−3/4”)
11 870−0212 1 Nut, Self−Lock (1/4−20)
12 740−1004 1 Washer, Flat (M6)
13 155−1258 1 Muffler, Arrester − Spark
(Inlet/Outlet on Opposite Ends)
14 155−1485 1 Muffler, Arrester − Spark
(Inlet/Outlet on Same End)
15 155−1239 1 Clamp, Muffler (1−5/8”)
16 155−2174 1 Hanger, Exhaust
17 155−1015 1 Clamp, Muffler (1−1/2”)
18 Screw, Head − Hex Washer
Thread Form
815−0261 2 Spec E−F(1/4−20 x 1/2”)
815−0290 2 Begin Spec G (1/4−20 x 5/8”)
19 155−2026−02 1 Strap, Muffler
20 154−2746 2 Gasket, Manifold − Exhaust
21 800−0026 4 Screw, Cap − Hex Head
(5/16−18x3/4”)
22 Bracket, Manifold − Exhaust
155−2036 1 BGEL (1.97” Long)
154−2538 1 BGE (2.31” Long)
23 800−0005 1 Screw, Cap − Hex Head
(1/4−20 x 3/4”)
24 526−0018 1 Washer, Flat (1/4”)
25 821−0029 2 Screw, Hex Washer Head −
Self−Locking (3/8−16 x 3/4”)
26 154−2662 1 Tube, Exhaust − 11” Long
27 154−2663 1 Bracket, Exhaust
28 370−4027 1 Spacer, Muffler− 2” Long
(Used Only On RVs With
6−1/4” Long Exhaust Adapter)
29 155−2449 1 Resonator, Exhaust − Gasoline
Units Only
30 154−2537 1 Flange, Exhaust Manifold
37
Exhaust System
Below Floor Models
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 154−2551 1 Manifold, Exhaust − Gasoline
2 154−2627 1 Manifold, Exhaust − LP
(Includes Fuel Line and Heat
Shield)
3 155−2086 1 Muffler, Arrestor − Spark
(Inlet/Outlet on Opposite Ends)
4 155−2085 1 Muffler, Arrestor − Spark
(Inlet/Outlet on Opposite Ends)
5 155−2164 1 Muffler, Arrestor − Spark
(Inlet/Outlet on Same End)
6 800−0004 2 Screw, Cap − Hex Head
(1/4−20 x 5/8”)
7 155−2049 1 Bracket, Manifold − Exhaust
8 155−1256 1 Clamp, Muffler (1−1/4”)
9 850−0040 2 Washer, Lock (1/4”)
10 800−0730 2 Screw, Cap − Hex Head
(5/16−18 x 1”)
11 800−0026 4 Screw, Cap − Hex Head
(5/16−18 x 3/4”)
12 850−0045 6 Washer, Lock (5/16”)
13 154−2539 1 Tube, Exhaust
14 155−1015 1 Clamp, Muffler (1−1/2”)
15 155−2174 1 Hanger, Pipe − Exhaust
16 154−2746 2 Gasket, Manifold − Exhaust
17 821−0029 2 Screw, Hex Washer Head − Self
Lock (3/8−16 x 3/4”)
18 526−0130 2 Washer, Flat (1/4”)
19 154−2542 1 Gasket, Exhaust
38
Housing − Below Floor Models
(1985−1992)
(Specs 26101, 26104, 26111, 29237, 31814)
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
7
21
22
24
16
19
23
6
89
10
25
26
28
17
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 405−3332 1 Panel, Right Hand
2 405−3333 1 Panel, Left Hand
3 405−3334 1 Panel, Rear
4 405−3401 1 Support, Housing
5 508−0071 3 Grommet, Rubber (.62 ID)
6 508−0008 2 Grommet, Rubber (.50 ID)
7 821−0014 2 Screw, Self−Locking
(5/16−18 x 1/2”)
8 800−0002 2 Screw, Cap − Hex Head
(1/4−20 x 3/8”)
9 526−0130 2 Washer, Flat (1/4”)
10 850−0040 2 Washer, Lock (1/4)
11 403−2280 1 Pan, Drip
12 406−0566 2 Pin, Hinge
13 406−0567 2 Plate, Hinge
14 406−0568 2 Support, Hinge
15 800−0005 6 Screw, Cap − Hex Head
(1/4−20 x 3/4”)
16 800−0048 4 Screw, Cap − Hex Head
(3/8−16 x 3/4”)
17 526−1518 4 Washer, Flat (7/16”)
18 405−3405 1 Bracket, Housing
19 405−3611 2 Brace, Side (22.2” Long)
20 405−3612 1 Brace, Rear (27.35” Long)
21 821−0033 2 Screw, Lock − Hex Head
(7/16−14 x 3/4”)
22 870−0437 2 Nut, Hex (7/16−14)
23 870−0257 2 Nut, Hex (5/16−18)
24 526−0174 4 Washer, Flat (3/8”)
25 526−0382 6 Washer, Flat (1/4”)
26 526−0122 4 Washer, Flat (5/16”)
27 98−6402−01 1 Label, Warning
28 800−0026 4 Screw, Cap − Hex Head
(5/16−18 x 3/4”)
29 508−0051 1 Grommet, Rubber (1.75”ID)
39
Housing − Below Floor Models
(Begin 1992)
(Specs 26101, 26104, 26111, 29237, 31814)
1
23
456
7
89
10
11
12
13
14
15
16
17
18
19
20
21
22
23
8
9
10
11
14
13
15
1
4
12
12
4
4
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 405−4763−02 2 Brace, Side
2 405−4762−02 1 Brace, Rear
3 508−0071 3 Grommet, Rubber (.62 ID)
4 526−0382 8 Washer, Flat (1/4”)
5 406−0568 2 Support, Hinge
6 406−0567 2 Plate, Hinge
7 406−0566 2 Pin, Hinge
8 526−0174 4 Washer, Flat (3/8”)
9 800−0048 4 Screw, Cap − Hex Head
(3/8−16 x 3/4”)
10 870−0257 2 Nut, Lock (5/16−18)
11 526−0017 2 Washer, Flat (7/16”)
12 800−0533 8 Screw, Cap − Hex Head
(1/4−20 x 3/4”)
13 526−0122 4 Washer, Flat (5/16”)
14 800−0026 4 Screw, Cap − Hex Head
(5/16−18 x 3/4”)
15 821−0014 2 Screw, Lock Head
(5/16−18 x 1/2”)
16 508−0051 1 Grommet, Rubber (1−3/4 ID)
17 405−3405 1 Bracket, Housing
18 405−3401 1 Support, Housing
19 405−3334 1 Panel, Rear
20 405−3333 1 Panel, Left Hand
21 405−3332 1 Panel, Right Hand
22 98−6402−01 1 Label, Warning
23 403−2280 1 Pan, Drip
40
Housing − Below Floor Sets
(Specs 26109, 37593)
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
6
7
89
10
19
22
24
25 26
26
26
28
28
16
17
32
21
23
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 405−3397 1 Panel, Right Hand
2 405−3400 1 Panel, Left Hand
3 405−3394 1 Panel, Rear
4 405−3401 1 Support
5 508−0071 3 Grommet, Rubber (.62 ID)
6 508−0008 2 Grommet, Rubber (.50 ID)
7 821−0014 2 Screw, Self−Locking
(5/16−18 x 1/2”)
8 800−0002 2 Screw, Cap − Hex Head
(1/4−20 x 3/8”)
9 526−0130 2 Washer, Flat (1/4”)
10 850−0040 2 Washer, Lock (1/4”)
11 403−2557−03 1 Pan, Drip
12 406−0566 2 Pin, Hinge
13 406−0567 2 Plate, Hinge
14 406−0568 2 Support, Hinge
15 800−0005 6 Screw, Cap − Hex Head
(1/4−20 x 3/4”)
16 800−0048 4 Screw, Cap − Hex Head
(3/8−16 x 3/4”)
17 526−1518 4 Washer, Flat (7/16”)
18 405−3406 1 Bracket
19 405−3607 2 Brace, Side (25−1/4” Long)
20 405−3608 1 Brace, Rear (29−1/4” Long)
21 821−0033 2 Screw, Lock − Hex Head
(7/16−14 x 3/4”)
22 870−0437 2 Nut, Hex (7/16−14)
23 870−0257 2 Nut, Hex (5/16−18)
24 526−0174 4 Washer, Flat (3/8”)
25 526−0382 6 Washer, Flat (1/4”)
26 526−0122 6 Washer, Flat (5/16”)
27 098−6402−01 1 Label, Warning
28 800−0026 6 Screw, Cap − Hex Head
(5/16−18 x 3/4”)
29 405−3597 1 Bracket
30 405−3596 1 Support
31 098−5543 1 Label, Caution
32 508−0051 1 Grommet, Rubber (1.75”ID)
41
Housing − Below Floor Models
(Commercial Applications)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
18
19
20
611
11
11
17
18
19
19
19
17
17
18
17
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 405−3993 1 Panel, Right Hand
2 405−3988 1 Panel, Left Hand
3 405−3986 1 Panel, Rear
4 405−3974 1 Support (Includes Warning
Label)
5 508−0071 3 Grommet, Rubber
6 405−3996 2 Spacer, Brace
7 405−3955−S0 1 Support, Housing (Includes
Caution Label)
8 403−2727 1 Pan, Drip
9 406−0655 2 Pin, Hinge
10 406−0657 2 Support, Hinge
11 526−0122 8 Washer, Flat (5/16”)
12 405−4037 1 Bracket, Housing
13 405−3999 1 Bracket, Housing
14 800−0589 4 Screw, Cap − Hex Head
(3/8−16 x 1−1/2”)
15 405−4000 1 Brace, Rear (27.22” Long)
16 800−0029 2 Screw, Cap − Hex Head
(5/16−18 x 1.12”)
17 526−0174 23 Washer, Flat (3/8”)
18 800−0026 6 Screw, Cap − Hex Head
(5/16−18 x 3/4”)
19 800−0517 6 Screw, Cap − Hex Head
(3/8−16 x 1”)
20 98−5334−01 1 Label, Warning
42
Remote Start Control
6
5
4
3
2
1
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
300−4936 1 Kit, Remote Control
1 300−4953−01 1 Panel, Control
2 308−1062 1 Switch, Rocker
3 815−0910 2 Screw, Machine − Round Head
(#6−32 x 1/2”)
4 319−6987−01 1 Panel, Control (Printed)
5 338−3510 1 Harness, Wiring
6 323−1304 1 Connector, Housing (8 Pin)
43
Remote Start Control
7
6
5
4
3
2
1
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
300−4937 1 Kit, Remote Control
(Includes Parts
1 300−4951−01 1 Panel, Control
2 319−6988−03 1 Panel, Control (Printed)
3 815−0910 2 Screw, Machine − Round Head
(#6−32 x 1/2”)
4 308−1062 1 Switch, Rocker
5 302−2002 1 Hourmeter
6 338−3466 1 Harness, Wiring
7 323−1304 1 Connector, Housing
45
Generator
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 201−3388−03 Rotor, Generator (Includes Fan,
Ball Bearing and Collector
Ring)
2 Housing, Stator
220−4133 1 Spec F−K
220−4532−01 1 Begin Spec L
3 Adapter, Generator
231−0288−01 1 Spec F−K
231−0381−01 1 Begin Spec L
4 Stator, Generator
60 Hz
220−4135−04 1 Spec F−G
Begin Spec H
220−4135−04 1 120 Volts
220−4135−05 1 100 Volts
220−4135−03 50 Hz
5 510−0099 1 Bearing, Ball
6 212−1285 1 Block, Brush − Genertor
(Includes Spring, Block, Brush)
7 815−0788 2 Screw, Head − Pan
(#10−32 x 7/8”)
8 509−0196 1 O’Ring, Housing − Stator
9 232−2955−02 3 Clamp, Stator
10 214−0103 2 Brush, Block
11 226−3492−01 1 Lead, Resistor
12 204−0134 1 Ring, Collector − Rotor
13 815−0691−01 1 Screw, Pan Head
(#10−32 x 23/64”)
14 212−1284 1 Cover, Block − Brush
15 802−1038 1 Screw, Socket − Rotor
Through (7/16−14 x 10−1/4”)
16 Screw, Hex − Flange Head
800−0575 4 Spec F−K (3/8−16 x 1−1/8”)
815−0908 4 Begin Spec L (3/8−16 x 1−1/2)
17 850−0050 4 Washer, Lock − Spring (3/8”)
(Spec F−K Only)
18 862−0003 4 Nut, Hex (3/8−16)
(Spec F−K Only)
19 815−0646 3 Screw, Cap − Hex Washer Head
(1/4−20 x 3/4”)
20 212−1276−03 2 Spring, Brush − Generator
21 212−1286 1 Block, with Terminal
22 205−0165 1 +Fan and Gear, Rotor
23 508−0272 2 Grommet, Nylon (.68” ID)
24 Resistor, Charger − Battery
(25 Watts)
304−0794 1 Spec F−J
304−0797 1 Begin Spec K
25 Washer, Center − Resistor
304−0796 4 Gasoline
304−0796 2 LP Gas
26 815−0660 1 Screw, Head − Hex
(#10−32 x 2−1/2”)
27 332−0941 1 Tie, Cable − 50 Hz
28 304−0798 1 Resistor, Pump − Fuel
(Gasoline)
29 815−0712 1 Screw, Head − Pan
(#10−32 x 1/2”)
30 323−1298 2 Connector, Tab
31 Connector, Receptacle
332−0819 2 60 Hz
332−0819 3 50 Hz
32 518−0460 1 Ring, Tolerance
33 518−0533 1 Clip − Below floor Models
34 853−0013 1 Washer, ET (#10−32)
35 815−0661 1 Screw, Pan Head − Thread
Form (#10−32 x 1/2”)
36 305−0718 1 Bridge, Rectifier (Begin
Spec K) (CR10)
37 338−3010 1 Harness, Charger − Battery
(Begin Spec K)
38 815−0788 1 Screw, Pan Head
(#10−32 x 7/8”) (Begin Spec K)
39 332−3328 1 Stud, Grounding
40 520−0961−02 1 Stud − 13.125” Long
Extended Shaft
41 526−0032 1 Washer, Flat (7/16”)
42 850−0055 1 Washer, Lock (7/16”)
43 870−0203 1 Nut, Hex (7/16−20)
44 331−0536 1 Connector, Conduit
47
Control
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Cover, Control
60 Hz
4.0
319−1238−03 1 Volt Code 1R,FA
319−1237−09 1 Volt Code FR
319−1238−07 1 5.0
319−1238−19 2 30 Amp Breakers
319−1237−02 1 50 Hz
2 Board, Circuit − Printed
300−3950 1 Spec E−G
300−3763−01 1 Spec H−M
300−4901−01 1 Begin Spec N
3 815−0791 4 Screw, Pan Head − Cross
Recessed (#6−32 x 3/8”)
4 308−0995 1 Switch, Rocker
5 321−0298 3 Fuse, 5 Amps − Slo−Blow
6 321−0295 1 Holder, Fuse (Holds Spare
Fuses)
7 Harness, Wiring − PCB#1
BGE
338−2040 1 Spec F,G
Spec H
338−2636−01 1 Gas
338−2636−02 2 LP
Spec J
338−2768−01 1 Gas
338−2768−02 1 LP
338−2895 1 Begin Spec K
338−3479 1 Begin Spec M & Up
338−2040 1 BGEL
8 323−1486 12 Socket, Contact (Spec H,J,K)
9 323−1200 1 Socket, Contact
10 323−1487−03 1 Housing, Connector (Spec
H,J,K)
11 323−1312 2 Housing, Connector (BGE Spec
F,G, and BGEL)
12 323−1440 5 Pin, Contact (BGE Spec F,G,
and BGEL)
13 815−0661 4 Screw, Pan Head − Thread
Forming (#10−32 x 1/2”)
14 307−2570 1 Solenoid, Start (Includes
Nuts and Washers)
15 320−1561−02 1 Guard, Breaker − Circuit (Use
with Single Pole Breakers
Only)
16 Breaker, Circuit
60 Hz
4.0
320−1323 1 30 Amp Volt Code 1R,FA
320−1683 2 20 Amp Volt Code FR
5.0
320−1323 1 30 Amp (CB1)
320−1683 1 20 Amp (CB2)
320−1548−02 1 50 Hz
17 Screw, Slotted Head − IT
815−0550 2 Use with Single CB
(#6−32 x 3/8”)
815−0550−01 4 Use with Double CB
(#6−32 x 5/16”)
18 332−0941 2 Tie, Cable
19 Regulator, Voltage
305−0809−01 1 60 Hz
305−0809−03 1 50 Hz
20 821−0003 1 Screw, Hex Head (#10−32 x 1”)
21 870−0131 1 Nut, Hex − W/ET (#10−32)
22 232−3265 1 Clamp, Conduit
23 Harness, Wiring − Voltage
Regulator
338−2076 1 60 Hz − Volt Code 1R,FA
338−2083 1 60 Hz − Volt Code FR
338−2083−01 1 50 Hz, 120/240 Volt,
Single Phase
24 323−1314 1 Housing (12 Pin)
25 323−1200 6 Socket, Contact − 60 Hz
26 323−1371 1 Header (12 Pin)
27 323−1199 12 Pin, Contact
28 Block, Terminal
332−2859−02 1 60 Hz
332−2859−01 1 50 Hz
29 Harness, Wiring − AC Outlet
60 Hz
338−2045 1 4.0
338−2058 1 5.0
338−2058 1 50 Hz
30 815−0692−02 1 Screw, Torx − Pan Head
(1/4−20 x 1)
31 332−3075 1 Insulator,Board − PC (.005”
Thick)
32 308−0949 1 Cover, Switch − Rocker
33 321−0287 1 Insulator, Fuse
34 815−0691−01 1 Screw, Head − Pan
(#10−32 x 23/64”)
35 815−0385 1 Screw, Machine − Round Head
(#6−32 x 1/2”) − 50 Hz
36 517−0133 1 Plug, Hole − 50 Hz
37 303−0276 1 Potentiometer − 50 Hz
38 870−0183 1 Nut, Hex − W/ET (#6) −
50 Hz
39 332−2112 1 Insulator, Terminal − Start
40 321−0323−02 1 Bracket, Holder − Fuse (Begin
Spec K)
49
Wiring Harness
PCB #3
1
2
3
4
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Harness, Wiring
338−2041 1 6 Pin Housing − 5 Wire −
Gasoline − Volt Code FA
338−2635 1 LP Liquid − Begin Spec H −
Volt. Code FA,FN
338−2634 1 Gasoline − Begin Spec H
338−2086 1 6 Pin Housing − BGEL
1 Pin, Contact
323−1302 6 Use With 6 Pin Housing −
Gasoline Units
323−1440 8 Use With 8 Pin Housing −
LP Liquid/Vapor
2 Housing
323−1329 1 6 Pin
323−1312 1 8 Pin
323−1487−03 1 12 Pin
3 357−0067 1 Rectifier − BGEL
4 323−1486 1 Socket, Contact
50
Remote Wiring Harness
1
2
3
4
5
6
7
8
5
2
3
1
7
7
9
10
11
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Harness, Wiring − Remote
338−1082 1 Without Socket − 6” Long
(Includes 5 Connector Pins)
338−2137 1 With Socket − 6” Long
338−2046 1 Without Socket (Includes
5 Contact Pins)
1 323−1304 1 Housing, Connector
2 Pin, Connector − Male
323−0500 6 Use with 6 Pin Harness
323−0500 5 Use with 5 Pin Harness
3 323−0440 1 Housing, Socket Pin
4 323−1303 1 Connector, 6 Pin
5 323−0400 1 Housing, Connector Pin
6 323−0488 1 Socke,t Connector − Female
7 332−0942 1 Tie, Cable
8 323−1199 5 Pin, Contact
9 338−3572 1 Harness, Adapter (Includes
Parts Marked *) (Use With
Gasoline and LP Kits
300−4936, 300−4937, &
300−2938)
10 323−1342 1 *Housing, Terminal
11 323−1200 5 *Socket, Contact
* − Parts Included in Adapter Harness.
51
Wiring Harness
Begin Spec J
1
34
5
2
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Harness, Wiring − Engine
Spec J
338−2766 1 Gasoline Engines
338−2767 1 LP Liquid Engines
338−3054 Begin Spec K (Includes Parts
Marked *)
2 321−0322−01 1 *Holder, Fuse
3 321−0321−06 1 *Fuse (F2) (Mounts Between
K1 and K4)
4 307−1886 1 *Relay (K4)
5 815−0181 1 *Screw, Thread Cutting −
Hex Head (w/ET)
(10−32 x 1/2”)
* − Parts Included in 338−3054 Wiring Harness.
52
25Labels, Paint, Thread Sealant, Gasket Kits, and Carburetor Kits
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
98−5313 1 Label, Warning (Battery Cables)
98−5142 1 Label, Warning (Fire Hazard)
98−5626 1 Decal (Emerald I) − 60 Hz
98−5852 1 Decal (Emerald I) − 50 Hz
98−6164−01 3 Label, Performer − 18 Horse
power
98−5755 1 Label, Warning (Hazardous
Voltage)
98−5958 1 Label, LP Kit
98−5777−01 1 Label, Warning (Improper
Operation)
98−5815 1 Service Instructions − BGE
98−6074−02 1 Label, Warning (Operation,
Maintenance and Service)
(2.38” Size)
98−6285−02 1 Decal (Onan 4000 Gen Set)
(Begin Spec H)
98−6276 1 Label, Warning − RV Units
98−6618−01 1 Label, Oil Fill
98−6041 1 Label, Warning (Voltage−Gas)
98−6388−02 1 Label, Phone Information
98−6285−03 1 Silkscreen, Model Identification
(4000)
98−5821 1 Label, Listed − RV − 60 Hz
98−6284 1 Silkscreen, Model Identification
(Emerald One)
98−6661 1 Decal, Model Ident (Onan 5000
GenSet
518−0452 1 Sealant, Thread (50cc. Bottle)
518−0602 1 Loctite, Bottle (250cc)
525−0305 1 Paint, Enamel Touch−Up
Green (Non−Metallic) 13 oz.
Pressurized Can
168−0189 1 Kit, Gasket − Carbon Removal
(Includes Parts Marked *)
110−3709 3 *Gasket, Valve Box
110−3181 2 *Gasket, Cylinder Head
154−2542 1 *Gasket, Exhaust Manifold
154−2800 1 *+Gasket, Exhaust Manifold
110−3604 2 *+Seal, Intake Valve
154−2746 2 *Gasket, Exhaust Manifold
509−0289 2 *Seal, Valve Stem
154−2495 2 *Gasket, Intake Manifold (BGE)
146−0616 1 Kit, Auto−Choke Carburetor
(Includes Parts Marked #)
G−0194 1 #Instruction Sheet
98−6566 1 #Label, Fuse
98−6587−03 1 #Label, Kit Number
98−6618−01 1 #Label, Oil Fill
123−1961 1 #Cap, Oil Fill
140−2308 1 #Gasket, Airhorn SubAssembly
140−2725 1 #Adapter Assembly
141−0958 1 #Gasket, Carburetor
145−0667 1 #Rod, Air Inlet
146−0577 1 #Carburetor, Auto Choke
150−2421 1 #Spring, Compression
150−2589 2 #Washer, Friction
167−0272 2 #Plug, Spark
226−4599 1 #Lead Assembly, Engine
304−0797 1 #Resistor
305−0718 1 #Bridge, Rectifier
321−0357−02 1 #Bracket, Fuse Holder
332−1445 5 #Tie, Cable
338−2895 1 #Harness, PCB #1
338−3010 1 #Harness, Battery Charging
338−3054 1 #Harness, Engine
502−0028 1 #Plug, Hex Head Pipe
509−0096 1 #Seal, O−Ring
509−0313 1 #O−Ring
518−0606 1 #Clip, Linkage
815−0181 1 #Screw, Hex Head Thread
Cutting With ET
815−0590 3 #Screw, Special
815−0788 1 #Screw, Pan Head Torx
862−0015 1 #Nut, Hex
146−0663 1 Kit, Emissions Auto−Choke
Carburetor (Includes Parts
Marked ~)
146−0630 1 ~Carburetor, Emissions and Auto
Choke
141−0958 1 ~Gasket, Carburetor
140−2308 1 ~Gasket, Air Horn
* − Parts Included in 168−0189 Gasket Kit.
+ − Parts Included in 168−0187 Gasket Kit.
# − Parts Included in Auto−Choke Carburetor Kit.
~ − Parts Included in Emissions Auto−Choke Carburetor Kit.
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
53
098−5142, 52
098−5313, 52
098−5334−01, 41
098−5543, 40
098−5626, 52
098−5755, 52
098−5777−01, 52
098−5815, 52
098−5821, 52
098−5852, 52
098−5958, 52
098−6041, 52
098−6074−02, 52
098−6105−01, 17
098−6164−01, 52
098−6276, 52
098−6284, 52
098−6285−02, 52
098−6285−03, 52
098−6388−02, 52
098−6402−01, 38, 39, 40
098−6455, 31
098−6566, 52
098−6587−03, 52
098−6618−01, 52
098−6661, 52
098−7315−08, 31
101−0405, 7
101−0439−01, 7
101−0804, 7
101−0804−02, 7
101−0804−10, 7
101−0804−20, 7
101−0804−30, 7
101−0805, 7
101−0805−02, 7
101−0805−10, 7
101−0805−20, 7
101−0805−30, 7
101−0809, 7
102−0743, 13
102−1387, 13
102−1458, 13
102−1493, 13
103−0772, 15
103−0810, 15
104−0032, 11
104−0043, 11
104−0170, 11
104−0575, 7
104−0776, 7
104−1735, 11
105−0541, 10
105−0637, 10
105−0700, 10
110−0197, 7
110−0197−10, 7
110−1824, 7
110−1824−02, 7
110−1824−05, 7
110−1824−10, 7
110−1824−25, 7
110−1879−01, 7
110−3181, 7, 52
110−3479, 7
110−3480, 7
110−3485, 7
110−3487, 7
110−3508, 7
110−3509, 7
110−3510, 7
110−3511, 7
110−3515, 7
110−3526, 7
110−3527, 7
110−3604, 52
110−3709, 7, 52
112−0229, 7
112−0264, 7
112−0264−01, 7
112−0264−02, 7
112−0264−03, 7
112−0264−05, 7
113−0310, 9
113−0310−01, 9
113−0310−02, 9
113−0310−03, 9
113−0310−05, 9
113−0314, 9
113−0314−05, 9
113−0314−10, 9
113−0314−20, 9
113−0314−30, 9
114−0022, 15
114−0023, 30
114−0392, 7
114−0397, 9
114−0397−10, 9
114−0397−20, 9
114−0397−30, 9
115−0006, 7
115−0006−02, 7
115−0006−05, 7
120−0140, 7, 17
120−0161, 7
120−0398, 7
120−0491, 7
120−1320, 7
122−0360−50, 14
122−0502, 14
122−0645, 14
122−0771, 14
122−0814, 14
123−1173, 7
123−1174, 7
123−1175, 7
123−1615, 17, 21
123−1616, 13
123−1649, 7
123−1871, 9
123−1961, 13, 52
134−4342, 11
134−4348, 33
134−4352, 33
134−4353, 33
134−4354, 33
134−4463, 33
140−1894, 17, 21
140−1919−70, 17
140−2308, 17, 21, 30, 31,
52
140−2379, 17, 21
140−2725, 52
140−2782, 17, 21
140−2962, 17
140−3093, 17
141−0077, 24
141−0281, 21
141−0700, 24
141−0701, 24
141−0708, 24
141−0710, 15
141−0711, 24
141−0736, 24
141−0906, 24
141−0919, 24
141−0924, 24
141−0932, 21, 24
141−0934, 24
141−0935, 24
141−0936, 24
141−0937, 24
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
54
141−0938, 24
141−0939, 24
141−0940, 24
141−0950, 17
141−0958, 17, 31, 52
141−0978, 24
145−0561, 17
145−0667, 17, 52
145−0704, 17
146−0449, 23
146−0450, 23
146−0453, 23
146−0455, 17, 23
146−0457, 23
146−0577, 17, 23, 52
146−0588, 23
146−0589, 23
146−0590, 23
146−0591, 23
146−0592, 23
146−0616, 52
146−0630, 17, 23, 52
146−0663, 23, 52
146−0723, 21, 24
146−0727, 24, 31
148−0311, 30
148−0843, 30, 31
148−0890, 21
148−0893, 21
148−0896, 21
148−0897, 21
148−0898, 21
148−0903, 21
148−0912, 30
148−0913, 30
148−1020, 21, 31
148−1057, 31
148−1107, 31
148−1108−01, 31
149−1353, 17
149−2032−01, 21
149−2080, 17
149−2140, 17
149−2226, 17
149−2269, 17
149−2279, 17
149−2293, 17
149−2319, 17
149−2331, 17
149−2331−02, 17
149−2333, 17
149−2334, 17
149−2335, 17
150−0075, 10
150−0078, 10
150−0096, 22
150−0939, 22
150−1187, 15
150−1519, 10
150−1520, 10
150−1612, 22
150−1957, 22
150−1958−02, 22
150−1998, 15
150−2002−04, 15
150−2079, 22
150−2294, 22
150−2295, 22
150−2298−01, 22
150−2421, 22, 52
150−2428, 22
150−2454, 22
150−2468, 22
150−2493, 22
150−2589, 22, 52
153−0554, 17
153−0555, 17
153−0556, 17
153−0557, 17
153−0558, 17
153−0561, 17
153−0576, 17
153−0577, 17
153−0578, 17
153−0579, 17
154−2447, 17, 21
154−2495, 17, 21, 52
154−2537, 35
154−2538, 35
154−2539, 37
154−2540, 35
154−2542, 35, 37, 52
154−2551, 35, 37
154−2627, 35, 37
154−2662, 35
154−2663, 35
154−2683, 35
154−2718, 35
154−2746, 35, 37, 52
154−2800, 52
154−3026, 21
155−1015, 35, 37
155−1239, 35
155−1256, 37
155−1258, 35
155−1485, 35
155−2025−02, 35
155−2026−02, 35
155−2036, 35
155−2049, 35, 37
155−2049−02, 35
155−2085, 37
155−2086, 37
155−2164, 37
155−2174, 35, 37
155−2449, 35
155−2555−51, 33
155−2579, 33
160−1151, 27
160−1183, 27
160−1314, 27
160−1316, 27
160−1317, 27
160−1325, 26, 27
160−1345−01, 25
160−1368, 25, 26, 27
166−0554, 26
166−0747, 25, 26
166−0761, 25
166−0770, 25
166−0771, 25
166−0772, 26
166−0789−01, 25
166−0793, 25
166−0820, 25
166−0821, 25
166−0821−01, 25
166−0842, 25
167−0263−01, 25
167−0272, 26, 52
167−1602, 25, 26
167−1615−01, 25, 26
168−0189, 7, 52
168−0192, 7
191−1667, 28, 29
191−1776, 29
191−1781, 29
191−2158, 29
191−2186, 29
191−2187, 29
201−3388−03, 45
204−0134, 45
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
55
205−0165, 45
212−1276−03, 45
212−1284, 45
212−1285, 45
212−1286, 45
214−0103, 45
220−4133, 45
220−4135−01, 45
220−4135−03, 45
220−4135−04, 45
220−4135−05, 45
220−4532−01, 45
226−3457, 28
226−3492−01, 45
226−4599, 52
231−0288−01, 45
231−0381−01, 45
232−2955−02, 45
232−3265, 47
300−3763−01, 47
300−3950, 47
300−4901−01, 47
300−4936, 42
300−4937, 43
300−4951−01, 43
300−4953−01, 42
302−2002, 43
303−0276, 47
304−0794, 45
304−0796, 45
304−0797, 45, 52
304−0798, 45
305−0718, 45, 52
305−0809−01, 47
305−0809−03, 47
307−1881, 30
307−1886, 21, 51
307−2478, 21
307−2501, 21
307−2559−01, 21
307−2570, 47
307−2880, 31
308−0949, 47
308−0995, 47
308−1062, 42, 43
309−0322, 14
312−0246, 27
312−0249, 26
312−0256, 27
319−1237−02, 47
319−1237−09, 47
319−1238−03, 47
319−1238−07, 47
319−1238−19, 47
319−6987−01, 42
319−6988−03, 43
320−1323, 47
320−1548−02, 47
320−1561−02, 47
320−1683, 47
321−0287, 47
321−0295, 47
321−0298, 47
321−0321−06, 51
321−0322−01, 51
321−0323−02, 47
321−0357−02, 52
323−0400, 50
323−0440, 50
323−0488, 50
323−0500, 50
323−1199, 47, 50
323−1200, 47, 50
323−1298, 45
323−1302, 49
323−1303, 50
323−1304, 42, 43, 50
323−1312, 47, 49
323−1314, 47
323−1329, 49
323−1342, 50
323−1371, 47
323−1440, 21, 47, 49
323−1486, 21, 47, 49
323−1487−03, 47, 49
331−0536, 45
332−0147, 21
332−0806, 21
332−0819, 45
332−0941, 45, 47
332−0942, 28, 50
332−1445, 52
332−1992, 21
332−1993, 21
332−2112, 47
332−2859−01, 47
332−2859−02, 47
332−3075, 47
332−3198, 25
332−3328, 45
336−2378, 27
336−9679, 21
337−2311, 13
338−1082, 50
338−2040, 47
338−2041, 14, 49
338−2045, 47
338−2058, 47
338−2076, 47
338−2083, 47
338−2083−01, 47
338−2086, 14, 49
338−2137, 50
338−2285, 17
338−2317, 21
338−2634, 14, 49
338−2635, 14, 49
338−2636−01, 47
338−2636−02, 47
338−2644, 21
338−2766, 51
338−2767, 51
338−2768−01, 47
338−2768−02, 47
338−2895, 47, 52
338−3010, 45, 52
338−3054, 51, 52
338−3466, 43
338−3479, 47
338−3510, 42
338−3572, 50
357−0067, 21, 49
370−4027, 35
370−4052, 17
402−0547, 13
402−0549, 13
402−0597, 13
403−1523−01, 33
403−2218−01, 13
403−2280, 38, 39
403−2557−02, 13
403−2557−03, 40
403−2727, 41
405−3332, 38, 39
405−3333, 38, 39
405−3334, 38, 39
405−3394, 40
405−3397, 40
405−3400, 40
405−3401, 38, 39, 40
405−3405, 38, 39
405−3406, 40
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
56
405−3596, 40
405−3597, 40
405−3607, 40
405−3608, 40
405−3611, 38
405−3612, 38
405−3955−S0, 41
405−3974, 41
405−3986, 41
405−3988, 41
405−3993, 41
405−3996, 41
405−3999, 41
405−4000, 41
405−4037, 41
405−4762−02, 39
405−4763−02, 39
406−0566, 38, 39, 40
406−0567, 38, 39, 40
406−0568, 38, 39, 40
406−0655, 41
406−0657, 41
501−0525, 21
502−0002, 17
502−0028, 19, 52
502−0054, 21
502−0065, 19
502−0238, 30
502−0313, 17
502−0395, 30, 31
502−0838, 21
502−0927−01, 21
502−0928−01, 21
502−0929−01, 21
502−0932−01, 21
502−0933−01, 21
502−0935, 21
502−0965−01, 21
502−1026, 48
502−1105, 17
502−1108, 17
502−1164, 17
503−0170, 19
503−0183, 17, 21, 30, 31
503−0633, 21
503−0813, 17
503−1016, 30, 31
503−1048, 30, 31
503−1133, 17, 21
503−1190, 21
503−1252, 17
503−1313, 17
503−1351, 17
503−1365, 21
503−1551, 48
504−0150, 13
505−0051, 30
505−0057, 30, 31
505−0101, 31
505−0120, 31
505−0131, 31
505−0266, 13
505−0332, 30
505−1426, 21
508−0008, 38, 40
508−0051, 38, 39, 40
508−0071, 38, 39, 40, 41
508−0272, 45
509−0008, 15
509−0040, 15
509−0041, 7
509−0096, 13, 52
509−0196, 45
509−0289, 7, 52
509−0313, 52
510−0013, 15
510−0014, 15
510−0015, 10
510−0099, 45
515−0001, 10, 11
515−0263, 11
516−0072, 7
516−0130, 15
516−0141, 7
517−0048−01, 7
517−0067, 7
517−0133, 47
517−0223, 17
517−0260, 48
517−0283, 33
518−0006, 22
518−0014, 11
518−0311, 7
518−0350, 30, 31
518−0387, 17
518−0450, 17
518−0452, 52
518−0459, 17
518−0460, 45
518−0466, 17
518−0515, 19
518−0533, 45
518−0582, 22
518−0602, 52
518−0606, 22, 52
520−0961−02, 45
525−0305, 52
526−0002, 17
526−0003, 21
526−0017, 11, 39
526−0018, 7, 30, 31, 35
526−0021, 17, 21
526−0032, 45
526−0063, 7
526−0065, 14, 15
526−0066, 7
526−0122, 7, 38, 39, 40,
41
526−0130, 37, 38, 40
526−0174, 38, 39, 40, 41
526−0240, 13
526−0251, 13
526−0324, 13
526−0325, 13
526−0356, 11
526−0382, 38, 39, 40
526−0402, 7
526−1518, 38, 40
541−0532, 21
740−1004, 7, 25, 35
740−1006, 17, 19, 21, 35
800−0002, 38, 40
800−0004, 25, 37
800−0005, 35, 38, 40
800−0007, 7, 35
800−0008, 31
800−0010, 7
800−0017, 17, 21
800−0026, 35, 37, 38, 39,
40, 41
800−0028, 14, 30, 31
800−0029, 41
800−0033, 17, 19, 21
800−0036, 35
800−0048, 33, 38, 39, 40
800−0051, 7
800−0052, 28
800−0058, 13
800−0517, 41
800−0533, 39
800−0545, 15
800−0571, 7
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
57
800−0575, 7, 45
800−0589, 41
800−0730, 35, 37
801−0049, 7
802−0034, 26, 27
802−1038, 45
803−0071, 7
813−0117, 30
815−0046, 15
815−0176, 21
815−0181, 51, 52
815−0261, 21, 26, 33, 35
815−0290, 17, 25, 35
815−0340, 14
815−0358, 27
815−0385, 47
815−0550, 47
815−0550−01, 47
815−0587, 17, 21
815−0590, 17, 21, 52
815−0591, 17, 21
815−0592, 17
815−0646, 45
815−0647, 21
815−0650, 25
815−0657, 13
815−0660, 45
815−0661, 45, 47
815−0664, 17, 21
815−0691−01, 45, 47
815−0692−01, 17, 21
815−0692−02, 17, 47
815−0712, 45
815−0759, 33
815−0770, 25
815−0782, 19
815−0788, 45, 52
815−0791, 47
815−0908, 45
815−0910, 42, 43
820−1077, 15
821−0003, 47
821−0005, 21
821−0009, 31, 33
821−0010, 13, 33
821−0014, 13, 38, 39, 40
821−0016, 13
821−0029, 35, 37
821−0031, 13
821−0033, 38, 40
850−0038, 26, 27
850−0040, 21, 28, 30, 31,
37, 38, 40
850−0045, 37
850−0050, 7, 28, 45
850−0055, 45
850−2005, 26
851−0031, 15
853−0013, 17, 31, 45
854−0010, 30
856−0008, 13
856−0010, 33
862−0001, 28, 30, 31
862−0003, 28, 45
862−0015, 17, 21, 52
870−0131, 22, 47
870−0183, 47
870−0203, 45
870−0212, 35
870−0221, 21
870−0257, 15, 30, 31, 38,
39, 40
870−0328, 15, 25
870−0415, 33
870−0421, 17
870−0437, 38, 40
870−0533, 7
Cummins Power Generation
1400 73rd Ave. NE
Minneapolis, MN 55432 USA
Phone 1 763 574 5000
Toll-free 1 800 888 6626
Fax 1 763 574 5298
Email www.cumminsonan.com/contact
www.cumminsonan.com
CumminsR, OnanR, the “C” logo, and “Performance you rely on.”
are trademarks of Cummins Inc.
E2007 Cummins Power Generation, Inc. All rights reserved.
