Eddy Current
Probe Catalog
October 2012
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 1
Eddy Current Probe Catalog
Table of Contents
To order: sales@ndts.com / 715.246.0433
2
NDTS Services Provided
What We Can Offer You
Warranty/Handling Shipping Damages Information
Connector Identification Chart
Probe Kits
Sizing Table
HF Surface Probes
Manual Bolt Hole Probes
Rotating Scanner Probes
Rotating Scanner Countersink Probes
LF Spot Probes
LF Ring Probes
Moulded Wheel Probes
Sliding Probes
Blade Probes
Finger Probes
Spring Loaded Probes
Delrin Surface Probes
Specials

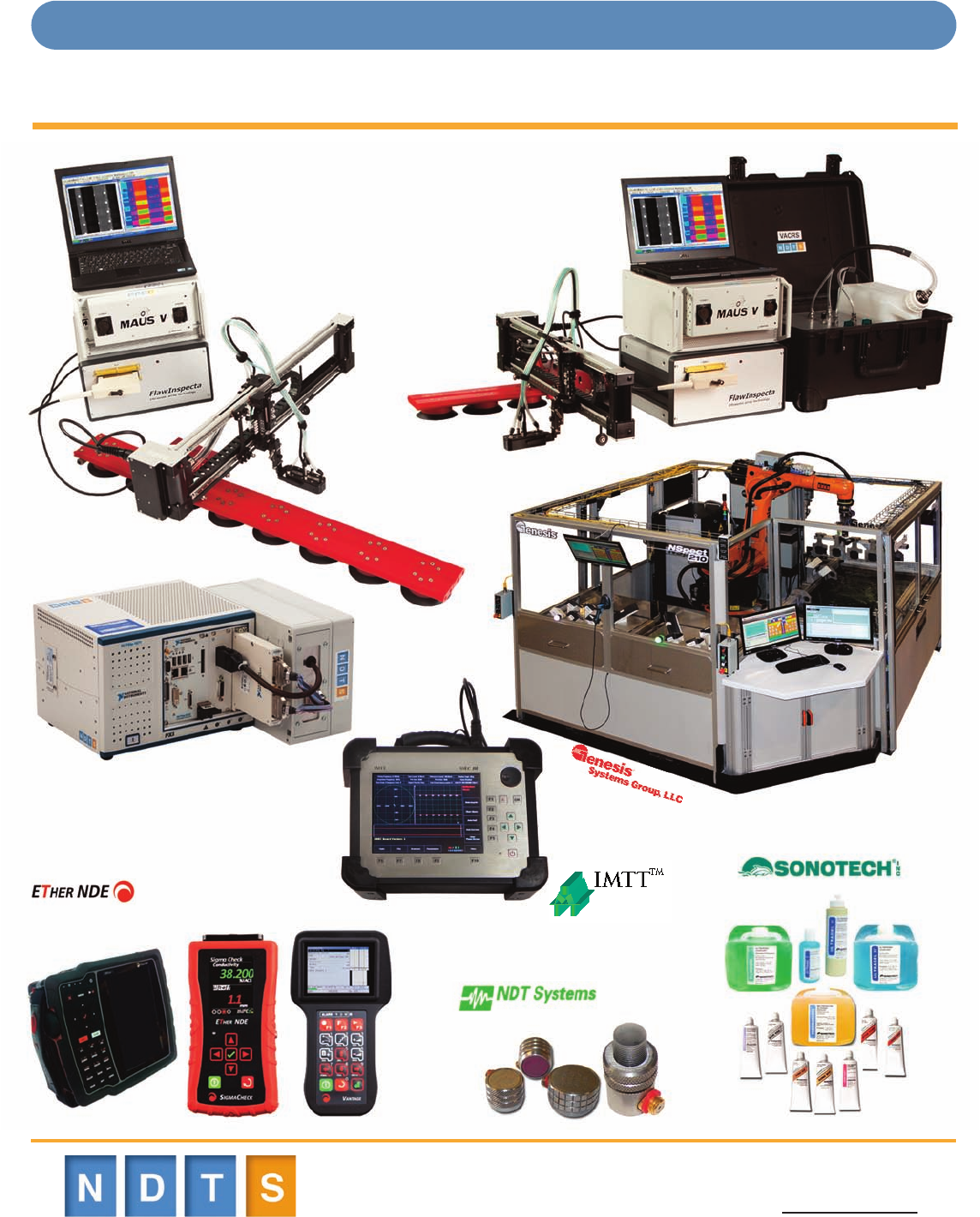

Other Eddy Current Products
3
4
5
6
7-11
12
13
14
15-16
16-17
18
19
20-21
22
23
24
25
25
26
27
Copyright Notice - The contents of this catalog are the property of NDT Solutions, Inc. and EC/NDT LLC. Any redistribution or reproduction of part or
all of the contents in any form is prohibited. ©NDTS All rights reserved.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 2
Eddy Current Probe Catalog
NDTS Services Provided
To order: sales@ndts.com / 715.246.0433 www.ndts.com
3
INSPECTION SERVICES
• On-site and in-house inspection services
- MAUS®- FlawInspecta®- C-scan
• Validation of Inspection Processes
• Part validation with Certificate of Conformance
• Inspection of customer provided test specimens
CONSULTING SERVICES
• Development of inspection techniques & processes
• Technical writing of procedures and techniques
• Technology transition program
- Develop - Design - Build - Deliver - Transition
• Procedure streamlining
- Increased Efficiency-Simplified Process-Time Savings
Quick Return on Investment
TRAINING SERVICES
• On-site and off-site training
• ASNT and NAS 410 Level I and Level II training
• MAUS system operation training
• MAUS system maintenance training
• MAUS operator refresher training
• On the job training services
QUICKTURN SERVICE & REPAIR
• MAUS maintenance services
• Equipment calibration services
• Evaluation and repair of MAUS equipment
• MAUS equipment lend/lease program
• MAUS logistical spare program
• MAUS replacement parts
• Equipment upgrade program
• System software updates
CUSTOM SCANNING SOLUTIONS
• Development of custom systems to meet specific
inspection needs
• Custom solution development
- Design - Build - Test - Install - Train - Support
SERVICE AND REPAIR PACKAGES AVAILABLE
The MAUS Automated Inspection System
In-house inspection services
Hands on training, inspection and analysis
Customized systems developed for specific
NDT requirements
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 3
Eddy Current Probe Catalog
What We Can Offer You
To order: sales@ndts.com / 715.246.0433
4
Providing you with quality products in a fast and dependable
manner with the service you deserve and need.
• Competitive Pricing
We will meet or beat any competitor price.
• Our Research and Development Team Work for You
We bring the world of specialty design to your fingertips with our experience and knowledge.
You tell us what you need and we design it.
• We have a large selection of probe kits to choose from
NDT Solutions is committed to our customers satisfaction. We design probe kits to meet our
customers inspection needs and budget requirements.
• We have thousands of probes to choose from
If there is a special probe you are looking for you will find it at NDT Solutions. We are ready to
help you find the exact probe you need to get the job done.
Probe and Cable Repair
Re-Certification of Probes and Standards
• We accept all of our competitors and NDTS/EC-NDT probes and cables for repair.
• Probes and cables which need repairs that are not manufactured by EC/NDT
are replaced with EC/NDT probes and cables at repair probe prices.
• What does this mean for you. You receive a new EC/NDT probe or cable for
half the cost.
• Save up to 50% on the cost of a new/repair.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 4
Eddy Current Probe Catalog
Warranty/Handling Shipping Damages Information
To order: sales@ndts.com / 715.246.0433 www.ndts.com
5
Warranty Information
All items manufactured and sold by EC/NDT are under warranty for manufacturing defects.
Wear, damage, material deterioration and other defects caused by improper use by the operator are not covered by warranty.
If, however, the above excluded conditions are related to the manufacturing process, design or materials used the item will be replaced
under warranty. Replaced items will be delivered under full warranty.
A one-year warranty is applicable for all eddy current probes and reference standards. The warranty period for probe repairs is 6 months.
The customer will pay all shipping charges and duties if applicable from their facility to:
NDT Solutions Inc.
10-1 Airport Road
New Richmond, WI 54017-2703
NDT Solutions Inc. will cover the return costs via economical shipping methods to the customer’s facilities. This does not include delays
caused by the shipping company, customs, acts of God, which are unforeseen at time of shipping.
Important Notice - For Your Protection
Under U.S. shipping regulation, damage claims must be collected by the consignee. Do not return merchandise which has been damaged
during the shipping process until after your claim has been established.
The carrier who delivers merchandise to your door is responsible for loss and damages. Acceptance of the shipment by the transportation
company is acknowledgement that the articles received by them were in good condition and properly packed.
All claims for loss or damaged orders should be filed immediately with the transportation company making the delivery to your door. After
you have made your claim please notify NDT Solutions Inc. about the problem.We will mark our records accordingly. Should you need
assistance with the claim, we will be glad to help.
Handling Shipping Damages /Shortages
Visible Damage
• Have delivery person note the damage on freight bill noting the nature and extent of damages.
• Notify the transportation company’s office to inspect the merchandise.
• File claim for damages at once. In filing a claim with the transportation company you can do one of the following:
1. Make a cash adjustment for full value
2. Arrange to have repairs made
3. Replace the merchandise
Concealed Damage
• If damage is noticed when merchandise is unpacked notify transportation company immediately and ask to have it inspected.
• Do not destroy packing materials until shipment is inspected and claim is settled.
Shortages
• All shortages must be reported within 5 days of receiving the order.
• Check the number of cartons delivered with the quantity shown on the receipt.
• If quantities do not match the cartons delivered and the quantity shown on the receipt please have delivery person note the shortage.
If missing items do not show up with in a few days of receiving your shipment please contact NDT Solutions Inc. and we will re-ship
your order.
Important Notice on Returning Goods
• Before returning any goods please contact NDT Solutions Inc.
All returned goods must have a return number, which you will receive after contacting
NDT Solutions. All shipments not having this number will be refused.
Warranty Information
Copyright Notice - The contents of this catalog are the property of NDT Solutions and EC-NDT. Any redistribution or reproduction of
part or all of the contents in any form is prohibited. ©NDTS and EC-NDT. All rights reserved.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 5
Eddy Current Probe Catalog
Introduction
6
Every section in this probe catalog begins with a short description of the different eddy current products available.
This section gives a short description on how to build a probe part number. Each eddy current probe available
from NDTS has a unique code. These codes can be used to order the desired probe configuration. When
ordering always indicate the instrument to be used and the preferred connector type. In the “How to Order” section
of each probe page you will find the correct format to use when building you own probe/part number.
If you have questions or concerns please call NDTS at (715) 246-0433.
Connector Identification Chart
Nortec 1000, 2000 & 500 (16 Pin Lemo)
M12-21 (4 Pin Fischer)
Locator 2 (7 Pin Lemo)
PS-5 Connector
8 Pin Fischer/Elotest
Microdot
2 Pin Microdot
Triax Lemo
4 Pin Switchcraft
MAUS Connector
3 Pin Din Defectometer
MIZ-20 & 22 (4 Pin Cannon)
Phasec 1.1 (6 Pin Jaeger)
Nortec NDT-18 & 19 (8 Pin Burndy)
Phasec 2d & 2200 (12 Pin Lemo)
To order: sales@ndts.com / 715.246.0433
Differential Reflection
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 6
Eddy Current Probe Catalog
Probe Kits
To order: sales@ndts.com / 715.246.0433 www.ndts.com
7
Reference Standards
• Boeing
• Lockheed
• Airbus
• Pratt & Whitney
• Eddy Current
• Custom EDM Notching
• Re-Certify Old Standards
• Sikorsky
• Bell Helicoptor
• General Electric
• Ultrasonic
Interconnecting Cables & Adapters
• Ultrasonic
• Eddy Current
The Last and Only Probe Kit(s) You Will Ever Need!
• Titanium wear surface option for extended durability and life
• Every size, shape, form and fit probe you will need.
• Certified and calibrated for use on aluminum, steel and titanium. Also available in magnesium,
inconel, stainless steel, etc.
• The highest sensitivity and lowest noise ratio available.
• A multitude of frequency ranges.
• Compatible for all Eddy Current testers
HOW TO ORDER
Order on-line at www.ndts.com.
Please contact NDT Solutions at (715) 246-0433 with your inspection requirements and we will
build a custom probe kit to fit your needs, requirements and budgetary goals.
NDT Solutions Inc. specializes in making custom probe kits which are designed to meet our customers
needs & specifications. We customize each kit/order to meet all budget requirements.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 7
Eddy Current Probe Catalog
Probe Kits (continued)
8
To order: sales@ndts.com / 715.246.0433
Our Most Popular Probe Kits
The following probe kits are custom probe kits which are most popular with our customers and in the
field of NDT. Each of these kits are designed to meet the needs of our customers and their business.
If you are looking for a specialty kit please give us a call and we would be happy to help you design the
kit which will meet your needs and your budget.
QTY Part Type Probe Type
1 Probe SO6R4-.156-.187
1 Probe SO6R4-.187-.250
1 Probe SO6R4-.250-.312
1 Probe SO6R4-.312-.375
1 Probe SO6R4-.375-.437
1 Probe SO6R4-.437-.500
1 Probe SO6R4-.500-.625
1 Probe SO6R4-.625-.750
1 Probe SO6R4-.750-.875
1 Probe SO6R4-.875-.1.00
1 Form Fitted Pelican Kit Box
Probe Kit SPCK-374
(Universal Scanner Probe Kit)
QTY Part Type Probe Type
1 Probe MBAB1-.875
1 Probe MBAB1-.625
1 Probe MBAB1-.437
1 Probe MBAB1-.312
1 Probe MBAB1-.250
1 Probe MBAB1-.156
1 Probe MBAB1-.750
1 Probe MBAB1-.500
1 Probe MBAB1-.375
1 Probe MBAB1-.281
1 Probe MBAB1-.187
1 Probe MBAB1-.125
1 Cable EC-N2K-TL-6
1 Form Fitted Pelican Kit Box
Probe Kit SPCK-363/N2K
(Manual Bolt Hole Kit)
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 8
Eddy Current Probe Catalog
Probe Kits (continued)
To order: sales@ndts.com / 715.246.0433 www.ndts.com
9
QTY Part Type Probe Type
1 Probe PAUB30602FX
1 Probe PAUB90602FX
1 Standard ECRS-08245-4/4340
1 Cable EC-N2K-TL-6
1 Form Fitted Pelican Kit Box
Probe Kit SPCK-135/N2K
(Surface Eddy Current Probe Kit)
QTY Part Type Probe Type Coil Diameter Size Frequency
1 Probe SPC-365R-.187 Reflection 3/16 4.76mm 100Hz-10KHz
1 Probe SPC-365R-.250 Reflection 1/4 6.35mm 100Hz-10KHz
1 Probe SPC-365R-.312 Reflection 5/16 7.9mm 100Hz-10KHz
1 Probe SPC-365R-.375 Reflection 3/8 9.5mm 100Hz-10KHz
1 Probe SPC-365R-.437 Reflection 7/16 11.11mm 100Hz-10KHz
1 Probe SPC-365R-.500 Reflection 1/2 12.7mm 100Hz-10KHz
1 Probe SPC-365R-.625 Reflection 5/8 15.88mm 100Hz-10KHz
1 Probe SPC-365R-.750 Reflection 3/4 19mm 100Hz-10KHz
1 Cable EC-RN2K-TL-6
1 Probe Form Fitted Pelican Kit Box
Probe Kit SPCK-228
(Low Frequency Ring Probe Kit)
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 9
Eddy Current Probe Catalog
Probe Kits (continued)
10
To order: sales@ndts.com / 715.246.0433
QTY Part Type Probe Type Frequency
2 Cable EC-N2K-TL-6
2 Cable EC-RN2K-TL-6
1 Probe PAB0080FX 50-500KHz
1 Probe PAB90602 50-500KHz
1 Probe PAB90601 50-500KHz
1 Probe PABM90402/.072 50-500KHz
1 Probe PAB0050 50-500KHz
1 Probe PAB45605 50-500KHz
1 Probe PAB90605 50-500KHz
1 Probe PAB90602FX 50-500KHz
1 Probe PAB90602FX 500KHz-2MHz
1 Probe PAB0080FX 500KHz-2MHz
1 Probe PAB90602 500KHz-2MHz
1 Probe PAB90601 500KHz-2MHz
1 Probe PABM90402/.072 500KHz-2MHz
1 Probe PAB0050 500KHz-2MHz
1 Probe PAB45605 500KHz-2MHz
1 Probe PAB90605 500KHz-2MHz
1 Scanner Probe SO6R2-.750-5FX 100KHz-1MHz
1 Scanner Probe SO6R2-.687-5FX 100KHz-1MHz
1 Scanner Probe SO6R2-.625-5FX 100KHz-1MHz
1 Scanner Probe SO6R2-.562-5FX 100KHz-1MHz
1 Scanner Probe SO6R2-.500-5FX 100KHz-1MHz
1 Scanner Probe SO6R2-.437-5FX 100KHz-1MHz
1 Scanner Probe SO6R2-.375-5FX 100KHz-1MHz
1 Scanner Probe SO6R2-.312-5FX 100KHz-1MHz
1 Scanner Probe SO6R2-.250-5FX 100KHz-1MHz
1 Scanner Probe SO6R2-.750-5FX 500KHz-2MHz
1 Scanner Probe SO6R2-.687-5FX 500KHz-2MHz
1 Scanner Probe SO6R2-.625-5FX 500KHz-2MHz
1 Scanner Probe SO6R2-.562-5FX 500KHz-2MHz
1 Scanner Probe SO6R2-.500-5FX 500KHz-2MHz
1 Scanner Probe SO6R2-.437-5FX 500KHz-2MHz
1 Scanner Probe SO6R2-.375-5FX 500KHz-2MHz
1 Scanner Probe SO6R2-.312-5FX 500KHz-2MHz
1 Scanner Probe SO6R2-.250-5FX 500KHz-2MHz
Form Fitted Pelican Kit Box
1 Scanner Probe SO6R4-.750 100KHz-1MHz
1 Scanner Probe SO6R4-.687 100KHz-1MHz
1 Scanner Probe SO6R4-.625 100KHz-1MHz
Probe Kit SPCK-367/N2K
(This is a General Purpose Surface Probe Kit)
QTY Part Type Probe Type Frequency
1 Scanner Probe SO6R4-.562 100KHz-1MHz
1 Scanner Probe SO6R4-.500 100KHz-1MHz
1 Scanner Probe SO6R4-.437 100KHz-1MHz
1 Scanner Probe SO6R4-.375 100KHz-1MHz
1 Scanner Probe SO6R4-.312 100KHz-1MHz
1 Scanner Probe SO6R4-.250 100KHz-1MHz
1 Scanner Probe SO6R4-.750 500KHz-2MHz
1 Scanner Probe SO6R4-.687 500KHz-2MHz
1 Scanner Probe SO6R4-.625 500KHz-2MHz
1 Scanner Probe SO6R4-.562 500KHz-2MHz
1 Scanner Probe SO6R4-.500 500KHz-2MHz
1 Scanner Probe SO6R4-.437 500KHz-2MHz
1 Scanner Probe SO6R4-.375 500KHz-2MHz
1 Scanner Probe SO6R4-.312 500KHz-2MHz
1 Scanner Probe SO6R4-.250 500KHz-2MHz
1 Probe PAR16-90605 1-20KHz
1 Spot Probe LFSR-.500/TM 200Hz-2KHz
1 Spot Probe LFSR-.437/TM 500Hz-5KHz
1 Spot Probe LFSR-.310/TM 1-50KHz
1 Spot Probe LFSR-.250/TM 1-50KHz
1 Standard ECRS-0824/AL
1 Standard ECRS-0824/Ti
1 Standard ECRS-0824-S4/4340
Probe Kit SPCK-367/N2K (continued)
(This is a General Purpose Surface Probe Kit)
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 10
Eddy Current Probe Catalog
Probe Kits (continued)
To order: sales@ndts.com / 715.246.0433 www.ndts.com
11
QTY Part Type Probe Type
1 Probe PAB0060/AL (50-500K)
1 Probe PAB90505/AL (50-500K)
1 Probe PAB90505/Ti (1-3 MHz)
1 Probe PAB90305/AL (50-500)
1 Probe PAB0030/Ti (1-3MHz)
1 Probe PAB0020/AL (50-500K)
1 Ref. Std. ECRS-0824/AL
1 Ref. Std. ECRS-0824/Ti
1 Ref. Std. ECRS-0824/MAG
1 Cable EC-N2K-TL-6
1 Form Fitted Pelican Kit Box
Probe Kit SPCK-218
(General Purpose Surface Probe Kit)
QTY Part Type Probe Type Size
1 Probe MBA1-10 5/32”
1 Probe MBA1-12 3/16”
1 Probe MBA1-14 7/32”
1 Probe MBA1-16 1/4”
1 Probe MBA1-18 9/32”
1 Probe MBA1-20 5/16”
1 Probe MBA1-22 11/32”
1 Probe MBA1-24 3/8”
1 Probe MBA1-26 13/32”
1 Probe MBA1-28 7/16”
1 Probe MBA1-30 15/32”
1 Probe MBA1-32 1/2”
1 Probe MBA1-34 17/32”
1 Probe MBA1-36 9/16”
1 Probe MBA1-38 19/32”
1 Probe MBA1-40 5/8”
1 Probe MBA1-42 21/32”
1 Probe MBA1-44 11/16”
1 Probe MBA1-46 23/32”
1 Probe MBA1-48 3/4”
1 Probe MBA1-50 25/32”
1 Probe MBA1-52 13/16”
1 Probe MBA1-54 27/32”
1 Probe MBA1-56 7/8”
1 Probe MBA1-58 29/32”
1 Probe MBA1-60 15/16”
1 Probe MBA1-62 31/32”
1 Probe MBA1-64 1”
1 Form Fitted Pelican Kit Box
Add “1” for Universal Bolt Hole Probe Kit
Add “IRA” for RA Scanner Bolt Hole Probe Kit
Probe Kit SPCK-229
(Manual Bolt Hole Kit)
QTY Part Type Probe Type
1 Probe PAB0040
1 Probe PAB0080FX
1 Probe PAB90605
1 Probe PAB90602
1 Probe PAB90C601
1 Probe PAB45502
1 Probe PAB90605FX
1 Probe PAB90802FX
1 Cable EC-N2K-TL-6
1 Ref. Std. ECRS-0824/AL
1 Form Fitted Pelican Kit Box
Probe Kit SPCK-330
(General Purpose Surface Probe Kit)
HOW TO ORDER
Order on-line at www.ndts.com.
Please contact NDT Solutions at (715) 246-0433 with your inspection requirements and we will build a
custom probe kit to fit your needs, requirements and budgetary goals.
(Kit pictures unavailable at this time)
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 11
Eddy Current Probe Catalog
Sizing Table
12
To order: sales@ndts.com / 715.246.0433
Size Fraction Decimals Millimeters
1 1/64 .0156 0.396
2 1/32 .0312 0.793
3 3/64 .0468 1.190
4 1/16 .0626 1.587
5 5/64 .0781 1.984
6 3/32 .0937 2.381
7 7/64 .1093 2.778
8 1/8 .125 3.175
9 9/64 .1406 3.571
10 5/32 .1562 3.968
11 11/64 .1718 4.365
12 3/16 .1875 4.762
13 13/64 .2031 5.159
14 7/32 .2187 5.556
15 15/64 .2343 5.953
16 1/4 .250 6.350
17 17/64 .2656 6.746
18 9/32 .2812 7.143
19 19/64 .2968 7.540
20 5/16 .3125 7.937
21 21/64 .3281 8.334
22 11/32 .3437 8.731
23 23/64 .3593 9.128
24 3/8 .375 9.525
25 25/64 .3906 9.921
26 13/32 .4062 10.318
27 27/64 .4218 10.715
28 7/16 .4375 11.112
29 29/64 .4531 11.509
30 15/32 .4687 11.906
31 31/64 .4843 12.303
32 1/2 .500 12.700
Size Fraction Decimals Millimeters
33 33/64 .5156 13.096
34 17/32 .5312 13.493
35 35/64 .5468 13.890
36 9/16 .5626 14.287
37 37/64 .5781 14.684
38 19/32 .5937 15.081
39 39/64 .6093 15.478
40 5/8 .625 15.875
41 41/64 .6406 16.271
42 21/32 .6562 16.668
43 43/64 .6718 17.065
44 11/16 .6875 17.462
45 45/64 .7031 17.859
46 23/32 .7187 18.256
47 47/64 .7343 18.653
48 3/4 .750 19.050
49 49/64 .7556 19.446
50 25/32 .7812 19.843
51 51/64 .7968 20.240
52 13/16 .8125 20.637
53 53/64 .8281 21.034
54 27/32 .8437 21.431
55 55/64 .8593 21.828
56 7/8 .875 22.225
57 57/64 .8906 22.621
58 29/32 .9062 23.018
59 59/64 .9218 23.415
60 15/16 .9375 23.812
61 61/64 .9531 24.209
62 31/32 .9687 24.606
63 63/64 .9843 25.003
64 1 1.000 25.4
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 12
Eddy Current Probe Catalog
HF Surface Probes
To order: sales@ndts.com / 715.246.0433 www.ndts.com
13
1.Probe
Type
2.Probe Tip
Diameter
3. Coil 4. Angle 5. Bend at
Handle
6. Length 7. Drop 8. Shaft 9. Frequency 10. Protective
Tip
High frequency surface probes are available in various shielded or unshielded designs and frequencies.
These probes are commonly used for surface crack detection.
Shielded P
Absolute Bridge, Quick Disconnect PAB
For unshielded add U to part number PAU
E.g. Absolute Unshielded
Defectometer (Ferrous) PDF
Defectometer (Non-Ferrous) PDN
Defectometer (Non-Ferrous Shielded) PDNS
Probe Configuration
1. Probe Type
Default diameter of HF probes = 0.125
For an unshielded Mini Tip the diameter is from .035 to .072
For a shielded Mini Tip the diameter is from .072 to .125
Add M to front of part # and /0.00 for the diameter you
request at the end of part number
2. Probe Tip Diameter
Differential D
Reflection R
Absolute A
Absolute Bridge AB
Absolute Reflection AR
Bridge Differential BD
3. Coil
Straight 00
45 Degrees 45
Right Angle 90
4. Angle
Straight (Default)
Bend (At Handle) B
Crank (1” from Coil End Side) C
5. Bend at Handle Angle
Probe length is 0.1” from handle end to shaft coil end
6. Length (WL)
0.100”
0.200”
0.300”
0.400”
0.500”
0.600”
0.700”
Custom Drop
7. Probe Drop
Stainless (Default)
Copper (Flexible) FX
8. Shaft
Probe frequency, either fixed or range 50-500KHz
(Default) 200KHz (Center Frequency)
500KHz - 1MHz, 1-3MHz
9. Frequency
Protects the wear on the coil - add TT at end of part #
10. Protective Tip
For Example: A shielded surface probe, with an absolute bridge, 90 degrees, cranked, 6 inches long, drops .4 and is copper
- the Part # would be: PAB90C604FX
HOW TO ORDER
Order on-line at www.ndts.com. Construct your part number as described in this section, or contact
NDTS at (715) 246-0433 with a description of your desired probe configuration.
45 Degree 90 Degree Straight Crank Bend
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 13
Eddy Current Probe Catalog
Manual Bolt Hole Probes
14
To order: sales@ndts.com / 715.246.0433
These probes are used for manual testing of bolt holes.
For Example: A manual bolt hole probe, differential, split end, .156 head size, 3 inches, the part # would be: MBD1-.156/3WL
Example #2: A manual bolt hole probe, absolute, split end, with a diameter of .156, and 3 inches working length, the part #
would be: MBA1-.156/3WL
HOW TO ORDER
Order on-line at www.ndts.com. Construct your part number as described in this section, or contact
NDTS at (715) 246-0433 with a description of your desired probe configuration.
Manual Bolt Hole Probe MB
Defectometer Ferrous MBDF
Defectometer Non-Ferrous Unshielded MBDN
Defectometer Non-Ferrous Shielded MDDNS
Probe Configuration
1. Probe Type
Differential - Quick Disconnect D
Reflection R
Absolute A
Absolute Bridge - Quick Disconnect AB
Absolute Reflection AR
Bridge Differential BD
2. Coil
Split End (Single Sized) 1
Self Expanding (Spread) 2
Screw Adjustable (Spread) 3
Add S to number if depth gage is used -
Collar default length is 1”
3. Probe Shape
Default in inches, see Table 1
For metric add M to end of part #
4. Diameter (Head Size)
Default frequency is 100 kHz - 1 MHz
Provide frequency range or desired frequency
5. Frequency
Default = 2 inches or in case of metric = 50mm
Indicate required length if not default in inches
or mm, length measured from probe end to coil
6. Working Length (WL)
1.Probe Type 2.Coil 3. Probe Shape 4. Diameter 5. Frequency 6. Working Length Metric
-//
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 14
Eddy Current Probe Catalog
Rotating Scanner Probes
To order: sales@ndts.com / 715.246.0433 www.ndts.com
15
Scanner probes are eddy current probes used in combination with an automated rotator, which is attached
to an eddy current instrument. High speed testing of bolt holes, counter bores, the hole perimeter or around
fasteners heads are a typical application for these types of probes. Several designs and materials are
possible depending on the application the probes are used in. EC/NDT has many different designs available
for all rotating guns on the market. If a standard design does not fit your application we will manufacture
a probe according to your specifications/requirements.
Rotating Scanner Bolt Hole Probes
Bolt hole probes are used to scan the inside of a bore for cracks. Many different designs and coil types
are available to meet your inspection requirements.
Rechii Scanner Probe (Plastic Design) S
Stainless Steel Scanner Probe SS
For unshielded design of above probes, SU, SSU
add U
For flexible shaft design probes, SFX,
add FX SUFX, etc.
Probe Configuration
1. Probe Type
Nortec 0
Zetec 1
Physical Acoustic 2
Rohmann 3
Foerster 4
Hocking 5
Uniwest 6
Gulton 7
2. Equipment Manufacturer
Nortec RA 0
Nortec RA2 1
Nortec PS2/3 2
Nortec PS4 4
Nortec PS5 5
Zetec Standard 0
Physical Acoustics Standard 0
Rohmann Standard 0
Rohmann Mini 1
Foerster 0
Foerster 1
Hocking Mini 1
Uniwest Standard 0
Gulton Standard 0
Universal Mini 1
3. Scanner Model
Differential D
Reflection R
Absolute A
Absolute Reflection AR
Absolute Bridge AB
4. Coil
Nortec PS2/3 Differential
Nortec RA, RA2, PS4, PS5 Reflection
Zetec Default Differential
Physical Acoustics Default Differential
Rohmann Default Reflection
Foerster Default Reflection
Hocking Default Reflection
Uniwest Default Differential
Gulton Default Absolute
Universal Reflection
Default Coil Types Are:
45 Degree
Solid
Screw Adjustable
Split End
Self Expanding
Collar Adjustable
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 15
Perimeter Probes HP
Fastener Head Probes FP
Solid 0
Split End 1
Self Expanding 2
Screw Adjustable 3
Collar Adjustable Shaft 4
5. Probe Model
Default in inches, see Table 1
For metric add M to end of part #
In case of fixed diameter e.g. S100/16
In case of diameter range e.g. S102/16-20
6. Diameter
Default = 2 inches or in case of metric = 50mm
Indicate required length if not default in inches or mm
7. Working Length (WL)
Probe frequency, either fixed or range
8. Frequency
//
1.Probe
Type
2.Equipment
Manufacturer
3. Scanner
Model
4. Coil 5. Probe
Model
6. Diameter 7. Working
Length
8. Frequency
M1/
1For metric sizes add M to end of part #
Scanner Probe (Plastic Design) SC
Stainless Steel Scanner Probe SSC
For unshielded design of above SCU, SSCU
probes, add U
For flexible shaft design probes, SCFX,
add FX SCUFX, etc.
Probe Configuration
1. Probe Type
Nortec 0
Zetec 1
Physical Acoustic 2
Rohmann 3
Foerster 4
Hocking 5
Uniwest 6
Gulton 7
Universal 8
2. Equipment Manufacturer
Eddy Current Probe Catalog
Rotating Scanner Probes (continued)
16
To order: sales@ndts.com / 715.246.0433
HOW TO ORDER
Order on-line at www.ndts.com. Construct your part number as described in this section, or contact
NDTS at (715) 246-0433 with a description of your desired probe configuration.
For Example: A Rechii Scanner Probe, Lemo 1/2 moon connector, Refl., Collar Adjustable Shaft, the part # would be: S00R4
Rotating Scanner Countersink Probes
Scanner countersink probes are used to scan the countersink area of a bore for cracks. Many different
designs and coil types are available to meet your inspection requirements.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 16
Nortec RA 0
Nortec RA2 1
Nortec PS2/3 2
Nortec PS4 4
Nortec PS5 5
Zetec Standard 0
Physical Acoustics Standard 0
Rohmann Standard 0
Rohmann Mini 1
Foerster Standard 0
Foerster Mini 1
Hocking Mini 1
Uniwest Standard 0
Gulton Standard 0
Universal Mini 1
3. Scanner Model
Differential D
Reflection R
Absolute A
Absolute Reflection AR
Absolute Bridge AB
4. Coil
Nortec PS2/3 Differential
Nortec RA, RA2, PS4, PS5 Reflection
Zetec Default Differential
Physical Acoustics Default Differential
Rohmann Default Reflection
Foerster Default Reflection
Hocking Default Reflection
Uniwest Default Differential
Gulton Default Absolute
Universal Reflection
Default Coil Types Are:
Eddy Current Probe Catalog
To order: sales@ndts.com / 715.246.0433 www.ndts.com
Rotating Scanner Countersink Probes (continued)
17
Standard (Degrees) 100
5. Angle
Default in inches, see Table 1
For metric add M to end of part #
6. Diameter
Default = 2 inches or in case of metric = 50mm
Indicate required length if not default in inches
or mm
7. Working Length (WL)
Probe frequency, either fixed or range
8. Frequency
//
1.Probe
Type
2.Equipment
Manufacturer
3. Scanner
Model
4. Coil 5. Angle 6. Diameter 7. Working
Length
8. Frequency
M1/
1For metric sizes add M to end of part #
HOW TO ORDER
Order on-line at www.ndts.com. Construct your part number as described in this section, or contact
NDTS at (715) 246-0433 with a description of your desired probe configuration.
For Example: A Nortec equipment with a Universal Scanner Gun, the part # would be: SC01R100-.312
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 17
LF Spot Probe LF
Probe Configuration
1. Probe Type
Side Connection (Default) S
Top Mount T
2. Connector Location
Differential D
Reflection R
Bridge Differential BD
Absolute A
Absolute Bridge AB
3. Coil
Diameter of probe is 0.1” or when metric in mm
4. Diameter
When diameter in metric add M
5. Metric
Lemo Quick Disconnect (Default)
Other connectors available upon request
6. Connector
Provide frequency range or desired frequency
7. Frequency
//
1.Probe
Type
2.Connector
Location
3. Coil 4. Diameter 5. Metric 7. Frequency
6. Connector
-
For Example: A LF Spot Probe with a top mount, absolute bridge. The part # would be: LFTAB-.54
Eddy Current Probe Catalog
LF Spot Probes
18
To order: sales@ndts.com / 715.246.0433
The LF Spot Probes are general purpose probes for most applications. They are used for sub-surface
defect detection, fatigue cracks, and metal thinning due to corrosion.
HOW TO ORDER
Order on-line at www.ndts.com. Construct your part number as described in this section, or contact
NDTS at (715) 246-0433 with a description of your desired probe configuration.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 18
LF Ring Probe LF
Probe Configuration
1. Probe Type
Side Mounted (Default) S
Top Mount T
3. Connector Location
Differential D
Reflection R
Bridge Differential BD
Absolute A
Absolute Bridge AB
2. Coil
Add desired diameters, default in inches
4. ID-OD
When diameter in metric add M
5. Metric
Lemo Quick Disconnect (Default)
Other connectors available upon request
6. Connector
Provide frequency range or desired frequency
7. Frequency
Aluminum
Steal
Titanium
8. Material
//
1.Probe
Type
2.Coil 3. Connector
Location
4. ID-OD 5. Metric 6. Connector 7. Frequency 8. Material
(For Example: A LF Ring Probe, Reflection, Top Mount. The part # would be: LFRT)
Eddy Current Probe Catalog
To order: sales@ndts.com / 715.246.0433 www.ndts.com
LF Ring Probes
19
The Ring Probes are used for crack detection around installed fastener heads. These probes are made
to fit various fastener head diameters.
HOW TO ORDER
Order on-line at www.ndts.com. Construct your part number as described in this section, or contact
NDTS at (715) 246-0433 with a description of your desired probe configuration.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 19
Wheel Probe WP
Wheel Standard SS
Wheel Probe Configuration
1. Probe Type
Main M
Nose N
Kit (Kit includes all probes and K
reference standards needed for
aircraft type)
2. Location
Indicate aircraft manufacturer’s code, if not
available contact NDT Solutions, Inc.
Aerospatial (ATR-1) E
Airbus A
Boeing B
Bombardier O
British Aerospace BA
Cessna C
Dehavilland D
Embraer M
Fokker F
Gulfstream G
Lockheed L
McDonnell Douglas MD
Northrop C
Pilatus P
Saab S
3. Aircraft Type
Lemo Quick Disconnect (Default)
Other connectors available upon request
5. Connector
The aircraft type indication e.g., Dash 8, 737, MD80
4. Aircraft Type Indication
1.Probe Shape 2.Location 3. Aircraft Type 4. Aircraft Type Indication 5. Connector
-
For Example: A Moulded Wheel Probe for the nose of a Boeing aircraft. The part # would be: WPN-B737
Eddy Current Probe Catalog
Moulded Wheel Probes and Wheel Standards
20
To order: sales@ndts.com / 715.246.0433
These probes are designed to scan complex shapes and maintain good contact to surface on large areas.
These probes are, for example, used to scan the bead seat area of aircraft wheels. Complete aircraft
wheel inspection kits are available for many different aircraft types. All other special design moulded probes
will be coded as a special. See section “Special Probes” for more detailed information.
HOW TO ORDER
Order on-line at www.ndts.com. Construct your part number as described in this section, or contact
NDTS at (715) 246-0433 with a description of your desired probe configuration.
SPCK-214/T1
T1 Wheel Probe Kit -
Nose and Main
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 20
B-717 WPM-B717 WPN-B717 WSM-B717 WSN-B717
B-727 WPM-B727 WPN-B727 WSM-B727 WSN-B727
B-737 WPM-B737 WPN-B737 WSM-B737 WSN-B737
B-747 WPM-B747 WPN-B747 WSM-B747 WSN-B747
B-757 WPM-B757 WPN-B757 WSM-B757 WSN-B757
B-767 WPM-B767 WPN-B767 WSM-B767 WSN-B767
A-320 WPM-A320 WPN-A320 WSM-A320 WSN-A320
DC-9 WPM-DC9 WPN-DC9 WSM-DC9 WSN-DC9
DC-10 WPM-DC10 WPN-DC10 WSM-DC10 WSN-DC10
MD-80 WPM-MD80 WPN-MD80 WSM-MD80 WSN-MD80
Dash 8 WPM-Dash8 WPN-Dash8 WSM-Dash8 WSN-Dash8
KC-135 WPM-KC135 WPN-KC135 WSM-KC135 WSN-KC135
B-52 WPM-B52 WPN-B52 WSM-B52 WSN-B52
F-15C, D WPM-F15CD WPN-F15CD WSM-F15CD WSN-F15CD
F-15E WPM-F15E WPN-F15E WSM-F15E WSN-F15E
F-16 WPM-F16 WPN-F16 WSM-F16 WSN-F16
A-6 WPM-A6 WPN-A6 WSM-A6 WSN-A6
A-10 WPM-A10 WPN-A10 WSM-A10 WSN-A10
UH-60 WPM-UH60 WPN-UH60 WSM-UH60 WSN-UH60
B-717 WPM-B717 WPN-B717 WSM-B717 WSN-B717
KC-135/CB WPM-KC135/CB WPN-KC135/CB WSM-KC135/CB WSN-KC135/CB
Carbon Brake
H46-2/CB WPM-H462/CB WPN-H462/CB WSM-H462/CB WSN-H462/CB
Carbon Brake
Aircraft
Wheel Probe
Placement - Main
Wheel Probe
Placement - Nose
Wheel Standard
Placement - Main
Wheel Standard
Placement - Nose
Eddy Current Probe Catalog
To order: sales@ndts.com / 715.246.0433 www.ndts.com
Moulded Wheel Probes and Wheel Standards (continued)
21
The following are examples of wheel probes and wheel standards which we build. However, there are
many different types of aircraft. It is important to know we design wheel probes and wheel standards for
all current aircraft. If there is an aircraft you are looking for but do not see it on this list please contact
us at (715) 246-0433 or through our website at sales@ndts.com. We would be happy to assist you with
your specific request.
It is helpful when building a wheel probe and/or reference standard, for our specialists to have a sample
of the wheel you will be using the probe and standard on. If you have a sample please indicate that on
your order or tell one of our representatives when placing your order. Thank you.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 21
Probe Type GP
Probe Configuration
1. Probe Type
Fixed Size F
Adjustable Size A
Wheel Adjustable WA
2. Shape
Lemo Quick Disconnect (Default)
Other connectors available upon request
6. Connector
Length of probe, in case of adjustable sliding
probes the minimum size
3. Length
Fixed Size F
Adjustable Size A
Wheel Adjustable WA
4. Width
When ID and OD in metric add M
5. Metric
Add frequency range or desired frequency
7. Frequency
1.Probe Type 2.Shape 3. Length 4. Width 5. Metric 6. Connector
-7. Frequency
-
For Example: A Sliding Probe, fixed size, 2 inches long, fixed width. The part # would be: GPF-2F
Eddy Current Probe Catalog
Sliding Probes
22
To order: sales@ndts.com / 715.246.0433
Sliding probes provide an easy and quick method of scanning smooth surfaces to detect surface and
subsurface cracks. These probes are mostly used to scan fastener rows. Probes can be designed to meet
your specific inspection requirements.
HOW TO ORDER
Order on-line at www.ndts.com. Construct your part number as described in this section, or contact
NDTS at (715) 246-0433 with a description of your desired probe configuration.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 22
Shielded Blade Probe BL
For unshielded add U to part # BLAU
e.g. Absolute Unshielded
Defectometer (Ferrous) BLDF
Defectometer (Non-Ferrous) BLDN
Defectometer (Non-Ferrous Shielded) BLDNS
For side mounded coil, change BL into BLS
Probe Configuration
1. Probe Type
Differential D
Reflection R
Absolute A
Absolute Reflection AR
Absolute Bridge AB
2. Coil
3 Standard Thickness’s are available:
0.8”, 0.06”, 0.04”
4. Thickness (T)
Default = 2 inches or in case of metric = 50mm
Indicate required length if not default in inches
or mm
5. Working Length (WL)
Add frequency range or desired frequency
7. Frequency
1.Probe Type 2.Coil 3. Angle 4. Thickness45. Working Length 6. Connector
/7. Frequency
-
For Example: A shielded blade probe, absolute bridge, straight, with .08” thickness. The part # would be: BLAB00-.08
Straight 00
30 Degrees, etc. 30
Right Angle or Indicate Desired Angle 90
3. Angle
Default connector is Tri-Axial Fischer TF
6. Connector
/
HOW TO ORDER
Order on-line at www.ndts.com. Construct your part number as described in this section, or contact
NDTS at (715) 246-0433 with a description of your desired probe configuration.
Eddy Current Probe Catalog
To order: sales@ndts.com / 715.246.0433 www.ndts.com
Blade Probes
23
Blade probes provide an easy access in narrow slots or gaps between structures detect surface anomalies.
Both sides of the probe are sensitive for defects.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 23
Finger Probe Shielded FSPFSP
For unshielded add U to part # FSPAU
e.g. Absolute Unshielded
Defectometer (Ferrous) FSPDF
Defectometer (Non-Ferrous) FSPDN
Defectometer (Non-Ferrous Shielded) FSPDNS
Probe Configuration
1. Probe Type
Differential D
Reflection R
Absolute A
Absolute Reflection AR
Absolute Bridge AB
2. Coil
Add frequency range or desired frequency
6. Frequency
1.Probe Type 2.Coil 3. Angle 4. Drop 5. Connector
/6. Frequency
-
For Example: A finger probe, absolute bridge, straight, with .1 drop. The part # would be: FSPFSPAB00-.01
Straight 00
30 Degrees, etc. 30
Right Angle 90
3. Angle
Microdot (Default)
Indicate connector type if not default
5. Connector
/
In terms of drop 0.1D
In terms of length 1.0D
4. Drop or Working Length
Eddy Current Probe Catalog
Finger Probes
24
To order: sales@ndts.com / 715.246.0433
HOW TO ORDER
Order on-line at www.ndts.com. Construct your part number as described in this section, or contact
NDTS at (715) 246-0433 with a description of your desired probe configuration.
Finger probes are surface probes that can be handled by sliding a finger in the handle. This gives the
possibility to scan areas that are difficult to access and remain in good contact with the surface.
Finger Probe Straight
Finger Probe Angle
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 24
Spring Loaded Probe SLP
Probe Configuration
1. Probe Type
Differential D
Reflection R
Absolute A
Absolute Bridge AB
2. Coil
Add frequency range or desired frequency
7. Frequency
Lemo Quick Disconnect (Default)
Other connectors available upon request
6. Connector
Diameter of surface area
3. Diameter
Length of holder
4. Length
If diameter and length are provided in metric add M
5. Metric
1.Probe Type 2.Coil 3. Diameter 4. Length 5. Metric 6. Connector
/7. Frequency
For Example: A spring loaded probe, absolute bridge, with a diameter of .025 and a length of two inches. The part #
would be SLPAB.0252
/
Tip Diameter 1/4” DSS
Tip Diameter 1/8” DSM
Probe Configuration
1. Probe Type
Differential D
Reflection R
Absolute A
Absolute Bridge AB
Absolute Reflection AR
2. Coil
Add frequency range or desired frequency
6. Frequency
Lemo Quick Disconnect (Default)
Other connectors available upon request
5. Connector
Length of holder, default in inches
3. Length
If diameter and length are provided in metric add M
4. Metric
1.Probe Type 2.Coil 3. Length 4. Metric 5. Connector
/6. Frequency
For Example: A delrin surface probe with a tip diameter of 1/4”, absolute bridge, two inches long. The part # would be DSSAB2
/
Eddy Current Probe Catalog
To order: sales@ndts.com / 715.246.0433 www.ndts.com
Spring Loaded Probes
25
Spring loaded probes are used when a constant pressure of the probe on the surface is required. This will
give a high repeatability of your inspection.
Delrin Surface Probes
Length
Diameter
Unshielded “pencil” type probe for surface crack detection.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 25
Special SPC
Probe Configuration
1. Probe Type
Scanning Probes 1
Manual Bolt Hole Probes 2
HF Surface Probes 3
LF Spot Probes 4
LF Ring Probes 5
Sliding Probes 6
Moulded Probes 7
Spring Loaded Probes 8
Finger Probes 9
Delrin Probes 10
Blade probes 11
2. Number
Added for internal administrative purposes
4. Drawing Index
Frequency range or desired frequency
5. Frequency
Lemo Quick Disconnect (Default)
Tri Axial Fischer TF
Microdot M
2 Pin Microdot 2P
4 Pin Fisher for Reflection Elotest Type 4F
3. Connector
Eddy Current Probe Catalog
Specials
26
To order: sales@ndts.com / 715.246.0433
Specially designed probes are available for all your applications. Since the design meets a special
requirement the probe identification will be given by NDT Solutions, Inc. and EC/NDT.
HOW TO ORDER
Order on-line at www.ndts.com. Contact NDT Solutions at (715) 246-0433 for help constructing your
part number. Have your inspection requirements ready and we will help construct a part number to fit
your needs and budgetary goals.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:40 PM Page 26
Eddy Current Probe Catalog
Other Eddy Current Products
To order: sales@ndts.com / 715.246.0433 www.ndts.com
27
System Features
• Ability to multiplex four frequencies per channel; meaning up to eight
probes can be used at any one time
• Uses Linux based software and has an EThernet connector for
connection to the client’s local network
• SD storage card on board and USB capability for further data storage
• Housed in a rugged, single piece cast aluminum chassis and is compact
to aid usability
ETi Series - 100 & 200
Eddy Current Flaw Detector
System Features
• Easy to use
• Lightweight (350g) and ergonomically designed for comfort in the hand
• Choice of five frequencies _60, 120, 240, 480, 960kHz
• Rapid display of conductivity results
• Field exchangeable probes via SD card
• USB PC connectivity for remote control and data logging
• Comes in a moulded UL94-5VA flame retardent ABS case
SigmaCheck
Eddy Current Conductivity Meter
System Features
• Perfectly balanced for comfortable single-handed operation
• Lightweight (1.8 lbs.) with rugged housing
• Automatic lift-off setting
• Separate connector for Absolute and Reflection / Bridge Probes
• 3.5” easy to read, bright, high-resolution (115 DPI/0.22mm pixel) display
• PC-based analysis and reporting utility software for easy analysis and
reporting included with the instrument
Vantage
Eddy Current Flaw Detector
Individual detailed brochures are available upon request
NDT Solutions, Inc. is a leading provider of Eddy Current testing equipment for applications requiring surface
and sub-surface crack detection, metal sorting, coating thickness and conductivity measurements.
The hand-held design allows true single hand operation, leaving the operator free to use their other hand
to scan with a probe. The specifications and features will appeal to users in aerospace, offshore oil,
petrochemical, power generation and rail/axle industries.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:41 PM Page 27
Eddy Current Probe Catalog
NDTS Product Line
©2012 NDT Solutions, Inc. All rights reserved. P/N 99-555-D119/A
NDT Solutions, Inc.
10-1 Airport Rd. • New Richmond, WI 54017-2703
Tel: 715.246.0433 • Fax: 715.246.0466 • Email: sales@ndts.com
www.ndts.com
NON DESTRUCTIVE TESTING SOLUTIONS, INC
VARIABLE
AUTOMATIC
COUPLANT AND
RECOVERY SYSTEM
MAUS
AUTOMATED
INSPECTION
SYSTEM
DR11
DOUBLE REVERSE
SCANNING ARM
FLAWINSPECTA®
HIGH SPEED
ULTRASONIC ARRAY SYSTEM
UT TRANSDUCERS
UT COUPLANTS
NSPECT 210 ROBOTIC
NON-DESTRUCTIVE INSPECTION SYSTEM
EDDY CURRENT TESTING EQUIPMENT SSEC III
REMOTE FIELD
EDDY CURRENT INSTRUMENT
Diagnostic Sonar Ltd.
99-555-D119A Probe catalogMASTER 62212_Layout 1 10/12/2012 2:41 PM Page 28
