Before Using this product, read this manual and
follow all safety rules and operating instructions.
THIS PAGE LEFT BLANK INTENTIONALLY
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SET-UP & INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PRODUCT OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
KEYPAD FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HANDLEBAR & SEAT ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 - 11
HEART RATE TRANSMITTER STRAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PROGRAM INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 20
ADDITIONAL KEY FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
MAINTENANCE & SERVICE. . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 - 27
CERTIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
WARRANTY CARD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . 29
The purpose of safety symbols is to attract your attention to possible dangers. The safety or attention symbols and their
explanations deserve your careful attention and understanding. The warnings do not, by themselves, eliminate any
danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.
Look for these symbols to point out safety precautions or important information.
Read all instructions before using your SCIFIT exercise machine. Save these instructions for future reference.
Close supervision is necessary when the exercise machine is being used by or near children or individuals with
disabilities. Keep children away from extended hand and foot supports.
Use the exercise machine only for its intended use as described in this manual. Do not use attachments not recommended
by the manufacturer.
Never drop or insert any object into any opening.
Do not use outdoors or in a harsh environment where water is present (i.e. pool or spa areas).
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
The American College of Sports Medicine (ACSM) and
the American Heart Association (AHA) are continuously
updating guidelines and recommendations for physical
activity.
The current basic recommendations from ACSM and AHA
are:
Do moderately intense cardio 30 minutes a day, ve days
a week.
OR
Do vigorously intense cardio 20 minutes a day, three days
a week.
AND
Do eight to ten strength-training exercises, eight to twelve
repetitions of each exercise twice a week.
Moderate-intensity physical activity means working hard
enough to raise your heart rate and break a sweat, yet
still being able to carry on a conversation. It should be
noted that to lose weight or maintain weight loss, 60 to
90 minutes of physical activity may be necessary. The 30
minute recommendation is for the average healthy adult to
maintain health and reduce the risk for chronic disease.
To review the latest guidelines and recommendations, visit
the American College of Sports Medicine website:
www.
acsm.org
To ensure a future of good health, you should always eat
well balanced meals, drink plenty of uid/water during a
workout, and stay t by exercising intelligently. Always
follow training guidelines that are specic to your own
physical condition.
Thank you for your purchase of the SCIFIT StepOne
recumbent stepper. We have incorporated the nest
technology and ergonomic design into this machine to assist
you in achieving your tness goals. However, for your
safety, please adhere to the following recommendations
before you begin to exercise.
The SCIFIT StepOne is designed for Class “S”
(Commercial), Class “A” (High Accuracy) and Class “II
a” (Medical Device Directive) applications. The intended
uses are for Cardio & Pulmonary Rehabilitation as well as
Sports Medicine, Physical Therapy, Physical Conditioning
and Strength Training. SCIFIT equipment is suitable for
placement in medical, wellness, tness, and recreational
facilities. The StepOne recumbent stepper has 200 levels
of console controlled resistance, which ensures that users
of all tness levels will be able to get a challenging but not
overwhelming workout.
Consult your physician or medical specialist before
participating in any exercise program, especially if you
are pregnant or if you are suffering from heart disease,
respiratory disease, diabetes, hypertension, high blood
pressure, elevated cholesterol, arthritis, or any other
diseases and physical complaints.
SCIFIT equipment is designed and intended for adult usage
and children of appropriate ages while being supervised.
Young children should be kept a safe distance away from
equipment.
To prevent muscle injuries and soreness, you should always
cool down (at least 5 minutes) by doing a series of stretches
after each workout.
Always stretch after a workout session to reduce the risk
of personal injury. Failure to stretch properly may result
in injury to yourself.
Stop exercising immediately if you feel nausea, dizziness,
sharp pain, or any other physical discomfort. Failure to
stop exercising can result in injury or death to yourself.
Injuries to health may result from incorrect or excessive
training. Failure to stop exercising can result in injury or
death to yourself.
INTRODUCTION
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
- 275 lbs (124 kg)
- 450 lbs (204 kg) - 600 lbs (272 kg) - 450 lbs (204 kg)
Self generating w/auto recharge battery back-up (15 Volt AC adapter included).
Electromagnetic Self Generating Resistance

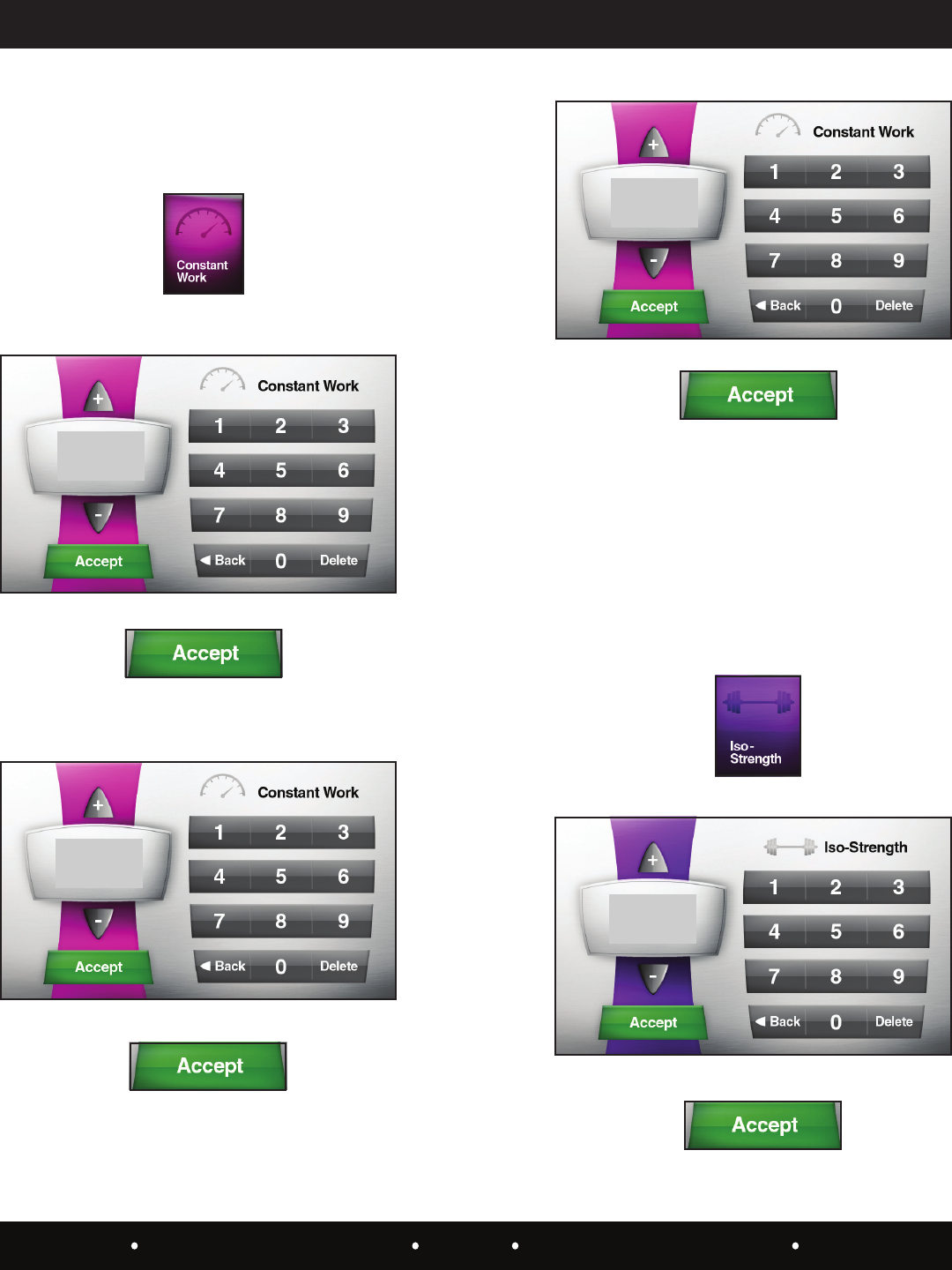

Manual, Fit Quik, Constant Workout, ISO-Strength, 7 Pre-programmed HILLS proles,
Heart Rate, Stress Test and Random
Class A
Within U.S. & Canada: 5 years parts, 1 year labor
Outside U.S.: 5 years parts, no labor
Weight
Max User Weight
Power
Resistance System
Programs
Accuracy Class
Warranty
1742mm
69in
1220mm
48in
766mm
30in
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
Depending on the regular operation of the
machine, the StepOne may require the DC wall
pack to be plugged into the machine at all times.
1. A full step stride of 11.5” below 40 Steps per Min.
2. A half step stride of 6” below 80 Step per Minute
Position the unit in a location that has a stable and level
sub-oor. Equipment should be positioned in a location
that is not in direct sunlight, extreme temperatures and
humidity or where it may be splashed with water or uids.
40” (1m)
Spacing
SPECIFICATIONS
Endcap
Endcap
40” (1m)
Spacing
40” (1m)
Spacing
40” (1m)
Spacing
Offset Endcap
Additional personnel may be required to move the machine.
Placement on an unstable sub-oor without a proper safety
perimeter can result in injury to yourself and others.
The StepOne has two transport wheels located in the front
of the machine and can be moved by grabbing the lift handle
at the rear of the machine.
LIFT
HANDLE
The StepOne should be positioned with a safety perimeter
of 40” or 1 meter around the unit (see diagram).
If the sub-oor is unlevel, the unit is equipped with leveling
end caps. The end caps are designed with the recess of the
end cap off centered. This allows you to rotate the endcap(s)
to a position that will level the equipment. After adjustment,
check and make sure end caps are fully seated against base
frame tubes.
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
INTELLI-FIT
CONSOLE
ERGONOMIC
EASY GRIP
HANDLES
LEVELING
ENDCAPS
OVERSIZED
COMFORT
FOOTBEDS
HANDLEBAR LENGTH
AND ANGLE CLAMPS
ERGONOMIC
SEAT ASSEMBLIES
(MODEL DEPENDENT)
FOOT PEDAL FOR
ADJUSTABLE
FORWARD/BACKWARD
SEAT MOTION
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

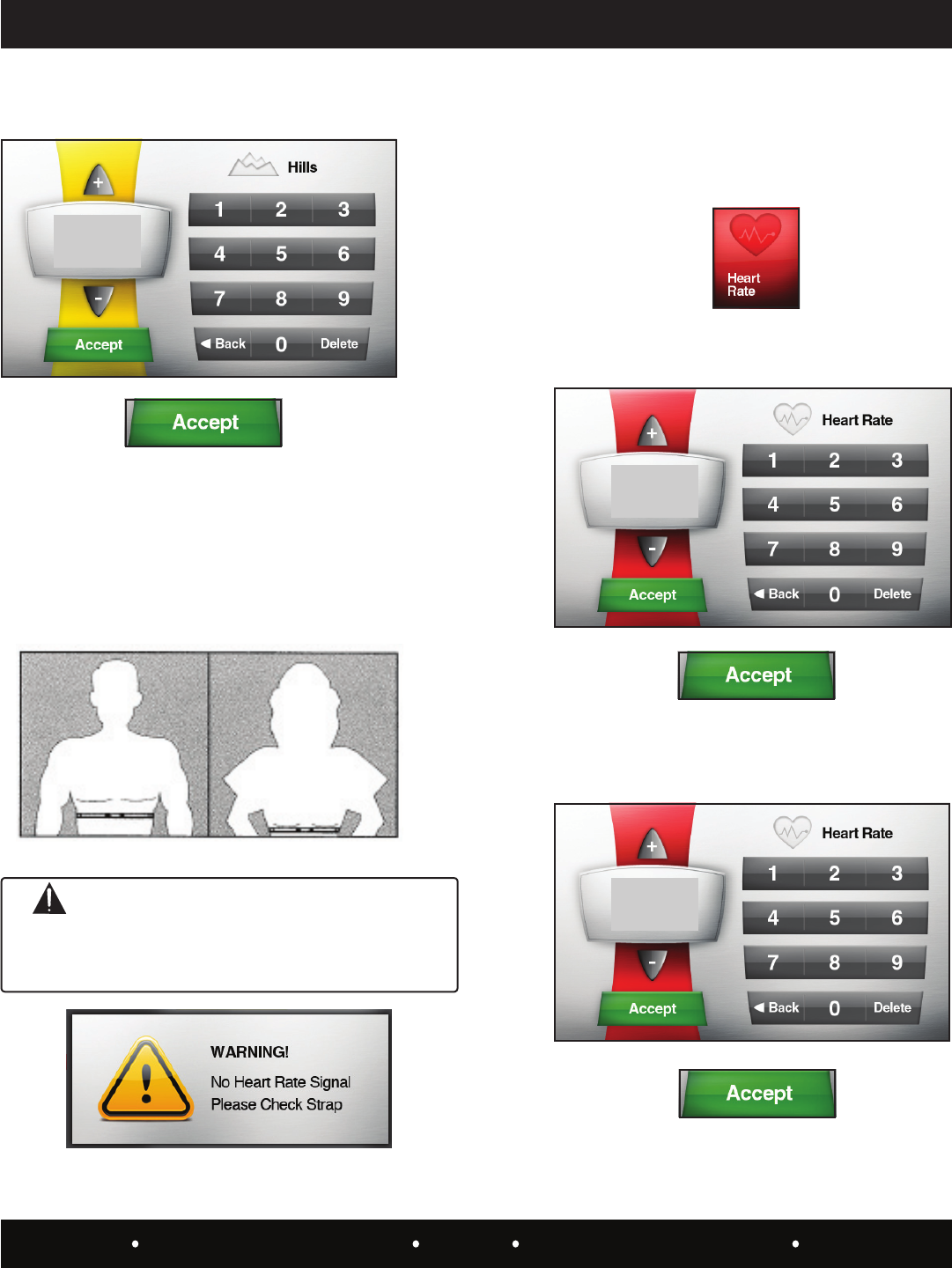

WARNING! Heart rate monitoring systems may be inaccurate.
Over exercise may result in serious injury.
If you feel faint or pain stop exercising immediately

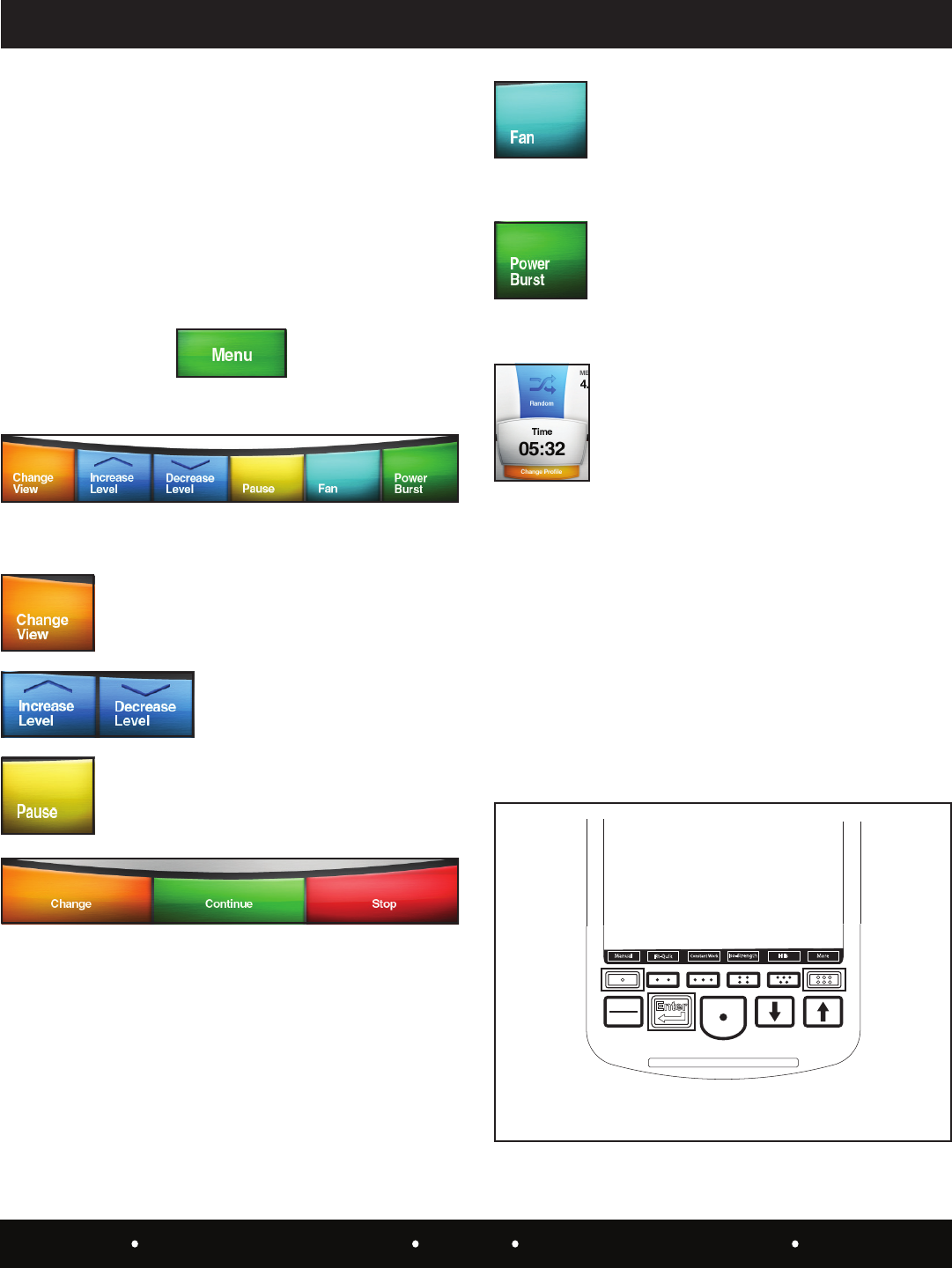

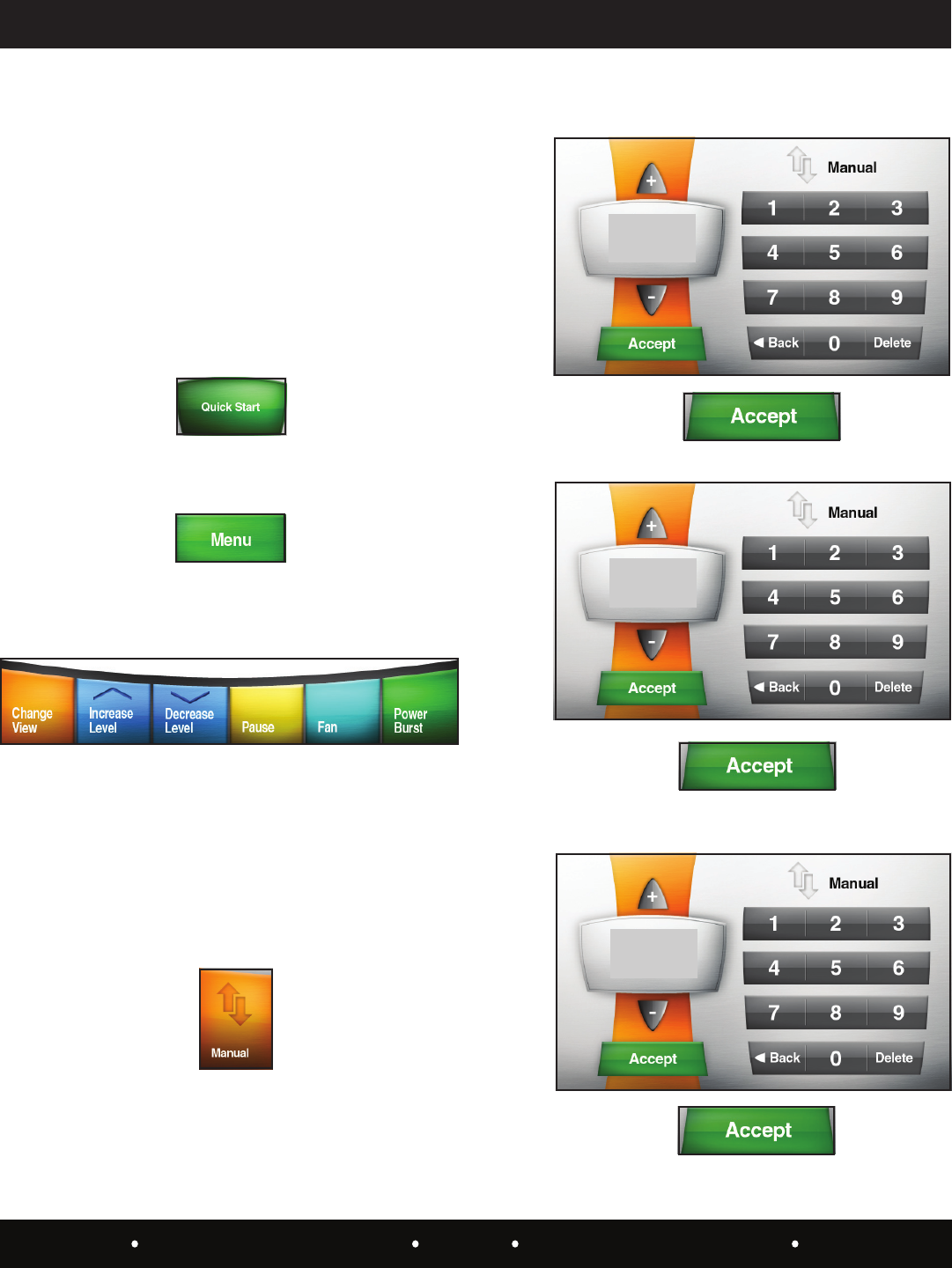

Quick
Start
Enter
Pause
Clear
This key pauses the workout at anytime.
Three choices then become available:
1. Continue the workout
2. Change data entry information
3. Stop the workout
This key conrms the
operator’s category value
selection in the data entry
screen.
Begins a pre-programmed
15 minute workout session.
These keys increase or
decrease values of workout
parameters.
The operator can
choose up to eight
different workouts.
SPECIFICATIONS
The right and left handlebars of the StepOne can be adjusted into different positions with the attached
clamping mechanism, so the operator can place themselves into the proper biomechanical position for a
comfortable workout.
Gently grab the handle of the clamping mechanism and pull downward freeing the handlebar to move away
from the machine or toward the machine. Using the etched numbers on the handlebar determine the most
comfortable position for your arm length.
When the desired position has been determined, lock the handlebar in place by pushing upward on the
clamp handle until it is rmly against the body of the clamp mechanism.
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
The handle can also be positioned into three different angles to allow the operator’s hand a more ergonomic
and comfortable setting during the workout.
Step 1: Open the clamp to free the handle.
Step 2: Use the etched notch on the handle to position the handle at the preferred angle.
Step 3: Close the clamp to secure the angle position.
L (+30 )
R (-30 )
L (0 )
R (0 )
L (- 30 )
R (+30 )
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
ETCHED
LOCATOR
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
Step 1:Place one hand on the back
of the seat cushion back support.
Step 2: Use the other hand to pull upward and hold the
yellow adjustment knob located on the front of the seatpost.
Step 3: Slide the seat assembly backwards until it is
completely off of the machine seat track.
Step 1:Place one hand on the back
of the seat cushion back support.
Step 2: Use the other hand to pull upward and hold the
yellow adjustment knob located on the front of the seatpost.
Step 3: Slide the seat assembly forward or backwards on the
machine seat track to the desired position.
The seat can be adjusted in 1” (25.4mm) increments and is
held in place with a spring loaded pin. This is done by using
the round yellow knob at the front of the seat assembly.
Step 1:Place one hand on the back
of the seat cushion back support.
Step 2 Option #1 (Adjustable Only):
Use the other hand to pull upward and hold the
yellow T-Handle located in front of the seat.
Step 2 Option #2 (Adjustable, Fixed/Swivel)
Step on the yellow foot pedal
Step 3: Slide the seat assembly forward or backwards on the
machine seat track to the desired position.
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
Step 1:Place one hand on the back
of the seat cushion back support.
Step 2a (Adjustable Only): Use the other hand to pull upward
and hold the yellow T-Handle located in front of the seat.
Step 2b (Fixed/Swivel): Step on the yellow foot pedal.
Step 3: Slide the seat assembly backwards until it is
completely off of the machine seat track.
SPECIFICATIONS
The seat can be adjusted in 1” (25.4mm) increments and is
held in place with a spring loaded pin. This is done by using
one of two options (1) Pull cable or (2) Foot pedal.
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
Step 1:Pull the yellow handle lever
upward to raise or lower the seat assembly.
.
Step 1: Push downward on the yellow handle
adjustment lever to rotate the seat right or left.
The optional wireless heart rate transmitter accessory is a
useful device if you desire continuous feedback on your
current heart rate during a workout. In addition, the StepOne
includes a heart rate control program which requires the use
of the strap.
The heart rate control program enables the user to
set-up a target heart rate through real-time monitoring of
the user’s heart rate. The console maintains the user’s heart
rate at or below this established target rate by decreasing the
workload if the user’s heart rate exceeds the target.
Heart Rate transmitter straps come in a variety of styles and
manufacturers. To properly activate, secure the strap to the
chest and to deactivate follow the instructions that come
with the transmitter strap.
Always follow the manufacturers instructions for
proper care and use. Failure to follow manufacturers
instructions may result in injury to yourself.
Heart Rate monitoring systems may be inaccurate if
you feel faint. Stop exercising immediately. Excessive
exercising may result in serious injury or death.
Your approximate Maximum Heart Rate (MHR) is equal
to 220 minus your age. The upper limit of your target zone
is equal to 0.85 times your MHR. The lower limit of your
target zone is equal to 0.60 times your MHR.
For Example:
Your age is 40:
220 - 40 = 180
180 x .85 = 153 (max MHR)
180 x .60 = 108 (min MHR)
These values are based upon averages, always consult your
physician to establish the proper Heart rate zone for your
individual health condition.
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SCIFIT products have 200 levels of computer controlled
resistance, which ensures that users of all tness levels
will be able to get a challenging but not overwhelming
workout. Because the resistance is adjustable in .1
increments, it is easy for the user to track progress. SCIFIT
products feature one of the highest resistance capabilities
available on any cardio equipment.
The StepOne is self-generated and has an extremely low
starting resistance. One pedal movement activates the
console and the screen will remain lit at the most minimal
levels of movement.
The StepOne has a battery back up which will keep the
screen lit for a short period after the workout is completed
or if the user stops. This varies between 0 seconds and
3 minutes and can change with the amount of use each
product gets.
If you prefer the console to remain lit at all times, a AC
adapter (included) can be plugged into the machine to
accomplish this. This is common in medical settings and
with Fit-Key Programs.
Touchscreen allows the user to select any program or
key feature on the console with just a nger tip touch
of the screen. The StepOne offers workout program
options that can be selected from the touchscreen display
(Menu screen example shown below). Six programs are
shown on the screen at one time, additional programs can
also be viewed by touching the “More” key on the screen.
When a workout program has been selected, the console
will then advance to the “Data Entry” mode where
additional information is entered prior to the workout
commencing.
The user will have two options of entering data as each
category is displayed on the screen.
A. Using the numerical touchscreen keypad (No. #1).
B. Using the “+” or “-” arrow keys (No. #2).
C. When the correct information has been entered,
touching the “Accept” button will save the data and
advance to the next category or begin the workout if it is
the last category (No. #3).
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
Touch the
The StepOne machine offers eight workout programs
(Not including Quick Start). The following is a summary
of the rst six programs.
Allows the user to get on the machine and go. Touching
the “Quick Start” key at the main screen begins a workout
with no set time limit. The intensity level can be changed by
pressing the “Menu” key on the screen to view additional
key features.
Touch the
Additional key features will appear at the bottom of the
screen.
Allows the user to set the intensity at any level. This level
will not change unless the user manually increases or
decreases the intensity.
key.
key.
Touch the key.
Using the data entry options described on page 13.
Enter the workout duration:
Select the level intensity:
Enter the user weight:
Touch the key
Touch the key.
Touch the key.
and begin the workout.
Touching the “Increase or Decrease” keys will change the
workout intensity level.
Workout resistance is automatically adjusted to compensate
for any change in pedal speed (SPM), thus workload (Watts)
will remain constant at any given setting.
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
ISO-Strength is a isokenitic program, meaning that
the unit will resist your movements in order to force
you to stay at a set speed. This type of strength
workout will not cause excessive soreness because it
is accommodating. The console will adjust resistance
to keep the user at the target SPM (Steps Per Minute)
Touch the key.
Enter the workout duration:
Enter the target watts:
Enter the user weight:
Touch the key.
Enter the workout duration:
Touch the key.
Touch the key.
Touch the key.
Touch the key.
and begin the workout.
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
Enter the target SPM (Steps Per Min.):
Enter user weight:
Touch the key.
Allows the user to select from seven different Hill proles
set at various pre-programmed intensities.
The following proles are available: Course, Sprints,
Twin Peaks, Peak, Progressive, Multi-Peaks and Ramp.
Touch the key.
and begin the workout.
Touch the key.
Select the course prole:
Touch the key.
Enter the workout duration:
Touch the key.
Select the level intensity:
Touch the key.
A heart rate transmitter chest strap is required for this program.
Refer to page 12 for a complete instruction on using the strap
and to understand how to calculate your target heart rate.
• Place the transmitter strap on your chest
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
If you are not wearing a transmitter belt or the belt is not
sending a signal correctly, after a short period of time
the following message will appear.
Enter the user weight:
Touch the key.
and begin the workout.
Touch the key.
If the signal continues to be undetected the program
will exit and return to the main screen.
Enter the workout duration:
Enter the target heart rate:
Touch the key.
Touch the
key.
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
This program randomly displays different workout proles
each with its own level of difculty. The user only has to
choose the type of prole, length of workout time and the
level difculty.
Note: The highest column of the prole represents the
highest workout level you selected. Columns below it are
percentages of the level selected.
Enter the user weight:
Touch the key.
and begin the workout.
Pressing this key will change the screen to show an
additional two more pre-programmed workout proles:
Random and Stress Test.
The following category is only seen when Manual, Hills or
Constant Work is selected in the “Set-up mode”.
Allows the user to select a two stage program of
cardiovascular work with ISO-strength (Isokinetic).
Work loads and time durations are preset within the Set-Up
mode.
R
Touch the key.
Enter the user weight:
Touch the key.
and begin the workout.
Touch the key.
Touch the key.
Select the course prole:
Touch the key.
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
Enter the workout duration:
Touch the key.
Select the level intensity:
Touch the key.
Enter the user weight:
Touch the key.
and begin the workout.
A designed stress test to be used as a training program
or use with other diagnostic devices (if applicable).
The user sets a target wattage with timed intervals and
preset wattage increments.
Touch the key.
Enter the wattage target:
Touch the key.
Enter the wattage increments:
Touch the
key.
Enter the time intervals:
Touch the key.
Enter the user weight:
Touch the
and begin the workout.
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
Allows the user to change the viewing format
of the workout prole and data displayed on
the screen during the workout.
This feature increases resistance for a short
duration of time during the workout when
activated. Touching this key will activate the
feature and a short count down will be seen
on the screen to prepare the user. The duration
length of the “Power Burst” can be increased
or decreased in the “Set-up” mode.
This activates two 3-speed cooling fans
(Low, Medium, High) at anytime during the
workout. Each touch of the key will change
the fan airow speed.
The SCIFIT touchscreen console also includes extra
user friendly key features that may be accessed during a
workout.
Only seen when the “Random” program is
selected. It allows the user to change the
current workout prole at the bottom of the
screen to a different one by touching the
“Change Prole” key anytime during the
workout.
Pauses the workout program at anytime. The
screen then changes providing the user with
three options as shown below.
Restarts the workout program at the point where the user
had paused it.
Returns to the data entry screen where the information
previously entered can be changed.
Exits the workout and returns to the main screen.
This code allows the operator to access the “Set-Up Mode”
screen customizing the program parameters for the operator
needs.
Press the [], [] and the []
keys at the same time. The screen will then change
and display various categories that may be customized
(Also see “Set-Up Mode Document” on the
www.SCFIT.com website).
SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT
WARNING! Heart rate monitoring systems may be inaccurate.
Over exercise may result in serious injury.
If you feel faint or pain stop exercising immediately
Quick
Start
Pause
Clear
Manual Fit-Quik Constant Work Hills
Iso-Strength More
Once a workout commences, the word “Menu” will appear
in the lower right corner of the screen.
Just a touch of the “Menu” icon activates a pop-up menu
that appears at the bottom of the screen for additional
selections.
Touch the
Pop-up menu with additional key features appear.
key.
Allows the user to change the
intensity of the workout.
The StepOne is virtually maintenance free. After training,
always wipe down your SCIFIT exercise product.
Perspiration that continuously settles on the frame,
upholstery, covers, and console may eventually cause rust
or damage. Damage resulting from lack of maintenance is
not covered under warranty.
If defective components are identied and require
replacement, the equipment should be put out of service
until repaired.
Always follow manufacturers instructions for proper care
and use. Failure to follow manufacturers instructions
may result in injury to yourself.
Any mechanical or electrical work conducted
within the main body of a medical CE class IIa unit
. The generic maintenance
schedule below should be applied to both medical CE and
non-medical products
For assistance in the service of SCIFIT products;
phone : +1 (918) 359-2000
fax : +1 (918) 359-2045
e-mail: service@scit.com
The Product Support department is available by means
of email. A voice mail service is available 24 hours a day
for recording messages to request technical support and to
order replacement parts. Our mailing address is:
SCIFIT Systems Inc.
5151 S. 110th E. Ave.
Tulsa, OK 74146
USA
phone : +44 1344 300022
fax: +44 1344 868838
e-mail: info@scit.uk.com
SCIFIT LTD (UK)
Lexham House
Forest Road
Bineld
Berkshire, RG42 4HP
UK
Company Number: 5970624 (UK)
*COUNTRIES OUTSIDE OF UK & EUROPE
PLEASE USE USA CONTACT NUMBERS*
Order online 24/ 7 at www.SCIFIT.com
COMPONENT BY WHOMUSE WHEN
Contact your local waste management agency for
specic requirements concerning recycling and disposal
locations of batteries.
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
Battery Voltmeter Every
6 Months
Club Maintenance
Seat Assy. Base Frame Roller
Guide and Adjustment Pan Damp Cloth Every two
weeks Club Maintenance
Lower Linkage Connections High Use - Check Bimonthly
Low Use - Check Every 6 mo.
Club Maintenance
LCD Screen Damp Cloth Weekly Club Maintenance
Covers, Seat, Handlebars
and Console Damp Cloth Daily Club Maintenance
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
It is very important that your SCIFIT machine is registered. This can be
done online at http:/www.SCIFIT.com/warrantyregistration.shtml/ or ll out and
mail the registration form on the back of this manual.
SCIFIT Statement of STEP ONE™ Warranty Only
SCIFIT warranties new products against defective workmanship and/or materials under normal and proper use
subject to the following limitations:
(a) SCIFIT’s obligation to the original purchaser shall apply within the
United States and Canada to both parts and the cost of labor required
to replace or repair a defective product, at SCIFIT’s option, for a period of one (1) year from user/
dealer purchase date as documented by *warranty card and if warranty card has not been returned
by user/dealer, then date of shipment from the factory. Thereafter, for a period of four (4) years, such
obligation shall extend only to the supply of replacement parts with any labor costs associated with such
replacement or repair to be at buyer’s expense. Refer to clause (e) for components outside this policy
clause.
Outside the United States and Canada SCIFIT will repair or replace defective product with no labor
included for a period of three (3) years from user purchase date as documented by *warranty card and if
warranty card has not been returned by user then date of shipment from factory. However these warranty
periods for sales outside the United States and Canada are subject to modication by local SCIFIT sales
dealers.
*Note: Original purchaser must register their purchased products either by warranty card return, web site
registration or fax to activate warranty period or shipment date is extant for start of warranty period. A
ninety (90) day period is to be given for warranty registration to allow stock rotation and showroom stock
thereafter registration will be shipment date for the start of the warranty period.
(b) SCIFIT’s obligation shall be limited to repairing or replacing defective parts. No allowance shall be
granted for repairs made by Buyer without SCIFIT’s prior written approval. The decision to replace or
repair shall be solely at SCIFIT’s discretion. SCIFIT reserves the right to require return of warranty parts,
or payment, in some cases. See “Return of Parts” below.
(c) SCIFIT’s warranty does not apply to parts requiring replacement or repair due to normal and
abnormal wear and tear, improper use, corrosion (perspiration), improper maintenance, improper
installation, improper rated, grounded or dedicated electrical circuits or improper storage, nor does it
apply where all or part of the product has been altered from its original state by Buyer or a third party.
(d) THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, ARISING BY LAW OR OTHERWISE INCLUDING WARRANTY OR MERCHANTABILITY
OF FITNESS FOR PARTICULAR PURPOSE, AND IS IN LIEU OF ALL OTHER LIABILITIES
OF SCIFIT INCLUDING DIRECT, INDIRECT, SPECIAL AND CONSEQUENTIAL DAMAGES OR
PENALTIES EXPRESSED OR IMPLIED WHETHER ARISING OUT OF CONTRACT, NEGLIGENCE
OR OTHER SORT.
SCIFIT Statement of Warranty
(e) The below listed items have the following warranty coverage unless
determined to be defective. These items include, but are not limited to:
STEP ONE™ Warranty Period
Upholstery 12 months
Saddles/Seats 12 months
Pedals/Foot beds 12 months
Rubber grips 12 months
Frame* 10 years
Battery 1 year
Brake 3 years
Seat frame pedestal (seatpost) 3 years
Console membrane switch 3 years
Springs and Drive belts 3 years
*Frame includes: Base and Main frame
Accessories Products Warranty Period
Pedal straps Normal wear & tear
Heart rate receiver/Transmitter 90 days
Assist gloves 90 days
Leg stabilizer 12 months
(f) Fires, oods, and acts of God, are not covered under ths
warranty.
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
Freight and Shipping
All SCIFIT products have displayed on the outside packaging “STOP – UPON DELIVERY
INSPECT MERCHANDISE THOUROUGHLY NOTING ANY DAMAGE ON RECEIVING
PAPERWORK PRIOR TO SIGNING”.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shipping and Installation
SCIFIT is not responsible for the repair or replacement of any unit or part damaged during transit
or installation. The customer is responsible for inspection of each unit and part for shipping
damage at the time of installation. If the customer signs an unqualied receipt for freight or
damage goods, the customer is solely responsible for the cost of the repair or replacement
for such freight damage.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software, Trademarks, Copyrights and Patents
If an order includes computer software, such software is transferred by SCIFIT to the customer
pursuant to a single user license, the royalty terms and conditions of that are set forth on or in the
package accompanying the software.
SCIFIT has trademarked several names to uniquely identify its business and products. These
names must not be used by other entities and remain the exclusive right of SCIFIT. SCIFIT’s
decals, user manuals, and service manuals are copyrighted and may not be copied without prior
written approval from SCIFIT.
SCIFIT owns patents on designs and features that are unique to its products. SCIFIT will defend
these patents against those who attempt to utilize these features and designs in other products.
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
Maintenance
After using, always wipe down your SCIFIT exercise
product. Perspiration that continuously settles on
frame, upholstery, casings and control panels may
eventually cause rust or damage. Damage resulting
from lack of maintenance WILL NOT be covered under
warranty. To clean upholstery, use mild soap and warm
water, then dry with a clean towel. Refer to the machine
maintenance schedule.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Support
Assistance for the service of SCIFIT products is available by
• Fax: +1 (918) 359-2045
• Phone: +1 (918) 359-2040
• Toll Free: +1 (800) 745-1373
• Email: Service@SCIFIT.com
The product support department is staffed from 7 AM to 5 PM US Central Time Monday through
Friday. A voicemail service is available 24 hours daily for recording messages to request
technical support and to order replacement parts. Our goal is to return every voicemail call within
30 minutes of when it is placed during our normal business hours. Some parts may also be
purchased online using a credit card at: www.SCIFIT.com
Please have the following information prior to calling technical support:
• Model number of equipment
• Serial number of equipment
• Point of contact name and phone number
• Detailed description of symptoms encountered.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Shipment
During the rst 30 days warranty parts will be shipped via overnight delivery. Determination
must be made before 2:00 PM US Central Time on any given weekday for next day delivery.
During the remainder of the rst year warranty period, parts requirements will be lled via ground
shipment. The customer will have the option to request overnight or 2nd day parts shipping, but
will be charged the difference between the ground shipment cost and the overnight or 2nd day
cost.
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
Return of Parts
SCIFIT is committed to continual improvement in the equipment we market. In order to meet
this commitment, the rapid return of defective parts is essential. The examination of the parts by
our engineering department leads to changes that insure the same problem does not re-occur.
Thank you in advance for your assistance!
When requested by SCIFIT, defective parts must be returned to the SCIFIT factory within 20 days
of receipt of replacement part. SCIFIT reserves the right to invoice buyer and collect for parts
where SCIFIT has requested the parts be returned and buyer has refused to do so.
Pleasefollowthesethreeeasystepsforreturningparts.
Step 1
Keep the box and packing material in which the new parts arrived.
Step 2
A prepaid return label will be in the parts box for only those parts that need to be returned. If no
prepaid return label is enclosed contact SCIFIT product support at
• Phone: +1 (918) 359 - 2040
• Toll Free: +1 (800) 745 -1373
• Email: Service@SCIFIT.com
When ALL of the parts are received and inspected at the factory, a credit will be issued for the
original parts invoiced. Attention service companies – Labor invoices will NOT be paid until the
defective parts are returned to the factory.
Step 3
Wrap the defective part, place it in the box and afx the return label for a safe return.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Labor
Where applicable, the SCIFIT product support personnel will arrange a local eld service
technician to provide eld support. Every effort will be made to schedule service during 48
business hours (8 hours per business day) following notication of a problem or as soon as
repair parts are available to the eld service technician. Where possible, parts will be supplied in
advance of the eld service technicians so that the product is repaired with one call.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Purchased Parts
All purchased parts will carry a 12 month warranty. Refer to purchased parts shipments and
installation for more information.
.
This Limited Commercial Warranty supercedes the Limited Commercial Warranty printed in the
“Owner’s Operation Manual” for all SCIFIT Systems, Inc. products.
If you have questions or require additional information, please contact SCIFIT Systems, Inc. at:
• Phone: +1 (918) 359 - 2040
• Toll Free: +1 (800) 745 - 1373
• Email: Service@SCIFIT.com
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
Address: SCIFIT Ltd (UK)
Lexham House, Forest Road
Binfield, Berkshire, RG42 4HP
United Kingdom
EU Support: +44 1344 300022
Email:
Web:
Manufacturer: SCIFIT Ltd (UK)
Product: Step One – Stepper
Class A (high accuracy class) per EN957-1:2005
Class S (commercial use class) per EN957-1:2005
We, SCIFIT Systems, Inc., hereby declare that the product listed above is in conformity
with the following standards and/or normative documents:
ISO 9001:2008
EN 957-1:2005
EN 957-8:1998
EN 60601-1-2:2007
EN 60601-1:2006
EN 62304:2006
Steve Wright
European Business Development Director
April 2, 2013
If your StepOne machine has CE on the label followed by
“0434”, it is a medical machine. The label will be located
at the front of the machine next to the serial number.
---
---
-
-
---
-----
---
-
-
-
--
-
0434
Address: SCIFIT Ltd (UK)
Lexham House, Forest Road
Binfield, Berkshire, RG42 4HP
United Kingdom
EU Support: +44 1344 300022
Email:
Web:
Manufacture: SCIFIT Ltd (UK)
Product: Step One – Recumbent Stepper
Class IIa device per rule 10 of Annex IX of 93/42/EEC.
Class A (high accuracy class) per EN957-1:2005
Class S (commercial use class) per EN957-1:2005
We, SCIFIT Systems, Inc., hereby declare that the product listed above is in conformity
with the essential requirements of the EC Council Directive 93/42 EEC Medical Device
Directive, as amended by 2007/47/EC and is in conformity with the following standards
and/or normative documents:
ISO 13485:2003
ISO 9001:2008
EN 957-1:2005
EN 957-8:2003
EN 60601-1-2:2007
EN 60601-1: 2006
EN 62304:2006
Steve Wright
UK Managing Director
17 January, 2013
---
---
-
-
---
-----
-
-
-
-
--
-
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
SPECIFICATIONS
P2278 Rev. B
Register online at http://www.SCIFIT.com/warrantyregistration.shtml or
complete this form, fold it and return it to SCIFIT. We request you send this card
within 2 weeks after your equipment has been delivered to insure proper warranty
registration.
Company Name
Contact Name
Address
City/State/Zip
Home Phone (____) Business Phone (_____)
Model Purchased
Date Received Serial Number
Entity Purchased From
City/State
Please rank the following reasons (1 through 6) for selecting SCIFIT with 1
being most important:
____Features____Quality____Price____Dealer___User Friendly___Appearance
Please Check the appropriate box(s) on how you were introduced to SCIFIT:
Saw in ______________________ Magazine Introduced by SCIFIT Dealer
Saw at ____________________ Tradeshow Referred by SCIFIT User
Other
Comment
Thank You For Choosing
www.SCIFIT.com
SCIFIT
5151 South 110th East Avenue
Tulsa, OK 74146
From
Important: Please keep this page for “Recalibration records”
Model Number:
Serial Number:
Date of Purchase:
Calibration Date
Medical Units:
Supplied By: SCIFIT Systems Inc.
User Manual: #A5583A (5/2013)
1st
Recalibration
DATE
CLUB OR
CERTIFICATION LOCATION CERTIFIED SERVICE COMPANY
TECH
INITIALS
2nd
Recalibration
3rd
Recalibration
4th
Recalibration
5th
Recalibration
Please make extra copies for future use
THIS PAGE LEFT BLANK INTENTIONALLY
Order online 24/7 at www.SCIFIT.com
