Surge Protective Devices
www.aptsurge.com | 1.800.237.4567 | info@aptsurge.com
SPD PRODUCT CATALOG
2016
“Protecting the electronic world from surges”
SPD Sizing Chart .........................................................................................................................................................................................................................................5
Type 1 and Type 2 SPDs

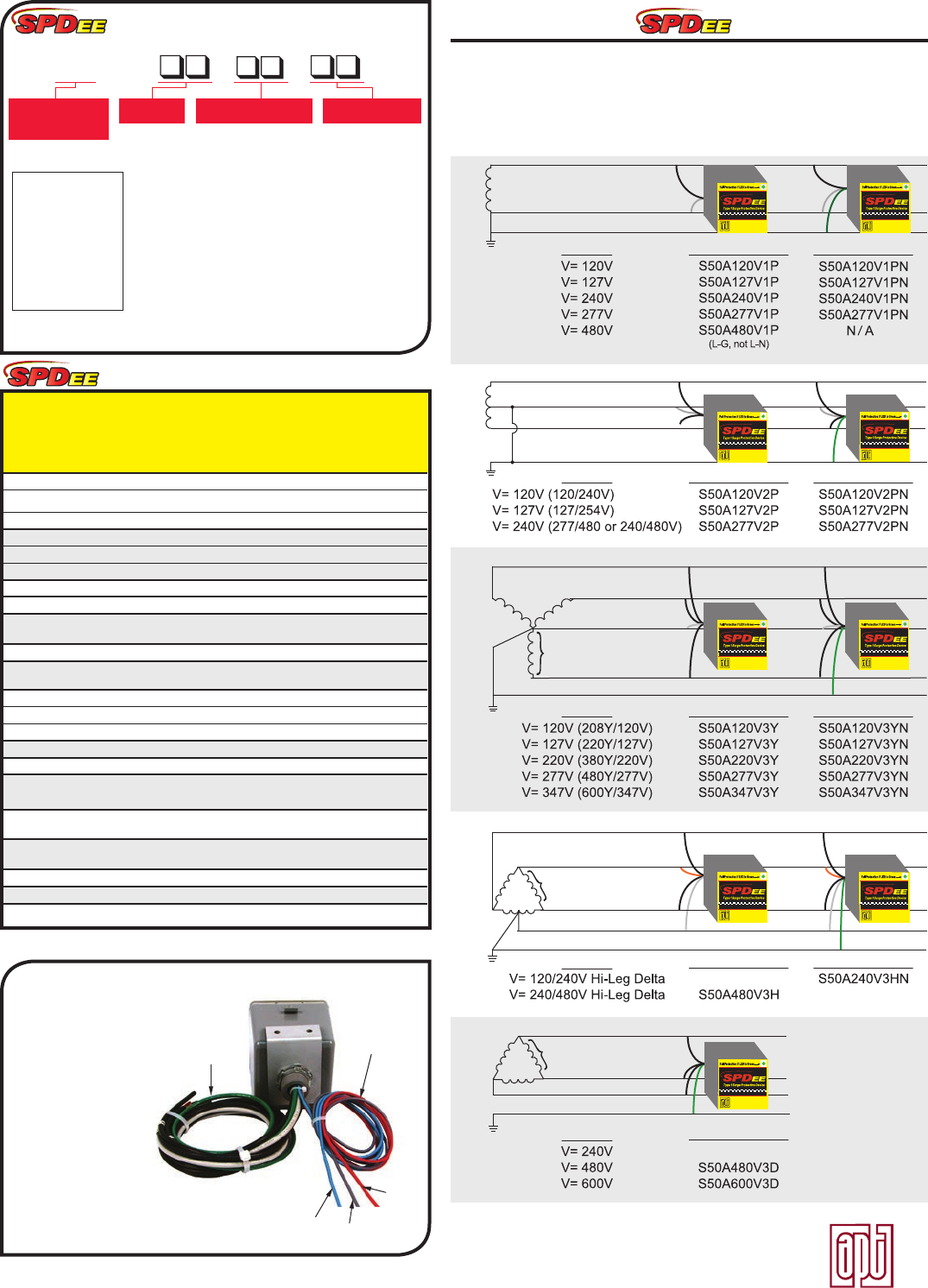

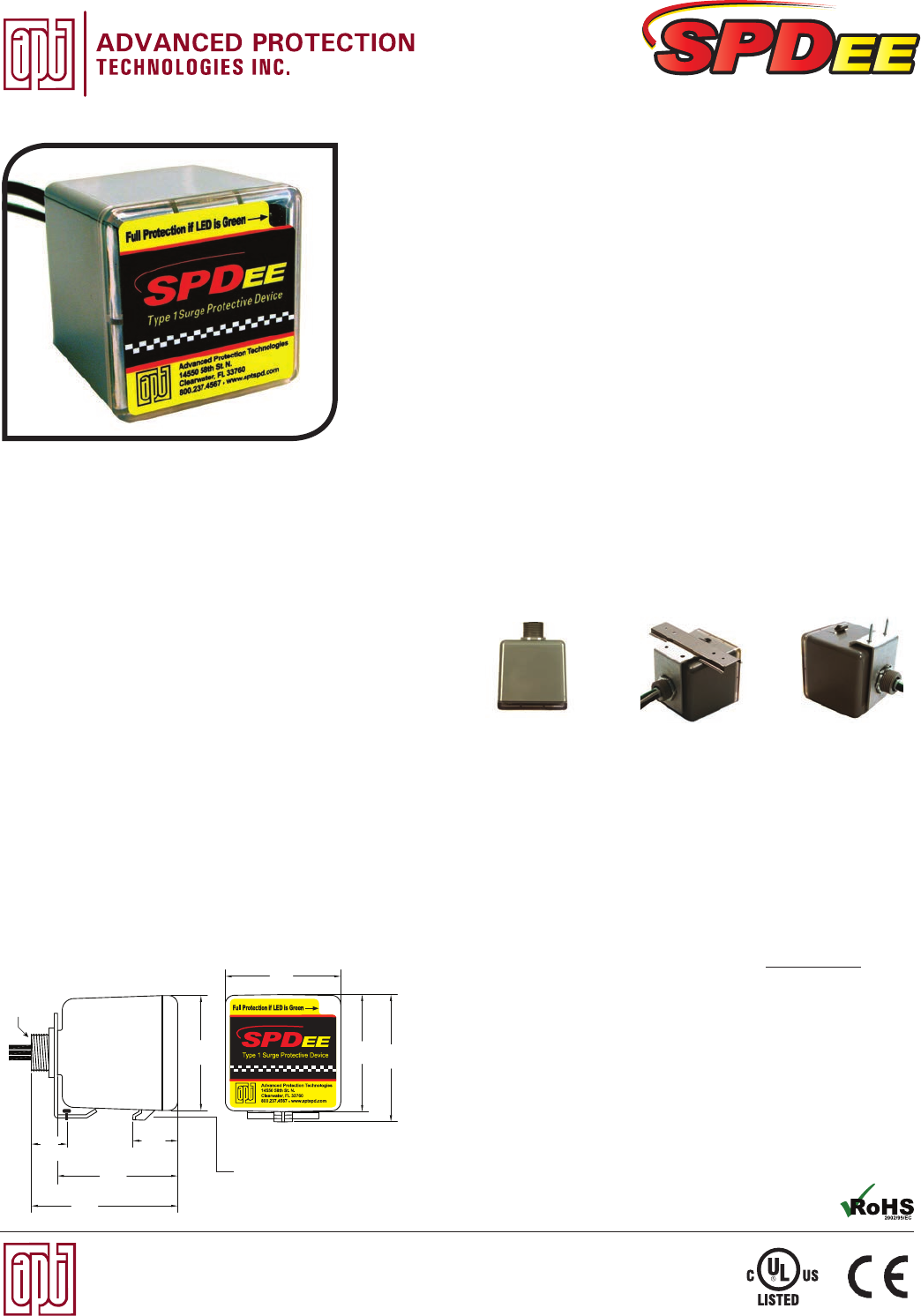

SPDEE Series ....................................................................................................................................................................................................................................................6

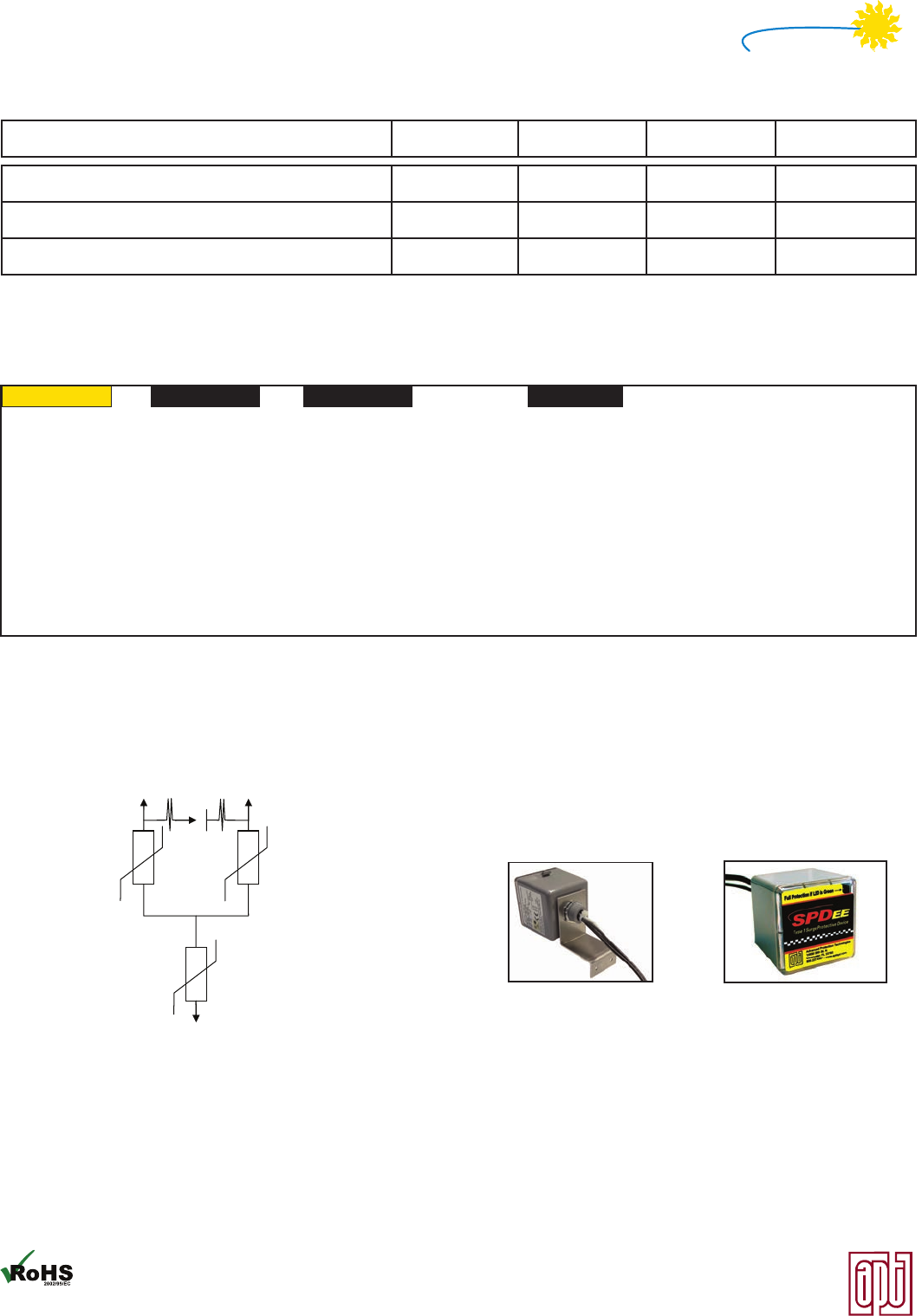

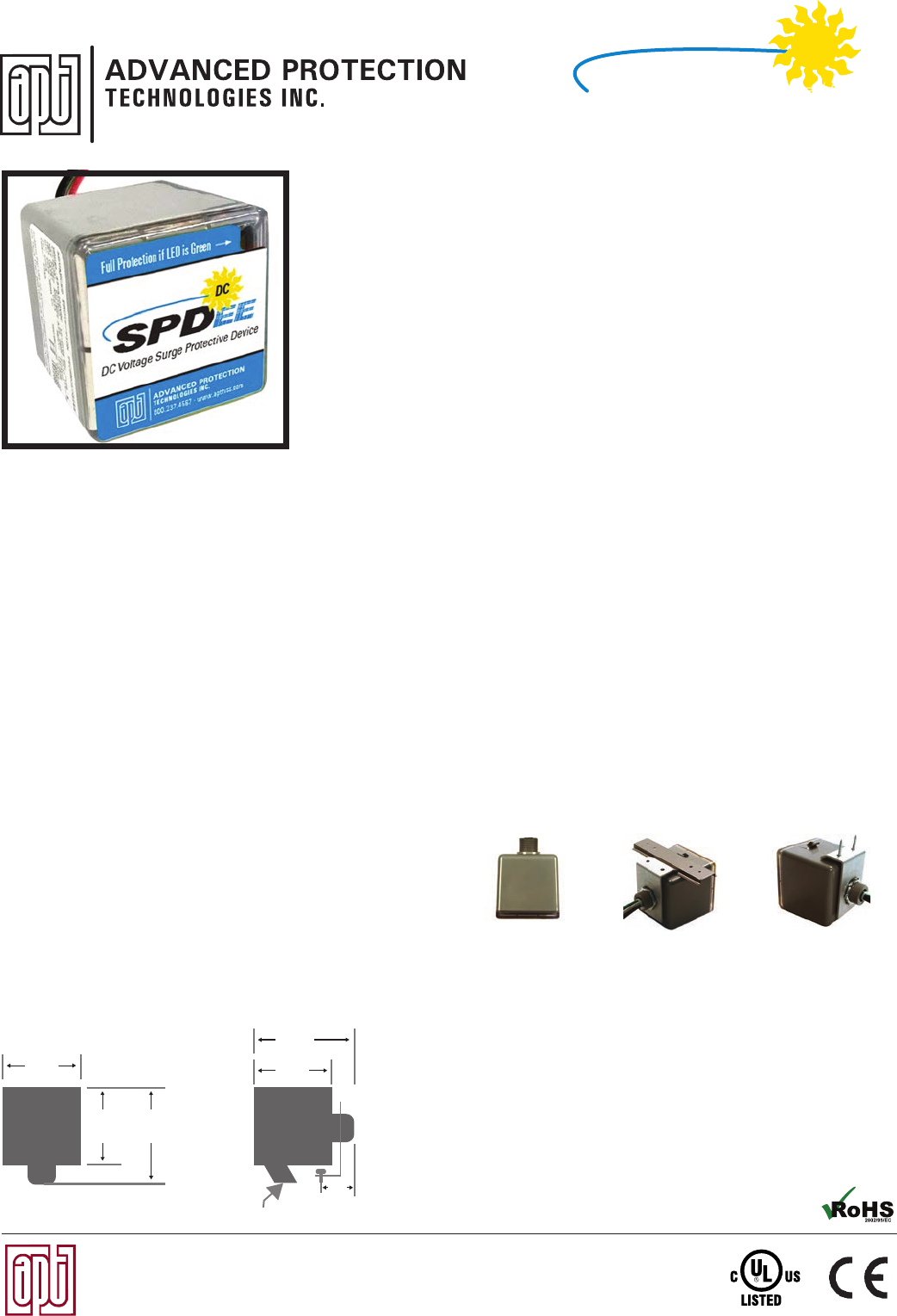

SPDEE DC Series ..........................................................................................................................................................................................................................................8

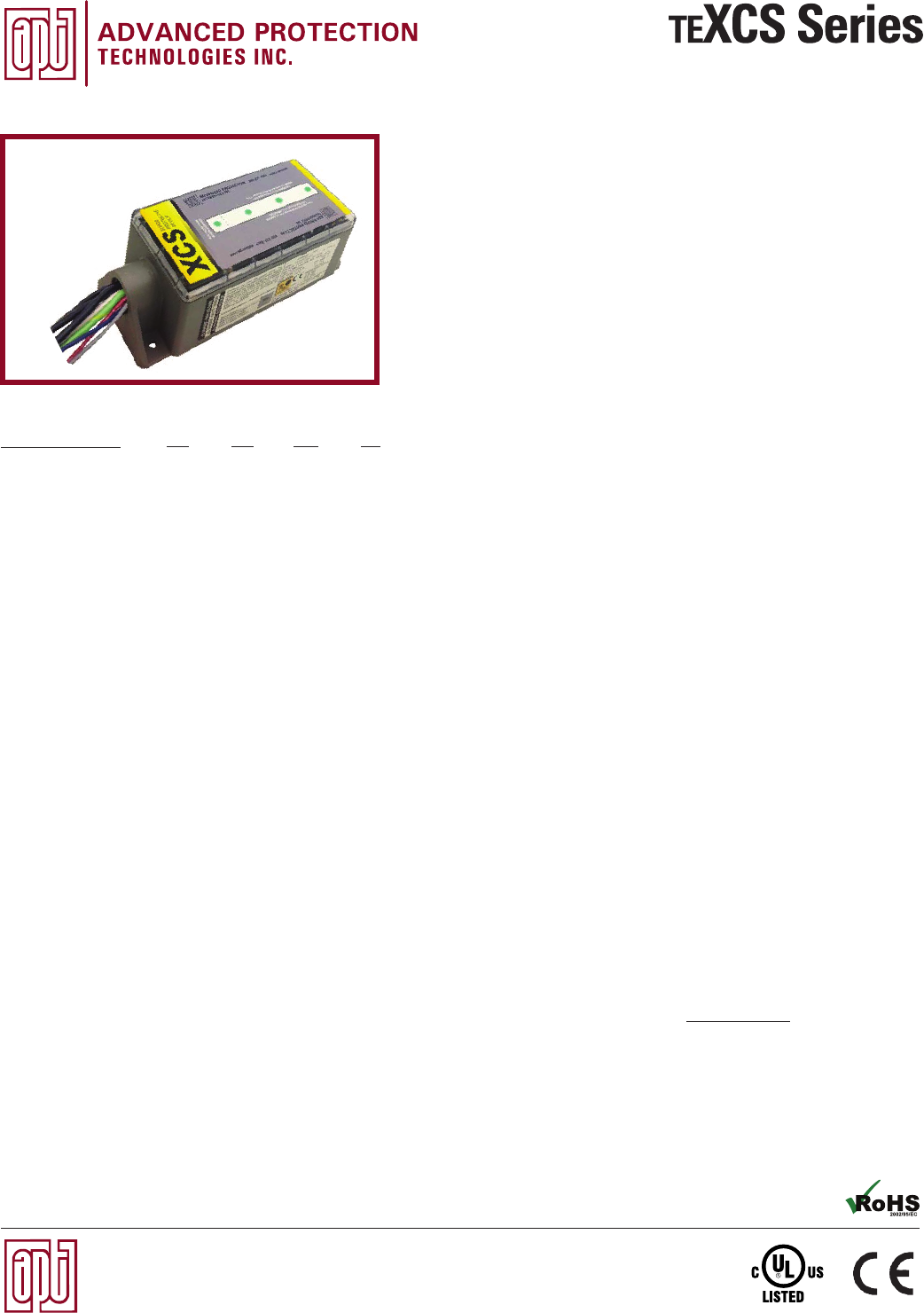

TEXCS Series ................................................................................................................................................................................................................................................10

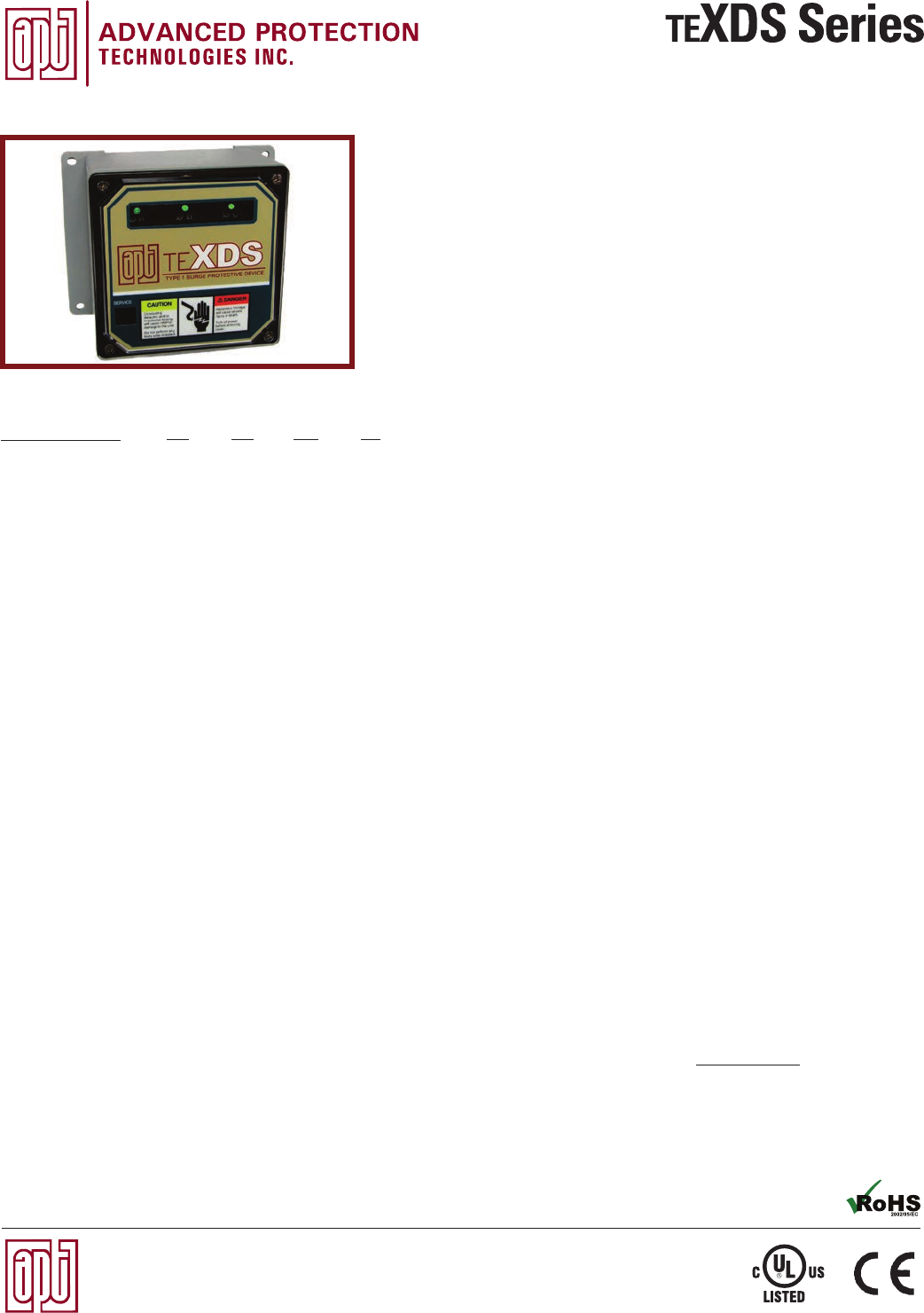

TEXDS Series ................................................................................................................................................................................................................................................12

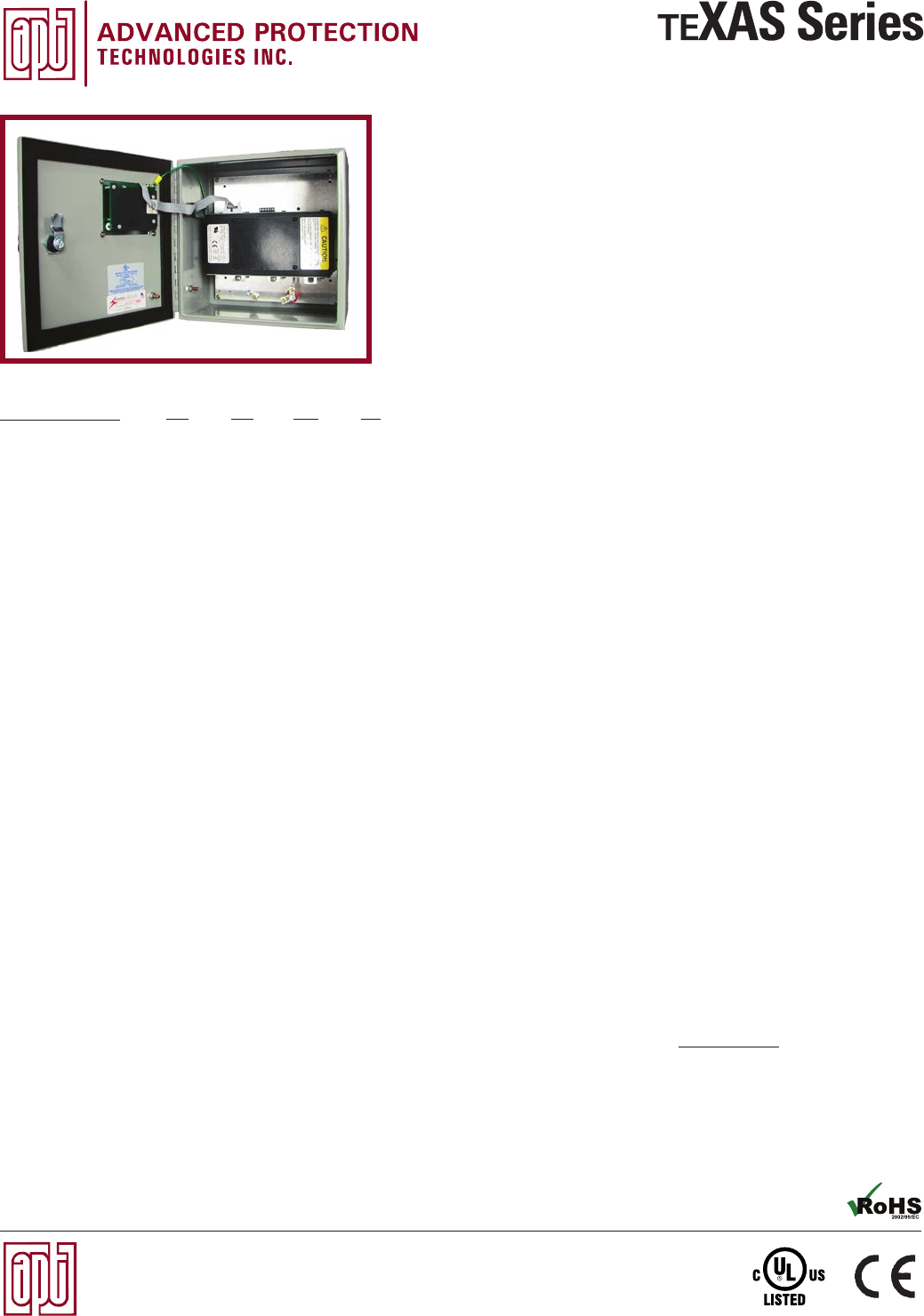

TEXAS Series ................................................................................................................................................................................................................................................14

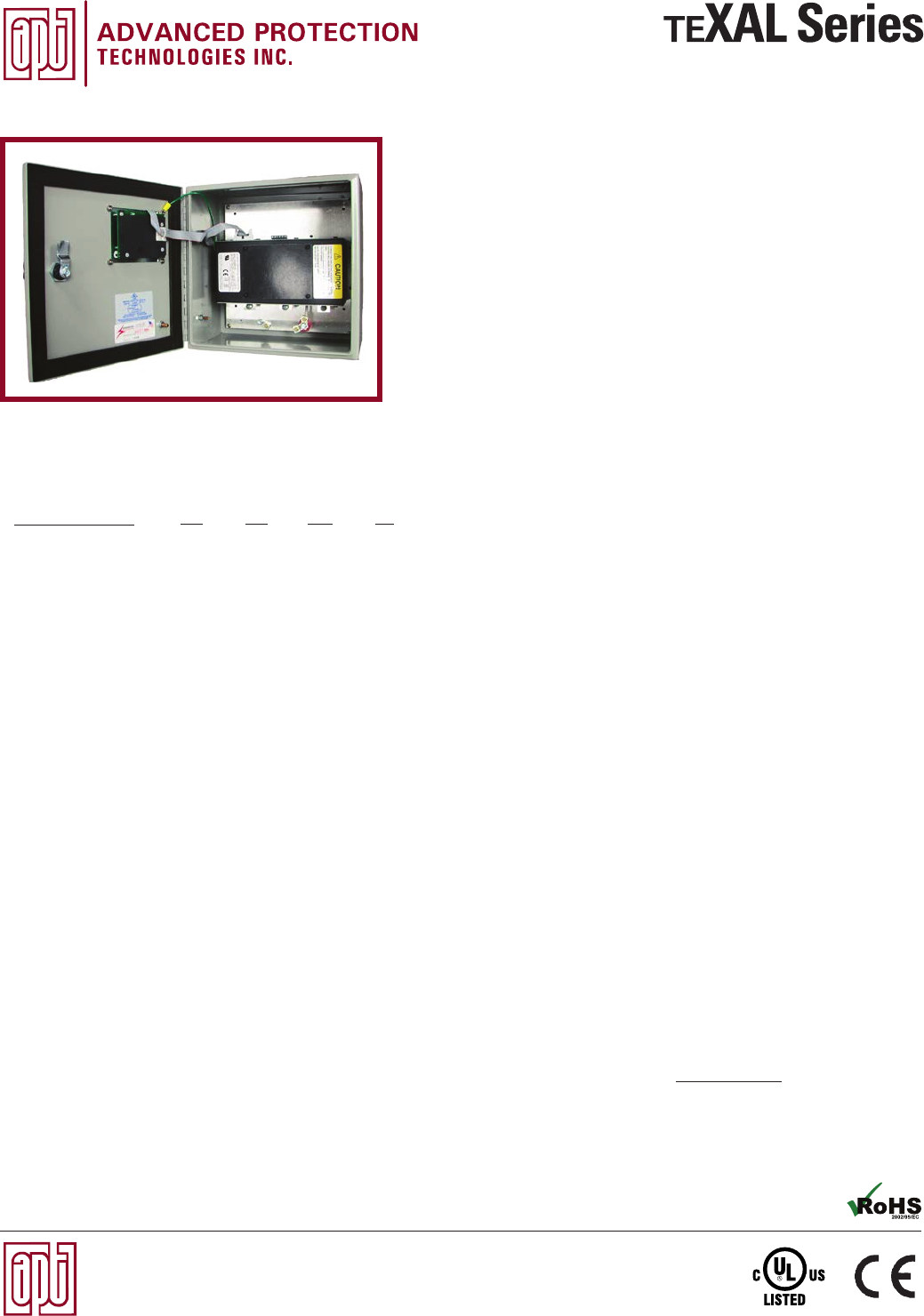

TEXAL Series ...............................................................................................................................................................................................................................................16

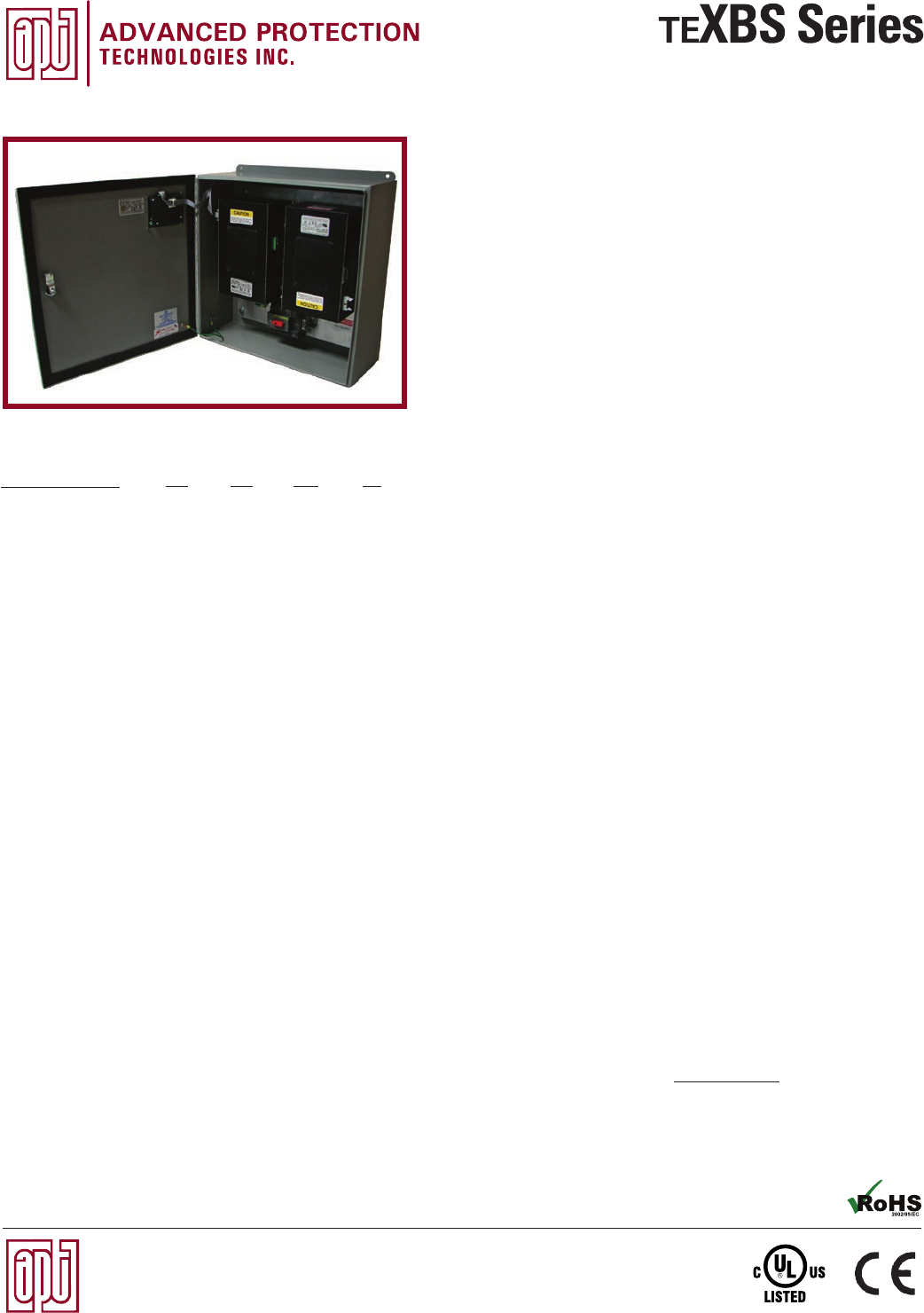

TEXBS Series .................................................................................................................................................................................................................................................18

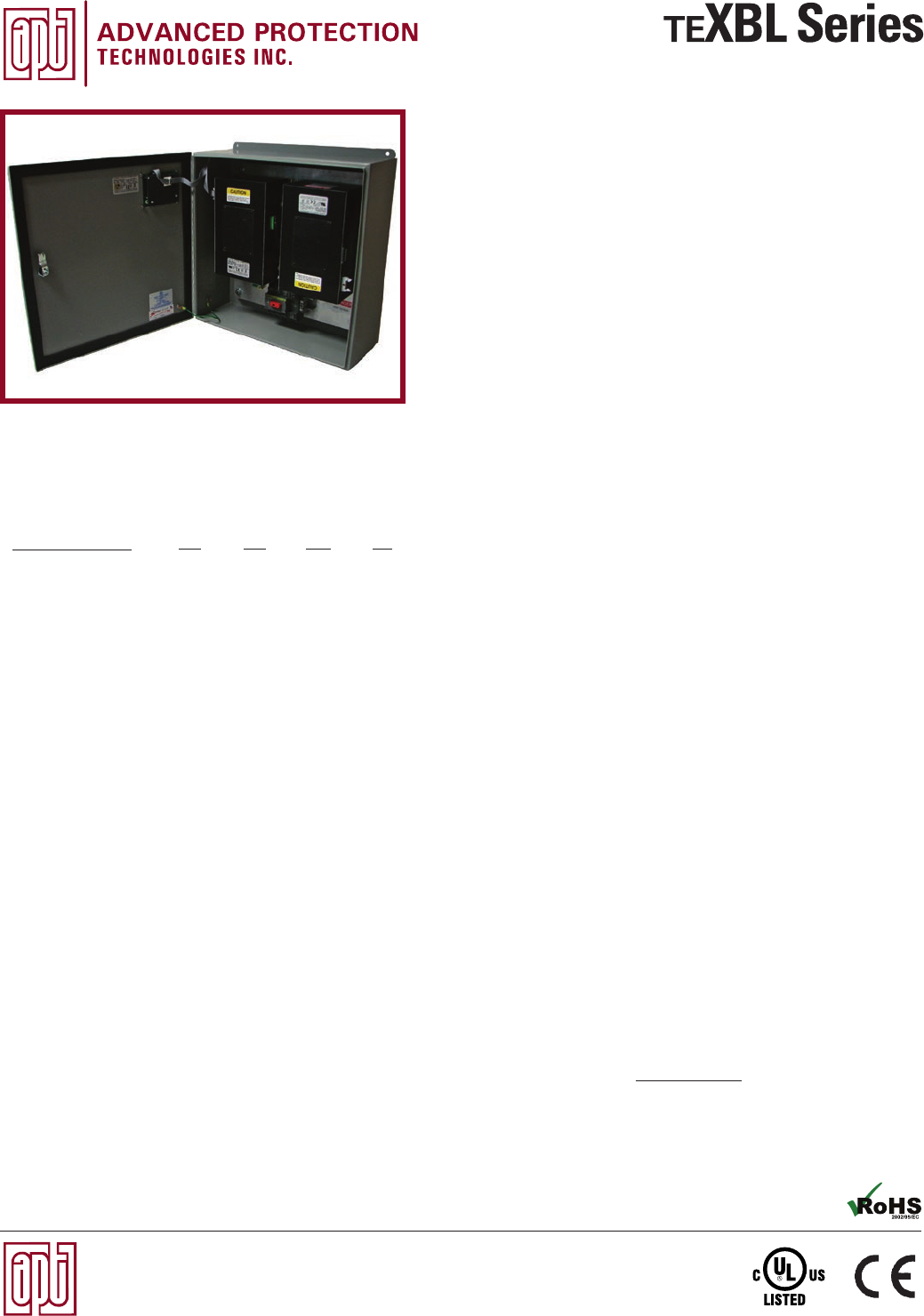

TEXBL Series .................................................................................................................................................................................................................................................20
Type 2 SPDs

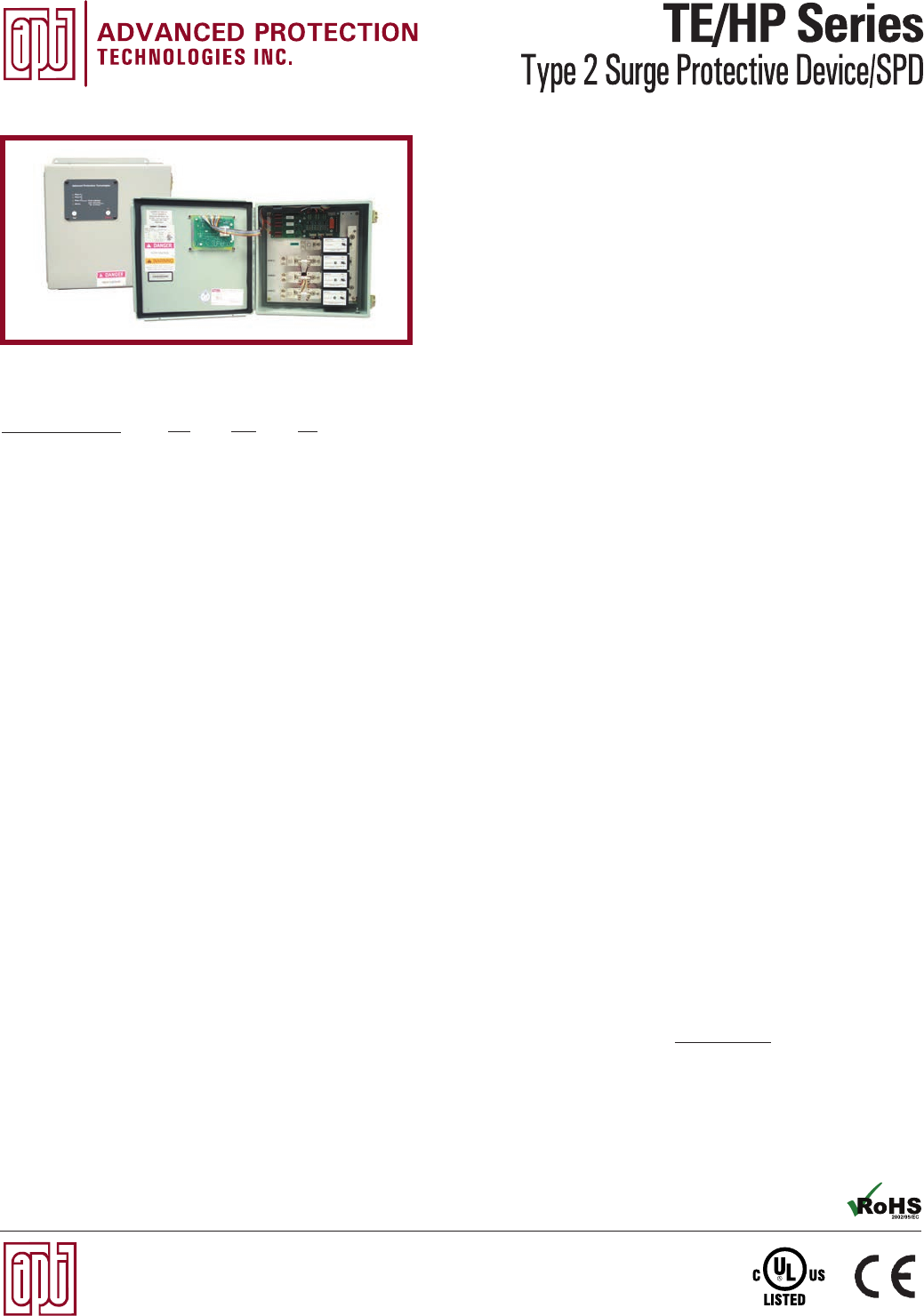

TE/HP Series (Modular) ....................................................................................................................................................................................................................22

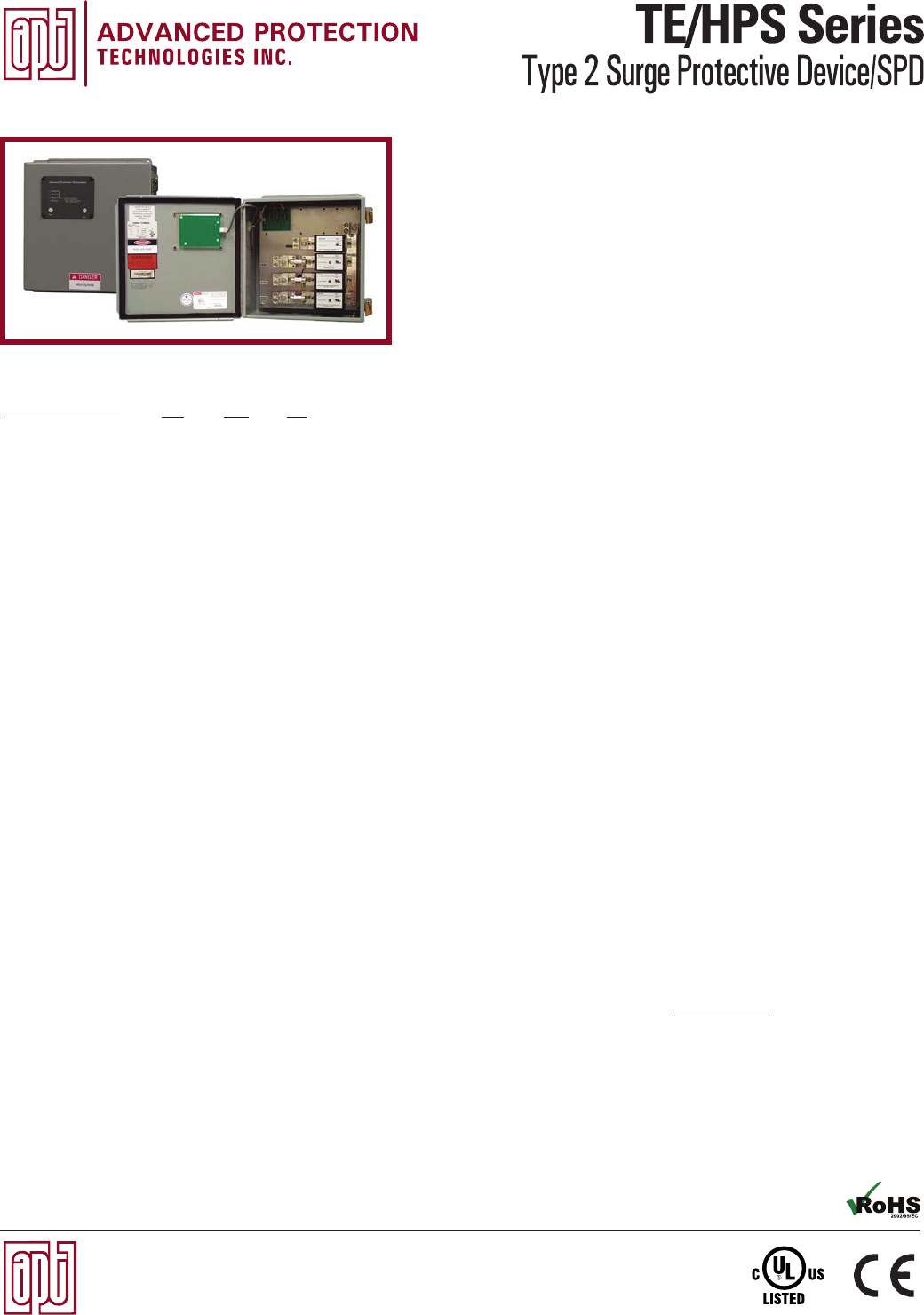

TE/HPS Series (Modular) ..................................................................................................................................................................................................................24

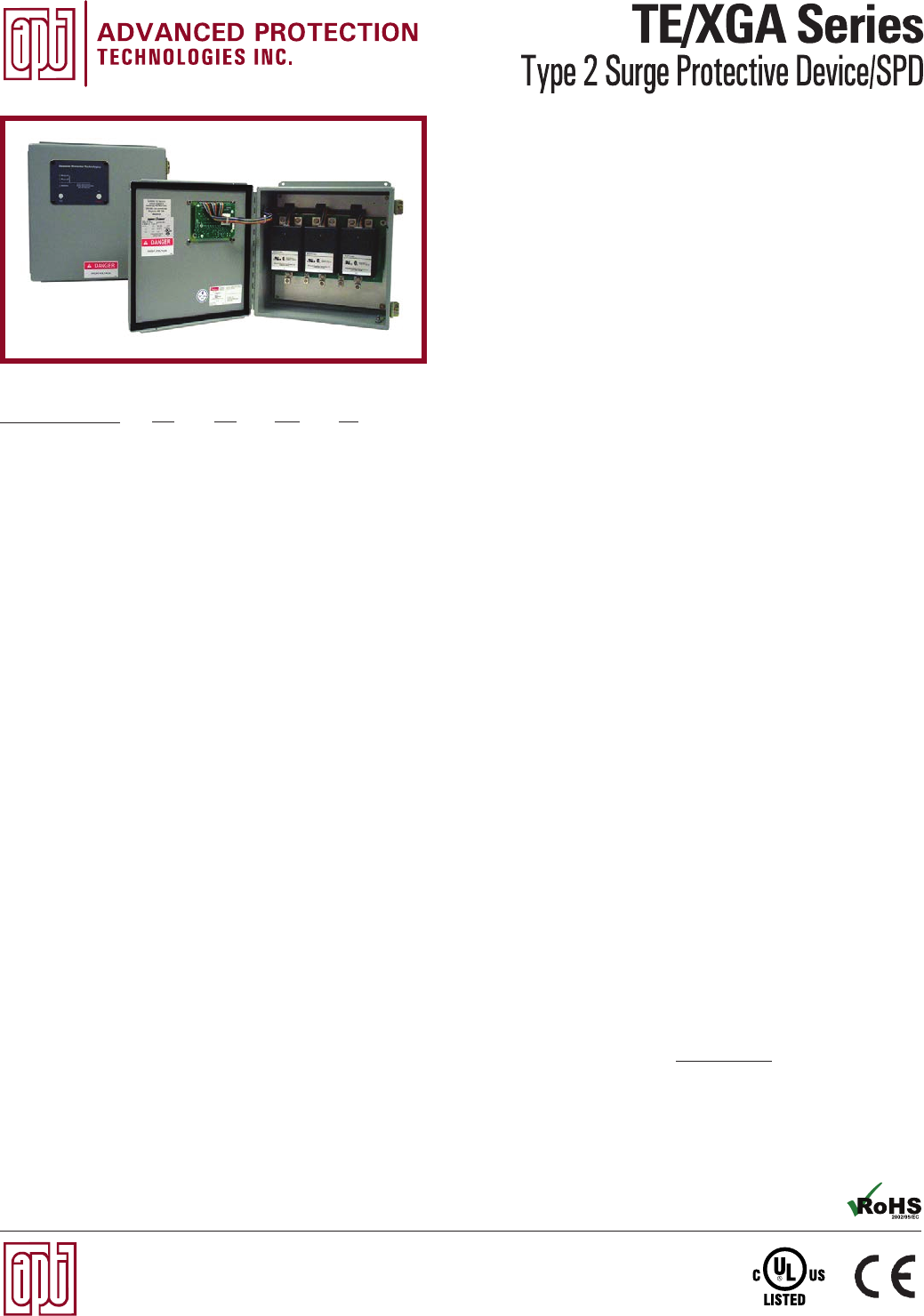

TE/XGA Series (Modular) ...............................................................................................................................................................................................................26

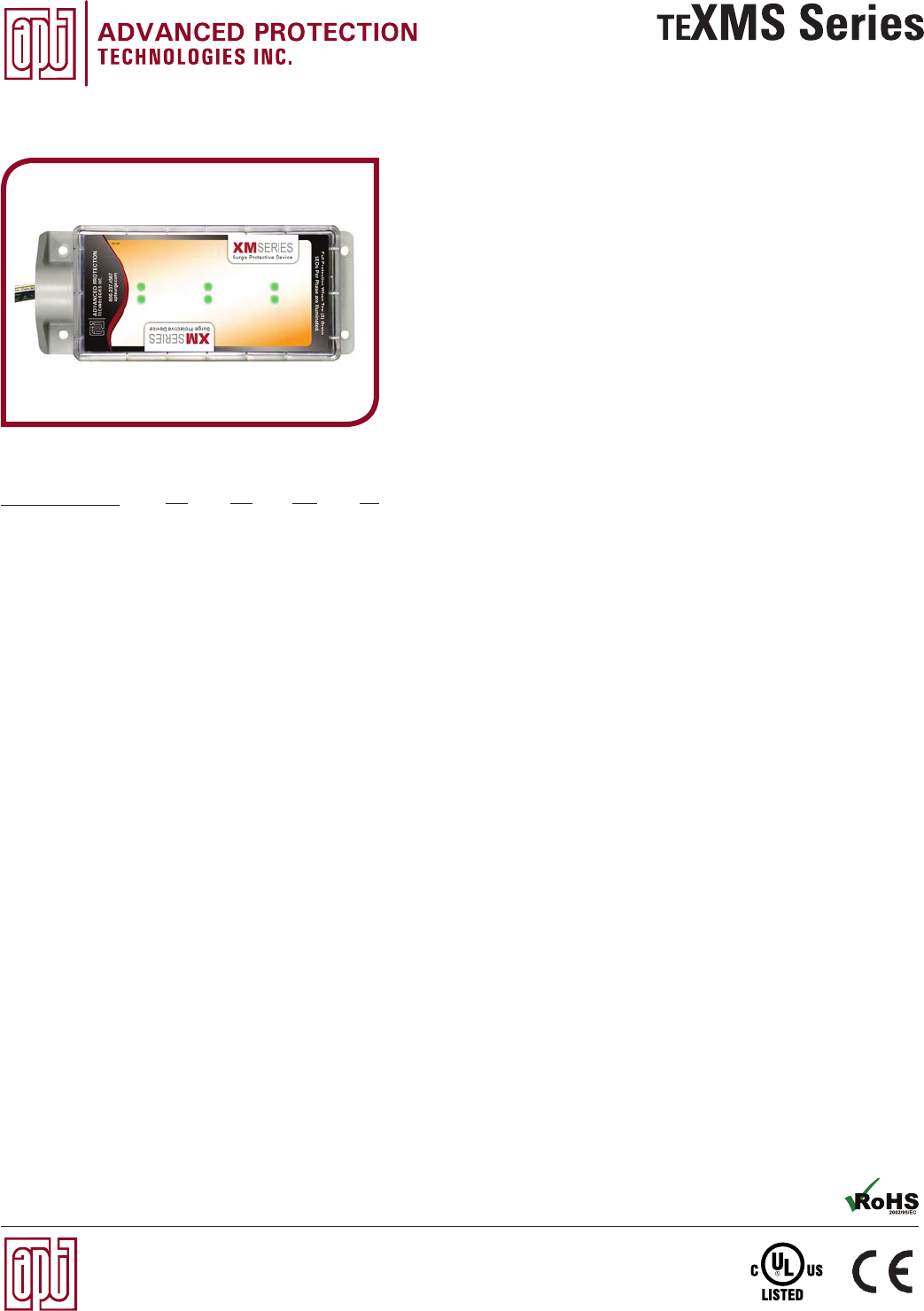

TE/XMS Series (Non-Modular) ...................................................................................................................................................................................................28
Component Assembly SPDs (Type 1 & Type 2)

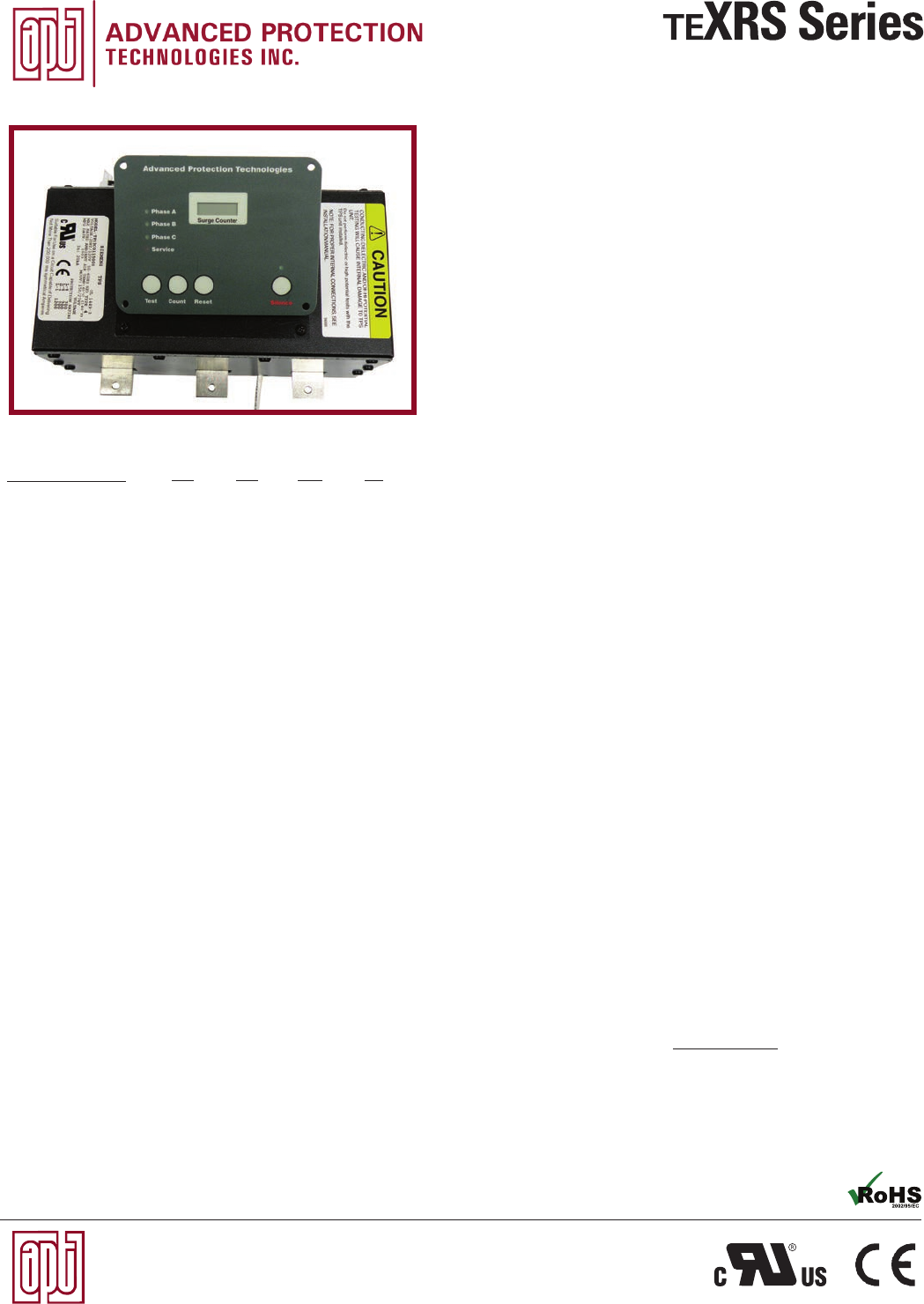

TE/XRS Series ............................................................................................................................................................................................................................................30

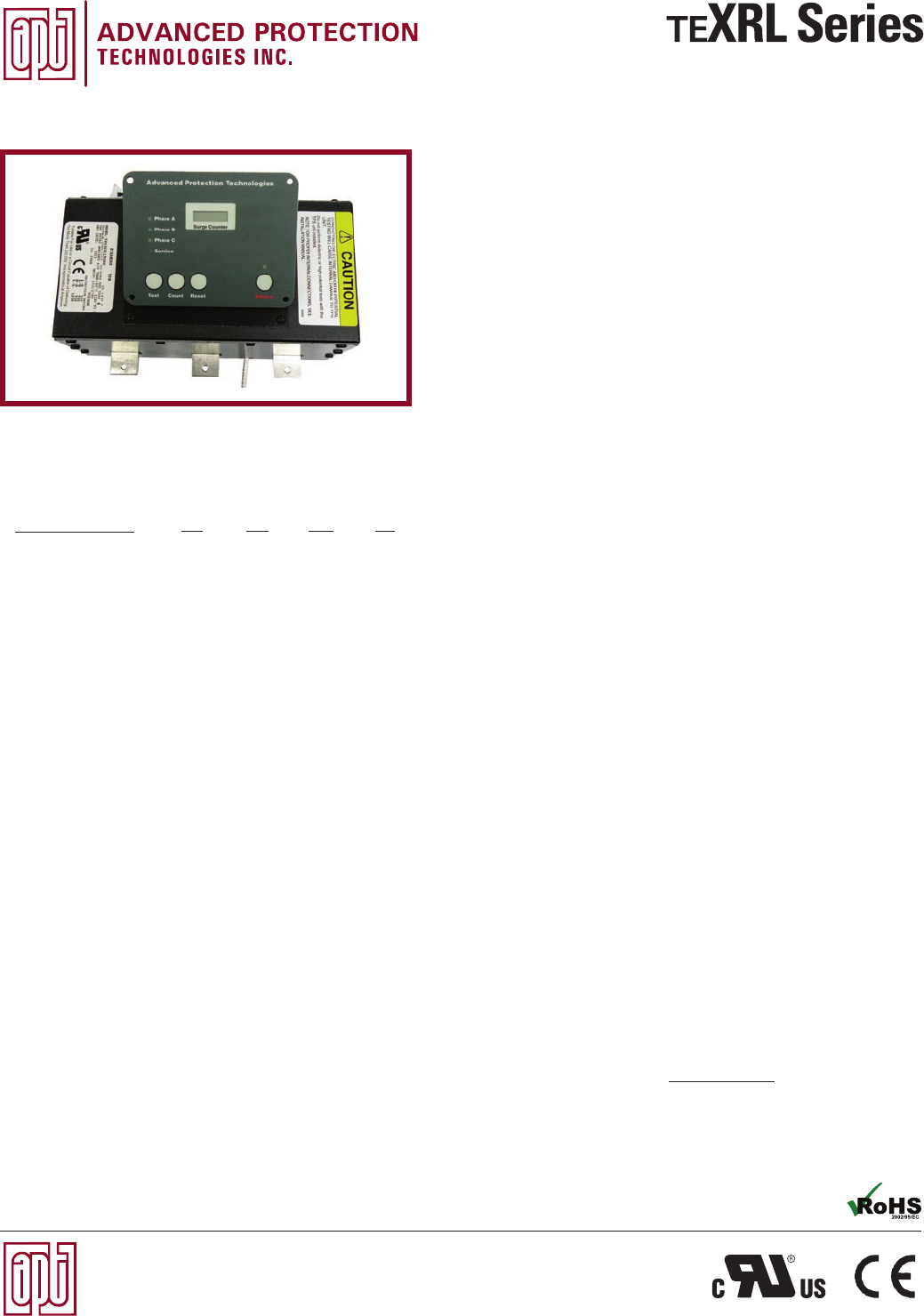

TE/XRL Series ...........................................................................................................................................................................................................................................32

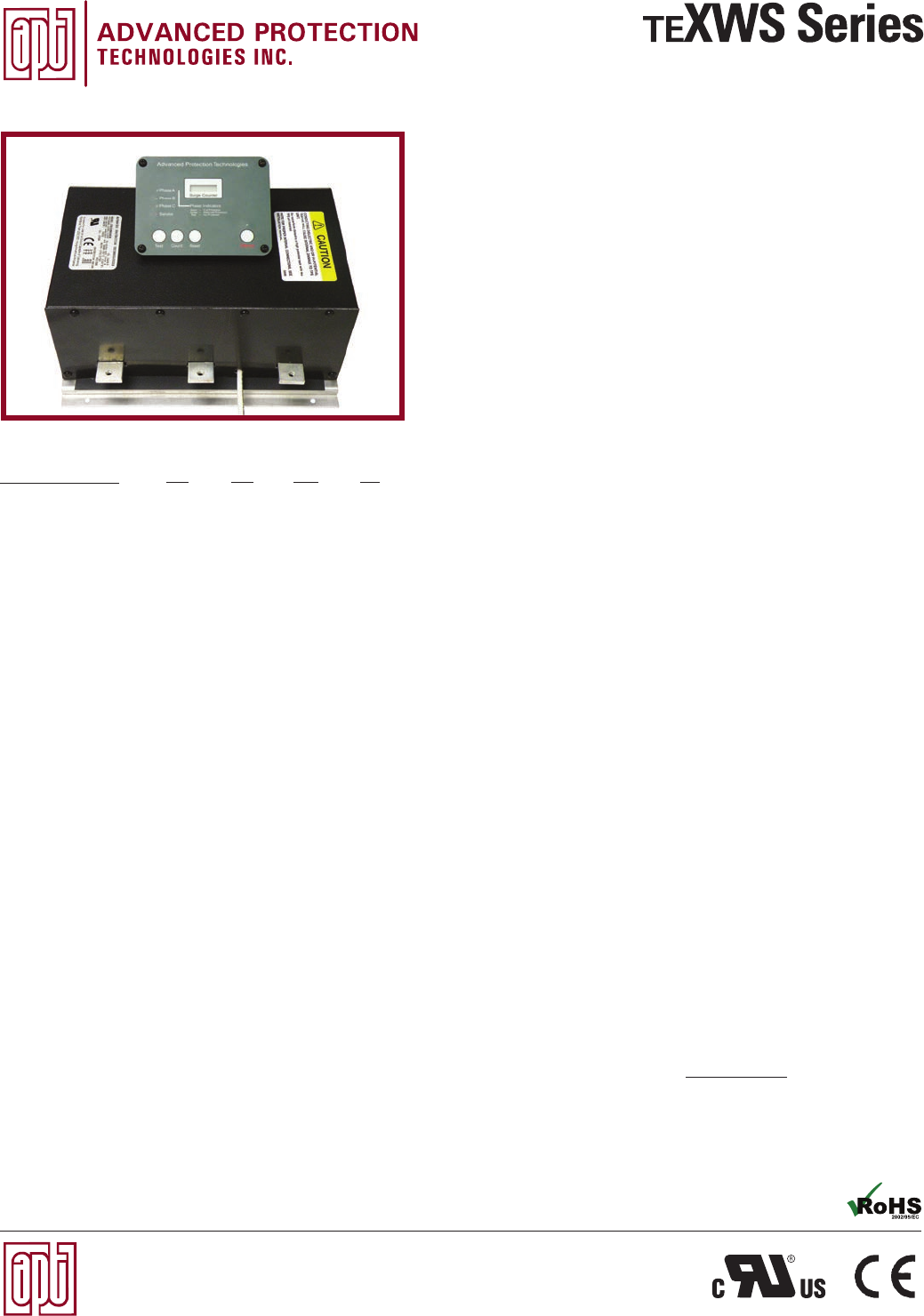

TE/XWS Series ........................................................................................................................................................................................................................................34

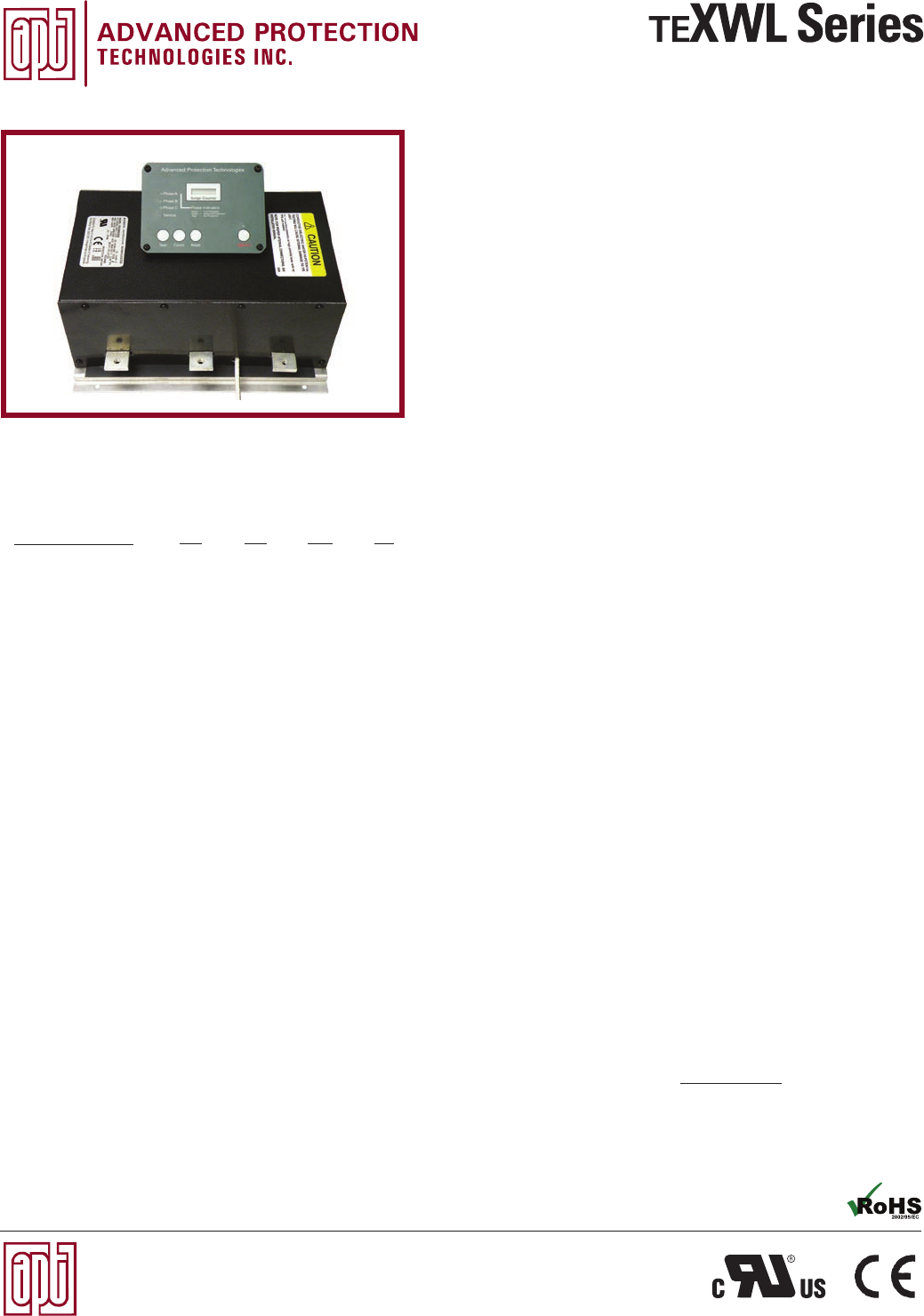

TE/XWL Series ........................................................................................................................................................................................................................................36

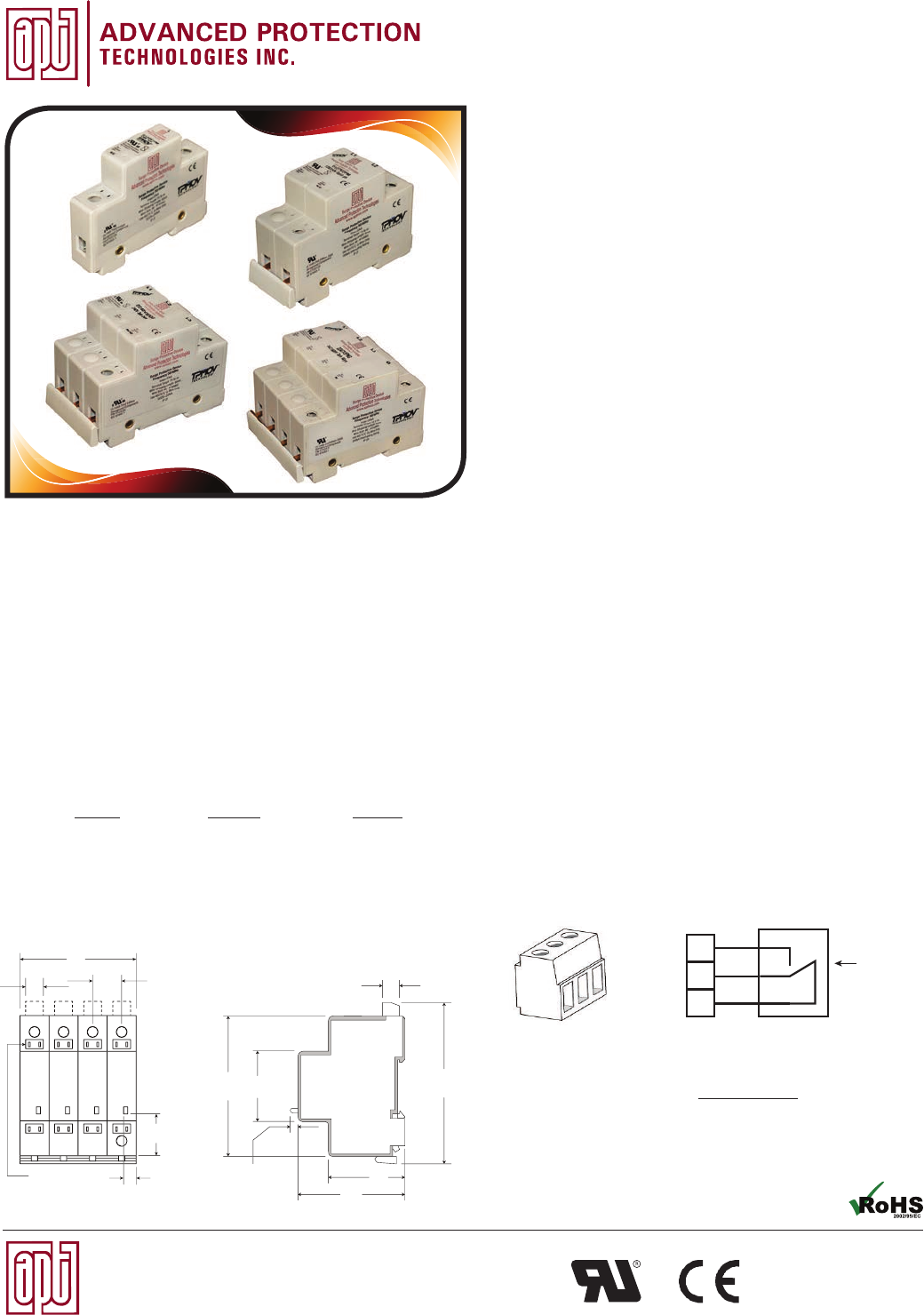

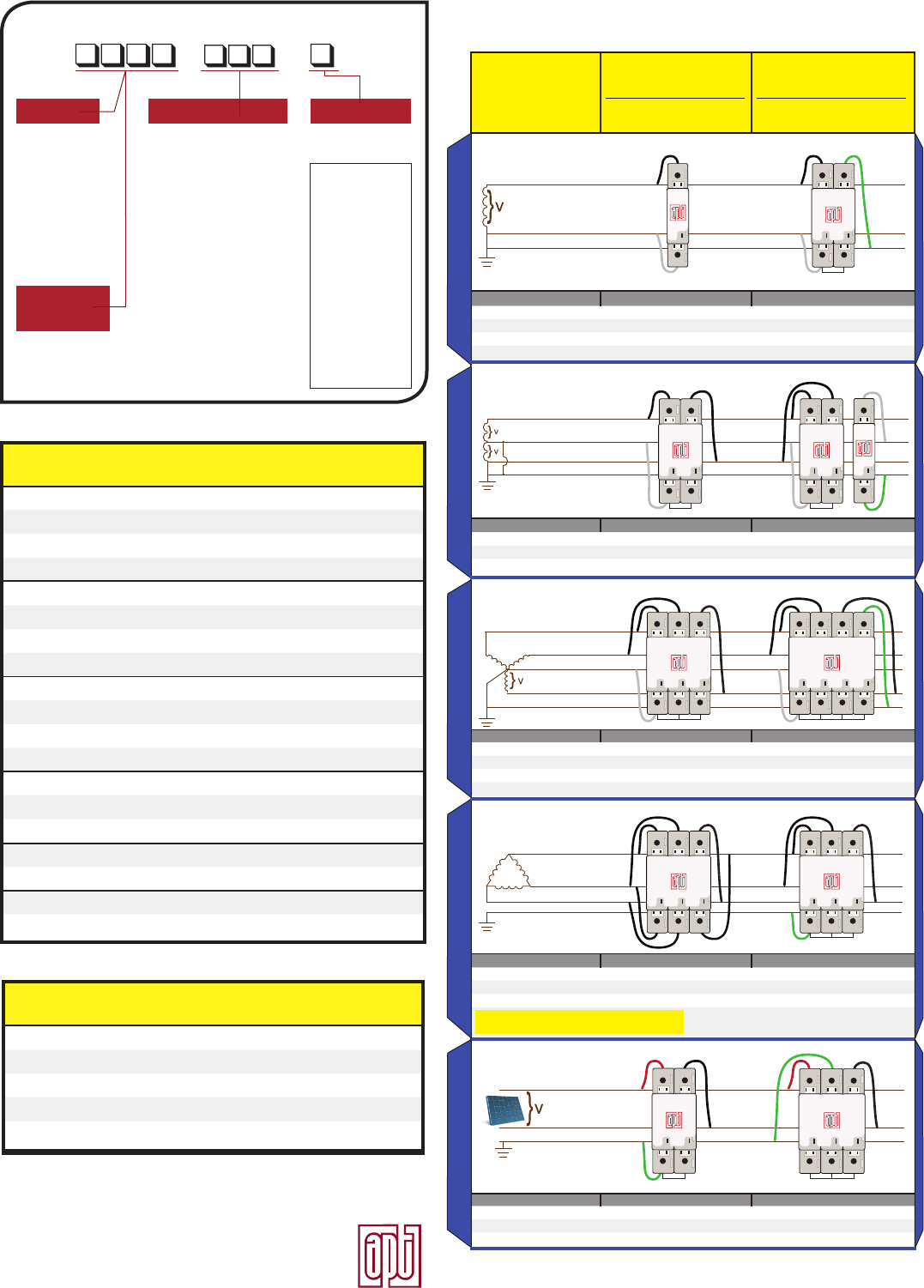

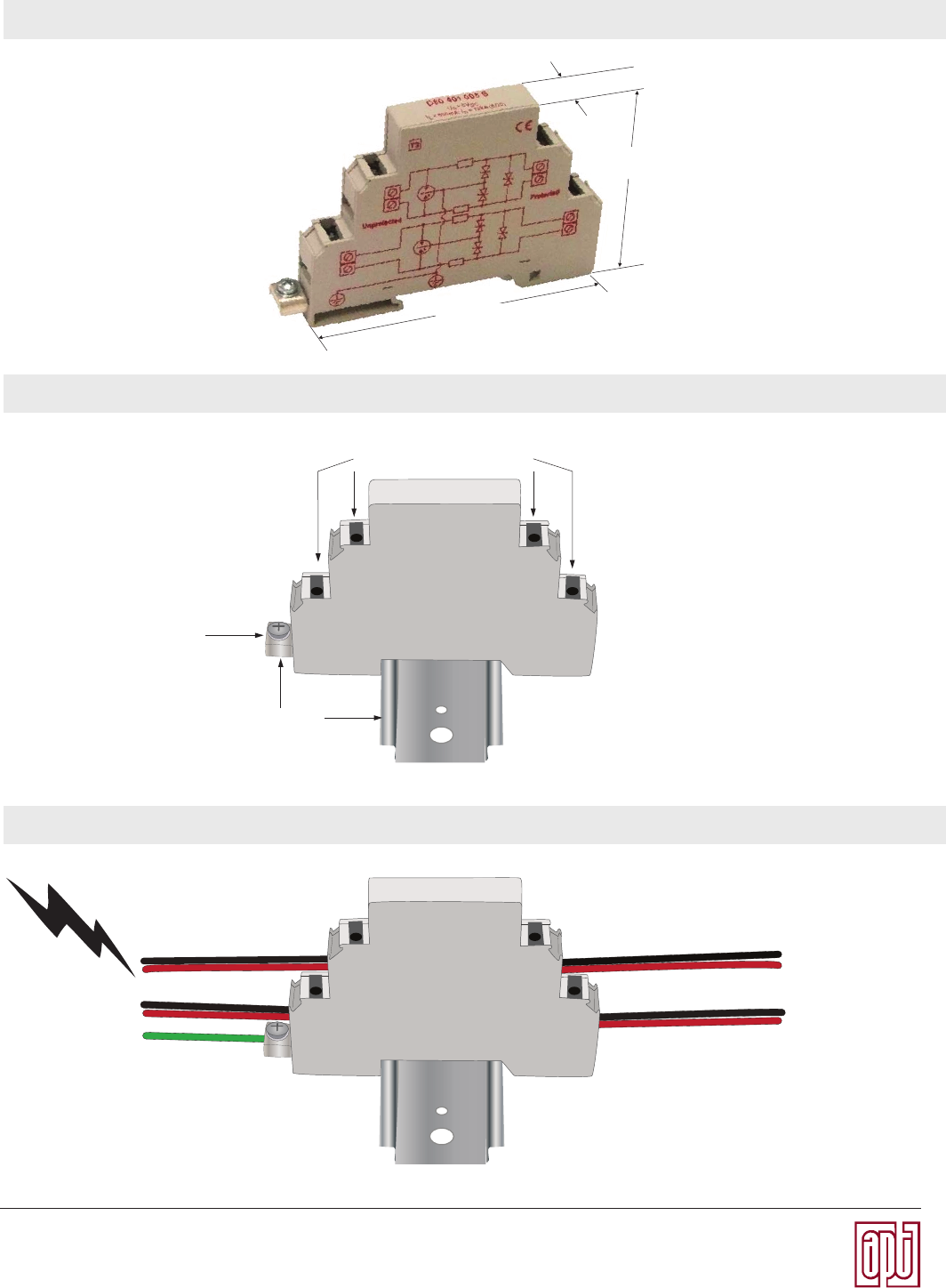

DIN-Rail: AC Power & DC PV ...................................................................................................................................................................................................38
Specialty SPDs

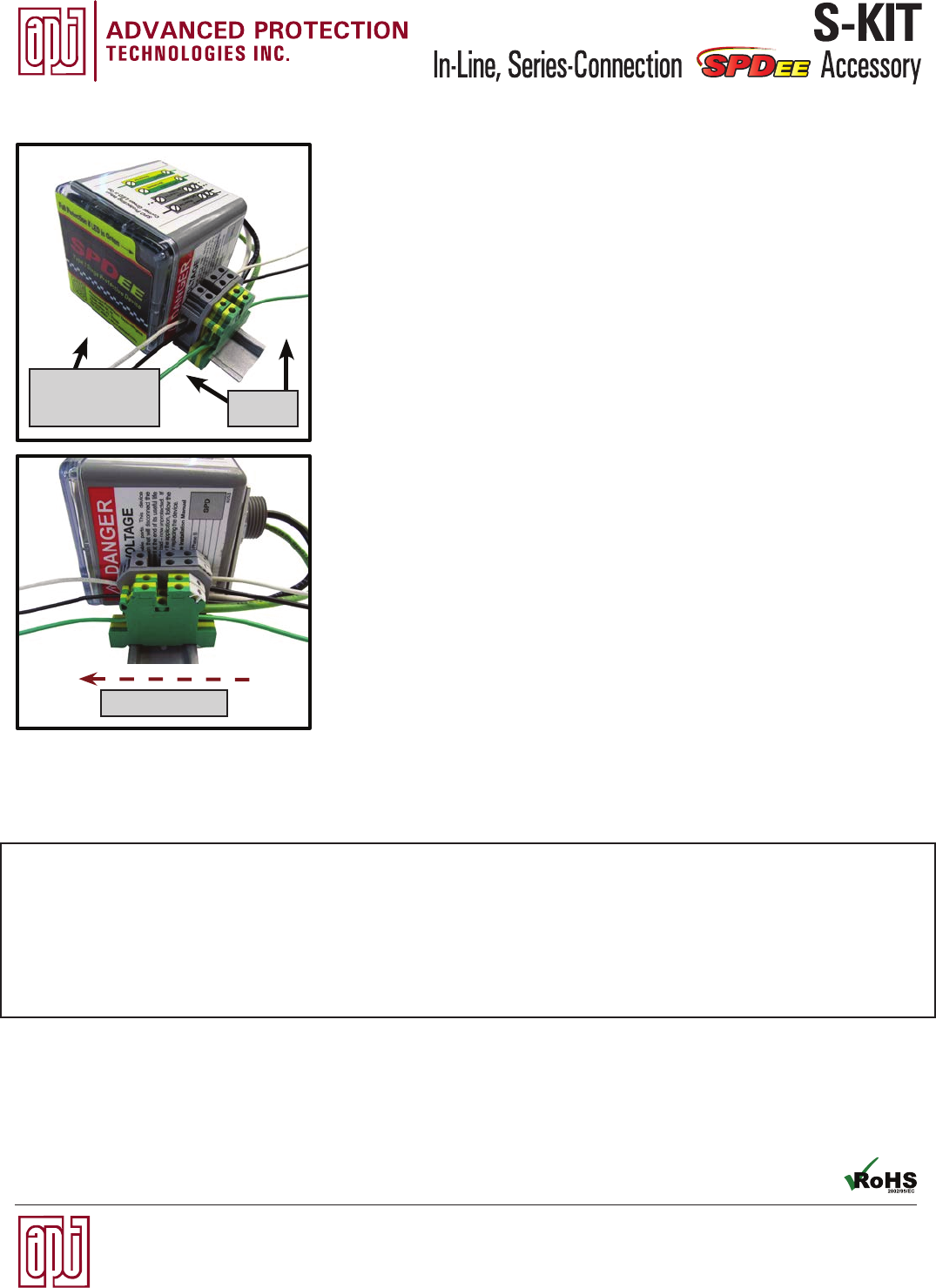

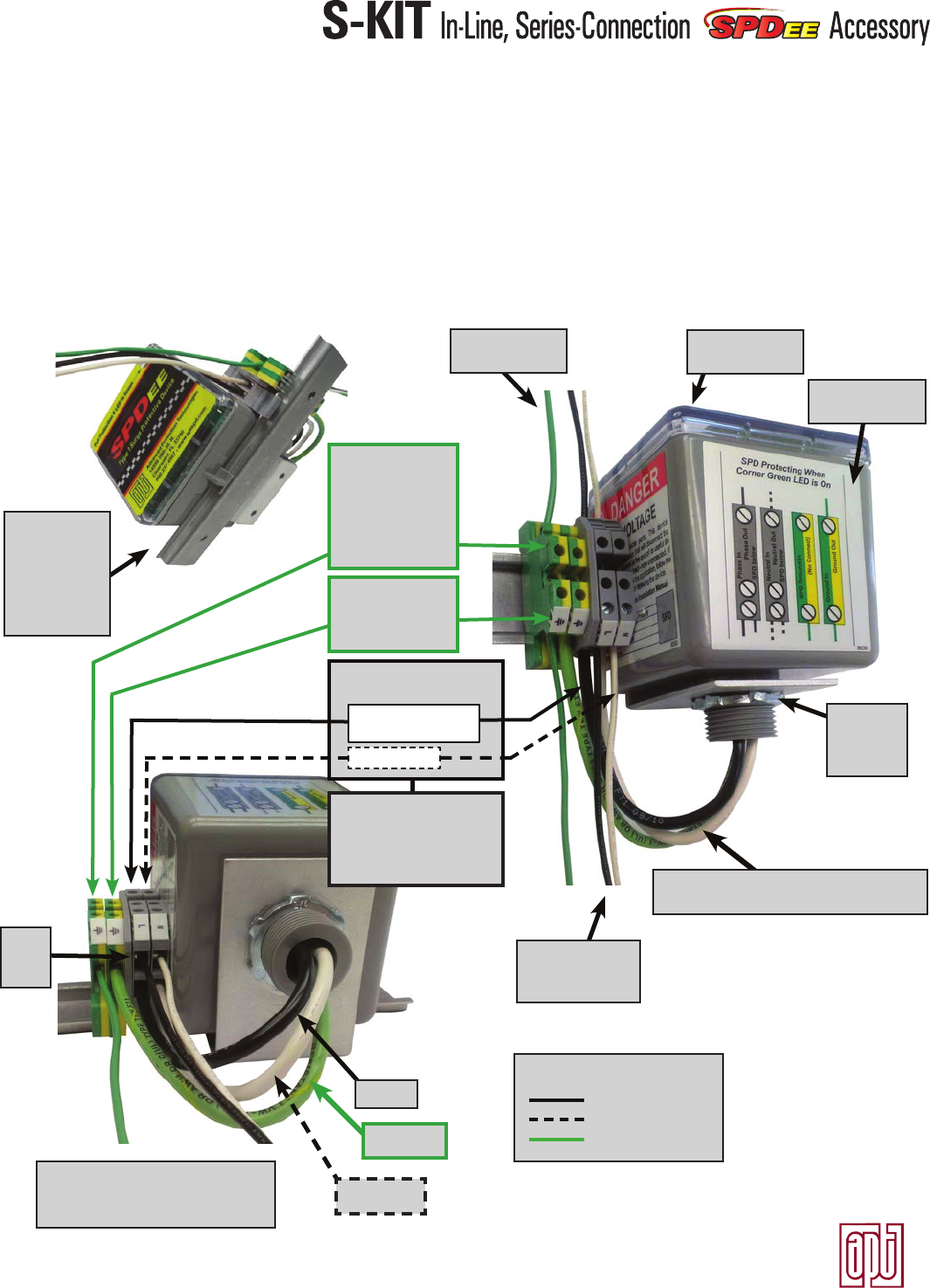

S-Kit Series ...................................................................................................................................................................................................................................................40

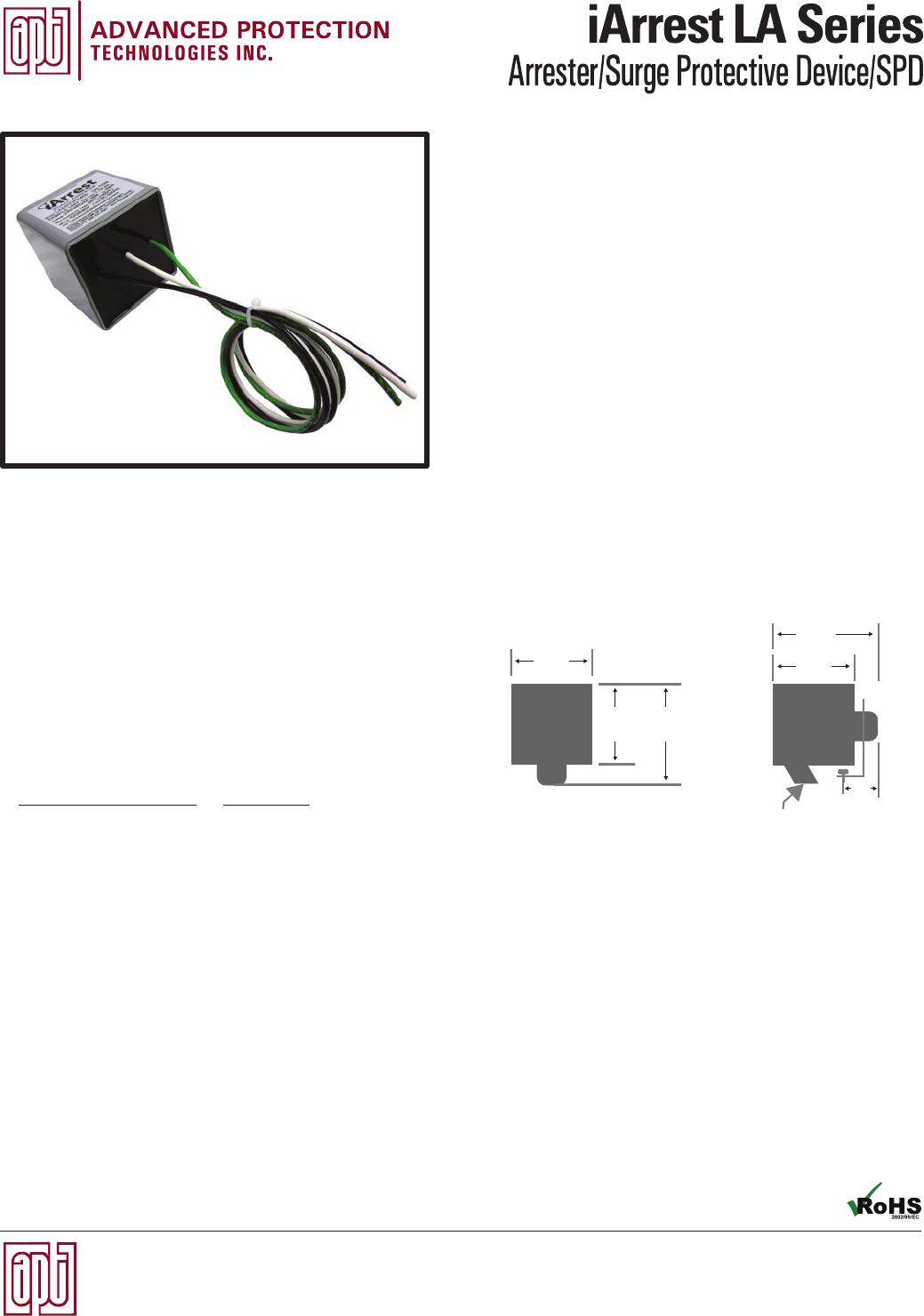

iArrest Series .............................................................................................................................................................................................................................................42
Low Voltage Communication & Data

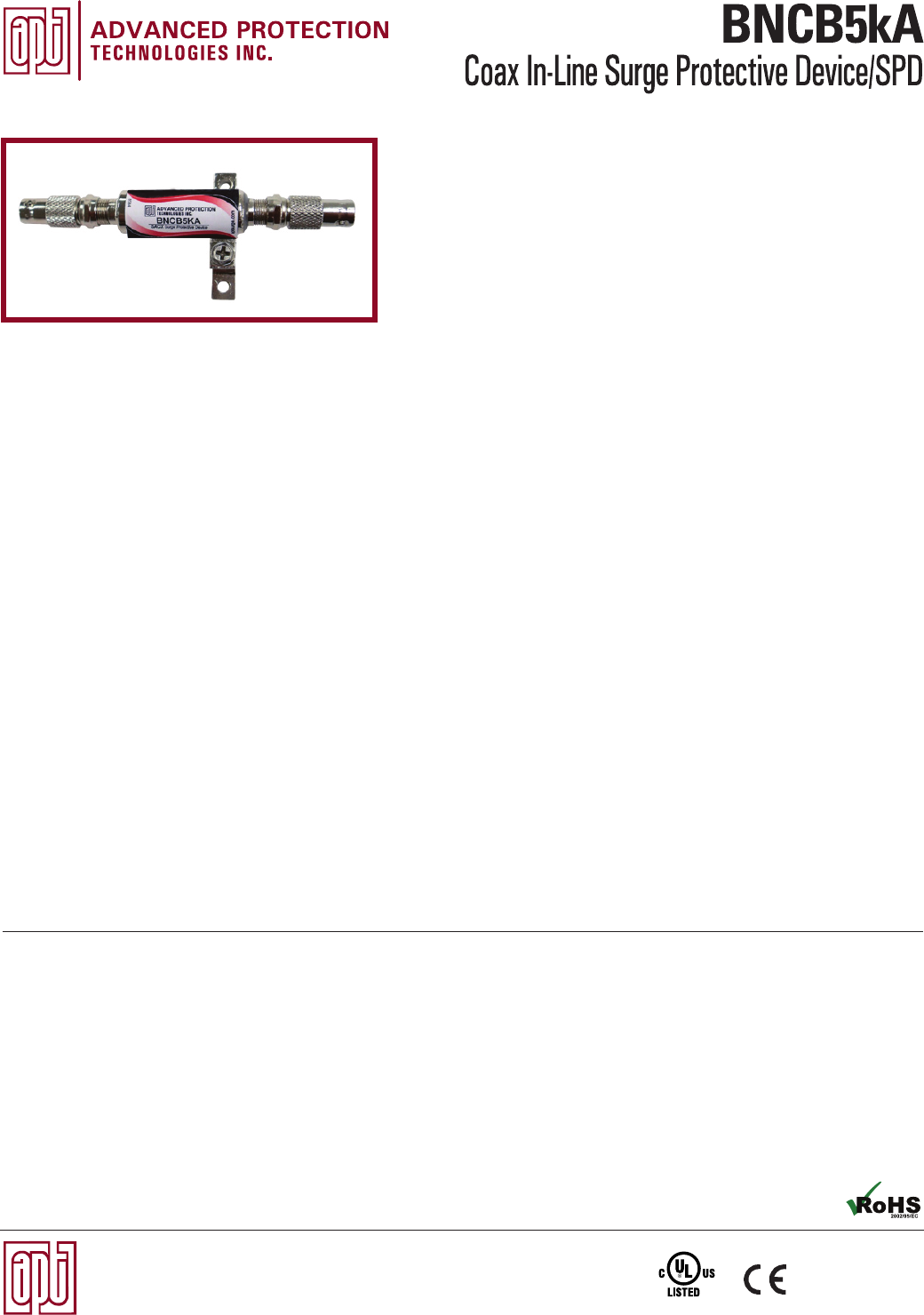

BNCB5kA ......................................................................................................................................................................................................................................................44

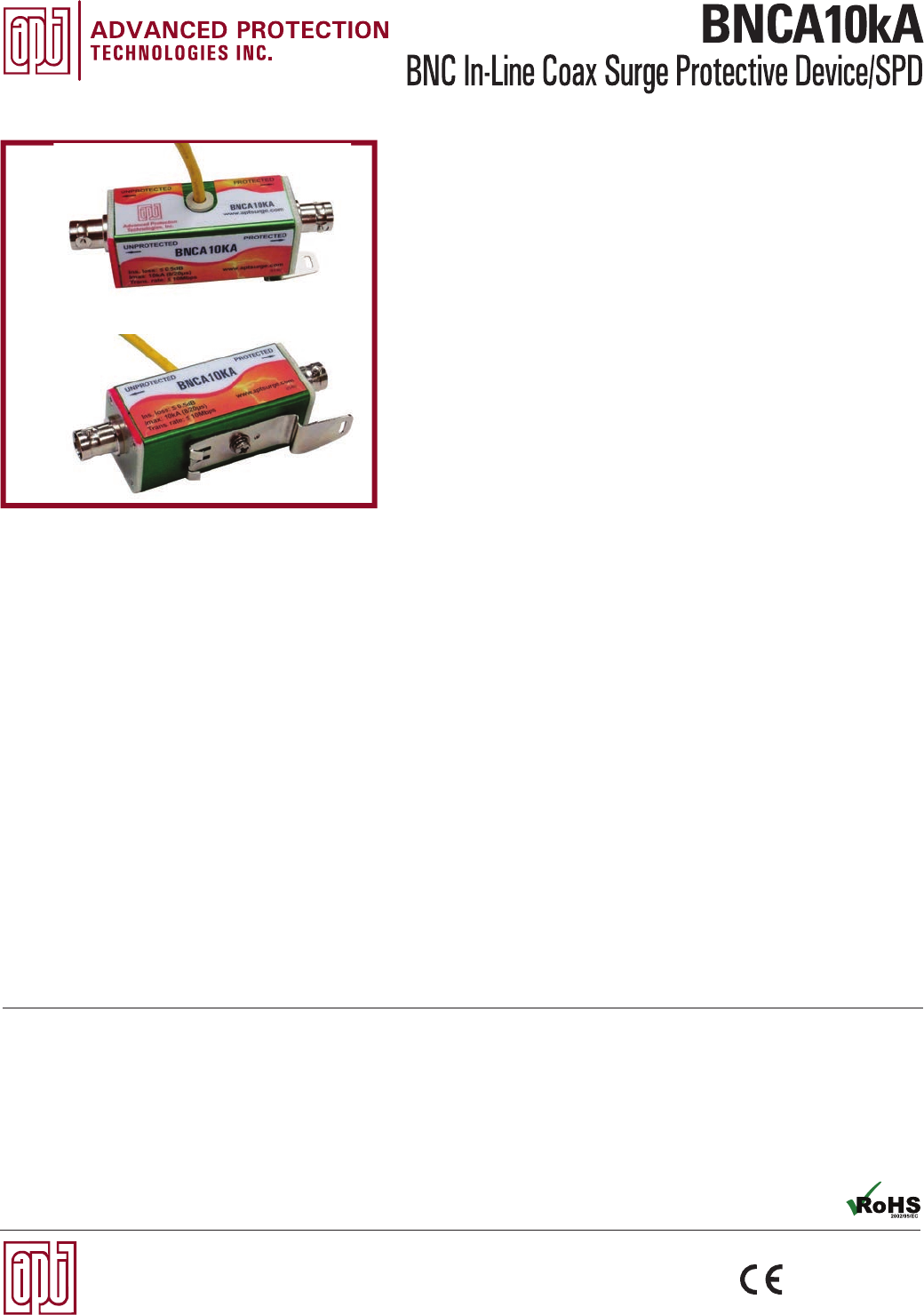

BNCA10kA ..................................................................................................................................................................................................................................................45
BNC Guide ....................................................................................................................................................................................................................................................46

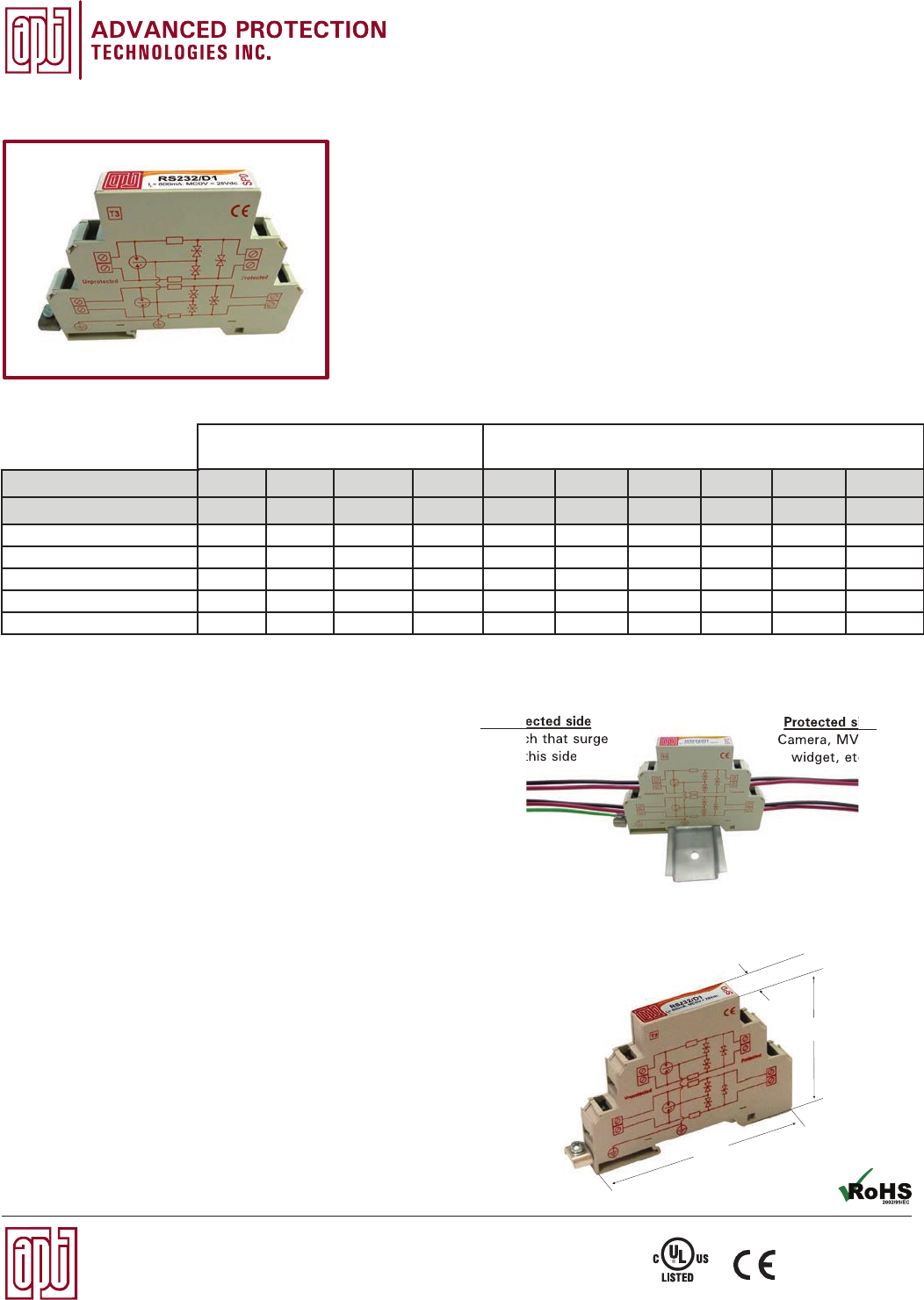

DIN-Rail: Popular Trac / ITS .......................................................................................................................................................................................................47

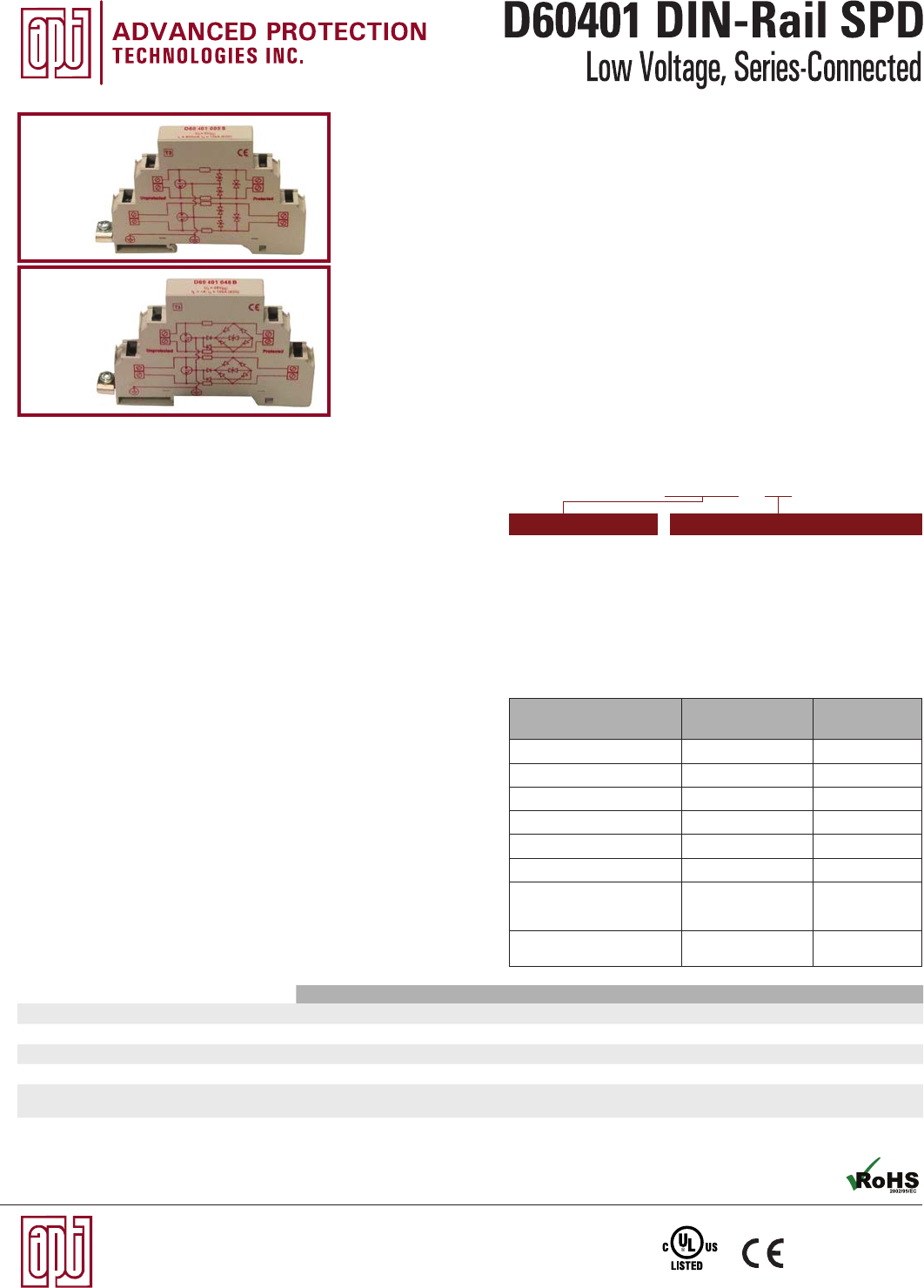

DIN-Rail: Low Voltage .......................................................................................................................................................................................................................48
Medium Voltage SPDs

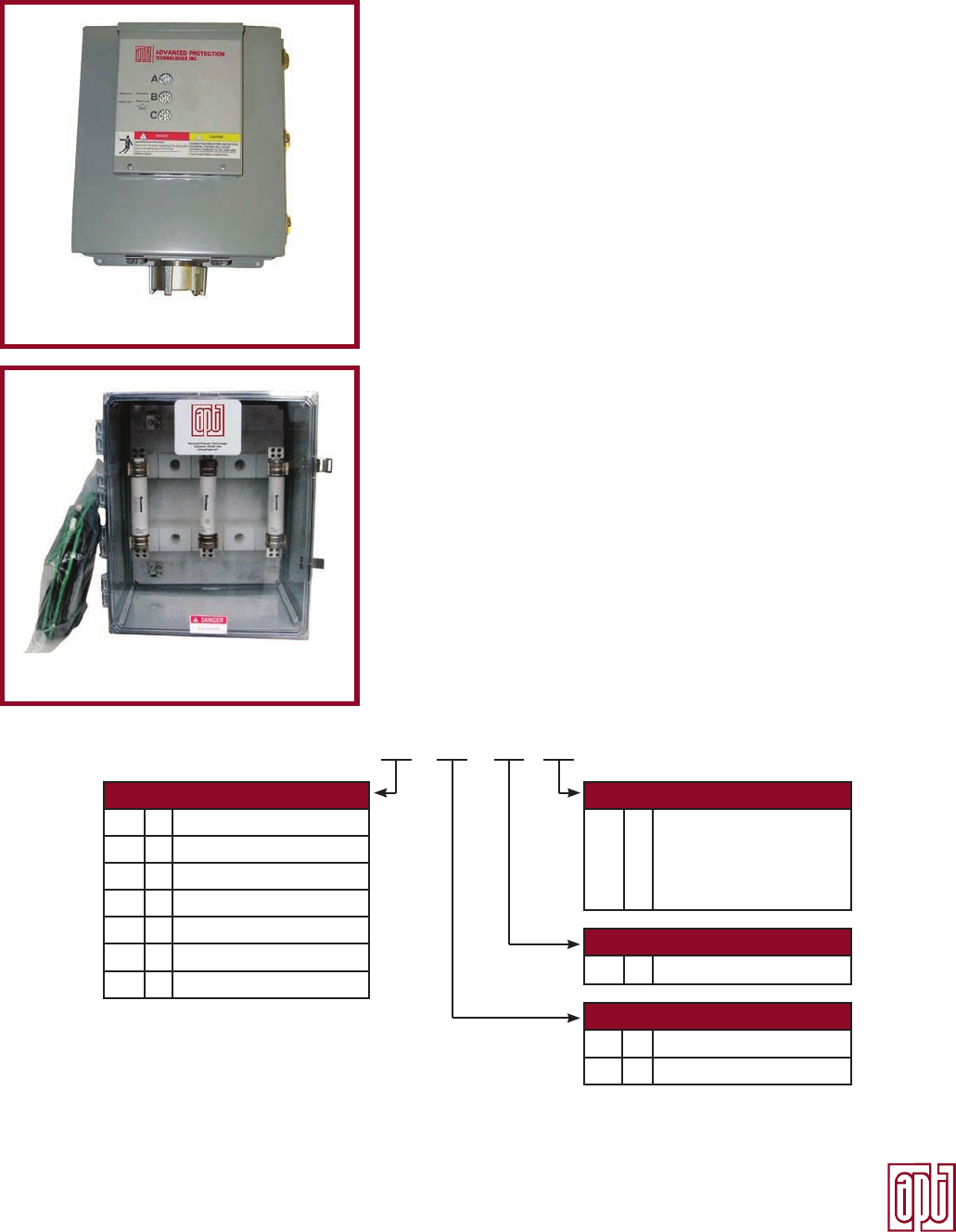

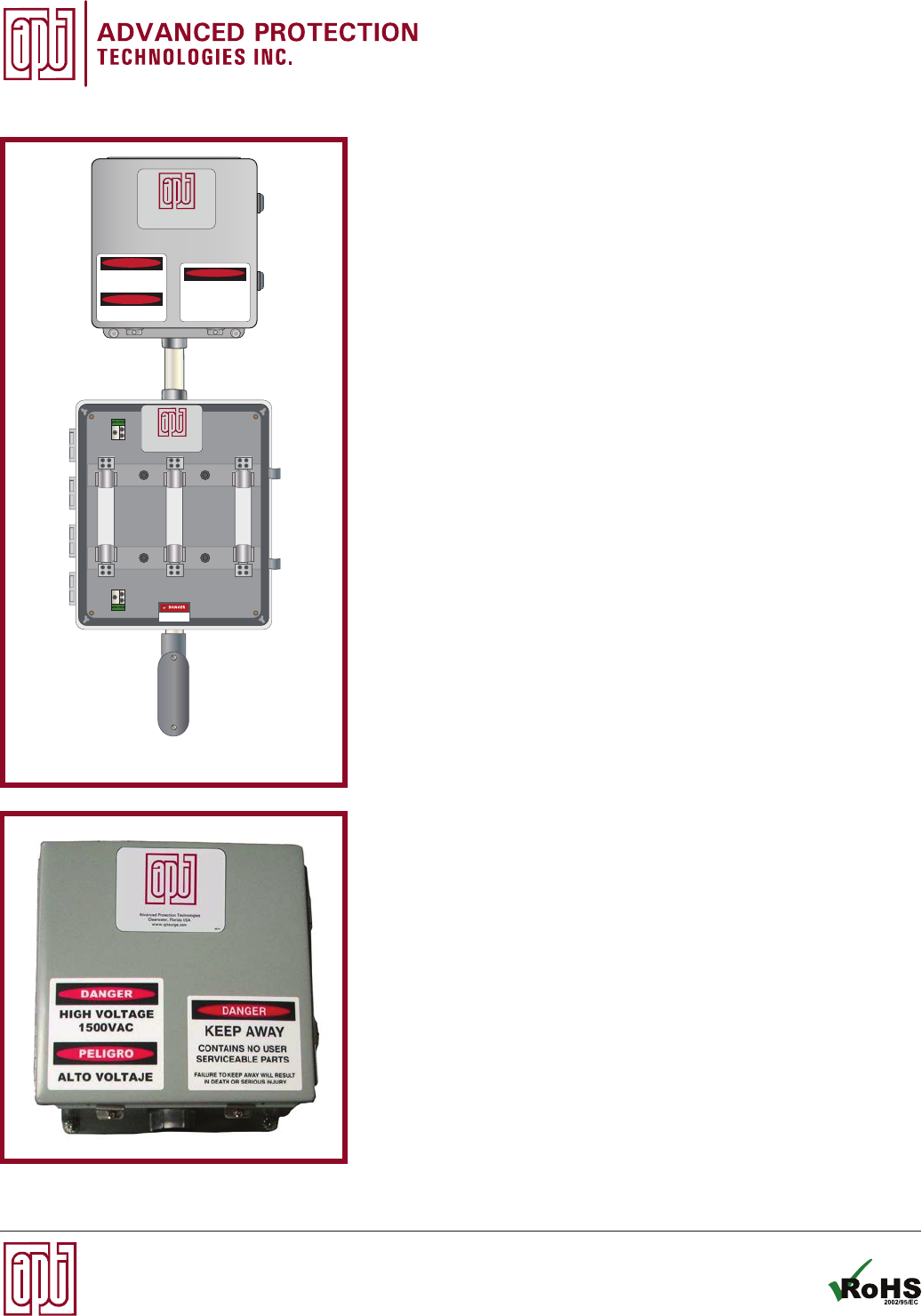

MVF Series ...................................................................................................................................................................................................................................................50

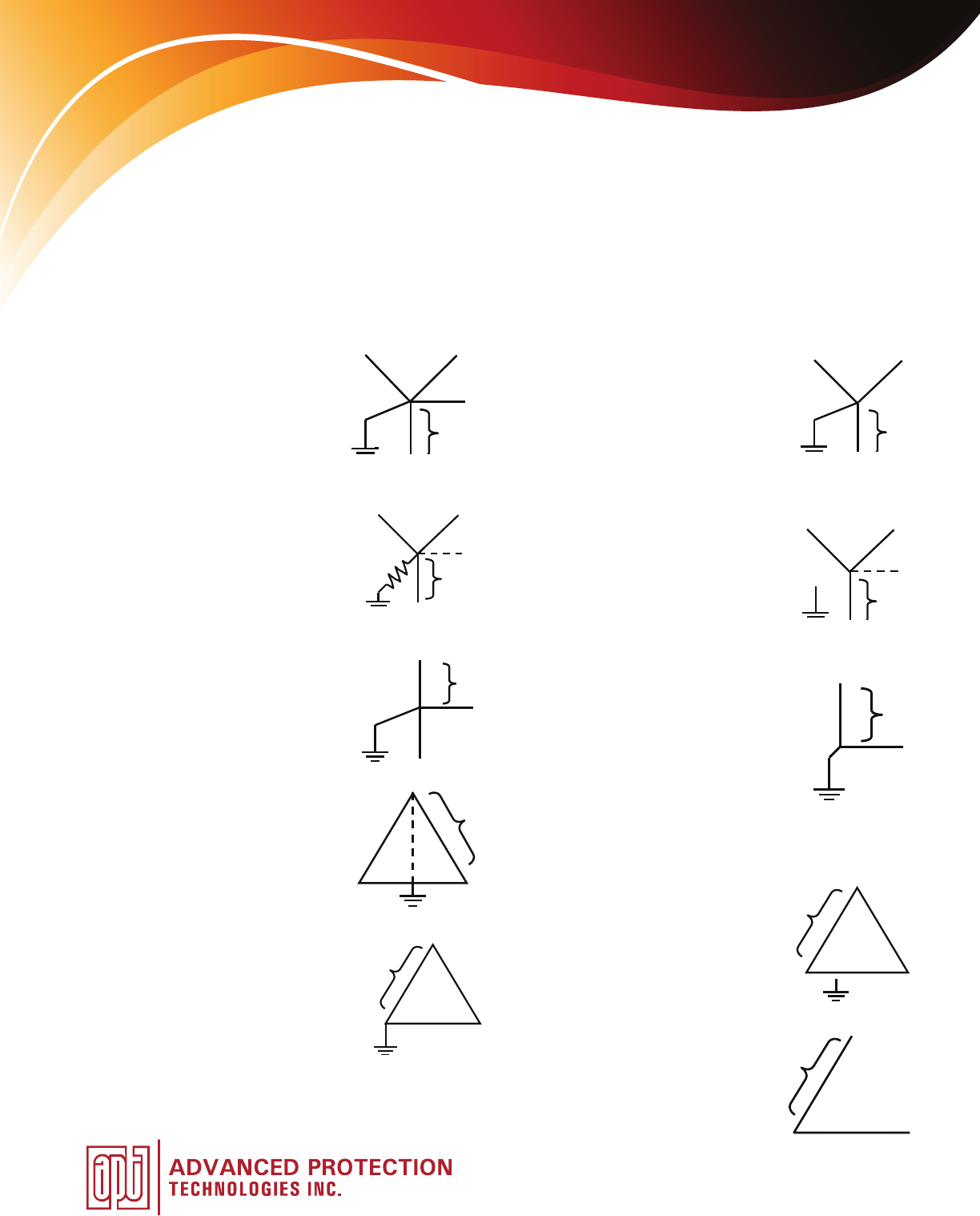

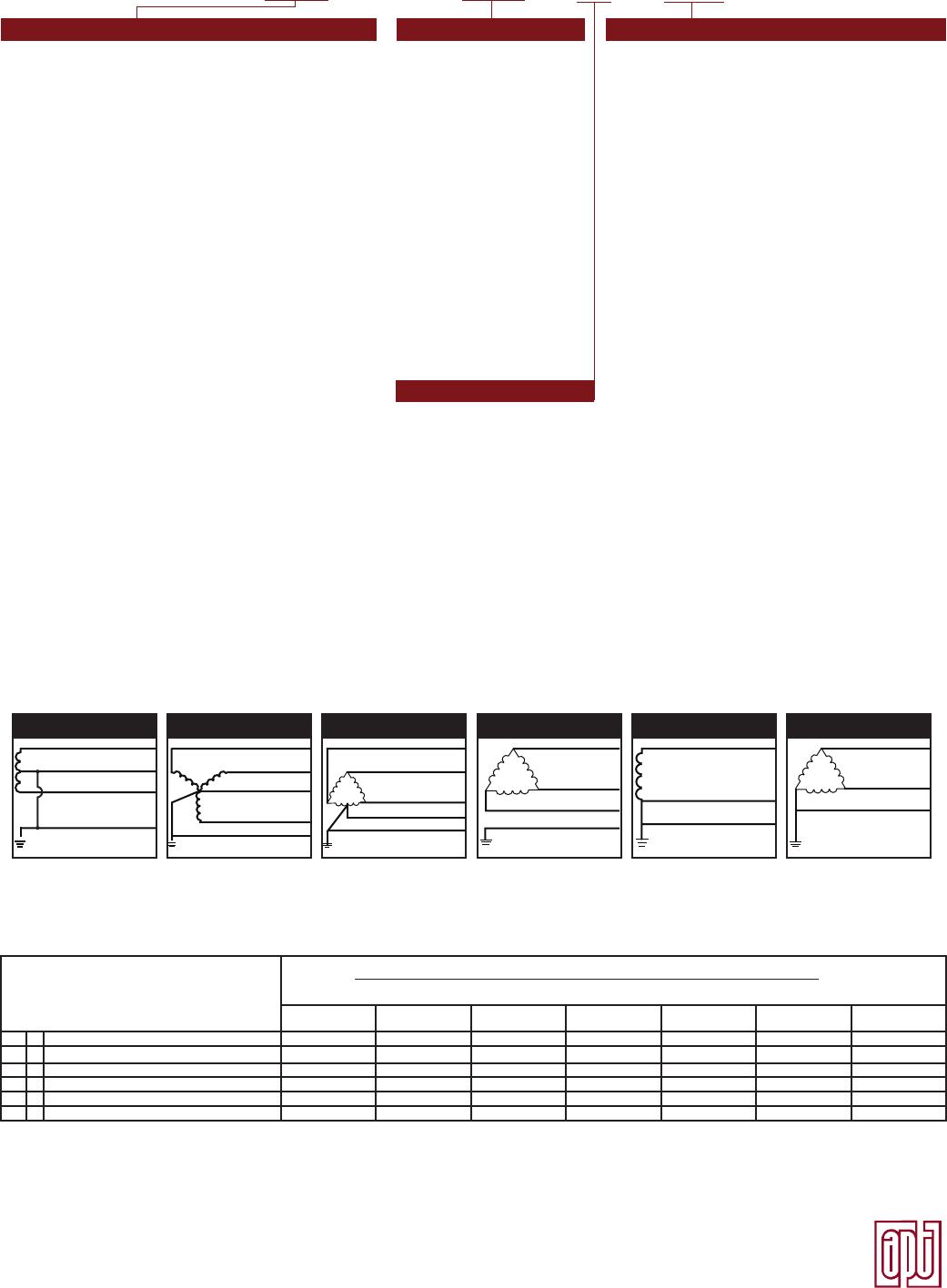

What Electrical System is It? .....................................................................................................................................................................................................52
Frequently Asked Questions ......................................................................................................................................................................................................53
Don’t Leave your Home Unprotected .............................................................................................................................................................................54
Table of Contents
Advanced Protection Technologies, Inc.
Advanced Protection Technologies, Inc. (APT) has been
designing, manufacturing and selling Industrial,
Commercial, Oil/Gas and Residential Surge Protective
Devices (SPDs) since 1985. We are a privately held
company with no debt that has been under the original
ownership for the entire duration. What began as a
small company of ten employees, selling to customers
in Southeastern USA, has grown to become a global
industry leader with over one hundred employees.
Each member of the senior management team has
been with the company for more than 15 years. APT
has eight degreed Electrical Engineers on staff, an
exceptionally trained technical sales team and a
manufacturing team trained in the latest, state of the
art, Lean manufacturing processes.
Surge Protective Devices
APT has the most complete line of Low Voltage SPDs in
the industry, with over 70,000 SKUs, used in
applications such as Industrial, Commercial, Residential,
Data/Communications and much more. Our low voltage
products protect systems ranging from 5VDC to
600VAC, including all international voltage systems.
Our products are the number one specified SPD by oil
producers and oil services companies worldwide.
APT’s new (1000VAC - 4160VAC) Medium Voltage SPD,
the first of its kind in the SPD industry, is commonly
used to protect medium voltage motors at oil
production wells, refineries, water/wastewater
treatment plants and mining operations. There are
currently no other UL listed Medium Voltage SPDs
available in the industry.
Live Training - Earn PDHs & CEUs
For over twenty years, APT has offered IEEE accredited
Engineering Seminars where PDHs (qualified and
approved by IEEE) can be earned that are recognized
and accepted by most states, including the rigorous
states, Florida and New York. This course starts with
basics and proceeds through advanced topics including
UL, IEEE & NEC and is standards-based, not sales-
oriented. This may be the most efficient and
comprehensive seven hours of SPD training available.
Engineers appreciate the explanation of the science, art
and marketing surrounding the surge industry.
“Protecting the
electronic world
from surges“
Top Notch Customer Service
APT has earned the respect from our clients by providing
world class customer service. Frost & Sullivan has
honored us for three years with awards for superior
service and has ranked APT number one in the SPD three
phase market. Our manufacturing processes are ISO
9001:2008 certified. We have two in-house testing labs
that are ISO 17025 certified by UL to do portions of UL
1449 testing.
Local Growth & Worldwide Presence
In 2007, APT’s growth strategy expanded from its base in
the US Construction Market and began to focus on
Alternative Energy, Oil/Gas, OEM and International
Markets. APT has developed key relationships and a
number of new products that will drive growth in these
new markets for years to come. In 2010, APT growth hit
41% over the previous year. Following that trend, in 2011
we celebrated a 10,000 square foot manufacturing floor
expansion. Several new positions were created ranging
from front office administration to production assemblers
to high level manufacturing personnel. We have settled
into our new facility and implemented new workflow
processes. Expansion continues as a number of new
products are manufactured and new brand label
agreements are finalized.
We are committed to becoming the number one supplier
of three phase SPDs to the International marketplace.
APT’s dedicated network of distributors and agents are
currently promoting our products throughout Canada,
Mexico, Central America, South America, Asia, Africa
and the Middle East. Our proven track record and
commitment to a long term business philosophy has
pushed us to the forefront of Surge Protective Device
manufacturing and distribution.
Private Labeling & Marketing
APT is the industry’s largest private label manufacturer
of SPDs. Past and present brand label partners include
Siemens Industry, Schneider Electric & Square D and
American Power Conversion (APC). We regularly sell
APT labeled products to other industry leaders such as
Eaton, GE, ABB, Rockwell and a number of smaller
niche market leaders.
Past, Present & Future
Advanced Protection
Technologies
14550 58th Street North
Clearwater, FL 33760
Phone: 727.535.6339
Fax: 727.539.8955
www.aptsurge.com
Advanced Protection Technologies, Inc. (APT) has been a worldwide
leader in the surge suppression industry since 1985. Headquartered
in Central Florida, heart of lightning activity, APT’s surge protection
products have long set the standard for protection of commercial
and industrial facilities.
In addition to superior products, APT has received numerous awards
for customer service including the coveted Frost and Sullivan Market
Engineering Award.
Our commitment to service and exceeding expectations comes
from our people and sophisticated system integration. We value the
client relationship and support it with integrity, responsiveness and
technical excellence.
We are, “Professionals Serving Professionals”
Construction
Industrial/Commercial
OEM
International
ITS/DOT
Specialty Sales
Medium Voltage
Residential
WHY APT?
WHAT MARKETS DO
WE SERVE?
Advanced Protection Technologies, Inc.
Advanced Protection Technologies, Inc. (APT) has been
designing, manufacturing and selling Industrial,
Commercial, Oil/Gas and Residential Surge Protective
Devices (SPDs) since 1985. We are a privately held
company with no debt that has been under the original
ownership for the entire duration. What began as a
small company of ten employees, selling to customers
in Southeastern USA, has grown to become a global
industry leader with over one hundred employees.
Each member of the senior management team has
been with the company for more than 15 years. APT
has eight degreed Electrical Engineers on staff, an
exceptionally trained technical sales team and a
manufacturing team trained in the latest, state of the
art, Lean manufacturing processes.
Surge Protective Devices
APT has the most complete line of Low Voltage SPDs in
the industry, with over 70,000 SKUs, used in
applications such as Industrial, Commercial, Residential,
Data/Communications and much more. Our low voltage
products protect systems ranging from 5VDC to
600VAC, including all international voltage systems.
Our products are the number one specified SPD by oil
producers and oil services companies worldwide.
APT’s new (1000VAC - 4160VAC) Medium Voltage SPD,
the first of its kind in the SPD industry, is commonly
used to protect medium voltage motors at oil
production wells, refineries, water/wastewater
treatment plants and mining operations. There are
currently no other UL listed Medium Voltage SPDs
available in the industry.
Live Training - Earn PDHs & CEUs
For over twenty years, APT has offered IEEE accredited
Engineering Seminars where PDHs (qualified and
approved by IEEE) can be earned that are recognized
and accepted by most states, including the rigorous
states, Florida and New York. This course starts with
basics and proceeds through advanced topics including
UL, IEEE & NEC and is standards-based, not sales-
oriented. This may be the most efficient and
comprehensive seven hours of SPD training available.
Engineers appreciate the explanation of the science, art
and marketing surrounding the surge industry.
“Protecting the
electronic world
from surges“
Top Notch Customer Service
APT has earned the respect from our clients by providing
world class customer service. Frost & Sullivan has
honored us for three years with awards for superior
service and has ranked APT number one in the SPD three
phase market. Our manufacturing processes are ISO
9001:2008 certified. We have two in-house testing labs
that are ISO 17025 certified by UL to do portions of UL
1449 testing.
Local Growth & Worldwide Presence
In 2007, APT’s growth strategy expanded from its base in
the US Construction Market and began to focus on
Alternative Energy, Oil/Gas, OEM and International
Markets. APT has developed key relationships and a
number of new products that will drive growth in these
new markets for years to come. In 2010, APT growth hit
41% over the previous year. Following that trend, in 2011
we celebrated a 10,000 square foot manufacturing floor
expansion. Several new positions were created ranging
from front office administration to production assemblers
to high level manufacturing personnel. We have settled
into our new facility and implemented new workflow
processes. Expansion continues as a number of new
products are manufactured and new brand label
agreements are finalized.
We are committed to becoming the number one supplier
of three phase SPDs to the International marketplace.
APT’s dedicated network of distributors and agents are
currently promoting our products throughout Canada,
Mexico, Central America, South America, Asia, Africa
and the Middle East. Our proven track record and
commitment to a long term business philosophy has
pushed us to the forefront of Surge Protective Device
manufacturing and distribution.
Private Labeling & Marketing
APT is the industry’s largest private label manufacturer
of SPDs. Past and present brand label partners include
Siemens Industry, Schneider Electric & Square D and
American Power Conversion (APC). We regularly sell
APT labeled products to other industry leaders such as
Eaton, GE, ABB, Rockwell and a number of smaller
niche market leaders.
Past, Present & Future
Advanced Protection
Technologies
14550 58th Street North
Clearwater, FL 33760
Phone: 727.535.6339
Fax: 727.539.8955
www.aptsurge.com
Advanced Protection Advanced Protection
TechnologiesTechnologies
14550 58th Street North14550 58th Street North
Clearwater, FL 33760Clearwater, FL 33760
Phone: 727.535.6339Phone: 727.535.6339
Fax: 727.539.8955Fax: 727.539.8955
www.aptsurge.comwww.aptsurge.com
Advanced Protection Technologies, Inc.
Advanced Protection Technologies, Inc. (APT) has been
designing, manufacturing and selling Industrial,
Commercial, Oil/Gas and Residential Surge Protective
Devices (SPDs) since 1985. We are a privately held
company with no debt that has been under the original
ownership for the entire duration. What began as a
small company of ten employees, selling to customers
in Southeastern USA, has grown to become a global
industry leader with over one hundred employees.
Each member of the senior management team has
been with the company for more than 15 years. APT
has eight degreed Electrical Engineers on staff, an
exceptionally trained technical sales team and a
manufacturing team trained in the latest, state of the
art, Lean manufacturing processes.
Surge Protective Devices
APT has the most complete line of Low Voltage SPDs in
the industry, with over 70,000 SKUs, used in
applications such as Industrial, Commercial, Residential,
Data/Communications and much more. Our low voltage
products protect systems ranging from 5VDC to
600VAC, including all international voltage systems.
Our products are the number one specified SPD by oil
producers and oil services companies worldwide.
APT’s new (1000VAC - 4160VAC) Medium Voltage SPD,
the first of its kind in the SPD industry, is commonly
used to protect medium voltage motors at oil
production wells, refineries, water/wastewater
treatment plants and mining operations. There are
currently no other UL listed Medium Voltage SPDs
available in the industry.
Live Training - Earn PDHs & CEUs
For over twenty years, APT has offered IEEE accredited
Engineering Seminars where PDHs (qualified and
approved by IEEE) can be earned that are recognized
and accepted by most states, including the rigorous
states, Florida and New York. This course starts with
basics and proceeds through advanced topics including
UL, IEEE & NEC and is standards-based, not sales-
oriented. This may be the most efficient and
comprehensive seven hours of SPD training available.
Engineers appreciate the explanation of the science, art
and marketing surrounding the surge industry.
“Protecting the
electronic world
from surges“
Top Notch Customer Service
APT has earned the respect from our clients by providing
world class customer service. Frost & Sullivan has
honored us for three years with awards for superior
service and has ranked APT number one in the SPD three
phase market. Our manufacturing processes are ISO
9001:2008 certified. We have two in-house testing labs
that are ISO 17025 certified by UL to do portions of UL
1449 testing.
Local Growth & Worldwide Presence
In 2007, APT’s growth strategy expanded from its base in
the US Construction Market and began to focus on
Alternative Energy, Oil/Gas, OEM and International
Markets. APT has developed key relationships and a
number of new products that will drive growth in these
new markets for years to come. In 2010, APT growth hit
41% over the previous year. Following that trend, in 2011
we celebrated a 10,000 square foot manufacturing floor
expansion. Several new positions were created ranging
from front office administration to production assemblers
to high level manufacturing personnel. We have settled
into our new facility and implemented new workflow
processes. Expansion continues as a number of new
products are manufactured and new brand label
agreements are finalized.
We are committed to becoming the number one supplier
of three phase SPDs to the International marketplace.
APT’s dedicated network of distributors and agents are
currently promoting our products throughout Canada,
Mexico, Central America, South America, Asia, Africa
and the Middle East. Our proven track record and
commitment to a long term business philosophy has
pushed us to the forefront of Surge Protective Device
manufacturing and distribution.
Private Labeling & Marketing
APT is the industry’s largest private label manufacturer
of SPDs. Past and present brand label partners include
Siemens Industry, Schneider Electric & Square D and
American Power Conversion (APC). We regularly sell
APT labeled products to other industry leaders such as
Eaton, GE, ABB, Rockwell and a number of smaller
niche market leaders.
Past, Present & Future
Advanced Protection
Technologies
14550 58th Street North
Clearwater, FL 33760
Phone: 727.535.6339
Fax: 727.539.8955
www.aptsurge.com
XAS XDS XCS SPDEE
PRICING & PRODUCT INFORMATION
Call 800.237.4567 or visit www.aptsurge.com
SPD Sizing Chart
Service Entrance Greater than 2000A
Exposure Level High Exposure Medium Exposure Low Exposure Lowest Exposure
kA per phase 300 kA 200 kA 150 kA 100 kA
Model XAS30 XAS20 XAS15 XDS10
Service Entrance 1200A - 2000A
Exposure Level High Exposure Medium Exposure Low Exposure Lowest Exposure
kA per phase 250 kA 200 kA 150 kA 100 kA
Model XAS25 XAS20 XDS15 XCS10
Service Entrance 800A - 1200A
Exposure Level High Exposure Medium Exposure Low Exposure Lowest Exposure
kA per phase 200 kA 150 kA 100 kA 50 kA
Model XDS20 XDS15 XCS10 SPDEE
Distribution/Branch Panel 800A - 1200A
Exposure Level High Exposure Medium Exposure Low Exposure Lowest Exposure
kA per phase 200 kA 150 kA 100 kA 50 kA
Model XDS20 XDS15 XCS10 SPDEE
Distribution/Branch Panel Less than 800A
Exposure Level High Exposure Medium Exposure Low Exposure Lowest Exposure
kA per phase 150 kA 100 kA 100 kA 50 kA
Model XDS15 XDS10 XCS10 SPDEE
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Green=Go Visual Diagnostic Monitoring
• Green LED = A-OK, Out = replace
• LED Visible from Multiple Sides & Angles - Better Viewing
• Every MOV is Monitored as opposed to ‘power is present’
Tri-Mount Installation
Options
• N-G protection
• Dry Contact & Audible Alarm
• Dry Contact connection leads exit through nipple via #18 AWG
• Other congurations available for OEM - Call
Quality, Standards & Validation
• 2 year warranty (longer optional)
• UL 1449 4th Edition le: VZCA.E321351 at www.UL.com, cUL
• Type 1: UL 1449 Fourth Edition, CSA 22.2 No. 269.1
• Type 2 (Opt.): UL 1449 Fourth Edition, CSA 22.2 No. 269.2
• ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002,
C62.62-2010 and C62.72-2007
• NEMA LS-1
• IEC 61643, CE
• Burn-In tested prior to shipment
• ISO 9001:2008 Certied Quality Management System
• ISO 17025:2005 Certied Test Lab
• RoHS-compliant
Bracket Mount
for flat surfaces
Std. 3/4”-14
Nipple
DIN-Rail Mount
(rail not incl.)
Features:
• UL 1449 Fourth Edition Listed
• 50kA 8 x 20
µ
s
• All UL required OCP & Safety Coordination included inside
–Type 1 SPDs intended for Line or Load Side of Main Disconnect
–Type 2 SPDs intended for Load Side of Main Disconnect
• 200kA SCCR (most models)
• All UL-required OCP & Safety Coordination Included Inside
• Voltage Specific Design: Performs better than ‘one-size fits all’
• Tri-Mount Installation for more mounting flexibility:
–Same unit mounts on Pipe Nipple, Bracket or DIN-Rail
• Visual Diagnostics: Easy to See; Easy to Understand
Special Thank You to NASA/SATOP for design assistance & validation
Performance Specifications
• 50kA 8 x 20µs Per Mode
• UL 1449 tested Inominal: 20kA (highest available)
• UL 1449 tested SCCR: 200kA (most models)
• Large-Block, 34mm square, 50kA MOVs
• Individually Fused & Thermally Protected MOVs
• UL 1449 Voltage Protection Ratings (VPRs):
– 600V for 120V, 120/240, 208Y/120
– 1000V for 277V, 480Y/277V
• Repetitive Impulse: 5000 - 3kA - 8 x 20µs; 1000 - 10kA - 8 x 20µs
• Data table on backpage
Physical Specifications
• Relative Humidity Range: 0 - 95% non-condensing
• Operating Frequency: 47 - 63Hz
• Peak Operating Temperature: +85oC (185oF)
• Typical Operating Temperature: -40oC (-40oF) to +60oC (140oF)
• Response Time: < 1nanosecond
• Solid State Bi-directional Operation
• NEMA 4X Polycarbonate Enclosure—UL746C(f1), UL 94-5VA
• Pre-wired with 3’ (1m) of #10 AWG conductor
• Typical Type 2 Connection: #10 AWG to 30A breaker
Dimensions
spee
-
dee
Type 1 / Type 2 Surge Protective Device/SPD
1.26
[32.05]
3.24
[82.20]
3.25
[82.55]
3.58
[90.97]
3.30
[83.74]
3.38
[85.95]
4.12
[104.66]
3/4” - 14
1.15
[29.21] Weight:1.60 lbs (0.73 kg)
Sized for std 35mm Din-Rail
6
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com

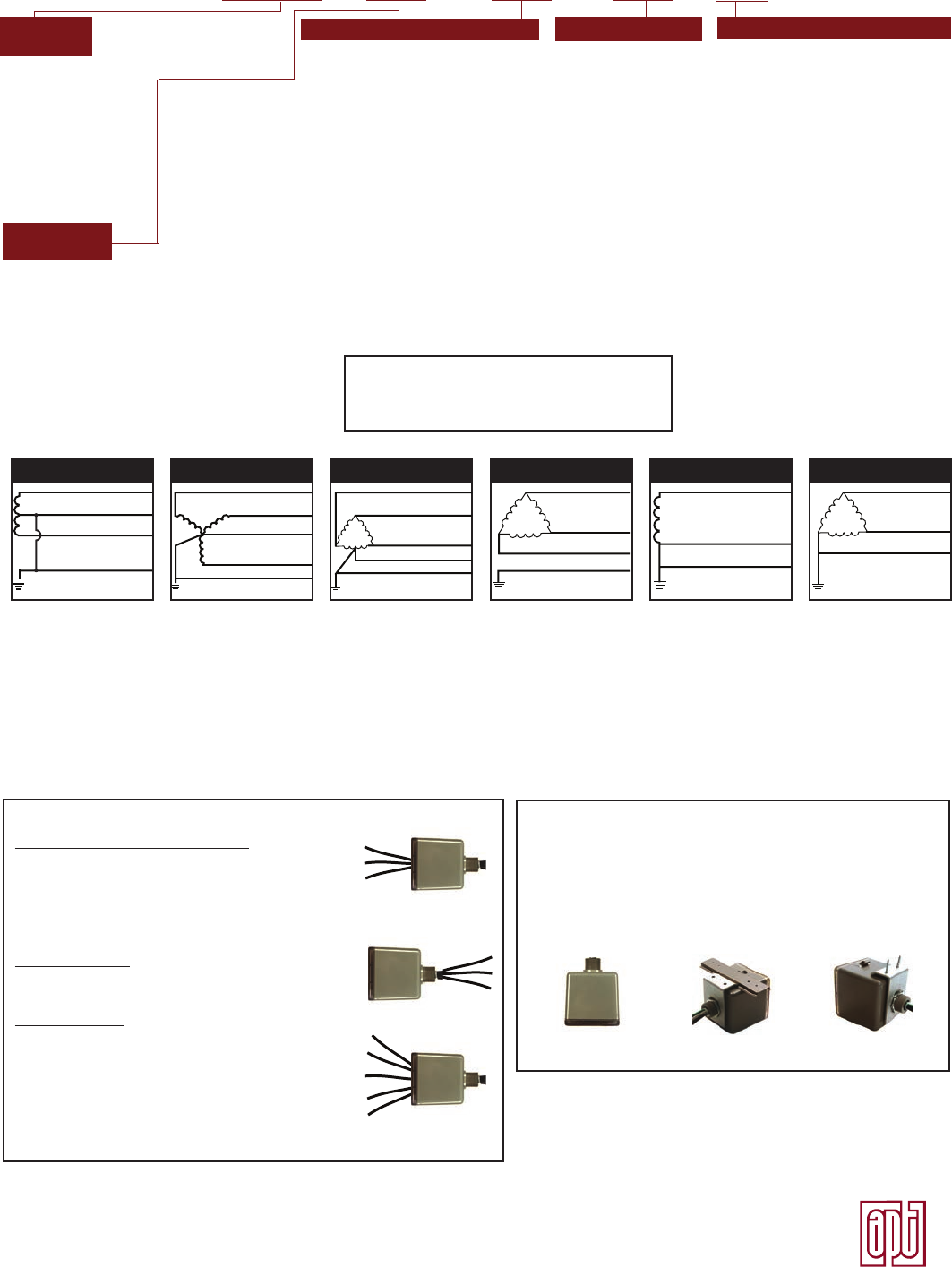

1 POLE / SINGLE
Phase B (ORNG)
Phase A (BLK)
Hot (BLK)
Neutral (WHT)
Ground (GRN)
Voltage Model Number Model Number
BLK
BLK
ORNG
WHT
BLK
BLK
ORNG
WHT
GRN
S50A240V3H N/A
Advanced Protection Technologies
14550 58th St. N.
Clearwater, FL 33760
800.237.4567 X www.aptspd.com
Advanced Protection Technologies
14550 58th St. N.
Clearwater, FL 33760
800.237.4567 X www.aptspd.com
v
Hot (BLK)
Ground (GRN)
Neutral (WHT)
Phase B (BLK)
Phase A (BLK)
Voltage Model Number Model Number
A
N
C
B
BLK
BLK
BLK
WHT
BLK
BLK
BLK
GRN
WHT
Advanced Protection Technologies
14550 58th St. N.
Clearwater, FL 33760
800.237.4567 X www.aptspd.com
Advanced Protection Technologies
14550 58th St. N.
Clearwater, FL 33760
800.237.4567 X www.aptspd.com
v
Phase A (BLK)
Phase B (BLK)
Phase C (BLK)
Ground (GRN)
Voltage Model Number
BLK
BLK
BLK
GRN
S50A240V3D
Advanced Protection Technologies
14550 58th St. N.
Clearwater, FL 33760
800.237.4567 X www.aptspd.com
v
Hot (BLK)
Hot (BLK)
Neutral (WHT)
Ground (GRN)
Voltage Model Number Model Number
}
}
BLK
BLK
WHT
BLK
BLK
WHT
GRN
Advanced Protection Technologies
14550 58th St. N.
Clearwater, FL 33760
800.237.4567 X www.aptspd.com
Advanced Protection Technologies
14550 58th St. N.
Clearwater, FL 33760
800.237.4567 X www.aptspd.com
v
v
Hot (BLK)
Neutral (WHT)
Ground (GRN)
Voltage Model Number Model Number
BLK
WHT
BLK
WHT
GRN
}
Advanced Protection Technologies
14550 58th St. N.
Clearwater, FL 33760
800.237.4567 X www.aptspd.com
Advanced Protection Technologies
14550 58th St. N.
Clearwater, FL 33760
800.237.4567 X www.aptspd.com
v
N = N-G
Protection
D = Dry Contact
& Audible
Alarm
2 = Type 2 SPD,
including
CSA 22.2,
No. 269.2
Power
Leads
Dry
Contact
Leads
Blue Gray
Red
Performance Data
MODEL
System
Voltage &
Config
UL 1449 Fourth Edition
Voltage Protection Rating
VPR 3000A InSCCR MCOV
L-N L-L N-G*L-G*
S50A120V1P 120V 600 600* 1000* 20kA 200kA 150
S50A120V2P 120V/240V 600 1000 600* 1000* 20kA 200kA 150
S50A120V3Y 208Y/120V 600 1000 600* 1000* 20kA 200kA 150
S50A127V1P 127V 700 600* 1200* 20kA 100kA 180
S50A127V2P 127/254V 700 1200 600* 1200* 20kA 100kA 180
S50A127V3Y 220Y/127V 700 1200 600* 1200* 20kA 100kA 180
S50A220V1P 220V-1 pole 1200 1000* 1800* 20kA 200kA 320
S50A220V3Y 380Y/220V 1200 2000 1000* 1800* 20kA 200kA 320
S50A240V3H 120/240V -
Hi-Leg Delta 600
/1200 1000
/1500 600* 1000*
/1500* 20kA 200kA 150 / 320
S50A240V1P 240V-1 pole 1200 1000 1800 20kA 200kA 320
S50A240V3D 240V Delta -
3 pole 1500 1200 20kA 200kA 320
S50A277V1P 277V 1200 1000* 1800* 20kA 200kA 320
S50A277V2P 240/480V 1200 2000 1000* 1800* 20kA 200kA 320
S50A277V3Y 480Y/277V 1200 2000 1000* 1800* 20kA 200kA 320
S50A347V3Y 600Y/347V 1500 2500 1200* 2500* 20kA 200kA 420
S50A480V1P 480V-1 pole 1800 20kA 200kA 550
S50A480V3D 480V Delta -
3 pole 3000 1800 20kA 200kA 550
S50A480V3H 240/480V -
Hi-Leg Delta 1200/
1800 2500 20kA 200kA 320 / 550
S50A600V3D 600V Delta -
3 pole 2500 2500 20kA 200kA 690
S100A120V2P 120/240V 600 1000 600 20kA 100kA 150
S100A277V2P 240/480V 1000 1800 1000 20kA 100kA 320
* with optional N-G protection

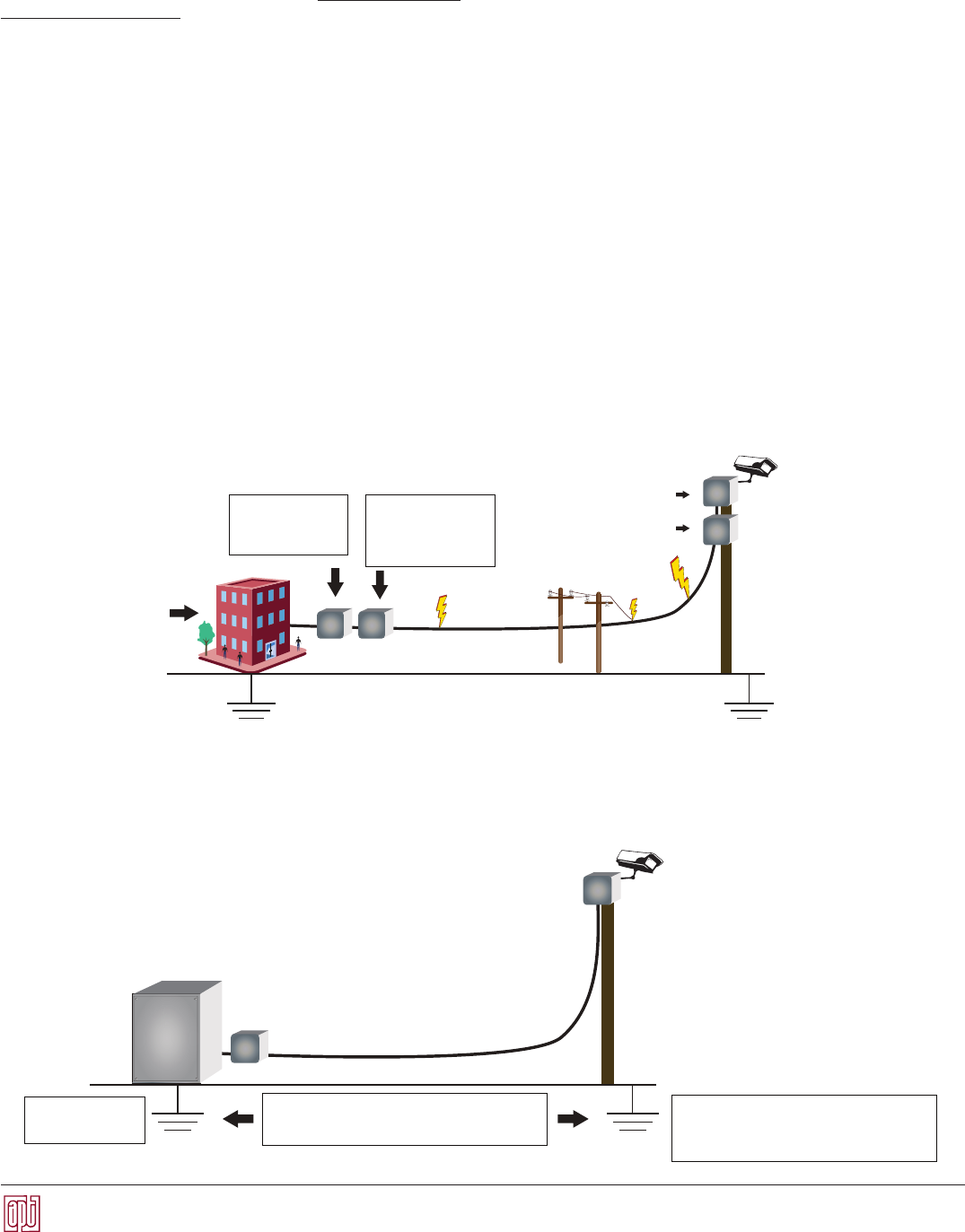

Application Guide
SYSTEM
CONFIGURATION
INSTALLED >10’(3M)
FROM SERVICE
ENTRANCE OR
TRANSFORMER
INSTALLED AT OR
NEAR SERVICE
ENTRANCE OR
TRANSFORMER
N-G Bonded - Does not
require N-G protection
Downstream of N-G
Bond - N-G protection
suggested
Optional Form C Dry Contact & Audible Alarm
Form C Dry Contact:
Three (3) #18 wires
exit the pipe nipple
Gray is Common,
Blue is Normally
Open, Red is
Normally Closed
• Normally Open:
Use Gray & Blue
• Normally Closed:
Use Gray & Red
Corner Grounded
Delta?
Use same models
& connect one SPD
black & green to
ground (diagnostics
will function correctly)
10.16.17.lh.RevH # 8179
Audible Alarm:
Alarm sounds when any protection
is lost (If diagnostic LED extinguishes
(i.e. problem), alarm will sound)
No cost accessories:
8483 Supplementary label
1P = One Pole,
Single Phase
2P = Two Pole,
Split Phase
3Y = Three Pole
Wye
3D = Three Pole
Delta
3H = Three Pole
Hi-Leg Delta
EXAMPLES:
S50A120V3Y
50kA, 120V, 3 pole
(208Y/120V)
S50A277V3YN
50kA, 277V, 3 pole
(480Y/277V) with N-G
50 = 50kA/Phase
120V
127V
220V
240V
277V
347V
480V
600V
S50 A

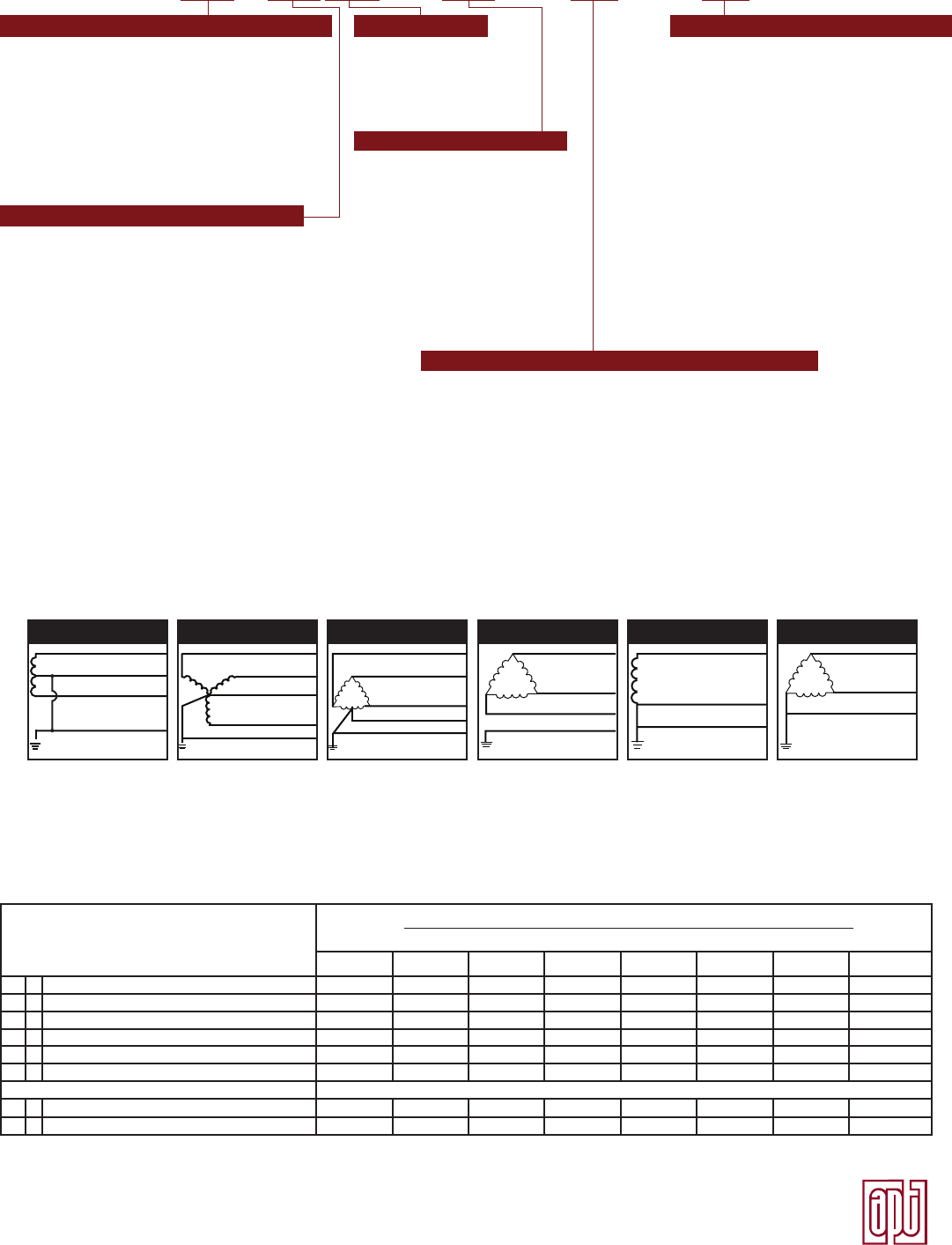

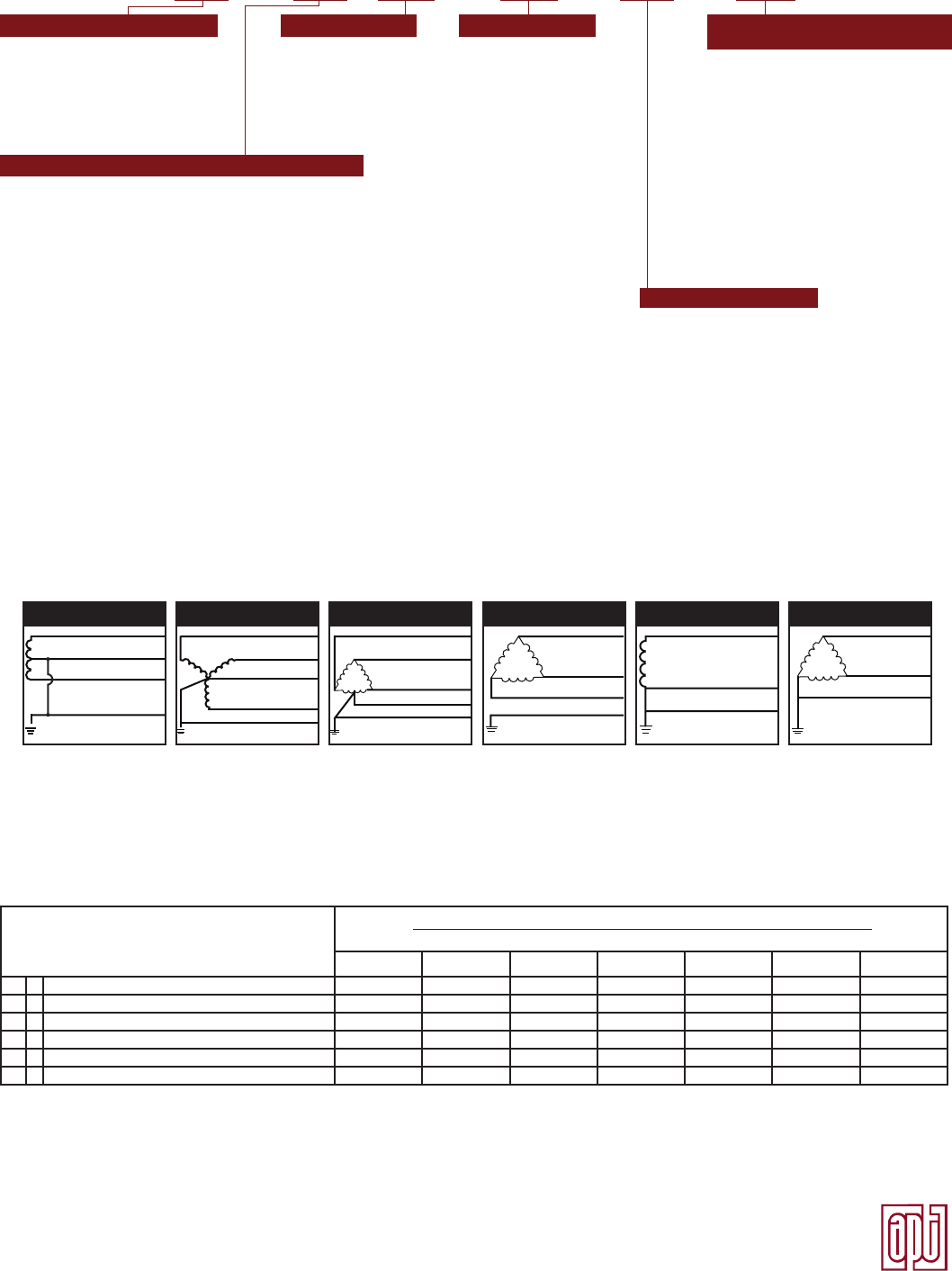

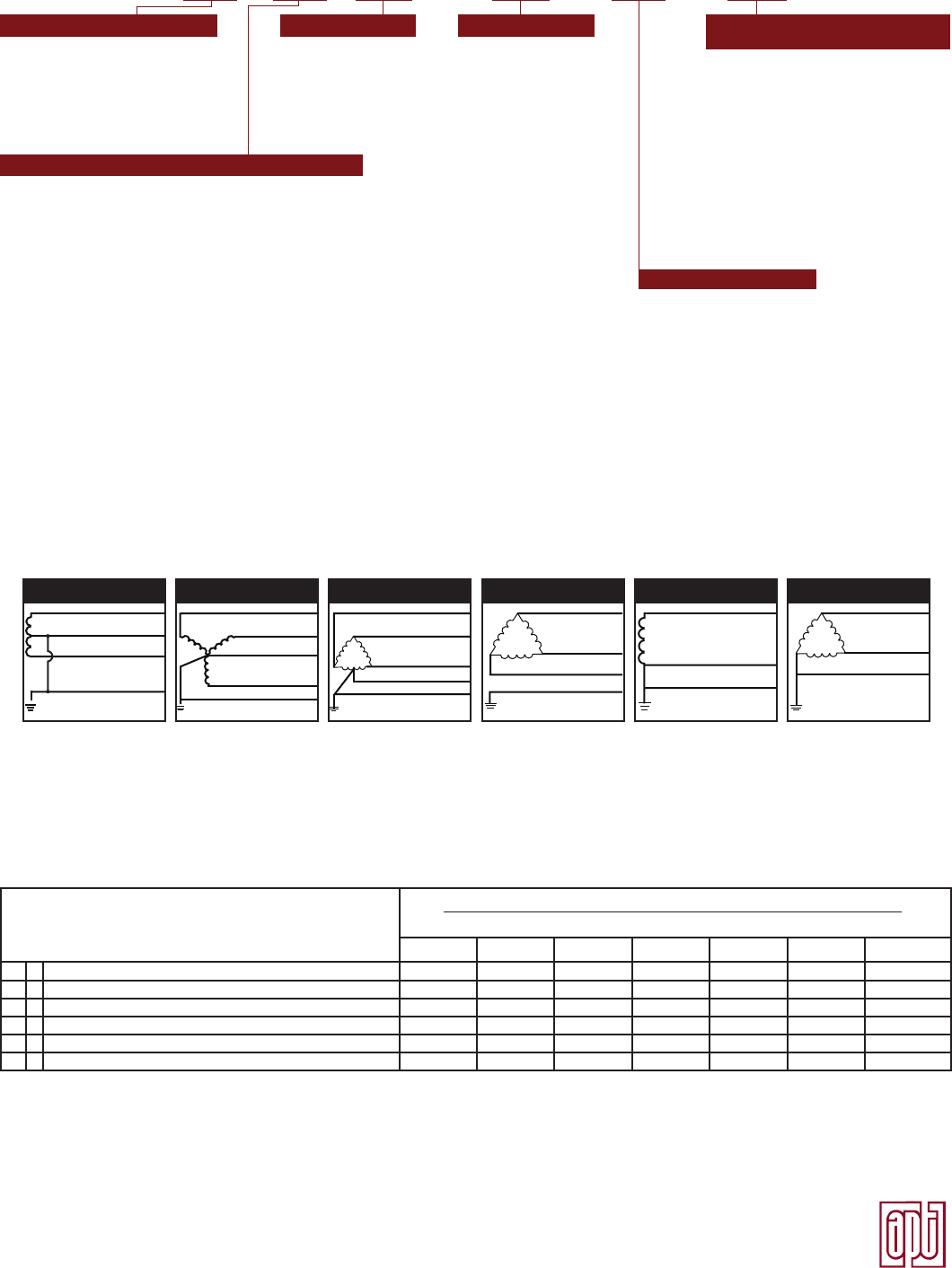

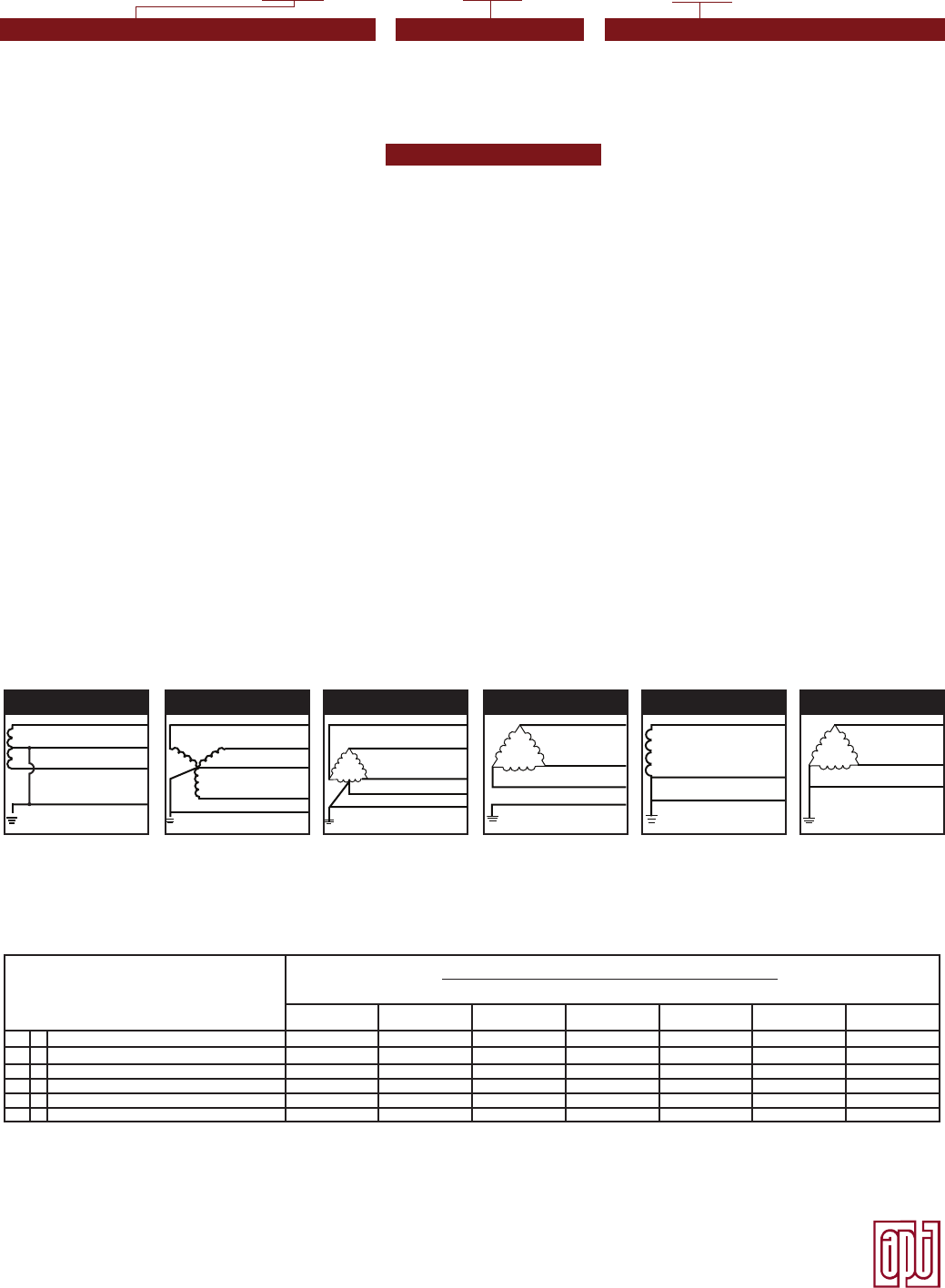

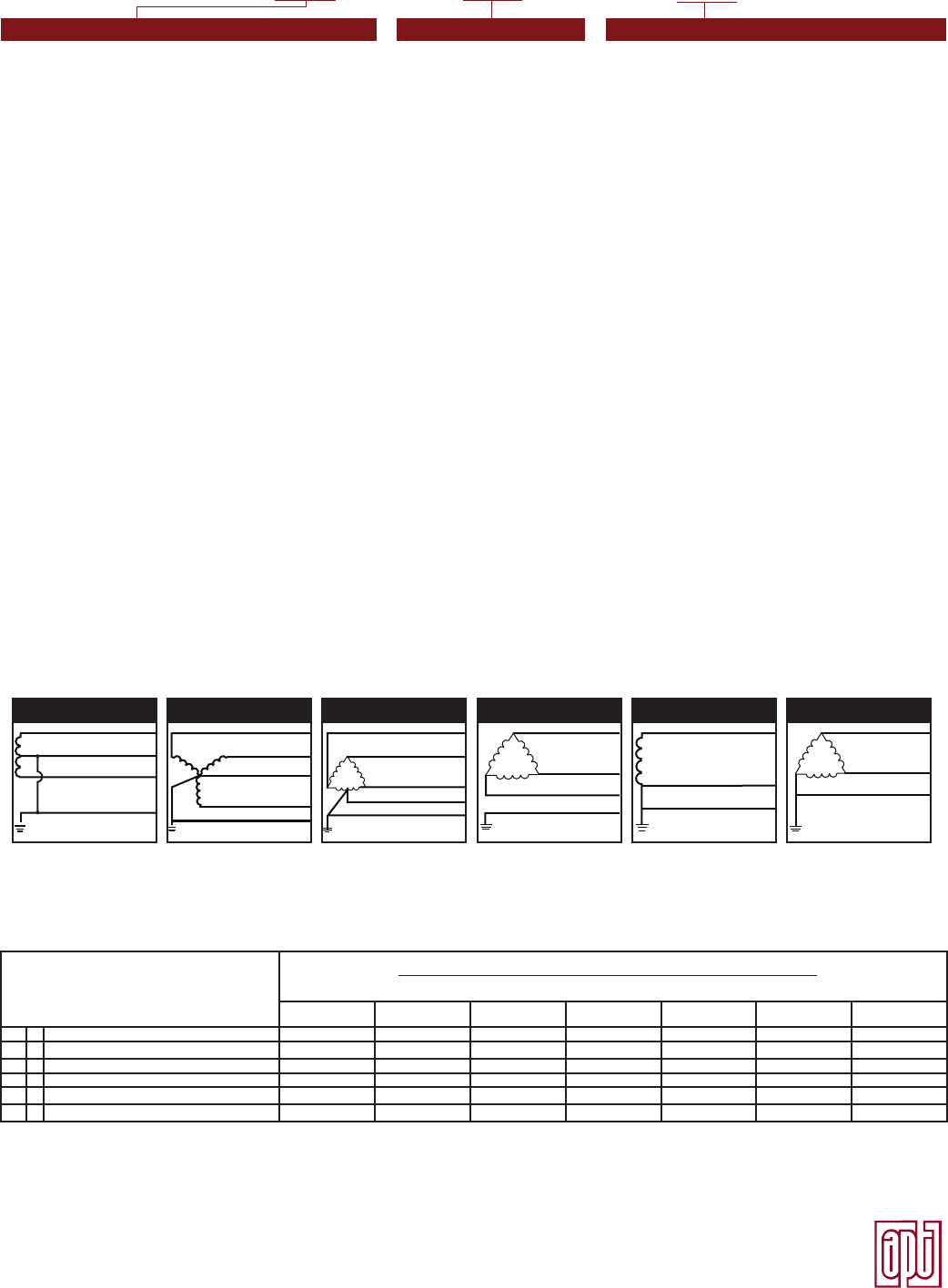

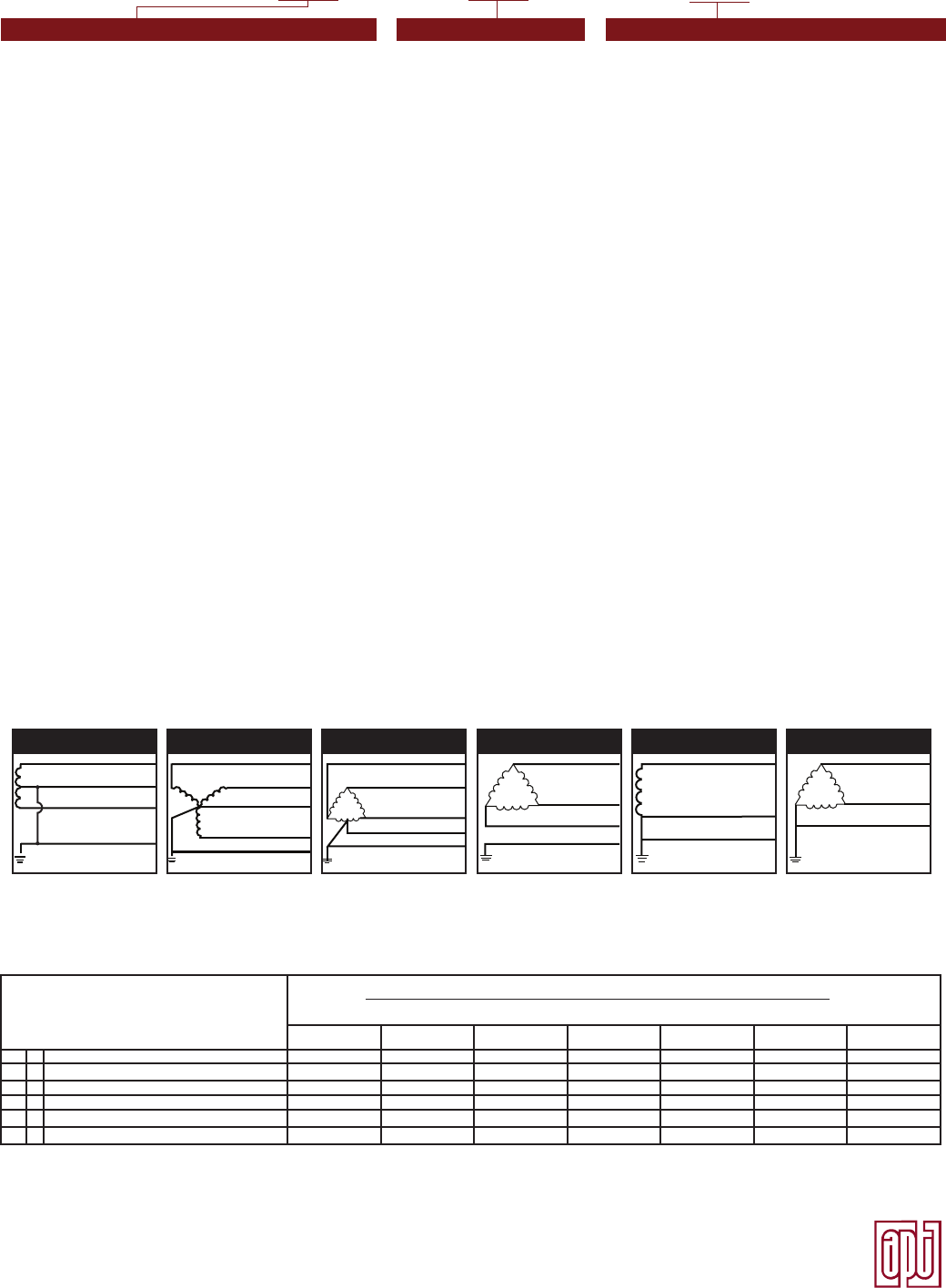

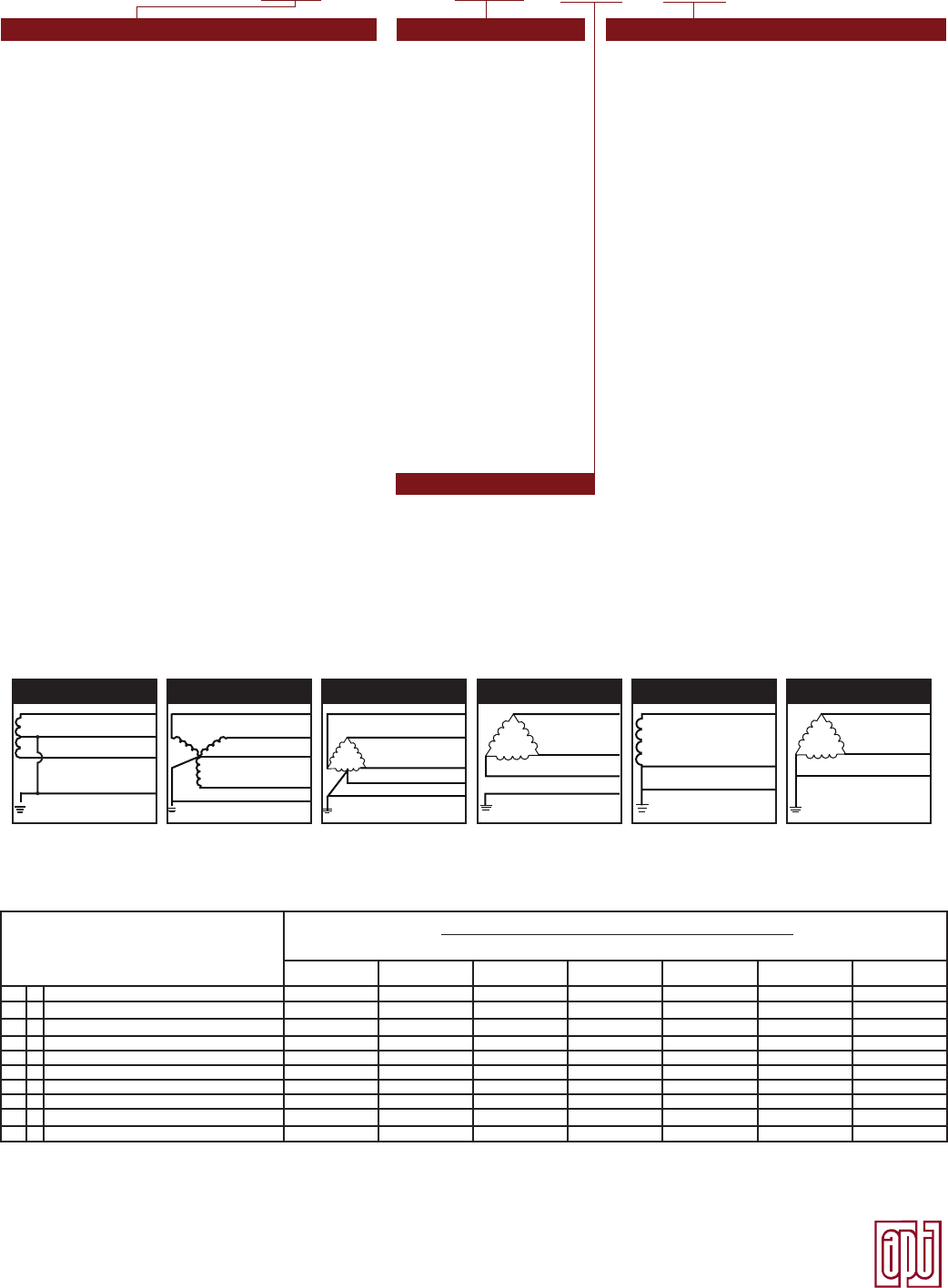

MODEL NUMBER CONFIGURATOR & OPTIONS
(Default)
Surge Current
Rating
Voltage System Options
DELTA HI-LEG WYE 2 POLE / SPLIT
7
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
• UL Listed as opposed to Recognized - avoids scrutiny over
Technical Considerations of Recognized products
• Avoids Certification Surprises
• No Unexpected Installation Requirements
UL Listed to UL 1449 Photovoltaic Standard
(VZCA.E321351 & VZCA7.E321351)
Bracket Mount
for flat surfaces
Std. 3/4”-14
Nipple
DIN-Rail Mount
(rail not included)
Tri-Mount Installation - Mounting Kit Included
Go Green with APT
SPDEE
DC Voltage Surge Protective Device
DC
Listed to UL 1449 as DC SPD for use in PV applications
Options & Configurations for OEMs (see back)
Does not require additional upstream fusing for SPD safety protection
• 100kA DC Short Circuit Current Rating (SCCR)
• Fail-Safe operation – arc breaking, slide-gate thermal disconnectors built-in
• Avoids safety challenges and fusing shortcomings of overseas-standard SPDs
Performance Specifications
• 50kA 8x20µs Per Mode
• 300VDC, 600VDC, 1000VDC, 1500VDC & OEM models
• All modes of protection: DC+ – G, DC- – G, DC+ – DC-
• UL 1449 tested In: 20kA (1500V: 10kA)
• UL 1449 tested SCCR: 100kA DC
• UL 1449 Listed as Type 1 SPD
• UL 1449 Type 2 optional for cUL Mark
• Large-Block arrestor-grade 34mm square MOVs
• Individually Fused and Thermally Protected MOVs
• Repetitive Impulse: 5000 - 3kA-8 x 20µs; 1000 - 10kA-8 x 20µs
• Response Time: < 1nanosecond
Physical Specifications
• Relative Humidity Range: 0 - 95% non-condensing
• Operating Frequency: DC
• Operating Temperature: -40˚C (-40˚F) to +65˚C (149˚F)
(1500VDC: -40˚C (-40˚F) to +85˚C (185˚F))
• Solid State Bi-directional Operation
• NEMA 4X Polycarbonate Enclosure – UL746C(f1), UL 94-5VA
• Pre-wired with 3’ (1m) of #8 AWG & #6 AWG ground conductor
(1500VDC: #10 AWG)
Monitoring Configurations
• Standard - Low consumption LED; monitors every MOV
–Illuminates when power is produced
• Options
–R - Removes LED and its circuitry
–M - MOV Microswitch access option (requires R above) Quality, Standards & Validation
• 2 year warranty (longer optional)
• ANSI/IEEE C62.41.1-2002, C62.41.2-2002 & C62.45-2002
• Burn-In tested prior to shipment
• ISO 9001:2008 Quality Management System
• ISO 17025: Certied Test Lab
• IEC 61643, CE
• UL 96A Lightning Protection Master Label Eligible @ 20kA In
3.26”3.26”
1.15”
4.13”
3/4”-1
4
Sized for std 35mm DIN-Rail
3.31”3.57”
Weight: 1.60 lbs
(0.73 kg)
Dimensions
8
9.16.15.lh.RevJ #8383
SPDEE
DC Voltage Surge Protective Device
DC
Applications & Models
UL 1449 Model Number S50A300VDC S50A600VDC S50A1000VDC S50A1500VDC
DC Voltage 0-300VDC 0-600VDC 0-1000VDC 0-1500VDC
Maximum Continuous Operating Voltage (V
pvdc
)
424VDC 905VDC 1188VDC 1500VDC
Voltage Protection Level (Up) @ 6kV/3kA <1000Vp <2000Vp <2500Vp <3000Vp
SPDEE DC Model Number Configurator & Options
UL 1449 S50A Voltage Options
2 = Type 2 SPD bearing cULus Mark (for Canada).
R = Removes LED and its circuitry Visual Monitoring
via pop-up indicator tabs on each MOV.
M = Microswitch option - requires R option above.
Allows remote access to logic connected MOV
diagnostics. Includes 20 AWG wires out of nipple.
Power must be limited to 50mA at 12VDC.
G=For Grounding DC+ terminal of system (call).
300VDC
600VDC
1000VDC
1500VDC
50kA default
Schematic: All Modes of Protection
DC —
black wire
DC+
red wire
Examples:
- S50A300VDCRM = 50kA, 300VDC, Remove LED,
Microswitch Monitoring
- S50A1000VDC2 = 50kA, 1000VDC, Type 2 marking for Canada
Available Z Mounting
Bracket Accessory
AC Voltage SPDEE’s
Also Available
OEM & Brand Label Opportunities
Please call 800.237.4567
GROUND
green/yellow wire
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
9
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002,
C62.62-2010 and C62.72-2007
–NEMA LS-1
–NEC® Article 285
–IEC 61643, CE
• High Energy Parallel Design for Category C3 & C-High
applications
• For External Mounting next to Switchgear, Motor Controls
Centers or Panelboards
• Individually Fused & Thermally Protected MOVs
• Large-Block, 34mm square, 50kA MOVs
• Solid State Bidirectional Operation
Diagnostic Monitoring
• 100% monitoring – Every MOV is monitored, incl. N-G
• Green LED Status indicator per phase
• Phase Loss monitoring (toggles LED & dry contacts)
• Electrically isolated circuitry ensures surges do not damage
diagnostics
• Optional: Audible Alarm & Form C Dry Contact (Contact rated
240V, 5A; leads are pre-wired through nipple with #18 AWG)
Quality, Standards & Validation
• Type 1: UL 1449 Fourth Edition, CSA 22.2 No. 269.1
• Type 2 (Opt.): UL 1449 Fourth Edition, CSA No. 269.2
• UL le: VZCA.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested prior to shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features
• UL 1449 Fourth Edition Listed
• 100kA per phase rating
• All UL required OCP & Safety Coordination included inside
–Type 1 SPDs intended for Line or Load Side of Main Disconnect
–Type 2 SPDs intended for Load Side of Main Disconnect
• 20kA Inominal (In)
• 200kA SCCRs (most models)
• UL 96A Lightning Protection Master Label compliant
• Voltage Specific Design – highly configurable
• All MOV suppression elements monitored
• All Modes of Protection
Performance Specifications
• UL 1449 Fourth Edition Listed
• UL 1449 Fourth Edition Listed Type 1, CSA 22.2 No. 269.1
• Optional UL 1449-4 Type 2 SPD, CSA 22.2 No. 269.2
• UL 1449-4 tested Inominal (In): 20kA
• UL 1449-4 tested SCCR: 200kA & 100kA
• UL 1449-4 Voltage Protection Ratings (VPRs)
–208Y/120V: as low as 600V
–480Y/277V: as low as 1000V (data table on back)
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
Physical Specifications
• Relative Humidity Range: 0 - 95% non-condensing
• Operating Frequency: 47 - 63Hz (also 400Hz on <480V)
• Operating Temperature: -40°C (-40°F) to +85°C (185°F)
• Weight: 3 lbs (1.4 kg)
• NEMA 4X Polycarbonate enclosure – UL 746C(f1) & UL 94-5VA
• Dimensions: 8.3” x 3.6” x 3.0” (211mm x 91mm x 77mm)
• 3/4” threaded hub - weather resistant 4X
• Pre-wired with 3’ (1m) of #10 AWG conductor
• Typical connection: #10 AWG and 30A breaker
Surge Capacities L-N L-G N-G L-L
100kA Per Phase 50kA 50kA 50kA 100kA
Type 1/Type 2 Surge Protective Device/SPD
10
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 3kA)
L-N L-G N-G L-L InSCCR MCOV
01 =240/120V Split Phase 600 700 500 1000 20kA 100kA 150
02 =208Y/120V 3� Wye 600 700 500 1000 20kA 200kA 150
03 =240Y/120V B High Leg Delta 600/1200 700/1200 500 1000 20kA 200kA 150 / 320
04 =480Y/277V 3� Wye 1200 1200 1000 1800 20kA 200kA 320
05 =480V 3� Delta -1800 -1800 20kA 200kA 552
08 =600Y/347V 3� Wye 1500 1500 1500 2500 20kA 200kA 420

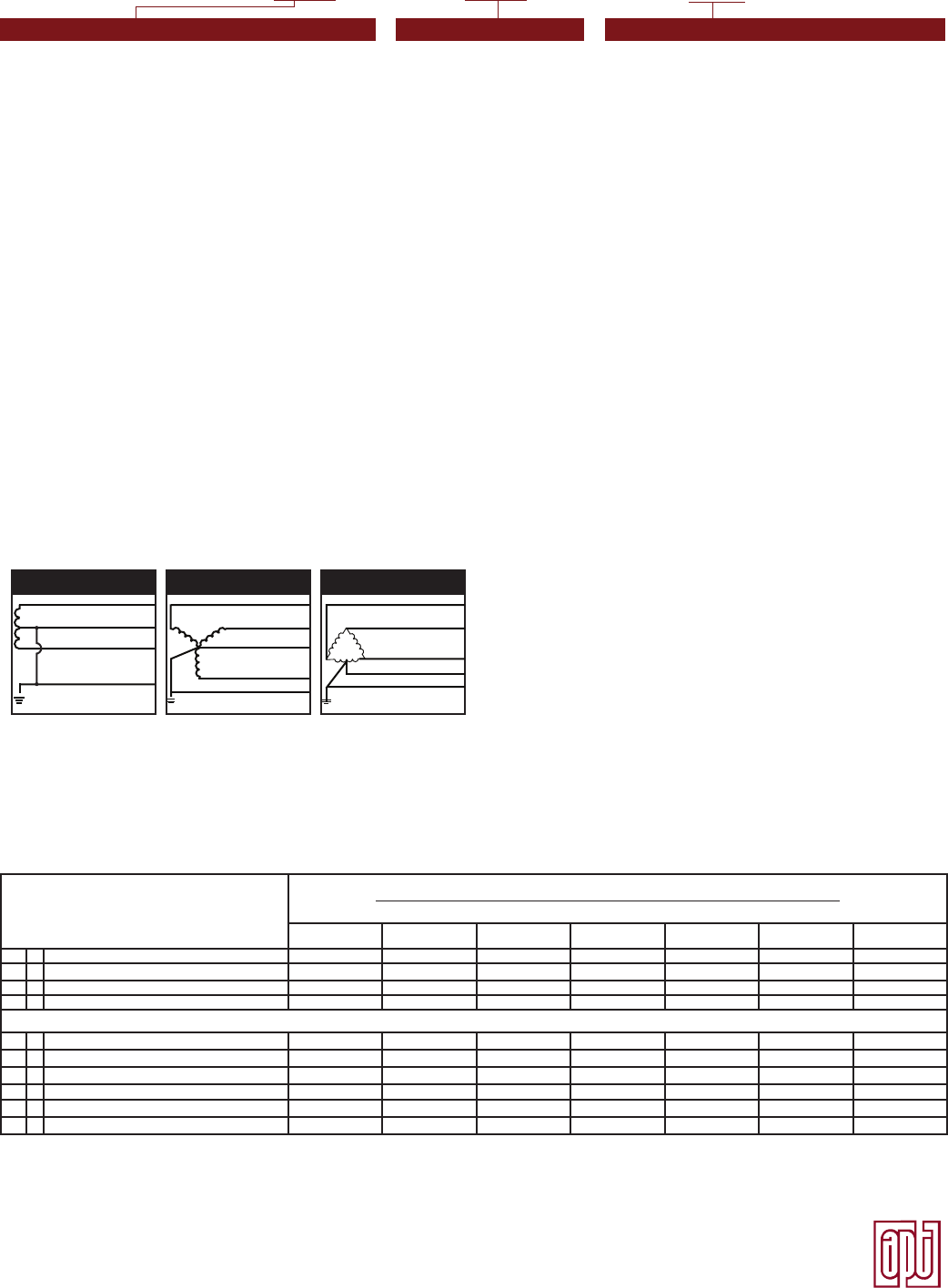

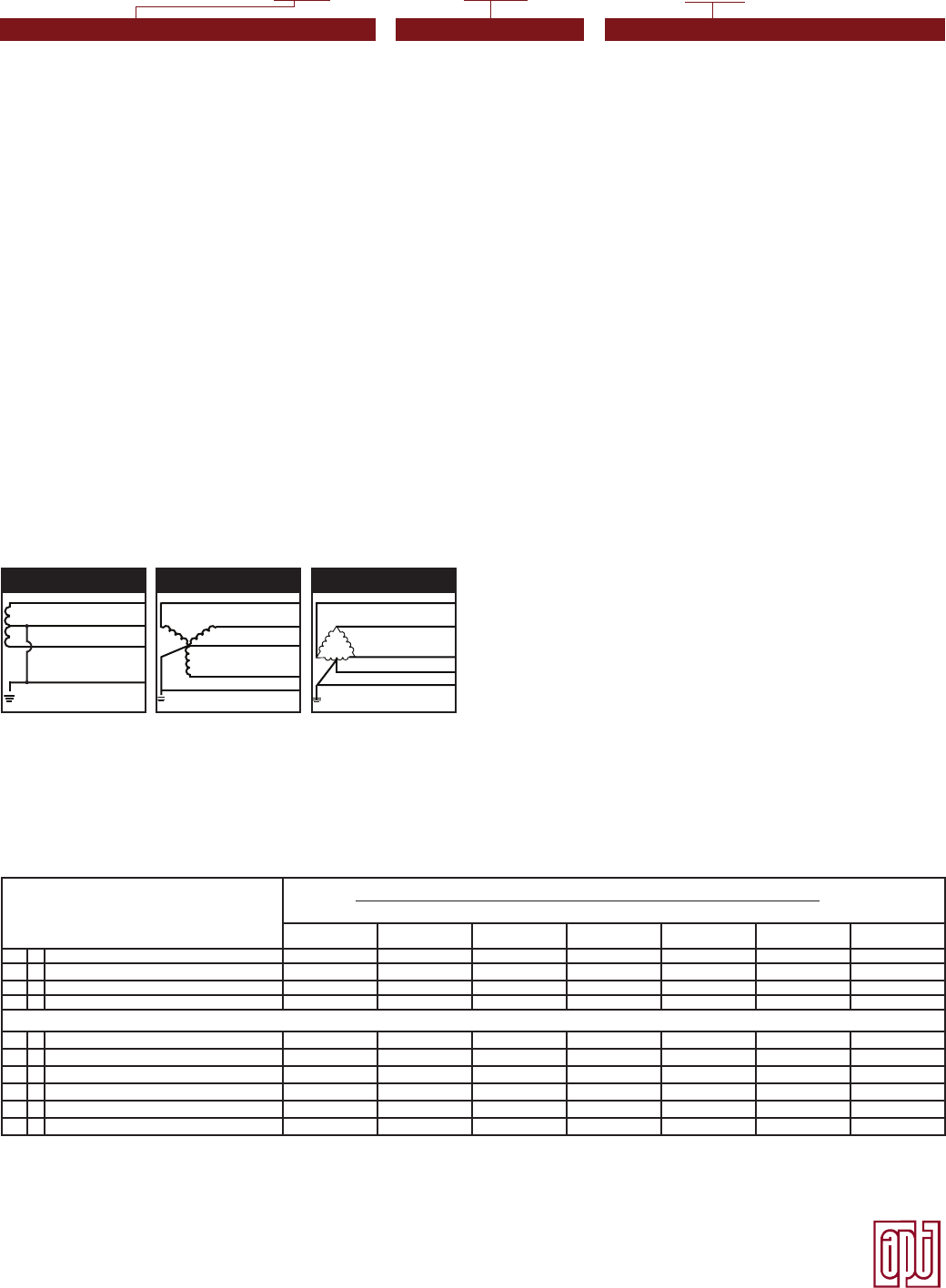

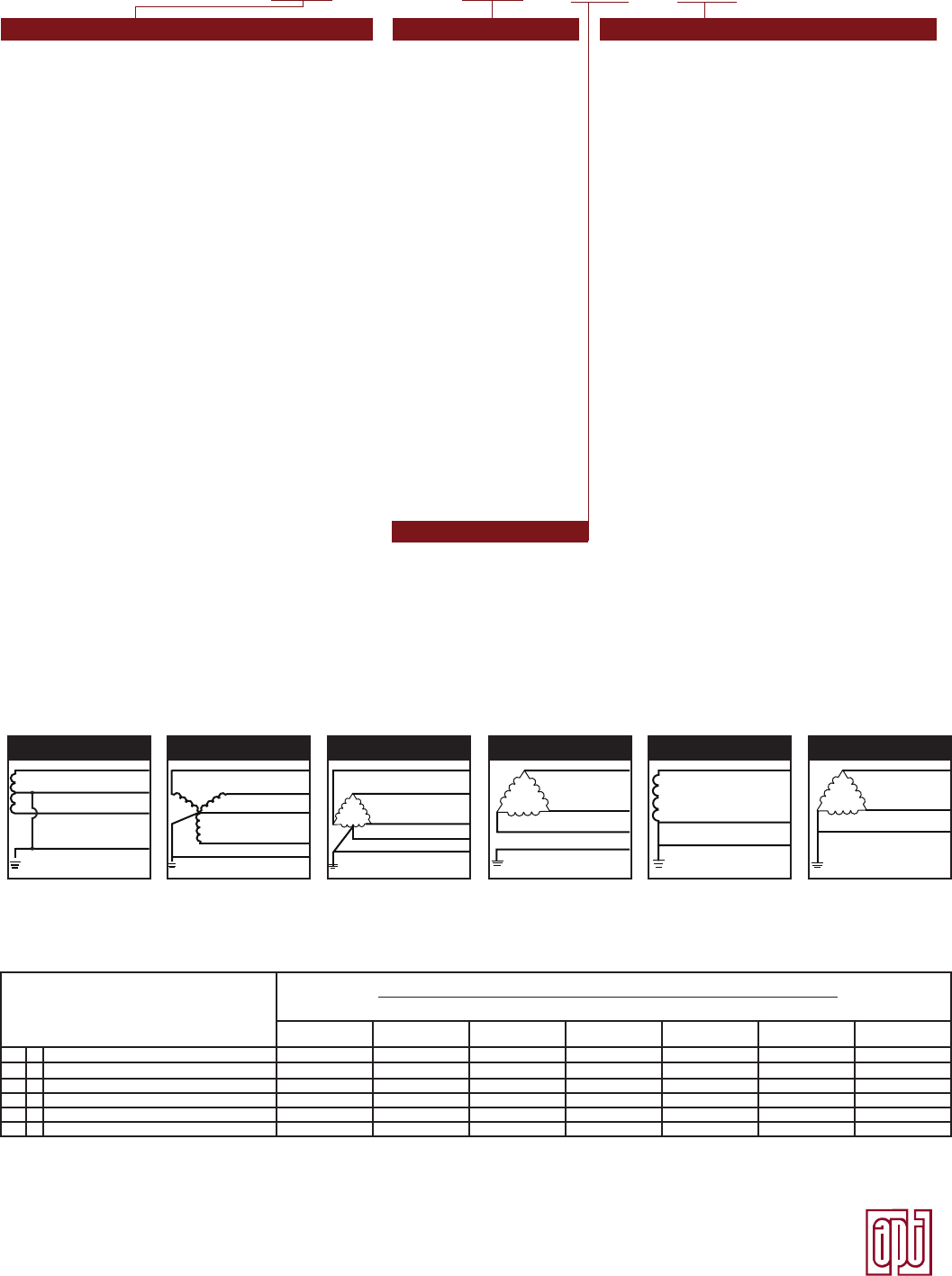

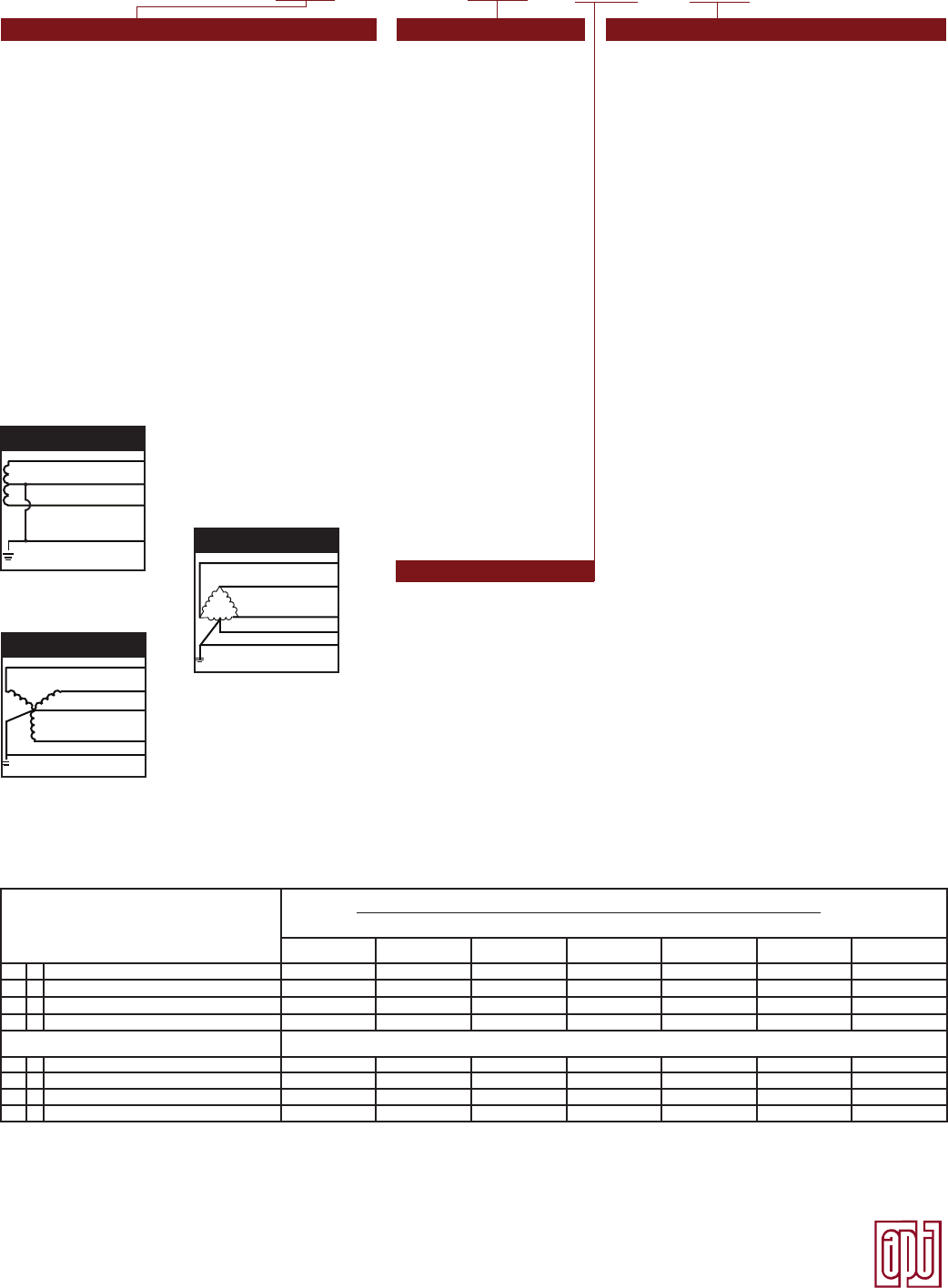

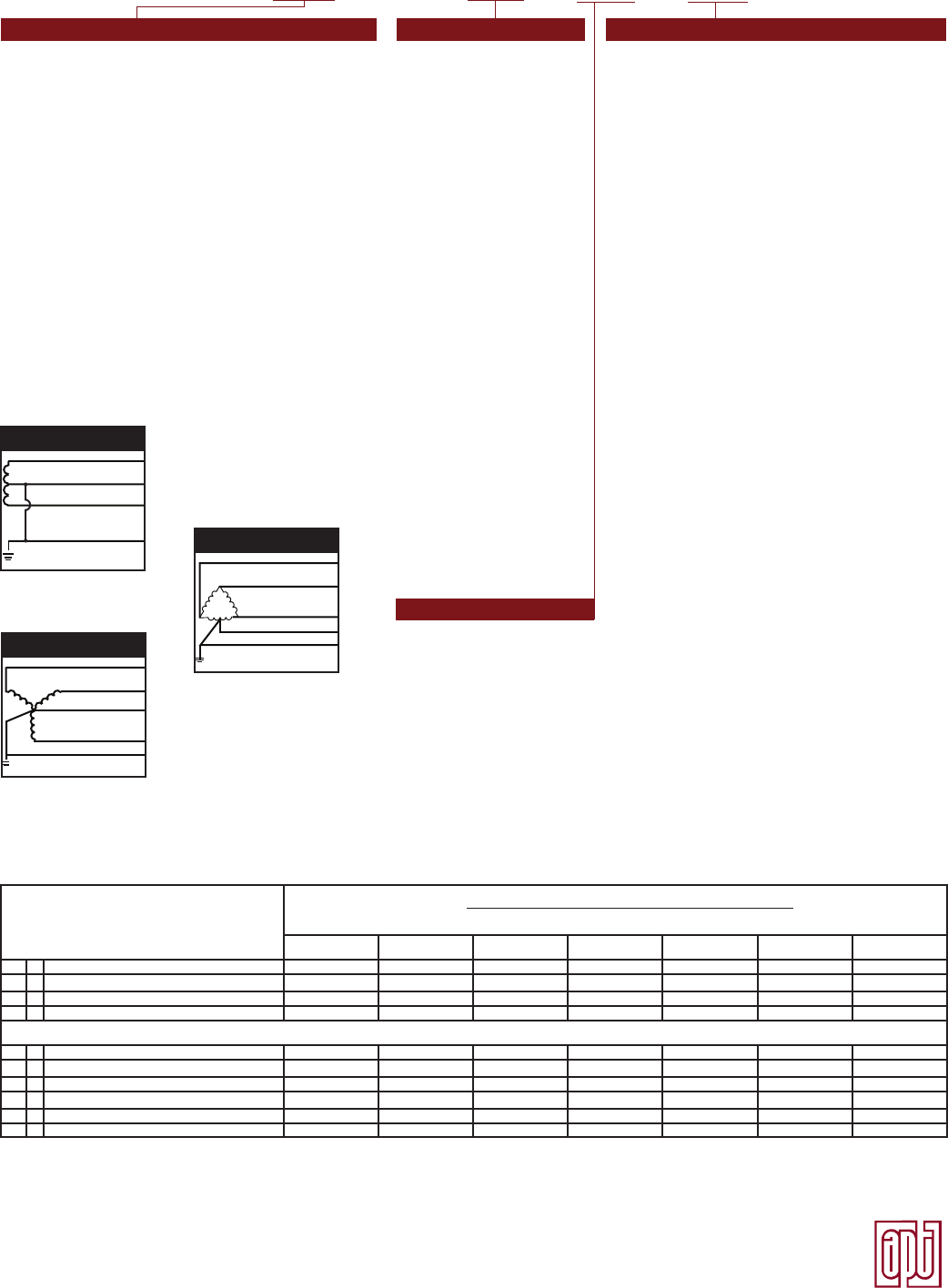

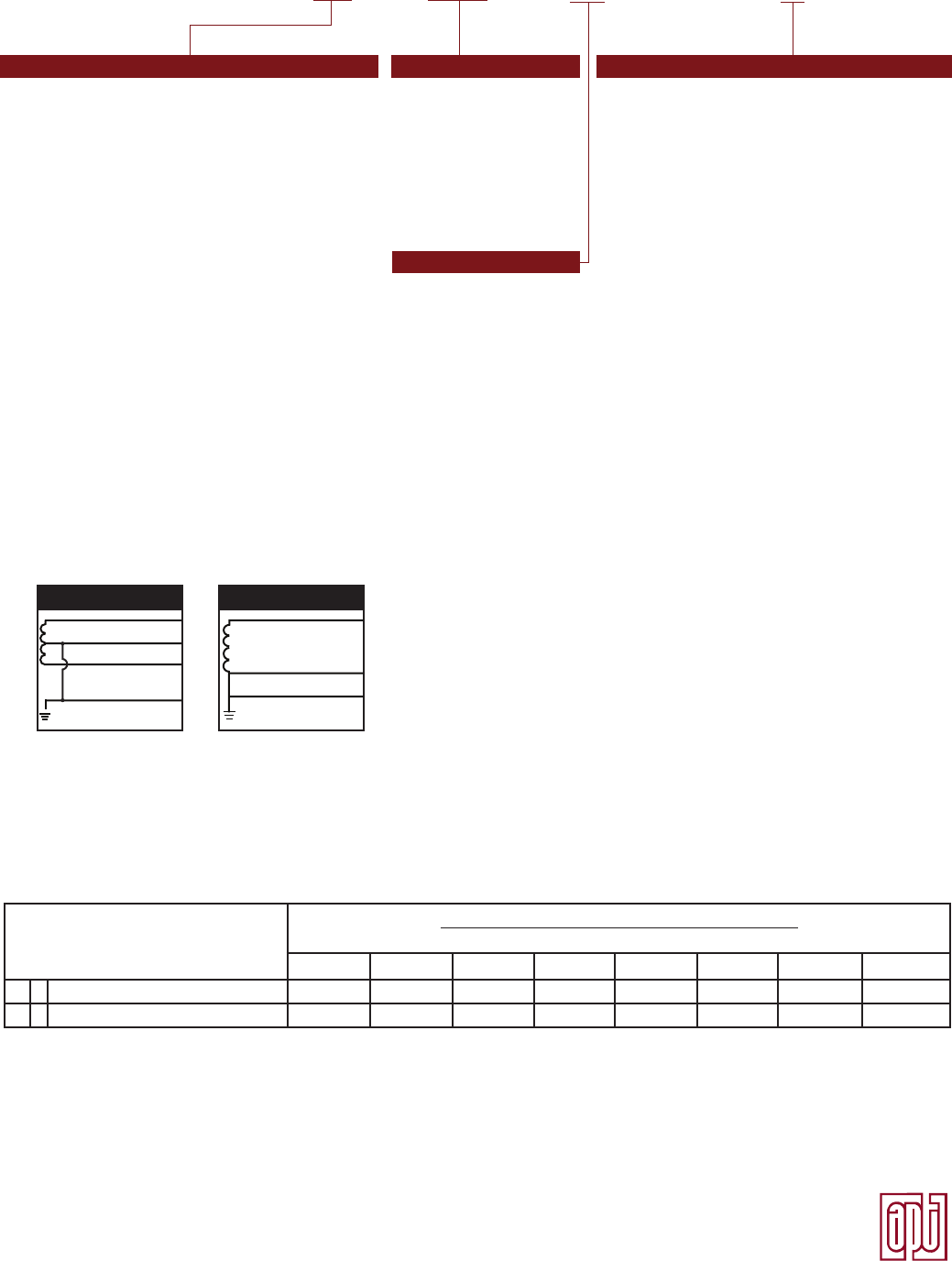

TEXCS MODEL NUMBER CONFIGURATOR & OPTIONS
Voltage Code for Electrical System Surge Current Rating Options
TE ll XCS ll l...
Figure 1
SPLIT
2 Hots, 1 Neu, 1 Grnd
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
Figure 2
WYE
3 Hots, 1 Neu, 1 Grnd
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Figure 3
HI-LEG DELTA (B
High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
V
Figure 5
SINGLE POLE
1 Hot, 1 Neu, 1 Grnd
V
}
Neutral (WHT)
Hot (BLK)
Ground (GRN)
Figure 4
DELTA & HRG WYE
3 Hots, 1 Grnd
Phase A (BLK)
Phase C (BLK)
Phase B (BLK)
Ground (GRN)
}
V
Figure 6
CORNER GROUND
DELTA (B grounded)
2 Hots, 1 Grnd
Phase A (BLK)
Phase C (BLK)
Ground (GRN)
V
}
Standard Enclosure Rating
A = Audible Alarm & Dry Contacts
Form C, 240V, 5A (pre-wired)
E = Remote Indicator LED on 6’ Cable
(pre-wired through nipple)
2 = Type 2 SPD
Delete Options - Consult Factory for Order Code
Delete L-N Protection (reduces kA rating)
Delete L-G Protection (reduces kA rating)
Delete N-G Protection (reduces kA rating)
Available Accessory (order separately)
XMFMKIT = Flush Mount Kit
RM = Remote Monitor
Other Available Systems - Confirmation encouraged:
15 =254/127V Split Phase - 1� 3W+Grnd (Fig 1)
18 =480/277V 2-Pole, (480/240V Split Phase) (Fig 1)
21 = 220Y/127V Wye - 3� 4W+Grnd (Fig 2)
41 = 520Y/300V Wye - 3� 4W+Grnd (Fig 2)
42 = 415Y/240V Wye - 3� 4W+Grnd (Fig 2)
43 = 400Y/230V Wye - 3� 4W+Grnd (Fig 2)
44 = 440Y/250V Wye - 3� 4W+Grnd (Fig 2)
51 = 480V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
06 = 240V Delta - 3� 3W+Grnd (Fig 4)
61 = 240V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
07 = 380Y/220V Wye - 3� 4W+Grnd (Fig 2)
09 = 600V Delta - 3� 3W+Grnd (Fig 4) & HRG Wye
91 = 600V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
11 =120V Single Phase (Fig 5)
12 =240V Single Phase (Fig 5) - Not split phase
13 =127V Single Phase (Fig 5)
14 =300V Single Phase (Fig 5)
16 =277V Single Phase (Fig 5)
17 =480V Single Phase (1 Hot, 1 Neu, 1 Grnd) (Fig 5)
10 = 100kA/Phase
Common North American Systems:
01 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
02 = 208Y/120V Wye - 3Ø 4W+Grnd (Fig 2)
03 = 240/120V High Leg Delta (B High) (Fig 3)
04 = 480Y/277V Wye - 3Ø 4W+Grnd (Fig 2)
05 = 480V Delta - 3Ø 3W+Grnd (Fig 4) & HRG Wye
08 = 600Y/347V Wye - 3Ø 4W+Grnd (Fig 2) NEMA 4X Polycarbonate
(size 8.3” x 3.6” x 3.0”)
Performance Data
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
10.16.17.lh.RevH #8389
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
11
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002,
C62.62-2010 and C62.72-2007
–NEMA LS-1
–NEC® Article 285
–IEC 61643, CE
• High Energy Parallel Design for Category C3 & C-High
applications
• For External Mounting next to Switchgear, Motor Controls
Centers or Panelboards
• Individually Fused & Thermally Protected MOVs
• Large-Block, 34mm square, 50kA MOVs
• Solid State Bidirectional Operation
Diagnostic Monitoring
• 100% monitoring – Every MOV is monitored, incl. N-G
• Green LED Status indicator per phase
• Red LED service indicator
• Phase Loss monitoring (toggles LED & dry contact)
• Electrically isolated circuitry ensures surges do not damage
diagnostics
• Optional: Audible Alarm & Form C Dry Contact
(Contact rated 240V, 5A)
Quality, Standards & Validation
• Type 1: UL 1449 Fourth Edition, CSA 22.2 No. 269.1
• Type 2 (Opt.): UL 1449 Fourth Edition, CSA No. 269.2,
UL 1283
• UL le: VZCA.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested prior to shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
•UL 1449 Fourth Edition Listed
• 100kA – 200kA per phase ratings
•All UL required OCP & Safety Coordination included inside
–Type 1 SPDs intended for Line or Load Side of Main Disconnect
–Type 2 SPDs intended for Load Side of Main Disconnect
•20kA Inominal (In)
• 200kA SCCRs (most models)
• UL 96A Lightning Protection Master Label compliant
• Voltage Specific Design – Highly configurable
• All MOV suppression elements monitored
• All Modes of Protection
Performance Specifications
• UL 1449 Fourth Edition Listed Type 1, CSA 22.2 No. 269.1
• Optional UL 1449-4 Type 2 SPD, UL 1283 Listed,
CSA 22.2 No. 269.2
• UL 1449-4 tested Inominal (In): 20kA
• UL 1449-4 tested SCCR: 200kA & 100kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–208Y/120V: as low as 600V
–480Y/277V: as low as 1000V (data table on back)
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• AC Sinewave Tracking Filter with EMI/RFI Filtering up to
-50dB from 10kHz to 100MHz (Type 2 option only, incl.
UL 1283 Listing)
Physical Specifications
• Relative Humidity Range: 0 - 95% non-condensing
• Operating Frequency: 47 - 63Hz
• Peak Operating Temperature: +85°C (185°F)
• Operating Temperature: -25°C (-15°F) to +60°C (140°F)
• Weight: 5 lbs (2.3 kg)
• NEMA 4X Polycarbonate enclosure – UL 746C(f1) & UL 94-5VA
• Dimensions: 6” x 6” x 4” (152mm x 152mm x 102mm)
(excluding removable mounting feet)
• Lug size: #8 - #10 AWG
• Typical connection: #8 AWG and 40A breaker
Surge Capacities L-N L-G N-G L-L
100kA Per Phase 50kA 50kA 50kA 100kA
150kA Per Phase 100kA 50kA 50kA 150kA
200kA Per Phase 100kA 100kA 100kA 200kA
Type 1/Type 2 Surge Protective Device/SPD
12
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
TEXDS MODEL NUMBER CONFIGURATOR & OPTIONS
Voltage Code for Electrical System Surge Current Rating Options
TE ll XDS ll 4X l...
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6
SPLIT
2 Hots, 1 Neu, 1 Grnd
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
SINGLE POLE
1 Hot, 1 Neu, 1 Grnd
WYE
3 Hots, 1 Neu, 1 Grnd
DELTA & HRG Wye
3 Hots, 1 Grnd
CORNER GROUND
DELTA (B grounded)
2 Hots, 1 Grnd
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 3kA)
L-N L-G N-G L-L InSCCR MCOV
01 =240/120V Split Phase 700 700 600 1000 20kA 100kA 150
02 =208Y/120V 3Ø Wye 700 700 600 1000 20kA 200kA 150
03 =240Y/120V B High Leg Delta 700/1200 700/1200 600 1000/2000 20kA 200kA 150 / 320
04 =480Y/277V 3Ø Wye 1200 1200 1200 2000 20kA 200kA 320
05 =480V 3Ø Delta -1800 -2000 20kA 200kA 550
08 =600Y/347V 3Ø Wye 1500 1500 1500 2500 20kA 200kA 420
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
VV
}
Neutral (WHT)
Hot (BLK)
Ground (GRN)
Phase A (BLK)
Phase C (BLK)
Phase B (BLK)
Ground (GRN)
}
VPhase A (BLK)
Phase C (BLK)
Ground (GRN)
V
}
Enclosure Rating
A = Audible Alarm & Dry Contacts,
Form C, 240V, 5A
2=Type 2 SPD, incl. UL 1283 EMI/RFI Filters
Delete Options - Consult Factory for Order Code
Delete L-N Protection (reduces kA rating)
Delete L-G Protection (reduces kA rating)
Delete N-G Protection (reduces kA rating)
Delete Noise Filtering
Available Accessory (order separately)
KITFMXF = Flush Mount Kit
RM = Remote Monitor
Other Available Systems - Confirmation encouraged:
15 =254/127V Split Phase - 1� 3W+Grnd (Fig 1)
18 =480/277V 2-Pole, (480/240V Split Phase) (Fig 1)
21 = 220Y/127V Wye - 3� 4W+Grnd (Fig 2)
41 = 520Y/300V Wye - 3� 4W+Grnd (Fig 2)
42 = 415Y/240V Wye - 3� 4W+Grnd (Fig 2)
43 = 400Y/230V Wye - 3� 4W+Grnd (Fig 2)
44 = 440Y/250V Wye - 3� 4W+Grnd (Fig 2)
51 = 480V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
06 = 240V Delta - 3� 3W+Grnd (Fig 4)
61 = 240V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
07 = 380Y/220V Wye - 3� 4W+Grnd (Fig 2)
09 = 600V Delta - 3� 3W+Grnd (Fig 4) & HRG Wye
(Available: 100kA)
91 = 600V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
(Available: 100kA)
11 =120V Single Phase (Fig 5)
12 =240V Single Phase (Fig 5) - Not split phase
13 =127V Single Phase (Fig 5)
14 =300V Single Phase (Fig 5)
16 =277V Single Phase (Fig 5)
17 =480V Single Phase (1 Hot, 1 Neu, 1 Grnd) (Fig 5)
10 = 100kA/Phase
15 = 150kA/Phase
20 = 200kA/Phase
Common North American Systems:
01 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
02 = 208Y/120V Wye - 3Ø 4W+Grnd (Fig 2)
03 = 240/120V High Leg Delta (B High) (Fig 3)
04 = 480Y/277V Wye - 3Ø 4W+Grnd (Fig 2)
05 = 480V Delta - 3Ø 3W+Grnd (Fig 4) & HRG Wye
08 = 600Y/347V Wye - 3Ø 4W+Grnd (Fig 2)
4X = NEMA 4X
Non-Metallic
(size 6” x 6”x 4”)
Performance Data
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
10.16.17.lh revH #8390
13
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002, C62.62-2010
and C62.72-2007
–NEMA LS-1
–NEC® Article 285
–IEC 61643
• High Energy Parallel Design for Category C3 & C-High applications
• For External Mounting next to Switchgear, Motor Controls Centers or
Panelboards
• Individually Fused & Thermally Protected MOVs
• Large-Block, 34mm square, 50kA MOVs
• Replaceable Module Construction
• Solid State Bidirectional Operation
Physical Specifications
• Relative Humidity Range: 0 - 95% non-condensing
• Operating Frequency: 47-63Hz
• Operating Temperature: -25°C (-15°F) to +60°C (140°F)
• Weight: 24 lbs (11 kg)
• Standard NEMA 1/12/3R/4 enclosure
• Standard size: 12” x 12” x 7” (305mm x 305mm x 177mm)
• Lug size: #2 - #14 AWG (w/opt. disconnect: #6 - #1/0)
• Typical connection: #6 AWG and 60A breaker
Quality, Standards & Validation
• Type 1: UL 1449 Fourth Edition, CSA 22.2 No. 269.1
• Type 2 (Opt.): UL 1449 Fourth Edition, CSA No. 269.2, UL 1283
• UL le: VZCA.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested prior to shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
• UL 1449 Fourth Edition Listed
• 100kA – 500kA per phase ratings
• All UL required OCP & Safety Coordination included inside
–Type 1 SPDs intended for Line or Load Side of Main Disconnect
–Type 2 SPDs intended for Load Side of Main Disconnect
• 20kA Inominal
• 200kA SCCRs (most models)
• UL 96A Lightning Protection Master Label compliant
• Voltage Specific Design – Highly configurable
• All MOV suppression elements monitored
• All Modes of Protection
• Optional Rotary Disconnect Switch
Performance Specifications
• UL 1449 Fourth Edition Listed Type 1, CSA 22.2 No. 269.1
• Optional UL 1449-4 Type 2 SPD, UL 1283 Listed, CSA 22.2
No. 269.2
• UL 1449-4 tested Inominal: 20kA
• UL 1449-4 tested SCCR: 200kA & 100kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–208Y/120V: as low as 600V
–480Y/277V: as low as 1000V
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• AC Sinewave Tracking Filter with EMI/RFI Filtering up to -50dB
from 10kHz to 100MHz (Type 2 option only, incl. UL 1283 Listing)
Diagnostic Monitoring
• 100% monitoring – Every MOV is monitored, incl. N-G
• Green LED Status indicator per phase
• Red LED service indicator
• Audible Alarm with Silence Switch
• Test Function: toggles Red Service LED, Audible Alarm & Dry
Contact (if equipped)
• N-G overvoltage detection
• Phase Loss monitoring (toggles LED & dry contacts)
• Electrically isolated circuitry ensures surges do not damage
diagnostics
• Form C Dry Contacts, 240V, 5A (two sets)
• Optional Surge Counter, six-digit LCD, with test function, reset &
no-maintenance Eprom memory
Surge Capacities L-N L-G N-G L-L
100kA Per Phase 50kA 50kA 50kA 100kA
150kA Per Phase 100kA 50kA 50kA 150kA
200kA Per Phase 100kA 100kA 100kA 200kA
250kA Per Phase 150kA 100kA 100kA 250kA
300kA Per Phase 150kA 150kA 150kA 300kA
400kA Per Phase 200kA 200kA 200kA 400kA
500kA Per Phase 250kA 250kA 250kA 500kA
Type 1/Type 2 Surge Protective Device/SPD
14
TEXAS MODEL NUMBER CONFIGURATOR & OPTIONS
Voltage Code for Electrical System Surge Current Rating Options
TE ll XAS ll ll l...
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 3kA)
L- N L- G N-G L- L InSCCR MCOV
01 =240/120V Split Phase (<300kA) 700 700 700 1200 20kA 100kA 150
01 =240/120V Split Phase (=>300kA) 700 600 600 1000 20kA 100kA 150
02 =208Y/120V 3� Wye (<300kA) 700 700 700 1200 20kA 200kA 150
02 =208Y/120V 3� Wye (=>300kA) 700 600 600 1000 20kA 200kA 150
03 =240Y/120V B High Leg Delta 700/1200 700/1200 700 1800 20kA 200kA 150 / 320
04 =480Y/277V 3� Wye (<300kA) 1200 1200 1200 2000 20kA 200kA 320
04 =480Y/277V 3� Wye (=>300kA) 1200 1000 1000 1800 20kA 200kA 320
05 =480V 3� Delta (<300kA) -1800 -1800 20kA 200kA 550
07 =380Y/220V 3� Wye (<300kA) 1200 1200 1200 2000 20kA 200kA 320
08 =600Y/347V 3� Wye (<300kA) 1500 1500 1500 2500 20kA 200kA 420
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
Optional disconnect switch may increase VPRs.
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6
SPLIT
2 Hots, 1 Neu, 1 Grnd
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
SINGLE POLE
1 Hot, 1 Neu, 1 Grnd
WYE
3 Hots, 1 Neu, 1 Grnd
DELTA & HRG WYE
3 Hots, 1 Grnd
CORNER GROUND
DELTA (B grounded)
2 Hots, 1 Grnd
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
VV
}
Neutral (WHT)
Hot (BLK)
Ground (GRN)
Phase A (BLK)
Phase C (BLK)
Phase B (BLK)
Ground (GRN)
}
VPhase A (BLK)
Phase C (BLK)
Ground (GRN)
V
}
Enclosure Rating
X = Surge Counter, six-digit LCD counter
includes maintenance-free Eprom memory
backup
E = Remote Locatable Display on 4 ft Cable
custom cable lengths available
F=Noise Filtering - Extended Range &
Attenuation (available on 400kA & 500kA
models)
D =Rotary Disconnect Switch, ABB, UL98
T = Thru-Door Rotary Disconnect Switch,
ABB, UL98, E1 enclosure only
(Consult factory for other disconnect
switch options)
2=Type 2 SPD, incl. UL 1283 EMI/RFI Filters
Delete Options - Consult Factory for Order Code
Delete L-N Protection (reduces kA rating)
Delete L-G Protection (reduces kA rating)
Delete N-G Protection (reduces kA rating)
Delete Noise Filtering
Available Accessory (order separately)
RM = Remote Monitor
Other Available Systems - Confirmation encouraged:
15 =254/127V Split Phase - 1� 3W+Grnd (Fig 1)
18 =480/277V 2-Pole, (480/240V Split Phase) (Fig 1)
21 = 220Y/127V Wye - 3� 4W+Grnd (Fig 2)
41 = 520Y/300V Wye - 3� 4W+Grnd (Fig 2)
42 = 415Y/240V Wye - 3� 4W+Grnd (Fig 2)
43 = 400Y/230V Wye - 3� 4W+Grnd (Fig 2)
44 = 440Y/250V Wye - 3� 4W+Grnd (Fig 2)
51 = 480V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
(450kA replaces 400kA or 500kA)
06 = 240V Delta - 3� 3W+Grnd (Fig 4)
(450kA replaces 400kA or 500kA)
61 = 240V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
(450kA replaces 400kA or 500kA)
07 = 380Y/220V Wye - 3� 4W+Grnd (Fig 2)
09 = 600V Delta - 3� 3W+Grnd (Fig 4) & HRG Wye
(Available: 100kA, 150kA, 200kA, 250kA)
91 = 600V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
(Available: 100kA, 150kA, 200kA, 250kA)
11 =120V Single Phase (Fig 5)
12 =240V Single Phase (Fig 5) - Not split phase
13 =127V Single Phase (Fig 5)
14 =300V Single Phase (Fig 5)
16 =277V Single Phase (Fig 5)
17 =480V Single Phase (1 Hot, 1 Neu, 1 Grnd) (Fig 5)
10 = 100kA/Phase
15 = 150kA/Phase
20 = 200kA/Phase
25 = 250kA/Phase
30 = 300kA/Phase
40 = 400kA/Phase
45 = 450kA/Phase
(Voltage Codes 05, 51, 06 & 61)
50 = 500kA/Phase
Common North American Systems:
01 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
02 = 208Y/120V Wye - 3Ø 4W+Grnd (Fig 2)
03 = 240/120V High Leg Delta (B High) (Fig 3)
04 = 480Y/277V Wye - 3Ø 4W+Grnd (Fig 2)
05 = 480V Delta - 3Ø 3W+Grnd (Fig 4) & HRG Wye
(450kA replaces 400kA or 500kA)
08 = 600Y/347V Wye - 3Ø 4W+Grnd (Fig 2)
E1 = NEMA 1/12/3R/4 (size: 12” x 12” x 7”)
4X = NEMA 4X Non-Metallic (size: 14” x 12”x 6”)
(polycarbonate, display inside clear front door)
4S = NEMA 4X Stainless Steel (size: 12" x 12"x 6")
(display inside door)
FM = NEMA 1 Flush Mount (wall cavity size: 12” x 12”x 6” deep)
P1 = NEMA 1 pullbox ‘indoor’ (size: 12” x 12” x 6”) includes ‘E’ option
(Optional rotary disconnect increases enclosure sizes to 16” x 14” x 6” on models > 300kA)
Performance Data
10.16.17.lh revD #8386
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
15
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002,
C62.62-2010 and C62.72-2007
–NEMA LS-1
–NEC® Article 285
–IEC 61643, CE
• High Energy Parallel Design for Category C3 & C-High
applications
• For External Mounting next to Switchgear, Motor Controls
Centers or Panelboards
• Individually Fused & Thermally Protected MOVs
• Large-Block, 34mm square, 50kA MOVs
• Replaceable Module Construction
• Solid State Bidirectional Operation
Physical Specifications
• Relative Humidity Range: 0 - 95% non-condensing
• Operating Frequency: 47-63Hz
• Operating Temperature: -25°C (-15°F) to +60°C (140°F)
• Weight: 24 lbs (11 kg)
• Standard NEMA 1/12/3R/4 enclosure
• Standard size: 12” x 12” x 7” (305mm x 305mm x 177mm)
• Lug size: #2 - #14 AWG (w/opt. disconnect: #6 - #1/0)
• Typical connection: #6 AWG and 60A breaker
Quality, Standards & Validation
• Type 1: UL 1449 Fourth Edition, CSA 22.2 No. 269.1
• Type 2 (Opt.): UL 1449 Fourth Ed., CSA No. 269.2, UL 1283
• UL le: VZCA.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested prior to shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
• Directly Connected, Discrete Protection Elements
Between All Possible Modes
• UL 1449 Fourth Edition Listed
• 150kA – 450kA per phase ratings
• All UL required OCP & Safety Coordination included inside
–Type 1 SPDs intended for Line or Load Side of Main Disconnect
–Type 2 SPDs intended for Load Side of Main Disconnect
• 20kA Inominal (In)
• 200kA SCCRs (most models)
• UL 96A Lightning Protection Master Label compliant (@20kA In)
• All MOV suppression elements monitored
• All Modes of Protection
Performance Specifications
• Directly Connected, Discrete Protection Elements
Between All Possible Modes with True 10-Mode
Protection
• UL 1449 Fourth Edition Listed Type 1, CSA 22.2 No. 269.1
• Optional UL 1449-4 Type 2 SPD, UL 1283 Listed,
CSA 22.2 No. 269.2
• UL 1449-4 tested Inominal (In): 20kA
• UL 1449-4 tested SCCR: 200kA & 100kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–208Y/120V: as low as 600V
–480Y/277V: as low as 1000V
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• AC Sinewave True Tracking Filter with EMI/RFI Filtering
up to -50dB from 10kHz to 100MHz (Type 2 option only,
incl. UL 1283 Listing)
Diagnostic Monitoring
• 100% monitoring – Every MOV is monitored, incl. N-G
• Green LED Status indicator per phase
• Red LED service indicator
• Audible Alarm with Silence Switch
• Test Function: toggles Red Service LED, Audible Alarm &
Dry Contact (if equipped)
• N-G overvoltage detection
• Phase Loss monitoring
• Electrically isolated diagnostic circuitry
• Form C Dry Contacts, 240V, 5A (two sets)
• Optional Surge Counter, six-digit LCD, with test function,
reset & no-maintenance Eprom memory
Surge Capacities L-N L-G N-G L-L
150kA Per Phase 50kA 50kA 50kA 50kA
300kA Per Phase 100kA 100kA 100kA 100kA
450kA Per Phase 150kA 150kA 150kA 150kA
Type 1/Type 2 Surge Protective Device/SPD
16
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
TEXAL 10-MODE MODEL NUMBER CONFIGURATOR & OPTIONS
Voltage Code for Electrical System Surge Current Rating Options
TE ll XAL ll ll l...
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 3kA)
L- N L- G N-G L- L InSCCR MCOV
01 =240/120V Split Phase 700 700 700 1000 20kA 100kA 150
02 =208Y/120V 3Ø Wye 700 700 700 1000 20kA 200kA 150
03 =240Y/120V B High Leg Delta 800/1500 700/1200 700 1800 20kA 200kA 150 / 320
04 =480Y/277V 3Ø Wye 1200 1200 1200 1800 20kA 200kA 320
Other Available Systems - Confirmation encouraged:
15 =254/127V Split Phase 700 700 700 1000 20kA 200kA 150
21 =220Y/127V 3Ø Wye 700 700 700 1000 20kA 200kA 180
42 =415Y/240V 3Ø Wye 1200 1200 1200 1800 20kA 200kA 320
43 =400Y/230V 3Ø Wye 1200 1200 1200 1800 20kA 200kA 320
44 =440Y/250V 3Ø Wye 1200 1200 1200 1800 20kA 200kA 320
07 =380Y/220V 3Ø Wye 1200 1200 1200 1800 20kA 200kA 320
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
Optional disconnect switch may increase VPRs.
Figure 1
SPLIT
2 Hots, 1 Neu, 1 Grnd
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
Figure 2
WYE
3 Hots, 1 Neu, 1 Grnd
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Figure 3
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
V
Enclosure Rating
X = Surge Counter, six-digit LCD counter
includes maintenance-free Eprom
memory backup
E = Remote Locatable Display on 4 ft Cable
custom cable lengths available
F=Noise Filtering - Extended Range &
Attenuation (available on 450kA & 500kA models)
D = Rotary Disconnect, ABB, UL98
T = Thru-door Rotary Disconnect Switch,
Katko, UL 508, E1 enclosure only
(Consult factory for other disconnect switch options)
2=Type 2 SPD, incl. UL 1283 EMI/RFI Filters
Delete Options - Consult Factory for Order Code
Delete L-N Protection (reduces kA rating)
Delete L-G Protection (reduces kA rating)
Delete N-G Protection (reduces kA rating)
Delete Noise Filtering
Available Accessory (order separately)
RM = Remote Monitor
Other Available Systems - Confirmation encouraged:
15 =254/127V Split Phase - 1� 3W+Grnd (Fig 1)
18 =480/277V 2-Pole, (480/240V Split Phase) (Fig 1)
21 = 220Y/127V Wye - 3� 4W+Grnd (Fig 2)
42 = 415Y/240V Wye - 3� 4W+Grnd (Fig 2)
43 = 400Y/230V Wye - 3� 4W+Grnd (Fig 2)
44 = 440Y/250V Wye - 3� 4W+Grnd (Fig 2)
07 = 380Y/220V Wye - 3� 4W+Grnd (Fig 2)
15 = 150kA/Phase
30 = 300kA/Phase
45 = 450kA/Phase
Common North American Systems:
01 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
02 = 208Y/120V Wye - 3Ø 4W+Grnd (Fig 2)
03 = 240/120V High Leg Delta (B High) (Fig 3)
04 = 480Y/277V Wye - 3Ø 4W+Grnd (Fig 2)
E1 = NEMA 1/12/3R/4 (size: 12” x 12” x 7”)
4X = NEMA 4X Non-Metallic (size: 14” x 12”x 6”)
(polycarbonate, display inside clear front door)
4S = NEMA 4X Stainless Steel (size: 12" x 12"x 6")
(display inside door)
FM = NEMA 1 Flush Mount (wall cavity size: 12” x 12”x 6” deep)
P1 = NEMA 1 pullbox ‘indoor’ (size: 12” x 12” x 6”) - includes ‘E’ option
(Optional rotary disconnect increases enclosure sizes to 16” x 14” x 6” on 450kA only)
Performance Data
9.29.15.lh.RevC #8385
17
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002,
C62.62-2010 and C62.72-2007
–NEMA LS-1
–NEC® Article 285
–IEC 61643, CE
• High Energy Parallel Design for Category C3 & C-High applications
• For External Mounting next to Switchgear, Motor Controls
Centers or Panelboards
• Individually Fused & Thermally Protected MOVs
• Large-Block, 34mm square, 50kA MOVs
• Dual Replaceable Module Construction
• Solid State Bidirectional Operation
Physical Specifications
• Relative Humidity Range: 0 -95% non-condensing
• Operating Frequency: 47-63Hz
• Operating Temperature: -25°C (-15°F) to +60°C (140°F)
• Weight: 52 lbs (23.6 kg)
• Standard NEMA 1/12/3R/4 enclosure
• Standard size: 20” x 20” x 7.5” (50.8cm x 50.8cm x 19cm)
• Lug size: #6 - #1/0 AWG
• Typical connection: #6 AWG and 60A breaker
Quality, Standards & Validation
• Type 1: UL 1449 Fourth Edition, CSA 22.2 No. 269.1
• Type 2 (Opt.): UL 1449 Fourth Ed., CSA No. 269.2, UL 1283
• UL le: VZCA.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested prior to shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
• UL 1449 Fourth Edition Listed
• 400kA – 1,000kA per phase ratings
• All UL required OCP & Safety Coordination included inside
–Type 1 SPDs intended for Line or Load Side of Main Disconnect
–Type 2 SPDs intended for Load Side of Main Disconnect
• 20kA Inominal (In)
• 200kA SCCRs (most models)
• UL 96A Lightning Protection Master Label compliant
• Rotary Disconnect Switch included as Standard Equipment
• Dual Redundant Replaceable Modules
• Voltage Specific Design – Highly configurable
• All MOV suppression elements monitored
• All Modes of Protection
Performance Specifications
• UL 1449 Fourth Edition Listed Type 1, CSA 22.2 No. 269.1
• Optional UL 1449-4 Type 2 SPD, UL 1283 Listed,
CSA 22.2 No. 269.2
• UL 1449-4 tested Inominal (In): 20kA
• UL 1449-4 tested SCCR: 200kA & 100kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–208Y/120V: as low as 700V
–480Y/277V: as low as 1200V
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• AC Sinewave Tracking Filter with EMI/RFI Filtering up to -50dB
from 10kHz to 100MHz (Type 2 option only, incl. UL 1283 Listing)
Diagnostic Monitoring
• 100% monitoring – Every MOV is monitored, incl. N-G
• Green LED Status indicator per phase
• Red LED service indicator
• Audible Alarm with Silence Switch
• Test Function: toggles Red Service LED, Audible Alarm &
Dry Contact (if equipped)
• N-G overvoltage detection
• Phase Loss monitoring (toggles LED & dry contacts)
• Electrically isolated circuitry ensures surges do not damage
diagnostics
• Form C Dry Contacts, 240V, 5A (two sets)
• Optional Surge Counter, six-digit LCD, with test function, reset &
no-maintenance Eprom memory
Surge Capacities L-N L-G N-G L-L
400kA Per Phase 200kA 200kA 200kA 400kA
600kA Per Phase 300kA 300kA 300kA 600kA
800kA Per Phase 400kA 400kA 400kA 800kA
1000kA Per Phase 500kA 500kA 500kA 1000kA
Type 1/Type 2 Surge Protective Device/SPD
18
Figure 6
CORNER GROUND
DELTA (B grounded)
2 Hots, 1 Grnd
Phase A (BLK)
Phase C (BLK)
Ground (GRN)
V
}
TEXBS MODEL NUMBER CONFIGURATOR & OPTIONS
Voltage Code for Electrical System Surge Current Rating Options
TE ll XBS ll ll l...
Figure 2 Figure 3
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
WYE
3 Hots, 1 Neu, 1 Grnd
Common North American Systems
UL 1449 Fourth Edition Test Data:
Voltage Protection Ratings (VPR - 3kA)
L-N L-G N-G L-L InSCCR MCOV
01 =240/120V Split Phase 700 700 700 1000 20kA 100kA 150
02 =208Y/120V 3Ø Wye 700 700 700 1000 20kA 200kA 150
03 =240/120V B High Leg Delta 700/1200 700/1200 700/1000 1000/1800 20kA 200kA 150 / 320
04 =480Y/277V 3Ø Wye 1200 1200 1200 1800 20kA 200kA 320
05 =480V 3Ø Delta -1800 -1800 20kA 200kA 550
08 =600Y/347V 3Ø Wye 1500 1500 1500 2500 20kA 200kA 420
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
V
Figure 5
SINGLE POLE
1 Hot, 1 Neu, 1 Grnd
V
}
Neutral (WHT)
Hot (BLK)
Ground (GRN)
Figure 4
DELTA & HRG Wye
3 Hots, 1 Grnd
Phase A (BLK)
Phase C (BLK)
Phase B (BLK)
Ground (GRN)
}
V
Enclosure Rating
Performance Data
Other Available Systems - Confirmation encouraged:
21 = 220Y/127V Wye - 3� 4W+Grnd (Fig 2)
41 = 520Y/300V Wye - 3� 4W+Grnd (Fig 2)
42 = 415Y/240V Wye - 3� 4W+Grnd (Fig 2)
43 = 400Y/230V Wye - 3� 4W+Grnd (Fig 2)
44 = 440Y/250V Wye - 3� 4W+Grnd (Fig 2)
51 = 480V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
(Available: 600kA & 900kA)
06 = 240V Delta - 3� 3W+Grnd (Fig 4)
(Available: 600kA & 900kA)
61 = 240V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
(Available: 600kA & 900kA)
07 = 380Y/220V Wye - 3� 4W+Grnd (Fig 2)
09 = 600V Delta - 3� 3W+Grnd (Fig 4) & HRG Wye
(Available: 400kA & 500kA)
91 = 600V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
(Available: 400kA & 500kA)
40 = 400kA/Phase
(Voltage Codes 09 & 91 only)
50 = 500kA/Phase
(Voltage Codes 09 & 91 only)
60 = 600kA/Phase
80 = 800kA/Phase
90 = 900kA/Phase
(Voltage codes 05, 51, 06, 61 only)
1K = 1000kA/Phase
Common North American Systems:
01 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
02 = 208Y/120V Wye - 3Ø 4W+Grnd (Fig 2)
03 = 240/120V High Leg Delta (B High) (Fig 3)
04 = 480Y/277V Wye - 3Ø 4W+Grnd (Fig 2)
05 = 480V Delta - 3Ø 3W+Grnd (Fig4) & HRG Wye
(Available: 400kA, 600kA, 900kA)
08 = 600Y/347V Wye - 3Ø 4W+Grnd (Fig2)
E1 = NEMA 1/12/3R/4 (size: 20” x 20” x 7.5”)
4X = NEMA 4X Non-Metallic (size: 24” x 24”x 8”)
(berglass, display inside door)
4S = NEMA 4X Stainless Steel (size: 20" x 20"x 7")
(display inside door)
P1 = NEMA 1 pullbox ‘indoor’ (size: 20” x 20” x 6”) - includes ‘E’ option
FM = NEMA 1 Flush Mount (wall cavity size: 20” x 20”x 6” deep)
(Dimensions include standard rotary disconnect switch. Optional Thru-Door
handle does not increase enclosure sizes.)
X = Surge Counter, six-digit LCD counter
includes maintenance-free Eprom memory
backup
E = Remote Locatable Display on 4 ft Cable
custom cable lengths available
F=Noise Filtering - Extended Range &
Attenuation (available on 400kA & 500kA
models)
T =Thru-Door Rotary Disconnect Switch, ABB,
UL98, E1 enclosure only
K = Rotary Disconnect Switch, Katko, UL508
S = Thru-Door Rotary Disconnect Switch,
Katko, UL 508, E1 enclosure only
2=Type 2 SPD, incl. UL 1283 EMI/RFI Filters
Delete Options - Consult Factory for Order Code
Delete L-N Protection (reduces kA rating)
Delete L-G Protection (reduces kA rating)
Delete N-G Protection (reduces kA rating)
Delete Noise Filtering
Available Accessory (order separately)
RM = Remote Monitor
.
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
9.29.15.lh.RevC #8388
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Figure 1
SPLIT
2 Hots, 1 Neu, 1 Grnd
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
19
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002,
C62.62-2010 and C62.72-2007
–NEMA LS-1
–NEC® Article 285
–IEC 61643, CE
• High Energy Parallel Design for Category C3 & C-High applications
• For External Mounting next to Switchgear, Motor Controls Centers
or Panelboards
• Individually Fused & Thermally Protected MOVs
• Large-Block, 34mm square, 50kA MOVs
• Dual Redundant Replaceable Module Construction
• Solid State Bidirectional Operation
Physical Specifications
• Relative Humidity Range: 0 -95% non-condensing
• Operating Frequency: 47-63Hz
• Operating Temperature: -25°C (-15°F) to +60°C (140°F)
• Weight: 52 lbs (23.6 kg)
• Standard NEMA 1/12/3R/4 enclosure
• Standard size: 20” x 20” x 7.5” (50.8cm x 50.8cm x 19cm)
• Lug size: #6 - #1/0 AWG
• Typical connection: #6 AWG and 60A breaker
Quality, Standards & Validation
• Type 1: UL 1449 Fourth Edition, CSA 22.2 No. 269.1
• Type 2 (Opt.): UL 1449 Fourth Ed., CSA No. 269.2, UL 1283
• UL le: VZCA.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested prior to shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
• Directly Connected, Discrete Protection Elements Between
All Possible Modes
• UL 1449 Fourth Edition Listed
• 600 & 900kA per phase ratings
• All UL required OCP & Safety Coordination included inside
–Type 1 SPDs intended for Line or Load Side of Main Disconnect
–Type 2 SPDs intended for Load Side of Main Disconnect
• 20kA Inominal (In)
• 200kA SCCRs (most models)
• UL 96A Lightning Protection Master Label compliant
• Rotary Disconnect Switch included as Standard Equipment
• Dual Redundant Replaceable Module Construction
• All MOV suppression elements monitored
• All Modes of Protection
Performance Specifications
• Directly Connected, Discrete Protection Elements
Between All Possible Modes with True 10-Mode
Protection
• UL 1449 Fourth Edition Listed Type 1, CSA 22.2 No. 269.1
• Optional UL 1449-4 Type 2 SPD, UL 1283 Listed,
CSA 22.2 No. 269.2
• UL 1449-4 tested Inominal (In): 20kA
• UL 1449-4 tested SCCR: 200kA & 100kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–208Y/120V: as low as 700V
–480Y/277V: as low as 1200V
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• AC Sinewave True Tracking Filter with EMI/RFI
Filtering up to -50dB from 10kHz to 100MHz
(Type 2 option only, incl. UL 1283 Listing)
Diagnostic Monitoring
• 100% monitoring – Every MOV is monitored, incl. N-G
• Green LED Status indicator per phase
• Red LED service indicator
• Audible Alarm with Silence Switch
• Test Function: toggles Red Service LED, Audible Alarm &
Dry Contact (if equipped)
• N-G overvoltage detection
• Phase Loss monitoring
• Electrically isolated diagnostic circuitry
• Form C Dry Contacts, 240V, 5A (two sets)
• Optional Surge Counter, six-digit LCD, with test function,
reset & no-maintenance Eprom memory
Surge Capacities L-N L-G N-G L-L
600kA Per Phase 200kA 200kA 200kA 200kA
900kA Per Phase 300kA 300kA 300kA 300kA
Type 1/Type 2 Surge Protective Device/SPD
20
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
TEXBL 10-MODE MODEL NUMBER CONFIGURATOR & OPTIONS
Voltage Code for Electrical System Surge Current Rating Options
TE ll XBL ll ll l...
Figure 3 Figure 4 Figure 5 Figure 6
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 3kA)
L- N L- G N-G L- L InSCCR MCOV
01 =240/120V Wye 700 700 700 1200 20kA 100kA 150
02 =208Y/120V 3� Wye 700 700 700 1200 20kA 200kA 150
03 =240Y/120V B High Leg Delta 700/1200 700/1200 700 1200/1800 20kA 200kA 150 / 320
04 =480Y/277V 3� Wye 1200 1200 1200 1800 20kA 200kA 320
Less Common & Specialty
42 =415V/240V 3� Wye 1200 1200 1200 1800 20kA 200kA 320
43 =400V/230V 3� Wye 1200 1200 1200 1800 20kA 200kA 320
44 =440V/250V 3� Wye 1200 1200 1200 1800 20kA 200kA 320
07 =380V/220V 3� Wye 1200 1200 1200 1800 20kA 200kA 320
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
Enclosure Rating
Performance Data
X = Surge Counter, six-digit LCD counter
includes maintenance-free Eprom
memory backup
E = Remote Locatable Display on 4 ft Cable
custom cable lengths available
F=Noise Filtering - Extended Range &
Attenuation (available on 400kA & 500kA
models)
T =Thru-Door Rotary Disconnect Switch,
ABB, UL98, E1 enclosure only
K = Rotary Disconnect Switch, Katko, UL 508
S = Thru-Door Rotary Disconnect Switch,
Katko, UL 508, E1 enclosure only
2=Type 2 SPD, incl. UL 1283 EMI/RFI Filters
Delete Options - Consult Factory for Order Code
Delete L-N Protection (reduces kA rating)
Delete L-G Protection (reduces kA rating)
Delete N-G Protection (reduces kA rating)
Delete Noise Filtering
Available Accessory (order separately)
RM = Remote Monitor
Other Available Systems - Confirmation encouraged:
41 = 520Y/300V Wye - 3� 4W+Grnd (Fig 2)
42 = 415Y/240V Wye - 3� 4W+Grnd (Fig 2)
43 = 400Y/230V Wye - 3� 4W+Grnd (Fig 2)
44 = 440Y/250V Wye - 3� 4W+Grnd (Fig 2)
07 = 380Y/220V Wye - 3� 4W+Grnd (Fig 2)
60 = 600kA/Phase
90 = 900kA/Phase
Common North American Systems:
01 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
02 = 208Y/120V Wye - 3Ø 4W+Grnd (Fig 2)
03 = 240/120V High Leg Delta (B High) (Fig 3)
04 = 480Y/277V Wye - 3Ø 4W+Grnd (Fig 2)
E1 = NEMA 1/12/3R/4 (size: 20” x 20” x 7.5”)
4X = NEMA 4X Non-Metallic (size: 24” x 24”x 8”)
(berglass, display inside door)
4S = NEMA 4X Stainless Steel (size: 20" x 20"x 7.5")
(display inside door)
P1 = NEMA 1 pullbox ‘indoor’ (size: 20” x 20” x 6”) - includes ‘E’ option
FM = NEMA 1 Flush Mount (wall cavity size: 20” x 20”x 6” deep)
(Dimensions include standard rotary disconnect switch. Optional Thru-Door
handle does not increase enclosure sizes.)
Figure 1
SPLIT
2 Hots, 1 Neu, 1 Grnd
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
Figure 2
WYE
3 Hots, 1 Neu, 1 Grnd
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Figure 3
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
V
9.29.15.lh.RevB #8387
21
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, and C62.45-2002
–NEMA LS-1
–NEC® Article 285
–IEC 61643
• High Energy Parallel Design for Category C3 & C-High
applications
• For External Mounting next to Switchgear, Motor Controls
Centers or Panelboards
• Individually Fused Suppression Modules
• Large-Block 34mm square MOVs
• Replaceable Phase Module Construction
• Thermal Cutout in Each Mode
• Busbar Construction
• Solid State Bidirectional Operation
Physical Specifications
• Relative Humidity Range: 0 -95% non-condensing
• Operating Frequency: 47-63Hz
• Operating Temperature: -25°C (-15°F) to +60°C (140°F)
• Weight: 25 lbs (11.4 kg)
• Standard NEMA 1/12/3R/4 enclosure
• Standard size: 12” x 12” x 7.5” (30.5cm x 30.5cm x 19cm)
• Lug size: #1/0 - #14 AWG
• Typical connection: #6 AWG and 60A breaker
Quality, Standards & Validation
• UL 1449 4th Edition, UL 1283 Listed & CSA 22.2 No. 269.2
• UL le: VZCA.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested Prior to Shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
• UL 1449 Fourth Edition Listed & CSA 22.2 No. 269.2
• 120kA & 160kA per phase ratings
• Type 2 SPD –
–All UL required OCP & Safety Coordination included inside
–Can be installed load-side of main disconnect
• Replaceable module construction
• 200kA SCCRs
• Voltage Specific Design – Highly configurable
• MOV suppression elements monitored
Performance Specifications
• UL 1449 4th Edition Listed, UL 1283 Listed & CSA 22.2 No. 269.2
• UL 1449-4 Type 2 SPD
• UL 1449-4 tested SCCR: 200kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–208Y/120V: as low as 600V
–480Y/277V: as low as 1000V
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• AC Sinewave Tracking Filter with EMI/RFI Filtering up to -50dB
from 10kHz to 100MHz
Diagnostic Monitoring
• Green LED Status indicator per phase
• Red LED service indicator
• Audible Alarm with Silence Switch
• Test Function: toggles Red Service LED, Audible Alarm
• Redundant monitoring LEDs on modules
• Phase Loss monitoring (toggles LED & dry contacts)
• Electrically isolated circuitry ensures surges do not damage
diagnostics
• Optional Form C Dry Contacts, 240V, 5A (two sets)
• Optional Surge Counter, six-digit LCD, with test function, reset &
no-maintenance SuperCap energy storage device
Surge Capacities L-N N-G L-L
120kA Per Phase 120kA 120kA 120kA Standard
160kA Per Phase 160kA 160kA 160kA Optional
22
TE/HP MODEL NUMBER CONFIGURATOR & OPTIONS
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 3kA)
L- N N-G L- L Type InSCCR MCOV
1=240/120V Split Phase 800 600 1200 Type 2 5kA 200kA 150
2=208Y/120V 3Ø Wye 800 600 1200 Type 2 5kA 200kA 150
3=240Y/120V B High Leg Delta 800/1200 600 1200 Type 2 5kA 200kA 150 / 320
4=480Y/277V 3Ø Wye 1200 1000 1800 Type 2 5kA 200kA 320
5=480V 3Ø Delta — — 1800 Type 2 5kA 200kA 550
8=600Y/347V 3Ø Wye 1500 1200 2500 Type 2 5kA 200kA 420
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6
SPLIT
2 Hots, 1 Neu, 1 Grnd
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
SINGLE POLE
1 Hot, 1 Neu, 1 Grnd
WYE
3 Hots, 1 Neu, 1 Grnd
DELTA & HRG WYE
3 Hots, 1 Grnd
CORNER GROUND
DELTA (B grounded)
2 Hots, 1 Grnd
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
VV
}
Neutral (WHT)
Hot (BLK)
Ground (GRN)
Phase A (BLK)
Phase C (BLK)
Phase B (BLK)
Ground (GRN)
}
VPhase A (BLK)
Phase C (BLK)
Ground (GRN)
V
}
Performance Data
2.1.17.RevE #8397
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
TE = Transient Eliminator,
Listed Type 2 SPD
in NEMA 1/3R/04/12
enclosure
Voltage Code for Electrical System
Model Family kA Rating Option Suffixes
(Seperated by slashes -/)
DC = Dry Contacts
Two sets Form C on
terminal strip
FM =Flush Mount enclosure,
NEMA 1 only
(wall cavity size:
12”x12”x6” deep)
SC = Surge Counter
Available Accessory
(order separately):
RM = Remote Monitor
CL = 160kA Option
(Not Available on
TE/8, 9, 91)
HP = HP Family
120kA rating
standard
ll / llHP / ll / ll / l...
Enclosure Rating
04 = Standard: NEMA 1/3R/04/12
(size: 12” x 12” x 7.5”)
FM = Flush Mount Enclosure, NEMA 1 only
(wall cavity size: 12” x 12” x 6”)
4X = NEMA 4X Non-Metallic
(size: 14” x 12”x 6”)
(polycarbonate, display inside clear front door)
4S = NEMA 4X Stainless Steel
(size: 12" x 12"x 6")
(display inside door)
Other Available Systems - Confirmation encouraged:
11 =120V Single Phase - 1Ø 2W + Grnd (Fig 5)
12 =240V Single Phase - 1Ø 2W + Grnd (Fig 5)
51 =480V B Corner Grnd Delta, 3Ø 3W+Grnd (Fig 6)
6=240V Delta - 3Ø 3W+Grnd (Fig 4)
61 =240V B Corner Grnd Delta, 3Ø 3W+Grnd (Fig 6)
7=380Y/220V Wye - 3Ø 4W+Grnd (Fig 2)
9=600V Delta - 3Ø 3W+Grnd (Fig 4) & HRG Wye
91 =600V B Corner Grnd Delta, 3Ø 3W+Grnd (Fig 6)
Common North American Systems:
1 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
2 = 208Y/120V Wye - 3Ø 4W+Grnd (Fig 2)
3 = 240/120V High Leg Delta (B High) (Fig 3)
4 = 480Y/277V Wye - 3Ø 4W+Grnd (Fig 2)
5 = 480V Delta - 3Ø 3W+Grnd (Fig 4) & HRG Wye
8 = 600Y/347V Wye - 3Ø 4W+Grnd (Fig 2)
23
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, and C62.45-2002
–NEMA LS-1
–NEC® Article 285
–IEC 61643
• High Energy Parallel Design for Category C3 & C-High
applications
• For External Mounting next to Switchgear, Motor Controls
Centers or Panelboards
• Individually Fused Suppression Modules
• Large-Block 34mm square MOVs
• Replaceable Phase Module Construction
• Thermal Cutout in Each Mode
• Busbar Construction
• Solid State Bidirectional Operation
Physical Specifications
• Relative Humidity Range: 0 -95% non-condensing
• Operating Frequency: 47-63Hz
• Operating Temperature: -25°C (-15°F) to +60°C (140°F)
• Weight: 25 lbs (11.4 kg)
• Standard NEMA 1/12/3R/4 enclosure
• Standard size: 12” x 12” x 7.5” (30.5cm x 30.5cm x 19cm)
• Lug size: #1/0 - #14 AWG
• Typical connection: #6 AWG and 60A breaker
Quality, Standards & Validation
• UL 1449 4th Edition, UL 1283 Listed & CSA 22.2 No. 269.2
• UL le: VZCA.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested Prior to Shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
• UL 1449 Fourth Edition Listed & CSA 22.2 No. 269.2
• 80kA, 120kA & 160kA per phase ratings
• Type 2 SPD –
–All UL required OCP & Safety Coordination included inside
–Can be installed load-side of main disconnect
• Replaceable module construction
• 200kA SCCRs
• Voltage Specific Design – Highly configurable
• MOV suppression elements monitored
Performance Specifications
• UL 1449 4th Edition Listed, UL 1283 Listed & CSA 22.2 No. 269.2
• UL 1449-4 Type 2 SPD
• UL 1449-4 tested SCCR: 200kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–208Y/120V: as low as 600V
–480Y/277V: as low as 1000V
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• AC Sinewave Tracking Filter with EMI/RFI Filtering up to -50dB
from 10kHz to 100MHz
Diagnostic Monitoring
• Green LED Status indicator per phase
• Redundant monitoring LEDs on modules
• Phase Loss monitoring (toggles LED & dry contacts)
• Electrically isolated circuitry ensures surges do not damage
diagnostics
• Optional Form C Dry Contacts, 240V, 5A (two sets)
Surge Capacities L-N N-G L-L
80kA Per Phase 80kA 80kA 80kA Standard
120kA Per Phase 120kA 120kA 120kA Optional
160kA Per Phase 160kA 160kA 160kA Optional
24
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
TE/HPS MODEL NUMBER CONFIGURATOR & OPTIONS
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 3kA)
L- N N-G L- L Type InSCCR MCOV
1 = 240/120V Split Phase 800 600 1200 Type 2 5kA 200kA 150
2=208Y/120V 3� Wye 800 600 1200 Type 2 5kA 200kA 150
3 = 240Y/120V B High Leg Delta 800/1200 600 1200 Type 2 5kA 200kA 150 / 320
4=480Y/277V 3� Wye 1200 1000 1800 Type 2 5kA 200kA 320
5=480V 3� Delta — — 1800 Type 2 5kA 200kA 550
8=600Y/347V 3� Wye 1500 1200 2500 Type 2 5kA 200kA 420
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
Performance Data
TE = Transient Eliminator,
Listed Type 2 SPD
in NEMA 1/3R/04/12
enclosure
Voltage Code for Electrical System
Model Family kA Rating Option Suffixes
(Seperated by slashes -/)
DC = Dry Contacts
Two sets Form C on
terminal strip
FM =Flush Mount enclosure,
NEMA 1 only
(wall cavity size:
12”x12”x6” deep)
Available Accessory
(order separately):
RM = Remote Monitor
CX = 120kA Option
CL = 160kA Option
(Not Available on
TE/8, 9, 91)
HPS = HPS Family
80kA rating standard
ll / llHPS / ll / ll / l...
Enclosure Rating
04 = Standard: NEMA 1/3R/04/12
(size: 12” x 12” x 7.5”)
FM = Flush Mount Enclosure, NEMA 1 only
(wall cavity size: 12” x 12” x 6”)
4X = NEMA 4X Non-Metallic
(size: 14” x 12”x 6”)
(polycarbonate, display inside clear front door)
4S = NEMA 4X Stainless Steel
(size: 12" x 12"x 6")
(display inside door)
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6
SPLIT
2 Hots, 1 Neu, 1 Grnd
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
SINGLE POLE
1 Hot, 1 Neu, 1 Grnd
WYE
3 Hots, 1 Neu, 1 Grnd
DELTA & HRG WYE
3 Hots, 1 Grnd
CORNER GROUND
DELTA (B grounded)
2 Hots, 1 Grnd
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
VV
}
Neutral (WHT)
Hot (BLK)
Ground (GRN)
Phase A (BLK)
Phase C (BLK)
Phase B (BLK)
Ground (GRN)
}
VPhase A (BLK)
Phase C (BLK)
Ground (GRN)
V
}
Other Available Systems - Confirmation encouraged:
11 =120V Single Phase - 1Ø 2W + Grnd (Fig 5)
12 =240V Single Phase - 1Ø 2W + Grnd (Fig 5)
51 =480V B Corner Grnd Delta, 3Ø 3W+Grnd (Fig 6)
6=240V Delta - 3Ø 3W+Grnd (Fig 4)
61 =240V B Corner Grnd Delta, 3Ø 3W+Grnd (Fig 6)
7=380Y/220V Wye - 3Ø 4W+Grnd (Fig 2)
9=600V Delta - 3Ø 3W+Grnd (Fig 4) & HRG Wye
91 =600V B Corner Grnd Delta, 3Ø 3W+Grnd (Fig 6)
Common North American Systems:
1 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
2 = 208Y/120V Wye - 3Ø 4W+Grnd (Fig 2)
3 = 240/120V High Leg Delta (B High) (Fig 3)
4 = 480Y/277V Wye - 3Ø 4W+Grnd (Fig 2)
5 = 480V Delta - 3Ø 3W+Grnd (Fig 4) & HRG Wye
8 = 600Y/347V Wye - 3Ø 4W+Grnd (Fig 2)
2.1.17.RevE #8396
25
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, and C62.45-2002
–NEMA LS-1
–NEC® Article 285
–IEC 61643
• High Energy Parallel Design for Category C3 & C-High applications
• For External Mounting next to Switchgear, Motor Controls Centers
or Panelboards
• Individually Fused Suppression Modes
• Large-Block utility grade 34mm square MOVs
• Replaceable Phase Module Construction
• Thermal Sensitivity in Each Mode
• Busbar Construction
• Solid State Bidirectional Operation
• Busbar connection
• Enclosure-less version for OEM available (XTE Series)
Physical Specifications
• Relative Humidity Range: 0 -95% non-condensing
• Operating Frequency: 47-63Hz
• Operating Temperature: -25°C (-15°F) to +60°C (140°F)
• Weight: 25 lbs (11.5 kg)
• Standard NEMA 4 (Other Enclosures Optional)
• Standard size: 12” x 12” x 7.5” (30.5cm x 30.5cm x 190.5 cm)
• Lug size: #2 - #14 AWG
• Typical connection: #6 AWG and 60A breaker
Quality, Standards & Validation
• UL 1449 4th Edition, UL 1283 Listed & CSA 22.2 No. 269.2
• UL le: VZCA.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested Prior to Shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
• UL 1449 Fourth Edition Listed and CSA 22.2 No. 269.2
• 160kA & 240kA per phase ratings
• Type 2 SPD –
–All UL required OCP & Safety Coordination included inside
–Can be installed load-side of main disconnect
• Replaceable module construction
• 200kA SCCRs
• Voltage Specific – Highly configurable
• All MOV suppression elements monitored
• All Modes of Protection
• Optional Silicon Avalanche Diode (SAD) Hybrid System
Performance Specifications
• UL 1449 4th Edition Listed, UL 1283 Listed & CSA 22.2 No. 269.2
• UL 1449-4 Type 2 SPD
• UL 1449-4 tested SCCR: 200kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–208Y/120V: as low as 500V
–480Y/277V: as low as 900V
• 200kAIR rated fusing
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• AC Sinewave Tracking Filter with EMI/RFI Filtering up to -50dB
from 10kHz to 100MHz
Diagnostic Monitoring
• Tri-color Green, Amber, Red LED Status indicator per phase
• Red LED service indicator
• Audible Alarm with Silence Switch
• Test Function: toggles Red Service LED, Audible Alarm
• Redundant monitoring LEDs on modules
• Phase Loss monitoring (toggles LED & dry contacts)
• Electrically isolated circuitry ensures surges do not damage
diagnostics
• Optional Form C Dry Contacts, 24V, 1A (two sets)
• Optional Surge Counter, six-digit LCD, with test function, reset &
no-maintenance SuperCap energy storage device
Surge Capacities L-N L-G N-G L-L
160kA Per Phase 80kA 80kA 120kA 160kA Standard
240kA Per Phase 120kA 120kA 120kA 240kA Optional
Silicon Avalanche Diode (SAD) Hybrid (120/240 & 208Y/120)
90kA Per Phase 50kA 40kA 120kA 90kA Optional
130kA Per Phase 50kA 80kA 120kA 130kA Optional
170kA Per Phase 90kA 80kA 120kA 170kA Optional
26
ll / llXGA / ll / ll / ll
TE = Transient Eliminator, Listed Type 2 SPD
in NEMA 1 enclosure
XTE = Transient Eliminator, Recognized
Type 2 Component Assembly SPD on
backplane for installation within gear
(display on 6’ cable)
Voltage Code for Electrical System
Model Family Options
TE/XGA MODEL NUMBER CONFIGURATOR & OPTIONS
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6
SPLIT
2 Hots, 1 Neu, 1 Grnd
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
SINGLE POLE
1 Hot, 1 Neu, 1 Grnd
WYE
3 Hots, 1 Neu, 1 Grnd
DELTA & HRG WYE
3 Hots, 1 Grnd
CORNER GROUND
DELTA (B grounded)
2 Hots, 1 Grnd
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 3kA)
L- N L- G N-G L- L Type InSCCR MCOV
01 =240/120V Split Phase 600 600 600 900 Type 2 5kA 200kA 150
02 =208Y/120V 3� Wye 600 600 600 900 Type 2 5kA 200kA 150
03 =240Y/120V B High Leg Delta 600/900 600/900 600 900/1500 Type 2 5kA 200kA 150 / 320
04 =480Y/277V 3� Wye 900 900 800 1500 Type 2 5kA 200kA 320
05 =480V 3� Delta —1500 —1800 Type 2 5kA 200kA 550
08 =600Y/347V 3� Wye 1200 1500 1200 2500 Type 2 5kA 200kA 420
SAD Models
01 =240/120V Split Phase 500 600 600 800 Type 2 5kA 200kA 138
02 =208Y/120V 3� Wye 500 600 600 800 Type 2 5kA 200kA 138
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
VV
}
Neutral (WHT)
Hot (BLK)
Ground (GRN)
Phase A (BLK)
Phase C (BLK)
Phase B (BLK)
Ground (GRN)
}
VPhase A (BLK)
Phase C (BLK)
Ground (GRN)
V
}
/24 = 240kA Option
/09 = 090kA SAD option
(120/240V & 208Y/120)
/13 = 130kA SAD option
(120/240V & 208Y/120)
/17 = 170kA SAD option
(120/240V & 208Y/120)
XGA = XGA Family
160kA rating standard
Performance Data
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
Other Available Systems - Confirmation encouraged:
11 =120V Single Phase - 1� 2W + Grnd (Fig 5)
12 =240V Single Phase - 1� 2W + Grnd (Fig 5)
51 = 480V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
6=240V Delta - 3� 3W+Grnd (Fig 4)
61 = 240V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
7=380Y/220V Wye - 3� 4W+Grnd (Fig 2)
9=600V Delta - 3� 3W+Grnd (Fig 4) & HRG Wye
91 = 600V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
Common North American Systems:
1 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
2 = 208Y/120V Wye - 3Ø 4W+Grnd (Fig 2)
3 = 240/120V High Leg Delta (B High) (Fig 3)
4 = 480Y/277V Wye - 3Ø 4W+Grnd (Fig 2)
5 = 480V Delta - 3Ø 3W+Grnd (Fig 4) & HRG Wye
8 = 600Y/347V Wye - 3Ø 4W+Grnd (Fig 2) Enclosure Rating
Surge Current Rating
10.7.16lh.RevE #8391
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
/DC = Dry Contacts
Two sets Form C (24V, 1A)
/SC = Surge Counter, six digit LCD
Available Accessory (order separately):
RM = Remote Monitor
04 = Standard: NEMA 1/3R/04/12 (size: 12” x 12” x 7.5”)
FM = Flush Mount Enclosure, NEMA 1 only
(wall cavity size: 12” x 12” x 6”)
4X = NEMA 4X Non-Metallic (size: 14” x 12”x 6”)
(polycarbonate, display inside clear front door)
4S = NEMA 4X Stainless Steel (size: 12" x 12" x 6")
(display inside door)
(Note: Enclosure-less version for OEM uses XTE prex)
27
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002,
C62.62-2010 and C62.72-2007
–NEMA LS-1
–NEC® Article 285
–IEC 61643, CE
• High Energy Parallel Design for Category C3 &
C-High applications
• For External Mounting next to Switchgear, Motor Controls
Centers or Panelboards
• Robust 25mm Thermally Protected MOVs
• Solid State Bidirectional Operation
Diagnostic Monitoring
• LED indicator monitoring:
–Separate LEDs for L-N and L-G on each phase
• LEDs extinguish upon Phase Loss
• Optional on Split & Single Phase: Form C Dry Contact,
(Contact rated 240V, 5A; leads are pre-wired through
nipple with 18 AWG )
Quality, Standards & Validation
• UL 1449 Fourth Edition Listed and CSA 22.2 No. 269.2
• UL le: VZCA.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested prior to shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features
• UL 1449 Fourth Edition Listed
• 180kA - 36kA Per Phase ratings (single & split phase)
• 20kA I-nominal (10kA In on 36kA models)
• 100kA SCCRs
• UL 96A Lightning Protection Master Label compliant (@20kA)
• Optional Sinewave Tracking EMI/RFI Noise Filtering
• Pre-attached 10 AWG Leads
• All Modes of Protection
• Data table on back
Performance Specifications
• UL 1449 Fourth Edition Listed and CSA 22.2 No. 269.2
• UL 1449-4 tested I-nominal: 20kA
• UL 1449-4 tested SCCR: 100kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–as low as 700V, including circuit breaker
• Less than 1 nanosecond response time
• Optional AC Sinewave Tracking Filter with EMI/RFI Filtering
up to -50dB from 10kHz to 100MHz
• Repetitive Impulse: 5,000 hits
• Data table on back
Physical Specifications
• Relative Humidity Range: 0 - 95% non-condensing
• Operating Frequency: 40 - 500Hz
• Operating Temperature: -40°C (-40°F) to +85°C (185°F)
• Weight: 3lbs (1.5kg)
• NEMA 4X Polycarbonate enclosure
–UL 746C(f1) & UL 94-5VA
• Dimensions: 8.3” x 3.6” x 3.0”
• 3/4” female threaded hub
• Pre-wired with 3’ (1m) of 10 AWG conductor
• Typical connection: 10 AWG and 20 - 30A breaker
Type 2 Surge Protective Device/SPD/TVSS
Pending
Surge Capacities L-N L-G N-G L-L
180kA Per Phase 90kA 90kA 90kA 180kA
144kA Per Phase 72kA 72kA 72kA 144kA
108kA Per Phase 54kA 54kA 54kA 108kA
72kA Per Phase 36kA 36kA 36kA 72kA
36kA Per Phase* 18kA 18kA 18kA 36kA
*10kA In
28
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 6kV, 3kA)
L-N L-G N-G L-L Type InSCCR MCOV
01 =240/120V Split Phase 700 700 700 1000 Type 2 20kA 100kA 150
11 =120 Single Phase 700 700 700 –Type 2 20kA 100kA 150
TEXMS Model Number Configurator & Options
Voltage Code for Electrical System Build Configuration Options
TE 01 XMS 14 0 C
Figure 1
SPLIT
2 Hots, 1 Neu, 1 Grnd
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
Figure 2
SINGLE POLE
1 Hot, 1 Neu, 1 Grnd
V
}
Neutral (WHT)
Hot (BLK)
Ground (GRN)
Surge Current Rating
C = Dry Contacts Form C, 240V, 5A (pre-wired)
L = Delete L-N Protection (reduces kA rating)
G = Delete L-G Protection (reduces kA rating)
N = Delete N-G Protection
F=Noise Filtering
Available Accessory (order separately)
XMFMKIT = Flush Mount Kit
XMS = Standard Model
18 = 180kA/Phase
14 = 144kA/Phase
10 = 108kA/Phase
07 = 72kA/Phase
03 = 36kA/Phase (10kA In)
(Other UL 1449 Listed surge current ratings are available for
OEM or special order. Please contact factory)
Common North American Systems:
01 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
11 = 120V Single Phase (Fig 2)
XMS
Performance Data TBD
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
9.29.15.lh.RevD #8814
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
4X = NEMA 4X Non-Metallic (size 8.3” x 3.6” x 3”)
Standard Enclosure:
(Default)
29
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
wwwaptsurge.com · info@aptsurge.com
Component Assembly SPDs
Type 1 and Type 2
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002,
C62.62-2010 and C62.72-2007
–NEMA LS-1
–NEC® Article 285
–IEC 61643
• High Energy Parallel Design for Category C3 & C-High applications
• For Mounting Internal to Switchgear, Motor Controls Centers,
Panelboards or Control Panels
• Individually Fused & Thermally Protected MOVs
• Large-Block 34mm square MOVs
• Replaceable Module Construction
• Solid State Bidirectional Operation
Physical Specifications
• Relative Humidity Range: 0 -95% non-condensing
• Operating Frequency: 47-63Hz
• Operating Temperature: -25°C (-15°F) to +60°C (140°F)
• Weight: 5 lbs (2.3 kg)
• Standard size: 6.5” x 11” x 4.5” (16.5cm x 29.9cm x 11.4cm)
• Lug size: #2 - #14 AWG (w/opt. disconnect: #6 - #1/0)
• Typical connection: #6 AWG and 60A breaker
Quality, Standards & Validation
• Type 1: UL 1449 Fourth Edition, CSA 22.2 No. 269.4-1
• Type 2 (Opt.): UL 1449 Fourth Ed., CSA No. 269.4-2, UL 1283 Rec.
• UL le: VZCA.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643,
• 10 year warranty (longer optional)
• Burn-In tested prior to shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
• UL 1449 Fourth Edition Recognized
• 100kA – 300kA per phase ratings
• All UL required OCP & Safety Coordination included inside
–Type 1 SPDs intended for Line or Load Side of Main Disconnect
–Type 2 SPDs intended for Load Side of Main Disconnect
• 20kA Inominal (In)
• 200kA SCCRs (most models)
• UL 96A Lightning Protection Master Label compliant
• Voltage Specific Design – Highly configurable
• All MOV suppression elements monitored
• All Modes of Protection
• Display on 28” cable
Performance Specifications
• UL 1449 4th Edition Recognized Type 1 CA, CSA 22.2 No. 269.4-1
• Optional UL 1449-4 Type 2 CA, UL 1283 Rec.,
CSA 22.2 No. 269.4-2
• UL 1449-4 tested Inominal (In): 20kA
• UL 1449-4 tested SCCR: 200kA & 100kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–208Y/120V: as low as 600V
–480Y/277V: as low as 1000V
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• AC Sinewave Tracking Filter with EMI/RFI Filtering up to -50dB
from 10kHz to 100MHz (Type 2 option only, incl. UL 1283 Rec.)
Diagnostic Monitoring
• 100% monitoring – Every MOV is monitored, incl. N-G
• Green LED Status indicator per phase
• Red LED service indicator
• Audible Alarm with Silence Switch
• Test Function: toggles Red Service LED, Audible Alarm &
Dry Contact (if equipped)
• N-G overvoltage detection
• Phase Loss monitoring (toggles LED & Dry Contacts)
• Electrically isolated circuitry ensures surges do not damage diagnostics
• Form C Dry Contacts, 240V, 5A (two sets)
• Optional Surge Counter, six-digit LCD, with test function,
reset & no-maintenance Eprom memory
• Installer-locatable display on 28” cable
Surge Capacities L-N L-G N-G L-L
100kA Per Phase 50kA 50kA 50kA 100kA
150kA Per Phase 100kA 50kA 50kA 150kA
200kA Per Phase 100kA 100kA 100kA 200kA
250kA Per Phase 150kA 100kA 100kA 250kA
300kA Per Phase 150kA 150kA 150kA 300kA
30
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
TEXRS MODEL NUMBER CONFIGURATOR & OPTIONS
Voltage Code for Electrical System Surge Current Rating Options
TE ll XRS ll l...
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 3kA)
L-N L-G N-G L-L InSCCR MCOV
01 =240/120V Split Phase 700 700 700 1200 20kA 100kA 150
02 =208Y/120V 3� Wye 700 700 700 1200 20kA 200kA 150
03 =240Y/120V B High Leg Delta 700/1200 700/1200 700 1800 20kA 200kA 150 / 320
04 =480Y/277V 3� Wye 1200 1200 1200 2000 20kA 200kA 320
05 =480V 3� Delta -1800 -1800 20kA 200kA 550
08 =600Y/347V 3� Wye 1500 1500 1500 2500 20kA 200kA 420
X = Surge Counter, six-digit LCD counter
includes maintenance-free Eprom memory
backup
M = Mount Display on SPD instead of Cable
D = Rotary Disconnect Switch, ABB, UL98,
SPD & Disconnect mounted on alum.
backplane (10.75” x 10.88” x 4.5”)
K = Rotary Disconnect Switch, Katko UL 508,
SPD & Disconnect mounted on alum
backplane (10.75” x 10.88” x 4.5”)
2=Type 2 SPD, incl. UL 1283 EMI/RFI Filters
Extended Disc. Sw. handle hardware available—
consult factory
Display on 28” Cable - other lengths available—
consult factory
Delete Options - Consult Factory for Order Code
Delete L-N Protection (reduces kA rating)
Delete L-G Protection (reduces kA rating)
Delete N-G Protection (reduces kA rating)
Delete Noise Filtering
Available Accessory (order separately)
RM = Remote Monitor
10 = 100kA/Phase
15 = 150kA/Phase
20 = 200kA/Phase
25 = 250kA/Phase
30 = 300kA/Phase
Common North American Systems:
01 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
02 = 208Y/120V Wye - 3Ø 4W+Grnd (Fig 2)
03 = 240/120V High Leg Delta (B High) (Fig 3)
04 = 480Y/277V Wye - 3Ø 4W+Grnd (Fig 2)
05 = 480V Delta - 3Ø 3W+Grnd (Fig 4) & HRG Wye
08 = 600Y/347V Wye - 3Ø 4W+Grnd (Fig 2)
Performance Data
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6
SPLIT
2 Hots, 1 Neu, 1 Grnd
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
SINGLE POLE
1 Hot, 1 Neu, 1 Grnd
WYE
3 Hots, 1 Neu, 1 Grnd
DELTA & HRG Wye
3 Hots, 1 Grnd
CORNER GROUND
DELTA (B grounded)
2 Hots, 1 Grnd
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
VV
}
Neutral (WHT)
Hot (BLK)
Ground (GRN)
Phase A (BLK)
Phase C (BLK)
Phase B (BLK)
Ground (GRN)
}
VPhase A (BLK)
Phase C (BLK)
Ground (GRN)
V
}
Other Available Systems - Confirmation encouraged:
15 =254/127V Split Phase - 1� 3W+Grnd, (Fig 1)
18 =480/277V 2-Pole, (480/240V Split Phase) (Fig 1)
21 = 220Y/127V Wye - 3� 4W+Grnd (Fig 2)
41 = 520Y/300V Wye - 3� 4W+Grnd (Fig 2)
42 = 415Y/240V Wye - 3� 4W+Grnd (Fig 2)
43 = 400Y/230V Wye - 3� 4W+Grnd (Fig 2)
44 = 440Y/250V Wye - 3� 4W+Grnd (Fig 2)
51 = 480V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
06 = 240V Delta - 3� 3W+Grnd (Fig 4)
61 = 240V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
07 = 380Y/220V Wye - 3� 4W+Grnd (Fig 2)
09 = 600V Delta - 3� 3W+Grnd (Fig 4) & HRG Wye
(Available: 100kA, 150kA)
91 = 600V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
(Available: 100kA, 150kA)
11 =120V Single Phase (Fig 5)
12 =240V Single Phase (Fig 5) - Not split phase
13 =127V Single Phase (Fig 5)
14 =300V Single Phase (Fig 5)
16 =277V Single Phase (Fig 5)
17 =480V Single Phase (1 Hot, 1 Neu, 1 Grnd) (Fig 5)
Other Available Systems:
Please see supplementary data sheet, contact us at CustomerCare@ASCO.com
or confirm at www.UL.com using CCN of VZCA.
Optional disconnect switch may increase VPRs.
10.16.17.RevD
31
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002, C62.62-
2010 and C62.72-2007
–NEMA LS-1
–NEC® Article 285
–IEC 61643
• High Energy Parallel Design for Category C3 & C-High applications
• For Mounting Internal to Switchgear, Motor Controls Centers,
Panelboards or Control Panels
• Individually Fused & Thermally Protected MOVs
• Large-Block 34mm square MOVs
• Replaceable Module Construction
• Solid State Bidirectional Operation
Physical Specifications
• Relative Humidity Range: 0 -95% non-condensing
• Operating Frequency: 47-63Hz
• Operating Temperature: -25°C (-15°F) to +60°C (140°F)
• Weight: 5 lbs (2.3 kg)
• Standard size: 6.5” x 11” x 4.5” (16.5cm x 29.9cm x 11.4cm)
• Lug size: #2 - #14 AWG (w/opt. disconnect: #6 - #1/0)
• Typical connection: #6 AWG and 60A breaker
Quality, Standards & Validation
• Type 1: UL 1449 Fourth Edition, CSA 22.2 No. 269.4-1
• Type 2 (Opt.): UL 1449 Fourth Ed., CSA No. 269.4-2, UL 1283 Rec.
• UL le: VZCA.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested prior to shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
• Directly Connected, Discrete Protection Elements Between
All Possible Modes
• UL 1449 Fourth Edition Recognized
• 150kA - 300kA per phase ratings
• All UL required OCP & Safety Coordination included inside
–Type 1 SPDs intended for Line or Load Side of Main Disconnect
–Type 2 SPDs intended for Load Side of Main Disconnect
• 20kA Inominal (In)
• 200kA SCCRs (most models)
• UL 96A Lightning Protection Master Label compliant
• Voltage Specific Design – Highly configurable
• All MOV suppression elements monitored
• All Modes of Protection
• Display on 28” cable
Performance Specifications
• Directly Connected, Discrete Protection Elements
Between All Possible Modes with True 10-Mode
Protection
• UL 1449 4th Edition Recognized. Type 1 CA, CSA 22.2 No. 269.4-1
• Optional UL 1449-4 Type 2 SPD, UL 1283 Listed, CSA 22.2
No. 269.4-2
• UL 1449-4 tested Inominal (In): 20kA
• UL 1449-4 tested SCCR: 200kA & 100kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–208Y/120V: as low as 600V
–480Y/277V: as low as 1000V
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• AC Sinewave Tracking Filter with EMI/RFI Filtering up
to -50dB from 10kHz to 100MHz (Type 2 option only,
incl. UL 1283 Listing)
Diagnostic Monitoring
• 100% monitoring – Every MOV is monitored, incl. N-G
• Green LED Status indicator per phase
• Red LED service indicator
• Audible Alarm with Silence Switch
• Test Function: toggles Red Service LED, Audible Alarm &
Dry Contact (if equipped)
• N-G overvoltage detection
• Phase Loss monitoring (toggles LED & Dry Contacts)
• Electrically isolated circuitry ensures surges do not damage
diagnostics
• Form C Dry Contacts, 240V, 5A (two sets)
• Optional Surge Counter, six-digit LCD, with test function,
reset & no-maintenance Eprom memory
• Installer-locatable display on 28” cable
Surge Capacities L-N L-G N-G L-L
150kA Per Phase 50kA 50kA 50kA 50kA
300kA Per Phase 100kA 100kA 100kA 100kA
Component Assembly SPDs
Type 1 and Type 2
32
TEXRL 10-MODE MODEL NUMBER CONFIGURATOR & OPTIONS
Voltage Code for Electrical System Surge Current Rating Options
TE ll XRL ll l...
Figure 1 Figure 2 Figure 3
SPLIT
2 Hots, 1 Neu, 1 Grnd
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
WYE
3 Hots, 1 Neu, 1 Grnd
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 3kA)
L- N L- G N-G L- L InSCCR MCOV
01 =240/120V Split Phase 700 700 700 1000 20kA 100kA 150
02 = 208Y/120V 3Ø Wye 700 700 700 1000 20kA 200kA 150
03 = 240Y/120V B High Leg Delta 800/1500 700/1200 700 1800 20kA 200kA 150 / 320
04 = 480Y/277V 3Ø Wye 1200 1200 1200 1800 20kA 200kA 320
Other Available Systems - Confirmation Encouraged:
15 =254/127V Split Phase 700 700 700 1000 20kA 100kA 180
21 = 220Y/127V 3Ø Wye 700 700 700 1000 20kA 100kA 180
42 = 415Y/240V 3Ø Wye 1200 1200 1200 1800 20kA 200kA 320
43 = 400Y/230V 3Ø Wye 1200 1200 1200 1800 20kA 200kA 320
44 = 440Y/250V 3Ø Wye 1200 1200 1200 1800 20kA 200kA 320
07 = 380Y/220V 3Ø Wye 1200 1200 1200 1800 20kA 200kA 320
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
Optional disconnect may increase VPRs.
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
V
X = Surge Counter, six-digit LCD counter
includes maintenance-free Eprom memory
backup
M = Mount Display on SPD instead of cable
D = Rotary Disconnect Switch, ABB, UL98, SPD
& Disconnect mounted on alum. backplane
(10.75” x 10.88” x 4.5”)
K = Rotary Disconnect Switch, Katko UL 508,
SPD & Disconnect mounted on alum.
backplane (10.75” x 10.88” x 4.5”)
2=Type 2 SPD, incl. UL 1283 EMI/RFI Filters
Extended Disc. Sw. handle hardware available—
consult factory
Display on 28” Cable - other lengths available—
consult factory
Delete Options - Consult Factory for Order Code
Delete L-N Protection (reduces kA rating)
Delete L-G Protection (reduces kA rating)
Delete N-G Protection (reduces kA rating)
Delete Noise Filtering
Available Accessory (order separately)
RM = Remote Monitor
Other Available Systems - Confirmation encouraged:
15 =254/127V Split Phase - 1� 3W+Grnd, (Fig 1)
18 =480/277V 2-Pole, (480/240V Split Phase) (Fig 1)
21 = 220Y/127V Wye - 3� 4W+Grnd (Fig 2)
42 = 415Y/240V Wye - 3� 4W+Grnd (Fig 2)
43 = 400Y/230V Wye - 3� 4W+Grnd (Fig 2)
44 = 440Y/250V Wye - 3� 4W+Grnd (Fig 2)
07 = 380Y/220V Wye - 3� 4W+Grnd (Fig 2)
15 = 150kA/Phase
30 = 300kA/Phase
Common North American Systems:
01 = 240/120V Split Phase - 1Ø 3W+Grnd, (Fig 1)
02 = 208Y/120V Wye - 3Ø 4W+Grnd, (Fig 2)
03 = 240/120V High Leg Delta (B High), (Fig 3)
04 = 480Y/277V Wye - 3Ø 4W+Grnd, (Fig 2)
Performance Data
10.16.17.lh.RevD #8392
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
33
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002,
C62.62-2010 and C62.72-2007
–NEMA LS-1
–NEC® Article 285
–IEC 61643
• High Energy Parallel Design for Category C3 &
• C-High applications
• For Mounting Internal to Switchgear, Motor Control Centers,
Panelboards or Control Panels
• Individually Fused & Thermally Protected MOVs
• Large-Block 34mm square MOVs
• Replaceable Module Construction
• Solid State Bidirectional Operation
Physical Specifications
• Relative Humidity Range: 0 -95% non-condensing
• Operating Frequency: 47-63Hz
• Operating Temperature: -25°C (-15°F) to +60°C (140°F)
• Weight: 7 lbs (3.2 kg)
• Standard size: 9” x 11” x 5.3” (22.9cm x 28.0cm x 13.5cm)
• Lug size: #2 - #14 AWG (w/opt. disconnect: #6 - #1/0)
• Typical connection: #6 AWG and 60A breaker
Quality, Standards & Validation
• Type 1: UL 1449 Fourth Edition, CSA 22.2 No. 269.4-1
• Type 2 (Opt.): UL 1449 Fourth Ed., CSA No. 269.4-2, UL 1283 Rec.
• UL le: VZCA2.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested Prior to Shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
• UL 1449 Fourth Edition Recognized
• 300kA – 500kA per phase ratings
• All UL required OCP & Safety Coordination included inside
–Type 1 SPDs intended for Line or Load Side of Main Disconnect
–Type 2 SPDs intended for Load Side of Main Disconnect
• 20kA Inominal (In)
• 200kA SCCRs (most models)
• UL 96A Lightning Protection Master Label compliant
• Voltage Specic Design – Highly congurable
• All MOV suppression elements monitored
• All Modes of Protection
• Display on 28” cable
Performance Specifications
• UL 1449 4th Edition Recognized Type 1 CA, CSA 22.2 No. 269.4-1
• Optional UL 1449-4 Type 2 CA, UL 1283 Rec., CSA 22.2
No. 269.4-2
• UL 1449-4 tested Inominal (In): 20kA
• UL 1449-4 tested SCCR: 200kA & 100kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–208Y/120V: as low as 600V
–480Y/277V: as low as 1000V
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• AC Sinewave Tracking Filter with EMI/RFI Filtering up to -50dB
from 10kHz to 100MHz (Type 2 option only, incl. UL 1283 Rec.)
Diagnostic Monitoring
• 100% monitoring – Every MOV is monitored, incl. N-G
• Green LED Status indicator per phase
• Red LED Service indicator
• Audible Alarm with Silence Switch
• Test Function: toggles Red Service LED, Audible Alarm &
Dry Contact (if equipped)
• N-G overvoltage detection
• Phase Loss monitoring (toggles LED & dry contacts)
• Electrically isolated circuitry ensures surges do not damage
diagnostics
• Form C Dry Contacts, 240V, 5A (two sets)
• Optional Surge Counter, six-digit LCD, with test function, reset &
no-maintenance Eprom memory
• Installer-locatable display on 28” cable
Surge Capacities L-N L-G N-G L-L
300kA Per Phase 150kA 150kA 150kA 300kA
400kA Per Phase 200kA 200kA 200kA 400kA
500kA Per Phase 250kA 250kA 250kA 500kA
Component Assembly SPDs
Type 1 and Type 2
34
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
TEXWS MODEL NUMBER CONFIGURATOR & OPTIONS
Voltage Code for Electrical System Surge Current Rating Options
TE ll XWS ll l...
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 3kA)
L- N L- G N-G L- L InSCCR MCOV
01 =240/120V Split Phase 700 600 600 1000 20kA 100kA 150
02 =208Y/120V 3� Wye 700 600 600 1000 20kA 200kA 150
03 =240Y/120V B High Leg Delta 700/1200 600/1000 600 1500 20kA 200kA 150 / 320
04 =480Y/277V 3� Wye 1200 1000 1200 1800 20kA 200kA 320
05 =480V 3� Delta -1800 -1800 20kA 200kA 550
08 =600Y/347V 3� Wye 1500 1500 1500 2500 20kA 200kA 420
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
Optional disconnect may increase VPRs.
X = Surge Counter, six-digit LCD counter
includes maintenance-free Eprom memory
backup
F=Noise Filtering - Extended Range &
Attenuation
M = Mount Display on SPD instead of Cable
D = Rotary Disconnect Switch, ABB, UL98,
SPD & Disconnect mounted on alum.
backplane (14.75” x 12.88” x 5.25”)
K=Rotary Disconnect Switch, Katko UL 508, SPD
& Disconnect mounted on alum backplane
(14.75” x 12.88” x 5.25”)
2=Type 2 SPD, incl. UL 1283 EMI/RFI Filters
Extended Disc. Sw. handle hardware available—
consult factory
Display on 28” Cable - other lengths available—
consult factory
Delete Options - Consult Factory for Order Code
Delete L-N Protection (reduces kA rating)
Delete L-G Protection (reduces kA rating)
Delete N-G Protection (reduces kA rating)
Delete Noise Filtering
Available Accessory (order separately)
RM = Remote Monitor
20 = 200kA/Phase
(Voltage Codes 09 & 91 only)
25 = 250kA/Phase
(Voltage Codes 09 & 91 only)
31 = 300kA/Phase
40 = 400kA/Phase
45 = 450kA/Phase
(Voltage Codes 05, 51, 06, 61 only)
50 = 500kA/Phase
Common North American Systems:
01 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
02 = 208Y/120V Wye - 3Ø 4W+Grnd (Fig 2)
03 = 240/120V High Leg Delta (B High) (Fig 3)
04 = 480Y/277V Wye - 3Ø 4W+Grnd (Fig 2)
05 = 480V Delta - 3Ø 3W+Grnd (Fig 4) & HRG Wye
(Available: 300kA, 450kA)
08 = 600Y/347 Wye - 3Ø 4W+Grnd (Fig 2)
Performance Data
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6
SPLIT
2 Hots, 1 Neu, 1 Grnd
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
SINGLE POLE
1 Hot, 1 Neu, 1 Grnd
WYE
3 Hots, 1 Neu, 1 Grnd
DELTA & HRG Wye
3 Hots, 1 Grnd
CORNER GROUND
DELTA (B grounded)
2 Hots, 1 Grnd
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
VV
}
Neutral (WHT)
Hot (BLK)
Ground (GRN)
Phase A (BLK)
Phase C (BLK)
Phase B (BLK)
Ground (GRN)
}
VPhase A (BLK)
Phase C (BLK)
Ground (GRN)
V
}
Other Available Systems - Confirmation encouraged:
15 =254/127V Split Phase - 1� 3W+Grnd, (Fig 1)
18 =480/277V 2-Pole, (480/240V Split Phase) (Fig 1)
21 = 220Y/127V Wye - 3� 4W+Grnd (Fig 2)
41 = 520Y/300V Wye - 3� 4W+Grnd (Fig 2)
42 = 415Y/240V Wye - 3� 4W+Grnd (Fig 2)
43 = 400Y/230V Wye - 3� 4W+Grnd (Fig 2)
44 = 440Y/250V Wye - 3� 4W+Grnd (Fig 2)
51 = 480V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
(Available: 300kA, 450kA)
06 = 240V Delta - 3� 3W+Grnd (Fig 4)
(Available: 300kA, 450kA)
61 = 240V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
(Available: 300kA, 450kA)
07 = 380Y/220V Wye - 3� 4W+Grnd (Fig 2)
09 = 600V Delta - 3� 3W+Grnd (Fig 4) & HRG Wye
(Available: 200kA, 250kA)
91 = 600V B Corner Grnd Delta, 3� 3W+Grnd (Fig 6)
(Available: 200kA, 250kA)
11 =120V Single Phase (Fig 5)
12 =240V Single Phase (Fig 5) - Not split phase
13 =127V Single Phase (Fig 5)
14 =300V Single Phase (Fig 5)
16 =277V Single Phase (Fig 5)
17 =480V Single Phase (1 Hot, 1 Neu, 1 Grnd) (Fig 5)
9.29.15.lh.RevC #8395
35
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002,
C62.62-2010 and C62.72-2007
–NEMA LS-1
–NEC® Article 285
–IEC 61643
• High Energy Parallel Design for Category C3 & C-High applications
• For Mounting Internal to Switchgear, Motor Controls Centers,
Panelboards and Control Panels
• Individually Fused & Thermally Protected MOVs
• Large-Block 34mm square MOVs
• Replaceable Module Construction
• Solid State Bidirectional Operation
Physical Specifications
• Relative Humidity Range: 0 -95% non-condensing
• Operating Frequency: 47-63Hz
• Operating Temperature: -25°C (-15°F) to +60°C (140°F)
• Weight: 7 lbs (3.2 kg)
• Standard size: 9” x 11” x 5.3” (22.9cm x 28.0cm x 13.5cm)
• Lug size: #2 - #14 AWG (w/opt. disconnect: #6 - #1/0)
• Typical connection: #6 AWG and 60A breaker
Quality, Standards & Validation
• Type 1: UL 1449 Fourth Edition, CSA 22.2 No. 269.4-1
• Type 2 (Opt.): UL 1449 Fourth Ed., CSA No. 269.4-2, UL 1283 Rec.
• UL le: VZCA2.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 10 year warranty (longer optional)
• Burn-In tested Prior to Shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
• Directly Connected, Discrete Protection Elements Between All
Possible Modes
• UL 1449 Fourth Edition Recognized
• 300kA - 450kA per phase ratings
• All UL required OCP & Safety Coordination included inside
–Type 1 SPDs intended for Line or Load Side of Main Disconnect
–Type 2 SPDs intended for Load Side of Main Disconnect
• 20kA Inominal (In)
• 200kA SCCRs (most models)
• UL 96A Lightning Protection Master Label compliant
• Voltage Specific Design – Highly configurable
• All MOV suppression elements monitored
• All Modes of Protection
• Display on 28” cable
Performance Specifications
• Directly Connected, Discrete Protection Elements
Between All Possible Modes with True 10-Mode
Protection
• UL 1449 4th Edition Recognized Type 1 CA, CSA 22.2 No. 269.4-1
• Optional UL 1449-4 Type 2 CA, UL 1283 Rec., CSA 22.2
No. 269.4-2
• UL 1449-4 tested Inominal (In): 20kA
• UL 1449-4 tested SCCR: 200kA & 100kA
• UL 1449-4 Voltage Protection Ratings (VPRs):
–208Y/120V: as low as 600V
–480Y/277V: as low as 1000V
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• AC Sinewave Tracking Filter with EMI/RFI Filtering up
to -50dB from 10kHz to 100MHz (Type 2 option only,
incl. UL 1283 Rec.)
Diagnostic Monitoring
• 100% monitoring – Every MOV is monitored, incl. N-G
• Green LED Status indicator per phase
• Red LED service indicator
• Audible Alarm with Silence Switch
• Test Function: toggles red service LED, audible alarm & dry
contact (if equipped)
• N-G overvoltage detection
• Phase Loss monitoring (toggles LED & dry contacts)
• Electrically isolated circuitry ensures surges do not damage diagnostics
• Form C Dry Contacts, 240V, 5A (two sets)
• Optional Surge Counter, six-digit LCD, with test function, reset &
no-maintenance Eprom memory
• Installer-locatable display on 28” cable
Surge Capacities L-N L-G N-G L-L
300kA Per Phase 100kA 100kA 100kA 100kA
450kA Per Phase 150kA 150kA 150kA 150kA
Component Assembly SPDs
Type 1 and Type 2
36
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
TEXWL 10-MODE MODEL NUMBER CONFIGURATOR & OPTIONS
Voltage Code for Electrical System Surge Current Rating Options
TE ll XWL ll l...
Figure 1 Figure 2 Figure 3
SPLIT
2 Hots, 1 Neu, 1 Grnd
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
WYE
3 Hots, 1 Neu, 1 Grnd
Common North American Systems
UL 1449 Fourth Edition Test Data
Voltage Protection Ratings (VPR - 3kA)
L- N L- G N-G L- L InSCCR MCOV
01 =240/120V Split Phase 700 700 600 1000 20kA 100kA 150
02 = 208Y/120V 3Ø Wye 700 700 600 1000 20kA 200kA 150
03 = 240Y/120V B High Leg Delta 700/1200 700/1000 600 1500 20kA 200kA 150 / 320
04 = 480Y/277V 3Ø Wye 1200 1000 1000 1800 20kA 200kA 320
Other Available Systems - Confirmation Encouraged:
15 =254/127V Split Phase 700 700 700 1000 20kA 100kA 180
21 = 220Y/127V 3Ø Wye 700 700 700 1000 20kA 100kA 180
42 = 415Y/240V 3Ø Wye 1200 1000 1000 1800 20kA 200kA 320
43 = 400Y/230V 3Ø Wye 1200 1000 1000 1800 20kA 200kA 320
44 = 440Y/250V 3Ø Wye 1200 1000 1000 1800 20kA 200kA 320
07 = 380Y/220V 3Ø Wye 1200 1000 1000 1800 20kA 200kA 320
Other Available Systems:
Please see supplementary data sheet, contact us at info@aptsurge.com
or confirm at www.UL.com using CCN of VZCA.
Optional disconnect may increase VPRs.
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
V
X = Surge Counter, six-digit LCD counter
includes maintenance-free Eprom memory
backup
F=Noise Filtering - Extended Range &
Attenuation
M = Mount Display on SPD instead of cable
D=Rotary Disconnect Switch, ABB, UL98, SPD
& Disconnect mounted on alum. backplane
(14.75” x 12.88” x 5.25”)
K = Rotary Disconnect Switch, Katko UL 508,
SPD & Disconnect mounted on alum.
backplane (14.75” x 12.88” x 5.25”)
2=Type 2 SPD, incl. UL 1283 EMI/RFI Filters
Extended Disc. Sw. handle hardware available—
consult factory
Display on 28” Cable - other lengths available—
consult factory
Delete Options - Consult Factory for Order Code
Delete L-N Protection (reduces kA rating)
Delete L-G Protection (reduces kA rating)
Delete N-G Protection (reduces kA rating)
Delete Noise Filtering
Available Accessory (order separately)
RM = Remote Monitor
Other Available Systems - Confirmation encouraged:
15 =254Y/127V Split Phase - 1� 3W+Grnd, (Fig 1)
18 =480/277V 2-Pole, (480/240V Split Phase) (Fig 1)
21 = 220Y/127V Wye - 3� 4W+Grnd (Fig 2)
42 = 415Y/240V Wye - 3� 4W+Grnd (Fig 2)
43 = 400Y/230V Wye - 3� 4W+Grnd (Fig 2)
44 = 440Y/250V Wye - 3� 4W+Grnd (Fig 2)
07 = 380Y/220V Wye - 3� 4W+Grnd (Fig 2)
31 = 300kA/Phase
45 = 450kA/Phase
Common North American Systems:
01 = 240/120V Split Phase - 1Ø 3W+Grnd (Fig 1)
02 = 208Y/120V Wye - 3Ø 4W+Grnd (Fig 2)
03 = 240/120V High Leg Delta (B High) (Fig 3)
04 = 480Y/277V Wye - 3Ø 4W+Grnd (Fig 2)
Performance Data
9.29.15.lh.RevC #8394
37
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–ANSI/IEEE C62.41.1-2002, C62.41.2-2002, and C62.45-2002
–NEC
®
Article 285
–IEC 61643-11, CE
• High Energy Parallel Design for Category C3 &
C-High Applications
• For Internal mounting within control panels, medical,
telecom, drives, security systems, robotics, etc.
• Less than 1 nanosecond response time
• Repetitive Impulse: 5,000 hits
• Solid State Bidirectional Operation
Optional Dry Contact
• ‘M’ Sufx Option
• Form C: Normally Open or Normally Closed
• Contact Wire Size: #16 - #30 AWG Torque: 2.0 lb-in
• Contact Rating: 125Vac, 3A maximum
Quality, Standards & Validation
• UL 1449 Fourth Edition Recognized, cUL
• UL le: VZCA2.E321351 at www.UL.com
• RoHS-compliant
• IEC 61643, CE
• 5 year warranty (longer optional)
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features
• UL 1449 Fourth Edition Recognized
• Parallel Electrical Connection – Easy to install
• 50kA per mode
• All UL required OCP & Safety Coordination included inside
–Supplemental Fusing/OCP Not Required
• UL 1449-4: 20kA Inominal
• UL 1449-4: 200kA SCCRs
• Large-Block 34mm sq. MOVs
–Individually Fused & Thermally Protected
• Diagnostic Monitoring - Visual Indicator Tabs
• Optional Form C Normally Open/Closed Dry Contact
Performance Specifications
• Data Table on Back
Physical Specifications
• Relative Humidity Range: 0 - 95% non-condensing
• Operating Frequency: 47 - 63Hz
• Operating Temperature: -40°C (-40°F) to +85°C (185°F)
• Polymeric Enclosure: Flame rated UL94 V-0
• Weight: 0.25 lbs (114 kg) per pole
• Wire Lug Size: #6 - #14 AWG
Dimensions
• Uses standard 35mm DIN-Rail (4-pole shown)
Width Length Height
1-Pole: 0.70” (17.8mm) 4.09” (103.9mm) 2.70” (68.5mm)
2-Pole: 1.39” (35.5mm) 4.09” (103.9mm) 2.70” (68.5mm)
3-Pole: 2.10” (53.3mm) 4.09” (103.9mm) 2.70” (68.5mm)
4-Pole: 2.80” (71.0mm) 4.09” (103.9mm) 2.70” (68.5mm)
1
2
3
NO
COMMON
125Vac
3A max
NC
WIRE MARKER
LOCATION
2.80”
71.0mm
0.41”
10.5mm
TYP.
0.70”
17.8mm
TYP.
1.09”
27.7mm
0.27”
6.9mm
0.20”
5.1mm
INDICATOR
IN TRIPPED
POSITION
2.70”
68.5mm
1.93”
49.0mm
4.09”
103.9mm
0.43”
11.0mm
1.77”
45.0mm
3.58”
91.0mm
DIN-Rail SPDs
AC Power & DC PV
Type 1 Component Assembly
Intended for use in Type 1 or Type 2 Applications
European Authorized Representative
Obelis s.a.
Boulevard Général Wahis 53
1030 Brussels, BELGIUM
Tel: +(32) 2. 732.59.54
Fax: +(32) 2. 732.60.03
E-Mail: mail@obelis.net
38
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
M = Monitoring
Dry Contact
Application & Installation Guide
Parallel Electrical Connections for Easy Installation
10.19.15.lh.RevC #8776
1P = One Pole,
Single Phase
2P = Two Pole,
Split Phase
3P = Three Pole
Wye
3PD = Three Pole
Delta
PV = Photovoltaic DC
(DC+, DC-, Ground)
EXAMPLES:
D120V3P
120V, 3 pole
(208Y/120V)
D277V3PNGM
50kA, 277V, 3 pole
(480Y/277V) with
N-G with Monitoring
(Dry Contact)
D1000VPV
1000V DC
(DC+, DC-, Ground)
120V
127V
230V
240V
277V
347V
480V
600V (DC)
1000V (DC)
D
DIN Model Configurator & Option:
Photovoltaic
DC Voltages
System Option
Modularity allows for many additional configurations.
Call factory for assistance.
DIN
(Default)
AC Voltage
System
Conguration
Installed at
Service Entrance
or Transformer
N-G BONDED:
Does NOT require N-G protection
Installed > 10’ (3m)
From Service Entrance
or Transformer
DOWNSTREAM OF N-G BOND:
N-G protection suggested
VOLTAGE MODEL # MODEL #
120V D120V1P D120V2P
127V D127V1P D127V2P
230V D230V1P 2-D230V1P
277V D277V1P 2-D277V1P
VOLTAGE MODEL # MODEL #
120V (120 / 240V) D120V2P D120V2P + D120V1P
127V (127 / 254V) D127V2P D127V2P + D127V1P
230V (230 / 460V) D230V2P D230V2P + D230V1P
VOLTAGE MODEL # MODEL #
120V (208Y / 120V) D120V3P D120V3PNG
127V (200Y / 127V) D127V3P D127V3PNG
277V (480Y / 277V) D277V3P D277V3PNG
347V (600Y / 347V) D347V3P D347V3PNG
VOLTAGE MODEL # MODEL #
240V D240V3PD D240V3PDG
480V D480V3PD D480V3PDG
600V N/A D347V3PNG*
(*Do not connect anything to SPD Neutral
connection. Leave SPD’s Neutral oating)
VOLTAGE MODEL # MODEL #
600VDC D600VPV D600VYPV
1000VDC N/A D1000VPV
D1000VYPV
1 Pole / Single PhaseDelta
DC Photovoltaic Wye
GRN
C
N
Ground (GRN)
AB
Neutral (WHT)
Phase B (BLK)
Phase A (BLK)
Phase C (BLK)
BLK BLK BLK
BLK
BLK
BLK
WHT WHT
Hot (BLK)
Ground (GRN)
Neutral (WHT)
BLK
WHT
BLK
WHT
GRN
A
CB
Ground (GRN)
Phase A (BLK)
Phase B (BLK)
Phase C (BLK)
BLK
BLK
BLK BLK BLK BLK BLK
BLK BLK GRN
2 Pole / Split Phase
BLK BLK
WHT
BLK
Hot (BLK)
Hot (BLK)
Neutral (WHT)
Ground (GRN)
BLK
WHT GRN
WHT
GRN BLK
GRN
DC+ (RED)
DC- (BLK)
Ground (GRN)
2 Pole
PV SPD 3 Pole
PV SPD
RED RED
BLK
Model
System
Voltage &
Config
# of
Poles
UL 1449
VPR
(6kV - 3kA)
InSCCR MCOV
D600VPV 600VDC 2 2000 20kA 10kADC 750VDC
D600VYPV 600VDC 3 2000 20kA 10kADC 720VDC
D1000VPV 1000VDC 3 3000 20kA 10kADC 1250VDC
D1000VYPV 1000VDC 3 3000 20kA 10kADC 1250VDC
(PV DC models are URus. Canadian PV SPD standards not yet established.)
Photovoltaic DC
Model
System
Voltage &
Config
# of
Poles
UL 1449
VPR
(6kV - 3kA)
InSCCR MCOV
D120V1P 120V 1 600 20kA 200kA 150
D120V2P 120/240V 2 600 20kA 200kA 150
D120V3P 208Y/120V 3 600 20kA 200kA 150
D120V3PNG 208Y/120V w/N-G 4 600 20kA 200kA 150
D127V1P 127V 1 600 20kA 200kA 180
D127V2P 127/254V 2 600 20kA 200kA 180
D127V3P 220Y/127V 3 600 20kA 200kA 180
D127V3PNG 220Y/127V w/N-G 4 600 20kA 200kA 180
D230V1P 230V 1 800 20kA 200kA 270
D230V2P 230/460V 2 800 20kA 200kA 270
D240V3PD 240V Delta 3 800 20kA 200kA 270
D240V3PDG 240V Delta 3 800 20kA 200kA 270
D277V1P 277V 1 1200 20kA 200kA 320
D277V3P 480Y/277V 3 900 20kA 200kA 320
D277V3PNG 480Y/277V w/N-G 4 1200 20kA 200kA 320
D347V3P 600Y/347V 3 1200 20kA 200kA 420
D347V3PNG 600Y/347V w/N-G 4 1500 20kA 200kA 420
D480V3PD 480V Delta 3 1500 20kA 200kA 550
D480V3PDG 480V Delta 3 1500 20kA 200kA 550
Performance Data
Corner Grounded Delta?
Use same models and connect one SPD Black & Green to Ground.
39
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Component Specifics (Or To Build Your Own):
• Energized and Neutral Feed-Through Terminal Blocks: Altech CMC1-2, Gray, tri-connect, 600V, 35A, 22-10 AWG,
Altech EPCMC1-2 end plate, cЯUus, le E220514
• Ground Feed-Through Terminal Blocks: Altech CGT6N, Green/Yellow, 600V, 35A, 22-10 AWG, cЯUus, le E220514
(two required – one connects feed-through ground leads to DIN rail ground, other connects SPD to DIN-Rail ground)
• Identification Label for afxing to SPDEE SPD.
Features & Where This Makes Sense:
• 50kA Service Entrance rated SPD
–Suitable for UL 96A Lightning Protection System
• High Surge Environments: Outdoor, Pole-Mount, Traffic, ITS
• Robust Arrestor Grade Components
–No ‘dwarf’ suppression elements
• UL 1449 4th Edition Listed SPD – UL Mark
–Avoids regulatory or compliance issues
• Type 1 SPD - does not require separate overcurrent protection at
additional cost & space
• Includes On-Board LED diagnostics
• No More Costly Than Traditional In-Line SPD (Maybe Less When Extra
Fusing is Required)
Disadvantages of Traditional Series-Connected SPDs:
• Not robust (take one apart: small dwarf/electronic grade MOVs)
• Usually need extra cost & extra space for overcurrent protection
• Not UL Listed (Series SPDs are historically Recognized, not Listed)
• Not UL Recognized (dangerous? - mfg knew it would not pass recent
UL 1449 changes?)
• UL Recognized with substantial shortcomings?(‘Surprises’ buried in File’s
Conditions of Acceptability?)
• Series SPDs can completely deenergize their loads if their fuse/breaker clears.
Unacceptable to critical loads such as trafc control cabinets, re alarm panels, etc.
Arrestor SPD Robustness for In-Line, Series-Connected
DIN-Rail Applications
Load
conductors
Ordering Information (SPDee is Ordered Separately):
• SKIT 1 – for 120V (true single phase): 1 Hot, 1 Neutral, 1 Ground Includes two Altech CMC1-2 term blocks, two Altech CGT6N term
blocks, one EPCMC-1-2 end plate, label
• SKIT 2 – for 120/240V (split phase): 2 Hots, 1 Neutral, 1 Ground Includes three Altech CMC1-2 term blocks, two Altech CGT6N term
blocks, one EPCMC-1-2 end plate, label
• SKIT 3 – for 208Y/120V (three phase, rare for series application): 3 Hots, 1 Neutral, 1 Ground
• ‘D’ suffix option – Adds 6” 35mm DIN-Rail and two mounting screws (example: SKIT1D)
Installation Instructions & Photos on Back
• For Indoor Use Only - Up to 600V, 35A, UL Recognized Connectors
• APT Technical Support at (800) 237-4567
Power feeds through
SPD connects via
feed-thru connection
on Std 35mm DIN Rail
40
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Installation:
• Qualied Personnel Only - Follow all applicable codes - Ensure all loads are de-energized - Do not install during lightning storm.
• Select appropriate SPDEE from SPDEE datasheet. SPDEE mounts to DIN-Rail as standard feature.
(Alternate mounting possible - SPD does not have to be mounted on DIN-Rail)
• Select appropriate S-KIT, or build your own from Feed-Through Terminal Blocks (Altech, Wago, etc.).
• Ensure DIN-Rail is solidly electrically grounded.
• Connect SPDEE and Feed-Through Terminal Blocks to DIN-Rail, covering exposed side(s) with end plate.
• Wire SPD hot and neutral leads to terminal blocks. Cut leads as short as possible. (May t better in top terminals) Torque: 7 lb-in
• Wire load connections into and out-of terminal blocks. Torque: 7 lb-in
• Wire SPD ground to one of two grounding blocks. (One grounds SPD to DIN-Rail, other grounds feed-through ground leads).
• Ensure leads are tight. Energize. Ensure LED illuminates.
Load – Out (or In,
can go either way)
• Make leads short as possible – inches matter!
• Gentle radius – no sharp bends
• Strip & Install SPD lead to
upper lug (all three terminals
are connected together)
• Strip & Install feed-through
load conductors on bottom
Load – Out (or In,
can go either way)
SPD Connection to Terminal Block –
Upper & Lower Terminals inside Terminal
Block are connected to each other
SPD Ground
SPD Hot
SPD Netural
Two ground terminals:
• One provides
feed-thru connection
to existing ground
conductor and
simultaneously
grounds to DIN-Rail
• One connects SPD
ground to DIN-Rail
ground, bonding
grounds together
Supplemental label
affixes to
SPDEE
Standard
SPDee
LED visible here
Three Position Feed-Thru
Terminal Blocks:
Nut tightens
aluminum
L-bracket to
DIN-Rail
Mounts and
Grounds thru std
35mm DIN-Rail
Make sure rail
is electrically
grounded
Leads
from
Load
One for each Energized
Black conductor
One for Neutral
KEY
= Power
= Neutral (white)
= Ground
3.10.15.lh # 8678
41
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Mounting Configurations: (graphic on back)
• Intended for mounting via nipple hub (1.05” OD)
• B sufx option mounting bracket permits mounting on at
surface or standard 35mm DIN-Rail
Quality, Standards & Validation:
• Designed, Manufactured & Tested consistent with:
ANSI/IEEE C62.41.1-2002, C62.41.2-2002, and C62.45-2002
• High Energy Parallel Design for Category C3 &
C-High applications
• UL Recognized MOVs & EMI/RFI Filter
• RoHS-compliant
• 2 year warranty (longer optional)
• Burn-In tested Prior to Shipment
• ISO 9001:2008 Quality Management System
• ISO 17025:2005 Laboratory Qualication
Features:
• Budget Surge Protection
• Intended for outdoor loads, light poles, DOT, etc.
• 20kA and 40kA Per Mode Surge Current Ratings
• Hi-Energy MOV based design
• Low Clamping Voltages – better protection than air-gap,
spark-gap, GDT or silica oxide varistor technologies
• Encapsulated in Ceramgard® elastomeric potting
compound for below grade application
• Voltage Specific Design – Highly configurable
• Pre-attached 12 AWG 24” Leads
• Parallel Connection - Solid State Bidirectional Operation
• Optional EMI/RFI Noise Filter (1 & 2 pole models)
• Optional series type connection (aka two-port,
Kelvin-connected or feed-thru connection)
• All Modes of Protection
Performance Specifications:
• Available Surge Current Capacities:
20kA in each of all specied modes
40kA in each of all specied modes
• Nominal DIscharge Current Rating (In): 20kA
• Operating Frequency: DC-500Hz
• Operating Temperature: -40°C (-40°F) to +85°C (185°F)
• Weight: 1.65 lbs (0.75 kg)
• Polycarbonate enclosure – UL 746C(f1) & UL 94-5VA
• 3/4” male threaded hub
• 10A upstream overcurrent protection recommended
• Maximum Continuous Operating Voltage (MCOV):
Lead Configurations: (graphic on back)
• Standard conguration: 12 AWG leads exit the mouth of
the SPD enclosure, not the nipple. This ensures maximum
potting coverage around the leads for environmental &
moisture protection.
• N sufx option: Moves 12 AWG leads to exit thru the nipple
area (unit is still potted).
• S sufx option: Provides Series connection leads thru the
mouth (not available with N option). This is also known as
two-port, Kelvin or feed-thru connection. Some DOT light pole
congurations require this. Steady state current rating for S
option is 12A. Not intended for continuous loads above 12A.
3.26”2.9”
1.15”
3.75”
3/4”-1
4
Sized for std 35mm DIN-rail
3.31”3.57”
Weight: 1.65 lbs
(0.75 kg)
Model Number Configurator on Back
Nominal System Voltage: SPD MCOV:
120-127V 175V
220-240V 320V
277V 420V
347V 550V
480V 625V
600V 1000V
42
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
LA llll ll ll lll...
LA MODEL NUMBER CONFIGURATOR & OPTIONS
Figure 1
SPLIT
2 Hots, 1 Neu, 1 Grnd
HI-LEG DELTA (B High)
3 Hots, (B HIGH),
1 Neu, 1 Grnd
SINGLE POLE
1 Hot, 1 Neu, 1 Grnd
WYE
3 Hots, 1 Neu, 1 Grnd
DELTA & HRG WYE
3 Hots, 1 Grnd
Hot (BLK)
Hot (BLK)
Neutral (WHT)
V
V
}
}
Ground (GRN)
Figure 2
}
Phase A (BLK)
Phase B (BLK)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
A
C
N
V
B
Figure 3
Phase A (BLK)
Phase B (ORNG)
Neutral (WHT)
Phase C (BLK)
Ground (GRN)
}
V
Figure 5
V
}
Neutral (WHT)
Hot (BLK)
Ground (GRN)
Figure 4
Phase A (BLK)
Phase C (BLK)
Phase B (BLK)
Ground (GRN)
}
V
CORNER GROUND
DELTA (B grounded)
2 Hots, 1 Grnd
Figure 6
Phase A (BLK)
Phase C (BLK)
Ground (GRN)
V
}
B=
Aluminum Mounting Bracket
F=EMI/RFI Noise Filter
(1 and 2 pole only)
N = Thru-nipple conductors
(not available with S option)
S = Series connected, aka
Kelvin connection
An energized lead into the
SPD and another energized
lead out of the SPD. Power
to the load goes through
the SPD. Limited to 12A
maximum current.
(1 and 2 pole only)
Q= Call for Custom or Special
Builds
A=
L-G and N-G protection
(suggested for tall poles, or
when far from service entrance)
B=
L-G protection only
C=
L-N protection only
(B or C suggested when at
service entrance)
D=
L-N and N-G protection
(suggested when close to
service entrance)
E=
L-G and L-N protection
F=L-L and L-G protection
(for Delta systems)
G=
L-L protection (for Delta
Systems)
H=
L-N, L-G & N-G protection
(Available up to 20kA per mode
and 40kA N-G, Not available
with F or S options)
1P = One Pole, Single Phase
(powered L-N, see Figure 5)
2P = Two Pole, Split Phase
(powered L-L, see Figure 1)
3Y = Three Pole Wye (Figure 2)
3C = B Phase Corner Grounded Delta
(Figure 6)
3D = Three Pole Delta (Figure 4)
3H = Three Pole Hi-Leg Delta (Figure 3)
20 = 20kA
40 = 40kA
120V
127V
220V
240V
277V
347V
480V
600V
12.30.14.lh #8691
Voltage
(see Figures)
Options
kA Rating Per Mode
Power System
(see Figures)
Modes of Protection Configuration
Examples:
LA480V1PA40S = L-G and N-G protection of 40kA for 480V true single phase (Meets FDOT Light Pole specs)
LA240V2PA40S = L-G and N-G protection of 40kA for 240/480V split phase (Meets FDOT Light Pole specs)
LA120V2PD20BFN = L-N and N-G protection of 20kA for 120/240V split phase with bracket, filter and thru-nipple wires
LA120V1PB40BFS = L-G protection of 40 kA for 120V true single phase with bracket, filter and series connection wires
Mounting Configurations:
Intended for mounting via nipple hub (1.05” OD,
needs appropriately sized hole)
B suffix option mounting bracket permits mounting on
flat surface or standard 35mm DIN-Rail
Bracket Mount
for flat surfaces
Std. 3/4”-14
Nipple
DIN-Rail Mount
(rail not incl.)
Lead Configurations:
Standard configuration (blank) 12 AWG
leads exit the mouth of the SPD enclosure,
not the nipple. This ensures maximum
potting coverage around the leads for
environmental & moisture protection
N suffix option moves 12 AWG leads to
exit thru the nipple area (unit is still potted)
S suffix option provides Series connection
leads thru the mouth (not available with N
option). This is also known as two-port,
Kelvin or feed-thru connection. Some
DOT light pole configurations require this.
Steady state current rating for S option is
12A. Not intended
Leads
into
Ground
Leads out of
SPD
Please call APT at 800.237.4567 for
questions and application assistance
43
Intended Application
• Primary Protector at Service Entrance for life safety protection
from power line crosses and lightning.
• SAVFFF is UL 497C Listed (QVKC.E303380)
• Suitable for use in UL 96A Master Label Lightning Protection
System
• Per regulatory & industry convention, cascaded SPDs provide
maximum protection. An additional Secondary SPD is highly
recommended for critical electronics applications.
Design Features
• Designed, Manufactured & Tested consistent with:
–IEEE C62.43-2005
–IEEE C62.64-2009
–IEEE C62.41.1, C62.41.2 & C62.45
–IEC 61643-21
• Integral Fail-Short Mechanism
Quality, Validation
• 5 year warranty (longer optional)
• UL 497C Listed (QVKC.E303380)
• APT employs an ISO 9001:2008 Quality Management System
• CE Mark: Yes
Features
• Primary Protector Kit for Coaxial Communication Lines
• Includes SAVFFF UL 497C Listed Coaxial SPD
• Includes two F to BNC connectors for BNC applications
• Coaxial Gas Discharge Tube (GDT) Technology
• Protects personnel and equipment from lightning and power
induced overvoltage surges
Performance Specifications
• Breakdown Voltage: 150V
• Maximum Operating Voltage: 100V
• Maximum Signal Current: 300mA
• Imax Surge Current Rating (8/20µs): 5kA
• Analog Frequency Range: DC-1GHz
• SPD Insertion Loss: 0.2 dB typical
• Response Time: <25ns
• Listing: UL 497C
Physical Specifications
• Intended for use within a weather-resistant enclosure
• Relative Humidity Range: 0-95% non-condensing
• Operating Temp: -40°C (-40°C) to +176°F (+80°C)
• Weight: 0.2lbs (56g) (excluding BNC conn.)
• Length: 3.0” (76mm long)
• Metallic Case
• Female F Connectors
• Two (2) F-BNC connectors included
• Pin-Grounded Shield Mode of Protection
Grounding
• Requires reliable ground
• SPD may be grounded via its legs with screw connections, or via
screw terminal that accepts up to 8 AWG (wire and attachment
screws not included)
Installation
• SPD is bidirectional; not direction-sensitive. Industry ‘Best
Practices’ recommend SPDs at both ends of cabling and/or
cascade protection.
• SPD must be connected to a reliable ground via screw-down
connection or ground wire (or both). Locate SPD such that
ground lead is as short and straight as possible. Inches matter!
Connect to a reliable ground, which should be the same ground
reference for power and Pan-Tilt-Zoom (if equipped).
• SPD redirects damaging energy to ground. If equipment/SPD
are atop tall pole, the long path to earth ground adds inductive
impedance and may affect performance
• This SPD intentionally short-circuit the line when failed. Remove
SPD, and test system. If system operates normally, replace
SPD.
• If signal quality decreases when SPD is installed, most
likely cause is a ground loop. Disconnect ground lead, and
test system. If system operates normally, contact APT for
BNCA10kA, which has ground isolation circuitry.
3.10.15.lh #8619
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
European Authorized Representative
Obelis s.a.
Boulevard Général Wahis 53
1030 Brussels, BELGIUM
Tel: +(32) 2. 732.59.54
Fax: +(32) 2. 732.60.03
E-Mail: mail@obelis.net
44
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Design Features
• Designed, Manufactured & Tested consistent with:
–IEEE C62.43-2005
–IEEE C62.64-2009
–IEEE C62.41.1, C62.41.2 & C62.45
–IEEE Location Categories C, B and A
–NFPA 780 Lightning Protection
–IEC 61643-21
Shield - Ground Isolation
• The BNCA10kA includes separate protection modes for Pin
to Shield and Shield to Ground.
• This prevents SPD ground loops and possible signal
interference caused if a long run of cable references a
different ground than the head-end ground.
Physical Specifications
• Intended for use within a weather-resistant enclosure
• Relative Humidity Range: 0 - 95% non-condensing
• Operating Temp: -40°C (-40°C) to +176°F (+80°C)
• Weight: 0.25lbs (100g)
• Dimensions: 3.35” (85mm long) x 1” square (25mm)
• Pre-wired with 2’ (60cm) of #12 AWG ground conductor
(User to cut to shortest length possible)
• Anodized Extruded Aluminum Case; metallic bracket
• BNC gender changers are available
Features
The BNCA10kA is a premium SPD intended for Severe Service
at BNC coaxial connections for video equipment such as CCTV
cameras.
The BNCA10kA SPD features Three Stage Series Hybrid Surge
Protection
• Primary ‘Course’ Protection: Gas Discharge Tubes (GDTs)
• Series Current Limiting Component
• Secondary ‘Fine’ Protection: Silicon Avalanche Diodes (SADs)
Easy to Install, Din-Rail Mounting Bracket Included
Performance Specifications
• Nominal Operating Voltage: 5V
• Maximum Operating Voltage: 8V
• Maximum Signal Current: 300mA
• Imax Surge Current Rating (8/20µs): 10kA
• Clamping Voltage (Pin-Shield):
–8/20µs, 5kA: 13.2V
–10/700µs, 1kV: 14.7V
• Digital Transmission Rate: ≤10Mbps
• Analog Frequency Range: 0-10Mhz
• Insertion Loss: ≤0.5dB@10MHz
• Response Time: <1ns
• Connection Type: BNC, 50 / 75 ohm
• Discrete Modes of Protection: Pin-Shield, Shield-Ground
Quality & Validation
• RoHS - compliant
• 5 year warranty (longer optional)
• Individually Tested prior to shipment
• APT employs an ISO 9001:2008 Quality Management System
• CE Mark: Yes
Installation:
• This is a directional, in-line series-connected SPD. PROTECTED end of SPD must be at equipment or camera end.
UNPROTECTED end must be at cable end. Industry ‘Best Practices’ recommend SPDs at both ends of cabling.
• Grounding: Locate SPD such that Ground lead is as short and straight as possible. Connect to a reliable ground, which should
be the same ground reference for power and Pan-Tilt-Zoom (if equipped). Trim Ground lead as appropriate. Inches matter! Do
not coil excess lead - cut off excess lead. Crimp-attach included wire terminal and connect to reliable ground. Din-Rail bracket
does not electrically ground this SPD. SPD attachment to Din-Rail is not mandatory.
• All applicable Code(s) and regulation(s) must be followed.
• If SPD problems are suspected, remove SPD and test system. If system operates normally, replace SPD.
3.10.15.lh #8540
Top View
Bottom View
European Authorized Representative
Obelis s.a.
Boulevard Général Wahis 53
1030 Brussels, BELGIUM
Tel: +(32) 2. 732.59.54
Fax: +(32) 2. 732.60.03
E-Mail: mail@obelis.net
45
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Advanced Protection Technologies, Inc.
14550 58th Street North, Clearwater, Florida 33760
SPD SPD
SPD
SPD
BUILDING
SECONDARY SPD
PRIMARY SPD
COAX CABLE
Secondary SPD
(UL 497A) with better
clamping performance
to better protect
Primary SPD
(UL 497C) for life safety
purposes to protect
against Power line cross
or direct stroke
Protecting Coax Cables from Surges
Most surges on coax cable originate on the shield, not the pin.
• In a coax application, the pin is protected by the shield. For
example, lightning induces onto the shield, as would accidental
contact with a power line. Consequently, excessive emphasis on
protecting the pin may be misguided.
• According to IEEE C62.43 research:
–Surge current injected equally onto the pin and shield will
propagate unequally. Due to inductance, the shield will carry
about four times more surge current than the pin.
• “Surge propagation speed is faster on the shield than the pin,
leading to voltage differentials between pin and shield on long
runs of coax cable.”
• Coax surge protection is different than AC power surge protection:
–Focus is on the grounded shield conductor as opposed to the
‘active’ conductor. (On AC systems, focus is usually on the
energized conductor.)
–MOV suppression components may degrade signal quality due to
higher capacitance.
Primary & Secondary SPDs are intended for use together in a
cascade arrangement.
• Irony: People routinely protect AC circuits with sizeable cascade
SPDs, but do not do it with coax, despite smaller SPDs and
sometimes a harsher environment. Cascade SPDs as appropriate.
UL 497 Listing categories are often misunderstood.
• UL has two generalized categories for Communication SPDs:
Primary and Secondary Protectors.
–Primary Protectors: e.g., UL 497, UL 497C. “Primary protectors
are intended to suppress abnormal overvoltage conditions
that may exist on the circuit due to accidental contact with
electric light or power conductors operating at or over 300 V to
ground…”.
Translation: These are more intended for life safety protection
from power line crosses & lightning, and may not clamp low
enough to protect sensitive electronics.
–Secondary Protectors: e.g., UL 497A. “Secondary protectors are
intended to suppress abnormal voltage and/or current conditions
that bypass the primary protector.”
Translation: Secondary Protectors offer better clamping
protection for sensitive electronics.
• Hiccup?: There are single SPDs having the robust componentry
of Primary SPDs and the lower and better clamping
performance of Secondary SPDs. However, by quirk, the lower
clamping voltage and better performance prevents them from
passing UL’s testing as a Primary Protector. The resulting
confusion factor is one reason why various manufacturers do
not UL List coax SPDs. Note that UL 96A Lightning Protection
applications mandate a UL 497C unit. Good practice suggests
an additional Secondary Protector to protect sensitive
electronics.
Hiccup: Ground Loops and resulting signal loss
• Coax cable shields are grounded at their ‘head-end’. The shield is
not supposed to be grounded further downstream. Reason: If the
shield is grounded at multiple locations, and those grounds are at
different potentials, then current will ‘loop’ through the shield as the
ground potentials attempt to equalize themselves. This is called a
Ground Loop, and can/will cause signal decay.
• Away from the ‘head-end’, if the SPD’s shield protection is directly
connected to ground, it can/will cause a ground loop. Different SPD
technology with ground isolation is required to prevent this. The
APT SPD will not cause ground loops.
Concept of Cascade Protection
Avoiding Ground Loops
SPD
SPD
If these two grounds have a voltage difference, and
the coax Shield can complete the circuit, then current
will flow through the Shield creating a Ground Loop.
COMMUNICATION
EQUIPMENT
Head-End Coax
Shield is Referenced
to Ground
If remote SPD shield is ‘hard-grounded’ and there
is a voltage between the two grounds, then a
Ground Loop is likely. An SPD with ground
isolating qualities is required (APT BNCA10kA).
COAX CABLE
3.10.15.lh
46
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
0.47 in.
(12 mm)
2.56 in.
(65 mm)
Two or Four Wire Data Lines such as
Camera PTZ or Vehicle Detectors Low Voltage Power Protection
Application RS-232 RS423 RS-422 RS-485 12VDC 24VDC 24VAC 30VDC 48VDC 60VDC
Model Number RS232/D1 RS423/D1 RS422/D1 RS485/D1 12VDC/D1 24VDC/D1 24VAC/D1 30VDC/D1 48VDC/D1 60VDC/D1
Protocol Operating Voltage +/- 25V +/- 6V -0.25V – +6V -7V – +12V 12VDC 24VDC 24VAC 48VDC 48VDC 60VDC
SPD Max Cont Op Volt (MCOV) 28VDC 15VDC 15VDC 15VDC 15VDC 28VDC 36VAC 52VDC 52VDC 64VDC
Clamping Voltage (VDC) <46V <27V <27V <27V <27V <46V <60VAC <85V <85V <105V
Typical Breakdown Voltage (VDC) 33V 18V 18V 18V 18V 33V 32VAC 61V 61V 75V
Maximum Leakage Current (µA) 5µA 5µA 5µA 5µA 5µA 5µA 5µA 5µA 5µA 5µA
Premium SPDs intended for use on a wide range of low voltage applications
inside appropriate enclosures, including high speed communication circuits.
Terminals are nger-safe.
• SPDs include three stage high-energy surge suppression in a Pi (π) conguration:
– 1st Stage: Parallel-connected Gas Discharge Tubes
– 2nd Stage: Series-connected impedance
– 3rd Stage: Parallel-connected Transorbs
• Each SPD Protects Two (2) Pairs of Wire
• UL 497B Recognized UL File: QVGQ.E244864
• Circuit schematic printed on side of SPD
• Dual Grounding:
–Ground Wire Lug (recommended)
–Through DIN-Rail Connection
Other Applications
• Other Low Voltage: See D60401 Series data sheets
• BNC: See BNCA10KA or BNCB5KA data sheets
• 120V: See AC DIN-Rail data sheets
Specifications & Features
• Surge Current Rating: 15kA
• Rated Operating Current IL (mA): 800mA
• Number Wires Protected: up to 4 wires (2 pair)
• Wire Size: 14 AWG - 26 AWG
• Response Time (ns): <1 ns
• Mounting Type: 35mm DIN-Rail
• Temperature Rating: -40°F to 185°F (-40°C to 85°C)
• Enclosure Material: Thermoplastic UL 94-V0
• Enclosure: NEMA 1 (IP 20)
• Dimensions: 3.9” x 2.6” x 0.47” (99mm x 65mm x 12mm)
• Weight: 4.75oz (135g)
• Thermal Protection: Yes
• Color: Gray
• IEEE C62.41-2002, Cat C, B & A: Yes
• IEC 61643-21Compliant: Yes
• IEC Max. Discharge Current Imax (8x20µs): 15kA
• IEC Max. Discharge Current In (8x20µs): 10kA
• IEC Max. Lightning Pulse Iimp (10x350µs): 2.5kA
• CE Mark: Yes
• Warranty: 2 Year
Dimensions
Easy to Install
In-line series connected SPD. Normal signal goes through this unit.
Unprotected side
Install such that surge
hits this side
Protected side
Camera, MVDS,
widget, etc.
Ground Lug internally connects to tab contacting DIN-Rail. We
recommend cable connection from Ground Lug to Verified Ground.
3.10.15 #8632
Unprotected side
Unprotected side
Install such that surge
hits this side
Protected side
Camera, MVDS,
widget, etc.
Weight:
4.75oz (135g)
3.9 in.
80 mm
European Authorized Representative
Obelis s.a.
Boulevard Général Wahis 53
1030 Brussels, BELGIUM
Tel: +(32) 2. 732.59.54
Fax: +(32) 2. 732.60.03
E-Mail: mail@obelis.net
Low Voltage/
Communication SPDs
DIN-Rail, Series Connected
47
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Model Number Configurator
Voltage Codes
D60401- llll
S (Standard) = Analog, DC
B (Bandwidth) =
Digital up to 35MHz
005 = 5VDC (3.5VAC)
012 = 12VDC (8.5VAC)
024 = 24VDC (17VAC)
048 = 48VDC (34VAC)
060 = 60VDC (42VAC)
• These premium SPDs are intended for use on a wide range of low
voltage applications inside appropriate enclosures, including high
speed communication circuits. Terminals are finger-safe.
• D60401 SPDs include three stage surge suppression in a Pi (π)
configuration:
–1st Stage: Parallel-connected Gas Discharge Tubes
–2nd Stage: Series-connected resistor (includes inductor on ‘S’ models)
–3rd Stage: Parallel - connected Transorbs
• Two D60401 SPD families are offered:
–S-sufx: ‘Standard’ - for Analog, DC voltage, or low-frequency data to
600kHz
–B-sufx: ‘Bandwidth’ - for Digital or High-Frequency Data up to 35MHz
D60401, S-suffix
D60401, B-suffix
"005" "012" "024" "048" "060"
Nominal Operating Voltage (VDC / VAC) 5 / 3.5 12 / 8.5 24 / 17 48 / 34 60 / 42
MCOV (VDC) 7 15 28 52 64
Clamping Voltage (VDC) <12 <27 <46 <85 <105
Voltage Breakdown (Min/Max VDC) 7/9 16/20 29.5/36.5 55.5/68.5 67.5/82.5
IEC Voltage Protection Level
(Up @ 1kV/µs, VDC) 12 27 28 52 64
Maximum Leakage Current (µA) 200 5 5 5 5
Protocol Nominal
Voltage Suggested SPD
RS-232 +/- 25V D60401-024S
RS-423 +/- 6V D60401-012S
RS-422 -0.25V - +6V D60401-012B
RS-485 -7V - + 12V D60401-012B
Modbus (usually RS-485) D60401-012B
Irrigation/Sprinkler Valves 24VAC D60401-048S
4 - 20mA
Need to determine.
Could be 24VDC,
12VDC, etc.
Default:
D60401-048S
Don’t know? Can’t Find Out? Default:
D60401-048S
Suggested Applications
Features
• Surge Current Rating: 15kA
• UL 96A Lightning Protection Master Label: Yes
• Rated Operating Current IL (mA): 800mA (1000mA for
B-sufx models)
• Number Wires Protected: up to 4 wires (2 pair)
• Wire Size: 14 AWG - 26 AWG
• Response Time (ns): <1 ns
• Mounting Type: 35mm DIN-Rail
• Temperature Rating: -40°F to 185°F (-40°C to 85°C)
• Enclosure Material: Thermoplastic UL 94-V0
• Enslosure: NEMA 1 (IP 20)
• Dimensions: 3.9” x 2.6” x 0.47” (99mm x 65mm x 12mm)
• Weight: 4.75oz (135g)
• Thermal Protection: Yes
• Color: Gray
• UL 497B Listed: UL File QVGQ.E244864
• CE Mark: Yes
• IEEE C62.41-2002, Cat C, B & A: Yes
• IEC 61643-21 Compliant: Yes
• IEC Max. Discharge Current Imax (8x20µs): 15kA
• IEC Max. Discharge Current In (8x20µs): 10kA
• IEC Max. Lightning Pulse Iimp (10x350µs): 2.5kA
• Warranty: 2 Year
Voltage Codes
European Authorized Representative
Obelis s.a.
Boulevard Général Wahis 53
1030 Brussels, BELGIUM
Tel: +(32) 2. 732.59.54
Fax: +(32) 2. 732.60.03
E-Mail: mail@obelis.net
48
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Finger Safe Terminals
Dimensions
Information
Typical 4-Wire Installation
DIN-Rail not included
0.47 in.
(12 mm)
Unprotected Side
Install such that
surge hits this side
Ground lug tab
Only 2 wires?
–Use either top or bottom sets.
Internally connected to DIN-Rail
VALUABLE EQUIPMENT SIDE
Protected Side
Protected Load Side
–Series connected (Power/Data goes through SPD)
–Protects up to 4 wires (2 pairs of 2 wires)
DIN-Rail not included
3.9 in.
80 mm
2.56 in.
(65 mm)
3.10.15.lh #8384
49
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
MVF SPD Component Design Features
• Low clamping voltage for maximum equipment protection
• Parallel design MOV suppression allows installation exibility
• Bi-directional operation for positive and negative surges
• Solid state, fully automatic action and reset
• Large-Block, 40mm, MOVs
• Solid State Bidirectional Operation
• Intended for High Energy applications including all IEEE C62.41.2
Category A, B and C High Applications
• All Mode (6 Modes) dedicated (A-B, B-C, A-C, A-G, B-G, C-G)
• Pre-wired with 2’ (0.61 Meters) #6 stranded leads for connection
to Fuse Box
• Includes internally threaded conduit hub 1 1/4”
• External Mounting Flanges
• Inorganic silica particle encapsulation
–Noncombustible at extreme temperature
–Superior gaseous expansion tolerance
• Double insulated against ground fault or arcing with separate
polypropylene and polyethylene layers
• Elastomeric Ceramgard®potting protects against environmental
contaminants
• High Voltage warning labels standard
MVF SPD Component Specifications
• Surge Current Rating: 120kA per phase
• Proven ‘large block’ 40mm MOV Technology
• Protection Modes: All Modes L-L and L-G (Normal mode & Common mode)
• Directly connected MOV suppression elements
• NEMA 4 (IP66) Heavy Gauge Steel Enclosure
• Dimensions: 31cm x 31cm x 15.5cm (12” x 12” x 6”)
• Weight: 29.5kg (65 Lbs)
• Relative Humidity Range: 0 – 95% Non-Condensing
• Operating Frequency: 50Hz, 60Hz
• Operating Temperature: -40°C (-40°F) to +85°C (+185°F)
MVF SPD Quality
• Seven (7) Year Warranty on SPD
• Every unit Burn-in tested prior to shipment
• ANSI/IEEE C62.11
The MVF consists of a Medium Voltage parallel SPD and stand-alone,
three phase fuse box. The MVF is designed for Oil and Gas, Water/
Wastewater, Chemical, Large Industrial and Heavy Duty Applications
at Service Entrance, Distribution locations as well as Individual
Equipment. The Three Phase Fuse Box component of the MVF is
REQUIRED to be installed on the line side of, and in-line with, the
Medium Voltage SPD component as dedicated overcurrent protection
and to safely disconnect the SPD from the electrical system in the
event of an SPD failure.
HIGH VOLTAGE
HIGH VOLTAGE
1500VAC KEEP AWAY
CONTAINS NO USER
SERVICEABLE PARTS
FAILURE TO KEEP AWAY WILL RESULT
IN DEATH OR SERIOUS INJURY
ALTO VOLTAJE
DANGER
DANGER
DANGER
#8518
Advanced Protection Technologies
Clearwater, Florida USA
www.aptsurge.com
#8518
Advanced Protection Technologies
Clearwater, Florida USA
www.aptsurge.com
Represents a typical installation of an MVF
FUSE BOX
SPD
MVF -
Medium Voltage
Surge Protective Device + Three Phase Fuse Box
50
7.5.16.lh RevF
Advanced Protection Technologies
14550 58th Street North · Clearwater, Florida 33760
(800) 237-4567 · (727) 535-6339 · Fax (727) 539-8955
www.aptsurge.com · info@aptsurge.com
Optional Monitoring Package
• Allows for on-site or remote monitoring of suppression circuits
–Indicator lights for each phase
–Dry Contacts for each phase
–Available on 120kA models only
Fuse Box Component Design Features
• Designed to be installed in front of and in-line with APT’s MV
Medium Voltage SPD as part of the MVF.
• NEMA 4X Polycarbonate enclosure with stainless steel lockable latches.
• All connecting wires included
–2.4m (8 ft) of #6 AWG, 25kV wire each (3 Phase, 1 Ground).
–Additional 6kV sleeving on each wire for added safety.
• 2 – 1 ¼ ” threaded hubs included to enter and exit enclosure.
• Includes 3 Bussman model 5.5CAVE (5.5kV, 15A).
• Includes 6” of conduit for SPD to Fuse Box connection.
Fuse Box Component Specifications
• Enclosure Dimensions: 457.2mm x 406.4mm x 254mm (18” x 16” x 10”)
• Weight: 15.9 kg (35 lbs)
• Maximum Voltage: 5500VAC
• Maximum Current: 15 Amp
• Torque: 80 Inch-Lbs
• Relative Humidity Range: 0 – 95% Non-Condensing
• Operating Frequency: 50Hz, 60Hz
• Operating Temperature: -40°C (-40°F) to +85°C (+185°F)
MVF -
Medium Voltage
Surge Protective Device + Three Phase Fuse Box
VOLTAGE CODES
10 = 1000V
15 = 1500V
20 = 2000V
25 = 2500V
30 = 3000V
36 = 3600V
41 = 4160V
SURGE CURRENT RATINGS
12 = 120kA per phase
24 = 240kA per phase
ENCLOSURE RATINGS
04 = NEMA 4
AVAILABLE OPTIONS
D = Monitoring Package:
Indicator lights per
phase & dry contacts
per phase
Note: Monitoring Package available only on
120kA per phase models
12 04 D41MVF
FUSE BOX
SPD WITH OPTIONAL MONITORING
51
What Electrical System Is It?
3-phase 4-wire Grounded Wye
Neutral bonded to ground. Neutral pulled into
facility. Common system configurations.
V = 120V (208Y/120V) APT ‘2’
V = 277V (48OY/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21 ‘ (non-USA)
V = 220V (38OY/220V) APT ‘7’ (non-USA)
What Electrical System Is It?
Based on secondary side of upstream transformer, NOT by how load is connected
Most SPD/TVSS misorders are misunderstandings related to grounding or neutrals
Grounded system means that the system is referenced to ground, NOT that there is a safety ground
By convention, ground wires are not ‘counted’ as one of the wires (3-wire, 4-wire, etc.)
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral pulled into facility
Common system configuration
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V (380Y/220V) APT ‘7’ (non-USA)
3-phase 3-wire Ungrounded Delta
System has no reference to ground
L-L voltages fixed by transformer, but L-
G voltages can vary; Known to become
unstable.
V = 240V APT ‘6’
V = 480V APT ‘5’
V = 600V APT ‘9’
Note NEC 285.3(2)
Common system configuration at older
industrial facilities, normally not used on
n
e
w
co
n
s
tr
uc
ti
o
n
3-phase 3-wire Corner
Grounded Delta
System has reference to ground
because B phase is grounded
V = 240V APT ‘61’
V = 480V APT ‘51’
V = 600V APT ‘91’
Note NEC 285.3(2)
Occasionally seen at industrial
facilities, normally not used on new
construction
Hi-Leg Grounded Delta
Neutral bonded to ground
Neutral often pulled into facility
Common system configuration
V = 120/240V APT ‘3’
V = 240/480V Call’
Resistive or Impedance Grounded Wye
Neutral bonded to ground via grounding resistor
Neutral may, or may not, be pulled into facility
Becoming popular system on high-tech
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
Open Delta
3-phase 3 or 4-wire
Could be ungrounded, corner
grounded or Hi-leg
Very rare, tend to be rural
Various solutions, Call for info
C
BA
G
N
V
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral NOT pulled into facility
Common system configuration at MCC,
pumping and water treatment
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V
(
380Y/220V
)
APT ‘7’
(
non-USA
)
3-phase 4-wire Ungrounded Wye
Neutral NOT bonded to ground
Neutral may or may not be pulled into facility
Rare system configuration; Error/miss-wire?
Note NEC 285.3(2),
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
V = 127V (220Y/127V) Call (non-USA)
V = 220V
(
380Y/220V
)
Call
(
non-USA
)
C
BA
N
GV
C
BA
G
N
V
A
G
B
N
V
R
C
B
G
A
V
A
G
N
V
Split-Phase ‘Single-Phase’
Neutral bonded to ground
Neutral usually pulled into facility
Very, very Common
V = 120V (120/240V) APT ‘1’
V = 240V (240/480V) Rare - Call
V = 127V (127/254V) APT ‘15’ (non-USA)
Single-Phase
Verify where Neutral and Ground are!
Often for one leg or one piece of equip.
Neutral bonded to ground
Less common than perceived!
V = 120V APT ‘11’
V = 240V APT ‘12’
V = 277V APT ‘16’
V = 480V APT ‘17’ Call – almost always different
V = 127V APT ‘13’ (non-USA)
V = 220V APT ‘12’ (non-USA)
B
A
G
N
C
G
A
B C
V
A
BC
V
G
A
BC
V
V
Rev Date: 3/16/09
Volta
g
e Dia
g
rams RevC
What Electrical System Is It?
Based on secondary side of upstream transformer, NOT by how load is connected
Most SPD/TVSS misorders are misunderstandings related to grounding or neutrals
Grounded system means that the system is referenced to ground, NOT that there is a safety ground
By convention, ground wires are not ‘counted’ as one of the wires (3-wire, 4-wire, etc.)
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral pulled into facility
Common system configuration
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V (380Y/220V) APT ‘7’ (non-USA)
3-phase 3-wire Ungrounded Delta
System has no reference to ground
L-L voltages fixed by transformer, but L-
G voltages can vary; Known to become
unstable.
V = 240V APT ‘6’
V = 480V APT ‘5’
V = 600V APT ‘9’
Note NEC 285.3(2)
Common system configuration at older
industrial facilities, normally not used on
n
e
w
co
n
s
tr
uc
ti
o
n
3-phase 3-wire Corner
Grounded Delta
System has reference to ground
because B phase is grounded
V = 240V APT ‘61’
V = 480V APT ‘51’
V = 600V APT ‘91’
Note NEC 285.3(2)
Occasionally seen at industrial
facilities, normally not used on new
construction
Hi-Leg Grounded Delta
Neutral bonded to ground
Neutral often pulled into facility
Common system configuration
V = 120/240V APT ‘3’
V = 240/480V Call’
Resistive or Impedance Grounded Wye
Neutral bonded to ground via grounding resistor
Neutral may, or may not, be pulled into facility
Becoming popular system on high-tech
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
Open Delta
3-phase 3 or 4-wire
Could be ungrounded, corner
grounded or Hi-leg
Very rare, tend to be rural
Various solutions, Call for info
C
BA
G
N
V
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral NOT pulled into facility
Common system configuration at MCC,
pumping and water treatment
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V
(
380Y/220V
)
APT ‘7’
(
non-USA
)
3-phase 4-wire Ungrounded Wye
Neutral NOT bonded to ground
Neutral may or may not be pulled into facility
Rare system configuration; Error/miss-wire?
Note NEC 285.3(2),
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
V = 127V (220Y/127V) Call (non-USA)
V = 220V
(
380Y/220V
)
Call
(
non-USA
)
C
BA
N
GV
C
BA
G
N
V
A
G
B
N
V
R
C
B
G
A
V
A
G
N
V
Split-Phase ‘Single-Phase’
Neutral bonded to ground
Neutral usually pulled into facility
Very, very Common
V = 120V (120/240V) APT ‘1’
V = 240V (240/480V) Rare - Call
V = 127V (127/254V) APT ‘15’ (non-USA)
Single-Phase
Verify where Neutral and Ground are!
Often for one leg or one piece of equip.
Neutral bonded to ground
Less common than perceived!
V = 120V APT ‘11’
V = 240V APT ‘12’
V = 277V APT ‘16’
V = 480V APT ‘17’ Call – almost always different
V = 127V APT ‘13’ (non-USA)
V = 220V APT ‘12’ (non-USA)
B
A
G
N
C
G
A
B C
V
A
BC
V
G
A
BC
V
V
Rev Date: 3/16/09
Volta
g
e Dia
g
rams RevC
3-phase 4-wire Grounded Wye
Neutral bonded to ground. Neutral NOT pulled into
facility. Common system configurations at MCC,
pumping and water treatment.
V = 120V (208Y/120V) APT ‘2’
V = 277V (48OY/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21 ‘ (non-USA)
V = 220V (38OY/220V) APT ‘7’ (non-USA)
Resistive or Impedance Grounded Wye
Neutral bonded to ground via grounding resistor.
Neutral may, or may not, be pulled into facility.
Becoming popular system on high-tech applications.
V = 120V (208Y /120V) Rare - Call APT
V = 277V (48OY/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
What Electrical System Is It?
Based on secondary side of upstream transformer, NOT by how load is connected
Most SPD/TVSS misorders are misunderstandings related to grounding or neutrals
Grounded system means that the system is referenced to ground, NOT that there is a safety ground
By convention, ground wires are not ‘counted’ as one of the wires (3-wire, 4-wire, etc.)
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral pulled into facility
Common system configuration
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V (380Y/220V) APT ‘7’ (non-USA)
3-phase 3-wire Ungrounded Delta
System has no reference to ground
L-L voltages fixed by transformer, but L-
G voltages can vary; Known to become
unstable.
V = 240V APT ‘6’
V = 480V APT ‘5’
V = 600V APT ‘9’
Note NEC 285.3(2)
Common system configuration at older
industrial facilities, normally not used on
n
e
w
co
n
s
tr
uc
ti
o
n
3-phase 3-wire Corner
Grounded Delta
System has reference to ground
because B phase is grounded
V = 240V APT ‘61’
V = 480V APT ‘51’
V = 600V APT ‘91’
Note NEC 285.3(2)
Occasionally seen at industrial
facilities, normally not used on new
construction
Hi-Leg Grounded Delta
Neutral bonded to ground
Neutral often pulled into facility
Common system configuration
V = 120/240V APT ‘3’
V = 240/480V Call’
Resistive or Impedance Grounded Wye
Neutral bonded to ground via grounding resistor
Neutral may, or may not, be pulled into facility
Becoming popular system on high-tech
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
Open Delta
3-phase 3 or 4-wire
Could be ungrounded, corner
grounded or Hi-leg
Very rare, tend to be rural
Various solutions, Call for info
C
BA
G
N
V
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral NOT pulled into facility
Common system configuration at MCC,
pumping and water treatment
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V
(
380Y/220V
)
APT ‘7’
(
non-USA
)
3-phase 4-wire Ungrounded Wye
Neutral NOT bonded to ground
Neutral may or may not be pulled into facility
Rare system configuration; Error/miss-wire?
Note NEC 285.3(2),
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
V = 127V (220Y/127V) Call (non-USA)
V = 220V
(
380Y/220V
)
Call
(
non-USA
)
C
BA
N
GV
C
BA
G
N
V
A
G
B
N
V
R
C
B
G
A
V
A
G
N
V
Split-Phase ‘Single-Phase’
Neutral bonded to ground
Neutral usually pulled into facility
Very, very Common
V = 120V (120/240V) APT ‘1’
V = 240V (240/480V) Rare - Call
V = 127V (127/254V) APT ‘15’ (non-USA)
Single-Phase
Verify where Neutral and Ground are!
Often for one leg or one piece of equip.
Neutral bonded to ground
Less common than perceived!
V = 120V APT ‘11’
V = 240V APT ‘12’
V = 277V APT ‘16’
V = 480V APT ‘17’ Call – almost always different
V = 127V APT ‘13’ (non-USA)
V = 220V APT ‘12’ (non-USA)
B
A
G
N
C
G
A
B C
V
A
BC
V
G
A
BC
V
V
Rev Date: 3/16/09
Volta
g
e Dia
g
rams RevC
What Electrical System Is It?
Based on secondary side of upstream transformer, NOT by how load is connected
Most SPD/TVSS misorders are misunderstandings related to grounding or neutrals
Grounded system means that the system is referenced to ground, NOT that there is a safety ground
By convention, ground wires are not ‘counted’ as one of the wires (3-wire, 4-wire, etc.)
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral pulled into facility
Common system configuration
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V (380Y/220V) APT ‘7’ (non-USA)
3-phase 3-wire Ungrounded Delta
System has no reference to ground
L-L voltages fixed by transformer, but L-
G voltages can vary; Known to become
unstable.
V = 240V APT ‘6’
V = 480V APT ‘5’
V = 600V APT ‘9’
Note NEC 285.3(2)
Common system configuration at older
industrial facilities, normally not used on
n
e
w
co
n
s
tr
uc
ti
o
n
3-phase 3-wire Corner
Grounded Delta
System has reference to ground
because B phase is grounded
V = 240V APT ‘61’
V = 480V APT ‘51’
V = 600V APT ‘91’
Note NEC 285.3(2)
Occasionally seen at industrial
facilities, normally not used on new
construction
Hi-Leg Grounded Delta
Neutral bonded to ground
Neutral often pulled into facility
Common system configuration
V = 120/240V APT ‘3’
V = 240/480V Call’
Resistive or Impedance Grounded Wye
Neutral bonded to ground via grounding resistor
Neutral may, or may not, be pulled into facility
Becoming popular system on high-tech
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
Open Delta
3-phase 3 or 4-wire
Could be ungrounded, corner
grounded or Hi-leg
Very rare, tend to be rural
Various solutions, Call for info
C
BA
G
N
V
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral NOT pulled into facility
Common system configuration at MCC,
pumping and water treatment
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V
(
380Y/220V
)
APT ‘7’
(
non-USA
)
3-phase 4-wire Ungrounded Wye
Neutral NOT bonded to ground
Neutral may or may not be pulled into facility
Rare system configuration; Error/miss-wire?
Note NEC 285.3(2),
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
V = 127V (220Y/127V) Call (non-USA)
V = 220V
(
380Y/220V
)
Call
(
non-USA
)
C
BA
N
GV
C
BA
G
N
V
A
G
B
N
V
R
C
B
G
A
V
A
G
N
V
Split-Phase ‘Single-Phase’
Neutral bonded to ground
Neutral usually pulled into facility
Very, very Common
V = 120V (120/240V) APT ‘1’
V = 240V (240/480V) Rare - Call
V = 127V (127/254V) APT ‘15’ (non-USA)
Single-Phase
Verify where Neutral and Ground are!
Often for one leg or one piece of equip.
Neutral bonded to ground
Less common than perceived!
V = 120V APT ‘11’
V = 240V APT ‘12’
V = 277V APT ‘16’
V = 480V APT ‘17’ Call – almost always different
V = 127V APT ‘13’ (non-USA)
V = 220V APT ‘12’ (non-USA)
B
A
G
N
C
G
A
B C
V
A
BC
V
G
A
BC
V
V
Rev Date: 3/16/09
Volta
g
e Dia
g
rams RevC
3-phase 4-wire Ungrounded Wye
Neutral NOT bonded to ground. Neutral mayor
may not be pulled into facility. Rare system
configuration; Error/miss-wire?. Note NEC 285.3(2).
V = 120V (208Y/120V) Rare - Call APT
V = 277V (48OY/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
V = 127V (220Y/127V) Call APT (non-USA)
V = 220V (38OY/220V) Call APT (non-USA)
Split-Phase ‘Single-Phase’
Neutral bonded to ground. Neutral usually pulled
into facility. Very, very Common.
V = 120V (120/240V) APT ‘1’
V = 240V (240/48OV) Rare - Call APT
V = 127V (127/254V) APT ‘15’ (non-USA)
What Electrical System Is It?
Based on secondary side of upstream transformer, NOT by how load is connected
Most SPD/TVSS misorders are misunderstandings related to grounding or neutrals
Grounded system means that the system is referenced to ground, NOT that there is a safety ground
By convention, ground wires are not ‘counted’ as one of the wires (3-wire, 4-wire, etc.)
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral pulled into facility
Common system configuration
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V (380Y/220V) APT ‘7’ (non-USA)
3-phase 3-wire Ungrounded Delta
System has no reference to ground
L-L voltages fixed by transformer, but L-
G voltages can vary; Known to become
unstable.
V = 240V APT ‘6’
V = 480V APT ‘5’
V = 600V APT ‘9’
Note NEC 285.3(2)
Common system configuration at older
industrial facilities, normally not used on
n
e
w
co
n
s
tr
uc
ti
o
n
3-phase 3-wire Corner
Grounded Delta
System has reference to ground
because B phase is grounded
V = 240V APT ‘61’
V = 480V APT ‘51’
V = 600V APT ‘91’
Note NEC 285.3(2)
Occasionally seen at industrial
facilities, normally not used on new
construction
Hi-Leg Grounded Delta
Neutral bonded to ground
Neutral often pulled into facility
Common system configuration
V = 120/240V APT ‘3’
V = 240/480V Call’
Resistive or Impedance Grounded Wye
Neutral bonded to ground via grounding resistor
Neutral may, or may not, be pulled into facility
Becoming popular system on high-tech
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
Open Delta
3-phase 3 or 4-wire
Could be ungrounded, corner
grounded or Hi-leg
Very rare, tend to be rural
Various solutions, Call for info
C
BA
G
N
V
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral NOT pulled into facility
Common system configuration at MCC,
pumping and water treatment
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V
(
380Y/220V
)
APT ‘7’
(
non-USA
)
3-phase 4-wire Ungrounded Wye
Neutral NOT bonded to ground
Neutral may or may not be pulled into facility
Rare system configuration; Error/miss-wire?
Note NEC 285.3(2),
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
V = 127V (220Y/127V) Call (non-USA)
V = 220V
(
380Y/220V
)
Call
(
non-USA
)
C
BA
N
GV
C
BA
G
N
V
A
G
B
N
V
R
C
B
G
A
V
A
G
N
V
Split-Phase ‘Single-Phase’
Neutral bonded to ground
Neutral usually pulled into facility
Very, very Common
V = 120V (120/240V) APT ‘1’
V = 240V (240/480V) Rare - Call
V = 127V (127/254V) APT ‘15’ (non-USA)
Single-Phase
Verify where Neutral and Ground are!
Often for one leg or one piece of equip.
Neutral bonded to ground
Less common than perceived!
V = 120V APT ‘11’
V = 240V APT ‘12’
V = 277V APT ‘16’
V = 480V APT ‘17’ Call – almost always different
V = 127V APT ‘13’ (non-USA)
V = 220V APT ‘12’ (non-USA)
B
A
G
N
C
G
A
B C
V
A
BC
V
G
A
BC
V
V
Rev Date: 3/16/09
Volta
g
e Dia
g
rams RevC
Single-Phase
Verify where neutral and ground are! Often this is used
for one leg or one piece of equipment. Neutral is bonded
to ground. This configuration is used less commonly than
perceived (see “split-phase”).
V = 120V APT ‘11‘
V = 240V APT ‘12’
V = 277V APT ‘16’
V = 48OV APT ‘17’ Call APT - almost always different
V = 127V APT ‘13’ (non-USA)
V = 220V APT ‘12’ (non-USA)
What Electrical System Is It?
Based on secondary side of upstream transformer, NOT by how load is connected
Most SPD/TVSS misorders are misunderstandings related to grounding or neutrals
Grounded system means that the system is referenced to ground, NOT that there is a safety ground
By convention, ground wires are not ‘counted’ as one of the wires (3-wire, 4-wire, etc.)
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral pulled into facility
Common system configuration
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V (380Y/220V) APT ‘7’ (non-USA)
3-phase 3-wire Ungrounded Delta
System has no reference to ground
L-L voltages fixed by transformer, but L-
G voltages can vary; Known to become
unstable.
V = 240V APT ‘6’
V = 480V APT ‘5’
V = 600V APT ‘9’
Note NEC 285.3(2)
Common system configuration at older
industrial facilities, normally not used on
n
e
w
co
n
s
tr
uc
ti
o
n
3-phase 3-wire Corner
Grounded Delta
System has reference to ground
because B phase is grounded
V = 240V APT ‘61’
V = 480V APT ‘51’
V = 600V APT ‘91’
Note NEC 285.3(2)
Occasionally seen at industrial
facilities, normally not used on new
construction
Hi-Leg Grounded Delta
Neutral bonded to ground
Neutral often pulled into facility
Common system configuration
V = 120/240V APT ‘3’
V = 240/480V Call’
Resistive or Impedance Grounded Wye
Neutral bonded to ground via grounding resistor
Neutral may, or may not, be pulled into facility
Becoming popular system on high-tech
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
Open Delta
3-phase 3 or 4-wire
Could be ungrounded, corner
grounded or Hi-leg
Very rare, tend to be rural
Various solutions, Call for info
C
BA
G
N
V
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral NOT pulled into facility
Common system configuration at MCC,
pumping and water treatment
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V
(
380Y/220V
)
APT ‘7’
(
non-USA
)
3-phase 4-wire Ungrounded Wye
Neutral NOT bonded to ground
Neutral may or may not be pulled into facility
Rare system configuration; Error/miss-wire?
Note NEC 285.3(2),
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
V = 127V (220Y/127V) Call (non-USA)
V = 220V
(
380Y/220V
)
Call
(
non-USA
)
C
BA
N
GV
C
BA
G
N
V
A
G
B
N
V
R
C
B
G
A
V
A
G
N
V
Split-Phase ‘Single-Phase’
Neutral bonded to ground
Neutral usually pulled into facility
Very, very Common
V = 120V (120/240V) APT ‘1’
V = 240V (240/480V) Rare - Call
V = 127V (127/254V) APT ‘15’ (non-USA)
Single-Phase
Verify where Neutral and Ground are!
Often for one leg or one piece of equip.
Neutral bonded to ground
Less common than perceived!
V = 120V APT ‘11’
V = 240V APT ‘12’
V = 277V APT ‘16’
V = 480V APT ‘17’ Call – almost always different
V = 127V APT ‘13’ (non-USA)
V = 220V APT ‘12’ (non-USA)
B
A
G
N
C
G
A
B C
V
A
BC
V
G
A
BC
V
V
Rev Date: 3/16/09
Volta
g
e Dia
g
rams RevC
Hi-Leg Grounded Delta
Neutral bonded to ground. Neutral often pulled into
facility. Common system configuration.
V = 120/240V APT ‘3’
V = 240/48OV Call APT
What Electrical System Is It?
Based on secondary side of upstream transformer, NOT by how load is connected
Most SPD/TVSS misorders are misunderstandings related to grounding or neutrals
Grounded system means that the system is referenced to ground, NOT that there is a safety ground
By convention, ground wires are not ‘counted’ as one of the wires (3-wire, 4-wire, etc.)
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral pulled into facility
Common system configuration
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V (380Y/220V) APT ‘7’ (non-USA)
3-phase 3-wire Ungrounded Delta
System has no reference to ground
L-L voltages fixed by transformer, but L-
G voltages can vary; Known to become
unstable.
V = 240V APT ‘6’
V = 480V APT ‘5’
V = 600V APT ‘9’
Note NEC 285.3(2)
Common system configuration at older
industrial facilities, normally not used on
n
e
w
co
n
s
tr
uc
ti
o
n
3-phase 3-wire Corner
Grounded Delta
System has reference to ground
because B phase is grounded
V = 240V APT ‘61’
V = 480V APT ‘51’
V = 600V APT ‘91’
Note NEC 285.3(2)
Occasionally seen at industrial
facilities, normally not used on new
construction
Hi-Leg Grounded Delta
Neutral bonded to ground
Neutral often pulled into facility
Common system configuration
V = 120/240V APT ‘3’
V = 240/480V Call’
Resistive or Impedance Grounded Wye
Neutral bonded to ground via grounding resistor
Neutral may, or may not, be pulled into facility
Becoming popular system on high-tech
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
Open Delta
3-phase 3 or 4-wire
Could be ungrounded, corner
grounded or Hi-leg
Very rare, tend to be rural
Various solutions, Call for info
C
BA
G
N
V
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral NOT pulled into facility
Common system configuration at MCC,
pumping and water treatment
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V
(
380Y/220V
)
APT ‘7’
(
non-USA
)
3-phase 4-wire Ungrounded Wye
Neutral NOT bonded to ground
Neutral may or may not be pulled into facility
Rare system configuration; Error/miss-wire?
Note NEC 285.3(2),
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
V = 127V (220Y/127V) Call (non-USA)
V = 220V
(
380Y/220V
)
Call
(
non-USA
)
C
BA
N
GV
C
BA
G
N
V
A
G
B
N
V
R
C
B
G
A
V
A
G
N
V
Split-Phase ‘Single-Phase’
Neutral bonded to ground
Neutral usually pulled into facility
Very, very Common
V = 120V (120/240V) APT ‘1’
V = 240V (240/480V) Rare - Call
V = 127V (127/254V) APT ‘15’ (non-USA)
Single-Phase
Verify where Neutral and Ground are!
Often for one leg or one piece of equip.
Neutral bonded to ground
Less common than perceived!
V = 120V APT ‘11’
V = 240V APT ‘12’
V = 277V APT ‘16’
V = 480V APT ‘17’ Call – almost always different
V = 127V APT ‘13’ (non-USA)
V = 220V APT ‘12’ (non-USA)
B
A
G
N
C
G
A
B C
V
A
BC
V
G
A
BC
V
V
Rev Date: 3/16/09
Volta
g
e Dia
g
rams RevC
What Electrical System Is It?
Based on secondary side of upstream transformer, NOT by how load is connected
Most SPD/TVSS misorders are misunderstandings related to grounding or neutrals
Grounded system means that the system is referenced to ground, NOT that there is a safety ground
By convention, ground wires are not ‘counted’ as one of the wires (3-wire, 4-wire, etc.)
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral pulled into facility
Common system configuration
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V (380Y/220V) APT ‘7’ (non-USA)
3-phase 3-wire Ungrounded Delta
System has no reference to ground
L-L voltages fixed by transformer, but L-
G voltages can vary; Known to become
unstable.
V = 240V APT ‘6’
V = 480V APT ‘5’
V = 600V APT ‘9’
Note NEC 285.3(2)
Common system configuration at older
industrial facilities, normally not used on
n
e
w
co
n
s
tr
uc
ti
o
n
3-phase 3-wire Corner
Grounded Delta
System has reference to ground
because B phase is grounded
V = 240V APT ‘61’
V = 480V APT ‘51’
V = 600V APT ‘91’
Note NEC 285.3(2)
Occasionally seen at industrial
facilities, normally not used on new
construction
Hi-Leg Grounded Delta
Neutral bonded to ground
Neutral often pulled into facility
Common system configuration
V = 120/240V APT ‘3’
V = 240/480V Call’
Resistive or Impedance Grounded Wye
Neutral bonded to ground via grounding resistor
Neutral may, or may not, be pulled into facility
Becoming popular system on high-tech
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
Open Delta
3-phase 3 or 4-wire
Could be ungrounded, corner
grounded or Hi-leg
Very rare, tend to be rural
Various solutions, Call for info
C
BA
G
N
V
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral NOT pulled into facility
Common system configuration at MCC,
pumping and water treatment
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V
(
380Y/220V
)
APT ‘7’
(
non-USA
)
3-phase 4-wire Ungrounded Wye
Neutral NOT bonded to ground
Neutral may or may not be pulled into facility
Rare system configuration; Error/miss-wire?
Note NEC 285.3(2),
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
V = 127V (220Y/127V) Call (non-USA)
V = 220V
(
380Y/220V
)
Call
(
non-USA
)
C
BA
N
GV
C
BA
G
N
V
A
G
B
N
V
R
C
B
G
A
V
A
G
N
V
Split-Phase ‘Single-Phase’
Neutral bonded to ground
Neutral usually pulled into facility
Very, very Common
V = 120V (120/240V) APT ‘1’
V = 240V (240/480V) Rare - Call
V = 127V (127/254V) APT ‘15’ (non-USA)
Single-Phase
Verify where Neutral and Ground are!
Often for one leg or one piece of equip.
Neutral bonded to ground
Less common than perceived!
V = 120V APT ‘11’
V = 240V APT ‘12’
V = 277V APT ‘16’
V = 480V APT ‘17’ Call – almost always different
V = 127V APT ‘13’ (non-USA)
V = 220V APT ‘12’ (non-USA)
B
A
G
N
C
G
A
B C
V
A
BC
V
G
A
BC
V
V
Rev Date: 3/16/09
Volta
g
e Dia
g
rams RevC
3-phase 3-wire Ungrounded Delta
System has NO reference to ground. L-L voltages fixed by
transformer, but L-G voltages can vary.
This configuration is known to become unstable.
V = 240V APT ‘6’
V = 48OV APT ‘5’
V = 600V APT ‘9’
Note NEC 285.3(2)
Common system configuration at older industrial facilities.
Normally, this is not used on new construction.
What Electrical System Is It?
Based on secondary side of upstream transformer, NOT by how load is connected
Most SPD/TVSS misorders are misunderstandings related to grounding or neutrals
Grounded system means that the system is referenced to ground, NOT that there is a safety ground
By convention, ground wires are not ‘counted’ as one of the wires (3-wire, 4-wire, etc.)
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral pulled into facility
Common system configuration
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V (380Y/220V) APT ‘7’ (non-USA)
3-phase 3-wire Ungrounded Delta
System has no reference to ground
L-L voltages fixed by transformer, but L-
G voltages can vary; Known to become
unstable.
V = 240V APT ‘6’
V = 480V APT ‘5’
V = 600V APT ‘9’
Note NEC 285.3(2)
Common system configuration at older
industrial facilities, normally not used on
n
e
w
co
n
s
tr
uc
ti
o
n
3-phase 3-wire Corner
Grounded Delta
System has reference to ground
because B phase is grounded
V = 240V APT ‘61’
V = 480V APT ‘51’
V = 600V APT ‘91’
Note NEC 285.3(2)
Occasionally seen at industrial
facilities, normally not used on new
construction
Hi-Leg Grounded Delta
Neutral bonded to ground
Neutral often pulled into facility
Common system configuration
V = 120/240V APT ‘3’
V = 240/480V Call’
Resistive or Impedance Grounded Wye
Neutral bonded to ground via grounding resistor
Neutral may, or may not, be pulled into facility
Becoming popular system on high-tech
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
Open Delta
3-phase 3 or 4-wire
Could be ungrounded, corner
grounded or Hi-leg
Very rare, tend to be rural
Various solutions, Call for info
C
BA
G
N
V
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral NOT pulled into facility
Common system configuration at MCC,
pumping and water treatment
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V
(
380Y/220V
)
APT ‘7’
(
non-USA
)
3-phase 4-wire Ungrounded Wye
Neutral NOT bonded to ground
Neutral may or may not be pulled into facility
Rare system configuration; Error/miss-wire?
Note NEC 285.3(2),
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
V = 127V (220Y/127V) Call (non-USA)
V = 220V
(
380Y/220V
)
Call
(
non-USA
)
C
BA
N
GV
C
BA
G
N
V
A
G
B
N
V
R
C
B
G
A
V
A
G
N
V
Split-Phase ‘Single-Phase’
Neutral bonded to ground
Neutral usually pulled into facility
Very, very Common
V = 120V (120/240V) APT ‘1’
V = 240V (240/480V) Rare - Call
V = 127V (127/254V) APT ‘15’ (non-USA)
Single-Phase
Verify where Neutral and Ground are!
Often for one leg or one piece of equip.
Neutral bonded to ground
Less common than perceived!
V = 120V APT ‘11’
V = 240V APT ‘12’
V = 277V APT ‘16’
V = 480V APT ‘17’ Call – almost always different
V = 127V APT ‘13’ (non-USA)
V = 220V APT ‘12’ (non-USA)
B
A
G
N
C
G
A
B C
V
A
BC
V
G
A
BC
V
V
Rev Date: 3/16/09
Volta
g
e Dia
g
rams RevC
3-phase 3-wire Corner Grounded Delta
System has reference to ground because
B phase is grounded.
V = 240V APT ‘61‘
V = 48OV APT ‘51’
V = 600V APT ‘91‘
Note NEC 285.3(2)
Occasionally seen at industrial facilities.
Normally, this is not used on new construction. Open Delta
3-phase 3 or 4-wire.
Could be ungrounded, corner grounded or Hi-leg.
Very rare, tend to be rural. Various solutions.
Call APT for information.
What Electrical System Is It?
Based on secondary side of upstream transformer, NOT by how load is connected
Most SPD/TVSS misorders are misunderstandings related to grounding or neutrals
Grounded system means that the system is referenced to ground, NOT that there is a safety ground
By convention, ground wires are not ‘counted’ as one of the wires (3-wire, 4-wire, etc.)
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral pulled into facility
Common system configuration
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V (380Y/220V) APT ‘7’ (non-USA)
3-phase 3-wire Ungrounded Delta
System has no reference to ground
L-L voltages fixed by transformer, but L-
G voltages can vary; Known to become
unstable.
V = 240V APT ‘6’
V = 480V APT ‘5’
V = 600V APT ‘9’
Note NEC 285.3(2)
Common system configuration at older
industrial facilities, normally not used on
n
e
w
co
n
s
tr
uc
ti
o
n
3-phase 3-wire Corner
Grounded Delta
System has reference to ground
because B phase is grounded
V = 240V APT ‘61’
V = 480V APT ‘51’
V = 600V APT ‘91’
Note NEC 285.3(2)
Occasionally seen at industrial
facilities, normally not used on new
construction
Hi-Leg Grounded Delta
Neutral bonded to ground
Neutral often pulled into facility
Common system configuration
V = 120/240V APT ‘3’
V = 240/480V Call’
Resistive or Impedance Grounded Wye
Neutral bonded to ground via grounding resistor
Neutral may, or may not, be pulled into facility
Becoming popular system on high-tech
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
Open Delta
3-phase 3 or 4-wire
Could be ungrounded, corner
grounded or Hi-leg
Very rare, tend to be rural
Various solutions, Call for info
C
BA
G
N
V
3-phase 4-wire Grounded Wye
Neutral bonded to ground
Neutral NOT pulled into facility
Common system configuration at MCC,
pumping and water treatment
V = 120V (208Y/120V) APT ‘2’
V = 277V (480Y/277V) APT ‘4’
V = 347V (600Y/347V) APT ‘8’
V = 127V (220Y/127V) APT ‘21’ (non-USA)
V = 220V
(
380Y/220V
)
APT ‘7’
(
non-USA
)
3-phase 4-wire Ungrounded Wye
Neutral NOT bonded to ground
Neutral may or may not be pulled into facility
Rare system configuration; Error/miss-wire?
Note NEC 285.3(2),
V = 120V (208Y/120V) Rare - Call
V = 277V (480Y/277V) APT ‘5’
V = 347V (600Y/347V) APT ‘9’
V = 127V (220Y/127V) Call (non-USA)
V = 220V
(
380Y/220V
)
Call
(
non-USA
)
C
BA
N
GV
C
BA
G
N
V
A
G
B
N
V
R
C
B
G
A
V
A
G
N
V
Split-Phase ‘Single-Phase’
Neutral bonded to ground
Neutral usually pulled into facility
Very, very Common
V = 120V (120/240V) APT ‘1’
V = 240V (240/480V) Rare - Call
V = 127V (127/254V) APT ‘15’ (non-USA)
Single-Phase
Verify where Neutral and Ground are!
Often for one leg or one piece of equip.
Neutral bonded to ground
Less common than perceived!
V = 120V APT ‘11’
V = 240V APT ‘12’
V = 277V APT ‘16’
V = 480V APT ‘17’ Call – almost always different
V = 127V APT ‘13’ (non-USA)
V = 220V APT ‘12’ (non-USA)
B
A
G
N
C
G
A
B C
V
A
BC
V
G
A
BC
V
V
Rev Date: 3/16/09
Volta
g
e Dia
g
rams RevC
“Protecting the electronic world from surges”
14550 58th Street North, Clearwater, Florida 33760
(727) 535-6339 • (800) 237-4567 • Fax (727) 539-8955
www.aptsurge.com • info@aptsurge.com
• Based on secondary side of upstream transformer, NOT by how load is connected.
• Most SPD/TVSS order errors are misunderstandings related to grounding or neutrals.
• Grounded system means that the system is referenced to ground, NOT that there is a safety ground.
• By convention, ground wires are not ‘counted’ as one of the wires (3-wire, 4-wire, etc.).
52
Frequently Asked Questions
WHAT IS AN SPD?
SPD is an abbreviation for “Surge Protective Device.”
An SPD is a device that attenuates (reduces in magnitude)
random, high energy, short duration electrical power
anomalies caused by utilities, atmospheric phenomena
or inductive loads.
Such anomalies occur in the form of voltage and current spikes
with a duration of less than half an AC cycle. These high energy
power spikes can damage sensitive electronic equipment, such
as computers, instrumentation and process controllers.
WHERE ARE SURGE SUPPRESSORS INSTALLED?
AC surge suppressors are typically installed in the following areas:
1. a utility service entrance for protection of an entire facility.
2. in distribution panelboards and switchboards for protection
of sensitive downstream loads.
3. connected to a wall outlet for individual protection of a
specific piece of equipment, such as a computer or solid-state
controller
WHAT FEATURES SHOULD BE CONSIDERED WHEN
SELECTING A SURGE SUPPRESSOR?
Two important areas to consider during the selection of a surge
suppressor are performance and safety. The performance of
a surge suppressor is measured in surge current capacity and
clamping voltage. Safety should also be a priority in this selection
process. The individual suppression circuit should be fused to
clear an inoperative MOV during an extreme transient event
and provide overcurrent protection for the surge suppressor
during a fault condition.
SPACE IS A CONCERN, DOES APT OFFER SOLUTIONS
FOR DIN-RAIL APPLICATIONS?
Yes. APT offers a wide range of DIN-Rail SPD solutions. Our
AC products range from 120V to 600V. In addition, we have
a series of DC and low voltage DIN-Rail surge suppressors. Our
SPDee product is also DIN-Rail mountable.
I AM A SYSTEMS INTEGRATOR AND BUILD CUSTOM
FABRICATIONS. WHAT DOES APT OFFER THAT
WOULD PROTECT MY SOLUTIONS?
We have a hard wired SPD solution for every type of panelboard,
switchgear, motorcontrol and PLC application. Within our line of
products we offer external, internal, modular and non-modular
configurations. We also custom design.
WHAT SURGE CURRENT CAPACITY IS REQUIRED?
Surge current capacity is dependent on the application and the
amount of required protection. The selection of the proper surge
suppressor is not an exact science and cannot be scientifically
calculated from a standard algorithm.
Questions to consider when specifying the proper surge current
capacity for surge a surge suppressor include:
• What is the geographic location of the facility and its
susceptibility to lightning? (For example, Florida is a high-
lightning area; California is a low-lightning area.)
• Is the facility in a rural or urban setting?
• Is the facility the tallest building around?
• Is the facility at the end of the utility grid?
• If it is an existing facility, what is its power quality history?
DOES APT OFFER SPD PRODUCTS FOR RENEWABLE
ENERGY APPLICATIONS?
Yes. APT offers a variety of solutions that can accommodate
both the needs of the wind and solar markets.
WHAT ARE YOUR STANDARD LEAD-TIMES?
Our normal ship date is no more than 10 days from the receipt
of the purchase order on custom builds and same day shipping
for the most common modular and non-modular inventory units
ordered before 2:00 pm EST.
WHY WOULD I BUY FROM APT?
As a leading manufacturer of quality U.S. made products, our
highly trained design engineers have designed SPD products
that are of high quality, low in cost and contain the highest
level of performance and safety features! You are working
directly with the manufacturer. Who knows our product better
than we do?
53
1.800.727.0669 | surgeassure@ascopower.com | www.surgeassure.com
surgeassure™ is the Preferred Vendor of: MR. ELECTRIC AND SERVICE ROUNDTABLE
surgeassure™ Brand Labels: MR. ELECTRIC, HITACHI AND SIEMENS
MAIN ZONEINTERIOR
ZONE
EXTERIOR
ZONE
surgeassure™ is the residential division of Advanced
Protection Technologies and ASCO Power Technologies. We
are the preferred vendor for Mr. Electric and have won the Mr.
Electric vendor of the year award in 2008, 2009 and 2011.
We have been in the surge protection industry since 1985. Our primary
goal is to save you time and money when dealing with SPDs. We have
an “equal” to any competitive product, and have on staff engineers that
