ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2009
AVIC-Z110BT/XN/UC
CRT4399
FLASH MEMORY MULTIMEDIA AV NAVIGATION RECEIVER
AVIC-Z110BT
/XN/UC
NAVIGATION AV SYSTEM
AVIC-F10BT
/XN/AU
This service manual should be used together with the following manual(s):
Manufactured under licence from Dolby Laboratories. "Dolby" and the double-D symbol
are trademarks of Dolby Laboratories.
"DTS" is registered trademarks of DTS, Inc.
Model No. Order No. Mech. Module Remarks
CX-3250 CRT4300 LS1 DVD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly
For details, refer to "Important Check Points for Good Servicing".
K-ZZZ.-001 JULY 2009 Printed in Japan
AVIC-Z110BT/XN/UC
2
1234
1234
C
D
F
A
B
E
SAFETY INFORMATION
Where in a manufacturer’s service documentation, for example in circuit diagrams or lists
of components, a symbol is used to indicate that a specific component shall be replaced only
by the component specified in that documentation for safety reasons, the following symbol shall
be used:
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
- Safety Precautions for those who Service this Unit.
When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13 cm from the focus lens must be kept.
CAUTION
CLASS 1M INVISIBLE LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
2. During repair or tests, do not view laser beam for 10 seconds or longer.
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
WARNING
This product may contain a chemical known to the State of California to cause cancer, or birth defects or
other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
AVIC-Z110BT/XN/UC 3
5 678
5678
C
D
F
A
B
E
[Important Check Points for Good Servicing]
In this manual, procedures that must be performed during repairs are marked with the below symbol.
Please be sure to confirm and follow these procedures.
1. Product safety
Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by
following the safety instructions described in this manual.
1 Use specified parts for repair.
Use genuine parts. Be sure to use important parts for safety.
2 Do not perform modifications without proper instructions.
Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as
radio/TV interference and foreign noise.
3 Make sure the soldering of repaired locations is properly performed.
When you solder while repairing, please be sure that there are no cold solder and other debris.
Soldering should be finished with the proper quantity. (Refer to the example)
4 Make sure the screws are tightly fastened.
Please be sure that all screws are fastened, and that there are no loose screws.
5 Make sure each connectors are correctly inserted.
Please be sure that all connectors are inserted, and that there are no imperfect insertion.
6 Make sure the wiring cables are set to their original state.
Please replace the wiring and cables to the original state after repairs.
In addition, be sure that there are no pinched wires, etc.
7 Make sure screws and soldering scraps do not remain inside the product.
Please check that neither solder debris nor screws remain inside the product.
8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord.
Damaged power cords may lead to fire accidents, so please be sure that there are no damages.
If you find a damaged power cord, please exchange it with a suitable one.
9 There should be no spark traces or similar marks on the power plug.
When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure
connections and suitable usage. Please exchange the power cord if necessary.
a Safe environment should be secured during servicing.
When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries.
Please pay attention to your surroundings and repair safely.
2. Adjustments
To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification.
Adjustments should be performed in accordance with the procedures/instructions described in this manual.
4. Cleaning
For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper
cleaning should be performed to restore their performances.
3. Lubricants, Glues, and Replacement parts
Use grease and adhesives that are equal to the specified substance.
Make sure the proper amount is applied.
5. Shipping mode and Shipping screws
To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be
installed before shipment. Please be sure to follow this method especially if it is specified in this manual.
AVIC-Z110BT/XN/UC
4
1234
1234
C
D
F
A
B
E
CONTENTS
SAFETY INFORMATION..................................................................................................................................... 2
1. SERVICE PRECAUTIONS............................................................................................................................... 5
1.1 SERVICE PRECAUTIONS ........................................................................................................................ 5
1.2 NOTES ON SOLDERING .......................................................................................................................... 6

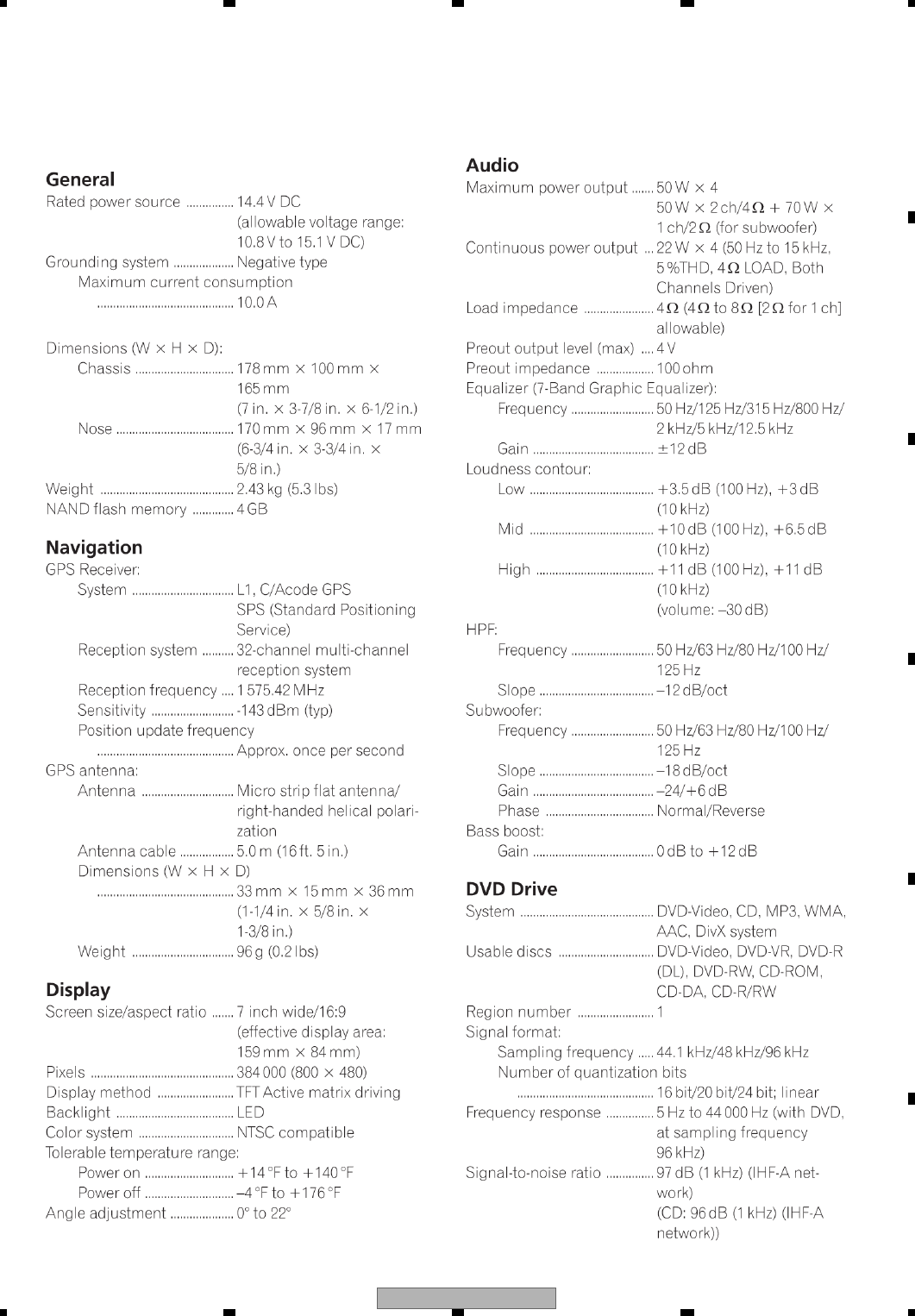

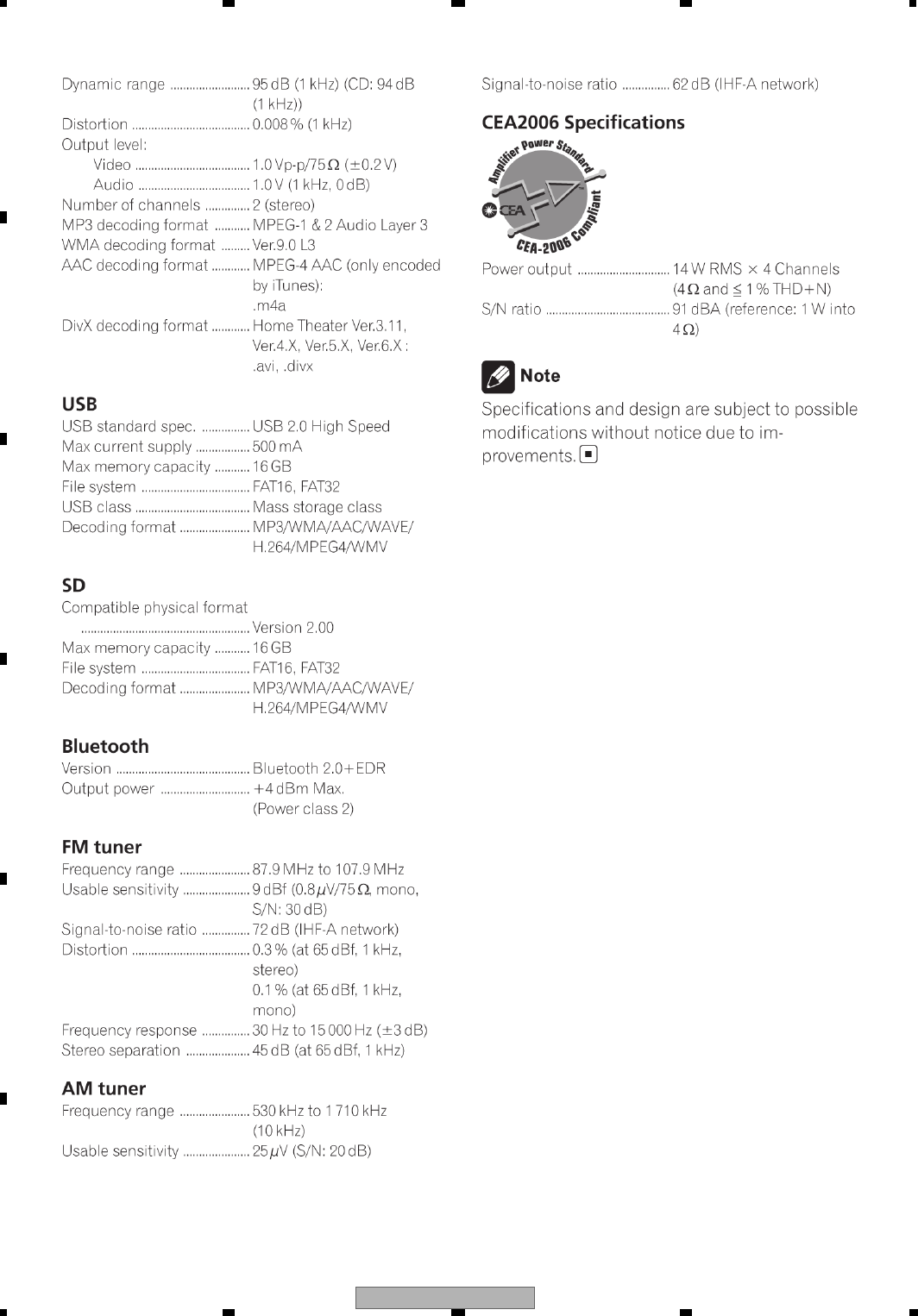

2. SPECIFICATIONS............................................................................................................................................ 7
2.1 SPECIFICATIONS ..................................................................................................................................... 7
2.2 DISC/CONTENT FORMAT .......................................................................................................................11

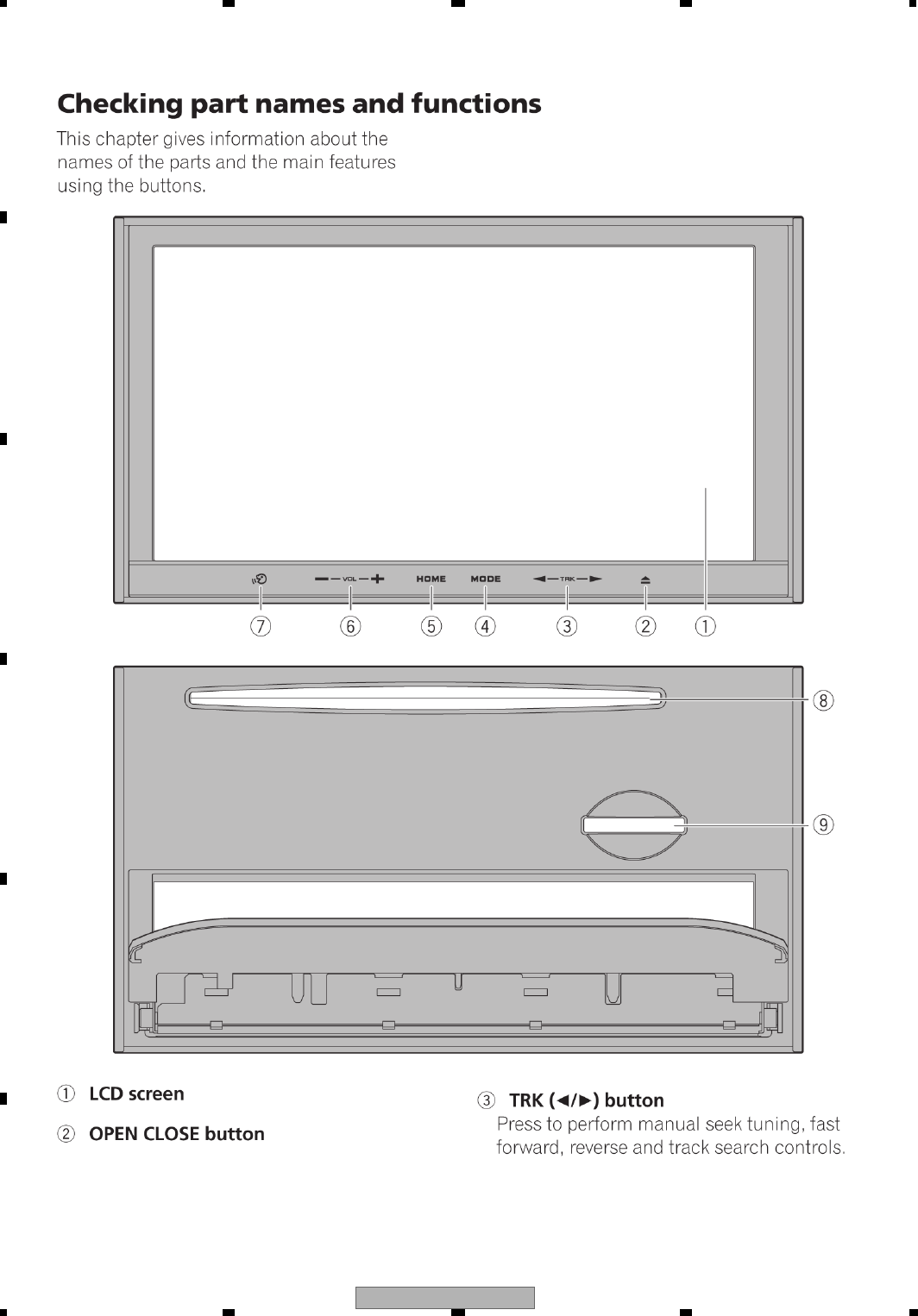

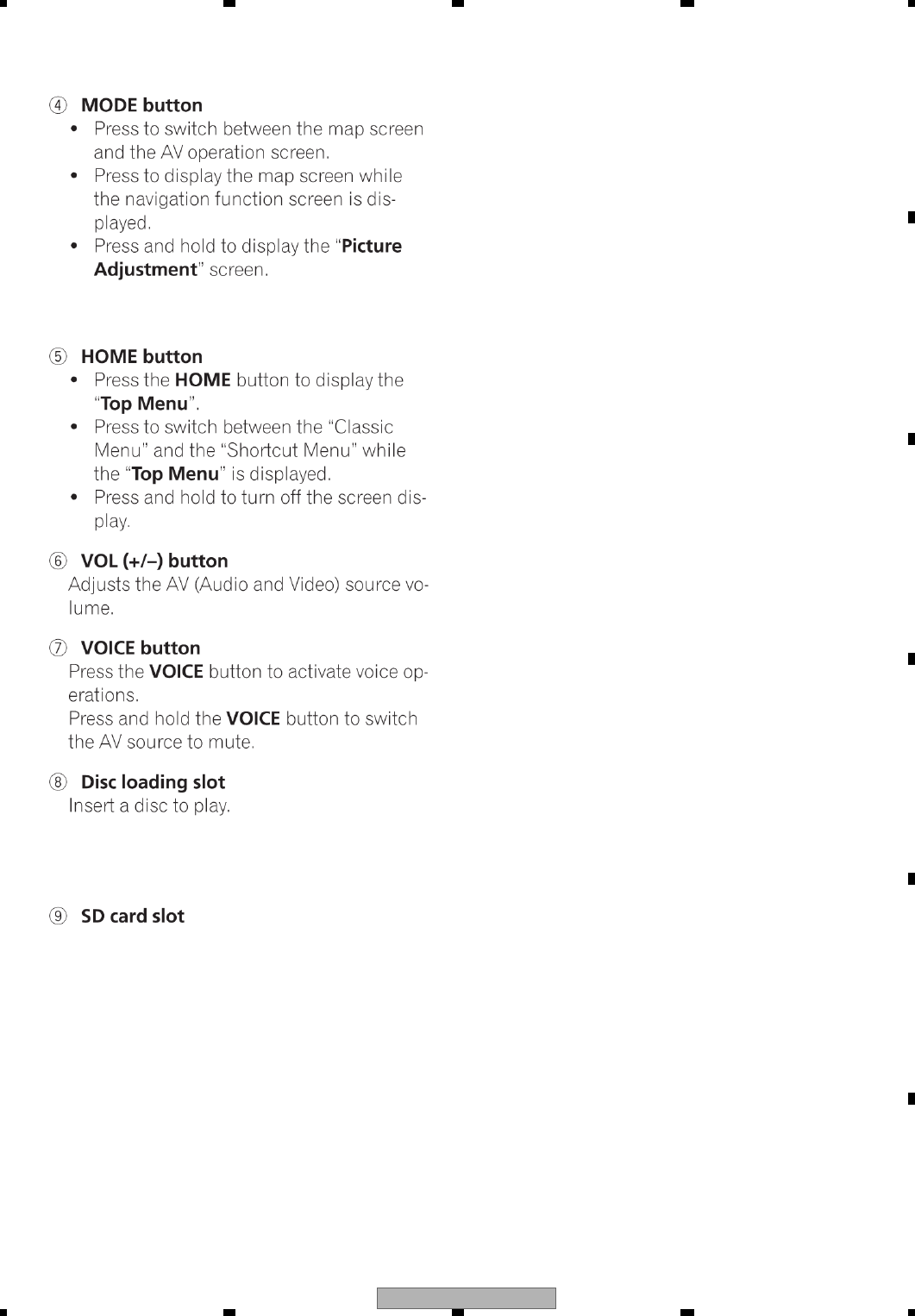

2.3 PANEL FACILITIES.................................................................................................................................. 12
2.4 CONNECTION DIAGRAM ....................................................................................................................... 14
3. BASIC ITEMS FOR SERVICE........................................................................................................................ 15
3.1 CHECK POINTS AFTER SERVICING..................................................................................................... 15
3.2 PCB LOCATIONS .................................................................................................................................... 16
3.3 JIGS LIST ................................................................................................................................................ 17
3.4 CLEANING............................................................................................................................................... 18
4. BLOCK DIAGRAM.......................................................................................................................................... 20
4.1 OVERALL CONNECTION DIAGRAM...................................................................................................... 20
4.2 BLOCK DIAGRAM ................................................................................................................................... 22
4.3 POWER SUPPLY SYSTEM FIGURE ...................................................................................................... 34
5. DIAGNOSIS.................................................................................................................................................... 51
5.1 OPERATIONAL FLOWCHART ................................................................................................................ 51
5.2 INSPECTION METHOD OF PICKUP UNIT............................................................................................. 52
5.3 DIAGNOSIS FLOWCHART ..................................................................................................................... 55
5.4 ERROR CODE LIST ................................................................................................................................ 82
5.5 CONNECTOR FUNCTION DESCRIPTION ............................................................................................. 84

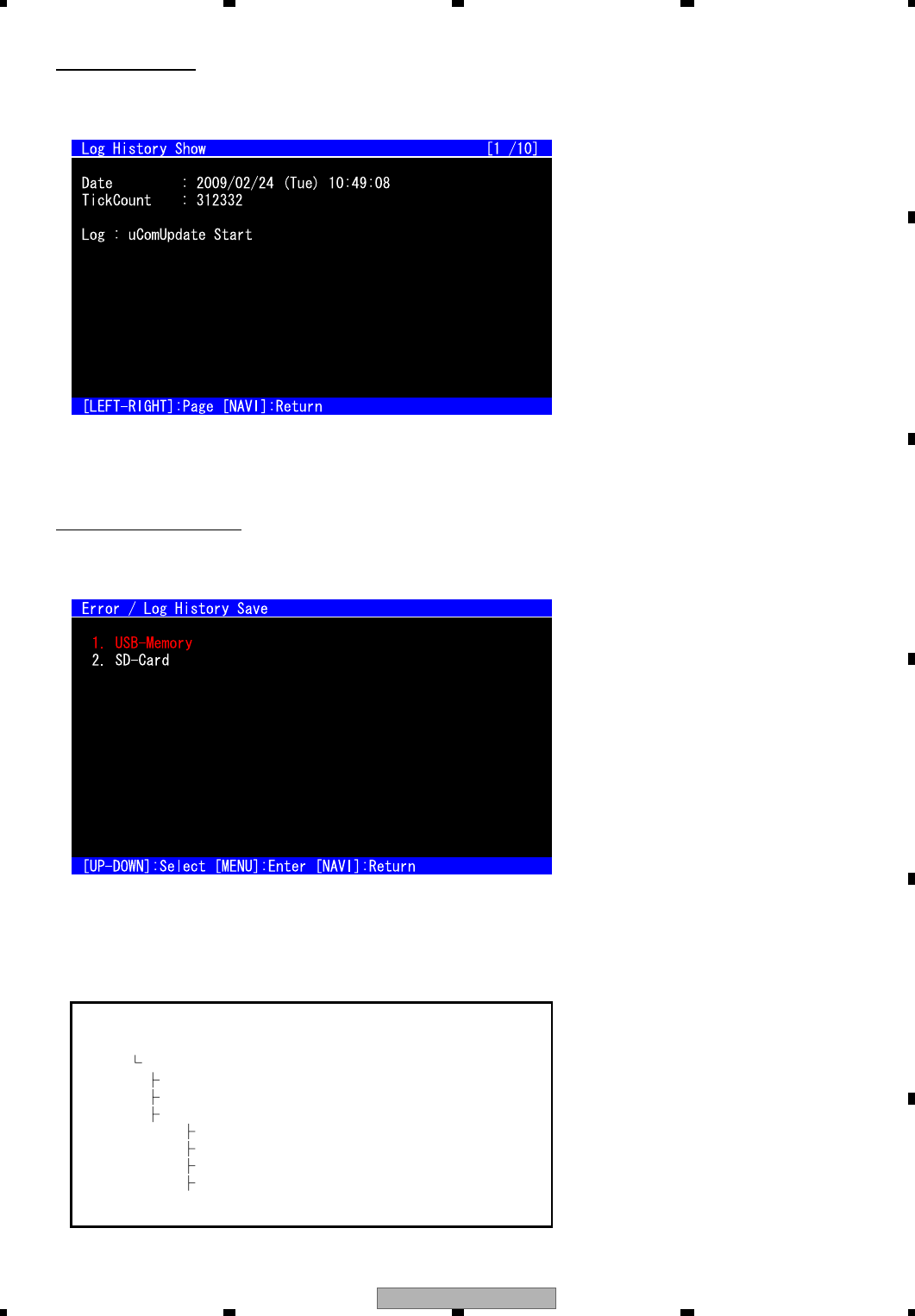

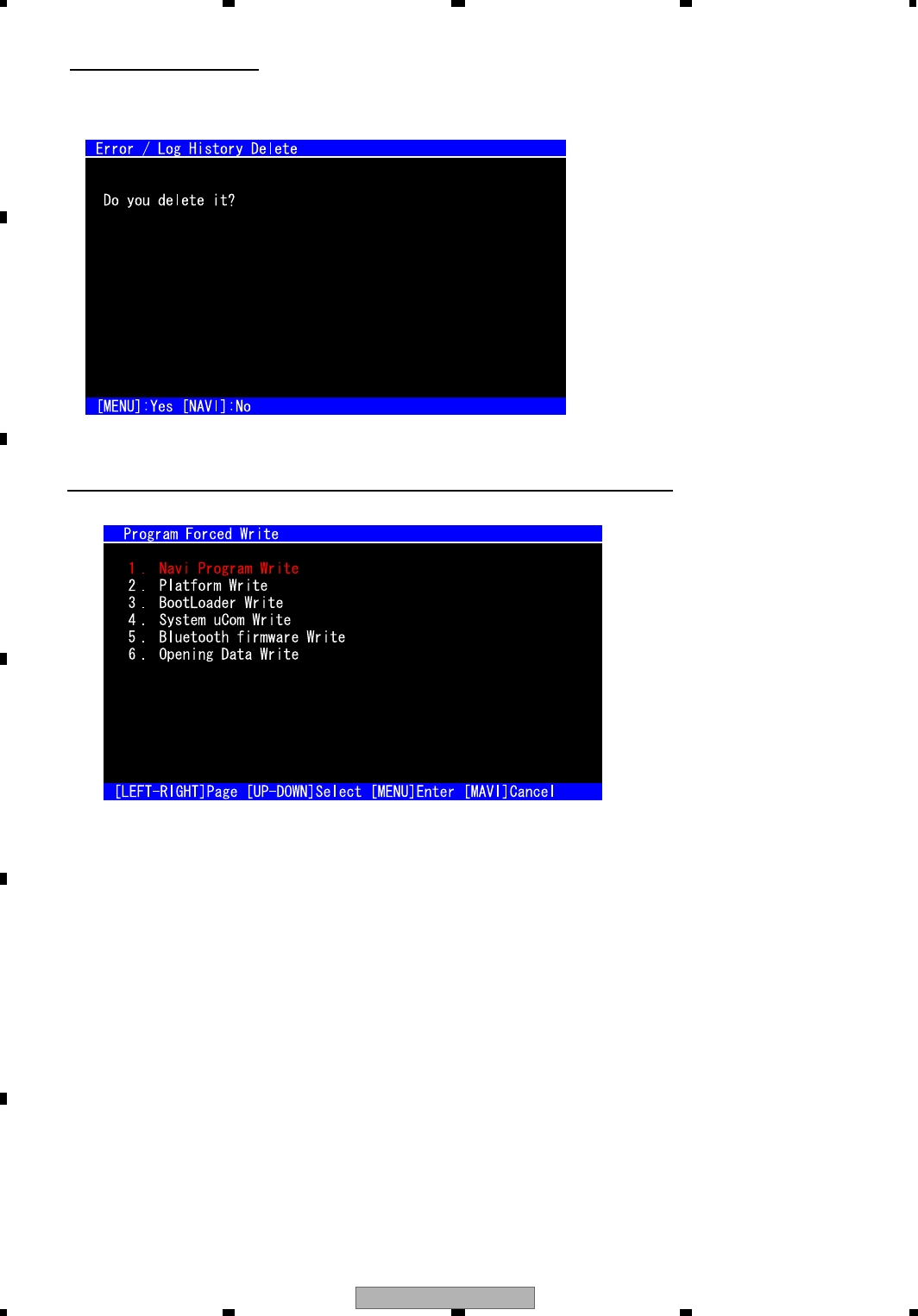

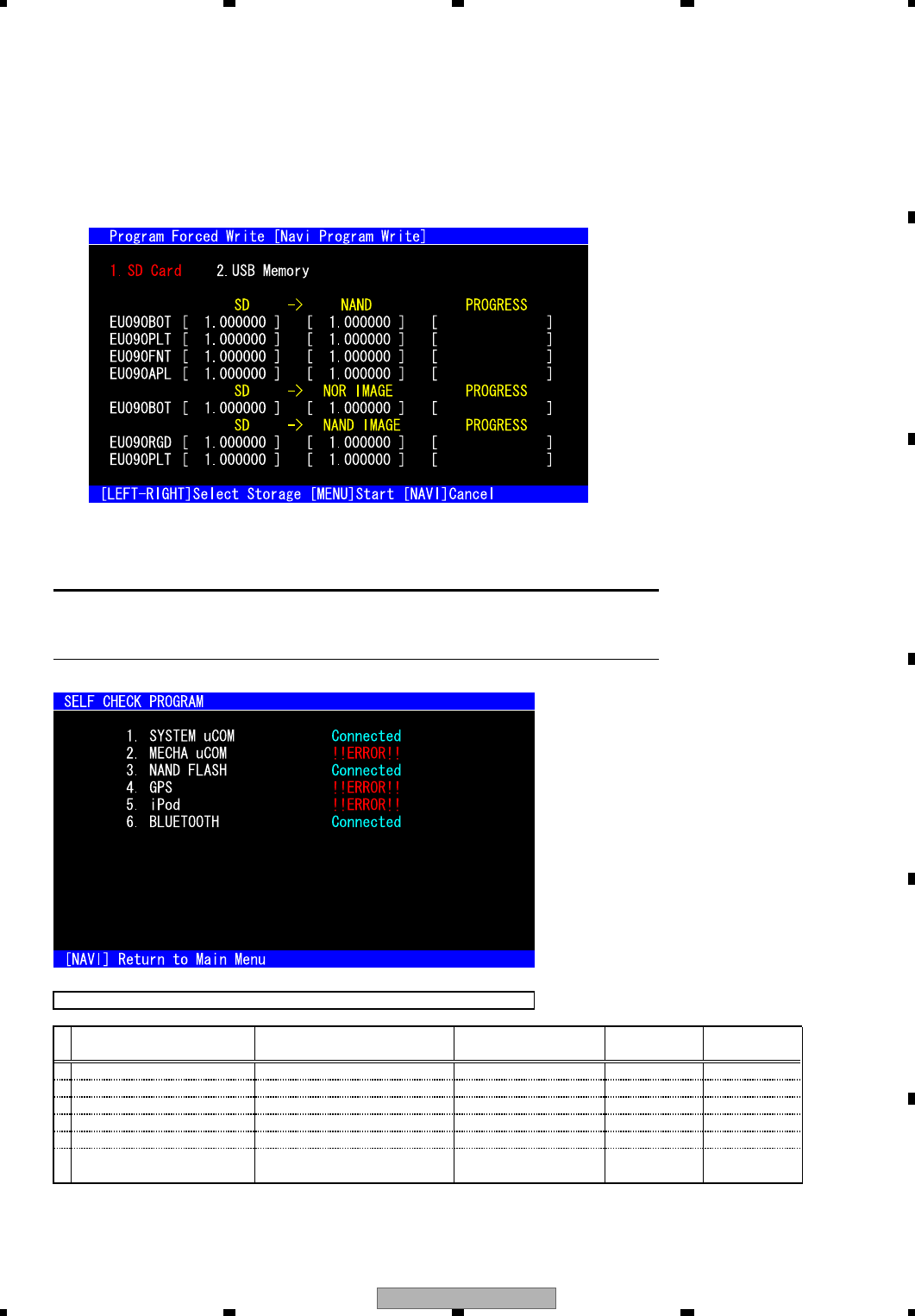

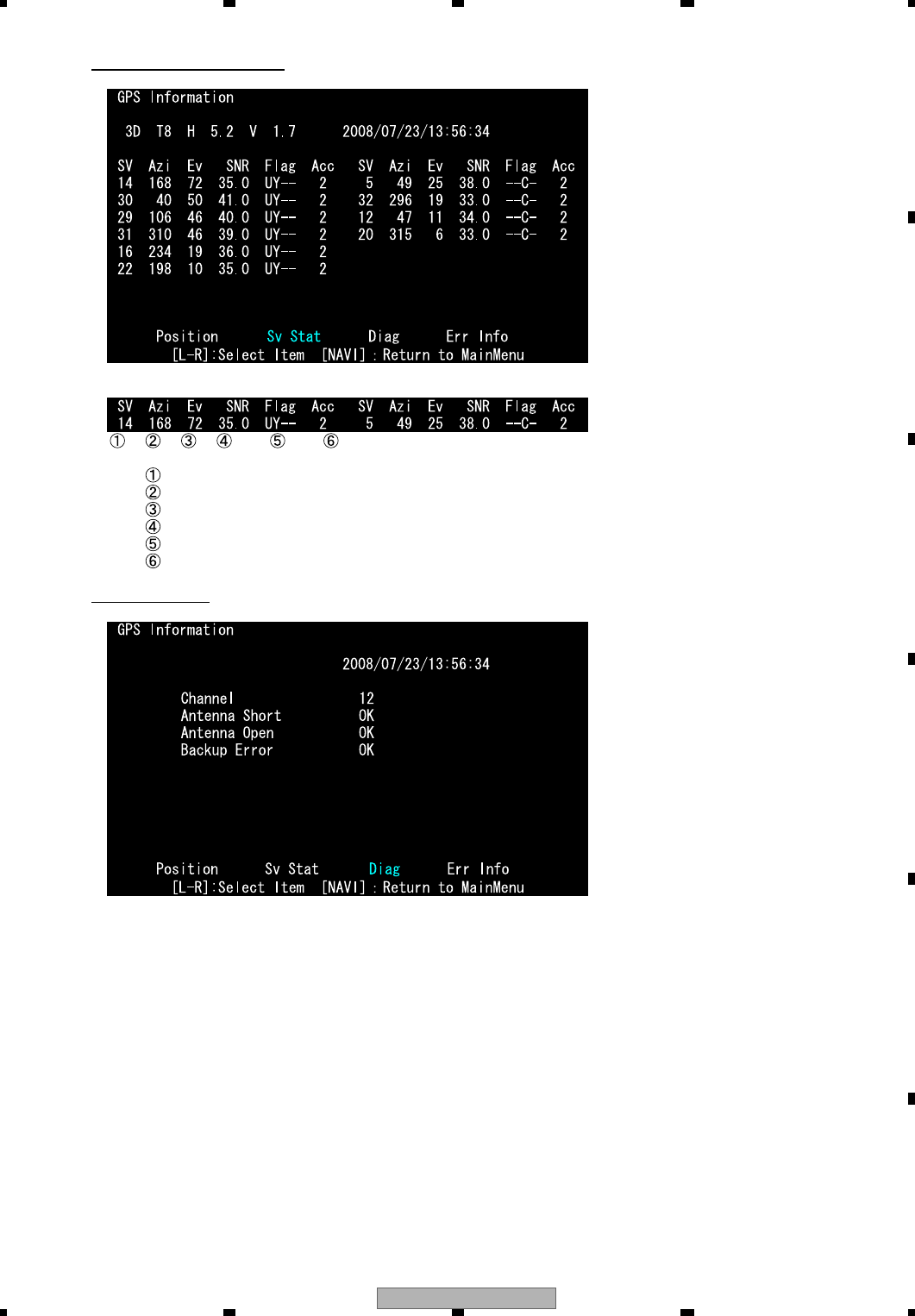

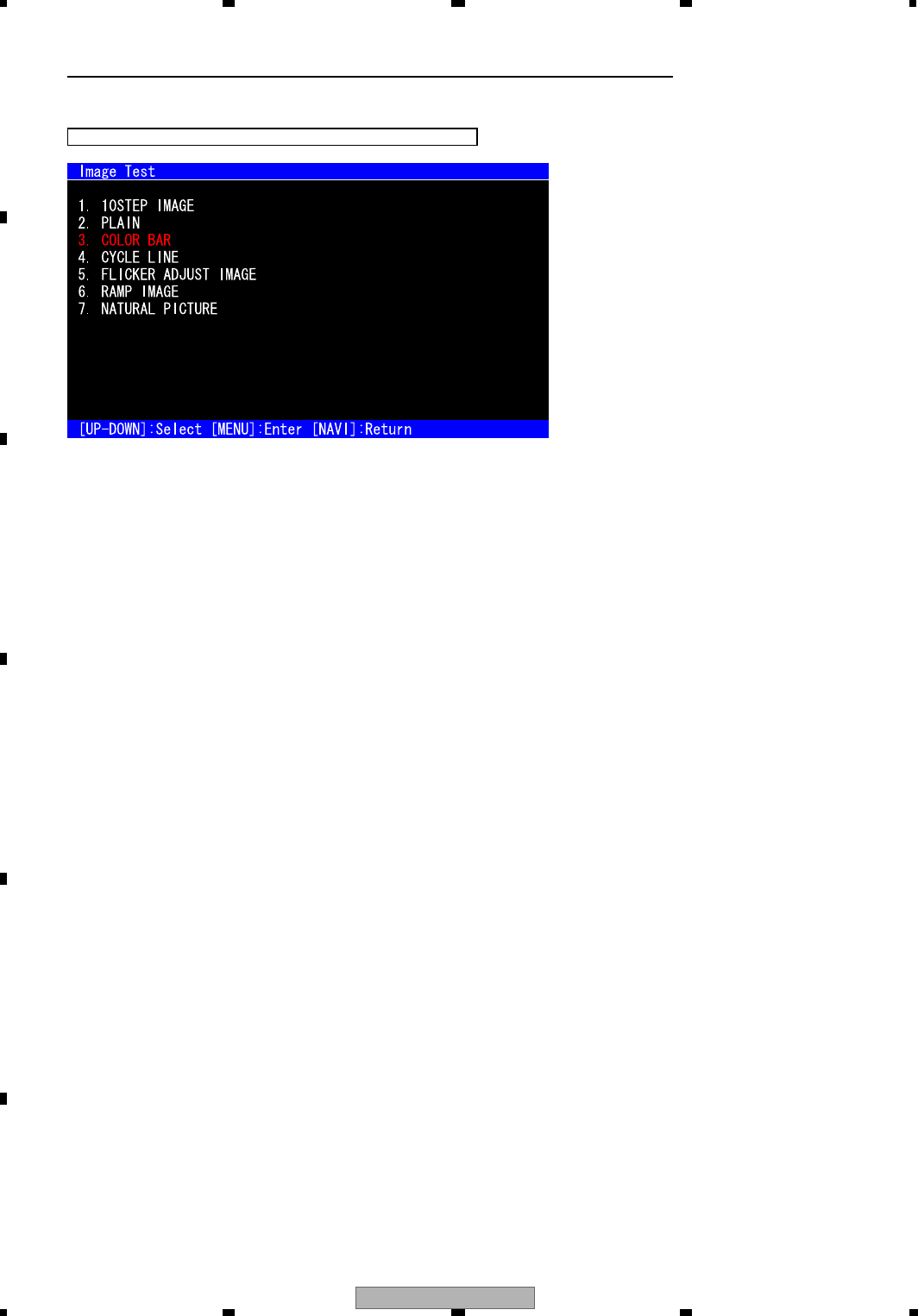

6. SERVICE MODE ............................................................................................................................................ 85
6.1 TEST MODE ............................................................................................................................................ 85
6.2 DVD TEST MODE ................................................................................................................................. 140
7. DISASSEMBLY ............................................................................................................................................ 145
8. EACH SETTING AND ADJUSTMENT ......................................................................................................... 160
8.1 DVD ADJUSTMENT .............................................................................................................................. 160
8.2 AUDIO UNIT ADJUSTMENT ................................................................................................................. 168
9. EXPLODED VIEWS AND PARTS LIST........................................................................................................ 170
9.1 PACKING ............................................................................................................................................... 170
9.2 EXTERIOR(1) ........................................................................................................................................ 172
9.3 EXTERIOR(2) ........................................................................................................................................ 174
9.4 EXTERIOR(3) ........................................................................................................................................ 176
9.5 EXTERIOR(4) ........................................................................................................................................ 178
9.6 DVD MECHANISM MODULE ................................................................................................................ 180
10. SCHEMATIC DIAGRAM............................................................................................................................. 184
10.1 AUDIO UNIT(PS/IF SECTION)(GUIDE PAGE) ................................................................................... 184
10.2 AUDIO UNIT(SYSCOM SECTION)(GUIDE PAGE)............................................................................. 190
10.3 AUDIO UNIT(AV SECTION)(GUIDE PAGE)........................................................................................ 196
10.4 TUNER IF UNIT(GUIDE PAGE)........................................................................................................... 202
10.5 DVD CORE UNIT(GUIDE PAGE) ........................................................................................................ 208
10.6 CONNECT PCB................................................................................................................................... 214
10.7 CC UNIT(PS PART)(GUIDE PAGE)..................................................................................................... 216
10.8 CC UNIT(CPU PART)(GUIDE PAGE).................................................................................................. 222
10.9 CC UNIT(CPU SURROUNDING PART)(GUIDE PAGE)...................................................................... 228
10.10 CC UNIT(DDR/FLASH_ROM/SRAM PART)(GUIDE PAGE) ............................................................. 234
10.11 CC UNIT(NAND PART)...................................................................................................................... 240
10.12 CC UNIT(VIDEO DEC./T-CON/LVDS PART)(GUIDE PAGE) ............................................................ 242
10.13 NAVI UNIT(PS PART)(GUIDE PAGE)................................................................................................ 248
10.14 NAVI UNIT(IF 1SEG PART)(GUIDE PAGE).......................................................................................254
10.15 NAVI UNIT(AUDIO,SENSOR PART) ................................................................................................. 260
10.16 NAVI UNIT(IF PART INTERNAL)(GUIDE PAGE) .............................................................................. 262
10.17 MONITOR UNIT(GUIDE PAGE) ........................................................................................................ 268
10.18 KEYBOARD UNIT.............................................................................................................................. 274
10.19 PCB UNIT(SERVICE) ........................................................................................................................ 276

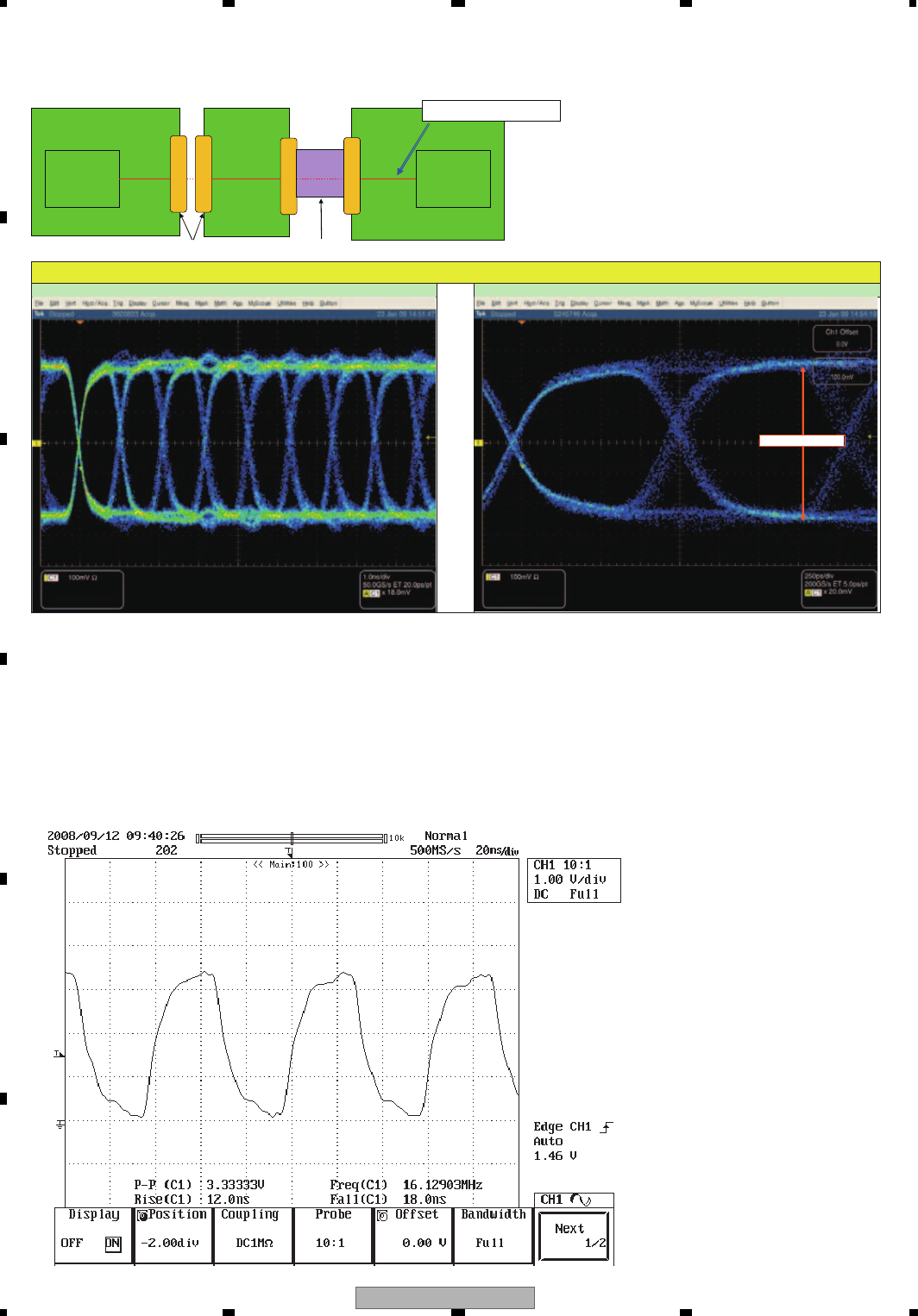

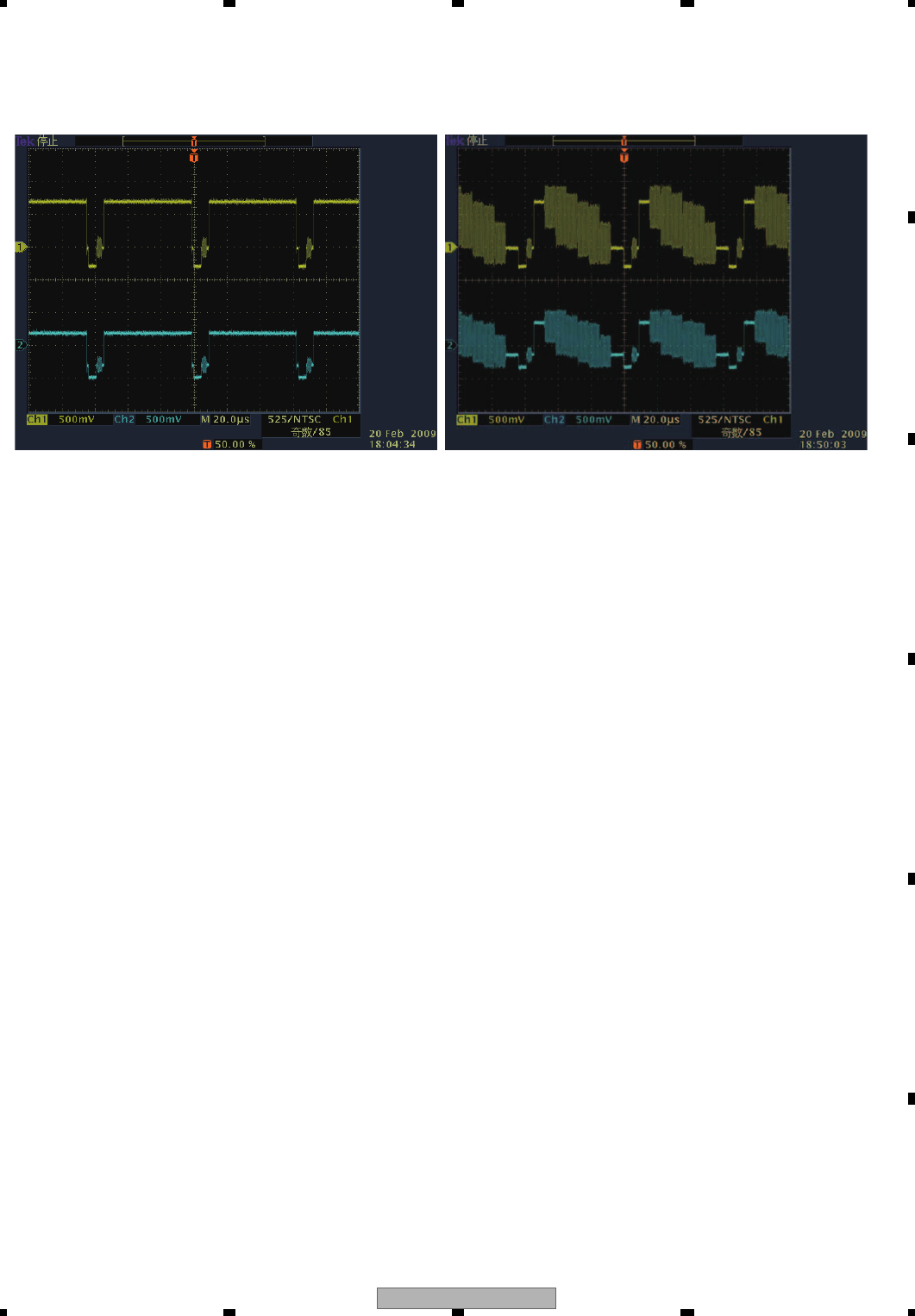

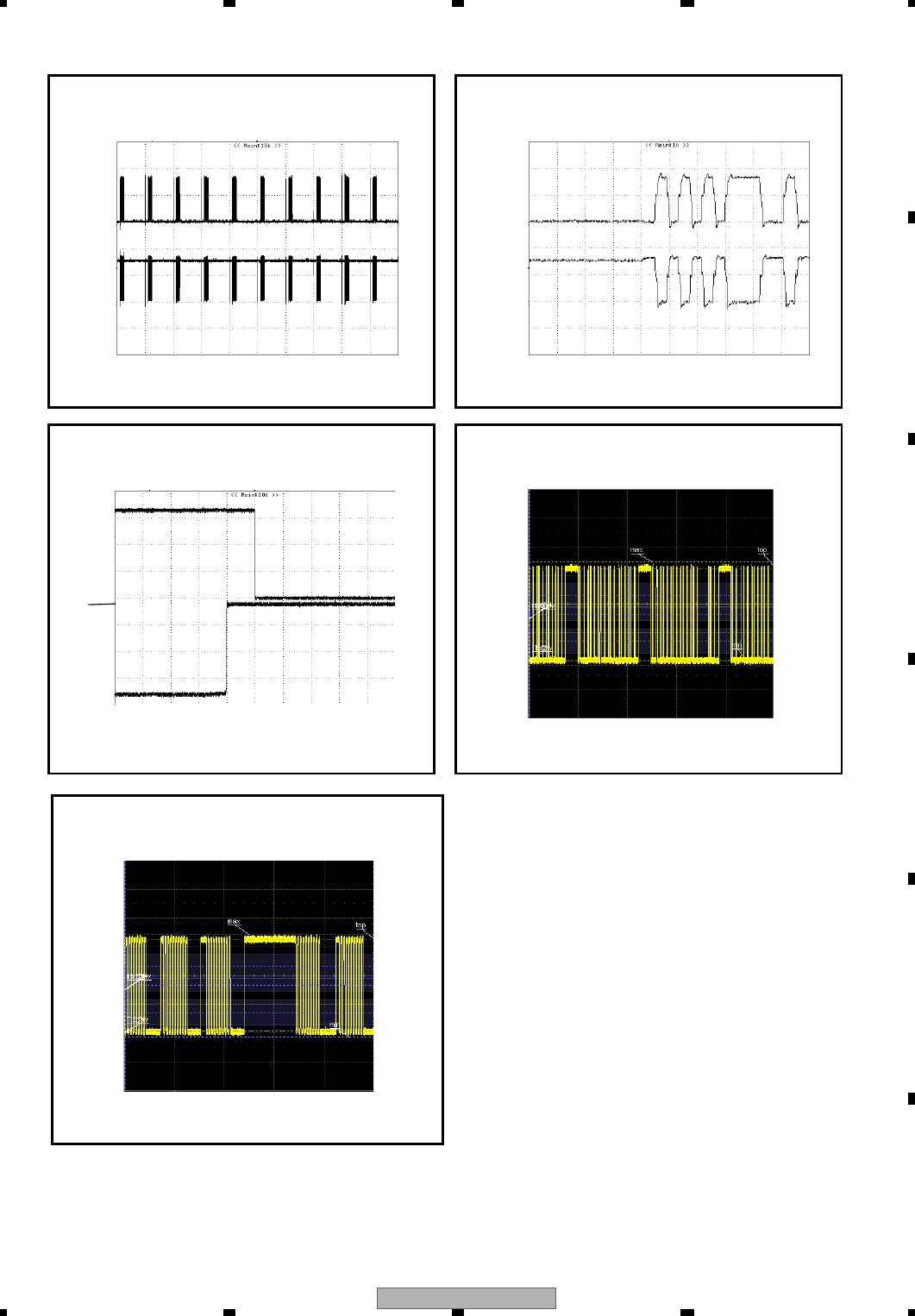

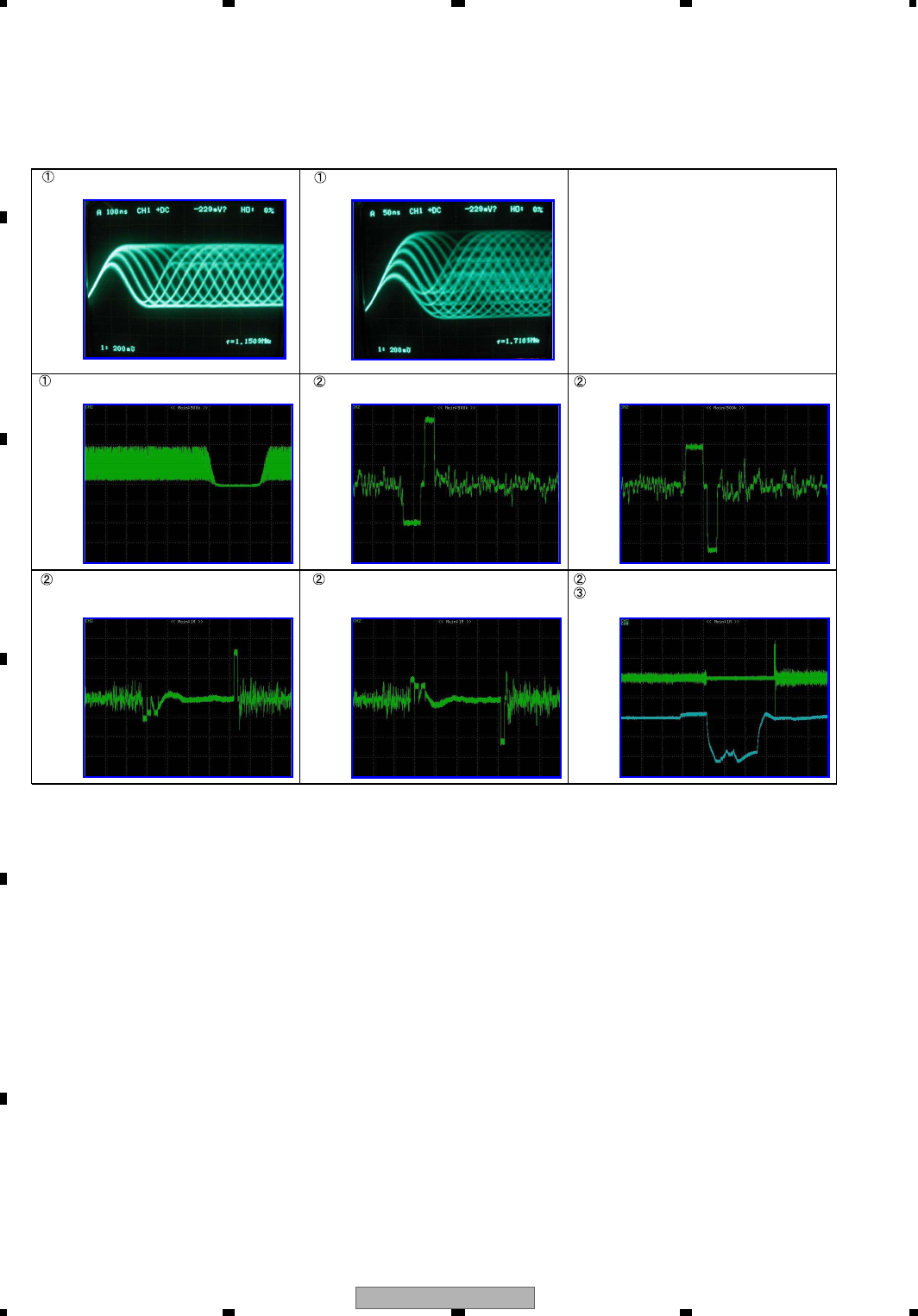

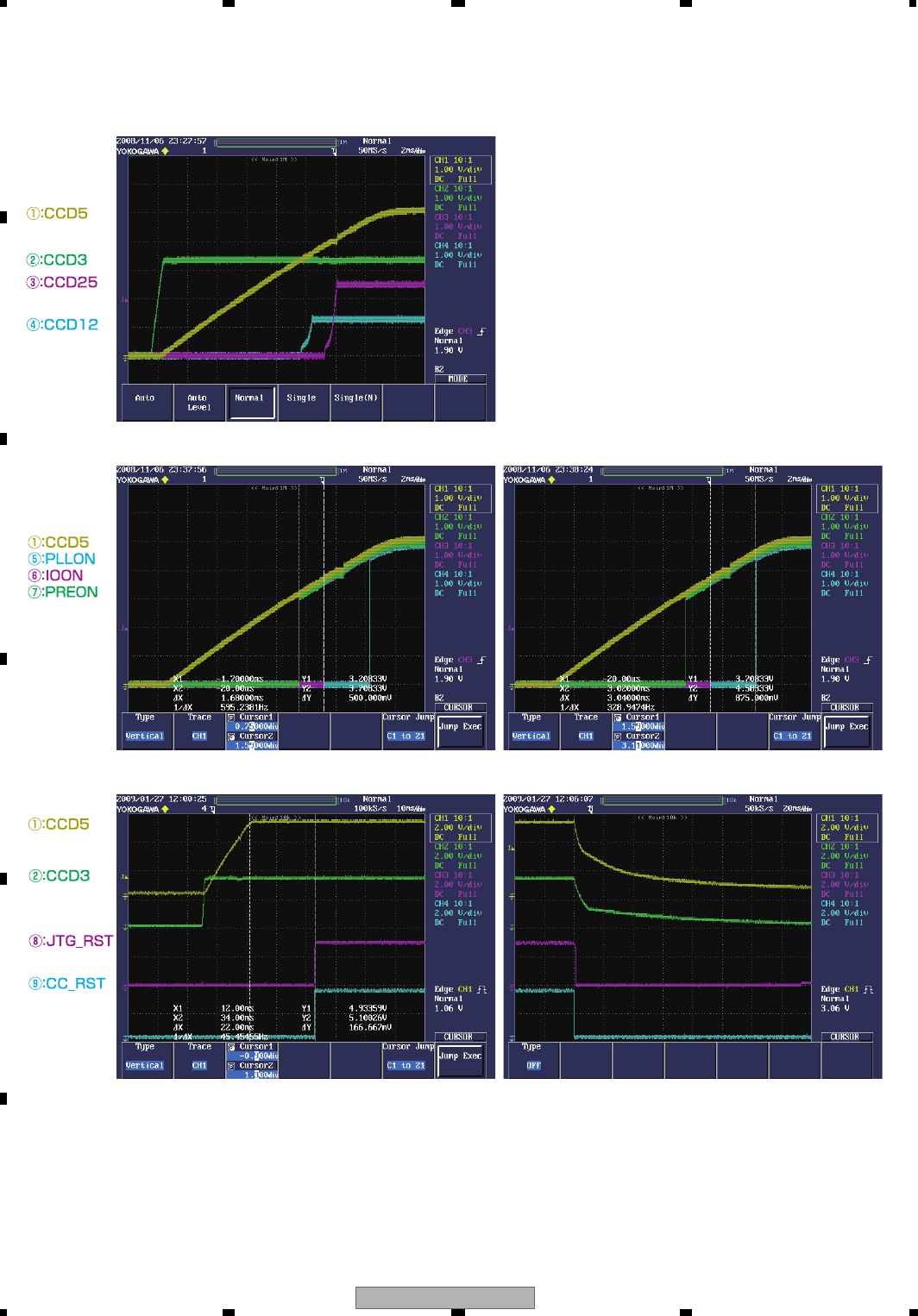

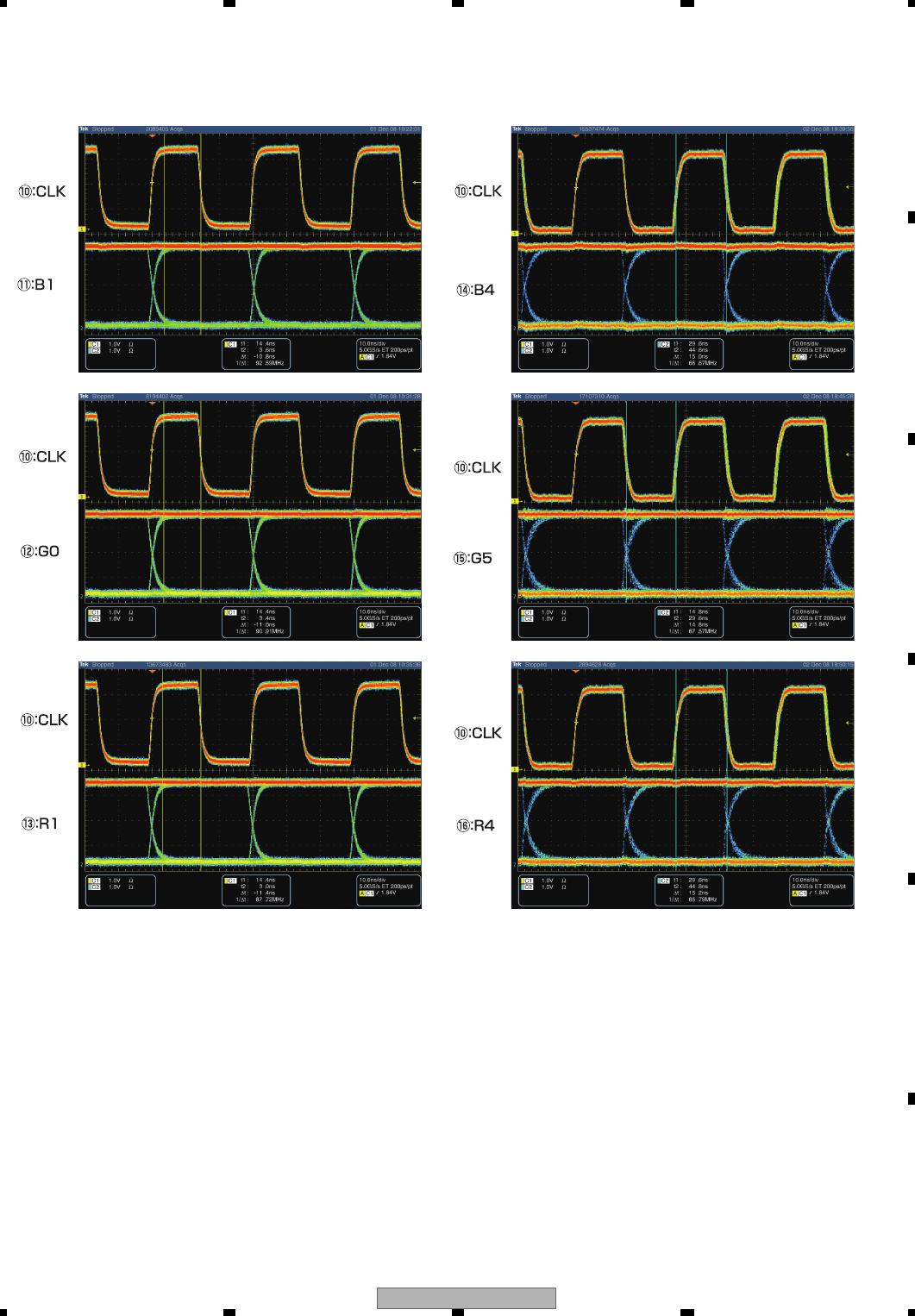

10.20 WAVEFORMS.................................................................................................................................... 278

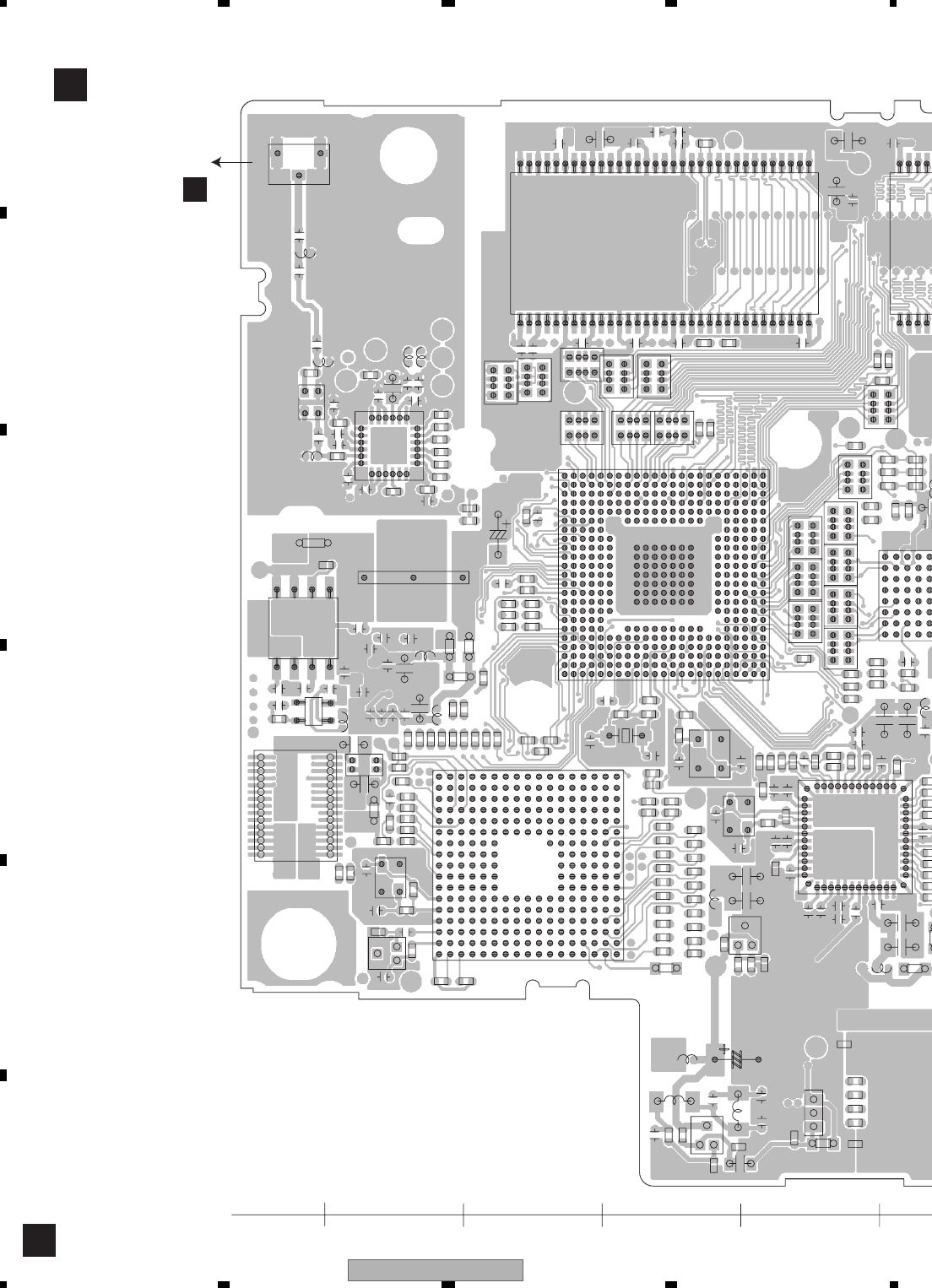

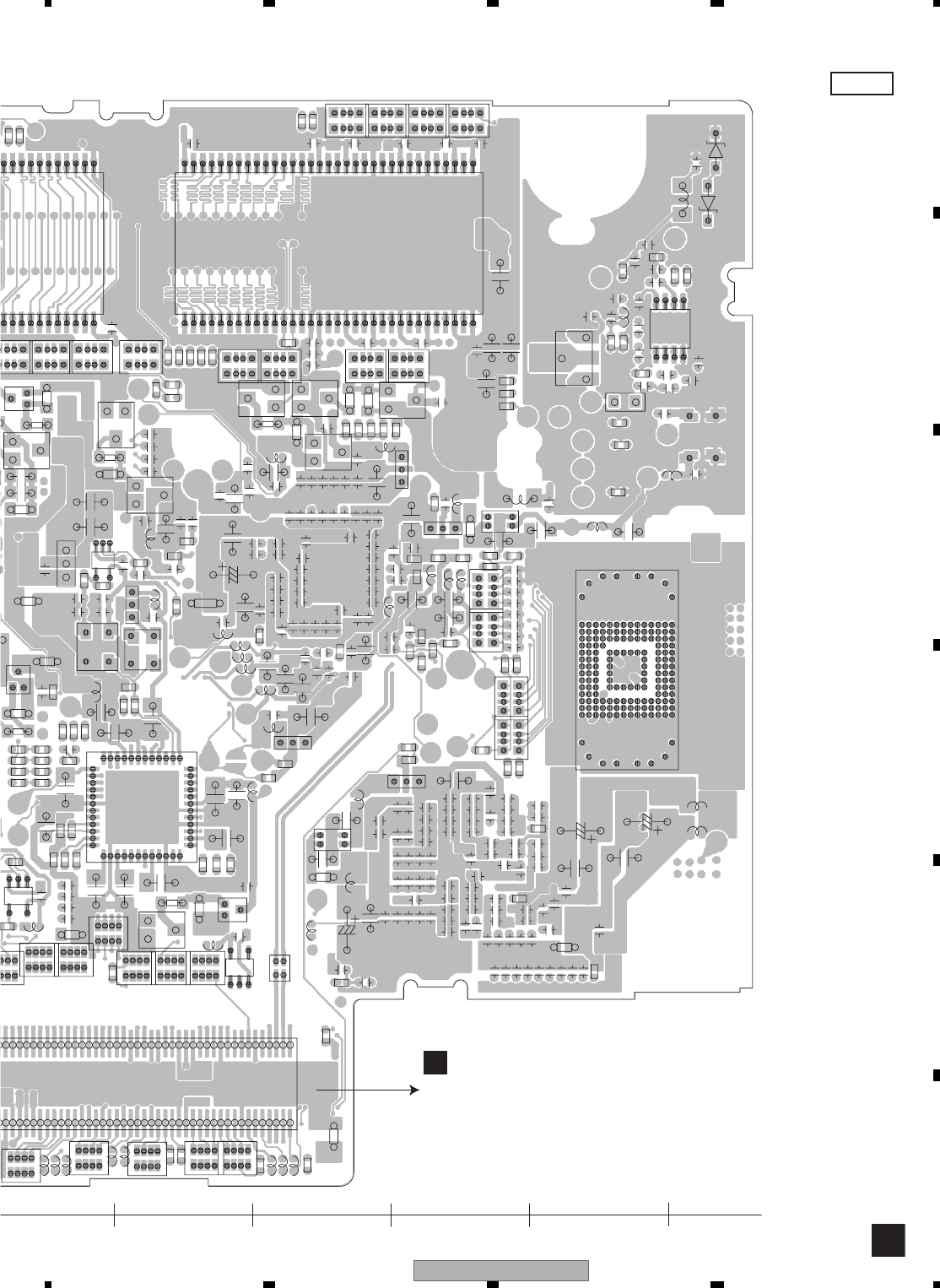

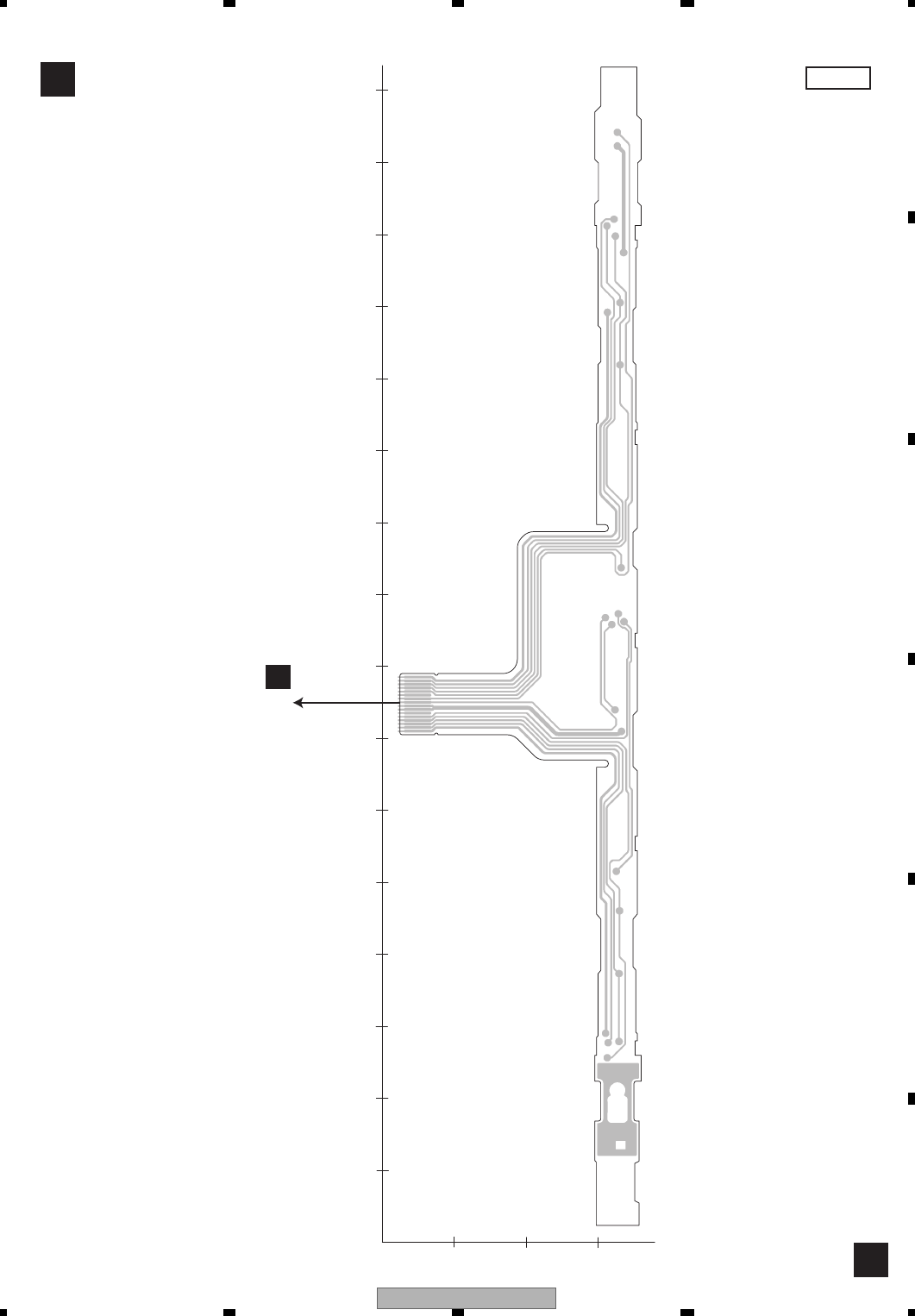

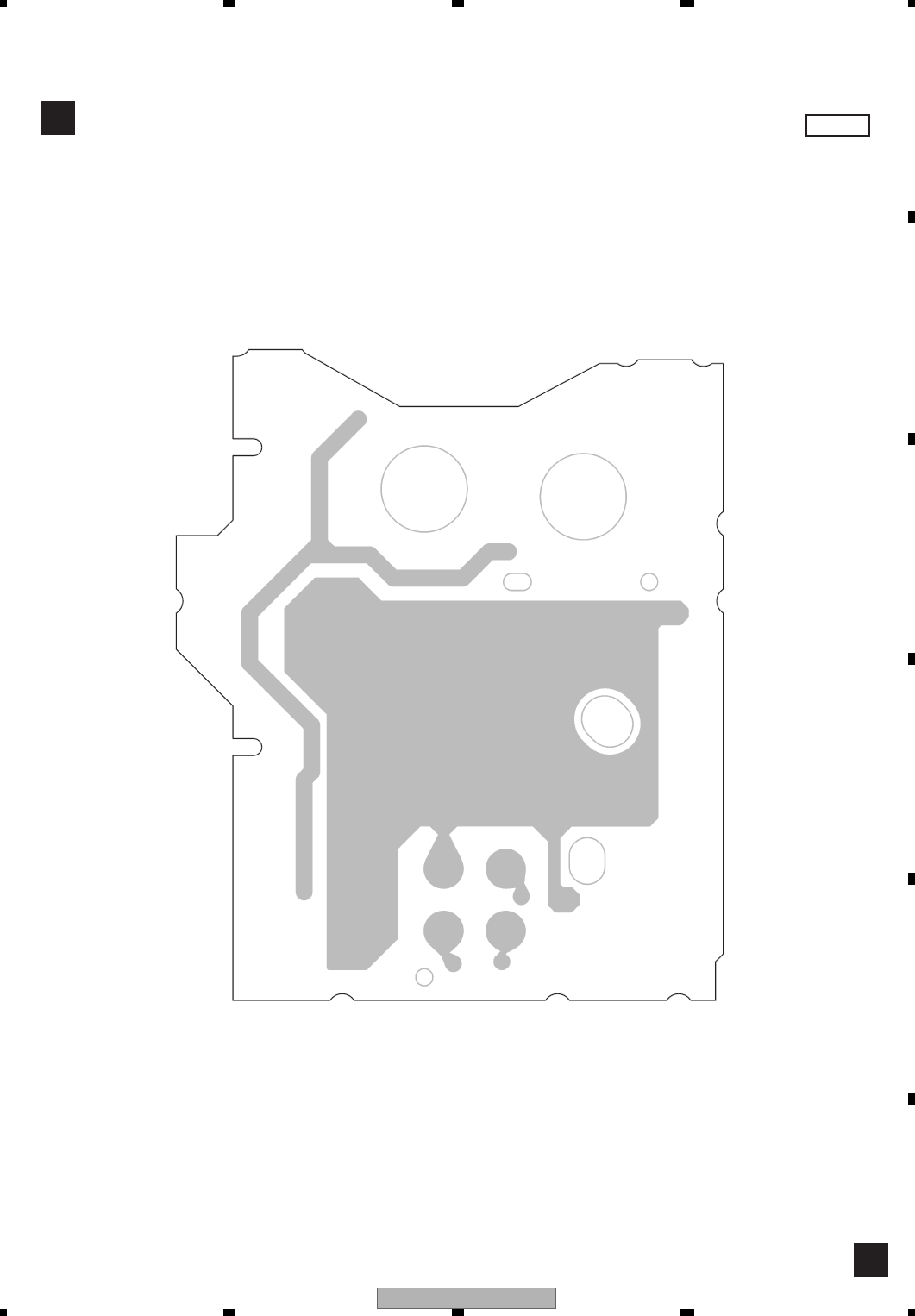

11. PCB CONNECTION DIAGRAM.................................................................................................................. 284
11.1 AUDIO UNIT......................................................................................................................................... 284
11.2 TUNER IF UNIT ................................................................................................................................... 288
11.3 DVD CORE UNIT ................................................................................................................................. 290
11.4 CONNECT PCB ................................................................................................................................... 292
11.5 CC UNIT............................................................................................................................................... 294
11.6 NAVI UNIT ............................................................................................................................................ 298
11.7 MONITOR UNIT ................................................................................................................................... 302
11.8 KEYBOARD UNIT ................................................................................................................................ 306
11.9 PCB UNIT(SERVICE) .......................................................................................................................... 308
12. ELECTRICAL PARTS LIST ........................................................................................................................ 310
AVIC-Z110BT/XN/UC 5
5 678
5678
C
D
F
A
B
E
1. SERVICE PRECAUTIONS
1.1 SERVICE PRECAUTIONS
1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations),
and should keep the safety during servicing by following the safety instructions described in this manual.
2. Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by electrostatic
induction.
3. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during
power-on mode may damage the ICs inside the unit.
4. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment
(shorting-solder) by referring to "the DISASSEMBLY" .
5. After replacing the pickup unit, be sure to skew adjustment.
6. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a connector
is plugged or unplugged.
7. Notes on the temperature protection
The temperature protection is set considering the use temperature range of moviNAND.
If the temperature reaches the detection temperature shown below, the operation stops (ASENS is disabled).
Detection temperature on low temperature side: -25°C, return temperature: -20°C
Detection temperature on high temperature side: 86.5°C, return temperature: 80°C
8. Control of FAN
There is the control of STOP, low rotation and high rotation.
The temperature (CC unit, DVD mechanism) and the sound volume are detected and controlled it.
9. Pay attention to the connection direction of 140-pin connector when you connect the audio unit and the navi
unit with the expansion jig.
10. Pay attention to the wiring of BT cable. (It affects the sensitivity of BT antenna)
11. Board-to-board connector
With this product, the board-to-board connector is used for the connection between boards.
Remove or attach the board with extra care not to damage the connector.
Assemble the product carefully to prevent an foreign object such as dust and dirt from getting mixed in the
connector joint part.
12. Do not remove the heat release sheet as much as possible.
As the heat release sheet is soft and it may be damaged when you remove it. If it is damaged, please replace
the part with new one.
13. Grill unit (CXE1974, CXE2206)
The plates (CNS9899, CNS9949) and right and left guides (CNS9824, CNS9825) cannot be removed.
If you want to replace the parts of the grill unit, replace the whole grill unit.
14. For the wiring of co-axial cable (CDE8990, CDE8991) in the monitor, the performance may vary depending on
the wiring position.
Please refer to "7. DISASSEMBLY".
15. The procedure of turn off the unit
1) Turn off the ACC line.
2) After 40 seconds, turn off the BUP line.
Note:
Navi software required approximately 40 seconds for storing the data after ACC OFF.
For your information, after the BUP current is less than 380 mA, you can turn off BUP line.
AVIC-Z110BT/XN/UC
6
1234
1234
C
D
F
A
B
E
1.2 NOTES ON SOLDERING
EJECT LOCK MODE for DVD mechanism
In order to change the EJECT LOCK/UNLOCK status of the mechanism, please perform following procedure.
< Procedure >
Top Menu -> AV Source -> Source OFF
Short push area "A" -> Short push area "B" -> Long push area "C" on above screen.
(In order to change the status, follow the same operation.)
The current status can be confirmed by "OFF" character color.
AB
C
Eject Lock: ON
(Blue character)
Eject Lock: OFF
(White character)
For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit.
Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs
accompanied by reworking of soldering.
Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 C.
Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 C in general, although
the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of
the soldering iron.
Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting
temperatures (hard to melt/easy to harden).
The following lead-free solders are available as service parts:
Parts numbers of lead-free solder:
GYP1006 1.0 in dia.
GYP1007 0.6 in dia.
GYP1008 0.3 in dia.
AVIC-Z110BT/XN/UC 7
5 678
5678
C
D
F
A
B
E
2. SPECIFICATIONS
2.1 SPECIFICATIONS
UC model
Backup current ................... 3.0 mA or less
AVIC-Z110BT/XN/UC
8
1234
1234
C
D
F
A
B
E
AVIC-Z110BT/XN/UC 9
5 678
5678
C
D
F
A
B
E
AU model
Backup current ................... 3.0 mA or less
AVIC-Z110BT/XN/UC
10
1234
1234
C
D
F
A
B
E
AVIC-Z110BT/XN/UC 11
5 678
5678
C
D
F
A
B
E
2.2 DISC/CONTENT FORMAT
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.
and any use of such marks by Pioneer Corporation is under license.
Other trademarks and trade names are those of their respective owners.
is a trademark of DVD Format/Logo Licensing Corporation.
AVIC-Z110BT/XN/UC
12
1234
1234
C
D
F
A
B
E
2.3 PANEL FACILITIES
AVIC-Z110BT/XN/UC 13
5 678
5678
C
D
F
A
B
E
AVIC-Z110BT/XN/UC
14
1234
1234
C
D
F
A
B
E
2.4 CONNECTION DIAGRAM
AVIC-Z110BT/XN/UC 15
5 678
5678
C
D
F
A
B
E
3. BASIC ITEMS FOR SERVICE
3.1 CHECK POINTS AFTER SERVICING
To keep the product quality after servicing, please confirm following check points.
No. Procedures Item to be confirmed
1 Confirm whether the customer complain has
been solved.
If the customer complain occurs with the
specific media, use it for the operation
check.
The customer complain must not be
reappeared.
Display, video, audio and operations must
be normal.
2 Flap-mecha Check the operation of the flap mechanism. The flap mechanism operation must be
smooth without making the noise and
scratches.
3 DVD Measure playback error rates at the
innermost and outermost tracks by using the
test mode with the following disc.
DVD test disc (GGV1025)
Deterioration of mecha-drive can be
checked.
The error rate must be less than the
threshold value.
(Refer to the chapter of DIAGNOSIS for the
threshold value.)
4 DVD Play back a DVD.
(Menu operation; Title/chapter search)
Display, video, audio and operations must
be normal.
5 CD Play back a CD.
(Track search)
Display, audio and operations must be
normal.
6 FM/AM tuner Check FM/AM tuner action.
(Seek, Preset)
Switch band to check both FM and AM.
Display, audio and operations must be
normal.
7 GPS positioning Connect GPS antenna to the product, and
check whether the current location is correct.
Current location must be correct.
Display and operations must be normal.
8 Gyro action On "3D Calibration Status", check whether
the gyro sensor works well by moving the
front face of the product from left to right and
up and down.
Gyro-sensing, display and operations must
be normal.
9 Map display
Touch-panel
operation
Remote-control
operation
Check functions of map scale change and
map scroll.
Display and operations must be normal.
10 Delete data added during the operating
check.
Check whether no media (CD etc.) is inside
the product.
Make sure to delete data added during the
operating check.
The media used for the operating check
must be ejected.
11 Appearance check No scratches or dirt on its appearance after
receiving it for service.
See the table below for the items to be checked regarding video and audio:
Item to be checked regarding video Item to be checked regarding audio
Block-noise Distortion
Horizontal noise Noise
Dot noise Volume too low
Disturbed image (video jumpiness) Volume too high
Too dark Volume fluctuating
Too bright Sound interrupted
Mottled color
AVIC-Z110BT/XN/UC
16
1234
1234
C
D
F
A
B
E
3.2 PCB LOCATIONS
C
D
DVD Core Unit
Connect PCB
GMonitor Unit
Tuner IF Unit
Keyboard Unit
H
Navi Unit
F
CC Unit
E
PCB Unit(SERVICE)
I
Audio Unit
A
B
Unit Number : CWN4335(UC)
Unit Number : CWN4336(AU)
Unit Name : Audio Unit
Unit Number : CWN4824(UC)
Unit Number : CWN4339(AU)
Unit Name : Tuner IF Unit
Unit Number : CXX2608(UC)
Unit Number : CXX2607(AU)
Unit Name : Service CC Assy
Unit Number : CWN3985
Unit Name : Navi Unit
Unit Number : CWN3935
Unit Name : Monitor Unit
Unit Number : CWN3988
Unit Name : Keyboard Unit
Unit Number : EXX1060
Unit Name : PCB Unit(Service)
Unit Number : YWX5009
Unit Name : DVD Core Unit
Unit Number :
Unit Name : Connect PCB
AVIC-Z110BT/XN/UC 17
5 678
5678
C
D
F
A
B
E
3.3 JIGS LIST
DVD CORE UNIT
CC UNIT
NAVI UNIT
AUDIO UNIT
MONITOR UNIT
TUNER IF UNIT
GGD1633
GGD1222
GGD1631
GGD1632
GGD1636
GGD1188
NAVI UNIT
AUDIO UNIT
GGD1609
DRIVE UNIT
Note:
Do not use GGD1632 and GGD1633 at the same time.
The picture will be distorted if you use both of them.
AVIC-Z110BT/XN/UC
18
1234
1234
C
D
F
A
B
E
3.4 CLEANING
Jigs List
RemarksJig No.Name
DISC GGV1025 Skew adjustment, Check points after servicing,
Inspection method of Pickup Unit
DISC TCD-782 Inspection method of Pickup Unit
B to B Extension Cable GGD1632 NAVI UNIT <---> CC UNIT
Extension Cable GGD1636 NAVI UNIT <---> CC UNIT
FFC Extension Cable GGD1633 MONITOR UNIT <--->NAVI UNIT
B to B Extension Cable GGD1631 AUDIO UNIT <---> NAVI UNIT
FFC Extension Cable GGD1222 AUDIO UNIT <---> DVD CORE UNIT
FFC Extension Cable GGD1609 AUDIO UNIT <---> TUNER IF UNIT
FFC Extension Cable GGD1188 TUNER IF UNIT <---> DRIVE UNIT
Grease List
DVD Mechanism ModuleGEM1024Grease
DVD Mechanism ModuleGEM1038Grease
DVD Mechanism ModuleGEM1045Grease
1401M
Bond
Bond
Drive UnitGEM1024Grease
Drive UnitGEM1043Grease
Antenna CableGYH1024Tape
Skew adjustment (1401M:produced by THREE BOND)
Locking agents
Skew adjustmentGEM1033
Skew adjustment (1530:produced by THREE BOND)1530
RemarksJig No.Name
Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools:
Portions to be cleaned Cleaning tools
DVD pickup lenses Cleaning liquid : GEM1004
Cleaning paper : GED-008
Portions to be cleaned Cleaning tools
Fans Cleaning paper : GED-008
AVIC-Z110BT/XN/UC 19
5 678
5678
C
D
F
A
B
E
AVIC-Z110BT/XN/UC
20
1234
1234
C
D
F
A
B
E
4. BLOCK DIAGRAM
4.1 OVERALL CONNECTION DIAGRAM
Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or
"ELECTRICAL PARTS LIST".
CN2571
POWER SUPPLY
TERMINALS
FUSE
140
1
JA2001
BtoB
CN2101
CN511
GPS
CODE ASS'Y
CODE ASS'Y
FFC
PREOUT
TERMINALS
CDP1194
CDP1095
GPS ANTENNA ASS'Y
CXE2 0
CXE2176-
CN2551
CN2861
CN2512
JA401
JA5202
CN5603
FFC
16
1
32
1
30
501
140
1
150
30
1
CN1901
Wired Remote Jack
JA2880
1
SD
C
CN
4
FL+
RR+
FR-
RL- ILM ACC B.UPRR- RL+
FR+
P.BREAK
A.ANT
SPEED
PULSE
REVERSE
FL- GND
RDS-TMC TUNER (AU only)
B
TUNER IF UNIT
A
AUDIO UNIT
AUDIO UNIT (PS/IF SECTION)
1/3
A
AUDIO UNIT (SYSCOM SECTION)
2/3
A
AUDIO UNIT (AV SECTION)
3/3
A
D
DVD MECHANISM MODULE
(LS1)
CXK6801-
C
E
CC UNIT
CC UNIT (PS PART)
1/6
E
CC UNIT (CPU PART)
2/6
E
CC UNIT (CPU SURROUNDIN
G
3/6
E
CC UNIT (DDR/FLASH_ROM/
S
4/6
E
CC UNIT (NAND PART)
5/6
E
CC UNIT (VIDEO DEC./T-CON
/
6/6
E
AVIC-Z110BT/XN/UC 21
5 678
5678
C
D
F
A
B
E
JA5302
FPC
LCD PANEL
CWX3813-
BTOB
CDE8990
CODE ASS'Y
FAN
CXM1394
CN5001
CN491
10
1DRIVE MECHA
UNIT
CSX1148-
TOUCH PANEL
GPS
CN3301
MIC
CXE1522-
CDE8991-
CODE ASS'Y
GPS ANTENNA ASS'Y
CXE2705
MIC ASS'Y
CPM1083
BT MODULE
CWX3851-
CODE ASS'Y
CDE8990-
JA5251JA5202
CN5603
CN5602
JA5201
CN5601
IPBUS IN
iPod Connerctor
CN5251
171
80
12
1
120
180
1
14 161
160 140
1
120
1
10
12
21
21
21
1
22
1
17PIN PLUG
4PIN JACK
USB-A
JUNCTION SOCKET
CODE ASS'Y
CDP1195
FFC
CN101
CN4201
JA4711
CN3401 CN3360 CN3362
CN3361
CN2901
CN3302
CN3300
110
CN3100
120
SD CARD
CN4601
FPC
FPC FPC
MONITOR ASS'Y
BTOB
11
12
6
4
7
3
810
5
9
FPC
G
MONITOR UNIT
H
KEYBOARD UNIT
F
NAVI UNIT
NAVI UNIT (PS PART)
1/4
F
NAVI UNIT (IF 1SEG PART)
2/4
F
NAVI UNIT (AUDIO,SENSOR PART)
3/4
F
NAVI UNIT (IF PART INTERNAL)
4/4
F
T
P
ART)
PART)
SURROUNDING PART)
/
FLASH_ROM/SRAM PART)
D PART)
E
O DEC./T-CON/LVDS PART)
1. IPBUS+
2. IPBUSG
3. IPLG
4. NC
5. IPBUS-
6. IPRG
7. IPL+
8. ASENBO
9. IPR+
10. IPR-
11. IPL-
I
PCB UNIT
(SERVICE)
AVIC-Z110BT/XN/UC
22
1234
1234
C
D
F
A
B
E
4.2 BLOCK DIAGRAM
AUDIO UNIT(1/2)
A
CN2571
103
GMUTE
51
53
PIPRST
TCON_SDA
55 TCON_SCL
IICSDA
IICSCL
66
7
KDT0
GUIDE
67
68
FCONT_C
KDT1
70
72
EJECT KDT2
COMDC
77 OFFOK
79
80
BSENRQ
STOIP
82
81 IPTOS
CPUWDT
83
85
RST_SO CCRST
ASENRQ
84 IPPW
86 ASENBO
87
90
CARDSNS
CCTEMPIN
IP_L 15 L3-1
LS_L 19 L4-1
iPod_L 23 L5-1
LS1V 43 V4-1
iPod_V 45 V5-1
A
N
AV
S
35 SD
A
36
IICSDA
IICSCL SCL
8VTR2L L2-1
39VTR2V V2-1
5
PIPRST
113
IICSDA
1
IICSCL
144
KDT0
138
FCONT_C
126
KDT1
139
KDT2
133
COMDC
3
OFFOK
123
BSENREQ
122
STOIP
51
IPTOS
50 CPUWDT
121
CCRST
120
ASENREQ
119 IPPW
70
ASENBO
71
CARDSNS
73
CCTEMPIN
129
VDT 96
VCK 97
VST 95
MUTEVO 105
GMUTEL 28
3
1
RESET(100msec
)
IC2304
BD5229FVE
MUTE
30
RESET 19
RS
T
18
CN2551
STANBY
19 LS1 SRX
20 S LS1TX
21 IRQPWR
DTOSYS
SYSTOD
IRQPW
22 XRES
24 VDD5
12 COMPOSIT LS1V
NAVI_L
TUN_L
XRES
64 IRQPW
82 SYSTOD
90 DTOSYS
88 LS1STBY
77
GMU
T
SYSTEM u-CON
IC2303(1/2)
PEG554A8: A
PEG555A8: B
SPEED_IN
73
PCHNG
75
KMODEOUT KMODE
107
FANUP
106
SPEED
LS1VDD
29 VD(Dry)
30 VD(Dry)
28
VD8V
VD(Reg) P2176
33
115
ROT1
122
ROT0
RDS57K
RDT
27 iPod_L
iPod_V
BSENS
BLERR2
100
104
FCONT_N
106
CTOSYS
116
BLERR1
99
101
FCONT_M
133
BLERR2
137
93 CTOSYS
121
ILMDT
123
ILMCK
127
ILMLD
LEDDT
LEDCK
LEDCS
FCONT_N
129
135
132
FCONT_M
BSENS
BLERR1
39 IP_L
125
TEMPSEN LCDTMPIN
126
DIMMER
124
MBLPW EPRDO/LEDDT
110
EPRCK/LEDCK
109
LEDCS
107 LCDTMPIN
134
108 DIMMER
80
MBLPW
Q2231
TUN_L 5
8
9
AU84
ACC84
11
VDD33
42
MOTVDD33
MOT1
MOTPWR2
H/OSW 43
41
40
38
22
21
20
19
37
POS_IN
MOT0
CN2101
TUNSL
TUNPCE1
TUNPDI
135
6
10
5
9
TUNPCLK
TUNPDO 7
TUNPCE2
MOTPWR2
MOT1
VICS_SDA
65
43
38
42
SDA
SCL
FMCLK
FMCE1
D_FMTOS
D_STOFM
FMCE2
49
VICS_SCL
MOT0
HOMESW 40
94
POS_IN
18
RDS57K
RDSLK 92
RDT 17
25
RCK
SDA
HRLK
HRDT
HRCK
HRHSLK
RDSLK
RDT
RCK
RDS57K
28
27
SCL
D_STOFM
FMCE1
TUNSL 18
17
15
14
13
D_FMTOS 12
FMCE2
FMCLK
FMSL
16
RSTIN
39
MOTPWR5
MOT8
I
36
34
13 NAVI_L
57
59
HYOKA
CTOEX
61 EXTOC
19 AVOUT
GPSREV
109
CN5603
F
CN511
B
127 FANCONT
SYSTOC
118
LCD_OE
112
72 PBSNS
BLSYNC
33
FANON
124
MVIPW
111
75 GNDSEL
PKB
PKG
119
MVIPW
102
117
LCD_OE
113
105
104
FANCONT
SYSTOC
PBSNS
FANON
BLSYNC
98
110
GNDSEL
LS1STBY
A
146
MOTPWR 62
TC74VHCT541AFTS1
IC2530(1/2)
3 5 LEVEL SHIFT
15
S
5
SYSPW 69
AU84 R
E
1
BUP IC213
1
NJM2388
F
4
(1/2)
→
→
→
Q2506
Q2505
BSENREQ
ASENREQ
CN1901
C
BUP
Q2032
Q2031
BSENS
BUPV
NKBUP
Q2492
Q2491 5
1
IC2491
NJM2904M
SPEED SENS
OUT IN+
14 LOUT LS_L
23 AMUTE AU84
Q2551
Q2552
1
3
LS1 LPF
NJM4580V
IC2889
IN+ OUT
EPRCE
78
EPRDI
53
2
IC2302
S-93C56BD0I-I8
EEPROM
SK
3
DI
4
DO
1
CB
H/OSW
IR REMOTE
SWVDD33
U2511
32
REMIN 4
B
BKSNS 89
ILMSNS 52
TELMUTE 68 TELMUTEIN
ASENS 103
SYSREV
Q2303
RMUTE 98
Q2762
MUTEBUP
SY
S
NAVI
IC
2
BA
4
IN+
GUID
E
GMU
T
VOUT CT
AVIC-Z110BT/XN/UC 23
5 678
5678
C
D
F
A
B
E
14
5
12
3
21
23
4SYSPW5
22
FANUP
MUTEVO
PA2030A
IC2300
PWR AMP
IN2 OUT2(+)
OUT2(-)
IN4 OUT4(+)
OUT4(-)
25 H-SW/VOS-DET
STBY
MUTE
JA2001
8
12
14
5
7
ILMILMSNS
ACC
6
ASENS
RL+
RL-
AANT
FL+
FL-
16
BUP
13
ANTB
28
LOUT1
15 L3-1
L19 L4-1
_L 23 L5-1
V43 V4-1
_V 45 V5-1 47
V6-1
AN15887A
IC2661
AV SELECTOR
34
VOUT1
VIDEO LEVEL SHIFT
35 SDA
36
DA
CL SCL
39
Rear_L
40
PRE/SW_L
16 CLK
7IN4+_L
8VTR2L L2-1
39VTR2V V2-1
32
VOUT2
10 IN1_L
97
5IN2-L
17 DATA
PML017A
IC2771
E-VOL/AUDIO SELECTOR
38
Front_L
15 STB
14 MUTE
3
ESET(100msec)
IC2304
BD5229FVE
46
5
1
2OFFMUTE 3TC74VHCT32AFT
MUTE
IC2531(1/2)
BUP
Q2302
Q2351
HRSTO
AVOUT
RSTIN
VI_L
N_L 149
GMUTE
Q2731
Q2732
Q2281
Q2041
Q2226
Q2046
RL
SWL
FL
VEHICLE I/F
9
VTR2L
17
EXTOC
18
2
KMODE
19
HYOKA
CTOEX
10
VTRIN2VVTR2V
15
RVOUT2REARVOUT
12
RLOUT2
CN2861
13
1
23
4
5
16
BCV
BREMOTE
SWL
PRL
PFL
SWL
PRL
PFL
BCV
10
PULSE
11
REVGPSREV
SYSREV
AVIC-Z110BT/XN/UC
AVIC-F10BT/XN/AU
A
B
9,10 8
HARD RESET
OFF MUTE
ILMSENS
ASENS
REV 9
PKGPKG
SPEED
FRONTV OUT
30
LOUT2
Q2761
PREMUTE
Q2276 AMPMUTE
AMPMUTE
SWL
PRL
PFL
BREMOTE
PREMUTE
TELMUTEIN TELMUTE
MUTEVO
SYSPW5
AU84 REG.
1AU84
IC2131
NJM2388F84
2
4
AMP MUTE
Q2242
BUP
PRE MUTE
MUTEBUP
REAR LOUT
CTO 2/2
SYSPW5
VDT
VCK
VST
NAVI ISOLATOR
IC2611(2/2)
BA4558RFVM
OUT
IN+
GUIDE 3
BA4558RFVM
IC2625
GUIDE ISOLATOR/LPF
GMUTEL
Q2643
Q2641
GUIDE MUTE
OUT
IN+
AU84
GUIDE MIX
NJM2747V
IC2641
OUT
IN-
TO 2/2C
DUAL ZONE
CORD ASSY
Q2831
Q2842
Q2841
OUT MUTE
NKBUP
BUPV
7
VOUT CT
AVIC-Z110BT/XN/UC
24
1234
1234
C
D
F
A
B
E
AUDIO UNIT(2/2)
A
NAVION
SWACPW5
NAVION5
SWACPW5
2
NAVION 48 18
16
17 ACCPW5
4
SWACPW 67
3
ACCPW 114
128
8
TMC_MSN_ON 131
RDSSNS
CN2571
130
ILMV
74
VDD5
AU84 AU8
AU8 1
3
KEEP_BUP
NKBUP 16
IO3
136
SWAC33
138
18
20
22
24
26
28
30
BUP 2
4
6
8
10
12
14
ACC84 REG.
1
BUP ACC84
IC2121
NJM2388F84
2
12
TMC_MSN_ON5
4
SWVDD5
Q2066
Q2067
ACCPW5
VDD5
SWAC33
Q2071
Q2072
VDD33
SWVDD33
Q2061
Q2062
ACCPW5
VDD33
MOTVDD33
Q2101
ACCPW5
ACCPW5
VDD33
111
101
C
F
TC74VHCT541AFTS1
IC2530(2/2)
3→5 LEVEL SHIFT
SWVDD33 REG.
SWVDD5 REG.
MOTVDD33 REG.
SWAC33 REG.
2
4
5
1
3
CN2512
Q2513
Q2515
Q2512
Q2514 89
RDSSNS 65
CTOVICS 63
VICSTOC
uRDSSNS
36
MSN_RST
TC7SET08FUS1
IC2513
4
61
1
2
RDSSNS
CTOVICS
VICSTOC
TMC_MSN_ON
SWBUP
CTOVICS
VICSTOC
SW BUP
IC2512
TPD1018F
6
1
2
5
7
3
IC2511
TC7WH126FU
A
B
JA2880
WREMIN1
WREMIN2
AVIC-Z110BT/XN/UC
AVIC-F10BT/XN/AU
A
B
SYSTEM u-CON
IC2303(2/2)
PEG554A8: A
PEG555A8: B
(2/2)
TO 1/2
C5NKBUP
ANTON 81
VD5CONT 60
DDCLK 37 ILMV
P2107
ANT+B REG.
5
BUP ANTB
IC2216
TP1018F
1
6
ANTON5
MT81V REG.
1
BUP MOT8
IC2161
BD9781HFP
2
7
LS1VDD
IC2151
LT3505EDD
LS1VDD REG.
BUPV
P2151 2
3
4
P2161
5
VDD33 REG.
1
VDD5 VDD33
3IC2056
S-1200B33-M5
VDD5 REG.
1
BUPV VDD5
IC2051
BD3931FP
3
AU4.3 REG.
1
AU84 AU4.3
IC2621
NJM2125F
3,4
IC2531(2/2)
TC74VHCT32AFT
12,13 11
HIVOLT 14 REG.
2IC2190 3
HIVOLT 12 REG.
23
HIVOLT 15 REG.
6IC2181
LT3461AES6
5
Q2181
Q2182
IC2182
S-812C56AUA-C3K
S-812C56AUA-C3K
HIVOLT14
HIVOLT
C
TO 1/2
VD8V
P2162
SYSPW5
4
WREMIN1 137
WREMIN2 136
WREMIN1
WREMIN2
GND
AVIC-Z110BT/XN/UC 25
5 678
5678
C
D
F
A
B
E
NAVION
S
WACPW5
CN2571
130
74
AU8
AU8 1
3
K
EEP_BUP 16
136
138
18
20
22
24
26
28
30
2
4
6
8
10
12
14
111
101
CN5603
F
2
4
5
1
3
CN2512
89
RDSSNS 65
CTOVICS 63
VICSTOC
RDSSNS
CTOVICS
VICSTOC
_
MSN_ON
SWBUP
JA2880
WREMIN1
WREMIN2
TUNER IF UNIT
B
JA401
ANTENNA IN
FM/AM TUNER UNIT
6
17
8
9
3
5
4
FMANT
1
AMANT
VCC
AUD84
13
VDD33 VDD3.3
TU33
SL
CE2
CE1
CK
10
14
DI
DO
FMSL
23
LchTUN_L
FMCE2
FMCE1
FMCLK
D_STOFM
D_FMTOS
MOT6V MOTVDD33
MOT1
MOT0
POS_IN
MOT1
MOT0
POS_IN
ROMVDD
1
2
8
5
6
7
CN491 AU84
CN511
43
42
9
15
16
17
40
MOTVDD33
VDD33
AUD84
MOT8
CN2101
A
TUN_L
FMCE2
FMCE1
FMCLK
D_STOFM
D_FMTOS
18
19
RDSCK
RDSDATA
20
RDSLOCK
29
30
31
HRCK
HRDT
HRLK
HRCK
HRDT
HRLK
FMSL
39
46
33
34
36
37
38
13
14
10
H/OSW H/OSW
10 8
MOTPWR2 11
MOTPWR5 12
Q491
Q492
Q493
MOT6.5 REG.
MOTVDD3.3
MOT8
TU33 REG.
1
TU33 IC401
NJM2885DL1-33
3
RSTIN 35
DRIVE UNIT CN101
A
(2/2)
ACC84
AVIC-Z110BT/XN/UC
AVIC-F10BT/XN/AU
A
B
WIRED
REMOTE
GND
AVIC-Z110BT/XN/UC
26
1234
1234
C
D
F
A
B
E
S
S
USB
_
TR
C
TR
C
TR
C
T
S
E
F
+
E
+
D
COM
S
T
CM
D
ST
I
R
E
TR
C
NRES
HWP(HW+),HWM(HW-)
HVP(HV+),HVM(HV-)
HUP(HU+),HUM(HU-)
HWP(HW+),HWM(HW-)
HVP(HV+),HVM(HV-)
HUP(HU+),HUM(HU-)
NRES
70 NRES
I
I
2
C
P
I
2
12 RESET
8
9
12
5
6
7
3
4
1
2
32
31
27
26
28
14
VHALF
TD
FD
CRGDRV
MD
CONT1
CONT2
FOP
FOM
TOP
TOM
CTL1
CTL2
FG
FCO+
FCO-
TKO-
TKO+
FCIN
SLIN
VC
TKIN
LDIN
SPIN
W
HB
SL/LDO-
SL/LDO+
V
U
SLOPOUT
CN1201
CN101
CN701
CRG/LE+
COIL_U
17
18
16
6
3
4
5
9
8
7
HALL_BIAS-
HALL_BIAS+
COIL_V
COIL_W
67
127
126
66
71
64
63
FG
CONT2
CONT1
12EJ
08EJ
HOME
62
MD
LDIN
CRGDRV
FD
TD
34
36
35
33
55
49
65
CRG/LE- 110 VHALF
FLASH 16M
C
VCC5
BR
GY
CRG-
CRG+
V COIL V
U COIL U
W COIL W
V
U
W
H- HALL BIAS-
H+
H-
H+ HALL BIAS+
HOME
8SNS
DSCSNS
HOME
8cm
12cm(DSCSNS)
SPINDLE MOTOR
D
2
1
3
13
16
15
14
10
11
12
1
2
3
4
10
1
2
3
4
10
M
H3
H2
H1
DVD CORE UNIT
CONNECT PCB
LS1 MECHA UNIT
HOME
S101
8cm
S102
12cm
S103
IC1401
CWW1825
IC1402
CWW1826
K4S641632N-LC75
SDRAM
IC1480
BD8231EFV
MOTOR DRIVER
IC1201
MN2DS0018
M
VIDEO+AU
D
IC1501
LOADING/CARRIAGE
MOTOR
AVIC-Z110BT/XN/UC 27
5 678
5678
C
D
F
A
B
E
AVCC5
VOUTL 7
BCK
LRCK
DATA
MD
1
3
2
13
LOUT
ML
MC
SCK
SRCK
LRCK
ADOUT
SDODAC
LTDAC
SCKDAC
DACCK
USB_CLOCK
15
14
16
149
150
151
57
56
58
148
50 2
SRCK
ADOUT
SDODAC
LRCK
LTDAC
SCKDAC
DACCK
TRCST
TRCDATA3
TRCDATA2
TRCDATA1
TRCDATA0
TRCCLK
EXTRG0
1
2
3
4
9
7
12
8
13
5
6
VREF
VCC5
CN1101
CN1951
78LD
F+H_G+H
E+G_E+F
F+H/G+H
E+G/E+F
LPCO2
8
2
3
4
14
15
12
18
17
13
20
22
7
5
11
65LD
VCC
Vref
LPCO1
TRCDATA2 79
TRCDATA3
TRCDATA0
TRCST 80
77
81
TRCCLK 76
SDATA
SCLOCK
SDATA 73
SCLOCK 72
EXTRG0
F+H_G+H
E+G_E+F
VIN4RF
VIN2RF
VIN1RF
VIN3RF
VIN8
DVDMPD
TEMP
RFINP
CDMPD
LPCO2
LPCO1
74
112
111
99
98
97
100
116
105
A
C
D
B
FE1
FE2
RF
122
96
103
106
104
51,3
AVCC5 REG.
VCC5
VD8
53,4
VCC5 REG.
A10
B
C
D
FE1
FE2
78MDCDMPD
65MDDVDMPD
TEMP
RF
ROUT
LOUT
COMPOSITE
152
146
144
138
STANDBY 191
CMDCOMN 53
STSCOMN 54
IRQPWR 48
EXTRG1 75
D+
4
D-
AMUTE
24
25
23
26
F-
F+
FOM
FOP
TOP
TOM
T+
T-
TRCDATA1 78
IFCOUT
D+
D-
SCL
SDA
RESET
COMPOSIT
STANBY
SLVSTS
HSTCMD
STSCOMN
CMDCOMN
COMPOSITE
STANDBY
ISC_SCL
I2C_SDA
CP_Reset
IRQPWR
AMUTE
VD8
XRESETNRES
X1950
ANALOG LOUT
CN1901
9
3
17
25
27
28
29
23
11
10
13
8
7
12
22
19
VREF
70 NRES
IECOUT
I2C_SDA
CP_Reset
47
46
61
I2C_SCL
67
1
27
1
26
66
71
64
63
FG
CONT2
CONT1
12EJ
08EJ
HOME
62
MD
LDIN
CRGDRV
FD
TD
120
VIN1
109
VREFH
119
VIN2 118
VIN4 117
VIN3 114
VIN6 113
VIN5
55
49
65
1
10 VHALF
VIN7 115
13
VCC33 VDD5
VCC33
2
8VDD5
VCC12 VIN
VDD
CE
LX
5VOUT
VDD5 VD5
PU (DP10)
DEBUG
3
4
1
.
2
3.3V REG.
MN2DS0018MAUB
VIDEO+AUDIO
IC1501
TC7SZU04FU
IC1951
PCM1753DBQ
AUDIO 2CH ANALOG OUT
IC1801
S-1133850-U5
IC1002
S-1200B50-M5
IC1003
NJM2885DL1-33
IC1004
R1232D121B
1.2V REG.
IC1005
Q1102
Q1104
Q1101
Q1103
CN2551
A
AVIC-Z110BT/XN/UC
28
1234
1234
C
D
F
A
B
E
CC UNIT
E
SD_DET2
SD_DET
SD_W
SD_CL
SD_CMD
CN4601
SD3
U1
V2
X_SD_CMD_1
V1 X_SD_CLK_1
U5 X_SD_CD_B_1
X_SD_WP_B_1
SD_DATA[0] - SD_DATA[3]
4
1
2
IC4602
TC7SH86FUS1
SPEED_IN
86
72
CN4201(1/3)
CASHFSNS
TDI
TDO
TCK
2
1
4
3
CN4621
JA4711
TMS
CPLD
PE9019A
IC4621
83
45
17
47 I/O_16
48
TDI
TDO
TCK
TMS
I/O_22
I/O_80
I/O_18
I/O_17
I/O_15
99
19
18
16
AA18
AA22
Y22
AC22
X_VIP_PXD[13]
X_CKO_0
27 AC13
P-TDI X_GPIO[10]
X_GPIO[14]
J23
E20
P-TMS
P-TCK
P-RTCK
P-TDO
X_GPIO[9]
X_SPI_EN_1
X_SPI_CLK_1
X_SPI_DIN_1
X_GPIO[15]
J20
H20
E21
J22
NTRST
X_GPIO[13]
X_GPIO[11]
7
8
9
11
10
12
X_TEST_MODE[4]
X_GPIO[12]
W7
H21
JTAG
NSRST
TEST4
JTGRST
13
14
15 GPS
IC4711
GRF3I-0336B
5RFIN
SIGN_MAG
SPI_DO/MAG
SPI_CLK
SPI_DI
SPI_CEB
16
15
14
13
A2
AC4
AA4
AB4
X_GPS_MAG
X_GPS_SGN
17 B3
X_UTXD_1
X_UTFS_1
GRFRST
ACQCLK 19
18
AC16
B2
X_VIP_PXD[15]
X_GPS_CLK
X_USCLK_1
W23
Y23
X_FA[24]
X_FA[25]
OPEN/SHORT DETECT
BA2115FVM
IC4713
A1 X_SAMPLE_CLK
GPS33 REG.
VIDEO DECODER
IC4903
TT4421
X_VIP_PXD[10]
X_VIP_PXCLK
X_VIP_HSYNC
X_VIP_VSYNC
X_VIP_DVALID_FID
AC17
AC19
AC18
Y18
19
14
13
12
DTCLK
RSTN
AB17 35
VD_F
DVALID_F
HD
7
SDA
AIN1
X_ SDA130
SCL X_SCL132
X_VIP_PXD[0] - X_VIP_PXD[7]
LVDS
IC4901
TC90192XBG
X_L_FCK
X_L_CLK
X_L_PCLK
F2
F1
E1
R4
T4
U4
45_D-RGB_H_IN
58_D-RGB_Clk_IN
46_D-RGB_V_IN
U16 98_DAC_OUT
U15 94_PLL_IN
P17
145_STV1
106_C.Video_IN1
E17
141_Vcom2 F16
150_GOE
153_Load
154_STH
160_CPH
140_Vcom1
C16
C17
B17
F17
D15
147_CPV E16
LDD_R[1] - LDD_R[5] D-R[0] - D-R[4]
55_I2C_Clk_IN
56_I2C_Data_IN U3
U2
49_Reset_IN T1
AC97CODEC
WM1616LGEFL
IC4654
X_VIP_PXD[11]
X_AC97_SYNC
X_AC97_DIN
X_AC97_BIT_CLK
X_AC97_DOUT
W2
Y2
W1
Y1
10
8
6
5
SYNC
RESETB
AB16 11
BITCLK
SDATAOUT
SDATAIN
LINEL
MONO
HPL 31
39
23
MIC1 21
24
IC4221
X_TXD_2 AB3 CTOS
24
IC4220
TC7SA34FU
TC7SA34FU
X_GPIO[5] AC14
W10
XCCSTBY
CC_RST1
X_XN
X_YN X_YN
X_XN
F23
H23
SDA_1
SCL_1 X_SCL1
X_SDA1
D1
D2
nRESET
X_VIP_PXD[9] Y19 I2C_SDA/SPI_SOMI 13
I2C_SCL/SPI_SIMO 12
4
iPod authentication coprocessor IC
IC4701
341S2162
14
GPS33 CCD5F
T5 X_SD_VCC_ON_1
Q4209
Q4206
SD3 CCD3F
IC4212
IC4207
TC7SH08FUS1
TC7SH08FUS1
2
14
X_RESET_B 2
1
4
CCD5F
IC4203
S-80944CNNB-G9E
POWER ON RESET
CCD3F
POWER ON RESET
IC4206
S-80929CNNB-G8Z
4
.
1
9
|
7
11
12
14
5
2
14
IC4202
BU33TA2WNVX
VDD5F
RTC33
BUP3
BUP3
LCD15
LCD25
CP18
CP3
CPU
SiRFprima
IC4001(1/2)
JTG_RST
3
24
24
CN5602
FSD CARD
VDD
SD_W
SD_CMD
SD_CL
SD_DET
CP3
6
SD3 REG.
F4711
JA5201
F
Q4711
+
-
1
+
-
27
6
35
JTG_RST
JTG_RST
Q4902
Q4903
X_YP X_YP
H22
Q4701
A
RTC33 REG.
3
Mo
v
C
IC4213
BU33TA2WNVX
LDD_G[0] - LDD_G[5]
LDD_B[1] - LDD_B[5] D-G[0] - D-G[5]
D-B[0] - D-B[4]
AVIC-Z110BT/XN/UC 29
5 678
5678
C
D
F
A
B
E
IC4501
PEM002B8
IC4401
IC4402
IC4404
IC4405
HY5DU121622DTP-D43
IC4406
CY62147EV30LL45BVA
IC4403
PEH224A8
X_ SDA1
X_SCL1
P17
E17
F16
C16
C17
B17
F17
46
25
10
3
DIN17
DIN18
D15 47
TCLK
DIN22
2
1
DIN21
DIN20
DIN0
OUT+ LVDSP20
OUT- LVDSN19
DIN19
E16 48
D-R[0] - D-R[4]
U3
U2
T1
TCON_SDA
TCON_SCL
PIPRST
LVDS SERIALIZER
IC4902
DS90C241QVS
L
E
L
O
P
L31
39
23
121
NAVI_L
MONO
LINE_L
MIC+
CTOSYS
PNLYB
PNLXL
C
2
12
2
07
0
8FUS1
0
8FUS1
OFFOK
NAVIRST
MOVITEMP
AVSEL_OUT 32
116
118
26
20
71
73
56
60
47
64
46
76
82
13
24
Y16
X_VIP_PXD[12]
J2
X_LDD[16] J1
X_LDD[17]
K1
X_LDD[20]
W3
X_TXD_1 Y3
X_RXD_1
W16
N5
X_SD_CD_B_0
J3
X_LDD[18]
P5
X_SD_VCC_ON_0
K2
X_LDD[19]
C2
X_GPIO[1]
J21
X_GPIO[8]
L1
X_LDD[22]
W4
X_CKO_1
AA23
X_IDE_DACK_B
AC3
X_RXD_2
AA2
X_URXD_0 AB15
X_UTXD_2
AC5
X_USB_DP
E22
X_SDA_0
AB14
X_GPIO[6]
AC2
X_UTXD_0
X_URXD_2
X_USB_DN
W15
AB5
X_IDE_IRQ
AA14
X_GPIO[7]
E23
X_SCL_0
AC23
X_IDE_CS_B[0]
CCD5F
CCD5
CCPORT2
88
57
80
12
55
104
74
106
100
84
19
KMODE
GMUTE
9
PPW
PCHNG
48
ASENRQ
PVSENS
38
RDMSDSENS
44
CPUWDT
51
BT_RESET
40
CTOVICS
4
6
70
68
78
CCIO_ON
HYOKA
94
EXTOC
SYSTOC
36
CTOEX
CTOBT
53
BTTOC
92
PRE_ON
VICSTOC
USB+
USB-
42
AD_SDA_0
AD_SCL_0
95
97
101
103
99
FUKKA2 63
CCPORT1 1
BT_BOOTS
108
REV
PKB
BSENRQ
CN5602
F
CN5602
F
14
PLL_ON
CCD25
CCD25_PLLON
CCD5F
P4202
IC4204
LTC3412AEFE
CCD2.5 REG.
10
11
14
SW_1
SW_2
SW_3
15
1
16
9
7
SW_4
SVIN
PVIN_2
PVIN_1
RUN/SS
Q4219
Q4220
CCA3_IOON CCA3F
Q4207
Q4218
CCD5F
POWER ON RESET
IC4217
S-80835CLNB-B6U
21
CCD12
PLL12
CCD5F
P4201
CCD1.2 REG.
IC4205
LTC3412AEFE
10
11
14
SW_1
SW_2
SW_3
15
1
16
9
7
SW_4
SVIN
PVIN_2
PVIN_1
RUN/SS
Q4216
Q4217
CCD5F
POWER ON RESET
IC4216
S-80830CLNB-B6P
21
SN4201
BUP3
1IC4208 CCD3F
LCD15
1IC4209
LCD25
14
IC4210
BU15TA2WNVX
BU25TA2WNVX
BU18TA2WNVX
CP18
CP3 Q4210
Q4211
14
3
IC4211
BU18TA2WNVX
CCD3F
VD18
CCD5F
S-80844CLNB-B65
IC4218
POWER ON RESET
21
CCD3F
CCD3
83
85
87
VDD5F 75
CCA3F 79
ANTVCC
102
NAND3 31
CCD3_IOON 96
CN4201(2/3) CN4201(3/3)
CPU
TT4421
IC4001(2/2)
Q4902 Q4901
PNLYT 69
14
MoviNAND Temp. Sensor
CP3 TR
3
4
3
4
3
LCD15 REG.
LCD25 REG.
CP18 REG.
DDR SDRAM(512Mbit x 4)
NAND(4GB)
SRAM(4Mbit)
FLASH ROM(8Mbit)
14
6
A
IC4407
TC7PA53FU
B5 CE
B4
RESET
K22 X_FCE_B[1]
CCA3_IOON TR
VD18 REG.
CCD25_PLLON TR
PLL12 TR
7
8
1
2
IC4219
BD6522F
CCD3F
CCD3_IOON
USB3 Q4212
Q4214
USB3 TR
CCD3_IOON REG.
CCD5
CCD3
VDD5
CCA3
GPSANTVCC
4
D-G[0] - D-G[5]
D-B[0] - D-B[4]
AVIC-Z110BT/XN/UC
30
1234
1234
C
D
F
A
B
E
NAVI UNIT
F
CN5602
GMUTE
100
PKB PBSNS
104
REV GPSREV
108
FCONT_C
110
CARDSNS
86 RDMSDSENS RDSSNS
88
MOVITEMP CCTEMPIN
13 PIPRST
20
CTOEX
36
TCON_SDA
24 TCON_SCL
26 AVSEL OUT AVO UT
32
EXTOC
38
VICSTOC
40 CTOVICS
42 SYSTOC
44 CTOSYS
46
NAVI_L
56
MONO GUIDE
60 SPEED_IN
72 PCHNG
74 OFFOK
76 BSENRQ
78 CPUWDT
80 NAVIRST
82 ASENRQ
84
CTOBT
51
LINE_L
47
BTTOC
53
USB+
4USB-
6
MIC+ MIC_CC
64
AD_SCL0
68
AD_SDA0
70
AD_SCL0
AD_SDA0
BT_BOOTS
55 BT_RESET
57
PNLYT(Y+/TR)
69 PNLXL(X-/TL)
71 PNLYB(Y-/BL)
PNLYT
PNLXL
PNLYB
73 LVDSP
116
LVDSN
118
CN4201
E
CN3301
G
3
48
AD3
SCL
14
SDA
15
ADS7828E
CH0 1
CH1 2
CH2 3
OUTX
12
OUTY
10
HYOKA
48
PLLON
OUTZ
8
CSX1149
IC5501 IC5407
ADC G SENSOR
VDD 14
CH4 5
CH5 6VREF
6
VOUT
5VDD 8
CH6 741
PRE_ON
PLLON
14
PVSENS
12 PPW
9KMODE
106
PRE_ON
92
1
3
AD3 REG.
BH30NB1WHFV
IC5503 4AD3
VDD5
SWDB
BUP
SWBUP REG.
Q5102
Q5103
MOVI5CCD5
Q5113
Q5116
I
VOUT 5
EN 3
HI-SIDE SWITCH
IC5104
BD6538G
VIN
1
4
CCD5 IPOD5V
PVSENS
PPW
KMODE
OC
TC7SET08FUS1
41
2
24
TC7SET04FUS1
IC5103 IC5102
Q5304
PWRBL
PWRBL
Q5106
Q5107 BUP
P5103
PWRVI
PWRVI
Q5104
Q5105 BUP
P5102
CN5601
MIC_BT 10
ILMV
PWRVI 16
CCA5 12
SWAC33 56
17
I
15
13
I
21
18
PWRBL
NJM2115V
IC5451
5
7
CTOBT 3
BT_L
LINE_L 6
BTTOC 4
BT_BOOTS 1
BT_RESET 2
36
38
PNLYT
PNLXL
PNLYB 40
LVDSP 74
LVDSN 72
LCD_OE 11
KDT0 33
KDT1 35
KDT2
42
ANTIN
JA5201
GPS ANTIN
JA5202
CCA33
CCD5
95
101
97
99
103
CCD3
83
85
87
IO3
96
102
IO3
79 CCA3
CCDIO3
GPSANTVCC
31 NAND3
75 VDD5
-
+
CCA25
1
3
47
MIC LPF AMP
IC5403
NJM2125F
MIC LPF AMP
IC5404
NJM2125F
-
+1
VOUT VDD
RES2 15
SWDB
CH3 4
MOVI5 REG.
1
IC5105
S-1200B33-M5
5
NAND3 3MOVI5
NAND3 REG.
12
CCA25 REG.
NJM13403V
IC5402(4/4)
14
CCA25 CCA5
13
6
-
+
JA4711
E
MIC AMP(TEL)
MIC H
P
(100H
z
MIC AMP
(VOICE RECOGNIZE)
IC5402(1/4~3/4)
NJM13403V
ANTENNA
GY5501
GYRO SENSOR
SN5501
TEMP SENSOR
OUT
OUT I
N
AVIC-Z110BT/XN/UC 31
5 678
5678
C
D
F
A
B
E
CN5251
CN2571
A
CN2571
A
C
N3301
LTC3850IGN
IC5001
3.3V/5.0V D/D CONVERTER
Q5001
25
26
23
SW1
TG1
BG1
6VFB1
CCD5
CCA5
CCD3
VIN
28
FREQ/PLLFLTR
1
RUN1
Q5002
17
16
20
SW2
TG2
RUN2
BG2
8VFB2
FCONT_N
NAVION5
22 BUV
P5001
CCA3
13
FANCONT
FANON
CN5603
106
102
104
ASENBOASENBO5
STOIP
IPTOS
86
82
80
IPPW 84
FANUP
ASENB
BUP
8
1
5
7
JA5302
ASENBO
ASENBO5
IPBUS+
IPBUS-
IPL+
IP_L
IP-BUS DRIVER
HA12241FP
IC5202
6
5
1DIN1 BUS+
2
STOIP
IPTOS
8BUS-
IP-BUS IN
IP_L 39
IPPW STBY
ROUT
Q5202
Q5201
FANON
FANCONT
FNV
CN5001
2
1
FAN
FANUP
Q5112
Q5108
|
P5104
MICIN+
3
MIC
JA5251
AD3
CN5603
BUP 2
8
4
6
10
AU8 1
3
136
IO3
138
SWAC33
130
ILMV
74
VDD5
12
14
BUV 16
24
20
22
26
KBUP
KBUP
KBUP
KBUP
KBUP
28
KBUP
30
KEEP_BUP
GMUTE
103
PBSNS
105
GPSREV
109
FCONT_C 67
CARDSNS 87
RDSSNS 89
CCTEMPIN 90
PIPRST 51
CTOEX 59
TCON_SDA 53
TCON_SCL 55
AVOUT 19
EXTOC 61
VICSTOC 63
CTOVICS 65
SYSTOC
113
CTOSYS 93
NAVI_L 13
GUIDE 7
SPEED_IN 73
PCHNG 75
OFFOK 77
BSENRQ 79
CPUWDT 81
NAVIRST 83
ASENRQ 85
LCD_OE
117
KDT0 66
ROT1
115
KDT1 68
EJCTKDT2 70
ROT0
122
HRST
120
ILMLD
127
MVIPW
119
ILMCK
123
MBLPW
125
ILMDT
121
BLERR2
137
DIMMER
124
BLERR1
135
TEMPSENLCDTEMP
126
FCONT_M
132
BLSYNC 98
HYOKA 57
COMDC 72
Q5003
BSENS
133
KMODE
107
SWACPW5
101
BUP
COMDC_M 43
1
IC5507
NJM2125F
-
+
SWAC33 56
17
I
21
18
PWRBL
LCD_OE 11
KDT0 33
ROT1 41
KDT1 35
KDT2 42
ROT0 43
HRST 45
ILMLD 46
MVIPW 47
ILMCK 48
MBLPW 49
ILMDT 50
BLERR2 51
DIMMER 52
BLERR1 53
LCDTEMP 54
FCONT_M 57
BLSYNC 61
COMDC_M 59
VOUT 13
LOUT
iPod_V
iPod_L 7
V_RETURN 12
GNDSEL
USB+ 2
USB- 1
USB 5V 4
IPOD5V
AU8
Q5252
USB/iPod Connector
iPod_V 33
iPod_L 27
GNDSEL
110
129
111
GNDD
18
KBUP
AU4
FAN REG.
GNDD
T
EL)
MIC HPF
(100Hz)
M
P
O
GNIZE)
(
1/4~3/4)
3403V
(1/2)
(LIGHT BULE)
(2/2)
IN+
AVIC-Z110BT/XN/UC
32
1234
1234
C
D
F
A
B
E
PWRVI
60
|
63
6
9
1
1
1
3
PWRBL
ROUT0
ROUT17
ROUT1
I
ROUT5
ROUT6
I
ROUT11
ROUT12
I
ROUT16
RCLK
ROUT18
ROUT19
ROUT20
5
ROUT21
4
ROUT22
MVIPW 1,2,5,6
PWRVI
3
4
3
4
BD6171KV
IC3001
D/D CONVERTER
3.4V FET
11
6PVCC1
PVCC2
32 EN1
OUT2 7
VS2 4
PVCC3
PVCC4
PVCC5
23
48
37
OUT1 10
OUT5 38
OUT4 47
V8
V34
V18
OUT3 22 V5
VM12
Q3001
8V FET
Q3002
41 PVCC
42 VCC
44 RT
VS1 13
DIMMER
MBLPW
IC310
1
1
2
PWRBL
64
65
FCONT_M
BLSYNC
BLERR1
IC310
0
TC7SH08
F
TC7SH08
F
2
1
BLERR2
66
|
68 ILMV
25 SWAC33
69 CCA5
41
43
CN3301
35
31
33
RIN+
RIN-
41
42
MONITOR UNIT
G
L
CN3300
BOTTOM
TOP
PNLXL
PNLYB
PNLYT
1
3
4
TOUCH PANEL
1,2,5,6
RED
GREEN
BLUE
BH2227AFV
IC3300
12 DI
11 CLK
10 CSB
AO1 1
AO2 2
AO3 5
PNLXL
27 LCDTEMP
PNLYB
45 PNLYT
9LVDSN
7LVDSP
22 COM_DC COMDC
24
34
V5
TH3350
TEMP. SENSOR
MBLPW
29
ILMCK
ILMLD
32
28
30 BLERR2
20
ILMDT
9
CN3360
71
77 BTTOC
MIC_BT 5
30
U0_OUT
MIC1P
BOOTS
BT_BOOTS
80
78 CTOBT U0_IN 29
41,2
TC7SH08FUS1
IC3362
79 BT_RESET
BT_L
10
NRESET
75 I2S_MCLK
I2S_CLK
DAC
IC3360
AK4388VT
11 AOUTL RSTN 5
MCLK 1
BICK 2
I2S_OUT1
I2S_SYNC
SDTI 3
LRCK 4
37
35
38
39
V34 23
24
39 KDT2
KDT1
46
48 KDT0
BT MODULE CN1
CN5601
F
LVDS
DS90C124QVS
IC3150
Q3103
Q3102
Q3101
Q3100
VCC
Q3360
DIMMER
BLERR1
BLSYNC
Q3005
Q3003
Q3004
AVIC-Z110BT/XN/UC 33
5 678
5678
C
D
F
A
B
E
R0-4
G0-5
B0-4
V0-10
IC3201
TC7S66FU
IC3200
NJM2100V
6
9
10
18
11
34
CN3401
STH1
LOAD
L/R
V5
V34
V18
VM12
Vcom
VGL
STV1
CPV
OE
CPH
46
29
28
26
25
24
20
17
16
13
9
8
6
4
2
1
59
48
I
I
I
I
58
30
34
36
41
42
41,2
ROUT0
ROUT17
ROUT1
I
ROUT5
ROUT6
I
ROUT11
ROUT12
I
ROUT16
RCLK
ROUT18
ROUT19
ROUT20 5
ROUT21
4
ROUT22
LCD MODULE
VGH
LEDBL
V DRIVE
Q3200
|
Q3203
-
+7
5
6
-
+
1
2
3
NJM082BV
IC3202
-
+1
3
2
-
+7
521
4
6
18
4EN OUTL
LED BACKLIGHT DRIVER
IC3102
BD8113EFV
IC3101
5-82,4
12
LED1
14
OVP
4
1
2
COM/LCD POWER
VDD2
VDD1
Q3106
LED1
13
LED2 LED2
8PWM
IC3100
TC7SH08FUS1
TC7SH08FUS1
4
2
16SYNC
9FAIL1
10 FAIL2
CN3100
LED1
LED2
LEDBL
5
6
BLUE
RED
GREEN
RIN+
RIN-
1
2
ILMR1
CN3302
15
14
13
ILMB1
12
KDT2 5
KDT1 8
KDT0
KEY2
KEY1
KEY0
KEY2
KEY1
KEY0
ILMG1
ILMR2 2
3
4
ILMB2
ILMG2
ILMR1
ILMB1
ILMG1
ILMR2
ILMB2
ILMG2
Q3304
Q3302
Q3300
KEYBOARD UNIT
H
KEY MATRIX
1
I
3
IC3151
TC7SZ08FU
TC7WT240FU
IC3203
TC74VHCT04AFTS1
IC3204
GRADATION
VOLTAGE
35
8,10,129,11,13
2,4,61,3,5
62
V5
ILMV1
CN3362
CN3361
BT MODULE
JA2901
CN2901
16 ILMV1
ILMV2 1ILMV2
ILMV
LVDS
DS90C124QVS
IC3150
STH1
LOAD
STV1
CPV
OE
3
103
3
101
3
100
22
CS
BACKLIGHT
Q3305
Q3303
Q3301
AVIC-Z110BT/XN/UC
34
1234
1234
C
D
F
A
B
E
4.3 POWER SUPPLY SYSTEM FIGURE
+B
HOLD BUP
4 700[uF]/16[V]
AUDIO UNIT
System u-com
R5F64165PFD
RESET IC
BD5229FVE
EEPROM
2 mA
SPEED I/F
NJM2904M
MUTE LOGIC(OR)
TC74VHCT32AFT
IR REMOTE(UW5/AU)
RS-750
2 mA
2 mA
SWVDD5
10 mA
MAX 45 mA
TYP 32 mA
0.5 A/1.6 W
(150 mA/0.3 W)
49 mA
ACCPW5
SWVDD33
3 -> 5 LEVEL SHIFT
TC74VHCT541AFST
ACCPW5
LC-Filter
UVDD33
2 mA
17 mA
10 mA
5.5 mA -> 4 mA
54.5 mA -> 53 mA
8 mA
61 mA
91.5 mA/0.96 Wmax
BUP
BUPV
VDD33
TO NAVI UNIT
uVDD33
SWACPW5
SWACC33
T
E
2
S
SWVDD5
2SA1577
SWVDD
2SA1577
SWAC33
2SA1577
DualZone
MUTE
ACCPW
RDS DETECT
(EU5/UC/AU)
2SA1576
SWBUP CONTROL Logic IC
for RDS-TMC/MSN-DIRECT Tuner
TC7SH08FUS1
MOTVDD
UMF21N
VDD5(Reg)
Constant Power
Supply 5 V
BD3931FP
VDD33(Reg)
Constant Power
Supply 3.3 V
S-1200B33-M5
ABCD
AUDIO UNIT
AVIC-Z110BT/XN/UC 35
5 678
5678
C
D
F
A
B
E
Power Supply
RESET IC
BD5229FVE
M
E(UW5/AU)
2 mA
2 mA
This block diffiers with
the region of destination.
TELMUTECircuit
2SA1576A
RESET Circuit
UMD3N
RDS Circuit(EU5/UW5/UC)
UMH1N*2
AVIC-Z110BT/XN/UC
36
1234
1234
C
D
F
A
B
E
ABCD
ACC84
typ 240 m
A
max 300
m
typ 105 m
A
max 140
m
typ 103 mA
max 140 mA
ANT+B(SW)
TPD1018F
300 mA(MAX)
ANTON5
SYSPW5
ACCPW5
For Auto
AU84(Reg)
8.4 V
NJM2388F84
typ 172 mA
max 200 mA
TU3
NJM2885
HIVOLT15(D/D)
15.4 V
LT3461A
AV SELECTO
R
AN15887A
SYSPW5
max 8 mA max 8 mA
AV4.3(4.2 V)
NJM2125F
300 mA/1.2 W
290 mA
typ 3 mA
max 5 mA
229 mA
577 mA/3.76 W
8.88 V-9.24
5 mA
101.3 mA
436.3 mA/3.141 W over
3*1SR-154
AU8.4
HIVOLT12
12.4 V
S-812C56AUA
TU33
AU8.4 (Center Voltage for Audio)
TO NAVI UNIT
(AU8)
TUNER UNIT
VIDEO LEV
E
2SC4081(RS
HIVOLT14
13.8 V
S-812C56AUA
HIVOLT
HIVOLT14
ACC84
HZU6R8
(Center Voltage for Hivolt) To Guide Mix
FLAP DRIVE UNIT
ACC84(Reg)
8.4 V
NJM2388F84
For Audio
EFG
AVIC-Z110BT/XN/UC 37
5 678
5678
C
D
F
A
B
E
typ:9.6 mA
max:13 mA
typ:56 mA
max:71 mA
typ 240 mA
max 300 mA
typ 105 mA
max 140 mA
typ:50 mA
max:200 mA
GUIDE MIX
NJM2747V
MUTE Circuit
Guide, P-Amp.
UMD3N *3
FM/AM Tuner
Second Improved
X-2026
CAPTAIN7
AV SELECTOR
AN15887A
LS1 LPF
NJM2904
9 mA
5.7 mA
max 8 mA
15 mA
1.6 mA max
VIDEO LEVEL SHIFT(2 -> 1)
2SC4081(RS)*2
NAVI ISOLATOR
BA4558RFVM
AVIC-Z110BT/XN/UC
38
1234
1234
C
D
F
A
B
E
EFG
IO33
MAX 1 640(TBD) mA
TYP 450(TBD) mA
MAX 520(TBD) mA
TYP 191(TBD) mA
MT81V(D/D)
8.1 V
BD9781HFP
LS
1
POWER AMP
TOSHIBA made
IC "PA2030A"
VD5CONT
DDCLK
LS1VDD(D/D)
5 V
LT3505
PKB SNS
TR
FROM NAVI UNIT
LITTEL0.25 A
CEK1276-A
SOC1.5 A
CEK1262-
MOTOR DRIVER
MOTOR 0/1
M
75 mA/250 mW
60 mA
MOTOR 7.5 V/6.5 V
2SB1260(Q)
SA1797(Q)
TO NAVI UNIT
NKBUP
SOC 1 A
CEK1254-A
SOC 0.5 A
CEK1278-
TO TUNER UNIT
TO NA
V
for IL
M
su
p
SWBUP(EU5/UC/AU)
TPD1018F
RDSSNS MSN_RST:UC
TMC-MSN-ON5:EU5/AU
MOTPWR5, MOTPW
SOC 3.15 A
CEK1259-A
HOLD BUP
10 000[uF]/16[V]
For DVD
TO FLAP DRI
V
AVIC-Z110BT/XN/UC 39
5 678
5678
C
D
F
A
B
E
LS1
IVER
/1
M
Max:200 mA
(Lock 600 mA)
Rush
MAX 1 030 mA
TO NAVI UNIT
for ILM power
supply
O FLAP DRIVER UNIT
AVIC-Z110BT/XN/UC
40
1234
1234
C
D
F
A
B
E
SOC
1.25 A
CEK1255
SOC
1 A
CEK1254
ASENB0
ILMV
SOC
1 A
CEK1254
FROM AUDIO UNIT
FANUP,FANCONT,FANON
FAN
CXN1394-A
PWR VI SW
2SD1760F5
UMF23N
SWACPW5
TO
MONITOR UNIT
PWR BL SW
2SB1184F5
DTC143EUA
SWACPW5
BUP
NAVI UNIT
POWER SUPPLY
(D/D)
POWER SUPPLY
(Reg)
BUPNV
AU8
ILMV AU8
VDD5
FAN POWER SUPPLY
2SD1760F5(R)
2SA1587(GRBL)
ASENB05
MAX:100 mA
MAX:232 mA
MAX:480 mA
MAX:360 mA
MAX:1 mA
MAX:14 mA
IP-BUS POWER SUPPLY
SW
2SA1576A
DTC114EUA
GND SELECT
IMD2A
IMH23
BUP
POWER SUPPLY
SW
IP-BUS Driver
HA12241FP
IPBUSP
IPBUSM
IP-BUS
VDD5 MAX:8.5 mA
NAVION5
TO
CC UNIT
S-1200B33 GPSANTVCC
NO MOUNT
ABC D
NAVI UNIT
AVIC-Z110BT/XN/UC 41
5 678
5678
C
D
F
A
B
E
AVIC-Z110BT/XN/UC
42
1234
1234
C
D
F
A
B
E
MAX:15 mA
CCA25
3.3 V
5 V
SOC
3.15 A:CEK1259
CCD3
TO
MONITOR UNIT
SWBUP
2SA1576A
2SC4081
PLL_ON
Bup
NAVION5
D/D
NAVI 3 V/5 V
LTC3850IGN
DTV5
CCA5
BT_AUDIO
NJM2115V
DTV3
8 V
R1515H080B
1.2 V
BH12PB1WHF
V
1.8 V
BU18TA2WNV
X
MAX:several uA
MAX:42.1 mA
MAX:900 mA
MAX:25 mA
CCA25
CCA25
39 k
39 k
GND
NJM13403V
ANT
CKS5701A
NM
R232C Driver
UPD4721GSS1
NM IO3 E
T
N
MAX:24 mA
MIC LPF(voice-recongnize)
NJM2125F
MIC HPF
NJM13403V
MIC LPF(TEL)
NJM2125F
CCA25
MAX:1.75[mA]
MAX:5[mA]
MAX:5[mA]
CCDIO3
DTV3
2.9 V
BH29NB1WHFV-T
R
DTV5
DTV3
NOT
Logic IC
TC7SH04FUS1
MAX:12[mA]
EMI
FIL
FCONT H:635 kHz
FCONT L:780 kHz
ABC D
MAX:1.75[mA]
EFGHI
AVIC-Z110BT/XN/UC 43
5 678
5678
C
D
F
A
B
E
VCCB
VDDRF
VDDS
VDDL
VDDC
VCCB
1.2 V
BH12PB1WHFV
1.8 V
BU18TA2WNVX
VCCA
3.3 V <-> 1.8 V
TC7WPB9306FK
VCCA
1-Seg FE
CWX3768
MAX:2.6 mA
MAX:47 mA
MAX:13.2 mA
MAX:0.4 mA
MAX:25 mA
MAX:25 mA
MAX:3 mA
MAX:12 mA
NT
KS5701A
NOT MOUNT
ETC
NOT MOUNT
3.3 V <-> 1.8 V
TC7MP3245FTG
congnize)
2.9 V
BH29NB1WHFV-TR
IC
H04FUS1
AVIC-Z110BT/XN/UC
44
1234
1234
C
D
F
A
B
E
COMDC
0 ohm
CCD5
VDD5 GYRO Sensor
CSX1147 3.0 V
±
TYP:1.
G Sensor
CSX1149 3.0 V(
2
TYP:0.
MAX:0
ADC
ADS7828E 3.0 V(
2
TYP:0.
MAX:0
AD3
3 V
BH30NB1WHFV-TR
Temp Sensor
S-58LM20A-N4
3.0 ± 0.1 V
VDD5
SECRITY CONNECTION
AND Logic
TC7SET08FUS1
MAX:1 500 mA
SECCONT,ASENS
LED SIGNAL
CONNECTION
HN1B04FU(Y)
MAX:5.4 mA
MAX:50 mA
NOT MOUNT
USB/iPod5
NOT/AND Logic IC
TC7SET04FUS1
TC7SET08FUS1
BSENS,PPOWER
3.3 V
S-1200
B
USB Highside switch
BD6538G
PLL_ON
PREON
3.0 V(
2
TYP:0.
MAX:0
PREON
SW
2SA1577A
DTC114EUA
SW
2SA1576A
DTC114EUA
COMDC LPF
NJM2125F
MAX:1.75[mA]
EFGHI
AVIC-Z110BT/XN/UC 45
5 678
5678
C
D
F
A
B
E
0 ohm
VDD5
or 3.0 V ± 0.15 V
TYP:1.7 mA
3.0 V(2.4 V-3.6 V)
TYP:0.68 mA
MAX:0.85 mA
3.0 V(2.7 V-3.6 V)
TYP:0.225 mA
MAX:0.32 mA
r
N4
CCA3 MAX:54mA
USB/iPod5
CCD5
CCD3
NAND3
USB, iPod
3.3 V
S-1200B33
h
3.0 V(2.7 V-5.5 V)
TYP:0.004 5 mA
MAX:0.006 mA
MAX:26[mA]
MAX:1 160[mA]
MAX:80[mA]
T
O
C
C
U
N
I
T
AVIC-Z110BT/XN/UC
46
1234
1234
C
D
F
A
B
E
Power supply
(D/D)
D/D
CCD1.2V
LTC3412A
Power supply
(LDO)
D/D
CCD2.5V
LTC3412A
LDO
LCD25
BU25TA2WNVX
MAX:1 549.1 + @ mA
MAX:880.5 mA
MAX:105 mA
Pc:84 mW
1.25 V:0.1 mA
PRE_ON
TYP:21 mA
IO_ON
PLL_ON
PLL_ON
1.2 ± 0.12 V
2.5 ± 0.2 V
2.5 ± 1%
MAX:248.6 mA
(Efficiency:85%)
MAX:120 mA
Pc:216 mW
LDO
LCD15
BU15TA2WNVX
1.5 ± 0.025 V
IO_ON
VDD5
CCD5
CCD3
RTC3
CCD12
CCD33
CCD25
LCD25
LCD15
MAX:911.2 + @ mA
BD6522F
MAX:516.1 + @ mA
TO NAVI UNIT
V
NAND3
RST1
3.0 V
RST2
3.5 V
RST3
4.4 V
PRE_ON
IO_ON
PLL_ON
Sequence generation
LDO
RTC3.3V
BU33TA2WNVX
ABCD
CC UNIT
AVIC-Z110BT/XN/UC 47
5 678
5678
C
D
F
A
B
E
CC UNIT
DDR SDRAM
HY5DU121622DTP-J-K
2.6 V ± 0.1 V
MAX:350 mA *4
T-CON
TC90192XBG 3.3 V ± 0.3 V
MAX:70 mA
movi-NAND
PEM002B8 3.3 V(2.5 V-3.6 V)
MAX:100 mA
NOR-Flash
S29GL512P11TFI010
3.3 V ± 0.3 V
MAX:90 mA
2.5 V ± 0.2 V
MAX:105 mA
ower supply
LDO)
1.25 V ± 0.125 V
MAX:1 mA? *4
2.5 V
1.25 V
2.5 V
3.3 V
2.5 V
3.3 V
1.5 V
3.3 V
3.3 V(CORE)
3.3 V
MAX:105 mA
Pc:84 mW
Power supply
(Reg)
VDDIO 3.0 V-3.6 V TYP:100 mA
VPROG 2.5 V ± 0.25 V TYP:30 mA
VDDA3V3_USB 3.0 V-3.6 V TYP:6 mA
VDDA2V5_USB 2.5 V ± 0.25 V TYP:22 mA
VDD_TSC 1.14 V-1.26 V TYP:0.5 mA
VDDIO_TSC 2.25 V-2.75 V
VDDIO_MEM 2.4 V-2.6 V-2.7 V TYP:100 mA
VREF_MEM 0.49-0.51*(VDDIOMEM) TYP:0.005 mA
VDDA_PLL 1.2 V ± 0.06 V TYP:10 mA
VDDIO_PLL 3.3 V 3.0 V-3.6 V TYP:100 mA
VDD_PDN 1.2 V ± 0.06 V TYP:800 mA
VDD_RTC 0.96 V-1.26 V TYP:1 mA
VDDIO_RTC 3.3 V(2.3 V-3.6 V) TYP:1 mA
VDD_LVR 2.3 V-3.6 V TYP:1 mA
3.3 V
1.2 V
3.3 V
1.2 V
1.25 V
2.5 V
A
CPU
SiRF_Prima
RTC
CORE
PLL
MEM
TSC
USB
eFUSE
IO
iPod
certification
IC
3.3 V(1.8 V-3.6 V)
MAX:10.0 mA
3.3 V
1.2 V
VDD_PRE 1.2 V ± 0.06 V TYP:50 mA
VDDA_TSC 2.25 V-2.75 V
PLL_ON
PLL_ON
512Mb x 4
1.5 V ± 0.2 V
MAX:120 mA
MAX:120 mA
Pc:216 mW
LCD25
LCD15
SRAM(1M)
CY62126EV30LL55BVE
3.3 V 3.3 V(2.2 V-3.6 V)
MAX:20 mA
PLL_ON VDD_PLL 1.2 V ± 0.06 V TYP:10 mA
VREF_ADC 2.5 V 2.0 V to 2.75 V TYP:@ mA
1.2 V
2.5 V
3.3 V(IO)
CCD25V
USB3
VREF125
PLL12
BUP3
TYP:25 mA
E
AVIC-Z110BT/XN/UC
48
1234
1234
C
D
F
A
B
E
LDO
VD18
BU18TA2WNVX
MAX:76 mA
Pc:114 mW
1.8 ± 0.025 V
LDO
CP18
BU18TA2WNVX
TYP:11 mA
Pc:16.5 mW
1.8 ± 0.025 V
X_SD_VCC_O
N
(for SiRFprima)
VD18
CP18
LDO
GPS33
BU33TA2WNVX
GPS_SAMPLE_
C
CCD
MAX:18 mA
Pc:30.6 mW
SD3
CCA3
IO_ON
LDO
VA18
BU18TA2WNVX
IO_ON
VA18
IO_ON
3.3 ± 1%
CCA33
ABCD
AVIC-Z110BT/XN/UC 49
5 678
5678
C
D
F
A
B
E
AC97-CODEC
WM1616LGEFL
3.3 V(2.7 V-3.6 V)
MAX:32.1 mA
VIDEO-Decoder
AK8853
3.3 V ± 0.3 V
TYP:4 mA
MAX:** mA
CPLD
PE9019A
3.3 V ± 0.3 V
MAX:6 mA
LVDS TX
DS90C241
3.3 V ± 0.3 V
TYP:45 mA
MAX:70 mA
TYP:19 mA
MAX:30 mA
GPS-RF
GRF3i+
3.3 V
(2.6 V-2.85 V-3.6 V)
TYP:16.0 mA(2.85 V)
MAX:18.0 mA(2.85 V)
3.3 V(A)
3.3 V
1.8 V 1.8 V(1.7 V-2.0 V)
TYP:54 mA
MAX:76 mA
3.3 V
3.3 V
1.8 V 1.8 V ± 0.1 V
TYP:11 mA
MAX:** mA
MAX:76 mA
Pc:114 mW
SD Card
power supply
3.3 V(2.7 V-3.6 V)
MAX:80 mA
3.3 V
TYP:11 mA
Pc:16.5 mW
_SD_VCC_ON
3.3 V
VD18
CP18
S_SAMPLE_CLK
GPS Antenna
power supply
3.3 V
MAX:18 mA
Pc:30.6 mW
SD3
GPS33
1.8 V
VA18
3.3 V(D)
_ON
CP18
USB jig
ETHER jig
CCA33
E
AVIC-Z110BT/XN/UC
50
1234
1234
C
D
F
A
B
E
Electric current unit: mA
Power supply
KEY PCB
typ - typ
max 0typ 0.7
max 1
typ 1.6 typ 0.8
max 3.2 max 2
typ 0.1
Actual survey value:26.555
max 0.2
typ 32.4
max 52.1
Actual survey value:0.194
min 150.29 260.5 typ 0.21 Actual survey value:0.326
typ 157.36 max 0.315 typ 3.5
max 203.14 max 5
5.8275
Actual survey value:10.877 Actual survey value:7.531
typ 8.42 typ 7.5
min 297.56 123.96 max 10.33 max 15
typ 311.69
max 420.25
Actual survey value:106.70
1284.855 Actual survey value:18.698
typ 287.9 typ 21.4
max 389.35 max 32.1
80
Actual survey value:10.709
typ 8.4 Actual survey value:0.194
max 10 typ 0.21
max 0.315
Actual survey value:0.193
typ 0.22
max 0.33
Actual survey value:3.70
typ 2.9
max 4.35
Actual survey value:10.684
typ 8.2
max 10
Actual survey value:10.709
typ 8.4
max 10
Actual survey value:42.8
typ -
max 85
Actual survey value:60.2
typ 200
max 300
Actual survey value:
typ 120
max 130
Actual survey value:12.94 Actual survey value:12.94
typ 18 typ 18
max 27 max 27
LCD Panel
LVDS:
:
DS90C124
min:3.0 V
typ:3.3 V
max:3.6 V
VCOM
NJM082(max5.6)
+
Tr Buffer
VCOM AMP
NJM2100 (max5.)
TC7S66FU
Gradation part
TC7WT240FU
TC74VHC04FTS1
LED
LED
NAVI side
LED Backlight
CWX3913-A
SWACC3
PWVI
PWBL
ILM8
DD Converter
(14 V -> 27 V)
BD8113FM
TEMP SENSE
CCX1063-A
DD Converter
BD6171KV
5 V
18.5 V
-12 V
3.3 V
8 V
BT
CK5050+
RGB Illumination
DAC
BH2227AFV
PU,PD…etc
SWACC3
CCA5
DAC to BT
AK4388VT
MONITOR UNIT
AVIC-Z110BT/XN/UC 51
5 678
5678
C
D
F
A
B
E
5. DIAGNOSIS
5.1 OPERATIONAL FLOWCHART
NO
YES
NO
YES
NO
YES
Parallel Operation
CCRST : Pin 120
OFFOK : Pin 123
MVIPW : Pin 111
PIPRST : Pin 113
MBLPW : Pin 108
BLSYNC : Pin 33
DIMMER : Pin 80
CCRST -> H
IO_ON -> H
PRE_ON -> H
SWACPW : Pin 67
NAVION : Pin 48
PRE_ON : Pin 125
IO_ON : Pin 115
VCC : Pin 23, 39, 59,
74, 91, 132
BSENS : Pin 104
ASENS : Pin 103
ACCPW : Pin 114
DDCLK -> PULSE
VD5CON -> H
VD5CONT : Pin 60
DDCLK : Pin 37
The communication with
LS1 begins.
LS1STBY <- H
LS1STBY : Pin 77
XRES -> H
XRES : Pin 64
OFFOK <- H
NAVION -> H
SWACPW -> H
ACCPW -> H
MVIPW -> H
The communication with
CC begins.
PIPRST -> H
MBLPW -> H
BLSYNC -> PULSE
DIMMER -> PULSE
Standby
The backlight lights.
RESET
BSENS = L?
ASENS = L?
VCC = 3.3 V?
AVIC-Z110BT/XN/UC
52
1234
1234
C
D
F
A
B
E
5.2 INSPECTION METHOD OF PICKUP UNIT
Disc to be used
CD-DA: TCD-782
DVD-Video: TDV-582
Execution method
START
Is it OK?
Is it OK?
Ckeck parts
other than PICK UP
PICK UP
cleaned?
Perform lens
cleaning
SKEW ADJ.
Is it OK?
LD current check
RF level check
RF level check
Yes
Error rate check
Finished
LD turned on? Check parts
No
Is it OK? PICK UP
cleaned?
Perform lens
cleaning
Error rate check
Is it OK?
Replace the PICK UP
Replace the PICK UP
Replace the PICK UP
Replace the PICK UP
Check point:
AS MAX check
Check point:
LD current check
Check point:
Error rate check
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Check point:
AS MAX check
Check point:
Error rate check
AVIC-Z110BT/XN/UC 53
5 678
5678
C
D
F
A
B
E
LD current check
Check
Status: [Foucs closed] of TEST MODE
Notes: Please pay attention to the laser diode damage by static electricity.
Threshold
2 TCD-782 CDLD1-VCC5_3 60 - 360 (mV) 10 - 60 (mA)
NO. Disc Check Point
Check Point
DVDLD1-VCC5_3
NO.
1
Disc
GGV1025
Remarks: LD current
10 - 65 (mA)
Threshold
60 - 390 (mV)
Expansion
Expansion
Remarks: LD current
AVIC-Z110BT/XN/UC
54
1234
1234
C
D
F
A
B
E
ASMAX check
ASMAX value shows the value of RF level.
Status: [Foucs closed] of TEST MODE
No. Disc Check Point Threshold Remarks:
8 digits value of
ASMAX more than
on display 0000 0B00
8 digits value of
ASMAX more than
on display 0000 0C00
Error rate check
Status: [Tracking Closed] of TEST MODE
No. Disc Check Point Threshold Remarks:
less than
1.000E-03
less than
1.000E-03
less than
2.500E-03
3 TCD-782 ID: HOME Position
2
GGV1025
ID: 200000
1
GGV1025
ID: 40000
1
GGV1025
Only four last digits are
displayed according to
the product.
2 TCD-782
Only four last digits is
displayed according to
the product.
In this case, the value is displayed for a split second.
When you tried to perform [FOCS CLOSE],
the display will charge automatically in the following order.
[1FFF0000]->[FEMAX]->[FE MIN]->[AS MAX]->
[ENV MAX]->[FE normal]->[Spindle gain]->
[TEMAX]->[TEMIN] ->[20000000]
Watch carefully the value of ASMAX.
Test mode display will not appear on the display of this product. Connect the rear monitor output to a monitor.
Test mode display will not appear on the display of this product. Connect the rear monitor output to a monitor.
AVIC-Z110BT/XN/UC 55
5 678
5678
C
D
F
A
B
E
5.3 DIAGNOSIS FLOWCHART
BACK END section flow
Standby
OK?
Execute
check 1.
Can the
playback
start?
NO
YES
YES
YES
YES
YES YES
YESYES
YE
S
YES
YES
YES
NO
NO
NO
NO
NO
YES
YES
YES
NO
YESYES
NO
START
END
END
YES
NO
NO
NO
NO
NO
YES
YES
NO
NO
NO
The product
is normal?(iPod
attestation IC)
YES
Product repair
YES
NO
NO
NO
NO
YES
NO
YES
YES
YES
NO
NO
YES
Does the
operation
take time?
Go to FE
section check.
Go to FE
section check.
Is the life of flash
memory OK?
Conduct check item 12.
Is the image
in error?
Is the video
circuit OK?
Execute check 11.
Is AVCC5
voltage OK?
Execute check 8.
Replace the unit.
Is VDD5(VCC33, VCC12)
power supply voltage OK?
Execute check 2.
Reset OK?
Execute check 3.
Is VSENS
OK?
Execute check 4.
Is 27 MHz
OK?
Execute check 5.
Is 48 MHz OK?
Execute check 13.
Replace the unit.
Replace the unit.
Replace the unit.
Go to FE
section check.
Go to the
product check.
Go to FE
section check.
Is VD8, VCC5
power supply
voltage OK?
Execute check 7.
Is SDRAM
IF OK?
Execute check 6.
Is the sound
in error?
Is the iPod play
in error?
Is the USB play
in error?
Is AVCC5
voltage OK?
Execute check 8.
Is DACCLK
normal?
Execute check 9.
Is the audio
circuit OK?
Execute check 10.
Repair the
defective part.
Normal?
Normal?
Is FE section
normal?
Go to FE related
repair process.
Is the iPod
circuit OK?
Execute check 14.
Is the USB
circuit OK?
Execute check 14.
AVIC-Z110BT/XN/UC
56
1234
1234
C
D
F
A
B
E
Check 1: Standby OK?
<Check> Check the voltage at the “STANBY” test point while the power is on.
Use the “DGND1” test point at the reference.
NO. Check point Module No. Specification value Unit
STANBY-DGND1 ALL VCC33 V-
0.6 V or more
V
Side A
1
Fig 1.1: STANBY check point
STANBY
AVIC-Z110BT/XN/UC 57
5 678
5678
C
D
F
A
B
E
VCC33 (= 3.3 V)
5DDV
VCC12 (= 1.2 V)
1VDD5_1 - DGND1
2VCC33_1 - DGND1
3VCC12_1 - DGND1
VDD5_1
DGND1
VCC12_1
VCC33_1
Check 2: Is VDD5 (VCC33, VCC12) power supply voltage OK?
Fig 2.1: Power supply configuration
IC1004
3.3 V output regulator
IC1005
DC/DC converter
1.2 V output
IC1501 DV5U power supply
IC1401 FLASH power supply (Data)
IC1402 FLASH power supply (Program)
IC1481 SDRAM power supply
IC1501 DV5U power supply
<Check> Check the voltage at the “VDD5_1, VCC33_1 and VCC12_1” test point while the power is on.
Use the “DGND1” test point at the reference.
Side A
NO. Check point Module No. Specification value Unit
Fig 2.2: VDD5, VCC33, VCC12 voltage check points
ALL
ALL
ALL
5.0 ± 0.4
3.3 ± 0.15
1.2 ± 0.12
V
V
V
AVIC-Z110BT/XN/UC
58
1234
1234
C
D
F
A
B
E
NRES
DGND1
Check 3: Reset OK?
NO. Check point Module No. Specification value Unit
1 XRES-DGND1 ALL VCC33 ×
0.7 or more
V
Side A
<Check> Check the voltage at the “XRES” test point while the power is on.
Use the “DGND1” test point at the reference.
Fig 3.1: RESET check point
AVIC-Z110BT/XN/UC 59
5 678
5678
C
D
F
A
B
E
CN1901
HOST I/F
SNESV8DV
33CCV5DDV
VCC12
STANBY
XRES
1 VSENS - DGND1 ALL 0.95 - 1.07 V
VD8 = 8.0 ± 0.4 V
IC1501
DV5U
IC1004
Regulator
IC1005
DC/DC
converter
VSENS
DGND1
Check 4: Is VSENS OK?
Fig 4.1: Power supply configuration and VSENS
<Check> Check the voltage at the “VSENS” test point while the power is on.
Use the “DGND1” test point at the reference.
NO. Check point
Side A
Module No. Specification value Unit
Fig 4.2: VSENS check point
R1004,
R1007
AVIC-Z110BT/XN/UC
60
1234
1234
C
D
F
A
B
E
IC1501
DVD-LSI
X1501
27 MHz
crystal
VCC33 VCC12
Check 5: 27 MHz Normal?
<Outline> Each clock is created inside the IC1501 using the 27 MHz master crystal oscillator (X1501).
Fig 5.1: Clock configuration
<Check method> Turn the power on, and check with DGND being the reference.
In case of NG, check the applicable line, periphery of IC1501,
soldering of the peripheral components and defective components.
NO. Check point Module No. Specification value Unit
2 IC1501 169pin ALL 27 MHz
± 50 ppm ppm
GND
Fig 5.2: Clock specification value
Side A
Specification
value
Fig 5.3: 27 MHz check point
IC1501 158pin
DGND1
OSCO
OSCI
AVIC-Z110BT/XN/UC 61
5 678
5678
C
D
F
A
B
E
MA0 - 11
MDQ0 - 15
MCK
XWE(NWE)
XCAS(NCAS)
XRAS(NRAS)
XCSM(NCSM)
DQM0
DQM1
BA0
BA1
IC
1480
SDRAM
IC1501
DV5U
Fig 6.1: SDRAM I/F
Check 6: Is SDRAM I/F OK?
<Outline> In order to secure the MPEG stream data as the buffer,
the capacity of communication I/F SDRAM between the LSI and the memory is 64Mbit.
Be careful as XCSM, XWE, XCAS and XRAS of IC1480 are called differently in IC1501,
namely NCSM, NWE, NCAS, NRAS.
AVIC-Z110BT/XN/UC
62
1234
1234
C
D
F
A
B
E
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
MA9
MA10
MA11
MDQ0
MDQ1
MDQ2
MDQ3
MDQ4
MDQ5
MDQ6
MDQ7
MDQ8
MDQ9
MDQ10
MDQ11
MDQ12
MDQ13
MDQ14
MDQ15
MCK
XWE
XCAS
XRAS
XCSM
DQM0
DQM1
BA0
BA1
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
0.17 ohm or lower
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
56 ohm ± 5 %
IC1480 23pin
IC1480 24pin
IC1480 25pin
IC1480 29pin
IC1480 30pin
IC1480 31pin
IC1480 32pin
IC1480 33pin
IC1480 34pin
IC1480 33pin
IC1480 22pin
IC1480 35pin
IC1480 2pin
IC1480 4pin
IC1480 5pin
IC1480 7pin
IC1480 8pin
IC1480 10pin
IC1480 11pin
IC1480 13pin
IC1480 42pin
IC1480 44pin
IC1480 45pin
IC1480 47pin
IC1480 48pin
IC1480 50pin
IC1480 51pin
IC1480 53pin
IC1480 38pin
IC1480 16pin
IC1480 17pin
IC1480 18pin
IC1480 19pin
IC1480 15pin
IC1480 39pin
IC1480 20pin
IC1480 21pin
IC1501 201pin
IC1501 203pin
IC1501 207pin
IC1501 209pin
IC1501 208pin
IC1501 206pin
IC1501 202pin
IC1501 200pin
IC1501 198pin
IC1501 194pin
IC1501 199pin
IC1501 192pin
IC1501 160pin
IC1501 162pin
IC1501 164pin
IC1501 168pin
IC1501 170pin
IC1501 172pin
IC1501 176pin
IC1501 178pin
IC1501 177pin
IC1501 175pin
IC1501 171pin
IC1501 169pin
IC1501 167pin
IC1501 163pin
IC1501 161pin
IC1501 159pin
IC1501 183pin
IC1501 181pin
IC1501 188pin
IC1501 189pin
IC1501 190pin
IC1501 179pin
IC1501 180pin
IC1501 193pin
IC1501 197pin
<Check> Check the conductivity at “check point 1” and “check point 2” without power.
In case of NG, check the soldering and defective components throughout the
“output t input” of the applicable section.
NO. Signal name Check point 1 Check point 2 Specification value
AVIC-Z110BT/XN/UC 63
5 678
5678
C
D
F
A
B
E
Side B
Side A
Check point 1 (IC1480)
Check point 2 (IC1501)
Fig 6.2: SDRAM I/F check point
AVIC-Z110BT/XN/UC
64
1234
1234
C
D
F
A
B
E
VD8_1
PGND3
VD
VD8_1
PGND1
VCC5_1
AGND3
Check 7: Is VD8, VCC5 power supply voltage OK?
F.E. driver system
IC1002
REG IC
for VCC 5 V.
Fig 7.1: Power supply configuration
Power supply
for PU
NO. Check point Module No. Specification value Unit
1
2
3
VD8_1 - PGND3
VD - PGND3
VCC5_1- AGND1
ALL
ALL
ALL
8.0 ± 0.4
8.0 ± 0.4
5.0 ± 0.1
V
V
V
Side A
<Check> Check the voltage at the “VD8_1, VD and VCC5_1” test point while the power is on.
Use the “PGND3 and AGND1” test point at the reference.
Fig 7.2: VD8, VCC5 voltage check points
VD8_2
VCC5 (= 5.0 V)
AVIC-Z110BT/XN/UC 65
5 678
5678
C
D
F
A
B
E
DV IC1801
Audio-DAC
GNDAU1
PGND3
VD
AVCC5
Fig 8.2: VD8, AVCC5 voltage check points
Side A
Check 8: Is AVCC5 voltage OK?
Fig 8.1: Power supply configuration
IC1003
REG IC
for AVCC 5 V.
<Check> Playback DVD-REF-A1 TITLE 1 and check the voltage at the stylus.
Check with PGND and GNDAU being the reference.
NO. Check point
VD - PGND_3
AVCC5 - GNDAU1
Module No. Specification value Unit
1
2
ALL
ALL
8.0 ± 0.4
5.0 ± 0.1
V
V
AVCC5 (= 5.0 V)
AVIC-Z110BT/XN/UC
66
1234
1234
C
D
F
A
B
E
Fig 9.1: Clock configuration
Check 9: Is DACCLK normal?
<Outline> DACCLK for Audio-DAC is created by IC1501 using the 27 MHz master crystal oscillator (X1501).
DACCLK
<Check method>
DVD: DVD-REF-A1 TITLE 1
CD: Playback a normal CDDA.
Common to all DVD-V compatible modules.
Check with DGND being the reference.
In case of NG, check the applicable line, the periphery of IC1501, soldering of the peripheral components and
defective components.
IC1501
DVD-LSIX1501
27 MHz
crystal
IC1801
Audio-DAC
VCC33 VCC12
GND
Fig 9.2: Clock specification value
Specification
value 1
Specification
value 2
Specification
value 3
NO. Check point 1 (stylus) Media Specification value 1 Specification value 2 Specification value 3
1
2
DACCK
DACCK
DVD
CD
2.0 V~VCC33 V
2.0 V~VCC33 V
DGND~0.8 V
DGND~0.8 V
36.864 0 MHz ± 300 ppm
33.868 8 MHz ± 300 ppm
AVIC-Z110BT/XN/UC 67
5 678
5678
C
D
F
A
B
E
DGND2
Side B
Side A
Fig 9.3: 27 MHz, DACCLK check point
Check point 1 (DACCK stylus)
Check point 2 (IC1501 148 pin)
AVIC-Z110BT/XN/UC
68
1234
1234
C
D
F
A
B
E
CN1901
HOST I/F
IECOUT
OLKCRL
ADOUT
ORKCRS
GNDAU
IC1801
Audio-DAC
IC1501
DVD-LSI
Fig 10.1: Audio circuit
Check 10: Is the audio circuit OK?
<Outline> The serial 3 lines digital output + DACCLK, output from DVD-LSI (IC1501), are converted to analog audio
signal at Audio-DAC (IC1801) and are output from the HOST I/F (CN1901).
Simultaneously, the analog MUTE signal is also output from DVD-LSI (IC1501) via the HOST I/F.
The digital audio signal (IECOUT), output from DVD-LSI (IC1501).
<Check method> Playback DVD-REF-A1 TITLE 2 CHAPTER 1 (48 k/16 bit 1 kHz 0 dB),
and check with DGND being the reference.
In case of NG, check the applicable line, periphery of major components as described in the above drawing,
soldering of the peripheral components and defective components.
NO. Check point 1 (stylus)
1
2
3
Specification value 1 Specification value 2 Reference waveform
ADOUT3
SRCK
LRCK
VCC33 V-0.6 V or higher
VCC33 V-0.6 V or higher
VCC33 V-0.6 V or higher
0.4 V or lower
0.4 V or lower
0.4 V or lower
Waveform 1
Waveform 2
Waveform 3
GND
Fig 10.2: Serial 3 lines specification value
Specification
value 1
Specification
value 2
AVIC-Z110BT/XN/UC 69
5 678
5678
C
D
F
A
B
E
SRCK
LRCK
ADOUT
DGND2
Fig 10.3: Serial 3 lines check points
Side A
Side B
AVIC-Z110BT/XN/UC
70
1234
1234
C
D
F
A
B
E
LO
RO GNDAU1
The following checks shall be conducted using the following measurement circuits with GNDAU1 being the reference.
NO.
4
5
Fig 10.4: Analog audio out (LO, RO) specification value.
Side A
Specification value is the root-mean-square value (rms).
Check point 1 (stylus)
1 400 ± 150 mV
1 400 ± 150 mV
Specification value (rms) Reference waveform
Waveform 4
Waveform 4
LO
RO
LO GNDAU1 RO
47 kohm 47 kohm
Fig 10.5: Analog audio out check point
Check with DGND being the reference.
NO. Check point 1 (stylus) Specification value 1 Specification value 2 Reference waveform
6 IEC VCC33 V-0.6 V or higher 0.4 V or lower Waveform 5
AVIC-Z110BT/XN/UC 71
5 678
5678
C
D
F
A
B
E
IEC DGND2
Fig 10.6: Digital audio signal (IECOUT) check point
Side A
AVIC-Z110BT/XN/UC
72
1234
1234
C
D
F
A
B
E
Check 11: Is the video circuit OK?
<Outline> Composite signal and component signal are output from DVD-LSI (IC1501), and are output from the
HOST I/F (CN1901) via a buffer circuit.
CN1901
HOST I/F
Composite COMPOSITE
Fig 11.1: Video circuit
<Checking method> Playback DVD-REF-A1 TITLE2 CHAPTER5 (WHITE 100%), and monitor COMPOSITE signal with
an oscilloscope with GNDV1 (stylus) being the reference. Set the trigger mode to “TV trigger” and
the trigger line to “150 line”.
IC1501
DVD_LSI
Video
DAC
section
NO.
Check point 1 (stylus)
Specification value Reference waveform
1 COMPOSITE 1 000 mVpp ± 5 % Waveform 6
In case of NG, check the applicable line, the periphery of the major components in the drawing above, soldering of the
peripheral components and defective components.
PEAK
COMPOSITE signal Reference
value
Color burst
Pedestal level
BOTTOM
Horizontal sync signal
Fig 11.2: Waveform for the case of composite white 100% output
AVIC-Z110BT/XN/UC 73
5 678
5678
C
D
F
A
B
E
Side A
COMPOSITE GNDV
Fig 11.3: VIDEO signal check point
AVIC-Z110BT/XN/UC
74
1234
1234
C
D
F
A
B
E
Check 12:How to judge whether the flash memory has reached its life or not.
If the reaction to user operation is slow or operation is slow in general, there is a possibility that the flash memory
has reached its life.
Make judgment regarding the flash memory life by looking at the display of the LD energizing time.
1.Let the LD energizing time displayed.
(Refer to the FE test mode for the method of displaying the LD energizing time.)
2.If the second digit from the left of the energizing time display is showing E,
such as “ E ”, it means that the flash memory has reached its life.
Example:
0E000BB8
AVIC-Z110BT/XN/UC 75
5 678
5678
C
D
F
A
B
E
USB_CLOCK
IC1501
DVD-LSI
X1950
48 MHz
VCC33 VCC12
Check 13: 48 MHz Normal?
<Outline> Each clock is created inside the IC1501 using the 48 MHz master crystal oscillator (X1501).
Fig 13.1: Clock configuration
crystal
Fig 13.2: Clock specification value
<Check method> Turn the power on, and check with DGND1 being the reference.
In case of NG, check the applicable line, periphery of IC1501,
soldering of the peripheral components and defective components.
NO. Check point Module No. Specification value Unit
2 IC1501 50pin-DGND1 ALL 48 MHz
± 50 ppm ppm
GND
Specification
value
AVIC-Z110BT/XN/UC
76
1234
1234
C
D
F
A
B
E
Side A
DGND1
IC1501 50pin
Fig 13.3: 48 MHz check point
AVIC-Z110BT/XN/UC 77
5 678
5678
C
D
F
A
B
E
CN1901
HOST I/F
No.
1 CP_RESET
2 SDATA VCC33*0.7or more VCC33*0.2 or less
VCC33*0.7or more VCC33*0.2 or less
VCC33*0.7or more VCC33*0.3 or less
VCC33*0.7or more VCC33*0.3 or less
3 SCLOCK
4 D+
5 D-
Fig. 14.2: USB Circuit Communication Wave
VCC33*0.7or more
IC1501
DVD-LSI
D-
D+
I2C_SCL
I2C_SDA
CP_RESE
Standard value 1
Standard value 1
Standard value 2
Standard value 2
DGND
Check 14: Is USB Circuit OK?
<Outline>
The data is transmitted through D+, D- and SDA of HOST I/F while playing USB/IPOD.
USB memory uses only D+ and D-, but IPOD uses SDA (DATA) and SCL (CLOCK)
in addition to D+ and D-.
Fig. 14-1: USB Circuit
<Check Method>
1.USB Memory: Play a song from USB memory and check D+ and D- with the DGND standards.
2.iPod: Connect iPod and check CP_RESET, SDA and SCL with the DGND standards until the pioneer log appears.
Play a song from iPod and check D+/D- with the DGND standards.
When it does not conform to the standards, check appropriate line, main parts shown in the above figure,
soldering of peripheral parts and malfunctions in parts.
Checking spot (stylus)
*Until the pioneer log appears after connecting the iPod
*Until the pioneer log appears after connecting the iPod
AVIC-Z110BT/XN/UC
78
1234
1234
C
D
F
A
B
E
Side A
SCLOCK
SDATA
D-
CP_RESET
D+ DGND2
AVIC-Z110BT/XN/UC 79
5 678
5678
C
D
F
A
B
E
AUDIO
Reference voltage: DGND2 1 V/div. 5 usec/div Reference voltage: GNDAU2 1 V/div. 500 usec/div
Reference voltage: DGND2 1 V/div. 5 usec/div Reference voltage: DGND2 1 V/div. 500 nsec/div
CH1:LRCK
CH1:SRCK
CH1:ADOUT3
CH1:LO
CH2:RO
CH1:IECOUT
Reference voltage: DGND2 1 V/div. 5 usec/div
G->
G->
->G->G
G->
G->
Waveform 1 Waveform 4
Waveform 2
Waveform 3
Waveform 5
AVIC-Z110BT/XN/UC
80
1234
1234
C
D
F
A
B
E
VIDEO
USB memory
USB memory USB memory
[WHITE 100IRE]
CH1:COMPO
Reference voltage: GNDV1 200 mV/div. 10 usec/div
-D-D
DNGDDNGD
+D+D
Waveform 6
Waveform 7 Waveform 8
Reference voltage:DGND 1 ms/div 2 V/div Reference voltage:DGND 200 ns/div 2 V/div
AVIC-Z110BT/XN/UC 81
5 678
5678
C
D
F
A
B
E
iPod
-D-D
DNGDDNGD
+D+D
CP_RESET
DGND
SDA
NRES
iPod
SCL
iPod
iPodiPod
iPod
Waveform 9
Waveform 11
Waveform 13
Waveform 12
Waveform 10
Reference voltage:DGND 1 ms/div 2 V/div
Reference voltage:DGND 20 ms/div 1 V/div
Reference voltage:DGND 500 us/div 1 V/div
Reference voltage:DGND 2 ms/div 1 V/div
Reference voltage:DGND 200 ns/div 2 V/div
AVIC-Z110BT/XN/UC
82
1234
1234
C
D
F
A
B
E
5.4 ERROR CODE LIST
Error status OSD *1 Disc
USB
(MSC)
USB
(iPod)
ACC
Off/On
Source
Off/On
Eject Play Key
NON-PLAYABLE DISC
INCOMPATIBLE DEVICE
UNPLAYABLE FILE
O
p
en 10h X-- ****
Read Error 0h299-20-RORRE X--
Focus Error(Focus Error
in mechanism set u
p)
h1209-20-RORRE X- - XXXX
XXXX
Surface Error h22E9-20-RORRE X- - XXXX
Address no t
found(Invalid Track) ERROR-02-80 23h X- - XXXX
Spindle Lock ERROR-02-91 24h X- - XXXX
Carriage HOME ERROR-02-92 25h X- - XXXX
ID/SUBCODE Read Error ERROR-02-94 26h X- - XXXX
AV CHIP decode Error ERROR-02-9A 2Ah XX - XXXX
AV CHIP Recovery NG ERROR-02-9B 2Bh XXX XXXX
Error of PLAY BAC K
Mode Status ERROR-02-9C 2Ch XX - XXXX
Disc Data Error ERROR-02-9D 2Dh X- - XXXX
THERMAL
PROTECTION IN MOTION
No Disc
(including Disc loading
and e
j
ectin
g)
40h X- - ****
Loading_Mecha Error 50h XXX X-X-
Communication fault attesting iPod
Communication fault attesting iPodh0606-20-RORRE X-X
h1616-20-RORRE X-X
iPod attestation retrying failure
iPod attestation time out
h2626-20-RORRE iPod attestation retrying failure X-X
h3636-20-RORRE X-X --X-
--X-
--X-
--X-
h4646-20-RORRE --X --X-
--X-
Error setting iPod h5656-20-RORRE -- X
h6666-20-RORRE --X --X-
h7676-20-RORRE --X --X-
h8686-20-RORRE --
X--X-
No songs error h96 --X --X-
iPod control forwarding/
Intarapta forwarding error hA6A6-20-RORRE --X --X-
Demand timeout
iPod's reproducing hB6B6-20-RORRE --X --X-
--X-
ERROR-02-6C -- X
Remote switch demand
timeout ERROR-02-6D --X --X-
--X-
--X-
PROTECTED DISC
NO ACCESSIBLE
DATA AVAILABL
DIFFERENT REGION DISC
NON-PLAYABLE DISC
ERROR-02-A0 X-- XXXX
h1A1A-20-RORRE X- -
ERROR-02-A2 A2h X-- XXXX
ERROR-02-A3 A3h X-- XXXX
ERROR-02-A4 A4h X-- XXXX
ERROR-02-A5 A5h X-- XXXX
ERROR-02-A6 A6h X--XXXX
ERROR-02-A7 A7h X-- XXXX
ERROR-02-A8 A8h X-- XXXX
ERROR-02-A9 A9h X-- XXXX
ERROR-02-AA AAh X-- XXXX
Focus Error ERROR-02-AB ABh X-- XXXX
Error of PLAY BAC K
Mode Status h0B0B-20-RORRE X- - XXXX
Error of PLAY BAC K
Mode Status h1B
C0h
1B-20-RORRE X- - XXXX
Audio Propert y Timeou
t
Error *9 ERROR-02-C0 Audio property timeout error X- - XX X -
ERROR-02-D0 -X- --X-
CBW and CSW forwarding error
ERROR-02-D1 -X- -- X -
Audio class band securing failure
ERROR-02-D8 -- X-- X -
Audio class FS setting failure
ERROR-02-D9 -- X-- X -
Undefined Error ERROR-FF-FF X-- XXXX
--
--
00h USB device of format alone that
cannot be reproduced XX
30h X
70h --
X--
90h --X
Method of reset
Temp Error
(In Case of High
Tem
p
erature )
Region code Error NG
--
--
8*rorrEyeK7*MRPC Key Error for playback X--
X-
--
-- --
X-
Generation source
-
--
XX
h00rorrEaideM XXX X -
00h USB device that doesn't correspond XX-
X-
h07rorrEMRD X
(No display)
(No display)
(No display)
(No display)
A disc containing the unplayable
Format only
Door open error
Transfer start error
Focus error
Focus error during set up
(A focus has never been achieved
with that disc.)
Address not found.
Spindle lock NG
(the disc cannot rotate)
Carriage home NG
(The pick up tries to return to carriage
home, but it cannot go back and stopped.)
ID/SUBCODE Read Error (ID/SUBCODE
cannot be read due to scratch or stain.)
UART
*2 Meaning
AV CHIP decode NG
(AV chip cannot be decoded.)
AV CHIP recovery NG
Playback state error
(An error due to software bug.)
Disc Data NG
Disc has not been inserted.
(Including Load in process or
Eject in process.)
High temperature
(Playback is stopped because the pick up
temperature is 89 C or higher.)
Loading mechanism error
(The disc cannot be clamped.)
6Ch
6Dh
A0h
h39
D0h
FFh
D9h
D8h
D1h
DRM error (All music cannot be played
back due to DRM.)
DRM error (All music cannot be played
back due to DRM.)
Undefined error
iPod authentication data is abnormal
iPod authentication data is abnormal
REQUEST error
Failure in issuing the read command
L0 adjustment is NG.
L1 adjustment is NG
LD system NG
Gain adjustment system NG.
Gain determining system NG.
Servo initial setting related items NG.
Disc is not clamped yet.
Tracking system NG
Media setting system NG
JUMP over layers NG
Navigation command error
Retry over
REQUEST error
Failure in issuing read
command (chip dependent)
Adjustment of L0 is NG.
Adjustment of L1 is NG.
LD system NG
Gain adjustment system NG.
Gain determining system NG.
Servo initial setting related items NG.
Disc is not clamped yet.
Tracking system NG.
Media setting system NG.
XXXX
Error when iPod is connected/
It is generated STALL by the USB
communication
Demand timeout when
initial is communicated
Protocol version
non-correspondence
Timeout when protocol
version is judged
Remote switch error
iPod attestation time out
Error setting iPod
No songs error
iPod control forwarding/
Intarapta forwarding error
Demand timeout
iPod's reproducing
Remote switch demand
timeout
Error when iPod is connected/
It is generated STALL by the USB
communication
Demand timeout when
initial is communicated
Protocol version
non-correspondence
Timeout when protocol
version is judged
Remote switch error
Error when MCS is connected/
It is generated STALL by the USB
communication
CBW and CSW forwarding error
Audio class band securing failure
Audio class FS setting failure
Error when MCS is connected/
It is generated STALL by the USB
communication
Region code NG (Unable to be played back
due to incorrect mechanism region.)
AVIC-Z110BT/XN/UC 83
5 678
5678
C
D
F
A
B
E
X: Cancel the error by operation. -: Error is not cancelled by operation. *: No setting
*1 A content displayed on OSD. As for the items having multiple display patterns, the upper row is for the Japanese version Full GUI, and the lower row is for
the Touch Panel model and Full GUI (English version).
*2 A parameter of UART command, such as “receipt error notice”, that the DVD mechanism transmits.
*3 CPPM(Content Protection for Prerecorded Media) : A copyright protection technique used in DVD-A. The protection is realized by using the keys recorded
on the media and the device key held by the player.
*4 DVD-A compatible model only.
When an error has occurred, only the audio output will be muted but playback operation will continue. Furthermore, acceptance of the user operation will be
the same as usual.
*5 AWM (Audio WaterMark): Electronic watermark. Information on the copyright owner or CCI (copy control information) are recorded so that illegally copied
discs can be identified.
*6 Notice as an error status will not be given
*7 CPRM(Content Protection for Recordable Media) : A copyright protection technique for digital contents used for re-writable DVD or memory card.
(DVD-VR model only)
AVIC-Z110BT/XN/UC
84
1234
1234
C
D
F
A
B
E
5.5 CONNECTOR FUNCTION DESCRIPTION
iPod
1 : USB-
2 : USB+
3 : ACCID
4 : USB5V
5 : USBGND
6 : NC
7 : LOUT
8 : NC
9 : TXiPod
10 : ACCDET
11 : A_RETURN
12 : V_RETURN
13 : VOUT
14 : RXiPod
15 : iACCPW
16 : ROUT
17 : GNDD
IP-BUS
1. IPBUS+
2. IPBUSG
3. IPLG
4. NC
5. IPBUS-
6. IPRG
7. IPL+
8. ASENBO
9. IPR+
10. IPR-
11. IPL-
ANTENNA
GPS ANTENNA MIC INPUT
AV CONNECTOR
242322212019
876543
1817
21
1 : TELMUTE
2 : KMODE
3 : PRR
4 : PRL
5 : SWL
6 : SWR
7 : PFR
8 : VTR2R
9 : VTR2L
10 : VTRIN2V
11 : RROUT2
12 : RLOUT2
13 : BCV
14 : VTRIN3V
15 : RVOUT2
16 : BREMOTE
17 : EXTOC
18 : CTOEX
19 : (HYOKA)
20 : HRGND
161514131211109
3231302928272625
21 : SWG
22 : HFGND
23 : PFL
24 : VTR2RG
25 : VTR2LG
26 : VTRIN2VG
27 : RROUT2G
28 : RLOUT2G
29 : BCVG
30 : VTR3VG
31 : RVOUT2G
32 : BGND
POWER SUPPLY
35791113
468101214
15
16
1 : FR+
2 : RR+
3 : FR-
4 : RR-
5 : FL+
6 : RL+
7 : FL-
8 : RL-
9 : PKB
10 : PULSE
11 : REV
12 : ILM
13 : AANT
14 : ACC
15 : GND
16 : BUP
1
2
1 : SWBUP
2 : RDSSNS
3 : TMC_MSN_ON
4 : CTOVICS
5 : VICSTOC
6 : GND
RDS-TMC TUNER
234561
AVIC-Z110BT/XN/UC 85
5 678
5678
C
D
F
A
B
E
6. SERVICE MODE
6.1 TEST MODE
1. How to Select Test Mode Menu
Key operations used at the test mode are the following six keys;
2. How to Start-up Test Mode
Start-up by operation of the product.
1. Enter the following password while +B, ACC are ON (Normal application start-up status).
Start-up by SD card.
1. Download GGS1080 from the Service Site.
2. Decompress the file.
3. Copy the decompressed file to the SD card root.
4. Insert the SD card to the product and turn ACC on.
2. When the password is correct, restart begins and test mode menu is displayed.
1. Press [HOME] key.
2. Press keys in the order,
[RIGHT] -> [LEFT] -> [RIGHT] -> [LEFT] -> [RIGHT] -> [LEFT],
while pressing [HOME] key.
3. Release [HOME] key.
Page Change (Next) RIGHT
Item Selection (Determination) MODE
Cancel /Return to previous page HOME
Key Operation Key Allocation
Cursor Up VOL UP
Cursor Down VOL DOWN
Page Change (Previous) LEFT
AVIC-Z110BT/XN/UC
86
1234
1234
C
D
F
A
B
E
3. Test Mode Menu
Display version information such as Navigation
Software, Navigation Destination, Microcomputer Software, etc.
Perform Error / Log View, File Copy and Clearing.
Writing of Navigation Program / Platform/Boot Loader /
IPL / System Microcomputer / BT Firmware.
Writing of Start-up Screen Data / APL Program.
Writing / Reading Fixed Data.
Writing / Reading / Clearing of BSP Backup Data.
Display connection status of System Microcomputer /
Mechanical Microcomputer / BT Module /
GPS_RF / iPod Authentication IC / One-Segment_RF.
Coordinate Test of touch panel.
Perform Line Touch Panel and Calibration Tests.
Perform Flicker Adjustment, Initialization of E2PROM.
Perform Service Test, E2PROM Test,
Backlight Test and Illumination Test.
Test of Hard Key.
Status display of Input Port.
Status display/changeover of Output Port.
Display drive information, disc scanning
(verification of volume).
File operation and file deletion.
Dumping display of file contents.
2
1
6
5
4
3
9
8
7
10
11
Overview of TestName of Test Item
Touch Panel Test
Drive Maintenance
File Maintenance
Port Test
Version Information
Monitor TestMode
TouchPanel Check
Program Forced Write
SELF CHECK PROGRAM
Key Test
Error / Log History
AVIC-Z110BT/XN/UC 87
5 678
5678
C
D
F
A
B
E
Display GPS positioning data, satellite information
acquired and error information.
Version display of GPS driver / sensor.
Reset GPS driver and perform clearing of backup
data.
Clear the gyro-sensor learned value.
Display G-sensor, gyro value, power supply
voltage, temperature and installation status.
Perform radio wave authentication test.
Data readout of NAND FLASH.
Writing data or file into NAND FLASH.
Execution of User Area clearing.
Guiding Audio Line confirmation by the replay of
audio file.
Display various test images.
Overview of Test
USER'S AREA OF FLASH CLEAR
NAND Test
Name of Test Item
Bluetooth Unit
GYRO SENSOR INFO data clear
GPS backup data clear
GPS INFORMATION
Audio Play Test
Image Test
SENSOR test
GPS assessment
12
19
18
17
21
20
16
13
15
14
AVIC-Z110BT/XN/UC
88
1234
1234
C
D
F
A
B
E
Display G Sensor, gyro value, power supply
voltage, temperature and variation, CAM_ON
terminal and installation status.
Confirmation of microphone input line for audio
recognition.
Confirmation of audio output line for SD / USB
Audio.
Confirmation of output for subwoofer pre-out.
Execution of ON/OFF for Fan Revolution,
controlling revolution speed.
Receiving test of wired remote control key.
Receiving test of manufacture code.
Setting of time
Confirm the normal operation of USB device by
connecting USB device to the product.
Confirmation of normal operation of SD card.
Display images from iPod / AUX, VTR, external
terrestrial digital television.
Display image of back camera on navigation
screen.
Check wire connecting status of 3 color signals
for RGB key illumination.
Confirming flap close and displaying RPS value.
Display product information.
22
BACK CAMERA TEST
27
26
24
25
23 MIC LINE TEST
SD TEST
USB CHECK
28
30
29
RTC TEST
VTR INPUT TEST
32
31
PRODUCT INFORMATION
35
RGB KEY ILLMINATION TEST
33
34 MechaClose Position Confirmation
EXT CONNECTION TEST
Overview of TesName of Test Item
Overview of TestName of Test Item
FAN CONTROL
WIRED REMOCON TEST
NAVI VOICELINE TEST
SUBWOOFER LINE TEST
AVIC-Z110BT/XN/UC 89
5 678
5678
C
D
F
A
B
E
[ *.****** ]: Value of Version
1. Version Information
Obtain version information for assigned software and display the information on
screen with list display.
Information DisplayItem ContentsItem
PLATFORM OS part version of system software [ *.****** ]: Value of Version
[NO_SET]: No information
IPL Version of product startup program [ *.****** ]: Value of Version
[NO_SET]: No information
BOOTLOADER Version of boot loader [ *.****** ]: Value of Version
[NO_SET]: No information
MECHA VERSION Version of DVD mechanism [ *.****** ]: Value of Version
[NO_SET]: No information
APL PROGRAM Version of navigation application
[NO_SET]: No information
CPU CORE Version of CPU core [ *.****** ]: Value of Version
SYSTEM uCOM Version of system microcomputer [ *.****** ]: Value of Version
[NO_SET]: No information
SYSTEM uCOM Version of startup program for [ *.****** ]: Value of Version
[NO_SET]: No informationBOOT PROGRAM system microcomputer
NAND CID Firmware ID of NAND Flash [ *.****** ]: ID value
[ GET_NG ]: Acquisition failed
1. Program Version [The first page]
Key Operation Key Allocation
Page Changeover (Prev. page) LEFT
Page Changeover (Next page) RIGHT
Cancel / Return to prev. page. HOME
AVIC-Z110BT/XN/UC
90
1234
1234
C
D
F
A
B
E
Key Operation Key Allocation
Page Changeover (Prev. page) LEFT
Page Changeover (Next page) RIGHT
Cancel / Return to prev. page. HOME
2. Model Information [The second page]
Information DisplayItem ContentsItem
Product Model NumberPRODUCT NUMBER
Planning Model NumberNAVI INFORMATION
NAND DATA Parts number of Data Set in
PARTS CODE NAND-FLASH
NAND VERSION Data Set Version of
NAND-FLASH
VOLUME Volume information of
INFORMATION NAND-FLASH
REGION CODE Region Code of DVD
[ AVIC-*** ]: Value of Version
[ NO_SET ]: No information
[ &XX*** ]: Value of Version
[ NO_SET ]: No information
[ NO_SET ]: No information
[ NO_SET ]: No information
[ Vol.* ]: Value of Version
[ CWW****- ]: Value of Version
[ PC5-*-* ]: Value of Version
[ NO_SET ]: No information
[2 ]: Europe / Normal Region Code
[1 ]: North America / Normal Region Code
[5 ]: Russia / Normal Region Code
[4 ]: Australia / Normal region Code
* Values other than above are abnormal values.
[ NO_SET ]: No information
AVIC-Z110BT/XN/UC 91
5 678
5678
C
D
F
A
B
E
Key Operation Key Allocation
Page Changeover (Prev. page) LEFT
Page Changeover (Next page) RIGHT
Cancel / Return to prev. page. HOME
Information DisplayItem ContentsItem
Bluetooth Firmware Bluetooth Firmware Version [ ****** ]: Value of Version
[ NO_SET ]: No information
3. Bluetooth Firmware Information [The third page]
AVIC-Z110BT/XN/UC
92
1234
1234
C
D
F
A
B
E
2. Error/Log History
Perform displaying each error history, saving the history into storage and clearing the history.
Menu Screen
<<Key Operation>>
VOL +/- : Item selection
MODE : Execution of selected item
HOME : Return to main menu
<<Item>>
1. Error History Show
Display error history currently saved.
2. Log History Show
Display execution log history currently saved.
3. Error / Log History Save
Save histories of error, log and exception files into storage.
4. Error / Log History Delete
Clearing of error, log and exception histories saved.
1. Error History Show
<<History Display Screen>
Date : Time of error recorded
TickCount : Value of counter started counts at OS startup. 1 count is corresponding to 1 millisecond.
Error Code : Error code
Error Line : Number of lines on source code
Error Info 1, 2 : Additional Information
Version Info : Program version
Versions for boot loader, platform and application are displayed.
File : Display file name where error happened.
Log : Log information (The content is displayed only when saved)
AVIC-Z110BT/XN/UC 93
5 678
5678
C
D
F
A
B
E
The execution log is the execution history when specific operation is performed. (Not errors)
Date : Time of error recorded
TickCount : Value of counter started counts at OS startup. 1 count is corresponding to 1 millisecond.
Log : Log information
3. Error / Log History Save
Histories of error, log and exception are saved in storage.
<< Selection Screen>>
<<Key Operation>>
VOL +/- : Item selection
DISP : Execution of copy
HOME : Return to main menu
The history is saved in the following folder configuration;
SD or USB Memory
LOG
000
error.txt <- Error History
log.txt <- Log History
AstLog <- Exception History Folder
DBMSG000.log
SYSER000.log
EMERG000.log
EMERG001.log
(Histories may be saved up to EMERG511.log)
2. Log History Show
<<History Display Screen>>
AVIC-Z110BT/XN/UC
94
1234
1234
C
D
F
A
B
E
Histories for error, log and exception are saved.
<<Confirmation Screen>>
3. Program Forced Write
<<Item Description>>
1. Navi Program Write . . .
2. Platform Write . . .
3. BootLoader Write . . .
4. System uCom Write . . .
5. Bluetooth Firmware Write . . .
6. Opening Data Write . . .
Normally the following programs which perform
automatic version up are all written;
- Boot loader software
- Platform software
- Font data
- Application software
Only platform software is written.
Only boot loader software is written.
System microcomputer software is written.
Firmware of Bluetooth chip is written.
* Normal writing becomes unable if power is off during the
writing. On this occasion, please retry firmware writing.
* "Complete" may not be displayed while the percentage is kept to 100%.
If "Complete" is not displayed in 1 minute after the percentage reaches 100%, turn
OFF and ON ACC, and then implement the writing of Bluetooth firmware again.
Startup screen data is written.
4. Error / Log History Delete
AVIC-Z110BT/XN/UC 95
5 678
5678
C
D
F
A
B
E
4. SELF CHECK PROGRAM
The connection status of function module installed in the product is displayed.
In the case of non-connection, error is displayed and the target module is considered to be fault.
Diagnostic Target
<<Key operation>>
VOLUME + . . . Nothing operates
VOLUME - . . . Nothing operates
LEFT/UP . . . SD card is selected
RIGHT/DOWN . . . USB memory is selected
MODE . . . Writing is started. * Valid only when the program is checked
HOME . . . Operation returns to the program selection
[Writing of navigation program]
Target Unit Check Content Required Time for Indication Indication
Diagnosis when OK when NG
1 System uCom Confirm connection status Less than 1 second Connected !!ERROR!!
2 Mecha uCom Confirm connection status Less than 1 second Connected !!ERROR!!
3 NAND Flash Confirm connection status Less than 1 second Connected !!ERROR!!
4 GPS RF Unit Confirm connection status Less than 1 second Connected !!ERROR!!
5 iPod Authentication Chip Confirm connection status Less than 1 second Connected !!ERROR!!
6 Bluetooth Unit Confirm communication Approx. 60 seconds, Connected !!ERROR!!
setup status max.
AVIC-Z110BT/XN/UC
96
1234
1234
C
D
F
A
B
E
6. Touch Panel Test
The following two items are performed at the touch panel test;
1. Line Touch Panel Test
2. Calibration Test
3. User Calibration Confirmation
The line touch panel test is the test for determining whether touch panel is out of
alignment or not by depressing four points displayed on the screen.
At the calibration test, calibration adjustment is performed to compensate the
misalignment of the touch panel. User touches displayed 17 points in order and
correction is automatically performed after touching.
At the User Calibration Confirmation, it is displayed that whether the user has
executed calibration adjustment or not.
5. Touch Panel Check
At the touch panel check, X, Y coordinates of location where touched are obtainable.
Screen under Checking
When touched, the coordination value where touched is displayed as well as vertical and
horizontal lines are illustrated with the cross point at the touched location.
The coordination value is set as the original point at upper-left and X coordinate to the right and
Y coordinate to the down, and maximum value of X coordinate is 800 and of Y coordinate is 480.
AVIC-Z110BT/XN/UC 97
5 678
5678
C
D
F
A
B
E
2. Calibration Test
Touch the illustrated points in order.
Unlike the line touch panel test, move to the next point after touching.
You are not able to exit from the test until all 17 points are touched.
When touching on 17 points is completed and calibration is successful,
[FINISHED] is displayed and if the calibration is unsuccessful, [NG] is displayed.
Return to main menu with [HOME] key.
3. User Calibration Confirmation
The following is displayed when
User already performed calibration Executed
User not performed yet calibration Not executed
1. Line Touch Panel Test
Touch the illustrated points in order.
If touched incorrectly, + mark is displayed in red.
When the touching proceeded to the final point of four (4), [OK] is displayed and the test is completed.
When depressing [HOME] key, [NG] is displayed and return to the menu screen.
The condition to be OK (move to the next point) when illustrated point is
touched is that the touched point should be within the following range;
10[dot] If the touched point is within 10 dots from the center,
the touch is determined as valid.
10[dot]
10[dot] 10[dot]
AVIC-Z110BT/XN/UC
98
1234
1234
C
D
F
A
B
E
Adjustment or test related to monitor is able to be performed.
1. E2PROM Test
7. Monitor Test Mode
Menu Screen
<<Menu Items>>
1. E2PROM Test Change the value of E2PROM related to monitor display.
2. Service Test Flicker adjusting mode for service.
3. Backlight Test Change backlight setting value.
4. Illumination RGB Test Change illumination RGB setting values.
5. E2PROM Initialize Perform initialization of E2PROM.
<<Items>>
Item Item Contents
ADR Display address of adjustment item in hexadecimal number.
Item Display adjustment item name whose setting value is adjustable.
ItemData Display the setting value of adjustment item which is indicated in the Item in hexadecimal number.
ItemGroup[Page] Display group name and page number of adjustment item indicated on screen.
The number of pages is indicated in decimal.
CheckSum Display the checksum of adjustment item group displayed on screen in hexadecimal.
In the case of group which does not have checksum, the value is indicated as ------.
Source Display the source name of image indicated as background.
Menu Contents
AVIC-Z110BT/XN/UC 99
5 678
5678
C
D
F
A
B
E
<<Items>>
<<Items>>
2. Service Test
Item Name Contents
COM_DC Display COM_DC value (center value of common inversed
output) in hexadecimal.
This is also adjustable.
FACTORY Display the factory shipping out reference value of
COM_DC value in hexadecimal.
This is just the item for indication and not adjustable.
3. Backlight Test
Item Name Contents
Backlight Brightness Data
Backlight Brightness Chg
Current backlight brightness (microcomputer saved value).
Backlight brightness is adjustable by the set value.
AVIC-Z110BT/XN/UC
100
1234
1234
C
D
F
A
B
E
4. Illumination RGB Test
5. E2PROM Initialize
[Range Selection Screen]
<<Items>>
Item Name Contents
Data-R
Data-G
Data-B
E2PROM Write
R (Red) data value
G (Green) data value
B (Blue) data value
ON/OFF setting of writing to E2PROM
<<Items>>
Item Item Contents
All Initialize
Part Initialize
Perform initialization of E2PROM entire region.
Perform initialization of E2PROM specified region
(Region assigned by the Design Division).
AVIC-Z110BT/XN/UC 101
5 678
5678
C
D
F
A
B
E
At the key entry test, key code of the hard key depressed, depressed/released status and
key description are displayed.
Retaining up to 12 histories is also possible.
When [HOME] key is depressed, however, it returns to the main menu.
Test Screen
Key Code: Specific value allocated to each key
State: ON … Status when key is depressed
OFF… Status when key is released
Operation Description: Operation description of each key
8. Key Test
VOICE UI 0x2000001a VOICE RECOGNITION
EJECT 0x00000001 DISC EJECT
MODE 0x20000013 NAVI/AV
VOL UP 0x20000008 VOL UP
VOL DOWN 0x20000009 VOL DOWN
LEFT 0x20000006 LEFT
RIGHT 0x20000007 RIGHT
HOME+LEFT 0x0002001b MENU+LEFT
HOME+RIGHT 0x0002001c MENU+RIGHT
LEFT+MODE 0x0002001d LEFT+NAVI/AV
EJECT+MODE 0x0002001e EJECT+NAVI/AV
Key Name Key Code Operation Description
AVIC-Z110BT/XN/UC
102
1234
1234
C
D
F
A
B
E
9. Port Test
At this test, port status of each item is displayed as Hi/Low.
The following port status is able to be confirmed.
Each description for port is as follows;
1. Detection of External RDS/MSNDirect Connection:
At this port, the status of external RDS/MSNDirect connection detection port is displayed.
Hi: Connection detected Low: Connection not detected
2. Detection of GPS Antenna Open Sense:
At this port, the status of GPS antenna OPEN detection port is displayed.
Hi: GPS antenna open status is detected. Low: GPS antenna not-open status is detected.
3. Detection of GPS Antenna Short Sense:
At this port, the status of GPS antenna short-circuit detection port is displayed.
Hi: GPS antenna short-circuit status is detected. Low: GPS antenna not shorted-circuit status is detected.
4. Input for Development Purpose:
At this port, the input status of port prepared for development is displayed.
Hi: K-mode signal is detected at the UI of this application. Low: Not detected.
5. High side SW Overcurrent Detection Signal Input for USB Overcurrent Protection:
At this port, status is displayed as the detection of short-circuit of power supply for iPod (USB).
Hi: Normal operation Low: Short-circuit detected
AVIC-Z110BT/XN/UC 103
5 678
5678
C
D
F
A
B
E
10. Drive Maintenance
In this test, each drive information is displayed and scan disc of NAND file is performed.
Drive Information
Drive Information Display Page
When drive information failed to be obtained, “Drive Information failed to be obtained”
is displayed and an error number is displayed subsequently.
Error numbers and cause of errors are as follows;
Error number Cause of Error
20005700 Drive is not found
20005701 Device open failed
20005702 Formatting failed
20005703 Scan disc failed
20005704 Defragmentation failed
20005705 Mounting failed
20005706 Un-mount failed
20005707 Number of partition failed to be obtained
20005708 Read failed
20005709 Write failed
2000570a Flash failed
2000570b Partition Table incorrect
2000570c Boot sector incorrect
2000570d Not supported drive
2000570e Drive information failed to be obtained
2000570f No consecutive vacant region exists
20005710 Device connection failed to be released
20005711 Device connection start failed
20005712 Synchronous object generation failed
20005713 Incorrect parameters
AVIC-Z110BT/XN/UC
104
1234
1234
C
D
F
A
B
E
Scan Disc
Screen for Starting Scan Disc
Screen for Scan Disc under Executing
Screen for Executed Result of Scan Disc
In the case of total error number being zero after the execution of scan disc,
“There isn’t error on the volume” is displayed.
AVIC-Z110BT/XN/UC 105
5 678
5678
C
D
F
A
B
E
11. File Maintenance
This test provides the capability to manage files in each directory.
In concrete terms, deletion of directory and execution of dumping are possible.
Operation Screen for the First Phase
The following 10 directories are becoming as the most significant directories.
USER/NDATA/SD/SD2/SD3/SD4/USB/USB2/USB3/USB4
The current file path is displayed on the first line.
Also, the directory under selection is marked in red and “>” is displayed at the left side of directory name.
Operable items are five (5) items, [Enter], [Select], [Delete], [All] and [Help].
[Enter] : Enter into the next phase in the directory selected.
The content of file is displayed during a file is under selection.
[Select] : Multiple number of directory or file is selectable.
“+” is displayed at the left side of directory or file name under selection.
By depressing [MENU] during the selection of directory or file,
selection status is released and “+” indication disappears.
[Delete] : Delete the selected directory.
Collective deletion is possible during multiple numbers of
directories are selected.
[All] : Select all of directories or files at the current phase.
All are marked in red and “+” is indicated.
By depressing [MENU] during the selection of directory or file,
selection status is released and “+” indication and red mark disappear.
[Help] : “Help” is displayed.
When the operation item is marked in white, the operation is unable to be executed.
Regarding Display Method
Name of Directory/File File Size (Only at the time of file)
At the time of Directory: <DIR> Indication
At the time of File: Extension Indication
Time of Update (Only at the time of file)
Displaying File Attribute (Only at the time of file)
W: Writing Approval Attribute
R: Writing Prohibition Attribute
H: Hidden Attribute
A: Archive Attribute
S: System Attribute
AVIC-Z110BT/XN/UC
106
1234
1234
C
D
F
A
B
E
12. GPS Information
At this test item, various values or status which is receivable from GPS are displayed.
Screen Display
* The First Page [Position]
Positioning Status Satellite Vehicle Number in Acquisition
Number of Satellite where positioning is possible Delay Time
Horizontal Accuracy for HDOP
Altitude Accuracy for VDOP
GPS Time
Latitude Velocity in Horizontal Direction
Longitude Azimuth of Velocity in Horizontal Direction
Altitude Velocity in Vertical Direction
Long Axis of Error Ellipsoid
Short Axis of Error Ellipsoid
Long Axis Inclination of Error Ellipsoid
AVIC-Z110BT/XN/UC 107
5 678
5678
C
D
F
A
B
E
* The Second Page [Sv Stat]
Satellite Vehicle Number in Acquisition
Azimuth
Elevation Angle
Received Signal Level
Positioning Status
Accuracy
* The Third Page [Diag]
Channel : GPS Diagnostic Result
Antenna Shot : Detection of Antenna Short Circuit
Antenna Open : Detection of Antenna Open Circuit
Backup Error : Detection of Backup Error
AVIC-Z110BT/XN/UC
108
1234
1234
C
D
F
A
B
E
* The Fourth Page [Err Info]
Count
Error Number
Week of Error
Time of Error Happened
Day of the Week Happened
13. GPS Assessmentt
Version information for GPS driver and sensor module are displayed on the screen.
AVIC-Z110BT/XN/UC 109
5 678
5678
C
D
F
A
B
E
14. Clear GPS Backup Data
Perform the resetting of GPS driver, clearing backup data and display the result on the screen.
[At the time when the clearing of GPS backup is successful]
[At the time when the clearing of GPS backup is unsuccessful]
AVIC-Z110BT/XN/UC
110
1234
1234
C
D
F
A
B
E
15. GYRO SENSOR INFO Data Clear
Perform the clearing of learning degrees in gyro sensor and display the results on the screen.
At the same time, clear the learning data saved in FLASH and SRAM.
[At the time when the clearing of learning degree in Gyro Sensor is successful]
[At the time when the clearing of learning degree in Gyro Sensor is unsuccessful]
AVIC-Z110BT/XN/UC 111
5 678
5678
C
D
F
A
B
E
16. SENSOR Test
Sensor information (AD value, running status, installation status on main body and
error at sensor learning) is displayed on the screen.
G SENSOR / SIGMA : Display of G-sensor voltage value
GYRO / SIGMA : Display of GYRO voltage value
POWER : Display of power supply voltage
TEMPERATURE : Display of Temperature
FIT UP : Display of installation status
DISTANCE : Display of distance calculation status
LOW SPEED : Display of the lowest output speed of low speed NG vehicle
(Depending on the status of DISTANCE)
Display Content of FIT UP
Display Status
NG Installation Position, NG
OK Installation Position, OK (The third-best)
OK(Better) Installation Position, OK (The second-best)
OK(Best) Installation Position, OK (The best)
Display Content of DISTANCE
Display Status
INITIALIZE Sensor under initial learning
GPS GPS Distance (Pulse not connected at the model without G sensor)
G-SENSOR G sensor distance (Simplified hybrid)
ND-PG1 ND-PG1 Distance
SPEED PULSE Vehicle speed pulse distance
Display Content of LOW SPEED
DISTANCE Status of SPEED PULSE Display
SPEED PULSE Low speed vehicle speed pulse under learning CHECK
Low speed vehicle speed pulse, OK OK
Low speed vehicle speed pulse, NG NG
Others -----
AVIC-Z110BT/XN/UC
112
1234
1234
C
D
F
A
B
E
17. Bluetooth Test
Emit radio wave for Bluetooth authentication.
First, display the following screen.
Display sub menu screen after the completion of internal processing.
Screen in Case of Error
Return to the main menu with [HOME] key.
This screen is also displayed when Bluetooth is internally used in other test.
Please execute Bluetooth Unit test again after depressing [HOME] key or resetting.
Select item with [ ], [ ] keys and determine with [MODE] key.
Return to the main menu with [HOME] key.
Screen at the Time of Start
0. Sub Menu Screen
AVIC-Z110BT/XN/UC 113
5 678
5678
C
D
F
A
B
E
Select [1. External Analyzer Test] from sub menu, the screen changes to the
following by depressing [MODE] key and the radio wave is emitted.
Screen under Radio Wave Emission
Please start the measurement.
Return to the sub menu with [HOME] key.
Select [2. Output Frequency Channel Test] from sub menu, the screen changes to the
following by depressing [MODE] key, and then select a pattern.
Select a page with [ ], [ ] keys.
Select an item with [ ], [ ] keys.
Emit the radio wave of pattern selected with [MODE] key.
Return to the sub menu with [HOME] key.
Selection patterns consist of six pages.
* Items 10, 11 and 12 on page 1 are not usable. [MODE SET ERROR!!!] is displayed.
Please execute the test of items on page 4, 5 and 6, respectively.
(The test content becomes in the form of 10, 11 and 12 of items 36 ~ 44.)
1. External Analyzer Test
2. Output Frequency Channel Test
AVIC-Z110BT/XN/UC
114
1234
1234
C
D
F
A
B
E
Page 1
00. Transmission Channel 0 (without GFSK)
01. Transmission Channel 39 (without GFSK)
02. Transmission Channel 78 (without GFSK)
03. Transmission DH5 Channel 0 (with GFSK)
04. Transmission DH5 Channel 39 (with GFSK)
05. Transmission DH5 Channel 78 (with GFSK)
06. Reception Channel 39
10. Using Only 20 Low Channel (0-19)
11. Using Only 20 Mid Channel (31-50)
12. Using Only 20 High Channel (60-79)
Page 2
15. transmission channel 19(without GFSK modulation)
16. transmission channel 19(with GFSK modulation)
17. reception channel 19
18. reception channel 0
19. reception channel 78
30. transmission DH1 channel 39
31. transmission DH3 channel 39
32. transmission DH1 channel 0
33. transmission DH3 channel 0
34. transmission DH1 channel 78
35. transmission DH3 channel 78
Page 3
36: transmission DH1with AFH activated
37: transmission DH3 with AFH activated
38: transmission DH5 with AFH activated
39: transmission 2-DH1 with AFH activated
40: transmission 2-DH3 with AFH activated
41: transmission 2-DH5 with AFH activated
42: transmission 3-DH1 with AFH activated
43: transmission 3-DH3 with AFH activated
44: transmission 3-DH5 with AFH activated
Page 4
36_10. Using Only 20 Low Channel (0-19)
37_10
38_10
39_10
40_10
41_10
42_10
43_10
44_10
Page 5
36_11. Using Only 20 Mid Channel (31-50)
37_11
38_11
39_11
40_11
41_11
42_11
43_11
44_11
Page 6
36_12. Using Only 20 High Channel (60-79)
37_12
38_12
39_12
40_12
41_12
42_12
43_12
44_12
AVIC-Z110BT/XN/UC 115
5 678
5678
C
D
F
A
B
E
Screen during the Emission of Radio Wave
Selected test item and [Now testing…..] are displayed.
Please start the measurement.
Return to the sub menu with [HOME] key.
Radio wave in which 7 items are set in detail is emitted.
Select item with [ ], [ ] keys and determine with [MODE] key.
Return to the sub menu with [HOME] key.
Flow of Process
After the detailed setting which was performed on [1. Parameter Setting], select [2. Execute] and
emit the radio wave which was set by depressing [HOME] key.
3. Output Frequency Channel Extended Test
AVIC-Z110BT/XN/UC
116
1234
1234
C
D
F
A
B
E
3-1. Parameter Setting
Select [1. Parameter Setting] and depress [HOME] key, then the screen becomes the item selecting screen below.
Select item desired to be changed with [ ], [ ] keys and determine it with [MODE] key.
Return to Output Frequency Channel Extended Test menu with [HOME] key.
Setting screen for the selected item is displayed.
Select item desired to be changed with [ ], [ ] keys.
Value is set with [MODE] key and return to Output Frequency Channel Extended Test menu.
Return to Output Frequency Channel Extended Test menu with [HOME] key.
* Setting of [4. Single Frequency] and [5. TX Burst Period] are numerical entry so the
display method becomes as follows;
Move the digit of numerical value desired to be set (cursor indicated with blue color) with [ ], [ ] keys.
Change the numerical value with [ ], [ ] keys.
Value is set with [MODE] key and return to Output Frequency Channel Extended Test menu.
Return to Output Frequency Channel Extended Test menu with [HOME] key.
AVIC-Z110BT/XN/UC 117
5 678
5678
C
D
F
A
B
E
In Case of Error Exists in the Setting Value
Value is set with [MODE] key and return to Output Frequency Channel Extended Test menu.
Please retry by entering correct value.
3-2. Execute
After the necessary setting is completed, select [2. Execute] from Output Frequency Channel Extended
Test menu, then the set radio wave is emitted by depressing [MODE] key.
*The set content is able to be confirmed on the screen by depressing [HOME] key
after selecting [1. Parameter Setting].
Please start the measurement.
Return to Output Frequency Channel Extended Test menu with [HOME] key.
AVIC-Z110BT/XN/UC
118
1234
1234
C
D
F
A
B
E
Setting Value of Output Frequency Channel Extended Test
1. Test Scenario
0. Switch Off
1. TX Burst Mode
2. RX Burst Mode
3. RX Burst Mode with Data transparently sent to host
4. RX Burst Mode with Bit & Packet Error Measurement Mode
2. Packet Type
4. DH1
11. DH3
15. DH5
36. 2-DH1
40. 3-DH1
42. 2-DH3
43. 3-DH3
46. 2-DH5
47. 3-DH5
3. Bit Pattern
1. All 0 Pattern
2. All 1 Pattern
3. 1010 Pattern
4. PRBS-9 Sequence
9. 11110000 Pattern
10. 1100 Pattern
4. Single Frequency
2402 + (00-93)MHz Value in parenthesis is able to be set arbitrarily.
5. TX Burst Period
(002-254) Value in parenthesis is able to be set arbitrarily
6. Scrambler Mode
0. OFF
1. ON
7. Power Level
0. Power Level 0
1. Power Level 1
2. Power Level 2
3. Power Level 3
4. Power Level 4
AVIC-Z110BT/XN/UC 119
5 678
5678
C
D
F
A
B
E
18. NAND Test
Perform the test on the read-write of NAND Flash.
Perform reading one sector by one sector from NAND Flash by assigning a starting sector number.
This screen displays the following contents when error happens before getting into read test.
• In the Case of a Device Opening not Successful
Fail to open device.
• In the Case of Obtaining Device Information not Successful
Fail to get device informations.
• In the Case of Internal Buffer Generation not Successful
Fail to create internal buffer.
Write a file into NAND Flash by using File System.
The written file is saved in the path below.
USER\SYSTEM\TM\WRITETST.DAT
This screen displays the following contents when error happens at the file writing test.
• In the Case of a Device Opening not Successful
Fail to open device.
• In the Case of Obtaining Device Information not Successful
Fail to get device informations.
• In the Case of Internal Buffer Generation not Successful
Fail to create internal buffer.
• In the Case of Writing a File not Successful
File write error.
• In the Case of Verify not Successful
Fail to verify data.
1. Read Test
2. File Write Test
AVIC-Z110BT/XN/UC
120
1234
1234
C
D
F
A
B
E
19. Clearing FLASH User Area
Perform initialization/deletion of file data or variable which is used by the software of each
navigation function (AV, One-Segment, GPS, etc.).
([Initialization of Backup Variable] contained in the models before 08JPRO, is also included in this item.)
In the case of clearing process not successful, the back ground turns to red and error contents are displayed.
Please refer to [Error View] for the details of error factors.
Target of Deletion
Module
Application1 USER\RW
USER\SETUP
2
NAND User Area
Backup Variable
RDS/TMC, AV, Application
Remarks
SRAM3
Error View
Displayed Error Error Factor
No File to be Deleted This is displayed when file or directory to be deleted is not found.
In this case, the situation is not an error because file to be deleted
does not exist on NAND-FLASH anymore.
CRC Error,
Uncorrectable Error
This is displayed when data writing/reading is failed.
Device under
Preparation
This is displayed when NAND-FLASH is under preparation
(such as under mounting) and unusable.
Other Errors Displayed when errors are other than above.
AVIC-Z110BT/XN/UC 121
5 678
5678
C
D
F
A
B
E
20. Audio Play Test
Perform the confirmation of guidance audio output line by playing audio file.
Audio is only played from the speaker in front.
File Selection Screen
<<Description of Screen>>
Path : Media where audio play file is placed is selectable.
(NAND Flash/SD Card)
File : File to be played is selectable.
Please refer to the following table for details of playing file.
Volume : Audio volume is selectable from 0 to 31, in 32 steps.
Mute is applied when assigning 0.
File Display Description of File
SineWave 11kHz Sampling Reproduce sinusoidal wave of 1KHz sampled with 11.025 KHz
SineWave 22kHz Sampling Reproduce sinusoidal wave of 1KHz sampled with 22.05 KHz
Music 11kHz Sampling Reproduce music file sampled with 11.025 KHz
Music 22kHz Sampling Reproduce music file sampled with 22.05 KHz
Narration 11kHz Sampling Reproduce narration sampled with 11.025 KHz
Narration 22kHz Sampling Reproduce narration sampled with 22.05 KHz
Error information is displayed when error happened during test.
Display Content of Error
File is not found. This happens when play targeted file is not found.
Device open failed. This happens when software setting for play is unsuccessful.
Fail to create internal buffer. Securing memory required for play is unsuccessful.
Device Error. Problem happens in software processing during audio playing.
AVIC-Z110BT/XN/UC
122
1234
1234
C
D
F
A
B
E
21. Image Test
Display a specified image.
0. Sub Menu Screen
1. 10STEP IMAGE
This is 10-gradation image from 0% white to 100% white.
2. PLAIN
One color is painted on one screen.
The color is changed by pressing LEFT/RIGHT key.
3. COLOR BAR
The color bar of 8 colors is displayed.
4. CYCLE LINE
The black-and-white stripe pattern of 1-8 dot width is displayed.
5. FLICKER ADJUST IMAGE
The stripe pattern of 1 dot width for checking flicker is displayed.
6. RAMP IMAGE
This is the 32-gradation image from 0% white to 100% white.
7. NATURAL PICTURE
The figure image is displayed.
An arbitrary image file can be displayed by placing an arbitrary image file
with the file name "Natural.jpg" on the route of SD or USB.
AVIC-Z110BT/XN/UC 123
5 678
5678
C
D
F
A
B
E
22. External Connection Test
Display information regarding externally exposed terminals or sensors such as illumination terminals,
vehicle speed pulse terminals, etc. Corresponding terminals are different depending on destination.
The status of item shown on the following figure is updated for every 0.5 second.
OK/NG Determination Condition
GYRO Test
OK/NG Determination of BATTERY VOLTAGE
(Obtain the difference of gyro output value and offset standard value and perform OK/NG determination.)
Offset Standard Value: 1.35 [V]
• Within + 0.025 [V]: Output Voltage OK (OK is displayed)
• Within + 0.025 ~ + 0.05 [V]: Within the allowable aging tolerance (USABLE is displayed)
• More than + 0.05 [V]: Output Voltage NG (NG is displayed)
OK/NG Determination of DELTA SIGMA Value
(Perform variation determination from Gyro variance value)
• Less than 30.0: Variation OK (OK is displayed)
• More than 30.0: Variation NG (NG is displayed)
G SENSOR Test
OK/NG determination of BATTERY VOLTAGE ? Planned change of determination value.
(Obtain the difference of G Sensor output value and offset standard value and perform OK/NG determination.)
Offset Standard Value: 1.5 [V]
• Within + 0.2 [V]: Output Voltage OK (OK is displayed)
• Within + 0.2 ~ + 0.26 [V]: Within the allowable aging tolerance (USABLE is displayed)
• More than + 0.26 [V]: Output Voltage NG (NG is displayed)
OK/NG Determination of DELTA SIGMA Value
(Perform variation determination from G Sensor variance value)
• Less than 80.0: Variation OK (OK is displayed)
• More than 80.0: Variation NG (NG is displayed)
* USABLE Range is the OK range of parts in which aging change is taken into consideration.
(USABLE is displayed on the screen)
* OK Range is the value determined when shipping test.
* At the Service Quarter, please determine OK products as parts if it is in the range of USABLE.
Temperature Sensor Output Value
(Display temperature AD value of temperature sensor in hexadecimal expression)
• CC Part Temperature Sensor
2B0 [- 30°C] ~ 10C [85°C]: Normal Operation Range (determination is not displayed)
Other than above: NG
• LCD Temperature Sensor
3F6 [- 25°C] ~ 015B [85°C]: Normal Operation Range (determination is not displayed)
Other than above: NG
AVIC-Z110BT/XN/UC
124
1234
1234
C
D
F
A
B
E
23. Speech Microphone Line Test
Perform confirmation of speech microphone input line for audio recognition.
Input from the microphone is output from guidance audio line via AC97 Codec.
The confirmation of muting circuit on the guidance audio line is also confirmed by this test.
[Display of Test Screen]
Test Screen
<<Screen Description>>
GMUTE : Mute setting on guidance audio line.
During “L” setting, microphone input is output from the front speaker.
During “H” setting, muting status is set.
<<Operation Description>>
MENU : Switchover of GMUTE port
HOME : Return to Main Menu
Error message
• When the setting of AC97 Codec is failed
Failed to CODEC through setting.
• When the setting of MUTE port is failed
Failed to port control.
AVIC-Z110BT/XN/UC 125
5 678
5678
C
D
F
A
B
E
24. NAVI Audio Line Test
Perform the confirmation of audio line for SD/USB Audio.
Sinusoidal wave of 1 KHz, 0 dB, is used for audio data.
Audio is output from front/rear speakers.
* The speaker output is set to large since this test is prepared for production line.
Please be careful when you use it at service.
[Display of Test Screen]
Sinusoidal wave is output from the speakers as far as this screen is displayed.
The message display differs depending on error content.
Please refer to the following table for details;
ContentMessage Displayed
Failed to initial setting. IC control on CC unit is unsuccessful.
Possible hardware failure exists.
Failed to change volume. Hard volume setting on AV unit is unsuccessful.
Possible hardware failure exists.
Switchover to audio at navigation side is unsuccessful.
Possible hardware failure exists.
Failed to change AV source.
Failed to mute off. Mute releasing of AV source is unsuccessful.
Possible hardware failure exists.
Device Open Error. Software setting for playing sinusoidal wave is
unsuccessful.
Problem happens in software processing during
audio playing.
Device Error.
AVIC-Z110BT/XN/UC
126
1234
1234
C
D
F
A
B
E
25. Subwoofer Line Test
This is the test for the pre-output line of subwoofer.
Sinusoidal wave of 100 Hz, 0 dB, is used for audio data.
* Audio is also output from front/rear speakers during this test.
* The speaker output is set to large since this test is prepared for production line.
Please be careful when you use it at service.
[Display of Test Screen]
Sinusoidal wave is output from the speakers as far as this screen is displayed.
[Screen Display When Error Happening]
The message display differs depending on error content.
Please refer to the following table for details;
Device Error.
Failed to initial setting. IC control on CC unit is unsuccessful.
Possible hardware failure exists.
Failed to change volume.
Failed to change AV source.
Failed to mute off.
Device Open Error.
Problem happens in software processing during
audio playing.
Hard volume setting on AV unit is unsuccessful.
Possible hardware failure exists.
Switchover to audio at navigation side is unsuccessful.
Possible hardware failure exists.
Mute releasing of AV source is unsuccessful.
Possible hardware failure exists.
Software setting for playing sinusoidal wave is
unsuccessful.
ContentMessage Displayed
AVIC-Z110BT/XN/UC 127
5 678
5678
C
D
F
A
B
E
26. Fan Control Test
This is the item to test cooling fan installed at rear side of product.
In a normal situation, revolution rate is automatically changed depending on the interior
temperature of a fan however FAN revolution rate is able to be confirmed regardless of
temperature during the test execution.
In the case of error happened at fan control while switchover fan speed, red screen
shown below is displayed. The error contents are displayed at the bottom of screen.
Please refer to [Error View] for the details of error factors.
Error View
Switchover NG Comment
STOP<=>SLOW POWER CONTROL NG This is displayed when fan power source control is unsuccessful.
STOP<=>FAST POWER CONTROL NG This is displayed when fan power source control is unsuccessful.
SLOW<=>FAST SPEED CONTROL NG This is displayed when fan speed control is unsuccessful.
AVIC-Z110BT/XN/UC
128
1234
1234
C
D
F
A
B
E
27. Wired Remote Control Test
Perform connection test for wired remote control.
1. Remote Control Key Code Input Information (REMOCON KEY CODE INFO)
When depressing the key of connected wired remote control, the depressed key is
displayed on the screen.
2. Manufacturer Code Input Information (MANUFACTURER CODE INFO)
Manufacturer code of connected wired remote control is displayed on the screen.
This is the menu screen for selecting items which configure this test.
This is the case of key code not obtained.
0. Wired Remote Control Test Menu
1.1. Remote Control Key Code Obtainment (Key Code not obtained)
AVIC-Z110BT/XN/UC 129
5 678
5678
C
D
F
A
B
E
Key code is displayed by depressing connected wired remote control key or test jig key.
Update is not performed until another key is depressed.
Obtain the manufacturer code for the connected wired remote control.
1.2. Manufacturer Code Input Information
2.1. Manufacturer Code Input Information (Under Obtainment)
Key Allocation
SOURCE
ATT
UP
DOWN
LEFT
RIGHT
VOL UP
VOL DOWN
BAND
PHONE
ON HOOK
OFF HOOK
SAT TEXT
Audio Recognition
0x00010002
0x00010003
0x00010004
0x00010005
0x00010006
0x00010007
0x00010008
0x00010009
0x0001000A
0x0001000B
0x0001000C
0x0001000D
0x0001000E
0x0001001A
AVIC-Z110BT/XN/UC
130
1234
1234
C
D
F
A
B
E
Once the manufacturer code is obtained, the code is displayed.
[*] is replaced by the following value.
Manufacturer Code Value
A: TOYOTA, DAIHATSU 0A
B: HONDA 0B
C: MATSUDA 0C
D: SUBARU 0D
E: MITSUBISHI 0E
F: SUZUKI 0F
* Manufacturer Code is obtainable only for Japanese Domestic model. Value of [FF] is displayed this model.
If the obtained code is abnormal value, this becomes NG and the screen below is displayed.
2.2. Manufacturer Code Input Information (Display)
2.3. Manufacturer Code Input Information (Obtainment Failed)
AVIC-Z110BT/XN/UC 131
5 678
5678
C
D
F
A
B
E
28. RTC Test
Perform the test of RTC (Real-Time Clock) function and of external circuit function used
when obtaining RTC count.
* This is not displayed when GPS antenna is connected.
If this test is performed under the status of GPS antenna disconnected,
[2008/10/01 12:00:00] is set as simulation time.
It takes approximately 6 seconds for the setting.
When the setting of simulation time is successful, the screen becomes as follows.
In addition, current time is set under the condition of the GPS antenna connected.
1. Time Setting Screen
2. Time Display Screen
AVIC-Z110BT/XN/UC
132
1234
1234
C
D
F
A
B
E
29. USB Check
This is the item to check all of USB terminals. USB memory is used for the test.
Check the performance by write -> read -> file comparison of 1 KB file automatically.
Perform the test after inserting USB memory.
The file to use for the test is automatically generated during the test so
you do not have to prepare the file in advance.
Also the generated file will automatically be deleted after the completion of test.
The following screen is displayed during a series of processing.
0. Screen during the Test
Please refer to [Error View] for the details of error factors.
Error View
CARD recognition failure
Drive capacity shortage
File creation failed
Internal buffer creation failed
Data write error
Data seek error
Data read error
Data verify error
Recognition of USB device is unsuccessful.
Free space of USB memory is insufficient and the test was unable.
File preparation in USB memory was unable.
Securing the memory for data comparison was unsuccessful.
Data writing was unsuccessful.
File pointer operation was unsuccessful.
Reading out of data was unsuccessful.
Data comparison was unsuccessful.
FactorDisplayed Error
AVIC-Z110BT/XN/UC 133
5 678
5678
C
D
F
A
B
E
30. SD CARD Test
Perform file accessing to SD card and confirm the SD card is usable without any problem.
<<Screen during Test>>
The following screen is displayed during the test.
The test content generates file for the test on the SD card, reads data out after data
writing and compares the read out data with written data.
After the test is completed, the screen is switched over automatically.
In the case of error happened during the test, detailed information for the error is displayed
on the red background.
Please refer to the following table for displayed error information and details;
FactorDisplayed Error
CARD recognition failure
Drive capacity shortage
File creation failed
Internal buffer creation failed
Data write error
Data seek error
Data read error
Data verify error
SD card recognition was unsuccessful.
Free space of SD card is insufficient and the test was unable.
File preparation in SD card was unable.
Securing the memory for data comparison was unsuccessful.
Data writing was unsuccessful.
File pointer operation was unsuccessful.
Reading out of data was unsuccessful.
Data comparison was unsuccessful.
AVIC-Z110BT/XN/UC
134
1234
1234
C
D
F
A
B
E
31. External Input Test
Confirm the video input route or audio route is valid. The following three routes are targeted;
I. iPod VIDEO [Video, Audio]
II. External Input via RCA terminals (Video, Audio)
Input video and audio to NAVI via video/audio input terminals and confirm the result with
NAVI screen and speaker.
In addition, confirm the rear monitor output.
At the start of test, set the VTR1 Input to ON and switch source to VTR.
In addition, at the end of test, set the VTR1 Input to OFF and switch source to OFF.
During the test, please input the Parking Brake Signal (GND).
Menu Screen
I. iPod VIDEO [Video, Audio]
When error happens, the following error message is displayed;
Case 1. Failed to Setup iPod/AUX-ON.
Input ON setting for microcomputer was unsuccessful.
Case 2. Failed to Change Source of iIPod/AUX.
Source switchover for microcomputer was unsuccessful.
Case 3. Failed to Setup iPod/AUX-OFF.
Input OFF setting for microcomputer was unsuccessful.
Case 4. Failed to Attest iPod.
iPod authentication was unsuccessful at the start of test.
AVIC-Z110BT/XN/UC 135
5 678
5678
C
D
F
A
B
E
When error happens, the following error message is displayed;
Case 1. Failed to Setup VTR-ON.
Input ON setting for microcomputer was unsuccessful.
Case 2. Failed to Change Source of VTR.
Source switchover for microcomputer was unsuccessful.
Case 3. Failed to Setup VTR-OFF.
Input OFF setting for microcomputer was unsuccessful.
II. External Input via RCA Terminals [Video, Audio]
AVIC-Z110BT/XN/UC
136
1234
1234
C
D
F
A
B
E
32. Back Camera Test
Confirm the signal line for back camera image is valid.
“Back Camera Image” which was input from Camera Image Input Terminals at rear side of the product is displayed.
1. Display via DECORDER
This is the screen when back camera image is under display.
The following error message is displayed when error happens;
Case: Back Camera ON setting was unsuccessful.
In the case microcomputer communication was unsuccessful.
This is the screen when back camera image is under display.
The following error message is displayed when error happens;
Case. Failed to Setup BackCamera.
In the case microcomputer communication was unsuccessful.
2. Display Directly
AVIC-Z110BT/XN/UC 137
5 678
5678
C
D
F
A
B
E
33. RGB Key Illumination Test
Test the three (3) wires which brighten RGB illumination of hard key.
It is OK when a white light is ON.
This is the screen for RGB Key Illumination Test.
RGB illumination for hard key glows white.
The following error message is displayed when error happens;
Case: Microcomputer Communication Error
Microcomputer communication was unsuccessful.
AVIC-Z110BT/XN/UC
138
1234
1234
C
D
F
A
B
E
34. Confirmation of Drive Mechanism Close Position
This is the test item to confirm whether the closing of drive mechanism is performed correctly or not.
If the RPS value obtained at close status corresponds to
0x06h - 0x36h
Then the test is OK.
In other cases, the test is NG.
Test Screen
When Test is OK
When Test is NG
AVIC-Z110BT/XN/UC 139
5 678
5678
C
D
F
A
B
E
35. Product Information
The product information allocated to the product is displayed on the screen.
16 digit values sectioned into four (4) separated by a dot are displayed on the screen.
Example: 0000.1111.2222.3333
AVIC-Z110BT/XN/UC
140
1234
1234
C
D
F
A
B
E
6.2 DVD TEST MODE
Before shifting to the test mode, please insert the "DISC".
Operate the equipment by turning ON the parking.
If the operations are completed successfully,
the screen shifts to the test mode screen after pressing (3) long.
The test mode is released by ACC-OFF operation.
In order to enter the DVD mechanism module test mode,
select "Slave Test Mode".
Switch the source to "DISC".
If you select the DVD source, the test mode screen
shown in the left figure is displayed.
Press "List" to display the list on the screen.
(2) (1)
Slave Test Mode
DVD REGION DISP
DVD DEBUG DISP
DVD TOUGH DIRECT
(1), (2) and (3) are invisible buttons.
Display the test mode screen by carrying out following
operations on this screen.
Press areas of (1), (2) and (3) long in order.
Detailed procedure
1. Display the source OFF screen.
2. Press the area of (1) long.
3. Press the area of (2) long.
4. Press the area of (3) long.
Operate the flow chart of the mechanism test mode
with buttons shown in the left screen.
Up to lists 01 to 08
(3)
AVIC-Z110BT/XN/UC 141
5 678
5678
C
D
F
A
B
E
[Note] Higher level 4 characters only. Lower level 4 characters are spaces.
)2()1(
Start of the test mode.
TEST
FE test selection EDC1 test selection
Hereafter, to FE test
mode image.
Hereafter, to EDC1
test mode image.
[Note] In order to move on to another test after selecting a test (FE/EDC1/EDC2), it is necessary to restart the DVD mechanism in the test mode.
(3)
EDC2 test selection
Hereafter, to EDC2
test mode image.
(4)
LD power on time
mode selection
Hereafter, to LD power on
time mode image.
(5)
Simple FE test mode
Hereafter, to simple
FE test mode.
Legend: … Key operation
… Operation state
… The content displayed on the DVD mechanism (video only)
8 characters data is sent to the product side (HOST) by UART communication.
Image of the front end test mode.
(2)
FE test mode
Disc type DVD1
layer
FE offset coefficient
TE offset coefficient
AS offset coefficient
ENV offset coefficient
TG offset coefficient
DBAL coefficient
VIN1 offset cancel value
VIN2 offset cancel value
VIN3 offset cancel value
VIN4 offset cancel value
VIN5 offset cancel value
Power on
0000 0000
0FFF 0000
0 x 00 0000
Legend: … Key operation
… Operation state
… The content displayed on the DVD mechanism (video only)
8 characters data is sent to the product side (HOST) by UART communication.
)5()4(
Disc type DVD2
layer Disc type CD
0000002000000010
Disc type CD-RW
0300 0000
EJECT
EJECT
[Note] If no action is taken for approximately 10 seconds after LD-ON, it will become LO-OFF automatically.
If F close is selected during LD-OFF, it will become an error.
During focus search (S character measurement mode), too, safety regulation applies if LD_OFF is not selected
within 10 seconds. Therefore, even if focus search is selected after LD-ON, it will become LD-OFF after 9 seconds.
In order to F close after focus search (S character measurement mode), set to Power_OFF first then power on again
before F close.
FEMAX level
FEMIN level
ASMAX level
ENVMAX level
FE normalization coefficient
Spindle gain coefficient
TEMAX level indication
TEMIN level indication
(2)
Focus close state
)2()1(
S curve
measurement
(2)
hcraesFesolcF
1A00 0000
F search
1100 0000
1FFF 0000
(3),(4)
CRG+/-
Activates while the key
is being pressed.
1B00 0000 : CRG+
1C00 0000 : CRG-
(5) (6)
LD-ON/OFF
When LO-ON: 1100 0000
When LD-OFF: 1000 000
CRG_HOME
1D00 0000
(8)
Power_OFF
(1) (3)
a b
1 x 00 0000
(7)
CRG_OUTSIDER
1E00 0000
AVIC-Z110BT/XN/UC
142
1234
1234
C
D
F
A
B
E
(2)
(1) (2)
Tracking balance
TBAL coefficient (layer 0)
TBAL coefficient (layer 1)
TE normalization coefficient (layer 0)
TE normalization coefficient (layer 1)
Off track adjustment result
Focus Jump
When L0 layer: 2000 0000
When L1 layer: 2100 0000
2 x 00 0000
2FFF 0000
(3),(4)
CRG +/-
It operates while the key
is being pressed.
2B00 0000 : CRG+
2C00 0000 : CRG-
3000 0000
(8)
Power_OFF
(8)
Power_OFF
(5)
Performed including the tracking close processing.
FBAL coefficient (layer 0)
FBAL coefficient (layer 1)
Focus gain coefficient (layer 0)
Focus gain coefficient (layer 1)
Tracking gain coefficient (layer 0)
Tracking gain coefficient (layer 1)
AS normalization adjustment value (layer 0)
RF level value
3FFF 0000
Tracking close state
)2()1(
(1)
Error rate
measurement
Error rate
Focus gain coefficient (layer 0)
Focus gain coefficient (layer 1)
Tracking gain coefficient (layer 0)
Tracking gain coefficient (layer 1)
AS normalization adjustment value (layer 0)
RF level value
indication start
5000 0000
RF level is informed
every 500msec.
RF level value
indication end
)8()7(
To (2)
T.OPEN Power_OFF
)4(,)3()1(
Tracking close CRG +/-
It operates while the key
is being pressed.
3B00 0000 : CRG+
3C00 0000 : CRG-
3FFF 0000
a b
)2()1(
Tracking close state
Error rate
measurement
FBAL coefficient (layer 0)
FBAL coefficient (layer 1)
Focus gain coefficient (layer 0)
Focus gain coefficient (layer 1)
Tracking gain coefficient (layer 0)
Tracking gain coefficient (layer 1)
Playback speed
switching
4000 0000
4 x 00 0000
(5)
Error rate
Focus gain coefficient (layer 0)
Focus gain coefficient (layer 1)
Tracking gain coefficient (layer 0)
Tracking gain coefficient (layer 1)
AS normalization adjustment value (layer 0)
Focus Jump
DVDX1.3~
1.6CAV
CDX4CLV:
4x00 0000
When L0 layer: 4x00 0000
When L1 layer: 4x00 0000
(8)
Error display
Power_OFF
Error occurrence
L0 layer DVD X 1.3~1.6CAV, CD X 4CLV :4000 0000
L1 layer DVD X 1.3~1.6CAV :4100 0000
[Note] If an error occurs at Power_OFF, reset cannot be made. In such a case, it is necessary to turn the power off and start the test mode once again.
Error occurrence at Power_OFF
Error display
The number for designation of the track number shall be selected from the track numbers previously prepared.
Switch to cyclic by (3). Fix by (4).
For CD: Tracks 1, 4, 10, 11 and 32
For DVD: Tracks 1, 4, 10, 11, 32, 64 and 100
Change the method for ID address designation.
Designation of digit by command (1) and (2). UP/DOWN of numbers by command (3) and (4). Fix by command (5).
The higher 2 digits of the designated ID are the value showing the test state.
The lower 6 digits show the ID.
Example) If 300000 is desired to be designated as the ID, designated ID: 4A03 0000.
)8()7(
To (2)
T.OPEN Power_OFF
)4(,)3()6(
)3()4(-)1(
)5()5(
ID Search T.Jump+/-
4A00 0000 Jump+ : 4B00 0000
Jump- : 4C00 0000
ID designation
ID display
Track number
designation
Track number
indication
Search start Jump start
AVIC-Z110BT/XN/UC 143
5 678
5678
C
D
F
A
B
E
EDC. Image of the test mode
[Note] Image is the same for both EDC1 and EDC2.
(1) (2)
EDC1/2 test mode
0000 0000
Layer 0 selection Layer 1 selection
0000 0000 0100 0000
1003 0000 1103 0000
(5)
[Note] The display is updated at 0.5 seconds interval until 0/1 layer is selected or Eject is effected.
(1)-(4)
ID designation
EDC1/2 start
Layer 0: 10** ****
Layer 1: 11** ****
[Note] ** **** is the ID designation value
Layer 0: 20** ****
Layer 1: 21** ****
[Note] ** **** is the present ID designation value
**** ****
[Note] **** **** is the present ID designation value
Legend: … Key operation
… Operational state
… The content displayed on the DVD mechanism (video only)
8 characters data is sent to the product side (HOST) by UART communication.
[Note] Eject can be effected any time during the EDC test mode.
Eject
After completion of EJECT operation
EJECT operation
Test mode Eject
Image of the LD power on time mode.
LD power on time mode
0000 0000
CD LD power on
time indication
DVD LD power on
time indication
10** ****
[Note] ** **** is the CD LD
power on time.
20** ****
[Note] ** **** is the DVD LD
power on time.
(1) (2)
CD LD power on
time setting
Setting time
designation
30** ****
[Note] ** **** is the setting time.
Setting time
registration
DVD LD power on
time setting
Setting time
designation
40** ****
[Note] ** **** is the setting time.
(5) (6)
(1)-(4) (1)-(4)
(5) (5)
(8)
10** ****
[Note] ** **** is the CD LD
power on time.
Setting time
registration
(8)
20** ****
[Note] ** **** is the DVD LD
power on time.
[Note] If the power on time is 999999 hours or more, it is always reported as 999999 hours.
[Note] If the power on time is “*E** ****”, the value may not be correct due to the life of the flash memory.
[Method of setting time designation]
Designate the digit by command (1) and (2). UP/DOWN of numbers by command (3) and (4).
Fix by command (5). Cancel by command (8).
Legend: … Key operation
… Operational state
… The content displayed on the DVD mechanism (video only)
8 characters data is sent to the product side (HOST) by UART communication.
Not for service use
AVIC-Z110BT/XN/UC
144
1234
1234
C
D
F
A
B
E
The selection of the figure of each screen can be selected by "Key command for the test".
TEST MODE
1: LD ON
2: ASMAX
3: Skew Adjustment
4: Error Rate
5: CRG Move Outer
6: Eject
Please Input Number
NODLNODLNODL
1: DVD Single Layer 1: Power OFF
2: DVD Dual Layer
3: CD
4: CD-RW
5: Return
rebmuNtupnIesaelPgninnuRwoNrebmuNtupnIesaelP
XAMSAXAMSAXAMSA
1: DVD Single Layer 1: Power OFF
2: DVD Dual Layer
3: CD
4: CD-RW
5: Return ASMAX Level : 000000
rebmuNtupnI
esaelPgninnuRwoNrebmuNtupnIesaelP
tnemtsujdAwekStnemtsujdAwekStnemtsujdAwekS
1: DVD Single Layer 1: Power OFF
5: Return RF Level : 000000
rebmuNtupnIesaelPgninnuRwoNrebmuNtupnIesaelP
rennI-etaRrorrErennI-etaRrorrEetaRrorrEetaRrorrE
tnemerusaeMrennI:1reyaLelgniSDVD:1 1: Power OFF
2: Outer Measurement
tneme
rusaeM
elddiM:3DC:3
nruteR:5nruteR:5 Error Rate : 000000
NtupnI
es
aelPgninnuRwoNreb
m
uNtupnIesaelPrebmuNtupnIesaelP umber
*1 : The position in which
select was done is
displayed.
Error Rate
-
CD
DVD Inner
DVD Outer
DVD Middle
CD CD
Now Running
retuOevoMGRCretuOevoMGRCretuOevoMGRC
1: DVD Single Layer 1: Power OFF
2: DVD Dual Layer
3: CD
4: CD-RW
5: Return
rebmuNtupnIesaelPgninnuRwoNrebmuNtupnIesaelP
ERROR
1: Power OFF
Code : 00000000
Please Input Number
ERROR
Code : 00000000
Please Reset
1 select
2 select
3 select
4 select
select LD ON
Completion
select
ASMAX
value set
value set
select
RF Level
DVD select select
Error Rate
set select
select
select
select
select
ASMAX
Level display
Error Rate
display
RF Level
display
Update 500 msec.
*1
CD select
*1
*1
Search ID
0x00100000
Search ID
inner :
0x00040000
outer :
Search CRG
home position
5 Return select
5 Return select
5 Return select
5 Return select
5 Return
select
5 select
select select
CRG moves
to the most
outer
5 Return select
CRG Move
Completion
0 0020000
0
Simple test mode
<Flow chart>
<Error>
<Error : Power OFF>
AVIC-Z110BT/XN/UC 145
5 678
5678
C
D
F
A
B
E
7. DISASSEMBLY
2
3
4
While the photograph shown is slightly different from this model in shape, the disassembly procedure is the same.
- Removing the Monitor Assy (Fig.1, 2, 3)
Fig.1
Draw out the Monitor Assy
and then remove the two screws. (Fig.1)
The main body is put on the stand of
the height of about 3 cm. (Fig.2)
(If three CD cases are piled up,
it becomes the stand of the even number degree.)
Bring down the Monitor Assy forward,
remove it. (Fig.2)
When Monitor Assy is removed,
it is noted that the length of the Flexible PCB is short.
Disconnect the Flexible PCB
from the connector. (Fig.3)
Remove the two screws
and then remove Holder. (Fig.3)
Fig.2
Fig.3
1
1
1
About 3 cm
2
Flexible PCB
3
3
4
Monitor Assy
(CD cases)
Holder
AVIC-Z110BT/XN/UC
146
1234
1234
C
D
F
A
B
E
1
2Remove the four hooks
and then remove the Case Unit.
When unplugging the Coaxial Jumper, make sure to use jig GGF1539.
If the antenna cable is directly unplugged without using jig GGF1539, you might damage your fingertip or fingernail.
- How to Remove the Coaxial Jumper
When unplugging Coaxial Jumper, hook the point of jig GGF1539 on the lid of Coaxial Jumper
and vertically draw out along with the engagement axis of connector.
- How to Attach the Coaxial Jumper
For inserting Coaxial Jumper, adjust cord assy with the engagement axis of connector and insert it as vertically
as possible.
Do not insert the Coaxial Jumper in extreme slant, as the connector might suffer damage.
Connector
Coaxial Jumper
GGF1539
Note)
When the Case Unit is not removed easily,
Remove by pushing the hook of the Grille Unit from the hole of the Case Unit.
Do not damage the Grille Unit.
- Removing the Case Unit (Fig.4)
Fig.4
Remove the six screws.
Case Unit
1
1
1
1
1
1
2
2
2
2
Grille Unit
AVIC-Z110BT/XN/UC 147
5 678
5678
C
D
F
A
B
E
1
2
3
4
1
Fig.5
- Removing the Monitor Unit(Fig.5)
Disconnect the Cord Assy
using GGF1539.
Disconnect the two cables
and then remove the Grille Unit.
Disconnect the two cables.
Remove the five screws
and then remove Monitor Unit.
Attention at assembly)
The BT Module connects in the upper connector
and the Cord Assy for antenna connects in the under connector.
- Removing the Keybord Unit (Fig.6, 7)
Attention at assembly)
Cord Assy is a thing set in
the ditch in the Grille Unit.
Attention when the Keyboard Unit
are exchanged.(Fig.7)
• Bend the cable of a broken line part.
• Don’t bend it while rubbing right and left.
Fig.7
_ Refer to figure for how to bend the Cable.
_ Notes after exchanges.
• Lighting confirmation of all LED
• All switch operation confirmations
• Connected confirmation of Bluetooth
The following items after the Keyboard Unit
are exchanged are checked.
The flat screwdriver is hung
and the Keybord Unit removes.(Fig.6)
Fig.6
Monitor Unit
Grille Unit
1
22
1
Keyboard Unit
AVIC-Z110BT/XN/UC
148
1234
1234
C
D
F
A
B
E
2
3
4
1
Remove the six screws.(Fig.10)
- Removing the Case (Fig.8)
Remove the Case.
Fig.8
- Removing the Panel Unit (Fig.9, 10)
Fig.9
Fig.10
Remove the screw
and then remove the Holder.(Fig.9)
Remove the two hooks
and then remove Panel Unit.(Fig.10)
The Flexible PCB is removed from
the projection two places. (Fig.9)
- Removing the DVD Mechanism Module (Fig.11)
Fig.11
2
1Remove the four screws.
Disconnect the FFC
and then remove the DVD Mechanism Module.
Rmove the hook of the Case
in order of figure.
12
4 3
1
22
3
3
33
3
3
4 4
Case
Holder
Panel Unit
DVD Mechanism Module
1
1
1
1
2
AVIC-Z110BT/XN/UC 149
5 678
5678
C
D
F
A
B
E
1
2
1
- Removing the Heat Sink (Fig.12)
1
2
3
Disconnect the FAN Cable.
Remove the two screws.
Remove the eight screws
and then remove the Heat Sink.
Fig.12
- Removing
the Upper and Lower Chassis (Fig.13, 14)
Disconnect the FFC.(Fig.13)
Fig.13
Remove the five screws
and then remove
the Upper and Lower Chassis.(Fig.14)
Fig.14
- Removing the Audio Unit (Fig.15)
Remove the five screws
and then remove the Audio Unit.
Fig.15
Attention at assembly)
Doesn't make a mistake in the direction.
FFC gets on the capacitor.
There is not a terminal peeling off.
Upper Chassis
Lower Chassis
2
22
2
2
Audio Unit
1
11
1
1
1
22
3
3
3
3
3
3
3
3
Heat Sink
1
AVIC-Z110BT/XN/UC
150
1234
1234
C
D
F
A
B
E
1
2
1
2
1
- Removing the CC Unit (Fig.16, 17)
Fig.16
Fig.17
Disconnect the FFC.(Fig.13)
Remove the three screws
and then remove the Tuner IF Unit.
Remove the six screws
and then remove the Navi Unit.
Remove the four screws
and then remove the CC Unit.(Fig.17)
Remove the Shield.(Fig.16)
Disconnect the Cord Assy
using GGF1539.(Fig.16)
- Removing the Navi Unit (Fig.18)
- Removing the Tuner IF Unit (Fig.19)
Fig.18
Fig.19
Shield
1
CC Unit
Navi Unit
1
1
1
1
1
1
Tuner IF Unit
12
2
2
AVIC-Z110BT/XN/UC 151
5 678
5678
C
D
F
A
B
E
<<Drive Unit Gear set position>>
The cutting lack of the Gear(ENV1635) is put between signs of the PCB.
The point of the Rack(ENV1629) is set to
the position of the mark of the Gear(ENV1630).
Confirm method
1. The Test mode is started.
2. "34. Mecha Close Position Confirmation"
is selected.
3. It is confirmed that check results are "OK".
Please set position of the gear again for "NG".
AVIC-Z110BT/XN/UC
152
1234
1234
C
D
F
A
B
E
Attention at assembly
The cover is diagonally set as shown in figure.
FPC is moved to the direction of the arrow like
this state, the hole of the monitor case
and the hole of FPC are put together,
and the cover is fixed.
Monitor case
Don't catch FPC in the holder.
FPC is attached in the direction of figure.
AVIC-Z110BT/XN/UC 153
5 678
5678
C
D
F
A
B
E
OK
OK
Short
FFC is positioned that reinforcement plate
is short on the mechanism side.
FFC doesn't protrude beyond
the main body of mechanism.
Attention at assembly of DVD Mechanism Module (LS1)
AVIC-Z110BT/XN/UC
154
1234
1234
C
D
F
A
B
E
• Use an ionizer when you stick the cover.
(1) Fold insulator softly. And peeled off separaters on the tape afterwards (order not specified).
(2) Put the 2 hooks of DVD mech module through the cover ( marks).
(3) Stick it aligning DVD mech module side ( line) with cover side.
(4), (5), (6) Stick insulator aside to corner ( line).
(7)Sets it to the position under the hole ( line=hole of chassis) and stick it.
(1)
(2)
(6) (6)
(3)
(1)
(4) (5)
(7)
(5)
(8)
(9)
(10)
(11)
(8), (9), (10), (11), (12)
Stick it aligning DVD mech module side ( line) with cover side.
(12)
<< How to put insulator of DVD Mechanism Module (LS1) >>
AVIC-Z110BT/XN/UC 155
5 678
5678
C
D
F
A
B
E
1.Have a specified part.
Handling OK
Handling NG
How to have it
AVIC-Z110BT/XN/UC
156
1234
1234
C
D
F
A
B
E
Connector (relay FFC)
Relay FFC
Fig. 1 Fig. 2
GND the brown line
4V to the gray line
Mecha Module_Bringing into the Clamp State with No Disc Loaded
1. Remove the relay FFC from the connector on the module PCB side (Fig. 1).
(Precaution) When it is difficult to apply 4V to the motor in procedure 2 below, remove the connector on the relay
PCB side, then remove the FFC, and remove the solder of the CRG motor lead and apply voltage to the lead.
2. Push the Disc detection arm while applying 4V to the CRG motor (Fig. 2)
By this action, the mecha moves to the clamp state and the PU moves to the outer periphery.
3. Stop the motor when the PU comes to the vicinity of the intermediate periphery.
(Precaution) If the PU goes to the outer most periphery, it idles.
It is not a problem, but please try not to let it idle as much as possible.
AVIC-Z110BT/XN/UC 157
5 678
5678
C
D
F
A
B
E
T-case washer
Drive gear
Fig. 1
Fig. 2
b.Open-lock state
There is a
space There is
no space
c.Clamp state with no disc loaded
A
CRG Mecha_Bringing into the Clamp State with No Disc Loaded
1.Remove the T-case washer and then remove the drive gear. (Fig. 1)
2.Lift the clamp arm assy until it is in the state shown in Fig. 2_b (open-lock state).
3.Put your finger on the area A of Fig. 2_c and then slide it to the direction of the arrow (the direction of the playing state).
4.Push down the clamp arm.
(Precaution) When bringing the CRG mecha into the ejecting state again, install the drive gear after sliding the drive
lever and bringing it to the ejecting state, in order to prevent the cog of the pinion in the drive gear from chipping at the
time of its installation.
a.Ejecting state
AVIC-Z110BT/XN/UC
158
1234
1234
C
D
F
A
B
E
Connector (pick up FPC)
Connector
(Relay FFC)PCB clinch screw
Short-circuit
Fig.1
Fig. 2
Fig.3
Pick up FPC
Relay FFC
Fig. 4
Solder on the lead
Relay PCB clinch screw
Hook A
Hook B
Fig. 5
Hook B
Fig. 6
OK NG
Fig. 7 Fig. 8
A
Removing the Module PCB
1.Short-circuit two spots on the land of the pick up FPC. (Fig. 1)
2.Remove the pick up FPC and the relay FFC from the connector. (Fig. 2)
3.Temporarily attach the pick up FPC to the pick up rack. (Fig. 3)
(in order to prevent the damage to the pick up FPC)
4.Remove the two PCB clinch screws and then remove the module PCB. (Fig. 2)
Removing/Installing the Relay PCB
Removing)
1.Remove the relay FFC from the connector
(remove both sides so that the entire FFC will be removed). (Fig. 2)
2.Remove the solder on the lead for the CRG motor. (Fig. 4)
3.Remove the one relay PCB clinch screw. (Fig. 4)
4.Slide the relay PCB to the direction of the arrow and then remove
the relay PCB from the hook A and the hook B. (Fig. 4)
5.Turn the relay PCB over and then remove the SPDL motor FFC
from the connector.
Installing)
1.Check the mecha is in the ejecting state (disc-load suspended state).
When it is not in the ejecting state, apply 4V to the lead (motor) and then
bring it to the ejecting state (4V to the brown line and GND the gray line).
2.Fit the SPDL motor FFC to the connector (back of the relay PCB).
3.Hold the relay PCB so that it does not touch the SW knob as in Fig. 5.
4.Insert it into the hook B as it is a little off to the clockwise direction.
(Precaution) This is to prevent the SW knob from getting into the NG
position as in Fig. 6.
5.Push down the relay PCB lightly and then rotate it to the
counterclockwise direction.
It sets the relay PCB in the hook A and the positioning dowel.
(Precaution) Pay attention so the SW knob will not get onto the PU rack.
(Fig. 6)
6.As in the Figures, while supporting the location A with your fingers,
screw the relay PCB. (Fig. 7 / Fig. 8)
7.Solder the lead for the CRG motor.
8.Fit the relay FFC to the connector.
AVIC-Z110BT/XN/UC 159
5 678
5678
C
D
F
A
B
E
Fig. 2a
Permanently hooked position Temporary hooked position
Fig. 2b
A
Slide to the direction of inner periphery
Fig. 1
Fig. 3
B
Fig.4
Regularly installed position Install avoiding the
area with blue broken
line (the connected
metal plate part)
The spring is installed under the resin flange and inside
the bended metal plate.
Outside holder
Back end of
the feed screw
Removing the PU Unit
1.Hook the feed screw biasing spring on the temporary hook (Fig. 2b). Be careful not to get injured by the tip of the spring.
2.Hold the PU at the location A in Fig. 1 and slide and scoot it to the direction of the inner periphery.
3.As in Fig. 3, shift the back end of the feed screw to the side and then to above and remove it from the outside holder.
4.Remove the tucking joint for the chassis at the location B and the PU unit by lifting them up without changing their
position and then remove the PU unit.
(Precaution) When installing the PU again, make sure to tuck the chassis in B and the PU unit (Fig. 4) first.
Moreover, do not forget to permanently hook the feed screw biasing spring (Fig. 2a).
Adjustments to the PU after its installation should be made according to the service manual.
Sending the PU to the outer periphery
1.Bring to the clamp state with no disc loaded according to the “Mecha Module_Bringing into the Clamp State with
No Disc Loaded” manual.
(Precaution) The relay FFC must be removed for certainty in order to prevent the IC damage.
2.Apply 1.5V to the CRG motor and then transfer the PU to the outer periphery.
(Precaution) Do not forget to reinstall the relay FFC after sending the PU to the outer periphery and take the
necessary measures.
[Installation NG]
The chassis is not tucked
between the PU case and the
PU rack.
AVIC-Z110BT/XN/UC
160
1234
1234
C
D
F
A
B
E
8. EACH SETTING AND ADJUSTMENT
8.1 DVD ADJUSTMENT
1) Precautions
This product uses 5 V and 3.3 V as standard voltages.
The electrical potential that is the reference for signals,
is not GND, but VREF (approximately 2.2 V) and VHALF
(approximately 1.65 V) .
During product adjustments, if the reference voltage is
mistakenly taken as GND, and a grounding contact is
made, not only would it be impossible to measure the
accurate electrical potential, but also the servo motor
would malfunction, resulting in the application of a
strong impact on the pick up. The following precautionary
measures should be strictly adhered to, in order to
avoid such problems.
The reference voltage and GND should not be confused
when using the minus probe of a measurement device.
When an oscilloscope is being used special care should
be taken to make sure that the reference voltage is not
connected to the probe of ch1 (on the minus side),
while the probe of ch2 (on the minus side), is connected
to GND. Further, since the body frame of most measurement
devices have the same electrical potential as
the minus side of the probe, the body frame of the
measurement device should be set to floating ground.
If the reference voltage is connected to GND by
mistake, turn the regulator OFF immediately, or
turn the power OFF.
Remove the filters and wires used for measurements
only after the regulator has been turned OFF.
After the power supply is turned on, regulator ON the
following adjustment and measurement are promptly
done.
Whenever the product is in the test mode, the software
will not take any protective action. For this reason,
special care should be taken to make sure that no
mechanical or electrical shock could be applied to the
product when taking measurements in the test mode.
Whenever the EJECT key is pressed to eject the disk,
no other keys, other than the EJECT key, should be
pressed until the disk eject action has been completed.
Press the EJECT key only after the disk has stopped
completely.
If the product hangs up turn the power OFF immediately.
Laser didoes may be damaged, if the volume switch for
the laser power adjustment of the pick up unit, is turned.
AVIC-Z110BT/XN/UC 161
5 678
5678
C
D
F
A
B
E
Disc used:GGV1025
Measurement reference: AGND3
Measurement point: RF
Expansion
Oscilloscope
RF
AGND3
- SKEW adjustment
When one of the following replacements has taken place, SKEW adjustment for the pick up will be required.
(1) Replacement of the pick up unit
(2) Replacement of the spindle motor
(3) Replacement of the carriage chassis
(4) Replacement of the main shaft of the pick up unit
Measurement equipment and tools/jigs: Oscilloscope
Driver for SKEW adjustment -> Driver
Bond for fixing the SKEW -> GEM1033
Bond for resonance -> 1530 (1530 : produced by THREE BOND)
Bond for locking the screw -> 1401M (1401M : produced by THREE BOND)
Connection drawing
DVD core unit
Symptom in case the adjustment is not adequate: Worsening of the error rate 10
(Normally 10 or less.)
Large RF jitter
RF waveform distortion
Tracking drawing/Unstable servo
* Caution: Do not look into the laser light during adjustment.
-3
-4
RF
AGND3
AVIC-Z110BT/XN/UC
162
1234
1234
C
D
F
A
B
E
TEST MODE
1: LD ON
2: ASMAX
3: Skew Adjustment
4: Error Rate
5: CRG Move Outer
6: Eject
Please Input Number
7. Skew Adjustment
Select “1: DVD Single Layer.”
Skew Adjustment
1: DVD Single Layer
5: Return
Please Input Number
There are two methods of making adjustment: a method of making adjustment through monitoring RF waves by the
oscilloscope (method 1) and a method of making adjustment through checking the numerical value of the RF level by
OSD (method 2).
Adjusting procedure is shown below, but regarding how to start the test mode and the operating procedure, please refer
to the clause on the service test mode.
Adjusting Procedure:
1. Install the pickup
(Refer to the removal of the pickup from the mecha unit.)
When handling the pickup, refer to the precautions on how to handle the PU listed below.
2. Method 1:
Connect the oscilloscope according to the AGND3 standards with reference to the connection diagram so that the RF
signals can be monitored.
Method 2:
The device does not need to be set. Proceed to the procedure 3.
3. Turn ON the power of the product.
4. Start the simplified FE test mode.
(Regarding how to start the test mode and the operating procedure, refer to the clause on the service test mode.)
5. Load the disc for adjustment (GGV1025).
6. TEST MODE
Select “3: Skew Adjustment.”
8. Adjust the Skew using a driver while checking the RF value.
Refer to the following pages concerning the locations to make SKEW adjustment.
Method 1:
Slightly turn the skew adjusting screw A while checking the RF wave level by the oscilloscope and make
adjustment so the wave level would reach its maximum.
Next, slightly turn the skew adjusting screw B so the wave level would reach its maximum.
Slightly turn the skew adjusting screw A again so the wave level would reach its maximum.
(Make adjustment in the order of A->B->A and in the end complete adjustment by turning each screw
in the clockwise direction.)
Method 2:
Slightly turn the skew adjusting screw A while checking the value of the RF level through the OSD display so the wave
level would reach its maximum.
Next, slightly turn the skew adjusting screw B so the level would reach its maximum.
Slightly turn the skew adjusting screw A again so the level would reach its maximum.
(Make adjustment in the order of A->B->A and in the end complete adjustment by turning each screw in the
clockwise direction.)
AVIC-Z110BT/XN/UC 163
5 678
5678
C
D
F
A
B
E
Skew Adjustment
1: Power OFF
RF Level : 000000
Please Input Number
Skew Adjustment
1: Power OFF
RF Level : 000000
Please Input Number
TEST MODE
1: LD ON
2: ASMAX
3: Skew Adjustment
4: Error Rate
5: CRG Move Outer
6: Eject
Please Input Number
TEST MODE
1: LD ON
2: ASMAX
3: Skew Adjustment
4: Error Rate
5: CRG Move Outer
6: Eject
Please Input Number
Switch arms
9. Skew Adjustment
Select “1: Power OFF.”
10. TEST MODE
Select “6: Eject.”
11. TEST MODE
Select “5: CRG Move Outer.”
12. In order to produce the clamping state with no disc loaded, slightly move the disc detection arm in the
counterclockwise direction while moving the switch arms outward.
AVIC-Z110BT/XN/UC
164
1234
1234
C
D
F
A
B
E
CRG Move Outer
1: DVD Single Layer
2: DVD Dual Layer
3: CD
4: CD-RW
5: Return
Please Input Number
CRG Move Outer
1: Power OFF
Please Input Number
TEST MODE
1: LD ON
2: ASMAX
3: Skew Adjustment
4: Error Rate
5: CRG Move Outer
6: Eject
Please Input Number
Disc Detection Arm
13. CRG Move Outer
Select “1: DVD Single Layer.”
The pickup moves to the outer periphery.
Apply the adhesive to fix the skew, the resonance adhesive and the screw lock.
Refer to the next page regarding the locations of adhesive joining.
14. CRG Move Outer
1: Power OFF
15. TEST MODE
Select “6: Eject.”
AVIC-Z110BT/XN/UC 165
5 678
5678
C
D
F
A
B
E
A
B
A
B
1
12 3
Locations to make SKEW adjustment
Locations to adhere the SKEW 1,2,3: GEM1033
2
3
AVIC-Z110BT/XN/UC
166
1234
1234
C
D
F
A
B
E
adhesive
Bond for resonance 4:Three Bond 1530
4
5
6
4
56
Bond for locking the screw 5,6 : Three Bond 1401M
Bond for locking the screw
AVIC-Z110BT/XN/UC 167
5 678
5678
C
D
F
A
B
E
Hologram (Beware of the static)
Do not touch the optical part
RF level adjusting part
Do not touch the spring
Precautions on handling the PU
*Precaution: Do not touch those shaded areas in the following figures.
.
AVIC-Z110BT/XN/UC
168
1234
1234
C
D
F
A
B
E
8.2 AUDIO UNIT ADJUSTMENT
Adustment item Mode Input signal Output signal
(Measurement point,
wave pattern)
Masuring
instruments
Specs Adjusting
point
Front monitor
picture level
DVD GGV1025
Title3 chap3 play
100 IRE(White 100%)
1.0 Vpp
TP : FVA
Refer to following
Oscilloscope
0.7 V ± 0.007 Vpp
VR2731
- Adjustment point
AUDIO UNIT(SIDE A)
VR2731
FVA
AVIC-Z110BT/XN/UC 169
5 678
5678
C
D
F
A
B
E
AVIC-Z110BT/XN/UC
170
1234
1234
C
D
F
A
B
E
9. EXPLODED VIEWS AND PARTS LIST
9.1 PACKING
N
OTES : Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List.
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screw adjacent to mark on the product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions,apply as you think it appropriate.)
""
F10BT/XN/AU
F10BT/XN/AU
AVIC-Z110BT/XN/UC 171
5 678
5678
C
D
F
A
B
E
(1) PACKING SECTION PARTS LIST
(2) CONTRAST TABLE
AVIC-Z110BT/XN/UC and AVIC-F10BT/XN/AU are constructed the same except for the following:
Owner's Manual,Installation Manual
CONTENTS OF CD-ROM (Operation Manual), CPJ1283
All operation manuals are supplied in PDF files by the CD-ROM.
Regarding the availability of paper manual, contact Pioneer Service representative in your region.
Mark No. Description Part No.
1 Polyethylene Bag See Contrast table (2)
2 Unit Box See Contrast table (2)
3 Contain Box See Contrast table (2)
4 Protector CHP3827
5 Sub Unit Box Assy See Contrast table (2)
6 Cord CDE6825
7 Cord CDP1157
8 Cord Assy CDP1194
9 Cord Assy CDP1195
10 Screw Assy CEA2788
11 Screw BMZ50P080FTC
* 12 Polyethylene Bag CEG-127
13 Screw CMZ50P080FTC
14 Polyethylene Bag CEG1116
15 Sub Unit Box CHG6937
16 Connector CKX1049
17 IM CD-ROM See Contrast table (2)
18 Microphone Assy CPM1083
* 19 Clip Holder CZN7912
* 20 Cushion CZN7913
21 RDS-TMC Tuner See Contrast table (2)
22 GPS Antenna Assy CXE2705
23 •••••
24 •••••
25 Sheet CZN7151
26-1 Owner's Manual See Contrast table (2)
26-2 Owner's Manual See Contrast table (2)
26-3 Quick Start Guide See Contrast table (2)
26-4 Quick Start Guide See Contrast table (2)
26-5 Important Information See Contrast table (2)
26-6 Installation Manual See Contrast table (2)
26-7 Caution Card CRP1310
* 26-8 Warranty Card See Contrast table (2)
* 26-9 Registration Card See Contrast table (2)
27 Cord Assy CDP1095
Mark No. Description Part No.
Mark No. Description AVIC-Z110BT/XN/UC AVIC-F10BT/XN/AU
1 Polyethylene Bag CEG1359 •••••
2 Unit Box CHG6940 CHG6942
3 Contain Box CHL6940 CHL6942
5 Sub Unit Box Assy CHX2124 CHX2127
17 IM CD-ROM Not used CPJ1283
21 RDS-TMC Tuner Not used CXE2176
26-1 Owner's Manual CRB3035 Not used
26-2 Owner's Manual CRB3036 Not used
26-3 Quick Start Guide CRB3037 CRB3056
26-4 Quick Start Guide CRB3038 Not used
26-5 Important Information Not used CRB3057
26-6 Installation Manual CRD4418 CRB3058
* 26-8 Warranty Card CRY1246 Not used
* 26-9 Registration Card CRY1271 Not used
Part No. Language
CRB3035 (UC) English
CRB3036 (UC) French
CRB3037 (UC) English
CRB3038 (UC) French
CRD4418 (UC) English, French
CRB3056 (AU) English
CRB3057 (AU) English
CRB3058 (AU) English
Part No. Language
* CRB3051 (UC) English
* CRB3052 (UC) Russian
* CRB3055 (AU) English
AVIC-Z110BT/XN/UC
172
1234
1234
C
D
F
A
B
E
9.2 EXTERIOR(1)
F
E
A
A
C
D
D
C
B
B
AVIC-Z110BT/XN/UC 173
5 678
5678
C
D
F
A
B
E
EXTERIOR(1) SECTION PARTS LIST
Mark No. Description Part No.
1 Screw BMZ26P050FTC
2 Screw(M2.6 x 4) CBA2048
3 Screw(M2.6 x 14) CBA2103
4 Screw(M2.5 x 4) CBA2217
5 FFC CDE8902
6 Cord Assy CDE8990
7 Shield CND4940
8 Bracket CND4941
9 Cover CND4961
10 Sheet CNN2803
11 Sheet CNN2804
12 Sheet CNN2813
13 Sheet CNN3148
14 Sheet CNN3149
15 Heat Sink CNR1988
16 Navi Unit CWN3985
17 Shield CND4932
18 Holder CND4933
19 Holder CND4935
20 Service CC Assy(UC) CXX2608
Service CC Assy(AU) CXX2607
21 Holder Unit CXE2706
22 Chassis Unit CXE1612
23 Shield Unit CXE1620
24 DVD Mechanism Module(LS1) CXK6801
25 Fan Motor CXM1394
AVIC-Z110BT/XN/UC
174
1234
1234
C
D
F
A
B
E
9.3 EXTERIOR(2)
A
AVIC-Z110BT/XN/UC 175
5 678
5678
C
D
F
A
B
E
EXTERIOR(2) SECTION PARTS LIST
Mark No. Description Part No.
1 Screw BMZ26P050FTC
2 Screw BMZ26P160FCC
3 Screw(M2.6 x 4) CBA2048
4 FFC CDE9208
5 Cord CDE6825
6 Cap CNS1472
7 Resistor RS1/2PMF102J
8 Cord Assy CDP1194
9 Cap CNW1490
10 Audio Unit(UC) CWN4335
Audio Unit(AU) CWN4336
11 Screw BMZ26P060FTB
12 Shield CND4926
13 Holder CND4927
14 Holder CND4929
15 Holder CND4930
16 Screw PPZ30P060FSN
>17 Fuse(10 A) YEK5001
18 Cord Assy CDP1095
AVIC-Z110BT/XN/UC
176
1234
1234
C
D
F
A
B
E
9.4 EXTERIOR(3)
H
G
B
A
A
C
B
C
D
D
E
E
The Plate (No.30) and the right and left Guide (No.28, 29) cannot be removed.
In the component replacement, please exchange each Grille Unit (No.26).
AVIC-Z110BT/XN/UC 177
5 678
5678
C
D
F
A
B
E
EXTERIOR(3) SECTION PARTS LIST
Mark No. Description Part No.
1 Screw CBA1735
2 Screw(M2 x 3) CBA1877
3 Holder CND5243
4 Flexible PCB CNQ2911
5 Cover CNS9804
6 Screw(M2 x 3) CBA1877
7 Cord Assy CDE8991
8 Lighting Conductor CNW1606
9 Spacer CNW1607
10 Touch Panel CSX1148
11 Keyboard Unit CWN3988
* 12 Spacer Unit CXE1707
13 Screw AMZ20P040FTC
14 Screw(M2 x 2) CBA1771
15 Holder CND4965
16 Insulator CNN2805
17 Monitor Unit CWN3935
18 Cord Assy CDE8990
19 Bluetooth Module CWX3851
20 Shield Unit CXE2163
21 Insulator CNN2822
22 LCD Panel CWX3813
23 Holder Unit CXE1741
24 Case Unit CXE2836
25 Cushion CNN3115
26 Grille Unit(UC) CXE2206
Grille Unit(AU) CXE1974
27 Grille CNS9807
28 Guide CNS9824
29 Guide CNS9825
30 Plate(UC) CNS9899
Plate(AU) CNS9949
31 Button Unit CXE1706
32 Panel Unit(UC) CXE1991
Panel Unit(AU) CXE1992
33 Case CNB3574
AVIC-Z110BT/XN/UC
178
1234
1234
C
D
F
A
B
E
9.5 EXTERIOR(4)
B
B
A
A
I
B
(B)
(A) : GEM1024
(B) : GEM1043
(B)
(A)
(A)
(A)
(A)
(A)
(A)
Spreads grease
on tip of gear.
Spreads grease on
the entire gear.
A
AVIC-Z110BT/XN/UC 179
5 678
5678
C
D
F
A
B
E
EXTERIOR(4) SECTION PARTS LIST
Mark No. Description Part No.
1 Screw BMZ26P050FTC
2 Screw(M2.6 x 4) CBA2048
3 FFC CDE8899
4 Bracket CND4916
5 Bracket CND4917
6 Bracket CND5037
7 Tuner IF Unit(UC) CWN4824
Tuner IF Unit(AU) CWN4339
8 Holder CND5159
9 Shield CND5426
10 Sheet CNN3157
11 Cushion CNN3159
12 FM/AM Tuner Unit(UC) CWE2097
FM/AM Tuner Unit(AU) CWE2128
13 Holder CND4324
14 Drive Unit CXE1522
15 Screw AMZ26P030FTC
16 Screw BMZ20P020FTC
17 Screw(M2 x 2) CBA1527
18 Washer CBF1039
19 Screw EBA1051
20 Spring EBH1684
21 Spring EBL1033
22 Spring EBL1034
23 Cord(Purple) EDC1026
24 Cord(Green) EDC1027
25 Bracket ENC1604
26 Arm ENV1615
27 Roller ENV1619
28 Arm ENV1623
29 Rack ENV1629
30 Gear ENV1630
31 Gear ENV1631
32 Gear ENV1632
33 Holder ENV1634
34 Gear ENV1635
35 Chassis Unit EXA1688
36 Motor Unit EXA1692
37 Frame Unit EXA1693
38 PCB Assy(Service) EXX1060
AVIC-Z110BT/XN/UC
180
1234
1234
C
D
F
A
B
E
9.6 DVD MECHANISM MODULE
A
C
D
D
F
E
C
B
A
B
E
G
F
G
C
D
(A) : GEM1045
(B) : GEM1038
(C) : GEM1024
(C)
(C)
(A)
(A)
(A)
(A)
(C)
(A)
(A)
(C)
(C)
(C)
(C)
(B)
(C)
(C)
AVIC-Z110BT/XN/UC 181
5 678
5678
C
D
F
A
B
E
DVD MECHANISM MODULE SECTION PARTS LIST
Mark No. Description Part No.
1 Screw BMZ20P020FTC
2 Screw BSZ20P040FTC
3 Screw(M2 x 4) CBA1835
4 Washer CBF1038
5 Spring CBH2860
6 Spring CBH3010
7 Spring CBH3011
8 Spring CBH3012
9 Spring CBH3013
10 Spring CBH3014
11 Spring CBH3015
12 Spring CBH3016
13 Spring CBH3017
14 Spring CBH3018
15 Spring CBH3019
16 Spring CBH3020
17 Spring CBH3030
18 Plate Spring CBL1797
19 Cable CDE8631
20 Service PU Unit CXX2398
21 Bracket CND4553
22 Arm CND4555
23 Lever CND4556
24 Frame CND4557
25 Frame CND4558
26 Sheet CNN2280
27 Rack CNW1170
28 Guide CNW1171
29 Roller CNW1172
30 Arm CNW1173
31 Arm CNW1174
32 Roller CNW1175
33 Lever CNW1176
34 Arm CNW1177
35 Arm CNW1178
36 Gear CNW1180
37 Gear CNW1181
38 Gear CNW1182
39 Gear CNW1183
40 Rack CNW1184
41 Gear CNW1185
42 Gear CNW1186
43 Gear CNW1187
44 Gear CNW1188
45 Clamper CNW1190
46 Arm CNW1191
47 Arm CNW1192
48 Holder CNW1193
49 Holder CNW1194
50 Holder CNW1195
51 Damper CNW1197
52 Damper CNW1198
* 53 Connect PCB Unit CWX3618
54 •••••
55 •••••
56 Motor Unit CXC4026
57 Screw Unit CXC8894
58 Chassis Unit CXC8895
59 Arm Assy CXC8896
60 Washer CBF1037
61 Washer CBF1038
62 Arm CND4554
63 Collar CNV6906
64 Roller CNW1196
65 Gear Unit CXC8893
66 Screw(M2 x 5) EBA1028
67 Motor EXM1050
68 Screw JFZ20P025FTC
69 Screw JGZ17P022FTC
70 Washer YE15FTC
71 Screw IMS20P030FTC
72 DVD Core Unit YWX5009
Mark No. Description Part No.
AVIC-Z110BT/XN/UC
182
1234
1234
C
D
F
A
B
E
(A) : GEM1045
(B) : GEM1038
(C) : GEM1024
(A)
(C)
(C)
(A)
(A)
(C)
(C)
(C)
(C)
(C)
(A)
(A)
AVIC-Z110BT/XN/UC 183
5 678
5678
C
D
F
A
B
E
AVIC-Z110BT/XN/UC
184
1234
1234
C
D
F
A
B
E
10. SCHEMATIC DIAGRAM
10.1 AUDIO UNIT(PS/IF SECTION)(GUIDE PAGE)
A-a A-b
A-a A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or
"ELECTRICAL PARTS LIST".
1/3
A
A-a 1/3
2001 2300
REFERENCE NUMBER LIST
A
H/OSW
MOT0
MOT1
RDS57K
BCAMPW
POS_IN
HRHSLK
HRLK
HRDT
HRCK
D_FMTOS
D_STOFM
FMCLK
FMCE1
FMCE2
TUNSL
VD5CONT
DDCLK
VD8CONT5
ILMSNS
GPSREV
SYSREV
SPEED
ASENS
BSENS
SWILMPW
SWACPW5
RSTIN
PBSNS
FANUP
B
S
IL
M
A
S
A
N
BCAMPW
ACCPW5
ACCPW5
SWACPW5
ANTON5
SWILMPW
SYSPW5
SYSPW5
VICSON
SCL
SDA
VICSON
TUNSL
MOTPWR2
HIVOLT
POS_IN
MOT0
MOT1
MOT8
VICSON
SCL
SDA
VICSON
HRCK
HRDT
HRLK
HRHSLK
FMCE2
RSTIN
FMCE1
FMCLK
D_STOFM
D_FMTOS
TUN_R
TUN_L
MOTPWR5
ACCPW5
MUTEBUP
MUTEBUP
H/OSW
MOTVDD33
VD5CONT
SWAC33
SYSPW5
HIVOLT14
ILMV
ACCPW5
SWVDD33
DDCLK
BUP
BUP
AU84
AU84
AU84
ACC84
ACC84
ACC84
VDD33
VDD33
VDD33
BUPV
VDD5
VDD5
VDD5
VDD5
CCH1623-A_Po
C2170
CCH1565-A
C2161
C2186
0.047u/10
C2184
4.7u/16
3216
C2143 NM
C2185
22p/50
C2190
NM
1608
C2163 CCG1223-A
C2162 CCG1223-A
C2166 NM
D2181
HZU9R1(B2)
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDA GNDV
GNDD
GNDD
GNDD
GNDD
IC2181
LT3461AES6
Vfb=1.255Vtyp
SW1 1
GND 2
FB 3
SHDN
4
5VOUT
6VIN
L2181
CTF1473-A
L2161
CTH1257-A
UMD3N
Q2181
E1 1
B1 2
C2 3E2
4
5B2
6C1
Q2182
2SD1767(R)
2SA1577(QR)
Q2066
2SA1577(QR)
Q2071
2SA1577(QR)
Q2061
R2189
6.8k
R2062 4.7k
R2061
4.7k
R2188
5.6k
R2071
2.2k
R2072 2.2k
R2067 4.7k
R2182
100k
R2183
160k
R2066
4.7k
8V
HV12
SVD
HVO
8EN
SWVDD33
VD8V
RDS57K
BCAMPW
ACCPW5
DDCLK
MOT0
SYSPW5
H/OSW
BUP
BSENS
MOT1
VDD5
GNDV
ANTON5
GNDA
GNDD
SWVDD33
ILMSNS
ASENS
ACC84
AU84
HIVOLT
VD8CONT5
AU84
GNDD
ILMV
SWACPW5
SWILMPW
SWVDD5
SWAC33
HIVOLT14
SYSREV
VDD33
GPSREV
SPEED
PBSNS
D2162
RB050L-40
R2068 100k
R2063 68k
S-812C56AUA-C3K
IC2182
1GND
2Vin
3Vout
R2266
NM
C2266 NM
NM
Q2266
R2102 1k
GNDM
GNDD
GNDRF
GNDFVRF
TUNAGND
TUNAGND
GNDD
GNDD
TUNAGND
POS_IN
HRHSLK
HRLK
HRDT
HRCK
D_FMTOS
D_STOFM
FMCLK
FMCE1
FMCE2
TUNSL
TVD3
R2101 1k
R2104 0
R2141 NM
R2270
NM
R2271
NM
R2073 47k
R2153
0
GNDD
R2155
24k
R2157
0
P2151
CEK1254-A
12
C2152
NM
C2151
2.2u/25
D2151
RB160M-40
R2154
130k
R2152
20k
D2152
1SS352
LT3505EDD
IC2151
BOOST
1
SW
2
VIN
3
SHDN
45
GND1
6
RT
7
FB
8
VC
9
GND2
LS1VDD
VD5CONT
BD9781HFP
IC2161
1VIN
2SW
3RT
4GND
5FB
6INV
7EN
L2162
CTH1254-A
NM
IC2141
1VC
2VIN
3GND
4VDD
5C
GNDD
R2162
10k
R2167
10k
R2168
10k
R2166
3k
R2165
68K
C2167
0.1u/16
C2168
1000p/50
C2171
330p/50
C2169
0.1u/50
DTC114EUA
Q2067
DTC114EUA
Q2062
NM
Q2277
DTC114EUA
Q2072
R2142
NM
C2183
0.1u/16
1608
C2182
0.1u/16
1608
C2154
0.1u/16
R2269
0
R2144
NM
R2156
NM
R2171
1M
R2268 NM
FANUP
NKBUP
GND
GND
L2151
CTF1744-A-T
CAMVIN
I8V
VD8
R2143
NM
R2267
NM
R2140
NM
RSTIN
C2187
1u/25
C2181
4.7u/25
3216
GNDD
R2187
47k
HV14
S-812C56AUA-C3K
IC2190
1GND
2Vin
3Vout
C2191
1u/25
R2190
5.6k
GNDD
C2173
4.7u/16
3216
GNDM
NM
C2144
C2142 NM
F2161
CCG1267-A
3
21
C2189
0.01u/25 C2193
0.01u/25
C2192
0.01u/25
C2188
0.01u/25
SCL
SDA
C2156
CCG1183-A
R2192
NM
2125
L2152
BTH1112-A
10u
VICSON
VICSON
R2185
12k
R2186
11k
GNDD
MPR2
FSL
FCE2
RSTI
FCE1
FCLK
DSTF
DFTS
TUL
TUR
R2164
0
R2184
0
POIN
MOT1
MOT8
R2992
NM
S-V
S-C
BCG
GNDD
NM
R2158
NM
C2157
R2151
22k
C2153
150p/50
C2155
220p/50
MUTEBUP
R2181
1.2k
R2191
6.2k
R2193
1.8k
UMF21N
Q2101
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1 R2105
47k
R2106
1k
GNDD
MVD3
CKS5546-A
CN2101
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
R2274
0
L2183
CTF1389-A
C2101
0.01u/16
C2194
0.01u/25
C2195
0.01u/25
P2107
CEK1276-A
12
R2161
100k
P2161
CEK1259-A
12
L2182
CTH1426-A
R2993
NM
R2994
10k
R2995
NM
R2163
100k
P2162
CEK1282-A
12
R2251
1k
R2996
0
R2997
NM
R2169
0.3
D2161 NM
NM
C2160
NM
C2159
GNDD
D2160
RB051LA-40
R2160 NM
R2081
NM
R2082
NM
R2083
0
GND GND
GND GND
GND
GNDA
NM
C2158
R2084
0
GNDA GNDA
R2085
0
GNDDGNDD
DMY
(10K*2)
SWVDD33
S
A
SWAC33
MT81V
(D)(D) (D)
(D)
330u/10
(POSCAP)
(10uH)
(D)
BCAM6
Typ:450mA
MAX:1390mA
RUSH:1650mA
HIVOLT15
(10K*2)
SWVDD5
(22uH)
ILMPW
TUNER IF
BSENS
ASENS
ILMSNS
VDD5
VDD33
SWVDD
SWVDD5
SWAC33
BCAM6
ACC84
AU84
ANT+B
PREMUTE
AND CIRCUIT
REV
PKB
SPEED
KMODE
2001 - 2020
2021 - 2030
BUP
KEEP BUP
2031 - 2035
2041 - 2045
2046 - 2050
2051 - 2055
2056 - 2060
2061 - 2065
2066 - 2070
2071 - 2074
2086 - 2105
2140 - 2144
2121 - 2130
2131 - 2139
2151 - 2160
2161 - 2175
2181 - 2195
2266 - 2275
2216 - 2220
2226 - 2230
2231 - 2235
2236 - 2238
2239 - 2240
2241 - 2245
2251 - 2255
2276 - 2280 AMPMUTE
2281 - 2295 POWER AMP
ILMV
(D) (D) (D)(D)
(250mA)
(10K*2)
(50V)
MOT8
GNDM
MOTVDD33
TUN_R
D_FMTOS
RSTIN
GNDM
TUNAGND
MOTPWR5
MOT1
FMSL
POS_IN
FMCLK
MOT8
H/OSW
D_STOFM
MOT0
HRHSLK
AU84
HLDET
GNDFVRF
GNDRF
MOTPWR2
HRLK
GNDRF
TUN_L
FV33
NC
GNDT
MOT8
GNDT
GNDRF
GNDFVRF
SDA
NC
FVDETO
VICSON
VDD33
HRDT
FMCE1
ACC84
SCL
HRCK
GNDRF
FMCE2
4
45
44
1
2
3
CONTACT SIDE
(3216)
(D)
(3216)
(D)
LS1VDD
LS1VDD
Typ:192mA 220mA
MAX 520mA 430mA
VD8V
(1.5A)
LS1VDSW
2176 - 2180
MT81
(3.15A)
(Rb=Rbe=10k)
(10K*2)
GNDM
GNDD
GNDD
MAX200mA
ROCK600mA
RUSH1030mA
2200mA max
(f=3MHz)
CCG1223
10u/50v/3225
CCH1565
100u/16V
22u/16V
HLDET/ HLDET/
HLDET/
REGION RESISTANCE
(1A)
HIVOLT
(D)
2296 - 2300 AMP+B
22u
(D)(D) (D) (D) (D)
MOTVDD33
GNDD
GNDD
NM
UNUSED
MODEL RESISTANCE
HiMid
(2125)
RS1/8SQR30J-T
UC EU5 AU UW5
8.03V +/-3%
5.0V+/-3%
15.06V-15.83V
13.25V-13.95V
12.09V-12.71V
>
>
>
>
B
CN511
3/3
A2/3
A
2/3
A
AVIC-Z110BT/XN/UC 185
5 678
5678
C
D
F
A
B
E
1/3
A
A-b 1/3
A
V
A
A
A
A A
A A
A
A
A
FL+
FR
RL
BREMOTE
PREMUTE
TUN_L
TUN_R
FL-
FR-
FR+
FR
FL
RL
RR
RR+
RR-
RL+
RL-
ILMSNS
BSENS
SWILMPW
MUTEVO
FL
RR
SWACPW5
RSTIN
FANUP
BSENS
ILMSNS
ASENS
ANTON5
PREMUTE
MUTEVO
FANUP
SYSPW5
RR+
RR-
FR-
FL-
RL+
SPEED
PBSNS
ACCPW5
ACCPW5
SWACPW5
MOTPWR2
ANTON5
SWILMPW
SYSPW5
SYSPW5
BREMOTE
RL-
FL+
FR+
MOTPWR5
IO3
GPSREV
SYSREV
VD5CONT
SYSPW5
ACCPW5
DDCLK
BUP
BUP
BUP
BUP
ACCPW5
SYSPW5
VDD33
BUPV
VDD5
VDD5
VDD5
47u/25
C2241
10u/16
C2294
(105 )
CCH1565-A
C2123
CCH1565-A
C2134
C2289 0.1u/50 1608
C2047
1u/16
2125
C2285
2125
C2284
1608
C2282
1608
C2121
0.1u/50 1608
C2029
0.1u/50
C2281
1608
C2233
NM
(2125)
C2283
1608
C2013 NM 1608
C2041
0.1u/50
1608
C2297 0.1u/50
1608
C2296 0.1u/50
1608
C2042
1000p/50
C2010 NM 1608
C2132
0.022u/16
C2011 NM 1608
C2003 NM 1608
C2004 NM 1608
C2008 NM 1608
C2009 NM 1608
C2012 NM 1608
C2122
0.022u/16
C2046
1000p/50
C2007
3900p/50
1608
C2005 NM 1608
C2002 NM 1608
C2052
0.01u/16
C2287
2125
C2236 NM
1608
C2227
1000p/50
C2048
NM
C2124
1000p/50
C2288
2125
C2291 NM
C2237 NM
1608
C2231
NM
C2290 0.1u/50 1608
C2131
0.1u/50 1608
C2217
0.1u/50 1608
C2226
1000p/50
1608
C2286
2125
C2133
1000p/50
D2031
D2296
1SR154-400
D2027
RB160M-30
D2033
D2041
1SR154-400
D2216
1SR154-400
D2217
1SR154-400
D2046
1SR154-400
D2236
1SR154-400
D2227
UDZS18(B)
D2034
EDZ20(B)
D2231
PTZ18A
D2001
ST70-27F
D2226
NM
GNDD
GND
GND
GNDD
GNDD
GNDD
GND
GNDD
GNDD
GND
GND
GNDA
GNDA
GNDD
GNDD
GND GNDA
IC2051
BD3931FP
1
1
2
2
3
3
IC2056
S-1200B33-M5
VIN
1
VSS
2
ON/OFF
3NC 4
5
VOUT
IC2216
TPD1018F
1
OUT 2
GND1 3
GND2 4
GND3 5
VDD
6IN
7GND4
8GND5
9GND6
10 DIAG
IC2300
PA2030A
TAB
1
PW-GND2
2
OUT2(-)
3
STBY
4
5OUT2(+)
6VCC2
7OUT1(-)
8PW-GND1
9OUT1(+)
10 RIPPLE
11 IN1
12 IN2
15 IN3
16 AC-GND
17 OUT3(+)
18 PW-GND3
19 OUT3(-)
20 VCC1
21 OUT4(+)
22 MUTE
23 OUT4(-)
24 PW-GND4
25 H-SW/VOS-DET
13 PRE-GND
14 IN4
JA2001
CKM1550-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
L2001
CTH1347-A
L2226
CTF1410-A
L2232
NM
L2236
CTF1410-A
L2231
NM
UMD3N
Q2242
E1
1
B1
2
C2
3
E2 4
5
B2
6
C1
Q2041
2SC4116(GRBL)
Q2226
2SC4116(GRBL)
R2046
1K
CCN1179-A-T
R2047
4.7K
CCN1180-A-T
R2041
4.7K
CCN1180-A-T
R2042
1K
CCN1179-A-T
R2226
1K
CCN1179-A-T
R2056
4.7k
R2277
10k
R2136
3.3k
R2241
390
R2242
390
R2243
1k
R2276
10k
R2234
1k
R2233
10k
R2230
47k
R2229
100k
R2026
4.7
R2027
4.7
FL+
ASN
AMP+B
BS1
BSN
BSB
BS2
IL1
VD5
PLS
AC8
ACC
RR+
FR+
PKBI
ISN
GD1
VD3
SYP5
PAV1 PAV2
ABO
FR-
ILM
RR-
REVI
RL+
BUP1
RL-
MUT
FL-
AU8
ATB
SWVDD33
ACCPW5
BREMOTE
SYSPW5
FR
RL
BSENS
FL
AMPMUTE
PREMUTEIN
PREMUTE
MOTPWR2
RR
ANTON5
ILMSNS
SWACPW5
SWILMPW
SWVDD5
SWAC33
D2028
1SR154-400
D2237
MALS180X
R2232
15k
C2292
4.7u/10
(2125)
D2029
RB500V-40
R2127
NM
R2128
3.3k
D2229
RB715W
R2231
TUN_L
TUN_R
FUP
R2021
4.7
R2022
4.7
BUPV
2
151
254-A
2
DTC114EUA
Q2276
DTC114EUA
Q2046
C2216
1000p/50
R2281 10k
R2282 10k
D2032
HZU7R5(B3)
D2228
UDZS5R6(B)
R2023
47k
R2028
47k
R2032
47k
R2033
10k
R2034
10k
R2044
47k
R2048
10k
R2052
NM
R2057
NM
R2058
NM
R2129
NM
R2137
NM
R2227
4.7k
R2228
1k
Q2031
2SC4081(RS)
Q2032
2SC4081(RS)
2SA1576A(QRS)
Q2231
KBP
FANUP
NKBUP
GND
GND
100u/16
C2053
100u/16
C2058
NJM2388F84
IC2131
1VIN
2VOUT
3GND
4CONTROL
GNDA
NJM2388F84
IC2121
1VIN
2VOUT
3GND
4
CONTROL
CCH1928-A
C2001
(P35)
4700u/16
C2028
CEAT472M16-P35
D2131
NM
R2121
47k
R2131
47k
R2135
NM
RSTIN
C2056
1u/16
1608
C2057
1u/16
1608
C2051
1.0u/35
3216
33u/16
C2276
(105 )
DTC114EUA
Q2281
GNDA
MUTEVO
R2283
0
CCH1849-A
C2027
NM
C2026
IO3
C2043
NM
GND
GND
R2031
47k
1.2k
MOTPWR5
D2026
KS926S2
D2297 1SR154-400
C2232
0.01u/50
1608
BUP2
BUP3
GD2
GD3
R2122
NM
R2132
NM
D2042
HZU8R2(B1)
R2043
47k
P2161
CEK1259-A
12
C2293
4.7u/16
(3216)
D2232
1SS352
R2125
0
R2126
NM
D2241
1SS352
N
M
0
N
M
C2295
NM
C2298
NM
C2299
NM
C2300
NM
GND
NM
CN2001
1
2
NM
CN2002
1
2
NM
CN2003
1
2
GNDAGNDA
GND
GND GND
CEF1050-A
JH2001
1
PWR AMP
VDD5
ACC84
PREMUTE
SYSTEM
AUDIO
ILMSNS
ASENS
AU84
ANT+B
(10K*2)
(10K*2)
(Rb=Rbe=10k)
(105 )
PKB
REV
CKSQYB105K16-T
CKSRYB105K16-T
SPEED
VDD33
VDD33
OVER VOLTAGE DETECTION 20[V]
BSENS
RPZ18T103J
91.5mA
65mA
436.3mA
L
T15
REV
ILM
FL-
BUP
FL+
FR+
ACC
GND
AANT
FR-
PKB
PULSE
RL+
RR+
RL-
RR-
(10000uF/16V)
MOUNT ON SIDE A
TAB
GNDD
GNDA
FLIN)
FRIN)
AC GND
FR+
GNDD
RL-
SREMOTE
FR-
VCC1
FL+
MUTE
FL-
GNDD
B_REM
RL+
VCC2
RR-
GNDD
RR+
RIPPLE
RRIN
RLIN
(3.15A)
VEHICLE I/F
A
)
AMPMUTE
MOUNT ON SIDE A
Reinforeced GND connector
Audio Signal
Video Signal
0.96W
4.9V-5.1V
0.119W
3.267V-3.333V
4.39Wmax
8.4V+/-2%
8.4V+/-2%
3.52Wmax
8
3V
600uH
>
>
AUDIO UNIT (PS/IF SECTION)
1/3
A
CORD ASSY
(POWER SUPPLY)
2/3
A
3/3
A
FM/AM:+31.56 dBs
NAVI(USB/SD):+33.31 dBs
NAVI(BT-Audio):+34.98 dBs
LS1:+33.68 dBs
IP-BUS:+33.31 dBs
iPod:+33.40 dBs
VTR2:+33.83 dBs
VTR1:+33.31 dBs
AVIC-Z110BT/XN/UC
186
1234
1234
C
D
F
A
B
E
A-a A-b
A-b 1/3
A
V
A
A
A
SWILMPW
SWACPW5
FANUP
BSENS
ILMSNS
ASENS
RR+
RR-
FR-
FL-
RL+
SPEED
PBSNS
RL-
FL+
FR+
GPSREV
SYSREV
ACCPW5
DDCLK
BUP
VDD33
VDD5
VDD5
C2047
1u/16
2125
C2029
0.1u/50
C2233
NM
(2125)
C2013 NM 1608
C2041
0.1u/50
1608
C2042
1000p/50
C2010 NM 1608
C2011 NM 1608
C2003 NM 1608
C2004 NM 1608
C2008 NM 1608
C2009 NM 1608
C2012 NM 1608
C2046
1000p/50
C2007
3900p/50
1608
C2005 NM 1608
C2002 NM 1608
C2052
0.01u/16
C2236 NM
1608
C2227
1000p/50
C2048
NM
C2237 NM
1608
C2231
NM
7
1608
C2226
1000p/50
1608
D2031
D2027
RB160M-30
D2033
D2041
1SR154-400
6
4
00
D2217
1SR154-400
D2046
1SR154-400
D2236
1SR154-400
D2227
UDZS18(B)
D2034
EDZ20(B)
D2231
PTZ18A
D2001
ST70-27F
D2226
NM
GNDD
GND
GND
GNDD
GNDD
GNDD
GND
GNDD
GNDD
IC2051
BD3931FP
1
1
2
2
3
3
IC2056
S-1200B33-M5
VIN
1
VSS
2
ON/OFF
3NC 4
5
VOUT
6
8F
1
OUT 2
G
ND1 3
G
ND2 4
G
ND3 5
VDD
JA2001
CKM1550-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
L2001
CTH1347-A
L2226
CTF1410-A
L2232
NM
L2236
CTF1410-A
L2231
NM
Q2041
2SC4116(GRBL)
Q2226
2SC4116(GRBL)
R2046
1K
CCN1179-A-T
R2047
4.7K
CCN1180-A-T
R2041
4.7K
CCN1180-A-T
R2042
1K
CCN1179-A-T
R2226
1K
CCN1179-A-T
R2056
4.7k
R2234
1k
R2233
10k
R2230
47k
R2229
100k
R2026
4.7
R2027
4.7
FL+
ASN
BS1
BSN
BSB
BS2
IL1
VD5
PLS
ACC
RR+
FR+
PKBI
ISN
GD1
VD3
ABO
FR-
ILM
RR-
REVI
RL+
BUP1
RL-
FL-
ATB
D2028
1SR154-400
D2237
MALS180X
R2232
15k
D2029
RB500V-40
D2229
RB715W
R2231
R2021
4.7
R2022
4.7
BUPV
DTC114EUA
Q2046
6
0
D2032
HZU7R5(B3)
D2228
UDZS5R6(B)
R2023
47k
R2028
47k
R2032
47k
R2033
10k
R2034
10k
R2044
47k
R2048
10k
R2052
NM
R2057
NM
R2058
NM
R2227
4.7k
R2228
1k
Q2031
2SC4081(RS)
Q2032
2SC4081(RS)
2SA1576A(QRS)
Q2231
KBP
FANUP
NKBUP
GND
GND
100u/16
C2053
100u/16
C2058
CCH1928-A
C2001
(P35)
4700u/16
C2028
CEAT472M16-P35
C2056
1u/16
1608
C2057
1u/16
1608
C2051
1.0u/35
3216
CCH1849-A
C2027
NM
C2026
C2043
NM
GND
R2031
47k
D2026
KS926S2
C2232
0.01u/50
1608
BUP2
BUP3
GD2
GD3
D2042
HZU8R2(B1)
R2043
47k
D2232
1SS352
GND GND
VDD5
ILMSNS
ASENS
ANT+B
(10K*2)
PKB
REV
SPEED
VDD33
VDD33
OVER VOLTAGE DETECTION 20[V]
BSENS
RPZ18T103J
91.5mA
65mA
REV
ILM
FL-
BUP
FL+
FR+
ACC
GND
AANT
FR-
PKB
PULSE
RL+
RR+
RL-
RR-
(10000uF/16V)
VEHICLE I/F
Audio Signal
Video Signal
0.96W
4.9V-5.1V
0.119W
3.267V-3.333V
600uH
AUDIO UNIT (PS/IF SECTION)
1/3
A
CORD ASSY
(POWER SUPPLY)
FM/AM:+31.56 dBs
NAVI(USB/SD):+33.31 dBs
NAVI(BT-Audio):+34.98 dBs
LS1:+33.68 dBs
IP-BUS:+33.31 dBs
iPod:+33.40 dBs
VTR2:+33.83 dBs
VTR1:+33.31 dBs
AVIC-Z110BT/XN/UC 187
5 678
5678
C
D
F
A
B
E
A-a A-b
A-b 1/3
A
A
A
A A
A A
FL+
FR
RL
BREMOTE
PREMUTE
TUN_L
TUN_R
FL-
FR-
FR+
FR
FL
RL
RR
RR+
RR-
RL+
RL-
MUTEVO
FL
RR
RSTIN
ANTON5
PREMUTE
MUTEVO
FANUP
SYSPW5
PBSNS
SWACPW5
MOTPWR2
ANTON5
SWILMPW
SYSPW5
SYSPW5
BREMOTE
MOTPWR5
IO3
VD5CONT
SYSPW5
BUP
BUP
BUP
ACCPW5
SYSPW5
VDD5
47u/25
C2241
10u/16
C2294
(105 )
CCH1565-A
C2123
CCH1565-A
C2134
C2289 0.1u/50 1608
C2285
2125
C2284
1608
C2282
1608
C2121
0.1u/50 1608
C2281
1608
C2233
NM
(2125)
C2283
1608
0
C2297 0.1u/50
1608
C2296 0.1u/50
1608
1
C2132
0.022u/16
C2122
0.022u/16
C2287
2125
C
C2124
1000p/50
C2288
2125
C2291 NM
C
C2231
NM
C2290 0.1u/50 1608
C2131
0.1u/50 1608
C2217
0.1u/50 1608
C2286
2125
C2133
1000p/50
D2296
1SR154-400
1
D2216
1SR154-400
D2217
1SR154-400
D2231
PTZ18A
GND
GNDD
GND
GNDD
GND
GND
GNDA
GNDA
GND GNDA
IC2216
TPD1018F
1
OUT 2
GND1 3
GND2 4
GND3 5
VDD
6IN
7GND4
8GND5
9GND6
10 DIAG
IC2300
PA2030A
TAB
1
PW-GND2
2
OUT2(-)
3
STBY
4
5OUT2(+)
6VCC2
7OUT1(-)
8PW-GND1
9OUT1(+)
10 RIPPLE
11 IN1
12 IN2
15 IN3
16 AC-GND
17 OUT3(+)
18 PW-GND3
19 OUT3(-)
20 VCC1
21 OUT4(+)
22 MUTE
23 OUT4(-)
24 PW-GND4
25 H-SW/VOS-DET
13 PRE-GND
14 IN4
L2232
NM L2231
NM
UMD3N
Q2242
E1
1
B1
2
C2
3
E2 4
5
B2
6
C1
CCN11
8
R2277
10k
R2136
3.3k
R2241
390
R2242
390
R2243
1k
R2276
10k
R2234
1k
R2233
10k
AMP+B
AC8
PKBI
SYP5
PAV1 PAV2
ABO
MUT
AU8
ATB
BREMOTE
SYSPW5
FR
RL
FL
AMPMUTE
PREMUTEIN
PREMUTE
MOTPWR2
RR
ANTON5
SWACPW5
SWILMPW
R2232
15k
C2292
4.7u/10
(2125)
R2127
NM
R2128
3.3k
R2231
TUN_L
TUN_R
FUP
DTC114EUA
Q2276
C2216
1000p/50
R2281 10k
R2282 10k
R2129
NM
R2137
NM
2SA1576A(QRS)
Q2231
NJM2388F84
IC2131
1VIN
2VOUT
3GND
4CONTROL
GNDA
NJM2388F84
IC2121
1VIN
2VOUT
3GND
4
CONTROL
D2131
NM
R2121
47k
R2131
47k
R2135
NM
RSTIN
33u/16
C2276
(105 )
DTC114EUA
Q2281
GNDA
MUTEVO
R2283
0
IO3
GND
MOTPWR5
D2297 1SR154-400
C2232
0.01u/50
1608
R2122
NM
R2132
NM
C2293
4.7u/16
(3216)
D2232
1SS352
R2125
0
R2126
NM
D2241
1SS352
C2295
NM
C2298
NM
C2299
NM
C2300
NM
GND
NM
CN2001
1
2
NM
CN2002
1
2
NM
CN2003
1
2
GNDAGNDA
GND
CEF1050-A
JH2001
1
PWR AMP
ACC84
PREMUTE
SYSTEM
AUDIO
AU84
ANT+B
(10K*2)
(Rb=Rbe=10k)
(105 )
PKB
CKSQYB105K16-T
CKSRYB105K16-T
RPZ18T103J
436.3mA
MOUNT ON SIDE A
TAB
GNDD
GNDA
FLIN)
FRIN)
AC GND
FR+
GNDD
RL-
SREMOTE
FR-
VCC1
FL+
MUTE
FL-
GNDD
B_REM
RL+
VCC2
RR-
GNDD
RR+
RIPPLE
RRIN
RLIN
AMPMUTE
MOUNT ON SIDE A
Reinforeced GND connector
4.39Wmax
8.4V+/-2%
8.4V+/-2%
3.52Wmax
3/3
A
AVIC-Z110BT/XN/UC
188
1234
1234
C
D
F
A
B
E
A-bA-a
A-a 1/3
A-b 1/3
A
SWILMPW
SWACPW5
FANUP
BSENS
ILMSNS
ASENS
BCAMPW
TUNSL
MOTPWR2
HIVOLT
POS_IN
MOT0
MOT1
MOT8
VICSON
SCL
SDA
VICSON
HRCK
HRDT
HRLK
HRHSLK
FMCE2
RSTIN
FMCE1
FMCLK
D_STOFM
D_FMTOS
TUN_R
TUN_L
MOTPWR5
ACCPW5
MUTEBUP
H/OSW
MOTVDD33
SWAC33
HIVOLT14
ILMV
ACCPW5
SWVDD33
DDCLK
AU84
AU84
ACC84
ACC84
VDD33
VDD33
VDD33
VDD5
VDD5
CCH1623-A_Po
C2170
CCH1565-A
C2161
C2143 NM
C2163 CCG1223-A
C2162 CCG1223-A
C2166 NM
GNDD
GNDD
GNDD
GNDD
GNDD
GNDA GNDV
GNDD
GNDD
GNDD
GNDD
L2161
CTH1257-A
2SA1577(QR)
Q2066
2SA1577(QR)
Q2071
2SA1577(QR)
Q2061
R2062 4.7k
R2061
4.7k
R2071
2.2k
R2072 2.2k
R2067 4.7k
R2066
4.7k
8V
SVD
8EN
SWVDD33
GNDV
GNDA
GNDD
SWVDD33
ACC84
AU84
HIVOLT
ILMV
SWVDD5
SWAC33
HIVOLT14
D2162
RB050L-40
R2068 100k
R2063 68k
R2266
NM
C2266 NM
NM
Q2266
R2102 1k
GNDM
GNDD
GNDFVRF
TUNAGND
TUNAGND
TUNAGND
TVD3
R2101 1k
R2104 0
R2141 NM
R2270
NM
R2271
NM
R2073 47k
BD9781HFP
IC2161
1VIN
2SW
3RT
4GND
5FB
6INV
7EN
L2162
CTH1254-A
NM
IC2141
1VC
2VIN
3GND
4VDD
5C
GNDD
R2162
10k
R2167
10k
R2168
10k
R2166
3k
R2165
68K
C2167
0.1u/16
C2168
1000p/50
C2171
330p/50
C2169
0.1u/50
DTC114EUA
Q2067
DTC114EUA
Q2062
NM
Q2277
DTC114EUA
Q2072
R2142
NM
R2269
0
R205
7
NM
R2144
NM
R2171
1M
R2268 NM
FANUP
NKBUP
GND
GND
CAMVIN
I8V
VD8
R2143
NM
R2267
NM
R2140
NM
HV14
S-812C56AUA-C3K
IC2190
1GND
2Vin
3Vout
90
6
k
C2173
4.7u/16
3216
GNDM
NM
C2144
C2142 NM
F2161
CCG1267-A
3
21
R2192
NM
2125
GNDD
MPR2
FSL
FCE2
RSTI
FCE1
FCLK
DSTF
DFTS
TUL
TUR
R2164
0
POIN
MOT1
MOT8
R2992
NM
S-V
S-C
BCG
MUTEBUP
UMF21N
Q2101
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1 R2105
47k
R2106
1k
GNDD
MVD3
CKS5546-A
CN2101
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
R2274
0
P2107
CEK1276-A
12
R2161
100k
P2161
CEK1259-A
12
R2993
NM
R2994
10k
R2995
NM
R2163
100k
P2162
CEK1282-A
12
R2251
1k
R2996
0
R2997
NM
R2169
0.3
D2161 NM
NM
C2160
NM
C2159
GNDD
D2160
RB051LA-40
R2160 NM
NM
C2158
(10K*2)
SWVDD33SWAC33
MT81V
(D)(D) (D)
(D)
330u/10
(POSCAP)
(10uH)
(D)
BCAM6
91.5mA
Typ:450mA
MAX:1390mA
RUSH:1650mA
(10K*2)
SWVDD5
(22uH)
ILMV
(250mA)
(10K*2)
(50V)
MOT8
GNDM
MOTVDD33
TUN_R
D_FMTOS
RSTIN
GNDM
TUNAGND
MOTPWR5
MOT1
FMSL
POS_IN
FMCLK
MOT8
H/OSW
D_STOFM
MOT0
HRHSLK
AU84
HLDET
GNDFVRF
MOTPWR2
HRLK
TUN_L
FV33
NC
GNDT
MOT8
GNDT
GNDFVRF
SDA
NC
FVDETO
VICSON
VDD33
HRDT
FMCE1
ACC84
SCL
HRCK
FMCE2
VD8V
(1.5A)
(3.15A)
(10K*2)
GNDM
GNDD
GNDD
MAX200mA
ROCK600mA
RUSH1030mA
2200mA max
CCG1223
10u/50v/3225
CCH1565
100u/16V
HLDET/
REGION RESISTANCE
D
)
MOTVDD33
GNDD
GNDD
NM
UNUSED
MODEL RESISTANCE
HiMid
(2125)
RS1/8SQR30J-T
UC EU5 AU UW5
8.03V +/-3%
13.25V-13.95V
>
>
>
B
CN511
3/3
A
2/3
A
AVIC-Z110BT/XN/UC 189
5 678
5678
C
D
F
A
B
E
A-bA-a
A-a 1/3
A-b 1/3
2001 2300
REFERENCE NUMBER LIST
A
H/OSW
MOT0
MOT1
RDS57K
BCAMPW
POS_IN
HRHSLK
HRLK
HRDT
HRCK
D_FMTOS
D_STOFM
FMCLK
FMCE1
FMCE2
TUNSL
VD5CONT
DDCLK
VD8CONT5
ILMSNS
GPSREV
SYSREV
SPEED
ASENS
BSENS
RSTIN
PBSNS
ANTON5
ACCPW5
ACCPW5
SWACPW5
MOTPWR2
ANTON5
SWILMPW
SYSPW5
SYSPW5
VICSON
SCL
SDA
VICSON
FMCLK
D_STOFM
D_FMTOS
TUN_R
TUN_L
MOTPWR5
MUTEBUP
VD5CONT
SYSPW5
BUP
BUP
AU84
AU84
ACC84
ACC84
VDD33
BUPV
VDD5
VDD5
C2186
0.047u/10
C2184
4.7u/16
3216
C2185
22p/50
C2190
NM
1608
D2181
HZU9R1(B2)
GNDD
GNDD
GNDD
IC2181
LT3461AES6
Vfb=1.255Vtyp
SW1 1
GND 2
FB 3
SHDN
4
5VOUT
6VIN
L2181
CTF1473-A
UMD3N
Q2181
E1 1
B1 2
C2 3E2
4
5B2
6C1
Q2182
2SD1767(R)
R2189
6.8k R2188
5.6k
R2182
100k
R2183
160k
HV12
HVO
VD8V
RDS57K
BCAMPW
ACCPW5
DDCLK
MOT0
SYSPW5
H/OSW
BUP
BSENS
MOT1
VDD5
MOTPWR2
ANTON5
ILMSNS
ASENS
VD8CONT5
AU84
GNDD
SWACPW5
SWILMPW
SYSREV
VDD33
GPSREV
SPEED
PBSNS
S-812C56AUA-C3K
IC2182
1GND
2Vin
3Vout
GNDRF
TUNAGND
GNDD
GNDD
POS_IN
HRHSLK
HRLK
HRDT
HRCK
D_FMTOS
D_STOFM
FMCLK
FMCE1
FMCE2
TUNSL
TVD3
R2153
0
GNDD
R2155
24k
R2157
0
P2151
CEK1254-A
12
C2152
NM
C2151
2.2u/25
D2151
RB160M-40
R2154
130k
R2152
20k
D2152
1SS352
LT3505EDD
IC2151
BOOST
1
SW
2
VIN
3
SHDN
45
GND1
6
RT
7
FB
8
VC
9
GND2
LS1VDD
VD5CONT
R2162
10k
R2167
10k
R2168
10k
R2166
3k
C2
1
0.1u
/
C2
1
1000
p
0
C2183
0.1u/16
1608
C2182
0.1u/16
1608
C2154
0.1u/16
R2156
NM
L2151
CTF1744-A-T
RSTIN
C2187
1u/25
C2181
4.7u/25
3216
GNDD
R2187
47k
HV14
S-812C56AUA-C3K
IC2190
1GND
2Vin
3Vout
C2191
1u/25
R2190
5.6k
GNDD
C2189
0.01u/25 C2193
0.01u/25
C2192
0.01u/25
C2188
0.01u/25
SCL
SDA
C2156
CCG1183-A
R2192
NM
2125
L2152
BTH1112-A
10u
VICSON
VICSON
R2185
12k
R2186
11k
FCLK
DSTF
DFTS
TUL
TUR
R2184
0
GNDD
NM
R2158
NM
C2157
R2151
22k
C2153
150p/50
C2155
220p/50
R2181
1.2k
R2191
6.2k
R2193
1.8k
MOTPWR5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
L2183
CTF1389-A
C2101
0.01u/16
C2194
0.01u/25
C2195
0.01u/25
L2182
CTH1426-A
R2163
100k
D224
1SS3
5
R2081
NM
R2082
NM
R2083
0
GND GND
GND GND
GND
GNDA
R2084
0
GNDA GNDA
R2085
0
GNDDGNDD
DMY
SYSTEM
AUDIO
(D) (D)
(D)
HIVOLT15
ILMPW
TUNER IF
BSENS
ASENS
ILMSNS
VDD5
VDD33
SWVDD
SWVDD5
SWAC33
BCAM6
ACC84
AU84
ANT+B
PREMUTE
AND CIRCUIT
REV
PKB
SPEED
KMODE
2001 - 2020
2021 - 2030
BUP
KEEP BUP
2031 - 2035
2041 - 2045
2046 - 2050
2051 - 2055
2056 - 2060
2061 - 2065
2066 - 2070
2071 - 2074
2086 - 2105
2140 - 2144
2121 - 2130
2131 - 2139
2151 - 2160
2161 - 2175
2181 - 2195
2266 - 2275
2216 - 2220
2226 - 2230
2231 - 2235
2236 - 2238
2239 - 2240
2241 - 2245
2251 - 2255
2276 - 2280 AMPMUTE
2281 - 2295 POWER AMP
(D) (D) (D)(D)
TUN_R
D_FMTOS
TUNAGND
FMCLK
D_STOFM
AU84
GNDRF
GNDRF
TUN_L
NC
GNDRF
VDD33
ACC84
GNDRF
4
45
44
1
2
3
CONTACT SIDE
(3216)
(D)
(3216)
(D)
LS1VDD
LS1VDD
Typ:192mA 220mA
MAX 520mA 430mA
LS1VDSW
2176 - 2180
MT81
(Rb=Rbe=10k)
(f=3MHz)
22u/16V
HLDET/ HLDET/
(1A)
HIVOLT
(D)
2296 - 2300 AMP+B
22u
(D)(D) (D) (D) (D)
5.0V+/-3%
15.06V-15.83V
13.25V-13.95V
12.09V-12.71V
>
2/3
A
AVIC-Z110BT/XN/UC
190
1234
1234
C
D
F
A
B
E
10.2 AUDIO UNIT(SYSCOM SECTION)(GUIDE PAGE)
2/3
A
A-a 2/3
A
V
A
V
A
V
A
A
V
A
WREMIN2
WREMIN1
GMUTER
GMUTEL
VST
VDT
VCK
BCAMPW
SWACPW
SYSPW
IPPW
MOTPWR2
BLERR2
BLERR1
CNVSS
IICSDA
IICSCL
iPod_V
iPod_AG
iPod_R
iPod_L
NAVI_L
iPod_VG
NAVI_AG
NAVI_R
IP_L
GUIDE
AVOUT
PBSNS
STOIP
IPTOS
ILMSNS
EPRDI
POS_IN
GNDAZ
HRESET
SYSREV
LEDCK
LEDDT
EPRCE
EPRDI
RMUTE
SPEED_IN
ASENBO
MBLPW
RMUTE
FMCE2
FMCE1
FMCLK
D_STOFM
D_FMTOS
IP_R
DIMMER
IPTOS
STOIP
IPPW
ASENBO
FANCONT
FANON
HYOKA
FANUP
GMUTE
EXTOC
CTOEX
FCONT_M
FCONT_N
MSN_RST
AVOUT
HYOKA
CTOEX
EXTOC
CTOVICS
VICSTOC
SPEED_IN
IICSDA
IICSCL
BLSYNC
LEDCS
LEDCK
LEDDT
PIPRST
PCHNG
OFFOK
CCRST
ASENREQ
CARDSNS
RDSSNS
IO_ON
PBSNS
GPSREV
NAVION5
RDS57K
LCD_OE
RDT
MBLPW
BSENS
PREON
REMIN
GMUTEL
GMUTER
MUTE
EPRCE
H/OSW
MOT1
LS1STBY
SCL
SDA
EPM
IRQPW
DTOSYS
MOT0
DIMMER
CTOSYS
POS_IN
MUTEVO
KMODE
RDS57K
MUTEVO
XRES
VD5CONT
FMCLK
RSTIN
SYSTOC
NAVION
SWACPW5
LEDCS
KDT0
KDT1
KMODE
TELMUTE
TELMUTE
SCL
SDA
RDS57K
RCK
TUNSL
MVIPW
RCK
LDET
RDT
RDSLK
BCAMSNS
RDT
RDSLK
RSTIN
GUIDE
GNDAZ
NAVI_L
NAVI_R
iPod_R
iPod_L
iPod_AG
iPod_VG
IP_R
IP_L
NAVI_AG
BSENREQ
CPUWDT
GMUTE
LCDTEMPIN
BLERR1
BLERR2
FCONT_C
FCONT_N
FCONT_M
iPod_V
RESET
LDET
EJECT
COMDC
CCTEMPIN
MOTPWR
IP_RG
GNDSEL
D_STOFM
GNDSEL
DDCLK
FMCE1
BLSYNC
FMCE2
BCAMSNS
COMDC
D_FMTOS
IICSDA
ANTON
RDSLK
CARDSNS
VCK
VST
VDT
IP_LG
BSENS
FANUP
GPSREV
SYSTOD
LDET
RDS57K
RCK
RCK
RDT
C2459 0.1u/16
C2306
0.015u/50
C2471 100p/50
C2311 100p/50
C2355 0.01u/16
C2463 NM C2435 47p/50
C2391 NM
C2307
0.1u/16
C2571
NM
C2573
NM
GNDV
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
(GNGI)
IC2304
BD5229FVE
RESET CIRCUIT(100msec)
VOUT
1
SUB
2
CT
3GND 4
5
VDD
S-93C56BD0I-I8
IC2302
CS
1
SK
2
DI
3
DO
45
GND
6
TEST
7
NC
8
VCC
IC2491
NJM2904M
3
4
2
18
IC2491
NJM2904M
7
R5F64165PFD
IC2303
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CNVss 16
17
18
RESET 19
Xout 20
Vss1 21
Xin 22
Vcc1 23
NMI 24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Vcc2
39
40
Vss2
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
Vss3
57
58
Vcc3
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
Vcc4
74
75
Vss4
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
Vcc5
91
92
Vss5
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
Vss6 130
131
Vcc6 132
133
134
135
136
137
138
139
Avss 140
141
Vref 142
Avcc 143
144
L2351
CTF1305-A
L2461
CTF1305-A
L2491 CTF1334-A
L2311 CTF1305-A
L2571
CTF1306-A
L2303
CTF1306-A
L2371
CTF1305-A
L2331 CTF1305-A
L2492
CTF1334-A
DTC114WK
Q2491
UMD3N
Q2302
E1
1
B1
2
C2
3
E2 4
5
B2
6
C1
R2494
51k
R2579 0
R2578 0
R2495
100k
R2580 0
R2439 1k
R2577
220
R2301
100k
R2387 1k
R2335 NM
R2327 470
R2316 470
R2575 0
R2574 0
R2492
47k
R2582 0
R2438 0
R2376 680
R2377 680
R2378 680
R2386 680
R2472 0
R2583 0
R2339 0
R2345 0
R2342 0
R2343 0
R2493
56k
R2352 NM
R2391 100k
R2392 100k
R2571 NM
R2348 47k
R2334 0
R2321 0
R2320 0
R2586 0
R2585 0
R2491
100k
R2435 1.8k
R2576 0
R2457 NM
R2450 NM
R2453 1k
R2461
47k
R2476 0
R2464 0
R2356 1k
R2452 4.7k
R2474 NM
R2315 470
R2326 0
R2328 680
R2313 4.7k
R2311 100k
R2379 1k
R2573 0
R2572 0
R2353 0
R2332 1k
R2331 220
R2314 47k
R2454 0
R2337 1k
R2437 47k
R2305
47k
R2304 47k
R2367 100k
R2371 0
R2584 0
R2374 NM
R2446 470
R2344 470
R2365 47k R2354 NM
R2406 100k
R2404 100k
R2458 47k
R2434 NM
R2355 1k
R2341 680
R2317 680
R2358 0
R2366 47k
R2382 150
R2381 150
R2384 220
R2385 220
R2581 0
SA3
CNVSS
AU84
TSTI
ILMV
WREMIN2
ASENS
WREMIN1
IICSDA
IICSCL
BSENS
GPSREV
GMUTEL
GMUTER
RCK
GMUTE
VDT
VST
VCK
MUTEVO
ILMV
RMUTE
CTOEX
EXTOC
iPod_AG
iPod_L
iPod_R
iPod_V
iPod_VG
NAVI_R
NAVI_AG
NAVI_L
GNDAZ
GUIDE
AVOUT
IP_L
IP_R
TELMUTEIN
R2590 0
C2574 NM
C2575 NM
C2576 NM
C2577 NM
C2578 NM
C2579 NM
C2580 NM
C2581 NM
C2582 NM
C2583 NM
C2584 NM
C2585 NM
C2586 NM
C2587 NM
C2589 NM
C2590 NM
R2368 220
R2372 220
R2369 100k
R2312 4.7k
R2390 100k
GNDD
HRCK
HRHSLK
HRDT
FMCLK
D_FMTOS
FMCE1
FMCE2
D_STOFM
VICSON
HRLK
C2572
0.1u/16
C2304
0.1u/16
R2310
1k
C2305
0.1u/16
R2418 0
R2416 0
C2491
0.1u/16
C2492
1000p/50
R2360
47k
R2359
4.7k
R2587
0
R2589 0
GNDA
FANUP
GNDD
R2591 0C2588 NM
HYOKA
NKB
NVB
GDAN
VGN
GDN
GDI
RESET
SPD1
R2455 NM
R2456 NM
R2462 NM
C2352 100p/50
R2375 680
R2405 100k
AV
C
NSD
POS_IN
MUTEVO
KMODE
RDS57K
R2436 47
R2351 100k
VICSON
SDA
SCL
R2373 0
TUNSL
R2507
22k
R2509
22k
R2508
22k
R2506
22k
R2444 47k
Q2506
UMH1N
1E1
2
B1
3C2 4
E2
5
B2
6
C1
Q2505 UMH1N
1E1
2
B1
3C2 4
E2
5
B2
6
C1
ERST
R2505
22k
IO3
BCAMSNS
SCAMSNS
FCAMSW
T-34
GDE
MNG
NVR
NVL
iR
iL
iAG
iVG
IPR
IPL
IPG
NVG
BRQ
WDT
GMT
TMP
BE1
BE2
FCC
FCN
FCM
iV
VON
HRLK
HRCK
HSLK
HRDT
R2463 100k
R2478 NM
R2447 NM
T-56
GSEL
GNDD
GND
COMDC
R2306
0
C2460 10p/50
C2461 10p/50
C2450
4.7u/10
R2451 100k
CCTMP
R2336 1k
R2388 220
R2473 220
R2357 220
C2464 1u/10
C2420
1u/10
C2321
0.01u/50
C2331
0.01u/50
C2374
0.01u/50
C2351
0.01u/50
C2462 0.01u/50
C2411
0.01u/50
R2475 0
R2471 NM
X2301
CSS1781-A
HOT1
1
GND1
2
GND2 4
HOT2
3
R2325 NM
CTOS
STOC
TCK
R2460
560
2SA1576A(QRS)
Q2303
R2445 0
R2443 0
R2442 0
R2441 0
C2434 330p/50
C2436 150p/50
C2437 470p/16
C2439 NM
C2438 0.01u/16
CKS6124-A
CN2571
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
C2308
0.1u/16
C2413 0.1u/16
C2412 0.01u/16
IO3
C2424
0.01u/50
R2329 100
L2572
NM
C2570 NM
GNDD
GNDD
C2368 NM
R2739 NM
C2443 NM
C2444 NM
C2440 NM
C2441 NM
R2570 0
R2569 0
GNDA
GNDV
R2741 NM
15000kHz
AU84AU84
AU8
Audio/Video
(Rb=Rbe=10k)
S
SWVDD5
SWAC33SWAC33
TUNPCLK
SYSTOC
BKSNS
LS1STBY
VICS_DCL
CCTEMPIN
ANTON
TUNPCE2
KDT1
BCAMSNS
BLERR1
CCRST
COMDC
NC
NC
NSD
BEEP
TMC_MSN_ON
ILMSNS
CPUWDT
IPPW
TUNSL
MOTPWR
RDS57K
VDC1
BLSYNC
SYSTOD
TELMUTE
VDT
EPM
BCAMPW
ASENBO
EPRDI
IICSCL
LCDTEMPIN
RDSSNS/CTOVICS
KDT2
IRQPW
TUNPDI
NC
R32C/116 GROUP
VICS_DRST
CTOSYS
WREMIN1
EPRST
KDT0
BSENS
VICS_SDA/BUSY
NC
VST
FLAPLESS
DIMMER
RCK
MBLPW
NC
XRES
VICS_BCLOCK
DTOSYS
SYSPW
LEDCS
VICS_DCE
CARDSNS
ACCPW
PBSNS
TSCK
ASENS
MOT1
NC
NAVION
HOMESW/TSI
PIPRST
BSENREQ
RMUTE
VCK
IO_ON
NC
FCAMSNS
/WREMSNS
/LEDDT
IICSDA
VICS_DINT
MOTPWR2/CE
FCONT_N
EPRCE
EPRDO
MOT0/TSO
WREMIN2/
WCONT
MUTEVO
PRE_ON
SIMUKE
EPRCK
RDSLK
STOIP
VD5CONT
ASENREQ
/LEDCK
FANON
DDCLK
NC
GNDSEL
TUNPCE1
SYSTEM u-COM
TUNPDO
BLERR2
RDT
TESTIN
MSN_RST
VICS_DDI
FCONT_M
FCONT_C
VICS_SCL/TSCK
IPTOS
SWACPW
POS_IN
VICS_DDO
NC
VDC0
LDET
LCD_OE
OFFOK
MVIPW
VDD5VDD5
EEPROM
HARD RESET
FANCONT
(Rb=10K,Rbe=4.7k)
TUNER
RDS
VICS
128
SECCONT
21
94
VICSTOC
23
MBLPW
IO_ON
NC
NC
NC
FANCONT
CTOSYS
ILMDT
65
136
FANON
52
122
38
55
HRST
CCTEMPIN
16
138
BSENRQ
67
126
GNDA
36
19
GNDSEL
115
GNDD
54
99
BLERR2
50
CTOVICS
63
BLSYNC
OFFOK
66
69
47
AVOUT
77
GUIDE
40
90
42
71
18
27
iPod_R
NAVION
RDSSNS
62
GNDAZ
BSENS
49
111
TCON_SCL
89
117
15
114
PIPRST
14
139
48
75
56
TCON_SDA
GNDD
81
104
ASENS
IPPW
NAVI_R
GND
125
DIMMER
127
79
9
GNDILM
37
GNDD
140
91
96
100
132
CARDSNS
118
7
20
PREON
25
61
124
4
83
MVIPW
78
109
EXTOC
82
45
105
35
10
133
8
24
6
1
GPSREV
iPod_L
110
FCONT_C
113
GND
41
PBSNS
34
101
KMODEOUT
85
131
SWACPW5
NC
ILMCK
107
106
BLERR1
103
31
30
68
121
26
IP_L
84
92
ILMV
108
102
44
80
135
123
NC
NC
60
ROT1
129
51
13
3
86
SYSTOC
70
17
134
72
112
120
43
2
73
39
11
12
93
46
97
ROT0
130
IPTOS
53
STOIP
87
57
58
5
TEMPSEN
22
FCONT_N
98
32
iPod_AG
SPEED_IN
29
88
RST_SO
64
137
CTOEX
PCHNG
95
116
119
28
NC
74
59
33
CPUWDT
76
ASENBO
NAVI_L
GMUTE
ILMLD
BUP
BUP
BUP
BUP
BUP
BUP
GNDD
FANUP
NC
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
VDD5
GNDD
ASENRQ
GNDA
GNDAG
GNDD
LCD_OE
FCONT_M
GNDD
GND
SWAC33
VDD5
IP_R
HYOKA
REMIN
GNDV
GNDV
iPod_VG
iPod_V
IP_RG
IP_LG
GNDD
GNDD
GNDD
AU8
GMUTEL
GMUTER
MUTE
NC
NKBUP NKBUP NKBUP
BUP BUP BUP
AU84
SWAC33
Pull up by Tuner PCB
KEEP_BUP
KEEP_BUP
KEEP_BUP
KEEP_BUP
KEEP_BUP
BUP
GND
GND
GND
NC
NC
KEEP_BUP
KEEP_BUP
KEEP_BUP
GNDA
GNDA
GNDA
KDT0
KDT1
KDT2
TIMEOUT
UNUSED TERMINAL
IO3
COMDC
NC
NC
PEG554A8(UC)
PEG555A8(AU)
TIMEOUT
Hi:validation
Lo:invalidation
UC
UNUSED
NM
UC
HLDET/
1/3
A
1/3
A
3/3
A
CN5603
4/4
F
AVIC-Z110BT/XN/UC 191
5 678
5678
C
D
F
A
B
E
2/3
A
A-b 2/3
A
V
A
V
A
V
ANTON5
AMPMUTE
OFFMUTE
OFFMUTE
PREMUTEIN
ANTON5
WREMIN2
IRQPW
LS1STBY
SYSTOD
XRES
WREMIN1
RESET
CNVSS
SPEED
ANTON
PREMUTEIN
AMPMUTE
LS1L
LS1R
MBLPW
SDA
SCL
MOT0
H/OSW
FCONT_N
REMIN
POS_IN
PBSNS
DDCLK
SYSPW5
MOTPWR2
ILMSNS
SWACPW5
MOT0
VD8CONT5
MOT1
H/OSW
SPEED
SYSREV
VD5CONT
SWILMPW
MOTPWR5
BCAMPW
RDS57K
MUTE
FANCONT
FCONT_C
FANON
CCRST
SWACPW5
SYSPW5
LEDCS
EPM
MOTPWR2
RSTIN
ACCPW5
ACCPW5
KDT1
NAVION
ACCPW
SYSPW
NAVION5
PCHNG
MOTPWR
MOTPWR5
TMC_MSN_ON5
TMC_MSN_ON
uRDSSNS
RDSSNS
MSN_RST
SWACPW
OFFOK
SYSTOC
CTOSYS
IO_ON
PIPRST
LCD_OE
MVIPW
LEDCK
PREON
ACCPW
ASENREQ
CPUWDT
BSENREQ
TUNSL
EJECT
HRSTO
CCTEMPIN
TMC_MSN_ON
KDT0
LCDTEMPIN
IICSCL
LEDDT
uRDSSNS
COMDC
IICSDA
uVDD33
uVDD33
VICSTOC
GNDALS
SWVDD33 CTOVICS
TMC_MSN_ON5
SWAC33
BSENS
FANUP
GPSREV
DTOSYS
LS1V
GNDVLS
C2531
0.1u/16
C2430 47p/50
C2435 47p/50
C2431 0.1u/16
C2432 0.1u/16
C2301
NM
C2391 NM
D2552
DAP202U
D2531
UDZS8R2(B)
GNDA
GNDD
GNDVLS
GNDALS
GNDD
GNDD
GNDD
GNDD
GNDA
GNDD
GNDV
GNDD
GNDD
GNDDDC
GNDV
GNDD
GNDDDC
IC2531
TC74VHCT32AFT
1A1
1B2
1Y3
2A4
5
2B
6
2Y
7
GND 83Y
93A
103B
114Y
124A
134B
14Vcc
IC2491
NJM2904M
3
4
2
18
IC2491
NJM2904M5
6
7
1
2
3106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
Vss6 130
131
Vcc6 132
133
134
135
136
137
138
139
Avss 140
141
Vref 142
Avcc 143
144
L2531
CTF1410-A
L2421 CTF1305-A
L2302
2.2u
L2492
CTF1334-A
L2411 CTF1305-A
UMD3N
Q2552
E1 1
B1 2
C2 3E2
4
5B2
6C1
IMH23
Q2551
C1 1
B2 2
E2 3C2
4
5B1
6E1
R2494
51k
R2559 470
R2497
51k
R2495
100k
R2561 220
R2387 1k
R2562 220
R2501
2k
R2496
51k
R2499
1k
R2492
47k
R2498
1k
R2504
33k
R2536
100k
R2438 0
R2503
20k
R2493
56k
R2500
560k
R2352 NM
R2391 100k
R2392 100k
R2502
8.2k
R2491
100k
R2557 470
R2431 1.8k
R2558 470
R2400 NM
R2407 220
R2398 470
R2401 680
R2425 NM
R2367 100k
R2374 NM
R2421 680
R2414 680
R2354 NM
R2408 NM
R2403 680
R2406 100k
R2404 100k
R2458 47k
R2560 1k
R2434 NM
R2395 1k
R2394 1k
R2537 100k
NB0
UVD
OFM
BS8
SWVDD5
AMPMUTE
PREMUTEIN
AU84
GNDA
GNDV
GNDD
GNDA
GNDD
GNDV
VDD5
ANTON5
GNDDDC
AU84
LS1V
LS1L
LS1R
GPSREV
GNDALS
GNDVLS
BUP
GNDD
VDD33
ILMV
SWAC33
SWVDD33
VD8V
GNDD
10u/16
C2302
L2553 CTF1488-A
L2554
CTF1410-A
LS8
LS5
R2429 100k
R2390 100k
GNDD
TVD
BSY
TSCK
TRX
TTX
TRST
CNVS
TGND
DTC114EUA
Q2492
R2418 0
R2416 0
C2491
0.1u/16
C2492
1000p/50
C2493
0.1u/16
C2495
0.082u/16
C2494
0.01u/50
C2303
1000p/50
C2558
0.1u/16
C2557
0.1u/16
C2561 0.1u/16
R2554
1.8k
R2551
1.8k
R2553 100k
R2552 100k
R2432 10k
R2419 1k
R2417 1k
R2533
47k
R2538
100k
FANUP
GNDA
R2520 1k
C2513
D2518 NM
D2519
C2514 NM
C2515 NM
D2520
UDZS18(B)
GND
R2521 1k
C2559
4.7u/10
LSVG
LSDG
R2396 1k
R2397 1k
GNDD
C2516
0.1u/50
R2524
47 R2523
0
SWBUP
RSN
CTV
VTC
R2405 100k
AVCC
GNDD
POS_IN
MOTPWR5
VD8CONT5
DDCLK
SWACPW5
SYSPW5
ILMSNS
SPEED
PBSNS
VD5CONT
MOT1
ACCPW5
SYSREV
SWILMPW
H/OSW
MOTPWR2
MOT0
RDS57K
BCAMPW
LS1VDD
C2518
0.1u/50
C2510
1000p/50
GND
IC2530
TC74VHCT541AFTS1
G1
1
A1
2
A2
3
A3
4
5A4
6A5
7A6
8A7
9A8
GND 11
Y8
12
Y7
13
Y6
14
Y5
15
Y4
16
Y3
17
Y2
18
Y1
19
G2
20
VCC
L2530
CTF1410-A
C2530
0.1u/16
GNDD
NAV5
R2539 100k
R2535 100k
R2534 100k
R2530 100k
R2532 100k
D2521
1SR154-400
NKBUP
RSTIN
R2436 47
R2423 47
C2563 10u 25V
CCG1221-A-T
C2562 NM
GND
L2511
CTF1410-A
C2511
0.1u/16
CE
EPM
R2420 680
R2413 680
R2428 3.9k
R2427 3.9k
D2522
1SR154-400
IC2512
TPD1018F
1OUT
2GND1
3GND2
4GND3
5VDD 6
IN
7
GND4
8
GND5
9
GND6
10
DIAG
C2512
0.01u/25
R2513
47k
ERST
R2527 1k
C2527
D2527
LMUT
IRQ
LSR
LSL
LSG
COMP
NB1
NB2
PCNG
R2463 100k
R2477 100k
R2447 NM
R2433 10k
RS-750
U2511
1GND
2VCC
3OUT
COMDC
D2433 RB751S-40
D2432 RB501V-40
R2451 100k
VKN1620-A
CN2551
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
R2412 NM
R2411 680
NM
CN2511
1
2
3
4
5
6
7
8
9
10
R2409 0
R2415 100k
R2388 220
C2420
1u/10
C2411
0.01u/50
R2540 0
R2541 0
R2543
100k
R2542 NM
C2552 100p/50
C2551 100p/50
R2410 0
GND
TCK
R2424 47k
R2422 NM
R2529 100k
R2511
1M
2SA1576A(QRS)
Q2512 Q2531
2SC4081(RS)
D2491
1SS352
CKS6155-A
CN2512
1
2
3
4
5
6
C2517
0.1u/10
P2176
CEK1278-A
12
R2514
47k
DTC144EUA
Q2514
DTC144EUA
Q2513
IC2513
TC7SET08FUS1
INB
1
INA
2
GND
3OUTY 4
5
Vcc
C2434 330p/50
C2436 150p/50
C2437 470p/16
C2439 NM
C2438 0.01u/16
C2412 0.01u/16
C2414 0.01u/16
C2415 0.01u/16
C2416 0.01u/16
C2417 0.01u/16
C2418 0.01u/16
C2419 0.01u/16
CTVI
VTCO
C2424
0.01u/50
DTC114EUA
Q2515
R2522 1k
R2525
NM
R2564
NM
TC7WH126FU
IC2511
G1
1
A1
2
Y2
3
GND
45
A2
6
Y1
7
G2
8
VCC
C2367 NM
R2556
0
C2564 10u 10V CCG1203-A-T
22u/16
C2565
GNDD
R2555
0
GNDA
C2440 NM
C2441 NM
R2563
NM
GNDA
OFF MUTE
BUSY
SCLK
CNVSS
RESET
RXD
VDD33
AGND
PGND
PGND
SLS1TX
VGND
DGND
DGND
SCK
DGND
DGND
AGND
D+
VDD5
LS1
VD(Dry)
ROUT
LS1 SRX
D-
AMUTE
5.1V
XRES
STANBY
CPRST
IECOUT
COMPOSIT
LOUT
SDA
IRQPWR
DGND
VD(Reg)
8.4V
AGND
VDD5
VDD33
TXD
AU84
AU84
SWAC33 SWAC33
SWVDD33SWVDD33
SPEED SENSE
SWVDD5
SWVDD5SWVDD5
SWVDD5
AU84
SWAC33
13
4230
29
SYSTOC
C
CTEMPIN
KDT1
CCRST
M
C_MSN_ON
CPUWDT
TUNSL
IICSCL
C
DTEMPIN
/
CTOVICS
KDT2
CTOSYS
WREMIN1
KDT0
MBLPW
LEDCS
ACCPW
TSCK
PIPRST
BSENREQ
IO_ON
FCAMSNS
/WREMSNS
/LEDDT
IICSDA
EPRDO
W
REMIN2/
W
CONT
PRE_ON
EPRCK
ASENREQ
/LEDCK
FANON
FCONT_C
LCD_OE
OFFOK
MVIPW
VDD5
VDD5
FANCONT
(Rb=Rbe=10k)
(2125)
VD(Dry)
GND
VDD
(Rb=Rbe=10k )
(Rb=4.7k )
GND
VICSTOC
CTOVICS
TMC_MSN_ON
RDSSNS
SWBUP
(2125)
IR REMOTE
SWBUP
NKBUP
NKBUP NKBUP
BUP
BUP BUP
(500mA)
AU
RDS-TMC/MSN-DIRECT
35 LEVEL SHIFT
UC
R2540 R2541
NM 0
u-com Rewriting dedication
CONTACT SIDE
NM
AU
UC
CE
EPM
Audio Signal
(Source System)
Video Signal
2301 - 2480u-com
2481 - 2490KMODE
SPEED SNS 2491 - 2510
EXTENDED I/O 2511 - 2530
3->5 2531 - 2550
LS1 2551 - 2570
TO NAVI 2571 - 2600
(2473)
(2484)
(2504)
(2522)
(2642)
(2566)
(2591)
(2962) DARC 2951 - 2970
0
>
AUDIO UNIT (SYSCOM SECTION)
2/3
A
1/3
A
1/3
A
3/3
A
1/3
A
C
CN1901
LS1:
+5.20 dBs
AVIC-Z110BT/XN/UC
192
1234
1234
C
D
F
A
B
E
A-a A-b
A-b 2/3
A
V
ANTON5
OFFMUTE
OFFMUTE
WREMIN2
WREMIN1
SPEED
ANTON
MUTE
KDT1
PCHNG
uRDSSNS
RDSSNS
MSN_RST
HRSTO
KDT0
IICSCL
IICSDA
uVDD33
VICSTOC
SWVDD33 CTOVICS
TMC_MSN_ON5
531
1
6
C2435 47p/50
C2301
NM
D2531
UDZS8R2(B)
GNDD
GNDD
GNDD
GNDD
GNDD
IC2531
1A1
1B2
1Y3
2A4
5
2B 103B
114Y
124A
134B
14Vcc
4
91
2
904M
3
4
2
18
IC2491
NJM2904M5
6
7
1
136
137
138
139
Avss 140
141
Vref 142
Avcc 143
144
L2531
CTF1410-A
L2421 CTF1305-A
L2302
2.2u
L2492
CTF1334-A
R2494
51k R2497
51k
R2495
100k
R2501
2k
R2496
51k
R2499
1k
R2492
47k
R2498
1k
R2504
33k
R2536
100k
R2503
20k
R2493
56k
R2500
560k R2502
8.2k
R
2491
100k
R2431 1.8k
R2421 680
R2458 47k
R2434 NM
NB0
UVD
OFM
BS8
SWVDD5
AU84
VDD5
AU84
BUP
GNDD
VDD33
SWAC33
SWVDD33
10u/16
C2302
R2429 100k
DTC114EUA
Q2492
R2418 0
R2416 0
C2491
0.1u/16
C2492
1000p/50
C2493
0.1u/16
C2495
0.082u/16
C2494
0.01u/50
C2303
1000p/50
R2432 10k
R2419 1k
R2417 1k
R2533
47k
R2538
100k
R2520 1k
C2513
D2518 NM
D2519
C2514 NM
C2515 NM
D2520
UDZS18(B)
GND
R2521 1k
SWBUP
RSN
CTV
VTC
AVCC
LS1VDD
C2518
0.1u/50
C2510
1000p/50
GND
D2521
1SR154-400
NKBUP
R2436 47
R2423 47
GND
L2511
CTF1410-A
C2511
0.1u/16
R2420 680
R2428 3.9k
R2427 3.9k
D2522
1SR154-400
IC2512
TPD1018F
1OUT
2GND1
3GND2
4GND3
5VDD 6
IN
7
GND4
8
GND5
9
GND6
10
DIAG
C2512
0.01u/25
R2513
47k
R2527 1k
C2527
D2527
NB1
NB2
PCNG
R2447 NM
R2433 10k
D2433 RB751S-40
D2432 RB501V-40
R2451 100k
R2415 100k
C2420
1u/10
R2540 0
R2541 0
R2543
100k
GND
R2511
1M
2SA1576A(QRS)
Q2512 Q2531
2SC4081(RS)
D2491
1SS352
CKS6155-A
CN2512
1
2
3
4
5
6
C2517
0.1u/10
R2514
47k
DTC144EUA
Q2514
DTC144EUA
Q2513
IC2513
TC7SET08FUS1
INB
1
INA
2
GND
3OUTY 4
5
Vcc
C2434 330p/50
C2436 150p/50
C2437 470p/16
C2439 NM
C2438 0.01u/16
CTVI
VTCO
C2424
0.01u/50
DTC114EUA
Q2515
R2522 1k
R2525
NM
TC7WH126FU
IC2511
G1
1
A1
2
Y2
3
GND
45
A2
6
Y1
7
G2
8
VCC
C2440 NM
C2441 NM
OFF MUTE
VDD33
VDD5
VDD33
AU84
AU84
SWAC33 SWAC33
SWVDD33SWVDD33
SPEED SENSE
SWVDD5
SWVDD5SWVDD5
SWVDD5
AU84
SWAC33
KDT1
C
SCL
E
MIN1
KDT0
A
MSNS
E
MSNS
M
IN2/
NT
VDD5
VDD5
(Rb=Rbe=10k)
GND
VICSTOC
CTOVICS
TMC_MSN_ON
RDSSNS
SWBUP
(2125)
SWBUP
NKBUP
NKBUP NKBUP
BUP
BUP BUP
RDS-TMC/MSN-DIRECT
UC
R2540 R2541
NM 0
NM
AU
UC
Audio Signal
(Source System)
Video Signal
0
AUDIO UNIT (SYSCOM SECTION)
2/3
A
1/3
A
1/3
A
AVIC-Z110BT/XN/UC 193
5 678
5678
C
D
F
A
B
E
A-a A-b
A-b 2/3
A
V
A
V
ANTON5
AMPMUTE
OFFMUTE
PREMUTEIN
ANTON5
WREMIN2
IRQPW
LS1STBY
SYSTOD
XRES
WREMIN1
RESET
CNVSS
ANTON
PREMUTEIN
AMPMUTE
LS1L
LS1R
MBLPW
SDA
SCL
MOT0
H/OSW
REMIN
POS_IN
PBSNS
DDCLK
SYSPW5
MOTPWR2
ILMSNS
SWACPW5
MOT0
VD8CONT5
MOT1
H/OSW
SPEED
SYSREV
VD5CONT
SWILMPW
MOTPWR5
BCAMPW
RDS57K
MUTE
FANCONT
FCONT_C
FANON
CCRST
SWACPW5
SYSPW5
EPM
MOTPWR2
RSTIN
ACCPW5
ACCPW5
KDT1
NAVION
ACCPW
SYSPW
NAVION5
MOTPWR
MOTPWR5
TMC_MSN_ON5
TMC_MSN_ON
SWACPW
OFFOK
SYSTOC
CTOSYS
IO_ON
PIPRST
LCD_OE
MVIPW
LEDCK
PREON
ACCPW
ASENREQ
CPUWDT
BSENREQ
TUNSL
EJECT
CCTEMPIN
TMC_MSN_ON
KDT0
LCDTEMPIN
IICSCL
LEDDT
uRDSSNS
uVDD33
GNDALS
SWAC33
FANUP
GPSREV
DTOSYS
LS1V
GNDVLS
C2531
0.1u/16
C2430 47p/50
C2431 0.1u/16
C2432 0.1u/16
C2391 NM
D2552
DAP202U
GNDA
GNDVLS
GNDALS
GNDD
GNDD
GNDA
GNDD
GNDV
GNDDDC
GNDV
GNDD
GNDDDC
IC2531
TC74VHCT32AFT
1A1
1B2
1Y3
2A4
5
2B
6
2Y
7
GND 83Y
93A
103B
114Y
124A
134B
14Vcc
1108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
Vss6 130
131
Vcc6 132
133
134
135
136
137
138
139
Avss 140
141
Vref 142
Avcc 143
144
L2531
CTF1410-A
L2421 CTF1305-A
L2411 CTF1305-A
UMD3N
Q2552
E1 1
B1 2
C2 3E2
4
5B2
6C1
IMH23
Q2551
C1 1
B2 2
E2 3C2
4
5B1
6E1
R2559 470
R2561 220
R2562 220
R2536
100k
R2352 NM
R2391 100k
R2392 100k
R2557 470
R2558 470
R2400 NM
R2407 220
R2398 470
R2401 680
R2425 NM
R2367 100k
R2374 NM
R2421 680
R2414 680
R2354 NM
R2408 NM
R2403 680
R2406 100k
R2404 100k
R2560 1k
R2395 1k
R2394 1k
R2537 100k
AMPMUTE
PREMUTEIN
GNDA
GNDV
GNDD
GNDA
GNDD
GNDV
ANTON5
GNDDDC
AU84
LS1V
LS1L
LS1R
GPSREV
GNDALS
GNDVLS
ILMV
VD8V
GNDD
L2553 CTF1488-A
L2554
CTF1410-A
LS8
LS5
R2390 100k
GNDD
TVD
BSY
TSCK
TRX
TTX
TRST
CNVS
TGND
R2418 0
R2416 0
C2558
0.1u/16
C2557
0.1u/16
C2561 0.1u/16
R2554
1.8k
R2551
1.8k
R2553 100k
R2552 100k
R2419 1k
R2417 1k
FANUP
GNDA
C2559
4.7u/10
LSVG
LSDG
R2396 1k
R2397 1k
GNDD
C2516
0.1u/50
R2524
47 R2523
0
R2405 100k
AVCC
GNDD
POS_IN
MOTPWR5
VD8CONT5
DDCLK
SWACPW5
SYSPW5
ILMSNS
SPEED
PBSNS
VD5CONT
MOT1
ACCPW5
SYSREV
SWILMPW
H/OSW
MOTPWR2
MOT0
RDS57K
BCAMPW
LS1VDD
IC2530
TC74VHCT541AFTS1
G1
1
A1
2
A2
3
A3
4
5A4
6A5
7A6
8A7
9A8
GND 11
Y8
12
Y7
13
Y6
14
Y5
15
Y4
16
Y3
17
Y2
18
Y1
19
G2
20
VCC
L2530
CTF1410-A
C2530
0.1u/16
GNDD
NAV5
R2539 100k
R2535 100k
R2534 100k
R2530 100k
R2532 100k
RSTIN
R2423 47
C2563 10u 25V
CCG1221-A-T
C2562 NM
CE
EPM
R2420 680
R2413 680
LMUT
IRQ
LSR
LSL
LSG
COMP
R2463 100k
R2477 100k
RS-750
U2511
1GND
2VCC
3OUT
VKN1620-A
CN2551
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
R2412 NM
R2411 680
NM
CN2511
1
2
3
4
5
6
7
8
9
10
R2409 0
R2388 220
C2420
1u/10
C2411
0.01u/50
R2542 NM
C2552 100p/50
C2551 100p/50
R2410 0
TCK
R2424 47k
R2422 NM
R2529 100k
P2176
CEK1278-A
12
C2412 0.01u/16
C2414 0.01u/16
C2415 0.01u/16
C2416 0.01u/16
C2417 0.01u/16
C2418 0.01u/16
C2419 0.01u/16
C2424
0.01u/50
R2564
NM
C2367 NM
R2556
0
C2564 10u 10V CCG1203-A-T
22u/16
C2565
GNDD
R2555
0
GNDA
R2563
NM
GNDA
BUSY
SCLK
CNVSS
RESET
RXD
AGND
PGND
PGND
SLS1TX
VGND
DGND
DGND
SCK
DGND
DGND
AGND
D+
VDD5
LS1
VD(Dry)
ROUT
LS1 SRX
D-
AMUTE
5.1V
XRES
STANBY
CPRST
IECOUT
COMPOSIT
LOUT
SDA
IRQPWR
DGND
VD(Reg)
8.4V
AGND
TXD
13
4230
29
Y
STOC
M
PIN
KDT1
C
CRST
S
N_ON
P
UWDT
T
UNSL
C
SCL
M
PIN
V
ICS
KDT2
O
SYS
E
MIN1
KDT0
A
CCPW
T
SCK
P
RST
NREQ
O
_ON
A
MSNS
E
MSNS
E
DDT
E
PRDO
M
IN2/
N
T
R
E_ON
E
PRCK
NREQ
E
DCK
F
ANON
O
NT_C
C
D_OE
O
FFOK
M
VIPW
CONT
(2125)
VD(Dry)
GND
VDD
(Rb=Rbe=10k )
(Rb=4.7k )
IR REMOTE
(500mA)
AU
3 5 LEVEL SHIFT
u-com Rewriting dedication
CONTACT SIDE
CE
EPM
2301 - 2480u-com
2481 - 2490KMODE
SPEED SNS 2491 - 2510
EXTENDED I/O 2511 - 2530
3->5 2531 - 2550
LS1 2551 - 2570
TO NAVI 2571 - 2600
(2473)
(2484)
(2504)
(2522)
(2642)
(2566)
(2591)
(2962) DARC 2951 - 2970
>
1/3
A
3/3
A
1/3
A
C
CN1901
LS1:
+5.20 dBs
AVIC-Z110BT/XN/UC
194
1234
1234
C
D
F
A
B
E
A-bA-a
A-a 2/3
A-b 2/3
A
V
A
V
A
BCAMPW
CNVSS
HRESET
LEDCK
LEDDT
EPRCE
EPRDI
SPEED_IN
FMCE2
FMCE1
FMCLK
D_STOFM
D_FMTOS
MSN_RST
AVOUT
HYOKA
CTOEX
EXTOC
CTOVICS
VICSTOC
SPEED_IN
IICSDA
IICSCL
PIPRST
PCHNG
PREON
REMIN
GMUTEL
GMUTER
MUTE
H/OSW
SCL
SDA
MOT0
FMCLK
KDT0
KDT1
SCL
SDA
RDS57K
RCK
TUNSL
LDET
RDT
RDSLK
RSTIN
GUIDE
GNDAZ
NAVI_L
NAVI_R
iPod_R
iPod_L
iPod_AG
iPod_VG
IP_R
IP_L
NAVI_AG
FCONT_C
iPod_V
RESET
LDET
EJECT
COMDC
IP_RG
D_STOFM
DDCLK
FMCE1
BLSYNC
FMCE2
BCAMSNS
COMDC
D_FMTOS
IICSDA
IP_LG
LDET
RDS57K
RCK
RCK
RDT
C2459 0.1u/16
C2306
0.015u/50
C2471 100p/50
C2463 NM C2435 47p/50
C2307
0.1u/16
C2571
NM
GNDV
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
IC2304
BD5229FVE
RESET CIRCUIT(100msec)
VOUT
1
SUB
2
CT
3GND 4
5
VDD
S-93C56BD0I-I8
IC2302
CS
1
SK
2
DI
3
DO
45
GND
6
TEST
7
NC
8
VCC
IC2491
NJM2904M
3
4
2
18
IC2491
NJM
2
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CNVss 16
17
18
RESET 19
Xout 20
Vss1 21
Xin 22
Vcc1 23
NMI 24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Vcc2
39
40
Vss2
41
42
43
44
45 136
137
138
139
Avss 140
141
Vref 142
Avcc 143
144
L2461
CTF1305-A
L2491 CTF1334-A
L2311 CTF1305-A
L2303
CTF1306-A
L2492
CTF1334-A
DTC114WK
Q2491
UMD3N
Q2302
E1
1
B1
2
C2
3
E2 4
5
B2
6
C1
R2494
51k
R2579 0
R2578 0
R2
1
0
R2580 0
R2439 1k
R2577
220
R2301
100k
R2335 NM
R2316 470
R2492
47k
R2438 0
R2472 0
R2493
56k
R2321 0
R2320 0
R2491
100k
R2435 1.8k
R2576 0
R2457 NM
R2450 NM
R2453 1k
R2461
47k
R2476 0
R2464 0
R2452 4.7k
R2474 NM
R2315 470
R2313 4.7k
R2311 100k
R2573 0
R2572 0
R2454 0
R2437 47k
R2305
47k
R2304 47k
R2446 470
R2458 47k
R2434 NM
R2317 680
CNVSS
AU84
C2576 NM
C2577 NM
C2578 NM
C2579 NM
C2580 NM
C2586 NM
C2587 NM
R2312 4.7k
GNDD
HRCK
HRHSLK
HRDT
FMCLK
D_FMTOS
FMCE1
FMCE2
D_STOFM
VICSON
HRLK
C2304
0.1u/16
R2310
1k
C2305
0.1u/16
R2418
R2416
C2491
0.1u/16
C2
100
0
R2587
0
GNDA
R2591 0C2588 NM
NKB
NVB
GDAN
VGN
GDN
RESET
SPD1
R2455 NM
R2456 NM
R2462 NM
NSD
R2436 47
VICSON
SDA
SCL
TUNSL
R2507
22k
R2509
22k
R2508
22k
R2506
22k
R2444 47k
Q2506
UMH1N
1E1
2
B1
3C2 4
E2
5
B2
6
C1
Q2505 UMH1N
1E1
2
B1
3C2 4
E2
5
B2
6
C1
ERST
R2505
22k
T-34
GDE
MNG
NVR
NVL
iR
iL
iAG
iVG
IPR
IPL
IPG
NVG
FCC
iV
VON
HRLK
HRCK
HSLK
HRDT
R2478 NM
R2447 NM
GND
COMDC
R2306
0
C2460 10p/50
C2461 10p/50
C2450
4.7u/10
R2451 100k
R2473 220
C2464 1u/10
C2420
1u/10
C2321
0.01u/50
C2462 0.01u/50
R2475 0
R2471 NM
X2301
CSS1781-A
HOT1
1
GND1
2
GND2 4
HOT2
3
R2325 NM
R2460
560
R2445 0
R2443 0
R2442 0
R2441 0
C2434 330p/50
C2436 150p/50
C2437 470p/16
C2439 NM
C2438 0.01u/16
CKS6124-A
CN2571
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
C2308
0.1u/16
C2424
0.01u/50
GNDD
R2739 NM
C2443 NM
C2444 NM
C2440 NM
C2441 NM
R2570 0
R2569 0
GNDA
GNDV
R2741 NM
15000kHz
AU84AU84
AU8
Audio/Video
(Rb=Rbe=10k)
SWVDD5
SWAC33SWAC33
TUNPCLK
TUNPCE2
KDT1
BCAMSNS
COMDC
NC
NSD
BEEP
RDS57K
VDC1
BLSYNC
BCAMPW
IICSCL
TUNPDI
WREMIN1
EPRST
KDT0VICS_SDA/BUSY
RCK
NC
HOMESW/TSI FCAMSNS
/WREMSNS
IICSDA
MOT0/TSO
WREMIN2/
WCONT
DDCLK
TUNPCE1
SYSTEM u-COM
TUNPDO
RDT
MSN_RST
VICS_DDI
VICS_SCL/TSCK
VICS_DDO
NC
VDC0
LDET
VDD5VDD5
EEPROM
HARD RESET
(Rb=10K,Rbe=4.7k)
TUNER
RDS
VICS
21
VICSTOC
23
65
52
38
55
16
67
GNDA
36
19
54
50
CTOVICS
63
66
69
47
AVOUT
GUIDE
40
42
71
18
27
iPod_R
62
GNDAZ
49
TCON_SCL
15
PIPRST
14
48
7
5
56
TCON_SDA
NAVI_R
GND
9
37
7
20
PREON
25
61
4
EXTOC
45
35
10
8
24
6
1
iPod_L
FCONT_C
GND
41
34
31
30
68
26
IP_L
44
60
51
13
3
70
17
72
43
2
73
39
11
12
46
53
57
58
5
22
32
iPod_AG
SPEED_IN
29
64
CTOEX
P
C
HN
G
28
74
59
33
NAVI_L
BUP
BUP
BUP
BUP
BUP
BUP
GNDD
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
VDD5
GNDA
GNDAG
VDD5
IP_R
HYOKA
REMIN
GNDV
GNDV
iPod_VG
iPod_V
IP_RG
IP_LG
GNDD
AU8
GMUTEL
GMUTER
MUTE
NKBUP NKBUP NKBUP
BUP BUP BUP
AU84
SWAC33
Pull up by Tuner PCB
KEEP_BUP
KEEP_BUP
KEEP_BUP
KEEP_BUP
KEEP_BUP
BUP
GND
GND
GND
NC
NC
KEEP_BUP
KEEP_BUP
KEEP_BUP
GNDA
GNDA
GNDA
KDT0
KDT1
KDT2
TIMEOUT
UNUSED TERMINAL
COMDC
NC
NC
TIMEOUT
Hi:validation
Lo:invalidation
UC
UNUSED
NM
UC
HLDET/
1/3
A
CN5603
4/4
F
AVIC-Z110BT/XN/UC 195
5 678
5678
C
D
F
A
B
E
A-bA-a
A-a 2/3
A-b 2/3
V
A
A
V
A
WREMIN2
WREMIN1
GMUTER
GMUTEL
VST
VDT
VCK
SWACPW
SYSPW
IPPW
MOTPWR2
BLERR2
BLERR1
IICSDA
IICSCL
iPod_V
iPod_AG
iPod_R
iPod_L
NAVI_L
iPod_VG
NAVI_AG
NAVI_R
IP_L
GUIDE
AVOUT
PBSNS
STOIP
IPTOS
ILMSNS
EPRDI
POS_IN
GNDAZ
SYSREV
RMUTE
ASENBO
MBLPW
RMUTE
IP_R
DIMMER
IPTOS
STOIP
IPPW
ASENBO
FANCONT
FANON
HYOKA
FANUP
GMUTE
EXTOC
CTOEX
FCONT_M
FCONT_N
SPEED_IN
BLSYNC
LEDCS
LEDCK
LEDDT
PCHNG
OFFOK
CCRST
ASENREQ
CARDSNS
RDSSNS
IO_ON
PBSNS
GPSREV
NAVION5
RDS57K
LCD_OE
RDT
MBLPW
BSENS
PREON
EPRCE
H/OSW
MOT1
LS1STBY
SCL
SDA
EPM
IRQPW
DTOSYS
MOT0
DIMMER
CTOSYS
MUTEVO
KMODE
MUTEVO
XRES
VD5CONT
RSTIN
SYSTOC
NAVION
SWACPW5
LEDCS
KDT0
KDT1
KMODE
TELMUTE
TELMUTE
MVIPW
RCK
RDT
RDSLK
BCAMSNS
BSENREQ
CPUWDT
GMUTE
LCDTEMPIN
BLERR1
BLERR2
FCONT_C
FCONT_N
FCONT_M
EJECT
COMDC
CCTEMPIN
MOTPWR
GNDSEL
GNDSEL
DDCLK
ANTON
RDSLK
CARDSNS
VCK
VST
VDT
BSENS
FANUP
GPSREV
SYSTOD
C2311 100p/50
C2355 0.01u/16
C2391 NM
C2573
NM
GNDD
GNDD
GNDD
(GNGI)
R5F64165PFD
IC2303
1
2
3
4
5
6
7
8
9
1
0
1
1
1
2
1
3
1
4
1
5
CNVss 1
6
1
7
1
8
RESET 1
9
Xout 2
0
Vss1 2
1
Xin 2
2
Vcc1 2
3
NMI 2
4
2
5
2
6
2
7
2
8
2
9
3
0
3
1
3
2
3
3
3
4
3
5
3
6
37
38
Vcc2
39
40
Vss2
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
Vss3
57
58
Vcc3
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
Vcc4
74
75
Vss4
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
Vcc5
91
92
Vss5
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
Vss6 130
131
Vcc6 132
133
134
135
136
137
138
139
Avss 140
141
Vref 142
Avcc 143
144
L2351
CTF1305-A
L2311 CTF1305-A
L2571
CTF1306-A
L2371
CTF1305-A
L2331 CTF1305-A
R2580 0
R2387 1k
R23
3
R2327 470
R2316 470
R2575 0
R2574 0
R2582 0
R2376 680
R2377 680
R2378 680
R2386 680
R2583 0
R2339 0
R2345 0
R2342 0
R2343 0
R2352 NM
R2391 100k
R2392 100k
R2571 NM
R2348 47k
R2334 0
R2321 0
R2320 0
R2586 0
R2585 0
R2356 1k
R2315 470
R2326 0
R2328 680
R231
3
R231
1
R2379 1k
R2353 0
R2332 1k
R2331 220
R2314 47k
R2337 1k
R2367 100k
R2371 0
R2584 0
R2374 NM
R2344 470
R2365 47k R2354 NM
R2406 100k
R2404 100k
R2355 1k
R2341 680
R2317 680
R2358 0
R2366 47k
R2382 150
R2381 150
R2384 220
R2385 220
R2581 0
SA3
TSTI
ILMV
WREMIN2
ASENS
WREMIN1
IICSDA
IICSCL
BSENS
GPSREV
GMUTEL
GMUTER
RCK
GMUTE
VDT
VST
VCK
MUTEVO
ILMV
RMUTE
CTOEX
EXTOC
iPod_AG
iPod_L
iPod_R
iPod_V
iPod_VG
NAVI_R
NAVI_AG
NAVI_L
GNDAZ
GUIDE
AVOUT
IP_L
IP_R
TELMUTEIN
R2590 0
C2574 NM
C2575 NM
C2580 NM
C2581 NM
C2582 NM
C2583 NM
C2584 NM
C2585 NM
C2589 NM
C2590 NM
R2368 220
R2372 220
R2369 100k
R231
2
R2390 100k
C2572
0.1u/16
R2418
R2416
R2360
47k
R2359
4.7k
R2589 0
FANUP
GNDD
HYOKA
GDI
C2352 100p/50
R2375 680
R2405 100k
MUTEVO
KMODE
R2351 100k
R2373 0
IO3
BCAMSNS
SCAMSNS
FCAMSW
BRQ
WDT
GMT
TMP
BE1
BE2
FCC
FCN
FCM
R2463 100k
T-56
GSEL
GNDD
CCTMP
R2336 1k
R2388 220
R2357 220
C2420
1u/10
C2321
0.01u/50
C2331
0.01u/50
C2374
0.01u/50
C2351
0.01u/50
C2411
0.01u/50
R232
5
CTOS
STOC
T
2SA1576A(QRS)
Q2303
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
C2413 0.1u/16
IO3
C2424
0.01u/50
R2329 100
L2572
NM
C2570 NM
GNDD
C2368 NM
TUNPCLK
SYSTOC
BKSNS
LS1STBY
VICS_DCL
CCTEMPIN
ANTON
TUNPCE2
KDT1
BCAMSNS
BLERR1
CCRST
COMDC
NC
NC
NSD
BEEP
TMC_MSN_ON
ILMSNS
CPUWDT
IPPW
TUNSL
MOTPWR
RDS57K
VDC1
BLSYNC
SYSTOD
TELMUTE
VDT
EPM
BCAMPW
ASENBO
EPRDI
IICSCL
LCDTEMPIN
RDSSNS/CTOVICS
KDT2
IRQPW
TUNPDI
NC
R32C/116 GROUP
VICS_DRST
CTOSYS
WREMIN1
EPRST
KDT0
BSENS
VICS_SDA/BUSY
NC
VST
FLAPLESS
DIMMER
RCK
MBLPW
NC
XRES
VICS_BCLOCK
DTOSYS
SYSPW
LEDCS
VICS_DCE
CARDSNS
ACCPW
PBSNS
TSCK
ASENS
MOT1
NC
NAVION
HOMESW/TSI
PIPRST
BSENREQ
RMUTE
VCK
IO_ON
NC
FCAMSNS
/WREMSNS
/LEDDT
IICSDA
VICS_DINT
MOTPWR2/CE
FCONT_N
EPRCE
EPRDO
MOT0/TSO
WREMIN2/
WCONT
MUTEVO
PRE_ON
SIMUKE
EPRCK
RDSLK
STOIP
VD5CONT
ASENREQ
/LEDCK
FANON
DDCLK
NC
GNDSEL
TUNPCE1
SYSTEM u-COM
TUNPDO
BLERR2
RDT
TESTIN
MSN_RST
VICS_DDI
FCONT_M
FCONT_C
VICS_SCL/TSCK
IPTOS
SWACPW
POS_IN
VICS_DDO
NC
VDC0
LDET
LCD_OE
OFFOK
MVIPW
FANCONT
128
SECCONT
94
MBLPW
IO_ON
NC
NC
NC
FANCONT
CTOSYS
ILMDT
136
FANON
122
HRST
CCTEMPIN
138
BSENRQ
67
126
GNDSEL
115
GNDD
99
BLERR2
BLSYNC
OFFOK
66
69
77
90
71
NAVION
RDSSNS
BSENS
111
89
117
114
139
75
GNDD
81
104
ASENS
IPPW
125
DIMMER
127
79
GNDILM
GNDD
140
91
96
100
132
CARDSNS
118
PREON
124
83
MVIPW
78
109
82
105
133
GPSREV
110
FCONT_C
113
PBSNS
101
KMODEOUT
85
131
SWACPW5
NC
ILMCK
107
106
BLERR1
103
68
121
84
92
ILMV
108
102
80
135
123
NC
NC
ROT1
129
86
SYSTOC
70
134
72
112
120
73
93
97
ROT0
130
IPTOS
STOIP
87
TEMPSEN
FCONT_N
98
SPEED_IN
88
RST_SO
137
PCHNG
95
116
119
NC
74
CPUWDT
76
ASENBO
GMUTE
ILMLD
FANUP
NC
VDD5
GNDD
ASENRQ
GNDD
LCD_OE
FCONT_M
GNDD
GND
SWAC33
REMIN
GNDD
GNDD
GNDD
GMUTEL
GMUTER
MUTE
NC
Pull up by Tuner PCB
KDT0
KDT1
KDT2
TIMEOUT
IO3
COMDC
NC
NC
PEG554A8(UC)
PEG555A8(AU)
1/3
A
3/3
A
AVIC-Z110BT/XN/UC
196
1234
1234
C
D
F
A
B
E
10.3 AUDIO UNIT(AV SECTION)(GUIDE PAGE)
3/3
A
A-a 3/3
1
4
2
3
5
6
AUDIO VIDEO
AV1
AV2
IP-BUS
LS1
iPod iPod
LS1
AV3
AV2
Camera Sel OUT
BIAS1
VCC1
GND1
R1-1
L1-1
L1-2
R1-2
GND2
VCC2
BIAS2
L2-1
L2-2
VOUT1
FB2
FB1
VOUT2
LOUT2
SCL
SDA
R5-1
ROUT1
R5-2
LOUT1
ROUT2
V1-1
V1-2
V2-1
V2-2
V3-1
V3-2
V4-1
V4-2
V5-1
V5-2
V6-1
V6-2
L3-2
L3-1
R3-2
R3-1
R4-1
L4-2
R4-2
L4-1
L5-2
L5-1
R2-2
R2-1
2661 - 2728
2661 - 2726 AV SELECTOR
2601 - 2609 SWC
2641 - 2660 GUIDE MIX/MUTE
2731 - 2751 VIDEO LEVEL SHIFT
2761 - 2767 DUAL ZONE OUT
2771 - 2805 E-VOL(CAPTAIN7)
2831 - 2836 SW OUT MUTE
2841 - 2852 HI OUT MUTE
2861 - 2880 AV CN
REFERENCE NUMBER LIST
2889 - 2900 LS1 LPF
Back Camera
2611 - 2620 NAVI ISO
2621 - 2624 AUD4.3
2625 - 2637 GUIDE ISO/LPF
2601 2900
2861 - 2880 WIRED REMOTE CN
V
A
A
A
V
A
V
A
A
A
A
A
V
V
V
V
V
A
A
A
A
A
A
A
A
A
A
GMUTE
GMUTEL
NAVI_L
WREMIN1
WREMIN2
IICSDA
IICSCL
iPod_V
iPod_AG
iPod_VG
GNDAZ
NAVI_AG
NAVI_L
NAVI_R
GUIDE
MUTEVO
VST
GMUTEL
GMUTE
GMUTER
VDT
VCK
iPod_V
iPod_L
iPod_R
iPod_VG
AVOUT
RMUTE
GNDALS
GNDVLS
IP_L
LS1V
LS1L
LS1R
IP_R
CTOEX
EXTOC
GNDALS
LS1R
IP_R
GMUTER
TELMUTEIN
BCV
BCVG
iPod_AG
iPod_L
LS_R
IP_L
LS_L
TUN_L
TUN_R
GNDALS
LS1L
LS_L
LS_R
NAVI_AG
NAVI_R
GUIDE
GNDAZ
GUIDEL
iPod_AG
iPod_AG
HYOKA
VTR2V
LS1V
VTR3VG
VTR3V
WREMIN1
RCK
RCK
WREMIN2
KMODE
ACC84
MUTEBUP
VTR2L
VTR2LG
VTR2R
VTR2RG
IP_LG
IP_RG
GUIDER
HIVOLT
AU84
GNDVLS
47u/16
C2661
47u/16
C2701
100u/16
C2621
10u/16
C2623
100u/25
C2650
C2613
DCH1201-A
C2614
DCH1201-A
C2612
DCH1201-A
C2611
DCH1201-A
C2651
CCG1195-A
C2889
2.2u/10
C2892
2.2u/10
C2891
2.2u/10
C2890
2.2u/10
C2665
C2652
0.01u/50
C2642
4.7u/10
C2641
4.7u/10
C2725 4
C2726 4
C2663 22u/6.3
C2703 22u/6.3
C2700 4
C2698 4
C2696
C2686
C2693
C2697
C2688
C2699
4.7u/10
C2694
C2692
C2689
C2690
C2695
C2691
C2685
C2687
C2671
C2672
C2674
1u
C2673
C2670 NM
C2669 NM
C2667
C2668
D2621
EDZ4R3(B)
GNDA
GNDA
GNDA
GNDV
GNDA
GNDA
TUNAGND
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDD
IC2641
NJM2747V
1
2
3
4
5
6
78
9
10
11
12
13
14
L2889
CTF1410-A
L2621
NM
L2641
CTF1410-A
L2661
10u
L2662
10u
L2622
CTF1410-A
DTC323TU
Q2643 DTC323TU
Q2644
UMD3N
Q2642 E1
1
B1
2
C2
3
E2 4
5
B2
6
C1
UMD3N
Q2641 E1
1
B1
2
C2
3
E2 4
5
B2
6
C1
R2724 220
R2723 220
VOR
AU4
WREMIN1
GNDA
GNDD
SWVDD33
GNDV
ACC84
WREMIN2
AU84
iPod_R
iPod_L
iPod_VG
iPod_AG
iPod_V
MUTEVO
VCK
VST
GMUTER
GMUTE
GMUTEL
VDT
GUIDE
NAVI_R
NAVI_L
NAVI_AG
GNDAZ
AVOUT
RMUTE
LS1V
LS1R
IP_L
LS1L
GNDALS
IP_R
GNDVLS
CTOEX
EXTOC
IICSDA
IICSCL
RCK
R2685
75
R2684 100
R2683 100
C2677 NM
C2678 NM C2679 0.1u/16
C2680 0.1u/16
C2706 0.1u/16
C2708 0.1u/16
C2705 0.1u/16
C2707 0.1u/16
C2717 NM
C2718 NM
C2720 NM
C2719 NM
R2701 100
R2699 100
R2702 100
R2700 100
R2707
1k
R2706
1k
R2705
1k
R2708
1k
R2713
0
R2714
0
R2712
0
R2711
0
R2709
47k R2710
47k
R2721 100
R2718 100
R2717 100
R2719
22k
R2720
22k
D2643
RB715Z D2644
RB715Z
C2643
1u/10
C2644
1u/10
HIVOLT14
HIVOLT
TELMUTEIN
GNDA
C2675
C2676
R2688 100
R2690
NM
GNDA
R2891
47k
R2889
47k
R2890
47k
R2892
47k
C2893
33p/50
C2895 33p/50
C2894
33p/50
C2896 33p/50
C2649 0.1u/50
R2773
1k
R2774
1k
R2611
NM
R2612
NM
R2615
47k
R2613
47k
R2614
47k
R2616
47k
R2617
47k
R2618
47k
R2619 47k
R2620 47k
C2615
33p/50
C2617 33p/50
C2616
33p/50
C2618 33p/50
R2726
0
R2660
100k
R2659
100k
R2682 0
R2686 0
R2681 0
R2670 NM
R2671 NM
R2668 NM
R2691 NM
C2714
C2715
C2713
C2716
R2621
1k
C2664 0.1u/16
C2897
0.1u/16
C2624
0.1u/16
C2622
0.01u/16
R2715
NM
R2716
NM
R2651
NM
R2653
3k
R2654
3k
R2655
NM
C2662 0.1u/16
C2702 0.1u/16
HYOKA
R2658 820
R2657
820
C2653
2.2u/10
IC2621
NJM2125F
32
14
5
R2642
47k
R2645
47k
R2641
47k
R2646
47k
R2650
47k
R2649
47k R2647
47k
R2648
47k
C2645
22p/50
C2648
22p/50
C2646
22p/50
C2647
22p/50
IC2611
BA4558RFVM
5
67
IC2611
BA4558RFVM
34
21
8
GNDA
C2619
0.1u/16
R2661
NM
R2673 100
R2692 0
R2687
NM
AN15887A
IC2661
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
KMODE
GNDA
R2626
NM
C2625
DCH1201-A
C2633 150p/50
R2625 NM
C2627 220p/50
C2626
DCH1201-A R2636 47k
R2633
100k
R2631 10k
R2634
100k
R2635
68k
IC2625
BA4558RFVM
5
67
R2637 NM
IC2625
BA4558RFVM
34
21
8
R2629
3.3k
R2628
3.3k
C2632
150p/50
GNDA
R2627
NM
C2628 220p/50
C2631
0.1u/16
R2630 10k
C2629
0.1u/16
R2632
1k
R2676 NM
R2675 NM
R2662
NM
R2652
0
R2656
0
C2603
NM
D2604
NM
C2601
NM
D2601
NM
GNDD
R2604
NM R2603
NM
NM
Q2601 E1
1
B1
2
C2
3
E2 4
5
B2
6
C1
R2602
NM
R2607
NM
R2609
NM
R2601
NM
R2608
NM
R2605
NM GNDD
R2606
NM
C2602
NM
GNDD
SWREM1
SWREM2
SWRSNS
C2630
0.01u/50
D2641
HZU6R8(B1) D2602
NM
D2603
NM
WRSNS
MUTEBUP
GNDA
IC2889
NJM4580V
34
21
8
NJM4580V
54
67
8
R2669 0
R2674 NM R2663 NM
R2680 NM
R2644
68k
R2643
68k
R2677 0
R2678 0
R2689 0
D2622
1SS352
R2893
36k
R2894
36k
R2895 36k
R2896 36k
C274
4
C274
3
R2695
4.7k
R2697
4.7k
R2703
12k
R2704
12k
R2696
4.7k
R2698
4.7k
R2075
0
GNDD
R2693
NM
GNDA
R2694
0
GNDD
R2727
NM
GNDA
R2640
NM
GND
GNDA
R2639
NM
C2666
R2725
0 R272
8
C2657
NM
C2658
NM
C2654 NM
C2655
NM
VIDEO
SYSTEM
AUDIO
(Rb=Rbe=10k)
(Rb=Rbe=10k)
(2.2k)
(2.2k)
VIDEO
AU4.3
(2/2)
(1/2)
GUIDE MIX
DCH1201
10u/10V
AUDIO
LS1 LPF
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
AUD8.4
(2125)
(2125)
(2125)
(2125)
(3216)
(3216)
(2125)
(1608)
GUIDE MUTE
(3216)
(2125)
NAVI ISOLATOR
(2125)
GUIDE ISO/LPF
(2125) (1/2)
(2/2)
(Rb=Rbe=10k)
HIVOLT14
(GNDV)
(GNDV)
(GND
V
(GNDV)
NM
HIVOLT6.8
AV SELECTOR
1/3
A
2/3
A
FM/AM:+11.56 dBs
NAVI(USB/SD):+13.31 dBs
NAVI(BT-Audio):+14.98 dBs
LS1:+13.68 dBs
IP-BUS:+13.31 dBs
iPod:+13.40 dBs
VTR2:+13.83 dBs
VTR1:+13.31 dBs
AVIC-Z110BT/XN/UC 197
5 678
5678
C
D
F
A
B
E
3/3
A
A-b 3/3
Vref
IN1_R
IN2_R
IN1_L
IN2_L
IN3_R
IN4+_R
IN4-_R
Tout_FR
SVin_FR
Tout_RR
SVin_RR
Tout_PreR
Tout_PreL
SVin_RL
Tout_RL
Tout_FL
SVin_FL
IN4-_L
IN4+_L
IN3_L
DGND
SVin_PreR
PRE/SW_R
Rear_R
Front_R
Front_L
Rear_L
PRE/SW_L
PGND
Pref
VP
SVin_PreL
MIC_in
DC_filter
Noise_DET
GND
Vcc
DATA
CLK
STB
MUTE
SA_clk
SA_out
AVSELECTOR
CODEC OUT
TUNER4
3
2
1
EO
d
1
V
3
V
2
Sel OUT
VOUT1
FB2
FB1
VOUT2
LOUT2
SCL
SDA
R5-1
ROUT1
R5-2
LOUT1
ROUT2
V1-1
V1-2
V2-1
V2-2
V3
-
1
R4-1
L4
-
2
R4-2
L5-2
L5-1
C
amera
12
32 31
1516
1718
WIRED REMOTE CN
AV CN
A
V
A A
V
A
V
V
V
A
A
V
V
A
A
A
A
A A
A
A
A
A
A
A
A
A
A
V
V
V
V
PREMUTE
TUN_L
IICSDA
IICSCL
iPod_VG
iPod_VG
PREMUTE
RMUTE
iPod_R
iPod_AG
iPod_L
LS_R
PREMUTE
BREMOTE
PFL
PFR
TUN_R
TELMUTEIN
REARLOUT
REARROUT
REARVOUT
VTR2RG
VTR2LG
VTR2V
WREMIN2
WREMIN1
VTR3V
HYOKA
CTOEX
EXTOC
VDT
VST
MUTEVO
VCK
REARVOUT
VTR2R
VTR2L
KMODE
AVOUT
BCV
VTR2V
PRR
PRL
SWR
SWL
PRR
PRL
SWL
SWR
PFR
BREMOTE
PFL
REARLOUT
REARROUT
VTR3V
BCVG
VTR3VG
VTR2VG
47u/16
C2771
10u/16
C2775
10u/16
C2799
47u/16
C2801
C2831
CCG1182-A
C2832
CCG1182-A
C2779
1u/10
C2788
4.7u/10
C2792
4.7u/10
C2791
4.7u/10
C2789
4.7u/10
C2787
4.7u/10
C2790
4.7u/10
C2734
1u/16
C2665
C2780 1u/10
C2846
NM
C2845
NM
C2848
NM
C2847
NM
C2762
4.7u/10
C2761
4.7u/10
C2834
NM
C2833
NM
C2725 4.7u/10
C2726 4.7u/10
C2700 4.7u/10
C2698 4.7u/10
C2696
C2697
C2699
C2694
1u
C2667
C2668
D2841
DAP202U
D2761
DAP202U
GNDA
TUNAGNDGNDD GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
TUNAGND
GNDA
GNDD
GNDA
GNDA
N
DA
GNDV
GNDA
GNDA
NJM2747V
1
2
3
4
5
69
10
11
12
13
14
PML017A
IC2771
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
L2771
2.2u
UMD3N
Q2762
E1 1
B1 2
C2 3E2
4
5B2
6C1
Q2731
2SC4081(RS)
R2785 0
R2787 0
R2784 0
R2786 0
R2724 220
R2723 220
MFR
MFL
VOR
VOF
SR1
GDA
SL1
MRR
MRL
FVA
TUN_L
TUNAGND
TUN_R
GNDV
GNDD
GNDD
FL
GNDA
FR
RL
RR
C2735
NM
L2731
CTF1473-A
C2679 0.1u/16
C2680 0.1u/16
C2717 NM
C2718 NM
C2720 NM
C2719 NM
R2714
0
R2712
0
R2721 100
R2718 100
R2717 100
R2722 100
R2719
22k
R2720
22k
C2811 NM
C2812 NM
miniSMDC075F/24
P2861
1 2
GNDA
P2862
miniSMDC075F/24
12
C2813 NM
C2814 NM
GNDA
GNDD
D2762
DAP202U
D2870 UDZS18(B)
D2871 UDZS18(B)
C2862 NM
C2863 NM
R2783
NM
C2777
NM
C2778
NM R2776
0
R2775
0
R2773
1k
R2774
1k
R2738
680
R2735
680
R2733
22k
R2734
30k
R2732
NM
R2731
0
R2726
0
R2765
NM
R2766
NM
C2763
NM
C2764
NM
R2670 NM
R2671 NM
R2668 NM
C2774
0.1u/16
C2772
0.1u/16
C2800
0.1u/16
C2782
0.1u/16
C2781
0.1u/16
R2716
NM
Q2761
FMG12
1
1
5
5
4
4
2
2
3
3
Q2831
FMG12
1
1
5
5
4
4
2
2
3
3
Q2841
FMG12
1
1
5
5
4
4
2
2
3
3
Q2842
FMG12
1
1
5
5
4
4
2
2
3
3
R2651
NM
R2777
R2778
R2779
R2780
R2781
R2782
4.7k
R2833 NM
R2834 NM
R2845 NM
R2846 NM
R2847 NM
R2848 NM
R2650
47k
R2649
47k R2647
47k
R2648
47k
C2648
22p/50
C2647
22p/50
R2661
NM
R2673 100
R2749
0
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
PREMUTE
BREMOTE
GNDA
GNDA
GNDA
R2867 1k
R2868 1k
D2861
NM
D2862
MALS180X
D2863
NM
F2862 NM
C2864
1000p/50
D2873
PTZ27(B)
F2874
CCG1067
GND
D2867
F2867
L2861
2.2u
C2874
3900p/50
D2869
MALS180X
D2865
F2868
GND
GND
D2866 NM
VA2861
AVR-M1608C270
R2865
NM
F2873
CCG1067
R2869
15k
D2868
MALS180X
VA2862 VA2863
AVR-M1608C270
VA2864
R2874 1k
C2865 0.01u/50
D2874 UDZS18(B)
GND
C2238
0.01u/50
GND
GND
L2239
CTF1556-A
JA2880
CKN1042-A
2
3
1
GND
C2880
1000p/50
C2881
1000p/50
L2880
CTF1334-A
L2881
CTF1334-A
R2842
39
R2843
39
R2841
39
R2844
39
D2240
1SS355
D2239
PTZ27(B)
R2239
10k
D2864
NM
GND
R2788
0
R2875
0 R2876
0R2878
0 R2877
0
R2879
0
R2880
0
R2862
0
R2861
0
R2852 22k R2835 22k
R2849 22k
R2850 22k
R2851 22k R2836 22k
C2841
CCG1182-A
C2842
CCG1182-A
C2843
CCG1182-A
C2844
CCG1182-A
R2831
39
R2832
39
R2764 22k
R2763 22k
R2762
820
R2761
820
KMOD
ETC
CTE
HYK
HRG
PFL
V2RG
V2LG
V2VG
BCVG
RV2G
V3VG
TELM
PRR
KMD2
SWR
PRL
SWL
PFR
V2L
RRO2
V2V
V2R
V3V
RLO2
BCV
RV2
BREM
CCP1442-A
VR2731
1k(B)
1
3
2
R2737
820
R2812 8.2k
R2818 8.2k
R2814 8.2k
R2815 8.2k
R2816 8.2k
R2817 8.2k
R2813 8.2k
R2811 8.2k
R2669 0
R2674 NM R2663 NM
C2786 1u/10
C2785
1u/10
P2880
miniSMDC075F/24
12
P2863
miniSMDC075F/24
12
P2864
miniSMDC075F/24
12
D2880
MALS180X
D2881
MALS180X
R2736
1k
AVO
R2680 NM
2SA1576A(QRS)
Q2732
D2872
1SS352
220u/6.3
C2744
100u/6.3
C2743
R2750
75
100u/4
C2733
CEVW101M4-TRB
100u/4
C2965
CEVW101M4-TRB
F2861
CCG1082-A-T
CN2861
CKM1567-A
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
13
R2870 75
R2871 75
GNDA
R2872 NM
C2773
NM
C2776
NM
C2803
NM
C2802
NM
C2736
NM
R2730
NM
GNDA
GNDA
R2639
NM
R2772
0GNDD
R2866
NM
GNDA
R2873
0
GND
C2666
R2725
0
R2740
0
R2881
0
GNDA
R2771 NM
GNDA
R2728 0
C2657
NM
C2658
NM
C2654 NM
C2655
NM
CAPTAIN7
FR
FL
RL
SWR
RR
SWL
(2.2K*2)
SW OUT MUTE
GUIDE MIX
AUD8.4
AUD8.4
(2.2K*2)
(2.2K*2)
(2.2K*2)
PRR
PRL
PFL
PFR
VIDEO
SYSTEM
AUDIO
(3216)
(3216)
(3216)
(3216)
CCG1182
10u/16V/3216
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(1608)
TELMUTE
RVOUT2
VTRIN2VG
VTR2RG
BCVG
RLOUT2G
VTR3VG
SWG
PRR
PRL
KMODE
VTR2LG
RVOUT2G
BGND
(HYOKA)
PFL
RROUT2G
HFGND
VTRIN2V
VTR2R
RLOUT2
EXTOC
CTOEX
(2A)
VTRIN3V
SWR
BCV
SWL
PFR
RROUT2
(2A)
(Rb=Rbe=10k )
(2125)
(2125)
REAR SIDE DRAWING
BREMOTE
HRGND
VTR2L
(2125)
2125
(2125)
2.0Vp-p 0.7Vp-p
HIVOLT
(GNDV)
(GNDV)
(GNDV)
HI OUT MUTE
REARV OUT
(D)
FRONTV OUT
DUAL ZONE
(GNDV)
(2A)
(2A)
Audio Signal
(Source System)
Video Signal
>
>
>
>
>
1/3
A
CORD ASSY(PREOUT)
AUDIO UNIT (AV SECTION)
3/3
A
FM/AM:+11.55 dBs
NAVI(USB/SD):+13.30 dBs
NAVI(BT-Audio):+14.96 dBs
LS1:+13.67 dBs
IP-BUS:+13.30 dBs
iPod:+13.39 dBs
VTR2:+13.82 dBs
VTR1:+13.30 dBs
M
/AM:+11.56 dBs
B
/SD):+13.31 dBs
udio):+14.98 dBs
LS1:+13.68 dBs
-
BUS:+13.31 dBs
iPod:+13.40 dBs
V
TR2:+13.83 dBs
V
TR1:+13.31 dBs
LS1:+2.58 dBs
IP-BUS:+2.21 dBs
iPod:+1.30 dBs
VTR2:+2.73 dBs
VTR1:+2.21 dBs
AVIC-Z110BT/XN/UC
198
1234
1234
C
D
F
A
B
E
A-a A-b
A-b 3/3
in
E
T
N
D
c
c
T
A
K
B
T
E
D
EO
o
d
S
1
V
3
V
2
a
Sel OUT
VOUT1
FB2
FB1
VOUT2
LOUT2
SCL
SDA
R5-1
ROUT1
R5-2
LOUT1
ROUT2
V1-1
V1-2
V2-1
V2-2
V3-1
R4-1
L4-2
R4-2
L5-2
L5-1
Camera
WIRED REMOTE CN
AV CN
A
V
A A
V
A
V
V
V
A
A
V
V
A
A
A
A
A A
A
A
A
V
V
V
V
IICSDA
IICSCL
iPod_VG
iPod_VG
PREMUTE
RMUTE
iPod_R
iPod_AG
iPod_L
LS_R
TELMUTEIN
REARLOUT
REARROUT
REARVOUT
VTR2V
WREMIN2
WREMIN1
VTR3V
HYOKA
CTOEX
EXTOC
VDT
VST
MUTEVO
VCK
REARVOUT
VTR2R
VTR2L
KMODE
AVOUT
BCV
VTR2V
PRR
PRL
SWL
SWR
PFR
BREMOTE
PFL
REARLOUT
REARROUT
VTR3V
47u/16
C2771
10u/16
C2775
9
C2734
1u/16
C2665
C2762
4.7u/10
C2761
4.7u/10
C2725 4.7u/10
C2726 4.7u/10
C2700 4.7u/10
C2698 4.7u/10
C2696
C2697
C2699
C2694
1u
C2667
C2668
D2761
DAP202U
GNDA
GNDA
TUNAGND
GNDA
GNDA
NDA
GNDA
GNDA
11
12
13
14
15
16
17
18
19
20
21
22
23
L2771
2.2u
UMD3N
Q2762
E1 1
B1 2
C2 3E2
4
5B2
6C1
Q2731
2SC4081(RS)
R2785 0
R2787 0
R2784 0
R2786 0
R2724 220
R2723 220
VOR
VOF
FVA
C2735
NM
L2731
CTF1473-A
C2679 0.1u/16
C2680 0.1u/16
C2717 NM
C2718 NM
C2720 NM
C2719 NM
R2714
0
R2712
0
R2721 100
R2718 100
R2717 100
R2722 100
R2719
22k
R2720
22k
GNDD
D2762
DAP202U
D
ZS18(B)
D
ZS18(B)
NM
NM
8
3
M
R2776
0
5
0
R2773
1k
R2774
1k
R2738
680
R2735
680
R2733
22k
R2734
30k
R2732
NM
R2731
0
R2726
0
R2765
NM
R2766
NM
C2763
NM
C2764
NM
R2670 NM
R2671 NM
R2668 NM
C2774
0.1u/16
C2772
0.1u/16
R2716
NM
Q2761
FMG12
1
1
5
5
4
4
2
2
3
3
R2661
NM
R2673 100
R2749
0
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
GNDA
R2867 1k
R2868 1k
D2862
MALS180X
F2862 NM
C2864
1000p/50
D2873
PTZ27(B)
F2874
CCG1067
D2867
F2867
L2861
2.2u
C2874
3900p/50
D2869
MALS180X
D2865
F2868
GND
GND
F2873
CCG1067
R2869
15k
D2868
MALS180X
VA2863
AVR-M1608C270
VA2864
R2874 1k
1u/50
D
ZS18(B)
C2238
0.01u/50
GND
GND
L2239
CTF1556-A
JA2880
CKN1042-A
2
3
1
GND
C2880
1000p/50
C2881
1000p/50
L2880
CTF1334-A
L2881
CTF1334-A
D2240
1SS355
D2239
PTZ27(B)
R2239
10k
D2864
NM
GND
8
8
0
R2875
0 R2876
0R2878
0 R2877
0
R2879
0
R2880
0
R2862
0
R2861
0
R2764 22k
R2763 22k
R2762
820
R2761
820
KMOD
ETC
CTE
HYK
HRG
PFL
TELM
PRR
KMD2
SWR
PRL
SWL
PFR
V2L
RRO2
V2V
V2R
V3V
RLO2
BCV
RV2
BREM
CCP1442-A
VR2731
1k(B)
1
3
2
R2737
820
R2669 0
R2674 NM R2663 NM
5
P2880
miniSMDC075F/24
12
D2880
MALS180X
D2881
MALS180X
R2736
1k
AVO
R2680 NM
2SA1576A(QRS)
Q2732
D2872
1SS352
220u/6.3
C2744
100u/6.3
C2743
R2750
75
100u/4
C2733
CEVW101M4-TRB
100u/4
C2965
CEVW101M4-TRB
F2861
CCG1082-A-T
CN2861
CKM1567-A
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
13
R2870 75
R2871 75
GNDA
R2872 NM
C2773
NM
C2776
NM
C2736
NM
R2730
NM
GNDA
R2772
0GNDD
C2666
R2725
0
R2740
0
R2771 NM
GNDA
R2728 0
CAPTAIN7
AUD8.4
AUD8.4
(2.2K*2)
VIDEO
SYSTEM
AUDIO
(2125)
(2125)
(2125)
(2125)
(1608)
TELMUTE
RVOUT2
SWG
PRR
PRL
KMODE
(HYOKA)
VTRIN2V
VTR2R
RLOUT2
EXTOC
CTOEX
VTRIN3V
SWR
BCV
SWL
PFR
RROUT2
(Rb=Rbe=10k )
(2125)
(2125)
BREMOTE
HRGND
VTR2L
(2125)
2125
(2125)
2.0Vp-p 0.7Vp-p
HIVOLT
(GNDV)
(GNDV)
(GNDV)
REARV OUT
(D)
FRONTV OUT
DUAL ZONE
(GNDV)
Audio Signal
(Source System)
Video Signal
>
CORD ASSY(PREOUT
)
AUDIO UNIT (AV SECTION)
3/3
A
LS1:+2.58 dBs
IP-BUS:+2.21 dBs
iPod:+1.30 dBs
VTR2:+2.73 dBs
VTR1:+2.21 dBs
AVIC-Z110BT/XN/UC 199
5 678
5678
C
D
F
A
B
E
A-a A-b
A-b 3/3
Vref
IN1_R
IN2_R
IN1_L
IN2_L
IN3_R
IN4+_R
IN4-_R
Tout_FR
SVin_FR
Tout_RR
SVin_RR
Tout_PreR
Tout_PreL
SVin_RL
Tout_RL
Tout_FL
SVin_FL
IN4-_L
IN4+_L
IN3_L
DGND
SVin_PreR
PRE/SW_R
Rear_R
Front_R
Front_L
Rear_L
PRE/SW_L
PGND
Pref
VP
SVin_PreL
MIC_in
DC_filter
Noise_DET
GND
Vcc
DATA
CLK
STB
MUTE
SA_clk
SA_out
AVSELECTOR
CODEC OUT
TUNER4
3
2
1
12
32 31
1516
1718
A A
A
A
A A
A
A
A
A
A
A
A
V
V
V
PREMUTE
TUN_L
PREMUTE
BREMOTE
PFL
PFR
TUN_R
VTR2RG
VTR2LG
HYOKA
CTOEX
EXTOC
VDT
VST
MUTEVO
VCK
PRR
PRL
SWR
SWL
BREMOTE
BCVG
VTR3VG
VTR2VG
47u/16
C2771
10u/16
C2775
10u/16
C2799
47u/16
C2801
C2831
CCG1182-A
C2832
CCG1182-A
C2779
1u/10
C2788
4.7u/10
C2792
4.7u/10
C2791
4.7u/10
C2789
4.7u/10
C2787
4.7u/10
C2790
4.7u/10
C2780 1u/10
C2846
NM
C2845
NM
C2848
NM
C2847
NM
C2834
NM
C2833
NM
D2841
DAP202U
GNDA
TUNAGNDGNDD GNDA
GNDA
GNDA
GNDA
GNDA
TUNAGND
GNDA
GNDD GNDV
NJM2747V
1
2
3
4
5
69
10
11
12
13
14
PML017A
IC2771
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
L2771
2.2u
R2785 0
R2787 0
R2784 0
R2786 0
MFR
MFL
SR1
GDA
SL1
MRR
MRL
TUN_L
TUNAGND
TUN_R
GNDV
GNDD
GNDD
FL
GNDA
FR
RL
RR
C2811 NM
C2812 NM
miniSMDC075F/24
P2861
12
GNDA
P2862
miniSMDC075F/24
12
C2813 NM
C2814 NM
GNDA
GNDD
D2870 UDZS18(B)
D2871 UDZS18(B)
C2862 NM
C2863 NM
R2783
NM
C2777
NM
C2778
NM R2776
0
R2775
0
R2773
1k
R2774
1k
C2774
0.1u/16
C2772
0.1u/16
C2800
0.1u/16
C2782
0.1u/16
C2781
0.1u/16
Q2831
FMG12
1
1
5
5
4
4
2
2
3
3
Q2841
FMG12
1
1
5
5
4
4
2
2
3
3
Q2842
FMG12
1
1
5
5
4
4
2
2
3
3
R2651
NM
R2777
R2778
R2779
R2780
R2781
R2782
4.7k
R2833 NM
R2834 NM
R2845 NM
R2846 NM
R2847 NM
R2848 NM
R2650
47k
R2649
47k R2647
47k
R2648
47k
C2648
22p/50
C2647
22p/50
PREMUTE
BREMOTE
GNDA
GNDA
GNDA
R2867 1k
R2868 1k
D2861
NM
D2863
NM
GND
C2874
3900p/50
D2866 NM
VA2861
AVR-M1608C270
R2865
NM
VA2862
R2874 1k
C2865 0.01u/50
D2874 UDZS18(B)
GND
GND
R2842
39
R2843
39
R2841
39
R2844
39
R2788
0
R2852 22k R2835 22k
R2849 22k
R2850 22k
R2851 22k R2836 22k
C2841
CCG1182-A
C2842
CCG1182-A
C2843
CCG1182-A
C2844
CCG1182-A
R2831
39
R2832
39
ETC
CTE
HYK
HRG
V2RG
V2LG
V2VG
BCVG
RV2G
V3VG
BREM
R2812 8.2k
R2818 8.2k
R2814 8.2k
R2815 8.2k
R2816 8.2k
R2817 8.2k
R2813 8.2k
R2811 8.2k
C2786 1u/10
C2785
1u/10
P2863
miniSMDC075F/24
12
P2864
miniSMDC075F/24
12
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
13
C2773
NM
C2776
NM
C2803
NM
C2802
NM
GNDA
R2639
NM
R2772
0GNDD
R2866
NM
GNDA
R2873
0
GND
R2881
0
GNDA
R2771 NM
GNDA
C2657
NM
C2658
NM
C2654 NM
C2655
NM
FR
FL
RL
SWR
RR
SWL
(2.2K*2)
SW OUT MUTE
GUIDE MIX
AUD8.4
AUD8.4
(2.2K*2)
(2.2K*2)
PRR
PRL
PFL
PFR
(3216)
(3216)
(3216)
(3216)
CCG1182
10u/16V/3216
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
RVOUT2
VTRIN2VG
VTR2RG
BCVG
RLOUT2G
VTR3VG
SWG
VTR2LG
RVOUT2G
BGND
(HYOKA)
PFL
RROUT2G
HFGND
RLOUT2
EXTOC
CTOEX
(2A)
VTRIN3V
BCV
(2A)
(2125)
(2125)
REAR SIDE DRAWING
BREMOTE
HRGND
(2125)
HIVOLT
HI OUT MUTE
(2A)
(2A)
>
>
>
>
1/3
A
ASSY(PREOUT)
FM/AM:+11.55 dBs
NAVI(USB/SD):+13.30 dBs
NAVI(BT-Audio):+14.96 dBs
LS1:+13.67 dBs
IP-BUS:+13.30 dBs
iPod:+13.39 dBs
VTR2:+13.82 dBs
VTR1:+13.30 dBs
M
/AM:+11.56 dBs
B
/SD):+13.31 dBs
A
udio):+14.98 dBs
LS1:+13.68 dBs
-BUS:+13.31 dBs
iPod:+13.40 dBs
V
TR2:+13.83 dBs
V
TR1:+13.31 dBs
AVIC-Z110BT/XN/UC
200
1234
1234
C
D
F
A
B
E
A-bA-a
A-a 3/3
A-b 3/3
1
4
2
3
5
6
AUDIO VIDEO
AV1
AV2
IP-BUS
LS1
iPod iPod
LS1
AV3
AV2
Camera Sel OUT
BIAS1
VCC1
GND1
R1-1
L1-1
L1-2
R1-2
GND2
VCC2
BIAS2
L2-1
L2-2
VOUT1
FB2
FB1
VOUT2
LOUT2
SCL
SDA
R5-1
ROUT1
R5-2
LOUT1
ROUT2
V1-1
V1-2
V2-1
V2-2
V3-1
V3-2
V4-1
V4-2
V5-1
V5-2
V6-1
V6-2
L3-2
L3-1
R3-2
R3-1
R4-1
L4-2
R4-2
L4-1
L5-2
L5-1
R2-2
R2-1
2661 - 2728
Back Camera
V
A
A
A
V
A
A
A
A
A
A
V
V
V
V
V
A
A
A
A
A
A
A
A
NAVI_L
WREMIN1
WREMIN2
IICSDA
IICSCL
iPod_V
iPod_AG
iPod_VG
GNDAZ
NAVI_AG
NAVI_L
NAVI_R
GUIDE
MUTEVO
VST
GMUTEL
GMUTE
GMUTER
VDT
VCK
iPod_V
iPod_L
iPod_R
iPod_VG
RMUTE
GNDALS
GNDVLS
IP_L
LS1V
LS1L
LS1R
IP_R
GNDALS
LS1R
IP_R
BCV
BCVG
iPod_L
LS_R
IP_L
LS_L
TUN_L
TUN_R
GNDALS
LS1L
LS_L
LS_R
NAVI_AG
NAVI_R
iPod_AG
iPod_AG
VTR2V
LS1V
VTR3VG
VTR3V
WREMIN1
RCK
RCK
WREMIN2
KMODE
ACC84
MUTEBUP
VTR2L
VTR2LG
VTR2R
VTR2RG
IP_LG
IP_RG
HIVOLT
GNDVLS
47u/16
C2661
47u/16
C2701
100u/16
C2621
C2611
DCH1201-A
C2889
2.2u/10
C2892
2.2u/10
C2891
2.2u/10
C2890
2.2u/10
C2665
C2663 22u/6.3
C2703 22u/6.3
C2696
C2686
C2693
C2697
C2688
C2699
4.7u/10
C2694
C2692
C2689
C2690
C2695
C2691
C2685
C2687
C2671
C2672
C2674
1u
C2673
C2670 NM
C2669 NM
C2667
C2668
GNDA
GNDA
GNDV
TUNAGND
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDD
L2889
CTF1410-A
L2621
NM
L2661
10u
L2662
10u
L2622
CTF1410-A
R272
4
R272
3
WREMIN1
GNDA
GNDD
SWVDD33
GNDV
ACC84
WREMIN2
AU84
iPod_R
iPod_L
iPod_VG
iPod_AG
iPod_V
MUTEVO
VCK
VST
GMUTER
GMUTE
GMUTEL
VDT
GUIDE
NAVI_R
NAVI_L
NAVI_AG
GNDAZ
RMUTE
LS1V
LS1R
IP_L
LS1L
GNDALS
IP_R
GNDVLS
IICSDA
IICSCL
RCK
R2685
75
R2684 100
R2683 100
C2677 NM
C2678 NM C2679 0
.
C2680 0
.
C2706 0.1u/16
C2708 0.1u/16
C2705 0.1u/16
C2707 0.1u/16
C2717 NM
C2720 NM
C2719 NM
R2701 100
R2699 100
R2702 100
R2700 100
R2707
1k
R2706
1k
R2705
1k
R2708
1k
R2713
0
R2714
0
R2712
0
R2711
0
R2709
47k R2710
47k
R2721 100
R2717 100
R2719
22k
HIVOLT14
HIVOLT
GNDA
C2675
C2676
R2688 100
R2690
NM
GNDA
R2891
47k
R2889
47k
R2890
47k
R2892
47k
C2893
33p/50
C2895 33p/50
C2894
33p/50
C2896 33p/50
R2773
1k
R2774
1k
11
M
R2613
47k
R2617
47k
R2619 47k
C2615
33p/50
C2617 33p/50
R2
7
R2682 0
R2686 0
R2681 0
R2671 NM
R2691 NM
C2714
C2715
C2713
C2716
R2621
1k
C2664 0.1u/16
C2897
0.1u/16
C2624
0.1u/16
R2715
NM
R2716
NM
C2662 0.1u/16
C2702 0.1u/16
IC2621
NJM2125F
1
67
R2661
NM
R2673 100
R2692 0
R2687
NM
AN15887A
IC2661
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
KMODE
R2676 NM
R2675 NM
R2662
NM
C2603
NM
D2604
NM
C2601
NM
D2601
NM
GNDD
R2604
NM R2603
NM
NM
Q2601 E1
1
B1
2
C2
3
E2 4
5
B2
6
C1
R2602
NM
R2607
NM
R2609
NM
R2601
NM
R2608
NM
R2605
NM GNDD
R2606
NM
C2602
NM
GNDD
SWREM1
SWREM2
SWRSNS
D2602
NM
D2603
NM
WRSNS
MUTEBUP
IC2889
NJM4580V
34
21
8
NJM4580V
54
67
8
R2674 NM R2663 NM
R2680 NM
R2677 0
R2678 0
R2689 0
D2622
1SS352
R2893
36k
R2894
36k
R2895 36k
R2896 36k
R2695
4.7k
R2697
4.7k
R2703
12k
R2704
12k
R2696
4.7k
R2698
4.7k
R2075
0
GNDD
R2693
NM
GNDA
R2694
0
GNDD
R2727
NM
GNDA
C2666
R
2
VIDEO
SYSTEM
AUDIO
VIDEO
AU4.3
AUDIO
LS1 LPF
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(3216)
(3216)
(2125)
(1608)
NAVI ISOLATOR
(Rb=Rbe=10k)
(GNDV)
(GNDV)
(GNDV)
NM
AV SELECTOR
1/3
A
2/3
A
AVIC-Z110BT/XN/UC 201
5 678
5678
C
D
F
A
B
E
A-bA-a
A-a 3/3
A-b 3/3
2661 - 2726 AV SELECTOR
2601 - 2609 SWC
2641 - 2660 GUIDE MIX/MUTE
2731 - 2751 VIDEO LEVEL SHIFT
2761 - 2767 DUAL ZONE OUT
2771 - 2805 E-VOL(CAPTAIN7)
2831 - 2836 SW OUT MUTE
2841 - 2852 HI OUT MUTE
2861 - 2880 AV CN
REFERENCE NUMBER LIST
2889 - 2900 LS1 LPF
2611 - 2620 NAVI ISO
2621 - 2624 AUD4.3
2625 - 2637 GUIDE ISO/LPF
2601 2900
2861 - 2880 WIRED REMOTE CN
V
A
A
A
A
A
A
GMUTE
GMUTEL
NAVI_L
MUTEVO
VST
VDT
VCK
AVOUT
CTOEX
EXTOC
GMUTER
TELMUTEIN
TUN_L
TUN_R
NAVI_AG
NAVI_R
GUIDE
GNDAZ
GUIDEL
HYOKA
KMODE
GUIDER
AU84
100u/16
C2621
10u/16
C2623
100u/25
C2650
C2613
DCH1201-A
C2614
DCH1201-A
C2612
DCH1201-A
C2611
DCH1201-A
C2651
CCG1195-A
C2652
0.01u/50
C2642
4.7u/10
C2641
4.7u/10
D2621
EDZ4R3(B)
GNDA
GNDA
GNDA
GNDA
TUNAGND
GNDA
IC2641
NJM2747V
1
2
3
4
5
6
78
9
10
11
12
13
14
L2621
NM
L2641
CTF1410-A
L2622
CTF1410-A
DTC323TU
Q2643 DTC323TU
Q2644
UMD3N
Q2642 E1
1
B1
2
C2
3
E2 4
5
B2
6
C1
UMD3N
Q2641 E1
1
B1
2
C2
3
E2 4
5
B2
6
C1
AU4
MUTEVO
VCK
VST
VDT
AVOUT
CTOEX
EXTOC
D2643
RB715Z D2644
RB715Z
C2643
1u/10
C2644
1u/10
TELMUTEIN
C2649 0.1u/50
R2773
1k
R2774
1k
R2611
NM
R2612
NM
R2615
47k
R2613
47k
R2614
47k
R2616
47k
R2617
47k
R2618
47k
R2619 47k
R2620 47k
C2615
33p/50
C2617 33p/50
C2616
33p/50
C2618 33p/50
R2660
100k
R2659
100k
R2621
1k
C2624
0.1u/16
C2622
0.01u/16
R2651
NM
R2653
3k
R2654
3k
R2655
NM
HYOKA
R2658 820
R2657
820
C2653
2.2u/10
IC2621
NJM2125F
32
14
5
R2642
47k
R2645
47k
R2641
47k
R2646
47k
R2650
47k
R2649
47k R2647
47k
R2648
47k
C2645
22p/50
C2648
22p/50
C2646
22p/50
C2647
22p/50
IC2611
BA4558RFVM
5
67
IC2611
BA4558RFVM
34
21
8
GNDA
C2619
0.1u/16
KMODE
GNDA
R2626
NM
C2625
DCH1201-A
C2633 150p/50
R2625 NM
C2627 220p/50
C2626
DCH1201-A R2636 47k
R2633
100k
R2631 10k
R2634
100k
R2635
68k
IC2625
BA4558RFVM
5
67
R2637 NM
IC2625
BA4558RFVM
34
21
8
R2629
3.3k
R2628
3.3k
C2632
150p/50
GNDA
R2627
NM
C2628 220p/50
C2631
0.1u/16
R2630 10k
C2629
0.1u/16
R2632
1k
R2652
0
R2656
0
C2630
0.01u/50
D2641
HZU6R8(B1)
GNDA
R2644
68k
R2643
68k
D2622
1SS352
R2640
NM
GND
GNDA
R2639
NM
C2657
NM
C2658
NM
C2654 NM
C2655
NM
(Rb=Rbe=10k)
(Rb=Rbe=10k)
(2.2k)
(2.2k)
AU4.3
(2/2)
(1/2)
GUIDE MI
X
DCH1201
10u/10V
(2125)
(2125)
(2125)
(2125)
AUD8.4
(2125)
(2125)
GUIDE MUTE
(3216)
(2125)
NAVI ISOLATOR
(2125)
GUIDE ISO/LPF
(2125) (1/2)
(2/2)
HIVOLT14
HIVOLT6.8
2/3
A
FM/AM:+11.56 dBs
NAVI(USB/SD):+13.31 dBs
NAVI(BT-Audio):+14.98 dBs
LS1:+13.68 dBs
IP-BUS:+13.31 dBs
iPod:+13.40 dBs
VTR2:+13.83 dBs
VTR1:+13.31 dBs
AVIC-Z110BT/XN/UC
202
1234
1234
C
D
F
A
B
E
10.4 TUNER IF UNIT(GUIDE PAGE)
B
B-a
MOT1
MOTPWR2
MOTPWR5
SDA
SCL
FVDETO
FMSL
FMCE1
FMCLK
D_STOFM
D_FMTOS
VICSON
ACC84
FMCE2
MOT8
MOT0
POS_IN
FV33V
MOTVDD33
H/OSW
C411 0.01u/50
C412 0.1u/16
C419
C480
0.1u/16
C482
0.47u/10
C454
0.01u/50
C461 0.01u/50
C463
27p/50
C451
0.01u/50
C446
22p/50
C460
15p/50
C443
2200p/50
C458
0.022u/50
C457
2200p/50
C444
2200p/50
C455
0.01u/50
C459 NM
C453 NM
C462 NM
C447
22p/50
C450
47p/50
C476
NM
C475
NM
C456
2200p/50
C452 0.01u/50
GNDFVRF
GNDFVRF
GNDRF
GNDFVRF
GNDRF
GN
D
RF
GNDD
GNDFVRF
GNDRF GNDRF
GNDRF
GNDRF
GNDRF
GNDRF
GNDFVRF
GNDFVRF
GNDRF
GNDFVRF
GNDFVRF
IC474
NJM2125F
32
14
5
L474
10u
L401
22u
L476
10u
L444
0.1u
L475
CTF1334-A
L402
CTF1607-A
L472
10u
L447 15u
L403
CTF1386-A
L446
1u
L450
0.1m
L449 0.1u
L473
10u
L445 NM
Q442
2SC3357(RE)
R434 1.5k
R419 680
R408
NM
R416 680
R417 680
R420 10k
R418 0
R459 NM
R421 1k
TWC
AMANT
PCE1
VDD33A
FVANT
FVCC2
FVDD
FVCC1
FMANT
PCE2
AUD8
GNDRF1
RFI
GNDRF
FXVDD
PDI
FVFREQ
FVEN
SL
TUN3V1
PDO
TDG
PCK
T443
CTC1192-A
1
2
34
5
T442
CTC1193-A
1
2
34
5
X471
CWX3694-A
VIO 1
GND 2
VDD
4
OUT
3
U401
1AMANT
2RFGND
3FMANT
4VCC
5SL
6CE2
7
8CE1
9CK
10 DI
11 LDET
12 OSCGND
13 ROMVDD
14 DO
15 DGND
16
P401
CSA30-201N
C409 NM
C416 NM
C414 NM
C413 NM
C417 NM
C415 NM
C404 NM
MT1
MT0
IC471
S-814A50AUC-BDO
Vout
1
GND
2
NC
3ON/OFF 4
5
Vin
GNDD
C471
1u/16
L471
CTF1410-A
GNDD
C472
1u/10
D495
HZU7R5(B1)
MOT6V
C494 1u/10
MOT8IN
R500
270 UMD3N
Q493
E1 1
B1 2
C2 3E2
4
5B2
6C1
D494
RSX201L
-30
R496
22k
CCH1565-A
C493
D496
HZU6R2(B1)
C492
0.015u/16
R501
3.3k
R499
470
2SB1260(R)
Q491
GNDM
HOSW
PIN
C441
NM
C442
NM
IC473
CWE2121-A
GND1
1
GND2
2
FM_ANT
3
INTX
13
14
VCC1
15
GND4
N.C
4
AF_OUT
5
GND3
6
VCC2
7
SCL
8
FREQ_IN
12
ENABLE
11
VDD
10
SDA
9
16
GND5
L441
NM
FV33
R401
0
GNDM
Q492
IMX1
1E
6
1B
5
2C
42E 3
2
2B
1
1C
L477
NM
C474
2.2u/10
C473
0.1u/16
D471
NM
47u/6.3
C477
47u/6.3
C481
47u/6.3
C478
47u/6.3
C479
VL401
NM
1
2
3 4
5
GNDT
R415 680
CKS6095-A
CN491
1
2
3
4
5
6
7
8
9
10
R506 30k
T441
CTC1210-A
1
2
34
5
IC472
BH33NB1WHFV
STBY 1
GND 2
VIN 3
VOUT
4
5NC
L443 0.22u
JA401
CKX1056-A
1
1
2
2
3
3
S-V
S-C
R521
10k
R522
NM
C488
1u/16
C487
NM
GNDRF
C486
NM
GNDRF
GNDRF
R443
1M
R460
0
C445
22p/50
L442
0.1u
C448
33p/50
C449
39p/50
D492 NM
D493 NM
R449 820
R450 33
R451
3.3k
R452
100
R441
150
R442
68
R445 680
R446
1.5k
R447 150
R479
0
R453
150
R454
68
R456 680
R457 1.5k
L448 0.18u
R458 150
R471
0
R472
10k
R477 0
R483 0
R484 100
R485 0
R480
NM
R494 47k
R495 47k
R414
NM
R498
180 R497
100
R478
NM
R493 0
R492 0
R461
0
R486
NM
R503 NM 2125
R481
NM
R444
NM
R455
NM
R502 NM
2125
R523
NM
C483
0.47u/10
C484
0.1u/16
C485
0.1u/16
470u/10
C519
C433
NM
GND
RF
C434 100p/50
R520
NM
R524
NM
Q443
55GN01CA
Q441
2SC3130(PQ)
R476 47k
R475 1.5k
L478 CTF1528-A
L479 CTF1528-A
R530
NM
R531
NM
GNDDGNDDGNDD
FM/AM TUNE
R
X-2026
FM DISTRIBUTION
WC/NC
COMP/NC
TMUTE
(32.768kHz)
ANTENNA IN
(D)
(1005)
(1005)
(1005)
GNDT
MOT0
H/OSW
PGND
PGND
MOTVDD3.3
ON/OFF
H:1.5Vmin
L:0.3Vmax
ON/OFF
H:1.5Vmin
L:0.3Vmax
0.08Wmax
FV33V
48mA
5mA
43mA
4.9V-5.1V
3.267V-3.333V
0.2Wmax
FV5V
MOTV
MOT6.5
(105 )
600mA MAX
1030mA RUSH
MOT1
POS_IN
(3216)
AU:CWE2128-
UC:CWE2097-
MOT6V
MOT6V
(1005)
(D)
EU5 AU
R521
R522
R523
S-C
10k NM NM
NM
NM
22k
NM 30k
NM
2.5V 1.56V 1.25V
"Chacker jig" has 10k
S-V
:5V UC
R520 4.7k NMNMNM
NM
NM
NM
3.40V
NM
R524 NM NM 47k
UW5
NM
NM
NM
NM
NM
JP
0.87V
SIMUKE RESISTANCE
NM
NM
NM
I
CN101
AVIC-Z110BT/XN/UC 203
5 678
5678
C
D
F
A
B
E
B
B-b
HRLK
HRDT
HRCK
HLDET
TUN_R
SDA
SCL
FVDETO
FMCE1
FMCLK
D_STOFM
D_FMTOS
VICSON
POS_IN
ACC84
ACC84
ACC84
ACC84
ACC84
TUN_L
FMCE2
MOT8
MOT8
MOTPWR2
MOTPWR5
MOT0
MOT1
FVDETO
VICSON
SCL
SDA
HLDET
HRCK
HRDT
HRLK
HRHSLK
FMSL
FMCE2
FMCE1
FMCLK
D_STOFM
D_FMTOS
TUN_L
V
33V FV33V
H/OSW
TUN_R
HRHSLK
VDD33
VDD33
MOTVDD33
MOTVDD33
AUD84
AUD84
C425
1000p/50
C419
0.01u/50
C421
NM
C418
0.01u/50
GNDD
GND
RF GNDD
GNDD
GNDRF
TUNAGND
L404
CTF1607-A
L405
CTF1607-A
R419 680
R408
NM
R416 680
R417 680
R420 10k
R410
680
R409 NM
R412
680
R413 NM
R418 0
R411
680
R421 1k
TWC
PCE1
VDD33A
TUNR
TUNL
PCE2
PDI
TUN3V1
PDO
TDG
PCK
U401
6
CE2
7
8CE1
9CK
10 DI
11 LDET
12 OSCGND
13 ROMVDD
14 DO
15 DGND
16
17 VDD
18 RDSCK
19 RDSDATA
20 RDSLOCK
21 RDSHSLK
22
23 LCH
24 RCH
C409 NM
C405 NM
C408 NM
C407 NM
C406 NM
C416 NM
C414 NM
C417 NM
C415 NM
C404 NM
4
71
1410-A
GNDFVRF
GNDRF
TUNAGND
R516 0
NJM2885DL1-33
IC401
1IN
2GND
3OUT
D402
1SR154-400
GNDD
D403
1SR154-400
C402
0.01u/16
C401
0.33u/16
D401
1SR154-400
GNDM
TAUD84
TACC84
HRHSLK
HRLK
HRDT
HRCK
HLDET
FVSDA
FVSCL
VICSON
FVDETO
TUNLO
TUNRO
TVDD33
TGNDRF
TGNDFV
GNDT
TGNDM
TGNDA
MPWR5
MPWR2
C514
NM
C511
NM
C516
0.33u/16
RST
GNDT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
C517
0.01u
/50
C518
NM
C512
NM
C515
NM
C513
NM
C428 1u/16
C429 1u/16
GNDRF D_FTS
D_STF
FMCLK
FMCE1
FMCE2
FMSL
FV33V
MOT8
MOT1
MOT0
MVD3
GNDD
GNDD
47u/6.3
C423
R514 0
4
72
0k
R424 100
R425 100
R511
0
R512 0
R528 0
R515
L532 CTF1606-A
47u/6.3
C403
GNDFVRF
R426 100k
R427 100k
TUNAGND
C433
NM
GND
RF
C430
NM
C431 1200p/50
C432 1200p/50
100u/16
C520
R529
0
GNDD
GND
RF
CCH1565-A
C420
100u/16V
47k
R527
0
GNDD
GND
RF
R526
0
GND
RF
GND
RF
GNDD
GNDD
GND
RF
R532
0
GND
FM/AM TUNER UNIT
X-2026
WC/NC
3.3
AGND
COMP/NC
FM DISTRIBUTION
VICS
Drive
Tuner
(1005)
(1005)
(1005)
ON/OFF
H:1.5Vmin
L:0.3Vmax
TUN_L
TUN_R
TUNAGND
AU84
VDD33
D_STOFM
FMCLK
D_FMTOS
RSTIN
FMCE2
HRHSLK
FMSL
FMCE1
HRDT
HRCK
HLDET
HRLK
GNDFVRF
SDA
SCL
GNDT
MOTPWR2
POS_IN
MOTPWR5
VICSON
MOT0
MOT1
MOTVDD33
MOT8
GNDFVRF
GNDT
GNDRF
GNDRF
GNDRF
ACC84
FVDETO
DRIVE MECHA
VICS
TUNER
(MAX 0.4A/pin)
TU33
GNDM
GNDM
GNDRF
FV33
MOT8
MOT8
H/OSW
IF
401 440 (434/430)
441 470 (459/463)
471 490 (485/485)
491 510 (503/494)
511 530 (516/515)
GNDM
GNDD
GNDD
NC
NC
49
450
31
2
CONTACT SIDE
NM
GNDD
GNDD
Reference map
NM
200mA
UC
NM
CKS5546-A
CN511
UC
BTUNER IF UNIT
CN2101
1/3
A
FM/AM:-9.54 dBs
AVIC-Z110BT/XN/UC
204
1234
1234
C
D
F
A
B
E
B-a B-b
B-b
HRLK
HRDT
HRCK
HLDET
TUN_R
FMCE1
FMCLK
D_STOFM
D_FMTOS
POS_IN
ACC84
ACC84
ACC84
TUN_L
MOT8
MOTPWR2
MOTPWR5
MOT0
MOT1
FVDETO
VICSON
SCL
SDA
HLDET
HRCK
HRDT
HRLK
HRHSLK
FMSL
FMCE2
FMCE1
FMCLK
D_STOFM
D_FMTOS
TUN_L
H/OSW
TUN_R
HRHSLK
VDD33
VDD33
MOTVDD33
AUD84
AUD84
C425
1000p/50
C419
0.01u/50
C421
NM
C418
0.01u/50
GNDD
GND
RF GNDD
GNDD
GNDRF
TUNAGND
L404
CTF1607-A
L405
CTF1607-A
R419 680
NM
R417 680
R420 10k
R410
680
R409 NM
R412
680
R413 NM
R418 0
R411
680
R421 1k
TWC
PCE1
VDD33A
TUNR
TUNL
PDI
TUN3V1
PDO
TDG
PCK
U401
8CE1
9CK
10 DI
11 LDET
12 OSCGND
13 ROMVDD
14 DO
15 DGND
16
17 VDD
18 RDSCK
19 RDSDATA
20 RDSLOCK
21 RDSHSLK
22
23 LCH
24 RCH
C409 NM
C405 NM
C408 NM
C407 NM
C406 NM
C416 NM
C417 NM
C415 NM
C404 NM
GNDFVRF
GNDRF
TUNAGND
R516 0
NJM2885DL1-33
IC401
1IN
2GND
3OUT
D402
1SR154-400
GNDD
D403
1SR154-400
C402
0.01u/16
C401
0.33u/16
D401
1SR154-400
GNDM
TAUD84
TACC84
HRHSLK
HRLK
HRDT
HRCK
HLDET
FVSDA
FVSCL
VICSON
FVDETO
TUNLO
TUNRO
TVDD33
TGNDRF
TGNDFV
GNDT
TGNDM
TGNDA
MPWR5
MPWR2
C514
NM
C511
NM
C516
0.33u/16
RST
GNDT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
C517
0.01u
/50
C518
NM
C512
NM
C515
NM
C513
NM
C428 1u/16
C429 1u/16
GNDRF D_FTS
D_STF
FMCLK
FMCE1
FMCE2
FMSL
FV33V
MOT8
MOT1
MOT0
MVD3
GNDD
GNDD
47u/6.3
C423
R514 0
R424 100
R425 100
R511
0
R512 0
R528 0
R515
L532 CTF1606-A
47u/6.3
C403
GNDFVRF
R426 100k
R427 100k
TUNAGND
C433
NM
GND
RF
C430
NM
C431 1200p/50
C432 1200p/50
100u/16
C520
CCH1565-A
C420
100u/16V
GNDD
GNDD
FM/AM TUNER UNIT
X-2026
WC/NC
3.3
AGND
COMP/NC
(1005)
(1005)
(1005)
TUN_L
TUN_R
TUNAGND
AU84
VDD33
D_STOFM
FMCLK
D_FMTOS
RSTIN
FMCE2
HRHSLK
FMSL
FMCE1
HRDT
HRCK
HLDET
HRLK
GNDFVRF
SDA
SCL
GNDT
MOTPWR2
POS_IN
MOTPWR5
VICSON
MOT0
MOT1
MOTVDD33
MOT8
GNDFVRF
GNDT
GNDRF
GNDRF
GNDRF
ACC84
FVDETO
DRIVE MECHA
VICS
TUNER
(MAX 0.4A/pin)
TU33
GNDM
GNDM
GNDRF
FV33
MOT8
MOT8
H/OSW
GNDM
GNDD
GNDD
NC
NC
49 3 1
CONTACT SIDE
GNDD
GNDD
NM
200mA
UC
CKS5546-A
CN511
UC
B
TUNER IF UNIT
CN2101
1/3
A
FM/AM:-9.54 dBs
AVIC-Z110BT/XN/UC 205
5 678
5678
C
D
F
A
B
E
B-a B-b
B-b
SDA
SCL
FVDETO
FMCE1
FMCLK
D_STOFM
D_FMTOS
VICSON
ACC84ACC84
MOT8
FV33V
MOTVDD33
0
-A
GNDM
1
2
3
4
5
6
GNDD
R529
0
GNDD
GND
RF
R527
0
GNDD
GND
RF
R526
0
GND
RF
GND
RF
GNDD
GND
RF
R532
0
GND
FM DISTRIBUTION
VICS
Drive
Tuner
/
OFF
.5Vmin
.
3Vmax
(MAX 0.4A/pin)
GNDM
IF
401 440 (434/430)
441 470 (459/463)
471 490 (485/485)
491 510 (503/494)
511 530 (516/515)
GNDM
GNDD
GNDD
49
450
31
2
CONTACT SIDE
NM
GNDD
GNDD
Reference map
NM
AVIC-Z110BT/XN/UC
206
1234
1234
C
D
F
A
B
E
B-bB-a
B-a
B-b
FMSL
FMCE1
FMCLK
D_STOFM
D_FMTOS
FMCE2
C411 0.01u/50
C412 0.1u/16
2
C454
0.01u/50
C461 0.01u/50
C463
27p/50
C446
22p/50
C460
15p/50
C458
0.022u/50
C457
2200p/50
C455
0.01u/50
C459 NM
C462 NM
C450
47p/50
C456
2200p/50
C452 0.01u/50
GNDRF
G
GNDRF GNDRF
GNDRF
GNDRF
GNDRF
GNDRF
GNDRF
L401
22u
L444
0.1u
L402
CTF1607-A
L472
10u
L447 15u
L403
CTF1386-A
L450
0.1m
L449 0.1u
Q442
2SC3357(RE)
R434 1.5k
R419 680
R408
NM
R416 680
R417 680
R420 10k
R418 0
R459 NM
R421 1k
TWC
AMANT
PCE1
VDD33A
FVCC1
FMANT
PCE2
AUD8
GNDRF1
RFI
GNDRF
PDI
SL
PDO
TDG
PCK
T443
CTC1192-A
1
2
34
5
T442
CTC1193-A
1
2
34
5
U401
1AMANT
2RFGND
3FMANT
4VCC
5SL
6CE2
7
8CE1
9CK
10 DI
11 LDET
12 OSCGND
13 ROMVDD
14 DO
15
P401
CSA30-201N
C409 NM
C416 NM
C414 NM
C413 NM
C417 NM
C415 NM
C404 NM
C442
NM
L441
NM
R401
0
7
VL401
NM
1
2
3 4
5
R415 680
T441
CTC1210-A
1
2
34
5
JA401
CKX1056-A
1
1
2
2
3
3
S-V
S-C
R521
10k
R522
NM
C487
NM
GNDRF
R443
1M
R460
0
C445
22p/50
L442
0.1u
C448
33p/50
C449
39p/50
R449 820
R450 33
R451
3.3k
R452
100
R453
150
R454
68
R456 680
R457 1.5k
L448 0.18u
R458 150
R414
NM
R461
0
R486
NM
R455
NM
R523
NM
470u/10
C519
C433
G
R
C434 100p/50
R520
NM
R524
NM
Q443
55GN01CA
R530
NM
R531
NM
GNDDGNDDGNDD
FM/AM TU
N
X-
2
FM DISTRIBUTION
WC/NC
ANTENNA IN
(D)
(1005)
(1005)
(1005)
(3216)
AU:CWE2128-
UC:CWE2097-
(1005)
(D)
EU5 AU
R521
R522
R523
S-C
10k NM NM
NM
NM
22k
NM 30k
NM
2.5V 1.56V 1.25V
"Chacker jig" has 10k
S-V
:5V UC
R520 4.7k NMNMNM
NM
NM
NM
3.40V
NM
R524 NM NM 47k
UW5
NM
NM
NM
NM
NM
JP
0.87V
SIMUKE RESISTANCE
NM
NM
AVIC-Z110BT/XN/UC 207
5 678
5678
C
D
F
A
B
E
B-a
B-b
B-bB-a
MOT1
MOTPWR2
MOTPWR5
SDA
SCL
FVDETO
FMSL
FMCE1
FMCLK
D_STOFM
D_FMTOS
VICSON
ACC84
FMCE2
MOT8
MOT0
POS_IN
FV33V
MOTVDD33
H/OSW
C480
0.1u/16
C482
0.47u/10
C454
0.01u/50
C451
0.01u/50
C443
2200p/50
C444
2200p/50
C455
0.01u/50
C453 NM
C447
22p/50
C476
NM
C475
NM
C452 0.01u/50
GNDFVRF
GNDFVRF
GNDRF
GNDFVRF
GNDFVRF
GNDRF GNDRF
GNDFVRF
GNDFVRF
GNDFVRF
GNDFVRF
IC474
NJM2125F
32
14
5
L474
10u
L476
10u
L475
CTF1334-A
L472
10u
L446
1u
L473
10u
L445 NM
FVANT
FVCC2
FVDD
FVCC1
GNDRF1
FXVDD
FVFREQ
FVEN
X471
CWX3694-A
VIO 1
GND 2
VDD
4
OUT
3
MT1
MT0
IC471
S-814A50AUC-BDO
Vout
1
GND
2
NC
3ON/OFF 4
5
Vin
GNDD
C471
1u/16
L471
CTF1410-A
GNDD
C472
1u/10
D495
HZU7R5(B1)
MOT6V
C494 1u/10
MOT8IN
R500
270 UMD3N
Q493
E1 1
B1 2
C2 3E2
4
5B2
6C1
D494
RSX201L
-30
R496
22k
CCH1565-A
C493
D496
HZU6R2(B1)
C492
0.015u/16
R501
3.3k
R499
470
2SB1260(R)
Q491
GNDM
HOSW
PIN
C441
NM
IC473
CWE2121-A
GND1
1
GND2
2
FM_ANT
3
INTX
13
14
VCC1
15
GND4
N.C
4
AF_OUT
5
GND3
6
VCC2
7
SCL
8
FREQ_IN
12
ENABLE
11
VDD
10
SDA
9
16
GND5
FV33
GNDM
Q492
IMX1
1E
6
1B
5
2C
42E 3
2
2B
1
1C
L477
NM
C474
2.2u/10
C473
0.1u/16
D471
NM
47u/6.3
C477
47u/6.3
C481
47u/6.3
C478
47u/6.3
C479
GNDT
CKS6095-A
CN491
1
2
3
4
5
6
7
8
9
10
R506 30k
IC472
BH33NB1WHFV
STBY 1
GND 2
VIN 3
VOUT
4
5NC
L443 0.22u
C488
1u/16
C486
NM
GNDRF
GNDRF
D492 NM
D493 NM
R449 820
R450 33
R451
3.3k
R441
150
R442
68
R445 680
R446
1.5k
R447 150
R479
0
R471
0
R472
10k
R477 0
R483 0
R484 100
R485 0
R480
NM
R494 47k
R495 47k
R498
180 R497
100
R478
NM
R493 0
R492 0
R503 NM 2125
R481
NM
R444
NM
R502 NM
2125
C483
0.47u/10
C484
0.1u/16
C485
0.1u/16
Q441
2SC3130(PQ)
R476 47k
R475 1.5k
L478 CTF1528-A
L479 CTF1528-A
TMUTE
(32.768kHz)
GNDT
MOT0
H/OSW
PGND
PGND
MOTVDD3.3
ON/OFF
H:1.5Vmin
L:0.3Vmax
ON/OFF
H:1.5Vmin
L:0.3Vmax
0.08Wmax
FV33V
48mA
5mA
43mA
4.9V-5.1V
3.267V-3.333V
0.2Wmax
FV5V
MOTV
MOT6.5
(105 )
600mA MAX
1030mA RUSH
MOT1
POS_IN
MOT6V
MOT6V
NM
I
CN101
AVIC-Z110BT/XN/UC
208
1234
1234
C
D
F
A
B
E
10.5 DVD CORE UNIT(GUIDE PAGE)
C
C-a
A9
A4
A10
A5
A11
A6
A12
A7
A13
A8
A14
A15
D15
D7
D14
D6
D13
D5
D12
D4
D11
D3
D10
D2
D9
D1
D8
A3
A2
A1
XRD
A16
A5
A10
A4
A9
A1
A2
A3
A16A15
A14
A8
A13
A7
A12
A6
XRD
A11
A19
XWR1
A18
A17 A17
A19
A18
MDQ7
MDQ6
MDQ5
MDQ15
MDQ14
MA9
MA8
MA7
MA6
MA5
MA4
DQM0
XWE
XCAS
XRAS
XCSM
BA1
MA10
BA0
MA0
MA1
MA2
MA3
MCK
MA11
MDQ15
MDQ0
MDQ14
MDQ1
MDQ13
MDQ2
MDQ12
MDQ3
MDQ11
MDQ4
MDQ10
MDQ5
MDQ7
MDQ6
DQM1
DQM0
MDQ9
MDQ8
XWE
MA9
XRAS
BA0
XCAS
XCSM
MA7
MA0
MA1
MA10
MA8
BA1
MA6
MA3
MA5
MA4
MA2
A0
XCSF2
XRD
A16
XWR1
A19
A1
A17
A6
A3
A5
A2
A4
A7
FD
TD
XCSF1
D0
D8
D1
D9
D10
D2
D3
D4
D5
D11
D14
D13
D12
D7
D15
D4
D12
D5
D13
D6
D14
D7
D15
D10
D3
D11
D0
D8
D1
D9
D2
D6
A10
A8
A11
A9
LOUT
ROUT
SDODAC
SCKDAC
LTDAC
A12
IECOUT
A0
MA11
TRCDATA3
SCLOCK
TRCDATA0
TRCCLK
TRCDATA1
TRCST
TRCDATA2
SDATA
A0
COILV
COILU
COILW
HVM
HVP
HWM
HUP
HUM
HBM
MCK
COMPOSITE
XCSF2
F+H G+H
FE1
FE2
EXTRG0
A15
A14
A13
A18
TEMP
DQM1
HWP
COILU
COILV
COILW
MD
LDIN TOM
FOP
FOM
TOP
CONT1
CONT2
FG
CRGDRV
HWP
HVM
HVP
HUM
HUP
HWM
HBM
HOM
E
XWR1
08EJ
NRES
NRES
TD
FD
STANDBY
MDQ13
MDQ9
MDQ10
MDQ11
MDQ12
MDQ8
MDQ1
MDQ3
MDQ2
MDQ4
MDQ0
A20
A20
D+
D-
D0
DGND3
DGND2
IEC
GNDD
GNDD
GNDA
GNDA
GNDD
GNDD
GND
A
GNDD
GNDD
GNDD
R1405
100K
R1503
1M
R1406
100K
R1402
100K
C1671
R1
C1672
R1
C1487
R1
C1481 R1
C1674
R1
C1480 R1
C1603
100P
C1482 R1
C1606
R1
C1484 R1
C1509
R1
C1488
R1
C1602
100P
C1408
R1
C1403
R1
C1407
NM
C1402
NM
C1502
10
C1404
4R7
C1409
4R7
C1676
1
C1503 R1
VCC33
VCC12
VCC33
C1485
R1
C1504
R1
C1505
R1
C1506
R1
C1507
R1
C1508
R1
C1518 R1
C1519 R1
C1514
R1
C1511
R1
C1513 R1
C1516 R1
C1517 R1
C1515
R1
C1805
R1
PCM1753DBQ
IC1801
BCK
1
DATA
2
LRCK
3
DGND
4
5
NC
6
VCC
7
VOUTL
8
VOUTR
9
AGND
10
VCOM
11
ZEROR/ZEROA
12
ZEROL/NA
13
MD
14
MC
15
ML
16
SCK
2081C
7R4
GNDAU1
R1804
820
R1803
820
C1801
4R7
R1802
100K
C1804
1800P
R1801
100K
C1803
1800P
GNDAU
C1809
R1
GNDD
AVCC5
GNDAU
VCC33
C1501
10
GNDD
CN1951
1
2
3
4
5
6
7
8
9
1011
12
13
14
15
16
17
18
19
20
GNDD
NM
VCC33
TEMP
PGND
GNDV
GNDD
R1954
NM
R1955
NM
C1601
R01
R1603
10K
R1517
10K
R1518
10K
C1673
R1
C1491 NM
C1492 NM
C1493 NM
C1494 NM
R1528
10K
R1529
10K
R1530
10K
R1531
10K
C1807
NM
R1217
1
R1218
1
R1213
1
R1214
1
R1215
1
R1216
1
PGND
PGND1PGND2
VHALF VHALF
VD8
PGND
100/16
C1201
FG
R1202 220
R1201 220
L1901
NM
11
2
2
3
344
D1902
NM
D1901
NM
GNDD
C1489
10
R1538
100K
R1542
10K
R1602
12K
R1601
12K
C1604
68P
C1605
68P
GNDD
VCC33
C1483 NM
C1486
NM
C1405
NM
R1212
270
AD2
ADOUT
CONT2
CONT1
CRGDRV
DACCK
FD1
LDIN
LRCK
LTDAC
MD1 MD2
SCKDAC
SDODAC
SRCK
TD1
XWR1
C1204
2200P
VC
C
GNDD5
R1403
NM
R1203
10K
R1204
15K
FOM2
FOP2
TOM2
TOP2
R1539
100K
R1501
1R2K
R1679
NM R1675
NM
R1673
NM
GNDD
R1505 100
R1506 100
R1507 100
L1904
C1490
R001
C1211
4R7
R1401
220
C1401
R01
R1950
NM
R1951
NM
C1512
10P
C1510
12P
C1203
NM
C1205
R1
C1207
R1
C1210
R1
C1209
R1
R1508
220
R1512
100
C1208
R01
C1525
NM
R1483
56
2
1
4
3
6
5
8
7
R1487
56
2
1
4
3
6
5
8
7
R1486
56
2
1
4
3
6
5
8
7
R1488
56
2
1
4
3
6
5
8
7
R1481
56
2
1
4
3
6
5
8
7
R1480
56
2
1
4
3
6
5
8
7
R1484
56
2
1
4
3
6
5
8
7
R1482
56
2
1
4
3
6
5
8
7
R1485
56
2
1
4
3
6
5
8
7
R1490
56
R1489
56
C1806
10
R1527
6R8K
R1546
6R8K
R1956
NM
R1957
NM
R1547
NM
R1409
NM
IC1201
BD8231EFV
1VC
2TKIN
3FCIN
4SLIN
5
SLOPOUT
6LDIN
7SPIN
8CTL1
9CTL2
10 GND1
11 TEST
12 FG
13 SPCNF
14 HB
15 HW-
16 HW+
17 HV-
18 HV+
19 HU-
20 HU+ 21
VM_S
22
BH
23
SPRNF
24
SPVM
25
SPGND
26
U
27
V
28
W
29
SLVM
30
PGND
31
SL/LDO+
32
SL/LDO-
33
FCO+
34
FCO-
35
TKO+
36
TKO- 37
AVM
38
PREVcc 39
PREGND 40
SUBGND
41
GND2
MN2DS0018MAUB
IC1501
EXDT1
1
EXDT9
2
EXDT2
3
EXDT10
4
VSS_1
5
VDD33_1
6
EXDT3
7
EXDT11
8
EXDT4
9
EXDT12
10
EXDT5
11
EXDT13
12
EXDT6
13
EXDT14
14
VSS_2
15
VDD33_2
16
EXDT7
17
EXDT15
18
VSS_3
19
VDD12_1
20
EXADR16
21
EXADT15
22
EXADT14
23
EXADT13
24
EXADT12
25
EXADT11
26
EXADT10
27
EXADT9
28
EXADT8
29
EXADR19
30
NEXWE
31
VSS_4
32
VDD33_3
33
EXADR18
34
EXADR17
35
EXADT7
36
EXADT6
37
EXADT5
38
EXADT4
39
EXADT3
40
EXADT2
41
EXADT1
42
VSS_5
43
VDD12_2
44
45
46
47
IRQPWR
48
49
USB_CLOCK
50
5
1 112
VIN5 113
VIN6 114
115
116
VIN3 117
VIN4 118
VIN2 119
VIN1 120
VDSENS 121
TEMP 122
AD2 123
AD4 124
AVSSH 125
TD 126
FD 127
AVDDH 128
DAC3OUT 129
DAC2OUT 130
DAC1OUT 131
AVDDF 132
COMP1 133
VREF 134
IREF1 135
COMP2 136
AVSSF 137
COMPOSITE 138
DAC5OUT 139
AVSSE 140
AVDDE 141
AVDDG 142
AVSSG 143
LOUT 144
145
AVSSI
146
ROUT
147
AVDDI
148
DACCK
149
SRCK
150
LRCK
151
ADOUT
152
IECOUT
153
VSS_9
154
VDD33_6
155
OSCI
156
OSCO
157
VSS_10
158
VDD12_4
159
MDQ15
160
MDQ0
161
MDQ14
162
MDQ1
163
MDQ13
164
MDQ2
165
VSS_11
166 VDD33_7
167 MDQ12
168 MDQ3
169 MDQ11
170 MDQ4
171 MDQ10
172 MDQ5
173 VSS_12
174 VDD33_8
175 MDQ9
176 MDQ6
177 MDQ8
178 MDQ7
179 DQM0
180 DQM1
181 NWE
182 VSS_13
183 MCK
184 VDD33_9
185 MCKI
186 VSS_14
187 VDD12_5
188 NCAS
189 NRAS
190 NCSM
191
192 DQM3
193 BA0
194 MA9
195 VSS_15
196 VDD33_10
197 BA1
198 MA8
199 MA10
200 MA7
201 MA0
202 MA6
203 MA1
204 VSS_16
205 VDD33_11
206 MA5
207 MA2
208 MA4
209 MA3
210 VSS_17
211 VDD12_6
212 EXADT0
213 NEXCE
214 NEXOE
215 EXDT0
216
EXDT8
X1501
CSS1768
X1
1GND1 2
GND2
4X2 3
L1512
R
IC1480
K4S641632N-LC75
VDD1
1
DQ0
2
VDDQ1
3
DQ1
4
5DQ2
6VSSQ1
7DQ3
8DQ4
9VDDQ2
10 DQ5
11 DQ6
12 VSSQ2
13 DQ7
14 VDD2
15 LDQM
16 WE
17 CAS
18 RAS
19 CS
20 BA0
21 BA1
22 A10/AP
23 A0
24 A1
25 A2
26 A3
27 VDD3 28
VSS1
29
A4
30
A5
31
A6
32
A7
33
A8
34
A9
35
A11
36
N.C
37
CKE
38
CLK
39
UDQM
40
N.C/RFU
41
VSS2
42
DQ8
43
VDDQ3
44
DQ9
45
DQ10
46
VSSQ3
47
DQ11
48
DQ12
49
VDDQ4
50
DQ13
51
DQ14
52
VSSQ4
53
DQ15
54
VSS3
R1504
12
C1808
NM
IC1401
CWW1825
A15
1
A14
2
A13
3
A12
4
5A11
6A10
7A9
8A8
9A19
10 NC1
11 /WE
12 /RESET
13 NC2
14 NC3
15 RY_/BY
16 A18
17 A17
18 A7
19 A6
20 A5
21 A4
22 A3
23 A2
24 A1 25
A0
26
/CE
27
Vss1
28
/OE
29
DQ0
30
DQ8
31
DQ1
32
DQ9
33
DQ2
34
DQ10
35
DQ3
36
DQ11
37
Vcc
38
DQ4
39
DQ12
40
DQ5
41
DQ13
42
DQ6
43
DQ14
44
DQ7
45
DQ15_A-1
46
Vss2
47
/BYTE
48
A16
IC1402
CWW1826
A15
1
A14
2
A13
3
A12
4
5A11
6A10
7A9
8A8
9A19
10 NC1
11 /WE
12 /RESET
13 NC2
14 NC3
15 RY_/BY
16 A18
17 A17
18 A7
19 A6
20 A5
21 A4
22 A3
23 A2
24 A1 25
A0
26
/CE
27
Vss1
28
/OE
29
DQ0
30
DQ8
31
DQ1
32
DQ9
33
DQ2
34
DQ10
35
DQ3
36
DQ11
37
Vcc
38
DQ4
39
DQ12
40
DQ5
41
DQ13
42
DQ6
43
DQ14
44
DQ7
45
DQ15_A-1
46
Vss2
47
/BYTE
48
A16
R1511 0R0
R1670
10K
R1672
200
R1671
24K
R1674
30K
FLASH 16M
(2125)
(2125)
(2125)
FLASH 16M
(IEC/IPFLG)
SDRAM
(1608)
(2125)
(2125)
AUDIO 2CH ANALOG OUT
ADAC
(2125)
DEBUG
(2125)
CP_READY
I2C_SDA
I2C_SCL
08EJ
STANDBY
VIN8
VIN7
(3216)
27.000MHz
2
4
T
T
F
F
F
T
T
F
T
F
S
C
C
C
C
C
S
S
S
AVIC-Z110BT/XN/UC 209
5 678
5678
C
D
F
A
B
E
C
C-b
DVDMPD
FE1
A1
A3
A2
SCLOCK
SDATA
TRCCLK
TRCDATA0
TRCDATA1
TRCDATA2
TRCDATA3
B
C
A
D
LPCO1
LPCO2
FD
TD
CDMPD
STANDBY
STSCOMN
SCKDAC
COILV
COILU
COILW
HVM
HVP
HWM
HUP
HUM
HBM
XCSF1
E+G_E+F
F+H_G+H
B
A
FE2
TEMP
RF
F+H_G+H
E+G_E+F
RF
CDMPD
CRGDRV
MD
FG
FE1
FE2
NRES
NRES
LTDAC
SDODAC
TOP
EXTRG0
TEMP
AMUTE
C
D
LDIN
CONT2
CONT1
CMDCOMN
VDSENS
VDSENS
HWP
FOM
FOP
HOME
NRES
IRQPWR
CMDCOMN
STSCOMN
ROUT
D-
D+
IECOUT
LOUT
AMUTE
08EJ
TRCST
TOM
I2C_SCL
I2C_SDA
CP_Reset
I2C_SCL
I2C_SDA
IRQPWR
COMPOSITE
HOME
08EJ
A20
CP_Reset
DVDMPD
DVDLD1
AGND3
VCC5_3
GNDA
GNDD
GNDA
GNDA
GNDA
GNDA
R1103
390
R1104
510
R1101 100K
C1106
R01
C1603
100P
C1606
R1
C1602
100P
VCC33
VCC5
Q1101
2SC4081
C1519 R1
C1520
R1
R1509 1K
R1510 1K
SDATA
SCLOCK
C1521 R1
C1622 R033
GNDA
C1620 R22
GNDA
C1624
R1
C1625
R1
C1621 R22
ANAMONI1
ANAMONI2
C1619 5600P
C1618 100P
C1616 R1
C1617 R1
GNDA
C1612 R1
C1614 R1
C1615 R1
C1613 R1
C1611 R1
C1610 R1
GNDA
C1609 R1
VREF
VREF
C1623
1
C1608
1
VHALF
R1232D121B
IC1005
PGND 1
VIN 2
VDD 3
CE 45 VOUT
6TEST
7AGND
8LX
L1004
FB12A
VCC12
C1010
2R2
C1011
1
R1002
100
VCC33-1
VCC33
VDD5
VCC12-1
FB12B
DDF
VCC33
IC1001
NM
OUT
1
VDD
2
NC
3
VSS
4
VSENS
VD8
GNDA
DGND1
PGND
PGND4
GNDV
NRES
VDD5
VD8_1
C1004
4R7
R1015
NM
AGND4
VCC5_1
EF1002
3
2
1
EF1001
3
2
1
PGND3
AGND1
VDD5_1
GNDAU GNDD
VDD5_2
GNDA
VCC5
GNDD
C1001
1
DGND4
PGND5
GNDD
AVCC5
RO
LO
VD8
AVCC5
C1522 R1
DVDLD0
CDLD0
R1604 1M
TEMP
PGND
GNDD
GNDD
CKS6003
VCC33
U-
HB+
HB-
W-
COM
COILU
V-
COP
U+
W+
V+
COILV
COILW
C1007
NM
C1006
NM
HOME
GNDD
R1017
NM
GND_DD
C1110
R01
VREF
C1108 R01
E+G_E+F
F+H_G+H
R1102 100K
GNDA
C1105 R1
R1106
560
Q1102
2SC4081
R1105
390
C1107
R01
CDLD1
DVDMPD
RF
C1601
R01
3
CDMPD
C1523
R1
R1513 10K
08EJ
12EJ
IRQPWR
CMDCOMN
STSCOMN
STANBY
COMPOSITE
D+
D-
VD
C1526 R01
R1523 220
R1522 100K
R1519 1K
IC1006
NM
G
1
IN
2
GND
3OUT 4
5
VCC
VD8
GNDAU
GNDAU3
GNDV
GNDAU2
GNDD
C1015
R001
PGND
R1536
100K
R1537
100K
R1004
47K
R1007
6R8K
GNDD
VD8_2
R1011
NM
GND_DD
GND_DD
GND_DCON
GND_DCON
B
A
C
D
FE1
FE2
R1217
1
R1218
1
R1213
1
R1214
1
R1215
1
R1216
1
L1003
R1534
220
GNDD
C1016
R001
R1540 220
AGND2
GNDA
C1607
10
C1003 R1
AMUTE
R1525 10K
GNDD
NM
1M
IC1951
NM
NC 1
IN_A 2
GND 3
OUT_Y
4
5VCC
C1950
NM
R1542
10K
R1524 4R7K
48MHz
C1104
R1
R1602
12K
R1601
12K
C1604
68P
C1605
68P
R1514 18K
R1541 220
C1017
NM
R1526 10K
C1005
1
R1222
270
A
D2
TRCST
R1026
NM
R1516 10K
R1300
0R0
VCC5
C1524
R047
C1302
NM
R1021
0R0
TOP1
FOP1
R1535
100K
CP_RESET
RESET
SDA
SCL
R1539
100K
NJM2885DL1-33
IC1004
1IN
2GND
3OUT
2SB1132
Q1104
2SB1132
Q1103
C1626
NM
C1627
NM
C1018
R1
L1902
L1903
C1211
4R7
GNDDPGND
C1019
R1
R1953
NM
C1210
R1
C1528
470P
WAKEUP
R1019
100
R1025
100
R1027
100
C1529
NM
GNDAU
C1952
NM
NM
10P
C1525
NM
C1527
NM
R1110
3R3
R1109
3R3
C1111
R22
C1109
R22
R1008
NM
R1001
NM
C1953
NM
C1954
47P
10
C1101
R1527
6R8K
R1546
6R8K
R1301
NM
R1547
NM
CN1901
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
CN1201
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
EXADT3
40
EXADT2
41
EXADT1
42
VSS_5
43
VDD12_2
44
45
46
47
IRQPWR
48
49
USB_CLOCK
50
VSS_6
51
VDD33_4
52
CMDCOMN
53 STSCOMN
54
12EJ
55
LTDAC 56
SDODAC 57
SCKDAC 58
XCSSR 59
P13 60
61
62
CONT1 63
CONT2 64
65
MD 66
CRGDRV 67
VSS_7 68
VDD33_5 69
NRES 70
FG 71
SCLOCK 72
SDATA 73
EXTRG0 74
EXTRG1 75
TRCCLK 76
TRCDATA0 77
TRCDATA1 78
TRCDATA2 79
TRCDATA3 80
TRCST 81
VSS_8 82
VDD12_3 83
AVDDD 84
PLFIL1 85
VREFH7 86
AVSSD 87
VREFL7 88
AVSSC 89
CCAPA 90
CDATA 91
AVDDC 92
ANAMONI1 93
ANAMONI2 94
RFINN 95
RFINP 96
VIN1RF 97
VIN2RF 98
VIN4RF 99
VIN3RF 100
VREFH5 101
VREFL5 102
DVDMPD 103
LPCO1 104
CDMPD 105
LPCO2
106
AVDDB
107
AVSSB
108
VREFH
109
VHALF 110
E+G_E+F 111
F+H_G+H 112
VIN5 113
VIN6 114
115
116
VIN3 117
VIN4 118
VIN2 119
VIN1 120
VDSENS 121
TEMP 122
AD2
123
IC1003
S-1200B50-M5
VIN 1
VSS 2
ON/OFF 3
NC
4
5VOUT
X1950
NM
X1
1GND1 2
GND2
4X2 3
C1301
NM
CN1101
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
R1532
NM
C1014
10
C1009
10
C1013
10
C1008
10
C1012
NM
R1543 NM
R1544 NM
R1533
100K
C1112
22
C1113
22
IC1002
S-1133B50-U5
NC
1
VSS
2
ON/OFF
3
VIN
4
5
VOUT
CP_READY
R1114
1R5
R1111
1R5
R1112
1R5
R1115
1R5
R1116
1R5
R1117
1R5
R1113
1R5
R1118
1R5
R1605 1M
GNDDGNDD
LPCO1
LPCO2
PU(DP10)
(1608)
(1608)
(1608*4)
(1608*4)
(1608)
DEBUG
MOTOR DRIVER
12cm(DSCSNS)
8cm
5.0-3.3&1.2 V DC/DC
VOLTAGE DETECT
(1608)
VD5
HOST I/F
AMUTE
ANALOG ROUT
(2125)
STANBY
(1608)
PGND
COMPOSIT
(3216)
HSTCMD
SLVSTS
PGND
XRESET
AGND
VD8
DGND
ANALOG LOUT
IRQPWR
VD8
AGND
VIDEO GND
AGND
D-
D+
DGND
COIL_U
HALL_V+
HALL_V-
HALL_U-
HALL_W+
GNDD
HALL_U+
COIL_V
HALL_W-
HALL_BIAS+
HALL_BIAS-
COIL_W
HOME
CRG/LE+
CRG/LE-
X
L
H
L
Z
GOUT
H
L
<TC7SZ126FU>
H
IN
VD8
F+
T-
LD GND
F-
FE2
B
A
T+
78LD
C
RF
78MDG
SW
65LD
E+G/E+F
GND
D
F+H/G+H
VCC
65MDG
FE1
:PU
1200->1299
1100->1199
:FLASH
:SDRAM
1480->1499
1850->1899
1670->1699 :DVN(BE)
:DVN(SYS)
:VIDEO
1900->1950
1500->1599
:AUDIO (DIGITAL)
1400->1449
1000->1049
1800->1849
1700->1749
:ACT+SPDL
:POWER SUPPLY
:OUTSIDE I/F
:AUDIO (ANALOG)
1600->1669 :DVN(FE)
1950->1999
(2125)
Vref
78MD
65MD
TEMP
TEMP GND
IECOUT
DGND
(1608)
(1608)
H
(1608)
LDIN
HOME
:USB
GNDD
(2125)
CP_Reset
CP_READY
I2C_SDA
I2C_SCL
08EJ
VIN8
VIN7
RESET
SDA
SCL
(3216)
(1608)
(1005)
WAKEUP
DGND
USB
48.000MHz
X:Don’t Care
Z:High Impedance
GNDD
C1021
680P
C1022
680P CKS6025
GNDV
C1934
68P
CD
DVD
CKS5775
CDVD CORE UNIT
CN2551
PICKUP UNIT (SERVICE)
D
CN701
2/3
A
1
3
FFOCUS SERVO LINE
TRACKING SERVO LINE
CARRIAGE SERVO LINE
SPINDLE SERVO LINE
RF SIGNAL
T
C
S
F
F
T
T
T
F
C
C
C
S
S
S
S
AVIC-Z110BT/XN/UC
210
1234
1234
C
D
F
A
B
E
C-a C-b
C-b
SCLOCK
SDATA
TRCCLK
TRCDATA0
TRCDATA1
TRCDATA2
TRCDATA3
B
C
A
D
LPCO1
LPCO2
FD
TD
CDMPD
F+H_G+H
E+G_E+F
RF
CRGDRV
FG
FE1
FE2
NRES
NRES
EXTRG0
TEMP
AMUTE
VDSENS
VDSENS
NRES
AMUTE
TRCST
DVDMPD
GNDA
GNDD
GNDA
C 603
100P
C1606
R1
C60
100P
VCC33
R1509 1K
R1510 1K
SDATA
SCLOCK
C1521 R1
C1622 R033
GNDA
C1620 R22
GNDA
C1624
R1
C1625
R1
C1621 R22
ANAMONI1
ANAMONI2
C1619 5600P
C1618 100P
C1616 R1
C1617 R1
GNDA
C1612 R1
C1614 R1
C1615 R1
C1613 R1
C1611 R1
C1610 R1
GNDA
C1609 R1
VREF
VREF
C1623
1
C1608
1
VHALF
R1232D121B
IC1005
PGND 1
VIN 2
VDD 3
CE 45 VOUT
6TEST
7AGND
8LX
L1004
FB12A
VCC12
C1010
2R2
C1011
1
R1002
100
VCC33-1
VCC33
VDD5
VCC12-1
FB12B
DDF
VCC33
IC1001
NM
OUT
1
VDD
2
NC
3
VSS
4
VSENS
VD8
GNDA
DGND1
PGND
PGND4
GNDV
NRES
VDD5
VD8_1
C1004
4R7
R1015
NM
AGND4
VCC5_1
EF1002
3
2
1
EF1001
3
2
1
PGND3
AGND1
VDD5_1
GNDAU GNDD
VDD5_2
GNDA
VCC5
GNDD
C1001
1
DGND4
PGND5
GNDD
AVCC5
VD8
AVCC5
C1522 R1
R1604 1M
C1007
NM
C1006
NM
GNDD
R1017
NM
GND_DD
C1601
R01
C1523
R1
R1513
10K
VD
C1526 R01
R1523 220
R1522 100K
VD8
C1015
R001
PGND
R1004
47K
R1007
6R8K
GNDD
VD8_2
R1011
NM
GND_DD
GND_DD
GND_DCON
GND_DCON
L1003
GNDD
C1016
R001
AGND2
GNDA
C1607
10
C1003 R1
AMUTE
R1524 4R7K
R1602
12K
R1601
12K
C1604
68P
C1605
68P
C1017
NM
C1005
1
TRCST
R1516 10K
NJM2885DL1-33
IC1004
1IN
2GND
3OUT
C1626
NM
C1627
NM
C1018
R1
L1902
L1903
GNDDPGND
C1019
R1
R1019
100
GNDAU
R1008
NM
R1001
NM
C1953
NM
C1954
47P
CN1901
1
2
3
4
5
6
7
8
9
10
11
67
VSS_7 68
VDD33_5 69
NRES 70
FG 71
SCLOCK 72
SDATA 73
EXTRG0 74
EXTRG1 75
TRCCLK 76
TRCDATA0 77
TRCDATA1 78
TRCDATA2 79
TRCDATA3 80
TRCST 81
VSS_8 82
VDD12_3 83
AVDDD 84
PLFIL1 85
VREFH7 86
AVSSD 87
VREFL7 88
AVSSC 89
CCAPA 90
CDATA 91
AVDDC 92
ANAMONI1 93
ANAMONI2 94
RFINN 95
RFINP 96
VIN1RF 97
VIN2RF 98
VIN4RF 99
VIN3RF 100
VREFH5 101
VREFL5 102
DVDMPD 103
LPCO1 104
CDMPD 105
LPCO2
106
AVDDB
107
AVSSB
108
VREFH
109
VHALF 110
E+G_E+F 111
F+H_G+H 112
VIN5 113
VIN6 114
115
116
VIN3 117
VIN4 118
VIN2 119
VIN1 120
VDSENS 121
TEMP
IC1003
S-1200B50-M5
VIN 1
VSS 2
ON/OFF 3
NC
4
5VOUT
C1014
10
C1009
10
C1013
10
C1008
10
C1012
NM
IC1002
S-1133B50-U5
NC
1
VSS
2
ON/OFF
3
VIN
4
5
VOUT
R1605 1M
GNDDGNDD
(1608)
DEBUG
5.0-3.3&1.2 V DC/DC
VOLTAGE DETECT
(1608)
VD5
HOST I/F
AMUTE
(2125)
(1608)
PGND
(3216)
HSTCMD
PGND
XRESET
VD8
DGND
IRQPWR
VD8
VD8
:PU
1200->1299
1100->1199
:FLASH
:SDRAM
1480->1499
1850->1899
1670->1699 :DVN(BE)
:DVN(SYS)
:VIDEO
1900->1950
1500->1599
:AUDIO (DIGITAL)
1400->1449
1000->1049
1800->1849
1700->1749
:ACT+SPDL
:POWER SUPPLY
:OUTSIDE I/F
:AUDIO (ANALOG)
1600->1669 :DVN(FE)
1950->1999
(2125)
(1608)
(1608)
(1608)
:USB
(2125)
VIN8
VIN7
(1608)
(1005)
USB
GNDD
C1021
680P
C1022
680P CKS6025
C1934
68P
C
DVD CORE UNIT
2/3
A
F
FOCUS SERVO LINE
TRACKING SERVO LINE
CARRIAGE SERVO LINE
SPINDLE SERVO LINE
RF SIGNAL
T
C
S
T
C
AVIC-Z110BT/XN/UC 211
5 678
5678
C
D
F
A
B
E
C-a C-b
C-b
DVDMPD
FE1
A1
A2
SCLOCK
SDATA
TRCCLK
STANDBY
STSCOMN
SCKDAC
COILV
COILU
COILW
HVM
HVP
HWM
HUP
HUM
HBM
XCSF1
E+G_E+F
F+H_G+H
B
A
FE2
TEMP
RF
CDMPD
CRGDRV
MD
FG
NRES
NRES
LTDAC
SDODAC
TOP
EXTRG0
AMUTE
C
D
LDIN
CONT2
CONT1
CMDCOMN
HWP
FOM
FOP
HOME
NRES
IRQPWR
CMDCOMN
STSCOMN
ROUT
D-
D+
IECOUT
LOUT
AMUTE
08EJ
TOM
I2C_SCL
I2C_SDA
CP_Reset
I2C_SCL
I2C_SDA
IRQPWR
COMPOSITE
HOME
08EJ
A20
CP_Reset
DVDLD1
AGND3
VCC5_3
GNDA
GNDD
GNDA
GNDA
GNDA
R1103
390
R1104
510
R1101 100K
C1106
R01
VCC5
Q1101
2SC4081
C1519 R1
C1520
R1
R1509 1K
R1510 1K
SDATA
SCLOCK
GNDA
NRES
VDD5
R1015
NM
AGND4
EF1002
3
2
1
AGND1
VDD5_1
VDD5_2
GNDD DGND4
GNDD
RO
LO
C1522 R1
DVDLD0
CDLD0
PGND
GNDD
GNDD
CKS6003
VCC33
U-
HB+
HB-
W-
COM
COILU
V-
COP
U+
W+
V+
COILV
COILW
HOME
C1110
R01
VREF
C1108 R01
E+G_E+F
F+H_G+H
R1102 100K
GNDA
C1105 R1
R1106
560
Q1102
2SC4081
R1105
390
C1107
R01
CDLD1
DVDMPD
RF
CDMPD
C1523
R1
R1513 10K
08EJ
12EJ
IRQPWR
CMDCOMN
STSCOMN
STANBY
COMPOSITE
D+
D-
C1526 R01
R1523 220
R1522 100K
R1519 1K
IC1006
NM
G
1
IN
2
GND
3OUT 4
5
VCC
GNDAU
GNDAU3
GNDV
GNDAU2
GNDD
PGND
R1536
100K
R1537
100K
B
A
C
D
FE1
FE2
R1217
1
R1218
1
R1213
1
R1214
1
R1215
1
R1216
1
R1534
220
GNDD
C1016
R001
R1540 220
AMUTE
R1525 10K
GNDD
NM
1M
IC1951
NM
NC 1
IN_A 2
GND 3
OUT_Y
4
5VCC
C1950
NM
R1542
10K
R1524 4R7K
48MHz
C1104
R1
R1514 18K
R1541 220
R1526 10K
R1222
270
R1026
NM
R1516 10K
R1300
0R0
VCC5
C1524
R047
C1302
NM
R1021
0R0
TOP1
FOP1
R1535
100K
CP_RESET
RESET
SDA
SCL
R1539
100K
2SB1132
Q1104
2SB1132
Q1103
L1903
C1211
4R7
R1953
NM
C1210
R1
C1528
470P
WAKEUP
R1019
100
R1025
100
R1027
100
C1529
NM
C1952
NM
NM
10P
C1525
NM
C1527
NM
R1110
3R3
R1109
3R3
C1111
R22
C1109
R22
10
C1101
R1527
6R8K
R1546
6R8K
R1301
NM
R1547
NM
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
CN1201
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
EXADT2
EXADT1
42
VSS_5
43
VDD12_2
44
45
46
47
IRQPWR
48
49
USB_CLOCK
50
VSS_6
51
VDD33_4
52
CMDCOMN
53 STSCOMN
54
12EJ
55
LTDAC 56
SDODAC 57
SCKDAC 58
XCSSR 59
P13 60
61
62
CONT1 63
CONT2 64
65
MD 66
CRGDRV 67
VSS_7 68
VDD33_5 69
NRES 70
FG 71
SCLOCK 72
SDATA 73
EXTRG0 74
EXTRG1 75
TRCCLK 76
TRCDATA0
X1950
NM
X1
1GND1 2
GND2
4X2 3
C1301
NM
CN1101
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
R1532
NM
R1543 NM
R1544 NM
R1533
100K
C1112
22
C1113
22
CP_READY
R1114
1R5
R1111
1R5
R1112
1R5
R1115
1R5
R1116
1R5
R1117
1R5
R1113
1R5
R1118
1R5
LPCO1
LPCO2
PU(DP10)
(1608)
(1608)
(1608*4)
(1608*4)
MOTOR DRIVER
12cm(DSCSNS)
8cm
VD5
AMUTE
ANALOG ROUT
STANBY
PGND
COMPOSIT
(3216)
HSTCMD
SLVSTS
PGND
XRESET
AGND
VD8
DGND
ANALOG LOUT
IRQPWR
AGND
VIDEO GND
AGND
D-
D+
DGND
COIL_U
HALL_V+
HALL_V-
HALL_U-
HALL_W+
GNDD
HALL_U+
COIL_V
HALL_W-
HALL_BIAS+
HALL_BIAS-
COIL_W
HOME
CRG/LE+
CRG/LE-
X
L
H
L
Z
G OUT
H
L
<TC7SZ126FU>
H
IN
VD8
F+
T-
LD GND
F-
FE2
B
A
T+
78LD
C
RF
78MDG
SW
65LD
E+G/E+F
GND
D
F+H/G+H
VCC
65MDG
FE1
Vref
78MD
65MD
TEMP
TEMP GND
IECOUT
DGND
H
LDIN
HOME
GNDD
CP_Reset
CP_READY
I2C_SDA
I2C_SCL
08EJ
RESET
SDA
SCL
(3216)
WAKEUP
DGND
48.000MHz
X:Don’t Care
Z:High Impedance
GNDV
CD
DVD
CKS5775
CN2551
PICKUP UNIT (SERVICE)
D
CN701
2/3
A
1
3
F
F
T
T
C
C
C
S
S
S
S
AVIC-Z110BT/XN/UC
212
1234
1234
C
D
F
A
B
E
C-bC-a
C-a
C-b
MDQ7
MDQ6
MDQ5
MDQ15
MDQ14
MA9
MA8
MA7
MA6
MA5
MA4
DQM0
XWE
XCAS
XRAS
XCSM
BA1
MA10
BA0
MA0
MA1
MA2
MA3
MCK
MA11
MDQ15
MDQ0
MDQ14
MDQ1
MDQ13
MDQ2
MDQ12
MDQ3
MDQ11
MDQ4
MDQ10
MDQ5
MDQ7
MDQ6
DQM1
DQM0
MDQ9
MDQ8
XWE
MA9
XRAS
BA0
XCAS
XCSM
MA7
MA0
MA1
MA10
MA8
BA1
MA6
FD
TD
LOUT
ROUT
SDODAC
SCKDAC
LTDAC
IECOUT
MA11
MCK
COMPOSITE
FE1
FE2
TEMP
DQM1
STANDBY
MDQ13
MDQ9
MDQ10
MDQ11
MDQ12
MDQ8
MDQ1
MDQ3
MDQ2
MDQ4
MDQ0
D+
D-
IEC
GNDA
GNDA
GNDD
GNDD
R1503
1M
C1671
R1
C1672
R1
C1487
R1
C1481 R1
C1674
R1
C1480 R1
C1603
100P
C1482 R1
C1484 R1
C1488
R1
C1602
100P
C1502
10
C1676
1
C1503 R1
VCC33
VCC12
C1485
R1
C1504
R1
C1505
R1
C1506
R1
C1507
R1
C1514
R1
C1511
R1
C1515
R1
C1805
R1
PCM1753DBQ
IC1801
BCK
1
DATA
2
LRCK
3
DGND
4
5
NC
6
VCC
7
VOUTL
8
VOUTR
9
AGND
10
VCOM
11
ZEROR/ZEROA
12
ZEROL/NA
13
MD
14
MC
15
ML
16
SCK
2081C
7R4
GNDAU1
R1804
820
R1803
820
C1801
4R7
R1802
100K
C1804
1800P
R1801
100K
C1803
1800P
GNDAU
C1809
R1
GNDD
AVCC5
GNDAU
VCC33
C1501
10
GNDD
TEMP
GNDV
GNDD
R1954
NM
R1955
NM
C1601
R01
R1603
10K
C1673
R1
C1491 NM
C1492 NM
C1493 NM
C1494 NM
C1807
NM
L1901
NM
11
2
2
3
344
D1902
NM
D1901
NM
GNDD
C1489
10
R1538
100K
R1602
12K
R1601
12K
C1604
68P
C1605
68P
C1483 NM
AD2
ADOUT
DACCK
LRCK
LTDAC
SCKDAC
SDODAC
SRCK
GNDD5
R1501
1R2K
R1679
NM R1675
NM
R1673
NM
GNDD
R1505 100
R1506 100
R1507 100
L1904
C1490
R001
R1950
NM
R1951
NM
C1512
10P
C1510
12P
R1508
220
R1512
100
R1483
56
2
1
4
3
6
5
8
7
R1487
56
2
1
4
3
6
5
8
7
R1486
56
2
1
4
3
6
5
8
7
R1488
56
2
1
4
3
6
5
8
7
R1481
56
2
1
4
3
6
5
8
7
R1480
56
2
1
4
3
6
5
8
7
R1484
56
2
1
4
3
6
5
8
7
R1482
56
2
1
4
3
6
5
8
7
R1485
56
2
1
4
3
6
5
8
7
R1490
56
R1489
56
C1806
10
R1956
NM
R1957
NM
MN2DS0018MAUB
IC1501
VIN6
114
115
116
VIN3 117
VIN4 118
VIN2 119
VIN1 120
VDSENS 121
TEMP 122
AD2 123
AD4 124
AVSSH 125
TD 126
FD 127
AVDDH 128
DAC3OUT 129
DAC2OUT 130
DAC1OUT 131
AVDDF 132
COMP1 133
VREF 134
IREF1 135
COMP2 136
AVSSF 137
COMPOSITE 138
DAC5OUT 139
AVSSE 140
AVDDE 141
AVDDG 142
AVSSG 143
LOUT 144
145
AVSSI
146
ROUT
147
AVDDI
148
DACCK
149
SRCK
150
LRCK
151
ADOUT
152
IECOUT
153
VSS_9
154
VDD33_6
155
OSCI
156
OSCO
157
VSS_10
158
VDD12_4
159
MDQ15
160
MDQ0
161
MDQ14
162
MDQ1
163
MDQ13
164
MDQ2
165
VSS_11
166 VDD33_7
167 MDQ12
168 MDQ3
169 MDQ11
170 MDQ4
171 MDQ10
172 MDQ5
173 VSS_12
174 VDD33_8
175 MDQ9
176 MDQ6
177 MDQ8
178 MDQ7
179 DQM0
180 DQM1
181 NWE
182 VSS_13
183 MCK
184 VDD33_9
185 MCKI
186 VSS_14
187 VDD12_5
188 NCAS
189 NRAS
190 NCSM
191
192 DQM3
193 BA0
194 MA9
195 VSS_15
196 VDD33_10
197 BA1
198 MA8
199 MA10
200 MA7
201 MA0
202 MA6
203 MA1
204
X1501
CSS1768
X1
1GND1 2
GND2
4X2 3
L1512
IC1480
VDD1
1
DQ0
2
VDDQ1
3
DQ1
4
5DQ2
6VSSQ1
7DQ3
8DQ4
9VDDQ2
10 DQ5
11 DQ6
12 VSSQ2
13 DQ7
14 VDD2
15 LDQM
16 WE
17 CAS
18 RAS
19 CS
20 BA0
21 BA1
22 A10/AP
23 A0
24 A1
25 A2
26 A3
27 VDD3 28
VSS1
29
A4
30
A5
31
A6
32
A7
33
A8
34
A9
35
A11
36
N.C
37
CKE
38
CLK
39
UDQM
40
N.C/RFU
41
VSS2
42
DQ8
43
VDDQ3
44
DQ9
45
DQ10
46
VSSQ3
47
DQ11
48
DQ12
49
VDDQ4
50
DQ13
51
DQ14
52
VSSQ4
53
DQ15
54
VSS3
R1504
12
C1808
NM
R1511 0R0
R1670
10K
R1672
200
R1671
24K
R1674
30K
(2125)
(IEC/IPFLG)
(1608)
(2125)
(2125)
AUDIO 2CH ANALOG OUT
ADAC
(2125)
(2125)
STANDBY
VIN8
VIN7
27.000MHz
T
F
T
F
AVIC-Z110BT/XN/UC 213
5 678
5678
C
D
F
A
B
E
C-a
C-b
C-bC-a
A9
A4
A10
A5
A11
A6
A12
A7
A13
A8
A14
A15
D15
D7
D14
D6
D13
D5
D12
D4
D11
D3
D10
D2
D9
D1
D8
A3
A2
A1
XRD
A16
A5
A10
A4
A9
A1
A2
A3
A16A15
A14
A8
A13
A7
A12
A6
XRD
A11
A19
XWR1
A18
A17 A17
A19
A18
MA9
MA8
MA7
MA6
MA5
MA4
XCSM
BA1
MA10
BA0
MA0
MA1
MA2
MA3
MA11
MA7
MA0
MA1
MA10
MA8
BA1
MA6
MA3
MA5
MA4
MA2
A0
XCSF2
XRD
A16
XWR1
A19
A1
A17
A6
A3
A5
A2
A4
A7
XCSF1
D0
D8
D1
D9
D10
D2
D3
D4
D5
D11
D14
D13
D12
D7
D15
D4
D12
D5
D13
D6
D14
D7
D15
D10
D3
D11
D0
D8
D1
D9
D2
D6
A10
A8
A11
A9
A12
A0
TRCDATA3
SCLOCK
TRCDATA0
TRCCLK
TRCDATA1
TRCST
TRCDATA2
SDATA
A0
C
C
C
XCSF2
EXTRG0
A15
A14
A13
A18
DQM1
COILU
COILV
COILW
MD
LDIN TOM
FOP
FOM
TOP
CONT1
CONT2
FG
CRGDRV
HWP
HVM
HVP
HUM
HUP
HWM
HBM
XWR1
NRES
NRES
TD
FD
A20
A20
D0
DGND3
DGND2
GNDD
GNDD
GNDD
GNDD
GNDD
R1405
100K
R1406
100K
R1402
100K
C1509
R1
C1408
R1
C1403
R1
C1407
NM
C1402
NM
C1404
4R7
C1409
4R7
VCC33
C1485
R1
C1507
R1
C1508
R1
C1518 R1
C1519 R1
C1513 R1
C1516 R1
C1517 R1
CN1951
1
2
3
4
5
6
7
8
9
1011
12
13
14
15
16
17
18
19
20
GNDD
NM
VCC33
PGND
R1517
10K
R1518
10K
R1528
10K
R1529
10K
R1530
10K
R1531
10K
R1217
1
R1218
1
R1213
1
R1214
1
R1215
1
R1216
1
PGND
PGND1PGND2
VHALF
VHALF
VD8
PGND
100/16
C1201
FG
R1202 220
R1201 220
R1542
GNDD
VCC33
C1486
NM
C1405
NM
R1212
270
CONT2
CONT1
CRGDRV
FD1
LDIN
MD1 MD2
TD1
XWR1
C1204
2200P
R1403
NM
R1203
10K
R1204
15K
FOM2
FOP2
TOM2
TOP2
R1539
100K
C1211
4R7
R1401
220
C1401
R01
C1203
NM
C1205
R1
C1207
R1
C1210
R1
C1209
R1
C1208
R01
C1525
R1483
56
2
1
4
3
6
5
8
7
R1487
56
2
1
4
3
6
5
8
7
R1488
56
2
1
4
3
6
5
8
7
R1484
56
2
1
4
3
6
5
8
7
1
8
R1527
6R8K
R1546
6R8K
R1547
NM
R1409
NM
IC1201
BD8231EFV
1VC
2TKIN
3FCIN
4SLIN
5
SLOPOUT
6LDIN
7SPIN
8CTL1
9CTL2
10 GND1
11 TEST
12 FG
13 SPCNF
14 HB
15 HW-
16 HW+
17 HV-
18 HV+
19 HU-
20 HU+ 21
VM_S
22
BH
23
SPRNF
24
SPVM
25
SPGND
26
U
27
V
28
W
29
SLVM
30
PGND
31
SL/LDO+
32
SL/LDO-
33
FCO+
34
FCO-
35
TKO+
36
TKO- 37
AVM
38
PREVcc 39
PREGND 40
SUBGND
41
GND2
EXDT1
1
EXDT9
2
EXDT2
3
EXDT10
4
VSS_1
5
VDD33_1
6
EXDT3
7
EXDT11
8
EXDT4
9
EXDT12
10
EXDT5
11
EXDT13
12
EXDT6
13
EXDT14
14
VSS_2
15
VDD33_2
16
EXDT7
17
EXDT15
18
VSS_3
19
VDD12_1
20
EXADR16
21
EXADT15
22
EXADT14
23
EXADT13
24
EXADT12
25
EXADT11
26
EXADT10
27
EXADT9
28
EXADT8
29
EXADR19
30
NEXWE
31
VSS_4
32
VDD33_3
33
EXADR18
34
EXADR17
35
EXADT7
36
EXADT6
37
EXADT5
38
EXADT4
39
EXADT3
40
EXADT2
41
EXADT1
42
VSS_5
43
VDD12_2
44
45
46
47
IRQPWR
48
49
MA9
195 VSS_15
196 VDD33_10
197 BA1
198 MA8
199 MA10
200 MA7
201 MA0
202 MA6
203 MA1
204 VSS_16
205 VDD33_11
206 MA5
207 MA2
208 MA4
209 MA3
210 VSS_17
211 VDD12_6
212 EXADT0
213 NEXCE
214 NEXOE
215 EXDT0
216
EXDT8
K4S641632N-LC75
19 CS
20 BA0
21 BA1
22 A10/AP
23 A0
24 A1
25 A2
26 A3
27 VDD3 28
VSS1
29
A4
30
A5
31
A6
32
A7
33
A8
34
A9
35
A11
36
N.C
IC1401
CWW1825
A15
1
A14
2
A13
3
A12
4
5A11
6A10
7A9
8A8
9A19
10 NC1
11 /WE
12 /RESET
13 NC2
14 NC3
15 RY_/BY
16 A18
17 A17
18 A7
19 A6
20 A5
21 A4
22 A3
23 A2
24 A1 25
A0
26
/CE
27
Vss1
28
/OE
29
DQ0
30
DQ8
31
DQ1
32
DQ9
33
DQ2
34
DQ10
35
DQ3
36
DQ11
37
Vcc
38
DQ4
39
DQ12
40
DQ5
41
DQ13
42
DQ6
43
DQ14
44
DQ7
45
DQ15_A-1
46
Vss2
47
/BYTE
48
A16
IC1402
CWW1826
A15
1
A14
2
A13
3
A12
4
5A11
6A10
7A9
8A8
9A19
10 NC1
11 /WE
12 /RESET
13 NC2
14 NC3
15 RY_/BY
16 A18
17 A17
18 A7
19 A6
20 A5
21 A4
22 A3
23 A2
24 A1 25
A0
26
/CE
27
Vss1
28
/OE
29
DQ0
30
DQ8
31
DQ1
32
DQ9
33
DQ2
34
DQ10
35
DQ3
36
DQ11
37
Vcc
38
DQ4
39
DQ12
40
DQ5
41
DQ13
42
DQ6
43
DQ14
44
DQ7
45
DQ15_A-1
46
Vss2
47
/BYTE
48
A16
FLASH 16M
(2125)
(2125)
FLASH 16M
SDRAM
DEBUG
CP_READY
I2C_SDA
I2C_SCL
08EJ
(3216)
2
4
T
T
F
F
F
T
S
C
C
C
S
S
S
AVIC-Z110BT/XN/UC
214
1234
1234
C
D
F
A
B
E
10.6 CONNECT PCB
D
H+,H-,HU+,HU-,HV+,HV-,HW+,HW-,U,V,W
H+
W
U
V
HW+
HW-
HV+
HV-
HU+
HU-
H-
HV-
H+
HV+
HU-
HU+
HW-
HW+
H-
W
U
V
CN701
1CRG-
2CRG+
3HALL BIAS-
4HALL U-
5HALL U+
6HALL V-
7HALL V+
8HALL W-
9HALL W+
10 COIL V
11 COIL U
12 COIL W
13 HALL BIAS+
14 DSCSNS
15 8SNS
16 HOME
17 GND
18 GND
CSN1068-A
S101
1
2
34
CSN1068-A
S102
1
2
34
12
11
HOME
8SNS0
DSCSNS0
GND3 GND2 GND1
CRGM
CRGP
HM
HUM
HUP
HVM
HVP
HWM
HWP
V
U
W
HP
CKS6003
BR
1
GY
1
DSCSNS0_B
8SNS0_B
HOME_B
C101
0.1u/50
R101
100
R102
100
R103
100
GND_B
HOME1_BHOME1
8SNS1 8SNS1_B
DSCSNS1 DSCSNS1_B
CN101
1
V
2
U
3
W
4
H-
5
HW+
6
HW-
7
HU+
8
HU-
9
HV+
10
H+
11
HV-
1
2
3
4
5
6
7
8
9
10
11
CSN1068-A
S103
1
2
34
H3
H1
H2
M2
SPINDLE MOTOR
EXM1050
M1
LOAD/CRG MOTOR
CXC4026
HOME
8SNS
DSCSNS
CKS6063
DCONNECT PCB
C
CN1201
C
C
C
C
S
S
S
S
S
S
AVIC-Z110BT/XN/UC 215
5 678
5678
C
D
F
A
B
E
AVIC-Z110BT/XN/UC
216
1234
1234
C
D
F
A
B
E
10.7 CC UNIT(PS PART)(GUIDE PAGE)
1/6
E
E-a 1/6
C4210
DCH1201-A
C4209
DCH1201-A
C4205
DCH1201-A
C4206
DCH1201-A
C4207
DCH1201-A
C4211
DCH1201-A
C4220
NM
C4225
NM
C4221
1u/10
C4226
1u/10
C4212
DCH1201-A
C4208
DCH1201-A
C4263
NM
C4264
NM
C4267
1u/10
C4266
1u/10
C4237
CCG1234-A
C4239
CCG1234-A
C4238
CCG1234-A
C4236
CCG1234-A
C4275
DCH1201-A
C4277
DCH1201-A
C4224
3900p/50
C4240
3900p/50
R4216
10k
Y+/TR
X+/BR
Y-/BL
X-/TL
SPEED_IN
PLL_O
EXTOC
CTOEX
STOC
BTTOC
CTOBT
CTOVICS
VICSTOC
X_SDA1
X_SCL1
USB_D+
USB_D-
AD_SDA0
AD_SCL0
BT_RESET
KMODE
EX_RDS_SENS
POUT
GMUTE
PVSENS
PKB
ANTPW
PPW
DTV_RST
BSENRQ
CPUWDT
BT_BOOTS
REV
CCPORT1
CCPORT2
ANTVSEN
CCPORT1
SLOCK
HYOKA
GPS_SAMPLE_CLK
GPS_SAMPLE_CLK
HYOKA
PPW
SLOCK
PIPRST
TCON_SDA
TCON_SCL
DTV_RST
TSO
TSEN
TSCLK
ANTVSEN
ANTPW
CTOEX
EXTOC
VICSTOC
CTOVICS
BT_RESET
MIC+
MONO
NAVI_L
NAVI_R
BTTOC
CTOBT
BT_BOOTS
STOC
X+/BR
Y+/TR
X-/TL
Y-/BL
AD_SCL0
AD_SDA0
SPEED_IN
POUT
BSENRQ
CPUWDT
ASENRQ
EX_RDS_SENS
GMUTE
PKB
KMODE
REV
LVDSP
LVDSN
CTOETC
ETCTOC
FCONT_C
NAVI_RST
CC_RST
OFFOK
ASENRQ
XCCSTBY
OFFOK
CCPORT2
USB_D-
USB_D+
LINE_L
LINE_R
LINE_R
LINE_L
PRE_ON_H
IO_ON_H
PLL_ON_H
IO_ON_M
PRE_ON_M
IO_ON_H
PRE_ON_H
IO_ON_M
PRE_ON_M
PRE_ON
IO_ON
IO_ON_H
PLL_ON_H
PLL_ON
CCD3IOON
CASHFSNS
IO_ON
ETCTOC
CTOETC
MOVITEMP
AVSELOUT
FUKKA2
FUKKA2
FCONT_C
IO_ON
PRE_ON
FCONT_C
NAVI_RST
PVSENS
CTOS
CTOS_B
CTOS
CTOS_B
MOVITEMP
CCD3IOON
JTG_RST
PLL_ON
X_SDA1
X_SCL1
CCD3_IOON
XCCSTBY
CCH1809-A
C4242
CCH1809-A
C4241
C4201
0.1u/10 C4202
0.1u/10
C4230
DCH1201-A
C4227
DCH1201-A C4231
DCH1201-A
C4228
DCH1201-A
F4202
CCG1162-A
3
21
F4201
CCG1162-A
3
21
LTC3412AEFE
IC4204
SVIN
1
PGOOD
2
ITH
3
VFB
4
5RT
6SYNC/MODE
7RUN/SS
8SGND 9
PVIN_1
10
SW_1
11
SW_2
12
PGND_1
13
PGND_2
14
SW_3
15
SW_4
16
PVIN_2
LTC3412AEFE
IC4205
SVIN
1
PGOOD
2
ITH
3
VFB
4
5RT
6SYNC/MODE
7RUN/SS
8SGND 9
PVIN_1
10
SW_1
11
SW_2
12
PGND_1
13
PGND_2
14
SW_3
15
SW_4
16
PVIN_2
NM
Q4202
NM
Q4201
R4215
0
R4214
0
NM
VR4202
13
2
NM
VR4201
13
2
CCH1820-A
C4232
NM
C4234 NM
C4235
CCH1820-A
C4233
F4203
CCG1162-A
3
21
C4203
0.1u/10
GNDA GNDA GNDA
GNDD
GNDD
GNDD
GNDD GNDD GNDD
GNDD
GNDD
GNDD
F4204
CCG1162-A
3
21
C4204
0.1u/10
GNDD GNDD
GNDD
GNDD
L4209
CTF1739-A
1
3
5
62
48
7
L4205 CTF1735-A
L4210
CTF1739-A 1
3
5
62
48
7
L4212
CTF1739-A
1
3
5
62
48
7
L4258
CTF1735-A
L4216
CTF1739-A
1
3
5
62
48
7
L4257
CTF1735-A
LVDSGND
IC4207
TC7SH08FUS1
INB
1
INA
2
GND
3OUTY 4
5
VCC
GNDD
R4226
100k
C4243
1000p/50
R4228
10k
GNDD
L4227
CTF1736-A
C4215
0.1u/10
C4246
0.1u/10
C4229
0.1u/10
Y-/BL
Y+/TR
X-/TL
X+/BR
GNDD
GNDD
SPEED_IN
R4272
NM
GNDD
GNDD
L4202
CTH1319-A
1
1A 21B
32A
4
2B
L4225
1.0uH
L4224
1.0uH
R4273
NM
RUN12 SW12
SW25
RUN25
RTC12
RTC25
GNDD
LVDSGND
RTC33
GPS33
CCD25
CCD12
R4204
NM
R4205
NM
R4227
NM
L4245
CTF1732-A 1
3
5
62
48
7
GNDD
GNDD
ANTVSEN
CCPORT2
CCPORT1
GPS_SAMPLE_CLK
SLOCK
HYOKA
EXTOC
STOC
CTOEX
CTOS
BTTOC
CTOBT
VICSTOC
CTOVICS
X_SDA1
X_SCL1
USB_D+
USB_D-
AD_SDA0
AD_SCL0
CPUWDT
GMUTE
REV
BSENRQ
PKB
PPW
EX_RDS_SENS
KMODE
ANTPW
ASENRQ
PVSENS
XCCSTBY
BT_BOOTS
POUT
BT_RESET
DTV_RST
CCRST
GNDD
L4201
CTF1735-A
L4215
CTF1739-A
1
3
5
62
48
7
C4284 NM
3
2
1
C4285 NM
3
2
1
GNDD
GNDD
L4213
CTF1739-A
1
3
5
62
48
7
VDD5
CCA3
CCD3
GNDV
L4206
CTF1732-A
1
3
5
62
48
7
L4218
CTF1732-A
1
3
5
62
48
7
L4246
CTF1739-A
1
3
5
62
48
7
L4251
CTF1739-A
1
3
5
62
48
7
L4252
CTF1739-A
1
3
5
62
48
7
L4255
CTF1739-A
1
3
5
62
48
7
L4256
CTF1739-A
1
3
5
62
48
7
L4219 NM
L4220 NM
CCD5
L4203
CTF1736-A
C4247
0.1u/10
GNDD
IC4212
TC7SH08FUS1
INB
1
INA
2
GND
3OUTY 4
5
VCC
R4280
NM
R4281
NM
R4286
0
R4267
0
R4224
0
R4225
0
R4206
47k
R4207
100k
R4208
47k
R4209
100k
R4221
100k
R4223
200k
R4218
51k
R4220
24k
L4204 CTF1528-A
L4207 CTF1528-A
GND_BT
LINE
_
R
LINE_L
GNDD
GNDA
GNDD GNDD GNDD
R4232
NM
R4244
NM
R4248
NM
R4250
0
R4251
0
R4252
NM
R4253
0
R4255
0
R4256 NM
R4258
NM
R4257
0
NM
IC4201
VOUT
1
GND
2
STBY
3
VIN 4
BU33TA2WNVX
IC4213
VOUT
1
GND
2
STBY
3
VIN 4
IC4214
NM
STBY
1
GND
2
VI
3VOUT 4
5
SEL
BU33TA2WNVX
IC4202
VOUT
1
GND
2
STBY
3
VIN 4
BD6522F
IC4219
VDDA
1
VDDB
2
SSCTL
3
CTRL
45
VSS
6
DISC
7
OUTB
8
OUTA
GNDD
C4254
NM
R4240
NM
R4211
22k
R4210
22k
R4245
NM
R4260
NM
R4263
NM
R4269
470
GNDD
GNDD
L4208
CTF1736-A
C4273
0.1u/10
GNDD
CN4201
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
ETCTOC
CTOETC
L4211
CTF1735-A
GPSAVTVCC
GNDD
GNDD
GNDD
C4274
0.1u/10
GPSANTVCCF
F4206
CCG1162-A
3
21
IC4206
S-80929CNNB-G8Z
VSS
1
VDD
2
CD
3
OUT
4
F4205
NM
3
2
1
C4216
100p/50
C4218
1000p/50
C4219
1000p/50
C4217
100p/50
C4222
10p/50
C4223
22p/50
R4213
5.1k
CCD3_IOON
L4214 CTF1528-A
FUKKA2
D4201
RB521G-30
D4202
RB521G-30
R4212
5.1k
R4222
9.1k
GNDD
R4275
470
CCD5F
CCD3F
S-58LM20A-N4
SN4201
VDD
1
VSS
2
NC
3
VOUT 4
NAVIRST
L4234 CTF1735-A
L4217
CTF1736-A
L4221
CTF1736-A
C4279
0.1u/10
C4280
0.1u/10
GNDD
GNDD
NAND3
VDD5F
CCA3F
P4201
CEK1283-A
12
C4261
0.01u/16
C4269
0.01u/16
C4270
0.01u/16
C4213
0.1u/10
C4214
0.1u/10
C4271
0.1u/10
C4272
0.1u/10
C4278
0.1u/10
R4266
1M
R4265
0
R4277
0
R4278
0
R4279
0
R4217
10k
R4239
0
R4242
0
R4270
10k
IC4216
S-80830CLNB-B6P
OUT
1
VDD
2
NC
3
VSS
4
IC4217
S-80835CLNB-B6U
OUT
1
VDD
2
NC
3
VSS
4
IC4218
S-80844CLNB-B65
OUT
1
VDD
2
NC
3
VSS
4
IC4203
S-80944CNNB-G9E
VSS
1
VDD
2
CD
3
OUT
4
IC4220
TC7SA34FU
NC
1
INA
2
GND
3
OUTY
4
5
VCC
IC4221
TC7SA34FU
NC
1
INA
2
GND
3
OUTY
4
5
VCC
P4202
CEK1282-A
12
L4226
CTF1736-A
R4219
0
R4293
0
R4292
0
R4295
1M
GND6
GND1
GND9GND8
R4202
0
GNDA
GNDD
GNDV
R4201
0
GND5
GND3GND2
GND4
GND7
R4203
NM
LVDSGND
R4296
0
R4298
0
R4297
0
1.75A
1.5A
(D)
(D)(D)
10K/10K
(D)
(D)
(D)
10K/10K
RTC25
RTC33
RTC12
L4225(Current rating):2000mA
CCPORT1
GNDD
USB+
GNDD
USB-
PPW
NC
NC
PVSENS
MOVITEMP
GNDD
BT_BOOTS
BTTOC
CTOBT
BT_RESET
LINE_R
GND
LINE_L
GND
MIC+
MONO
NAVI_R
PNLYT
CTOETC
FUKKA2
TCON_SCL
AD_SCL0
TCON_SDA
PIPRST
GNDV
AVSELOUT
CCPORT2
TSO
NC
TSEN
DTV_SDA1
DTV_SCL1
SPEED_IN
PCHNG
REV
BSENRQ
OFFOK
ASENRQ
CPUWDT
NAVIRST
RDMSDSENS
PKB
KMODE
CASHFSNS
CTOSYS
SYSTOC
CTOVICS
VICSTOC
CTOEX
NC
PRE_ON
FCONT_C
VDD5
CCA3
CCD3
LVDSGND
LVDSGND
LVDSGND
LVDSGND
LVDSN
LVDSP
AND
MIN10ms
TYP22ms
MAX65ms
MIN10ms
TYP22ms
MAX65ms
TSCLK
GNDD
NAND3
GPS33
CTH1416
CTH1416
SS 1ms
SS 1ms
MAX:1600mA
MAX:900mA
Fc:1.962MHz
L4224(Current rating):2000mA
CCD1.2V
CCD2.5V
Fc:1.962MHz
10u/10V
10u/10V
(D)(D)
520mA
1mA
1mA
21mA
18mA
GNDD
GNDD
GNDD
GNDA
GNDA
NAVI_L
GNDA
MICGND
GNDA
PNLXR
PNLYB
PNLXL
ETCTOC
NC
AD_SDA0
DTV_RST
ANTVSEN
GMUTE
EXTOC
CCIO_ON
CCD3_IOON
GNDD
CCD3
GNDD
CCD3
GNDD
GNDD
CCD5
CCD5
CCD5
CCD5
CCD5
GNDD
GNDD
GNDD
GNDD
GNDD
HYOKA
LVDSGND
SLOCK
ANTPW
GNDA
GNDD
NC
(1/10W)
(1/10W)
GNDD
GNDD
GNDV
AND
Temp.sensor to watch
the condition of IC4501(moviNAND)
NC
GPSANTVCC
CCD3_IOON
(D)
NC
CCD3_IOON
PLL_ON
Discharge resistance
Discharge resistance
5.0V
3.3V
5.0V
3.3V
5.3V/3.3V
3.3V
3.3V
2.5V
1.2V
3.3V
47uF/10V 3528
10uF/10V 2125
(DCH1201)
100uF/4V 3528
10uF/6.3V 1608
10uF/10V 2125
100uF/4V 3528
(DCH1201)
10uF/6.3V 1608
47uF/10V 3528
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(1608)(1608)
(1608)(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(2125)
(2125)
(1608)
(1608) (1608)
(1608)
(1608)
(1608)
(1608)
(2125)
(2125)
Diode for fast discharge
at power-off
(1608)
(1608)
(1608)
Diode for fast discharge
at power-off
Proadlizer
Proadlizer
CKS6126-A
10u/10V
10u/10V
10u/10V
10u/10V
10u/10V
10u/10V
10u/10V
10u/10V
1/4W
1/4W
160mA
>
>
2/6
E
CN5602
4/4
F
AVIC-Z110BT/XN/UC 217
5 678
5678
C
D
F
A
B
E
1/6
E
E-b 1/6
C4251
1u/10
C4252
1u/10
C4253
1u/10
C4257
1u/10
C4259
1u/10
C4276
NM
C4245
0.47u/16
NM
C4283
C4258
NM
R4238
10k
CASHFSNS
CC_RST
TSO
TSEN
TSCLK
Y+/TR
X+/BR
Y-/BL
X-/TL
SPEED_IN
MIC+
NAVI_R
NAVI_L
MONO
LVDSN
LVDSP
TCON_SDA
TCON_SCL
PIPRST
AVSELOUT
IO_ON
PLL_ON
PLL_ON
PLL_ON
IO_ON
IO_ON
JTG_RST
GPS_SAMPLE_CLK
CC_RST
OFFOK
LINE_L
LINE_R
PRE_ON_H
IO_ON_H
PLL_ON_H
PRE_ON_H
PRE_ON_M
PRE_ON
IO_ON
CTOS
CTOS_B
CCD3IOON
JTG_RST
X_SD_VCC_ON
CC_RST
X_SD_VCC_ON
XCCSTBY
RTC33
CCD12
CCD25
CCD12
CCD25
GNDD
CCD3_IOON
RTC12
LCD25
PLL12
CCD25_PLLON
RTC25
CCD3
C4249
1u/10
GNDD
C4248
1u/10
GNDD
C4250
1u/10
GNDD
GNDD
GNDV
LCD15
CP18
GNDD
GNDD
GNDD
GNDD
CCD25_PLLON
USB3
CCD3_IOON
X_SD_VCC_ON
GNDD
GNDD
C4255
0.1u/10
C4260
0.1u/10
C4256
0.1u/10
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDV
CC_RST
Y-/BL
Y+/TR
X-/TL
X+/BR
TSO
TSEN
TSCLK
CASHFSNS
MIC+
NAVI_R
NAVI_L
MONO
AVSELOUT
LVDSN
LVDSP
TCON_SDA
TCON_SCL
PIPRST
SPEED_IN
GNDD
C4265
0.1u/10
2SB1689
Q4218
2SB1689
Q4214
2SB1689
Q4217
PLL12
LCD25
LCD15
SD3
CP18
VD18
CCD25_PLLON
USB3
C4268
NM
GNDA
R4274
NM
BUP3
GNDD
DTC114EUA
Q4216
DTC114EUA
Q4207
DTC114EUA
Q4212
DTC114EUA
Q4206
GNDA
GNDA
GNDA
GNDA
GNDD
DTC114EUA
Q4219
GNDA
C4282
0.1u/10
GNDD
GNDD
CCD5
VA18
CCA3_IOON
C4244
0.1u/10
Q4211
2SC4081(QRS)
GNDD CP3
CP3
JTG_RST
CCD3_IOON
CCD3_IOON
CCD3_IOON
VD18
VA18
CCD3
SD3
GPS33
ANTVCC
CCA3_IOON
CCD3_IOON
CCD3_IOON
C4286 NM
3
2
1
GNDD
L4203
CTF1736-A
C4247
0.1u/10
NDD
IC4212
TC7SH08FUS1
INB
1
INA
2
GND
3OUTY 4
5
VCC
LINE_R
LINE_L
GNDD
NAND3
GNDD GNDD
R4244
NM
R4248
NM
R4250
0
R4253
0
BU15TA2WNVX
IC4208
VOUT
1
GND
2
STBY
3
VIN 4
BU18TA2WNVX
IC4210
VOUT
1
GND
2
STBY
3
VIN 4
NM
IC4215
VOUT
1
GND
2
STBY
3
VIN 4
BU25TA2WNVX
IC4209
VOUT
1
GND
2
STBY
3
VIN 4
BU18TA2WNVX
IC4211
VOUT
1
GND
2
STBY
3
VIN 4
F
5
VSS
6
D
ISC
7
O
UTB
8
O
UTA
GNDD
R4240
NM
BUP3
CCD3_IOON
GNDD
R4287
0
R4288
NM
R4289
NM
R4290
NM
R
4275
470
3
L4217
CTF1736-A
L4221
CTF1736-A
C4279
0.1u/10
C4280
0.1u/10
NDD
NDD
CCD3_IOONB
C4270
0.01u/16
C4271
0.1u/10
C4278
0.1u/10
R4233
0R4234
0R4235
0
R4249
0
R4229
10k
R4237
10k
R4236
10k
R4241
10k
R4254
10k
R4268
10k
R4282
10k
R4243
0
IC4217
3
5CLNB-B6U
OUT
1
VDD
2
NC
3
VSS
4
IC4218
S-80844CLNB-B65
OUT
1
VDD
2
NC
3
VSS
4
R4262
0
CC_RST
IC4220
TC7SA34FU
NC
1
INA
2
GND
3
OUTY
4
5
VCC
IC4221
TC7SA34FU
NC
1
INA
2
GND
3
OUTY
4
5
VCC
R4261
1k
R4271
560
R4247
560
R4283
560
R4230
1k
R4246
330
R4259
680
R4276
NM
2SA2030
Q4220
2SA2030
Q4209
2SA2030
Q4210
GNDD
R4294
1k
1M
iPod
BLOCK
Reference : 4201 4400
LCD25
LCD15
CP18
VD18
AC97CODEC
ADC
BLOCK
SD CARD
BLOCK
CPLD
BLOCK
GPS-RF
BLOCK
RTC
CORE
PLL
MEM
TSC
USB
IO
30mA
520mA
80mA
6mA
105mA
120mA
11mA
VA18
76mA
14mA
50mA
Prima
(1/10W)
AND
(10k/10k)
(10k/10k)
(10k/10k)
(10k/10k)
(10k/10k)
h
0
1(moviNAND)
O
ON
CCD25_PLLON
CCA3_IOON
CP3
USB3
SD3
PLL12
Delivery Resistansce
R4276 is mounted
if the SD3 supply must be in
the IO-POWER domain
Discharge resistance
Discharge resistance
10mA
3.3V 3.3V
3.3V
3.3V
3.3V
1.8V
1.8V
1.5V
2.5V
2.5V
1.2V
47uF/6.3V 3216
(1608)
(1608)(1608)
(1608)
(1608) (1608) (1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608) (1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(2125)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
R4290
R4289
Model Information
R4288
R4287 RS1/16SS0R0J-T
NM
NM
NM
NM
NM
RS1/16SS0R0J-T
RS1/16SS0R0J-T
NM
RS1/16SS0R0J-T
NM
RS1/16SS0R0J-T
RS1/16SS0R0J-T
NM
NM
RS1/16SS0R0J-T
EU5:CWN4180- UW5:CWN4181- UC:CWN4182- AU:CWN4183-
Proadlizer
CC UNIT (PS PART)
1/6
E
3/6
E6/6
E
2/6
E
3/6
E
4/6
E
5/6
E
6/6
E
AVIC-Z110BT/XN/UC
218
1234
1234
C
D
F
A
B
E
E-a E-b
E-b 1/6
C4253
1u/10
C4257
1u/10
C4259
1u/10
C4245
0.47u/16
NM
C4283
C4258
NM
R4238
10k
CASHFSNS
CC_RST
IO_ON
PLL_ON
PLL_ON
PLL_ON
IO_ONGPS_SAMPLE_CLK
PRE_ON_H
IO_ON_H
PLL_ON_H
IO_ON
CCD3IOON
X_SD_VCC_ON
RTC33
CCD12
CCD25
CCD12
CCD3_IOON
RTC12
PLL12
CCD25_PLLON
RTC25
C4250
1u/10
GNDD
CP18
GNDD
GNDD
GNDD
GNDD
CCD25_PLLON
USB3
CCD3_IOON
X_SD_VCC_ON
GNDD
C4260
0.1u/10
C4256
0.1u/10
GNDD
CC_RST
CASHFSNS
GNDD
C4265
0.1u/10
2SB1689
Q4218
2SB1689
Q4214
2SB1689
Q4217
PLL12
SD3
CP18
VD18
CCD25_PLLON
USB3
DTC114EUA
Q4216
DTC114EUA
Q4207
DTC114EUA
Q4212
GNDA
GNDA
GNDD
DTC114EUA
Q4219
GNDA
C4282
0.1u/10
GNDD
GNDD
CCD5
CCA3_IOON
C4244
0.1u/10
Q4211
2SC4081(QRS)
GNDD CP3
CP3
CCD3_IOON
GPS33
ANTVCC
CCA3_IOON
CCD3_IOON
C4286 NM
3
2
1
GNDD
L4203
T
F1736-A
C4247
0.1u/10
IC4212
GNDD
GNDD GNDD
R4244
NM
R4248
NM
BU18TA2WNVX
IC4210
VOUT
1
GND
2
STBY
3
VIN 4
BU18TA2WNVX
IC4211
VOUT
1
GND
2
STBY
3
VIN 4
5
6
7
8
G
NDD
R4240
NM
CCD3_IOON
N
DD
CCD3_IOONB
C4270
0.01u/16
C4271
0.1u/10
0.1u/10
R4235
0
R4249
0
R4229
10k
R4237
10k
R4236
10k
R4254
10k
R4268
10k
R4282
10k
R4243
0
7
B
-B6U
OUT
1
VSS
4
IC4218
S-80844CLNB-B65
OUT
1
VDD
2
NC
3
VSS
4
R4271
560
R4247
560
R4283
560
R4230
1k
R4259
680
R4276
NM
2SA2030
Q4220
2SA2030
Q4210
GNDD
R4294
1k
iPod
BLOCK
CP18
VD18
AC97CODEC
ADC
BLOCK
CPLD
BLOCK
GPS-RF
BLOCK
RTC
CORE
PLL
MEM
TSC
USB
IO
30mA
520mA
6mA
11mA
76mA
14mA
50mA
Prima
(1/10W)
(10k/10k)
(10k/10k)
(10k/10k)
(10k/10k)
m
oviNAND)
CCD25_PLLON
CCA3_IOON
CP3
USB3
SD3
PLL12
R4276 is mounted
if the SD3 supply must be in
the IO-POWER domain
Discharge resistance
10mA
3.3V 3.3V
3.3V
3.3V
1.8V
1.8V
2.5V
1.2V
47uF/6.3V 3216
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(2125)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
Proadlizer
CC UNIT (PS PART)
1/6
E
2/6
E
3/6
E
AVIC-Z110BT/XN/UC 219
5 678
5678
C
D
F
A
B
E
E-a E-b
E-b 1/6
C4251
1u/10
C4252
1u/10
C4257
1u/10
C4259
1u/10
C4276
NM
CASHFSNS
TSO
TSEN
TSCLK
Y+/TR
X+/BR
Y-/BL
X-/TL
SPEED_IN
MIC+
NAVI_R
NAVI_L
MONO
LVDSN
LVDSP
TCON_SDA
TCON_SCL
PIPRST
AVSELOUT
IO_ON
IO_ON
JTG_RST
GPS_SAMPLE_CLK
CC_RST
OFFOK
LINE_L
LINE_R
PRE_ON_H
PRE_ON
IO_ON
CTOS
CTOS_B
JTG_RST
X_SD_VCC_ON
CC_RST
XCCSTBY
CCD25
GNDD
LCD25
CCD3
C4249
1u/10
GNDD
C4248
1u/10
GNDD
GNDD
GNDV
LCD15
GNDD
GNDD
GNDD
C4255
0.1u/10
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDV
Y-/BL
Y+/TR
X-/TL
X+/BR
TSO
TSEN
TSCLK
CASHFSNS
MIC+
NAVI_R
NAVI_L
MONO
AVSELOUT
LVDSN
LVDSP
TCON_SDA
TCON_SCL
PIPRST
SPEED_IN
LCD25
LCD15
SD3
VD18
C4268
NM
GNDA
R4274
NM
BUP3
GNDD
DTC114EUA
Q4206
GNDA
GNDA
GNDD
VA18
JTG_RST
CCD3_IOON
CCD3_IOON
VD18
VA18
CCD3
SD3
GPS33
ANTVCC
CCD3_IOON
L4203
CTF1736-A
C4247
0.1u/10
IC4212
C
7SH08FUS1
I
NB
I
NA
G
ND OUTY 4
5
VCC
LINE_R
LINE_L
NAND3
R4250
0
R4253
0
BU15TA2WNVX
IC4208
VOUT
1
GND
2
STBY
3
VIN 4
NM
IC4215
VOUT
1
GND
2
STBY
3
VIN 4
BU25TA2WNVX
IC4209
VOUT
1
GND
2
STBY
3
VIN 4
BU18TA2WNVX
VOUT
1
GND
2
STBY
3
VIN 4
BUP3
R4287
0
R4288
NM
R4289
NM
R4290
NM
L4217
CTF1736-A
L4221
CTF1736-A
C4279
0.1u/10
C4280
0.1u/10
R4233
0R4234
0
R
4
R4241
10k
R4262
0
CC_RST
IC4220
T
C7SA34FU
N
C
N
A
G
ND OUTY
4
5
VCC
IC4221
T
C7SA34FU
N
C
N
A
G
ND OUTY
4
5
VCC
R4261
1k
R4246
330
R4276
NM
2SA2030
Q4209
Reference : 4201 4400
LCD25
LCD15
SD CARD
BLOCK
GPS-RF
BLOCK
80mA
105mA
120mA
VA18
76mA
AND
(10k/10k)
(10k/10k)
SD3
Delivery Resistansce
R4276 is mounted
if the SD3 supply must be in
the IO-POWER domain
Discharge resistance
3.3V
1.8V
1.5V
2.5V
(1608)(1608)
(1608) (1608)
(1608)
(1608)
(1608)
(1608)
(1608) (1608)
(1608)
(1608)
(1608)
R4290
R4289
Model Information
R4288
R4287 RS1/16SS0R0J-T
NM
NM
NM
NM
NM
RS1/16SS0R0J-T
RS1/16SS0R0J-T
NM
RS1/16SS0R0J-T
NM
RS1/16SS0R0J-T
RS1/16SS0R0J-T
NM
NM
RS1/16SS0R0J-T
EU5:CWN4180- UW5:CWN4181- UC:CWN4182- AU:CWN4183-
3/6
E
6/6
E
4/6
E
5/6
E
6/6
E
AVIC-Z110BT/XN/UC
220
1234
1234
C
D
F
A
B
E
E-bE-a
E-a 1/6
E-b 1/6
C4210
DCH1201-A
C4209
DCH1201-A
C4205
DCH1201-A
C4206
DCH1201-A
C4207
DCH1201-A
C4211
DCH1201-A
C4220
NM
C4225
NM
C4221
1u/10
C4226
1u/10
C4212
DCH1201-A
C4208
DCH1201-A
C4263
NM
C4264
NM
C4267
1u/10
C4266
1u/10
1234-A
1234-A
C4275
DCH1201-A
C4277
DCH1201-A
P
CCPORT1
GPS_SAMPLE_CLK
HYOKA
PPW
SLOCK
PIPRST
TCON_SDA
TCON_SCL
DTV_RST
TSO
TSEN
TSCLK
ANTVSEN
ANTPW
CTOEX
EXTOC
VICSTOC
CTOVICS
BT_RESET
MIC+
MONO
NAVI_L
NAVI_R
BTTOC
CTOBT
BT_BOOTS
STOC
X+/BR
Y+/TR
X /TL
CTOETC
ETCTOC
CCPORT2
USB_D-
USB_D+
LINE_R
LINE_L
PRE_ON_H
IO_ON_H
PLL_ON_H
IO_ON
MOVITEMP
AVSELOUT
FUKKA2
PRE_ON
PVSENS
CTOS_B
MOVITEMP
CCD3IOON
PLL_ON
X_SDA1
X_SCL1
C4201
0.1u/10 C4202
0.1u/10
F4202
CCG1162-A
3
21
F4201
CCG1162-A
3
21
SVIN
1
PGOOD
2
ITH
3
413
14
SW_3
15
SW_4
16
PVIN_2
R4215
0
F4203
CCG1162-A
3
21
C4203
0.1u/10
GNDA GNDA GNDA
GNDD
GNDD
GNDD
GNDD GNDD GNDD
GNDD
F4204
CCG1162-A
3
21
C4204
0.1u/10
GNDD GNDD
GNDD
GNDD
L4209
CTF1739-A
1
3
5
62
48
7
L4205 CTF1735-A
L4210
CTF1739-A 1
3
5
62
48
7
L4212
CTF1739-A
1
3
5
62
48
7
L4216
CTF1739-A
1
3
5
62
48
7
R4272
NM
GNDD
GNDD
L4202
CTH1319-A
1
1A 21B
32A
4
2B
L4225
1.0uH
R4273
NM
RTC12
RTC25
GNDD
RTC33
GPS33
CCD12L4245
CTF1732-A 1
3
5
62
7
GNDD
L4201
CTF1735-A
L4215
CTF1739-A
1
3
5
62
48
7
C4284 NM
3
2
1
L4213
CTF1739-A
1
3
5
62
48
7
GNDV
L4206
CTF1732-A
1
3
5
62
48
7
L4218
CTF1732-A
1
3
5
62
48
7
L4219 NM
L4220 NM
L4203
T
F1736-A
C4247
0.1u/10
IC4212
R4280
NM
R4281
NM
R4286
0
R4225
0
R4221
100k
L4204 CTF1528-A
L4207 CTF1528-A
GND_BT
GNDD
GNDD GNDD GNDD
R4232
NM
R4244
NM
R4248
NM
NM
IC4201
VOUT
1
GND
2
STBY
3
VIN 4
BU33TA2WNVX
IC4213
VOUT
1
GND
2
STBY
3
VIN 4
IC4214
NM
STBY
1
GND
2
VI
3VOUT 4
5
SEL
BU33TA2WNVX
IC4202
VOUT
1
GND
2
STBY
3
VIN 4
BD6522F
IC4219
VDDA
1
VDDB
2
SSCTL
3
CTRL
45
VSS
6
DISC
7
OUTB
8
OUTA
GNDD
C4254
NM
R4240
NM
2
11
2
k
R4245
NM
3
M
L4208
CTF1736-A
C4273
0.1u/10
GNDD
CN4201
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
L4211
CTF1735-A
GNDD
GNDD
GNDD
C4274
0.1u/10
GPSANTVCCF
F4206
CCG1162-A
3
21
F4205
NM
3
2
1
C4223
22p/50
CCD3_IOON
L4214 CTF1528-A
D4201
RB521G-30
R4222
9.1k
GNDD
R4275
470
CCD5F
CCD3F
S-58LM20A-N4
SN4201
VDD
1
VSS
2
NC
3
VOUT 4
L4234 CTF1735-A
NAND3
VDD5F
CCA3F
P4201
CEK1283-A
12
C4261
0.01u/16
C4269
0.01u/16
C4270
0.01u/16
C4271
0.1u/10
C4272
0.1u/10
C4278
0.1u/10
R4265
0
R4277
0
R4278
0
R4279
0
R4217
10k
R4242
0
R4270
10k
IC4216
S-80830CLNB-B6P
OUT
1
VDD
2
NC
3
VSS
4
IC4217
S-80835CLNB-B6U
OUT
1
VDD
2
NC
3
VSS
4
IC4218
S-80844CLNB-B65
OUT
1
VDD
2
NC
3
VSS
4
R4293
0
R4292
0
1.75A
(D)
RTC25
RTC33
RTC12
L4225(Current rating):2000mA
CCPORT1
GNDD
USB+
GNDD
USB-
PPW
NC
NC
PVSENS
MOVITEMP
GNDD
BT_BOOTS
BTTOC
CTOBT
BT_RESET
LINE_R
GND
LINE_L
GND
MIC+
MONO
NAVI_R
PNLYT
CTOETC
FUKKA2
TCON_SCL
AD_SCL0
TCON_SDA
PIPRST
GNDV
AVSELOUT
CCPORT2
TSO
NC
TSEN
DTV_SDA1
DTV_SCL1
SPEED IN
CTOSYS
SYSTOC
CTOVICS
VICSTOC
CTOEX
TSCLK
GNDD
NAND3
GPS33
CTH1416
SS 1ms
MAX:900mA
CCD1.2V
10u/10V
10u/10V
520mA
1mA
1mA
21mA
18mA
GNDD
GNDD
GNDD
GNDA
GNDA
NAVI_L
GNDA
MICGND
GNDA
PNLXR
PNLXL
ETCTOC
NC
AD_SDA0
DTV_RST
ANTVSEN
EXTOC
HYOKA
SLOCK
ANTPW
NC
(1/10W)
GNDD
GNDD
GNDV
Temp.sensor to watch
the condition of IC4501(moviNAND)
CCD3_IOON
(D)
NC
PLL_ON
5.0V
3.3V
5.0V
3.3V
5.3V/3.3V
3.3V
3.3V
1.2V
3.3V
5
28
08
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(1608)(1608)
(1608)(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(2125)
(1608)
(1608) (1608)
(1608)
(1608)
(1608)
(2125)
(2125)
Diode for fast discharge
at power off Proadlizer
CKS6126-A
10u/10V
10u/10V
10u/10V
10u/10V
10u/10V
10u/10V
10u/10V
10u/10V
1/4W
160mA
>
CN5602
4/4
F
AVIC-Z110BT/XN/UC 221
5 678
5678
C
D
F
A
B
E
E-bE-a
E-a 1/6
E-b 1/6
C4237
CCG1234-A
C4239
CCG1234-A
C4238
CCG1234-A
C4236
CCG1234-A
C4224
3900p/50
C4240
3900p/50
R4216
10k
Y+/TR
X+/BR
Y-/BL
X-/TL
SPEED_IN
EXTOC
CTOEX
STOC
BTTOC
CTOBT
CTOVICS
VICSTOC
X_SDA1
X_SCL1
USB_D+
USB_D-
AD_SDA0
AD_SCL0
BT_RESET
KMODE
EX_RDS_SENS
POUT
GMUTE
PVSENS
PKB
ANTPW
PPW
DTV_RST
BSENRQ
CPUWDT
BT_BOOTS
REV
CCPORT2
ANTVSEN
CCPORT1
SLOCK
HYOKA
GPS_SAMPLE_CLK
GPS_SAMPLE_CLK
MIC+
X+/BR
Y+/TR
X-/TL
Y-/BL
AD_SCL0
AD_SDA0
SPEED_IN
POUT
BSENRQ
CPUWDT
ASENRQ
EX_RDS_SENS
GMUTE
PKB
KMODE
REV
LVDSP
LVDSN
CTOETC
ETCTOC
FCONT_C
NAVI_RST
CC_RST
OFFOK
ASENRQ
XCCSTBY
OFFOK
LINE_L
IO_ON_M
PRE_ON_M
IO_ON_H
PRE_ON_H
IO_ON_M
PRE_ON_M
PRE_ON
IO_ON
IO_ON_H
PLL_ON_H
PLL_ON
CCD3IOON
CASHFSNS
IO_ON
ETCTOC
CTOETC
FUKKA2
FUKKA2
FCONT_C
IO_ON
PRE_ON
FCONT_C
NAVI_RST
CTOS
CTOS_B
CTOS
JTG_RST
CCD3_IOON
XCCSTBY
CCH1809-A
C4242
CCH1809-A
C4241
C4230
DCH1201-A
C4227
DCH1201-A C4231
DCH1201-A
C4228
DCH1201-A
LTC3412AEFE
IC4204
SVIN
1
PGOOD
2
ITH
3
VFB
4
5RT
6SYNC/MODE
7RUN/SS
8SGND 9
PVIN_1
10
SW_1
11
SW_2
12
PGND_1
13
PGND_2
14
SW_3
15
SW_4
16
PVIN_2
LTC3412AEFE
IC4205
SVIN
1
PGOOD
2
ITH
3
VFB
4
5RT
6SYNC/MODE
7RUN/SS
8SGND 9
PVIN_1
10
SW_1
11
SW_2
12
PGND_1
13
PGND_2
14
SW_3
15
SW_4
16
PVIN_2
NM
Q4202
NM
Q4201
R4215
0
R4214
0
NM
VR4202
13
2
NM
VR4201
13
2
CCH1820-A
C4232
NM
C4234 NM
C4235
CCH1820-A
C4233
GNDD
GNDD
L4258
CTF1735-A
L4257
CTF1735-A
LVDSGND
IC4207
TC7SH08FUS1
INB
1
INA
2
GND
3OUTY 4
5
VCC
GNDD
R4226
100k
C4243
1000p/50
R4228
10k
GNDD
L4227
CTF1736-A
C4215
0.1u/10
C4246
0.1u/10
C4229
0.1u/10
Y-/BL
Y+/TR
X-/TL
X+/BR
GNDD
GNDD
SPEED_IN
L4225
1.0uH
L4224
1.0uH
RUN12 SW12
SW25
RUN25
LVDSGND
CCD25
CCD12
R4204
NM
R4205
NM
R4227
NM
L4245
CTF1732-A 1
3
5
62
48
7
GNDD
GNDD
ANTVSEN
CCPORT2
CCPORT1
GPS_SAMPLE_CLK
SLOCK
HYOKA
EXTOC
STOC
CTOEX
CTOS
BTTOC
CTOBT
VICSTOC
CTOVICS
X_SDA1
X_SCL1
USB_D+
USB_D-
AD_SDA0
AD_SCL0
CPUWDT
GMUTE
REV
BSENRQ
PKB
PPW
EX_RDS_SENS
KMODE
ANTPW
ASENRQ
PVSENS
XCCSTBY
BT_BOOTS
POUT
BT_RESET
DTV_RST
CCRST
C4284 NM
3
2
1
C4285 NM
3
2
1
GNDD
GNDD
VDD5
CCA3
CCD3
L4246
CTF1739-A
1
3
5
62
48
7
L4251
CTF1739-A
1
3
5
62
48
7
L4252
CTF1739-A
1
3
5
62
48
7
L4255
CTF1739-A
1
3
5
62
48
7
L4256
CTF1739-A
1
3
5
62
48
7
L4219 NM
L4220 NM
CCD5
L4203
CTF1736-A
C4247
0.1u/10
GNDD
IC4212
TC7SH08FUS1
INB
1
INA
2
GND
3OUTY 4
5
VCC
R4267
0
R4224
0
R4225
0
R4206
47k
R4207
100k
R4208
47k
R4209
100k
R4221
100k
R4223
200k
R4218
51k
R4220
24k
GNDA
R4250
0
R4251
0
R4252
NM
R4253
0
R4255
0
R4256 NM
R4258
NM
R4257
0
R4211
22k
R4210
22k
R4245
NM
R4260
NM
R4263
NM
R4269
470
GNDD
GNDD
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
ETCTOC
CTOETC
GPSAVTVCC
IC4206
S-80929CNNB-G8Z
VSS
1
VDD
2
CD
3
OUT
4
C4216
100p/50
C4218
1000p/50
C4219
1000p/50
C4217
100p/50
C4222
10p/50
C4223
22p/50
R4213
5.1k
L4214 CTF1528-A
FUKKA2
D4201
RB521G-30
D4202
RB521G-30
R4212
5.1k
R4222
9.1k
NAVIRST L4217
CTF1736-A
L4221
CTF1736-A
C4279
0.1u/10
C4280
0.1u/10
GNDD
GNDD
P4201
CEK1283-A
12
C4213
0.1u/10
C4214
0.1u/10
R4266
1M
R4217
10k
R4239
0
R4242
0
IC4203
S-80944CNNB-G9E
VSS
1
VDD
2
CD
3
OUT
4
IC4220
TC7SA34FU
NC
1
INA
2
GND
3
OUTY
4
5
VCC
IC4221
TC7SA34FU
NC
1
INA
2
GND
3
OUTY
4
5
VCC
P4202
CEK1282-A
12
L4226
CTF1736-A
R4219
0
R4295
1M
GND6
GND1
GND9GND8
R4202
0
GNDA
GNDD
GNDV
R4201
0
GND5
GND3GND2
GND4
GND7
R4203
NM
LVDSGND
R4296
0
R4298
0
R4297
0
1.75A
1.5A
(D)
(D)(D)
10K/10K
(D)
(D)
(D)
10K/10K
L4225(Current rating):2000mA
MIC+
PNLYT
FUKKA2
AD_SCL0
SPEED_IN
PCHNG
REV
BSENRQ
OFFOK
ASENRQ
CPUWDT
NAVIRST
RDMSDSENS
PKB
KMODE
CASHFSNS
NC
PRE_ON
FCONT_C
VDD5
CCA3
CCD3
LVDSGND
LVDSGND
LVDSGND
LVDSGND
LVDSN
LVDSP
AND
MIN10ms
TYP22ms
MAX65ms
MIN10ms
TYP22ms
MAX65ms
CTH1416
CTH1416
SS 1ms
SS 1ms
MAX:1600mA
MAX:900mA
Fc:1.962MHz
L4224(Current rating):2000mA
CCD1.2V
CCD2.5V
Fc:1.962MHz
(D)(D)
MICGND
GNDA
PNLXR
PNLYB
PNLXL
NC
AD_SDA0
GMUTE
CCIO_ON
CCD3_IOON
GNDD
CCD3
GNDD
CCD3
GNDD
GNDD
CCD5
CCD5
CCD5
CCD5
CCD5
GNDD
GNDD
GNDD
GNDD
GNDD
LVDSGND
GNDA
GNDD
(1/10W)
(1/10W)
AND
NC
GPSANTVCC
(D)
CCD3_IOON
Discharge resistance
Discharge resistance
2.5V
1.2V
47uF/10V 3528
10uF/10V 2125
(DCH1201)
100uF/4V 3528
10uF/6.3V 1608
10uF/10V 2125
100uF/4V 3528
(DCH1201)
10uF/6.3V 1608
47uF/10V 3528
(1608)
(1608)
(1608)
(1608)
(1608)
(2125)
(2125)
(1608)
(1608)
Diode for fast discharge
at power-off
(1608)
(1608)
(1608)
Diode for fast discharge
at power-off
Proadlizer
Proadlizer
1/4W
1/4W
>
>
2/6
E
AVIC-Z110BT/XN/UC
222
1234
1234
C
D
F
A
B
E
10.8 CC UNIT(CPU PART)(GUIDE PAGE)
2/6
E
E-a 2/6
X_SD_VCC_ON
X_MD[1]
X_MD[3]
X_MD[5]
X_MD[7]
X_MD[10]
X_MD[12]X_MD[13]
X_MD[15] X_MD[16]
X_MD[17] X_MD[18]
X_MD[20]
X_MD[25]
X_MD[26] X_MD[31]
X_MD[29] X_MDQS[3]
X_FA[1]
X_FA[2]
X_FA[3]
X_FA[4]
X_FA[5]
X_FA[6]
X_FA[7]
X_FA[8]
X_FA[9]
X_FA[10]
X_FA[11]
X_FA[12] X_FA[13]
X_FA[14]
X_FD[0]
X_FD[1]
X_FD[2]
X_FD[3]
X_FD[4]
X_FD[5]
X_FD[6]
X_FD[7]
X_FD[8]
X_FD[9]
X_FD[10]
X_FD[11]
X_FD[12]
X_FD[13]
X_FD[14]
X_FD[15]
X_MA[0]
X_MA[1]
X_MA[3]
X_MA[5]
X_MA[6]
X_MA[7] X_MA[9]
X_MA[11] X_MCLKB_O
X_MCLK_O
X_FOE_B
X_FWE_B
X_MCAS_B X_MCS_B[0]
LDD_HSYNC
LDD_VSYNC
GPS_MAG
X_SD_CLK
X_SD_CMD
X_SD_DATA1
X_SD_DATA2
X_SD_DATA3
X_SD_DATA5
X_SD_DATA6
X_SD_DATA7
SD_CMD
SD_DATA0
SD_DATA1 SD_DATA3
P-TMS
P-TDI
P-TDO
P-NSRST
P-RTCK X_FBUSY_B
X_M_BA[1]
X_M_BA[0]
X_MA[8]
X_MA[12]
X_MA[4]
X_MA[2]
X_MA[10] X_MD[6]
X_MD[2]
X_MD[0]
X_MD[4]
X_MDQS[0]
X_MDQM[0]
X_MD[11]
X_MDQS[1]
X_MD[9]
X_MD[14]
X_MDQM[1]
X_MD[8]
X_MD[19]
X_MDQS[2]
X_MD[21]
X_MD[22]
X_MD[23]
X_MDQM[2]
X_MD[30]
X_MD[27]
P-NTRST
X_MD[28]
X_MDQM[3]
P-TCK
X_MRAS_B
AD_SDA0
X_MWE_B
X_MCKE
AD_SCL0
X_SD_DATA4
X_MCS_B[1]
X_FCE_B[0]
X_SD_DATA0
USB_DAT0
USB_DAT1
USB_DAT2
USB_DAT3
USB_DAT4
USB_DAT5
USB_DAT6
USB_DAT7
DF_AD7
DF_AD6
DF_AD5 DF_AD4
DF_AD3
DF_AD2 DF_AD0
GPS_SGNGPS_CLK
X_USB_DIR X_USB_STP
X_USB_NXT
X_USB_CLK
GPS_SAMPLE_CLK
LDD_B[1]
LDD_B[2]
LDD_B[3]
LDD_B[4]
LDD_B[5]
LDD_G[0]
LDD_G[1]
LDD_G[2]
LDD_G[3] LDD_G[4]
LDD_G[5]
LDD_R[1]
LDD_R[2]
LDD_R[3]
LDD_R[4]
LDD_R[5]
X_XP
X_XN
X_YP
X_YN
CPUWDT
PKB
REV
POUT
KMODE
PVSENS PPW
ETHER_INT
CCPORT2
GMUTE
X_FCE_B[3]
X_FCE_B[1]
X_FCE_B[2] X_FA[0]
SD_CD
X_MD[24]DF_AD1
DF_AD13
DF_AD11 DF_AD8
DF_AD9
DF_AD15
DF_AD14
DF_AD12
DF_AD10
EX_RDS_SENS
X_SDA1 X_SCL1
C4072
10u/6.3
C4002
10u/6.3
C4071
10u/6.3
GNDDGNDD
GNDD
GNDD
C4070
0.1u/10
GNDD
R4009
10k
GNDD
R4008
10k
GNDD
L4014
CTF1736-A
L4015
CTF1736-A
GNDA
GNDD
R4012
NM
IC4001
TT4421
X_MD[17]
X_DF_AD[0]
X_MD[12]
X_DF_AD[6]
X_MD[13]
X_MD[7]
X_DF_WE_B
VSS1
X_MD[3]
X_DF_AD[2]
X_MDQS[3]
X_MCLK_O
X_MD[29]
X_MA[9]
X_SAMPLE_CLK
X_MD[25]
X_MA[1]
X_MA[7]
X_MD[18]
X_DF_AD[15]
X_MA[5]
VREF_MEM
X_GPS_PSS
X_DF_AD[3]
X_DF_AD[7]
X_DF_AD[1]
X_DF_AD[14]
X_MA[0]
X_MA[3]
X_MA[6]
X_MA[11]
X_MCLKB_O
X_MD[5]
X_MD[1]
X_MD[10]
X_MD[15]
X_MD[16]
X_MD[20]
X_MD[26]
X_MD[31]
X_MD[24]
X_MCAS_B
X_MCS_B[0]
X_GPIO[0]
X_GPIO[1]
X_DF_RE_B
X_DF_ALE
X_DF_AD[5]
X_DF_AD[4]
X_DF_AD[12]
X_M_BA[1]
X_MA[8]
X_MA[4]
X_MA[10]
X_MD[6]
X_MD[0]
X_MDQS[0]
X_MD[11]
X_MD[14]
X_MD[19]
X_MD[21]
X_MD[23]
X_MD[30]
X_MD[28]
X_MCS_B[1]
X_MWE_B
X_DF_RY_BY
X_DF_CLE
X_DF_AD[13]
X_DF_AD[8]
X_DF_AD[10]
X_M_BA[0]
X_MA[12]
X_MA[2]
X_MA[13]
X_MD[2]
X_MD[4]
X_MDQM[0]
X_MDQS[1]
X_MDQM[1]
X_MDQS[2]
X_MD[22]
X_MDQM[2]
X_MD[27]
X_MDQM[3]
X_MRAS_B
X_MCKE
X_L_PCLK
X_L_DE
X_LDD[1]
X_LDD[4]
X_DF_AD[11]
X_DF_AD[9]
VDDIO1
VDD_PRE1
VDDIO_MEM1
VDDIO_MEM2
VDDIO_MEM3
VDDIO_MEM4
VDDIO_MEM5
VDD_PRE2
X_MD[9]
X_MD[8]
VDDIO_MEM6
VDDIO_MEM7
VDD_TSC
X_GPIO[14]
X_GPIO[15]
X_SDA_0
X_SCL_0
X_L_LCK
X_L_FCK
X_LDD[2]
X_LDD[5]
X_DF_WP_B
VDDIO2
VDDIO3
VDD_PDN1
VDD_PDN2
VDDIO_MEM8
VDDIO_MEM9
VDD_PDN3
VDD_PDN4
VDDIO_MEM10
X_AUX2
X_AUX3
X_AUX4
X_XP
X_XN
X_LDD[11]
X_LDD[10]
X_LDD[8]
X_LDD[3]
X_LDD[0]
X_AUX1
X_AUX0
VSSA_TSC
VREF_ADC
VDDA_TSC
X_LDD[13]
X_LDD[7]
X_LDD[9]
X_LDD[15]
VDDIO4
VDDIO5
VDDIO_MEM11
VDDIO_TSC
X_GPIO[13]
X_GPIO[12]
X_YP
X_YN
X_LDD[17]
X_LDD[16]
X_LDD[18]
X_LDD[12]
X_LDD[6]
VDDIO6
VDDIO_MEM12
VDD_PDN5
X_GPIO[11]
X_GPIO[8]
X_GPIO[9]
X_GPIO[10]
X_LDD[20]
X_LDD[19]
X_LDD[14]
X_LDD[21]
VPROG
VDDIO7
VDD_PDN6
VDD_PDN7
X_FBUSY_B(X_FRDY_B?)
X_FCE_B[0]
X_FCE_B[1]
X_FCE_B[3]
X_LDD[22]
X_LDD[23]
X_USB_DAT[0]
X_USB_DAT[1]
X_USB_DIR
VDD_PRE3
VDD_PDN8
X_FWE_B
X_FCE_B[2]
X_FD[1]
X_FOE_B
X_FD[0]
X_USB_CLK
X_USB_DAT[4]
X_USB_DAT[2]
X_USB_DAT[3]
X_USB_STP
VDDIO8
VDD_PDN9
X_FD[5]
X_FD[4]
X_FD[6]
X_FD[3]
X_FD[2]
X_USB_DAT[5]
X_USB_DAT[7]
X_USB_DAT[6]
X_USB_NXT
X_SD_CD_B_0
VDDIO9
VDDIO10
X_FD[13]
X_FD[10]
X_FD[9]
X_FD[8]
X_FD[7]
X_SD_CLK_0
X_SD_DAT_0[1]
X_SD_CMD_0
X_SD_DAT_0[0]
X_SD_VCC_ON_0
VDDIO11
VDDIO12
X_FD[15]
X_FA[0]
X_FD[14]
X_FD[12]
X_FD[11]
X_SD_DAT_0[5]
X_SD_DAT_0[3]
X_SD_DAT_0[6]
X_SD_DAT_0[4]
X_SD_WP_B_0
VDDIO13
VDDIO14
X_FA[5]
X_FA[6]
X_FA[4]
X_FA[2]
X_FA[1]
X_SD_DAT_0[2]
X_SD_DAT_0[7]
X_SD_DAT_1[0]
X_SD_DAT_1[1]
X_SD_VCC_ON_1
VDD_PRE4
VDDIO15
X_FA[7]
X_FA[12]
X_FA[9]
X_FA[8]
X_FA[3]
X_SD_CMD_1
X_SD_DAT_1[5]
X_SD_DAT_1[4]
X_SD_DAT_1[3]
X_SD_CD_B_1
VDD_PRE5
X_FA[13]
X_FA[14]
X_FA[11]
X_FA[10]
X_SD_CLK_1
X_SD_WP_B_1
X_SD_DAT_1[2]
X_SD_DAT_1[6]
X_SD_DAT_1[7]
VDDIO16
VDDIO17
VDD_PDN10
VDD_PDN11
VDD_PDN12
VDD_PDN13
VDD_PDN14
VDD_PDN15
VDD_PDN16
X_FA[18]
X_FA[15]
X_FA[16]
X_FA[17]
X_FA[19]
X_AC97_BIT_CLK
X_AC97_SYNC
X_TXD_1
X_CKO_1
X_URFS_1
X_USB_TSET_GPANAIO
X_TEST_MODE[4]
VDDIO18
VDDIO19
X_RESET_B
X_TEST_MODE[0]
VDD_PRE6
VDD_PDN17
VDD_PDN18
X_URXD_2
X_IDE_IRQ
VDDIO20
X_IDE_DREQ
X_FA[20]
X_FA[22]
X_FA[21]
X_FA[23]
X_FA[24]
X_AC97_DOUT
X_AC97_DIN
X_RXD_1
X_URXD_1
X_USB_VBUS
VSSA_USB
VDDIO_PLL
VSSIO_PLL
X_TEST_MODE[3]
X_TEST_MODE[2]
X_RTC_RST_B
X_TEST_MODE[1]
X_LVR_PDN
X_GPIO[4]
X_UTFS_2
X_VIP_PXD[12]
X_VIP_PXD[14]
X_VIP_DVALID_FID
X_VIP_PXD[9]
X_VIP_PXD[0]
X_SPI_EN_0
X_SPI_EN_1
X_FA[25]
X_RXD_0
X_URXD_0
X_URFS_0
X_UTXD_1
X_USB_ID
X_USB_RREFEXT
VSSA_PLL2
VSSA_PLL1
X_PWR_EN
VDD_LVR
X_RTC_ALARM
X_TEST_MODE[5]
X_SCAN_EN
X_GPIO[7]
X_URFS_2
X_VIP_PXD[6]
X_VIP_PXD[4]
X_VIP_PXD[13]
X_VIP_PXD[1]
X_VIP_PXD[2]
X_SPI_DIN_0
X_SPI_DIN_1
X_IDE_DACK_B
X_TXD_0
X_UTFS_0
X_TXD_2
X_UTFS_1
X_USB_DN
VDDA2V5_USB
VDDA_PLL1
VSS_PLL
X_XINW
VSS_RTC
VDDIO_RTC
X_XIN
X_RST_OUT_B
X_GPIO[6]
X_UTXD_2
X_VIP_PXD[11]
X_VIP_PXD[10]
X_VIP_PXD[7]
X_VIP_PXD[5]
X_VIP_PXD[3]
X_SPI_DOUT_0
X_SPI_DOUT_1
X_IDE_CS_B[1]
X_USCLK_0
X_UTXD_0
X_RXD_2
X_USCLK_1
X_USB_DP
VDDA3V3_U
S
VDDA_PLL2
VDD_PLL
X_XOUTW
VDD_RTC
VSSIO_RTC
X_XOUT
X_CKO_0
X_GPIO[5]
X_USCLK_2
X_VIP_PXD[15
X_VIP_PXCL
K
X_VIP_VSYN
C
X_VIP_HSYN
C
X_VIP_PXD[8]
X_SPI_CLK_
0
X_SPI_CLK_1
X_IDE_CS_B[0
R4045
2.2k
C4004
0.1u
C4096
1u/10
C4097
1u/10
ABCD E HFG RJ PNM UTVKL WYAA ACAB
FG RK TVB WC YDE AALP ABHACJA M UN
19 23517 2211212 2116415314610 207181 98 13
X_GPS_MAG
X_GPS_SGN
SCL_1
SDA_1
X_GPS_CLK
PWM0
47uF/6.3V 3216
(2125)
(1608)
(2125)
(2125)
(1608)
(1608)
(1608)
(
1608
)
USB_D-
USB_D+
CTOVICS
BTTOC
CTOBT
STOC
CTOS
EXTOC
CTOEX
VICSTOC
X_SD_VCC_ON
PPW
KMODE
GPS_SAMPLE_CLK
SLOCK
BSENRQ
GMUTE
BT_RESET
ANTVSEN
POUT
CCPORT2
PKB
BT_BOOTS
ANTPW
PVSENS
CPUWDT
DTV_RST
XCCSTBY
ASENRQ
HYOKA
EX_RDS_SENS
CCPORT1
DF_AD4
DF_AD0
DF_AD1
DF_AD6
DF_AD5
DF_AD7
DF_AD2
DF_AD3
REV
ETCTOC
CTOETC
DF_AD11
DF_AD9
DF_AD12
DF_AD15
DF_AD13
DF_AD8
DF_AD10
DF_AD14
FUKKA2
AD_SDA0
AD_SCL0
X_SCL1
X_SDA1
CC_RST1
CCD12
C4078
0.1u/10
GNDD
GNDD
VDDIO
L4006
CTF1736-A
L4002
CTF1736-A
GNDD
GNDD
VDDMEM
C4005
0.1u/10 CCD25
CCD3_IOON
RTC33
C4075
0.1u/10
GNDD
VDDPDN
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
C4042
0.1u/10
C4052
0.1u/10
GNDD
C4066
0.1u/10
GNDD
C4053
0.1u/10
GNDD
GNDD
GNDD
GNDD
C4033
0.1u/10
GNDD
C4036
0.1u/10
C4039
0.1u/10
GNDD GNDD GNDD
C4046
0.1u/10
C4048
0.1u/10
GNDD
C4050
0.1u/10
GNDD
C4062
0.1u/10
GNDD
C4061
0.1u/10
GNDD
C4063
0.1u/10
GNDD
C4051
0.1u/10
GNDD
C4049
0.1u/10
GNDD
C4047
0.1u/10
GNDD
C4045
0.1u/10
GNDD
C4035
1000p
GNDD
C4031
1000p
GNDD
C4010
1000p
GNDD
C4017
1000p
GNDD
GNDD
C4016
1000p
GNDD
C4011
1000p
GNDD
C4012
1000p
GNDD
C4019
1000p
GNDD
C4013
1000p
GNDD
C4014
1000p
GNDD
C4015
1000p
GNDD
C4060
0.1u/10
GNDD
C4059
0.1u/10
GNDD
C4057
0.1u/10
GNDD
C4065
0.1u/10
GNDD
C4056
0.1u/10
GNDD
C4064
0.1u/10
GNDD
C4055
0.1u/10
GNDD
C4054
0.1u/10
GNDD
C4043
0.1u/10
GNDD
C4041
0.1u/10
GNDD
C4038
0.1u/10
GNDD
C4037
0.1u/10
GNDD
C4034
0.1u/10
C4082
USBGNDUSBGND
C4077
0.1u/10
USBGND
C4079
GNDDGNDD
GNDDGNDD
C4073
0.1u/10
GNDD
GNDD
C4028
0.1u/10
C4027
0.1u/10
GNDD
C4026
0.1u/10
GNDD
C4020
1000p
GNDD
C4023
0.1u/10
C4021
0.1u/10
GNDD
GNDD
C4018
0.1u/10
GNDD
GNDD
C4003
1000p
GNDD
C4080
GNDD
GNDD
C4069
0.1u/10
GND
_
C4081
GND_PLL
C4076
0.1u/10
GND_PLL
GND_PLL GNDDGNDD
R4013
10k
R4005
10k
GNDD
R4004
10k
R4007
10k
VDDPRE
R4002
2.2k
BTTOC
AD_SCL0
STOC
CTOEX
EXTOC
CTOS
AD_SDA0
X_SD_VCC_ON
USB_D-
R4001
2.2k
USB_D+
CTOBT
X_SDA1
CC_RST
CTOVICS
VICSTOC
X_SCL1
R4016
6.04k
USBGND
VREFMEM
RTC33V
GNDD
USBGND
R4028
100k
2
1
4
36
5
8
7
R4027
100k
2
1
4
36
5
8
7
GNDD
CCD12
GNDD
GNDD
CCD25_PLLON
GNDA
C4100
NM
TSC25
TSC12
L4005
CTF1736-A
L4007
CTF1736-A
R4030
1k
GNDD
C4022
0.1u/10
C4032
0.1u/10
C4044
0.1u/10
GNDD
C4029
0.01u/16
C4030
0.01u/16
C4040
0.01u/16
C4098
0.01u/16
R4010 0
R4021
10k
GNDD
GNDD
WARI_TEST
3V TEST
GNDD
CE_START
R4011
NM
GNDD
DE
GNDD
X_PWR_EN
F4001
VTL1171-A
3
2
1
F4003
VTL1171-A
3
2
1
GNDA
GNDA
GNDA
GNDA
GNDA GNDA
R4032
0
EX_RDS_SENS
CCPORT2
XCCSTBY
BT_RESET
REV
BSENRQ
GPS_SAMPLE_CLK
PKB
ASENRQ
DTV_RST
ANTVSEN
BT_BOOTS
CPUWDT
KMODE
GMUTE
PVSENS
PPW
ANTPW
POUT
HYOKA
SLOCK
CCPORT1
R4153
10k
GNDD
R4050
100k
GNDD
R4051
100k
GNDD
R4052
100k
GNDD
A17
A6
A16
A5
A2
A15
A14
A3
A22
A13
A4
A21
A12
A20
A11
A1
A19
A8
A10
A18
A7
A9
A23
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C20
C21
C22
C23
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
E1
E2
E3
E4
E5
E6
E7
E8
E9
E10
E11
E12
E13
E14
E15
E16
E17
E18
E19
E20
E21
E22
E23
F1
F2
F3
F4
F5
F8
F9
F10
F11
F12
F13
F14
F15
F16
F19
F20
F21
F22
F23
G1
G2
G3
G4
G5
G19
G20
G21
G22
G23
H1
H2
H3
H4
H5
H6
H18
H19
H20
H21
H22
H23
J1
J2
J3
J4
J5
J6
J9
VSS2
J10
VSS3
J11
VSS4
J12
VSS5
J13
VSS6
J14
VSS7
J15
VSS8
J18
J19
J20
J21
J22
J23
K1
K2
K3
K4
K5
K6
K9
VSS9
K10
VSS10
K11
VSS11
K12
VSS12
K13
VSS13
K14
VSS14
K15
VSS15
K18
K19
K20
K21
K22
K23
L1
L2
L3
L4
L5
L6
L9
VSS16
L10
VSS17
L11
VSS18
L12
VSS19
L13
VSS20
L14
VSS21
L15
VSS22
L18
L19
L20
L21
L22
L23
M1
M2
M3
M4
M5
M6
M9
VSS23
M10
VSS24
M11
VSS25
M12
VSS26
M13
VSS27
M14
VSS28
M15
VSS29
M18
M19
M20
M21
M22
M23
N1
N2
N3
N4
N5
N6
N9
VSS30
N10
VSS31
N11
VSS32
N12
VSS33
N13
VSS34
N14
VSS35
N15
VSS36
N18
N19
N20
N21
N22
N23
P1
P2
P3
P4
P5
P6
P9
VSS37
P10
VSS38
P11
VSS39
P12
VSS40
P13
VSS41
P14
VSS42
P15
VSS43
P18
P19
P20
P21
P22
P23
R1
R2
R3
R4
R5
R6
R9
VSS44
R10
VSS45
R11
VSS46
R12
VSS47
R13
VSS48
R14
VSS49
R15
VSS50
R18
R19
R20
R21
R22
R23
T1
T2
T3
T4
T5
T6
T18
T19
T20
T21
T22
T23
U1
U2
U3
U4
U5
U19
U20
U21
U22
U23
V1
V2
V3
V4
V5
V8
V9
V10
V11
V12
V13
V14
V15
V16
V19
V20
V21
V22
V23
W1
W2
W3
W4
W5
W6
W7
W8
W9
W10
W11
W12
W13
W14
W15
W16
W17
W18
W19
W20
W21
W22
W23
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
Y9
Y10
Y11
Y12
Y13
Y14
Y15
Y16
Y17
Y18
Y19
Y20
Y21
Y22
Y23
AA1
AA2
AA3
AA4
AA5
AA6
AA7
AA8
AA9
AA10
AA11
AA12
AA13
AA14
AA15
AA16
AA17
AA18
AA19
AA20
AA21
AA22
AA23
AB1
AB2
AB3
AB4
AB5
AB6
AB7
AB8
AB9
AB10
AB11
AB12
AB13
AB14
AB15
AB16
AB17
AB18
AB19
AB20
AB21
AB22
AB23
AC1
AC2
AC3
AC4
AC5
AC6
AC7
AC8
AC9
AC10
AC11
AC12
AC13
AC14
AC15
AC16
AC17
AC18
AC19
AC20
AC21
AC22
AC23
GNDD
GNDD
R4056
NM
R4058
2.2k
R4061
100k
GNDD
R4049
2.2k
R4048
2.2k
R4043
2.2k
R4044
2.2k
CCH1852-A
C4103
C4007
0.1u/10
C4008
0.1u/10
C4009
0.1u/10
CTOETC
ETCTOC
moviPIKA1
moviPIKA2
moviPIKA3
moviPIKA4
R4038
100k
2
1
4
36
5
8
7
R4029
100k
2
1
4
36
5
8
7
R4152
47k
R4039
NM
FUKKA2
R4025
10k
R4003
NM
R4199
2.7k
R4198
100k
R4197
100k
R4196
100k
GNDD GNDD
FUKKA2
R4060
2.2k
R4062
2.2k
AD_SDA0
AD_SCL0
C4104
0.1u/10
C4074
1u/10
R4064
10k
R4155
1.5k
R4154
1.5k
C4001
NM
R4065
2.2k
TEST0
TEST1
TEST5
R4006
1.8k
R4063
2.2k
R4066
0R4067
0
R4059
15k
R4055
680k
R4068
0
R4069
0
R4195
NM
GNDD
GNDD
R4194
0
C4105
NM
CORE
VREF_MEM 1.25V
MEM
IO
VDDIO 3.3V
VDD_PDN 1.2V
VDD_PRE 1.2V
VDDIO_MEM 2.5V
Power
BT_module
UART
Syscom
Sensor ADCDTV
VICS
USB
Debug
I2CGPIO
VDD_TSC 2.5V
VDD_TSC 1.2V
TSC
ETC
INT_KEY
(2012)
(D) (D)
2.5V
1.2V
2.5V
1.2V
3.3V
3.3V
1/6
E
AVIC-Z110BT/XN/UC 223
5 678
5678
C
D
F
A
B
E
2/6
E
E-b 2/6
X_VIP_PXD[0]
X_VIP_PXD[2]X_VIP_PXD[1]X_VIP_PXD[4]X_VIP_PXD[6]
X_VIP_DVALID_FID
X_FA[15] X_FA[16] X_FA[17]
AC97_BCLK
AC97_DOUT AC97_DIN
AC97_SYNC
USB_D-
USB_D+
SD_DATA2
X_VIP_PXCLK
X_VIP_PXD[7]
X_VIP_VSYNC
X_VIP_PXD[5]
X_VIP_HSYNC
X_VIP_PXD[3]
X_SPI_EN_1
X_SPI_DIN_1
X_SPI_CLK_1
BT_BOOTS X_FA[18]SD_CLK X_FA[19]
ETCTOC
CTOEX
EXTOC
CTOS
STOC
X_UTXD_1
X_UTFS_1
XCCSTBY
ASENRQ
BSENRQ
PIKAPIKA
GRF_RESET
ANTPW
CPLD_RESET
BT_RESET
CODEC_RESET VDEC_RST
CPRST
DTV_RST
CCPORT1
OPEN
X_CKO_0
TESTMODE4
CTOVICS
SD_WP
X_USCLK_1
SHORT
HYOKA
SLOCK
PWM0 VICSTOC
FUKKA2
BTTOC
CTOBT
ANTVSEN
X_SPI_DIN_0
X_SPI_CLK_0
CTOETC
X_SPI_EN_0
C4072
10u/6.3
C4086
10u/6.3
C4071
10u/6.3
GNDD
GNDDGNDD
GNDD
N
DD
0.1u/10
GND_PLL
T
E
[3]
2]
F
ID
X_RXD_0
X_URXD_0
X_URFS_0
X_UTXD_1
X_USB_ID
X
_USB_RREFEXT
VSSA_PLL2
VSSA_PLL1
X_PWR_EN
VDD_LVR
X
_RTC_ALARM
X_TEST_MODE[5]
X_SCAN_EN
X_GPIO[7]
X_URFS_2
X_VIP_PXD[6]
X_VIP_PXD[4]
X
_VIP_PXD[13]
X_VIP_PXD[1]
X_VIP_PXD[2]
X
_SPI_DIN_0
X_SPI_DIN_1
X
_IDE_DACK_B
X_TXD_0
X_UTFS_0
X_TXD_2
X_UTFS_1
X_USB_DN
VDDA2V5_USB
VDDA_PLL1
VSS_PLL
X_XINW
VSS_RTC
VDDIO_RTC
X_XIN
X_RST_OUT_B
X_GPIO[6]
X_UTXD_2
X_VIP_PXD[11]
X_VIP_PXD[10]
X_VIP_PXD[7]
X_VIP_PXD[5]
X_VIP_PXD[3]
X_SPI_DOUT_0
X_SPI_DOUT_1
X_IDE_CS_B[1]
X_USCLK_0
X_UTXD_0
X_RXD_2
X_USCLK_1
X_USB_DP
VDDA3V3_USB
VDDA_PLL2
VDD_PLL
X_XOUTW
VDD_RTC
VSSIO_RTC
X_XOUT
X_CKO_0
X_GPIO[5]
X_USCLK_2
X_VIP_PXD[15]
X_VIP_PXCLK
X_VIP_VSYNC
X_VIP_HSYNC
X_VIP_PXD[8]
X_SPI_CLK_0
X_SPI_CLK_1
X_IDE_CS_B[0]
C4087
1u/10
C4089
1u/10
C4090
1u/10
C4091
1u/10
AA ACAB
2213 211622311 1251715320191467 181091 8
AA AB AC
4
Mode Configuration
X_TEST_MODE[5:4] X_TEST_MODE[3:2] X_TEST_MODE[1] X_TEST_MODE[0]
Working Mode Sub Mode Feature1 Feature0
00:Normal
01:Normal With ARM JTAG
10:Function ATE
11:TEST/EFUSE
00:External ROM Boot
01:NAND Boot(SLC)
10:Embedded ROM Nand Boot
11:Embedded ROM SD/MMC Boot
00:Pin Scan
01:Chip Test1
10:Chip Test2
11:Reserved
0:8bit 1:16bit
0:Boundary Scan
1:EFUSE(x_rest_b
should be 0)
0:Internal Reserved
for Chip testing
1:16bit0:8bit
1:16bit0:8bit
0:512B page 1:2kB page
1:4kB page0:2kB page
1:Internal Reserved
for Chip testing
0:Internal Reserved
for Chip testing
1:Internal Reserved
for Chip testing
Reserved
0:DC Scan
1:AC Scan
M
0
(2125)
(2125)
(1608)
(2125)
(1608)
(1608)
(1608)
(1608)
(2125)
(1608)
(1608)
(1608)
GPS_MAG
X_FD[0]
X_FD[1]
X_FD[2]
X_FD[3]
X_FD[4]
X_FD[5]
X_FD[6]
X_FD[7]
X_FD[8]
X_FD[9]
X_FD[10]
X_FD[11]
X_FD[12]
X_FD[13]
X_FD[14]
X_FD[15]
X_MCLK_O
X_M_BA[0]
X_M_BA[1]
X_MA[0]
X_MA[1]
X_MA[2]
X_MA[3]
X_MA[4]
X_MA[5]
X_MA[6]
X_MA[7]
X_MA[8]
X_MA[9]
X_FOE_B
X_MCLKB_O
AC97_BCLK
AC97_DOUT
AC97_DIN
AC97_SYNC
X_FBUSY_B
X_SD_CMD
X_SD_CLK
X_VIP_PXD[0]
X_VIP_PXD[1]
X_VIP_PXD[2]
X_VIP_PXD[3]
X_VIP_PXD[4]
X_VIP_PXD[5]
X_VIP_PXD[6]
X_VIP_PXD[7]
X_VIP_PXCLK
X_VIP_HSYNC
X_VIP_DVALID_FID
X_VIP_VSYNC
X_SDA1
X_SCL1
X_SCL1
X_SDA1
X_MA[11] CODEC_RESET
GRF_RESET
VDEC_RST
GPS_SGN
GPS_CLK
X_SPI_EN_0
CPLD_RESET
X_SPI_CLK_1
X_SPI_DIN_1
X_SPI_EN_1
X_SPI_CLK_0
X_SPI_DIN_0
PWM0
X_USCLK_1
X_YN
X_YP
X_XN
X_XP
P-TCK
P-NTRST
P-RTCK
P-NSRST
P-TMS
P-TDI
P-TDO
PIKAPIKA
CPRST
OPEN
SHORT
X_MA[10]
X_CKO_0
X_SD_DATA6
X_SD_DATA7
X_SD_DATA5
X_SD_DATA4
X_SD_DATA3
X_SD_DATA2
X_SD_DATA1
X_SD_DATA0
TESTMODE4
LDD_HSYNC
LDD_VSYNC
USB_DAT4
USB_DAT6
X_USB_STP
USB_DAT3
X_MA[12]
X_MCKE
X_MWE_B
X_MCAS_B
X_MRAS_B
X_MCS_B[0]
X_MCS_B[1]
X_MDQS[0]
X_MDQS[1]
X_MDQS[2]
X_MDQS[3]
X_MDQM[0]
X_MDQM[1]
X_MDQM[2]
X_MDQM[3]
X_FA[1]
X_FA[2]
X_FA[3]
X_FA[4]
X_FA[5]
X_FA[6]
X_FA[7]
X_FA[8]
X_FA[9]
X_FA[10]
X_FA[11]
X_FA[12]
X_FA[13]
X_FA[14]
X_FA[15]
X_FA[16]
X_FA[17]
X_FA[18]
X_FA[19]
X_FWE_B
X_FCE_B[0]
X_FCE_B[3]
X_FCE_B[2]
X_FCE_B[1]
LDD_R[3]
LDD_B[2]
LDD_R[1]
LDD_G[3]
LDD_B[4]
LDD_G[1]
LDD_G[4]
LDD_R[4]
LDD_B[1]
LDD_R[2]
LDD_G[2]
LDD_B[5]
LDD_B[3]
LDD_G[0]
LDD_G[5]
LDD_PCLK
LDD_R[5]
USB_DAT2
X_USB_NXT
X_USB_CLK
USB_DAT5
X_USB_DIR
USB_DAT1
USB_DAT0
USB_DAT7
CC_RST
ETHER_INT
SD_CD
SD_WP
SD_CLK
SD_CMD
SD_DATA0
SD_DATA1
SD_DATA2
SD_DATA3
A0X_FA[0]
X_MD[1]
X_MD[14]
X_MD[0]
X_MD[15]
X_MD[5]
X_MD[10]
X_MD[4]
X_MD[11]
X_MD[7]
X_MD[8]
X_MD[6]
X_MD[9]
X_MD[3]
X_MD[12]
X_MD[2]
X_MD[13]
X_MD[29]
X_MD[18]
X_MD[28]
X_MD[19]
X_MD[25]
X_MD[22]
X_MD[24]
X_MD[23]
X_MD[27]
X_MD[20]
X_MD[26]
X_MD[21]
X_MD[31]
X_MD[16]
X_MD[30]
X_MD[17]
X_UTXD_1
X_UTFS_1
CCD5
CC_RST1
CCD3_IOON
PLL12
GNDD
CCD12
GNDD
C4078
0.1u/10
GNDD
GNDD
VDDIO
L4006
CTF1736-A
CCD3_IOON
RTC25
RTC12
RTC33
L4009
NM
USB3
CCD25_PLLON
L4013
CTF1736-A
USBGND
USBGND
L4012
CTF1736-A
PLL33
GNDD
L4010
CTF1736-A
C4088
0.1u/10
C4075
0.1u/10
GNDD GNDD
L4011
CTF1736-A
DPLL12
GPS_MAG
AC97_BCLK
AC97_DOUT
AC97_DIN
AC97_SYNC
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
X_MDQM[0]
X_MDQM[1]
X_MDQM[2]
X_MDQM[3]
WE#
FROM_CE#
OE#
X_MCAS_B
X_MRAS_B
X_MA[5]
X_MA[0]
X_MWE_B
X_MCKE
X_MA[1]
X_MA[6]
X_M_BA[0]
X_MA[9]
X_MA[7]
X_MA[3]
X_MA[12]
X_MCLKB_O
X_MA[8]
X_MA[2]
X_MCS_B[0]
X_MA[11]
X_MA[4]
X_MCLK_O
X_M_BA[1]
GNDD GNDD
X4001
CSS1708-A
X1
1GND1 2
GND2
4X2 3
GNDD
C4093
22p/50
C4094
22p/50
R4017
1M
SDCMD
SDCLK
SDDATA0
SDWP
SDDATA1
SDDATA3
SDDATA2
SDCD
GNDD
C4082
0.1u/10
USBGND
C4077
0.1u/10
USBGND
USBGND GNDD
C4079
0.1u/10
GNDDGNDD
GNDDGNDD
GNDDGNDD
C4073
0.1u/10
GNDD
C4080
0.1u/10
GNDD
GND_PLL
C4081
0.1u/10
GND_PLL
C4076
0.1u/10
_
PLL
_
PLL GNDD
RY/BY#
R4138 0
R4144 0
CLK
CMD
X_VIP_PXD[7]
X_VIP_VSYNC
X_VIP_PXCLK
X_VIP_PXD[6]
X_VIP_HSYNC
X_VIP_PXD[1]
X_VIP_PXD[2]
X_VIP_PXD[3]
X_VIP_PXD[0]
X_VIP_DVALID_FID
X_VIP_PXD[5]
X_VIP_PXD[4]
X_SDA1
X_SCL1
X_SDA1
X_SCL1
10k
GNDD
LDD_R[4]
LDD_R[3]
LDD_R[2]
LDD_B[4]
LDD_B[5]
LDD_G[5]
LDD_PCLK
LDD_G[1]
LDD_B[2]
LDD_HSYNC
LDD_G[4]
LDD_VSYNC
LDD_R[1]
LDD_B[3]
LDD_G[0]
LDD_R[5]
LDD_G[2]
LDD_B[1]
LDD_G[3]
CODEC_RESET
VDEC_RST
GRF_RESET
X_MCS_B[1]
A18
CPRST
6.04k
RTC33V
RTC33_25V
RTC12V
USB25 USB33
GNDD
OPEN
SHORT
GPS_SGN
GPS_CLK
X_USCLK_1
X_UTXD_1
X_UTFS_1
L4005
CTF1736-A
L4008
NM
L4007
CTF1736-A
SRAM_CE#
R4024
470
CCD5
X_SPI_CLK_0
X_SPI_EN_0
X_SPI_DIN_0
X_SPI_CLK_1
X_SPI_EN_1
X_SPI_DIN_1
CPLD_RESET
X_CKO_0
PWM0
A19
X_XP
X_XN
X_YP
X_YN
10k
P-TMS
P-TDI
P-TDO
P-NSRST
P-RTCK
P-NTRST
P-TCK
DSDS[0]
DSDS[1]
DSDS[2]
DSDS[3]
L4001
CTF1736-A
DTC114EUA
Q4002
R4042
220
C4102
0.1u/10
GNDD
GNDD
C4101
0.1u/10
GNDD
DTC114EUA
Q4001
GNDD
R4041
47k
C4099
CCG1201-A
IC4002
TC7S14FU
NC
1
IN_A
2
GND
3OUT_Y 4
5
VCC
CL-270PG-C
D4001
GNDD
GNDD
WARI_TEST
3V TEST
GNDD
GND_PLL GNDD
X_MA[10]
DAT0
DAT1
DAT2
DAT3
DAT4
DAT5
DAT7
DAT6
GNDD
TESTMODE4
L4016
CTF1736-A
APLL12
R
_EN
HSYNC
VSYNC
ETHER_CE#
F4003
VTL1171-A
3
2
1
F4005
VTL1171-A
3
2
1
GNDD
R4110
22
2
1
4
36
5
8
7
R4111
22
2
1
4
36
5
8
7
R4112
22
2
1
4
36
5
8
7
R4113
22
2
1
4
36
5
8
7
R4133
33
R4134
33
R4147
33
R4139
47
2
1
4
36
5
8
7
R4140
47
2
1
4
36
5
8
7
R4141
47
2
1
4
36
5
8
7
R4142
47
2
1
4
36
5
8
7
R4145
47
2
1
4
3
6
5
8
7
R4146
47
2
1
4
3
6
5
8
7
R4143 47
R4135 22
R4136 22
R4231 22
R4015 NM
R4019 NM
R4023 NM
R4026 22
R4031 NM
R4137 47
ETHER_INT#
R4033 22
R4109 0
R4114 0
R4034 10k
R4035 10k
R4036 10k
R4037 10k
R4040 10k
R4046 10k
R4047 NM
A0
R4121 0
DSD[3]
DSD[2]
DSD[1]
DSD[0]
DSD[7]
DSD[6]
DSD[5]
DSD[4]
DSD[8]
DSD[9]
DSD[10]
DSD[11]
DSD[12]
DSD[13]
DSD[14]
DSD[15]
DSD[16]
DSD[17]
DSD[18]
DSD[19]
DSD[20]
DSD[21]
DSD[22]
DSD[23]
DSD[27]
DSD[26]
DSD[25]
DSD[24]
DSD[31]
DSD[30]
DSD[29]
DSD[28]
100k
GNDD
R4053
100k
R4054
100k
AA1
AA2
AA3
AA4
AA5
AA6
AA7
AA8
AA9
AA10
AA11
AA12
AA13
AA14
AA15
AA16
AA17
AA18
AA19
AA20
AA21
AA22
AA23
AB1
AB2
AB3
AB4
AB5
AB6
AB7
AB8
AB9
AB10
AB11
AB12
AB13
AB14
AB15
AB16
AB17
AB18
AB19
AB20
AB21
AB22
AB23
AC1
AC2
AC3
AC4
AC5
AC6
AC7
AC8
AC9
AC10
AC11
AC12
AC13
AC14
AC15
AC16
AC17
AC18
AC19
AC20
AC21
AC22
AC23
5
6
M
R4014
0
R4018
0
R4043
2.2k
R4044
2.2k
L4018
CTF1736-A
R4022
100
C4092
12p/50
C4095
12p/50
R4020
10M
NM
CN4001
12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
10k
R4057
820
100k
R4196
100k
N
DD GNDD
FUKKA2
R4116 22
R4117 22
R4118 22
R4119 22
R4120 22
R4115 47
R4060
2.2k
2.2k
C4074
1u/10
C4083
1u/10
C4084
1u/10
C4085
NM
X4002
CSS1777-A
R4065
2.2k
T5
R4148 22
R4151 22
R4149 22
R4150 22
R4104
22
2
1
4
3
6
5
8
7
R4102
22
2
1
4
3
6
5
8
7
R4103
22
2
1
4
3
6
5
8
7
R4107
22
2
1
4
3
6
5
8
7
R4105
22
2
1
4
3
6
5
8
7
R4108
22
2
1
4
3
6
5
8
7
R4101
22
2
1
4
3
6
5
8
7
R4106
22
2
1
4
3
6
5
8
7
R4068
0
Reference 4001 4200
CORE PLL
IO RTC USB
AC97CODEC
GPS-RF
166MHz
CPLD
32.768kHz
FCX-04C
12.000MHz
SD CARD
VDDIO_RTC 3.3V
VDD_LVR 3.3V or 2.5V
VDD_RTC 1.2V
VDDA2V5_USB 2.5V
VDDA3V3_USB 3.3V
VDD_PLL 1.2V
VDDIO_PLL 3.3V
iPod
Power
12.288MHz
JTAG
5.0V
4.7uF/10V
2125SIZE
60MHz
VDDA_PLL 1.2V
33.33333MHz
(2012)
USB JIG Connector
Supply 3.3V to TEST4
at JTAG
R4016(X_USB_RREFEXT) is
6.04k (1%).
NM
27MHz
1.2V
3.3V
3.3V
3.3V
3.3V
1.2V
2.5V
5.0V
CC UNIT (CPU PART)
2/6
E
/
6
4/6
E3/6
E
3/6
E
5/6
E
6/6
E
AVIC-Z110BT/XN/UC
224
1234
1234
C
D
F
A
B
E
E-a E-b
E-b 2/6
X_VIP_PXD[0]
X_VIP_PXD[2]X_VIP_PXD[1]X_VIP_PXD[4]X_VIP_PXD[6]
X_VIP_DVALID_FID
X_FA[15] X_FA[16] X_FA[17]
X_VIP_PXCLK
X_VIP_PXD[7]
X_VIP_VSYNC
X_VIP_PXD[5]
X_VIP_HSYNC
X_VIP_PXD[3]
X_SPI_EN_1
X_SPI_DIN_1
X_SPI_CLK_1
BT_BOOTS X_FA[18] X_FA[19]
GRF_RESET
ANTPW
CPLD_RESET
BT_RESET
CODEC_RESET VDEC_RST
CPRST
DTV_RST
OPEN
O
VICS
SHORT
HYOKA
SLOCK
C
STOC
FUKKA2
ANTVSEN
X_SPI_DIN_0
X_SPI_CLK_0
X_SPI_EN_0
C4072
10u/6.3
C4086
10u/6.3
10u/6.3
GNDD
GNDD
N
DD
GNDD
GND_PLL
D
_
VIP_PXD[6]
_
VIP_PXD[4]
_
VIP_PXD[13]
_
VIP_PXD[1]
_
VIP_PXD[2]
SPI_DIN_0
X
_SPI_DIN_1
DE_DACK_B
X_VIP_PXD[11]
X_VIP_PXD[10]
X_VIP_PXD[7]
X_VIP_PXD[5]
X_VIP_PXD[3]
X_SPI_DOUT_0
X_SPI_DOUT_1
X_IDE_CS_B[1]
X_VIP_PXD[15]
X_VIP_PXCLK
X_VIP_VSYNC
X_VIP_HSYNC
X_VIP_PXD[8]
X_SPI_CLK_0
X_SPI_CLK_1
X_IDE_CS_B[0]
C4087
1u/10
C4089
1u/10
C4090
1u/10
C4091
1u/10
AA ACAB
222116 2317
5
201918
Mode Configuration
X_TEST_MODE[5:4] X_TEST_MODE[3:2] X_TEST_MODE[1] X_TEST_MODE[0]
Working Mode Sub Mode Feature1 Feature0
00:Normal
01:Normal With ARM JTAG
10:Function ATE
11:TEST/EFUSE
00:External ROM Boot
01:NAND Boot(SLC)
10:Embedded ROM Nand Boot
11:Embedded ROM SD/MMC Boot
00:Pin Scan
01:Chip Test1
10:Chip Test2
11:Reserved
0:8bit 1:16bit
0:Boundary Scan
1:EFUSE(x_rest_b
should be 0)
0:Internal Reserved
for Chip testing
1:16bit0:8bit
1:16bit0:8bit
0:512B page 1:2kB page
1:4kB page0:2kB page
1:Internal Reserved
for Chip testing
0:Internal Reserved
for Chip testing
1:Internal Reserved
for Chip testing
Reserved
0:DC Scan
1:AC Scan
(2125)
(2125)
(1608)
(2125)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
(1608)
GPS_MAG
X_MCLK_O
X_M_BA[0]
X_M_BA[1]
X_MA[0]
X_MA[1]
X_MA[2]
X_MA[3]
X_MA[4]
X_MA[5]
X_MA[6]
X_MA[7]
X_MA[8]
X_MA[9]
X_MCLKB_O
AC97_BCLK
AC97_DOUT
AC97_DIN
AC97_SYNC
X_SCL1
X_SDA1
X_MA[11] CODEC_RESET
GRF_RESET
GPS_SGN
GPS_CLK
X_SPI_EN_0
CPLD_RESET
X_SPI_CLK_1
X_SPI_DIN_1
X_SPI_EN_1
X_SPI_CLK_0
X_SPI_DIN_0
PWM0
X_USCLK_1
X_YN
X_YP
X_XN
X_XP
P-TCK
P-NTRST
P-RTCK
P-NSRST
P-TMS
P-TDI
P-TDO
CPRST
OPEN
SHORT
X_MA[10]
X_CKO_0
TESTMODE4
X_MA[12]
X_MCKE
X_MWE_B
X_MCAS_B
X_MRAS_B
X_MCS_B[0]
X_MCS_B[1]
X_MDQS[0]
XMD
QS[
1
]
SD_CD
SD_WP
SD_CLK
SD_CMD
SD_DATA0
SD_DATA1
SD_DATA2
SD_DATA3
X_MD[1]
X_MD[14]
X_MD[0]
X_MD[15]
X_MD[5]
X_MD[10]
X_MD[4]
X_MD[11]
X_MD[7]
X_MD[8]
X_MD[6]
X_MD[9]
X_MD[3]
X_MD[12]
X_MD[2]
X_MD[13]
X_MD[29]
X_MD[18]
X_MD[28]
X_MD[19]
X_MD[25]
X_MD[22]
X_MD[24]
X_MD[23]
X_MD[27]
X_MD[20]
X_MD[26]
X_MD[21]
X_MD[31]
X_MD[16]
X_MD[30]
X_MD[17]
X_UTXD_1
X_UTFS_1
CCD3_IOON
PLL12
GNDD
CCD12
GNDD
C4078
0.1u/10
GNDD
GNDD
VDDIO
L4006
CTF1736-A
CCD3_IOON
RTC25
RTC12
RTC33
L4009
NM
USB3
CCD25_PLLON
L4013
CTF1736-A
USBGND
USBGND
L4012
CTF1736-A
PLL33
GNDD
L4010
CTF1736-A
C4088
0.1u/10
C4075
0.1u/10
GNDD GNDD
L4011
CTF1736-A
DPLL12
GPS_MAG
AC97_BCLK
AC97_DOUT
AC97_DIN
AC97_SYNC
X_MCAS_B
X_MRAS_B
X_MA[5]
X_MA[0]
X_MWE_B
X_MCKE
X_MA[1]
X_MA[6]
X_M_BA[0]
X_MA[9]
X_MA[7]
X_MA[3]
X_MA[12]
X_MCLKB_O
X_MA[8]
X_MA[2]
X_MCS_B[0]
X_MA[11]
X_MA[4]
X_MCLK_O
X_M_BA[1]
SDCMD
SDCLK
SDDATA0
SDWP
SDDATA1
SDDATA3
SDDATA2
SDCD
GNDD
USBGND GNDD
GNDDGNDDGNDD
X_SDA1
X_SCL1
CODEC_RESET
GRF_RESET
X_MCS_B[1]
CPRST
RTC33V
RTC33_25V
RTC12V
USB25 USB33
OPEN
SHORT
GPS_SGN
GPS_CLK
X_USCLK_1
X_UTXD_1
X_UTFS_1
L4005
CTF1736-A
L4008
NM
L4007
CTF1736-A
CCD5
X_SPI_CLK_0
X_SPI_EN_0
X_SPI_DIN_0
X_SPI_CLK_1
X_SPI_EN_1
X_SPI_DIN_1
CPLD_RESET
X_CKO_0
PWM0
X_XP
X_XN
X_YP
X_YN
P-TMS
P-TDI
P-TDO
P-NSRST
P-RTCK
P-NTRST
P-TCK
DSDS[0]
DSDS[1]
GNDD
WARI_TEST
3V TEST
GNDD
GND_PLL GNDD
X_MA[10]
GNDD
TESTMODE4
L4016
CTF1736-A
APLL12
F4003
VTL1171-A
3
2
1
F4005
VTL1171-A
3
2
1
R4109 0
R4114 0
R4034 10k
R4035 10k
R4036 10k
R4037 10k
R4040 10k
R4046 10k
R4047 NM
DSD[3]
DSD[2]
DSD[1]
DSD[0]
DSD[7]
DSD[6]
DSD[5]
DSD[4]
DSD[8]
DSD[9]
DSD[10]
DSD[11]
DSD[12]
DSD[13]
DSD[14]
DSD[15]
DSD[16]
DSD[17]
DSD[18]
DSD[19]
DSD[20]
DSD[21]
DSD[22]
DSD[23]
DSD[27]
DSD[26]
DSD[25]
DSD[24]
DSD[31]
DSD[30]
DSD[29]
DSD[28]
GNDD
R4053
100k
R4054
100k
AA15
AA16
AA17
AA18
AA19
AA20
AA21
AA22
AA23
AB15
AB16
AB17
AB18
AB19
AB20
AB21
AB22
AB23
AC15
AC16
AC17
AC18
AC19
AC20
AC21
AC22
AC23
R4014
0
R4018
0
R4043
2.2k
R4044
2.2k
L4018
CTF1736-A
R4196
100k
D
D GNDD
FUKKA2
R4116 22
R4117 22
R4118 22
R4119 22
R4120 22
R4115 47
C4074
1u/10
C4083
1u/10
C4084
1u/10
C4085
NM
R4148 22
R4149 22
R4104
22
2
1
4
3
6
5
8
7
R4102
22
2
1
4
3
6
5
8
7
R4103
22
2
1
4
3
6
5
8
7
R4107
22
2
1
4
3
6
5
8
7
R4105
22
2
1
4
3
6
5
8
7
R4108
22
2
1
4
3
6
5
8
7
R4101
22
2
1
4
3
6
5
8
7
R4106
22
2
1
4
3
6
5
8
7
R4068
0
CORE PLL
IO RTC USB
AC97CODEC
GPS-RF
166MHz
CPLD
SD CARD
R
TC 3.3V
R
3.3V or 2.5V
C
1.2V
5
_USB 2.5V
3
_USB 3.3V
L
1.2V
P
LL 3.3V
iPod
Power
12.288MHz
JTAG
L
L 1.2V
(2012)
1.2V
3.3V
3.3V
3.3V
3.3V
1.2V
2.5V
5.0V
CC UNIT (CPU PART)
2/6
E
6
4/6
E
3/6
E
3/6
E
5/6
E
AVIC-Z110BT/XN/UC 225
5 678
5678
C
D
F
A
B
E
E-a E-b
E-b 2/6
X_VIP_PXD[4]X_VIP_PXD[6]
AC97_BCLK
AC97_DOUT AC97_DIN
AC97_SYNC
USB_D-
USB_D+
SD_DATA2
X_VIP_PXCLK
BT_BOOTS
SD_CLK
ETCTOC
CTOEX
EXTOC
CTOS
STOC
X_UTXD_1
X_UTFS_1
XCCSTBY
ASENRQ
BSENRQ
PIKAPIKA
GRF_RESET
ANTPW
BT_RESET
CODEC_RESET VDEC_RST
CCPORT1
X_CKO_0
TESTMODE4
CTOVICS
SD_WP
X_USCLK_1
PWM0 VICSTOC
BTTOC
CTOBT
CTOETC
D
0
.
1u/10
]
X_RXD_0
X_URXD_0
X_URFS_0
X_UTXD_1
X_USB_ID
_
USB_RREFEXT
V
SSA_PLL2
V
SSA_PLL1
X_PWR_EN
VDD_LVR
R
TC_ALARM
X_TEST_MODE[5]
X
_SCAN_EN
X
_GPIO[7]
X_URFS_2
_
VIP_PXD[6]
_
VIP_PXD[4]
X_TXD_0
X_UTFS_0
X_TXD_2
X_UTFS_1
X_USB_DN
VDDA2V5_USB
VDDA_PLL1
VSS_PLL
X_XINW
VSS_RTC
VDDIO_RTC
X_XIN
X_RST_OUT_B
X_GPIO[6]
X_UTXD_2
X_VIP_PXD[11]
X_VIP_PXD[10]
X_USCLK_0
X_UTXD_0
X_RXD_2
X_USCLK_1
X_USB_DP
VDDA3V3_USB
VDDA_PLL2
VDD_PLL
X_XOUTW
VDD_RTC
VSSIO_RTC
X_XOUT
X_CKO_0
X_GPIO[5]
X_USCLK_2
X_VIP_PXD[15]
X_VIP_PXCLK
13 16211 125171531467 1091 8
AA AB AC
4
0
(2125)
X_FD[0]
X_FD[1]
X_FD[2]
X_FD[3]
X_FD[4]
X_FD[5]
X_FD[6]
X_FD[7]
X_FD[8]
X_FD[9]
X_FD[10]
X_FD[11]
X_FD[12]
X_FD[13]
X_FD[14]
X_FD[15]
X_FOE_B
X_FBUSY_B
X_SD_CMD
X_SD_CLK
X_VIP_PXD[0]
X_VIP_PXD[1]
X_VIP_PXD[2]
X_VIP_PXD[3]
X_VIP_PXD[4]
X_VIP_PXD[5]
X_VIP_PXD[6]
X_VIP_PXD[7]
X_VIP_PXCLK
X_VIP_HSYNC
X_VIP_DVALID_FID
X_VIP_VSYNC
X_SDA1
X_SCL1
VDEC_RST
PIKAPIKA
X_SD_DATA6
X_SD_DATA7
X_SD_DATA5
X_SD_DATA4
X_SD_DATA3
X_SD_DATA2
X_SD_DATA1
X_SD_DATA0
LDD_HSYNC
LDD_VSYNC
USB_DAT4
USB_DAT6
X_USB_STP
USB_DAT3
X_MDQS[0]
X_MDQS[1]
X_MDQS[2]
X_MDQS[3]
X_MDQM[0]
X_MDQM[1]
X_MDQM[2]
X_MDQM[3]
X_FA[1]
X_FA[2]
X_FA[3]
X_FA[4]
X_FA[5]
X_FA[6]
X_FA[7]
X_FA[8]
X_FA[9]
X_FA[10]
X_FA[11]
X_FA[12]
X_FA[13]
X_FA[14]
X_FA[15]
X_FA[16]
X_FA[17]
X_FA[18]
X_FA[19]
X_FWE_B
X_FCE_B[0]
X_FCE_B[3]
X_FCE_B[2]
X_FCE_B[1]
LDD_R[3]
LDD_B[2]
LDD_R[1]
LDD_G[3]
LDD_B[4]
LDD_G[1]
LDD_G[4]
LDD_R[4]
LDD_B[1]
LDD_R[2]
LDD_G[2]
LDD_B[5]
LDD_B[3]
LDD_G[0]
LDD_G[5]
LDD_PCLK
LDD_R[5]
USB_DAT2
X_USB_NXT
X_USB_CLK
USB_DAT5
X_USB_DIR
USB_DAT1
USB_DAT0
USB_DAT7
CC_RST
ETHER_INT
A0X_FA[0]
_
[]
X_MD[20]
X_MD[26]
X_MD[21]
X_MD[31]
X_MD[16]
X_MD[30]
X_MD[17]
CCD5
CC_RST1
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
X_MDQM[0]
X_MDQM[1]
X_MDQM[2]
X_MDQM[3]
WE#
FROM_CE#
OE#
GNDD GNDD
X4001
CSS1708-A
X1
1GND1 2
GND2
4X2 3
GNDD
C4093
22p/50
C4094
22p/50
R4017
1M
C4082
0.1u/10
USBGND
C4077
0.1u/10
USBGND
C4079
0.1u/10
GNDDGNDD
GNDDGNDD
C4073
0.1u/10
C4080
0.1u/10
GNDD
GND_PLL
C4081
0.1u/10
GND_PLL
C4076
0.1u/10
LL
LL GNDD
RY/BY#
R4138 0
R4144 0
CLK
CMD
X_VIP_PXD[7]
X_VIP_VSYNC
X_VIP_PXCLK
X_VIP_PXD[6]
X_VIP_HSYNC
X_VIP_PXD[1]
X_VIP_PXD[2]
X_VIP_PXD[3]
X_VIP_PXD[0]
X_VIP_DVALID_FID
X_VIP_PXD[5]
X_VIP_PXD[4]
X_SDA1
X_SCL1
10k
G
NDD
LDD_R[4]
LDD_R[3]
LDD_R[2]
LDD_B[4]
LDD_B[5]
LDD_G[5]
LDD_PCLK
LDD_G[1]
LDD_B[2]
LDD_HSYNC
LDD_G[4]
LDD_VSYNC
LDD_R[1]
LDD_B[3]
LDD_G[0]
LDD_R[5]
LDD_G[2]
LDD_B[1]
LDD_G[3]
VDEC_RST
A18
6.04k
G
NDD
SRAM_CE#
R4024
470
A19
0
DSDS[0]
DSDS[1]
DSDS[2]
DSDS[3]
L4001
CTF1736-A
DTC114EUA
Q4002
R4042
220
C4102
0.1u/10
GNDD
GNDD
C4101
0.1u/10
GNDD
DTC114EUA
Q4001
GNDD
R4041
47k
C4099
CCG1201-A
IC4002
TC7S14FU
NC
1
IN_A
2
GND
3OUT_Y 4
5
VCC
CL-270PG-C
D4001
GNDD
DAT0
DAT1
DAT2
DAT3
DAT4
DAT5
DAT7
DAT6
_
EN
HSYNC
VSYNC
ETHER_CE#
GNDD
R4110
22
2
1
4
36
5
8
7
R4111
22
2
1
4
36
5
8
7
R4112
22
2
1
4
36
5
8
7
R4113
22
2
1
4
36
5
8
7
R4133
33
R4134
33
R4147
33
R4139
47
2
1
4
36
5
8
7
R4140
47
2
1
4
36
5
8
7
R4141
47
2
1
4
36
5
8
7
R4142
47
2
1
4
36
5
8
7
R4145
47
2
1
4
3
6
5
8
7
R4146
47
2
1
4
3
6
5
8
7
R4143 47
R4135 22
R4136 22
R4231 22
R4015 NM
R4019 NM
R4023 NM
R4026 22
R4031 NM
R4137 47
ETHER_INT#
R4033 22
A0
R4121 0
DSD[16]
DSD[17]
DSD[20]
DSD[21]
DSD[27]
DSD[26]
DSD[31]
DSD[30]
100k
AA1
AA2
AA3
AA4
AA5
AA6
AA7
AA8
AA9
AA10
AA11
AA12
AA13
AA14
AA15
AA16
AA17
AB1
AB2
AB3
AB4
AB5
AB6
AB7
AB8
AB9
AB10
AB11
AB12
AB13
AB14
AB15
AB16
AB17
AC1
AC2
AC3
AC4
AC5
AC6
AC7
AC8
AC9
AC10
AC11
AC12
AC13
AC14
AC15
AC16
AC17
R4022
100
C4092
12p/50
C4095
12p/50
R4020
10M
NM
CN4001
12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
R4057
820
R4060
2.2k
2
.
2k
X4002
CSS1777-A
R4065
2.2k
5
R4148 22
R4151 22
R4149 22
R4150 22
R4107
22
2
1
4
3
6
5
8
7
R4108
22
2
1
4
3
6
5
8
7
Reference 4001 4200
32.768kHz
FCX-04C
12.000MHz
VDDIO_RTC 3.3V
VDD_LVR 3.3V or 2.5V
VDD_RTC 1.2V
VDDA2V5_USB 2.5V
VDDA3V3_USB 3.3V
VDD_PLL 1.2V
VDDIO_PLL 3.3V
5.0V
4.7uF/10V
2125SIZE
60MHz
VDDA_PLL 1.2V
33.33333MHz
USB JIG Connector
Supply 3.3V to TEST4
at JTAG
R4016(X_USB_RREFEXT) is
6.04k (1%).
NM
27MHz
5/6
E
6/6
E
AVIC-Z110BT/XN/UC
226
1234
1234
C
D
F
A
B
E
E-bE-a
E-a 2/6
E-b 2/6
D
[10]
X_MD[12]
D
[13]
X_MD[15] X_MD[16]
X_MD[17] X_MD[18]
X_MD[20]
X_MD[25]
X_MD[26] X_MD[31]
X_MD[29] X_MDQS[3]
X_FA[1]
X_FA[2]
X_FA[3]
X_FA[4]
X_FA[5]
X_FA[6]
X_FA[7]
X_FA[8]
X_FA[9]
X_FA[10]
X_FA[11]
X_FA[12] X_FA[13]
X_FA[14]
X_FD[0]
X_FD[1]
X_FD[2]
X_FD[3]
X_FD[4]
X_FD[5]
X_FD[6]
X_FD[7]
X_FD[8]
X_FD[9]
X_FD[10]
X_FD[11]
X_FD[12]
X_FD[13]
X_FD[14]
X_FD[15]
X_FOE_B
X_FWE_B
X_MCAS_B X_MCS_B[0]
P-TMS
P-TDI
P-TDO
P-NSRST
P-RTCK X_FBUSY_B
D
[11]
Q
S[1]
M
D[9]
X_MD[14]
X_MDQM[1]
X_MD[8]
X_MD[19]
X_MDQS[2]
X_MD[21]
X_MD[22]
X_MD[23]
X_MDQM[2]
X_MD[30]
X_MD[27]
P-NTRST
X_MD[28]
X_MDQM[3]
P-TCK
X_MRAS_B
AD_SDA0
X_MWE_B
X_MCKE
AD_SCL0
X_MCS_B[1]
X_FCE_B[0]
X_XP
X_XN
X_YP
X_YN
CCPORT2
X_FCE_B[3]
X_FCE_B[1]
X_FCE_B[2] X_FA[0]
X_MD[24]
C4072
10u/6.3
C4002
10u/6.3
C4071
10u/6.3
GNDDGNDD
GNDD
GNDD
L4014
CTF1736-A
L4015
CTF1736-A
GNDA
IC4001
TT4421
X_MD[17]
X_MD[12]
VSS1
X_MDQS[3]
X_MD[29]
X_MD[25]
X_MD[18]
VREF_MEM
X_MD[15]
X_MD[16]
X_MD[20]
X_MD[26]
X_MD[31]
X_MD[24]
X_MCAS_B
X_MCS_B[0]
X_MD[14]
X_MD[19]
X_MD[21]
X_MD[23]
X_MD[30]
X_MD[28]
X_MCS_B[1]
X_MWE_B
X_MDQM[1]
X_MDQS[2]
X_MD[22]
X_MDQM[2]
X_MD[27]
X_MDQM[3]
X_MRAS_B
X_MCKE
X_MD[8]
VDDIO_MEM6
VDDIO_MEM7
VDD_TSC
X_GPIO[14]
X_GPIO[15]
X_SDA_0
X_SCL_0
VDDIO_MEM10
X_AUX2
X_AUX3
X_AUX4
X_XP
X_XN
X_AUX1
X_AUX0
VSSA_TSC
VREF_ADC
VDDA_TSC
VDDIO_MEM11
VDDIO_TSC
X_GPIO[13]
X_GPIO[12]
X_YP
X_YN
VDDIO_MEM12
VDD_PDN5
X_GPIO[11]
X_GPIO[8]
X_GPIO[9]
X_GPIO[10]
VDD_PDN6
VDD_PDN7
X_FBUSY_B(X_FRDY_B?)
X_FCE_B[0]
X_FCE_B[1]
X_FCE_B[3]
VDD_PDN8
X_FWE_B
X_FCE_B[2]
X_FD[1]
X_FOE_B
X_FD[0]
VDD_PDN9
X_FD[5]
X_FD[4]
X_FD[6]
X_FD[3]
X_FD[2]
VDDIO10
X_FD[13]
X_FD[10]
X_FD[9]
X_FD[8]
X_FD[7]
VDDIO12
X_FD[15]
X_FA[0]
X_FD[14]
X_FD[12]
X_FD[11]
VDDIO14
X_FA[5]
X_FA[6]
X_FA[4]
X_FA[2]
X_FA[1]
VDDIO15
X_FA[7]
X_FA[12]
X_FA[9]
X_FA[8]
X_FA[3]
VDD_PRE5
X_FA[13]
X_FA[14]
X_FA[11]
X_FA[10]
VDD_PDN16
X_FA[18]
X_FA[15]
X_FA[16]
X_FA[17]
X_FA[19]
X_IDE_IRQ
VDDIO20
X_IDE_DREQ
X_FA[20]
X_FA[22]
X_FA[21]
X_FA[23]
X_FA[24]
X_VIP_PXD[12]
X_VIP_PXD[14]
X_VIP_DVALID_FID
X_VIP_PXD[9]
X_VIP_PXD[0]
X_SPI_EN_0
X_SPI_EN_1
X_FA[25]
X_VIP_PXD[6]
X_VIP_PXD[4]
X_VIP_PXD[13]
X_VIP_PXD[1]
X_VIP_PXD[2]
X_SPI_DIN_0
X_SPI_DIN_1
X_IDE_DACK_B
X_VIP_PXD[11]
X_VIP_PXD[10]
X_VIP_PXD[7]
X_VIP_PXD[5]
X_VIP_PXD[3]
X_SPI_DOUT_0
X_SPI_DOUT_1
X_IDE_CS_B[1]
X_VI
X_
V
X_
V
X_
V
X_V
X_
S
X_
S
X_I
D
C4004
0.1u
C4096
1u/10
C4097
1u/10
ABCD E HFG RJ PNM UTVKL WYAAAB
19 2317 222116
5
2018
47uF/6.3V 3216
(2125)
(1608)
(2125)
(2125)
(1608)
(1608)
(1608)
USB_D-
USB_D+
CTOVICS
BTTOC
CTOBT
STOC
CTOS
EXTOC
CTOEX
VICSTOC
X_SD_VCC_ON
PPW
KMODE
GPS_SAMPLE_CLK
SLOCK
BSENRQ
GMUTE
BT_RESET
ANTVSEN
POUT
CCPORT2
PKB
BT_BOOTS
ANTPW
PVSENS
CPUWDT
DTV_RST
XCCSTBY
ASENRQ
HYOKA
EX_RDS_SENS
CCPORT1
REV
ETCTOC
CTOETC
FUKKA2
AD_SDA0
AD_SCL0
X_SCL1
X_SDA1
CC_RST1
CCD12
C4078
GNDD
VDDIO
L4006
CTF1736-A
L4002
CTF1736-A
GNDD
GNDD
VDDMEM
C4005
0.1u/10 CCD25
C4075
0.1u/10
GNDD
VDDPDN
GNDD
C4053
0.1u/10
GNDD
C4063
0.1u/10
GNDD
C4051
0.1u/10
GNDD
C4049
0.1u/10
GNDD
C4047
0.1u/10
GNDD
C4045
0.1u/10
GNDD
C4035
1000p
GNDD
C4031
1000p
GNDD
C4010
1000p
GNDD
C4017
1000p
GNDD
GNDD
C4016
1000p
GNDD
C4054
0.1u/10
GNDD
C4043
0.1u/10
GNDD
C4041
0.1u/10
GNDD
C4038
0.1u/10
GNDD
C4037
0.1u/10
GNDD
C4034
0.1u/10
GNDD
3
C4003
1000p
GNDD
VDDPRE
BTTOC
AD_SCL0
STOC
CTOEX
EXTOC
CTOS
AD_SDA0
X_SD_VCC_ON
USB_D-
USB_D+
CTOBT
X_SDA1
CC_RST
CTOVICS
VICSTOC
X_SCL1
VREFMEM
CCD12
GNDD
GNDD
CCD25_PLLON
GNDA
C4100
NM
TSC25
TSC12
L4005
CTF1736-A
GNDD
C4029
0.01u/16
C4030
0.01u/16
C4040
0.01u/16
C4098
0.01u/16
R4010 0
GNDD
WARI_TEST
3V TEST
GNDD
CE_START
GNDD
F4001
VTL1171-A
3
2
1
F4003
VTL1171-A
3
2
1
GNDA
GNDA
GNDA
GNDA
GNDA GNDA
R4032
0
EX_RDS_SENS
CCPORT2
XCCSTBY
BT_RESET
REV
BSENRQ
GPS_SAMPLE_CLK
PKB
ASENRQ
DTV_RST
ANTVSEN
BT_BOOTS
CPUWDT
KMODE
GMUTE
PVSENS
PPW
ANTPW
POUT
HYOKA
SLOCK
CCPORT1
0
50
4
051
A17
A16
A15
A22
A21
A20
A19
A18
A23
B15
B16
B17
B18
B19
B20
B21
B22
B23
C15
C16
C17
C18
C19
C20
C21
C22
C23
D15
D16
D17
D18
D19
D20
D21
D22
D23
E15
E16
E17
E18
E19
E20
E21
E22
E23
F15
F16
F19
F20
F21
F22
F23
G19
G20
G21
G22
G23
H18
H19
H20
H21
H22
H23
J15
J18
J19
J20
J21
J22
J23
K15
K18
K19
K20
K21
K22
K23
L15
L18
L19
L20
L21
L22
L23
M15
M18
M19
M20
M21
M22
M23
N15
N18
N19
N20
N21
N22
N23
P15
P18
P19
P20
P21
P22
P23
R15
R18
R19
R20
R21
R22
R23
T18
T19
T20
T21
T22
T23
U19
U20
U21
U22
U23
V15
V16
V19
V20
V21
V22
V23
W15
W16
W17
W18
W19
W20
W21
W22
W23
Y15
Y16
Y17
Y18
Y19
Y20
Y21
Y22
Y23
AA15
AA16
AA17
AA18
AA19
AA20
AA21
AA22
AA23
AB15
AB16
AB17
AB18
AB19
AB20
AB21
AB22
AB23
A
A
A
A
A
A
A
A
A
GNDD
GNDD
R4058
2.2k
R4049
2.2k
R4048
2.2k
R4043
2.2k
R4044
2.2k
CCH1852-A
C4103
C4007
0.1u/10
C4008
0.1u/10
C4009
0.1u/10
CTOETC
ETCTOC
moviPIKA1
moviPIKA2
FUKKA2
R4199
2.7k
R4198
100k
R4197
100k
R4196
100k
GNDD GNDD
FUKKA2
AD_SDA0
AD_SCL0
C4074
1u/10
R4155
1.5k
R4154
1.5k
R4059
15k
5
R4068
0
R4069
0
R4195
NM
GNDD
CORE
VREF_MEM 1.25V
MEM
VDDIO_MEM 2.5V
Power
BT_module
UART
Syscom
Sensor ADCDTV
VICS
USB
Debug
I2CGPIO
VDD_TSC 2.5V
VDD_TSC 1.2V
TSC
ETC
INT_KEY
(2012)
(D) (D)
2.5V
1.2V
2.5V
1.2V
33V
1/6
E
AVIC-Z110BT/XN/UC 227
5 678
5678
C
D
F
A
B
E
E-bE-a
E-a 2/6
E-b 2/6
X_SD_VCC_ON
X_MD[1]
X_MD[3]
X_MD[5]
X_MD[7]
X_MD[10]
X_MD[12]X_MD[13]
X_MD[15] X_MD[16]
X_MD[17]
X_MA[0]
X_MA[1]
X_MA[3]
X_MA[5]
X_MA[6]
X_MA[7] X_MA[9]
X_MA[11] X_MCLKB_O
X_MCLK_O
LDD_HSYNC
LDD_VSYNC
GPS_MAG
X_SD_CLK
X_SD_CMD
X_SD_DATA1
X_SD_DATA2
X_SD_DATA3
X_SD_DATA5
X_SD_DATA6
X_SD_DATA7
SD_CMD
SD_DATA0
SD_DATA1 SD_DATA3
X_M_BA[1]
X_M_BA[0]
X_MA[8]
X_MA[12]
X_MA[4]
X_MA[2]
X_MA[10] X_MD[6]
X_MD[2]
X_MD[0]
X_MD[4]
X_MDQS[0]
X_MDQM[0]
X_MD[11]
X_MDQS[1]
X_MD[9]
X_MD[14]
X_MDQM[1]
X_MD[8]
X_MD[19]
X_MDQS[2]
X_SD_DATA4X_SD_DATA0
USB_DAT0
USB_DAT1
USB_DAT2
USB_DAT3
USB_DAT4
USB_DAT5
USB_DAT6
USB_DAT7
DF_AD7
DF_AD6
DF_AD5 DF_AD4
DF_AD3
DF_AD2 DF_AD0
GPS_SGNGPS_CLK
X_USB_DIR X_USB_STP
X_USB_NXT
X_USB_CLK
GPS_SAMPLE_CLK
LDD_B[1]
LDD_B[2]
LDD_B[3]
LDD_B[4]
LDD_B[5]
LDD_G[0]
LDD_G[1]
LDD_G[2]
LDD_G[3] LDD_G[4]
LDD_G[5]
LDD_R[1]
LDD_R[2]
LDD_R[3]
LDD_R[4]
LDD_R[5]
CPUWDT
PKB
REV
POUT
KMODE
PVSENS PPW
ETHER_INT
GMUTE
SD_CD
DF_AD1
DF_AD13
DF_AD11 DF_AD8
DF_AD9
DF_AD15
DF_AD14
DF_AD12
DF_AD10
EX_RDS_SENS
X_SDA1 X_SCL1
GNDD
C4070
0.1u/10
R4009
10k
GNDD
R4008
10k
GNDD
GNDD
R4012
NM
IC4001
TT4421
X_MD[17]
X_DF_AD[0]
X_MD[12]
X_DF_AD[6]
X_MD[13]
X_MD[7]
X_DF_WE_B
X_MD[3]
X_DF_AD[2]
X_MCLK_O
X_MA[9]
X_SAMPLE_CLK
X_MA[1]
X_MA[7]
X_DF_AD[15]
X_MA[5]
X_GPS_PSS
X_DF_AD[3]
X_DF_AD[7]
X_DF_AD[1]
X_DF_AD[14]
X_MA[0]
X_MA[3]
X_MA[6]
X_MA[11]
X_MCLKB_O
X_MD[5]
X_MD[1]
X_MD[10]
X_MD[15]
X_MD[16]
X_GPIO[0]
X_GPIO[1]
X_DF_RE_B
X_DF_ALE
X_DF_AD[5]
X_DF_AD[4]
X_DF_AD[12]
X_M_BA[1]
X_MA[8]
X_MA[4]
X_MA[10]
X_MD[6]
X_MD[0]
X_MDQS[0]
X_MD[11]
X_MD[14]
X_MD[19]
X_DF_RY_BY
X_DF_CLE
X_DF_AD[13]
X_DF_AD[8]
X_DF_AD[10]
X_M_BA[0]
X_MA[12]
X_MA[2]
X_MA[13]
X_MD[2]
X_MD[4]
X_MDQM[0]
X_MDQS[1]
X_MDQM[1]
X_MDQS[2]
X_L_PCLK
X_L_DE
X_LDD[1]
X_LDD[4]
X_DF_AD[11]
X_DF_AD[9]
VDDIO1
VDD_PRE1
VDDIO_MEM1
VDDIO_MEM2
VDDIO_MEM3
VDDIO_MEM4
VDDIO_MEM5
VDD_PRE2
X_MD[9]
X_MD[8]
VDDIO_MEM6
X_L_LCK
X_L_FCK
X_LDD[2]
X_LDD[5]
X_DF_WP_B
VDDIO2
VDDIO3
VDD_PDN1
VDD_PDN2
VDDIO_MEM8
VDDIO_MEM9
VDD_PDN3
VDD_PDN4
VDDIO_MEM10
X_LDD[11]
X_LDD[10]
X_LDD[8]
X_LDD[3]
X_LDD[0]
X_LDD[13]
X_LDD[7]
X_LDD[9]
X_LDD[15]
VDDIO4
VDDIO5
X_LDD[17]
X_LDD[16]
X_LDD[18]
X_LDD[12]
X_LDD[6]
VDDIO6
X_LDD[20]
X_LDD[19]
X_LDD[14]
X_LDD[21]
VPROG
VDDIO7
X_LDD[22]
X_LDD[23]
X_USB_DAT[0]
X_USB_DAT[1]
X_USB_DIR
VDD_PRE3
X_USB_CLK
X_USB_DAT[4]
X_USB_DAT[2]
X_USB_DAT[3]
X_USB_STP
VDDIO8
X_USB_DAT[5]
X_USB_DAT[7]
X_USB_DAT[6]
X_USB_NXT
X_SD_CD_B_0
VDDIO9
X_SD_CLK_0
X_SD_DAT_0[1]
X_SD_CMD_0
X_SD_DAT_0[0]
X_SD_VCC_ON_0
VDDIO11
X_SD_DAT_0[5]
X_SD_DAT_0[3]
X_SD_DAT_0[6]
X_SD_DAT_0[4]
X_SD_WP_B_0
VDDIO13
X_SD_DAT_0[2]
X_SD_DAT_0[7]
X_SD_DAT_1[0]
X_SD_DAT_1[1]
X_SD_VCC_ON_1
VDD_PRE4
X_SD_CMD_1
X_SD_DAT_1[5]
X_SD_DAT_1[4]
X_SD_DAT_1[3]
X_SD_CD_B_1
X_SD_CLK_1
X_SD_WP_B_1
X_SD_DAT_1[2]
X_SD_DAT_1[6]
X_SD_DAT_1[7]
VDDIO16
VDDIO17
VDD_PDN10
VDD_PDN11
VDD_PDN12
VDD_PDN13
VDD_PDN14
VDD_PDN15
VDD_PDN16
X_AC97_BIT_CLK
X_AC97_SYNC
X_TXD_1
X_CKO_1
X_URFS_1
X_USB_TSET_GPANAIO
X_TEST_MODE[4]
VDDIO18
VDDIO19
X_RESET_B
X_TEST_MODE[0]
VDD_PRE6
VDD_PDN17
VDD_PDN18
X_URXD_2
X_IDE_IRQ
VDDIO20
X_AC97_DOUT
X_AC97_DIN
X_RXD_1
X_URXD_1
X_USB_VBUS
VSSA_USB
VDDIO_PLL
VSSIO_PLL
X_TEST_MODE[3]
X_TEST_MODE[2]
X_RTC_RST_B
X_TEST_MODE[1]
X_LVR_PDN
X_GPIO[4]
X_UTFS_2
X_VIP_PXD[12]
X_VIP_PXD[14]
X_RXD_0
X_URXD_0
X_URFS_0
X_UTXD_1
X_USB_ID
X_USB_RREFEXT
VSSA_PLL2
VSSA_PLL1
X_PWR_EN
VDD_LVR
X_RTC_ALARM
X_TEST_MODE[5]
X_SCAN_EN
X_GPIO[7]
X_URFS_2
X_VIP_PXD[6]
X_VIP_PXD[4]
X_TXD_0
X_UTFS_0
X_TXD_2
X_UTFS_1
X_USB_DN
VDDA2V5_USB
VDDA_PLL1
VSS_PLL
X_XINW
VSS_RTC
VDDIO_RTC
X_XIN
X_RST_OUT_B
X_GPIO[6]
X_UTXD_2
X_VIP_PXD[11]
X_VIP_PXD[10]
X
_
X
_
X
X
_
X
_
VD
D
V
D
V
X
VD
D
V
S
X
X
X
_
X
_
X_VI
X_
V
R4045
2.2k
FG RK TVB WC YDE AALP ABHJA M UN
51711212 1641531461071 98 13
X_GPS_MAG
X_GPS_SGN
SCL_1
SDA_1
X_GPS_CLK
PWM0
DF_AD4
DF_AD0
DF_AD1
DF_AD6
DF_AD5
DF_AD7
DF_AD2
DF_AD3
DF_AD11
DF_AD9
DF_AD12
DF_AD15
DF_AD13
DF_AD8
DF_AD10
DF_AD14
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
C4042
0.1u/10
C4052
0.1u/10
GNDD
C4066
0.1u/10
GNDD
GNDD
GNDD
GNDD
C4033
0.1u/10
GNDD
C4036
0.1u/10
C4039
0.1u/10
GNDD GNDD GNDD
C4046
0.1u/10
C4048
0.1u/10
GNDD
C4050
0.1u/10
GNDD
C4062
0.1u/10
GNDD
C4061
0.1u/10
GNDD
C4063
0.1u/10
GNDD
C405
1
0.1u/1
0
GNDD
C404
9
0.1u/1
0
GNDD
C404
7
0.1u/1
0
GNDD
C404
5
0.1u/1
0
GNDD
C403
5
1000p
GNDD
C403
1
1000p
GNDD
C
10
GNDD
C4017
1000p
GNDD
GNDD
C4016
1000p
GNDD
C4011
1000p
GNDD
C4012
1000p
GNDD
C4019
1000p
GNDD
C4013
1000p
GNDD
C4014
1000p
GNDD
C4015
1000p
GNDD
C4060
0.1u/10
GNDD
C4059
0.1u/10
GNDD
C4057
0.1u/10
GNDD
C4065
0.1u/10
GNDD
C4056
0.1u/10
GNDD
C4064
0.1u/10
GNDD
C4055
0.1u/10
GNDD
C4054
0.1u/10
GNDD
C404
3
0.1u/1
0
GNDD
C404
1
0.1u/1
0
GNDD
C403
8
0.1u/1
0
USBGND
C4077
0.1u/10
USBGND
GNDD
GNDDGNDD
C4073
0.1u/10
GNDD
C4028
0.1u/10
C4027
0.1u/10
GNDD
C4026
0.1u/10
GNDD
C4020
1000p
GNDD
C4023
0.1u/10
C4021
0.1u/10
GNDD
GNDD
C4018
0.1u/10
GNDD
GNDD
GNDD
C4069
0.1u/10
GND_PL
L
C4076
0.1u/10
GND_PLL
GND_PLL GNDDGNDD
R4013
10k
R4005
10k
GNDD
R4004
10k
R4007
10k
R4002
2.2k
R4001
2.2k
R4016
6.04k
USBGND
GNDD
USBGND
R4028
100k
2
1
4
36
5
8
7
R4027
100k
2
1
4
36
5
8
7
GNDD
R4030
1k
C4022
0.1u/10
C4032
0.1u/10
C4044
0.1u/10
GNDD
R4021
10k
GNDD
R4011
NM
GNDD
DE
X_PWR_EN
R4153
10k
GNDD
R4050
100k
GNDD
R4051
100k
GNDD
R4052
100k
GNDD
A17
A6
A16
A5
A2
A15
A14
A3
A13
A4
A12
A11
A1
A8
A10
A7
A9
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
C14
C15
C16
C17
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
E1
E2
E3
E4
E5
E6
E7
E8
E9
E10
E11
E12
E13
E14
E15
E16
E17
F1
F2
F3
F4
F5
F8
F9
F10
F11
F12
F13
F14
F15
F16
G1
G2
G3
G4
G5
H1
H2
H3
H4
H5
H6
J1
J2
J3
J4
J5
J6
J9
VSS2
J10
VSS3
J11
VSS4
J12
VSS5
J13
VSS6
J14
VSS7
J15
VSS8
K1
K2
K3
K4
K5
K6
K9
VSS9
K10
VSS10
K11
VSS11
K12
VSS12
K13
VSS13
K14
VSS14
K15
VSS15
L1
L2
L3
L4
L5
L6
L9
VSS16
L10
VSS17
L11
VSS18
L12
VSS19
L13
VSS20
L14
VSS21
L15
VSS22
M1
M2
M3
M4
M5
M6
M9
VSS23
M10
VSS24
M11
VSS25
M12
VSS26
M13
VSS27
M14
VSS28
M15
VSS29
N1
N2
N3
N4
N5
N6
N9
VSS30
N10
VSS31
N11
VSS32
N12
VSS33
N13
VSS34
N14
VSS35
N15
VSS36
P1
P2
P3
P4
P5
P6
P9
VSS37
P10
VSS38
P11
VSS39
P12
VSS40
P13
VSS41
P14
VSS42
P15
VSS43
R1
R2
R3
R4
R5
R6
R9
VSS44
R10
VSS45
R11
VSS46
R12
VSS47
R13
VSS48
R14
VSS49
R15
VSS50
T1
T2
T3
T4
T5
T6
U1
U2
U3
U4
U5
V1
V2
V3
V4
V5
V8
V9
V10
V11
V12
V13
V14
V15
V16
W1
W2
W3
W4
W5
W6
W7
W8
W9
W10
W11
W12
W13
W14
W15
W16
W17
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
Y9
Y10
Y11
Y12
Y13
Y14
Y15
Y16
Y17
AA1
AA2
AA3
AA4
AA5
AA6
AA7
AA8
AA9
AA10
AA11
AA12
AA13
AA14
AA15
AA16
AA17
AB1
AB2
AB3
AB4
AB5
AB6
AB7
AB8
AB9
AB10
AB11
AB12
AB13
AB14
AB15
AB16
AB17
A
A
A
A
A
A
A
A
R4056
NM
R4061
100k
GNDD
moviPIKA3
moviPIKA4
R4038
100k
2
1
4
36
5
8
7
R4029
100k
2
1
4
36
5
8
7
R4152
47k
R4039
NM
R4025
10k
R4003
NM
R4060
2.2k
R4062
2.2k
C4104
0.1u/10
R4064
10k
C4001
NM
R4065
2.2k
TEST0
TEST1
TEST5
R4006
1.8k
R4063
2.2k
R4066
0R4067
0
R4059
15k
R4055
680k
GNDD
R4194
0
C4105
NM
VDDIO 3.3V
VDD_PDN 1.2V
VDD_PRE 1.2V
AVIC-Z110BT/XN/UC
228
1234
1234
C
D
F
A
B
E
10.9 CC UNIT(CPU SURROUNDING PART)(GUIDE PAGE)
3/6
E
E-a 3/6
AC97_DIN
AC97_DOUT
AC97_BCLK
CODEC_RESET
SDCD
SDDATA1
SDWP
SDDATA0
SDDATA3
SDCMD
AC97_BCLK
SDDATA2
AC97_SYNC
AC97_SYNC
AC97_DOUT
CPLD_RESET
GPS_SGN
GPS_MAG
GPS_CLK
OPEN
SHORT
X_SPI_DIN_1
X_CKO_0
X_SPI_DIN_0
TDO
X_SPI_CLK_0
PWM0
PWM0
CODEC_RESET
X_USCLK_1
X_UTXD_1
X_UTFS_1
TSCLK
CPLD_RESET
GRF_RESET
AC97_DIN
GRF_RESET
GPS_CLK
GPS_SGN
GPS_MAG
X_USCLK_1
X_UTXD_1
X_UTFS_1
TSCLK
TSEN
TSO
SPEED_IN
X_SCL1
X_SDA1
CPRST
X_XP
X_YP
X_XN
X_YN
X_CKO_0
TDI
TMS
TCK
TSO
TSEN
X+/BR
Y+/TR
X-/TL
Y-/BL
MIC+
MONO
NAVI_L
LINE_R
LINE_L
NAVI_R
P-TMS
P-TDI
P-TDO
P-NSRST
P-RTCK
P-NTRST
P-TCK
X_SPI_EN_0
JTG_RST
TESTMODE4
Div2
Div1
Div0
Test
X_SPI_CLK_1
X_SPI_EN_1
SPEED_IN
TMS
TDI
TDO
TCK
P-NTRST
P-TDI
P-TMS
P-TCK
P-RTCK
P-TDO
P-NSRST
TESTMODE4
JTG_RST
SDCLK
R4638 0
C4717
0.1u/10
X_SPI_DIN_0
GNDD
MONO
GNDD
R4682 0
D4712
HZU5R6(B3)
SDDATA1
SDDATA3
C4729
0.01u/16
X+/BR
GNDD
GNDD
Y-/BL
C4728
1000p/50
GNDD
GRF3I-0336B
IC4711
XTAL_OUT 1
TP_IF 2
VCC_VCO 3
VCC1 4
RFIN 5
VCC2 6
VCC3
7
VCC4
8
RTC_XI
9
VCC_RTC
10
RTC_XO
11
RTC_OUT
12
SPI_CEB
13
SPI_DI
14
SPI_CLK
15
SPI_DO/MAG
16
SIGN_MAG
17
ACQCLK
18
GRFRST 19
MAIN_VIO 20
MAIN_VCC 21
VCC5 22
VCC6 23
XTAL_IN 24
GND25
R4636 0
GNDD
GNDD
GNDD
SPEED_IN
L4714
CTF1736-A
C4622
0.047u/10
CODEC_RESET
GNDD
R4681
0
GNDD
L4718
1u
GPS_SGN
SDDATA2
R4720 0
D4711
HZU5R6(B3)
SDCMD
GNDD
GNDD
C4725
100p/50
GNDD
GPS_MAG
Y+/TR
R4678
0
NAVI_L
LINE_R
X-/TL
R4639 0
C4624
0.047u/10
GNDD
GNDD
R4717
NM
MIC+
C4724
100p/50
R4637
0
NAVI_R
GNDD
C4625
0.047u/10
X_SPI_EN_0
SDDATA0
GNDD
C4719
0.1u/10
SDWP
C4621
0.047u/10
AC97_BCLK
SDCLK
CTF1706-A
F4711
GND1
1
IN
2GND2 3
OUT 4
GNDD
GNDD
TPIF
LINE_L
L4715
CTF1736-A
C4626
0.047u/10
GNDD
GNDD
C4721
100p/50
R4719 0
GNDD
R4603 0
L4716
CTF1736-A
C4623
0.047u/10
SDCD
X_SPI_CLK_0
X_SPI_DIN_1
X_SPI_EN_1
R4621 NM
R4623 0
R4626 NM
R4627 NM
R4628
0
R4629 NM
R4630 NM
R4632 NM
X_CKO_0
X_SPI_CLK_1
R4633 0
R4634 0
R4635
0
R4641 47k
R4643 47k
R4642 47k
R4640 47k
PWM0
IC4652
HD74ALVC1G07VS
NC
1
IN 2
GND
3OUT
4
5VCC
R4665
6.2k
R4664
1k
R4663
1k
C4656
1u/6.3
C4658
0.1u/10
C4660
1u/6.3
GNDD
GN
D
C4657
NM
C4659
0.01u/50
C4711
1u/6.3
GNDD
VVCO
TCXO
SPDOMG
SGNMG
ACQCLK
SPDI
SPCEB
SPCLK
TSO
TSEN
TSCLK
CPLD_RESET
C4713
1000p/50
R4712
4.7k
R4713
20k
GNDD
GNDD
CPRST
X_SDA1
X_SCL1
X_XP
X_YP
X_XN
X_YN
GNDD
P-RTCK
P-NTRST
P-TMS
P-TCK
P-TDI
P-TDO
P-NSRST
R4740
0
L4719
NM
L4712
NM
R4718 0
JTG_RST
GNDD
TESTMODE4
C4602 NM
C4603 NM
C4604 NM
C4605 NM
C4606 NM
GPS_CLK
GRF_RESET
OPEN
SHORT
X_USCLK_1
X_UTXD_1
X_UTFS_1
AC97_DOUT
AC97_DIN
AC97_SYNC
C4609
0.1u/50
C4611
NM
R4742
0
C4727
100p/50
R4645
NMR4644
NMR4646
NM
R4647
10k R4648
10k R4649
10k
GNDD
R4721
0
X4711
CWX3728-A
(GND)
1
GND
2
VCC 4
OUTPUT 3
C4613
0.047u/10
CKS5983-A
CN4621 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
R4781
R4616
NM
R4617
10k
C4607
0.1u/10
C4608
0.1u/10
GNDD
C4615 NM
R4771 10k
R4772 10k
R4774 10k
R4773 10k
R4776 10k
R4775 10k
R4618
100k
R4619
100k
GNDD
R4620
100k
C
V
1
V
4
IC4621
PE9019A
I/O_1
1
I/O_2
2
I/O_3
3
I/O_4
4
VAUX
5
I/O_5
6
I/O_6
7
I/O_7
8
I/O_8
9
I/O_9
10
I/O_10
11
I/O_11
12
I/O_12
13
I/O_13
14
I/O_14
15
I/O_15
16
I/O_16
17
I/O_17
18
I/O_18
19
VCCIO1_1
20
GND1
21
I/O_19
22
I/O_20
23
I/O_21
24 GND2
25
VCC1
26
I/O_22
27
I/O_23
28
I/O_24
29
I/O_25
30
GND3
31
I/O_26
32
I/O_27
33
I/O_28
34
I/O_29
35
I/O_30
36
I/O_31
37
VCCIO1_2
38
I/O_32
39
I/O_33
40
I/O_34
41
I/O_35
42
I/O_36
43
I/O_37
44
TDI
45
I/O_38
46
TMS
47 TCK
48 I/O_39
49
I/O_40
50
VCCIO1_3 51
I/O_41 52
I/O_42 53
I/O_43 54
I/O_44 55
I/O_45 56
VCC2 57
I/O_46 58
I/O_47 59
I/O_48 60
I/O_49 61
GND4 62
I/O_50 63
I/O_51 64
I/O_52 65
I/O_53 66
I/O_54 67
I/O_55 68
GND5 69
I/O_56 70
I/O_57 71
I/O_58 72
I/O_59
73
I/O_60
74
GND6 75
I/O_61 76
I/O_62 77
I/O_63 78
I/O_64 79
I/O_65 80
I/O_66 81
I/O_67 82
TDO 83
GND7 84
I/O_68 85
I/O_69 86
I/O_70 87
VCCIO2_1 88
I/O_71 89
I/O_72 90
I/O_73 91
I/O_74 92
I/O_75 93
I/O_76 94
I/O_77 95
I/O_78 96
I/O_79 97
VCCIO2_2 98
I/O_80
99
GND8
100
C4654
IC4602
TC7SH86FUS1
B
1
A
2
GND
3Y4
5
VCC
GNDD
BUP3
L4601
CTF1736-A
GNDD
D4601
RB520G-30
TMS
TDI
TDO
TCK
NTRST
P-TDI
P-TMS
P-TCK
RTCK
P-TDO
NSRST
TEST4
JTGRST
R4611
NM
C4614
0.1u/10
R4716 100
R4715 100
R4714 100
C4616
NM
JA4711
CKS5749-A
1
2
3
R4613
100k
R4612
100k
C4712
0.01u/16
C4718
47p/50
C4720
47p/50
C4722
47p/50 C4723
47p/50
R4711
2.7
R4604 22
R4605 22
R4606 22
R4607 22
R4608 22
R4609 1.5k
R4610 33
R4679 33
R4680
33
C4610
NM
C4612
NM
L4713
NM
C4735
1p/50
GNDD
R4739
150
R4631
150
R4622 100
R4625 100
R4624 100
CKS6107-A
CN4601
1SD_DATA3
2SD_CMD
3GND
4VDD
5SD_CL
6GND2
7SD_DATA0
8SD_DATA1
10
TER_2
9SD_DATA2
12 SD_W 11
SD_DET2
13 TER
14 SD_DET
C4736
NM
GNDD
C4716 10u/6.3
C4715
100p/50
C4714
0.1u/10
C4662
CCG12
0
C4665
JTAG
CPLD
CPLD BLOCK
GPS BLOCK
AC97
AC97
GPS
CPLD
CP18
CP3
16.367667MHz
12.288MHz
3.3V
1.8V
iPOD
JTAG
CP33
4601-4615
4616-4650
4711-4760
JTAG
SD3
12MHz
EXOR
4771-4780
SD CARD BLOCK
at 1seg TS
Use CPLD
3.3V
(1608)
(1608)
(1608)
NM
JA5201
2/4
F
2/6
E
1/6
E
AVIC-Z110BT/XN/UC 229
5 678
5678
C
D
F
A
B
E
3/6
E
E-b 3/6
X_SDA1
X_SCL1
NAVI_L
NAVI_R
SHORT
OPEN
X_XP
X_YP
X_XN
X_YN
X+/BR
Y+/TRY+/TR
X-/TLX-/TL
Y-/BLY-/BL
MONO
MIC+
LINE_R
LINE_L
CPRST
R4730
4.3k
L4787
CTF1394-A
GNDD
L4782
CTF1736-A
R4736
1k
341S2162
IC4701
NC1 1
MODE/SPI_nSS 2
NC2 3
nRESET 4
VCC 5
NC3 6
NC4 7
NC5 8
NC6 9
NC7 10
VSS
11
I2C_SCL/SPI_SIMO
12
I2C_SDA/SPI_SOMI
13
I2C_ADDR0/SPI_CLK
14
NC8
15
NC9
16
NC10
17
NC11
18
NC12
19
NC13
20
R4682 0
GNDD
L4788
CTF1736-A
GNDD
R4684
100
C4729
0.01u/16
R4704
0
CPRST
C4732
0.01u/16
GNDA
GNDD
R4669 0
GNDD
GNDD
CP18
GNDD
GNDDGNDD
R4703
0
C4728
1000p/50
L4781
CTF1736-A
GNDD
R4733
33k
GNDD
R4670 0
GNDD
R4681
0
L4718
1u
CASHFSNS
GNDD
C4731
0.1u/10
GNDD
GNDD
C4733
100p/50
GNDD
R4702
0
L4785
CTF1736-A
GNDA
R4674 NM
R4678
0
GNDD
L4784
CTF1736-A
L4783
CTF1736-A
C4734
0.1u/10
RF
GNDD
R4731
10k
R4735
1k
R4723
10
GNDD
GNDD
R4709
10k
GNDD
L4786
CTF1736-A
GNDD
GNDD
R4673 NM
GNDD
GNDD
R4706
NM
R4705
NM
R4734
10k
R4683
100
GNDD
GNDA
C4730
0.1u/10
ANTV
R4675 NM
R4708
100k
R4701
NM
iPOD3
GPS3
CODEC3
CODEC3_A
CP3V
CP18V
SD3V
GNDA
GNDA
IC4652
4
ALVC1G07VS
OUT
4
5VCC
R4665
6.2k
R4666
NM
R4663
1k
R4667
100
C4656
1u/6.3
C4658
0.1u/10
C4660
1u/6.3
GNDD
GNDD
C4655
0.01u/50
C4659
0.01u/50
L4711
CTF1736-A
OPN
SHRT
GNDA
GNDA
R4685 0
R4686 0
R4687 0
R4688 0
R4676 NM
R4677 0
GNDA GNDA GNDA GNDA
BA2115FVM
IC4713
OUT1
1
-IN1
2
+IN1
3
VEE
45
+IN2
6
-IN2
7
OUT2
8
VCC
CP3
SD3
ANTVCC
GPS33
CCA3_IOON
CCD3_IOON
CCD3_IOON
C4727
100p/50
R4724
1.5k
R4725
24k
R4726
33k
R4722
NM
R4727
NM
2SB1132(QR)
Q4711
R4721
0
R4728
47k
R4729
47k
R4732
22k
R4737
NM
R4738
NM
C4701
0.1u/10
R4781
220
R4661
0
GND_BT GNDD
R4671
0
X4651
CWX3747-A
Vc
1GND 2
Vcc
4OUT 3
C4654
NM
X4652
CWX3635-A
EN/DI
1
GND
2
VDD 4
OUTPUT 3
F4651
DTL1106-A
3
2
1
L4651
CTF1736-A
GNDD
GNDD
C4702
NM
IC4602
TC7SH86FUS1
B
1
A
2
GND
3Y4
5
VCC
G
NDD
BUP3
L4601
CTF1736-A
GNDD
nRESET
GNDD
R4707
47k
R4761
NM
C4614
0.1u/10
WM1616LGEFL
IC4654
DBVDD
1
MCLKA
2
MCLKB
3
DGND1
4
SDATAOUT
5
BITCLK
6
DGND2
7
SDATAIN
8
DCVDD
9
SYNC
10
RESETB
11 WIPER
12
TPVDD
13
X+/BR
14
Y+/TR
15
X-/TL
16
Y-/BL
17
TPGND
18
PCBEEP
19
MONOIN
20
MIC1
21
MICCM
22
LINEL
23 LINER
24
AVDD 25
AGND 26
VREF 27
MICBIAS 28
MIC2A 29
MIC2B 30
MONO 31
CAP2 32
OUT4 33
SPKGND 34
SPKL
35
SPKR
36
OUT3 37
SPKVDD 38
HPL 39
HPGND 40
HPR 41
AGND2 42
HPVDD 43
GPIO1 44
GPIO2 45
GPIO3 46
GPIO4
47
GPIO5
48
R4651
NM
GNDA
DTC114TUA
Q4701
R4710
22k
R4679 33
R4680
33
C4651
0.1u/10
R4668
0
NM
C4789
C4668
1u/10
GNDA
GNDD GNDDGNDDGNDA GNDD
GNDDGNDD GNDD
C4652
NM
C4663
NM
C4664
NM
C4672
NM
C4781
CCG1234-A
C4783
CCG1234-A
C4788
CCG1234-A
C4782
CCG1234-A
C4787
1000p/50
C4784
1u/10
C4785
1u/10
C4786
1u/10
C4653
CCG1201-A
C4661
CCG1201-A
C4662
CCG1201-A
C4665
CCG1201-A
C4666
CCG1201-A
C4667
CCG1201-A
C4670
CCG1201-A
C4671
CCG1201-A
3.3V
Ipod
BLOCK
DIAGNOSIS BLOCK
CPLD
BLOCK
GPS-RF
BLOCK
SD CARD
BLOCK
ANTVCC
AC97CODEC
BLOCK
AC97
BLOCK
Ver.2.0B
Reference 4601 4800
CCD3_IOON
ANTVCC
GPS33
CCA3_IOON
CCD3_IOON
Class 4
4781-4800
4651-4700
4701-4710
EXOR
24.576MHz
4761-4770
(1608)
iPod authenticatrion
coprocessor IC
There is the pull up
resistance of I2C
in coordinate L3 of sheet 2.
3.3V
3.3V
1.8V
3.3V
3.3V
3.3V
3.3V
3.3V
5.3V/3.3V
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(1608)
(1608)
(1608)
(10u/6.3V 1608)
(10u/6.3V 1608)
(10u/6.3V 1608)
(10u/6.3V 1608)
(10k)
(47u/6.3V)
1/6
E
CC UNIT (CPU SURROUNDING PART)
3/6
E
AVIC-Z110BT/XN/UC
230
1234
1234
C
D
F
A
B
E
E-a E-b
E-b 3/6
X_SDA1
X_SCL1
NAVI_L
NAVI_R
MONO
CPRST
L4787
CTF1394-A
L4782
CTF1736-A
341S2162
IC4701
NC1 1
MODE/SPI_nSS 2
NC2 3
nRESET 4
VCC 5
NC3 6
NC4 7
NC5 8
NC6 9
NC7 10
VSS
11
I2C_SCL/SPI_SIMO
12
I2C_SDA/SPI_SOMI
13
I2C_ADDR0/SPI_CLK
14
NC8
15
NC9
16
NC10
17
NC11
18
NC12
19
NC13
20
R4682 0
GNDD
L4788
CTF1736-A
GNDD
R4684
100
R4704
0
CPRST
GNDA
GNDD
CP18
GNDD
R4703
0
L4781
CTF1736-A
GNDD
GNDDGNDD
R4681
0
CASHFSNS
GNDD
GNDD
GNDD
GNDD
R4702
0
L4785
CTF1736-A
GNDA
R4678
0
GNDD
L4784
CTF1736-A
L4783
CTF1736-A
R4709
10k
L4786
CTF1736-A
GNDD
GNDD
R4706
NM
R4705
NM
R4683
100
GNDA
ANTV
R4708
100k
R4701
NM
iPOD3
GPS3
CODEC3
CODEC3_A
CP3V
CP18V
SD3V
GNDA
4
652
V
C1G07VS
OUT
4
5VCC
R4665
6.2k
R4666
NM
R4663
1k
R4667
100
C4656
1u/6.3
C4658
0.1u/10
C4660
1u/6.3
GNDD
GNDD
C4655
0.01u/50
C4659
0.01u/50
GNDA
GNDA
CP3
SD3
ANTVCC
GPS33
CCA3_IOON
CCD3_IOON
CCD3_IOON
C4701
0.1u/10
R4781
220
R4661
0
GND_BT GNDD
R4671
0
X4651
CWX3747-A
Vc
1GND 2
Vcc
4OUT 3
C4654
NM
X4652
CWX3635-A
EN/DI
1
GND
2
VDD 4
OUTPUT 3
F4651
DTL1106-A
3
2
1
L4651
CTF1736-A
GNDD
GNDD
C4702
NM
IC4602
TC7SH86FUS1
B
1
A
2
GND
3
Y4
5
VCC
D
BUP3
L4601
CTF1736-A
GNDD
nRESET
GNDD
R4707
47k
R4761
NM
C4614
0.1u/10
WM1616LGEFL
IC4654
DBVDD
1
MCLKA
2
MCLKB
3
DGND1
4
SDATAOUT
5
BITCLK
6
DGND2
7
SDATAIN
8
DCVDD
9
SYNC
10
RESETB
11 WIPER
12
TPVDD
13
X+/BR
14
Y+/TR
15
X-/TL
16
Y-/BL
17
TPGND
18
PCBEEP
19
MONOIN
20
MIC1
21
MICCM
22
LINEL
23 LINER
24
AVDD 25
AGND 26
VREF 27
MICBIAS 28
MIC2A 29
MIC2B 30
MONO 31
CAP2 32
OUT4 33
SPKGND 34
SPKL
35
SPKR
36
OUT3 37
SPKVDD 38
HPL 39
HPGND 40
HPR 41
AGND2 42
HPVDD 43
GPIO1 44
GPIO2 45
GPIO3 46
GPIO4
47
GPIO5
48
R4651
NM
GNDA
DTC114TUA
Q4701
R4710
22k
R4679 33
R4680
33
C4651
0.1u/10
R4668
0
NM
C4789
C4668
1u/10
GNDD GNDDGNDDGNDA GNDD
GNDDGNDD GNDD
C4781
CCG1234-A
C4783
CCG1234-A
C4788
CCG1234-A
C4782
CCG1234-A
C4787
1000p/50
C4784
1u/10
C4785
1u/10
C4786
1u/10
C4653
CCG1201-A
C4661
CCG1201-A
C4662
CCG1201-A
C4665
CCG1201-A
C4666
CCG1201-A
C4667
CCG1201-A
C4670
CCG1201-A
C4671
CCG1201-A
Ipod
BLOCK
CPLD
BLOCK
GPS-RF
BLOCK
SD CARD
BLOCK
AC97
BLOCK
Ver.2.0B
CCD3_IOON
CCA3_IOON
CCD3_IOON
Class 4
4781-4800
4701-4710
EXOR
24.576MHz
4761-4770
(1608)
iPod authenticatrion
coprocessor IC
There is the pull up
resistance of I2C
in coordinate L3 of sheet 2.
3.3V
3.3V
1.8V
3.3V
3.3V
3.3V
3.3V
3.3V
5.3V/3.3V
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(1608)
(1608)
(1608)
(10u/6.3V 1608)
(10u/6.3V 1608)
(10u/6.3V 1608)
(10u/6.3V 1608)
(10k)
(47u/6.3V)
1/6
E
CC UNIT (CPU SURROUNDING PART)
3/6
E
AVIC-Z110BT/XN/UC 231
5 678
5678
C
D
F
A
B
E
E-a E-b
E-b 3/6
X_SDA1
X_SCL1
SHORT
OPEN
X_XP
X_YP
X_XN
X_YN
X+/BR
Y+/TRY+/TR
X-/TLX-/TL
Y-/BLY-/BL
MIC+
LINE_R
LINE_L
R4730
4.3k
GNDD
R4736
1k
R4682 0
GNDD
C4729
0.01u/16
R4704
0
C4732
0.01u/16
GNDA
GNDD
R4669 0
GNDD
GNDD
GNDD
G
NDD
R4703
0
C4728
1000p/50
GNDD
R4733
33k
R4670 0
R4681
0
L4718
1u
C4731
0.1u/10
C4733
100p/50
GNDA
R4674 NM
C4734
0.1u/10
RF
GNDD
R4731
10k
R4735
1k
R4723
10
GNDD
GNDD
GNDD
GNDD
R4673 NM
GNDD
R4
7
N
R4
7
N
R4734
10k
GNDD
GNDA
C4730
0.1u/10
R4675 NM
GNDA
GNDA
L4711
CTF1736-A
OPN
SHRT
R4685 0
R4686 0
R4687 0
R4688 0
R4676 NM
R4677 0
GNDA GNDA GNDA GNDA
BA2115FVM
IC4713
OUT1
1
-IN1
2
+IN1
3
VEE
45
+IN2
6
-IN2
7
OUT2
8
VCC
100p/50
R4724
1.5k
R4725
24k
R4726
33k
R4722
NM
R4727
NM
2SB1132(QR)
Q4711
R4721
0
R4728
47k
R4729
47k
R4732
22k
R4737
NM
R4738
NM
GND_BT GNDD
R4671
0
C4654
NM
R4761
NM
SDATAIN
8
DCVDD
9
SYNC
10
RESETB
11 WIPER
12
TPVDD
13
X+/BR
14
Y+/TR
15
X-/TL
16
Y-/BL
17
TPGND
18
PCBEEP
19
MONOIN
20
MIC1
21
MICCM
22
LINEL
23 LINER
24
AVDD 25
AGND 26
VREF 27
MICBIAS 28
MIC2A
29
R4651
NM
GNDA
33
R4668
0
C4668
1u/10
GNDA
C4652
NM
C4663
NM
C4664
NM
C4672
NM
C4661
CCG1201-A
C4662
CCG1201-A
C4666
CCG1201-A
C4671
CCG1201-A
3.3V
DIAGNOSIS BLOCK
ANTVCC
AC97CODEC
BLOCK
Reference 4601 4800
ANTVCC
GPS33
4651-4700
(1608)
There
is
the
pull
up
resistance of I2C
in coordinate L3 of sheet 2.
(2125)
(2125)
(2125)
(2125)
AVIC-Z110BT/XN/UC
232
1234
1234
C
D
F
A
B
E
E-bE-a
E-a 3/6
E-b 3/6
AC97_DIN
AC97_DOUT
AC97_BCLK
CODEC_RESET
SDCD
SDDATA1
SDWP
SDDATA0
SDDATA3
SDCMD
AC97_BCLK
SDDATA2
AC97_SYNC
AC97_SYNC
AC97_DOUT
CPLD_RESET
GPS_SGN
GPS_MAG
GPS_CLK
OPEN
SHORT
X_SPI_DIN_1
X_CKO_0
X_SPI_DIN_0
TDO
X_SPI_CLK_0
PWM0
PWM0
CODEC_RESET
X_USCLK_1
X_UTXD_1
X_UTFS_1
TSCLK
CPLD_RESET
GRF_RESET
AC97_DIN
X_SCL1
X_SDA1
CPRST
X_XP
X_YP
X_XN
X_YN
X_SPI_EN_0
X_SPI_CLK_1
X_SPI_EN_1
SPEED_IN
SDCLK
X_SPI_DIN_0
GNDD
R4682 0
SDDATA1
SDDATA3
GNDD
4
622
7
u/10
CODEC_RESET
R4681
0
GPS_SGN
SDDATA2
SDCMD
GPS_MAG
R4678
0
C4624
0.047u/10
R4637
0
C4625
0.047u/10
X_SPI_EN_0
SDDATA0
SDWP
C4621
0.047u/10
AC97_BCLK
SDCLK
C4626
0.047u/10
R4603 0
SDCD
X_SPI_CLK_0
X_SPI_DIN_1
X_SPI_EN_1
R4621 NM
R4623 0
R4626 NM
R4627 NM
R4632 NM
X_CKO_0
X_SPI_CLK_1
R4633 0
R4634 0
R4635
0
PWM0
IC4652
HD74ALVC1G07VS
NC
1
IN 2
GND
3OUT
4
5VCC
R4665
6.2k
R4664
1k
R4663
1k
C4658
0.1u/10
GNDD
C4657
NM
C4659
0.01u/50
CPLD_RESET
CPRST
X_SDA1
X_SCL1
X_XP
X_YP
X_XN
X_YN
GNDD
C4602 NM
C4603 NM
C4604 NM
C4605 NM
C4606 NM
GPS_CLK
GRF_RESET
OPEN
SHORT
X_USCLK_1
X_UTXD_1
X_UTFS_1
AC97_DOUT
AC97_DIN
AC97_SYNC
C4609
0.1u/50
C4611
NM
C4613
0.047u/10
C4607
0.1u/10
C4608
0.1u/10
GNDD
C4615 NM
R4771 10k
R4772 10k
R4774 10k
R4773 10k
R4776 10k
R4775 10k
R4618
100k
R4619
100k
GNDD
R4620
100k
IC4621
PE9019A
I/O_1
1
I/O_2
2
I/O_3
3
I/O_4
4
VAUX
5
I/O_5
6
I/O_6
7
I/O_7
8
I/O_8
9
I/O_9
10
I/O_10
11
I/O_11
12
I/O_12
13
I/O_13
14
I/O_14
15
I/O_15
16
I/O_16
17
I/O_17
18
I/O_18
19
VCCIO1_1
20
GND1
21
I/O_19
22
I/O_20
23
I/O_21
24 GND2
25
VCC1
26
I/O_22
27
I/O_23
28
I/O_24
29
I/O_25
30
GND3
31
I/O_26
32
I/O_27
33
I/O_28
34
I/O_29
35
I/O_30
36
I/O_31
37
VCCIO1_2
38
I/O_32
39
I/O_33
40
I/O_34
41
I/O_35
42
I/O_36
43
I/O_37
44
TDI
45
I/O_38
46
TMS
47 TCK
48 I/O_39
49
I/O_40
50
VCCIO1_3 51
I/O_41 52
I/O_42 53
I/O_43 54
I/O_44 55
I/O_45 56
VCC2 57
I/O_46 58
I/O_47 59
I/O_48 60
I/O_49 61
GND4 62
I/O_50 63
I/O_51 64
I/O_52 65
I/O_53 66
I/O_54 67
I/O_55 68
GND5 69
I/O_56 70
I/O_57 71
I/O_58 72
I/O_59
73
I/O_60
74
GND6 75
I/O_61 76
I/O_62 77
I/O_63 78
I/O_64 79
I/O_65 80
I/O_66 81
I/O_67 82
TDO 83
GND7 84
I/O_68 85
I/O_69 86
I/O_70 87
VCCIO2_1 88
I/O_71 89
I/O_72 90
I/O_73 91
I/O_74 92
I/O_75 93
I/O_76 94
I/O_77 95
I/O_78 96
I/O_79 97
VCCIO2_2 98
I/O_80
99
GND8
100
IC4602
TC7SH86FUS1
B
1
A
2
GND
3Y4
5
VCC
GNDD
L4601
CTF1
7
GNDD
D4601
RB520G-30
R4611
NM
C4614
0.1u/10
C4616
NM
R4613
100k
R4612
100k
R4604 22
R4605 22
R4606 22
R4607 22
R4608 22
R4609 1.5k
R4610 33
R4679 33
R4680
33
C4610
NM
C4612
NM
R4631
150
R4622 100
R4625 100
R4624 100
CKS6107-A
CN4601
1SD_DATA3
2SD_CMD
3GND
4VDD
5SD_CL
6GND2
7SD_DATA0
8SD_DATA1
10
TER_2
9SD_DATA2
12 SD_W 11
SD_DET2
13 TER
14 SD_DET
CPLD
CPLD BLOCK
AC97
GPS
CP18
CP3
12.288MHz
iPOD
4601-4615
4616-4650
SD3
EXOR
4771-4780
SD CARD BLOCK
at 1seg TS
Use CPLD
(1608)
(1608)
NM
2/6
E
AVIC-Z110BT/XN/UC 233
5 678
5678
C
D
F
A
B
E
E-bE-a
E-a 3/6
E-b 3/6
A
C
97_DIN
AC97_SYNC
X_SPI_CLK_0 CODEC_RESET
TSCLK
C
PLD_RE
S
ET
GRF_RESET
GPS_CLK
GPS_SGN
GPS_MAG
X_USCLK_1
X_UTXD_1
X_UTFS_1
TSCLK
TSEN
TSO
SPEED_IN
X_SCL1
X_SDA1
CPRST
X_CKO_0
TDI
TMS
TCK
TSO
TSEN
X+/BR
Y+/TR
X-/TL
Y-/BL
MIC+
MONO
NAVI_L
LINE_R
LINE_L
NAVI_R
P-TMS
P-TDI
P-TDO
P-NSRST
P-RTCK
P-NTRST
P-TCK
JTG_RST
TESTMODE4
Div2
Div1
Div0
Test
TMS
TDI
TDO
TCK
P-NTRST
P-TDI
P-TMS
P-TCK
P-RTCK
P-TDO
P-NSRST
TESTMODE4
JTG_RST
R4638 0
C4717
0.1u/10
GNDD
MONO
R4682 0
D4712
HZU5R6(B3)
C4729
0.01u/16
X+/BR
GNDD
GNDD
Y-/BL
C4728
1000p/50
GNDD
GRF3I-0336B
IC4711
XTAL_OUT 1
TP_IF 2
VCC_VCO 3
VCC1 4
RFIN 5
VCC2 6
VCC3
7
VCC4
8
RTC_XI
9
VCC_RTC
10
RTC_XO
11
RTC_OUT
12
SPI_CEB
13
SPI_DI
14
SPI_CLK
15
SPI_DO/MAG
16
SIGN_MAG
17
ACQCLK
18
GRFRST 19
MAIN_VIO 20
MAIN_VCC 21
VCC5 22
VCC6 23
XTAL_IN 24
GND25
R4636 0
GNDD
GNDD
GNDD
SPEED_IN
L4714
CTF1736-A
C4622
0.047u/10
GNDD
R4681
0
GNDD
L4718
1u
R4720 0
D4711
HZU5R6(B3)
GNDD
GNDD
C4725
100p/50
GNDD
Y+/TR
NAVI_L
LINE_R
X-/TL
R4639 0
C4624
0.047u/10
GNDD
GNDD
R4717
NM
MIC+
C4724
100p/50
NAVI_R
GNDD
GNDD
C4719
0.1u/10
C4621
0.047u/10
CTF1706-A
F4711
GND1
1
IN
2GND2 3
OUT 4
GNDD
GNDD
TPIF
LINE_L
L4715
CTF1736-A
GNDD
GNDD
C4721
100p/50
R4719 0
GNDD
L4716
CTF1736-A
C4623
0.047u/10
X_SPI_CLK_0
R4626 NM
R4627 NM
R4628
0
R4629 NM
R4630 NM
R4633 0
R4634 0
R4635
0
R4641 47k
R4643 47k
R4642 47k
R4640 47k
C4711
1u/6.3
GNDD
VVCO
TCXO
SPDOMG
SGNMG
ACQCLK
SPDI
SPCEB
SPCLK
TSO
TSEN
TSCLK
CPLD_RESET
C4713
1000p/50
R4712
4.7k
R4713
20k
GNDD
GNDD
CPRST
X_SDA1
X_SCL1
GNDD
P-RTCK
P-NTRST
P-TMS
P-TCK
P-TDI
P-TDO
P-NSRST
R4740
0
L4719
NM
L4712
NM
R4718 0
JTG_RST
TESTMODE4
R4742
0
C4727
100p/50
R4645
NMR4644
NMR4646
NM
R4647
10k R4648
10k R4649
10k
GNDD
X4711
CWX3728-A
(GND)
1
GND
2
VCC 4
OUTPUT 3
CKS5983-A
CN4621
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
R4616
NM
R4617
10k
R461
9
100k
GNDD
VCCIO1_1
20
GND1
21
I/O_19
22
I/O_20
23
I/O_21
24 GND2
25
VCC1
26
I/O_22
27
I/O_23
28
I/O_24
29
I/O_25
30
GND3
31
I/O_26
32
I/O_27
33
I/O_28
34
I/O_29
35
I/O_30
36
I/O_31
37
VCCIO1_2
38
I/O_32
39
I/O_33
40
I/O_34
41
I/O_35
42
I/O_36
43
I/O_37
44
TDI
45
I/O_38
46
TMS
47 TCK
48 I/O_39
49
I/O_40
50
VCCIO1_3 51
I/O_41 52
I/O_42 53
I/O_43 54
I/O_44 55
I/O_45
56
TMS
TDI
TDO
TCK
NTRST
P-TDI
P-TMS
P-TCK
RTCK
P-TDO
NSRST
TEST4
JTGRST
R4716 100
R4715 100
R4714 100
JA4711
CKS5749-A
1
2
3
C4712
0.01u/16
C4718
47p/50
C4720
47p/50
C4722
47p/50 C4723
47p/50
R4711
2.7
33
L4713
NM
C4735
1p/50
GNDD
R4739
150
C4736
NM
GNDD
C4716 10u/6.3
C4715
100p/50
C4714
0.1u/10
JTAG
CPLD
GPS BLOCK
AC97
CPLD
16.367667MHz
3.3V
1.8V
iPOD
JTAG
CP33
4711-4760
JTAG
12MHz
(1608)
JA5201
2/4
F
1/6
E
AVIC-Z110BT/XN/UC
234
1234
1234
C
D
F
A
B
E
10.10 CC UNIT(DDR/FLASH_ROM/SRAM PART)(GUIDE PAGE)
4/6
E
E-a 4/6
C4420
10u/6.3
C4407
10u/6.3
C4433
10u/6.3
GNDDGNDDGNDD
GNDD
C4457
10u/6.3
IC4406
CY62147EV30LL45BVA
IC4403
E
B
4 1
D
5 3
F
6
C
E
AB
A
F
2
CD
D
4
A
E
1
F
H
C
63
G
B
52
(2125)
(2125)
(2125)
(2125)
(1608)
(1608)
(1608)
DSA5
DSA6
DSA10
DSA7
DSA8
DSA1
DSA9
DSA2
DSA11
DSA3
DSA12
DSA4
DDRCKE
DSA5
DSDM3
DSA6
DSA7
DSA8
DSA9
DSA11
DSA12
DDRCKE
DSDM1
DSA3
DSA2
DSA1
DSA0
DSA10
DSBA1
DSBA0
DDRRAS
DDRCAS
DDRWE
DSCS0
DSA4
DSBA0
DSDM0
DDRWE
DDRCAS
DDRRAS
DSBA0
DSBA1
DSA10
DSA0
DSA1
DSA2
DSA3
DDRRAS
DDRCAS
DDRWE
DSDM0
DSA0
DSBA1
FROM_CE#
DQ0
DQ8 DQ10
DQ2
WE#
DQ5
DQ12 DQ14
DQ7
DSDM2
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A15
DQ10
A7
A12
A10
DQ0DQ6
A16
DQ11
DQ5
XCS
DQ4
SRAM_CE#
A11 A14
DQ14
A8
A6
DQ12
DQ2
WE# DQ1
DQ9DQ15
A9
A4
DQ7
DQ3
DQ13
DQ8
A5
A13 A1
A2
OE#
DSCS0 DSCS1
XCS A3
RY/BY#
A19
DQ14
DQ12
DQ10
DQ8
DQ6
WE#
ETHER_CE#
OE#
A1
A0
DQ15
DQ13
DQ11
DQ9
DQ7
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0
DSD0
DSD1
DSD2
DSD3
DSD4
DSD5
DSD6
DSD7
DSDS0
DSD15
DSD14
DSD13
DSD12
DSD11
DSD10
DSD9
DSD8
DSDS1
DSD16
DSD17
DSD18
DSD19
DSD20
DSD21
DSD22
DSD23
DSDS2 DSDS3
DSD24
DSD25
DSD26
DSD27
DSD31
DSD30
DSD29
DSD28
DSD0
DSD1
DSD2
DSD3
DSD4
DSD5
DSD6
DSD7
DSDS0
ETHER_INT#
A18
A17
C4411
0.1u/10
C4417
0.01u/16
C4425
0.01u/16
C4410
0.01u/16
C4419
0.01u/16
C4418
0.01u/16
C4416
0.01u/16
C4414
0.01u/16
C4409
0.01u/16
C4424
0.1u/10
C4405
0.01u/16
C4423
0.01u/16
C4403
0.01u/16
C4406
0.01u/16
C4401
0.01u/16
C4415
0.01u/16
C4404
0.01u/16
C4412
0.01u/16
C4438
0.1u/10
C4436
0.01u/16
C4431
0.01u/16
C4427
0.01u/16
C4428
0.01u/16
C4435
0.01u/16
C4432
0.01u/16
C4430
0.01u/16
C4429
0.01u/16
GNDDGNDD GNDD
R4424
0
R4415
470
R4404
470
DDR1251
DDR1252
DDR253DDR251 DDR255
R4419
47k
C4402
0.01u/16
C4455
0.1u/10
GNDD
GNDD
C4458
0.1u/10
GNDD
IC4407
TC7PA53FU
CH1
1
GND
2
CH0
3COMMON4
5
VCC
6
A
R4446
100k
R4448
100k
GNDD
GNDD
F4409
DTL1106-A
3
2
1
C4456
0.1u/10
GNDD
C4459
0.1u/10
R4449
100k
GNDD
GNDD
GNDD
C4422
0.01u/16
R4447
NM
R4414
10k
L4414
CTF1736-A
L4415
CTF1736-A
A4
A1
B4
A4
C4
A6
D4
A7
E4
A16
F4
A15
G4
A13
H4
A10
A5
A2
B5
CE
C5
I/O1
D5
I/O3
E5
I/O4
F5
I/O5
G5
WE
H5
A11
A6
NC1
B6
I/O0
C6
I/O2
D6
VCC1
E6
VSS2
F6
I/O6
G6
I/O7
H6
NC5
A3
A0
F1
I/O14
H2
A8
E1
VCC2
B1
I/O8
H3
A9
G2
NC3
G3
A12
F2
I/O13
C1
I/O9
F3
A14
E2
I/O12
D1
VSS1
E3
NC2
D2
I/O11
D3
A17
C2
I/O10
A1
BLE
C3
A5
H1
NC4
B2
BHE
B3
A3
G1
I/O15
A2
OE
E1
A0
E2
DQ0
E3
DQ2
E4
DQ5
E5
DQ7
E6
A16
F1
CE#
F2
DQ8
F3
DQ10
F4
DQ12
F5
DQ14
F6
BYTE#
C5
A10
A6
A13
C4
NC1
A5
A9
A2
A7
D6
A15
C3
A18
D5
A11
C2
A6
A3
RY/BY#
D4
NC3
C1
A2
A4
WE#
D3
NC2
B6
A12
D2
A5
B5
A8
A1
A3
D1
A1
B2
A17
B4
RESET#
C6
A14
B1
A4
B3
WP#
GNDD
IC4404
HY5DU121622DTP-D43
VDD_1
1
DQ0
2
VDDQ_1
3
DQ1
4
5DQ2
6VSSQ_1
7DQ3
8DQ4
9VDDQ_2
10 DQ5
11 DQ6
12 VSSQ_2
13 DQ7
14 NC_1
15 VDDQ_3
16 LDQS
17 NC_2
18 VDD_2
19 NC_3
20 LDM
21 /WE
22 /CAS
23 /RAS
24 /CS
25 NC_4
26 BA0
27 BA1
28 A10/AP
29 A0
30 A1
31 A2
32 A3
33 VDD_3 34
VSS_1
35
A4
36
A5
37
A6
38
A7
39
A8
40
A9
41
A11
42
A12
43
NC_5
44
CKE
45
CK
46
/CK
47
UDM
48
VSS_2
49
VREF
50
NC_6
51
UDQS
52
VSSQ_3
53
NC_7
54
DQ8
55
VDDQ_4
56
DQ9
57
DQ10
58
VSSQ_4
59
DQ11
60
DQ12
61
VDDQ_5
62
DQ13
63
DQ14
64
VSSQ_5
65
DQ15
66
VSS_3
IC4402
HY5DU121622DTP-D43
VDD_1
1
DQ0
2
VDDQ_1
3
DQ1
4
5DQ2
6VSSQ_1
7DQ3
8DQ4
9VDDQ_2
10 DQ5
11 DQ6
12 VSSQ_2
13 DQ7
14 NC_1
15 VDDQ_3
16 LDQS
17 NC_2
18 VDD_2
19 NC_3
20 LDM
21 /WE
22 /CAS
23 /RAS
24 /CS
25 NC_4
26 BA0
27 BA1
28 A10/AP
29 A0
30 A1
31 A2
32 A3
33 VDD_3 34
VSS_1
35
A4
36
A5
37
A6
38
A7
39
A8
40
A9
41
A11
42
A12
43
NC_5
44
CKE
45
CK
46
/CK
47
UDM
48
VSS_2
49
VREF
50
NC_6
51
UDQS
52
VSSQ_3
53
NC_7
54
DQ8
55
VDDQ_4
56
DQ9
57
DQ10
58
VSSQ_4
59
DQ11
60
DQ12
61
VDDQ_5
62
DQ13
63
DQ14
64
VSSQ_5
65
DQ15
66
VSS_3
IC4401
HY5DU121622DTP-D43
VDD_1
1
DQ0
2
VDDQ_1
3
DQ1
4
5DQ2
6VSSQ_1
7DQ3
8DQ4
9VDDQ_2
10 DQ5
11 DQ6
12 VSSQ_2
13 DQ7
14 NC_1
15 VDDQ_3
16 LDQS
17 NC_2
18 VDD_2
19 NC_3
20 LDM
21 /WE
22 /CAS
23 /RAS
24 /CS
25 NC_4
26 BA0
27 BA1
28 A10/AP
29 A0
30 A1
31 A2
32 A3
33 VDD_3 34
VSS_1
35
A4
36
A5
37
A6
38
A7
39
A8
40
A9
41
A11
42
A12
43
NC_5
44
CKE
45
CK
46
/CK
47
UDM
48
VSS_2
49
VREF
50
NC_6
51
UDQS
52
VSSQ_3
53
NC_7
54
DQ8
55
VDDQ_4
56
DQ9
57
DQ10
58
VSSQ_4
59
DQ11
60
DQ12
61
VDDQ_5
62
DQ13
63
DQ14
64
VSSQ_5
65
DQ15
66
VSS_3
NM
CN4401
12
34
56
78
910
1112
1314
1516
1718
1920
21
22
2324
2526
2728
2930
SRAMVDD
R4455
1.5k
R4454
1.5k
R4457
1.5k
R4456
1.5k
C4413
1u/10
C4421
1u/10
C4426
1u/10
C4454
NM
C4449
NM
C4460
NM
C4461
NM
C4462
NM
GNDD
ADDRESS COMMAND
CPU
DD
R
SHORT
CPU
CPU
512Mb512Mb
D0 - D15 D16 - D31
ADDRESS COMMAND (simplex)
DDR SDRAM
ADDRESS COMMAND (simplex)
DDR SDRAM
ADDRESS COMMAND (simplex)
512Mb
DDR SDRAM
D0 - D15
OPEN
8Mbit
SRAM 4Mbit (256K*16bit)
B3pin : WP# has internal p
u
PEH224A8
OPEN
ETHER JIG Connector
(D)
(D)
(D)
(D)
Data lines(DQ):I/O Data lines(DQ):I/O Data lines(DQ):I/O
Rs Rs
Rs
Rs
Rt
Rt
RsD
Vtt Vtt
AVIC-Z110BT/XN/UC 235
5 678
5678
C
D
F
A
B
E
4/6
E
E-b 4/6
C4448
10u/6.3
C4433
10u/6.3
GNDD
GNDD
GNDD
C
4403
C4441
1u/10
E
H
D
GF
GH
E
F
D
4 6 5 1 2 3
(2125)
(2125)
(1608)
(1608)
(1608)
WE#
OE#
FROM_CE#
DSDS1
DSDS0
DSDS3
DSDS2
DSA6
DSA9
DSA12
DSA8
DDRCKE
DSA7
DSA5
DSA11
DSA4
DSDM1
DSA7
DSA6
DSA4
DSA8
DSA9
DSA12
DDRCKE
DSA5
DSA11
DSDM3DSDM2
DDRWE
DDRCAS
DDRRAS
DSBA0
DSBA1
DSA10
DSA0
DSA1
DSA2
DSA3
A1
A2
A4
A3
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
RY/BY#
FROM_CE#
OE#
DQ0
DQ8
DQ9
DQ1 DQ3
DQ11
DQ10
DQ2 DQ5
DQ12
DQ4 DQ6
DQ13
DQ14
DQ7
DQ15
DSCS1
DSCS1
A18
A1
A2 A6 A12 A16
A17
SRAM_CE#
A19
DSDM3
DSDM2
DSDM1
DSDM0
DDRWE
DSA7
DSA6
DSA9
DSA11
DSA0
DSA1
DSA5
DSA3
DSA12
DSA10
DDRCKE
DDRRAS
DSCS0
DDRCAS
DSA8
DSBA1
DSBA0
DSA2
DSA4
ETHER_CE#
DSD15
DSD14
DSD13
DSD12
DSD11
DSD10
DSD9
DSD8
DSDS1
DSD16
DSD17
DSD18
DSD19
DSD20
DSD21
DSD22
DSD23
DSDS2 DSDS3
DSD27
DSD26
DSD25
DSD24
DSD31
DSD30
DSD29
DSD28
ETHER_INT#
A0
DSD1
DSD14
DSD0
DSD15
DSD3
DSD12
DSD2
DSD13
DSD5
DSD10
DSD4
DSD11
DSD7
DSD8
DSD6
DSD9
DSD31
DSD16
DSD30
DSD17
DSD29
DSD18
DSD28
DSD19
DSD27
DSD20
DSD26
DSD21
DSD25
DSD22
DSD24
DSD23
CCD25
C4451
0.01u/16
C4442
0.01u/16
C4444
0.01u/16
C4446
0.01u/16
C4452
0.1u/10
C4443
0.01u/16
C4453
0.01u/16
C4450
0.01u/16
C4445
0.01u/16
C4447
0.01u/16
C4438
0.1u/10
C4436
0.01u/16
C4435
0.01u/16
C4439
0.01u/16
GNDD
GNDD
GNDD
GNDD
R4420
470
R4431
470
DDR1254
DDR257
DDR1253
A1
A15
A7
A5
A11
A16
A17
OE#
FROM_CE#
WE#
A13
A4
A2
A8
A6
A9
A10
A12
A14
DQ2
DQ3
DQ14
DQ13
DQ0
DQ8
DQ12
DQ15
DQ10
DQ11
DQ5
DQ7
DQ1
GNDD
DQ4
DQ9
CCD25
DSDS[3]
DSDS[1]
DSDS[2]
X_MCLKB_O
CC_RST
X_MCLK_O
X_MDQM[2]
CCD3_IOON
X_MDQM[1]
X_MDQM[0]
X_MDQM[3]
DSDS[0]
GNDD
DQ6
L4410
CTF1736-A
A3
C4437
0.1u/10
GNDD
RY/BY#
GNDD
GNDD
R4419
47k
X_MCS_B[1]
R4435
39
A18
BUP3
SRAM_CE#
R4434
39
A19
R4436
56
R4437
56
R4438
56
R4439
56
X_MWE_B
X_MA[7]
X_MA[6]
X_MA[9]
X_MA[11]
X_MA[0]
X_MA[1]
X_MA[5]
X_MA[3]
X_MA[12]
X_MA[10]
X_MCKE
X_MRAS_B
X_MCS_B[0]
X_MCAS_B
CCD3
X_MA[8]
X_M_BA[0]
X_M_BA[1]
X_MA[2]
X_MA[4]
ETHER_CE#
E1
A0
E2
DQ0
E3
DQ2
E4
DQ5
E5
DQ7
E6
A16
F1
CE#
F2
DQ8
F3
DQ10
F4
DQ12
F5
DQ14
F6
BYTE#
G1
OE#
G2
DQ9
G3
DQ11
G4
Vcc
G5
DQ13
G6
DQ15/A-1
H1
Vss1
H2
DQ1
H3
DQ3
H4
DQ4
H5
DQ6
H6
Vss2
D6
A15
D5
A11
D4
NC3
D3
NC2
D2
A5
D1
A1
ETHER_INT#
A0
DSD[15]
DSD[14]
DSD[13]
DSD[12]
DSD[11]
DSD[10]
DSD[9]
DSD[8]
DSD[7]
DSD[6]
DSD[5]
DSD[4]
DSD[3]
DSD[2]
DSD[1]
DSD[0]
DSD[31]
DSD[16]
DSD[30]
DSD[17]
DSD[19]
DSD[28]
DSD[18]
DSD[29]
DSD[21]
DSD[26]
DSD[20]
DSD[27]
DSD[23]
DSD[24]
DSD[22]
DSD[25]
R4432
15
R4433
15
IC4405
HY5DU121622DTP-D43
VDD_1
1
DQ0
2
VDDQ_1
3
DQ1
4
5DQ2
6VSSQ_1
7DQ3
8DQ4
9VDDQ_2
10 DQ5
11 DQ6
12 VSSQ_2
13 DQ7
14 NC_1
15 VDDQ_3
16 LDQS
17 NC_2
18 VDD_2
19 NC_3
20 LDM
21 /WE
22 /CAS
23 /RAS
24 /CS
25 NC_4
26 BA0
27 BA1
28 A10/AP
29 A0
30 A1
31 A2
32 A3
33 VDD_3 34
VSS_1
35
A4
36
A5
37
A6
38
A7
39
A8
40
A9
41
A11
42
A12
43
NC_5
44
CKE
45
CK
46
/CK
47
UDM
48
VSS_2
49
VREF
50
NC_6
51
UDQS
52
VSSQ_3
53
NC_7
54
DQ8
55
VDDQ_4
56
DQ9
57
DQ10
58
VSSQ_4
59
DQ11
60
DQ12
61
VDDQ_5
62
DQ13
63
DQ14
64
VSSQ_5
65
DQ15
66
VSS_3
IC4404
5DU121622DTP-D43
VDD_1
DQ0
VDDQ_1
DQ1
DQ2
VSSQ_1
DQ3
DQ4
VDDQ_2
DQ5
DQ6
VSSQ_2
DQ7
NC_1
VDDQ_3
LDQS
NC_2
VDD_2
NC_3
LDM
/WE
/CAS
/RAS
/CS
NC_4
BA0
BA1
A10/AP
A0
A1
A2
A3
VDD_3 34
VSS_1
35
A4
36
A5
37
A6
38
A7
39
A8
40
A9
41
A11
42
A12
43
NC_5
44
CKE
45
CK
46
/CK
47
UDM
48
VSS_2
49
VREF
50
NC_6
51
UDQS
52
VSSQ_3
53
NC_7
54
DQ8
55
VDDQ_4
56
DQ9
57
DQ10
58
VSSQ_4
59
DQ11
60
DQ12
61
VDDQ_5
62
DQ13
63
DQ14
64
VSSQ_5
65
DQ15
66
VSS_3
NORVDD
R4450
1.5k
R4451
1.5k
R4453
1.5k
R4452
1.5k
C4408
1u/10
C4413
1u/10
R4410 22
R4412 22
R4413 22
R4411 22
R4440
33
2
1
4
3
6
5
8
7
R4441
33
2
1
4
3
6
5
8
7
R4442
33
2
1
4
3
6
5
8
7
R4443
33
2
1
4
3
6
5
8
7
R4444
33
2
1
4
3
6
5
8
7
C4434
NM
C4440
NM
C4454
NM
C4449
NM
R4409
22
2
1
4
36
5
8
7
R4403
22
2
1
4
36
5
8
7
R4407
22
2
1
4
36
5
8
7
R4401
22
2
1
4
36
5
8
7
R4405
22
2
1
4
36
5
8
7
R4408
22
2
1
4
36
5
8
7
R4402
22
2
1
4
36
5
8
7
R4406
22
2
1
4
36
5
8
7
CPU
DDR CLOCK
s
s
166MHz
C
OMMAND (simplex)
512Mb
DDR SDRAM
D0 - D15
DDR SDRAM
ADDRESS COMMAND (simplex)
D16 - D31
512Mb
Referene 4401 4500
t
WP# has internal pull-up.
H224A8
(D)(D)
(D)(D)
2.5V
3.3V
3.3V
3.3V
a
ta lines(DQ):I/O Data lines(DQ):I/O
Rs
Rs
Rt
CC UNIT (DDR/FLASH_ROM/SRAM PART)
4/6
E
1/6
E
2/6
E
1/6
E
2/6
E
AVIC-Z110BT/XN/UC
236
1234
1234
C
D
F
A
B
E
E-a E-b
E-b 4/6
C4448
10u/6.3
C4433
10u/6.3
GNDD
GNDD
(2125)
(2125)
(1608)
(1608)
DSDS1
DSDS0
DSDS3
DSDS2
DSA6
DSA9
DSA12
DSA8
DDRCKE
DSA7
DSA5
DSA11
DSA4
DSDM1
DSA7
DSA6
DSA4
DSA8
DSA9
DSA12
DDRCKE
DSA5
DSA11
DSDM3DSDM2
DDRWE
DDRCAS
DDRRAS
DSBA0
DSBA1
DSA10
DSA0
DSA1
DSA2
DSA3
DSCS1
DSD15
DSD14
DSD13
DSD12
DSD11
DSD10
DSD9
DSD8
DSDS1
DSD16
DSD17
DSD18
DSD19
DSD20
DSD21
DSD22
DSD23
DSDS2 DSDS3
DSD27
DSD26
DSD25
DSD24
DSD31
DSD30
DSD29
DSD28
DSD1
DSD14
DSD0
DSD15
DSD3
DSD12
DSD2
DSD13
DSD5
DSD10
DSD4
DSD11
DSD7
DSD8
DSD6
DSD9
DSD31
DSD16
DSD30
DSD17
DSD29
DSD18
DSD28
DSD19
DSD27
DSD20
DSD26
DSD21
DSD25
DSD22
DSD24
DSD23
CCD25
C4451
0.01u/16
C4442
0.01u/16
C4444
0.01u/16
C4446
0.01u/16
C4452
0.1u/10
C4443
0.01u/16
C4453
0.01u/16
C4450
0.01u/16
C4445
0.01u/16
C4447
0.01u/16
C4438
0.1u/10
C4436
0.01u/16
C4435
0.01u/16
C4439
0.01u/16
GNDD
GNDD
GNDD
DDR1254
DDR257
DDR1253
GNDD
CCD25
DSDS[3]
DSDS[1]
DSDS[2]
DSDS[0]
DSD[15]
DSD[14]
DSD[13]
DSD[12]
DSD[11]
DSD[10]
DSD[9]
DSD[8]
DSD[7]
DSD[6]
DSD[5]
DSD[4]
DSD[3]
DSD[2]
DSD[1]
DSD[0]
DSD[31]
DSD[16]
DSD[30]
DSD[17]
DSD[19]
DSD[28]
DSD[18]
DSD[29]
DSD[21]
DSD[26]
DSD[20]
DSD[27]
DSD[23]
DSD[24]
DSD[22]
DSD[25]
IC4405
HY5DU121622DTP-D43
VDD_1
1
DQ0
2
VDDQ_1
3
DQ1
4
5DQ2
6VSSQ_1
7DQ3
8DQ4
9VDDQ_2
10 DQ5
11 DQ6
12 VSSQ_2
13 DQ7
14 NC_1
15 VDDQ_3
16 LDQS
17 NC_2
18 VDD_2
19 NC_3
20 LDM
21 /WE
22 /CAS
23 /RAS
24 /CS
25 NC_4
26 BA0
27 BA1
28 A10/AP
29 A0
30 A1
31 A2
32 A3
33 VDD_3 34
VSS_1
35
A4
36
A5
37
A6
38
A7
39
A8
40
A9
41
A11
42
A12
43
NC_5
44
CKE
45
CK
46
/CK
47
UDM
48
VSS_2
49
VREF
50
NC_6
51
UDQS
52
VSSQ_3
53
NC_7
54
DQ8
55
VDDQ_4
56
DQ9
57
DQ10
58
VSSQ_4
59
DQ11
60
DQ12
61
VDDQ_5
62
DQ13
63
DQ14
64
VSSQ_5
65
DQ15
66
VSS_3
IC4404
Y
5DU121622DTP-D43
VDD_1
DQ0
VDDQ_1
DQ1
DQ2
VSSQ_1
DQ3
DQ4
VDDQ_2
DQ5
DQ6
VSSQ_2
DQ7
NC_1
VDDQ_3
LDQS
NC_2
VDD_2
NC_3
LDM
/WE
/CAS
/RAS
/CS
NC_4
BA0
BA1
A10/AP
A0
A1
A2
A3
VDD_3 34
VSS_1
35
A4
36
A5
37
A6
38
A7
39
A8
40
A9
41
A11
42
A12
43
NC_5
44
CKE
45
CK
46
/CK
47
UDM
48
VSS_2
49
VREF
50
NC_6
51
UDQS
52
VSSQ_3
53
NC_7
54
DQ8
55
VDDQ_4
56
DQ9
57
DQ10
58
VSSQ_4
59
DQ11
60
DQ12
61
VDDQ_5
62
DQ13
63
DQ14
64
VSSQ_5
65
DQ15
66
VSS_3
R4450
1.5k
R4451
1.5k
R4453
1.5k
R4452
1.5k
C4408
1u/10
C4413
1u/10
R4410 22
R4412 22
R4413 22
R4411 22
C4434
NM
C4440
NM
C4454
NM
C4449
NM
R4409
22
2
1
4
36
5
8
7
R4403
22
2
1
4
36
5
8
7
R4407
22
2
1
4
36
5
8
7
R4401
22
2
1
4
36
5
8
7
R4405
22
2
1
4
36
5
8
7
R4408
22
2
1
4
36
5
8
7
R4402
22
2
1
4
36
5
8
7
R4406
22
2
1
4
36
5
8
7
CPU
DDR CLOCK
512Mb
DDR SDRAM
D0 - D15
DDR SDRAM
D16 - D31
512Mb
(D)(D)
(D)(D)
2.5V
a
ta lines(DQ):I/O Data lines(DQ):I/O
Rs
Rs
Rt
CC UNIT (DDR/FLASH_ROM/SRAM PART)
4/6
E
1/6
E
2/6
E
AVIC-Z110BT/XN/UC 237
5 678
5678
C
D
F
A
B
E
E-a E-b
E-b 4/6
GNDD
C
4403
C4441
1u/10
E
H
D
GF
GH
E
F
D
4 6
5 1 2 3
(1608)
WE#
OE#
FROM_CE#
DSDS1
DSDS0
DSDS3
DSDS2
DSA5
DSA4 DSA4
DSA5DSA2
DSA3
A1
A2
A4
A3
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
RY/BY#
FROM_CE#
OE#
DQ0
DQ8
DQ9
DQ1 DQ3
DQ11
DQ10
DQ2 DQ5
DQ12
DQ4 DQ6
DQ13
DQ14
DQ7
DQ15
DSCS1
A18
A1
A2 A6 A12 A16
A17
SRAM_CE#
A19
DSDM3
DSDM2
DSDM1
DSDM0
DDRWE
DSA7
DSA6
DSA9
DSA11
DSA0
DSA1
DSA5
DSA3
DSA12
DSA10
DDRCKE
DDRRAS
DSCS0
DDRCAS
DSA8
DSBA1
DSBA0
DSA2
DSA4
ETHER_CE#
ETHER_INT#
A0
C4447
0.01u/16
GNDD
GNDDGNDD
R4420
470
R4431
470
A1
A15
A7
A5
A11
A16
A17
OE#
FROM_CE#
WE#
A13
A4
A2
A8
A6
A9
A10
A12
A14
DQ2
DQ3
DQ14
DQ13
DQ0
DQ8
DQ12
DQ15
DQ10
DQ11
DQ5
DQ7
DQ1
DQ4
DQ9
DSDS[3]
DSDS[1]
DSDS[2]
X_MCLKB_O
CC_RST
X_MCLK_O
X_MDQM[2]
CCD3_IOON
X_MDQM[1]
X_MDQM[0]
X_MDQM[3]
DSDS[0]
GNDD
DQ6
L4410
CTF1736-A
A3
C4437
0.1u/10
GNDD
RY/BY#
GNDD
GNDD
R4419
47k
X_MCS_B[1]
R4435
39
A18
BUP3
SRAM_CE#
R4434
39
A19
R4436
56
R4437
56
R4438
56
R4439
56
X_MWE_B
X_MA[7]
X_MA[6]
X_MA[9]
X_MA[11]
X_MA[0]
X_MA[1]
X_MA[5]
X_MA[3]
X_MA[12]
X_MA[10]
X_MCKE
X_MRAS_B
X_MCS_B[0]
X_MCAS_B
CCD3
X_MA[8]
X_M_BA[0]
X_M_BA[1]
X_MA[2]
X_MA[4]
ETHER_CE#
E1
A0
E2
DQ0
E3
DQ2
E4
DQ5
E5
DQ7
E6
A16
F1
CE#
F2
DQ8
F3
DQ10
F4
DQ12
F5
DQ14
F6
BYTE#
G1
OE#
G2
DQ9
G3
DQ11
G4
Vcc
G5
DQ13
G6
DQ15/A-1
H1
Vss1
H2
DQ1
H3
DQ3
H4
DQ4
H5
DQ6
H6
Vss2
D6
A15
D5
A11
D4
NC3
D3
NC2
D2
A5
D1
A1
ETHER_INT#
A0
R4432
15
R4433
15
IC4405
HY5DU121622DTP-D43
31 A2
32 A3
33 VDD_3 34
VSS_1
35
A4
36
A5
IC4404
Y
5DU121622DTP-D43
A2
A3
VDD_3 34
VSS_1
35
A4
36
A5
NORVDD
R4410
22
R4412 22
R4413 22
R4411 22
R4440
33
2
1
4
3
6
5
8
7
R4441
33
2
1
4
3
6
5
8
7
R4442
33
2
1
4
3
6
5
8
7
R4443
33
2
1
4
3
6
5
8
7
R4444
33
2
1
4
3
6
5
8
7
s
s
166MHz
C
OMMAND (simplex)
D0 - D15
ADDRESS COMMAND (simplex)
D16 - D31
Referene 4401 4500
t
WP# has internal pull-up.
E
H224A8
3.3V
3.3V
3.3V
1/6
E
2/6
E
AVIC-Z110BT/XN/UC
238
1234
1234
C
D
F
A
B
E
E-bE-a
E-a 4/6
E-b 4/6
C4420
10u/6.3
C4407
10u/6.3
C4433
10u/6.3
GNDDGNDDGNDD
(2125)
(2125)
(2125)
(1608)
(1608)
(1608)
DSA5
DSA6
DSA10
DSA7
DSA8
DSA1
DSA9
DSA2
DSA11
DSA3
DSA12
DSA4
DDRCKE
DSA5
DSDM3
DSA6
DSA7
DSA8
DSA9
DSA11
DSA12
DDRCKE
DSDM1
DSA3
DSA2
DSA1
DSA0
DSA10
DSBA1
DSBA0
DDRRAS
DDRCAS
DDRWE
DSCS0
DSA4
DSBA0
DSDM0
DDRWE
DDRCAS
DDRRAS
DSBA0
DSBA1
DSA10
DSA0
DSA1
DSA2
DSA3
DDRRAS
DDRCAS
DDRWE
DSDM0
DSA0
DSBA1
DSDM2
DSCS0 DSCS1
DSD0
DSD1
DSD2
DSD3
DSD4
DSD5
DSD6
DSD7
DSDS0
DSD15
DSD14
DSD13
DSD12
DSD11
DSD10
DSD9
DSD8
DSDS1
DSD16
DSD17
DSD18
DSD19
DSD20
DSD21
DSD22
DSD23
DSDS2 DSDS3
DSD24
DSD25
DSD26
DSD27
DSD31
DSD30
DSD29
DSD28
DSD0
DSD1
DSD2
DSD3
DSD4
DSD5
DSD6
DSD7
DSDS0
C4411
0.1u/10
C4417
0.01u/16
C4425
0.01u/16
C4410
0.01u/16
C4419
0.01u/16
C4418
0.01u/16
C4416
0.01u/16
C4414
0.01u/16
C4409
0.01u/16
C4424
0.1u/10
C4405
0.01u/16
C4423
0.01u/16
C4403
0.01u/16
C4406
0.01u/16
C4401
0.01u/16
C4415
0.01u/16
C4404
0.01u/16
C4412
0.01u/16
C4438
0.1u/10
C
4
0.01
u
C4431
0.01u/16
C4427
0.01u/16
C4428
0.01u/16
C
4
0.01
u
C4432
0.01u/16
C4430
0.01u/16
C4429
0.01u/16
GNDDGNDD
DDR1251
DDR1252
DDR253DDR251 DDR255
C4402
0.01u/16
C4422
0.01u/16
IC4404
HY5DU121622DTP-D43
VDD_1
1
DQ0
2
VDDQ_1
3
DQ1
4
5DQ2
6VSSQ_1
7DQ3
8DQ4
9VDDQ_2
10 DQ5
11 DQ6
12 VSSQ_2
13 DQ7
14 NC_1
15 VDDQ_3
16 LDQS
17 NC_2
18 VDD_2
19 NC_3
20 LDM
21 /WE
22 /CAS
23 /RAS
24 /CS
25 NC_4
26 BA0
27 BA1
28 A10/AP
29 A0
30 A1
31 A2
32 A3
33 VDD_3 34
VSS_1
35
A4
36
A5
37
A6
38
A7
39
A8
40
A9
41
A11
42
A12
43
NC_5
44
CKE
45
CK
46
/CK
47
UDM
48
VSS_2
49
VREF
50
NC_6
51
UDQS
52
VSSQ_3
53
NC_7
54
DQ8
55
VDDQ_4
56
DQ9
57
DQ10
58
VSSQ_4
59
DQ11
60
DQ12
61
VDDQ_5
62
DQ13
63
DQ14
64
VSSQ_5
65
DQ15
66
VSS_3
IC4402
HY5DU121622DTP-D43
VDD_1
1
DQ0
2
VDDQ_1
3
DQ1
4
5DQ2
6VSSQ_1
7DQ3
8DQ4
9VDDQ_2
10 DQ5
11 DQ6
12 VSSQ_2
13 DQ7
14 NC_1
15 VDDQ_3
16 LDQS
17 NC_2
18 VDD_2
19 NC_3
20 LDM
21 /WE
22 /CAS
23 /RAS
24 /CS
25 NC_4
26 BA0
27 BA1
28 A10/AP
29 A0
30 A1
31 A2
32 A3
33 VDD_3 34
VSS_1
35
A4
36
A5
37
A6
38
A7
39
A8
40
A9
41
A11
42
A12
43
NC_5
44
CKE
45
CK
46
/CK
47
UDM
48
VSS_2
49
VREF
50
NC_6
51
UDQS
52
VSSQ_3
53
NC_7
54
DQ8
55
VDDQ_4
56
DQ9
57
DQ10
58
VSSQ_4
59
DQ11
60
DQ12
61
VDDQ_5
62
DQ13
63
DQ14
64
VSSQ_5
65
DQ15
66
VSS_3
IC4401
HY5DU121622DTP-D43
VDD_1
1
DQ0
2
VDDQ_1
3
DQ1
4
5DQ2
6VSSQ_1
7DQ3
8DQ4
9VDDQ_2
10 DQ5
11 DQ6
12 VSSQ_2
13 DQ7
14 NC_1
15 VDDQ_3
16 LDQS
17 NC_2
18 VDD_2
19 NC_3
20 LDM
21 /WE
22 /CAS
23 /RAS
24 /CS
25 NC_4
26 BA0
27 BA1
28 A10/AP
29 A0
30 A1
31 A2
32 A3
33 VDD_3 34
VSS_1
35
A4
36
A5
37
A6
38
A7
39
A8
40
A9
41
A11
42
A12
43
NC_5
44
CKE
45
CK
46
/CK
47
UDM
48
VSS_2
49
VREF
50
NC_6
51
UDQS
52
VSSQ_3
53
NC_7
54
DQ8
55
VDDQ_4
56
DQ9
57
DQ10
58
VSSQ_4
59
DQ11
60
DQ12
61
VDDQ_5
62
DQ13
63
DQ14
64
VSSQ_5
65
DQ15
66
VSS_3
R4455
1.5k
R4454
1.5k
R4457
1.5k
R4456
1.5k
C4413
1u/10
C4421
1u/10
C4426
1u/10
C4454
NM
C4449
C4460
NM
C4461
NM
ADDRESS COMMAND
CPU
SHORT
CPU
CPU
512Mb512Mb
D0 - D15 D16 - D31
DDR SDRAMDDR SDRAM
512Mb
DDR SDRAM
D0 - D15
OPEN OPEN
(D)
(D)
(D)
(D)
Data lines(DQ):I/O Data lines(DQ):I/O Data lines(DQ):I/O
Rs Rs
Rs
Rs
Rt
Rt
RsD
Vtt Vtt
AVIC-Z110BT/XN/UC 239
5 678
5678
C
D
F
A
B
E
E-bE-a
E-a 4/6
E-b 4/6
GNDD
C4457
10u/6.3
IC4406
CY62147EV30LL45BVA
IC4403
E
B
4 1
D
5 3 6
C
E
AB
A
2
CD
D
4
A
E
1
F
H
C
63
G
B
52
(2125)
DSA5DSA2
DSA3 DSA4
DSA5
DSA3
DSA2
DSA4
DSA2
DSA3
FROM CE#
DQ0
DQ8 DQ10
DQ2
WE#
DQ5
DQ12 DQ14
DQ7A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A15
DQ10
A7
A12
A10
DQ0DQ6
A16
DQ11
DQ5
XCS
DQ4
SRAM_CE#
A11 A14
DQ14
A8
A6
DQ12
DQ2
WE# DQ1
DQ9DQ15
A9
A4
DQ7
DQ3
DQ13
DQ8
A5
A13 A1
A2
OE#
XCS A3
RY/BY#
A19
DQ14
DQ12
DQ10
DQ8
DQ6
WE#
ETHER_CE#
OE#
A1
A0
DQ15
DQ13
DQ11
DQ9
DQ7
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0
ETHER_INT#
A18
A17
C4419
0.01u/16
C4406
0.01u/16
C4432
0.01u/16
GNDDGNDD
R4424
0
R4415
470
R4404
470
R4419
C4455
0.1u/10
GNDD
GNDD
C4458
0.1u/10
GNDD
IC4407
TC7PA53FU
CH1
1
GND
2
CH0
3COMMON4
5
VCC
6
A
R4446
100k
R4448
100k
GNDD
GNDD
F4409
DTL1106-A
3
2
1
C4456
0.1u/10
GNDD
C4459
0.1u/10
R4449
100k
GNDD
GNDD
GNDD
R4447
NM
R4414
10k
L4414
CTF1736-A
L4415
CTF1736-A
A4
A1
B4
A4
C4
A6
D4
A7
E4
A16
F4
A15
G4
A13
H4
A10
A5
A2
B5
CE
C5
I/O1
D5
I/O3
E5
I/O4
F5
I/O5
G5
WE
H5
A11
A6
NC1
B6
I/O0
C6
I/O2
D6
VCC1
E6
VSS2
F6
I/O6
G6
I/O7
H6
NC5
A3
A0
F1
I/O14
H2
A8
E1
VCC2
B1
I/O8
H3
A9
G2
NC3
G3
A12
F2
I/O13
C1
I/O9
F3
A14
E2
I/O12
D1
VSS1
E3
NC2
D2
I/O11
D3
A17
C2
I/O10
A1
BLE
C3
A5
H1
NC4
B2
BHE
B3
A3
G1
I/O15
A2
OE
E1
A0
E2
DQ0
E3
DQ2
E4
DQ5
E5
DQ7
E6
A16
C5
A10
A6
A13
C4
NC1
A5
A9
A2
A7
D6
A15
C3
A18
D5
A11
C2
A6
A3
RY/BY#
D4
NC3
C1
A2
A4
WE#
D3
NC2
B6
A12
D2
A5
B5
A8
A1
A3
D1
A1
B2
A17
B4
RESET#
C6
A14
B1
A4
B3
WP#
GNDD
IC4404
HY5DU121622DTP-D43
31 A2
32 A3
33 VDD_3 34
VSS_1
35
A4
36
A5
IC4402
HY5DU121622DTP-D43
31 A2
32 A3
33 VDD_3 34
VSS_1
35
A4
36
A5
IC4401
HY5DU121622DTP-D43
31 A2
32 A3
33 VDD_3 34
VSS_1
35
A4
36
A5
NM
CN4401
12
34
56
78
910
1112
1314
1516
1718
1920
21
22
2324
2526
2728
2930
SRAMVDD
C4462
NM
GNDD
D0 - D15 D16 - D31
ADDRESS COMMAND (simplex) ADDRESS COMMAND (simplex) ADDRESS COMMAND (simplex)
D0 - D15
8Mbit
SRAM 4Mbit (256K*16bit)
B3pin : WP# has inte
r
PEH224A8
ETHER JIG Connector
AVIC-Z110BT/XN/UC
240
1234
1234
C
D
F
A
B
E
10.11 CC UNIT(NAND PART)
5/6
E
IC4501
1
2
3
4
5
6
7
8
9
10
11
12
13
14
AB D HJ KLMNPRT
DAT4
DAT5
DAT6DAT2
DAT0
DAT7
DAT3
DAT1
CLK
DAT7
DAT6
DAT5
DAT4
DAT3
DAT2
DAT1
DAT0
CMD
DAT5
C4511
0.1u/10
GNDD
DAT0
DAT4
GNDD
CMD
DAT7
GNDD
GNDD
DAT3
DAT2
CLK
DAT1
GNDD
R4502 4.7k
GNDD GNDD
GNDD
GNDD
DAT6
C4513
0.1u/10
C4514
0.1u/10
C4515
0.1u/10
C4520
0.1u/10
R4503
56k
2
1
4
36
5
8
7
R4504
56k
2
1
4
36
5
8
7
C4501
NM
C4502
NM
C4503
NM
C4504
NM
C4505
NM
C4506
NM
C4507
NM
C4508
NM
C4509
NM
GNDD
B13
NC6
H8
NC13
B2
NC5
A6
NC2
H7
NC12
H6
NC11
A9
NC3
H5
DAT2
A11
NC4
H4
DAT1
H3
DAT0
A4
NC1
D14
NC8
H2
NC10
D1
NC7
H1
NC9
H9
NC14
H10
NC15
H11
NC16
H12
NC17
H13
NC18
H14
NC19
J1
NC20
J2
DAT3
J3
DAT4
J4
DAT5
J5
DAT6
J6
DAT7
J7
NC21
J8
NC22
J9
NC23
J10
NC24
J11
NC25
J12
NC26
J13
NC27
J14
NC28
K1
NC29
K2
VDDI
K3
NC30
K4
VSS1
K5
NC31
K6
VDD1
K7
NC32
K8
NC33
K9
NC34
K10
NC35
K11
NC36
K12
NC37
K13
NC38
K14
NC39
L1
NC40
L2
NC41
L3
NC42
L4
A1index
L12
NC43
L13
NC44
L14
NC45
M1
NC46
M2
NC47
M3
NC48
M5
NC49
M6
VDDF1
M7
VSS2
M8
NC50
M9
NC51
M10
NC52
M12
NC53
M13
NC54
M14
NC55
N1
NC56
N2
NC57
N3
NC58
N5
VDDF2
N10
NC59
N12
NC60
N13
NC61
N14
NC62
P1
NC63
P2
NC64
P3
NC65
P5
VSS3
P10
NC66
P12
NC67
P13
NC68
P14
NC69
R1
NC70
R2
NC71
R3
NC72
R5
NC73
R10
VSS4
R12
NC74
R13
NC75
R14
NC76
T1
NC77
T2
NC78
T3
NC79
T5
NC80
T10
VDDF3
T12
NC81
T13
NC82
T14
NC83
4GB
PEM002B8
Capacitance for internal Reg.
moviNAND
2/6
E
AVIC-Z110BT/XN/UC 241
5 678
5678
C
D
F
A
B
E
5/6
E
1
C4522
1u/10
C4512
1u/10
R T U V W Y AA AE AG AH
(RMS) 100mA Max
(1608) (1608)
CLK
CMD
GNDD
GNDD
GNDD
GNDD
GNDD
L4501
CTF1736-A
GNDD
GNDD
GNDD
GNDD
GNDD GNDD
GNDD
GNDD
GNDD
GNDD
C4516
0.1u/10
C4517
0.1u/10
C4518
0.1u/10
C4519
0.1u/10
C4520
0.1u/10
C4521
0.1u/10
L4502
CTF1736-A
GNDD
CCD3_IOON
R4501
82
R4505
0
NAND3
R4509
NM
R1
NC70
R2
NC71
R3
NC72
R5
NC73
R10
VSS4
R12
NC74
R13
NC75
R14
NC76
T1
NC77
T2
NC78
T3
NC79
T5
NC80
T10
VDDF3
T12
NC81
T13
NC82
T14
NC83
U1
NC84
U2
NC85
U3
NC86
U5
NC87
U6
NC88
U7
NC89
U8
VSS5
U9
VDDF4
U10
NC90
U12
NC91
U13
NC92
U14
NC93
V1
NC94
V2
NC95
V3
NC96
V12
NC97
V13
NC98
V14
NC99
W1
NC100
W2
NC101
W3
NC102
W4
VDD2
W5
CMD
W6
CLK
W7
NC103
W8
NC104
W9
NC105
W10
NC106
W11
NC107
W12
NC108
W13
NC109
W14
NC110
Y1
NC111
Y2
VSS6
Y3
NC112
Y4
VDD3
Y5
VSS7
Y6
NC113
Y7
NC114
Y8
NC115
Y9
NC116
Y10
NC117
Y11
NC118
Y12
NC119
Y13
NC120
Y14
NC121
AA1
NC122
AA2
NC123
AA3
VDD4
AA4
VSS8
AA5
VDD5
AA6
VSS9
AA7
NC124
AA8
NC125
AA9
NC126
AA10
NC127
AA11
NC128
AA12
NC129
AA13
NC130
AA14
NC131
AE1
NC132
AE14
NC133
AG2
NC134
AG13
NC135
AH4
NC136
AH6
NC137
AH9
NC138
AH11
NC139
R4506
0
R4507
0
Reference 4501 4600
2
B8
N
D
3.3V
3.3V
CC UNIT (NAND PART)
5/6
E
1/6
E
AVIC-Z110BT/XN/UC
242
1234
1234
C
D
F
A
B
E
10.12 CC UNIT(VIDEO DEC./T-CON/LVDS PART)(GUIDE PAGE)
6/6
E
E-a 6/6
188_D-B7_Out
183_D-G1_Out
178_D-G3_Out
176_D-G5_Out
174_D-G7_Out
170_D-R1_Out
165_D-R3_Out
163_D-R5_Out
161_D-R7_Out
160_CPH
9_OSD_R2_D-Y2_IN
10_OSD_R3_D-Y3_IN
VSS5
VDD-IO_1
VDD-IO_2
VDD-IO_3
VSS6
VSS7
VDD-D_1
VSS8
VDD-IO_4
VSS9
VDD-IO_5
VSS10
VSS11
153_Load
154_STH
13_OSD_R4_D-Y4_IN
14_OSD_R5_D-Y5_IN
VSS12
VDD-IO_6
VDD-IO_7
VDD-IO_8
VSS13
VSS14
VDD-D_2
VSS15
VDD-IO_9
VSS16
VDD-IO_10
VSS17
150_GOE
151_STV2
152_Enable
VSS18
VSS19
VSS20
VDD-D_3
VDD-D_4
VDD-D_5
VDD-D_6
VSS21
VDD-D_7
VSS22
VDD-IO_11
VDD-D_8
VDD-IO_12
VSS23
VDD-IO_17
133_Test-4
132_Test-3
22_OSD_G4_UV2_IN
23_OSD_G5UV3_IN
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
131_Test-2
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VDD-D_16
VDD-D_17
VDD-D_18
VDD-D_19
130_Test-1
122_A-Cb_IN
25_OSD_B0_UV4_IN
26_OSD_B1_UV5_IN
VDD-IO_18
VDD-IO_19
VDD-IO_20
VDD-IO_21
VSS48
VSS49
VSS50
VDD-D_20
121_A-Y_IN
120_A-Cr_IN
27_OSD_B2_UV6_IN
28_OSD_B3_UV7_IN
VDD-D_21
VDD-D_22
VSS51
VSS52
126_VDD_MADC4
119_VDD_MADC3
116_A-G_IN
115_A-R_IN
36_D-YUV_Clk_IN
VSS53
VSS54
VSS55
VSS56
VSS57
VDD-IO_25
VDD-IO_26
VSS58
VDD-D_29
VDD-IO_27
NC2
104_VSS_DSEP
109_VSS_MADC1
123_MADC_VREFB
111_S-Y_IN
110_S-C_IN
37_OSD_BLK-L
38_OSD_BLK-H
VDD-IO_28
42_PS_IN
43_Test_Scan
VSS59
VSS60
VSS61
VSS62
VDD-D_30
VDD-IO_29
NC3
97_DVDD
99_DVSS
114_MADC_VREFT
108_C.Video_IN2
106_C.Video_IN1
48_Mute_IN
VSS63
VDD-IO_30
46_D-RGB_V_IN
63_RIN3
66_RIN0
72_GIN3
75_GIN0
81_BIN3
84_BIN0
88_C.Video_Sync
124_MADC_BIAS
VDD-D_23
VSS2
193_D-B2_Out
140_Vcom1
VSS26
VSS29
VDD-IO_24
112_VSS_MADC2
34_OSD_B5_V_IN
162_D-R6_Out
199_D-B0_Out
205_OSD_V_Out
141_Vcom2
VSS25
VDD-D_28
190_D-B5_Out
33_OSD_B4_H_IN
164_D-R4_Out 139_Moni
VSS24
VDD-D_27
192_D-B3_Out
117_A-B_IN
166_D-R2_Out
204_OSD_H_Out
VSS31
16_OSD_G1_D-Y7_IN
VDD-IO_23
198_D-B1_Out
NC1
171_D-R0_Out
203_OSD_Clk_Out
VDD-IO_14
15_OSD_G0_D-Y6_IN
VDD-IO_22
VSS4
107_VDD_MADC1
175_D-G6_Out VDD-D_10
145_STV1
VDD-D_26
VSS3
113_VDD_MADC2
177_D-G4_Out
VSS1
VDD-IO_13
147_CPV
VDD-D_25
8_OSD_R1_D-Y1_IN
189_D-B6_Out
179_D-G2_Out
VSS28
VSS30
146_U/D
118_VSS_MADC3
VDD-D_24
7_OSD_R0_D-Y0_IN
191_D-B4_Out
184_D-G0_Out
VSS27
VDD-D_9
125_VSS_MADC4
VDD-D_13
VDD-D_14
21_OSD_G3_UV1_IN
20_OSD_G2_UV0_IN
VDD-D_11
VDD-D_12
NC4
101_VDD_DSEP
NC5
100_DAC_BIAS1
103_Slice2_IN
105_Slice3_IN
49_Reset_IN
VSS64
VSS65
45_D-RGB_H_IN
62_RIN4
65_RIN1
71_GIN4
74_GIN1
80_BIN4
83_BIN1
NC6
93_VDD_PLL
NC7
96_VSS_PLL
95_PLL_FILTER
VSS66
102_Slice1_IN
VSS67
55_I2C_Clk_IN
56_I2C_Data_IN
58_D-RGB_Clk_IN
61_RIN5
64_RIN2
70_GIN5
73_GIN2
79_BIN5
82_BIN2
89_VDD_XTAL
90_X'TAL_IN
91_X'TAL_OUT
92_VSS_XTAL
94_PLL_IN
98_DAC_OUT
VSS68
VDD-IO_15
VDD-IO_16
VDD-D_15
VSS32
91
B
PJM
L
7
K
12
H
11
K
7
14
UF
A
14
9
D
32
52
R
T
A
NE
16
15
E
G
1713
H
JGC
12 17
6 11
N
10 13
RCFB
4
P
108
MT
L U
615 15
D
84
3 16
(2125) (2125) (2125)
(2125)
(2125)(2125)
(1608)
(1608)
(1608)
(D)
(D)
(D)
(D)
LDD_G5
D-G0
LDD_R2
CPH
LDD_G1 LDD_B4
T_CON_SCL
STV1
D-B0
LDD_G2
D-R4
D-B1
CPV
LDD_R3
LDD_V_SYNC
D-B4
T_CON_SDA
D-G4
D-R0
D-R3
STH
D-G5
D-G2
VCOM1
LDD_G0
LDD_B2
D-R2
D-B3
LDD_H_SYNC
LDD_P_CLK
LOAD
D-R1
D-B2
LDD_G4
D-G1
LDD_B1
LDD_G3
LDD_R4 LDD_R1
D-G3
LDD_B3
GOE
VCOM2
AVSEL_OUT
X_VIP_PXD[5]
X_VIP_PXD[6]
X_VIP_PXD[4]
X_VIP_PXD[4]
X_VIP_PXD[5]
VDEC_RST
X_VIP_PXD[6]
X_VIP_PXD[3]
NSIG
X_VIP_PXD[2]
X_SDA1
X_VIP_PXD[1]
X_VIP_PXD[0]
X_VIP_PXD[0]
X_SDA1
X_VIP_PXD[7]
X_VIP_PXD[3]
X_SCL1
X_VIP_DVALID_FID
X_VIP_HSYNC
X_VIP_VSYNC
NSIG
X_VIP_PXCLK
X_VIP_PXD[2]
VDEC_RST
X_VIP_PXCLK
X_VIP_HSYNC
X_VIP_DVALID_FID
X_VIP_VSYNC
X_SCL1
X_VIP_PXD[7]
STV2
X_VIP_PXD[1]
LDD_R5 LDD_B5
PIP_RST
AVSEL_OUT
GNDD
GNDD
GNDD
GNDAV
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
R4957
0
R4956
0
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
R4955
0
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDAV
GNDD
GNDAV
GNDDGNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDAV
GNDD
R4958
0
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDDGNDD
GNDD
GNDD
GNDD
GNDD
GNDAV
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
AVSELOUT
CCH1586-A_Po
C4979
L4935
CTF1736-A
GNDAV GNDAV
GNDAV
GNDAV
GNDAV
GNDAV
GNDAV
GNDAV GNDAV
GNDAV
C4934
0.01u/16
AVSELOUT
R4819 0
C4923
10u/6.3
X_SDA1
X_VIP_PXD[3]
C4922
10u/6.3
C4921
10u/6.3
GNDV
R4818 10k
GNDV
R4816 10k
X_VIP_PXD[0]
C4933
0.01u/16
X_VIP_PXD[4]
R4812
6.8k
VDEC_RST
X4902
CSS1699-A
GND1
1
2
2
44
GND2 3
NSIG
R4810 47
X_VIP_PXD[1]
GNDV
GNDV
X_VIP_PXD[5]
GNDD
X_VIP_DVALID_FID
X_VIP_PXD[7]
GNDV
C4924
10u/6.3
C4927
0.01u/16
X_VIP_PXCLK
X_VIP_PXD[2]
R4827
NM
R4809 47
C4925
0.033u/10
R4811 47
C4937
0.01u/16
C4919
NM
C4941
0.01u/16
R4807 47
GNDD
GNDD
C4939
4p/50
GNDD
X_VIP_VSYNC
C4932
4p/50
X_SCL1
R4808 47
R4813
0
R4821
0
R4806 47
R4820
NM
X_VIP_PXD[6]
R4815
47 X_VIP_HSYNC
R4814 0
GNDD
R4933
100k
GNDD
C4837
0.01u/16
C4803
0.01u/16
C4820
0.01u/16
C4812
0.01u/16
C4810
0.01u/16
C4809
0.01u/16
C4815
0.01u/16
C4813
0.01u/16
C4901
0.01u/16
C4814
0.01u/16
C4811
0.01u/16
C4816
0.01u/16
C4819
0.01u/16
C4869
0.01u/16
C4818
0.01u/16
C4866
0.01u/16
C4871
0.01u/16
C4868
0.01u/16
C4867
0.01u/16
C4817
0.01u/16
C4821
0.01u/16
C4872
0.01u/16
C4870
0.01u/16
C4838
0.01u/16
C4903
0.01u/16
C4805
0.01u/16
C4839
0.01u/16
C4841
0.01u/16
C4902
0.01u/16
C4840
0.01u/16
C4804
0.01u/16
C4904
0.01u/16
C4861
0.01u/16
C4842
0.01u/16
C4844
0.01u/16
C4846
0.01u/16
C4847
0.01u/16
C4854
0.01u/16
C4806
0.01u/16
C4843
0.01u/16
C4864
0.01u/16
C4859
0.01u/16
C4855
0.01u/16
C4807
0.01u/16
C4863
0.01u/16
C4905
0.01u/16
C4865
0.01u/16
C4808
0.01u/16
C4858
0.01u/16
C4851
0.01u/16
C4852
0.01u/16
C4853
0.01u/16
C4850
0.01u/16
C4845
0.01u/16
C4857
0.01u/16
C4856
0.01u/16
C4848
0.01u/16
C4906
0.01u/16
C4860
0.01u/16
C4849
0.01u/16
GNDAV
C4943
10u/6.3
GNDD
C4944
10u/6.3
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD GNDD
GNDD
CCD3_IOON
VD18
VA18
MCCA3
L4933
CTF1736-A
L4936
CTF1736-A
L4931
CTF1736-A
R4801 47
R4803 47
R4802 47
R4804 47
R4805 47
AK8853VN
IC4903
1VRN
2AIN3
3VRP
4AIN2
5AVSS1
6AVDD1
7AIN1
8AVSS2
9DVDD1
10 DVSS1
11 NSIG
12 DVALID_F
13 VD_F
14 HD
15 DATA7
16
DATA6
17
DATA5
18 DVSS2
19 DTCLK
20 PVDD1
21 DATA4
22 DATA3
23 DATA2
24 DATA1
25
DATA0
26
TEST0
27
TEST1
28
DVDD2
29
DVSS3
30
SDA
31
PVDD2
32
SCL
33
SELA
34
OE
35
RSTN
36
PDN
37
CLKMD 38
DVDD3 39
XTI 40
DVSS4 41
XTO
42
AVSS3 43
AVDD2 44
IREF 45
AVSS4 46
ATIO 47
VCOM 48
AIN4
49
GND1
50
GND2
51
GND3
52
GND4
R4923
1.8k
Q4901
2SC4617(RS)
C4976
NM
2SA1774(QR)
Q4902
C4975
NM
C4994
10u/6.3
L4901
NM
R4952
NM
L4902
NM
GNDAV
C4970
NM
C4974
NM
GNDD
GNDD
C4911
NM
GNDD
C4920
NM
GNDD
R4922
22k
R4951
100k
R4924
820
R4936
NM
R4966
680
R4994
100k
GNDV
C4918
0.47u/6.3
R4921
0
C4949
NM
IC4901
TC90192XBG
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
C14
C15
C16
C17
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
E1
E2
E3
E4
E5
E6
E7
E8
E9
E10
E11
E12
E13
E14
G15
G16
G17
H1
H2
H3
H4
H5
H6
H12
H13
H14
H15
H16
H17
J1
J2
J3
J4
J5
J6
J12
J13
J14
J15
J16
J17
K1
K2
K3
K4
K5
K6
K12
K13
K14
K15
K16
K17
L1
L2
L3
L4
L5
L6
L12
L13
M16
M17
N1
N2
N3
N4
N5
N6
N7
N8
N9
N10
N11
N12
N13
N14
N15
N16
N17
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
R11
M15
M3
A17
A6
F17
F5
F8
M11
M14
M2
A16
A5
A2
F16
F4
M10
B7
M1
A15 F15
F3
M9
B6
L17
A14
A3
F14
F2
M8
B5
L16
A13
A4
F13
F1
M7
B4
L15
A12 F12
E17
M6
B3
L14
A11
A1
F11
E16
M5
B2
A8
A10
F7
F10
E15
M13
M4
B1
A7
A9
F6
F9
M12
G5
G6
G2
G1
G3
G4
R12
R13
R14
R15
R16
R17
T1
T2
T3
T4
T5
T6
T7
T8
T9
T10
T11
T12
T13
T14
T15
T16
T17
U1
U2
U3
U4
U5
U6
U7
U8
U9
U10
U11
U12
U13
U14
U15
U16
U17
G13
G14
G12
G7
AVSEL
C4926
0.1u/10
C4928
0.1u/10
C4929
0.1u/10
C4930
0.1u/10
C4931
0.1u/10
C4935
0.1u/10
C4936
0.1u/10
C4938
0.1u/10
C4940
0.1u/10
C4942
0.1u/10
C4822
0.1u/10
C4823
0.1u/10
C4824
0.1u/10
C4825
0.1u/10
C4826
0.1u/10
C4827
0.1u/10
C4828
0.1u/10
C4862
0.01u/16
C4912
0.1u/10
C4913
0.1u/10
C4914
0.1u/10
C4915
0.1u/10
C4916
0.1u/10
C4917
0.1u/10
C4829
0.1u/10
C4830
0.1u/10
C4831
0.1u/10
C4832
0.1u/10
C4833
0.1u/10
C4834
0.1u/10
C4835
0.1u/10
C4836
0.1u/10
R4937
0
R4925
560
R4817 150
R4934
NM
CVBS
CCD3
LCD_D25
LCD D15
24.576MHz
(FCX-05)
27MHz
The input level that DAC of the VIDEO DECODER inside permits is max 0.3Vpp.
Therefore, assume the analog signal level max 0.3Vpp when use VIDEO DECODER
by the setting of the default(AGC:OFF, PGA:0dB).
VIDEO DECODER BLOCK
LCD_A25
Level conversion and LPF
Going to use only level conversion.
0.7Vpp 0.5Vpp
33u/10V
There is the pull up
resistance of I2C
in coordinate B7 of sheet 2.
Default setting
3.3V
1.8V
1/6
E
2/6
E
AVIC-Z110BT/XN/UC 243
5 678
5678
C
D
F
A
B
E
6/6
E
E-b 6/6
VSS67
2C_Clk_IN
2
C_Data_IN
-RGB_Clk_IN
6
1_RIN5
6
4_RIN2
7
0_GIN5
7
3_GIN2
7
9_BIN5
8
2_BIN2
_
VDD_XTAL
_
X'TAL_IN
_
X'TAL_OUT
_
VSS_XTAL
4
_PLL_IN
_
DAC_OUT
VSS68
7 11 14
U
932 1612 1710 13
U
615 1584
Optimize the VDSEL & PRE terminal
with the measurement result
of the EYE-PATTERN.
(2125) (2125)
(2125)
(1608)
(2125)
(1608)
(1608)
LDD_G5
LDD_G0
LDD_R2
LDD_G1 LDD_B4
T_CON_SCL
TCON_SDA
LDD_B2
LDD_B5
LDD_G2
LDD_R5
LDD_R3
LDD_G2
LDD_V_SYNC
LDD_H_SYNC
T_CON_SDA
LDD_G1
LDD_R4
LDD_G0
LDD_B2
LDD_R3
LDD_B1
LDD_H_SYNC
LDD_P_CLK
LDD_B3
LDD_G3
LDD_G5
LDD_R1
PIPRST
LDD_G4
LDD_P_CLK
LDD_B4
LDD_R2
LDD_B1
LDD_G3
LDD_R4 LDD_R1
LDD_G4
LDD_B3
TCON_SCL
LDD_V_SYNC
D-R1
D-R2
D-R3
D-R4
STV1
VCOM1
LDD_HSYNC
LDD_PCLK
LDD_VSYNC
VCOM2
CPV
GOE
LOAD
D-R0
D-G5
D-G4
D-G3
D-G2
D-G1
D-G0
D-B4
D-B3
D-B2
D-B1
D-B0
STH
CPH
LVDSP
LVDSN
AVSEL_OUT
T_CON_SCL
T_CON_SDA
STV2
PIP_RST
LDD_R5 LDD_B5
PIP_RST
AVSEL_OUT
L4905
CTF1736-A
GNDD
GNDD
TCON_SCL
MLCD25
GNDD
LVDSN
GNDD
L4904
CTF1736-A
Q4903
2SC4617(RS)
TCON_SDA
R4929 0
LVDSP
D
GNDAV
R4930 0
GNDD
L4903
CTF1736-A
R4928 0
GNDD
R4960
1.5k
D
R4962
1.2k
PIPRST
GNDD
MLCD15
C4986
10u/6.3
R4981
0
R4979
0
GNDD
R4973
100
R4970
0
R4972
0
GNDD
R4969
0
R4980
0
R4968
0
L4907
CTF1731-A
11
2
2
3
344
R4978
0
R4967
0
GNDD
R4965
0
R4971
0
R4982
47k
R4984
0
R4985
0
R4986
0
R4987
0
R4988
0
R4989
0
MCCD3
GNDD
R4990
0
R4991
0
LDD_G[2]
LDD_G[0]
LDD_G[3]
LDD_B[4]
LDD_B[1]
LDD_G[1]
LDD_HSYNC
LDD_R[1]
LDD_PCLK
LDD_R[4]
LDD_B[5]
LDD_G[4]
LDD_B[3]
LDD_G[5]
LDD_R[3]
LDD_VSYNC
LDD_R[5]
LDD_R[2]
LDD_B[2]
R4999
5.6k
C4981
22p/50
C4989
4p/50
C4908
0.1u/16
C4909
0.1u/16
R4977
0
R4976
0
R4975
0
R4974
0
GNDD
1
P
XD[3]
P
XD[0]
P
XD[4]
R
ST
P
XD[1]
P
XD[5]
D
VALID_FID
P
XD[7]
P
XCLK
P
XD[2]
V
SYNC
1
P
XD[6]
H
SYNC
R4954
NM
MLCA25 L4934
CTF1736-A
C4963
10u/6.3
C4971
0.01u/16
C4972
0.01u/16
C4973
0.01u/16
GNDD
C4998
0.01u/16
C4801
0.01u/16
C4999
0.01u/16
C4964
0.01u/16
C4983
0.01u/16
GNDD
C4837
0.01u/16
GNDD
F4901
DTL1106-A
3
2
1
GNDD
C4987
10u/6.3
GNDDGNDD
R4983
NM
L4937
CTF1736-A
GNDD
C4947
10u/6.3
GNDD
CCD3_LVDS
GNDD
LCD15
LCD25
CCD3
R4992
0
GNDD
X4901
CSS1779-A
GND1 1
X1
2
X2
4
GND2
3
CCH1852-A
C4984 CCH1852-A
C4982
CCH1852-A
C4965
CCH1852-A
C4945
R4935
0
R4993
5.6k
R4998
NM
CCH1852-A
C4948
R4926
270k
C4990
10p/50
C4991
10p/50
R4961
1k
R4826
NM
R4932
22k
R4828
NM
C4969
0.1u/16
4
918
/
6.3
U1
U2
U3
U4
U5
U6
U7
U8
U9
U10
U11
U12
U13
U14
U15
U16
U17
AVSEL
R4920 150
R4901 150
R4902 150
C4988
0.01u/16
C4907
0.1u/10
C4910
0.1u/10
C4995
0.1u/10
C4996 0.1u/10
C4802
0.1u/10
C4946
0.01u/16
C4985
0.01u/16
C4993
1u/10
R4963
0
R4903
27
R4914 150
R4904 150
R4915 150
R4916 150
R4917 150
R4906 150
R4911 150
R4910 150
R4918 150
R4907 150
R4912 150
R4919 150
R4908 150
R4905 150
R4913 150
R4909 150
R4939 150
R4940
150
R4938150
R4948
150
R4941
150
R4942
150
R4947
150
R4943
150
R4946
150
R4950
150
R4945
150
R4949
150
R4944
150
R4822
150
R4964
150
R4823
150
R4824
150
R4825
150
R4996
150
R4995
150
R4997
150
R4953
150
R4959
150
DS90C241QVS
IC4902
DIN20
1
DIN21
2
DIN22 3
DIN23 4
DCAOFF 5
VssL 6
VddL 7
DCBOFF 8
TPWDNB 9
TCLK 10
TRFB 11
VODSEL
12
RESRVD
13
VddPT1
14
VssPT1
15
VddPT0 16
VssPT0 17
DEN 18
DOUT- 19
DOUT+ 20
VssDR 21
VddDR 22
PRE 23
Vss
24
DIN0
25
DIN1
26
DIN2
27
DIN3
28
DIN4
29
VddT
30
VssT
31
DIN5
32
DIN6
33
DIN7
34 DIN8
35 DIN9
36
DIN10
37
DIN11
38
DIN12
39
DIN13
40
DIN14
41
VddIT
42
VssIT
43
DIN15
44
DIN16
45 DIN17
46 DIN18
47
DIN19
48
Reference 4801 4999
LVDS
LVDS BLOCK
CCD3
CCD3
LCD_D25
LCD_D15
47u/6.3V 47u/6.3V
PRE Open Pre-Emphasis Off
P.D. Pre-Emphasis On
Recommendation
VDSEL
LLVDS Output 400mV
HLVDS Output 750mV
27MHz
LCD_A25
47u/6.3V
LVDS
CPH
STH
STV1
Vcom1
Vcom2
CPV
Load
GOE
D-B3_Out
D-B4_Out
D-B5_Out
D-B6_Out
D-B7_Out
D-G2_Out
D-G3_Out
D-G4_Out
D-G5_Out
D-G6_Out
D-G7_Out
D-R6_Out
D-R7_Out
D-R3_Out
D-R4_Out
D-R5_Out
D-G3
D-B2
D-G4
D-B3
D-G5
D-B4
D-G0
D-G1
D-G2
D-R3
D-R1
D-R2
D-B0
D-B1
D-R4
D-R0
VCOM2
CPV
STH
STV1
VCOM1
LOAD
CPH
GOE
TCLK
Din(0)
Din(20)
Din(22)
Din(21)
Din(19)
Din(18)
Din(17)
Din(1)
Din(2)
Din(3)
Din(5)
Din(6)
Din(4)
Din(8)
Din(9)
Din(7)
Din(12)
Din(11)
Din(15)
Din(10)
Din(13)
Din(14)
Din(16)
47u/6.3V
There is the pull up
resistance of I2C
Prima T-CON
Signal name
LDD_PCLK
LDD_HSYNC
LDD_VSYNC
LDD_B[1]
LDD_B[4]
LDD_B[2]
LDD_B[5]
LDD_B[3]
LDD_G[4]
LDD_G[5]
LDD_R[2]
LDD_R[1]
LDD_G[2]
LDD_G[0]
LDD_G[3]
LDD_G[1]
LDD_R[5]
LDD_R[3]
LDD_R[4]
GIN5
BIN2
RIN2
RIN3
GIN4
RIN5
BIN3
BIN5
RIN1
GIN1
GIN3
BIN4
RIN4
D-RGB_V_IN
D-RGB_CLK_IN
BIN1
D-RGB_H_IN
GIN0
GIN2
X_LDD_1
X_LDD_2
X_LDD_4
X_LDD_3
X_LDD_0
X_LDD_8
X_LDD_7
X_LDD_6
X_LDD_9
X_LDD_5
X_LDD_13
X_LDD_12
X_LDD_11
X_LDD_14
X_LDD_10
X_LDD_15
X_L_FCK
X_L_PCK
X_L_LCK
Prima T-CON connection
T-CON LVDS connection
42.000000MHz
More than 3k
terminal name input terminal name
T-CON
output terminal name Signal name terminal name
in the main side.
33.33333MHz
3.3V
2.5V
1.5V
CC UNIT (VIDEO DEC./T-CON/LVDS PART)
6/6
E
2
/6
1/6
E
2/6
E
AVIC-Z110BT/XN/UC
244
1234
1234
C
D
F
A
B
E
E-a E-b
E-b 6/6
V
SS_XTAL
PLL_IN
D
AC_OUT
SS68
14 16 17
U
15
(2125) (2125)
(2125)
(1608)
(2125)
(1608)
LDD_G0
TCON_SDA
LDD_B2
LDD_B5
LDD G2
LDD_H_SYNC
LDD_G1
LDD_B1
LDD_B3
PIPRST
LDD_P_CLK
LDD_B4
TCON_SCL
LDD_V_SYNC
LDD_HSYNC
LDD_PCLK
LDD_VSYNC
AVSEL_OUT
T_CON_SCL
T_CON_SDA
PIP_RST
AVSEL_OUT
L4905
CTF1736-A
GNDD
GNDD
TCON_SCL
MLCD25
GNDD
LVDSN
GNDD
L4904
CTF1736-A
Q4903
2SC4617(RS)
TCON_SDA
R4929 0
LVDSP
GNDAV
R4930 0
GNDD
L4903
CTF1736-A
R4928 0
GNDD
R4960
1.5k
R4962
1.2k
PIPRST
GNDD
MLCD15
C4986
10u/6.3
MCCD3
LDD_G[0]
LDD_B[4]
LDD_B[1]
LDD_G[1]
LDD_HSYNC
LDD_PCLK
LDD_B[5]
LDD_B[3]
LDD_VSYNC
LDD_B[2]
C4989
4p/50
X
D[3]
X
D[0]
X
D[4]
S
T
X
D[1]
X
D[5]
V
ALID_FID
X
D[7]
X
CLK
X
D[2]
S
YNC
X
D[6]
S
YNC
MLCA25 L4934
CTF1736-A
C4963
10u/6.3
C4964
0.01u/16
C4983
0.01u/16
GNDD
C4837
0.01u/16
GNDD
F4901
DTL1106-A
3
2
1
GNDD
C4987
10u/6.3
L4937
CTF1736-A
GNDD
C4947
10u/6.3
GNDD
CCD3_LVDS
GNDD
LCD15
LCD25
CCD3
GNDD
CCH1852-A
C4984 CCH1852-A
C4982
CCH1852-A
C4965
CCH1852-A
C4945
CCH1852-A
C4948
C4990
R4961
R4932
22k
18
3
U
14
U
15
U
16
U
17
AVSEL
R4920 150
R4901 150
R4902 150
C4988
0.01u/16
C4946
0.01u/16
C4985
0.01u/16
C4993
1u/10
R4963
0
R4904 150
R4906 150
R4911 150
R4910 150
R4907 150
R4908 150
R4905 150
R4909 150
LVDS
CCD3
CCD3
LCD_D25
LCD_D15
47u/6.3V 47u/6.3V
27MHz
LCD_A25
47u/6.3V
LVDS
CPH
STH
STV1
Vcom1
STH
STV1
VCOM1
CPH TCLK
Din(0)
Din(20)
Din(22)
47u/6.3V
There is the pull up
resistance of I2C
Prima T-CON
Signal name
LDD_PCLK
LDD_HSYNC
LDD_VSYNC
LDD_B[1]
LDD_B[4]
LDD_B[2]
LDD_B[5]
LDD_B[3]
LDD_G[4]
LDD_G[5]
LDD_R[2]
LDD_R[1]
LDD_G[2]
LDD_G[0]
LDD_G[3]
LDD_G[1]
LDD_R[5]
LDD_R[3]
LDD_R[4]
GIN5
BIN2
RIN2
RIN3
GIN4
RIN5
BIN3
BIN5
RIN1
GIN1
GIN3
BIN4
RIN4
D-RGB_V_IN
D-RGB_CLK_IN
BIN1
D-RGB_H_IN
GIN0
GIN2
X_LDD_1
X_LDD_2
X_LDD_4
X_LDD_3
X_LDD_0
X_LDD_8
X_LDD_7
X_LDD_6
X_LDD_9
X_LDD_5
X_LDD_13
X_LDD_12
X_LDD_11
X_LDD_14
X_LDD_10
X_LDD_15
X_L_FCK
X_L_PCK
X_L_LCK
Prima T-CON connection
T-CON LVDS connection
terminal name input terminal name
T-CON
output terminal name Signal name terminal name
in the main side.
33.33333MHz
3.3V
2.5V
1.5V
CC UNIT (VIDEO DEC./T-CON/LVDS PART)
6/6
E
/
6
1/6
E
AVIC-Z110BT/XN/UC 245
5 678
5678
C
D
F
A
B
E
E-a E-b
E-b 6/6
SS67
C
_Clk_IN
C
_Data_IN
R
GB_Clk_IN
_
RIN5
_
RIN2
_
GIN5
_
GIN2
9
_BIN5
_
BIN2
V
DD_XTAL
X
'TAL_IN
TAL_OUT
V
SS_XTAL
PLL_IN
_
7 11 14
U
932 1210 13615 1584
Optimize the VDSEL & PRE terminal
with the measurement result
of the EYE-PATTERN.
(1608)
LDD_G5
LDD_G0
LDD_R2
LDD_G1 LDD_B4
T_CON_SCL
LDD_B2
LDD_B5
LDD_G2
LDD_R5
LDD_R3
LDD_G2
LDD_V_SYNC
LDD_H_SYNC
T_CON_SDA
LDD_G1
LDD_R4
LDD_G0
LDD_B2
LDD_R3
LDD_B1
LDD_H_SYNC
LDD_P_CLK
LDD_B3
LDD_G3
LDD_G5
LDD_R1
LDD_G4
LDD_B4
LDD_R2
LDD_B1
LDD_G3
LDD_R4 LDD_R1
LDD_G4
LDD_B3
LDD_V_SYNC
D-R1
D-R2
D-R3
D-R4
STV1
VCOM1
LDD_HSYNC
LDD_VSYNC
VCOM2
CPV
GOE
LOAD
D-R0
D-G5
D-G4
D-G3
D-G2
D-G1
D-G0
D-B4
D-B3
D-B2
D-B1
D-B0
STH
CPH
LVDSP
LVDSN
STV2
LDD_R5 LDD_B5
PIP_RST
Q4903
2SC4617(RS)
R4962
1.2k
R4981
0
R4979
0
GNDD
R4973
100
R4970
0
R4972
0
GNDD
R4969
0
R4980
0
R4968
0
L4907
CTF1731-A
11
2
2
3
344
R4978
0
R4967
0
GNDD
R4965
0
R4971
0
R4982
47k
R4984
0
R4985
0
R4986
0
R4987
0
R4988
0
R4989
0
GNDD
R4990
0
R4991
0
LDD_G[2]
LDD_G[0]
LDD_G[3]
LDD_B[4]
LDD_B[1]
LDD_G[1]
LDD_HSYNC
LDD_R[1]
LDD
_
PCLK
LDD_R[4]
LDD_B[5]
LDD_G[4]
LDD_B[3]
LDD_G[5]
LDD_R[3]
LDD_VSYNC
LDD_R[5]
LDD_R[2]
LDD_B[2]
R4999
5.6k
C4981
22p/50
C4989
4p/50
C4908
0.1u/16
C4909
0.1u/16
R4977
0
R4976
0
R4975
0
R4974
0
GNDD
R4954
NM
C4971
0.01u/16
C4972
0.01u/16
C4973
0.01u/16
GNDD
C4998
0.01u/16
C4801
0.01u/16
C4999
0.01u/16
C4837
0.01u/16
GNDDGNDD
R4983
NM
GNDD
R4992
0
X4901
CSS1779-A
GND1 1
X1
2
X2
4
GND2
3
R4935
0
R4993
5.6k
R4998
NM
R4926
270k
C4990
10p/50
C4991
10p/50
R4961
1k
R4826
NM
R4828
NM
C4969
0.1u/16
U
1
U
2
U
3
U
4
U
5
U
6
U
7
U
8
U
9
U
10
U
11
U
12
U
13
U
14
U
15
R4901 150
R4902 150
C4988
0.01u/16
C4907
0.1u/10
C4910
0.1u/10
C4995
0.1u/10
C4996 0.1u/10
C4802
0.1u/10
R4903
27
R4914 150
R4904 150
R4915 150
R4916 150
R4917 150
R4906 150
R4911 150
R4910 150
R4918 150
R4907 150
R4912 150
R4919 150
R4908 150
R4905 150
R4913 150
R4909 150
R4939 150
R4940
150
R4938150
R4948
150
R4941
150
R4942
150
R4947
150
R4943
150
R4946
150
R4950
150
R4945
150
R4949
150
R4944
150
R4822
150
R4964
150
R4823
150
R4824
150
R4825
150
R4996
150
R4995
150
R4997
150
R4953
150
R4959
150
DS90C241QVS
IC4902
DIN20
1
DIN21
2
DIN22 3
DIN23 4
DCAOFF 5
VssL 6
VddL 7
DCBOFF 8
TPWDNB 9
TCLK 10
TRFB 11
VODSEL
12
RESRVD
13
VddPT1
14
VssPT1
15
VddPT0 16
VssPT0 17
DEN 18
DOUT- 19
DOUT+ 20
VssDR 21
VddDR 22
PRE 23
Vss
24
DIN0
25
DIN1
26
DIN2
27
DIN3
28
DIN4
29
VddT
30
VssT
31
DIN5
32
DIN6
33
DIN7
34 DIN8
35 DIN9
36
DIN10
37
DIN11
38
DIN12
39
DIN13
40
DIN14
41
VddIT
42
VssIT
43
DIN15
44
DIN16
45 DIN17
46 DIN18
47
DIN19
48
Reference 4801 4999
LVDS BLOCK
CCD3
PRE Open Pre-Emphasis Off
P.D. Pre-Emphasis On
Recommendation
VDSEL
LLVDS Output 400mV
HLVDS Output 750mV
LVDS
CPH
STH
STV1
Vcom1
Vcom2
CPV
Load
GOE
D-B3_Out
D-B4_Out
D-B5_Out
D-B6_Out
D-B7_Out
D-G2_Out
D-G3_Out
D-G4_Out
D-G5_Out
D-G6_Out
D-G7_Out
D-R6_Out
D-R7_Out
D-R3_Out
D-R4_Out
D-R5_Out
D-G3
D-B2
D-G4
D-B3
D-G5
D-B4
D-G0
D-G1
D-G2
D-R3
D-R1
D-R2
D-B0
D-B1
D-R4
D-R0
VCOM2
CPV
STH
STV1
VCOM1
LOAD
CPH
GOE
TCLK
Din(0)
Din(20)
Din(22)
Din(21)
Din(19)
Din(18)
Din(17)
Din(1)
Din(2)
Din(3)
Din(5)
Din(6)
Din(4)
Din(8)
Din(9)
Din(7)
Din(12)
Din(11)
Din(15)
Din(10)
Din(13)
Din(14)
Din(16)
42.000000MHz
More than 3k
T-CON
output terminal name Signal name terminal name
2/6
E
AVIC-Z110BT/XN/UC
246
1234
1234
C
D
F
A
B
E
E-bE-a
E-a 6/6
E-b 6/6
165_D-R3_Out
163_D-R5_Out
161_D-R7_Out
160_CPH
VSS10
VSS11
153_Load
154_STH
VSS17
150_GOE
151_STV2
152_Enable
VSS23
VDD-IO_17
133_Test-4
132_Test-3
VSS39
VSS40
VSS41
131_Test-2
VDD-D_18
VDD-D_19
130_Test-1
122_A-Cb_IN
VSS50
VDD-D_20
121_A-Y_IN
120_A-Cr_IN
116_A-G_IN
115_A-R_IN
109_VSS_MADC1
123_MADC_VREFB
111_S-Y_IN
110_S-C_IN
99_DVSS
114_MADC_VREFT
108_C.Video_IN2
106_C.Video_IN1
124_MADC_BIAS
VSS2 140_Vcom1
112_VSS_MADC2
162_D-R6_Out 141_Vcom2
164_D-R4_Out 139_Moni
117_A-B_IN
166_D-R2_Out VSS31
NC1
107_VDD_MADC1
145_STV1
113_VDD_MADC2
147_CPV
146_U/D
NC5
100_DAC_BIAS1
103_Slice2_IN
105_Slice3_IN
96_VSS_PLL
95_PLL_FILTER
VSS66
102_Slice1_IN
92_VSS_XTAL
94_PLL_IN
98_DAC_OUT
VSS68
VDD-IO_16
PJMK
14
A
14
D TNE
16
15
G
17
H
17
RCFB L U
15
16
(2125) (2125) (2125)
(2125)
(2125)(2125)
(1608)
(1608)
(1608)
(D)
(D)
(D)
(D)
CPH
STV1
D-R4
CPV
D-R0
D-R3
STH
VCOM1
D-R2 LOAD
D-R1
GOE
VCOM2
AVSEL OUT
X_VIP_PXD[5]
X_VIP_PXD[6]
X_VIP_PXD[4]
X_VIP_PXD[4]
X_VIP_PXD[5]
VDEC_RST
X_VIP_PXD[6]
X_VIP_PXD[3]
NSIG
X_VIP_PXD[2]
X_SDA1
X_VIP_PXD[1]
X_VIP_PXD[0]
X_VIP_PXD[0]
X_SDA1
X_VIP_PXD[7]
X_VIP_PXD[3]
X_SCL1
X_VIP_DVALID_FID
X_VIP_HSYNC
X_VIP_VSYNC
NSIG
X_VIP_PXCLK
X_VIP_PXD[2]
VDEC_RST
X_VIP_PXCLK
X_VIP_HSYNC
X_VIP_DVALID_FID
X_VIP_VSYNC
X_SCL1
X_VIP_PXD[7]
STV2
X_VIP_PXD[1]
AVSEL_OUT
GNDD
R4956
0
GNDD
GNDD
GNDD
GNDD
R4955
0
GNDD
GNDAV
GNDDGNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDAV
GNDD
R4958
0
GNDD
GNDD
GNDD
GNDD
GNDD
GNDAV
GNDD
GNDD
GNDD
AVSELOUT
CCH1586-A_Po
C4979
L4935
CTF1736-A
GNDAV GNDAV
GNDAV
GNDAV
GNDAV
GNDAV
GNDAV
GNDAV GNDAV
GNDAV
C4934
0.01u/16
AVSELOUT
R4819 0
C4923
10u/6.3
X_SDA1
X_VIP_PXD[3]
C4922
10u/6.3
C4921
10u/6.3
GNDV
R4818 10k
GNDV
R4816 10k
X_VIP_PXD[0]
C4933
0.01u/16
X_VIP_PXD[4]
R4812
6.8k
VDEC_RST
X4902
CSS1699-A
GND1
1
2
2
44
GND2 3
NSIG
R4810 47
X_VIP_PXD[1]
GNDV
GNDV
X_VIP_PXD[5]
GNDD
X_VIP_DVALID_FID
X_VIP_PXD[7]
GNDV
C4924
10u/6.3
C4927
0.01u/16
X_VIP_PXCLK
X_VIP_PXD[2]
R4827
NM
R4809 47
C4925
0.033u/10
R4811 47
C4937
0.01u/16
C4919
NM
C4941
0.01u/16
R4807 47
GNDD
GNDD
C4939
4p/50
GNDD
X_VIP_VSYNC
C4932
4p/50
X_SCL1
R4808 47
R4813
0
R4821
0
R4806 47
R4820
NM
X_VIP_PXD[6]
R4815
47 X_VIP_HSYNC
R4814 0
C4837
0.01u/16
C4820
0.01u/16
C4815
0.01u/16
C4819
0.01u/16
C4818
0.01u/16
C4821
0.01u/16
GNDAV
C4943
10u/6.3
GNDD
C4944
10u/6.3
GNDD
GNDD
GNDD GNDD
GNDD
CCD3_IOON
VD18
VA18
MCCA3
L4933
CTF1736-A
L4936
CTF1736-A
L4931
CTF1736-A
R4801 47
R4803 47
R4802 47
R4804 47
R4805 47
AK8853VN
IC4903
1VRN
2AIN3
3VRP
4AIN2
5AVSS1
6AVDD1
7AIN1
8AVSS2
9DVDD1
10 DVSS1
11 NSIG
12 DVALID_F
13 VD_F
14 HD
15 DATA7
16
DATA6
17
DATA5
18 DVSS2
19 DTCLK
20 PVDD1
21 DATA4
22 DATA3
23 DATA2
24 DATA1
25
DATA0
26
TEST0
27
TEST1
28
DVDD2
29
DVSS3
30
SDA
31
PVDD2
32
SCL
33
SELA
34
OE
35
RSTN
36
PDN
37
CLKMD 38
DVDD3 39
XTI 40
DVSS4 41
XTO
42
AVSS3 43
AVDD2 44
IREF 45
AVSS4 46
ATIO 47
VCOM 48
AIN4
49
GND1
50
GND2
51
GND3
52
GND4
R4923
1.8k
Q4901
2SC4617(RS)
C4976
NM
2SA1774(QR)
Q4902
C4975
NM
C4994
10u/6.3
L4901
NM
R4952
NM
L4902
NM
GNDAV
C4970
NM
C4974
NM
C4911
NM
GNDD
R4922
22k
R4951
100k
R4924
820
R4936
NM
R4966
680
R4994
100k
GNDV
C4918
0.47u/6.3
R4921
0
C4949
NM
B14
B15
B16
B17
C14
C15
C16
C17
D14
D15
D16
D17
E14
G15
G16
G17
H14
H15
H16
H17
J14
J15
J16
J17
K14
K15
K16
K17
M16
M17
N14
N15
N16
N17
P14
P15
P16
P17
M15
A17 F17
M14
A16 F16
A15 F15
L17
A14 F14
L16
L15
E17
L14
E16
E15
R14
R15
R16
R17
T14
T15
T16
T17
U14
U15
U16
U17
G14
AVSEL
C4926
0.1u/10
C4928
0.1u/10
C4929
0.1u/10
C4930
0.1u/10
C4931
0.1u/10
C4935
0.1u/10
C4936
0.1u/10
C4938
0.1u/10
C4940
0.1u/10
C4942
0.1u/10
C4822
0.1u/10
C4824
0.1u/10
C4825
0.1u/10
C4826
0 1u/10
0
C4912
0.1u/10
C4913
0.1u/10
C4914
0.1u/10
C4915
0.1u/10
C4916
0.1u/10
C4917
0.1u/10
C4829
0.1u/10
C4830
0.1u/10
C4831
0.1u/10
C4832
0.1u/10
C4833
0.1u/10
C4834
0.1u/10
C4835
0.1u/10
C4836
0.1u/10
R4937
0
R4925
560
R4817 150
R4934
NM
CVBS
CCD3
24.576MHz
(FCX-05)
27MHz
The input level that DAC of the VIDEO DECODER inside permits is max 0.3Vpp.
Therefore, assume the analog signal level max 0.3Vpp when use VIDEO DECODER
by the setting of the default(AGC:OFF, PGA:0dB).
VIDEO DECODER BLOCK
LCD_A25
Level conversion and LPF
Going to use only level conversion.
0.7Vpp 0.5Vpp
33u/10V
There is the pull up
resistance of I2C
in coordinate B7 of sheet 2.
Default setting
3.3V
1.8V
1/6
E
2/6
E
AVIC-Z110BT/XN/UC 247
5 678
5678
C
D
F
A
B
E
E-bE-a
E-a 6/6
E-b 6/6
188_D-B7_Out
183_D-G1_Out
178_D-G3_Out
176_D-G5_Out
174_D-G7_Out
170_D-R1_Out
165_D-R3_Out
163_D-R5_Out
__
9_OSD_R2_D-Y2_IN
10_OSD_R3_D-Y3_IN
VSS5
VDD-IO_1
VDD-IO_2
VDD-IO_3
VSS6
VSS7
VDD-D_1
VSS8
VDD-IO_4
VSS9
VDD-IO_5
VSS10
VSS11
_
13_OSD_R4_D-Y4_IN
14_OSD_R5_D-Y5_IN
VSS12
VDD-IO_6
VDD-IO_7
VDD-IO_8
VSS13
VSS14
VDD-D_2
VSS15
VDD-IO_9
VSS16
VDD-IO_10
VSS17
150_GOE
_
VSS18
VSS19
VSS20
VDD-D_3
VDD-D_4
VDD-D_5
VDD-D_6
VSS21
VDD-D_7
VSS22
VDD-IO_11
VDD-D_8
VDD-IO_12
VSS23
VDD-IO_17
_
22_OSD_G4_UV2_IN
23_OSD_G5UV3_IN
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VDD-D_16
VDD-D_17
VDD-D_18
VDD-D_19
_
25_OSD_B0_UV4_IN
26_OSD_B1_UV5_IN
VDD-IO_18
VDD-IO_19
VDD-IO_20
VDD-IO_21
VSS48
VSS49
VSS50
VDD-D_20
__
27_OSD_B2_UV6_IN
28_OSD_B3_UV7_IN
VDD-D_21
VDD-D_22
VSS51
VSS52
126_VDD_MADC4
119_VDD_MADC3
__
36_D-YUV_Clk_IN
VSS53
VSS54
VSS55
VSS56
VSS57
VDD-IO_25
VDD-IO_26
VSS58
VDD-D_29
VDD-IO_27
NC2
104_VSS_DSEP
109_VSS_MADC1
123_MADC_VREFB
__
37_OSD_BLK-L
38_OSD_BLK-H
VDD-IO_28
42_PS_IN
43_Test_Scan
VSS59
VSS60
VSS61
VSS62
VDD-D_30
VDD-IO_29
NC3
97_DVDD
99_DVSS
114_MADC_VREFT
__
48_Mute_IN
VSS63
VDD-IO_30
46_D-RGB_V_IN
63_RIN3
66_RIN0
72_GIN3
75_GIN0
81_BIN3
84_BIN0
88_C.Video_Sync
124_MADC_BIAS
VDD-D_23
193_D-B2_Out
VSS26
VSS29
VDD-IO_24
112_VSS_MADC2
34_OSD_B5_V_IN
__
199_D-B0_Out
205_OSD_V_Out
_
VSS25
VDD-D_28
190_D-B5_Out
33_OSD_B4_H_IN
164_D-R4_Out 139_Moni
VSS24
VDD-D_27
192_D-B3_Out
166_D-R2_Out
204_OSD_H_Out
VSS31
16_OSD_G1_D-Y7_IN
VDD-IO_23
198_D-B1_Out
171_D-R0_Out
203_OSD_Clk_Out
VDD-IO_14
15_OSD_G0_D-Y6_IN
VDD-IO_22
VSS4
107_VDD_MADC1
175_D-G6_Out VDD-D_10
VDD-D_26
VSS3
113_VDD_MADC2
177_D-G4_Out
VSS1
VDD-IO_13
_
VDD-D_25
8_OSD_R1_D-Y1_IN
189_D-B6_Out
179_D-G2_Out
VSS28
VSS30
146_U/D
118_VSS_MADC3
VDD-D_24
7_OSD_R0_D-Y0_IN
191_D-B4_Out
184_D-G0_Out
VSS27
VDD-D_9
125_VSS_MADC4
VDD-D_13
VDD-D_14
21_OSD_G3_UV1_IN
20_OSD_G2_UV0_IN
VDD-D_11
VDD-D_12
NC4
101_VDD_DSEP
NC5
100_DAC_BIAS1
103_Slice2_IN
49_Reset_IN
VSS64
VSS65
45_D-RGB_H_IN
62_RIN4
65_RIN1
71_GIN4
74_GIN1
80_BIN4
83_BIN1
NC6
93_VDD_PLL
NC7
96_VSS_PLL
95_PLL_FILTER
VSS67
55_I2C_Clk_IN
56_I2C_Data_IN
58_D-RGB_Clk_IN
61_RIN5
64_RIN2
70_GIN5
73_GIN2
79_BIN5
82_BIN2
89_VDD_XTAL
90_X'TAL_IN
91_X'TAL_OUT
92_VSS_XTAL
94_PLL_IN
__
VDD-IO_15
VDD-IO_16
VDD-D_15
VSS32
91
B L
7
K
12
H
11
7
14
UF
14
932
52
RA
15
E
13
JGC
12
6 11
N
10 13
4
P
108
MT
615 15
D
84
3
D-G0
LDD G1 LDD B4
D-B0
D-B1
LDD_R3
LDD_V_SYNC
D-B4
D-G4
D-R0D-G5
D-G2
LDD_G0
D-R2
D-B3
LDD H SYNC
D-R1
D-B2
LDD G4
D-G1
LDD B1
LDD_G3
LDD R4 LDD R 1
D-G3
LDD_B3
GOE
PIP RST
GNDD
GNDD
GNDAV
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
R4957
0
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDAV
GNDD
GNDAV
GNDDGNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDAV
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDDGNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDAV GNDAVGNDAV
GNDAV
GNDAV GNDAV
GNDAV
GNDD
R4933
100k
GNDD
C4837
0.01u/16
C4803
0.01u/16
C4820
0.01u/16
C4812
0.01u/16
C4810
0.01u/16
C4809
0.01u/16
C4815
0.01u/16
C4813
0.01u/16
C4901
0.01u/16
C4814
0.01u/16
C4811
0.01u/16
C4816
0.01u/16
C4819
0.01u/16
C4869
0.01u/16
C4818
0.01u/16
C4866
0.01u/16
C4871
0.01u/16
C4868
0.01u/16
C4867
0.01u/16
C4817
0.01u/16
C4821
0.01u/16
C4872
0.01u/16
C4870
0.01u/16
C4838
0.01u/16
C4903
0.01u/16
C4805
0.01u/16
C4839
0.01u/16
C4841
0.01u/16
C4902
0.01u/16
C4840
0.01u/16
C4804
0.01u/16
C4904
0.01u/16
C4861
0.01u/16
C4842
0.01u/16
C4844
0.01u/16
C4846
0.01u/16
C4847
0.01u/16
C4854
0.01u/16
C4806
0.01u/16
C4843
0.01u/16
C4864
0.01u/16
C4859
0.01u/16
C4855
0.01u/16
C4807
0.01u/16
C4863
0.01u/16
C4905
0.01u/16
C4865
0.01u/16
C4808
0.01u/16
C4858
0.01u/16
C4851
0.01u/16
C4852
0.01u/16
C4853
0.01u/16
C4850
0.01u/16
C4845
0.01u/16
C4857
0.01u/16
C4856
0.01u/16
C4848
0.01u/16
C4906
0.01u/16
C4860
0.01u/16
C4849
0.01u/16
GNDD
GNDD
GNDD
GNDD
GNDD GNDD
GNDD
GNDAV
GNDD
GNDD
C4920
NM
GNDD
IC4901
TC90192XBG
B8
B9
B10
B11
B12
B13
B14
B15
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
C14
C15
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
E1
E2
E3
E4
E5
E6
E7
E8
E9
E10
E11
E12
E13
E14
G15
H1
H2
H3
H4
H5
H6
H12
H13
H14
H15
J1
J2
J3
J4
J5
J6
J12
J13
J14
J15
K1
K2
K3
K4
K5
K6
K12
K13
K14
K15
L1
L2
L3
L4
L5
L6
L12
L13
N1
N2
N3
N4
N5
N6
N7
N8
N9
N10
N11
N12
N13
N14
N15
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
R11
M15
M3
A6
F5
F8
M11
M14
M2
A5
A2
F4
M10
B7
M1
A15 F15
F3
M9
B6
A14
A3
F14
F2
M8
B5
A13
A4
F13
F1
M7
B4
L15
A12 F12
M6
B3
L14
A11
A1
F11
M5
B2
A8
A10
F7
F10
E15
M13
M4
B1
A7
A9
F6
F9
M12
G5
G6
G2
G1
G3
G4
R12
R13
R14
R15
T1
T2
T3
T4
T5
T6
T7
T8
T9
T10
T11
T12
T13
T14
T15
U1
U2
U3
U4
U5
U6
U7
U8
U9
U10
U11
U12
U13
U14
U15
G13
G14
G12
G7
C4822
0.1u/10
C4823
0.1u/10
C4824
0.1u/10
C4825
0.1u/10
C4826
0.1u/10
C4827
0.1u/10
C4828
0.1u/10
C4862
0.01u/16
C4913
0.1u/10
C4914
0.1u/10
C4915
0.1u/10
C4916
0.1u/10
C4917
0.1u/10
AVIC-Z110BT/XN/UC
248
1234
1234
C
D
F
A
B
E
10.13 NAVI UNIT(PS PART)(GUIDE PAGE)
1/4
F
F-a 1/4
LLL
L
SECPWR
ASENS H
H
LL
LH
H
SECCONT H
PWRBL
PWRVI
FCONT_N
BSENS
PPW
FANCONT
NAVION5
SWACPW5
FANON
PVSENS
VDD5
SWDB
PWRVI
SWDB
VDD5
ASENS
SECIND
SECCONTSECCONT
SECIND
ASENS
AU8
BUP
AU8
NAVION5
NAVION5
IO3
PREON
PLLON
FCONT_N
C5132
CCH1565-A-TRB
100u/16
C5110
CCH1635-A_Po
C5015
NM
C5109
100u/16
C5108
C5013
1000p/50
C5020
CCG1223-A
C5021
CCG1223-A
C5011
0.1u/50
C5008
0.1u/50
C5007
4.7u/10
C5002
1000p/50
C5003
0.1u/50
C5001
1500p/50
C5107
0.1u/50
C5106
0.01u/50
C5012
22p/50
C5005
220p/50
C5006
680p/50
C5009
680p/50
C5010
470p/50
C5143
NM
C5144
NM
C5014
0.027u/25
C5103
NM
CKSSYB103K16-T
C5101
NM
CKSSYB104K10-T
C5105
NM
CKSRYB474K10-T
C5104
NM
CKSRYB474K10-T
C5102
NM
CCG1171-A-T
D5001
RB160M-40
D5002
RB160M-40
GNDD
GNDD
GNDD
GNDD
G
N
GNDD
GNDD
GNDVI
GNDD
GNDD
GNDD
GNDD
GNDD
IC5101
NM
TC7SET08FUS1-TLB
INB
1
INA
2
GND
3OUTY 4
5
Vcc
IC5106
NM
VOUT
1
SUB
2
CT
3VDD 4
5
GND
IC5001
LTC3850IGN
RUN1
1
SENSE1+
2
SENSE1-
3
TK/SS1
4
5
ITH1
6
VFB1
7
SGND
8
VFB2
9
ITH2
10
TK/SS2
11
SENSE2-
12
SENSE2+
13
RUN2
14
ILIM(EXTVCC)
15
PGOOD
16
SW2
17
TG2
18
BOOST2
19
PGND
20
BG2
21
INTVCC
22
VIN
23
BG1
24
BOOST1
25
TG1
26
SW1
27
MODE/PLLIN
28
FREQ/PLLFLTR
L5102
NM
CTF1410-A-T
L5101
NM
CTF1334-A-T
L5105
NM
L5001
CTH1396-A-TLB
L5002
CTH1399-A-TLB
P5102
CEK1254-A
1
2
Q5101
NM
HN1B04FU(Y)-TRB
E11
B12
C23
E2
4
5
B2
6
C1
DTC114EUA
Q5003
SP8K10S
Q5002
1
2
3
45
6
7
8
SP8K10S
Q5001
1
2
3
45
6
7
8
UMF23N
Q5105
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1
Q5104
2SD1760F5(R)
2SA1576A(QRS)
Q5102
R5023
NM
R5145
NM
R5107
10k
R5104
6.8k
R5106 NM
R5143
NM
R5142
NM
R5018
2.2
R5015
0
R5020
100k
R5008
6.8k
R5017
4.7
R5011
10
R5010
10
R5004
6.8k
R5002
10
R5014
CCN1190-A
R5003
10
R5005
2.2
R5101
NM
RS1/4SA515J-T
R5031
2k
R5102
NM
RS1/4SA515J-T
R5030
2k
R5103
NM
RS1/16SS0R0J-T
R5029
1.5k
R5012
100k
R5105
15k
R5016
0
R5013
CCN1190-A
R5109
33
R5111
4.7k
R5108
NM
R5110
22k
NAVION5
SWDB _PWRVI
SECIND
ASENS
FCONT_N
ANDOUT
SECCONT
RUN3 CT
IO3
ASENS
SECIND
SECCONT
FANON
PVSENS
SWDB
SWACPW5
PPW
VDD5
PWRBL
PWRVI
FCONT_N
AU8
NAVION5
BSENS
FANCONT
BUP
C5148
NM
C5146
NM
R5009
220k
R5007
68K
C5147
NM
C5145
NM
IC5107
NM
VIN
1
VSS
2
ON/OFF
3NC 4
5
VOUT
GNDD
R5001
130k
R5006
24k
PREON
SW33
SW5
GPSV
R5144
0
GNDD
R5151
680
R5152
680
GNDA
C5142
NM
C5004
33p/50
PLLON
Q5103
2SC4081(QR)
R5154
39k
C5149
1u/10
R5153
47k
3.3V / 5.0V
FOR NAVI
PWRVI
(27m )
2125
For DC/DC Converter
10k
10k
SWBUP
(1/10W)
2125
(1005)
(1005)
(2001)
(2001)
(1501)
(1/8W)
3216
AND
(1/8W)
3216
10u/6.3
6.8uH
(D)
(1608)
(D)
(1608)
NM
NM
(1.0A)
(27m )
2125
SECURITY CIRCUIT
GPS ANTENNA POWER
780kHzFCONT LOW
635kHzFCONT HI
Ocillating frequency
NM
4.7uH
>
2/4
F
3/4
F
4/4
F
AVIC-Z110BT/XN/UC 249
5 678
5678
C
D
F
A
B
E
1/
4
F
F-b 1/4
(103)
(103)
(472)
(472)
(103)
(103)
VDD5
FANCONT
FANUP
BSENS
IO3
PPW
BUP
BUP
SWACPW5
PREON
PWRBL
PLLON
FANUP
PVSENS
FANON
CCD5
CCD5
CCD5
CCD5
CKS4822-A
CN5001
1
2
C5132
CCH1565-A-TRB
CCH1635-A_Po
C5015
47u/16
C5118
100u/16
C5120
100u/16
C5111
CCH1635-A_Po
C5016
100u/16
C5125
100u/16
C5114
CCH1623-A_Po
C5134
330u 10V
C5130
0.1u/16
C5129
0.01u/50
C5128
0.1u/16
C5127
0.01u/50
C5117 0.01u/16
C5124
0.1u/10
C5126
0.01u/50
C5115 4700p/50
C5116
0.1u/16
C5122
0.1u/50
C5017
DCH1201-A
C5119
0.01u/16
C5131
0.01u/50
C5018
DCH1201-A
C5112 0.1u/50
C5113 0.1u/50
C5123
0.1u/10
C5141
0.01u/50
C5121
0.1u/50
C5133
0.01u/50
D5008
RB551V-30
D5007
RB551V-30
D5006 HZU11(B2)
F5101
CCG1172-A
3
2
1
F5102
CCG1172-A
3
2
1
F5003
CCG1267-A
3
21
GNDBL
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
IC5104
BD6538G
VIN
1
GND
2
EN
3/OC 4
5
VOUT
IC5102
TC7SET04FUS1
NC
1
INA
2
GND
3OUTY 4
5
VCC
L5003
CTF1306-A
L5001
T
H1396-A-TLB
L5002
T
H1399-A-TLB
P5103
CEK1255-A
12
P5104
CEK1254-A
12
P5001
CEK1259-A
12
P5102
CEK1254-A
12
Q5110 IMX1
1E
6
1B
5
2C
42E 3
2
2B
1
1C
DTC143EUA
Q5111
DTC114EUA
Q5114
DTC143EUA
Q5107
DTC114EUA
Q5109
DTC114EUA
Q5116
UMF23N
Q5105
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1
Q5112
2SD1760F5(R)
)
Q5106
2SB1184F5(R)
2SA1587(GRBL)
Q5108
2SA1576A(QRS)
Q5113
R5026
0
R5113
15k
R5140
15k
R5014
CCN1190-A
R5114
330
R5025
0
R5138
NM
R5137
NM
R5118
220k
R5119
4.7k
R5028
220
R5027
220
R5123
0
R5124
0
R5125
NM
R5122
1k
R5120
1k
R5117
5.1k
R5116
10k
R5126 0
R5121
680
R5128
0
R5131
0
R5129
NM
R5130
NM
R5135
NM
R5013
CCN1190-A
R5109
33
R5132
15k
R5022
0
R5111
4.7k
5108
NM
R5032
6.8k
R5115
330
R5112 NM
R5110
22k
FANUP
FNV
FNG
CCA5
DTV5
VDD5
DDC5
DDC33
PWRBL2
SIMUKE_IN
SIMUKE1SIMUKE2
CCA3
CCD3
PVSENS
PPOWER
FANON
FANCONT
BSENS
CCD5
NAND3
FANUP
CCA5
CCD3
CCA3
CCD5
IPOD5V
CCD3
VDD5
DTV5
GPSANTVCC
BUV
BU
C5148
NM
C5147
NM
GNDD
IC5105
S-1200B33-M5
VIN 1
VSS 2
ON/OFF 3
NC
4
5VOUT
C5137
1u/16
C5139
10u/6.3
SWACPW5
MOVI5
MOVI33
R5146
0
R5147
NM
GPSV
F5002
CCG1267-A
3
21
F5001
CCG1267-A
3
21
CCD5
R5019
0
R5150 6.8k
IC5103
TC7SET08FUS1
INB
1
INA
2
GND
3OUTY 4
5
Vcc
F5004
DTF1106-A
3
2
1
F5005
DTF1106-A
3
2
1
GNDD
D5003
RB551V-30
D5004
RB551V-30
C5138
0.1u/10
C5140
0.1u/10
2SA1577(QR)
Q5115
R5141
680
D5005
HZU6R8(B1)
PREON
SIMUKE3
R5136
1k
NM
C5625
R5133
NM
R5134
NM
GNDD
CCA5
FAN
(1.25A)
(4.7k*2)
I
(27m )
2125
5V
(3.15A)
3.3V
PWRBL
TO 1seg(max:100mA)
TO MIC Filter
(max:10mA)
TO CC(Analog)
(1.0A)
NOT AND
TO USB_VBUS
10k
10k
5001 - 5200
(1/4W)
3216
(1/8W)
2125
(1/4W)
3216
(1/10W)
2125
(3216)
(1/4W)
3216
(1/4W)
3216
(1/10W)
2125
(1/4W)
3216
(1/10W)
2125
(1005)
6.8uH
(1/4W)
3216 (1/4W)
3216
NM
(1.0A)
(27m )
2125
NM
5.9V
L
large
FANUP
(AC amplitude)
H
FAN VOLTAGE
FANCONT
small 10.5V
10.5V 10.5V
R
USB POWER SUPPLY
moviNAND POWER SUPPLY
3.3V
R5136 R5137 R5138SIMUKE
EU5,UC,AU
UW5
JP
1k
1k
1k
NM NM
NM NM
NMNM
4.7uH
>
>
FAN
>
>
4/4
F
2/4
F
3/4
F
4/4
F
NAVI UNIT (PS PART)
1/4
F
AVIC-Z110BT/XN/UC
250
1234
1234
C
D
F
A
B
E
F-a F-b
F-b 1/4
(103)
(103)
(472)
(472)
VDD5
FANCONT
FANUP
BSENS
PPW
BUP
BUP
SWACPW5
PWRBL
PLLON
FANUP
FANON
CCD5
CKS4822-A
CN5001
1
2
100u/16
47u/16
C5118
100u/16
C5120
100u/16
C5111
100u/16
C5114
C5117 0.01u/16
C5124
0.1u/10
C5115 4700p/50
C5116
0.1u/16
C5122
0.1u/50
C5119
0.01u/16
C5112 0.1u/50
C5113 0.1u/50
C5123
0.1u/10
C5121
0.1u/50
D5006 HZU11(B2)
F5101
CCG1172-A
3
2
1
F5102
CCG1172-A
3
2
1
F5003
CCG1267-A
GNDBL
GNDD
GNDD
GNDD
GNDD
IC5104
IC5102
TC7SET04FUS1
NC
1
INA
2
GND
3OUTY 4
5
VCC
L5003
CTF1306-A
P5103
CEK1255-A
12
P5104
CEK1254-A
12
P5001
P5102
CEK1254-A
12
Q5110 IMX1
1E
6
1B
5
2C
42E 3
2
2B
1
1C
DTC143EUA
Q5111
DTC143EUA
Q5107
DTC114EUA
Q5109
UMF23N
Q5105
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1
Q5112
2SD1760F5(R)
5(R)
Q5106
2SB1184F5(R)
2SA1587(GRBL)
Q5108
R5113
15k
R5114
330
R5118
220k
R5119
4.7k
R5123
0
R5124
0
R5125
NM
R5122
1k
R5120
1k
R5117
5.1k
R5116
10k
R5121
680
R5109
33
R5111
4.7k
R5108
NM
R5115
330
R5112 NM
R5110
22k
FANUP
FNV
FNG
VDD5
PWRBL2
PPOWER
FANON
FANCONT
BSENS
FANUP
VDD5
GPSANTVCC
BUV
BU
C5148
NM
C5147
NM
4
5
GNDD
SWACPW5
GPSV
R5150 6.8k
IC5103
TC7SET08FUS1
INB
1
INA
2
GND
3OUTY 4
5
Vcc
D5003
RB551V-30
D5004
RB551V-30
D5005
HZU6R8(B1)
FAN
(1.25A)
(4.7k*2)
V
IPWRBL
(1.0A)
NOT AND
10k
10k
(1/10W)
2125
(3216)
(1/4W)
3216
(1/4W)
3216
(1/10W)
2125
(1/4W)
3216
(1/10W)
2125
(1005)
NM
(1.0A)
5.9V
L
large
FANUP
(AC amplitude)
H
FAN VOLTAGE
FANCONT
small 10.5V
10.5V 10.5V
E
R
USB POWER SUPPLY
>
>
FAN
>
>
4/4
F
NAVI UNIT (PS PART)
1/4
F
AVIC-Z110BT/XN/UC 251
5 678
5678
C
D
F
A
B
E
F-a F-b
F-b 1/4
(103)
(103)
BSENS
IO3
PREON
PVSENS
CCD5
CCD5
CCD5
C5132
CCH1565-A-TRB
CCH1635-A_Po
C5015
CCH1635-A_Po
C5016
100u/16
C5125
CCH1623-A_Po
C5134
330u 10V
C5130
0.1u/16
C5129
0.01u/50
C5128
0.1u/16
C5127
0.01u/50
C5124
0.1u/10
C5126
0.01u/50
C5017
DCH1201-A
C5131
0.01u/50
C5018
DCH1201-A
C5123
0.1u/10
C5141
0.01u/50
C5133
0.01u/50
D5008
RB551V-30
D5007
RB551V-30
F5003
CCG1267-A
3
21
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
IC5104
BD6538G
VIN
1
GND
2
EN
3/OC 4
5
VOUT
TC7SET04FUS1
NC
1
INA
2
GND
3OUTY 4
5
VCC
L5001
CTH1396-A-TLB
L5002
CTH1399-A-TLB
P5001
CEK1259-A
12
DTC114EUA
Q5114
DTC114EUA
Q5116
2SA1576A(QRS)
Q5113
R5026
0
R5140
15k
R5014
CCN1190-A
R5025
0
R5138
NM
R5137
NM
R5028
220
R5027
220
R5123
0
R5124
0
R51
2
N
M
R5126 0
R5128
0
R5131
0
R5129
NM
R5130
NM
R5135
NM
R5013
CCN1190-A
R5132
15k
R5022
0
R5032
6.8k
CCA5
DTV5
DDC5
DDC33
SIMUKE_IN
SIMUKE1SIMUKE2
CCA3
CCD3
PVSENS
BSENS
CCD5
NAND3
CCA5
CCD3
CCA3
CCD5
IPOD5V
CCD3
DTV5
GNDD
IC5105
S-1200B33-M5
VIN 1
VSS 2
ON/OFF 3
NC
4
5VOUT
C5137
1u/16
C5139
10u/6.3
MOVI5
MOVI33
R5146
0
R5147
NM
F5002
CCG1267-A
3
21
F5001
CCG1267-A
3
21
CCD5
R5019
0
TC7SET08FUS1
INB
1
INA
2
GND
3OUTY 4
5
Vcc
F5004
DTF1106-A
3
2
1
F5005
DTF1106-A
3
2
1
GNDD
C5138
0.1u/10
C5140
0.1u/10
2SA1577(QR)
Q5115
R5141
680
PREON
SIMUKE3
R5136
1k
NM
C5625
R5133
NM
R5134
NM
GNDD
CCA5
(27m )
2125
5V
(3.15A)
3.3V
TO 1seg(max:100mA)
TO MIC Filter
(max:10mA)
TO CC(Analog)
NOT AND
TO USB_VBUS
5001 - 5200
(1/4W)
3216
(1/8W)
2125
(1/4W)
3216
(1/10W)
2125
6.8uH
(1/4W)
3216 (1/4W)
3216
NM
(27m )
2125
NM
moviNAND POWER SUPPLY
3.3V
R5136 R5137 R5138SIMUKE
EU5,UC,AU
UW5
JP
1k
1k
1k
NM NM
NM NM
NMNM
4.7uH
>
2/4
F
3/4
F
4/4
F
AVIC-Z110BT/XN/UC
252
1234
1234
C
D
F
A
B
E
F-bF-a
F-a 1/4
F-b 1/4
LLL
L
SECPWR
ASENS H
H
LL
LH
H
SECCONT H
PWRBL
PWRVI
FCONT_N
BSENS
PPW
FANCONT
NAVION5
SWACPW5
FANON
PVSENS
VDD5
SWDB
PWRVI
SWDB
VDD5
ASENS
SECIND
SECCONTSECCONT
SECIND
ASENS
AU8
BUP
AU8
NAVION5
IO3
PREON
PLLON
100u/16
C5110
NM
C5109
100u/16
C5108
C5107
0.1u/50
C5106
0.01u/50
C5103
NM
CKSSYB103K16-T
C5101
NM
CKSSYB104K10-T
C5105
NM
CKSRYB474K10-T
C5104
NM
CKSRYB474K10-T
C5102
NM
CCG1171-A-T
GNDVI
GNDD
GNDD
GNDD
IC5101
NM
TC7SET08FUS1-TLB
INB
1
INA
2
GND
3OUTY 4
5
Vcc
L5102
NM
CTF1410-A-T
L5101
NM
CTF1334-A-T
Q5101
NM
HN1B04FU(Y)-TRB
E11
B12
C23
E2
4
5
B2
6
C1
UMF23N
Q5105
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1
Q5104
2SD1760F5(R)
2SA1576A(QRS)
Q5102
R5107
10k
R5104
6.8k
R5106 NM
R5101
NM
RS1/4SA515J-T
R5102
NM
RS1/4SA515J-T
R5103
NM
RS1/16SS0R0J-T
R5105
15k
R5109
33
R5111
47k
R5108
NM
R5110
22k
SWDB _PWRVI
SECIND
ASENS
ANDOUT
SECCONT
IO3
ASENS
SECIND
SECCONT
FANON
PVSENS
SWDB
SWACPW5
PPW
VDD5
PWRBL
PWRVI
FCONT_N
AU8
NAVION5
BSENS
FANCONT
BUP
C5148
NM
C5146
NM
C5147
NM
C5145
NM
IC5107
NM
VIN
1
VSS
2
ON/OFF
3NC 4
5
VOUT
GNDD
PREON
GPSV
R5151
680
R5152
680
GNDA
PLLON
Q5103
2SC4081(QR)
R5154
39k
C5149
1u/10
R5153
47k
PWRVI
10k
10k
SWBUP
(1/8W)
3216
AND
(1/8W)
3216
10u/6.3
(D)
(1608)
(D)
(1608)
NM
SECURITY CIRCUIT
GPS ANTENNA POWER
NM
2/4
F
3/4
F
4/4
F
AVIC-Z110BT/XN/UC 253
5 678
5678
C
D
F
A
B
E
F-bF-a
F-a 1/4
F-b 1/4
NAVION5
NAVION5
PLLON
FCONT_N
C5132
CCH1565-A-TRB
C5013
1000p/50
C5020
CCG1223-A
C5021
CCG1223-A
C5011
0.1u/50
C5008
0.1u/50
C5007
4.7u/10
C5002
1000p/50
C5003
0.1u/50
C5001
1500p/50
C5012
22p/50
C5005
220p/50
C5006
680p/50
C5009
680p/50
C5010
470p/50
C5143
NM
C5144
NM
C5014
0.027u/25
D5001
RB160M-40
D5002
RB160M-40
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
IC5106
NM
VOUT
1
SUB
2
CT
3VDD 4
5
GND
IC5001
LTC3850IGN
RUN1
1
SENSE1+
2
SENSE1-
3
TK/SS1
4
5
ITH1
6
VFB1
7
SGND
8
VFB2
9
ITH2
10
TK/SS2
11
SENSE2-
12
SENSE2+
13
RUN2
14
ILIM(EXTVCC)
15
PGOOD
16
SW2
17
TG2
18
BOOST2
19
PGND
20
BG2
21
INTVCC
22
VIN
23
BG1
24
BOOST1
25
TG1
26
SW1
27
MODE/PLLIN
28
FREQ/PLLFLTR
L5105
NM
L5001
CTH1396-A-TLB
L5002
CTH1399-A-TLB
DTC114EUA
Q5003
SP8K10S
Q5002
1
2
3
45
6
7
8
SP8K10S
Q5001
1
2
3
45
6
7
8
R5023
NM
R5145
NM
R5143
NM
R5142
NM
R5018
2.2
R5015
0
R5020
100k
R5008
6.8k
R5017
4.7
R5011
10
R5010
10
R5004
6.8k
R5002
10
R50
1
CCN11
9
R5003
10
R5005
2.2
R5031
2k
R5030
2k
R5029
1.5k
R5012
100k
R5016
0
R50
1
CCN1
1
NAVION5
FCONT_N
RUN3 CT
R5009
220k
R5007
68K
GNDD
R5001
130k
R5006
24k
PREON
SW33
SW5
R5144
0
GNDD
GNDA
C5142
NM
C5004
33p/50
PLLON
3.3V / 5.0V
FOR NAVI
(27
m
21
For DC/DC Converter
(1005)
(2001)
(2001)
(1501)
6.8uH
NM
NM
(27
m
2125
780kHzFCONT LOW
635kHzFCONT HI
Ocillating frequency
4.7uH
AVIC-Z110BT/XN/UC
254
1234
1234
C
D
F
A
B
E
10.14 NAVI UNIT(IF 1SEG PART)(GUIDE PAGE)
2/4
F
F-a 2/4
1.8V
1.2V
2.9V
ANT8V
2.9V
1.8V
1.2V
NOT
3.3V 1.8V(I2C)
3.3V 1.8V
(D%) (D%)
(D%)
(D%)
DTV5
NM
for READY
5301-
DTV(1seg)
TS_EN
DTV_RESET
GNDSEL
DTV_SCL
TS_CLK
ASENBO5
IP_L
IPTOS
STOIP
DTV_SDA
IPPW
AU8
MICIN+
USB-
USB+
iPod_R
iPod_L
iPod_V
iPod_AG
iPod_VG
ANTPW
ANTVSEN
SLOCK
TS_EN
DTV5
VDD5
CCD3
IPOD5V
TS_DAT
TS_CLK
DTV_SCL
VDDIO_ON
DTV3
DTV3
KMODE
KMODEOUT
DTV3
CCD3
ANTPW
IO3
CTOETC
ETCTOC
CTOEX
EXTOC
HYOKA
DTV_SDA
SLOCK
DTV3
IP_R
IP_LG
IP_RG
DTV3
AU4
ANTVSEN
DTV5
DTV3
DTV3
DTV_RESET
TS_DAT
JA5202
CKS5702-A1
ANTIN
2
GND1 3
GND2
CCH1565-A
C5315
C5310
0.1u/10
C5302
0.1u/10
C5305
10u/6.3
C5306
0.1u/10
C5301
10u/6.3
C5307
10u/6.3
C5308
0.1u/10
C5303 10u/6.3
C5304 0.1u/10
C5329
NM
C5328
0.1u/10
C5325
NM
C5312
0.1u/10
C5323
0.1u/10
C5322
0.1u/10
C5321
0.1u/10
C5319
0.1u/50
C5317
0.1u/10
C5330
0.1u/10
C5331
NM
C5333
0.1u/10
C5335
0.1u/10
C5327 NM
C5326 NM
C5334 NM
C5337
NM
C5311
10u/6.3
C5336
NM
C5339
NM
C5309
10u/6.3
C5324
0.1u/10
C5343
0.1u/10
C5338
NM
C5344
0.1u/10
C5320
0.1u/10
L5301
CTF1687-A
CWX3768-A
U5309
RF_IN 1
GNDRF5 2
VDDRF 3
DGND3 4
VDDS 5
TESTPIN 6
GNDRF4 7
PORT2 8
DGND2 9
VDDC 10
RLOCK 11
SLOCK 12
STSFLGO 13
GNDRF3 14
SDA
15
SCL
16
GTDION
17
VDDL
18
DGND1
19
SRCK
20
GNDRF2
21
SRDT
22
PBVAL
23
SBYTE
24
RSEORF
25
IFOP
26
IFOM
27
GNDRF1
28
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDDTV_D
GNDDTV_D
GNDDTV_A
GNDDTV_D
GNDDTV_D
GNDDTV_D
GNDD
GNDDTV_A
GNDDTV_D
GNDRF
GNDDTV_A
GNDDTV_D
GNDDTV_A
GNDDTV_D
GNDDTV_A
GNDDTV_A
GNDDTV_A
GNDDTV_A
BU18TA2WNVX
IC5302
VOUT 1
GND
2
STBY
3
VIN
4
IC5301
BH12PB1WHFV
STBY
1
GND
2
VI
3VOUT 4
5
SEL
IC5306
TC7SH04FUS1
NC
1
INA
2
GND
3OUTY 4
5
VCC
IC5304
R1515H080B
VOUT
1
GND1
2
CE
3GND2 4
5
VDD
BA10393F
IC5308
OUT1
1
IN-1
2
IN+1
3
VEE
45
IN+2
6
IN-2
7
OUT2
8
VCC
L5302
0.47u
LCYBR47J2125-T
2SA1576A(QRS)
Q5304
R5217
82k
R5384
47k
R5318
10k
R5344 0
R5345 0
R5311
1k
R5346
NM
R5316 0
R5369
0
R5317
1k
R5333
0
R5365
1k
R5320
1k
R5364
0
R5363
0
R536
2
10k
R
R5360
10k
R5309
0
R5308
0
R5319
18k
R5307
0
R5305
0
R5304
NM
R5321 0
R5322 0
R5323 220
R5303
0
R5327
47k
R5326
47k
R5330 10k
R5331 0
R5332 0
R5358
0
R5356
47k
R5335
NM
R5336
NM
R5337
NM
R5355
0
R5301
0
R5338 0
R5341
0
R5339 0
R5328
0
R5302
0
R5340
NM
R5343
0
R5219
27k
R5342
0
DTV18_IN
TESTPIN
RSEORFSBYTE
PORT2
RLOCK
STSFLGO
GNDDTV_A
GNDDTV_D
DTV12_IN DTV12_OUT
DTV18_OUT
DTV3
DTV29_IN DTV29_OUT
ANTPW
ANT8
TSCLK33
TSDAT33
SLOCK33
DTV_RST33
SLOCK18
TS_CLK18
DTV_RST18
TS_DAT18
TS_EN18
DTV_SCL18
DTV_SDA18
TS_EN
RFGND3
VA5301
AVRL101A1R1NTB
IPPW
ANTVSEN
ANTPW
USB-
USB+
STOIP
iPod_AG
iPod_R
DTV5
CCD3
TS_EN
IPOD5V
VDD5
ASENBO5
CTOETC
ETCTOC
GNDSEL
EXTOC
HYOKA
iPod_V
DTV_SDA
IP_L
iPod_L
IP_R
TS_DAT
MICIN+
iPod_VG
TS_CLK
SLOCK
AU4
BUP
KMODE
KMODEOUT
VDDIO_ON
DTV_SCL
DTV_RESET
CTOEX
IPTOS
IO3
AU8
R5310
1k
JA5201
CKS5749-A
1
2
3
R5221
47k
R5334
10k
IC5303
BH29NB1WHFV
STBY
1
GND
2
VIN
3VOUT 4
5
NC
TC7WPB9306FK
IC5307
VCCA 1
A1 2
A2 3
GND 45 OE
6B2
7B1
8VCCB
C5332
1000p/50
C5316
4.7u/16
C5314
1000p/50
C5313
0.1u/16
IP_LG
IP_RG
C5318
0.1u/16
ANTVSEN
JA5301
CKS5701-A1
1
2
23
3
TC7MP3245FTG
IC5305
1A1
1
1A2
2
1A3 3
1A4 4
2A1
5
2A2
6
2A3
7
2A4
8
GND1 9
VCCB 10
2B4
11
2B3
12
2B2
13
2B1
14
1B4
15
1B3
16 1B2
17 1B1
18
2OE
19
1OE
20
GND2
21
VCCA
22
1DIR
23 2DIR
24
R5324 220
R5325 220
R5315 220
R5314 220
R5313 220
R5312 220 L5312
CTF1630-A
L5313
CTF1630-A
L5314
CTF1630-A
DTV_SCL33
DTV_SDA33
DTV3
GNDDTV_A
GPS
NM
1/4
F
4/4
F
F
JA4711
3/6
E
AVIC-Z110BT/XN/UC 255
5 678
5678
C
D
F
A
B
E
2/
4
F
F-b 2/4
5201 - 5400
5251-
GNDD
ACCID
USB -
A_RETURN
ACCDET
LOUT
NC
USB GND
USB 5V
CHASSIS
ROUT
VOUT
NC
CHASSIS
USB +
V_RETURN
iACCPW
TXiPod
RXiPod
IPLG
IPRG
IP-BUS IN
(LIGHT BLUE)
IPL+
IPL-
IPR-
IPBUSG
IPR+
IPBUS+
ASENBO
IPBUS-
ASENB 5201-
NC
GND SELECT
MIC
L3501 L3506
CTF1334
CTOEX
GND
RS232C DRIVER
ETCTOC
HYOKA
CTOETC
EXTOC
miniSMDC020F
NM TO ETC
USB/iPod Connector
MICIN+
iPod_R
MICIN+
GNDD
IP_L
IPTOS
KMODE
IO3
AU8
IO3
EXTOC
CTOEX
ETCTOC
CTOETC
CTOETC
HYOKA
EXTOC1
IPBUSM
IPBUSP
VDD5
ASENBO5
IPPW
IO3
IP_LG
IP_R
IP_RG
iPod_VG
ETCTOC1
GNDSEL
IPOD5V
iPod_L
iPod_VG
iPod_AG
iPod_V
USB+
USB-
STOIP
AU4
KMODEOUT
CKS4826-A
CN5302
1
2
3
4
5
6
CKS5867-A
CN5251
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
RT1
RT2
33u/10
C5346
C5213 NM
C5340
0.1u/50
C5352
1u/16
C5212
0.1u/50
C5349
1u/16
C5350
1u/16
C5214
4700p/16
SS
C5348
1u/16
C5345
1u/10
C5351
1u/16
C5347
1u/10
C5344
0.1u/10
D5257
RSB12JS2
1
2
34
5
6
D5256 1SR154-400
D5205
EDZ5R6(B)
D5259
EDZ6R8(B)
D5203
UDZS18(B)
EDZ6R8(B)
D5258
D5204
EDZ5R6(B)
D5251 MALS180X
D5254 MALS180X
D5252 MALS180X
D5255 MALS180X
D5253 MALS180X
F5254 CCG1161-A
3
21
F5251 CCG1067-A
F5252
CCG1067-A
F5253
CCG1060-A
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDA
HA12241FP
IC5202
DIN1
1
ROUT
2
DIN2
3
GND
45
BUS-
6
BUS+
7
VCC
8
STBY
IC5309
UPD4721GSS1
VDD
1
C1+
2
VCC
3
C1-
4
5C5+
6C5-
7Din1
8Din2
9Rout1
10 Rout2 11
Rin2
12
Rin1
13
Dout2
14
Dout1
15
Vcha
16
STBY
17
VSS
18
C4-
19
GND
20
C4+
JA5251
CKS5589-A
5
6
4
3
2
1
JA5302
CKS5271-A
1
2
3
4
5
6
7
8
9
10
11
L5251
CTH1319-A
1
1A 21B
32A
4
2B
L5201
2.2u
L5307 CTF1334-A
L5305
CTF1410-A
L5306 CTF1334-A
L5308 CTF1334-A
L5309 CTF1334-A
miniSMDC050F
P5377
1 2
Q5252
IMD2A-TRB
2E
6
2B
5
1C
4
1E
3
2
1B
1
2C
DTC114EUA
Q5202
Q5251
IMH23-T
C1
1
B2
2
E2
3
C2 4
5
B1
6
E1
2SA1576A(QRS)
Q5304
2SA1576A(QRS)
Q5201
R5378 10
R5252
NM
R5379 100
R5381 100
R5362
10k
R5361
1k
R5360
10k
R5214
0
R5209
3.3k
R5210
6.8k
R5211
2.2k
R5225
100 SS R5227
68
R5226
68
R5223
100
R5222
10k SS
R5220
68
R5218
68
R5216
100
R5382 680
R5359
0
R5380 0
_IPOD_V
_IPODL
IPTOSYS
SYSTOIP
IPPW
R-
VOUT
IPRG
BUS+
ABO
BUS-
MIC
_IPODR
USBGND
IPODR
IPODL
IPOD_VG
USB5V
L+
R+
L-
VA5201
AVR-M1608C270KT2AB
VA5203
AVR-M1608C270KT2AB
VA5204
AVR-M1608C270KT2AB
VA5202
AVR-M1608C270KT2AB
CTOETC
ETCTOC
MICIN+
AU4
IO3
ASENBO
CEX
CETC
EXC
ETCC
ETCG
CTOEX
CTOETC
EXTOC
ETCTOC
KMODE
KOUT
GNDD
D5370 MALS180X
D5371 MALS180X
D5372 MALS180X
D5373 MALS180X
R5253
0
P5378
12
GNDD
R5224
680 SS
R5385
0
GNDD
R5374 680
R5375 680
R5376 680
R5377 680
GNDSEL
GNDD
L5252 CTF1689-A
L5253 CTF1689-A
L5254 CTF1689-A
IPOD_AG
(103)
(103)
160mA
>
>
NAVI UNIT (IF 1SEG PART)
2/4
F
3/4
F
IP-BUS:+2.21 dBs
iPod:+1.30 dBs
AVIC-Z110BT/XN/UC
256
1234
1234
C
D
F
A
B
E
F-a F-b
F-b 2/4
5251-
GNDD
ACCID
USB -
A_RETURN
ACCDET
LOUT
NC
USB GND
USB 5V
CHASSIS
ROUT
VOUT
NC
CHASSIS
USB +
V_RETURN
iACCPW
TXiPod
RXiPod
IPLG
IPRG
IP-BUS IN
(LIGHT BLUE)
IPL+
IPL-
IPR-
IPBUSG
IPR+
IPBUS+
ASENBO
IPBUS-
ASENB
5201-
NC
GND SELECT
USB/iPod Connector
iPod_R
IP_L
IPTOS
KMODE
IO3
AU8
IPBUSM
IPBUSP
VDD5
ASENBO5
IPPW
IP_LG
IP_R
IP_RG
IPOD5V
iPod_L
iPod_VG
iPod_AG
iPod_V
USB+
USB-
STOIP
KMODEOUT
CKS5867-A
CN5251
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
RT1
RT2
C5213 NM
C5212
0.1u/50
C5214
4700p/16
SS
C5344
0.1u/10
D5257
RSB12JS2
1
2
34
5
6
D5256 1SR154-400
D5205
EDZ5R6(B)
D5203
UDZS18(B)
D5204
EDZ5R6(B)
D5251 MALS180X
D5254 MALS180X
D5252 MALS180X
D5255 MALS180X
D5253 MALS180X
F5251 CCG1067-A
F5252
CCG1067-A
F5253
CCG1060-A
GNDD
GNDD
GNDD
GNDD
GNDD
HA12241FP
IC5202
DIN1
1
ROUT
2
DIN2
3
GND
45
BUS-
6
BUS+
7
VCC
8
STBY
JA5302
CKS5271-A
1
2
3
4
5
6
7
8
9
10
11
L5251
CTH1319-A
1
1A 21B
32A
4
2B
L5201
2.2u
DTC114EUA
Q5202
2SA1576A(QRS)
Q5304
2SA1576A(QRS)
Q5201
R5362
10k
R5361
1k
R5360
10k
R5214
0
R5209
3.3k
R5210
6.8k
R5211
2.2k
R5225
100 SS R5227
68
R5226
68
R5223
100
R5222
10k SS
R5220
68
R5218
68
R5216
100
R5359
0
_IPOD_V
_IPODL
IPTOSYS
SYSTOIP
IPPW
R-
VOUT
IPRG
BUS+
ABO
BUS-
_IPODR
USBGND
IPODR
IPODL
IPOD_VG
USB5V
L+
R+
L-
VA5201
AVR-M1608C270KT2AB
VA5203
AVR-M1608C270KT2AB
VA5204
AVR-M1608C270KT2AB
VA5202
AVR-M1608C270KT2AB
ASENBO
KMODE
KOUT
GNDD
R5224
680 SS
GNDD
L5252 CTF1689-A
L5253 CTF1689-A
L5254 CTF1689-A
IPOD_AG
(103)
(103)
160mA
NAVI UNIT (IF 1SEG PART)
2/4
F
IP-BUS:+2.21 dBs
iPod:+1.30 dBs
AVIC-Z110BT/XN/UC 257
5 678
5678
C
D
F
A
B
E
F-a F-b
F-b 2/4
5201 - 5400
5251-
CHASSIS
GND SELECT
MIC
L3501 L3506
CTF1334
CTOEX
GND
RS232C DRIVER
ETCTOC
HYOKA
CTOETC
EXTOC
miniSMDC020F
NM TO ETC
MICIN+
MICIN+
GNDD
KMODE
AU8
IO3
EXTOC
CTOEX
ETCTOC
CTOETC
HYOKA
EXTOC1
IO3
iPod_VG
ETCTOC1
GNDSEL
AU4
KMODEOUT
CKS4826-A
CN5302
1
2
3
4
5
6
RT2
33u/10
C5346
C5213 NM
C5340
0.1u/50
C5352
1u/16
C5349
1u/16
C5350
1u/16
C5348
1u/16
C5345
1u/10
C5351
1u/16
C5347
1u/10
C5344
0.1u/10
D5257
RSB12JS2
1
2
34
5
6
D5256 1SR154-4
0
D5259
EDZ6R8(B)
EDZ6R8(B)
D5258
D5251 MAL
S
D5254 MAL
S
D5252 MAL
S
D5255 MAL
S
D5253 MAL
S
F5254 CCG1161-A
3
21
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDA
IC5309
UPD4721GSS1
VDD
1
C1+
2
VCC
3
C1-
4
5C5+
6C5-
7Din1
8Din2
9Rout1
10 Rout2 11
Rin2
12
Rin1
13
Dout2
14
Dout1
15
Vcha
16
STBY
17
VSS
18
C4-
19
GND
20
C4+
JA5251
CKS5589-A
5
6
4
3
2
1
L5307 CTF1334-A
L5305
CTF1410-A
L5306 CTF1334-A
L5308 CTF1334-A
L5309 CTF1334-A
miniSMDC050F
P5377
12
Q5252
IMD2A-TRB
2E
6
2B
5
1C
4
1E
3
2
1B
1
2C
Q5251
IMH23-T
C1
1
B2
2
E2
3
C2 4
5
B1
6
E1
2SA1576A(QRS)
Q5304
R5378 10
R5252
NM
R5379 100
R5381 100
R5362
10k
R5361
1k
R5360
10k
R5382 680
R5359
0
R5380 0
MIC
MICIN+
AU4
IO3
CEX
CETC
EXC
ETCC
ETCG
CTOEX
CTOETC
EXTOC
ETCTOC
KMODE
KOUT
GNDD
D5370 MALS180X
D5371 MALS180X
D5372 MALS180X
D5373 MALS180X
R5253
0
P5378
12
GNDD
R5385
0
GNDD
R5374 680
R5375 680
R5376 680
R5377 680
GNDSEL
>
>
3/4
F
AVIC-Z110BT/XN/UC
258
1234
1234
C
D
F
A
B
E
F-bF-a
F-a 2/4
F-b 2/4
ANT8V
2.9V
1.8V
1.2V
NOT
3.3V 1.8V(I2C)
3.3V 1.8V
(D%) (D%)
(D%)
(D%)
DTV5
5301-
DTV(1seg)
TS_EN
TS_DAT
TS_CLK
DTV_SCL
DTV3
DTV3
DTV3
CCD3
ANTPW
DTV_SDA
SLOCK
DTV3
ANTVSEN
DTV5
DTV3
DTV_RESET
JA5202
CKS5702-A1
ANTIN
2
GND1 3
GND2
CCH1565-A
C5315
C5329
NM
C5328
0.1u/10
C5325
NM
C5323
0.1u/10
C5322
0.1u/10
C5321
0.1u/10
C5319
0.1u/50
C5317
0.1u/10
C5330
0.1u/10
C5331
NM
C5333
0.1u/10
C5335
0.1u/10
C5327 NM
C5326 NM
C5337
NM
C5336
NM
C5339
NM
C5324
0.1u/10
C5343
0.1u/10
C5338
NM
C5344
0.1u/10
C5320
0.1u/10
L5301
CTF1687-A
CWX3768-A
U5309
RF_IN 1
GNDRF5 2
VDDRF 3
DGND3 4
VDDS 5
TESTPIN 6
GNDRF4 7
PORT2 8
DGND2 9
VDDC 10
RLOCK 11
SLOCK 12
STSFLGO 13
GNDRF3 14
SDA
15
SCL
16
GTDION
17
VDDL
18
DGND1
19
SRCK
20
GNDRF2
21
SRDT
22
PBVAL
23
SBYTE
24
RSEORF
25
IFOP
26
IFOM
27
GNDRF1
28
GNDD
GNDDTV_D
GNDDTV_D
GNDDTV_D
GNDDTV_A
GNDDTV_D
GNDRF
GNDDTV_A
GNDDTV_D
GNDDTV_A
GNDDTV_D
GNDDTV_A
GNDDTV_A
GNDDTV_A
GNDDTV_A
IC5306
TC7SH04FUS1
NC
1
INA
2
GND
3OUTY 4
5
VCC
IC5304
R1515H080B
VOUT
1
GND1
2
CE
3GND2 4
5
VDD
BA10393F
IC5308
OUT1
1
IN-1
2
IN+1
3
VEE
45
IN+2
6
IN-2
7
OUT2
8
VCC
L5302
0.47u
LCYBR47J2125-T
2SA1576A(QRS)
Q5304
R5217
82k
R5384
47k
R5318
10k
R5344 0
R5345 0
R5316 0
R5369
0
R5317
1k
R5333
0
R5365
1k
R5320
1k
R5364
0
R5363
0
R
R5360
10k
R5319
18k
R5307
0
R5305
0
R5321 0
R5322 0
R5323 220
R5303
0
R5327
47k
R5326
47k
R5330 10k
R5331 0
R5332 0
R5358
0
R5356
47k
R5355
0
R5338 0
R5341
0
R5339 0
R5328
0
R5343
0
R5219
27k
R5342
0
TESTPIN
RSEORFSBYTE
PORT2
RLOCK
STSFLGO
GNDDTV_A
GNDDTV_D
DTV3
DTV29_IN DTV29_OUT
ANTPW
ANT8
TSCLK33
TSDAT33
SLOCK33
DTV_RST33
SLOCK18
TS_CLK18
DTV_RST18
TS_DAT18
TS_EN18
DTV_SCL18
DTV_SDA18
TS_EN
RFGND3
VA5301
AVRL101A1R1NTB
R5310
1k
JA5201
CKS5749-A
1
2
3
R5221
47k
IC5303
BH29NB1WHFV
STBY
1
GND
2
VIN
3VOUT 4
5
NC
TC7WPB9306FK
IC5307
VCCA 1
A1 2
A2 3
GND 45 OE
6B2
7B1
8VCCB
C5332
1000p/50
C5316
4.7u/16
C5314
1000p/50
C5313
0.1u/16
C5318
0.1u/16
ANTVSEN
JA5301
CKS5701-A1
1
2
23
3
TC7MP3245FTG
IC5305
1A1
1
1A2
2
1A3 3
1A4 4
2A1
5
2A2
6
2A3
7
2A4
8
GND1 9
VCCB 10
2B4
11
2B3
12
2B2
13
2B1
14
1B4
15
1B3
16 1B2
17 1B1
18
2OE
19
1OE
20
GND2
21
VCCA
22
1DIR
23 2DIR
24
R5324 220
R5325 220
R5315 220
R5314 220
R5313 220
R5312 220 L5312
CTF1630-A
L5313
CTF1630-A
L5314
CTF1630-A
DTV_SCL33
DTV_SDA33
GPS
NM
JA4711
3/6
E
AVIC-Z110BT/XN/UC 259
5 678
5678
C
D
F
A
B
E
F-bF-a
F-a 2/4
F-b 2/4
1.8V
1.2V
2.9V
(D%)
(D%)
NM
for READY
TS_EN
DTV_RESET
GNDSEL
DTV_SCL
TS_CLK
ASENBO5
IP_L
IPTOS
STOIP
DTV_SDA
IPPW
AU8
MICIN+
USB-
USB+
iPod_R
iPod_L
iPod_V
iPod_AG
iPod_VG
ANTPW
ANTVSEN
SLOCK
DTV5
VDD5
CCD3
IPOD5V
VDDIO_ON
KMODE
KMODEOUT
IO3
CTOETC
ETCTOC
CTOEX
EXTOC
HYOKA
IP_R
IP_LG
IP_RG
DTV3
AU4
DTV5
DTV3
DTV3
TS_DAT
C5310
0.1u/10
C5302
0.1u/10
C5305
10u/6.3
C5306
0.1u/10
C5301
10u/6.3
C5307
10u/6.3
C5308
0.1u/10
C5303 10u/6.3
C5304 0.1u/10
C5312
0.1u/10
C5317
0.1u/10
C5334 NM
C5311
10u/6.3
C5309
10u/6.3
C5343
0.1u/10
C5344
0.1u/10
GN
D
GNDD
GNDD
GNDD
GNDD
GNDD
GNDDTV_A
GNDDTV_D
GNDDTV_D
GNDD
GNDDTV_A
BU18TA2WNVX
IC5302
VOUT 1
GND
2
STBY
3
VIN
4
IC5301
BH12PB1WHFV
STBY
1
GND
2
VI
3VOUT 4
5
SEL
BA10393F
2SA1576A(QRS)
Q5304
R5217
82k
R5318
10k
R5311
1k
R5346
NM
R
R5360
10k
R5309
0
R5308
0
R5307
0
R5305
0
R5304
NM
R5303
0
R5335
NM
R5336
NM
R5337
NM
R5301
0
R5302
0
R5340
NM
DTV18_IN
DTV12_IN DTV12_OUT
DTV18_OUT
DTV29_IN DTV29_OUT
IPPW
ANTVSEN
ANTPW
USB-
USB+
STOIP
iPod_AG
iPod_R
DTV5
CCD3
TS_EN
IPOD5V
VDD5
ASENBO5
CTOETC
ETCTOC
GNDSEL
EXTOC
HYOKA
iPod_V
DTV_SDA
IP_L
iPod_L
IP_R
TS_DAT
MICIN+
iPod_VG
TS_CLK
SLOCK
AU4
BUP
KMODE
KMODEOUT
VDDIO_ON
DTV_SCL
DTV_RESET
CTOEX
IPTOS
IO3
AU8
R5310
1k
R5334
10k
IC5303
BH29NB1WHFV
STBY
1
GND
2
VIN
3VOUT 4
5
NC
IP_LG
IP_RG
DTV3
GNDDTV_A
1/4
F
4/4
F
AVIC-Z110BT/XN/UC
260
1234
1234
C
D
F
A
B
E
10.15 NAVI UNIT(AUDIO,SENSOR PART)
3/4
F
GOUTY
GOUTX
GYOUT
GYREF
GOUTZ
ADC_SDA
ADC_SCL
GOUTZ
MICIN+
GOUTY
GOUTX
MICIN+
TSN
TSN
NAVI_L2
NAVI_R1
NAVI_L1
AU4
MIC_CC
MIC_BT
NAVI_R2
NAVI_R1
GNDAZ
NAVI_L1
LINE_R
LINE_L
GNDAZ
GNDAG
COMDC
COMDC_M
VDD5
SWDB
AU8
PLLON
COMDC_M
COMDC
PLLON
NM
C5522
C5425
NM
C5520
0.1u/10
C5426
C5524
0.1u/10
C5513
0.1u/10
C5518
10u/6.3
C5519
0.1u/10
C5521
10u/6.3
C5523
10u/6.3
C5514
0.1u/10
C5409
0.1u/16
C5410
DCH1201-A
C5411
DCH1201-A
C5412
1u/10
C5415
0.047u/50
C5416
0.047u/50
C5417
0.1u/16
C5418
0.1u/16
C5419
330p/50
C5434
CCG1178-A
C5414
820p/50
C5413
470p/50
C5430
0.1u/16
C5461
NM
C5462
NM
C5451
4.7u/10
C5452
4.7u/10
C5460
0.1u/16
C5455
220p/50
C5456
220p/50
C5454
390p/50
C5453 390p/50
D5501
NM
D5402
NM
D5502
UDZS5R6(B)
D5401
NM
GNDD
GNDD
GNDAD
GNDA
GNDA
GNDAD
GNDAD
GNDAD
GNDD
GNDD
GNDD
GNDAD
GNDAD
GNDAD
IC5402
NJM13403V
(1/4)
311
2
1
4
IC5402
NJM13403V
(3/4)
10
9
8
IC5402
NJM13403V
(4/4)
12
13
14
IC5402
NJM13403V
(2/4)
5
6
7
L5502
CTF1410-A
L5503
CTF1410-A
L5404
CTF1410-A
R5419
100
R5416
6.8k
R5427
100
R5415
0
R5428
15k
R5426
47k
R5414
15k
R5413
68k
R5411
1k
R5410
39k R5409
39k
R5462
NM
R5527 0
R5526 0
R5528
0
R5525 0
R5519
390
R5453
15k
R5454
15k
R5455
47k
R5456
47k
R5412
1k
R5457
10k
R5458
10k
R5482
NM
R5481
0
R5483
NM
R5452
NM
R5451
NM
R5432
NM
R5461
NM
R5529
0
MICIN
AD3
A4G
MCHPF
CODECR
CCA25
GNDAZ
CODECL
AU4
MICIN+
NAVI_L1
AU8
GNDAG
GNDAZ
BT_L
LINE_R
BT_R
ADC_SCL
NAVI_R1
MIC_CC
CCA5
NAVI_R2
ADC_SDA
NAVI_L2
VDD5
LINE_L
MIC_BT
IC5507
NJM2125F
+IN 1
V- 2
-IN 3OUT
4
5V+
GNDD
PLLON
COMDC
COMDC_M
R5532 NM
C5515 0.15u/10
C5516 0.15u/10
C5517 CCG1205-A
2.2u
BTINR
BTINL
S-58LM20A-N4
SN5501
VDD
1
VSS
2
NC
3
VOUT 4
GY5501
CSX1147-A
NC1
1
NC2
2
5
VOUT
6
VREFNC3
3
4GND
7
NC4
8
VDD
COMMON
COMDC
CCD5
IC5503
BH30NB1WHFV
STBY
1
GND
2
VIN
3VOUT 4
5
NC
CSX1149
IC5407
FS
1
ST
2
NC1
3
RES1
4
PD
5
NC2
6
GND
7OUTZ
8
NC3 9
OUTY 10
NC4
11
OUTX
12
NC5
13
VDD
14
RES2 15
NC6 16
C5420
1500p/50
R5417
120k
R5418
47k
SWDB
R5420
68k
C5526
0.1u/16
R5533
470
R5523
15k
R5524
15k
C5512
1u/6.3
C5511
1u/6.3
PLLON
NM
C5401
NJM2115V
IC5451
A_OUT
1
A_-IN
2
A_+IN
3
V-
45
B_+IN
6
B_-IN
7
B_OUT
8
V+
NAVI5 => AD3
MI
C
MIC HPF
100Hz 18dB/oct
NM
BT_AUDIO
GAIN -2.4dB
fc:40.1kHz
CCA25
(D)
G SENSOR
TEMP SENSOR
GYRO SENSOR
4/4
F
1/4
F
2/4
F
4/4
F
AVIC-Z110BT/XN/UC 261
5 678
5678
C
D
F
A
B
E
3/4
F
NM
NM
NM
NM CKSRYB104K16-T
NM
NM
NM RS1/10SR0R0J-T
NM
RS1/10SR683J-T
RS1/10SR154J-T
RS1/10SR683J-T
RS1/10SR101J-T
CKSRYB105K10-T
CCSRCH680J50-T
CCSRCH471J50-T
CCSRCH821J50-T
NM
RS1/10SR153J-T
NM
NM
RS1/10SR0R0J-T
NM
NM
RS1/10SR0R0J-T
RS1/10SR473J-T
NM
RS1/10SR333J-T
NM CCSRCH471J50-T
CKSRYB105K10-T
NM
RS1/10SR101J-T
NJM2125F-TLB
NM
CKSRYB104K16-T
ADC_SCL
ADC_SDA
NAVI_R2
AU4
NAVI_L2
LINE_R
GNDAG
LINE_L
SWDB
MIC_BT
MIC_CC
AU25
CCA5
C5466
NM
C5464
NM
C5465
NM
C5463
NM
C5424
1u/10
C5423
68p/50
C5422
470p/50
C5501
0.1u/10
C5504
10u/6.3
C5502
0.1u/16
4
19
/
50
C5469
NM
C5470
NM
C5503
0.1u/16
C5421
1u/10
413
/
50
C5429
1u/10
C5473
NM
C5467
NM
C5461
NM
C5462
NM
C5471
4.7u/10
C5472
4.7u/10
C5468
NM
D5501
NM
D5502
UDZS5R6(B)
GNDA
GNDAD
GNDAD
GNDD
GNDAD
IC5461
NM
34
2
1
8
IC5402
M
13403V
(3/4)
8
IC5461
NM
5
6
7
IC5402
7
L5501
CTF1410-A
R5422
68k
R5511 470
R5419
100
R5515
NM
R5522
2.2k
R5470
NM
R5468
NM
R5466
NM
R5464
NM
R5427
100
R5426
47k
R5429
NM
R5503 2k
R5472
NM
R5462
NM
R5421
33k
R5471
NM
R5521
2.2k
R5519
390
R5465
NM
R5514
NM
R5502 0
R5423
150k
R5424
100
R5501 0
R5504 2k
R5513
NM
R5469
NM
R5516
100
R5463
NM
R5512
NM
R5475
0
R5476
0
R5461
NM
R5467 NM
MBT
NAVIR
MCC
NAVIL
GNDAD
SCL
GX
GY
GZ
BUPSENS
GY_REF
GYO
SDA
TSNIN
R5401
33k
R5403
150k
R5402
68k
C5402
470p/50
C5403
68p/50
R5404
100
GNDD GNDD
C5404
0.1u/16
GNDD
C5433
0.1u/16
IC5404
NJM2125F
+IN 1
V- 2
-IN 3OUT
4
5V+
IC5403
NJM2125F
+IN 1
V- 2
-IN 3OUT
4
5V+
LINE_R
LINE_L
ADS7828E
IC5501
CH0
1
CH1
2
CH2
3
CH3
4
5CH4
6CH5
7CH6
8CH7 9
GND
10
REFI/O
11
COM
12
A0
13
A1
14
SCL
15
SDA
16
+VDD
R5405
0
4
17
0k
R5418
47k
C5505 0.1u/10
C5506 NM
C5507 NM
C5510 0.1u/10
C5525 0.1u/10
C5509 0.1u/10
C5508 0.1u/10
420
6
8k
GNDD
D5404
NM
GNDD
D5403
NM
MIC AMP (TEL)
MIC LPFAMP
10.3kHz 12dB/oct
13.2dB
CH0 GSEN_X CH4 GYRO_REF
CH1 GSEN_Y CH5 GYRO_OUT
CH2 GSEN_Z CH6 TEMP
CH3 BUPSNS CH7 NOT_USE
5401 - 5600
5501-
5401-
2.8V
(D)
(VOICE RECONGNIZE)
C5402
C5404
C5424
R5420
C5430
UC,AU,EU5
R5402
R5403
R5404
C5413
C5403
(for VOICE RECONGNIZE)
R5428
R5415
R5401
APPLICATION TABLE
C5414
C5429
sheet4
R5645
R5426
R5427
IC5403
MIC AMP
UW5
NM
ADC
NAVI UNIT (AUDIO, SENSOR PART)
3/4
F
AVIC-Z110BT/XN/UC
262
1234
1234
C
D
F
A
B
E
10.16 NAVI UNIT(IF PART INTERNAL)(GUIDE PAGE)
4/4
F
F-a 4/4
BT_RESET
PWRBL
LVDSP
LVDSN
LCDTEMP
PWRVI
PVSENS
PPW
CTOEX
SPEED_IN
TCON_SDA
TCON_SCL
HYOKA
RDMSDSNS
PCHNG
BSENRQ
NAVIRST
CPUWDT
OFFOK
ASENRQ
CARDSNS
IPTOS
PBSNS
NAVION5
GMUTE
VDDIO_ON
IPPW
FANON
FANCONT
ASENBO5
GPSREV
ROT1
ROT0
HRST
MBLPW
MVIPW
FCONT_N
FCONT_M
BSENS
BSENS
PNLXR
PNLXL
PNLYT
BLERR1
SWAC33
FCONT_M
LCDTEMP
DIMMER
BLERR2
MBLPW
MVIPW
HRST
ROT0
KDT2
ROT1
PNLYB
STOIP
BT RESET
PIPRST
DTV_RESET
TS_DAT
TCON_SCL
TS_EN
NAVI_L1
AVSELOUT
DTV_SDA
VICSTOC
ANTVSEN
ANTPW
CTOVICS
SYSTOC
CTOSYS
CTOBT
NAVI_R1
BTTOC
SLOCK
BT_BOOTS
TS_CLK
LCD_OE
LCD_OE
MIC_BT
SYSTOC
FCONT_C
ILMLD
ILMCK
ILMDT
FANUP
SECIND
SECCONT
ASENS
USB-
USB+
CTOBT
BTTOC
BT_L
BT_R
LINE_L
LINE_R
TCON_SDA
KMODE
ILMV
CCA5
BLSYNC
KDT1
KDT0
KDT2
KDT1
KDT0
BLERR1
BLERR2
SWAC33
IO3
SWACPW5
COMDC
MOVITEMP
PLLON
MOVITEMP
GNDSEL
DTV_SCL
CTOEX
CTOEX
HYOKA
HYOKA
COMDC_M
BLSYNC
PREON
VICSTOC
EXTOC
EXTOC
EXTOC
GNDD
LVDSGND
ILMLD
DIMMER
ILMCK
CTOSYS
CTOVICS
ILMDT
100u/16
C5603
100u/16
C5604
C5610
NM
C5609
NM
C5601
CCG1223-A
C5602
NM
C5608
NM
C5606
NM
C5612
NM
C5613
NM
C5614
NM
C5611
NM
C5618
NM
C5605 NM
C5619
NM
C5620
NM
L5601
CTF1453-A
GNDD
GNDD
GNDILM
GNDD
GNDV
GNDVI
GNDILM
GNDBL
GNDD
GNDD
GNDAZ
GNDD
GNDD
GNDD
GNDD
L5602
CTH1256-A
R5647 0
R5685 NM
R5664 0
R5643 NM
R5642 0
R5666 0
R5606
0
R5639 0
R5638 0
R5637 0
R5644 NM
R5608
0
R5603 0
R5665 0
R5648 0
R5615
0
R5612
0
R5610
0
R5614
0
R5613
0
R5618
0
R5617
0
R5621
0
R5620
0
R5622
0
R5623
0
R5624
0
R5625
0
R5626
0
R5627
0
R5636 0
R5628 0
R5632 0
R5629 0
R5631 0
R5630 0
R5634 0
R5635 0
R5662 0
R5661 0
R5660 0
R5659 0
R5686 NM
R5611
0
R5619
0
R5697
NM
R5649 NM
R5650 0
R5651 0
R5653
0
R5604 0
R5605 0
R5655 0
R5656 0
R5657 NM
GND_ILM
GND1
GND3
PWRBL
ILMV
GNDILM
GNDVI
GNDD
GNDBL
PWRVI
R5713
NM
CN5601
CKS6118-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
CN5602
CKS6116-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
R5698
1.8k
MTEMP
R5658 NM
R5601 330
82
R5663 150
L5607
NM
L5608 NM
CCPORT1
GNDD
USB+
GNDD
USB-
GNDD
GNDD
PPW
GNDD
PLLON
NC
PVSENS
BTTOC
GNDD
CTOBT
LINE_L
BT_BOOTS
LINE_R
NAVI_L
NAVI_R
TCON_SCL
TCON_SDA
PIPRST
GNDV
TSO
GNDV
CCPORT2
AVSELOUT
DTV_RST
TSEN
TSCLK
NC
NAND3
DTV_SDA1
GNDD
DTV_SCL1
CTOSYS
MICSENS
CTOVICS
VICSTOC
SYSTOC
EXTOC
CTOEX
GNDD
PWRBL
GNDILM
GNDBL
ILMV
BT_RESET
PWRVI
GNDVI
BTTOC
GNDVI
BT_BOOTS
HRST
GNDILM
DIMMER
BT_R
KDT2
CTOBT
PWRBL
ILMDT
CCA5
BT_L
PWRBL
PWRVI
GNDBL
ILMCK
ILMV
ILMLD
GNDBL
GNDD
GNDD
GNDA
HYOKA
GNDD
SLED
NC
NC
LCD_OE
NC
KDT1
PNLXR
GNDD
SWAC33
KDT0
PNLXL
GNDD
PNLYB
GNDD
BLERR1
NC
LVDSGND
LVDSN
NC
NC
NC
LCDTEMP
BLERR2
PNLYT
ROT1
LVDSGND
MVIPW
LVDSP
ROT0
NC
MBLPW
NC
FCONT_M
NC
NC
LVDSGND
LVDSGND
GNDBL
GNDILM
PWRBL
ILMV
GNDD
IPTOS
BLSYNC
CTOEX
OFFOK
CTOVICS
BLERR2
PREON
ILMV
ASENBO
NC
ILMDT
KMODE
GNDD
GNDD
ASENRQ
GPSREV
VDD5
SPEED_IN
SWAC33
EXTOC
SWACPW5
NC
GNDD
NC
NAVION5
IPPW
NAVIRST
TCON_SCL
FCONT_N
GNDD
GMUTE
VDDIO_ON
TEMPSEN
ROT1
HRST
MVIPW
IO3
GNDD
ASENS
LCD_OE
BSENS
GNDD
GNDILM
BLERR1
CARDSNS
SYSTOC
SECCONT
MBLPW
CTOSYS
STOIP
PBSNS
GNDSEL
NC
CPUWDT
FCONT_C
TCON_SDA
VICSTOC
BSENRQ
FANCONT
NC
DIMMER
FCONT_M
NC
ROT0
GNDD
PCHNG
FANUP
RDSSNS
HYOKA
FANON
ILMCK
ILMLD
SLOCK
ANTVSEN
ANTPW
GNDD
NC
GNDA
TELVC NC
GND
GNDD
LVDSGND
MIC_BT
GNDD
S
EJCT
COMDC
CCTEMPIN
KDT1
KDT0
MOVITEMP
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
MIC_GND
BLSYNC
NC
NC
GNDD
GNDD
GNDD
NC
NC
1005
COMDC_M
CN2571
2/3
A
G
CN3301
AVIC-Z110BT/XN/UC 263
5 678
5678
C
D
F
A
B
E
4/
4
F
F-b 4/4
PPW
PVSENS
FCONT_N
FANCONT
DTV_SDA
TS_CLK
TS_EN
DTV_SCL
DTV_RESET
USB-
USB+
FANON
iPod_AG
iPod_VG
MIC_CC
iPod_V
iPod_L
iPod_R
GNDAZ
NAVI_R2
NAVI_R1
NAVI_L1
ADC_SCL
ADC_SDA
BSENS
IP_L
IP_R
IPPW
STOIP
IPTOS
ASENBO5
LVDSP
LVDSN
SWACPW5
ANTVSEN
ANTPW
IP_R
IP_L
NAVI_L2
NAVI_R2
iPod_L
iPod_AG
iPod_R
iPod_VG
iPod_V
CTOEX
PIPRST
TCON_SDA
TCON_SCL
HYOKA
BT_RESET
MIC_CC
MONO
NAVI_L1
PNLXL
PNLXR
PNLYT
PNLYB
CTOSYS
CTOBT
NAVI_R1
BTTOC
GPSREV
GMUTE
PCHNG
BSENRQ
SPEED_IN
ADC_SCL
ADC_SDA
CARDSNS
PBSNS
OFFOK
CPUWDT
FCONT_C
BT_BOOTS
CCA3
MIC_BT
TS_DAT
SLOCK
GNDSEL
FANUP
SECCONT
ASENS
VDDIO_ON
LINE_R
LINE_L
BT_R
BT_L
GNDAZ
NAVIRST
GNDAG
GNDAG
LINE_L
KMODEOUT
KMODEOUT
CCA5
SECIND
CTOETC
ETCTOC
CTOETC
ETCTOC
EXTOC
GPSANTVCC
COMDC
NAVI_L2
PREON
NAVION5
LVDSGND
IP_LG
IP_RG
HYOKA
IP_RG
IP_LG
KMODE
PLLON
PLLON
IO3
DTV3
IO3
CTOEX
HYOKA
HYOKA
COMDC_M
GNDAZ
GNDAZ
VICSTOC
EXTOC
MONO
AVSELOUT
DTV3
CCD5
IO3IO3
ASENRQ
RDMSDSNS
AU8
C5607
NM
C5615
0.1u/16
C5616
0.1u/16
C5617
0.1u/16
GNDV
GNDAGNDD
GNDAZ
GNDD
GNDD
L5605
CTF1393-A
L5604
CTF1393-A
L5603
CTF1393-A
R5645 0
R5664 0
R5666 0
R5671 0
R5667 0
R5670 0
R5668 0
R5669 0
R5673 100
R5674 100
R5677 0
R5675 0
R5676 0
R5678 0
R5679 220
R5607
0
R5665 0
R5682 0
R5615
0
R5614
0
R5613
0
R5616
0
R5618
0
R5617
0
R5646 0
R5662 0
R5661 0
R5710
NM
R5711
0
R5712
NM
R5699 NM
R5694
0
R5693
0
R5650 0
R5690 NM
R5689 0
R5609
0
BUP1
BUP2
BUV1
BUV2
GNDA
GNDV
GNDAZ
NAVI_R2
VDD5
SLOCK
CCD3
iPod_L
ADC_SDA
CCD5
MIC_BT
ADC_SCL
CCA3
IPTOS
IP_L
BUV
USB-
USB+
GNDSEL
DTV_RESET
TS_EN
TS_DAT
AU8
TS_CLK
DTV_SDA
iPod_R
IPPW
DTV_SCL
IP_R
FANON
STOIP
FANUP
ASENS
SECCONT
SECIND
BU
NAVI_L2
NAVION5
VDDIO_ON
PVSENS
SWACPW5
PWRBL
FCONT_N
MIC_CC
LINE_R
LINE_L
BT_R
BT_L
GNDAG
ANTVSEN
ANTPW
NAVI_R1
iPod_AG
KMODE
KMODEOUT
BSENS
CCA5
NAND3
NAVI_L1
iPod_VG
ASENBO5
PWRVI
FANCONT
ETCTOC
CTOETC
EXTOC
iPod_V
PPW
VDD5
GPSANTVCC
COMDC
COMDC_M
PLLON
R5680 220
AU8
PREON
R5714
100k
GNDD
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
CKS6123-A
CN5603
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
C5621
NM
C5622
NM
C5623
0.1u/16
C5624
0.1u/16
HYOKA
IP_LG
IP_RG
1
.
8k
PLLON
R5672
330
R5641
82
R5663 150
F5255
DTF1106-A
3
2
1
GNDD
C5626
0.1u/16
L5310
CTF1736-A
L5311
CTF1736-A
IO3
DTV3
IO3
IO3
CTOEX
AU8
AU8
GNDD
BTTOC
CTOBT
LINE_L
BT_BOOTS
GNDA
NAVI_L
MIC+
NAVI_R
MONO
GNDA
GNDD(MIC)
CTOETC
PNLYT(Y+/TR)
PNLYB(Y-/BL)
PNLXR(X+/BR)
PNLXL(X-/TL)
NC
NC
ETCTOC
SPEED_IN
PCHNG
CPUWDT
REV
OFFOK
BSENRQ
ASENRQ
NAVIRST
RDMSDSENS
CTOSYS
GMUTE
KMODE
PKB
CARDSNS
PRE_ON
NC
CCDIO3
GPSANTVCC
CCIO_ON
FCONT_C
VDD5
CCD3
CCD3
GNDD
CCD3
GNDD
GNDD
CCD5
CCD5
5601 - 5800
GNDA
CCA33
HYOKA
CCD5
CCD5
GNDD
GNDD
GNDD
CCD5
LVDSP
LVDSN
LVDSGND
LVDSGND
LVDSGND
LVDSGND
LVDSGND
AD_SDA0
AD_SCL0
GNDD
GNDD
IP_L
KBUP
CTOEX
BUP
IP_R
BUP
BUP
GUIDE
iPod_V
AU8
EXTOC
KEEP_BUP
KBUP
iPod_L
GNDD
KBUP
GNDAZ
TCON_SCL
NAVI_L
AU8
iPod_VG
AVOUT
PIPRST
BUP
NAVI_R
iPod_R
TCON_SDA
KBUP
VICSTOC
KBUP
BUP
iPod_AG
IP_LG
BUP
HYOKA
NC
GNDA
GNDAG
GNDA
IP_RG
GNDV
GNDV
GNDA
BT_RESET
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDA
GNDA
GNDA
BUP
KBUP
KBUP
NC
NC
1005
NAVI UNIT (IF PART INTERNAL)
4/4
F
1/4
F
2/4
F
3/4
F
1/4
F
CN4201
1/6
E
AVIC-Z110BT/XN/UC
264
1234
1234
C
D
F
A
B
E
F-a F-b
F-b 4/4
PPW
PVSENS
FCONT_N
FANCONT
USB-
USB+
FANON
iPod_AG
iPod_VG
BSENS
LVDSP
LVDSN
SWACPW5
ANTVSEN
ANTPW
BT_RESET
MIC_CC
MONO
NAVI_L1
PNLXL
PNLXR
PNLYT
PNLYB
CTOBT
NAVI_R1
BTTOC
GPSREV
GMUTE
PCHNG
BSENRQ
SPEED_IN
ADC_SCL
ADC_SDA
CARDSNS
PBSNS
OFFOK
CPUWDT
FCONT_C
BT_BOOTS
CCA3
GNDSEL
FANUP
SECCONT
ASENS
NAVIRST
LINE_L
KMODEOUT
CCA5
SECIND
CTOETC
ETCTOC
CTOETC
ETCTOC
GPSANTVCC
PREON
NAVION5
LVDSGND
PLLON
IO3
DTV3
IO3
HYOKA
HYOKA
GNDAZ
GNDAZ
DTV3
CCD5
IO3IO3
ASENRQ
RDMSDSNS
C5615
0.1u/16
C5616
0.1u/16
C5617
0.1u/16
GNDAZ
GNDD
GNDD
L5605
CTF1393-A
L5604
CTF1393-A
L5603
CTF1393-A
R5645 0
R5664 0
R5666 0
R5671 0
R5667 0
R5670 0
R5668 0
R5669 0
R5673 100
R5674 100
R5677 0
R5675 0
R5676 0
R5678 0
R5679 220
R5665 0
R5682 0
R5646 0
R5662 0
R5710
NM
R5711
0
R5712
NM
R5699 NM
R5694
0
R5650 0
R5690 NM
R5689 0
CCD3
CCD5
CCA3
USB-
USB+
GNDSEL
FANON
FANUP
ASENS
SECCONT
SECIND
NAVION5
PVSENS
SWACPW5
PWRBL
FCONT_N
ANTVSEN
ANTPW
iPod_AG
BSENS
CCA5
NAND3
iPod_VG
PWRVI
FANCONT
CTOETC
PPW
GPSANTVCC
R5680 220
PREON
R5714
100k
GNDD
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
C5621
NM
C5622
NM
C5623
0.1u/16
C5624
0.1u/16
PLLON
R5672
330
R5641
82
R5663 150
F5255
DTF1106-A
3
2
1
GNDD
C5626
0.1u/16
L5310
CTF1736-A
L5311
CTF1736-A
IO3
DTV3
IO3
IO3
AU8
GNDD
BTTOC
CTOBT
LINE_L
BT_BOOTS
GNDA
NAVI_L
MIC+
NAVI_R
MONO
GNDA
GNDD(MIC)
CTOETC
PNLYT(Y+/TR)
PNLYB(Y-/BL)
PNLXR(X+/BR)
PNLXL(X-/TL)
NC
NC
ETCTOC
SPEED_IN
PCHNG
CPUWDT
REV
OFFOK
BSENRQ
ASENRQ
NAVIRST
RDMSDSENS
GMUTE
KMODE
PKB
CARDSNS
PRE_ON
NC
CCDIO3
GPSANTVCC
CCIO_ON
FCONT_C
VDD5
CCD3
CCD3
GNDD
CCD3
GNDD
GNDD
CCD5
CCD5
GNDA
CCA33
HYOKA
CCD5
CCD5
GNDD
GNDD
GNDD
CCD5
LVDSP
LVDSN
LVDSGND
LVDSGND
LVDSGND
LVDSGND
LVDSGND
AD_SDA0
AD_SCL0
GNDD
GNDD
NC
GNDA
BT_RESET
GNDD
GNDD
GNDD
NAVI UNIT (IF PART INTERNAL)
4/4
F
1/4
F
2/4
F
CN4201
1/6
E
AVIC-Z110BT/XN/UC 265
5 678
5678
C
D
F
A
B
E
F-a F-b
F-b 4/4
DTV_SDA
TS_CLK
TS_EN
DTV_SCL
DTV_RESET
USB-
USB+
iPod_AG
iPod_VG
MIC_CC
iPod_V
iPod_L
iPod_R
GNDAZ
NAVI_R2
NAVI_R1
NAVI_L1
ADC_SCL
ADC_SDA
IP_L
IP_R
IPPW
STOIP
IPTOS
ASENBO5
ANTVSEN
ANTPW
IP_R
IP_L
NAVI_L2
NAVI_R2
iPod_L
iPod_AG
iPod_R
iPod_VG
iPod_V
CTOEX
PIPRST
TCON_SDA
TCON_SCL
HYOKA
MIC_BT
TS_DAT
SLOCK
GNDSEL
VDDIO_ON
LINE_R
LINE_L
BT_R
BT_L
GNDAZ
GNDAG
GNDAG
KMODEOUT
CTOETC
ETCTOC
EXTOC
COMDC
NAVI_L2
IP_LG
IP_RG
HYOKA
IP_RG
IP_LG
KMODE
PLLON
DTV3
CTOEX
COMDC_M
EXTOC
MONO
AVSELOUT
AU8
C5607
NM
GNDV
GNDAGNDD
R5607
0
R5615
0
R5614
0
R5616
0
R5618
0
R5617
0
R5693
0
R5609
0
BUP1
BUP2
BUV1
BUV2
GNDA
GNDV
GNDAZ
NAVI_R2
VDD5
SLOCK
iPod_L
ADC_SDA
MIC_BT
ADC_SCL
IPTOS
IP_L
BUV
USB-
USB+
GNDSEL
DTV_RESET
TS_EN
TS_DAT
AU8
TS_CLK
DTV_SDA
iPod_R
IPPW
DTV_SCL
IP_R
STOIP
BU
NAVI_L2
VDDIO_ON
MIC_CC
LINE_R
LINE_L
BT_R
BT_L
GNDAG
ANTVSEN
ANTPW
NAVI_R1
iPod_AG
KMODE
KMODEOUT
NAVI_L1
iPod_VG
ASENBO5
ETCTOC
CTOETC
EXTOC
iPod_V
VDD5
COMDC
COMDC_M
PLLON
AU8
CKS6123-A
CN5603
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
HYOKA
IP_LG
IP_RG
DTV3
CTOEX
AU8
5601 - 5800
IP_L
KBUP
CTOEX
BUP
IP_R
BUP
BUP
GUIDE
iPod_V
AU8
EXTOC
KEEP_BUP
KBUP
iPod_L
GNDD
KBUP
GNDAZ
TCON_SCL
NAVI_L
AU8
iPod_VG
AVOUT
PIPRST
BUP
NAVI_R
iPod_R
TCON_SDA
KBUP
KBUP
BUP
iPod_AG
IP_LG
BUP
HYOKA
GNDA
GNDAG
GNDA
IP_RG
GNDV
GNDV
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDA
GNDA
GNDA
BUP
KBUP
KBUP
NC
NC
3/4
F
1/4
F
AVIC-Z110BT/XN/UC
266
1234
1234
C
D
F
A
B
E
F-bF-a
F-a 4/4
F-b 4/4
BT_RESET
PWRBL
PWRVI
PVSENS
PPW
PNLXR
PNLXL
PNLYT
HRST
ROT0
KDT2
ROT1
PNLYB
PIPRST
DTV_RESET
TS_DAT
TCON_SCL
TS_EN
AVSELOUT
DTV_SDA
VICSTOC
ANTVSEN
ANTPW
CTOVICS
SYSTOC
CTOSYS
CTOBT
NAVI_R1
BTTOC
SLOCK
BT_BOOTS
TS_CLK
LCD_OE
MIC_BT
SECIND
USB-
USB+
CTOBT
BTTOC
BT_L
BT_R
LINE_L
LINE_R
TCON_SDA
V
CCA5
KDT1
KDT0
PLLON
MOVITEMP
DTV_SCL
CTOEX
CTOEX
HYOKA
HYOKA
EXTOC
EXTOC
GNDD
100u/16
C5603
100u/16
C5604
C5601
CCG1223-A
C5602
NM
C5605 NM
C5619
NM
C5620
NM
L5601
CTF1453-A
GNDV
GNDVI
GNDILM
GNDBL
GNDD
GNDAZ
GNDD
GNDD
GNDD
L5602
CTH1256-A
R5647 0
R5685 NM
R5664 0
R5643 NM
R5642 0
R5666 0
R5639 0
R5638 0
R5637 0
R5644 NM
R5603 0
R5665 0
R5648 0
R5628 0
R5632 0
R5629 0
R5631 0
R5630 0
R5662 0
R5661 0
R5660 0
R5659 0
R5686 NM
R5649 NM
R5651 0
R5653
0
R5604 0
R5605 0
R5655 0
R5656 0
R5657 NM
PWRBL
ILMV
GNDILM
GNDVI
GNDBL
PWRVI
CN5601
CKS6118-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
CN5602
CKS6116-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
MTEMP
R5658 NM
R5601 330
R5663 150
L5607
NM
L5608 NM
CCPORT1
GNDD
USB+
GNDD
USB-
GNDD
GNDD
PPW
GNDD
PLLON
NC
PVSENS
BTTOC
GNDD
CTOBT
LINE_L
BT BOOTS
LINE_R
NAVI_R
TCON_SCL
TCON_SDA
PIPRST
GNDV
TSO
GNDV
CCPORT2
AVSELOUT
DTV_RST
TSEN
TSCLK
NC
NAND3
DTV_SDA1
GNDD
DTV_SCL1
CTOSYS
MICSENS
CTOVICS
VICSTOC
SYSTOC
EXTOC
CTOEX
GNDD
PWRBL
GNDILM
GNDBL
ILMV
BT_RESET
PWRVI
GNDVI
BTTOC
GNDVI
BT_BOOTS
GNDILM
BT_R
KDT2
CTOBT
PWRBL
CCA5
BT_L
PWRBL
PWRVI
GNDBL
ILMV
GNDBL
GNDD
GNDD
GNDA
HYOKA
GNDD
SLED
NC
NC
LCD_OE
KDT1
PNLXR
KDT0
PNLXL
PNLYB
NC
PNLYT
ROT1
ROT0
NC
GNDBL
GNDILM
PWRBL
ILMV
SLOCK
ANTVSEN
ANTPW
GNDD
NC
GNDA
TELVC NC
MIC_BT
GNDD
MOVITEMP
MIC_GND
G
CN3301
AVIC-Z110BT/XN/UC 267
5 678
5678
C
D
F
A
B
E
F-bF-a
F-a 4/4
F-b 4/4
LVDSP
LVDSN
LCDTEMP
CTOEX
SPEED_IN
TCON_SCL
HYOKA
RDMSDSNS
PCHNG
BSENRQ
NAVIRST
CPUWDT
OFFOK
ASENRQ
CARDSNS
IPTOS
PBSNS
NAVION5
GMUTE
VDDIO_ON
IPPW
FANON
FANCONT
ASENBO5
GPSREV
ROT1
ROT0
HRST
MBLPW
MVIPW
FCONT_N
FCONT_M
BSENS
BSENS
PNLXL
PNLYT
BLERR1
SWAC33
FCONT_M
LCDTEMP
DIMMER
BLERR2
MBLPW
MVIPW
HRST
ROT0
KDT2
ROT1
PNLYB
STOIP
LCD_OE
SYSTOC
FCONT_C
ILMLD
ILMCK
ILMDT
FANUP
SECIND
SECCONT
ASENS
KMODE
ILMV
BLSYNC
KDT1
KDT2
KDT1
KDT0
BLERR1
BLERR2
SWAC33
IO3
SWACPW5
COMDC
MOVITEMP
GNDSEL
COMDC_M
BLSYNC
PREON
VICSTOC
EXTOC
LVDSGND
ILMLD
DIMMER
ILMCK
CTOSYS
CTOVICS
ILMDT
C5610
NM
C5609
NM
C5608
NM
C5606
NM
C5612
NM
C5613
NM
C5614
NM
C5611
NM
C5618
NM
GNDD
GNDD
GNDILM
GNDD
GNDD
GNDD
R5606
0
R5639 0
R5638 0
R5637 0
R5608
0
R5615
0
R5612
0
R5610
0
R5614
0
R5613
0
R5618
0
R5621
0
R5620
0
R5622
0
R5623
0
R5624
0
R5625
0
R5626
0
R5627
0
R5636 0
R5628 0
R5631 0
R5630 0
R5634 0
R5635 0
R5611
0
R5619
0
R5697
NM
GND_ILM
GND1
GND3
GNDD
R5713
NM
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
R5698
1.8k
HRST
DIMMER
KDT2
ILMDT
ILMCK
ILMLD
SLED
NC
KDT1
GNDD
SWAC33
PNLXL
GNDD
PNLYB
GNDD
BLERR1
NC
LVDSGND
LVDSN
NC
NC
NC
LCDTEMP
BLERR2
PNLYT
ROT1
LVDSGND
MVIPW
LVDSP
ROT0
NC
MBLPW
NC
FCONT_M
NC
NC
LVDSGND
LVDSGND
GNDD
IPTOS
BLSYNC
CTOEX
OFFOK
CTOVICS
BLERR2
PREON
ILMV
ASENBO
NC
ILMDT
KMODE
GNDD
GNDD
ASENRQ
GPSREV
VDD5
SPEED_IN
SWAC33
EXTOC
SWACPW5
NC
GNDD
NC
NAVION5
IPPW
NAVIRST
TCON_SCL
FCONT_N
GNDD
GMUTE
VDDIO_ON
TEMPSEN
ROT1
HRST
MVIPW
IO3
GNDD
ASENS
LCD_OE
BSENS
GNDD
GNDILM
BLERR1
CARDSNS
SYSTOC
SECCONT
MBLPW
CTOSYS
STOIP
PBSNS
GNDSEL
NC
CPUWDT
FCONT_C
VICSTOC
BSENRQ
FANCONT
NC
DIMMER
FCONT_M
NC
ROT0
GNDD
PCHNG
FANUP
RDSSNS
HYOKA
FANON
ILMCK
ILMLD
GND
GNDD
LVDSGND
EJCT
COMDC
CCTEMPIN
KDT1
KDT0
GNDD
GNDD
GNDD
GNDD
GNDD
BLSYNC
NC
NC
GNDD
GNDD
GNDD
NC
NC
1005
COMDC_M
CN2571
2/3
A
G
CN3301
AVIC-Z110BT/XN/UC
268
1234
1234
C
D
F
A
B
E
10.17 MONITOR UNIT(GUIDE PAGE)
G
G-a
DIF1:i
n
DEM:i
n
R0
G4
G5
G3
G2
R1
R2
R3
CPV
LOAD
VCOM2
VCOM1
STV2
LCDTEMP
EN
R4 G1
G0
B4
B3
B2
B1
B0
STH2
DIMMER
MBLPW
STH1
STV1
PNLXL
PNLYB
PNLXR
PNLYT
SWAC3
PNLYB
PNLXL
PNLYT
PNLXR
BLSYNC
BLERR1
BLERR2
MVIPW
MBLPW
DIMMER
BT_L
BT_R
BTTOC
CTOBT
BT_RESET
BT_BOOTS
MIC_BT
MIC_GND
LCDTEMP
HRST
KDT2
KDT1
KDT0
ILMDT
ILMCK
ILMLD
ILMB2
ILMB1
ILMG2
ILMG1
ILMR2
ILMR1
OE1
OE
OE1
BLSYNC
LVDSP
LVDSN
BT_R
HRST
ILMG2
ILMR2
ILMB2
ILMB1
RED
GREEN
BLUE
BLERR2
BLERR1
SLED
SLED
CPH
COMDC
KDT0
KDT2
KDT1
GND
LVDSN
LVDSP
ILMG1
KDT2
KDT1
KDT0
ILMR1
COMDC
SWAC3
BT_L
C3103
0.1u/16
D3101
RB500V-40
D3103
RB500V-40
D3102
RB500V-40
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
IC3101
TC7SH08FUS1
INB
1
INA
2
GND
3OUTY 4
5
VCC
IC3100
TC7SH08FUS1
INB
1
INA
2
GND
3OUTY 4
5
VCC
L3157
CTF1734-A
L3159
CTF1734-A
L3161
CTF1734-A
L3310
CTF1635-A
L3163
CTF1734-A
L3155
CTF1734-A
L3100
CTF1306-A
Q3101
2SC4617(QRS)
Q3100
2SC4617(QRS)
Q3103
2SC4617(QRS)
Q3102
2SC4617(QRS)
R3118
27k
R3105
4.7k
R3117
100
R3109
4.7k
R3106
100
R3115
100k
R3119
1k
R3116
220k
R3120
1k
R3111
100
R3165
NM
SWAC33
SWAC33
SWAC33
GN
D
C3309
DCH1201-A
10u
C3311
10u/6.3
R
GND
L3300 CTF1528-A
L3301 CTF1528-A
CN3300
CKS5105-A
1
2
3
4
L3302 CTF1528-A
L3303 CTF1528-A
C3104
NM
LEDBL
GNDBL
C3109
NM
C3113
1000p/50
GNDBL
C3112
CCG1223-A-T
NM
Q3105
11
22
33
445 5
66
77
88
D3105
RB160VA-40
R3133
0
C3111
CCG1223-A-T
D3104
NM
LED1
SP8K22
Q3106
11
2
2
3
3
4
45
5
6
6
7
7
8
8
LED2
R3155
NM
GND
R3100
2.2k
R3101
2.2k
R3102
2.2k
R3104
47k
R3110
47k
GND
GND
GND
SWAC33
R3169 150
R3161 150
R3163 150
R3167 150
R3159 150
R3171 150
R3126
120k
R3156
0
R3164
0
R3113 47
R3114 47
R3154
10k
R3153
10k
R3152
10k
R3151
10k
R3112
22k
D3100
UDZS6R8(B)
GND
ILMV
PWRVI
L3304
CTF1488-A
GND
GNDBL1
GNDBL2
PNLXL1
PNLYB1
PNLXR1
PNLYT1
LVDSGND
PWRVI
GNDBL
GND
GND
GNDILM
GNDVI
GNDBL
BT_L
GNDAL
BT_R
OE1
BTTOC
CTOBT
BT_RESET
BT_BOOTS
GND
DIMMER
BLSYNC
BLERR1
BLERR2
LCDTEMP
MVIPW
MBLPW
PNLXL
PNLYB
PNLYT
PNLXR
ILMV
GND
R3150
100
L3150
CTF1731-A
1
122
33
4
4
C3151
0.1u/16
IC3300
BH2227AFV
AO1
1
AO2
2
TESTMONI1
3
TESTMONI2
4
5AO3
6AO4
7NC1 8
NC2
9
VDD
10
CSB
11
CLK
12
DI
13
VFS
14
VSS
L3169
CTF1736-A-T
L3168
CTF1306-A
L3152
CTF1306-A
L3179
CTF1306-A
L3151
CTF1306-A
PWRBL
VA3314
VA3315
TH3350
CCX1084-A
C3107
0.1u/50
C3110
NM
C3108
2.2u/10
R3134
36k (D)
R3321
200
C3303
10u/6.3
GND
R3322
240
R3324
240
R3323
200
R3326
200
R3329
240
R3328
200
R3327
240
C3304
10u/6.3
GND
C3305
10u/6.3
R3333
200
R3332
240
GND
R3334
240
R3331
200
R3300 0
CKS5501-A
CN3302
1ILMV2
2ILMR2
3ILMG2
4ILMB2
5KEY1
6INT_KEY1
7HRST
8KEY0
9GND
10 GND
11 INT_KEY0
12 KEY2
13 ILMB1
14 ILMG1
15 ILMR1
16 ILMV1
R3174 NM
GND
GND
GND
GND
GND
B0
B1
B2
B3
B4
G0
G1
R0
R1
R2
R3
G5
G4
G3
G2
R4
NM
Q3104
L3101
CTH1394-A
9
D
10
A
11
A
12
V
13
V
14
V
15
D
16
D
GND
CCA5
GNDBT
GND
R3363
22k R3362
22k
R3360
220
R3361
220
GND
L3360
2.7u
C3363
10u/6.3
C3364
10u/6.3
C3366
10u/6.3
C3362
10u/6.3
C3367
1000p/50
C3365
1000p/50
C3361
2200p/50
C3360
2200p/50
GNDAR
CCA5
FCONT_M
GND
SLED
GND
C3162 0.1u/10
C3160
0.1u/10
C3164 0.1u/10
C3166
0.1u/10
C3155
0.1u/10
C3153 0.1u/10
C3152
0.1u/10
C3156
0.1u/10
C3163 0.01u/16
C3350
0.1u/10
R3122 0
R3107
10k
R3350
18k
R3108
47k
R3103 NM
C3302
0.22u/50
C3310
0.1u/10
R3129
0
R3303
0
R3137
0
R3128
15
R3127
NM
R3123
2.2M
R3330
33k
R3325
33k
R3335
33k
R3121
NM
(D)
R3135
1.8k (D)
R3124
100k
R3316 NM
Q3305
UMZ1N
E1
1
B1
2
C2
3E2 4
5
B2
6
C1
Q3300
UMZ1N
E1
1
B1
2
C2
3E2 4
5
B2
6
C1
Q3303
UMZ1N
E1
1
B1
2
C2
3E2 4
5
B2
6
C1
Q3304
UMZ1N
E1
1
B1
2
C2
3E2 4
5
B2
6
C1
Q3302
UMZ1N
E1
1
B1
2
C2
3E2 4
5
B2
6
C1
Q3301
UMZ1N
E1
1
B1
2
C2
3E2 4
5
B2
6
C1
R3125
3.9k
C3300
10u/35
GNDBL
C3301
NM
R3184
NM
GND
IC3151
TC7SZ08FU
4
2
5
3
1
GND
C3423
0.01u/16
FCONT_M
V34
L3180
CTF1306-A
LOCK
CN3301
CKS6118-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
C3150
0.1u/16
D3300
D3301
D3302
D3303
D3304
D3305
D3306
D3308
C3306
C3307
C3308
C3312
C3313
C3314
C3315
C3317
GND
C3319
C3320
C3321
C3322
D3150
NM
1
2
34
5
6
R3130
1
R3131
1
C3114
NM
C3115
NM
C3161
0.01u/16
C3157 0.01u/16
C3154
0.01u/16
C3165 0.01u/16
C3158
0.01u/16
C3167
0.01u/16
C3159
0.01u/16
C3116
1000p/50
IC3102
BD8113EFV
COMP
1
SS
2
VCC
3
EN
4
5RT
6SYNC
7GND
8PWM
9FAIL1
10 FAIL2
11 LEDEN
12 LED1 13
LED2
14
OVP
15
VDAC
16
ISET
17
PGND
18
OUTL
19
DGND
20
SW
21
OUTH
22
CS
23
BOOT
24
VREG
VA3303
VA3310
VA3308
VA3302
VA3300
VA3301
VA3307
VA3305
ILMV
CCH1635-A_Po
C3168
68u/10V
C3106
0.047u/16
D3310
D3311
D3312
D3313
R3305
NM
R3309
NM
R3310
NM
SWAC3
CCA5
DS90C124QVS
IC3150
RPWDNB
1
RESRVD
2
ROUT23
3
ROUT22
4
ROUT21
5
ROUT20
6
VddOR3
7
VssOR3
8
ROUT19
9
ROUT18
10
ROUT17
11 ROUT16
12
ROUT15
13
ROUT14
14
ROUT13
15
ROUT12 16
LOCK 17
RCLK 18
VssOR2 19
VddOR2 20
ROUT11 21
ROUT10 22
ROUT9
23
ROUT8
24
ROUT7 25
ROUT6 26
ROUT5 27
ROUT4 28
VssOR1 29
VddOR1 30
ROUT3 31
ROUT2 32
ROUT1 33
ROUT0 34
VssR0
35
VddR0
36
VddR1
37
VssR1
38
VddIR
39 VssIR
40
RIN+
41 RIN-
42 RRFB
43 VssPR1
44 VddPR1
45
VssPR0
46
VddPR0
47
REN
48
R3179
82 R3185
47
L3174
CTF1734-A
R3158 150
R3168 150
R3172 150
R3166 150
R3162 150
R3181 150
R3182 150
R3175 150
R3178 150
R3160 150
R3180 150
R3173 150
R3177 150
R3183 150
R3170 150
R3176 150
R3157 180
L3164
CTF1748-A
L3158
CTF1748-A
L3156
CTF1748-A
L3162
CTF1748-A
L3154
CTF1748-A
L3153
CTF1748-A
L3166
CTF1748-A
L3160
CTF1748-A
L3173
CTF1748-A
L3177
CTF1748-A
L3170
CTF1748-A
L3171
CTF1748-A
L3178
CTF1748-A
L3176
CTF1748-A
L3172
CTF1748-A
L3175
CTF1748-A
L3165
CTF1748-A
L3167
CTF1748-A
R3306
NM
R3307
NM
R3311
NM
R3312
NM
VA3317
C3100
0.1u/16
C3101
0.1u/16
C3102
0.1u/16
VA3316
R3136
0
C3105
47p/50
VI
LVDS
DD
SWAC33
to KEYBOARD
RGB ILM
REF NO 3150 3199
PWRVI
TOUCH PANEL
TOP
L
BOTTOM
R
ABOUT 27V
REF NO 3100 3149
LED_BACKLIGHT Driver
PWRBL
D%
D
NC
LVDSGND
NC
LVDSP
LVDSGND
LVDSN
NC
GNDD
GNDD
LCDTEMP
SWAC33
BLERR1
ILMCK
ILMLD
ILMDT
SECIND
PNLYB
PNLXR
PNLXL
PNLYT
GNDBL
GNDBL
GNDVI
GNDILM
GNDILM
NC
PWRVI
ILMV
PWRBL
PWRBL
CCA5
MIC_BT
BTTOC
BT_L
BT_RESET
BT_R
GNDD
LVDSGND
NC
NC
LVDSGND
NC
NC
LVDSGND
FCONT_M
BLSYNC
BLERR2
DIMMER
NM
NM
MBLPW
MVIPW
HRST
KDT1
GNDILM
NC
PWRBL
GNDBL
GNDVI
GNDBL
PWRBL
PWRVI
KDT0
ILMV
CTOBT
LCD_OE
MIC_GND
BT_BOOTS
GNDD
GNDD
ILMV
COM_DC
GNDD
GNDD
GNDD
NC
NC
KDT2
A
A
D
around the CONNECTOR
REF NO 3300
REF NO 3350
THERMISTOR
D
A
FAIL1
FAIL2
UVLO,TSD,OVP,SCP
LED_OPEN/SHORT
NM
NM
NM
BLSYNC:500kHz or 430kHz
CPH:33.33MHz
430kHz
500kHz
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
VA3305-3310
:AVR-M1608C120MT6AB
NM
NM
NM
NM
NM
NM
NM
NM
VA3300-3303
:AVR-M1608C120MT6AB
56uH
H
CN5601
4/4
F
AVIC-Z110BT/XN/UC 269
5 678
5678
C
D
F
A
B
E
G
G-b
DIF1:inner pull up:100k
DEM:inner pull down:100k
G2
G1
OE
LOAD
STV2
CPV
STH2
STH1
CPH
G5
G4
G3
STV1
B3
B2
B1
B0
R3
R2
R1
R0
PWRVI
BTTOC
CTOBT
B4
R4
G0
MVIPW
ILMDT
ILMCK
ILMLD
MIC_BT
MIC_GND
BT_RESET
R
ED
G
REEN
B
LUE
VCOM2
VCOM1
BT_BOOTS
CN3401
CKS5773-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
C3410
CCG1192-A
C3414 106/10
C3409
10u/35
C3411 106/10
C3407 106/10
C3419
1000p/10
C3420
1000p/10
C3422
100p/50
C3421
100p/50
C3208 0.1u/50
C3206
1u/6.3
C3212
NM
C3203
1u/6.3
C3401 NM
C3402 NM
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
IC3201
TC7S66FU
I/O
1
O/I
2
GND
3CONT 4
5
VCC
IC3200
NJM2100V
34
21
8
IC3200
NJM2100V
5
67
L3202
LCTAW101J2520-T
L3203
LCTAW101J2520-T
L3403
CTF1635-A
L3404
CTF1635-A
L3205
CTF1306-A
L3200
CTF1306-A
L3207
CTF1306-A
L3401
DTL1096-A
L3305
10u
L3402
DTL1096-A
L3208
CTF1306-A
L3206
CTF1635-A
Q3202
2SC4617(RS)
Q3200
2SC4617(RS)
2SA1774(QR)
Q3201
2SA1774(QR)
Q3203
R3220
0
R3219
0
R3215
0
R3216
NM
STH2
LCD3V
STV1
STH1
OE
LCD18
CPH
LCDM12
VCOM
LCD5V
GNDV2
STV2
LOAD
VCOMOUT
GNDIO
CPV
VM12
V18
VM12
V34
V5
V5
V8
SWAC33
GND
C3309
DCH1201-A
10u
V5
R3336 0
R3338 0
R3337 0
D3012
RB548W
1
2
3
D3002 RB500V-40
D3010
RB548W
1
2
3
D3011
RB548W
1
2
3
V8
VM12
2SA1577(QR)
Q3003
GND
GND
L3005
CTF1635-A
(10uH)
D3004
RB500V-40
L3001
CTH1250-A
(18uH) GND
C3017
0.039u/50
C3012 0.039u/50
C3021 10u/35
V5
BD6171KV
IC3001
NC1
1
OCPC2
2
VREGA 3
VS2 4
CL2 5
PVCC2 6
OUT2 7
LGND 8
VREGB 9
OVT1 10
PVCC1
11
CL1
12
VS1
13
OCPC1
14
FB1
15
INV1
16
SS1
17
FB2
18
INV2
19
SS2
20
VREF
21
OUT3
22 PVCC3
23
FB3
24
V03DET
25 V01DET
26 V02DET
27 V04DET
28 V05DET
29
SVBGND
30
GND
31
EN1
32 EN2
33
EN3
34 EN4
35 EN5
36
PVCC5 37
OUT5 38
FB5 39
PGND5 40
PVCC 41
VCC 42
FIN 43
RT 44
PGND4 45
FB4 46
OUT4
47
PVCC4
48
V34
L3002
CTF1635-A
GND
V34
GND
PWRVI
V18
D3007
RB500V-40
D3009
RB548W
1
2
3
D3008
RB548W
1
2
3
R3030
330k
D3006
RB160M-30
GND
V5
C3025
10u/35
R3015
390
L3004
CTH1318-A
(68uH)
L3006
DTL1096-A
C3001
CCG1232-A
107/6.3
V8
GND
D3001
RB160M-30
R3014
2k
V18
CCH1586-A_Po
C3038
(330/10)
RSQ035P03
Q3001
D1
1
D2
2
G
3S4
5
D3
6
D4
GND
R3008
330
L3007
CTF1635-A
Q3004
2SC4097(R)
GND
VM12
C3015
0.039u/50
D3005
RB500V-40
C3022 10u/35
RSQ035P03
Q3002
D1
1
D2
2
G
3
S
4
5
D3
6
D4
LEDBL
GNDBL
C3113
1000p/50
C3112
CCG1223-A-T
CCG1223 A T
LED1
LED2
L3361
CTF1394-A
V34
R3376
47
R3375
47
R3373
47
GNDBT
GNDBT
D3003 RB500V-40
R3378
0
R3413
NM
R3415
NM
R3414
0
NJM082BV
IC3202
A:OUT
1
A:-IN
2
A:+IN
3
V-
45
B:+IN
6
B:-IN
7
B:OUT
8
V+
R3339
0
TC7WT240FU
IC3203
G1
1
A1
2
Y2
3
GND
45
A2
6
Y1
7
G2
8
VCC
GND
L_R
BT_LRCK
BT_DATA1
BT_CLK1
COTOBT
U0_OUT
U0_IN
BT_VCC
GNDBT1
NRESET
BOOTS
GNDBT
IC3300
BH2227AFV
AO1
1
AO2
2
TESTMONI1
3
TESTMONI2
4
5AO3
6AO4
7NC1 8
NC2
9
VDD
10
CSB
11
CLK
12
DI
13
VFS
14
VSS
CKS5715-A
CN3100
1
2
3
4
5
6
7
8
9
10
C3210 CCG1222-A
4.7u
C3214
DCH1201-A
10u/10V
PWRVI
R3379
NM
V34_DD
R3134
36k (D)
IC3204
TC74VHCT04AFTS1
1A
1
1Y
2
2A
3
2Y
4
53A
63Y
7GND 8
4Y
9
4A
10
5Y
11
5A
12
6Y
13
6A
14
Vcc
GND
R3382 0
R3383 0
BT_DATA2
C3369
10u/6.3
C3368
10u/6.3
R3374
10k
R3420
0
GND
R3419
NM
GND
R3418
0
GND
AK4388VT
IC3360
MCLK 1
BICK 2
SDTI 3
LRCK 4
5
RSTN
6
SMUTE
7
ACKS
8
DIF0
9DIF1
10 AOUTR
11 AOUTL
12 VCOM
13 VSS
14 VDD
15 DEM
16 DZF
CCA5
BT_MCLK
GNDBT
R3365
10k
R3364
10k
R3367 10k
GNDBT
GND
R3363
22k R3362
22k
L3360
2.7u
C3363
10u/6.3
C3364
10u/6.3
C3366
10u/6.3
C3362
10u/6.3
C3367
1000p/50
C3365
1000p/50
R3372
47k
R3417
NM R3421
NM
R3422
47k
R3384
NM
NM
VR3201
22k 13
2
C3201
0.1u/10
C3200
0.1u/10
C3205
0.1u/10
R3208
100
R3211
100
R3217
15k
R3218
15k
R3209
22k
R3028
47
R3027
47
R3210
4.7k
R3416
47k
R3370 NM
R3369 47
R3371 47
R3368 47
R3366 47
C3408
0.33u/50
C3202
0.1u/10
C3204
0.1u/10
C3213
0.1u/10
C3215
0.1u/10
C3370 0.1u/10
C3371 0.1u/10
C3372 0.1u/10
C3373 0.1u/10
C3415
0.1u/10
C3418 0.1u/10
R3213
470k
R3212
56k D%
R3023
18k
R3025
18k
R3024
22k
R3002
6.8k
C3046
1u/25
C3051
1u/25
C3050
1u/25
C3048
2.2u/16
C3049
2.2u/16
C3417
1000p/50
C3416
1000p/50
GND
R3001
0
R3005
0
R3222
10
R3221
10
R3010
1k
R3009
1k
R3019 15
R3018 15
R3031
20k
R3017
27k
R3012 33k
R3020
56k
R3016
100 (D)
R3004
1k
(D)
R3006
1k
R3021
10k
R3135
1.8k (D)
R3412
75
(D)
R3423 R3424
TEST_V TEST_P
GND
R3214
33k D%
DTC114EE
Q3005
R3022 62k
DTC114EE
Q3360
GNDBT
FCONT_M
R3003
200
R3026
820
R3200
51k D%
TP2
TP1
C3424
NM
R3429
NM
R3431
NM(D)
L3405
NM
R3430
NM
R3426
NM(D)
D3152
NM
C3425
NM
GND
GND
GND
C3429
NM
R3428
NM
L3406
NM
BTH1110-A-T
GND
R3427
NM
R3425
NM
C3427 NM
C3426 NM
V34_DD
R3204
100k
NM
C3428
IC3361
NM
BD
1
BOOST
2
SW
3
Vin
4
RUN/SS
5
SYNC
6
N/C
7
FB
8
Vc
9
Rt
10
GND
11
R3205
6.8k
D%
R3206
10k
D%
R3207
100
C3003
1u/16
C3004 680p/50
C3006
330p/50
C3008
0.1u/50 C3009
0.1u/50
C3010 0.01u/50
C3014 NM
C3016
0.1u/50
C3018
0.1u/50
C3019
NM C3020 0.01u/50
C3023 1u/10
C3024
1000p/50
C3026
0.1u/50
C3027
0.01u/50
C3028
1000p/50
C3029 1u/10
C3030
0.01u/50
C3031 NM
C3032 1u/10
C3033
0.01u/50
C3034
4.7u/16
C3035
0.1u/16
C3036
180p/50 C3037
0.1u/50
C3039 180p/50
R3034
270k
R3380
22k
L3407
NM L3003
CTH1318-A
(68uH)
R3011 100k
C3007
0.1u/50
CN3360
CKS6117-A
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
13
C3405
0.1u/50
C3403
0.1u/50 C3406
0.1u/50
C3404
0.1u/50
C3412
0.1u/50
C3209
10u/35
CCG1236-A-T
C3211
10u/35
CCG1236-A-T
C3413
0.1u/50
C3207 0.1u/50
C3116
1000p/50
CN3361
CKS5749-A
1
2
3
CN3362
CKS5749-A
1
2
3
R3385
NM
CCH1635-A_Po
C3005
68u/10V
IC3362
TC7SH08FUS1
INB 1
INA 2
GND 3
OUTY
4
5VCC
R3377
0
L3362
CTF1306-A
C3374
0.1u/16
FCONT
R3007
82
(D)
R3013
330
C3002 0.01u/50
R3202
10k
C3013
4700p/50
C3011
CCG1192-A
C3040
4700p/50
C3041
4700p/50
C3042
0.47u/16
C3043
0.47u/16
C3044
1u/16
C3045
0.47u/16
C3047
0.1u/50
C3052
1u/16
C3053
1u/16
C3054
1u/16
C3055
1u/16
R3386
0
R3201
36k D%
R3401
18
(D)
R3403
100
(D)
R3404
91
(D)
R3410
91
(D)
R3432 NM
R3433 NM
R3434 NM
R3435 NM
R3402
24
(D)
R3405
100
(D)
R3406
30
(D)
R3407
47
(D)
R3408
47
(D)
R3409
27
(D)
R3411
100
(D)
R0
CPH
STV2
V0
B1
NC
V8
R1
VDD1
NC
G3
B0
NC
V7
R2
STH2
GND
G0
LOAD
NC
V6
R5
NC
NC
G1
L/R
V5
R4
V1
STV1
Vcom
G2
VDD2
V4
VDD2
B5
VDD1
GND
Vcom
GND
G5
VDD2
CPV
V3
B4
VGH
STH1
G4
GND
OE
V2
B3
NC
V10
R3
GND
U/D
B2
VGL
V9
GRADATION VOLTAGE
VM12
V8
REF NO 3200 3299
COM, LCD power
COMAC
COMDC
TO LCD
TO BL
DC/DC
V5
VM12
VI
V18
V8
PWRVI
V34
ABOUT 27V
BT MODULE
(CWX3851-A)
LIN
USB0 D+
VSS
I2S_MCLK
VSS
USB1 D-
VCC
MIC2N
VCC
USB0_VBUS
I2S_OUT1
USB1 D+
MIC1N
I2S_SYNC
I2S_OUT2
I2S_CLK
USB0 D-
VSS
U0_OUT
MIC_PWR
VSS
USB1_VBUS
NRESET
BOOTS
VSS
VSS
USB1_ID
RIN
I2S_IN
MIC1P
U1_IN
I2C_CLK
I2C_DA
U0_IN
U1_OUT
VSS
USB0_ID
USB0_DRV_VBUS
MIC2P
USB1_DRV_VBUS
REF NO 3001 3499
A
REF NO 3401
around PANEL
V5
V18
VM12
V34
NM
capacitor in BT module
MODEL
5V
fsw=500kHz
5.7Vpp
H:450kHz
L:400kHz
100k
0
REF NO 3001 3099
5V
LCD PANEL
LCD PANEL
H
CN2901
GMONITOR UNIT
AVIC-Z110BT/XN/UC
270
1234
1234
C
D
F
A
B
E
G-a G-b
G-b
STH1
B3
B2
B1
B0
PWRVI
B4
G0
MVIPW
ILMDT
ILMCK
ILMLD
EN
E
VCOM2
VCOM1
CN3401
CKS5773-A
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
C3203
1u/6.3
GND
GND
GND
IC3201
TC7S66FU
I/O
1
O/I
2
GND
3CONT 4
5
VCC
IC3200
NJM2100V
5
67
L3205
CTF1306-A
L3200
CTF1306-A
L3207
CTF1306-A
L3305
10u
L3208
CTF1306-A
L3206
CTF1635-A
R3215
0
R3216
NM
STH1
VCOMOUT
GNDIO
V5
SWAC33
GND
C3309
DCH1201-A
10u
V5
R3336 0
R3338 0
R3337 0
D3012
RB548W
1
2
3
D3002 RB500V-40
D3010
RB548W
1
2
3
D3011
RB548W
1
2
3
V8
VM12
2SA1577(QR)
Q3003
GND
GND
L3005
CTF1635-A
(10uH)
D3004
RB500V-40
L3001
CTH1250-A
(18uH) GND
C3017
0.039u/50
C3012 0.039u/50
C3021 10u/35
V5
BD6171KV
IC3001
NC1
1
OCPC2
2
VREGA 3
VS2 4
CL2 5
PVCC2 6
OUT2 7
LGND 8
VREGB 9
OVT1 10
PVCC1
11
CL1
12
VS1
13
OCPC1
14
FB1
15
INV1
16
SS1
17
FB2
18
INV2
19
SS2
20
VREF
21
OUT3
22 PVCC3
23
FB3
24
V03DET
25 V01DET
26 V02DET
27 V04DET
28 V05DET
29
SVBGND
30 GND
31
EN1
32 EN2
33
EN3
34
EN4
35 EN5
36
PVCC5
37
OUT5 38
FB5 39
PGND5 40
PVCC 41
VCC 42
FIN 43
RT 44
PGND4 45
FB4 46
OUT4
47
PVCC4
48
V34
L3002
CTF1635-A
GND
V34
GND
PWRVI
V18
D3007
RB500V-40
D3009
RB548W
1
2
3
D3008
RB548W
1
2
3
R3030
330k
D3006
RB160M-30
GND
V5
C3025
10u/35
R3015
390
L3004
CTH1318-A
(68uH)
L3006
DTL1096-A
C3001
CCG1232-A
107/6.3
V8
GND
D3001
RB160M-30
R3014
2k
V18
CCH1586-A_Po
C3038
(330/10)
RSQ035P03
Q3001
D1
1
D2
2
G
3S4
5
D3
6
D4
GND
R3008
330
L3007
CTF1635-A
Q3004
2SC4097(R)
GND
VM12
C3015
0.039u/50
D3005
RB500V-40
C3022 10u/35
RSQ035P03
Q3002
D1
1
D2
2
G
3
S
4
5
D3
6
D4
D3003 RB500V-40
R3413
NM
R3414
R3339
0
TC7WT240FU
IC3203
G1
1
A1
2
Y2
3
GND
45
A2
6
Y1
7
G2
8
VCC
GND
IC3300
BH2227AFV
AO1
1
AO2
2
TESTMONI1
3
TESTMONI2
4
5AO3
6AO4
7NC1 8
NC2
9
VDD
10
CSB
11
CLK
12
DI
13
VFS
14
VSS
C3214
DCH1201-A
10u/10V
IC3204
TC74VHCT04AFTS1
1A
1
1Y
2
2A
3
2Y
4
53A
63Y
7GND 8
4Y
9
4A
10
5Y
11
5A
12
6Y
13
6A
14
Vcc
R3419
R3418
0
GND
NM
3201
2
2k 13
2
C3200
0.1u/10
C3205
u
/10
R3028
47
R3027
47
R3210
4.7k
C3213
0.1u/10
C3215
0.1u/10
R3023
18k
R3025
18k
R3024
22k
R3002
6.8k
C3046
1u/25
C3051
1u/25
C3050
1u/25
C3048
2.2u/16
C3049
2.2u/16
R3001
0
R3005
0
R3010
1k
R3009
1k
R3019 15
R3018 15
R3031
20k
R3017
27k
R3012 33k
R3020
56k
R3016
100 (D)
R3004
1k
(D)
R3006
1k
R3021
10k
R3423 R3424
TEST_V TEST_P
GND
DTC114EE
Q3005
R3022 62k
FCONT_M
R3003
200
R3026
820
R3200
51k D%
R3205
6.8k
D%
206
10k
D%
R3207
100
C3003
1u/16
C3004 680p/50
C3006
330p/50
C3008
0.1u/50 C3009
0.1u/50
C3010 0.01u/50
C3014 NM
C3016
0.1u/50
C3018
0.1u/50
C3019
NM C3020 0.01u/50
C3023 1u/10
C3024
1000p/50
C3026
0.1u/50
C3027
0.01u/50
C3028
1000p/50
C3029 1u/10
C3030
0.01u/50
C3031 NM
C3032 1u/10
C3033
0.01u/50
C3034
4.7u/16
C3035
0.1u/16
C3036
180p/50 C3037
0.1u/50
C3039 180p/50
R3034
270k
L3407
NM L3003
CTH1318-A
(68uH)
R3011 100k
C3007
0.1u/50
CCH1635-A_Po
C3005
68u/10V
FCONT
R3007
82
(D)
R3013
330
C3002 0.01u/50
C3013
4700p/50
C3011
CCG1192-A
C3040
4700p/50
C3041
4700p/50
C3042
0.47u/16
C3043
0.47u/16
C3044
1u/16
C3045
0.47u/16
C3047
0.1u/50
C3052
1u/16
C3053
1u/16
C3054
1u/16
C3055
1u/16
R3201
36k D%
R3401
18
(D)
R3403
100
(D)
R3404
91
(D)
R3432 NM
R3433 NM
R3434 NM
R3435 NM
R3402
24
(D)
R3405
100
(D)
R3406
30
(D)
R3407
47
(D)
V0
B1
V8
B0
V7
G0
V6
V5
V1
V4
B5
GND
V3
B4
STH1
V2
B3
V10
B2
V9
GRADATION VOLTAGE
REF NO 3200 3299
COM, LCD power
COMAC
TO LCD
DC/DC
V5
VM12
VI
V18
V8
PWRVI
V34
MODEL
5V
H:450kHz
L:400kHz
100k
0
REF NO 3001 3099
5V
G
MONITOR UNIT
AVIC-Z110BT/XN/UC 271
5 678
5678
C
D
F
A
B
E
G-a G-b
G-b
DIF1:inner pull up:100k
DEM:inner pull down:100k
G2
G1
OE
LOAD
STV2
CPV
STH2
CPH
G5
G4
G3
STV1
B3
B2
B1
B0
R3
R2
R1
R0
BTTOC
CTOBT
B4
R4
G0
MIC_BT
MIC_GND
BT_RESET
BT_BOOTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
C3410
CCG1192-A
C3414 106/10
C3409
10u/35
C3411 106/10
C3407 106/10
C3419
1000p/10
C3420
1000p/10
C3422
100p/50
C3421
100p/50
C3208 0.1u/50
C3206
1u/6.3
C3212
NM
C3203
1u/6.3
C3401 NM
C3402 NM
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
IC3201
TC7S66FU
I/O
1
O/I
2
GND
3CONT 4
5
VCC
IC3200
NJM2100V
34
21
8
IC3200
NJM2100V
5
67
L3202
LCTAW101J2520-T
L3203
LCTAW101J2520-T
L3403
CTF1635-A
L3404
CTF1635-A
L3200
CTF1306-A
L3401
DTL1096-A
L3402
DTL1096-A
L3208
CTF1306-A
Q3202
2SC4617(RS)
Q3200
2SC4617(RS)
2SA1774(QR)
Q3201
2SA1774(QR)
Q3203
R3220
0
R3219
0
R3215
0
R3216
NM
STH2
LCD3V
STV1
OE
LCD18
CPH
LCDM12
VCOM
LCD5V
GNDV2
STV2
LOAD
VCOM
O
GNDIO
CPV
VM12
V18
VM12
V34
V5
V8
V
5
LEDBL
GNDBL
C3113
1000p/50
C3112
CCG1223-A-T
LED1
LED2
L3361
CTF1394-A
V34
R3376
47
R3375
47
R3373
47
GNDBT
GNDBT
R3378
0
R3413
NM
R3415
NM
R3414
0
NJM082BV
IC3202
A:OUT
1
A:-IN
2
A:+IN
3
V-
45
B:+IN
6
B:-IN
7
B:OUT
8
V+
TC7WT240FU
G1
1
A1
2
Y2
3
GND
45
A2
6
Y1
7
G2
8
VCC
L_R
BT_LRCK
BT_DATA1
BT_CLK1
COTOBT
U0_OUT
U0_IN
BT_VCC
GNDBT1
NRESET
BOOTS
GNDBT
CKS5715-A
CN3100
1
2
3
4
5
6
7
8
9
10
C3210 CCG1222-A
4.7u
PWRVI
R3379
NM
V34_DD
R3134
36k (D)
IC3204
TC74VHCT04AFTS1
1A
1
1Y
2
2A
3
2Y
4
53A
63Y
7GND 8
4Y
9
4A
10
5Y
11
5A
12
6Y
13
6A
14
Vcc
GND
R3382 0
R3383 0
BT_DATA2
C3369
10u/6.3
C3368
10u/6.3
R3374
10k
R3420
0
GND
R3419
NM
GND
R3418
0
GND
AK4388VT
IC3360
MCLK 1
BICK 2
SDTI 3
LRCK 4
5
RSTN
6
SMUTE
7
ACKS
8
DIF0
9DIF1
10 AOUTR
11 AOUTL
12 VCOM
13 VSS
14 VDD
15 DEM
16 DZF
CCA5
BT_MCLK
GNDBT
R3365
10k
R3364
10k
R3367 10k
GNDBT
GND
R3363 22k
L3360
2.7u
C3363
10u/6.3
C3364
10u/6.3
C3366
10u/6.3
C3362
10u/6.3
C3367
1000p/50
C3365
1000p/50
R3372
47k
R3417
NM R3421
NM
R3422
47k
R3384
NM
NM
VR3201
22k 13
2
C3201
0.1u/10
C3200
0.1u/10
C3205
0.1u/10
R3208
100
R3211
100
R3217
15k
R3218
15k
R3209
22k
R3210
4.7k
R3416
47k
R3370 NM
R3369 47
R3371 47
R3368 47
R3366 47
C3408
0.33u/50
C3202
0.1u/10
C3204
0.1u/10
C3213
0.1u/10
C3370 0.1u/10
C3371 0.1u/10
C3372 0.1u/10
C3373 0.1u/10
C3415
0.1u/10
C3418 0.1u/10
R3213
470k
R3212
56k D%
C3417
1000p/50
C3416
1000p/50
GND
R3222
10
R3221
10
R3135
1.8k (D)
R3412
75
(D)
R3214
33k D%
DTC114EE
Q3360
GNDBT
R3200
51k D%
TP2
TP1
C3424
NM
R3429
NM
R3431
NM(D)
L3405
NM
R3430
NM
R3426
NM(D)
D3152
NM
C3425
NM
GND
GND
GND
C3429
NM
R3428
NM
L3406
NM
BTH1110-A-T
GND
R3427
NM
R3425
NM
C3427 NM
C3426 NM
V34_DD
R3204
100k
NM
C3428
IC3361
NM
BD
1
BOOST
2
SW
3
Vin
4
RUN/SS
5
SYNC
6
N/C
7
FB
8
Vc
9
Rt
10
GND
11
R3205
6.8k
D%
R3206
10k
D%
R3207
100
R3380
22k
CN3360
CKS6117-A
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
13
C3405
0.1u/50
C3403
0.1u/50 C3406
0.1u/50
C3404
0.1u/50
C3412
0.1u/50
C3209
10u/35
CCG1236-A-T
C3211
10u/35
CCG1236-A-T
C3413
0.1u/50
C3207 0.1u/50
C3116
1000p/50
CN3361
CKS5749-A
1
2
3
CN3362
CKS5749-A
1
2
3
R3385
NM
IC3362
TC7SH08FUS1
INB 1
INA 2
GND 3
OUTY
4
5VCC
R3377
0
L3362
CTF1306-A
C3374
0.1u/16
R3202
10k
R3386
0
R3201
36k D%
R34
0
91
(D
)
R3410
91
(D)
R3405
100
(D)
R3406
30
(D)
R3407
47
(D)
R3408
47
(D)
R3409
27
(D)
R3411
100
(D)
R0
CPH
STV2
B1
NC
V8
R1
VDD1
NC
G3
B0
NC
R2
STH2
GND
G0
LOAD
NC
R5
NC
NC
G1
L/R
R4
STV1
Vcom
G2
VDD2
VDD2
B5
VDD1
GND
Vcom
G5
VDD2
CPV
B4
VGH
G4
GND
OE
B3
NC
V10
R3
GND
U/D
B2
VGL
V9
GRADATION VOLTAGE
VM12
V8
COMAC
COMDC
TO BL
ABOUT 27V
BT MODULE
(CWX3851-A)
LIN
USB0 D+
VSS
I2S_MCLK
VSS
USB1 D-
VCC
MIC2N
VCC
USB0_VBUS
I2S_OUT1
USB1 D+
MIC1N
I2S_SYNC
I2S_OUT2
I2S_CLK
USB0 D-
VSS
U0_OUT
MIC_PWR
VSS
USB1_VBUS
NRESET
BOOTS
VSS
VSS
USB1_ID
RIN
I2S_IN
MIC1P
U1_IN
I2C_CLK
I2C_DA
U0_IN
U1_OUT
VSS
USB0_ID
USB0_DRV_VBUS
MIC2P
USB1_DRV_VBUS
REF NO 3001 3499
A
REF NO 3401
around PANEL
V5
V18
VM12
V34
NM
capacitor in BT module
fsw=500kHz
5.7Vpp
LCD PANEL
LCD PANEL
H
CN2901
AVIC-Z110BT/XN/UC
272
1234
1234
C
D
F
A
B
E
G-bG-a
G-a
G-b
R0
G4
G5
G3
G2
R1
R2
R3
G1
G0
B4
B3
B2
B1
B0
STH2
STH1
PNLYB
PNLXL
PNLYT
PNLXR
BLSYNC
BLERR1
BLERR2
MVIPW
MBLPW
DIMMER
LCDTEMP
HRST
KDT2
KDT1
KDT0
ILMDT
ILMCK
ILMLD
ILMB2
ILMB1
ILMG2
ILMG1
ILMR2
ILMR1
LVDSP
LVDSN
HRST
ILMG2
ILMR2
ILMB2
ILMB1
RED
GREEN
BLUE
SLED
SLED
COMDC
KDT0
KDT2
KDT1
GND
LVDSN
LVDSP
ILMG1
KDT2
KDT1
KDT0
ILMR1
COMDC
SWAC3
GND
GND
GND
GND
GND
GND
GND
GND
GND
C3309
DCH1201
-
A
R3155
NM
GND
R3156
0
R3153
10k
10k
GND
LVDSGND
GNDBL
GND
GND
GNDILM
GNDVI
GNDBL
GND
DIMMER
BLSYNC
BLERR1
BLERR2
LCDTEMP
MVIPW
MBLPW
PNLXL
PNLYB
PNLYT
PNLXR
ILMV
GND
R3150
100
L3150
CTF1731-A
1
122
33
4
4
C3151
0.1u/16
IC3300
BH2227AFV
AO1
1
AO2
2
TESTMONI1
3
TESTMONI2
4
5AO3
6AO4
7NC1 8
NC2
9
VDD
10
CSB
11
CLK
12
DI
13
VFS
14
VSS
L3169
CTF1736-A-T
L3168
CTF1306-A
L3152
CTF1306-A
L3179
CTF1306-A
L3151
CTF1306-A
VA3314
VA3315
R3321
200
C3303
10u/6.3
GND
R3322
240
R3324
240
R3323
200
R3326
200
R3329
240
R3328
200
R3327
240
C3304
10u/6.3
GND
C3305
10u/6.3
R3333
200
R3332
240
GND
R3334
240
R3331
200
R3300 0
CKS5501-A
CN3302
1ILMV2
2ILMR2
3ILMG2
4ILMB2
5KEY1
6INT_KEY1
7HRST
8KEY0
9GND
10 GND
11 INT_KEY0
12 KEY2
13 ILMB1
14 ILMG1
15 ILMR1
16 ILMV1
B0
B1
B2
B3
B4
G0
G1
R0
R1
R2
R3
G5
G4
G3
G2
FCONT_M
SLED
GND
C3162 0.1u/10
C3160
0.1u/10
C3164 0 1u/10
C3166
0.1u/10
C3155
0.1u/10
C3153 0.1u/10
C3152
0.1u/10
C3156
0.1u/10
C3163 0.01u/16
R3303
0
R3330
33k
R3325
33k
R3335
33k
R3316 NM
Q3305
UMZ1N
E1
1
B1
2
C2
3E2 4
5
B2
6
C1
Q3300
UMZ1N
E1
1
B1
2
C2
3E2 4
5
B2
6
C1
Q3303
UMZ1N
E1
1
B1
2
C2
3E2 4
5
B2
6
C1
Q3304
UMZ1N
E1
1
B1
2
C2
3E2 4
5
B2
6
C1
Q3302
UMZ1N
E1
1
B1
2
C2
3E2 4
5
B2
6
C1
Q3301
UMZ1N
E1
1
B1
2
C2
3E2 4
5
B2
6
C1
R3184
NM
GND
FCONT_M
V34
LOCK
CN3301
CKS6118-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
C3150
0.1u/16
D3304
D3305
D3306
D3308
C3306
C3307
C3308
C3317
GND
C3319
C3320
C3321
C3322
D3150
NM
1
2
34
5
6
C3161
0.01u/16
C3157 0.01u/16
C3154
0.01u/16
C3165 0.01u/16
C3158
0.01u/16
C3167
0.01u/16
C3159
0.01u/16
VA3310
VA3308
VA3307
VA3305
CCH1635-A_Po
C3168
68u/10V
D3310
D3311
D3312
D3313
R3305
NM
R3309
NM
R3310
NM
SWAC3
DS90C124QVS
IC3150
RPWDNB
1
RESRVD
2
ROUT23
3
ROUT22
4
ROUT21
5
ROUT20
6
VddOR3
7
VssOR3
8
ROUT19
9
ROUT18
10
ROUT17
11 ROUT16
12
ROUT15
13
ROUT14
14
ROUT13
15
ROUT12 16
LOCK 17
RCLK 18
VssOR2 19
VddOR2 20
ROUT11 21
ROUT10 22
ROUT9
23
ROUT8
24
ROUT7 25
ROUT6 26
ROUT5 27
ROUT4 28
VssOR1 29
VddOR1 30
ROUT3 31
ROUT2 32
ROUT1 33
ROUT0 34
VssR0
35
VddR0
36
VddR1
37
VssR1
38
VddIR
39 VssIR
40
RIN+
41 RIN-
42 RRFB
43 VssPR1
44 VddPR1
45
VssPR0
46
VddPR0
47
REN
48
R3158 150
R3168 150
R3172 150
R3166 150
R3162 150
R3181 150
R3182 150
R3175 150
R3178 150
R3160 150
R3180 150
R3177 150
R3183 150
R3170 150
R3176 150
R3157 180
L3164
CTF1748-A
L3158
CTF1748-A
L3156
CTF1748-A
L3162
CTF1748-A
L3154
CTF1748-A
L3153
CTF1748-A
L3166
CTF1748-A
L3160
CTF1748-A
L3173
CTF1748-A
L3177
CTF1748-A
L3170
CTF1748-A
L3171
CTF1748-A
L3178
CTF1748-A
L3176
CTF1748-A
L3172
CTF1748-A
L3175
CTF1748-A
R3306
NM
R3307
NM
R3311
NM
R3312
NM
VA3317
VA3316
VI
LVDS
to KEYBOARD
RGB ILM
REF NO 3150 3199
NC
LVDSGND
NC
LVDSP
LVDSGND
LVDSN
NC
GNDD
GNDD
LCDTEMP
SWAC33
BLERR1
ILMCK
ILMLD
ILMDT
SECIND
PNLYB
PNLXR
PNLXL
PNLYT
GNDBL
GNDBL
GNDVI
GNDILM
GNDILM
GNDD
LVDSGND
NC
NC
LVDSGND
NC
NC
LVDSGND
FCONT_M
BLSYNC
BLERR2
DIMMER
NM
NM
MBLPW
MVIPW
HRST
KDT1
GNDILM
NC
GNDBL
GNDVI
GNDBL
KDT0
COM_DC
GNDD
GNDD
GNDD
NC
NC
KDT2
D
THERMISTOR
D
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
NM
VA3305-3310
:AVR-M1608C120MT6AB
NM
NM
NM
NM
NM
NM
NM
NM
H
CN5601
4/4
F
AVIC-Z110BT/XN/UC 273
5 678
5678
C
D
F
A
B
E
G-a
G-b
G-bG-a
R0
R1
R2
R3
CPV
LOAD
VCOM2
VCOM1
STV2
LCDTEMP
EN
R4
DIMMER
MBLPW
STV1
PNLXL
PNLYB
PNLXR
PNLYT
SWAC3
BT_L
BT_R
BTTOC
CTOBT
BT_RESET
BT_BOOTS
MIC_BT
MIC_GND
OE1
OE
OE1
BLSYNC
BT_R
BLERR2
BLERR1
CPH
LVDSN
BT_L
C3103
0.1u/16
D3101
RB500V-40
D3103
RB500V-40
D3102
RB500V-40
GND
GND
GND
GND
GND
GND
GND
GND
IC3101
TC7SH08FUS1
INB
1
INA
2
GND
3OUTY 4
5
VCC
IC3100
TC7SH08FUS1
INB
1
INA
2
GND
3OUTY 4
5
VCC
L3157
CTF1734-A
L3159
CTF1734-A
L3161
CTF1734-A
L3310
CTF1635-A
L3163
CTF1734-A
L3155
CTF1734-A
L3100
CTF1306-A
Q3101
2SC4617(QRS)
Q3100
2SC4617(QRS)
Q3103
2SC4617(QRS)
Q3102
2SC4617(QRS)
R3118
27k
R3105
4.7k
R3117
100
R3109
4.7k
R3106
100
R3115
100k
R3119
1k
R3116
220k
R3120
1k
R3111
100
R3165
NM
SWAC33
SWAC33
SWAC33
C3311
10u/6.3
GND
L3300 CTF1528-A
L3301 CTF1528-A
CN3300
CKS5105-A
1
2
3
4
L3302 CTF1528-A
L3303 CTF1528-A
C3104
NM
LE
GNDBL
C3109
NM
C3113
1000p/50
GNDBL
C3112
CCG1223-A-T
NM
Q3105
11
22
33
445 5
66
77
88
D3105
RB160VA-40
R3133
0
C3111
CCG1223-A-T
D3104
NM
L
E
SP8K22
Q3106
11
2
2
3
3
4
45
5
6
6
7
7
8
8
L
E
R3100
2.2k
R3101
2.2k
R3102
2.2k
R3104
47k
R3110
47k
GND
GND
GND
SWAC33
R3169 150
R3161 150
R3163 150
R3167 150
R3159 150
R3171 150
R3126
120k
R3164
0
R3113 47
R3114 47
R3154
10k
R3153
10k
R3152
10k
R3151
10k
R3112
22k
D3100
UDZS6R8(B)
ILMV
PWRVI
L3304
CTF1488-A
GND
GNDBL1
GNDBL2
PNLXL1
PNLYB1
PNLXR1
PNLYT1
PWRVI
GNDBL
GND
GND
GNDILM
GNDVI
GNDBL
BT_L
GNDAL
BT_R
OE1
BTTOC
CTOBT
BT_RESET
BT_BOOTS
CTF1731-A
1
1
2
2
C3151
0.1u/16
L3151
CTF1306-A
PWRBL
TH3350
CCX1084-A
C3107
0.1u/50
C3110
NM
C3108
2.2u/10
R3134
36k (D)
R3174 NM
GND
GND
GND
GND
GND
R0
R1
R2
R3
R4
NM
Q3104
L3101
CTH1394-A
GND
CCA
5
GNDBT
GND
R3363
22k R3362
22k
R3360
220
R3361
220
GND
L3360
2.7u
C3363
10u/6.3
C3364
10u/6.3
C3366
10u/6.3
C3362
10u/6.3
C3367
1000p/50
C3365
1000p/50
C3361
2200p/50
C3360
2200p/50
GNDAR
CCA5
GND
C3164 0.1u/10
C31
0.1u
/
C3155
0.1u/10
C3156
0.1u/10
C3350
0.1u/10
R3122 0
R3107
10k
R3350
18k
R3108
47k
R3103 NM
C3302
0.22u/50
C3310
0.1u/10
R3129
0
R3137
0
R3128
15
R3127
NM
R3123
2.2M
R3121
NM
(D)
R3135
1.8k (D)
R3124
100k
R3125
3.9k
C3300
10u/35
GNDBL
C3301
NM
R3184
NM
GND
IC3151
TC7SZ08FU
4
2
5
3
1
GND
C3423
0.01u/16
V34
L3180
CTF1306-A
LOCK
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
D3300
D3301
D3302
D3303
C3312
C3313
C3314
C3315
D3150
NM
1
2
34
5
6
R3130
1
R3131
1
C3114
NM
C3115
NM
C3165 0.01u/16
C3158
0.01u/16
C31
0.01u
/
C3159
0.01u/16
C3116
1000p/50
IC3102
BD8113EFV
COMP
1
SS
2
VCC
3
EN
4
5RT
6SYNC
7GND
8PWM
9FAIL1
10 FAIL2
11 LEDEN
12 LED1 13
LED2
14
OVP
15
VDAC
16
ISET
17
PGND
18
OUTL
19
DGND
20
SW
21
OUTH
22
CS
23
BOOT
24
VREG
VA3303
VA3302
VA3300
VA3301
ILMV
C3106
0.047u/16
CCA5
D
S
90
C
124
Q
V
S
RPWDNB
1
RESRVD
2
ROUT23
3
ROUT22
4
ROUT21
5
ROUT20
6
VddOR3
7
VssOR3
8
ROUT19
9
ROUT18
10
ROUT17
11 ROUT16
12
ROUT15
13
ROUT14
14
ROUT13
15
ROUT12 16
LOCK 17
RCLK 18
VssOR2 19
2041
RIN-
42 RRFB
43 VssPR1
44 VddPR1
45
VssPR0
46
VddPR0
47
REN
48
R3179
82 R3185
47
L3174
CTF1734-A
R3181 150
R3182 150
R3180 150
R3173 150
R3183 150 L3177
CTF1748-A
L3178
CTF1748-A
L3176
CTF1748-A
L3175
CTF1748-A
L3165
CTF1748-A
L3167
CTF1748-A
C3100
0.1u/16
C3101
0.1u/16
C3102
0.1u/16
R3136
0
C3105
47p/50
VI
DD
SWAC33
PWRVI
TOUCH PANEL
TOP
L
BOTTOM
R
ABO
U
REF NO 3100 3149
LED_BACKLIGHT Driver
PWRBL
D%
D
GNDBL
GNDBL
GNDVI
GNDILM
GNDILM
NC
PWRVI
ILMV
PWRBL
PWRBL
CCA5
MIC_BT
BTTOC
BT_L
BT_RESET
BT_R
GNDILM
NC
PWRBL
GNDBL
GNDVI
GNDBL
PWRBL
PWRVI
ILMV
CTOBT
LCD_OE
MIC_GND
BT_BOOTS
GNDD
GNDD
ILMV
A
A
around the CONNECTOR
REF NO 3300
REF NO 3350
THERMISTOR
A
FAIL1
FAIL2
UVLO,TSD,OVP,SCP
LED_OPEN/SHORT
NM
BLSYNC:500kHz or 430kHz
CPH:33.33MHz
430kHz
500kHz
NM
NM
NM
NM
NM
NM
NM
VA3300-3303
:AVR-M1608C120MT6AB
56uH
AVIC-Z110BT/XN/UC
274
1234
1234
C
D
F
A
B
E
10.18 KEYBOARD UNIT
H
BUTTON
L
VOICE
ILMV2
ILMR1
ILMG1
ILMB1
ILMB2
ILMG2
ILMR2
ILMV1
KEY1
KEY0
HRST
KEY2
GND
D2901
NSSM038A-7306
123456
D2902
NSSM038A-7306
123456
GND
C2901
0.1u/50
C2902
0.1u/50
C2903
0.1u/50
C2904
0.1u/50
ILMV1
ILMR1
ILMG1
ILMB1
KEY0
KEY2
GND
GND
HRST
KEY1
ILMB2
ILMG2
ILMR2
ILMV2
CSG1191-A
S2902
1
2
3
4
CSG1191-A
S2903
1
2
3
4
NM
S2901
1
2
3
4
CN2901
CKS5749-A
1
2
3
BTGND
R2901
1.2k
R2903
1.2k
CSG1191-A
S2906
1
2
3
4
L2902
CTF1767-A
L2903
CTF1767-A
JA2901
CTX1110-A
1
1
2
2
L2901
NM
EJECT
RGB
BGR
0V
ILMR1
GND
ILMG1
ILMB2
ILMB1
GND
ILMG2
ILMV1
ILMV2
ILMR2
HRST
KEY0
KEY1
KEY2
VOLUME -
1
2
3
5
6
7
9
11
10
4
8
NC
NC
12
13
14
15
16
BT ANTENNA
MODE
G
CN3302
GCN3361
AVIC-Z110BT/XN/UC 275
5 678
5678
C
D
F
A
B
E
H
BUTTON LAYOUT
VOL- VOL+ HOME MODE TRK TRKVOICE EJECT
GND
33
CSG1191-A
S2908
1
2
3
4
CSG1191-A
S2909
1
2
3
4
R2901
1.2k
R2903
1.2k
R2902
2.4k
R2904
2.4k
R2905
6.8k
CSG1191-A
S2904
1
2
3
4
CSG1191-A
S2905
1
2
3
4
3
CSG1191-A
S2907
1
2
3
4
T
2.4V0.8V
THRESHOLD LEVEL(V)
0 0.4
0.4 1.2
1.2 2.0
2.0 2.8
E
- VOLUME +
VOICE HOME
1.6V
TRACK TRACK
HKEYBOARD UNIT
AVIC-Z110BT/XN/UC
276
1234
1234
C
D
F
A
B
E
10.19 PCB UNIT(SERVICE)
I
VREF
OUT2
C104
NM
1
+
2
-
C102
0.1uF
R103
0
BA6288FS
IC101
GND
1
NC1
2
OUT1
3
VM
4
5VCC
6FIN
7NC2
8NC3 9
NC4
10
NC5
11
RIN
12
VREF
13
NC6
14
OUT2
15
NC7
16
RNF
R104
NM
OUT1
C101
22uF/16V
C103
NM
GN
PL
C105
NM
DRIVE MECHANISM
MOTOR UNIT
AVIC-Z110BT/XN/UC 277
5 678
5678
C
D
F
A
B
E
I
MOT0
MOTVB
CCW1029-A
VR101
10k
13
2
PGND_1
MOT0B
DGND
R102
220
MOT1
MOTV_1
R103
0
PGNDB
BA6288FS
NC3 NC4
MOT1B
CSN1067-A
S101
1
2
34
R101
220
POSVDD
CSN1068-A
S102
1
2
34
22uF/16V
MOTV_0
OP HO
PGND_0
CKS4997-A
CN101
1
2
3
4
5
6
7
8
9
10
POS
MOT0
6.5V
I/O
GND
H/O
GND
MOTV
GND
DGND
PGND
3.3VVDD
MOT1
PGND
MOTV 6.5V
IPCB UNIT(SERVICE)
B
CN491
AVIC-Z110BT/XN/UC
278
1234
1234
C
D
F
A
B
E
10.20 WAVEFORMS
RF 0.2 V/div(AC) 100 ns/div
CDRF(x4CLV)
RF 0.2 V/div(AC) 50 ns/div
DVDRF(x1.3ZCAV)
RF 0.5 V/div 100 us/div
DVDRF(BD1mm)
TD1 0.2 V/div 100 us/div
Interval FWD(DVD)
TD1 0.2 V/div 100 us/div
Interval REV(DVD)
VHALF VHALF
2.2 V->
Traverse 1001FWD(short)(DVD)
VHALF
VHALF VHALF
0->
TD1 0.2 V/div 500 us/div
Multi 32FWD(DVD)
TD1 0.2 V/div 500 us/div
Multi 32REV(DVD)
CH1:TD1 0.5 V/div 10 ms/div
CH2:COP-COM 2.0 V/div 10 ms/div
- DVD CORE UNIT
Note:1. The encircled number denote measuring points in the circuit diagram.
2. Reference voltage: 1.65 V(TD1,FD1)(=VHALF)
2.2 V(RF)(=VREF)
In the waveform, it is seeing on the GND standard.
Offset of 1.65 V or 2.2 V is put in.
AVIC-Z110BT/XN/UC 279
5 678
5678
C
D
F
A
B
E
VHALF VHALF
VHALF
VHALF
VHALF VHALF
VHALF
VHALF
0->
0->
0->
0->
CH1:TD1 0.5 V/div 10 ms/div
CH2:COP-COM 2.0 V/div 10 ms/div
Traverse 1001REV(short)(DVD)
CH2:COP-COM 2.0 V/div 100 ms/div
ID search Inside -> Outside(DVD)
FD1 0.5 V/div 20 ms/div
Play FD(DVD)
FD1 0.5 V/div 500 us/div
Focus Jump L0 -> L1 FD1 0.5 V/div 500 us/div
Focus Jump L1 -> L0
TD1 0.5 V/div 100 ms/div
Play TD (DVD)
FD1 0.5 V/div 1 ms/div
Focus Close (DVD)
CH1:TD1 0.5 V/div 20 ms/div
CH2:COP-COM 2.0 V/div 20 ms/div
Traverse 5001FWD(long)(DVD)
CH1:TD1 0.5 V/div 20 ms/div
CH2:COP-COM 2.0 V/div 20 ms/div
Traverse 5001REV(long)(DVD)
AVIC-Z110BT/XN/UC
280
1234
1234
C
D
F
A
B
E
Each power supply start wave pattern
Power supply control line start timing
RST cancellation timing
- CC UNIT
AVIC-Z110BT/XN/UC 281
5 678
5678
C
D
F
A
B
E
During Prima and TCON During T-CON and LVDS
AVIC-Z110BT/XN/UC
282
1234
1234
C
D
F
A
B
E
LVDS waveforms(Measures it in this side of the RX.)
1.0 ns/div 250 ps
LVDS Tx LVDS
CC UNIT NAVI UNIT MONITOR UNIT
120pin B to B connector
VOD = About 450 mV
Monitor connector and flexible cable
LVDS Rx
Measure by the differential probe.
ACQCLK waveforms
LVDS waveforms
AVIC-Z110BT/XN/UC 283
5 678
5678
C
D
F
A
B
E
VTR2 input
After VR
adjustment
VTR2 input(color bar)
VTR2 input
After VR
adjustment
1 Vpp
0.7 Vpp
VTR input and a composite wave pattern after the adjustment
- AUDIO UNIT
VTR2 input(white 100%)
AVIC-Z110BT/XN/UC
284
1234
1234
C
D
F
A
B
E
11. PCB CONNECTION DIAGRAM
11.1 AUDIO UNIT
A
AAUDIO UNIT
Capacitor
Connector
P.C.Board Chip Part SIDE B
SIDE A
NOTE FOR PCB DIAGRAMS
1.The parts mounted on this PCB
include all necessary parts for
several destination.
For further information for
respective destinations, be sure
to check with the schematic dia-
gram.
2.Viewpoint of PCB diagrams
1
5
1
1
1
1 10
1 5
1
1
1
1 5
10
1
1510
15
20
1 5
1
1
E
E
E
1
5
1
E
E
E
E
E
E
E
10
515
R2478
L2371
D2491
R2491
R2492 R2493
R2494
R2495
R2496
R2497
R2498
IC2491
R2499
L2572
JA2880
P2107
C2301
C2302
C2303
C2304
C2305
C2306
Q2302
C230
7
Q2303
CN2511
CN2512
C2123
C2124
C2510
C2511
C2512
C2516
C2518
P2151
C2133
C2134
R2301
R2304
R2305
R2306
IC2302
I
C
R2500
P2161
R2501
R2502
R2503
C2144
R2504
L2001
C2530
C2531
R2122
Q
R2129
IC2121 R2511
C2158
C2159
IC2511
IC2512
R2132
D2521
D2522
R2137
C2160
R2520
IC2131
R2521
C235
5
R2522
R2523
R2524
R2525
R2527
R2529
L2411
R2532
R25
3
R2534
R2536
IC2530
IC2531
R2539
L2421
R2540
L2231
R2541
D
C2570
R2357
R2741
R2359
R2360
R2367
R2371
R2373
R2374
R2569
R2376
R2377
R2378
R2379
R2570
R2386
U2511
CN2002
R2992
R2993
R2994
R2995
L2491
R2996
L2492
R2997
L2880
L2881
D2001
C2601
C260
2
C2603
C2028
Q2601
C2412
C2414
C2415
C2416
C2417
C2419
JA2001
Q2226
C2041
C2042
C2043
Q2041
D2601
C2431
D2602
C2432
D2603
D2604
R2601
R2602
C2436
R2603
C2438
R2604
C2439
R2605
R2606
R2607
R2413
R2414
R2608
R2415
R2609
R2416
R2
4
C2440
C20
5
R2418
D2228
C2441
D2229
R2419
R2229
L2302
L2303
D
2
R2230
R2231
D2041
Q2061
R2425
D2042
Q2062
R2427
R2428
R2429
R2043
R2044
D2432
D2433
R2432
R2433
Q2071 Q2072
L2511
C2464
C2276
R2444
Q2276
R2447
R2061
R2062
R2063
P2880
L2530
R2458
L2531
R2071
R2072
R2073
R2463
R2081
C2491
R2082
R2276
C2492
C2493
R2277
C2494
Q2491
C2495
Q2492
C2880
C2881
R2477
10 20 30 40 50 6
0
X
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
Y
POWER SUP
P
WIRED REMOTE
JACK
P 2107 (A,37,23) Fuse 250 mA CEK1276
P 2151 (A,8,65) Fuse 1 A CEK1254
P 2161 (A,39,91) Fuse 3.15 A CEK1259
P 2162 (A,118,23) Fuse 1.5 A CEK1282
P 2176 (A,110,26) Fuse 0.5 A CEK1278
P 2880 (A,18,135) Poly Switch MINISMDC075F/24
>
>
>
>
>
>
AVIC-Z110BT/XN/UC 285
5 678
5678
C
D
F
A
B
E
A
SIDE A
1
1
1
525151
2010
1
1
1 5
1
1
1
1
1
1
5
1 5 15 25 35 45
10 20 30 40 50
1
1
1
1
1
1
1
1
5
1
15
1
1
1
1
1
1
1
5
1
5
510151
03
5
202
1
E
E
E
1
10
5
D2864
R2861
D2865
C2889
R2862
D2867
D2868
D2869
R2866
C2890
C2891
C2892
C2893
C2894
C2895
C2896
C2897
R2870
R2871
R2872
R2873
R2875
L2371
R2876
R2877
R2878
L2181
R2879
L2182 L2183
R2880
R2881
R2889
L2771
R2890
IC2889
R2891
R2892
R2893
R2894
R2895
R2896
CN2101
C2101
C2302
3
03
C2305
C2306
Q2302
C2307
C2308
Q2505
Q2506
C2701
R2101
R2102
R2104
JH2001
R2301
IC2300
IC2304
P2162
L2001
R2311
R2506
R2507
R2314
R2508
C2531
R2509
Q2531
C2151
C2154
P2176
C2156
C2157
C2733
C2734
5
8
C2735
Q2731
C2159
C2736
Q2732
R2326
C2160
C2161
C2355
C2162
C2163
C2166
R2332
C2743
C2744
R2335
Q2551
D2531
R2339
Q2552
C2170
R2532
C2173
R2533
R2534
D2151
R2535
D2152
R2536
R2342
R2538
IC2531
R2730
R2731
C2565
R2732
R2156
R2733
R2158
R2734
IC2151
R2735
L2231
R2736
C2183
R2737
R2738
C2184
D2160
R2739
D2161
D2162
C2186
C2187
C2188
R2160
L2621
C2189
L2622
Q2762
R2357
R2740
D2552
IC2161
R2169
C2771
R2749
R2555
C2965
R2559
C2775
R2171
C2776
R2367
R2750
VR2731
R2563
R2371
R2373
R2374
L2641
D2761
D2762
R2376
R2377
R2188
R2189
IC2181
IC2182
R2771
C2799
L2461
R2772
R2777
R2778
R2779
L2661
L2662
R2780
R2781
F2161
R2782
R2783
R2788
CN2001
CN2003
C2001
L2889
C2026
C2602
C2027
C2028
Q2601
C2416
C2801
C2802
C2803
JA2001
C2615
C2616
C2617
C2618
C2619
C2231
C2232
C2041
C2042
C2621
C2622
C2623
C2624
D2601
C2431
D2602
C2432
D2603
C2241
R2601
2
602
C2438
R2604
Q2242
R2606
C2053
R2607
9
R2416
R2417
C2440
C2058
R2418
C2441
R2419
C2443
R2613
R2614
R2615
D2231
R2616
R2617
R2618
IC2611
R2619
R2231
D2041
D2042
D2621
D2622
R2043
R2620
R2044
R2621
L2311
D2432
D2433
C2841
D2241
C2842
R2432
C2843
R2433
C2650
C2844 Q2841
C2845
IC2621
R2241
C2846
Q2842
R2242
C2847
R2243
C2848
C2464
CN2861
C2661
R2639
C2281
L2331
C2282
C2283 C2284
C2285
C2286
C2287
R2458
R2841
L2531
R2842
R2843
R2844
R2075
R2845
R2846
C2292
C2293
R2847
R2848
C2294
C2295
L2151
R2655
R2849 R2656
L2152
C2874
L2731
R2850
R2851
R2852
R2083
R2084
L2351
L2161
L2162
D2862
50 60 70 80 90 100 110 120 130 140 150
C2288
FRONT
P
OWER SUPPLY
PREOUT
B
CN511
RDS-TMC TUNER
FVA
AVIC-Z110BT/XN/UC
286
1234
1234
C
D
F
A
B
E
A
AAUDIO UNIT
150 140 130 120 110 100 90
1
1
1
1
1
1
1
1 5
10 0302
5
2
51
1
1
5
1
1 5 10
15
20
2530
35
40
1
5
1
1
1
1 5
10
1 5 10
15 20
25 30 35
40 45
E
E
E
C2694
C2695
C2696
D2866
C2697
L2553
C2698
R2670
L2554
R2671
R2865
C2699
R2867
R2673
R2868
R2674
R2675
R2869
R2676
R2677
R2678
D2870
D2871
D2872
D2296
D2297
D2873
D2874
R2680
R2874
R2681
R2682
R2683
R2684
R2685
R2686
R2687
R2688
R2689
R2690
R2691
R2692
R2693
R2694
R2695
R2696
R2697
R2698
R2699
F2861
F2862
F2867
F2868
Q2101
C2300
F2873
F2874
C2700
C2702
C2703
C2705
C2706
C2707
C2708
R2105
R2106
C2713
C2714
C2715
C2716
C2717
C2718
C2719
C2720
C2725 C2726
R2700
R2701
R2702
R2703 R2704
R2705
R2706
C2152
C2153
R2707
R2708
R2709
C2155
R2710
CN2551
R2711
R2712
R2713
R2714
R2715
R2716
R2717
R2718
R2719
C2167
C2168
C2551
C2169
C2552
R2720
R2721
R2722
R2723
C2557
C2558
R2724
C2171
C2559
R2725
R2726
R2727
R2728
R2151
C2561
C2562
R2152
R2153
C2563
C2564
R2154
R2155
R2157
C2182
C2185
Q2181
C2761
C2762
Q2182
C2763
C2764
L2239
R21
6
Q2761
R21
6
R2163
R2164
R2165 R2166
R2167
R2168
C2190
C2191
R2551
C2192
R2552
C2193
R2553
C2194
R2554
C2195
R2556
C2772
R2557
C2773
C2774
R2558
C2777 C2778
C2779
R2560
R2561
R2562
R2564
C2780
C2781
D2181
C2782
C2785
C2786
R2182
R2183
C2787
C2788
R2184
R2185
C2789
R2761
R2186
R2762
R2187
R2763
R2764
R2765
R2766
C2790
C2791
C2792
R2190
R2191
R2192
R2193
R2773
IC2190
R2774
R2775 R2776
IC2771
R2784
R2785
R2786
R2787
L2861
C2800
C2612
C26
1
C2614
C2811
C2812
C2813
C2238
C2814
C2625 C2626
C
2
C2628
C2629
C2630
C2631
C2632
C2633
R
2
R2612
C2831 C2832
C2833 C2834
Q2831
C2641
C2642
C2643
C2644
R2811
D2239
C2645
Q2641
R2812
Q2642
C2646
R2813
Q2643
C2647
Q2644
R2814
C2648
R2815
C2649
VA2861
R2239
R2816
VA2862
VA2863
R2817
D2240
VA2864
R2818
P2861
R2625
R2626
P2862
P2863
R2627
P2864
R2
6
C2651
C2652
C2653
C2654
C2655
IC2625
C2657
C2658
R2630
R2
R2632
R2633
R2634
R2635
R2636
R2637
R225
C2662
C2663
C2664
D2641
C2665
R2831 R2832
C2666
R2833
C2667
D2643
C2668
R2834
R2640
D2644
C2669
R2641
R2835
R2642
R2836
R2643
R2644
R2645
C2862
R2646
C2863
R2647
R2648
C2670
C2864
D2841
C2671
C2865
C2289
IC2641
R2649
C2672
C2673
C2674
C2675
C2676
C2677
R2650
C2678
C2290
C2679
R2651
R2652
R2653
R2654
C2296
C2297
R2657
R2658
C2680
R2659
C2685
C2686
C2687
R2660
C2688
R2661
C2689
R2662
R2663
C2690
R2668
R2669
R2281
IC2661
D2861
C2691
C2692
R2282
D2863
C2693
P 2861 (B,123,133) Poly Switch MINISMDC075F/24
P 2862 (B,140,138) Poly Switch MINISMDC075F/24
P 2863 (B,129,136) Poly Switch MINISMDC075F/24
P 2864 (B,134,136) Poly Switch MINISMDC075F/24
>
>
>
>
C
CN1901
1
AVIC-Z110BT/XN/UC 287
5 678
5678
C
D
F
A
B
E
A
SIDE B
0
90 80 70 60 50 40 30 20 10
X
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
Y
1
1
1 5 10 15 20 25 30 35
40 45 50 55 60 65 70
75
80859095100105
110115120125130135140
1
5
1
1 5 15 25 35 45 55
10 20 30 40 50 60
65 75 85 95 105 115 125 135
70 80 90 100 110 120 130 140
1
1
1
1 5
10
E
1
1
1
11
1
E
E
E
E
E
E
E
E
E
E
E
D2880
D2881
L2571
C2300
C2311
C2121
C2122
C2513
C2514
C2515
C2321
Q2512
Q2513
C2517
Q2514
C2131
Q2515
C2132
C2331
C2527
IC2303
C2142
C2143
R2310
R2505
R2312
R2313
R2121
R2315
R2316
R2317
R2125
R2126
R2127
R2128
C2152
C
2153
R2513
D2518
R2514
R2320
C2155
D2131
D2519
R2321
R2131
R2325
IC2513
R2327
D2520
R2328
R2135
R2329
C2351
R2136
C2352
D2527
R2331
C2167
C2168
R2334
R2140
C2169
R2141
R2336
R2142
R2337
R2143
R2144
R2530
2
171
IC2141
C2367
C2368
R2341
L2226
R2343 R2537
R2344
R2151
R2345
R2152
R2153 R2154
R2348
R2155
CN2571
R2157
C2374
C2181
C2182
R2542
L2232
R2543
C2185
Q2181
R2351
Q2182
L2236
R2352 R2353
R2354
R2161
C2571
R2355
R2162
R2356
C2572
R2163
C2573
2
164
C2574
R2358
2
165
C2575
R2166
C2576
R2167
C2577
R2168
C2190
C2578
C2579
C2580
R2365
C2581
R2366
C2582
C2583
C2584
R2368
C2391
C2585
R2369
C2586
C2587
C2588
C2589
D2181
R2372
C2590
R2181
R2375
R2182
R2183
R2184
R2185
R2186
R2571
R2572
R2573
R2574
R2575
R2381
R2382
R2576
R2577
R2578
R2384
R2385
R2579
R2387
R2388
R2580
R2581
R2582
R2583
R2390
R2584
R2585
R2391
R2392
R2586
R2587
R2394
R2395
R2589
R2396
R2397
R2398
8
4
R2590
8
5
R2591
8
6
8
7
C2002
C2003
C2004
C2005
C2007
C2008
C2009
C2010
C2011
C2012
C2013
X2301
C2216
C2217
C2029
C2411
C2413
C2418
C2226
C2227
C2611
Q2031
C2612
Q2032
C2613
C2614
C2420
C2424
C2233
R2400
Q2231
R2401
C2236
C2237
R2403
R2404 R2405
C2046
D2216
R2406
C2047
D2217
R2407
C2048
R2408
C2430
C2625
R2021
R2409
C2626
D2026
R2022
Q2046
D2027
C2627
R2023
C2628
D2028
C2434
C2629
D2029
C2435
R2026
R2027
C2437
R2028
R2410
C2051
R2411
C2052
IC2216
R2412
D2031
6
32
D2032
C2056
D2226
C2633
D2033
C2057
D2227
D2034
R2031
R2032
R2226
R2033
R2227
C2444
R2034
R2228
R2611
R2612
R2420
R2421
R2422
D2232
R2423
R2424
D2236
R2232
D2237
R2233
C2450
R2234
R2041
D2046
R2042
Q2066
Q2067
R2046
R2047
R2048
R2625
C2459
R2431
R2626
C2266
R2627
R2628
R2434
R2629
R2435
Q2266
R2436
R2437
C2460
R2438
IC2625
R2439
C2461
R2052
C2462
C2463
R2630
R2631
R2056
R2633
R2057
R2058
IC2051
R2441
R2442
R2637
R2443
R2251
R2445
IC2056
R2446
Q2277
C2471
R2066
R2067
R2450
R2068
Q2281
R2451
R2452
R2453
R2454
C2289
R2455
R2456
R2457
R2266
R2267
C2290
R2268
C2291
R2269
R2460
R2461
R2462
C2298
R2270
R2464
C2299
R2271
R2274
R2085
R2471
R2472
R2473
R2474
R2281
R2475
R2282
R2476
R2283
F
CN5603
1
1
AVIC-Z110BT/XN/UC
288
1234
1234
C
D
F
A
B
E
11.2 TUNER IF UNIT
B
SIDE A
BTUNER IF UNIT
1
1
1 5 10
1
1
1
1
1
1
1 5 15 25 35 45
10 20 30 40 50
1 5
15
10
1
E
E
E
R401
R408
R414
VL401
R415
R416
R417
R418
R419
R420
JA401
R424
R425
R426
L472
R427
L473
L474
L475
L476
L477
R434
C402
C403
C404
R441
R442
R443
R444
R445
R446
R447
R449
C413
C414
R450
C415
R451
C416
C417
R453
R454
R455
R456
R457
R458
R459
C420
C423
R460
R461
C428
C429
C430
C431
C432
C433
C434
R471
R478
R479
C441
C442
C444
R481
C445
C446
C447
C448
C449
C450
C451
C452
C453
C454
R492
R493
C457
R494
C458
R495
C459
C460
C463
CN491
C473
C474
C475
C476
C477
C478
C479
C480
C481
IC401
X471
C482
C483
C484
C485
C493
L532
T441
T442
T443
R506
D471
R512
R515
R520
R521
U401
R522
R523
R524
R526
R527
R529
CN511
D492
IC472
D493
IC473
IC474
R530
R531
P401
C514
C517
C518
C519
C520
L401
L405
Q441
Q442
Q443
L441
L442
L443
L444
L445
L446
L448
L449
10 20 30 40 50 60 70
X
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
Y
ACN2101
ICN101
FM/AM TUNER UNIT
ANTENNA
AVIC-Z110BT/XN/UC 289
5 678
5678
C
D
F
A
B
E
B
SIDE B
BTUNER IF UNIT
70 60 50 40 30 20 10
X
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
Y
E
1
5
1
1
L450
R409
R410
R411
R412
R413
R421
L471
L478
L479
Q491
Q492
Q493
C401
C405
C406
C407
C408
C409
C411
C412
R452
C418
C419
C421
C425
R472
R475
R476
R477
C443
R480
R483
R484
R485
R486
C455
C456
R496
R497
R498
R499
D401
C461
D402
C462
D403
C471 C472
C486
C487
C488
C492
C494
R500
R501
R502
R503
R511
R514
R516
R528
IC471
D494
D495
D496
R532
C511
C512
C513
C515
C516
L402
L403
L404
L447
AVIC-Z110BT/XN/UC
290
1234
1234
C
D
F
A
B
E
11.3 DVD CORE UNIT
C
SIDE A
CDVD CORE UNIT
1 5 10 15 20 25 30
1 5 10 15 20 25 30 35 40 45 50
65 70 75 80 85 90 95 100 105
130 135 140 145 150 155 160
195 200 205 210 215
6055
125120115110
190
185
180175170
165
1510
1520
1 5 10 15
1
1 5 10 15 20
25303540
1
1 5 10 15 20 25
E
E
E
E
C1502
C1503
C1504
C1505
C1506 C1507 C1509
CN1901
R1101
C1511
R1102
R1103
C1514
R1104
C1515
R1105
C1516
R1106
C1517
C1518
C1519
R1109
C1520
R1110
C1521
R1111
C1522
R1112
C1523
R1113
C1524
R1114
R1115
C1526
R1116
R1117
C1528
R1118
C1529
R1505
R1506
R1507
R1508
R1509
IC1501
R1510
R1512
R1513
R1514
D1901
D1902
R1516
R1517
R1518
R1519
R1522
R1523
R1524
R1525
R1526
R1528
R1529
R1530R1531
R1533
R1534
CN1951
R1536
R1537
R1538
R1539
R1540
R1541
R1542
C1953
R1547
R1950
R1951
R1954
R1955
R1956
R1957
CN1201
C1203
C1204
C1205
C1207
C1208
C1018
C1019
C1022
C1601
C1602
C1603
C1604
R1001
C1605
C1606
C1607
R1004
C1608
C1609
R1007
R1008
IC1001
C1610
R1201
C1611
R1202
C1612
R1203
C1613
R1204
C1614
C1615
C1616
C1617
C1618
IC1201
C1619
C1620
C1621
C1622
R1212
C1623
C1624
R1021
C1625
C1626
C1627
R1601
R1026
R1602
R1603
R1027
R1604
R1605
L1512
L1901 C1671
C1672
C1673
C1674
C1676
R1670
R1671 R1672
R1673
R1674
R1675
R1679
CN1101
C1104
C1105
Q1101
Q1102
C1106
Q1103
C1107
C1108
Q1104
C1109 C1110
C1111
C1508
10 20 30 40 50 60 70 80
X
50
40
30
20
10
0
Y
PICKUP UNIT (SERVICE)
ACN2551
DCN701
AVIC-Z110BT/XN/UC 291
5 678
5678
C
D
F
A
B
E
C
SIDE B
CDVD CORE UNIT
80 70 60 50 40 30 20 10
X
50
40
30
20
10
0
Y
1
1
1
5
1
1
1
1
1
5
1
5
10
15
20
25
30
35
40
45
1
5
10
15
20
25
30
35
40
45
1 5
1015
1
1 5 10 15 20 25
3035404550
C1501
C1510
C1512
C1513
R1300
R1301
C1525
C1527
R1501
R1503
R1504
L1003
L1004
R1511
EF1001
EF1002
C1934
R1527
R1532
R1535
C1950
C1951
C1952
R1543R1544
C1954
R1546
R1952 R1953
IC1951
C1001
C1003
C1004
C1005
C1006
C1007
C1008 C1009
C1201
C1010
C1011
C1012
C1013 C1014
C1209
C1015
C1016
C1017
C1401
C1402
C1403
C1404
C1210
C1405
C1211
C1407
C1408
C1409
C1021
X1501
R1002
C1802
IC1002
C1803
IC1003
C1804
IC1004
IC1005
C1805
C1806
IC1006
C1807
C1808
R1011
C1809
R1015
R1017
R1019
R1401
R1402
R1403
R1405
R1406
R1213
R1214
R1215
IC1401
R1409 R1216
IC1402
R1217
R1218
R1025
R1222
R1801 R1802
R1803
R1804
IC1801
L1902
L1903
L1904
X1950
C1480
C1481
C1482C1483
C1484
C1485
C1486
C1487
C1488
C1489
C1490
C1491
C1492
C1493
C1494
R1480
R1481
R1482
R1483R1484
R1485
R1486
R1487
R1488
IC1480
R1489
R1490
C1101
C1301
C1302
C1112 C1113
C1801
1
AVIC-Z110BT/XN/UC
292
1234
1234
C
D
F
A
B
E
11.4 CONNECT PCB
D
SIDE A
DCONNECT PCB
1 5 10 15
CN701
10 20 30 40 50
X
40
30
20
10
0
Y
M
M1
LOAD/CRG
MOTOR
CCN1201
AVIC-Z110BT/XN/UC 293
5 678
5678
C
D
F
A
B
E
D
SIDE B
DCONNECT PCB
50 40 30 20 10
X
40
30
20
10
0
Y
1
1
1
1 5 10
R101
R102
R103
CN101
C101
S101
S102
S103
M2
SPINDLE MOTOR
HOME
8SNS
DSCSNS
AVIC-Z110BT/XN/UC
294
1234
1234
C
D
F
A
B
E
11.5 CC UNIT
E
ECC UNIT
1
A
1
1
1
51 10 15 20 25 30
35 40 45 50 55 60 65
30
35
1
5
1
1
1
1
1
E
E
E
A
1
1 5 10
15 20
25 30 35
40 45
1 5
10
15
20
302010
1 5 15 25
R4994
R4995
R4996
R4997
C4001
C4401
C4402
C4403
C4404
C4405
C4406
C4407
C4409
C4410
C4411
C4412
C4419
IC4001
R4013
X4901
R4015
X4902
C4426
R4017
R4019
R4404
IC4209
R4020
IC4401
R4021
R4022
IC4403
R4023
R4024
R4026
R4027
C4
4
R4028
R4029
R4414
C4249
IC4219
R4419
R4031
R4801
R4802
R4033
R4803
R4804
C4251
R48
0
R4807
C4254
R4038
R442
4
R4231
R4233
L4501
L4502
R4812
R4813
R4814
R4815
R4816
R4817
R4818
R4819
R4432
R4433
R4434
R4240
R4436
R4437
R4243
R4050
R4438
R4820
C4460
R4051
R4439
R4821
C446
2
R4052
R4822
R4823 R4824
R4055
F4205
C4271
R4825
C4272
C4273
R4827
R4440
R4441
L4901
R4442
L4902
R4443
R4444
C4278
L4712
L4713
R4060
L4715
R4062
L4716
R4064
L4719
R4065
R4066
C4283
R4067
R4069
C4286
C4092
C4093
C4094
C4095
R4456
R4457
R4265
R4275
L4931
L4933
L4935
L4936
R4287
R4288
R4289
R4290
R4297
R4298
SN4201
X4001
X4002
C4105
C4509
C4511
C4512
C4513
C4514
C4515
C4516
C4517
C4518
C4519
Q4901
C4711
Q4902
Q4903
C4520
R4110
C4714
C4521
R4111
C4715
C4522
R4112
C4716
R4113
C4717
C4718
R4115
C4719
R4116 R4117
R4118
R4119
C4911
C4720
C4721
R4506
C4722
R4507
C4723
R4120
C4724
R4509
R4121
C4919
C4725
C4920
C4921
C4922
C4923
C4924
C4925
C4926
C4927
C4928
L4208
R4901
C4929
C4735
C4736
R4902
R4903
R4133
R4904
R4134
R4905
R4135
R4711
R4906
R4136
R4712
R4907
R4137
R4908
R4138
C4930
R4714
R4909
IC4901
R4139
C4931
R4715
C4932
R4716
C4933
IC4903
R4717
R4718
C4935
IC4711
R4719
C4936
C4937
R4910
R4140
C4938
R4911
R4141
C4939
JA4711
R4912
R4142
R4913
R4143
R4144
R4914
R4720
R4915
R4916
R4917
R4147
R4918
C4940
R4919
C4941
C4942
C4943 C4944
R4920
R4922
R4923
R4924
R4925
R4926
R4928
R4929
R4739
R4930
R4932
R4934
R4740
R4936
R4742
R4937
R4938
R4939 R4940
R4941
R4942
R4943
R4944
R4945
R4946
R4947
C4970
R4948
R4949
F4711
C4974
C4975
C4976
R4950
R4951
C4979
R4952
R4953 R4954
R4955
R4958
R4959
R4960 C4988
C4989
R4961
R4962
R4194
R4964
R4966
C4990 C4991
R4199
C4994
CN4001
90
80
70
60
50
FJA5201
AVIC-Z110BT/XN/UC 295
5 678
5678
C
D
F
A
B
E
E
SIDE A
15
5
1
10 20
25
30
5
1
1
5
1 5 10 15
1
1
1
1
1
5
51 10 15 20 25 30
35 40 45 50 55 60 65
1
1
5
1
5
1
1
1
1
1
1
1
1
1
1
5 10
15 20
25 30
1 5 10 15 20
E
E
E
E
Q4001
Q4002
CN4401
C4201
C4202
C4203
C4204
Q4201
C4205
Q4202
C4206
C4207
C4208
C4209
CN4601
CN4602
C4210
C4211
C4212
C4215
D4001
C4602
C4603
C4604
C4605
C4411
C4606
C4607
C4414
C4608
C4220
C4415
C4609
C4221
R4005
C4416
C4417
C4418
C4224
C4419
C4225
IC4002
C4226
C4610
C4611
C4229
R4201
C4612
C4420
R4204
C4615
R4205
CN4621
C4421
C4422
R4206
C4423
R4207
C4424
R4208
C4425
R4209
R4015
IC4201
IC4202
IC4203
R4019
IC4206
IC4207
D4601
IC4402
IC4403
R4023
C4240
IC4211
R4026
IC4212
IC4406
C4437
R4603
C4243
IC4407
R4604
IC4214
R4605
IC4215
R4606
C4246
IC4217
C4247
R4607
R4414
R4608
R4415
R4609
VR4201
C4441
R4419
R4031
R4801
VR4202
R4226
R4802
R4033
R4227
R4803
R4034
R4610
R4228
R4804
R4035
R4611
R4805
R4036
R4806
R4037
R4807
R4808
R4809
C4257
R4424
R4231
C4259
R4040
R4810
R4041
R4811
R4042
R4814
R4239
C4455
R4815
R4046
C4456
R4047
C4457
C4263
C4458
C4264
C4459
R4819
R4434
C4268
C4269
R4244
R4438
2
0
R4439
F4201
C4461
C4462
F4202
F4203
F4204
R4249
C4276
R4444
R4446
R4447
R4448
R4449
R4640
F4409
R4641
R4642
R4643
R4069
C4285
R4454
R4455
C4099
R4266
R4267
R4269
R4272
R4273
R4274
R4277
R4278
L4931
R4280
L4936
R4287
R4288
R4289
R4290
R4296
R4298
L4785
C4101
C4102
R4112
R4113
L4001
R4121
C4919
C4921
L4203
C4923
C4925
C4926
3
4
R4135
R4136
R4137
R4138
C4930
R4139
IC4903
C4934
C4936
R4140
R4142
L4410
7
L4414
C4940
C
4941
L4415
C
4942
C4943 C4944
L4227
R4934
R4937
C4785
C4789
R4771
R4772
R4773
R4774
R4775
R4776
10 20 30 40 50 60 70 80
X
50
40
30
20
10
0
Y
SD CARD
JTAG
AVIC-Z110BT/XN/UC
296
1234
1234
C
D
F
A
B
E
E
ECC UNIT
80 70 60 50 40 30 20 10
X
40
30
20
10
0
Y
65 75 85 95 105 115
60 70 80 90 100 110 120
E
E
1 5
1015
1 5
1015
1
1
1
51 10 15 20 25 30
35 40 45 50 55 60 65
1
1
1
5
1
5
1 5 10 15 20 25
30 35 40 45 50
55 60 65 70 75
80 85 90 95 100
1
1
1
1 5
10
15
20
1 5 10
15 20
25 30 35
40 45
1
1
1
E
E
E
R4998
R4999
Q4206
Q4209
C4213
Q4210
C4214
C4408
Q4211
C4216
C4217
C4218
C4219
C4222
C4223
D4201
C4801
D4202
C4802
C4227
C4228
C4613
R4203
C4614
C4616
C4230
C4231
C4232
C4233
C4234
IC4204
C4235
IC4205
C4236
C4237
R4210
C4238
R4211
C4239
C4621
R4406
R4212
C4622
R4407
R4213
C4623
R4408
R4214
C4624
R4409
R4215
C4625
R4216
C4626
R4217
R4218
IC4210
C4434
IC4405
R4219
C4241
C4242
C4244
C4245
IC4216
R4412
R4413
IC4218
R4220
R4221
R4222
IC4602
R4223
R4224
C4440
R4225
C4442
C4443
C4444
C4250
IC4220
C4445
R4229
C4446
R4612
C4253
R4613
C4448
C4255
R4616
R4617
R4618
C4258
R4230
R4619
R4232
C4450 C4451
R4235
C4452
C4453
R4237
R4620
R4238
C4261
R4621
R4622
R4623
R4624
R4431
R4625
R4626
R4627
R4628
R4241
R4629
IC4621
R4242
C4652
C4654
R4245
R4246
C
C4270
R4248
R4630
R4631
C4659
R4632
F4206
R4826
R4633
R4634
C4274
R4828
R4635
C42
7
R4636
R4637
C42
7
R4250
R4638 C4660
R4251
R4639
C4661
C4279
R4252
R4253
C4663
L4907
C4664
R4255
R4256
R4257
C4668
R4258
C4284
R4644
R4450
R4645
R4451
R4646
R4647
R4648
R4260
R4649
R4261
C4672
R4262
R4263
R4651
R4276
R4665
R4668
R4669
L4937
R4670
R4671
R4673
R4674
R4675
R4676
R4677
R4679
R4294
R4295
R4680
R4681
R4682
R4685
R4686
R4687
R4688
L4784
L4786
L4788
C4701
C4702
Q4701
R4105 R41
R4108
C4907
C4908
C4909
C4910
R4701
R4702
R4703
R4704
R4705
R4706
R4707
R4708
R4709
IC4701
R4710
IC4902
L4214
L4216
L4217
L4219
L4601 L4220
L4224 L4225
C4945
X4651
C4946
L4226
C4947
C4948
R4935
L4245
L4246
C4969
C4971
L4251
L4252
C4972
C4973
L4255
C
L4256
L4257
L4258
C4784
C4786
C4788
R4761
C4981
R4195
R4965
R4196
R4967
R4197
R4968
R4969
C4995
C4996
R4970
C4998
C4999
R4971
R4972
R4973
R4974
R4975
R4781
R4976
R4977
R4978
R4979
R4980
R4981
R4982
R4983
R4984
R4985
R4986
R4987
R4988
P4201
R4989
P4202
R4990
R4991
R4992
R4993
AVIC-Z110BT/XN/UC 297
5 678
5678
C
D
F
A
B
E
E
SIDE B
90
80
70
60
50
1 5 15 25 35 45 55 65 75
8
10 20 30 40 50 60 70 80
E
E
E
E
E
E
1
51 10 15 20 25 30
35 40 45 50 55 60 65
25 30
35 40
1
1
5
1
5
1
1
1
1
1
1 5 10
15 20
25 30 35
40 45
1
E
1
1
1
1
1
1
E
E
E
E
E
CN4201
C4002
C4003
C4004
C4005
C4007
C4008
C4009
C4010
C4011
C4012
C4013
C4014
C4015
C4016
C4017
Q4207
C4018
Q4209
C4019
Q4210
C4020
C4021
Q4211
C4022
Q4212 C4023
Q4214
C4026
Q4216
C4027
Q4217
C4028
Q4218
Q4219
C4029
R4001
R4002
R4003
C4413
R4004
R4006
R4007
Q4220
C4030
R4008
C4031
R4009
C4032
C4033
C4803
C4034
C4804
C4035
C4805
R4202
C4036
C4806
C4037
C4807
R4010
C4038
C4614
C4808
C4039
R4011
C4809
R4012
C4616
R4014
R4016
C4427
C4428
C4040
R4018
C4810
R4401
C4429
C4041
C4811
X4711
R4402
C4042
C4812
R4403
C4043
C4813
C4044
IC4208
C4814
R4405
C4045
C4815
C4046
C4816
C4047
C4817
C4430
C4048
C4818
C4431
C4049
C4819
C4432
C4433
IC4404
C4435 R4025
C4436
IC4213
R4410
C4050
C4438
C4820
R4411
C4439
C4245
C4051
C4821
R4412
C4052
C4822
R4413
C4053
C4823
C4054
C4248
C4824
C4055
C4825
C4056
IC4602
C4826
C4057
C4827
R4030
C4828
C4059
C4829
R4032
R4229
IC4221
C4252
R4612
C4447
R4613
R4420
C4060
C4830
C4061
R4039
C4255
C4831
C4449
C4062
C4256
C4832
C4063
C4833
C4258
R4230
C4064
C4834
C4065
C4835
C4066
C4836
C4837
R4234
C4838
C4069
R4235
C4839
R4236
R4237
R4043
R4238
R4044
C4260
C4454
R4045
F4001
F4003
R4048
C4070
C4840
R4049
F4005
C4071
C4265
C4841
C4266
C4072
C4842
C4073
C4267
C4843
C4074
C4844
R4241
R4435
C4075
C4651
C4845
C4076
C4652
C4846
C4077
C4653
C4847
C4078
C4654
C4848
C4079
C4655
C4849
R4246
C4656
R4053
C4657
R4247
R4054
C4658
C4659
R4056
F4206
R4057
R4058
C4080
C4274
C4850
C4081
C4275
R4059
C4851
C4082
C4852
L4903
R4637
C4083
C4277
C4853
L4904
C4660
C4084
C4854
L4905
C4661
C4085
C4855
L4711
C4662
C4086
C4856
C4663
C4087
C4857
C4088
C4664
R4254
C4858
L4714
R4061
C4089
C4665
C4859
C4666
C4667
R4063
C4668
C4280
L4718
R4259
C4282
R4068
C4090
C4860
C4091
C4861
C4862
R4452
C4863
R4453
C4670
C4864
C4671
C4865
R4261
C4672
C4096
C4866
C4097
C4867
C4098
C4868
C4869
R4268
R4651
C4870
C4871
C4872
R4270
R4271
IC4652
IC4654
R4276
R4279
R4661
R4663
R4664
R4665
R4666
R4667
L4934
R4668
R4281
R4669
R4282
R4283
R4286
R4670
R4671
R4673
R4674
R4675
R4676
R4677
R4678
R4679
R4292
R4293
R4294
R4680
R4681
R4682
R4683
R4684
R4685
R4686
R4687
R4688
F4651
L4781
L4782
L4783
L4787
C4100
C4103
C4104
C4501
C4502
C4503
C4504
C4505
C4506
C4507
C4508
R4101
R4102R4103 R4104
R4105 R4106R4107
R4108
C4901
R4109
C4902
C4903
C4904
C4905
C4906
C4712
C4713
Q4711
R4114
R4501
R4502
C4912
R4503
C4913
R4504
C4914
R4505
C4915
C4916
L4002
C4917
C4918
IC4501
L4005
L4006
L4007
C4727
L4008
C4728
L4009
C4729
L4201
L4202
L4204
L4010
C4730
L4011
L4205
C4731
L4206
L4012
C4732
L4207
L4013
C4733
L4014
C4734
L4209
L4015
D4711
L4016
D4712
L4018
R4713
L4210
L4211
L4212
L4213
L4214
L4215
L4216
IC4713
L4218
L4219
L4601
R4145
R4721
R4146
R4722
R4723
R4148
L4220
R4724
R4149
L4221
R4725
R4726
R4727
R4728
X4651
R4729
X4652
R4150
R4151
R4921
C4949
R4152
R4153
R4154
R4730
R4155
R4731
R4732
R4733
R4734
R4735
R4736
R4737
L4234
R4738
R4933
C4963
C4964
C4965
L4245
L4246
F4901
L4251
4
252
C4781
C4782
C4783
C4787
R4956
R4957
C4982
C4983
C4984
C4985
C4986
C4987
L4651
R4963
R4198
C4993
5
R
4781
6
7
7
4
5
FCN5602
P 4201 (B,48,9) Fuse 1.75 A CEK1283
P 4202 (B,51,14) Fuse 1.5 A CEK1282
>
>
AVIC-Z110BT/XN/UC
298
1234
1234
C
D
F
A
B
E
11.6 NAVI UNIT
F
FNAVI UNIT
1
1 5
10
15 20
25
1
5
1
5
E
1 5 15 25 35 45
10 20 30 40
1
1
1
1
15
1
1
1
1
5
5
1
1
1
1
1 5
10
15
20
1
1
5
1
1
1
1
R5365
R5369 L5251
U5309
R
R5384
P5001
Q5001 Q5002
Q5201
C5015 C5016
C5017 C5018
CN5601
C5213
C5020
C5021
C5601
C5603
C5604
C
R5013 R5014
R5019
R5211
R5022
R5026 R5028
CN5251
R5411
R
L5301
F5002
F5003
F5004
R5628
R5629
R5630
R5634
D5252
R5639
D5255
D5256
R5252
D5257
D
R5641
R
JA
5
R5
6
R5658
R566
3
R5664
R5666
R5685
R5689
P5102
P5103
R
VA5301
C5107
C5108
C5109
C5301
C5302
C5303
C5110
C5304
C5111
C5305
C5112
C5306
C5113
C5307
C5114
C5308
C5309
C5310
C5311
C5312
C5315
C5316
C5123
C5317
C5124
C5318
C5125
C5319
C5126
C5127
C5128
C5320
R5106
C5131
C5132
IC
5
I
C
R5301
R5302
R5303
IC5107
R5305
R5112
R5308
IC5301
C5332
IC5302
C5333
IC5303
C5334
IC5304
C5335
JA5301
IC5305
JA5302
IC5306
R5310
C5339
R5311
L5001
C5145
R5312
L5002
C5146
R5313
L5003
C5147
R5314
C5148
R5315
R5316
R5317
R5124
R5318
R5319
R5126
R5320
R5321
R5322
R5323
R5324
R5325
R5331
R5332
R5334
R5335
L5601
R5336
L5602
R5337
L5603
L
5
R5144
L5605
L5607
L5608
R5340
R5341
R5342
R5343
R5344
R5150
R5345
R5346
R5355
R5356
10 20 30 40 50 60 70 80
X
130
120
110
100
90
80
70
60
50
40
30
20
10
0
Y
IP-BUS
iPod
M
GCN3301
AVIC-Z110BT/XN/UC 299
5 678
5678
C
D
F
A
B
E
F
SIDE A
1
1
5
1
1
25 35 45 55 65 75
0
30 40 50 60 70 80
1 5 15 25 35 45 55 65 75 85 95 105 115
120
110
1009080706050
40302010
1
1
1
5
10
15
1
5
1
15
1
E
E
E
E
1
5
1
5
1
5
1
1
1 5 10
1520
1
D5370
L5251
D5371
D5372
D5373
R5374
R5375
R5376
R5377
R5378
R5379
R5380
R5381
R5382
R5385
GY5501
SN5501
CN5001
C5401
CN5601
CN5602
C5409
C5601
C5410
C5411
C5606
C5412
D5007
C5607
C5609
C5415
C5416
C5610
C5611
C5612
C5613
C5614
C5615
C5616
C5618
C5619
JA5201
JA5202
C5621
C5622
R5409
C5625
C5626
R5601
IC5407
R5603
R5410
L5101
R5411
L5102
R5413
R5414
L5305
L5306
L5307
L5308
L5309
L5501
L5502 L5503
L5310
L5311
R5622
R5628
R5629
C5462
C5464
R5630
C5466
C5468
R5634
R5635
R5636
R5639
D5257
D5259
R5641
R5642
R5643
R5644
R5645
JA5251
R5646
R5647R5648
R5649
R5650
R5651 R5653
R5461
R5655
R5462
R5656
R5657
R5464
R5658
R5659
R5466
R5468
R5469
R5660
R5661
R5662
R5663
R5664
R5665
R5666
R5667
R5668
R5669
R5670
R5671
R5672
R5673
R5674
R5675
R5482
R5676
R5483
R5677
R5678
R5679
R5680
F5255
R5682
R5685
R5686
R5689
R5690
R5693
R5694
P5104
R5699
C5101
C5102
CN5302
C5103
C5104 C5105
Q5101
C5106
Q5102
Q5103
Q5108
Q5109
C5118
C5119
C5120
1
6
C5123
C5124
5318
C5125
C5126
R5101
C5511
R5102
C5512
R5103
C5513
C5514
R5104
C5515
R5105
C5516
C5517
C5518
C5131
C5519
IC5101
IC5102
IC5103
C5134
IC5104
IC5105
C5137
7
C5138
C5520
C5139
C5521
C5522
C5523
C5524
R5116
R5117
C5140
IC5309
5
146
L5003
C5148
C5149
R5123
IC5503
R5124 R5125
R5126
C5345
C5346
C5347
C5348
C5349
R5130
R5324
R5131
R5325
R5133
R5134
C5350
C5351
R5135
C5352
R5136
R5137
R5138
L5404
P5377
R5523
R5524
R5528
R5529
L5601
L5603
L5604
L5605
L5607
L5608
R5533
R5151
R5152
R5153
R5154
80 90 100 110 120 130 140 150 160 170
E
CN4201
MIC
FAN
GPS
E
JA4711
P 5001 (A,70,31) Fuse 3.15 A CEK1259
P 5102 (A,41,68) Fuse 1 A CEK1254
P 5103 (A,75,47) Fuse 1.25 A CEK1255
P 5104 (A,123,104) Fuse 1 A CEK1254
>
>
>
>
AVIC-Z110BT/XN/UC
300
1234
1234
C
D
F
A
B
E
F
FNAVI UNIT
170 160 150 140 130 120 110 100 90
1 5 15 25 35 45 55 65 75 85 95 105 115 125 135
10 20 30 40 50 60 70 80 90 100 110 120 130 140
1 5
10
11
1
1
E
1
5
E
E
E
E
E
E
1 5
10
15
1
1
1
R5359
R5360
R5361 R5362
C5402
CN5603
C5403
C
5
D5003
D5004
D5005
D5006
D5008
C5417
C5418
C5419 C5420
C5421
C5422
C5617
C5423
C5424
C5425
D5401
C5426
D5402
D5403
D5404
C5429
R5401
R5402
R5403
C5620
R5404
R5405
C5623
C5430
C5624
IC5402
C5433
IC5403
C5434
IC5404
R5606
R5412
R5607
R5608
R5609
R5415
R5416
R5417
R5418
R5419
R5032
R5610
R5611
R5612
R5613
R5614
R542
0
R5615
R5421
R5616
R5422
R5617
R5423
R5618
R5424
R5619
R5
4
R5427 R5428
R5429
R5620
R5621
R5623
R5624 R5625
R5432
R5626
R5627
C5461
C5463
C5465
R
C5467
C5469
R5637
R5638
C5470
C5471
C
C5473
R5463
R5465
R5467
IC5461
R5470
R5471
R5472
R5475
R5476
R5481
F5254
R5697 R5698
Q5110
Q5304
C5115
Q5111
C5116
Q5112
Q5113
C5117
Q5114
Q5115
C5501
Q5116
C5502
C5503
C5504
C5505
C5506
C5507
C5508
C5509
C5121
C5122
C5510
C5133
C5525 D5501
D5502
R5118
C5141
R5119
R5501
R5502
R5503
R5504
R5120
R5121
IC5501
R5122
IC550
R5128
C5344
R5129
R5511
R5512
R5513
R5514
R5515
R5516
R5519
R5132
R
R
R5712
R5713
R5521
R5522
R5525
R5526
R5527
R5140
R5141
F5101
F5102
R5146
R5147
R5532
A
CN2571
P 5378 (B,79,115) Poly Switch MINISMDC020F
>
AVIC-Z110BT/XN/UC 301
5 678
5678
C
D
F
A
B
E
F
SIDE B
90 80 70 60 50 40 30
X
130
120
110
100
90
80
70
60
50
40
30
20
10
0
Y
20 10
E
E
25 20 15
10
5
1
1
5
1 5
10
1
1
1
5
1
1
1
5
1
1
1
1
E
1
E
E
1
1
5
1
5
1
R5358
R5363
R5364
L5252
L5253
L5254
VA5201
VA5202
VA5203
VA5204
C5001
C5002
C5003
C5004
C5005
C5006
Q5003
C5007
C5008
C5009
C5010
C5011
Q5202
C5012
C5013
C5014
C5402
C5403
C5404
C5212
C5214
D5001
C5602
D5002
C5605
R5001
R5002
C5413
R5003
C5608
C5414
R5004
R5005
R5006
C5417
R5007
C5418
R5008
R5009
IC5001
D5203
D5204
D5205
R5010
R5011
R5012
C5617
C5424
R5209
R5015
IC5202
R5016
R5017
R5018
C5429
R5401
R5402
R5403
R5210
C5620
R5404
5
R5214
C5430
R5020
R5216
IC5402
R5217
C5433
R5023
IC5403
C5434
R5218
R5219
R5025 R5027
R5604
R5029
R5605
R5412
R5220
R5221
R5415
L5105
R5222
R5416
R5223
R5224
R5030
R5225
R5031
R5226
R5227
L5302
R5420
Q5251
Q5252
R5426
R5427 R5428
C5451
R5429
C5452
C5453
C5454
C5455
F5001
L5312
C5456
L5313
L5314
F5005
C5460
R5631R5632
D5251
D5253
R5637
D5254
R5638
R5253
D5258
C5471 C5472
R5451
R5452
R5453
R5454
R5455
R5456
R5457
R5458
IC5451
F5251
F5252
F5253
F5254
Q5104
Q5105
Q5106
Q5107
C5313
C5314
C5129
C5321
C5322
R5107
C5323
C5130
R5108
C5324
R5109
C5325
C5326
C5327 C5328
C5329
IC5106
R5110
R5304
R5111
R5113
R5307
R5114
C5330
R5115
R5309
C5331
C5526
C5336
C5142
C5337
IC5307
C5143
C5338
IC5308
C5144
C5340
C5343
IC5507
L5201
R5326 R5327
R5328
R5710
R5711
R5712
R5714
R5330
P5378
R5333
R5142
R5143
R5338
R5339
R5145
R5532
1
1
AVIC-Z110BT/XN/UC
302
1234
1234
C
D
F
A
B
E
11.7 MONITOR UNIT
G
GMONITOR UNIT
1
1
1 5 15 25 35 45 55
10 20 30 40 50
6
1 5 10 15 18
11
1 1
1 5
10
1
5
1 5 10
15 20
25 30 35
40 45
1
5
1510 15 20 25 30 35 40 45 50 55 60
E
E
E
E
1
5
1
5
1
5
5
1
VR3201
L3
3
L3310
L3150
L3151
L3152
L3153
L3154 L3155
L3156
L3157
L3158 L3159
L3160
L3161
L3162
L3163
L3164 L3165
L3166
L3167
L3168
L3169
L3170
L3171
L3172
L3173
L3174
L3175
L3176
L3177
L3178
L3179
L3180
VA3314
VA3315
VA3316
VA3317
CN3301
CN3303
C330
3
Q3300
C3304
Q3301
C3305
Q3302
Q3303
Q3304
Q3305
C33
0
C3310
C3311
R3300
R3305
R3306
R3307
IC3300
R3309
R3310
R3311
R3316
L3200
C3150
C3151
L3202
C3152
C3153
L3203
C3154
L3205
C3157
R3325
R3326
R3327
C3350
R3328
L3401
R3329
L3402
L3403 C3160
L3404
C3161
R3330
R3331
R3332
R3333
R3334
R3335
R3336
R3337
R3338
R
3
D3150
R3150
R3151
R3152
R3153
R3154
R3157
IC3150
R3158 R3159
IC3151
R3350
R3160
R3161
R3162 R3163
R3166 R3167
R3168
R3169
R3170
R3171
R3172
R3173
TH3350
R3174
R3175
R3176
R3177
R3178
R3179
R3180
R3181
R3182
R3183
R3184
R3185
C3200
C3201
CN3401
C3202
C3203
Q3200
C3204
Q3201
C3205
Q3202
C3206
Q3203
C3401
C3402
C3403
C3404
C3405
C3406
C3213
C3407
C3408
C3409 C3410
C3411
C3412
C3413
C3414
C3415
C3416
C3417
C3418
C3419
R3200
R3201
R3202
R3204
C3420
R3205
C3421
R3206
C3422
R3207
C3423
IC3200
R3208
IC3201
R3209
IC3202
IC3203
R3210
R3211
R3212
R3213
R3214
R3215
R3216
R3217
R3218
R3219
R3220
R3414
R3221
R3222
10 20 30 40 50 60 70
X
70
60
50
40
30
20
10
0
Y
FCN5601
LCD PANEL
AVIC-Z110BT/XN/UC 303
5 678
5678
C
D
F
A
B
E
G
SIDE A
15 10
1 4
45 55 65 75
4
0 50 60 70 80
1 10 15
5
1
1
5
1
5
11
1
1
1
1
20 15
1051
1 5
10
1
1
1 5 15 25 35
10 20 30 40
L3300
L3301
L3302
L3303
L3304
L3305
R3432
R3433
R3434
R3435
L3361
VA3300
VA3301
VA3302
VA3303
VA3305
VA3307
VA3308
CN3100
VA3310 CN3300
C
N3301
CN3302
C3104
C3105
C3108
Q3104
Q3105
C3109
Q3106
C3300
C3301
C3302
C3303
C3110
Q3300
C3304
C3111
Q3301
C3112
C3307
C3114
C3309
C3116
C3317
D3104
D3105
R3103
R3104
IC3102
R3300
D3305
R3303
R3110
D3308
R3306
R3113
R3307
IC3300
R3114
R3309
R3310
R3311
R3312
R3121
R3124
R3127
R3128
R3321 R3322
R3323
R3324
R3130
R3325
R3131
R3326
R3327
R3133
R3328
R3329
R3136
CN3360
CN3361
CN3362
R3330
3
5
R3338
R3339
C3368 C3369
C3373
0
R3366
R3368
R3369
R3378
R3379
R3380
R3382
R3383
R3384
L3101
70 80 90 100 110 120 130 140
TOUCH PANEL
CN5601
HKEYBOARD UNIT HCN2901 BT MODULE
LCD PANEL
BT MODULE
AVIC-Z110BT/XN/UC
304
1234
1234
C
D
F
A
B
E
G
GMONITOR UNIT
140 130 120 110 100 90 80 70
E
E
E
E
1
5
1
5
1
15
10
15
1
5
1
51
5
E
E
1
1 5 10
15 20
30 35
40 45
25
R3030
R3031
R3034
R3423
R3424
L3360
L3362
C3100
C3101
C3102
C3103
Q3100
Q3101
C3106 Q3102
Q3103
C3107
C3306
C3113
C3308
C3115
C3312
C3313 C3314
C3315
D3100
D3101
D3102
D3103
R3100
R3101
R3102
R3105
R3106
R3107
IC3100
R3108
D3300
IC3101
R3109
D3301
D3303
D3304 D3306
R3111
R3112
R3115
R3116
R3117
R3118
R3119
L3001
L3002
L3003
L3004
R3120
L3005
L3006
R3122
L3007
R3123
R3125
R3126
R3129
R3134
R3135
R3137
L3407
C3360
C3361
C3362
C3363
C3364
Q3360
C3365
C3366
C3367
C3370
C3371
C3372
C3374
R3360
R3361
R3362
R3363
R3364
R3365
R3367
IC3360
IC3362
R3370
R3371
R3372
R3373
R3374
R3375
R3376
R3377
R3385
R3386
C3001
C3002
C3003
C3004
Q3001
C3005
Q3002
C3006
Q3003
C3007
Q3004
C3008
C3009
Q3005
C3010
C3011
C3012
C3013
C3014
C3015
C3016
C3017
C3018
C3019
C3020
C3021
C3022
C3023
C3024
D3001
C3025
D3002
C3026
D3003
C3027
D3004
C3028
D3005
R3001
C3029
D3006
R3002
D3007
R3003
D3008
R3004
D3009
R3005
R3006
R3007 R3008
C3030
IC3001
R3009
C3031
C3032
C3033
D3010
C3034
D3011
C3035
D3012
C3036
C3037
R3010
C3038
R3011
C3039
R3012
R3013
R3014
R3015
R3016
R3017
R3018
C3040
R3019
C3041
C3042
C3043
C3044
C3045
C3046
C3047
R3020
C3048
R3021
C3049
R3022
R3023 R3024
R3025
R3026
R3027
L3100
R3028
C3050
C3051
C3052
C3053
C3054
C3055
D3302
AVIC-Z110BT/XN/UC 305
5 678
5678
C
D
F
A
B
E
G
SIDE B
70 60 50 40 30 20 10
X
70
60
50
40
30
20
10
0
Y
1 5
10
1 5
R3418
R3419
R3420
R3421
R3422
R3425
R3426
R3427
R3428
R3429
R3430
R3431
C3319
C3320
C3321
C3322
D3310
D3311
D3312
D3313
C3155
L3206
C3156
L3207
C3158
L3208
C3159
L3405
C3162
L3406
C3163
C3164
C3165
C3166 C3167
C3168
D3152
R3155
R3156
R3164
R3165
IC3361
C3207
C3208
C3209
C3210
C3211
C3212
C3214
C3215
C3424
C3425
C3426
C3427
IC3204
C3428
R3401
C3429
R3402
R3403
R3404
R3405
R3406
R3407
R3408
R3409
R3410
R3411
R3412
R3413
R3415
R3416 R3417
AVIC-Z110BT/XN/UC
306
1234
1234
C
D
F
A
B
E
11.8 KEYBOARD UNIT
H
SIDE A
HKEYBOARD UNIT
1
1
5
1
5
1
1
1
1
1
1
1
1
1
1
CN2901
C2901
C2902
C2903
C2904
D2901 D2902
R2901
R2902
R2903 R2904
R2905
JA2901 S2901
S2902
S2903
S2904 S2905
S2906
L2901
L2902
L2903
S2909
S2908
S2907
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
X
30
20
10
0
Y
160
GCN3361
BT
ANTENNA VOICE VOL- VOL+ HOME MODE TRACK< TRACK> EJECT
AVIC-Z110BT/XN/UC 307
5 678
5678
C
D
F
A
B
E
H
SIDE B
HKEYBOARD UNIT
160 150 140 130 120 110 100 90 80 70 60 50 40 30 20
X
30
20
10
0
Y
10
GCN3302
AVIC-Z110BT/XN/UC
308
1234
1234
C
D
F
A
B
E
11.9 PCB UNIT(SERVICE)
I
IPCB UNIT(SERVICE) SIDE A
VR101
S101
S102
18
16 9
IC101
C101
R102
R103
R104
R101
C102
C104
C103
C105
1510
CN101
M
BCN491
AVIC-Z110BT/XN/UC 309
5 678
5678
C
D
F
A
B
E
I
IPCB UNIT(SERVICE) SIDE B
AVIC-Z110BT/XN/UC
310
1234
1234
C
D
F
A
B
E
12. ELECTRICAL PARTS LIST
N
OTE:
Parts whose parts numbers are omitted are subject to being not supplied.
The part numbers shown below indicate chip components.
Chip Resistor
RS1/_S___J,RS1/__S___J
Chip Capacitor (except for CQS.....)
CKS....., CCS....., CSZS.....
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Meaning of the figures and others in the parentheses in the parts list.
Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding
PC board.
IC 301 (A, 91, 111) IC NJM2068V
Circuit Symbol and No. Part No.
Unit Number : CWN4335(UC)
Unit Number : CWN4336(AU)
Unit Name : Audio Unit
Unit Number : CWN4824(UC)
Unit Number : CWN4339(AU)
Unit Name : Tuner IF Unit
Unit Number : CXX2608(UC)
Unit Number : CXX2607(AU)
Unit Name : Service CC Assy
Unit Number : CWN3985
Unit Name : Navi Unit
Unit Number : CWN3935
Unit Name : Monitor Unit
Unit Number : CWN3988
Unit Name : Keyboard Unit
Unit Number : EXX1060
Unit Name : PCB Unit(Service)
Unit Number : YWX5009
Unit Name : DVD Core Unit
Unit Number :
Unit Name : Connect PCB
A
Unit Number : CWN4335(UC)
Unit Number : CWN4336(AU)
Unit Name : Audio Unit
MISCELLANEOUS
IC 2051 (B,61,82) IC BD3931FP
IC 2056 (B,67,78) IC S-1200B33-M5
IC 2121 (A,11,99) IC NJM2388F84
IC 2131 (A,11,76) IC NJM2388F84
IC 2151 (A,92,15) IC LT3505EDD
IC 2161 (A,84,42) Regulator IC BD9781HFP
IC 2181 (A,97,30) IC LT3461AES6
IC 2182 (A,112,39) IC S-812C56AUA-C3K
IC 2190 (B,136,32) IC S-812C56AUA-C3K
IC 2216 (B,36,109) IC TPD1018F
IC 2300 (A,86,134) IC PA2030A
IC 2302 (A,41,35) IC S-93C56BD0I-I8
IC 2303 (B,54,49) IC(UC) PEG554A8
(B,54,49) IC(AU) PEG555A8
IC 2304 (A,59,51) IC BD5229FVE
IC 2491 (A,9,42) IC NJM2904M
IC 2511 (A,21,111) IC TC7WH126FU
IC 2512 (A,22,118) IC TPD1018F
IC 2513 (B,19,118) L-MOS And Gate(UC) TC7SET08FUS1
IC 2530 (A,36,44) IC TC74VHCT541AFTS1
IC 2531 (A,50,49) Logic IC TC74VHCT32AFT
IC 2611 (A,97,70) IC BA4558RFVM
IC 2621 (A,105,70) IC NJM2125F
IC 2625 (B,95,63) IC BA4558RFVM
IC 2641 (B,135,88) IC NJM2747V
IC 2661 (B,127,52) IC AN15887A
IC 2771 (B,110,80) IC PML017A
IC 2889 (A,138,16) IC NJM4580V
Q 2031 (B,35,83) Transistor 2SC4081
Q 2032 (B,38,86) Transistor 2SC4081
Q 2041 (A,46,117) Transistor 2SC4116
Q 2046 (B,10,127) Chip Transistor DTC114EUA
Q 2061 (A,19,39) Transistor 2SA1577
Q 2062 (A,21,39) Chip Transistor DTC114EUA
Q 2066 (B,11,32) Transistor 2SA1577
Q 2067 (B,12,27) Chip Transistor DTC114EUA
Q 2071 (A,28,36) Transistor 2SA1577
Q 2072 (A,31,36) Chip Transistor DTC114EUA
Q 2101 (B,118,28) Chip Transistor UMF21N
Q 2181 (B,90,36) Transistor UMD3N
Q 2182 (B,89,29) Transistor 2SD1767
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 311
5 678
5678
C
D
F
A
B
E
Q 2226 (A,25,47) Transistor 2SC4116
Q 2231 (B,69,32) Transistor 2SA1576A
Q 2242 (A,74,95) Transistor UMD3N
Q 2276 (A,35,68) Chip Transistor DTC114EUA
Q 2281 (B,83,121) Chip Transistor DTC114EUA
Q 2302 (A,58,46) Transistor UMD3N
Q 2303 (A,37,30) Transistor 2SA1576A
Q 2491 (A,11,35) Transistor DTC114WK
Q 2492 (A,15,43) Chip Transistor DTC114EUA
Q 2505 (A,74,57) Transistor(UC) UMH1N
Q 2506 (A,76,60) Transistor(UC) UMH1N
Q 2512 (B,23,126) Transistor 2SA1576A
Q 2513 (B,23,118) Digital Transistor DTC144EUA
Q 2514 (B,22,121) Digital TransistorDTC144EUA
Q 2515 (B,22,116) Chip Transistor(UC) DTC114EUA
Q 2531 (A,61,90) Transistor 2SC4081
Q 2551 (A,141,6) Transistor IMH23
Q 2552 (A,133,7) Transistor UMD3N
Q 2641 (B,142,74) Transistor UMD3N
Q 2642 (B,142,80) Transistor UMD3N
Q 2643 (B,139,75) Transistor DTC323TU
Q 2644 (B,139,79) Transistor DTC323TU
Q 2731 (A,122,69) Transistor 2SC4081
Q 2732 (A,122,64) Transistor 2SA1576A
Q 2761 (B,142,69) Transistor FMG12
Q 2762 (A,136,59) Transistor UMD3N
Q 2831 (B,116,100) Transistor FMG12
Q 2841 (A,122,95) Transistor FMG12
Q 2842 (A,109,97) Transistor FMG12
D 2001 (A,34,108) Diode ST70-27F
D 2026 (B,73,90) Diode KS926S2
D 2027 (B,78,84) Diode RB160M-30
D 2028 (B,68,89) Diode 1SR154-400
D 2029 (B,47,77) Diode RB500V-40
D 2031 (B,42,81) Diode RB500V-40
D 2032 (B,40,81) Diode HZU7R5(B3)
D 2033 (B,49,77) Diode RB500V-40
D 2034 (B,45,78) Diode EDZ20(B)
D 2041 (A,52,121) Diode 1SR154-400
D 2042 (A,52,116) Diode HZU8R2(B1)
D 2046 (B,18,128) Diode 1SR154-400
D 2151 (A,94,20) Diode RB160M-40
D 2152 (A,95,13) Diode 1SS352
D 2160 (A,65,21) Diode RB051LA-40
D 2162 (A,93,47) Diode RB050L-40
D 2181 (B,90,34) Diode HZU9R1(B2)
D 2216 (B,30,109) Diode 1SR154-400
D 2217 (B,27,109) Diode 1SR154-400
D 2227 (B,59,139) Diode UDZS18(B)
D 2228 (A,21,47) Diode UDZS5R6(B)
D 2229 (A,28,46) Diode RB715W
D 2231 (A,61,116) Diode PTZ18A
D 2232 (B,65,29) Diode 1SS352
D 2236 (B,67,118) Diode 1SR154-400
D 2237 (B,65,114) Diode MALS180X
D 2239 (B,120,115) Diode PTZ27(B)
D 2240 (B,111,107) Diode 1SS355
D 2241 (A,67,98) Diode 1SS352
D 2296 (B,144,103) Diode 1SR154-400
D 2297 (B,144,108) Diode 1SR154-400
Circuit Symbol and No. Part No.
D 2432 (A,55,56) Diode RB501V-40
D 2433 (A,52,58) Diode RB751S-40
D 2491 (A,13,49) Diode 1SS352
D 2519 (B,30,126) Diode UDZS18(B)
D 2520 (B,33,126) Diode UDZS18(B)
D 2521 (A,22,129) Diode 1SR154-400
D 2522 (A,17,128) Diode 1SR154-400
D 2527 (B,26,121) Diode UDZS18(B)
D 2531 (A,62,98) Diode UDZS8R2(B)
D 2552 (A,137,7) Diode DAP202U
D 2621 (A,99,61) Diode EDZ4R3(B)
D 2622 (A,102,67) Diode 1SS352
D 2641 (B,145,88) Diode HZU6R8(B1)
D 2643 (B,144,71) Diode RB715Z
D 2644 (B,145,74) Diode RB715Z
D 2761 (A,142,67) Diode DAP202U
D 2762 (A,140,60) Diode DAP202U
D 2841 (B,109,101) Diode DAP202U
D 2862 (A,133,116) Diode MALS180X
D 2865 (A,136,116) Diode MALS180X
D 2867 (A,128,116) Diode MALS180X
D 2868 (A,131,116) Diode MALS180X
D 2869 (A,130,116) Diode MALS180X
D 2870 (B,104,118) Diode UDZS18(B)
D 2871 (B,117,139) Diode UDZS18(B)
D 2872 (B,109,114) Diode 1SS352
D 2873 (B,117,115) Diode PTZ27(B)
D 2874 (B,121,139) Diode UDZS18(B)
D 2880 (B,8,124) Diode MALS180X
D 2881 (B,6,124) Diode MALS180X
L 2001 (A,53,108) Choke Coil 600 uH CTH1347
L 2151 (A,90,20) Inductor CTF1744
L 2152 (A,99,17) Inductor BTH1112
L 2161 (A,84,16) Inductor CTH1257
L 2162 (A,98,38) Inductor CTH1254
L 2181 (A,88,27) Inductor CTF1473
L 2182 (A,90,32) Choke Coil 22 uH CTH1426
L 2183 (A,103,32) Inductor CTF1389
L 2226 (B,53,136) Inductor CTF1410
L 2236 (B,61,136) Inductor CTF1410
L 2239 (B,113,111) Inductor CTF1556
L 2302 (A,46,69) Inductor LCTAW2R2J2520
L 2303 (A,41,31) Inductor CTF1306
L 2311 (A,65,55) Inductor CTF1305
L 2331 (A,69,46) Inductor CTF1305
L 2351 (A,64,37) Inductor CTF1305
L 2371 (A,56,35) Inductor CTF1305
L 2411 (A,43,57) Inductor CTF1305
L 2421 (A,41,57) Inductor CTF1305
L 2461 (A,63,69) Inductor CTF1305
L 2491 (A,15,36) Inductor CTF1334
L 2492 (A,14,40) Inductor CTF1334
L 2511 (A,18,114) Inductor CTF1410
L 2530 (A,37,37) Inductor CTF1410
L 2531 (A,54,46) Inductor CTF1410
L 2553 (B,110,15) Inductor CTF1488
L 2554 (B,112,19) Inductor CTF1410
L 2571 (B,17,35) Inductor CTF1306
L 2622 (A,94,63) Inductor CTF1410
L 2641 (A,143,98) Inductor CTF1410
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
312
1234
1234
C
D
F
A
B
E
L 2661 (A,133,51) Chip Coil LCTAW100J2520
L 2662 (A,119,43) Chip Coil LCTAW100J2520
L 2731 (A,127,61) Inductor CTF1473
L 2771 (A,109,78) Inductor LCTAW2R2J2520
L 2861 (B,111,114) Inductor LCTC2R2K1608
L 2880 (A,6,120) Inductor CTF1334
L 2881 (A,11,122) Inductor CTF1334
L 2889 (A,134,19) Inductor CTF1410
X 2301 (B,58,66) Oscillator 15 000 kHz CSS1781
F 2161 (A,71,18) EMI Filter CCG1267
F 2861 (B,133,114) EMI Filter CCG1082
F 2867 (B,137,114) EMI Filter CCG1082
F 2868 (B,126,114) EMI Filter CCG1082
F 2873 (B,131,114) EMI Filter CCG1067
F 2874 (B,129,114) EMI Filter CCG1067
VR2731 (A,115,68) Semi-fixed 1 kohm(B) CCP1442
>P2107 (A,37,23) Fuse 250 mA CEK1276
>P2151 (A,8,65) Fuse 1 A CEK1254
>P2161 (A,39,91) Fuse 3.15 A CEK1259
>P2162 (A,118,23) Fuse 1.5 A CEK1282
>P2176 (A,110,26) Fuse 0.5 A CEK1278
P 2861 (B,123,133) Poly Switch MINISMDC075F/24
P 2862 (B,140,138) Poly Switch MINISMDC075F/24
P 2863 (B,129,136) Poly Switch MINISMDC075F/24
P 2864 (B,134,136) Poly Switch MINISMDC075F/24
P 2880 (A,18,135) Poly Switch MINISMDC075F/24
VA2861 (B,126,131) Varistor
AVR-M1608C270KT2AB
VA2862 (B,129,131) Varistor
AVR-M1608C270KT2AB
VA2863 (B,123,115) Varistor
AVR-M1608C270KT2AB
VA2864 (B,125,115) Varistor
AVR-M1608C270KT2AB
CN2101 (A,133,34) Connector CKS5546
CN2512 (A,30,142) Connector CKS6155
CN2551 (B,128,7) Terminal VKN1620
CN2571 (B,25,52) Connector CKS6124
CN2861 (A,128,138) Plug CKM1567
JA2001 (A,54,135) Plug CKM1550
JA2880 (A,11,131) Jack CKN1042
U 2511 (A,6,57) Remote IC(AU) RS-750
RESISTORS
R 2021 (B,62,94) RS1/4S4R7J
R 2022 (B,59,94) RS1/4S4R7J
R 2023 (B,65,89) RS1/10SR473J
R 2026 (B,79,88) RS1/4S4R7J
R 2027 (B,79,94) RS1/4S4R7J
R 2028 (B,74,84) RS1/10SR473J
R 2031 (B,38,83) RS1/10SR473J
R 2032 (B,36,81) RS1/10SR473J
R 2033 (B,42,78) RS1/10SR103J
R 2034 (B,40,88) RS1/10SR103J
R 2041 (B,47,138) 4.7 kohm CCN1180
R 2042 (B,47,140) 1 kohm CCN1179
R 2043 (A,50,117) RS1/10SR473J
R 2044 (A,48,117) RS1/10SR473J
R 2046 (B,51,139) 1 kohm CCN1179
R 2047 (B,16,125) 4.7 kohm CCN1180
R 2048 (B,13,127) RS1/10SR103J
R 2056 (B,69,81) RS1/16SS472J
R 2061 (A,19,41) RS1/16SS472J
R 2062 (A,20,37) RS1/16SS472J
Circuit Symbol and No. Part No.
R 2063 (A,19,36) RS1/16SS683J
R 2066 (B,11,30) RS1/16SS472J
R 2067 (B,10,27) RS1/16SS472J
R 2068 (B,9,33) RS1/16SS104J
R 2071 (A,28,38) RS1/16SS222J
R 2072 (A,30,34) RS1/16SS222J
R 2073 (A,31,33) RS1/16SS473J
R 2075 (A,137,9) RS1/16SS0R0J
R 2083 (A,137,109) RS1/10SR0R0J
R 2084 (A,135,26) RS1/10SR0R0J
R 2085 (B,33,30) RS1/16SS0R0J
R 2101 (A,125,28) RS1/16SS102J
R 2102 (A,113,49) RS1/16SS102J
R 2104 (A,133,29) RS1/16SS0R0J
R 2105 (B,122,27) RS1/16SS473J
R 2106 (B,120,27) RS1/16SS102J
R 2121 (B,17,106) RS1/16SS473J
R 2125 (B,18,99) RS1/8SQ0R0J
R 2128 (B,17,110) RS1/16SS332J
R 2131 (B,16,89) RS1/16SS473J
R 2136 (B,16,91) RS1/16SS332J
R 2151 (B,96,12) RS1/16SS223J
R 2152 (B,92,13) RS1/16SS2002D
R 2153 (B,97,14) RS1/16SS0R0J
R 2154 (B,95,14) RS1/10SR1303D
R 2155 (B,92,14) RS1/16SS2402D
R 2157 (B,89,16) RS1/16SS0R0J
R 2161 (B,88,41) RS1/10SR1003D
R 2162 (B,88,43) RS1/10SR1002D
R 2163 (B,94,44) RS1/10SR104J
R 2164 (B,97,45) RS1/10SR0R0J
R 2165 (B,97,47) RS1/10SR6802D
R 2166 (B,94,47) RS1/10SR3001D
R 2167 (B,91,46) RS1/10SR1002D
R 2168 (B,94,46) RS1/10SR103J
R 2169 (A,103,45) RS1/8SQR30J
R 2171 (A,74,19) RS1/10SR105J
R 2181 (B,87,31) RS1/16SS122J
R 2182 (B,98,31) RS1/16SS1003D
R 2183 (B,97,31) RS1/16SS1603D
R 2184 (B,99,29) RS1/16SS0R0J
R 2185 (B,95,31) RS1/16SS1202D
R 2186 (B,95,29) RS1/16SS1102D
R 2187 (B,100,30) RS1/10SR473J
R 2188 (A,109,42) RS1/16SS5601D
R 2189 (A,108,40) RS1/16SS6801D
R 2190 (B,138,29) RS1/16SS5601D
R 2191 (B,138,28) RS1/10SR6201D
R 2193 (B,135,28) RS1/10SR1801D
R 2226 (B,56,135) 1 kohm CCN1179
R 2227 (B,56,139) RS1/10SR472J
R 2228 (B,56,140) RS1/10SR102J
R 2229 (A,23,47) RS1/16SS104J
R 2230 (A,23,46) RS1/16SS473J
R 2231 (A,58,120) 10 kohm CCN1191
R 2232 (B,70,34) RS1/16SS153J
R 2233 (B,68,34) RS1/16SS103J
R 2234 (B,66,34) RS1/16SS102J
R 2239 (B,112,107) RS1/8SQ103J
R 2241 (A,71,97) RS1/16SS391J
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 313
5 678
5678
C
D
F
A
B
E
R 2242 (A,71,95) RS1/16SS391J
R 2243 (A,72,94) RS1/16SS102J
R 2251 (B,88,49) RS1/10SR102J
R 2269 (B,25,21) RS1/10SR0R0J
R 2274 (B,32,25) RS1/10SR0R0J
R 2276 (A,38,71) RS1/16SS103J
R 2277 (A,38,69) RS1/16SS103J
R 2281 (B,89,121) RS1/10SR103J
R 2282 (B,89,123) RS1/10SR103J
R 2283 (B,76,121) RS1/16SS0R0J
R 2301 (A,57,52) RS1/16SS104J
R 2304 (A,43,38) RS1/16SS473J
R 2305 (A,39,36) RS1/16SS473J
R 2306 (A,39,33) RS1/16SS0R0J
R 2310 (B,53,65) RS1/16SS102J
R 2311 (A,68,50) RS1/16SS104J
R 2312 (B,71,49) RS1/16SS472J
R 2313 (B,70,51) RS1/16SS472J
R 2314 (A,68,55) RS1/16SS473J
R 2315 (B,65,60) RS1/16SS471J
R 2316 (B,67,59) RS1/16SS471J
R 2317 (B,71,57) RS1/16SS681J
R 2320 (B,69,57) RS1/16SS0R0J
R 2321 (B,69,56) RS1/16SS0R0J
R 2326 (A,61,50) RS1/16SS0R0J
R 2327 (B,69,52) RS1/16SS471J
R 2328 (B,67,52) RS1/16SS681J
R 2329 (B,67,51) RS1/16SS101J
R 2331 (B,69,50) RS1/16SS221J
R 2332 (A,62,48) RS1/16SS102J
R 2334 (B,67,49) RS1/16SS0R0J
R 2336 (B,69,45) RS1/16SS102J
R 2337 (B,67,43) RS1/16SS102J
R 2339 (A,61,43) RS1/16SS0R0J
R 2341 (B,67,41) RS1/16SS681J
R 2342 (A,62,40) RS1/16SS0R0J
R 2343 (B,67,40) RS1/16SS0R0J
R 2344 (B,67,39) RS1/16SS471J
R 2345 (B,66,36) RS1/16SS0R0J
R 2348 (B,69,37) RS1/16SS473J
R 2351 (B,60,34) RS1/16SS104J
R 2353 (B,65,36) RS1/16SS0R0J
R 2355 (B,62,34) RS1/16SS102J
R 2356 (B,60,36) RS1/16SS102J
R 2357 (A,59,38) RS1/16SS221J
R 2358 (B,59,36) RS1/16SS0R0J
R 2359 (A,34,34) RS1/10SR472J
R 2360 (A,34,30) RS1/10SR473J
R 2365 (B,56,34) RS1/16SS473J
R 2366 (B,55,34) RS1/16SS473J
R 2367 (A,53,37) RS1/16SS104J
R 2368 (B,53,33) RS1/16SS221J
R 2369 (B,54,35) RS1/16SS104J
R 2371 (A,53,38) RS1/16SS0R0J
R 2372 (B,52,33) RS1/16SS221J
R 2373 (A,55,40) RS1/10SR0R0J
R 2375 (B,51,34) RS1/16SS681J
R 2376 (A,53,40) RS1/16SS681J
R 2377 (A,50,35) RS1/16SS681J
R 2378 (A,48,36) RS1/16SS681J
Circuit Symbol and No. Part No.
R 2379 (A,47,41) RS1/16SS102J
R 2381 (B,42,31) RS1/16SS151J
R 2382 (B,42,33) RS1/16SS151J
R 2384 (B,47,36) RS1/16SS221J
R 2385 (B,46,36) RS1/16SS221J
R 2386 (A,46,36) RS1/16SS681J
R 2387 (B,40,36) RS1/16SS102J
R 2388 (B,36,35) RS1/16SS221J
R 2390 (B,38,35) RS1/16SS104J
R 2391 (B,45,34) RS1/16SS104J
R 2392 (B,45,35) RS1/16SS104J
R 2394 (B,40,37) RS1/16SS102J
R 2395 (B,41,39) RS1/16SS102J
R 2396 (B,40,40) RS1/16SS102J
R 2397 (B,40,41) RS1/16SS102J
R 2398 (B,40,42) RS1/16SS471J
R 2401 (B,39,45) RS1/16SS681J
R 2403 (B,34,41) RS1/16SS681J
R 2404 (B,37,48) RS1/16SS104J
R 2405 (B,35,48) RS1/10SR104J
R 2406 (B,37,49) RS1/16SS104J
R 2407 (B,35,50) RS1/16SS221J
R 2409 (B,38,51) RS1/16SS0R0J
R 2410 (B,40,52) RS1/16SS0R0J
R 2411 (B,40,50) RS1/16SS681J
R 2413 (A,44,53) RS1/16SS681J
R 2414 (A,42,52) RS1/16SS681J
R 2415 (A,46,50) RS1/16SS104J
R 2416 (A,54,56) RS1/16SS0R0J
R 2417 (A,58,58) RS1/16SS102J
R 2418 (A,50,56) RS1/16SS0R0J
R 2419 (A,50,57) RS1/16SS102J
R 2420 (B,38,62) RS1/16SS681J
R 2421 (B,37,62) RS1/16SS681J
R 2423 (B,39,59) RS1/16SS470J
R 2424 (B,38,45) RS1/16SS473J
R 2427 (A,39,61) RS1/10SR392J
R 2428 (A,37,61) RS1/10SR392J
R 2429 (A,44,54) RS1/16SS104J
R 2431 (B,36,60) RS1/16SS182J
R 2432 (A,53,56) RS1/16SS103J
R 2433 (A,52,56) RS1/16SS103J
R 2435 (B,36,63) RS1/16SS182J
R 2436 (B,39,62) RS1/16SS470J
R 2437 (B,43,60) RS1/16SS473J
R 2438 (B,43,62) RS1/16SS0R0J
R 2439 (B,43,63) RS1/16SS102J
R 2441 (B,44,64) RS1/16SS0R0J
R 2442 (B,45,63) RS1/16SS0R0J
R 2443 (B,46,64) RS1/16SS0R0J
R 2444 (A,40,61) RS1/16SS473J
R 2445 (B,47,63) RS1/16SS0R0J
R 2446 (B,48,63) RS1/16SS471J
R 2451 (B,43,66) RS1/16SS104J
R 2452 (B,44,69) RS1/16SS472J
R 2453 (B,52,63) RS1/16SS102J
R 2454 (B,53,63) RS1/16SS0R0J
R 2458 (A,52,62) RS1/16SS473J
R 2460 (B,55,64) RS1/16SS561J
R 2461 (B,62,65) RS1/16SS473J
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
314
1234
1234
C
D
F
A
B
E
R 2463 (A,29,46) RS1/16SS104J
R 2464 (B,68,64) RS1/16SS0R0J
R 2472 (B,63,63) RS1/16SS0R0J
R 2473 (B,63,62) RS1/16SS221J
R 2475 (B,67,62) RS1/16SS0R0J
R 2476 (B,63,65) RS1/16SS0R0J
R 2477 (A,44,35) RS1/16SS104J
R 2491 (A,7,37) RS1/16SS104J
R 2492 (A,10,37) RS1/16SS473J
R 2493 (A,12,37) RS1/16SS563J
R 2494 (A,5,43) RS1/16SS513J
R 2495 (A,8,48) RS1/16SS104J
R 2496 (A,10,48) RS1/16SS513J
R 2497 (A,11,47) RS1/16SS513J
R 2498 (A,10,49) RS1/16SS102J
R 2499 (A,9,49) RS1/16SS102J
R 2500 (A,11,48) RS1/16SS564J
R 2501 (A,14,48) RS1/16SS202J
R 2502 (A,15,48) RS1/16SS822J
R 2503 (A,14,47) RS1/16SS203J
R 2504 (A,16,47) RS1/16SS333J
R 2507 (A,71,58) (UC) RS1/10SR223J
R 2508 (A,74,58) (UC) RS1/16SS223J
R 2509 (A,72,61) (UC) RS1/10SR223J
R 2511 (A,18,108) RS1/10SR105J
R 2513 (B,25,125) RS1/10SR473J
R 2514 (B,24,128) RS1/10SR473J
R 2520 (A,29,131) RS1/8SQ102J
R 2521 (A,31,131) RS1/8SQ102J
R 2522 (A,33,131) RS1/8SQ102J
R 2523 (A,5,50) (AU) RS1/16SS0R0J
R 2524 (A,5,49) (AU) RS1/10SR470J
R 2527 (A,27,131) RS1/8SQ102J
R 2529 (A,41,47) RS1/16SS104J
R 2530 (B,71,45) RS1/16SS104J
R 2532 (A,58,43) RS1/16SS104J
R 2533 (A,60,92) RS1/10SR473J
R 2534 (A,60,41) RS1/16SS104J
R 2535 (A,61,44) RS1/16SS104J
R 2536 (A,56,51) RS1/16SS104J
R 2537 (B,38,42) RS1/16SS104J
R 2538 (A,65,92) RS1/10SR104J
R 2539 (A,41,42) RS1/16SS104J
R 2540 (A,17,116) (UC) RS1/10SR0R0J
R 2541 (A,17,118) (AU) RS1/10SR0R0J
R 2543 (B,17,113) (UC) RS1/10SR104J
R 2551 (B,141,17) RS1/10SR182J
R 2552 (B,143,19) RS1/10SR104J
R 2553 (B,143,16) RS1/10SR104J
R 2554 (B,141,18) RS1/10SR182J
R 2555 (A,123,15) RS1/10SR0R0J
R 2556 (B,136,13) RS1/16SS0R0J
R 2557 (B,119,19) RS1/16SS471J
R 2558 (B,122,19) RS1/16SS471J
R 2559 (A,121,11) RS1/16SS471J
R 2560 (B,118,19) RS1/16SS102J
R 2561 (B,120,19) RS1/16SS221J
R 2562 (B,121,19) RS1/16SS221J
R 2569 (A,27,65) RS1/16SS0R0J
R 2570 (A,28,92) RS1/16SS0R0J
Circuit Symbol and No. Part No.
R 2572 (B,33,58) RS1/16SS0R0J
R 2573 (B,34,58) RS1/16SS0R0J
R 2574 (B,33,46) RS1/16SS0R0J
R 2575 (B,33,41) RS1/16SS0R0J
R 2576 (B,34,53) RS1/16SS0R0J
R 2577 (B,34,54) RS1/16SS221J
R 2578 (B,34,56) RS1/16SS0R0J
R 2579 (B,33,55) RS1/16SS0R0J
R 2580 (B,34,51) RS1/16SS0R0J
R 2581 (B,36,37) RS1/16SS0R0J
R 2582 (B,36,36) RS1/16SS0R0J
R 2583 (B,36,34) RS1/16SS0R0J
R 2584 (B,18,39) RS1/16SS0R0J
R 2585 (B,18,51) RS1/16SS0R0J
R 2586 (B,17,49) RS1/16SS0R0J
R 2587 (B,37,67) RS1/10SR0R0J
R 2589 (B,10,38) RS1/10SR0R0J
R 2590 (B,17,46) RS1/16SS0R0J
R 2591 (B,34,57) RS1/16SS0R0J
R 2613 (A,94,64) RS1/10SR473J
R 2614 (A,95,76) RS1/10SR473J
R 2615 (A,93,68) RS1/10SR473J
R 2616 (A,93,72) RS1/10SR473J
R 2617 (A,93,67) RS1/10SR473J
R 2618 (A,93,73) RS1/10SR473J
R 2619 (A,97,64) RS1/10SR473J
R 2620 (A,97,76) RS1/10SR473J
R 2621 (A,97,62) RS1/16SS102J
R 2628 (B,88,62) RS1/10SR332J
R 2629 (B,90,66) RS1/10SR332J
R 2630 (B,89,62) RS1/10SR103J
R 2631 (B,90,65) RS1/10SR103J
R 2632 (B,104,59) RS1/10SR102J
R 2633 (B,99,60) RS1/10SR104J
R 2634 (B,101,64) RS1/10SR104J
R 2635 (B,103,62) RS1/10SR683J
R 2636 (B,101,62) RS1/10SR473J
R 2641 (B,130,83) RS1/10SR473J
R 2642 (B,138,83) RS1/10SR473J
R 2643 (B,132,83) RS1/10SR683J
R 2644 (B,136,83) RS1/10SR683J
R 2645 (B,132,85) RS1/10SR473J
R 2646 (B,138,85) RS1/10SR473J
R 2647 (B,129,90) RS1/10SR473J
R 2648 (B,141,90) RS1/10SR473J
R 2649 (B,128,86) RS1/10SR473J
R 2650 (B,141,86) RS1/10SR473J
R 2652 (B,142,83) RS1/10SR0R0J
R 2653 (B,146,93) RS1/10SR302J
R 2654 (B,144,93) RS1/10SR302J
R 2656 (A,143,96) RS1/10SR0R0J
R 2657 (B,130,76) RS1/10SR821J
R 2658 (B,134,74) RS1/10SR821J
R 2659 (B,140,74) RS1/16SS104J
R 2660 (B,139,78) RS1/16SS104J
R 2669 (B,142,58) RS1/10SR0R0J
R 2673 (B,142,62) RS1/10SR101J
R 2677 (B,145,50) RS1/16SS0R0J
R 2678 (B,142,50) RS1/16SS0R0J
R 2681 (B,145,46) RS1/10SR0R0J
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 315
5 678
5678
C
D
F
A
B
E
R 2682 (B,144,44) RS1/10SR0R0J
R 2683 (B,142,49) RS1/16SS101J
R 2684 (B,142,48) RS1/16SS101J
R 2685 (B,144,46) RS1/16SS750J
R 2686 (B,144,42) RS1/10SR0R0J
R 2688 (B,141,42) RS1/16SS101J
R 2689 (B,141,41) RS1/16SS0R0J
R 2692 (B,140,40) RS1/10SR0R0J
R 2694 (B,143,22) RS1/8SQ0R0J
R 2695 (B,117,34) RS1/16SS472J
R 2696 (B,115,39) RS1/16SS472J
R 2697 (B,120,35) RS1/16SS472J
R 2698 (B,115,36) RS1/16SS472J
R 2699 (B,119,33) RS1/16SS101J
R 2700 (B,113,36) RS1/16SS101J
R 2701 (B,120,33) RS1/16SS101J
R 2702 (B,111,36) RS1/16SS101J
R 2703 (B,119,34) RS1/16SS123J
R 2704 (B,113,35) RS1/16SS123J
R 2705 (B,113,45) RS1/16SS102J
R 2706 (B,112,42) RS1/16SS102J
R 2707 (B,112,43) RS1/16SS102J
R 2708 (B,112,41) RS1/16SS102J
R 2709 (B,116,45) RS1/16SS473J
R 2710 (B,115,42) RS1/16SS473J
R 2711 (B,111,56) RS1/16SS0R0J
R 2712 (B,114,57) RS1/16SS0R0J
R 2713 (B,112,56) RS1/16SS0R0J
R 2714 (B,114,56) RS1/16SS0R0J
R 2717 (B,111,60) RS1/16SS101J
R 2718 (B,112,65) RS1/16SS101J
R 2719 (B,111,61) RS1/16SS223J
R 2720 (B,112,64) RS1/16SS223J
R 2721 (B,112,63) RS1/16SS101J
R 2722 (B,112,67) RS1/16SS101J
R 2723 (B,133,61) RS1/16SS221J
R 2724 (B,133,62) RS1/16SS221J
R 2725 (B,131,62) RS1/16SS0R0J
R 2726 (B,128,62) RS1/16SS0R0J
R 2728 (B,129,62) RS1/16SS0R0J
R 2731 (A,127,67) RS1/16SS0R0J
R 2733 (A,126,66) RS1/16SS223J
R 2734 (A,125,67) RS1/16SS303J
R 2735 (A,120,69) RS1/10SR681J
R 2736 (A,118,69) RS1/10SR102J
R 2737 (A,118,66) RS1/10SR821J
R 2738 (A,122,61) RS1/10SR681J
R 2740 (A,127,62) RS1/10SR0R0J
R 2749 (A,142,76) RS1/10SR0R0J
R 2750 (A,143,76) RS1/10SR75R0D
R 2761 (B,139,66) RS1/16SS821J
R 2762 (B,144,66) RS1/16SS821J
R 2763 (B,139,68) RS1/16SS223J
R 2764 (B,144,68) RS1/16SS223J
R 2772 (A,90,81) RS1/10SR0R0J
R 2773 (B,111,70) RS1/10SR102J
R 2774 (B,111,90) RS1/10SR102J
R 2775 (B,104,71) RS1/10SR0R0J
R 2776 (B,104,89) RS1/10SR0R0J
R 2777 (A,122,84) RS1/10SR472J
Circuit Symbol and No. Part No.
R 2778 (A,122,86) RS1/10SR472J
R 2779 (A,117,84) RS1/10SR472J
R 2780 (A,117,85) RS1/10SR472J
R 2781 (A,117,82) RS1/10SR472J
R 2782 (A,122,88) RS1/10SR472J
R 2784 (B,102,76) RS1/16SS0R0J
R 2785 (B,102,77) RS1/16SS0R0J
R 2786 (B,102,78) RS1/16SS0R0J
R 2787 (B,102,79) RS1/16SS0R0J
R 2788 (A,109,75) RS1/10SR0R0J
R 2811 (B,131,93) RS1/10SR822J
R 2812 (B,139,93) RS1/10SR822J
R 2813 (B,130,93) RS1/10SR822J
R 2814 (B,138,93) RS1/10SR822J
R 2815 (B,124,82) RS1/10SR822J
R 2816 (B,124,85) RS1/10SR822J
R 2817 (B,124,81) RS1/10SR822J
R 2818 (B,124,86) RS1/10SR822J
R 2831 (B,119,97) RS1/10SR390J
R 2832 (B,113,97) RS1/10SR390J
R 2835 (B,119,98) RS1/10SR223J
R 2836 (B,113,98) RS1/10SR223J
R 2841 (A,125,94) RS1/10SR390J
R 2842 (A,119,94) RS1/10SR390J
R 2843 (A,112,96) RS1/10SR390J
R 2844 (A,106,96) RS1/10SR390J
R 2849 (A,125,95) RS1/10SR223J
R 2850 (A,119,95) RS1/10SR223J
R 2851 (A,112,97) RS1/10SR223J
R 2852 (A,106,97) RS1/10SR223J
R 2861 (A,127,115) RS1/8SQ0R0J
R 2862 (A,124,115) RS1/8SQ0R0J
R 2867 (B,108,117) RS1/8SQ102J
R 2868 (B,118,135) RS1/8SQ102J
R 2869 (B,112,114) RS1/8SQ153J
R 2870 (A,131,104) RS1/16SS750J
R 2871 (A,127,104) RS1/16SS750J
R 2873 (A,108,114) RS1/10SR0R0J
R 2874 (B,120,135) RS1/8SQ102J
R 2875 (A,116,115) RS1/8SQ0R0J
R 2876 (A,118,115) RS1/8SQ0R0J
R 2877 (A,122,115) RS1/8SQ0R0J
R 2878 (A,120,115) RS1/8SQ0R0J
R 2879 (A,113,115) RS1/8SQ0R0J
R 2880 (A,111,115) RS1/8SQ0R0J
R 2881 (A,96,99) RS1/10SR0R0J
R 2889 (A,139,9) RS1/10SR473J
R 2890 (A,139,24) RS1/10SR473J
R 2891 (A,134,11) RS1/10SR473J
R 2892 (A,136,24) RS1/10SR473J
R 2893 (A,139,10) RS1/10SR363J
R 2894 (A,139,23) RS1/10SR363J
R 2895 (A,133,13) RS1/10SR363J
R 2896 (A,136,23) RS1/10SR363J
R 2993 (A,7,25) (AU) RS1/16SS332J
R 2995 (A,7,22) (UC) RS1/16SS333J
R 2996 (A,7,19) RS1/16SS0R0J
CAPACITORS
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
316
1234
1234
C
D
F
A
B
E
C 2001 (A,74,104) 3 300 uF/16 V CCH1928(P35)
C 2007 (B,48,121) CKSRYB392K50
C 2027 (A,85,92) 10 000 uF/16 V CCH1849(P35)
C 2028 (A,50,91) CEAT472M16(P35)
C 2029 (B,74,82) CKSRYB104K50
C 2041 (A,53,118) CKSRYB104K50
C 2042 (A,53,117) CKSSYB102K50
C 2046 (B,17,123) CKSRYB102K50
C 2047 (B,12,125) CKSQYB105K16
C 2051 (B,60,89) CKSYB105K35
C 2052 (B,65,83) CKSSYB103K16
C 2053 (A,68,79) CEVW101M16
C 2056 (B,66,81) CKSRYB105K16
C 2057 (B,64,75) CKSRYB105K16
C 2058 (A,59,79) CEVW101M16
C 2101 (A,143,28) CKSSYB103K16
C 2121 (B,17,102) CKSRYB104K50
C 2122 (B,16,106) CKSSYB223K16
C 2123 (A,19,102) 100 uF/16 V CCH1565
C 2124 (A,15,103) CKSSYB102K50
C 2131 (B,17,85) CKSRYB104K50
C 2132 (B,15,89) CKSSYB223K16
C 2133 (A,16,83) CKSSYB102K50
C 2134 (A,19,89) 100 uF/16 V CCH1565
C 2151 (A,91,21) CKSYB225K25
C 2153 (B,98,12) CCSRCH151J50
C 2154 (A,95,16) CKSRYB104K16
C 2155 (B,93,13) CCSSCH221J50
C 2156 (A,102,22) 22 uF CCG1183
C 2161 (A,83,25) 100 uF/16 V CCH1565
C 2162 (A,82,31) 10 uF CCG1223
C 2163 (A,82,34) 10 uF CCG1223
C 2167 (B,90,42) CKSSYB104K16
C 2168 (B,93,44) CCSRCH102J50
C 2169 (B,94,42) CKSRYB104K50
C 2170 (A,100,48) 330 uF/10 V CCH1623
C 2171 (B,97,46) CCSRCH331J50
C 2173 (A,122,24) CKSYB475K16
C 2181 (B,86,25) CKSYB475K25
C 2182 (B,90,32) CKSRYB104K16
C 2183 (A,90,26) CKSRYB104K16
C 2184 (A,91,28) CKSYB475K16
C 2185 (B,97,30) CCSRCH220J50
C 2186 (A,98,28) CKSSYB473K10
C 2187 (A,101,29) CKSQYB105K25
C 2188 (A,108,39) CKSSYB103K25
C 2189 (A,108,42) CKSSYB103K25
C 2191 (B,132,31) CKSQYB105K25
C 2192 (B,136,29) CKSSYB103K25
C 2193 (B,140,34) CKSSYB103K25
C 2194 (B,103,32) CKSSYB103K25
C 2195 (B,108,30) CKSSYB103K25
C 2216 (B,32,111) CKSRYB102K50
C 2217 (B,40,111) CKSRYB104K50
C 2226 (B,53,139) CKSRYB102K50
C 2227 (B,58,140) CKSSYB102K50
C 2232 (A,60,118) CKSRYB103K50
C 2238 (B,113,110) CKSRYB103K50
C 2241 (A,70,89) CEVW470M25
C 2276 (A,41,76) CEHVW330M16
Circuit Symbol and No. Part No.
C 2281 (A,95,125) CKSRYB105K16
C 2282 (A,89,125) CKSRYB105K16
C 2283 (A,78,125) CKSRYB105K16
C 2284 (A,84,125) CKSRYB105K16
C 2285 (A,94,123) CKSQYB105K16
C 2286 (A,88,123) CKSQYB105K16
C 2287 (A,79,123) CKSQYB105K16
C 2288 (A,85,123) CKSQYB105K16
C 2289 (B,96,120) CKSRYB104K50
C 2290 (B,96,121) CKSRYB104K50
C 2292 (A,101,125) CKSQYB475K10
C 2293 (A,98,123) CKSYB475K16
C 2294 (A,102,118) CEHVW100M16
C 2296 (B,147,101) CKSRYB104K50
C 2297 (B,143,106) CKSRYB104K50
C 2302 (A,51,70) CEVW100M16
C 2303 (A,48,68) CKSRYB102K50
C 2304 (A,41,33) CKSRYB104K16
C 2305 (A,60,45) CKSRYB104K16
C 2306 (A,59,49) CKSRYB153K50
C 2307 (A,58,53) CKSRYB104K16
C 2308 (A,61,46) CKSRYB104K16
C 2311 (B,69,60) CCSSCH101J50
C 2321 (B,66,57) CKSRYB103K50
C 2331 (B,67,47) CKSRYB103K50
C 2351 (B,63,36) CKSRYB103K50
C 2352 (B,59,34) CCSSCH101J50
C 2355 (A,59,37) CKSSYB103K16
C 2374 (B,53,35) CKSRYB103K50
C 2411 (B,41,52) CKSRYB103K50
C 2412 (A,42,50) CKSSYB103K16
C 2413 (B,51,36) CKSSYB104K16
C 2414 (A,47,51) CKSSYB103K16
C 2415 (A,44,51) CKSSYB103K16
C 2416 (A,50,54) CKSSYB103K16
C 2417 (A,46,56) CKSSYB103K16
C 2418 (B,39,55) CKSSYB103K16
C 2419 (A,47,57) CKSSYB103K16
C 2420 (B,40,56) CKSRYB105K10
C 2424 (B,40,57) CKSRYB103K50
C 2430 (B,35,59) CCSSCH470J50
C 2431 (A,57,55) CKSSYB104K16
C 2432 (A,51,56) CKSSYB104K16
C 2434 (B,44,66) CCSSCH331J50
C 2435 (B,39,64) CCSSCH470J50
C 2436 (A,42,66) CCSSCH151J50
C 2437 (B,43,65) CCSSCH471J16
C 2438 (A,48,66) CKSSYB103K16
C 2450 (B,48,67) CKSQYB475K10
C 2459 (B,53,68) CKSRYB104K16
C 2460 (B,57,64) CCSSCH100D50
C 2461 (B,59,64) CCSSCH100D50
C 2462 (B,56,62) CKSRYB103K50
C 2464 (A,57,60) CKSRYB105K10
C 2471 (B,68,63) CCSSCH101J50
C 2491 (A,12,40) CKSRYB104K16
C 2492 (A,8,47) CKSSYB102K50
C 2493 (A,13,45) CKSRYB104K16
C 2494 (A,15,45) CKSRYB103K50
C 2495 (A,13,43) CKSRYB823K16
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 317
5 678
5678
C
D
F
A
B
E
C 2510 (A,21,127) CKSRYB102K50
C 2511 (A,18,110) CKSRYB104K16
C 2512 (A,21,126) CKSSYB103K25
C 2513 (B,28,126) CKSRYB103K50
C 2516 (A,5,51) (AU) CKSRYB104K50
C 2517 (B,20,120) (UC) CKSSYB104K10
C 2518 (A,18,121) CKSRYB104K50
C 2527 (B,26,122) CKSRYB103K50
C 2530 (A,37,39) CKSRYB104K16
C 2531 (A,54,48) CKSRYB104K16
C 2551 (B,144,16) CCSRCH101J50
C 2552 (B,144,19) CCSRCH101J50
C 2557 (B,115,13) CKSRYB104K16
C 2558 (B,118,13) CKSRYB104K16
C 2559 (B,119,15) CKSQYB475K10
C 2561 (B,115,19) CKSRYB104K16
C 2563 (B,114,17) 10 uF CCG1221
C 2564 (B,115,20) 10 uF CCG1203
C 2565 (A,113,17) CEVQW220M16
C 2572 (B,16,35) CKSRYB104K16
C 2611 (B,86,71) 10 uF DCH1201
C 2612 (B,91,78) 10 uF DCH1201
C 2613 (B,88,71) 10 uF DCH1201
C 2614 (B,89,78) 10 uF DCH1201
C 2615 (A,94,66) CCSRCH330J50
C 2616 (A,95,75) CCSRCH330J50
C 2617 (A,97,66) CCSRCH330J50
C 2618 (A,97,75) CCSRCH330J50
C 2619 (A,99,70) CKSSYB104K16
C 2621 (A,88,61) CEVW101M16
C 2622 (A,100,61) CKSSYB103K16
C 2623 (A,103,63) CEVW100M16
C 2624 (A,103,70) CKSSYB104K16
C 2625 (B,96,70) 10 uF DCH1201
C 2626 (B,93,70) 10 uF DCH1201
C 2627 (B,90,64) CCSRCH221J50
C 2628 (B,90,62) CCSRCH221J50
C 2629 (B,95,61) CKSSYB104K16
C 2630 (B,103,59) CKSRYB103K50
C 2631 (B,103,63) CKSRYB104K16
C 2632 (B,99,65) CCSRCH151J50
C 2633 (B,99,62) CCSRCH151J50
C 2641 (B,128,79) CKSQYB475K10
C 2642 (B,134,79) CKSQYB475K10
C 2643 (B,130,79) CKSRYB105K10
C 2644 (B,132,80) CKSRYB105K10
C 2645 (B,130,85) CCSSCH220J50
C 2646 (B,140,85) CCSSCH220J50
C 2647 (B,130,91) CCSSCH220J50
C 2648 (B,139,91) CCSSCH220J50
C 2649 (B,135,92) CKSRYB104K50
C 2650 (A,133,98) CEVW101M25
C 2651 (B,145,83) 10 uF CCG1195
C 2652 (B,146,88) CKSRYB103K50
C 2653 (B,105,62) CKSQYB225K10
C 2661 (A,137,45) CEVW470M16
C 2662 (B,134,42) CKSRYB104K16
C 2663 (B,132,41) CKSYB226K6R3
C 2664 (B,131,43) CKSSYB104K16
C 2665 (B,137,57) CKSSYB104K16
C 2666 (B,138,57) CKSSYB104K16
Circuit Symbol and No. Part No.
C 2667 (B,140,58) CKSRYB105K10
C 2668 (B,139,55) CKSRYB105K10
C 2671 (B,139,50) CKSRYB105K10
C 2672 (B,139,49) CKSRYB105K10
C 2673 (B,139,48) CKSRYB105K10
C 2674 (B,139,46) CKSRYB105K10
C 2675 (B,138,43) CKSRYB105K10
C 2676 (B,138,41) CKSRYB105K10
C 2679 (B,137,52) CKSSYB104K16
C 2680 (B,137,54) CKSSYB104K16
C 2685 (B,125,34) CKSQYB475K10
C 2686 (B,113,38) CKSQYB475K10
C 2687 (B,123,34) CKSQYB475K10
C 2688 (B,111,38) CKSQYB475K10
C 2689 (B,114,46) CKSQYB475K10
C 2690 (B,116,50) CKSQYB475K10
C 2691 (B,116,48) CKSQYB475K10
C 2692 (B,112,50) CKSQYB475K10
C 2693 (B,111,53) CKSQYB475K10
C 2694 (B,113,53) CKSQYB475K10
C 2695 (B,116,53) CKSQYB475K10
C 2696 (B,116,55) CKSQYB475K10
C 2697 (B,115,61) CKSQYB475K10
C 2698 (B,115,65) CKSQYB475K10
C 2699 (B,115,63) CKSQYB475K10
C 2700 (B,115,67) CKSQYB475K10
C 2701 (A,125,44) CEVW470M16
C 2702 (B,123,42) CKSRYB104K16
C 2703 (B,120,40) CKSYB226K6R3
C 2705 (B,129,42) CKSSYB104K16
C 2706 (B,127,42) CKSSYB104K16
C 2707 (B,128,42) CKSSYB104K16
C 2708 (B,126,42) CKSSYB104K16
C 2713 (B,116,32) CKSRYB102K50
C 2714 (B,116,37) CKSRYB102K50
C 2715 (B,121,34) CKSRYB102K50
C 2716 (B,114,33) CKSRYB102K50
C 2725 (B,102,71) CKSQYB475K10
C 2726 (B,102,89) CKSQYB475K10
C 2733 (A,127,71) CEVW101M4
C 2734 (A,124,62) CKSRYB105K16
C 2743 (A,136,73) CEVW101M6R3
C 2744 (A,136,65) CEVQW221M6R3
C 2761 (B,137,71) CKSQYB475K10
C 2762 (B,135,71) CKSQYB475K10
C 2771 (A,104,82) CEVW470M16
C 2772 (B,102,81) CKSSYB104K16
C 2774 (B,102,85) CKSSYB104K16
C 2775 (A,112,86) CEVW100M16
C 2779 (B,106,71) CKSRYB105K10
C 2780 (B,106,89) CKSRYB105K10
C 2781 (B,108,71) CKSSYB104K16
C 2782 (B,108,89) CKSSYB104K16
C 2785 (B,111,71) CKSRYB105K10
C 2786 (B,112,90) CKSRYB105K10
C 2787 (B,115,71) CKSQYB475K10
C 2788 (B,114,90) CKSQYB475K10
C 2789 (B,118,72) CKSQYB475K10
C 2790 (B,116,90) CKSQYB475K10
C 2791 (B,120,72) CKSQYB475K10
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
318
1234
1234
C
D
F
A
B
E
C 2792 (B,118,90) CKSQYB475K10
C 2799 (A,114,78) CEVW100M16
C 2800 (B,119,78) CKSSYB104K16
C 2801 (A,123,79) CEVW470M16
C 2831 (B,119,95) 10 uF CCG1182
C 2832 (B,113,95) 10 uF CCG1182
C 2841 (A,127,92) 10 uF CCG1182
C 2842 (A,118,92) 10 uF CCG1182
C 2843 (A,112,94) 10 uF CCG1182
C 2844 (A,106,94) 10 uF CCG1182
C 2864 (B,115,115) CKSRYB102K50
C 2865 (B,120,138) CKSRYB103K50
C 2874 (A,138,116) CKSRYB392K50
C 2880 (A,13,122) CKSSYB102K50
C 2881 (A,6,122) CKSSYB102K50
C 2889 (A,143,16) CKSQYB225K10
C 2890 (A,143,19) CKSQYB225K10
C 2891 (A,144,13) CKSQYB225K10
C 2892 (A,143,21) CKSQYB225K10
C 2893 (A,141,11) CCSRCH330J50
C 2894 (A,139,21) CCSRCH330J50
C 2895 (A,135,13) CCSRCH330J50
C 2896 (A,136,21) CCSRCH330J50
C 2897 (A,135,17) CKSSYB104K16
C 2965 (A,115,62) CEVW101M4
B
Unit Number : CWN4824(UC)
Unit Number : CWN4339(AU)
Unit Name : Tuner IF Unit
MISCELLANEOUS
IC 401 (A,52,52) IC NJM2885DL1-33
Q 491 (B,41,22) Transistor 2SB1260
Q 492 (B,46,25) Transistor IMX1
Q 493 (B,43,32) Transistor UMD3N
D 401 (B,52,42) Diode 1SR154-400
D 402 (B,54,47) Diode 1SR154-400
D 403 (B,50,47) Diode 1SR154-400
D 494 (B,37,22) Diode RSX201L-30
D 495 (B,40,26) Diode HZU7R5(B1)
D 496 (B,42,26) Diode HZU6R2(B1)
L 401 (A,22,100) Inductor LCTC220K2125
L 402 (B,36,69) Inductor CTF1607
L 403 (B,34,72) Inductor CTF1386
L 404 (B,32,48) Inductor CTF1607
L 405 (A,39,55) Inductor CTF1607
L 532 (A,32,21) Inductor CTF1606
P 401 (A,22,106) Surge Protector CSA30-201N
CN491 (A,56,34) Connector CKS6095
CN511 (A,43,10) Connector CKS5546
JA401 (A,14,118) Antenna Jack CKX1056
FM/AM Tuner Unit(UC) CWE2097
FM/AM Tuner Unit(AU) CWE2128
RESISTORS
R 401 (A,27,102) RS1/4SA0R0J
R 410 (B,32,40) (UC) RS1/16SS681J
Circuit Symbol and No. Part No.
R 411 (B,33,42) (UC) RS1/16SS681J
R 412 (B,33,44) (UC) RS1/16SS681J
R 415 (A,29,70) RS1/16SS6800D
R 416 (A,29,68) RS1/16SS681J
R 417 (A,29,63) RS1/16SS681J
R 418 (A,29,60) RS1/16SS0R0J
R 419 (A,29,58) RS1/16SS681J
R 420 (A,29,55) RS1/16SS103J
R 421 (B,28,49) RS1/16SS102J
R 424 (A,13,9) RS1/10SR101J
R 425 (A,16,10) RS1/10SR101J
R 426 (A,14,10) (UC) RS1/16SS104J
R 427 (A,15,12) (UC) RS1/16SS104J
R 434 (A,29,71) RS1/16SS1501D
R 461 (A,24,96) RS1/10SR0R0J
R 492 (A,46,22) RS1/10SR0R0J
R 493 (A,46,25) RS1/10SR0R0J
R 494 (A,50,24) RS1/10SR473J
R 495 (A,49,24) RS1/10SR473J
R 496 (B,45,22) RS1/16SS223J
R 497 (B,49,30) RS1/10SR101J
R 498 (B,48,32) RS1/10SR181J
R 499 (B,44,26) RS1/16SS471J
R 500 (B,43,26) RS1/16SS271J
R 501 (B,49,27) RS1/16SS332J
R 506 (A,50,39) RS1/16SS303J
R 511 (B,35,10) RS1/10SR0R0J
R 512 (A,47,14) RS1/10SR0R0J
R 514 (B,52,36) RS1/16SS0R0J
R 516 (B,53,8) RS1/16SS0R0J
R 520 (A,10,13) (UC) RS1/16SS472J
R 522 (A,10,10) (AU) RS1/16SS223J
R 528 (B,31,11) RS1/10SR0R0J
CAPACITORS
C 401 (B,47,49) CKSQYB334K16
C 402 (A,52,46) CKSSYB103K16
C 403 (A,39,47) CEVW470M6R3
C 411 (B,36,72) CKSRYB103K50
C 412 (B,32,72) CKSRYB104K16
C 418 (B,30,45) CKSRYB103K50
C 419 (B,28,51) CKSRYB103K50
C 420 (A,32,44) 100 uF/16 V CCH1565
C 423 (A,39,61) CEVW470M6R3
C 425 (B,35,48) CKSRYB102K50
C 428 (A,13,7) CKSRYB105K16
C 429 (A,16,8) CKSRYB105K16
C 431 (A,14,11) (UC) CKSSYB122K50
C 432 (A,15,13) (UC) CKSSYB122K50
C 434 (A,20,77) CCSSCH101J50
C 492 (B,48,27) CKSSYB153K16
C 493 (A,47,33) 100 uF/16 V CCH1565
C 494 (B,46,34) CKSRYB105K10
C 516 (B,70,75) CKSQYB334K16
C 517 (A,31,18) CKSRYB103K50
C 519 (A,38,73) CEVW471M10
C 520 (A,31,32) CEVW101M16
E
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 319
5 678
5678
C
D
F
A
B
E
Unit Number : CXX2608(UC)
Unit Number : CXX2607(AU)
Unit Name : Service CC Assy
MISCELLANEOUS
IC 4001 (A,46,66) IC TT4421
IC 4202 (A,24,44) IC BU33TA2WNVX
IC 4203 (A,20,31) IC S-80944CNNB-G9E
IC 4204 (B,62,13) IC LTC3412AEFE
IC 4205 (B,41,13) IC LTC3412AEFE
IC 4206 (A,20,34) IC S-80929CNNB-G8Z
IC 4207 (A,20,14) IC TC7SH08FUS1
IC 4208 (B,27,66) IC BU15TA2WNVX
IC 4209 (A,32,87) IC BU25TA2WNVX
IC 4210 (B,39,40) IC BU18TA2WNVX
IC 4211 (A,19,43) IC BU18TA2WNVX
IC 4212 (A,25,14) IC TC7SH08FUS1
IC 4213 (B,50,78) IC BU33TA2WNVX
IC 4216 (B,41,23) IC S-80830CLNB-B6P
IC 4217 (A,23,26) IC S-80835CLNB-B6U
IC 4218 (B,65,20) IC S-80844CLNB-B65
IC 4219 (A,42,92) IC BD6522F
IC 4220 (B,28,5) Logic IC TC7SA34FU
IC 4221 (B,18,59) Logic IC TC7SA34FU
IC 4401 (A,70,66) IC
HY5DU121622DTP-D43
IC 4402 (A,70,38) IC
HY5DU121622DTP-D43
IC 4403 (A,45,48) IC PEH224A8
IC 4404 (B,70,66) IC
HY5DU121622DTP-D43
IC 4405 (B,70,38) IC
HY5DU121622DTP-D43
IC 4406 (A,35,41) IC
CY62147EV30LL45BVA
IC 4407 (A,28,37) IC TC7PA53FU
IC 4501 (B,39,87) IC PEM002B8
IC 4602 (B,23,43) IC TC7SH86FUS1
IC 4621 (B,49,32) IC PE9019A
IC 4654 (B,29,52) IC WM1616LGEFL
IC 4701 (B,24,20) IC 341S2162
IC 4711 (A,55,85) IC GRF3I-0336B
IC 4713 (B,64,90) IC BA2115FVM
IC 4901 (A,25,75) IC TC90192XBG
IC 4902 (B,29,33) IC DS90C241QVS
IC 4903 (A,27,52) IC AK8853VN
Q 4206 (B,36,40) Chip Transistor DTC114EUA
Q 4207 (B,57,50) Chip Transistor DTC114EUA
Q 4209 (B,39,43) Transistor 2SA2030
Q 4210 (B,59,43) Transistor 2SA2030
Q 4211 (B,55,44) Transistor 2SC4081
Q 4212 (B,59,65) Chip Transistor DTC114EUA
Q 4214 (B,59,71) Chip Transistor 2SB1689
Q 4216 (B,59,61) Chip Transistor DTC114EUA
Q 4217 (B,55,65) Chip Transistor 2SB1689
Q 4218 (B,52,53) Chip Transistor 2SB1689
Q 4219 (B,21,53) Chip Transistor DTC114EUA
Q 4220 (B,22,59) Transistor 2SA2030
Q 4701 (B,23,26) Chip Transistor DTC114TUA
Q 4711 (B,62,82) Transistor 2SB1132
Q 4901 (A,6,62) Transistor 2SC4617
Q 4902 (A,20,60) Transistor 2SA1774
Q 4903 (A,19,86) Transistor 2SC4617
D 4201 (B,39,18) Diode RB521G-30
Circuit Symbol and No. Part No.
D 4202 (B,63,6) Diode RB521G-30
D 4601 (A,27,33) Diode RB520G-30
D 4711 (B,73,93) Diode HZU5R6(B3)
D 4712 (B,77,93) Diode HZU5R6(B3)
L 4002 (B,55,70) Inductor CTF1736
L 4005 (B,42,58) Inductor CTF1736
L 4006 (B,51,75) Inductor CTF1736
L 4007 (B,41,59) Inductor CTF1736
L 4010 (B,35,62) Inductor CTF1736
L 4011 (B,46,73) Inductor CTF1736
L 4012 (B,46,74) Inductor CTF1736
L 4013 (B,46,75) Inductor CTF1736
L 4014 (B,55,62) Inductor CTF1736
L 4015 (B,49,53) Inductor CTF1736
L 4016 (B,44,70) Inductor CTF1736
L 4018 (B,40,59) Inductor CTF1736
L 4201 (B,4,63) Inductor CTF1735
L 4202 (B,18,62) Choke Coil 160 mA CTH1319
L 4203 (A,23,16) Inductor CTF1736
L 4204 (B,4,51) Ferrite Bead CTF1528
L 4205 (B,4,62) Inductor CTF1735
L 4206 (B,4,59) Inductor CTF1732
L 4207 (B,4,50) Ferrite Bead CTF1528
L 4208 (A,36,89) Inductor CTF1736
L 4209 (B,18,57) Inductor CTF1739
L 4210 (B,4,57) Inductor CTF1739
L 4211 (B,4,61) Inductor CTF1735
L 4212 (B,4,52) Inductor CTF1739
L 4213 (B,18,54) Inductor CTF1739
L 4214 (B,4,45) Ferrite Bead CTF1528
L 4215 (B,18,52) Inductor CTF1739
L 4216 (B,4,48) Inductor CTF1739
L 4217 (B,31,5) Inductor CTF1736
L 4218 (B,20,50) Inductor CTF1732
L 4221 (B,19,57) Inductor CTF1736
L 4224 (B,55,13) Choke Coil 1 uH CTH1416
L 4225 (B,47,13) Choke Coil 1 uH CTH1416
L 4226 (B,20,41) Inductor CTF1736
L 4227 (A,19,17) Inductor CTF1736
L 4234 (B,21,64) Inductor CTF1735
L 4245 (B,4,43) Inductor CTF1732
L 4246 (B,18,47) Inductor CTF1739
L 4251 (B,18,45) Inductor CTF1739
L 4252 (B,18,42) Inductor CTF1739
L 4255 (B,18,40) Inductor CTF1739
L 4256 (B,18,37) Inductor CTF1739
L 4257 (B,20,37) Inductor CTF1735
L 4258 (B,20,36) Inductor CTF1735
L 4410 (A,52,46) Inductor CTF1736
L 4414 (A,25,40) Inductor CTF1736
L 4415 (A,27,35) Inductor CTF1736
L 4501 (A,36,82) Inductor CTF1736
L 4502 (A,40,83) Inductor CTF1736
L 4601 (B,21,44) Inductor CTF1736
L 4651 (B,44,53) Inductor CTF1736
L 4711 (B,65,87) Inductor CTF1736
L 4714 (B,53,90) Inductor CTF1736
L 4715 (A,62,83) Inductor CTF1736
L 4716 (A,62,84) Inductor CTF1736
L 4718 (B,73,91) Inductor LCYC1R0K2125
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
320
1234
1234
C
D
F
A
B
E
L 4781 (B,38,49) Inductor CTF1736
L 4782 (B,31,60) Inductor CTF1736
L 4783 (B,50,85) Inductor CTF1736
L 4784 (B,59,38) Inductor CTF1736
L 4785 (A,41,42) Inductor CTF1736
L 4786 (B,38,36) Inductor CTF1736
L 4787 (B,52,79) Inductor CTF1394
L 4788 (B,18,26) Inductor CTF1736
L 4903 (B,24,67) Inductor CTF1736
L 4904 (B,29,92) Inductor CTF1736
L 4905 (B,30,68) Inductor CTF1736
L 4907 (B,18,34) Inductor CTF1731
L 4931 (A,37,47) Inductor CTF1736
L 4933 (A,23,62) Inductor CTF1736
L 4934 (B,28,92) Inductor CTF1736
L 4935 (A,11,64) Inductor CTF1736
L 4936 (A,18,50) Inductor CTF1736
L 4937 (B,37,25) Inductor CTF1736
X 4001 (A,33,62) Oscillator 12.000 MHz CSS1708
X 4002 (A,35,68) Oscillator 32.768 kHz CSS1777
X 4652 (B,41,52) Oscillator 24.576 MHz CWX3635
X 4711 (B,56,92) TCXO 16.367 667 MHz CWX3728
X 4901 (A,24,85) Oscillator 42.000 000 MHz CSS1779
X 4902 (A,29,60) Oscillator 24.576 MHz CSS1699
F 4001 (B,54,71) Chip EMI Filter VTL1171
F 4003 (B,50,74) Chip EMI Filter VTL1171
F 4005 (B,34,63) Chip EMI Filter VTL1171
F 4201 (A,7,32) EMI Filter CCG1162
F 4202 (A,8,35) EMI Filter CCG1162
F 4203 (A,4,38) EMI Filter CCG1162
F 4204 (A,19,38) EMI Filter CCG1162
F 4206 (B,47,47) EMI Filter CCG1162
F 4409 (A,27,39) Chip EMI Filter DTL1106
F 4651 (B,44,51) Chip EMI Filter DTL1106
F 4711 (A,59,91) Filter CTF1706
F 4901 (B,31,71) Chip EMI Filter DTL1106
>P4201 (B,48,9) Fuse 1.75 A CEK1283
>P4202 (B,51,14) Fuse 1.5 A CEK1282
CN4201 (B,9,48) Connector CKS6126
CN4601 (A,45,17) Connector CKS6107
JA4711 (A,77,92) Connector CKS5749
SN4201 (A,36,91) Sensor S-58LM20A-N4
RESISTORS
R 4001 (B,57,67) RS1/16SS222J
R 4002 (B,57,68) RS1/16SS222J
R 4004 (B,58,78) RS1/16SS103J
R 4005 (A,62,13) RS1/16SS103J
R 4006 (B,57,69) RS1/16SS182J
R 4007 (B,57,70) RS1/16SS103J
R 4008 (B,60,78) RS1/16SS103J
R 4009 (B,59,78) RS1/16SS103J
R 4010 (B,49,55) RS1/16SS0R0J
R 4013 (A,32,66) RS1/16SS103J
R 4014 (B,46,72) RS1/16SS0R0J
R 4016 (B,47,75) RS1/16SS6041F
R 4017 (A,36,64) RS1/16SS105J
R 4018 (B,47,73) RS1/16SS0R0J
R 4020 (A,36,69) RS1/16SS106J
Circuit Symbol and No. Part No.
R 4021 (A,31,66) RS1/16SS103J
R 4022 (A,36,67) RS1/16SS101J
R 4024 (A,35,64) RS1/16SS471J
R 4025 (B,42,72) RS1/16SS103J
R 4026 (A,54,47) RS1/16SS220J
R 4027 (A,61,71) RAB4CQ104J
R 4028 (A,57,71) RAB4CQ104J
R 4029 (A,60,77) RAB4CQ104J
R 4030 (B,47,72) RS1/16SS102J
R 4032 (B,48,54) RS1/16SS0R0J
R 4033 (A,55,52) RS1/16SS220J
R 4034 (A,62,9) RS1/16SS103J
R 4035 (A,62,9) RS1/16SS103J
R 4036 (A,62,12) RS1/16SS103J
R 4037 (A,62,13) RS1/16SS103J
R 4038 (A,60,75) RAB4CQ104J
R 4040 (A,62,8) RS1/16SS103J
R 4043 (B,32,61) RS1/16SS222J
R 4044 (B,33,62) RS1/16SS222J
R 4045 (B,60,54) RS1/16SS222J
R 4046 (A,62,10) RS1/16SS103J
R 4048 (B,17,50) RS1/16SS222J
R 4049 (B,4,61) RS1/16SS222J
R 4050 (A,33,59) RS1/16SS104J
R 4051 (A,33,58) RS1/16SS104J
R 4052 (A,39,79) RS1/16SS104J
R 4053 (B,32,79) RS1/16SS104J
R 4054 (B,32,78) RS1/16SS104J
R 4055 (A,31,58) RS1/16SS684J
R 4057 (B,34,71) RS1/16SS821J
R 4058 (B,13,65) RS1/16SS222J
R 4059 (B,41,66) RS1/16SS153J
R 4060 (A,34,75) RS1/16SS222J
R 4061 (B,4,64) RS1/16SS104J
R 4062 (A,34,74) RS1/16SS222J
R 4063 (B,51,73) RS1/16SS222J
R 4064 (A,37,67) RS1/16SS103J
R 4065 (A,33,74) RS1/16SS222J
R 4066 (A,51,80) RS1/16SS0R0J
R 4067 (A,50,80) RS1/16SS0R0J
R 4068 (B,44,57) RS1/8SQ0R0J
R 4069 (A,38,48) RS1/16SS0R0J
R 4101 (B,61,71) RAB4CQ220J
R 4102 (B,61,62) RAB4CQ220J
R 4103 (B,61,59) RAB4CQ220J
R 4104 (B,61,68) RAB4CQ220J
R 4105 (B,62,45) RAB4CQ220J
R 4106 (B,62,52) RAB4CQ220J
R 4107 (B,62,48) RAB4CQ220J
R 4108 (B,62,43) RAB4CQ220J
R 4109 (B,40,72) RS1/16SS0R0J
R 4110 (A,46,55) RAB4CQ220J
R 4111 (A,43,55) RAB4CQ220J
R 4112 (A,44,53) RAB4CQ220J
R 4113 (A,41,53) RAB4CQ220J
R 4114 (B,41,73) RS1/16SS0R0J
R 4115 (A,42,75) RS1/16SS470J
R 4116 (A,44,77) RS1/16SS220J
R 4117 (A,44,75) RS1/16SS220J
R 4118 (A,43,75) RS1/16SS220J
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 321
5 678
5678
C
D
F
A
B
E
R 4119 (A,42,77) RS1/16SS220J
R 4120 (A,43,77) RS1/16SS220J
R 4121 (A,38,50) RS1/16SS0R0J
R 4133 (A,39,52) RS1/16SS330J
R 4134 (A,38,52) RS1/16SS330J
R 4135 (A,40,50) RS1/16SS220J
R 4136 (A,51,51) RS1/16SS220J
R 4137 (A,50,51) RS1/16SS470J
R 4138 (A,39,50) RS1/16SS0R0J
R 4139 (A,53,52) RAB4CQ470J
R 4140 (A,50,53) RAB4CQ470J
R 4141 (A,49,55) RAB4CQ470J
R 4142 (A,47,53) RAB4CQ470J
R 4143 (A,45,75) RS1/16SS470J
R 4144 (A,46,75) RS1/16SS0R0J
R 4145 (B,45,77) RAB4CQ470J
R 4146 (B,42,77) RAB4CQ470J
R 4147 (A,37,52) RS1/16SS330J
R 4148 (B,62,57) RS1/16SS220J
R 4149 (B,62,56) RS1/16SS220J
R 4150 (B,62,56) RS1/16SS220J
R 4151 (B,62,55) RS1/16SS220J
R 4152 (B,41,71) RS1/16SS473J
R 4153 (B,41,74) RS1/16SS103J
R 4154 (B,54,60) RN1/16SSE1501D
R 4155 (B,52,60) RN1/16SSE1501D
R 4194 (A,50,75) RS1/16SS0R0J
R 4196 (B,61,27) RS1/16SS104J
R 4197 (B,61,32) RS1/16SS104J
R 4198 (B,44,55) RS1/16SS104J
R 4199 (A,40,55) RS1/16SS272J
R 4201 (A,6,37) RS1/10SR0R0J
R 4202 (B,6,66) RS1/10SR0R0J
R 4206 (A,64,14) RS1/16SS4702D
R 4207 (A,63,14) RS1/16SS1003D
R 4208 (A,20,19) RS1/16SS4702D
R 4209 (A,19,20) RS1/16SS1003D
R 4210 (B,63,8) RS1/16SS223J
R 4211 (B,39,17) RS1/16SS223J
R 4212 (B,68,14) RS1/16SS512J
R 4213 (B,34,10) RS1/16SS512J
R 4214 (B,53,18) RS1/4S0R0J
R 4215 (B,45,6) RS1/4S0R0J
R 4216 (B,64,16) RS1/10SR103J
R 4217 (B,38,9) RS1/10SR103J
R 4218 (B,69,12) RS1/16SS5102D
R 4219 (B,67,13) RS1/16SS0R0J
R 4220 (B,69,14) RS1/16SS2402D
R 4221 (B,34,13) RS1/16SS1003D
R 4222 (B,36,12) RS1/16SS9101D
R 4223 (B,33,10) RS1/16SS2003D
R 4224 (B,51,8) RS1/16SS0R0J
R 4225 (B,45,16) RS1/16SS0R0J
R 4226 (A,19,27) RS1/16SS104J
R 4228 (A,18,12) RS1/16SS103J
R 4229 (B,59,45) RS1/10SR103J
R 4230 (B,57,44) RS1/10SR102J
R 4231 (A,53,49) RS1/16SS220J
R 4233 (A,29,86) RS1/10SR0R0J
R 4234 (B,24,65) RS1/10SR0R0J
Circuit Symbol and No. Part No.
R 4235 (B,41,41) RS1/10SR0R0J
R 4236 (B,53,50) RS1/10SR103J
R 4237 (B,51,43) RS1/10SR103J
R 4238 (B,57,41) RS1/10SR103J
R 4239 (A,62,44) RS1/8SQ0R0J
R 4241 (B,36,43) RS1/10SR103J
R 4242 (B,33,15) RS1/8SQ0R0J
R 4243 (A,48,91) RS1/8SQ0R0J
R 4246 (B,35,43) RS1/10SR331J
R 4247 (B,55,50) RS1/10SR561J
R 4249 (A,19,39) RS1/10SR0R0J
R 4250 (B,39,21) RS1/16SS0R0J
R 4251 (B,22,38) RS1/16SS0R0J
R 4253 (B,39,20) RS1/16SS0R0J
R 4254 (B,59,68) RS1/10SR103J
R 4255 (B,20,38) RS1/16SS0R0J
R 4257 (B,63,22) RS1/16SS0R0J
R 4259 (B,59,67) RS1/10SR681J
R 4261 (B,38,46) RS1/16SS102J
R 4262 (B,37,38) RS1/16SS0R0J
R 4265 (A,5,54) RS1/10SR0R0J
R 4266 (A,19,24) RS1/16SS105J
R 4267 (A,22,14) RS1/16SS0R0J
R 4268 (B,56,63) RS1/10SR103J
R 4269 (A,56,35) RS1/10SR471J
R 4270 (B,47,77) RS1/16SS103J
R 4271 (B,57,61) RS1/10SR561J
R 4275 (A,36,93) RS1/16SS471J
R 4277 (A,23,40) RS1/10SR0R0J
R 4278 (A,28,44) RS1/10SR0R0J
R 4279 (B,49,76) RS1/10SR0R0J
R 4282 (B,22,56) RS1/10SR103J
R 4283 (B,23,54) RS1/10SR561J
R 4286 (B,48,79) RS1/16SS0R0J
R 4287 (A,7,52) (AU) RS1/16SS0R0J
R 4288 (A,8,52) (UC) RS1/16SS0R0J
R 4290 (A,10,52) RS1/16SS0R0J
R 4292 (B,4,55) RS1/16SS0R0J
R 4293 (B,4,54) RS1/16SS0R0J
R 4294 (B,44,44) RS1/10SR102J
R 4295 (B,32,5) RS1/16SS105J
R 4296 (A,12,41) RS1/16SS0R0J
R 4297 (A,12,53) RS1/16SS0R0J
R 4298 (A,5,52) RS1/16SS0R0J
R 4401 (B,79,76) RAB4CQ220J
R 4402 (B,79,73) RAB4CQ220J
R 4403 (B,79,70) RAB4CQ220J
R 4404 (A,77,63) RS1/16SS471J
R 4405 (B,79,67) RAB4CQ220J
R 4406 (B,79,28) RAB4CQ220J
R 4407 (B,79,31) RAB4CQ220J
R 4408 (B,79,34) RAB4CQ220J
R 4409 (B,79,37) RAB4CQ220J
R 4410 (B,79,64) RS1/16SS220J
R 4411 (B,79,64) RS1/16SS220J
R 4412 (B,78,43) RS1/16SS220J
R 4413 (B,78,42) RS1/16SS220J
R 4414 (A,51,48) RS1/16SS103J
R 4415 (A,63,41) RS1/16SS471J
R 4419 (A,51,49) RS1/16SS473J
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
322
1234
1234
C
D
F
A
B
E
R 4420 (B,63,63) RS1/16SS471J
R 4424 (A,39,48) RS1/16SS0R0J
R 4431 (B,77,41) RS1/16SS471J
R 4432 (A,57,62) RS1/16SS150J
R 4433 (A,57,63) RS1/16SS150J
R 4434 (A,60,50) RS1/16SS390J
R 4435 (B,62,54) RS1/16SS390J
R 4436 (A,63,61) RS1/16SS560J
R 4437 (A,63,63) RS1/16SS560J
R 4438 (A,62,50) RS1/16SS560J
R 4439 (A,62,49) RS1/16SS560J
R 4440 (A,60,69) RAB4CQ330J
R 4441 (A,60,66) RAB4CQ330J
R 4442 (A,57,68) RAB4CQ330J
R 4443 (A,57,65) RAB4CQ330J
R 4444 (A,58,50) RAB4CQ330J
R 4446 (A,39,39) RS1/16SS104J
R 4448 (A,30,37) RS1/16SS104J
R 4449 (A,40,39) RS1/16SS104J
R 4450 (B,78,39) RN1/16SSE1501D
R 4451 (B,78,41) RN1/16SSE1501D
R 4452 (B,62,64) RN1/16SSE1501D
R 4453 (B,61,64) RN1/16SSE1501D
R 4454 (A,63,38) RN1/16SSE1501D
R 4455 (A,62,38) RN1/16SSE1501D
R 4456 (A,78,64) RN1/16SSE1501D
R 4457 (A,78,66) RN1/16SSE1501D
R 4501 (B,40,79) RS1/16SS820J
R 4502 (B,40,78) RS1/16SS472J
R 4503 (B,34,79) RAB4CQ563J
R 4504 (B,37,79) RAB4CQ563J
R 4505 (B,34,77) RS1/16SS0R0J
R 4506 (A,41,81) RS1/10SR0R0J
R 4507 (A,41,80) RS1/10SR0R0J
R 4603 (A,40,37) RS1/16SS0R0J
R 4604 (A,53,35) RS1/16SS220J
R 4605 (A,50,35) RS1/16SS220J
R 4606 (A,48,35) RS1/16SS220J
R 4607 (A,35,35) RS1/16SS220J
R 4608 (A,34,35) RS1/16SS220J
R 4609 (A,31,35) RS1/16SS152J
R 4610 (A,29,35) RS1/16SS330J
R 4612 (B,26,42) RS1/16SS104J
R 4613 (B,25,43) RS1/16SS104J
R 4617 (B,46,22) RS1/16SS103J
R 4618 (B,61,30) RS1/16SS104J
R 4619 (B,60,27) RS1/16SS104J
R 4620 (B,61,31) RS1/16SS104J
R 4622 (B,59,32) RS1/16SS101J
R 4623 (B,59,31) RS1/16SS0R0J
R 4624 (B,59,30) RS1/16SS101J
R 4625 (B,59,29) RS1/16SS101J
R 4628 (B,57,23) RS1/16SS0R0J
R 4631 (B,53,42) RS1/16SS151J
R 4633 (B,58,22) RS1/16SS0R0J
R 4634 (B,55,22) RS1/16SS0R0J
R 4635 (B,59,25) RS1/16SS0R0J
R 4636 (B,45,22) RS1/16SS0R0J
R 4637 (B,47,41) RS1/16SS0R0J
R 4638 (B,45,22) RS1/16SS0R0J
Circuit Symbol and No. Part No.
R 4639 (B,44,22) RS1/16SS0R0J
R 4640 (A,62,7) RS1/16SS473J
R 4641 (A,62,4) RS1/16SS473J
R 4642 (A,62,5) RS1/16SS473J
R 4643 (A,62,6) RS1/16SS473J
R 4647 (B,49,22) RS1/16SS103J
R 4648 (B,50,22) RS1/16SS103J
R 4649 (B,53,22) RS1/16SS103J
R 4661 (B,25,56) RS1/16SS0R0J
R 4667 (B,37,52) RS1/16SS101J
R 4668 (B,20,47) RS1/10SR0R0J
R 4669 (B,26,46) RS1/16SS0R0J
R 4670 (B,26,47) RS1/16SS0R0J
R 4671 (B,28,46) RS1/16SS0R0J
R 4677 (B,28,47) RS1/16SS0R0J
R 4678 (B,37,51) RS1/16SS0R0J
R 4679 (B,35,48) RS1/16SS330J
R 4680 (B,35,47) RS1/16SS330J
R 4681 (B,35,46) RS1/16SS0R0J
R 4682 (B,33,47) RS1/16SS0R0J
R 4683 (B,25,58) RS1/16SS1000D
R 4684 (B,25,57) RS1/16SS1000D
R 4685 (B,31,43) RS1/16SS0R0J
R 4686 (B,32,43) RS1/16SS0R0J
R 4687 (B,33,43) RS1/16SS0R0J
R 4688 (B,34,43) RS1/16SS0R0J
R 4702 (B,21,26) RS1/16SS0R0J
R 4703 (B,25,16) RS1/16SS0R0J
R 4704 (B,24,16) RS1/16SS0R0J
R 4707 (B,24,23) RS1/16SS473J
R 4708 (B,22,16) RS1/16SS104J
R 4709 (B,21,23) RS1/16SS103J
R 4710 (B,20,25) RS1/16SS223J
R 4711 (A,57,89) RS1/16SS2R7J
R 4712 (A,52,85) RS1/16SS472J
R 4713 (B,52,86) RS1/16SS203J
R 4714 (A,55,82) RS1/16SS101J
R 4715 (A,54,82) RS1/16SS101J
R 4716 (A,53,82) RS1/16SS101J
R 4718 (A,57,82) RS1/16SS0R0J
R 4719 (A,58,82) RS1/16SS0R0J
R 4720 (A,56,82) RS1/16SS0R0J
R 4721 (B,68,87) RS1/16SS0R0J
R 4723 (B,59,87) RN1/16SC10R0D
R 4724 (B,60,88) RN1/16SSE1501D
R 4725 (B,60,90) RN1/16SSE2402D
R 4726 (B,60,92) RN1/16SSE3302D
R 4728 (B,64,88) RN1/16SSE4702D
R 4729 (B,62,92) RN1/16SSE4702D
R 4730 (B,61,88) RS1/16SS432J
R 4731 (B,62,88) RN1/16SSE1002D
R 4732 (B,67,89) RN1/16SSE2202D
R 4733 (B,68,89) RN1/16SSE3302D
R 4734 (B,68,91) RS1/16SS103J
R 4735 (B,68,90) RS1/16SS102J
R 4736 (B,63,86) RS1/16SS102J
R 4739 (A,52,83) RS1/16SS151J
R 4740 (A,55,89) RS1/16SS0R0J
R 4742 (A,61,91) RS1/16SS0R0J
R 4771 (A,55,35) RS1/16SS103J
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 323
5 678
5678
C
D
F
A
B
E
R 4772 (A,52,35) RS1/16SS103J
R 4773 (A,49,35) RS1/16SS103J
R 4774 (A,39,35) RS1/16SS103J
R 4775 (A,37,35) RS1/16SS103J
R 4776 (A,33,35) RS1/16SS103J
R 4781 (B,21,42) RS1/16SS221J
R 4801 (A,23,46) RS1/16SS470J
R 4802 (A,24,46) RS1/16SS470J
R 4803 (A,25,46) RS1/16SS470J
R 4804 (A,25,46) RS1/16SS470J
R 4805 (A,26,46) RS1/16SS470J
R 4806 (A,29,45) RS1/16SS470J
R 4807 (A,29,46) RS1/16SS470J
R 4808 (A,30,46) RS1/16SS470J
R 4809 (A,30,46) RS1/16SS470J
R 4810 (A,31,46) RS1/16SS470J
R 4811 (A,23,45) RS1/16SS470J
R 4812 (A,25,58) RS1/16SS6801D
R 4813 (A,28,58) RS1/16SS0R0J
R 4814 (A,33,51) RS1/16SS0R0J
R 4815 (A,32,49) RS1/16SS470J
R 4816 (A,33,56) RS1/16SS103J
R 4817 (A,33,57) RS1/16SS151J
R 4818 (A,33,55) RS1/16SS103J
R 4819 (A,33,52) RS1/16SS0R0J
R 4821 (A,33,53) RS1/16SS0R0J
R 4822 (A,28,63) RS1/16SS151J
R 4823 (A,27,66) RS1/16SS151J
R 4824 (A,27,63) RS1/16SS151J
R 4825 (A,26,66) RS1/16SS151J
R 4901 (A,32,85) RS1/16SS151J
R 4902 (A,33,85) RS1/16SS151J
R 4903 (A,18,65) RS1/10SR270J
R 4904 (A,34,78) RS1/16SS151J
R 4905 (A,27,84) RS1/16SS151J
R 4906 (A,36,80) RS1/16SS151J
R 4907 (A,36,81) RS1/16SS151J
R 4908 (A,34,78) RS1/16SS151J
R 4909 (A,34,79) RS1/16SS151J
R 4910 (A,34,80) RS1/16SS151J
R 4911 (A,28,84) RS1/16SS151J
R 4912 (A,34,83) RS1/16SS151J
R 4913 (A,34,84) RS1/16SS151J
R 4914 (A,29,84) RS1/16SS151J
R 4915 (A,34,82) RS1/16SS151J
R 4916 (A,34,82) RS1/16SS151J
R 4917 (A,29,84) RS1/16SS151J
R 4918 (A,34,81) RS1/16SS151J
R 4919 (A,30,84) RS1/16SS151J
R 4920 (A,31,84) RS1/16SS151J
R 4921 (B,17,66) RS1/16SS0R0J
R 4922 (A,6,64) RS1/16SS2202D
R 4923 (A,4,62) RS1/16SS182J
R 4924 (A,18,58) RS1/16SS8200D
R 4925 (A,20,61) RS1/16SS561J
R 4926 (A,23,84) RS1/16SS274J
R 4928 (A,25,89) RS1/16SS0R0J
R 4929 (A,25,88) RS1/16SS0R0J
R 4930 (A,28,85) RS1/16SS0R0J
R 4932 (A,27,86) RS1/16SS223J
Circuit Symbol and No. Part No.
R 4933 (B,28,81) RS1/16SS104J
R 4935 (B,26,27) RS1/16SS0R0J
R 4937 (A,18,48) RS1/10SR0R0J
R 4938 (A,21,63) RS1/16SS151J
R 4939 (A,20,66) RS1/16SS151J
R 4940 (A,20,63) RS1/16SS151J
R 4941 (A,21,66) RS1/16SS151J
R 4942 (A,22,63) RS1/16SS151J
R 4943 (A,22,66) RS1/16SS151J
R 4944 (A,23,63) RS1/16SS151J
R 4945 (A,23,66) RS1/16SS151J
R 4946 (A,24,63) RS1/16SS151J
R 4947 (A,24,66) RS1/16SS151J
R 4948 (A,25,63) RS1/16SS151J
R 4949 (A,25,66) RS1/16SS151J
R 4950 (A,26,63) RS1/16SS151J
R 4951 (A,5,60) RS1/16SS1003D
R 4953 (A,19,66) RS1/16SS151J
R 4955 (A,17,80) RS1/16SS0R0J
R 4956 (B,18,85) RS1/16SS0R0J
R 4957 (B,23,79) RS1/16SS0R0J
R 4958 (A,17,82) RS1/16SS0R0J
R 4959 (A,28,66) RS1/16SS151J
R 4960 (A,19,84) RS1/16SS152J
R 4961 (A,22,84) RS1/16SS1001D
R 4962 (A,20,86) RS1/16SS1201F
R 4963 (B,19,83) RS1/10SR0R0J
R 4964 (A,29,65) RS1/16SS151J
R 4965 (B,31,26) RS1/16SS0R0J
R 4966 (A,18,60) RS1/16SS6800D
R 4967 (B,35,29) RS1/16SS0R0J
R 4968 (B,35,30) RS1/16SS0R0J
R 4969 (B,35,31) RS1/16SS0R0J
R 4970 (B,35,32) RS1/16SS0R0J
R 4971 (B,35,32) RS1/16SS0R0J
R 4972 (B,35,35) RS1/16SS0R0J
R 4973 (B,23,34) RS1/16SS1000D
R 4974 (B,36,38) RS1/16SS0R0J
R 4975 (B,33,40) RS1/16SS0R0J
R 4976 (B,31,40) RS1/16SS0R0J
R 4977 (B,30,40) RS1/16SS0R0J
R 4978 (B,27,40) RS1/16SS0R0J
R 4979 (B,26,40) RS1/16SS0R0J
R 4980 (B,25,40) RS1/16SS0R0J
R 4981 (B,24,40) RS1/16SS0R0J
R 4982 (B,27,26) RS1/16SS473J
R 4984 (B,32,40) RS1/16SS0R0J
R 4985 (B,32,40) RS1/16SS0R0J
R 4986 (B,35,38) RS1/16SS0R0J
R 4987 (B,35,36) RS1/16SS0R0J
R 4988 (B,31,26) RS1/16SS0R0J
R 4989 (B,32,26) RS1/16SS0R0J
R 4990 (B,27,40) RS1/16SS0R0J
R 4991 (B,34,38) RS1/16SS0R0J
R 4992 (B,26,26) RS1/16SS0R0J
R 4993 (B,30,26) RS1/16SS562J
R 4994 (A,6,56) RS1/16SS104J
R 4995 (A,29,67) RS1/16SS151J
R 4996 (A,30,65) RS1/16SS151J
R 4997 (A,30,67) RS1/16SS151J
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
324
1234
1234
C
D
F
A
B
E
R 4999 (B,25,27) RS1/16SS562J
CAPACITORS
C 4002 (B,53,69) CKSQYB106K6R3
C 4003 (B,52,58) CKSSYB102K50
C 4004 (B,52,59) CKSRYB104K10
C 4005 (B,54,68) CKSSYB104K10
C 4007 (B,50,55) CKSSYB104K10
C 4008 (B,53,62) CKSSYB104K10
C 4009 (B,47,54) CKSSYB104K10
C 4010 (B,53,63) CKSSYB102K50
C 4011 (B,53,64) CKSSYB102K50
C 4012 (B,53,65) CKSSYB102K50
C 4013 (B,53,66) CKSSYB102K50
C 4014 (B,53,67) CKSSYB102K50
C 4015 (B,53,68) CKSSYB102K50
C 4016 (B,50,63) CKSSYB102K50
C 4017 (B,50,63) CKSSYB102K50
C 4018 (B,50,64) CKSSYB104K10
C 4019 (B,50,65) CKSSYB102K50
C 4020 (B,50,66) CKSSYB102K50
C 4021 (B,50,67) CKSSYB104K10
C 4022 (B,50,69) CKSSYB104K10
C 4023 (B,49,64) CKSSYB104K10
C 4026 (B,49,67) CKSSYB104K10
C 4027 (B,50,67) CKSSYB104K10
C 4028 (B,50,68) CKSSYB104K10
C 4029 (B,55,53) CKSSYB103K16
C 4030 (B,54,53) CKSSYB103K16
C 4031 (B,48,60) CKSSYB102K50
C 4032 (B,49,69) CKSSYB104K10
C 4033 (B,48,70) CKSSYB104K10
C 4034 (B,48,62) CKSSYB104K10
C 4035 (B,48,60) CKSSYB102K50
C 4036 (B,48,69) CKSSYB104K10
C 4037 (B,48,62) CKSSYB104K10
C 4038 (B,47,64) CKSSYB104K10
C 4039 (B,47,69) CKSSYB104K10
C 4040 (B,55,53) CKSSYB103K16
C 4041 (B,47,63) CKSSYB104K10
C 4042 (B,47,70) CKSSYB104K10
C 4043 (B,46,63) CKSSYB104K10
C 4044 (B,47,69) CKSSYB104K10
C 4045 (B,46,62) CKSSYB104K10
C 4046 (B,46,69) CKSSYB104K10
C 4047 (B,45,62) CKSSYB104K10
C 4048 (B,45,69) CKSSYB104K10
C 4049 (B,44,62) CKSSYB104K10
C 4050 (B,44,69) CKSSYB104K10
C 4051 (B,43,62) CKSSYB104K10
C 4052 (B,46,70) CKSSYB104K10
C 4053 (B,44,61) CKSSYB104K10
C 4054 (B,42,63) CKSSYB104K10
C 4055 (B,45,63) CKSSYB104K10
C 4056 (B,44,63) CKSSYB104K10
C 4057 (B,42,65) CKSSYB104K10
C 4059 (B,42,66) CKSSYB104K10
C 4060 (B,44,66) CKSSYB104K10
C 4061 (B,43,68) CKSSYB104K10
Circuit Symbol and No. Part No.
C 4062 (B,43,68) CKSSYB104K10
C 4063 (B,42,62) CKSSYB104K10
C 4064 (B,42,64) CKSSYB104K10
C 4065 (B,42,65) CKSSYB104K10
C 4066 (B,41,65) CKSSYB104K10
C 4069 (B,39,67) CKSSYB104K10
C 4070 (B,39,65) CKSSYB104K10
C 4071 (B,49,59) CKSQYB106K6R3
C 4072 (B,50,71) CKSQYB106K6R3
C 4073 (B,40,64) CKSSYB104K10
C 4074 (B,44,59) CKSRYB105K10
C 4075 (B,43,58) CKSSYB104K10
C 4076 (B,41,70) CKSSYB104K10
C 4077 (B,42,71) CKSSYB104K10
C 4078 (B,51,74) CKSSYB104K10
C 4079 (B,39,66) CKSSYB104K10
C 4080 (B,41,67) CKSSYB104K10
C 4081 (B,42,70) CKSSYB104K10
C 4082 (B,42,74) CKSSYB104K10
C 4083 (B,40,61) CKSRYB105K10
C 4084 (B,39,62) CKSRYB105K10
C 4086 (B,36,64) CKSQYB106K6R3
C 4087 (B,41,68) CKSRYB105K10
C 4088 (B,36,62) CKSSYB104K10
C 4089 (B,44,72) CKSRYB105K10
C 4090 (B,43,74) CKSRYB105K10
C 4091 (B,44,74) CKSRYB105K10
C 4092 (A,33,60) CCSSCH120J50
C 4093 (A,34,71) CCSSCH220J50
C 4094 (A,33,66) CCSSCH220J50
C 4095 (A,33,64) CCSSCH120J50
C 4096 (B,54,62) CKSRYB105K10
C 4097 (B,49,54) CKSRYB105K10
C 4098 (B,56,53) CKSSYB103K16
C 4103 (B,46,59) 47 uF/6.3 V CCH1852
C 4104 (B,48,72) CKSSYB104K10
C 4201 (A,6,30) CKSSYB104K10
C 4202 (A,6,34) CKSSYB104K10
C 4203 (A,5,41) CKSSYB104K10
C 4204 (A,19,36) CKSSYB104K10
C 4205 (A,10,31) 10 uF DCH1201
C 4206 (A,10,34) 10 uF DCH1201
C 4207 (A,12,38) 10 uF DCH1201
C 4208 (A,22,37) 10 uF DCH1201
C 4209 (A,12,31) 10 uF DCH1201
C 4210 (A,12,34) 10 uF DCH1201
C 4211 (A,10,38) 10 uF DCH1201
C 4212 (A,24,37) 10 uF DCH1201
C 4213 (B,63,9) CKSSYB104K10
C 4214 (B,38,16) CKSSYB104K10
C 4215 (A,18,31) CKSSYB104K10
C 4216 (B,67,14) CCSSCH101J50
C 4217 (B,35,10) CCSSCH101J50
C 4218 (B,68,16) CCSSCH102J50
C 4219 (B,34,9) CCSSCH102J50
C 4221 (A,24,42) CKSRYB105K10
C 4222 (B,69,13) CCSSCH100D50
C 4223 (B,34,12) CCSSCH220J50
C 4224 (A,19,29) CKSSYB392K50
C 4226 (A,26,44) CKSRYB105K10
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 325
5 678
5678
C
D
F
A
B
E
C 4227 (B,61,9) 10 uF DCH1201
C 4228 (B,42,17) 10 uF DCH1201
C 4229 (A,17,34) CKSSYB104K10
C 4230 (B,60,17) 10 uF DCH1201
C 4231 (B,42,9) 10 uF DCH1201
C 4232 (B,60,19) 47 uF/10 V CCH1820
C 4233 (B,40,6) 47 uF/10 V CCH1820
C 4236 (B,57,9) 10 uF CCG1234
C 4237 (B,44,18) 10 uF CCG1234
C 4238 (B,55,9) 10 uF CCG1234
C 4239 (B,46,18) 10 uF CCG1234
C 4240 (A,20,32) CKSSYB392K50
C 4241 (B,53,8) 100 uF/4 V CCH1809
C 4242 (B,48,18) 100 uF/4 V CCH1809
C 4243 (A,19,28) CKSSYB102K50
C 4244 (B,60,39) CKSSYB104K10
C 4245 (B,53,43) CKSRYB474K16
C 4246 (A,19,16) CKSSYB104K10
C 4247 (A,23,14) CKSSYB104K10
C 4248 (B,26,65) CKSRYB105K10
C 4249 (A,31,87) CKSRYB105K10
C 4250 (B,40,40) CKSRYB105K10
C 4251 (A,34,88) CKSRYB105K10
C 4252 (B,28,67) CKSRYB105K10
C 4253 (B,39,37) CKSRYB105K10
C 4255 (B,38,45) CKSSYB104K10
C 4256 (B,50,52) CKSSYB104K10
C 4257 (A,19,41) CKSRYB105K10
C 4259 (A,18,45) CKSRYB105K10
C 4260 (B,59,74) CKSSYB104K10
C 4261 (B,41,21) CKSSYB103K16
C 4265 (B,57,65) CKSSYB104K10
C 4266 (B,49,78) CKSRYB105K10
C 4267 (B,49,81) CKSRYB105K10
C 4269 (A,22,24) CKSSYB103K16
C 4270 (B,64,20) CKSSYB103K16
C 4271 (A,42,88) CKSSYB104K10
C 4272 (A,38,93) CKSSYB104K10
C 4273 (A,38,90) CKSSYB104K10
C 4274 (B,47,45) CKSSYB104K10
C 4275 (B,50,48) 10 uF DCH1201
C 4277 (B,51,48) 10 uF DCH1201
C 4278 (A,37,93) CKSSYB104K10
C 4279 (B,30,5) CKSSYB104K10
C 4280 (B,20,59) CKSSYB104K10
C 4282 (B,24,60) CKSSYB104K10
C 4401 (A,62,76) CKSSYB103K16
C 4402 (A,62,75) CKSSYB103K16
C 4403 (A,63,71) CKSSYB103K16
C 4404 (A,63,68) CKSSYB103K16
C 4405 (A,63,64) CKSSYB103K16
C 4406 (A,63,56) CKSSYB103K16
C 4407 (A,77,52) CKSQYB106K6R3
C 4408 (B,70,25) CKSRYB105K10
C 4409 (A,77,73) CKSSYB103K16
C 4410 (A,77,68) CKSSYB103K16
C 4411 (A,73,52) CKSSYB104K10
C 4412 (A,77,64) CKSSYB103K16
C 4413 (B,63,77) CKSRYB105K10
C 4414 (A,78,27) CKSSYB103K16
Circuit Symbol and No. Part No.
C 4415 (A,78,29) CKSSYB103K16
C 4416 (A,78,33) CKSSYB103K16
C 4417 (A,77,36) CKSSYB103K16
C 4418 (A,77,39) CKSSYB103K16
C 4419 (A,77,49) CKSSYB103K16
C 4420 (A,75,24) CKSQYB106K6R3
C 4421 (A,71,25) CKSRYB105K10
C 4422 (A,63,32) CKSSYB103K16
C 4423 (A,63,36) CKSSYB103K16
C 4424 (A,70,25) CKSSYB104K10
C 4425 (A,63,39) CKSSYB103K16
C 4426 (A,74,53) CKSRYB105K10
C 4427 (B,77,76) CKSSYB103K16
C 4428 (B,77,74) CKSSYB103K16
C 4429 (B,77,71) CKSSYB103K16
C 4430 (B,77,67) CKSSYB103K16
C 4431 (B,77,64) CKSSYB103K16
C 4432 (B,77,56) CKSSYB103K16
C 4433 (B,68,78) CKSQYB106K6R3
C 4435 (B,63,72) CKSSYB103K16
C 4436 (B,63,68) CKSSYB103K16
C 4437 (A,50,46) CKSSYB104K10
C 4438 (B,62,76) CKSSYB104K10
C 4439 (B,63,64) CKSSYB103K16
C 4441 (A,51,46) CKSRYB105K10
C 4442 (B,63,27) CKSSYB103K16
C 4443 (B,63,29) CKSSYB103K16
C 4444 (B,63,32) CKSSYB103K16
C 4445 (B,63,36) CKSSYB103K16
C 4446 (B,63,39) CKSSYB103K16
C 4447 (B,64,50) CKSSYB103K16
C 4448 (B,66,25) CKSQYB106K6R3
C 4450 (B,77,31) CKSSYB103K16
C 4451 (B,77,35) CKSSYB103K16
C 4452 (B,71,25) CKSSYB104K10
C 4453 (B,77,39) CKSSYB103K16
C 4455 (A,27,35) CKSSYB104K10
C 4456 (A,26,41) CKSSYB104K10
C 4457 (A,29,41) CKSQYB106K6R3
C 4458 (A,31,41) CKSSYB104K10
C 4459 (A,39,41) CKSSYB104K10
C 4511 (A,42,84) CKSSYB104K10
C 4512 (A,37,83) CKSRYB105K10
C 4513 (A,42,86) CKSSYB104K10
C 4514 (A,40,85) CKSSYB104K10
C 4515 (A,41,87) CKSSYB104K10
C 4516 (A,36,87) CKSSYB104K10
C 4517 (A,36,85) CKSSYB104K10
C 4518 (A,36,84) CKSSYB104K10
C 4519 (A,36,86) CKSSYB104K10
C 4520 (A,39,89) CKSSYB104K10
C 4521 (A,38,87) CKSSYB104K10
C 4522 (A,39,84) CKSRYB105K10
C 4607 (A,30,35) CKSSYB104K10
C 4608 (A,29,35) CKSSYB104K10
C 4609 (A,44,35) CKSRYB104K50
C 4613 (B,40,30) CKSSYB473K10
C 4614 (B,23,45) CKSSYB104K10
C 4621 (B,59,28) CKSSYB473K10
C 4622 (B,57,24) CKSSYB473K10
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
326
1234
1234
C
D
F
A
B
E
C 4623 (B,48,22) CKSSYB473K10
C 4624 (B,40,25) CKSSYB473K10
C 4625 (B,48,41) CKSSYB473K10
C 4626 (B,55,41) CKSSYB473K10
C 4651 (B,43,53) CKSSYB104K10
C 4653 (B,30,57) 4.7 uF CCG1201
C 4661 (B,31,47) 4.7 uF CCG1201
C 4662 (B,35,50) 4.7 uF CCG1201
C 4665 (B,36,53) 4.7 uF CCG1201
C 4666 (B,23,49) 4.7 uF CCG1201
C 4667 (B,27,58) 4.7 uF CCG1201
C 4668 (B,28,45) CKSRYB105K10
C 4670 (B,24,53) 4.7 uF CCG1201
C 4671 (B,23,51) 4.7 uF CCG1201
C 4701 (B,26,23) CKSSYB104K10
C 4711 (A,58,89) CKSSYB105K6R3
C 4712 (B,58,90) CKSSYB103K16
C 4713 (B,53,92) CKSSYB102K50
C 4714 (A,60,84) CKSSYB104K10
C 4715 (A,60,83) CCSSCH101J50
C 4716 (A,60,85) 10 uF CCG1244
C 4717 (A,59,84) CKSSYB104K10
C 4718 (A,59,86) CCSSCH470J50
C 4719 (A,56,89) CKSSYB104K10
C 4720 (A,56,89) CCSSCH470J50
C 4721 (A,56,90) CCSSCH101J50
C 4722 (A,53,88) CCSSCH470J50
C 4723 (A,52,87) CCSSCH470J50
C 4724 (A,63,91) CCSSCH101J50
C 4725 (A,71,92) CCSSCH101J50
C 4727 (B,76,92) CCSSCH101J50
C 4728 (B,70,89) CKSSYB102K50
C 4729 (B,69,88) CKSSYB103K16
C 4730 (B,66,86) CKSSYB104K10
C 4731 (B,65,84) CKSSYB104K10
C 4732 (B,65,86) CKSSYB103K16
C 4733 (B,61,90) CCSSCH101J50
C 4734 (B,66,88) CKSSYB104K10
C 4735 (A,68,92) CCSSCK1R0C50
C 4781 (B,36,49) 10 uF CCG1234
C 4782 (B,30,59) 10 uF CCG1234
C 4783 (B,49,87) 10 uF CCG1234
C 4784 (B,59,39) CKSRYB105K10
C 4785 (A,41,40) CKSRYB105K10
C 4786 (B,39,34) CKSRYB105K10
C 4787 (B,51,81) CKSSYB102K50
C 4788 (B,19,27) 10 uF CCG1234
C 4801 (B,22,32) CKSSYB103K16
C 4802 (B,29,26) CKSSYB104K10
C 4803 (B,21,71) CKSSYB103K16
C 4804 (B,24,71) CKSSYB103K16
C 4805 (B,26,71) CKSSYB103K16
C 4806 (B,27,71) CKSSYB103K16
C 4807 (B,27,69) CKSSYB103K16
C 4808 (B,29,71) CKSSYB103K16
C 4809 (B,21,72) CKSSYB103K16
C 4810 (B,24,74) CKSSYB103K16
C 4811 (B,21,73) CKSSYB103K16
C 4812 (B,23,72) CKSSYB103K16
C 4813 (B,22,74) CKSSYB103K16
Circuit Symbol and No. Part No.
C 4814 (B,23,74) CKSSYB103K16
C 4815 (B,21,74) CKSSYB103K16
C 4816 (B,24,76) CKSSYB103K16
C 4817 (B,23,76) CKSSYB103K16
C 4818 (B,22,76) CKSSYB103K16
C 4819 (B,21,75) CKSSYB103K16
C 4820 (B,20,74) CKSSYB103K16
C 4821 (B,21,76) CKSSYB103K16
C 4822 (B,20,77) CKSSYB104K10
C 4823 (B,21,80) CKSSYB104K10
C 4824 (B,22,78) CKSSYB104K10
C 4825 (B,21,78) CKSSYB104K10
C 4826 (B,22,80) CKSSYB104K10
C 4827 (B,23,78) CKSSYB104K10
C 4828 (B,22,81) CKSSYB104K10
C 4829 (B,18,77) CKSSYB104K10
C 4830 (B,18,79) CKSSYB104K10
C 4831 (B,18,78) CKSSYB104K10
C 4832 (B,18,80) CKSSYB104K10
C 4833 (B,18,81) CKSSYB104K10
C 4834 (B,18,81) CKSSYB104K10
C 4835 (B,18,82) CKSSYB104K10
C 4836 (B,18,83) CKSSYB104K10
C 4837 (B,22,82) CKSSYB103K16
C 4838 (B,24,72) CKSSYB103K16
C 4839 (B,24,73) CKSSYB103K16
C 4840 (B,26,72) CKSSYB103K16
C 4841 (B,26,73) CKSSYB103K16
C 4842 (B,27,73) CKSSYB103K16
C 4843 (B,28,73) CKSSYB103K16
C 4844 (B,29,73) CKSSYB103K16
C 4845 (B,29,73) CKSSYB103K16
C 4846 (B,28,74) CKSSYB103K16
C 4847 (B,28,74) CKSSYB103K16
C 4848 (B,29,74) CKSSYB103K16
C 4849 (B,30,74) CKSSYB103K16
C 4850 (B,30,76) CKSSYB103K16
C 4851 (B,31,77) CKSSYB103K16
C 4852 (B,29,77) CKSSYB103K16
C 4853 (B,29,76) CKSSYB103K16
C 4854 (B,28,76) CKSSYB103K16
C 4855 (B,28,76) CKSSYB103K16
C 4856 (B,30,78) CKSSYB103K16
C 4857 (B,30,81) CKSSYB103K16
C 4858 (B,29,78) CKSSYB103K16
C 4859 (B,28,78) CKSSYB103K16
C 4860 (B,29,81) CKSSYB103K16
C 4861 (B,28,78) CKSSYB103K16
C 4862 (B,27,77) CKSSYB103K16
C 4863 (B,27,79) CKSSYB103K16
C 4864 (B,26,77) CKSSYB103K16
C 4865 (B,26,79) CKSSYB103K16
C 4866 (B,25,78) CKSSYB103K16
C 4867 (B,24,76) CKSSYB103K16
C 4868 (B,26,76) CKSSYB103K16
C 4869 (B,25,79) CKSSYB103K16
C 4870 (B,27,81) CKSSYB103K16
C 4871 (B,26,81) CKSSYB103K16
C 4872 (B,25,81) CKSSYB103K16
C 4901 (B,21,70) CKSSYB103K16
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 327
5 678
5678
C
D
F
A
B
E
C 4902 (B,24,70) CKSSYB103K16
C 4903 (B,26,70) CKSSYB103K16
C 4904 (B,27,70) CKSSYB103K16
C 4905 (B,28,69) CKSSYB103K16
C 4906 (B,29,70) CKSSYB103K16
C 4907 (B,21,36) CKSSYB104K10
C 4908 (B,21,34) CKSSYB104K16
C 4909 (B,21,33) CKSSYB104K16
C 4910 (B,21,32) CKSSYB104K10
C 4912 (B,18,84) CKSSYB104K10
C 4913 (B,20,79) CKSSYB104K10
C 4914 (B,20,80) CKSSYB104K10
C 4915 (B,21,81) CKSSYB104K10
C 4916 (B,20,79) CKSSYB104K10
C 4917 (B,20,78) CKSSYB104K10
C 4918 (B,17,68) CKSSYB474K6R3
C 4921 (A,36,48) CKSQYB106K6R3
C 4922 (A,23,60) CKSQYB106K6R3
C 4923 (A,36,50) CKSQYB106K6R3
C 4924 (A,24,60) CKSQYB106K6R3
C 4925 (A,22,52) CKSSYB333K10
C 4926 (A,21,53) CKSSYB104K10
C 4927 (A,22,53) CKSSYB103K16
C 4928 (A,22,55) CKSSYB104K10
C 4929 (A,22,54) CKSSYB104K10
C 4930 (A,22,50) CKSSYB104K10
C 4931 (A,25,56) CKSSYB104K10
C 4932 (A,26,60) CCSSCH4R0C50
C 4933 (A,27,57) CKSSYB103K16
C 4934 (A,28,46) CKSSYB103K16
C 4935 (A,27,58) CKSSYB104K10
C 4936 (A,28,47) CKSSYB104K10
C 4937 (A,31,57) CKSSYB103K16
C 4938 (A,31,58) CKSSYB104K10
C 4939 (A,29,62) CCSSCH4R0C50
C 4940 (A,33,50) CKSSYB104K10
C 4941 (A,34,52) CKSSYB103K16
C 4942 (A,35,52) CKSSYB104K10
C 4943 (A,19,48) CKSQYB106K6R3
C 4944 (A,21,48) CKSQYB106K6R3
C 4945 (B,34,24) 47 uF/6.3 V CCH1852
C 4946 (B,33,29) CKSSYB103K16
C 4947 (B,35,26) CKSQYB106K6R3
C 4948 (B,34,28) 47 uF/6.3 V CCH1852
C 4963 (B,26,87) CKSQYB106K6R3
C 4964 (B,21,85) CKSSYB103K16
C 4965 (B,28,88) 47 uF/6.3 V CCH1852
C 4969 (B,21,30) CKSRYB104K16
C 4971 (B,29,39) CKSSYB103K16
C 4972 (B,34,34) CKSSYB103K16
C 4973 (B,29,27) CKSSYB103K16
C 4979 (A,11,60) 33 uF/10 V CCH1586
C 4981 (B,27,27) CCSSCH220J50
C 4982 (B,21,67) 47 uF/6.3 V CCH1852
C 4983 (B,21,70) CKSSYB103K16
C 4984 (B,28,84) 47 uF/6.3 V CCH1852
C 4985 (B,23,83) CKSSYB103K16
C 4986 (B,25,83) CKSQYB106K6R3
C 4987 (B,31,75) CKSQYB106K6R3
C 4988 (A,20,84) CKSSYB103K16
Circuit Symbol and No. Part No.
C 4989 (A,17,86) CCSSCH4R0C50
C 4990 (A,22,86) CCSSCH100D50
C 4991 (A,25,87) CCSSCH100D50
C 4993 (B,21,69) CKSRYB105K10
C 4994 (A,4,60) 10 uF CCG1244
C 4995 (B,29,40) CKSSYB104K10
C 4996 (B,35,34) CKSSYB104K10
C 4998 (B,22,36) CKSSYB103K16
C 4999 (B,22,30) CKSSYB103K16
F
Unit Number : CWN3985
Unit Name : Navi Unit
MISCELLANEOUS
IC 5001 (B,51,39) IC LTC3850IGN
IC 5102 (A,88,68) IC TC7SET04FUS1
IC 5103 (A,89,72) L-MOS And Gate TC7SET08FUS1
IC 5104 (A,90,76) IC BD6538G
IC 5105 (A,119,79) IC S-1200B33-M5
IC 5202 (B,54,82) IC HA12241FP
IC 5402 (B,91,113) IC NJM13403V
IC 5403 (B,89,101) IC NJM2125F
IC 5404 (B,97,101) IC NJM2125F
IC 5407 (A,147,86) IC CSX1149
IC 5451 (B,58,19) IC NJM2115V
IC 5501 (B,154,93) IC ADS7828E
IC 5503 (A,135,99) IC BH30NB1WHFV
IC 5507 (B,86,15) IC NJM2125F
Q 5001 (A,41,32) FET SP8K10S
Q 5002 (A,61,33) FET SP8K10S
Q 5003 (B,40,30) Chip Transistor DTC114EUA
Q 5102 (A,124,90) Transistor 2SA1576A
Q 5103 (A,123,86) Transistor 2SC4081
Q 5104 (B,43,73) Transistor 2SD1760F5
Q 5105 (B,52,76) Transistor UMF23N
Q 5106 (B,75,27) Transistor 2SB1184F5
Q 5107 (B,75,41) Digital Transistor DTC143EUA
Q 5108 (A,119,102) Transistor 2SA1587
Q 5109 (A,117,97) Chip Transistor DTC114EUA
Q 5110 (B,124,102) Transistor IMX1
Q 5111 (B,117,109) Digital Transistor DTC143EUA
Q 5112 (B,111,111) Transistor 2SD1760F5
Q 5113 (B,117,89) Transistor 2SA1576A
Q 5114 (B,123,89) Chip Transistor DTC114EUA
Q 5115 (B,119,83) Transistor 2SA1577
Q 5116 (B,124,82) Chip Transistor DTC114EUA
Q 5201 (A,61,86) Transistor 2SA1576A
Q 5202 (B,67,83) Chip Transistor DTC114EUA
Q 5251 (B,82,104) Transistor IMH23
Q 5252 (B,80,109) Transistor IMD2A
Q 5304 (B,120,33) Transistor 2SA1576A
D 5001 (B,48,30) Diode RB160M-40
D 5002 (B,54,30) Diode RB160M-40
D 5003 (B,124,108) Diode RB551V-30
D 5004 (B,114,103) Diode RB551V-30
D 5005 (B,116,105) Diode HZU6R8(B1)
D 5006 (B,112,104) Diode HZU11(B2)
D 5007 (A,129,85) Diode RB551V-30
D 5008 (B,125,85) Diode RB551V-30
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
328
1234
1234
C
D
F
A
B
E
D 5203 (B,19,110) Diode UDZS18(B)
D 5204 (B,22,110) Diode EDZ5R6(B)
D 5205 (B,21,110) Diode EDZ5R6(B)
D 5251 (B,63,112) Diode MALS180X
D 5252 (A,68,109) Diode MALS180X
D 5253 (B,67,110) Diode MALS180X
D 5254 (B,74,111) Diode MALS180X
D 5255 (A,72,110) Diode MALS180X
D 5256 (A,64,110) Diode 1SR154-400
D 5257 (A,82,112) Diode RSB12JS2
D 5258 (B,85,123) Diode EDZ6R8(B)
D 5502 (B,144,86) Diode UDZS5R6(B)
L 5001 (A,41,42) Choke Coil 6.8 uH CTH1396
L 5002 (A,60,42) Choke Coil 4.7 uH CTH1399
L 5003 (A,84,67) Inductor CTF1306
L 5201 (B,56,76) Inductor LCYC2R2K1608
L 5251 (A,82,109) Choke Coil 160 mA CTH1319
L 5252 (B,71,105) Inductor CTF1689
L 5253 (B,69,105) Inductor CTF1689
L 5254 (B,74,105) Inductor CTF1689
L 5310 (A,129,46) Inductor CTF1736
L 5311 (A,129,41) Inductor CTF1736
L 5404 (A,145,93) Inductor CTF1410
L 5501 (A,158,91) Inductor CTF1410
L 5502 (A,148,90) Inductor CTF1410
L 5503 (A,154,92) Inductor CTF1410
L 5601 (A,81,22) Inductor CTF1453
L 5602 (A,65,20) Inductor CTH1256
L 5603 (A,86,37) Inductor CTF1393
L 5604 (A,89,35) Inductor CTF1393
L 5605 (A,84,37) Inductor CTF1393
F 5001 (B,39,64) EMI Filter CCG1267
F 5002 (A,58,66) EMI Filter CCG1267
F 5003 (A,61,27) EMI Filter CCG1267
F 5005 (B,75,73) Chip EMI Filter DTF1106
F 5101 (B,162,71) EMI Filter CCG1172
F 5102 (B,162,64) EMI Filter CCG1172
F 5251 (B,70,108) EMI Filter CCG1067
F 5252 (B,73,108) EMI Filter CCG1067
F 5253 (B,66,108) EMI Filter CCG1060
F 5254 (B,88,122) EMI Filter CCG1161
F 5255 (A,128,43) Chip EMI Filter DTF1106
>P5001 (A,70,31) Fuse 3.15 A CEK1259
>P5102 (A,41,68) Fuse 1 A CEK1254
>P5103 (A,75,47) Fuse 1.25 A CEK1255
>P5104 (A,123,104) Fuse 1 A CEK1254
P 5378 (B,79,115) Poly Switch MINISMDC020F
GY5501 (A,153,96) IC CSX1147
VA5201 (B,13,109) Varistor
AVR-M1608C270KT2AB
VA5202 (B,15,109) Varistor
AVR-M1608C270KT2AB
VA5203 (B,10,110) Varistor
AVR-M1608C270KT2AB
VA5204 (B,12,110) Varistor
AVR-M1608C270KT2AB
CN5001 (A,103,115) Connector CKS4822
CN5251 (A,68,124) Connector CKS5867
CN5601 (A,86,8) Connector CKS6118
CN5602 (A,100,50) Connector CKS6116
CN5603 (B,151,51) Connector CKS6123
JA5201 (A,166,113) Connector CKS5749
JA5202 (A,162,126) Connector CKS5702
JA5251 (A,90,128) Connector CKS5589
Circuit Symbol and No. Part No.
JA5302 (A,15,123) Connector CKS5271
SN5501 (A,152,91) Sensor S-58LM20A-N4
RESISTORS
R 5001 (B,49,45) RS1/10SR1303D
R 5002 (B,43,41) RS1/16SS100J
R 5003 (B,43,43) RS1/16SS100J
R 5004 (B,47,50) RS1/10SR682J
R 5005 (B,51,30) RS1/10SR2R2J
R 5006 (B,49,49) RS1/10SR2402D
R 5007 (B,52,49) RS1/10SR6802D
R 5008 (B,54,50) RS1/10SR682J
R 5009 (B,53,45) RS1/10SR2203D
R 5010 (B,59,42) RS1/16SS100J
R 5011 (B,59,41) RS1/16SS100J
R 5012 (B,45,28) RS1/16SS104J
R 5013 (A,41,49) 0.027 ohm CCN1190
R 5014 (A,59,49) 0.027 ohm CCN1190
R 5015 (B,46,46) RS1/10SR0R0J
R 5016 (B,56,46) RS1/10SR0R0J
R 5017 (B,43,31) RS1/10SR4R7J
R 5018 (B,58,31) RS1/10SR2R2J
R 5019 (A,63,61) RS1/8SQ0R0J
R 5020 (B,57,40) RS1/16SS104J
R 5022 (A,56,27) RS1/8SQ0R0J
R 5025 (B,44,62) RS1/4SA0R0J
R 5026 (A,51,66) RS1/4SA0R0J
R 5027 (B,39,62) RS1/4SA221J
R 5028 (A,54,66) RS1/4SA221J
R 5029 (B,41,34) RS1/10SR1501D
R 5030 (B,42,36) RS1/10SR2001D
R 5031 (B,39,36) RS1/10SR2001D
R 5032 (B,122,91) RS1/10SR682J
R 5104 (A,123,88) RS1/10SR682J
R 5105 (A,126,87) RS1/10SR153J
R 5107 (B,50,75) RS1/10SR103J
R 5109 (B,52,69) RS1/10SR330J
R 5110 (B,53,73) RS1/16SS223J
R 5111 (B,53,71) RS1/8SQ472J
R 5113 (B,73,35) RS1/10SR153J
R 5114 (B,76,36) RS1/4SA331J
R 5115 (B,76,38) RS1/4SA331J
R 5116 (A,120,100) RS1/16SS103J
R 5117 (A,120,98) RS1/16SS512J
R 5118 (B,122,106) RS1/16SS224J
R 5119 (B,126,105) RS1/16SS472J
R 5120 (B,121,103) RS1/8SQ102J
R 5121 (B,118,100) RS1/4SA681J
R 5122 (B,119,108) RS1/10SR102J
R 5123 (A,90,70) RS1/16SS0R0J
R 5124 (A,89,71) RS1/16SS0R0J
R 5126 (A,82,68) RS1/8SQ0R0J
R 5128 (B,116,82) RS1/10SR0R0J
R 5131 (A,126,82) RS1/10SR0R0J
R 5132 (B,118,86) RS1/10SR153J
R 5136 (A,128,32) RS1/10SR102J
R 5140 (B,119,81) RS1/10SR153J
R 5141 (B,122,82) RS1/10SR681J
R 5144 (A,70,24) RS1/16SS0R0J
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 329
5 678
5678
C
D
F
A
B
E
R 5146 (B,126,89) RS1/10SR0R0J
R 5150 (A,74,27) RS1/4SA682J
R 5151 (A,128,90) RS1/10SR6800D
R 5152 (A,127,90) RS1/10SR6800D
R 5153 (A,120,86) RS1/16SS473J
R 5154 (A,119,88) RS1/16SS393J
R 5209 (B,63,83) RS1/10SR332J
R 5210 (B,65,83) RS1/10SR682J
R 5211 (A,60,92) RS1/10SR222J
R 5214 (B,65,80) RS1/10SR0R0J
R 5216 (B,49,79) RS1/10SR101J
R 5218 (B,45,81) RS1/4SA680J
R 5220 (B,43,81) RS1/4SA680J
R 5222 (B,59,81) RS1/16SS103J
R 5223 (B,49,82) RS1/10SR101J
R 5224 (B,58,85) RS1/16SS681J
R 5225 (B,59,85) RS1/16SS101J
R 5226 (B,47,81) RS1/4SA680J
R 5227 (B,36,82) RS1/4SA680J
R 5253 (B,81,101) RS1/10SR0R0J
R 5359 (B,124,33) RS1/10SR0R0J
R 5360 (B,120,36) RS1/16SS103J
R 5361 (B,123,34) RS1/16SS102J
R 5362 (B,117,35) RS1/16SS103J
R 5401 (B,91,106) RS1/10SR333J
R 5402 (B,92,103) RS1/10SR683J
R 5403 (B,93,103) RS1/10SR154J
R 5404 (B,92,97) RS1/10SR101J
R 5405 (B,97,91) RS1/8SQ0R0J
R 5409 (A,97,106) RS1/10SR393J
R 5410 (A,96,109) RS1/10SR393J
R 5411 (A,88,116) RS1/10SR102J
R 5412 (B,88,120) RS1/10SR102J
R 5413 (A,93,117) RS1/10SR683J
R 5414 (A,89,116) RS1/10SR153J
R 5415 (B,92,109) RS1/10SR0R0J
R 5416 (B,97,111) RS1/10SR682J
R 5417 (B,99,114) RS1/10SR124J
R 5418 (B,100,111) RS1/10SR473J
R 5419 (B,98,109) RS1/10SR101J
R 5420 (B,86,115) RS1/10SR683J
R 5421 (B,98,106) RS1/10SR333J
R 5422 (B,99,103) RS1/10SR683J
R 5423 (B,101,103) RS1/10SR154J
R 5424 (B,98,97) RS1/10SR101J
R 5426 (B,86,109) RS1/10SR473J
R 5427 (B,88,106) RS1/10SR101J
R 5428 (B,86,111) RS1/10SR153J
R 5453 (B,62,16) RS1/16SS153J
R 5454 (B,65,18) RS1/16SS153J
R 5455 (B,60,16) RS1/10SR473J
R 5456 (B,64,15) RS1/10SR473J
R 5457 (B,55,16) RS1/10SR103J
R 5458 (B,64,20) RS1/10SR103J
R 5475 (B,132,67) RS1/10SR0R0J
R 5476 (B,132,69) RS1/10SR0R0J
R 5481 (B,132,65) RS1/10SR0R0J
R 5501 (B,160,88) RS1/16SS0R0J
R 5502 (B,161,89) RS1/16SS0R0J
R 5503 (B,160,92) RS1/16SS202J
Circuit Symbol and No. Part No.
R 5504 (B,160,95) RS1/16SS202J
R 5511 (B,149,96) RS1/16SS471J
R 5516 (B,151,96) RS1/16SS101J
R 5519 (B,145,93) RS1/10SR3900D
R 5521 (B,157,82) RS1/10SR222J
R 5522 (B,157,83) RS1/10SR222J
R 5523 (A,150,97) RS1/16SS153J
R 5524 (A,150,99) RS1/16SS153J
R 5525 (B,147,88) RS1/16SS0R0J
R 5526 (B,153,86) RS1/16SS0R0J
R 5527 (B,154,87) RS1/16SS0R0J
R 5528 (A,139,96) RS1/10SR0R0J
R 5529 (A,138,92) RS1/10SR0R0J
R 5533 (A,137,103) RS1/10SR471J
R 5601 (A,92,65) RS1/16SS331J
R 5603 (A,111,73) RS1/16SS0R0J
R 5604 (B,72,16) RS1/16SS0R0J
R 5605 (B,68,12) RS1/16SS0R0J
R 5606 (B,160,33) RS1/16SS0R0J
R 5607 (B,144,67) RS1/16SS0R0J
R 5608 (B,159,31) RS1/16SS0R0J
R 5609 (B,140,64) RS1/16SS0R0J
R 5610 (B,136,50) RS1/16SS0R0J
R 5611 (B,134,50) RS1/16SS0R0J
R 5612 (B,134,52) RS1/16SS0R0J
R 5613 (B,136,52) RS1/16SS0R0J
R 5614 (B,134,53) RS1/16SS0R0J
R 5615 (B,136,53) RS1/16SS0R0J
R 5616 (B,141,54) RS1/16SS0R0J
R 5617 (B,136,55) RS1/16SS0R0J
R 5618 (B,134,54) RS1/16SS0R0J
R 5619 (B,140,40) RS1/16SS0R0J
R 5620 (B,162,50) RS1/16SS0R0J
R 5621 (B,161,50) RS1/16SS0R0J
R 5622 (A,158,43) RS1/16SS0R0J
R 5623 (B,142,30) RS1/16SS0R0J
R 5624 (B,161,31) RS1/16SS0R0J
R 5625 (B,144,30) RS1/16SS0R0J
R 5626 (B,144,34) RS1/16SS0R0J
R 5627 (B,142,34) RS1/16SS0R0J
R 5628 (A,86,18) RS1/16SS0R0J
R 5629 (A,85,18) RS1/16SS0R0J
R 5630 (A,87,18) RS1/16SS0R0J
R 5631 (B,84,12) RS1/16SS0R0J
R 5632 (B,82,12) RS1/16SS0R0J
R 5634 (A,89,15) RS1/16SS0R0J
R 5635 (A,91,15) RS1/16SS0R0J
R 5636 (A,90,15) RS1/16SS0R0J
R 5637 (B,86,13) RS1/16SS0R0J
R 5638 (B,88,12) RS1/16SS0R0J
R 5639 (A,88,18) RS1/16SS0R0J
R 5641 (A,85,50) RS1/16SS820J
R 5642 (A,112,63) RS1/16SS0R0J
R 5645 (A,109,48) RS1/16SS0R0J
R 5646 (A,111,49) RS1/16SS0R0J
R 5647 (A,108,61) RS1/16SS0R0J
R 5648 (A,110,61) RS1/16SS0R0J
R 5650 (A,111,50) RS1/16SS0R0J
R 5651 (A,109,57) RS1/16SS0R0J
R 5653 (A,114,57) RS1/16SS0R0J
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
330
1234
1234
C
D
F
A
B
E
R 5655 (A,117,56) RS1/16SS0R0J
R 5656 (A,118,55) RS1/16SS0R0J
R 5659 (A,116,55) RS1/16SS0R0J
R 5660 (A,111,54) RS1/16SS0R0J
R 5661 (A,109,54) RS1/16SS0R0J
R 5662 (A,111,53) RS1/16SS0R0J
R 5663 (A,86,51) RS1/16SS151J
R 5664 (A,84,53) RS1/16SS0R0J
R 5665 (A,111,52) RS1/16SS0R0J
R 5666 (A,85,52) RS1/16SS0R0J
R 5667 (A,113,45) RS1/16SS0R0J
R 5668 (A,111,44) RS1/16SS0R0J
R 5669 (A,115,34) RS1/16SS0R0J
R 5670 (A,111,43) RS1/16SS0R0J
R 5671 (A,112,40) RS1/16SS0R0J
R 5672 (A,115,37) RS1/16SS331J
R 5673 (A,113,46) RS1/16SS101J
R 5674 (A,111,45) RS1/16SS101J
R 5675 (A,115,35) RS1/16SS0R0J
R 5676 (A,117,35) RS1/16SS0R0J
R 5677 (A,114,40) RS1/16SS0R0J
R 5678 (A,113,44) RS1/16SS0R0J
R 5679 (A,113,42) RS1/16SS221J
R 5680 (A,116,42) RS1/16SS221J
R 5682 (A,117,38) RS1/16SS0R0J
R 5689 (A,84,42) RS1/16SS0R0J
R 5693 (A,143,55) RS1/10SR0R0J
R 5694 (A,109,47) RS1/16SS0R0J
R 5698 (B,118,49) RS1/16SS182J
R 5711 (B,86,37) RS1/10SR0R0J
R 5714 (B,45,40) RS1/16SS104J
CAPACITORS
C 5001 (B,56,45) CKSRYB152K50
C 5002 (B,45,42) CCSRCH102J50
C 5003 (B,44,35) CKSRYB104K50
C 5004 (B,49,46) CCSRCH330J50
C 5005 (B,48,48) CCSRCH221J50
C 5006 (B,46,49) CCSRCH681J50
C 5007 (B,52,33) CKSQYB475K10
C 5008 (B,50,33) CKSRYB104K50
C 5009 (B,55,49) CCSRCH681J50
C 5010 (B,54,48) CCSRCH471J50
C 5011 (B,57,34) CKSRYB104K50
C 5012 (B,53,46) CCSRCH220J50
C 5013 (B,57,42) CCSRCH102J50
C 5014 (B,46,45) CKSRYB273K25
C 5015 (A,45,52) 68 uF/10 V CCH1635
C 5016 (A,55,52) 68 uF/10 V CCH1635
C 5017 (A,44,49) 10 uF DCH1201
C 5018 (A,56,49) 10 uF DCH1201
C 5020 (A,45,29) 10 uF CCG1223
C 5021 (A,56,32) 10 uF CCG1223
C 5106 (A,121,90) CKSQYB103K50
C 5107 (A,56,73) CKSQYB104K50
C 5108 (A,51,75) CEVW101M16
C 5110 (A,41,74) CEVW101M16
C 5111 (A,74,20) CEVW101M16
Circuit Symbol and No. Part No.
C 5112 (A,74,25) CKSQYB104K50
C 5113 (A,76,35) CKSQYB104K50
C 5114 (A,76,40) CEVW101M16
C 5115 (B,125,106) CKSRYB472K50
C 5116 (B,122,108) CKSRYB104K16
C 5117 (B,110,104) CKSSYB103K16
C 5118 (A,114,105) CEVW470M16
C 5119 (A,108,113) CKSSYB103K16
C 5120 (A,105,105) CEVW101M16
C 5121 (B,164,68) CKSRYB104K50
C 5122 (B,165,60) CKSRYB104K50
C 5123 (A,86,66) CKSSYB104K10
C 5124 (A,87,72) CKSSYB104K10
C 5125 (A,82,78) CEVW101M16
C 5126 (A,86,77) CKSRYB103K50
C 5129 (B,74,71) CKSRYB103K50
C 5130 (B,74,75) CKSRYB104K16
C 5131 (A,86,74) CKSRYB103K50
C 5132 (A,51,31) 100 uF/16 V CCH1565
C 5133 (B,115,86) CKSQYB103K50
C 5134 (A,129,124) 330 uF/10 V CCH1623
C 5137 (A,124,82) CKSQYB105K16
C 5138 (A,122,82) CKSSYB104K10
C 5139 (A,116,75) CKSQYB106K6R3
C 5140 (A,118,75) CKSSYB104K10
C 5141 (B,122,85) CKSQYB103K50
C 5149 (A,119,86) CKSRYB105K10
C 5212 (B,17,110) CKSRYB104K50
C 5214 (B,57,78) CKSSYB472K16
C 5340 (B,85,122) CKSRYB104K50
C 5344 (B,118,36) CKSSYB104K10
C 5402 (B,90,104) CCSRCH471J50
C 5403 (B,92,101) CCSRCH680J50
C 5404 (B,87,101) CKSRYB104K16
C 5409 (A,94,102) CKSRYB104K16
C 5410 (A,96,103) 10 uF DCH1201
C 5411 (A,98,103) 10 uF DCH1201
C 5412 (A,94,109) CKSRYB105K10
C 5413 (B,85,113) CCSRCH471J50
C 5414 (B,85,111) CCSRCH821J50
C 5415 (A,89,119) CKSRYB473K50
C 5416 (A,91,118) CKSRYB473K50
C 5417 (B,90,110) CKSRYB104K16
C 5418 (B,96,110) CKSRYB104K16
C 5419 (B,99,113) CCSRCH331J50
C 5420 (B,98,111) CKSRYB152K50
C 5421 (B,97,106) CKSRYB105K10
C 5422 (B,97,104) CCSRCH471J50
C 5423 (B,99,101) CCSRCH680J50
C 5424 (B,94,91) CKSRYB105K10
C 5429 (B,89,106) CKSRYB105K10
C 5430 (B,89,109) CKSRYB104K16
C 5433 (B,95,101) CKSRYB104K16
C 5434 (B,90,117) 22 uF CCG1178
C 5451 (B,67,16) CKSQYB475K10
C 5452 (B,67,19) CKSQYB475K10
C 5453 (B,57,16) CCSRCH391J50
C 5454 (B,64,21) CCSRCH391J50
C 5455 (B,52,16) CCSRCH221J50
C 5456 (B,63,18) CCSRCH221J50
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 331
5 678
5678
C
D
F
A
B
E
C 5460 (B,57,22) CKSRYB104K16
C 5471 (B,87,49) CKSQYB475K10
C 5472 (B,85,50) CKSQYB475K10
C 5501 (B,160,94) CKSSYB104K10
C 5502 (B,157,97) CKSRYB104K16
C 5503 (B,157,89) CKSRYB104K16
C 5504 (B,157,87) CKSQYB106K6R3
C 5505 (B,150,89) CKSSYB104K10
C 5508 (B,147,92) CKSSYB104K10
C 5509 (B,147,93) CKSSYB104K10
C 5510 (B,148,95) CKSSYB104K10
C 5511 (A,148,99) CKSSYB105K6R3
C 5512 (A,148,97) CKSSYB105K6R3
C 5513 (A,154,93) CKSSYB104K10
C 5514 (A,150,92) CKSSYB104K10
C 5515 (A,153,81) CKSRYB154K10
C 5516 (A,153,84) CKSRYB154K10
C 5517 (A,153,86) 2.2 uF CCG1205
C 5518 (A,145,90) CKSQYB106K6R3
C 5519 (A,146,89) CKSSYB104K10
C 5520 (A,135,101) CKSSYB104K10
C 5521 (A,135,102) CKSQYB106K6R3
C 5523 (A,137,95) CKSQYB106K6R3
C 5524 (A,135,96) CKSSYB104K10
C 5525 (B,151,98) CKSSYB104K10
C 5526 (B,83,15) CKSRYB104K16
C 5601 (A,82,18) 10 uF CCG1223
C 5603 (A,54,19) CEVW101M16
C 5604 (A,46,19) CEVW101M16
C 5615 (A,92,42) CKSRYB104K16
C 5616 (A,90,37) CKSRYB104K16
C 5617 (B,88,43) CKSRYB104K16
C 5623 (B,110,40) CKSRYB104K16
C 5624 (B,109,42) CKSRYB104K16
C 5626 (A,125,42) CKSRYB104K16
G
Unit Number : CWN3935
Unit Name : Monitor Unit
MISCELLANEOUS
IC 3001 (B,108,28) IC BD6171KV
IC 3100 (B,103,63) IC TC7SH08FUS1
IC 3101 (B,103,57) IC TC7SH08FUS1
IC 3102 (A,117,64) IC BD8113EFV
IC 3150 (A,41,48) IC DS90C124QVS
IC 3151 (A,31,48) IC TC7SZ08FU
IC 3200 (A,23,64) IC NJM2100V
IC 3201 (A,30,60) IC TC7S66FU
IC 3202 (A,24,54) IC NJM082BV
IC 3203 (A,33,62) IC TC7WT240FU
IC 3204 (B,60,38) Logic IC TC74VHCT04AFTS1
IC 3300 (A,72,30) IC BH2227AFV
IC 3360 (B,86,53) IC AK4388VT
IC 3362 (B,82,35) IC TC7SH08FUS1
Q 3001 (B,117,37) FET RSQ035P03
Q 3002 (B,104,42) FET RSQ035P03
Q 3003 (B,95,22) Transistor 2SA1577
Q 3004 (B,97,19) Transistor 2SC4097
Q 3005 (B,95,32) Transistor DTC114EE
Circuit Symbol and No. Part No.
Q 3100 (B,99,65) Transistor 2SC4617
Q 3101 (B,99,59) Transistor 2SC4617
Q 3102 (B,103,66) Transistor 2SC4617
Q 3103 (B,99,68) Transistor 2SC4617
Q 3106 (A,131,63) FET SP8K22
Q 3200 (A,19,46) Transistor 2SC4617
Q 3201 (A,26,49) Transistor 2SA1774
Q 3202 (A,27,45) Transistor 2SC4617
Q 3203 (A,22,49) Transistor 2SA1774
Q 3300 (A,75,18) Transistor UMZ1N
Q 3301 (A,75,20) Transistor UMZ1N
Q 3302 (A,66,16) Transistor UMZ1N
Q 3303 (A,66,19) Transistor UMZ1N
Q 3304 (A,66,25) Transistor UMZ1N
Q 3305 (A,66,22) Transistor UMZ1N
Q 3360 (B,85,32) Transistor DTC114EE
D 3001 (B,120,38) Diode RB160M-30
D 3002 (B,102,20) Diode RB500V-40
D 3003 (B,106,20) Diode RB500V-40
D 3004 (B,104,20) Diode RB500V-40
D 3005 (B,109,18) Diode RB500V-40
D 3006 (B,107,42) Diode RB160M-30
D 3007 (B,101,36) Diode RB500V-40
D 3008 (B,97,41) Diode RB548W
D 3009 (B,99,41) Diode RB548W
D 3010 (B,88,17) Diode RB548W
D 3011 (B,91,17) Diode RB548W
D 3012 (B,93,17) Diode RB548W
D 3100 (B,108,64) Diode UDZS6R8(B)
D 3101 (B,95,67) Diode RB500V-40
D 3102 (B,108,61) Diode RB500V-40
D 3103 (B,108,57) Diode RB500V-40
D 3105 (A,139,50) Diode RB160VA-40
L 3001 (B,130,50) Choke Coil 18 uH CTH1250
L 3002 (B,126,26) Inductor CTF1635
L 3003 (B,125,38) Choke Coil 68 uH CTH1318
L 3004 (B,111,45) Choke Coil 68 uH CTH1318
L 3005 (B,112,49) Inductor CTF1635
L 3006 (B,95,45) Inductor DTL1096
L 3007 (B,96,15) Inductor CTF1635
L 3100 (B,104,60) Inductor CTF1306
L 3101 (A,137,55) Choke Coil 56 uH CTH1394
L 3150 (A,54,48) Inductor CTF1731
L 3151 (A,48,53) Inductor CTF1306
L 3152 (A,47,41) Inductor CTF1306
L 3153 (A,44,37) Inductor CTF1748
L 3154 (A,43,37) Inductor CTF1748
L 3155 (A,43,59) Inductor CTF1734
L 3156 (A,42,36) Inductor CTF1748
L 3157 (A,42,59) Inductor CTF1734
L 3158 (A,40,37) Inductor CTF1748
L 3159 (A,41,59) Inductor CTF1734
L 3160 (A,39,38) Inductor CTF1748
L 3161 (A,38,58) Inductor CTF1734
L 3162 (A,38,37) Inductor CTF1748
L 3163 (A,37,58) Inductor CTF1734
L 3164 (A,37,38) Inductor CTF1748
L 3165 (A,36,58) Inductor CTF1748
L 3166 (A,36,37) Inductor CTF1748
L 3167 (A,31,55) Inductor CTF1748
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
332
1234
1234
C
D
F
A
B
E
L 3168 (A,40,58) Inductor CTF1306
L 3169 (A,40,62) Inductor CTF1736
L 3170 (A,35,40) Inductor CTF1748
L 3171 (A,34,40) Inductor CTF1748
L 3172 (A,33,40) Inductor CTF1748
L 3173 (A,32,40) Inductor CTF1748
L 3174 (A,30,43) Inductor CTF1734
L 3175 (A,31,51) Inductor CTF1748
L 3176 (A,30,52) Inductor CTF1748
L 3177 (A,31,53) Inductor CTF1748
L 3178 (A,31,54) Inductor CTF1748
L 3179 (A,49,43) Inductor CTF1306
L 3180 (A,34,47) Inductor CTF1306
L 3200 (A,30,64) Inductor CTF1306
L 3202 (A,26,57) Inductor LCTAW101J2520
L 3203 (A,19,50) Inductor LCTAW101J2520
L 3205 (A,31,67) Inductor CTF1306
L 3206 (B,62,46) Inductor CTF1635
L 3207 (B,55,34) Inductor CTF1306
L 3208 (B,62,34) Inductor CTF1306
L 3300 (A,127,16) Ferrite Bead CTF1528
L 3301 (A,128,16) Ferrite Bead CTF1528
L 3302 (A,111,18) Ferrite Bead CTF1528
L 3303 (A,112,16) Ferrite Bead CTF1528
L 3304 (A,86,56) Inductor CTF1488
L 3305 (A,77,36) Chip Coil LCTAW100J2520
L 3310 (A,64,57) Inductor CTF1635
L 3360 (B,94,58) Inductor LCTAW2R7J2520
L 3361 (A,80,32) Inductor CTF1394
L 3362 (B,79,33) Inductor CTF1306
L 3401 (A,21,39) Inductor DTL1096
L 3402 (A,12,35) Inductor DTL1096
L 3403 (A,22,43) Inductor CTF1635
L 3404 (A,14,42) Inductor CTF1635
TH3350 (A,65,5) Thermistor CCX1084
VA3300 (A,126,18) Varistor
AVR-M1608C120MT6AB
VA3301 (A,128,20) Varistor
AVR-M1608C120MT6AB
VA3302 (A,113,19) Varistor
AVR-M1608C120MT6AB
VA3303 (A,114,16) Varistor
AVR-M1608C120MT6AB
VA3305 (A,88,19) Varistor
AVR-M1608C120MT6AB
VA3307 (A,90,19) Varistor
AVR-M1608C120MT6AB
VA3308 (A,87,19) Varistor
AVR-M1608C120MT6AB
VA3310 (A,84,18) Varistor
AVR-M1608C120MT6AB
CN3100 (A,136,38) Connector CKS5715
CN3300 (A,120,14) Connector CKS5105
CN3301 (A,68,69) Connector CKS6118
CN3302 (A,88,12) Connector CKS5501
CN3360 (A,88,35) Connector CKS6117
CN3361 (A,106,8) Connector CKS5749
CN3362 (A,106,14) Connector CKS5749
CN3401 (A,33,30) Connector CKS5773
RESISTORS
R 3001 (B,131,29) RS1/10SR0R0J
R 3002 (B,129,28) RS1/10SR6801D
R 3003 (B,125,29) RS1/10SR2000D
R 3004 (B,125,28) RS1/10SR1001D
R 3005 (B,130,36) RS1/10SR0R0J
R 3006 (B,129,32) RS1/10SR1001D
Circuit Symbol and No. Part No.
R 3007 (B,128,31) RS1/10SR82R0D
R 3008 (B,123,31) RS1/10SR3300D
R 3009 (B,126,34) RS1/10SR102J
R 3010 (B,122,30) RS1/10SR102J
R 3011 (B,118,29) RS1/10SR104J
R 3012 (B,122,33) RS1/10SR333J
R 3013 (B,118,30) RS1/16SS331J
R 3014 (B,117,25) RS1/10SR2001D
R 3015 (B,118,25) RS1/10SR3900D
R 3016 (B,120,25) RS1/10SR1000D
R 3017 (B,112,40) RS1/10SR273J
R 3018 (B,114,37) RS1/10SR150J
R 3019 (B,103,37) RS1/10SR150J
R 3020 (B,108,36) RS1/10SR563J
R 3021 (B,100,15) RS1/10SR1002D
R 3022 (B,101,31) RS1/10SR6202D
R 3023 (B,99,17) RS1/10SR1802D
R 3024 (B,96,16) RS1/10SR2202D
R 3025 (B,98,35) RS1/10SR1802D
R 3026 (B,97,33) RS1/10SR8200D
R 3027 (B,99,24) RS1/16SS470J
R 3028 (B,99,23) RS1/16SS470J
R 3030 (B,96,38) RS1/10SR3303D
R 3031 (B,96,50) RS1/10SR203J
R 3034 (B,95,35) RS1/10SR2703D
R 3100 (B,97,67) RS1/16SS222J
R 3101 (B,100,61) RS1/16SS222J
R 3102 (B,100,55) RS1/16SS222J
R 3104 (A,108,62) RS1/16SS473J
R 3105 (B,100,56) RS1/16SS472J
R 3106 (B,97,59) RS1/16SS101J
R 3107 (B,105,65) RS1/16SS103J
R 3108 (B,105,67) RS1/16SS473J
R 3109 (B,100,62) RS1/16SS472J
R 3110 (A,108,63) RS1/16SS473J
R 3111 (B,97,65) RS1/16SS101J
R 3112 (B,102,69) RS1/16SS223J
R 3113 (A,111,63) RS1/16SS470J
R 3114 (A,111,62) RS1/16SS470J
R 3115 (B,98,63) RS1/16SS104J
R 3116 (B,98,57) RS1/16SS224J
R 3117 (B,101,68) RS1/16SS101J
R 3118 (B,96,68) RS1/16SS273J
R 3119 (B,105,63) RS1/16SS102J
R 3120 (B,105,57) RS1/16SS102J
R 3122 (B,114,61) RS1/16SS0R0J
R 3123 (B,117,66) RS1/10SR225J
R 3124 (A,109,65) RS1/10SR1003D
R 3125 (B,113,69) RS1/10SR392J
R 3126 (B,126,62) RS1/10SR1203D
R 3128 (A,124,65) RS1/10SR150J
R 3129 (B,126,60) RS1/10SR0R0J
R 3130 (A,119,73) RS1/4S1R0J
R 3131 (A,115,73) RS1/4S1R0J
R 3133 (A,113,71) RS1/16SS0R0J
R 3134 (B,123,58) RS1/10SR3602D
R 3135 (B,122,59) RS1/10SR1801D
R 3136 (A,126,72) RS1/8SQ0R0J
R 3137 (B,124,66) RS1/10SR0R0J
R 3150 (A,47,48) RS1/16SS1000D
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 333
5 678
5678
C
D
F
A
B
E
R 3151 (A,45,55) RS1/16SS103J
R 3152 (A,44,57) RS1/16SS103J
R 3153 (A,50,52) RS1/16SS103J
R 3154 (A,43,55) RS1/16SS103J
R 3156 (B,47,32) RS1/16SS0R0J
R 3157 (A,44,39) RS1/16SS181J
R 3158 (A,43,39) RS1/16SS151J
R 3159 (A,43,57) RS1/16SS151J
R 3160 (A,42,38) RS1/16SS151J
R 3161 (A,42,57) RS1/16SS151J
R 3162 (A,40,39) RS1/16SS151J
R 3163 (A,41,57) RS1/16SS151J
R 3164 (B,22,33) RS1/16SS0R0J
R 3166 (A,39,40) RS1/16SS151J
R 3167 (A,38,56) RS1/16SS151J
R 3168 (A,38,39) RS1/16SS151J
R 3169 (A,37,56) RS1/16SS151J
R 3170 (A,37,40) RS1/16SS151J
R 3171 (A,36,56) RS1/16SS151J
R 3172 (A,36,39) RS1/16SS151J
R 3173 (A,33,55) RS1/16SS151J
R 3175 (A,35,42) RS1/16SS151J
R 3176 (A,34,42) RS1/16SS151J
R 3177 (A,33,42) RS1/16SS151J
R 3178 (A,32,42) RS1/16SS151J
R 3179 (A,33,49) RS1/16SS820J
R 3180 (A,32,51) RS1/16SS151J
R 3181 (A,32,52) RS1/16SS151J
R 3182 (A,33,53) RS1/16SS151J
R 3183 (A,33,54) RS1/16SS151J
R 3185 (A,30,45) RS1/16SS470J
R 3200 (A,25,68) RS1/10SR5102D
R 3201 (A,27,68) RS1/10SR3602D
R 3202 (A,21,70) RS1/16SS103J
R 3204 (A,22,68) RS1/16SS104J
R 3205 (A,24,61) RS1/10SR6801D
R 3206 (A,21,61) RS1/10SR1002D
R 3207 (A,27,61) RS1/16SS101J
R 3208 (A,24,59) RS1/16SS101J
R 3209 (A,22,60) RS1/16SS223J
R 3210 (A,29,58) RS1/16SS472J
R 3211 (A,21,59) RS1/16SS101J
R 3212 (A,22,57) RS1/10SR5602D
R 3213 (A,19,54) RS1/10SR4703D
R 3214 (A,23,51) RS1/10SR3302D
R 3215 (A,34,58) RS1/16SS0R0J
R 3217 (A,28,48) RS1/16SS153J
R 3218 (A,21,49) RS1/16SS153J
R 3219 (A,27,47) RS1/16SS0R0J
R 3220 (A,22,47) RS1/16SS0R0J
R 3221 (A,25,45) RS1/10SR100J
R 3222 (A,24,48) RS1/10SR100J
R 3300 (A,73,8) RS1/16SS0R0J
R 3303 (A,94,17) RS1/10SR0R0J
R 3321 (A,78,17) RS1/10SR2000D
R 3322 (A,80,17) RS1/10SR2400D
R 3323 (A,78,20) RS1/10SR2000D
R 3324 (A,79,22) RS1/10SR2400D
R 3325 (A,75,23) RS1/10SR333J
R 3326 (A,69,16) RS1/10SR2000D
Circuit Symbol and No. Part No.
R 3327 (A,71,16) RS1/10SR2400D
R 3328 (A,69,19) RS1/10SR2000D
R 3329 (A,71,19) RS1/10SR2400D
R 3330 (A,70,24) RS1/10SR333J
R 3331 (A,63,25) RS1/10SR2000D
R 3332 (A,62,25) RS1/10SR2400D
R 3333 (A,63,22) RS1/10SR2000D
R 3334 (A,62,22) RS1/10SR2400D
R 3335 (A,68,28) RS1/10SR333J
R 3336 (A,66,56) RS1/16SS0R0J
R 3337 (A,67,56) RS1/16SS0R0J
R 3338 (A,68,56) RS1/16SS0R0J
R 3339 (A,77,40) RS1/16SS0R0J
R 3350 (A,68,6) RS1/16SS183J
R 3360 (B,83,64) RS1/16SS221J
R 3361 (B,86,65) RS1/16SS221J
R 3362 (B,84,63) RS1/16SS223J
R 3363 (B,86,63) RS1/16SS223J
R 3364 (B,83,47) RS1/16SS103J
R 3365 (B,83,51) RS1/16SS103J
R 3366 (A,83,42) RS1/16SS470J
R 3367 (B,83,52) RS1/16SS103J
R 3368 (A,84,43) RS1/16SS470J
R 3369 (A,82,41) RS1/16SS470J
R 3371 (B,93,40) RS1/16SS470J
R 3372 (B,92,38) RS1/16SS473J
R 3373 (B,85,47) RS1/16SS470J
R 3374 (B,84,47) RS1/16SS103J
R 3375 (B,92,37) RS1/16SS470J
R 3376 (B,82,40) RS1/16SS470J
R 3377 (B,84,36) RS1/16SS0R0J
R 3378 (A,78,33) RS1/16SS0R0J
R 3380 (A,83,37) RS1/16SS223J
R 3382 (A,83,31) RS1/16SS0R0J
R 3383 (A,83,30) RS1/16SS0R0J
R 3386 (B,87,33) RS1/16SS0R0J
R 3401 (B,52,34) RS1/10SR18R0D
R 3402 (B,52,36) RS1/10SR24R0D
R 3403 (B,52,37) RS1/10SR1000D
R 3404 (B,54,40) RS1/10SR91R0D
R 3405 (B,53,40) RS1/10SR1000D
R 3406 (B,51,40) RS1/10SR30R0D
R 3407 (B,54,43) RS1/10SR47R0D
R 3408 (B,56,43) RS1/10SR47R0D
R 3409 (B,57,43) RS1/10SR27R0D
R 3410 (B,56,47) RS1/10SR91R0D
R 3411 (B,57,47) RS1/10SR1000D
R 3412 (B,59,47) RS1/10SR75R0D
R 3414 (A,38,36) RS1/16SS0R0J
R 3416 (B,30,35) RS1/16SS473J
R 3418 (B,40,34) RS1/16SS0R0J
R 3420 (B,34,36) RS1/16SS0R0J
R 3422 (B,22,37) RS1/16SS473J
R 3423 (B,105,13) RS1/16SS0R0J
R 3424 (B,106,13) RS1/16SS104J
R 3432 (A,139,27) RS1/16SS0R0J
CAPACITORS
C 3001 (B,124,54) 100 uF CCG1232
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
334
1234
1234
C
D
F
A
B
E
C 3002 (B,128,29) CKSRYB103K50
C 3003 (B,124,51) CKSQYB105K16
C 3004 (B,129,34) CCSRCH681J50
C 3005 (B,124,45) 68 uF/10 V CCH1635
C 3006 (B,126,32) CCSRCH331J50
C 3007 (B,122,28) CKSRYB104K50
C 3008 (B,126,24) CKSRYB104K50
C 3009 (B,123,43) CKSRYB104K50
C 3010 (B,119,34) CKSRYB103K50
C 3011 (B,123,25) 10 uF CCG1192
C 3012 (B,118,32) CKSRYB393K50
C 3013 (B,120,29) CKSRYB472K50
C 3015 (B,117,27) CKSRYB393K50
C 3016 (B,121,25) CKSRYB104K50
C 3017 (B,113,18) CKSRYB393K50
C 3018 (B,112,39) CKSRYB104K50
C 3020 (B,117,40) CKSRYB103K50
C 3021 (B,118,42) 10 uF CCG1236
C 3022 (B,118,44) 10 uF CCG1236
C 3023 (B,112,37) CKSRYB105K10
C 3024 (B,110,37) CCSRCH102J50
C 3025 (B,104,46) 10 uF CCG1236
C 3026 (B,108,37) CKSRYB104K50
C 3027 (B,103,45) CKSRYB103K50
C 3028 (B,108,21) CCSRCH102J50
C 3029 (B,106,37) CKSRYB105K10
C 3030 (B,104,37) CKSRYB103K50
C 3032 (B,102,17) CKSRYB105K10
C 3033 (B,101,28) CKSRYB103K50
C 3034 (B,99,28) CKSYB475K16
C 3035 (B,102,25) CKSRYB104K16
C 3036 (B,99,33) CCSRCH181J50
C 3037 (B,108,49) CKSRYB104K50
C 3038 (B,107,51) 33 uF/10 V CCH1586
C 3039 (B,95,38) CCSRCH181J50
C 3040 (B,99,38) CKSRYB472K50
C 3041 (B,98,38) CKSRYB472K50
C 3042 (B,87,20) CKSRYB474K16
C 3043 (B,89,20) CKSRYB474K16
C 3044 (B,116,49) CKSQYB105K16
C 3045 (B,90,20) CKSRYB474K16
C 3046 (B,97,45) CKSQYB105K25
C 3047 (B,101,44) CKSRYB104K50
C 3048 (B,91,13) CKSQYB225K16
C 3049 (B,93,13) CKSQYB225K16
C 3050 (B,99,46) CKSQYB105K25
C 3051 (B,96,48) CKSQYB105K25
C 3052 (B,87,13) CKSQYB105K16
C 3053 (B,89,13) CKSQYB105K16
C 3054 (B,92,21) CKSQYB105K16
C 3055 (B,96,12) CKSQYB105K16
C 3100 (B,100,63) CKSSYB104K16
C 3101 (B,100,57) CKSSYB104K16
C 3102 (B,103,61) CKSSYB104K16
C 3103 (B,103,58) CKSSYB104K16
C 3105 (A,111,66) CCSSCH470J50
C 3106 (B,113,67) CKSSYB473K16
C 3107 (B,115,65) CKSRYB104K50
C 3108 (A,123,70) CKSQYB225K10
C 3111 (A,138,44) 10 uF CCG1223
Circuit Symbol and No. Part No.
C 3112 (A,138,47) 10 uF CCG1223
C 3113 (B,136,43) CKSRYB102K50
C 3116 (A,124,60) CKSRYB102K50
C 3150 (A,49,47) CKSSYB104K16
C 3151 (A,49,48) CKSSYB104K16
C 3152 (A,49,45) CKSSYB104K10
C 3153 (A,48,44) CKSSYB104K10
C 3154 (A,48,45) CKSSYB103K16
C 3155 (B,48,49) CKSSYB104K10
C 3156 (B,48,53) CKSSYB104K10
C 3157 (A,48,43) CKSSYB103K16
C 3158 (B,48,48) CKSSYB103K16
C 3159 (B,48,52) CKSSYB103K16
C 3160 (A,46,44) CKSSYB104K10
C 3161 (A,46,43) CKSSYB103K16
C 3162 (B,39,47) CKSSYB104K10
C 3163 (B,40,47) CKSSYB103K16
C 3164 (B,39,51) CKSSYB104K10
C 3165 (B,40,51) CKSSYB103K16
C 3166 (B,39,49) CKSSYB104K10
C 3167 (B,38,49) CKSSYB103K16
C 3168 (B,41,63) 68 uF/10 V CCH1635
C 3200 (A,28,67) CKSSYB104K10
C 3201 (A,22,67) CKSSYB104K10
C 3202 (A,28,65) CKSSYB104K10
C 3203 (A,28,63) CKSRYB105K6R3
C 3204 (A,19,56) CKSSYB104K10
C 3205 (A,30,62) CKSSYB104K10
C 3206 (A,26,51) CKSRYB105K6R3
C 3207 (B,24,54) CKSRYB104K50
C 3208 (B,20,49) CKSRYB104K50
C 3209 (B,21,54) 10 uF CCG1236
C 3210 (B,22,49) 4.7 uF CCG1222
C 3211 (B,18,54) 10 uF CCG1236
C 3213 (A,32,66) CKSSYB104K10
C 3214 (B,62,43) 10 uF DCH1201
C 3215 (B,61,42) CKSSYB104K10
C 3300 (A,107,70) 10 uF CCG1236
C 3302 (A,81,56) CKSQYB224K50
C 3303 (A,76,24) CKSQYB106K6R3
C 3304 (A,71,22) CKSQYB106K6R3
C 3305 (A,66,28) CKSQYB106K6R3
C 3309 (A,76,32) 10 uF DCH1201
C 3310 (A,64,52) CKSSYB104K10
C 3311 (A,63,54) CKSQYB106K6R3
C 3350 (A,65,6) CKSSYB104K10
C 3360 (B,84,64) CKSSYB222K50
C 3361 (B,85,65) CKSSYB222K50
C 3362 (B,84,60) CKSQYB106K6R3
C 3363 (B,86,61) CKSQYB106K6R3
C 3364 (B,88,60) CKSQYB106K6R3
C 3365 (B,88,63) CKSSYB102K50
C 3366 (B,90,59) CKSQYB106K6R3
C 3367 (B,88,58) CKSSYB102K50
C 3368 (A,80,35) CKSQYB106K6R3
C 3369 (A,82,35) CKSQYB106K6R3
C 3370 (B,91,34) CKSSYB104K10
C 3371 (B,92,34) CKSSYB104K10
C 3372 (B,94,34) CKSSYB104K10
C 3373 (A,84,29) CKSSYB104K10
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 335
5 678
5678
C
D
F
A
B
E
C 3374 (B,80,34) CKSSYB104K16
C 3403 (A,21,41) CKSRYB104K50
C 3404 (A,11,41) CKSRYB104K50
C 3405 (A,11,38) CKSRYB104K50
C 3406 (A,19,43) CKSRYB104K50
C 3407 (A,25,42) 10 uF CCG1192
C 3408 (A,17,38) CKSQYB334K50
C 3409 (A,15,37) 10 uF CCG1236
C 3410 (A,25,38) 10 uF CCG1192
C 3411 (A,27,40) 10 uF CCG1192
C 3412 (A,24,36) CKSRYB104K50
C 3413 (A,20,36) CKSRYB104K50
C 3414 (A,29,38) 10 uF CCG1192
C 3415 (A,27,37) CKSSYB104K10
C 3416 (A,24,35) CKSSYB102K50
C 3417 (A,21,35) CKSSYB102K50
C 3418 (A,29,37) CKSSYB104K10
C 3419 (A,27,36) CKSSYB102K10
C 3420 (A,30,36) CKSSYB102K10
C 3421 (A,30,35) CCSSCH101J50
C 3422 (A,27,35) CCSSCH101J50
C 3423 (A,32,47) CKSSYB103K16
H
Unit Number : CWN3988
Unit Name : Keyboard Unit
MISCELLANEOUS
D 2901 (A,24,33) Chip LED NSSM038A-7306
D 2902 (A,143,33) Chip LED NSSM038A-7306
L 2902 (A,10,31) Inductor CTF1767
L 2903 (A,7,31) Inductor CTF1767
S 2902 (A,133,33) Switch CSG1191
S 2903 (A,91,33) Switch CSG1191
S 2904 (A,34,33) Switch CSG1191
S 2905 (A,77,33) Switch CSG1191
S 2906 (A,48,33) Switch CSG1191
S 2907 (A,63,33) Switch CSG1191
S 2908 (A,104,33) Switch CSG1191
S 2909 (A,119,33) Switch CSG1191
CN2901 (A,15,33) Connector CKS5749
JA2901 (A,5,33) Antenna CTX1110
RESISTORS
R 2901 (A,81,32) RS1/10SR122J
R 2902 (A,68,33) RS1/10SR242J
R 2903 (A,53,32) RS1/10SR122J
R 2904 (A,97,32) RS1/10SR242J
R 2905 (A,115,32) RS1/10SR682J
CAPACITORS
C 2901 (A,44,33) CKSRYB104K50
C 2902 (A,40,33) CKSRYB104K50
C 2903 (A,124,33) CKSRYB104K50
C 2904 (A,128,33) CKSRYB104K50
I
Unit Number : EXX1060
Unit Name : PCB Unit(Service)
Circuit Symbol and No. Part No.
MISCELLANEOUS
IC 101 Driver IC BA6288FS
VR101 Volume 10 kohm CCW1029
S 101 Switch CSN1067
S 102 Switch CSN1068
CN101 Connector CKS4997
RESISTORS
R 101 RS1/16S221J
R 102 RS1/16S221J
R 103 RS1/16S0R0J
CAPACITORS
C 101 CEVW220M16
C 102 CKSRYB104K16
C
Unit Number : YWX5009
Unit Name : DVD Core Unit
MISCELLANEOUS
IC 1002 (B,21,41) Regulator IC S-1133B50-U5
IC 1003 (B,35,23) IC S-1200B50-M5
IC 1004 (B,25,11) IC NJM2885DL1-33
IC 1005 (B,19,21) IC R1232D121B
IC 1201 (A,15,29) IC BD8231EFV
*IC1401 (B,63,36) Flash ROM Unit CWW1825
*IC1402 (B,50,36) Flash ROM Unit CWW1826
IC 1480 (B,59,13) SDRAM(64M) K4S641632N-LC75
IC 1501 (A,60,20) IC MN2DS0018MAUB
IC 1801 (B,37,16) D/A Converter PCM1753DBQ
Q 1101 (A,35,39) Transistor 2SC4081
Q 1102 (A,46,42) Transistor 2SC4081
Q 1103 (A,38,45) Transistor 2SB1132
Q 1104 (A,45,49) Transistor 2SB1132
L 1003 (B,22,26) Inductor CTF1677
L 1004 (B,14,17) Inductor CTF1678
L 1512 (A,57,5) Inductor CTF1743
L 1902 (B,5,8) Inductor CTF1487
L 1903 (B,12,11) Inductor CTF1558
L 1904 (B,46,19) Inductor CTF1473
X 1501 (B,43,7) Oscillator 27.000 MHz CSS1768
EF1001 (B,5,12) Chip EMI Filter DTF1106
EF1002 (B,11,13) Chip EMI Filter DTL1106
CN1101 (A,66,49) Connector CKS5775
CN1201 (A,16,44) Connector CKS6003
CN1901 (A,21,7) Connector CKS6025
RESISTORS
R 1002 (B,18,27) RS1/16SS101J
R 1004 (A,29,27) RS1/16SS4702D
R 1007 (A,29,26) RS1/16SS6801D
R 1019 (B,15,9) RS1/16SS101J
R 1021 (A,27,15) RS1/16SS0R0J
R 1025 (B,19,11) RS1/16SS101J
R 1027 (A,27,19) RS1/16SS101J
R 1101 (A,35,36) RS1/16SS104J
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC
336
1234
1234
C
D
F
A
B
E
R 1102 (A,43,42) RS1/16SS104J
R 1103 (A,34,41) RS1/16SS391J
R 1104 (A,36,36) RS1/16SS511J
R 1105 (A,42,44) RS1/16SS391J
R 1106 (A,45,39) RS1/16SS561J
R 1109 (A,34,43) RS1/16SS3R3J
R 1110 (A,41,43) RS1/16SS3R3J
R 1111 (A,38,39) RS1/10SR1R5J
R 1112 (A,38,38) RS1/10SR1R5J
R 1113 (A,49,46) RS1/10SR1R5J
R 1114 (A,48,46) RS1/10SR1R5J
R 1115 (A,41,38) RS1/10SR1R5J
R 1116 (A,41,39) RS1/10SR1R5J
R 1117 (A,48,43) RS1/10SR1R5J
R 1118 (A,49,43) RS1/10SR1R5J
R 1201 (A,16,36) RS1/16SS221J
R 1202 (A,17,35) RS1/16SS221J
R 1203 (A,22,35) RS1/16SS103J
R 1204 (A,19,35) RS1/16SS153J
R 1212 (A,7,36) RS1/16SS271J
R 1213 (B,8,29) RS1/16SS1R0J
R 1214 (B,8,27) RS1/16SS1R0J
R 1215 (B,8,28) RS1/16SS1R0J
R 1216 (B,8,24) RS1/16SS1R0J
R 1217 (B,8,25) RS1/16SS1R0J
R 1218 (B,8,26) RS1/16SS1R0J
R 1222 (B,26,39) RS1/16SS271J
R 1300 (B,39,24) RS1/16SS0R0J
R 1401 (B,63,49) RS1/16SS221J
R 1402 (B,70,27) RS1/16SS104J
R 1405 (B,56,24) RS1/16SS104J
R 1406 (B,54,25) RS1/16SS104J
R 1480 (B,52,21) RAB4CQ560J
R 1481 (B,56,21) RAB4CQ560J
R 1482 (B,61,21) RAB4CQ560J
R 1483 (B,64,21) RAB4CQ560J
R 1484 (B,67,21) RAB4CQ560J
R 1485 (B,50,5) RAB4CQ560J
R 1486 (B,55,5) RAB4CQ560J
R 1487 (B,64,5) RAB4CQ560J
R 1488 (B,68,5) RAB4CQ560J
R 1489 (B,59,5) RS1/16SS560J
R 1490 (B,50,21) RS1/16SS560J
R 1501 (B,46,7) RS1/16SS122J
R 1503 (B,45,8) RS1/16SS105J
R 1504 (B,45,13) RS1/16SS120J
R 1505 (A,43,13) RS1/16SS101J
R 1506 (A,37,14) RS1/16SS101J
R 1507 (A,44,14) RS1/16SS101J
R 1508 (A,43,15) RS1/16SS221J
R 1509 (A,63,35) RS1/16SS102J
R 1510 (A,64,35) RS1/16SS102J
R 1511 (B,46,13) RS1/16S0R0J
R 1512 (A,58,5) RS1/16SS101J
R 1513 (A,66,35) RS1/16SS103J
R 1514 (A,68,35) RS1/16SS183J
R 1516 (A,65,36) RS1/16SS103J
R 1517 (A,76,16) RS1/16SS103J
R 1518 (A,74,24) RS1/16SS103J
R 1519 (A,70,34) RS1/16SS102J
Circuit Symbol and No. Part No.
R 1522 (A,65,38) RS1/16SS104J
R 1523 (A,66,37) RS1/16SS221J
R 1524 (A,64,37) RS1/16SS472J
R 1525 (A,71,34) RS1/16SS103J
R 1526 (A,67,34) RS1/16SS103J
R 1527 (B,77,29) RS1/16SS682J
R 1528 (A,78,20) RS1/16SS103J
R 1529 (A,76,18) RS1/16SS103J
R 1530 (A,77,20) RS1/16SS103J
R 1531 (A,75,24) RS1/16SS103J
R 1533 (A,75,29) RS1/16SS104J
R 1534 (A,78,30) RS1/16SS221J
R 1535 (B,70,34) RS1/16SS104J
R 1536 (A,78,31) RS1/16SS104J
R 1537 (A,73,35) RS1/16SS104J
R 1538 (A,61,4) RS1/16SS104J
R 1539 (A,77,23) RS1/16SS104J
R 1540 (A,73,32) RS1/16SS221J
R 1541 (A,75,32) RS1/16SS221J
R 1542 (A,77,29) RS1/16SS103J
R 1546 (B,75,29) RS1/16SS682J
R 1601 (A,42,25) RS1/16SS123J
R 1602 (A,44,25) RS1/16SS123J
R 1603 (A,43,30) RN1/16SE1002D
R 1604 (A,50,35) RS1/16SS105J
R 1605 (A,49,37) RS1/16SS105J
R 1670 (A,34,21) RS1/16SS1002D
R 1671 (A,36,21) RS1/16SS2402D
R 1672 (A,45,19) RS1/16SS2000D
R 1674 (A,45,20) RS1/16SS3002D
R 1801 (B,35,6) RS1/16SS104J
R 1802 (B,33,6) RS1/16SS104J
R 1803 (B,35,11) RS1/16SS821J
R 1804 (B,34,11) RS1/16SS821J
CAPACITORS
C 1001 (B,36,21) CKSRYB105K10
C 1003 (B,18,44) CKSSYB104K16
C 1004 (B,24,40) CKSQYB475K10
C 1005 (B,32,23) CKSRYB105K16
C 1008 (B,20,31) 10 uF DCH1201
C 1009 (B,18,31) 10 uF DCH1201
C 1010 (B,26,18) CKSQYB225K10
C 1011 (B,22,18) CKSRYB105K10
C 1013 (B,15,25) 10 uF DCH1201
C 1014 (B,13,25) 10 uF DCH1201
C 1015 (B,7,8) CKSSYB102K50
C 1016 (B,12,10) CKSSYB102K50
C 1018 (A,28,28) CKSSYB104K10
C 1019 (A,10,17) CKSSYB104K10
C 1021 (B,34,4) CCSRCH681J50
C 1022 (A,23,21) CCSRCH681J50
C 1101 (B,31,40) 10 uF DCH1201
C 1104 (A,34,42) CKSSYB104K10
C 1105 (A,42,45) CKSSYB104K10
C 1106 (A,37,48) CKSSYB103K16
C 1107 (A,41,49) CKSSYB103K16
C 1108 (A,74,42) CKSSYB103K16
C 1109 (A,56,41) CKSRYB224K10
Circuit Symbol and No. Part No.
AVIC-Z110BT/XN/UC 337
5 678
5678
C
D
F
A
B
E
C 1110 (A,71,42) CKSSYB103K16
C 1111 (A,61,39) CKSRYB224K10
C 1112 (B,40,39) 22 uF CCG1178
C 1113 (B,36,38) 22 uF CCG1178
C 1201 (B,12,34) CEVW101M16
C 1204 (A,8,24) CKSSYB222K50
C 1205 (A,13,23) CKSSYB104K16
C 1207 (A,22,25) CKSSYB104K16
C 1208 (A,15,36) CKSSYB103K16
C 1209 (B,10,25) CKSSYB104K16
C 1210 (B,6,23) CKSSYB104K16
C 1211 (B,9,22) CKSYB475K16
C 1401 (B,63,48) CKSSYB103K16
C 1403 (B,69,23) CKSSYB104K10
C 1404 (B,58,25) CKSQYB475K6R3
C 1408 (B,47,25) CKSSYB104K10
C 1409 (B,47,23) CKSQYB475K6R3
C 1480 (B,47,21) CKSSYB104K10
C 1481 (B,49,23) CKSSYB104K10
C 1482 (B,54,21) CKSSYB104K10
C 1484 (B,59,20) CKSSYB104K10
C 1485 (B,69,21) CKSSYB104K10
C 1487 (B,58,4) CKSSYB104K10
C 1488 (B,52,5) CKSSYB104K10
C 1489 (B,45,20) CKSQYB106K6R3
C 1490 (B,45,23) CKSSYB102K50
C 1501 (B,72,9) CKSQYB106K6R3
C 1502 (A,35,32) CKSQYB106K6R3
C 1503 (A,60,4) CKSSYB104K10
C 1504 (A,51,5) CKSSYB104K10
C 1505 (A,53,5) CKSSYB104K10
C 1506 (A,55,5) CKSSYB104K10
C 1507 (A,62,5) CKSSYB104K10
C 1508 (A,66,5) CKSSYB104K10
C 1509 (A,69,5) CKSSYB104K10
C 1510 (B,46,5) CCSSCH120J50
C 1511 (A,46,9) CKSSYB104K10
C 1512 (B,43,10) CCSSCH100D50
C 1513 (B,74,12) CKSSYB104K10
C 1514 (A,46,13) CKSSYB104K10
C 1515 (A,45,15) CKSSYB104K10
C 1516 (A,75,15) CKSSYB104K10
C 1517 (A,74,16) CKSSYB104K10
C 1518 (A,75,22) CKSSYB104K10
C 1519 (A,74,26) CKSSYB104K10
C 1520 (A,75,30) CKSSYB104K10
C 1521 (A,60,37) CKSSYB104K10
C 1522 (A,65,34) CKSSYB104K10
C 1523 (A,68,37) CKSSYB104K10
C 1524 (A,69,37) CKSSYB473K10
C 1526 (A,68,37) CKSSYB103K16
C 1528 (A,78,29) CCSSCH471J16
C 1601 (A,44,29) CKSSYB103K16
C 1602 (A,42,24) CCSSCH101J50
C 1603 (A,44,27) CCSSCH101J50
C 1604 (A,41,27) CCSSCH680J50
C 1605 (A,43,27) CCSSCH680J50
C 1606 (A,41,23) CKSSYB104K10
C 1607 (A,41,35) CKSQYB106K6R3
C 1608 (A,43,36) CKSRYB105K10
Circuit Symbol and No. Part No.
C 1609 (A,48,35) CKSSYB104K10
C 1610 (A,50,37) CKSSYB104K10
C 1611 (A,51,37) CKSSYB104K10
C 1612 (A,52,34) CKSSYB104K10
C 1613 (A,52,37) CKSSYB104K10
C 1614 (A,53,34) CKSSYB104K10
C 1615 (A,54,34) CKSSYB104K10
C 1616 (A,54,37) CKSSYB104K10
C 1617 (A,54,38) CKSSYB104K10
C 1618 (A,56,34) CCSSCH101J50
C 1619 (A,57,34) CKSSYB562K25
C 1620 (A,58,34) CKSSYB224K6R3
C 1621 (A,57,37) CKSSYB224K6R3
C 1622 (A,59,35) CKSSYB333K16
C 1623 (A,45,35) CKSRYB105K10
C 1624 (A,58,37) CKSSYB104K10
C 1625 (A,56,37) CKSSYB104K10
C 1671 (A,44,17) CKSSYB104K10
C 1672 (A,45,18) CKSSYB104K10
C 1673 (A,45,22) CKSSYB104K10
C 1674 (A,43,21) CKSSYB104K10
C 1676 (A,38,22) CKSRYB105K10
C 1801 (B,34,8) CKSQYB475K6R3
C 1802 (B,32,8) CKSQYB475K6R3
C 1803 (B,36,8) CCSRCH182J50
C 1804 (B,31,7) CCSRCH182J50
C 1805 (B,32,19) CKSSYB104K10
C 1806 (B,39,9) 10 uF DCH1201
C 1809 (B,43,16) CKSSYB104K10
C 1934 (B,42,29) CCSRCH680J50
D
Unit Number :
Unit Name : Connect PCB
MISCELLANEOUS
S 101 (B,51,37) Switch(HOME) CSN1068
S 102 (B,12,23) Switch(DSCSNS) CSN1068
S 103 (B,22,10) Switch(8SNS) CSN1068
R 101 (B,52,27) RS1/16S101J
R 102 (B,15,29) RS1/16S101J
R 103 (B,16,11) RS1/16S101J
C 101 (B,51,23) CKSRYB104K50
Miscellaneous Parts List
Pickup Unit(Service) CXX2398
M 1 Motor Unit(LOAD/CRG) CXC4026
M 2 Motor(SPINDLE) EXM1050
Circuit Symbol and No. Part No.

Navigation menu
