Allwinner A64 User Manual
Version 1.1
Jun.25,2015
Copyright© 2015 Allwinner Technology Co.,Ltd. All Rights Reserved.
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 2
Declaration
THIS DOCUMENTATION IS THE ORIGINAL WORK AND COPYRIGHTED PROPERTY OF ALLWINNER TECHNOLOGY
(“ALLWINNER”). REPRODUCTION IN WHOLE OR IN PART MUST OBTAIN THE WRITTEN APPROVAL OF ALLWINNER
AND GIVE CLEAR ACKNOWLEDGEMENT TO THE COPYRIGHT OWNER.
THE INFORMATION FURNISHED BY ALLWINNER IS BELIEVED TO BE ACCURATE AND RELIABLE. ALLWINNER
RESERVES THE RIGHT TO MAKE CHANGES IN CIRCUIT DESIGN AND/OR SPECIFICATIONS AT ANY TIME WITHOUT
NOTICE. ALLWINNER DOES NOT ASSUME ANY RESPONSIBILITY AND LIABILITY FOR ITS USE. NOR FOR ANY
INFRINGEMENTS OF PATENTS OR OTHER RIGHTS OF THE THIRD PARTIES WHICH MAY RESULT FROM ITS USE. NO
LICENSE IS GRANTED BY IMPLICATION OR OTHERWISE UNDER ANY PATENT OR PATENT RIGHTS OF ALLWINNER.
THIS DOCUMENTATION NEITHER STATES NOR IMPLIES WARRANTY OF ANY KIND, INCLUDING FITNESS FOR ANY
PARTICULAR APPLICATION.
THIRD PARTY LICENCES MAY BE REQUIRED TO IMPLEMENT THE SOLUTION/PRODUCT. CUSTOMERS SHALL BE
SOLELY RESPONSIBLE TO OBTAIN ALL APPROPRIATELY REQUIRED THIRD PARTY LICENCES. ALLWINNER SHALL
NOT BE LIABLE FOR ANY LICENCE FEE OR ROYALTY DUE IN RESPECT OF ANY REQUIRED THIRD PARTY LICENCE.
ALLWINNER SHALL HAVE NO WARRANTY, INDEMNITY OR OTHER OBLIGATIONS WITH RESPECT TO MATTERS
COVERED UNDER ANY REQUIRED THIRD PARTY LICENCE.
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 3
Revision History
Version
Date
Description
V1.0
Mar.30,2015
Initial Release Version
V1.1
Jun.26,2015
Revise the feature of display output
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 4
Table of Contents
Declaration................................................................................................................................................................. 2
Revision History ......................................................................................................................................................... 3
Table of Contents ....................................................................................................................................................... 4
Chapter 1 About This Documentation .............................................................................................................. 58
1.1. Documentation Overview ................................................................................................................ 58
1.2. Acronyms and abbreviations ........................................................................................................... 58
Chapter 2 Overview .......................................................................................................................................... 60
2.1. Processor Features ........................................................................................................................... 61
2.1.1. CPU Architecture ...................................................................................................................... 61
2.1.2. GPU Architecture ..................................................................................................................... 61
2.1.3. Memory Subsystem ................................................................................................................. 61
2.1.3.1. Boot ROM ........................................................................................................................ 61
2.1.3.2. SDRAM ............................................................................................................................. 62
2.1.3.3. NAND Flash ...................................................................................................................... 62
2.1.3.4. SD/MMC .......................................................................................................................... 62
2.1.4. System Peripheral .................................................................................................................... 62
2.1.4.1. Timer ................................................................................................................................ 62
2.1.4.2. High Speed Timer ............................................................................................................. 63
2.1.4.3. RTC ................................................................................................................................... 63
2.1.4.4. GIC.................................................................................................................................... 63
2.1.4.5. DMA ................................................................................................................................. 63
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 5
2.1.4.6. CCU .................................................................................................................................. 63
2.1.4.7. PWM ................................................................................................................................ 64
2.1.4.8. Thermal Sensor ................................................................................................................ 64
2.1.4.9. KEYADC ............................................................................................................................ 64
2.1.4.10. Crypto Engine(CE) .......................................................................................................... 64
2.1.4.11. Security ID ...................................................................................................................... 64
2.1.4.12. CPU Configuration ......................................................................................................... 65
2.1.5. Display Subsystem .................................................................................................................... 65
2.1.5.1. DE ..................................................................................................................................... 65
2.1.5.2. Display Output ................................................................................................................. 65
2.1.6. Video Engine ............................................................................................................................ 65
2.1.6.1. Video Decoding ................................................................................................................ 65
2.1.6.2. Video Encoding ................................................................................................................ 66
2.1.7. Image In ................................................................................................................................... 66
2.1.7.1. CSI .................................................................................................................................... 66
2.1.8. Audio Subsystem ...................................................................................................................... 66
2.1.8.1. Audio Codec ..................................................................................................................... 66
2.1.8.2. One Wire Audio(OWA) .................................................................................................... 67
2.1.8.3. I2S/PCM ........................................................................................................................... 67
2.1.9. External Peripherals ................................................................................................................. 68
2.1.9.1. USB ................................................................................................................................... 68
2.1.9.2. EMAC ............................................................................................................................... 68
2.1.9.3. UART ................................................................................................................................ 68
2.1.9.4. SPI .................................................................................................................................... 68
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 6
2.1.9.5. Two Wire Interface(TWI) ................................................................................................. 69
2.1.9.6. CIR .................................................................................................................................... 69
2.1.9.7. Reduced Serial Bus(RSBTM) .............................................................................................. 69
2.1.9.8. TS ..................................................................................................................................... 69
2.1.9.9. SCR ................................................................................................................................... 70
2.1.10. Package .................................................................................................................................... 70
2.2. System Block Diagram ...................................................................................................................... 71
Chapter 3 System .............................................................................................................................................. 72
3.1. Memory Mapping ............................................................................................................................ 73
3.2. Boot System ..................................................................................................................................... 76
3.3. CCU .................................................................................................................................................. 77
3.3.1. Overview .................................................................................................................................. 77
3.3.2. Functionalities Description ...................................................................................................... 77
3.3.2.1. System Bus ....................................................................................................................... 77
3.3.2.2. Bus clock tree ................................................................................................................... 79
3.3.2.3. Module clock tree ............................................................................................................ 79
3.3.3. Typical Applications.................................................................................................................. 81
3.3.4. Register List .............................................................................................................................. 81
3.3.5. Register Description ................................................................................................................. 84
3.3.5.1. PLL_CPUX Control Register (Default Value: 0x00001000) ............................................... 84
3.3.5.2. PLL_Audio Control Register (Default Value: 0x00035514) ............................................... 85
3.3.5.3. PLL_VIDEO0 Control Register (Default Value: 0x03006207) ............................................ 86
3.3.5.4. PLL_VE Control Register (Default Value: 0x03006207) .................................................... 87
3.3.5.5. PLL_DDR0 Control Register (Default Value: 0x00001000) ............................................... 88
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 7
3.3.5.6. PLL_PERIPH0 Control Register (Default Value: 0x00041811) ........................................... 89
3.3.5.7. PLL_PERIPH1 Control Register (Default Value: 0x00041811) ........................................... 90
3.3.5.8. PLL_VIDEO1 Control Register (Default Value: 0x03006207) ............................................ 92
3.3.5.9. PLL_GPU Control Register (Default Value: 0x03006207) ................................................. 93
3.3.5.10. PLL_MIPI Control Register (Default Value: 0x00000515) ............................................... 94
3.3.5.11. PLL_HSIC Control Register (Default Value: 0x03001300) ............................................... 95
3.3.5.12. PLL_DE Control Register (Default Value: 0x03006207) .................................................. 96
3.3.5.13. PLL_DDR1 Control Register (Default Value: 0x00001800) ............................................. 97
3.3.5.14. CPUX/AXI Configuration Register (Default Value: 0x00010300) .................................... 98
3.3.5.15. AHB1/APB1 Configuration Register (Default Value: 0x00001010) ................................. 99
3.3.5.16. APB2 Configuration Register (Default Value: 0x01000000) ......................................... 100
3.3.5.17. AHB2 Configuration Register (Default Value: 0x00000000) ......................................... 100
3.3.5.18. Bus Clock Gating Register0 (Default Value: 0x00000000) ............................................ 100
3.3.5.19. Bus Clock Gating Register1 (Default Value: 0x00000000) ............................................ 102
3.3.5.20. Bus Clock Gating Register2 (Default Value: 0x00000000) ............................................ 103
3.3.5.21. Bus Clock Gating Register3 (Default Value: 0x00000000) ............................................ 104
3.3.5.22. Bus Clock Gating Register4 (Default Value: 0x00000000) ............................................ 105
3.3.5.23. THS Clock Register (Default Value: 0x00000000) ......................................................... 106
3.3.5.24. NAND Clock Register (Default Value: 0x00000000) ..................................................... 106
3.3.5.25. SMHC0 Clock Register (Default Value: 0x00000000) ................................................... 107
3.3.5.26. SMHC1 Clock Register (Default Value: 0x00000000) ................................................... 108
3.3.5.27. SMHC2 Clock Register (Default Value: 0x00000000) ................................................... 108
3.3.5.28. TS Clock Register (Default Value: 0x00000000)............................................................ 109
3.3.5.29. CE Clock Register (Default Value: 0x00000000) ........................................................... 109
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 8
3.3.5.30. SPI0 Clock Register (Default Value: 0x00000000) ........................................................ 110
3.3.5.31. SPI1 Clock Register (Default Value: 0x00000000) ........................................................ 111
3.3.5.32. I2S/PCM 0 Clock Register (Default Value: 0x00000000) .............................................. 112
3.3.5.33. I2S/PCM 1 Clock Register (Default Value: 0x00000000) .............................................. 112
3.3.5.34. I2S/PCM 2 Clock Register (Default Value: 0x00000000) .............................................. 112
3.3.5.35. OWA Clock Register (Default Value: 0x00000000) ....................................................... 113
3.3.5.36. USBPHY Configuration Register (Default Value: 0x00000000) ..................................... 113
3.3.5.37. DRAM Configuration Register (Default Value: 0x00000000) ....................................... 114
3.3.5.38. PLL_DDR Configuration Register (Default Value: 0xCCCA0000) ................................... 115
3.3.5.39. MBUS Reset Register (Default Value: 0x80000000) ..................................................... 116
3.3.5.40. DRAM Clock Gating Register (Default Value: 0x00000000) ......................................... 116
3.3.5.41. DE Clock Gating Register (Default Value: 0x00000000) ............................................... 117
3.3.5.42. TCON0 Clock Register (Default Value: 0x00000000) .................................................... 117
3.3.5.43. TCON1 Clock Register (Default Value: 0x00000000) .................................................... 117
3.3.5.44. DEINTERLACE Clock Register (Default Value: 0x00000000) ......................................... 118
3.3.5.45. CSI_MISC Clock Register (Default Value: 0x00000000) ................................................ 118
3.3.5.46. CSI Clock Register (Default Value: 0x00000000) .......................................................... 119
3.3.5.47. VE Clock Register (Default Value: 0x00000000) ........................................................... 120
3.3.5.48. AC Digital Clock Register (Default Value: 0x00000000) ............................................... 120
3.3.5.49. AVS Clock Register (Default Value: 0x00000000) ......................................................... 120
3.3.5.50. HDMI Clock Register (Default Value: 0x00000000) ...................................................... 121
3.3.5.51. HDMI Slow Clock Register (Default Value: 0x00000000) ............................................. 121
3.3.5.52. MBUS Clock Register (Default Value: 0x00000000) ..................................................... 121
3.3.5.53. MIPI_DSI Clock Register (Default Value: 0x00000000) ................................................ 122
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 9
3.3.5.54. GPU Clock Register (Default Value: 0x00000000) ........................................................ 122
3.3.5.55. PLL Stable Time Register0 (Default Value: 0x000000FF) ............................................. 123
3.3.5.56. PLL Stable Time Register1 (Default Value: 0x000000FF) ............................................. 123
3.3.5.57. PLL_PERIPH1 Bias Register (Default Value: 0x10100010) ............................................ 123
3.3.5.58. PLL_CPUX Bias Register (Default Value: 0x08100200) ................................................. 124
3.3.5.59. PLL_AUDIO Bias Register (Default Value: 0x10100000) ............................................... 124
3.3.5.60. PLL_VIDEO0 Bias Register (Default Value: 0x10100000) ............................................. 125
3.3.5.61. PLL_VE Bias Register (Default Value: 0x10100000)...................................................... 125
3.3.5.62. PLL_DDR0 Bias Register (Default Value: 0x81104000) ................................................. 125
3.3.5.63. PLL_PERIPH0 Bias Register (Default Value: 0x10100010) ............................................ 126
3.3.5.64. PLL_VIDEO1 Bias Register (Default Value: 0x10100000) ............................................. 126
3.3.5.65. PLL_GPU Bias Register (Default Value: 0x10100000) ................................................... 127
3.3.5.66. PLL_MIPI Bias Register (Default Value: 0XF8100400) .................................................. 127
3.3.5.67. PLL_HSIC Bias Register (Default Value: 0x10100000) .................................................. 128
3.3.5.68. PLL_DE Bias Register (Default Value: 0x10100000) ..................................................... 128
3.3.5.69. PLL_DDR1 Bias Register (Default Value: 0x10010000) ................................................. 128
3.3.5.70. PLL_CPUX Tuning Register (Default Value: 0x0A101000) ............................................ 129
3.3.5.71. PLL_DDR0 Tuning Register (Default Value: 0x14880000) ............................................ 129
3.3.5.72. PLL_MIPI Tuning Register (Default Value: 0x8A002000) .............................................. 130
3.3.5.73. PLL_PERIPH1 Pattern Control Register (Default Value: 0x00000000) .......................... 131
3.3.5.74. PLL_CPUX Pattern Control Register (Default Value: 0x00000000) ............................... 131
3.3.5.75. PLL_AUDIO Pattern Control Register(Default Value: 0x00000000) .............................. 132
3.3.5.76. PLL_VIDEO0 Pattern Control Register (Default Value: 0x00000000) ........................... 133
3.3.5.77. PLL_VE Pattern Control Register (Default Value: 0x00000000) ................................... 133
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 10
3.3.5.78. PLL_DDR0 Pattern Control Register (Default Value: 0x00000000) .............................. 134
3.3.5.79. PLL_VIDEO1 Pattern Control Register (Default Value: 0x00000000) ........................... 134
3.3.5.80. PLL_GPU Pattern Control Register (Default Value: 0x00000000) ................................ 135
3.3.5.81. PLL_MIPI Pattern Control Register (Default Value: 0x00000000) ................................ 135
3.3.5.82. PLL_HSIC Pattern Control Register (Default Value: 0x00000000) ................................ 136
3.3.5.83. PLL_DE Pattern Control Register (Default Value: 0x00000000) ................................... 137
3.3.5.84. PLL_DDR1 Pattern Control Register0 (Default Value: 0x00000000) ............................ 137
3.3.5.85. PLL_DDR1 Pattern Control Register1 (Default Value: 0x00000000) ............................ 138
3.3.5.86. Bus Software Reset Register 0 (Default Value: 0x00000000) ....................................... 138
3.3.5.87. Bus Software Reset Register 1 (Default Value: 0x00000000) ....................................... 140
3.3.5.88. Bus Software Reset Register 2 (Default Value: 0x00000000) ....................................... 141
3.3.5.89. Bus Software Reset Register 3 (Default Value: 0x00000000) ....................................... 142
3.3.5.90. Bus Software Reset Register 4 (Default Value: 0x00000000) ....................................... 142
3.3.5.91. CCU Security Switch Register (Default Value: 0x00000000) ........................................ 143
3.3.5.92. PS Control Register (Default Value: 0x00000000) ........................................................ 144
3.3.5.93. PS Counter Register (Default Value: 0x00000000) ....................................................... 145
3.3.5.94. PLL Lock Control Register (Default Value: 0x00000000) .............................................. 145
3.3.6. Programming Guidelines ........................................................................................................ 147
3.3.6.1. PLL .................................................................................................................................. 147
3.3.6.2. BUS ................................................................................................................................. 147
3.3.6.3. Clock Switch ................................................................................................................... 147
3.3.6.4. Gating and reset ............................................................................................................. 147
3.4. CPU Configuration .......................................................................................................................... 148
3.4.1. Overview ................................................................................................................................ 148
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 11
3.4.2. Block Diagram ........................................................................................................................ 148
3.4.3. Functionalities Description .................................................................................................... 149
3.4.3.1. Signal Description .......................................................................................................... 149
3.4.3.2. L2 Idle Mode .................................................................................................................. 149
3.4.3.3. CPU Reset System .......................................................................................................... 149
3.4.3.4. Operation Principle ........................................................................................................ 149
3.4.4. Register List ............................................................................................................................ 149
3.4.5. Register Description ............................................................................................................... 150
3.4.5.1. Cluster Control Register0 (Default Value: 0x80000000) ................................................ 150
3.4.5.2. Cluster Control Register1 (Default Value: 0x00000000) ................................................ 151
3.4.5.3. Cache Parameter Control Register0 (Default Value: 0x22222222) ................................ 151
3.4.5.4. Cache Parameter Control Register1 (Default Value: 0x02022020) ................................ 152
3.4.5.5. General Control Register0 (Default Value: 0x00000010) ............................................... 152
3.4.5.6. Cluster CPU Status Register (Default Value: 0x000E0000) ............................................. 153
3.4.5.7. L2 Status Register(Default Value: 0x00000000) ............................................................. 153
3.4.5.8. Cluster Reset Control Register (Default Value: 0x11101101) ......................................... 154
3.4.5.9. Reset Vector Base Address Register0_L (Default Value: 0x00000000) .......................... 155
3.4.5.10. Reset Vector Base Address Register0_H (Default Value: 0x00000000) ........................ 155
3.4.5.11. Reset Vector Base Address Register1_L (Default Value: 0x00000000) ........................ 155
3.4.5.12. Reset Vector Base Address Register1_H (Default Value: 0x00000000) ........................ 155
3.4.5.13. Reset Vector Base Address Register2_L (Default Value: 0x00000000) ........................ 156
3.4.5.14. Reset Vector Base Address Register2_H (Default Value: 0x00000000) ........................ 156
3.4.5.15. Reset Vector Base Address Register3_L (Default Value: 0x00000000) ........................ 156
3.4.5.16. Reset Vector Base Address Register3_H (Default Value: 0x00000000) ........................ 156
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 12
3.5. System Control ............................................................................................................................... 157
3.5.1. Overview ................................................................................................................................ 157
3.5.2. System Control Register List ................................................................................................... 157
3.5.3. System Control Register Description ...................................................................................... 157
3.5.3.1. Version Register ............................................................................................................. 157
3.5.3.2. EMAC Clock Register (Default Value: 0x00000000) ....................................................... 158
3.6. Timer .............................................................................................................................................. 159
3.6.1. Overview ................................................................................................................................ 159
3.6.2. Block Diagram ........................................................................................................................ 159
3.6.3. Operation Principle ................................................................................................................ 160
3.6.3.1. Timer reload and enable bit........................................................................................... 160
3.6.3.2. Timing requirement for Timer command ...................................................................... 160
3.6.3.3. Watchdog restart ........................................................................................................... 161
3.6.4. Timer Register List ................................................................................................................. 161
3.6.5. Timer Register Description .................................................................................................... 161
3.6.5.1. Timer IRQ Enable Register (Default Value: 0x00000000) ............................................... 161
3.6.5.2. Timer IRQ Status Register (Default Value: 0x00000000) ................................................ 162
3.6.5.3. Timer 0 Control Register (Default Value: 0x00000004) ................................................. 162
3.6.5.4. Timer 0 Interval Value Register ...................................................................................... 163
3.6.5.5. Timer 0 Current Value Register ...................................................................................... 163
3.6.5.6. Timer 1 Control Register (Default Value: 0x00000004) ................................................. 164
3.6.5.7. Timer 1 Interval Value Register ...................................................................................... 165
3.6.5.8. Timer 1 Current Value Register ...................................................................................... 165
3.6.5.9. AVS Counter Control Register (Default Value: 0x00000000).......................................... 165
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 13
3.6.5.10. AVS Counter 0 Register (Default Value: 0x00000000) ................................................. 166
3.6.5.11. AVS Counter 1 Register (Default Value: 0x00000000) ................................................. 166
3.6.5.12. AVS Counter Divisor Register (Default Value: 0x05DB05DB) ....................................... 166
3.6.5.13. Watchdog IRQ Enable Register (Default Value: 0x00000000) ...................................... 167
3.6.5.14. Watchdog Status Register (Default Value: 0x00000000).............................................. 167
3.6.5.15. Watchdog Control Register (Default Value: 0x00000000) ............................................ 168
3.6.5.16. Watchdog Configuration Register (Default Value: 0x00000001).................................. 168
3.6.5.17. Watchdog Mode Register (Default Value: 0x00000000) .............................................. 168
3.6.6. Programming Guidelines ........................................................................................................ 169
3.6.6.1. Timer .............................................................................................................................. 169
3.6.6.2. Watchdog ....................................................................................................................... 169
3.7. R_Trusted Watchdog Timer ........................................................................................................... 170
3.7.1. Overview ................................................................................................................................ 170
3.7.2. Block Diagram ........................................................................................................................ 170
3.7.3. Functionalities Description .................................................................................................... 170
3.7.3.1. TWD Reset ...................................................................................................................... 170
3.7.3.2. NV-Counter .................................................................................................................... 171
3.7.4. TWD Register List ................................................................................................................... 171
3.7.5. R_TWD Register Description .................................................................................................. 172
3.7.5.1. R_TWD Status Register (Default Value: 0x00000000) .................................................... 172
3.7.5.2. R_TWD Control Register (Default Value: 0x00000000) .................................................. 172
3.7.5.3. R_TWD Restart Register (Default Value: 0x00000000) .................................................. 173
3.7.5.4. R_TWD Low Counter Register (Default Value: 0x00000000) ......................................... 173
3.7.5.5. R_TWD High Counter Register (Default Value: 0x00000000) ........................................ 173
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 14
3.7.5.6. R_TWD Interval Value Register (Default Value: 0x00000000) ....................................... 173
3.7.5.7. R_TWD Low Counter Compare Register (Default Value: 0x00000000) ......................... 174
3.7.5.8. R_TWD High Counter Compare Register (Default Value: 0x00000000) ......................... 174
3.7.5.9. Secure Storage NV-Counter Register (Default Value: 0x00000000) ............................... 174
3.7.5.10. Synchronize Data Counter Register 0 (Default Value: 0x00000000) ............................ 174
3.7.5.11. Synchronize Data Counter Register 1 (Default Value: 0x00000000) ............................ 174
3.7.5.12. Synchronize Data Counter Register 2 (Default Value: 0x00000000) ............................ 175
3.7.5.13. Synchronize Data Counter Register 3 (Default Value: 0x00000000) ............................ 175
3.8. RTC ................................................................................................................................................. 176
3.8.1. Overview ................................................................................................................................ 176
3.8.2. RTC Register List ..................................................................................................................... 176
3.8.3. RTC Register Description ........................................................................................................ 177
3.8.3.1. LOSC Control Register (Default Value: 0x00004000) ...................................................... 177
3.8.3.2. LOSC Auto Switch Status Register (Default Value: 0x00000000) ................................... 178
3.8.3.3. Internal OSC Clock Prescalar Register (Default Value: 0x0000000F) .............................. 178
3.8.3.4. RTC YY-MM-DD Register (Default Value: 0x00000000) .................................................. 179
3.8.3.5. RTC HH-MM-SS Register (Default Value: 0x00000000) .................................................. 179
3.8.3.6. Alarm 0 Counter Register (Default Value: 0x00000000) ................................................ 180
3.8.3.7. Alarm 0 Current Value Register ...................................................................................... 180
3.8.3.8. Alarm 0 Enable Register (Default Value: 0x00000000) .................................................. 180
3.8.3.9. Alarm 0 IRQ Enable Register (Default Value: 0x00000000) ........................................... 181
3.8.3.10. Alarm 0 IRQ Status Register (Default Value: 0x00000000) .......................................... 181
3.8.3.11. Alarm 1 Week HH-MM-SS Register (Default Value: 0x00000000) ............................... 181
3.8.3.12. Alarm 1 Enable Register (Default Value: 0x00000000) ................................................ 182
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 15
3.8.3.13. Alarm 1 IRQ Enable Register (Default Value: 0x00000000) ......................................... 183
3.8.3.14. Alarm 1 IRQ Status Register (Default Value: 0x00000000) .......................................... 183
3.8.3.15. Alarm Config Register (Default Value: 0x00000000) .................................................... 184
3.8.3.16. LOSC Output Gating Register (Default Value: 0x00000000) ........................................ 184
3.8.3.17. General Purpose Register (Default Value: 0x00000000) .............................................. 184
3.8.3.18. GPL Hold Output Register (Default Value: 0x00000000) ............................................. 184
3.8.3.19. VDD RTC Regulation Register (Default Value: 0x00000004) ........................................ 186
3.8.3.20. IC Characteristic Register (Default Value: 0x00000000) .............................................. 187
3.8.3.21. Crypt Configuration Register (Default Value: 0x00000000) ......................................... 187
3.8.3.22. Crypt Key Register (Default Value: 0x00000000) ......................................................... 187
3.8.3.23. Crypt Enable Register (Default Value: 0x00000000) .................................................... 187
3.9. High-speed Timer .......................................................................................................................... 188
3.9.1. Overview ................................................................................................................................ 188
3.9.2. Operation Principle ................................................................................................................ 188
3.9.2.1. HSTimer clock gating and software reset ...................................................................... 188
3.9.2.2. HSTimer reload bit ......................................................................................................... 188
3.9.3. HSTimer Block Diagram ......................................................................................................... 189
3.9.4. HSTimer Register List ............................................................................................................. 189
3.9.5. HSTimer Register Description ................................................................................................ 189
3.9.5.1. HS Timer IRQ Enable Register (Default Value: 0x00000000) ......................................... 189
3.9.5.2. HS Timer IRQ Status Register (Default Value: 0x00000000) .......................................... 190
3.9.5.3. HS Timer Control Register (Default Value: 0x00000000) ............................................... 190
3.9.5.4. HS Timer Interval Value Lo Register ............................................................................... 191
3.9.5.5. HS Timer Interval Value Hi Register ............................................................................... 191
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 16
3.9.5.6. HS Timer Current Value Lo Register ............................................................................... 192
3.9.5.7. HS Timer Current Value Hi Register ............................................................................... 192
3.9.6. Programming Guidelines ........................................................................................................ 192
3.10. PWM .............................................................................................................................................. 193
3.10.1. Overview ................................................................................................................................ 193
3.10.2. PWM Block Diagram .............................................................................................................. 193
3.10.3. PWM Register List .................................................................................................................. 194
3.10.4. PWM Register Description ..................................................................................................... 194
3.10.4.1. PWM Control Register(Default Value: 0x00000000) .................................................... 194
3.10.4.2. PWM Channel 0 Period Register .................................................................................. 195
3.11. DMA ............................................................................................................................................... 196
3.11.1. Overview ................................................................................................................................ 196
3.11.2. Functionalities Description .................................................................................................... 196
3.11.2.1. Block Diagram .............................................................................................................. 196
3.11.2.2. DRQ Type and Corresponding Relation ........................................................................ 197
3.11.2.3. DMA Descriptor ........................................................................................................... 197
3.11.3. DMA Register List ................................................................................................................... 198
3.11.4. DMA Register Description ...................................................................................................... 199
3.11.4.1. DMA IRQ Enable Register (Default Value: 0x00000000) .............................................. 199
3.11.4.2. DMA IRQ Pending Status Register0 (Default Value: 0x00000000) ............................... 201
3.11.4.3. DMA Security Register (Default Value: 0x00000000) .................................................. 203
3.11.4.4. DMA Auto Gating Register (Default Value: 0x00000000) ............................................ 204
3.11.4.5. DMA Status Register (Default Value: 0x00000000)...................................................... 205
3.11.4.6. DMA Channel Enable Register (Default Value: 0x00000000) ...................................... 206
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 17
3.11.4.7. DMA Channel Pause Register (Default Value: 0x00000000) ........................................ 206
3.11.4.8. DMA Channel Descriptor Address Register (Default Value: 0x00000000) ................... 206
3.11.4.9. DMA Channel Configuration Register (Default Value: 0x00000000) ........................... 207
3.11.4.10. DMA Channel Current Source Address Register (Default Value: 0x00000000) ......... 208
3.11.4.11. DMA Channel Current Destination Address Register (Default Value: 0x00000000) .. 208
3.11.4.12. DMA Channel Byte Counter Left Register (Default Value: 0x00000000) ................... 208
3.11.4.13. DMA Channel Parameter Register (Default Value: 0x00000000) .............................. 208
3.11.4.14. DMA Mode Register (Default Value: 0x00000000) .................................................... 209
3.11.4.15. DMA Former Descriptor Address Register (Default Value: 0x00000000) .................. 209
3.11.4.16. DMA Package Number Register (Default Value: 0x00000000) .................................. 209
3.12. GIC .................................................................................................................................................. 210
3.12.1. Interrupt Source ..................................................................................................................... 210
3.13. Message Box .................................................................................................................................. 214
3.13.1. Overview ................................................................................................................................ 214
3.13.2. Functionalities Description .................................................................................................... 214
3.13.2.1. Typical Applications ...................................................................................................... 215
3.13.2.2. Functional Block Diagram ............................................................................................ 216
3.13.3. Operation Principle ................................................................................................................ 216
3.13.3.1. Message Queue Assignment ........................................................................................ 216
3.13.3.2. Interrupt request ......................................................................................................... 217
3.13.4. Message Box Register List ...................................................................................................... 217
3.13.5. Message Box Register Description ......................................................................................... 218
3.13.5.1. MSGBox Control Register 0(Default Value: 0x10101010) ............................................ 218
3.13.5.2. MSGBox Control Register 1(Default Value: 0x10101010) ............................................ 219
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 18
3.13.5.3. MSGBox IRQ Enable Register u(Default Value: 0x00000000) ...................................... 220
3.13.5.4. MSGBox IRQ Status Register u(Default Value: 0x0000AAAA) ...................................... 222
3.13.5.5. MSGBox FIFO Status Register m(Default Value: 0x00000000) ..................................... 223
3.13.5.6. MSGBox Message Status Register m(Default Value: 0x00000000) .............................. 223
3.13.5.7. MSGBox Message Queue Register (Default Value: 0x00000000) ................................ 224
3.14. Spinlock .......................................................................................................................................... 225
3.14.1. Overview ................................................................................................................................ 225
3.14.2. Functionalities Description .................................................................................................... 226
3.14.2.1. Typical Applications ...................................................................................................... 226
3.14.2.2. Functional Block Diagram ............................................................................................ 226
3.14.3. Operation Principle ................................................................................................................ 227
3.14.3.1. Spinlock clock gating and software reset ..................................................................... 227
3.14.3.2. Take and free a spinlock ............................................................................................... 227
3.14.4. Spinlock Register List .............................................................................................................. 227
3.14.5. Spinlock Register Description ................................................................................................. 228
3.14.5.1. Spinlock System Status Register (Default Value: 0x10000000) .................................... 228
3.14.5.2. Spinlock Register Status (Default Value: 0x00000000) ................................................ 228
3.14.5.3. Spinlock Lock Register N (N=0 to 31)(Default Value: 0x00000000) ............................. 228
3.14.6. Programming Guidelines ........................................................................................................ 229
3.15. Crypto Engine ................................................................................................................................. 230
3.15.1. Overview ................................................................................................................................ 230
3.15.2. Functionalities Description .................................................................................................... 230
3.15.2.1. Block Diagram .............................................................................................................. 230
3.15.2.2. Crypto Engine with keysram ........................................................................................ 231
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 19
3.15.2.3. Crypto Engine Task Descriptor ..................................................................................... 233
3.15.3. Crypto Engine Register List .................................................................................................... 236
3.15.4. Crypto Engine Register Description ....................................................................................... 237
3.15.4.1. Crypto Engine Task Descriptor Queue Register(Default Value: 0x00000000) ............. 237
3.15.4.2. Crypto Engine Control Register(Default Value: 0x00000000) ...................................... 237
3.15.4.3. Crypto Engine Interrupt Control Register(Default Value: 0x00000000) ...................... 237
3.15.4.4. Crypto Engine Interrupt Status Register(Default Value: 0x00000000) ........................ 237
3.15.4.5. Crypto Engine Task Load Register(Default Value: 0x00000000) .................................. 238
3.15.4.6. Crypto Engine Task Status Register(Default Value: 0x00000000) ................................ 238
3.15.4.7. Crypto Engine Error Status Register(Default Value: 0x00000000) ............................... 238
3.15.4.8. Crypto Engine Current Source Address Register(Default Value: 0x00000000) ............ 239
3.15.4.9. Crypto Engine Current Destination Address Register(Default Value: 0x00000000) .... 239
3.15.4.10. Crypto Engine Throughput Register(Default Value: 0x00000000) ............................. 239
3.15.5. Crypto Engine Clock Requirement ......................................................................................... 239
3.16. Secure Memory Controller ............................................................................................................ 242
3.16.1. Overview ................................................................................................................................ 242
3.16.2. Functionalities Description .................................................................................................... 242
3.16.2.1. DRM Block Diagram ..................................................................................................... 243
3.16.2.2. Master ID Table ............................................................................................................ 243
3.16.2.3. Region Size Table .......................................................................................................... 244
3.16.2.4. Security inversion is disabled ....................................................................................... 244
3.16.2.5. Security inversion is enabled ....................................................................................... 245
3.16.3. SMC Register List .................................................................................................................... 245
3.16.4. SMC Register Description ....................................................................................................... 246
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 20
3.16.4.1. SMC Configuration Register(Default Value: 0x00001F0F) ........................................... 246
3.16.4.2. SMC Action Register(Default Value: 0x00000001) ...................................................... 246
3.16.4.3. SMC Lockdown Range Register(Default Value: 0x00000000) ...................................... 247
3.16.4.4. SMC Lockdown Select Register(Default Value: 0x00000000) ...................................... 247
3.16.4.5. SMC Interrupt Status Register(Default Value: 0x00000000) ....................................... 248
3.16.4.6. SMC Interrupt Clear Register(Default Value: 0x00000000) ......................................... 248
3.16.4.7. SMC Master Bypass Register(Default Value: 0xFFFFFFFF) ........................................... 248
3.16.4.8. SMC Master Secure Register(Default Value: 0x00000000) .......................................... 249
3.16.4.9. SMC Fail Address Register(Default Value: 0x00000000) .............................................. 249
3.16.4.10. SMC Fail Control Register(Default Value: 0x00000000) ............................................ 249
3.16.4.11. SMC Fail ID Register(Default Value: 0x00001F00) ..................................................... 250
3.16.4.12. SMC Speculation Control Register(Default Value: 0x00000000) ............................... 250
3.16.4.13. SMC Security Inversion Enable Register(Default Value: 0x00000000) ...................... 251
3.16.4.14. SMC Master Attribute Register(Default Value: 0x00000000) .................................... 251
3.16.4.15. DRM Master Enable Register(Default Value: 0x00000000) ....................................... 251
3.16.4.16. DRM Illegal Access Register(Default Value: 0x00000000) ......................................... 252
3.16.4.17. DRM Start Address Register(Default Value: 0x00000000) ......................................... 252
3.16.4.18. DRM End Address Register(Default Value: 0x00000000) .......................................... 252
3.16.4.19. SMC Region Setup Low Register(Default Value: 0x00000000) .................................. 252
3.16.4.20. SMC Region Setup High Register(Default Value: 0x00000000) ................................. 253
3.16.4.21. SMC Region Attributes Register(Default Value: 0x00000000) ................................... 253
3.17. Secure Peripherals Controller ........................................................................................................ 255
3.17.1. Overview ................................................................................................................................ 255
3.17.2. Functionalities Description .................................................................................................... 255
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 21
3.17.2.1. Peripherals Security Feature Table............................................................................... 255
3.17.2.2. SPC Configuration Table ............................................................................................... 256
3.17.3. SPC Register List ..................................................................................................................... 257
3.17.4. SPC Register Description ........................................................................................................ 257
3.17.4.1. SPC DECPORT0 Status Register(Default Value: 0x00000000) ...................................... 257
3.17.4.2. SPC DECPORT0 Set Register(Default Value: 0x00000000) ........................................... 258
3.17.4.3. SPC DECPORT0 Clear Register(Default Value: 0x00000000) ........................................ 258
3.17.4.4. SPC DECPORT1 Status Register(Default Value: 0x00000000) ...................................... 258
3.17.4.5. SPC DECPORT1 Set Register(Default Value: 0x00000000) ........................................... 258
3.17.4.6. SPC DECPORT1 Clear Register(Default Value: 0x00000000) ........................................ 259
3.17.4.7. SPC DECPORT2 Status Register(Default Value: 0x00000000) ...................................... 259
3.17.4.8. SPC DECPORT2 Set Register(Default Value: 0x00000000) ........................................... 259
3.17.4.9. SPC DECPORT2 Clear Register(Default Value: 0x00000000) ........................................ 260
3.17.4.10. SPC DECPORT3 Status Register(Default Value: 0x00000000) .................................... 260
3.17.4.11. SPC DECPORT3 Set Register(Default Value: 0x00000000) ......................................... 260
3.17.4.12. SPC DECPORT3 Clear Register(Default Value: 0x00000000) ...................................... 261
3.17.4.13. SPC DECPORT4 Status Register(Default Value: 0x00000000) .................................... 261
3.17.4.14. SPC DECPORT4 Set Register(Default Value: 0x00000000) ......................................... 261
3.17.4.15. SPC DECPORT4 Clear Register(Default Value: 0x00000000) ...................................... 261
3.17.4.16. SPC DECPORT5 Status Register(Default Value: 0x00000000) .................................... 262
3.17.4.17. SPC DECPORT5 Set Register(Default Value: 0x00000000) ......................................... 262
3.17.4.18. SPC DECPORT5 Clear Register(Default Value: 0x00000000) ...................................... 262
3.18. Thermal Sensor Controller ............................................................................................................. 264
3.18.1. Overview ................................................................................................................................ 264
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 22
3.18.2. Clock and Timing Requirements ............................................................................................ 264
3.18.3. Temperature Conversion Formula ......................................................................................... 265
3.18.4. Thermal Sensor Register List .................................................................................................. 265
3.18.5. Thermal Sensor Register Description ..................................................................................... 265
3.18.5.1. THS Control Register0 (Default Value: 0x00000000) .................................................... 265
3.18.5.2. THS Control Register1 (Default Value: 0x00000000) .................................................... 266
3.18.5.3. ADC calibration Data Register (Default Value: 0x00000000) ....................................... 266
3.18.5.4. THS Control Register2 (Default Value: 0x00040000) .................................................... 266
3.18.5.5. THS Interrupt Control Register (Default Value: 0x00000000) ...................................... 267
3.18.5.6. THS status Register (Default Value: 0x00000000) ........................................................ 268
3.18.5.7. Alarm threshold Control Register0 (Default Value: 0x05a00684) ................................ 269
3.18.5.8. Alarm threshold Control Register1 (Default Value: 0x05a00684) ................................ 269
3.18.5.9. Alarm threshold Control Register2 (Default Value: 0x05a00684) ................................ 270
3.18.5.10. Shutdown threshold Control Register0 (Default Value: 0x04e90000) ....................... 270
3.18.5.11. Shutdown threshold Control Register1 (Default Value: 0x04e90000) ....................... 270
3.18.5.12. Shutdown threshold Control Register2 (Default Value: 0x04e90000) ....................... 270
3.18.5.13. Average filter Control Register (Default Value: 0x00000001) .................................... 271
3.18.5.14. Thermal Sensor 0&1 calibration Data Register (Default Value: 0x08000800) ........... 271
3.18.5.15. Thermal Sensor 2 calibration Data Register (Default Value: 0x00000800) ................ 271
3.18.5.16. THS0 Data Register (Default Value: 0x00000000) ...................................................... 272
3.18.5.17. THS1 Data Register (Default Value: 0x00000000) ...................................................... 272
3.18.5.18. THS2 Data Register (Default Value: 0x00000000) ...................................................... 272
3.19. KEYADC ........................................................................................................................................... 273
3.19.1. Overview ................................................................................................................................ 273
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 23
3.19.2. Clock Source ........................................................................................................................... 273
3.19.3. Operation Principle ................................................................................................................ 273
3.19.4. KEY_ADC Register List ............................................................................................................ 274
3.19.5. KEYADC Register Description ................................................................................................. 275
3.19.5.1. KEYADC Control Register (Default Value: 0x01000168) ............................................... 275
3.19.5.2. KEYADC Interrupt Control Register (Default Value: 0x00000000) ................................ 276
3.19.5.3. KEYADC Interrupt Status Register (Default Value: 0x00000000) .................................. 276
3.19.5.4. KEYADC Data Register (Default Value: 0x00000000) .................................................... 277
3.20. Audio Codec ................................................................................................................................... 278
3.20.1. Overview ................................................................................................................................ 278
3.20.2. Power and Signal Description ................................................................................................ 279
3.20.2.1. Analog I/O Pins ............................................................................................................ 279
3.20.2.2. Filter/Reference ........................................................................................................... 279
3.20.2.3. Power/Ground ............................................................................................................. 280
3.20.3. Data Path Diagram ................................................................................................................. 280
3.20.4. Audio Codec Register List ....................................................................................................... 280
3.20.5. Audio Codec Register Description .......................................................................................... 286
3.20.5.1. 0x00 I2S_AP Control Register(Default Value: 0x00000000) ......................................... 286
3.20.5.2. 0x04 I2S_AP Format Register0(Default Value: 0x0000000C) ....................................... 287
3.20.5.3. 0x08 I2S_AP Format Register1(Default Value: 0x00004020) ....................................... 288
3.20.5.4. 0x0C I2S_AP Interrupt Status Register(Default Value: 0x00000010) ........................... 289
3.20.5.5. 0x10 I2S_AP RX FIFO Register(Default Value: 0x00000000) ........................................ 290
3.20.5.6. 0x14 I2S_AP FIFO Control Register(Default Value: 0x000400F0) ................................. 290
3.20.5.7. 0x18 I2S_AP FIFO Status Register(Default Value: 0x10800000)................................... 291
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 24
3.20.5.8. 0x1C I2S_AP DMA&Interrupt Control Register(Default Value: 0x00000000) .............. 292
3.20.5.9. 0x20 I2S_AP TX FIFO Register(Default Value: 0x00000000)......................................... 293
3.20.5.10. 0x24 I2S_AP Clock Divide Register(Default Value: 0x00000000) ............................... 293
3.20.5.11. 0x28 I2S_AP TX Counter Register(Default Value: 0x00000000) ................................. 294
3.20.5.12. 0x2C I2S_AP RX Counter Register(Default Value: 0x00000000) ................................ 294
3.20.5.13. 0x30 I2S_AP TX Channel Select Register(Default Value: 0x00000001) ...................... 295
3.20.5.14. 0x34 I2S_AP TX Channel Mapping Register(Default Value: 0x76543210) ................. 295
3.20.5.15. 0x38 I2S_AP RX Channel Select Register(Default Value: 0x00000001) ...................... 296
3.20.5.16. 0x3C I2S_AP RX Channel Mapping Register(Default Value: 0x00003210) ................. 296
3.20.5.17. 0x200 Codec Reset Register(Default Value: 0x00000101) ......................................... 297
3.20.5.18. 0x20C System Clock Control Register(Default Value: 0x00000000) ........................... 297
3.20.5.19. 0x210 Module Clock Control Register(Default Value: 0x00000000) .......................... 298
3.20.5.20. 0x214 Module Reset Control Register(Default Value: 0x00000000) ......................... 299
3.20.5.21. 0x218 System Sample rate & SRC Configuration Register(Default Value: 0x00000000)
299
3.20.5.22. 0x21C System SRC Clock Source Select Register(Default Value: 0x00000000) .......... 300
3.20.5.23. 0x220 System DVC Mode Select Register(Default Value: 0x00000000) .................... 301
3.20.5.24. 0x240 AIF1 BCLK/LRCK Control Register(Default Value: 0x00000000) ...................... 301
3.20.5.25. 0x244 AIF1 ADCDAT Control Register(Default Value: 0x00000000) ........................... 302
3.20.5.26. 0x248 AIF1 DACDAT Control Register(Default Value: 0x00000000) ........................... 304
3.20.5.27. 0x24C AIF1 Digital Mixer Source Select Register(Default Value: 0x00000000) .......... 305
3.20.5.28. 0x250 AIF1 Volume Control 1 Register(Default Value: 0x0000A0A0) ........................ 306
3.20.5.29. 0x254 AIF1 Volume Control 2 Register(Default Value: 0x0000A0A0) ........................ 307
3.20.5.30. 0x258 AIF1 Volume Control 3 Register(Default Value: 0x0000A0A0) ........................ 307
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 25
3.20.5.31. 0x25C AIF1 Volume Control 4 Register(Default Value: 0x0000A0A0) ........................ 308
3.20.5.32. 0x260 AIF1 Digital Mixer Gain Control Register(Default Value: 0x00000000) ........... 309
3.20.5.33. 0x264 AIF1 Receiver Data Discarding Control Register(Default Value: 0x00000000) 309
3.20.5.34. 0x280 AIF2 BCLK/LRCK Control Register(Default Value: 0x00000000) ...................... 310
3.20.5.35. 0x284 AIF2 ADCDAT Control Register(Default Value: 0x00000000) ........................... 311
3.20.5.36. 0x288 AIF2 DACDAT Control Register(Default Value: 0x00000000) ........................... 312
3.20.5.37. 0x28C AIF2 Digital Mixer Source Select Register(Default Value: 0x00000000) .......... 313
3.20.5.38. 0x290 AIF2 Volume Control 1 Register(Default Value: 0x0000A0A0) ........................ 313
3.20.5.39. 0x298 AIF2 Volume Control 2 Register(Default Value: 0x0000A0A0) ........................ 314
3.20.5.40. 0x2A0 AIF2 Digital Mixer Gain Control Register(Default Value: 0x00000000) ........... 315
3.20.5.41. 0x2A4 AIF2 Receiver Data Discarding Control Register(Default Value: 0x00000000) 315
3.20.5.42. 0x2C0 AIF3 BCLK/LRCK Control Register(Default Value: 0x00000000) ...................... 315
3.20.5.43. 0x2C4 AIF3 ADCDAT Control Register(Default Value: 0x00000000) .......................... 316
3.20.5.44. 0x2C8 AIF3 DACDAT Control Register(Default Value: 0x00000000) ........................... 316
3.20.5.45. 0x2CC AIF3 Signal Path Control Register(Default Value: 0x00000000) ...................... 317
3.20.5.46. 0x2E4 AIF3 Receiver Data Discarding Control Register(Default Value: 0x00000000) 318
3.20.5.47. 0x300 ADC Digital Control Register(Default Value: 0x00000000) .............................. 318
3.20.5.48. 0x304 ADC Volume Control Register(Default Value: 0x0000A0A0) ........................... 319
3.20.5.49. 0x308 ADC Debug Control Register(Default Value: 0x00000000) .............................. 319
3.20.5.50. 0x310 HMIC Control 1 Register(Default Value: 0x00000020) .................................... 321
3.20.5.51. 0x314 HMIC Control 2 Register(Default Value: 0x00000000) .................................... 322
3.20.5.52. 0x318 HMIC Status Register(Default Value: 0x00000000) ......................................... 322
3.20.5.53. 0x320 DAC Digital Control Register(Default Value: 0x00000000) .............................. 323
3.20.5.54. 0x324 DAC Volume Control Register(Default Value: 0x0000A0A0) ........................... 324
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 26
3.20.5.55. 0x328 DAC Debug Control Register(Default Value: 0x00000000) .............................. 325
3.20.5.56. 0x330 DAC Digital Mixer Source Select Register(Default Value: 0x00000000) .......... 325
3.20.5.57. 0x334 DAC Digital Mixer Gain Control Register(Default Value: 0x00000000) ........... 326
3.20.5.58. 0x400 ADC DAP Left Status Register(Default Value: 0x00000000) ............................ 326
3.20.5.59. 0x404 ADC DAP Right Status Register(Default Value: 0x00000000) .......................... 327
3.20.5.60. 0x408 ADC DAP Left Channel Control Register(Default Value: 0x00000000) ............ 327
3.20.5.61. 0x40C ADC DAP Right Channel Control Register(Default Value: 0x00000000) .......... 328
3.20.5.62. 0x410 ADC DAP Left Target Level Register(Default Value: 0x00002C28) ................... 328
3.20.5.63. 0x414 ADC DAP Right Target Level Register(Default Value: 0x00002C28) ................. 329
3.20.5.64. 0x418 ADC DAP Left High Average Coef Register(Default Value: 0x00000005) ......... 329
3.20.5.65. 0x41C ADC DAP Left Low Average Coef Register(Default Value: 0x00001EB8) ......... 329
3.20.5.66. 0x420 ADC DAP Right High Average Coef Register(Default Value: 0x00000005) ...... 329
3.20.5.67. 0x424 ADC DAP Right Low Average Coef Register(Default Value: 0x00001EB8) ....... 330
3.20.5.68. 0x428 ADC DAP Left Decay Time Register(Default Value: 0x0000001F) .................... 330
3.20.5.69. 0x42C ADC DAP Left Attack Time Register(Default Value: 0x00000000) ................... 330
3.20.5.70. 0x430 ADC DAP Right Decay Time Register(Default Value: 0x0000001F) ................. 330
3.20.5.71. 0x434 ADC DAP Right Attack Time Register(Default Value: 0x00000000) ................. 331
3.20.5.72. 0x438 ADC DAP Noise Threshold Register(Default Value: 0x00001E1E) ................... 331
3.20.5.73. 0x43C ADC DAP Left Input Signal High Average Coef Register(Default Value:
0x00000005) .................................................................................................................................. 332
3.20.5.74. 0x440 ADC DAP Left Input Signal Low Average Coef Register(Default Value:
0x00001EB8) .................................................................................................................................. 332
3.20.5.75. 0x444 ADC DAP Right Input Signal High Average Coef Register(Default Value:
0x00000005) .................................................................................................................................. 332
3.20.5.76. 0x448 ADC DAP Right Input Signal Low Average Coef Register(Default Value:
0x00001EB8) .................................................................................................................................. 332
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 27
3.20.5.77. 0x44C ADC DAP High HPF Coef Register(Default Value: 0x000000FF) ....................... 333
3.20.5.78. 0x450 ADC DAP Low HPF Coef Register(Default Value: 0x0000FAC1) ....................... 333
3.20.5.79. 0x454 ADC DAP Optimum Register(Default Value: 0x00000000) .............................. 333
3.20.5.80. 0x480 DAC DAP Control Register(Default Value: 0x00000000) ................................. 334
3.20.5.81. 0x4D0 AGC Enable Register(Default Value: 0x00000000).......................................... 334
3.20.5.82. 0x4D4 DRC Enable Register(Default Value: 0x00000000) .......................................... 335
3.20.5.83. 0x4D8 SRC Bist Control Register(Default Value: 0x00000000) ................................... 336
3.20.5.84. 0x4DC SRC Bist Status Register(Default Value: 0x00000202) .................................... 337
3.20.5.85. 0x4E0 SRC1 Control 1 Register(Default Value: 0x00000000) ..................................... 338
3.20.5.86. 0x4E4 SRC1 Control 2 Register(Default Value: 0x00000000) ..................................... 338
3.20.5.87. 0x4E8 SRC1 Control 3 Register(Default Value: 0x00000040) ..................................... 338
3.20.5.88. 0x4EC SRC1 Control 4 Register(Default Value: 0x00000000) ..................................... 338
3.20.5.89. 0x4F0 SRC2 Control 1 Register(Default Value: 0x00000000) ..................................... 339
3.20.5.90. 0x4F4 SRC2 Control 2 Register(Default Value: 0x00000000) ..................................... 339
3.20.5.91. 0x4F8 SRC2 Control 3 Register(Default Value: 0x00000040) ..................................... 339
3.20.5.92. 0x4FC SRC2 Control 4 Register(Default Value: 0x00000000) ..................................... 339
3.20.5.93. 0x600 DRC0 High HPF Coef Register(Default Value: 0x000000FF)............................. 340
3.20.5.94. 0x604 DRC0 Low HPF Coef Register(Default Value: 0x0000FAC1) ............................. 340
3.20.5.95. 0x608 DRC0 Control Register(Default Value: 0x00000080) ....................................... 340
3.20.5.96. 0x60C DRC0 Left Peak Filter High Attack Time Coef Register(Default Value:
0x0000000B) .................................................................................................................................. 341
3.20.5.97. 0x610 DRC0 Left Peak Filter Low Attack Time Coef Register(Default Value:
0x000077BF) .................................................................................................................................. 342
3.20.5.98. 0x614 DRC0 Right Peak Filter High Attack Time Coef Register(Default Value:
0x0000000B) .................................................................................................................................. 342
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 28
3.20.5.99. 0x618 DRC0 Peak Filter Low Attack Time Coef Register(Default Value: 0x000077BF)342
3.20.5.100. 0x61C DRC0 Left Peak Filter High Release Time Coef Register(Default Value:
0x000000FF) 342
3.20.5.101. 0x620 DRC0 Left Peak Filter Low Release Time Coef Register(Default Value:
0x0000E1F8) 342
3.20.5.102. 0x624 DRC0 Right Peak filter High Release Time Coef Register(Default Value:
0x000000FF) 343
3.20.5.103. 0x628 DRC0 Right Peak filter Low Release Time Coef Register(Default Value:
0x0000E1F8) 343
3.20.5.104. 0x62C DRC0 Left RMS Filter High Coef Register(Default Value: 0x00000001) ......... 343
3.20.5.105. 0x630 DRC0 Left RMS Filter Low Coef Register(Default Value: 0x00002BAF) ......... 343
3.20.5.106. 0x634 DRC0 Right RMS Filter High Coef Register(Default Value: 0x00000001) ....... 343
3.20.5.107. 0x638 DRC0 Right RMS Filter Low Coef Register(Default Value: 0x00002BAF) ....... 344
3.20.5.108. 0x63C DRC0 Compressor Theshold High Setting Register(Default Value:
0x000006A4) 344
3.20.5.109. 0x640 DRC0 Compressor Theshold Low Setting Register(Default Value:
0x0000D3C0) 344
3.20.5.110. 0x644 DRC0 Compressor Slope High Setting Register(Default Value: 0x00000080) 344
3.20.5.111. 0x648 DRC0 Compressor Slope Low Setting Register(Default Value: 0x00000000) 344
3.20.5.112. 0x64C DRC0 Compressor High Output at Compressor Threshold Register(Default
Value: 0x0000F95B) ....................................................................................................................... 345
3.20.5.113. 0x650 DRC0 Compressor Low Output at Compressor Threshold Register(Default
Value: 0x00002C3F) ....................................................................................................................... 345
3.20.5.114. 0x654 DRC0 Limiter Theshold High Setting Register(Default Value: 0x000001A9) . 345
3.20.5.115. 0x658 DRC0 Limiter Theshold Low Setting Register(Default Value: 0x000034F0) .. 345
3.20.5.116. 0x65C DRC0 Limiter Slope High Setting Register(Default Value: 0x00000005) ....... 345
3.20.5.117. 0x660 DRC0 Limiter Slope Low Setting Register(Default Value: 0x00001EB8) ........ 346
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 29
3.20.5.118. 0x664 DRC0 Limiter High Output at Limiter Threshold Register(Default Value:
0x0000FBD8) 346
3.20.5.119. 0x668 DRC0 Limiter Low Output at Limiter Threshold Register(Default Value:
0x0000FBA7) 346
3.20.5.120. 0x66C DRC0 Expander Theshold High Setting Register(Default Value: 0x00000BA0)346
3.20.5.121. 0x670 DRC0 Expander Theshold Low Setting Register(Default Value: 0x00007291)346
3.20.5.122. 0x674 DRC0 Expander Slope High Setting Register(Default Value: 0x00000500) .... 347
3.20.5.123. 0x678 DRC0 Expander Slope Low Setting Register(Default Value: 0x00000000) .... 347
3.20.5.124. 0x67C DRC0 Expander High Output at Expander Threshold Register(Default Value:
0x0000F45F) 347
3.20.5.125. 0x680 DRC0 Expander Low Output at Expander Threshold Register(Default Value:
0x00008D6E) 347
3.20.5.126. 0x684 DRC0 Linear Slope High Setting Register(Default Value: 0x00000100) ......... 348
3.20.5.127. 0x688 DRC0 Linear Slope Low Setting Register(Default Value: 0x00000000) .......... 348
3.20.5.128. 0x68C DRC0 Smooth filter Gain High Attack Time Coef Register(Default Value:
0x00000002) 348
3.20.5.129. 0x690 DRC0 Smooth filter Gain Low Attack Time Coef Register(Default Value:
0x00005600) 348
3.20.5.130. 0x694 DRC0 Smooth filter Gain High Release Time Coef Register(Default Value:
0x00000000) 348
3.20.5.131. 0x698 DRC0 Smooth filter Gain Low Release Time Coef Register(Default Value:
0x00000F04) 349
3.20.5.132. 0x69C DRC0 MAX Gain High Setting Register(Default Value: 0x0000FE56) ............. 349
3.20.5.133. 0x6A0 DRC0 MAX Gain Low Setting Register(Default Value: 0x0000CB0F) ............. 349
3.20.5.134. 0x6A4 DRC0 MIN Gain High Setting Register(Default Value: 0x0000F95B) ............. 349
3.20.5.135. 0x6A8 DRC0 MIN Gain Low Setting Register(Default Value: 0x00002C3F) .............. 349
3.20.5.136. 0x6AC DRC0 Expander Smooth Time High Coef Register(Default Value:
0x00000000) 350
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 30
3.20.5.137. 0x6B0 DRC0 Expander Smooth Time Low Coef Register(Default Value: 0x0000640C)
350
3.20.5.138. 0x6B4 DRC0 Optimum Register(Default Value: 0x00000000) .................................. 350
3.20.5.139. 0x6B8 DRC0 HPF Gain High Coef Register(Default Value: 0x00000100) .................. 351
3.20.5.140. 0x6BC DRC0 HPF Gain Low Coef Register(Default Value: 0x00000000) .................. 351
3.20.5.141. 0x700 DRC1 High HPF Coef Register(Default Value: 0x000000FF) ........................... 351
3.20.5.142. 0x704 DRC1 Low HPF Coef Register(Default Value: 0x0000FAC1) ........................... 352
3.20.5.143. 0x708 DRC1 Control Register(Default Value: 0x00000080) ..................................... 352
3.20.5.144. 0x70C DRC1 Left Peak Filter High Attack Time Coef Register(Default Value:
0x0000000B) 353
3.20.5.145. 0x710 DRC1 Left Peak Filter Low Attack Time Coef Register(Default Value:
0x000077BF) 353
3.20.5.146. 0x714 DRC1 Right Peak Filter High Attack Time Coef Register(Default Value:
0x0000000B) 354
3.20.5.147. 0x718 DRC1 Peak Filter Low Attack Time Coef Register(Default Value: 0x000077BF)354
3.20.5.148. 0x71C DRC1 Left Peak Filter High Release Time Coef Register(Default Value:
0x000000FF) 354
3.20.5.149. 0x720 DRC1 Left Peak Filter Low Release Time Coef Register(Default Value:
0x0000E1F8) 354
3.20.5.150. 0x724 DRC1 Right Peak filter High Release Time Coef Register(Default Value:
0x000000FF) 354
3.20.5.151. 0x728 DRC1 Right Peak filter Low Release Time Coef Register(Default Value:
0x0000E1F8) 355
3.20.5.152. 0x72C DRC Left RMS Filter High Coef Register(Default Value: 0x00000001) ........... 355
3.20.5.153. 0x730 DRC1 Left RMS Filter Low Coef Register(Default Value: 0x00002BAF) ......... 355
3.20.5.154. 0x734 DRC1 Right RMS Filter High Coef Register(Default Value: 0x00000001) ....... 355
3.20.5.155. 0x738 DRC1 Right RMS Filter Low Coef Register(Default Value: 0x00002BAF) ....... 355
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 31
3.20.5.156. 0x73C DRC1 Compressor Theshold High Setting Register(Default Value:
0x000006A4) 356
3.20.5.157. 0x740 DRC1 Compressor Slope High Setting Register(Default Value: 0x0000D3D0)356
3.20.5.158. 0x744 DRC1 Compressor Slope High Setting Register(Default Value: 0x00000080) 356
3.20.5.159. 0x748 DRC1 Compressor Slope Low Setting Register(Default Value: 0x00000000) 356
3.20.5.160. 0x74C DRC1 Compressor High Output at Compressor Threshold Register(Default
Value: 0x0000F95B) ....................................................................................................................... 356
3.20.5.161. 0x750 DRC1 Compressor Low Output at Compressor Threshold Register(Default
Value: 0x00002C3F) ....................................................................................................................... 357
3.20.5.162. 0x754 DRC1 Limiter Theshold High Setting Register(Default Value: 0x000001A9) . 357
3.20.5.163. 0x758 DRC1 Limiter Theshold Low Setting Register(Default Value: 0x000034F0) .. 357
3.20.5.164. 0x75C DRC1 Limiter Slope High Setting Register(Default Value: 0x00000005) ....... 357
3.20.5.165. 0x760 DRC1 Limiter Slope Low Setting Register(Default Value: 0x00001EB8) ........ 357
3.20.5.166. 0x764 DRC1 Limiter High Output at Limiter Threshold Register(Default Value:
0x0000FBD8) 358
3.20.5.167. 0x768 DRC1 Limiter Low Output at Limiter Threshold Register(Default Value:
0x0000FBA7) 358
3.20.5.168. 0x76C DRC1 Expander Theshold High Setting Register(Default Value: 0x00000BA0)358
3.20.5.169. 0x770 DRC1 Expander Theshold Low Setting Register(Default Value: 0x00007291)358
3.20.5.170. 0x774 DRC1 Expander Slope High Setting Register(Default Value: 0x00000500) .... 358
3.20.5.171. 0x778 DRC1 Expander Slope Low Setting Register(Default Value: 0x00000000) .... 359
3.20.5.172. 0x77C DRC1 Expander High Output at Expander Threshold Register(Default Value:
0x0000F45F) 359
3.20.5.173. 0x780 DRC1 Expander Low Output at Expander Threshold Register(Default Value:
0x00008D6E) 359
3.20.5.174. 0x784 DRC1 Linear Slope High Setting Register(Default Value: 0x00000100) ......... 359
3.20.5.175. 0x788 DRC1 Linear Slope Low Setting Register(Default Value: 0x00000000) .......... 360
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 32
3.20.5.176. 0x78C DRC1 Smooth filter Gain High Attack Time Coef Register(Default Value:
0x00000002) 360
3.20.5.177. 0x790 DRC1 Smooth filter Gain Low Attack Time Coef Register(Default Value:
0x00005600) 360
3.20.5.178. 0x794 DRC1 Smooth filter Gain High Release Time Coef Register(Default Value:
0x00000000) 360
3.20.5.179. 0x798 DRC1 Smooth filter Gain Low Release Time Coef Register(Default Value:
0x00000F04) 360
3.20.5.180. 0x79C DRC1 MAX Gain High Setting Register(Default Value: 0x0000FE56) ............. 361
3.20.5.181. 0x7A0 DRC1 MAX Gain Low Setting Register(Default Value: 0x0000CB0F) ............. 361
3.20.5.182. 0x7A4 DRC1 MIN Gain High Setting Register(Default Value: 0x0000F95B) ............. 361
3.20.5.183. 0x7A8 DRC1 MIN Gain Low Setting Register(Default Value: 0x00002C3F) .............. 361
3.20.5.184. 0x7AC DRC1 Expander Smooth Time High Coef Register(Default Value:
0x00000000) 361
3.20.5.185. 0x7B0 DRC1 Expander Smooth Time Low Coef Register(Default Value: 0x0000640C)
362
3.20.5.186. 0x7B8 DRC1 HPF Gain High Coef Register(Default Value: 0x00000100) .................. 362
3.20.5.187. 0x7BC DRC1 HPF Gain Low Coef Register(Default Value: 0x00000000) .................. 362
3.20.5.188. AC_PR Configuration Register .................................................................................. 362
3.20.5.189. 0x00 Headphone Amplifier Control Register(Default Value: 0x00) ......................... 363
3.20.5.190. 0x01 Output Left Mixer Control Register(Default Value: 0x00) ............................... 363
3.20.5.191. 0x02 Output Right Mixer Control Register(Default Value: 0x00) ............................. 363
3.20.5.192. 0x03 Earpiece Control Register 0 (Default Value: 0x00) .......................................... 364
3.20.5.193. 0x04 Earpiece Control Register 1 (Default Value: 0x00) .......................................... 364
3.20.5.194. 0x05 LINEOUT Control Register 0 (Default Value: 0x00) .......................................... 365
3.20.5.195. 0x06 LINEOUT Control Register 1 (Default Value: 0x00) .......................................... 365
3.20.5.196. 0x07 MIC1 Control Register (Default Value: 0x34) ................................................... 365
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 33
3.20.5.197. 0x08 MIC2 Control Register (Default Value: 0x11) .................................................. 366
3.20.5.198. 0x09 Linein Control Register (Default Value: 0x03) ................................................. 366
3.20.5.199. 0x0A Mixer and DAC Control Register (Default Value: 0x00) ................................... 366
3.20.5.200. 0x0B Left ADC Mixer Control Register (Default Value: 0x00) ................................... 367
3.20.5.201. 0x0C Right ADC Mixer Control Register (Default Value: 0x00) ................................. 368
3.20.5.202. 0x0D ADC Control Register (Default Value: 0x03) .................................................... 368
3.20.5.203. 0x0E Headset Microphone Bias Control Register (Default Value: 0x21) .................. 368
3.20.5.204. 0x0F Analog Performance Tuning Register (Default Value: 0xD6) ........................... 369
3.20.5.205. 0x10 OP BIAS Control Register0 (Default Value: 0x55) ............................................ 369
3.20.5.206. 0x11 OP BIAS Control Register1 (Default Value: 0x55) ............................................ 370
3.20.5.207. 0x12 USB Bias & Volume Change Control Register (Default Value: 0x02) ............... 370
3.20.5.208. 0x13 Bias Calibration Data Register (Default Value: 0x00)....................................... 370
3.20.5.209. 0x14 Bias Calibration Set Data Register (Default Value: 0x20) ................................ 371
3.20.5.210. 0x15 Bias & DA16 Calibration Control Register (Default Value: 0x00) ..................... 371
3.20.5.211. 0x16 Headphone PA Control Register (Default Value: 0xF1).................................... 371
3.20.5.212. 0x17 Headphone Calibration Control Register (Default Value: 0x04) ...................... 372
3.20.5.213. 0x18 Right Headphone Calibration DAT Register (Default Value: 0x00) .................. 373
3.20.5.214. 0x19 Right Headphone Calibration Setting Register (Default Value: 0x80) ............. 373
3.20.5.215. 0x1A Left Headphone Calibration DAT Register (Default Value: 0x00) .................... 373
3.20.5.216. 0x1B Left Headphone Calibration Setting Register (Default Value: 0x80) ............... 373
3.20.5.217. 0x1C Mic detect Control Register (Default Value: 0x40) .......................................... 373
3.20.5.218. 0x1D Jack & Mic detect Control Register (Default Value: 0x00) .............................. 374
3.20.5.219. 0x1E Phone Output Register (Default Value: 0x60) ................................................. 375
3.20.5.220. 0x1F Phone Input Register (Default Value: 0x34) .................................................... 375
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 34
3.21. Port Controller(CPUx-PORT) ........................................................................................................... 376
3.21.1. Port Controller Register List ................................................................................................... 376
3.21.2. Port Controller Register Description ...................................................................................... 377
3.21.2.1. PB Configure Register 0 (Default Value: 0x77777777) ................................................. 377
3.21.2.2. PB Configure Register 1 (Default Value: 0x00000077) ................................................. 378
3.21.2.3. PB Configure Register 2 (Default Value: 0x00000000) ................................................. 378
3.21.2.4. PB Configure Register 3 (Default Value: 0x00000000) ................................................. 378
3.21.2.5. PB Data Register (Default Value: 0x00000000) ............................................................ 379
3.21.2.6. PB Multi-Driving Register 0 (Default Value: 0x00055555) ........................................... 379
3.21.2.7. PB Multi-Driving Register 1 (Default Value: 0x00000000) ........................................... 379
3.21.2.8. PB PULL Register 0 (Default Value: 0x00000000)......................................................... 379
3.21.2.9. PB PULL Register 1 (Default Value: 0x00000000)......................................................... 380
3.21.2.10. PC Configure Register 0 (Default Value: 0x77777777) ............................................... 380
3.21.2.11. PC Configure Register 1 (Default Value: 0x77777777) ............................................... 381
3.21.2.12. PC Configure Register 2 (Default Value: 0x00000777) ............................................... 382
3.21.2.13. PC Configure Register 3 (Default Value: 0x00000000) ............................................... 383
3.21.2.14. PC Data Register (Default Value: 0x00000000) .......................................................... 383
3.21.2.15. PC Multi-Driving Register 0 (Default Value: 0x55555555) ......................................... 383
3.21.2.16. PC Multi-Driving Register 1 (Default Value: 0x00000015) ......................................... 383
3.21.2.17. PC PULL Register 0 (Default Value: 0x00005140)....................................................... 384
3.21.2.18. PC PULL Register 1 (Default Value: 0x00000014)....................................................... 384
3.21.2.19. PD Configure Register 0 (Default Value: 0x77777777) .............................................. 384
3.21.2.20. PD Configure Register 1 (Default Value: 0x77777777) .............................................. 385
3.21.2.21. PD Configure Register 2 (Default Value: 0x77777777) .............................................. 387
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 35
3.21.2.22. PD Configure Register 3 (Default Value: 0x00000007) .............................................. 388
3.21.2.23. PD Data Register (Default Value: 0x00000000) .......................................................... 388
3.21.2.24. PD Multi-Driving Register 0 (Default Value: 0x55555555) ......................................... 388
3.21.2.25. PD Multi-Driving Register 1 (Default Value: 0x00015555) ......................................... 389
3.21.2.26. PD PULL Register 0 (Default Value: 0x00000000) ...................................................... 389
3.21.2.27. PD PULL Register 1 (Default Value: 0x00000000) ...................................................... 389
3.21.2.28. PE Configure Register 0 (Default Value: 0x77777777) ............................................... 389
3.21.2.29. PE Configure Register 1 (Default Value: 0x77777777) ............................................... 391
3.21.2.30. PE Configure Register 2 (Default Value: 0x00000077) ............................................... 392
3.21.2.31. PE Configure Register 3 (Default Value: 0x00000000) ............................................... 392
3.21.2.32. PE Data Register (Default Value: 0x00000000) .......................................................... 392
3.21.2.33. PE Multi-Driving Register 0 (Default Value: 0x55555555) ......................................... 393
3.21.2.34. PE Multi-Driving Register 1 (Default Value: 0x00000005) ......................................... 393
3.21.2.35. PE PULL Register 0 (Default Value: 0x00000000) ....................................................... 393
3.21.2.36. PE PULL Register 1 (Default Value: 0x00000000) ....................................................... 393
3.21.2.37. PF Configure Register 0 (Default Value: 0x07777777) ............................................... 394
3.21.2.38. PF Configure Register 1 (Default Value: 0x00000000) ............................................... 395
3.21.2.39. PF Configure Register 2(Default Value: 0x00000000) ................................................ 395
3.21.2.40. PF Configure Register 3(Default Value: 0x00000000) ................................................ 395
3.21.2.41. PF Data Register (Default Value: 0x00000000) .......................................................... 395
3.21.2.42. PF Multi-Driving Register 0 (Default Value: 0x00001555) ......................................... 396
3.21.2.43. PF Multi-Driving Register 1 (Default Value: 0x00000000) ......................................... 396
3.21.2.44. PF PULL Register 0 (Default Value: 0x00000000) ....................................................... 396
3.21.2.45. PF PULL Register 1 (Default Value: 0x00000000) ....................................................... 396
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 36
3.21.2.46. PG Configure Register 0 (Default Value: 0x77777777) .............................................. 396
3.21.2.47. PG Configure Register 1 (Default Value: 0x00777777) .............................................. 398
3.21.2.48. PG Configure Register 2 (Default Value: 0x00000000) .............................................. 399
3.21.2.49. PG Configure Register 3 (Default Value: 0x00000000) .............................................. 399
3.21.2.50. PG Data Register (Default Value: 0x00000000).......................................................... 399
3.21.2.51. PG Multi-Driving Register 0 (Default Value: 0x05555555) ......................................... 399
3.21.2.52. PG Multi-Driving Register 1 (Default Value: 0x00000000) ......................................... 400
3.21.2.53. PG PULL Register 0 (Default Value: 0x00000000) ...................................................... 400
3.21.2.54. PG PULL Register 1 (Default Value: 0x00000000) ...................................................... 400
3.21.2.55. PH Configure Register 0 (Default Value: 0x77777777) .............................................. 400
3.21.2.56. PH Configure Register 1 (Default Value: 0x00007777) .............................................. 401
3.21.2.57. PH Configure Register 2 (Default Value: 0x00000000) .............................................. 402
3.21.2.58. PH Configure Register 3 (Default Value: 0x00000000) .............................................. 402
3.21.2.59. PH Data Register (Default Value: 0x00000000).......................................................... 402
3.21.2.60. PH Multi-Driving Register 0 (Default Value: 0x00555555) ......................................... 403
3.21.2.61. PH Multi-Driving Register 1 (Default Value: 0x00000000) ......................................... 403
3.21.2.62. PH PULL Register 0 (Default Value: 0x00000000) ...................................................... 403
3.21.2.63. PH PULL Register 1 (Default Value: 0x00000000) ...................................................... 403
3.21.2.64. PB External Interrupt Configure Register 0 (Default Value: 0x00000000) ................. 404
3.21.2.65. PB External Interrupt Configure Register 1 (Default Value: 0x00000000) ................. 404
3.21.2.66. PB External Interrupt Configure Register 2 (Default Value: 0x00000000) ................. 404
3.21.2.67. PB External Interrupt Configure Register 3 (Default Value: 0x00000000) ................. 404
3.21.2.68. PB External Interrupt Control Register (Default Value: 0x00000000) ........................ 405
3.21.2.69. PB External Interrupt Status Register (Default Value: 0x00000000) .......................... 405
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 37
3.21.2.70. PB External Interrupt Debounce Register (Default Value: 0x00000000) ................... 405
3.21.2.71. PG External Interrupt Configure Register 0 (Default Value: 0x00000000) ................. 406
3.21.2.72. PG External Interrupt Configure Register 1 (Default Value: 0x00000000) ................. 406
3.21.2.73. PG External Interrupt Configure Register 2 (Default Value: 0x00000000) ................. 406
3.21.2.74. PG External Interrupt Configure Register 3 (Default Value: 0x00000000) ................. 406
3.21.2.75. PG External Interrupt Control Register (Default Value: 0x00000000) ....................... 407
3.21.2.76. PG External Interrupt Status Register (Default Value: 0x00000000) ......................... 407
3.21.2.77. PG External Interrupt Debounce Register (Default Value: 0x00000000) ................... 407
3.21.2.78. PH External Interrupt Configure Register 0 (Default Value: 0x00000000) ................. 407
3.21.2.79. PH External Interrupt Configure Register 1 (Default Value: 0x00000000) ................. 408
3.21.2.80. PH External Interrupt Configure Register2 (Default Value: 0x00000000) .................. 408
3.21.2.81. PH External Interrupt Configure Register3 (Default Value: 0x00000000) .................. 408
3.21.2.82. PH External Interrupt Control Register (Default Value: 0x00000000) ....................... 408
3.21.2.83. PH External Interrupt Status Register (Default Value: 0x00000000) ......................... 409
3.21.2.84. PH External Interrupt Debounce Register (Default Value: 0x00000000) ................... 409
3.22. Port Controller(CPUs-PORT) ........................................................................................................... 410
3.22.1. Port Controller Register List ................................................................................................... 410
3.22.2. Port Controller Register Description ...................................................................................... 410
3.22.2.1. PL Configure Register 0 (Default Value: 0x77777777) ................................................. 410
3.22.2.2. PL Configure Register 1 (Default Value: 0x00077777) ................................................. 412
3.22.2.3. PL Configure Register 2 (Default Value: 0x00000000) ................................................. 413
3.22.2.4. PL Configure Register 3 (Default Value: 0x00000000) ................................................. 413
3.22.2.5. PL Data Register (Default Value: 0x00000000) ............................................................ 413
3.22.2.6. PL Multi-Driving Register 0 (Default Value: 0x01555555) ............................................ 413
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 38
3.22.2.7. PL Multi-Driving Register 1 (Default Value: 0x00000000) ............................................ 413
3.22.2.8. PL PULL Register 0 (Default Value: 0x00000005) ......................................................... 414
3.22.2.9. PL PULL Register 1 (Default Value: 0x00000000) ......................................................... 414
3.22.2.10. PL External Interrupt Configure Register 0 (Default Value: 0x00000000) .................. 414
3.22.2.11. PL External Interrupt Configure Register 1 (Default Value: 0x00000000) .................. 414
3.22.2.12. PL External Interrupt Configure Register 2 (Default Value: 0x00000000) .................. 415
3.22.2.13. PL External Interrupt Configure Register 3 (Default Value: 0x00000000) .................. 415
3.22.2.14. PL External Interrupt Control Register (Default Value: 0x00000000) ........................ 415
3.22.2.15. PL External Interrupt Status Register (Default Value: 0x00000000) .......................... 415
3.22.2.16. PL External Interrupt Debounce Register (Default Value: 0x00000000) .................... 416
Chapter 4 Memory ......................................................................................................................................... 417
4.1. SDRAM ........................................................................................................................................... 417
4.1.1. Overview ................................................................................................................................ 417
4.2. NAND Flash Controller(NDFC) ........................................................................................................ 418
4.2.1. Overview ................................................................................................................................ 418
4.2.2. Block Diagram ........................................................................................................................ 419
4.2.3. NDFC Timing Diagram ............................................................................................................ 419
4.2.4. NDFC Operation Guide ........................................................................................................... 426
4.2.5. NDFC Register List .................................................................................................................. 427
4.2.6. NDFC Register Description ..................................................................................................... 428
4.2.6.1. NDFC Control Register(Default Value: 0x00000000) ..................................................... 428
4.2.6.2. NDFC Status Register(Default Value: 0x00000000) ....................................................... 430
4.2.6.3. NDFC Interrupt and DMA Enable Register(Default Value: 0x00000000) ....................... 431
4.2.6.4. NDFC Timing Control Register(Default Value: 0x00000000) ......................................... 432
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 39
4.2.6.5. NDFC Timing Configure Register(Default Value: 0x00000095) ..................................... 432
4.2.6.6. NDFC Address Low Word Register(Default Value: 0x00000000) ................................... 434
4.2.6.7. NDFC Address High Word Register(Default Value: 0x00000000) .................................. 434
4.2.6.8. NDFC Data Block Number Register(Default Value: 0x00000000) .................................. 434
4.2.6.9. NDFC Data Counter Register(Default Value: 0x00000000) ............................................ 435
4.2.6.10. NDFC Command IO Register(Default Value: 0x00000000) .......................................... 435
4.2.6.11. NDFC Command Set Register 0(Default Value: 0x00E00530) ...................................... 437
4.2.6.12. NDFC Command Set Register 1(Default Value: 0x70008510) ...................................... 437
4.2.6.13. NDFC IO Data Register(Default Value: 0x00000000) ................................................... 438
4.2.6.14. NDFC ECC Control Register(Default Value: 0x4a800008) ............................................ 438
4.2.6.15. NDFC ECC Status Register(Default Value: 0x00000000) .............................................. 439
4.2.6.16. NDFC Enhanced Feature Register(Default Value: 0x00000000) .................................. 439
4.2.6.17. NDFC Error Counter Register 0(Default Value: 0x00000000) ...................................... 440
4.2.6.18. NDFC Error Counter Register 1(Default Value: 0x00000000) ...................................... 440
4.2.6.19. NDFC Error Counter Register 2(Default Value: 0x00000000) ...................................... 440
4.2.6.20. NDFC Error Counter Register 3(Default Value: 0x00000000) ...................................... 441
4.2.6.21. NDFC User Data Register [n]( Default Value: 0xffffffff) ................................................ 441
4.2.6.22. NDFC EFNAND STATUS Register(Default Value: 0x00000000) ..................................... 441
4.2.6.23. NDFC Spare Area Register(Default Value: 0x00000400) .............................................. 442
4.2.6.24. NDFC Pattern ID Register(Default Value: 0x00000000) ............................................... 442
4.2.6.25. NDFC Read Data Status Control Register(Default Value: 0x01000000) ....................... 442
4.2.6.26. NDFC Read Data Status Register 0(Default Value: 0x00000000) ................................. 443
4.2.6.27. NDFC Read Data Status Register 1(Default Value: 0x00000000) ................................. 443
4.2.6.28. NDFC MBUS DMA Address Register(Default Value: 0x00000000) ............................... 443
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 40
4.2.6.29. NDFC MBUS DMA Byte Counter Register(Default Value: 0x00000000) ...................... 443
4.2.6.30. NDFC Normal DMA Mode Control Register(Default Value: 0x000000A5) ................... 443
4.3. SD-MMC Host Controller ............................................................................................................... 444
4.3.1. Overview ................................................................................................................................ 444
4.3.2. Block Diagram ........................................................................................................................ 444
4.3.3. SMHC Controller Timing Diagram .......................................................................................... 445
4.3.4. SMHC Operation Description ................................................................................................. 445
4.3.4.1. External Signal List ......................................................................................................... 445
4.3.4.2. Calibrate Delay Chain ..................................................................................................... 446
4.3.5. SMHC DMA Controller Description ........................................................................................ 446
4.3.5.1. IDMAC Descriptor Structure .......................................................................................... 447
4.3.5.2. DES0 definition .............................................................................................................. 447
4.3.5.3. DES1 definition .............................................................................................................. 448
4.3.5.4. DES2 definition .............................................................................................................. 448
4.3.5.5. DES3 definition .............................................................................................................. 448
4.3.6. SMHC Register List ................................................................................................................. 448
4.3.7. SMHC Register Description .................................................................................................... 450
4.3.7.1. SMHC Global Control Register(Default Value: 0x00000300) ......................................... 450
4.3.7.2. SMHC Clock Control Register(Default Value: 0x00000000) ........................................... 451
4.3.7.3. SMHC Timeout Register (Default Value: 0xFFFFFF40) ................................................... 452
4.3.7.4. SMHC Bus Width Register (Default Value: 0x00000000) ............................................... 452
4.3.7.5. SMHC Block Size Register (Default Value: 0x00000200) ................................................ 452
4.3.7.6. SMHC Block Count Register (Default Value: 0x00000200) ............................................ 452
4.3.7.7. SMHC Command Register (Default Value: 0x00000000) ............................................... 453
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 41
4.3.7.8. SMHC Command Argument Register (Default Value: 0x00000000) .............................. 454
4.3.7.9. SMHC Response 0 Register (Default Value: 0x00000000) ............................................. 455
4.3.7.10. SMHC Response 1 Register (Default Value: 0x00000000) ........................................... 455
4.3.7.11. SMHC Response 2 Register (Default Value: 0x00000000) ........................................... 455
4.3.7.12. SMHC Response 3 Register (Default Value: 0x00000000) ........................................... 455
4.3.7.13. SMHC Interrupt Mask Register (Default Value: 0x00000000) ..................................... 456
4.3.7.14. SMHC Masked Interrupt Status Register (Default Value: 0x00000000) ....................... 457
4.3.7.15. SMHC Raw Interrupt Status Register (Default Value: 0x00000000) ............................ 458
4.3.7.16. SMHC Status Register (Default Value: 0x00000006) ................................................... 460
4.3.7.17. SMHC FIFO Water Level Register (Default Value: 0x000F0000) .................................. 461
4.3.7.18. SMHC Function Select Register (Default Value: 0x00000000) ..................................... 462
4.3.7.19. SMHC Transferred Byte Count Register0 (Default Value: 0x00000000) ...................... 463
4.3.7.20. SMHC Transferred Byte Count Register1 (Default Value: 0x00000000) ...................... 463
4.3.7.21. SMHC CRC Status Detect Control Register (Default Value: 0x00000003) .................... 463
4.3.7.22. SMHC Auto Command 12 Register (Default Value: 0x0000ffff) .................................. 464
4.3.7.23. SMHC NewTiming Set Register (Default Value: 0x00000000) ..................................... 464
4.3.7.24. SMHC Hardware Reset Register (Default Value: 0x00000001) .................................... 464
4.3.7.25. SMHC DMAC Control Register (Default Value: 0x00000000) ...................................... 465
4.3.7.26. SMHC Descriptor List Base Address Register (Default Value: 0x00000000) ................ 465
4.3.7.27. SMHC DMAC Status Register (Default Value: 0x0000_0000) ...................................... 466
4.3.7.28. SMHC DMAC Interrupt Enable Register (Default Value: 0x00000000) ........................ 467
4.3.7.29. SMHC Card Threshold Control Register (Default Value: 0x00000000) ........................ 468
4.3.7.30. SMHC eMMC4.5 DDR Start Bit Detection Control Register (Default Value:
0x00000000) .................................................................................................................................. 468
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 42
4.3.7.31. SMHC Response CRC Register (Default Value: 0x00000000) ....................................... 469
4.3.7.32. SMHC Data7 CRC Register (Default Value: 0x00000000) ............................................. 469
4.3.7.33. SMHC Data6 CRC Register (Default Value: 0x00000000) ............................................. 469
4.3.7.34. SMHC Data5 CRC Register (Default Value: 0x00000000) ............................................. 470
4.3.7.35. SMHC Data4 CRC Register (Default Value: 0x00000000) ............................................. 470
4.3.7.36. SMHC Data3 CRC Register (Default Value: 0x00000000) ............................................. 470
4.3.7.37. SMHC Data2 CRC Register (Default Value: 0x00000000) ............................................. 471
4.3.7.38. SMHC Data1 CRC Register (Default Value: 0x00000000) ............................................. 471
4.3.7.39. SMHC Data0 CRC Register (Default Value: 0x00000000) ............................................. 471
4.3.7.40. SMHC CRC Status Register (Default Value: 0x00000000) ............................................ 472
4.3.7.41. SMHC Drive Delay Control Register (Default Value: 0x00000000) .............................. 472
4.3.7.42. SMHC Sample Delay Control Register (Default Value: 0x00002000) ........................... 473
4.3.7.43. SMHC Data Strobe Delay Control Register (Default Value: 0x00002000) .................... 473
4.3.7.44. SMHC FIFO Register (Default Value: 0x00000000) ...................................................... 474
Chapter 5 Image ............................................................................................................................................. 475
5.1. CSI .................................................................................................................................................. 475
5.1.1. Overview ................................................................................................................................ 475
5.1.2. Functionalities Description .................................................................................................... 476
5.1.2.1. Block Diagram ................................................................................................................ 476
5.1.2.2. CSI FIFO Distribution ...................................................................................................... 477
5.1.2.3. CSI Timing ...................................................................................................................... 477
5.1.2.4. CCIR656 Header Code .................................................................................................... 478
5.1.2.5. Camera Communication Interface ................................................................................. 478
5.1.3. CSI Register list ....................................................................................................................... 480
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 43
5.1.4. CSI Register Description ......................................................................................................... 481
5.1.4.1. CSI Enable Register (Default Value: 0x00000000) ......................................................... 481
5.1.4.2. CSI Interface Configuration Register (Default Value: 0x00000000) ............................... 482
5.1.4.3. CSI Capture Register (Default Value: 0x00000000) ....................................................... 483
5.1.4.4. CSI Synchronization Counter Register (Default Value: 0x00000000) ............................. 484
5.1.4.5. CSI FIFO Threshold Register (Default Value: 0x040f0400) ............................................. 484
5.1.4.6. CSI Pattern Generation Length Register (Default Value: 0x00000000) ......................... 484
5.1.4.7. CSI Pattern Generation Address Register (Default Value: 0x00000000) ........................ 484
5.1.4.8. CSI Version Register (Default Value: 0x00000000) ........................................................ 485
5.1.4.9. CSI Channel_0 configuration Register (Default Value: 0x00300200) ............................. 485
5.1.4.10. CSI Channel_0 scale Register (Default Value: 0x00000000) ........................................ 487
5.1.4.11. CSI Channel_0 FIFO 0 output buffer-A address Register (Default Value: 0x00000000)488
5.1.4.12. CSI Channel_0 FIFO 1 output buffer-A address Register (Default Value: 0x00000000)488
5.1.4.13. CSI Channel_0 FIFO 2 output buffer-A address Register (Default Value: 0x00000000)488
5.1.4.14. CSI Channel_0 status Register (Default Value: 0x00000000) ...................................... 488
5.1.4.15. CSI Channel_0 interrupt enable Register (Default Value: 0x00000000) ...................... 489
5.1.4.16. CSI Channel_0 interrupt status Register (Default Value: 0x00000000) ....................... 490
5.1.4.17. CSI Channel_0 horizontal size Register (Default Value: 0x05000000) ......................... 490
5.1.4.18. CSI Channel_0 vertical size Register (Default Value: 0x01E00000).............................. 490
5.1.4.19. CSI Channel_0 buffer length Register (Default Value: 0x01400280) ........................... 491
5.1.4.20. CSI Channel_0 flip size Register (Default Value: 0x01E00280) .................................... 491
5.1.4.21. CSI Channel_0 frame clock counter Register (Default Value: 0x00000000) ................ 491
5.1.4.22. CSI Channel_0 accumulated and internal clock counter Register (Default Value:
0x00000000) .................................................................................................................................. 492
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 44
5.1.4.23. CSI Channel_0 FIFO Statistic Register (Default Value: 0x00000000) ........................... 492
5.1.4.24. CSI Channel_0 PCLK Statistic Register (Default Value: 0x00007FFF) ........................... 492
5.1.4.25. CCI Control Register (Default Value: 0x00000000) ...................................................... 493
5.1.4.26. CCI Transmission Configuration Register (Default Value: 0x10000000) ...................... 494
5.1.4.27. CCI Packet Format Register (Default Value: 0x00110001) ........................................... 495
5.1.4.28. CCI Bus Control Register (Default Value: 0x00002500) ............................................... 495
5.1.4.29. CCI Interrupt Control Register (Default Value: 0x00000000) ...................................... 496
5.1.4.30. CCI Line Counter Trigger Control Register (Default Value: 0x00000000) .................... 496
5.1.4.31. CCI FIFO Acess Register (Default Value: 0x00000000) ................................................. 496
Chapter 6 Display ............................................................................................................................................ 498
6.1. DE2.0 .............................................................................................................................................. 499
6.1.1. Overview ................................................................................................................................ 499
6.2. TCON .............................................................................................................................................. 500
6.2.1. Overview ................................................................................................................................ 500
6.2.2. Block Diagram ........................................................................................................................ 500
6.2.3. Functionalities Description .................................................................................................... 501
6.2.3.1. Panel Interface ............................................................................................................... 501
6.2.3.2. RGB gamma correction .................................................................................................. 506
6.2.3.3. CEU module ................................................................................................................... 506
6.2.3.4. CMAP module ................................................................................................................ 507
6.2.4. TCON0 Module Register List .................................................................................................. 507
6.2.5. TCON0 Module Register Description ..................................................................................... 508
6.2.5.1. TCON Global Control Register (Default Value: 0x00000000) ......................................... 508
6.2.5.2. TCON Global Interrupt Register0 (Default Value: 0x00000000) .................................... 509
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 45
6.2.5.3. TCON Global Interrupt Register1 (Default Value: 0x00000000) .................................... 510
6.2.5.4. TCON FRM Control Register0 (Default Value: 0x00000000) .......................................... 510
6.2.5.5. TCON FRM Seed Register0 (Default Value: 0x00000000) .............................................. 511
6.2.5.6. TCON FRM Table Register0 (Default Value: 0x00000000) ............................................. 511
6.2.5.7. TCON 3D FIFO Register0 (Default Value: 0x00000000) ................................................. 512
6.2.5.8. TCON0 Control Register (Default Value: 0x00000000) .................................................. 512
6.2.5.9. TCON0 Data Clock Register (Default Value: 0x00000000) ............................................. 513
6.2.5.10. TCON0 Basic0 Register (Default Value: 0x00000000) .................................................. 514
6.2.5.11. TCON0 Basic1 Register (Default Value: 0x00000000) .................................................. 514
6.2.5.12. TCON0 Basic2 Register (Default Value: 0x00000000) .................................................. 514
6.2.5.13. TCON0 Basic3 Register (Default Value: 0x00000000) .................................................. 515
6.2.5.14. TCON0 HV Panel Interface Register (Default Value: 0x00000000) .............................. 515
6.2.5.15. TCON0 CPU Panel Interface Register (Default Value: 0x00000000) ............................ 516
6.2.5.16. TCON0 CPU Panel Write Data Register (Default Value: 0x00000000) ......................... 517
6.2.5.17. TCON0 CPU Panel Read Data 0 Register (Default Value: 0x00000000) ....................... 517
6.2.5.18. TCON0 CPU Panel Read Data 1 Register (Default Value: 0x00000000) ....................... 518
6.2.5.19. TCON0 LVDS Panel Interface Register (Default Value: 0x00000000) ........................... 518
6.2.5.20. TCON0 IO Polarity Register (Default Value: 0x00000000) ........................................... 519
6.2.5.21. TCON0 IO Trigger Register (Default Value: 0x00000000) ............................................ 520
6.2.5.22. TCON CEU Control Register (Default Value: 0x00000000) ........................................... 520
6.2.5.23. TCON CEU Coefficient Mul Register (Default Value: 0x00000000) .............................. 520
6.2.5.24. TCON CEU Coefficient Add Register (Default Value: 0x00000000) .............................. 521
6.2.5.25. TCON CEU Coefficient Range Register (Default Value: 0x00000000) .......................... 521
6.2.5.26. TCON0 CPU Panel Trigger0 Register (Default Value: 0x00000000) .............................. 521
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 46
6.2.5.27. TCON0 CPU Panel Trigger1 Register (Default Value: 0x00000000) .............................. 522
6.2.5.28. TCON0 CPU Panel Trigger2 Register (Default Value: 0x00000000) .............................. 522
6.2.5.29. TCON0 CPU Panel Trigger3 Register (Default Value: 0x00000000) .............................. 522
6.2.5.30. TCON0 CPU Panel Trigger4 Register (Default Value: 0x00000000) .............................. 523
6.2.5.31. TCON0 CPU Panel Trigger5 Register (Default Value: 0x00000000) .............................. 523
6.2.5.32. TCON Color Map Control Register (Default Value: 0x00000000) ................................ 523
6.2.5.33. TCON Color Map Odd Line0 Register (Default Value: 0x00000000) ............................ 524
6.2.5.34. TCON Color Map Odd Line1 Register (Default Value: 0x00000000) ............................ 524
6.2.5.35. TCON Color Map Even0 Register (Default Value: 0x00000000) ................................... 524
6.2.5.36. TCON Color Map Even1 Register (Default Value: 0x00000000) ................................... 525
6.2.5.37. TCON Safe Period Register (Default Value: 0x00000000) ............................................ 525
6.2.5.38. TCON0 LVDS ANA0 Register (Default Value: 0x00000000) .......................................... 525
6.2.6. TCON1 Module Register List .................................................................................................. 526
6.2.7. TCON1 Module Register Description ..................................................................................... 527
6.2.7.1. TCON Global Control Register (Default Value: 0x00000000) ......................................... 527
6.2.7.2. TCON Global Interrupt Register0 (Default Value: 0x00000000) .................................... 527
6.2.7.3. TCON Global Interrupt Register1 (Default Value: 0x00000000) .................................... 528
6.2.7.4. TCON1 Control Register (Default Value: 0x00000000) .................................................. 528
6.2.7.5. TCON1 Basic Timing 0 Register (Default Value: 0x00000000) ....................................... 529
6.2.7.6. TCON1 Basic Timing 1 Register (Default Value: 0x00000000) ....................................... 529
6.2.7.7. TCON1 Basic Timing 2 Register (Default Value: 0x00000000) ....................................... 529
6.2.7.8. TCON1 Basic Timing 3 Register (Default Value: 0x00000000) ....................................... 530
6.2.7.9. TCON1 Basic Timing Register (Default Value: 0x00000000) .......................................... 530
6.2.7.10. TCON1 Basic Timing 5 Register (Default Value: 0x00000000) ..................................... 530
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 47
6.2.7.11. TCON1 PS SYNC Register (Default Value: 0x00000000) ............................................... 531
6.2.7.12. TCON1 IO Polarity Register (Default Value: 0x00000000) ........................................... 531
6.2.7.13. TCON1 IO Polarity Register (Default Value: 0x0FFFFFFF)............................................. 531
6.2.7.14. TCON CEU Control Register (Default Value: 0x00000000) ........................................... 532
6.2.7.15. TCON CEU Coefficient Mul Register (Default Value: 0x00000000) .............................. 532
6.2.7.16. TCON CEU Coefficient Add Register (Default Value: 0x00000000) .............................. 533
6.2.7.17. TCON CEU Coefficient Rang Register (Default Value: 0x00000000) ............................ 533
6.2.7.18. TCON Safe Period Register (Default Value: 0x00000000) ............................................ 533
6.2.7.19. TCON1 Fill Control Register (Default Value: 0x00000000)........................................... 534
6.2.7.20. TCON1 Fill Begin Register (Default Value: 0x00000000) ............................................. 534
6.2.7.21. TCON1 Fill End Register (Default Value: 0x00000000) ................................................ 534
6.2.7.22. TCON1 Fill Data Register (Default Value: 0x00000000) ............................................... 534
Chapter 7 Interfaces ....................................................................................................................................... 535
7.1. TWI ................................................................................................................................................. 536
7.1.1. Overview ................................................................................................................................ 536
7.1.2. Timing Diagram ...................................................................................................................... 536
7.1.3. TWI Controller Special Requirement...................................................................................... 537
7.1.3.1. TWI Pin List .................................................................................................................... 537
7.1.3.2. TWI Controller Operation .............................................................................................. 537
7.1.4. TWI Controller Register List ................................................................................................... 538
7.1.5. TWI Controller Register Description ...................................................................................... 538
7.1.5.1. TWI Slave Address Register(Default Value: 0x00000000) ............................................. 538
7.1.5.2. TWI Extend Address Register(Default Value: 0x00000000)........................................... 539
7.1.5.3. TWI Data Register(Default Value: 0x00000000) ............................................................ 539
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 48
7.1.5.4. TWI Control Register(Default Value: 0x00000000) ........................................................ 539
7.1.5.5. TWI Status Register(Default Value: 0x000000F8) .......................................................... 541
7.1.5.6. TWI Clock Register(Default Value: 0x00000000) ........................................................... 542
7.1.5.7. TWI Soft Reset Register(Default Value: 0x00000000) ................................................... 542
7.1.5.8. TWI Enhance Feature Register(Default Value: 0x00000000)......................................... 542
7.1.5.9. TWI Line Control Register(Default Value: 0x0000003A) ................................................ 543
7.1.5.10. TWI DVFS Register(Default Value: 0x00000000) ......................................................... 544
7.2. SPI .................................................................................................................................................. 545
7.2.1. Overview ................................................................................................................................ 545
7.2.2. SPI Block Diagram .................................................................................................................. 545
7.2.3. SPI Timing Diagram ................................................................................................................ 546
7.2.4. SPI Pin Lists ............................................................................................................................. 547
7.2.5. SPI Register List ...................................................................................................................... 548
7.2.6. SPI Register Description ......................................................................................................... 548
7.2.6.1. SPI Global Control Register(Default Value: 0x00000080) .............................................. 548
7.2.6.2. SPI Transfer Control Register(Default Value: 0x00000087) ........................................... 549
7.2.6.3. SPI Interrupt Control Register(Default Value: 0x00000000) .......................................... 551
7.2.6.4. SPI Interrupt Status Register(Default Value: 0x00000022) ............................................ 553
7.2.6.5. SPI FIFO Control Register(Default Value: 0x00400001) ................................................. 554
7.2.6.6. SPI FIFO Status Register(Default Value: 0x00000000) ................................................... 555
7.2.6.7. SPI Wait Clock Register(Default Value: 0x00000000) .................................................... 556
7.2.6.8. SPI Clock Control Register(Default Value: 0x00000002) ................................................ 557
7.2.6.9. SPI Master Burst Counter Register(Default Value: 0x00000000) ................................... 557
7.2.6.10. SPI Master Transmit Counter Register(Default Value: 0x00000000) ........................... 557
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 49
7.2.6.11. SPI Master Burst Control Counter Register(Default Value: 0x00000000) .................... 558
7.2.6.12. SPI Normal DMA Mode Control Register(Default Value: 0x000000A5) ....................... 559
7.2.6.13. SPI TX Data Register(Default Value: 0x00000000) ....................................................... 559
7.2.6.14. SPI RX Data Register(Default Value: 0x00000000) ....................................................... 559
7.3. UART .............................................................................................................................................. 560
7.3.1. Overview ................................................................................................................................ 560
7.3.2. UART Timing Diagram ............................................................................................................ 561
7.3.3. UART Pin List .......................................................................................................................... 561
7.3.4. UART Controller Register List ................................................................................................. 562
7.3.5. UART Register Description ..................................................................................................... 563
7.3.5.1. UART Receiver Buffer Register(Default Value: 0x00000000) ......................................... 563
7.3.5.2. UART Transmit Holding Register(Default Value: 0x00000000) ...................................... 563
7.3.5.3. UART Divisor Latch Low Register(Default Value: 0x00000000) ..................................... 564
7.3.5.4. UART Divisor Latch High Register(Default Value: 0x00000000) .................................... 564
7.3.5.5. UART Interrupt Enable Register(Default Value: 0x00000000) ....................................... 565
7.3.5.6. UART Interrupt Identity Register(Default Value: 0x00000000) ..................................... 565
7.3.5.7. UART FIFO Control Register(Default Value: 0x00000000) ............................................. 567
7.3.5.8. UART Line Control Register(Default Value: 0x00000000) .............................................. 568
7.3.5.9. UART Modem Control Register(Default Value: 0x00000000) ........................................ 569
7.3.5.10. UART Line Status Register(Default Value: 0x00000060) .............................................. 571
7.3.5.11. UART Modem Status Register(Default Value: 0x00000000) ........................................ 573
7.3.5.12. UART Scratch Register(Default Value: 0x00000000) .................................................... 575
7.3.5.13. UART Status Register(Default Value: 0x00000006) ..................................................... 575
7.3.5.14. UART Transmit FIFO Level Register(Default Value: 0x00000000) ................................ 576
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 50
7.3.5.15. UART Receive FIFO Level Register(Default Value: 0x00000000) .................................. 576
7.3.5.16. UART Halt TX Register(Default Value: 0x00000000) .................................................... 576
7.4. CIR Receiver ................................................................................................................................... 578
7.4.1. Overview ................................................................................................................................ 578
7.4.2. CIR Receiver Register List ....................................................................................................... 578
7.4.3. CIR Receiver Register Description .......................................................................................... 579
7.4.3.1. CIR Receiver Control Register(Default Value: 0x00000000) .......................................... 579
7.4.3.2. CIR Receiver Configure Register(Default Value: 0x00000004) ....................................... 579
7.4.3.3. CIR Receiver FIFO Register(Default Value: 0x00000000) ............................................... 580
7.4.3.4. CIR Receiver Interrupt Control Register(Default Value: 0x00000000) ........................... 580
7.4.3.5. CIR Receiver Status Register(Default Value: 0x00000000) ............................................ 580
7.4.3.6. CIR Receiver Configure Register(Default Value: 0x00000000) ....................................... 581
7.5. USB ................................................................................................................................................. 583
7.5.1. USB Controller Block Diagram ................................................................................................ 583
7.5.2. USB OTG ................................................................................................................................. 584
7.5.2.1. Overview ........................................................................................................................ 584
7.5.3. USB Host ................................................................................................................................ 584
7.5.3.1. Overview ........................................................................................................................ 584
7.5.3.2. USB Host Timing Diagram .............................................................................................. 585
7.5.3.3. USB Host Register List .................................................................................................... 585
7.5.3.4. EHCI Register Description .............................................................................................. 586
7.5.3.5. OHCI Register Description ............................................................................................. 601
7.5.3.6. HCI Interface Control and Status Register Description .................................................. 618
7.5.3.7. USB Host Clock Requirement ......................................................................................... 620
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 51
7.6. I2S/PCM ......................................................................................................................................... 621
7.6.1. Overview ................................................................................................................................ 621
7.6.2. Signal Description .................................................................................................................. 621
7.6.2.1. I2S/PCM Pin List ............................................................................................................. 621
7.6.2.2. Digital Audio Interface Clock Source and Frequency ..................................................... 622
7.6.3. Functionalities Description .................................................................................................... 622
7.6.3.1. Typical Applications ........................................................................................................ 622
7.6.3.2. Functional Block Diagram .............................................................................................. 622
7.6.4. Timing Diagram ...................................................................................................................... 623
7.6.5. Operation Modes ................................................................................................................... 625
7.6.5.1. System setup and I2S/PCM initialization ....................................................................... 625
7.6.5.2. The channel setup and DMA setup ................................................................................ 625
7.6.5.3. Enable and disable the I2S/PCM .................................................................................... 625
7.6.6. I2S/PCM Register List ............................................................................................................. 626
7.6.7. I2S/PCM Register Description ................................................................................................ 626
7.6.7.1. I2S/PCM Control Register(Default Value: 0x00060000) ................................................ 626
7.6.7.2. I2S/PCM Format Register0 (Default Value: 0x00000033) .............................................. 628
7.6.7.3. I2S/PCM Format Register1 (Default Value: 0x00000030) .............................................. 629
7.6.7.4. I2S/PCM Interrupt Status Register(Default Value: 0x00000010) ................................... 630
7.6.7.5. I2S/PCM RX FIFO Register(Default Value: 0x00000000) ................................................ 631
7.6.7.6. I2S/PCM FIFO Control Register (Default Value: 0x000400F0) ....................................... 631
7.6.7.7. I2S/PCM FIFO Status Register (Default Value: 0x10800000) ......................................... 632
7.6.7.8. I2S/PCM DMA & Interrupt Control Register(Default Value: 0x00000000) .................... 632
7.6.7.9. I2S/PCM TX FIFO Register(Default Value: 0x00000000) ................................................ 633
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 52
7.6.7.10. I2S/PCM Clock Divide Register(Default Value: 0x00000000)....................................... 634
7.6.7.11. I2S/PCM TX Counter Register(Default Value: 0x00000000) ........................................ 635
7.6.7.12. I2S/PCM RX Counter Register(Default Value: 0x00000000) ........................................ 635
7.6.7.13. I2S/PCM Channel Configuration Register(Default Value: 0x00000000) ...................... 635
7.6.7.14. I2S/PCM TXn Channel Select Register(Default Value: 0x00000000) ........................... 636
7.6.7.15. I2S/PCM TXn Channel Mapping Register(Default Value: 0x00000000) ....................... 636
7.6.7.16. I2S/PCM RX Channel Select Register(Default Value: 0x00000000) ............................. 638
7.6.7.17. I2S/PCM RX Channel Mapping Register(Default Value: 0x00000000) ......................... 638
7.7. OWA ............................................................................................................................................... 640
7.7.1. Overview ................................................................................................................................ 640
7.7.2. Functional Description ........................................................................................................... 640
7.7.2.1. OWA Interface Pin List ................................................................................................... 640
7.7.2.2. OWA Clock Requirement ............................................................................................... 640
7.7.2.3. OWA Block Diagram ....................................................................................................... 640
7.7.2.4. OWA Frame Format ....................................................................................................... 641
7.7.2.5. Operation Modes ........................................................................................................... 642
7.7.3. OWA Register List ................................................................................................................... 643
7.7.4. OWA Register Description ...................................................................................................... 644
7.7.4.1. OWA General Control Register(Default Value : 0x00000080) ........................................ 644
7.7.4.2. OWA TX Configure Register(Default Value: 0x000000F0) .............................................. 644
7.7.4.3. OWA RX Configure Register(Default Value: 0x00000000) ............................................. 645
7.7.4.4. OWA Interrupt Status Register(Default Value: 0x00000010) ......................................... 646
7.7.4.5. OWA RX FIFO Register(Default Value: 0x00000000) ...................................................... 647
7.7.4.6. OWA FIFO Control Register(Default Value: 0x00001078) .............................................. 647
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 53
7.7.4.7. OWA FIFO Status Register(Default Value: 0x00006000) ................................................ 648
7.7.4.8. OWA Interrupt Control Register(Default Value: 0x00000000) ....................................... 648
7.7.4.9. OWA TX FIFO Register(Default Value: 0x00000000) ...................................................... 650
7.7.4.10. OWA TX Counter Register(Default Value: 0x00000000) .............................................. 650
7.7.4.11. OWA RX Counter Register(Default Value: 0x00000000) .............................................. 650
7.7.4.12. OWA TX Channel Status Register0(Default Value: 0x00000000) ................................. 650
7.7.4.13. OWA TX Channel Status Register1(Default Value: 0x00000000) ................................. 652
7.7.4.14. OWA RX Channel Status Register0(Default Value: 0x00000000) ................................. 653
7.7.4.15. OWA RX Channel Status Register1(Default Value: 0x00000000) ................................. 654
7.8. SCR ................................................................................................................................................. 656
7.8.1. Overview ................................................................................................................................ 656
7.8.2. Block Diagram ........................................................................................................................ 656
7.8.3. SCR Timing Diagram ............................................................................................................... 657
7.8.4. SCR Special Requirement ....................................................................................................... 657
7.8.4.1. Clock Generator ............................................................................................................. 657
7.8.4.2. SCIO Pad Configuration .................................................................................................. 658
7.8.5. SCR Register List ..................................................................................................................... 659
7.8.6. SCR Register Description ........................................................................................................ 659
7.8.6.1. Smart Card Reader Control and Status Register(Default Value: 0x00000000) .............. 659
7.8.6.2. Smart Card Reader Interrupt Enable Register(Default Value: 0x00000000).................. 661
7.8.6.3. Smart Card Reader Interrupt Status Register(Default Value: 0x00000000)................... 662
7.8.6.4. Smart Card Reader FIFO Control and Status Register(Default Value: 0x00000000) ...... 663
7.8.6.5. Smart Card Reader FIFO Counter Register(Default Value: 0x00000000) ....................... 664
7.8.6.6. Smart Card Reader Repeat Control Register(Default Value: 0x00000000) .................... 664
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 54
7.8.6.7. Smart Card Reader Clock Divisor Register(Default Value: 0x00000000) ........................ 665
7.8.6.8. Smart Card Reader Line Time Register(Default Value: 0x00000000) ............................ 665
7.8.6.9. Smart Card Reader Character Time Register(Default Value: 0x00000000) ................... 666
7.8.6.10. Smart Card Reader Line Control Register(Default Value: 0x00000000) ....................... 666
7.8.6.11. Smart Card Reader FIFO Data Register(Default Value: 0x00000000) ........................... 667
7.9. EMAC ............................................................................................................................................. 668
7.9.1. Overview ................................................................................................................................ 668
7.9.2. Block Diagram ........................................................................................................................ 668
7.9.3. EMAC Core Register List ......................................................................................................... 669
7.9.4. EMAC Core Register Description ............................................................................................ 670
7.9.4.1. Basic Control 0 Register(Default Value: 0x00000000) ................................................... 670
7.9.4.2. Basic Control 1 Register(Default Value: 0x08000000) ................................................... 671
7.9.4.3. Interrupt Status Register(Default Value: 0x00000000) .................................................. 671
7.9.4.4. Interrupt Enable Register(Default Value: 0x00000000) ................................................. 672
7.9.4.5. Transmit Control 0 Register(Default Value: 0x00000000) .............................................. 673
7.9.4.6. Transmit Control 1 Register(Default Value: 0x00000000) .............................................. 673
7.9.4.7. Transmit Flow Control Register(Default Value: 0x00000000) ........................................ 674
7.9.4.8. Transmit DMA Descriptor List Address Register(Default Value: 0x00000000) ............... 675
7.9.4.9. Receive Control 0 Register(Default Value: 0x00000000) ............................................... 675
7.9.4.10. Receive Control 1 Register(Default Value: 0x00000000) ............................................. 676
7.9.4.11. Receive DMA Descriptor List Address Register(Default Value: 0x00000000) .............. 677
7.9.4.12. Receive Frame Filter Register(Default Value: 0x00000000) ........................................ 677
7.9.4.13. Receive Hash Table 0 Register(Default Value: 0x00000000) ....................................... 678
7.9.4.14. Receive Hash Table 1 Register(Default Value: 0x00000000) ....................................... 679
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 55
7.9.4.15. MII Command Register(Default Value: 0x00000000) .................................................. 679
7.9.4.16. MII Data Register(Default Value: 0x00000000) ........................................................... 680
7.9.4.17. MAC Address 0 High Register(Default Value: 0x0000FFFF) ......................................... 680
7.9.4.18. MAC Address 0 Low Register(Default Value: 0xFFFFFFFF) ........................................... 680
7.9.4.19. MAC Address x High Register(Default Value: 0x0000FFFF) ......................................... 680
7.9.4.20. MAC Address x Low Register(Default Value: 0xFFFFFFFF) ........................................... 681
7.9.4.21. Transmit DMA Status Register(Default Value: 0x00000000) ....................................... 681
7.9.4.22. Transmit DMA Current Descriptor Register(Default Value: 0x00000000).................... 681
7.9.4.23. Transmit DMA Current Buffer Address Register(Default Value: 0x00000000) ............. 681
7.9.4.24. Receive DMA Status Register(Default Value: 0x00000000) ......................................... 682
7.9.4.25. Receive DMA Current Descriptor Register(Default Value: 0x00000000) ..................... 682
7.9.4.26. Receive DMA Current Buffer Address Register(Default Value: 0x00000000) .............. 682
7.9.4.27. RGMII Status Register(Default Value: 0x00000000) .................................................... 682
7.9.5. EMAC RX/TX Descriptor ......................................................................................................... 683
7.9.5.1. Transmit Descriptor ........................................................................................................ 683
7.9.5.2. Receive Descriptor ......................................................................................................... 685
7.10. TSC ................................................................................................................................................. 687
7.10.1. Overview ................................................................................................................................ 687
7.10.2. Transport Stream Input Timing Diagram ............................................................................... 688
7.10.3. Transport Stream Controller Register List .............................................................................. 690
7.10.4. Transport Stream Controller Register Description ................................................................. 691
7.10.4.1. TSC Control Register(Default Value: 0x00000000) ....................................................... 691
7.10.4.2. TSC Status Register(Default Value: 0x00000000) ......................................................... 691
7.10.4.3. TSC Port Control Register(Default Value: 0x00000000) ............................................... 691
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 56
7.10.4.4. TSC Port Parameter Register(Default Value: 0x00000000) .......................................... 691
7.10.4.5. TSC TSF Input Multiplex Control Register(Default Value: 0x00000000) ....................... 692
7.10.4.6. TSC Port Output Multiplex Control Register(Default Value: 0x00000000) ................... 692
7.10.4.7. TSC Port Output Multiplex Control Register(Default Value: 0x00000000) ................... 693
7.10.4.8. TSG Packet Parameter Register(Default Value: 0x00470000) ...................................... 694
7.10.4.9. TSG Interrupt Enable and Status Register(Default Value: 0x00000000) ...................... 694
7.10.4.10. TSG Clock Control Register(Default Value: 0x00000000) ........................................... 695
7.10.4.11. TSG Buffer Base Address Register(Default Value: 0x00000000) ................................ 695
7.10.4.12. TSG Buffer Size Register(Default Value: 0x00000000)................................................ 696
7.10.4.13. TSG Buffer Point Register(Default Value: 0x00000000) ............................................. 696
7.10.4.14. TSF Control and Status Register(Default Value: 0x00000000) ................................... 696
7.10.4.15. TSF Packet Parameter Register(Default Value: 0x00470000) ..................................... 696
7.10.4.16. TSF Interrupt Enable and Status Register(Default Value: 0x00000000) ..................... 697
7.10.4.17. TSF DMA Interrupt Enable Register(Default Value: 0x00000000) .............................. 698
7.10.4.18. TSF Overlap Interrupt Enable Register(Default Value: 0x00000000) ......................... 698
7.10.4.19. TSF DMA Interrupt Status Register(Default Value: 0x00000000) ............................... 699
7.10.4.20. TSF Overlap Interrupt Status Register(Default Value: 0x00000000) .......................... 699
7.10.4.21. TSF PCR Control Register(Default Value: 0x00000000) .............................................. 699
7.10.4.22. TSF PCR Data Register(Default Value: 0x00000000) .................................................. 700
7.10.4.23. TSF Channel Enable Register(Default Value: 0x00000000) ........................................ 700
7.10.4.24. TSF PES Enable Register(Default Value: 0x00000000) ................................................ 700
7.10.4.25. TSF Channel Descramble Enable Register(Default Value: 0x00000000) .................... 700
7.10.4.26. TSF Channel Index Register(Default Value: 0x00000000) .......................................... 701
7.10.4.27. TSF Channel Control Register(Default Value: 0x00000000) ....................................... 701
Confidential
A64
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 57
7.10.4.28. TSF Channel Status Register(Default Value: 0x00000000) ......................................... 701
7.10.4.29. TSF Channel CW Index Register(Default Value: 0x00000000) .................................... 701
7.10.4.30. TSF Channel PID Register(Default Value: 0x1FFF0000) .............................................. 702
7.10.4.31. TSF Channel Buffer Base Address Register(Default Value: 0x00000000) ................... 702
7.10.4.32. TSF Channel Buffer Size Register(Default Value: 0x00000000) .................................. 702
7.10.4.33. TSF Channel Write Pointer Register(Default Value: 0x00000000) .............................. 703
7.10.4.34. TSF Channel Read Pointer Register(Default Value: 0x00000000) ............................... 703
7.10.4.35. TSD Control Register(Default Value: 0x00000000) ..................................................... 703
7.10.4.36. TSD Status Register(Default Value: 0x00000000) ....................................................... 703
7.10.4.37. TSD Control Word Index Register(Default Value: 0x00000000) ................................. 704
7.10.4.38. TSD Control Word Register(Default Value: 0x00000000) ........................................... 704
Appendix ................................................................................................................................................................ 705
Confidential
About This Documentation
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 58
Chapter 1 About This Documentation
1.1. Documentation Overview
This documentation provides an overall description of the Allwinner quad-core A64 application processor,
which will provide instructions to programmers from several sections, including overview,system,memory,
image,display and interfaces.
1.2. Acronyms and abbreviations
The table below contains acronyms and abbreviations used in this document.
AES
Advanced Encryption Standard
ADC
Analog-to-digital converter
AGC
Automatic Gain Control
AHB
AMBA High-speed Bus
APB
Advanced Peripheral Bus
ARM
Advanced RISC Machine
AVS
Audio Video Standard
CIR
Consumer Infrared
CP15
Coprocessor 15
CPU
Central processing unit
CRC
Cyclic Redundancy Check
CSI
Camera Serial Interface
DES
Data Encryption Standard
DLL
Delay-Locked Loop
DMA
Direct Memory Access
DRC
Dynamic Range Compression
DSI
MIPI Display Serial Interface
DVFS
Dynamic Voltage and Frequency Scaling
eFuse
Electrical Fuse,A one-time programmable memory
EHCI
Enhanced Host Controller Interface
eMMC
Embedded Multi-Media Card
FBGA
Fine Ball Grid Array
FIFO
First in First out
GIC
Generic Interrupt Controller
GPIO
General Purpose Input Output
HDMI
High-Definition Multimedia Interface
Confidential
About This Documentation
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 59
I2S
Inter IC Sound
JEDEC
Joint Electron Device Engineering Council
JPEG
Joint Photographic Experts Group
JTAG
Joint Test Action Group
KEYADC
Analog to Digital Converter
LCD
Liquid-Crystal Display
LSB
Least Significant Bit
LVDS
Low Voltage Differential Signaling
MAC
Media Access Control
MII
Media Independent Interface
MIPI
Mobile Industry Processor Interface
MIPI DSI
MIPI Display Serial Interface
MMC
Multimedia Card
MPEG
Motion Pictures Expert Group
MPEG1
The First MPEG Compression Scheme Specification
MPEG4
The Most Current MPEG Compression Scheme Specification
MSB
Most Significant Bit
NTSC
National Television System Committee
OHCI
Open Host Controller Interface
OWA
One Wire Audio
PAL
Phase Alternating Line
PCM
Pulse Code Modulation
PHY
Physical Layer Controller
PID
Packet Identifier
PLL
Phase-Locked Loop
RSBTM
Reduced Serial Bus
SDIO
Secure Digital Input Output
SOC
System on a chip
SPI
Serial Peripheral Interface
TWI
Two Wire Interface
USB OTG
Universal Serial Bus On The Go
UART
Universal Asynchronous Receiver Transmitter
Transmitter
Confidential
Overview
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 60
Chapter 2 Overview
Allwinner’s A64 is a quad-core,64bit SoC targeted for high performance tablets.A64 integrates a higher energy
efficiency ARM Cortex-A53 CPU architecture, and also includes advanced 3D graphics processing unit,
high-definition video encoding/decoding, low power audio codec, excellent display controllers and a broad
range of interfaces.
The processor has some very exciting features:
CPU Quad-core ARM Cortex-A53 Processor, a power-efficient ARM v8 architecture, it has 64 and 32bit
execution states for scalable high performance ,which includes a NEON multimedia processing engine.
Graphics ARM Mali400MP2 graphics acceleration provides mobile users with superior experience in web
browsing, video playback and gaming effects; OpenGL ES2.0 ,OpenVG1.1 standards are supported.
Video A64 provides almost full motion playback of up to 4K high-definition video, and supports H.265
decoder by 4K@30fps , H.264 decoder by 1080p@60fps, MPEG1/2/4 decoder by 1080p@60fps, VP8 decoder by
1080p@60fps, AVS/AVS+ decoder by 1080p@60fps,VC1 decoder by 1080p@30fps, H.264 encoder by
1080p@60fps with dedicated hardware.
Audio An integrated audio subsystem delivers extremely low power audio playback and exceptional high
quality sound.
Display A64 features Allwinner’s SmartColor2.0TM technology with an integrated display engine. Content
can be displayed on 4-lane MIPI DSI displays up to 1920x1200@60fps, or a RGB panel interface up to
1920x1200@60fps, or LVDS panel up to 1366x768@60fps , or HDMI v1.4 is also supported up to 4K@30fps.
External Memory Many types of external memory devices are supported, including LPDDR2, LPDDR3,
DDR2, DDR3 ,DDR3L, NAND Flash(MLC,SLC,TLC,EF),Nor Flash, SD/SDIO/MMC including eMMC up to rev5.0,and
also supports booting from RAW NAND,eMMC,SD/TF Card or Nor Flash.
Security A64 delivers hardware security features that enable trustzone security system, Digital Rights
Management(DRM), information encryption/decryption, secure boot, secure JTAG and secure efuse.
Connectivity A64 has a broad range of hardware interfaces such as parallel CMOS sensor interface,
10/100/1000Mbps EMAC,USB OTG v2.0 operating at high speed(480Mbps) with PHY, USB Host with PHY and a
variety of other popular interfaces(SPI,UART,CIR,TS,TWI,RSB,SCR).
Confidential
Overview
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 61
2.1. Processor Features
2.1.1. CPU Architecture
Quad-core ARM Cortex-A53 Processor
A power-efficient ARM v8 architecture
64 and 32bit execution states for scalable high performance
Trustzone technology supported
3~10x better software encryption performance
Support NEON Advanced SIMD(Single Instruction Multiple Data)instruction for acceleration of media and
signal processing functions
Support Large Physical Address Extensions(LPAE)
VFPv4 Floating Point Unit
32KB L1 Instruction cache and 32KB L1 Data cache
512KB L2 cache
2.1.2. GPU Architecture
ARM Mali400MP2 GPU
Support OpenGL ES 2.0 and OpenVG 1.1 standard
2.1.3. Memory Subsystem
2.1.3.1. Boot ROM
On-chip memory
Size:112KB(non secure ROM:48KB,secure ROM:64KB)
Support secure and non-secure access boot
Support system boot from the following devices:
- NAND Flash
- SD/TF card
- eMMC
- Nor Flash
• Support system code download through USB OTG
Confidential
Overview
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 62
2.1.3.2. SDRAM
Compatible with JEDEC standard DDR2/DDR3/DDR3L/LPDDR2/LPDDR3 SDRAM
Support clock frequency up to 667MHz(DDR3-1333)
Up to 3GB address space
Support 2 chip select
16 address signal lines and 3 bank signal lines
32-bits data width
Support Memory Dynamic Frequency Scale(MDFS)
2.1.3.3. NAND Flash
Up to 2 flash chips
8-bit data bus width
Up to 64-bit ECC per 1024 bytes
Support 1024, 2048, 4096, 8192, 16K bytes size per page
Support SLC/MLC/TLC flash and EF-NAND memory
Support SDR, ONFI DDR and Toggle DDR NAND
Embedded DMA to do data transfer
Support data transfer together with normal DMA
2.1.3.4. SD/MMC
Up to three SD/MMC controller interfaces
Comply to eMMC standard specification V5.0, SD physical layer specification V2.0, SDIO card specification
V3.0
1-bit or 4-bit data bus transfer mode for SD cards
1-bit or 4-bit data bus transfer mode for SDIO interface
1-bit ,4-bit or 8-bit data bus transfer mode for MMC cards
Embedded special DMA to do data transfer
Support hardware CRC generation and error detection
2.1.4. System Peripheral
2.1.4.1. Timer
Two on-chip timers with interrupt-based operation
One watchdogs to generate reset signal or interrupts
Two AVS Counter to synchronize video and audio in the player
Confidential
Overview
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 63
24MHz or 32KHz clock input
2.1.4.2. High Speed Timer
One high speed timer with 56bit counter
Clock source is synchronized with AHB1 clock, much more accurate than other timers
2.1.4.3. RTC
Calendar :Counters second,minutes,hours,day,week,month and year with leap year generator
Alarm:general alarm and weekly alarm
One 32768Hz fanout
2.1.4.4. GIC
Support 16 Software Generated Interrupts(SGIs), 16 Private Peripheral Interrupts(PPIs) and 125 Shared
Peripheral Interrupts(SPIs)
2.1.4.5. DMA
Up to 8-channels DMA
Interrupt generated for each DMA channel
Flexible data width of 8/16/32/64-bits
Support linear and IO address modes
Support data transfer types with memory-to-memory, memory-to-peripheral, peripheral-to-memory
2.1.4.6. CCU
13 PLLs
One on-chip RC oscillator
Support a external 24MHz oscillator and a external32.768KHz oscillator
Support clock configuration and clock generated for corresponding modules
Support software-controlled clock gating and software-controlled reset for corresponding modules
Confidential
Overview
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 64
2.1.4.7. PWM
Support outputting two kinds of waveform: continuous waveform and pulse waveform
0% to 100% adjustable duty cycle
Up to 24MHz output frequency
2.1.4.8. Thermal Sensor
Temperature Accuracy : ±3℃ from 0℃ to +100℃, ±5℃ from -20℃ to +125℃
Support over-temperature protection interrupt and over-temperature alarm interrupt
Averaging filter for thermal sensor reading
Support 3 sensors:sensor0 for CPU,sensor1/2 for GPU
2.1.4.9. KEYADC
ADC with 6-bit resolution for key
Support hold key and continuous key
Support single key, normal key and continuous key
2.1.4.10. Crypto Engine(CE)
Support Symmetrical algorithm: AES,DES,TDES
- Support AES 128/192/256-bits with ECB,CBC,CTS,CTR mode
- Support DES/TDES with ECB,CBC,CTR mode
Support Hash algorithm: MD5,SHA1,SHA224,SHA256,HMAC
Support Asymmetrical algorithm:RSA512/1024/2048bit
Support 160-bits hardware PRNG with 175-bits seed
Support 256-bits hardware TRNG
Internal Embedded DMA to do data transfer
Support secure and non-secure interfaces respectively
2.1.4.11. Security ID
Support 2K-bits EFUSE for chip ID and security application
Confidential
Overview
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 65
2.1.4.12. CPU Configuration
Support power clamp
Flexible CPU configuration
2.1.5. Display Subsystem
2.1.5.1. DE
Output size up to 4096x4096
Support four alpha blending channel for main display, two channel for aux display
Support four overlay layers in each channel, and has a independent scaler
Support potter-duff compatible blending operation
Support input format YUV422/YUV420/YUV411/ARGB8888/XRGB8888/RGB888/ARGB4444/ARGB1555 and
RGB565
Support Frame Packing/Top-and-Bottom/Side-by-side Full/Side-by-Side Half 3D format data
Support SmartColorTM 2.0 for excellent display experience
- Adaptive edge sharping
- Adaptive color enhancement
- Adaptive contrast enhancement and fresh tone rectify
Support writeback and rotation for high efficient dual display and miracast
2.1.5.2. Display Output
Support LVDS interface with single link, up to 1366x768@60fps
Support RGB interface with DE/SYNC mode, up to 1920x1200@60fps
Dither function from RGB666/RGB565 to RGB888
Support 4-lanes MIPI DSI up to 1920x1200@60fps
Support HDMI1.4 with HDCP1.2 up to 4K@30fps
2.1.6. Video Engine
2.1.6.1. Video Decoding
Support multi-format video playback, including:
- H.265:4K@30fps
- H.264:1080p@60fps
- MPEG1/2/4:1080p@60fps
Confidential
Overview
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 66
- VP8:1080p@60fps
- VC1:1080p@30fps
- AVS/AVS+: 1080p@60fps
- JPEG/MJPEG:1080p@30fps
Support 1080P blu-ray 3D
Support frame compatible 3D format,size:3840x1080,1920x2160
2.1.6.2. Video Encoding
Support H.264 video encoding up to 1080p@60fps
JPEG baseline: picture size up to 8192x8192
Support input format: YU12/YV12/NV12/NV21/YUYV/YVYU/UYVY/VYUY/ARGB/BGRA/RGBA/ABGR
/YU16/YV16/TILE32/TILE128
Support Alpha blending
Support thumb generation
Support 4x2 scaling ratio: from 1/16 to 64 arbitrary non-integer ratio
Support rotated input
2.1.7. Image In
2.1.7.1. CSI
Support 8bit YUV422 CMOS sensor interface
Support CCIR656 protocol for NTSC and PAL
Maximum still capture resolution to 5M
Maximum video capture resolution to 1080p@30fps
2.1.8. Audio Subsystem
2.1.8.1. Audio Codec
Two audio digital-to-analog(DAC) channels
Stereo capless headphone drivers:
- 100dB SNR@A-weight
- Support DAC Sample Rates from 8KHz to 192KHz
Support analog/ digital volume control
Differential earpiece driver
Analog low-power loop from line-in /microphone to headphone/earpiece outputs
Confidential
Overview
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 67
Support Dynamic Range Controller(DRC) adjusting the DAC playback output
Accessory button press detection
Four audio inputs:
- Two differential microphone inputs
- One differential Phone input
- Stereo Line-in L/R input
Four audio outputs:
- Earpiece amplifier differential output
- Phone amplifier differential output
- Headphone amplifier L/R channel output
- Line-out L/R output
Two audio analog-to-digital(ADC) channels
- 96dB SNR@A-weight
- Supports ADC Sample Rates from 8KHz to 48KHz
Support Automatic Gain Control(AGC) and Dynamic Range Control(DRC) adjusting the ADC recording input
Two PCM interface connected with BB and BT
One 128x24-bits FIFO for data transmit, one 64x24-bits FIFO for data receive
Support Audio HUB
2.1.8.2. One Wire Audio(OWA)
IEC-60958 transmitter and receiver functionality
Complies with SPDIF Interface
Support channel status insertion for the transmitter
Hardware Parity generation on the transmitter
One 32×24bits FIFO (TX) for audio data transfer
Programmable FIFO thresholds
Support Audio HUB
2.1.8.3. I2S/PCM
Up to two I2S/PCM controllers
Compliant with standard Inter-IC sound(I2S) bus specification
Compliant with left-justified, right-justified, PCM mode, and TDM(Time Division Multiplexing) format
Full-duplex synchronous work mode
Mater and slave mode configured
Adjustable audio sample resolution from 8-bit to 32-bit
Sample rate from 8KHz to 192KHz
Support 8-bits u-law and 8-bits A-law companded sample
Support programmable PCM frame width:1 BCLK width(short frame) and 2 BCLKs width(long frame)
Support Audio HUB
Confidential
Overview
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 68
2.1.9. External Peripherals
2.1.9.1. USB
One USB 2.0 OTG,with integrated one USB 2.0 analog PHY
- Complies with USB2.0 Specification
- Support High-Speed (HS,480Mbps),Full-Speed(FS,12Mbps) and Low-Speed(LS,1.5Mbps) in host mode
- Complies with Enhanced Host Controller Interface(EHCI)Specification, Version 1.0, and the Open Host
Controller Interface(OHCI) Specification, Version 1.0a for host mode
- Up to 10 User-Configurable Endpoints for Bulk,Isochronous and Interrupt bi-directional transfers
(Endpoint1, Endpoint2, Endpoint3, Endpoint4, Endpoint5)
- Support 8KB FIFO for EPs(excluding EP0)
- HCI(EHCI+OHCI) and USB2.0 OTG SIE share USB analog PHY
One EHCI/OHCI Host, multiplexed with one USB 2.0 analog PHY and one HSIC PHY
- Complies with Enhanced Host Controller Interface(EHCI)Specification, Version 1.0, and the Open Host
Controller Interface(OHCI) Specification, Version 1.0a.
2.1.9.2. EMAC
Support 10/100/1000Mbps data transfer rate
Support RGMII/RMII interface
Support full-duplex and half-duplex operation
Support linked-list descriptor list structure
Programmable frame length to support Standard or Jumbo Ethernet frames with sizes up to 16 KB
Supports a variety of flexible address filtering modes
2.1.9.3. UART
Up to six UART controllers
Two of six UART controllers support 2-wire while others support 4-wire
64-Bytes Transmit and receive data FIFOs for all UART
Compatible with industry-standard 16550 UARTs
Support Infrared Data Association(IrDA) 1.0 SIR
Support speed up to 3MHz
2.1.9.4. SPI
• Up to two SPI controllers
Confidential
Overview
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 69
• Full-duplex synchronous serial interface
• Master/Slave configurable
• Mode0~3 are supported for both transmit and receive operations
• Two 64-Bytes FIFO for SPI-TX and SPI-RX operation
• DMA-based or interrupt-based operation
• Polarity and phase of the chip select(SPI_SS) and SPI_Clock(SPI_SCLK) are configurable
• Support single and dual IO mode
2.1.9.5. Two Wire Interface(TWI)
• Up to four TWI controllers
• Support Standard mode(up to 100K bps) and Fast mode(up to 400K bps)
• Master/Slave configurable
• Allows 10-bit addressing transactions
• Perform arbitration and clock synchronization
• Allow operation from a wide range of input clock frequencies
2.1.9.6. CIR
A flexible receiver for IR remote
Programmable FIFO threshold
64x8bits FIFO for data buffer
2.1.9.7. Reduced Serial Bus(RSBTM)
Up to 20MHz speed with ultra low power
Support push-pull bus
Support host mode and multi-devices
Programmable output delay of CD signal
Support parity check for address and data transmission
2.1.9.8. TS
Compliant with the industry-standard AMBA Host Bus(AHB) Specification, Revision 2.0.Support 32-bit Little
Endian bus.
Support DVB-CSA V1.1 Descrambler
One external Synchronous Parallel Interface(SPI) or one external Synchronous Serial Interface(SSI)
Configurable SPI and SSI timing parameters
Hardware packet synchronous byte error detecting
Confidential
Overview
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 70
Hardware PCR packet detecting
2.1.9.9. SCR
Supports APB slave interface for easy integration with AMBA-based host systems
Supports the ISO/IEC 7816-3:1997(E) and EMV2000 (4.0) Specifications
Supports adjustable clock rate and bit rate
Configurable automatic byte repetition
Support asynchronous half-duplex character transmission and block transmission
Supports synchronous and any other non-ISO 7816 and non-EMV cards
Performs functions needed for complete smart card sessions, including:
- Card activation and deactivation
- Cold/warm reset
- Answer to Reset (ATR) response reception
- Data transfers to and from the card
2.1.10. Package
FBGA 396 balls, 0.65mm ball pitch,15 x 15mm
Confidential
Overview
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 71
2.2. System Block Diagram
The following figure shows the block diagram of A64 processor.
Figure 2-1. A64 Block Diagram
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 72
Chapter 3 System
The chapter describes the A64 system from following sections:
Memory Mapping
Boot System
CCU
CPU Configuration
System Control
Timer
R_Trusted Watchdog Timer
RTC
High-speed Timer
PWM
DMA
GIC
Message Box
Spinlock
Crypto Engine
Secure Memory Controller
Secure Peripherals Controller
Thermal Sensor Controller
KEYADC
Audio Codec
Port Controller(CPUx-PORT)
Port Controller(CPUs-PORT)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 73
3.1. Memory Mapping
Module
Address (It is for Cluster CPU)
Size (byte)
N-BROM
0x0000 0000---0x0000 BFFF
48K
S-BROM
0x0000 0000---0x0000 FFFF
64K
SRAM A1
0x0001 0000---0x0001 7FFF
32K
SRAM A2
0x0004 4000---0x0005 3FFF
64K
SRAM C
0x0001 8000---0x0003 FFFF
160K
DE
0x0100 0000---0x013F FFFF
4M
Core Sight Debug
0x0140 0000---0x0141 FFFF
128K
CPU MBIST
0x0150 2000---0x0150 2FFF
4K
CPUX_CFG
0x0170 0000---0x0170 03FF
1K
System Control
0x01C0 0000---0x01C0 0FFF
4K
DMA
0x01C0 2000---0x01C0 2FFF
4K
NFDC
0x01C0 3000---0x01C0 3FFF
4K
TS
0x01C0 6000---0x01C0 6FFF
4K
Key Memory Space
0x01C0 B000---0x01C0 BFFF
4K
TCON 0
0x01C0 C000---0x01C0 CFFF
4K
TCON 1
0x01C0 D000---0x01C0 DFFF
4K
VE
0x01C0 E000---0x01C0 EFFF
4K
SMHC 0
0x01C0 F000---0x01C0 FFFF
4K
SMHC 1
0x01C1 0000---0x01C1 0FFF
4K
SMHC 2
0x01C1 1000---0x01C1 1FFF
4K
SID
0x01C1 4000---0x01C1 43FF
1K
Crypto Engine
0x01C1 5000---0x01C1 5FFF
4K
MSG_BOX
0x01C1 7000---0x01C1 7FFF
4K
SPINLOCK
0x01C1 8000---0x01C1 8FFF
4K
USB-OTG-Device
0x01C1 9000---0x01C1 9FFF
4K
USB-OTG-EHCI/OHCI
0x01C1 A000---0x01C1 AFFF
4K
USB-EHCI0/OHCI0
0x01C1 B000---0x01C1 BFFF
4K
SMC
0x01C1 E000---0x01C1 EFFF
4K
CCU
0x01C2 0000---0x01C2 03FF
1K
PIO
0x01C2 0800---0x01C2 0BFF
1K
TIMER
0x01C2 0C00---0x01C2 0FFF
1K
OWA
0x01C2 1000---0x01C2 13FF
1K
PWM
0x01C2 1400---0x01C2 17FF
1K
KEYADC
0x01C2 1800---0x01C2 1BFF
1K
I2S/PCM 0
0x01C2 2000---0x01C2 23FF
1K
I2S/PCM 1
0x01C2 2400---0x01C2 27FF
1K
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 74
I2S/PCM 2
0x01C2 2800---0x01C2 2BFF
1K
AC
0x01C2 2C00---0x01C2 33FF
2K
SPC
0x01C2 3400---0x01C2 37FF
1K
THS
0x01C2 5000---0x01C2 53FF
1K
UART 0
0x01C2 8000---0x01C2 83FF
1K
UART 1
0x01C2 8400---0x01C2 87FF
1K
UART 2
0x01C2 8800---0x01C2 8BFF
1K
UART 3
0x01C2 8C00---0x01C2 8FFF
1K
UART 4
0x01C2 9000---0x01C2 93FF
1K
TWI 0
0x01C2 AC00---0x01C2 AFFF
1K
TWI 1
0x01C2 B000---0x01C2 B3FF
1K
TWI 2
0x01C2 B400---0x01C2 B7FF
1K
SCR
0x01C2 C400---0x01C2 C7FF
1K
EMAC
0x01C3 0000---0x01C3 FFFF
64K
GPU
0x01C4 0000---0x01C4 FFFF
64K
HSTMR
0x01C6 0000---0x01C6 0FFF
4K
DRAMCOM
0x01C6 2000---0x01C6 2FFF
4K
DRAMCTL0
0x01C6 3000---0x01C6 3FFF
4K
DRAMPHY0
0x01C6 5000---0x01C6 5FFF
4K
SPI0
0x01C6 8000---0x01C6 8FFF
4K
SPI1
0x01C6 9000---0x01C6 9FFF
4K
SCU space,
CPUS can’t access
0x01C80000
GIC_DIST: 0x01C80000 + 0x1000
GIC_CPUIF:0x01C80000 + 0x2000
MIPI DSI
0x01CA 0000---0x01CA 0FFF
4K
MIPI DSI-PHY
0x01CA 1000---0x01CA 1FFF
4K
CSI
0x01CB 0000---0x01CF FFFF
320K
De-interlaced
0x01E0 0000---0x01E1 FFFF
128K
HDMI
0x01EE 0000---0x01EF FFFF
128K
RTC
0x01F0 0000---0x01F0 03FF
1K
R_TIMER
0x01F0 0800---0x01F0 0BFF
1K
R_INTC
0x01F0 0C00---0x01F0 0FFF
1K
R_WDOG
0x01F0 1000---0x01F0 13FF
1K
R_PRCM
0x01F0 1400---0x01F0 17FF
1K
R_TWD
0x01F0 1800---0x01F0 1BFF
1K
R_CPUCFG
0x01F0 1C00---0x01F0 1FFF
1K
R_CIR-RX
0x01F0 2000---0x01F0 23FF
1K
R_TWI
0x01F0 2400---0x01F0 27FF
1K
R_UART
0x01F0 2800---0x01F0 2BFF
1K
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 75
R_PIO
0x01F0 2C00---0x01F0 2FFF
1K
R_RSB
0x01F0 3400---0x01F0 37FF
1K
R_PWM
0x01F0 3800---0x01F0 3BFF
1K
SDRAM
0x4000 0000---0xFFFF FFFF
3G
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 76
3.2. Boot System
The system will boot in different ways based on whether its security features are enabled.
The Boot System includes the following features:
• Support CPU-0 boot process and CPU-0+ boot process
• Support super standby wakeup process
• Support mandatory upgrade process through SDC0 and USB OTG
• Support fast boot process from Raw NAND,eMMC,SD/TF card ,and SPI NOR Flash
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 77
3.3. CCU
3.3.1. Overview
The CCU controls the PLLs configuration and most of the clock generation, division, distribution,
synchronization and gating. CCU input signals include the external clock for the reference frequency (24MHz).
The outputs from CCU are mostly clocks to other blocks in the system.
The CCU includes the following features:
13 PLLs, independent PLL for CPUX
Bus Source and Divisions
PLLs Bias Control
PLLs Tunning Control
PLLs Pattern Control
Configuring Modules Clock
Bus Clock Gating
Bus Software Reset
3.3.2. Functionalities Description
3.3.2.1. System Bus
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 78
DRAM
Arbiter
AHB AHB
AHB1 BUS
SYS_CTRL
HS TIMER
TCON
DRAMC
SRAM A1
SPINLOCK SDRCTL
SPI
NAND
SMHC
GPU
DMA
CSI
CE
APB2 BUS
UART TWI
CCM
GPIO
TIMER
KEYADC
DAUDIO
THS
BROM SID SMTA
PWM
X2H
Bridge
AHB1
APB2
Bridge
AHB1
APB1
AHB2AHB
Arbiter
CPUS
AHBS BUS
AHB2AHB Bridge
APBS BUS
R_TIMER
R_PRCM
R_INTC R_WDOG
RTC
R_TWI R_UART R_GPIO
R_CPUCFG
R_PWM
HDMI
TSGEN
SMHC
TH
DE
CSI
DMA
APB1 BUS
R_CIR_RX
DE
CE
CPUS
VE
GPU
USB-OTG
USB-HOST
AXIS1 AXIS2
AHB
CORE0 CORE1
Cache, GIC
MIPI_DSI
SRAM C VE
SID
OWA
SMC
MSGBOX
SRAM A2
CORE2 CORE3
EMAC
USB
AHB2 BUS
Bridge
AHB1
AHB2
NAND
R_RSB
Figure 3-1. System Bus Tree
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 79
3.3.2.2. Bus clock tree
MUX CPU
ExternalOSC
MUX
XLOSC
X
PLL-PERH0(1X)
MUX
AHB1_PRE_DIV
1/(1~4)
AHB1_CLK_DIV_RATIO
(/1 /2 /4 /8) AHB1
APB1_CLK_RATIO
(/2 /2 /4 /8) APB1
MUX CLK_RAT_N
(/1 /2 /4 /8)
CLK_RAT_M
1/(1~32) APB2
PLL_CPUX
AXI AXI_CLK_DIV_RATIO
(1/(1~4))
32.768KHz
OSC24M
L2 Cache /1
System APB CPU_APB_CLK_DIV
(/1 /2 /4)
/512
AHB2
MUX
/2
PLL-PERH0(2X)
16MHz
Figure 3-2. Bus Clock Tree
3.3.2.3. Module clock tree
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 80
24 MHz
PLLOsciallor
PLL_C0_CPUX
PLL_AUDIO
PLL_VIDEO0
PLL_VE
PLL_PERIPH0
PLL_PERIPH1
PLL_GPU
PLL_HSIC
PLL_DE
PLL_DDR1
24MOSC CPUX
M
U
X
TCON0/TCON1/HDMI/MIPI_DSI/
CSI
VE
NAND/SMHC0/SMHC1/SMHC2/
SPI0/SPI1/CSI/MIPI_DSI
GPU
USB
DE
DRAM/MBUS
PLL_MIPI TCON0
PLL_DDR0 DRAM/MBUS
LOSC
DAUDIO0/DAUDIO1/DAUDIO2/
OWA/AC_DIGITAL
NAND/SMHC0/SMHC1/SMHC2/CE
/SPI0/SPI1/DE/CSI/MBUS/
MIPI_DSI
PLL_VIDEO1 TCON1/HDMI/CSI
24MOSC
Timer
M
U
X
LOSC
ExternalOSC
X
/512
16MHz
M
U
X
Watchdog
/750
Figure 3-3.Module Clock Diagram
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 81
3.3.3. Typical Applications
(1). Clock output of PLL_CPUX is used only for CPU;and the frequency factor can be dynamically modified for
DVFS;
(2). Clock output of PLL_AUDIO (24.571MHz or 24.5792MHz)can be used for I2S/PCM 0,I2S/PCM 1,I2S/PCM 2,
AC DIGITAL,OWA ;and dynamic frequency scaling is not supported;
(3). Clock output of PLL_VIDEO0 (1X) can be used for TCON1,HDMI,MIPI_DSI;clock output of PLL_VIDEO0 (2X)
can be used for TCON0;dynamic frequency scaling is not supported for PLL_VIDEO0(1X) and PLL_VIDEO0(2X);
(4). Clock output of PLL_VIDEO1 (1X) can be used for TCON1,HDMI,CSI; and dynamic frequency scaling is not
supported;
(5). Clock output of PLL_VE can be only used for VE;and dynamic frequency scaling is not supported;
(6). Clock output of PLL_DDR0 can be used for MBUS and DRAM;and dynamic frequency scaling is not
supported;
(7). Clock output of PLL_PERIPH0 (2X) can be used for APB2,MBUS,SMHC0,SMHC1,SMHC2,CE,DE; Clock output
of PLL_PERIPH0(1X) can be used for AHB1,APB1,AHB2,MBUS and NAND,SPI0,SPI1,CSI,MIPI_DSI,De-interlace,
CPUS; dynamic frequency scaling is not supported for PLL_PERIPH0(2X) and PLL_PERIPH0(1X);
(8). Clock output of PLL_PERIPH1(2X) can be used for SMHC0,SMHC1,SMHC2,CE;Clock output of
PLL_PERIPH1(1X) can be used for NAND,SPI0,SPI1,CSI,MIPI_DSI,De-interlace;dynamic frequency scaling is not
supported for PLL_PERIPH1(2X) and PLL_PERIPH1(1X);
(9). Clock output of PLL_GPU can be used for GPU;and dynamic frequency scaling is not supported;
(10). Clock output of PLL_MIPI can be used for TCON0;and dynamic frequency scaling is not supported;
(11). Clock output of PLL_HSIC can be used for USB;and dynamic frequency scaling is not supported;
(12). Clock output of PLL_DE can be used for DE;and dynamic frequency scaling is not supported;
(13). Clock output of PLL_DDR1 can be used for MBUS and DRAM;and dynamic frequency scaling is not
supported;
3.3.4. Register List
Module Name
Base Address
CCU
0x01C20000
Register Name
Offset
Description
PLL_CPUX_CTRL_REG
0x0000
PLL_CPUX Control Register
PLL_AUDIO_CTRL_REG
0x0008
PLL_AUDIO Control Register
PLL_VIDEO0_CTRL_REG
0x0010
PLL_VIDEO0 Control Register
PLL_VE_CTRL_REG
0x0018
PLL_VE Control Register
PLL_DDR0_CTRL_REG
0x0020
PLL_DDR0 Control Register
PLL_PERIPH0_CTRL_REG
0x0028
PLL_PERIPH0 Control Register
PLL_PERIPH1_CTRL_REG
0x002C
PLL_PERIPH1 Control Register
PLL_VIDEO1_CTRL_REG
0x0030
PLL_VIDEO1 Control Register
PLL_GPU_CTRL_REG
0x0038
PLL_GPU Control Register
PLL_MIPI_CTRL_REG
0x0040
PLL_MIPI Control Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 82
PLL_HSIC_CTRL_REG
0x0044
PLL_HSIC Control Register
PLL_DE_CTRL_REG
0x0048
PLL_DE Control Register
PLL_DDR1_CTRL_REG
0x004C
PLL_DDR1 Control Register
CPU_AXI_CFG_REG
0x0050
CPUX/AXI Configuration Register
AHB1_APB1_CFG_REG
0x0054
AHB1/APB1 Configuration Register
APB2 _CFG_REG
0x0058
APB2 Configuration Register
AHB2_CFG_REG
0x005C
AHB2 Configuration Register
BUS_CLK_GATING_REG0
0x0060
Bus Clock Gating Register 0
BUS_CLK_GATING_REG1
0x0064
Bus Clock Gating Register 1
BUS_CLK_GATING_REG2
0x0068
Bus Clock Gating Register 2
BUS_CLK_GATING_REG3
0x006C
Bus Clock Gating Register 3
BUS_CLK_GATING_REG4
0x0070
Bus Clock Gating Register 4
THS_CLK_REG
0x0074
THS Clock Register
NAND_CLK_REG
0x0080
NAND Clock Register
SDMMC0_CLK_REG
0x0088
SDMMC0 Clock Register
SDMMC1_CLK_REG
0x008C
SDMMC1 Clock Register
SDMMC2_CLK_REG
0x0090
SDMMC2 Clock Register
TS_CLK_REG
0x0098
TS Clock Register
CE_CLK_REG
0x009C
CE Clock Register
SPI0_CLK_REG
0x00A0
SPI0 Clock Register
SPI1_CLK_REG
0x00A4
SPI1 Clock Register
I2S/PCM-0_CLK_REG
0x00B0
I2S/PCM-0 Clock Register
I2S/PCM-1_CLK_REG
0x00B4
I2S/PCM-1 Clock Register
I2S/PCM-2_CLK_REG
0x00B8
I2S/PCM-2 Clock Register
SPDIF_CLK_REG
0x00C0
SPDIF Clock Register
USBPHY_CFG_REG
0x00CC
USBPHY Configuration Register
DRAM_CFG_REG
0x00F4
DRAM Configuration Register
PLL_DDR_CFG_REG
0x00F8
PLL_DDR Configuration Register
MBUS_RST_REG
0x00FC
MBUS Reset Register
DRAM_CLK_GATING_REG
0x0100
DRAM Clock Gating Register
DE_CLK_REG
0x0104
DE Clock Register
TCON0_CLK_REG
0x0118
TCON0 Clock Register
TCON1_CLK_REG
0x011C
TCON1 Clock Register
DEINTERLACE_CLK_REG
0x0124
DEINTERLACE Clock Register
CSI_MISC_CLK_REG
0x0130
CSI_MISC Clock Register
CSI_CLK_REG
0x0134
CSI Clock Register
VE_CLK_REG
0x013C
VE Clock Register
AC_DIG_CLK_REG
0x0140
AC Digital Clock Register
AVS_CLK_REG
0x0144
AVS Clock Register
HDMI_CLK_REG
0x0150
HDMI Clock Register
HDMI_SLOW_CLK_REG
0x0154
HDMI Slow Clock Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 83
MBUS_CLK_REG
0x015C
MBUS Clock Register
MIPI_DSI_CLK_REG
0x0168
MIPI_DSI Clock Register
GPU_CLK_REG
0x01A0
GPU Clock Register
PLL_STABLE_TIME_REG0
0x0200
PLL Stable Time Register0
PLL_STABLE_TIME_REG1
0x0204
PLL Stable Time Register1
PLL_PERIPH1_BIAS_REG
0x021C
PLL_PERIPH1 Bias Register
PLL_CPUX_BIAS_REG
0x0220
PLL_CPUX Bias Register
PLL_AUDIO_BIAS_REG
0x0224
PLL_AUDIO Bias Register
PLL_VIDEO0_BIAS_REG
0x0228
PLL_VIDEO0 Bias Register
PLL_VE_BIAS_REG
0x022C
PLL_VE Bias Register
PLL_DDR0_BIAS_REG
0x0230
PLL_DDR0 Bias Register
PLL_PERIPH0_BIAS_REG
0x0234
PLL_PERIPH0 Bias Register
PLL_VIDEO1_BIAS_REG
0x0238
PLL_VIDEO1 Bias Register
PLL_GPU_BIAS_REG
0x023C
PLL_GPU Bias Register
PLL_MIPI_BIAS_REG
0x0240
PLL_MIPI Bias Register
PLL_HSIC_BIAS_REG
0x0244
PLL_HSIC Bias Register
PLL_DE_BIAS_REG
0x0248
PLL_DE Bias Register
PLL_DDR1_BIAS_REG
0x024C
PLL_DDR1 Bias Register
PLL_CPUX_TUN_REG
0x0250
PLL_CPUX Tuning Register
PLL_DDR0_TUN_REG
0x0260
PLL_DDR0 Tuning Register
PLL_MIPI_TUN_REG
0x0270
PLL_MIPI Tuning Register
PLL_PERIPH1_PAT_CTRL_REG
0x027C
PLL_PERIPH1 Pattern Control Register
PLL_CPUX_PAT_CTRL_REG
0x0280
PLL_CPUX Pattern Control Register
PLL_AUDIO_PAT_CTRL_REG
0x0284
PLL_AUDIO Pattern Control Register
PLL_VIDEO0_PAT_CTRL_REG
0x0288
PLL_VIDEO0 Pattern Control Register
PLL_VE_PAT_CTRL_REG
0x028C
PLL_VE Pattern Control Register
PLL_DDR0_PAT_CTRL_REG
0x0290
PLL_DDR0 Pattern Control Register
PLL_VIDEO1_PAT_CTRL_REG
0x0298
PLL_VIDEO1 Pattern Control Register
PLL_GPU_PAT_CTRL_REG
0x029C
PLL_GPU Pattern Control Register
PLL_MIPI_PAT_CTRL_REG
0x02A0
PLL_MIPI Pattern Control Register
PLL_HSIC_PAT_CTRL_REG
0x02A4
PLL_HSIC Pattern Control Register
PLL_DE_PAT_CTRL_REG
0x02A8
PLL_DE Pattern Control Register
PLL_DDR1_PAT_CTRL_REG0
0x02AC
PLL_DDR1 Pattern Control Register0
PLL_DDR1_PAT_CTRL_REG1
0x02B0
PLL_DDR1 Pattern Control Register1
BUS_SOFT_RST_REG0
0x02C0
Bus Software Reset Register 0
BUS_SOFT_RST_REG1
0x02C4
Bus Software Reset Register 1
BUS_SOFT_RST_REG2
0x02C8
Bus Software Reset Register 2
BUS_SOFT_RST_REG3
0x02D0
Bus Software Reset Register 3
BUS_SOFT_RST_REG4
0x02D8
Bus Software Reset Register 4
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 84
CCM_SEC_SWITCH_REG
0x02F0
CCM Security Switch Register
PS_CTRL_REG
0x0300
PS Control Register
PS_CNT_REG
0x0304
PS Counter Register
PLL_LOCK_CTRL_REG
0x0320
PLL Lock Control Register
3.3.5. Register Description
3.3.5.1. PLL_CPUX Control Register (Default Value: 0x00001000)
Offset: 0x0000
Register Name: PLL_CPUX_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable
The PLL Output= (24MHz*N*K)/(M*P).
The PLL output is for the CPUX Clock.
Note: 10≤N*K≤88,The P factor only can be used when PLL output
frequency is less than 240MHz.
The PLL output clock must be in the range of 240MHz~2.1GHz.
The default of CPUX Clock is 408MHz.
30:29
/
/
/
28
R
0x0
LOCK
0: Unlocked
1: Locked (It indicates that the PLL has been stable.)
27:25
/
/
/
24
R/W
0x0
CPUX_SDM_EN.
0: Disable
1: Enable
23:18
/
/
/
17:16
R/W
0x0
PLL_OUT_EXT_DIVP
PLL Output external divider P
00: /1
01: /2
10: /4
11: /
15:13
/
/
/
12:8
R/W
0x10
PLL_FACTOR_N
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 85
……
Factor=31, N=32
7:6
/
/
/
5:4
R/W
0x0
PLL_FACTOR_K.
PLL Factor K.(K=Factor + 1 )
The range is from 1 to 4.
3:2
/
/
/
1:0
R/W
0x0
PLL_FACTOR_M.
PLL Factor M. (M=Factor + 1)
The range is from 1 to 4.
3.3.5.2. PLL_Audio Control Register (Default Value: 0x00035514)
Offset: 0x0008
Register Name: PLL_AUDIO_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable.
The PLL is for Audio.
The PLL_AUDIO= (24MHz*N)/(M*P).
The PLL_AUDIO(8X) = (24MHz*N*2)/M
Note: 3≤N/M≤21.
(24MHz*N)/P must be in the range of 72MHz~504MHz.
PLL_AUDIO default is 24.571MHz.
30:29
/
/
/
28
R
0x0
LOCK.
0: Unlocked
1: Locked (It indicates that the PLL has been stable.)
27:25
/
/
/
24
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable.
In this case, the PLL_FACTOR_N only low 4 bits are valid (N: The range is
from 1 to 16).
23:20
/
/
/
19:16
R/W
0x3
PLL_POSTDIV_P.
Post-div factor (P= Factor+1)
The range is from 1 to 16.
14:8
R/W
0x55
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 86
Factor=1, N=2
……
Factor=127, N=128.
7:5
/
/
/
4:0
R/W
0x14
PLL_PREDIV_M.
PLL Pre-div Factor(M = Factor+1).
The range is from 1 to 32.
3.3.5.3. PLL_VIDEO0 Control Register (Default Value: 0x03006207)
Offset: 0x0010
Register Name: PLL_VIDEO0_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable.
In the integer mode,
PLL_VIDEO0(1X) = (24MHz*N)/M.
PLL_VIDEO0(2X) =( (24MHz*N)/M)*2.
In the fractional mode, the PLL Output is select by bit 25.
Note: 8≤N/M≤25
(24MHz*N)/M must be in the range of 192MHz~600MHz.
PLL_VIDEO0(1X) default is 297MHz.
30
R/W
0x0
PLL_MODE.
0: Manual Mode
1: Auto Mode (Controlled by DE).
29
/
/
/
28
R
0x0
LOCK.
0: Unlocked
1: Locked (It indicates that the PLL has been stable.)
27:26
/
/
/
25
R/W
0x1
FRAC_CLK_OUT.
PLL clock output when PLL_MODE_SEL=0(PLL_PREDIV_M factor must be
set to 0); No meaning when PLL_MODE_SEL =1.
0: PLL Output=270MHz
1: PLL Output =297MHz.
24
R/W
0x1
PLL_MODE_SEL.
0: Fractional Mode
1: Integer Mode.
Note: When in Fractional mode, the Per Divider M should be set to 0.
23:21
/
/
/
20
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 87
19:15
/
/
/
14:8
R/W
0x62
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=127,N=128.
7:4
/
/
/
3:0
R/W
0x7
PLL_PREDIV_M.
PLL Pre-div Factor(M = Factor+1).
The range is from 1 to 16.
3.3.5.4. PLL_VE Control Register (Default Value: 0x03006207)
Offset: 0x0018
Register Name: PLL_VE_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable.
In the integer mode, The PLL_VE = (24MHz*N)/M.
In the fractional mode, the PLL Output is select by bit 25.
Note: 8≤N/M≤25
(24MHz*N)/M must be in the range of 192MHz~600MHz.
PLL_VE default is 297MHz.
30:29
/
/
/
28
R
0x0
LOCK
0: Unlocked
1: Locked (It indicates that the PLL has been stable.)
27:26
/
/
/
25
R/W
0x1
FRAC_CLK_OUT.
PLL clock output when PLL_MODE_SEL=0(PLL_PREDIV_M factor must be
set to 0); No meaning when PLL_MODE_SEL =1.
0: PLL Output=270MHz
1: PLL Output =297MHz.
24
R/W
0x1
PLL_MODE_SEL.
0: Fractional Mode
1: Integer Mode.
Note: When in Fractional mode, the Per Divider M should be set to 0.
23:21
/
/
/
20
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 88
19:15
/
/
/
14:8
R/W
0x62
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=31,N=32
…
Factor=127,N=128.
7:4
/
/
/
3:0
R/W
0x7
PLL_PREDIV_M.
PLL Pre Divider (M = Factor+1).
The range is from 1 to 16.
3.3.5.5. PLL_DDR0 Control Register (Default Value: 0x00001000)
Offset: 0x0020
Register Name: PLL_DDR0_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable.
The PLL_DDR0 = (24MHz*N*K)/M.
Note: 10≤N*K≤77(give priority to the choice of K≥2)
(24MHz*N*K) must be in the range of 240MHz~1.8GHz.
PLL_DDR0 default is 408MHz.
30:29
/
/
/
28
R
0x0
LOCK
0: Unlocked
1: Locked (It indicates that the PLL has been stable.)
27:25
/
/
/
24
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable.
23:21
/
/
/
20
R/W
0x0
PLL_DDR0_CFG_UPDATE.
PLL_DDR0 Configuration Update.
When PLL_DDR0 has been changed, this bit should be set to 1 to validate
the PLL, otherwise the change would be invalid. And this bit would be
cleared automatically after the PLL change is valid.
0: No effect
1: Validating the PLL_DDR0.
19:13
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 89
12:8
R/W
0x10
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=31,N=32.
7:6
/
/
/
5:4
R/W
0x0
PLL_FACTOR_K.
PLL Factor K.(K=Factor + 1 )
The range is from 1 to 4.
3:2
/
/
/
1:0
R/W
0x0
PLL_FACTOR_M.
PLL Factor M.(M = Factor + 1 )
The range is from 1 to 4.
3.3.5.6. PLL_PERIPH0 Control Register (Default Value: 0x00041811)
Offset: 0x0028
Register Name: PLL_PERIPH0_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable.
The PLL_PERIPH0(1X) = 24MHz*N*K/2.
The PLL_PERIPH0(2X) = 24MHz*N*K.
Note: 21≤N*K≤58(give priority to the choice of K≥2)
The PLL_PERIPH0(2X) should be fixed to 1.2GHz, it is not recommended
to vary this value arbitrarily.
24MHz*N*K clock must be in the range of 504MHz~1.4GHz.
PLL_PERIPH0(2X) default is 1.2GHz.
30:29
/
/
/
28
R
0x0
LOCK.
0: Unlocked
1: Locked (It indicates that the PLL has been stable.)
27:26
/
/
/
25
R/W
0x0
PLL_BYPASS_EN.
PLL Output Bypass Enable.
0: Disable
1: Enable
If the bypass is enabled, the PLL output is 24MHz.
24
R/W
0x0
PLL_CLK_OUT_EN.
PLL clock output enable.
0: Disable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 90
1: Enable
23:19
/
/
/
18
R/W
0x1
PLL_24M_OUT_EN.
PLL 24MHz Output Enable.
0: Disable
1: Enable
When 25MHz crystal used, this PLL can output 24MHz.
17:16
R/W
0x0
PLL_24M_POST_DIV.
PLL 24M Output Clock Post Divider (When 25MHz crystal used).
1/2/3/4.
15:13
/
/
/
12:8
R/W
0x18
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=31, N=32
7:6
/
/
/
5:4
R/W
0x1
PLL_FACTOR_K.
PLL Factor K.(K=Factor + 1 )
The range is from 1 to 4.
3:2
/
/
/
1:0
R/W
0x1
PLL_FACTOR_M.
PLL Factor M (M = Factor + 1) is only valid in plltest debug.
The PLL_PERIPH back door clock output =24MHz*N*K/M.
The range is from 1 to 4.
3.3.5.7. PLL_PERIPH1 Control Register (Default Value: 0x00041811)
Offset: 0x002C
Register Name: PLL_PERIPH1_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable.
The PLL_PERIPH0(1X) = 24MHz*N*K/2.
The PLL_PERIPH0(2X) = 24MHz*N*K.
Note: 21≤N*K≤58(give priority to the choice of K≥2)
The PLL_PERIPH1(2X) should be fixed to 1.2GHz, it is not recommended
to vary this value arbitrarily.
24MHz*N*K clock must be in the range of 504MHz~1.4GHz.
PLL_PERIPH0(2X) default is 1.2GHz.
30:29
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 91
28
R
0x0
LOCK.
0: Unlocked
1: Locked (It indicates that the PLL has been stable.)
27:26
/
/
/
25
R/W
0x0
PLL_BYPASS_EN.
PLL Output Bypass Enable.
0: Disable
1: Enable.
If the bypass is enabled, the PLL output is 24MHz.
24
R/W
0x0
PLL_CLK_OUT_EN.
PLL clock output enable.(Just for the SATA Phy)
0: Disable
1: Enable.
23:21
/
/
/
20
R/W
0x0
PLL_SDM_EN
0: Disable
1: Enable.
19
/
/
/
18
R/W
0x1
PLL_24M_OUT_EN.
PLL 24MHz Output Enable.
0: Disable
1: Enable.
When 25MHz crystal used, this PLL can output 24MHz.
17:16
R/W
0x0
PLL_24M_POST_DIV.
PLL 24M Output Clock Post Divider (When 25MHz crystal used).
1/2/3/4.
15:13
/
/
/
12:8
R/W
0x18
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=31,N=32.
7:6
/
/
/
5:4
R/W
0x1
PLL_FACTOR_K.
PLL Factor K.(K=Factor + 1 )
The range is from 1 to 4.
3:2
/
/
/
1:0
R/W
0x1
PLL_FACTOR_M.
PLL Factor M (M = Factor + 1) is only valid in plltest debug.
The PLL_PERIPH back door clock output =24MHz*N*K/M.
The range is from 1 to 4.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 92
3.3.5.8. PLL_VIDEO1 Control Register (Default Value: 0x03006207)
Offset: 0x0030
Register Name: PLL_VIDEO1_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable.
In the integer mode,
PLL_VIDEO1(1X) = (24MHz*N)/M.
PLL_VIDEO1(2X) =( (24MHz*N)/M)*2.
In the fractional mode, the PLL Output is select by bit 25.
Note: 8≤N/M≤25
(24MHz*N)/M must be in the range of 192MHz~600MHz.
PLL_VIDEO1(1X) default is 297MHz.
30
R/W
0x0
PLL_MODE.
0: Manual Mode
1: Auto Mode (Controlled by DE).
29
/
/
/
28
R
0x0
LOCK.
0: Unlocked
1: Locked (It indicates that the PLL has been stable.)
27:26
/
/
/
25
R/W
0x1
FRAC_CLK_OUT.
PLL clock output when PLL_MODE_SEL=0(PLL_PREDIV_M factor must be
set to 0); No meaning when PLL_MODE_SEL =1.
0: PLL Output=270MHz
1: PLL Output =297MHz.
24
R/W
0x1
PLL_MODE_SEL.
0: Fractional Mode
1: Integer Mode.
Note: When in Fractional mode, the Per Divider M should be set to 0.
23:21
/
/
/
20
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable.
19:15
/
/
/
14:8
R/W
0x62
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=127,N=128.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 93
7:4
/
/
/
3:0
R/W
0x7
PLL_PREDIV_M.
PLL Pre-div Factor(M = Factor+1).
The range is from 1 to 16.
3.3.5.9. PLL_GPU Control Register (Default Value: 0x03006207)
Offset: 0x0038
Register Name: PLL_GPU_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable.
In the integer mode, The PLL_GPU = (24MHz*N)/M.
In the fractional mode, the PLL Output is select by bit 25.
Note: 8≤N/M≤25
(24MHz*N)/M must be in the range of 192MHz~600MHz.
PLL_GPU default is 297MHz.
30:29
/
/
/
28
R
0x0
LOCK.
0: Unlocked
1: Locked (It indicates that the PLL has been stable.)
27:26
/
/
/
25
R/W
0x1
FRAC_CLK_OUT.
PLL clock output when PLL_MODE_SEL=0(PLL_PREDIV_M factor must be
set to 0); no meaning when PLL_MODE_SEL =1.
0: PLL Output=270MHz
1: PLL Output=297MHz.
24
R/W
0x1
PLL_MODE_SEL.
0: Fractional Mode.
1: Integer Mode.
Note: When in Fractional mode, the Per Divider M should be set to 0.
23:21
/
/
/
20
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable.
19:15
/
/
/
14:8
R/W
0x62
PLL_FACTOR_N
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=127,N=128.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 94
7:4
/
/
/
3:0
R/W
0x7
PLL_PRE_DIV_M.
PLL Pre Divider (M = Factor+1).
The range is from 1 to 16.
3.3.5.10. PLL_MIPI Control Register (Default Value: 0x00000515)
Offset: 0x0040
Register Name: PLL_MIPI_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable.
The PLL_MIPI= (PLL_VIDEO0(1X)*N*K)/M when VFB_SEL=0 (MIPI
mode).
When VFB_SEL=1, the PLL Output is depend on these bits: sint_frac,sdiv2,
s6p25_7p5 , pll_feedback_div.6
Note: K≥2;M/N≤3;
(PLL_VIDEO0)/M≥24MHz;
PLL_MIPI must be in the range of 500MHz~1.4GHz.
PLL_MIPI default value is 594MHz.
30:29
/
/
/
28
R
0x0
LOCK.
0: Unlocked
1: Locked (It indicates that the PLL has been stable.)
27
R/W
0x0
SINT_FRAC.
When VFB_SEL=1, PLL mode control, otherwise no meaning.
0: Integer Mode
1: Fractional Mode.
26
R/W
0x0
SDIV2.
PLL clock output when VFB_SEL=1; no meaning when VFB_SEL =0
0: PLL Output
1: PLL Output X2.
25
R/W
0x0
S6P25_7P5.
PLL Output is selected by this bit when VFB_SEL=1 and SINT_FRAC=1,
otherwise no meaning.
0: PLL Output=PLL Input*6.25
1: PLL Output= PLL Input *7.5.
24
/
/
/
23
R/W
0
LDO1_EN.
On-chip LDO1 Enable.
22
R/W
0
LDO2_EN.
On-chip LDO2 Enable.
21
R/W
0
PLL_SRC.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 95
PLL Source Select.
0: VIDEO0 PLL
1: /.
20
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable.
19:18
/
/
/
17
R/W
0x0
PLL_FEEDBACK_DIV.
PLL feed-back divider control. PLL clock output when VFB_SEL=1; no
meaning when VFB_SEL =0
0:Divided by 5
1:Divided by 7.
16
R/W
0x0
VFB_SEL.
0: MIPI Mode(N, K, M valid)
1:HDMI Mode(sint_frac,sdiv2,s6p25_7p5 , pll_feedback_div valid)
15:12
/
/
/
11:8
R/W
0x5
PLL_FACTOR_N
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
……
Factor=15,N=16;
7:6
/
/
/
5:4
R/W
0x1
PLL_FACTOR_K.
PLL Factor K.(K=Factor + 1 )
The range is from 2 to 4.
3:0
R/W
0x5
PLL_PRE_DIV_M.
PLL Pre Divider (M = Factor+1).
The range is from 1 to 16.
3.3.5.11. PLL_HSIC Control Register (Default Value: 0x03001300)
Offset: 0x0044
Register Name: PLL_HSIC_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable.
In the integer mode, The PLL_HSIC = (24MHz*N)/M.
In the fractional mode, the PLL Output is select by bit 25.
Note: 8≤N/M≤25
(24MHz*N)/M must be in the range of 192MHz~600MHz.
PLL_HSIC default is 480MHz.
30:29
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 96
28
R
0x0
LOCK
0: Unlocked
1: Locked (It indicates that the PLL has been stable.)
27:26
/
/
/
25
R/W
0x1
FRAC_CLK_OUT.
PLL clock output when PLL_MODE_SEL=0(PLL_PREDIV_M factor must be
set to 0); no meaning when PLL_MODE_SEL =1.
0: PLL Output=270MHz
1: PLL Output=297MHz.
24
R/W
0x1
PLL_MODE_SEL.
0: Fractional Mode
1: Integer Mode.
Note: When in Fractional mode, the Per Divider M should be set to 0.
23:21
/
/
/
20
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable.
19:15
/
/
/
14:8
R/W
0x13
PLL_FACTOR_N
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=0x7F,N=128.
7:4
/
/
/
3:0
R/W
0x0
PLL_PRE_DIV_M.
PLL Per Divider (M = Factor+1).
The range is from 1 to 16.
3.3.5.12. PLL_DE Control Register (Default Value: 0x03006207)
Offset: 0x0048
Register Name: PLL_DE_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable
In the integer mode, The PLL Output= (24MHz*N)/M.
In the fractional mode, the PLL Output is select by bit 25.
Note: 8≤N/M≤25
(24MHz*N)/M must be in the range of 192MHz~600MHz.
Its default is 297MHz.
30:29
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 97
28
R
0x0
LOCK
0: Unlocked
1: Locked (It indicates that the PLL has been stable.)
27:26
/
/
/
25
R/W
0x1
FRAC_CLK_OUT.
PLL clock output when PLL_MODE_SEL=0(PLL_PREDIV_M factor must be
set to 0); no meaning when PLL_MODE_SEL =1.
0: PLL Output=270MHz
1: PLL Output =297MHz
24
R/W
0x1
PLL_MODE_SEL.
0: Fractional Mode
1: Integer Mode
Note: When in Fractional mode, the Pre Divider M should be set to 0.
23:21
/
/
/
20
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable
19:15
/
/
/
14:8
R/W
0x62
PLL_FACTOR_N
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=0x7F, N=128
7:4
/
/
/
3:0
R/W
0x7
PLL_PRE_DIV_M.
PLL Per Divider (M = Factor+1).
The range is from 1 to 16.
3.3.5.13. PLL_DDR1 Control Register (Default Value: 0x00001800)
Offset: 0x004C
Register Name: PLL_DDR1_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable.
The PLL_DDR1 = 24MHz*N/M.
Note: 16≤N≤75.
24MHz*N/M must be in the range of 192MHz~1.6GHz.
Its default is 600 MHz.
30
R/W
0x0
SDRPLL_UPD.
SDRPLL Configuration Update.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 98
Note: When PLL_DDR1 has changed, this bit should be set to 1 to validate
the PLL, otherwise the change is invalid. It will be auto cleared after the
PLL is valid.
0: No effect
1: To validate the PLL_DDR1.
29
/
/
/
28
R
0x0
LOCK
0:Unlocked
1: Locked (It indicates that the PLL has been stable.)
27:25
/
/
/
24
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable.
23:15
/
/
/
14:8
R/W
0x18
PLL_FACTOR_N.
N= Factor +1.
The range is from 0 to 127
7:2
/
/
/
1:0
R/W
0x0
PLL_FACTOR_M.
M= Factor +1.
The range is from 0 to 4
3.3.5.14. CPUX/AXI Configuration Register (Default Value: 0x00010300)
Offset: 0x0050
Register Name: CPUX_AXI_CFG_REG
Bit
R/W
Default/Hex
Description
31:18
/
/
/
17:16
R/W
0x1
CPUX_CLK_SRC_SEL.
CPUX Clock Source Select.
CPUX Clock = Clock Source
00: LOSC
01: OSC24M
1X: PLL_CPUX
If the clock source is changed, at most to wait for 8 present running clock
cycles.
15:10
/
/
/
9:8
R/W
0x0
CPU_APB_CLK_DIV.
00: /1
01: /2
10: /3
11: /4
Note: System APB clock source is CPU clock source.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 99
7:2
/
/
/
1:0
R/W
0x0
AXI_CLK_DIV_RATIO.
AXI Clock Divide Ratio.
AXI Clock source is CPU clock source.
00: /1
01: /2
10: /3
11: /4
3.3.5.15. AHB1/APB1 Configuration Register (Default Value: 0x00001010)
Offset: 0x0054
Register Name: AHB1_APB1_CFG_REG
Bit
R/W
Default/Hex
Description
31:14
/
/
/
13:12
R/W
0x1
AHB1_CLK_SRC_SEL.
00: LOSC
01: OSC24M
10: AXI
11: PLL_PERIPH0(1X)/ AHB1_PRE_DIV.
11:10
/
/
/
9:8
R/W
0x0
APB1_CLK_RATIO.
APB1 Clock Divide Ratio. APB1 clock source is AHB1 clock.
00: /2
01: /2
10: /4
11: /8.
7:6
R/W
0x0
AHB1_PRE_DIV
AHB1 Clock Pre Divide Ratio
00: /1
01: /2
10: /3
11: /4.
5:4
R/W
0x1
AHB1_CLK_DIV_RATIO.
AHB1 Clock Divide Ratio.
00: /1
01: /2
10: /4
11: /8.
3:0
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 100
3.3.5.16. APB2 Configuration Register (Default Value: 0x01000000)
Offset: 0x0058
Register Name: APB2_CFG_REG
Bit
R/W
Default/Hex
Description
31:26
/
/
/
25:24
R/W
0x1
APB2_CLK_SRC_SEL.
APB2 Clock Source Select
00: LOSC
01: OSC24M
1X: PLL_PERIPH0(2X).
This clock is used for some special module apbclk(UART、TWI). Because
these modules need special clock rate even if the apb1clk changed.
23:18
/
/
/
17:16
R/W
0x0
CLK_RAT_N
Clock Per Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8.
15:5
/
/
/
4:0
R/W
0x0
CLK_RAT_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 32.
3.3.5.17. AHB2 Configuration Register (Default Value: 0x00000000)
Offset: 0x005C
Register Name: AHB2_CFG_REG
Bit
R/W
Default/Hex
Description
31:2
/
/
/
1:0
R/W
0x0
AHB2_CLK_CFG.
00: AHB1 Clock
01: PLL_PERIPH0(1X)/2
1X: /
EMAC ,USB HCI0 default clock source is AHB2 Clock.
Its default value is 300Mhz.
3.3.5.18. Bus Clock Gating Register0 (Default Value: 0x00000000)
Offset: 0x0060
Register Name: BUS_CLK_GATING_REG0
Bit
R/W
Default/Hex
Description
31:30
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 101
29
R/W
0x0
USBOHCI0_GATING.
Gating Clock for USB OHCI0
0: Mask
1: Pass
28
R/W
0x0
USB-OTG-OHCI_GATING.
Gating Clock for USB-OTG-OHCI
0: Mask
1: Pass
27:26
/
/
/
25
R/W
0x0
USBEHCI0_GATING.
Gating Clock For USB EHCI0
0: Mask
1: Pass
24
R/W
0x0
USB-OTG-EHCI_GATING.
Gating Clock For USB-OTG-EHCI
0: Mask
1: Pass
23
R/W
0x0
USB-OTG-Device_GATING.
Gating Clock For USB OTG Device
0: Mask
1: Pass
22
/
/
/
21
R/W
0x0
SPI1_GATING.
Gating Clock For SPI1
0: Mask
1: Pass.
20
R/W
0x0
SPI0_GATING.
Gating Clock For SPI0
0: Mask
1: Pass.
19
R/W
0x0
HSTMR_GATING.
Gating Clock For High Speed Timer
0: Mask
1: Pass.
18
R/W
0x0
TS_GATING.
Gating Clock For TS
0: Mask
1: Pass
17
R/W
0x0
EMAC_GATING.
Gating Clock For EMAC
0: Mask
1: Pass
16:15
/
/
/
14
R/W
0x0
DRAM_GATING.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 102
Gating Clock For DRAM
0: Mask
1: Pass.
13
R/W
0x0
NAND_GATING.
Gating Clock For NAND
0: Mask
1: Pass.
12:11
/
/
/
10
R/W
0x0
SMHC2_GATING.
Gating Clock For SMHC2
0: Mask
1: Pass.
9
R/W
0x0
SMHC1_GATING.
Gating Clock For SMHC1
0: Mask
1: Pass.
8
R/W
0x0
SMHC0_GATING.
Gating Clock For SMHC0
0: Mask
1: Pass.
7
/
/
/
6
R/W
0x0
DMA_GATING.
Gating Clock For DMA
0: Mask
1: Pass.
5
R/W
0x0
CE_GATING.
Gating Clock For CE
0: Mask
1: Pass.
4:2
/
/
/
1
R/W
0x0
MIPIDSI_GATING.
Gating Clock For MIPI DSI
0: Mask
1: Pass.
0
/
/
/
3.3.5.19. Bus Clock Gating Register1 (Default Value: 0x00000000)
Offset: 0x0064
Register Name: BUS_CLK_GATING_REG1
Bit
R/W
Default/Hex
Description
31:23
/
/
/
22
R/W
0x0
SPINLOCK_GATING.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 103
0: Mask
1: Pass.
21
R/W
0x0
MSGBOX_GATING.
0: Mask
1: Pass.
20
R/W
0x0
GPU_GATING.
0: Mask
1: Pass.
19:13
/
/
/
12
R/W
0x0
DE_GATING.
0: Mask
1: Pass.
11
R/W
0x0
HDMI_GATING.
0: Mask
1: Pass.
10:9
/
/
/
8
R/W
0x0
CSI_GATING.
0: Mask
1: Pass.
7:6
/
/
/
5
R/W
0x0
DEINTERLACE_GATING.
Gating Clock For DEINTERLACE
0: Mask
1: Pass
4
R/W
0x0
TCON1_GATING.
Gating Clock For TCON1
0: Mask
1: Pass.
3
R/W
0x0
TCON0_GATING.
Gating Clock For TCON0
0: Mask
1: Pass.
2:1
/
/
/
0
R/W
0x0
VE_GATING.
Gating Clock For VE
0: Mask
1: Pass.
3.3.5.20. Bus Clock Gating Register2 (Default Value: 0x00000000)
Offset: 0x0068
Register Name: BUS_CLK_GATING_REG2
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 104
31:15
/
/
/
14
R/W
0x0
I2S/PCM-2_GATING.
Gating Clock For I2S/PCM-2
0: Mask
1: Pass.
13
R/W
0x0
I2S/PCM-1_GATING.
Gating Clock For I2S/PCM-1
0: Mask
1: Pass.
12
R/W
0x0
I2S/PCM-0_GATING.
Gating Clock For I2S/PCM-0
0: Mask
1: Pass.
11:9
/
/
/
8
R/W
0x0
THS_GATING.
Gating Clock For THS
0: Mask
1: Pass
6:7
/
/
/
5
R/W
0x0
PIO_GATING.
Gating Clock For PIO
0: Mask
1: Pass.
4:2
/
/
/
1
R/W
0x0
SPDIF_GATING.
Gating Clock For SPDIF
0: Mask
1: Pass
0
R/W
0x0
AC_DIG_GATING.
Gating Clock For AC Digital
0: Mask
1: Pass
3.3.5.21. Bus Clock Gating Register3 (Default Value: 0x00000000)
Offset: 0x006C
Register Name: BUS_CLK_GATING_REG3
Bit
R/W
Default/Hex
Description
31:21
/
/
/
20
R/W
0x0
UART4_GATING.
Gating Clock For UART4
0: Mask
1: Pass.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 105
19
R/W
0x0
UART3_GATING.
Gating Clock For UART3
0: Mask
1: Pass.
18
R/W
0x0
UART2_GATING.
Gating Clock For UART2
0: Mask
1: Pass.
17
R/W
0x0
UART1_GATING.
Gating Clock For UART1
0: Mask
1: Pass.
16
R/W
0x0
UART0_GATING.
Gating Clock For UART0
0: Mask
1: Pass.
15:6
/
/
/
5
R/W
0x0
SCR_GATING.
Gating Clock For SCR
0: Mask
1: Pass
4:3
/
/
/
2
R/W
0x0
TWI2_GATING.
Gating Clock For TWI2
0: Mask
1: Pass.
1
R/W
0x0
TWI1_GATING.
Gating Clock For TWI1
0: Mask
1: Pass.
0
R/W
0x0
TWI0_GATING.
Gating Clock For TWI0
0: Mask
1: Pass.
3.3.5.22. Bus Clock Gating Register4 (Default Value: 0x00000000)
Offset: 0x0070
Register Name: BUS_CLK_GATING_REG4
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
DBGSYS_GATING.
Gating Clock For DBGSYS
0: Mask
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 106
1: Pass
6:0
/
/
/
3.3.5.23. THS Clock Register (Default Value: 0x00000000)
Offset: 0x0074
Register Name: THS_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock.
0: Clock is OFF
1: Clock is ON
This special clock = Clock Source/CLK_DIV_RATIO.
30:26
/
/
/
25:24
R/W
0x0
THS_CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: /
10: /
11: /
23:2
/
/
/
1:0
R/W
0x0
THS_CLK_DIV_RATIO.
THS clock divide ratio.
00: /1
01: /2
10: /4
11: /6
3.3.5.24. NAND Clock Register (Default Value: 0x00000000)
Offset: 0x0080
Register Name: NAND_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
SCLK = Clock Source/Divider N/Divider M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 107
10: PLL_PERIPH1
11: /
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
3.3.5.25. SMHC0 Clock Register (Default Value: 0x00000000)
Offset: 0x0088
Register Name: SMHC0_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 384MHz)
0: Clock is OFF
1: Clock is ON.
SCLK = Clock Source/Divider N/Divider M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(2X)
10: PLL_PERIPH1(2X)
11: /.
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 108
3.3.5.26. SMHC1 Clock Register (Default Value: 0x00000000)
Offset: 0x008C
Register Name: SMHC1_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 384MHz)
0: Clock is OFF
1: Clock is ON.
SCLK = Clock Source/Divider N/Divider M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(2X)
10: PLL_PERIPH1(2X)
11: /.
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
3.3.5.27. SMHC2 Clock Register (Default Value: 0x00000000)
Offset: 0x0090
Register Name: SMHC2_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 384MHz)
0: Clock is OFF
1: Clock is ON.
SCLK = Clock Source/Divider N/Divider M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(2X)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 109
10: PLL_PERIPH1(2X)
11: /.
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
3.3.5.28. TS Clock Register (Default Value: 0x00000000)
Offset: 0x0098
Register Name: TS_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating of SCLK (Max Clock = 200MHz).
0: Clock is OFF
1: Clock is ON
SCLK = Clock Source/Divider N/Divider M.
30:28
/
/
/
27:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
0000: OSC24M
0001: PLL_PERIPH0(1X)
Others: /
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock pre-divide ratio (n)
The select clock source is pre-divided by 2^n. The divider is 1/2/4/8.
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock divide ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
3.3.5.29. CE Clock Register (Default Value: 0x00000000)
Offset: 0x009C
Register Name: CE_CLK_REG
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 110
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 400MHz)
0: Clock is OFF
1: Clock is ON.
SCLK = Clock Source/Divider N/Divider M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0（2X）
10: PLL_PERIPH1（2X）
11: /.
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock divide ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
3.3.5.30. SPI0 Clock Register (Default Value: 0x00000000)
Offset: 0x00A0
Register Name: SPI0_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
SCLK = Clock Source/Divider N/Divider M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(1X)
10: PLL_PERIPH1(1X)
11: /
23:18
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 111
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
3.3.5.31. SPI1 Clock Register (Default Value: 0x00000000)
Offset: 0x00A4
Register Name: SPI1_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
SCLK= Clock Source/Divider N/Divider M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(1X)
10: PLL_PERIPH1(1X)
11: /
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 112
3.3.5.32. I2S/PCM 0 Clock Register (Default Value: 0x00000000)
Offset: 0x00B0
Register Name: I2S/PCM 0_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
30:18
/
/
/
17:16
R/W
0x0
CLK_SRC_SEL.
00: PLL_AUDIO (8X)
01: PLL_AUDIO(8X)/2
10: PLL_AUDIO(8X)/4
11: PLL_AUDIO
15:0
/
/
/
3.3.5.33. I2S/PCM 1 Clock Register (Default Value: 0x00000000)
Offset: 0x00B4
Register Name: I2S/PCM 1_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
30:18
/
/
/
17:16
R/W
0x0
CLK_SRC_SEL.
00: PLL_AUDIO (8X)
01: PLL_AUDIO(8X)/2
10: PLL_AUDIO(8X)/4
11: PLL_AUDIO
15:0
/
/
/
3.3.5.34. I2S/PCM 2 Clock Register (Default Value: 0x00000000)
Offset: 0x00B8
Register Name: I2S/PCM 2_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
30:18
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 113
17:16
R/W
0x0
CLK_SRC_SEL.
00: PLL_AUDIO(8X)
01: PLL_AUDIO(8X)/2
10: PLL_AUDIO(8X)/4
11: PLL_AUDIO
15:0
/
/
/
3.3.5.35. OWA Clock Register (Default Value: 0x00000000)
Offset: 0x00C0
Register Name: OWA_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
SCLK= PLL_AUDIO/Divider M.
30:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
3.3.5.36. USBPHY Configuration Register (Default Value: 0x00000000)
Offset: 0x00CC
Register Name: USBPHY_CFG_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:22
R/W
0x0
OHCI1_12M_SRC_SEL.
OHCI1 12M Source Select
00: 12M divided from 48M
01: 12M divided from 24M
10: LOSC
11: /
21:20
R/W
0x0
OHCI0_12M_SRC_SEL.
OHCI0 12M Source Select
00: 12M divided from 48M
01: 12M divided from 24M
10: LOSC
11: /
19:18
/
/
/
17:16
R/W
0x0
SCLK_GATING_OHCI.
Gating Special Clock For OHCI(48M and 12M)
00: Clock is OFF
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 114
01: OTG-OHCI Clock is ON
10: Clock is OFF
11:OTG-OHCI and OHCI0 Clock is ON
15:12
/
/
/
11
R/W
0
SCLK_GATING_12M
Gating Special 12M Clock For HSIC
0: Clock is OFF
1: Clock is ON.
The special 12M clock = OSC24M/2.
10
R/W
0
SCLK_GATING_HSIC
Gating Special Clock For HSIC
0: Clock is OFF
1: Clock is ON.
The special clock is from PLL_HSIC.
9
R/W
0x0
SCLK_GATING_USBPHY1.
Gating Special Clock For USB PHY1
0: Clock is OFF
1: Clock is ON
8
R/W
0x0
SCLK_GATING_USBPHY0.
Gating Special Clock For USB PHY0
0: Clock is OFF
1: Clock is ON
7:3
/
/
/
2
R/W
0x0
USBHSIC_RST.
USB HSIC Reset Control
0: Assert
1: De-assert.
1
R/W
0x0
USBPHY1_RST.
USB PHY1 Reset Control
0: Assert
1: De-assert
0
R/W
0x0
USBPHY0_RST.
USB PHY0 Reset Control
0: Assert
1: De-assert
3.3.5.37. DRAM Configuration Register (Default Value: 0x00000000)
Offset: 0x00F4
Register Name: DRAM_CFG_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
DRAM_CTR_RST.
DRAM Controller Reset For AHB Clock Domain.
0: Assert
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 115
1: De-assert.
30:22
/
/
/
21:20
R/W
0x0
DDR_SRC_SELECT.
00: PLL_DDR0
01: PLL_DDR1
1X: /.
19:17
/
/
/
16
R/W
0x0
SDRCLK_UPD.
SDRCLK Configuration Update.
0:Invalid
1:Valid.
Note: Set this bit will validate Configuration . It will be auto cleared after
the Configuration is valid.
The DRAMCLK Source is from PLL_DDR.
15:2
/
/
/
1:0
R/W
0x0
DRAM_DIV_M.
DRAMCLK Divider of Configuration.
The clock is divided by (m+1). The divider M should be from 1 to 4.
3.3.5.38. PLL_DDR Configuration Register (Default Value: 0xCCCA0000)
Offset: 0x00F8
Register Name: PLL_DDR_CFG_REG
Bit
R/W
Default/Hex
Description
31:16
R/W
0xCCCA
PLL_SSC
The amplitude of SSC must be the integer times of (2^Step).
Spread Frequency Amplitude =(SSC Amplitude +2^Step)*24/(2^17),unit is
Mhz
15:13
/
/
/
12
R/W
0x0
PLL_DDR1_MODE.
0: Normal Mode
1: Continuously Frequency Scale.
11:7
/
/
/
6:4
R/W
0x0
PLL_DDR1_PHASE_COMPENSATE.
The value of bit[6:4] is based on 24M clock, then the default PLL_DDR
phase compensate is (3/24000000) s.
3:0
R/W
0x0
PLL_DDR1_STEP.
0000: 0.00439MHz/us (576/2^17)
0001: 0.00879MHz/us (576/2^16)
0010: 0.01758MHz/us (576/2^15)
0011: 0.03516MHz/us (576/2^14)
0100: 0.07031MHz/us (576/2^13)
0101: 0.14062MHz/us (576/2^12)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 116
0110: 0.28125MHz/us (576/2^11)
0111: 0.56250MHz/us (576/2^10)
1000: 1.12500MHz/us (576/2^9)
1001: 2.25000MHz/us (576/2^8)
1010: 4.50000Mhz/us (576/2^7)
1011: 9.00000Mhz/us (576/2^6)
Others: 0.00439MHz/us (576/2^17).
3.3.5.39. MBUS Reset Register (Default Value: 0x80000000)
Offset: 0x00FC
Register Name: MBUS_RST_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x1
MBUS_RESET.
0: Assert
1: De-assert.
30:0
/
/
/
3.3.5.40. DRAM Clock Gating Register (Default Value: 0x00000000)
Offset: 0x0100
Register Name: DRAM_CLK_GATING_REG
Bit
R/W
Default/Hex
Description
31:4
/
/
/
3
R/W
0x0
TS_DCLK_GATING.
Gating DRAM Clock For TS
0: Mask
1: Pass
2
R/W
0x0
DEINTERLACE_DCLK_GATING.
Gating DRAM SCLK(1X) For DEINTERLACE
0: Mask
1: Pass
1
R/W
0x0
CSI_DCLK_GATING.
Gating DRAM Clock For CSI
0: Mask
1: Pass
0
R/W
0x0
VE_DCLK_GATING.
Gating DRAM Clock For VE
0: Mask
1: Pass
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 117
3.3.5.41. DE Clock Gating Register (Default Value: 0x00000000)
Offset: 0x0104
Register Name: DE_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON
This special clock = Clock Source/Divider M.
30:27
/
/
/
26:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
000: PLL_PERIPH0(2X)
001: PLL_DE
Others: /
23:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
3.3.5.42. TCON0 Clock Register (Default Value: 0x00000000)
Offset: 0x0118
Register Name: TCON0_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
30:27
/
/
/
26:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
000: PLL_MIPI
001: /
010: PLL_VIDEO0(2X)
011~111: /.
23:0
/
/
/
3.3.5.43. TCON1 Clock Register (Default Value: 0x00000000)
Offset: 0x011C
Register Name: TCON1_CLK_REG
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 118
31
R/W
0x0
SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
SCLK = Clock Source/ Divider M.
30:26
/
/
/
25:24
R/W
0x0
SCLK_SEL.
Special Clock Source Select
00: PLL_VIDEO0(1X)
01: /
10: PLL_VIDEO1(1X)
11: /.
23:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock divide ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
3.3.5.44. DEINTERLACE Clock Register (Default Value: 0x00000000)
Offset: 0x0124
Register Name: DEINTERLACE_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON
SCLK = Clock Source/ Divider M
30:27
/
/
/
26:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
000: PLL_PERIPH0(1X)
001: PLL_PERIPH1(1X)
Others: /
23:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
3.3.5.45. CSI_MISC Clock Register (Default Value: 0x00000000)
Offset: 0x0130
Register Name: CSI_MISC_CLK_REG
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 119
31
R/W
0x0
CSI_MISC_SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON
SCLK = OSC24M.
30:0
/
/
/
3.3.5.46. CSI Clock Register (Default Value: 0x00000000)
Offset: 0x0134
Register Name: CSI_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
CSI_SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
SCLK= Special Clock Source/CSI_SCLK_DIV_M.
30:27
/
/
/
26:24
R/W
0x0
SCLK_SRC_SEL.
Special Clock Source Select
000: PLL_PERIPH0(1X)
001: PLL_PERIPH1(1X)
Others: /
23:20
/
/
/
19:16
R/W
0x0
CSI_SCLK_DIV_M.
CSI Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
15
R/W
0x0
CSI_MCLK_GATING.
Gating Master Clock
0: Clock is OFF
1: Clock is ON
This clock =Master Clock Source/ CSI_MCLK_DIV_M.
14:11
/
/
/
10:8
R/W
0x0
MCLK_SRC_SEL.
Master Clock Source Select
000: OSC24M
001: PLL_VIDEO1(1X)
010: PLL_PERIPH1
Others: /
7:5
/
/
/
4:0
R/W
0x0
CSI_MCLK_DIV_M.
CSI Master Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 32.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 120
3.3.5.47. VE Clock Register (Default Value: 0x00000000)
Offset: 0x013C
Register Name: VE_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
VE_SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
SCLK = PLL_VE /Divider N.
30:19
/
/
/.
18:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (N)
The select clock source is pre-divided by n+1. The divider N is from 1 to 8.
15:0
/
/
/
3.3.5.48. AC Digital Clock Register (Default Value: 0x00000000)
Offset: 0x0140
Register Name: AC_DIG_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_1X_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
SCLK = 1X Clock Output.
30
R/W
0x0
SCLK_4X_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
SCLK=4X Clock Output.
29:0
/
/
/
3.3.5.49. AVS Clock Register (Default Value: 0x00000000)
Offset: 0x0144
Register Name: AVS_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
SCLK= OSC24M.
30:0
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 121
3.3.5.50. HDMI Clock Register (Default Value: 0x00000000)
Offset: 0x0150
Register Name: HDMI_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
SCLK= Clock Source/ Divider M.
30:26
/
/
/
25:24
R/W
0x0
SCLK_SEL.
Special Clock Source Select
00: PLL_VIDEO0(1X)
01:PLL_VIDEO1(1X)
Others: /
23:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
3.3.5.51. HDMI Slow Clock Register (Default Value: 0x00000000)
Offset: 0x0154
Register Name: HDMI_SLOW_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
HDMI_DDC_CLK_GATING.
0: Clock is OFF
1: Clock is ON.
SCLK = OSC24M.
30:0
/
/
/
3.3.5.52. MBUS Clock Register (Default Value: 0x00000000)
Offset: 0x015C
Register Name: MBUS_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
MBUS_SCLK_GATING.
Gating Clock for MBUS
0: Clock is OFF
1: Clock is ON.
MBUS_CLOCK = Clock Source/Divider M
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 122
30:26
/
/
/
25:24
R/W
0x0
MBUS_SCLK_SRC
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(2X)
10: PLL_DDR0
11: PLL_DDR1.
23:3
/
/
/
2:0
R/W
0x0
MBUS_SCLK_RATIO_M
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 8.
Note: If the clock has been changed ,it must wait for at least 16 cycles.
3.3.5.53. MIPI_DSI Clock Register (Default Value: 0x00000000)
Offset: 0x0168
Register Name: MIPI_DSI_CLK_REG
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15
R/W
0x0
DSI_DPHY_GATING.
Gating DSI DPHY Clock
0: Clock is OFF
1: Clock is ON.
This DSI DPHY clock =Clock Source/ DPHY_CLK_DIV_M.
14:10
/
/
/
9:8
R/W
0x0
DSI_DPHY_SRC_SEL.
DSI DPHY Clock Source Select.
00: PLL_VIDEO0(1X)
01: /
10: PLL_PERIPH0(1X)
11: /.
7:4
/
/
/.
3:0
R/W
0x0
DPHY_CLK_DIV_M.
DSI DPHY Clock divide ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
3.3.5.54. GPU Clock Register (Default Value: 0x00000000)
Offset: 0x01A0
Register Name: GPU_CLK_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
0: Clock is OFF
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 123
1: Clock is ON.
SCLK= PLL_GPU/Divider N.
30:3
/
/
/.
2:0
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (N)
The select clock source is pre-divided by( n+1). The divider N is from 1 to
8.
3.3.5.55. PLL Stable Time Register0 (Default Value: 0x000000FF)
Offset: 0x0200
Register Name: PLL_STABLE_TIME_REG0
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x00FF
PLL_LOCK_TIME
PLL Lock Time (Unit: us).
Note: When any PLL (except PLL_CPU) is enabled or changed, the
corresponding PLL lock bit will be set after the PLL STABLE Time.
3.3.5.56. PLL Stable Time Register1 (Default Value: 0x000000FF)
Offset: 0x0204
Register Name: PLL_STABLE_TIME_REG1
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x00FF
PLL_CPU_LOCK_TIME
PLL_CPU Lock Time (Unit: us).
Note: When PLL_CPU is enabled or changed, the PLL_CPU lock bit will be
set after the PLL_CPU STABLE Time.
3.3.5.57. PLL_PERIPH1 Bias Register (Default Value: 0x10100010)
Offset: 0x021C
Register Name: PLL_PERIPH1_BIAS_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_CUR_BIAS_CTRL.
PLL Current Bias Control[4:0].
15:5
/
/
/
4
R/W
0x1
PLL_BANDW_CTRL.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 124
PLL Band Width Control.
0: Narrow
1: Wide.
3:2
/
/
/
1:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[1:0].
3.3.5.58. PLL_CPUX Bias Register (Default Value: 0x08100200)
Offset: 0x0220
Register Name: PLL_CPUX_BIAS_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
VCO_RST.
VCO reset in.
30:29
/
/
/
28
R/W
0x0
EXG_MODE.
Exchange Mode.
Note: CPU PLL source will select PLL_PERIPH0 instead of PLL_CPU
27:24
R/W
0x8
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[3:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_CUR_BIAS_CTRL.
PLL Current Bias Control[4:0].
15:11
/
/
/
10:8
R/W
0x2
PLL_LOCK_CTRL.
PLL Lock Time Control[2:0].
7:4
/
/
/
3:0
R/W
0x0
PLL_DAMP_FACT_CTRL.
PLL Damping Factor Control[3:0].
3.3.5.59. PLL_AUDIO Bias Register (Default Value: 0x10100000)
Offset: 0x0224
Register Name: PLL_AUDIO_BIAS_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS.
PLL VCO Bias Current[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_CUR_BIAS_CTRL.
PLL Current Bias Control[4:0].
15:0
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 125
3.3.5.60. PLL_VIDEO0 Bias Register (Default Value: 0x10100000)
Offset: 0x0228
Register Name: PLL_VIDEO0_BIAS_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_CUR_BIAS_CTRL.
PLL Current Bias Control[4:0].
15:3
/
/
/
2:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[2:0].
3.3.5.61. PLL_VE Bias Register (Default Value: 0x10100000)
Offset: 0x022C
Register Name: PLL_VE_BIAS_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_CUR_BIAS_CTRL.
PLL Current Bias Control[4:0].
15:3
/
/
/
2:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[2:0].
3.3.5.62. PLL_DDR0 Bias Register (Default Value: 0x81104000)
Offset: 0x0230
Register Name: PLL_DDR0_BIAS_REG
Bit
R/W
Default/Hex
Description
31:28
R/W
0x8
PLL_VCO_BIAS.
PLL VCO Bias Control[3:0].
27:26
/
/
/.
25
R/W
0x0
PLL_VCO_GAIN_CTRL_EN.
PLL VCO Gain Control Enable.
0: Disable
1: Enable.
24
R/W
0x1
PLL_BANDW_CTRL.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 126
PLL Band Width Control.
0: Narrow
1: Wide.
23:21
/
/
/
20:16
R/W
0x10
PLL_CUR_BIAS_CTRL.
PLL Current Bias Control[4:0].
15
/
/
/
14:12
R/W
0x4
PLL_VCO_GAIN_CTRL.
PLL VCO Gain Control Bit[2:0].
11:4
/
/
/
3:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[3:0].
3.3.5.63. PLL_PERIPH0 Bias Register (Default Value: 0x10100010)
Offset: 0x0234
Register Name: PLL_PERIPH0_BIAS_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS.
PLL VCO Bias[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_BIAS_CUR_CTRL.
PLL Bias Current Control.
15:5
/
/
/
4
R/W
0x1
PLL_BANDW_CTRL.
PLL Band Width Control.
0: Narrow
1: Wide
3:2
/
/
/
1:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[1:0].
3.3.5.64. PLL_VIDEO1 Bias Register (Default Value: 0x10100000)
Offset: 0x0238
Register Name: PLL_VIDEO1_BIAS_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_CUR_BIAS_CTRL.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 127
PLL Current Bias Control[4:0].
15:3
/
/
/
2:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[2:0].
3.3.5.65. PLL_GPU Bias Register (Default Value: 0x10100000)
Offset: 0x023C
Register Name: PLL_GPU_BIAS_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_CUR_BIAS_CTRL.
PLL Current Bias Control[4:0].
15:3
/
/
/
2:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[2:0].
3.3.5.66. PLL_MIPI Bias Register (Default Value: 0XF8100400)
Offset: 0x0240
Register Name: PLL_MIPI_BIAS_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x1
VCO_RST.
VCO Reset In.
30:28
R/W
0x7
PLLVDD_LDO_OUT_CTRL.
PLLVDD LDO Output Control.
PLL_IN_POWER_SEL=1 PLL_IN_POWER_SEL=0
000:1.00v 000:1.20v
001:1.02v 001:1.225v
010:1.04v 010:1.25v
011:1.06v 011:1.275v
100: 1.08v 100:1.30v
101:1.10v 101:1.325v
110:1.12v 110:1.35v
111:1.14v. 111:1.375v
The PLL_IN_PWR_SEL is in the PLL_MIPI Tuning Register.
27:24
R/W
0x8
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control [3:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_CUR_BIAS_CTRL.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 128
PLL Current Bias Control[4:0].
15:11
/
/
/
10:8
R/W
0x4
PLL_LOCK_CTRL.
PLL Lock Time Control[2:0].
7:1
/
/
/
0
R/W
0x0
PLL_DAMP_FACT_CTRL.
PLL Damping Factor Control.
3.3.5.67. PLL_HSIC Bias Register (Default Value: 0x10100000)
Offset: 0x0244
Register Name: PLL_HSIC_BIAS_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS.
PLL VCO Bias[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_CUR_BIAS_CTRL.
PLL Current Bias Control[4:0].
15:3
/
/
/.
2:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[2:0].
3.3.5.68. PLL_DE Bias Register (Default Value: 0x10100000)
Offset: 0x0248
Register Name: PLL_DE_BIAS_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_CUR_BIAS_CTRL.
PLL Current Bias Control[4:0].
15:3
/
/
/
2:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[2:0].
3.3.5.69. PLL_DDR1 Bias Register (Default Value: 0x10010000)
Offset: 0x024C
Register Name: PLL_DDR1_BIAS_REG
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 129
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[4:0].
23:21
/
/
/
20:16
R/W
0x01
PLL_CUR_BIAS_CTRL.
PLL Current Bias Control[4:0].
15:0
/
/
/
3.3.5.70. PLL_CPUX Tuning Register (Default Value: 0x0A101000)
Offset: 0x0250
Register Name: PLL_CPUX_TUN_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27
R/W
0x1
PLL_BAND_WID_CTRL.
PLL Band Width Control.
0: Narrow
1: Wide
26
R/W
0x0
VCO_GAIN_CTRL_EN.
VCO Gain Control Enable.
0: Disable
1: Enable
25:23
R/W
0x4
VCO_GAIN_CTRL.
VCO Gain Control Bits[2:0].
22:16
R/W
0x10
PLL_INIT_FREQ_CTRL.
PLL Initial Frequency Control[6:0].
15
R/W
0x0
C_OD.
C-Reg-Od For Verify.
14:8
R/W
0x10
C_B_IN.
C-B-In[6:0] For Verify.
7
R/W
0x0
C_OD1.
C-Reg-Od1 For Verify.
6:0
R
0x0
C_B_OUT.
C-B-Out[6:0] For Verify.
3.3.5.71. PLL_DDR0 Tuning Register (Default Value: 0x14880000)
Offset: 0x0260
Register Name: PLL_DDR0_TUN_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28
R/W
0x1
VREG1_OUT_EN.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 130
Vreg1 Out Enable.
0: Disable
1: Enable
27
/
/
/
26:24
R/W
0x4
PLL_LTIME_CTRL.
PLL Lock Time Control[2:0].
23
R/W
0x1
VCO_RST.
VCO Reset In.
22:16
R/W
0x08
PLL_INIT_FREQ_CTRL.
PLL Initial Frequency Control[6:0].
15
R/W
0x0
OD1.
Reg-Od1 For Verify.
14:8
R/W
0x0
B_IN.
B-In[6:0] For Verify.
7
R/W
0x0
OD.
Reg-Od For Verify.
6:0
R
0x0
B_OUT.
B-Out[6:0] For Verify.
3.3.5.72. PLL_MIPI Tuning Register (Default Value: 0x8A002000)
Offset: 0x0270
Register Name: PLL_MIPI_TUN_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x1
PLL_INPUT_POWER_SEL.
0:2.5V
1:3.0V.
30
/
/
/
29:28
R/W
0x0
VREG_OUT_EN.
For Verify
27
R/W
0x1
PLL_BAND_WID_CTRL.
PLL Band Width Control.
0: Narrow
1: Wide.
26
R/W
0x0
VCO_GAIN_CTRL_EN.
VCO Gain Control Enable.
0: Disable
1: Enable.
25:23
R/W
0x4
VCO_GAIN_CTRL.
VCO Gain Control Bits[2:0].
22
/
/
/
21:16
R/W
0x0
CNT_INT.
For Verify[5:0].
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 131
15
R/W
0x0
C_OD.
C-Reg-Od For Verify
14
/
/
/
13:8
R/W
0x20
C_B_IN.
C-B-In[5:0] For Verify
7
R/W
0x0
C_OD1.
C-Reg-Od1 For Verify
6
/
/
/
5:0
R
C_B_OUT.
C-B-Out[5:0] For Verify
3.3.5.73. PLL_PERIPH1 Pattern Control Register (Default Value: 0x00000000)
Offset: 0x027C
Register Name: PLL_PERIPH1_PAT_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-Delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular.
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz.
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
3.3.5.74. PLL_CPUX Pattern Control Register (Default Value: 0x00000000)
Offset: 0x0280
Register Name: PLL_CPUX_PAT_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 132
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
3.3.5.75. PLL_AUDIO Pattern Control Register(Default Value: 0x00000000)
Offset: 0x0284
Register Name: PLL_AUDIO_PAT_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 133
3.3.5.76. PLL_VIDEO0 Pattern Control Register (Default Value: 0x00000000)
Offset: 0x0288
Register Name: PLL_VIDEO0_PAT_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
3.3.5.77. PLL_VE Pattern Control Register (Default Value: 0x00000000)
Offset: 0x028C
Register Name: PLL_VE_PAT_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 134
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
3.3.5.78. PLL_DDR0 Pattern Control Register (Default Value: 0x00000000)
Offset: 0x0290
Register Name: PLL_DDR0_PAT_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
3.3.5.79. PLL_VIDEO1 Pattern Control Register (Default Value: 0x00000000)
Offset: 0x0298
Register Name: PLL_VIDEO1_PAT_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-Delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular.
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 135
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz.
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
3.3.5.80. PLL_GPU Pattern Control Register (Default Value: 0x00000000)
Offset: 0x029C
Register Name: PLL_GPU_PAT_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-Delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
3.3.5.81. PLL_MIPI Pattern Control Register (Default Value: 0x00000000)
Offset: 0x02A0
Register Name: PLL_MIPI_PAT_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-Delta Pattern Enable.
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-Delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 136
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular.
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz.
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
3.3.5.82. PLL_HSIC Pattern Control Register (Default Value: 0x00000000)
Offset: 0x02A4
Register Name: PLL_HSIC_PAT_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-Delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 137
3.3.5.83. PLL_DE Pattern Control Register (Default Value: 0x00000000)
Offset: 0x02A8
Register Name: PLL_DE_PAT_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-Delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
3.3.5.84. PLL_DDR1 Pattern Control Register0 (Default Value: 0x00000000)
Offset: 0x02AC
Register Name: PLL_DDR1_PAT_CTRL_REG0
Bit
R/W
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-Delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
10: /
11: Triangular.
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 138
10: 32.5KHz
11: 33KHz.
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
3.3.5.85. PLL_DDR1 Pattern Control Register1 (Default Value: 0x00000000)
Offset: 0x02B0
Register Name: PLL_DDR1_PAT_CTRL_REG1
Bit
R/W
Default/Hex
Description
30:25
/
/
/
24
R/W
0x0
DITHER_EN.
23:21
/
/
/
20
R/W
0x0
FRAC_EN.
19:17
/
/
/
16:0
R/W
0x0
FRAC_IN.
3.3.5.86. Bus Software Reset Register 0 (Default Value: 0x00000000)
Offset: 0x02C0
Register Name: BUS_SOFT_RST_REG0
Bit
R/W
Default/Hex
Description
31:30
/
/
/
29
R/W
0x0
USB-OHCI0_RST.
USB-OHCI0 Reset Control
0: Assert
1: De-assert
28
R/W
0x0
USB-OTG-OHCI_RST.
USB-OTG-OHCI Reset Control
0: Assert
1: De-assert
27:26
/
/
/
25
R/W
0x0
USB-EHCI0_RST.
USB-EHCI0 Reset Control
0: Assert
1: De-assert.
24
R/W
0x0
USB-OTG-EHCI_RST.
USB-OTG-EHCI Reset Control
0: Assert
1: De-assert
23
R/W
0x0
USB-OTG-Device_RST.
USB-OTG-Device Reset Control
0: Assert
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 139
1: De-assert
22
/
/
/
21
R/W
0x0
SPI1_RST.
SPI1 Reset.
0: Assert
1: De-assert
20
R/W
0x0
SPI0_RST.
SPI0 Reset.
0: Assert
1: De-assert
19
R/W
0x0
HSTMR_RST.
HSTMR Reset.
0: Assert
1: De-assert
18
R/W
0x0
TS_RST.
TS Reset.
0: Assert
1: De-assert
17
R/W
0x0
EMAC_RST.
EMAC Reset.
0: Assert
1: De-assert
16:15
/
/
/
14
R/W
0x0
SDRAM_RST.
SDRAM AHB Reset.
0: Assert
1: De-assert
13
R/W
0x0
NAND_RST.
NAND Reset.
0: Assert
1: De-assert
12:11
/
/
/
10
R/W
0x0
SMHC2_RST.
SMHC2 Reset.
0: Assert
1: De-assert.
9
R/W
0x0
SMHC1_RST.
SMHC1 Reset.
0: Assert
1: De-assert.
8
R/W
0x0
SMHC0_RST.
SMHC0 Reset.
0: Assert
1: De-assert.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 140
7
/
/
/
6
R/W
0x0
DMA_RST.
DMA Reset.
0: Assert
1: De-assert
5
R/W
0x0
CE_RST.
CE Reset.
0: Assert
1: De-assert
4:2
/
/
/
1
R/W
0x0
MIPI_DSI_RST.
MIPI DSI Reset.
0: Assert
1: De-assert.
0
/
/
/
3.3.5.87. Bus Software Reset Register 1 (Default Value: 0x00000000)
Offset: 0x02C4
Register Name: BUS_SOFT_RST_REG1
Bit
R/W
Default/Hex
Description
31
R/W
0x0
DBGSYS_RST.
DBGSYS Reset.
0: Assert
1: De-assert
30:23
/
/
/
22
R/W
0x0
SPINLOCK_RST.
SPINLOCK Reset.
0: Assert
1: De-assert.
21
R/W
0x0
MSGBOX_RST.
MSGBOX Reset.
0: Assert
1: De-assert.
20
R/W
0x0
GPU_RST.
GPU Reset.
0: Assert
1: De-assert.
19:13
/
/
/
12
R/W
0x0
DE_RST.
DE Reset.
0: Assert
1: De-assert.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 141
11
R/W
0x0
HDMI1_RST.
HDMI1 Reset.
0: Assert
1: De-assert.
10
R/W
0x0
HDMI0_RST.
HDMI0 Reset.
0: Assert
1: De-assert.
9
/
/
/
8
R/W
0x0
CSI_RST.
CSI Reset.
0: Assert
1: De-assert.
7:6
/
/
/
5
R/W
0x0
DEINTERLACE_RST.
DEINTERLACE Reset.
0: Assert
1:De-assert
4
R/W
0x0
TCON1_RST.
TCON1 Reset.
0: Assert
1: De-assert.
3
R/W
0x0
TCON0_RST.
TCON0 Reset.
0: Assert
1: De-assert.
2:1
/
/
/
0
R/W
0x0
VE_RST.
VE Reset.
0: Assert
1: De-assert.
3.3.5.88. Bus Software Reset Register 2 (Default Value: 0x00000000)
Offset: 0x02C8
Register Name: BUS_SOFT_RST_REG2
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
LVDS_RST.
LVDS Reset.
0: Assert
1: De-assert.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 142
3.3.5.89. Bus Software Reset Register 3 (Default Value: 0x00000000)
Offset: 0x02D0
Register Name: BUS_SOFT_RST_REG3
Bit
R/W
Default/Hex
Description
31:15
/
/
/
14
R/W
0x0
I2S/PCM 2_RST.
I2S/PCM 2 Reset.
0: Assert
1: De-assert.
13
R/W
0x0
I2S/PCM 1_RST.
I2S/PCM 1 Reset.
0: Assert
1: De-assert.
12
R/W
0x0
I2S/PCM 0_RST.
I2S/PCM 0 Reset.
0: Assert
1: De-assert.
11:9
/
/
/
8
R/W
0x0
THS_RST.
THS Reset.
0: Assert
1: De-assert
7:2
/
/
/
1
R/W
0x0
OWA_RST.
OWA Reset.
0: Assert
1: De-assert
0
R/W
0x0
AC_RST.
AC Reset.
0: Assert
1: De-assert
3.3.5.90. Bus Software Reset Register 4 (Default Value: 0x00000000)
Offset: 0x02D8
Register Name: BUS_SOFT_RST_REG4
Bit
R/W
Default/Hex
Description
31:21
/
/
/
20
R/W
0x0
UART4_RST.
UART4 Reset.
0: Assert
1: De-assert.
19
R/W
0x0
UART3_RST.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 143
UART3 Reset.
0: Assert
1: De-assert.
18
R/W
0x0
UART2_RST.
UART2 Reset.
0: Assert
1: De-assert.
17
R/W
0x0
UART1_RST.
UART1 Reset.
0: Assert
1: De-assert.
16
R/W
0x0
UART0_RST.
UART0 Reset.
0: Assert
1: De-assert.
15:6
/
/
/
5
R/W
0x0
SCR_RST.
SCR Reset.
0: Assert
1: De-assert
4:3
/
/
/
2
R/W
0x0
TWI2_RST.
TWI2 Reset.
0: Assert
1: De-assert.
1
R/W
0x0
TWI1_RST.
TWI1 Reset.
0: Assert
1: De-assert.
0
R/W
0x0
TWI0_RST.
TWI0 Reset.
0: Assert
1: De-assert.
3.3.5.91. CCU Security Switch Register (Default Value: 0x00000000)
Offset: 0x02F0
Register Name: CCU_SEC_SWITCH_REG
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2
R/W
0x0
MBUS_SEC
MBUS clock register security
0:Secure
1:Non-secure
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 144
Including MBUS Reset Register and MBUS Clock Register
1
R/W
0x0
BUS_SEC
Bus relevant registers’ security
0:Secure
1:Non-secure
Including AXI/AHB/APB relevant registers,such as CPUX/AXI Configuration
Register,AHB1/APB1 Configuration Register,APB2 Configuration Register,
AHB2 Configuration Register.
0
R/W
0x0
PLL_SEC
PLL relevant registers’ security.
0:Secure
1:Non-secure
Including PLL_CPUX Control Register, PLL_AUDIO Control Register,
PLL_VIDEO0 Control Register, PLL_VIDEO1 Control Register, PLL_VE
Control Register, PLL_DDR0 Control Register,PLL_DDR1 Control Register,
PLL_PERIPH0 Control Register, PLL_PERIPH1 Control Register,PLL_GPU
Control Register, PLL_MIPI Control Register, PLL_HSIC Control Register,
PLL_DE Control Register and offset from 0x200 to 0x2B0 relevant
registers.
3.3.5.92. PS Control Register (Default Value: 0x00000000)
Offset: 0x0300
Register Name: PS_CTRL_REG
Bit
R/W
Default/Hex
Description
31:10
/
/
/
9:8
R/W
0x0
DEC_SEL
Device Select
7
R/W
0x0
DET_FIN.
Detect Finish.
0: Unfinished
1: Finished
Set 1 to this bit will clear it.
6
R/W
0x0
DLY_SEL.
Delay Select
0: 1 Cycle
1: 2 Cycles
5:4
R/W
0x0
OSC_SEL
OSC Select.
00: IDLE
01: SVT
10: LVT
11: ULVT
3:1
R/W
0x0
TIME_DET.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 145
Time detect.
000: 0.5/4 us
001: 0.5/2 us
002: 0.5/1 us
003: 0.5*2us
.................
111:0.5*2^5us
0
R/W
0x0
MOD_EN.
Module enable.
0: Disable
1: Enable
3.3.5.93. PS Counter Register (Default Value: 0x00000000)
Offset: 0x0304
Register Name: PS_CNT_REG
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0
PS_CNT.
PS Counter.
3.3.5.94. PLL Lock Control Register (Default Value: 0x00000000)
Offset: 0x0320
Register Name: PLL_LOCK_CTRL_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28
R/W
0x0
MODE_SEL
Mode Select
0: Old Mode
1: New Mode
27:25
/
/
/
24
R/W
0x0
DBG_EN
Debug Enable
0: Disable
1: Enable
23:20
R/W
0x0
DBG_SEL
Debug Select
0000: PLL_CPUX
0001: PLL_AUDIO
0010: PLL_VIDEO0
0011: PLL_VE
0100: PLL_DDR0
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 146
0101: PLL_PERIPH0
0110: PLL_VIDEO1
0111: PLL_GPU
1000: PLL_MIPI
1001: PLL_HSIC
1010: PLL_DE
1011: PLL_DDR1
1100: PLL_PERIPH1
Others: /
19
/
/
/
18:17
R/W
0x0
UNLOCK_LEVEL
Unlock Level
00: 21-29 Clock Cycles
01: 22-28 Clock Cycles
1X: 20-30 Clock Cycles
16
R/W
0x0
LOCK_LEVEL
Lock Level
0: 24-26 Clock Cycles
1: 23-27 Clock Cycles
15:13
/
/
/
12:0
R/W
0x0
LOCK_EN
Lock Enable
Bit12: PLL_PERIPH1
Bit11: PLL_DDR1
Bit10: PLL_DE
Bit9: PLL_HSIC
Bit8: PLL_MIPI
Bit7: PLL_GPU
Bit6: PLL_VIDEO1
Bit5: PLL_PERIPH0
Bit4: PLL_DDR0
Bit3: PLL_VE
Bit2: PLL_VIDEO0
Bit1: PLL_AUDIO
Bit0: PLL_CPUX
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 147
3.3.6. Programming Guidelines
3.3.6.1. PLL
1) In practical application, other PLLs doesn’t support dynamic frequency scaling except for PLL_CPUX and
PLL_DDR1;
2) After the PLL_DDR0 frequency changes, the 20-bit of PLL_DDR0 Control Register should be written 1 to
make it valid;
3) After the PLL_DDR1 frequency changes, the 30-bit of PLL_DDR1 Control Register should be written 1 to
make it valid;
4) When configured PLL_MIPI,LDO1 and LDO2 must be enable at first,and delay 100us ,configure the
division factor, then enable and delay 500us, PLL_MIPI can be output to use.
3.3.6.2. BUS
1) When setting the Bus Clock , you should set the division factor first, and after the division factor
available ,switch the clock source. The switching of clock source will be available after at least three clock
cycles;
2) The Bus Clock should not be dynamically changed in most applications.
3.3.6.3. Clock Switch
Make sure that the clock source output is valid before the clock source switch, and then set a proper divide
ratio; after the division factor becomes valid, switch the clock source.
3.3.6.4. Gating and reset
Make sure that the reset signal has been released before the release of module clock gating;
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 148
3.4. CPU Configuration
3.4.1. Overview
CPUCFG module is used to configure related CPU parameters,including power on,reset,cache,debug etc,and
check the status of CPU. It will be used when you want to disable/enable the CPU, cluster switch, CPU status
check, and debug, etc.
It features:
• Capable of CPU reset, including core reset, debug circuit rest, etc
• Capable of other CPU-related control, including interface control, CP15 control, and power control, etc
• Capable of checking CPU status, including idle status, SMP status, and interrupt status, etc
3.4.2. Block Diagram
Figure 3-4. CPUCFG Block Diagram
The figure above lists the power domain of CPU reset. All power switch of CPU core are default to be closed.
Since each CPU core and its appended circuits have the same power domain,the processor and related L1
cache,neon and vfp should be taken as a whole when it comes to the CPU core enable/disable.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 149
3.4.3. Functionalities Description
3.4.3.1. Signal Description
For the detail of CPU Signal, please refer to ARM Cortex-A53 TRM.
3.4.3.2. L2 Idle Mode
When the L2 of Cluster needs to enter WFI mode, firstly make sure the CPU0/1/2/3 of Cluster enter WFI mode,
which can be checked through Cluster CPU Status Register, and then pull the ACINACTM of Cluster high by
writing related register bit to 1, and then check whether L2 enters idle status by checking whether the
STANDBYWFIL2 is high. Remember to set the ACINACTM to low when exiting the L2 idle mode.
3.4.3.3. CPU Reset System
The CPU reset includes core reset, power-on reset and H_Reset. And their scopes rank: core reset < power-on
Reset < H_Reset.For the detail description,please refer to 3.4.5 Register Description.
3.4.3.4. Operation Principle
The CPU-related operation needs proper configuration of CPUCFG related register, as well as related system
control resource including BUS, clock ,reset and power control.
3.4.4. Register List
Module Name
Base Address
CPUCFG
0x01700C00
Register Name
Offset
Description
C_CTRL_REG0
0x0000
Cluster Control Register0
C_CTRL_REG1
0x0004
Cluster Control Register1
CACHE_CFG_REG0
0x0008
Cache parameters configuration register0
CACHE_CFG_REG1
0x000C
Cache parameters configuration register1
GENER_CTRL_REG0
0x0028
General Control Register0
C_CPU_STATUS
0x0030
Cluster CPU Status Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 150
L2_ STATUS_REG
0x003C
L2 Status Register
C_RST_CTRL
0x0080
Cluster Reset Control Register
RVBARADDR0_L
0x00A0
Reset Vector Base Address Register0_L
RVBARADDR0_H
0x00A4
Reset Vector Base Address Register0_H
RVBARADDR1_L
0x00A8
Reset Vector Base Address Register1_L
RVBARADDR1_H
0x00AC
Reset Vector Base Address Register1_H
RVBARADDR2_L
0x00B0
Reset Vector Base Address Register2_L
RVBARADDR2_H
0x00B4
Reset Vector Base Address Register2_H
RVBARADDR3_L
0x00B8
Reset Vector Base Address Register3_L
RVBARADDR3_H
0x00BC
Reset Vector Base Address Register3_H
3.4.5. Register Description
3.4.5.1. Cluster Control Register0 (Default Value: 0x80000000)
Offset: 0x00
Register Name: C_CTRL_REG0
Bit
R/W
Default/Hex
Description
31
R/W
0x1
SYSBAR_DISABLE.
Disable broadcasting of barriers onto system bus:
0: Barriers are broadcast onto system bus,this requires an AMBA4
interconnect.
1: Barriers are not broadcast onto the system bus.This is compatible with
an AXI3 interconnect.
30
R/W
0x0
BROADCAST_INNER.
Enable broadcasting of Inner Shareable transactions:
0: Inner shareable transactions are not broadcasted externally.
1: Inner shareable transactions are broadcasted externally.
29
R/W
0x0
BROADCAST_OUTER.
Enable broadcasting of outer shareable transactions:
0: Outer Shareable transactions are not broadcasted externally.
1: Outer Shareable transactions are broadcasted externally.
28
R/W
0x0
BROADCAST_CACHE_MAINT
Enable broadcasting of cache maintenance operations to downstream
caches:
0: Cache maintenance operations are not broadcasted to downstream
caches.
1: Cache maintenance operations are broadcasted to downstream
caches.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 151
27:24
R/W
0x0
AA64nAA32
Register width state.Determines which execution state the processor
boots into after a cold reset.
0: AArch32
1: AArch64
23:10
/
/
/
11:8
R/W
0x0
CP15S_DISABLE.
Disable write access to some secure CP15 register.
7:5
/
/
/
4
R/W
0x0
L2_RST_DISABLE.
Disable automatic L2 cache invalidate at reset:
0: L2 cache is reset by hardware.
1: L2 cache is not reset by hardware.
3:0
/
/
/
3.4.5.2. Cluster Control Register1 (Default Value: 0x00000000)
Offset: 0x04
Register Name: C_CTRL_REG1
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
ACINACTM.
Snoop interface is inactive and no longer accepting requests.
0: snoop interface is active
1: Snoop interface is inactive
3.4.5.3. Cache Parameter Control Register0 (Default Value: 0x22222222)
Offset: 0x08
Register Name: CACHE_CFG_REG0
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0x2
L1SDT_DELAY
27
/
/
/
26:24
R/W
0x2
L1TLB_DELAY
23
/
/
/
22:20
R/W
0x2
BTAC_DELAY
19
/
/
/
18:16
R/W
0x2
L1DY_DELAY
15
/
/
/
14:12
R/W
0x2
L1DT_DELAY
11
/
/
/
10:8
R/W
0x2
L1DD_DELAY
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 152
7
/
/
/
6:4
R/W
0x2
L1IT_DELAY
3
/
/
/
2:0
R/W
0x2
L1ID_DELAY
3.4.5.4. Cache Parameter Control Register1 (Default Value: 0x02022020)
Offset: 0x0C
Register Name: CACHE_CFG_REG1
Bit
R/W
Default/Hex
Description
31:26
/
/
/
25:24
R/W
0x2
EMAW
23:19
/
/
/
18:16
R/W
0x2
EMA
15
/
/
/
14:12
R/W
0x2
L2V_DELAY
11:8
/
/
/
7
/
/
/
6:4
R/W
0x2
L2T_DELAY
3:0
/
/
/
3.4.5.5. General Control Register0 (Default Value: 0x00000010)
Offset: 0x28
Register Name: GENER_CTRL_REG0
Bit
R/W
Default/Hex
Description
31:25
/
/
/
24
R/W
0x0
EVENTI
Event input for processor wake-up from WFE state.This bit must remain
HIGH for at least one clock cycle to be visible by the cores.
23:20
R/W
0x0
EXM_CLR[3:0]
19:17
/
/
/
16
R/W
0x0
CLREXMONREQ
Clearing of the external global exclusive monitor request.When this bit is
asserted, it acts as a WFE wake-up event to all the cores in the MPCore
device.
15:12
R/W
0x0
CRYPTODISABLE
Disable the Cryptography Extensions.
11:9
/
/
/
8
R/W
0x0
L2FLUSHREQ
L2 hardware flush request.
7:5
/
/
/
4
R/W
0x1
GICCDISABLE.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 153
Globally disables the CPU interface logic and routes the "External" signals
directly to the processor:
0: Enable the GIC CPU interface logic.
1: Disable the GIC CPU interface logic.
3:0
/
/
/
3.4.5.6. Cluster CPU Status Register (Default Value: 0x000E0000)
Offset: 0x30
Register Name: C_CPU_STATUS
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:24
R
0x0
SMP
Indicates whether a core is taking part in coherency.
0: Disable
1: Enable
23:20
/
/
/
19:16
R
0xE
STANDBYWFI.
Indicates if a core is in WFI standby mode:
0: Processor not in WFI standby mode.
1: Processor in WFI standby mode
15:12
/
/
/
11:8
R
0x0
STANDBYWFE.
Indicates if a core is in the WFE standby mode:
0: Processor not in WFE standby mode
1: Processor in WFE standby mode
7:1
/
/
/
0
R
0x0
STANDBYWFIL2.
Indicates if the Cluster L2 memory system is in WFI standby mode.
0:active
1:idle
3.4.5.7. L2 Status Register(Default Value: 0x00000000)
Offset: 0x3C
Register Name: L2_STATUS_REG
Bit
R/W
Default/Hex
Description
31:11
/
/
/
10
R
0x0
L2FLUSHDONE
L2 hardware flush complete
9
R
0x0
EVENTO
Event output.This bit is asserted HIGH for 3 clock cycles when any core in
the cluster executes an SEV instruction.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 154
8
R
0x0
CLREXMONACK
Clearing of the external global exclusive monitor acknowledge.
7:0
/
/
/
3.4.5.8. Cluster Reset Control Register (Default Value: 0x11101101)
Offset: 0x80
Register Name: C_RST_CTRL
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28
R/W
0x1
DDR_RST
AXI2MBUS logic circuit Reset.
0: assert
1: de-assert
27:25
/
/
/
24
R/W
0x1
SOC_DBG_RST.
Cluster SOC Debug P_Reset. Clear this bit will reset the SOC Debug Bus
Logic and it will auto change to 1 after 64 p_cycles.
0: assert
1: de-assert.
23:21
R/W
0x0
20
R/W
0x1
MBIST_RST
CPUBIST Reset. The reset signal for test.
0: assert
1: de-assert
19:16
R/W
0x0
/
15:13
/
/
/
12
R/W
0x1
HRESET.
Cluster H_Reset. Reset all the Cluster Logic and Cluster Interface Logic.
0: assert
1: de-assert.
11:9
/
/
/
8
R/W
0x1
L2_RST.
Cluster L2 Cache Reset
0: assert
1: de-assert.
7:4
/
/
/
3:0
R/W
0x1
CORE_RESET.
Control a core reset assert.
0: assert
1: de-assert.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 155
3.4.5.9. Reset Vector Base Address Register0_L (Default Value: 0x00000000)
Offset: 0xA0
Register Name: RVBARADDR0_L
Bit
R/W
Default/Hex
Description
31:2
R/W
0x0
RVBARDDR[31:2]
Reset Vector Base Address[39:2] for executing in 64-bit state (AArch64)of
CPU0.
1:0
/
/
/
3.4.5.10. Reset Vector Base Address Register0_H (Default Value: 0x00000000)
Offset: 0xA4
Register Name: RVBARADDR0_H
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
RVBARDDR[39:32]
Reset Vector Base Address[39:2]for executing in 64-bit state (AArch64) of
CPU0.
3.4.5.11. Reset Vector Base Address Register1_L (Default Value: 0x00000000)
Offset: 0xA8
Register Name: RVBARADDR1_L
Bit
R/W
Default/Hex
Description
31:2
R/W
0x0
RVBARDDR[31:2]
Reset Vector Base Address[39:2] for executing in 64-bit state (AArch64)of
CPU1.
1:0
/
/
/
3.4.5.12. Reset Vector Base Address Register1_H (Default Value: 0x00000000)
Offset: 0xAC
Register Name: RVBARADDR1_H
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
RVBARDDR[39:32]
Reset Vector Base Address[39:2]for executing in 64-bit state (AArch64) of
CPU1.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 156
3.4.5.13. Reset Vector Base Address Register2_L (Default Value: 0x00000000)
Offset: 0xB0
Register Name: RVBARADDR2_L
Bit
R/W
Default/Hex
Description
31:2
R/W
0x0
RVBARDDR[31:2]
Reset Vector Base Address[39:2] for executing in 64-bit state (AArch64)of
CPU2.
1:0
/
/
/
3.4.5.14. Reset Vector Base Address Register2_H (Default Value: 0x00000000)
Offset: 0xB4
Register Name: RVBARADDR2_H
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
RVBARDDR[39:32]
Reset Vector Base Address[39:2]for executing in 64-bit state (AArch64) of
CPU2.
3.4.5.15. Reset Vector Base Address Register3_L (Default Value: 0x00000000)
Offset: 0xB8
Register Name: RVBARADDR3_L
Bit
R/W
Default/Hex
Description
31:2
R/W
0x0
RVBARDDR[31:2]
Reset Vector Base Address[39:2] for executing in 64-bit state (AArch64)of
CPU3.
1:0
/
/
/
3.4.5.16. Reset Vector Base Address Register3_H (Default Value: 0x00000000)
Offset: 0xBC
Register Name: RVBARADDR3_H
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
RVBARDDR[39:32]
Reset Vector Base Address[39:2]for executing in 64-bit state (AArch64) of
CPU3.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 157
3.5. System Control
3.5.1. Overview
Area
Size(Bytes)
A1
32K
A2
64K
C
172K
CPUX I-Cache
32K (X=0,1,2,3)
CPUX D-Cache
32K (X=0,1,2,3)
CPU L2 Cache
512K
Total
1036K
3.5.2. System Control Register List
Module Name
Base Address
System Control
0x01C00000
Register Name
Offset
Description
VER_REG
0x24
Version Register
EMAC_CLK_REG
0x30
EMAC Clock Register
3.5.3. System Control Register Description
3.5.3.1. Version Register
Offset:0x24
Register Name: VER_REG
Bit
R/W
Default/Hex
Description
31:9
/
/
/
8
R
x
UBOOT_SEL_PAD_STA.
U_boot Select Pin Status.
0: U_Boot;
1: Normal Boot.
7:0
R
0x0
VER_BITS.
This read-only bit field always reads back the mask revision level of the
chip.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 158
3.5.3.2. EMAC Clock Register (Default Value: 0x00000000)
Offset:0x30
Register Name: EMAC_CLK_REG
Bit
R/W
Default/Hex
Description
31:14
/
/
/
13
R/W
0x0
RMII_EN
0 : Disable RMII Module
1 : Enable RMII Module
When this bit assert, MII or RGMII interface is disabled( This means bit13
is prior to bit2)
12:10
R/W
0x0
ETXDC.
Configure EMAC Transmit Clock Delay Chain.
9:5
R/W
0x0
ERXDC.
Configure EMAC Receive Clock Delay Chain.
4
R/W
0x0
ERXIE
Enable EMAC Receive Clock Invertor.
0: Disable
1: Enable
3
R/W
0x0
ETXIE
Enable EMAC Transmit Clock Invertor.
0: Disable
1: Enable
2
R/W
0x0
EPIT
EMAC PHY Interface Type
0: MII
1: RGMII
1:0
R/W
0x0
ETCS.
EMAC Transmit Clock Source
00: Transmit clock source for MII
01: External transmit clock source for GMII and RGMII
10: Internal transmit clock source for GMII and RGMII
11: Reserved
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 159
3.6. Timer
3.6.1. Overview
Timer 0/1 can take their inputs from 32K or OSC24M. They provide the operating system’s scheduler interrupt.
It is designed to offer maximum accuracy and efficient management, even for systems with long or short
response time. They provide 32-bit programmable overflow counter and work in auto-reload mode or
no-reload mode. When the current value in Timer 0 Current Value Register or Timer 1 Current Value Register
is counting down to zero, the timer will generate interrupt if set interrupt enable bit.
The watchdog is used to resume the controller operation when it had been disturbed by malfunctions such as
noise and system errors. It features a down counter that allows a watchdog period of up to 16 seconds (512000
cycles). It can generate a general reset or interrupt request.
Audio-Video-Sync(AVS) counter is used to synchronize video and audio in the player.
The timer module includes the following features:
2 Timers for system scheduler counting using 24MHz or 32KHz clock
Each Timer could general individual interrupt
1 Watchdog for resetting whole system or interrupt
2 AVS counters used for synchronize video and audio in the player
3.6.2. Block Diagram
Timer counter' clock input comes from one of the two clock sources that could be pre-scaled up to 128 division.
In single mode, when current value is counted down to 0, enable bit would be cleared automatically and Timer
stops working. But in continuous mode, Interval Value will be auto-reloaded into Timer 0 Current Value
Register/Timer 1 Current Value Register and then counter counts from the new interval value again when
current value is counted down to 0. Every time current value is counted down to 0, a pending will be generated.
Pending could be sent to GIC or R_INTC only if IRQ enable bit is set.
Generally watchdog could not count down to 0 because it would be restart inside Interval Value. Otherwise the
malfunction makes the watchdog counts down to 0 and a pending will be generated, which causes a
reset(Watchdog Configuration Register is configured for whole system) or an interrupt(Watchdog
Configuration Register is configured for only interrupt).
AVS has two counters which are both up-counted. The counter’ clock source comes from 24MHz/Divisor_N
and Divisor_N is set in AVS Counter Divisor Register. AVS counter could be changed to pause or enable at any
time,so are the Interval Value set in AVS Counter 0 Register or AVS Counter 1 Register and Divisor Value set in
AVS Counter Divisor Register. When you enable the AVS counter,it counts up from Interval Value until you
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 160
pause it. It doesn't general any pending.
24M
32K
Timer 0
Timer 1
Single
Continuous
Interval Value Enable IV=0? Pending
IRQ EN
IRQ
yes
/1
/2
/4
/8
/16
/32
/64
/128
Watchdog
Interrupt Enable Pending IRQ
16k cycles
32k cycles
64k cycles
96k cycles
128k cycles
160k cycles
192k cycles
others cycles
24M/750
Restart
Time
out?
yes
Reset Enable Pending
Restart
Time
out?
Whole System Reset
yes
Figure 3-5. Timer Block Diagram
3.6.3. Operation Principle
3.6.3.1. Timer reload and enable bit
Generally the operation of setting both reload bit and enable bit and writing them into Timer 0 Control
Register/Timer 1 Control Register moreover could cause a risk. It had better to enable Timer after Interval
Value has been loaded into Timer 0 Current Value Register/Timer 1 Current Value Register. Only in timer
pause time, when you hope that counter starts working from a new interval value, reload bit and enable bit
should be set 1 and wrote into TMR0_CTRL_REG/ TMR1_CTRL_REG at the same time.
3.6.3.2. Timing requirement for Timer command
For reload and enable operation of Timer, it is necessary to wait some cycles between the same continuous
operations. It indicates that from pause state to start or from start state to pause it has to wait for 2 cycles at
lease. And to reload operation, it could not be implemented immediately again until the reload bit had been
cleared automatically of the last operation.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 161
3.6.3.3. Watchdog restart
Watchdog restart function should be enable inside Interval Value. Writing Watchdog Restart to 1 and
Watchdog Key Field to 0xA57 at the same time make a restart, but writing Watchdog Key Field to other values
is ignored.
3.6.4. Timer Register List
Module Name
Base Address
TIMER
0x01C20C00
Register Name
Offset
Description
TMR_IRQ_EN_REG
0x0
Timer IRQ Enable Register
TMR_IRQ_STA_REG
0x4
Timer Status Register
TMR0_CTRL_REG
0x10
Timer 0 Control Register
TMR0_INTV_VALUE_REG
0x14
Timer 0 Interval Value Register
TMR0_CUR_VALUE_REG
0x18
Timer 0 Current Value Register
TMR1_CTRL_REG
0x20
Timer 1 Control Register
TMR1_INTV_VALUE_REG
0x24
Timer 1 Interval Value Register
TMR1_CUR_VALUE_REG
0x28
Timer 1 Current Value Register
AVS_CNT_CTL_REG
0x80
AVS Control Register
AVS_CNT0_REG
0x84
AVS Counter 0 Register
AVS_CNT1_REG
0x88
AVS Counter 1 Register
AVS_CNT_DIV_REG
0x8C
AVS Divisor Register
WDOG0_IRQ_EN_REG
0xA0
Watchdog 0 IRQ Enable Register
WDOG0_IRQ_STA_REG
0xA4
Watchdog 0 Status Register
WDOG0_CTRL_REG
0xB0
Watchdog 0 Control Register
WDOG0_CFG_REG
0xB4
Watchdog 0 Configuration Register
WDOG0_MODE_REG
0xB8
Watchdog 0 Mode Register
3.6.5. Timer Register Description
3.6.5.1. Timer IRQ Enable Register (Default Value: 0x00000000)
Offset:0x0
Register Name: TMR_IRQ_EN_REG
Bit
R/W
Default/Hex
Description
31:2
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 162
1
R/W
0x0
TMR1_IRQ_EN.
Timer 1 Interrupt Enable.
0: No effect;
1: Timer 1 Interval Value reached interrupt enable.
0
R/W
0x0
TMR0_IRQ_EN.
Timer 0 Interrupt Enable.
0: No effect;
1: Timer 0 Interval Value reached interrupt enable.
3.6.5.2. Timer IRQ Status Register (Default Value: 0x00000000)
Offset:0x04
Register Name: TMR_IRQ_STA_REG
Bit
R/W
Default/Hex
Description
31:2
/
/
/
1
R/W
0x0
TMR1_IRQ_PEND.
Timer 1 IRQ Pending. Set 1 to the bit will clear it.
0: No effect;
1: Pending, timer 1 interval value is reached.
0
R/W
0x0
TMR0_IRQ_PEND.
Timer 0 IRQ Pending. Set 1 to the bit will clear it.
0: No effect;
1: Pending, timer 0 interval value is reached.
3.6.5.3. Timer 0 Control Register (Default Value: 0x00000004)
Offset:0x10
Register Name: TMR0_CTRL_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
TMR0_MODE.
Timer 0 mode.
0: Continuous mode. When interval value reached, the timer will not
disable automatically.
1: Single mode. When interval value reached, the timer will disable
automatically.
6:4
R/W
0x0
TMR0_CLK_PRES.
Select the pre-scale of timer 0 clock source.
000: /1
001: /2
010: /4
011: /8
100: /16
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 163
101: /32
110: /64
111: /128
3:2
R/W
0x1
TMR0_CLK_SRC.
Timer 0 Clock Source.
00: 32K
01: OSC24M.
10: /
11: /
1
R/W
0x0
TMR0_RELOAD.
Timer 0 Reload.
0: No effect
1: Reload timer 0 Interval value.
After the bit is set, it can not be written again before it’s cleared
automatically.
0
R/W
0x0
TMR0_EN.
Timer 0 Enable.
0: Stop/Pause
1: Start.
When the timer is started, it will reload the interval value to internal
register, and the current counter will count from interval value to 0. If
the current counter does not reach the zero, the timer enable bit is set
to “0”, the current value counter will pause. At least wait for 2 cycles,
the start bit can be set to 1.In timer pause state; the interval value
register can be modified. If the timer is started again, and the Software
hope the current value register to down-count from the new interval
value, the reload bit and the enable bit should be set to 1 at the same
time.
3.6.5.4. Timer 0 Interval Value Register
Offset:0x14
Register Name: TMR0_INTV_VALUE_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
TMR0_INTV_VALUE.
Timer 0 Interval Value.
Note:The value setting should consider the system clock and the timer clock source.
3.6.5.5. Timer 0 Current Value Register
Offset:0x18
Register Name: TMR0_CUR_VALUE_REG
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 164
31:0
R/W
0x0
TMR0_CUR_VALUE.
Timer 0 Current Value.
Note: Timer0 current value is a 32-bit down-counter (from interval value to 0).
3.6.5.6. Timer 1 Control Register (Default Value: 0x00000004)
Offset:0x20
Register Name: TMR1_CTRL_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
TMR1_MODE.
Timer 1 mode.
0: Continuous mode. When interval value reached, the timer will not
disable automatically.
1: Single mode. When interval value reached, the timer will disable
automatically.
6:4
R/W
0x0
TMR1_CLK_PRES.
Select the pre-scale of timer 1 clock source.
000: /1
001: /2
010: /4
011: /8
100: /16
101: /32
110: /64
111: /128
3:2
R/W
0x1
TMR1_CLK_SRC.
00: 32K
01: OSC24M.
10: /
11: /.
1
R/W
0x0
TMR1_RELOAD.
Timer 1 Reload.
0: No effect
1: Reload timer 1 Interval value.
After the bit is set, it can not be written again before it’s cleared
automatically.
0
R/W
0x0
TMR1_EN.
Timer 1 Enable.
0: Stop/Pause
1: Start.
If the timer is started, it will reload the interval value to internal register,
and the current counter will count from interval value to 0.
If the current counter does not reach the zero, the timer enable bit is set
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 165
to “0”, the current value counter will pause. At least wait for 2 cycles, the
start bit can be set to 1.
In timer pause state, the interval value register can be modified. If the
timer is started again, and the Software hope the current value register to
down-count from the new interval value, the reload bit and the enable bit
should be set to 1 at the same time.
3.6.5.7. Timer 1 Interval Value Register
Offset:0x24
Register Name: TMR1_INTV_VALUE_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
TMR1_INTV_VALUE.
Timer 1 Interval Value.
Note: The value setting should consider the system clock and the timer clock source.
3.6.5.8. Timer 1 Current Value Register
Offset:0x28
Register Name: TMR1_CUR_VALUE_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
TMR1_CUR_VALUE.
Timer 1 Current Value.
Note: Timer1 current value is a 32-bit down-counter (from interval value to 0).
3.6.5.9. AVS Counter Control Register (Default Value: 0x00000000)
Offset:0x80
Register Name: AVS_CNT_CTL_REG
Bit
R/W
Default/Hex
Description
31:10
/
/
/
9
R/W
0x0
AVS_CNT1_PS.
Audio/Video Sync Counter 1 Pause Control
0: Not pause
1: Pause Counter 1.
8
R/W
0x0
AVS_CNT0_PS.
Audio/Video Sync Counter 0 Pause Control
0: Not pause
1: Pause Counter 0.
7:2
/
/
/
1
R/W
0x0
AVS_CNT1_EN.
Audio/Video Sync Counter 1 Enable/ Disable. The counter source is
OSC24M.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 166
0: Disable
1: Enable.
0
R/W
0x0
AVS_CNT0_EN.
Audio/Video Sync Counter 1 Enable/ Disable. The counter source is
OSC24M.
0: Disable
1: Enable.
3.6.5.10. AVS Counter 0 Register (Default Value: 0x00000000)
Offset:0x84
Register Name: AVS_CNT0_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
AVS_CNT0.
Counter 0 for Audio/ Video Sync Application
The high 32 bits of the internal 33-bits counter register. The initial value of
the internal 33-bits counter register can be set by software. The LSB bit of
the 33-bits counter register should be zero when the initial value is
updated. It will count from the initial value. The initial value can be
updated at any time. It can also be paused by setting AVS_CNT0_PS to ‘1’.
When it is paused, the counter won’t increase.
3.6.5.11. AVS Counter 1 Register (Default Value: 0x00000000)
Offset:0x88
Register Name: AVS_CNT1_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
AVS_CNT1.
Counter 1 for Audio/ Video Sync Application
The high 32 bits of the internal 33-bits counter register. The initial value of
the internal 33-bits counter register can be set by software. The LSB bit of
the 33-bits counter register should be zero when the initial value is
updated. It will count from the initial value. The initial value can be
updated at any time. It can also be paused by setting AVS_CNT1_PS to ‘1’.
When it is paused, the counter won’t increase.
3.6.5.12. AVS Counter Divisor Register (Default Value: 0x05DB05DB)
Offset:0x8C
Register Name: AVS_CNT_DIV_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x5DB
AVS_CNT1_D.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 167
Divisor N for AVS Counter 1
AVS CN1 CLK=24MHz/Divisor_N1.
Divisor N1 = Bit [27:16] + 1.
The number N is from 1 to 0x7ff. The zero value is reserved.
The internal 33-bits counter engine will maintain another 12-bits counter.
The 12-bits counter is used for counting the cycle number of one 24Mhz
clock. When the 12-bits counter reaches (>= N) the divisor value, the
internal 33-bits counter register will increase 1 and the 12-bits counter
will reset to zero and restart again.
15:12
/
/
/
11:0
R/W
0x5DB
AVS_CNT0_D.
Divisor N for AVS Counter 0
AVS CN0 CLK=24MHz/Divisor_N0.
Divisor N0 = Bit [11:0] + 1
The number N is from 1 to 0x7ff. The zero value is reserved.
The internal 33-bits counter engine will maintain another 12-bits counter.
The 12-bits counter is used for counting the cycle number of one 24Mhz
clock. When the 12-bits counter reaches (>= N) the divisor value, the
internal 33-bits counter register will increase 1 and the 12-bits counter
will reset to zero and restart again.
Note: Divisor N can be configured by software at any time.
3.6.5.13. Watchdog IRQ Enable Register (Default Value: 0x00000000)
Offset:0xA0
Register Name: WDOG_IRQ_EN_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
WDOG_IRQ_EN.
Watchdog Interrupt Enable.
0: No effect
1: Watchdog interrupt enable.
3.6.5.14. Watchdog Status Register (Default Value: 0x00000000)
Offset:0xA4
Register Name: WDOG_IRQ_STA_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
WDOG_IRQ _PEND.
Watchdog n IRQ Pending. Set 1 to the bit will clear it.
0: No effect,
1: Pending, watchdog interval value is reached.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 168
3.6.5.15. Watchdog Control Register (Default Value: 0x00000000)
Offset:0xB0
Register Name: WDOG_CTRL_REG
Bit
R/W
Default/Hex
Description
31:13
/
/
/
12:1
R/W
0x0
WDOG_KEY_FIELD.
Watchdog Key Field.
Should be written at value 0xA57. Writing any other value in this field
aborts the write operation.
0
R/W
0x0
WDOG_RSTART.
Watchdog Restart.
0: No effect,
1: Restart watchdog0.
3.6.5.16. Watchdog Configuration Register (Default Value: 0x00000001)
Offset:0xB4
Register Name: WDOG_CFG_REG
Bit
R/W
Default/Hex
Description
31:2
/
/
/
1:0
R/W
0x1
WDOG_CONFIG.
Watchdog generates a reset signal
00: /
01: To whole system
10: Only interrupt
11: /
3.6.5.17. Watchdog Mode Register (Default Value: 0x00000000)
Offset:0xB8
Register Name: WDOG_MODE_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:4
R/W
0x0
WDOG_INTV_VALUE.
Watchdog Interval Value
Watchdog clock source is OSC24M / 750. If the clock source is turned off,
Watchdog will not work.
0000: 16000 cycles (0.5s)
0001: 32000 cycles (1s)
0010: 64000 cycles (2s)
0011: 96000 cycles (3s)
0100: 128000 cycles (4s)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 169
0101: 160000 cycles (5s)
0110: 192000 cycles (6s)
0111: 256000 cycles (8s)
1000: 320000 cycles (10s)
1001: 384000 cycles (12s)
1010: 448000 cycles (14s)
1011: 512000 cycles (16s)
others: /
3:1
/
/
/
0
R/W
0x0
WDOG_EN.
Watchdog Enable.
0: No effect;
1: Enable watchdog.
3.6.6. Programming Guidelines
3.6.6.1. Timer
Take making a Timer0 1ms delay for an example, 24M clock source, single mode and 2 pre-scale will be
selected in the instance.
writel(0x2EE0, TMR0_INTV_VALUE_REG); //Set interval value
writel(0x94, TMR0_CTRL_REG); //Select Single mode,24MHz clock source,2 pre-scale
writel(readl(TMR0_CTRL_REG)|(1<<1), TMR0_CTRL_REG); //Set Reload bit
while((readl(TMR0_CTRL_REG)>>1)&1); //Waiting Reload bit turns to 0
writel(readl(TMR0_CTRL_REG)|(1<<0), TMR0_CTRL_REG); //Enable Timer0
3.6.6.2. Watchdog
In the following instance making configurations for Watchdog: configurate clock source as 24M/750,
configurate Interval Value as 1s and configurate Watchdog Configuration as To whole system. This instance
indicates that restarting Watchdog after 0.5s inside Interval Value.
writel(0x1, WDOG_CFG_REG); //To whole system
writel(0x10, WDOG_MODE_REG); //Interval Value set 1s
writel(readl(WDOG_MODE_REG)|(1<<0), WDOG_MODE_REG); //Enable Watchdog
delay_ms(500); //Delay 500ms
writel(readl(WDOG_CTRL_REG)|(0xA57<<1)|(1<<0)，WDOG_CTRL_REG); //Writel 0xA57 at Key Field and
Restart Watchdog
……………After 1s, Watchdog will general a pending, which would reset the system……………
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 170
3.7. R_Trusted Watchdog Timer
3.7.1. Overview
The r_trusted watchdog timer is primarily used to protect the trusted world operations from denial of service
when secure services are dependent to the RichOS scheduler. For example, if the trusted world is not entered
after a defined time limit the SoC is re-started to perform an authentication of the system.
The r_trusted watchdog timer can also be used to mask the real cause of a security error thanks to the delayed
warm reset it generates.
3.7.2. Block Diagram
24M
LOSC
TWD
Interval Value
CMP Counter
Value ==
Hi/Low Counter
Value ?
Pending
IRQ
Enable IRQ
yes
Cold
Reset
Hi/Low Counter
Rolling-over
Restart
CMP Counter Value =
Hi/Low Counter Value + Interval Value
Reset
Enable Reset
Interval Value
Register
Read Latch Enable
Clear Enable
Stop Enable
Clear
Counter?
Read Value?
Counter Value and Interval Value are
Cleared
Stop?
Hi/Low Counter
Stop Rolling-over Resum? Hi/Low Counter
Continue Rolling-over
Reset Flag
After
Warm
Reset
Defualt Status
Figure 3-6. TWD Block Diagram
The trusted watchdog timer must always be running when the SoC wakes up from cold reset and can be
refreshed, suspended, or reset only by secure accesses. And a clock of at least 32 kHz is used when the device is
not a power saving cycles.
3.7.3. Functionalities Description
3.7.3.1. TWD Reset
The trusted watchdog timer is able to generate a SoC warm reset after a duration programmed into the timer
or set by default in hardware. And the flag indicating the occurrence of a watchdog triggered warm reset has
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 171
occurred since the last cold reset.
Clock sources driving the watchdog timer must be controlled or managed by a trusted entity. This means that
non-trusted world accesses are not permitted to turn on, turn off or modify the characteristics of clock source.
The clear enable bit will reset relevant bits in R_TWD_CTRL_REG, except the reset flag.
3.7.3.2. NV-Counter
After a firmware image is validated, the image revision number taken from the certificate extension field, for
example, Trusted Firmware NV-Counter is compared with the corresponding NV-Counter stored in hardware. If
the value is:
- Less than the associated NV-Counter, then the authentication fail.
- Identical to the NV-Counter, then the authentication is successful.
- More than the NV-Counter, then the authentication are successful and the NV-Counter is updated.
The 2^32 monotonic counter does not need to be e-Fuses, but it does need to be fully secure. Using the SoC
embedded NVM, or external secure element, or a trusted register, which is always on power.
The Secure Storage NV-Counter Register is used for protecting the trusted world Secure Storage (SST) file from
replay attacks, since SST contains subsidiary relay attacks protection counters for each Trusted Application.
Four 32-bit counters are used for counting 2^32 states for synchronizing data stores against replay attacks.
These counters are optionally required since they can be handled by a Trusted OS service using the secure
storage at boot time or using eMMC v4.4x Replay Protected Memory Block (RPMB).
3.7.4. TWD Register List
Module Name
Base Address
TWD
0x01F01800
Register Name
Offset
Description
R_TWD_STA_REG
0x0
R_TWD Status Register
R_TWD_CTRL_REG
0x10
R_TWD Control Register
R_TWD_RESTA_REG
0x14
R_TWD Restart Register
R_TWD_LOW_COUNTER_REG
0x20
R_TWD Low Counter Register
R_TWD_HI_COUNTER_REG
0x24
R_TWD High Counter Register
R_TWD_INTV_VAL_REG
0x30
R_TWD Interval Value Register
R_TWD_LOW_CMP_REG
0x40
R_TWD Low Counter Compare Register
R_TWD_HI_CMP_REG
0x44
R_TWD High Counter Compare Register
SST_NV_COUNTER_REG
0x100
Secure Storage NV-Counter Register
SYN_DATA_COUNTER_REG0
0x110
Synchronize Data Counter Register 0
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 172
SYN_DATA_COUNTER_REG1
0x114
Synchronize Data Counter Register 1
SYN_DATA_COUNTER_REG2
0x118
Synchronize Data Counter Register 2
SYN_DATA_COUNTER_REG3
0x11c
Synchronize Data Counter Register 3
3.7.5. R_TWD Register Description
3.7.5.1. R_TWD Status Register (Default Value: 0x00000000)
Offset: 0x0000
Register Name: R_TWD_STATUS_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
R_TWD_PEND_FLAG.
Trusted watchdog timer’s interrupt pending. Set 1 to the bit will clear it.
0: No effect
1: Pending
3.7.5.2. R_TWD Control Register (Default Value: 0x00000000)
Offset: 0x0010
Register Name: R_TWD_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
CNT64_CLK_SRC_SEL.
64-bit counter clock source select.
0: LOSC.
1: OSC24M.
30:10
/
/
/
9
R/W
0x0
R_TWD_RESET_EN.
R_TWD reset enable.
0: Reset disable.
1: Reset enable.
8
R/W
0x0
R_TWD_INT_EN.
R_TWD Interrupt Enable.
0: Interrupt disable.
1: Interrupt enable.
7:2
/
/
/
1
R/W
0x0
R_TWD_STOP_EN.
R_TWD stop enable.
0: Resume rolling-over.
1: Stop rolling-over.
0
R/W
0x0
R_TWD_CLR_EN.
R_TWD clear enable.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 173
0: No effect.
1: To clear relevant registers and it will change to zero after the registers
are cleared.
3.7.5.3. R_TWD Restart Register (Default Value: 0x00000000)
Offset: 0x0014
Register Name: R_TWD_RESTART_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
WO
0x0
R_TWD_RESTART_KEYFILED.
Should be written at value 0xD14. Writing any other value in this field
aborts the write operation.
15:1
/
/
/
0
WO
0x0
R_TWD_RESTART_EN.
If writing ‘1’ in this bit, the value of Counter Compare Register would
change.
0: No effect.
1: Restart enable.
3.7.5.4. R_TWD Low Counter Register (Default Value: 0x00000000)
Offset: 0x0020
Register Name: R_TWD_LOW_CNT_REG
Bit
R/W
Default/Hex
Description
31:0
RO
0x0
R_TWD_LOW_CNT.
The TWD low 32-bit counter.
3.7.5.5. R_TWD High Counter Register (Default Value: 0x00000000)
Offset: 0x0024
Register Name: R_TWD_HIGH_CNT_REG
Bit
R/W
Default/Hex
Description
31:0
RO
0x0
R_TWD_HIGH_CNT.
The TWD high 32-bit counter.
3.7.5.6. R_TWD Interval Value Register (Default Value: 0x00000000)
Offset: 0x0030
Register Name: R_TWD_INTV_VAL_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
R_TWD_INTV_VAL.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 174
The TWD interval value.
3.7.5.7. R_TWD Low Counter Compare Register (Default Value: 0x00000000)
Offset: 0x0040
Register Name: R_TWD_LOW_CNT_CMP_REG
Bit
R/W
Default/Hex
Description
31:0
RO
0x0
R_TWD_LOW_CMP.
The TWD low 32-bit compare counter.
3.7.5.8. R_TWD High Counter Compare Register (Default Value: 0x00000000)
Offset: 0x0044
Register Name: R_TWD_HIGH_CNT_CMP_REG
Bit
R/W
Default/Hex
Description
31:0
RO
0x0
R_TWD_HIGH_CMP.
The TWD high 32-bit compare counter.
3.7.5.9. Secure Storage NV-Counter Register (Default Value: 0x00000000)
Offset: 0x0100
Register Name: SST_NV_CNT_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
SST_NV_CNT.
This counter protects the trusted world Secure Storage file from replay
attacks.
3.7.5.10. Synchronize Data Counter Register 0 (Default Value: 0x00000000)
Offset: 0x0110
Register Name: SYN_DATA_CNT_REG0
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
SYN_DATA_CNT0.
This counter is used for synchronizing data stores against replay attacks.
3.7.5.11. Synchronize Data Counter Register 1 (Default Value: 0x00000000)
Offset: 0x0114
Register Name: SYN_DATA_CNT_REG1
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
SYN_DATA_CNT1.
This counter is used for synchronizing data stores against replay attacks.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 175
3.7.5.12. Synchronize Data Counter Register 2 (Default Value: 0x00000000)
Offset: 0x0118
Register Name: SYN_DATA_CNT_REG2
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
SYN_DATA_CNT2.
This counter is used for synchronizing data stores against replay attacks.
3.7.5.13. Synchronize Data Counter Register 3 (Default Value: 0x00000000)
Offset: 0x011C
Register Name: SYN_DATA_CNT_REG3
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
SYN_DATA_CNT3.
This counter is used for synchronizing data stores against replay attacks.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 176
3.8. RTC
3.8.1. Overview
The real time clock (RTC) is for calendar usage. It is built around a 30-bit counter and used to count elapsed
time in YY-MM-DD and HH-MM-SS. The unit can be operated by the backup battery while the system power is
off. It has a built-in leap year generator and a independent power pin (RTC_VIO).
The alarm generates an alarm signal at a specified time in the power-off mode or normal operation mode. In
normal operation mode, both the alarm interrupt and the power management wakeup are activated. In
power-off mode, the power management wakeup signal is activated. In this section, there are two kinds of
alarm. Alarm 0 is a general alarm, its counter is based on second. Alarm 1 is a weekly alarm, its counter is
based on the real time.
The 32768Hz oscillator is used only to provide a low power, accurate reference for the RTC.
General Purpose Register can be flag register, and it will save the value all the time when the VDD_RTC is not
power off.
3.8.2. RTC Register List
Module Name
Base Address
RTC
0x01F00000
Register Name
Offset
Description
LOSC_CTRL_REG
0x0
Low Oscillator Control Register
LOSC_AUTO_SWT_STA_REG
0x4
LOSC Auto Switch Status Register
INTOSC_CLK_PRESCAL_REG
0x8
Internal OSC Clock Prescalar Register
RTC_YY_MM_DD_REG
0x10
RTC Year-Month-Day Register
RTC_HH_MM_SS_REG
0x14
RTC Hour-Minute-Second Register
ALARM0_COUNTER_REG
0x20
Alarm 0 Counter Register
ALARM0_CUR_VLU_REG
0x24
Alarm 0 Counter Current Value Register
ALARM0_ENABLE_REG
0x28
Alarm 0 Enable Register
ALARM0_IRQ_EN
0x2C
Alarm 0 IRQ Enable Register
ALARM0_IRQ_STA_REG
0x30
Alarm 0 IRQ Status Register
ALARM1_WK_HH_MM-SS
0x40
Alarm 1 Week HMS Register
ALARM1_ENABLE_REG
0x44
Alarm 1 Enable Register
ALARM1_IRQ_EN
0x48
Alarm 1 IRQ Enable Register
ALARM1_IRQ_STA_REG
0x4C
Alarm 1 IRQ Status Register
ALARM_CONFIG_REG
0x50
Alarm Config Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 177
LOSC_OUT_GATING_REG
0x60
LOSC output gating register
GP_DATA_REG
0x100 + N*0x4
General Purpose Register (N=0~3)
GPL_HOLD_OUTPUT_REG
0x180
GPL Hold Output Register
VDD_RTC_REG
0x190
VDD RTC Regulate Register
IC_CHARA_REG
0x1F0
IC Characteristic Register
Crypt Configuration Register
0x210
CRY_CONFIG_REG
Crypt Key Register
0x214
CRY_KEY_REG
Crypt Enable Register
0x218
CRY_CONFIG_REG
3.8.3. RTC Register Description
3.8.3.1. LOSC Control Register (Default Value: 0x00004000)
Offset:0x0
Register Name: LOSC_CTRL_REG
Bit
R/W
Default/Hex
Description
31:16
W
0x0
KEY_FIELD.
Key Field. This field should be filled with 0x16AA, and then the bit 0 can be
written with the new value.
15
/
/
/
14
R/W
0x1
LOSC_AUTO_SWT_EN.
LOSC auto switch enable.
0: Disable, 1: Enable.
13:10
/
/
/
9
R/W
0x0
ALM_DDHHMMSS_ACCE.
ALARM DD-HH-MM-SS access.
After writing the ALARM DD-HH-MM-SS register, this bit is set and it will
be cleared until the real writing operation is finished.
8
R/W
0x0
RTC_HHMMSS_ACCE.
RTC HH-MM-SS access.
After writing the RTC HH-MM-SS register, this bit is set and it will be
cleared until the real writing operation is finished.
After writing the RTC HH-MM-SS register, the HH-MM-SS register will be
refreshed for at most one second.
7
R/W
0x0
RTC_YYMMDD_ACCE.
RTC YY-MM-DD access.
After writing the RTC YY-MM-DD register, this bit is set and it will be
cleared until the real writing operation is finished.
After writing the RTC YY-MM-DD register, the YY-MM-DD register will be
refreshed for at most one second.
6:4
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 178
3:2
R/W
0x0
EXT_LOSC_GSM.
External 32768Hz Crystal GSM.
00: low
01:/
10:/
11:high
1
/
/
/
0
R/W
0x0
LOSC_SRC_SEL.
LOSC Clock source Select. ‘N’ is the value of Internal OSC Clock Prescalar
register.
0: InternalOSC /32/ N
1: External 32.768KHz OSC.
Note1: Any bit of [9:7] is set, the RTC HH-MM-SS, YY-MM-DD and ALARM DD-HH-MM-SS register can’t be
written.
Note2: Internal OSC is about 16MHz.
3.8.3.2. LOSC Auto Switch Status Register (Default Value: 0x00000000)
Offset:0x4
Register Name: LOSC_AUTO_SWT_STA_REG
Bit
R/W
Default/Hex
Description
31:2
/
/
/
1
R/W
0x0
LOSC_AUTO_SWT_PEND.
LOSC auto switch pending.
0: No effect
1: Auto switches pending
Set 1 to this bit will clear it.
0
RO
0x0
LOSC_SRC_SEL_STA.
Checking LOSC Clock Source Status. ‘N’ is the value of Internal OSC Clock
Prescalar register.
0: InternalOSC / N
1: External 32.768KHz OSC
3.8.3.3. Internal OSC Clock Prescalar Register (Default Value: 0x0000000F)
Offset:0x8
Register Name: INTOSC_CLK_PRESCAL_REG
Bit
R/W
Default/Hex
Description
31:5
/
/
/
4:0
R/W
0xF
INTOSC_CLK_PRESCAL.
Internal OSC Clock Prescalar value N.
00000: 1
00001: 2
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 179
00010: 3
............
11111: 32
3.8.3.4. RTC YY-MM-DD Register (Default Value: 0x00000000)
Offset:0x10
Register Name: RTC_YY_MM_DD_REG
Bit
R/W
Default/Hex
Description
31:23
/
/
/
22
R/W
0x0
LEAP.
Leap Year.
0: not, 1: Leap year.
This bit can not set by hardware. It should be set or clear by software.
21:16
R/W
x
YEAR.
Year.
Range from 0~63.
15:12
/
/
/
11:8
R/W
x
MONTH.
Month.
Range from 1~12.
7:5
/
/
/
4:0
R/W
x
DAY.
Day.
Range from 1~31.
Note1: If the written value is not from 1 to 31 in Day Area, it turns into 31 automatically. Month Area and Year
Area are similar to Day Area.
Note2: The number of days in different month may be different.
3.8.3.5. RTC HH-MM-SS Register (Default Value: 0x00000000)
Offset:0x14
Register Name: RTC_HH_MM_SS_REG
Bit
R/W
Default/Hex
Description
31:29
R/W
0x0
WK_NO.
Week number.
000: Monday
001: Tuesday
010: Wednesday
011: Thursday
100: Friday
101: Saturday
110: Sunday
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 180
111: /
28:21
/
/
/
20:16
R/W
x
HOUR.
Range from 0~23
15:14
/
/
/
13:8
R/W
x
MINUTE.
Range from 0~59
7:6
/
/
/
5:0
R/W
x
SECOND.
Range from 0~59
Note: If the written value is not from 0 to 59 in Second Area, it turns into 59 automatically. Minute Area and
Hour Area are similar to Second Area.
3.8.3.6. Alarm 0 Counter Register (Default Value: 0x00000000)
Offset:0x20
Register Name: ALARM0_COUNTER_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
ALARM0_COUNTER.
Alarm 0 Counter is Based on Second.
Note: If the second is set to 0, it will be 1 second in fact.
3.8.3.7. Alarm 0 Current Value Register
Offset:0x24
Register Name: ALARM0_CUR_VLU_REG
Bit
R/W
Default/Hex
Description
31:0
RO
x
ALARM0_CUR_VLU.
Check Alarm 0 Counter Current Values.
Note: If the second is set to 0, it will be 1 second in fact.
3.8.3.8. Alarm 0 Enable Register (Default Value: 0x00000000)
Offset:0x28
Register Name: ALARM0_ENABLE_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
ALM_0_EN
Alarm 0 Enable.
If this bit is set to “1”, the Alarm 0 Counter register’s valid bits will down
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 181
count to zero, and the alarm pending bit will be set to “1”.
0: Disable
1: Enable
3.8.3.9. Alarm 0 IRQ Enable Register (Default Value: 0x00000000)
Offset:0x2C
Register Name: ALARM0_IRQ_EN
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
ALARM0_IRQ_EN.
Alarm 0 IRQ Enable.
0: Disable
1: Enable
3.8.3.10. Alarm 0 IRQ Status Register (Default Value: 0x00000000)
Offset:0x30
Register Name: ALARM0_IRQ_STA_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
ALARM0_IRQ_PEND.
Alarm 0 IRQ Pending bit.
0: No effect
1: Pending, alarm 0 counter value is reached
If alarm 0 irq enable is set to 1, the pending bit will be sent to the
interrupt controller.
3.8.3.11. Alarm 1 Week HH-MM-SS Register (Default Value: 0x00000000)
Offset:0x40
Register Name: ALARM1_WK_HH_MM_SS
Bit
R/W
Default/Hex
Description
31:21
/
/
/
20:16
R/W
x
HOUR.
Range from 0~23.
15:14
/
/
/
13:8
R/W
x
MINUTE.
Range from 0~59.
7:6
/
/
/
5:0
R/W
x
SECOND.
Range from 0~59.
Note: If the written value is not from 0 to 59 in Second Area, it turns into 59 automatically. Minute Area and
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 182
Hour Area are similar to Second Area.
3.8.3.12. Alarm 1 Enable Register (Default Value: 0x00000000)
Offset:0x44
Register Name: ALARM1_EN_REG
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6
R/W
0x0
WK6_ALM1_EN.
Week 6 (Sunday) Alarm 1 Enable.
0: Disable
1: Enable
If this bit is set to “1”, only when the bit[20:0] of Alarm 1 Week
HH-MM-SS Register are equal to the bit[20:0] of RTC HH-MM-SS Register
and the bit [31:29] of RTC HH-MM-SS Register is 6, the week 6 alarm irq
pending bit will be set to “1”.
5
R/W
0x0
WK5_ALM1_EN.
Week 5 (Saturday) Alarm 1 Enable.
0: Disable
1: Enable
If this bit is set to “1”, only when the bit[20:0] of Alarm 1 Week
HH-MM-SS Register are equal to the bit[20:0] of RTC HH-MM-SS Register
and the bit [31:29] of RTC HH-MM-SS Register is 5, the week 5 alarm irq
pending bit will be set to “1”.
4
R/W
0x0
WK4_ALM1_EN.
Week 4 (Friday) Alarm 1 Enable.
0: Disable
1: Enable
If this bit is set to “1”, only when the bit[20:0] of Alarm 1 Week
HH-MM-SS Register are equal to the bit[20:0] of RTC HH-MM-SS Register
and the bit [31:29] of RTC HH-MM-SS Register is 4, the week 4 alarm irq
pending bit will be set to “1”.
3
R/W
0x0
WK3_ALM1_EN.
Week 3 (Thursday) Alarm 1 Enable.
0: Disable
1: Enable
If this bit is set to “1”, only when the bit[20:0] Alarm 1 Week HH-MM-SS
Register valid bits are equal to the bit[20:0] of RTC HH-MM-SS Register
and the bit [31:29] of RTC HH-MM-SS Register is 3, the week 3 alarm irq
pending bit will be set to “1”.
2
R/W
0x0
WK2_ALM1_EN.
Week 2 (Wednesday) Alarm 1 Enable.
0: Disable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 183
1: Enable
If this bit is set to “1”, only when the bit[20:0] Alarm 1 Week HH-MM-SS
Register valid bits are equal to the bit[20:0] of RTC HH-MM-SS Register
and the bit [31:29] of RTC HH-MM-SS Register is 2, the week 2 alarm irq
pending bit will be set to “1”.
1
R/W
0x0
WK1_ALM1_EN.
Week 1 (Tuesday) Alarm 1 Enable.
0: Disable
1: Enable
If this bit is set to “1”, only when the bit[20:0] Alarm 1 Week HH-MM-SS
Register valid bits are equal to the bit[20:0] of RTC HH-MM-SS Register
and the bit [31:29] of RTC HH-MM-SS Register is 1, the week 1 alarm irq
pending bit will be set to “1”.
0
R/W
0x0
WK0_ALM1_EN.
Week 0 (Monday) Alarm 1 Enable.
0: Disable
1: Enable
If this bit is set to “1”, only when the bit[20:0] Alarm 1 Week HH-MM-SS
Register valid bits are equal to the bit[20:0] of RTC HH-MM-SS Register
and the bit [31:29] of RTC HH-MM-SS Register is 0, the week 0 alarm irq
pending bit will be set to “1”.
3.8.3.13. Alarm 1 IRQ Enable Register (Default Value: 0x00000000)
Offset:0x48
Register Name: ALARM1_IRQ_EN
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
ALARM1_IRQ_EN.
Alarm 1 IRQ Enable.
0: Disable
1: Enable
3.8.3.14. Alarm 1 IRQ Status Register (Default Value: 0x00000000)
Offset:0x4C
Register Name: ALARM1_IRQ_STA_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
ALARM1_WEEK_IRQ_PEND.
Alarm 1 Week (0/1/2/3/4/5/6) IRQ Pending.
0: No effect
1: Pending, week counter value is reached
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 184
If alarm 1 week irq enable is set to 1, the pending bit will be sent to the
interrupt controller.
3.8.3.15. Alarm Config Register (Default Value: 0x00000000)
Offset:0x50
Register Name: ALARM_CONFIG_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
ALARM_WAKEUP.
Configuration of alarm wake up output.
0: Disable alarm wake up output
1: Enable alarm wake up output
3.8.3.16. LOSC Output Gating Register (Default Value: 0x00000000)
Offset:0x60
Register Name: LOSC_OUT_GATING_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
LOSC_OUT_GATING.
Configuration of LOSC output, and no LOSC output by default.
0: Enable LOSC output gating
1: Disable LOSC output gating
3.8.3.17. General Purpose Register (Default Value: 0x00000000)
Offset:0x100+N *0x4
(N=0~7)
Register Name: GP_DATA_REGn
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
GP_DATA.
Data [31:0].
Note: General purpose register 0~7 value can be stored if the VCC-RTC is larger than 1.0v.
3.8.3.18. GPL Hold Output Register (Default Value: 0x00000000)
Offset:0x180
Register Name: GPL_HOLD_OUTPUT_REG
Bit
R/W
Default/Hex
Description
31:12
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 185
11
R/W
0x0
GPL11_HOLD_OUTPUT.
Hold the output of GPIOL11 when system’s power is changing. The
output must be low level (0) or high level (1) or High-Z; any other
outputs may not hold on.
0: Hold disable
1: Hold enable
10
R/W
0x0
GPL10_HOLD_OUTPUT.
Hold the output of GPIOL10 when system’s power is changing. The
output must be low level (0) or high level (1) or High-Z; any other
outputs may not hold on.
0: Hold disable
1: Hold enable
9
R/W
0x0
GPL9_HOLD_OUTPUT.
Hold the output of GPIOL9 when system’s power is changing. The output
must be low level (0) or high level (1) or High-Z; any other outputs may
not hold on.
0: Hold disable
1: Hold enable
8
R/W
0x0
GPL8_HOLD_OUTPUT.
Hold the output of GPIOL8 when system’s power is changing. The output
must be low level (0) or high level (1) or High-Z; any other outputs may
not hold on.
0: Hold disable
1: Hold enable
7
R/W
0x0
GPL7_HOLD_OUTPUT.
Hold the output of GPIOL7 when system’s power is changing. The output
must be low level (0) or high level (1) or High-Z; any other outputs may
not hold on.
0: Hold disable
1: Hold enable
6
R/W
0x0
GPL6_HOLD_OUTPUT.
Hold the output of GPIOL6 when system’s power is changing. The output
must be low level (0) or high level (1) or High-Z; any other outputs may
not hold on.
0: Hold disable
1: Hold enable
5
R/W
0x0
GPL5_HOLD_OUTPUT.
Hold the output of GPIOL5 when system’s power is changing. The output
must be low level (0) or high level (1) or High-Z; any other outputs may
not hold on.
0: Hold disable
1: Hold enable
4
R/W
0x0
GPL4_HOLD_OUTPUT.
Hold the output of GPIOL4 when system’s power is changing. The
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 186
outputs must be low level (0) or high level (1) or High-Z; any other
output may not hold on.
0: Hold disable
1: Hold enable
3
R/W
0x0
GPL3_HOLD_OUTPUT.
Hold the output of GPIOL3 when system’s power is changing. The output
must be low level (0) or high level (1) or High-Z; any other outputs may
not hold on.
0: Hold disable
1: Hold enable
2
R/W
0x0
GPL2_HOLD_OUTPUT.
Hold the output of GPIOL2 when system’s power is changing. The output
must be low level (0) or high level (1) or High-Z; any other outputs may
not hold on.
0: Hold disable
1: Hold enable
1
R/W
0x0
GPL1_HOLD_OUTPUT.
Hold the output of GPIOL1 when system’s power is changing. The output
must be low level (0) or high level (1) or High-Z; any other outputs may
not hold on.
0: Hold disable
1: Hold enable
0
R/W
0x0
GPL0_HOLD_OUTPUT.
Hold the output of GPIOL0 when system’s power is changing. The output
must be low level (0) or high level (1) or High-Z; any other outputs may
not hold on.
0: Hold disable
1: Hold enable
3.8.3.19. VDD RTC Regulation Register (Default Value: 0x00000004)
Offset:0x190
Register Name: VDD_RTC_REG
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2:0
R/W
0x100
VDD_RTC_REGU.
These bits are useful for regulating the RTC_VIO from 0.7v to 1.4v, and
the regulation step is 0.1v.
000: 0.7v
001: 0.8v
010: 0.9v
011: 1.0v
100: 1.1v
101: 1.2v
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 187
110: 1.3v
111: 1.4v
3.8.3.20. IC Characteristic Register (Default Value: 0x00000000)
Offset:0x1F0
Register Name: IC_CHARA_REG
Bit
Read/Write
Default/Hex
Description
31:16
R/W
0x0
IC_CHARA.
Key Field.
Should be written at value 0x16AA. Writing any other value in this field
aborts the write operation.
15:0
R/W
0x0
ID_DATA.
Return 0x16AA only if the KEY_FIELD is set as 0x16AA when read those
bits, otherwise return 0x0.
3.8.3.21. Crypt Configuration Register (Default Value: 0x00000000)
Offset:0x210
Register Name: CRY_CONFIG_REG
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0
KEY_FIELD
Key Field
3.8.3.22. Crypt Key Register (Default Value: 0x00000000)
Offset:0x214
Register Name: CRY_KEY_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
CRY_KEY
Crypt Key
3.8.3.23. Crypt Enable Register (Default Value: 0x00000000)
Offset:0x218
Register Name: CRY_CONFIG_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
CRY_EN
Crypt enable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 188
3.9. High-speed Timer
3.9.1. Overview
High Speed Timer' clock source is fixed to AHBCLK, which is much higher than OSC24M and so this kind of
timer is called High Speed Timer. Compared with other timers, High Speed Timer calculates much more
accurately. When the relevant bit in the Control Register is set 1, hstimer goes into the test mode, which is
used to System Simulation. While the current value in both LO and HI Current Value Register are counting
down to zero, the timer will generate interrupt if set interrupt enable bit.
The High Speed Timer includes the following features:
1 HSTimer with individual 56-bit counter
HSTimer could generate a pending
Clock source is synchronized with AHB clock, which means calculating much more accurate than other
timers
Support Test Mode for System Simulation
3.9.2. Operation Principle
3.9.2.1. HSTimer clock gating and software reset
By default the HSTimer clock gating is mask. When it is necessary to use HSTimer, it’s clock gating should be
open in Bus Clock Gating Register0 and then de-assert the software reset in Bus Software Reset Register 0 on
CCU module. If it is no need to use HSTimer, both the gating bit and software reset bit should be set 0.
3.9.2.2. HSTimer reload bit
Differing from the reload of Timer, when interval value is reloaded into HS Timer Current Value Lo Register
and HS Timer Current Value Hi Register, the Reload bit would not turn to 0 automatically until you clear it. If
software hopes the HS Timer Current Value Lo Register and HS Timer Current Value Hi Register to
down-count from the new Interval Value in pause status, the Reload bit and the Enable bit should be written 1
at the same time.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 189
3.9.3. HSTimer Block Diagram
Figure 3-7. HSTimer function structure and work flow
HSTimer has two work modes and two count modes. n_mode is used for normal counting and Test mode is
used in System Simulation. Each work mode has the two count mode: Single mode and Continuous mode.
These two count modes have the same principle with Timers’, which means when Current Value counts down
to 0, HSTimer will be disable in Single mode ,but HSTimer will not be disable and counts from Interval value
again in Continuous mode. About HSTimer 56-bit counter, it is combined with a high 24-bit counter(HS Timer
Current Value Hi Register) and a low 32-bit counter(HS Timer Current Value Lo Register).
3.9.4. HSTimer Register List
Module Name
Base Address
High Speed Timer
0x01C60000
Register Name
Offset
Description
HS_TMR_IRQ_EN_REG
0x00
HS Timer IRQ Enable Register
HS_TMR_IRQ_STAS_REG
0x04
HS Timer Status Register
HS_TMR_CTRL_REG
0x10
HS Timer Control Register
HS_TMR_INTV_LO_REG
0x14
HS Timer Interval Value Low Register
HS_TMR_INTV_HI_REG
0x18
HS Timer Interval Value High Register
HS_TMR_CURNT_LO_REG
0x1C
HS Timer Current Value Low Register
HS_TMR_CURNT_HI_REG
0x20
HS Timer Current Value High Register
3.9.5. HSTimer Register Description
3.9.5.1. HS Timer IRQ Enable Register (Default Value: 0x00000000)
Offset:0x0
Register Name: HS_TMR_IRQ_EN_REG
Bit
R/W
Default/Hex
Description
Test mode
/
1
/
2
/
4
/
8
/
16
AHBCLK
n
_
mode
HSTimer
Single
mode
Continuous
mode
Interval Value
Enable
IV
=
0
?
Pending
IRQ EN
IRQ
Yes
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 190
31:1
/
/
/
0
R/W
0x0
HS_TMR_INT_EN.
High Speed Timer Interrupt Enable.
0: No effect;
1: High Speed Timer Interval Value reached interrupt enable.
3.9.5.2. HS Timer IRQ Status Register (Default Value: 0x00000000)
Offset:0x4
Register Name: HS_TMR_IRQ_STAS_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
HS_TMR_IRQ_PEND.
High Speed Timer IRQ Pending. Set 1 to the bit will clear it.
0: No effect;
1: Pending, High speed timer interval value is reached.
3.9.5.3. HS Timer Control Register (Default Value: 0x00000000)
Offset:0x10
Register Name: HS_TMR_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
HS_TMR_TEST.
High speed timer test mode. In test mode, the low register should be set
to 0x1, the high register will down counter. The counter needs to be
reloaded.
0: normal mode;
1: test mode.
30:8
/
/
/
7
R/W
0x0
HS_TMR_MODE.
High Speed Timer mode.
0: Continuous mode. When interval value reached, the timer will not
disable automatically.
1: Single mode. When interval value reached, the timer will disable
automatically.
6:4
R/W
0x0
HS_TMR_CLK
Select the pre-scale of the high speed timer clock sources.
000: /1
001: /2
010: /4
011: /8
100: /16
101: /
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 191
110: /
111: /
3:2
/
/
/
1
R/W
0x0
HS_TMR_RELOAD.
High Speed Timer Reload.
0: No effect
1: Reload High Speed Timer Interval Value.
0
R/W
0x0
HS_TMR_EN.
High Speed Timer Enable.
0: Stop/Pause
1: Start.
If the timer is started, it will reload the interval value to internal register,
and the current counter will count from interval value to 0.
If the current counter does not reach the zero, the timer enable bit is set
to “0”, the current value counter will pause. At least wait for 2 cycles, the
start bit can be set to 1.
In timer pause state, the interval value register can be modified. If the
timer is started again, and the Software hope the current value register to
down-count from the new interval value, the reload bit and the enable bit
should be set to 1 at the same time.
3.9.5.4. HS Timer Interval Value Lo Register
Offset:0x14
Register Name: HS_TMR_INTV_LO_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
x
HS_TMR_INTV_VALUE_LO.
High Speed Timer Interval Value [31:0].
3.9.5.5. HS Timer Interval Value Hi Register
Offset:0x18
Register Name: HS_TMR_INTV_HI_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
R/W
x
HS_TMR_INTV_VALUE_HI.
High Speed Timer Interval Value [55:32].
Note:The interval value register is a 56-bit register. When read or write the interval value, the Lo register
should be read or write first. And the Hi register should be written after the Lo register.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 192
3.9.5.6. HS Timer Current Value Lo Register
Offset:0x1C
Register Name: HS_TMR_CURNT_LO_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
x
HS_TMR_CUR_VALUE_LO.
High Speed Timer Current Value [31:0].
3.9.5.7. HS Timer Current Value Hi Register
Offset:0x20
Register Name: HS_TMR_CURNT_HI_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
R/W
x
HS_TMR_CUR_VALUE_HI.
High Speed Timer Current Value [55:32].
Note1:HSTimer current value is a 56-bit down-counter (from interval value to 0).
Note2:The current value register is a 56-bit register. When read or write the current value, the Lo register
should be read or write first.
3.9.6. Programming Guidelines
Take making a 1us delay using HSTimer for an instance as follow, AHB1CLK will be configurated as 100MHz and
n_mode, Single mode and 2 pre-scale will be selected in this instance.
writel(0x0, HS_TMR_INTV_HI_REG); //Set interval value Hi 0x0
writel(0x32, HS_TMR_INTV_LO_REG); //Set interval value Lo 0x32
writel(0x90, HS_TMR_CTRL_REG); //Select n_mode,2 pre-scale,single mode
writel(readl(HS_TMR_CTRL_REG)|(1<<1), HS_TMR_CTRL_REG); //Set Reload bit
writel(readl(HS_TMR_CTRL_REG)|(1<<0), HS_TMR_CTRL_REG); //Enable HSTimer
While(!(readl(HS_TMR_IRQ_STAS_REG)&1)); //Wait for HSTimer to generate pending
Writel(1, HS_TMR_IRQ_STAS_REG); //Clear HSTimer pending
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 193
3.10. PWM
3.10.1. Overview
The output of the PWM is a toggling signal whose frequency and duty cycle can be modulated by its
programmable registers. Each channel has a dedicated internal 16-bit up counter. If the counter reaches the
value stored in PWM Channel 0 Period Register, it resets. At the beginning of a count period cycle, the
PWMOUT is set to active state and count from 0x0.
The PWM includes the following features:
Support outputting 2 kinds of waveform: continuous waveform and pulse waveform
0% to 100% adjustable duty cycle
0Hz to 24MHz output frequency
3.10.2. PWM Block Diagram
Cycle Mode
Entire cycles
Active low
Active cycles
Pulse Mode
Active high
Active cycles
Figure 3-8. PWM Block Diagram
The PWM divider divides the clock (24MHz) by 1-64 according to the pre-scalar bits in the PWM control
register. The PWM output Frequency can be divided by 65536 at most. In PWM cycle mode, the output will be
a square waveform; the frequency is set to the period register. In PWM pulse mode, the output will be a
positive pulse or a negative pulse.
In cycle mode PWM outputs continuous waveform and in pulse mode it outputs a pulse waveform. Each PWM
channel has 2 16-bit up counters exiting in corresponding Period Register, whose [31:16] bits indicate one
16-bit up counter for counting entire cycles and [15:0] bits indicate the other 16-bit up counter for counting
active cycles.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 194
3.10.3. PWM Register List
Module Name
Base Address
PWM
0x01C21400
Register Name
Offset
Description
PWM_CH_CTRL
0x00
PWM Control Register
PWM_CH0_PERIOD
0x04
PWM Channel 0 Period Register
3.10.4. PWM Register Description
3.10.4.1. PWM Control Register(Default Value: 0x00000000)
Offset:0x0
Register Name: PWM_CTRL_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/.
28
RO
0x0
PWM0_RDY.
PWM0 period register ready.
0: PWM0 period register is ready to write,
1: PWM0 period register is busy.
27:10
/
/
/
9
R/W
0x0
PWM0_BYPASS.
PWM CH0 bypass enable.
If the bit is set to 1, PWM0’s output is OSC24MHz.
0: disable,
1: enable.
8
R/W
0x0
PWM_CH0_PUL_START.
PWM Channel 0 pulse output start.
0: no effect,
1: output 1 pulse.
The pulse width should be according to the period 0 register[15:0],and
the pulse state should be according to the active state.
After the pulse is finished,the bit will be cleared automatically.
7
R/W
0x0
PWM_CHANNEL0_MODE.
0: cycle mode,
1: pulse mode.
6
R/W
0x0
SCLK_CH0_GATING.
Gating the Special Clock for PWM0(0: mask, 1: pass).
5
R/W
0x0
PWM_CH0_ACT_STA.
PWM Channel 0 Active State.
0: Low Level,
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 195
1: High Level.
4
R/W
0x0
PWM_CH0_EN.
PWM Channel 0 Enable.
0: Disable,
1: Enable.
3:0
R/W
0x0
PWM_CH0_PRESCAL.
PWM Channel 0 Prescalar.
These bits should be setting before the PWM Channel 0 clock gate on.
0000: /120
0001: /180
0010: /240
0011: /360
0100: /480
0101: /
0110: /
0111: /
1000: /12k
1001: /24k
1010: /36k
1011: /48k
1100: /72k
1101: /
1110: /
1111: /1
3.10.4.2. PWM Channel 0 Period Register
Offset:0x4
Register Name: PWM_CH0_PERIOD
Bit
R/W
Default/Hex
Description
31:16
R/W
x
PWM_CH0_ENTIRE_CYS
Number of the entire cycles in the PWM clock.
0 = 1 cycle
1 = 2 cycles
……
N = N+1 cycles
If the register need to be modified dynamically, the PCLK should be
faster than the PWM CLK (PWM CLK = 24MHz/pre-scale).
15:0
R/W
x
PWM_CH0_ENTIRE_ACT_CYS
Number of the active cycles in the PWM clock.
0 = 0 cycle
1 = 1 cycles
……
N = N cycles
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 196
3.11. DMA
3.11.1. Overview
There are 8 DMA channels in the chip. Each DMA channel can generate interrupts. According to different
pending status, the referenced DMA channel generates corresponding interrupt. And, the configuration
information of every DMA channel are storing in the DDR or SRAM. When start a DMA transferring, the DMA
Channel Descriptor Address Register contains the address information in the DDR or SRAM, where has the
relevance configuration information of the DMA transferring.
3.11.2. Functionalities Description
3.11.2.1. Block Diagram
Source
Address
Configuration
Destination
Address
Byte Counter
Link
Descriptor information Pending Status
Pkg-pend
End-pend
Commity
Parameter
Half-pend
Request DMA
Any
Idle?
Write Descriptor
Address and Start DMA
Transferring Package
Pause?
Link=fffff 800?
DMA Transfer Progress
Prepare Descriptor Data
1
Link
2
Link
3
Link
4
0xfffff 800
Pkg-pend
Half-pend
Pkg-pend
Half-pend
Pkf-pend
Half-pend
After transferring a half data of a pkg, the pkg half pending bit would set up
After transferring all data of pkg, the pkg end pending bit would set up
After finishing a transmission, the queue end pending bit would set up
Link is used to storing next descriptor address or transmission end flag (0xfffff800)
Pkg-pend
Half-pend
Yes
Resume
No
No
End-pend
Transmission Finish
DMA
DMAC obtains
Descriptor information
Figure 3-9. DMA Block Diagram
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 197
3.11.2.2. DRQ Type and Corresponding Relation
Table 3-1. DMA DRQ Table
Source DRQ Type
Destination DRQ Type
Port NO.
Module Name
Port NO.
Module Name
Port 0
SRAM
Port 0
SRAM
Port 1
SDRAM
Port 1
SDRAM
Port 2
/
Port 2
OWA_TX
Port 3
I2S/PCM_0_RX
Port 3
I2S/PCM_0_TX
Port 4
I2S/PCM_1_RX
Port 4
I2S/PCM_1_TX
Port 5
NAND
Port 5
NAND
Port 6
UART0_RX
Port 6
UART0_TX
Port 7
UART1_RX
Port 7
UART1_TX
Port 8
UART2_RX
Port 8
UART2_TX
Port 9
UART3_RX
Port 9
UART3_TX
Port 10
UART4_RX
Port 10
UART4_TX
Port 11
/
Port 11
/
Port 12
/
Port 12
/
Port 13
/
Port 13
/
Port 14
/
Port 14
/
Port 15
Audio Codec
Port 15
Audio Codec
Port 16
/
Port 16
/
Port 17
USB OTG_EP1
Port 17
USB OTG_EP1
Port 18
USB OTG_EP2
Port 18
USB OTG_EP2
Port 19
USB OTG_EP3
Port 19
USB OTG_EP3
Port20
USB OTG_EP4
Port 20
USB OTG_EP4
Port 21
USB OTG_EP5
Port 21
USB OTG_EP5
Port 22
/
Port 22
/
Port 23
SPI0_RX
Port 23
SPI0_TX
Port 24
SPI1_RX
Port 24
SPI1_TX
Port 25
Port 25
Port 26
Port 26
Port 27
Port 27
I2S/PCM_2_TX
Port 28
Port 28
Port 29
Port 29
Port 30
Port 30
3.11.2.3. DMA Descriptor
In this section, the DMA descriptor registers will be introduced in detail.
When starting a DMA transmission, the module data are transferred as packages, which have the link data
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 198
information. And, by reading the DMA Status Register, the status of a DMA channel could be known. Reading
back the DMA Channel Descriptor Address Register, the value is the link data in the transferring package. If
only the value is equal to 0x1ffff800, then it can be regarded as NULL, which means the package is the last
package in this DMA transmission. Otherwise, the value means the start address of the next package. And
DMA Channel Descriptor Address Register can be changed during a package transferring.
When transferring the half of a package, the relevant pending bit will be set up automatically, and if the
corresponding interrupt is enabled, DMA generates an interrupt to the system. The similar thing would occur
when transferring a package completely. Meanwhile, if DMA have transferred the last package in the data, the
relevant pending bit would be set up, and generates an interrupt if the corresponding interrupt is enabled. The
flow-process diagram is showed in Block Diagram section.
During a DMA transmission, the configuration could be obtained via DMA Channel Configuration Register. And,
behind the address of the config register in DDR or SRAM, there are some registers including other information
of a DMA transmission. The structure chart is showed in Block Diagram section. Also, other information of a
transferring data can be obtained by reading the DMA Channel Current Source Address Register, DMA
Channel Current Destination Address Register and DMA Channel Byte Counter Left Register. The
configuration must be word-aligning.
The transferring data would be paused when setting up the relevant Pause Register, if coming up emergency.
And the pausing data could be presumable when set 0 to the same bit in Pause Register.
3.11.3. DMA Register List
Module Name
Base Address
DMA
0x01C02000
Register Name
Offset
Description
DMA_IRQ_EN_REG
0x00
DMA IRQ Enable Register
DMA_IRQ_PEND_REG
0x10
DMA IRQ Pending Register
DMA_SEC_REG
0x20
DMA Security Register
DMA_AUTO_GATE_REG
0x28
DMA Auto Gating Register
DMA_STA_REG
0x30
DMA Status Register
DMA_EN_REG
0x100+N*0x40
DMA Channel Enable Register
(N=0~7)
DMA_PAU_REG
0x100+N*0x40+0x4
DMA Channel Pause Register
(N=0~7)
DMA_DESC_ADDR_REG
0x100+N*0x40+0x8
DMA Channel Start Address Register
(N=0~7)
DMA_CFG_REG
0x100+N*0x40+0xC
DMA Channel Configuration Register
(N=0~7)
DMA_CUR_SRC_REG
0x100+N*0x40+0x10
DMA Channel Current Source Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 199
(N=0~7)
DMA_CUR_DEST_REG
0x100+N*0x40+0x14
DMA Channel Current Destination Register
(N=0~7)
DMA_BCNT_LEFT_REG
0x100+N*0x40+0x18
DMA Channel Byte Counter Left Register
(N=0~7)
DMA_PARA_REG
0x100+N*0x40+0x1C
DMA Channel Parameter Register
(N=0~7)
DMA Mode Register
0x100+N*0x40+0x28
DMA_MODE_REG
(N=0~7)
DMA_FDESC_ADDR_REG
0x100+N*0x40+0x2C
DMA Formar Descriptor Address Register
(N=0~7)
DMA_PKG_NUM_REG
0x100+N*0x40+0x30
DMA Package Number Register
(N=0~7)
3.11.4. DMA Register Description
3.11.4.1. DMA IRQ Enable Register (Default Value: 0x00000000)
Offset: 0x0000
Register Name: DMA_IRQ_EN_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30
R/W
0x0
DMA7_QUEUE_IRQ_EN
DMA 7 Queue End Transfer Interrupt Enable.
0: Disable, 1: Enable.
29
R/W
0x0
DMA7_PKG_IRQ_EN
DMA 7 Package End Transfer Interrupt Enable.
0: Disable, 1: Enable.
28
R/W
0x0
DMA7_HLAF_IRQ_EN
DMA 7 Half Package Transfer Interrupt Enable.
0: Disable, 1: Enable.
27
/
/
/
26
R/W
0x0
DMA6_QUEUE_IRQ_EN
DMA 6 Queue End Transfer Interrupt Enable.
0: Disable, 1: Enable.
25
R/W
0x0
DMA6_PKG_IRQ_EN
DMA 6 Package End Transfer Interrupt Enable.
0: Disable, 1: Enable.
24
R/W
0x0
DMA6_HLAF_IRQ_EN
DMA 6 Half Package Transfer Interrupt Enable.
0: Disable, 1: Enable.
23
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 200
22
R/W
0x0
DMA5_QUEUE_IRQ_EN
DMA 5 Queue End Transfer Interrupt Enable.
0: Disable, 1: Enable.
21
R/W
0x0
DMA5_PKG_IRQ_EN
DMA 5 Package End Transfer Interrupt Enable.
0: Disable, 1: Enable.
20
R/W
0x0
DMA5_HLAF_IRQ_EN
DMA 5 Half package Transfer Interrupt Enable.
0: Disable, 1: Enable.
19
/
/
/
18
R/W
0x0
DMA4_QUEUE_IRQ_EN
DMA 4 Queue End Transfer Interrupt Enable.
0: Disable, 1: Enable.
17
R/W
0x0
DMA4_PKG_IRQ_EN
DMA 4 Package End Transfer Interrupt Enable.
0: Disable, 1: Enable.
16
R/W
0x0
DMA4_HLAF_IRQ_EN
DMA 4 Half Package Transfer Interrupt Enable.
0: Disable, 1: Enable.
15
/
/
/
14
R/W
0x0
DMA3_QUEUE_IRQ_EN
DMA 3 Queue End Transfer Interrupt Enable.
0: Disable, 1: Enable.
13
R/W
0x0
DMA3_PKG_IRQ_EN
DMA 3 Package End Transfer Interrupt Enable.
0: Disable, 1: Enable.
12
R/W
0x0
DMA3_HLAF_IRQ_EN
DMA 3 Half Package Transfer Interrupt Enable.
0: Disable, 1: Enable.
11
/
/
/
10
R/W
0x0
DMA2_QUEUE_IRQ_EN
DMA 2 Queue End Transfer Interrupt Enable.
0: Disable, 1: Enable.
9
R/W
0x0
DMA2_PKG_IRQ_EN
DMA 2 Package End Transfer Interrupt Enable.
0: Disable, 1: Enable.
8
R/W
0x0
DMA2_HLAF_IRQ_EN
DMA 2 Half Package Transfer Interrupt Enable.
0: Disable, 1: Enable.
7
/
/
/
6
R/W
0x0
DMA1_QUEUE_IRQ_EN
DMA 1 Queue End Transfer Interrupt Enable.
0: Disable, 1: Enable.
5
R/W
0x0
DMA1_PKG_IRQ_EN
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 201
DMA 1 Package End Transfer Interrupt Enable.
0: Disable, 1: Enable.
4
R/W
0x0
DMA1_HLAF_IRQ_EN
DMA 1 Half Package Transfer Interrupt Enable.
0: Disable, 1: Enable.
3
/
/
/
2
R/W
0x0
DMA0_QUEUE_IRQ_EN
DMA 0 Queue End Transfer Interrupt Enable.
0: Disable, 1: Enable.
1
R/W
0x0
DMA0_PKG_IRQ_EN
DMA 0 Package End Transfer Interrupt Enable.
0: Disable, 1: Enable.
0
R/W
0x0
DMA0_HLAF_IRQ_EN
DMA 0 Half Package Transfer Interrupt Enable.
0: Disable, 1: Enable
3.11.4.2. DMA IRQ Pending Status Register0 (Default Value: 0x00000000)
Offset:0x10
Register Name: DMA_IRQ_PEND_REG0
Bit
R/W
Default/Hex
Description
31
/
/
/
30
R/W
0x0
DMA7_QUEUE_IRQ_PEND.
DMA 7 Queue End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
29
R/W
0x0
DMA7_PKG_IRQ_ PEND
DMA 7 Package End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
28
R/W
0x0
DMA7_HLAF_IRQ_PEND.
DMA 7 Half Package Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
27
/
/
/
26
R/W
0x0
DMA6_QUEUE_IRQ_PEND.
DMA 6 Queue End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
25
R/W
0x0
DMA6_PKG_IRQ_ PEND
DMA 6 Package End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 202
24
R/W
0x0
DMA6_HLAF_IRQ_PEND.
DMA 6 Half Package Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
23
/
/
/
22
R/W
0x0
DMA5_QUEUE_IRQ_PEND.
DMA 5 Queue End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
21
R/W
0x0
DMA5_PKG_IRQ_ PEND
DMA 5 Package End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
20
R/W
0x0
DMA5_HLAF_IRQ_PEND.
DMA 5 Half Package Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
19
/
/
/
18
R/W
0x0
DMA4_QUEUE_IRQ_PEND.
DMA 4 Queue End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
17
R/W
0x0
DMA4_PKG_IRQ_ PEND
DMA 4 Package End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
16
R/W
0x0
DMA4_HLAF_IRQ_PEND.
DMA 4 Half Package Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
15
/
/
/
14
R/W
0x0
DMA3_QUEUE_IRQ_PEND.
DMA 3 Queue End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
13
R/W
0x0
DMA3_PKG_IRQ_ PEND
DMA 3 Package End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
12
R/W
0x0
DMA3_HLAF_IRQ_PEND.
DMA 3 Half Package Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
11
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 203
10
R/W
0x0
DMA2_QUEUE_IRQ_PEND.
DMA 2 Queue End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
9
R/W
0x0
DMA2_PKG_IRQ_ PEND
DMA 2 Package End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
8
R/W
0x0
DMA2_HLAF_IRQ_PEND.
DMA 2 Half Package Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
7
/
/
/
6
R/W
0x0
DMA1_QUEUE_IRQ_PEND.
DMA 1 Queue End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
5
R/W
0x0
DMA1_PKG_IRQ_ PEND
DMA 1 Package End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
4
R/W
0x0
DMA1_HLAF_IRQ_PEND.
DMA 1 Half Package Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
3
/
/
/
2
R/W
0x0
DMA0_QUEUE_IRQ_PEND.
DMA 0 Queue End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
1
R/W
0x0
DMA0_PKG_IRQ_ PEND
DMA 0 Package End Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
0
R/W
0x0
DMA0_HLAF_IRQ_PEND.
DMA 0 Half Package Transfer Interrupt Pending. Set 1 to the bit will clear
it.
0: No effect, 1: Pending.
3.11.4.3. DMA Security Register (Default Value: 0x00000000)
Offset:0x20
Register Name: DMA_SECURE_REG
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 204
31:8
/
/
/
7
R/W
0x0
DMA7_SEC
DMA channel 7 security.
0: Secure,
1: Non-secure.
6
R/W
0x0
DMA6_SEC
DMA channel 6 security.
0: Secure,
1: Non-secure.
5
R/W
0x0
DMA5_SEC
DMA channel 5 security.
0: Secure,
1: Non-secure.
4
R/W
0x0
DMA4_SECURE.
Indicating DMA 4 security.
0: Secure,
1: Non-secure.
3
R/W
0x0
DMA3_SECURE.
Indicating DMA 3 security.
0: Secure,
1: Non-secure.
2
R/W
0x0
DMA2_SECURE.
Indicating DMA 2 security.
0: Secure,
1: Non-secure.
1
R/W
0x0
DMA1_SECURE.
Indicating DMA 1 security.
0: Secure,
1: Non-secure.
0
R/W
0x0
DMA0_SECURE.
Indicating DMA 0 security.
0: Secure,
1: Non-secure.
3.11.4.4. DMA Auto Gating Register (Default Value: 0x00000000)
Offset:0x28
Register Name: DMA_AUTO_GATE_REG
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2
R/W
0x0
DMA_MCLK_CIRCUIT.
DMA MCLK interface circuit auto gating bit.
0: Auto gating enable
1: Auto gating disable.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 205
1
R/W
0x0
DMA_COMMON_CIRCUIT.
DMA common circuit auto gating bit.
0: Auto gating enable
1: Auto gating disable.
0
R/W
0x0
DMA_CHAN_CIRCUIT.
DMA channel circuit auto gating bit.
0: Auto gating enable
1: Auto gating disable.
3.11.4.5. DMA Status Register (Default Value: 0x00000000)
Offset:0x30
Register Name: DMA_STA_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30
RO
0x0
MBUS FIFO Status
0:Empty
1:Not Empty
29:8
/
/
/
7
RO
0x0
DMA7_STATUS
DMA Channel 7 Status.
0: Idle
1: Busy
6
RO
0x0
DMA6_STATUS
DMA Channel 6 Status.
0: Idle
1: Busy
5
RO
0x0
DMA5_STATUS
DMA Channel 5 Status.
0: Idle
1: Busy
4
RO
0x0
DMA4_STATUS
DMA Channel 4 Status.
0: Idle
1: Busy.
3
RO
0x0
DMA3_STATUS
DMA Channel 3 Status.
0: Idle
1: Busy.
2
RO
0x0
DMA2_STATUS
DMA Channel 2 Status.
0: Idle,
1: Busy.
1
RO
0x0
DMA1_STATUS
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 206
DMA Channel 1 Status.
0: Idle,
1: Busy.
0
RO
0x0
DMA0_STATUS
DMA Channel 0 Status.
0: Idle,
1: Busy.
3.11.4.6. DMA Channel Enable Register (Default Value: 0x00000000)
Offset: 0x100+N*0x40+0x0(N=0~7)
Register Name: DMA_EN_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
DMA_EN.
DMA Channel Enable
0: Disable
1: Enable.
3.11.4.7. DMA Channel Pause Register (Default Value: 0x00000000)
Offset: 0x100+N*0x40+0x4(N=0~7)
Register Name: DMA_PAU_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
DMA_PAUSE.
Pausing DMA Channel Transfer Data.
0: Resume Transferring,
1: Pause Transferring.
3.11.4.8. DMA Channel Descriptor Address Register (Default Value: 0x00000000)
Offset: 0x100+N*0x40+0x8(N=0~7)
Register Name: DMA_DESC_ADDR_REG
Bit
R/W
Default/Hex
Description
31:1
R/W
0x0
DMA_DESC_ADDR
DMA Channel Descriptor Address.
The Descriptor Address must be half-word aligned before DMA enable.
0
R/W
0x0
DMA_DESCPT_ADDR_HIGH.
This bit would be used to storing [32] bits of the descriptor address, if it
is necessary. Otherwise, it should be 0.
Note:After DMA channel completed all data transmission,the final value of the register is 0xFFFFF800.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 207
3.11.4.9. DMA Channel Configuration Register (Default Value: 0x00000000)
Offset: 0x100+N*0x40+0xC(N=0~7)
Register Name: DMA_CFG_REG
Bit
R/W
Default/Hex
Description
31:27
/
/
/
26:25
RO
0x0
DMA_DEST_DATA_WIDTH.
DMA Destination Data Width.
00: 8-bit
01: 16-bit
10: 32-bit
11: 64-bit
24
/
/
/
23:22
RO
0x0
DMA_DEST_BLOCK_SIZE.
DMA Destination Block Size.
00: 1
01: 4
10: 8
11: 16
21
RO
0x0
DMA_ADDR_MODE.
DMA Destination Address Mode
0: Linear Mode
1: IO Mode
20:16
RO
0x0
DMA_DEST_DRQ_TYPE.
DMA Destination DRQ Type
The details in DRQ Type and Port Corresponding Relation.
15:11
/
/
/
10:9
RO
0x0
DMA_SRC_DATA_WIDTH.
DMA Source Data Width.
00: 8-bit
01: 16-bit
10: 32-bit
11: 64-bit
8
/
/
/
7:6
RO
0x0
DMA_SRC_BLOCK_SIZE.
DMA Source Block Size.
00: 1
01: 4
10: 8
11: 16
5
RO
0x0
DMA_SRC_ADDR_MODE.
DMA Source Address Mode
0: Linear Mode
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 208
1: IO Mode
4:0
RO
0x0
DMA_SRC_DRQ_TYPE.
DMA Source DRQ Type
The details in DRQ Type and Port Corresponding Relation.
3.11.4.10. DMA Channel Current Source Address Register (Default Value: 0x00000000)
Offset: 0x100+N*0x40+0x10(N=0~7)
Register Name: DMA_CUR_SRC_REG
Bit
R/W
Default/Hex
Description
31:0
RO
0x0
DMA_CUR_SRC.
DMA Channel Current Source Address, read only.
3.11.4.11. DMA Channel Current Destination Address Register (Default Value: 0x00000000)
Offset: 0x100+N*0x40+0x14(N=0~7)
Register Name: DMA_CUR_DEST_REG
Bit
R/W
Default/Hex
Description
31:0
RO
0x0
DMA_CUR_DEST.
DMA Channel Current Destination Address, read only.
3.11.4.12. DMA Channel Byte Counter Left Register (Default Value: 0x00000000)
Offset: 0x100+N*0x40+0x18(N=0~7)
Register Name: DMA_BCNT_LEFT_REG
Bit
R/W
Default/Hex
Description
31:25
/
/
/
24:0
RO
0x0
DMA_BCNT_LEFT.
DMA Channel Byte Counter Left, read only.
3.11.4.13. DMA Channel Parameter Register (Default Value: 0x00000000)
Offset: 0x100+N*0x40+0x1C(N=0~7)
Register Name: DMA_PARA_REG
Bit
R/W
Default/Hex
Description
31:19
/
/
/
18
RO
0x0
DMA_DST_HBIT_ADDR.
17
/
/
/
16
RO
0x0
DMA_SRC_HBIT_ADDR.
15:8
/
/
/
7:0
RO
0x0
WAIT_CLK_CYCLE.
Wait clock cycle.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 209
3.11.4.14. DMA Mode Register (Default Value: 0x00000000)
Offset: 0x100+N*0x40+0x28(N=0~7)
Register Name: DMA_MODE_REG
Bit
R/W
Default/Hex
Description
31:4
/
/
/
3
R/W
0x0
DMA_DST_MODE.
0: Wait mode.
1: Handshake mode.
2
R/W
0x0
DMA_SRC_MODE.
0: Wait mode.
1: Handshake mode.
1:0
/
/
/
3.11.4.15. DMA Former Descriptor Address Register (Default Value: 0x00000000)
Offset: 0x100+N*0x40+0x2C(N=0~7)
Register Name: DMA_FDESC_ADDR_REG
Bit
R/W
Default/Hex
Description
31:0
RO
0x0
DMA_FDESC_ADDR.
This register is used to storing the former value of DMA Channel
Descriptor Address Register.
3.11.4.16. DMA Package Number Register (Default Value: 0x00000000)
Offset: 0x100+N*0x40+0x30(N=0~7)
Register Name: DMA_PKG_NUM_REG
Bit
R/W
Default/Hex
Description
31:0
RO
0x0
DMA_PKG_NUM.
This register will record the number of packages which has been
completed in one transmission.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 210
3.12. GIC
For details about GIC, please refer to the GIC PL400 technical reference manual and ARM GIC Architecture
Specification V2.0.
3.12.1. Interrupt Source
Interrupt Source
SRC
Vector
Description
SGI 0
0
0x0000
SGI 0 interrupt
SGI 1
1
0x0004
SGI 1 interrupt
SGI 2
2
0x0008
SGI 2 interrupt
SGI 3
3
0x000C
SGI 3 interrupt
SGI 4
4
0x0010
SGI 4 interrupt
SGI 5
5
0x0014
SGI 5 interrupt
SGI 6
6
0x0018
SGI 6 interrupt
SGI 7
7
0x001C
SGI 7 interrupt
SGI 8
8
0x0020
SGI 8 interrupt
SGI 9
9
0x0024
SGI 9 interrupt
SGI 10
10
0x0028
SGI 10 interrupt
SGI 11
11
0x002C
SGI 11 interrupt
SGI 12
12
0x0030
SGI 12 interrupt
SGI 13
13
0x0034
SGI 13 interrupt
SGI 14
14
0x0038
SGI 14 interrupt
SGI 15
15
0x003C
SGI 15 interrupt
PPI 0
16
0x0040
PPI 0 interrupt
PPI 1
17
0x0044
PPI 1 interrupt
PPI 2
18
0x0048
PPI 2 interrupt
PPI 3
19
0x004C
PPI 3 interrupt
PPI 4
20
0x0050
PPI 4 interrupt
PPI 5
21
0x0054
PPI 5 interrupt
PPI 6
22
0x0058
PPI 6 interrupt
PPI 7
23
0x005C
PPI 7 interrupt
PPI 8
24
0x0060
PPI 8 interrupt
PPI 9
25
0x0064
PPI 9 interrupt
PPI 10
26
0x0068
PPI 10 interrupt
PPI 11
27
0x006C
PPI 11 interrupt
PPI 12
28
0x0070
PPI 12 interrupt
PPI 13
29
0x0074
PPI 13 interrupt
PPI 14
30
0x0078
PPI 14 interrupt
PPI 15
31
0x007C
PPI 15 interrupt
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 211
UART 0
32
0x0080
UART 0 interrupt
UART 1
33
0x0084
UART 1 interrupt
UART 2
34
0x0088
UART 2 interrupt
UART 3
35
0x008C
UART 3 interrupt
UART 4
36
0x0090
UART 4 interrupt
37
0x0094
TWI 0
38
0x0098
TWI 0 interrupt
TWI 1
39
0x009C
TWI 1 interrupt
TWI 2
40
0x00A0
TWI 2 interrupt
41
0x00A4
42
0x00A8
PB_EINT
43
0x00AC
PB_EINT interrupt
OWA
44
0x00B0
OWA interrupt
I2S/PCM-0
45
0x00B4
I2S/PCM-0 interrupt
I2S/PCM-1
46
0x00B8
I2S/PCM-1 interrupt
I2S/PCM-2
47
0x00BC
I2S/PCM-2 interrupt
48
0x00C0
PG_EINT
49
0x00C4
PG_EINT interrupt
Timer 0
50
0x00C8
Timer 0 interrupt
Timer 1
51
0x00CC
Timer 1 interrupt
52
0x00D0
PH_EINT
53
0x00D4
PH_EINT interrupt
54
0x00D8
55
0x00DC
56
0x00E0
Watchdog
57
0x00E4
Watchdog interrupt
58
0x00E8
59
0x00EC
AC_DET
60
0x00F0
Audio Codec earphone detect interrupt
Audio Codec
61
0x00F4
Audio Codec interrupt
KEYADC
62
0x00F8
KEYADC interrupt
Thermal Sensor
63
0x00FC
Thermal Sensor interrupt
External NMI
64
0x100
External Non-Mask Interrupt
R_timer 0
65
0x104
R_timer 0 interrupt
R_timer 1
66
0x108
R_timer 1 interrupt
67
0x010C
R_watchdog
68
0x0110
R_watchdog interrupt
R_CIR_RX
69
0x00E8
R_CIR_RX interrupt
R_UART
70
0x0118
R_UART interrupt
R_RSB
71
0x011C
R_RSB interrupt
R_Alarm 0
72
0x0120
R_Alarm 0 interrupt
R_Alarm 1
73
0x0124
R_Alarm 1 interrupt
R_timer 2
74
0x0128
R_timer 2 interrupt
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 212
R_timer 3
75
0x012C
R_timer 3 interrupt
R_TWI
76
0x0130
R_TWI interrupt
R_PL_EINT
77
0x0134
R_PL_EINT interrupt
R_TWD
78
0x0138
R_TWD interrupt
79
0x013C
80
0x0140
MSGBOX
81
0x0144
MSGBOX interrupt
DMA
82
0x0148
DMA channel interrupt
HS Timer
83
0x014C
HS Timer interrupt
84
0x0150
85
0x0154
86
0x0158
87
0x015C
SMC
88
0x0160
SMC interrupt
89
0x0164
VE
90
0x0168
VE interrupt
91
0x016C
SD/MMC 0
92
0x0170
SD/MMC Host Controller 0 interrupt
SD/MMC 1
93
0x0174
SD/MMC Host Controller 1 interrupt
SD/MMC 2
94
0x0178
SD/MMC Host Controller 2 interrupt
95
0x017C
96
0x0180
SPI 0
97
0x0184
SPI 0 interrupt
SPI 1
98
0x0188
SPI 1 interrupt
99
0x018C
100
0x0190
DRAM_MDFS
101
0x0194
DRAM MDFS interrupt
NAND
102
0x0198
NAND Flash Controller interrupt
USB-OTG
103
0x019C
USB-OTG interrupt
USB-OTG-EHCI
104
0x01A0
USB-OTG-EHCI interrupt
USB-OTG-OHCI
105
0x01A4
USB-OTG-OHCI interrupt
USB-EHCI0
106
0x01A8
USB-EHCI0 interrupt
USB-OHCI0
107
0x01AC
USB-OHCI0 interrupt
108
0x01B0
109
0x01B4
110
0x01B8
111
0x01BC
CE0
112
0x01C0
CE interrupt
TS
113
0x01C4
TS interrupt
EMAC
114
0x01C8
EMAC interrupt
SCR
115
0x01CC
SCR interrupt
CSI
116
0x01D0
CSI interrupt
CSI_CCI
117
0x01D4
CSI_CCI interrupt
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 213
TCON0
118
0x01D8
TCON0 interrupt
TCON1
119
0x01DC
TCON1 interrupt
HDMI
120
0x01E0
HDMI interrupt
MIPI DSI
121
0x01E4
MIPI DSI interrupt
122
0x01E8
123
0x01EC
124
0x01F0
DIT
125
0x01F4
De-interlace interrupt
CE1
126
0x01F8
CE1 interrupt
DE
127
0x01FC
DE interrupt
ROT
128
0x0200
DE_RORATE interrupt
GPU-GP
129
0x0204
GPU-GP interrupt
GPU-GPMMU
130
0x0208
GPU-GPMMU interrupt
GPU-PP0
131
0x020C
GPU-PP0 interrupt
GPU-PP0MMU
132
0x0210
GPU-PPMMU0 interrupt
GPU-PMU
133
0x0214
GPU-PMU interrupt
GPU-PP1
134
0x0218
GPU-PP1 interrupt
GPU-PPMMU1
135
0x021C
GPU-PPMMU1 interrupt
136
0x0220
137
0x0224
138
0x0228
139
0x022C
CTI0
140
0x0230
CTI0 interrupt
CTI1
141
0x0234
CTI1 interrupt
CTI2
142
0x0238
CTI2 interrupt
CTI3
143
0x023C
CTI3 interrupt
COMMTX0
144
0x0240
COMMTX0 interrupt
COMMTX1
145
0x0244
COMMTX1 interrupt
COMMTX2
146
0x0248
COMMTX2 interrupt
COMMTX3
147
0x024C
COMMTX3 interrupt
COMMRX0
148
0x0250
COMMRX0 interrupt
COMMRX1
149
0x0254
COMMRX1 interrupt
COMMRX2
150
0x0258
COMMRX2 interrupt
COMMRX3
151
0x025C
COMMRX3 interrupt
PMU0
152
0x0260
PMU0 interrupt
PMU1
153
0x0264
PMU1 interrupt
PMU2
154
0x0268
PMU2 interrupt
PMU3
155
0x026C
PMU3 interrupt
AXI_ERROR
156
0x0270
AXI_ERROR interrupt
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 214
3.13. Message Box
3.13.1. Overview
Message Box provides an MSGBox-interrupt mechanism for on-chip processors intercommunication.It allows a
processor transmit messages to the other one or receive messages from the other through a series of Message
Queues,each of which is a four 32-bits depth FIFO.An intercommunication channel could be established by
configuring Message Box registers and it works under MSGBox-interrupt mechanism.
The Message Box includes the following features:
• Two users for Message Box instance(User0 for CPUS and User1 for CPUX)
• Eight Message Queues for the MSGBox instance
• Each of Queues has four 32-bits depth FIFO for establishing intercommunication channel
• Each of Queues could be configured as transmitter or receiver for user
• Message reception and queue-not-full notification interrupt mechanism
3.13.2. Functionalities Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 215
3.13.2.1. Typical Applications
Typical Application Flow Chart
Set a MSG Queue as a
Transmitter or a receiver?
START
FINISH
Check the MSG status or
FIFO status if it is not full?
Write a message to
the MSG REG
As a transmitter As a receiver
Enable the
RECEPTION IRQ
A new message has
received?
Read the MSG REG
to fetch the message
FINISH
Clear the Reception
IRQ Pending
Y
Y
N
N
IF the Message Queue
FIFO is empty?
Y
N
Figure 3-10. Message Box Typical Application Chart
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 216
3.13.2.2. Functional Block Diagram
MSGBOX_MSG_REG_M
MSGBOX_MSG_STATUS_REG_M
MSGBOX_FIFO_STATUS_REG_M
MSGBox Message Queue m (m
: from 0 to 7)
MSGBox
USER0 USER1
MSGBOX_IRQ_EN_REG_0
MSGBOX_IRQ_STATUS_REG_0
For user0
MSGBOX_CTRL_REG0
MSGBOX_IRQ_EN_REG_1
MSGBOX_IRQ_STATUS_REG_1
For user1
MSGBOX_CTRL_REG1
Four Message FIFO
Figure 3-11. Message Box Functional Block Diagram
Message Box supports a set of registers for a processor to establish an interconnection channel with the
others.The processor determines message queue numbers for interconnection and the used queues to the
transmitter or receiver for itself and the interconnectible one.Every queue has a MSGBox FIFO Status Register
for processor to check out queue FIFO full status and a MSGBox Message Status Register for processor to
check out message numbers in queue FIFO.Otherwise,every queue has a corresponding IRQ status bit and a
corresponding IRQ enable bit,which used for requesting interrupt.
3.13.3. Operation Principle
3.13.3.1. Message Queue Assignment
To transmit messages from a user to the other user through any Message Queue, set the corresponding bit in
the MSGBox Control Register 0 or MSGBox Control Register 1 register.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 217
When a 32-bit message is written to the MSGBOX_MSG_REG_M register, the message is appended into the
FIFO queue. This queue holds 4 messages. If the queue is full, the message is discarded. The receiver user
could read the MSGBox Message Queue Register (m is the message queue number, where m=0 to 7) to
retrieve a message from the corresponding Message Queue FIFO.
It is recommended that register polling be used for a user to send a message:
• Set a Message Queue as a transmitter (in the MSGBox Control Register 0 /MSGBox Control Register 1).
• Check the FIFO status or the message status (in the MSGBox FIFO Status Register m or MSGBox
Message Status Register m).
• Write the message to the corresponding MSGBox Message Queue Register, if space is available.
The transmit interrupt might be used when the initial MSGBox status indicates that the Message Queue is full.
In this case, the sender can enable the corresponding MSGBox IRQ Enable Register u interrupt for the user.
This allows the user to be notified by interrupt when the message queue is not full.
3.13.3.2. Interrupt request
An interrupt request allows the user of the MSGBox to be notified when a new message is received or when
the message queue is not full.
An event can generate an interrupt request when enable the corresponding bit in the MSGBox IRQ Enable
Register u (u is the user number, where u=0 or 1) register. Events are reported in the appropriate MSGBox IRQ
Status Register u register.
An event stops generating interrupt requests when disable the corresponding bit in the MSGBox IRQ Enable
Register u register.
In case of the MSGBox IRQ Status Register u, the event is reported in the corresponding bit even if the
interrupt request generation is disabled for this event.
3.13.4. Message Box Register List
Module Name
Base Address
MSGBOX
0x01C17000
Register Name
Offset
Description
MSGBOX_CTRL_REG0
0x0000
Message Queue Attribute Control Register 0
MSGBOX_CTRL_REG1
0x0004
Message Queue Attribute Control Register 1
MSGBOXU_IRQ_EN_REG
0x0040+N*0x20
IRQ Enable For User N(N=0,1)
MSGBOXU_IRQ_STATUS_REG
0x0050+N*0x20
IRQ Status For User N(N=0,1)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 218
3.13.5. Message Box Register Description
3.13.5.1. MSGBox Control Register 0(Default Value: 0x10101010)
Offset: 0x00
Register Name: MSGBOX_CTRL_REG0
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28
R/W
0x1
TRANSMIT_MQ3.
Message Queue 3 is a Transmitter of user u.
0: user0
1: user1
27:25
/
/
/
24
R/W
0x0
RECEPTION_MQ3.
Message Queue 3 is a Receiver of user u.
0: user0
1: user1
23:21
/
/
/
20
R/W
0x1
TRANSMIT_MQ2.
Message Queue 2 is a Transmitter of user u.
0: user0
1: user1
19:17
/
/
/
16
R/W
0x0
RECEPTION_MQ2.
Message Queue 2 is a Receiver of user u.
0: user0
1: user1
15:13
/
/
/
12
R/W
0x1
TRANSMIT_MQ1
Message Queue 1 is a Transmitter of user u.
0: user0
1: user1
11:9
/
/
/
8
R/W
0x0
RECEPTION_MQ1.
Message Queue 1 is a Receiver of user u.
0: user0
1: user1
7:5
/
/
/
MSGBOXM_FIFO_STATUS_REG
0x0100+N*0x4
FIFO Status For Message Queue N(N = 0~7)
MSGBOXM_MSG_STATUS_REG
0x0140+N*0x4
Message Status For Message Queue N(N=0~7)
MSGBOXM_MSG_REG
0x0180+N*0x4
Message Register For Message Queue N(N=0~7)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 219
4
R/W
0x1
TRANSMIT_MQ0.
Message Queue 0 is a Transmitter of user u.
0: user0
1: user1
3:1
/
/
/
0
R/W
0x0
RECEPTION_MQ0.
Message Queue 0 is a Receiver of user u.
0: user0
1: user1
3.13.5.2. MSGBox Control Register 1(Default Value: 0x10101010)
Offset: 0x04
Register Name: MSGBOX_CTRL_REG1
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28
R/W
0x1
TRANSMIT_MQ7.
Message Queue 7 is a Transmitter of user u.
0: user0
1: user1
27:25
/
/
/
24
R/W
0x0
RECEPTION_MQ7.
Message Queue 7 is a Receiver of user u.
0: user0
1: user1
23:21
/
/
/
20
R/W
0x1
TRANSMIT_MQ6.
Message Queue 6 is a Transmitter of user u.
0: user0
1: user1
19:17
/
/
/
16
R/W
0x0
RECEPTION_MQ6.
Message Queue 6 is a Receiver of user u.
0: user0
1: user1
15:13
/
/
/
12
R/W
0x1
TRANSMIT_MQ5
Message Queue 5 is a Transmitter of user u.
0: user0
1: user1
11:9
/
/
/
8
R/W
0x0
RECEPTION_MQ5.
Message Queue 5 is a Receiver of user u.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 220
0: user0
1: user1
7:5
/
/
/
4
R/W
0x1
TRANSMIT_MQ4.
Message Queue 4 is a Transmitter of user u.
0: user0
1: user1
3:1
/
/
/
0
R/W
0x0
RECEPTION_MQ4.
Message Queue 4 is a Receiver of user u.
0: user0
1: user1
3.13.5.3. MSGBox IRQ Enable Register u(Default Value: 0x00000000)
Offset:0x40+N*0x20 (N=0,1)
Register Name: MSGBOXU_IRQ_EN_REG
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15
R/W
0x0
TRANSMIT_MQ7_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 7 is not
full.)
14
R/W
0x0
RECEPTION_MQ7_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 7 has
received a new message.)
13
R/W
0x0
TRANSMIT_MQ6_IRQ_EN.
0: Disable
1: Enable (It will Notify user u by interrupt when Message Queue 6 is not
full.)
12
R/W
0x0
RECEPTION_MQ6_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 6 has
received a new message.)
11
R/W
0x0
TRANSMIT_MQ5_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 5 is not
full.)
10
R/W
0x0
RECEPTION_MQ5_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 5 has
received a new message.)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 221
9
R/W
0x0
TRANSMIT_MQ4_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 4 is not
full.)
8
R/W
0x0
RECEPTION_MQ4_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 4 has
received a new message.)
7
R/W
0x0
TRANSMIT_MQ3_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 3 is not
full.)
6
R/W
0x0
RECEPTION_MQ3_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 3 has
received a new message.)
5
R/W
0x0
TRANSMIT_MQ2_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 2 is not
full.)
4
R/W
0x0
RECEPTION_MQ2_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 2 has
received a new message.)
3
R/W
0x0
TRANSMIT_MQ1_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 1 is not
full.)
2
R/W
0x0
RECEPTION_MQ1_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 1 has
received a new message.)
1
R/W
0x0
TRANSMIT_MQ0_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 0 is not
full.)
0
R/W
0x0
RECEPTION_MQ0_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 0 has
received a new message.)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 222
3.13.5.4. MSGBox IRQ Status Register u(Default Value: 0x0000AAAA)
Offset:0x50+N*0x20 (N=0,1)
Register Name: MSGBOXU_IRQ_STATUS_REG
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15
R/W
0x1
TRANSMIT_MQ7_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 7 is
not full. Set one to this bit will clear it.
14
R/W
0x0
RECEPTION_MQ7_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 7 has
received a new message. Set one to this bit will clear it.
13
R/W
0x1
TRANSMIT_MQ6_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 6 is
not full. Set one to this bit will clear it.
12
R/W
0x0
RECEPTION_MQ6_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 6 has
received a new message. Set one to this bit will clear it.
11
R/W
0x1
TRANSMIT_MQ5_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 5 is
not full. Set one to this bit will clear it.
10
R/W
0x0
RECEPTION_MQ5_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 5 has
received a new message. Set one to this bit will clear it.
9
R/W
0x1
TRANSMIT_MQ4_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 4 is
not full. Set one to this bit will clear it.
8
R/W
0x0
RECEPTION_MQ4_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 4 has
received a new message. Set one to this bit will clear it.
7
R/W
0x1
TRANSMIT_MQ3_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 3 is
not full. Set one to this bit will clear it.
6
R/W
0x0
RECEPTION_MQ3_IRQ_PEND.
0: No effect,
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 223
1: Pending. This bit will be pending for user u when Message Queue 3 has
received a new message. Set one to this bit will clear it.
5
R/W
0x1
TRANSMIT_MQ2_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 2 is
not full. Set one to this bit will clear it.
4
R/W
0x0
RECEPTION_MQ2_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 2 has
received a new message. Set one to this bit will clear it.
3
R/W
0x1
TRANSMIT_MQ1_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 1 is
not full. Set one to this bit will clear it.
2
R/W
0x0
RECEPTION_MQ1_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 1 has
received a new message. Set one to this bit will clear it.
1
R/W
0x1
TRANSMIT_MQ0_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 0 is
not full. Set one to this bit will clear it.
0
R/W
0x0
RECEPTION_MQ0_IRQ_PEND.
0: No effect,
1: Pending. This bit will be pending for user u when Message Queue 0 has
received a new message. Set one to this bit will clear it.
3.13.5.5. MSGBox FIFO Status Register m(Default Value: 0x00000000)
Offset:0x100+N*0x4 (N=0~7)
Register Name: MSGBOXM_FIFO_STATUS_REG
Bit
R/W
Default/Hex
Description
31: 1
/
/
/
0
RO
0x0
FIFO_FULL_FLAG.
0: The Message FIFO queue is not full (space is available),
1: The Message FIFO queue is full.
This FIFO status register has the status related to the message queue.
3.13.5.6. MSGBox Message Status Register m(Default Value: 0x00000000)
Offset:0x140+N*0x4 (N=0~7)
Register Name: MSGBOXM_MSG_STATUS_REG
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 224
31:3
/
/
/
2:0
RO
0x0
MSG_NUM.
Number of unread messages in the message queue. Here, limited to four
messages per message queue.
000: There is no message in the message FIFO queue.
001: There is 1 message in the message FIFO queue.
010: There are 2 messages in the message FIFO queue.
011: There are 3 messages in the message FIFO queue.
100: There are 4 messages in the message FIFO queue.
101~111:/
3.13.5.7. MSGBox Message Queue Register (Default Value: 0x00000000)
Offset:0x180+N*0x4 (N=0~7)
Register Name: MSGBOXM_MSG_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
The message register stores the next to be read message of the message
FIFO queue. Reads remove the message from the FIFO queue.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 225
3.14. Spinlock
3.14.1. Overview
Spinlock provides hardware assistance for synchronizing the processes running on multiple processors in the
device. The SpinLock module implements thirty-two 32-bit spinlocks (or hardware semaphores), which provide
an efficient way to perform a lock operation of a device resource using a single read access, thus avoiding the
need for a ‘read-modify-write’ bus transfer that not all the programmable cores are capable of.
Spinlocks are present to solve the need for synchronization and mutual exclusion between heterogeneous
processors and those not operating under a single, shared operating system. There is no alternative
mechanism to accomplish these operations between processors in separate subsystems. However, Spinlocks
do not solve all system synchronization issues. They have limited applicability and should be used with care to
implement higher level synchronization protocols.
A spinlock is appropriate for mutual exclusion for access to a shared data structure. It should be used only
when:
1) The time to hold the lock is predictable and small (for example, a maximum hold time of less than 200
CPU cycles may be acceptable).
2) The locking task cannot be preempted, suspended, or interrupted while holding the lock (this would make
the hold time large and unpredictable).
3) The lock is lightly contended, that is the chance of any other process (or processor) trying to acquire the
lock while it is held is small.
If the conditions are not met, then a spinlock is not a good candidate. One alternative is to use a spinlock for
critical section control (engineered to meet the conditions) to implement a higher level semaphore that can
support preemption, notification, timeout or other higher level properties.
The Spinlock includes the following features:
• Spinlock module includes 32 spinlocks
• Two kinds of status of lock register: TAKEN and NOT TAKEN
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 226
3.14.2. Functionalities Description
3.14.2.1. Typical Applications
Start
Is the Lock Taken?
(SPINLOCK_LOCK_REG_i[0]=0?)
SPINLOCK_LOCK_REG_i[0]=0
End
Y
NTake a Lock
Free a Lock
Take the Lock
Critical code section
Free the Lock
Figure3-11. Spinlock Typical Application Flow Chart
3.14.2.2. Functional Block Diagram
Unlocked State
(TAKEN_bit=0)
Locked State
(TAKEN_bit=1)
Read: 0
Write 1
Read: 1
Write 0
Write 0/1
Reset
Figure 3-12. Spinlock Lock Register State Diagram
Every lock register has two kinds of states: TAKEN(locked) or NOT TAKEN(Unlocked). Only read-0-access and
write-0-access could change lock register’ state and the other accesses has no effect. Just 32-bit reads and
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 227
writes are supported to access all lock registers.
3.14.3. Operation Principle
3.14.3.1. Spinlock clock gating and software reset
Spinlock clock gating should be open before using it. Setting the bit[22] of Bus Clock Gating Register1 to 1
could activate Spinlock and then de-asserting it's software reset. Setting the bit[22] of Bus Software Reset
Register 1 to 1 could de-assert the software reset of Spinlock. If it is no need to use spinlock, both the gating
bit and software reset bit should be set 0.
3.14.3.2. Take and free a spinlock
Checking out Spinlock Register Status is necessary when a processor would like to take a spinlock. This register
stores all 32 lock registers’ status: TAKEN or NOT TAKEN(free).
In order to request to take a spinlock, a processor has to do a read-access to the corresponding lock register. If
lock register returns 0, the processor takes this spinlock. And if lock register returns 1, the processor must
retry.
Writing 0 to a lock register frees the corresponding spinlock. If the lock register is not taken, write-access has
no effect. For a taken spinlock, every processor has the privilege to free this spinlock. But it is suggested that
the processor which has taken the spinlock free it for strictness.
3.14.4. Spinlock Register List
Module Name
Base Address
SPINLOCK
0x01C18000
Register Name
Offset
Description
SPINLOCK_SYSTATUS_REG
0x0000
Spinlock System Status Register
SPINLOCK_STATUS_REG
0x0010
Spinlock Status Register
SPINLOCK_LOCK_REGN
0x100+N*0x4
Spinlock Lock Register N (N=0~31)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 228
3.14.5. Spinlock Register Description
3.14.5.1. Spinlock System Status Register (Default Value: 0x10000000)
Offset: 0x0
Register Name: SPINLOCK_SYSTATUS_REG
Bit
R/W
Default/Hex
Description
31:30
/
/
/
29:28
RO
0x1
LOCKS_NUM.
Number of lock registers implemented.
0x1: This instance has 32 lock registers.
0x2: This instance has 64 lock registers.
0x3: This instance has 128 lock registers.
0x4: This instance has 256 lock registers.
27:16
/
/
/
15:9
/
/
/
8
RO
0x0
IU0.
In-Use flag0, covering lock register0-31.
0: All lock register 0-31 are in the Not Taken state.
1: At least one of the lock register 0-31 is in the Taken state.
7:0
/
/
/
3.14.5.2. Spinlock Register Status (Default Value: 0x00000000)
Offset: 0x10
Register Name: SPINLOCK_STATUS_REG
Bit
R/W
Default/Hex
Description
[i]
(i=0~31)
RO
0x0
LOCK_REG_STATUS.
SpinLock[i] status (i=0~31)
0: The Spinlock is free,
1: The Spinlock is taken.
3.14.5.3. Spinlock Lock Register N (N=0 to 31)(Default Value: 0x00000000)
Offset:0x100+N*0x4 (N=0~31)
Register Name: SPINLOCKN_LOCK_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
TAKEN.
Lock State.
Read 0x0: The lock was previously Not Taken (free).The requester is
granted the lock.
Write 0x0: Set the lock to Not Taken (free).
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 229
Read 0x1: The lock was previously Taken. The requester is not granted
the lock and must retry.
Write 0x1: No update to the lock value.
3.14.6. Programming Guidelines
Take CPU0's synchronization with CPUS with Spinlock0 for an example, CPU0 takes the spinlock0 firstly in the
instance：
CPU0
Step 1: CPU0 initializes Spinlock
writel(readl(BUS_CLK_GATING_REG1)|(1<<22) , BUS_CLK_GATING_REG1); //open Spinlock clock gating
writel (readl(BUS_SOFT_RST_REG1)|(1<<22) , BUS_SOFT_RST_REG1); //software reset Spinlock
Step 2: CPU0 requests to take spinlock0
rdata=readl(SPINLOCK_SYSTATUS_REG0); //check lock register0 status, if it is taken, check till
if(rdata != 0) rdata=readl(SPINLOCK_SYSTATUS_REG0); // lock register0 is free
rdata=readl(SPINLOCKN_LOCK_REG0); //request to take spinlock0, if fail, retry till
if(rdata != 0) rdata=readl(SPINLOCKN_LOCK_REG0); // lock register0 is taken
---------- CPU0 critical code section ----------
Step 3: CPU0 free spinlock0
writel (0, SPINLOCKN_LOCK_REG0); //CPU0 frees spinlock0
Step 4: CPU0 waits for CPUS’ freeing spinlock0
writel (readl(SPINLOCK_SYSTATUS_REG0) == 1); // CPU0 waits for CPUS’freeing spinlock0
CPUS
Step 1: CPU0 has taken spinlock0, CPUS waits for CPU0’ freeing spinlock0
while(readl(SPINLOCK_SYSTATUS_REG0) == 1); // CPUS waits for CPU0’freeing spinlock0
Step 2: CPUS takes spinlock0 and go on
---------- CPUS critical code section ----------
Step 3: CPUS frees spinlock0
writel (0, SPINLOCKN_LOCK_REG0); //CPUS frees spinlock0
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 230
3.15. Crypto Engine
3.15.1. Overview
The Crypto Engine(CE) is one encrypt/ decrypt function accelerator. It is suitable for a variety of applications. It
can support both encryption/decryption and signature/verification, calculate the hash value. Several modes
are supported by the Crypto Engine. The Crypto Engine has a special internal DMA(IDMA) controller to transfer
data .
It includes the following features:
Support symmetrical algorithm :AES, DES, TDES
Support asymmetrical algorithm :RSA512/1024/2048-bits
Support secure Hash algorithm: MD5, SHA-1,SHA-224,SHA-256, HMAC-SHA1,HMAC-SHA256
Support 160-bits hardware PRNG with 175-bits seed
Support 256-bits hardware TRNG
Support ECB, CBC, CTR modes for DES/TDES
Support ECB, CBC, CTR, CTS modes for AES
Support 128-bits, 192-bits and 256-bits key size for AES
Support multi-package mode for MD5/SHA-1/SHA-224/SHA-256/HMAC
Support IDMA mode
Support secure and non-secure interface respectively
3.15.2. Functionalities Description
3.15.2.1. Block Diagram
Figure 3-13 shows the block diagram of Crypto Engine.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 231
RXFIFO
TXFIFO
symmetric
RSA
MBUS
(T)DES
AES
SHA1
SHA224
SHA256
MD5
TRNG
RSA512 RSA1024
RSA2048
AHB
PRNG
HMAC
S interrupt
NS interrupt
Task
management
Register
Efuse keys
Figure 3-13. Crypto Engine Block Diagram
3.15.2.2. Crypto Engine with keysram
In Figure 3-14, keysram space composed by HDCP key,EK and BSSK.AES and RSA belong to CE,RSSK in efuse
directly links to CE,and Only CE in secure mode can be read RSSK .
The path between CE and keysram explain as following:
(1) CE in secure mode uses RSSK as key,The ciphertext of HDCP key in external memory is decrypted by AES,the
result writes in HDCP key memory of keysram.AES has only the writing privilege for HDCP key memory.
(2) In order to verify that HDCP key in external memory has not been tampered,after the plaintext of HDCP key
writed in keysram,the digest of HDCP key can be obtained by MD5.We can compare the value and the digest
that in advance wrote to efuse, if the compared result is consistency,it explains that HDCP key has not been
tampered.
(3) CE in secure mode uses RSSK as key, The ciphertext of EK in external memory is decrypted by AES,the result
writes in EK memory of keysram.AES has only the writing privilege for EK memory.
(4) In order to verify that EK in external memory has not been tampered,after the plaintext of EK writed in
keysram,the digest of EK can be obtained by MD5.We can compare the value and the digest that in advance
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 232
wrote to efuse, if the compared result is consistency,it explains that EK has not been tampered.
(5) CE in secure mode uses RSSK as key, The ciphertext of EK in external memory is decrypted by AES,the result
writes in EK memory of keysram.At the same time,AES could use BSSK as key to encrypt and decrypt.So AES
has the reading and writing privilege for BSSK.
(6) HDMI and HDCP key memory have the dedicated channe,HDMI has the reading privilege for HDCP key
memory at any time.
(7) RSA has only the reading privilege for EK memory.
HDCP key BSSKEK
AES
RSSK
HDMI
6
1
3
5
RSA
7
MD5
2
4
keysram
CE
Figure 3-14. Crypto Engine with Keysram
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 233
3.15.2.3. Crypto Engine Task Descriptor
Figure 3-15 shows the block diagram of Crypto Engine Task Chaining.
Task chaining0
Task chaining1
Task chaining2
Task chaining3
task chaining id=0
common ctl
symmetric ctl
asymmetric ctl
key descriptor
iv descriptor
ctr descriptor
data len
src adr0
dst adr7
dst len7
next descriptor(task1)
src len0
reserved[3]
task0 task1 task2 ………… taskn
src adr7
src len7
…
dst adr0
dst len0
…
task chaining id=0
common ctl
symmetric ctl
asymmetric ctl
key descriptor
iv descriptor
ctr descriptor
data len
src adr0
dst adr7
dst len7
next descriptor(task2)
src len0
reserved[3]
src adr7
src len7
…
dst adr0
dst len0
…
task chaining id=0
common ctl
symmetric ctl
asymmetric ctl
key descriptor
iv descriptor
ctr descriptor
data len
src adr0
dst adr7
dst len7
next descriptor(taskn)
src len0
reserved[3]
src adr7
src len7
…
dst adr0
dst len0
…
task chaining id=1
common ctl
symmetric ctl
asymmetric ctl
key descriptor
iv descriptor
ctr descriptor
data len
src adr0
dst adr7
dst len7
next descriptor(task1)
src len0
reserved[3]
src adr7
src len7
…
dst adr0
dst len0
…
task chaining id=1
common ctl
symmetric ctl
asymmetric ctl
key descriptor
iv descriptor
ctr descriptor
data len
src adr0
dst adr7
dst len7
next descriptor(task2)
src len0
reserved[3]
src adr7
src len7
…
dst adr0
dst len0
…
task chaining id=1
common ctl
symmetric ctl
asymmetric ctl
key descriptor
iv descriptor
ctr descriptor
data len
src adr0
dst adr7
dst len7
next descriptor(taskn)
src len0
reserved[3]
src adr7
src len7
…
dst adr0
dst len0
…
task0 task1 task2 ………… taskn
Task chaining id=2
Task chaining id=3
……
…………
…………
Figure 3-15. Crypto Engine Task Chaining Block Diagram
In the above figure,Every CE task deccriptor is 44*4Byte memory.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 234
CE contains secure CE and non-secure CE,which corresponds the different base address,but the registers
design are the same.CE supports 4 task channels,every task chain correspond one task id,every task channel
could do multiple tasks,which is based on whether the next descriptor of every task descriptor is 0.The task id
in the same task channel is the same.
data len= src len0 + src len1 +……+src len7,they are word in unit,when src len0 = data len,others(src len1……src
len7)must be wrote to 0;but for AES CTS,data len is byte in unit,src len0~7 are word in unit.
Next descriptor = 0, it denotes that there are not the new tasks; Next descriptor != 0,it denotes that there are
the new tasks,which is the head address of the next task descriptor.
When the source of symmetrical algorithm divide into multiple packages to encrypt or decrypt, the iv value of
the next package store at the ctr descriptor address for ctr/cfb/ofb mode;the iv value of the next package are
the result of the last ciphertext.
The address of src/dst/key/iv/ctr in the descriptor align with word.
For the bit description of commom ctl,symmetric ctl,asymmetric ctl descriptor are as following:
task_descriptor_queue common control bitmap(32bit)
Bit
Description
31
interrupt enable for current task
0: disable interrupt
1: enable interrupt
30:17
/
16
IV_Mode
IV Steady of SHA-1/SHA-224/SHA-256/MD5
0: use initial constants defined in FIPS-180
1: Arbitrary IV
15
HMAC plaintext last
0: not the last HMAC plaintext package
1: the last HMAC plaintext package
14:9
/
8
SS_OP_DIR
SS Operation Direction
0: Encryption
1: Decryption
7
/
6:0
SS_Method
0: AES
1: DES
2: Triple DES (3DES)
3~15: reserved
16: MD5
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 235
17: SHA-1
18: SHA-224
19: SHA-256
20: /
21: /
22: HMAC-SHA1
23:HMAC-SHA256
24~31: reserved
32: RSA
33~47: reserved
48: TRNG
49: PRNG
others: reserved
task_descriptor_queue symmetric control(32bit)
Bit
Description
31:24
/
23:20
SKEY_Select
key select for AES
0: Select input SS_KEYx (Normal Mode)
1: Select {SSK}
2: Select {HUK}
3: Select {RSSK}
4-7: Reserved
8-15: Select internal Key n (n from 0 to 7)
19:18
/
17
/
16
AES_CTS_Last_Block_Flag
When set to "1", it means this is the last package for AES-CTS mode. (the size of the last
block >128bit)
15:12
/
11:8
SS_OP_Mode
SS Operation Mode
0: Electronic Code Book (ECB) mode
1: Cipher Block Chaining (CBC) mode
2: Counter (CTR) mode
3: Ciphertext Stealing (CTS) mode
Others: reserved
7:4
/
3:2
CTR_Width
Counter Width for CTR Mode
0: 16-bits Counter
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 236
1: 32-bits Counter
2: 64-bits Counter
3: 128-bits Counter
1:0
AES_Key_Size
0: 128-bits
1: 192-bits
2: 256-bits
3: Reserved
task_descriptor_queue asymmetric control(32bit)
Bit
Description
31
/
30:28
RSA_Pubic_Modular_Width
0:512 bit
1:1024 bit
2:2048 bit
Others: reserved
27:0
/
3.15.3. Crypto Engine Register List
Module Name
Base Address
CE_NS
0x01C15000
CE_S
0x01C15800
Register Name
Offset
Description
CE_TDQ
0x00
Task Descriptor Queue Address
CE_CTR
0x04
Gating Control Register
CE_ICR
0x08
Interrupt Control Register
CE_ISR
0x0c
Interrupt Status Register
CE_TLR
0x10
Task Load Register
CE_TSR
0x14
Task Status Register
CE_ESR
0x18
Task Error type Register
CE_CSAR
0x24
Current Source Address Register
CE_CDAR
0x28
Current Destination Address Register
CE_TPR
0x2c
Throughput Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 237
3.15.4. Crypto Engine Register Description
3.15.4.1. Crypto Engine Task Descriptor Queue Register(Default Value: 0x00000000)
Offset: 0x00
Register Name: CE_TDQ
Bit
R/W
Default/Hex
Description
31:0
R/W
0
Task_Descriptor_Queue_Address
3.15.4.2. Crypto Engine Control Register(Default Value: 0x00000000)
Offset: 0x04
Register Name:CE_CTR
Bit
R/W
Default/Hex
Description
31:4
/
/
/
3
R/W
0
RSA_CLK_Gating_Enable(read only for NS world)
0: RSA clk gating enable
1: RSA clk gating disable
2:0
R
x
DIE_ID
Die Bonding ID
3.15.4.3. Crypto Engine Interrupt Control Register(Default Value: 0x00000000)
Offset: 0x08
Register Name: CE_ICR
Bit
R/W
Default/Hex
Description
31:4
/
/
/
3:0
R/W
0
Task chaining0-3_interrupt_enable
0: interrupt disable
1: interrupt enable
3.15.4.4. Crypto Engine Interrupt Status Register(Default Value: 0x00000000)
Offset: 0x0C
Register Name: CE_ISR
Bit
R/W
Default/Hex
Description
31:4
/
/
/
3:0
R/W
0
Task chaining0-3_End_Pending
0: busy
1: task end
It indicates that the processing of encrypt /signing or decrypt/verification
has been completed .
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 238
Notes: Write ‘1’ to clear it.
3.15.4.5. Crypto Engine Task Load Register(Default Value: 0x00000000)
Offset: 0x10
Register Name: CE_TLR
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0
Task_Load
When set , SS starts to load the configure of task from task descriptor
queue and start to perform the task if task FIFO is not full.
3.15.4.6. Crypto Engine Task Status Register(Default Value: 0x00000000)
Offset: 0x14
Register Name: CE_TSR
Bit
R/W
Default/Hex
Description
31:2
/
/
/
1:0
R
0
Current task in run
0: task chaining0
1: task chaining1
2: task chaining2
3: task chaining3
3.15.4.7. Crypto Engine Error Status Register(Default Value: 0x00000000)
Offset: 0x18
Register Name: CE_ESR
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15:12
R
0
Task channel3 error type
xxx1: algorithm not support
xx1x: data length error
x1xx: keysram access error for AES. Write ‘1’ to clear.
1xxx: reserved
11:8
R
0
Task channel2 error type
xxx1: algorithm not support
xx1x: data length error
x1xx: keysram access error for AES. Write ‘1’ to clear.
1xxx: reserved
7:4
R
0
Task channel1 error type
xxx1: algorithm not support
xx1x: data length error
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 239
x1xx: keysram access error for AES. Write ‘1’ to clear.
1xxx: reserved
3:0
R
0
Task channel0 error type
xxxlgorithm not support
xx1x: data length error
x1xx: keysram access error for AES. Write ‘1’ to clear.
1xxx: reserved
3.15.4.8. Crypto Engine Current Source Address Register(Default Value: 0x00000000)
Offset: 0x24
Register Name: CE_CSAR
Bit
R/W
Default/Hex
Description
31:0
R
0
Current source address of the executing task
3.15.4.9. Crypto Engine Current Destination Address Register(Default Value: 0x00000000)
Offset: 0x28
Register Name: CE_CDAR
Bit
R/W
Default/Hex
Description
31:0
R
0
Current destination address of the executing task
3.15.4.10. Crypto Engine Throughput Register(Default Value: 0x00000000)
Offset: 0x2C
Register Name: CE_TPR
Bit
R/W
Default/Hex
Description
31:0
R/W
0
It indicates the throughput of data from the whole processing.
Notes: Write ‘0’ to clear it.
3.15.5. Crypto Engine Clock Requirement
Clock Name
Description
Requirement
ahb_clk
AHB bus clock
>=24MHz
m_clk
MBUS clock
>=24MHz
ce_clk
Crypto Engine serial clock
<= 300MHz && >=24MHz
3.15.6. Programming Guidelines
(1) The module provides two interfaces to software.Secure CPU uses the interface of 0x800 offset,non-secure
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 240
CPU uses the interface of 0x0 offset.
(2) The task is approached by the task descriptor mode,so before start to the load bit,the task descriptor is
wrote in the specified address,and the task descriptor address register is configured.After the load bit is
ensure to be low,the next task could be configured.
(3) The writing/reading function of the data is completed by the internal DMA,if the data is in cache,the cache
need refresh before the task loaded,so that the data in the address is latest.
(4) The task descriptor supports 8 source scatters and 8 destination scatters.When configuring the scatter
address and size,the continue scatter address and size should be used.Except the active scatters,the size of
other scatter need be configured to 0.
(5) data len= src len0 + src len1 +……+src len7,they are word in unit,when src len0 = data len,others(src
len1……src len7)must be wrote to 0;but for AES CTS,data len is byte in unit,src len0~7 are word in unit.
(6) Secure CPU and non-secure CPU support separately 4 task channels, every task channel has a interrupt
enable bit and interrupt status bit.
(7) The enable bit of the interrupt register represents channel interrupt,the 31bit of the first word in the task
descriptor represents the interrupt enable of every task,only the two bits are 1 at the same time,the
interrupt could pend when the task is completed.
(8) The input data sequence of RSA is that the low word store in the low address.
(9) SSK/HUK/RSSK in efuse directly links to CE,and Only CE in secure mode can read SSK/HUK/RSSK.
(10) CE in secure mode uses RSSK as key,The ciphertext of HDCP/EK/BSSK key in external memory is decrypted
by AES,the result writes in HDCP/EK/BSSK key memory of keysram.AES has only the writing privilege for
the keysram ,and to prevent the key leaked, the result only can be wrote in the keysram address when
AES decrypt by RSSK.
(11) For SHA1/SHA224/SHA256/SHA384/SHA512,It should be noted the sequence of the initial hash value.
SHA1/SHA224/SHA256/SHA384/SHA512 is the big-endian algorithm, within each word,the most significant
bit is stored in the left-most bit position.For example,the initial hash value of SHA1 in Fips180-2,H(0) shall
consist of the following five 32-bit words,in hex:
H0
(0) = 67452301
H1
(0) = efcdab89
H2
(0) = 98badcfe
H3
(0) = 10325476
H4
(0) = c3d2e1f0
High-order byte Low-order byte
address A address A+1
address increasing direction
Big-endian
MSB LSB
High-order byte Low-order byte
address A
address A+1
address increasing direction
little-endian
The default access mode of ARM is litter-endian.So When we write the initial value in the IV descriptor
address, according to the following array input sequence:
For SHA1:
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 241
unsigned char iv_sha1[20]={
0x67,0x45,0x23,0x01,0xef,0xcd,0xab,0x89,
0x98,0xba,0xdc,0xfe,0x10,0x32,0x54,0x76,
0xc3,0xd2,0xe1,0xf0};
Then:
IV descriptor address : 0x01234567
IV descriptor address +0x4: 0x89abcdef
IV descriptor address +0x8: 0xfedcba98
IV descriptor address +0xC: 0x76543210
IV descriptor address +0x10: 0xf0e1d2c3
For SHA224:
unsigned char iv_sha224[32]={
0xc1,0x05,0x9e,0xd8,0x36,0x7c,0xd5,0x07,
0x30,0x70,0xdd,0x17,0xf7,0x0e,0x59,0x39,
0xff,0xc0,0x0b,0x31,0x68,0x58,0x15,0x11,
0x64,0xf9,0x8f,0xa7,0xbe,0xfa,0x4f,0xa4};
For SHA256:
unsigned char iv_sha256[32]={
0x6a,0x09,0xe6,0x67,0xbb,0x67,0xae,0x85,
0x3c,0x6e,0xf3,0x72,0xa5,0x4f,0xf5,0x3a,
0x51,0x0e,0x52,0x7f,0x9b,0x05,0x68,0x8c,
0x1f,0x83,0xd9,0xab,0x5b,0xe0,0xcd,0x19};
For SHA384:
unsigned char iv_sha384[64]={
0xcb,0xbb,0x9d,0x5d,0xc1,0x05,0x9e,0xd8,
0x62,0x9a,0x29,0x2a,0x36,0x7c,0xD5,0x07,
0x91,0x59,0x01,0x5a,0x30,0x70,0xdd,0x17,
0x15,0x2f,0xec,0xd8,0xf7,0x0e,0x59,0x39,
0x67,0x33,0x26,0x67,0xff,0xc0,0x0b,0x31,
0x8e,0xb4,0x4a,0x87,0x68,0x58,0x15,0x11,
0xdb,0x0c,0x2e,0x0d,0x64,0xf9,0x8f,0xa7,
0x47,0xb5,0x48,0x1d,0xbe,0xfa,0x4f,0xa4};
For SHA512:
unsigned char iv_sha512[64]={
0x6a,0x09,0xe6,0x67,0xf3,0xbc,0xc9,0x08,
0xbb,0x67,0xae,0x85,0x84,0xca,0xa7,0x3b,
0x3c,0x6e,0xf3,0x72,0xfe,0x94,0xf8,0x2b,
0xa5,0x4f,0xf5,0x3a,0x5f,0x1d,0x36,0xf1,
0x51,0x0e,0x52,0x7f,0xad,0xe6,0x82,0xd1,
0x9b,0x05,0x68,0x8c,0x2b,0x3e,0x6c,0x1f,
0x1f,0x83,0xd9,0xab,0xfb,0x41,0xbd,0x6b,
0x5b,0xe0,0xcd,0x19,0x13,0x7e,0x21,0x79};
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 242
3.16. Secure Memory Controller
3.16.1. Overview
The SMC is an Advanced Microcontroller Bus Architecture compliant System-on-Chip peripheral. It is a
high-performance, area-optimized address space controller with on-chip AMBA bus interfaces that conform to
the AMBA Advanced extensible Interface protocol and the AMBA Advanced Peripheral Bus protocol.
You can configure the SMC to provide the optimum security address region control functions required for your
intended application.
The SMC includes the following features:
Enables you to program security access permissions each address region.
Permits the transfer of data between master and slave only if the security status of the AXI transaction
matches the security settings of the memory region it addresses.
3.16.2. Functionalities Description
By default, the SMC performs read or write speculative that means it forwards an AXI transaction address to a
slave, before it verifies that the AXI transaction is permitted to read address or write address respectively.
The SMC only permits the transfer of data between its AXI bus interfaces, after verifying the access that the
read or write access is permitted respectively. If the verification fails, then it prevents the transfer of data
between the master and slave as Denied AXI transactions.
When the speculative accesses are disabled, the SMC verifies the permissions of the access before it forwards
the access to the slave. If the SMC:
Permits the access, it commences an AXI transaction to the slave, and it adds one clock latency.
Denies the access, it prevents the transfer of data between the master and slave. In this situation, the
slave is unaware when the SMC prevents the master from accessing the slave.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 243
3.16.2.1. DRM Block Diagram
Secure Zone
DRM
Non-secure
Zone
DRAM SPACE
S.M. stands for Secure Mater
G. NS.M stands for General Non-secure Master
D. NS.M stands for Non-secure Master appointed by DRM
G.NS.MNSZ
DRM
SZ
D.NS.MNSZ
DRM
SZ
S.MNSZ
DRM
SZ
G.NS.M only can read data from NSZ and write data into NSZ
D.NS.M can read data from NSZ and DRM, but only can write data into DRM
S.M can read data from the whole DRAM SPACE
Figure 3-16. DRM Block Diagram
3.16.2.2. Master ID Table
Table 3-2. Master and Master ID
ID
Master
ID
Master
0
CPU
12
VE
1
GPU
13
CSI
2
CPUS
14
NAND
3
ATH (test interface for
AHB)
15
Crypto Engine
4
USB-OTG/USB-OTG-HCI
16
DE_RT-MIXER0
5
SMHC0
17
DE_RT-MIXER1
6
SMHC1
18
DE_RT-WB
7
SMHC2
19
DE_ROT
8
USB-HCI0
20
9
21
TS
10
EMAC
22
DE Interlace
11
DMA
23
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 244
3.16.2.3. Region Size Table
Table 3-3. Region Size
Size<n>
Size of region<n>
Base address constraints
b000000-b001101
Reserved
-
b001110
32KB
-
b001111
64KB
Bit [15] must be zero
b010000
128KB
Bits [16:15] must be zero
b010001
256KB
Bits [17:15] must be zero
b010010
512KB
Bits [18:15] must be zero
b010011
1MB
Bits [19:15] must be zero
b010100
2MB
Bits [20:15] must be zero
b010101
4MB
Bits [21:15] must be zero
b010110
8MB
Bits [22:15] must be zero
b010111
16MB
Bits [23:15] must be zero
b011000
32MB
Bits [24:15] must be zero
b011001
64MB
Bits [25:15] must be zero
b011010
128MB
Bits [26:15] must be zero
b011011
256MB
Bits [27:15] must be zero
b011100
512MB
Bits [28:15] must be zero
b011101
1GB
Bits [29:15] must be zero
b011110
2GB
Bits [30:15] must be zero
b011111
4GB
Bits [31:15] must be zero
B100000
8GB
Bits [32:15] must be zero
3.16.2.4. Security inversion is disabled
Table 3-4. Region security permissions
SPN field
Secure Read
Secure Write
Non-secure Read
Non-secure Write
4b0000
No
No
No
No
4b0100
No
Yes
No
No
4b0001, 4b0101
No
Yes
No
Yes
4b1000
Yes
No
No
No
4b0010, 4b1010
Yes
No
Yes
No
4b1100
Yes
Yes
No
No
4b1001, 4b1101
Yes
Yes
No
Yes
4b0110, 4b1110
Yes
Yes
Yes
No
4b0011-4b1111
Yes
Yes
Yes
Yes
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 245
3.16.2.5. Security inversion is enabled
If you enable security inversion, the SMC permits you to program any combination of security permissions as
Table 3-5 shows.
Table 3-5. Region security permissions
SPN field
Secure Read
Secure Write
Non-secure Read
Non-secure Write
4b0000
No
No
No
No
4b0001
No
No
No
Yes
4b0010
No
No
Yes
No
4b0011
No
No
Yes
Yes
4b0100
No
Yes
No
No
4b0101
No
Yes
No
Yes
4b0110
No
Yes
Yes
No
4b0111
No
Yes
Yes
Yes
4b1000
Yes
No
No
No
4b1001
Yes
No
No
Yes
4b1010
Yes
No
Yes
No
4b1011
Yes
No
Yes
Yes
4b1100
Yes
Yes
No
No
4b1101
Yes
Yes
No
Yes
4b1110
Yes
Yes
Yes
No
4b1111
Yes
Yes
Yes
Yes
3.16.3. SMC Register List
Module Name
Base Address
SMC
0x01C1E000
Register Name
Offset
Description
SMC_CONFIG_REG
0x0
SMC Configuration Register
SMC_ACTION_REG
0x4
SMC Action Register
SMC_LD_RANGE_REG
0x8
SMC Lock Down Range Register
SMC_LD_SELECT_REG
0xC
SMC Lock Down Select Register
SMC_INT_STATUS_REG
0x10
SMC Interrupt Status Register
SMC_INT_CLEAR_REG
0x14
SMC Interrupt Clear Register
SMC_MST_BYP_REG
0x18
SMC Master Bypass Register
SMC_MST_SEC_REG
0x1C
SMC Master Secure Register
SMC_FAIL_ADDR_REG
0x20
SMC Fail Address Register
SMC_FAIL_CTRL_REG
0x28
SMC Fail Control Register
SMC_FAIL_ID_REG
0x2C
SMC Fail ID Register
SMC_SPECU_CTRL_REG
0x30
SMC Speculation Control Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 246
SMC_SEC_INV_EN_REG
0x34
SMC Security Inversion Enable Register
SMC_MST_ATTRI_REG
0x48
SMC Master Attribute Register
DRM_MASTER_EN_REG
0x50
DRM Master Enable Register
DRM_ILLACCE_REG
0x58
DRM Illegal Access Register
DRM_STATADDR_REG
0x60
DRM Start Address Register
DRM_ENDADDR_REG
0x68
DRM End Address Register
SMC_REGION_SETUP_LO_REG
0x100+N*0x10
Region Setup Low Register N
(N=0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15)
SMC_REGION_SETUP_HI_REG
0x104+N*0x10
Region Setup High Register N
(N=0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15)
SMC_REGION_ATTR_REG
0x108+N*0x10
Region Attribute Register N
(N=0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15)
3.16.4. SMC Register Description
3.16.4.1. SMC Configuration Register(Default Value: 0x00001F0F)
Offset: 0x0
Register Name: SMC_CONFIG_REG
Bit
R/W
Default/Hex
Description
31:14
/
/
/
13:8
R
0x1F
ADDR_WIDTH_RTN.
Address width. Return the width of the AXI address bus.
6’b 000000-6’b011110 reserved.
6’b 011111 = 32-bit
……
6’b 111111 = 64-bit
7:4
/
/
/
3:0
R
0xF
REGIONS_RTN.
Returns the number of the regions that the SMC provides.
4’b0000 = reserved
4’b0001 = 2 regions
……
4’b1111 = 16 regions.
3.16.4.2. SMC Action Register(Default Value: 0x00000001)
Offset: 0x4
Register Name: SMC_ACTION_REG
Bit
R/W
Default/Hex
Description
31:2
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 247
1:0
R/W
0x1
SMC_INT_RESP.
Control how the SMC uses the bresps[1:0], rresps[1:0], and smc_int
signals when a region permission failure occurs:
2’b00 = sets smc_int LOW and issues an OKEY response
2’b01 = sets smc_int LOW and issues a DECERR response
2’b10 = sets smc_int HIGH and issues an OKEY response
2’b11 = sets smc_int HIGH and issues a DECERR response
Note:This action is only valid for CPU access, not for MBUS and DMA access.
3.16.4.3. SMC Lockdown Range Register(Default Value: 0x00000000)
Offset: 0x8
Register Name: SMC_LD_RANGE_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
LOCKDOWN_EN.
When set to 1, it enables the lockdown_regions field to control the
regions that are to be locked.
30:4
/
/
/
3:0
R/W
0x0
NO_REGIONS_LOCKDOWN.
Control the number of regions to lockdown when the enable bit is set to
1.
4’b0000 = region no_of_regions-1 is locked
4’b0001 = region no_of_regions-1 to region no_of_regions-2 are locked
……
4’b1111 = region no_of_regions-1 to region no_of_regions-16 are locked
Note1: No_of_regions is the value of the no_of_regions field in the configuration register.
Note2: The value programmed in lockdown_range register must not be greater than no_of_regions-1 ,else all
regions are locked.
3.16.4.4. SMC Lockdown Select Register(Default Value: 0x00000000)
Offset: 0xC
Register Name: SMC_LD_SELECT_REG
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2
R/W
0x0
ACCESS_TYPE_SPECU.
Modify the access type of the speculation_control register:
0: no effect. The speculation register remains RW.
1: speculation_control register is RO
1
R/W
0x0
ACCESS_TYPE_SEC_INV_EN.
Modify the access type of the security_inversion_en register.
0: no effect. Security_inversion_en register remains RW.
1: security_inversion_en register is RO
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 248
0
R/W
0x0
ACCESS_TYPE_LOCKDOWN_RANGE.
Modify the access type of the lockdown_range register.
0: no effect. Lockdown_range register remains RW
1: lockdown_range register is RO.
3.16.4.5. SMC Interrupt Status Register(Default Value: 0x00000000)
Offset: 0x10
Register Name: SMC_INT_STATUS_REG
Bit
R/W
Default/Hex
Description
31:2
/
/
/
1
R
0x0
INT_OVERRUN.
When set to 1, it indicates the occurrence of two or more region
permission failure since the interrupt was last cleared.
0
R
0x0
INT_STATUS.
Return the status of the interrupt.
0: interrupt is inactive.
1: interrupt is active.
3.16.4.6. SMC Interrupt Clear Register(Default Value: 0x00000000)
Offset: 0x14
Register Name: SMC_INT_CLEAR_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
SMC_CLR_REG.
Write any value to the int_clear register sets the :
Status bit to 0 in the int_status register
Overrun bit to 0 in the int_status register.
Note: It will be auto cleared after the write operation.
3.16.4.7. SMC Master Bypass Register(Default Value: 0xFFFFFFFF)
Offset: 0x18
Register Name: SMC_MST_BYP_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0xFFFFFFFF
SMC_MASTER_BYPASS_EN.
SMC Master n Bypass Enable.
(n = 0~31, see theTable 3-2. MASTER and MASTER ID for detail.)
Note: Bit[31:0] stand for Master ID [31:0]
If the master n bypass enable is set to 0, the master n access must be
through the SMC.
0: Bypass Disable
1: Bypass Enable.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 249
3.16.4.8. SMC Master Secure Register(Default Value: 0x00000000)
Offset: 0x1C
Register Name: SMC_MST_SEC_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
SMC_MASTER_SEC.
SMC Master n Secure Configuration.(n = 0~31，see the Table 3-2 for
detail)
0: secure
1: non-secure.
3.16.4.9. SMC Fail Address Register(Default Value: 0x00000000)
Offset: 0x20
Register Name: SMC_FAIL_ADDR_REG
Bit
R/W
Default/Hex
Description
31:0
R
0x0
FIRST_ACCESS_FAIL.
Return the address bits [31:0] of the first access to fail a region
permission check after the interrupt was cleared.
For external 16-bit DDR2, the address [2:0] is fixed to zero.
For external 32-bit DDR2 and 16-bit DDR3, the address [3:0] is fixed to
zero.
For external 32-bit DDR3, the address [4:0] is fixed to zero.
Note:If the master ID=”SRAM” and the register value is between 0x80000 to 0xBFFFF, the real address should
be divide by 4.
3.16.4.10. SMC Fail Control Register(Default Value: 0x00000000)
Offset: 0x28
Register Name: SMC_FAIL_CTRL_REG
Bit
R/W
Default/Hex
Description
31:25
/
/
/
24
R
0x0
READ_WRITE.
This bit indicates whether the first access to fail a region permission check
was a write or read as:
0 = read access
1 = write access.
23:22
/
/
/
21
R
0x0
NON_SECURE.
After clearing the interrupt status, this bit indicates whether the first access
to fail a region permission check was non-secure. Read as:
0 = secure access
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 250
1 = non-secure access
20
R
0x0
PRIVILEGED.
After clearing the interrupt status, this bit indicates whether the first access
to fail a region permission check was privileged. Read as:
0 = unprivileged access.
1 = privileged access
19:0
/
/
/
3.16.4.11. SMC Fail ID Register(Default Value: 0x00001F00)
Offset: 0x2C
Register Name: SMC_FAIL_ID_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:16
R
0x0
FAIL_BST_LEN.
Fail burst length.
0 = 1 word length
……
0xf =16 words length
15:8
/
/
/
7:0
R
0x0
FAIL_MASTER_ID.
Fail Master ID.
The value stands for master id, see the Table 3-2 MASTER and MASTER ID
for detail.
3.16.4.12. SMC Speculation Control Register(Default Value: 0x00000000)
Offset: 0x30
Register Name: SMC_SPECU_CTRL_REG
Bit
R/W
Default/Hex
Description
31:2
/
/
/
1
R/W
0x0
WRITE_SPECU.
Write_speculation. Control the write access speculation:
0 = write access speculation is enabled
1 = write access speculation is disabled.
0
R/W
0x0
READ_SPECU.
Read_speculation. Control the read access speculation:
0 = read access speculation is enabled
1 = read access speculation is disabled.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 251
3.16.4.13. SMC Security Inversion Enable Register(Default Value: 0x00000000)
Offset: 0x34
Register Name: SMC_SEC_INV_EN_REG
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
SEC_INV_EN.
Security_inversion_en. Controls whether the SMC permits security inversion
to occur.
0 = security inversion is not permitted.
1 = security inversion is permitted. This enables a region to be accessible to
masters in Non-secure state but not accessible to masters in Secure state.
See Table 3-4 and Table 3-5.
3.16.4.14. SMC Master Attribute Register(Default Value: 0x00000000)
Offset: 0x48
Register Name: SMC_MST_ATTRI_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
MST_ATTRI.
0: The secure attribute of master is up to master security extensions;
1: The secure attribute of master is up to SMC Master Secure Register.
3.16.4.15. DRM Master Enable Register(Default Value: 0x00000000)
Offset: 0x50
Register Name: DRM_MASTER_EN_REG
Bit
R/W
Default/Hex
Description
31
R/W
0x0
DRM_EN.
DRM enable.
30:12
/
/
/
13
R/W
0x0
GPU_WRITE_EN
GPU write enable.
12
R/W
0x0
GPU_READ_EN
GPU read enable.
11
R/W
0x0
GPU_EN
GPU enable
When setted the bit to 1,bit12 and bit13 will be invalid.
10:9
/
/
/
8
R/W
0x0
DE_ROT
DE_ROT enable
7
R/W
0x0
DE_INTERLACE
DE_ INTERLACE enable.
6
R/W
0x0
DE_RT-WB
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 252
DE_RT-WB enable.
5
R/W
0x0
DE_RT-MIXER1
DE_RT-MIXER1 enable.
4
R/W
0x0
DE_RT-MIXER0
DE_RT-MIXER0 enable.
3:1
/
/
/
0
R/W
0x0
VE_DECODE_EN
VE decode enable
3.16.4.16. DRM Illegal Access Register(Default Value: 0x00000000)
Offset: 0x58
Register Name: DRM_ILLACCE_REG0
Bit
R/W
Default/Hex
Description
31:0
RO
0x0
DRM_ILLACCE_REG.
When a master, which is non-secure, accesses the DRM space, then the
relevant bit will be set up. See Table 3-2 for detail.
3.16.4.17. DRM Start Address Register(Default Value: 0x00000000)
Offset: 0x60
Register Name: DRM_STATADDR_REG
Bit
R/W
Default/Hex
Description
31:15
R/W
0x0
DRM_STATADDR_REG.
14:0
/
/
/
3.16.4.18. DRM End Address Register(Default Value: 0x00000000)
Offset: 0x68
Register Name: DRM_ENDADDR_REG
Bit
R/W
Default/Hex
Description
31:15
R/W
0x0
DRM_ENDADDR_REG.
14:0
/
/
/
3.16.4.19. SMC Region Setup Low Register(Default Value: 0x00000000)
Offset: 0x100+N*0x10(N=0~15)
Register Name: SMC_REGION_SETUP_LO_REG
Bit
R/W
Default/Hex
Description
31:15
R/W
0x0
BASE_ADDRESS_LOW.
Controls the base address [31:15] of region<n>.
The SMC only permits a region to start at address 0x0, or at a multiple of its
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 253
region size. For example, if the size of a region is 512MB, and it is not at
address 0x0, the only valid settings for this field are:
17’b00100000000000000
17’b01000000000000000
17’b01100000000000000
17’b10000000000000000
17’b10100000000000000
17’b11000000000000000
17’b11100000000000000
14:0
/
/
/
Note1:For region 0, this field is Read Only (RO). The SMC sets the base address of region 0 to 0x0.
Note2:The base address should be equal to the DRAM absolutely address.
3.16.4.20. SMC Region Setup High Register(Default Value: 0x00000000)
Offset: 0x104+N*0x10(N=0~15)
Register Name: SMC_REGION_SETUP_HI_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
BASE_ADDRESS_HIGH
The SMC only permits a region to start at address 0x0, or at a multiple of its
region size. If you program a region size to be 8GB or more, then the SMC
might ignore certain bits depending on the region size.
3.16.4.21. SMC Region Attributes Register(Default Value: 0x00000000)
Offset: 0x108+N*0x10(N=0~15)
Register Name: SMC_REGION_ATTR_REG
Bit
R/W
Default/Hex
Description
31:28
R/W
0x0
REGION_ATTR_SPN.
SP<n>. Permission setting for region <n>. if an AXI transaction occurs to
region n, the value in the sp<n> field controls whether the SMC permits the
transaction to proceed. . See Table 3-4 and Table 3-5.
27:16
/
/
/.
15:8
R/W
0x0
SUB_REGION_DISABLE.
Subregion_disable. Regions are split into eight equal-sized sub-regions, and
each bit enables the corresponding subregion to be disabled.
Bit [15] = 1 subregion 7 is disabled.
Bit [14] = 1 subregion 6 is disabled.
Bit [13] = 1 subregion 5 is disabled.
Bit [12] = 1 subregion 4 is disabled.
Bit [11] = 1 subregion 3 is disabled.
Bit [10] = 1 subregion 2 is disabled.
Bit [9] = 1 subregion 1 is disabled.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 254
Bit [8] = 1 subregion 0 is disabled.
7
/
/
/
6:1
R/W
0x0
REGION_ATTR_SIZE.
Size<n>. Size of region<n>, see Table 3-3 for detail.
0
R/W
0x0
REGION_ATTR_EN.
EN<n>. Enable for region<n>.
0 = region < n> is disabled.
1 = region < n> is enabled.
Note:For region 0,this field is reserved except SPN field.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 255
3.17. Secure Peripherals Controller
3.17.1. Overview
Secure Peripherals Controller(SPC) provides a software interface to the protection bits in a secure system in a
TrustZone design. It provides system flexibility that enables to configure different areas of memory as secure or
non-secure.
The SPC includes the following features:
It has protection bits to enable you to program some areas of memory as secure or non–secure.
3.17.2. Functionalities Description
3.17.2.1. Peripherals Security Feature Table
SPC contains secure peripherals,non-secure peripherals and switchable peripherals.Table 3-6 shows the
security feature of A64 peripherals in CPUX and CPUS domain.
Table 3-6. Peripherals Security Feature Table
CPUX Domain
Module Name
Security
Module Name
Security
SRAM A1
Switchable
DMA
Switchable/Trust Capabilities
DE-TOP
Switchable
CS DEBUG
Trust Capabilities
DE-MIXER0
Switchable
GIC
Trust Capabilities
DE-MIXER1
Switchable
MSG_BOX
Non-secure
DE-WB
Switchable
SPINLOCK
Non-secure
DE-ROT
Switchable
OWA
Non-secure
SMHC0
Switchable
PWM
Non-secure
SMHC1
Switchable
KEYADC
Non-secure
SMHC2
Switchable
I2S/PCM-0
Non-secure
System Control
Switchable
I2S/PCM-1
Non-secure
NAND
Switchable
I2S/PCM-2
Non-secure
CE
Switchable
Audio Codec
Non-secure
USB-OTG
Switchable
Thermal Sensor
Non-secure
USB-OTG-HCI
Switchable
EMAC
Non-secure
USB-HCI0
Switchable
GPU
Non-secure
CCU
Switchable
HSTIMER
Non-secure
GPIO
Switchable
MIPI DSI
Non-secure
TWI0
Switchable
CSI
Non-secure
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 256
TWI1
Switchable
HDMI
Non-secure
TWI2
Switchable
DE-interlace
Non-secure
DRAMC
Switchable
TS
Non-secure
SPI0
Switchable
TCON0
Non-secure
SPI1
Switchable
TCON1
Non-secure
VE SRAM
Switchable
VE
Non-secure
UART0
Switchable
TIMER
Non-secure
UART1
Switchable
SID
Secure
UART2
Switchable
SMC
Secure
UART3
Switchable
SPC
Secure
UART4
Switchable
SCR
Switchable
CPUX_CFG
Switchable
DE-TOP
Switchable
CPUS Domain
Module Name
Security
Module Name
Security
PRCM
Switchable
R_UART
Switchable
R_CPUCFG
Switchable
R_CIR_RX
Switchable
R_INTC
Switchable
R_GPIO
Switchable
RTC
Switchable
R_RSB
Switchable
R_TIMER0
Switchable
R_PWM
Non-secure
R_TIMER1
Switchable
R_TWD
Secure
R_TIMER2
Switchable
R_WDOG
Secure
R_TIMER3
Switchable
SRAM A2
Secure
R_TWI
Switchable
3.17.2.2. SPC Configuration Table
The table 3-7 shows the configuration region of the switchable peripherals.
Table 3-7. SPC Configuration Table
Bit
SPC0
SPC1
SPC2
SPC3
SPC4
SPC5
[0]
TWI0
NAND
VE SRAM
R_UART
UART0
DE-TOP
[1]
TWI1
DMA
R_CPUCFG
R_CIR_RX
UART1
DE-MIXER0
[2]
TWI2
Crypto Engine
System
Control
R_GPIO
UART2
DE-MIXER1
[3]
SPI0
SRAM A1
CCU
R_RSB
UART3
DE-WB
[4]
SPI1
USB-OTG
USB HCI0
R_TIMER0
UART4
DE-ROT
[5]
GPIO
USB-OTG-HCI
RTC
R_TIMER1
SMHC0
[6]
CPUX_CFG
DRAMC
R_INTC
R_TIMER2
SMHC1
[7]
SCR
PRCM
R_TWI
R_TIMER3
SMHC2
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 257
3.17.3. SPC Register List
Module Name
Base Address
SPC
0x01C23400
Register Name
Offset
Description
SPC_DECPORT0_STA_REG
0x4
SPC Decode Port0 Status Register
SPC_DECPORT0_SET_REG
0x8
SPC Decode Port0 Set Register
SPC_DECPORT0_CLR_REG
0xC
SPC Decode Port0 Clear Register
SPC_DECPORT1_STA_REG
0x10
SPC Decode Port1 Status Register
SPC_DECPORT1_SET_REG
0x14
SPC Decode Port1 Set Register
SPC_DECPORT1_CLR_REG
0x18
SPC Decode Port1 Clear Register
SPC_DECPORT2_STA_REG
0x1C
SPC Decode Port2 Status Register
SPC_DECPORT2_SET_REG
0x20
SPC Decode Port2 Set Register
SPC_DECPORT2_CLR_REG
0x24
SPC Decode Port2 Clear Register
SPC_DECPORT3_STA_REG
0x28
SPC Decode Port3 Status Register
SPC_DECPORT3_SET_REG
0x2C
SPC Decode Port3 Set Register
SPC_DECPORT3_CLR_REG
0x30
SPC Decode Port3 Clear Register
SPC_DECPORT4_STA_REG
0x34
SPC Decode Port4 Status Register
SPC_DECPORT4_SET_REG
0x38
SPC Decode Port4 Set Register
SPC_DECPORT4_CLR_REG
0x3C
SPC Decode Port4 Clear Register
SPC_DECPORT5_STA_REG
0x40
SPC Decode Port5 Status Register
SPC_DECPORT5_SET_REG
0x44
SPC Decode Port5 Set Register
SPC_DECPORT5_CLR_REG
0x48
SPC Decode Port5 Clear Register
3.17.4. SPC Register Description
3.17.4.1. SPC DECPORT0 Status Register(Default Value: 0x00000000)
Offset: 0x4
Register Name: SPC_DECPORT0_STA_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
RO
0x0
STA_DEC_PROT0_OUT.
Show the status of the decode protection output:
0: = Decode region corresponding to the bit is secure
1: = Decode region corresponding to the bit is non-secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 258
3.17.4.2. SPC DECPORT0 Set Register(Default Value: 0x00000000)
Offset: 0x8
Register Name: SPC_DECPORT0_SET_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/.
7:0
WO
0x0
SET_DEC_PORT0_OUT.
Sets the corresponding decode protection output:
0: = No effect
1: = Set decode region to non-secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.3. SPC DECPORT0 Clear Register(Default Value: 0x00000000)
Offset: 0xC
Register Name: SPC_DECPORT0_CLR_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
WO
0x0
CLR_DEC_PROT0_OUT.
Clears the corresponding decode protection output:
0: = No effect
1: = Set decode region to secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.4. SPC DECPORT1 Status Register(Default Value: 0x00000000)
Offset: 0x10
Register Name: SPC_DECPORT1_STA_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
RO
0x0
STA_DEC_PROT1_OUT.
Show the status of the decode protection output:
0: = Decode region corresponding to the bit is secure
1: = Decode region corresponding to the bit is non-secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.5. SPC DECPORT1 Set Register(Default Value: 0x00000000)
Offset: 0x14
Register Name: SPC_DECPORT1_SET_REG
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 259
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
WO
0x0
SET_DEC_PORT1_OUT.
Sets the corresponding decode protection output:
0: = No effect
1: = Set decode region to non-secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.6. SPC DECPORT1 Clear Register(Default Value: 0x00000000)
Offset: 0x18
Register Name: SPC_DECPORT1_CLR_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
WO
0x0
CLR_DEC_PROT1_OUT.
Clears the corresponding decode protection output:
0: = No effect
1: = Set decode region to secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.7. SPC DECPORT2 Status Register(Default Value: 0x00000000)
Offset: 0x1C
Register Name: SPC_DECPORT2_STA_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
RO
0x0
STA_DEC_PROT2_OUT.
Show the status of the decode protection output:
0: = Decode region corresponding to the bit is secure
1: = Decode region corresponding to the bit is non-secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.8. SPC DECPORT2 Set Register(Default Value: 0x00000000)
Offset: 0x20
Register Name: SPC_DECPORT2_SET_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
WO
0x0
SET_DEC_PORT2_OUT.
Sets the corresponding decode protection output:
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 260
0: = No effect
1: = Set decode region to non-secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.9. SPC DECPORT2 Clear Register(Default Value: 0x00000000)
Offset: 0x24
Register Name: SPC_DECPORT2_CLR_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
WO
0x0
CLR_DEC_PROT2_OUT.
Clears the corresponding decode protection output:
0: = No effect
1: = Set decode region to secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.10. SPC DECPORT3 Status Register(Default Value: 0x00000000)
Offset: 0x28
Register Name: SPC_DECPORT3_STA_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
RO
0x0
STA_DEC_PROT3_OUT.
Show the status of the decode protection output:
0: = Decode region corresponding to the bit is secure
1: = Decode region corresponding to the bit is non-secure
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.11. SPC DECPORT3 Set Register(Default Value: 0x00000000)
Offset: 0x2C
Register Name: SPC_DECPORT3_SET_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
WO
0x0
SET_DEC_PORT3_OUT.
Sets the corresponding decode protection output:
0: = No effect
1: = Set decode region to non-secure
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 261
3.17.4.12. SPC DECPORT3 Clear Register(Default Value: 0x00000000)
Offset: 0x30
Register Name: SPC_DECPORT3_CLR_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
WO
0x0
CLR_DEC_PROT3_OUT.
Clears the corresponding decode protection output:
0: = No effect
1: = Set decode region to secure
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.13. SPC DECPORT4 Status Register(Default Value: 0x00000000)
Offset: 0x34
Register Name: SPC_DECPORT4_STA_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
RO
0x0
STA_DEC_PROT4_OUT.
Show the status of the decode protection output:
0: = Decode region corresponding to the bit is secure
1: = Decode region corresponding to the bit is non-secure
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.14. SPC DECPORT4 Set Register(Default Value: 0x00000000)
Offset: 0x38
Register Name: SPC_DECPORT4_SET_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
WO
0x0
SET_DEC_PORT4_OUT.
Sets the corresponding decode protection output:
0: = No effect
1: = Set decode region to non-secure
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.15. SPC DECPORT4 Clear Register(Default Value: 0x00000000)
Offset: 0x3C
Register Name: SPC_DECPORT4_CLR_REG
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 262
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
WO
0x0
CLR_DEC_PROT4_OUT.
Clears the corresponding decode protection output:
0: = No effect
1: = Set decode region to secure
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.16. SPC DECPORT5 Status Register(Default Value: 0x00000000)
Offset: 0x40
Register Name: SPC_DECPORT5_STA_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
RO
0x0
STA_DEC_PROT5_OUT.
Show the status of the decode protection output:
0: = Decode region corresponding to the bit is secure
1: = Decode region corresponding to the bit is non-secure
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.17. SPC DECPORT5 Set Register(Default Value: 0x00000000)
Offset: 0x44
Register Name: SPC_DECPORT5_SET_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
WO
0x0
SET_DEC_PORT5_OUT.
Sets the corresponding decode protection output:
0: = No effect
1: = Set decode region to non-secure
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
3.17.4.18. SPC DECPORT5 Clear Register(Default Value: 0x00000000)
Offset: 0x48
Register Name: SPC_DECPORT5_CLR_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
WO
0x0
CLR_DEC_PROT5_OUT.
Clears the corresponding decode protection output:
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 263
0: = No effect
1: = Set decode region to secure
There is one bit of the register for each protection output (See the SPC
Configuration Table 3-7 in detail).
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 264
3.18. Thermal Sensor Controller
3.18.1. Overview
The thermal sensors have become common elements in wide range of modern system on chip (SOC) platform.
Thermal sensors are used to constantly monitor the temperature on the chip.
A64 embeds three thermal sensors in possible hot spots on the die, sensor0 located in the CPU, sensor1 and
sensor2 located in the GPU. The thermal sensor Generates interrupt to SW to lower temperature via DVFS, on
reaching a certain thermal threshold.
The Thermal Sensor Controller includes the following features:
Supports APB 32-bits bus width
Power supply voltage:3.0V
Low power dissipation
Periodic temperature measurement
Averaging filter for thermal sensor reading
Support over-temperature protection interrupt and over-temperature alarm interrupt
3.18.2. Clock and Timing Requirements
CLK_IN = 24MHz/M, M can be set in the CCU
Conversion Time = 1/(24MHz/M/14Cycles) =0.583 * M (us)
THERMAL_PER (configured by the value of THERMAL_PER) is must be greater than (ACQ1 + ACQ0+Conversion
Time)
THERMAL_PER > ACQ1 + ACQ0+Conversion Time
Figure 3-17. Thermal Conversion phase
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 265
3.18.3. Temperature Conversion Formula
Temp=-8.56*Data + 2170 ℃
Val is the value that read from THS0_DATA_REG/THS1_DATA_REG/THS2_DATA_REG.
3.18.4. Thermal Sensor Register List
Module Name
Base Address
Thermal Sensor
0x01C25000
Register Name
Offset
Description
THS_CTRL0
0x00
THS Control Register0
THS_CTRL1
0x04
THS Control Register1
ADC_CDAT
0x14
ADC calibration data Register
THS_CTRL2
0x40
THS Control Register2
THS_INT_CTRL
0x44
THS Interrupt Control Register
THS_STAT
0x48
THS Status Register
THS0_ALARM_CTRL
0x50
Alarm threshold Control Register0
THS1_ALARM_CTRL
0x54
Alarm threshold Control Register1
THS2_ALARM_CTRL
0x58
Alarm threshold Control Register2
THS0_SHUTDOWN_CTRL
0x60
Shutdown threshold Control Register0
THS1_SHUTDOWN_CTRL
0x64
Shutdown threshold Control Register1
THS2_SHUTDOWN_CTRL
0x68
Shutdown threshold Control Register2
THS_FILTER
0x70
Median filter Control Register
THS0_1_CDATA
0x74
Thermal Sensor 0 1 Calibration Data
THS2_CDATA
0x78
Thermal Sensor2 Calibration Data
THS0_DATA
0x80
THS0 Data Register
THS1_DATA
0x84
THS1 Data Register
THS2_DATA
0x88
THS2 Data Register
3.18.5. Thermal Sensor Register Description
3.18.5.1. THS Control Register0 (Default Value: 0x00000000)
Offset: 0x00
Register Name: THS_CTRL_REG0
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0
SENSOR_ACQ0
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 266
ADC acquire time
CLK_IN/(N+1)
3.18.5.2. THS Control Register1 (Default Value: 0x00000000)
Offset: 0x04
Register Name: THS_CTRL_REG1
Bit
R/W
Default/Hex
Description
31:22
/
/
/
21:20
R/W
0x0
THS_OP_BIAS.
THS OP Bias
19:18
/
/
/
17
R/W
0x0
ADC_CALI_EN.
ADC Calibration
1: start Calibration, it is clear to 0 after calibration
16:0
/
/
/
3.18.5.3. ADC calibration Data Register (Default Value: 0x00000000)
Offset: 0x14
Register Name: ADC_CDAT_REG
Bit
R/W
Default/Hex
Description
31:12
/
/
/
11:0
R/W
0xxxx
ADC_CDAT.
ADC calibration data
3.18.5.4. THS Control Register2 (Default Value: 0x00040000)
Offset: 0x40
Register Name: THS_CTRL_REG2
Bit
R/W
Default/Hex
Description
31:16
R/W
0x4
SENSOR_ACQ1.
Sensor acquire time
CLK_IN/(N+1)
15:3
/
/
/
2
R/W
0x0
SENSE2_EN.
Enable temperature measurement sensor2
0:Disable
1:Enable
1
R/W
0x0
SENSE1_EN.
Enable temperature measurement sensor1
0:Disable
1:Enable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 267
0
R/W
0x0
SENSE0_EN.
Enable temperature measurement sensor0
0:Disable
1:Enable
3.18.5.5. THS Interrupt Control Register (Default Value: 0x00000000)
Offset: 0x44
Register Name: THS_INT_CTRL_REG
Bit
R/W
Default/Hex
Description
31:12
R/W
0x0
THERMAL_PER.
4096*(n+1)/CLK_IN
11
/
/
/
10
R/W
0x0
THS2_DATA_IRQ_EN.
Selects Temperature measurement data of sensor2
0: No select
1: Select
9
R/W
0x0
THS1_DATA_IRQ_EN.
Selects Temperature measurement data of sensor1
0: No select
1: Select
8
R/W
0x0
THS0_DATA_IRQ_EN.
Selects Temperature measurement data of sensor0
0: No select
1: Select
7
/
/
/
6
R/W
0x0
SHUT_INT2_EN.
Selects shutdown interrupt for sensor2
0: No select
1: Select
5
R/W
0x0
SHUT_INT1_EN.
Selects shutdown interrupt for sensor1
0: No select
1: Select
4
R/W
0x0
SHUT_INT0_EN.
Selects shutdown interrupt for sensor0
0: No select
1: Select
3
/
/
/
2
R/W
0x0
ALARM_INT2_EN.
Selects Alert interrupt for sensor2
0: No select
1: Select
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 268
1
R/W
0x0
ALARM_INT1_EN.
Selects Alert interrupt for sensor1
0: No select
1: Select
0
R/W
0x0
ALARM_INT0_EN.
Selects Alert interrupt for sensor0
0: No select
1: Select
3.18.5.6. THS status Register (Default Value: 0x00000000)
Offset: 0x48
Register Name: THS_STAT_REG
Bit
R/W
Default/Hex
Description
31:15
/
/
/
14
R/W
0x0
ALARM_OFF2_STS.
Alarm interrupt off pending for sensor2
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails
13
R/W
0x0
ALARM_OFF1_STS.
Alarm interrupt off pending for sensor1
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails
12
R/W
0x0
ALARM_OFF0_STS.
Alarm interrupt off pending for sensor0
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails
11
/
/
/
10
R/W
0x0
THS2_DATA_IRQ_STS.
Data interrupt status for sensor2
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails
9
R/W
0x0
THS1_DATA_IRQ_STS.
Data interrupt status for sensor1
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails
8
R/W
0x0
THS0_DATA_IRQ_STS.
Data interrupt status for sensor0
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails
7
/
/
/
6
R/W
0x0
SHUT_INT2_STS.
Shutdown interrupt status for sensor2
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 269
fails
5
R/W
0x0
SHUT_INT1_STS.
Shutdown interrupt status for sensor1
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails
4
R/W
0x0
SHUT_INT0_STS.
Shutdown interrupt status for sensor0
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails
3
/
/
/
2
R/W
0x0
ALARM_INT2_STS.
Alarm interrupt pending for sensor2
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails
1
R/W
0x0
ALARM_INT1_STS.
Alarm interrupt pending for sensor1
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails
0
R/W
0x0
ALARM_INT0_STS.
Alarm interrupt pending for sensor0
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails
3.18.5.7. Alarm threshold Control Register0 (Default Value: 0x05a00684)
Offset: 0x50
Register Name: THS0_ALARM_CTRL_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x5A0
ALARM0_T_HOT.
Thermal sensor0 Alarm Threshold for hot temperature
15:12
/
/
/
11:0
R/W
0x684
ALARM0_T_HYST
Thermal sensor0 Alarm threshold for hysteresis temperature
3.18.5.8. Alarm threshold Control Register1 (Default Value: 0x05a00684)
Offset: 0x54
Register Name: THS1_ALARM_CTRL_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x5A0
ALARM1_T_HOT.
Thermal sensor1 Alarm Threshold for hot temperature
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 270
15:12
/
/
/
11:0
R/W
0x684
ALARM1_T_HYST
Thermal sensor1 Alarm threshold for hysteresis temperature
3.18.5.9. Alarm threshold Control Register2 (Default Value: 0x05a00684)
Offset: 0x58
Register Name: THS2_ALARM_CTRL_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x5A0
ALARM2_T_HOT.
Thermal sensor2 Alarm Threshold for hot temperature
15:12
/
/
/
11:0
R/W
0x684
ALARM2_T_HYST
Thermal sensor2 Alarm threshold for hysteresis temperature
3.18.5.10. Shutdown threshold Control Register0 (Default Value: 0x04e90000)
Offset: 0x60
Register Name: THS0_SHUTDOWN_CTRL_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x4E9
SHUT0_T_HOT.
Thermal sensor0 Shutdown Threshold for hot temperature
15:0
/
/
/
3.18.5.11. Shutdown threshold Control Register1 (Default Value: 0x04e90000)
Offset: 0x64
Register Name: THS1_SHUTDOWN_CTRL_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x4E9
SHUT1_T_HOT.
Thermal sensor1 Shutdown Threshold for hot temperature
15:0
/
/
/
3.18.5.12. Shutdown threshold Control Register2 (Default Value: 0x04e90000)
Offset: 0x68
Register Name: THS2_SHUTDOWN_CTRL_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 271
27:16
R/W
0x4E9
SHUT2_T_HOT.
Thermal sensor2 Shutdown Threshold for hot temperature
15:0
/
/
/
3.18.5.13. Average filter Control Register (Default Value: 0x00000001)
Offset: 0x70
Register Name: THS_FILTER_REG
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2
R/W
0x0
FILTER_EN.
Filter Enable
0: Disable
1: Enable
1:0
R/W
0x1
FILTER_TYPE.
Average Filter Type
00: 2
01: 4
10: 8
11: 16
3.18.5.14. Thermal Sensor 0&1 calibration Data Register (Default Value: 0x08000800)
Offset: 0x74
Register Name: THS0_1_CDATA_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x800
THS1_CDATA.
Thermal Sensor1 calibration data
15:12
/
/
/
11:0
R/W
0x800
THS0_CDATA.
Thermal Sensor0 calibration data
3.18.5.15. Thermal Sensor 2 calibration Data Register (Default Value: 0x00000800)
Offset: 0x78
Register Name: THS2_CDATA_REG
Bit
R/W
Default/Hex
Description
31:12
/
/
/
11:0
R/W
0x800
THS2_CDATA.
Thermal Sensor2 calibration data
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 272
3.18.5.16. THS0 Data Register (Default Value: 0x00000000)
Offset: 0x80
Register Name: THS0_DATA_REG
Bit
R/W
Default/Hex
Description
31:12
/
/
/
11:0
R
0x0
THS0_DATA.
Temperature measurement data of sensor0
3.18.5.17. THS1 Data Register (Default Value: 0x00000000)
Offset: 0x84
Register Name: THS1_DATA_REG
Bit
R/W
Default/Hex
Description
31:12
/
/
/
11:0
R
0x0
THS1_DATA.
Temperature measurement data of sensor1
3.18.5.18. THS2 Data Register (Default Value: 0x00000000)
Offset: 0x88
Register Name: THS2_DATA_REG
Bit
R/W
Default/Hex
Description
31:12
/
/
/
11:0
R
0x0
THS2_DATA.
Temperature measurement data of sensor2
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 273
3.19. KEYADC
3.19.1. Overview
KEYADC is 6-bit resolution ADC for key application. The KEYADC can work up to 250Hz conversion rate.
The KEYADC includes the following features:
Supports APB 32-bits bus width,reference voltage is 2.0V
Support interrupt
Support Hold Key and General Key
Support Single Key and Continue Key mode
Support 6-bits resolution
Voltage input range between 0V to 2.0V
Sample rate up to 250Hz
3.19.2. Clock Source
The following diagram shows the clock source of KEYADC.
KeyADC
DIV
Internal
OSC
32KHz
Figure 3-18. KEYADC Clock Source
3.19.3. Operation Principle
The KEYADC converted data can accessed by interrupt and polling method. If software can’t access the last
converted data instantly, the new converted data would update the old one at new sampling data.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 274
Figure 3-19. KEY_ADC Converted Data Diagram
When ADC_IN Signal change from 1.8V to less than 1.35V (Level A), the comparator24 send first interrupt to
control logic; When ADC_IN Signal change from 1.35V to less than certain level (Program can set), the
comparator25 give second interrupt. If the control Logic get the first interrupt, In a certain time range (program
can set), doesn’t get second interrupt, it will send hold key interrupt to the host; If the control Logic get the
first interrupt, In a certain time range (program can set), get second interrupt, it will send key down interrupt
to the host; If the control logic only get the second interrupt, doesn’t get the first interrupt, it will send already
hold interrupt to the host.
The KEYADC have three mode, Normal Mode、Single Mode and Continue Mode. Normal Mode is that the
KEYADC will report the result data of each convert all the time when the key is down. Single Mode is that the
KEYADC will only report the first convert result data when the key is down. Continue Mode is that the KEYADC
will report one of 8*(N+1) (N is program can set) sample convert result data when key is down.
The KEYADC is support four sample rate such as 250Hz、125Hz、62.5Hz and 32.25Hz, you can configure the
value of KEYADC_SAMPLE_RATE to select the fit sample rate.
3.19.4. KEY_ADC Register List
Module Name
Base Address
KEYADC
0x01C21800
Register Name
Offset
Description
KEYADC_CTRL
0x00
KEYADC Control Register
KEYADC_INTC
0x04
KEYADC Interrupt Control Register
KEYADC_INTS
0x08
KEYADC Interrupt Status Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 275
KEYADC_DATA
0x0C
KEYADC Data Register
3.19.5. KEYADC Register Description
3.19.5.1. KEYADC Control Register (Default Value: 0x01000168)
Offset: 0x00
Register Name: KEYADC_CTRL_REG
Bit
R/W
Default/Hex
Description
31: 24
R/W
0x1
FIRST_CONVERT_DLY.
ADC First Convert Delay setting, ADC conversion is delayed by n samples
23:22
R/W
0x0
Reserved to 0
21:20
/
/
/
19:16
R/W
0x0
CONTINUE_TIME_SELECT.
Continue Mode time select, one of 8*(N+1) sample as a valuable sample
data
15:14
/
/
/
13:12
R/W
0x0
KEY_MODE_SELECT.
Key Mode Select:
00: Normal Mode
01: Single Mode
10: Continue Mode
11:8
R/W
0x1
LEVELA_B_CNT.
Level A to Level B time threshold select, judge ADC convert value in level
A to level B in n+1 samples
7
R/W
0X0
KEYADC_HOLD_KEY_EN
KEYADC Hold Key Enable
0: Disable
1: Enable
6
R/W
0x1
KEYADC_HOLD_EN.
KEYADC Sample hold Enable
0: Disable
1: Enable
5: 4
R/W
0x2
LEVELB_VOL.
Level B Corresponding Data Value setting (the real voltage value)
00: 0x3C (~1.9v)
01: 0x39 (~1.8v)
10: 0x36 (~1.7v)
11: 0x33 (~1.6v)
3: 2
R/W
0x2
KEYADC_SAMPLE_RATE.
KEYADC Sample Rate
00: 250 Hz
01: 125 Hz
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 276
10: 62.5 Hz
11: 32.25 Hz
1
/
/
/
0
R/W
0x0
KEYADC_EN.
KEYADC enable
0: Disable
1: Enable
3.19.5.2. KEYADC Interrupt Control Register (Default Value: 0x00000000)
Offset: 0x04
Register Name: KEYADC_INTC_REG
Bit
R/W
Default/Hex
Description
31:5
/
/
/
4
R/W
0x0
ADC_KEYUP_IRQ_EN.
ADC Key Up IRQ Enable
0: Disable
1: Enable
3
R/W
0x0
ADC_ALRDY_HOLD_IRQ_EN.
ADC Already Hold IRQ Enable
0: Disable
1: Enable
2
R/W
0x0
ADC_HOLD_IRQ_EN.
ADC Hold Key IRQ Enable
0: Disable
1: Enable
1
R/W
0x0
ADC_KEYDOWN_EN
ADC Key Down Enable
0: Disable
1: Enable
0
R/W
0x0
ADC_DATA_IRQ_EN.
ADC Data IRQ Enable
0: Disable
1: Enable
3.19.5.3. KEYADC Interrupt Status Register (Default Value: 0x00000000)
Offset: 0x08
Register Name:KEYADC_INTS_REG
Bit
R/W
Default/Hex
Description
31:5
/
/
/
4
R/W
0x0
ADC_KEYUP_PENDING.
ADC Key up pending Bit
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 277
When general key pull up, it the corresponding interrupt is enabled.
0: No IRQ
1: IRQ Pending
Notes: Writing 1 to the bit will clear it and its corresponding interrupt if
the interrupt is enable
3
R/W
0x0
ADC_ALRDY_HOLD_PENDING.
ADC Already Hold Pending Bit
When hold key pull down and pull the general key down, if the
corresponding interrupt is enabled.
0: No IRQ
1: IRQ Pending
Notes: Writing 1 to the bit will clear it and its corresponding interrupt if
the interrupt is enable
2
R/W
0x0
ADC_HOLDKEY_PENDING.
ADC Hold Key pending Bit
When Hold key pull down, the status bit is set and the interrupt line is set
if the corresponding interrupt is enabled.
0: NO IRQ
1: IRQ Pending
Notes: Writing 1 to the bit will clear it and its corresponding interrupt if
the interrupt is enable.
1
R/W
0x0
ADC_KEYDOWN_PENDING.
ADC Key Down IRQ Pending Bit
When General key pull down, the status bit is set and the interrupt line is
set if the corresponding interrupt is enabled.
0: No IRQ
1: IRQ Pending
Notes: Writing 1 to the bit will clear it and its corresponding interrupt if
the interrupt is enable.
0
R/W
0x0
ADC_DATA_PENDING.
ADC Data IRQ Pending Bit
0: No IRQ
1: IRQ Pending
Notes: Writing 1 to the bit will clear it and its corresponding interrupt if
the interrupt is enable.
3.19.5.4. KEYADC Data Register (Default Value: 0x00000000)
Offset: 0x0C
Register Name: KEYADC_DATA_REG
Bit
R/W
Default/Hex
Description
31:6
/
/
/
5:0
R
0x0
KEYADC_DATA.
KEYADC Data
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 278
3.20. Audio Codec
3.20.1. Overview
The Audio CODEC has two I2S/PCM interface, 2 channels DAC and 2 channels ADC with a high level of
mixed-signal integration which ideal for smart phone and other portable devices. The two sets of audio interface
pins are available in order to provide synchronous connections to multiple processors such as baseband
processor and wireless headset transceiver.
The Codec integrates true-ground capless headphone driver to deliver high quality and power-efficient
headphone playback without any requirement for DC block capacitors.
The integrated hardware DSP engine capable of AGC and DRC can be used in record and playback paths for
maintaining a constant signal level,maximizing the loudness.
The features of Audio Codec:
Two audio digital-to-analog(DAC) channels
Stereo capless headphone drivers:
- 100dB SNR@A-weight
- Supports DAC Sample Rates from 8KHz to 192KHz
Support analog/digital volume control
Differential earpiece driver
Analog low-power loop from line-in /microphone to headphone/earpiece outputs
Support Dynamic Range Controller(DRC) adjusting the DAC playback output.
Accessory button press detection
Four audio inputs:
- Two differential microphone inputs
- One differential Phone input
- Stereo Line-in L/R input
Four audio outputs:
- Earpiece amplifier differential output
- Phone amplifier differential output
- Headphone amplifier L/R channel output
- Line-out L/R output
Two audio analog-to-digital(ADC) channels
- 96dB SNR@A-weight
- Supports ADC Sample Rates from 8KHz to 48KHz
Support Automatic Gain Control(AGC) and Dynamic Range Control(DRC) adjusting the ADC recording
output
Two PCM interface connected with BB and BT
One 128x24-bits FIFO for data transmit, one 64x24-bits FIFO for data receive
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 279
Programmable FIFO thresholds
Interrupt and DMA Support
Support Audio HUB
3.20.2. Power and Signal Description
3.20.2.1. Analog I/O Pins
MIC1P
I
Positive differential input for MIC1
MIC1N
I
Negative differential input for MIC1
MIC2P
I
Positive differential input for MIC2
MIC2N
I
Negative differential input for MIC2
LINEINL
I
Left single-end input for LINE-IN
LINEINR
I
Right single-end input for LINE-IN
PHONEINP
I
Positive differential input for Phone
PHONEINN
I
Negative differential input for Phone
HPOUTL
O
Headphone amplifier left channel output
HPOUTR
O
Headphone amplifier right channel output
LINEOUTL
O
Left single-end output for LINE-OUT
LINEOUTR
O
Right single-end output for LINE-OUT
EAROUTP
O
Earpiece amplifier positive differential output
EAROUTN
O
Earpiece amplifier negative differential output
PHONEOUTP
O
Positive differential output for Phone
PHONEOUTN
O
Negative differential output for Phone
MIC-DET
I
Headphone MIC Detect
HP-DET
I
Headphone Jack Detect
3.20.2.2. Filter/Reference
MBIAS
O
First bias voltage output for main microphone
HBIAS
O
Second bias voltage output for headset microphone
HP-FB
I
Pseudo differential headphone ground feedback
CPN
O
charge pump flying-back capacitor
CPP
O
charge pump flying-back capacitor
VRA1
O
internal reference voltage
VRA2
O
internal reference voltage
VRP
O
internal reference voltage
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 280
3.20.2.3. Power/Ground
AVCC
P
Analog power
AGND
G
Analog ground
CPVDD
P
Analog power for headphone charge pump
CPVEE
P
Charge pump negative voltage output
VEE
P
PA negative voltage input
3.20.3. Data Path Diagram
MIC2N
LINEINL
G
G
MIC2P
MIC1N G
PHONEINN G
PHONEINP
LINEINR
G
+
-
+
-
+
-
ADCL
ADCR
MIC1P
DAP
DACR
DACL
m
G
G
HPOUTL
HPOUTR
I2S/PCM Interface I2S/PCM Interface
PHONEOUTP
PHONEOUTN
G
+
G
+
-
+ + +
L/R Source Select/Mono Mix Control
DAP
L/R Source Select/Mono
Mix Control
PCM Interface
DACL
MIXL
DACR
MIXR
Slot0 Slot1 Slot0 Slot1
LR L R L R L R L R L R
+
D
A
P
D
A
P
D
A
P
D
A
P
DAP DAP
DAP DAP
SRC
m
m
G
G
LINEOUTL
-1
m
MIXL
MIXR
MIXR LINEOUTR
SYNC
FIFO
APB BB BT
NO SRC
mGEAROUTP
MIXL
MIXR
DACL
DACR EAROUTN
m
m
m
m
m
mmmm m
m
m
m
m
m
m
m
m
m
m
m
m
m
m
m
m
m
m
Figure 3-20. Audio Codec Data Path Diagram
3.20.4. Audio Codec Register List
Module Name
Base Address
AC
0X01C22C00
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 281
Register Name
Offset
Description
DA_CTL
0x000
Digital Audio Control Register
DA_FAT0
0x004
Digital Audio Format Register 0
DA_FAT1
0x008
Digital Audio Format Register 1
DA_ISTA
0x00C
Digital Audio Interrupt Status Register
DA_RXFIFO
0x010
Digital Audio RX FIFO Register
DA_FCTL
0x014
Digital Audio FIFO Control Register
DA_FSTA
0x018
Digital Audio FIFO Status Register
DA_INT
0x01C
Digital Audio Interrupt Control Register
DA_TXFIFO
0x020
Digital Audio TX FIFO Register
DA_CLKD
0x024
Digital Audio Clock Divide Register
DA_TXCNT
0x028
Digital Audio RX Sample Counter Register
DA_RXCNT
0x02C
Digital Audio TX Sample Counter Register
DA_TXCHSEL
0x030
Digital Audio TX Channel Select register
DA_TXCHMAP
0x034
Digital Audio TX Channel Mapping Register
DA_RXCHSEL
0x038
Digital Audio RX Channel Select register
DA_RXCHMAP
0x03C
Digital Audio RX Channel Mapping Register
Codec_RST
0x200
Chip Soft Reset Register
SYSCLK_CTL
0x20C
System Clock Control Register
MOD_CLK_ENA
0x210
Module Clock Control Register
MOD_RST_CTL
0x214
Module Reset Control Register
SYS_SR_CTRL
0x218
System Sample rate & SRC Configuration Register
SYS_SRC_CLK
0x21C
System SRC Clock Source Select Register
SYS_DVC_MOD
0x220
System DVC Mode Select Register
AIF1CLK_CTRL
0x240
AIF1 BCLK/LRCK Control Register
AIF1_ADCDAT_CTRL
0x244
AIF1 ADCDAT Control Register
AIF1_DACDAT_CTRL
0x248
AIF1 DACDAT Control Register
AIF1_MIXR_SRC
0x24C
AIF1 Digital Mixer Source Select Register
AIF1_VOL_CTRL1
0x250
AIF1 Volume Control 1 Register
AIF1_VOL_CTRL2
0x254
AIF1 Volume Control 2 Register
AIF1_VOL_CTRL3
0x258
AIF1 Volume Control 3 Register
AIF1_VOL_CTRL4
0x25C
AIF1 Volume Control 4 Register
AIF1_MXR_GAIN
0x260
AIF1 Digital Mixer Gain Control Register
AIF1_RXD_CTRL
0x264
AIF1 Receiver Data Discarding Control Register
AIF2_CLK_CTRL
0x280
AIF2 BCLK/LRCK Control Register
AIF2_ADCDAT_CTRL
0x284
AIF2 ADCDAT Control Register
AIF2_DACDAT_CTRL
0x288
AIF2 DACDAT Control Register
AIF2_MXR_SRC
0x28C
AIF2 Digital Mixer Source Select Register
AIF2_VOL_CTRL1
0x290
AIF2 Volume Control 1 Register
AIF2_VOL_CTRL2
0x298
AIF2 Volume Control 2 Register
AIF2_MXR_GAIN
0x2A0
AIF2 Digital Mixer Gain Control Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 282
AIF2_RXD_CTRL
0x2A4
AIF2 Receiver Data Discarding Control Register
AIF3_CLK_CTRL
0x2C0
AIF3 BCLK/LRCK Control Register
AIF3_ADCDAT_CTRL
0x2C4
AIF3 ADCDAT Control Register
AIF3_DACDAT_CTRL
0x2C8
AIF3 DACDAT Control Register
AIF3_SGP_CTRL
0x2CC
AIF3 Signal Path Control Register
AIF3_RXD_CTRL
0x2E4
AIF3 Receiver Data Discarding Control Register
ADC_DIG_CTRL
0x300
ADC Digital Control Register
ADC_VOL_CTRL
0x304
ADC Volume Control Register
ADC_DBG_CTRL
0x308
ADC Debug Control Register
HMIC_CTRL1
0x310
HMIC Control 1 Register
HMIC_CTRL2
0x314
HMIC Control 2 Register
HMIC_STS
0x318
HMIC Status Register
DAC_DIG_CTRL
0x320
DAC Digital Control Register
DAC_VOL_CTRL
0x324
DAC Volume Control Register
DAC_DBG_CTRL
0x328
DAC Debug Control Register
DAC_MXR_SRC
0x330
DAC Digital Mixer Source Select Register
DAC_MXR_GAIN
0x334
DAC Digital Mixer Gain Control Register
AC_ADC_DAPLSTA
0x400
ADC DAP Left Status Register
AC_ADC_DAPRSTA
0x404
ADC DAP Right Status Register
AC_ADC_DAPLCTRL
0x408
ADC DAP Left Channel Control Register
AC_ADC_DAPRCTRL
0x40C
ADC DAP Right Channel Control Register
AC_ADC_DAPLTL
0x410
ADC DAP Left Target Level Register
AC_ADC_DAPRTL
0x414
ADC DAP Right Target Level Register
AC_ADC_DAPLHAC
0x418
ADC DAP Left High Average Coef Register
AC_ADC_DAPLLAC
0x41C
ADC DAP Left Low Average Coef Register
AC_ADC_DAPRHAC
0x420
ADC DAP Right High Average Coef Register
AC_ADC_DAPRLAC
0x424
ADC DAP Right Low Average Coef Register
AC_ADC_DAPLDT
0x428
ADC DAP Left Decay Time Register
AC_ADC_DAPLAT
0x42C
ADC DAP Left Attack Time Register
AC_ADC_DAPRDT
0x430
ADC DAP Right Decay Time Register
AC_ADC_DAPRAT
0x434
ADC DAP Right Attack Time Register
AC_ADC_DAPNTH
0x438
ADC DAP Noise Threshold Register
AC_ADC_DAPLHNAC
0x43C
ADC DAP Left Input Signal High Average Coef Register
AC_ADC_DAPLLNAC
0x440
ADC DAP Left Input Signal Low Average Coef Register
AC_ADC_DAPRHNAC
0x444
ADC DAP Right Input Signal High Average Coef Register
AC_ADC_DAPRLNAC
0x448
ADC DAP Right Input Signal Low Average Coef Register
AC_DAPHHPFC
0x44C
ADC DAP High HPF Coef Register
AC_DAPLHPFC
0x450
ADC DAP Low HPF Coef Register
AC_DAPOPT
0x454
ADC DAP Optimum Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 283
AC_DAC_DAPCTRL
0x480
DAC DAP Control Register
AGC_ENA
0x4D0
AGC Enable Register
DRC_ENA
0x4D4
DRC Enable Register
SRC_BISTCR
0x4D8
SRC Bist control Register
SRC_BISTST
0x4DC
SRC Bist Status Register
SRC1_CTRL1
0x4E0
SRC1 Control 1 Register
SRC1_CTRL2
0x4E4
SRC1 Control 2 Register
SRC1_CTRL3
0x4E8
SRC1 Control 3 Register
SRC1_CTRL4
0x4EC
SRC1 Control 4 Register
SRC2_CTRL1
0x4F0
SRC2 Control 1 Register
SRC2_CTRL2
0x4F4
SRC2 Control 2 Register
SRC2_CTRL3
0x4F8
SRC2 Control 3 Register
SRC2_CTRL4
0x4FC
SRC2 Control 4 Register
AC_DRC0_HHPFC
0x600
DRC0 High HPF Coef Register
AC_DRC0_LHPFC
0x604
DRC0 Low HPF Coef Register
AC_DRC0_CTRL
0x608
DRC0 Control Register
AC_DRC0_LPFHAT
0x60C
DRC0 Left Peak Filter High Attack Time Coef Register
AC_DRC0_LPFLAT
0x610
DRC0 Left Peak Filter Low Attack Time Coef Register
AC_DRC0_RPFHAT
0x614
DRC0 Right Peak Filter High Attack Time Coef Register
AC_DRC0_RPFLAT
0x618
DRC0 Peak Filter Low Attack Time Coef Register
AC_DRC0_LPFHRT
0x61C
DRC0 Left Peak Filter High Release Time Coef Register
AC_DRC0_LPFLRT
0x620
DRC0 Left Peak Filter Low Release Time Coef Register
AC_DRC0_RPFHRT
0x624
DRC0 Right Peak filter High Release Time Coef Register
AC_DRC0_RPFLRT
0x628
DRC0 Right Peak filter Low Release Time Coef Register
AC_DRC0_LRMSHAT
0x62C
DRC0 Left RMS Filter High Coef Register
AC_DRC0_LRMSLAT
0x630
DRC0 Left RMS Filter Low Coef Register
AC_DRC0_RRMSHAT
0x634
DRC0 Right RMS Filter High Coef Register
AC_DRC0_RRMSLAT
0x638
DRC0 Right RMS Filter Low Coef Register
AC_DRC0_HCT
0x63C
DRC0 Compressor Theshold High Setting Register
AC_DRC0_LCT
0x640
DRC0 Compressor Slope High Setting Register
AC_DRC0_HKC
0x644
DRC0 Compressor Slope High Setting Register
AC_DRC0_LKC
0x648
DRC0 Compressor Slope Low Setting Register
AC_DRC0_HOPC
0x64C
DRC0 Compressor High Output at Compressor Threshold
Register
AC_DRC0_LOPC
0x650
DRC0 Compressor Low Output at Compressor Threshold
Register
AC_DRC0_HLT
0x654
DRC0 Limiter Theshold High Setting Register
AC_DRC0_LLT
0x658
DRC0 Limiter Theshold Low Setting Register
AC_DRC0_HKl
0x65C
DRC0 Limiter Slope High Setting Register
AC_DRC0_LKl
0x660
DRC0 Limiter Slope Low Setting Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 284
AC_DRC0_HOPL
0x664
DRC0 Limiter High Output at Limiter Threshold
AC_DRC0_LOPL
0x668
DRC0 Limiter Low Output at Limiter Threshold
AC_DRC0_HET
0x66C
DRC0 Expander Theshold High Setting Register
AC_DRC0_LET
0x670
DRC0 Expander Theshold Low Setting Register
AC_DRC0_HKE
0x674
DRC0 Expander Slope High Setting Register
AC_DRC0_LKE
0x678
DRC0 Expander Slope Low Setting Register
AC_DRC0_HOPE
0x67C
DRC0 Expander High Output at Expander Threshold
AC_DRC0_LOPE
0x680
DRC0 Expander Low Output at Expander Threshold
AC_DRC0_HKN
0x684
DRC0 Linear Slope High Setting Register
AC_DRC0_LKN
0x688
DRC0 Linear Slope Low Setting Register
AC_DRC0_SFHAT
0x68C
DRC0 Smooth filter Gain High Attack Time Coef Register
AC_DRC0_SFLAT
0x690
DRC0 Smooth filter Gain Low Attack Time Coef Register
AC_DRC0_SFHRT
0x694
DRC0 Smooth filter Gain High Release Time Coef
Register
AC_DRC0_SFLRT
0x698
DRC0 Smooth filter Gain Low Release Time Coef Register
AC_DRC0_MXGHS
0x69C
DRC0 MAX Gain High Setting Register
AC_DRC0_MXGLS
0x6A0
DRC0 MAX Gain Low Setting Register
AC_DRC0_MNGHS
0x6A4
DRC0 MIN Gain High Setting Register
AC_DRC0_MNGLS
0x6A8
DRC0 MIN Gain Low Setting Register
AC_DRC0_EPSHC
0x6AC
DRC0 Expander Smooth Time High Coef Register
AC_DRC0_EPSLC
0x6B0
DRC0 Expander Smooth Time Low Coef Register
AC_DRC0_OPT
0x6AC
DRC0 Optimum Register
AC_DRC1_HHPFC
0x700
DRC1 High HPF Coef Register
AC_DRC1_LHPFC
0x704
DRC1 Low HPF Coef Register
AC_DRC1_CTRL
0x708
DRC1 Control Register
AC_DRC1_LPFHAT
0x70C
DRC1 Left Peak Filter High Attack Time Coef Register
AC_DRC1_LPFLAT
0x710
DRC1 Left Peak Filter Low Attack Time Coef Register
AC_DRC1_RPFHAT
0x714
DRC1 Right Peak Filter High Attack Time Coef Register
AC_DRC1_RPFLAT
0x718
DRC1 Peak Filter Low Attack Time Coef Register
AC_DRC1_LPFHRT
0x71C
DRC1 Left Peak Filter High Release Time Coef Register
AC_DRC1_LPFLRT
0x720
DRC1 Left Peak Filter Low Release Time Coef Register
AC_DRC1_RPFHRT
0x724
DRC1 Right Peak filter High Release Time Coef Register
AC_DRC1_RPFLRT
0x728
DRC1 Right Peak filter Low Release Time Coef Register
AC_DRC1_LRMSHAT
0x72C
DRC1 Left RMS Filter High Coef Register
AC_DRC1_LRMSLAT
0x730
DRC1 Left RMS Filter Low Coef Register
AC_DRC1_RRMSHAT
0x734
DRC1 Right RMS Filter High Coef Register
AC_DRC1_RRMSLAT
0x738
DRC1 Right RMS Filter Low Coef Register
AC_DRC1_HCT
0x73C
DRC1 Compressor Theshold High Setting Register
AC_DRC1_LCT
0x740
DRC1 Compressor Slope High Setting Register
AC_DRC1_HKC
0x744
DRC1 Compressor Slope High Setting Register
AC_DRC1_LKC
0x748
DRC1 Compressor Slope Low Setting Register
AC_DRC1_HOPC
0x74C
DRC1 Compressor High Output at Compressor Threshold
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 285
Register
AC_DRC1_LOPC
0x750
DRC1 Compressor Low Output at Compressor Threshold
Register
AC_DRC1_HLT
0x754
DRC1 Limiter Theshold High Setting Register
AC_DRC1_LLT
0x758
DRC1 Limiter Theshold Low Setting Register
AC_DRC1_HKl
0x75C
DRC1 Limiter Slope High Setting Register
AC_DRC1_LKl
0x760
DRC1 Limiter Slope Low Setting Register
AC_DRC1_HOPL
0x764
DRC1 Limiter High Output at Limiter Threshold
AC_DRC1_LOPL
0x768
DRC1 Limiter Low Output at Limiter Threshold
AC_DRC1_HET
0x76C
DRC1 Expander Theshold High Setting Register
AC_DRC1_LET
0x770
DRC1 Expander Theshold Low Setting Register
AC_DRC1_HKE
0x774
DRC1 Expander Slope High Setting Register
AC_DRC1_LKE
0x778
DRC1 Expander Slope Low Setting Register
AC_DRC1_HOPE
0x77C
DRC1 Expander High Output at Expander Threshold
AC_DRC1_LOPE
0x780
DRC1 Expander Low Output at Expander Threshold
AC_DRC1_HKN
0x784
DRC1 Linear Slope High Setting Register
AC_DRC1_LKN
0x788
DRC1 Linear Slope Low Setting Register
AC_DRC1_SFHAT
0x78C
DRC1 Smooth filter Gain High Attack Time Coef Register
AC_DRC1_SFLAT
0x790
DRC1 Smooth filter Gain Low Attack Time Coef Register
AC_DRC1_SFHRT
0x794
DRC1 Smooth filter Gain High Release Time Coef
Register
AC_DRC1_SFLRT
0x798
DRC1 Smooth filter Gain Low Release Time Coef Register
AC_DRC1_MXGHS
0x79C
DRC1 MAX Gain High Setting Register
AC_DRC1_MXGLS
0x7A0
DRC1 MAX Gain Low Setting Register
AC_DRC1_MNGHS
0x7A4
DRC1 MIN Gain High Setting Register
AC_DRC1_MNGLS
0x7A8
DRC1 MIN Gain Low Setting Register
AC_DRC1_EPSHC
0x7AC
DRC1 Expander Smooth Time High Coef Register
AC_DRC1_EPSLC
0x7B0
DRC1 Expander Smooth Time Low Coef Register
AC_DRC1_OPT
0x7B4
DRC1 Optimum Register
Analog Domain Register
HP_CTRL
0x00
Headphone Amplifier Control Register
OL_MIX_CTRL
0x01
Output Left Mixer Control Register
OR_MIX_CTRL
0x02
Output Right Mixer Control Register
EARPIECE_CTRL0
0x03
Earpiece Control Register 0
EARPIECE_CTRL1
0x04
Earpiece Control Register 1
LINEOUT_CTRL0
0x05
LINEOUT Control Register 0
LINEOUT_CTRL1
0x06
LINEOUT Control Register 1
MIC1_CTRL
0x07
MIC1 Control Register
MIC2_CTRL
0x08
MIC2 Control Register
LINEIN_CTRL
0x09
Linein Control Register
MIX_DAC_CTRL
0x0A
Mixer and DAC Control Register
L_ADCMIX_SRC
0x0B
Left ADC Mixer Control Register
R_ADCMIX_SRC
0x0C
Right ADC Mixer Control Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 286
ADC_CTRL
0x0D
ADC Control Register
HS_MBIAS_CTRL
0x0E
Headset Microphone Bias Control Register
APT_REG
0x0F
Analog Performance Tuning Register
OP_BIAS_CTRL0
0x10
OP BIAS Control Register 0
OP_BIAS_CTRL1
0x11
OP BIAS Control Register 1
ZC_VOL_CTRL
0x12
USB Bias & Volume Change Control Register
BIAS_CAL_DATA
0x13
Bias Calibration Data Register
BIAS_CAL_SET
0x14
Bias Calibration Set Data Register
BD_CAL_CTRL
0x15
Bias & DA16 Calibration Control Register
HP_PA_CTRL
0x16
Headphone PA Control Register
HP_CAL_CTRL
0x17
Headphone Calibration Control
RHP_CAL_DAT
0x18
Right Headphone Calibration DATE
RHP_CAL_SET
0x19
Right Headphone Calibration Setting
LHP_CAL_DAT
0x1A
Left Headphone Calibration DATE
LHP_CAL_SET
0x1B
Left Headphone Calibration Setting
MDET_CTRL
0x1C
Mic detect Control Register
JM_DET_CTRL
0x1D
Jack & Mic detect Control Register
PHOUT_CTRL
0x1E
Phone output Register
PHIN_CTRL
0x1F
Phone input Register
3.20.5. Audio Codec Register Description
3.20.5.1. 0x00 I2S_AP Control Register(Default Value: 0x00000000)
Offset: 0x00
Register Name: DA_CTL
Bit
R/W
Default/Hex
Description
31:9
/
/
/
8
R/W
0
SDO_EN
0: Disable
1: Enable
7
/
/
/
6
R/W
0
ASS
Audio sample select when TX FIFO under run
0: Sending zero
1: Sending last audio sample
5
R/W
0
MS
Master Slave Select
0: Master
1: Slave
4
R/W
0
PCM
0: I2S Interface
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 287
1: PCM Interface
3
R/W
0
LOOP
Loop back test
0: Normal mode
1: Loop back test
When set ‘1’, connecting the SDO with the SDI in Master mode.
2
R/W
0
TXEN
Transmitter Block Enable
0: Disable
1: Enable
1
R/W
0
RXEN
Receiver Block Enable
0: Disable
1: Enable
0
R/W
0
GEN
Globe Enable
A disable on this bit overrides any other block or channel enables and
flushes all FIFOs.
0: Disable
1: Enable
3.20.5.2. 0x04 I2S_AP Format Register0(Default Value: 0x0000000C)
Offset: 0x04
Register Name: DA_FAT0
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7
R/W
0
LRCP
Left/ Right Clock Parity
0: Normal
1: Inverted
In DSP/ PCM mode
0: MSB is available on 2nd BCLK rising edge after LRC rising edge
1: MSB is available on 1st BCLK rising edge after LRC rising edge
6
R/W
0
BCP
BCLK Parity
0: Normal
1: Inverted
5:4
R/W
0
SR
Sample Resolution
00: 16-bits
01: 20-bits
10: 24-bits
11: Reserved
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 288
3:2
R/W
0x3
WSS
Word Select Size
00: 16 BCLK
01: 20 BCLK
10: 24 BCLK
11: 32 BCLK
1:0
R/W
0
FMT
Serial Data Format
00: Standard I2S Format
01: Left Justified Format
10: Right Justified Format
11: Reserved
3.20.5.3. 0x08 I2S_AP Format Register1(Default Value: 0x00004020)
Offset: 0x08
Register Name: DA_FAT1
Bit
R/W
Default/Hex
Description
31:15
/
/
/
14:12
R/W
0x4
PCM_SYNC_PERIOD
PCM SYNC Period Clock Number
000: 16 BCLK period
001: 32 BCLK period
010: 64 BCLK period
011: 128 BCLK period
100: 256 BCLK period
Others : Reserved
11
R/W
0
PCM_SYNC_OUT
PCM Sync Out
0: Enable PCM_SYNC output in Master mode
1: Suppress PCM_SYNC whilst keeping PCM_CLK running. Some Codec
utilize this to enter a low power state.
10
R/W
0
PCM Out Mute
Write 1 force PCM_OUT to 0
9
R/W
0
MLS
MSB / LSB First Select
0: MSB First
1: LSB First
8
R/W
0
SEXT
Sign Extend (only for 16 bits slot)
0: Zeros or audio gain padding at LSB position
1: Sign extension at MSB position
When writing the bit is 0, the unused bits are audio gain for 13-bit linear
sample and zeros padding for 8-bit companding sample.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 289
When writing the bit is 1, the unused bits are both sign extension.
7:6
R/W
0
SI
Slot Index
00: the 1st slot
01: the 2nd slot
10: the 3rd slot
11: the 4th slot
5
R/W
1
SW
Slot Width
0: 8 clocks width
1: 16 clocks width
Notes: For A-law or u-law PCM sample, if this bit is set to 1, eight zero bits
are following with PCM sample.
4
R/W
0
SSYNC
Short Sync Select
0: Long Frame Sync
1: Short Frame Sync
It should be set ‘1’ for 8 clocks width slot.
3:2
R/W
0
RX_PDM
PCM Data Mode
00: 16-bits Linear PCM
01: 8-bits Linear PCM
10: 8-bits u-law
11: 8-bits A-law
1:0
R/W
0
TX_PDM
PCM Data Mode
00: 16-bits Linear PCM
01: 8-bits Linear PCM
10: 8-bits u-law
11: 8-bits A-law
3.20.5.4. 0x0C I2S_AP Interrupt Status Register(Default Value: 0x00000010)
Offset: 0x0C
Register Name: DA_ISTA
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6
R/W
0
TXU_INT
TX FIFO Under run Pending Interrupt
0: No Pending Interrupt
1: FIFO Under run Pending Interrupt
5
R/W
0
TXO_INT
TX FIFO Overrun Pending Interrupt
0: No Pending Interrupt
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 290
1: FIFO Overrun Pending Interrupt
Write ‘1’ to clear this interrupt
4
R/W
1
TXE_INT
TX FIFO Empty Pending Interrupt
0: No Pending IRQ
1: FIFO Empty Pending Interrupt
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails.
3:2
/
/
/
2
R/W
0
RXU_INT
RX FIFO Under run Pending Interrupt
0: No Pending Interrupt
1:FIFO Under run Pending Interrupt
Write 1 to clear this interrupt
1
R/W
0
RXO_INT
RX FIFO Overrun Pending Interrupt
0: No Pending IRQ
1: FIFO Overrun Pending IRQ
Write ‘1’ to clear this interrupt
0
R/W
0
RXA_INT
RX FIFO Data Available Pending Interrupt
0: No Pending IRQ
1: Data Available Pending IRQ
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails.
3.20.5.5. 0x10 I2S_AP RX FIFO Register(Default Value: 0x00000000)
Offset: 0x10
Register Name: DA_RXFIFO
Bit
R/W
Default/Hex
Description
31:0
R
0
RX_DATA
RX Sample
Host can get one sample by reading this register. The left channel sample
data is first and then the right channel sample.
3.20.5.6. 0x14 I2S_AP FIFO Control Register(Default Value: 0x000400F0)
Offset: 0x14
Register Name: DA_FCTL
Bit
R/W
Default/Hex
Description
31
R/W
0
HUB_EN
Audio Hub Enable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 291
0: Disable
1: Enable
30:26
/
/
/
25
R/W
0
FTX
Write ‘1’ to flush TX FIFO, self clear to ‘0’.
24
R/W
0
FRX
Write ‘1’ to flush RX FIFO, self clear to ‘0’.
23:19
/
/
/
18:12
R/W
0x40
TXTL
TX FIFO Empty Trigger Level
Interrupt and DMA request trigger level for TXFIFO normal condition
Trigger Level = TXTL
11:10
/
/
/
9:4
R/W
0xF
RXTL
RX FIFO Trigger Level
Interrupt and DMA request trigger level for RXFIFO normal condition
Trigger Level = RXTL + 1
3
/
/
/
2
R/W
0
TXIM
TX FIFO Input Mode (Mode 0, 1)
0: Valid data at the MSB of TXFIFO register
1: Valid data at the LSB of TXFIFO register
Example for 20-bits transmitted audio sample:
Mode 0: FIFO_I[23:0] = {TXFIFO[31:12], 4’h0}
Mode 1: FIFO_I[23:0] = {TXFIFO[19:0], 4’h0}
1:0
R/W
0
RXOM
RX FIFO Output Mode (Mode 0, 1, 2, 3)
00: Expanding ‘0’ at LSB of DA_RXFIFO register.
01: Expanding received sample sign bit at MSB of DA_RXFIFO register.
10: Truncating received samples at high half-word of DA_RXFIFO register
and low half-word of DA_RXFIFO register is filled by ‘0’.
11: Truncating received samples at low half-word of DA_RXFIFO register
and high half-word of DA_RXFIFO register is expanded by its sign bit.
Example for 20-bits received audio sample:
Mode 0: RXFIFO[31:0] = {FIFO_O[19:0], 12’h0}
Mode 1: RXFIFO[31:0] = {12{FIFO_O[19]}, FIFO_O[19:0]}
Mode 2: RXFIFO[31:0] = {FIFO_O[19:4], 16’h0}
Mode 3: RXFIFO[31:0] = {16{FIFO_O[19], FIFO_O[19:4]}
3.20.5.7. 0x18 I2S_AP FIFO Status Register(Default Value: 0x10800000)
Offset: 0x18
Register Name: DA_FSTA
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 292
31:29
/
/
/
28
R
1
TXE
TX FIFO Empty
0: No room for new sample in TX FIFO
1: More than one room for new sample in TX FIFO (>= 1 word)
27:24
/
/
/
23:16
R
0x80
TXE_CNT
TX FIFO Empty Space Word Counter
15:9
/
/
/
8
R
0
RXA
RX FIFO Available
0: No available data in RX FIFO
1: More than one sample in RX FIFO (>= 1 word)
7
/
/
/
6:0
R
0
RXA_CNT
RX FIFO Available Sample Word Counter
3.20.5.8. 0x1C I2S_AP DMA&Interrupt Control Register(Default Value: 0x00000000)
Offset: 0x1C
Register Name: DA_INT
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7
R/W
0
TX_DRQ
TX FIFO Empty DRQ Enable
0: Disable
1: Enable
6
R/W
0
TXUI_EN
TX FIFO Under run Interrupt Enable
0: Disable
1: Enable
5
R/W
0
TXOI_EN
TX FIFO Overrun Interrupt Enable
0: Disable
1: Enable
When set to ‘1’, an interrupt happens when writing new audio data if TX
FIFO is full.
4
R/W
0
TXEI_EN
TX FIFO Empty Interrupt Enable
0: Disable
1: Enable
3
R/W
0
RX_DRQ
RX FIFO Data Available DRQ Enable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 293
0: Disable
1: Enable
When set to ‘1’, RXFIFO DMA Request line is asserted if Data is available
in RX FIFO.
2
R/W
0
RXUI_EN
RX FIFO Under run Interrupt Enable
0: Disable
1: Enable
1
R/W
0
RXOI_EN
RX FIFO Overrun Interrupt Enable
0: Disable
1: Enable
0
R/W
0
RXAI_EN
RX FIFO Data Available Interrupt Enable
0: Disable
1: Enable
3.20.5.9. 0x20 I2S_AP TX FIFO Register(Default Value: 0x00000000)
Offset: 0x20
Register Name: DA_TXFIFO
Bit
R/W
Default/Hex
Description
31:0
W
0X0
TX_DATA
Transmitting left, right channel sample data should be written this
register one by one. The left channel sample data is first and then the
right channel sample.
3.20.5.10. 0x24 I2S_AP Clock Divide Register(Default Value: 0x00000000)
Offset: 0x24
Register Name: DA_CLKD
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7
R/W
0
MCLKO_EN
0: Disable MCLK Output
1: Enable MCLK Output
Notes: Whether in Slave or Master mode, when this bit is set to 1, MCLK
should be output.
6:4
R/W
0
BCLKDIV
BCLK Divide Ratio from MCLK
000: Divide by 2 (BCLK = MCLK/2)
001: Divide by 4
010: Divide by 6
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 294
011: Divide by 8
100: Divide by 12
101: Divide by 16
110: Divide by 32
111: Divide by 64
3:0
R/W
0
MCLKDIV
MCLK Divide Ratio from Audio PLL Output
0000: Divide by 1
0001: Divide by 2
0010: Divide by 4
0011: Divide by 6
0100: Divide by 8
0101: Divide by 12
0110: Divide by 16
0111: Divide by 24
1000: Divide by 32
1001: Divide by 48
1010: Divide by 64
Others : Reserved
3.20.5.11. 0x28 I2S_AP TX Counter Register(Default Value: 0x00000000)
Offset: 0x28
Register Name: DA_TXCNT
Bit
R/W
Default/Hex
Description
31:0
R/W
0
TX_CNT
TX Sample Counter
The audio sample number of sending into TXFIFO. When one sample is
put into TXFIFO by DMA or by host IO, the TX sample counter register
increases by one. The TX sample counter register can be set to any initial
valve at any time. After been updated by the initial value, the counter
register should count on base of this initial value.
3.20.5.12. 0x2C I2S_AP RX Counter Register(Default Value: 0x00000000)
Offset: 0x2C
Register Name: DA_RXCNT
Bit
R/W
Default/Hex
Description
31:0
R/W
0
RX_CNT
RX Sample Counter
The audio sample number of writing into RXFIFO. When one sample is
written by I2S_AP Engine, the RX sample counter register increases by
one. The RX sample counter register can be set to any initial valve at any
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 295
time. After been updated by the initial value, the counter register should
count on base of this initial value.
3.20.5.13. 0x30 I2S_AP TX Channel Select Register(Default Value: 0x00000001)
Offset: 0x30
Register Name: DA_TXCHSEL
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2:0
R/W
1
TX_CHSEL
TX Channel Select
0: 1-ch
1: 2-ch
2: 3-ch
3: 4-ch
3.20.5.14. 0x34 I2S_AP TX Channel Mapping Register(Default Value: 0x76543210)
Offset: 0x34
Register Name: DA_TXCHMAP
Bit
R/W
Default/Hex
Description
31:15
/
/
/
14:12
R/W
3
TX_CH3_MAP
TX Channel3 Mapping
000: 1st sample
001: 2nd sample
010: 3rd sample
011: 4th sample
1xx: Reserved
11
/
/
/
10:8
R/W
2
TX_CH2_MAP
TX Channel2 Mapping
000: 1st sample
001: 2nd sample
010: 3rd sample
011: 4th sample
1xx: Reserved
7
/
/
/
6:4
R/W
1
TX_CH1_MAP
TX Channel1 Mapping
000: 1st sample
001: 2nd sample
010: 3rd sample
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 296
011: 4th sample
1xx: Reserved
3
/
/
/
2:0
R/W
0
TX_CH0_MAP
TX Channel0 Mapping
000: 1st sample
001: 2nd sample
010: 3rd sample
011: 4th sample
1xx: Reserved
3.20.5.15. 0x38 I2S_AP RX Channel Select Register(Default Value: 0x00000001)
Offset: 0x38
Register Name: DA_RXCHSEL
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2:0
R/W
1
RX_CHSEL
RX Channel Select
0: 1-ch
1: 2-ch
2: 3-ch
3: 4-ch
Others: Reserved
3.20.5.16. 0x3C I2S_AP RX Channel Mapping Register(Default Value: 0x00003210)
Offset: 0x3C
Register Name: DA_RXCHMAP
Bit
R/W
Default/Hex
Description
31:15
/
/
/
14:12
R/W
3
RX_CH3_MAP
RX Channel3 Mapping
000: 1st sample
001: 2nd sample
010: 3rd sample
011: 4th sample
1xx: Reserved
11
/
/
/
10:8
R/W
2
RX_CH2_MAP
RX Channel2 Mapping
000: 1st sample
001: 2nd sample
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 297
010: 3rd sample
011: 4th sample
1xx: Reserved
7
/
/
/
6:4
R/W
1
RX_CH1_MAP
RX Channel1 Mapping
000: 1st sample
001: 2nd sample
010: 3rd sample
011: 4th sample
1xx: Reserved
3
/
/
/
2:0
R/W
0
RX_CH0_MAP
RX Channel0 Mapping
000: 1st sample
001: 2nd sample
010: 3rd sample
011: 4th sample
1xx: Reserved
3.20.5.17. 0x200 Codec Reset Register(Default Value: 0x00000101)
Offset: 0x200
Register Name: Codec_RST
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15:0
R/W
/
Reserved
3.20.5.18. 0x20C System Clock Control Register(Default Value: 0x00000000)
Offset: 0x20C
Register Name: SYSCLK_CTL
Bit
R/W
Default/Hex
Description
31:12
/
/
/
11
R/W
0x0
AIF1CLK_ENA
AIF1CLK Enable
0: Disable
1: Enable
10
R/W
0x0
Reserved
9:8
R/W
0x0
AIF1CLK_SRC
AIF1CLK Source Select
00: MLCK1
01: Reserved
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 298
1X: pll2_1x
7
R/W
0x0
AIF2CLK_ENA
AIF2CLK Enable
0: Disable
1: Enable
6
R/W
0x0
Reserved
5:4
R/W
0x0
AIF2CLK_SRC
AIF2CLK Source Select
00: MLCK1
01: Reserved
1X: pll2_1x
3
R/W
0x0
SYSCLK_ENA
SYSCLK Enable
0: Disable
1: Enable
2:1
R/W
0x0
Reserved
0
R/W
0x0
SYSCLK_SRC
System Clock Source Select
0: AIF1CLK
1: AIF2CLK
3.20.5.19. 0x210 Module Clock Control Register(Default Value: 0x00000000)
Offset: 0x210
Register Name: MOD_CLK_ENA
Bit
R/W
Default/Hex
Description
31:16
R/W
0x0
Reserved
15:0
R/W
0x0000
Module clock enable control
0-Clock disable
1-Clock enable
BIT15-AIF1
BIT14-AIF2
BIT13-AIF3
BIT12-Reserved
BIT11-SRC1
BIT10-SRC2
BIT9-Reserved
BIT8-Reserved
BIT7-HPF & AGC
BIT6-HPF & DRC0
BIT5-HPF & DRC1
BIT4-Reserved
BIT3-ADC Digital
BIT2-DAC Digital
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 299
BIT1-Reserved
BIT0-Reserved
3.20.5.20. 0x214 Module Reset Control Register(Default Value: 0x00000000)
Offset: 0x214
Register Name: MOD_RST_CTL
Bit
R/W
Default/Hex
Description
31:16
R/W
0x0
Reserved
15:0
R/W
0x0000
Module reset control
0-Reset asserted
1-Reset de-asserted
BIT15-AIF1
BIT14-AIF2
BIT13-AIF3
BIT12-Reserved
BIT11-SRC1
BIT10-SRC2
BIT9-Reserved
BIT8-Reserved
BIT7-HPF & AGC
BIT6-HPF & DRC0
BIT5-HPF & DRC1
BIT4-Reserved
BIT3-ADC Digital
BIT2-DAC Digital
BIT1-Reserved
BIT0-Reserved
3.20.5.21. 0x218 System Sample rate & SRC Configuration Register(Default Value: 0x00000000)
Offset: 0x218
Register Name: SYS_SR_CTRL
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15:12
R/W
0x0
AIF1_FS
AIF1 Sample Rate
0000: 8KHz
0001: 11.025KHz
0010: 12KHz
0011: 16KHz
0100: 22.05KHz
0101: 24KHz
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 300
0110: 32KHz
0111: 44.1KHz
1000: 48KHz
1001: 96KHz
1010: 192KHz
Other: Reserved
11:8
R/W
0x0
AIF2_FS
AIF2 Sample Rate
0000: 8KHz
0001: 11.025KHz
0010: 12KHz
0011: 16KHz
0100: 22.05KHz
0101: 24KHz
0110: 32KHz
0111: 44.1KHz
1000: 48KHz
1001: 96KHz
1010: 192KHz
Other: Reserved
3
R/W
0x0
SRC1_ENA
SRC1 Enable. SRC1 Performs sample rate conversion of digital audio input
to the codec.
0: Disable
1: Enable
2
R/W
0x0
SRC1_SRC
From which the input data will come.
0: AIF1 DAC Timeslot 0
1: AIF2 DAC
1
R/W
0x0
SRC2_ENA
SRC2 Enable. SRC2 Performs sample rate conversion of digital audio
output from the codec.
0: Disable
1: Enable
0
R/W
0x0
SRC2_SRC
To which the converted data will be output.
0: AIF1 ADC Timeslot 0
1: AIF2 ADC
3.20.5.22. 0x21C System SRC Clock Source Select Register(Default Value: 0x00000000)
Offset: 0x21C
Register Name: SYS_SRC_CLK
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 301
31:2
/
/
/
1:0
R/W
0x0
SRC_CLK_SLT
System SRC module output clock source select
00: normal mode
01: src1 output sample rate select DAC clk
10: src2 input sample rate select ADC clk
11: reserved
3.20.5.23. 0x220 System DVC Mode Select Register(Default Value: 0x00000000)
Offset: 0x220
Register Name: SYS_DVC_CLK
Bit
R/W
Default/Hex
Description
31:2
/
/
/
1:0
R/W
0x0
AIFDVC_FS_SEL
0 : DVC output to AIF sync
1 : normal
3.20.5.24. 0x240 AIF1 BCLK/LRCK Control Register(Default Value: 0x00000000)
Offset: 0x240
Register Name: AIF1CLK_CTRL
Bit
R/W
Default/Hex
Description
15
R/W
0x0
AIF1_MSTR_MOD
AIF1 Audio Interface mode select
0 = Master mode
1 = Slave mode
14
R/W
0x0
AIF1_BCLK_INV
AIF1 BCLK Polarity
0: Normal
1: Inverted
13
R/W
0x0
AIF1_LRCK_INV
AIF1 LRCK Polarity
0: Normal
1: Inverted
12:9
R/W
0x0
AIF1_BCLK_DIV
Select the AIF1CLK/BCLK1 ratio
0000: AIF1CLK/1
0001: AIF1CLK/2
0010: AIF1CLK/4
0011: AIF1CLK/6
0100: AIF1CLK/8
0101: AIF1CLK/12
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 302
0110: AIF1CLK/16
0111: AIF1CLK/24
1000: AIF1CLK/32
1001: AIF1CLK/48
1010: AIF1CLK/64
1011: AIF1CLK/96
1100: AIF1CLK/128
1101: AIF1CLK/192
1110: Reserved
1111: Reserved
8:6
R/W
0x0
AIF1_LRCK_DIV
Select the BCLK1/LRCK ratio
000: 16
001: 32
010: 64
011: 128
100: 256
1xx: Reserved
5:4
R/W
0x0
AIF1_WORD_SIZ
AIF1 digital interface word size
00: 8bit
01: 16bit
10: 20bit
11: 24bit
3:2
R/W
0x0
AIF1_DATA_FMT
AIF1 digital interface data format
00: I2S mode
01: Left mode
10: Right mode
11: DSP mode
1
R/W
0x0
DSP_MONO_PCM
DSP Mono mode select
0: Stereo mode select
1: Mono mode select
0
R/W
0x0
AIF1_TDMM_ENA
AIF1 TDM Mode enable
0: Disable
1: Enable
3.20.5.25. 0x244 AIF1 ADCDAT Control Register(Default Value: 0x00000000)
Offset: 0x244
Register Name: AIF1_ADCDAT_CTRL
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 303
15
R/W
0x0
AIF1_ADC0L_ENA
AIF1 ADC Timeslot 0 left channel enable
0: Disable
1: Enable
14
R/W
0x0
AIF1_ADC0R_ENA
AIF1 ADC Timeslot 0 right channel enable
0: Disable
1: Enable
13
R/W
0x0
AIF1_ADC1L_ENA
AIF1 ADC Timeslot 1 left channel enable
0: Disable
1: Enable
12
R/W
0x0
AIF1_ADC1R_ENA
AIF1 ADC Timeslot 1 right channel enable
0: Disable
1: Enable
11:10
R/W
0x0
AIF1_ADC0L_SRC
AIF1 ADC Timeslot 0 left channel data source select
00: AIF1 ADC0L
01: AIF1 ADC0R
10: (AIF1 ADC0L+AIF1 ADC0R)
11: (AIF1 ADC0L+AIF1 ADC0R)/2
9:8
R/W
0x0
AIF1_ADC0R_SRC
AIF1 ADC Timeslot 0 right channel data source select
00: AIF1 ADC0R
01: AIF1 ADC0L
10: (AIF1 ADC0L+AIF1 ADC0R)
11: (AIF1 ADC0L+AIF1 ADC0R)/2
7:6
R/W
0x0
AIF1_ADC1L_SRC
AIF1 ADC Timeslot 1 left channel data source select
00: AIF1 ADC1L
01: AIF1 ADC1R
10: (AIF1 ADC1L+AIF1 ADC1R)
11: (AIF1 ADC1L+AIF1 ADC1R)/2
5:4
R/W
0x0
AIF1_ADC1R_SRC
AIF1 ADC Timeslot 1 right channel data source select
00: AIF1 ADC1R
01: AIF1 ADC1L
10: (AIF1 ADC1L+AIF1 ADC1R)
11: (AIF1 ADC1L+AIF1 ADC1R)/2
3
R/W
0x0
AIF1_ADCP_ENA
AIF1 ADC Companding enable(8-bit mode only)
0: Disable
1: Enable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 304
2
R/W
0x0
AIF1_ADCUL_ENA
AIF1 ADC Companding mode select
0: A-law
1: u-law
1:0
R/W
0x0
AIF1_SLOT_SIZ
Select the slot size(only in TDM mode)
00: 8
01: 16
10: 32
11: Reserved
3.20.5.26. 0x248 AIF1 DACDAT Control Register(Default Value: 0x00000000)
Offset: 0x248
Register Name: AIF1_DACDAT_CTRL
Bit
R/W
Default/Hex
Description
15
R/W
0x0
AIF1_DAC0L_ENA
AIF1 DAC Timeslot 0 left channel enable
0: Disable
1: Enable
14
R/W
0x0
AIF1_DAC0R_ENA
AIF1 DAC Timeslot 0 right channel enable
0: Disable
1: Enable
13
R/W
0x0
AIF1_DAC1L_ENA
AIF1 DAC Timeslot 1 left channel enable
0: Disable
1: Enable
12
R/W
0x0
AIF1_DAC1R_ENA
AIF1 DAC Timeslot 1 right channel enable
0: Disable
1: Enable
11:10
R/W
0x0
AIF1_DAC0L_SRC
AIF1 DAC Timeslot 0 left channel data source select
00: AIF1 DAC0L
01: AIF1 DA0R
10: (AIF1 DAC0L+AIF1 DAC0R)
11: (AIF1 DAC0L+AIF1 DAC0R)/2
9:8
R/W
0x0
AIF1_DAC0R_SRC
AIF1 DAC Timeslot 0 right channel data source select
00: AIF1 DAC0R
01: AIF1 DAC0L
10: (AIF1 DAC0L+AIF1 DAC0R)
11: (AIF1 DAC0L+AIF1 DAC0R)/2
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 305
7:6
R/W
0x0
AIF1_DAC1L_SRC
AIF1 DAC Timeslot 1 left channel data source select
00: AIF1 DAC1L
01: AIF1 DAC1R
10: (AIF1 DAC1L+AIF1 DAC1R)
11: (AIF1 DAC1L+AIF1 DAC1R)/2
5:4
R/W
0x0
AIF1_DAC1R_SRC
AIF1 DAC Timeslot 1 right channel data source select
00: AIF1 DAC1R
01: AIF1 DAC1L
10: (AIF1 DAC1L+AIF1 DAC1R)
11: (AIF1 DAC1L+AIF1 DAC1R)/2
3
R/W
0x0
AIF1_DACP_ENA
AIF1 DAC Companding enable(8-bit mode only)
00: Disable
01: Enable
2
R/W
0x0
AIF1_DACUL_ENA
AIF1 DAC Companding mode select
0: A-law
1: u-law
1
R/W
0x0
Reserved
0
R/W
0x0
AIF1_LOOP_ENA
AIF1 loopback enable
0: No loopback
1: Loopback(ADCDAT1 data output to DACDAT1 data input)
3.20.5.27. 0x24C AIF1 Digital Mixer Source Select Register(Default Value: 0x00000000)
Offset: 0x24C
Register Name: AIF1_MXR_SRC
Bit
R/W
Default/Hex
Description
15:12
R/W
0x0
AIF1_ADC0L_MXL_SRC
AIF1 ADC Timeslot 0 left channel mixer source select
0: Disable 1: Enable
Bit15: AIF1 DAC0L data
Bit14: AIF2 DACL data
Bit13: ADCL data
Bit12: AIF2 DACR data
11:8
R/W
0x0
AIF1_ADC0R_MXR_SRC
AIF1 ADC Timeslot 0 right channel mixer source select
0: Disable 1: Enable
Bit11: AIF1 DAC0R data
Bit10: AIF2 DACR data
Bit9: ADCR data
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 306
Bit8: AIF2 DACL data
7:6
R/W
0x0
AIF1_ADC1L_MXR_SRC
AIF1 ADC Timeslot 1 left channel mixer source select
0: Disable 1: Enable
Bit7: AIF2 DACL data
Bit6: ADCL data
5:4
R/W
0x0
Reserved
3:2
R/W
0x0
AIF1_ADC1R_MXR_SRC
AIF1 ADC Timeslot 1 right channel mixer source select
0: Disable 1: Enable
Bit3: AIF2 DACR data
Bit2: ADCR data
1:0
R/W
0x0
Reserved
3.20.5.28. 0x250 AIF1 Volume Control 1 Register(Default Value: 0x0000A0A0)
Offset: 0x250
Register Name: AIF1_VOL_CTRL1
Bit
R/W
Default/Hex
Description
15:8
R/W
0xA0
AIF1_ADC0L_VOL
AIF1 ADC Timeslot 0 left channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
7:0
R/W
0xA0
AIF1_ADC0R_VOL
AIF1 ADC Timeslot 0 right channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 307
3.20.5.29. 0x254 AIF1 Volume Control 2 Register(Default Value: 0x0000A0A0)
Offset: 0x254
Register Name: AIF1_VOL_CTRL2
Bit
R/W
Default/Hex
Description
15:8
R/W
0xA0
AIF1_ADC1L_VOL
AIF1 ADC Timeslot 1 left channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
7:0
R/W
0xA0
AIF1_ADC1R_VOL
AIF1 ADC Timeslot 1 right channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
3.20.5.30. 0x258 AIF1 Volume Control 3 Register(Default Value: 0x0000A0A0)
Offset: 0x258
Register Name: AIF1_VOL_CTRL3
Bit
R/W
Default/Hex
Description
15:8
R/W
0xA0
AIF1_DAC0L_VOL
AIF1 DAC Timeslot 0 left channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 308
7:0
R/W
0xA0
AIF1_DAC0R_VOL
AIF1 DAC Timeslot 0 right channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
3.20.5.31. 0x25C AIF1 Volume Control 4 Register(Default Value: 0x0000A0A0)
Offset: 0x25C
Register Name: AIF1_VOL_CTRL4
Bit
R/W
Default/Hex
Description
15:8
R/W
0xA0
AIF1_DAC0L_VOL
AIF1 DAC Timeslot 0 left channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
7:0
R/W
0xA0
AIF1_DAC1R_VOL
AIF1 DAC Timeslot 1 right channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 309
3.20.5.32. 0x260 AIF1 Digital Mixer Gain Control Register(Default Value: 0x00000000)
Offset: 0x260
Register Name: AIF1_MXR_GAIN
Bit
R/W
Default/Hex
Description
15:12
R/W
0x0
AIF1_ADC0L_MXR_GAIN
AIF1 ADC Timeslot 0 left channel mixer gain control
0: 0dB 1: -6dB
Bit15: AIF1 DAC0L data
Bit14: AIF2 DACL data
Bit13: ADCL data
Bit12: AIF2 DACR data
11:8
R/W
0x0
AIF1_ADC0R_MXR_GAIN
AIF1 ADC Timeslot 0 right channel mixer gain control
0: 0dB 1: -6dB
Bit11: AIF1 DAC0R data
Bit10: AIF2 DACR data
Bit9: ADCR data
Bit8: AIF2 DACL data
7:6
R/W
0x0
AIF1_ADC1L_MXR_GAIN
AIF1 ADC Timeslot 1 left channel mixer gain control
0: 0dB 1: -6dB
Bit7: AIF2 DACL data
Bit6: ADCL data
5:4
R/W
0x0
Reserved
3:2
R/W
0x0
AIF1_ADC1R_MXR_GAIN
AIF1 ADC Timeslot 1 right channel mixer gain control
0: 0dB 1: -6dB
Bit3: AIF2 DACR data
Bit2: ADCR data
1:0
R/W
0x0
Reserved
3.20.5.33. 0x264 AIF1 Receiver Data Discarding Control Register(Default Value: 0x00000000)
Offset: 0x264
Register Name: AIF1_RXD_CTRL
Bit
R/W
Default/Hex
Description
15:8
R/W
0x0
After data receiving progress begins, the first N-data will be discarded. N
defined as follows:
0x00: None discarded
0x01: 1-data discarded
...
0xFF: 255-data discarded
7:0
R/W
0x0
Reserved
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 310
3.20.5.34. 0x280 AIF2 BCLK/LRCK Control Register(Default Value: 0x00000000)
Offset: 0x280
Register Name: AIF2_CLK_CTRL
Bit
R/W
Default/Hex
Description
15
R/W
0x0
AIF2_MSTR_MOD
AIF2 Audio Interface mode select
0 = Master mode
1 = Slave mode
14
R/W
0x0
AIF2_BCLK_INV
AIF2 BCLK Polarity
0: Normal
1: Inverted
13
R/W
0x0
AIF2_LRCK_INV
AIF2 LRCK Polarity
0: Normal
1: Inverted
12:9
R/W
0x0
AIF2_BCLK_DIV
Select the AIF2CLK/BCLK2 ratio
0000: AIF2CLK/1
0001: AIF2CLK/2
0010: AIF2CLK/4
0011: AIF2CLK/6
0100: AIF2CLK/8
0101: AIF2CLK/12
0110: AIF2CLK/16
0111: AIF2CLK/24
1000: AIF2CLK/32
1001: AIF2CLK/48
1010: AIF2CLK/64
1011: AIF2CLK/96
1100: AIF2CLK/128
1101: AIF2CLK/192
1110: Reserved
1111: Reserved
8:6
R/W
0x0
AIF2_LRCK_DIV
Select the BCLK2/LRCK2 ratio
000: 16
001: 32
010: 64
011: 128
100: 256
1xx: Reserved
5:4
R/W
0x0
AIF2_WORD_SIZ
AIF2 digital interface world length
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 311
00: 8bit
01: 16bit
10: 20bit
11: 24bit
3:2
R/W
0x0
AIF2_DATA_FMT
AIF digital interface data format
00: I2S mode
01: Left mode
10: Right mode
11: DSP mode
1
R/W
0x0
AIF2_MONO_PCM
AIF2 Mono PCM mode select
0: Stereo mode select
1: Mono mode select
0
R/W
0x0
Reserved
3.20.5.35. 0x284 AIF2 ADCDAT Control Register(Default Value: 0x00000000)
Offset: 0x284
Register Name: AIF2_ADCDAT_CTRL
Bit
R/W
Default/Hex
Description
15
R/W
0x0
AIF2_ADCL_EN
AIF2 ADC left channel enable
0: Disable
1: Enable
14
R/W
0x0
AIF2_ADCR_EN
AIF2 ADC right channel enable
0: Disable
1: Enable
13:12
R/W
0x0
Reserved
11:10
R/W
0x0
AIF2_ADCL_SRC
AIF2 ADC left channel data source select
00: AIF2 ADCL
01: AIF2 ADCR
10: (AIF2 ADCL+AIF2 ADCR)
11: (AIF2 ADCL+AIF2 ADCR)/2
9:8
R/W
0x0
AIF2_ADCR_SRC
AIF2 ADC right channel data source select
00: AIF2 ADCR
01: AIF2 ADCL
10: (AIF2 ADCL+AIF2 ADCR)
11: (AIF2 ADCL+AIF2 ADCR)/2
7:4
R/W
0x0
Reserved
3
R/W
0x0
AIF2_ADCP_ENA
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 312
AIF2 ADC Companding enable(8-bit mode only)
00: Disable
01: Enable
2
R/W
0x0
AIF2_ADCUL_ENA
AIF2 ADC Companding mode select
0: A-law
1: u-law
1
/
/
/
0
R/W
0x0
AIF2_LOOP_EN
AIF2 loopback enable
0: No loopback
1: Loopback(ADCDAT2 data output to DACDAT2 data input)
3.20.5.36. 0x288 AIF2 DACDAT Control Register(Default Value: 0x00000000)
Offset: 0x288
Register Name: AIF2_DACDAT_CTRL
Bit
R/W
Default/Hex
Description
15
R/W
0x0
AIF2_DACL_ENA
AIF2 DAC left channel enable
0: Disable
1: Enable
14
R/W
0x0
AIF2_DACR_ENA
AIF2 DAC right channel enable
0: Disable
1: Enable
13:12
R/W
0x0
Reserved
11:10
R/W
0x0
AIF2_DACL_SRC
AIF2 DAC left channel data source select
00: AIF2 DACL
01: AIF2 DACR
10: (AIF2 DACL+AIF2 DACR)
11: (AIF2 DACL+AIF2 DACR)/2
9:8
R/W
0x0
AIF2_DACR_SRC
AIF2 DAC right channel data source select
00: AIF2 DACR
01: AIF2 DACL
10: (AIF2 DACL+AIF2 DACR)
11: (AIF2 DACL+AIF2 DACR)/2
7:4
R/W
0x0
Reserved
3
R/W
0x0
AIF2_DACP_ENA
AIF2 DAC Companding enable(8-bit mode only)
00: Disable
01: Enable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 313
2
R/W
0x0
AIF2_DACUL_ENA
AIF2 DAC Companding mode select
0: A-law
1: u-law
1
R/W
0x0
Reserved
0
R/W
0x0
/
3.20.5.37. 0x28C AIF2 Digital Mixer Source Select Register(Default Value: 0x00000000)
Offset: 0x28C
Register Name: AIF2_MXR_SRC
Bit
R/W
Default/Hex
Description
15:12
R/W
0x0
AIF2_ADCL_MXR_SRC
AIF2 ADC left channel mixer source select
0: Disable 1:Enable
Bit15: AIF1 DAC0L data
Bit14: AIF1 DAC1L data
Bit13: AIF2 DACR data
Bit12: ADCL data
11:8
R/W
0x0
AIF2_ADCR_MXR_SRC
AIF2 ADC right channel mixer source select
0: Disable 1:Enable
Bit11: AIF1 DA0R data
Bit10: AIF1 DA1R data
Bit9: AIF2 DACL data
Bit8: ADCR data
7:0
R/W
0x0
Reserved
3.20.5.38. 0x290 AIF2 Volume Control 1 Register(Default Value: 0x0000A0A0)
Offset: 0x290
Register Name: AIF2_VOL_CTRL1
Bit
R/W
Default/Hex
Description
15:8
R/W
0xA0
AIF2_ADCL_VOL
AIF2 ADC left channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 314
0xFF = 71.25dB
7:0
R/W
0xA0
AIF2_ADCR_VOL
AIF2 ADC right channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
3.20.5.39. 0x298 AIF2 Volume Control 2 Register(Default Value: 0x0000A0A0)
Offset: 0x298
Register Name: AIF2_VOL_CTRL2
Bit
R/W
Default/Hex
Description
15:8
R/W
0xA0
AIF2_ADCL_VOL
AIF2 ADC left channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
7:0
R/W
0xA0
AIF2_DACR_VOL
AIF2 DAC right channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 315
3.20.5.40. 0x2A0 AIF2 Digital Mixer Gain Control Register(Default Value: 0x00000000)
Offset: 0x2A0
Register Name: AIF2_MXR_GAIN
Bit
R/W
Default/Hex
Description
15:12
R/W
0x0
AIF2_ADCL_MXR_GAIN
AIF2 ADC left channel mixer gain control
0: 0dB 1: -6dB
Bit15: AIF1 DAC0L data
Bit14: AIF1 DAC1L data
Bit13: AIF2 DACR data
Bit12: ADCL data
11:8
R/W
0x0
AIF2_ADCR_MXR_GAIN
AIF2 ADC right channel mixer gain control
0: 0dB 1: -6dB
Bit11: AIF1 DAC0R data
Bit10: AIF1 DAC1R data
Bit9: AIF2 DACL data
Bit8: ADCR data
7:0
R/W
0x0
Reserved
3.20.5.41. 0x2A4 AIF2 Receiver Data Discarding Control Register(Default Value: 0x00000000)
Offset: 0x2A4
Register Name: AIF2_RXD_CTRL
Bit
R/W
Default/Hex
Description
15:8
R/W
0x0
After data receiving progress begins, the first N-data will be discarded. N
defined as follows:
0x00: None discarded
0x01: 1-data discarded
...
0xFF: 255-data discarded
7:0
R/W
0x0
Reserved
3.20.5.42. 0x2C0 AIF3 BCLK/LRCK Control Register(Default Value: 0x00000000)
Offset: 0x2C0
Register Name: AIF3_CLK_CTRL
Bit
R/W
Default/Hex
Description
15
R/W
0x0
Reserved
14
R/W
0x0
AIF3_BCLK_INV
AIF3 BCLK Polarity
0: Normal
1: Inverted
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 316
13
R/W
0x0
AIF3_LRCK_INV
AIF3 LRCK Polarity
0: Normal
1: Inverted
12:6
R/W
0x0
Reserved
5:4
R/W
0x0
AIF3_WORD_SIZ
AIF3 digital interface world length
00: 8bit
01: 16bit
10: 20bit
11: 24bit
3:2
R/W
0x0
Reserved
1:0
R/W
0x0
AIF3_CLOCK_SRC
AIF3 BCLK/LRCK source control
0: BCLK/LRCK Come from AIF1
1: BCLK/LRCK Come from AIF2
2: BCLK/LRCK is generated by AIF3, and the source clock is AIF1CLK
3: Reserved
3.20.5.43. 0x2C4 AIF3 ADCDAT Control Register(Default Value: 0x00000000)
Offset: 0x2C4
Register Name: AIF3_ADCDAT_CTRL
Bit
R/W
Default/Hex
Description
15:4
R/W
0x0
Reserved
3
R/W
0x0
AIF3_ADCP_ENA
AIF3 ADC Companding enable
00: Disable
01: Enable
2
R/W
0x0
AIF3_ADUL_ENA
AIF3 ADC Companding mode select
0: A-law
1: u-law
1:0
R/W
0x0
Reserved
3.20.5.44. 0x2C8 AIF3 DACDAT Control Register(Default Value: 0x00000000)
Offset: 0x2C8
Register Name: AIF3_DACDAT_CTRL
Bit
R/W
Default/Hex
Description
15:4
R/W
0x0
Reserved
3
R/W
0x0
AIF3_DACP_ENA
AIF3 DAC Companding enable(8-bit mode only)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 317
00: Disable
01: Enable
2
R/W
0x0
AIF3_DAUL_ENA
AIF3 DAC Companding mode select
00: u-law
01: A-law
1
R/W
0x0
Reserved
0
R/W
0x0
AIF3_LOOP_ENA
AIF3 loopback enable
0: No loopback
1: Loopback(ADCDAT3 data output to DACDAT3 data input)
3.20.5.45. 0x2CC AIF3 Signal Path Control Register(Default Value: 0x00000000)
Offset: 0x2CC
Register Name: AIF3_SGP_CTRL
Bit
R/W
Default/Hex
Description
15:12
R/W
0x0
Reserved
11:10
R/W
0x0
AIF3_ADC_SRC
AIF3 PCM output source select
00: None
01: AIF2 ADC left channel
10: AIF2 ADC right channel
11: Reserved
9:8
R/W
0x0
AIF2_DAC_SRC
AIF2 DAC input source select
00: Left and right inputs from AIF2
01: Left input from AIF3; Right input from AIF2
10: Left input from AIF2; Right input from AIF3
11: Reserved
7
R/W
0x0
AIF3_PINS_TRI
AIF3 Pins Tri-state Control
0 = AIF3 pins operate normally
1 = Tri-state all AIF3 interface pins
6:4
R/W
0x0
reserved
3
R/W
0x0
reserved
2
R/W
0x0
reserved
1
R/W
0x0
reserved
0
R/W
0x0
reserved
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 318
3.20.5.46. 0x2E4 AIF3 Receiver Data Discarding Control Register(Default Value: 0x00000000)
Offset: 0x2E4
Register Name: AIF3_RXD_CTRL
Bit
R/W
Default/Hex
Description
15:8
R/W
0x0
After data receiving progress begins, the first N-data will be discarded. N
defined as follows:
0x00: None discarded
0x01: 1-data discarded
...
0xFF: 255-data discarded
7:0
R/W
0x0
Reserved
3.20.5.47. 0x300 ADC Digital Control Register(Default Value: 0x00000000)
Offset: 0x300
Register Name: ADC_DIG_CTRL
Bit
R/W
Default/Hex
Description
15
R/W
0x0
ENAD
ADC Digital part enable
0: Disable
1: Enable
14
R/W
0x0
ENDM
Digital microphone enable
0: Analog ADC mode
1:
13
R/W
0x0
ADFIR32
Enable 32-tap FIR filter
0: 64-tap
1: 32-tap
12:5
R/W
0x0
Reserved
4
R/W
0x0
DOSR
Digital Microphone Oversample Rate Select
0：128fs
1：64fs
3:2
R/W
0x0
ADOUT_DTS
ADC Delay Time For transmitting data after ENAD
00:5ms
01:10ms
10:20ms
11:30ms
1
R/W
0x0
ADOUT_DLY
ADC Delay Function enable for transmitting data after ENAD
0: Disable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 319
1: Enable
0
R/W
0x0
DOSR
Digital Microphone Oversampling Rate
0:64 fs
1:128fs
3.20.5.48. 0x304 ADC Volume Control Register(Default Value: 0x0000A0A0)
Offset: 0x304
Register Name: ADC_VOL_CTRL
Bit
R/W
Default/Hex
Description
15:8
R/W
0xA0
ADC_VOL_L
ADC left channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
7:0
R/W
0xA0
ADC_VOL_R
ADC left channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
3.20.5.49. 0x308 ADC Debug Control Register(Default Value: 0x00000000)
Offset: 0x308
Register Name: ADC_DBG_CTRL
Bit
R/W
Default/Hex
Description
15
R/W
0x0
ADSW
ADC input channel swap enable
0: Disable
1: Enable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 320
14
R/W
0x0
Reserved
13:12
R/W
0x0
/
11:3
R/W
0x0
Reserved
2:0
R/W
0x0
Interface between ADDA digital part and ADDA analog part debug control.
Normal
Normal
BCLK2/LRCK2/ADCDAT2/DACDAT2
BCLK3/LRCK3/ADCDAT3/DACDAT3
is multiplexed as follows:
BCLK2
CKAD_A input to ADC analog part
LRCK2
Normal
ADCDAT2
ADIN_L[1] output from ADC analog part
DACDAT2
ADIN_L[0] output from ADC analog part
BCLK3
CKAD_A output from ADC digital part
LRCK3
Normal
ADCDAT3
ADIN_L/R[1] input to ADC digital part
DACDAT3
ADIN_L/R[0] input to ADC digital part
BCLK2/LRCK2/ADADAT2/DACDAT2
BCLK3/LRCK3/ADCDAT3/DACDAT3
is multiplexed as follows:
BCLK2
CKAD_A input to ADC analog part
LRCK2
Normal
ADCDAT2
ADIN_R[1] output from ADC analog part
DACDAT2
ADIN_R[0] output from ADC analog part
BCLK3
CKAD_A output from ADC digital part
LRCK3
Normal
ADCDAT3
ADIN_L/R[1] input to ADC digital part
DACDAT3
ADIN_L/R[0] input to ADC digital part
BCLK2/LRCK2/ADADAT2/DACDAT2
BCLK3/LRCK3/ADCDAT3/DACDAT3
is multiplexed as follows:
BCLK2
CKDA_A output from DAC digital part
LRCK2
DAOUT_L[6] output from DAC digital part
ADCDAT2
DAOUT_L[5] output from DAC digital part
DACDAT2
DAOUT_L[4] output from DAC digital part
BCLK3
DAOUT_L[3] output from DAC digital part
LRCK3
DAOUT_L[2] output from DAC digital part
ADCDAT3
DAOUT_L[1] output from DAC digital part
DACDAT3
DAOUT_L[0] output from DAC digital part
BCLK2/LRCK2/ADADAT2/DACDAT2
BCLK3/LRCK3/ADCDAT3/DACDAT3
is multiplexed as follows:
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 321
BCLK2
CKDA_A output from DAC digital part
LRCK2
DAOUT_R[6] output from DAC digital part
ADCDAT2
DAOUT_R[5] output from DAC digital part
DACDAT2
DAOUT_R[4] output from DAC digital part
BCLK3
DAOUT_R[3] output from DAC digital part
LRCK3
DAOUT_R[2] output from DAC digital part
ADCDAT3
DAOUT_R[1] output from DAC digital part
DACDAT3
DAOUT_R[0] output from DAC digital part
BCLK2/LRCK2/ADADAT2/DACDAT2
BCLK3/LRCK3/ADCDAT3/DACDAT3
is multiplexed as follows:
BCLK2
CKDA_A input to DAC analog part
LRCK2
DAOUT_L/R[6] input to DAC analog part
ADCDAT2
DAOUT_L/R[5] input to DAC analog part
DACDAT2
DAOUT_L/R[4] input to DAC analog part
BCLK3
DAOUT_L/R[3] input to DAC analog part
LRCK3
DAOUT_L/R[2] input to DAC analog part
ADCDAT3
DAOUT_L/R[1] input to DAC analog part
DACDAT3
DAOUT_L/R[0] input to DAC analog part
BCLK2/LRCK2/ADADAT2/DACDAT2
BCLK3/LRCK3/ADCDAT3/DACDAT3
is multiplexed as follows:
BCLK2
CKDA_A input to DAC analog part
LRCK2
DAOUT_L/R[6] input to DAC analog part
ADCDAT2
DAOUT_L/R[5] input to DAC analog part
DACDAT2
DAOUT_L/R[4] input to DAC analog part
BCLK3
DAOUT_L/R[3] input to DAC analog part
LRCK3
DAOUT_L/R[2] input to DAC analog part
ADCDAT3
DAOUT_L/R[1] input to DAC analog part
DACDAT3
DAOUT_L/R[0] input to DAC analog part
3.20.5.50. 0x310 HMIC Control 1 Register(Default Value: 0x00000020)
Offset: 0x310
Register Name: HMIC_CTRL1
Bit
R/W
Default/Hex
Description
15:12
R/W
0x0
HMIC_M
Debounce when the MIC Key down or up.
11:8
R/W
0x0
Reserved to 0xf
7
/
/
/
6:5
R/W
0x1
MDATA_Threshold_Debounce
00:0
01:1
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 322
10:2
11: Reserve(default 1)
4
R/W
0x0
JACK_IN_IRQ_EN
MIC Detect Interrupt Set
0 : disable
1 : enable
3
R/W
0x0
JACK_OUT_IRQ_EN
MIC Detect Interrupt Set
0 : disable
1 : enable
2:1
/
/
/
0
R/W
0x0
MIC_DET_IRQ_EN
MIC Detect Interrupt Set
0:disable
1:enable
3.20.5.51. 0x314 HMIC Control 2 Register(Default Value: 0x00000000)
Offset: 0x314
Register Name: HMIC_CTRL2
Bit
R/W
Default/Hex
Description
15:14
R/W
0x0
HMIC_SAMPLE_SELECT
Down Sample Setting Select
00 : Down by 1, 128Hz
01 : Down by 2, 64Hz
10 : Down by 4, 32Hz
11 : Down by 8, 16Hz
13
/
/
/
12:8
R/W
0x0
MDATA_Threshold
MIC DATA De-Bounce DATA
7:6
R/W
0x0
HMIC_SF
Hmic Smooth Filter setting
00: by pass
01: (x1+x2)/2
10: (x1+x2+x3+x4)/4
11: (x1+x2+x3+x4+x5+x6+x7+x8)/8
5:0
/
/
3.20.5.52. 0x318 HMIC Status Register(Default Value: 0x00000000)
Offset: 0x318
Register Name: HMIC_STS
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 323
15
R/W
0x1
MDATA_Threshold_EN
0 : The MIC Threshold Data write by user
1 : The MIC Threshold Data is auto write
14:13
R/W
0x3
MDATA_DISCARD
After MIC DATA data receiving, the first N-data will be discarded. N
defined as follows:
00 ：0; None discarded
01 ：1; 1-data discarded
10 ：2; 2-data discarded
11 ：4; 4-data discarded
12:8
R
0x0
HMIC_DATA
HMIC Average Data
7
/
/
/
6
R/W
0x0
Jack Detect Status
0:Not MIC/Accessory present
1:MIC/Accessory is present(impedance is < 30K ohm)
5
/
/
/
4
R/W
0x0
JACK_DET_OIRQ
Jack output detect pending interrupt
0: No Pending IRQ
1:Pending IRQ
Writing 1 clear pending
3
R/W
0x0
JACK_DET_IIRQ
Jack input detect pending interrupt
0: No Pending IRQ
1: Pending IRQ
Writing 1 clear pending
2:1
/
/
/
0
R/W
0x0
MIC_DET_ST.
MIC Detect Pending interrupt
0:No pending IRQ
1:Pending IRQ
Writing 1 clear pending
3.20.5.53. 0x320 DAC Digital Control Register(Default Value: 0x00000000)
Offset: 0x320
Register Name: DAC_DIG_CTRL
Bit
R/W
Default/Hex
Description
15
R/W
0x0
ENDA.
DAC Digital Part Enable
0: Disabe
1: Enable
14
R/W
0x0
ENHPF
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 324
HPF Function Enable
0: Enable
1: Disable
13
R/W
0x0
DAFIR32
Enable 32-tap FIR filter
0: 64-tap
1: 32-tap
12
R/W
0x0
Reserved
11:8
R/W
0x0
MODQU
Internal DAC Quantization Levels
Levels=[7*(21+MODQU[3:0])]/128
Default levels=7*21/128=1.15
7:0
R/W
0x0
Reserved
3.20.5.54. 0x324 DAC Volume Control Register(Default Value: 0x0000A0A0)
Offset: 0x324
Register Name: DAC_VOL_CTRL
Bit
R/W
Default/Hex
Description
15:8
R/W
0xA0
DAC_VOL_L
DAC left channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
7:0
R/W
0xA0
DAC_VOL_R
DAC right channel volume
(-119.25dB To 71.25dB, 0.75dB/Step)
0x00: Mute
0x01: -119.25dB
………………
0x9F = -0.75dB
0xA0 = 0dB
0xA1 = 0.75dB
………………
0xFF = 71.25dB
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 325
3.20.5.55. 0x328 DAC Debug Control Register(Default Value: 0x00000000)
Offset: 0x328
Register Name: DAC_DBG_CTRL
Bit
R/W
Default/Hex
Description
15
R/W
0x0
DASW
DAC output channel swap enable
0:Disable
1:Enable
14
R/W
0x0
ENDWA_N
DWA Function Disable
0: Enable
1: Disable
13
R/W
0x0
DAC_MOD_DBG
DAC Modulator Debug
0: DAC Modulator Normal Mode
1: DAC Modulator Debug Mode
12:8
R/W
0x0
Reserved
7:6
R/W
0x0
DAC_PTN_SEL
DAC Pattern Select
00: Normal(Audio sample from DAC mixer)
01: -6 dB sin wave
10: -60 dB sin wave
11: zero data
5:0
R/W
0x0
DVC
Digital volume control, ATT=DVC[5:0]*(-1.16dB)
64 steps, -1.16dB/step
3.20.5.56. 0x330 DAC Digital Mixer Source Select Register(Default Value: 0x00000000)
Offset: 0x330
Register Name: DAC_MXR_SRC
Bit
R/W
Default/Hex
Description
15:12
R/W
0x0
DACL_MXR_SRC
DAC left channel mixer source select
0: Disable 1:Enable
Bit15: AIF1 DAC0L
Bit14: AIF1 DAC1L
Bit13: AIF2 DACL
Bit12: ADCL
11:8
R/W
0x0
DACR_MXR_SRC
DAC right channel mixer source select
0: Disable 1:Enable
Bit11: AIF1 DAC0R
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 326
Bit10: AIF1 DAC1R
Bit9: AIF2 DACR
Bit8: ADCR
7:0
R/W
0x0
Reserved
3.20.5.57. 0x334 DAC Digital Mixer Gain Control Register(Default Value: 0x00000000)
Offset: 0x334
Register Name: DAC_MXR_GAIN
Bit
R/W
Default/Hex
Description
15:12
R/W
0x0
DACL_MXR_GAIN
DAC left channel mixer gain control
0: 0dB 1: -6dB
Bit15: AIF1 DAC0L
Bit14: AIF1 DAC1L
Bit13: AIF2 DACL
Bit12: ADCL
11:8
R/W
0x0
DACR_MXR_GAIN
DAC right channel mixer gain control
0: 0dB 1: -6dB
Bit11: AIF1 DAC0R
Bit10: AIF1 DAC1R
Bit9: AIF2 DACR
Bit8: ADCR
7:0
R/W
0x0
Reserved
3.20.5.58. 0x400 ADC DAP Left Status Register(Default Value: 0x00000000)
Offset: 0x400
Register Name: AC_ADC_DAPLSTA
Bit
R/W
Default/Hex
Description
15:10
R
0x0
Reserved
9
R
0x0
Left AGC saturation flag
8
R
0x0
Left AGC noise-threshold flag
7:0
R
0x0
Left Gain applied by AGC
(7.1 format 2s complement(-20dB – 40dB), 0.5B/ step)
0x50: 40dB
0x4F: 39.5dB
---------------
0x00: 00dB
0xFF: -0.5dB
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 327
3.20.5.59. 0x404 ADC DAP Right Status Register(Default Value: 0x00000000)
Offset: 0x404
Register Name: AC_ADC_DAPRSTA
Bit
R/W
Default/Hex
Description
11:10
R
0x0
Reserved
9
R
0x0
Right AGC saturation flag
8
R
0x0
Right AGC noise-threshold flag
7:0
R
0x0
Right Gain applied by AGC
(7.1 format 2s complement(-20dB – 40dB), 0.5dB /step)
0x50: 40dB
0x4F: 39.5dB
---------------
0x00: 00dB
0xFF: -0.5dB
3.20.5.60. 0x408 ADC DAP Left Channel Control Register(Default Value: 0x00000000)
Offset: 0x408
Register Name: AC_ADC_DAPLCTRL
Bit
R/W
Default/Hex
Description
15
/
/
/
14
R/W
0x0
Left AGC enable
0: disable 1: enable
13
R/W
0x0
Left HPF enable
0: disable 1: enable
12
R/W
0x0
Left Noise detect enable
0: disable 1: enable
11:10
R/W
0x0
Reserved
9:8
R/W
0x0
Left Hysteresis setting
00: 1dB
01: 2dB
10: 4dB
11: disable;
7:4
R/W
0x0
Left Noise debounce time
0000: disable
0001: 4/fs
0010: 8/fs
------------
1111: 16*4096/fs
T=2(N+1)/fs, except N=0
3:0
R/W
0x0
Left Signal debounce time
0000: disable
0001: 4/fs
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 328
0010: 8/fs
------------
1111: 16*4096/fs
T=2(N+1)/fs, except N=0
3.20.5.61. 0x40C ADC DAP Right Channel Control Register(Default Value: 0x00000000)
Offset: 0x40C
Register Name: AC_ADC_DAPRCTRL
Bit
R/W
Default/Hex
Description
15
/
/
/
14
R/W
0x0
Right AGC enable
0: disable 1: enable
13
R/W
0x0
Right HPF enable
0: disable 1: enable
12
R/W
0x0
Right Noise detect enable
0: disable 1: enable
11:10
R/W
0x0
Reserved
9: 8
R/W
0x0
Right Hysteresis setting
00: 1dB
01: 2dB
10: 4dB
11: disable
7: 4
R/W
0x0
Right Noise debounce time
0000: disable
0001: 4/fs
0010: 8/fs
------------
1111: 16*4096/fs
T=2(N+1)/fs ,except N=0
3: 0
R/W
0x0
Right Signal debounce time
0000: disable
0001: 4/fs
0010: 8/fs
------------
1111: 16*4096/fs
T=2(N+1)/fs, except N=0
3.20.5.62. 0x410 ADC DAP Left Target Level Register(Default Value: 0x00002C28)
Offset: 0x410
Register Name: AC_ADC_DAPLTL
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 329
15:14
/
/
/
13:8
R/W
0x2C(-20dB)
Left channel target level setting(-1dB -- -30dB).(6.0format 2s
complement)
7:0
R/W
0x28(20dB)
Left channel max gain setting(0-40dB).(7.1format 2s complement)
3.20.5.63. 0x414 ADC DAP Right Target Level Register(Default Value: 0x00002C28)
Offset: 0x414
Register Name: AC_ADC_DAPRTL
Bit
R/W
Default/Hex
Description
15:14
/
/
/
13:8
R/W
0x2C(-20dB)
Right channel target level setting(-1dB -- -30dB).(6.0format 2s
complement)
7:0
R/W
0x28(20dB)
Right channel max gain setting (0-40dB). (7.1format 2s complement)
3.20.5.64. 0x418 ADC DAP Left High Average Coef Register(Default Value: 0x00000005)
Offset: 0x418
Register Name: AC_ADC_DAPLHAC
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0005
Left channel output signal average level coefficient setting(the coefficient
[reg06[10:0],reg07] is 3.24 format 2s complement)
3.20.5.65. 0x41C ADC DAP Left Low Average Coef Register(Default Value: 0x00001EB8)
Offset: 0x41C
Register Name: AC_ADC_DAPLHAC
Bit
R/W
Default/Hex
Description
15:0
R/W
0x1EB8
Left channel output signal average level coefficient setting(the coefficient
[reg07[10:0],reg08] is 3.24 format 2s complement)
3.20.5.66. 0x420 ADC DAP Right High Average Coef Register(Default Value: 0x00000005)
Offset: 0x420
Register Name: AC_ADC_DAPRHAC
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0005
Right channel output signal average level coefficient setting(the
coefficient [reg08[10:0],reg09] is 3.24 format 2s complement)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 330
3.20.5.67. 0x424 ADC DAP Right Low Average Coef Register(Default Value: 0x00001EB8)
Offset: 0x424
Register Name: AC_ADC_DAPRLAC
Bit
R/W
Default/Hex
Description
15:0
R/W
0x1EB8
Right channel output signal average level coefficient setting(the
coefficient [reg08[10:0],reg09] is 3.24 format 2s complement)
3.20.5.68. 0x428 ADC DAP Left Decay Time Register(Default Value: 0x0000001F)
Offset: 0x428
Register Name: AC_ADC_DAPLDT
Bit
R/W
Default/Hex
Description
15
/
/
/
14:0
R/W
0x001F
(32x32fs)
Left decay time coefficient setting
0000: 1x32/fs
0001: 2x32/fs
------------------------
7FFF: 215 x32/fs
T=(n+1)*32/fs
When the gain increases, the actual gain will increase 0.5dB at every
decay time.
3.20.5.69. 0x42C ADC DAP Left Attack Time Register(Default Value: 0x00000000)
Offset: 0x42C
Register Name: AC_ADC_DAPLAT
Bit
R/W
Default/Hex
Description
15
/
/
/
14:0
R/W
0x0000
Left attack time coefficient setting
0000: 1x32/fs
0001: 2x32/fs
------------------------
7FFF: 215 x32/fs
T=(n+1)*32/fs
When the gain decreases, the actual gain will decrease 0.5dB at every
attack time.
3.20.5.70. 0x430 ADC DAP Right Decay Time Register(Default Value: 0x0000001F)
Offset: 0x430
Register Name: AC_ADC_DAPRDT
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 331
15
/
/
/
14:0
R/W
0x001F
(32x32fs)
Right decay time coefficient setting
0000: 1x32/fs
0001: 2x32/fs
------------------------
7FFF: 215 x32/fs
T=(n+1)*32/fs
When the gain increases, the actual gain will increase 0.5dB at every
decay time.
3.20.5.71. 0x434 ADC DAP Right Attack Time Register(Default Value: 0x00000000)
Offset: 0x434
Register Name: AC_ADC_DAPRDT
Bit
R/W
Default/Hex
Description
15
/
/
/
14:0
R/W
0x0000
Right attack time coefficient setting
0000: 1x32/fs
0001: 2x32/fs
------------------------
7FFF: 215 x32/fs
T=(n+1)*32/fs
When the gain decreases, the actual gain will decrease 0.5dB at every
attack time.
3.20.5.72. 0x438 ADC DAP Noise Threshold Register(Default Value: 0x00001E1E)
Offset: 0x438
Register Name: AC_ADC_DAPNTH
Bit
R/W
Default/Hex
Description
15:13
/
/
/
12:8
R/W
0x1E
(-90dB)
Left channel noise threshold setting.
0x00: -30dB
0x01: -32dB
0x02: -34dB
--------------------------------------------
0x1D: -88dB
0x1E: -90dB
0x1F: -90dB(the same as 0x1E)
7:5
/
/
/
4:0
R/W
0x1E(-90dB)
Right channel noise threshold setting(-90 -- -30dB).
0x00: -30dB
0x01: -32dB
0x02: -34dB
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 332
--------------------------------------------
0x1D: -88dB
0x1E: -90dB
0x1F: -90dB(the same as 0x1E)
3.20.5.73. 0x43C ADC DAP Left Input Signal High Average Coef Register(Default Value: 0x00000005)
Offset: 0x43C
Register Name: AC_ADC_DAPLHNAC
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0005
Left input signal average filter coefficient to check noise or not(the
coefficient [reg0f[10:0],reg10] is 3.24 format 2s complement), always the
same as the left output signal average filter's.
3.20.5.74. 0x440 ADC DAP Left Input Signal Low Average Coef Register(Default Value: 0x00001EB8)
Offset: 0x440
Register Name: AC_ADC_DAPLHNAC
Bit
R/W
Default/Hex
Description
15:0
R/W
0x1EB8
Left input signal average filter coefficient to check noise or not(the
coefficient [reg0f[10:0],reg10] is 3.24 format 2s complement) always
the same as the left output signal average filter's
3.20.5.75. 0x444 ADC DAP Right Input Signal High Average Coef Register(Default Value: 0x00000005)
Offset: 0x444
Register Name: AC_ADC_DAPRHNAC
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0005
Right input signal average filter coefficient to check noise or not(the
coefficient [reg11[10:0],reg12] is 3.24 format 2s complement), always the
same as the right output signal average filter's
3.20.5.76. 0x448 ADC DAP Right Input Signal Low Average Coef Register(Default Value: 0x00001EB8)
Offset: 0x448
Register Name: AC_ADC_DAPRHNAC
Bit
R/W
Default/Hex
Description
15:0
R/W
0x1EB8
Right input signal average filter coefficient to check noise or not(the
coefficient [reg11[10:0],reg12] is 3.24 format 2s complement), always
the same as the right output signal average filter's
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 333
3.20.5.77. 0x44C ADC DAP High HPF Coef Register(Default Value: 0x000000FF)
Offset: 0x44C
Register Name: AC_DAPHHPFC
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x00FF
HPF coefficient setting(the coefficient [reg13[10:0],reg14] is 3.24 format
2s complement)
3.20.5.78. 0x450 ADC DAP Low HPF Coef Register(Default Value: 0x0000FAC1)
Offset: 0x450
Register Name: AC_DAPLHPFC
Bit
R/W
Default/Hex
Description
15:0
R/W
0xFAC1
HPF coefficient setting(the coefficient [reg13[10:0],reg14] is 3.24 format
2s complement)
3.20.5.79. 0x454 ADC DAP Optimum Register(Default Value: 0x00000000)
Offset: 0x454
Register Name: AC_DAPOPT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10
R/W
0
Left energy default value setting(include the input and output)
0: min
1: max
9:8
R/W
00
Left channel gain hystersis setting.
The different between target level and the signal level must larger than
the hystersis when the gain change.
00: 0.4375db
01: 0.9375db
10: 1.9375db
11: 3db
7:6
/
/
/
5
R/W
0
The input signal average filter coefficient setting
0: is the [reg0f[10:0], reg10] and [reg11[1:0], reg12];
1: is the [reg06[10:0], reg07] and [reg08[1:0], reg09];
4
R/W
0
AGC output when the channel in noise state
0: output is zero
1: output is the input data
3
/
/
/
2
R/W
0
Right energy default value setting(include the input and output)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 334
0: min
1: max
1:0
R/W
00
Right channel gain hystersis setting.
The different between target level and the signal level must larger than
the hystersis when the gain change.
00: 0.4375db
01: 0.9375db
10: 1.9375db
11: 3db
3.20.5.80. 0x480 DAC DAP Control Register(Default Value: 0x00000000)
Offset: 0x480
Register Name: AC_DAC_DAPCTRL
Bit
R/W
Default/Hex
Description
15:7
/
/
/
6
R/W
0
DRC1 enable control
0: disable 1: enable
5
R/W
0
DRC1 Left channel HPF enable control
0: disable 1: enable
4
R/W
0
DRC1 Right channel HPF enable control
0: disable 1: enable
3
/
/
/
2
R/W
0
DRC0 enable control
0: disable 1: enable
1
R/W
0
DRC0 Left channel HPF enable control
0: disable 1: enable
0
R/W
0
DRC0 Right channel HPF enable control
0: disable 1: enable
3.20.5.81. 0x4D0 AGC Enable Register(Default Value: 0x00000000)
Offset: 0x4D0
Register Name: AGC_ENA
Bit
R/W
Default/Hex
Description
15
R/W
0x0
AIF1_ADC0L_AGC_ENA
AIF1 ADC timeslot 0 left channel AGC enable
0: Disable
1: Enable
14
R/W
0x0
AIF1_ADC0R_AGC_ENA
AIF1 ADC timeslot 0 right channel AGC enable
0: Disable
1: Enable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 335
13
R/W
0x0
AIF1_ADC1L_AGC_ENA
AIF1 ADC timeslot 1 left channel AGC enable
0: Disable
1: Enable
12
R/W
0x0
AIF1_ADC1R_AGC_ENA
AIF1 ADC timeslot 1 right channel AGC enable
0: Disable
1: Enable
11
R/W
0x0
AIF2_ADCL_AGC_ENA
AIF2 ADC left channel AGC enable
0: Disable
1: Enable
10
R/W
0x0
AIF2_ADCR_AGC_ENA
AIF2 ADC right channel AGC enable
0: Disable
1: Enable
9
R/W
0x0
AIF2_DACL_AGC_ENA
AIF2 DAC left channel AGC enable
0: Disable
1: Enable
8
R/W
0x0
AIF2_DACR_AGC_ENA
AIF2 DAC right channel AGC enable
0: Disable
1: Enable
7
R/W
0x0
ADCL_AGC_ENA
ADC left channel AGC enable
0: Disable
1: Enable
6
R/W
0x0
ADCR_AGC_ENA
ADC right channel AGC enable
0: Disable
1: Enable
5:0
R/W
0x0
Reserved
3.20.5.82. 0x4D4 DRC Enable Register(Default Value: 0x00000000)
Offset: 0x4D4
Register Name: DRC_ENA
Bit
R/W
Default/Hex
Description
15
R/W
0x0
AIF1_DAC0_DRC0_ENA
AIF1 DAC timeslot 0 DRC0 enable
0: Disable
1: Enable
14
R/W
0x0
AIF1_DAC1_DRC0_ENA
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 336
AIF1 DAC timeslot 1 DRC0 enable
0: Disable
1: Enable
13
R/W
0x0
AIF2_DAC_DRC0_ENA
AIF2 DAC DRC0 enable
0: Disable
1: Enable
12
R/W
0x0
DAC_DRC0_ENA
DAC DRC0 enable
0: Disable
1: Enable
11:8
/
/
/
7
R/W
0x0
AIF1_ADC0_DRC1_ENA
AIF1 ADC timeslot 0 DRC1 enable
0 : Disable
1 : Enable
6
R/W
0x0
AIF1_ADC1_DRC1_ENA
AIF1 ADC timeslot 1 DRC1 enable
0 : Disable
1 : Enable
5
R/W
0x0
AIF2_ADC_DRC1_ENA
AIF2 ADC DRC1 enable
0 : Disable
1 : Enable
4
R/W
0x0
ADC_DRC1_ENA
ADC_DRC1 enable
0 : Disable
1 : Enable
3:0
/
/
/
3.20.5.83. 0x4D8 SRC Bist Control Register(Default Value: 0x00000000)
Offset: 0x4D8
Register Name: SRC_BISTCR
Bit
R/W
Default/Hex
Description
15:13
R/W
0
SRC1 and SRC2 SRAM BIST Register Select
12
R/W
0
SRC1 and SRC2 SRAM BIST Address MODE Select
11:9
R/W
0
SRC1 and SRC2 SRAM BIST Write Data Pattern
0: 0x0000_0000
1: 0x5555_5555
2: 0x3333_3333
3: 0x0f0f_0f0f
4: 0x00ff_00ff
5: 0x0000_ffff
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 337
Others, reserved.
8
R/W
0
SRC1 and SRC2 SRAM BIST Enable
A positive edge will trigger the SRAM BIST to start
7
R
0
SRC2 ROM CheckSum Error
0: No Error 1: Error
6
R
0
SRC2 ROM CheckXor Error
0: No Error 1: Error
5
R
0
SRC2 ROM BIST Busy
0: Idle 1: Busy
4
R/W
0
SRC2 ROM BIST Enable
A positive edge will trigger the ROM BIST to start
3
R
0
SRC1 ROM CheckSum Error
0: No Error 1: Error
2
R
0
SRC1 ROM CheckXor Error
0: No Error 1: Error
1
R
0
SRC1 ROM BIST Busy
0: Idle 1: Busy
0
R/W
0
SRC1 ROM BIST Enable
A positive edge will trigger the ROM BIST to start
3.20.5.84. 0x4DC SRC Bist Status Register(Default Value: 0x00000202)
Offset: 0x4DC
Register Name: SRC_BISTST
Bit
R/W
Default/Hex
Description
15
R
0
SRC2 SRAM BIST Error Status
0: No Error 1: Error
14:12
R
0
SRC2 SRAM BIST Error Pattern
11:10
R
0
SRC2 SRAM BIST Error Cycles
9
R
1
SRC2 SRAM BIST Stop
0: Running 1: Stop
8
R
0
SRC2 SRAM BIST Busy
0: Idle 1: Busy
7
R
0
SRC1 SRAM BIST Error Status
0: No Error 1: Error
6:4
R
0
SRC1 SRAM BIST Error Pattern
3:2
R
0
SRC1 SRAM BIST Error Cycles
1
R
1
SRC1 SRAM BIST Stop
0: Running 1: Stop
0
R
0
SRC1 SRAM BIST Busy
0: Idle 1: Busy
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 338
3.20.5.85. 0x4E0 SRC1 Control 1 Register(Default Value: 0x00000000)
Offset: 0x4E0
Register Name: SRC1_CTRL1
Bit
R/W
Default/Hex
Description
15
R/W
0x0
SRC1_RATI_ENA
SRC1 Manual setting ratio enable
0-disable 1-enable
14
R
0x0
SRC1_LOCK_STS
SRC1 Ratio lock status
0-not locked 1-locked
13
R
0x0
SRC1_FIFO_OVR
SRC1 FIFO Overflow status
0-normal 1-overflowed
12:10
R
0x0
SRC1_FIFO_LEV_[8:6]
SRC1 FIFO Level high 3-bit
9:0
R/W
0x0
SRC1_RATI_SET_[25:16]
Manual setting ratio high 10-bit
3.20.5.86. 0x4E4 SRC1 Control 2 Register(Default Value: 0x00000000)
Offset: 0x4E4
Register Name: SRC1_CTRL2
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0
SRC1_RATI_SET_[15:0]
Manual setting ratio low 16-bit
3.20.5.87. 0x4E8 SRC1 Control 3 Register(Default Value: 0x00000040)
Offset: 0x4E8
Register Name: SRC1_CTRL3
Bit
R/W
Default/Hex
Description
15:10
R
0x0
SRC1_FIFO_LEV_[5:0]
SRC1 FIFO Level low 6-bit
9:0
R
0x40
SRC1_RATI_VAL_[25:16]
Calculated ratio high 10-bit
3.20.5.88. 0x4EC SRC1 Control 4 Register(Default Value: 0x00000000)
Offset: 0x4EC
Register Name: SRC1_CTRL4
Bit
R/W
Default/Hex
Description
15:0
R
0x0
SRC1_RATI_VAL_[15:0]
Calculated ratio low 16-bit
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 339
3.20.5.89. 0x4F0 SRC2 Control 1 Register(Default Value: 0x00000000)
Offset: 0x4F0
Register Name: SRC2_CTRL1
Bit
R/W
Default/Hex
Description
15
R/W
0x0
SRC2_RATI_ENA
SRC2 Manual setting ratio enable
0-disable 1-enable
14
R
0x0
SRC2_LOCK_STS
SRC2 Ratio lock status
0-not locked 1-locked
13
R
0x0
SRC2_FIFO_OVR
SRC2 FIFO Overflow status
0-normal 1-overflowed
12:10
R
0x0
SRC2_FIFO_LEV_[8:6]
SRC2 FIFO Level high 3-bit
9:0
R/W
0x0
SRC2_RATI_SET_[25:16]
Manual setting ratio high 10-bit
3.20.5.90. 0x4F4 SRC2 Control 2 Register(Default Value: 0x00000000)
Offset: 0x4F4
Register Name: SRC2_CTRL2
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0
SRC2_RATI_SET_[15:0]
Manual setting ratio low 16-bit
3.20.5.91. 0x4F8 SRC2 Control 3 Register(Default Value: 0x00000040)
Offset: 0x4F8
Register Name: SRC2_CTRL3
Bit
R/W
Default/Hex
Description
15:10
R
0x0
SRC2_FIFO_LEV_[5:0]
SRC2 FIFO Level low 6-bit
9:0
R
0x40
SRC2_RATI_VAL_[25:16]
Calculated ratio high 10-bit
3.20.5.92. 0x4FC SRC2 Control 4 Register(Default Value: 0x00000000)
Offset: 0x4FC
Register Name: SRC2_CTRL4
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 340
Bit
R/W
Default/Hex
Description
15:0
R
0x0
SRC2_RATI_VAL_[15:0]
Calculated ratio low 16-bit
3.20.5.93. 0x600 DRC0 High HPF Coef Register(Default Value: 0x000000FF)
Offset: 0x600
Register Name: AC_DRC0_HHPFC
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0xFF
HPF coefficient setting and the data is 3.24 format.
3.20.5.94. 0x604 DRC0 Low HPF Coef Register(Default Value: 0x0000FAC1)
Offset: 0x604
Register Name: AC_DRC0_LHPFC
Bit
R/W
Default/Hex
Description
15:0
R/W
0xFAC1
HPF coefficient setting and the data is 3.24 format.
3.20.5.95. 0x608 DRC0 Control Register(Default Value: 0x00000080)
Offset: 0x608
Register Name: AC_DRC0_CTRL
Bit
R/W
Default/Hex
Description
15
R
0
DRC delay buffer data output state when drc delay function is enble and
the drc funciton disable. After disable drc function and this bit go to 0, the
user should write the drc delay function bit to 0;
0 : not complete
1 : is complete
14
/
/
/
13:8
R/W
0
Signal delay time setting
6'h00 : (8x1)fs
6'h01 : (8x2)fs
6'h02 : (8x3)fs
----------------------------------------
6'h2e : (8*47)fs
6'h2f : (8*48)fs
6'h30 -- 6'h3f : (8*48)fs
Delay time = 8*(n+1)fs, n<6'h30;
When the delay function is disable, the signal delay time is unused.
7
R/W
0x1
The delay buffer use or not when the drc disable and the drc buffer data
output completely
0 : don't use the buffer
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 341
1 : use the buffer
6
R/W
0x0
DRC gain max limit enable
0 : disable
1 : enable
5
R/W
0x0
DRC gain min limit enable. when this fuction enable, it will overwrite the
noise detect funciton.
0 : disable
1 : enable
4
R/W
0x0
Control the drc to detect noise when ET enable
0 : disable
1 : enable
3
R/W
0x0
Signal function Select
0 : RMS filter
1 : Peak filter
When Signal function Select Peak filter, the RMS parameter is unused.
(AC_DRC_LRMSHAT / AC_DRC_LRMSLAT / AC_DRC_LRMSHAT /
AC_DRC_LRMSLAT)
When Signal function Select RMS filter, the Peak filter parameter is
unused.(AC_DRC_LPFHAT / AC_DRC_LPFLAT / AC_DRC_RPFHAT /
AC_DRC_RPFLAT / AC_DRC_LPFHRT / AC_DRC_LPFLRT / AC_DRC_RPFHRT
/ AC_DRC_RPFLRT)
2
R/W
0x0
Delay function enable
0 : disable
1 : enable
When the Delay function enable is disable, the Signal delay time is
unused.
1
R/W
0x0
DRC LT enable
0 : disable
1 : enable
When the DRC LT is disable the LT, Kl and OPL parameter is unused.
0
R/W
0x0
DRC ET enable
0 : disable
1 : enable
When the DRC ET is disable the ET, Ke and OPE parameter is unused.
3.20.5.96. 0x60C DRC0 Left Peak Filter High Attack Time Coef Register(Default Value: 0x0000000B)
Offset: 0x60C
Register Name: AC_DRC0_LPFHAT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x000B
The left peak filter attack time parameter setting, which determine by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 342
3.20.5.97. 0x610 DRC0 Left Peak Filter Low Attack Time Coef Register(Default Value: 0x000077BF)
Offset: 0x610
Register Name: AC_DRC0_LPFLAT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x77BF
The left peak filter attack time parameter setting, which determine by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
3.20.5.98. 0x614 DRC0 Right Peak Filter High Attack Time Coef Register(Default Value: 0x0000000B)
Offset: 0x614
Register Name: AC_DRC0_RPFHAT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x000B
The left peak filter attack time parameter setting, which determine by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
3.20.5.99. 0x618 DRC0 Peak Filter Low Attack Time Coef Register(Default Value: 0x000077BF)
Offset: 0x618
Register Name: AC_DRC0_RPFLAT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x77BF
The left peak filter attack time parameter setting, which determine by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
3.20.5.100. 0x61C DRC0 Left Peak Filter High Release Time Coef Register(Default Value: 0x000000FF)
Offset: 0x61C
Register Name: AC_DRC0_LPFHRT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x00FF
The left peak filter release time parameter setting, which determine by
the equation that RT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
3.20.5.101. 0x620 DRC0 Left Peak Filter Low Release Time Coef Register(Default Value: 0x0000E1F8)
Offset: 0x620
Register Name: AC_DRC0_LPFLRT
Bit
R/W
Default/Hex
Description
15:0
R/W
0xE1F8
The left peak filter release time parameter setting, which determine by
the equation that RT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 343
3.20.5.102. 0x624 DRC0 Right Peak filter High Release Time Coef Register(Default Value: 0x000000FF)
Offset: 0x624
Register Name: AC_DRC0_RPFHRT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x00FF
The left peak filter attack time parameter setting, which determine by the
equation that RT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
3.20.5.103. 0x628 DRC0 Right Peak filter Low Release Time Coef Register(Default Value: 0x0000E1F8)
Offset: 0x628
Register Name: AC_DRC0_RPFLRT
Bit
R/W
Default/Hex
Description
15:0
R/W
0xE1F8
The left peak filter release time parameter setting, which determine by
the equation that AT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
3.20.5.104. 0x62C DRC0 Left RMS Filter High Coef Register(Default Value: 0x00000001)
Offset: 0x62C
Register Name: AC_DRC0_LRMSHAT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0001
The left RMS filter average time parameter setting, which determine by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
3.20.5.105. 0x630 DRC0 Left RMS Filter Low Coef Register(Default Value: 0x00002BAF)
Offset: 0x630
Register Name: AC_DRC0_LRMSLAT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x2BAF
The left RMS filter average time parameter setting, which determine by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
3.20.5.106. 0x634 DRC0 Right RMS Filter High Coef Register(Default Value: 0x00000001)
Offset: 0x634
Register Name: AC_DRC0_RRMSHAT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0001
The right RMS filter average time parameter setting, which determine by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 344
3.20.5.107. 0x638 DRC0 Right RMS Filter Low Coef Register(Default Value: 0x00002BAF)
Offset: 0x638
Register Name: AC_DRC0_RRMSLAT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x2BAF
The right RMS filter average time parameter setting, which determine by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
3.20.5.108. 0x63C DRC0 Compressor Theshold High Setting Register(Default Value: 0x000006A4)
Offset: 0x63C
Register Name: AC_DRC0_HCT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x06A4
The compressor threshold setting, which set by the equation that CTin =
-CT/6.0206. The format is 8.24 (-40dB)
3.20.5.109. 0x640 DRC0 Compressor Theshold Low Setting Register(Default Value: 0x0000D3C0)
Offset: 0x640
Register Name: AC_DRC0_LCT
Bit
R/W
Default/Hex
Description
15:0
R/W
0xD3C0
The compressor threshold setting, which set by the equation that CTin =
-CT/6.0206. The format is 8.24 (-40dB)
3.20.5.110. 0x644 DRC0 Compressor Slope High Setting Register(Default Value: 0x00000080)
Offset: 0x644
Register Name: AC_DRC0_HKC
Bit
R/W
Default/Hex
Description
15:13
/
/
/
13:0
R/W
0x0080
The slope of the compressor which determine by the equation that Kc =
1/R, there, R is the ratio of the compressor, which always is interger. The
format is 8.24. (2 : 1)
3.20.5.111. 0x648 DRC0 Compressor Slope Low Setting Register(Default Value: 0x00000000)
Offset: 0x648
Register Name: AC_DRC0_LKC
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0000
The slope of the compressor which determine by the equation that Kc =
1/R, there, R is the ratio of the compressor, which always is interger. The
format is 8.24. (2 : 1)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 345
3.20.5.112. 0x64C DRC0 Compressor High Output at Compressor Threshold Register(Default Value:
0x0000F95B)
Offset: 0x64C
Register Name: AC_DRC0_HOPC
Bit
R/W
Default/Hex
Description
15:0
R/W
0xF95B
The output of the compressor which determine by the equation
-OPC/6.0206 The format is 8.24 (-40dB)
3.20.5.113. 0x650 DRC0 Compressor Low Output at Compressor Threshold Register(Default Value:
0x00002C3F)
Offset: 0x650
Register Name: AC_DRC0_LOPC
Bit
R/W
Default/Hex
Description
15:0
R/W
0x2C3F
The output of the compressor which determine by the equation
OPC/6.0206 The format is 8.24 (-40dB)
3.20.5.114. 0x654 DRC0 Limiter Theshold High Setting Register(Default Value: 0x000001A9)
Offset: 0x654
Register Name: AC_DRC0_HLT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x01A9
The limiter threshold setting, which set by the equation that LTin =
-LT/6.0206, The format is 8.24. (-10dB)
3.20.5.115. 0x658 DRC0 Limiter Theshold Low Setting Register(Default Value: 0x000034F0)
Offset: 0x658
Register Name: AC_DRC0_LLT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x34F0
The limiter threshold setting, which set by the equation that LTin =
-LT/6.0206, The format is 8.24. (-10dB)
3.20.5.116. 0x65C DRC0 Limiter Slope High Setting Register(Default Value: 0x00000005)
Offset: 0x65C
Register Name: AC_DRC0_HK1
Bit
R/W
Default/Hex
Description
15:11
/
/
/
13:0
R/W
0x0005
The slope of the limiter which determine by the equation that Kl = 1/R,
there, R is the ratio of the limiter, which always is interger. The format is
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 346
8.24. (50 :1)
3.20.5.117. 0x660 DRC0 Limiter Slope Low Setting Register(Default Value: 0x00001EB8)
Offset: 0x660
Register Name: AC_DRC0_LK1
Bit
R/W
Default/Hex
Description
15:0
R/W
0x1EB8
The slope of the limiter which determine by the equation that Kl = 1/R,
there, R is the ratio of the limiter, which always is interger. The format is
8.24. (50 :1)
3.20.5.118. 0x664 DRC0 Limiter High Output at Limiter Threshold Register(Default Value: 0x0000FBD8)
Offset: 0x664
Register Name: AC_DRC0_HOPL
Bit
R/W
Default/Hex
Description
15:0
R/W
0xFBD8
The output of the limiter which determine by equation OPT/6.0206. The
format is 8.24 (-25dB)
3.20.5.119. 0x668 DRC0 Limiter Low Output at Limiter Threshold Register(Default Value: 0x0000FBA7)
Offset: 0x668
Register Name: AC_DRC0_LOPL
Bit
R/W
Default/Hex
Description
15:0
R/W
0xFBA7
The output of the limiter which determine by equation OPT/6.0206. The
format is 8.24 (-25dB)
3.20.5.120. 0x66C DRC0 Expander Theshold High Setting Register(Default Value: 0x00000BA0)
Offset: 0x66C
Register Name: AC_DRC0_HET
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0BA0
The expander threshold setting, which set by the equation that ETin =
-ET/6.0206, The format is 8.24. (-70dB)
3.20.5.121. 0x670 DRC0 Expander Theshold Low Setting Register(Default Value: 0x00007291)
Offset: 0x670
Register Name: AC_DRC0_LET
Bit
R/W
Default/Hex
Description
15:0
R/W
0x7291
The expander threshold setting, which set by the equation that ETin =
-ET/6.0206, The format is 8.24. (-70dB)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 347
3.20.5.122. 0x674 DRC0 Expander Slope High Setting Register(Default Value: 0x00000500)
Offset: 0x674
Register Name: AC_DRC0_HKE
Bit
R/W
Default/Hex
Description
15:14
/
/
/
13:0
R/W
0x0050
The slope of the expander which determine by the equation that Ke = 1/R,
there, R is the ratio of the expander, which always is interger and the ke
must larger than 50. The format is 8.24. (1:5)
3.20.5.123. 0x678 DRC0 Expander Slope Low Setting Register(Default Value: 0x00000000)
Offset: 0x678
Register Name: AC_DRC0_LKE
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0000
The slope of the expander which determine by the equation that Ke = 1/R,
there, R is the ratio of the expander, which always is interger and the ke
must larger than 50. The format is 8.24. (1:5)
3.20.5.124. 0x67C DRC0 Expander High Output at Expander Threshold Register(Default Value:
0x0000F45F)
Offset: 0x67C
Register Name: AC_DRC0_HOPE
Bit
R/W
Default/Hex
Description
15:0
R/W
0xF45F
The output of the expander which determine by equation OPE/6.0206.
The format is 8.24 (-70dB)
3.20.5.125. 0x680 DRC0 Expander Low Output at Expander Threshold Register(Default Value:
0x00008D6E)
Offset: 0x680
Register Name: AC_DRC0_LOPE
Bit
R/W
Default/Hex
Description
15:0
R/W
0x8D6E
The output of the expander which determine by equation OPE/6.0206.
The format is 8.24 (-70dB)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 348
3.20.5.126. 0x684 DRC0 Linear Slope High Setting Register(Default Value: 0x00000100)
Offset: 0x684
Register Name: AC_DRC0_HKN
Bit
R/W
Default/Hex
Description
15:14
/
/
/
13:0
R/W
0x0100
The slope of the linear which determine by the equation that Kn = 1/R,
there, R is the ratio of the linear, which always is interger . The format is
8.24. (1:1)
3.20.5.127. 0x688 DRC0 Linear Slope Low Setting Register(Default Value: 0x00000000)
Offset: 0x688
Register Name: AC_DRC0_LKN
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0000
The slope of the linear which determine by the equation that Kn = 1/R,
there, R is the ratio of the linear, which always is interger . The format is
8.24. (1:1)
3.20.5.128. 0x68C DRC0 Smooth filter Gain High Attack Time Coef Register(Default Value: 0x00000002)
Offset: 0x68C
Register Name: AC_DRC0_SFHAT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0002
The smooth filter attack time parameter setting, which determine by the
equation that AT = 1-exp(-2.2Ts/tr). The format is 3.24. (5ms)
3.20.5.129. 0x690 DRC0 Smooth filter Gain Low Attack Time Coef Register(Default Value: 0x00005600)
Offset: 0x690
Register Name: AC_DRC0_SFLAT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x5600
The smooth filter attack time parameter setting, which determine by the
equation that AT = 1-exp(-2.2Ts/tr). The format is 3.24. (5ms)
3.20.5.130. 0x694 DRC0 Smooth filter Gain High Release Time Coef Register(Default Value: 0x00000000)
Offset: 0x694
Register Name: AC_DRC0_SFHRT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0000
The gain smooth filter release time parameter setting, which determine
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 349
by the equation that RT = 1-exp(-2.2Ts/tr). The format is 3.24. (200ms)
3.20.5.131. 0x698 DRC0 Smooth filter Gain Low Release Time Coef Register(Default Value: 0x00000F04)
Offset: 0x698
Register Name: AC_DRC0_SFHRT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0F04
The gain smooth filter release time parameter setting, which determine
by the equation that RT = 1-exp(-2.2Ts/tr). The format is 3.24. (200ms)
3.20.5.132. 0x69C DRC0 MAX Gain High Setting Register(Default Value: 0x0000FE56)
Offset: 0x69C
Register Name: AC_DRC0_MXGHS
Bit
R/W
Default/Hex
Description
15:0
R/W
0xFE56
The max gain setting which determine by equation MXG/6.0206. The
format is 8.24 and must -20dB <MXG< 30dB (-10dB)
3.20.5.133. 0x6A0 DRC0 MAX Gain Low Setting Register(Default Value: 0x0000CB0F)
Offset: 0x6A0
Register Name: AC_DRC0_MXGLS
Bit
R/W
Default/Hex
Description
15:0
R/W
0xCB0F
The max gain setting which determine by equation MXG/6.0206. The
format is 8.24 and must -20dB <MXG < 30dB (-10dB)
3.20.5.134. 0x6A4 DRC0 MIN Gain High Setting Register(Default Value: 0x0000F95B)
Offset: 0x6A4
Register Name: AC_DRC0_MNGHS
Bit
R/W
Default/Hex
Description
15:0
R/W
0xF95B
The min gain setting which determine by equation MXG/6.0206. The
format is 8.24 and must -60dB ≤MNG ≤ -40dB (-40dB)
3.20.5.135. 0x6A8 DRC0 MIN Gain Low Setting Register(Default Value: 0x00002C3F)
Offset: 0x6A8
Register Name: AC_DRC0_MNGLS
Bit
R/W
Default/Hex
Description
15:0
R/W
0x2C3F
The min gain setting which determine by equation MNG/6.0206. The
format is 8.24 and must -60dB ≤MNG ≤ -40dB (-40dB)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 350
3.20.5.136. 0x6AC DRC0 Expander Smooth Time High Coef Register(Default Value: 0x00000000)
Offset: 0x6AC
Register Name: AC_DRC0_EPSHC
Bit
R/W
Default/Hex
Description
11:0
R/W
0x0000
The gain smooth filter release and attack time parameter setting in
expander region, which determine by the equation that RT =
1-exp(-2.2Ts/tr). The format is 3.24. (30ms)
3.20.5.137. 0x6B0 DRC0 Expander Smooth Time Low Coef Register(Default Value: 0x0000640C)
Offset: 0x6B0
Register Name: AC_DRC0_EPSLC
Bit
R/W
Default/Hex
Description
15:0
R/W
0x640C
The gain smooth filter release and attack time parameter setting in
expander region, which determine by the equation that RT =
1-exp(-2.2Ts/tr). The format is 3.24. (30ms)
3.20.5.138. 0x6B4 DRC0 Optimum Register(Default Value: 0x00000000)
Offset: 0x6B4
Register Name: AC_DRC0_OPT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10
R/W
0x0
The gain smooth use the expander coiffcient when the energy in
expander range
0 : use the normal smooth coeffcient
1 : use the expander coeffcient
9
R/W
0x0
The gain normal smooth coefficeint selection mode set
0 : both release and attack coeffcient use hysteresis;
1 : only the attack coeffcient use hysteresis;
8
R/W
0x0
The min of energy set in Peak detect mode
0 : -120dB 1 : -210dB
7
R/W
0x0
The energy mode select in rms detect mode
0 : the energy is RMS
1 : the energy is square of RMS
6
R/W
0x0
DRC data ouput when DRC disable and DRC delay data output complete.
0 : the ouput is the input music data;
1 : the output is 0 ;
5
R/W
0
DRC gain defaut value setting
0: The default gain is 1
1: The default gain is 0
4:0
R/W
0x00
The hysteresis of the gain smooth filter to use the decay time coefficient
or the attack time coefficient.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 351
When in the decay time state, if g(n-1)-g(n)>hysteresis, then the state will
change to attack time state, and when in the attack time, if
g(n)-g(n-1)>hysteresis, then the state will change to decay time state.
Note the hysteresis of 0x00 and 0x04 is the same.
00000:
16
2
00001:
19
2
00010:
18
2
00011:
17
2
00100:
16
2
-----------------
10011:
1
2
10100 ~11111: 1
hysteresis =
20
2n
,except n=0x00, and n less 0x14.
3.20.5.139. 0x6B8 DRC0 HPF Gain High Coef Register(Default Value: 0x00000100)
Offset: 0x6B8
Register Name: AC_DRC0_HPFHGAIN
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0100
The gain of the hpf coefficient setting which format is 3.24.(gain = 1)
3.20.5.140. 0x6BC DRC0 HPF Gain Low Coef Register(Default Value: 0x00000000)
Offset: 0x6BC
Register Name: AC_DRC0_HPFLGAIN
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0000
The gain of the hpf coefficient setting which format is 3.24.(gain = 1)
3.20.5.141. 0x700 DRC1 High HPF Coef Register(Default Value: 0x000000FF)
Offset: 0x700
Register Name: AC_DRC1_HHPFC
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0xFF
HPF coefficient setting and the data is 3.24 format.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 352
3.20.5.142. 0x704 DRC1 Low HPF Coef Register(Default Value: 0x0000FAC1)
Offset: 0x704
Register Name: AC_DRC1_LHPFC
Bit
R/W
Default/Hex
Description
15:0
R/W
0xFAC1
HPF coefficient setting and the data is 3.24 format.
3.20.5.143. 0x708 DRC1 Control Register(Default Value: 0x00000080)
Offset: 0x708
Register Name: AC_DRC1_CTRL
Bit
R/W
Default/Hex
Description
15
R
0
DRC delay buffer data output state when drc delay function is enble and
the drc funciton disable. After disable drc function and this bit go to 0, the
user should write the drc delay function bit to 0;
0 : not complete
1 : is complete
14:10
/
/
/
13:8
R/W
0
Signal delay time setting
6'h00 : (8x1)fs
6'h01 : (8x2)fs
6'h02 : (8x3)fs
----------------------------------------
6'h2e : (8*47)fs
6'h2f : (8*48)fs
6'h30 -- 6'h3f : (8*48)fs
Delay time = 8*(n+1)fs, n<6'h30;
When the delay function is disable, the signal delay time is unused.
7
R/W
0x1
The delay buffer use or not when the drc disable and the drc buffer data
output completely
0 : don't use the buffer
1 : use the buffer
6
R/W
0x0
DRC gain max limit enable
0 : disable
1 : enable
5
R/W
0x0
DRC gain min limit enable. when this fuction enable, it will overwrite the
noise detect funciton.
0 : disable
1 : enable
4
R/W
0x0
Control the drc to detect noise when ET enable
0 : disable
1 : enable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 353
3
R/W
0x0
Signal function Select
0 : RMS filter
1 : Peak filter
When Signal function Select Peak filter, the RMS parameter is unused.
(AC_DRC_LRMSHAT / AC_DRC_LRMSLAT / AC_DRC_LRMSHAT /
AC_DRC_LRMSLAT)
When Signal function Select RMS filter, the Peak filter parameter is
unused.(AC_DRC_LPFHAT / AC_DRC_LPFLAT / AC_DRC_RPFHAT /
AC_DRC_RPFLAT / AC_DRC_LPFHRT / AC_DRC_LPFLRT / AC_DRC_RPFHRT
/ AC_DRC_RPFLRT)
2
R/W
0x0
Delay function enable
0 : disable
1 : enable
When the Delay function enable is disable, the Signal delay time is
unused.
1
R/W
0x0
DRC LT enable
0 : disable
1 : enable
When the DRC LT is disable the LT, Kl and OPL parameter is unused.
0
R/W
0x0
DRC ET enable
0 : disable
1 : enable
When the DRC ET is disable the ET, Ke and OPE parameter is unused.
3.20.5.144. 0x70C DRC1 Left Peak Filter High Attack Time Coef Register(Default Value: 0x0000000B)
Offset: 0x70C
Register Name: AC_DRC1_LPFHAT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x000B
The left peak filter attack time parameter setting, which determine by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
3.20.5.145. 0x710 DRC1 Left Peak Filter Low Attack Time Coef Register(Default Value: 0x000077BF)
Offset: 0x710
Register Name: AC_DRC1_LPFLAT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x77BF
The left peak filter attack time parameter setting, which determine by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 354
3.20.5.146. 0x714 DRC1 Right Peak Filter High Attack Time Coef Register(Default Value: 0x0000000B)
Offset: 0x714
Register Name: AC_DRC1_RPFHAT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x000B
The left peak filter attack time parameter setting, which determine by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
3.20.5.147. 0x718 DRC1 Peak Filter Low Attack Time Coef Register(Default Value: 0x000077BF)
Offset: 0x718
Register Name: AC_DRC1_RPFLAT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x77BF
The left peak filter attack time parameter setting, which determine by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
3.20.5.148. 0x71C DRC1 Left Peak Filter High Release Time Coef Register(Default Value: 0x000000FF)
Offset: 0x71C
Register Name: AC_DRC1_LPFHRT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x00FF
The left peak filter release time parameter setting, which determine by
the equation that RT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
3.20.5.149. 0x720 DRC1 Left Peak Filter Low Release Time Coef Register(Default Value: 0x0000E1F8)
Offset: 0x720
Register Name: AC_DRC1_LPFLRT
Bit
R/W
Default/Hex
Description
15:0
R/W
0xE1F8
The left peak filter release time parameter setting, which determine by
the equation that RT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
3.20.5.150. 0x724 DRC1 Right Peak filter High Release Time Coef Register(Default Value: 0x000000FF)
Offset: 0x724
Register Name: AC_DRC1_RPFHRT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x00FF
The left peak filter attack time parameter setting, which determine by the
equation that RT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 355
3.20.5.151. 0x728 DRC1 Right Peak filter Low Release Time Coef Register(Default Value: 0x0000E1F8)
Offset: 0x728
Register Name: AC_DRC1_RPFLRT
Bit
R/W
Default/Hex
Description
15:0
R/W
0xE1F8
The left peak filter release time parameter setting, which determine by
the equation that AT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
3.20.5.152. 0x72C DRC Left RMS Filter High Coef Register(Default Value: 0x00000001)
Offset: 0x72C
Register Name: AC_DRC1_LRMSHAT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0001
The left RMS filter average time parameter setting, which determine by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
3.20.5.153. 0x730 DRC1 Left RMS Filter Low Coef Register(Default Value: 0x00002BAF)
Offset: 0x730
Register Name: AC_DRC1_LRMSLAT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x2BAF
The left RMS filter average time parameter setting, which determine by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
3.20.5.154. 0x734 DRC1 Right RMS Filter High Coef Register(Default Value: 0x00000001)
Offset: 0x734
Register Name: AC_DRC1_RRMSHAT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0001
The right RMS filter average time parameter setting, which determine by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
3.20.5.155. 0x738 DRC1 Right RMS Filter Low Coef Register(Default Value: 0x00002BAF)
Offset: 0x738
Register Name: AC_DRC1_RRMSLAT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x2BAF
The right RMS filter average time parameter setting, which determine by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 356
3.20.5.156. 0x73C DRC1 Compressor Theshold High Setting Register(Default Value: 0x000006A4)
Offset: 0x73C
Register Name: AC_DRC1_HCT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x06A4
The compressor threshold setting, which set by the equation that CTin =
-CT/6.0206. The format is 8.24 (-40dB)
3.20.5.157. 0x740 DRC1 Compressor Slope High Setting Register(Default Value: 0x0000D3D0)
Offset: 0x740
Register Name: AC_DRC1_LCT
Bit
R/W
Default/Hex
Description
15:0
R/W
0xD3C0
The compressor threshold setting, which set by the equation that CTin =
-CT/6.0206. The format is 8.24 (-40dB)
3.20.5.158. 0x744 DRC1 Compressor Slope High Setting Register(Default Value: 0x00000080)
Offset: 0x744
Register Name: AC_DRC1_HKC
Bit
R/W
Default/Hex
Description
15:14
/
/
/
13:0
R/W
0x0800
The slope of the compressor which determine by the equation that Kc =
1/R, there, R is the ratio of the compressor, which always is interger. The
format is 8.24. (2 : 1)
3.20.5.159. 0x748 DRC1 Compressor Slope Low Setting Register(Default Value: 0x00000000)
Offset: 0x748
Register Name: AC_DRC1_LKC
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0000
The slope of the compressor which determine by the equation that Kc =
1/R, there, R is the ratio of the compressor, which always is interger. The
format is 8.24. (2 : 1)
3.20.5.160. 0x74C DRC1 Compressor High Output at Compressor Threshold Register(Default Value:
0x0000F95B)
Offset: 0x74C
Register Name: AC_DRC1_HOPC
Bit
R/W
Default/Hex
Description
15:0
R/W
0xF95B
The output of the compressor which determine by the equation
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 357
-OPC/6.0206 The format is 8.24 (-40dB)
3.20.5.161. 0x750 DRC1 Compressor Low Output at Compressor Threshold Register(Default Value:
0x00002C3F)
Offset: 0x750
Register Name: AC_DRC1_LOPC
Bit
R/W
Default/Hex
Description
15:0
R/W
0x2C3F
The output of the compressor which determine by the equation
OPC/6.0206 The format is 8.24 (-40dB)
3.20.5.162. 0x754 DRC1 Limiter Theshold High Setting Register(Default Value: 0x000001A9)
Offset: 0x754
Register Name: AC_DRC1_HLT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x01A9
The limiter threshold setting, which set by the equation that LTin =
-LT/6.0206, The format is 8.24. (-10dB)
3.20.5.163. 0x758 DRC1 Limiter Theshold Low Setting Register(Default Value: 0x000034F0)
Offset: 0x758
Register Name: AC_DRC1_LLT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x34F0
The limiter threshold setting, which set by the equation that LTin =
-LT/6.0206, The format is 8.24. (-10dB)
3.20.5.164. 0x75C DRC1 Limiter Slope High Setting Register(Default Value: 0x00000005)
Offset: 0x75C
Register Name: AC_DRC1_HK1
Bit
R/W
Default/Hex
Description
15:11
/
/
/
13:0
R/W
0x0005
The slope of the limiter which determine by the equation that Kl = 1/R,
there, R is the ratio of the limiter, which always is interger. The format is
8.24. (50 :1)
3.20.5.165. 0x760 DRC1 Limiter Slope Low Setting Register(Default Value: 0x00001EB8)
Offset: 0x760
Register Name: AC_DRC1_LK1
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 358
Bit
R/W
Default/Hex
Description
15:0
R/W
0x1EB8
The slope of the limiter which determine by the equation that Kl = 1/R,
there, R is the ratio of the limiter, which always is interger. The format is
8.24. (50 :1)
3.20.5.166. 0x764 DRC1 Limiter High Output at Limiter Threshold Register(Default Value: 0x0000FBD8)
Offset: 0x764
Register Name: AC_DRC1_HOPL
Bit
R/W
Default/Hex
Description
15:0
R/W
0xFBD8
The output of the limiter which determine by equation OPT/6.0206. The
format is 8.24 (-25dB)
3.20.5.167. 0x768 DRC1 Limiter Low Output at Limiter Threshold Register(Default Value: 0x0000FBA7)
Offset: 0x768
Register Name: AC_DRC1_LOPL
Bit
R/W
Default/Hex
Description
15:0
R/W
0xFBA7
The output of the limiter which determine by equation OPT/6.0206. The
format is 8.24 (-25dB)
3.20.5.168. 0x76C DRC1 Expander Theshold High Setting Register(Default Value: 0x00000BA0)
Offset: 0x76C
Register Name: AC_DRC1_HET
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0BA0
The expander threshold setting, which set by the equation that ETin =
-ET/6.0206, The format is 8.24. (-70dB)
3.20.5.169. 0x770 DRC1 Expander Theshold Low Setting Register(Default Value: 0x00007291)
Offset: 0x770
Register Name: AC_DRC1_LET
Bit
R/W
Default/Hex
Description
15:0
R/W
0x7291
The expander threshold setting, which set by the equation that ETin =
-ET/6.0206, The format is 8.24. (-70dB)
3.20.5.170. 0x774 DRC1 Expander Slope High Setting Register(Default Value: 0x00000500)
Offset: 0x774
Register Name: AC_DRC1_HKE
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 359
15:14
/
/
/
13:0
R/W
0x0050
The slope of the expander which determine by the equation that Ke = 1/R,
there, R is the ratio of the expander, which always is interger and the ke
must larger than 50. The format is 8.24. (1:5)
3.20.5.171. 0x778 DRC1 Expander Slope Low Setting Register(Default Value: 0x00000000)
Offset: 0x778
Register Name: AC_DRC1_LKE
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0000
The slope of the expander which determine by the equation that Ke = 1/R,
there, R is the ratio of the expander, which always is interger and the ke
must larger than 50. The format is 8.24. (1:5)
3.20.5.172. 0x77C DRC1 Expander High Output at Expander Threshold Register(Default Value:
0x0000F45F)
Offset: 0x77C
Register Name: AC_DRC1_HOPE
Bit
R/W
Default/Hex
Description
15:0
R/W
0xF45F
The output of the expander which determine by equation OPE/6.0206.
The format is 8.24 (-70dB)
3.20.5.173. 0x780 DRC1 Expander Low Output at Expander Threshold Register(Default Value:
0x00008D6E)
Offset: 0x780
Register Name: AC_DRC1_LOPE
Bit
R/W
Default/Hex
Description
15:0
R/W
0x8D6E
The output of the expander which determine by equation OPE/6.0206.
The format is 8.24 (-70dB)
3.20.5.174. 0x784 DRC1 Linear Slope High Setting Register(Default Value: 0x00000100)
Offset: 0x784
Register Name: AC_DRC1_HKN
Bit
R/W
Default/Hex
Description
15:14
/
/
/
13:0
R/W
0x0100
The slope of the linear which determine by the equation that Kn = 1/R,
there, R is the ratio of the linear, which always is interger. The format is
8.24. (1:1)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 360
3.20.5.175. 0x788 DRC1 Linear Slope Low Setting Register(Default Value: 0x00000000)
Offset: 0x788
Register Name: AC_DRC1_LKN
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0000
The slope of the linear which determine by the equation that Kn = 1/R,
there, R is the ratio of the linear, which always is interger. The format is
8.24. (1:1)
3.20.5.176. 0x78C DRC1 Smooth filter Gain High Attack Time Coef Register(Default Value: 0x00000002)
Offset: 0x78C
Register Name: AC_DRC1_SFHAT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0002
The smooth filter attack time parameter setting, which determine by the
equation that AT = 1-exp(-2.2Ts/tr). The format is 3.24. (5ms)
3.20.5.177. 0x790 DRC1 Smooth filter Gain Low Attack Time Coef Register(Default Value: 0x00005600)
Offset: 0x790
Register Name: AC_DRC1_SFLAT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x5600
The smooth filter attack time parameter setting, which determine by the
equation that AT = 1-exp(-2.2Ts/tr). The format is 3.24. (5ms)
3.20.5.178. 0x794 DRC1 Smooth filter Gain High Release Time Coef Register(Default Value: 0x00000000)
Offset: 0x794
Register Name: AC_DRC1_SFHRT
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0000
The gain smooth filter release time parameter setting, which determine
by the equation that RT = 1-exp(-2.2Ts/tr). The format is 3.24. (200ms)
3.20.5.179. 0x798 DRC1 Smooth filter Gain Low Release Time Coef Register(Default Value: 0x00000F04)
Offset: 0x798
Register Name: AC_DRC1_SFHRT
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0F04
The gain smooth filter release time parameter setting, which determine
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 361
by the equation that RT = 1-exp(-2.2Ts/tr). The format is 3.24. (200ms)
3.20.5.180. 0x79C DRC1 MAX Gain High Setting Register(Default Value: 0x0000FE56)
Offset: 0x79C
Register Name: AC_DRC1_MXGHS
Bit
R/W
Default/Hex
Description
15:0
R/W
0xFE56
The max gain setting which determine by equation MXG/6.0206. The
format is 8.24 and must -20dB <MXG< 30dB (-10dB)
3.20.5.181. 0x7A0 DRC1 MAX Gain Low Setting Register(Default Value: 0x0000CB0F)
Offset: 0x7A0
Register Name: AC_DRC1_MXGLS
Bit
R/W
Default/Hex
Description
15:0
R/W
0xCB0F
The max gain setting which determine by equation MXG/6.0206. The
format is 8.24 and must -20dB <MXG < 30dB (-10dB)
3.20.5.182. 0x7A4 DRC1 MIN Gain High Setting Register(Default Value: 0x0000F95B)
Offset: 0x7A4
Register Name: AC_DRC1_MNGHS
Bit
R/W
Default/Hex
Description
15:0
R/W
0xF95B
The min gain setting which determine by equation MXG/6.0206. The
format is 8.24 and must -60dB ≤MNG ≤ -40dB (-40dB)
3.20.5.183. 0x7A8 DRC1 MIN Gain Low Setting Register(Default Value: 0x00002C3F)
Offset: 0x7A8
Register Name: AC_DRC1_MNGLS
Bit
R/W
Default/Hex
Description
15:0
R/W
0x2C3F
The min gain setting which determine by equation MNG/6.0206. The
format is 8.24 and must -60dB ≤MNG ≤ -40dB (-40dB)
3.20.5.184. 0x7AC DRC1 Expander Smooth Time High Coef Register(Default Value: 0x00000000)
Offset: 0x7AC
Register Name: AC_DRC1_EPSHC
Bit
R/W
Default/Hex
Description
11:0
R/W
0x0000
The gain smooth filter release and attack time parameter setting in
expander region, which determine by the equation that RT =
1-exp(-2.2Ts/tr). The format is 3.24. (30ms)
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 362
3.20.5.185. 0x7B0 DRC1 Expander Smooth Time Low Coef Register(Default Value: 0x0000640C)
Offset: 0x7B0
Register Name: AC_DRC1_EPSLC
Bit
R/W
Default/Hex
Description
15:0
R/W
0x640C
The gain smooth filter release and attack time parameter setting in
expander region, which determine by the equation that RT =
1-exp(-2.2Ts/tr). The format is 3.24. (30ms)
3.20.5.186. 0x7B8 DRC1 HPF Gain High Coef Register(Default Value: 0x00000100)
Offset: 0x7B8
Register Name: AC_DRC1_HPFHGAIN
Bit
R/W
Default/Hex
Description
15:11
/
/
/
10:0
R/W
0x0100
The gain of the hpf coefficient setting which format is 3.24.(gain = 1)
3.20.5.187. 0x7BC DRC1 HPF Gain Low Coef Register(Default Value: 0x00000000)
Offset: 0x7BC
Register Name: AC_DRC1_HPFLGAIN
Bit
R/W
Default/Hex
Description
15:0
R/W
0x0000
The gain of the hpf coefficient setting which format is 3.24.(gain = 1)
3.20.5.188. AC_PR Configuration Register
The Analog domain register can be write/Read through the AC_PR Configuration Register(AC_PR_CFG_REG)
which is in the PRCM Spec. To configure the codec analog domain circuit throught this register.
Reset：Reset signal;
ADDR[4:0] :AC_PR address;
W/R :write/read enable;
WDAT[7:0] :write data;
RDAT[7:0] : read data.
APB0 W/R
Addr[4:0]
Data_in[7:0]
Data_out[7:0]
Bit
RST
28
31-29
/
27-23
/
24
WR
15-8
Data_in
7-0
Data_out
20-16
Addr
Reset
23-21
/
25 8-bit
registers
CPUS 0x01F015C0
Figure 3-21. AC_PR Configuration Register function
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 363
3.20.5.189. 0x00 Headphone Amplifier Control Register(Default Value: 0x00)
Offset: 0x00
Register Name: HP_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0x0
PA_CLK_GATE
PA clock gating control;
when system VDD is off and Audio analog channel is working, this bit
must be set to 1, because the PA clock come from system VDD domain.
When this bit is 1, the Zero cross over function will be disabled
automatically.
0: not gating; 1: gating
6
R/W
0x0
HPPA_EN
Right & Left Headphone PA Enable
0: Disable; 1: Enable
5:0
R/W
0x0
HPVOL
Headphone Volume Control, (HPVOL): Total 64 level, from 0dB to -62dB,
1dB/step, mute when 000000
3.20.5.190. 0x01 Output Left Mixer Control Register(Default Value: 0x00)
Offset: 0x01
Register Name: OL_MIX_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0x0
/
6:0
R/W
0x0
LMIXMUTE
Left Output Mixer Mute Control
0-Mute, 1-Not mute
Bit 6: MIC1 Boost stage
Bit 5: MIC2 Boost stage
Bit 4: xxx
Bit 3: xxx
Bit 2: LINEINL
Bit 1: Left channel DAC
Bit 0: Right channel DAC
3.20.5.191. 0x02 Output Right Mixer Control Register(Default Value: 0x00)
Offset: 0x02
Register Name: OR_MIX_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0x0
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 364
6:0
R/W
0x00
RMIXMUTE
Right Output Mixer Mute Control, (???rmixs)
0-Mute, 1-Not mute
Bit 6: MIC1 Boost stage
Bit 5: MIC2 Boost stage
Bit 4: xxx
Bit 3: xxx
Bit 2: LINEINR
Bit 1: Right channel DAC
Bit 0: Left channel DAC
3.20.5.192. 0x03 Earpiece Control Register 0 (Default Value: 0x00)
Offset: 0x03
Register Name: EARPIECE_CTRL0
Bit
R/W
Default/Hex
Description
7:6
/
/
/
5:4
R/W
0x0
EAR_RAMP_TIME
Earpiece ramp time select
00: 131ms
01: 262ms
10: 395ms
11: 524ms
3:2
/
/
/
1:0
R/W
0x0
ESPSR
Earpiece input source select
00: DACR
01: DACL
10: Right Analog Mixer
11: Left Analog Mixer
3.20.5.193. 0x04 Earpiece Control Register 1 (Default Value: 0x00)
Offset: 0x04
Register Name: EARPIECE_CTRL1
Bit
R/W
Default/Hex
Description
7
R/W
0x0
ESPPA_EN
Earspeaker PA Enable
0: Disable; 1: Enable
6
R/W
0x0
ESPPA_MUTE
All input source to Earspeaker PA mute
0: mute; 1: on
5
R/W
0x0
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 365
4:0
R/W
0x00
ESP_VOL
Earspeaker VOLume control, total 31 level from 0dB to -43.5dB,
1.5dB/step, mute when 00000&00001
3.20.5.194. 0x05 LINEOUT Control Register 0 (Default Value: 0x00)
Offset: 0x05
Register Name: LINEOUT_CTRL0
Bit
R/W
Default/Hex
Description
7
R/W
0x0
Lineout Left Enable
0: Disable
1: Enable
6
R/W
0x0
Lineout Right Enable
0: Disable
1: Enable
5
R/W
0x0
Left lineout source select
0-left output mixer
1-left output mixer + right output mixer
4
R/W
0x0
Right lineout source select
0-right output mixer
1-left lineout, for differential output
3:0
/
/
/
3.20.5.195. 0x06 LINEOUT Control Register 1 (Default Value: 0x00)
Offset: 0x06
Register Name: LINEOUT_CTRL1
Bit
R/W
Default/Hex
Description
7:5
/
/
/
4:0
R/W
0x00
Lineout Volume Control, Total 31 level, from 0dB to -43.5dB, 1.5dB/step,
mute when 00000 & 00001
3.20.5.196. 0x07 MIC1 Control Register (Default Value: 0x34)
Offset: 0x07
Register Name: MIC1_CTRL
Bit
R/W
Default/Hex
Description
7
/
/
/
6:4
R/W
0x3
MIC1G, (volm1)
MIC1 BOOST stage to L or R output mixer Gain Control
From -4.5dB to 6dB, 1.5dB/step, default is 0dB
3
R/W
0x0
MIC1AMPEN
MIC1 Boost AMP Enable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 366
0-Disable; 1-Enable
2:0
R/W
0x4
MIC1BOOST
MIC1 Boost AMP Gain Control
0dB when 000, 24dB to 42dB when 001 to 111, 3dB/step, default is 33dB
3.20.5.197. 0x08 MIC2 Control Register (Default Value: 0x11)
Offset: 0x08
Register Name: MIC2_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0x1
MIC2 Source select
0: MICIN3 1: MICIN2
6:4
R/W
0x3
MIC2G.
MIC2 BOOST stage to L or R output mixer Gain Control
From -4.5dB to 6dB, 1.5dB/step, default is 0dB
3
R/W
0x0
MIC2AMPEN
MIC2 Boost AMP Enable
0-Disable; 1-Enable
2:0
R/W
0x4
MIC2BOOST
MIC2 Boost AMP Gain Control
0dB when 000, 24dB to 42dB when 001 to 111, 3dB/step, default is 33dB
3.20.5.198. 0x09 Linein Control Register (Default Value: 0x03)
Offset: 0x09
Register Name: LINEIN_CTRL
Bit
R/W
Default/Hex
Description
7:3
/
/
/
2:0
R/W
0x3
LINEING.
LINEINL/R to L/R output mixer Gain Control
From -4.5dB to 6dB, 1.5dB/step, default is 0dB
3.20.5.199. 0x0A Mixer and DAC Control Register (Default Value: 0x00)
Offset: 0x0A
Register Name: MIX_DAC_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0x0
DACAREN
Internal Analog Right channel DAC Enable
0:Disable; 1:Enable
6
R/W
0x0
DACALEN
Internal Analog Left channel DAC Enable
0:Disable; 1:Enable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 367
5
R/W
0x0
RMIXEN
Right Analog Output Mixer Enable
0:Disable; 1:Enable
4
R/W
0x0
LMIXEN
Left Analog Output Mixer Enable
0:Disable; 1:Enable
3
R/W
0x0
RHPPAMUTE
All input source to Right Headphone PA mute, including Right Output
mixer and Internal Right channel DAC:
0:Mute, 1: Not mute
2
R/W
0x0
LHPPAMUTE
All input source to Left Headphone PA mute, including Left Output mixer
and Internal Left channel DAC:
0:Mute, 1: Not mute
1
R/W
0x0
RHPIS
Right Headphone Power Amplifier (PA) Input Source Select
0: Right channel DAC
1: Right Analog Mixer
0
R/W
0x0
LHPIS
Left Headphone Power Amplifier (PA) Input Source Select
0: Left channel DAC
1: Left Analog Mixer
3.20.5.200. 0x0B Left ADC Mixer Control Register (Default Value: 0x00)
Offset: 0x0B
Register Name: L_ADCMIX_SRC
Bit
R/W
Default/Hex
Description
7
R/W
0x0
/
6:0
R/W
0x0
LADCMIXMUTE
Left ADC Mixer Mute Control:
0: Mute; 1:On
Bit 6: MIC1 Boost stage
Bit 5: MIC2 Boost stage
Bit 4: xxx
Bit 3: xxx
Bit 2: LINEINL
Bit 1: Left output mixer
Bit 0: Right output mixer
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 368
3.20.5.201. 0x0C Right ADC Mixer Control Register (Default Value: 0x00)
Offset: 0x0C
Register Name: R_ADCMIX_SRC
Bit
R/W
Default/Hex
Description
7
R/W
0x0
/
6:0
R/W
0x0
RADCMIXMUTE
Right ADC Mixer Mute Control:
0: Mute; 1:On
Bit 6: MIC1 Boost stage
Bit 5: MIC2 Boost stage
Bit 4: xxx
Bit 3: xxx
Bit 2: LINEINR
Bit 1: Right output mixer
Bit 0: Left output mixer
3.20.5.202. 0x0D ADC Control Register (Default Value: 0x03)
Offset: 0x0D
Register Name: ADC_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0x0
ADCREN
ADC Right Channel Enable
0-Disable; 1-Enable
6
R/W
0x0
ADCLEN
ADC Left Channel Enable
0-Disable; 1-Enable
5:3
R/W
0x0
/
2:0
R/W
0x3
ADCG
ADC Input Gain Control
From -4.5dB to 6dB, 1.5dB/step default is 0dB
3.20.5.203. 0x0E Headset Microphone Bias Control Register (Default Value: 0x21)
Offset: 0x0E
Register Name: HS_MBIAS_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0x0
MMICBIASEN
Master Microphone Bias enable
0: disable, 1: enable
6:5
R/W
0x1
MBIASSEL
MMICBIAS voltage level select
00: 1.88V
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 369
01: 2.09V
10: 2.33V
11: 2.50V
1:0
R/W
0x1
HBIASSEL
HMICBIAS voltage level select
00: 1.88V
01: 2.09V
10: 2.33V
11: 2.50V
3.20.5.204. 0x0F Analog Performance Tuning Register (Default Value: 0xD6)
Offset: 0x0F
Register Name: APT_REG
Bit
R/W
Default/Hex
Description
7
R/W
0x1
MMIC BIAS chopper enable
0: disable; 1:enable
6:5
R/W
0x10
MMIC BIAS chopper clock select
00: 250KHz; 01: 500KHz; 10: 1MHz; 11: 2MHz
4
R/W
0x1
DITHER
ADC dither on/off control
0: dither off; 1: dither on
3:2
R/W
0x1
DITHER_CLK_SELECT
ADC dither clock select
00: ADC FS * (8/9), about 43KHz when FS=48KHz
01: ADC FS * (16/15), about 51KHz when FS=48KHz
10: ADC FS * (4/3), about 64KHz when FS=48KHz
11: ADC FS * (16/9), about 85KHz when FS=48KHz
1:0
R/W
0x10
BIHE_CTRL, BIHE control
00: no BIHE
01: BIHE=7.5 HOSC
10: BIHE=11.5 HOSC
11: BIHE=15.5 HOSC
3.20.5.205. 0x10 OP BIAS Control Register0 (Default Value: 0x55)
Offset: 0x10
Register Name: OP_BIAS_CTRL0
Bit
R/W
Default/Hex
Description
7:6
R/W
0x01
OPDRV_OPEAR_CUR.
OPDRV/OPEAR output stage current setting
5:4
R/W
0x01
OPADC1_BIAS_CUR.
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 370
OPADC1 Bias Current Select
3:2
R/W
0x01
OPADC2_BIAS_CUR.
OPADC2 Bias Current Select
1:0
R/W
0x01
OPAAF_BIAS_CUR.
OPAAF in ADC Bias Current Select
3.20.5.206. 0x11 OP BIAS Control Register1 (Default Value: 0x55)
Offset: 0x11
Register Name: OP_BIAS_CTRL1
Bit
R/W
Default/Hex
Description
7:6
R/W
0x01
OPMIC_BIAS_CUR
OPMIC Bias Current Control
5:4
R/W
0x01
OPVR_BIAS_CUR.
OPVR Bias Current Control
3:2
R/W
0x01
OPDAC_BIAS_CUR.
OPDAC Bias Current Control
1:0
R/W
0x01
OPMIX_BIAS_CUR.
OPMIX/OPLPF/OPDRV/OPEAR Bias Current Control
3.20.5.207. 0x12 USB Bias & Volume Change Control Register (Default Value: 0x02)
Offset: 0x12
Register Name: ZC_VOL_CTRL
Bit
R/W
Default/Hex
Description
7:6
R/W
0x0
function enable for master volume change at zero cross over
0: disable; 1: enable
5:4
R/W
0x0
Timeout control for master volume change at zero cross over
0: 32ms; 1: 64ms
3
/
/
/
2:0
R/W
0x2
USB_BIAS_CUR.
USB bias current tuning
From 23uA to 30uA, Default is 25uA
3.20.5.208. 0x13 Bias Calibration Data Register (Default Value: 0x00)
Offset: 0x13
Register Name: BIAS_CAL_DATA
Bit
R/W
Default/Hex
Description
7:6
/
/
/
5:0
R
/
BIASCALI
Bias Calibration Data, 6bit
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 371
3.20.5.209. 0x14 Bias Calibration Set Data Register (Default Value: 0x20)
Offset: 0x14
Register Name: BIAS_CAL_SET
Bit
R/W
Default/Hex
Description
7:6
R/W
00
SELDETADCDY
Select the delay time to pull low the micdet when jack removal
00: 0.5ms
01: 1ms
10: 1.5ms
11: 2ms
5:0
R/W
0x20
BIASVERIFY
Bias Register Setting Data
3.20.5.210. 0x15 Bias & DA16 Calibration Control Register (Default Value: 0x00)
Offset: 0x15
Register Name: BD_CAL_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0x0
PA_SPEED_SELECT
PA setup speed control (for testing)
0: slow; 1: fast
6
R/W
0x0
CURRENT_TEST_SELECT
Internal current sink test enable (from LINEIN pin)
0:Normal; 1: For Debug
5:3
/
/
/
2
R/W
0x0
BIAS calibration mode select
0: average; 1: single
1
R/W
0x0
BIAS and HP calibration control
Write 1 to this bit, the calibration will be doing again. Then this bit will be
reset to zero automatically
0
R/W
0x0
BIASCALIVERIFY
Bias Calibration Verify
0: Calibration; 1: Register setting
3.20.5.211. 0x16 Headphone PA Control Register (Default Value: 0xF1)
Offset: 0x16
Register Name: HP_PA_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0x1
BUFFERENABLE
When this bit is write to 0, the buffer in headphone disabled
6
R/W
0x1
HPMUTENABLE
When this bit is write to 0, all input to headphone is mute
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 372
5
R/W
0x1
HPINPUTENABLE
When this bit is write to 0, the input stage of headphone disabled
4
R/W
0x1
HPOUTPUTENABLE
When this bit is write to 0, the output stage of headphone disabled
3:2
R/W
0x0
HPPA_DEL
Headphone delay time when start up
00: 4ms
01: 8ms
10: 16ms
11: 32ms
1:0
R/W
0x1
CP_CLKS
Charge Pump Clock select
00: 250k
01: 330k
10: 400k
11: 500k
3.20.5.212. 0x17 Headphone Calibration Control Register (Default Value: 0x04)
Offset: 0x17
Register Name: HP_CAL_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0
HPCALIFIRST
When this bit is write to 1 , HEADPHONE Calibration once before enable
6
R/W
0
/
5
R/W
0
HPCALIMODE
HEADPHONE calibration equilibration MODE select
0: equilibration mode
1: no equilibration
4
R/W
0
HPCALIVERIFY
HEADPHONE calibration in verify mode enable
0: Disable; 1: Enable
3
R/W
0
/
2:0
R/W
100
HPCALICKS
HEADPHONE Calibration clock frequency select
000: 1k
…
100: 16k
…
111: 128k
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 373
3.20.5.213. 0x18 Right Headphone Calibration DAT Register (Default Value: 0x00)
Offset: 0x18
Register Name: RHP_CAL_DAT
Bit
R/W
Default/Hex
Description
7:0
R
/
HPRCALI
Right Headphone calibration Data
3.20.5.214. 0x19 Right Headphone Calibration Setting Register (Default Value: 0x80)
Offset: 0x19
Register Name: RHP_CAL_SET
Bit
R/W
Default/Hex
Description
7:0
R/W
0x80
HPRCALIVERIFY
Right Headphone calibration Setting Data
3.20.5.215. 0x1A Left Headphone Calibration DAT Register (Default Value: 0x00)
Offset: 0x1A
Register Name: LHP_CAL_DAT
Bit
R/W
Default/Hex
Description
7:0
R
/
HPLCALI
Left Headphone calibration Data
3.20.5.216. 0x1B Left Headphone Calibration Setting Register (Default Value: 0x80)
Offset: 0x1B
Register Name: LHP_CAL_SET
Bit
R/W
Default/Hex
Description
7:0
R/W
0x80
HPLCALIVERIFY
Left Headphone calibration Setting Data
3.20.5.217. 0x1C Mic detect Control Register (Default Value: 0x40)
Offset: 0x1C
Register Name: MDET_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0
/
6:4
R/W
100
SELDETADCFS
Select sample interval of the ADC sample
000: 2ms
…
100: 32ms
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 374
…
111: 256ms
3:2
R/W
00
SELDETADCDB
Select debounce time when jack removal
00: 128ms
01: 256ms
10: 512ms
11: 1024ms
1:0
R/W
00
SELDETADCBF
Select the time to enable HBIAS before micadc work
00: 2ms
01: 4ms
10: 8ms
11: 16ms
3.20.5.218. 0x1D Jack & Mic detect Control Register (Default Value: 0x00)
Offset: 0x1D
Register Name: JACK_MIC_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0
JACKDETEN
Jack detect enable
0: disable, 1: enable
6
R/W
0
INNERRESEN
Inner 2.2k resistor between hbias and micdet enable
0: disable, 1: enable
5
R/W
0
HMICBIASEN
Handset Microphone Bias enable
0: disable, 1: enable
4
R/W
0
MICADCEN
Microphone detect ADC enable
0: disable, 1: enable
3
R/W
0
POPFREE
When this bit is 0, HBIAS MICADC is controlled by registor
2
R/W
0
/
1
R/W
0
AUTOPLEN
Enable the function to auto pull low micdet when jack removal
0: disable, 1: enable
0
R/W
0
MICDETPL
When this bit is 1and AUTOPLEN is 0, the micdet is pull to gnd
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 375
3.20.5.219. 0x1E Phone Output Register (Default Value: 0x60)
Offset: 0x1E
Register Name: PHOUT_CTRL
Bit
R/W
Default/Hex
Description
7:5
R/W
011
PHONEOUTG
Phone-out Gain Control
From -4.5dB to 6dB, 1.5dB/step, default is 0dB
4
R/W
0
PHONEOUT enable
0: Disable
1: Enable
3
R/W
0
PHONEOUTS3
MIC1 Boost stage to Phone out mute
0: Mute, 1: Not mute
2
R/W
0
PHONEOUTS2
MIC2 Boost stage to Phone out mute
0: Mute, 1: Not mute
1
R/W
0
PHONEOUTS1
Right Output mixer to Phone out mute
0: Mute, 1: Not mute
0
R/W
0
PHONEOUTS0
Left Output mixer to Phone out mute
0: Mute, 1: Not mute
3.20.5.220. 0x1F Phone Input Register (Default Value: 0x34)
Offset: 0x1F
Register Name: PHIN_CTRL
Bit
R/W
Default/Hex
Description
7
R/W
0
/
6:4
R/W
011
PHONEG, (volpn)
PHONEP/N/G to Right output mixer Gain Control
From -4.5dB to 6dB, 1.5dB/step, default is 0dB
4
R/W
0
/
2:0
R/W
100
PHONEPREG
PHONEP-PHONEN pre-amplifier gain control
-12dB to 9dB, 3dB/step, default is 0dB
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 376
3.21. Port Controller(CPUx-PORT)
The chip has 7 ports for multi-functional input/out pins. They are shown below:
Port B(PB): 10 input/output port
Port C(PC): 17 input/output port
Port D(PD): 25 input/output port
Port E(PE): 18 input/output port
Port F(PF): 7 input/output port
Port G(PG): 14 input/output port
Port H(PH): 12 input/output port
For various system configurations, these ports can be easily configured by software. All these ports can be
configured as GPIO if multiplexed functions are not used. The total 3 group external PIO interrupt sources are
supported and interrupt mode can be configured by software.
3.21.1. Port Controller Register List
Module Name
Base Address
PIO
0x01C20800
Register Name
Offset
Description
Pn_CFG0
n*0x24+0x00
Port n Configure Register 0 (n from 1 to 7)
Pn_CFG1
n*0x24+0x04
Port n Configure Register 1 (n from 1 to 7)
Pn_CFG2
n*0x24+0x08
Port n Configure Register 2 (n from 1 to 7)
Pn_CFG3
n*0x24+0x0C
Port n Configure Register 3 (n from 1 to 7)
Pn_DAT
n*0x24+0x10
Port n Data Register (n from 1 to 7)
Pn_DRV0
n*0x24+0x14
Port n Multi-Driving Register 0 (n from 1 to 7)
Pn_DRV1
n*0x24+0x18
Port n Multi-Driving Register 1 (n from 1 to 7)
Pn_PUL0
n*0x24+0x1C
Port n Pull Register 0 (n from 1 to 7)
Pn_PUL1
n*0x24+0x20
Port n Pull Register 1 (n from 1 to 7)
Pn_INT_CFG0
0x200+0*0x20+0x00
PIO Interrrupt Configure Register 0
Pn _INT_CFG1
0x200+0*0x20+0x04
PIO Interrrupt Configure Register 1
Pn _INT_CFG2
0x200+0*0x20+0x08
PIO Interrrupt Configure Register 2
Pn _INT_CFG3
0x200+0*0x20+0x0C
PIO Interrrupt Configure Register 3
Pn _INT_CTL
0x200+0*0x20+0x10
PIO Interrupt Control Register
Pn _INT_STA
0x200+0*0x20+0x14
PIO Interrupt Status Register
Pn_INT_DEB
0x200+0*0x20+0x18
PIO Interrupt Debounce Register
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 377
3.21.2. Port Controller Register Description
3.21.2.1. PB Configure Register 0 (Default Value: 0x77777777)
Offset: 0x24
Register Name: PB_CFG0_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PB7_SELECT
000: Input 001: Output
010: AIF2_DIN 011: PCM0_DIN
100: Reserved 101: SIM_DET
110: PB_EINT7 111: IO Disable
27
/
/
/
26:24
R/W
0x7
PB6_SELECT
000: Input 001: Output
010: AIF2_DOUT 011: PCM0_DOUT
100: Reserved 101: SIM_RST
110: PB_EINT6 111: IO Disable
23
/
/
/
22:20
R/W
0x7
PB5_SELECT
000: Input 001: Output
010: AIF2_BCLK 011: PCM0_BCLK
100: Reserved 101: SIM_DATA
110: PB_EINT5 111: IO Disable
19
/
/
/
18:16
R/W
0x7
PB4_SELECT
000: Input 001: Output
010: AIF2_SYNC 011: PCM0_SYNC
100: Reserved 101: SIM_CLK
110: PB_EINT4 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PB3_SELECT
000: Input 001: Output
010: UART2_CTS 011: I2S0_MCLK
100: JTAG_DI0 101: SIM_VPPPP
110: PB_EINT3 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PB2_SELECT
000: Input 001: Output
010: UART2_RTS 011: Reserved
100: JTAG_DO0 101: SIM_VPPEN
110: PB_EINT2 111: IO Disable
7
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 378
6:4
R/W
0x7
PB1_SELECT
000: Input 001: Output
010: UART2_RX 011: Reserved
100: JTAG_CK0 101: SIM_PWREN
110: PB_EINT1 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PB0_SELECT
000: Input 001: Output
010: UART2_TX 011: Reserved
100: JTAG_MS0 101: Reserved
110: PB_EINT0 111: IO Disable
3.21.2.2. PB Configure Register 1 (Default Value: 0x00000077)
Offset: 0x28
Register Name: PB_CFG1_REG
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6:4
R/W
0x7
PB9_SELECT
000: Input 001: Output
010: Reserved 011: Reserved
100: UART0_RX 101: Reserved
110: PB_EINT9 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PB8_SELECT
000: Input 001: Output
010: Reserved 011: Reserved
100: UART0_TX 101: Reserved
110: PB_EINT8 111: IO Disable
3.21.2.3. PB Configure Register 2 (Default Value: 0x00000000)
Offset: 0x2C
Register Name: PB_CFG2_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.4. PB Configure Register 3 (Default Value: 0x00000000)
Offset: 0x30
Register Name: PB_CFG3_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 379
3.21.2.5. PB Data Register (Default Value: 0x00000000)
Offset: 0x34
Register Name: PB_DATA_REG
Bit
R/W
Default/Hex
Description
31:10
/
/
/
9:0
R/W
0x0
PB_DAT
If the port is configured as input, the corresponding bit is the pin state. If
the port is configured as output, the pin state is the same as the
corresponding bit. The read bit value is the value setup by software. If the
port is configured as functional pin, the undefined value will be read.
3.21.2.6. PB Multi-Driving Register 0 (Default Value: 0x00055555)
Offset: 0x38
Register Name: PB_DRV0_REG
Bit
R/W
Default/Hex
Description
31:20
/
/
/
[2i+1:2i]
(i=0~9)
R/W
0x1
PB_DRV
PB[n] Multi-Driving Select (n = 0~9)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
3.21.2.7. PB Multi-Driving Register 1 (Default Value: 0x00000000)
Offset: 0x3C
Register Name: PB_DRV1_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.8. PB PULL Register 0 (Default Value: 0x00000000)
Offset: 0x40
Register Name: PB_PULL0_REG
Bit
R/W
Default/Hex
Description
31:20
/
/
Reserved
[2i+1:2i]
(i=0~9)
R/W
0x0
PB_PULL
PB[n] Pull-up/down Select (n = 0~9)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 380
3.21.2.9. PB PULL Register 1 (Default Value: 0x00000000)
Offset: 0x44
Register Name: PB_PULL1_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.10. PC Configure Register 0 (Default Value: 0x77777777)
Offset: 0x48
Register Name: PC_CFG0_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PC7_SELECT
000: Input 001: Output
010: NAND_RB1 011: Reserved
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
27
/
/
/
26:24
R/W
0x7
PC6_SELECT
000: Input 001: Output
010: NAND_RB0 011: SDC2_CMD
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
23
/
/
/
22:20
R/W
0x7
PC5_SELECT
000: Input 001: Output
010: NAND_RE 011: SDC2_CLK
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
19
/
/
/
18:16
R/W
0x7
PC4_SELECT
000: Input 001: Output
010: NAND_CE0 011: Reserved
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PC3_SELECT
000: Input 001: Output
010: NAND_CE1 011: Reserved
100: SPI0_CS 101: Reserved
110: Reserved 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PC2_SELECT
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 381
000: Input 001: Output
010: NAND_CLE 011: Reserved
100: SPI0_CLK 101: Reserved
110: Reserved 111: IO Disable
7
/
/
/
6:4
R/W
0x7
PC1_SELECT
000: Input 001: Output
010: NAND_ALE 011: SDC2_DS
100: SPI0_MISO 101: Reserved
110: Reserved 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PC0_SELECT
000: Input 001: Output
010: NAND_WE 011: Reserved
100: SPI0_MOSI 101: Reserved
110: Reserved 111: IO Disable
3.21.2.11. PC Configure Register 1 (Default Value: 0x77777777)
Offset: 0x4C
Register Name: PC_CFG1_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PC15_SELECT
000:Input 001:Output
010:NAND_DQ7 011:SDC2_D7
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
27
/
/
/
26:24
R/W
0x7
PC14_SELECT
000:Input 001:Output
010:NAND_DQ6 011:SDC2_D6
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
23
/
/
/
22:20
R/W
0x7
PC13_SELECT
000:Input 001:Output
010:NAND_DQ5 011:SDC2_D5
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
19
/
/
/
18:16
R/W
0x7
PC12_SELECT
000:Input 001:Output
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 382
010:NAND_DQ4 011:SDC2_D4
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
15
/
/
/
14:12
R/W
0x7
PC11_SELECT
000:Input 001:Output
010:NAND_DQ3 011:SDC2_D3
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PC10_SELECT
000:Input 001:Output
010:NAND_DQ2 011:SDC2_D2
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
7
/
/
/
6:4
R/W
0x7
PC9_SELECT
000:Input 001:Output
010:NAND_DQ1 011:SDC2_D1
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
3
/
/
/
2:0
R/W
0x7
PC8_SELECT
000:Input 001:Output
010:NAND_DQ0 011:SDC2_D0
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
3.21.2.12. PC Configure Register 2 (Default Value: 0x00000777)
Offset: 0x50
Register Name: PC_CFG2_REG
Bit
R/W
Default/Hex
Description
31:11
/
/
/
10:8
R/W
0x7
/
7
/
/
/
6:4
R/W
0x7
/
3
/
/
/
2:0
R/W
0x7
PC16_SELECT
000:Input 001:Output
010:NAND_DQS 011:SDC2_RST
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 383
3.21.2.13. PC Configure Register 3 (Default Value: 0x00000000)
Offset: 0x54
Register Name: PC_CFG3_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.14. PC Data Register (Default Value: 0x00000000)
Offset: 0x58
Register Name: PC_DATA_REG
Bit
R/W
Default/Hex
Description
31:19
/
/
/
18:0
R/W
0x0
PC_DAT
If the port is configured as input, the corresponding bit is the pin state. If
the port is configured as output, the pin state is the same as the
corresponding bit. The read bit value is the value setup by software. If the
port is configured as functional pin, the undefined value will be read.
3.21.2.15. PC Multi-Driving Register 0 (Default Value: 0x55555555)
Offset: 0x5C
Register Name: PC_DRV0_REG
Bit
R/W
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x1
PC_DRV
PC[n] Multi-Driving SELECT (n = 0~15)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
3.21.2.16. PC Multi-Driving Register 1 (Default Value: 0x00000015)
Offset: 0x60
Register Name: PC_DRV1_REG
Bit
R/W
Default/Hex
Description
31:6
/
/
/
[2i+1:2i]
(i=0~2)
R/W
0x1
PC_DRV
PC[n] Multi-Driving Select (n = 16~18)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 384
3.21.2.17. PC PULL Register 0 (Default Value: 0x00005140)
Offset: 0x64
Register Name: PC_PULL0_REG
Bit
R/W
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x5140
PC_PULL
PC[n] Pull-up/down Select (n = 0~15)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
3.21.2.18. PC PULL Register 1 (Default Value: 0x00000014)
Offset: 0x68
Register Name: PC_PULL1_REG
Bit
R/W
Default/Hex
Description
31:6
/
/
Reserved
[2i+1:2i]
(i=0~2)
R/W
0x14
PC_PULL
PC[n] Pull-up/down Select (n = 16~18)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
3.21.2.19. PD Configure Register 0 (Default Value: 0x77777777)
Offset: 0x6C
Register Name: PD_CFG0_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PD7_SELECT
000: Input 001: Output
010: LCD_D11 011: Reserved
100: Reserved 101: CCIR_D3
110: Reserved 111: IO Disable
27
/
/
Reserved
26:24
R/W
0x7
PD6_SELECT
000: Input 001: Output
010: LCD_D10 011: Reserved
100: Reserved 101: CCIR_D2
110: Reserved 111: IO Disable
23
/
/
/
22:20
R/W
0x7
PD5_SELECT
000: Input 001: Output
010: LCD_D7 011: UART4_CTS
100: Reserved 101: CCIR_D1
110: Reserved 111: IO Disable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 385
19
/
/
/
18:16
R/W
0x7
PD4_SELECT
000: Input 001: Output
010: LCD_D6 011: UART4_RTS
100: Reserved 101: CCIR_D0
110: Reserved 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PD3_SELECT
000: Input 001: Output
010: LCD_D5 011: UART4_RX
100: SPI1_MISO 101: CCIR_VSYNC
110: Reserved 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PD2_SELECT
000: Input 001: Output
010: LCD_D4 011: UART4_TX
100: SPI1_MOSI 101: CCIR_HSYNC
110: Reserved 111: IO Disable
7
/
/
/
6:4
R/W
0x7
PD1_SELECT
000: Input 001: Output
010: LCD_D3 011: UART3_RX
100: SPI1_CLK 101: CCIR_DE
110: Reserved 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PD0_SELECT
000: Input 001: Output
010: LCD_D2 011: UART3_TX
100: SPI1_CS 101: CCIR_CLK
110: Reserved 111: IO Disable
3.21.2.20. PD Configure Register 1 (Default Value: 0x77777777)
Offset: 0x70
Register Name: PD_CFG1_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PD15_SELECT
000: Input 001: Output
010: LCD_D21 011: LVDS_VN1
100: RGMII_TXD3/MII_TXD3/RMII_NULL 101: CCIR_D6
110: Reserved 111: IO Disable
27
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 386
26:24
R/W
0x7
PD14_SELECT
000: Input 001: Output
010: LCD_D20 011: LVDS_VP1
100: RGMII_NULL/MII_RXERR/RMII_RXER 101: Reserved
110: Reserved 111: IO Disable
23
/
/
/
22:20
R/W
0x7
PD13_SELECT
000: Input 001: Output
010: LCD_D19 011: LVDS_VN0
100: RGMII_RXCTL/MII_RXDV/RMII_CRS_DV 101: Reserved
110: Reserved 111: IO Disable
19
/
/
/
18:16
R/W
0x7
PD12_SELECT
000: Input 001: Output
010: LCD_D18 011: LVDS_VP0
100: RGMII_RXCK/MII_RXCK/RMII_NULL 101: Reserved
110: Reserved 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PD11_SELECT
000: Input 001: Output
010: LCD_D15 011: Reserved
100: RGMII_RXD0/MII_RXD0/RMII_RXD0 101: Reserved
110: Reserved 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PD10_SELECT
000: Input 001: Output
010: LCD_D14 011: Reserved
100: RGMII_RXD1/MII_RXD1/RMII_RXD1 101: Reserved
110: Reserved 111: IO Disable
7
/
/
/
6:4
R/W
0x7
PD9_SELECT
000: Input 001: Output
010: LCD_D13 011: Reserved
100: RGMII_RXD2/MII_RXD2/RMII_NULL 101: CCIR_D5
110: Reserved 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PD8_SELECT
000: Input 001: Output
010: LCD_D12 011: Reserved
100: RGMII_RXD3/MII_RXD3/RMII_NULL 101: CCIR_D4
110: Reserved 111: IO Disable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 387
3.21.2.21. PD Configure Register 2 (Default Value: 0x77777777)
Offset: 0x74
Register Name: PD_CFG2_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PD23_SELECT
000: Input 001: Output
010: Reserved 011: Reserved
100: MDIO 101: Reserved
110: Reserved 111: IO Disable
27
/
/
/
26:24
R/W
0x7
PD22_SELECT
000: Input 001: Output
010: PWM0 011: Reserved
100: MDC 101: Reserved
110: Reserved 111: IO Disable
23
/
/
/
22:20
R/W
0x7
PD21_SELECT
000: Input 001: Output
010: LCD_VSYNC 011: LVDS_VN3
100: RGMII_CLKIN/MII_COL/RMII_NULL 101: Reserved
110: Reserved 111: IO Disable
19
/
/
/
18:16
R/W
0x7
PD20_SELECT
000: Input 001: Output
010: LCD_HSYNC 011: LVDS_VP3
100: RGMII_TXCTL/MII_TXEN/RMII_TXEN 101: Reserved
110: Reserved 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PD19_SELECT
000: Input 001: Output
010: LCD_DE 011: LVDS_VNC
100: RGMII_TXCK/MII_TXCK/RMII_TXCK 101: Reserved
110: Reserved 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PD18_SELECT
000: Input 001: Output
010: LCD_CLK 011: LVDS_VPC
100: RGMII_TXD0/MII_TXD0/RMII_TXD0 101: Reserved
110: Reserved 111: IO Disable
7
/
/
/
6:4
R/W
0x7
PD17_SELECT
000: Input 001: Output
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 388
010: LCD_D23 011: LVDS_VN2
100: RGMII_TXD1/MII_TXD1/RMII_TXD1 101: Reserved
110: Reserved 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PD16_SELECT
000: Input 001: Output
010: LCD_D22 011: LVDS_VP2
100: RGMII_TXD2/MII_TXD2/RMII_NULL 101: CCIR_D7
110: Reserved 111: IO Disable
3.21.2.22. PD Configure Register 3 (Default Value: 0x00000007)
Offset: 0x78
Register Name: PD_CFG3_REG
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2:0
R/W
0x7
PD24_SELECT
000: Input 001: Output
010: Reserved 011: Reserved
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
3.21.2.23. PD Data Register (Default Value: 0x00000000)
Offset: 0x7C
Register Name: PD_DATA _REG
Bit
R/W
Default/Hex
Description
31:25
/
/
/
24:0
R/W
0
PD_DAT
If the port is configured as input, the corresponding bit is the pin state. If
the port is configured as output, the pin state is the same as the
corresponding bit. The read bit value is the value setup by software. If the
port is configured as functional pin, the undefined value will be read.
3.21.2.24. PD Multi-Driving Register 0 (Default Value: 0x55555555)
Offset: 0x80
Register Name: PD_DRV0_REG
Bit
R/W
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x1
PD_DRV
PD[n] Multi-Driving SELECT (n = 0~15)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 389
3.21.2.25. PD Multi-Driving Register 1 (Default Value: 0x00015555)
Offset: 0x84
Register Name: PD_DRV1_REG
Bit
R/W
Default/Hex
Description
31:18
/
/
/
[2i+1:2i]
(i=0~8)
R/W
0x1
PD_DRV
PD[n] Multi-Driving Select (n = 16~24)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
3.21.2.26. PD PULL Register 0 (Default Value: 0x00000000)
Offset: 0x88
Register Name: PD_PULL0_REG
Bit
R/W
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x0
PD_PULL
PD[n] Pull-up/down Select (n = 0~15)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
3.21.2.27. PD PULL Register 1 (Default Value: 0x00000000)
Offset: 0x8C
Register Name: PD_PULL1_REG
Bit
R/W
Default/Hex
Description
31:18
/
/
Reserved
[2i+1:2i]
(i=0~8)
R/W
0x0
PD_PULL
PD[n] Pull-up/down Select (n = 16~24)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
3.21.2.28. PE Configure Register 0 (Default Value: 0x77777777)
Offset: 0x90
Register Name: PE_CFG0_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PE7_SELECT
000: Input 001: Output
010: CSI_D3 011: Reserved
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 390
100: TS_D3 101: Reserved
110: Reserved 111: IO Disable
27
/
/
/
26:24
R/W
0x7
PE6_SELECT
000: Input 001: Output
010: CSI_D2 011: Reserved
100: TS_D2 101: Reserved
110: Reserved 111: IO Disable
23
/
/
/
22:20
R/W
0x7
PE5_SELECT
000: Input 001: Output
010: CSI_D1 011: Reserved
100: TS_D1 101: Reserved
110: Reserved 111: IO Disable
19
/
/
/
18:16
R/W
0x7
PE4_SELECT
000: Input 001: Output
010: CSI_D0 011: Reserved
100: TS_D0 101: Reserved
110: Reserved 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PE3_SELECT
000: Input 001: Output
010: CSI_VSYNC 011: Reserved
100: TS_DVLD 101: Reserved
110: Reserved 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PE2_SELECT
000: Input 001: Output
010: CSI_HSYNC 011: Reserved
100: TS_SYNC 101: Reserved
110: Reserved 111: IO Disable
7
/
/
/
6:4
R/W
0x7
PE1_SELECT
000: Input 001: Output
010: CSI_MCLK 011: Reserved
100: TS_ERR 101: Reserved
110: Reserved 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PE0_SELECT
000: Input 001: Output
010: CSI_PCLK 011: Reserved
100: TS_CLK 101: Reserved
110: Reserved 111: IO Disable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 391
3.21.2.29. PE Configure Register 1 (Default Value: 0x77777777)
Offset: 0x94
Register Name: PE_CFG1_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PE15_SELECT
000: Input 001: Output
010: Reserved 011: TWI2_SDA
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
27
/
/
/
26:24
R/W
0x7
PE14_SELECT
000: Input 001: Output
010: PLL_LOCK_DBG 011: TWI2_SCK
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
23
/
/
/
22:20
R/W
0x7
PE13_SELECT
000: Input 001: Output
010: CSI_SDA 011: Reserved
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
19
/
/
/
18:16
R/W
0x7
PE12_SELECT
000: Input 001: Output
010: CSI_SCK 011: Reserved
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PE11_SELECT
000: Input 001: Output
010: CSI_D7 011: Reserved
100: TS_D7 101: Reserved
110: Reserved 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PE10_SELECT
000: Input 001: Output
010: CSI_D6 011: Reserved
100: TS_D6 101: Reserved
110: Reserved 111: IO Disable
7
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 392
6:4
R/W
0x7
PE9_SELECT
000: Input 001: Output
010: CSI_D5 011: Reserved
100: TS_D5 101: Reserved
110: Reserved 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PE8_SELECT
000: Input 001: Output
010: CSI_D4 011: Reserved
100: TS_D4 101: Reserved
110: Reserved 111: IO Disable
3.21.2.30. PE Configure Register 2 (Default Value: 0x00000077)
Offset: 0x98
Register Name: PE_CFG2_REG
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6:4
R/W
0x7
PE17_SELECT
000: Input 001: Output
010: Reserved 011: Reserved
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PE16_SELECT
000: Input 001: Output
010: Reserved 011: Reserved
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
3.21.2.31. PE Configure Register 3 (Default Value: 0x00000000)
Offset: 0x9C
Register Name: PE_CFG3_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.32. PE Data Register (Default Value: 0x00000000)
Offset: 0xA0
Register Name: PE_DATA _REG
Bit
R/W
Default/Hex
Description
31:18
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 393
17:0
R/W
0x0
PE_DAT
If the port is configured as input, the corresponding bit is the pin state. If
the port is configured as output, the pin state is the same as the
corresponding bit. The read bit value is the value setup by software. If the
port is configured as functional pin, the undefined value will be read.
3.21.2.33. PE Multi-Driving Register 0 (Default Value: 0x55555555)
Offset: 0xA4
Register Name: PE_DRV0_REG
Bit
R/W
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x1
PE_DRV
PE[n] Multi-Driving SELECT (n = 0~15)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
3.21.2.34. PE Multi-Driving Register 1 (Default Value: 0x00000005)
Offset: 0xA8
Register Name: PE_DRV1_REG
Bit
R/W
Default/Hex
Description
31:4
/
/
/
[2i+1:2i]
(i=0~1)
R/W
0x1
PE_DRV
PE[n] Multi-Driving Select (n = 16~17)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
3.21.2.35. PE PULL Register 0 (Default Value: 0x00000000)
Offset: 0xAC
Register Name: PE_PULL0_REG
Bit
R/W
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x0
PE_PULL
PE[n] Pull-up/down Select (n = 0~15)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
3.21.2.36. PE PULL Register 1 (Default Value: 0x00000000)
Offset: 0xB0
Register Name: PE_PULL1_REG
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 394
31:4
/
/
/
[2i+1:2i]
(i=0~1)
R/W
0x0
PE_PULL
PE[n] Pull-up/down Select (n = 16~17)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
3.21.2.37. PF Configure Register 0 (Default Value: 0x07777777)
Offset: 0xB4
Register Name: PF_CFG0_REG
Bit
R/W
Default/Hex
Description
31:27
/
/
/
26:24
R/W
0x7
PF6_SELECT
000: Input 001: Output
010: Reserved 011: Reserved
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
23
/
/
/
22:20
R/W
0x7
PF5_SELECT
000: Input 001: Output
010: SDC0_D2 011: JTAG_CK1
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
19
/
/
/
18:16
R/W
0x7
PF4_SELECT
000: Input 001: Output
010: SDC0_D3 011: UART0_RX
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PF3_SELECT
000: Input 001: Output
010: SDC0_CMD 011: JTAG_DO1
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PF2_SELECT
000: Input 001: Output
010: SDC0_CLK 011: UART0_TX
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
7
/
/
/
6:4
R/W
0x7
PF1_SELECT
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 395
000: Input 001: Output
010: SDC0_D0 011: JTAG_DI1
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PF0_SELECT
000: Input 001: Output
010: SDC0_D1 011: JTAG_MS1
100: Reserved 101: Reserved
110: Reserved 111: IO Disable
3.21.2.38. PF Configure Register 1 (Default Value: 0x00000000)
Offset: 0xB8
Register Name: PF_CFG1_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.39. PF Configure Register 2(Default Value: 0x00000000)
Offset: 0xBC
Register Name: PF_CFG2_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.40. PF Configure Register 3(Default Value: 0x00000000)
Offset: 0xC0
Register Name: PF_CFG3_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.41. PF Data Register (Default Value: 0x00000000)
Offset: 0xC4
Register Name: PF_DATA_REG
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6:0
R/W
0x0
PF_DAT
If the port is configured as input, the corresponding bit is the pin state. If
the port is configured as output, the pin state is the same as the
corresponding bit. The read bit value is the value setup by software. If the
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 396
port is configured as functional pin, the undefined value will be read.
3.21.2.42. PF Multi-Driving Register 0 (Default Value: 0x00001555)
Offset: 0xC8
Register Name: PF_DRV0_REG
Bit
R/W
Default/Hex
Description
31:14
/
/
/
[2i+1:2i]
(i=0~6)
R/W
0x1
PF_DRV
PF[n] Multi-Driving SELECT (n = 0~6)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
3.21.2.43. PF Multi-Driving Register 1 (Default Value: 0x00000000)
Offset: 0xCC
Register Name: PF_DRV1_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.44. PF PULL Register 0 (Default Value: 0x00000000)
Offset: 0xD0
Register Name: PF_PULL0_REG
Bit
R/W
Default/Hex
Description
31:14
/
/
/
[2i+1:2i]
(i=0~6)
R/W
0x0
PF_PULL
PF[n] Pull-up/down Select (n = 0~6)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
3.21.2.45. PF PULL Register 1 (Default Value: 0x00000000)
Offset: 0xD4
Register Name: PF_PULL1_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.46. PG Configure Register 0 (Default Value: 0x77777777)
Offset: 0xD8
Register Name: PG_CFG0_REG
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 397
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PG7_SELECT
000: Input 001: Output
010: UART1_RX 011: Reserved
100: Reserved 101: Reserved
110: PG_EINT7 111: IO Disable
27
/
/
/
26:24
R/W
0x7
PG6_SELECT
000: Input 001: Output
010: UART1_TX 011: Reserved
100: Reserved 101: Reserved
110: PG_EINT6 111: IO Disable
23
/
/
/
22:20
R/W
0x7
PG5_SELECT
000: Input 001: Output
010: SDC1_D3 011: Reserved
100: Reserved 101: Reserved
110: PG_EINT5 111: IO Disable
19
/
/
/
18:16
R/W
0x7
PG4_SELECT
000: Input 001: Output
010: SDC1_D2 011: Reserved
100: Reserved 101: Reserved
110: PG_EINT4 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PG3_SELECT
000: Input 001: Output
010: SDC1_D1 011: Reserved
100: Reserved 101: Reserved
110: PG_EINT3 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PG2_SELECT
000: Input 001: Output
010: SDC1_D0 011: Reserved
100: Reserved 101: Reserved
110: PG_EINT2 111: IO Disable
7
/
/
/
6:4
R/W
0x7
PG1_SELECT
000: Input 001: Output
010: SDC1_CMD 011: Reserved
100: Reserved 101: Reserved
110: PG_EINT1 111: IO Disable
3
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 398
2:0
R/W
0x7
PG0_SELECT
000: Input 001: Output
010: SDC1_CLK 011: Reserved
100: Reserved 101: Reserved
110: PG_EINT0 111: IO Disable
3.21.2.47. PG Configure Register 1 (Default Value: 0x00777777)
Offset: 0xDC
Register Name: PG_CFG1_REG
Bit
R/W
Default/Hex
Description
31:23
/
/
/
22:20
R/W
0x7
PG13_SELECT
000: Input 001: Output
010: AIF3_DIN 011: PCM1_DIN
100: Reserved 101: Reserved
110: PG_EINT13 111: IO Disable
19
/
/
/
18:16
R/W
0x7
PG12_SELECT
000: Input 001: Output
010: AIF3_DOUT 011: PCM1_DOUT
100: Reserved 101: Reserved
110: PG_EINT12 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PG11_SELECT
000: Input 001: Output
010: AIF3_BCLK 011: PCM1_BCLK
100: Reserved 101: Reserved
110: PG_EINT11 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PG10_SELECT
000: Input 001: Output
010: AIF3_SYNC 011: PCM1_SYNC
100: Reserved 101: Reserved
110: PG_EINT10 111: IO Disable
7
/
/
/
6:4
R/W
0x7
PG9_SELECT
000: Input 001: Output
010: UART1_CTS 011: Reserved
100: Reserved 101: Reserved
110: PG_EINT9 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PG8_SELECT
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 399
000: Input 001: Output
010: UART1_RTS 011: Reserved
100: Reserved 101: Reserved
110: PG_EINT8 111: IO Disable
3.21.2.48. PG Configure Register 2 (Default Value: 0x00000000)
Offset: 0xE0
Register Name: PG_CFG2_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.49. PG Configure Register 3 (Default Value: 0x00000000)
Offset: 0xE4
Register Name: PG_CFG3_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.50. PG Data Register (Default Value: 0x00000000)
Offset: 0xE8
Register Name: PG_DATA_REG
Bit
R/W
Default/Hex
Description
31:14
/
/
/
13:0
R/W
0x0
PG_DAT
If the port is configured as input, the corresponding bit is the pin state. If
the port is configured as output, the pin state is the same as the
corresponding bit. The read bit value is the value setup by software. If the
port is configured as functional pin, the undefined value will be read.
3.21.2.51. PG Multi-Driving Register 0 (Default Value: 0x05555555)
Offset: 0xEC
Register Name: PG_DRV0_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
[2i+1:2i]
(i=0~13)
R/W
0x1
PG_DRV
PG[n] Multi-Driving SELECT (n = 0~13)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 400
3.21.2.52. PG Multi-Driving Register 1 (Default Value: 0x00000000)
Offset: 0xF0
Register Name: PG_DRV1_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.53. PG PULL Register 0 (Default Value: 0x00000000)
Offset: 0xF4
Register Name: PG_PULL0_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
[2i+1:2i]
(i=0~13)
R/W
0x0
PF_PULL
PF[n] Pull-up/down Select (n = 0~13)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
3.21.2.54. PG PULL Register 1 (Default Value: 0x00000000)
Offset: 0xF8
Register Name: PG_PULL1_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.55. PH Configure Register 0 (Default Value: 0x77777777)
Offset: 0xFC
Register Name: PH_CFG0_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PH7_SELECT
000: Input 001: Output
010: UART3_CTS 011: Reserved
100: Reserved 101: Reserved
110: PH_EINT7 111: IO Disable
27
/
/
/
26:24
R/W
0x7
PH6_SELECT
000: Input 001: Output
010: UART3_RTS 011: Reserved
100: Reserved 101: Reserved
110: PH_EINT6 111: IO Disable
23
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 401
22:20
R/W
0x7
PH5_SELECT
000: Input 001: Output
010: UART3_RX 011: Reserved
100: Reserved 101: Reserved
110: PH_EINT5 111: IO Disable
19
/
/
/
18:16
R/W
0x7
PH4_SELECT
000: Input 001: Output
010: UART3_TX 011: Reserved
100: Reserved 101: Reserved
110: PH_EINT4 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PH3_SELECT
000: Input 001: Output
010: TWI1_SDA 011: Reserved
100: Reserved 101: Reserved
110: PH_EINT3 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PH2_SELECT
000: Input 001: Output
010: TWI1_SCK 011: Reserved
100: Reserved 101: Reserved
110: PH_EINT2 111: IO Disable
7
/
/
/
6:4
R/W
0x7
PH1_SELECT
000: Input 001: Output
010: TWI0_SDA 011: Reserved
100: Reserved 101: Reserved
110: PH_EINT1 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PH0_SELECT
000: Input 001: Output
010: TWI0_SCK 011: Reserved
100: Reserved 101: Reserved
110: PH_EINT0 111: IO Disable
3.21.2.56. PH Configure Register 1 (Default Value: 0x00007777)
Offset: 0x100
Register Name: PH_CFG1_REG
Bit
R/W
Default/Hex
Description
31:15
/
/
/
14:12
R/W
0x7
PH11_SELECT
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 402
000: Input 001: Output
010: MIC_DATA 011: Reserved
100: Reserved 101: Reserved
110: PH_EINT11 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PH10_SELECT
000: Input 001: Output
010: MIC_CLK 011: Reserved
100: Reserved 101: Reserved
110: PH_EINT10 111: IO Disable
7
/
/
/
6:4
R/W
0x7
PH9_SELECT
000: Input 001: Output
010: Reserved 011: Reserved
100: Reserved 101: Reserved
110: PH_EINT9 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PH8_SELECT
000: Input 001: Output
010: OWA_OUT 011: Reserved
100: Reserved 101: Reserved
110: PH_EINT8 111: IO Disable
3.21.2.57. PH Configure Register 2 (Default Value: 0x00000000)
Offset: 0x104
Register Name: PH_CFG2_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.58. PH Configure Register 3 (Default Value: 0x00000000)
Offset: 0x108
Register Name: PH_CFG3_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.59. PH Data Register (Default Value: 0x00000000)
Offset: 0x10C
Register Name: PH_DATA_REG
Bit
R/W
Default/Hex
Description
31:12
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 403
11:0
R/W
0
PH_DAT
If the port is configured as input, the corresponding bit is the pin state. If
the port is configured as output, the pin state is the same as the
corresponding bit. The read bit value is the value setup by software.
If the port is configured as functional pin, the undefined value will
be read.
3.21.2.60. PH Multi-Driving Register 0 (Default Value: 0x00555555)
Offset: 0x110
Register Name: PH_DRV0_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
[2i+1:2i]
(i=0~11)
R/W
0x1
PH_DRV
PH[n] Multi-Driving Select (n = 0~11)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
3.21.2.61. PH Multi-Driving Register 1 (Default Value: 0x00000000)
Offset: 0x114
Register Name: PH_DRV1_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.62. PH PULL Register 0 (Default Value: 0x00000000)
Offset: 0x118
Register Name: PH_PULL0_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
[2i+1:2i]
(i=0~11)
R/W
0
PH_PULL
PH[n] Pull-up/down Select (n = 0~11)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
3.21.2.63. PH PULL Register 1 (Default Value: 0x00000000)
Offset: 0x11C
Register Name: PH_PULL1_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 404
3.21.2.64. PB External Interrupt Configure Register 0 (Default Value: 0x00000000)
Offset: 0x200
Register Name: PB_EINT_CFG0_REG
Bit
R/W
Default/Hex
Description
[4i+3:4i]
(i=0~7)
R/W
0
EINT_CFG
External INTn Mode (n = 0~7)
0x0: Positive Edge
0x1: Negative Edge
0x2: High Level
0x3: Low Level
0x4: Double Edge (Positive/ Negative)
Others: Reserved
3.21.2.65. PB External Interrupt Configure Register 1 (Default Value: 0x00000000)
Offset: 0x204
Register Name: PB_EINT_CFG1_REG
Bit
R/W
Default/Hex
Description
31:8
/
/
/
[4i+3:4i]
(i=0~1)
R/W
0
EINT_CFG
External INTn Mode (n = 8~9)
0x0: Positive Edge
0x1: Negative Edge
0x2: High Level
0x3: Low Level
0x4: Double Edge (Positive/ Negative)
Others: Reserved
3.21.2.66. PB External Interrupt Configure Register 2 (Default Value: 0x00000000)
Offset: 0x208
Register Name: PB_EINT_CFG2_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.67. PB External Interrupt Configure Register 3 (Default Value: 0x00000000)
Offset: 0x20C
Register Name: PB_EINT_CFG3_REG
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 405
31:0
/
/
/
3.21.2.68. PB External Interrupt Control Register (Default Value: 0x00000000)
Offset: 0x210
Register Name: PB_EINT_CTL_REG
Bit
R/W
Default/Hex
Description
31:10
/
/
/
[n]
(n=0~9)
R/W
0
EINT_CTL
External INTn Enable (n = 0~9)
0: Disable
1: Enable
3.21.2.69. PB External Interrupt Status Register (Default Value: 0x00000000)
Offset: 0x214
Register Name: PB_EINT_STATUS_REG
Bit
R/W
Default/Hex
Description
31:10
/
/
/
[n]
(n=0~9)
R/W
0
EINT_STATUS
External INTn Pending Bit (n = 0~9)
0: No IRQ pending
1: IRQ pending
Write ‘1’ to clear
3.21.2.70. PB External Interrupt Debounce Register (Default Value: 0x00000000)
Offset: 0x218
Register Name: PB_EINT_DEB_REG
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6:4
R/W
0
DEB_CLK_PRE_SCALE
Debounce Clock Pre-scale n
The selected clock source is prescaled by 2^n.
3:1
/
/
/
0
R/W
0
PIO_INT_CLK_SELECT
PIO Interrupt Clock Select
0: LOSC 32Khz
1: HOSC 24Mhz
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 406
3.21.2.71. PG External Interrupt Configure Register 0 (Default Value: 0x00000000)
Offset: 0x220
Register Name: PG_EINT_CFG0_REG
Bit
R/W
Default/Hex
Description
[4i+3:4i]
(i=0~7)
R/W
0
EINT_CFG
External INTn Mode (n = 0~7)
0x0: Positive Edge
0x1: Negative Edge
0x2: High Level
0x3: Low Level
0x4: Double Edge (Positive/ Negative)
Others: Reserved
3.21.2.72. PG External Interrupt Configure Register 1 (Default Value: 0x00000000)
Offset: 0x224
Register Name: PG_EINT_CFG1_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
[4i+3:4i]
(i=0~5)
R/W
0
EINT_CFG
External INTn Mode (n = 8~13)
0x0: Positive Edge
0x1: Negative Edge
0x2: High Level
0x3: Low Level
0x4: Double Edge (Positive/ Negative)
Others: Reserved
3.21.2.73. PG External Interrupt Configure Register 2 (Default Value: 0x00000000)
Offset: 0x228
Register Name: PG_EINT_CFG2_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.74. PG External Interrupt Configure Register 3 (Default Value: 0x00000000)
Offset: 0x22C
Register Name: PG_EINT_CFG3_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 407
3.21.2.75. PG External Interrupt Control Register (Default Value: 0x00000000)
Offset: 0x230
Register Name: PG_EINT_CTL_REG
Bit
R/W
Default/Hex
Description
31:14
/
/
/
[n]
(n=0~13)
R/W
0
EINT_CTL
External INTn Enable (n = 0~13)
0: Disable
1: Enable
3.21.2.76. PG External Interrupt Status Register (Default Value: 0x00000000)
Offset: 0x234
Register Name: PG_EINT_STATUS_REG
Bit
R/W
Default/Hex
Description
31:14
/
/
/
[n]
(n=0~13)
R/W
0
EINT_STATUS
External INTn Pending Bit (n = 0~13)
0: No IRQ pending
1: IRQ pending
Write ‘1’ to clear
3.21.2.77. PG External Interrupt Debounce Register (Default Value: 0x00000000)
Offset: 0x238
Register Name: PG_EINT_DEB_REG
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6:4
R/W
0
DEB_CLK_PRE_SCALE
Debounce Clock Pre-scale n
The selected clock source is prescaled by 2^n.
3:1
/
/
/
0
R/W
0
PIO_INT_CLK_SELECT
PIO Interrupt Clock Select
0: LOSC 32Khz
1: HOSC 24Mhz
3.21.2.78. PH External Interrupt Configure Register 0 (Default Value: 0x00000000)
Offset: 0x240
Register Name: PH_EINT_CFG0_REG
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 408
[4i+3:4i]
(i=0~7)
R/W
0
EINT_CFG
External INTn Mode (n = 0~7)
0x0: Positive Edge
0x1: Negative Edge
0x2: High Level
0x3: Low Level
0x4: Double Edge (Positive/ Negative)
Others: Reserved
3.21.2.79. PH External Interrupt Configure Register 1 (Default Value: 0x00000000)
Offset: 0x244
Register Name: PH_EINT_CFG1_REG
Bit
R/W
Default/Hex
Description
31:16
/
/
/
[4i+3:4i]
(i=0~3)
R/W
0
ENT_CFG
External INTn Mode (n = 8~11)
0x0: Positive Edge
0x1: Negative Edge
0x2: High Level
0x3: Low Level
0x4: Double Edge (Positive/ Negative)
Others: Reserved
3.21.2.80. PH External Interrupt Configure Register2 (Default Value: 0x00000000)
Offset: 0x248
Register Name: PH_EINT_CFG2_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.81. PH External Interrupt Configure Register3 (Default Value: 0x00000000)
Offset: 0x24C
Register Name: PH_EINT_CFG3_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.21.2.82. PH External Interrupt Control Register (Default Value: 0x00000000)
Offset: 0x250
Register Name: PH_EINT_CTL_REG
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 409
Bit
R/W
Default/Hex
Description
31:14
/
/
/
[n]
(n=0~11)
R/W
0
EINT_CTL
External INTn Enable (n = 0~11)
0: Disable
1: Enable
3.21.2.83. PH External Interrupt Status Register (Default Value: 0x00000000)
Offset: 0x254
Register Name: PH_EINT_STATUS_REG
Bit
R/W
Default/Hex
Description
31:12
/
/
/
[n]
(n=0~11)
R/W
0
EINT_STATUS
External INTn Pending Bit (n = 0~11)
0: No IRQ pending
1: IRQ pending
Write ‘1’ to clear
3.21.2.84. PH External Interrupt Debounce Register (Default Value: 0x00000000)
Offset: 0x258
Register Name: PH_EINT_DEB_REG
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6:4
R/W
0
DEB_CLK_PRE_SCALE
Debounce Clock Pre-scale n
The selected clock source is prescaled by 2^n.
3:1
/
/
/
0
R/W
0
PIO_INT_CLK_SELECT
PIO Interrupt Clock Select
0: LOSC 32Khz
1: HOSC 24Mhz
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 410
3.22. Port Controller(CPUs-PORT)
The chip has 1 port for multi-functional input/out pins. They are shown below:
Port L(PL):13 input/output port
For various system configurations, these ports can be easily configured by software. All these ports can be
configured as GPIO if multiplexed functions not used. The one group external PIO interrupt sources are
supported and interrupt mode can be configured by software.
3.22.1. Port Controller Register List
Module Name
Base Address
PIO
0x01F02C00
Register Name
Offset
Description
PL_CFG0
0*0x24+0x00
Port L Configure Register 0
PL_CFG1
0*0x24+0x04
Port L Configure Register 1
PL_CFG2
0*0x24+0x08
Port L Configure Register 2
PL_CFG3
0*0x24+0x0C
Port L Configure Register 3
PL_DAT
0*0x24+0x10
Port L Data Register
PL_DRV0
0*0x24+0x14
Port L Multi-Driving Register 0
PL_DRV1
0*0x24+0x18
Port L Multi-Driving Register 1
PL_PUL0
0*0x24+0x1C
Port L Pull Register 0
PL_PUL1
0*0x24+0x20
Port L Pull Register 1
PL_INT_CFG0
0x200+0*0x20+0x00
PIO Interrrupt Configure Register 0
PL _INT_CFG1
0x200+0*0x20+0x04
PIO Interrrupt Configure Register 1
PL _INT_CFG2
0x200+0*0x20+0x08
PIO Interrrupt Configure Register 2
PL _INT_CFG3
0x200+0*0x20+0x0C
PIO Interrrupt Configure Register 3
PL _INT_CTL
0x200+0*0x20+0x10
PIO Interrupt Control Register
PL _INT_STA
0x200+0*0x20+0x14
PIO Interrupt Status Register
PL _INT_DEB
0x200+0*0x20+0x18
PIO Interrupt Debounce Register
3.22.2. Port Controller Register Description
3.22.2.1. PL Configure Register 0 (Default Value: 0x77777777)
Offset: 0x00
Register Name: PL_CFG0_REG
Bit
R/W
Default/Hex
Description
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 411
31
/
/
/
30:28
R/W
0x7
PL7_SELECT
000: Input 001: Output
010: S_JTAG_DI 011: Reserved
100: Reserved 101: Reserved
110: S_PL_EINT7 111: IO Disable
27
/
/
/
26:24
R/W
0x7
PL6_SELECT
000: Input 001: Output
010: S_JTAG_DO 011: Reserved
100: Reserved 101: Reserved
110: S_PL_EINT6 111: IO Disable
23
/
/
/
22:20
R/W
0x7
PL5_SELECT
000: Input 001: Output
010: S_JTAG_CK 011: Reserved
100: Reserved 101: Reserved
110: S_PL_EINT5 111: IO Disable
19
/
/
/
18:16
R/W
0x7
PL4_SELECT
000: Input 001: Output
010: S_JTAG_MS 011: Reserved
100: Reserved 101: Reserved
110: S_PL_EINT4 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PL3_SELECT
000: Input 001: Output
010: S_UART_RX 011: Reserved
100: Reserved 101: Reserved
110: S_PL_EINT3 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PL2_SELECT
000: Input 001: Output
010: S_UART_TX 011: Reserved
100: Reserved 101: Reserved
110: S_PL_EINT2 111: IO Disable
7
/
/
/
6:4
R/W
0x7
PL1_SELECT
000: Input 001: Output
010: S_RSB_SDA 011: S_TWI_SDA
100: Reserved 101: Reserved
110: S_PL_EINT1 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PL0_SELECT
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 412
000: Input 001: Output
010: S_RSB_SCK 011: S_TWI_SCK
100: Reserved 101: Reserved
110: S_PL_EINT0 111: IO Disable
3.22.2.2. PL Configure Register 1 (Default Value: 0x00077777)
Offset: 0x04
Register Name: PL_CFG1_REG
Bit
R/W
Default/Hex
Description
31:19
/
/
/
18:16
R/W
0x7
PL12_SELECT
000: Input 001: Output
010: Reserved 011: Reserved
100: Reserved 101: Reserved
110: S_PL_EINT12 111: IO Disable
15
/
/
/
14:12
R/W
0x7
PL11_SELECT
000: Input 001: Output
010: S_CIR_RX 011: Reserved
100: Reserved 101: Reserved
110: S_PL_EINT11 111: IO Disable
11
/
/
/
10:8
R/W
0x7
PL10_SELECT
000: Input 001: Output
010: S_PWM 011: Reserved
100: Reserved 101: Reserved
110: S_PL_EINT10 111: IO Disable
7
/
/
/
6:4
R/W
0x7
PL9_SELECT
000: Input 001: Output
010: S_TWI_SDA 011: Reserved
100: Reserved 101: Reserved
110: S_PL_EINT9 111: IO Disable
3
/
/
/
2:0
R/W
0x7
PL8_SELECT
000: Input 001: Output
010: S_TWI_SCK 011: Reserved
100: Reserved 101: Reserved
110: S_PL_EINT8 111: IO Disable
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 413
3.22.2.3. PL Configure Register 2 (Default Value: 0x00000000)
Offset: 0x08
Register Name: PL_CFG2_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.22.2.4. PL Configure Register 3 (Default Value: 0x00000000)
Offset: 0x0C
Register Name: PL_CFG3_REG
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.22.2.5. PL Data Register (Default Value: 0x00000000)
Offset: 0x10
Register Name: PL_DATA_REG
Bit
R/W
Default/Hex
Description
31:13
/
/
/
12:0
R/W
0
PL_DAT
If the port is configured as input, the corresponding bit is the pin state. If
the port is configured as output, the pin state is the same as the
corresponding bit. The read bit value is the value setup by software. If the
port is configured as functional pin, the undefined value will be read.
3.22.2.6. PL Multi-Driving Register 0 (Default Value: 0x01555555)
Offset: 0x14
Register Name: PL_DRV0
Bit
R/W
Default/Hex
Description
31:26
/
/
/
[2i+1:2i]
(i=0~12)
R/W
0x1
PL_DRV
PL[n] Multi-Driving Select (n = 0~12)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
3.22.2.7. PL Multi-Driving Register 1 (Default Value: 0x00000000)
Offset: 0x18
Register Name: PL_DRV1
Bit
R/W
Default/Hex
Description
31:0
/
/
/
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 414
3.22.2.8. PL PULL Register 0 (Default Value: 0x00000005)
Offset: 0x1C
Register Name: PL_PULL0
Bit
R/W
Default/Hex
Description
31:26
/
/
/
[2i+1:2i]
(i=0~12)
R/W
0x5
PL_PULL
PL[n] Pull-up/down Select (n = 0~12)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
3.22.2.9. PL PULL Register 1 (Default Value: 0x00000000)
Offset: 0x20
Register Name: PL_PULL1
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.22.2.10. PL External Interrupt Configure Register 0 (Default Value: 0x00000000)
Offset: 0x200
Register Name: PL_EINT_CFG0
Bit
R/W
Default/Hex
Description
[4i+3:4i]
(i=0~7)
R/W
0
EINT_CFG
External INTn Mode (n = 0~7)
0x0: Positive Edge
0x1: Negative Edge
0x2: High Level
0x3: Low Level
0x4: Double Edge (Positive/ Negative)
Others: Reserved
3.22.2.11. PL External Interrupt Configure Register 1 (Default Value: 0x00000000)
Offset: 0x204
Register Name: PL_EINT_CFG1
Bit
R/W
Default/Hex
Description
31:20
/
/
/
[4i+3:4i]
(i=0~4)
R/W
0
EINT_CFG
External INTn Mode (n = 8~12)
0x0: Positive Edge
0x1: Negative Edge
0x2: High Level
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 415
0x3: Low Level
0x4: Double Edge (Positive/ Negative)
Others: Reserved
3.22.2.12. PL External Interrupt Configure Register 2 (Default Value: 0x00000000)
Offset: 0x208
Register Name: PL_EINT_CFG2
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.22.2.13. PL External Interrupt Configure Register 3 (Default Value: 0x00000000)
Offset: 0x20C
Register Name: PL_EINT_CFG3
Bit
R/W
Default/Hex
Description
31:0
/
/
/
3.22.2.14. PL External Interrupt Control Register (Default Value: 0x00000000)
Offset: 0x210
Register Name: PL_EINT_CTL
Bit
R/W
Default/Hex
Description
31:13
/
/
/
[n]
(n=0~12)
R/W
0
EINT_CTL
External INTn Enable (n = 0~12)
0: Disable
1: Enable
3.22.2.15. PL External Interrupt Status Register (Default Value: 0x00000000)
Offset: 0x214
Register Name: PL_EINT_STATUS
Bit
R/W
Default/Hex
Description
31:13
/
/
/
[n]
(n=0~12)
R/W
0
EINT_STATUS
External INTn Pending Bit (n = 0~12)
0: No IRQ pending
1: IRQ pending
Write ‘1’ to clear
Confidential
System
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 416
3.22.2.16. PL External Interrupt Debounce Register (Default Value: 0x00000000)
Offset: 0x218
Register Name: PL_EINT_DEB
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6:4
R/W
0
DEB_CLK_PRE_SCALE
Debounce Clock Pre-scale n
The selected clock source is prescaled by 2^n.
3:1
/
/
/
0
R/W
0
PIO_INT_CLK_SELECT
PIO Interrupt Clock Select
0: LOSC 32KHz
1: HOSC 24MHz
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 417
Chapter 4 Memory
This section describes the A64 memory from three aspects:
SDRAM
NAND Flash
SD-MMC Host Controller
4.1. SDRAM
4.1.1. Overview
The SDRAM Controller (DRAMC) provides a simple, flexible, burst-optimized interface to all industy-standard
SDRAM. It supports up to a 32G bits memory address space.
The DRAMC automatically handles memory management, initialization, and refresh operations. It gives the
host CPU a simple command interface, hiding details of the required address, page, and burst handling
procedures. All memory parameters are runtime-configurable, including timing, memory setting, SDRAM type,
and Extended-Mode-Register settings. To simplify chip system integration, DDR controller works in half rate
mode.
The DRAMC includes the following features:
32-bits data width
Support 2 Chip Select
Support DDR2/DDR3/DDR3L/LPDDR2/LPDDR3 SDRAM
Support Different Memory Device’s Power Voltage of 1.2V 1.35V 1.5V and 1.8V
Support clock frequency up to 667 MHz(DDR3-1333)
Support Memory Capacity up to 24G bits (3G Bytes)
Support 16 address lines and three bank address lines per channel
Automatically generates initialization and refresh sequences
Runtime-configurable parameters setting for application flexibility
Clock frequency can be chosen for different application(MDFS supported)
Priority of transferring through multiple ports is programmable
Random read or write operation is supported
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 418
4.2. NAND Flash Controller(NDFC)
4.2.1. Overview
The NDFC is the NAND Flash Controller which supports all NAND flash memory available in the market. New
type flash can be supported by software re-configuration.
The On-the-fly error correction code (ECC) is built-in NDFC for enhancing reliability. BCH is implemented and it
can detect and correct up to 64 bits error per 512 or 1024 bytes data. The on chip ECC and parity checking
circuitry of NDFC frees CPU for other tasks. The ECC function can be disabled by software.
The data can be transferred by DMA or by CPU memory-mapped IO method. The NDFC provides automatic
timing control for reading or writing external Flash. The NDFC maintains the proper relativity for CLE, CE# and
ALE control signal lines. Three modes are supported for serial read access. The conventional serial access is
mode 0 and mode 1 is for EDO type and mode 2 for extension EDO type. NDFC can monitor the status of R/B#
signal line.
Block management and wear leveling management are implemented in software.
The NDFC includes the following features:
Supports all SLC/MLC/TLC flash and EF-NAND memory available in the market
Software configure seed for randomize engine
Software configure method for adaptability to a variety of system and memory types
Supports 8-bit Data Bus Width
Supports 1024, 2048, 4096, 8192, 16384 bytes size per page
Supports Conventional and EDO serial access method for serial reading Flash
On-the-fly BCH error correction code which correcting up to 64 bits per 512 or 1024 bytes
Corrected Error bits number information report
ECC automatic disable function for all 0xff data
NDFC status information is reported by its’ registers and interrupt is supported
One Command FIFO
Embedded DMA to do data transfer
External DMA is also supported for transferring data
Two 256x32-bit RAM for Pipeline Procession
Support SDR, ONFI DDR and Toggle DDR NAND
Support self–debug for NDFC debug
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 419
4.2.2. Block Diagram
The NDFC system block diagram is shown below:
Sync
Register
File
FIFO
RAM0
(256x32)
ECC
Control
AHB
Slave I/F
Command
FIFO FIFO
Control
DMA & INT
Control
FIFO
RAM1
(256x32)
NAND Flash Basic Operation
Normal
Command
FSM
Spare
Command
FSM
Batch
Command
FSM
User Data
(8x32)
CE[7:0] CLE ALE WE RE RB[1:0] DO[7:0] DI[7:0]
nfc_clk
domain
ahb_clk
domain
Figure 4-1. NDFC Block Diagram
4.2.3. NDFC Timing Diagram
Typically, there are two kinds of serial access method. One method is conventional method which fetching data
at the rise edge of NDFC_RE# signal line. Another one is EDO type which fetching data at the next fall edge of
NDFC_RE# signal line.
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 420
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE#
NDFC_RB#
NDFC_ALE
NDFC_IOx
t3
t10
t12
t14
t13
t4
sample 0 sample n-1
D(0) D(n-1)
Figure 4-2. Conventional Serial Access Cycle Diagram (SAM0)
t3
t10
t12
t14
t13
t4
sample 0
D(0) D(n-1)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE#
NDFC_RB#
NDFC_ALE
NDFC_IOx
Figure 4-3. EDO type Serial Access after Read Cycle (SAM1)
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 421
t3
t10
t14
t12
t13
sample 0
D(0) D(n-1)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE#
NDFC_RB#
NDFC_ALE
NDFC_IOx
Figure 4-4. Extending EDO type Serial Access Mode (SAM2)
t1
t5
t11
t4
t2
t3
t7
t8 t9
COMMAND
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE#
NDFC_ALE
NDFC_IOx
Figure 4-5. Command Latch Cycle
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 422
t5
t6
t15
t1
t3
t7
t8 t9
t4
t11
Addr(0) Addr(n-1)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE#
NDFC_ALE
NDFC_IOx
Figure 4-6. Address Latch Cycle
t5
t6
t15
t1
t3
t7
t8 t9
t4
t11
D(0) D(n-1)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE#
NDFC_ALE
NDFC_IOx
Figure 4-7. Write Data to Flash Cycle
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 423
D(0)
CMD D(n-1)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx
t16
t14
t12 t13
Figure 4-8. Waiting R/B# ready Diagram
D(0)
CMD D(n-1)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx
t17
Figure 4-9. WE# high to RE# low Timing Diagram
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 424
D(n-1) 05h
D(n-2) Col1 Col2
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx
t18
Figure 4-10. RE# high to WE# low Timing Diagram
Addr3 D(0)
Addr2 D(1) D(2)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx
t19
Figure 4-11. Address to Data Loading Timing Diagram
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 425
Timing cycle list:
ID
Parameter
Timing
Notes
t1
NDFC_CLE setup time
2T
t2
NDFC_CLE hold time
2T
t3
NDFC_CE setup time
2T
t4
NDFC_CE hold time
2T
t5
NDFC_WE# pulse width
T
t6
NDFC_WE# hold time
T
t7
NDFC_ALE setup time
2T
t8
Data setup time
T
t9
Data hold time
T
t10
Ready to NDFC_RE# low
3T
t11
NDFC_ALE hold time
2T
t12
NDFC_RE# pulse width
T
t13
NDFC_RE# hold time
T
t14
Read cycle time
2T
t15
Write cycle time
2T
t16
NDFC_WE# high to R/B# busy
T_WB
Specified by timing configure register
(NDFC_TIMING_CFG)
t17
NDFC_WE# high to NDFC_RE# low
T_WHR
Specified by timing configure register
(NDFC_TIMING_CFG)
t18
NDFC_RE# high to NDFC_WE# low
T_RHW
Specified by timing configure register
(NDFC_TIMING_CFG)
t19
Address to Data Loading time
T_ADL
Specified by timing configure register
(NDFC_TIMING_CFG)
Notes: T is the clock period duration of NDFC_CLK (x1).
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 426
4.2.4. NDFC Operation Guide
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx 00h Addr(5 cycle) 30h Data output
First Command
cmdio[22]
cmdio[7:0]
Address Cycle
cmdio[18:16]
cmdio[19]=1
Second Command
cmdio[24] Wait RB Signal
cmdio[23]
Sequence Read
cmdio[20]=0
cmdio[25]=1
Page Command
cmdio[31:30]=2
Figure 4-12. Page Read Command Diagram
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx 80h Addr(5 cycle) Data Input
First Command
cmdio[22]
cmdio[7:0]
Address Cycle
cmdio[18:16]
cmdio[19]=1
Sequence Write
cmdio[20]=1
cmdio[25]=1
Page Command
cmdio[31:30]=2
Wait RB Signal
cmdio[23]
Figure 4-13. Page Program Diagram
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 427
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx 00h 30h
First Command
cmdio[22]
cmdio[7:0]
Address Cycle
cmdio[18:16]
cmdio[19]=1
Second Command
cmdio[24] Wait RB Signal
cmdio[23]
Page Command
cmdio[31:30]=2
col0 col1 row0row1row2 70h d(0) 00h Data output
Third Comand
cmdio[28] Forth Comand
cmdio[29]
Sequence Read
cmdio[20]=0
cmdio[25]=1
Figure 4-14. EF-NAND Page Read Diagram
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx 00h 30h Data output
First Command
cmdio[22]
cmdio[7:0]
Address Cycle
cmdio[18:16]
cmdio[19]=1
Second Command
cmdio[24] Wait RB Signal
cmdio[23]
Interleave Read
cmdio[20]=0
cmdio[25]=0
Page Command
cmdio[31:30]=2
col0 col1 row0row1row2 05h col0 col1 E0h Data output
Address set by hardware
automatically
Figure 4-15. Interleave Page Read Diagram
4.2.5. NDFC Register List
Module Name
Base Address
NDFC
0x01C03000
Register Name
Offset
Description
NDFC_CTL
0x00
NDFC Configure and Control Register
NDFC_ST
0x04
NDFC Status Information Register
NDFC_INT
0x08
NDFC Interrupt Control Register
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 428
NDFC_TIMING_CTL
0x0C
NDFC Timing Control Register
NDFC_TIMING_CFG
0x10
NDFC Timing Configure Register
NDFC_ADDR_LOW
0x14
NDFC Low Word Address Register
NDFC_ADDR_HIGH
0x18
NDFC High Word Address Register
NDFC_BLOCK_NUM
0x1C
NDFC Data Block Number Register
NDFC_CNT
0x20
NDFC Data Counter for data transfer Register
NDFC_CMD
0x24
Set up NDFC commands Register
NDFC_RCMD_SET
0x28
Read Command Set Register for vendor’s NAND memory
NDFC_WCMD_SET
0x2C
Write Command Set Register for vendor’s NAND memory
NDFC_ECC_CTL
0x34
ECC Configure and Control Register
NDFC_ECC_ST
0x38
ECC Status and Operation information Register
NDFC_EFR
0x3C
Enhanced Feature Register
NDFC_ERR_CNT0
0x40
Corrected Error Bit Counter Register 0
NDFC_ERR_CNT1
0x44
Corrected Error Bit Counter Register 1
NDFC_USER_DATAn
0x50+4*n
User Data Field Register n (n from 0 to 15)
NDFC_EFNAND_STA
0x90
EFNAND Status Register
NDFC_SPARE_AREA
0xA0
Spare Area Configure Register
NDFC_PAT_ID
0xA4
Pattern ID Register
NDFC_RDATA_STA_CTL
0xA8
Read Data Status Control Register
NDFC_RDATA_STA_0
0xAC
Read Data Status Register 0
NDFC_RDATA_STA_1
0xB0
Read Data Status Register 1
NDFC_MDMA_ADDR
0xC0
MBUS DMA Address Register
NDFC_MDMA_CNT
0xC4
MBUS DMA Data Counter Register
NDFC_NDMA_MODE_CTL
0xD0
NDFC Normal DMA Mode Control Register
NDFC_IO_DATA
0x300
Data Input/ Output Port Address Register
RAM0_BASE
0x400
1024 Bytes RAM0 base
RAM1_BASE
0x800
1024 Bytes RAM1 base
4.2.6. NDFC Register Description
4.2.6.1. NDFC Control Register(Default Value: 0x00000000)
Offset: 0x00
Register Name: NDFC_CTL
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:24
R/W
0
NDFC_CE_SEL
Chip Select for 8 NAND Flash Chips
0 -7: NDFC Chip Select Signal 0-7 is selected
8-15: NDFC CS[7:0] not selected. GPIO pins can be used for CS.
23:22
/
/
/
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 429
21
R/W
0
NDFC_DDR_RM
DDR Repeat data mode
0: Lower byte
1: Higher byte
20
R/W
0
NDFC_DDR_REN
DDR Repeat Enable
0: Disable
1: Enable
19:18
R/W
0
NF_TYPE
NAND Flash Type
0x0: Normal SDR NAND
0x1: Reserved
0x2: ONFI DDR NAND
0x3: Toggle DDR NAND
17
R/W
0
NDFC_CLE_POL
NDFC Command Latch Enable (CLE) Signal Polarity Select
0: High active
1: Low active
16
R/W
0
NDFC_ALE_POL
NDFC Address Latch Enable (ALE) Signal Polarity Select
0: High active
1: Low active
15
R/W
0
NDFC_DMA_TYPE
0: Dedicated DMA
1: Normal DMA
14
R/W
0
NDFC_RAM_METHOD
Access internal RAM method
0: Access internal RAM by AHB bus
1: Access internal RAM by DMA bus
13:12
/
/
/
11:8
R/W
0
NDFC_PAGE_SIZE
0x0: 1024 bytes
0x1: 2048 bytes
0x2: 4096 bytes
0x3: 8192 bytes
0x4: 16384 bytes
Notes: The page size is for main field data.
7
/
/
/
6
R/W
0
NDFC_CE_ACT
Chip Select Signal CE# Control During NAND operation
0: De-active Chip Select Signal NDFC_CE# during data loading, serial
access and other no operation stage for power consumption. NDFC
automatic control Chip Select Signals.
1: Chip select signal NDFC_CE# is always active after NDFC is enabled
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 430
5
/
/
/
4:3
R/W
0
NDFC_RB_SEL
NDFC external R/B Signal select
The value 0-3 selects the external R/B signal. The same R/B signal can be
used for multiple chip select flash.
2
R/W
0
NDFC_BUS_WIDTH
0: 8-bit bus
1: 16-bit bus
1
R/W
0
NDFC_RESET
NDFC Reset
Write 1 to reset NDFC and clear to 0 after reset
0
R/W
0
NDFC_EN
NDFC Enable Control
0: Disable NDFC
1: Enable NDFC
4.2.6.2. NDFC Status Register(Default Value: 0x00000000)
Offset: 0x04
Register Name: NDFC_ST
Bit
R/W
Default/Hex
Description
31:14
/
/
/
13
R
0
NDFC_RDATA_STA_0
0: The number of bit 1 during current read operation is greater
threshold value.
1: The number of bit 1 during current read operation is less than or
equal to threshold value.
This field only is valid when NDFC_RDATA_STA_EN is 1.
The threshold value is configured in NDFC_RDATA_STA_TH.
12
R
0
NDFC_RDATA_STA_1
0: The number of bit 0 during current read operation is greater
threshold value.
1: The number of bit 0 during current read operation is less than or
equal to than threshold value.
This field only is valid when NDFC_RDATA_STA_EN is 1.
The threshold value is configured in NDFC_RDATA_STA_TH.
11
R
0
NDFC_RB_STATE3
NAND Flash R/B 3 Line State
0: NAND Flash in BUSY State
1: NAND Flash in READY State
10
R
0
NDFC_RB_STATE2
NAND Flash R/B 2 Line State
0: NAND Flash in BUSY State
1: NAND Flash in READY State
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 431
9
R
0
NDFC_RB_STATE1
NAND Flash R/B 1 Line State
0: NAND Flash in BUSY State
1: NAND Flash in READY State
8
R
0
NDFC_RB_STATE0
NAND Flash R/B 0 Line State
0: NAND Flash in BUSY State
1: NAND Flash in READY State
7:5
/
/
/
4
R
0
NDFC_STA
0: NDFC FSM in IDLE state
1: NDFC FSM in BUSY state
When NDFC_STA is 0, NDFC can accept new command and process
command.
3
R
0
NDFC_CMD_FIFO_STATUS
0: Command FIFO not full and can receive new command
1: Full and waiting NDFC to process commands in FIFO
Since there is only one 32-bit FIFO for command. When NDFC latches
one command, command FIFO is free and can accept another new
command.
2
R/W
0
NDFC_DMA_INT_FLAG
When it is 1, it means that a pending DMA is completed. It will be clear
after writing 1 to this bit or it will be automatically clear before FSM
processing an new command.
1
R/W
0
NDFC_CMD_INT_FLAG
When it is 1, it means that NDFC has finished one Normal Command
Mode or one Batch Command Work Mode. It will be clear after writing 1
to this bit or it will be automatically clear before FSM processing a new
command.
0
R/W
0
NDFC_RB_B2R
When it is 1, it means that NDFC_R/B# signal is transferred from BUSY
state to READY state. It will be clear after writing 1 to this bit.
4.2.6.3. NDFC Interrupt and DMA Enable Register(Default Value: 0x00000000)
Offset: 0x08
Register Name: NDFC_INT
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2
R/W
0
NDFC_DMA_INT_ENABLE
Enable or disable interrupt when a pending DMA is completed.
1
R/W
0
NDFC_CMD_INT_ENABLE
Enable or disable interrupt when NDFC has finished the procession of a
single command in Normal Command Work Mode or one Batch
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 432
Command Work Mode.
0: Disable
1: Enable
0
R/W
0
NDFC_B2R_INT_ENABLE
Enable or disable interrupt when NDFC_RB# signal is transferring from
BUSY state to READY state
0: Disable
1: Enable
4.2.6.4. NDFC Timing Control Register(Default Value: 0x00000000)
Offset: 0x0C
Register Name: NDFC_TIMING_CTL
Bit
R/W
Default/Hex
Description
31:12
/
/
/
11:8
R/W
0
NDFC_READ_PIPE
In SDR mode:
0: Normal
1: EDO
2: E-EDO
Other : Reserved
In DDR mode:
1~15 is valid.(These bits configure the number of clock when data is
valid after RE#’s falling edge)
7:6
/
/
/
5:0
R/W
0
NDFC_DC_CTL
NDFC Delay Chain Control. (These bits are only valid in DDR data
interface, and configure the relative phase between DQS and DQ[0…7] )
4.2.6.5. NDFC Timing Configure Register(Default Value: 0x00000095)
Offset: 0x10
Register Name: NDFC_TIMING_CFG
Bit
R/W
Default/Hex
Description
31:20
/
/
/
19:18
R/W
0
T_WC
Write Cycle Time
0: 1*2T
1: 2*2T
2: 3*2T
3: 4*2T
17:16
R/W
0
T_CCS
Change Column Setup Time
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 433
0: 16*2T
1: 24*2T
2: 32*2T
3: 64*2T
15:14
R/W
0
T_CLHZ
CLE High to Output Hi-z
0: 2*2T
1: 8*2T
2: 16*2T
3: 31*2T
13:12
R/W
0
T_CS
CE Setup Time
0: 2*2T
1: 8*2T
2: 16*2T
3: 31*2T
11
R/W
0
T_CDQSS
DQS Setup Time for data input start
0: 8*2T
1: 24*2T
10:8
R/W
0
T_CAD
Command, Address, Data Delay
000: 4*2T
001: 8*2T
010: 12*2T
011: 16*2T
100: 24*2T
101: 32*2T
110/111: 64*2T
7:6
R/W
0x2
T_RHW
RE# high to WE# low cycle number
00: 4*2T
01: 8*2T
10: 12*2T
11: 20*2T
5:4
R/W
0x1
T_WHR
WE# high to RE# low cycle number
00: 8*2T
01: 16*2T
10: 24*2T
11: 32*2T
3:2
R/W
0x1
T_ADL
Address to Data Loading cycle number
00: 0*2T
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 434
01: 8*2T
10: 16*2T
11: 24*2T
1:0
R/W
0x1
T_WB
WE# high to busy cycle number
00:14*2T
01:22*2T
10: 30*2T
11:38*2T
4.2.6.6. NDFC Address Low Word Register(Default Value: 0x00000000)
Offset: 0x14
Register Name: NDFC_ADDR_LOW
Bit
R/W
Default/Hex
Description
31:24
R/W
0
ADDR_DATA4
NAND Flash 4th Cycle Address Data
23:16
R/W
0
ADDR_DATA3
NAND Flash 3rd Cycle Address Data
15:8
R/W
0
ADDR_DATA2
NAND Flash 2nd Cycle Address Data
7:0
R/W
0
ADDR_DATA1
NAND Flash 1st Cycle Address Data
4.2.6.7. NDFC Address High Word Register(Default Value: 0x00000000)
Offset: 0x18
Register Name: NDFC_ADDR_HIGH
Bit
R/W
Default/Hex
Description
31:24
R/W
0
ADDR_DATA8
NAND Flash 8th Cycle Address Data
23:16
R/W
0
ADDR_DATA7
NAND Flash 7th Cycle Address Data
15:8
R/W
0
ADDR_DATA6
NAND Flash 6th Cycle Address Data
7:0
R/W
0
ADDR_DATA5
NAND Flash 5th Cycle Address Data
4.2.6.8. NDFC Data Block Number Register(Default Value: 0x00000000)
Offset: 0x1C
Register Name: NDFC_DATA_BLOCK_NUM
Bit
R/W
Default/Hex
Description
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 435
31:6
/
/
/
4:0
R/W
0
NDFC_DATA_BLOCK_NUM
DATA BLOCK Number
It is used for batch command procession.
0: no data
1: 1 data blocks
2: 2 data blocks
…
16: 16 data blocks
Others: Reserved
Notes: 1 data block = 512 or 1024 bytes main field data
4.2.6.9. NDFC Data Counter Register(Default Value: 0x00000000)
Offset: 0x20
Register Name: NDFC_CNT
Bit
R/W
Default/Hex
Description
31:10
/
/
/
9:0
R/W
0
NDFC_DATA_CNT
Transfer Data Byte Counter
The length can be set from 1 byte to 1024 bytes. However, 1024 bytes is
set when it is zero.
4.2.6.10. NDFC Command IO Register(Default Value: 0x00000000)
Offset: 0x24
Register Name: NDFC_CMD
Bit
R/W
Default/Hex
Description
31:30
R/W
0
NDFC_CMD_TYPE
00: Common Command for normal operation
01: Special Command for Flash Spare Field Operation
10: Page Command for batch process operation
11: Reserved
29
R/W
0
NDFC_SEND_FOURTH_CMD
0: Don’t send third set command
1: Send it on the external memory’s bus
Notes
：
It is used for EF-NAND page read.
28
R/W
0
NDFC_SEND_THIRD_CMD
0: Don’t send third set command
1: Send it on the external memory’s bus
Notes
：
It is used for EF-NAND page read.
27
R/W
0
NDFC_ROW_ADDR_AUTO
Row Address Auto Increase for Page Command
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 436
0: Normal operation
1: Row address increasing automatically
26
R/W
0
NDFC_DATA_METHOD
Data swap method when the internal RAM and system memory
It is only active for Common Command and Special Command.
0: No action
1: DMA transfer automatically
It only is active when NDFC_RAM_METHOD is 1.
If this bit is set to 1, NDFC should setup DRQ to fetching data before
output to Flash or NDFC should setup DRQ to sending out to system
memory after fetching data from Flash.
If this bit is set to 0, NDFC output the data in internal RAM or do nothing
after fetching data from Flash.
25
R/W
0
NDFC_SEQ
User data & BCH check word position. It only is active for Page
Command, don’t care about this bit for other two commands
0: Interleave Method (on page spare area)
1: Sequence Method (following data block)
24
R/W
0
NDFC_SEND_SECOND_CMD
0: Don’t send second set command
1: Send it on the external memory’s bus
23
R/W
0
NDFC_WAIT_FLAG
0: NDFC can transfer data regardless of the internal NDFC_RB wire
1: NDFC can transfer data when the internal NDFC_RB wire is READY;
otherwise it can’t when the internal NDFC_RB wire is BUSY.
22
R/W
0
NDFC_SEND_FIRST_CMD
0: Don’t send first set command
1: Send it on the external memory’s bus
21
R/W
0
NDFC_DATA_TRANS
0: No data transfer on external memory bus
1: Data transfer and direction is decided by the field NDFC_ACCESS_DIR
20
R/W
0
NDFC_ACCESS_DIR
0: Read NAND Flash
1: Write NAND Flash
19
R/W
0
NDFC_SEND_ADR
0: Don’t send ADDRESS
1: Send N cycles ADDRESS, the number N is specified by
NDFC_ADR_NUM field
18:16
R/W
0
NDFC_ADR_NUM
Address Cycles’ Number
000: 1 cycle address field
001: 2 cycles address field
010: 3 cycles address field
011: 4 cycles address field
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 437
100: 5 cycles address field
101: 6 cycles address field
110: 7 cycles address field
111: 8 cycles address field
15:8
R/W
0
NDFC_CMD_HIGH_BYTE
NDFC Command high byte data
If 8-bit command is supported, the high byte should be zero for 16-bit
bus width NAND Flash. For 8-bit bus width NAND Flash, high byte
command is discarded.
7:0
R/W
0
NDFC_CMD_LOW_BYTE
NDFC Command low byte data
This command will be sent to external Flash by NDFC.
4.2.6.11. NDFC Command Set Register 0(Default Value: 0x00E00530)
Offset: 0x28
Register Name: NDFC_CMD_SET0
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:16
R/W
0xE0
NDFC_RANDOM_READ_CMD1
Used for Batch Read Operation
15:8
R/W
0x05
NDFC_RANDOM_READ_CMD0
Used for Batch Read Operation
7:0
R/W
0x30
NDFC_READ_CMD
Used for Batch Read Operation
4.2.6.12. NDFC Command Set Register 1(Default Value: 0x70008510)
Offset: 0x2C
Register Name: NDFC_CMD_SET1
Bit
R/W
Default/Hex
Description
31:16
R/W
0x70
NDFC_READ_CMD0
Used for EF-NAND Page Read operation
23:16
R/W
0x00
NDFC_READ_CMD1
Used for EF-NAND Page Read operation
15:8
R/W
0x85
NDFC_RANDOM_WRITE_CMD
Used for Batch Write Operation
7:0
R/W
0x10
NDFC_PROGRAM_CMD
Used for Batch Write Operation
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 438
4.2.6.13. NDFC IO Data Register(Default Value: 0x00000000)
Offset: 0x30
Register Name: NDFC_IO_DATA
Bit
R/W
Default/Hex
Description
31:0
R/W
0
NDFC_IO_DATA
Read/Write data into internal RAM
Access unit is 32-bit.
4.2.6.14. NDFC ECC Control Register(Default Value: 0x4a800008)
Offset: 0x34
Register Name: NDFC_ECC_CTL
Bit
R/W
Default/Hex
Description
31
/
/
/
30:16
R/W
0x4a80
NDFC_RANDOM_SEED
The seed value for randomize engine. It is only active when
NDFC_RANDOM_EN is set to ‘1’.
15:12
R/W
0
NDFC_ECC_MODE
0x0: BCH-16 for one ECC Data Block
0x1: BCH-24 for one ECC Data Block
0x2 : BCH-28 for one ECC Data Block
0x3 : BCH-32 for one ECC Data Block
0x4 : BCH-40 for one ECC Data Block
0x5 : BCH-48 for one ECC Data Block
0x6 : BCH-56 for one ECC Data Block
0x7 : BCH-60 for one ECC Data Block
0x8 : BCH-64 for one ECC Data Block
Others: Reserved
11
R/W
0
NDFC_RANDOM_SIZE
0: ECC block size
1: Page size
10
R/W
0
NDFC_RANDOM_DIRECTION
0: LSB first
1: MSB first
9
R/W
0
NDFC_RANDOM_EN
0: Disable Data Randomize
1: Enable Data Randomize
8:6
/
/
/
5
R/W
0
NDFC_ECC_BLOCK_SIZE
0: 1024 bytes of one ECC data block
1: 512 bytes of one ECC data block
4
R/W
0
NDFC_ECC_EXCEPTION
0: Normal ECC
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 439
1: For ECC, there is an exception. If all data is 0xff or 0x00 for the block.
When reading this page, ECC assumes that it is right. For this case, no
error information is reported.
Notes: It only is active when ECC is ON
3
R/W
0x1
NDFC_ECC_PIPELINE
Pipeline function enable or disable for batch command
0: Error Correction function no pipeline with next block operation
1: Error Correction pipeline
2:1
/
/
/
0
R/W
0
NDFC_ECC_EN
0: ECC is OFF
1: ECC is ON
4.2.6.15. NDFC ECC Status Register(Default Value: 0x00000000)
Offset: 0x38
Register Name: NDFC_ECC_ST
Bit
R/W
Default/Hex
Description
31:16
R
0
NDFC_PAT_FOUND
Special pattern (all 0x00 or all x0ff) Found Flag for 16 Data Blocks
0: No Found
1: Special pattern is found
When this field is ‘1’, this means that the special data is found for
reading external NAND flash. The register of NDFC_PAT_ID would
indicates which pattern is found.
15:0
R
0
NDFC_ECC_ERR
Error information bit of 16 Data Blocks
0: ECC can correct these error bits or there is no error bit
1: Error bits number beyond of ECC correction capability and can’t
correct them
Notes: The LSB of this register is corresponding the 1st ECC data block. 1
ECC Data Block = 512 or 1024 bytes.
4.2.6.16. NDFC Enhanced Feature Register(Default Value: 0x00000000)
Offset: 0x3C
Register Name: NDFC_EFR
Bit
R/W
Default/Hex
Description
31:9
R/W
0
/
8
R/W
0
NDFC_WP_CTRL
NAND Flash Write Protect Control Bit
0: Write Protect is active
1: Write Protect is not active
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 440
Notes: When this bit is ‘0’, WP signal line is low level and external NAND
flash is on protected state.
7
/
/
/
6:0
R/W
0
NDFC_ECC_DEBUG
For the purpose of debugging ECC engine, special bits error are inserted
before writing external Flash Memory.
0: No error is inserted (ECC Normal Operation)
n: N bits error are inserted
4.2.6.17. NDFC Error Counter Register 0(Default Value: 0x00000000)
Offset: 0x40
Register Name: NDFC_ERR_CNT0
Bit
R/W
Default/Hex
Description
[8i+7:8i]
(i=0~3)
R
0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[n] (n from 0 to 3)
0: No corrected bits
1: 1 corrected bit
2: 2 corrected bits
…
64: 64 corrected bits
Others: Reserved
Notes: 1 ECC Data Block = 512 or 1024 bytes
4.2.6.18. NDFC Error Counter Register 1(Default Value: 0x00000000)
Offset: 0x44
Register Name: NDFC_ERR_CNT1
Bit
R/W
Default/Hex
Description
[8i+7:8i]
(i=0~3)
R
0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[n] (n from 4 to 7)
0: No corrected bits
1: 1 corrected bit
2: 2 corrected bits
…
64: 64 corrected bits
Others: Reserved
Notes: 1 ECC Data Block = 512 or 1024 bytes
4.2.6.19. NDFC Error Counter Register 2(Default Value: 0x00000000)
Offset: 0x48
Register Name: NDFC_ERR_CNT2
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 441
Bit
R/W
Default/Hex
Description
[8i+7:8i]
(i=0~3)
R
0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[n] (n from 8 to 11)
0: No corrected bits
1: 1 corrected bit
2: 2 corrected bits
…
64: 64 corrected bits
Others: Reserved
Notes: 1 ECC Data Block = 512 or 1024 bytes
4.2.6.20. NDFC Error Counter Register 3(Default Value: 0x00000000)
Offset: 0x4C
Register Name: NDFC_ERR_CNT3
Bit
R/W
Default/Hex
Description
[8i+7:8i]
(i=0~3)
R
0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[n] (n from 12 to 15)
0: No corrected bits
1: 1 corrected bit
2: 2 corrected bits
…
64: 64 corrected bits
Others: Reserved
Notes: 1 ECC Data Block = 512 or 1024 bytes
4.2.6.21. NDFC User Data Register [n]( Default Value: 0xffffffff)
Offset: 0x50 + 0x4*n
Register Name: NDFC_USER_DATAn(n=0~15)
Bit
R/W
Default/Hex
Description
31:0
R/W
0xffffffff
USER_DATA
User Data for ECC Data Block[n] (n from 0 to 15)
Notes: 1 ECC Data Block = 512 or 1024 bytes
4.2.6.22. NDFC EFNAND STATUS Register(Default Value: 0x00000000)
Offset: 0x90
Register Name: NDFC_EFNAND_STATUS
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R
0
EF_NAND_STATUS
The Status Value for EF-NAND Page Read operation
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 442
4.2.6.23. NDFC Spare Area Register(Default Value: 0x00000400)
Offset: 0xA0
Register Name: NDFC_SPARE_AREA
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x400
NDFC_SPARE_ADR
This value indicates the spare area first byte address for NDFC interleave
page operation.
4.2.6.24. NDFC Pattern ID Register(Default Value: 0x00000000)
Offset: 0xA4
Register Name: NDFC_PAT_ID
Bit
R/W
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R
0
PAT_ID
Special Pattern ID for 16 ECC data block
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
4.2.6.25. NDFC Read Data Status Control Register(Default Value: 0x01000000)
Offset: 0xA8
Register Name: NDFC_RDATA_STA_CTL
Bit
R/W
Default/Hex
Description
31:25
/
/
/
24
R/W
1
NDFC_RDATA_STA_EN
0: Disable to count the number of bit 1 and bit 0 during current read
operation;
1: Enable to count the number of bit 1 and bit 0 during current read
operation;
The number of bit 1 and bit 0 during current read operation can be used
to check whether a page is blank or bad.
23:18
/
/
/
17:0
R/W
0
NDFC_RDATA_STA_TH
The threshold value to generate data status.
If the number of bit 1 during current read operation is less than or equal
to threshold value, the bit 13 of NDFC_ST register will be set.
If the number of bit 0 during current read operation is less than or equal
to threshold value, the bit 12 of NDFC_ST register will be set.
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 443
4.2.6.26. NDFC Read Data Status Register 0(Default Value: 0x00000000)
Offset: 0xAC
Register Name: NDFC_RDATA_STA_0
Bit
R/W
Default/Hex
Description
31:0
R
0
BIT_CNT_1
The number of input bit 1 during current command. It will be cleared
automatically when next command is executed.
4.2.6.27. NDFC Read Data Status Register 1(Default Value: 0x00000000)
Offset: 0xB0
Register Name: NDFC_RDATA_STA_1
Bit
R/W
Default/Hex
Description
31:0
R
0
BIT_CNT_0
The number of input bit 0 during current command. It will be cleared
automatically when next command is executed.
4.2.6.28. NDFC MBUS DMA Address Register(Default Value: 0x00000000)
Offset: 0xC0
Register Name: NDFC_MDMA_ADDR
Bit
R/W
Default/Hex
Description
31:0
R/W
0
MDMA_ADDR
MBUS DMA address
4.2.6.29. NDFC MBUS DMA Byte Counter Register(Default Value: 0x00000000)
Offset: 0xC4
Register Name: NDFC_MDMA_CNT
Bit
R/W
Default/Hex
Description
14:0
R/W
0
MDMA_CNT
MBUS DMA data counter
4.2.6.30. NDFC Normal DMA Mode Control Register(Default Value: 0x000000A5)
Offset: 0xD0
Register Name: NDFC_NDMA_MODE_CTL
Bit
R/W
Default/Hex
Description
7:0
R/W
0xA5
NDMA_MODE_CTL
0xEA:NDMA handshake mode
Note:NDMA wait mode don't care this value. 0xA5 can be used in
handshake mode, but 0xEA is better.
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 444
4.3. SD-MMC Host Controller
4.3.1. Overview
The SD-MMC Host controller(SMHC) can be configured either as a Secure Digital Multimedia Card controller,
which simultaneously supports Secure Digital memory (SD Memory), UHS-1 Card, Secure Digital I/O (SDIO),
Multimedia Cards (MMC) and eMMC.
The SMHC controller includes the following features:
Supports Secure Digital memory protocol commands (up to SD3.0)
Supports Secure Digital I/O protocol commands(up to SDIO2.0)
Supports Multimedia Card protocol commands (up to MMC5.0)
Supports eMMC boot operation
Supports Command Completion signal and interrupt to host processor and Command Completion Signal
disable feature
Supports one SD (Verson1.0 to 3.0) or MMC (Verson3.3 to 5.0)
Supports hardware CRC generation and error detection
Supports host pull-up control
Supports SDIO interrupts in 1-bit and 4-bit modes
Supports block size of 1 to 65535 bytes
Supports descriptor-based internal DMA controller
Internal 1024 bytes FIFO for data transfer
Support 3.3 and 1.8V IO pad
4.3.2. Block Diagram
Figure 4-16. SD/MMC Controller Block Diagram
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 445
4.3.3. SMHC Controller Timing Diagram
Please refer to relative specifications:
Physical Layer Specification Ver3.00 Final,2009.04.16
SDIO Specification Ver2.00
Multimedia Cards (MMC : version 4.2)
JEDEC Standard – JESD84-B50, Embedded Multimedia Card (eMMC) Card Product Standard
4.3.4. SMHC Operation Description
4.3.4.1. External Signal List
Port Name
Width
Direction
Description
CLK
1
OUT
Clock signal for SD/SDIO/MMC card.
CMD
1
IN/OUT
CMD line.
DATA
4/8
IN/OUT
Data lines, 4bit for SMHC0 and SMHC1, 8bit for SMHC2.
DS
1
OUT
Data strobe signal for SMHC2.
RST
1
OUT
Reset signal for SMHC2.
Figure 4-17 shows a pin diagram of the SMHC.
SD/MMC
Host
Controller
CLK
DATA[4:0]/[7:0]
CMD
Chip
DS
RST
Figure 4-17. SD/MMC Pin Diagram
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 446
4.3.4.2. Calibrate Delay Chain
The sample clock delay chain and Data Strobe delay chain(only in SMHC2) are used to generate delay to make
proper timing between sample clock/Data Strobe and data signals. Each delay chain is made up with 64 delay
cells. The delay time of one delay cell can be estimated through delay chain calibration.
The steps to calibrate delay chain are as follows:
Step1: Enable SMHC. In order to calibrate delay chain by operation registers in SMHC, SMHC must be enabled
through Bus Software Reset Register 0 and Bus Clock Gating Register0.
Step2: Configure a proper clock for SMHC. Calibration delay chain is based on the clock for SMHC from Clock
Control Unit(CCU). Calibration delay chain a internal function in SMHC and don’t need device. So, it is
unnecessary to open clock signal for device. The recommended clock frequency is 200MHz.
Step3: Set proper initial delay value. Writing 0xA0 to delay control register enables Delay Software Enable
(bit[7]) and sets initial delay value 0x20 to Delay chain(bit[5:0]). Then write 0x0 to delay control register to clear
the value.
Step4: Write 0x8000 to delay control register to start calibrate delay chain.
Step5: Wait until the flag(Bit14 in delay control register) of calibration done is set. The number of delay cells is
shown at Bit8~Bit13 in delay control register. The delay time generated by these delay cells is equal to the cycle
of SMHC’s clock nearly. This value is the result of calibration.
Step6: Calculate the delay time of one delay cell according to the cycle of SMHC’s clock and the result of
calibration.
Note: In the above descriptions,delay control register contains SMHC Sample Delay Control Register and
SMHC Data Strobe Delay Control Register.Delay Software Enable contains Sample Delay Software Enable
and Data Strobe Delay Software Enable. Delay chain contains Sample Delay Software and Data Strobe Delay
Software.
4.3.5. SMHC DMA Controller Description
SMHC controller has an internal DMA controller (IDMAC) to transfer data between host memory and SDMMC
port. With a descriptor, IDMAC can efficiently move data from source to destination by automatically loading
next DMA transfer arguments, which need less CPU intervention. Before transfer data in IDMAC, host driver
should construct a descriptor list, configure arguments of every DMA transfer, then launch the descriptor and
start the DMA. IDMAC has an interrupt controller, when enabled, it can interrupt the HOST CPU in situations
such as data transmission completed or some errors happened.
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 447
4.3.5.1. IDMAC Descriptor Structure
The IDMAC uses a descriptor with a chain structure, and each descriptor points to a unique buffer and the next
descriptor.
DES0
DES1
DES2
DES3
DES0
DES1
DES2
DES3
DES0
DES1
DES2
DES3
…
This figure illustrates the internal formats of a descriptor. The descriptor addresses must be aligned to the bus
width used for 32-bit buses. Each descriptor contains 16 bytes of control and status information.
DES0 is a notation used to denote the [31:0] bits, DES1 to denote [63:32] bits, DES2 to denote [95:64]bits, and
DES3 to denote [127:96]bits in a descriptor.
4.3.5.2. DES0 definition
Bits
Name
Descriptor
31
HOLD
DES_OWN_FLAG
When set, this bit indicates that the descriptor is owned by the
IDMAC. When this bit is reset, it indicates that the descriptor is
owned by the host. This bit is cleared when transfer is over.
30
ERROR
ERR_FLAG
When some error happened in transfer, this bit will be set.
29:6
/
/
5
/
Not used
4
Chain Flag
CHAIN_MOD
When set, this bit indicates that the second address in descriptor is
the next descriptor address. Must be set 1.
3
First DES Flag
FIRST_FLAG
When set, this bit indicates that this descriptor contains the first
buffer of data. Must be set to 1 in first DES.
2
Last DES Flag
LAST_FLAG
When set, this bit indicates that the buffers pointed to by this
descriptor are the last data buffer
1
Disable Interrupt on
completion
CUR_TXRX_OVER_INT_DIS
When set, this bit will prevent the setting of the TX/RX interrupt bit
of the IDMAC status register for data that ends in the buffer
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 448
pointed to by this descriptor
0
/
/
4.3.5.3. DES1 definition
Bits
Name
Descriptor
31:16
/
/
15:0
Buffer size
BUFF_SIZE
These bits indicate the data buffer byte size, which must be a
multiple of 4 bytes. If this filed is 0, the DMA ignores this buffer and
proceeds to the next descriptor.
4.3.5.4. DES2 definition
Bits
Name
Descriptor
31:0
Buffer address pointer
BUFF_ADDR
These bits indicate the physical address of data buffer. The IDMAC
ignores DES2[1:0], corresponding to the bus width of 32.
4.3.5.5. DES3 definition
Bits
Name
Descriptor
31:0
Next descriptor address
NEXT_DESP_ADDR
These bits indicate the pointer to the physical memory where the
next descriptor is present.
4.3.6. SMHC Register List
Module Name
Base Address
SMHC0
0x01C0F000
SMHC1
0x01C10000
SMHC2
0x01C11000
Register Name
Offset
Description
SMHC_CTRL
0x00
Control register
SMHC_CLKDIV
0x04
Clock control register
SMHC_TMOUT
0x08
Time out register
SMHC_CTYPE
0x0C
Bus width register
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 449
SMHC_BLKSIZ
0x10
Block size register
SMHC_BYTCNT
0x14
Byte count register
SMHC_CMD
0x18
Command register
SMHC_CMDARG
0x1C
Command argument register
SMHC_RESP0
0x20
Response 0 register
SMHC_RESP1
0x24
Response 1 register
SMHC_RESP2
0x28
Response 2 register
SMHC_RESP3
0x2C
Response 3 register
SMHC_INTMASK
0x30
Interrupt mask register
SMHC_MINTSTS
0x34
Masked interrupt status register
SMHC_RINTSTS
0x38
Raw interrupt status register
SMHC_STATUS
0x3C
Status register
SMHC_FIFOTH
0x40
FIFO water level register
SMHC_FUNS
0x44
FIFO function select register
SMHC_TBC0
0x48
Transferred byte count0 between controller and card
SMHC_TBC1
0x4C
Transferred byte count1 between host memory and internal
FIFO
SMHC_CSDC
0x54
CRC status detect control register(only for SMHC2)
SMHC_A12A
0x58
Auto command 12 argument register
SMHC_NTSR
0x5C
SD new timing set register(only for SMHC0&1)
SMHC_HWRST
0x78
Hardware reset register
SMHC_DMAC
0x80
DMA control register
SMHC_DLBA
0x84
Descriptor list base address register
SMHC_IDST
0x88
DMAC status register
SMHC_IDIE
0x8C
DMAC interrupt enable register
SMHC_THLD
0x100
Card threshold control register
SMHC_EDSD
0x10C
eMMC4.5 DDR start bit detection control register
SMHC_RES_CRC
0x110
Response CRC from device(only for SMHC0&1)
SMHC_D7_CRC
0x114
CRC in data7 form device(only for SMHC0&1)
SMHC_D6_CRC
0x118
CRC in data6 form device(only for SMHC0&1)
SMHC_D5_CRC
0x11C
CRC in data5 form device(only for SMHC0&1)
SMHC_D4_CRC
0x120
CRC in data4 form device(only for SMHC0&1)
SMHC_D3_CRC
0x124
CRC in data3 form device(only for SMHC0&1)
SMHC_D2_CRC
0x128
CRC in data2 form device(only for SMHC0&1)
SMHC_D1_CRC
0x12C
CRC in data1 form device(only for SMHC0&1)
SMHC_D0_CRC
0x130
CRC in data0 form device(only for SMHC0&1)
SMHC_CRC_STA
0x134
CRC status from device in write operation(only for SMHC0&1)
SMHC_DRV_DL
0x140
Drive delay control register
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 450
SMHC_SMAP_DL
0x144
Sample delay control register
SMHC_DS_DL
0x148
Data strobe delay control register
SMHC_FIFO
0x200
Read/ Write FIFO
4.3.7. SMHC Register Description
4.3.7.1. SMHC Global Control Register(Default Value: 0x00000300)
Offset: 0x0000
Register Name: SD_CTRL
Bit
R/W
Default/Hex
Description
31
R/W
0
FIFO_AC_MOD
FIFO Access Mode
1: AHB bus
0: DMA bus
30:13
/
/
/
12
R/W
0
TIME_UNIT_CMD
Time unit for command line
Time unit used to calculate command line time out value defined in
RTO_LMT.
0: 1 card clock period
1: 256 card clock period
11
R/W
0
TIME_UNIT_DAT
Time unit for data line
Time unit used to calculate data line time out value defined in DTO_LMT.
0: 1 card clock period
1: 256 card clock period
10
R/W
0
DDR_MOD_SEL
DDR Mode Select
Although eMMC’s HS400 speed mode is 8-bit DDR, this filed should be
cleared when HS_MD_EN is set.
0: SDR mode
1: DDR mode
9
/
/
/
8
R/W
1
CD_DBC_ENB
Card Detect (Data[3] status) De-bounce Enable
0: disable de-bounce
1: enable de-bounce
7:6
/
/
/
5
R/W
0
DMA_ENB
DMA Global Enable
0: Disable DMA to transfer data, using AHB bus
1: Enable DMA to transfer data
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 451
4
R/W
0
INT_ENB
Global Interrupt Enable
0: Disable interrupts
1: Enable interrupts
3
/
/
/
2
R/W
0
DMA_RST
DMA Reset
1
R/W
0
FIFO_RST
FIFO Reset
0: No change
1: Reset FIFO
This bit is auto-cleared after completion of reset operation.
0
R/W
0
SOFT_RST
Software Reset
0: No change
1: Reset SD/MMC controller
This bit is auto-cleared after completion of reset operation.
4.3.7.2. SMHC Clock Control Register(Default Value: 0x00000000)
Offset: 0x0004
Register Name: SD_CLKDIV
Bit
R/W
Default/Hex
Description
31
R/W
0
MASK_DATA0
0 : Do not mask data0 when updata clock ;
1 : Mask data0 when updata clock;
Default : 0;
30:18
/
/
/
17
R/W
0
CCLK_CTRL
Card Clock Output Control
0 : Card clock always on
1 : Turn off card clock when FSM in IDLE state
16
R/W
0
CCLK_ENB
Card Clock Enable
0 : Card Clock off
1 : Card Clock on
15:8
/
/
/
7:0
R/W
0
CCLK_DIV
Card clock divider
n : Source clock is divided by 2*n.(n=0~255)
when HS_MD_EN is set, this field must be cleared.
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 452
4.3.7.3. SMHC Timeout Register (Default Value: 0xFFFFFF40)
Offset: 0x0008
Register Name: SD_TMOUT
Bit
R/W
Default/Hex
Description
31:8
R/W
0xffffff
DTO_LMT
Data Timeout Limit
7:0
R/W
0x40
RTO_LMT
Response Timeout Limit
4.3.7.4. SMHC Bus Width Register (Default Value: 0x00000000)
Offset: 0x000c
Register Name: SD_CTYPE
Bit
R/W
Default/Hex
Description
31:2
/
/
/
1:0
R/W
0
CARD_WID
Card width
2’b00 : 1-bit width
2’b01 : 4-bit width
2’b1x : 8-bit width
4.3.7.5. SMHC Block Size Register (Default Value: 0x00000200)
Offset: 0x0010
Register Name: SD_BLKSIZ
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x200
BLK_SZ
Block size
4.3.7.6. SMHC Block Count Register (Default Value: 0x00000200)
Offset: 0x0014
Register Name: SD_BYTCNT
Bit
R/W
Default/Hex
Description
31:0
R/W
0x200
BYTE_CNT
Byte counter
Number of bytes to be transferred; should be integer multiple of Block
Size(BLK_SZ) for block transfers.
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 453
4.3.7.7. SMHC Command Register (Default Value: 0x00000000)
Offset: 0x0018
Register Name: SD_CMD
Bit
R/W
Default/Hex
Description
31
R/W
0
CMD_LOAD
Start Command.
This bit is auto cleared when current command is sent. If there is no any
response error happened, a command complete interrupt bit
(CMD_OVER) will be set in SMHC_RINTSTS register. You should not write
any other command before this bit is cleared, or when a command busy
interrupt bit (CMD_BUSY) will be set in SMHC_RINTSTS register.
30:29
/
/
/
28
R/W
0
VOL_SW
Voltage Switch
0: normal command
1: Voltage switch command, set for CMD11 only
27
R/W
0
BOOT_ABT
Boot Abort
Setting this bit will terminate the boot operation.
26
R/W
0
EXP_BOOT_ACK
Expect Boot Acknowledge.
When Software sets this bit along in mandatory boot operation,
controller expects a boot acknowledge start pattern of 0-1-0 from the
selected card.
25:24
R/W
0
BOOT_MOD
Boot Mode
2’b00: Normal command
2’b01: Mandatory Boot operation
2’b10: Alternate Boot operation
2’b11: Reserved
23:22
/
/
/
21
R/W
0
PRG_CLK
Change Clock
0: Normal command
1: Change Card Clock; when this bit is set, controller will change clock
domain and clock output. No command will be sent.
20:16
/
/
/
15
R/W
0
SEND_INIT_SEQ
Send Initialization
0: normal command sending
1: Send initialization sequence before sending this command.
14
R/W
0
STOP_ABT_CMD
Stop Abort Command
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 454
0: normal command sending
1:send Stop or abort command to stop current data transfer in
progress.(CMD12, CMD52 for writing “I/O Abort” in SDIO CCCR)
13
R/W
0
WAIT_PRE_OVER
Wait Data Transfer Over
0: Send command at once, do not care of data transferring
1: Wait for data transfer completion before sending current command
12
R/W
0
STOP_CMD_FLAG
Send Stop CMD Automatically (CMD12)
0: Do not send stop command at end of data transfer
1: Send stop command automatically at end of data transfer
11
R/W
0
TRANS_MODE
Transfer Mode
0: Block data transfer command
1: Stream data transfer command
10
R/W
0
TRANS_DIR
Transfer Direction
0: Read operation
1: Write operation
9
R/W
0
DATA_TRANS
Data Transfer
0: without data transfer
1: with data transfer
8
R/W
0
CHK_RESP_CRC
Check Response CRC
0: Do not check response CRC
1: Check response CRC
7
R/W
0
LONG_RESP
Response Type
0:Short Response (48 bits)
1:Long Response (136 bits)
6
R/W
0
RESP_RCV
Response Receive
0: Command without Response
1: Command with Response
5:0
R/W
0
CMD_IDX
CMD Index
Command index value
4.3.7.8. SMHC Command Argument Register (Default Value: 0x00000000)
Offset: 0x001c
Register Name: SD_CMDARG
Bit
R/W
Default/Hex
Description
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 455
31:0
R/W
0
CMD_ARG
Command argument
4.3.7.9. SMHC Response 0 Register (Default Value: 0x00000000)
Offset: 0x0020
Register Name: SD_RESP0
Bit
R/W
Default/Hex
Description
31:0
R
0
CMD_RESP0
response 0
Bit[31:0] of response
4.3.7.10. SMHC Response 1 Register (Default Value: 0x00000000)
Offset: 0x0024
Register Name: SD_RESP1
Bit
R/W
Default/Hex
Description
31:0
R
0
CMD_RESP1
response 1
Bit[63:31] of response
4.3.7.11. SMHC Response 2 Register (Default Value: 0x00000000)
Offset: 0x0028
Register Name: SD_RESP2
Bit
R/W
Default/Hex
Description
31:0
R
0
CMD_RESP2
response 2
Bit[95:64] of response
4.3.7.12. SMHC Response 3 Register (Default Value: 0x00000000)
Offset: 0x002C
Register Name: SD_RESP3
Bit
R/W
Default/Hex
Description
31:0
R
0
CMD_RESP3
response 3
Bit[127:96] of response
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 456
4.3.7.13. SMHC Interrupt Mask Register (Default Value: 0x00000000)
Offset: 0x0030
Register Name: SMHC_INTMASK
Bit
R/W
Default/Hex
Description
31
R/W
0
CARD_REMOVAL_INT_EN
Card Removed Interrupt Enable
30
R/W
0
CARD_INSERT_INT_EN
Card Inserted Interrupt Enable
29:17
/
/
/
16
R/W
0
SDIO_INT_EN
SDIO Interrupt Enable
15
R/W
0
DEE_INT_EN
Data End-bit Error Interrupt Enable
14
R/W
0
ACD_INT_EN
Auto Command Done Interrupt Enable
13
R/W
0
DSE_BC_INT_EN
Data Start Error Interrupt Enable
12
R/W
0
CB_IW_INT_EN
Command Busy and Illegal Write Interrupt Enable
11
R/W
0
FU_FO_INT_EN
FIFO Underrun/Overflow Interrupt Enable
10
R/W
0
DSTO_VSD_INT_EN
Data Starvation Timeout/V1.8 Switch Done Interrupt Enable
9
R/W
0
DTO_BDS_INT_EN
Data Timeout/Boot Data Start Interrupt Enable
8
R/W
0
RTO_BACK_INT_EN
Response Timeout/Boot ACK Received Interrupt Enable
7
R/W
0
DCE_INT_EN
Data CRC Error Interrupt Enable
6
R/W
0
RCE_INT_EN
Response CRC Error Interrupt Enable
5
R/W
0
DRR_INT_EN
Data Receive Request Interrupt Enable
4
R/W
0
DTR_INT_EN
Data Transmit Request Interrupt Enable
3
R/W
0
DTC_INT_EN
Data Transfer Complete Interrupt Enable
2
R/W
0
CC_INT_EN
Command Complete Interrupt Enable
1
R/W
0
RE_INT_EN
Response Error Interrupt Enable
0
/
/
/
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 457
4.3.7.14. SMHC Masked Interrupt Status Register (Default Value: 0x00000000)
Offset: 0x0034
Register Name: SMHC_MINTSTS
Bit
R/W
Default/Hex
Description
31
R/W
0
M_CARD_REMOVAL_INT
Card Removed
30
R/W
0
M_CARD_INSERT
Card Inserted
29:17
/
/
/
16
R/W
0
M_SDIO_INT
SDIO Interrupt
15
R/W
0
M_DEE_INT
Data End-bit Error
When set during receiving data, it means that host controller does not
receive valid data end bit.
When set during transmitting data, it means that host controller does not
receive CRC status taken or received CRC status taken is negative.
14
R/W
0
M_ACD_INT
Auto Command Done
When set, it means auto stop command(CMD12) completed.
13
R/W
0
M_DSE_BC_INT
Data Start Error
When set during receiving data, it means that host controller found a
error start bit.
When set during transmitting data, it means that busy signal is cleared.
12
R/W
0
M_CB_IW_INT
Command Busy and Illegal Write
11
R/W
0
M_FU_FO_INT
FIFO Underrun/Overflow
10
R/W
0
M_DSTO_VSD_INT
Data Starvation Timeout/V1.8 Switch Done
9
R/W
0
M_DTO_BDS_INT
Data Timeout/Boot Data Start
8
R/W
0
M_RTO_BACK_INT
Response Timeout/Boot ACK Received
7
R/W
0
M_DCE_INT
Data CRC Error
When set during receiving data, it means that the received data have
data CRC error.
When set during transmitting data, it means that the received CRC status
taken is negative.
6
R/W
0
M_RCE_INT
Response CRC Error
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 458
5
R/W
0
M_DRR_INT
Data Receive Request
When set, it means that there are enough data in FIFO during receiving
data.
4
R/W
0
M_DTR_INT
Data Transmit Request
When set, it means that there are enough space in FIFO during
transmitting data.
3
R/W
0
M_DTC_INT
Data Transfer Complete
2
R/W
0
M_CC_INT
Command Complete
1
R/W
0
M_RE_INT
Response Error (no response or response CRC error)
When set, Transmit Bit error or End Bit error or CMD Index error may
occurs.
0
/
/
/
4.3.7.15. SMHC Raw Interrupt Status Register (Default Value: 0x00000000)
Offset: 0x0038
Register Name: SMHC_RINTSTS
Bit
R/W
Default/Hex
Description
31
R/W
0
CARD_REMOVAL
Card Removed
This is write-1-to-clear bits.
30
R/W
0
CARD_INSERT
Card Inserted
This is write-1-to-clear bits.
29:17
/
/
/
16
R/W
0
SDIOI_INT
SDIO Interrupt
This is write-1-to-clear bits.
15
R/W
0
DEE
Data End-bit Error
When set during receiving data, it means that host controller does not
receive valid data end bit.
When set during transmitting data, it means that host controller does not
receive CRC status taken.
This is write-1-to-clear bits.
14
R/W
0
ACD
Auto Command Done
When set, it means auto stop command(CMD12) completed.
This is write-1-to-clear bits.
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 459
13
R/W
0
DSE_BC
Data Start Error
When set during receiving data, it means that host controller found a
error start bit.
When set during transmitting data, it means that busy signal is cleared.
This is write-1-to-clear bits.
12
R/W
0
CB_IW
Command Busy and Illegal Write
This is write-1-to-clear bits.
11
R/W
0
FU_FO
FIFO Underrun/Overflow
This is write-1-to-clear bits.
10
R/W
0
DSTO_VSD
Data Starvation Timeout/V1.8 Switch Done
This is write-1-to-clear bits.
9
R/W
0
DTO_BDS
Data Timeout/Boot Data Start
This is write-1-to-clear bits.
8
R/W
0
RTO_BACK
Response Timeout/Boot ACK Received
This is write-1-to-clear bits.
7
R/W
0
DCE
Data CRC Error
When set during receiving data, it means that the received data have
data CRC error.
When set during transmitting data, it means that the received CRC status
taken is negative.
This is write-1-to-clear bits.
6
R/W
0
RCE
Response CRC Error
This is write-1-to-clear bits.
5
R/W
0
DRR
Data Receive Request
When set, it means that there are enough data in FIFO during receiving
data.
This is write-1-to-clear bits.
4
R/W
0
DTR
Data Transmit Request
When set, it means that there are enough space in FIFO during
transmitting data.
This is write-1-to-clear bits.
3
R/W
0
DTC
Data Transfer Complete
This is write-1-to-clear bits.
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 460
2
R/W
0
CC
Command Complete
This is write-1-to-clear bits.
1
R/W
0
RE
Response Error (no response or response CRC error)
When set, Transmit Bit error or End Bit error or CMD Index error may
occurs.
This is write-1-to-clear bits.
0
/
/
/
4.3.7.16. SMHC Status Register (Default Value: 0x00000006)
Offset: 0x003C
Register Name: SMHC_STATUS
Bit
R/W
Default/Hex
Description
31
R
0
DMA_REQ
DMA Request
DMA request signal state
30:26
/
/
/
25:17
R
0
FIFO_LEVEL
FIFO Level
Number of filled locations in FIFO
16:11
R
0
RESP_IDX
Response Index
Index of previous response, including any auto-stop sent by controller
10
R
0
FSM_BUSY
Data FSM Busy
Data transmit or receive state-machine is busy
9
R
0
CARD_BUSY
Card data busy
Inverted version of DATA[0]
0: card data not busy
1: card data busy
8
R
0
CARD_PRESENT
Data[3] status
level of DATA[3]; checks whether card is present
0: card not present
1: card present
7:4
R
0
FSM_STA
Command FSM states:
0: Idle
1: Send init sequence
2: TX CMD start bit
3: TX CMD TX bit
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 461
4: TX CMD index + argument
5: TX CMD CRC7
6: TX CMD end bit
7: RX response start bit
8: RX response IRQ response
9: RX response TX bit
10: RX response CMD index
11: RX response data
12: RX response CRC7
13: RX response end bit
14: CMD path wait NCC
15: Wait; CMD-to-response turnaround
3
R
0
FIFO_FULL
FIFO full
1: FIFO full
0: FIFO not full
2
R
1
FIFO_EMPTY
FIFO Empty
1 - FIFO Empty
0 - FIFO not Empty
1
R
1
FIFO_TX_LEVEL
FIFO TX Water Level flag
0: FIFO didn’t reach transmit trigger level
1: FIFO reached transmit trigger level
0
R
0
FIFO_RX_LEVEL
FIFO RX Water Level flag
0: FIFO didn’t reach receive trigger level
1: FIFO reached receive trigger level
4.3.7.17. SMHC FIFO Water Level Register (Default Value: 0x000F0000)
Offset: 0x0040
Register Name: SMHC_FIFOTH
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0
BSIZE_OF_TRANS
Burst size of multiple transaction
3’b000: 1 transfers
3’b001: 4
3’b010: 8
3’b011: 16 (SMHC0 don’t support)
Others: Reserved
Should be programmed same as DMA controller multiple transaction size.
The units for transfers are the DWORD. A single transfer would be
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 462
signaled based on this value. Value should be sub-multiple of (RX_TL + 1)
and (FIFO_DEPTH - TX_TL)
Recommended:
MSize = 16, TX_TL = 240, RX_TL = 15(for SMHC1 and SMHC2)
MSize = 8, TX_TL = 248, RX_TL = 7(for SMHC0)
27:24
R
0
/
23:16
R/W
0xF
RX_TL
RX Trigger Level
0x0~0xFE: RX Trigger Level is 0~254
0xFF reserved
FIFO threshold when FIFO request host to receive data from FIFO. When
FIFO data level is greater than this value, DMA is request is raised if DMA
enabled, or RX interrupt bit is set if interrupt enabled. At the end of
packet, if the last transfer is less than this level, the value is ignored and
relative request will be raised as usual.
Recommended: 15 (means greater than 15, for SMHC1 and SMHC2)
7 (means greater than 7, for SMHC0)
15:8
R
0
/
7:0
R/W
0
TX_TL
TX Trigger Level
0x1~0xFF: TX Trigger Level is 1~255
0x0: no trigger
FIFO threshold when FIFO requests host to transmit data to FIFO. When
FIFO data level is less than or equal to this value, DMA TX request is
raised if DMA enabled, or TX request interrupt bit is set if interrupt
enabled. At the end of packet, if the last transfer is less than this level, the
value is ignored and relative request will be raised as usual.
Recommended: 240(means less than or equal to 240, for SMHC1 and
SMHC2)
248(means less than or equal to 248,for SMHC0)
4.3.7.18. SMHC Function Select Register (Default Value: 0x00000000)
Offset: 0x0044
Register Name: SMHC_CTRL
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2
R/W
0
ABT_RDATA
Abort Read Data
0: Ignored
1: After suspend command is issued during read-transfer, software polls
card to find when suspend happened. Once suspend occurs, software
sets bit to reset data state-machine, which is waiting for next block of
data.
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 463
Used in SDIO card suspends sequence.
This bit is auto-cleared once controller reset to idle state.
1
R/W
0
READ_WAIT
Read Wait
0: Clear SDIO read wait
1: Assert SDIO read wait
0
R/W
0
HOST_SEND_MMC_IRQRESQ
Host Send MMC IRQ Response
0: Ignored
1: Send auto IRQ response
When host is waiting MMC card interrupt response, setting this bit will
make controller cancel wait state and return to idle state, at which time,
controller will receive IRQ response sent by itself.
This bit is auto-cleared after response is sent.
4.3.7.19. SMHC Transferred Byte Count Register0 (Default Value: 0x00000000)
Offset: 0x0048
Register Name: SMHC_TBC0
Bit
R/W
Default/Hex
Description
31:0
R
0
TBC0
Transferred Count 0
Number of bytes transferred between card and internal FIFO.
The register should be accessed in full to avoid read-coherency problems
and read only after data transfer completes.
4.3.7.20. SMHC Transferred Byte Count Register1 (Default Value: 0x00000000)
Offset: 0x004C
Register Name: SMHC_TBC1
Bit
R/W
Default/Hex
Description
31:0
R
0
TBC1
Transferred Count 1
Number of bytes transferred between Host/DMA memory and internal
FIFO.
The register should be accessed in full to avoid read-coherency problems
and read only after data transfer completes.
4.3.7.21. SMHC CRC Status Detect Control Register (Default Value: 0x00000003)
Offset: 0x0054
Register Name: SMHC_CSDC
Bit
R/W
Default/Hex
Description
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 464
31:4
/
/
/
3:0
R/W
0x3
CRC_DET_PARA
0x6:HS400 speed mode
0x3:Other speed mode
Note: The register is for SMHC2 only.
4.3.7.22. SMHC Auto Command 12 Register (Default Value: 0x0000ffff)
Offset: 0x0058
Register Name: SMHC_A12A
Bit
R/W
Default/Hex
Description
31:16
/
/
/
0:15
R/W
0xffff
SD_A12A.
SD_A12A set the argument of command 12 automatically send by
controller
4.3.7.23. SMHC NewTiming Set Register (Default Value: 0x00000000)
Offset: 0x005C
Register Name: SMHC_NTSR_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
MODE_SELEC
0: Old mode of Sample/Output Timing ;
1: New mode of Sample/Output Timing;
Default value : 0;
30:6
/
/
/
5:4
R/W
0x00
SAMPLE_TIMING_PHASE(RX)
00: Sample timing phase offset 90。;
01: Sample timing phase offset 180。;
10: Sample timing phase offset 270。;
11: Ignore;
Default value: 00;
3:0
/
/
/
Note: The register is for SMHC0 and SMHC1 only.
4.3.7.24. SMHC Hardware Reset Register (Default Value: 0x00000001)
Offset: 0x0078
Register Name: SMHC_HWRST
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
1
HW_RESET.
1 : Active mode
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 465
0 : Reset
These bits cause the cards to enter pre-idle state, which requires them to
be re-initialized.
4.3.7.25. SMHC DMAC Control Register (Default Value: 0x00000000)
Offset: 0x0080
Register Name: SMHC_BUS_MODE
Bit
R/W
Default/Hex
Description
31
W
0
DES_LOAD_CTRL
When DMAC fetches a descriptor, if the valid bit of a descriptor is not set,
DMAC FSM will go to the suspend state. Setting this bit will make DMAC
re-fetch descriptor again and do the transfer normally.
30:11
/
/
/
10:8
R
0
/
7
R/W
0
IDMAC_ENB
IDMAC Enable.
When set, the IDMAC is enabled. DE is read/write.
6:2
R/W
0
/
1
R/W
0
FIX_BUST_CTRL
Fixed Burst.
Controls whether the AHB Master interface performs fixed burst transfers
or not. When set, the AHB will use only SINGLE, INCR4, INCR8 during start
of normal burst transfers. When reset, the AHB will use SINGLE and INCR
burst transfer operations.
0
R/W
0
IDMAC_RST
DMA Reset.
When set, the DMA Controller resets all its internal registers. SWR is
read/write. It is automatically cleared after 1 clock cycle.
4.3.7.26. SMHC Descriptor List Base Address Register (Default Value: 0x00000000)
Offset: 0x0084
Register Name: SMHC_DLBA_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0
DES_BASE_ADDR
Start of Descriptor List.
Contains the base address of the First Descriptor. The LSB bits [1:0] are
ignored and taken as all-zero by the IDMAC internally. Hence these LSB
bits are read-only.
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 466
4.3.7.27. SMHC DMAC Status Register (Default Value: 0x0000_0000)
Offset: 0x0088
Register Name: SMHC_IDST
Bit
R/W
Default/Hex
Description
31:17
/
/
/
16:13
R
0
/
12:10
R
0
DMAC_ERR_STA
Error Bits.
Indicates the type of error that caused a Bus Error. Valid only with Fatal
Bus Error Interrupt (SMHC_IDST[2]) set. This field does not generate an
interrupt.
3’b001: Host Abort received during transmission
3’b010: Host Abort received during reception
Others: Reserved EB is read-only.
9
R/W
0
ABN_INT_SUM
Abnormal Interrupt Summary.
Logical OR of the following:
SMHC_IDST[2]: Fatal Bus Interrupt
SMHC_IDST[4]: DU bit Interrupt
SMHC_IDST[5]: Card Error Summary Interrupt
Only unmasked bits affect this bit.
This is a sticky bit and must be cleared each time a corresponding bit that
causes AIS to be set is cleared. Writing a 1 clears this bit.
8
R/W
0
NOR_INT_SUM
Normal Interrupt Summary.
Logical OR of the following:
SMHC_IDST[0]: Transmit Interrupt
SMHC_IDST[1]: Receive Interrupt
Only unmasked bits affect this bit.
This is a sticky bit and must be cleared each time a corresponding bit that
causes NIS to be set is cleared. Writing a 1 clears this bit.
7:6
/
/
/
5
R/W
0
ERR_FLAG_SUM
Card Error Summary.
Indicates the status of the transaction to/from the card; also present in
RINTSTS. Indicates the logical OR of the following bits:
EBE: End Bit Error
RTO: Response Timeout/Boot ACK Timeout
RCRC: Response CRC
SBE: Start Bit Error
DRTO: Data Read Timeout/BDS timeout
DCRC: Data CRC for Receive
RE: Response Error
Writing a 1 clears this bit.
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 467
4
R/W
0
DES_UNAVL_INT
Descriptor Unavailable Interrupt.
This bit is set when the descriptor is unavailable due to OWN bit = 0
(DES0[31] =0). Writing a 1 clears this bit.
3
/
/
/
2
R/W
0
FATAL_BERR_INT
Fatal Bus Error Interrupt.
Indicates that a Bus Error occurred (SMHC_IDST[12:10]). When this bit is
set, the DMA disables all its bus accesses. Writing a 1 clears this bit.
1
R/W
0
RX_INT
Receive Interrupt.
Indicates the completion of data reception for a descriptor. Writing a 1
clears this bit.
0
R/W
0
TX_INT
Transmit Interrupt.
Indicates that data transmission is finished for a descriptor. Writing a ‘1’
clears this bit.
4.3.7.28. SMHC DMAC Interrupt Enable Register (Default Value: 0x00000000)
Offset: 0x008C
Register Name: SD_IDIE_REG
Bit
R/W
Default/Hex
Description
31:10
/
/
/
9
R/W
0
/
8
R/W
0
/
7:6
/
/
/
5
R/W
0
ERR_SUM_INT_ENB
Card Error summary Interrupt Enable.
When set, it enables the Card Interrupt summary.
4
R/W
0
DES_UNAVL_INT_ENB
Descriptor Unavailable Interrupt.
When set along with Abnormal Interrupt Summary Enable, the DU
interrupt is enabled.
3
/
/
/
2
R/W
0
FERR_INT_ENB
Fatal Bus Error Enable.
When set with Abnormal Interrupt Summary Enable, the Fatal Bus Error
Interrupt is enabled. When reset, Fatal Bus Error Enable Interrupt is
disabled.
1
R/W
0
RX_INT_ENB
Receive Interrupt Enable.
When set with Normal Interrupt Summary Enable, Receive Interrupt is
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 468
enabled. When reset, Receive Interrupt is disabled.
0
R/W
0
TX_INT_ENB
Transmit Interrupt Enable.
When set with Normal Interrupt Summary Enable, Transmit Interrupt is
enabled. When reset, Transmit Interrupt is disabled.
4.3.7.29. SMHC Card Threshold Control Register (Default Value: 0x00000000)
Offset: 0x0100
Register Name: SMHC_THLD_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0
CARD_RD_THLD
Card Read Threshold Size
15:3
/
/
/
2
R/W
0
CARD_WR_THLD_ENB(for SMHC2 only)
Card Write Threshold Enable(HS400)
0: Card write threshold disable
1: Card write threshold enabled
Host controller initiates write transfer only if card threshold amount of
data is available in transmit FIFO.
1
R/W
0
BCIG(for SMHC2 only)
Busy Clear Interrupt Generation
0: Busy Clear Interrupt disabled
1: Busy Clear Interrupt Enabled
The application can disable this feature if it does not want to wait for a
Busy Clear Interrupt.
0
R/W
0
CARD_RD_THLD_ENB
Card Read Threshold Enable
0 : Card Read Threshold Disable
1 : Card Read Threshold Enable
Host controller initiates Read Transfer only if CARD_RD_THLD amount of
space is available in receive FIFO.
4.3.7.30. SMHC eMMC4.5 DDR Start Bit Detection Control Register (Default Value: 0x00000000)
Offset: 0x010C
Register Name: EMMC_DDR_SBIT_DET_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
HS_MD_EN
HS400 Mode Enable
0:Disable
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 469
1:Enable
It is required to set this bit to '1' before initiating any data transfer CMD
in HS400 mode.
30:1
/
/
/
0
R/W
0
HALF_START_BIT
Control for start bit detection mechanism inside mstorage based on
duration of start bit.
For eMMC 4.5, start bit can be:
0 : Full cycle
1 : Less than one full cycle
Set HALF_START_BIT=1 for eMMC 4.5 and above; set to 0 for SD
applications.
4.3.7.31. SMHC Response CRC Register (Default Value: 0x00000000)
Offset: 0x0110
Register Name: RESP_CRC_REG
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6:0
R
0
RESP_CRC
Response CRC
Response CRC from device.
Note: The register is for SMHC0 and SMHC1 only.
4.3.7.32. SMHC Data7 CRC Register (Default Value: 0x00000000)
Offset: 0x0114
Register Name: DATA7_CRC_REG
Bit
R/W
Default/Hex
Description
31:0
R
0
DAT7_CRC
Data[7] CRC
CRC in data[7] form device.
In 8bit DDR mode, the higher 16 bits indicate the CRC of even data, and
the lower 16 bits indicate the CRC of odd data.
In 4 bit DDR mode,it is not used.
In SDR mode, the higher 16 bits indicate the CRC of all data.
Note: The register is for SMHC0 and SMHC1 only.
4.3.7.33. SMHC Data6 CRC Register (Default Value: 0x00000000)
Offset: 0x0118
Register Name: DATA6_CRC_REG
Bit
R/W
Default/Hex
Description
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 470
31:0
R
0
DAT6_CRC
Data[6] CRC
CRC in data[6] form device.
In 8bit DDR mode, the higher 16 bits indicate the CRC of even data, and
the lower 16 bits indicate the CRC of odd data.
In 4 bit DDR mode,it is not used.
In SDR mode, the higher 16 bits indicate the CRC of all data.
Note: The register is for SMHC0 and SMHC1 only.
4.3.7.34. SMHC Data5 CRC Register (Default Value: 0x00000000)
Offset: 0x011c
Register Name: DATA5_CRC_REG
Bit
R/W
Default/Hex
Description
31:0
R
0
DAT5_CRC
Data[5] CRC
CRC in data[5] form device.
In 8bit DDR mode, the higher 16 bits indicate the CRC of even data, and
the lower 16 bits indicate the CRC of odd data.
In 4 bit DDR mode,it is not used.
In SDR mode, the higher 16 bits indicate the CRC of all data.
Note: The register is for SMHC0 and SMHC1 only.
4.3.7.35. SMHC Data4 CRC Register (Default Value: 0x00000000)
Offset: 0x0120
Register Name: DATA4_CRC_REG
Bit
R/W
Default/Hex
Description
31:0
R
0
DAT4_CRC
Data[4] CRC
CRC in data[4] form device.
In 8 bit DDR mode, the higher 16 bits indicate the CRC of even data, and
the lower 16 bits indicate the CRC of odd data.
In 4 bit DDR mode, the higher 16 bits indicate the CRC of odd data, and
the lower 16 bits indicate the CRC of even data.
In SDR mode, the higher 16 bits indicate the CRC of all data.
Note: The register is for SMHC0 and SMHC1 only.
4.3.7.36. SMHC Data3 CRC Register (Default Value: 0x00000000)
Offset: 0x0124
Register Name: DATA3_CRC_REG
Bit
R/W
Default/Hex
Description
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 471
31:0
R
0
DATA3_CRC
Data[3] CRC
CRC in data[3] from card/eMMC.
In 8bit DDR mode,the higher 16 bits indicate the CRC of even data,and
the lower 16bits indicate the CRC of odd data.
In 4 bit DDR mode,the higher of 16 bits indicate the CRC of odd data, ,and
the lower 16bits indicate the CRC of even data.
In SDR mode,the higher of 16 bits indicate the CRC of all data.
Note: The register is for SMHC0 and SMHC1 only.
4.3.7.37. SMHC Data2 CRC Register (Default Value: 0x00000000)
Offset: 0x0128
Register Name: DATA2_CRC_REG
Bit
R/W
Default/Hex
Description
31:0
R
0
DATA2_CRC
Data[2] CRC
CRC in data[2] from card/eMMC.
In 8bit DDR mode,the higher 16 bits indicate the CRC of even data,and
the lower 16bits indicate the CRC of odd data.
In 4 bit DDR mode,the higher of 16 bits indicate the CRC of odd data, ,and
the lower 16bits indicate the CRC of even data.
In SDR mode,the higher of 16 bits indicate the CRC of all data.
Note: The register is for SMHC0 and SMHC1 only.
4.3.7.38. SMHC Data1 CRC Register (Default Value: 0x00000000)
Offset: 0x012c
Register Name: DATA1_CRC_REG
Bit
R/W
Default/Hex
Description
31:0
R
0
DATA1_CRC
Data[1] CRC
CRC in data[1] from card/eMMC.
In 8bit DDR mode,the higher 16 bits indicate the CRC of even data,and
the lower 16bits indicate the CRC of odd data.
In 4 bit DDR mode,the higher of 16 bits indicate the CRC of odd data, ,and
the lower 16bits indicate the CRC of even data.
In SDR mode,the higher of 16 bits indicate the CRC of all data.
Note: The register is for SMHC0 and SMHC1 only.
4.3.7.39. SMHC Data0 CRC Register (Default Value: 0x00000000)
Offset: 0x0130
Register Name: DATA0_CRC_REG
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 472
Bit
R/W
Default/Hex
Description
31:0
R
0
DATA0_CRC
Data[0] CRC
CRC in data[0] from card/eMMC.
In 8bit DDR mode,the higher 16 bits indicate the CRC of even data,and
the lower 16bits indicate the CRC of odd data.
In 4 bit DDR mode,the higher of 16 bits indicate the CRC of odd data, ,and
the lower 16bits indicate the CRC of even data.
In SDR mode,the higher of 16 bits indicate the CRC of all data.
Note: The register is for SMHC0 and SMHC1 only.
4.3.7.40. SMHC CRC Status Register (Default Value: 0x00000000)
Offset: 0x0134
Register Name:CRC_STA_REG
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2:0
R
0
CRC_STA
CRC Status
CRC status from card/eMMC in write operation
Positive CRC status token:3’b010
Negative CRC status token:3’b101
Note: The register is for SMHC0 and SMHC1 only.
4.3.7.41. SMHC Drive Delay Control Register (Default Value: 0x00000000)
Offset: 0x0140
Register Name: SMHC_DDC_REG
Bit
R/W
Default/Hex
Description
31:18
/
/
/
17
R/W
0
DAT_DRV_PH_SEL
Data Drive Phase Select
0: Drive phase offset is 900
1: Drive phase select is 1800
In DDR mode, only 900 phase offset is valid.
16
R/W
1
CMD_DRV_PH_SEL
Command Drive Phase Select
0: Drive phase offset is 900
1: Drive phase select is 1800
15:0
/
/
/
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 473
4.3.7.42. SMHC Sample Delay Control Register (Default Value: 0x00002000)
Offset: 0x0144
Register Name: SMHC_SAMP_DL_REG
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15
R/W
0
SAMP_DL_CAL_START
Sample Delay Calibration Start
When set, start sample delay chain calibration.
14
R
0
SAMP_DL_CAL_DONE
Sample Delay Calibration Done
When set, it means that sample delay chain calibration is done and the
result of calibration is shown in SAMP_DL.
13:8
R
0x20
SAMP_DL
Sample Delay
It indicates the number of delay cells corresponding to current card clock.
The delay time generated by these delay cells is equal to the cycle of card
clock nearly.
Generally, it is necessary to do drive delay calibration when card clock is
changed.
This bit is valid only when SAMP_DL_CAL_DONE is set.
7
R/W
0
SAMP_DL_SW_EN
Sample Delay Software Enable
When set, enable smaple delay specified at SAMP_DL_SW.
6
/
/
/
5:0
R/W
0
SAMP_DL_SW
Sample Delay Software
The relative delay between clock line and command line, data lines.
It can be determined according to the value of SAMP_DL, the cycle of
card clock and device’s input timing requirement.
4.3.7.43. SMHC Data Strobe Delay Control Register (Default Value: 0x00002000)
Offset: 0x0148
Register Name: SMHC_DS_DL_REG
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15
R/W
0
DS_DL_CAL_START
Data Strobe Delay Calibration Start
When set, start sample delay chain calibration.
14
R
0
DS_DL_CAL_DONE
Data Strobe Delay Calibration Done
When set, it means that sample delay chain calibration is done.
13:8
R
0x20
DS_DL
Confidential
Memory
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 474
Data Strobe Delay
7
R/W
0
DS_DL_SW_EN
Data Strobe Delay Software Enable
6
/
/
/
5:0
R/W
0
DS_DL_SW
Data Strobe Delay Software
Note: The register is for SMHC2 only.
4.3.7.44. SMHC FIFO Register (Default Value: 0x00000000)
Offset: 0x0200
Register Name: SMHC_FIFO_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0
TX/RX_FIFO
Data FIFO
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 475
Chapter 5 Image
This section describes the image input of A64:
CSI
5.1. CSI
5.1.1. Overview
The CSI includes the following feature:
CSI
Support 8bit yuv422 CMOS sensor interface
Support CCIR656 protocol for NTSC and PAL
Maximum still capture resolution to 5M
Maximum video capture resolution to 1080@30fps
CCI
Compatible with i2c transmission in 7 bit slave ID + 1 bit R/W
Automatic transmission
0/8/16/32 bit register address supported
8/16/32 bit data supported
64bytes-FIFO input CCI data supported
Synchronized with CSI signal and delay trigger supported
Repeated transmission with sync signal supported
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 476
5.1.2. Functionalities Description
5.1.2.1. Block Diagram
CSI
Formatter
System BUS
FIFO 2
FIFO 1
FIFO 0
DMA
CS Data
CS Data Clock
CS Hsync
CS Vsync
Channel 0 CS Field
CSI
IF
Converter
DMA
MUX
Pattern
Generater
YUV Interleaved/Raw IF
CCIR656 IF
Figure 5-1. CSI Block Diagram
SDA CTL
CCI FIFO
PAD
CTL
FMT CTL
SCL CTL
CLD_DIV24MHz CLK
TRIG
SEL
CSI0/1 1st HREF
CSI0/1 last HREF
CSI0/1 Line counter
REGISTER IMMEDIATELY
SDA
SCL
CSI TRIG
DLY CNT
Figure 5-2. CCI Block Diagram
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 477
5.1.2.2. CSI FIFO Distribution
Interface
YUYV422 Interleaved/Raw
BT656 Interface
Input format
YUV422
Raw
YUV422
Output format
Planar
UV combined/
MB
Raw/RGB/PRGB
Planar
UV combined/MB
CH0_FIFO0
Y pixel data
Y pixel data
All pixels data
Y
Y
CH0_FIFO1
Cb (U) pixel data
Cb (U) Cr (V)
pixel data
-
Cb (U)
CbCr (UV)
CH0_FIFO2
Cr (V) pixel data
-
-
Cr (V)
5.1.2.3. CSI Timing
VSYNC
HSYNC
DATA
HSYNC
DATA[7/9/11:0]
PCLK
n frame n+1 frame
…
first line second line last line
…
…
…
Figure 5-3. 8-bit CMOS Sensor Interface Timing
(clock rising edge sample.vsync valid = positive,hsycn valid = positive)
PCLK
D[7:0] Cb0
[7:0]
Y0
[7:0]
Cr0
[7:0]
Y1
[7:0]
Cb2
[7:0]
Y2
[7:0]
Cr2
[7:0] ...
SAV blank
Pixel0~Pixel1 Pixel2~Pixel3 ...
FF 00 00 XY FF
Y3
[7:0]
Figure 5-4. 8-bit YCbCr4:2:2 with embedded syncs(BT656) Timing
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 478
5.1.2.4. CCIR656 Header Code
The following table shows the data bit definition of CCIR656 Header.
Table 5-1. CCIR656 Header Data Bit definition
Data Bit
First Word(0xFF)
Second Word(0x00)
Third Word(0x00)
Fourth Word
CS D[9] (MSB)
1
0
0
1
CS D[8]
1
0
0
F
CS D[7]
1
0
0
V
CS D[6]
1
0
0
H
CS D[5]
1
0
0
P3
CS D[4]
1
0
0
P2
CS D[3]
1
0
0
P1
CS D[2]
1
0
0
P0
CS D[1]
x
x
x
x
CS D[0]
x
x
x
x
Note: For compatibility with 8-bit interface, CS D[1] and CS D[0] are not defined.
Decode
F
V
H
P3
P2
P1
P0
Field 1 start of active video (SAV)
0
0
0
0
0
0
0
Field 1 end of active video (EAV)
0
0
1
1
1
0
1
Field 1 SAV (digital blanking)
0
1
0
1
0
1
1
Field 1 EAV (digital blanking)
0
1
1
0
1
1
0
Field 2 SAV
1
0
0
0
1
1
1
Field 2 EAV
1
0
1
1
0
1
0
Field 2 SAV (digital blanking)
1
1
0
1
1
0
0
Field 2 EAV (digital blanking)
1
1
1
0
0
0
1
5.1.2.5. Camera Communication Interface
The CCI module support master mode i2c-compatible single read and write access to camera and related
devices.
It reads a series of packet from FIFO (accessed by registers) and transmit with the format defined in specific
register(or packet data).
In compact mode, format register define the slave ID, R/W flag, register address width(0/8/16/32…bit), data
width(8/16/32…bit) and access counter.
In complete mode, all data and format will be loaded from memory packet.
The access counter should be set to N(N> 0), and it will read N packets from FIFO. The total bytes should not
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 479
exceed 64 for FIFO input mode.
BYTE3BYTE2BYTE1BYTE0
MEM ENDMEM START
…… BYTEn
Data1_rdReg1Data0_rdReg0 …… …
Data1Reg1Data0Reg0 …… ...
Reg1_highData0_rdReg0_lowReg0_high …… ...
Reg1_highData0Reg0_lowReg0_high …… ...
8_8 RD
8_8 WR
16_8 RD
16_8 WR
Total bytes = Packet size * Counter of packet
A packet
COMPACT MODE
COMPLETE MODE
BYTE3BYTE2BYTE1BYTE0 …… BYTEn
Data0Reg0Reg_w/Dat_wSlave_id …… …
Data0Reg0Reg_w/Dat_wSlave_id …… ...
Reg0_lowReg0_highReg_w/Dat_wSlave_id Data0 ...
Reg0_lowReg0_highReg_w/Dat_wSlave_id Data0 ...
8_8 RD
8_8 WR
16_8 RD
16_8 WR
Total bytes = Packet size * Counter of packet
A packet
A packet is several bytes filled with register address and data(if in complete mode, slave id and width should be
filled too) as the i2c access sequence defined. That is, the low address byte will be transmitted/received first.
Bytes will be sent in write access, while some address will be written back with the data received in read
access.
Data0_rdReg0
8_8 RD
8_8 WR
16_8 RD
16_8 WR
Single Access protocol supported by CCI
ID+W
X
ACK RS ID+R ACK NAC
K
P+S
S
Data0_wrReg0ID+W ACK ACK NAC
K
S
Data0_rdReg0_highID+W ACK RS ID+R ACK NAC
K
S Reg0_lowACK
Data0_wrReg0_highID+W ACK ACK NAC
K
S Reg0_lowACK
RS is optional
or is driven by CCI Xis driven by slave
Data0_rd_lo
w
Data0_rd_hi
gh
0_16 RD
0_16 WR
ID+R
ID+R ACK ACK NAC
K
S
Data0_wr_lo
w
Data0_wr_h
igh
ID+W ACK ACK NAC
K
S
After set the execution bit, the module will do the transmission automatically and return the result - success or
fail. If any access fail, the whole transmission will be stopped and returns the number when it fail in the access
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 480
counter.
PACKETn
……
PACKET1CNT_DLY …… CNT_DLY PACKETn
……
PACKET1
Whole transmission
……
Triggered
again if in
repeat mode
Repeat
transmission
complete
Setting format,
filling packet
data and enable
transmission Transmission
start
Triggered
Complete IRQ
Error IRQ
and stop
current
transmission
Abort
transmission
……
5.1.3. CSI Register list
Module Name
Base Address
CSI0
0x01CB0000
Register Name
Offset
Register name
CSI0_EN_REG
0x0000
CSI Enable register
CSI0_IF_CFG_REG
0x0004
CSI Interface Configuration Register
CSI0_CAP_REG
0x0008
CSI Capture Register
CSI0_SYNC_CNT_REG
0x000C
CSI Synchronization Counter Register
CSI0_FIFO_THRS_REG
0x0010
CSI FIFO Threshold Register
CSI0_PTN_LEN_REG
0x0030
CSI Pattern Generation Length register
CSI0_PTN_ADDR_REG
0x0034
CSI Pattern Generation Address register
CSI0_VER_REG
0x003C
CSI Version Register
CSI0_C0_CFG_REG
0x0044
CSI Channel_0 configuration register
CSI0_C0_SCALE_REG
0x004C
CSI Channel_0 scale register
CSI0_C0_F0_BUFA_REG
0x0050
CSI Channel_0 FIFO 0 output buffer-A address register
CSI0_C0_F1_BUFA_REG
0x0058
CSI Channel_0 FIFO 1 output buffer-A address register
CSI0_C0_F2_BUFA_REG
0x0060
CSI Channel_0 FIFO 2 output buffer-A address register
CSI0_C0_CAP_STA_REG
0x006C
CSI Channel_0 status register
CSI0_C0_INT_EN_REG
0x0070
CSI Channel_0 interrupt enable register
CSI0_C0_INT_STA_REG
0x0074
CSI Channel_0 interrupt status register
CSI0_C0_HSIZE_REG
0x0080
CSI Channel_0 horizontal size register
CSI0_C0_VSIZE_REG
0x0084
CSI Channel_0 vertical size register
CSI0_C0_BUF_LEN_REG
0x0088
CSI Channel_0 line buffer length register
CSI0_C0_FLIP_SIZE_REG
0x008C
CSI Channel_0 flip size register
CSI0_C0_FRM_CLK_CNT_REG
0x0090
CSI Channel_0 frame clock counter register
CSI0_C0_ACC_ITNL_CLK_CNT_REG
0x0094
CSI Channel_0 accumulated and internal clock counter
register
CSI0_C0_FIFO_STAT_REG
0x0098
CSI Channel_0 FIFO Statistic Register
CSI0_C0_PCLK_STAT_REG
0x009C
CSI Channel_0 PCLK Statistic Register
CCI_CTRL
0x3000
CCI control register
CCI_CFG
0x3004
CCI transmission config register
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 481
CCI_FMT
0x3008
CCI packet format register
CCI_BUS_CTRL
0x300C
CCI bus control register
CCI_INT_CTRL
0x3014
CCI interrupt control register
CCI_LC_TRIG
0x3018
CCI line counter trigger register
CCI_FIFO_ACC
0x3100
CCI FIFO access register
CCI_RSV_REG
0x3200
CCI reserved register
5.1.4. CSI Register Description
5.1.4.1. CSI Enable Register (Default Value: 0x00000000)
Offset: 0x0000
Register Name: CSI0_EN_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30
R/W
0x0
VER_EN
CSI Version Register Read Enable:
0: Disable
1: Enable
29:24
/
/
/
23:16
R/W
0x00
PTN_CYCLE
Pattern generating cycle counter.
The pattern in dram will be generated in cycles of PTN_CYCLE+1.
15:9
/
/
/
8
R/W
0x0
SRAM_PWDN
0: SRAM in normal
1: SRAM in power down
7:5
/
/
/
4
R/W
0x0
PTN_START
CSI Pattern Generating Start
0: Finish
other: Start
Software write this bit to“1” to start pattern generating from DRAM.
When finished, the hardware will clear this bit to“0”automatically.
Generating cycles depends on PTN_CYCLE.
3
R/W
0
CLK_CNT_SPL
Sampling time for clk counter per frame
0: Sampling clock counter every frame done
1: Sampling clock counter every vsync
2
R/W
0
CLK_CNT_EN
clk count per frame enable
1
R/W
0
PTN_GEN_EN
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 482
Pattern Generation Enable
0
R/W
0
CSI_EN
Enable
0: Reset and disable the CSI module
1: Enable the CSI module
5.1.4.2. CSI Interface Configuration Register (Default Value: 0x00000000)
Offset: 0x0004
Register Name: CSI0_IF_CFG_REG
Bit
R/W
Default/Hex
Description
31:22
/
/
/
21
R/W
0
SRC_TYPE
Source type
0: Progressed
1: Interlaced
20
R/W
0
FPS_DS
Fps down sample
0: no down sample
1: 1/2 fps, only receives the first frame every 2 frames
19
R/W
0
FIELD
For YUV HV timing, Field polarity
0: negative(field=0 indicate odd, field=1 indicate even )
1: positive(field=1 indicate odd, field=0 indicate even )
For BT656 timing, Field sequence
0: Normal sequence (field 0 first)
1: Inverse sequence (field 1 first)
18
R/W
1
VREF_POL
Vref polarity
0: negative
1: positive
This register is not apply to CCIR656 interface.
17
R/W
0
HERF_POL
Href polarity
0: negative
1: positive
This register is not apply to CCIR656 interface.
16
R/W
1
CLK_POL
Data clock type
0: active in rising edge
1: active in falling edge
15:12
/
/
/
11:10
R/W
0
SEQ_8PLUS2
When select IF_DATA_WIDTH to be 8+2bit, odd/even pixel byte at
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 483
CSI-D[11:4] will be rearranged to D[11:2]+2’b0 at the actual csi data bus
according to these sequences:
00: 6’bx+D[9:8], D[7:0]
01: D[9:2], 6’bx+D[1:0]
10: D[7:0], D[9:8]+6’bx
11: D[7:0], 6’bx+D[9:8]
9:8
R/W
0
IF_DATA_WIDTH
00: 8 bit data bus
01: 10 bit data bus
10: 12 bit data bus
11: 8+2bit data bus
7:5
/
/
/
4:0
R/W
0
CSI_IF
YUV:
00000: YUYV422 Interleaved or RAW (All data in one data bus)
CCIR656:
00100: YUYV422 Interleaved or RAW (All data in one data bus)
Others: Reserved
5.1.4.3. CSI Capture Register (Default Value: 0x00000000)
Offset: 0x0008
Register Name: CSI0_CAP_REG
Bit
R/W
Default/Hex
Description
31:6
/
/
/
5:2
R/W
0x0
CH0_CAP_MASK
Vsync number masked before capture.
1
R/W
0x0
CH0_VCAP_ON
Video capture control: Capture the video image data stream on channel
0.
0: Disable video capture
If video capture is in progress, the CSI stops capturing image data at the
end of the current frame, and all of the current frame data is wrote to
output FIFO.
1: Enable video capture
The CSI starts capturing image data at the start of the next frame.
0
R/W
0x0
CH0_SCAP_ON
Still capture control: Capture a single still image frame on channel 0.
0: Disable still capture.
1: Enable still capture
The CSI module starts capturing image data at the start of the next
frame. The CSI module captures only one frame of image data. This bit is
self clearing and always reads as a 0.
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 484
5.1.4.4. CSI Synchronization Counter Register (Default Value: 0x00000000)
Offset: 0x000C
Register Name: CSI0_SYNC_CNT_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
R
0
SYNC_CNT
The counter value between vsync of CSI0 channel 0 and vsync of CSI1
channel 0 , using 24MHz.
5.1.4.5. CSI FIFO Threshold Register (Default Value: 0x040f0400)
Offset: 0x0010
Register Name: CSI0_FIFO_THRS_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:26
R/W
0x1
FIFO_NEARLY_FULL_TH
The threshold of FIFO being nearly full. Indicates that the ISP should stop
writing. Only valid when ISP is enabled.
0~7:
The smaller the value, the flag of FIFO being nearly full is easier to reach.
25:24
R/W
0x0
PTN_GEN_CLK_DIV
Packet generator clock divider
23:16
R/W
0x0f
PTN_GEN_DLY
Clocks delayed before pattern generating start.
15:12
/
/
/
11:00
R/W
0x400
FIFO_THRS
When CSI0 FIFO occupied memory exceed the threshold, dram frequency
can not change.
5.1.4.6. CSI Pattern Generation Length Register (Default Value: 0x00000000)
Offset: 0x0030
Register Name: CSI0_PTN_LEN_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
PTN_LEN
The pattern length in byte when generating pattern.
5.1.4.7. CSI Pattern Generation Address Register (Default Value: 0x00000000)
Offset: 0x0034
Register Name: CSI0_PTN_ADDR_REG
Bit
R/W
Default/Hex
Description
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 485
31:0
R/W
0x0
PTN_ADDR
The pattern DRAM address when generating pattern.
5.1.4.8. CSI Version Register (Default Value: 0x00000000)
Offset: 0x003C
Register Name: CSI0_VER_REG
Bit
R/W
Default/Hex
Description
31:0
R
0x0
VER
Version of hardware circuit. Only can be read when version register read
enable is on.
5.1.4.9. CSI Channel_0 configuration Register (Default Value: 0x00300200)
Offset: 0x0044
Register Name: CSI0_C0_CFG_REG
Bit
R/W
Default/Hex
Description
31:24
R/W
0
PAD_VAL
Padding value when OUTPUT_FMT is prgb888
0x00~0xff
23:20
R/W
3
INPUT_FMT
Input data format
0000: RAW stream
0001: reserved
0010: reserved
0011: YUV422
0100: YUV420
Others: reserved
19:16
R/W
0
OUTPUT_FMT
Output data format
When the input format is set RAW stream
0000: field-raw-8
0001: field-raw-10
0010: field-raw-12
0011: reserved
0100: field-rgb565
0101: field-rgb888
0110: field-prgb888
1000: frame-raw-8
1001: frame-raw-10
1010: frame-raw-12
1011: reserved
1100: frame-rgb565
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 486
1101: frame-rgb888
1110: frame-prgb888
When the input format is set YUV422
0000: field planar YCbCr 422
0001: field planar YCbCr 420
0010: frame planar YCbCr 420
0011: frame planar YCbCr 422
0100: field planar YCbCr 422 UV combined
0101: field planar YCbCr 420 UV combined
0110: frame planar YCbCr 420 UV combined
0111: frame planar YCbCr 422 UV combined
1000: field MB YCbCr 422
1001: field MB YCbCr 420
1010: frame MB YCbCr 420
1011: frame MB YCbCr 422
1100: field planar YCbCr 422 10bit UV combined
1101: field planar YCbCr 420 10bit UV combined
1110: Reserved
1111: Reserved
When the input format is set YUV420
0000: Reserved
0001: field planar YCbCr 420
0010: frame planar YCbCr 420
0011: Reserved
0100: Reserved
0101: field planar YCbCr 420 UV combined
0110: frame planar YCbCr 420 UV combined
0111: Reserved
1000: Reserved
1001: field MB YCbCr 420
1010: frame MB YCbCr 420
1011: Reserved
1100: Reserved
1101: field planar YCbCr 420 10bit UV combined
1110: Reserved
1111: Reserved
Others: reserved
15:14
/
/
/
13
R/W
0
VFLIP_EN
Vertical flip enable
When enabled, the received data will be arranged in vertical flip.
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 487
0:Disable
1:Enable
12
R/W
0
HFLIP_EN
Horizontal flip enable
When enabled, the received data will be arranged in horizontal flip.
0:Disable
1:Enable
11:10
R/W
0
FIELD_SEL
Field selection.
00: capturing with field 1.
01: capturing with field 2.
10: capturing with either field.
11: reserved
09:08
R/W
2
INPUT_SEQ
Input data sequence, only valid for YUV422 and YUV420 input format.
All data interleaved in one channel:
00: YUYV
01: YVYU
10: UYVY
11: VYUY
Y and UV in separated channel:
x0: UV
x1: VU
07:02
/
/
/
01:00
R/W
0
MIN_SDR_WR_SIZE
Minimum size of SDRAM block write
0: 256 bytes (if hflip is enable, always select 256 bytes)
1: 512 bytes
2: 1k bytes
3: 2k bytes
5.1.4.10. CSI Channel_0 scale Register (Default Value: 0x00000000)
Offset: 0x004C
Register Name: CSI0_C0_SCALE_REG
Bit
R/W
Default/Hex
Description
31:01
/
/
/
00
R/W
0
QUART_EN
When this bit is set to 1, input image will be decimated to quarter size.
All input format are supported.
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 488
5.1.4.11. CSI Channel_0 FIFO 0 output buffer-A address Register (Default Value: 0x00000000)
Offset: 0x0050
Register Name: CSI0_C0_F0_BUFA_REG
Bit
R/W
Default/Hex
Description
31:00
R/W
0
C0F0_BUFA
FIFO 0 output buffer-A address
5.1.4.12. CSI Channel_0 FIFO 1 output buffer-A address Register (Default Value: 0x00000000)
Offset: 0x0058
Register Name: CSI0_C0_F1_BUFA_REG
Bit
R/W
Default/Hex
Description
31:00
R/W
0
C0F1_BUFA
FIFO 1 output buffer-A address
5.1.4.13. CSI Channel_0 FIFO 2 output buffer-A address Register (Default Value: 0x00000000)
Offset: 0x0060
Register Name: CSI0_C0_F2_BUFA_REG
Bit
R/W
Default/Hex
Description
31:00
R/W
0
C0F2_BUFA
FIFO 2 output buffer-A address
5.1.4.14. CSI Channel_0 status Register (Default Value: 0x00000000)
Offset: 0x006C
Register Name: CSI0_C0_CAP_STA_REG
Bit
R/W
Default/Hex
Description
31:03
/
/
/
02
R
0
FIELD_STA
The status of the received field
0: Field 0
1: Field 1
01
R
0
VCAP_STA
Video capture in progress
Indicates the CSI is capturing video image data (multiple frames). The bit
is set at the start of the first frame after enabling video capture. When
software disables video capture, it clears itself after the last pixel of the
current frame is captured.
00
R
0
SCAP_STA
Still capture in progress
Indicates the CSI is capturing still image data (single frame). The bit is set
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 489
at the start of the first frame after enabling still frame capture. It clears
itself after the last pixel of the first frame is captured.
For CCIR656 interface, if the output format is frame planar YCbCr 420
mode, the frame end means the field2 end, the other frame end means
filed end.
5.1.4.15. CSI Channel_0 interrupt enable Register (Default Value: 0x00000000)
Offset: 0x0070
Register Name: CSI0_C0_INT_EN_REG
Bit
R/W
Default/Hex
Description
31:08
/
/
/
07
R/W
0
VS_INT_EN
vsync flag
The bit is set when vsync come. And at this time load the buffer address
for the coming frame. So after this irq come, change the buffer address
could only effect next frame
06
R/W
0
HB_OF_INT_EN
Hblank FIFO overflow
The bit is set when 3 FIFOs still overflow after the hblank.
05
R/W
0
MUL_ERR_INT_EN
Multi-channel writing error
Indicates error has been detected for writing data to a wrong channel.
04
R/W
0
FIFO2_OF_INT_EN
FIFO 2 overflow
The bit is set when the FIFO 2 become overflow.
03
R/W
0
FIFO1_OF_INT_EN
FIFO 1 overflow
The bit is set when the FIFO 1 become overflow.
02
R/W
0
FIFO0_OF_INT_EN
FIFO 0 overflow
The bit is set when the FIFO 0 become overflow.
01
R/W
0
FD_INT_EN
Frame done
Indicates the CSI has finished capturing an image frame. Applies to video
capture mode. The bit is set after each completed frame capturing data is
wrote to buffer as long as video capture remains enabled.
00
R/W
0
CD_INT_EN
Capture done
Indicates the CSI has completed capturing the image data.
For still capture, the bit is set when one frame data has been wrote to
buffer.
For video capture, the bit is set when the last frame has been wrote to
buffer after video capture has been disabled.
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 490
For CCIR656 interface, if the output format is frame planar YCbCr 420
mode, the frame end means the field2 end, the other frame end means
field end.
5.1.4.16. CSI Channel_0 interrupt status Register (Default Value: 0x00000000)
Offset: 0x0074
Register Name: CSI0_C0_INT_STA_REG
Bit
R/W
Default/Hex
Description
31:08
/
/
/
07
R/W
0
VS_PD
vsync flag
06
R/W
0
HB_OF_PD
Hblank FIFO overflow
05
R/W
0
MUL_ ERR_PD
Multi-channel writing error
04
R/W
0
FIFO2_OF_PD
FIFO 2 overflow
03
R/W
0
FIFO1_OF_PD
FIFO 1 overflow
02
R/W
0
FIFO0_OF_PD
FIFO 0 overflow
01
R/W
0
FD_PD
Frame done
00
R/W
0
CD_PD
Capture done
5.1.4.17. CSI Channel_0 horizontal size Register (Default Value: 0x05000000)
Offset: 0x0080
Register Name: CSI0_C0_INT_STA_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:16
R/W
500
HOR_LEN
Horizontal pixel unit length. Valid pixel of a line.
15:13
/
/
/
12:00
R/W
0
HOR_START
Horizontal pixel unit start. Pixel is valid from this pixel.
5.1.4.18. CSI Channel_0 vertical size Register (Default Value: 0x01E00000)
Offset: 0x0084
Register Name: CSI0_C0_VSIZE_REG
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 491
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:16
R/W
1E0
VER_LEN
Vertical line length. Valid line number of a frame.
15:13
/
/
/
12:00
R/W
0
VER_START
Vertical line start. data is valid from this line.
5.1.4.19. CSI Channel_0 buffer length Register (Default Value: 0x01400280)
Offset: 0x0088
Register Name: CSI0_C0_BUF_LEN_REG
Bit
R/W
Default/Hex
Description
31:30
/
/
/
29:16
R/W
140
BUF_LEN_C
Buffer length of chroma C in a line. Unit is byte.
15:14
/
/
/
13:00
R/W
280
BUF_LEN
Buffer length of luminance Y in a line. Unit is byte.
5.1.4.20. CSI Channel_0 flip size Register (Default Value: 0x01E00280)
Offset: 0x008C
Register Name: CSI0_C0_FLIP_SIZE_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:16
R/W
1E0
VER_LEN
Vertical line number when in vflip mode.
15:13
/
/
/
12:00
R/W
280
VALID_LEN
Valid components of a line when in flip mode.
5.1.4.21. CSI Channel_0 frame clock counter Register (Default Value: 0x00000000)
Offset: 0x0090
Register Name: CSI0_C0_FRM_CLK_CNT_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:00
R
0
FRM_CLK_CNT
Counter value between every frame. For instant hardware frame rate
statics.
The internal counter is added by one every 24MHz clock cycle. When
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 492
frame done or vsync comes, the internal counter value is sampled to
FRM_CLK_CNT, and cleared to 0.
5.1.4.22. CSI Channel_0 accumulated and internal clock counter Register (Default Value: 0x00000000)
Offset: 0x0094
Register Name: CSI0_C0_ACC_ITNL_CLK_CNT_REG
Bit
R/W
Default/Hex
Description
31:24
R
0
ACC_CLK_CNT
The accumulated value of FRM_CLK_CNT for software frame rate statics.
Every interrupt of frame done, the software check this accumulated
value and clear it to 0. If the ACC_CLK_CNT is larger than 1, the software
has lost frame.
When frame done or vsync comes, ACC_CLK_CNT = ACC_CLK_CNT + 1,
and cleared to 0 when writing 0 to this register.
23:00
R
0
ITNL_CLK_CNT
The instant value of internal frame clock counter.
When frame done interrupt comes, the software can query this counter
for judging whether it is the time for updating the double buffer address
registers.
5.1.4.23. CSI Channel_0 FIFO Statistic Register (Default Value: 0x00000000)
Offset: 0x0098
Register Name: CSI0_C0_FIFO_STAT_REG
Bit
R/W
Default/Hex
Description
31:12
/
/
/
11:00
R
0
FIFO_FRM_MAX
Indicates the maximum depth of FIFO being occupied for whole frame.
Update at every vsync or framedone.
5.1.4.24. CSI Channel_0 PCLK Statistic Register (Default Value: 0x00007FFF)
Offset: 0x009C
Register Name: CSI0_C0_PCLK_STAT_REG
Bit
R/W
Default/Hex
Description
31
/
/
/
30:16
R
0
PCLK_CNT_LINE_MAX
Indicates maximum pixel clock counter value for each line.
Update at every vsync or framedone.
15
/
/
/
14:00
R
0x7fff
PCLK_CNT_LINE_MIN
Indicates minimum pixel clock counter value for each line.
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 493
Update at every vsync or framedone.
5.1.4.25. CCI Control Register (Default Value: 0x00000000)
Offset: 0x3000
Register Name: CCI_CTRL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
SINGLE_TRAN
0: Transmission idle
1: Start single transmission
Automatically cleared to ‘0’ when finished. Abort current transmission
immediately if changing from ‘1’ to ‘0’. If slave not respond for the
expected status over the time defined by TIMEOUT, current transmission
will stop. PACKET_CNT will return the sequence number when
transmission fail. All format setting and data will be loaded from registers
and FIFO when transmission start.
30
R/W
0
REPEAT_TRAN
0: transmission idle
1: repeated transmission
When this bit is set to 1, transmission repeats when trigger signal (such
as VSYNC/ VCAP done ) repeats.
If changing this bit from ‘1’ to ‘0’ during transmission, the current
transmission will be guaranteed then stop.
29
R/W
0
RESTART_MODE
0: RESTART
1: STOP+START
Define the CCI action after sending register address.
28
R/W
0
READ_TRAN_MODE
0: send slave_id+W
1: do not send slave_id+W
Note:Setting this bit to 1 if reading from a slave which register width is
equal to 0.
27:24
R
0
TRAN_RESULT
000: OK
001: FAIL
Other: Reserved
23:16
R
/
CCI_STA
0x00: bus error
0x08: START condition transmitted
0x10: Repeated START condition transmitted
0x18: Address + Write bit transmitted, ACK received
0x20: Address + Write bit transmitted, ACK not received
0x28: Data byte transmitted in master mode, ACK received
0x30: Data byte transmitted in master mode, ACK not received
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 494
0x38: Arbitration lost in address or data byte
0x40: Address + Read bit transmitted, ACK received
0x48: Address + Read bit transmitted, ACK not received
0x50: Data byte received in master mode, ACK received
0x58: Data byte received in master mode, ACK not received
0x01: Timeout when sending 9th SCL clk
Other: Reserved
15:2
/
/
/
1
R/W
0
SOFT_RESET
0: normal
1: reset
0
R/W
0
CCI_EN
0: Module disable
1: Module enable
5.1.4.26. CCI Transmission Configuration Register (Default Value: 0x10000000)
Offset: 0x3004
Register Name: CCI_CFG_REG
Bit
R/W
Default/Hex
Description
31:24
R/W
0x10
TIMEOUT_N
When sending the 9th clock, assert fail signal when slave device did not
response after N*FSCL cycles. And software must do a reset to CCI
module and send a stop condition to slave.
23:16
R/W
0x00
INTERVAL
Define the interval between each packet in 40*FSCL cycles. 0~255
15
R/W
0
PACKET_MODE
Select where to load slave id / data width
0: Compact mode
1: Complete mode
In compact mode, slave id/register width / data width will be loaded
from CCI_FMT register, only address and data read from memory.
In complete mode, they will be loaded from packet memory.
14:7
/
/
/
6:4
R/W
0
TRIG_MODE
Transmit mode:
000: Immediately, no trigger
001: Reserved
010: CSI0 int trigger
011: CSI1 int trigger
3:0
R/W
0
CSI_TRIG
CSI Int trig signal select:
0000: First HREF start
0001: Last HREF done
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 495
0010: Line counter trigger
other: Reserved
5.1.4.27. CCI Packet Format Register (Default Value: 0x00110001)
Offset: 0x3008
Register Name: CCI_FMT_REG
Bit
R/W
Default/Hex
Description
31:25
R/W
0
SLV_ID
7bit address
24
R/W
0
CMD
0: write
1: read
23:20
R/W
1
ADDR_BYTE
How many bytes be sent as address
0~15
19:16
R/W
1
DATA_BYTE
How many bytes be sent/received as data
1~15
Normally use ADDR_DATA with 0_2, 1_1, 1_2, 2_1, 2_2 access mode. If
DATA bytes is 0, transmission will not start. In complete mode, the
ADDR_BYTE and DATA_BYTE is defined in a byte’s high/low 4bit.
15:0
R/W
1
PACKET_CNT
FIFO data be transmitted as PACKET_CNT packets in current format.
Total bytes not exceed 32bytes.
5.1.4.28. CCI Bus Control Register (Default Value: 0x00002500)
Offset: 0x300C
Register Name: CCI_BUS_REG
Bit
R/W
Default/Hex
Description
31:16
R/W
0
DLY_CYC
0~65535 FSCL cycles between each transmission
15
R/W
0
DLY_TRIG
0: disable
1: execute transmission after internal counter delay when triggered
14:12
R/W
0x2
CLK_N
CCI bus sampling clock F0=24MHz/2^CLK_N
11:8
R/W
0x5
CLK_M
CCI output SCL frequency is FSCL=F1/10=(F0/(CLK_M+1))/10
7
R
/
SCL_STA
SCL current status
6
R
/
SDA_STA
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 496
SDA current status
5
R/W
0
SCL_PEN
SCL PAD enable
4
R/W
0
SDA_PEN
SDA PAD enable
3
R/W
0
SCL_MOV
SCL manual output value
2
R/W
0
SDA_MOV
SDA manual output value
1
R/W
0
SCL_MOE
SCL manual output en
0
R/W
0
SDA_MOE
SDA manual output en
5.1.4.29. CCI Interrupt Control Register (Default Value: 0x00000000)
Offset: 0x3014
Register Name: CCI_INT_CTRL_REG
Bit
R/W
Default/Hex
Description
31:18
/
/
/
17
R/W
0
S_TRAN_ERR_INT_EN
16
R/W
0
S_TRAN_COM_INT_EN
15:2
/
/
/
1
R/W
0
S_TRAN_ERR_PD
0
R/W
0
S_TRAN_COM_PD
5.1.4.30. CCI Line Counter Trigger Control Register (Default Value: 0x00000000)
Offset: 0x3018
Register Name: CCI_LC_REG
Bit
R/W
Default/Hex
Description
31:13
/
/
/
12:0
R/W
0
LN_CNT
0~8191: line counter send trigger when 1st~8192th line is received.
5.1.4.31. CCI FIFO Acess Register (Default Value: 0x00000000)
Offset: 0x3100~0x313f
Register Name: CCI_FIFO_ACC_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0
DATA_FIFO
From 0x100 to 0x13f, CCI data fifo is 64bytes, used in fifo input mode. CCI
Confidential
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 497
transmission read/write data from/to fifo in byte.
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 498
Chapter 6 Display
This chapter describes the A64 display system from following perspectives:
DE2.0
TCON
The following figure shows the block diagramof display system:
RT-Mixer
Core 0
RT-Mixer
Core 1
MUX
Write-Back
Rotate
TCON0
TCON1
LVDS
RGB
MIPI-
DSI
HDMI
DE2.0
M
B
U
S
Figure 6-1. Display System Block Diagram
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 499
6.1. DE2.0
6.1.1. Overview
Output size up to 4096x4096
Support four alpha blending channel for main display, two channel for aux display
Support four overlay layers in each channel, and has a independent scaler
Support potter-duff compatible blending operation
Support input format YUV422/YUV420/YUV411/ARGB8888/XRGB8888/RGB888/ARGB4444/ARGB1555 and
RGB565
Support Frame Packing/Top-and-Bottom/Side-by-side Full/Side-by-Side Half 3D format data
Support SmartColor 2.0 for excellent display experience
- Adaptive edge sharping
- Adaptive color enhancement
- Adaptive contrast enhancement and fresh tone rectify
Support writeback and rotation for high effieient dual display and miracast
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 500
6.2. TCON
6.2.1. Overview
Support LVDS interface with single link, up to 1366x768@60fps
Support RGB interface with DE/SYNC mode, up to 1920x1200@60fps
Support serial RGB/dummy RGB/CCIR656 interface, up to 800x480@60fps
Support i80 interface with 18/16/9/8 bit, support TE, up to 800x480@60fps
Support 4-lanes MIPI DSI up to 1920x1200@60fps
Support HDMI1.4 with HDCP1.2 up to4K@30fps
Support pixel format: RGB888, RGB666 and RGB565
Dither function from RGB666/RGB565 to RGB888
Gamma correction with R/G/B channel independence
4 interrupts for programmer LCD output
2 input source: DE sources
6.2.2. Block Diagram
The following figure shows the block diagram of dual TCON controller.

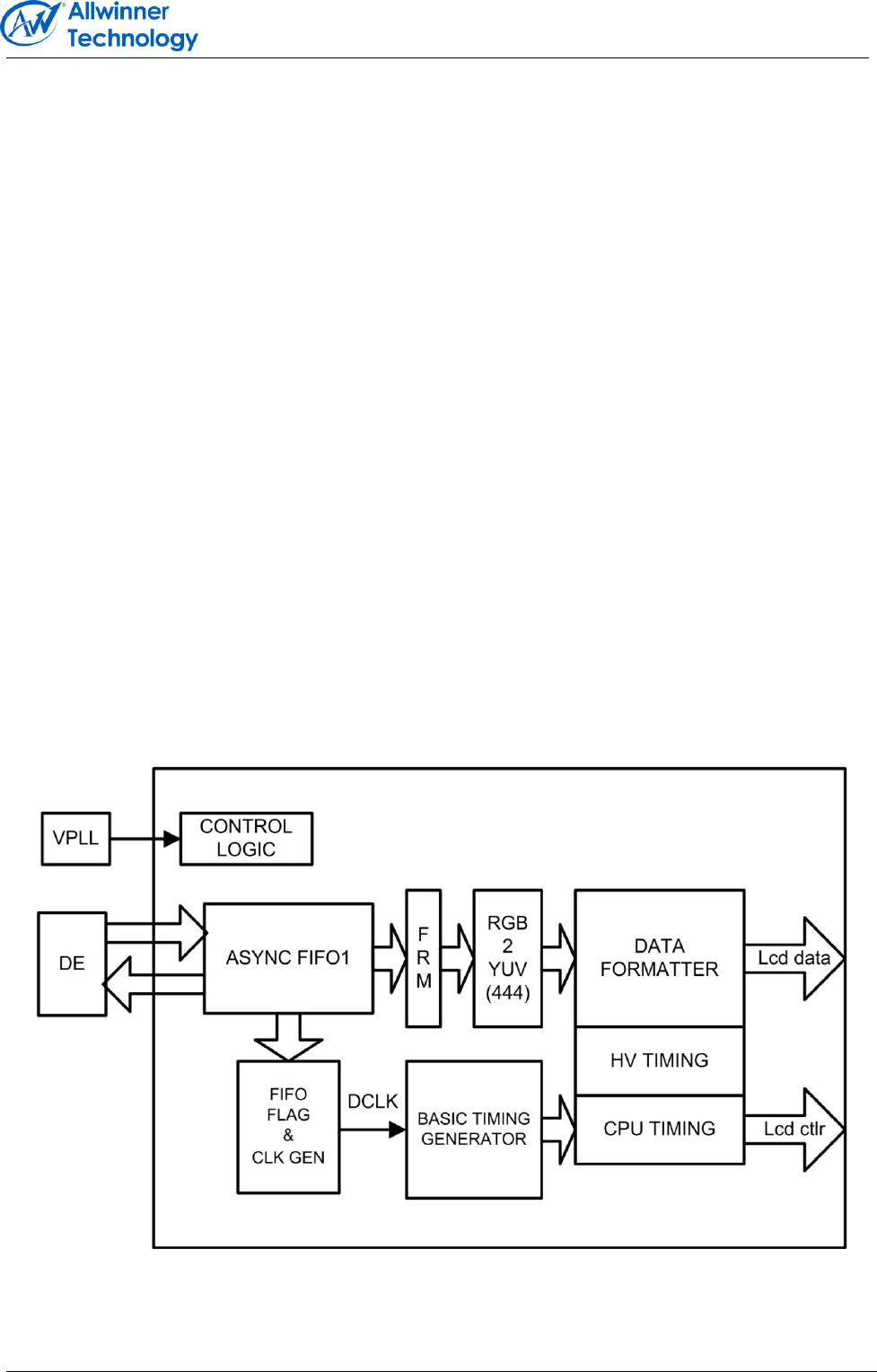

Figure 6-1. TCON0 Block Diagram
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 501
Figure 6-2. TCON1 Block Diagram
6.2.3. Functionalities Description
6.2.3.1. Panel Interface
HV_I/F(Sync+DE mode)
HV I/F is also known as Sync + DE mode, which is widely used in TFT LCD module for PMP/MP4 applications.
Its signals are define as:
Main Signal
I/O type
Definition And Description
Vsync
O
Vertical sync, indicates one new frame
Hsync
O
Horizontal sync, indicate one new scan line
DCLK
O
Dot clock, pixel data are sync by this clock
LDE
O
LCD data enable
LD[23..0]
O
18Bit RGB/YUV output from input FIFO for panel
HV control signals are active low.
The following figures show the Panel interface timing ,Parallel mode and serial mode timing of TCON0.
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 502

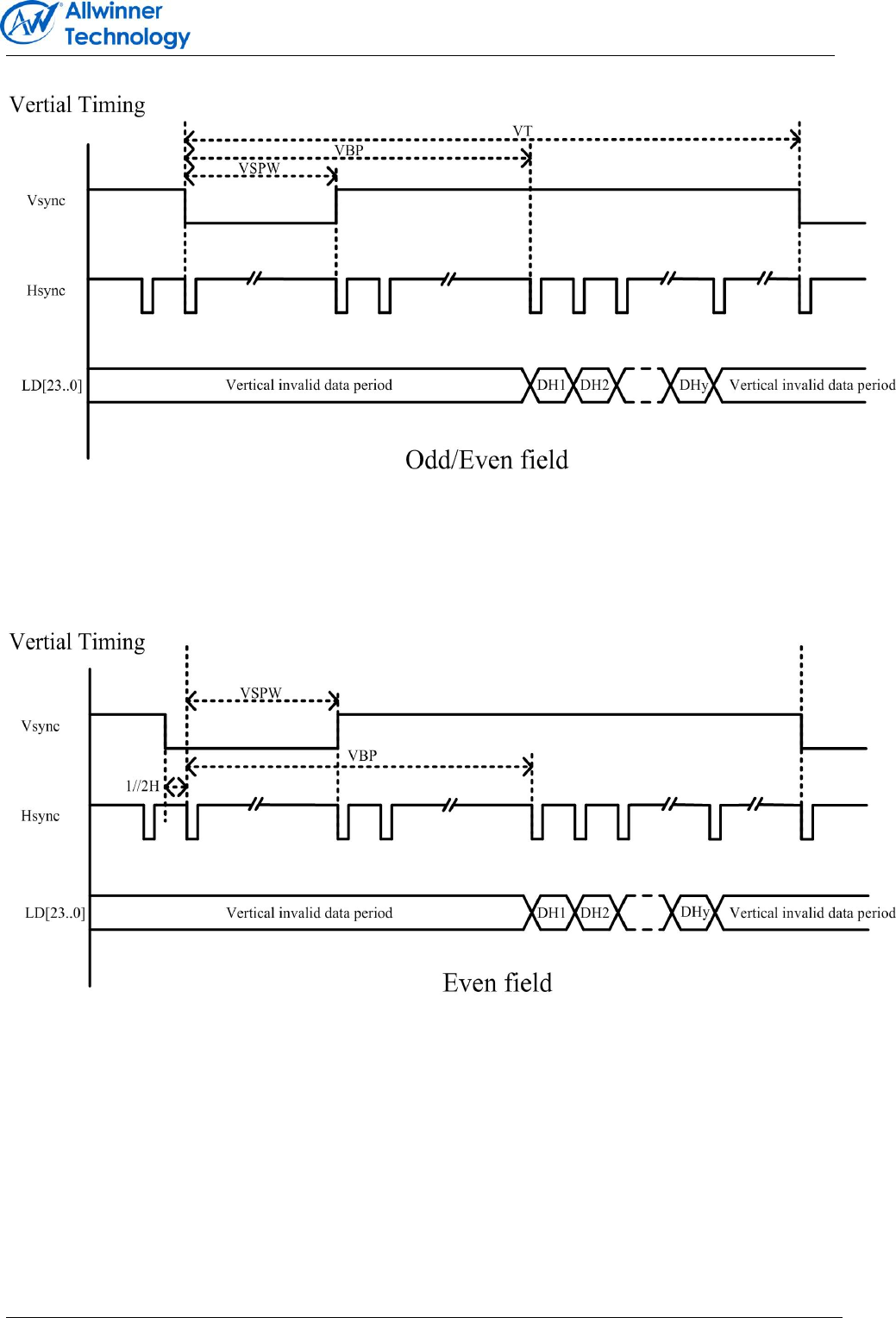

Figure 6-3. Panel Interface Timing of Odd/Even field
Figure 6-4. Panel Interface Timing of Even field
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 503
Figure 6-5.Parallel Mode Horizontal Timing
Figure 6-6. Serial Mode Horizontal Timing
CCIR output SAV/EAV sync signal
When in HV serial YUV output mode, it’s timing is CCIR656/601 compatible. SAV add right before active
area every line; EAV add right after active area every line.
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 504
It logic are:
F = “0” for Field 1 F = “1” for Field 2
V = “1” during vertical blanking
H = “0” at SAV H = “1” at EAV
P3–P0 = protection bits
P3 = V ⊕
P2 = F ⊕
P1 = F ⊕
P0 = F ⊕ ⊕
Where ⊕ exclusive-OR function
The 4 byte SAV/EAV sequences are:
8-bit Data
10-bit Data
D9
(MSB)
D8
D7
D6
D5
D4
D3
D2
D1
D0
preamble
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Status word
1
F
V
H
P3
P2
P1
P0
0
0
CPU_I/F
CPU I/F LCD panel is most common interface for small size, low resolution LCD panels.
CPU control signals are active low.
Main Signal
I/O type
Definition And Description
CS
O
Chip select, active low
WR
O
Write strobe, active low
RD
O
Read strobe, active low
A1
O
Address bit, controlled by "LCD_CPUI/F" BIT26/25
D[23..0]
I/O
Digital RGB output signal
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 505
The following figure relationship between basic timing and CPU timing. WR is 180 degree delay of DCLK; CS is
active when pixel data are valid; RD is always set to 1; A1 are set by “Lcd_CPU I/F”. When CPU I/F is in IDLE
state, it can generate WR/RD timing by setting “Lcd_CPU I/F”. CS strobe is one DCLK width, WR/RD strobe is
half DCLK width.
Hsync
D[23..0]
DCLK
Invalid line data
CS
Valid line data Invalid
LDE
WR
Figure 6-7. CPU I/F LCD panel
LVDS_IF
Clock
R3 R2 G2 R7 R6 R5 R4 R3 R2 G2
G4 G3 B3 B2 G7 G6 G5 G4 G3 B3
B5 B4 DE VS HS B7 B6 B5 B4 DE
R1 R0 NA B1 B0 G1 G0 R1 R0 NA
RIN0+
RIN0-
RIN1+
RIN1-
RIN2+
RIN2-
RIN3+
RIN3-
Current CyclePrevious Cycle Next Cycle
Figure 6-8. LVDS_IF JEDIA mode
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 506
Clock
R1 R0 G0 R5 R4 R3 R2 G0
G2 G1 B1 B0 G3 G2 G1 B1
B3 B2 DE VS HS B5 B4 B3 B2 DE
R7 R6 NA B7 B6 G7 G6 R7 R6 NA
RIN0+
RIN0-
RIN1+
RIN1-
RIN2+
RIN2-
RIN3+
RIN3-
Current CyclePrevious Cycle Next Cycle
R1 R0
G5 G4
Figure 6-9. LVDS_IF NS mode
6.2.3.2. RGB gamma correction
Function: This module correct the RGB input data of DE0 .
A 256*8*3 Byte register file is used to store the gamma table. The following is the layout:
Offset
Value
0x400, 0x401, 0x402
{ B0[7:0], G0[7:0], R0[7:0] }
0x404,
{ B1[7:0], G1[7:0], R1[7:0] }
......
......
0x4FC
{ B255[7:0], G255[7:0], R255[7:0] }
6.2.3.3. CEU module
Function: This module enhance color data from DE0 .
R’ = Rr*R + Rg*G + Rb*B + Rc
G’ = Gr*R + Gg*G + Gb*B +Gc
B’ = Br*R + Bg*G + Bb*B + Bc
Note:
Rr, Rg, Rb, ,Gr, Gg, Gb, Br, Bg, Bb s13 (-16,16)
Rc, Gc, Bc s19 (-16384, 16384)
R, G, B u8 [0-255]
R’ have the range of [Rmin ,Rmax]
G’ have the range of [Rmin ,Rmax]
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 507
B’ have the range of [Rmin ,Rmax]
6.2.3.4. CMAP module
Function: This module map color data from DE
Every 4 input pixels are as a unit. A unit is divided into 12 bytes. Output byte can select one of those 12
bytes.Note that even line and odd line can be different, and output can be 12 bytes(4 pixels) or reduce to 6
bytes(2 pixels).
r0(2)
g0(1)
b0(0)
r1(6)
g1(5)
b1(4)
r2(a)
g2(9)
b2(8)
r3(d)
g3(c)
b3(b)
odd0
odd2 odd3
eve0 eve1 eve2 eve3
Input
In mode: 4 pixels
Out mode: 4 pixels/2 pixels
Output
odd0
odd0
D23:16
D15:08
D07:00
odd1
6.2.4. TCON0 Module Register List
Module Name
Base Address
TCON0
0x01C0C000
Register Name
Offset
Description
TCON_GCTL_REG
0x000
TCON global control register
TCON_GINT0_REG
0x004
TCON global interrupt register0
TCON_GINT1_REG
0x008
TCON global interrupt register1
TCON0_FRM_CTL_REG
0x010
TCON FRM control register
TCON0_FRM_SEED_REG
0x014+N*0x04
TCON FRM seed register
(N=0,1,2,3,4,5)
TCON0_FRM_TAB_REG
0x02C+N*0x04
TCON FRM table register
(N=0,1,2,3)
TCON0_3D_FIFO_REG
0x03C
TCON0 3D fifo register
TCON0_CTL_REG
0x040
TCON0 control register
TCON0_DCLK_REG
0x044
TCON0 data clock register
TCON0_BASIC0_REG
0x048
TCON0 basic timing register0
TCON0_BASIC1_REG
0x04C
TCON0 basic timing register1
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 508
TCON0_BASIC2_REG
0x050
TCON0 basic timing register2
TCON0_BASIC3_REG
0x054
TCON0 basic timing register3
TCON0_HV_IF_REG
0x058
TCON0 hv panel interface register
TCON0_CPU_IF_REG
0x060
TCON0 cpu panel interface register
TCON0_CPU_WR_REG
0x064
TCON0 cpu panel write data register
TCON0_CPU_RD0_REG
0x068
TCON0 cpu panel read data register0
TCON0_CPU_RD1_REG
0x06C
TCON0 cpu panel read data register1
TCON0_LVDS_IF_REG
0x084
TCON0 lvds panel interface register
TCON0_IO_POL_REG
0x088
TCON0 IO polarity register
TCON0_IO_TRI_REG
0x08C
TCON0 IO trigger register
TCON_CEU_CTL_REG
0x100
TCON CEU control register
TCON_CEU_COEF_MUL_REG
0x110+N*0x04
TCON CEU coefficient register0
(N=0,1,2,4,5,6,8,9,10)
TCON_CEU_COEF_ADD_REG
0x11C+N*0x10
TCON CEU coefficient register1
(N=0,1,2)
TCON_CEU_COEF_RANG_REG
0x140+N*0x04
TCON CEU coefficient register2
(N=0,1,2)
TCON0_CPU_TRI0_REG
0x160
TCON0 cpu panel trigger register0
TCON0_CPU_TRI1_REG
0x164
TCON0 cpu panel trigger register1
TCON0_CPU_TRI2_REG
0x168
TCON0 cpu panel trigger register2
TCON0_CPU_TRI3_REG
0x16C
TCON0 cpu panel trigger register3
TCON0_CPU_TRI4_REG
0x170
TCON0 cpu panel trigger register4
TCON0_CPU_TRI5_REG
0x174
TCON0 cpu panel trigger register5
TCON_CMAP_CTL_REG
0x180
TCON color map control register
TCON_CMAP_ODD0_REG
0x190
TCON color map odd line register0
TCON_CMAP_ODD1_REG
0x194
TCON color map odd line register1
TCON_CMAP_EVEN0_REG
0x198
TCON color map even line register0
TCON_CMAP_EVEN1_REG
0x19C
TCON color map even line register1
TCON_SAFE_PERIOD_REG
0x1F0
TCON safe period register
TCON0_LVDS_ANA0_REG
0x220
TCON LVDS analog register0
TCON0_GAMMA_TABLE_REG
0x400-0x7FF
TCON0_3D_FIFO_BIST_REG
0xFF4
TCON_TRI_FIFO_BIST_REG
0xFF8
6.2.5. TCON0 Module Register Description
6.2.5.1. TCON Global Control Register (Default Value: 0x00000000)
Offset: 0x0000
Register Name: TCON_GCTL_REG
Bit
R/W
Default/Hex
Description
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 509
31
R/W
0
TCON_En
0: disable
1: enable
When it’s disabled, the module will be reset to idle state.
30
R/W
0
TCON_Gamma_En
0: disable
1: enable
29:1
/
/
/
0
R/W
0
IO_Map_Sel
0: TCON0
1: TCON1
Note: this bit determined which IO_INV/IO_TRI are valid
6.2.5.2. TCON Global Interrupt Register0 (Default Value: 0x00000000)
Offset: 0x0004
Register Name: TCON_GINT0_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
TCON0_Vb_Int_En
0: disable
1: enable
30
R/W
0
TCON1_Vb_Int_En
0: disable
1: enable
29
R/W
0
TCON0_Line_Int_En
0: disable
1: enable
28
R/W
0
TCON1_Line_Int_En
0: disable
1: enable
27
R/W
0
TCON0_Tri_Finish_Int_En
0: disable
1: enable
26:
R/W
0
TCON0_Tri_Counter_Int_En
0: disable
1: enable
25:16
/
/
/
15
R/W
0
TCON0_Vb_Int_Flag
Asserted during vertical no-display period every frame.
Write 0 to clear it.
14
R/W
0
TCON1_Vb_Int_Flag
Asserted during vertical no-display period every frame.
Write 0 to clear it.
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 510
13
R/W
0
TCON0_Line_Int_Flag
Trigger when SY0 match the current TCON0 scan line
Write 0 to clear it.
12
R/W
0
TCON1_Line_Int_Flag
Trigger when SY1 match the current TCON1 scan line
Write 0 to clear it.
11
R/W
0
TCON0_Tri_Finish_Int_Flag
Trigger when cpu trigger mode finish
Write 0 to clear it.
10
R/W
0
TCON0_Tri_Counter_Int_Flag
Trigger when tri counter reache this value
Write 0 to clear it.
9
R/W
0
TCON0_Tri_Underflow_Flag
Only used in dsi video mode, tri when sync by dsi but not finish
Write 0 to clear it.
8:0
/
/
/
6.2.5.3. TCON Global Interrupt Register1 (Default Value: 0x00000000)
Offset: 0x0008
Register Name: TCON_GINT1_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0
TCON0_Line_Int_Num
scan line for TCON0 line trigger(including inactive lines)
Setting it for the specified line for trigger0.
Note: SY0 is writable only when LINE_TRG0 disable.
15:12
/
/
/
11:0
R/W
0
TCON1_Line_Int_Num
scan line for TCON1 line trigger(including inactive lines)
Setting it for the specified line for trigger 1.
Note: SY1 is writable only when LINE_TRG1 disable.
6.2.5.4. TCON FRM Control Register0 (Default Value: 0x00000000)
Offset: 0x0010
Register Name: TCON0_FRM_CTL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
TCON0_Frm_En
0:disable
1:enable
30:7
/
/
/
6
R/W
0
TCON0_Frm_Mode_R
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 511
0: 6bit frm output
1: 5bit frm output
5
R/W
0
TCON0_Frm_Mode_G
0: 6bit frm output
1: 5bit frm output
4
R/W
0
TCON0_Frm_Mode_B
0: 6bit frm output
1: 5bit frm output
3:2
/
/
/
1:0
R/W
0
TCON0_Frm_Test
00: FRM
01: half 5/6bit, half FRM
10: half 8bit, half FRM
11: half 8bit, half 5/6bit
6.2.5.5. TCON FRM Seed Register0 (Default Value: 0x00000000)
Offset: 0x0014+N*0x04
(N=0,1,2,3,4,5)
Register Name: TCON0_FRM_SEED_REG
Bit
R/W
Default/Hex
Description
31:25
/
/
/
24:0
R/W
0
Seed_Value
N=0: Pixel_Seed_R
N=1: Pixel_Seed_G
N=2: Pixel_Seed_B
N=3: Line_Seed_R
N=4: Line_Seed_G
N=5: Line_Seed_B
Note: avoid set it to 0
6.2.5.6. TCON FRM Table Register0 (Default Value: 0x00000000)
Offset: 0x002C+N*0x04
(N=0,1,2,3)
Register Name: TCON0_FRM_TAB_REG
Bit
R/W
Default/Hex
Description
31:0
R/W
0
Frm_Table_Value
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 512
6.2.5.7. TCON 3D FIFO Register0 (Default Value: 0x00000000)
Offset: 0x003C
Register Name: TCON0_3D_FIFO_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
3D_FIFO_BIST_EN
0: disable
1: enable
30:14
/
/
/
13:4
R/W
0
3D_FIFO_HALF_LINE_SIZE
Note:
The number of data in half line=3D_FIFO_HALF_LINE_SIZE+1
only valid when 3D_FIFO_SETTING set as 2
3:2
/
/
/
1:0
R/W
0
3D_FIFO_SETTING
0: by pass
1: used as normal FIFO
2: used as 3D interlace FIFO
3: reserved
6.2.5.8. TCON0 Control Register (Default Value: 0x00000000)
Offset: 0x040
Register Name: TCON0_CTL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
TCON0_En
0: disable
1: enable
Note: It executes at the beginning of the first blank line of TCON0 timing.
30:29
/
/
/
28
R/W
0
TCON0_Work_Mode
0: normal
1: dynamic freq
27:26
/
/
/
25:24
R/W
0
TCON0_IF
00: HV(Sync+DE)
01: 8080 I/F
1x:reservd
23
R/W
0
TCON0_RB_Swap
0: default
1: swap RED and BLUE data at FIFO1
22
/
/
/
21
R/W
0
TCON0_FIFO1_Rst
Write 1 and then 0 at this bit will reset FIFO 1
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 513
Note: 1 holding time must more than 1 DCLK
20
/
/
/
19:9
/
/
/
8:4
R/W
0
TCON0_Start_Delay
STA delay
NOTE: valid only when TCON0_EN == 1
3
/
/
/
2:0
R/W
0
TCON0_SRC_SEL:
000: DE0
001: reserved
010: reserved
011: reserved
100: Test Data all 0
101: Test Data all 1
11x: reserved
6.2.5.9. TCON0 Data Clock Register (Default Value: 0x00000000)
Offset: 0x044
Register Name: TCON0_DCLK_REG
Bit
R/W
Default/Hex
Description
31:28
R/W
0
TCON0_Dclk_En
LCLK_EN[3:0] :TCON0 clock enable
4'h0, 'h4,4'h6,4'ha7:dclk_en=0;dclk1_en=0;dclk2_en=0;dclkm2_en=0;
4'h1: dclk_en = 1; dclk1_en = 0; dclk2_en = 0; dclkm2_en = 0;
4'h2: dclk_en = 1; dclk1_en = 0; dclk2_en = 0; dclkm2_en = 1;
4'h3: dclk_en = 1; dclk1_en = 1; dclk2_en = 0; dclkm2_en = 0;
4'h5: dclk_en = 1; dclk1_en = 0; dclk2_en = 1; dclkm2_en = 0;
4'h8,4'h9,4'ha,4'hb,4'hc,4'hd,4'he,4'hf:
dclk_en = 1;
dclk1_en = 1;
dclk2_en = 1;
dclkm2_en = 1;
27:7
/
/
/
6:0
R/W
0
TCON0_Dclk_Div
Tdclk = Tsclk * DCLKDIV
Note:
1.if dclk1&dclk2 used，DCLKDIV >=6
2.if dclk only，DCLKDIV >=1
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 514
6.2.5.10. TCON0 Basic0 Register (Default Value: 0x00000000)
Offset: 0x048
Register Name: TCON0_BASIC0_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0
TCON0_X
Panel width is X+1
15:12
/
/
/
11:0
R/W
0
TCON0_Y
Panel height is Y+1
6.2.5.11. TCON0 Basic1 Register (Default Value: 0x00000000)
Offset: 0x04C
Register Name: TCON0_BASIC1_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
Reservd
30:29
/
/
/
28:16
R/W
0
HT
Thcycle = (HT+1) * Tdclk
Computation
1) parallel:HT = X + BLANK
Limitation:
1) parallel :HT >= (HBP +1) + (X+1) +2
2) serial 1: HT >= (HBP +1) + (X+1) *3+2
3) serial 2: HT >= (HBP +1) + (X+1) *3/2+2
15:12
/
/
/
11:0
R/W
0
HBP
horizontal back porch (in dclk)
Thbp = (HBP +1) * Tdclk
6.2.5.12. TCON0 Basic2 Register (Default Value: 0x00000000)
Offset: 0x050
Register Name: TCON0_BASIC2_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0
VT
TVT = (VT)/2 * Thsync
Note: VT/2 >= (VBP+1 ) + (Y+1) +2
15:12
/
/
/
11:0
R/W
0
VBP
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 515
Tvbp = (VBP +1) * Thsync
6.2.5.13. TCON0 Basic3 Register (Default Value: 0x00000000)
Offset: 0x054
Register Name: TCON0_BASIC3_REG
Bit
R/W
Default/Hex
Description
31:26
/
/
/
25:16
R/W
0
HSPW
Thspw = (HSPW+1) * Tdclk
Note: HT> (HSPW+1)
15:10
/
/
/
9:0
R/W
0
VSPW
Tvspw = (VSPW+1) * Thsync
Note: VT/2 > (VSPW+1)
6.2.5.14. TCON0 HV Panel Interface Register (Default Value: 0x00000000)
Offset: 0x058
Register Name: TCON0_HV_IF_REG
Bit
R/W
Default/Hex
Description
31:28
R/W
0
HV_Mode
0000: 24bit/1cycle parallel mode
1000: 8bit/3cycle RGB serial mode(RGB888)
1010: 8bit/4cycle Dummy RGB(DRGB)
1011: 8bit/4cycle RGB Dummy(RGBD)
1100: 8bit/2cycle YUV serial mode(CCIR656)
27:26
R/W
0
RGB888_SM0
serial RGB888 mode Output sequence at odd lines of the panel (line 1, 3,
5, 7…)
00: R→G→B
01: B→R→G
10: G→B→R
11: R→G→B
25:24
R/W
0
RGB888_SM1
serial RGB888 mode Output sequence at even lines of the panel (line 2, 4,
6, 8…)
00: R→G→B
01: B→R→G
10: G→B→R
11: R→G→B
23:22
R/W
0
YUV_SM
serial YUV mode Output sequence 2-pixel-pair of every scan line
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 516
00: YUYV
01: YVYU
10: UYVY
11: VYUY
21:20
R/W
0
YUV EAV/SAV F line delay
0:F toggle right after active video line
1:delay 2 line(CCIR PAL)
2:delay 3 line(CCIR NTSC)
3:reserved
19
R/W
0
CCIR_CSC_Dis
0: enable
1: disable
Only valid when HV mode is “1100”,
select ‘0’ TCON convert source from RGB to YUV
18:0
/
/
/
6.2.5.15. TCON0 CPU Panel Interface Register (Default Value: 0x00000000)
Offset: 0x060
Register Name: TCON0_CPU_IF_REG
Bit
R/W
Default/Hex
Description
31:28
R/W
0
CPU_Mode
0000: 18bit/256K mode
0010: 16bit mode0
0100: 16bit mode1
0110: 16bit mode2
1000: 16bit mode3
1010: 9bit mode
1100: 8bit 256K mode
1110: 8bit 65K mode
xxx1: 24bit for DSI
27
/
/
/
26
R/W
0
DA
pin A1 value in 8080 mode auto/flash states
25
R/W
0
CA
pin A1 value in 8080 mode WR/RD execute
24
/
/
/
23
R
0
Wr_Flag
0:write operation is finishing
1:write operation is pending
22
R
0
Rd_Flag
0:read operation is finishing
1:read operation is pending
21:18
/
/
/
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 517
17
R/W
0
AUTO
auto Transfer Mode:
If it’s 1, all the valid data during this frame are write to panel.
Note: This bit is sampled by Vsync
16
R/W
0
FLUSH
direct transfer mode:
If it’s enabled, FIFO1 is regardless of the HV timing, pixels data keep
being transferred unless the input FIFO was empty.
Data output rate control by DCLK.
15:6
/
/
/
5:4
R/W
0
/
3
R/W
0
Trigger_FIFO_Bist_En
0: disable
1: enable
Entry addr is 0xFF8
2
R/W
0
Trigger_FIFO_En
0:enable
1:disable
1
R/W
0
Trigger_Start
write ‘1’ to start a frame flush, write’0’ has no effect.
this flag indicated frame flush is running
sofeware must make sure write ‘1’ only when this flag is ‘0’.
0
R/W
0
Trigger_En
0: trigger mode disable
1: trigger mode enable
6.2.5.16. TCON0 CPU Panel Write Data Register (Default Value: 0x00000000)
Offset: 0x064
Register Name: TCON0_CPU_WR_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
W
0
Data_Wr
data write on 8080 bus, launch a write operation on 8080 bus
6.2.5.17. TCON0 CPU Panel Read Data 0 Register (Default Value: 0x00000000)
Offset: 0x068
Register Name: TCON0_CPU_RD0_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
R
/
Data_Rd0
data read on 8080 bus, launch a new read operation on 8080 bus
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 518
6.2.5.18. TCON0 CPU Panel Read Data 1 Register (Default Value: 0x00000000)
Offset: 0x06C
Register Name: TCON0_CPU_RD1_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
R
/
Data_Rd1
data read on 8080 bus, without a new read operation on 8080 bus
6.2.5.19. TCON0 LVDS Panel Interface Register (Default Value: 0x00000000)
Offset: 0x084
Register Name: TCON0_LVDS_IF_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
TCON0_LVDS_En
0: disable
1: enable
30
/
/
/
29
R/W
0
TCON0_LVDS_Even_Odd_Dir
0: normal
1: reverse
28
R/W
0
TCON0_LVDS_Dir
1: normal
2: reverse
NOTE: LVDS direction
27
R/W
0
TCON0_LVDS_Mode
0: NS mode
1: JEIDA mode
26
R/W
0
TCON0_LVDS_BitWidth
0: 24bit
1: 18bit
25
R/W
0
TCON0_LVDS_DeBug_En
0: disable
1: enable
24
R/W
0
TCON0_LVDS_DeBug_Mode
0: mode0 RANDOM DATA
1: mode1 output CLK period=7/2 LVDS CLK period
23
R/W
0
TCON0_LVDS_Correct_Mode
0: mode0
1: mode1
22:21
/
/
/
20
R/W
0
TCON0_LVDS_Clk_Sel
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 519
0: MIPI PLL
1: TCON0 CLK
19:5
/
/
/
4
R/W
0
TCON0_LVDS_CLK_Polarity
0: reverse
1: normal
3:0
R/W
0
TCON0_LVDS_Data_Polarity
0: reverse
1: normal
6.2.5.20. TCON0 IO Polarity Register (Default Value: 0x00000000)
Offset: 0x088
Register Name: TCON0_IO_POL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
IO_Output_Sel
0: normal output
1: register output
when set as ‘1’, d[23:0], io0, io1,io3 sync to dclk
30:28
R/W
0
DCLK_Sel
000: used DCLK0(normal phase offset)
001: used DCLK1(1/3 phase offset)
010: used DCLK2(2/3 phase offset)
101: DCLK0/2 phase 0
100: DCLK0/2 phase 90
reserved
27
R/W
0
IO3_Inv
0: not invert
1: invert
26
R/W
0
IO2_ Inv
0: not invert
1: invert
25
R/W
0
IO1_Inv
0: not invert
1: invert
24
R/W
0
IO0_Inv
0: not invert
1: invert
23:0
R/W
0
Data_Inv
TCON0 output port D[23:0] polarity control, with independent bit
control:
0s: normal polarity
1s: invert the specify output
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 520
6.2.5.21. TCON0 IO Trigger Register (Default Value: 0x00000000)
Offset: 0x08C
Register Name: TCON0_IO_TRI_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28
/
/
RGB_Endian
0: normal
1: bits_invert
27
R/W
1
IO3_Output_Tri_En
1: disable
0: enable
26
R/W
1
IO2_Output_Tri_En
1: disable
0: enable
25
R/W
1
IO1_Output_Tri_En
1: disable
0: enable
24
R/W
1
IO0_Output_Tri_En
1: disable
0: enable
23:0
R/W
0xFFFFFF
Data_Output_Tri_En
TCON0 output port D[23:0] output enable, with independent bit control:
1s: disable
0s: enable
6.2.5.22. TCON CEU Control Register (Default Value: 0x00000000)
Offset: 0x100
Register Name: TCON_CEU_CTL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
CEU_en
0: bypass
1: enable
30:0
/
/
/
6.2.5.23. TCON CEU Coefficient Mul Register (Default Value: 0x00000000)
Offset: 0x110+N*0x04
(N=0,1,2,4,5,6,8,9,10)
Register Name: TCON_CEU_COEF_MUL_REG
Bit
R/W
Default/Hex
Description
31:13
/
/
/
12:0
R/W
0
CEU_Coef_Mul_Value
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 521
signed 13bit value, range of (-16,16)
N=0: Rr
N=1: Rg
N=2: Rb
N=4: Gr
N=5: Gg
N=6: Gb
N=8: Br
N=9: Bg
N=10: Bb
6.2.5.24. TCON CEU Coefficient Add Register (Default Value: 0x00000000)
Offset: 0x11C+N*0x10
(N=0,1,2)
Register Name: TCON_CEU_COEF_ADD_REG
Bit
R/W
Default/Hex
Description
31:19
/
/
/
18:0
R/W
0
CEU_Coef_Add_Value
signed 19bit value, range of (-16384, 16384)
N=0: Rc
N=1: Gc
N=2: Bc
6.2.5.25. TCON CEU Coefficient Range Register (Default Value: 0x00000000)
Offset: 0x140+N*0x04
(N=0,1,2)
Register Name: TCON_CEU_COEF_RANGE_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:16
R/W
0
CEU_Coef _Range_Min
unsigned 8bit value, range of [0,255]
15:8
/
/
/
7:0
R/W
0
CEU Coef _Range_Max
unsigned 8bit value, range of [0,255]
6.2.5.26. TCON0 CPU Panel Trigger0 Register (Default Value: 0x00000000)
Offset: 0x160
Register Name: TCON0_CPU_TRI0_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 522
27:16
R/W
0
Block_Space
should be set >20*pixel_cycle
15:12
/
/
/
11:0
R/W
0
Block_Size
6.2.5.27. TCON0 CPU Panel Trigger1 Register (Default Value: 0x00000000)
Offset: 0x164
Register Name: TCON0_CPU_TRI1_REG
Bit
R/W
Default/Hex
Description
31:16
R
0
Block_Current_Num
15:0
R/W
0
Block_Num
6.2.5.28. TCON0 CPU Panel Trigger2 Register (Default Value: 0x00000000)
Offset: 0x168
Register Name: TCON0_CPU_TRI2_REG
Bit
R/W
Default/Hex
Description
31:16
R/W
0x20
Start_Delay
Tdly = (Start_Delay +1) * be_clk*8
15
R/W
0
Trans_Start_Mode
0: ecc_fifo+tri_fifo
1: tri_fifo
14:13
R/W
0
Sync_Mode
0x: auto
10: 0
11: 1
12:0
R/W
0
Trans_Start_Set
6.2.5.29. TCON0 CPU Panel Trigger3 Register (Default Value: 0x00000000)
Offset: 0x16C
Register Name: TCON0_CPU_TRI3_REG
Bit
R/W
Default/Hex
Description
31:30
/
/
/
29:28
R/W
0
Tri_Int_Mode
00: disable
01: counter mode
10: te rising mode
11: te falling mode
when set as 01, Tri_Counter_Int occur in cycle of (Count_N+1)×
(Count_M+1)×4 dclk.
when set as 10 or 11, io0 is map as TE input.
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 523
27:24
/
/
/
23:8
R/W
0
Counter_N
7:0
R/W
0
Counter_M
6.2.5.30. TCON0 CPU Panel Trigger4 Register (Default Value: 0x00000000)
Offset: 0x170
Register Name: TCON0_CPU_TRI4_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28
R/W
0
Plug_Mode_En
0: disable
1:enable
27:25
/
/
/
24
R/W
0
A1
Valid in first Block
23:0
R/W
0
D23-D0
Valid in first Block
6.2.5.31. TCON0 CPU Panel Trigger5 Register (Default Value: 0x00000000)
Offset: 0x174
Register Name: TCON0_CPU_TRI5_REG
Bit
R/W
Default/Hex
Description
31:25
/
/
/
24
R/W
0
A1
Valid in Block except first
23:0
R/W
0
D23-D0
Valid in Block except first
6.2.5.32. TCON Color Map Control Register (Default Value: 0x00000000)
Offset: 0x180
Register Name: TCON0_CMAP_CTL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
Color_Map_En
0: bypass
1: enable
This module only work when X is divided by 4
30:1
/
/
/
0
R/W
0
Out_Format
0: 4 pixel output mode: Out0 -> Out1 -> Out2 -> Out3
1: 2 pixel output mode: Out0 -> Out1
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 524
6.2.5.33. TCON Color Map Odd Line0 Register (Default Value: 0x00000000)
Offset: 0x190
Register Name: TCON0_CMAP_ODD0_REG
Bit
R/W
Default/Hex
Description
31:16
R/W
0
Out_Odd1
15:0
R/W
0
Out_Odd0
bit15-12: Reservd
bit11-08: Out_Odd0[23:16]
bit07-04: Out_Odd0[15:8]
bit03-00: Out_Odd0[7:0]
0x0: in_b0
0x1: in_g0
0x2: in_r0
0x3: reservd
0x4: in_b1
0x5: in_g1
0x6: in_r1
0x7: reservd
0x8: in_b2
0x9: in_g2
0xa: in_r2
0xb: reservd
0xc: in_b3
0xd: in_g3
0xe: in_r3
0xf: reservd
6.2.5.34. TCON Color Map Odd Line1 Register (Default Value: 0x00000000)
Offset: 0x194
Register Name: TCON0_CMAP_ODD1_REG
Bit
R/W
Default/Hex
Description
31:16
R/W
0
Out_Odd3
15:0
R/W
0
Out_Odd2
6.2.5.35. TCON Color Map Even0 Register (Default Value: 0x00000000)
Offset: 0x198
Register Name: TCON0_CMAP_EVEN0_REG
Bit
R/W
Default/Hex
Description
31:16
R/W
0
Out_Even1
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 525
15:0
R/W
0
Out_Even0
6.2.5.36. TCON Color Map Even1 Register (Default Value: 0x00000000)
Offset: 0x19C
Register Name: TCON_CMAP_EVEN1_REG
Bit
R/W
Default/Hex
Description
31:16
R/W
0
Out_Even3
15:0
R/W
0
Out_Even2
6.2.5.37. TCON Safe Period Register (Default Value: 0x00000000)
Offset: 0x1F0
Register Name: TCON_SAFE_PERIOD_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0
Safe_Period_FIFO_Num
15:4
R/W
0
Safe_Period_Line
3
/
/
/
2:0
R/W
0
Safe_Period_Mode
0: unsafe
1: safe
2: safe at ecc_fifo_curr_num > safe_period_fifo_num
3: safe at 2 and safe at sync active
4: safe at line
6.2.5.38. TCON0 LVDS ANA0 Register (Default Value: 0x00000000)
Offset: 0x220
Register Name: TCON0_LVDS_ANA0_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
lvds0_en_mb
enable the bias circuit of the LVDS_Ana module
30
R/W
0
lvds0_en_ldo
29:25
/
/
/
24
R/W
0
lvds0_en_drvc
enable all circuits working when transmitting the data in channel clock of
LVDS_tx0
23:20
R/W
0
lvds0_en_drv
enable all circuits working when transmitting the data in channel<3:0> of
LVDS_tx0
19
R/W
0
Lvds0_reg_dram_test
0:dram test clk disable
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 526
1:dram test clk enable
18:17
R/W
0
lvds0_reg_c
adjust current flowing through Rload of Rx to change the differential
signals amplitude
0:250mV 1:300mV
2:350mV 3:400mV
16
R/W
0
lvds0_reg_denc
choose data output or PLL test clock output in LVDS_tx
15:12
R/W
0
lvds0_reg_den
choose data output or PLL test clock output in LVDS_tx
11:10
/
/
/
9:8
R/W
0
lvds0_reg_v
adjust common mode voltage of the differential signals in five channels
single signal high level:
0:1.1V 1:1.19V
2:1.3V 3:1.43V
7:6
/
/
/
5:4
R/W
0
lvds0_reg_pd
fine adjust the slew rate of output data
3:2
/
/
/
1
R/W
0
lvds0_reg_pwslv
adjust voltage amplitude of low power in LVDS_Ana
0
R/W
0
lvds0_reg_pwsmb
adjust voltage amplitude of mbias voltage reference in LVDS_Ana
6.2.6. TCON1 Module Register List
Module Name
Base Address
TCON1
0x01C0D000
Register Name
Offset
Description
TCON_GCTL_REG
0x000
TCON global control register
TCON_GINT0_REG
0x004
TCON global interrupt register0
TCON_GINT1_REG
0x008
TCON global interrupt register1
TCON1_CTL_REG
0x090
TCON1 control register
TCON1_BASIC0_REG
0x094
TCON1 basic timing register0
TCON1_BASIC1_REG
0x098
TCON1 basic timing register1
TCON1_BASIC2_REG
0x09C
TCON1 basic timing register2
TCON1_BASIC3_REG
0x0A0
TCON1 basic timing register3
TCON1_BASIC4_REG
0x0A4
TCON1 basic timing register4
TCON1_BASIC5_REG
0x0A8
TCON1 basic timing register5
TCON1_PS_SYNC_REG
0x0B0
TCON1 sync register
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 527
TCON1_IO_POL_REG
0x0F0
TCON1 IO polarity register
TCON1_IO_TRI_REG
0x0F4
TCON1 IO trigger register
TCON_CEU_CTL_REG
0x100
TCON CEU control register
TCON_CEU_COEF_MUL_REG
0x110+N*0x04
TCON CEU coefficient register0
(N=0,1,2,4,5,6,8,9,10)
TCON_CEU_COEF_ADD_REG
0x11C+N*0x10
TCON CEU coefficient register1
(N=0,1,2)
TCON_CEU_COEF_RANG_REG
0x140+N*0x04
TCON CEU coefficient register2
(N=0,1,2)
TCON_SAFE_PERIOD_REG
0x1F0
TCON safe period register
TCON1_FILL_CTL_REG
0x300
TCON1 fill data control register
TCON1_FILL_BEGIN_REG
0x304+N*0x0C
TCON1 fill data begin register
(N=0,1,2)
TCON1_FILL_END_REG
0x308+N*0x0C
TCON1 fill data end register
(N=0,1,2)
TCON1_FILL_DATA0_REG
0x30C+N*0x0C
TCON1 fill data value register
(N=0,1,2)
TCON1_GAMMA_TABLE_REG
0x400-0x7FF
TCON_ECC_FIFO_BIST_REG
0xFFC
6.2.7. TCON1 Module Register Description
6.2.7.1. TCON Global Control Register (Default Value: 0x00000000)
Offset: 0x0000
Register Name: TCON_GCTL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
TCON_En
0: disable
1: enable
When it’s disabled, the module will be reset to idle state.
30
R/W
0
TCON_Gamma_En
0: disable
1: enable
29:0
/
/
/
6.2.7.2. TCON Global Interrupt Register0 (Default Value: 0x00000000)
Offset: 0x0004
Register Name: TCON_GINT0_REG
Bit
R/W
Default/Hex
Description
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 528
31
/
/
/
30
R/W
0
TCON1_Vb_Int_En
0: disable
1: enable
29
/
/
/
28
R/W
0
TCON1_Line_Int_En
0: disable
1: enable
27:15
/
/
/
14
R/W
0
TCON1_Vb_Int_Flag
Asserted during vertical no-display period every frame.
Write 0 to clear it.
13
/
/
/
12
R/W
0
TCON1_Line_Int_Flag
trigger when SY1 match the current TCON1 scan line
Write 0 to clear it.
11:0
/
0
/
6.2.7.3. TCON Global Interrupt Register1 (Default Value: 0x00000000)
Offset: 0x0008
Register Name: TCON_GINT1_REG
Bit
R/W
Default/Hex
Description
31:12
/
/
/
11:0
R/W
0
TCON1_Line_Int_Num
scan line for TCON1 line trigger(including inactive lines)
Setting it for the specified line for trigger 1.
Note: SY1 is writable only when LINE_TRG1 disable.
6.2.7.4. TCON1 Control Register (Default Value: 0x00000000)
Offset: 0x0090
Register Name: TCON1_CTL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
TCON1_En
0: disable
1: enable
30:9
/
/
/
8:4
R/W
0
Start_Delay
This is for DE1 and DE2
3:2
/
/
/
1
R/W
0
TCON1_Src_Sel
00: reserved
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 529
01: BLUE data(FIFO2 disable,RGB = 0000FF)
0
/
/
/
6.2.7.5. TCON1 Basic Timing 0 Register (Default Value: 0x00000000)
Offset: 0x0094
Register Name: TCON1_BASIC0_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0
TCON1_XI
source width is X+1
15:12
/
/
/
11:0
R/W
0
TCON1_YI
source height is Y+1
6.2.7.6. TCON1 Basic Timing 1 Register (Default Value: 0x00000000)
Offset: 0x0098
Register Name: TCON1_BASIC1_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0
LS_XO
width is LS_XO+1
15:12
/
/
/
11:0
R/W
0
LS_YO
width is LS_YO+1
NOTE: this version LS_YO = TCON1_YI
6.2.7.7. TCON1 Basic Timing 2 Register (Default Value: 0x00000000)
Offset: 0x009C
Register Name: TCON1_BASIC2_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0
TCON1_XO
width is TCON1_XO+1
15:12
/
/
/
11:0
R/W
0
TCON1_YO
height is TCON1_YO+1
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 530
6.2.7.8. TCON1 Basic Timing 3 Register (Default Value: 0x00000000)
Offset: 0x00A0
Register Name: TCON1_BASIC3_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0
HT
horizontal total time
Thcycle = (HT+1) * Thdclk
15:12
/
/
/
11:0
R/W
0
HBP
horizontal back porch
Thbp = (HBP +1) * Thdclk
6.2.7.9. TCON1 Basic Timing Register (Default Value: 0x00000000)
Offset: 0x00A4
Register Name: TCON1_BASIC4_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0
VT
horizontal total time (in HD line)
Tvt = VT/2 * Th
15:12
/
/
/
11:0
R/W
0
VBP
horizontal back porch (in HD line)
Tvbp = (VBP +1) * Th
6.2.7.10. TCON1 Basic Timing 5 Register (Default Value: 0x00000000)
Offset: 0x00A8
Register Name: TCON1_BASIC5_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
25:16
R/W
0
HSPW
horizontal Sync Pulse Width (in dclk)
Thspw = (HSPW+1) * Tdclk
Note: HT> (HSPW+1)
15:10
/
/
/
9:0
R/W
0
VSPW
vertical Sync Pulse Width (in lines)
Tvspw = (VSPW+1) * Th
Note: VT/2 > (VSPW+1)
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 531
6.2.7.11. TCON1 PS SYNC Register (Default Value: 0x00000000)
Offset: 0x00B0
Register Name: TCON1_PS_SYNC_REG
Bit
R/W
Default/Hex
Description
31:16
R/W
0
SYNC_X
15:0
R/W
0
SYNC_Y
6.2.7.12. TCON1 IO Polarity Register (Default Value: 0x00000000)
Offset: 0x00F0
Register Name: TCON1_IO_POL_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27
R/W
0
IO3_Inv
0: not invert
1: invert
26
R/W
0
IO2 Inv
0: not invert
1: invert
25
R/W
0
IO1_Inv
0: not invert
1: invert
24
R/W
0
IO0_Inv
0: not invert
1: invert
23:0
R/W
0
Data_Inv
TCON1 output port D[23:0] polarity control, with independent bit
control:
0s: normal polarity
1s: invert the specify output
6.2.7.13. TCON1 IO Polarity Register (Default Value: 0x0FFFFFFF)
Offset: 0x00F4
Register Name: TCON1_IO_POL_REG
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27
R/W
1
IO3_Output_Tri_En
1: disable
0: enable
26
R/W
1
IO2_Output_Tri_En
1: disable
0: enable
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 532
25
R/W
1
IO1_Output_Tri_En
1: disable
0: enable
24
R/W
1
IO0_Output_Tri_En
1: disable
0: enable
23:0
R/W
0xFFFFFF
Data_Output_Tri_En
TCON1 output port D[23:0] output enable, with independent bit control:
1s: disable
0s: enable
6.2.7.14. TCON CEU Control Register (Default Value: 0x00000000)
Offset: 0x0100
Register Name: TCON_CEU_CTL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
CEU_en
0: bypass
1: enable
30:0
/
/
/
6.2.7.15. TCON CEU Coefficient Mul Register (Default Value: 0x00000000)
Offset: 0x0110+N*0x04
(N=0,1,2,4,5,6,8,9,10)
Register Name: TCON_CEU_COEF_MUL_REG
Bit
R/W
Default/Hex
Description
31:13
/
/
/
12:0
R/W
0
CEU_Coef_Mul_Value
signed 13bit value, range of (-16,16)
N=0: Rr
N=1: Rg
N=2: Rb
N=4: Gr
N=5: Gg
N=6: Gb
N=8: Br
N=9: Bg
N=10: Bb
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 533
6.2.7.16. TCON CEU Coefficient Add Register (Default Value: 0x00000000)
Offset: 0x011C+N*0x10
(N=0,1,2)
Register Name: TCON_CEU_COEF_ADD_REG
Bit
R/W
Default/Hex
Description
31:19
/
/
/
18:0
R/W
0
CEU_Coef_Add_Value
signed 19bit value, range of (-16384, 16384)
N=0: Rc
N=1: Gc
N=2: Bc
6.2.7.17. TCON CEU Coefficient Rang Register (Default Value: 0x00000000)
Offset: 0x0140+N*0x4
(N=0,1,2)
Register Name: TCON_CEU_COEF_RANG_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:16
R/W
0
CEU_Coef _Range_Min
unsigned 8bit value, range of [0,255]
15:8
/
/
/
7:0
R/W
0
CEU Coef _Range_Max
unsigned 8bit value, range of [0,255]
6.2.7.18. TCON Safe Period Register (Default Value: 0x00000000)
Offset: 0x01F0
Register Name: TCON_SAFE_PERIOD_REG
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0
Safe_Period_FIFO_Num
15:4
R/W
0
Safe_Period_Line
3
/
/
/
2:0
R/W
0
Safe_Period_Mode
0: unsafe
1: safe
2: safe at ecc_fifo_curr_num > safe_period_fifo_num
3: safe at 2 and safe at sync active
4: safe at line
Confidential
Display
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 534
6.2.7.19. TCON1 Fill Control Register (Default Value: 0x00000000)
Offset: 0x0300
Register Name: TCON1_FILL_CTL_REG
Bit
R/W
Default/Hex
Description
31
R/W
0
TCON1_Fill_En
0: bypass
1: enable
30:0
/
/
/
6.2.7.20. TCON1 Fill Begin Register (Default Value: 0x00000000)
Offset: 0x0304+N*0x0C(N=0,1,2)
Register Name: TCON1_FILL_BEGIN_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0
Fill_Begin
6.2.7.21. TCON1 Fill End Register (Default Value: 0x00000000)
Offset: 0x0308+N*0x0C(N=0,1,2)
Register Name: TCON1_FILL_END_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0
Fill_End
6.2.7.22. TCON1 Fill Data Register (Default Value: 0x00000000)
Offset: 0x030C+N*0x0C(N=0,1,2)
Register Name: TCON1_FILL_DATA_REG
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0
Fill_Value
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 535
Chapter 7 Interfaces
This chapter describes the A64 interfaces, including:
TWI
SPI
UART
CIR Receiver
USB
I2S/PCM
OWA
SCR
EMAC
TSC
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 536
7.1. TWI
7.1.1. Overview
This TWI Controller is designed to be used as an interface between CPU host and the serial TWI bus. It can
support all the standard TWI transfer, including Slave and Master. The communication to the TWI bus is carried
out on a byte-wise basis using interrupt or polled handshaking. This TWI Controller can be operated in
standard mode (100K bps) or fast-mode, supporting data rate up to 400K bps. Multiple Masters and 10-bit
addressing Mode are supported for this specified application. General Call Addressing is also supported in Slave
mode.
The TWI Controller includes the following features:
Software-programmable for Slave or Master
Support Repeated START signal
Multi-master systems supported
Allow 10-bit addressing with TWI bus
Performs arbitration and clock synchronization
Own address and General Call address detection
Interrupt on address detection
Support speeds up to 400Kbits/s (‘fast mode’)
Allow operation from a wide range of input clock frequencies
7.1.2. Timing Diagram
Data transferred are always in a unit of 8-bit (byte), followed by an acknowledge bit. The number of bytes that
can be transmitted per transfer is unrestricted. Data is transferred in serial with the MSB first. Between each
byte of data transfer, a receiver device will hold the clock line SCL low to force the transmitter into a wait state
while waiting the response from microprocessor.
Data transfer with acknowledge is obligatory. The clock line is driven by the master all the time, including the
acknowledge-related clock cycle, except for the SCL holding between each bytes. After sending each byte, the
transmitter releases the SDA line to allow the receiver to pull down the SDA line and send an acknowledge
signal (or leave it high to send a "not acknowledge") to the transmitter.
When a slave receiver doesn't acknowledge the slave address (unable to receive because of no resource
available), the data line must be left high by the slave so that the master can then generate a STOP condition to
abort the transfer. Slave receiver can also indicate not to want to send more data during a transfer by leave the
acknowledge signal high. And the master should generate the STOP condition to abort the transfer.
Below diagram provides an illustration the relation of SDA signal line and SCL signal line on the TWI serial bus.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 537
IIC2IIC5IIC5IIC4IIC4IIC3IIC1
SDA
SCL
Figure 7-1. TWI Timing Diagram
7.1.3. TWI Controller Special Requirement
7.1.3.1. TWI Pin List
Port Name
Width
Direction
Description
TWI_SCL
1
IN/OUT
TWI Clock line
TWI_SDA
1
IN/OUT
TWI Serial Data line
7.1.3.2. TWI Controller Operation
There are four operation modes on the TWI bus which dictates the communications method. They are Master
Transmit, Master Receive, Slave Transmit and Slave Receive. In general, CPU host controls TWI by writing
commands and data to its registers. The TWI interrupts the CPU host for the attention each time a byte
transfer is done or a START/STOP conditions is detected. The CPU host can also poll the status register for
current status if the interrupt mechanism is not disabled by the CPU host.
When the CPU host wants to start a bus transfer, it initiates a bus START to enter the master mode by setting
IM_STA bit in the 2WIRE_CNTR register to high (before it must be low). The TWI will assert INT line and
INT_FLAG to indicate a completion for the START condition and each consequent byte transfer. At each
interrupt, the micro-processor needs to check the 2WIRE_STAT register for current status. A transfer has to be
concluded with STOP condition by setting M_STP bit high.
In Slave Mode, the TWI also constantly samples the bus and look for its own slave address during addressing
cycles. Once a match is found, it is addressed and interruptted the CPU host with the corresponding status.
Upon request, the CPU host should read the status, read/write 2WIRE_DATA data register, and set the
2WIRE_CNTR control register. After each byte transfer, a slave device always halt the operation of remote
master by holding the next low pulse on SCL line until the microprocessor responds to the status of previous
byte transfer or START condition.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 538
7.1.4. TWI Controller Register List
Module Name
Base Address
R_TWI
0x01F02400
TWI0
0x01C2AC00
TWI1
0x01C2B000
TWI2
0x01C2B400
Register Name
Offset
Description
TWI_ADDR
0x0000
TWI Slave address
TWI_XADDR
0x0004
TWI Extended slave address
TWI_DATA
0x0008
TWI Data byte
TWI_CNTR
0x000C
TWI Control register
TWI_STAT
0x0010
TWI Status register
TWI_CCR
0x0014
TWI Clock control register
TWI_SRST
0x0018
TWI Software reset
TWI_EFR
0x001C
TWI Enhance Feature register
TWI_LCR
0x0020
TWI Line Control register
7.1.5. TWI Controller Register Description
7.1.5.1. TWI Slave Address Register(Default Value: 0x00000000)
Offset: 0x00
Register Name: TWI_ADDR
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:1
R/W
0
SLA
Slave address
7-bit addressing
SLA6, SLA5, SLA4, SLA3, SLA2, SLA1, SLA0
10-bit addressing
1, 1, 1, 1, 0, SLAX[9:8]
0
R/W
0
GCE
General call address enable
0: Disable
1: Enable
Notes:
For 7-bit addressing:
SLA6 – SLA0 is the 7-bit address of the TWI when in slave mode. When the TWI receives this address after a
START condition, it will generate an interrupt and enter slave mode. (SLA6 corresponds to the first bit received
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 539
from the TWI bus.) If GCE is set to ‘1’, the TWI will also recognize the general call address (00h).
For 10-bit addressing:
When the address received starts with 11110b, the TWI recognizes this as the first part of a 10-bit address and if
the next two bits match ADDR[2:1] (i.e. SLAX9 and SLAX8 of the device’s extended address), it sends an ACK.
(The device does not generate an interrupt at this point.) If the next byte of the address matches the XADDR
register (SLAX7 – SLAX0), the TWI generates an interrupt and goes into slave mode.
7.1.5.2. TWI Extend Address Register(Default Value: 0x00000000)
Offset: 0x04
Register Name: TWI_XADDR
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0
SLAX
Extend Slave Address
SLAX[7:0]
7.1.5.3. TWI Data Register(Default Value: 0x00000000)
Offset: 0x08
Register Name: TWI_DATA
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0
TWI_DATA
Data byte for transmitting or received
7.1.5.4. TWI Control Register(Default Value: 0x00000000)
Offset: 0x0C
Register Name: TWI_ CNTR
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7
R/W
0
INT_EN
Interrupt Enable
1’b0: The interrupt line always low
1’b1: The interrupt line will go high when INT_FLAG is set.
6
R/W
0
BUS_EN
TWI Bus Enable
1’b0: The TWI bus inputs ISDA/ISCL are ignored and the TWI Controller
will not respond to any address on the bus
1’b1: The TWI will respond to calls to its slave address – and to the
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 540
general call address if the GCE bit in the ADDR register is set.
Notes: In master operation mode, this bit should be set to ‘1’
5
R/W
0
M_STA
Master Mode Start
When M_STA is set to ‘1’, TWI Controller enters master mode and will
transmit a START condition on the bus when the bus is free. If the M_STA
bit is set to ‘1’ when the TWI Controller is already in master mode and
one or more bytes have been transmitted, then a repeated START
condition will be sent. If the M_STA bit is set to ‘1’ when the TWI is being
accessed in slave mode, the TWI will complete the data transfer in slave
mode then enter master mode when the bus has been released.
The M_STA bit is cleared automatically after a START condition has been
sent,writing a ‘0’ to this bit has no effect.
4
R/W
0
M_STP
Master Mode Stop
If M_STP is set to ‘1’ in master mode, a STOP condition is transmitted on
the TWI bus. If the M_STP bit is set to ‘1’ in slave mode, the TWI will
behave as if a STOP condition has been received, but no STOP condition
will be transmitted on the TWI bus. If both M_STA and M_STP bits are
set, the TWI will first transmit the STOP condition (if in master mode)
then transmit the START condition.
The M_STP bit is cleared automatically,writing a ‘0’ to this bit has no
effect.
3
R/W
0
INT_FLAG
Interrupt Flag
INT_FLAG is automatically set to ‘1’ when any of 28 (out of the possible
29) states is entered (see ‘STAT Register’ below). The only state that does
not set INT_FLAG is state F8h. If the INT_EN bit is set, the interrupt line
goes high when IFLG is set to ‘1’. If the TWI is operating in slave mode,
data transfer is suspended when INT_FLAG is set and the low period of
the TWI bus clock line (SCL) is stretched until ‘1’ is written to INT_FLAG.
The TWI clock line is then released and the interrupt line goes low.
2
R/W
0
A_ACK
Assert Acknowledge
When A_ACK is set to ‘1’, an Acknowledge (low level on SDA) will be sent
during the acknowledge clock pulse on the TWI bus if:
1. Either the whole of a matching 7-bit slave address or the first or the
second byte of a matching 10-bit slave address has been received.
2. The general call address has been received and the GCE bit in the ADDR
register is set to ‘1’.
3. A data byte has been received in master or slave mode.
When A_ACK is ‘0’, a Not Acknowledge (high level on SDA) will be sent
when a data byte is received in master or slave mode.
If A_ACK is cleared to ‘0’ in slave transmitter mode, the byte in the DATA
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 541
register is assumed to be the ‘last byte’. After this byte has been
transmitted, the TWI will enter state C8h then return to the idle state
(status code F8h) when INT_FLAG is cleared.
The TWI will not respond as a slave unless A_ACK is set.
1:0
R/W
0
/
7.1.5.5. TWI Status Register(Default Value: 0x000000F8)
Offset: 0x10
Register Name: TWI_STAT
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R
0xF8
STA
Status Information Byte
Code Status
0x00: Bus error
0x08: START condition transmitted
0x10: Repeated START condition transmitted
0x18: Address + Write bit transmitted, ACK received
0x20: Address + Write bit transmitted, ACK not received
0x28: Data byte transmitted in master mode, ACK received
0x30: Data byte transmitted in master mode, ACK not received
0x38: Arbitration lost in address or data byte
0x40: Address + Read bit transmitted, ACK received
0x48: Address + Read bit transmitted, ACK not received
0x50: Data byte received in master mode, ACK transmitted
0x58: Data byte received in master mode, not ACK transmitted
0x60: Slave address + Write bit received, ACK transmitted
0x68: Arbitration lost in address as master, slave address + Write bit
received, ACK transmitted
0x70: General Call address received, ACK transmitted
0x78: Arbitration lost in address as master, General Call address received,
ACK transmitted
0x80: Data byte received after slave address received, ACK transmitted
0x88: Data byte received after slave address received, not ACK
transmitted
0x90: Data byte received after General Call received, ACK transmitted
0x98: Data byte received after General Call received, not ACK transmitted
0xA0: STOP or repeated START condition received in slave mode
0xA8: Slave address + Read bit received, ACK transmitted
0xB0: Arbitration lost in address as master, slave address + Read bit
received, ACK transmitted
0xB8: Data byte transmitted in slave mode, ACK received
0xC0: Data byte transmitted in slave mode, ACK not received
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 542
0xC8: Last byte transmitted in slave mode, ACK received
0xD0: Second Address byte + Write bit transmitted, ACK received
0xD8: Second Address byte + Write bit transmitted, ACK not received
0xF8: No relevant status information, INT_FLAG=0
Others: Reserved
7.1.5.6. TWI Clock Register(Default Value: 0x00000000)
Offset: 0x14
Register Name: TWI_CCR
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6:3
R/W
0
CLK_M
2:0
R/W
0
CLK_N
The TWI bus is sampled by the TWI at the frequency defined by F0:
Fsamp = F 0 = Fin / 2^CLK_N
The TWI OSCL output frequency, in master mode, is F1 / 10:
F1 = F0 / (CLK_M + 1)
Foscl = F1 / 10 = Fin / (2^CLK_N * (CLK_M + 1)*10)
For Example：
Fin = 48Mhz (APB clock input)
For 400kHz full speed 2Wire, CLK_N = 2, CLK_M=2
F0 = 48M/2^2=12Mhz, F1= F0/(10*(2+1)) = 0.4Mhz
For 100Khz standard speed 2Wire, CLK_N=2, CLK_M=11
F0=48M/2^2=12Mhz, F1=F0/(10*(11+1)) = 0.1Mhz
7.1.5.7. TWI Soft Reset Register(Default Value: 0x00000000)
Offset: 0x18
Register Name: TWI_SRST
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0
SOFT_RST
Soft Reset
Write ‘1’ to this bit to reset the TWI and clear to ‘0’ when completing Soft
Reset operation.
7.1.5.8. TWI Enhance Feature Register(Default Value: 0x00000000)
Offset: 0x1C
Register Name: TWI_EFR
Bit
R/W
Default/Hex
Description
31:2
/
/
/
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 543
0:1
R/W
0
DBN
Data Byte number follow Read Command Control
0— No Data Byte to be written after read command
1— Only 1 byte data to be written after read command
2— 2 bytes data can be written after read command
3— 3 bytes data can be written after read command
7.1.5.9. TWI Line Control Register(Default Value: 0x0000003A)
Offset: 0x20
Register Name: TWI_LCR
Bit
R/W
Default/Hex
Description
31:6
/
/
/
5
R
1
SCL_STATE
Current state of TWI_SCL
0 – low
1 - high
4
R
1
SDA_STATE
Current state of TWI_SDA
0 – low
1 - high
3
R/W
1
SCL_CTL
TWI_SCL line state control bit
When line control mode is enabled (bit[2] set), value of this bit decide the
output level of TWI_SCL
0 – output low level
1 – output high level
2
R/W
0
SCL_CTL_EN
TWI_SCL line state control enable
When this bit is set, the state of TWI_SCL is control by the value of bit[3].
0-disable TWI_SCL line control mode
1-enable TWI_SCL line control mode
1
R/W
1
SDA_CTL
TWI_SDA line state control bit
When line control mode is enabled (bit[0] set), value of this bit decide the
output level of TWI_SDA
0 – output low level
1 – output high level
0
R/W
0
SDA_CTL_EN
TWI_SDA line state control enable
When this bit is set, the state of TWI_SDA is control by the value of bit[1].
0-disable TWI_SDA line control mode
1-enable TWI_SDA line control mode
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 544
7.1.5.10. TWI DVFS Register(Default Value: 0x00000000)
Offset: 0x24
Register Name: TWI_DVFSCR
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2
R/W
0
MS_PRIORITY
CPU and DVFS BUSY set priority select
0: CPU has higher priority
1: DVFS has higher priority
1
R/W
0
CPU_BUSY_SET
CPU Busy set
0
R/W
0
DVFC_BUSY_SET
DVFS Busy set
Notes:This register is only implemented in TWI0.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 545
7.2. SPI
7.2.1. Overview
The SPI is the Serial Peripheral Interface which allows rapid data communication with fewer software interrupts.
It can interface with up to four slave external devices or one single external master.The SPI module contains one
64x8 receiver buffer (RXFIFO) and one64x8 transmit buffer (TXFIFO). It can work at two modes: Master mode
and Slave mode.
The SPI includes the following features:
Full-duplex synchronous serial interface
Master/Slave configurable
Programmable clock granularity
Four chip selects to support multiple peripherals
8-bit wide by 64-entry FIFO for both transmit and receive date
Polarity and phase of the Chip Select (SPI_SS) and SPI Clock (SPI_SCLK) are configurable
Interrupt or DMA supported
Support single and dual read mode
7.2.2. SPI Block Diagram
Figure 7-2 shows a block diagram of the SPI.
spi_rf
rbuf
tbuf
AHB
TX DMA
RX DMA
txfifo
rxfifo
spi_tx
spi_rx
spi_cmu
INTC
spi_top
hclk
domain sclk
domain
sckt
sckr
spi_mosi_oen
spi_mosi_out
spi_miso_oen
spi_miso_out
spi_ss_oen
spi_ss_out
spi_ss_in
spi_mosi_in
spi_miso_in
spi_sck_in
spi_sck_out
spi_sck_oen
Figure 7-2. SPI Block Diagram
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 546
The SPI comprises with:
spi_rf: Responsible for implementing the internal register,interrupt and DMA Request.
spi_tbuf: The data length transmitted from AHB to txfifo is converted into 8bits,then the data is written into
the rxfifo.
spi_rbuf: The block is used as converted the rxfifo data into read data length of AHB.
txfifo,rxfifo: For transmit and receive transfers,data transmitted from the SPI to the external serial device is
written into the txfifo;data received from the external serial device into SPI is pushed into the rxfifo.
spi_cmu: Responsible for implementing SPI bus clock,chip select,internal sample and the generation of
transfer clock.
spi_tx: Responsible for implementing SPI data transfer ,the interface of the internal txfifo and status register.
spi_rx: Responsible for implementing SPI data receive, the interface of the internal rxfifo and status register.
7.2.3. SPI Timing Diagram
The serial peripheral interface master uses the SPI_SCLK signal to transfer data in and out of the shift register.
Data is clocked using any one of four programmable clock phase and polarity combinations.
During Phase 0, Polarity 0 and Phase 1, Polarity 1 operations, output data changes on the falling clock edge and
input data is shifted in on the rising edge.
During Phase 1, Polarity 0 and Phase 0, Polarity 1 operations, output data changes on the rising edges of the
clock and is shifted in on falling edges.
The POL defines the signal polarity when SPI_SCLK is in idle state. The SPI_SCLK is high level when POL is ‘1’ and
it is low level when POL is ‘0’. The PHA decides whether the leading edge of SPI_SCLK is used for setup or sample
data. The leading edge is used for setup data when PHA is ‘1’ and for sample data when PHA is ‘0’. The four kind
of modes are listed below:
SPI Mode
POL
PHA
Leading Edge
Trailing Edge
0
0
0
Rising, Sample
Falling, Setup
1
0
1
Rising, Setup
Falling, Sample
2
1
0
Falling, Sample
Rising, Setup
3
1
1
Failing, Setup
Rising, Sample
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 547
Phase 0
SPI_SCLK (Mode 0)
SPI_SCLK (Mode 2)
SPI_MOSI
SPI_MISO
SPI_SS
Sample MOSI/ MISO pin
Figure 7-3. SPI Phase 0 Timing Diagram
Phase 1
SPI_SCLK (Mode 1)
SPI_SCLK (Mode 3)
SPI_MOSI
SPI_MISO
SPI_SS
Sample MOSI/ MISO pin
Figure 7-4. SPI Phase 1 Timing Diagram
7.2.4. SPI Pin Lists
The direction of SPI pin is different in two work modes: Master Mode and Slave Mode.The following table
describes the external pins of SPI,SPI_MOSI and SPI_MISO are bidirectional I/O,When SPI is configured as
Master device,CLK and CS is output pin;when SPI is configurable as Slave device,CLK and CS is input pin.The
unused SPI ports are used as General Purpose I/O ports.For information about General Purpose I/O ports,see
Port Controller(CPUx-PORT)in chapter3.
Port Name
Width
Direction(M)
Direction(S)
Description
SPI_CLK
1
OUT
IN
SPI Clock
SPI_MOSI
1
OUT
IN
SPI Master Output Slave Input Data Signal
SPI_MISO
1
IN
OUT
SPI Master Input Slave Output Data Signal
SPI_CS
1
OUT
IN
SPI Chip Select Signal
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 548
7.2.5. SPI Register List
Module Name
Base Address
SPI0
0x01C68000
SPI1
0x01C69000
Register Name
Offset
Description
SPI_GCR
0x04
SPI Global Control Register
SPI_TCR
0x08
SPI Transfer Control register
/
0x0c
reserved
SPI_IER
0x10
SPI Interrupt Control register
SPI_ISR
0x14
SPI Interrupt Status register
SPI_FCR
0x18
SPI FIFO Control register
SPI_FSR
0x1C
SPI FIFO Status register
SPI_WCR
0x20
SPI Wait Clock Counter register
SPI_CCR
0x24
SPI Clock Rate Control register
/
0x28
reserved
/
0x2c
reserved
SPI_MBC
0x30
SPI Burst Counter register
SPI_MTC
0x34
SPI Transmit Counter Register
SPI_BCC
0x38
SPI Burst Control register
SPI_NDMA_MODE_CTL
0x88
SPI Normal DMA Mode Control Register
SPI_TXD
0x200
SPI TX Data register
SPI_RXD
0x300
SPI RX Data register
7.2.6. SPI Register Description
7.2.6.1. SPI Global Control Register(Default Value: 0x00000080)
Offset: 0x04
Register Name: SPI_CTL
Bit
R/W
Default/Hex
Description
31
R/W
0
SRST
Soft reset
Write ‘1’ to this bit will clear the SPI controller, and auto clear to ‘0’ when
reset operation completes
Write ‘0’ has no effect.
30:8
/
/
/
7
R/W
1
TP_EN
Transmit Pause Enable
In master mode, it is used to control transmit state machine to stop smart
burst sending when RX FIFO is full.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 549
1 – stop transmit data when RXFIFO full
0 – normal operation, ignore RXFIFO status
Note: Can’t be written when XCH=1
6:2
/
/
/
1
R/W
0
MODE
SPI Function Mode Select
0: Slave Mode
1: Master Mode
Note: Can’t be written when XCH=1
0
R/W
0
EN
SPI Module Enable Control
0: Disable
1: Enable
7.2.6.2. SPI Transfer Control Register(Default Value: 0x00000087)
Offset: 0x08
Register Name: SPI_INTCTL
Bit
R/W
Default/Hex
Description
31
R/W
0x0
XCH
Exchange Burst
In master mode it is used to start SPI burst
0: Idle
1: Initiates exchange.
Write “1” to this bit will start the SPI burst, and will auto clear after
finishing the bursts transfer specified by BC. Write “1” to SRST will also
clear this bit. Write ‘0’ to this bit has no effect.
Note：Can’t be written when XCH=1.
30:15
/
/
/
14
R/W
0x0
SDDM
Sending Data Delay Mode
0:normal sending
1:delay sending
Set the bit to"1" to make the data that should be sent with a delay of half
cycle of SPI_CLK in dual io mode for SPI mode 0.
13
R/W
0x0
SDM
Master Sample Data Mode
0 - Delay Sample Mode
1 - Normal Sample Mode
In Normal Sample Mode, SPI master samples the data at the correct edge
for each SPI mode;
In Delay Sample Mode, SPI master samples data at the edge that is half
cycle delayed by the correct edge defined in respective SPI mode.
12
R/W
0x0
FBS
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 550
First Transmit Bit Select
0: MSB first
1: LSB first
Note：Can’t be written when XCH=1.
11
R/W
0x0
SDC
Master Sample Data Control
Set this bit to ‘1’ to make the internal read sample point with a delay of
half cycle of SPI_CLK. It is used in high speed read operation to reduce the
error caused by the time delay of SPI_CLK propagating between master
and slave.
0 – normal operation, do not delay internal read sample point
1 – delay internal read sample point
Note：Can’t be written when XCH=1.
10
R/W
0x0
RPSM
Rapids mode select
Select Rapids mode for high speed write.
0: normal write mode
1: rapids write mode
Note：Can’t be written when XCH=1.
9
R/W
0x0
DDB
Dummy Burst Type
0: The bit value of dummy SPI burst is zero
1: The bit value of dummy SPI burst is one
Note：Can’t be written when XCH=1.
8
R/W
0x0
DHB
Discard Hash Burst
In master mode it controls whether discarding unused SPI bursts
0: Receiving all SPI bursts in BC period
1: Discard unused SPI bursts, only fetching the SPI bursts during dummy
burst period. The bursts number is specified by TC.
Note：Can’t be written when XCH=1.
7
R/W
0x1
SS_LEVEL
When control SS signal manually (SPI_CTRL_REG.SS_CTRL==1), set this bit
to ‘1’ or ‘0’ to control the level of SS signal.
0: set SS to low
1: set SS to high
Note：Can’t be written when XCH=1.
6
R/W
0x0
SS_OWNER
SS Output Owner Select
Usually, controller sends SS signal automatically with data together. When
this bit is set to 1, software must manually write SPI_CTL_REG.SS_LEVEL
to 1 or 0 to control the level of SS signal.
0: SPI controller
1: Software
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 551
Note：Can’t be written when XCH=1.
5:4
R/W
0x0
SS_SEL
SPI Chip Select
Select one of four external SPI Master/Slave Devices
00: SPI_SS0 will be asserted
01: SPI_SS1 will be asserted
10: SPI_SS2 will be asserted
11: SPI_SS3 will be asserted
Note：Can’t be written when XCH=1.
3
R/W
0x0
SSCTL
In master mode, this bit selects the output wave form for the SPI_SSx
signal. Only valid when SS_OWNER = 0.
0: SPI_SSx remains asserted between SPI bursts
1: Negate SPI_SSx between SPI bursts
Note：Can’t be written when XCH=1.
2
R/W
0x1
SPOL
SPI Chip Select Signal Polarity Control
0: Active high polarity (0 = Idle)
1: Active low polarity (1 = Idle)
Note：Can’t be written when XCH=1.
1
R/W
0x1
CPOL
SPI Clock Polarity Control
0: Active high polarity (0 = Idle)
1: Active low polarity (1 = Idle)
Note：Can’t be written when XCH=1.
0
R/W
0x1
CPHA
SPI Clock/Data Phase Control
0: Phase 0 (Leading edge for sample data)
1: Phase 1 (Leading edge for setup data)
Note：Can’t be written when XCH=1.
7.2.6.3. SPI Interrupt Control Register(Default Value: 0x00000000)
Offset: 0x10
Register Name: SPI_IER
Bit
R/W
Default/Hex
Description
31:14
R
0x0
Reserved.
13
R/W
0x0
SS_INT_EN
SSI Interrupt Enable
Chip Select Signal (SSx) from valid state to invalid state
0: Disable
1: Enable
12
R/W
0x0
TC_INT_EN
Transfer Completed Interrupt Enable
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 552
0: Disable
1: Enable
11
R/W
0x0
TF_UDR_INT_EN
TXFIFO under run Interrupt Enable
0: Disable
1: Enable
10
R/W
0x0
TF_OVF_INT_EN
TX FIFO Overflow Interrupt Enable
0: Disable
1: Enable
9
R/W
0x0
RF_UDR_INT_EN
RXFIFO under run Interrupt Enable
0: Disable
1: Enable
8
R/W
0x0
RF_OVF_INT_EN
RX FIFO Overflow Interrupt Enable
0: Disable
1: Enable
7
R
0x0
Reserved.
6
R/W
0x0
TF_FUL_INT_EN
TX FIFO Full Interrupt Enable
0: Disable
1: Enable
5
R/W
0x0
TX_EMP_INT_EN
TX FIFO Empty Interrupt Enable
0: Disable
1: Enable
4
R/W
0x0
TX_ERQ_INT_EN
TX FIFO Empty Request Interrupt Enable
0: Disable
1: Enable
3
R
0x0
Reserved
2
R/W
0x0
RF_FUL_INT_EN
RX FIFO Full Interrupt Enable
0: Disable
1: Enable
1
R/W
0x0
RX_EMP_INT_EN
RX FIFO Empty Interrupt Enable
0: Disable
1: Enable
0
R/W
0x0
RF_RDY_INT_EN
RX FIFO Ready Request Interrupt Enable
0: Disable
1: Enable
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 553
7.2.6.4. SPI Interrupt Status Register(Default Value: 0x00000022)
Offset: 0x14
Register Name: SPI_INT_STA
Bit
R/W
Default/Hex
Description
31:14
/
0x0
/
13
R/W
0
SSI
SS Invalid Interrupt
When SSI is 1, it indicates that SS has changed from valid state to invalid
state. Writing 1 to this bit clears it.
12
R/W
0
TC
Transfer Completed
In master mode, it indicates that all bursts specified by BC has been
exchanged. In other condition, When set, this bit indicates that all the
data in TXFIFO has been loaded in the Shift register, and the Shift register
has shifted out all the bits. Writing 1 to this bit clears it.
0: Busy
1: Transfer Completed
11
R/W
0
TF_UDF
TXFIFO Underrun
This bit is set when if the TXFIFO is underrun. Writing 1 to this bit clears
it.
0: TXFIFO is not underrun
1: TXFIFO is underrun
10
R/W
0
TF_OVF
TXFIFO Overflow
This bit is set when if the TXFIFO is overflow. Writing 1 to this bit clears it.
0: TXFIFO is not overflow
1: TXFIFO is overflowed
9
R/W
0
RX_UDF
RXFIFO Underrun
When set, this bit indicates that RXFIFO has underrun. Writing 1 to this
bit clears it.
8
R/W
0
RX_OVF
RXFIFO Overflow
When set, this bit indicates that RXFIFO has overflowed. Writing 1 to this
bit clears it.
0: RXFIFO is available.
1: RXFIFO has overflowed.
7
/
/
/
6
R/W
0
TX_FULL
TXFIFO Full
This bit is set when if the TXFIFO is full . Writing 1 to this bit clears it.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 554
0: TXFIFO is not Full
1: TXFIFO is Full
5
R/W
1
TX_EMP
TXFIFO Empty
This bit is set if the TXFIFO is empty. Writing 1 to this bit clears it.
0: TXFIFO contains one or more words.
1: TXFIFO is empty
4
R/W
0
TX_READY
TXFIFO Ready
0: TX_WL > TX_TRIG_LEVEL
1: TX_WL <= TX_TRIG_LEVEL
This bit is set any time if TX_WL <= TX_TRIG_LEVEL. Writing “1” to this bit
clears it. Where TX_WL is the water level of RXFIFO
3
/
/
reserved
2
R/W
0
RX_FULL
RXFIFO Full
This bit is set when the RXFIFO is full . Writing 1 to this bit clears it.
0: Not Full
1: Full
1
R/W
1
RX_EMP
RXFIFO Empty
This bit is set when the RXFIFO is empty . Writing 1 to this bit clears it.
0: Not empty
1: empty
0
R/W
0
RX_RDY
RXFIFO Ready
0: RX_WL < RX_TRIG_LEVEL
1: RX_WL >= RX_TRIG_LEVEL
This bit is set any time if RX_WL >= RX_TRIG_LEVEL. Writing “1” to this bit
clears it. Where RX_WL is the water level of RXFIFO.
7.2.6.5. SPI FIFO Control Register(Default Value: 0x00400001)
Offset: 0x18
Register Name: SPI_ FCR
Bit
R/W
Default/Hex
Description
31
R/W
0
TX_FIFO_RST
TX FIFO Reset
Write ‘1’ to this bit will reset the control portion of the TX FIFO and auto
clear to ‘0’ when completing reset operation, write to ‘0’ has no effect.
30
R/W
0
TF_TEST_ENB
TX Test Mode Enable
0: disable
1: enable
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 555
Note: In normal mode, TX FIFO can only be read by SPI controller, write
‘1’ to this bit will switch TX FIFO read and write function to AHB bus. This
bit is used to test the TX FIFO, don’t set in normal operation and don’t set
RF_TEST and TF_TEST at the same time.
29:26
/
/
/
25
/
/
/
24
R/W
0x0
TF_ DRQ_EN
TX FIFO DMA Request Enable
0: Disable
1: Enable
23:16
R/W
0x40
TX_TRIG_LEVEL
TX FIFO Empty Request Trigger Level
15
R/W
0x0
RF_RST
RXFIFO Reset
Write ‘1’ to this bit will reset the control portion of the receiver FIFO, and
auto clear to ‘0’ when completing reset operation, write ‘0’ to this bit has
no effect.
14
R/W
0x0
RF_TEST
RX Test Mode Enable
0: Disable
1: Enable
Note: In normal mode, RX FIFO can only be written by SPI controller,
write ‘1’ to this bit will switch RX FIFO read and write function to AHB
bus. This bit is used to test the RX FIFO, don’t set in normal operation and
don’t set RF_TEST and TF_TEST at the same time.
13:10
R
0x0
Reserved
9
R/W
0x0
RX_DMA_MODE
SPI RX DMA Mode Control
0: Normal DMA mode
1: Dedicate DMA mode
8
R/W
0x0
RF_ DRQ_EN
RX FIFO DMA Request Enable
0: Disable
1: Enable
7:0
R/W
0x1
RX_TRIG_LEVEL
RX FIFO Ready Request Trigger Level
7.2.6.6. SPI FIFO Status Register(Default Value: 0x00000000)
Offset: 0x1C
Register Name: SPI_FSR
Bit
R/W
Default/Hex
Description
31
R
0x0
TB_WR
TX FIFO Write Buffer Write Enable
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 556
30:28
R
0x0
TB_CNT
TX FIFO Write Buffer Counter
These bits indicate the number of words in TX FIFO Write Buffer
27:24
R
0x0
Reserved
23:16
R
0x0
TF_CNT
TX FIFO Counter
These bits indicate the number of words in TX FIFO
0: 0 byte in TX FIFO
1: 1 byte in TX FIFO
…
64: 64 bytes in TX FIFO
15
R
0x0
RB_WR
RX FIFO Read Buffer Write Enable
14:12
R
0x0
RB_CNT
RX FIFO Read Buffer Counter
These bits indicate the number of words in RX FIFO Read Buffer
11:8
R
0x0
Reserved
7:0
R
0x0
RF_CNT
RX FIFO Counter
These bits indicate the number of words in RX FIFO
0: 0 byte in RX FIFO
1: 1 byte in RX FIFO
…
64:64 bytes in RX FIFO
7.2.6.7. SPI Wait Clock Register(Default Value: 0x00000000)
Offset: 0x20
Register Name: SPI_WAIT
Bit
R/W
Default/Hex
Description
31:20
/
/
/
19:16
R/W
0x0
SWC
Dual mode direction switch wait clock counter (for master mode only).
0: No wait states inserted
n: n SPI_SCLK wait states inserted
Note: These bits control the number of wait states to be inserted before
start dual data transfer in dual SPI mode. The SPI module counts SPI_SCLK
by SWC for delaying next word data transfer.
Note：Can’t be written when XCH=1.
15:0
R/W
0
WCC
Wait Clock Counter (In Master mode)
These bits control the number of wait states to be inserted in data
transfers. The SPI module counts SPI_SCLK by WCC for delaying next word
data transfer.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 557
0: No wait states inserted
N: N SPI_SCLK wait states inserted
7.2.6.8. SPI Clock Control Register(Default Value: 0x00000002)
Offset: 0x24
Register Name: SPI_CCTL
Bit
R/W
Default/Hex
Description
31:13
/
/
/
12
R/W
0
DRS
Divide Rate Select (Master Mode Only)
0: Select Clock Divide Rate 1
1: Select Clock Divide Rate 2
11:8
R/W
0
CDR1
Clock Divide Rate 1 (Master Mode Only)
The SPI_SCLK is determined according to the following equation: SPI_CLK
= Source_CLK / 2^n.
7:0
R/W
0x2
CDR2
Clock Divide Rate 2 (Master Mode Only)
The SPI_SCLK is determined according to the following equation: SPI_CLK
= Source_CLK / (2*(n + 1)).
7.2.6.9. SPI Master Burst Counter Register(Default Value: 0x00000000)
Offset: 0x30
Register Name: SPI_BC
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0
MBC
Master Burst Counter
In master mode, this field specifies the total burst number.
0: 0 burst
1: 1 burst
…
N: N bursts
7.2.6.10. SPI Master Transmit Counter Register(Default Value: 0x00000000)
Offset: 0x34
Register Name: SPI_TC
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0
MWTC
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 558
Master Write Transmit Counter
In master mode, this field specifies the burst number that should be sent
to TXFIFO before automatically sending dummy burst. For saving bus
bandwidth, the dummy burst (all zero bits or all one bits) is sent by SPI
Controller automatically.
0: 0 burst
1: 1 burst
…
N: N bursts
7.2.6.11. SPI Master Burst Control Counter Register(Default Value: 0x00000000)
Offset: 0x38
Register Name: SPI_BCC
Bit
R/W
Default/Hex
Description
31:29
R
0x0
Reserved
28
R/W
0x0
DRM
Master Dual Mode RX Enable
0: RX use single-bit mode
1: RX use dual mode
Note：Can’t be written when XCH=1.
27:24
R/W
0x0
DBC
Master Dummy Burst Counter
In master mode, this field specifies the burst number that should be sent
before receive in dual SPI mode. The data is don’t care by the device.
0: 0 burst
1: 1 burst
…
N: N bursts
Note：Can’t be written when XCH=1.
23:0
R/W
0x0
STC
Master Single Mode Transmit Counter
In master mode, this field specifies the burst number that should be sent
in single mode before automatically sending dummy burst. This is the first
transmit counter in all bursts.
0: 0 burst
1: 1 burst
…
N: N bursts
Note：Can’t be written when XCH=1.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 559
7.2.6.12. SPI Normal DMA Mode Control Register(Default Value: 0x000000A5)
Offset: 0x88
Register Name: SPI_NDMA_MODE_CTL
Bit
R/W
Default/Hex
Description
7:0
R/W
0xA5
NDMA_MODE_CTL
0xEA:NDMA handshake mode
Note:NDMA wait mode don't care this value.0xA5 can be used in
handshake mode, but 0xEA is better.
7.2.6.13. SPI TX Data Register(Default Value: 0x00000000)
Offset: 0x200
Register Name: SPI_TXD
Bit
R/W
Default/Hex
Description
31:0
W/R
0x0
TDATA
Transmit Data
This register can be accessed in byte, half-word or word unit by AHB. In
byte accessing method, if there are rooms in RXFIFO, one burst data is
written to RXFIFO and the depth is increased by 1. In half-word accessing
method, two SPI burst data are written and the TXFIFO depth is increase
by 2. In word accessing method, four SPI burst data are written and the
TXFIFO depth is increased by 4.
Note: This address is writing-only if TF_TEST is ‘0’, and if TF_TEST is set to
‘1’, this address is readable and writable to test the TX FIFO through the
AHB bus.
7.2.6.14. SPI RX Data Register(Default Value: 0x00000000)
Offset: 0x300
Register Name: SPI_RXD
Bit
R/W
Default/Hex
Description
31:0
R
0
RDATA
Receive Data
This register can be accessed in byte, half-word or word unit by AHB. In
byte accessing method, if there are data in RXFIFO, the top word is
returned and the RXFIFO depth is decreased by 1. In half-word accessing
method, two SPI bursts are returned and the RXFIFO depth is decrease by
2. In word accessing method, the four SPI bursts are returned and the
RXFIFO depth is decreased by 4.
Note: This address is read-only if RF_TEST is ‘0’, and if RF_TEST is set to
‘1’, this address is readable and writable to test the RX FIFO through the
AHB bus.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 560
7.3. UART
7.3.1. Overview
The UART is used for serial communication with a peripheral, modem (data carrier equipment, DCE) or data set.
Data is written from a master (CPU) over the APB bus to the UART and it is converted to serial form and
transmitted to the destination device. Serial data is also received by the UART and stored for the master (CPU) to
read back.
The UART contains registers to control the character length, baud rate, parity generation/checking, and interrupt
generation. Although there is only one interrupt output signal from the UART, there are several prioritized
interrupt types that can be responsible for its assertion. Each of the interrupt types can be separately
enabled/disabled with the control registers.
The UART has 16450 and 16550 modes of operation, which are compatible with a range of standard software
drivers. In 16550 mode, transmit and receive operations are both buffered by FIFOs. In 16450 mode, these FIFOs
are disabled.
The UART supports data lengths from five to eight bits, an optional parity bit and 1, 1 ½ or 2 stop bits, and is fully
programmable by an AMBA APB CPU interface. A 16-bit programmable baud rate generator and an 8-bit scratch
register are included, together with separate transmit and receive FIFOs. Eight modem control lines and a
diagnostic loop-back mode are provided.
Interrupts can be generated for a range of TX Buffer/FIFO, RX Buffer/FIFO, Modem Status and Line Status
conditions.
For integration in system where Infrared SIR serial data format is required,the UART can be configured to have a
software-programmable IrDA SIR Mode.If this mode is not selected,only the UART(RS232 standard) serial data
format is available.
The UART includes the following features:
Compatible with industry-standard 16550 UARTs
64-Bytes Transmit and receive data FIFOs
DMA controller interface
Software/ Hardware Flow Control
Programmable Transmit Holding Register Empty interrupt
Interrupt support for FIFOs, Status Change
Support IrDA 1.0 SIR
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 561
7.3.2. UART Timing Diagram
Serial Data
S
Data bits 5-8
P
S 1,1.5,2
One Character
Bit TimeBit Time
One Character
TX/RX
Figure 7-5. UART Serial Data Format
S
Stop
3/16 Bit Time3/16 Bit Time
3/16 Bit Time3/16 Bit Time3/16 Bit Time3/16 Bit Time
Data Bits
Bit Time
Data Bits
Bit Time
SIN/SOUT
SIR_OUT
SIR_IN
Figure 7-6. Serial IrDA Data Format
7.3.3. UART Pin List
Port Name
Width
Direction
Description
UART0_TX
1
OUT
UART Serial Bit output
UART0_RX
1
IN
UART Serial Bit input
UART1_TX
1
OUT
UART Serial Bit output
UART1_RX
1
IN
UART Serial Bit input
UART1_RTS
1
OUT
UART Request To Send
This active low output signal informs Modem that the UART is ready to
send data
UART1_CTS
1
IN
UART Clear To End
This active low signal is an input showing when Modem is ready to
accept data
UART2_TX
1
OUT
UART Serial Bit output
UART2_RX
1
IN
UART Serial Bit input
UART2_RTS
1
OUT
UART Request To Send
This active low output signal informs Modem that the UART is ready to
send data
UART2_CTS
1
IN
UART Clear To End
This active low signal is an input showing when Modem is ready to
accept data
UART3_TX
1
OUT
UART Serial Bit output
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 562
UART3_RX
1
IN
UART Serial Bit input
UART3_RTS
1
OUT
UART Request To Send
This active low output signal informs Modem that the UART is ready to
send data
UART3_CTS
1
IN
UART Clear To End
This active low signal is an input showing when Modem is ready to
accept data
UART4_TX
1
OUT
UART Serial Bit output
UART4_RX
1
IN
UART Serial Bit input
UART4_RTS
1
OUT
UART Request To Send
This active low output signal informs Modem that the UART is ready to
send data
UART4_CTS
1
IN
UART Clear To End
This active low signal is an input showing when Modem is ready to
accept data
S_UART_TX
1
OUT
UART Serial Bit output
S_UART_RX
1
IN
UART Serial Bit input
7.3.4. UART Controller Register List
There are 6 UART controllers. All UART controllers can be configured as Serial IrDA.
Module Name
Base Address
UART0
0x01C28000
UART1
0x01C28400
UART2
0x01C28800
UART3
0x01C28C00
UART4
0x01C29000
R-UART
0x01F02800
Register Name
Offset
Description
UART_RBR
0x00
UART Receive Buffer Register
UART_THR
0x00
UART Transmit Holding Register
UART_DLL
0x00
UART Divisor Latch Low Register
UART_DLH
0x04
UART Divisor Latch High Register
UART_IER
0x04
UART Interrupt Enable Register
UART_IIR
0x08
UART Interrupt Identity Register
UART_FCR
0x08
UART FIFO Control Register
UART_LCR
0x0C
UART Line Control Register
UART_MCR
0x10
UART Modem Control Register
UART_LSR
0x14
UART Line Status Register
UART_MSR
0x18
UART Modem Status Register
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 563
UART_SCH
0x1C
UART Scratch Register
UART_USR
0x7C
UART Status Register
UART_TFL
0x80
UART Transmit FIFO Level
UART_RFL
0x84
UART_RFL
UART_HALT
0xA4
UART Halt TX Register
7.3.5. UART Register Description
7.3.5.1. UART Receiver Buffer Register(Default Value: 0x00000000)
Offset: 0x0000
Register Name: UART_RBR
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R
0
RBR
Receiver Buffer Register
Data byte received on the serial input port . The data in this register is
valid only if the Data Ready (DR) bit in the UART Line Status Register
(UART_LCR) is set.
If in FIFO mode and FIFOs are enabled (UART_FCR[0] set to one), this
register accesses the head of the receive FIFO. If the receive FIFO is full
and this register is not read before the next data character arrives, then
the data already in the FIFO is preserved, but any incoming data are lost
and an overrun error occurs.
7.3.5.2. UART Transmit Holding Register(Default Value: 0x00000000)
Offset: 0x0000
Register Name: UART_THR
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
W
0
THR
Transmit Holding Register
Data to be transmitted on the serial output port . Data should only be
written to the THR when the THR Empty (THRE) bit (UART_LSR[5]) is set.
If in FIFO mode and FIFOs are enabled (UART_FCR[0] = 1) and THRE is set,
16 number of characters of data may be written to the THR before the
FIFO is full. Any attempt to write data when the FIFO is full results in the
write data being lost.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 564
7.3.5.3. UART Divisor Latch Low Register(Default Value: 0x00000000)
Offset: 0x0000
Register Name: UART_DLL
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0
DLL
Divisor Latch Low
Lower 8 bits of a 16-bit, read/write, Divisor Latch register that contains
the baud rate divisor for the UART. This register may only be accessed
when the DLAB bit (UART_LCR[7]) is set and the UART is not busy
(UART_USR[0] is zero).
The output baud rate is equal to the serial clock (sclk) frequency divided
by sixteen times the value of the baud rate divisor, as follows: baud rate =
(serial clock freq) / (16 * divisor).
Note that with the Divisor Latch Registers (DLL and DLH) set to zero, the
baud clock is disabled and no serial communications occur. Also, once the
DLL is set, at least 8 clock cycles of the slowest UART clock should be
allowed to pass before transmitting or receiving data.
7.3.5.4. UART Divisor Latch High Register(Default Value: 0x00000000)
Offset: 0x0004
Register Name: UART_DLH
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0
DLH
Divisor Latch High
Upper 8 bits of a 16-bit, read/write, Divisor Latch register that contains
the baud rate divisor for the UART. This register may only be accessed
when the DLAB bit (UART_LCR[7]) is set and the UART is not busy
(UART_USR [0] is zero).
The output baud rate is equal to the serial clock (sclk) frequency divided
by sixteen times the value of the baud rate divisor, as follows: baud rate =
(serial clock freq) / (16 * divisor).
Note that with the Divisor Latch Registers (DLL and DLH) set to zero, the
baud clock is disabled and no serial communications occur. Also, once the
DLH is set, at least 8 clock cycles of the slowest UART clock should be
allowed to pass before transmitting or receiving data.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 565
7.3.5.5. UART Interrupt Enable Register(Default Value: 0x00000000)
Offset: 0x0004
Register Name: UART_IER
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7
R/W
PTIME
Programmable THRE Interrupt Mode Enable
This is used to enable/disable the generation of THRE Interrupt.
0: Disable
1: Enable
6:4
/
/
/
3
R/W
0
EDSSI
Enable Modem Status Interrupt
This is used to enable/disable the generation of Modem Status Interrupt.
This is the fourth highest priority interrupt.
0: Disable
1: Enable
2
R/W
0
ELSI
Enable Receiver Line Status Interrupt
This is used to enable/disable the generation of Receiver Line Status
Interrupt. This is the highest priority interrupt.
0: Disable
1: Enable
1
R/W
0
ETBEI
Enable Transmit Holding Register Empty Interrupt
This is used to enable/disable the generation of Transmitter Holding
Register Empty Interrupt. This is the third highest priority interrupt.
0: Disable
1: Enable
0
R/W
0
ERBFI
Enable Received Data Available Interrupt
This is used to enable/disable the generation of Received Data Available
Interrupt and the Character Timeout Interrupt (if in FIFO mode and FIFOs
enabled). These are the second highest priority interrupts.
0: Disable
1: Enable
7.3.5.6. UART Interrupt Identity Register(Default Value: 0x00000000)
Offset: 0x0008
Register Name: UART_IIR
Bit
R/W
Default/Hex
Description
31:8
/
/
/
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 566
7:6
R
0
FEFLAG
FIFOs Enable Flag
This is used to indicate whether the FIFOs are enabled or disabled.
00: Disable
11: Enable
5:4
/
/
/
3:0
R
0x1
IID
Interrupt ID
This indicates the highest priority pending interrupt which can be one of
the following types:
0000: modem status
0001: no interrupt pending
0010: THR empty
0100: received data available
0110: receiver line status
0111: busy detect
1100: character timeout
Bit 3 indicates an interrupt can only occur when the FIFOs are enabled
and used to distinguish a Character Timeout condition interrupt.
Interrupt
ID
Priority
Level
Interrupt Type
Interrupt Source
Interrupt Reset
0001
-
None
None
-
0110
Highest
Receiver line
status
Overrun/parity/framing
errors or break interrupt
Reading UART Line Status Register
0100
Second
Received data
available
Receiver data available
(non-FIFO mode or FIFOs
disabled) or RCVR FIFO
trigger level reached (FIFO
mode and FIFOs enabled)
Reading UART Receiver Buffer Register
(non-FIFO mode or FIFOs disabled) or
the FIFO drops below the trigger level
(FIFO mode and FIFOs enabled)
1100
Second
Character
timeout
indication
No characters in or out of
the RCVR FIFO during the last
4 character times and there
is at least 1character in it
during
This time
Reading UART Receiver Buffer Register
0010
Third
Transmit
holding
register empty
Transmitter holding register
empty (Program THRE Mode
disabled) or XMIT FIFO at or
below threshold (Program
THRE Mode enabled)
Reading UART Interrupt Identity
Register (if source of interrupt); or,
writing into THR (FIFOs or THRE Mode
not selected or disabled) or XMIT FIFO
above threshold (FIFOs and THRE Mode
selected and enabled).
0000
Fourth
Modem status
Clear to send or data set
Reading the Modem status Register
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 567
ready or ring indicator or
data carrier detect. Note that
if auto flow control mode is
enabled, a change in CTS
(that is, DCTS set) does not
cause an interrupt.
0111
Fifth
Busy detect
indication
UART_16550_COMPATIBLE =
NO and master has tried to
write to the Line Control
Register while the UART is
busy (UART_USR[0] is set to
one).
Reading the UART status register
7.3.5.7. UART FIFO Control Register(Default Value: 0x00000000)
Offset: 0x0008
Register Name: UART_FCR
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:6
W
0
RT
RCVR Trigger
This is used to select the trigger level in the receiver FIFO at which the
Received Data Available Interrupt is generated. In auto flow control mode
it is used to determine when the rts_n signal is de-asserted. It also
determines when the dma_rx_req_n signal is asserted in certain modes
of operation.
00: 1 character in the FIFO
01: FIFO ¼ full
10: FIFO ½ full
11: FIFO-2 less than full
5:4
W
0
TFT
TX Empty Trigger
Writes have no effect when THRE_MODE_USER = Disabled. This is used to
select the empty threshold level at which the THRE Interrupts are
generated when the mode is active. It also determines when the
dma_tx_req_n signal is asserted when in certain modes of operation.
00: FIFO empty
01: 2 characters in the FIFO
10: FIFO ¼ full
11: FIFO ½ full
3
W
0
DMAM
DMA Mode
0: Mode 0
1: Mode 1
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 568
2
W
0
XFIFOR
XMIT FIFO Reset
This resets the control portion of the transmit FIFO and treats the FIFO as
empty. This also de-asserts the DMA TX request.
It is 'self-clearing'. It is not necessary to clear this bit.
1
W
0
RFIFOR
RCVR FIFO Reset
This resets the control portion of the receive FIFO and treats the FIFO as
empty. This also de-asserts the DMA RX request.
It is 'self-clearing'. It is not necessary to clear this bit.
0
W
0
FIFOE
Enable FIFOs
This enables/disables the transmit (XMIT) and receive (RCVR) FIFOs.
Whenever the value of this bit is changed both the XMIT and RCVR
controller portion of FIFOs is reset.
7.3.5.8. UART Line Control Register(Default Value: 0x00000000)
Offset: 0x000C
Register Name: UART_LCR
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7
R/W
0
DLAB
Divisor Latch Access Bit
It is writeable only when UART is not busy (UART_USR[0] is zero) and
always readable. This bit is used to enable reading and writing of the
Divisor Latch register (UART_DLL and UART_DLH) to set the baud rate of
the UART. This bit must be cleared after initial baud rate setup in order to
access other registers.
0: Select UART Receiver Buffer Register(UART_RBR) / UART Transmit
Holding Register (UART_THR) and UART Interrupt Enable
Register(UART_IER)
1: Select UART Divisor Latch Low Register(UART_DLL) and UART Divisor
Latch High Register (UART_DLH)
6
R/W
0
BC
Break Control Bit
This is used to cause a break condition to be transmitted to the receiving
device. If set to one the serial output is forced to the spacing (logic 0)
state. When not in Loop Back Mode, as determined by UART_MCR[4],
the sout line is forced low until the Break bit is cleared. If SIR_MODE =
Enabled and active (UART_MCR[6] set to one) the sir_out_n line is
continuously pulsed. When in Loop Back Mode, the break condition is
internally looped back to the receiver and the sir_out_n line is forced low.
5:4
R/W
0
EPS
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 569
Even Parity Select
It is writeable only when UART is not busy (UART_USR[0] is zero) and
always writable readable. This is used to select between even and odd
parity, when parity is enabled (PEN set to one). Setting the UART_LCR[5]
is to reverse the UART_LCR[4].
00: Odd Parity
01: Even Parity
1X: Reverse LCR[4]
3
R/W
0
PEN
Parity Enable
It is writeable only when UART is not busy (UART_USR[0] is zero) and
always readable. This bit is used to enable and disable parity generation
and detection in transmitted and received serial character respectively.
0: parity disabled
1: parity enabled
2
R/W
0
STOP
Number of stop bits
It is writeable only when UART is not busy (UART_USR[0] is zero) and
always readable. This is used to select the number of stop bits per
character that the peripheral transmits and receives. If set to zero, one
stop bit is transmitted in the serial data. If set to one and the data bits are
set to 5 (UART_LCR[1:0] set to zero) one and a half stop bits is
transmitted. Otherwise, two stop bits are transmitted. Note that
regardless of the number of stop bits selected, the receiver checks only
the first stop bit.
0: 1 stop bit
1: 1.5 stop bits when DLS (UART_LCR[1:0]) is zero, else 2 stop bit
1:0
R/W
0
DLS
Data Length Select
It is writeable only when UART is not busy (UART_USR[0] is zero) and
always readable. This is used to select the number of data bits per
character that the peripheral transmits and receives. The number of bit
that may be selected areas follows:
00: 5 bits
01: 6 bits
10: 7 bits
11: 8 bits
7.3.5.9. UART Modem Control Register(Default Value: 0x00000000)
Offset: 0x0010
Register Name: UART_MCR
Bit
R/W
Default/Hex
Description
31:7
/
/
/
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 570
6
R/W
0
SIRE
SIR Mode Enable
0:IrDA SIR Mode disable
1:IrDA SIR Mode enable
5
R/W
0
AFCE
Auto Flow Control Enable
When FIFOs are enabled and the Auto Flow Control Enable (AFCE) bit is
set, Auto Flow Control features are enabled.
0: Auto Flow Control Mode disabled
1: Auto Flow Control Mode enabled
4
R/W
0
LOOP
Loop Back Mode
0: Normal Mode
1: Loop Back Mode
This is used to put the UART into a diagnostic mode for test purposes. If
operating in UART mode (SIR_MODE != Enabled or not active,
UART_MCR[6] set to zero), data on the sout line is held high, while serial
data output is looped back to the sin line, internally. In this mode all the
interrupts are fully functional. Also, in Loop Back Mode, the modem
control inputs (dsr_n, cts_n, ri_n, dcd_n) are disconnected and the
modem control outputs (dtr_n, rts_n, out1_n, out2_n) are looped back to
the inputs, internally. If operating in infrared mode (SIR_MODE ==
Enabled AND active, UART_MCR[6] set to one), data on the sir_out_n line
is held low, while serial data output is inverted and looped back to the
sir_in line.
3:2
/
/
/
1
R/W
0
RTS
Request to Send
This is used to directly control the Request to Send (rts_n) output. The
Request To Send (rts_n) output is used to inform the modem or data set
that the UART is ready to exchange data. When Auto RTS Flow Control is
not enabled (UART_MCR[5] set to zero), the rts_n signal is set low by
programming UART_MCR[1] (RTS) to a high.In Auto Flow Control,
AFCE_MODE == Enabled and active (UART_MCR[5] set to one) and FIFOs
enable (FCR[0] set to one), the rts_n output is controlled in the same way,
but is also gated with the receiver FIFO threshold trigger (rts_n is inactive
high when above the threshold). The rts_n signal is de-asserted when
UART_MCR[1] is set low.
0: rts_n de-asserted (logic 1)
1: rts_n asserted (logic 0)
Note that in Loop Back Mode (UART_MCR[4] set to one), the rts_n
output is held inactive high while the value of this location is internally
looped back to an input.
0
R/W
0
DTR
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 571
Data Terminal Ready
This is used to directly control the Data Terminal Ready (dtr_n) output.
The value written to this location is inverted and driven out on dtr_n.
0：dtr_n de-asserted (logic 1)
1：dtr_n asserted (logic 0)
The Data Terminal Ready output is used to inform the modem or data set
that the UART is ready to establish communications.
Note that in Loop Back Mode(UART_MCR[4] set to one), the dtr_n
output is held inactive high while the value of this location is internally
looped back to an input.
7.3.5.10. UART Line Status Register(Default Value: 0x00000060)
Offset: 0x0014
Register Name: UART_LSR
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7
R
0
FIFOERR
RX Data Error in FIFO
When FIFOs are disabled, this bit is always 0. When FIFOs are enabled,
this bit is set to 1 when there is at least one PE, FE, or BI in the RX FIFO. It
is cleared by a read from the LSR register provided there are no
subsequent errors in the FIFO.
6
R
1
TEMT
Transmitter Empty
If the FIFOs are disabled, this bit is set to "1" whenever the TX Holding
Register and the TX Shift Register are empty. If the FIFOs are enabled, this
bit is set whenever the TX FIFO and the TX Shift Register are empty. In
both cases, this bit is cleared when a byte is written to the TX data
channel.
5
R
1
THRE
TX Holding Register Empty
If the FIFOs are disabled, this bit is set to "1" whenever the TX Holding
Register is empty and ready to accept new data and it is cleared when the
CPU writes to the TX Holding Register.
If the FIFOs are enabled, this bit is set to "1" whenever the TX FIFO is
empty and it is cleared when at least one byte is written
to the TX FIFO.
4
R
0
BI
Break Interrupt
This is used to indicate the detection of a break sequence on the serial
input data.
If in UART mode(SIR_MODE=Disable),it is set whenever the serial input,
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 572
sin, is held in a logic '0' state for longer than the sum of start time + data
bits + parity + stop bits.
If in infrared mode(SIR_MODE=Enable),it is set whenever the serial input,
sir_in,is continuously pulsed to logic ‘0’ for longer than the sum of start
time + data bits + parity + stop bits.Abreak condition on serial input
causes one and only one character,consisting of all zeros,to be received
by the UART.
In the FIFO mode, the character associated with the break condition is
carried through the FIFO and is revealed when the character is at the top
of the FIFO. Reading the LSR clears the BI bit. In the non-FIFO mode, the
BI indication occurs immediately and persists until the LSR is read.
3
R
0
FE
Framing Error
This is used to indicate the occurrence of a framing error in the receiver.
A framing error occurs when the receiver does not detect a valid STOP bit
in the received data.
In the FIFO mode, since the framing error is associated with a character
received, it is revealed when the character with the framing error is at the
top of the FIFO. When a framing error occurs, the UART tries to
resynchronize. It does this by assuming that the error was due to the start
bit of the next character and then continues receiving the other bit i.e.
data, and/or parity and stop. It should be noted that the Framing Error
(FE) bit (UART_LSR[3]) is set if a break interrupt has
occurred, as indicated by Break Interrupt (BI) bit (UART_LSR[4]).
0: no framing error
1:framing error
Reading the LSR clears the FE bit.
2
R
0
PE
Parity Error
This is used to indicate the occurrence of a parity error in the receiver if
the Parity Enable (PEN) bit (UART_LCR[3]) is set. In the FIFO mode, since
the parity error is associated with a character received, it is revealed
when the character with the parity error arrives at the top of the FIFO. It
should be noted that the Parity Error (PE) bit (UART_LSR[2]) is set if a
break interrupt has occurred, as indicated by Break Interrupt(BI) bit
(UART_LSR[4]).
0: no parity error
1: parity error
Reading the LSR clears the PE bit.
1
R
0
OE
Overrun Error
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 573
This occurs if a new data character was received before the previous data
was read. In the non-FIFO mode, the OE bit is set when a new character
arrives in the receiver before the previous character was read from the
RBR. When this happens, the data in the RBR is overwritten. In the FIFO
mode, an overrun error occurs when the FIFO is full and a new character
arrives at the receiver. The data in the FIFO is retained and the data in the
receive shift register is lost.
0: no overrun error
1: overrun error
Reading the LSR clears the OE bit.
0
R
0
DR
Data Ready
This is used to indicate that the receiver contains at least one character in
the RBR or the receiver FIFO.
0: no data ready
1: data ready
This bit is cleared when the RBR is read in non-FIFO mode, or when the
receiver FIFO is empty, in FIFO mode.
7.3.5.11. UART Modem Status Register(Default Value: 0x00000000)
Offset: 0x0018
Register Name: UART_MSR
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7
R
0
DCD
Line State of Data Carrier Detect
This is used to indicate the current state of the modem control line
dcd_n. This bit is the complement of dcd_n. When the Data Carrier
Detect input (dcd_n) is asserted it is an indication that the carrier has
been detected by the modem or data set.
0: dcd_n input is de-asserted (logic 1)
1: dcd_n input is asserted (logic 0)
6
R
0
RI
Line State of Ring Indicator
This is used to indicate the current state of the modem control line ri_n.
This bit is the complement of ri_n. When the Ring Indicator input (ri_n) is
asserted it is an indication that a telephone ringing signal has been
received by the modem or data set.
0: ri_n input is de-asserted (logic 1)
1: ri_n input is asserted (logic 0)
5
R
0
DSR
Line State of Data Set Ready
This is used to indicate the current state of the modem control line dsr_n.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 574
This bit is the complement of dsr_n. When the Data Set Ready input
(dsr_n) is asserted it is an indication that the modem or data set is ready
to establish communications with UART.
0: dsr_n input is de-asserted (logic 1)
1: dsr_n input is asserted (logic 0)
In Loop Back Mode (UART_MCR[4] set to one), DSR is the same as
UART_MCR[0] (DTR).
4
R
0
CTS
Line State of Clear To Send
This is used to indicate the current state of the modem control line cts_n.
This bit is the complement of cts_n. When the Clear to Send input (cts_n)
is asserted it is an indication that the modem or data set is ready to
exchange data with UART.
0: cts_n input is de-asserted (logic 1)
1: cts_n input is asserted (logic 0)
In Loop Back Mode (UART_MCR[4] = 1), CTS is the same as UART_MCR
[1] (RTS).
3
R
0
DDCD
Delta Data Carrier Detect
This is used to indicate that the modem control line dcd_n has changed
since the last time the MSR was read.
0: no change on dcd_n since last read of MSR
1: change on dcd_n since last read of MSR
Reading the MSR clears the DDCD bit.
Note: Ff the DDCD bit is not set and the dcd_n signal is asserted (low) and
a reset occurs (software or otherwise), then the DDCD bit is set when the
reset is removed if the dcd_n signal remains asserted.
2
R
0
TERI
Trailing Edge Ring Indicator
This is used to indicate that a change on the input ri_n (from an
active-low to an inactive-high state) has occurred since the last time the
MSR was read.
0: no change on ri_n since last read of MSR
1: change on ri_n since last read of MSR
Reading the MSR clears the TERI bit.
1
R
0
DDSR
Delta Data Set Ready
This is used to indicate that the modem control line dsr_n has changed
since the last time the MSR was read.
0: no change on dsr_n since last read of MSR
1: change on dsr_n since last read of MSR
Reading the MSR clears the DDSR bit. In Loop Back Mode (UART_MCR[4]
= 1), DDSR reflects changes on UART_MCR[0] (DTR).
Note: If the DDSR bit is not set and the dsr_n signal is asserted (low) and
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 575
a reset occurs (software or otherwise), then the DDSR bit is set when the
reset is removed if the dsr_n signal remains asserted.
0
R
0
DCTS
Delta Clear to Send
This is used to indicate that the modem control line cts_n has changed
since the last time the MSR was read.
0: no change on ctsdsr_n since last read of MSR
1: change on ctsdsr_n since last read of MSR
Reading the MSR clears the DCTS bit. In Loop Back Mode (UART_MCR[4]
= 1), DCTS reflects changes on UART_MCR[1] (RTS).
Note: If the DCTS bit is not set and the cts_n signal is asserted (low) and a
reset occurs (software or otherwise), then the DCTS bit is set when the
reset isremoved if the cts_n signal remains asserted.
7.3.5.12. UART Scratch Register(Default Value: 0x00000000)
Offset: 0x001C
Register Name: UART_SCH
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0
SCRATCH_REG
Scratch Register
This register is for programmers to use as a temporary storage space. It
has no defined purpose in the UART.
7.3.5.13. UART Status Register(Default Value: 0x00000006)
Offset: 0x007C
Register Name: UART_USR
Bit
R/W
Default/Hex
Description
31:5
/
/
/
4
R
0
RFF
Receive FIFO Full
This is used to indicate that the receive FIFO is completely full.
0: Receive FIFO not full
1: Receive FIFO Full
This bit is cleared when the RX FIFO is no longer full.
3
R
0
RFNE
Receive FIFO Not Empty
This is used to indicate that the receive FIFO contains one or more
entries.
0: Receive FIFO is empty
1: Receive FIFO is not empty
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 576
This bit is cleared when the RX FIFO is empty.
2
R
1
TFE
Transmit FIFO Empty
This is used to indicate that the transmit FIFO is completely empty.
0: Transmit FIFO is not empty
1: Transmit FIFO is empty
This bit is cleared when the TX FIFO is no longer empty.
1
R
1
TFNF
Transmit FIFO Not Full
This is used to indicate that the transmit FIFO in not full.
0: Transmit FIFO is full
1: Transmit FIFO is not full
This bit is cleared when the TX FIFO is full.
0
R
0
BUSY
UART Busy Bit
0: Idle or inactive
1: Busy
7.3.5.14. UART Transmit FIFO Level Register(Default Value: 0x00000000)
Offset: 0x0080
Register Name: UART_TFL
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6:0
R
0
TFL
Transmit FIFO Level
This is indicates the number of data entries in the transmit FIFO.
7.3.5.15. UART Receive FIFO Level Register(Default Value: 0x00000000)
Offset: 0x0084
Register Name: UART_RFL
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6:0
R
0
RFL
Receive FIFO Level
This is indicates the number of data entries in the receive FIFO.
7.3.5.16. UART Halt TX Register(Default Value: 0x00000000)
Offset: 0x00A4
Register Name: UART_HALT
Bit
R/W
Default/Hex
Description
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 577
31:4
/
/
/
5
R/W
0
SIR_RX_INVERT
SIR Receiver Pulse Polarity Invert
0: Not invert receiver signal
1: Invert receiver signal
4
R/W
0
SIR_TX_INVERT
SIR Transmit Pulse Polarity Invert
0: Not invert transmit pulse
1: Invert transmit pulse
3
/
/
/
2
R/W
0
CHANGE_UPDATE
After the user using HALT[1] to change the baudrate or LCR configuration,
write 1 to update the configuration and waiting this bit self clear to 0 to
finish update process. Write 0 to this bit has no effect.
1: Update trigger, Self clear to 0 when finish update.
1
R/W
0
CHCFG_AT_BUSY
This is an enable bit for the user to change LCR register configuration
(except for the DLAB bit) and baudrate register (DLH and DLL) when the
UART is busy (UART_USR[0] is 1).
1: Enable change when busy
0
R/W
0
HALT_TX
Halt TX
This register is use to halt transmissions for testing, so that the transmit
FIFO can be filled by the master when FIFOs are implemented and
enabled.
0 : Halt TX disabled
1 : Halt TX enabled
Note: If FIFOs are not enabled, the setting of the halt TX register has no
effect on operation.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 578
7.4. CIR Receiver
7.4.1. Overview
The CIR includes the following features:
Full physical layer implementation
Support CIR for remote control
64x8 bits FIFO for data buffer
Programmable FIFO thresholds
For saving CPU resource, CIR receiver is implemented in hardware. The CIR receiver samples the input signal on
the programmable frequency and records these samples into RX FIFO when one CIR signal is found on the air.
The CIR receiver uses Run-Length Code (RLC) to encode pulse width. The encoded data is buffered in a 64
levels and 8-bit width RX FIFO; the MSB bit is used to record the polarity of the receiving CIR signal. The high
level is represented as ‘1’ and the low level is represented as ‘0’. The rest 7 bits are used for the length of RLC.
The maximum length is 128. If the duration of one level (high or low level) is more than 128, another byte is
used.
In the air, there is always some noise. One threshold can be set to filter the noise to reduce system loading and
improve the system stability.
7.4.2. CIR Receiver Register List
Module Name
Base Address
CIR
0x01F02000
Register Name
Offset
Description
CIR_CTL
0x00
CIR Control Register
CIR_RXCTL
0x10
CIR Receiver Configure Register
CIR_RXFIFO
0x20
CIR Receiver FIFO Register
CIR_RXINT
0x2C
CIR Receiver Interrupt Control Register
CIR_RXSTA
0x30
CIR Receiver Status Register
CIR_CONFIG
0x34
CIR Configure Register
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 579
7.4.3. CIR Receiver Register Description
7.4.3.1. CIR Receiver Control Register(Default Value: 0x00000000)
Offset: 0x0000
Register Name: CIR_CTL
Bit
R/W
Default/Hex
Description
31:9
/
/
/
8
R/W
0
CGPO
General Program Output (GPO) Control in CIR mode for TX Pin
0: Low level
1: High level
7:6
/
/
/
5:4
R/W
0
CIR ENABLE
00~10: Reserved
11: CIR mode enable
3:2
/
/
/.
1
R/W
0
RXEN
Receiver Block Enable
0: Disable
1: Enable
0
R/W
0
GEN
Global Enable
A disable on this bit overrides any other block or channel enables and
flushes all FIFOs.
0: Disable
1: Enable
7.4.3.2. CIR Receiver Configure Register(Default Value: 0x00000004)
Offset: 0x0010
Register Name: CIR_RXCTL
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2
R/W
1
RPPI
Receiver Pulse Polarity Invert
0: Not invert receiver signal
1: Invert receiver signal
1:0
/
/
/
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 580
7.4.3.3. CIR Receiver FIFO Register(Default Value: 0x00000000)
Offset: 0x0020
Register Name: CIR_RXFIFO
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R
0
Receiver Byte FIFO
7.4.3.4. CIR Receiver Interrupt Control Register(Default Value: 0x00000000)
Offset: 0x002C
Register Name: CIR_RXINT
Bit
R/W
Default/Hex
Description
31:14
/
/
/
13:8
R/W
0
RAL
RX FIFO Available Received Byte Level for interrupt and DMA request
TRIGGER_LEVEL = RAL + 1
5
R/W
0
DRQ_EN
RX FIFO DMA Enable
0: Disable
1: Enable
When set to ‘1’, the Receiver FIFO DRQ is asserted if reaching RAL. The
DRQ is de-asserted when condition fails.
4
R/W
0
RAI_EN
RX FIFO Available Interrupt Enable
0: Disable
1: Enable
When set to ‘1’, the Receiver FIFO IRQ is asserted if reaching RAL. The IRQ
is de-asserted when condition fails.
3:2
/
/
/
1
R/W
0
RPEI_EN
Receiver Packet End Interrupt Enable
0: Disable
1: Enable
0
R/W
0
ROI_EN
Receiver FIFO Overrun Interrupt Enable
0: Disable
1: Enable
7.4.3.5. CIR Receiver Status Register(Default Value: 0x00000000)
Offset: 0x0030
Register Name: CIR_RXSTA
Bit
R/W
Default/Hex
Description
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 581
31:15
/
/
/
14:8
R
0
RAC
RX FIFO Available Counter
0: No available data in RX FIFO
1: 1 byte available data in RX FIFO
2: 2 byte available data in RX FIFO
…
64: 64 byte available data in RX FIFO
7
R
0x0
STAT
Status of CIR
0x0 – Idle
0x1 – busy
6:5
/
/
/
4
R/W
0
RA
RX FIFO Available
0: RX FIFO not available according its level
1: RX FIFO available according its level
This bit is cleared by writing a ‘1’.
3:2
/
/
/
1
R/W
0
RPE
Receiver Packet End Flag
0: STO was not detected. In CIR mode, one CIR symbol is receiving or not
detected.
1: STO field or packet abort symbol (7’b0000,000 and 8’b0000,0000 for
MIR and FIR) is detected. In CIR mode, one CIR symbol is received.
This bit is cleared by writing a ‘1’.
0
R/W
0
ROI
Receiver FIFO Overrun
0: Receiver FIFO not overrun
1: Receiver FIFO overrun
This bit is cleared by writing a ‘1’.
7.4.3.6. CIR Receiver Configure Register(Default Value: 0x00000000)
Offset: 0x0034
Register Name: CIR_RCR
Bit
R/W
Default/Hex
Description
31
/
/
/
30:25
/
/
/
24
R/W
0x0
SCS2
Bit2 of Sample Clock Select for CIR
This bit is defined by SCS bits below.
23
R/W
0x0
ATHC
Active Threshold Control for CIR
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 582
0x0 –ATHR in Unit of (Sample Clock)
0x1 –ATHR in Unit of (128*Sample Clocks)
22:16
R/W
0x0
ATHR
Active Threshold for CIR
These bits control the duration of CIR from Idle to Active State. The
duration can be calculated by ((ATHR + 1)*(ATHC? Sample Clock:
128*Sample Clock)).
15:8
R/W
0x18
ITHR
Idle Threshold for CIR
The Receiver uses it to decide whether the CIR command has been
received. If there is no CIR signal on the air, the receiver is staying in IDLE
status. One active pulse will bring the receiver from IDLE status to
Receiving status. After the CIR is end, the inputting signal will keep the
specified level (high or low level) for a long time. The receiver can use this
idle signal duration to decide that it has received the CIR command. The
corresponding flag is asserted. If the corresponding interrupt is enable,
the interrupt line is asserted to CPU.
When the duration of signal keeps one status (high or low level) for the
specified duration ( (ITHR + 1)*128 sample_clk ), this means that the
previous CIR command has been finished.
7:2
R/W
0xa
NTHR
Noise Threshold for CIR
When the duration of signal pulse (high or low level) is less than NTHR,
the pulse is taken as noise and should be discarded by hardware.
0: all samples are recorded into RX FIFO
1: If the signal is only one sample duration, it is taken as noise and
discarded.
2: If the signal is less than (<=) two sample duration, it is taken as noise
and discarded.
…
61: if the signal is less than (<=) sixty-one sample duration, it is taken as
noise and discarded.
1:0
R/W
0
SCS
Sample Clock Select for CIR
SCS2
SCS[1]
SCS[0]
Sample Clock
0
0
0
ir_clk/64
0
0
1
ir_clk/128
0
1
0
ir_clk/256
0
1
1
ir_clk/512
1
0
0
ir_clk
1
0
1
Reserved
1
1
0
Reserved
1
1
1
Reserved
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 583
7.5. USB
7.5.1. USB Controller Block Diagram
System AHB Bus
USB2.0
PHY
UTMI+
DM
DP
USB0 Controller
USB-OTG
EHCI
OHCI
Port Control
UTMI+
DM
DP
Data
Strobe
HSIC
USB2.0
PHY
HCI0
EHCI
OHCI
Port Control
USB-OTG-HCI
SIE Switch
PHY Switch
Figure 7-7. USB Controller Block DIagram
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 584
7.5.2. USB OTG
7.5.2.1. Overview
The USB OTG is a Dual-Role Device controller, which supports both device and host functions which can also be
configured as a Host-only or Device-only controller, fully compliant with the USB 2.0 Specification. It can
support high-speed (HS, 480-Mbps), full-speed (FS, 12-Mbps), and low-speed (LS, 1.5-Mbps) transfers in Host
mode. It can support high-speed (HS, 480-Mbps), and full-speed (FS, 12-Mbps) in Device mode. Standard USB
transceiver can be used through its UTMI+PHY Level3 interface. The UTMI+PHY interface is bidirectional with
8-bit data bus. For saving CPU bandwidth, USB-OTG DMA interface can support external DMA controller to
take care of the data transfer between the memory and USB-OTG FIFO. The USB-OTG core also supports USB
power saving functions.
The USB2.0 OTG controller has following features:
Complies with USB 2.0 Specification
Support High-Speed (HS, 480-Mbps), Full-Speed (FS, 12-Mbps),and Low-Speed(LS,1.5-Mbps) in Host mode
and support High-Speed(HS,480-Mbps),Full-Speed(FS,12-Mbps) in device mode
Supports bi-directional endpoint0 for Control transfer
Supports up to 10 User-Configurable Endpoints for Bulk , Isochronous and Interrupt bi-directional transfers
(Endpoint1, Endpoint2, Endpoint3, Endpoint4, Endpoint5)
Supports up to 8KB FIFO for EPs
Support High-bandwidth Isochronous & Interrupt transfers
Automated splitting/combining of packets for Bulk transfers
Supports point-to-point and point-to-multipoint transfer in both Host and Peripheral mode
Include automatic ping capabilities
Soft connect/disconnect function
Performs all transaction scheduling in hardware
Supports the UTMI+ Level 3 interface . The 8-bit bidirectional data buses are used
Supports point-to-point and point-to-multipoint transfer in both Host and Peripheral mode
Power Optimization and Power Management capabilities
Include interface to an external Normal DMA controller for every EPs
7.5.3. USB Host
7.5.3.1. Overview
USB Host Controller is fully compliant with the USB 2.0 specification, Enhanced Host Controller Interface (EHCI)
Specification, Revision 1.0, and the Open Host Controller Interface (OHCI) Specification Release 1.0a. The
controller supports high-speed, 480-Mbps transfers (40 times faster than USB 1.1 full-speed mode) using an
EHCI Host Controller, as well as full and low speeds through one or more integrated OHCI Host Controllers.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 585
The USB host controller includes the following features:
Supports industry-standard AMBA High-Performance Bus (AHB) and it is fully compliant with the AMBA
Specification, Revision 2.0.
Supports 32-bit Little Endian AMBA AHB Slave Bus for Register Access.
Supports 32-bit Little Endian AMBA AHB Master Bus for Memory Access.
Including an internal DMA Controller for data transfer with memory.
Complies with Enhanced Host Controller Interface (EHCI) Specification, Version 1.0, and the Open Host
Controller Interface (OHCI) Specification, Version 1.0a.
Supports High-Speed (HS, 480-Mbps), Full-Speed (FS, 12-Mbps), and Low-Speed (LS, 1.5-Mbps) Device.
Supports the UTMI+ Level 3 interface . The 8-bit bidirectional data buses are used.
Supports only 1 USB Root Port shared between EHCI and OHCI.
7.5.3.2. USB Host Timing Diagram
Please refer USB2.0 Specification, Enhanced Host Controller Interface (EHCI) Specification, Version 1.0, and the
Open Host Controller Interface (OHCI) Specification, Version 1.0a.
7.5.3.3. USB Host Register List
Module Name
Base Address
USB_HCI1
0x01C1B000
Register Name
Offset
Description
EHCI Capability Register
E_CAPLENGTH
0x000
EHCI Capability register Length Register
E_HCIVERSION
0x002
EHCI Host Interface Version Number Register
E_HCSPARAMS
0x004
EHCI Host Control Structural Parameter Register
E_HCCPARAMS
0x008
EHCI Host Control Capability Parameter Register
E_HCSPPORTROUTE
0x00c
EHCI Companion Port Route Description
EHCI Operational Register
E_USBCMD
0x010
EHCI USB Command Register
E_USBSTS
0x014
EHCI USB Status Register
E_USBINTR
0x018
EHCI USB Interrupt Enable Register
E_FRINDEX
0x01c
EHCI USB Frame Index Register
E_CTRLDSSEGMENT
0x020
EHCI 4G Segment Selector Register
E_PERIODICLISTBASE
0x024
EHCI Frame List Base Address Register
E_ASYNCLISTADDR
0x028
EHCI Next Asynchronous List Address Register
E_CONFIGFLAG
0x050
EHCI Configured Flag Register
E_PORTSC
0x054
EHCI Port Status/Control Register
OHCI Control and Status Partition Register
O_HcRevision
0x400
OHCI Revision Register
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 586
O_HcControl
0x404
OHCI Control Register
O_HcCommandStatus
0x408
OHCI Command Status Register
O_HcInterruptStatus
0x40c
OHCI Interrupt Status Register
O_HcInterruptEnable
0x410
OHCI Interrupt Enable Register
O_HcInterruptDisable
0x414
OHCI Interrupt Disable Register
OHCI Memory Pointer Partition Register
O_HcHCCA
0x418
OHCI HCCA Base
O_HcPeriodCurrentED
0x41c
OHCI Period Current ED Base
O_HcControlHeadED
0x420
OHCI Control Head ED Base
O_HcControlCurrentED
0x424
OHCI Control Current ED Base
O_HcBulkHeadED
0x428
OHCI Bulk Head ED Base
O_HcBulkCurrentED
0x42c
OHCI Bulk Current ED Base
O_HcDoneHead
0x430
OHCI Done Head Base
OHCI Frame Counter Partition Register
O_HcFmInterval
0x434
OHCI Frame Interval Register
O_HcFmRemaining
0x438
OHCI Frame Remaining Register
O_HcFmNumber
0x43c
OHCI Frame Number Register
O_HcPerioddicStart
0x440
OHCI Periodic Start Register
O_HcLSThreshold
0x444
OHCI LS Threshold Register
OHCI Root Hub Partition Register
O_HcRhDescriptorA
0x448
OHCI Root Hub Descriptor Register A
O_HcRhDesriptorB
0x44c
OHCI Root Hub Descriptor Register B
O_HcRhStatus
0x450
OHCI Root Hub Status Register
O_HcRhPortStatus
0x454
OHCI Root Hub Port Status Register
7.5.3.4. EHCI Register Description
7.5.3.4.1. EHCI Identification Register(Default Value: Implementation Dependent)
Offset: 0x0000
Register Name: CAPLENGTH
Bit
R/W
Default/Hex
Description
7:0
R
0x10
CAPLENGTH
The value in these bits indicates an offset to add to register base to find
the beginning of the Operational Register Space.
7.5.3.4.2. EHCI Host Interface Version Number Register(Default Value: 0x0100)
Offset: 0x0002
Register Name: HCIVERSION
Bit
R/W
Default/Hex
Description
15:0
R
0x0100
HCIVERSION
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 587
This is a 16-bits register containing a BCD encoding of the EHCI revision
number supported by this host controller. The most significant byte of
this register represents a major revision and the least significant byte is
the minor revision.
7.5.3.4.3. EHCI Host Control Structural Parameter Register(Default Value: Implementation Dependent)
Offset: 0x0004
Register Name: HCSPARAMS
Bit
R/W
Default/Hex
Description
31:24
/
0
Reserved.
These bits are reserved and should be set to zero.
23:20
R
0
Debug Port Number
This register identifies which of the host controller ports is the debug
port. The value is the port number (one based) of the debug port.
This field will always be ‘0’.
19:16
/
0
Reserved.
These bits are reserved and should be set to zero.
15:12
R
0
Number of Companion Controller (N_CC)
This field indicates the number of companion controllers associated with
this USB2.0 host controller. A zero in this field indicates there are no
companion host controllers. And a value larger than zero in this field
indicates there are companion USB1.1 host controller(s).
This field will always be ‘0’.
11:8
R
0
Number of Port per Companion Controller(N_PCC)
This field indicates the number of ports supported per companion host
controller host controller. It is used to indicate the port routing
configuration to system software.
This field will always fix with ‘0’.
7
R
0
Port Routing Rules
This field indicates the method used by this implementation for how all
ports are mapped to companion controllers. The value of this field has
the following interpretation:
Value
Meaning
0
The first N_PCC ports are routed to the lowest numbered
function companion host controller, the next N_PCC port
are routed to the next lowest function companion
controller, and so on.
1
The port routing is explicitly enumerated by the first
N_PORTS elements of the HCSP-PORTTOUTE array.
This field will always be ‘0’.
6:4
/
0
Reserved.
These bits are reserved and should be set to zero.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 588
3:0
R
1
N_PORTS
This field specifies the number of physical downstream ports
implemented on this host controller. The value of this field determines
how many port registers are addressable in the Operational Register
Space. Valid values are in the range of 0x1 to 0x0f.
This field is always 1.
7.5.3.4.4. EHCI Host Control Capability Parameter Register(Default Value: Implementation Dependent)
Offset: 0x0008
Register Name: HCCPARAMS
Bit
R/W
Default/Hex
Description
31:16
/
0
Reserved
These bits are reserved and should be set to zero.
15:18
R
0
EHCI Extended Capabilities Pointer (EECP)
This optional field indicates the existence of a capabilities list. A value of
00b indicates no extended capabilities are implemented. A non-zero
value in this register indicates the offset in PCI configuration space of the
first EHCI extended capabiliby. The pointer value must be 40h or greater if
implemented to maintain to consistency of the PCI header defined for
this calss of device.
The value of this field is always ‘00b’.
7:4
R
Isochronous Scheduling Threshold
This field indicates, relative to the current position of the executing host
controller, where software can reliably update the isochronous schedule.
When bit[7] is zero, the value of the least significant 3 bits indicates the
number of micro-frames a host controller can hold a set of isochronous
data structures(one or more) before flushing the state. When bit[7] is a
one, then host software assumes the host controller may cache an
isochronous data structure for an entire frame.
3
R
0
Reserved
These bits are reserved and should be set to zero.
2
R
Asynchronous Schedule Park Capability
If this bit is set to a one, then the host controller supports the park
feature for high-speed queue heads in the Asynchronous Schedule. The
feature can be disabled or enabled and set to a specific level by using the
Asynchronous Schedule Park Mode Enable and Asynchronous Schedule
Park Mode Count fields in the USBCMD register.
1
R
Programmable Frame List Flag
If this bit is set to a zero, then system software must use a frame list
length of 1024 elements with this host controller.The USBCMD register
Frame List Size field is a read-only register and should be set to zero.
If set to 1,then system software can specify and use the frame list in the
USBCMD register Frame List Size field to cofigure the host controller.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 589
The frame list must always aligned on a 4K page boundary.This
requirement ensures that the frame list is always physically contiguous.
0
R
0
Reserved
These bits are reserved for future use and should return a value of zero
when read.
7.5.3.4.5. EHCI Companion Port Route Description (Default Value: UNDEFINED)
Offset: 0x000C
Register Name: HCSP-PORTROUTE
Bit
R/W
Default/Hex
Description
31:0
R
HCSP-PORTROUTE
This optional field is valid only if Port Routing Rules field in HCSPARAMS
register is set to a one.
This field is used to allow a host controller implementation to explicitly
describe to which companion host controller each implemented port is
mapped. This field is a 15-element nibble array (each 4 bit is one array
element). Each array location corresponds one-to-one with a physical
port provided by the host controller (e.g. PORTROUTE [0] corresponds to
the first PORTSC port, PORTROUTE [1] to the second PORTSC port, etc.).
The value of each element indicates to which of the companion host
controllers this port is routed. Only the first N_PORTS elements have valid
information. A value of zero indicates that the port is routed to the lowest
numbered function companion host controller. A value of one indicates
that the port is routed to the next lowest numbered function companion
host controller, and so on.
7.5.3.4.6. EHCI USB Command Register (Default Value: 0x00080000,0x00080B00 if Asynchronous Schedule
Park Capability is a one)
Offset: 0x0010
Register Name: USBCMD
Bit
R/W
Default/Hex
Description
31:24
/
0
Reserved
These bits are reserved and should be set to zero.
23:16
R/W
0x08
Interrupt Threshold Control
The value in this field is used by system software to select the maximum
rate at which the host controller will issue interrupts. The only valid
values are defined below:
Value
Minimum Interrupt Interval
0x00
Reserved
0x01
1 micro-frame
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 590
0x02
2 micro-frame
0x04
4 micro-frame
0x08
8 micro-frame(default, equates to 1 ms)
0x10
16 micro-frame(2ms)
0x20
32 micro-frame(4ms)
0x40
64 micro-frame(8ms)
Any other value in this register yields undefined results.
The default value in this field is 0x08 .
Software modifications to this bit while HC Halted bit is equal to zero
results in undefined behavior.
15:12
/
0
Reserved
These bits are reserved and should be set to zero.
11
R/W or
R
0
Asynchronous Schedule Park Mode Enable(OPTIONAL)
If the Asynchronous Park Capability bit in the HCCPARAMS register is a
one, then this bit defaults to a 1 and is R/W. Otherwise the bit must be a
zero and is Read Only. Software uses this bit to enable or disable Park
mode. When this bit is one, Park mode is enabled. When this bit is zero,
Park mode is disabled.
10
/
0
Reserved
These bits are reserved and should be set to zero.
9:8
R/W or
R
0
Asynchronous Schedule Park Mode Count(OPTIONAL)
Asynchronous Park Capability bit in the HCCPARAMS register is a one,
Then this field defaults to 0x3 and is W/R. Otherwise it defaults to zero
and is R. It contains a count of the number of successive transactions the
host controller is allowed to execute from a high-speed queue head on
the Asynchronous schedule before continuing traversal of the
Asynchronous schedule.
Valid value are 0x1 to 0x3.Software must not write a zero to this bit when
Park Mode Enable is a one as it will result in undefined behavior.
7
R/W
0
Light Host Controller Reset(OPTIONAL)
This control bit is not required.
If implemented, it allows the driver to reset the EHCI controller without
affecting the state of the ports or relationship to the companion host
controllers. For example, the PORSTC registers should not be reset to
their default values and the CF bit setting should not go to zero (retaining
port ownership relationships).
A host software read of this bit as zero indicates the Light Host Controller
Reset has completed and it si safe for software to re-initialize the host
controller. A host software read of this bit as a one indicates the Light
Host
6
R/W
0
Interrupt on Async Advance Doorbell
This bit is used as a doorbell by software to tell the host controller to
issue an interrupt the next time it advances asynchronous schedule. Soft-
Ware must write a 1 to this bit to ring the doorbell.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 591
When the host controller has evicted all appropriate cached schedule
state, it sets the Interrupt on Async Advance status bit in the USBSTS. if
the Interrupt on Async Advance Enable bit in the USBINTR register is a
one then the host controller will assert an interrupt at the next interrupt
threshold.
The host controller sets this bit to a zero after it has set the Interrupt on
Async Advance status bit in the USBSTS register to a one.
Software should not write a one to this bit when the asynchronous
schedule is disabled. Doing so will yield undefined results.
5
R/W
0
Asynchronous Schedule Enable
This bit controls whether the host controller skips processing the
Asynchronous Schedule. Values mean:
Bit Value
Meaning
0
Do not process the Asynchronous Schedule.
1
Use the ASYNLISTADDR register to access the
Asynchronous Schedule.
The default value of this field is ‘0b’.
4
R/W
0
Periodic Schedule Enable
This bit controls whether the host controller skips processing the Periodic
Schedule. Values mean:
Bit Value
Meaning
0
Do not process the Periodic Schedule.
1
Use the PERIODICLISTBASE register to access the
Periodic Schedule.
The default value of this field is ‘0b’.
3:2
R/W or
R
0
Frame List Size
This field is R/W only if Programmable Frame List Flag in the HCCPARAMS
registers is set to a one. This field specifies the size of the
Frame list. The size the frame list controls which bits in the Frame Index
Register should be used for the Frame List Current index. Values mean:
Bits
Meaning
00b
1024 elements(4096bytes)Default
01b
512 elements(2048byts)
10b
256 elements(1024bytes)For resource-constrained condition
11b
reserved
The default value is ‘00b’.
1
R/W
0
Host Controller Reset
This control bit is used by software to reset the host controller. The
effects of this on Root Hub registers are similar to a Chip Hardware Reset.
When software writes a one to this bit, the Host Controller resets its
internal pipelines, timers, counters, state machines, etc. to their initial
value. Any transaction currently in progress on USB is immediately
terminated. A USB reset is not driven on downstream ports.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 592
All operational registers, including port registers and port state machines
are set to their initial values. Port ownership reverts to the companion
host controller(s). Software must reinitialize the host controller as
described in Section 4.1 of the CHEI Specification in order to return the
host controller to an operational state.
This bit is set to zero by the Host Controller when the reset process is
complete. Software cannot terminate the reset process early by writing a
zero to this register.
Software should not set this bit to a one when the HC Halted bit in the
USBSTS register is a zero. Attempting to reset an actively running host
controller will result in undefined behavior.
0
R/W
0
Run/Stop
When set to a 1, the Host Controller proceeds with execution of the
schedule. When set to 0, the Host Controller completes the current and
any actively pipelined transactions on the USB and then halts. The Host
Controller must halt within 16 micro-frames after software clears this bit.
The HC Halted bit indicates when the Host Controller has finished its
pending pipelined transactions and has entered the stopped state.
Software must not write a one to this field unless the Host Controller is in
the Halt State.
The default value is 0x0.
7.5.3.4.7. EHCI USB Status Register (Default Value: 0x00001000)
Offset: 0x0014
Register Name: USBSTS
Bit
R/W
Default/Hex
Description
31:16
/
0
Reserved
These bits are reserved and should be set to zero.
15
R
0
Asynchronous Schedule Status
The bit reports the current real status of Asynchronous Schedule. If this
bit is a zero then the status of the Asynchronous Schedule is disabled. If
this bit is a one then the status of the Asynchronous Schedule is enabled.
The Host Controller is not required to immediately disable or enable the
Asynchronous Schedule when software transitions the Asynchronous
Schedule Enable bit in the USBCMD register. When this bit and the
Asynchronous Schedule Enable bit are the same value, the Asynchronous
Schedule is either enabled (1) or disabled (0).
14
R
0
Periodic Schedule Status
The bit reports the current real status of the Periodic Schedule. If this bit
is a zero then the status of the Periodic Schedule is disabled. If this bit is a
one then the status of the Periodic Schedule is enabled. The Host
Controller is not required to immediately disable or enable the Periodic
Schedule when software transitions the Periodic Schedule Enable bit in
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 593
the USBCMD register. When this bit and the Periodic Schedule Enable bit
are the same value, the Periodic Schedule is either enabled (1) or
disabled (0).
13
R
0
Reclamation
This is a read-only status bit, which is used to detect an empty
asynchronous schedule.
12
R
1
HC Halted
This bit is a zero whenever the Run/Stop bit is a one. The Host Controller
Sets this bit to one after it has stopped executing as a result of the
Run/Stop bit being set to 0, either by software or by the Host Controller
Hardware (e.g. internal error).
The default value is ‘1’.
11:6
/
0
Reserved
These bits are reserved and should be set to zero.
5
R/WC
0
Interrupt on Async Advance
System software can force the host controller to issue an interrupt the
next time the host controller advances the asynchronous schedule by
writing a one to the Interrupt on Async Advance Doorbell bit in the
USBCMD register. This status bit indicates the assertion of that interrupt
source.
4
R/WC
0
Host System Error
The Host Controller set this bit to 1 when a serious error occurs during a
host system access involving the Host Controller module. When this error
occurs, the Host Controller clears the Run/Stop bit in the Command
register to prevent further execution of the scheduled TDs.
3
R/WC
0
Frame List Rollover
The Host Controller sets this bit to a one when the Frame List Index rolls
over from its maximum value to zero. The exact value at which the
rollover occurs depends on the frame list size. For example, if the frame
list size is 1024, the Frame Index Register rolls over every time FRINDEX
[13] toggles. Similarly, if the size is 512, the Host Controller sets this bit to
a one every time FRINDEX [12] toggles.
2
R/WC
0
Port Change Detect
The Host Controller sets this bit to a one when any port for which the
Port Owner bit is set to zero has a change bit transition from a zero to a
one or a Force Port Resume bit transition from a zero to a one as a result
of a J-K transition detected on a suspended port. This bit will also be set
as a result of the Connect Status Chang being set to a one after system
software has relinquished ownership of a connected port by writing a one
to a port’s Port Owner bit.
1
R/WC
0
USB Error Interrupt(USBERRINT)
The Host Controller sets this bit to 1 when completion of USB transaction
results in an error condition(e.g. error counter underflow).If the TD on
which the error interrupt occurred also had its IOC bit set, both.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 594
This bit and USBINT bit are set.
0
R/WC
0
USB Interrupt(USBINT)
The Host Controller sets this bit to a one on the completion of a USB
transaction, which results in the retirement of a Transfer Descriptor that
had its IOC bit set.
The Host Controller also sets this bit to 1 when a short packet is detected
(actual number of bytes received was less than the expected number of
bytes)
7.5.3.4.8. EHCI USB Interrupt Enable Register (Default Value: 0x00000000)
Offset: 0x0018
Register Name: USBINTR
Bit
R/W
Default/Hex
Description
31:6
/
0
Reserved
These bits are reserved and should be zero.
5
R/W
0
Interrupt on Async Advance Enable
When this bit is 1, and the Interrupt on Async Advance bit in the USBSTS
register is 1, the host controller will issue an interrupt at the next
interrupt threshold. The interrupt is acknowledged by software clearing
the Interrupt on Async Advance bit.
4
R/W
0
Host System Error Enable
When this bit is 1, and the Host System Error Status bit in the USBSTS
register is 1, the host controller will issue an interrupt. The interrupt is
acknowledged by software clearing the Host System Error bit.
3
R/W
0
Frame List Rollover Enable
When this bit is 1, and the Frame List Rollover bit in the USBSTS register is
1, the host controller will issue an interrupt. The interrupt is
acknowledged by software clearing the Frame List Rollover bit.
2
R/W
0
Port Change Interrupt Enable
When this bit is 1, and the Port Chang Detect bit in the USBSTS register is
1, the host controller will issue an interrupt. The interrupt is
acknowledged by software clearing the Port Chang Detect bit.
1
R/W
0
USB Error Interrupt Enable
When this bit is 1, and the USBERRINT bit in the USBSTS register is 1,the
host controller will issue an interrupt at the next interrupt threshold.
The interrupt is acknowledged by software clearing the USBERRINT bit.
0
R/W
0
USB Interrupt Enable
When this bit is 1, and the USBINT bit in the USBSTS register is 1,the host
controller will issue an interrupt at the next interrupt threshold.
The interrupt is acknowledged by software clearing the USBINT bit
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 595
7.5.3.4.9. EHCI Frame Index Register (Default Value: 0x00000000)
Offset: 0x001C
Register Name: FRINDEX
Bit
R/W
Default/Hex
Description
31:14
/
0
Reserved
These bits are reserved and should be zero.
13:0
R/W
0
Frame Index
The value in this register increment at the end of each time frame
(e.g. micro-frame).Bits[N:3] are used for the Frame List current index. It
Means that each location of the frame list is accessed 8 times(frames or
Micro-frames) before moving to the next index. The following illustrates
Values of N based on the value of the Frame List Size field in the USBCMD
register.
USBCMD[Frame List Size]
Number Elements
N
00b
1024
12
01b
512
11
10b
256
10
11b
Reserved
Note: This register must be written as a DWord. Byte writes produce undefined results.
7.5.3.4.10. EHCI Periodic Frame List Base Address Register (Default Value: Undefined)
Offset: 0x0024
Register Name: PERIODICLISTBASE
Bit
R/W
Default/Hex
Description
31:12
R/W
Base Address
These bits correspond to memory address signals [31:12], respectively.
This register contains the beginning address of the Periodic Frame List in
the system memory.
System software loads this register prior to starting the schedule
execution by the Host Controller. The memory structure referenced by
this physical memory pointer is assumed to be 4-K byte aligned. The
contents of this register are combined with the Frame Index Register
(FRINDEX) to enable the Host Controller to step through the Periodic
Frame List in sequence.
11:0
/
Reserved
Must be written as 0x0 during runtime, the values of these bits are
undefined.
Note: Writes must be Dword Writes.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 596
7.5.3.4.11. EHCI Current Asynchronous List Address Register (Default Value: Undefined)
Offset: 0x0028
Register Name: ASYNCLISTADDR
Bit
R/W
Default/Hex
Description
31:5
R/W
/
Link Pointer (LP)
This field contains the address of the next asynchronous queue head to
be executed.
These bits correspond to memory address signals [31:5], respectively.
4:0
/
/
Reserved
These bits are reserved and their value has no effect on operation.
Bits in this field cannot be modified by system software and will always
return a zero when read.
Note: Write must be DWord Writes.
7.5.3.4.12. EHCI Configure Flag Register (Default Value: 0x00000000)
Offset: 0x0050
Register Name: CONFIGFLAG
Bit
R/W
Default/Hex
Description
31:1
/
0
Reserved
These bits are reserved and should be set to zero.
0
R/W
0
Configure Flag(CF)
Host software sets this bit as the last action in its process of configuring
the Host Controller. This bit controls the default port-routing control logic
as follow:
Value
Meaning
0
Port routing control logic default-routs each port to an
implementation dependent classic host controller.
1
Port routing control logic default-routs all ports to this host
controller.
The default value of this field is ‘0’.
Note: This register is not use in the normal implementation.
7.5.3.4.13. EHCI Port Status and Control Register (Default Value: 0x00002000(w/PPC set to
one);0x00003000(w/PPC set to a zero))
Offset: 0x0054
Register Name: PORTSC
Bit
R/W
Default/Hex
Description
31:22
/
0
Reserved
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 597
These bits are reserved for future use and should return a value of zero
when read.
21
R/W
0
Wake on Disconnect Enable(WKDSCNNT_E)
Writing this bit to a one enables the port to be sensitive to device
disconnects as wake-up events.
This field is zero if Port Power is zero.
The default value in this field is ‘0’.
20
R/W
0
Wake on Connect Enable(WKCNNT_E)
Writing this bit to a one enable the port to be sensitive to device
connects as wake-up events.
This field is zero if Port Power is zero.
The default value in this field is ‘0’.
19:16
R/W
0
Port Test Control
The value in this field specifies the test mode of the port. The encoding of
the test mode bits are as follow:
Bits
Test Mode
0000b
The port is NOT operating in a test mode.
0001b
Test J_STATE
0010b
Test K_STATE
0011b
Test SE0_NAK
0100b
Test Packet
0101b
Test FORCE_ENABLE
0110b-
1111b
Reserved
The default value in this field is ‘0000b’.
15:14
R/W
0
Reserved
These bits are reserved for future use and should return a value of zero
when read.
13
R/W
1
Port Owner
This bit unconditionally goes to a 0b when the Configured bit in the
CONFIGFLAG register makes a 0b to 1b transition. This bit unconditionally
goes to 1b whenever the Configured bit is zero.
System software uses this field to release ownership of the port to
selected host controller (in the event that the attached device is not a
high-speed device).Software writes a one to this bit when the attached
device is not a high-speed device. A one in this bit means that a
companion host controller owns and controls the port.
Default Value = 1b.
12
/
0
Reserved
These bits are reserved for future use and should return a value of zero
when read.
11:10
R
0
Line Status
These bits reflect the current logical levels of the D+ (bit11) and D-(bit10)
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 598
signal lines. These bits are used for detection of low-speed USB devices
prior to port reset and enable sequence. This read only field is valid only
when the port enable bit is zero and the current connect status bit is set
to a one.
The encoding of the bits are:
Bit[11:10]
USB State
Interpretation
00b
SE0
Not Low-speed device, perform EHCI
reset.
10b
J-state
Not Low-speed device, perform EHCI
reset.
01b
K-state
Low-speed device, release ownership of
port.
11b
Undefined
Not Low-speed device, perform EHCI
reset.
This value of this field is undefined if Port Power is zero.
9
/
0
Reserved
This bit is reserved for future use, and should return a value of zero when
read.
8
R/W
0
Port Reset
1=Port is in Reset. 0=Port is not in Reset. Default = 0.
When software writes a one to this bit (from a zero), the bus reset
sequence as defined in the USB Specification Revision 2.0 is started.
Software writes a zero to this bit to terminate the bus reset sequence.
Software must keep this bit at a one long enough to ensure the reset
sequence, as specified in the USB Specification Revision 2.0, completes.
Notes: when software writes this bit to a one , it must also write a zero to
the Port Enable bit.
Note that when software writes a zero to this bit there may be a delay
before the bit status changes to a zero. The bit status will not read as a
zero until after the reset has completed. If the port is in high-speed mode
after reset is complete, the host controller will automatically enable this
port (e.g. set the Port Enable bit to a one). A host controller must
terminate the reset and stabilize the state of the port within 2
milliseconds of software transitioning this bit from a one to a zero. For
example: if the port detects that the attached device is high-speed during
reset, then the host controller must have the port in the enabled state
with 2ms of software writing this bit to a zero.
The HC Halted bit in the USBSTS register should be a zero before software
attempts to use this bit. The host controller may hold Port Reset asserted
to a one when the HC Halted bit is a one.
This field is zero if Port Power is zero.
7
R/W
0
Suspend
Port Enabled Bit and Suspend bit of this register define the port states as
follows:
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 599
Bits[Port Enables, Suspend]
Port State
0x
Disable
10
Enable
11
Suspend
When in suspend state, downstream propagation of data is blocked on
this port, except for port reset. The blocking occurs at the end of the
current transaction, if a transaction was in progress when this bit was
written to 1. In the suspend state, the port is sensitive to resume
detection. Not that the bit status does not change until the port is
suspend and that there may be a delay in suspending a port if there is a
transaction currently in progress on the USB.
A write of zero to this bit is ignored by the host controller. The host
controller will unconditionally set this bit to a zero when:
① Software sets the Force Port Resume bit to a zero(from a one).
② Software sets the Port Reset bit to a one(from a zero).
If host software sets this bit to a one when the port is not enabled(i.e.
Port enabled bit is a zero), the results are undefined.
This field is zero if Port Power is zero.
The default value in this field is ‘0’.
6
R/W
0
Force Port Resume
1 = Resume detected/driven on port. 0 = No resume (K-state) detected/
driven on port. Default = 0.
This functionality defined for manipulating this bit depends on the value
of the Suspend bit. For example, if the port is not suspend and software
transitions this bit to a one, then the effects on the bus are undefined.
Software sets this bit to a 1 drive resume signaling. The Host Controller
sets this bit to a 1 if a J-to-K transition is detected while the port is in the
Suspend state. When this bit transitions to a one because a J-to-K
transition is detected, the Port Change Detect bit in the USBSTS register is
also set to a one. If software sets this bit to a one, the host controller
must not set the Port Change Detect bit.
Note that when the EHCI controller owns the port, the resume sequence
follows the defined sequence documented in the USB Specification
Revision 2.0. The resume signaling (Full-speed ‘K’) is driven on the port as
long as this remains a one. Software must appropriately time the Resume
and set this bit to a zero when the appropriate amount of time has
elapsed. Writing a zero (from one) causes the port to return high-speed
mode (forcing the bus below the port into a high-speed idle). This bit will
remain a one until the port has switched to high-speed idle. The host
controller must complete this transition within 2 milliseconds of software
setting this bit to a zero.
This field is zero if Port Power is zero.
5
R/WC
0
Over-current Change
Default = 0. This bit gets set to a one when there is a change to
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 600
Over-current Active. Software clears this bit by writing a one to this bit
position.
4
R
0
Over-current Active
0 = This port does not have an over-current condition. 1 = This port
currently has an over-current condition. This bit will automatically
transition from a one to a zero when the over current condition is
removed.
The default value of this bit is ‘0’.
3
R/WC
0
Port Enable/Disable Change
Default = 0. 1 = Port enabled/disabled status has changed. 0 = No change.
For the root hub, this bit gets set to a one only when a port is disabled
due to the appropriate conditions existing at the EOF2 point (See Chapter
11 of the USB Specification for the definition of a Port Error). Software
clears this bit by writing a 1 to it.
This field is zero if Port Power is zero.
2
R/W
0
Port Enabled/Disabled
1=Enable, 0=Disable. Ports can only be enabled by the host controller as a
part of the reset and enable. Software cannot enable a port by writing a
one to this field. The host controller will only set this bit to a one when
the reset sequence determines that the attached device is a high-speed
device.
Ports can be disabled by either a fault condition(disconnect event or
other fault condition) or by host software. Note that the bit status does
not change until the port state actually changes. There may be a delay in
disabling or enabling a port due to other host controller and bus events.
When the port is disabled, downstream propagation of data is blocked on
this port except for reset.
The default value of this field is ‘0’.
This field is zero if Port Power is zero.
1
R/WC
0
Connect Status Change
1=Change in Current Connect Status, 0=No change, Default=0.
Indicates a change has occurred in the port’s Current Connect Status. The
host controller sets this bit for all changes to the port device connect
status, even if system software has not cleared an existing connect status
change. For example, the insertion status changes twice before system
software has cleared the changed condition, hub hardware will be
“setting” an already-set bit. Software sets this bit to 0 by writing a 1 to it.
This field is zero if Port Power is zero.
0
R
0
Current Connect Status
Device is present on port when the value of this field is a one, and no
device is present on port when the value of this field is a zero. This value
reflects the current state of the port, and may not correspond directly to
the event that caused the Connect Status Change(Bit 1) to be set.
This field is zero if Port Power zero.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 601
Note: This register is only reset by hardware or in response to a host controller reset.
7.5.3.5. OHCI Register Description
7.5.3.5.1. HcRevision Register(Default Value: 0x00000010)
Offset: 0x400
Register Name: HcRevision
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:8
/
/
0x00
Reserved
7:0
R
R
0x10
Revision
This read-only field contains the BCD representation of the version of
the HCI specification that is implemented by this HC. For example, a
value of 0x11 corresponds to version 1.1. All of the HC implementations
that are compliant with this specification will have a value of 0x10.
7.5.3.5.2. HcControl Register(Default Value: 0x00000000)
Offset: 0x404
Register Name: HcRevision
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:11
/
/
0x00
Reserved
10
R/W
R
0x0
RemoteWakeupEnable
This bit is used by HCD to enable or disable the remote wakeup feature
upon the detection of upstream resume signaling. When this bit is set
and the ResumeDetected bit in HcInterruptStatus is set, a remote
wakeup is signaled to the host system. Setting this bit has no impact on
the generation of hardware interrupt.
9
R/W
R/W
0x0
RemoteWakeupConnected
This bit indicates whether HC supports remote wakeup signaling. If
remote wakeup is supported and used by the system, it is the
responsibility of system firmware to set this bit during POST. HC clear
the bit upon a hardware reset but does not alter it upon a software
reset. Remote wakeup signaling of the host system is host-bus-specific
and is not described in this specification.
8
R/W
R
0x0
InterruptRouting
This bit determines the routing of interrupts generated by events
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 602
registered in HcInterruptStatus. If clear, all interrupt are routed to the
normal host bus interrupt mechanism. If set interrupts are routed to the
System Management Interrupt. HCD clears this bit upon a hardware
reset, but it does not alter this bit upon a software reset. HCD uses this
bit as a tag to indicate the ownership of HC.
7:6
R/W
R/W
0x0
HostControllerFunctionalState for USB
00b
USBReset
01b
USBResume
10b
USBOperational
11b
USBSuspend
A transition to USBOperational from another state causes SOF
generation to begin 1 ms later. HCD may determine whether HC has
begun sending SOFs by reading the StartoFrame field of
HcInterruptStatus.
This field may be changed by HC only when in the USBSUSPEND state.
HC may move from the USBSUSPEND state to the USBRESUME state
after detecting the resume signaling from a downstream port.
HC enters USBSUSPEND after a software reset, whereas it enters
USBRESET after a hardware reset. The latter also resets the Root
Hub and asserts subsequent reset signaling to downstream ports.
5
R/W
R
0x0
BulkListEnable
This bit is set to enable the processing of the Bulk list in the next
Frame. If cleared by HCD, processing of the Bulk list does not occur after
the next SOF. HC checks this bit whenever it determines to process the
list. When disabled, HCD may modify the list. If HcBulkCurrentED is
pointing to an ED to be removed, HCD must advance the pointer by
updating HcBulkCurrentED before re-enabling processing of the list.
4
R/W
R
0x0
ControlListEnable
This bit is set to enable the processing of the Control list in the next
Frame. If cleared by HCD, processing of the Control list does not occur
after the next SOF. HC must check this bit whenever it determines to
process the list. When disabled, HCD may modify the list. If
HcControlCurrentED is pointing to an ED to be removed, HCD must
advance the pointer by updating HcControlCurrentED before
re-enabling processing of the list.
3
R/W
R
0x0
IsochronousEnable
This bit is used by HCD to enable/disable processing of isochronous EDs.
While processing the periodic list in a Frame, HC checks the status of
this bit when it finds an Isochronous ED (F=1). If set (enabled), HC
continues processing the EDs. If cleared (disabled), HC halts processing
of the periodic list (which now contains only isochronous EDs) and
begins processing the Bulk/Control lists.
Setting this bit is guaranteed to take effect in the next Frame (not the
current Frame).
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 603
2
R/W
R
0x0
PeriodicListEnable
This bit is set to enable the processing of periodic list in the next Frame.
If cleared by HCD, processing of the periodic list does not occur after the
next SOF. HC must check this bit before it starts processing the list.
1:0
R/W
R
0x0
ControlBulkServiceRatio
This specifies the service ratio between Control and Bulk EDs. Before
processing any of the nonperiodic lists, HC must compare the ratio
specified with its internal count on how many nonempty Control EDs
have been processed, in determining whether to continue serving
another Control ED or switching to Bulk EDs. The internal count will be
retained when crossing the frame boundary. In case of reset, HCD is
responsible for restoring this value.
CBSR
No. of Control EDs Over Bulk EDs Served
0
1:1
1
2:1
2
3:1
3
4:1
The default value is 0x0.
7.5.3.5.3. HcCommandStatus Register(Default Value: 0x00000000)
Offset: 0x408
Register Name: HcCommandStatus
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:18
/
/
0x0
Reserved
17:16
R
R/W
0x0
SchedulingOverrunCount
These bits are incremented on each scheduling overrun error. It is
initialized to 00b and wraps around at 11b. This will be incremented
when a scheduling overrun is detected even if SchedulingOverrun in
HcInterruptStatus has already been set. This is used by HCD to monitor
any persistent scheduling problem.
15:4
/
/
0x0
Reserved
3
R/W
R/W
0x0
OwershipChangeRequest
This bit is set by an OS HCD to request a change of control of the HC.
When set HC will set the OwnershipChange field in HcInterruptStatus.
After the changeover, this bit is cleared and remains so until the next
request from OS HCD.
2
R/W
R/W
0x0
BulklListFilled
This bit is used to indicate whether there are any TDs on the Bulk list. It
is set by HCD whenever it adds a TD to an ED in the Bulk list.
When HC begins to process the head of the Bulk list, it checks BLF. As
long as BulkListFilled is 0, HC will not start processing the Bulk list. If
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 604
BulkListFilled is 1, HC will start processing the Bulk list and will set BF to
0. If HC finds a TD on the list, then HC will set BulkListFilled to 1 causing
the Bulk list processing to continue. If no TD is found on the Bulk list,
and if HCD does not set BulkListFilled, then BulkListFilled will still be 0
when HC completes processing the Bulk list and Bulk list processing will
stop.
1
R/W
R/W
0x0
ControlListFilled
This bit is used to indicate whether there are any TDs on the Control list.
It is set by HCD whenever it adds a TD to an ED in the Control list.
When HC begins to process the head of the Control list, it checks CLF. As
long as ControlListFilled is 0, HC will not start processing the Control list.
If CF is 1, HC will start processing the Control list and will set
ControlListFilled to 0. If HC finds a TD on the list, then HC will set
ControlListFilled to 1 causing the Control list processing to continue. If
no TD is found on the Control list, and if the HCD does not set
ControlListFilled, then ControlListFilled will still be 0 when HC
completes processing the Control list and Control list processing will
stop.
0
R/W
R/E
0x0
HostControllerReset
This bit is by HCD to initiate a software reset of HC. Regardless of the
functional state of HC, it moves to the USBSuspend state in which most
of the operational registers are reset except those stated otherwise; e.g,
the InteruptRouting field of HcControl, and no Host bus accesses are
allowed. This bit is cleared by HC upon the completion of the reset
operation. The reset operation must be completed within 10 ms. This
bit,
when set, should not cause a reset to the Root Hub and no subsequent
reset signaling should be asserted to its downstream ports.
7.5.3.5.4. HcInterruptStatus Register(Default Value: 0x00000000)
Offset: 0x40c
Register Name: HcInterruptStatus
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:7
/
/
0x0
Reserved
6
R/W
R/W
0x0
RootHubStatusChange
This bit is set when the content of HcRhStatus or the content of any of
HcRhPortStatus[NumberofDownstreamPort] has changed.
5
R/W
R/W
0x0
FrameNumberOverflow
This bit is set when the MSb of HcFmNumber (bit 15) changes value,
from 0 to 1 or from 1 to 0, and after HccaFrameNumber has been
updated.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 605
4
R/W
R/W
0x0
UnrecoverableError
This bit is set when HC detects a system error not related to USB. HC
should not proceed with any processing nor signaling before the system
error has been corrected. HCD clears this bit after HC has been reset.
3
R/W
R/W
0x0
ResumeDetected
This bit is set when HC detects that a device on the USB is asserting
resume signaling. It is the transition from no resume signaling to
resume signaling causing this bit to be set. This bit is not set when HCD
sets the USBRseume state.
2
R/W
R/W
0x0
StartofFrame
This bit is set by HC at each start of frame and after the update of
HccaFrameNumber. HC also generates a SOF token at the same time.
1
R/W
R/W
0x0
WritebackDoneHead
This bit is set immediately after HC has written HcDoneHead to
HccaDoneHead. Further updates of the HccaDoneHead will not occur
until this bit has been cleared. HCD should only clear this bit after it has
saved the content of HccaDoneHead.
0
R/W
R/W
0x0
SchedulingOverrun
This bit is set when the USB schedule for the current Frame overruns
and after the update of HccaFrameNumber. A scheduling overrun will
also cause the SchedulingOverrunCount of HcCommandStatus to be
Incremented.
7.5.3.5.5. HcInterruptEnable Register(Default Value: 0x00000000)
Offset: 0x410
Register Name: HcInterruptEnable Register
Bit
Read/Write
Default/Hex
Description
HCD
HC
31
R/W
R
0x0
MasterInterruptEnable
A ‘0’ writtern to this field is ignored by HC. A ‘1’ written to this field
enables interrupt generation due to events specified in the other bits of
this register. This is used by HCD as Master Interrupt Enable.
30:7
/
/
0x0
Reserved
6
R/W
R
0x0
RootHubStatusChange Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Root Hub Status Change;
5
R/W
R
0x0
FrameNumberOverflow Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Frame Number Over Flow;
4
R/W
R
0x0
UnrecoverableError Interrupt Enable
0
Ignore;
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 606
1
Enable interrupt generation due to Unrecoverable Error;
3
R/W
R
0x0
ResumeDetected Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Resume Detected;
2
R/W
R
0x0
StartofFrame Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Start of Flame;
1
R/W
R
0x0
WritebackDoneHead Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Write back Done Head;
0
R/W
R
0x0
SchedulingOverrun Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Scheduling Overrun;
7.5.3.5.6. HcInterruptDisable Register(Default Value: 0x00000000)
Offset: 0x414
Register Name: HcInterruptDisable Register
Bit
Read/Write
Default/Hex
Description
HCD
HC
31
R/W
R
0x0
MasterInterruptEnable
A written ‘0’ to this field is ignored by HC. A ‘1’ written to this field
disables interrupt generation due events specified in the other bits of
this register. This field is set after a hardware or software reset.
30:7
/
/
0x00
Reserved
6
R/W
R
0x0
RootHubStatusChange Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Root Hub Status Change;
5
R/W
R
0x0
FrameNumberOverflow Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Frame Number Over Flow;
4
R/W
R
0x0
UnrecoverableError Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Unrecoverable Error;
3
R/W
R
0x0
ResumeDetected Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Resume Detected;
2
R/W
R
0x0
StartofFrame Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Start of Flame;
1
R/W
R
0x0
WritebackDoneHead Interrupt Disable
0
Ignore;
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 607
1
Disable interrupt generation due to Write back Done Head;
0
R/w
R
0x0
SchedulingOverrun Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Scheduling Overrun;
7.5.3.5.7. HcHCCA Register(Default Value: 0x00000000)
Offset: 0x418
Register Name: HcHCCA
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:8
R/W
R
0x0
HCCA[31:8]
This is the base address of the Host Controller Communication Area.
This area is used to hold the control structures and the Interrupt table
that are accessed by both the Host Controller and the Host Controller
Driver.
7:0
R
R
0x0
HCCA[7:0]
The alignment restriction in HcHCCA register is evaluated by examining
the number of zeros in the lower order bits. The minimum alignment is
256 bytes, therefore, bits 0 through 7 must always return 0 when read.
7.5.3.5.8. HcPeriodCurrentED Register(Default Value: 0x00000000)
Offset: 0x41c
Register Name: HcPeriodCurrentED(PCED)
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:4
R
R/W
0x0
PCED[31:4]
This is used by HC to point to the head of one of the Periodec list
which will be processed in the current Frame. The content of this
register is updated by HC after a periodic ED has been processed. HCD
may read the content in determining which ED is currently being
processed at the time of reading.
3:0
R
R
0x0
PCED[3:0]
Because the general TD length is 16 bytes, the memory structure for
the TD must be aligned to a 16-byte boundary. So the lower bits in the
PCED, through bit 0 to bit 3 must be zero in this field.
7.5.3.5.9. HcControlHeadED Register(Default Value: 0x00000000)
Offset: 0x420
Register Name: HcControlHeadED[CHED]
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 608
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:4
R/W
R
0x0
EHCD[31:4]
The HcControlHeadED register contains the physical address of the
first
Endpoint Descriptor of the Control list. HC traverse the Control list
starting with the HcControlHeadED pointer. The content is loaded
from HCCA during the initialization of HC.
3:0
R
R
0x0
EHCD[3:0]
Because the general TD length is 16 bytes, the memory structure for
the TD must be aligned to a 16-byte boundary. So the lower bits in the
PCED, through bit 0 to bit 3 must be zero in this field.
7.5.3.5.10. HcControlCurrentED Register(Default Value: 0x00000000)
Offset: 0x424
Register Name: HcControlCurrentED[CCED]
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:4
R/W
R/W
0x0
CCED[31:4]
The pointer is advanced to the next ED after serving the present one.
HC will continue processing the list from where it left off in the last
Frame. When it reaches the end of the Control list, HC checks the
ControlListFilled of in HcCommandStatus. If set, it copies the content
of HcControlHeadED to HcControlCurrentED and clears the bit. If not
set, it does nothing.
HCD is allowed to modify this register only when the ControlListEnable
of HcControl is cleared. When set, HCD only reads the instantaneous
value of this register. Initially, this is set to zero to indicate the end of
the Control list.
3:0
R
R
0x0
CCED[3:0]
Because the general TD length is 16 bytes, the memory structure for
the TD must be aligned to a 16-byte boundary. So the lower bits in the
PCED, through bit 0 to bit 3 must be zero in this field.
7.5.3.5.11. HcBulkHeadED Register(Default Value: 0x00000000)
Offset: 0x428
Register Name: HcBulkHeadED[BHED]
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:4
R/W
R
0x0
BHED[31:4]
The HcBulkHeadED register contains the physical address of the first
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 609
Endpoint Descriptor of the Bulk list. HC traverses the Bulk list starting
with the HcBulkHeadED pointer. The content is loaded from HCCA
during the initialization of HC.
3:0
R
R
0x0
BHED[3:0]
Because the general TD length is 16 bytes, the memory structure for
the TD must be aligned to a 16-byte boundary. So the lower bits in the
PCED, through bit 0 to bit 3 must be zero in this field.
7.5.3.5.12. HcBulkCurrentED Register(Default Value: 0x00000000)
Offset: 0x42c
Register Name: HcBulkCurrentED [BCED]
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:4
R/W
R/W
0x0
BulkCurrentED[31:4]
This is advanced to the next ED after the HC has served the present
one. HC continues processing the list from where it left off in the last
Frame. When it reaches the end of the Bulk list, HC checks the
ControlListFilled of HcControl. If set, it copies the content of
HcBulkHeadED to HcBulkCurrentED and clears the bit. If it is not set, it
does nothing. HCD is only allowed to modify this register when the
BulkListEnable of HcControl is cleared. When set, the HCD only reads
the instantaneous value of this register. This is initially set to zero to
indicate the end of the Bulk list.
3:0
R
R
0x0
BulkCurrentED [3:0]
Because the general TD length is 16 bytes, the memory structure for
the TD must be aligned to a 16-byte boundary. So the lower bits in the
PCED, through bit 0 to bit 3 must be zero in this field.
7.5.3.5.13. HcDoneHead Register(Default Value: 0x00000000)
Offset: 0x430
Register Name: HcDoneHead
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:4
R
R/W
0x0
HcDoneHead[31:4]
When a TD is completed, HC writes the content of HcDoneHead to the
NextTD field of the TD. HC then overwrites the content of
HcDoneHead with the address of this TD. This is set to zero whenever
HC writes the content of this register to HCCA. It also sets the
WritebackDoneHead of HcInterruptStatus.
3:0
R
R
0x0
HcDoneHead[3:0]
Because the general TD length is 16 bytes, the memory structure for
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 610
the TD must be aligned to a 16-byte boundary. So the lower bits in the
PCED, through bit 0 to bit 3 must be zero in this field.
7.5.3.5.14. HcFmInterval Register(Default Value: 0x00002EDF)
Offset: 0x434
Register Name: HcFmInterval Register
Bit
Read/Write
Default/Hex
Description
HCD
HC
31
R/W
R
0x0
FrameIntervalToggler
HCD toggles this bit whenever it loads a new value to FrameInterval.
30:16
R/W
R
0x0
FSLargestDataPacket
This field specifies a value which is loaded into the Largest Data Packet
Counter at the beginning of each frame. The counter value represents
the largest amount of data in bits which can be sent or received by the
HC in a single transaction at any given time without causing scheduling
overrun. The field value is calculated by the HCD.
15:14
/
/
0x0
Reserved
13:0
R/W
R
0x2edf
FrameInterval
This specifies the interval between two consecutive SOFs in bit times.
The nominal value is set to be 11,999. HCD should store the current
value of this field before resetting HC. By setting the
HostControllerReset field of HcCommandStatus as this will cause the
HC to reset this field to its nominal value. HCD may choose to restore
the stored value upon the completion of the Reset sequence.
7.5.3.5.15. HcFmRemaining Register(Default Value: 0x00000000)
Offset: 0x438
Register Name: HcFmRemaining
Bit
Read/Write
Default/Hex
Description
HCD
HC
31
R
R/W
0x0
FrameRemaining Toggle
This bit is loaded from the FrameIntervalToggle field of HcFmInterval
whenever FrameRemaining reaches 0. This bit is used by HCD for the
synchronization between FrameInterval and FrameRemaining.
30:14
/
/
0x0
Reserved
13:0
R
RW
0x0
FramRemaining
This counter is decremented at each bit time. When it reaches zero, it
is reset by loading the FrameInterval value specified in HcFmInterval at
the next bit time boundary. When entering the USBOPERATIONAL
state, HC re-loads the content with the FrameInterval of HcFmInterval
and uses the updated value from the next SOF.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 611
7.5.3.5.16. HcFmNumber Register(Default Value: 0x00000000)
Offset: 0x43c
Register Name: HcFmNumber
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:16
/
/
/
Reserved
15:0
R
R/W
0x0
FrameNumber
This is incremented when HcFmRemaining is re-loaded. It will be
rolled over to 0x0 after 0x0ffff. When entering the USBOPERATIONAL
state, this will be incremented automatically. The content will be
written to HCCA after HC has incremented the FrameNumber at each
frame boundary and sent a SOF but before HC reads the first ED in
that Frame. After writing to HCCA, HC will set the StartofFrame in
HcInterruptStatus.
7.5.3.5.17. HcPeriodicStart Register(Default Value: 0x00000000)
Offset: 0x440
Register Name: HcPeriodicStatus
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:14
/
/
/
Reserved
13:0
R/W
R
0x0
PeriodicStart
After a hardware reset, this field is cleared. This is then set by HCD
during the HC initialization. The value is calculated roughly as 10% off
from HcFmInterval. A typical value will be 0x2A3F (0x3e67). When
HcFmRemaining reaches the value specified, processing of the
periodic lists will have priority over Control/Bulk processing. HC will
therefore start processing the Interrupt list after completing the
current Control or Bulk transaction that is in progress.
7.5.3.5.18. HcLSThreshold Register(Default Value: 0x00000628)
Offset: 0x444
Register Name: HcLSThreshold
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:12
Reserved
11:0
R/W
R
0x0628
LSThreshold
This field contains a value which is compared to the FrameRemaining
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 612
field prior to initiating a Low Speed transaction. The transaction is
started only if FrameRemaining ³ this field. The value is calculated by
HCD with the consideration of transmission and setup overhead.
7.5.3.5.19. HcRhDescriptorA Register(Default Value: 0x02001201)
Offset: 0x448
Register Name: HcRhDescriptorA
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:24
R/W
R
0x2
PowerOnToPowerGoodTime[POTPGT]
This byte specifies the duration HCD has to wait before accessing a
powered-on port of the Root Hub. It is implementation-specific. The
unit of time is 2 ms. The duration is calculated as POTPGT * 2ms.
23:13
Reserved
12
R/W
R
1
NoOverCurrentProtection
This bit describes how the overcurrent status for the Root Hub ports
are reported. When this bit is cleared, the
OverCurrentProtectionMode field specifies global or per-port
reporting.
0
Over-current status is reported collectively for all downstream
ports.
1
No overcurrent protection supported.
11
R/W
R
0
OverCurrentProtectionMode
This bit describes how the overcurrent status for the Root Hub ports
are reported. At reset, these fields should reflect the same mode as
PowerSwitchingMode. This field is valid only if the
NoOverCurrentProtection field is cleared.
0
Over-current status is reported collectively for all downstream
ports.
1
Over-current status is reported on per-port basis.
10
R
R
0x0
Device Type
This bit specifies that the Root Hub is not a compound device. The
Root Hub is not permitted to be a compound device. This field should
always read/write 0.
9
R/W
R
1
PowerSwitchingMode
This bit is used to specify how the power switching of the Root Hub
ports is controlled. It is implementation-specific. This field is only valid
if the NoPowerSwitching field is cleared.
0
All ports are powered at the same time.
1
Each port is powered individually. This mode allows port power
to be controlled by either the global switch or per-port
switching. If the PortPowerControlMask bit is set, the port
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 613
responds only to port power commands (Set/ClearPortPower).
If the port mask is cleared, then the port is controlled only by
the global power switch (Set/ClearGlobalPower).
8
R/W
R
0
NoPowerSwithcing
These bits are used to specify whether power switching is supported
or ports are always powered. It is implementation-specific. When this
bit is cleared, the PowerSwitchingMode specifies global or per-port
switching.
0
Ports are power switched.
1
Ports are always powered on when the HC is powered on.
7:0
R
R
0x01
NumberDownstreamPorts
These bits specify the number of downstream ports supported by the
Root Hub. It is implementation-specific. The minimum number of
ports is 1. The maximum number of ports supported.
7.5.3.5.20. HcRhDescriptorB Register(Default Value: 0x00000000)
Offset: 0x44c
Register Name: HcRhDescriptorB Register
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:16
R/W
R
0x0
PortPowerControlMask
Each bit indicates if a port is affected by a global power control
command when PowerSwitchingMode is set. When set, the port's
power state is only affected by per-port power control
(Set/ClearPortPower). When cleared, the port is controlled by the
global power switch (Set/ClearGlobalPower). If the device is
configured to global switching mode (PowerSwitchingMode = 0 ), this
field is not valid.
Bit0
Reserved
Bit1
Ganged-power mask on Port #1.
Bit2
Ganged-power mask on Port #2.
…
Bit15
Ganged-power mask on Port #15.
15:0
R/W
R
0x0
DeviceRemovable
Each bit is dedicated to a port of the Root Hub. When cleared, the
attached device is removable. When set, the attached device is not
removable.
Bit0
Reserved
Bit1
Device attached to Port #1.
Bit2
Device attached to Port #2.
…
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 614
Bit15
Device attached to Port #15.
7.5.3.5.21. HcRhStatus Register(Default Value: 0x00000000)
Offset: 0x450
Register Name: HcRhStatus Register
Bit
Read/Write
Default/Hex
Description
HCD
HC
31
W
R
0
(write)ClearRemoteWakeupEnable
Write a ‘1’ clears DeviceRemoteWakeupEnable. Write a ‘0’ has no
effect.
30:18
/
/
0x0
Reserved
17
R/W
R
0
OverCurrentIndicatorChang
This bit is set by hardware when a change has occurred to the
OverCurrentIndicator field of this register. The HCD clears this bit by
writing a ‘1’.Writing a ‘0’ has no effect.
16
R/W
R
0x0
(read)LocalPowerStartusChange
The Root Hub does not support the local power status features, thus,
this bit is always read as ‘0’.
(write)SetGlobalPower
In global power mode (PowerSwitchingMode=0), This bit is written to
‘1’ to turn on power to all ports (clear PortPowerStatus). In per-port
power mode, it sets PortPowerStatus only on ports whose
PortPowerControlMask bit is not set. Writing a ‘0’ has no effect.
15
R/W
R
0x0
(read)DeviceRemoteWakeupEnable
This bit enables a ConnectStatusChange bit as a resume event, causing
a USBSUSPEND to USBRESUME state transition and setting the
ResumeDetected interrupt.
0
ConnectStatusChange is not a remote wakeup event.
1
ConnectStatusChange is a remote wakeup event.
(write)SetRemoteWakeupEnable
Writing a ‘1’ sets DeviceRemoveWakeupEnable. Writing a ‘0’ has no
effect.
14:2
Reserved
1
R
R/W
0x0
OverCurrentIndicator
This bit reports overcurrent conditions when the global reporting is
implemented. When set, an overcurrent condition exists. When
cleared, all power operations are normal.
If per-port overcurrent protection is implemented this bit is always ‘0’
0
R/W
R
0x0
(Read)LocalPowerStatus
When read, this bit returns the LocalPowerStatus of the Root Hub. The
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 615
Root Hub does not support the local power status feature; thus, this
bit is always read as ‘0’.
(Write)ClearGlobalPower
When write, this bit is operated as the ClearGlobalPower. In global
power mode (PowerSwitchingMode=0), This bit is written to ‘1’ to
turn off power to all ports (clear PortPowerStatus). In per-port power
mode, it clears PortPowerStatus only on ports whose
PortPowerControlMask bit is not set. Writing a ‘0’ has no effect.
7.5.3.5.22. HcRhPortStatus Register(Default Value: 0x00000100)
Offset: 0x454
Register Name: HcRhPortStatus
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:21
/
/
0x0
Reserved
20
R/W
R/W
0x0
PortResetStatusChange
This bit is set at the end of the 10-ms port reset signal. The HCD writes
a ‘1’ to clear this bit. Writing a ‘0’ has no effect.
0
port reset is not complete
1
port reset is complete
19
R/W
R/W
0x0
PortOverCurrentIndicatorChange
This bit is valid only if overcurrent conditions are reported on a
per-port basis. This bit is set when Root Hub changes the
PortOverCurrentIndicator bit. The HCD writes a ‘1’ to clear this bit.
Writing a ‘0’ has no effect.
0
no change in PortOverCurrentIndicator
1
PortOverCurrentIndicator has changed
18
R/W
R/W
0x0
PortSuspendStatusChange
This bit is set when the full resume sequence has been completed.
This sequence includes the 20-s resume pulse, LS EOP, and 3-ms
resychronization delay. The HCD writes a ‘1’ to clear this bit. Writing a
‘0’ has no effect. This bit is also cleared when ResetStatusChange is
set.
0
resume is not completed
1
resume completed
17
R/W
R/W
0x0
PortEnableStatusChange
This bit is set when hardware events cause the PortEnableStatus bit to
be cleared. Changes from HCD writes do not set this bit. The HCD
writes a ‘1’ to clear this bit. Writing a ‘0’ has no effect.
0
no change in PortEnableStatus
1
change in PortEnableStatus
16
R/W
R/W
0x0
ConnectStatusChange
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 616
This bit is set whenever a connect or disconnect event occurs. The
HCD writes a ‘1’ to clear this bit. Writing a ‘0’ has no effect. If
CurrentConnectStatus is cleared when a SetPortReset,SetPortEnable,
or SetPortSuspend write occurs, this bit is set to force the driver to
re-evaluate the connection status since these writes should not occur
if the port is disconnected.
0
no change in PortEnableStatus
1
change in PortEnableStatus
Note: If the DeviceRemovable[NDP] bit is set, this bit is set only
after a Root Hub reset to inform the system that the device is
attached.
15:10
/
/
0x0
Reserved
9
R/W
R/W
-
(read)LowSpeedDeviceAttached
This bit indicates the speed of the device attached to this port. When
set, a Low Speed device is attached to this port. When clear, a Full
Speed device is attached to this port. This field is valid only when the
CurrentConnectStatus is set.
0
full speed device attached
1
low speed device attached
(write)ClearPortPower
The HCD clears the PortPowerStatus bit by writing a ‘1’ to this bit.
Writing a ‘0’ has no effect.
8
R/W
R/W
0x1
(read)PortPowerStatus
This bit reflects the port’s power status, regardless of the type of
power switching implemented. This bit is cleared if an overcurrent
condition is detected. HCD sets this bit by writing SetPortPower or
SetGlobalPower. HCD clears this bit by writing ClearPortPower or
ClearGlobalPower. Which power control switches are enabled is
determined by PowerSwitchingMode and
PortPortControlMask[NumberDownstreamPort]. In global switching
mode(PowerSwitchingMode=0), only Set/ClearGlobalPower controls
this bit. In per-port power switching (PowerSwitchingMode=1), if the
PortPowerControlMask[NDP] bit for the port is set, only
Set/ClearPortPower commands are enabled. If the mask is not set,
only Set/ClearGlobalPower commands are enabled. When port power
is disabled, CurrentConnectStatus, PortEnableStatus,
PortSuspendStatus, and PortResetStatus should be reset.
0
port power is off
1
port power is on
(write)SetPortPower
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 617
The HCD writes a ‘1’ to set the PortPowerStatus bit. Writing a ‘0’ has
no effect.
Note: This bit is always reads ‘1b’ if power switching is not supported.
7:5
/
/
0x0
Reserved
4
R/W
R/W
0x0
(read)PortResetStatus
When this bit is set by a write to SetPortReset, port reset signaling is
asserted. When reset is completed, this bit is cleared when
PortResetStatusChange is set. This bit cannot be set if
CurrentConnectStatus is cleared.
0
port reset signal is not active
1
port reset signal is active
(write)SetPortReset
The HCD sets the port reset signaling by writing a ‘1’ to this bit.
Writing a ‘0’ has no effect. If CurrentConnectStatus is cleared, this
write does not set PortResetStatus, but instead sets
ConnectStatusChange. This informs the driver that it attempted to
reset a disconnected port.
3
R/W
R/W
0x0
(read)PortOverCurrentIndicator
This bit is only valid when the Root Hub is configured in such a way
that overcurrent conditions are reported on a per-port basis. If
per-port overcurrent reporting is not supported, this bit is set to 0. If
cleared, all power operations are normal for this port. If set, an
overcurrent condition exists on this port. This bit always reflects the
overcurrent input signal.
0
no overcurrent condition.
1
overcurrent condition detected.
(write)ClearSuspendStatus
The HCD writes a ‘1’ to initiate a resume. Writing a ‘0’ has no effect. A
resume is initiated only if PortSuspendStatus is set.
2
R/W
R/W
0x0
(read)PortSuspendStatus
This bit indicates the port is suspended or in the resume sequence. It
is set by a SetSuspendState write and cleared when
PortSuspendStatusChange is set at the end of the resume interval.
This bit cannot be set if CurrentConnectStatus is cleared. This bit is
also cleared when PortResetStatusChange is set at the end of the port
reset or when the HC is placed in the USBRESUME state. If an
upstream resume is in progress, it should propagate to the HC.
0
port is not suspended
1
port is suspended
(write)SetPortSuspend
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 618
The HCD sets the PortSuspendStatus bit by writing a ‘1’ to this bit.
Writing a ‘0’ has no effect. If CurrentConnectStatus is cleared, this
write does not set PortSuspendStatus; instead it sets
ConnectStatusChange. This informs the driver that it attempted to
suspend a disconnected port.
1
R/W
R/W
0x0
(read)PortEnableStatus
This bit indicates whether the port is enabled or disabled. The Root
Hub may clear this bit when an overcurrent condition, disconnect
event, switched-off power, or operational bus error such as babble is
detected. This change also causes PortEnabledStatusChange to be set.
HCD sets this bit by writing SetPortEnable and clears it by writing
ClearPortEnable. This bit cannot be set when CurrentConnectStatus is
cleared. This bit is also set, if not already, at the completion of a port
reset when ResetStatusChange is set or port suspend when
SuspendStatusChange is set.
0
port is disabled
1
port is enabled
(write)SetPortEnable
The HCD sets PortEnableStatus by writing a ‘1’. Writing a ‘0’ has no
effect. If CurrentConnectStatus is cleared, this write does not set
PortEnableStatus, but instead sets ConnectStatusChange. This informs
the driver that it attempted to enable a disconnected Port.
0
R/W
R/W
0x0
(read)CurrentConnectStatus
This bit reflects the current state of the downstream port.
0
No device connected
1
Device connected
(write)ClearPortEnable
The HCD writes a ‘1’ to clear the PortEnableStatus bit. Writing ‘0’ has
no effect. The CurrentConnectStatus is not affected by any write.
Note: This bit is always read ‘1’ when the attached device is
nonremovalble(DviceRemoveable[NumberDownstreamPort]).
7.5.3.6. HCI Interface Control and Status Register Description
7.5.3.6.1. HCI Interface Control Register(Default Value: 0x00000000)
Offset: 0x800
Register Name: HCI_ICR
Bit
R/W
Default/Hex
Description
31:21
/
/
Reserved.
20
R/W
0
EHCI HS force
Set 1 to this field force the ehci enter the high speed mode during bus
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 619
reset.
This field only valid when the bit 1 is set.
19:18
/
/
/
17
R/W
0
HSIC Connect detect
1 in this field enable the hsic phy to detect device connect pulse on the
bus.
This field only valid when the bit 1 is set.
16
R/W
0
HSIC Connect Interrupt Enable
Enable the HSIC connect interrupt.
This field only valid when the bit 1 is set.
15:13
/
/
/
12
/
/
/
11
R/W
0
AHB Master interface INCR16 enable
1: Use INCR16 when appropriate
0: do not use INCR16,use other enabled INCRX or unspecified length burst
INCR
10
R/W
0
AHB Master interface INCR8 enable
1: Use INCR8 when appropriate
0: do not use INCR8,use other enabled INCRX or unspecified length burst
INCR
9
R/W
0
AHB Master interface burst type INCR4 enable
1: Use INCR4 when appropriate
0: do not use INCR4,use other enabled INCRX or unspecified length burst
INCR
8
R/W
0
AHB Master interface INCRX align enable
1: start INCRx burst only on burst x-align address
0: Start burst on any double word boundary
Note: This bit must enable if any bit of 11:9 is enabled
7:2
/
/
Reserved
1
R/W
0
HSIC
0:/
1:HSIC
This meaning is only valid when the controller is HCI1.
0
R/W
0
ULPI bypass enable。
1: Enable UTMI interface, disable ULPI interface(SP used utmi
interface)
0: Enable ULPI interface, disable UTMI interface
7.5.3.6.2. HSIC status Register(Default Value: 0x00000000)
Offset: 0x804
Register Name: HSIC_STATUS
Bit
R/W
Default/Hex
Description
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 620
31:17
/
/
/
16
R/W
0
HSIC Connect Status
1 in this field indicates a device connect pulse being detected on the bus.
This field only valid when the EHCI HS force bit and the HSIC Phy Select bit
is set.
When the HSIC Connect Interrupt Enable is set, 1 in this bit will generate an
interrupt to the system.
This register is valid on HCI1.
15:0
/
/
/
7.5.3.7. USB Host Clock Requirement
Name
Description
HCLK
System clock (provided by AHB bus clock). This clock needs to be >30MHz.
CLK60M
Clock from PHY for HS SIE, is constant to be 60MHz.
CLK48M
Clock from PLL for FS/LS SIE, is constant to be 48MHz.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 621
7.6. I2S/PCM
7.6.1. Overview
The I2S/PCM Controller has been designed to transfer streaming audio-data between the system memory and
the codec chip. The controller supports standard I2S format, Left-justified Mode format, Right-justified Mode
format, PCM Mode format and TDM Mode format.
The I2S/PCM controller includes the following features:
Compliant with standard Philips Inter-IC sound (I2S) bus specification
Compliant with Left-justified, Right-justified, PCM mode, and TDM (Time Division Multiplexing) format
Support different sample period width in each interface when using LRCK and LRCKR at the same time
Support full-duplex synchronous work mode
Support Master / Slave mode
Support adjustable interface voltage
Support clock up to 100MHz
Support adjustable audio sample rate from 8-bit to 32-bit.
Support up to 8 slots which has adjustable width from 8-bit to 32-bit.
Support sample rate from 8KHz to 192KHz
Support 8-bits u-law and 8-bits A-law companded sample
One 128 x 32-bit width FIFO for data transmit, one 64 x 32-bit width FIFO for data receive
Support programmable PCM frame width: 1 BCLK width (short frame) and 2 BCLKs width (long frame)
Programmable FIFO thresholds
Interrupt and DMA Support
Support loopback mode for test
Support Audio HUB
7.6.2. Signal Description
7.6.2.1. I2S/PCM Pin List
Signal Name(x=0,1)
Direction(M)
Description
PCMx_BCLK
I/O
I2S/PCM x BCLK Output
PCMx_SYNC
I/O
I2S/PCM x Sample Rate Clock/Sync
PCMx_DIN
I
I2S/PCM x Serial Data Input
PCMx_DOUT
O
I2S/PCM x Serial Data Output
I2S_MCLK
O
I2S CLK Output
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 622
7.6.2.2. Digital Audio Interface Clock Source and Frequency
Name
Description
Audio_PLL
24.576Mhz or 22.5792Mhz generated by AUDIO-PLL to produce 48KHz or 44.1KHz serial
frequency
7.6.3. Functionalities Description
7.6.3.1. Typical Applications
The I2S/PCM provides a serial bus interface for stereo and multichannel audio data. This interface is most
commonly used by consumer audio market, including compact disc, digital audio tape, digital sound processors,
and digital TV-sound.
7.6.3.2. Functional Block Diagram
The I2S/PCM Interface block diagram is shown below:
Register
64x32-
bits
RX FIFO
I2S
Engine
PCM
Engine
PCM
Codec
Clock
Divide
M
U
X
MCLK
BCLK
BCLK
LRCK
SDO
SDI
TX_DRQ
RX_DRQ
AUDIO_PLL
DA_INT
System
Bus
(APB)
128x32-
bits
TX FIFO
S
Y
N
C
Figure 7-8. I2S/PCM Interface System Block Diagram
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 623
7.6.4. Timing Diagram
BCLK
LRCK
DOUT/DIN
n-1 …10
n-2
MSB LSB
Left Channel Right Channel
1 / fs
8 slot
4 slot
2 slot 0 1
0
0
1
1
2
2
3
3
465 7
DOUT/DIN
DOUT/DIN
[I2S mode]
m m = 0 ~ 7
slot
sample
[TDM-I2S mode]
[TDM-I2S mode]
Figure 7-9. Timing Diagram for I2S/TDM-I2S mode
BCLK
LRCK
n-1 …10
n-2
MSB LSB
Left Channel Right Channel
1 / fs
8 slot
4 slot
2 slot 0 1
0
0
1
1
2
2
3
34 6 5 7
[Left-Justified mode]
m m = 0 ~ 7
slot
sample
[TDM-Left mode]
[TDM-Left mode]
Figure 7-10. Timing Diagram for Left-justified/TDM-Left mode
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 624
BCLK
LRCK
n-1 …10
n-2
MSB LSB
Left Channel Right Channel
1 / fs
8 slot
4 slot
2 slot 01
0
0
1
1
2
2
3
3
4 6 5 7
[Right-Justified mode]
m m = 0 ~ 7
slot
sample
[TDM-Right mode]
[TDM-Right mode]
Figure 7-11. Timing Diagram for Right-justified/TDM-Right mode
BCLK
LRCK
n-1 …10
n-2
MSB LSB
1 / fs
8 slot
4 slot
2 slot
0 1 2 3
[DSP_B stereo]
m m = 0 ~ 7
slot
sample
[TDM-DSP_B mode]
[TDM-DSP_B mode] 4 5 6 7
0 1 2 3
0 1
[DSP_B mono]
1 slot 0
0 1 2 3 4 5 6 7
0 1 2 3
0 1
0
8 slot
4 slot
2 slot
[DSP_A stereo]
[TDM-DSP_A mode]
[TDM-DSP_A mode]
[DSP_A mono]
1 slot
Figure 7-12. Timing Diagram for PCM/TDM-PCM mode
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 625
7.6.5. Operation Modes
The software operation of the I2S/PCM is divided into five steps: system setup, PCM/I2S initialization, the
channel setup, DMA setup and Enable/Disable module. These five steps are described in detail in the following
sections.
7.6.5.1. System setup and I2S/PCM initialization
The first step in the system setup is properly programming the GPIO. Because the I2S/PCM port is a multiplex
pin. You can find the function in the pin multiplex specification. The clock source for the I2S/PCM should be
followed. At first you must reset the audio PLL through the PLL_ENABLE bit of PLL_AUDIO_CTRL_REG in the
CCU. The second step, you must setup the frequence of the audio pll in the PLL_AUDIO_CTRL_REG. After that,
you must open the I2S/PCM gating through the I2S/PCM 0_CLK_REG / I2S/PCM 1_CLK_REG when you
checkout that the LOCK bit of PLL_AUDIO_CTRL_REG become 1. At last, you must reset the I2S/PCM in
BUS_SOFT_RST_REG3's bit[13:12] and open the I2S/PCM bus gating in the BUS_CLK_GATING_REG2's
bit[13:12].
After the system setup, the register of I2S/PCM can be setup. At first, you should initialization the I2S/PCM. You
should closed the Globe Enable bit(I2S/PCM_CTL[0]) , Transmitter Block Enable bit(I2S/PCM_CTL[2]) and
Receiver Block Enable bit(I2S/PCM_CTL[1]) by write 0 to it. After that, you must clear the TX/RX FIFO by write
0 to register I2S/PCM_FCTL[25:24]. At last, you can clear the TX/RX FIFO counter by write 0 to
I2S/PCM_TXCNT/I2S/PCM_RXCNT.
7.6.5.2. The channel setup and DMA setup
Before the usage and control of I2S/PCM, you must configure the I2C. The configuration of I2C will not describe
in this chapter. But you can only configure I2S/PCM of master and slave through the I2C. In the following, you
can setup the I2S/PCM of mater and slave. The configuration can be referred to the the protocol of I2S/PCM.
Then, you can set the translation mode, the sample precision, the wide of slot, the frame mode and the trigger
level. The register set can be found in the spec.
The I2S/PCM supports three methods to transfer the data. The most common way is DMA, the set of DMA can
be found in the DMA. In this module, you just to enable the DRQ.
7.6.5.3. Enable and disable the I2S/PCM
To enable the function, you can enable TX/RX by write the I2S/PCM_CTL[2:1]. After that, you must enable
I2S/PCM by write the Globe Enable bit to 1 in the I2S/PCM_CTL. The disable process is writed the Globe
Enable to 0.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 626
7.6.6. I2S/PCM Register List
Module Name
Base Address
I2S/PCM 0
0x01C22000
I2S/PCM 1
0x01C22400
I2S/PCM 2
0x01C22800 (for HDMI)
Register Name
Offset
Description
I2S/PCM_CTL
0x00
I2S/PCM Control Register
I2S/PCM_FMT0
0x04
I2S/PCM Format Register 0
I2S/PCM_FMT1
0x08
I2S/PCM Format Register 1
I2S/PCM_ISTA
0x0C
I2S/PCM Interrupt Status Register
I2S/PCM_RXFIFO
0x10
I2S/PCM RX FIFO Register
I2S/PCM_FCTL
0x14
I2S/PCM FIFO Control Register
I2S/PCM_FSTA
0x18
I2S/PCM FIFO Status Register
I2S/PCM_INT
0x1C
I2S/PCM DMA & Interrupt Control Register
I2S/PCM_TXFIFO
0x20
I2S/PCM TX FIFO Register
I2S/PCM_CLKD
0x24
I2S/PCM Clock Divide Register
I2S/PCM_TXCNT
0x28
I2S/PCM TX Sample Counter Register
I2S/PCM_RXCNT
0x2C
I2S/PCM RX Sample Counter Register
I2S/PCM_CHCFG
0x30
I2S/PCM Channel Configuration register
I2S/PCM_TX0CHCFG
0x34
I2S/PCM TX0 Channel Configuration register
I2S/PCM_TX1CHSEL
0x38
I2S/PCM TX1 Channel Select Register
I2S/PCM_TX2CHSEL
0x3C
I2S/PCM TX2 Channel Select Register
I2S/PCM_TX3CHSEL
0x40
I2S/PCM TX3 Channel Select Register
I2S/PCM_TX0CHMAP
0x44
I2S/PCM TX0 Channel Mapping Register
I2S/PCM_TX0CHMAP
0x48
I2S/PCM TX1 Channel Mapping Register
I2S/PCM_TX0CHMAP
0x4C
I2S/PCM TX2 Channel Mapping Register
I2S/PCM_TX0CHMAP
0x50
I2S/PCM TX3 Channel Mapping Register
I2S/PCM_RXCHSEL
0x54
I2S/PCM RX Channel Select register
I2S/PCM_RXCHMAP
0x58
I2S/PCM RX Channel Mapping Register
7.6.7. I2S/PCM Register Description
7.6.7.1. I2S/PCM Control Register(Default Value: 0x00060000)
Offset: 0x00
Register Name: I2S/PCM_CTL
Bit
R/W
Default/Hex
Description
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 627
31:19
/
/
/
18
R/W
1
BCLK_OUT
0: input
1: output
17
R/W
1
LRCK_OUT
0: input
1: output
16
R/W
0
/
15:12
/
/
/
11
R/W
0
/
10
R/W
0
/
9
R/W
0
/
8
R/W
0
SDO0_EN
0: Disable, Hi-Z state
1: Enable
7
/
/
/
6
R/W
0
OUT Mute
0: normal transfer
1: force DOUT to output 0
5:4
R/W
0
MODE_SEL
Mode Selection
0: PCM mode (offset 0: DSP_B; offset 1: DSP_A)
1: Left mode (offset 0: LJ mode; offset 1: I2S mode)
2: Right-Justified mode
3: Reserved
3
R/W
0
LOOP
Loop back test
0: Normal mode
1: Loop back test
When set ‘1’, connecting the SDO0 with the SDI
2
R/W
0
TXEN
Transmitter Block Enable
0: Disable
1: Enable
1
R/W
0
RXEN
Receiver Block Enable
0: Disable
1: Enable
0
R/W
0
GEN
Globe Enable
A disable on this bit overrides any other block or channel enables.
0: Disable
1: Enable
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 628
7.6.7.2. I2S/PCM Format Register0 (Default Value: 0x00000033)
Offset: 0x04
Register Name: I2S/PCM_FMT0
Bit
R/W
Default/Hex
Description
31
R/W
0
/
30
R/W
0
LRCK_WIDTH
(only apply in PCM mode ) LRCK width
0: LRCK = 1 BCLK width (short frame)
1: LRCK = 2 BCLK width (long frame)
29:20
R/W
0
/
19
R/W
0
LRCK_POLARITY/LRCKR_POLARITY
When apply in I2S / Left-Justified / Right-Justified mode:
0: Left channel when LRCK is low
1: Left channel when LRCK is high
When apply in PCM mode:
0: PCM LRCK/LRCKR asserted at the negative edge
1: PCM LRCK/LRCKR asserted at the positive edge
18
/
/
/
17:8
R/W
0
LRCK_PERIOD
It is used to program the number of BCLKs per channel of sample frame.
This value is interpreted as follow:
PCM mode: Number of BCLKs within (Left + Right) channel width
I2S / Left-Justified / Right-Justified mode: Number of BCLKs within each
individual channel width (Left or Right)
N+1
For example:
n = 7: 8 BCLK width
…
n = 1023: 1024 BCLKs width
7
R/W
0
BCLK_POLARITY
0: normal mode, negative edge drive and positive edge sample
1: invert mode, positive edge drive and negative edge sample
6:4
R/W
3
SR
Sample Resolution
0: Reserved
1: 8-bit
2: 12-bit
3: 16-bit
4: 20-bit
5: 24-bit
6: 28-bit
7: 32-bit
3
R/W
0
EDGE_TRANSFER
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 629
0: SDO drive data and SDI sample data at the different BCLK edge
1: SDO drive data and SDI sample data at the same BCLK edge
BCLK_POLARITY = 0, use negative edge
BCLK_POLARITY = 1, use positive edge
2:0
R/W
0x3
SW
Slot Width Select
0: Reserved
1: 8-bit
2: 12-bit
3: 16-bit
4: 20-bit
5: 24-bit
6: 28-bit
7: 32-bit
7.6.7.3. I2S/PCM Format Register1 (Default Value: 0x00000030)
Offset: 0x08
Register Name: I2S/PCM_FMT1
Bit
R/W
Default/Hex
Description
31:8
/
/
7
R/W
0
RX MLS
MSB / LSB First Select
0: MSB First
1: LSB First
6
R/W
0
TX MLS
MSB / LSB First Select
0: MSB First
1: LSB First
5:4
R/W
3
SEXT
Sign Extend in slot [sample resolution < slot width]
0: Zeros or audio gain padding at LSB position
1: Sign extension at MSB position
2: Reserved
3: Transfer 0 after each sample in each slot
3:2
R/W
0
RX_PDM
PCM Data Mode
0: Linear PCM
1: reserved
2: 8-bits u-law
3: 8-bits A-law
1:0
R/W
0
TX_PDM
PCM Data Mode
0: Linear PCM
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 630
1: reserved
2: 8-bits u-law
3: 8-bits A-law
7.6.7.4. I2S/PCM Interrupt Status Register(Default Value: 0x00000010)
Offset: 0x0C
Register Name: I2S/PCM_ISTA
Bit
R/W
Default/Hex
Description
31:7
/
/
/
6
R/W
0
TXU_INT
TX FIFO Under run Pending Interrupt
0: No Pending Interrupt
1: FIFO Under run Pending Interrupt
Write 1 to clear this interrupt
5
R/W
0
TXO_INT
TX FIFO Overrun Pending Interrupt
0: No Pending Interrupt
1: FIFO Overrun Pending Interrupt
Write ‘1’ to clear this interrupt
4
R/W
1
TXE_INT
TX FIFO Empty Pending Interrupt
0: No Pending IRQ
1: FIFO Empty Pending Interrupt when data in TX FIFO are less than TX
trigger level
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
fails.
3
/
/
/
2
R/W
0
RXU_INT
RX FIFO Under run Pending Interrupt
0: No Pending Interrupt
1:FIFO Under run Pending Interrupt
Write 1 to clear this interrupt
1
R/W
0
RXO_INT
RX FIFO Overrun Pending Interrupt
0: No Pending IRQ
1: FIFO Overrun Pending IRQ
Write ‘1’ to clear this interrupt
0
R/W
0
RXA_INT
RX FIFO Data Available Pending Interrupt
0: No Pending IRQ
1: Data Available Pending IRQ when data in RX FIFO are more than RX
trigger level
Write ‘1’ to clear this interrupt or automatic clear if interrupt condition
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 631
fails.
7.6.7.5. I2S/PCM RX FIFO Register(Default Value: 0x00000000)
Offset: 0x10
Register Name: I2S/PCM_RXFIFO
Bit
R/W
Default/Hex
Description
31:0
R
0
RX_DATA
RX Sample
Host can get one sample by reading this register. The left channel sample
data is first and then the right channel sample.
7.6.7.6. I2S/PCM FIFO Control Register (Default Value: 0x000400F0)
Offset: 0x14
Register Name: I2S/PCM_FCTL
Bit
R/W
Default/Hex
Description
31
R/W
0
HUB_EN
Audio hub enable
0:disable
1:enable
30:26
/
/
/
25
R/W
0
FTX
Write ‘1’ to flush TX FIFO, self clear to ‘0’.
24
R/W
0
FRX
Write ‘1’ to flush RX FIFO, self clear to ‘0’.
23:19
/
/
/
18:12
R/W
0x40
TXTL
TX FIFO Empty Trigger Level
Interrupt and DMA request trigger level for TXFIFO normal condition
Trigger Level = TXTL
11:10
/
/
/
9:4
R/W
0xF
RXTL
RX FIFO Trigger Level
Interrupt and DMA request trigger level for RXFIFO normal condition
Trigger Level = RXTL + 1
3
/
/
/
2
R/W
0
TXIM
TX FIFO Input Mode (Mode 0, 1)
0: Valid data at the MSB of TXFIFO register
1: Valid data at the LSB of TXFIFO register
Example for 20-bits transmitted audio sample:
Mode 0: FIFO_I[31:0] = {APB_WDATA[31:12], 12’h0}
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 632
Mode 1: FIFO_I[31:0] = {APB_WDATA[19:0], 12’h0}
1:0
R/W
0
RXOM
RX FIFO Output Mode (Mode 0, 1, 2, 3)
00: Expanding ‘0’ at LSB of DA_RXFIFO register.
01: Expanding received sample sign bit at MSB of DA_RXFIFO register.
10: Truncating received samples at high half-word of DA_RXFIFO register
and low half-word of DA_RXFIFO register is filled by ‘0’.
11: Truncating received samples at low half-word of DA_RXFIFO register
and high half-word of DA_RXFIFO register is expanded by its sign bit.
Example for 20-bits received audio sample:
Mode 0: APB_RDATA[31:0] = {FIFO_O[31:12], 12’h0}
Mode 1: APB_RDATA [31:0] = {12{FIFO_O[31]}, FIFO_O[31:12]}
Mode 2: APB_RDATA [31:0] = {FIFO_O[31:16], 16’h0}
Mode 3: APB_RDATA [31:0] = {16{FIFO_O[31], FIFO_O[31:16]}
7.6.7.7. I2S/PCM FIFO Status Register (Default Value: 0x10800000)
Offset: 0x18
Register Name: I2S/PCM_FSTA
Bit
R/W
Default/Hex
Description
31:29
/
/
/
28
R
1
TXE
TX FIFO Empty
0: No room for new sample in TX FIFO
1: More than one room for new sample in TX FIFO (>= 1 word)
27:24
/
/
/
23:16
R
0x80
TXE_CNT
TX FIFO Empty Space Word Counter
15:9
/
/
/
8
R
0
RXA
RX FIFO Available
0: No available data in RX FIFO
1: More than one sample in RX FIFO (>= 1 word)
7
/
/
/
6:0
R
0
RXA_CNT
RX FIFO Available Sample Word Counter
7.6.7.8. I2S/PCM DMA & Interrupt Control Register(Default Value: 0x00000000)
Offset: 0x1C
Register Name: I2S/PCM_INT
Bit
R/W
Default/Hex
Description
31:8
/
/
/
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 633
7
R/W
0
TX_DRQ
TX FIFO Empty DRQ Enable
0: Disable
1: Enable
6
R/W
0
TXUI_EN
TX FIFO Under run Interrupt Enable
0: Disable
1: Enable
5
R/W
0
TXOI_EN
TX FIFO Overrun Interrupt Enable
0: Disable
1: Enable
When set to ‘1’, an interrupt happens when writing new audio data if TX
FIFO is full.
4
R/W
0
TXEI_EN
TX FIFO Empty Interrupt Enable
0: Disable
1: Enable
3
R/W
0
RX_DRQ
RX FIFO Data Available DRQ Enable
0: Disable
1: Enable
When set to ‘1’, RXFIFO DMA Request line is asserted if Data is available in
RX FIFO.
2
R/W
0
RXUI_EN
RX FIFO Under run Interrupt Enable
0: Disable
1: Enable
1
R/W
0
RXOI_EN
RX FIFO Overrun Interrupt Enable
0: Disable
1: Enable
0
R/W
0
RXAI_EN
RX FIFO Data Available Interrupt Enable
0: Disable
1: Enable
7.6.7.9. I2S/PCM TX FIFO Register(Default Value: 0x00000000)
Offset: 0x20
Register Name: I2S/PCM_TXFIFO
Bit
R/W
Default/Hex
Description
31:0
W
0
TX_DATA
TX Sample
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 634
Transmitting left, right channel sample data should be written this register
one by one. The left channel sample data is first and then the right channel
sample.
7.6.7.10. I2S/PCM Clock Divide Register(Default Value: 0x00000000)
Offset: 0x24
Register Name: I2S/PCM_CLKD
Bit
R/W
Default/Hex
Description
31:9
/
/
/
8
R/W
0
MCLKO_EN
0: Disable MCLK Output
1: Enable MCLK Output
Notes: Whether in Slave or Master mode, when this bit is set to 1, MCLK
should be output.
7:4
R/W
0
BCLKDIV
BCLK Divide Ratio from PLL2
0: reserved
1: Divide by 1
2: Divide by 2
3: Divide by 4
4: Divide by 6
5: Divide by 8
6: Divide by 12
7: Divide by 16
8: Divide by 24
9: Divide by 32
10: Divide by 48
11: Divide by 64
12: Divide by 96
13: Divide by 128
14: Divide by 176
15: Divide by 192
3:0
R/W
0
MCLKDIV
MCLK Divide Ratio from PLL2 Output
0: reserved
1: Divide by 1
2: Divide by 2
3: Divide by 4
4: Divide by 6
5: Divide by 8
6: Divide by 12
7: Divide by 16
8: Divide by 24
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 635
9: Divide by 32
10: Divide by 48
11: Divide by 64
12: Divide by 96
13: Divide by 128
14: Divide by 176
15: Divide by 192
7.6.7.11. I2S/PCM TX Counter Register(Default Value: 0x00000000)
Offset: 0x28
Register Name: I2S/PCM_TXCNT
Bit
R/W
Default/Hex
Description
31:0
R/W
0
TX_CNT
TX Sample Counter
The audio sample number of sending into TXFIFO. When one sample is put
into TXFIFO by DMA or by host IO, the TX sample counter register
increases by one. The TX sample counter register can be set to any initial
valve at any time. After been updated by the initial value, the counter
register should count on base of this initial value.
7.6.7.12. I2S/PCM RX Counter Register(Default Value: 0x00000000)
Offset: 0x2C
Register Name: I2S/PCM_RXCNT
Bit
R/W
Default/Hex
Description
31:0
R/W
0
RX_CNT
RX Sample Counter
The audio sample number of writing into RXFIFO. When one sample is
written by Digital Audio Engine, the RX sample counter register increases
by one. The RX sample counter register can be set to any initial valve at any
time. After been updated by the initial value, the counter register should
count on base of this initial value.
7.6.7.13. I2S/PCM Channel Configuration Register(Default Value: 0x00000000)
Offset: 0x30
Register Name: I2S/PCM_CHCFG
Bit
R/W
Default/Hex
Description
31:10
/
/
/
9
R/W
0
TX_SLOT_HIZ
0: normal mode for the last half cycle of BCLK in the slot
1: turn to hi-z state for the last half cycle of BCLK in the slot
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 636
8
R/W
0
TXn_STATE
0: transfer level 0 when not transferring slot
1: turn to hi-z state when not transferring slot
7
/
/
/
6:4
R/W
0
RX_SLOT_NUM
RX Channel/Slot Number which between CPU/DMA and FIFO
0: 1 channel or slot
...
7: 8 channels or slots
3
/
/
/
2:0
R/W
0
TX_SLOT_NUM
TX Channel/Slot Number which between CPU/DMA and FIFO
0: 1 channel or slot
...
7: 8 channels or slots
7.6.7.14. I2S/PCM TXn Channel Select Register(Default Value: 0x00000000)
Offset: 0x34 + n*4 (n = 0, 1, 2, 3)
Register Name: I2S/PCM_TXnCHSEL
Bit
R/W
Default/Hex
Description
31:14
/
/
/
13:12
R/W
0
TXn_OFFSET
TXn offset tune, TXn data offset to LRCK
0: no offset
n: data is offset by n BCLKs to LRCK
11:4
R/W
0
TXn_CHEN
TXn Channel (slot) enable, bit[11:4] refer to slot [7:0]. When one or
more slot(s) is(are) disabled, the affected slot(s) is(are) set to disable
state
0: disable
1: enable
3
/
/
/
2:0
R/W
0
TXn_CHSEL
TXn Channel (slot) number Select for each output
0: 1 channel / slot
…
7: 8 channels / slots
7.6.7.15. I2S/PCM TXn Channel Mapping Register(Default Value: 0x00000000)
Offset: 0x44 + n*4 (n = 0, 1, 2, 3)
Register Name: I2S/PCM_TXnCHMAP
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 637
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0
TXn_CH7_MAP
TXn Channel7 Mapping
0: 1st sample
…
7: 8th sample
27
/
/
/
26:24
R/W
0
TXn_CH6_MAP
TXn Channel6 Mapping
0: 1st sample
…
7: 8th sample
23
/
/
/
22:20
R/W
0
TXn_CH5_MAP
TXn Channel5 Mapping
0: 1st sample
…
7: 8th sample
19
/
/
/
18:16
R/W
0
TXn_CH4_MAP
TXn Channel4 Mapping
0: 1st sample
…
7: 8th sample
15
/
/
/
14:12
R/W
0
TXn_CH3_MAP
TXn Channel3 Mapping
0: 1st sample
…
7: 8th sample
11
/
/
/
10:8
R/W
0
TXn_CH2_MAP
TXn Channel2 Mapping
0: 1st sample
…
7: 8th sample
7
/
/
/
6:4
R/W
0
TXn_CH1_MAP
TXn Channel1 Mapping
0: 1st sample
…
7: 8th sample
3
/
/
/
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 638
2:0
R/W
0
TXn_CH0_MAP
TXn Channel0 Mapping
0: 1st sample
…
7: 8th sample
7.6.7.16. I2S/PCM RX Channel Select Register(Default Value: 0x00000000)
Offset: 0x54
Register Name: I2S/PCM_RXCHSEL
Bit
R/W
Default/Hex
Description
31:14
/
/
/
13:12
R/W
0
RX_OFFSET
RX offset tune, RX data offset to LRCK
0: no offset
n: data is offset by n BCLKs to LRCK
11:3
/
/
2:0
R/W
0
RX_CHSEL
RX Channel (slot) number Select for input
0: 1 channel / slot
…
7: 8 channels / slots
7.6.7.17. I2S/PCM RX Channel Mapping Register(Default Value: 0x00000000)
Offset: 0x58
Register Name: I2S/PCM_RXCHMAP
Bit
R/W
Default/Hex
Description
31
/
/
/
30:28
R/W
0
RX_CH7_MAP
RX Channel7 Mapping
0: 1st sample
…
7: 8th sample
27
/
/
/
26:24
R/W
0
RX_CH6_MAP
RX Channel6 Mapping
0: 1st sample
…
7: 8th sample
23
/
/
/
22:20
R/W
0
RX_CH5_MAP
RX Channel5 Mapping
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 639
0: 1st sample
…
7: 8th sample
19
/
/
/
18:16
R/W
0
RX_CH4_MAP
RX Channel4 Mapping
0: 1st sample
…
7: 8th sample
15
/
/
/
14:12
R/W
0
RX_CH3_MAP
RX Channel3 Mapping
0: 1st sample
…
7: 8th sample
11
/
/
/
10:8
R/W
0
RX_CH2_MAP
RX Channel2 Mapping
0: 1st sample
…
7: 8th sample
7
/
/
/
6:4
R/W
0
RX_CH1_MAP
TX Channel1 Mapping
0: 1st sample
…
7: 8th sample
3
/
/
/
2:0
R/W
0
RX_CH0_MAP
RX Channel0 Mapping
0: 1st sample
…
7: 8th sample
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 640
7.7. OWA
7.7.1. Overview
The OWA(One Wire Audio) provides a serial bus interface for audio data between system. This interface is
widely used for consumer audio connect.
The OWA includes the following features:
IEC-60958 transmitter and receiver functionality
Complies with SPDIF Interface
Support channel status insertion for the transmitter
Hardware Parity generation on the transmitter
One 32×24bits FIFO (TX) for audio data transfer
Programmable FIFO thresholds
Interrupt and DMA support
Support Audio HUB
7.7.2. Functional Description
7.7.2.1. OWA Interface Pin List
Signal Name
Direction(M)
Description
Pin
OWA_DOUT
O
OWA output
PH8
7.7.2.2. OWA Clock Requirement
Clock Name
Description
Requirement
apb_clk
APB bus clock
>13 MHz
s_clk
OWA serial access clock
4x24.576 MHz or 4x22.5792 MHz from CCU
7.7.2.3. OWA Block Diagram
Figure 7-13 shows the OWA block diagram.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 641
APB
I/F
RX FIFO
Channel
Status
Registers
Registers
TX FIFO
Channel
status & user
data buffers
DMA &
INT
OWA_IN
OWA_OUT
Receiver
Transmitter
FSM & Control
Clock Divider
Clock Diveder
Figure 7-13. OWA Block Diagram
7.7.2.4. OWA Frame Format
Figure 7-14. Sub-Frame Format
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 642
Figure 7-15. Frame/block format
Figure 7-16. Biphase-Mark Encoding
7.7.2.5. Operation Modes
The software operation of the OWA is divided into five steps: system setup, OWA initialization, the channel
setup, DMA setup and Enable/Disable module. These five steps are described in detail in the following
sections.
7.7.2.5.1. System setup and OWA initialization
The first step in the OWA initialization is properly programming the GPIO. Because the OWA port is a multiplex
pin. You can find the function in the Port Controller(CPUx-PORT). The clock source for the OWA should be
followed. At first you must reset the audio PLL in the CCU. The second step, you must setup the frequence of
the audio pll. After that, you must open the OWA gating. At last, you must open the OWA bus gating.
After the system setup, the register of OWA can be setup. At first, you should reset the OWA by write 1 to
OWA_CTL[0] and clear the TX/RX FIFO by write 1 to register OWA_FCTL[17:16]. After that you should enable
the globe enable bit by write 1 to OWA_CTL[1] and clear the interrupt and TX/RX counter throught the
OWA_ISTA and OWA_TX_CNT/OWA_RX_CNT.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 643
7.7.2.5.2. The channel setup and DMA setup
The OWA support three methods to transfer the data. The most common way is DMA, the set of DMA can be
found in the DMA. In this module, you just to enable the DRQ.
7.7.2.5.3. Enable and disable the OWA
To enable the function, you can enable TX/RX by writting the OWA_TX_CFIG[31] and OWA_RX_CFIG[0]. After
that, you must enable OWA by write the Globe Enable bit to 1 in the OWA_CTL. Writting the Globe Enable to 0
disable process.
7.7.3. OWA Register List
Module Name
Base Address
OWA
0x01C21000
Register Name
Offset
Description
OWA_GEN_CTL
0x00
OWA General Control
OWA_TX_CFIG
0x04
OWA TX Configuration Register
OWA_RX_CFIG
0x08
OWA RX Configuration Register
OWA_ISTA
0x0C
OWA Interrupt Status Register
OWA_RX_FIFO
0x10
OWA RX FIFO Register
OWA_FCTL
0x14
OWA FIFO Control Register
OWA_FSTA
0x18
OWA FIFO Status Register
OWA_INT
0x1C
OWA Interrupt Control Register
OWA_TX_FIFO
0x20
OWA TX FIFO Register
OWA_TX_CNT
0x24
OWA TX Counter Register
OWA_RX_CNT
0x28
OWA RX Counter Register
OWA_TX_CHSTA0
0x2C
OWA TX Channel Status Register0
OWA_TX_CHSTA1
0x30
OWA TX Channel Status Register1
OWA_RX_CHSTA0
0x34
OWA RX Channel Status Register0
OWA_RX_CHSTA1
0x38
OWA RX Channel Status Register1
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 644
7.7.4. OWA Register Description
7.7.4.1. OWA General Control Register(Default Value : 0x00000080)
Offset: 0x00
Register Name: OWA_CTL
Bit
R/W
Default/Hex
Description
31:10
/
/
/
9:4
R/W
0x08
MCLK_DIV_RATIO
Mclk divide Ratio
Note: only support 2n divide ratio(n=1~31)
3:2
/
/
/
1
R/W
0
GEN
Globe Enable
A disable on this bit overrides any other block or channel enables and
flushes all FIFOs.
0: Disable
1: Enable
0
R/W
0
RST
Reset
0: Normal
1: Reset
Self clear to 0
7.7.4.2. OWA TX Configure Register(Default Value: 0x000000F0)
Offset: 0x04
Register Name: OWA_TX_CFIG
Bit
R/W
Default/Hex
Description
31
R/W
0
TX_SINGLE_MODE
Tx single channel mode
0: Disable
1: Eanble
30:18
/
/
/
17
R/W
0
ASS
Audio sample select with TX FIFO under run
when
0: sending 0
1: sending the last audio
Note: This bit is only valid in PCM mode
16
R/W
0
TX_AUDIO
TX data type
0: Linear PCM (Valid bit of both sub-frame set to 0 )
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 645
1: Non-audio(Valid bit of both sub-frame set to 1)
15:9
/
/
/
8:4
R/W
0xF
TX_RATIO
TX clock divide Ratio
Note: clock divide ratio = TX TATIO +1
3:2
R/W
0
TX_SF
TX Sample format:
00: 16bit
01: 20bit
10: 24bit
11: Reserved
1
R/W
0
TX_CHM
CHSTMODE
0: Channel status A&B set to 0
1: Channel status A&B generated form TX_CHSTA
0
R/W
0
TXEN
0: disabled
1: enabled
7.7.4.3. OWA RX Configure Register(Default Value: 0x00000000)
Offset: 0x08
Register Name: OWA_RX_CFIG
Bit
R/W
Default/Hex
Description
31:5
/
/
/
4
R
0
RX_LOCK_FLAG
0: unlock
1: lock
3
R/W
0
RX_CHST_SRC
0: RX_CH_STA Register holds status from Channel A
1: RX_CH_STA Register holds status from Channel B
2
/
/
/
1
R/W
0
CHST_CP
Channel status Capture
0: Idle or capture end
1: Capture Channel status start
Notes: When set to ‘1’, the channel status information is capturing,
the bit will clear to ‘0’ after captured.
0
R/W
0
RXEN
0: disabled
1: enabled
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 646
7.7.4.4. OWA Interrupt Status Register(Default Value: 0x00000010)
Offset: 0x0C
Register Name: OWA_ISTA
Bit
R/W
Default/Hex
Description
31:19
/
/
/
18
R/W
0
RX_LOCK_INT
0: No pending IRQ
1: RX lock Pending Interrupt (RX_LOCK_FLAG 0→1)
Write “1” to clear this interrupt
17
R/W
0
RX_UNLOCK_INT
RX Unlock Pending Interrupt
0: No pending IRQ
1: RX Unlock Pending Interrupt (RX_LOCK_FLAG 1→0)
Write “1” to clear this interrupt
16
R/W
0
RX_PARERRI_INT
RX Parity Error Pending Interrupt
0: No pending IRQ
1: RX Parity Error Pending Interrupt
Write “1” to clear this interrupt
15:7
/
/
/
6
R/W
0
TXU_INT
TX FIFO Under run Pending Interrupt
0: No pending IRQ
1: FIFO Under run Pending Interrupt
Write “1” to clear this interrupt
5
R/W
0
TXO_INT
TX FIFO Overrun Pending Interrupt
0: No Pending IRQ
1: FIFO Overrun Pending Interrupt
Write “1” to clear this interrupt
4
R/W
1
TXE_INT
TX FIFO Empty Pending Interrupt
0: No Pending IRQ
1: FIFO Empty Pending Interrupt
Write “1” to clear this interrupt or automatically clear if interrupt
condition fails.
3:2
/
/
/
1
R/W
0
RXO_INT
RX FIFO Overrun Pending Interrupt
0: FIFO Overrun Pending
Write “1” to clear this interrupt
0
R/W
0
RXA_INT
RX FIFO Available Pending Interrupt
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 647
0: No Pending IRQ
1: Data Available Pending IRQ
Write “1” to clear this interrupt or automatically clear if interrupt
condition fails
7.7.4.5. OWA RX FIFO Register(Default Value: 0x00000000)
Offset: 0x10
Register Name: OWA_RXFIFO
Bit
R/W
Default/Hex
Description
31:0
R
0
RX_DATA
Host can get one sample by reading this register, the A channel data is
first and then the B channel data
7.7.4.6. OWA FIFO Control Register(Default Value: 0x00001078)
Offset: 0x14
Register Name: OWA_FCTL
Bit
R/W
Default/Hex
Description
31
R/W
0
HUB_EN
Audio hub enable
0 : Disable
1: Enable
30:18
/
/
/
17
R/W
0
FTX
Write “1” to flush TX FIFO, self clear to “0”
16
R/W
0
FRX
Write “1” to flush RX FIFO, self clear to “0”
15:13
/
/
/
12:8
R/W
0x10
TXTL
TX FIFO empty Trigger Level
Interrupt and DMA request trigger level for TX FIFO normal condition
Trigger Level = TXTL
7:3
R/W
0x0F
RXTL
RX FIFO Trigger Level
Interrupt and DMA request trigger level for RX FIFO normal condition
Trigger Level = RXTL + 1
2
R/W
0
TXIM
TX FIFO Input Mode(Mode0, 1)
0: Valid data at the MSB of OWA_TXFIFO register
1: Valid data at the LSB of OWA_TXFIFO register
Example for 20-bits transmitted audio sample:
Mode 0: FIFO_I[23:0] = {TXFIFO[31:12], 4’h0}
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 648
Mode 1: FIFO_I[23:0] = {TXFIFO[19:0], 4’h0}
1:0
R/W
0
RXOM
RX FIFO Output Mode(Mode 0,1,2,3)
00: Expanding “0” at LSB of SPDIP_RXFIFO register
01: Expanding received sample sign bit at MSB of OWA_RXFIFO
register
10: Truncating received samples at high half-word of OWA_RXFIFO
register and low half-word of AC_FIFO register is filled by “0”
11: Truncating received samples at low half-word of OWA_RXFIFO
register and high half-word of AC_FIFO register is expanded by its sigh
bit
Mode0: RXFIFO[31:0] = {FIFO_O[23:0], 8’h0}
Mode 1: RXFIFO[31:0] = {8’FIFO_O[23], FIFO_O[23:0]}
Mode 2: RXFIFO[31:0] = {FIFO_O[23:8], 16’h0}
Mode 3: RXFIFO[31:0] = {16’FIFO_O[23], FIFO_O[23:8]}
7.7.4.7. OWA FIFO Status Register(Default Value: 0x00006000)
Offset: 0x18
Register Name: OWA_FSTA
Bit
R/W
Default/Hex
Description
31:15
/
/
/
14
R
1
TXE
TX FIFO Empty (indicate FIFO is not full)
0: No room for new sample in TX FIFO
1: More than one room for new sample in TX FIFO ( >=1 word )
13:8
R
0x20
TXE_CNT
TX FIFO Empty Space Word counter
7
/
/
/
6
R
0
RXA
RX FIFO Available
0: No available data in RX FIFO
1: More than one sample in RX FIFO ( >=1 word )
5:0
R
0
RXA_CNT
RX FIFO Available Sample Word counter
7.7.4.8. OWA Interrupt Control Register(Default Value: 0x00000000)
Offset: 0x1C
Register Name: OWA_INT
Bit
R/W
Default/Hex
Description
31:19
/
/
/
18
R/W
0
RX_LOCKI_EN
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 649
RX LOCK Interrupt enable
0: Disable
1: Enable
17
R/W
0
RX_UNLOCKI_EN
RX UNLOCK Interrupt enable
0: Disable
1: Enable
16
R/W
0
RX_PARERRI_EN
RX PARITY ERORR Interrupt enable
0: Disable
1: Enable
15:8
/
/
/
7
R/W
0
TX_DRQ
TX FIFO Empty DRQ Enable
0: Disable
1: Enable
6
R/W
0
TXUI_EN
TX FIFO Under run Interrupt Enable
0: Disable
1: Enable
5
R/W
0
TXOI_EN
TX FIFO Overrun Interrupt Enable
0: Disable
1: Enable
4
R/W
0
TXEI_EN
TX FIFO Empty Interrupt Enable
0: Disable
1: Enable
3
/
/
/
2
R/W
0
RX_DRQ
RX FIFO Data Available DRQ Enable
When set to “1”, RX FIFO DMA Request is asserted if Data is available
in RX FIFO
0: Disable
1: Enable
1
R/W
0
RXOI_EN
RX FIFO Overrun Interrupt Enable
0: Disable
1: Enable
0
R/W
0
RXAI_EN
RX FIFO Data Available Interrupt Enable
0: Disable
1: Enable
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 650
7.7.4.9. OWA TX FIFO Register(Default Value: 0x00000000)
Offset: 0x20
Register Name: OWA_TXFIFO
Bit
R/W
Default/Hex
Description
31:0
W
0
TX_DATA
Transmitting A, B channel data should be written this register one by
one. The A channel data is first and then the B channel data.
7.7.4.10. OWA TX Counter Register(Default Value: 0x00000000)
Offset: 0x24
Register Name: OWA_TX_CNT
Bit
R/W
Default/Hex
Description
31:0
R/W
0
TX_CNT
TX Sample counter
The audio sample number of writing into TX FIFO. When one sample is
written by DMA or by host IO, the TX sample counter register
increases by one. The TX Counter register can be set to any initial
value at any time. After been updated by the initial value, the counter
register should count on base of this value.
7.7.4.11. OWA RX Counter Register(Default Value: 0x00000000)
Offset: 0x28
Register Name: OWA_RX_CNT
Bit
R/W
Default/Hex
Description
31:0
R/W
0
RX_CNT
RX Sample counter
The audio sample number of writing into RX FIFO. When one sample
is written by Codec, the RX sample counter register increases by one.
The RX Counter register can be set to any initial value at any time.
After been updated by the initial value, the counter register should
count on base of this value.
7.7.4.12. OWA TX Channel Status Register0(Default Value: 0x00000000)
Offset: 0x2C
Register Name: OWA_TX_CHSTA0
Bit
R/W
Default/Hex
Description
31: 30
/
/
/
29:28
R/W
0
CA
Clock Accuracy
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 651
00: Level 2
01: Level 1
10: Level 3
11: not matched
27:24
R/W
FREQ
Sampling frequency
0000: 44.1kHz 1000: Reserved
0001: not indicated 1001: 768kHz
0010: 48kHz 1010: 96kHz
0011: 32kHz 1011: Reserved
0100: 22.05kHz 1100:176.4kHz
0101: Reserved 1101: Reserved
0110: 24kHz 1110: 192kHz
0111: Reserved 1111: Reserved
23:20
R/W
0
CN
Channel Number
19:16
R/W
0
SN
Source Number
15:8
R/W
0
CC
Category code
Indicates the kind of equipment that generates the digital audio
interface signal.
7:6
R/W
0
MODE
Mode
00: Default Mode
01~11: Reserved
5:3
R/W
0
EMP
Emphasis
Additional format information
For bit 1 = “0”, Linear PCM audio mode:
000: 2 audio channels without pre-emphasis
001: 2 audio channels with 50 μs / 15 μs pre-emphasis
010: Reserved (for 2 audio channels with pre-emphasis)
011: Reserved (for 2 audio channels with pre-emphasis)
100~111: Reserved
For bit 1 = “1”, other than Linear PCM applications:
000: Default state
001~111: Reserved
2
R/W
0
CP
Copyright
0: copyright is asserted
1: no copyright is asserted
1
R/W
0
TYPE
Audio Data Type
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 652
0: Linear PCM Samples
1: For none-linear PCM audio such as AC3, DTS, MPEG audio
0
R/W
0
PRO
Application type
0: Consumer Application
1: Professional Application
Note: This bit must be fixed to “0”
7.7.4.13. OWA TX Channel Status Register1(Default Value: 0x00000000)
Offset: 0x30
Register Name: OWA_TX_CHSTA1
Bit
R/W
Default/Hex
Description
31:10
/
/
/
9:8
R/W
0
CGMS_A
00: Copying is permitted without restriction
01: One generation of copies may be made
10: Condition not be used
11: No copying is permitted
7:4
R/W
0
ORIG_FREQ
Original sampling frequency
0000: not indicated
0001: 192kHz
0010: 12kHz
0011: 176.4kHz
0100: Reserved
0101: 96kHz
0110: 8kHz
0111: 88.2kHz
1000: 16kHz
1001: 24kHz
1010: 11.025kHz
1011: 22.05kHz
1100: 32kHz
1101: 48kHz
1110: Reserved
1111: 44.1kHz
3:1
R/W
0
WL
Sample word length
For bit 0 = “0”:
000: not indicated
001: 16 bits
010: 18 bits
100: 19 bits
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 653
101: 20 bits
110: 17 bits
111: Reserved
For bit 0 = “1”:
000: not indicated
001: 20 bits
010: 22 bits
100: 23 bits
101: 24 bits
110: 21 bits
111: Reserved
0
R/W
0
MWL
Max Word length
0: Maximum audio sample word length is 20 bits
1: Maximum audio sample word length is 24 bits
7.7.4.14. OWA RX Channel Status Register0(Default Value: 0x00000000)
Offset: 0x34
Register Name: OWA_RX_CHSTA0
Bit
R/W
Default/Hex
Description
31: 30
/
/
/
29:28
R/W
0
CA
Clock Accuracy
00: Level 2
01: Level 1
10: Level 3
11: not matched
27:24
R/W
0
FREQ
Sampling frequency
0000: 44.1kHz 1000: Reserved
0001: not indicated 1001: 768kHz
0010: 48kHz 1010: 96kHz
0011: 32kHz 1011: Reserved
0100: 22.05kHz 1100:176.4kHz
0101: Reserved 1101: Reserved
0110: 24kHz 1110: 192kHz
0111: Reserved 1111: Reserved
23:20
R/W
0
CN
Channel Number
19:16
R/W
0
SN
Source Number
15:8
R/W
0
CC
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 654
Category code
Indicates the kind of equipment that generates the digital audio
interface signal.
7:6
R/W
0
MODE
Mode
00: Default Mode
01~11: Reserved
5:3
R/W
0
EMP
Emphasis
Additional format information
For bit 1 = “0”, Linear PCM audio mode:
000: 2 audio channels without pre-emphasis
001: 2 audio channels with 50 μs / 15 μs pre-emphasis
010: Reserved (for 2 audio channels with pre-emphasis)
011: Reserved (for 2 audio channels with pre-emphasis)
100~111: Reserved
For bit 1 = “1”, other than Linear PCM applications:
000: Default state
001~111: Reserved
2
R/W
0
CP
Copyright
0: copyright is asserted
1: no copyright is asserted
1
R/W
0
TYPE
Audio Data Type
0: Linear PCM Samples
1: For none-linear PCM audio such as AC3, DTS, MPEG audio
0
R/W
0
PRO
Application type
0: Consumer Application
1: Professional Application
7.7.4.15. OWA RX Channel Status Register1(Default Value: 0x00000000)
Offset: 0x38
Register Name: OWA_CH_STA0
Bit
R/W
Default/Hex
Description
31:10
/
/
/
9:8
R/W
0
CGMS_A
00: Copying is permitted without restriction
01: One generation of copies may be made
10: Condition not be used
11: No copying is permitted
7:4
R/W
0
ORIG_FREQ
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 655
Original sampling frequency
0000: not indicated
0001: 192kHz
0010: 12kHz
0011: 176.4kHz
0100: Reserved
0101: 96kHz
0110: 8kHz
0111: 88.2kHz
1000: 16kHz
1001: 24kHz
1010: 11.025kHz
1011: 22.05kHz
1100: 32kHz
1101: 48kHz
1110: Reserved
1111: 44.1kHz
3:1
R/W
0
WL
Sample word length
For bit 0 = “0”:
000: not indicated
001: 16 bits
010: 18 bits
100: 19 bits
101: 20 bits
110: 17 bits
111: Reserved
For bit 0 = “1”:
000: not indicated
001: 20 bits
010: 22 bits
100: 23 bits
101: 24 bits
110: 21 bits
111: Reserved
0
R/W
0
MWL
Max Word length
0: Maximum audio sample word length is 20 bits
1: Maximum audio sample word length is 24 bits
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 656
7.8. SCR
7.8.1. Overview
The Smart Card Reader (SCR) is a communication controller that transmits data between the system and Smart
Card. The controller can perform a complete smart card session, including card activation, card deactivation.
Cold/warm reset, Answer to Reset (ATR) response reception, data transfers, etc.
The SCR includes the following features:
Supports APB slave interface for easy integration with AMBA-based host systems
Supports the ISO/IEC 7816-3:1997(E) and EMV2000 (4.0) Specifications
Performs functions needed for complete smart card sessions, including:
- Card activation and deactivation
- Cold/warm reset
- Answer to Reset (ATR) response reception
- Data transfers to and from the card
Supports adjustable clock rate and bit rate
Configurable automatic byte repetition
Support commonly used communication protocols:
- T=0 for asynchronous half-duplex character transmission
- T=1 for asynchronous half-duplex block transmission
Support FIFOs for receive and transmit buffers (up to 128 characters) with threshold
Support configurable timing functions:
- Smart card activation time
- Smart card reset time
- Guard time
- Timeout timers
Supports synchronous and any other non-ISO 7816 and non-EMV cards
7.8.2. Block Diagram
The Top Diagram of Smart Card Reader is below:
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 657
Smart Card Reader
APB
SCR
Registers
TX FIFO
RX FIFO
SCR
Clock
Generator
SCR
Controller
SCR
Interface
SCR_Det
SCR_Vpppp
SCR_Vppen
SCR_Vcc
SCR_Clk
SCR_Rst
SCR_IO
Figure 7-17. SCR Block Diagram
7.8.3. SCR Timing Diagram
Please refer ISO/IEC 7816 and EMV2000 Specification.
7.8.4. SCR Special Requirement
7.8.4.1. Clock Generator
The Clock Generator generates the Smart Card Clock signal and the Baud Clock Impulse signal, used in timing
the Smart Card Reader.
The Smart Card Clock signal is used as the main clock for the smart card. Its frequency can be adjusted using
the Smart Card Clock Divisor (SCCDIV). This value is used to divide the system clock. The SCCLK frequency is
given by the following equation:
2 * ( 1)
sys clk
scc lk
f
fSC C D IV
scclk
f
-- Smart Card Clock Frequency
sysclk
f
-- System Clock (PCLK) Frequency
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 658
The Baud Clock Impulse signal is used to transmit and receive serial between the Smart Card Reader and the
Smart Card. The baud rate can be modified using the Baud Clock Divisor (BAUDDIV). The value is used to divide
the system clock. The BUAD rate is given by the following equation:
2 * ( 1)
sys clk
f
B A U D B A U D D IV
B A U D
-- Baud rate of the data stream between Smart Card and Reader.
The duration of one bit, Elementary Time Unit (ETU), is defined in the ISO/IEC 7816-3 specification. During the
first answer to reset response after the cold reset, the initial ETU must be equal to 372 Smart Card Clock Cycles.
1 3 7 2
scclk
E T U
B A U D f

In this case, the BAUDDIV should be
3 7 2 * 1 3 7 2 * ( 1) 1
2*
sysc lk
scclk
f
B A U D D IV S C C D IV
f
 
.
After the ATR is completed, the ETU can be changed according to Smart Card abilities.
11
*
scclk
F
E T U
B A U D D f

Parameters F and D are defined in the ISO/IEC 7816-3 Specification.
7.8.4.2. SCIO Pad Configuration
Figure 7-18. SCIO Pad Configuration Diagram
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 659
7.8.5. SCR Register List
Module Name
Base Address
SCR
0x01C2C400
Register Name
Offset
Description
SCR_CSR
0x000
Smart Card Reader Control and Status Register
SCR_INTEN
0x004
Smart Card Reader Interrupt Enable Register 1
SCR_INTST
0x008
Smart Card Reader Interrupt Status Register 1
SCR_FCSR
0x00c
Smart Card Reader FIFO Control and Status Register
SCR_FCNT
0x010
Smart Card Reader RX and TX FIFO Counter Register
SCR_RPT
0x014
Smart Card Reader RX and TX Repeat Register
SCR_DIV
0x018
Smart Card Reader Clock and Baud Divisor Register
SCR_LTIM
0x01c
Smart Card Reader Line Time Register
SCR_CTIM
0x020
Smart Card Reader Character Time Register
SCR_LCTLR
0x030
Smart Card Reader Line Control Register
SCR_FSM
0x03c
Smart Card Reader FSM Register
SCR_FIFO
0x100
Smart Card Reader RX and TX FIFO Access Point
7.8.6. SCR Register Description
7.8.6.1. Smart Card Reader Control and Status Register(Default Value: 0x00000000)
Offset: 0x00
Register Name: SCR_CSR
Bit
R/W
Default/Hex
Description
31
R
0
SCDET
Smart Card Detected
This bit is set to ‘1’ when the scdetect input is active at least for a
debounce time.
30
/
/
/
24
R/W
0
SCDETPOL
Smart Card Detect Polarity
This bit set polarity of scdetect signal.
0: Low Active
1: High Active
23:22
R/W
0
Protocol Selection (PTLSEL)
0x0 : T=0.
0x1 : T=1, no character repeating and no guard time is used when T=1
protocol is selected.
0x2 : Reserved
0x3 : Reserved
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 660
21
R/W
0
ATRSTFLUSH
ATR Start Flush FIFO
When enabled, both FIFOs are flushed before the ATR is started.
20
R/W
0
TSRXE
TS Receive Enable
When set to ‘1’, the TS character (the first ATR character) will be store in
RXFIFO during card session.
19
R/W
0
CLKSTPPOL
Clock Stop Polarity
The value of the scclk output during the clock stop state.
18
R/W
0
PECRXE
Parity Error Character Receive Enable
Enables storage of the characters received with wrong parity in RX FIFO.
17
R/W
0
MSBF
MSB First
When high, inverse bit ordering convention (msb to lsb) is used.
16
R/W
0
DATAPOL
Data Plorarity
When high, inverse level convention is used (A=’1’, Z=’0’).
15:12
/
/
/
11
R/W
0
DEACTDeactivation. Setting of this bit initializes the deactivation
sequence. When the deactivation is finished, the DEACT bit is
automatically cleared.
10
R/W
0
ACT
Activation. Setting of this bit initializes the activation sequence. When
the activation is finished, the ACT bit is automatically cleared.
9
R/W
0
WARMRST
Warm Reset Command. Writing ‘1’ to this bit initializes Warm Reset of
the Smart Card. This bit is always read as ‘0’.
8
R/W
0
CLKSTOP
Clock Stop. When this bit is asserted and the smart card I/O line is in ‘Z’
state, the SCR core stops driving of the smart card clock signal after the
CLKSTOPDELAY time expires. The smart card clock is restarted
immediately after the CLKSTOP signal is deasserted. New character
transmission can be started after CLKSTARTDELAY time. The expiration
of both times is signaled by the CLKSTOPRUN bit in the interrupt
registers.
7:3
/
/
Reserved
2
R/W
0
GINTEN
Global Interrupt Enable. When high, IRQ output assertion is enabled.
1
R/W
0
RXEN
Receiving Enable. When enabled the characters sent by the Smart Card
are received by the UART and stored in RX FIFO. Receiving is internally
disabled while a transmission is in progress.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 661
0
R/W
0
TXEN
Transmission Enable. When enabled the characters are read from TX
FIFO and transmitted through UART to the Smart Card.
7.8.6.2. Smart Card Reader Interrupt Enable Register(Default Value: 0x00000000)
Offset: 0x04
Register Name: SCR_INTEN
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23
R/W
0
SCDEA
Smart Card Deactivation Interrupt Enable.
22
R/W
0
SCACT
Smart Card Activation Interrupt Enable.
21
R/W
0
SCINS
Smart Card Inserted Interrupt Enable.
20
R/W
0
SCREM
Smart Card Removed Interrupt Enable.
19
R/W
0
ATRDONE
ATR Done Interrupt Enable.
18
R/W
0
ATRFAIL
ATR Fail Interrupt Enable.
17
R/W
0
C2CFULL
Two Consecutive Characters Limit Interrupt Enable.
16
R/W
0
CLKSTOPRUN
Smart Card Clock Stop/Run Interrupt Enable.
15:13
/
/
/
12
R/W
0
RXPERR
RX Parity Error Interrupt Enable.
11
R/W
0
RXDONE
RX Done Interrupt Enable.
10
R/W
0
RXFIFOTHD
RX FIFO Threshold Interrupt Enable.
9
R/W
0
RXFIFOFULL
RX FIFO Full Interrupt Enable.
8
/
/
/
7:5
/
/
/
4
R/W
0
TXPERR
TX Parity Error Interrupt Enable.
3
R/W
0
TXDONE
TX Done Interrupt Enable.
2
R/W
0
TXFIFOTHD
TX FIFO Threshold Interrupt Enable.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 662
1
R/W
0
TXFIFOEMPTY
TX FIFO Empty Interrupt Enable.
0
R/W
0
TXFIFODONE
TX FIFO Done Interrupt Enable.
7.8.6.3. Smart Card Reader Interrupt Status Register(Default Value: 0x00000000)
Offset: 0x08
Register Name: SCR_INTST
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23
R/W
0
SCDEA
Smart Card Deactivation Interrupt. When enabled, this interrupt is
asserted after the Smart Card deactivation sequence is complete.
22
R/W
0
SCACT
Smart Card Activation Interrupt. When enabled, this interrupt is
asserted after the Smart Card activation sequence is complete.
21
R/W
0
SCINS
Smart Card Inserted Interrupt. When enabled, this interrupt is asserted
after the smart card insertion.
20
R/W
0
SCREM
Smart Card Removed Interrupt. When enabled, this interrupt is asserted
after the smart card removal.
19
R/W
0
ATRDONE
ATR Done Interrupt. When enabled, this interrupt is asserted after the
ATR sequence is successfully completed.
18
R/W
0
ATRFAIL
ATR Fail Interrupt. When enabled, this interrupt is asserted if the ATR
sequence fails.
17
R/W
0
C2CFULL
Two Consecutive Characters Limit Interrupt. When enabled, this
interrupt is asserted if the time between two consecutive characters,
transmitted between the Smart Card and the Reader in both directions,
is equal the Two Characters Delay Limit described below. The C2CFULL
interrupt is internally enabled from the ATR start to the deactivation or
ATR restart initialization. It is recommended to use this counter to
detect unresponsive Smart Cards.
16
R/W
0
CLKSTOPRUN
Smart Card Clock Stop/Run Interrupt. When enabled, this interrupt is
asserted in two cases:
- When the smart card clock is stopped.
- When the new character can be started after the clock restart.
To distinguish between the two interrupt cases, we recommend reading
the CLKSTOP bit in SCR_CTRL1 register.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 663
15:13
/
/
/
12
R/W
0
RXPERR
RX Parity Error Interrupt. When enabled, this interrupt is asserted after
the character with wrong parity was received when the number of
repeated receptions exceeds RXREPEAT value or T=1 protocol is used.
11
R/W
0
RXDONE
RX Done Interrupt. When enabled, this interrupt is asserted after a
character was received from the Smart Card.
10
R/W
0
RXFIFOTHD
RX FIFO Threshold Interrupt. When enabled, this interrupt is asserted if
the number of bytes in RX FIFO is equal or exceeds the RX FIFO
threshold.
9
R/W
0
RXFIFOFULL
RX FIFO Full Interrupt. When enabled, this interrupt is asserted if the RX
FIFO is filled up.
8
/
/
/
7:5
/
/
/
4
R/W
0
TXPERR
TX Parity Error Interrupt. When enabled, this interrupt is asserted if the
Smart Card signals wrong character parity during the guard time after
the character transmission was repeated TXREPEAT times or T=1
protocol is used.
3
R/W
0
TXDONE
TX Done Interrupt. When enabled, this interrupt is asserted after one
character was transmitted to the smart card.
2
R/W
0
TXFIFOTHD
TX FIFO Threshold Interrupt. When enabled, this interrupt is asserted if
the number of bytes in TX FIFO is equal or less than the TX FIFO
threshold.
1
R/W
0
TXFIFOEMPTY
TX FIFO Empty Interrupt. When enabled, this interrupt is asserted if the
TX FIFO is emptied out.
0
R/W
0
TXFIFODONE
TX FIFO Done Interrupt. When enabled, this interrupt is asserted after all
bytes from TX FIFO ware transferred to the Smart Card.
Note: This register provides information about the state of each interrupt bit. You can clear the register bits
individually by writing ‘1’ to a bit you intend to clear.
7.8.6.4. Smart Card Reader FIFO Control and Status Register(Default Value: 0x00000000)
Offset: 0x0C
Register Name: SCR_FCSR
Bit
R/W
Default/Hex
Description
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 664
31:11
/
/
/
10
R/W
0
RXFIFOFLUSH
Flush RX FIFO. RX FIFO is flushed, when ‘1’ is written to this bit.
9
R
0
RXFIFOFULL
RX FIFO Full.
8
R
1
RXFIFOEMPTY
RX FIFO Empty.
7:3
/
/
/
2
R/W
0
TXFIFOFLUSH
Flush TX FIFO. TX FIFO is flushed, when ‘1’ is written to this bit.
1
R
0
TXFIFOFULL
TX FIFO Full.
0
R
1
TXFIFOEMPTY
TX FIFO Empty.
7.8.6.5. Smart Card Reader FIFO Counter Register(Default Value: 0x00000000)
Offset: 0x10
Register Name: SCR_FIFOCNT
Bit
R/W
Default/Hex
Description
31:24
R/W
0
RXFTH
RX FIFO Threshold
These bits set the interrupt threshold of RX FIFO. The interrupt is
asserted when the number of bytes it receives is equal to, or exceeds
the threshold.
23:16
R/W
0
TXFTH
TX FIFO Threshold
These bits set the interrupt threshold of TX FIFO. The interrupt is
asserted when the number of bytes in TX FIFO is equal to or less than
the threshold.
15:8
R
0
RXFCNT
RX FIFO Counter
These bits provide the number of bytes stored in the RXFIFO.
7:0
R
0
TXFCNT
TX FIFO Counter
These bits provide the number of bytes stored in the TXFIFO.
7.8.6.6. Smart Card Reader Repeat Control Register(Default Value: 0x00000000)
Offset: 0x14
Register Name: SCR_REPEAT
Bit
R/W
Default/Hex
Description
31:8
/
/
/
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 665
7:4
R/W
0
RXRPT
RX Repeat
This is a 4-bit register that specifies the number of attempts to request
character re-transmission after wrong parity was detected. The
re-transmission of the character is requested using the error signal
during the guard time.
3:0
R/W
0
TXRPT
TX Repeat
This is a 4-bit register that specifies the number of attempts to
re-transmit the character after the Smart Card signals the wrong parity
during the guard time.
7.8.6.7. Smart Card Reader Clock Divisor Register(Default Value: 0x00000000)
Offset: 0x18
Register Name: SCR_CLKDIV
Bit
R/W
Default/Hex
Description
31:16
R/W
0
BAUDDIV
Baud Clock Divisor. This 16-bit register defines the divisor value used to
generate the Baud Clock impulses from the system clock.
2 * ( 1)
sys clk
f
B A U D B A U D D IV
15:0
R/W
0
SCCDIV
Smart Card Clock Divisor. This 16-bit register defines the divisor value
used to generate the Smart Card Clock from the system clock.
2 * ( 1)
sys clk
scc lk
f
fSC C D IV
scclk
f
is the frequency of Smart Card Clock Signal.
s y s c lk
f
is the frequency of APB Clock.
7.8.6.8. Smart Card Reader Line Time Register(Default Value: 0x00000000)
Offset: 0x1C
Register Name: SCR_LTIM
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:16
R/W
0
ATR
ATR Start Limit. This 16-bit register defines the maximum time between
the rising edge of the scrstn signal and the start of ATR response.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 666
ATR Start Limit = 128* ATR*
scclk
T
.
15:8
R/W
0
RST
Reset Duration. This 16-bit register sets the duration of the Smart Card
reset sequence. This value is same for the cold and warm reset.
Cold/Warm Reset Duration = 128* RST*
scclk
T
.
7:0
R/W
0
ACT
Activation/Deactivation Time. This 16-bit register sets the duration of
each part of the activation and deactivation sequence.
Activation/Deactivation Duration = 128* ACT *
scclk
T
.
1
scclk
scclk
Tf
is the Smart Card Clock Cycle.
7.8.6.9. Smart Card Reader Character Time Register(Default Value: 0x00000000)
Offset: 0x20
Register Name: SCR_CTIM
Bit
R/W
Default/Hex
Description
31:16
R/W
0
CHARLIMIT
Character Limit. This 16-bit register sets the maximum time between the
leading edges of two consecutive characters. The value is ETUs.
15:8
/
/
/
7:0
R/W
0
GUARDTIME
Character Guard time. This 8-bit register sets a delay at the end of each
character transmitted from the Smart Card Reader to the Smart Card.
The value is in ETUs. The parity error is besides signaled during the
guard time.
7.8.6.10. Smart Card Reader Line Control Register(Default Value: 0x00000000)
Offset: 0x30
Register Name: SCR_PAD
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7
R/W
0
DSCVPPPP
Direct Smart Card Vpp Pause/Prog. It provides direct access to SCVPPPP
output.
6
R/W
0
DSCVPPEN
Direct Smart Card Vpp Enable. It provides direct access to SCVPPEN
output.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 667
5
R/W
0
AUTOADEAVPP
Automatic Vpp Handling. When high, it enables automatic handling of
DSVPPEN and DSVPPPP signals during activation and deactivation
sequence.
4
R/W
0
DSCVCC
Direct Smart Card VCC. When DIRACCPADS=’1’, the DSCVCC bit provides
direct access to SCVCC pad.
3
R/W
0
DSCRST
Direct Smart Card Clock. When DIRACCPADS=’1’, the DSCRST bit
provides direct access to SCRST pad.
2
R/W
0
DSCCLK
Direct Smart Card Clock. When DIRACCPADS=’1’, the DSCCLK bit
provides direct access to SCCLK pad.
1
R/W
0
DSCIO
Direct Smart Card Input/Output. When DIRACCPADS=’1’, the DSCIO bit
provides direct access to SCIO pad.
0
R/W
0
DIRACCPADS
Direct Access to Smart Card Pads. When high, it disables a serial
interface functionality and enables direct control of the smart card pads
using following 4 bits.
Note: This register provides direct access to smart card pads without serial interface assistance. You can use
this register feature with synchronous and any other non-ISO 7816 and non-EMV cards.
7.8.6.11. Smart Card Reader FIFO Data Register(Default Value: 0x00000000)
Offset: 0x0100
Register Name: SCR_FIFO
Bit
R/W
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0
FIFO_DATA
This 8-bit register provides access to the RX and TX FIFO buffers. The TX
FIFO is accessed during the APB write transfer. The RX FIFO is accessed
during the APB read transfer.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 668
7.9. EMAC
7.9.1. Overview
The Ethernet MAC(EMAC) controller enables a host to transmit and receive data over Ethernet in compliance
with the IEEE 802.3-2002 standard. It supports 10M/100M/1000M external PHY with RMII/ RGMII interface in
both full and half duplex mode. The Ethernet MAC-DMA is designed for packet-oriented data transfers based
on a linked list of descriptors. 4K Byte TXFIFO and 16K Byte RXFIFO are provided to keep continuous
transmission and reception. Flow Control, CRC Pad & Stripping, and address filtering are also supported in this
module.
The Ethernet MAC Controller includes the following features:
Supports 10/100/1000Mbps data transfer rates
Supports RMII/RGMII PHY interface
Supports both full-duplex and half-duplex operation
Programmable frame length to support Standard or Jumbo Ethernet frames with sizes up to 16 KB
Supports a variety of flexible address filtering modes
Separate 32-bit status returned for transmission and reception packets
Optimization for packet-oriented DMA transfers with frame delimiters
Support linked-list (chained) descriptor chaining
Descriptor architecture, allowing large blocks of data transfer with minimum CPU intervention; each
descriptor can transfer up to 4 KB of data
Comprehensive status reporting for normal operation and transfers with errors
4KB TXFIFO for transmission packets and 16KB RXFIFO for reception packets
Programmable interrupt options for different operational conditions
7.9.2. Block Diagram
The EMAC Controller block diagram is shown below:
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 669
EMAC
TXFIFO RXFIFO
TXFC RXFCDMA
DMA CSR
MAC CSR
OMR Register
AHB
Master
AHB Slave
RGMII
PHY
Interface
RMII
Figure 7-19. EMAC Block Diagram
7.9.3. EMAC Core Register List
Module Name
Base Address
EMAC
0x01C30000
Register Name
Offset
Description
BASIC_CTL_0
0x00
Basic Control 0 Register
BASIC_CTL_1
0x04
Basic Control 1 Register
INT_STA
0x08
Interrupt Status Register
INT_EN
0x0C
Interrupt Enable Register
TX_CTL_0
0x10
Transmit Control 0 Register
TX_CTL_1
0x14
Transmit Control 1 Register
TX_FLOW_CTL
0x1C
Transmit Flow Control Register
TX_DMA_DESC_LIST
0x20
Transmit Descriptor List Address Register
RX_CTL_0
0x24
Receive Control 0 Register
RX_CTL_1
0x28
Receive Control 1 Register
RX_DMA_DESC_LIST
0x34
Receive Descriptor List Address Register
RX_FRM_FLT
0x38
Receive Frame Filter Register
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 670
RX_HASH_0
0x40
Hash Table 0 Register
RX_HASH_1
0x44
Hash Table 1 Register
MII_CMD
0x48
Management Interface Command Register
MII_DATA
0x4C
Management Interface Data Register
ADDR_HIGH_0
0x50
MAC Address High Register 0
ADDR_LOW_0
0x54
MAC Address High Register 0
ADDR_HIGH_x
0x50+8*x
MAC Address High Register x(x:1~7)
ADDR_LOW_x
0x54+8*x
MAC Address Low Register x(x:1~7)
TX_DMA_STA
0xB0
Transmit DMA Status Register
TX_CUR_DESC
0xB4
Current Transmit Descriptor Register
TX_CUR_BUF
0xB8
Current Transmit Buffer Address Register
RX_DMA_STA
0xC0
Receive DMA Status Register
RX_CUR_DESC
0xC4
Current Receive Descriptor Register
RX_CUR_BUF
0xC8
Current Receive Buffer Address Register
RGMII_STA
0xD0
RGMII Status Register
7.9.4. EMAC Core Register Description
7.9.4.1. Basic Control 0 Register(Default Value: 0x00000000)
Offset: 0x00
Register Name: BASIC_CTL_0
Bit
R/W
Default/Hex
Description
31:4
/
/
/
3:2
R/W
0
SPEED
00: 1000Mbps
11: 100Mbps
10: 10Mbps
01: Reserved
1
R/W
0
LOOPBACK
0: Disable;
1: Enable;
0
R/W
0
DUPLEX
0: Half-duplex
1: Full-duplex
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 671
7.9.4.2. Basic Control 1 Register(Default Value: 0x08000000)
Offset: 0x04
Register Name: BASIC_CTL_1
Bit
R/W
Default/Hex
Description
31:30
/
/
/
29:24
R/W
8
BURST_LEN
The burst length of RX and TX DMA transfer.
23:2
/
/
/
1
R/W
0
RX_TX_PRI
0: RX DMA and TX DMA have same priority
1: RX DMA has priority over TX DMA
0
R/W
0
SOFT_RST
When this bit is set, soft reset all registers and logic. All clock inputs
must be valid before soft rest. This bit is cleared internally when the
reset operation is completed fully. Before write any register, this bit
should read a 0.
7.9.4.3. Interrupt Status Register(Default Value: 0x00000000)
Offset: 0x08
Register Name: INT_STA
Bit
R/W
Default/Hex
Description
31:17
/
/
/
16
R
0
RGMII_LINK_STA_INT
When this bit is asserted, the link status of RGMII interface is changed.
15:14
/
/
/
13
R
0
RX_EARLY_INT
When this bit asserted, the RX DMA had filled the first data buffer of the
receive frame.
12
R
0
RX_OVERFLOW_INT
When this bit is asserted, the RX FIFO had an overflow error.
11
R
0
RX_TIMEOUT_INT
When this bit asserted, the length of receive frame is greater than 2048
bytes(10240 when JUMBO_FRM_EN is set)
10
R
0
RX_DMA_STOPPED_INT
When this bit asserted, the RX DMA FSM is stopped.
9
R
0
RX_BUF_UA _INT
When this asserted, the RX DMA can’t acquire next RX descriptor and RX
DMA FSM is suspended. The ownership of next RX descriptor should be
changed to RX DMA. The RX DMA FSM will resume when write to
DMA_RX_START bit or next receive frame is coming.
8
R
0
RX_INT
When this bit is asserted, a frame reception is completed. The RX DMA
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 672
FSM remains in the running state.
7:6
/
/
/
5
R
0
TX_EARLY_INT
When this bit is asserted , the frame is transmitted to FIFO totally.
4
R
0
TX_UNDERFLOW_INT
When this bit is asserted, the TX FIFO had an underflow error.
3
R
0
TX_TIMEOUT_INT
When this bit is asserted, the transmitter had been excessively active.
2
R
0
TX_BUF_UA_INT
When this asserted, the TX DMA can not acquire next TX descriptor and
TX DMA FSM is suspended. The ownership of next TX descriptor should
be changed to TX DMA. The TX DMA FSM will resume when write to
DMA_TX_START bit.
1
R
0
TX_DMA_STOPPED_INT
When this bit is asserted, the TX DMA FSM is stopped.
0
R
0
TX_INT
When this bit is asserted, a frame transmission is completed.
7.9.4.4. Interrupt Enable Register(Default Value: 0x00000000)
Offset: 0x0C
Register Name: INT_EN
Bit
R/W
Default/Hex
Description
31:14
/
/
/
13
R/W
0
RX_EARLY_INT_EN
0: Disable early receive interrupt enable
1: Enable early receive interrupt enable
12
R/W
0
RX_OVERFLOW_INT_EN
0: Disable overflow interrupt
1: Enable overflow interrupt
11
R/W
0
RX_TIMEOUT_INT_EN
0: Disable receive timeout interrupt
1: Enable receive timeout interrupt
10
R/W
0
RX_DMA_STOPPED_INT_EN
0: Disable receive DMA FSM stopped interrupt
1: Enable receive DMA FSM stopped interrupt
9
R/W
0
RX_BUF_UA_INT_EN
0: Disable receive buffer unavailable interrupt
1: Enable receive buffer unavailable interrupt
8
R/W
0
RX_INT_EN
0: Disable receive interrupt
1: Enable receive interrupt
7:6
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 673
5
R/W
0
TX_EARLY_INT_EN
0: Disable early transmit interrupt
1: Enable early transmit interrupt
4
R/W
0
TX_UNDERFLOW_INT_EN
0: Disable underflow interrupt
1: Enable underflow interrupt
3
R/W
0
TX_TIMEOUT_INT_EN
0: Disable transmit timeout interrupt
1: Enable transmit timeout interrupt
2
R/W
0
TX_BUF_UA_INT_EN
0: Disable transmit buffer available interrupt
1: Enable transmit buffer available interrupt
1
R/W
0
TX_DMA_STOPPED_INT_EN
0: Disable transmit DMA FSM stopped interrupt
1: Enable transmit DMA FSM stopped interrupt
0
R/W
0
TX_INT_EN
0: Disable transmit interrupt
1: Enable transmit interrupt
7.9.4.5. Transmit Control 0 Register(Default Value: 0x00000000)
Offset: 0x10
Register Name: TX_CTL_0
Bit
R/W
Default/Hex
Description
31
R/W
0
TX_EN
Enable transmitter.
0: Disable transmitter after current transmission
1: Enable
30
R/W
0
TX_FRM_LEN_CTL
0: Allow to transmit frames no more than 2,048 bytes (10,240 if
JUMBO_FRM_EN is set) and cut off any bytes after that
1:Allow to transmit frames of up to 16,384 bytes
29:0
/
/
/
7.9.4.6. Transmit Control 1 Register(Default Value: 0x00000000)
Offset: 0x14
Register Name: TX_CTL_1
Bit
R/W
Default/Hex
Description
31
R/W
0
TX_DMA_START
When set this bit, the TX DMA FSM will go no to work. It is cleared
internally and always read a 0.
30
R/W
0
TX_DMA_EN
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 674
0: Stop TX DMA after the completion of current frame transmission.
1: Start and run TX DMA.
29:11
/
/
/
10:8
R/W
0
TX_TH
The threshold value of TX DMA FIFO. When TX_MD is 0, transmission
starts when the size of frame in TX DMA FIFO is greater than the
threshold. In addition, full frames with a length less than the threshold
are transferred automatically.
000: 64
001: 128
010: 192
011: 256
Others: Reserved
7:2
/
/
/
1
R/W
0
TX_MD
0: Transmission starts after the number of data in TX DAM FIFO is
greater than TX_TH
1: Transmission starts after a full frame located in TX DMA FIFO
0
R/W
0
FLUSH_TX_FIFO
The functionality that flush the data in the TX FIFO.
0: Enable
1: Disable
7.9.4.7. Transmit Flow Control Register(Default Value: 0x00000000)
Offset: 0x1C
Register Name: TX_FLOW_CTL
Bit
R/W
Default/Hex
Description
31
R/W
0
TX_FLOW_CTL_STA
This bit indicates a pause frame transmission is in progress. When the
configuration of flow control is ready, set this bit to transmit a pause
frame in full-duplex mode or activate the backpressure function. After
completion of transmission, this bit will be cleared automatically. Before
write register TX_FLOW_CTRL, this bit must be read as 0.
30:22
/
/
/
21:20
R/W
0
TX_PAUSE_FRM_SLOT
The threshold of the pause timer at which the input flow control signal
is checked for automatic retransmission of pause frame. The threshold
values should be always less than the PAUSE_TIME
19:4
R/W
0
PAUSE_TIME
The pause time field in the transmitted control frame.
3:2
/
/
/
1
R/W
0
ZQP_FRM_EN
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 675
When set, enable the functionality to generate Zero-Quanta Pause
control frame.
0
R/W
0
TX_FLOW_CTL_EN
When set, enable flow control operation to transmit pause frames in
full-duplex mode, or enable the back-pressure operation in half-duplex
mode.
0: Disable
1: Enable
7.9.4.8. Transmit DMA Descriptor List Address Register(Default Value: 0x00000000)
Offset: 0x20
Register Name: TX_DMA_LIST
Bit
R/W
Default/Hex
Description
31:0
R/W
0
TX_DESC_LIST
The base address of transmit descriptor list. It must be 32-bit aligned.
7.9.4.9. Receive Control 0 Register(Default Value: 0x00000000)
Offset: 0x24
Register Name: RX_CTL_0
Bit
R/W
Default/Hex
Description
31
R/W
0
RX_EN
Enable receiver
0: Disable receiver after current reception
1: Enable
30
R/W
0
RX_FRM_LEN_CTL
0: Allow to receive frames less than or equal to 2,048 bytes (10,240 if
JUMBO_FRM_EN is set) and cuts off any bytes received after that
1: Allow to receive frames of up to 16,384 bytes
29
R/W
0
JUMBO_FRM_EN
When set, allows Jumbo frames of 9,018 bytes without reporting a giant
frame error in the receive frame status.
28
R/W
0
STRIP_FCS
When set, strip the Pad/FCS field on received frames only when the
length’s field value is less than or equal to 1,500 bytes.
27
R/W
0
CHECK_CRC
When set, calculate CRC and check the IPv4 Header Checksum.
26:18
/
/
/
17
R/W
0
RX_PAUSE_FRM_MD
0: Only detect multicast pause frame specified in the 802.3x standard.
1: In addition to detect multicast pause frame specified in the 802.3x
standard, also detect unicast pause frame with address specified in MAC
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 676
Address 0 High Register and MAC address 0 Low Register.
16
R/W
0
RX_FLOW_CTL_EN
When set, enable the functionality that decode the received pause
frame and disable its transmitter for a specified time by pause frame.
15:0
/
/
/
7.9.4.10. Receive Control 1 Register(Default Value: 0x00000000)
Offset: 0x28
Register Name: RX_CTL_1
Bit
R/W
Default/Hex
Description
31
R/W
0
RX_DMA_START
When set, the RX DMA will go no to work. It is cleared internally and
always read a 0.
30
R/W
0
RX_DMA_EN
0: Stop RX DMA after finish receiving current frame
1: Start and run RX DMA
29:25
/
/
/
24
R/W
0
RX_FIFO_FLOW_CTL
0: Disable RX flow control
1: Enable RX flow control based on RX_FLOW_CTL_TH_DEACT and
RX_FLOW_CTL_TH_ACT
23:22
R/W
0
RX_FLOW_CTL_TH_DEACT
The threshold for deactivating flow control in both half-duplex mode
and full-duplex mode
00: Full minus 1 KB
01: Full minus 2 KB
10: Full minus 3 KB
11: Full minus 4 KB
21:20
R/W
0
RX_FLOW_CTL_TH_ACT
The threshold for activating flow control in both half-duplex mode and
full-duplex mode.
00: Full minus 1 KB
01: Full minus 2 KB
10: Full minus 3 KB
11: Full minus 4 KB
19:6
/
/
/
5:4
R/W
0
RX_TH
The threshold value of RX DMA FIFO. When RX_MD is 0, RX DMA starts
to transfer data when the size of received frame in RX DMA FIFO is
greater than the threshold. In addition, full frames with a length less
than the threshold are transferred automatically.
00: 64
01: 32
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 677
10: 96
11: 128
3
R/W
0
RX_ERR_FRM
0: RX DMA drops frames with error
1: RX DMA forwards frames with error
2
R/W
0
RX_RUNT_FRM
When set, forward undersized frames with no error and length less than
64bytes
1
R/W
0
RX_MD
0: RX DMA reads data from RX DMA FIFO to host memory after the
number of data in RX DAM FIFO is greater than RX_TH
1: RX DMA reads data from RX DMA FIFO to host memory after a
complete frame has been written to RX DMA FIFO
0
R/W
0
FLUSH_RX_FRM
The functionality that flush the frames when receive descriptors/buffers
is unavailable
0: Enable
1: Disable
7.9.4.11. Receive DMA Descriptor List Address Register(Default Value: 0x00000000)
Offset: 0x34
Register Name: RX_DMA_LIST
Bit
R/W
Default/Hex
Description
31:0
R/W
0
RX_DESC_LIST
The base address of receive descriptor list. It must be 32-bit aligned.
7.9.4.12. Receive Frame Filter Register(Default Value: 0x00000000)
Offset: 0x38
Register Name: RX_FRM_FLT
Bit
R/W
Default/Hex
Description
31
R/W
0
DIS_ADDR_FILTER
0: Enable address filter
1: Disable address filter
30:18
/
/
/
17
R/W
0
DIS_BROADCAST
0: Receive all broadcast frames
1: Drop all broadcast frames
16
R/W
0
RX_ALL_MULTICAST
0: Filter multicast frame according to HASH_MULTICAST
1: Receive all multicast frames
15:14
/
/
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 678
13:12
R/W
0
CTL_FRM_FILTER
00, 01: Drop all control frames
10: Receive all control frames
11: Receive all control frames when pass the address filter
11:10
/
/
/
9
R/W
0
HASH_MULTICAST
0: Filter multicast frames by comparing the DA field with the values in
DA MAC address registers
1: Filter multicast frames according to the hash table
8
R/W
0
HASH_UNICAST
0: Filter unicast frames by comparing the DA field with the values in DA
MAC address registers
1: Filter unicast frames according to the hash table
7
/
/
/
6
R/W
0
SA_FILTER_EN
0: Receive frames and update the result of SA filter
1: Update the result of SA filter. In addition, if the SA field of received
frame does not match the values in SA MAC address registers, drop this
frame.
5
R/W
0
SA_INV_FILTER
0: When the SA field of current frame matches the values in SA MAC
address registers, it passes the SA filter
1: When the SA filed of current frame does not match the values in SA
MAC address registers,, it passes the SA filter
4
R/W
0
DA_INV_FILTER
0: Normal filtering of frames is performed
1: Filter both unicast and multicast frames by comparing DA field in
inverse filtering mode
3:2
/
/
/
1
R/W
0
FLT_MD
0: If the HASH_MULTICAST or HASH_UNICAST is set, the frame is passed
only when it matches the Hash filter
1: Receive the frame when it pass the address register filter or the hash
filter(set by HASH_MULTICAST or HASH_UNICAST)
0
R/W
0
RX_ALL
0: Receive the frames that pass the SA/DA address filter
1: Receive all frames and update the result of address filter(pass or fail)
in the receive status word
7.9.4.13. Receive Hash Table 0 Register(Default Value: 0x00000000)
Offset: 0x40
Register Name: RX_HASH_0
Bit
R/W
Default/Hex
Description
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 679
31:0
R/W
0
HASH_TAB_0
The upper 32 bits of Hash table for receive frame filter.
7.9.4.14. Receive Hash Table 1 Register(Default Value: 0x00000000)
Offset: 0x44
Register Name: RX_HASH_1
Bit
R/W
Default/Hex
Description
31:0
R/W
0
HASH_TAB_1
The lower 32 bits of Hash table for receive frame filter.
7.9.4.15. MII Command Register(Default Value: 0x00000000)
Offset: 0x48
Register Name: MII_CMD
Bit
R/W
Default/Hex
Description
31:23
/
/
/
22:20
R/W
0
MDC_DIV_RATIO_M
MDC clock divide ration(m). The source of MDC clock is AHB clock.
000: 16
001: 32
010: 64
011: 128
Others: Reserved
19:17
/
/
/
16:12
R/W
0
PHY_ADDR
Select a PHY device from 32 possible candidates.
11:9
/
/
/
8:4
R/W
0
PHY_REG_ADDR
Select register in the selected PHY device
3:2
/
/
/
1
R/W
0
MII_WR
0: Read register in selected PHY and return data in EMAC_GMII_DATA
1: Write register in selected PHY using data in EMAC_GMII_DATA
0
R/W
0
MII_BUSY
This bit indicates that a read or write operation is in progress. When
prepared the data and register address for a write operation or the
register address for a read operation, set this bit and start to access
register in PHY.
When this bit is cleared automatically, the read or write operation is
over and the data in EMAC_GMII_DATA is valid for a read operation.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 680
7.9.4.16. MII Data Register(Default Value: 0x00000000)
Offset: 0x4C
Register Name: MII_DATA
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0
MII_DATA
The 16-bit data to be written to or read from the register in the selected
PHY.
7.9.4.17. MAC Address 0 High Register(Default Value: 0x0000FFFF)
Offset: 0x50
Register Name: ADDR0_HIGH
Bit
R/W
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xFFFF
MAC_ADDR_0_HIGH
The upper 16bits of the 1st MAC address.
7.9.4.18. MAC Address 0 Low Register(Default Value: 0xFFFFFFFF)
Offset: 0x54
Register Name: ADDR0_LOW
Bit
R/W
Default/Hex
Description
31:0
R/W
0xFFFFFFFF
MAC_ADDR_0_LOW
The lower 32bits of 1st MAC address.
7.9.4.19. MAC Address x High Register(Default Value: 0x0000FFFF)
Offset: 0x50+8*x (x=1~7)
Register Name: ADDRx_HIGH
Bit
R/W
Default/Hex
Description
31
R/W
0
MAC_ADDR_CTL
0: MAC address x(x: 1~7) is not valid, and it will be ignored by the
address filter
1: MAC address x(x：1~7) is valid
30
R/W
0.
MAC_ADDR_TYPE
1: MAC address x(x:1~7) used to compare with the source address of the
received frame
0: MAC address x(x:1~7) used to compare with the destination address
of the received frame
29:24
R/W
0
MAC_ADDR_BYTE_CTL
MAC address byte control mask. The lower bit of mask controls the
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 681
lower byte of in MAC address x(x:1~7). When the bit of mask is 1, do not
compare the corresponding byte.
23:16
/
/
/
15:0
R/W
0xFFFF
MAC_ADDR_x_HIGH
The upper 16bits of the MAC address x(x:1~7).
7.9.4.20. MAC Address x Low Register(Default Value: 0xFFFFFFFF)
Offset: 0x54+8*x (x=1~7)
Register Name: ADDRx_LOW
Bit
R/W
Default/Hex
Description
31:0
R/W
0xFFFFFFFF
MAC_ADDR_x_LOW
The lower 32bits of MAC address x(x:1~7).
7.9.4.21. Transmit DMA Status Register(Default Value: 0x00000000)
Offset: 0xB0
Register Name: TX_DMA_STA
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2:0
R
0
TX_DMA_STA
The state of Transmit DMA FSM.
000: STOP: When reset or disable TX DMA;
001: RUN_FETCH_DESC: Fetching TX DMA descriptor;
010: RUN_WAIT_STA: Waiting for the status of TX frame;
011: RUN_TRANS_DATA: Passing frame from host memory to TX DMA
FIFO;
111: RUN_CLOSE_DESC: Closing TX descriptor.
110: SUSPEND: TX descriptor unavailable or TX DMA FIFO underflow;
100, 101: Reserved;
7.9.4.22. Transmit DMA Current Descriptor Register(Default Value: 0x00000000)
Offset: 0xB4
Register Name: TX_DMA_CUR_DESC
Bit
R/W
Default/Hex
Description
31:0
R
0
The address of current transmit descriptor.
7.9.4.23. Transmit DMA Current Buffer Address Register(Default Value: 0x00000000)
Offset: 0xB8
Register Name: TX_DMA_CUR_BUF
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 682
Bit
R/W
Default/Hex
Description
31:0
R
0
The address of current transmit DMA buffer.
7.9.4.24. Receive DMA Status Register(Default Value: 0x00000000)
Offset: 0xC0
Register Name: RX_DMA_STA
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2:0
R
0
RX_DMA_STA
The state of RX DMA FSM.
000: STOP: When reset or disable RX DMA;.
001: RUN_FETCH_DESC: Fetching RX DMA descriptor;
011: RUN_WAIT_FRM: Waiting for frame.
100: SUSPEND: RX descriptor unavailable;
101: RUN_CLOSE_DESC: Closing RX descriptor.
111: RUN_TRANS_DATA: Passing frame from host memory to RX DMA
FIFO;
010, 110: Reserved.
7.9.4.25. Receive DMA Current Descriptor Register(Default Value: 0x00000000)
Offset: 0xC4
Register Name: RX_DMA_CUR_DESC
Bit
R/W
Default/Hex
Description
31:0
R
0
The address of current receive descriptor
7.9.4.26. Receive DMA Current Buffer Address Register(Default Value: 0x00000000)
Offset: 0xC8
Register Name: RX_DMA_CUR_BUF
Bit
R/W
Default/Hex
Description
31:0
R
0
The address of current receive DMA buffer
7.9.4.27. RGMII Status Register(Default Value: 0x00000000)
Offset: 0xD0
Register Name: RGMII_STA
Bit
R/W
Default/Hex
Description
31:4
/
/
/
3
R
0
RGMII_LINK
The link status of RGMII interface
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 683
0: down
1: up
2:1
R
0
RGMII_LINK_SPD
The link speed of RGMII interface
00: 2.5 MHz
01: 25 MHz
10: 125 MHz
0
R
0
RGMII_LINK_MD
The link Mode of RGMII interface
0: Half-Duplex
1: Full-Duplex
7.9.5. EMAC RX/TX Descriptor
The EMAC’ internal DMA transfers data between host memory and internal RX/TX FIFO with a linked list of
descriptors. Each descriptor is consisted of four words, and contains some necessary information to
transfer TX and RX frames. The descriptor list structure is shown in Figure 7-20. The address of each
descriptor must be 32-bit aligned.
4th: Next Desc
1st: Status
2nd: Buffer Size
2rd: Buffer Addr
1st Desc 2nd Desc 3rd Desc N-th Desc
…
Desc List Base Addr
4th: Next Desc
1st: Status
2nd: Buffer Size
2rd: Buffer Addr
4th: Next Desc
1st: Status
2nd: Buffer Size
2rd: Buffer Addr
4th: Next Desc
1st: Status
2nd: Buffer Size
2rd: Buffer Addr
Figure 7-20. EMAC RX/TX Descriptor List
7.9.5.1. Transmit Descriptor
1st Word of Transmit Descriptor
Bits
Description
31
TX_DESC_CTL
When set, current descriptor can be used by DMA. This bit is cleared by DMA when the whole frame is
transmitted or all data in current descriptor’s buffer are transmitted.
30:17
Reserved
16
TX_HEADER_ERR
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 684
When set, the checksum of transmitted frame’s header is wrong.
15
Reserved
14
TX_LENGHT_ERR
When set, the length of transmitted frame is wrong.
13
Reserved
12
TX_PAYLOAD_ERR
When set, the checksum of transmitted frame’s payload is wrong.
11
Reserved
10
TX_CRS_ERR
When set, carrier is lost during transmission.
9
TX_COL_ERR_0
When set, the frame is aborted because of collision after contention period.
8
TX_COL_ERR_1
When set, the frame is aborted because of too many collisions.
7
Reserved.
6:3
TX_COL_CNT
The number of collisions before transmission.
2
TX_DEFER_ERR
When set, the frame is aborted because of too much deferral.
1
TX_UNDERFLOW_ERR
When set, the frame is aborted because of TX FIFO underflow error.
0
TX_DEFER
When set in Half-Duplex mode, the EMAC defers the frame transmission.
2nd Word of Transmit Descriptor
Bits
Description
31
TX_INT_CTL
When set and the current frame have been transmitted, the TX_INT in Interrupt Status Register will be
set.
30
LAST_DESC
When set, current descriptor is the last one for current frame.
29
FIR_DESC
When set, current descriptor is the first one for current frame.
28:27
CHECKSUM_CTL
These bits control to insert checksums in transmit frame.
26
CRC_CTL
When set, CRC field is not transmitted.
25:11
Reserved
10:0
BUF_SIZE
The size of buffer specified by current descriptor.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 685
3rd Word of Transmit Descriptor
Bits
Description
31:0
BUF_ADDR
The address of buffer specified by current descriptor.
4th Word of Transmit Descriptor
Bits
Description
31:0
NEXT_DESC_ADDR
The address of next descriptor. It must be 32-bit aligned.
7.9.5.2. Receive Descriptor
1st Word of Receive Descriptor
Bits
Description
31
RX_DESC_CTL
When set, current descriptor can be used by DMA. This bit is cleared by DMA when complete frame is
received or current descriptor’s buffer is full.
30
RX_DAF_FAIL
When set, current frame don’t pass DA filter.
29:16
RX_FRM_LEN
When LAST_DESC is not set and no error bit is set, this field is the length of received data for current
frame.
When LAST_DESC is set, RX_OVERFLOW_ERR and RX_NO_ENOUGH_BUF_ERR are not set, this field is
the length of receive frame.
15
Reserved
14
RX_NO_ENOUGH_BUF_ERR
When set, current frame is clipped because of no enough buffer.
13
RX_SAF_FAIL
When set, current fame don’t pass SA filter.
12
Reserved.
11
RX_OVERFLOW_ERR
When set, a buffer overflow error occurred and current frame is wrong.
10
Reserved
9
FIR_DESC
When set, current descriptor is the first descriptor for current frame.
8
LAST_DESC
When set, current descriptor is the last descriptor for current frame.
7
RX_HEADER_ERR
When set, the checksum of frame’s header is wrong.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 686
6
RX_COL_ERR
When set, there is a late collision during reception in half-duplex mode.
5
Reserved.
4
RX_LENGTH_ERR
When set, the length of current frame is wrong.
3
RX_PHY_ERR
When set, the receive error signal from PHY is asserted during reception.
2
Reserved.
1
RX_CRC_ERR
When set, the CRC filed of received frame is wrong.
0
RX_PAYLOAD_ERR
When set, the checksum or length of received frame’s payload is wrong.
2nd Word of Receive Descriptor
Bits
Description
31
RX_INT_CTL
When set and a frame have been received, the RX_INT will not be set.
30:11
Reserved
10:0
BUF_SIZE
The size of buffer specified by current descriptor.
3rd Word of Receive Descriptor
Bits
Description
31:0
BUF_ADDR
The address of buffer specified by current descriptor.
4th Word of Receive Descriptor
Bits
Description
31:0
NEXT_DESC_ADDR
The address of next descriptor. This field must be 32-bit aligned.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 687
7.10. TSC
7.10.1. Overview
The transport stream controller(TSC) is responsible for de-multiplexing and pre-processing the inputting
multimedia data defined in ISO/IEC 13818-1.
The transport stream controller receives multimedia data stream from SSI (Synchronous Serial Port)/SPI
(Synchronous Parallel Port) inputs and de-multiplexing the data into Packets by PID (Packet Identify). Before
the Packet to be store to memory by DMA, it can be pre-processing by the Transport Stream Descrambler.
The transport stream controller can be used for almost all multi-media application cases, example: DVB Set top
Box, IPTV, Streaming-media Box, multi-media players and so on.
The Transport Stream Controller (TSC) includes the following features:
Supports industry-standard AMBA Host Bus (AHB) and it is fully compliant with the AMBA Specification,
Revision 2.0. Supports 32-bit Little Endian bus.
Supports AHB 32-bit bus width
One external Synchronous Parallel Interface (SPI) or one external Synchronous Serial Interface (SSI)
32 channels PID filter
Multiple transport stream packet (188, 192, 204) format support
SPI and SSI timing parameters are configurable
Hardware packet synchronous byte error detecting
Hardware PCR packet detecting
Configurable SPI transport stream generator for streams in DRAM memory
DMA is supported for transferring data
Interrupt is supported
Support DVB-CSA V1.1 Descrambler
The Top Diagram of TSC is below:
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 688
Figure 7-21. TSC Block Diagram
Note:
TSC – TS Controller
TSF – TS Filter
TSD – TS Descrambler
TSG – TS Generator
7.10.2. Transport Stream Input Timing Diagram
Table 7-1. Input Signals Description
Name
Description
Clock
Clock of SPI/SSI data input
Psync
Packet sync (or Start flag) for TS packet
Dvalid
Data valid flag for TS data input
Error
Error flag for TS data, but do not used by TSC
Data[7:0]
TS data input.
Data[7:0] are used in SPI mode;
Only Data[0] is used in SSI mode.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 689

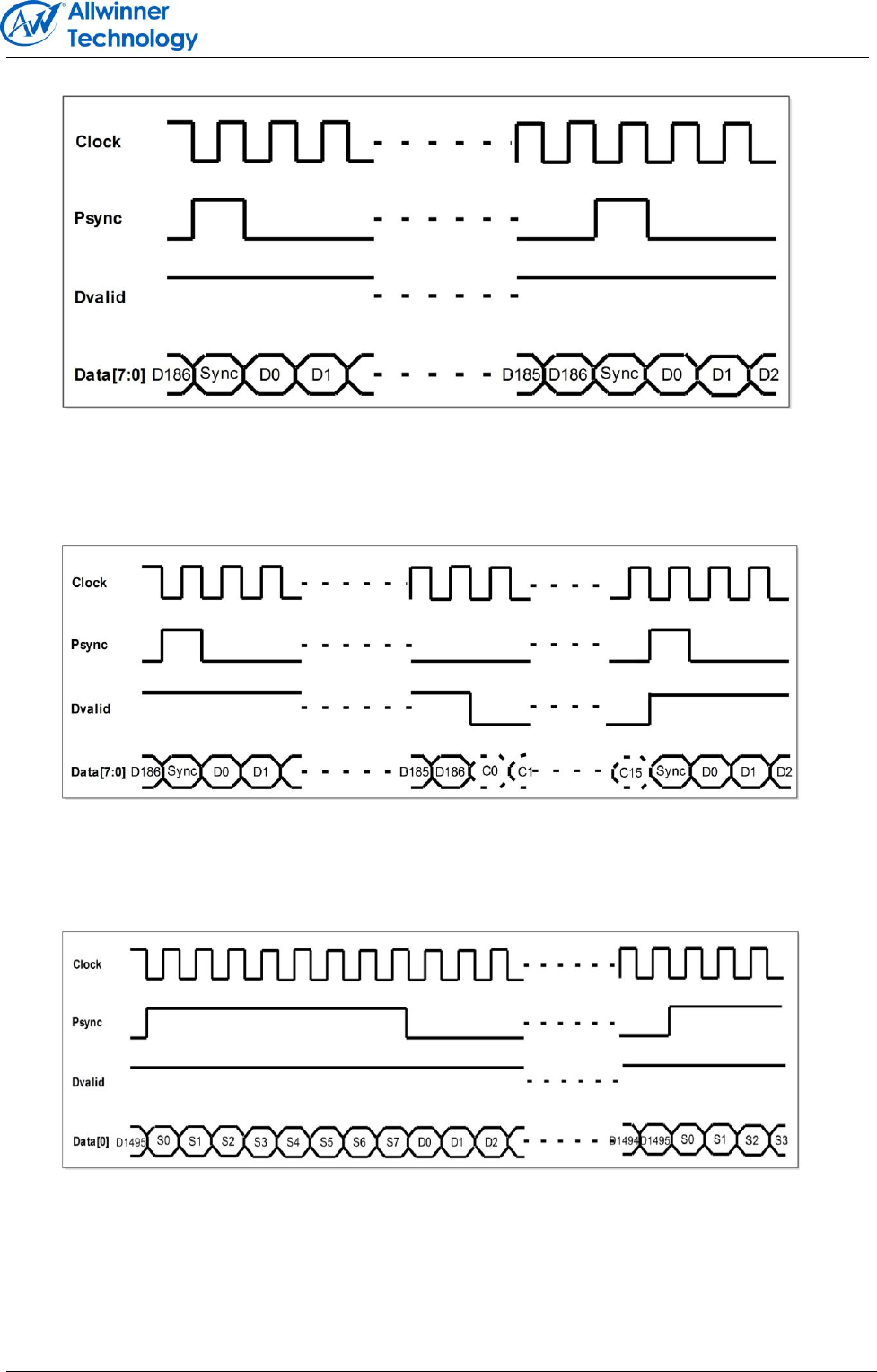

Figure 7-22. Input Timing for SPI mode
(CLOCK = Rising Edge, PSYNC = High Active, DVALID = High Active, Packet Size = 188 Bytes)
Figure 7-23. Alternative Input Timing for SPI mode
(CLOCK = Rising Edge, PSYNC = High Active, DVALID = High Active, Packet Size = 188 Bytes)
Figure 7-24. Alternative Input Timing for SSI mode
(CLOCK = Rising Edge, PSYNC = High Active, DVALID = High Active, Packet Size = 188 Bytes)
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 690
7.10.3. Transport Stream Controller Register List
Module Name
Base Address
TSC
0x01C06000
TSG OFFSET
0x00000040
TSF0 OFFSET
0x00000080
TSD OFFSET
0x00000180
Register Name
Offset
Description
TSC_CTLR
TSC + 0x00
TSC Control Register
TSC_STAR
TSC + 0x04
TSC Status Register
TSC_PCTLR
TSC + 0x10
TSC Port Control Register
TSC_PPARR
TSC + 0x14
TSC Port Parameter Register
TSC_TSFMUXR
TSC + 0x20
TSC TSF Input Multiplex Control Register
TSC_OUTMUXR
TSC + 0x28
TSC Port Output Multiplex Control Register
TSG_CTLR
TSG + 0x00
TSG Control Register
TSG_PPR
TSG + 0x04
TSG Packet Parameter Register
TSG_STAR
TSG + 0x08
TSG Status Register
TSG_CCR
TSG + 0x0c
TSG Clock Control Register
TSG_BBAR
TSG + 0x10
TSG Buffer Base Address Register
TSG_BSZR
TSG + 0x14
TSG Buffer Size Register
TSG_BPR
TSG + 0x18
TSG Buffer Pointer Register
TSF_CTLR
TSF + 0x00
TSF Control Register
TSF_PPR
TSF + 0x04
TSF Packet Parameter Register
TSF_STAR
TSF + 0x08
TSF Status Register
TSF_DIER
TSF + 0x10
TSF DMA Interrupt Enable Register
TSF_OIER
TSF + 0x14
TSF Overlap Interrupt Enable Register
TSF_DISR
TSF + 0x18
TSF DMA Interrupt Status Register
TSF_OISR
TSF + 0x1c
TSF Overlap Interrupt Status Register
TSF_PCRCR
TSF + 0x20
TSF PCR Control Register
TSF_PCRDR
TSF + 0x24
TSF PCR Data Register
TSF_CENR
TSF + 0x30
TSF Channel Enable Register
TSF_CPER
TSF + 0x34
TSF Channel PES Enable Register
TSF_CDER
TSF + 0x38
TSF Channel Descramble Enable Register
TSF_CINDR
TSF + 0x3c
TSF Channel Index Register
TSF_CCTLR
TSF + 0x40
TSF Channel Control Register
TSF_CSTAR
TSF + 0x44
TSF Channel Status Register
TSF_CCWIR
TSF + 0x48
TSF Channel CW Index Register
TSF_CPIDR
TSF + 0x4c
TSF Channel PID Register
TSF_CBBAR
TSF + 0x50
TSF Channel Buffer Base Address Register
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 691
TSF_CBSZR
TSF + 0x54
TSF Channel Buffer Size Register
TSF_CBWPR
TSF + 0x58
TSF Channel Buffer Write Pointer Register
TSF_CBRPR
TSF + 0x5c
TSF Channel Buffer Read Pointer Register
TSD_CTLR
TSD + 0x00
TSD Control Register
TSD_STAR
TSD + 0x04
TSD Status Register
TSD_CWIR
TSD + 0x1c
TSD Control Word Index Register
TSD_CWR
TSD + 0x20
TSD Control Word Register
7.10.4. Transport Stream Controller Register Description
7.10.4.1. TSC Control Register(Default Value: 0x00000000)
Offset: 0x00
Register Name: TSC_CTLR
Bit
R/W
Default/Hex
Description
31:0
/
/
/
7.10.4.2. TSC Status Register(Default Value: 0x00000000)
Offset: 0x04
Register Name: TSC_STAR
Bit
R/W
Default/Hex
Description
31:0
/
/
/
7.10.4.3. TSC Port Control Register(Default Value: 0x00000000)
Offset: 0x10
Register Name: TSC_PCTLR
Bit
R/W
Default/Hex
Description
31:1
/
/
/
0
R/W
0
TSInPort0Ctrl
TS Input Port0 Control
0 – SPI
1 – SSI
7.10.4.4. TSC Port Parameter Register(Default Value: 0x00000000)
Offset: 0x14
Register Name: TSC_PPARR
Bit
R/W
Default/Hex
Description
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 692
31:8
/
/
/
7:0
R/W
0x00
TSInPort0Par
TS Input Port0 Parameters
Bit
Definition
7:5
Reserved
4
SSI data order
0: MSB first for one byte data
1: LSB first for one byte data
3
CLOCK signal polarity
0 : Rise edge capturing
1: Fall edge capturing
2
ERROR signal polarity
0: High level active
1: Low level active
1
DVALID signal polarity
0: High level active
1: Low level active
0
PSYNC signal polarity
0: High level active
1: Low level active
7.10.4.5. TSC TSF Input Multiplex Control Register(Default Value: 0x00000000)
Offset: 0x20
Register Name: TSC_TSFMUXR
Bit
R/W
Default/Hex
Description
31:4
/
/
/
3:0
R/W
0x0
TSF0InputMuxCtrl
TSF0 Input Multiplex Control
0x0 –Data from TSG
0x1 –Data from TS IN Port0
Others – Reserved
7.10.4.6. TSC Port Output Multiplex Control Register(Default Value: 0x00000000)
Offset: 0x28
Register Name: TSC_TSFMUXR
Bit
R/W
Default/Hex
Description
31:0
/
/
/
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 693
7.10.4.7. TSC Port Output Multiplex Control Register(Default Value: 0x00000000)
Offset: TSG+0x00
Register Name: TSC_TSFMUXR
Bit
R/W
Default/Hex
Description
31:26
/
/
/
25:24
R
0
TSGSts
Status for TS Generator
0: IDLE state
1: Running state
2: PAUSE state
Others: Reserved
23:10
/
/
/
9
R/W
0
TSGLBufMode
Loop Buffer Mode
When set to ‘1’, the TSG external buffer is in loop mode.
8
R/W
0
TSGSyncByteChkEn
Sync Byte Check Enable
Enable/ Disable check SYNC byte fro receiving new packet
0: Disable
1: Enable
If enable check SYNC byte and an error SYNC byte is receiver, TS
Generator would come into PAUSE state. If the correspond interrupt is
enable, the interrupt would happen.
7:3
/
/
/
2
R/W
0
TSGPauseBit
Pause Bit for TS Generator
Write ‘1’ to pause TS Generator. TS Generator would stop fetch new
data from DRAM. After finishing this operation, this bit will clear to zero
by hardware. In PAUSE state, write ‘1’ to resume this state.
1
R/W
0
TSGStopBit
Stop Bit for TS Generator
Write ‘1’ to stop TS Generator. TS Generator would stop fetch new data
from DRAM. The data already in its FIFO should be sent to TS filter. After
finishing this operation, this bit will clear to zero by hardware.
0
R/W
0
TSGStartBit
Start Bit for TS Generator
Write ‘1’ to start TS Generator. TS Generator would fetch data from
DRAM and generate SPI stream to TS filter. This bit will clear to zero by
hardware after TS Generator is running.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 694
7.10.4.8. TSG Packet Parameter Register(Default Value: 0x00470000)
Offset: TSG+0x04
Register Name: TSG_PPR
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:16
R/W
0x47
SyncByteVal
Sync Byte Value
This is the value of sync byte used in the TS Packet.
15:8
/
/
/
7
R/W
0
SyncBytePos
Sync Byte Position
0: the 1st byte position
1: the 5th byte position
Notes: This bit is only used for 192 bytes packet size.
6:2
/
/
/
1:0
R/W
0
PktSize
Packet Size
Byte Size for one TS packet
0: 188 bytes
Others: Reserved
7.10.4.9. TSG Interrupt Enable and Status Register(Default Value: 0x00000000)
Offset: TSG+0x08
Register Name: TSG_IESR
Bit
R/W
Default/Hex
Description
31:20
/
/
/
19
R/W
0
TSGEndIE
TS Generator (TSG) End Interrupt Enable
0: Disable
1: Enable
If set this bit, the interrupt would assert to CPU when all data in external
DRAM are sent to TS PID filter.
18
R/W
0
TSGFFIE
TS Generator (TSG) Full Finish Interrupt Enable
0: Disable
1: Enable
17
R/W
0
TSGHFIE
TS Generator (TSG) Half Finish Interrupt Enable
0: Disable
1: Enable
16
R/W
0
TSGErrSyncByteIE
TS Generator (TSG) Error Sync Byte Interrupt Enable
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 695
0: Disable
1: Enable
15:4
/
/
/
3
R/W
0
TSGEndSts
TS Generator (TSG) End Status
Write ‘1’ to clear.
2
R/W
0
TSGFFSts
TS Generator (TSG) Full Finish Status
Write ‘1’ to clear.
1
R/W
0
TSGHFSts
TS Generator (TSG) Half Finish Status
Write ‘1’ to clear.
0
R/W
0
TSGErrSyncByteSts
TS Generator (TSG) Error Sync Byte Status
Write ‘1’ to clear.
7.10.4.10. TSG Clock Control Register(Default Value: 0x00000000)
Offset: TSG+0x0C
Register Name: TSG_CCR
Bit
R/W
Default/Hex
Description
31:16
R/W
0x0
TSGCDF_N
TSG Clock Divide Factor (N)
The Numerator part of TSG Clock Divisor Factor.
15:0
R/W
0x0
TSGCDF_D
TSG Clock Divide Factor (D)
The Denominator part of TSG Clock Divisor Factor.
Frequency of output clock:
Fo = (Fi*(N+1))/(8*(D+1)).
Fi is the input special clock of TSC, and D must not less than N.
7.10.4.11. TSG Buffer Base Address Register(Default Value: 0x00000000)
Offset: TSG+0x10
Register Name: TSG_BBAR
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:0
RW
0x0
TSGBufBase
Buffer Base Address
This value is a start address of TSG buffer.
Note: This value should be 4-word (16Bytes) align, and the lowest 4-bit
of this value should be zero.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 696
7.10.4.12. TSG Buffer Size Register(Default Value: 0x00000000)
Offset: TSG+0x14
Register Name: TSG_BSZR
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0
TSGBufSize
Data Buffer Size for TS Generator
It is in byte unit.
The size should be 4-word (16Bytes) align, and the lowest 4 bits should
be zero.
7.10.4.13. TSG Buffer Point Register(Default Value: 0x00000000)
Offset: TSG+0x18
Register Name: TSG_BPR
Bit
R/W
Default/Hex
Description
31:24
/
/
/
23:0
R
0
TSGBufPtr
Data Buffer Pointer for TS Generator
Current TS generator data buffer read pointer (in byte unit)
7.10.4.14. TSF Control and Status Register(Default Value: 0x00000000)
Offset: TSF+0x00
Register Name: TSF_CSR
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2
R/W
0
TSF Enable
0: Disable TSF Input
1: Enable TSF Input
1
/
/
/
0
TSFGSR
TSF Global Soft Reset
A software writing ‘1’ will reset all status and state machine of TSF. And
it’s cleared by hardware after finish reset.
A software writing ‘0’ has no effect.
7.10.4.15. TSF Packet Parameter Register(Default Value: 0x00470000)
Offset: TSF+0x04
Register Name: TSF_PPR
Bit
R/W
Default/Hex
Description
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 697
31:28
R/W
0
LostSyncThd
Lost Sync Packet Threshold
It is used for packet sync lost by checking the value of sync byte.
27:24
R/W
0
SyncThd
Sync Packet Threshold
It is used for packet sync by checking the value of sync byte.
23:16
R/W
0x47
SyncByteVal
Sync Byte Value
This is the value of sync byte used in the TS Packet.
15:10
/
/
/
9:8
R/W
0
SyncMthd
Packet Sync Method
0: By PSYNC signal
1: By sync byte
2: By both PSYNC and Sync Byte
3: Reserved
7
R/W
0
SyncBytePos
Sync Byte Position
0: the 1st byte position
1: the 5th byte position
Notes: This bit is only used for 192 bytes packet size.
6:2
/
/
/
1:0
R/W
0
PktSize
Packet Size
Byte Size for one TS packet
0: 188 bytes
1: 192 bytes
2: 204 bytes
3: Reserved
7.10.4.16. TSF Interrupt Enable and Status Register(Default Value: 0x00000000)
Offset: TSF+0x08
Register Name: TSF_IESR
Bit
R/W
Default/Hex
Description
31:20
/
/
/
19
R/W
0
TSFFOIE
TS PID Filter (TSF) Internal FIFO Overrun Interrupt Enable
0: Disable
1: Enable
18
R/W
0
TSFPPDIE
TS PCR Packet Detect Interrupt Enable
0: Disable
1: Enable
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 698
17
R/W
0
TSFCOIE
TS PID Filter (TSF) Channel Overlap Interrupt Global Enable
0: Disable
1: Enable
16
R/W
0
TSFCDIE
TS PID Filter (TSF) Channel DMA Interrupt Global Enable
0: Disable
1: Enable
15:4
/
/
/
3
R/W
0
TSFFOIS
TS PID Filter (TSF) Internal FIFO Overrun Status
Write ‘1’ to clear.
2
R/W
0
TSFPPDIS
TS PCR Packet Found Status
When it is ‘1’, one TS PCR Packet is found. Write ‘1’ to clear.
1
R
0
TSFCOIS
TS PID Filter (TSF) Channel Overlap Status
It is global status for 16 channel. It would clear to zero after all channels
status bits are clear.
0
R
0
TSFCDIS
TS PID Filter (TSF) Channel DMA status
It is global status for 16 channel. It would clear to zero after all channels
status bits are clear.
7.10.4.17. TSF DMA Interrupt Enable Register(Default Value: 0x00000000)
Offset: TSF+0x10
Register Name: TSF_DIER
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
DMAIE
DMA Interrupt Enable
DMA interrupt enable bits for channel 0~31.
7.10.4.18. TSF Overlap Interrupt Enable Register(Default Value: 0x00000000)
Offset: TSF+0x14
Register Name: TSF_OIER
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
OLPIE
Overlap Interrupt Enable
Overlap interrupt enable bits for channel 0~31.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 699
7.10.4.19. TSF DMA Interrupt Status Register(Default Value: 0x00000000)
Offset: TSF+0x18
Register Name: TSF_DISR
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
DMAIS
DMA Interrupt Status
DMA interrupt Status bits for channel 0~31.
Set by hardware, and can be cleared by software writing ‘1’.
When both these bits and the corresponding DMA Interrupt Enable bits
set, the TSF interrupt will generate.
7.10.4.20. TSF Overlap Interrupt Status Register(Default Value: 0x00000000)
Offset: TSF+0x1C
Register Name: TSF_OISR
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
OLPIS
Overlap Interrupt Status
Overlap interrupt Status bits for channel 0~31.
Set by hardware, and can be cleared by software writing ‘1’.
When both these bits and the corresponding Overlap Interrupt Enable
bits set, the TSF interrupt will generate.
7.10.4.21. TSF PCR Control Register(Default Value: 0x00000000)
Offset: TSF+0x20
Register Name: TSF_PCRCR
Bit
R/W
Default/Hex
Description
31:17
/
/
/
16
R/W
0
PCRDE
PCR Detecting Enable
0: Disable
1: Enable
15:13
/
/
/
12:8
R/W
0
PCRCIND
Channel Index m for Detecting PCR packet (m from 0 to 31)
7:1
/
/
/
0
R
0
PCRLSB
PCR Contest LSB 1 bit
PCR[0]
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 700
7.10.4.22. TSF PCR Data Register(Default Value: 0x00000000)
Offset: TSF+0x24
Register Name: TSF_PCRDR
Bit
R/W
Default/Hex
Description
31:0
R
0
PCRMSB
PCR Data High 32 bits
PCR[33:1]
7.10.4.23. TSF Channel Enable Register(Default Value: 0x00000000)
Offset: TSF+0x30
Register Name: TSF_CENR
Bit
R/W
Default/Hex
Description
31:0
R/W
0
FilterEn
Filter Enable for Channel 0~31
0: Disable
1: Enable
From Disable to Enable, internal status of the corresponding filter
channel will be reset.
7.10.4.24. TSF PES Enable Register(Default Value: 0x00000000)
Offset: TSF+0x34
Register Name: TSF_CPER
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
PESEn
PES Packet Enable for Channel 0~31
0: Disable
1: Enable
These bits should not be changed during the corresponding channel
enable.
7.10.4.25. TSF Channel Descramble Enable Register(Default Value: 0x00000000)
Offset: TSF+0x38
Register Name: TSF_CDER
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
DescEn
Descramble Enable for Channel 0~31
0: Disable
1: Enable
These bits should not be changed during the corresponding channel
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 701
enable.
7.10.4.26. TSF Channel Index Register(Default Value: 0x00000000)
Offset: TSF+0x3C
Register Name: TSF_CINDR
Bit
R/W
Default/Hex
Description
31:5
/
/
/
4:0
R/W
0x0
CHIND
Channel Index
This value is the channel index for channel private registers access.
Range is from 0x00 to 0x1f.
Address range of channel private registers is 0x40~0x7f.
7.10.4.27. TSF Channel Control Register(Default Value: 0x00000000)
Offset: TSF+0x40
Register Name: TSF_CCTLR
Bit
R/W
Default/Hex
Description
31:0
/
/
/
7.10.4.28. TSF Channel Status Register(Default Value: 0x00000000)
Offset: TSF+0x44
Register Name: TSF_CSTAR
Bit
R/W
Default/Hex
Description
31:0
/
/
/
7.10.4.29. TSF Channel CW Index Register(Default Value: 0x00000000)
Offset: TSF+0x48
Register Name: TSF_CCWIR
Bit
R/W
Default/Hex
Description
31:3
/
/
/
2:0
R/W
0x0
CWIND
Related Control Word Index
Index to the control word used by this channel when Descramble Enable
of this channel enable.
This value is useless when the corresponding Descramble Enable is ‘0’.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 702
7.10.4.30. TSF Channel PID Register(Default Value: 0x1FFF0000)
Offset: TSF+0x4C
Register Name: TSF_CPIDR
Bit
R/W
Default/Hex
Description
31:16
R/W
0x1fff
PIDMSK
Filter PID Mask for Channel
15:0
R/W
0x0
PIDVAL
Filter PID value for Channel
7.10.4.31. TSF Channel Buffer Base Address Register(Default Value: 0x00000000)
Offset: TSF+0x50
Register Name: TSF_CBBAR
Bit
R/W
Default/Hex
Description
31:28
/
/
/
27:0
R/W
0
TSFBufBAddr
Data Buffer Base Address for Channel
It is 4-word (16Bytes) align address. The LSB four bits should be zero.
7.10.4.32. TSF Channel Buffer Size Register(Default Value: 0x00000000)
Offset: TSF+0x54
Register Name: TSF_CBSZR
Bit
R/W
Default/Hex
Description
31:26
/
/
/
25:24
R/W
0
CHDMAIntThd
DMA Interrupt Threshold for Channel
The unit is TS packet size. When received packet (has also stored in
DRAM) size is beyond (>=) threshold value, the corresponding channel
interrupt is generated to CPU. TSC should count the new received
packet again, when exceed the specified threshold value, one new
interrupt is generated again.
0: 1/2 data buffer packet size
1: 1/4 data buffer packet size
2: 1/8 data buffer packet size
3: 1/16 data buffer packet size
23:21
/
/
/
20:0
R/W
0
CHBufPktSz
Data Buffer Packet Size for Channel
The exact buffer size of buffer is N+1 bytes.
The maximum buffer size is 2MB.
This size should be 4-word (16Bytes) aligned. The LSB four bits should be
zero.
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 703
7.10.4.33. TSF Channel Write Pointer Register(Default Value: 0x00000000)
Offset: TSF+0x58
Register Name: TSF_CBWPR
Bit
R/W
Default/Hex
Description
31:21
/
/
/
20:0
R/W
0
BufWrPtr
Data Buffer Write Pointer (in Bytes)
This value is changed by hardware, when data is filled into buffer, this
pointer is increased.
And this pointer can be set by software, but it should not be changed by
software during the corresponding channel is enable.
7.10.4.34. TSF Channel Read Pointer Register(Default Value: 0x00000000)
Offset: TSF+0x5C
Register Name: TSF_CBRPR
Bit
R/W
Default/Hex
Description
31:21
/
/
/
20:0
R/W
0
BufRdPtr
Data Buffer Read Pointer (in Bytes)
This pointer should be changed by software after the data of buffer is
read.
7.10.4.35. TSD Control Register(Default Value: 0x00000000)
Offset: TSD+0x00
Register Name: TSD_CTLR
Bit
R/W
Default/Hex
Description
31:2
/
/
/
1:0
R/W
0x0
DescArith
Descramble Arithmetic
00: DVB CSA V1.1
Others: Reserved
7.10.4.36. TSD Status Register(Default Value: 0x00000000)
Offset: TSD+0x04
Register Name: TSD_STAR
Bit
R/W
Default/Hex
Description
31:0
/
/
/
Confidential
Interfaces
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 704
7.10.4.37. TSD Control Word Index Register(Default Value: 0x00000000)
Offset: TSD+0x1C
Register Name: TSD_CWIR
Bit
R/W
Default/Hex
Description
31:3
/
/
/
6:4
R/W
0x0
CWI
Control Word Index
This value is the Control index for Control word access.
Range is from 0x00 to 0x7.
3:2
/
/
/
1:0
R/W
0x0
CWII
Control Word Internal Index
0 – Odd Control Word Low 32-bit, OCW[31:0];
1 – Odd Control Word High 32-bit, OCW[63:32];
2 – Even Control Word Low 32-bit, ECW[31:0];
3 – Even Control Word High 32-bit, ECW[63:0];
7.10.4.38. TSD Control Word Register(Default Value: 0x00000000)
Offset: TSD+0x20
Register Name: TSD_CWR
Bit
R/W
Default/Hex
Description
31:0
R/W
0x0
CWD
Content of Control Word corresponding to the TSD_CWIR value
Confidential
Appendix
A64 User Manual(Revision 1.1) Copyright© 2015 Allwinner Technology Co.,Ltd.All Rights Reserved. Page 705
Appendix
Control signal and data port mapping for TCON:
SYNC RGB
CPU
cmd
CPU
18bit
CPU
16bit
CPU
8bit
CPU
9bit
LVDS
I/O
Para
RGB
Serial RGB
CCIR
656
256K
256K
65K
256K
65K
256K
Single
Link
1st
2nd
3rd
1st
2nd
3rd
1st
2nd
1st
2nd
1st
2nd
3rd
1st
2nd
1st
2nd
IO0
VSYNC
CS
D3N
IO1
HSYNC
RD
D3P
IO2
DCLK
WR
CKP
IO3
DE
RS
CKN
D23
R7
D23
R5
R5
B5
G5
R5
R5
B5
R4
D2N
D22
R6
D22
R4
R4
B4
G4
R4
R4
B4
R3
D2P
D21
R5
D21
R3
R3
B3
G3
R3
R3
B3
R2
D1N
D20
R4
D20
R2
R2
B2
G2
R2
R2
B2
R1
D1P
D19
R3
D19
R1
R1
B1
G1
R1
R1
B1
R0
D0N
D18
R2
D18
R0
R0
B0
G0
R0
R0
B0
G5
D0P
D17
R1
D17
D16
R0
D16
D15
G7
D15
G5
G4
D14
G6
D14
G4
G3
D13
G5
D13
G3
D12
G4
D17
D27
D37
D7
D12
G2
G5
R5
B5
G5
B5
G5
G2
R5
G5
B5
R4
G2
R5
G2
D11
G3
D16
D26
D36
D6
D11
G1
G4
R4
B4
G4
B4
G4
G1
R4
G4
B4
R3
G1
R4
G1
D10
G2
D15
D25
D35
D5
D10
G0
G3
R3
B3
G3
B3
G3
G0
R3
G3
B3
R2
G0
R3
G0
D9
G1
D9
D8
G0
D8
D7
B7
D14
D24
D34
D4
D7
B5
G2
R2
B2
G2
B2
G2
B4
R2
G2
B2
R1
B4
R2
B5
D6
B6
D13
D23
D33
D3
D6
B4
G1
R1
B1
G1
B1
G1
B3
R1
G1
B1
R0
B3
R1
B4
D5
B5
D12
D22
D32
D2
D5
B3
G0
R0
B0
G0
B0
G0
B2
R0
G0
B0
G5
B2
R0
B3
D4
B4
D11
D21
D31
D1
D4
B2
B1
G4
B1
G5
B2
D3
B3
D10
D20
D30
D0
D3
B1
B0
G3
B0
G4
B1
D2
B2
D2
B0
G3
B0
D1
B1
D1
D0
B0
D0
Confidential
