Allwinner H5 Datasheet
Quad-Core OTT Box Processor
Revision 1.0
May.20,2016
Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved.
Declaration
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 2
Declaration
THIS DOCUMENTATION IS THE ORIGINAL WORK AND COPYRIGHTED PROPERTY OF ALLWINNER TECHNOLOGY
ALLWINNER. REPRODUCTION IN WHOLE OR IN PART MUST OBTAIN THE WRITTEN APPROVAL OF ALLWINNER AND
GIVE CLEAR ACKNOWLEDGEMENT TO THE COPYRIGHT OWNER.
THE INFORMATION FURNISHED BY ALLWINNER IS BELIEVED TO BE ACCURATE AND RELIABLE. ALLWINNER RESERVES
THE RIGHT TO MAKE CHANGES IN CIRCUIT DESIGN AND/OR SPECIFICATIONS AT ANY TIME WITHOUT NOTICE.
ALLWINNER DOES NOT ASSUME ANY RESPONSIBILITY AND LIABILITY FOR ITS USE. NOR FOR ANY INFRINGEMENTS OF
PATENTS OR OTHER RIGHTS OF THE THIRD PARTIES WHICH MAY RESULT FROM ITS USE. NO LICENSE IS GRANTED BY
IMPLICATION OR OTHERWISE UNDER ANY PATENT OR PATENT RIGHTS OF ALLWINNER. THIS DOCUMENTATION
NEITHER STATES NOR IMPLIES WARRANTY OF ANY KIND, INCLUDING FITNESS FOR ANY PARTICULAR APPLICATION.
THIRD PARTY LICENCES MAY BE REQUIRED TO IMPLEMENT THE SOLUTION/PRODUCT. CUSTOMERS SHALL BE SOLELY
RESPONSIBLE TO OBTAIN ALL APPROPRIATELY REQUIRED THIRD PARTY LICENCES. ALLWINNER SHALL NOT BE LIABLE FOR
ANY LICENCE FEE OR ROYALTY DUE IN RESPECT OF ANY REQUIRED THIRD PARTY LICENCE. ALLWINNER SHALL HAVE NO
WARRANTY, INDEMNITY OR OTHER OBLIGATIONS WITH RESPECT TO MATTERS COVERED UNDER ANY REQUIRED THIRD
PARTY LICENCE.
Revision History
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 3
Revision History
Revision
Date
Description
1.0
May. 20,2016
Initial Release Version
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 4
Table of Contents
Declaration ............................................................................................................................................................................ 2
Revision History..................................................................................................................................................................... 3
Table of Contents .................................................................................................................................................................. 4
Figures ................................................................................................................................................................................. 31
Tables .................................................................................................................................................................................. 34
Chapter 1 About This Documentation ............................................................................................................................. 36
1.1. Purpose ................................................................................................................................................................ 36
1.2. Acronyms and Abbreviations ............................................................................................................................... 36
Chapter 2 Overview ......................................................................................................................................................... 39
2.1. Processor Overview .............................................................................................................................................. 40
2.2. Processor Features ............................................................................................................................................... 41
2.2.1. CPU Architecture ....................................................................................................................................... 41
2.2.2. GPU Architecture....................................................................................................................................... 41
2.2.3. Memory Subsystem ................................................................................................................................... 41
2.2.3.1. Boot ROM ....................................................................................................................................... 41
2.2.3.2. SDRAM ........................................................................................................................................... 42
2.2.3.3. NAND Flash..................................................................................................................................... 42
2.2.3.4. SMHC .............................................................................................................................................. 42
2.2.4. System Peripheral ...................................................................................................................................... 42
2.2.4.1. Timer .............................................................................................................................................. 42
2.2.4.2. High Speed Timer ........................................................................................................................... 43
2.2.4.3. RTC ................................................................................................................................................. 43
2.2.4.4. GIC .................................................................................................................................................. 43
2.2.4.5. DMA ............................................................................................................................................... 43
2.2.4.6. CCU ................................................................................................................................................. 43
2.2.4.7. PWM ............................................................................................................................................... 43
2.2.4.8. Thermal Sensor .............................................................................................................................. 44
2.2.4.9. KEYADC ........................................................................................................................................... 44
2.2.4.10. Message Box ................................................................................................................................. 44
2.2.4.11. Spinlock ........................................................................................................................................ 44
2.2.4.12. Crypto Engine(CE) ........................................................................................................................ 44
2.2.4.13. Security ID(SID) ............................................................................................................................ 45
2.2.4.14. CPU Configuration ........................................................................................................................ 45
2.2.5. Display Subsystem ..................................................................................................................................... 45
2.2.5.1. DE2.0 .............................................................................................................................................. 45
2.2.5.2. Display Output ................................................................................................................................ 45
2.2.6. Video Engine ............................................................................................................................................. 46
2.2.6.1. Video Decoder ............................................................................................................................... 46
2.2.6.2. Video Encoder ................................................................................................................................ 46
2.2.7. Image Subsystem....................................................................................................................................... 47
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 5
2.2.7.1. CSI ................................................................................................................................................... 47
2.2.8. Audio Subsystem ....................................................................................................................................... 47
2.2.8.1. Audio Codec ................................................................................................................................... 47
2.2.8.2. I2S/PCM .......................................................................................................................................... 47
2.2.8.3. One Wire Audio(OWA) ................................................................................................................... 48
2.2.9. External Peripherals .................................................................................................................................. 48
2.2.9.1. USB ................................................................................................................................................. 48
2.2.9.2. Ethernet ......................................................................................................................................... 48
2.2.9.3. CIR .................................................................................................................................................. 48
2.2.9.4. UART ............................................................................................................................................... 49
2.2.9.5. SPI ................................................................................................................................................... 49
2.2.9.6. TWI ................................................................................................................................................. 49
2.2.9.7. TSC .................................................................................................................................................. 49
2.2.9.8. SCR ................................................................................................................................................. 50
2.2.10. Package ................................................................................................................................................... 50
2.3. System Block Diagram .......................................................................................................................................... 51
Chapter 3 Pin Description ................................................................................................................................................ 52
3.1. Pin Characteristics ................................................................................................................................................ 53
3.2. Signal Descriptions ............................................................................................................................................... 72
Chapter 4 System ............................................................................................................................................................. 79
4.1. Memory Mapping ................................................................................................................................................ 80
4.2. Boot System ......................................................................................................................................................... 82
4.2.1. Overview ................................................................................................................................................... 82
4.2.2. Boot Diagram ............................................................................................................................................ 82
4.2.2.1. Normal Mode ................................................................................................................................. 82
4.2.2.2. Security Mode ................................................................................................................................ 84
4.2.2.3. CPU-0+ Boot Process ...................................................................................................................... 84
4.2.2.4. CPU Hot Plug Process ..................................................................................................................... 85
4.2.2.5. Super Standby Wakeup Process ..................................................................................................... 86
4.2.2.6. Mandatory Upgrade Process .......................................................................................................... 87
4.2.2.7. Fast Boot Normal Process .............................................................................................................. 88
4.2.2.8. Fast Boot Security Process.............................................................................................................. 88
4.3. CCU ....................................................................................................................................................................... 90
4.3.1. Overview ................................................................................................................................................... 90
4.3.2. Operations and Functional Descriptions ................................................................................................... 90
4.3.2.1. System Bus ..................................................................................................................................... 90
4.3.2.2. Bus Clock Tree ................................................................................................................................ 92
4.3.2.3. Typical Applications ........................................................................................................................ 92
4.3.2.4. PLL .................................................................................................................................................. 93
4.3.2.5. BUS ................................................................................................................................................. 93
4.3.2.6. Clock Switch ................................................................................................................................... 93
4.3.2.7. Gating and Reset ............................................................................................................................ 93
4.3.3. Register List ............................................................................................................................................... 93
4.3.4. Register Description .................................................................................................................................. 95
4.3.4.1. PLL_CPUX Control Register (Default Value: 0x0000_1000) ............................................................ 95
4.3.4.2. PLL_AUDIO Control Register (Default Value: 0x0003_5514) .......................................................... 97
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 6
4.3.4.3. PLL_VIDEO Control Register (Default Value: 0x0300_6207) ........................................................... 98
4.3.4.4. PLL_VE Control Register (Default Value: 0x0300_6207) ................................................................. 99
4.3.4.5. PLL_DDR Control Register (Default Value: 0x0000_1000) ............................................................ 100
4.3.4.6. PLL_PERIPH0 Control Register (Default Value: 0x0004_1811) ..................................................... 101
4.3.4.7. PLL_GPU Control Register (Default Value: 0x0300_6207) ............................................................ 102
4.3.4.8. PLL_PERIPH1 Control Register (Default Value: 0x0004_1811) ..................................................... 104
4.3.4.9. PLL_DE Control Register (Default Value: 0x0300_6207) .............................................................. 105
4.3.4.10. CPUX/AXI Configuration Register (Default Value: 0x0001_0000) .............................................. 106
4.3.4.11. AHB1/APB1 Configuration Register (Default Value: 0x0000_1010) ............................................ 107
4.3.4.12. APB2 Configuration Register (Default Value: 0x0100_0000) ..................................................... 108
4.3.4.13. AHB2 Configuration Register (Default Value: 0x0000_0000) ..................................................... 108
4.3.4.14. Bus Clock Gating Register0 (Default Value: 0x0000_0000) ........................................................ 109
4.3.4.15. Bus Clock Gating Register1 (Default Value: 0x0000_0000) ........................................................ 111
4.3.4.16. Bus Clock Gating Register2 (Default Value: 0x0000_0000) ........................................................ 113
4.3.4.17. Bus Clock Gating Register3 (Default Value: 0x0000_0000) ........................................................ 114
4.3.4.18. Bus Clock Gating Register4 (Default Value: 0x0000_0000) ........................................................ 115
4.3.4.19. THS Clock Register (Default Value: 0x0000_0000) ..................................................................... 115
4.3.4.20. NAND Clock Register (Default Value: 0x0000_0000) ................................................................. 116
4.3.4.21. SMHC0 Clock Register (Default Value: 0x0000_0000)................................................................ 117
4.3.4.22. SMHC1 Clock Register (Default Value: 0x0000_0000)................................................................ 117
4.3.4.23. SMHC2 Clock Register (Default Value: 0x0000_0000)................................................................ 118
4.3.4.24. TSC Clock Register (Default Value: 0x0000_0000) ..................................................................... 119
4.3.4.25. CE Clock Register (Default Value: 0x0000_0000) ....................................................................... 120
4.3.4.26. SPI0 Clock Register (Default Value: 0x0000_0000) .................................................................... 120
4.3.4.27. SPI1 Clock Register (Default Value: 0x0000_0000) ..................................................................... 121
4.3.4.28. I2S/PCM0 Clock Register (Default Value: 0x0000_0000) ........................................................... 122
4.3.4.29. I2S/PCM1 Clock Register (Default Value: 0x0000_0000) ........................................................... 122
4.3.4.30. I2S/PCM2 Clock Register (Default Value: 0x0000_0000) ........................................................... 123
4.3.4.31. OWA Clock Register (Default Value: 0x0000_0000) ................................................................... 123
4.3.4.32. USBPHY Configuration Register (Default Value: 0x0000_0000) ................................................. 123
4.3.4.33. DRAM Configuration Register (Default Value: 0x0000_0000) .................................................... 125
4.3.4.34. MBUS Reset Register (Default Value: 0x8000_0000) ................................................................. 126
4.3.4.35. DRAM Clock Gating Register (Default Value: 0x0000_0000) ...................................................... 126
4.3.4.36. DE Clock Gating Register (Default Value: 0x0000_0000) ........................................................... 127
4.3.4.37. TCON0 Clock Register (Default Value: 0x0000_0000) ................................................................ 127
4.3.4.38. TVE Clock Register (Default Value: 0x0000_0000) ..................................................................... 128
4.3.4.39. DEINTERLACE Clock Register (Default Value: 0x0000_0000) ..................................................... 128
4.3.4.40. CSI_MISC Clock Register (Default Value: 0x0000_0000) ............................................................ 129
4.3.4.41. CSI Clock Register (Default Value: 0x0000_0000) ...................................................................... 129
4.3.4.42. VE Clock Register (Default Value: 0x0000_0000) ....................................................................... 130
4.3.4.43. AC Digital Clock Register (Default Value: 0x0000_0000) ............................................................ 130
4.3.4.44. AVS Clock Register (Default Value: 0x0000_0000) ..................................................................... 131
4.3.4.45. HDMI Clock Register (Default Value: 0x0000_0000) .................................................................. 131
4.3.4.46. HDMI Slow Clock Register (Default Value: 0x0000_0000) ......................................................... 131
4.3.4.47. MBUS Clock Register (Default Value: 0x0000_0000).................................................................. 132
4.3.4.48. GPU Clock Register (Default Value: 0x0000_0000) .................................................................... 132
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 7
4.3.4.49. PLL Stable Time Register0 (Default Value: 0x0000_00FF) .......................................................... 133
4.3.4.50. PLL Stable Time Register1 (Default Value: 0x0000_00FF) .......................................................... 133
4.3.4.51. PLL_CPUX Bias Register (Default Value: 0x0810_0200) ............................................................. 133
4.3.4.52. PLL_AUDIO Bias Register (Default Value: 0x1010_0000) ........................................................... 134
4.3.4.53. PLL_VIDEO Bias Register (Default Value: 0x1010_0000) ............................................................ 134
4.3.4.54. PLL_VE Bias Register (Default Value: 0x1010_0000) .................................................................. 134
4.3.4.55. PLL_DDR Bias Register (Default Value: 0x8110_4000) ............................................................... 135
4.3.4.56. PLL_PERIPH0 Bias Register (Default Value: 0x1010_0010) ........................................................ 135
4.3.4.57. PLL_GPU Bias Register (Default Value: 0x1010_0000) ............................................................... 136
4.3.4.58. PLL_PERIPH1 Bias Register (Default Value: 0x1010_0010) ........................................................ 136
4.3.4.59. PLL_DE Bias Register (Default Value: 0x1010_0000) .................................................................. 136
4.3.4.60. PLL_CPUX Tuning Register (Default Value: 0x0A10_1000) ......................................................... 137
4.3.4.61. PLL_DDR Tuning Register (Default Value: 0x1488_0000) ........................................................... 137
4.3.4.62. PLL_CPUX Pattern Control Register (Default Value: 0x0000_0000) ........................................... 138
4.3.4.63. PLL_AUDIO Pattern Control Register (Default Value: 0x0000_0000) ......................................... 139
4.3.4.64. PLL_VIDEO Pattern Control Register (Default Value: 0x0000_0000) .......................................... 139
4.3.4.65. PLL_VE Pattern Control Register (Default Value: 0x0000_0000) ................................................ 140
4.3.4.66. PLL_DDR Pattern Control Register (Default Value: 0x0000_0000) ............................................. 140
4.3.4.67. PLL_GPU Pattern Control Register (Default Value: 0x0000_0000) ............................................. 141
4.3.4.68. PLL_PERIPH1 Pattern Control Register (Default Value: 0x0000_0000) ...................................... 141
4.3.4.69. PLL_DE Pattern Control Register (Default Value: 0x0000_0000)................................................ 142
4.3.4.70. Bus Software Reset Register 0 (Default Value: 0x0000_0000) ................................................... 143
4.3.4.71. Bus Software Reset Register 1 (Default Value: 0x0000_0000) ................................................... 145
4.3.4.72. Bus Software Reset Register 2 (Default Value: 0x0000_0000) ................................................... 147
4.3.4.73. Bus Software Reset Register 3 (Default Value: 0x0000_0000) ................................................... 147
4.3.4.74. Bus Software Reset Register 4 (Default Value: 0x0000_0000) ................................................... 148
4.3.4.75. CCU Security Switch Register (Default Value: 0x0000_0000) ..................................................... 149
4.3.4.76. PS Control Register (Default Value: 0x0000_0000) .................................................................... 150
4.3.4.77. PS Counter Register (Default Value: 0x0000_0000) ................................................................... 151
4.4. CPU Configuration .............................................................................................................................................. 152
4.4.1. Overview ................................................................................................................................................. 152
4.4.2. Block Diagram ......................................................................................................................................... 152
4.4.3. Operations and Functional Descriptions ................................................................................................. 153
4.4.3.1. Signal Description ......................................................................................................................... 153
4.4.3.2. L2 Idle Mode ................................................................................................................................ 153
4.4.3.3. CPU Reset System ......................................................................................................................... 153
4.4.3.4. Operation Principle ...................................................................................................................... 153
4.4.4. Register List ............................................................................................................................................. 153
4.4.5. Register Description ................................................................................................................................ 154
4.4.5.1. Cluster Control Register0 (Default Value: 0x8000_0000) ............................................................. 154
4.4.5.2. Cluster Control Register1 (Default Value: 0x0000_0000) ............................................................. 155
4.4.5.3. Cache Parameter Control Register0 (Default Value: 0x2222_2222)............................................. 155
4.4.5.4. Cache Parameter Control Register1 (Default Value: 0x0202_2020) ............................................. 156
4.4.5.5. General Control Register0 (Default Value: 0x0000_0010) ........................................................... 156
4.4.5.6. Cluster CPU Status Register (Default Value: 0x000E_0000) ......................................................... 157
4.4.5.7. L2 Status Register (Default Value: 0x0000_0000) ........................................................................ 157
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 8
4.4.5.8. CPU2 Reset Control Register(Default Value: 0x1110_1101) ........................................................ 158
4.4.5.9. Reset Vector Base Address Register0_L (Default Value: 0x0000_0000) ....................................... 159
4.4.5.10. Reset Vector Base Address Register0_H (Default Value: 0x0000_0000) .................................... 159
4.4.5.11. Reset Vector Base Address Register1_L (Default Value: 0x0000_0000) ..................................... 159
4.4.5.12. Reset Vector Base Address Register1_H (Default Value: 0x0000_0000) .................................... 159
4.4.5.13. Reset Vector Base Address Register2_L (Default Value: 0x0000_0000) ..................................... 159
4.4.5.14. Reset Vector Base Address Register2_H (Default Value: 0x0000_0000) .................................... 160
4.4.5.15. Reset Vector Base Address Register3_L (Default Value: 0x0000_0000) ..................................... 160
4.4.5.16. Reset Vector Base Address Register3_H (Default Value: 0x0000_0000) .................................... 160
4.5. System Control ................................................................................................................................................... 161
4.5.1. Overview ................................................................................................................................................. 161
4.5.2. Register List ............................................................................................................................................. 161
4.5.3. Register Description ................................................................................................................................ 161
4.5.3.1. Version Register (Default Value: UDF) .......................................................................................... 161
4.5.3.2. EMAC-EPHY Clock Register (Default Value: 0x0005_8000) .......................................................... 162
4.6. Timer .................................................................................................................................................................. 164
4.6.1. Overview ................................................................................................................................................. 164
4.6.2. Block Diagram ......................................................................................................................................... 164
4.6.3. Operations and Functional Descriptions ................................................................................................. 165
4.6.3.1. Timer Reload and Enable Bit ........................................................................................................ 165
4.6.3.2. Timing Requirement for Timer Command ................................................................................... 165
4.6.3.3. Watchdog Restart ......................................................................................................................... 166
4.6.3.4. Programming Guide ..................................................................................................................... 166
4.6.4. Register List ............................................................................................................................................. 167
4.6.5. Register Description ................................................................................................................................ 167
4.6.5.1. Timer IRQ Enable Register (Default Value: 0x0000_0000) ........................................................... 167
4.6.5.2. Timer IRQ Status Register (Default Value: 0x0000_0000) ............................................................ 168
4.6.5.3. Timer 0 Control Register (Default Value: 0x0000_0004).............................................................. 168
4.6.5.4. Timer 0 Interval Value Register (Default Value: 0x0000_0000) ................................................... 169
4.6.5.5. Timer 0 Current Value Register (Default Value: 0x0000_0000) ................................................... 169
4.6.5.6. Timer 1 Control Register (Default Value: 0x0000_0004).............................................................. 170
4.6.5.7. Timer 1 Interval Value Register (Default Value: 0x0000_0000) ................................................... 171
4.6.5.8. Timer 1 Current Value Register (Default Value: 0x0000_0000) ................................................... 171
4.6.5.9. AVS Counter Control Register (Default Value: 0x0000_0000) ...................................................... 171
4.6.5.10. AVS Counter 0 Register (Default Value: 0x0000_0000) .............................................................. 172
4.6.5.11. AVS Counter 1 Register (Default Value: 0x0000_0000) .............................................................. 172
4.6.5.12. AVS Counter Divisor Register (Default Value: 0x05DB_05DB) .................................................... 173
4.6.5.13. Watchdog0 IRQ Enable Register (Default Value: 0x0000_0000) ................................................ 173
4.6.5.14. Watchdog0 Status Register (Default Value: 0x0000_0000) ........................................................ 174
4.6.5.15. Watchdog0 Control Register (Default Value: 0x0000_0000) ...................................................... 174
4.6.5.16. Watchdog0 Configuration Register (Default Value: 0x0000_0001) ............................................ 174
4.6.5.17. Watchdog0 Mode Register (Default Value: 0x0000_0000) ........................................................ 175
4.7. Trusted Watchdog .............................................................................................................................................. 176
4.7.1. Overview ................................................................................................................................................. 176
4.7.2. Block Diagram ......................................................................................................................................... 176
4.7.3. Operations and Functional Descriptions ................................................................................................. 176
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 9
4.7.3.1. TWD Reset .................................................................................................................................... 176
4.7.3.2. NV-Counter ................................................................................................................................... 177
4.7.4. Register List ............................................................................................................................................. 177
4.7.5. Register Description ................................................................................................................................ 178
4.7.5.1. TWD Status Register (Default Value: 0x0000_0000) .................................................................... 178
4.7.5.2. TWD Control Register (Default Value: 0x0000_0000) .................................................................. 178
4.7.5.3. TWD Restart Register (Default Value: 0x0000_0000) ................................................................... 179
4.7.5.4. TWD Low Counter Register (Default Value: 0x0000_0000) .......................................................... 179
4.7.5.5. TWD High Counter Register (Default Value: 0x0000_0000) ......................................................... 179
4.7.5.6. TWD Interval Value Register (Default Value: 0x0000_0000) ........................................................ 179
4.7.5.7. TWD Low Counter Compare Register (Default Value: 0x0000_0000) .......................................... 180
4.7.5.8. TWD High Counter Compare Register (Default Value: 0x0000_0000) ......................................... 180
4.7.5.9. Secure Storage NV-Counter Register (Default Value: 0x0000_0000) ........................................... 180
4.7.5.10. Synchronize Data Counter Register 0 (Default Value: 0x0000_0000) ........................................ 180
4.7.5.11. Synchronize Data Counter Register 1 (Default Value: 0x0000_0000) ........................................ 180
4.7.5.12. Synchronize Data Counter Register 2 (Default Value: 0x0000_0000) ........................................ 181
4.7.5.13. Synchronize Data Counter Register 3 (Default Value: 0x0000_0000) ........................................ 181
4.8. RTC ..................................................................................................................................................................... 182
4.8.1. Overview ................................................................................................................................................. 182
4.8.2. Register List ............................................................................................................................................. 182
4.8.3. Register Description ................................................................................................................................ 183
4.8.3.1. LOSC Control Register (Default Value: 0x0000_4000) .................................................................. 183
4.8.3.2. LOSC Auto Switch Status Register (Default Value: 0x0000_0000) ................................................ 184
4.8.3.3. Internal OSC Clock Prescalar Register (Default Value: 0x0000_000F) .......................................... 184
4.8.3.4. RTC YY-MM-DD Register (Default Value: UDF) ............................................................................. 185
4.8.3.5. RTC HH-MM-SS Register (Default Value: UDF) ............................................................................. 185
4.8.3.6. Alarm 0 Counter Register (Default Value: 0x0000_0000) ............................................................ 186
4.8.3.7. Alarm 0 Current Value Register (Default Value: UDF) .................................................................. 186
4.8.3.8. Alarm 0 Enable Register (Default Value: 0x0000_0000)............................................................... 186
4.8.3.9. Alarm 0 IRQ Enable Register (Default Value: 0x0000_0000) ........................................................ 187
4.8.3.10. Alarm 0 IRQ Status Register (Default Value: 0x0000_0000) ....................................................... 187
4.8.3.11. Alarm 1 Week HH-MM-SS Register (Default Value: UDF)........................................................... 187
4.8.3.12. Alarm 1 Enable Register (Default Value: 0x0000_0000) ............................................................ 188
4.8.3.13. Alarm 1 IRQ Enable Register (Default Value: 0x0000_0000) ...................................................... 189
4.8.3.14. Alarm 1 IRQ Status Register (Default Value: 0x0000_0000) ....................................................... 190
4.8.3.15. Alarm Configuration Register (Default Value: 0x0000_0000) .................................................... 190
4.8.3.16. LOSC Output Gating Register (Default Value: 0x0000_0000) ..................................................... 190
4.8.3.17. General Purpose Register (Default Value: 0x0000_0000) .......................................................... 191
4.8.3.18. GPL Hold Output Register (Default Value: 0x0000_0000) .......................................................... 191
4.8.3.19. RTC-VIO Regulation Register (Default Value: 0x0000_0004)...................................................... 193
4.8.3.20. IC Characteristic Register (Default Value: 0x0000_0000) ........................................................... 193
4.8.3.21. Crypto Configuration Register (Default Value: 0x0000_0000) ................................................... 194
4.8.3.22. Crypto Key Register (Default Value: 0x0000_0000) ................................................................... 194
4.8.3.23. Crypto Enable Register (Default Value: 0x0000_0000) .............................................................. 194
4.9. High Speed Timer ............................................................................................................................................... 195
4.9.1. Overview ................................................................................................................................................. 195
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 10
4.9.2. Operations and Functional Descriptions ................................................................................................. 195
4.9.2.1. HSTimer Function Structure ......................................................................................................... 195
4.9.2.2. HSTimer Clock Gating and Software Reset................................................................................... 195
4.9.2.3. HSTimer Reloading Bit.................................................................................................................. 196
4.9.3. Programming Guidelines ......................................................................................................................... 196
4.9.4. Register List ............................................................................................................................................. 196
4.9.5. Register Description ................................................................................................................................ 197
4.9.5.1. HSTimer IRQ Enable Register (Default Value: 0x0000_0000) ...................................................... 197
4.9.5.2. HSTimer IRQ Status Register (Default Value: 0x0000_0000) ....................................................... 197
4.9.5.3. HSTimer Control Register (Default Value: 0x0000_0000) ............................................................ 197
4.9.5.4. HSTimer Interval Value Lo Register (Default Value: UDF) ............................................................ 198
4.9.5.5. HSTimer Interval Value Hi Register (Default Value: UDF) ............................................................. 198
4.9.5.6. HSTimer Current Value Lo Register (Default Value: UDF) ............................................................ 199
4.9.5.7. HSTimer Current Value Hi Register (Default Value: UDF) ............................................................. 199
4.10. PWM ................................................................................................................................................................ 200
4.10.1. Overview ............................................................................................................................................... 200
4.10.2. Block Diagram ....................................................................................................................................... 200
4.10.3. Register List ........................................................................................................................................... 200
4.10.4. Register Description .............................................................................................................................. 201
4.10.4.1. PWM Control Register(Default Value: 0x0000_0000) ................................................................ 201
4.10.4.2. PWM Channel Period Register (Default Value: UDF) ................................................................. 202
4.11. DMA ................................................................................................................................................................. 204
4.11.1. Overview ............................................................................................................................................... 204
4.11.2. Block Diagram ....................................................................................................................................... 205
4.11.3. Functionalities Description .................................................................................................................... 205
4.11.3.1. DRQ Type and Corresponding Relation ...................................................................................... 205
4.11.3.2. DMA Descriptor .......................................................................................................................... 206
4.11.4. Register List ........................................................................................................................................... 207
4.11.5. Register Description .............................................................................................................................. 208
4.11.5.1. DMA IRQ Enable Register0 (Default Value: 0x0000_0000) ........................................................ 208
4.11.5.2. DMA IRQ Enable Register1 (Default Value: 0x0000_0000) ........................................................ 211
4.11.5.3. DMA IRQ Pending Status Register0 (Default Value: 0x0000_0000) ........................................... 212
4.11.5.4. DMA IRQ Pending Status Register1 (Default Value: 0x0000_0000) ........................................... 216
4.11.5.5. DMA Security Register (Default Value: 0x0000_0000) ............................................................... 218
4.11.5.6. DMA Auto Gating Register (Default Value: 0x0000_0000) ......................................................... 219
4.11.5.7. DMA Status Register (Default Value: 0x0000_0000) .................................................................. 220
4.11.5.8. DMA Channel Enable Register (Default Value: 0x0000_0000) ................................................... 221
4.11.5.9. DMA Channel Pause Register (Default Value: 0x0000_0000) .................................................... 221
4.11.5.10. DMA Channel Descriptor Address Register (Default Value: 0x0000_0000) ............................. 222
4.11.5.11. DMA Channel Configuration Register (Default Value: 0x0000_0000) ...................................... 222
4.11.5.12. DMA Channel Current Source Address Register (Default Value: 0x0000_0000) ...................... 223
4.11.5.13. DMA Channel Current Destination Address Register (Default Value: 0x0000_0000) .............. 223
4.11.5.14. DMA Channel Byte Counter Left Register (Default Value: 0x0000_0000) ................................ 224
4.11.5.15. DMA Channel Parameter Register (Default Value: 0x0000_0000) ........................................... 224
4.11.5.16. DMA Mode Register (Default Value: 0x0000_0000) ................................................................ 224
4.11.5.17. DMA Former Descriptor Address Register (Default Value: 0x0000_0000) ............................... 224
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 11
4.11.5.18. DMA Package Number Register (Default Value: 0x0000_0000) ............................................... 225
4.12. GIC .................................................................................................................................................................... 226
4.12.1. Interrupt Source .................................................................................................................................... 226
4.13. Message Box..................................................................................................................................................... 230
4.13.1. Overview ............................................................................................................................................... 230
4.13.2. Block Diagram ....................................................................................................................................... 230
4.13.3. Operations and Functional Descriptions ............................................................................................... 232
4.13.3.1. Typical Applications .................................................................................................................... 232
4.13.3.2. Message Queue Assignment ...................................................................................................... 233
4.13.3.3. Interrupt Request ....................................................................................................................... 233
4.13.4. Register List ........................................................................................................................................... 233
4.13.5. Register Description .............................................................................................................................. 234
4.13.5.1. MSGBox Control Register 0(Default Value: 0x1010_1010) ........................................................ 234
4.13.5.2. MSGBox Control Register 1(Default Value: 0x1010_1010) ........................................................ 235
4.13.5.3. MSGBox IRQ Enable Register (Default Value: 0x0000_0000) ..................................................... 236
4.13.5.4. MSGBox IRQ Status Register u(Default Value: 0x0000_AAAA) ................................................... 238
4.13.5.5. MSGBox FIFO Status Register m(Default Value: 0x0000_0000) ................................................. 240
4.13.5.6. MSGBox Message Status Register m(Default Value: 0x0000_0000) .......................................... 240
4.13.5.7. MSGBox Message Queue Register (Default Value: 0x0000_0000) ............................................ 241
4.14. Spinlock ............................................................................................................................................................ 242
4.14.1. Overview ............................................................................................................................................... 242
4.14.2. Operations and Functional Descriptions ............................................................................................... 243
4.14.2.1. Typical Applications .................................................................................................................... 243
4.14.2.2. Lock Register State Diagram ....................................................................................................... 243
4.14.2.3. Spinlock Clock Gating and Software Reset ................................................................................. 244
4.14.2.4. Take and Free a Spinlock ............................................................................................................ 244
4.14.3. Programming Guidelines ....................................................................................................................... 244
4.14.4. Register List ........................................................................................................................................... 245
4.14.5. Register Description .............................................................................................................................. 245
4.14.5.1. Spinlock System Status Register (Default Value: 0x1000_0000) ................................................ 245
4.14.5.2. Spinlock Register Status (Default Value: 0x0000_0000) ............................................................. 246
4.14.5.3. Spinlock Register N (N=0 to 31)(Default Value: 0x0000_0000) .................................................. 246
4.15. Crypto Engine ................................................................................................................................................... 247
4.15.1. Overview ............................................................................................................................................... 247
4.15.2. Block Diagram ....................................................................................................................................... 247
4.15.3. Operations and Functional Descriptions ............................................................................................... 248
4.15.3.1. Crypto Engine Task Descriptor.................................................................................................... 248
4.15.3.2. Task_descriptor_queue Common Control .................................................................................. 249
4.15.3.3. Task_descriptor_queue Symmetric Control ............................................................................... 250
4.15.3.4. Task_descriptor_queue Asymmetric Control ............................................................................. 251
4.15.3.5. Task Request ............................................................................................................................... 251
4.15.3.6. Data Length Setting .................................................................................................................... 252
4.15.3.7. Security Operation ..................................................................................................................... 252
4.15.3.8. Error Check ................................................................................................................................. 252
4.15.3.9. Clock Requirement ..................................................................................................................... 252
4.15.4. Register List ........................................................................................................................................... 252
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 12
4.15.5. Register Description .............................................................................................................................. 253
4.15.5.1. Crypto Engine Task Descriptor Address Register (Default Value: 0x0000_0000) ....................... 253
4.15.5.2. Crypto Engine Control Register (Default Value: UDF) ................................................................ 253
4.15.5.3. Crypto Engine Interrupt Control Register(Default Value: 0x0000_0000) ................................... 253
4.15.5.4. Crypto Engine Interrupt Status Register(Default Value: 0x0000_0000) ..................................... 254
4.15.5.5. Crypto Engine Task Load Register(Default Value: 0x0000_0000) ............................................... 254
4.15.5.6. Crypto Engine Task Status Register(Default Value: 0x0000_0000) ............................................. 254
4.15.5.7. Crypto Engine Error Status Register(Default Value: 0x0000_0000) ........................................... 255
4.15.5.8. Crypto Engine Current Source Address Register(Default Value: 0x0000_0000) ........................ 256
4.15.5.9. Crypto Engine Current Destination Address Register(Default Value: 0x0000_0000) ................. 256
4.15.5.10. Crypto Engine Throughput Register(Default Value: 0x0000_0000) ......................................... 256
4.16. Security ID ........................................................................................................................................................ 257
4.16.1. Overview ............................................................................................................................................... 257
4.17. Secure Memory Controller ............................................................................................................................... 258
4.17.1. Overview ............................................................................................................................................... 258
4.17.2. Operations and Functional Descriptions ............................................................................................... 258
4.17.2.1. DRM Block Diagram .................................................................................................................... 259
4.17.2.2. Master ID Table .......................................................................................................................... 259
4.17.2.3. Region Size Table ........................................................................................................................ 260
4.17.2.4. Security Inversion Disabled ........................................................................................................ 260
4.17.2.5. Security Inversion Enabled ......................................................................................................... 261
4.17.3. Register List ........................................................................................................................................... 261
4.17.4. Register Description .............................................................................................................................. 262
4.17.4.1. SMC Configuration Register (Default Value: 0x0000_1F0F) ....................................................... 262
4.17.4.2. SMC Action Register (Default Value: 0x0000_0001) .................................................................. 262
4.17.4.3. SMC Lockdown Range Register (Default Value: 0x0000_0000) .................................................. 263
4.17.4.4. SMC Lockdown Select Register (Default Value: 0x0000_0000) .................................................. 263
4.17.4.5. SMC Interrupt Status Register (Default Value: 0x0000_0000) ................................................... 264
4.17.4.6. SMC Interrupt Clear Register (Default Value: 0x0000_0000) ..................................................... 264
4.17.4.7. SMC Master Bypass Register (Default Value: 0xFFFF_FFFF) ....................................................... 264
4.17.4.8. SMC Master Secure Register (Default Value: 0x0000_0000) ..................................................... 265
4.17.4.9. SMC Fail Address Register (Default Value: 0x0000_0000) ......................................................... 265
4.17.4.10. SMC Fail Control Register (Default Value: 0x0000_0000) ........................................................ 265
4.17.4.11. SMC Fail ID Register (Default Value: 0x0000_1F00) ................................................................. 266
4.17.4.12. SMC Speculation Control Register (Default Value: 0x0000_0000) ........................................... 266
4.17.4.13. SMC Security Inversion Enable Register (Default Value: 0x0000_0000) .................................. 267
4.17.4.14. SMC Master Attribute Register (Default Value: 0x0000_0000) ................................................ 267
4.17.4.15. DRM Master Enable Register (Default Value: 0x0000_0000) ................................................... 267
4.17.4.16. DRM Illegal Access Register (Default Value: 0x0000_0000) ..................................................... 268
4.17.4.17. DRM Start Address Register (Default Value: 0x0000_0000) ..................................................... 268
4.17.4.18. DRM End Address Register (Default Value: 0x0000_0000) ...................................................... 268
4.17.4.19. SMC Region Setup Low Register (Default Value: 0x0000_0000) .............................................. 268
4.17.4.20. SMC Region Setup High Register (Default Value: 0x0000_0000) ............................................. 269
4.17.4.21. SMC Region Attributes Register (Default Value: 0x0000_0000) ............................................... 269
4.18. Secure Peripherals Controller .......................................................................................................................... 271
4.18.1. Overview ............................................................................................................................................... 271
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 13
4.18.2. Operations and Functional Descriptions ............................................................................................... 271
4.18.2.1. Typical Applications .................................................................................................................... 271
4.18.2.2. SPC Configuration Table ............................................................................................................. 271
4.18.3. Register List ........................................................................................................................................... 272
4.18.4. Register Description .............................................................................................................................. 272
4.18.4.1. SPC DECPORT0 Status Register (Default Value: 0x0000_0000) .................................................. 272
4.18.4.2. SPC DECPORT0 Set Register (Default Value: 0x0000_0000) ....................................................... 272
4.18.4.3. SPC DECPORT0 Clear Register(Default Value: 0x0000_0000) .................................................... 273
4.18.4.4. SPC DECPORT1 Status Register (Default Value: 0x0000_0000) .................................................. 273
4.18.4.5. SPC DECPORT1 Set Register(Default Value: 0x0000_0000) ........................................................ 273
4.18.4.6. SPC DECPORT1 Clear Register(Default Value: 0x0000_0000) .................................................... 274
4.18.4.7. SPC DECPORT2 Status Register(Default Value: 0x0000_0000) ................................................... 274
4.18.4.8. SPC DECPORT2 Set Register(Default Value: 0x0000_0000) ........................................................ 274
4.18.4.9. SPC DECPORT2 Clear Register(Default Value: 0x0000_0000) .................................................... 275
4.19. Thermal Sensor Controller ............................................................................................................................... 276
4.19.1. Overview ............................................................................................................................................... 276
4.19.2. Block Diagram ....................................................................................................................................... 276
4.19.3. Clock and Timing Requirements ........................................................................................................... 276
4.19.4. Programming Guidelines ....................................................................................................................... 277
4.19.5. Register List ........................................................................................................................................... 277
4.19.6. Register Description .............................................................................................................................. 278
4.19.6.1. THS Control Register0 (Default Value: 0x0000_0000) ................................................................ 278
4.19.6.2. THS Control Register2 (Default Value: 0x0004_0000) ................................................................ 278
4.19.6.3. THS Interrupt Control Register (Default Value: 0x0000_0000) .................................................. 279
4.19.6.4. THS Status Register (Default Value: 0x0000_0000) .................................................................... 280
4.19.6.5. Alarm Threshold Control Register0 (Default Value: 0x05A0_0684) ........................................... 281
4.19.6.6. Alarm Threshold Control Register1 (Default Value: 0x05A0_0684) ........................................... 281
4.19.6.7. Shutdown Threshold Control Register0 (Default Value: 0x04E9_0000) ..................................... 281
4.19.6.8. Shutdown Threshold Control Register1 (Default Value: 0x04E9_0000) ..................................... 281
4.19.6.9. Average Filter Control Register (Default Value: 0x0000_0001) .................................................. 282
4.19.6.10. Thermal Sensor Calibration Data Register (Default Value: 0x0800_0800) ............................... 282
4.19.6.11. THS0 Data Register (Default Value: 0x0000_0000) .................................................................. 282
4.19.6.12. THS1 Data Register (Default Value: 0x0000_0000) .................................................................. 283
4.20. KEYADC ............................................................................................................................................................. 284
4.20.1. Overview ............................................................................................................................................... 284
4.20.2. Block Diagram ....................................................................................................................................... 284
4.20.3. Operations and Functional Descriptions ............................................................................................... 284
4.20.3.1. External Signals .......................................................................................................................... 284
4.20.3.2. Clock Sources.............................................................................................................................. 285
4.20.3.3. KEYADC Work Mode ................................................................................................................... 285
4.20.3.4. KEYADC Operation Principle ....................................................................................................... 285
4.20.4. Programming Guidelines ....................................................................................................................... 286
4.20.5. Register List ........................................................................................................................................... 286
4.20.6. Register Description .............................................................................................................................. 287
4.20.6.1. KEYADC Control Register (Default Value: 0x0100_0168)............................................................ 287
4.20.6.2. KEYADC Interrupt Control Register (Default Value: 0x0000_0000) ............................................ 288
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 14
4.20.6.3. KEYADC Interrupt Status Register (Default Value: 0x0000_0000) .............................................. 289
4.20.6.4. KEYADC Data Register (Default Value: 0x0000_0000) ................................................................ 290
4.21. Port Controller(CPUx-PORT) ............................................................................................................................. 291
4.21.1. Overview ............................................................................................................................................... 291
4.21.2. Register List ........................................................................................................................................... 291
4.21.3. Register Description .............................................................................................................................. 292
4.21.3.1. PA Configure Register 0 (Default Value: 0x7777_7777) ............................................................. 292
4.21.3.2. PA Configure Register 1 (Default Value: 0x7777_7777) ............................................................. 293
4.21.3.3. PA Configure Register 2 (Default Value: 0x0077_7777) ............................................................. 295
4.21.3.4. PA Configure Register 3 (Default Value: 0x0000_0000) ............................................................. 296
4.21.3.5. PA Data Register (Default Value: 0x0000_0000) ........................................................................ 296
4.21.3.6. PA Multi-Driving Register 0 (Default Value: 0x5555_5555) ........................................................ 296
4.21.3.7. PA Multi-Driving Register 1 (Default Value: 0x0000_0555) ........................................................ 296
4.21.3.8. PA PULL Register 0 (Default Value: 0x0000_0000) ..................................................................... 297
4.21.3.9. PA PULL Register 1 (Default Value: 0x0000_0000) ..................................................................... 297
4.21.3.10. PC Configure Register 0 (Default Value: 0x7777_7777) ........................................................... 297
4.21.3.11. PC Configure Register 1 (Default Value: 0x7777_7777) ........................................................... 299
4.21.3.12. PC Configure Register 2 (Default Value: 0x0000_0777) ........................................................... 300
4.21.3.13. PC Configure Register 3 (Default Value: 0x0000_0000) ........................................................... 300
4.21.3.14. PC Data Register (Default Value: 0x0000_0000) ...................................................................... 301
4.21.3.15. PC Multi-Driving Register 0 (Default Value: 0x5555_5555) ...................................................... 301
4.21.3.16. PC Multi-Driving Register 1 (Default Value: 0x0000_0015) ...................................................... 301
4.21.3.17. PC PULL Register 0 (Default Value: 0x0000_5140) ................................................................... 301
4.21.3.18. PC PULL Register 1 (Default Value: 0x0000_0014) ................................................................... 302
4.21.3.19. PD Configure Register 0 (Default Value: 0x7777_7777) ........................................................... 302
4.21.3.20. PD Configure Register 1 (Default Value: 0x7777_7777) ........................................................... 303
4.21.3.21. PD Configure Register 2 (Default Value: 0x0000_0077) ........................................................... 305
4.21.3.22. PD Configure Register 3 (Default Value: 0x0000_0000) ........................................................... 305
4.21.3.23. PD Data Register (Default Value: 0x0000_0000) ...................................................................... 305
4.21.3.24. PD Multi-Driving Register 0 (Default Value: 0x5555_5555) ..................................................... 306
4.21.3.25. PD Multi-Driving Register 1 (Default Value: 0x0000_0005) ..................................................... 306
4.21.3.26. PD PULL Register 0 (Default Value: 0x0000_0000) ................................................................... 306
4.21.3.27. PD PULL Register 1 (Default Value: 0x0000_0000) ................................................................... 306
4.21.3.28. PE Configure Register 0 (Default Value: 0x7777_7777) ........................................................... 307
4.21.3.29. PE Configure Register 1 (Default Value: 0x7777_7777) ........................................................... 308
4.21.3.30. PE Configure Register 2 (Default Value: 0x0000_0000) ........................................................... 309
4.21.3.31. PE Configure Register 3 (Default Value: 0x0000_0000) ........................................................... 309
4.21.3.32. PE Data Register (Default Value: 0x0000_0000) ...................................................................... 310
4.21.3.33. PE Multi-Driving Register 0 (Default Value: 0x5555_5555) ...................................................... 310
4.21.3.34. PE Multi-Driving Register 1 (Default Value: 0x0000_0000) ...................................................... 310
4.21.3.35. PE PULL Register 0 (Default Value: 0x0000_0000) ................................................................... 310
4.21.3.36. PE PULL Register 1 (Default Value: 0x0000_0000) ................................................................... 310
4.21.3.37. PF Configure Register 0 (Default Value: 0x0777_7777) ........................................................... 311
4.21.3.38. PF Configure Register 1 (Default Value: 0x0000_0000) ........................................................... 312
4.21.3.39. PF Configure Register 2 (Default Value: 0x0000_0000) ........................................................... 312
4.21.3.40. PF Configure Register 3 (Default Value: 0x0000_0000) ........................................................... 312
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 15
4.21.3.41. PF Data Register (Default Value: 0x0000_0000) ....................................................................... 312
4.21.3.42. PF Multi-Driving Register 0 (Default Value: 0x0000_1555) ...................................................... 313
4.21.3.43. PF Multi-Driving Register 1 (Default Value: 0x0000_0000) ...................................................... 313
4.21.3.44. PF PULL Register 0 (Default Value: 0x0000_0000) ................................................................... 313
4.21.3.45. PF PULL Register 1 (Default Value: 0x0000_0000) ................................................................... 313
4.21.3.46. PG Configure Register 0 (Default Value: 0x7777_7777) ........................................................... 313
4.21.3.47. PG Configure Register 1 (Default Value: 0x0077_7777) ........................................................... 315
4.21.3.48. PG Configure Register 2 (Default Value: 0x0000_0000) ........................................................... 316
4.21.3.49. PG Configure Register 3 (Default Value: 0x0000_0000) ........................................................... 316
4.21.3.50. PG Data Register (Default Value: 0x0000_0000) ...................................................................... 316
4.21.3.51. PG Multi-Driving Register 0 (Default Value: 0x0555_5555) ..................................................... 316
4.21.3.52. PG Multi-Driving Register 1 (Default Value: 0x0000_0000) ..................................................... 317
4.21.3.53. PG PULL Register 0 (Default Value: 0x0000_0000) ................................................................... 317
4.21.3.54. PG PULL Register 1 (Default Value: 0x0000_0000) ................................................................... 317
4.21.3.55. PA External Interrupt Configure Register 0 (Default Value: 0x0000_0000) .............................. 317
4.21.3.56. PA External Interrupt Configure Register 1 (Default Value: 0x0000_0000) .............................. 318
4.21.3.57. PA External Interrupt Configure Register 2 (Default Value: 0x0000_0000) .............................. 318
4.21.3.58. PA External Interrupt Configure Register 3 (Default Value: 0x0000_0000) .............................. 318
4.21.3.59. PA External Interrupt Control Register (Default Value: 0x0000_0000) .................................... 318
4.21.3.60. PA External Interrupt Status Register (Default Value: 0x0000_0000) ...................................... 319
4.21.3.61. PA External Interrupt Debounce Register (Default Value: 0x0000_0000) ................................ 319
4.21.3.62. PF External Interrupt Configure Register 0 (Default Value: 0x0000_0000) .............................. 319
4.21.3.63. PF External Interrupt Configure Register 1 (Default Value: 0x0000_0000) .............................. 320
4.21.3.64. PF External Interrupt Configure Register 2 (Default Value: 0x0000_0000) .............................. 320
4.21.3.65. PF External Interrupt Configure Register 3 (Default Value: 0x0000_0000) .............................. 320
4.21.3.66. PF External Interrupt Control Register (Default Value: 0x0000_0000)..................................... 320
4.21.3.67. PF External Interrupt Status Register (Default Value: 0x0000_0000)....................................... 320
4.21.3.68. PF External Interrupt Debounce Register (Default Value: 0x0000_0000) ................................ 321
4.21.3.69. PG External Interrupt Configure Register 0 (Default Value: 0x0000_0000) ............................. 321
4.21.3.70. PG External Interrupt Configure Register 1 (Default Value: 0x0000_0000) ............................. 321
4.21.3.71. PG External Interrupt Configure Register 2 (Default Value: 0x0000_0000) ............................. 322
4.21.3.72. PG External Interrupt Configure Register 3 (Default Value: 0x0000_0000) ............................. 322
4.21.3.73. PG External Interrupt Control Register (Default Value: 0x0000_0000) .................................... 322
4.21.3.74. PG External Interrupt Status Register (Default Value: 0x0000_0000) ...................................... 322
4.21.3.75. PG External Interrupt Debounce Register (Default Value: 0x0000_0000) ............................... 323
4.22. Port Controller (CPUs-PORT) ............................................................................................................................ 324
4.22.1. Overview ............................................................................................................................................... 324
4.22.2. Register List ........................................................................................................................................... 324
4.22.3. Register Description .............................................................................................................................. 324
4.22.3.1. PL Configure Register 0 (Default Value: 0x7777_7777) ............................................................. 324
4.22.3.2. PL Configure Register 1 (Default Value: 0x0000_7777) .............................................................. 326
4.22.3.3. PL Configure Register 2 (Default Value: 0x0000_0000) .............................................................. 327
4.22.3.4. PL Configure Register 3 (Default Value: 0x0000_0000) .............................................................. 327
4.22.3.5. PL Data Register (Default Value: 0x0000_0000) ......................................................................... 327
4.22.3.6. PL Multi-Driving Register 0 (Default Value: 0x0055_5555) ........................................................ 327
4.22.3.7. PL Multi-Driving Register 1 (Default Value: 0x0000_0000) ........................................................ 327
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 16
4.22.3.8. PL PULL Register 0 (Default Value: 0x0000_0005) ..................................................................... 328
4.22.3.9. PL PULL Register 1 (Default Value: 0x0000_0000) ..................................................................... 328
4.22.3.10. PL External Interrupt Configure Register 0 (Default Value: 0x0000_0000) .............................. 328
4.22.3.11. PL External Interrupt Configure Register 1 (Default Value: 0x0000_0000) .............................. 328
4.22.3.12. PL External Interrupt Configure Register 2 (Default Value: 0x0000_0000) .............................. 329
4.22.3.13. PL External Interrupt Configure Register 3 (Default Value: 0x0000_0000) .............................. 329
4.22.3.14. PL External Interrupt Control Register (Default Value: 0x0000_0000) ..................................... 329
4.22.3.15. PL External Interrupt Status Register (Default Value: 0x0000_0000) ....................................... 329
4.22.3.16. PL External Interrupt Debounce Register (Default Value: 0x0000_0000) ................................ 330
Chapter 5 Memory ......................................................................................................................................................... 331
5.1. SDRAM Controller(DRAMC) ............................................................................................................................... 332
5.1.1. Overview ................................................................................................................................................. 332
5.2. NAND Flash Controller(NDFC) ............................................................................................................................ 333
5.2.1. Overview ................................................................................................................................................. 333
5.2.2. Block Diagram ......................................................................................................................................... 333
5.2.3. Operations and Functional Descriptions ................................................................................................. 334
5.2.3.1. External Signals ............................................................................................................................ 334
5.2.3.2. Clock Sources................................................................................................................................ 335
5.2.3.3. NDFC Timing Diagram .................................................................................................................. 335
5.2.3.4. NDFC Operation Guide ................................................................................................................. 341
5.2.4. Register List ............................................................................................................................................. 343
5.2.5. Register Description ................................................................................................................................ 344
5.2.5.1. NDFC Control Register (Default Value: 0x0000_0000) ................................................................. 344
5.2.5.2. NDFC Status Register (Default Value: 0x0000_0F00) ................................................................... 346
5.2.5.3. NDFC Interrupt and DMA Enable Register (Default Value: 0x0000_0000) ................................... 347
5.2.5.4. NDFC Timing Control Register (Default Value: 0x0000_0000) ..................................................... 348
5.2.5.5. NDFC Timing Configure Register (Default Value: 0x0000_0095) ................................................. 348
5.2.5.6. NDFC Address Low Word Register (Default Value: 0x0000_0000) ............................................... 350
5.2.5.7. NDFC Address High Word Register (Default Value: 0x0000_0000) .............................................. 350
5.2.5.8. NDFC Data Block Number Register (Default Value: 0x0000_0000) .............................................. 351
5.2.5.9. NDFC Data Counter Register (Default Value: 0x0000_0000) ........................................................ 351
5.2.5.10. NDFC Command IO Register (Default Value: 0x0000_0000) ...................................................... 351
5.2.5.11. NDFC Command Set Register 0 (Default Value: 0x00E0_0530).................................................. 353
5.2.5.12. NDFC Command Set Register 1 (Default Value: 0x7000_8510).................................................. 354
5.2.5.13. NDFC ECC Control Register (Default Value: 0x4A80_0008) ........................................................ 354
5.2.5.14. NDFC ECC Status Register (Default Value: 0x0000_0000) .......................................................... 355
5.2.5.15. NDFC Enhanced Feature Register (Default Value: 0x0000_0000) .............................................. 356
5.2.5.16. NDFC Error Counter Register 0 (Default Value: 0x0000_0000) .................................................. 356
5.2.5.17. NDFC Error Counter Register 1 (Default Value: 0x0000_0000) .................................................. 357
5.2.5.18. NDFC Error Counter Register 2 (Default Value: 0x0000_0000) .................................................. 359
5.2.5.19. NDFC Error Counter Register 3 (Default Value: 0x0000_0000) .................................................. 360
5.2.5.20. NDFC User Data Register [N] (Default Value: 0xFFFF_FFFF) ....................................................... 361
5.2.5.21. NDFC EFNAND STATUS Register (Default Value: 0x0000_0000) ................................................. 361
5.2.5.22. NDFC Spare Area Register (Default Value: 0x0000_0400) .......................................................... 361
5.2.5.23. NDFC Pattern ID Register (Default Value: 0x0000_0000) ........................................................... 361
5.2.5.24. NDFC Read Data Status Control Register (Default Value: 0x0100_0000) ................................... 364
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 17
5.2.5.25. NDFC Read Data Status Register 0 (Default Value: 0x0000_0000) ............................................. 364
5.2.5.26. NDFC Read Data Status Register 1 (Default Value: 0x0000_0000) ............................................. 364
5.2.5.27. NDFC MBUS DMA Address Register (Default Value: 0x0000_0000) .......................................... 365
5.2.5.28. NDFC MBUS DMA Byte Counter Register (Default Value: 0x0000_0000) .................................. 365
5.2.5.29. NDFC Normal DMA Mode Control Register (Default Value: 0x0000_00A5) .............................. 365
5.2.5.30. NDFC IO Data Register (Default Value: 0x0000_0000) ............................................................... 365
5.3. SD/MMC Host Controller(SMHC) ....................................................................................................................... 366
5.3.1. Overview ................................................................................................................................................. 366
5.3.2. Block Diagram ......................................................................................................................................... 366
5.3.3. Operations and Functional Descriptions ................................................................................................. 367
5.3.3.1. External Signals ............................................................................................................................ 367
5.3.3.2. Clock Sources................................................................................................................................ 367
5.3.3.3. SMHC Timing Diagram ................................................................................................................. 367
5.3.3.4. Internal DMA Controller Description ........................................................................................... 368
5.3.3.5. Calibrate Delay Chain ................................................................................................................... 370
5.3.4. Register List ............................................................................................................................................. 370
5.3.5. Register Description ................................................................................................................................ 372
5.3.5.1. SMHC Global Control Register (Default Value: 0x0000_0100) ..................................................... 372
5.3.5.2. SMHC Clock Control Register (Default Value: 0x0000_0000) ....................................................... 373
5.3.5.3. SMHC Timeout Register (Default Value: 0xFFFF_FF40)................................................................ 374
5.3.5.4. SMHC Bus Width Register (Default Value: 0x0000_0000) ........................................................... 374
5.3.5.5. SMHC Block Size Register (Default Value: 0x0000_0200) ............................................................ 374
5.3.5.6. SMHC Block Count Register (Default Value: 0x0000_0200) ......................................................... 374
5.3.5.7. SMHC Command Register (Default Value: 0x0000_0000)............................................................ 375
5.3.5.8. SMHC Command Argument Register (Default Value: 0x0000_0000) .......................................... 377
5.3.5.9. SMHC Response 0 Register (Default Value: 0x0000_0000) .......................................................... 377
5.3.5.10. SMHC Response 1 Register (Default Value: 0x0000_0000) ........................................................ 377
5.3.5.11. SMHC Response 2 Register (Default Value: 0x0000_0000) ........................................................ 377
5.3.5.12. SMHC Response 3 Register (Default Value: 0x0000_0000) ........................................................ 378
5.3.5.13. SMHC Interrupt Mask Register (Default Value: 0x0000_0000) .................................................. 378
5.3.5.14. SMHC Masked Interrupt Status Register (Default Value: 0x0000_0000) ................................... 379
5.3.5.15. SMHC Raw Interrupt Status Register (Default Value: 0x0000_0000) ......................................... 380
5.3.5.16. SMHC Status Register (Default Value: 0x0000_0006) ................................................................ 382
5.3.5.17. SMHC FIFO Water Level Register (Default Value: 0x000F_0000) ............................................... 383
5.3.5.18. SMHC Function Select Register (Default Value: 0x0000_0000) ................................................. 384
5.3.5.19. SMHC Transferred Byte Count Register0 (Default Value: 0x0000_0000) ................................... 385
5.3.5.20. SMHC Transferred Byte Count Register1 (Default Value: 0x0000_0000) ................................... 385
5.3.5.21. SMHC Auto Command 12 Argument Register (Default Value: 0x0000_FFFF) ............................ 386
5.3.5.22. SMHC New Timing Set Register (Default Value: 0x8171_0000) ................................................. 386
5.3.5.23. SMHC Hardware Reset Register (Default Value: 0x0000_0001) ................................................. 387
5.3.5.24. SMHC DMAC Control Register (Default Value: 0x0000_0000) ................................................... 387
5.3.5.25. SMHC Descriptor List Base Address Register (Default Value: 0x0000_0000) ............................. 388
5.3.5.26. SMHC DMAC Status Register (Default Value: 0x0000_0000) ..................................................... 389
5.3.5.27. SMHC DMAC Interrupt Enable Register (Default Value: 0x0000_0000) ..................................... 390
5.3.5.28. SMHC Current Host Descriptor Address Register (Default Value: 0x0000_0000) ...................... 391
5.3.5.29. SMHC Current Buffer Descriptor Address Register (Default Value: 0x0000_0000) .................... 391
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 18
5.3.5.30. SMHC Card Threshold Control Register (Default Value: 0x0000_0000) ..................................... 392
5.3.5.31. SMHC eMMC4.5 DDR Start Bit Detection Control Register (Default Value: 0x0000_0000) ....... 392
5.3.5.32. SMHC Response CRC Register (Default Value: 0x0000_0000) ................................................... 393
5.3.5.33. SMHC Data7 CRC Register (Default Value: 0x0000_0000) ......................................................... 393
5.3.5.34. SMHC Data6 CRC Register (Default Value: 0x0000_0000) ......................................................... 394
5.3.5.35. SMHC Data5 CRC Register (Default Value: 0x0000_0000) ......................................................... 394
5.3.5.36. SMHC Data4 CRC Register (Default Value: 0x0000_0000) ......................................................... 394
5.3.5.37. SMHC Data3 CRC Register (Default Value: 0x0000_0000) ......................................................... 395
5.3.5.38. SMHC Data2 CRC Register (Default Value: 0x0000_0000) ......................................................... 395
5.3.5.39. SMHC Data1 CRC Register (Default Value: 0x0000_0000) ......................................................... 395
5.3.5.40. SMHC Data0 CRC Register (Default Value: 0x0000_0000) ......................................................... 396
5.3.5.41. SMHC CRC Status Register (Default Value: 0x0000_0000) ......................................................... 396
5.3.5.42. SMHC Drive Delay Control Register (Default Value: 0x0001_0000) ........................................... 396
5.3.5.43. SMHC Sample Delay Control Register (Default Value: 0x0000_2000) ........................................ 397
5.3.5.44. SMHC Data Strobe Delay Control Register (Default Value: 0x0000_2000) ................................ 397
5.3.5.45. SMHC FIFO Register (Default Value: 0x0000_0000) ................................................................... 398
Chapter 6 Image ............................................................................................................................................................. 399
6.1. CSI....................................................................................................................................................................... 400
6.1.1. Overview ................................................................................................................................................. 400
6.1.2. Block Diagram ......................................................................................................................................... 401
6.1.3. Operations and Functional Descriptions ................................................................................................. 402
6.1.3.1. CSI FIFO Distribution .................................................................................................................... 402
6.1.3.2. CSI Timing..................................................................................................................................... 402
6.1.3.3. Bit Definition ................................................................................................................................ 403
6.1.4. Register list .............................................................................................................................................. 403
6.1.5. Register Description ................................................................................................................................ 404
6.1.5.1. CSI Enable Register (Default Value: 0x0000_0000) ...................................................................... 404
6.1.5.2. CSI Interface Configuration Register (Default Value: 0x0005_0000) ............................................ 405
6.1.5.3. CSI Capture Register (Default Value: 0x0000_0000) .................................................................... 407
6.1.5.4. CSI Synchronization Counter Register (Default Value: 0x0000_0000) ......................................... 407
6.1.5.5. CSI FIFO Threshold Register (Default Value: 0x040F_0400) ......................................................... 408
6.1.5.6. CSI Pattern Generation Length Register (Default Value: 0x0000_0000) ...................................... 408
6.1.5.7. CSI Pattern Generation Address Register (Default Value: 0x0000_0000) .................................... 408
6.1.5.8. CSI Version Register (Default Value: 0x0000_0000) ..................................................................... 408
6.1.5.9. CSI Channel_0 Configuration Register (Default Value: 0x0030_0200) ......................................... 409
6.1.5.10. CSI Channel_0 Scale Register (Default Value: 0x0000_0000) ..................................................... 411
6.1.5.11. CSI Channel_0 FIFO 0 Output Buffer-A Address Register (Default Value: 0x0000_0000) .......... 411
6.1.5.12. CSI Channel_0 FIFO 1 Output Buffer-A Address Register (Default Value: 0x0000_0000) .......... 411
6.1.5.13. CSI Channel_0 FIFO 2 Output Buffer-A Address Register (Default Value: 0x0000_0000) .......... 412
6.1.5.14. CSI Channel_0 Status Register (Default Value: 0x0000_0000) ................................................... 412
6.1.5.15. CSI Channel_0 Interrupt Enable Register (Default Value: 0x0000_0000)................................... 412
6.1.5.16. CSI Channel_0 Interrupt Status Register (Default Value: 0x0000_0000) ................................... 413
6.1.5.17. CSI Channel_0 Horizontal Size Register (Default Value: 0x0500_0000) ..................................... 414
6.1.5.18. CSI Channel_0 Vertical Size Register (Default Value: 0x01E0_0000) .......................................... 414
6.1.5.19. CSI Channel_0 Buffer Length Register (Default Value: 0x0140_0280) ....................................... 414
6.1.5.20. CSI Channel_0 Flip Size Register (Default Value: 0x01E0_0280) ................................................ 415
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 19
6.1.5.21. CSI Channel_0 Frame Clock Counter Register (Default Value: 0x0000_0000) ........................... 415
6.1.5.22. CSI Channel_0 accumulated and internal clock counter Register (Default Value: 0x0000_0000)
................................................................................................................................................................... 415
6.1.5.23. CSI Channel_0 FIFO Statistic Register (Default Value: 0x0000_0000) ........................................ 415
6.1.5.24. CSI Channel_0 PCLK Statistic Register (Default Value: 0x0000_7FFF) ........................................ 416
6.1.5.25. CCI Control Register (Default Value: 0x0000_0000) ................................................................... 416
6.1.5.26. CCI Transmission Configuration Register (Default Value: 0x1000_0000) ................................... 418
6.1.5.27. CCI Packet Format Register (Default Value: 0x0011_0001) ........................................................ 418
6.1.5.28. CCI Bus Control Register (Default Value: 0x0000_2500) ............................................................ 419
6.1.5.29. CCI Interrupt Control Register (Default Value: 0x0000_0000) ................................................... 420
6.1.5.30. CCI Line Counter Trigger Control Register (Default Value: 0x0000_0000) ................................. 420
6.1.5.31. CCI FIFO Access Register (Default Value: 0x0000_0000) ............................................................ 420
Chapter 7 Display ........................................................................................................................................................... 421
7.1. DE2.0 .................................................................................................................................................................. 422
7.1.1. Overview ................................................................................................................................................. 422
7.2. TCON .................................................................................................................................................................. 423
7.2.1. Overview ................................................................................................................................................. 423
7.2.2. Block Diagram ......................................................................................................................................... 423
7.2.3. Operations and Functional Descriptions ................................................................................................. 423
7.2.3.1. RGB Gamma Correction ............................................................................................................... 423
7.2.3.2. CEU Module ................................................................................................................................. 424
7.2.4. TCON0 Module Register List ................................................................................................................... 424
7.2.5. TCON0 Module Register Description ...................................................................................................... 425
7.2.5.1. TCON Global Control Register (Default Value: 0x0000_0000) ...................................................... 425
7.2.5.2. TCON Global Interrupt Register0 (Default Value: 0x0000_0000) ................................................. 425
7.2.5.3. TCON Global Interrupt Register1 (Default Value: 0x0000_0000) ................................................. 426
7.2.5.4. TCON1 Control Register (Default Value: 0x0000_0000) ............................................................... 426
7.2.5.5. TCON1 Basic Timing Register0 (Default Value: 0x0000_0000) ..................................................... 426
7.2.5.6. TCON1 Basic Timing Register1 (Default Value: 0x0000_0000) ..................................................... 427
7.2.5.7. TCON1 Basic Timing Register2 (Default Value: 0x0000_0000) ..................................................... 427
7.2.5.8. TCON1 Basic Timing Register3 (Default Value: 0x0000_0000) ..................................................... 427
7.2.5.9. TCON1 Basic Timing Register4 (Default Value: 0x0000_0000) ..................................................... 428
7.2.5.10. TCON1 Basic Timing Register5 (Default Value: 0x0000_0000) ................................................... 428
7.2.5.11. TCON1 SYNC Register (Default Value: 0x0000_0000) ................................................................ 428
7.2.5.12. TCON1 IO Polarity Register (Default Value: 0x0000_0000) ........................................................ 428
7.2.5.13. TCON1 IO Trigger Register (Default Value: 0x0FFF_FFFF)........................................................... 429
7.2.5.14. TCON ECC FIFO Register (Default Value: UDF) ............................................................................ 430
7.2.5.15. TCON CEU Control Register (Default Value: 0x0000_0000) ....................................................... 430
7.2.5.16. TCON CEU Coefficient MUL Register (Default Value: 0x0000_0000) ......................................... 430
7.2.5.17. TCON CEU Coefficient Add Register (Default Value: 0x0000_0000) ........................................... 431
7.2.5.18. TCON CEU Coefficient Range Register (Default Value: 0x0000_0000) ....................................... 431
7.2.5.19. TCON Safe Period Register (Default Value: 0x0000_0000) ......................................................... 431
7.2.5.20. TCON1 Fill Control Register (Default Value: 0x0000_0000) ....................................................... 432
7.2.5.21. TCON1 Fill Begin Register (Default Value: 0x0000_0000) .......................................................... 432
7.2.5.22. TCON1 Fill End Register (Default Value: 0x0000_0000) ............................................................. 432
7.2.5.23. TCON1 Fill Data Register (Default Value: 0x0000_0000) ............................................................ 432
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 20
7.2.6. TCON1 Module Register List ................................................................................................................... 433
7.2.7. TCON1 Module Register Description ...................................................................................................... 433
7.2.7.1. TCON Global Control Register (Default Value: 0x0000_0000) ...................................................... 433
7.2.7.2. TCON Global Interrupt Register0 (Default Value: 0x0000_0000) ................................................. 434
7.2.7.3. TCON Global Interrupt Register1 (Default Value: 0x0000_0000) ................................................. 434
7.2.7.4. TCON1 Control Register (Default Value: 0x0000_0000) ............................................................... 435
7.2.7.5. TCON1 Basic Timing Register0 (Default Value: 0x0000_0000) ..................................................... 435
7.2.7.6. TCON1 Basic Timing Register1 (Default Value: 0x0000_0000) ..................................................... 435
7.2.7.7. TCON1 Basic Timing Register2 (Default Value: 0x0000_0000) ..................................................... 436
7.2.7.8. TCON1 Basic Timing Register3 (Default Value: 0x0000_0000) ..................................................... 436
7.2.7.9. TCON1 Basic Timing Register (Default Value: 0x0000_0000) ....................................................... 436
7.2.7.10. TCON1 Basic Timing Register5 (Default Value: 0x0000_0000) ................................................... 436
7.2.7.11. TCON1 SYNC Register (Default Value: 0x0000_0000) ................................................................ 437
7.2.7.12. TCON1 IO Polarity Register (Default Value: 0x0000_0000) ........................................................ 437
7.2.7.13. TCON1 IO Trigger Register (Default Value: 0x0FFF_FFFF)........................................................... 438
7.2.7.14. TCON ECC FIFO Register (Default Value: UDF) ............................................................................ 438
7.2.7.15. TCON CEU Control Register (Default Value: 0x0000_0000) ....................................................... 439
7.2.7.16. TCON CEU Coefficient MUL Register (Default Value: 0x0000_0000) ......................................... 439
7.2.7.17. TCON CEU Coefficient Add Register (Default Value: 0x0000_0000) ........................................... 439
7.2.7.18. TCON CEU Coefficient Rang Register (Default Value: 0x0000_0000) ......................................... 440
7.2.7.19. TCON Safe Period Register (Default Value: 0x0000_0000) ......................................................... 440
7.2.7.20. TCON1 Fill Control Register (Default Value: 0x0000_0000) ....................................................... 440
7.2.7.21. TCON1 Fill Begin Register (Default Value: 0x0000_0000) .......................................................... 441
7.2.7.22. TCON1 Fill End Register (Default Value: 0x0000_0000) ............................................................. 441
7.2.7.23. TCON1 Fill Data Register (Default Value: 0x0000_0000) ............................................................ 441
Chapter 8 Audio ............................................................................................................................................................. 442
8.1. Audio Codec ....................................................................................................................................................... 443
8.1.1. Overview ................................................................................................................................................. 443
8.1.2. Block Diagram ......................................................................................................................................... 443
8.1.3. Operations and Functional Descriptions ................................................................................................. 444
8.1.3.1. External Signals ............................................................................................................................ 444
8.1.3.2. Clock Sources................................................................................................................................ 445
8.1.3.3. Reset System ................................................................................................................................ 445
8.1.3.4. Power Domain .............................................................................................................................. 446
8.1.4. Register List ............................................................................................................................................. 447
8.1.5. Register Description ................................................................................................................................ 450
8.1.5.1. 0x00 DAC Digital Part Control Register(Default Value: 0x0000_0000) ......................................... 450
8.1.5.2. 0x04 DAC FIFO Control Register (Default Value: 0x0000_4000) .................................................. 451
8.1.5.3. 0x08 DAC FIFO Status Register(Default Value: 0x0080_0088) ..................................................... 453
8.1.5.4. 0x10 ADC FIFO Control Register(Default Value: 0x0000_0F00) ................................................... 454
8.1.5.5. 0x14 ADC FIFO Status Register (Default Value: 0x0000_0000) .................................................... 456
8.1.5.6. 0x18 ADC RX DATA Register (Default Value: 0x0000_0000) ......................................................... 457
8.1.5.7. 0x20 DAC TX DATA Register (Default Value: 0x0000_0000) ......................................................... 457
8.1.5.8. 0x40 DAC TX Counter Register(Default Value: 0x0000_0000)...................................................... 457
8.1.5.9. 0x44 ADC RX Counter Register(Default Value: 0x0000_0000) ..................................................... 457
8.1.5.10. 0x48 DAC Debug Register (Default Value: 0x0000_0000) .......................................................... 458
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 21
8.1.5.11. 0x4C ADC Debug Register (Default Value: 0x0000_0000) .......................................................... 458
8.1.5.12. 0x60 DAC DAP Control Register (Default Value: 0x0000_0000) ................................................. 459
8.1.5.13. 0x70 ADC DAP Control Register (Default Value: 0x0000_0000) ................................................. 459
8.1.5.14. 0x74 ADC DAP Left Control Register (Default Value: 0x001F_7000) .......................................... 461
8.1.5.15. 0x78 ADC DAP Right Control Register (Default Value: 0x001F_7000) ........................................ 462
8.1.5.16. 0x7C ADC DAP Parameter Register (Default Value: 0x2C2C_2828) ............................................ 463
8.1.5.17. 0x80 ADC DAP Left Average Coef Register (Default Value: 0x0005_1EB8) ................................ 464
8.1.5.18. 0x84 ADC DAP Left Decay & Attack Time Register (Default Value: 0x0000_001F) .................... 464
8.1.5.19. 0x88 ADC DAP Right Average Coef Register (Default Value: 0x0005_1EB8) .............................. 465
8.1.5.20. 0x8C ADC DAP Right Decay & Attack Time Register (Default Value: 0x0000_001F) .................. 465
8.1.5.21. 0x90 ADC DAP HPF Coef Register (Default Value: 0x00FF_FAC1) ............................................... 466
8.1.5.22. 0x94 ADC DAP Left Input Signal Low Average Coef Register (Default Value: 0x0005_1EB8) ..... 466
8.1.5.23. 0x98 ADC DAP Right Input Signal Low Average Coef Register (Default Value: 0x0005_1EB8) ... 466
8.1.5.24. 0x9C ADC DAP Optimum Register (Default Value: 0x0000_0000) ............................................. 466
8.1.5.25. 0x100 DAC DRC High HPF Coef Register (Default Value: 0x0000_00FF) .................................... 467
8.1.5.26. 0x104 DAC DRC Low HPF Coef Register(Default Value: 0x0000_FAC1) ...................................... 467
8.1.5.27. 0x108 DAC DRC Control Register(Default Value: 0x0000_0080) ................................................ 468
8.1.5.28. 0x10C DAC DRC Left Peak Filter High Attack Time Coef Register (Default Value: 0x0000_000B)
................................................................................................................................................................... 469
8.1.5.29. 0x110 DAC DRC Left Peak Filter Low Attack Time Coef Register (Default Value: 0x0000_77BF)
................................................................................................................................................................... 469
8.1.5.30. 0x114 DAC DRC Right Peak Filter High Attack Time Coef Register (Default Value: 0x0000_000B)
................................................................................................................................................................... 470
8.1.5.31. 0x118 DAC DRC Peak Filter Low Attack Time Coef Register (Default Value: 0x0000_77BF) ...... 470
8.1.5.32. 0x11C DAC DRC Left Peak Filter High Release Time Coef Register (Default Value: 0x0000_00FF)
................................................................................................................................................................... 470
8.1.5.33. 0x120 DAC DRC Left Peak Filter Low Release Time Coef Register (Default Value: 0x0000_E1F8)
................................................................................................................................................................... 470
8.1.5.34. 0x124 DAC DRC Right Peak filter High Release Time Coef Register (Default Value: 0x0000_00FF)
................................................................................................................................................................... 470
8.1.5.35. 0x128 DAC DRC Right Peak filter Low Release Time Coef Register (Default Value: 0x0000_E1F8)
................................................................................................................................................................... 471
8.1.5.36. 0x12C DAC DRC Left RMS Filter High Coef Register (Default Value: 0x0000_0001) .................. 471
8.1.5.37. 0x130 DAC DRC Left RMS Filter Low Coef Register (Default Value: 0x0000_2BAF) ................... 471
8.1.5.38. 0x134 DAC DRC Right RMS Filter High Coef Register (Default Value: 0x0000_0001) ................ 471
8.1.5.39. 0x138 DAC DRC Right RMS Filter Low Coef Register (Default Value: 0x0000_2BAF) ................. 471
8.1.5.40. 0x13C DAC DRC Compressor Threshold High Setting Register (Default Value: 0x0000_06A4) .. 472
8.1.5.41. 0x140 DAC DRC Compressor Threshold Low Setting Register (Default Value: 0x0000_D3C0) .. 472
8.1.5.42. 0x144 DAC DRC Compressor Slope High Setting Register (Default Value: 0x0000_0080) ......... 472
8.1.5.43. 0x148 DAC DRC Compressor Slope Low Setting Register (Default Value: 0x0000_0000) .......... 472
8.1.5.44. 0x14C DAC DRC Compressor High Output at Compressor Threshold Register (Default Value:
0x0000_F95B)............................................................................................................................................ 473
8.1.5.45. 0x150 DAC DRC Compressor Low Output at Compressor Threshold Register (Default Value:
0x0000_2C3F) ............................................................................................................................................ 473
8.1.5.46. 0x154 DAC DRC Limiter Theshold High Setting Register (Default Value: 0x0000_01A9) ........... 473
8.1.5.47. 0x158 DAC DRC Limiter Theshold Low Setting Register (Default Value: 0x0000_34F0) ............. 473
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 22
8.1.5.48. 0x15C DAC DRC Limiter Slope High Setting Register (Default Value: 0x0000_0005) ................. 473
8.1.5.49. 0x160 DAC DRC Limiter Slope Low Setting Register (Default Value: 0x0000_1EB8) .................. 474
8.1.5.50. 0x164 DAC DRC Limiter High Output at Limiter Threshold (Default Value: 0x0000_FBD8) ....... 474
8.1.5.51. 0x168 DAC DRC Limiter Low Output at Limiter Threshold (Default Value: 0x0000_FBA7) ........ 474
8.1.5.52. 0x16C DAC DRC Expander Theshold High Setting Register (Default Value: 0x0000_0BA0) ....... 474
8.1.5.53. 0x170 DAC DRC Expander Theshold Low Setting Register (Default Value: 0x0000_7291) ......... 474
8.1.5.54. 0x174 DAC DRC Expander Slope High Setting Register (Default Value: 0x0000_0500) .............. 475
8.1.5.55. 0x178 DAC DRC Expander Slope Low Setting Register (Default Value: 0x0000_0000) .............. 475
8.1.5.56. 0x17C DAC DRC Expander High Output at Expander Threshold (Default Value: 0x0000_F45F) 475
8.1.5.57. 0x180 DAC DRC Expander Low Output at Expander Threshold (Default Value: 0x0000_8D6E) 475
8.1.5.58. 0x184 DAC DRC Linear Slope High Setting Register (Default Value: 0x0000_0100) ................... 475
8.1.5.59. 0x188 DAC DRC Linear Slope Low Setting Register (Default Value: 0x0000_0000).................... 476
8.1.5.60. 0x18C DAC DRC Smooth Filter Gain High Attack Time Coef Register (Default Value:
0x0000_0002)............................................................................................................................................ 476
8.1.5.61. 0x190 DAC DRC Smooth Filter Gain Low Attack Time Coef Register (Default Value: 0x0000_5600)
................................................................................................................................................................... 476
8.1.5.62. 0x194 DAC DRC Smooth filter Gain High Release Time Coef Register (Default Value:
0x0000_0000) ........................................................................................................................................... 476
8.1.5.63. 0x198 DAC DRC Smooth filter Gain Low Release Time Coef Register (Default Value:
0x0000_0F04) ............................................................................................................................................ 476
8.1.5.64. 0x19C DAC DRC MAX Gain High Setting Register (Default Value: 0x0000_FE56) ....................... 477
8.1.5.65. 0x1A0 DAC DRC MAX Gain Low Setting Register (Default Value: 0x0000_CB0F) ....................... 477
8.1.5.66. 0x1A4 DAC DRC MIN Gain High Setting Register (Default Value: 0x0000_F95B) ....................... 477
8.1.5.67. 0x1A8 DAC DRC MIN Gain Low Setting Register (Default Value: 0x0000_2C3F) ........................ 477
8.1.5.68. 0x1AC DAC DRC Expander Smooth Time High Coef Register (Default Value: 0x0000_0000) .... 477
8.1.5.69. 0x1B0 DAC DRC Expander Smooth Time Low Coef Register(Default Value: 0x0000_640C) ...... 478
8.1.5.70. 0x1B8 DAC DRC HPF Gain High Coef Register(Default Value: 0x0000_0100) ............................ 478
8.1.5.71. 0x1BC DAC DRC HPF Gain Low Coef Register(Default Value: 0x0000_0000) ............................. 478
8.1.5.72. 0x200 ADC DRC High HPF Coef Register (Default Value: 0x0000_00FF) .................................... 478
8.1.5.73. 0x204 ADC DRC Low HPF Coef Register (Default Value: 0x0000_FAC1) ..................................... 479
8.1.5.74. 0x208 ADC DRC Control Register (Default Value: 0x0000_0080) ............................................... 479
8.1.5.75. 0x20C ADC DRC Left Peak Filter High Attack Time Coef Register (Default Value: 0x0000_000B)
................................................................................................................................................................... 480
8.1.5.76. 0x210 ADC DRC Left Peak Filter Low Attack Time Coef Register (Default Value: 0x0000_77BF)
................................................................................................................................................................... 481
8.1.5.77. 0x214 ADC DRC Right Peak Filter High Attack Time Coef Register (Default Value: 0x0000_000B)
................................................................................................................................................................... 481
8.1.5.78. 0x218 ADC DRC Peak Filter Low Attack Time Coef Register (Default Value: 0x0000_77BF) ...... 481
8.1.5.79. 0x21C ADC DRC Left Peak Filter High Release Time Coef Register (Default Value: 0x0000_00FF)
................................................................................................................................................................... 481
8.1.5.80. 0x220 ADC DRC Left Peak Filter Low Release Time Coef Register (Default Value: 0x0000_E1F8)
................................................................................................................................................................... 481
8.1.5.81. 0x224 ADC DRC Right Peak filter High Release Time Coef Register (Default Value: 0x0000_00FF)
................................................................................................................................................................... 482
8.1.5.82. 0x228 ADC DRC Right Peak filter Low Release Time Coef Register (Default Value: 0x0000_E1F8)
................................................................................................................................................................... 482
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 23
8.1.5.83. 0x22C ADC DRC Left RMS Filter High Coef Register (Default Value: 0x0000_0001) .................. 482
8.1.5.84. 0x230 ADC DRC Left RMS Filter Low Coef Register (Default Value: 0x0000_2BAF) ................... 482
8.1.5.85. 0x234 ADC DRC Right RMS Filter High Coef Register (Default Value: 0x0000_0001) ................ 482
8.1.5.86. 0x238 ADC DRC Right RMS Filter Low Coef Register (Default Value: 0x0000_2BAF) ................. 483
8.1.5.87. 0x23C ADC DRC Compressor Theshold High Setting Register (Default Value: 0x0000_06A4) ... 483
8.1.5.88. 0x240 ADC DRC Compressor Theshold Low Setting Register (Default Value: 0x0000_D3C0) .... 483
8.1.5.89. 0x244 ADC DRC Compressor Slope High Setting Register (Default Value: 0x0000_0080) ......... 483
8.1.5.90. 0x248 ADC DRC Compressor Slope Low Setting Register (Default Value: 0x0000_0000) .......... 483
8.1.5.91. 0x24C ADC DRC Compressor High Output at Compressor Threshold Register (Default Value:
0x0000_F95B)............................................................................................................................................ 484
8.1.5.92. 0x250 ADC DRC Compressor Low Output at Compressor Threshold Register (Default Value:
0x0000_2C3F) ............................................................................................................................................ 484
8.1.5.93. 0x254 ADC DRC Limiter Theshold High Setting Register (Default Value: 0x0000_01A9) ........... 484
8.1.5.94. 0x258 ADC DRC Limiter Theshold Low Setting Register (Default Value: 0x0000_34F0) ............ 484
8.1.5.95. 0x25C ADC DRC Limiter Slope High Setting Register (Default Value: 0x0000_0005) ................. 484
8.1.5.96. 0x260 ADC DRC Limiter Slope Low Setting Register (Default Value: 0x0000_1EB8) .................. 485
8.1.5.97. 0x264 ADC DRC Limiter High Output at Limiter Threshold Register (Default Value: 0x0000_FBD8)
................................................................................................................................................................... 485
8.1.5.98. 0x268 ADC DRC Limiter Low Output at Limiter Threshold Register (Default Value: 0x0000_FBA7)
................................................................................................................................................................... 485
8.1.5.99. 0x26C ADC DRC Expander Theshold High Setting Register (Default Value: 0x0000_0BA0) ....... 485
8.1.5.100. 0x270 ADC DRC Expander Theshold Low Setting Register (Default Value: 0x0000_7291) ....... 486
8.1.5.101. 0x274 ADC DRC Expander Slope High Setting Register (Default Value: 0x0000_0500) ............ 486
8.1.5.102. 0x278 ADC DRC Expander Slope Low Setting Register (Default Value: 0x0000_0000) ............ 486
8.1.5.103. 0x27C ADC DRC Expander High Output at Expander Threshold (Default Value: 0x0000_F45F)
................................................................................................................................................................... 486
8.1.5.104. 0x280 ADC DRC Expander Low Output at Expander Threshold (Default Value: 0x0000_8D6E)
................................................................................................................................................................... 486
8.1.5.105. 0x284 ADC DRC Linear Slope High Setting Register (Default Value: 0x0000_0100) ................. 487
8.1.5.106. 0x288 ADC DRC Linear Slope Low Setting Register (Default Value: 0x0000_0000) ................. 487
8.1.5.107. 0x28C ADC DRC Smooth Filter Gain High Attack Time Coef Register (Default Value:
0x0000_0002)............................................................................................................................................ 487
8.1.5.108. 0x290 ADC DRC Smooth Filter Gain Low Attack Time Coef Register (Default Value:
0x0000_5600) ........................................................................................................................................... 487
8.1.5.109. 0x294 ADC DRC Smooth filter Gain High Release Time Coef Register (Default Value:
0x0000_0000) ........................................................................................................................................... 487
8.1.5.110. 0x298 ADC DRC Smooth filter Gain Low Release Time Coef Register (Default Value:
0x0000_0F04) ............................................................................................................................................ 488
8.1.5.111. 0x29C ADC DRC MAX Gain High Setting Register (Default Value: 0x0000_FE56) .................... 488
8.1.5.112. 0x2A0 ADC DRC MAX Gain Low Setting Register (Default Value: 0x0000_CB0F) ..................... 488
8.1.5.113. 0x2A4 ADC DRC MIN Gain High Setting Register (Default Value: 0x0000_F95B) ..................... 488
8.1.5.114. 0x2A8 ADC DRC MIN Gain Low Setting Register (Default Value: 0x0000_2C3F) ...................... 488
8.1.5.115. 0x2AC ADC DRC Expander Smooth Time High Coef Register (Default Value: 0x0000_0000) .. 489
8.1.5.116. 0x2B0 ADC DRC Expander Smooth Time Low Coef Register (Default Value: 0x0000_640C) ... 489
8.1.5.117. 0x2B8 ADC DRC HPF Gain High Coef Register (Default Value: 0x0000_0100) ......................... 489
8.1.5.118. 0x2BC ADC DRC HPF Gain Low Coef Register (Default Value: 0x0000_0000) .......................... 489
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 24
8.1.6. Analog Part Register Description ............................................................................................................. 490
8.1.6.1. AC Parameter Configuration Register (Default Value: 0x1000_0000) .......................................... 490
8.1.6.2. 0x00 LINEOUT PA Gating Control Register (Default Value: 0x00) ................................................. 491
8.1.6.3. 0x01 Left Output Mixer Source Select Control Register (Default Value: 0x00) ............................ 491
8.1.6.4. 0x02 Right Output Mixer Source Select Control Register (Default Value: 0x00) .......................... 491
8.1.6.5. 0x03 DAC Analog Enable and PA Source Control Register (Default Value: 0x00) ......................... 492
8.1.6.6. 0x05 Linein and Gain Control Register (Default Value: 0x30) ....................................................... 492
8.1.6.7. 0x06 MIC1 And MIC2 Gain Control Register (Default Value: 0x33) .............................................. 493
8.1.6.8. 0x07 PA Enable and LINEOUT Control Register (Default Value: 0x04) ......................................... 493
8.1.6.9. 0x09 Lineout Volume Control Register (Default Value: 0x00) ...................................................... 493
8.1.6.10. 0x0A Mic2 Boost and Lineout Enable Control Register (Default Value: 0x40) ........................... 494
8.1.6.11. 0x0B MIC1 Boost and MICBIAS Control Register (Default Value: 0x04) ..................................... 494
8.1.6.12. 0x0C Left ADC Mixer Source Control Register (Default Value: 0x00) ......................................... 495
8.1.6.13. 0x0D Right ADC Mixer Source Control Register (Default Value: 0x00) ....................................... 495
8.1.6.14. 0x0E Reserved Register (Default Value: 0x04) ............................................................................ 496
8.1.6.15. 0x0F ADC Analog Part Enable Register (Default Value: 0x03) .................................................... 496
8.1.6.16. 0x10 ADDA Analog Performance Turning 0 Register (Default Value: 0x55) ............................... 497
8.1.6.17. 0x11 ADDA Analog Performance Turning 1 Register (Default Value: 0x45) ............................... 497
8.1.6.18. 0x12 ADDA Analog Performance Turning 2 Register (Default Value: 0x42) ............................... 497
8.1.6.19. 0x13 Bias & DA16 Calibration Control Register0 (Default Value: 0xD6) ..................................... 498
8.1.6.20. 0x14 Bias & DA16 Calibration Control Register1 (Default Value: 0x00) ..................................... 499
8.1.6.21. 0x15 DA16 Calibration Data Register (Default Value: 0x80) ....................................................... 500
8.1.6.22. 0x16 DA16 Register Setting Data Register (Default Value: 0x80) ............................................... 500
8.1.6.23. 0x17 Bias Calibration Data Register (Default Value: 0x20) ......................................................... 500
8.1.6.24. 0x18 Bias Register Setting Data Register (Default Value: 0x20) ................................................. 500
8.2. I2S/PCM.............................................................................................................................................................. 501
8.2.1. Overview ................................................................................................................................................. 501
8.2.2. Block Diagram ......................................................................................................................................... 501
8.2.3. Operations and Functional Descriptions ................................................................................................. 502
8.2.3.1. External Signals ............................................................................................................................ 502
8.2.3.2. Clock Sources................................................................................................................................ 503
8.2.3.3. Timing Diagram ............................................................................................................................ 503
8.2.3.4. Operation Modes ......................................................................................................................... 505
8.2.4. I2S/PCM Register List .............................................................................................................................. 506
8.2.5. I2S/PCM Register Description ................................................................................................................. 507
8.2.5.1. I2S/PCM Control Register(Default Value: 0x0006_0000) ............................................................. 507
8.2.5.2. I2S/PCM Format Register0(Default Value: 0x0000_0033) ........................................................... 508
8.2.5.3. I2S/PCM Format Register1(Default Value: 0x0000_0030) ........................................................... 510
8.2.5.4. I2S/PCM Interrupt Status Register(Default Value: 0x0000_0010) ............................................... 511
8.2.5.5. I2S/PCM RX FIFO Register(Default Value: 0x0000_0000) ............................................................. 512
8.2.5.6. I2S/PCM FIFO Control Register(Default Value: 0x0004_00F0) ..................................................... 512
8.2.5.7. I2S/PCM FIFO Status Register(Default Value: 0x1080_0000) ....................................................... 513
8.2.5.8. I2S/PCM DMA & Interrupt Control Register(Default Value: 0x0000_0000) ................................. 514
8.2.5.9. I2S/PCM TX FIFO Register(Default Value: 0x0000_0000) ............................................................. 515
8.2.5.10. I2S/PCM Clock Divide Register(Default Value: 0x0000_0000) ................................................... 515
8.2.5.11. I2S/PCM TX Counter Register(Default Value: 0x0000_0000) ..................................................... 516
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 25
8.2.5.12. I2S/PCM RX Counter Register(Default Value: 0x0000_0000) ..................................................... 517
8.2.5.13. I2S/PCM Channel Configuration Register(Default Value: 0x0000_0000) ................................... 517
8.2.5.14. I2S/PCM TX Channel Select Register(Default Value: 0x0000_0000) .......................................... 517
8.2.5.15. I2S/PCM TX Channel Mapping Register(Default Value: 0x0000_0000) ...................................... 518
8.2.5.16. I2S/PCM RX Channel Select Register(Default Value: 0x0000_0000) .......................................... 519
8.2.5.17. I2S/PCM RX Channel Mapping Register(Default Value: 0x0000_0000) ..................................... 520
8.3. OWA ................................................................................................................................................................... 522
8.3.1. Overview ................................................................................................................................................. 522
8.3.2. Block Diagram ......................................................................................................................................... 522
8.3.3. Operations and Functional Descriptions ................................................................................................. 523
8.3.3.1. External Signals ............................................................................................................................ 523
8.3.3.2. Clock Sources................................................................................................................................ 523
8.3.3.3. OWA Frame Format ...................................................................................................................... 523
8.3.3.4. Operation Modes ......................................................................................................................... 524
8.3.4. Register List ............................................................................................................................................. 525
8.3.5. Register Description ................................................................................................................................ 525
8.3.5.1. OWA General Control Register (Default Value : 0x0000_0000) ................................................... 525
8.3.5.2. OWA TX Configure Register (Default Value: 0x0000_00F0) ......................................................... 526
8.3.5.3. OWA Interrupt Status Register (Default Value: 0x0000_0010) .................................................... 527
8.3.5.4. OWA FIFO Control Register (Default Value: 0x0000_1078) .......................................................... 527
8.3.5.5. OWA FIFO Status Register (Default Value: 0x0000_6000) ............................................................ 528
8.3.5.6. OWA Interrupt Control Register (Default Value: 0x0000_0000) .................................................. 528
8.3.5.7. OWA TX FIFO Register (Default Value: 0x0000_0000) .................................................................. 529
8.3.5.8. OWA TX Counter Register (Default Value: 0x0000_0000) ............................................................ 529
8.3.5.9. OWA TX Channel Status Register0 (Default Value: 0x0000_0000) ............................................... 529
8.3.5.10. OWA TX Channel Status Register1 (Default Value: 0x0000_0000) ............................................. 531
Chapter 9 Interfaces ....................................................................................................................................................... 533
9.1. TWI ..................................................................................................................................................................... 534
9.1.1. Overview ................................................................................................................................................. 534
9.1.2. Operations and Functional Descriptions ................................................................................................. 534
9.1.2.1. External Signals ............................................................................................................................ 534
9.1.2.2. Clock Sources................................................................................................................................ 535
9.1.2.3. Timing Diagram ............................................................................................................................ 535
9.1.2.4. TWI Controller Operation ............................................................................................................. 535
9.1.3. Register List ............................................................................................................................................. 536
9.1.4. Register Description ................................................................................................................................ 536
9.1.4.1. TWI Slave Address Register(Default Value: 0x0000_0000) .......................................................... 536
9.1.4.2. TWI Extend Address Register(Default Value: 0x0000_0000) ........................................................ 537
9.1.4.3. TWI Data Register(Default Value: 0x0000_0000) ......................................................................... 537
9.1.4.4. TWI Control Register(Default Value: 0x0000_0000) .................................................................... 538
9.1.4.5. TWI Status Register(Default Value: 0x0000_00F8) ....................................................................... 539
9.1.4.6. TWI Clock Register(Default Value: 0x0000_0000) ........................................................................ 540
9.1.4.7. TWI Soft Reset Register(Default Value: 0x0000_0000) ................................................................ 541
9.1.4.8. TWI Enhance Feature Register(Default Value: 0x0000_0000) ..................................................... 541
9.1.4.9. TWI Line Control Register(Default Value: 0x0000_003A) ............................................................. 541
9.2. SPI ....................................................................................................................................................................... 543
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 26
9.2.1. Overview ................................................................................................................................................. 543
9.2.2. Block Diagram ......................................................................................................................................... 543
9.2.3. Operations and Functional Descriptions ................................................................................................. 544
9.2.3.1. External Signals ............................................................................................................................ 544
9.2.3.2. Clock Sources................................................................................................................................ 544
9.2.3.3. SPI Transmit Format ..................................................................................................................... 545
9.2.3.4. SPI Master and Slave Mode .......................................................................................................... 546
9.2.3.5. SPI Dual Read Mode ..................................................................................................................... 546
9.2.4. Programming Guide ................................................................................................................................ 546
9.2.4.1. Transmit/Receive Burst in Master Mode ...................................................................................... 546
9.2.4.2. SPI Sample Mode and Run Clock Configuration ........................................................................... 547
9.2.5. Register List ............................................................................................................................................. 547
9.2.6. Register Description ................................................................................................................................ 548
9.2.6.1. SPI Global Control Register(Default Value: 0x0000_0080) ........................................................... 548
9.2.6.2. SPI Transfer Control Register(Default Value: 0x0000_0087) ........................................................ 549
9.2.6.3. SPI Interrupt Control Register(Default Value: 0x0000_0000) ....................................................... 552
9.2.6.4. SPI Interrupt Status Register(Default Value: 0x0000_0032) ......................................................... 553
9.2.6.5. SPI FIFO Control Register(Default Value: 0x0040_0001) .............................................................. 555
9.2.6.6. SPI FIFO Status Register(Default Value: 0x0000_0000) ................................................................ 556
9.2.6.7. SPI Wait Clock Register(Default Value: 0x0000_0000) ................................................................. 557
9.2.6.8. SPI Clock Control Register(Default Value: 0x0000_0002) ............................................................. 558
9.2.6.9. SPI Master Burst Counter Register(Default Value: 0x0000_0000) ............................................... 558
9.2.6.10. SPI Master Transmit Counter Register(Default Value: 0x0000_0000) ........................................ 558
9.2.6.11. SPI Master Burst Control Counter Register(Default Value: 0x0000_0000)................................. 559
9.2.6.12. SPI Normal DMA Control Register(Default Value: 0x0000_00A5) .............................................. 560
9.2.6.13. SPI TX Data Register(Default Value: 0x0000_0000) .................................................................... 560
9.2.6.14. SPI RX Data Register(Default Value: 0x0000_0000) ................................................................... 560
9.3. UART ................................................................................................................................................................... 562
9.3.1. Overview ................................................................................................................................................. 562
9.3.2. Block Diagram ......................................................................................................................................... 562
9.3.3. Operations and Functional Descriptions ................................................................................................. 563
9.3.3.1. External Signals ............................................................................................................................ 563
9.3.3.2. Clock Sources................................................................................................................................ 564
9.3.3.3. UART Timing Diagram .................................................................................................................. 564
9.3.4. Register List ............................................................................................................................................. 564
9.3.5. Register Description ................................................................................................................................ 565
9.3.5.1. UART Receiver Buffer Register(Default Value: 0x0000_0000) ..................................................... 565
9.3.5.2. UART Transmit Holding Register(Default Value: 0x0000_0000) ................................................... 565
9.3.5.3. UART Divisor Latch Low Register(Default Value: 0x0000_0000) .................................................. 566
9.3.5.4. UART Divisor Latch High Register(Default Value: 0x0000_0000) ................................................. 566
9.3.5.5. UART Interrupt Enable Register(Default Value: 0x0000_0000) .................................................... 567
9.3.5.6. UART Interrupt Identity Register(Default Value: 0x0000_0001) .................................................. 568
9.3.5.7. UART FIFO Control Register(Default Value: 0x0000_0000) .......................................................... 569
9.3.5.8. UART Line Control Register(Default Value: 0x0000_0000) ........................................................... 570
9.3.5.9. UART Modem Control Register(Default Value: 0x0000_0000)..................................................... 572
9.3.5.10. UART Line Status Register(Default Value: 0x0000_0060) ........................................................... 573
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 27
9.3.5.11. UART Modem Status Register(Default Value: 0x0000_0000) .................................................... 575
9.3.5.12. UART Scratch Register(Default Value: 0x0000_0000) ................................................................ 577
9.3.5.13. UART Status Register(Default Value: 0x0000_0006) .................................................................. 578
9.3.5.14. UART Transmit FIFO Level Register(Default Value: 0x0000_0000) ............................................. 579
9.3.5.15. UART Receive FIFO Level Register(Default Value: 0x0000_0000) .............................................. 579
9.3.5.16. UART Halt TX Register(Default Value: 0x0000_0000)................................................................. 579
9.4. CIR Receiver........................................................................................................................................................ 581
9.4.1. Overview ................................................................................................................................................. 581
9.4.2. Register List ............................................................................................................................................. 581
9.4.3. Register Description ................................................................................................................................ 582
9.4.3.1. CIR Receiver Control Register(Default Value: 0x0000_0000) ....................................................... 582
9.4.3.2. CIR Receiver Configure Register(Default Value: 0x0000_0004) ................................................... 582
9.4.3.3. CIR Receiver FIFO Register(Default Value: 0x0000_0000) ............................................................ 583
9.4.3.4. CIR Receiver Interrupt Control Register(Default Value: 0x0000_0000)........................................ 583
9.4.3.5. CIR Receiver Status Register(Default Value: 0x0000_0000) ......................................................... 584
9.4.3.6. CIR Receiver Configure Register(Default Value: 0x0000_1828) ................................................... 585
9.5. USB ..................................................................................................................................................................... 587
9.5.1. USB OTG Controller ................................................................................................................................. 587
9.5.1.1. Overview ...................................................................................................................................... 587
9.5.1.2. Block Diagram .............................................................................................................................. 587
9.5.2. USB Host Controller................................................................................................................................. 588
9.5.2.1. Overview ...................................................................................................................................... 588
9.5.2.2. Block Diagram .............................................................................................................................. 589
9.5.2.3. USB Host Timing Diagram ............................................................................................................ 589
9.5.2.4. USB Host Register List .................................................................................................................. 589
9.5.2.5. EHCI Register Description ............................................................................................................. 591
9.5.2.6. OHCI Register Description ............................................................................................................ 604
9.5.2.7. HCI Interface Control and Status Register Description ................................................................. 621
9.5.2.8. USB Host Clock Requirement ....................................................................................................... 623
9.6. SCR ..................................................................................................................................................................... 626
9.6.1. Overview ................................................................................................................................................. 626
9.6.2. Block Diagram ......................................................................................................................................... 626
9.6.3. Operations and Functional Descriptions ................................................................................................. 627
9.6.3.1. External Signals ............................................................................................................................ 627
9.6.3.2. SCR Timing Diagram ..................................................................................................................... 628
9.6.3.3. Clock Generator............................................................................................................................ 628
9.6.3.4. SCIO Pad Configuration ................................................................................................................ 629
9.6.4. Register List ............................................................................................................................................. 629
9.6.5. Register Description ................................................................................................................................ 630
9.6.5.1. Smart Card Reader Control and Status Register (Default Value: 0x0000_0000) .......................... 630
9.6.5.2. Smart Card Reader Interrupt Enable Register (Default Value: 0x0000_0000) ............................. 631
9.6.5.3. Smart Card Reader Interrupt Status Register(Default Value: 0x0000_0000) ............................... 632
9.6.5.4. Smart Card Reader FIFO Control and Status Register(Default Value: 0x0000_0000) ................... 634
9.6.5.5. Smart Card Reader FIFO Counter Register(Default Value: 0x0000_0000) .................................... 635
9.6.5.6. Smart Card Reader Repeat Control Register(Default Value: 0x0000_0000) ................................. 635
9.6.5.7. Smart Card Reader Clock Divisor Register(Default Value: 0x0000_0000) .................................... 635
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 28
9.6.5.8. Smart Card Reader Line Time Register(Default Value: 0x0000_0000) ......................................... 636
9.6.5.9. Smart Card Reader Character Time Register(Default Value: 0x0000_0000) ................................ 637
9.6.5.10. Smart Card Reader Line Control Register(Default Value: 0x0000_0000) ................................... 637
9.6.5.11. Smart Card Reader FIFO Data Register(Default Value: 0x0000_0000) ....................................... 638
9.7. EMAC .................................................................................................................................................................. 639
9.7.1. Overview ................................................................................................................................................. 639
9.7.2. Block Diagram ......................................................................................................................................... 639
9.7.3. Operations and Functional Descriptions ................................................................................................. 640
9.7.3.1. External Signals ............................................................................................................................ 640
9.7.3.2. EMAC RX/TX Descriptor ............................................................................................................... 641
9.7.3.3. Transmit Descriptor ...................................................................................................................... 641
9.7.3.4. Receive Descriptor........................................................................................................................ 643
9.7.4. Register List ............................................................................................................................................. 644
9.7.5. Register Description ................................................................................................................................ 645
9.7.5.1. Basic Control 0 Register(Default Value: 0x0000_0000) ................................................................ 645
9.7.5.2. Basic Control 1 Register(Default Value: 0x0800_0000) ................................................................ 646
9.7.5.3. Interrupt Status Register(Default Value: 0x0000_0000) .............................................................. 646
9.7.5.4. Interrupt Enable Register(Default Value: 0x0000_0000) ............................................................. 647
9.7.5.5. Transmit Control 0 Register(Default Value: 0x0000_0000) .......................................................... 648
9.7.5.6. Transmit Control 1 Register(Default Value: 0x0000_0000) .......................................................... 649
9.7.5.7. Transmit Flow Control Register(Default Value: 0x0000_0000) .................................................... 650
9.7.5.8. Transmit DMA Descriptor List Address Register(Default Value: 0x0000_0000) ........................... 650
9.7.5.9. Receive Control 0 Register(Default Value: 0x0000_0000) ............................................................ 650
9.7.5.10. Receive Control 1 Register(Default Value: 0x0000_0000) .......................................................... 651
9.7.5.11. Receive DMA Descriptor List Address Register(Default Value: 0x0000_0000) ........................... 653
9.7.5.12. Receive Frame Filter Register(Default Value: 0x0000_0000) ..................................................... 653
9.7.5.13. Receive Hash Table 0 Register(Default Value: 0x0000_0000) .................................................... 654
9.7.5.14. Receive Hash Table 1 Register(Default Value: 0x0000_0000) .................................................... 654
9.7.5.15. MII Command Register(Default Value: 0x0000_0000) ............................................................... 655
9.7.5.16. MII Data Register(Default Value: 0x0000_0000) ........................................................................ 655
9.7.5.17. MAC Address 0 High Register(Default Value: 0x0000_FFFF) ...................................................... 656
9.7.5.18. MAC Address 0 Low Register(Default Value: 0xFFFF_FFFF) ....................................................... 656
9.7.5.19. MAC Address N High Register(Default Value: 0x0000FFFF) ....................................................... 656
9.7.5.20. MAC Address N Low Register(Default Value: 0xFFFF_FFFF) ....................................................... 656
9.7.5.21. Transmit DMA Status Register(Default Value: 0x0000_0000) .................................................... 657
9.7.5.22. Transmit DMA Current Descriptor Register(Default Value: 0x0000_0000) ................................ 657
9.7.5.23. Transmit DMA Current Buffer Address Register(Default Value: 0x0000_0000) ......................... 657
9.7.5.24. Receive DMA Status Register(Default Value: 0x0000_0000) ..................................................... 657
9.7.5.25. Receive DMA Current Descriptor Register(Default Value: 0x0000_0000).................................. 658
9.7.5.26. Receive DMA Current Buffer Address Register(Default Value: 0x0000_0000) ........................... 658
9.7.5.27. RGMII Status Register(Default Value: 0x0000_0000) ................................................................. 658
9.8. TSC ...................................................................................................................................................................... 659
9.8.1. Overview ................................................................................................................................................. 659
9.8.2. Block Diagram ......................................................................................................................................... 659
9.8.3. Operations and Functional Descriptions ................................................................................................. 660
9.8.3.1. External Signals ............................................................................................................................ 660
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 29
9.8.3.2. Clock Sources................................................................................................................................ 661
9.8.3.3. TSC Timing Diagram ..................................................................................................................... 661
9.8.4. Register List ............................................................................................................................................. 662
9.8.5. Register Description ................................................................................................................................ 664
9.8.5.1. TSC Control Register(Default Value: 0x0000_0000) ..................................................................... 664
9.8.5.2. TSC Status Register(Default Value: 0x0000_0000) ....................................................................... 664
9.8.5.3. TSC Port Control Register(Default Value: 0x0000_000A) ............................................................. 664
9.8.5.4. TSC Port Parameter Register(Default Value: 0x0000_0000) ........................................................ 665
9.8.5.5. TSC TSF Input Multiplex Control Register(Default Value: 0x0000_0000) ..................................... 667
9.8.5.6. TSC Port Output Multiplex Control Register(Default Value: 0x0000_0000) ................................. 667
9.8.5.7. TSC Interrupt Status Register(Default Value: 0x0000_0000) ........................................................ 668
9.8.5.8. TSG Control and Status Register(Default Value: 0x0000_0000) ................................................... 668
9.8.5.9. TSG Packet Parameter Register(Default Value: 0x0047_0000) .................................................... 669
9.8.5.10. TSG Interrupt Enable and Status Register(Default Value: 0x0000_0000) .................................. 670
9.8.5.11. TSG Clock Control Register(Default Value: 0x0000_0000) ......................................................... 671
9.8.5.12. TSG Buffer Base Address Register(Default Value: 0x0000_0000) ............................................... 671
9.8.5.13. TSG Buffer Size Register(Default Value: 0x0000_0000) .............................................................. 671
9.8.5.14. TSG Buffer Point Register(Default Value: 0x0000_0000) ........................................................... 672
9.8.5.15. TSF Control and Status Register(Default Value: 0x0000_0000).................................................. 672
9.8.5.16. TSF Packet Parameter Register(Default Value: 0x0047_0000) ................................................... 672
9.8.5.17. TSF Interrupt Enable and Status Register(Default Value: 0x0000_0000) ................................... 673
9.8.5.18. TSF DMA Interrupt Enable Register(Default Value: 0x0000_0000) ............................................ 674
9.8.5.19. TSF Overlap Interrupt Enable Register(Default Value: 0x0000_0000) ....................................... 674
9.8.5.20. TSF DMA Interrupt Status Register(Default Value: 0x0000_0000) ............................................. 674
9.8.5.21. TSF Overlap Interrupt Status Register(Default Value: 0x0000_0000) ........................................ 675
9.8.5.22. TSF PCR Control Register(Default Value: 0x0000_0000) ............................................................ 675
9.8.5.23. TSF PCR Data Register(Default Value: 0x0000_0000) ................................................................. 675
9.8.5.24. TSF Channel Enable Register(Default Value: 0x0000_0000) ...................................................... 676
9.8.5.25. TSF PES Enable Register(Default Value: 0x0000_0000) .............................................................. 676
9.8.5.26. TSF Channel Descramble Enable Register(Default Value: 0x0000_0000) .................................. 676
9.8.5.27. TSF Channel Index Register(Default Value: 0x0000_0000)......................................................... 676
9.8.5.28. TSF Channel Control Register(Default Value: 0x0000_0000) ..................................................... 677
9.8.5.29. TSF Channel Status Register(Default Value: 0x0000_0000) ....................................................... 677
9.8.5.30. TSF Channel CW Index Register(Default Value: 0x0000_0000) .................................................. 677
9.8.5.31. TSF Channel PID Register(Default Value: 0x1FFF_0000) ............................................................ 677
9.8.5.32. TSF Channel Buffer Base Address Register(Default Value: 0x0000_0000) ................................. 678
9.8.5.33. TSF Channel Buffer Size Register(Default Value: 0x0000_0000) ................................................ 678
9.8.5.34. TSF Channel Write Pointer Register(Default Value: 0x0000_0000) ............................................ 678
9.8.5.35. TSF Channel Read Pointer Register(Default Value: 0x0000_0000) ............................................. 679
9.8.5.36. TSD Control Register(Default Value: 0x0000_0000) ................................................................... 679
9.8.5.37. TSD Status Register(Default Value: 0x00000000) ....................................................................... 679
9.8.5.38. TSD Control Word Index Register(Default Value: 0x0000_0000) ............................................... 679
9.8.5.39. TSD Control Word Register(Default Value: 0x0000_0000) ......................................................... 680
Chapter 10 Electrical Characteristics ........................................................................................................................... 681
10.1. Absolute Maximum Ratings ............................................................................................................................. 682
10.2. Recommended Operating Conditions .............................................................................................................. 683
Table of Contents
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 30
10.3. DC Electrical Characteristics ............................................................................................................................. 683
10.4. ADC Electrical Characteristics ........................................................................................................................... 684
10.5. Oscillator Electrical Characteristics .................................................................................................................. 684
10.6. Maximum Current Consumption ..................................................................................................................... 685
10.7. External Memory AC Electrical Characteristics ................................................................................................ 686
10.7.1. Nand Flash AC Electrical Characteristics ............................................................................................... 686
10.7.2. SMHC AC Electrical Characteristics ....................................................................................................... 690
10.8. External Peripheral AC Electrical Characteristics.............................................................................................. 692
10.8.1. LCD AC Electrical Characteristics ........................................................................................................... 692
10.8.2. CSI AC Electrical Characteristics ............................................................................................................ 694
10.8.3. EMAC AC Electrical Characteristics ....................................................................................................... 695
10.8.4. CIR Receiver AC Electrical Characteristics ............................................................................................. 696
10.8.5. SPI AC Electrical Characteristics ............................................................................................................ 696
10.8.6. UART AC Electrical Characteristics ........................................................................................................ 697
10.8.7. TWI AC Electrical Characteristics ........................................................................................................... 698
10.8.8. TSC AC Electrical Characteristics ........................................................................................................... 699
10.8.9. SCR AC Electrical Characteristics ........................................................................................................... 700
10.9. Power-up and Power-down Sequence ............................................................................................................. 701
10.10. Package Thermal Characteristics .................................................................................................................... 702
Appendix ........................................................................................................................................................................... 704
Pin Map ..................................................................................................................................................................... 704
Package Dimension ................................................................................................................................................... 705
Figures
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 31
Figures
Figure 2-1. H5 Block Diagram .............................................................................................................................................. 51
Figure 4-1. Normal Mode Boot Process .............................................................................................................................. 83
Figure 4-2. Security Mode Boot Process ............................................................................................................................. 84
Figure 4-3. CPU-0+ Boot Process......................................................................................................................................... 85
Figure 4-4. CPU Hot Plug Process ........................................................................................................................................ 86
Figure 4-5. Super Standby Wakeup Process ....................................................................................................................... 86
Figure 4-6. Mandatory Upgrade Process ............................................................................................................................ 87
Figure 4-7. Fast Boot Normal Process ................................................................................................................................. 88
Figure 4-8. Fast Boot Security Process ................................................................................................................................ 89
Figure 4-9. System Bus Tree ................................................................................................................................................ 91
Figure 4-10. Bus Clock Tree ................................................................................................................................................. 92
Figure 4-11. CPU CFG Block Diagram ................................................................................................................................ 152
Figure 4-12. Timer Block Diagram ..................................................................................................................................... 165
Figure 4-13. TWD Block Diagram ...................................................................................................................................... 176
Figure 4-14. HSTimer Function Structure and Work Flow ................................................................................................ 195
Figure 4-15. PWM Block Diagram ..................................................................................................................................... 200
Figure 4-16. DMA Block Diagram ...................................................................................................................................... 205
Figure 4-17. Message Box Block Diagram ......................................................................................................................... 231
Figure 4-18. Message Box Typical Application Chart ........................................................................................................ 232
Figure 4-19. Spinlock Typical Application Flow Chart ....................................................................................................... 243
Figure 4-20. Spinlock Lock Register State Diagram ........................................................................................................... 243
Figure 4-21. CE Block Diagram .......................................................................................................................................... 248
Figure 4-22. Crypto Engine Task Chaining ......................................................................................................................... 249
Figure 4-23. DRM Block Diagram ...................................................................................................................................... 259
Figure 4-24. Thermal Sensor Block Diagram ..................................................................................................................... 276
Figure 4-25. Thermal Conversion Phase ........................................................................................................................... 277
Figure 4-26. KEYADC Block Diagram ................................................................................................................................. 284
Figure 4-27. KEYADC Converted Data Diagram ................................................................................................................. 285
Figure 5-1. NDFC Block Diagram ....................................................................................................................................... 334
Figure 5-2. Conventional Serial Access Cycle Diagram (SAM0) ......................................................................................... 336
Figure 5-3. EDO Type Serial Access after Read Cycle (SAM1) ........................................................................................... 336
Figure 5-4. Extending EDO Type Serial Access Mode (SAM2) ........................................................................................... 337
Figure 5-5. Command Latch Cycle ..................................................................................................................................... 337
Figure 5-6. Address Latch Cycle ........................................................................................................................................ 338
Figure 5-7. Write Data to Flash Cycle ................................................................................................................................ 338
Figure 5-8. Waiting R/B# Ready Diagram .......................................................................................................................... 339
Figure 5-9. WE# High to RE# Low Timing Diagram ........................................................................................................... 339
Figure 5-10. RE# High to WE# Low Timing Diagram ......................................................................................................... 340
Figure 5-11. Address to Data Loading Timing Diagram ..................................................................................................... 340
Figures
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 32
Figure 5-12. Page Read Command Diagram ..................................................................................................................... 341
Figure 5-13. Page Program Diagram ................................................................................................................................. 342
Figure 5-14. EF-NAND Page Read Diagram ....................................................................................................................... 342
Figure 5-15. Interleave Page Read Diagram ...................................................................................................................... 343
Figure 5-16. SMHC Block Diagram .................................................................................................................................... 366
Figure 6-1. CSI Block Diagram ........................................................................................................................................... 401
Figure 6-2. CCI Block Diagram ........................................................................................................................................... 401
Figure 6-3. 8/10/12-bit CMOS Sensor Interface Timing .................................................................................................... 402
Figure 6-4. 8-bit YCbCr4:2:2 with Embedded Syncs(BT656) Timing ................................................................................. 402
Figure 7-1. Display System Block Diagram ........................................................................................................................ 421
Figure 7-2. TCON Block Diagram ....................................................................................................................................... 423
Figure 8-1. Audio Codec Block Diagram ............................................................................................................................ 444
Figure 8-2. Audio Codec Clock Sources ............................................................................................................................. 445
Figure 8-3. Audio Codec Analog Reset System ................................................................................................................. 445
Figure 8-4. Audio Codec Digital Reset System .................................................................................................................. 446
Figure 8-5. Audio Codec Power Domain ........................................................................................................................... 446
Figure 8-6. Audio Codec Analog Register Diagram ........................................................................................................... 490
Figure 8-7. I2S/PCM Interface System Block Diagram ...................................................................................................... 502
Figure 8-8. I2S/TDM-I2S Mode Timing .............................................................................................................................. 503
Figure 8-9. Left-Justified/TDM-Left Mode Timing ............................................................................................................ 504
Figure 8-10. Right-Justified/TDM-Right Mode Timing ...................................................................................................... 504
Figure 8-11. OWA Block Diagram ...................................................................................................................................... 522
Figure 8-12. Sub-Frame Format ........................................................................................................................................ 523
Figure 8-13. Frame/Block Format ..................................................................................................................................... 524
Figure 8-14. Biphase-Mark Encoding ................................................................................................................................ 524
Figure 9-1. TWI Timing Diagram ....................................................................................................................................... 535
Figure 9-2. SPI Block Diagram ........................................................................................................................................... 543
Figure 9-3. SPI Phase 0 Timing Diagram ............................................................................................................................ 545
Figure 9-4. SPI Phase 1 Timing Diagram ............................................................................................................................ 546
Figure 9-5. UART Block Diagram ....................................................................................................................................... 563
Figure 9-6. UART Serial Data Format ................................................................................................................................ 564
Figure 9-7. USB OTG Controller Block Diagram ................................................................................................................ 588
Figure 9-8. USB Host Controller Block Diagram ................................................................................................................ 589
Figure 9-9. SCR Block Diagram .......................................................................................................................................... 627
Figure 9-10. SCIO Pad Configuration Diagram .................................................................................................................. 629
Figure 9-11. EMAC Block Diagram .................................................................................................................................... 640
Figure 9-12. EMAC RX/TX Descriptor List .......................................................................................................................... 641
Figure 9-13. TSC Block Diagram ........................................................................................................................................ 660
Figure 9-14. Input Timing for SPI Mode ............................................................................................................................ 661
Figure 9-15. Alternative Input Timing for SPI Mode ......................................................................................................... 662
Figure 9-16. Alternative Input Timing for SSI Mode ......................................................................................................... 662
Figure 10-1. Conventional Serial Access Cycle Timing (SAM0) ......................................................................................... 686
Figure 10-2. EDO Type Serial Access after Read Cycle Timing (SAM1) ............................................................................. 686
Figure 10-3. Extending EDO Type Serial Access Mode Timing (SAM2) ............................................................................. 687
Figure 10-4. Command Latch Cycle Timing ....................................................................................................................... 687
Figure 10-5. Address Latch Cycle Timing........................................................................................................................... 688
Figures
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 33
Figure 10-6. Write Data to Flash Cycle Timing .................................................................................................................. 688
Figure 10-7. Waiting R/B# Ready Timing .......................................................................................................................... 688
Figure 10-8. WE# High to RE# Low Timing ........................................................................................................................ 689
Figure 10-9. RE# High to WE# Low Timing ........................................................................................................................ 689
Figure 10-10. Address to Data Loading Timing ................................................................................................................. 689
Figure 10-11. SMHC in SDR Mode Output Timing ............................................................................................................ 690
Figure 10-12. SMHC in SDR Mode Input Timing ............................................................................................................... 691
Figure 10-13. HV_IF Interface Vertical Timing .................................................................................................................. 692
Figure 10-14. HV_IF Interface Parallel Mode Horizontal Timing ...................................................................................... 693
Figure 10-15. HV_IF Interface Serial Mode Horizontal Timing ......................................................................................... 693
Figure 10-16. Data Sample Timing .................................................................................................................................... 694
Figure 10-17. MII Interface Transmit Timing .................................................................................................................... 695
Figure 10-18. MII Interface Receive Timing ...................................................................................................................... 695
Figure 10-19. CIR Receiver Timing .................................................................................................................................... 696
Figure 10-20. SPI MOSI Timing .......................................................................................................................................... 696
Figure 10-21. SPI MISO Timing .......................................................................................................................................... 697
Figure 10-22. UART RX Timing .......................................................................................................................................... 697
Figure 10-23. UART nCTS Timing ....................................................................................................................................... 698
Figure 10-24. UART nRTS Timing ....................................................................................................................................... 698
Figure 10-25. TWI Timing .................................................................................................................................................. 698
Figure 10-26. TSC Data and Clock Timing .......................................................................................................................... 699
Figure 10-27. SCR Activation and Cold Reset Timing ........................................................................................................ 700
Figure 10-28. SCR Warm Reset Timing ............................................................................................................................. 700
Figure 10-29. Power On Sequence .................................................................................................................................... 702
Tables
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 34
Tables
Table 3-1. Pin Characteristics .............................................................................................................................................. 54
Table 4-1. PLLs Typical Applications .................................................................................................................................... 92
Table 4-2. DMA DRQ Table ............................................................................................................................................... 205
Table 4-3. Master and Master ID ...................................................................................................................................... 259
Table 4-4. Region Size ....................................................................................................................................................... 260
Table 4-5. Region Security Permissions when Security Inversion Disabled ...................................................................... 260
Table 4-6. Region Security Permissions when Security Inversion Enabled ....................................................................... 261
Table 4-7. SPC Configuration Table ................................................................................................................................... 271
Table 4-8. KEYADC External Signals................................................................................................................................... 285
Table 4-9. KEYADC Clock Sources ...................................................................................................................................... 285
Table 5-1. NDFC External Signals ...................................................................................................................................... 334
Table 5-2. NDFC Clock Sources ......................................................................................................................................... 335
Table 5-3. SMHC External Signals...................................................................................................................................... 367
Table 5-4. SMHC Clock Sources ......................................................................................................................................... 367
Table 6-1. CSI FIFO Distribution ........................................................................................................................................ 402
Table 8-1. Audio Codec External Signals ........................................................................................................................... 444
Table 8-2. I2S/PCM External Signals ................................................................................................................................. 502
Table 8-3. I2S/PCM Clock Sources..................................................................................................................................... 503
Table 8-4. OWA External Signals ....................................................................................................................................... 523
Table 8-5. OWA Clock Sources .......................................................................................................................................... 523
Table 9-1. TWI External Signals ......................................................................................................................................... 534
Table 9-2. TWI Clock Sources ............................................................................................................................................ 535
Table 9-3. SPI External Signals .......................................................................................................................................... 544
Table 9-4. SPI Clock Sources .............................................................................................................................................. 544
Table 9-5. SPI Transmit Format ......................................................................................................................................... 545
Table 9-6. SPI Sample Mode and Run Clock ...................................................................................................................... 547
Table 9-7. UART External Signals ...................................................................................................................................... 563
Table 9-8. UART Clock Sources.......................................................................................................................................... 564
Table 9-9. SCR External Signals ......................................................................................................................................... 627
Table 9-10. EMAC External Signals .................................................................................................................................... 640
Table 9-11. TSC External Signals ....................................................................................................................................... 660
Table 9-12. TSC Clock Sources ........................................................................................................................................... 661
Table 10-1. Absolute Maximum Ratings ........................................................................................................................... 682
Table 10-2. Recommended Operating Conditions ............................................................................................................ 683
Table 10-3. DC Electrical Characteristics ........................................................................................................................... 683
Table 10-4. KEYADC Electrical Characteristics .................................................................................................................. 684
Table 10-5. 24MHz Crystal Characteristics ....................................................................................................................... 684
Table 10-6. 32768Hz Crystal Characteristics ..................................................................................................................... 685
Table 10-7. Maximum Current Consumption ................................................................................................................... 685
Table 10-8. NAND Timing Constants ................................................................................................................................. 690
Tables
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 35
Table 10-9. SMHC Timing Constants ................................................................................................................................. 691
Table 10-10. LCD HV_IF Interface Timing Constants ......................................................................................................... 693
Table 10-11. CSI Interface Timing Constants .................................................................................................................... 694
Table 10-12. 100Mb/s MII Transmit Timing Constants..................................................................................................... 695
Table 10-13. 100Mb/s MII Receive Timing Constants ...................................................................................................... 695
Table 10-14. CIR Receiver Timing Constants ..................................................................................................................... 696
Table 10-15. SPI Timing Constants .................................................................................................................................... 697
Table 10-16. UART Timing Constants ................................................................................................................................ 698
Table 10-17. TWI Timing Constants .................................................................................................................................. 699
Table 10-18. TSC Timing Constants ................................................................................................................................... 699
Table 10-19. SCR Timing Constants ................................................................................................................................... 700
Table 10-20. H5 Thermal Resistance Characteristics ........................................................................................................ 702
About This Documentation
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 36
Chapter 1 About This Documentation
1.1. Purpose
This documentation provides a oeall desiptio of the Allies H appliatio poesso, hih desies the
overview, features, logical structures ,functions and register listings of each module. The documentation also describes
pin/signal characteristics, operating modes, current consumption, the interface timing and package. The documentation
is intended to be used by board-level product designers and product hardware/software developers. This
documentation assumes that the reader has a background in computer engineering and/or hardware designing and/or
software engineering.
1.2. Acronyms and Abbreviations
The table below contains acronyms and abbreviations used in this documentation.
AES
Advanced Encryption Standard
ADC
Analog-to-Digital Converter
AGC
Automatic Gain Control
AHB
AMBA High-speed Bus
APB
Advanced Peripheral Bus
ARM
Advanced RISC Machine
AVS
Audio Video Standard
CIR
Consumer Infrared
CP15
Coprocessor 15
CPU
Central Processing Unit
CRC
Cyclic Redundancy Check
CSI
Camera Serial Interface
CVBS
Composite Video Broadcast Signal
DES
Data Encryption Standard
DLL
Delay-Locked Loop
DMA
Direct Memory Access
DRC
Dynamic Range Compression
About This Documentation
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 37
DSI
MIPI Display Serial Interface
DVFS
Dynamic Voltage and Frequency Scaling
ECC
Error Correction Code
eFuse
Electrical Fuse, A one-time programmable memory
EHCI
Enhanced Host Controller Interface
eMMC
Embedded Multi-Media Card
ESD
Electrostatic Discharge
FBGA
Fine Ball Grid Array
FIFO
First In First Out
GIC
Generic Interrupt Controller
GMII
Gigabit Media Independent Interface
GPIO
General Purpose Input Output
GPU
Graphics Processing Unit
HDCP
High-bandwidth Digital Content Protection
HDMI
High-Definition Multimedia Interface
I2C
Inter Integrated Circuit
I2S
Inter IC Sound
JEDEC
Joint Electron Device Engineering Council
JPEG
Joint Photographic Experts Group
JTAG
Joint Test Action Group
KEYADC
Analog to Digital Converter for Key
LCD
Liquid-Crystal Display
LSB
Least Significant Bit
LVDS
Low Voltage Differential Signaling
MAC
Media Access Control
MII
Media Independent Interface
MIPI
Mobile Industry Processor Interface
MIPI DSI
MIPI Display Serial Interface
MMC
Multimedia Card
MPEG
Motion Pictures Expert Group
MPEG1
The First MPEG Compression Scheme Specification
MPEG4
The Most Current MPEG Compression Scheme Specification
MSB
Most Significant Bit
N/A
Not Application
NMI
Non Maskable Interrupt
NTSC
National Television Standards Committee
OHCI
Open Host Controller Interface
OWA
One Wire Audio
PAL
Phase Alternating Line
PCM
Pulse Code Modulation
PHY
Physical Layer Controller
PID
Packet Identifier
PLL
Phase-Locked Loop
PWM
Pulse Width Modulation
R
Read only/non-Write
About This Documentation
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 38
RGB
Read Green Blue
RMII
Reduced Media Independent Interface
ROM
Read Only Memory
RTC
Real Time Clock
R/W
Read/Write
R/WAC
Read/Write-Automatic-Clear,clear the bit automatically when the operation of
complete.Writing 0 has no effect
R/WC
Read/Write-Clear
R/W0C
Read/Write 0 to Clear, Writing 1 has non-effect
R/W1C
Read/Write 1 to Clear, Writing 0 has non-effect
R/W1S
Read/Write 1 to Set, Writing 0 has non-effect
SDIO
Secure Digital Input Output
SDRAM
Sychronous Dynamic Random Access Memory
SOC
System On Chip
SPI
Serial Peripheral Interface
S/PDIF
Sony/Philips Digital Interface Format
SRAM
Static Random Access Memory
TWI
Two Wire Interface
UART
Universal Asynchronous Receiver Transmitter
UDF
Undefined
USB OTG
Universal Serial Bus On The Go
UTMI
USB2.0 Transceiver Macrocell Interface
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 39
Chapter 2 Overview
This part describes the overview for H5 processor.
Processor Overview
Processor Features
System Block Diagram
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 40
2.1. Processor Overview
The Allwinner H5 is a highly cost-efficient quad-core OTT Box processor, which is a part of growing home entertainment
products that offer high-performance processing with a high degree of functional integration.
The H5 processor has some very exciting features, for example:
• CPU: Quad-core ARM CortexTM-A53 Processor, a power-efficient ARM v8 architecture, it has 64 and 32bit execution
states for scalable high performance ,which includes a NEON multimedia processing engine.
• Graphics: The hexa-core ARM Mali450 GPU including dual Geometry Processors(GP) and quad Pixel
Processors(PP), provides users with superior experience in video playback and mainstream game; OpenGL ES2.0 and
OpenVG1.1 standards are supported.
• Video Engine: H5 provides multi-format high-definition video encoder/decoder with dedicated hardware,
including H.265 decoder by 4K@30fps , H.264 decoder by 4K@30fps, MPEG1/2/4 decoder by 1080p@60fps, VP8/AVS
jizhun decoder by 1080p@60fps, VC1 decoder by 1080p@30fps, H.264 encoder by 1080p@60fps.
• Display Subsystem: Supports DE2.0 for excellent display experience, and two display interfaces for HDMI1.4 and
CVBS display.
• Memory Controller: The processor supports many types of external memory devices, including DDR3/DDR3L,
NAND Flash(MLC,SLC,TLC,EF),Nor Flash, SD/SDIO/MMC including eMMC up to rev5.1.
• Security System: The processor delivers hardware security features that enable trustzone security system, Digital
Rights Management(DRM) , information encryption/decryption, secure boot, secure JTAG and secure efuse.
• Interfaces: The processor has a broad range of hardware interfaces such as parallel CMOS sensor interface,
10/100/1000Mbps EMAC with FE PHY, USB OTG v2.0 operating at high speed(480Mbps) with PHY, USB Host with PHY
and a variety of other popular interfaces(SPI,UART,CIR,TSC,TWI,SCR).
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 41
2.2. Processor Features
2.2.1. CPU Architecture
Quad-core ARM CortexTM-A53 MPCoreTM Processor
Thumb-2 Technology
Supports NEON Advanced SIMD(Single Instruction Multiple Data)instruction for acceleration of media and signal
processing functions
Supports Large Physical Address Extensions(LPAE)
VFPv4 Floating Point Unit
Independent 32KB L1 Instruction cache and 32KB L1 Data cache
Shared 512KB L2-cache
2.2.2. GPU Architecture
Hexa-core ARM Mali450 GPU
Dual Geometry Processors with 32KB L2 cache
Quad Pixel Processors with 128KB L2 cache
Concurrent multi-core processing
3000Mpix/sec and 163Mtri/sec
Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage
OpenGL ES 1.1/2.0 and OpenVG 1.1 support
2.2.3. Memory Subsystem
2.2.3.1. Boot ROM
On chip ROM
Supports secure and non-secure access boot
Supports system boot from the following devices:
- NAND Flash
- SD/TF card
- eMMC
- Nor Flash
• Supports system code download through USB OTG
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 42
2.2.3.2. SDRAM
Compatible with JEDEC standard DDR3/DDR3L SDRAM
Supports clock frequency up to 667MHz(DDR3-1333)
32-bit bus width
Up to 3GB address space
Supports 2 chip selects
16 address signal lines and 3 bank signal lines
Supports Memory Dynamic Frequency Scale(MDFS)
Random read or write operation is supported
2.2.3.3. NAND Flash
Compliant with ONFI 2.3 and Toggle 1.0
Up to 2 flash chips
8-bit data bus width
Up to 64-bit ECC per 1024 bytes
Supports 1024, 2048, 4096, 8192, 16K bytes size per page
Supports SLC/MLC/TLC flash and EF-NAND memory
Supports SDR, ONFI DDR and Toggle DDR NAND
Embedded DMA to do data transfer
Supports data transfer together with normal DMA
2.2.3.4. SMHC
Up to 3 SD/MMC host controller(SMHC) interfaces
Complies with eMMC standard specification V5.1, SD physical layer specification V3.0, SDIO card specification V3.0
1-bit or 4-bit data bus transfer mode for SD/TF cards up to 50MHz in SDR mode
1-bit or 4-bit data bus transfer mode for connecting to an external Wi-Fi module up to 150MHz in SDR mode and
50MHz in DDR mode
1-bit ,4-bit or 8-bit data bus transfer mode for MMC cards up to 150MHz in SDR mode or 100MHz in DDR mode
Supports block size of 1 to 65535 bytes
Embedded special DMA to do data transfer
Supports hardware CRC generation and error detection
2.2.4. System Peripheral
2.2.4.1. Timer
2 on-chip Timers with interrupt-based operation
1 watchdog to generate reset signal or interrupt
Two 33-bit Audio/Video Sync(AVS) Counter to synchronize video and audio in the player
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 43
2.2.4.2. High Speed Timer
1 High Speed Timer with 56-bit counter
56-bit counter that can be separated to 24-bit high register and 32-bit low register
Clock source is synchronized with AHB clock, much more accurate than other timers
2.2.4.3. RTC
Time,calendar
Counters second,minutes,hours,day,week,month and year with leap year generator
Alarm:general alarm and weekly alarm
One 32KHz fanout
2.2.4.4. GIC
Supports 16 Software Generated Interrupts(SGIs), 16 Private Peripheral Interrupts(PPIs) and 125 Shared Peripheral
Interrupts(SPIs)
2.2.4.5. DMA
Up to 12-channel DMA
Interrupt generated for each DMA channel
Transfers data width of 8/16/32/64-bit
Supports linear and IO address modes
Programs the DMA burst size
Supports data transfer types with memory-to-memory, memory-to-peripheral, peripheral-to-memory
2.2.4.6. CCU
9 PLLs
Supports an external 24MHz crystal oscillator and an on-chip 16MHz RC oscillator
Supports clock configuration and clock generated for corresponding modules
Supports software-controlled clock gating and software-controlled reset for corresponding modules
2.2.4.7. PWM
Supports outputting two kinds of waveform: continuous waveform and pulse waveform
0% to 100% adjustable duty cycle
Up to 24MHz output frequency
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 44
2.2.4.8. Thermal Sensor
Temperature Accuracy : ±3℃ from 0℃ to +100℃, ±5℃ from -20℃ to +125℃
Supports over-temperature protection interrupt and over-temperature alarm interrupt
Averaging filter for thermal sensor reading
2 temperature-sensing cell embedded :sensor0 for CPU,sensor1 for GPU
2.2.4.9. KEYADC
Analog to digital converter with 6-bit resolution for key application
Maximum sampling frequency up to 250 Hz
Supports general key, hold key and already hold key
Supports single , normal and continuous work mode
2.2.4.10. Message Box
Two users for Message Box instance
Eight Message Queues for the MSGBox instance
Each of Queues could be configured as transmitter or receiver for user
Two interrupts for the MSGBox instance
Register polling for the MSGBox instance
32-bit message width
Four-message FIFO depth for each message queue
2.2.4.11. Spinlock
32 spinlocks
Two kinds of status of lock register: TAKEN and NOT TAKEN
2.2.4.12. Crypto Engine(CE)
Supports symmetrical algorithm: AES, DES, TDES
Supports hash algorithm:SHA-1/SHA-224/SHA-256,MD5,HMAC
Supports 160-bit hardware PRNG with 175-bit seed
Supports 256-bit TRNG
Supports ECB,CBC, CTR, CTS modes for AES
Supports ECB, CBC, CTR modes for DES
Supports ECB, CBC, CTR modes for TDES
128-bit, 192-bit and 256-bit key size for AES
Embedded special DMA to do data transfer
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 45
2.2.4.13. Security ID(SID)
Supports 2K-bit EFUSE for chip ID and security application
2.2.4.14. CPU Configuration
Configure related CPU parameters, including power on, reset, cache, debug, and check the status of CPU
One 64-bit common counter
2.2.5. Display Subsystem
2.2.5.1. DE2.0
Output size up to 4096x4096
Supports four alpha blending channel for main display, two channel for aux display
Supports four overlay layers in each channel, and has a independent scaler
Supports potter-duff compatible blending operation
Supports input format YUV422/YUV420/YUV411/ARGB8888/XRGB8888/RGB888/ARGB4444/ARGB1555 and
RGB565
Supports Frame Packing/Top-and-Bottom/Side-by-Side Full/Side-by-Side Half 3D format data
Supports SmartColor 2.0 for excellent display experience
- Adaptive edge sharping
- Adaptive color enhancement
- Adaptive contrast enhancement and fresh tone rectify
Supports writeback for high efficient dual display
2.2.5.2. Display Output
Supports HDMI V1.4 output up to 4K@30fps
- Compatible with HDMI 1.4 specification
- Compatible with HDCP 1.2 for HDMI
- Supports EDID block read by DDC
- Supports HPD
- Integrated CEC hardware
- Supports TMDS clock from 27MHz to 297MHz
- Supports RGB888,YUV444 video formats with only 8bit color depth
4K@30Hz
1920 x 1080p@50/60Hz
1920 x 1080p@24Hz
1920 x 1080i@50/60Hz
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 46
1280 x 720p@50/60Hz
720 x 480p@60Hz
720 x 576p@50Hz
3D Frame Packing 1920 x 1080p@24Hz
- Supports L-PCM audio format
Up to 192KHz IEC-60958 audio sampling rate
Maximum 24bit, 8 channel
- Supports IEC-61937 compressed audio format
Supports TV CVBS output
- Standard NTSC-M and PAL-B,D,G,H,I output
- Plug status auto detecting
2.2.6. Video Engine
2.2.6.1. Video Decoder
Supports multi-format video playback, including:
- H.265 MP/L5.0: 4K@30fps
- H.264 BP/MP/HP Level4.2: 4K@30fps
- H.263 BP: 1080p@60fps
- MPEG1 MP/HL: 1080p@60fps
- MPEG2 MP/HL: 1080p@60fps
- MPEG4 SP/ASP L5: 1080p@60fps
- Sorenson Spark: 1080p@60fps
- VP8 N/A: 1080p@60fps
- VC1 SP/MP/AP: 1080p@30fps
- AVS/AVS+ jizhun: 1080p@60fps
- xvid N/A: 1080p@60fps
- MJPEG: 1080p@30fps
Supports 1080p blu-ray 3D
Supports 3D size:3840x1080,1920x2160
Supports decoding output format:YV12
2.2.6.2. Video Encoder
Supports H.264 video encoder up to 1080p@60fps
Supports input picture size up to 4800x4800
Supports input format: tiled (128x32)/YU12/YV12/NU12/NV12/ARGB/YUYV
Supports Alpha blending
Supports thumb generation
Supports 4x2 scaling ratio: from 1/16 to 64 arbitrary non-integer ratio
Supports rotated input
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 47
2.2.7. Image Subsystem
2.2.7.1. CSI
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Up to 5M pixel camera sensor
Supports video capture resolution up to 1080p@30fps
2.2.8. Audio Subsystem
2.2.8.1. Audio Codec
Two audio digital-to-analog(DAC) channels
- 100 ± 3 dB SNR@A-weight
- Supports ADC sample rate from 8 KHz to 192 KHz
Two audio analog-to-digital(ADC) channels
- 93 ± 3 dB SNR@A-weight
- Supports ADC sample rate from 8 KHz to 48 KHz
Supports analog/ digital volume control
Supports Dynamic Range Controller(DRC) adjusting the DAC playback output
Supports Dynamic Range Control(DRC) adjusting the ADC recording input
Three audio inputs:
- Two differential microphone inputs
- One stereo Line-in L/R channel input
One audio output: Stereo line-out L/R channel output
2.2.8.2. I2S/PCM
2 I2S/PCM controllers
Compliant with standard Inter-IC sound(I2S) bus specification
Compliant with left-justified, right-justified, PCM mode, and TDM(Time Division Multiplexing) format
Supports 8-channel in TDM mode
Full-duplex synchronous work mode
Mater and slave mode configured
Clock up to 100 MHz
Adjustable audio sample resolution from 8-bit to 32-bit
Sample rate from 8 KHz to 192 KHz
Supports 8-bit u-law and 8-bit A-law companded sample
Supports programmable PCM frame width:1 BCLK width(short frame) and 2 BCLKs width(long frame)
One 128 depth x 32-bit width FIFO for data transmit, one 64 depth x 32-bit width FIFO for data receive
Programmable FIFO thresholds
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 48
2.2.8.3. One Wire Audio(OWA)
IEC-60958 transmitter functionality
Compliance with S/PDIF Interface
Supports channel status insertion for the transmitter
Hardware parity generation on the transmitter
One 32×24 bits FIFO (TX) for audio data transfer
Programmable FIFO thresholds
2.2.9. External Peripherals
2.2.9.1. USB
One USB 2.0 OTG,with integrated USB PHY
- Complies with USB2.0 Specification
- Supports High-Speed (HS,480Mbps),Full-Speed(FS,12Mbps) and Low-Speed(LS,1.5Mbps) in host mode
- Complies with Enhanced Host Controller Interface(EHCI)Specification, Version 1.0, and the Open Host
Controller Interface(OHCI) Specification, Version 1.0a for host mode
- Up to 8 User-Configurable Endpoints in device mode
- Supports point-to-point and point-to-multipoint transfer in both host and peripheral mode
Three USB Host, with integrated USB PHY
- Complies with Enhanced Host Controller Interface(EHCI)Specification, Version 1.0, and the Open Host
Controller Interface(OHCI) Specification, Version 1.0a.
2.2.9.2. Ethernet
Integrated an internal 10/100M PHY
Supports 10/100/1000Mbps data transfer rate
Supports MII/RGMII/RMII interface
Supports full-duplex and half-duplex operation
Programmable frame length
Automatic CRC and pad generation controllable on a per-frame basis
Options for Automatic Pad/CRC Stripping on receive frames
Programmable frame length to support Standard or Jumbo Ethernet frames with sizes up to 16 KB
Programmable Inter Frame Gap (40-96 bit times in steps of 8)
Supports a variety of flexible address filtering modes
2.2.9.3. CIR
A flexible receiver for IR remote
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 49
Programmable FIFO threshold
2.2.9.4. UART
Up to 5 UART controllers, one UART for CPUx debug, one UART for CPUs debug, others for UART applications
UART0: 2-wire; UART1/2/3: 4-wire; S_UART: 2-wire
Compliant with industry-standard 16450 and 16550 UARTs
Supports word length from 5 to 8 bits, an optional parity bit and 1,1.5 or 2 stop bits
Programmable parity(even, odd and no parity)
64-byte Transmit and receive data FIFOs for all UART
2.2.9.5. SPI
Up to 2 SPI controllers
Full-duplex synchronous serial interface
Master/Slave configurable
Mode0~3 are supported for both transmit and receive operations
Two 64-byte FIFO for SPI-TX and SPI-RX operation
DMA-based or interrupt-based operation supported
Polarity and phase of the chip select(SPI_SS) and SPI_Clock(SPI_SCLK) are configurable
The maximum frequency is 100MHz
Supports single and dual read mode
2.2.9.6. TWI
Up to 4 TWI(Two Wire Interface) controllers
Supports Standard mode(up to 100K bps) and Fast mode(up to 400K bps)
Master/Slave configurable
Allows 10-bit addressing transactions
Perform arbitration and clock synchronization
Allows operation from a wide range of input clock frequencies
2.2.9.7. TSC
Up to 4 TSC(Transport Stream Controller)
Compliant with the industry-standard AMBA Host Bus(AHB) Specification, Revision 2.0.Supports 32-bit Little
Endian bus
Supports DVB-CSA V1.1 Descrambler
One external Synchronous Parallel Interface(SPI) or one external Synchronous Serial Interface(SSI)
Configurable SPI and SSI timing parameters
Hardware packet synchronous byte error detecting
Hardware PCR packet detecting
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 50
2.2.9.8. SCR
Up to 2 SCR(Smart Card Reader) controllers
Supports APB slave interface for easy integration with AMBA-based host systems
Supports the ISO/IEC 7816-3:1997(E) and EMV2000 (4.0) Specifications
Supports adjustable clock rate and bit rate
Configurable automatic byte repetition
Supports asynchronous half-duplex character transmission and block transmission
Supports synchronous and any other non-ISO 7816 and non-EMV cards
Performs functions needed for complete smart card sessions, including:
- Card activation and deactivation
- Cold/warm reset
- Answer to Reset (ATR) response reception
- Data transfers to and from the card
2.2.10. Package
FBGA 347 balls, 0.65mm ball pitch, 14mm x 14mm
Overview
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 51
2.3. System Block Diagram
Figure 2-1 shows the block diagram of H5 processor.
Display out
CVBS output
PAL/NTSC mode
Encoder
H.264 1080p@60fps
External Memory
DDR3/DDR3L
32-bit bus
8-bit NDFC
with 64-bit ECC
SD3.0/eMMC5.1
1/4/8-bit bus
System
GIC
CCU
Thermal Sensor
Timer
DMA
KEYADC
Connectivity
TWI x4
SPI x2
UART x5
Audio
Audio Codec
DE2.0
HDMI 1.4
4K@30fps
PWM
8-bit Parallel CSI
5M pixel
1080p@30fps
I2S/PCM x 2
OWA output
Video Engine SDIO3.0
Hexa-core
ARM Mali450 GPU
ARM Cortex-A53 Quad-core
Decoder
H.265 4K@30fps
CIR Rx
SCR x2
TSC x4
USB HOST x3
USB2.0 OTG
I cache
32KB
D cache
32KB
NEON
SIMD
Thumb-2
/FPU
512KB L2 cache
Security System
SID
Crypto Engine
Security Boot
TrustZone
10/100/1000M EMAC
Ethernet
10/100M FE PHY
Figure 2-1. H5 Block Diagram
Pin Description
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 52
Chapter 3 Pin Description
This part details the H5 pin description from the following aspects:
Pin Characteristics
Signal Descriptions
Pin Description
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 53
3.1. Pin Characteristics
Table 3-1 lists the characteristics of H5 Pins from seven aspects: BALL#, Pin Name, Default Function, Type, Reset State,
Default Pull Up/Down, and Buffer Strength.
(1).Ball# : Package ball numbers associated with each signals.
(2).Pin Name : The name of the package pin.
(3).Signal Name : The signal name for that pin in the mode being used.
(4).Function : Multiplexing function number.
(5).Ball Reset Rel. Function : The function is automatically configured after RESET from low to high.
(6).Type : Denotes the signal direction
I (Input),
O (Output),
I/O(Input / Output),
OD(Open-Drain),
A (Analog),
AI(Analog Input),
AO(Analog Output),
A I/O(Analog Input/Output),
P (Power),
G (Ground)
(7).Ball Reset State : The state of the terminal at reset.
Z(High-impedance)
(8).Pull Up/Down : Denotes the presence of an internal pull-up or pull-down resistor. Pull-up(PU) and Pull-down(PD)
resistors can be enabled or disabled via software.
(9).Buffer Strength : Defines drive strength of the associated output buffer.
(10).Power Supply : The oltage suppl fo the teials IO uffes.
Pin Description
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 72
3.2. Signal Descriptions
H5 contains many peripheral interfaces. Many of the interfaces can multiplex up to eight functions. Pin-multiplexing
configuration can refer to Table 3-1. Table 3-2 shows the detailed function description of every signal based on the
different interface.
(1).Signal Name: The name of every signal.
(2).Description: The detailed function description of every signal.
(3).Type: Denotes the signal direction:
I (Input),
O (Output),
I/O(Input/Output),
OD(Open-Drain),
A (Analog),
AI(Analog Input),
AO(Analog Output),
A I/O(Analog Input/Output),
P (Power),
G (Ground)
Table 3-2. Signal Descriptions
Pin/Signal Name
Description
Type
DRAM
SDQ[31:0]
DRAM Bidirectional Data Line to the Memory Device
I/O
SDQS[3:0]
DRAM Active-High Bidirectional Data Strobes to the Memory Device
I/O
SDQSB[3:0]
DRAM Active-Low Bidirectional Data Strobes to the Memory Device
I/O
SDQM[3:0]
DRAM Data Mask Signal to the Memory Device
O
SCK
DRAM Active-High Clock Signal to the Memory Device
O
SCKB
DRAM Active-Low Clock Signal to the Memory Device
O
SCKE[1:0]
DRAM Clock Enable Signal to the Memory Device for Two Chip Select
O
SA[15:0]
DRAM Address Signal to the Memory Device
O
SWE
DRAM Write Enable Strobe to the Memory Device
O
SCAS
DRAM Column Address Strobe to the Memory Device
O
SRAS
DRAM Row Address Strobe to the Memory Device
O
SCS[1:0]
DRAM Chip Select Signal to the Memory Device
O
SBA[2:0]
DRAM Bank Address Signal to the Memory Device
O
SODT[1:0]
DRAM On-Die Termination Output Signal for Two Chip Select
O
SRST
DRAM Reset Signal to the Memory Device
O
SZQ
DRAM ZQ Calibration
AI
SVREF
DRAM Reference Input
P
Pin Description
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 73
Pin/Signal Name
Description
Type
VCC-DRAM
DRAM Power Supply
P
System
UBOOT
UBOOT Mode Select
I
TEST
TEST Signal
I
NMI
Non-Maskable Interrupt
I
RESET
Reset Signal
I/O
JTAG-SEL0
JTAG Mode Select 0
I
JTAG-SEL1
JTAG Mode Select 1
I
PLL&Clock
X32KFOUT
32KHz Clock Fanout
AOD
X32KIN
Clock Input Of 32KHz Crystal
AI
X32KOUT
Clock Output Of 32KHz Crystal
AO
VCC-RTC
RTC Power Supply
P
REXT
External Reference Register
AI
RTC-VIO
Internal LDO Output Bypass
AO
X24MFOUT
24MHz Clock Fanout
AOD
X24MIN
Clock Input Of 24MHz Crystal
AI
X24MOUT
Clock Output Of 24MHz Crystal
AO
PLLTEST
PLL Test
AOD
VCC-PLL
PLL Power Supply
P
HDMI
HTX0P
HDMI Positive TMDS Differential Line Driver Data0 Output
AO
HTX0N
HDMI Negative TMDS Differential Line Driver Data0 Output
AO
HTX1P
HDMI Positive TMDS Differential Line Driver Data1 Output
AO
HTX1N
HDMI Negative TMDS Differential Line Driver Data1 Output
AO
HTX2P
HDMI Positive TMDS Differential Line Driver Data2 Output
AO
HTX2N
HDMI Negative TMDS Differential Line Driver Data2 Output
AO
HTXCP
HDMI Positive TMDS Differential Line Driver Clock Output
AO
HTXCN
HDMI Negative TMDS Differential Line Driver Clock Output
AO
HHPD
HDMI Hot Plug Detection signal
I/O
HCEC
HDMI Consumer Electronics Control
I/O
HSCL
HDMI Serial Clock
O
HSDA
HDMI Serial Data
I/O
HVCC
HDMI Power Supply
P
USB
USB-DM0
USB DM Signal
A I/O
USB-DP0
USB DP Signal
A I/O
USB-DM1
USBDM Signal
A I/O
USB-DP1
USB DP Signal
A I/O
USB-DM2
USB DM Signal
A I/O
USB-DP2
USB DP Signal
A I/O
USB-DM3
USB DM Signal
A I/O
Pin Description
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 74
Pin/Signal Name
Description
Type
USB-DP3
USB DP Signal
A I/O
VCC-USB
USB Power Supply
P
ADC
KEYADC
ADC Input for KEY Application
AI
EPHY
EPHY-RXP
Transceiver Positive Output/Input
A I/O
EPHY-RXN
Transceiver Negative Output/Input
A I/O
EPHY-TXP
Transceiver Positive Output/Input
A I/O
EPHY-TXN
Transceiver Negative Output/Input
A I/O
EPHY-RTX
EPHY External Resistance to Ground
AI
EPHY-LINK-LED
EPHY LINK Up/Down Indicator LED
O
EPHY-SPD-LED
EPHY 10M/100M Indicator LED
O
EPHY-VDD
3.3V Analog Power Supply for EPHY
P
EPHY-VCC
1.1V Analog Power Supply for EPHY
P
TV
TV-OUT
TV Output
AO
V33-TV
TV Out Power Supply
P
Audio Codec
LINEINL
LINE-IN Left Channel Input
AI
LINEINR
LINE-IN Right Channel Input
AI
LINEOUTL
LINE-OUT Left Channel Output
AO
LINEOUTR
LINE-OUT Right Channel Output
AO
MBIAS
Master Analog Microphone Bias
AO
MICIN1N
Microphone Negative Input 1
AI
MICIN1P
Microphone Positive Input 1
AI
MICIN2N
Microphone Negative Input 2
AI
MICIN2P
Microphone Positive Input 2
AI
VRA1
Reference Voltage Output
AO
VRA2
Reference Voltage Output
AO
VRP
Reference Voltage Output
AO
AVCC
Analog Power
P
AGND
Analog GND
G
I2S/PCM
PCM0_SYNC
PCM0 Sync/I2S0 Left and Right Channel Select Clock
I/O
PCM0_CLK
PCM0 Sample Rate Clock/I2S0 Bit Clock
I/O
PCM0_DOUT
I2S0/PCM0 Serial Data Output
O
PCM0_DIN
I2S0/PCM0 Serial Data Input
I
PCM0_MCLK
I2S0/PCM0 Master Clock
O
PCM1_SYNC
PCM1 Sync/I2S1 Left and Right Channel Select Clock
I/O
PCM1_CLK
PCM1 Sample Rate Clock/I2S1 Bit Clock
I/O
PCM1_DOUT
I2S1/PCM1 Serial Data Output
O
PCM1_DIN
I2S1/PCM1 Serial Data Input
I
Pin Description
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 75
Pin/Signal Name
Description
Type
OWA
OWA_OUT
One Wire Audio Output
O
SD/MMC
SDC0_CMD
Command Signal for SD/TF Card
I/O
SDC0_CLK
Clock for SD/TF Card
O
SDC0_D[3:0]
Data Input and Output for SD/TF Card
I/O
SDC1_CMD
Command Signal for SDIO Wi-Fi
I/O
SDC1_CLK
Clock for SDIO Wi-Fi
O
SDC1_D[3:0]
Data Input and Output for SDIO Wi-Fi
I/O
SDC2_CMD
Command Signal for SD/eMMC
I/O
SDC2_CLK
Clock for SD/eMMC
O
SDC2_D[7:0]
Data Input and Output for SD/eMMC
I/O
SDC2_RST
Reset Signal for SD/eMMC
O
NAND FLASH
NAND_DQ[7:0]
NAND Flash0 Data Bit [7:0]
I/O
NAND_DQS
NADN Flash Data Strobe
I/O
NAND_WE
NAND Flash Write Enable
O
NAND_RE
NAND Flash chip Read Enable
O
NAND_ALE
NAND Flash Address Latch Enable
O
NAND_CLE
NAND Command Latch Enable
O
NAND_CE[1:0]
NAND Flash Chip Select [1:0]
O
NAND_RB[1:0]
NAND Flash Ready/Busy Bit
I
Interrupt
PA_EINT[21:0]
GPIO A Interrupt
I
PF_EINT[6:0]
GPIO F Interrupt
I
PG_EINT[13:0]
GPIO G Interrupt
I
S_PL_EINT[11:0]
GPIO L Interrupt
I
PWM
S_PWM
Pulse Width Modulation Output
O
PWM0
Pulse Width Modulation Output
O
IR
S_CIR_RX
Consumer IR Data Receive
I
CSI
CSI_PCLK
CSI Pixel Clock
I
CSI_MCLK
CSI Master Clock
O
CSI_HSYNC
CSI Horizontal SYNC
I
CSI_VSYNC
CSI Vertical SYNC
I
CSI_D[7:0]
CSI Data bit [7:0]
I
CSI_SCK
CSI Command Serial Clock Signal
I/O
CSI_SDA
CSI Command Serial Data Signal
I/O
EMAC
RGMII_RXD3/MII_RXD3 /RMII_NULL
RGMII/MII Receive Data
I
Pin Description
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 76
Pin/Signal Name
Description
Type
RGMII_RXD2/MII_RXD2/ RMII_NULL
RGMII/MII Receive Data
I
RGMII_RXD1/MII_RXD1/ RMII_RXD1
RGMII/MII /RMII Receive Data
I
RGMII_RXD0/MII_RXD0/ RMII_RXD0
RGMII/MII /RMII Receive Data
I
RGMII_RXCK/MII_RXCK/ RMII_NULL
RGMII/MII Receive Clock
I
RGMII_RXCTL/MII_RXDV/
RMII_CRS_DV
RGMII Receive Control/MII Receive Enable/RMII Carrier Sense-Receive
Data Valid
I
RGMII_NULL/MII_RXERR/
RMII_RXER
MII/RMII Receive Error
I
RGMII_TXD3/MII_TXD3/ RMII_NULL
RGMII/MII Transmit Data
O
RGMII_TXD2/MII_TXD2/ RMII_NULL
RGMII/MII Transmit Data
O
RGMII_TXD1/MII_TXD1/ RMII_TXD1
RGMII/MII /RMII Transmit Data
O
RGMII_TXD0/MII_TXD0/ RMII_TXD0
RGMII/MII /RMII Transmit Data
O
RGMII_NULL/MII_CRS/ RMII_NULL
MII Carrier Sense
I
RGMII_TXCK/MII_TXCK/
RMII_TXCK
RGMII/MII /RMII Transmit Clock: Output Pin for RGMII, Input Pin for
MII/RMII
I/O
RGMII_TXCTL/MII_TXEN/
RMII_TXEN
RGMII Transmit Control/MII Transmit Enable/RMII Transmit Enable:
Output Pin for RGMII/RMII, Input Pin for MII
I/O
RGMII_NULL/MII_TXERR/
RMII_NULL
MII Transmit Error
O
RGMII_CLKIN/MII_COL/
RMII_NULL
RGMII Transmit Clock from External/MII Collision Detect
I
MDC
RGMII/MII /RMII Management Data Clock
O
MDIO
RGMII/MII /RMII Management Data Input/Output
I/O
Transport Stream Controller
TS0_CLK
Transport Stream0 Clock
I
TS0_ERR
Transport Stream0 Error Indicate
I
TS0_SYNC
Transport Stream0 Sync
I
TS0_DVLD
Transport Stream0 Valid Signal
I
TS0_D[7:0]
Transport Stream0 Data
I
TS1_CLK
Transport Stream1 Clock
I
TS1_ERR
Transport Stream1 Error Indicate
I
TS1_SYNC
Transport Stream1 Sync
I
TS1_DVLD
Transport Stream1 Valid Signal
I
TS1_D0
Transport Stream1 Data
I
TS2_CLK
Transport Stream2 Clock
I
TS2_ERR
Transport Stream2 Error Indicate
I
TS2_SYNC
Transport Stream2 Sync
I
TS2_DVLD
Transport Stream2 Valid Signal
I
TS2_D[7:0]
Transport Stream2 Data
I
TS3_CLK
Transport Stream3 Clock
I
TS3_ERR
Transport Stream3 Error Indicate
I
TS3_SYNC
Transport Stream3 Sync
I
TS3_DVLD
Transport Stream3 Valid Signal
I
Pin Description
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 77
Pin/Signal Name
Description
Type
TS3_D0
Transport Stream3 Data
I
SPI (x=[1:0])
SPIx_CS
SPIx Chip Select signal, Low Active
I/O
SPIx_CLK
SPIx Clock Signal
I/O
SPIx_MOSI
SPIx Master Data Out, Slave Data In
I/O
SPIx_MISO
SPIx Master Data In, Slave Data Out
I/O
UART
UART0_TX
UART0 Data Transmit
O
UART0_RX
UART0 Data Receive
I
UART1_TX
UART1 Data Transmit
O
UART1_RX
UART1 Data Receive
I
UART1_CTS
UART1 Data Clear To Send
I
UART1_RTS
UART1 Data Request To Send
O
UART2_TX
UART2 Data Transmit
O
UART2_RX
UART2 Data Receive
I
UART2_CTS
UART2 Data Clear To Send
I
UART2_RTS
UART2 Data Request To Send
O
UART3_TX
UART3 Data Transmit
O
UART3_RX
UART3 Data Receive
I
UART3_CTS
UART3 Data Clear To Send
I
UART3_RTS
UART3 Data Request To Send
O
S_UART_TX
UART Data Transmit
O
S_UART_RX
UART Data Receive
I
TWI (x=[2:0])
TWIx_SCK
TWIx Serial Clock Signal
I/O
TWIx_SDA
TWIx Serial Data Signal
I/O
S_TWI_SCK
TWI Serial Clock Signal for CPUs
I/O
S_TWI_SDA
TWI Serial Data Signal for CPUs
I/O
Smart Card Reader(x=[1:0])
SIMx_PWREN
Smart Card Power Enable
O
SIMx_CLK
Smart Card Clock
O
SIMx_DATA
Smart Card Data
I/O
SIMx_RST
Smart Card Reset
O
SIMx_DET
Smart Card Detect
I
SIMx_VPPEN
Smart Card Program Voltage Enable
O
SIMx_VPPPP
Smart Card Program Control
O
DI
DI_TX
De-Interlacer Output
O
DI_RX
De-Interlacer Input
I
JTAG
JTAG_MS
JTAG Mode Select Input
I
JTAG_CK
JTAG Clock Input
I
Pin Description
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 78
Pin/Signal Name
Description
Type
JTAG_DO
JTAG Data Output
O
JTAG_DI
JTAG Data Input
I
S_JTAG_MS
JTAG Mode Select Input for CPUs
I
S_JTAG_CK
JTAG Clock Input for CPUs
I
S_JTAG_DO
JTAG Data Output for CPUs
O
S_JTAG_DI
JTAG Data Input for CPUs
I
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 79
Chapter 4 System
The chapter describes the H5 system from following sections:
Memory Mapping
Boot System
CCU
CPU Configuration
System Control
Timer
Trusted Watchdog
RTC
High-speed Timer
PWM
DMA
GIC
Message Box
Spinlock
Crypto Engine
Security ID
Secure Memory Controller
Secure Peripherals Controller
Thermal Sensor Controller
KEYADC
Port Controller(CPUx-PORT)
Port Controller(CPUs-PORT)
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 80
4.1. Memory Mapping
Module
Address (It is for Cluster CPU)
Size (byte)
N-BROM
0x0000 0000—0x0000 7FFF
32K
S-BROM
0x0000 0000—0x0000 FFFF
64K
SRAM A1
0x0001 0000---0x0001 7FFF
32K
SRAM C
0x0001 8000---0x0003 3FFF
112K
SRAM A2
0x0004 4000---0x0005 3FFF
64K
DE
0x0100 0000---0x013F FFFF
4M
Coresight Debug
0x0140 0000---0x0141 FFFF
128K
CPU MBIST
0x0150 2000---0x0150 2FFF
4K
CPU CFG
0x0170 0000---0x0170 03FF
1K
System Control
0x01C0 0000---0x01C0 0FFF
4K
DMA
0x01C0 2000---0x01C0 2FFF
4K
NFDC
0x01C0 3000---0x01C0 3FFF
4K
TSC
0x01C0 6000---0x01C0 6FFF
4K
Key Memory Space
0x01C0 B000---0x01C0 BFFF
4K
TCON 0
0x01C0 C000---0x01C0 CFFF
4K
TCON 1
0x01C0 D000---0x01C0 DFFF
4K
VE
0x01C0 E000---0x01C0 EFFF
4K
SMHC 0
0x01C0 F000---0x01C0 FFFF
4K
SMHC 1
0x01C1 0000---0x01C1 0FFF
4K
SMHC 2
0x01C1 1000---0x01C1 1FFF
4K
SID
0x01C1 4000---0x01C1 43FF
1K
Crypto Engine
0x01C1 5000---0x01C1 5FFF
4K
MSG_BOX
0x01C1 7000---0x01C1 7FFF
4K
SPINLOCK
0x01C1 8000---0x01C1 8FFF
4K
USB-OTG_Device
0x01C1 9000---0x01C1 9FFF
4K
USB-OTG_EHCI0/OHCI0
0x01C1 A000---0x01C1 AFFF
4K
USB-HCI1
0x01C1 B000---0x01C1 BFFF
4K
USB-HCI2
0x01C1 C000---0x01C1 CFFF
4K
USB-HCI3
0x01C1 D000---0x01C1 DFFF
4K
SMC
0x01C1 E000---0x01C1 EFFF
4K
CCU
0x01C2 0000---0x01C2 03FF
1K
PIO
0x01C2 0800---0x01C2 0BFF
1K
TIMER
0x01C2 0C00---0x01C2 0FFF
1K
OWA
0x01C2 1000---0x01C2 13FF
1K
PWM
0x01C2 1400---0x01C2 17FF
1K
KEYADC
0x01C2 1800---0x01C2 1BFF
1K
I2S/PCM 0
0x01C2 2000---0x01C2 23FF
1K
I2S/PCM 1
0x01C2 2400---0x01C2 27FF
1K
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 81
I2S/PCM 2
0x01C2 2800---0x01C2 2BFF
1K
Audio Codec
0x01C2 2C00---0x01C2 33FF
2K
SPC
0x01C2 3400---0x01C2 37FF
1K
THS
0x01C2 5000---0x01C2 53FF
1K
UART 0
0x01C2 8000---0x01C2 83FF
1K
UART 1
0x01C2 8400---0x01C2 87FF
1K
UART 2
0x01C2 8800---0x01C2 8BFF
1K
UART 3
0x01C2 8C00---0x01C2 8FFF
1K
TWI 0
0x01C2 AC00---0x01C2 AFFF
1K
TWI 1
0x01C2 B000---0x01C2 B3FF
1K
TWI 2
0x01C2 B400---0x01C2 B7FF
1K
SCR0
0x01C2 C400---0x01C2 C7FF
1K
SCR1
0x01C2 C800---0x01C2 CBFF
1K
EMAC
0x01C3 0000---0x01C3 FFFF
64K
HSTMR
0x01C6 0000---0x01C6 0FFF
4K
DRAMCOM
0x01C6 2000---0x01C6 2FFF
4K
DRAMCTL0
0x01C6 3000---0x01C6 3FFF
4K
DRAMPHY0
0x01C6 5000---0x01C6 5FFF
4K
SPI0
0x01C6 8000---0x01C6 8FFF
4K
SPI1
0x01C6 9000---0x01C6 9FFF
4K
SCU
0x01C80000
GIC_DIST: 0x01C80000 + 0x1000
GIC_CPUIF:0x01C80000 + 0x2000
CSI
0x01CB 0000---0x01CF FFFF
320K
De-interlacer
0x01E0 0000---0x01E1 FFFF
128K
TVE
0x01E4 0000---0x01E4 FFFF
64K
GPU
0x01E8 0000---0x01EA FFFF
192K
HDMI
0x01EE 0000---0x01EF FFFF
128K
RTC
0x01F0 0000---0x01F0 03FF
1K
R_TIMER
0x01F0 0800---0x01F0 0BFF
1K
R_INTC
0x01F0 0C00---0x01F0 0FFF
1K
R_WDOG
0x01F0 1000---0x01F0 13FF
1K
R_PRCM
0x01F0 1400---0x01F0 17FF
1K
R_TWD
0x01F0 1800---0x01F0 1BFF
1K
R_CPUCFG
0x01F0 1C00---0x01F0 1FFF
1K
R_CIR-RX
0x01F0 2000---0x01F0 23FF
1K
R_TWI
0x01F0 2400---0x01F0 27FF
1K
R_UART
0x01F0 2800---0x01F0 2BFF
1K
R_PIO
0x01F0 2C00---0x01F0 2FFF
1K
R_PWM
0x01F0 3800---0x01F0 3BFF
1K
DDR
0x4000 0000---0xFFFF FFFF
3G
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 82
4.2. Boot System
4.2.1. Overview
The Boot System includes the following features:
• The system will boot in different ways based on whether its security features are enabled
• Supports CPU-0 boot process and CPU-0+ boot process
• Supports super standby wakeup process
• Supports mandatory upgrade process through USB OTG
• Supports fast boot process from Raw NAND, eMMC, SD/TF card ,and SPI NOR Flash
4.2.2. Boot Diagram
4.2.2.1. Normal Mode
The system will boot in normal mode or security mode based on whether its security feature are enabled.
Normal mode: The system boot will start from CPU-0 or CPU-0+, and the boot process is illustrated below.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 83
Figure 4-1. Normal Mode Boot Process
CPU-0+: Other CPU cores(CPU1,CPU2,CPU3) except CPU-0
CPU-0+ Boot process: refer to 4.2.2.3.CPU-0+ Boot Process
CPU Hot Plug process: refer to 4.2.2.4. CPU Hot Plug Process
Mandatory Upgrade process: refer to 4.2.2.5.Mandatory Upgrade Process
Fast Boot process: refer to 4.2.2.6. Fast Boot Normal Process and 4.2.2.7.Fast Boot Security Process
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 84
4.2.2.2. Security Mode
In Security Boot mode, after the fast boot process finishes, the system will go to run Security BROM software.
Figure 4-2. Security Mode Boot Process
4.2.2.3. CPU-0+ Boot Process
When the system boots from CPU-0+, BROM will jump to multi-core system firmware address according to the CPU-0+
Boot pointer, and run CPU-0+ boot code.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 85
CPU-0+ Boot
starts
Read 0x01F01C00+0x1A4
register
Get soft_entry_address
Jump to
The soft_entry_address
Run CPU-0+ code
Read CPU_ID
CPU_ID > 0? Run cpu0 code
NO
YES
Figure 4-3. CPU-0+ Boot Process
4.2.2.4. CPU Hot Plug Process
The Hot Plug bit determines whether the system will do hot plug boot.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 86
Read 0x01f01c00+0x1AC
register get the value
The value==0xFA50392F? Read 0x01f01c00+0x1A4
Get hot_plug_entry_address
Run CPU0 code
Yes
No
Jump to
The hot_plug_entry_address
CPU0 Hot Plug
starts
Figure 4-4. CPU Hot Plug Process
4.2.2.5. Super Standby Wakeup Process
Super Standby(SS) wakeup will be started by CPU-S, and will be carried on by CPU-0 after the release of CPU-0.
CPU-S starts the
Super Standby
wakeup process
DRAM exit
Self refresh
(optional)
Move the boot0
code to SRAM A1
0x00
(optional)
Release CPU-0
reset
CPU-0 boot
Figure 4-5. Super Standby Wakeup Process
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 87
4.2.2.6. Mandatory Upgrade Process
When the system chooses to whether enter mandatory upgrade processor, if the UBOOT_SEL(UBOOT signal) is detected
to pull low, then the system will jump to mandatory upgrade process. The mandatory upgrade process is illustrated
below.
Mandatory
Upgrade starts
USB Fel
Mandatory
Upgrade finish
Figure 4-6. Mandatory Upgrade Process
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 88
4.2.2.7. Fast Boot Normal Process
When the system chooses to whether enter mandatory upgrade process, if the UBOOT_SEL(UBOOT signal) is detected
to pull high, then the system will jump to fast boot process. The fast boot normal process is illustrated below.
Fast boot process
starts
SDC0
Boot Operation
EMMC2
Boot Operation
SDC2
Boot Operation
Mandatory Upgrade
Process
Not Pass
Pass
Not Pass
Not Pass
Run Boot0 CODE
Pass
Pass
NAND
Boot Operation
SPI_NOR
Boot Operation
Pass
Pass
Not Pass
Not Pass
Figure 4-7. Fast Boot Normal Process
4.2.2.8. Fast Boot Security Process
When the system chooses to whether enter mandatory MP process, if the UBOOT_SEL(UBOOT signal) is detected to
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 89
pulled to high level, then the system will jump to fast boot process. The fast boot process is illustrated below.
Fast boot process
starts
SDC0
Boot Operation
EMMC2
Boot Operation
SDC2
Boot Operation
Normal_fel
Not Pass
Pass
Not Pass
Not Pass
Run the TOC
Certification
Pass
Pass
NAND
Boot Operation
SPI_NOR
Boot Operation
Pass
Pass
Not Pass
Not Pass
Read
Security Brom
Software in TOC
Check
Run Security Brom
Software Code
Wrong
right
Figure 4-8. Fast Boot Security Process
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 90
4.3. CCU
4.3.1. Overview
The CCU controls the PLLs configuration and most of the clock generation, division, distribution, synchronization and
gating. CCU input signals include the external clock for the reference frequency (24MHz). The outputs from CCU are
mostly clocks to other blocks in the system.
Features:
9 PLLs, independent PLL for CPUX
Bus Source and Divisions
PLLs Bias Control
PLLs Tuning Control
PLLs Pattern Control
Configuring Modules Clock
Bus Clock Gating
Bus Software Reset
4.3.2. Operations and Functional Descriptions
4.3.2.1. System Bus
Figure 4-9 shows a block diagram of the System Bus.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 91
DRAM
Arbiter
AHB AHB
AHB1 BUS
SYS_CTRL
HS TIMER
TCON
SMC
SRAM A1
SPINLOCK USB OTG
HDMI
NAND
SD/MMC
GPU
DMA
CSI
TSC
APB2 BUS
UART TWI
CCU
GPIO
TIMER
KEYADC
I2S/PCM
Audio Codec
BROM THS
PWM
X2H
Bridge
AHB1
APB2
Bridge
AHB1
APB1
AHB2AHB
Arbiter
CPUS
AHB0 BUS
AHB2AHB Bridge
APB0 BUS
R_TIMER
R_PRCM
R_INTC R_WDOG
RTC
R_TWI R_UART R_GPIO
R_CPUCFG
R_PWM
CS-DEBUG
TSGEN
SD/MMC
TSC
DE
VE
CSI
DMA
APB1 BUS
R_CIR_RX
DE
CE
De-interlacer
CPUS
GPU
USB OTG
NAND
AXIS1 AXIS2
AHB
CORE0 CORE1
Cache, GIC
De-interlaced
SRAM C VE
DRAMC
OWA
SPI
SPC
MSGBOX
SRAM A2
CORE2 CORE3
EMAC
USB HOST
AHB2 BUS
Bridge
AHB1
AHB2
SID
USB HOST
CE
SCR
Figure 4-9. System Bus Tree
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 92
4.3.2.2. Bus Clock Tree
Figure 4-10 shows a block diagram of the Bus Clock Tree.
MUX
CPU
ExternalOSC
MUX
XLOSC
X
PLL_PERIPH0(1X)
MUX
AHB1_PRE_DIV
1/(1~4)
AHB1_CLK_DIV_RATIO
(/1 /2 /4 /8)
AHB1
APB1_CLK_RATIO
(/2 /2 /4 /8)
APB1
MUX CLK_RAT_N
(/1 /2 /4 /8)
CLK_RAT_M
1/(1~32)
APB2
PLL_CPUX
AXI
AXI_CLK_DIV_RATIO
(1/(1~4))
32.768KHz
OSC24M
L2 Cache
/1
System APB
CPU_APB_CLK_DIV
(/1 /2 /4)
/512
AHB2
MUX
/2
16MHz
Figure 4-10. Bus Clock Tree
4.3.2.3. Typical Applications
PLL Applications: use the available clock sources to generate clock roots to various parts of the chip. In practical
application, other PLLs do not support dynamic frequency scaling except for PLL_CPUX.
Table 4-1. PLLs Typical Applications
PLLs
Typical Applications
Dynamic Frequency Scaling(DFS)
PLL_CPUX
CPU
Support
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 93
PLL_AUDIO
I2S/PCM, OWA, Audio Codec Digital Part
Not Support
PLL_VIDEO
TCON,HDMI,CSI,DE2.0
Not Support
PLL_VE
VE
Not Support
PLL_DDR
MBUS,DRAM
Not Support
PLL_PERIPH0
AHB1,AHB2,APB1,APB2,MBUS,NAND,SMHC,CE,SPI,DE2.0,CSI,
DEINTERLACE,CPUS
Not Support
PLL_PERIPH1
NAND,SMHC,SPI,TVE,DEINTERLACE,CSI
Not Support
PLL_GPU
GPU
Not Support
PLL_DE
DE,TCON,TVE
Not Support
Note: All module clocks do not support DFS unless other noted. Because when switching module clock source or
adjusting division-ratio, the burr or transient instability may be generated, which will hang dead the module.
4.3.2.4. PLL
(1) In practical application, other PLLs do not support dynamic frequency scaling except for PLL_CPUX.
(2) After the PLL_DDR frequency changed, the 20-bit of PLL_DDR_CTRL_REG should be written 1 to make it valid.
4.3.2.5. BUS
(1) When setting the BUS clock , you should set the division factor firstly, and after the division factor becomes valid,
switch the clock source. The clock source will be switched after at least three clock cycles.
(2) The BUS clock should not be dynamically changed in most applications.
4.3.2.6. Clock Switch
Make sure that the clock source output is valid before the clock source switch, and then set a proper divide ratio; after
the division factor becomes valid, switch the clock source.
4.3.2.7. Gating and Reset
Make sure that the reset signal has been released before the release of module clock gating.
4.3.3. Register List
Module Name
Base Address
CCU
0x01C20000
Register Name
Offset
Description
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 94
PLL_CPUX_CTRL_REG
0x0000
PLL_CPUX Control Register
PLL_AUDIO_CTRL_REG
0x0008
PLL_AUDIO Control Register
PLL_VIDEO_CTRL_REG
0x0010
PLL_VIDEO Control Register
PLL_VE_CTRL_REG
0x0018
PLL_VE Control Register
PLL_DDR_CTRL_REG
0x0020
PLL_DDR Control Register
PLL_PERIPH0_CTRL_REG
0x0028
PLL_PERIPH0 Control Register
PLL_GPU_CTRL_REG
0x0038
PLL_GPU Control Register
PLL_PERIPH1_CTRL_REG
0x0044
PLL_PERIPH1 Control Register
PLL_DE_CTRL_REG
0x0048
PLL_DE Control Register
CPUX_AXI_CFG_REG
0x0050
CPUX/AXI Configuration Register
AHB1_APB1_CFG_REG
0x0054
AHB1/APB1 Configuration Register
APB2 _CFG_REG
0x0058
APB2 Configuration Register
AHB2_CFG_REG
0x005C
AHB2 Configuration Register
BUS_CLK_GATING_REG0
0x0060
Bus Clock Gating Register 0
BUS_CLK_GATING_REG1
0x0064
Bus Clock Gating Register 1
BUS_CLK_GATING_REG2
0x0068
Bus Clock Gating Register 2
BUS_CLK_GATING_REG3
0x006C
Bus Clock Gating Register 3
BUS_CLK_GATING_REG4
0x0070
Bus Clock Gating Register4
THS_CLK_REG
0x0074
THS Clock Register
NAND_CLK_REG
0x0080
NAND Clock Register
SMHC0_CLK_REG
0x0088
SMHC0 Clock Register
SMHC1_CLK_REG
0x008C
SMHC1 Clock Register
SMHC2_CLK_REG
0x0090
SMHC2 Clock Register
TSC_CLK_REG
0x0098
TSC Clock Register
CE_CLK_REG
0x009C
CE Clock Register
SPI0_CLK_REG
0x00A0
SPI0 Clock Register
SPI1_CLK_REG
0x00A4
SPI1 Clock Register
I2S/PCM0_CLK_REG
0x00B0
I2S/PCM0 Clock Register
I2S/PCM1_CLK_REG
0x00B4
I2S/PCM1 Clock Register
I2S/PCM2_CLK_REG
0x00B8
I2S/PCM2 Clock Register
OWA_CLK_REG
0x00C0
OWA Clock Register
USBPHY_CFG_REG
0x00CC
USBPHY Configuration Register
DRAM_CFG_REG
0x00F4
DRAM Configuration Register
MBUS_RST_REG
0x00FC
MBUS Reset Register
DRAM_CLK_GATING_REG
0x0100
DRAM Clock Gating Register
TCON0_CLK_REG
0x0118
TCON0 Clock Register
TVE_CLK_REG
0x0120
TVE Clock Register
DEINTERLACE_CLK_REG
0x0124
DEINTERLACE Clock Register
CSI_MISC_CLK_REG
0x0130
CSI_MISC Clock Register
CSI_CLK_REG
0x0134
CSI Clock Register
VE_CLK_REG
0x013C
VE Clock Register
AC_DIG_CLK_REG
0x0140
AC Digital Clock Register
AVS_CLK_REG
0x0144
AVS Clock Register
HDMI_CLK_REG
0x0150
HDMI Clock Register
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 95
HDMI_SLOW_CLK_REG
0x0154
HDMI Slow Clock Register
MBUS_CLK_REG
0x015C
MBUS Clock Register
GPU_CLK_REG
0x01A0
GPU Clock Register
PLL_STABLE_TIME_REG0
0x0200
PLL Stable Time Register 0
PLL_STABLE_TIME_REG1
0x0204
PLL Stable Time Register 1
PLL_CPUX_BIAS_REG
0x0220
PLL_CPUX Bias Register
PLL_AUDIO_BIAS_REG
0x0224
PLL_AUDIO Bias Register
PLL_VIDEO_BIAS_REG
0x0228
PLL_VIDEO Bias Register
PLL_VE_BIAS_REG
0x022C
PLL_VE Bias Register
PLL_DDR_BIAS_REG
0x0230
PLL_DDR Bias Register
PLL_PERIPH0_BIAS_REG
0x0234
PLL_PERIPH0 Bias Register
PLL_GPU_BIAS_REG
0x023C
PLL_GPU Bias Register
PLL_PERIPH1_BIAS_REG
0x0244
PLL_PERIPH1 Bias Register
PLL_DE_BIAS_REG
0x0248
PLL_DE Bias Register
PLL_CPUX_TUN_REG
0x0250
PLL_CPUX Tuning Register
PLL_DDR_TUN_REG
0x0260
PLL_DDR Tuning Register
PLL_CPUX_PAT_CTRL_REG
0x0280
PLL_CPUX Pattern Control Register
PLL_AUDIO_PAT_CTRL_REG0
0x0284
PLL_AUDIO Pattern Control Register
PLL_VIDEO_PAT_CTRL_REG0
0x0288
PLL_VIDEO Pattern Control Register
PLL_VE_PAT_CTRL_REG
0x028C
PLL_VE Pattern Control Register
PLL_DDR_PAT_CTRL_REG0
0x0290
PLL_DDR Pattern Control Register
PLL_GPU_PAT_CTRL_REG
0x029C
PLL_GPU Pattern Control Register
PLL_PERIPH1_PAT_CTRL_REG1
0x02A4
PLL_PERIPH1 Pattern Control Register
PLL_DE_PAT_CTRL_REG
0x02A8
PLL_DE Pattern Control Register
BUS_SOFT_RST_REG0
0x02C0
Bus Software Reset Register 0
BUS_SOFT_RST_REG1
0x02C4
Bus Software Reset Register 1
BUS_SOFT_RST_REG2
0x02C8
Bus Software Reset Register 2
BUS_SOFT_RST_REG3
0x02D0
Bus Software Reset Register 3
BUS_SOFT_RST_REG4
0x02D8
Bus Software Reset Register 4
CCU_SEC_SWITCH_REG
0x02F0
CCU Security Switch Register
PS_CTRL_REG
0x0300
PS Control Register
PS_CNT_REG
0x0304
PS Counter Register
4.3.4. Register Description
4.3.4.1. PLL_CPUX Control Register (Default Value: 0x0000_1000)
Offset: 0x0000
Register Name: PLL_CPUX_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 96
1: Enable
The PLL Output= (24MHz*N*K)/(M*P).
The PLL output is for the CPUX Clock.
The PLL output clock must be in the range of 200MHz~2.6GHz.
Its default value is 408MHz.
30:29
/
/
/
28
R
0x0
LOCK
0: Unlocked
1: Locked (It indicates that the PLL is stable.)
27:25
/
/
/
24
R/W
0x0
CPUX_SDM_EN.
0: Disable
1: Enable
23:18
/
/
/
17:16
R/W
0x0
PLL_OUT_EXT_DIVP
PLL Output external divider P
00: /1
01: /2
10: /4
11: /
The P factor only uses in the condition that PLL output is less than 288
MHz.
15:13
/
/
/
12:8
R/W
0x10
PLL_FACTOR_N
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=31, N=32
7:6
/
/
/
5:4
R/W
0x0
PLL_FACTOR_K.
PLL Factor K.(K=Factor + 1 )
The range is from 1 to 4.
3:2
/
/
/
1:0
R/W
0x0
PLL_FACTOR_M.
PLL Factor M. (M=Factor + 1)
The range is from 1 to 4.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 97
4.3.4.2. PLL_AUDIO Control Register (Default Value: 0x0003_5514)
Offset: 0x0008
Register Name: PLL_AUDIO_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable.
The PLL is for Audio.
PLL_AUDIO = (24MHz*N)/(M*P)
PLL_AUDIO(8X)= (24MHz*N*2)/M
PLL_AUDIO(4X)=PLL_AUDIO(8X)/2
PLL_AUDIO(2X)=PLL_AUDIO(4X)/2
The PLL output clock must be in the range of 20MHz~200MHz.
Its default value is 24.571MHz.
30:29
/
/
/
28
R
0x0
LOCK.
0: Unlocked
1: Locked (It indicates that the PLL is stable.)
27:25
/
/
/
24
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable
In this case, only the low 4 bits of PLL_FACTOR_N are valid (N: The range is
from 1 to 16).
23:20
/
/
/
19:16
R/W
0x3
PLL_POSTDIV_P.
Post-div factor P (P= Factor+1)
The range is from 1 to 16.
15
/
/
/
14:8
R/W
0x55
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
……
Factor=127, N=128
7:5
/
/
/
4:0
R/W
0x14
PLL_PREDIV_M.
PLL Pre-div Factor M (M = Factor+1).
The range is from 1 to 32.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 98
4.3.4.3. PLL_VIDEO Control Register (Default Value: 0x0300_6207)
Offset: 0x0010
Register Name: PLL_VIDEO_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable
In the integer mode, the PLL Output = (24MHz*N)/M.
In the fractional mode, the PLL Output is selected by FRAC_CLK_OUT.
In the Clock Control Module, PLL(1X) Output = PLL, PLL(2X) Output = PLL * 2.
The PLL output clock must be in the range of 30MHz~600MHz.
Its default value is 297MHz.
30
R/W
0x0
PLL_MODE.
0: Manual Mode
1: Auto Mode (Controlled by DE)
29
/
/
/
28
R
0x0
LOCK.
0: Unlocked
1: Locked (It indicates that the PLL is stable.)
27:26
/
/
/
25
R/W
0x1
FRAC_CLK_OUT.
PLL clock output when PLL_MODE_SEL =0(PLL_PREDIV_M factor must be set
to 0). No meaning when PLL_MODE_SEL =1.
0: PLL Output = 270MHz
1: PLL Output = 297MHz
24
R/W
0x1
PLL_MODE_SEL.
0: Fractional Mode
1: Integer Mode
When in Fractional mode, the Per Divider M should be set to 0.
23:21
/
/
/
20
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable
19:15
/
/
/
14:8
R/W
0x62
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 99
Factor=1, N=2
Factor=2, N=3
……
Factor=127, N=128
7:4
/
/
/
3:0
R/W
0x7
PLL_PREDIV_M.
PLL Pre-div Factor M (M = Factor+1).
The range is from 1 to 16.
4.3.4.4. PLL_VE Control Register (Default Value: 0x0300_6207)
Offset: 0x0018
Register Name: PLL_VE_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable
In the integer mode, The PLL Output = (24MHz*N)/M.
In the fractional mode, the PLL Output is selected by FRAC_CLK_OUT.
The PLL output clock must be in the range of 30MHz~600MHz.
Its default value is 297MHz.
30:29
/
/
/
28
R
0x0
LOCK
0: Unlocked
1: Locked (It indicates that the PLL is stable.)
27:26
/
/
/
25
R/W
0x1
FRAC_CLK_OUT.
PLL clock output when PLL_MODE_SEL =0(PLL_PREDIV_M factor must be set
to 0). No meaning when PLL_MODE_SEL =1.
0: PLL Output = 270MHz
1: PLL Output = 297MHz
24
R/W
0x1
PLL_MODE_SEL.
0: Fractional Mode
1: Integer Mode
When in Fractional mode, the Per Divider M should be set to 0.
23:21
/
/
/
20
R/W
0x0
PLL_SDM_EN.
0: Disable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 100
1: Enable
19:15
/
/
/
14:8
R/W
0x62
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=31, N=32
…
Factor=127, N=128
7:4
/
/
/
3:0
R/W
0x7
PLL_PREDIV_M.
PLL Pre Divider M (M = Factor+1).
The range is from 1 to 16.
4.3.4.5. PLL_DDR Control Register (Default Value: 0x0000_1000)
Offset: 0x0020
Register Name: PLL_DDR_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable
Set PLL_DDR_CFG_UPDATE to validate the PLL after this bit is set to 1.
The PLL Output = (24MHz*N*K)/M.
The PLL output clock must be in the range of 200MHz~2.6GHz.
Its default value is 408MHz.
30:29
/
/
/
28
R
0x0
LOCK
0: Unlocked
1: Locked (It indicates that the PLL is stable.)
27:25
/
/
/
24
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable
23:21
/
/
/
20
R/W
0x0
PLL_DDR_CFG_UPDATE.
PLL_DDR Configuration Update.
0: No effect
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 101
1: Validating the PLL_DDR
When PLL_DDR changed, this bit should be set to 1 to validate the PLL,
otherwise the change would be invalid. And this bit would be cleared
automatically after the PLL change is valid.
19:13
/
/
/
12:8
R/W
0x10
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=31, N=32
7:6
/
/
/
5:4
R/W
0x0
PLL_FACTOR_K.
PLL Factor K.(K = Factor + 1 )
The range is from 1 to 4.
3:2
/
/
/
1:0
R/W
0x0
PLL_FACTOR_M.
PLL Factor M.(M = Factor + 1 )
The range is from 1 to 4.
4.3.4.6. PLL_PERIPH0 Control Register (Default Value: 0x0004_1811)
Offset: 0x0028
Register Name: PLL_PERIPH0_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable
The PLL Output = 24MHz*N*K/2 .
The PLL Output should be fixed to 600MHz, it is not recommended to vary
this value arbitrarily.
In the Clock Control Module, PLL(2X) output= PLL*2 = 24MHz*N*K.
The PLL output clock must be in the range of 200MHz~1.8GHz.
Its default value is 600MHz.
30:29
/
/
/
28
R
0x0
LOCK.
0: Unlocked
1: Locked (It indicates that the PLL is stable.)
27:26
/
/
/
25
R/W
0x0
PLL_BYPASS_EN.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 102
PLL Output Bypass Enable.
0: Disable
1: Enable
If the bypass is enabled, the PLL output is 24MHz.
24
R/W
0x0
PLL_CLK_OUT_EN.
PLL clock Output Enable.
0: Disable
1: Enable
23:19
/
/
/
18
R/W
0x1
PLL_24M_OUT_EN.
PLL 24MHz Output Enable.
0: Disable
1: Enable
When 25MHz crystal is used, this PLL can output 24MHz.
17:16
R/W
0x0
PLL_24M_POST_DIV.
PLL 24M Output Clock Post Divider (When 25MHz crystal is used).
1/2/3/4.
15:13
/
/
/
12:8
R/W
0x18
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=31, N=32
7:6
/
/
/
5:4
R/W
0x1
PLL_FACTOR_K.
PLL Factor K.(K=Factor + 1 )
The range is from 1 to 4.
3:2
/
/
/
1:0
R/W
0x1
PLL_FACTOR_M.
PLL Factor M (M = Factor + 1) is only valid in plltest debug.
The PLL_PERIPH back door clock output =24MHz*N*K/M.
The range is from 1 to 4.
4.3.4.7. PLL_GPU Control Register (Default Value: 0x0300_6207)
Offset: 0x0038
Register Name: PLL_GPU_CTRL_REG
Bit
Read/Write
Default/Hex
Description
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 103
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable
In the integer mode, The PLL_GPU Output= (24MHz*N)/M.
In the fractional mode, the PLL_GPU Output is selected by FRAC_CLK_OUT.
The PLL output clock must be in the range of 30MHz~600MHz.
Its default value is 297MHz.
30:29
/
/
/
28
R
0x0
LOCK.
0: Unlocked
1: Locked (It indicates that the PLL is stable.)
27:26
/
/
/
25
R/W
0x1
FRAC_CLK_OUT.
PLL clock output when PLL_MODE_SEL =0(PLL_PRE_DIV_M factor must be
set to 0). No meaning when PLL_MODE_SEL =1.
0: PLL Output = 270MHz
1: PLL Output = 297MHz
24
R/W
0x1
PLL_MODE_SEL.
0: Fractional Mode.
1: Integer Mode
When in Fractional mode, the Per Divider M should be set to 0.
23:21
/
/
/
20
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable
19:15
/
/
/
14:8
R/W
0x62
PLL_FACTOR_N
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=127, N=128
7:4
/
/
/
3:0
R/W
0x7
PLL_PRE_DIV_M.
PLL Pre Divider M (M = Factor+1).
The range is from 1 to 16.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 104
4.3.4.8. PLL_PERIPH1 Control Register (Default Value: 0x0004_1811)
Offset: 0x0044
Register Name: PLL_PERIPH1_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable
The PLL Output = 24MHz*N*K/2 .
The PLL Output should be fixed to 600MHz, it is not recommended to vary
this value arbitrarily.
In the Clock Control Module, PLL(2X) output= PLL*2 = 24MHz*N*K.
The PLL output clock must be in the range of 200MHz~1.8GHz.
Its default value is 600MHz.
30:29
/
/
/
28
R
0x0
LOCK.
0: Unlocked
1: Locked (It indicates that the PLL is stable.)
27:26
/
/
/
25
R/W
0x0
PLL_BYPASS_EN.
PLL Output Bypass Enable.
0: Disable
1: Enable
If the bypass is enabled, the PLL output is 24MHz.
24
R/W
0x0
PLL_CLK_OUT_EN.
PLL clock Output Enable.
0: Disable
1: Enable
23:21
/
/
/
20
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable
19
/
/
/
18
R/W
0x1
PLL_24M_OUT_EN.
PLL 24MHz Output Enable.
0: Disable
1: Enable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 105
When 25MHz crystal used, this PLL can output 24MHz.
17:16
R/W
0x0
PLL_24M_POST_DIV.
PLL 24M Output Clock Post Divider (When 25MHz crystal used).
1/2/3/4.
15:13
/
/
/
12:8
R/W
0x18
PLL_FACTOR_N.
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=31, N=32
7:6
/
/
/
5:4
R/W
0x1
PLL_FACTOR_K.
PLL Factor K.(K=Factor + 1 )
The range is from 1 to 4.
3:2
/
/
/
1:0
R/W
0x1
PLL_FACTOR_M.
PLL Factor M (M = Factor + 1) is only valid in plltest debug.
The PLL_PERIPH back door clock output =24MHz*N*K/M.
The range is from 1 to 4.
4.3.4.9. PLL_DE Control Register (Default Value: 0x0300_6207)
Offset: 0x0048
Register Name: PLL_DE_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
PLL_ENABLE.
0: Disable
1: Enable
In the integer mode, The PLL Output= (24MHz*N)/M.
In the fractional mode, the PLL Output is selected by FRAC_CLK_OUT.
Its default value is 297MHz.
30:29
/
/
/
28
R
0x0
LOCK
0: Unlocked
1: Locked (It indicates that the PLL is stable.)
27:26
/
/
/
25
R/W
0x1
FRAC_CLK_OUT.
PLL clock output when PLL_MODE_SEL =0(PLL_PRE_DIV_M factor must be
set to 0). No meaning when PLL_MODE_SEL =1.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 106
0: PLL Output=270MHz
1: PLL Output =297MHz
24
R/W
0x1
PLL_MODE_SEL.
0: Fractional Mode
1: Integer Mode
When in Fractional mode, the Pre Divider M should be set to 0.
23:21
/
/
/
20
R/W
0x0
PLL_SDM_EN.
0: Disable
1: Enable
19:15
/
/
/
14:8
R/W
0x62
PLL_FACTOR_N
PLL Factor N.
Factor=0, N=1
Factor=1, N=2
Factor=2, N=3
……
Factor=0x7F, N=128
7:4
/
/
/
3:0
R/W
0x7
PLL_PRE_DIV_M.
PLL Per Divider M (M = Factor+1).
The range is from 1 to 16.
4.3.4.10. CPUX/AXI Configuration Register (Default Value: 0x0001_0000)
Offset: 0x0050
Register Name: CPUX_AXI_CFG_REG
Bit
Read/Write
Default/Hex
Description
31:18
/
/
/
17:16
R/W
0x1
CPUX_CLK_SRC_SEL.
CPUX Clock Source Select.
CPUX Clock = Clock Source
00: LOSC
01: OSC24M
1X: PLL_CPUX
If the clock source is changed, wait for at most 8 present running clock cycles.
15:10
/
/
/
9:8
R/W
0x0
CPU_APB_CLK_DIV.
00: /1
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 107
01: /2
1X: /4
Note: System APB clock source is CPU clock source.
7:2
/
/
/
1:0
R/W
0x0
AXI_CLK_DIV_RATIO.
AXI Clock Divide Ratio.
AXI Clock source is CPU clock source.
00: /1
01: /2
10: /3
11: /4
4.3.4.11. AHB1/APB1 Configuration Register (Default Value: 0x0000_1010)
Offset: 0x0054
Register Name: AHB1_APB1_CFG_REG
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
13:12
R/W
0x1
AHB1_CLK_SRC_SEL.
00: LOSC
01: OSC24M
10: AXI
11: PLL_PERIPH0(1X)/AHB1_PRE_DIV
11:10
/
/
/
9:8
R/W
0x0
APB1_CLK_RATIO.
APB1 Clock Divide Ratio.
APB1 clock source is AHB1 clock.
00: /2
01: /2
10: /4
11: /8
7:6
R/W
0x0
AHB1_PRE_DIV
AHB1 Clock Pre Divide Ratio
00: /1
01: /2
10: /3
11: /4
5:4
R/W
0x1
AHB1_CLK_DIV_RATIO.
AHB1 Clock Divide Ratio.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 108
00: /1
01: /2
10: /4
11: /8
3:0
/
/
/
4.3.4.12. APB2 Configuration Register (Default Value: 0x0100_0000)
Offset: 0x0058
Register Name: APB2_CFG_REG
Bit
Read/Write
Default/Hex
Description
31:26
/
/
/
25:24
R/W
0x1
APB2_CLK_SRC_SEL.
APB2 Clock Source Select
00: LOSC
01: OSC24M
1X: PLL_PERIPH0(1X)
This clock is used for some special module apbclk(UART⃝TWI). Because these
modules need special clock rate even if the apb1clk changed.
23:18
/
/
/
17:16
R/W
0x0
CLK_RAT_N
Clock Pre Divide Ratio (n)
The select clock source is pre-divided by 2^n.
00: /1
01: /2
10: /4
11: /8
15:5
/
/
/
4:0
R/W
0x0
CLK_RAT_M.
Clock Divide Ratio (m)
The Pre Divide clock is divided by (m+1). The divider M is from 1 to 32.
4.3.4.13. AHB2 Configuration Register (Default Value: 0x0000_0000)
Offset: 0x005C
Register Name: AHB2_CFG_REG
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
1:0
R/W
0x0
AHB2_CLK_CFG.
00: AHB1 Clock
01: PLL_PERIPH0(1X)/2
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 109
1X: /
The default clock source of EMAC,USB HOST is AHB2 Clock.
4.3.4.14. Bus Clock Gating Register0 (Default Value: 0x0000_0000)
Offset: 0x0060
Register Name: BUS_CLK_GATING_REG0
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
USBOHCI3_GATING.
Gating Clock for USB OHCI3
0: Mask
1: Pass
30
R/W
0x0
USBOHCI2_GATING.
Gating Clock for USB OHCI2
0: Mask
1: Pass
29
R/W
0x0
USBOHCI1_GATING.
Gating Clock for USB OHCI1
0: Mask
1: Pass
28
R/W
0x0
USB OTG_OHCI0_GATING.
Gating Clock for USB OTG_OHCI0
0: Mask
1: Pass
27
R/W
0x0
USBEHCI3_GATING.
Gating Clock for USB EHCI3
0: Mask
1: Pass
26
R/W
0x0
USBEHCI2_GATING.
Gating Clock for USB EHCI2
0: Mask
1: Pass
25
R/W
0x0
USBEHCI1_GATING.
Gating Clock for USB EHCI1
0: Mask
1: Pass
24
R/W
0x0
USB OTG_EHCI0_GATING.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 110
Gating Clock for USB OTG_EHCI0
0: Mask
1: Pass
23
R/W
0x0
USB OTG_Device_GATING.
Gating Clock for USB OTG_Device
0: Mask
1: Pass
22
/
/
/
21
R/W
0x0
SPI1_GATING.
Gating Clock for SPI1
0: Mask
1: Pass
20
R/W
0x0
SPI0_GATING.
Gating Clock for SPI0
0: Mask
1: Pass
19
R/W
0x0
HSTMR_GATING.
Gating Clock for High Speed Timer
0: Mask
1: Pass
18
R/W
0x0
TSC_GATING.
Gating Clock for TSC
0: Mask
1: Pass
17
R/W
0x0
EMAC_GATING.
Gating Clock for EMAC
0: Mask
1: Pass
16:15
/
/
/
14
R/W
0x0
DRAM_GATING.
Gating Clock for DRAM
0: Mask
1: Pass
13
R/W
0x0
NAND_GATING.
Gating Clock for NAND
0: Mask
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 111
1: Pass
12:11
/
/
/
10
R/W
0x0
MMC2_GATING.
Gating Clock for SMHC2
0: Mask
1: Pass
9
R/W
0x0
MMC1_GATING.
Gating Clock for SMHC1
0: Mask
1: Pass
8
R/W
0x0
MMC0_GATING.
Gating Clock for SMHC0
0: Mask
1: Pass
7
/
/
/
6
R/W
0x0
DMA_GATING.
Gating Clock for DMA
0: Mask
1: Pass
5
R/W
0x0
CE_GATING.
Gating Clock for CE.
0: Mask
1: Pass
4:0
/
/
/
4.3.4.15. Bus Clock Gating Register1 (Default Value: 0x0000_0000)
Offset: 0x0064
Register Name: BUS_CLK_GATING_REG1
Bit
Read/Write
Default/Hex
Description
31:23
/
/
/
22
R/W
0x0
SPINLOCK_GATING.
Gating Clock for SPINLOCK
0: Mask
1: Pass.
21
R/W
0x0
MSGBOX_GATING.
Gating Clock for MSGBOX
0: Mask
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 112
1: Pass.
20
R/W
0x0
GPU_GATING.
Gating Clock for GPU
0: Mask
1: Pass.
19:13
/
/
/
12
R/W
0x0
DE_GATING.
Gating Clock for DE
0: Mask
1: Pass.
11
R/W
0x0
HDMI_GATING.
Gating Clock for HDMI
0: Mask
1: Pass.
10
/
/
/
9
R/W
0x0
TVE_GATING.
Gating Clock for TVE
0: Mask
1: Pass.
8
R/W
0x0
CSI_GATING.
Gating Clock for CSI
0: Mask
1: Pass.
7:6
/
/
/
5
R/W
0x0
DEINTERLACE_GATING.
Gating Clock for DEINTERLACE
0: Mask
1: Pass
4
R/W
0x0
TCON1_GATING.
Gating Clock for TCON1
0: Mask
1: Pass.
3
R/W
0x0
TCON0_GATING.
Gating Clock for TCON0
0: Mask
1: Pass.
2:1
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 113
0
R/W
0x0
VE_GATING.
Gating Clock for VE
0: Mask
1: Pass.
4.3.4.16. Bus Clock Gating Register2 (Default Value: 0x0000_0000)
Offset: 0x0068
Register Name: BUS_CLK_GATING_REG2
Bit
Read/Write
Default/Hex
Description
31:15
/
/
/
14
R/W
0x0
I2S/PCM2_GATING.
Gating Clock for I2S/PCM2
0: Mask
1: Pass.
13
R/W
0x0
I2S/PCM1_GATING.
Gating Clock for I2S/PCM1
0: Mask
1: Pass.
12
R/W
0x0
I2S/PCM0_GATING.
Gating Clock for I2S/PCM0
0: Mask
1: Pass.
11:9
/
/
/
8
R/W
0x0
THS_GATING.
Gating Clock for THS
0: Mask
1: Pass
7:6
/
/
/
5
R/W
0x0
PIO_GATING.
Gating Clock for Port Controller
0: Mask
1: Pass.
4:2
/
/
/
1
R/W
0x0
OWA_GATING.
Gating Clock for OWA
0: Mask
1: Pass.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 114
0
R/W
0x0
AC_DIG_GATING.
Gating Clock for Audio Codec Digital Part
0: Mask
1: Pass
4.3.4.17. Bus Clock Gating Register3 (Default Value: 0x0000_0000)
Offset: 0x006C
Register Name: BUS_CLK_GATING_REG3
Bit
Read/Write
Default/Hex
Description
31:22
/
/
/
21
R/W
0x0
SCR1_GATING.
Gating Clock for SCR1
0: Mask
1: Pass
20
R/W
0x0
SCR0_GATING.
Gating Clock for SCR0
0: Mask
1: Pass
19
R/W
0x0
UART3_GATING.
Gating Clock for UART3
0: Mask
1: Pass.
18
R/W
0x0
UART2_GATING.
Gating Clock for UART2
0: Mask
1: Pass.
17
R/W
0x0
UART1_GATING.
Gating Clock for UART1
0: Mask
1: Pass.
16
R/W
0x0
UART0_GATING.
Gating Clock for UART0
0: Mask
1: Pass.
15:3
/
/
/
2
R/W
0x0
TWI2_GATING.
Gating Clock for TWI2
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 115
0: Mask
1: Pass.
1
R/W
0x0
TWI1_GATING.
Gating Clock for TWI1
0: Mask
1: Pass.
0
R/W
0x0
TWI0_GATING.
Gating Clock for TWI0
0: Mask
1: Pass.
4.3.4.18. Bus Clock Gating Register4 (Default Value: 0x0000_0000)
Offset: 0x0070
Register Name: BUS_CLK_GATING_REG4
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
DBGSYS_GATING.
Gating Clock for DBGSYS
0: Mask
1: Pass
6:1
/
/
/
0
R/W
0x0
EPHY_GATING.
Gating Clock for EPHY
0: Mask
1: Pass
4.3.4.19. THS Clock Register (Default Value: 0x0000_0000)
Offset: 0x0074
Register Name: THS_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock.
0: Clock is OFF
1: Clock is ON
This special clock = THS_CLK_SRC_SEL/THS_CLK_DIV_RATIO.
30:26
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 116
25:24
R/W
0x0
THS_CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: /
10: /
11: /
23:2
/
/
/
1:0
R/W
0x0
THS_CLK_DIV_RATIO.
THS Clock Divide Ratio.
00: /1
01: /2
10: /4
11: /6
4.3.4.20. NAND Clock Register (Default Value: 0x0000_0000)
Offset: 0x0080
Register Name: NAND_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
SCLK = CLK_SRC_SEL/CLK_DIV_RATIO_N/CLK_DIV_RATIO_M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(1X)
10: PLL_PERIPH1(1X)
11: /
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 117
3:0
R/W
0x0
CLK_DIV_RATIO_M
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
4.3.4.21. SMHC0 Clock Register (Default Value: 0x0000_0000)
Offset: 0x0088
Register Name: SMHC0_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 100MHz)
0: Clock is OFF
1: Clock is ON.
SCLK = CLK_SRC_SEL/CLK_DIV_RATIO_N/CLK_DIV_RATIO_M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(2X)
10: PLL_PERIPH1(2X)
11: /
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
4.3.4.22. SMHC1 Clock Register (Default Value: 0x0000_0000)
Offset: 0x008C
Register Name: SMHC1_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 118
0: Clock is OFF
1: Clock is ON.
SCLK = CLK_SRC_SEL/CLK_DIV_RATIO_N/CLK_DIV_RATIO_M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(2X)
10: PLL_PERIPH1(2X)
11: /
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre-Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
4.3.4.23. SMHC2 Clock Register (Default Value: 0x0000_0000)
Offset: 0x0090
Register Name: SMHC2_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
SCLK = CLK_SRC_SEL/CLK_DIV_RATIO_N/CLK_DIV_RATIO_M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(2X)
10: PLL_PERIPH1(2X)
11: /
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 119
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
4.3.4.24. TSC Clock Register (Default Value: 0x0000_0000)
Offset: 0x0098
Register Name: TSC_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
SCLK = CLK_SRC_SEL/CLK_DIV_RATIO_N/CLK_DIV_RATIO_M.
30:28
/
/
/
27:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
0000: OSC24M
0001: PLL_PERIPH0(1X)
Others: /
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock pre-divide ratio (n)
The select clock source is pre-divided by 2^n. The divider is 1/2/4/8.
00: /1
01: /2
10: /4
11: /8
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock divide ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 120
4.3.4.25. CE Clock Register (Default Value: 0x0000_0000)
Offset: 0x009C
Register Name: CE_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 400MHz)
0: Clock is OFF
1: Clock is ON.
SCLK = CLK_SRC_SEL/CLK_DIV_RATIO_N/CLK_DIV_RATIO_M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(1X)
10: PLL_PERIPH1(1X)
11: /
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock divide ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
4.3.4.26. SPI0 Clock Register (Default Value: 0x0000_0000)
Offset: 0x00A0
Register Name: SPI0_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 121
SCLK = CLK_SRC_SEL/CLK_DIV_RATIO_N/CLK_DIV_RATIO_M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(1X)
10: PLL_PERIPH1(1X)
11: /
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
4.3.4.27. SPI1 Clock Register (Default Value: 0x0000_0000)
Offset: 0x00A4
Register Name: SPI1_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
SCLK= CLK_SRC_SEL/CLK_DIV_RATIO_N/CLK_DIV_RATIO_M.
30:26
/
/
/
25:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(1X)
10: PLL_PERIPH1(1X)
11: /
23:18
/
/
/
17:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (n)
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 122
00: /1
01: /2
10: /4
11: /8 .
15:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
4.3.4.28. I2S/PCM0 Clock Register (Default Value: 0x0000_0000)
Offset: 0x00B0
Register Name: I2S/PCM0_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
30:18
/
/
/
17:16
R/W
0x0
CLK_SRC_SEL.
00: PLL_AUDIO(8X)
01: PLL_AUDIO(8X)/2
10: PLL_AUDIO(8X)/4
11: PLL_AUDIO
15:0
/
/
/
4.3.4.29. I2S/PCM1 Clock Register (Default Value: 0x0000_0000)
Offset: 0x00B4
Register Name: I2S/PCM1_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
30:18
/
/
/
17:16
R/W
0x0
CLK_SRC_SEL.
00: PLL_AUDIO(8X)
01: PLL_AUDIO(8X)/2
10: PLL_AUDIO(8X)/4
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 123
11: PLL_AUDIO
15:0
/
/
/
4.3.4.30. I2S/PCM2 Clock Register (Default Value: 0x0000_0000)
Offset: 0x00B8
Register Name: I2S/PCM2_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
30:18
/
/
/
17:16
R/W
0x0
CLK_SRC_SEL.
00: PLL_AUDIO(8X)
01: PLL_AUDIO(8X)/2
10: PLL_AUDIO(8X)/4
11: PLL_AUDIO
15:0
/
/
/
4.3.4.31. OWA Clock Register (Default Value: 0x0000_0000)
Offset: 0x00C0
Register Name: OWA_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock(Max Clock = 200MHz)
0: Clock is OFF
1: Clock is ON.
SCLK= PLL _AUDIO/CLK_DIV_RATIO_M.
30:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
4.3.4.32. USBPHY Configuration Register (Default Value: 0x0000_0000)
Offset: 0x00CC
Register Name: USBPHY_CFG_REG
Bit
Read/Write
Default/Hex
Description
31:20
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 124
19
R/W
0x0
SCLK_GATING_OHCI3.
Gating Special Clock for OHCI3
0: Clock is OFF
1: Clock is ON
18
R/W
0x0
SCLK_GATING_OHCI2.
Gating Special Clock for OHCI2
0: Clock is OFF
1: Clock is ON
17
R/W
0x0
SCLK_GATING_OHCI1.
Gating Special Clock for OHCI1
0: Clock is OFF
1: Clock is ON
16
R/W
0x0
SCLK_GATING_OTG_OHCI0.
Gating Special Clock for USB OTG_OHCI0
0: Clock is OFF
1: Clock is ON
15:12
/
/
/
11
R/W
0x0
SCLK_GATING_USBPHY3.
Gating Special Clock for USB PHY3
0: Clock is OFF
1: Clock is ON
10
R/W
0x0
SCLK_GATING_USBPHY2.
Gating Special Clock for USB PHY2
0: Clock is OFF
1: Clock is ON
9
R/W
0x0
SCLK_GATING_USBPHY1.
Gating Special Clock for USB PHY1
0: Clock is OFF
1: Clock is ON
8
R/W
0x0
SCLK_GATING_USBPHY0.
Gating Special Clock for USB PHY0
0: Clock is OFF
1: Clock is ON
7:4
/
/
/
3
R/W
0x0
USBPHY3_RST.
USB PHY3 Reset Control
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 125
0: Assert
1: De-assert
2
R/W
0x0
USBPHY2_RST.
USB PHY2 Reset Control
0: Assert
1: De-assert.
1
R/W
0x0
USBPHY1_RST.
USB PHY1 Reset Control
0: Assert
1: De-assert
0
R/W
0x0
USBPHY0_RST.
USB PHY0 Reset Control
0: Assert
1: De-assert
4.3.4.33. DRAM Configuration Register (Default Value: 0x0000_0000)
Offset: 0x00F4
Register Name: DRAM_CFG_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
DRAM_CTR_RST.
DRAM Controller Reset for AHB Clock Domain.
0: Assert
1: De-assert.
SCLK = CLK_SRC_SEL/DRAM_DIV_M
30:22
21:20
R/W
0x0
CLK_SRC_SEL.
00: PLL_DDR
01: PLL_PERIPH0(2X)
Others: /
19:17
/
/
/
16
R/W
0x0
SDRCLK_UPD.
SDRCLK Configuration Update.
0: Invalid
1: Valid.
Setting this bit will validate SDRCLK configuration . It will be automatically
cleared after the configuration is valid.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 126
The DRAMCLK Source is from PLL_DDR.
15:2
/
/
/
1:0
R/W
0x0
DRAM_DIV_M.
DRAMCLK Divider of Configuration.
The clock is divided by (m+1). The divider M should be from 1 to 4.
4.3.4.34. MBUS Reset Register (Default Value: 0x8000_0000)
Offset: 0x00FC
Register Name: MBUS_RST_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x1
MBUS_RESET.
0: Reset Mbus Domain
1: Assert Mbus Domain.
30:0
/
/
/
4.3.4.35. DRAM Clock Gating Register (Default Value: 0x0000_0000)
Offset: 0x0100
Register Name: DRAM_CLK_GATING_REG
Bit
Read/Write
Default/Hex
Description
31:4
/
/
/
3
R/W
0x0
TSC_DCLK_GATING.
Gating DRAM Clock for TSC
0: Mask
1: Pass
2
R/W
0x0
DEINTERLACE_DCLK_GATING.
Gating DRAM SCLK(1X) for DEINTERLACE
0: Mask
1: Pass
1
R/W
0x0
CSI_DCLK_GATING.
Gating DRAM Clock for CSI
0: Mask
1: Pass
0
R/W
0x0
VE_DCLK_GATING.
Gating DRAM Clock for VE
0: Mask
1: Pass
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 127
4.3.4.36. DE Clock Gating Register (Default Value: 0x0000_0000)
Offset: 0x0104
Register Name: DE_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON
This special clock = CLK_SRC_SEL/CLK_DIV_RATIO_M.
30:27
/
/
/
26:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
000: PLL_PERIPH0(2X)
001: PLL_DE
Others: /
23:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
4.3.4.37. TCON0 Clock Register (Default Value: 0x0000_0000)
Offset: 0x0118
Register Name: TCON0_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
30:27
/
/
/
26:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
000: PLL_VIDEO
Others: /.
23:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 128
4.3.4.38. TVE Clock Register (Default Value: 0x0000_0000)
Offset: 0x0120
Register Name: TVE_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON
SCLK= CLK_SRC_SEL/CLK_DIV_RATIO_M.
30:27
/
/
/
26:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
000: PLL_DE
001: PLL_PERIPH1(1X)
Others: /
23:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
4.3.4.39. DEINTERLACE Clock Register (Default Value: 0x0000_0000)
Offset: 0x0124
Register Name: DEINTERLACE_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON
SCLK = CLK_SRC_SEL/CLK_DIV_RATIO_M
30:27
/
/
/
26:24
R/W
0x0
CLK_SRC_SEL.
Clock Source Select
000: PLL_PERIPH0
001: PLL_PERIPH1
Others: /
23:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 16.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 129
4.3.4.40. CSI_MISC Clock Register (Default Value: 0x0000_0000)
Offset: 0x0130
Register Name: CSI_MISC_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
CSI_MISC_SCLK_GATING.
0: Clock is OFF
1: Clock is ON.
This clock = OSC24M.
30:0
/
/
/
4.3.4.41. CSI Clock Register (Default Value: 0x0000_0000)
Offset: 0x0134
Register Name: CSI_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
CSI_SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
SCLK= SCLK_SRC_SEL/CSI_SCLK_DIV_M.
30:27
/
/
/
26:24
R/W
0x0
SCLK_SRC_SEL.
Special Clock Source Select
000: PLL_PERIPH0(1X)
001: PLL_PERIPH1(1X)
Others: /
23:20
/
/
/
19:16
R/W
0x0
CSI_SCLK_DIV_M.
CSI Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
15
R/W
0x0
CSI_MCLK_GATING.
Gating Master Clock
0: Clock is OFF
1: Clock is ON
This clock = MCLK_SRC_SEL/CSI_MCLK_DIV_M.
14:11
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 130
10:8
R/W
0x0
MCLK_SRC_SEL.
Master Clock Source Select
000: OSC24M
001: PLL_VIDEO
010: PLL_PERIPH1(1X)
Others: /
7:5
/
/
/
4:0
R/W
0x0
CSI_MCLK_DIV_M.
CSI Master Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider is from 1 to 32.
4.3.4.42. VE Clock Register (Default Value: 0x0000_0000)
Offset: 0x013C
Register Name: VE_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
VE_SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
SCLK = PLL_VE/CLK_DIV_RATIO_N.
30:19
/
/
/.
18:16
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (N)
The select clock source is pre-divided by (n+1). The divider N is from 1 to 8.
15:0
/
/
/
4.3.4.43. AC Digital Clock Register (Default Value: 0x0000_0000)
Offset: 0x0140
Register Name: AC_DIG_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_1X_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON
SCLK = PLL _AUDIO Output.
30:0
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 131
4.3.4.44. AVS Clock Register (Default Value: 0x0000_0000)
Offset: 0x0144
Register Name: AVS_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
SCLK= OSC24M.
30:0
/
/
/
4.3.4.45. HDMI Clock Register (Default Value: 0x0000_0000)
Offset: 0x0150
Register Name: HDMI_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
Gating Special Clock
0: Clock is OFF
1: Clock is ON.
SCLK= SCLK_SEL/CLK_DIV_RATIO_M.
30:26
/
/
/
25:24
R/W
0x0
SCLK_SEL.
Special Clock Source Select
00: PLL_VIDEO
Others: /
23:4
/
/
/
3:0
R/W
0x0
CLK_DIV_RATIO_M.
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 16.
4.3.4.46. HDMI Slow Clock Register (Default Value: 0x0000_0000)
Offset: 0x0154
Register Name: HDMI_SLOW_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
HDMI_DDC_CLK_GATING.
0: Clock is OFF
1: Clock is ON.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 132
SCLK = OSC24M.
30:0
/
/
/
4.3.4.47. MBUS Clock Register (Default Value: 0x0000_0000)
Offset: 0x015C
Register Name: MBUS_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
MBUS_SCLK_GATING.
Gating Clock for MBUS
0: Clock is OFF
1: Clock is ON.
MBUS_CLOCK = MBUS_SCLK_SRC/MBUS_SCLK_RATIO_M
30:26
/
/
/
25:24
R/W
0x0
MBUS_SCLK_SRC
Clock Source Select
00: OSC24M
01: PLL_PERIPH0(2X)
10: PLL_DDR
11: /.
23:3
/
/
/
2:0
R/W
0x0
MBUS_SCLK_RATIO_M
Clock Divide Ratio (m)
The pre-divided clock is divided by (m+1). The divider M is from 1 to 8.
Note: If the clock has been changed , it must wait for at least 16 cycles.
4.3.4.48. GPU Clock Register (Default Value: 0x0000_0000)
Offset: 0x01A0
Register Name: GPU_CLK_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SCLK_GATING.
0: Clock is OFF
1: Clock is ON.
SCLK= PLL_GPU/CLK_DIV_RATIO_N.
30:3
/
/
/.
2:0
R/W
0x0
CLK_DIV_RATIO_N.
Clock Pre Divide Ratio (N)
The select clock source is pre-divided by ( n+1). The divider N is from 1 to 8.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 133
4.3.4.49. PLL Stable Time Register0 (Default Value: 0x0000_00FF)
Offset: 0x0200
Register Name: PLL_STABLE_TIME_REG0
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x00FF
PLL_LOCK_TIME
PLL Lock Time (Unit: us).
Note: When any PLL (except PLL_CPU) is enabled or changed, the
corresponding PLL lock bit will be set after the PLL Lock Time.
4.3.4.50. PLL Stable Time Register1 (Default Value: 0x0000_00FF)
Offset: 0x0204
Register Name: PLL_STABLE_TIME_REG1
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x00FF
PLL_CPU_LOCK_TIME
PLL_CPU Lock Time (Unit: us).
Note: When PLL_CPU is enabled or changed, the PLL_CPU lock bit will be set
after the PLL_CPU Lock Time.
4.3.4.51. PLL_CPUX Bias Register (Default Value: 0x0810_0200)
Offset: 0x0220
Register Name: PLL_CPUX_BIAS_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
VCO_RST.
VCO reset in.
30:29
/
/
/
28
R/W
0x0
EXG_MODE.
Exchange Mode.
CPU PLL source will select PLL_PERIPH0 instead of PLL_CPUX
27:24
R/W
0x8
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[3:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_BIAS_CUR_CTRL.
PLL Bias Current Control[4:0].
15:11
/
/
/
10:8
R/W
0x2
PLL_LOCK_CTRL.
PLL Lock Time Control[2:0].
7:4
/
/
/
3:0
R/W
0x0
PLL_DAMP_FACT_CTRL.
PLL Damping Factor Control[3:0].
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 134
4.3.4.52. PLL_AUDIO Bias Register (Default Value: 0x1010_0000)
Offset: 0x0224
Register Name: PLL_AUDIO_BIAS_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS.
PLL VCO Bias Current[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_BIAS_CUR.
PLL Bias Current[4:0].
15:0
/
/
/
4.3.4.53. PLL_VIDEO Bias Register (Default Value: 0x1010_0000)
Offset: 0x0228
Register Name: PLL_VIDEO_BIAS_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_BIAS_CTRL.
PLL Bias Control[4:0].
15:3
/
/
/
2:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[2:0].
4.3.4.54. PLL_VE Bias Register (Default Value: 0x1010_0000)
Offset: 0x022C
Register Name: PLL_VE_BIAS_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_BIAS_CTRL.
PLL Bias Control[4:0].
15:3
/
/
/
2:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[2:0].
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 135
4.3.4.55. PLL_DDR Bias Register (Default Value: 0x8110_4000)
Offset: 0x0230
Register Name: PLL_DDR_BIAS_REG
Bit
Read/Write
Default/Hex
Description
31:28
R/W
0x8
PLL_VCO_BIAS.
PLL VCO Bias[3:0].
27:26
/
/
/.
25
R/W
0x0
PLL_VCO_GAIN_CTRL_EN.
PLL VCO Gain Control Enable.
0: Disable
1: Enable.
24
R/W
0x1
PLL_BANDW_CTRL.
PLL Band Width Control.
0: Narrow
1: Wide.
23:21
/
/
/
20:16
R/W
0x10
PLL_BIAS_CUR_CTRL.
PLL Bias Current Control.
15
/
/
/
14:12
R/W
0x4
PLL_VCO_GAIN_CTRL.
PLL VCO Gain Control Bit[2:0].
11:4
/
/
/
3:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[3:0].
4.3.4.56. PLL_PERIPH0 Bias Register (Default Value: 0x1010_0010)
Offset: 0x0234
Register Name: PLL_PERIPH0_BIAS_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS.
PLL VCO Bias[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_BIAS_CUR_CTRL.
PLL Bias Current Control.
15:5
/
/
/
4
R/W
0x1
PLL_BANDW_CTRL.
PLL Band Width Control.
0: Narrow
1: Wide
3:2
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 136
1:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[1:0].
4.3.4.57. PLL_GPU Bias Register (Default Value: 0x1010_0000)
Offset: 0x023C
Register Name: PLL_GPU_BIAS_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_BIAS_CTRL.
PLL Bias Control[4:0].
15:3
/
/
/
2:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[2:0].
4.3.4.58. PLL_PERIPH1 Bias Register (Default Value: 0x1010_0010)
Offset: 0x0244
Register Name: PLL_PERIPH1_BIAS_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:24
R/W
0x10
PLL_VCO_BIAS.
PLL VCO Bias[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_BIAS_CUR_CTRL.
PLL Bias Current Control.
15:5
/
/
/
4
R/W
0x1
PLL_BANDW_CTRL.
PLL Band Width Control.
0: Narrow
1: Wide
3:2
/
/
/
1:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[1:0].
4.3.4.59. PLL_DE Bias Register (Default Value: 0x1010_0000)
Offset: 0x0248
Register Name: PLL_DE_BIAS_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 137
28:24
R/W
0x10
PLL_VCO_BIAS_CTRL.
PLL VCO Bias Control[4:0].
23:21
/
/
/
20:16
R/W
0x10
PLL_BIAS_CTRL.
PLL Bias Control[4:0].
15:3
/
/
/
2:0
R/W
0x0
PLL_DAMP_FACTOR_CTRL.
PLL Damping Factor Control[2:0].
4.3.4.60. PLL_CPUX Tuning Register (Default Value: 0x0A10_1000)
Offset: 0x0250
Register Name: PLL_CPUX_TUN_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27
R/W
0x1
PLL_BAND_WID_CTRL.
PLL Band Width Control.
0: Narrow
1: Wide
26
R/W
0x0
VCO_GAIN_CTRL_EN.
VCO Gain Control Enable.
0: Disable
1: Enable
25:23
R/W
0x4
VCO_GAIN_CTRL.
VCO Gain Control Bits[2:0].
22:16
R/W
0x10
PLL_INIT_FREQ_CTRL.
PLL Initial Frequency Control[6:0].
15
R/W
0x0
C_OD.
C-Reg-Od for Verify.
14:8
R/W
0x10
C_B_IN.
C-B-In[6:0] for Verify.
7
R/W
0x0
C_OD1.
C-Reg-Od1 for Verify.
6:0
R
0x0
C_B_OUT.
C-B-Out[6:0] for Verify.
4.3.4.61. PLL_DDR Tuning Register (Default Value: 0x1488_0000)
Offset: 0x0260
Register Name: PLL_DDR_TUN_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28
R/W
0x1
VREG1_OUT_EN.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 138
VREG1 Out Enable.
0: Disable
1: Enable
27
/
/
/
26:24
R/W
0x4
PLL_LTIME_CTRL.
PLL Lock Time Control[2:0].
23
R/W
0x1
VCO_RST.
VCO Reset In.
22:16
R/W
0x08
PLL_INIT_FREQ_CTRL.
PLL Initial Frequency Control[6:0].
15
R/W
0x0
OD1.
Reg-Od1 for Verify.
14:8
R/W
0x0
B_IN.
B-In[6:0] for Verify.
7
R/W
0x0
OD.
Reg-Od for Verify.
6:0
R
0x0
B_OUT.
B-Out[6:0] for Verify.
4.3.4.62. PLL_CPUX Pattern Control Register (Default Value: 0x0000_0000)
Offset: 0x0280
Register Name: PLL_CPUX_PAT_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 139
4.3.4.63. PLL_AUDIO Pattern Control Register (Default Value: 0x0000_0000)
Offset: 0x0284
Register Name: PLL_AUDIO_PAT_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
4.3.4.64. PLL_VIDEO Pattern Control Register (Default Value: 0x0000_0000)
Offset: 0x0288
Register Name: PLL_VIDEO_PAT_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 140
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
4.3.4.65. PLL_VE Pattern Control Register (Default Value: 0x0000_0000)
Offset: 0x028C
Register Name: PLL_VE_PAT_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
4.3.4.66. PLL_DDR Pattern Control Register (Default Value: 0x0000_0000)
Offset: 0x0290
Register Name: PLL_DDR_PAT_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 141
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
4.3.4.67. PLL_GPU Pattern Control Register (Default Value: 0x0000_0000)
Offset: 0x029C
Register Name: PLL_GPU_PAT_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-Delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
4.3.4.68. PLL_PERIPH1 Pattern Control Register (Default Value: 0x0000_0000)
Offset: 0x02A4
Register Name: PLL_PERIPH1_PAT_CTRL_REG
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 142
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-Delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
4.3.4.69. PLL_DE Pattern Control Register (Default Value: 0x0000_0000)
Offset: 0x02A8
Register Name: PLL_DE_PAT_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SIG_DELT_PAT_EN.
Sigma-Delta Pattern Enable.
30:29
R/W
0x0
SPR_FREQ_MODE.
Spread Frequency Mode.
00: DC=0
01: DC=1
1X: Triangular
28:20
R/W
0x0
WAVE_STEP.
Wave Step.
19
/
/
/
18:17
R/W
0x0
FREQ.
Frequency.
00: 31.5KHz
01: 32KHz
10: 32.5KHz
11: 33KHz
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 143
16:0
R/W
0x0
WAVE_BOT.
Wave Bottom.
4.3.4.70. Bus Software Reset Register 0 (Default Value: 0x0000_0000)
Offset: 0x02C0
Register Name: BUS_SOFT_RST_REG0
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
USBOHCI3_RST.
USB OHCI3 Reset Control
0: Assert
1: De-assert
30
R/W
0x0
USBOHCI2_RST.
USB OHCI2 Reset Control
0: Assert
1: De-assert
29
R/W
0x0
USBOHCI1_RST.
USB OHCI1 Reset Control
0: Assert
1: De-assert
28
R/W
0x0
USB OTG_OHCI0_RST.
USB OTG_OHCI0 Reset Control
0: Assert
1: De-assert
27
R/W
0x0
USBEHCI3_RST.
USB EHCI3 Reset Control
0: Assert
1: De-assert
26
R/W
0x0
USBEHCI2_RST.
USB EHCI2 Reset Control
0: Assert
1: De-assert
25
R/W
0x0
USBEHCI1_RST.
USB EHCI1 Reset Control
0: Assert
1: De-assert.
24
R/W
0x0
USB OTG_EHCI0_RST.
USB OTG_EHCI0 Reset Control
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 144
0: Assert
1: De-assert
23
R/W
0x0
USB OTG_Device_RST.
USB OTG_Device Reset Control
0: Assert
1: De-assert
22
/
/
/
21
R/W
0x0
SPI1_RST.
SPI1 Reset.
0: Assert
1: De-assert
20
R/W
0x0
SPI0_RST.
SPI0 Reset.
0: Assert
1: De-assert
19
R/W
0x0
HSTMR_RST.
HSTMR Reset.
0: Assert
1: De-assert
18
R/W
0x0
TSC_RST.
TSC Reset.
0: Assert
1: De-assert
17
R/W
0x0
EMAC_RST.
EMAC Reset.
0: Assert
1: De-assert
16:15
/
/
/
14
R/W
0x0
SDRAM_RST.
SDRAM AHB Reset.
0: Assert
1: De-assert
13
R/W
0x0
NAND_RST.
NAND Reset.
0: Assert
1: De-assert
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 145
12:11
/
/
/
10
R/W
0x0
SMHC2_RST.
SD/MMC2 Reset.
0: Assert
1: De-assert
9
R/W
0x0
SMHC1_RST.
SD/MMC1 Reset.
0: Assert
1: De-assert
8
R/W
0x0
SMHC0_RST.
SD/MMC0 Reset.
0: Assert
1: De-assert
7
/
/
/
6
R/W
0x0
DMA_RST.
DMA Reset.
0: Assert
1: De-assert
5
R/W
0x0
CE_RST.
CE Reset.
0: Assert
1: De-assert
4:0
/
/
/
4.3.4.71. Bus Software Reset Register 1 (Default Value: 0x0000_0000)
Offset: 0x02C4
Register Name: BUS_SOFT_RST_REG1
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
DBGSYS_RST.
DBGSYS Reset.
0: Assert
1: De-assert
30:23
/
/
/
22
R/W
0x0
SPINLOCK_RST.
SPINLOCK Reset.
0: Assert
1: De-assert.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 146
21
R/W
0x0
MSGBOX_RST.
MSGBOX Reset.
0: Assert
1: De-assert.
20
R/W
0x0
GPU_RST.
GPU Reset.
0: Assert
1: De-assert.
19:13
/
/
/
12
R/W
0x0
DE_RST.
DE Reset.
0: Assert
1: De-assert.
11
R/W
0x0
HDMI1_RST.
HDMI1 Reset.
0: Assert
1: De-assert.
10
R/W
0x0
HDMI0_RST.
HDMI0 Reset.
0: Assert
1: De-assert.
9
R/W
0x0
TVE_RST.
TVE Reset.
0: Assert
1: De-assert
8
R/W
0x0
CSI_RST.
CSI Reset.
0: Assert
1: De-assert.
7:6
/
/
5
R/W
0x0
DEINTERLACE_RST.
DEINTERLACE Reset.
0: Assert
1:De-assert
4
R/W
0x0
TCON1_RST.
TCON1 Reset.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 147
0: Assert
1: De-assert.
3
R/W
0x0
TCON0_RST.
TCON0 Reset.
0: Assert
1: De-assert.
2:1
/
/
/
0
R/W
0x0
VE_RST.
VE Reset.
0: Assert
1: De-assert.
4.3.4.72. Bus Software Reset Register 2 (Default Value: 0x0000_0000)
Offset: 0x02C8
Register Name: BUS_SOFT_RST_REG2
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2
R/W
0x0
EPHY_RST.
EPHY Reset.
0: Assert
1: De-assert
1:0
/
/
/
4.3.4.73. Bus Software Reset Register 3 (Default Value: 0x0000_0000)
Offset: 0x02D0
Register Name: BUS_SOFT_RST_REG3
Bit
Read/Write
Default/Hex
Description
31:15
/
/
/
14
R/W
0x0
I2S/PCM2_RST.
I2S/PCM2 Reset.
0: Assert
1: De-assert.
13
R/W
0x0
I2S/PCM1_RST.
I2S/PCM1 Reset.
0: Assert
1: De-assert.
12
R/W
0x0
I2S/PCM0_RST.
I2S/PCM0 Reset.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 148
0: Assert
1: De-assert.
11:9
/
/
/
8
R/W
0x0
THS_RST.
THS Reset.
0: Assert
1: De-assert
7:2
/
/
/
1
R/W
0x0
OWA_RST.
OWA Reset.
0: Assert
1: De-assert
0
R/W
0x0
AC_RST.
Audio Codec Reset.
0: Assert
1: De-assert
4.3.4.74. Bus Software Reset Register 4 (Default Value: 0x0000_0000)
Offset: 0x02D8
Register Name: BUS_SOFT_RST_REG4
Bit
Read/Write
Default/Hex
Description
31:22
/
/
/
21
R/W
0x0
SCR1_RST.
SCR1 Reset.
0: Assert
1: De-assert
20
R/W
0x0
SCR0_RST.
SCR0 Reset.
0: Assert
1: De-assert
19
R/W
0x0
UART3_RST.
UART3 Reset.
0: Assert
1: De-assert.
18
R/W
0x0
UART2_RST.
UART2 Reset.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 149
0: Assert
1: De-assert.
17
R/W
0x0
UART1_RST.
UART1 Reset.
0: Assert
1: De-assert.
16
R/W
0x0
UART0_RST.
UART0 Reset.
0: Assert
1: De-assert.
15:3
/
/
/
2
R/W
0x0
TWI2_RST.
TWI2 Reset.
0: Assert
1: De-assert.
1
R/W
0x0
TWI1_RST.
TWI1 Reset.
0: Assert
1: De-assert.
0
R/W
0x0
TWI0_RST.
TWI0 Reset.
0: Assert
1: De-assert.
4.3.4.75. CCU Security Switch Register (Default Value: 0x0000_0000)
Offset: 0x02F0
Register Name: CCU_SEC_SWITCH_REG
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2
R/W
0x0
MBUS_SEC
MBUS clock register security
0: Secure
1: Non-secure
Including MBUS Reset Register and MBUS Clock Register
1
R/W
0x0
BUS_SEC
Bus relevant registers security
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 150
0: Secure
1: Non-secure
Including AXI/AHB/APB relevant registers,such as CPUX/AXI Configuration
Register,AHB1/APB1 Configuration Register,APB2 Configuration Register,
AHB2 Configuration Register.
0
R/W
0x0
PLL_SEC
PLL relevant registers security.
0: Secure
1: Non-secure
Including PLL_CPUX Control Register,PLL_AUDIO Control Register,PLL_VIDEO
Control Register,PLL_VE Control Register,PLL_DDR Control Register,
PLL_PEPIPH0 Control Register,PLL_GPU Control Register,PLL_PERIPH1 Control
Register,PLL_DE Control Register and offset from 0x200 to 0x2A8 relevant
registers.
4.3.4.76. PS Control Register (Default Value: 0x0000_0000)
Offset: 0x0300
Register Name: PS_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:10
/
/
/
9:8
R/W
0x0
DEC_SEL
Device Select
7
R/W
0x0
DET_FIN.
Detect Finish.
0: Unfinished
1: Finished
Setting 1 to this bit will clear it.
6
R/W
0x0
DLY_SEL.
Delay Select
0: 1 Cycle
1: 2 Cycles
5:4
R/W
0x0
OSC_SEL
OSC Select.
00: IDLE
01: SVT
10: LVT
11: ULVT
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 151
3:1
R/W
0x0
TIME_DET.
Time Detect.
000: 0.5/4 us
001: 0.5/2 us
010: 0.5/1 us
011: 0.5*2us
.................
111:0.5*2^5us
0
R/W
0x0
MOD_EN.
Module Enable.
0: Disable
1: Enable
4.3.4.77. PS Counter Register (Default Value: 0x0000_0000)
Offset: 0x0304
Register Name: PS_CNT_REG
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0
PS_CNT.
PS Counter.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 152
4.4. CPU Configuration
4.4.1. Overview
CPU Configuration(CPU CFG) module is used to configure related CPU parameters, including power on, reset, cache,
debug, and check the status of CPU. It will be used when you want to disable/enable the CPU, cluster switch, CPU status
check, and debug, etc.
Features:
Software Reset Control for every CPU
CPU Configuration for every CPU
One 64-bit common counter
4.4.2. Block Diagram
Figure 4-11. CPU CFG Block Diagram
The figure above lists the power domains at CPU reset status. All power switch of CPU core are default to be closed.
Since each CPU core and its appended circuits have the same power domain, the processor and related L1 cache, neon
and vfp should be taken as a whole core.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 153
4.4.3. Operations and Functional Descriptions
4.4.3.1. Signal Description
For the detail of CPU signal, please refer to ARM Cortex-A53 TRM.
4.4.3.2. L2 Idle Mode
When the L2 of Cluster needs to enter WFI mode, firstly make sure the CPU0/1/2/3 of Cluster enter WFI mode, which can
be checked through Cluster CPU Status Register, and then pull high the ACINACTM of Cluster by writing related register
bit to 1, and then check whether L2 enters idle status by checking whether the STANDBYWFIL2 is high. Remember to
set the ACINACTM to low when exiting the L2 idle mode.
4.4.3.3. CPU Reset System
The CPU reset includes core reset, power-on reset and H_Reset. And their scopes rank: core reset < power-on Reset <
H_Reset.
4.4.3.4. Operation Principle
The CPU-related operation needs proper configuration of CPUCFG related register, as well as related system control
resource including BUS, clock ,reset and power control.
4.4.4. Register List
Module Name
Base Address
CPU CFG
0x01700000
Register Name
Offset
Description
C_CTRL_REG0
0x0000
Cluster Control Register0
C_CTRL_REG1
0x0004
Cluster Control Register1
CACHE_CFG_REG0
0x0008
Cache parameters configuration register0
CACHE_CFG_REG1
0x000C
Cache parameters configuration register1
GENER_CTRL_REG0
0x0028
General Control Register0
C_CPU_STATUS
0x0030
Cluster CPU Status Register
L2_ STATUS_REG
0x003C
L2 Status Register
C_RST_CTRL
0x0080
Cluster Reset Control Register
RVBARADDR0_L
0x00A0
Reset Vector Base Address Register0_L
RVBARADDR0_H
0x00A4
Reset Vector Base Address Register0_H
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 154
RVBARADDR1_L
0x00A8
Reset Vector Base Address Register1_L
RVBARADDR1_H
0x00AC
Reset Vector Base Address Register1_H
RVBARADDR2_L
0x00B0
Reset Vector Base Address Register2_L
RVBARADDR2_H
0x00B4
Reset Vector Base Address Register2_H
RVBARADDR3_L
0x00B8
Reset Vector Base Address Register3_L
RVBARADDR3_H
0x00BC
Reset Vector Base Address Register3_H
4.4.5. Register Description
4.4.5.1. Cluster Control Register0 (Default Value: 0x8000_0000)
Offset: 0x0000
Register Name: C_CTRL_REG0
Bit
Read/Write
Default/Hex
Description
31
R/W
0x1
SYSBAR_DISABLE.
Disable broadcasting of barriers onto system bus
0: Barriers are broadcast onto system bus, this requires an AMBA4
interconnect.
1: Barriers are not broadcast onto the system bus. This is compatible with an
AXI3 interconnect.
30
R/W
0x0
BROADCAST_INNER.
Enable broadcasting of Inner Shareable transactions
0: Inner shareable transactions are not broadcasted externally.
1: Inner shareable transactions are broadcasted externally.
29
R/W
0x0
BROADCAST_OUTER.
Enable broadcasting of outer shareable transactions
0: Outer Shareable transactions are not broadcasted externally.
1: Outer Shareable transactions are broadcasted externally.
28
R/W
0x0
BROADCAST_CACHE_MAINT
Enable broadcasting of cache maintenance operations to downstream caches
0: Cache maintenance operations are not broadcasted to downstream
caches.
1: Cache maintenance operations are broadcasted to downstream caches.
27:24
R/W
0x0
AA64nAA32
Register width state. Determines which execution state the processor boots
into after a cold reset.
0: AArch32
1: AArch64
23:10
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 155
11:8
R/W
0x0
CP15S_DISABLE.
Disable write access to some secure CP15 register.
7:5
/
/
/
4
R/W
0x0
L2_RST_DISABLE.
Disable automatic L2 cache invalidate at reset
0: L2 cache is reset by hardware.
1: L2 cache is not reset by hardware.
3:0
/
/
/
4.4.5.2. Cluster Control Register1 (Default Value: 0x0000_0000)
Offset: 0x0004
Register Name: C_CTRL_REG1
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
ACINACTM.
Snoop interface is inactive and no longer accepting requests.
0: Snoop interface is active
1: Snoop interface is inactive
4.4.5.3. Cache Parameter Control Register0 (Default Value: 0x2222_2222)
Offset: 0x0008
Register Name: CACHE_CFG_REG0
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x2
L1SDT_DELAY
27
/
/
/
26:24
R/W
0x2
L1TLB_DELAY
23
/
/
/
22:20
R/W
0x2
BTAC_DELAY
19
/
/
/
18:16
R/W
0x2
L1DY_DELAY
15
/
/
/
14:12
R/W
0x2
L1DT_DELAY
11
/
/
/
10:8
R/W
0x2
L1DD_DELAY
7
/
/
/
6:4
R/W
0x2
L1IT_DELAY
3
/
/
/
2:0
R/W
0x2
L1ID_DELAY
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 156
4.4.5.4. Cache Parameter Control Register1 (Default Value: 0x0202_2020)
Offset: 0x000C
Register Name: CACHE_CFG_REG1
Bit
Read/Write
Default/Hex
Description
31:26
/
/
/
25:24
R/W
0x2
EMAW
23:19
/
/
/
18:16
R/W
0x2
EMA
15
/
/
/
14:12
R/W
0x2
L2V_DELAY
11:8
/
/
/
7
/
/
/
6:4
R/W
0x2
L2T_DELAY
3:0
/
/
/
4.4.5.5. General Control Register0 (Default Value: 0x0000_0010)
Offset: 0x0028
Register Name: GENER_CTRL_REG0
Bit
Read/Write
Default/Hex
Description
31:25
/
/
/
24
R/W
0x0
EVENTI
Event input for processor wake-up from WFE state.This bit must remain HIGH
for at least one clock cycle to be visible by the cores.
23:20
R/W
0x0
EXM_CLR[3:0]
19:17
/
/
/
16
R/W
0x0
CLREXMONREQ
Clearing of the external global exclusive monitor request.When this bit is
asserted, it acts as a WFE wake-up event to all the cores in the MPCore
device.
15:12
R/W
0x0
CRYPTODISABLE
Disable the Cryptography Extensions.
11:9
/
/
/
8
R/W
0x0
L2FLUSHREQ
L2 hardware flush request.
7:5
/
/
/
4
R/W
0x1
GICCDISABLE.
Globally disables the CPU interface logic and routes the "External" signals
directly to the processor:
0: Enable the GIC CPU interface logic.
1: Disable the GIC CPU interface logic.
3:0
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 157
4.4.5.6. Cluster CPU Status Register (Default Value: 0x000E_0000)
Offset: 0x30
Register Name: C_CPU_STATUS
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:24
R
0x0
SMP
Indicates whether a core is taking part in coherency.
0: Disable
1: Enable
23:20
/
/
/
19:16
R
0xE
STANDBYWFI.
Indicates if a core is in WFI standby mode:
0: Processor not in WFI standby mode.
1: Processor in WFI standby mode
15:12
/
/
/
11:8
R
0x0
STANDBYWFE.
Indicates if a core is in the WFE standby mode:
0: Processor not in WFE standby mode
1: Processor in WFE standby mode
7:1
/
/
/
0
R
0x0
STANDBYWFIL2.
Indicates if the Cluster L2 memory system is in WFI standby mode.
0: Active
1: Idle
4.4.5.7. L2 Status Register (Default Value: 0x0000_0000)
Offset: 0x003C
Register Name: L2_STATUS_REG
Bit
Read/Write
Default/Hex
Description
31:11
/
/
/
10
R
0x0
L2FLUSHDONE
L2 hardware flush complete
9
R
0x0
EVENTO
Event output.
This bit is asserted HIGH for 3 clock cycles when any core in the cluster
executes an SEV instruction.
8
R
0x0
CLREXMONACK
Clearing of the external global exclusive monitor acknowledge.
7:0
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 158
4.4.5.8. CPU2 Reset Control Register(Default Value: 0x1110_1101)
Offset: 0x80
Register Name: C_RST_CTRL
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28
R/W
0x1
DDR_RST
AXI2MBUS Logic Circuit Reset.
0: Assert
1: De-assert
27:25
/
/
/
24
R/W
0x1
SOC_DBG_RST.
Cluster SOC Debug P_Reset.
Clear this bit will reset the SOC Debug Bus Logic and it will automatically
change to 1 after 64 p_cycles.
0: Assert
1: De-assert.
23:21
R/W
0x0
20
R/W
0x1
MBIST_RST
CPUBIST Reset.
The reset signal for test.
0: Assert
1: De-assert
19:16
R/W
0x0
/
15:13
/
/
/
12
R/W
0x1
HRESET.
Cluster H_Reset.
Reset all the Cluster Logic and Cluster Interface Logic.
0: Assert
1: De-assert
11:9
/
/
/
8
R/W
0x1
L2_RST.
Cluster L2 Cache Reset
0: Assert
1: De-assert
7:4
/
/
/
3:0
R/W
0x1
CORE_RESET.
Control a Core Reset Assert.
0: Assert
1: De-assert
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 159
4.4.5.9. Reset Vector Base Address Register0_L (Default Value: 0x0000_0000)
Offset: 0x00A0
Register Name: RVBARADDR0_L
Bit
Read/Write
Default/Hex
Description
31:2
R/W
0x0
RVBARDDR[31:2]
Reset Vector Base Address[39:2] for executing in 64-bit state (AArch64)of
CPU0.
1:0
/
/
/
4.4.5.10. Reset Vector Base Address Register0_H (Default Value: 0x0000_0000)
Offset: 0x00A4
Register Name: RVBARADDR0_H
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
RVBARDDR[39:32]
Reset Vector Base Address[39:2]for executing in 64-bit state (AArch64) of
CPU0.
4.4.5.11. Reset Vector Base Address Register1_L (Default Value: 0x0000_0000)
Offset: 0x00A8
Register Name: RVBARADDR1_L
Bit
Read/Write
Default/Hex
Description
31:2
R/W
0x0
RVBARDDR[31:2]
Reset Vector Base Address[39:2] for executing in 64-bit state (AArch64)of
CPU1.
1:0
/
/
/
4.4.5.12. Reset Vector Base Address Register1_H (Default Value: 0x0000_0000)
Offset: 0x00AC
Register Name: RVBARADDR1_H
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
RVBARDDR[39:32]
Reset Vector Base Address[39:2] for executing in 64-bit state (AArch64) of
CPU1.
4.4.5.13. Reset Vector Base Address Register2_L (Default Value: 0x0000_0000)
Offset: 0x00B0
Register Name: RVBARADDR2_L
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 160
Bit
Read/Write
Default/Hex
Description
31:2
R/W
0x0
RVBARDDR[31:2]
Reset Vector Base Address[39:2] for executing in 64-bit state (AArch64)of
CPU2.
1:0
/
/
/
4.4.5.14. Reset Vector Base Address Register2_H (Default Value: 0x0000_0000)
Offset: 0x00B4
Register Name: RVBARADDR2_H
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
RVBARDDR[39:32]
Reset Vector Base Address[39:2] for executing in 64-bit state (AArch64) of
CPU2.
4.4.5.15. Reset Vector Base Address Register3_L (Default Value: 0x0000_0000)
Offset: 0x00B8
Register Name: RVBARADDR3_L
Bit
Read/Write
Default/Hex
Description
31:2
R/W
0x0
RVBARDDR[31:2]
Reset Vector Base Address[39:2] for executing in 64-bit state (AArch64)of
CPU3.
1:0
/
/
/
4.4.5.16. Reset Vector Base Address Register3_H (Default Value: 0x0000_0000)
Offset: 0x00BC
Register Name: RVBARADDR3_H
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
RVBARDDR[39:32]
Reset Vector Base Address[39:2] for executing in 64-bit state (AArch64) of
CPU3.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 161
4.5. System Control
4.5.1. Overview
Area
Size(Bytes)
SRAM A1
32K
SRAM A2
64K
SRAM C
112K
CPUX I-Cache
32K (X=0,1,2,3)
CPUX D-Cache
32K (X=0,1,2,3)
CPU L2 Cache
512K
Total
976K
4.5.2. Register List
Module Name
Base Address
System Control
0x01C00000
Register Name
Offset
Description
VER_REG
0x24
Version Register
EMAC_EPHY_CLK_REG
0x30
EMAC-EPHY Clock Register
4.5.3. Register Description
4.5.3.1. Version Register (Default Value: UDF)
Offset:0x0024
Register Name: VER_REG
Bit
Read/Write
Default/Hex
Description
31:9
/
/
/
8
R
UDF
UBOOT_SEL_PAD_STA.
U_boot Select Pin Status.
0: U_Boot
1: Normal Boot
7:0
R
0x0
Reserved
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 162
4.5.3.2. EMAC-EPHY Clock Register (Default Value: 0x0005_8000)
Offset:0x0030
Register Name: EMAC_EPHY_CLK_REG
Bit
Read/Write
Default/Hex
Description
31:28
R/W
0x0
BPS_EFFUSE
27
R/W
0x0
XMII_SEL
0: Internal SMI and MII
1: External SMI and MII
26:25
R/W
0x0
EPHY_MODE
Operation Mode Selection
00: Normal Mode
01: Sim Mode
10: AFE Test Mode
11: /
24:20
R/W
0x0
PHY_ADDR
PHY Address
19
R/W
0x0
BIST_CLK_EN
0: BIST clk disable
1: BIST clk enable
18
R/W
0x1
CLK_SEL
0: 25MHz
1: 24MHz
17
R/W
0x0
LED_POL
0: High active
1: Low active
16
R/W
0x1
SHUTDOWN
0: Power up
1: Shutdown
15
R/W
0x1
PHY_SELECT.
0: External PHY
1: Internal PHY
14
/
/
/
13
R/W
0x0
RMII_EN
0: Disable RMII Module
1: Enable RMII Module
When this bit assert, MII or RGMII interface is disabled( This means bit13 is
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 163
prior to bit2)
12:10
R/W
0x0
ETXDC.
Configure EMAC Transmit Clock Delay Chain.
9:5
R/W
0x0
ERXDC.
Configure EMAC Receive Clock Delay Chain.
4
R/W
0x0
ERXIE
Enable EMAC Receive Clock Invertor.
0: Disable
1: Enable
3
R/W
0x0
ETXIE
Enable EMAC Transmit Clock Invertor.
0: Disable
1: Enable
2
R/W
0x0
EPIT
EMAC PHY Interface Type
0: MII
1: RGMII
1:0
R/W
0x0
ETCS.
EMAC Transmit Clock Source
00: Transmit clock source for MII
01: External transmit clock source for GMII and RGMII
10: Internal transmit clock source for GMII and RGMII
11: Reserved
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 164
4.6. Timer
4.6.1. Overview
Timer 0/1 can take their inputs from Internal OSC(INOSC) o OSCM. The poide the opeatig sstes scheduler
interrupt. It is designed to offer maximum accuracy and efficient management, even for systems with long or short
response time. They provide 24-bit programmable overflow counter and work in auto-reload mode or no-reload mode.
When the current value in Timer 0 Current Value Register or Timer 1 Current Value Register is counting down to zero,
the timer will generate interrupt if the interrupt enable bit is set.
The watchdog is used to resume the controller operation when it is disturbed by malfunctions such as noise and system
errors. It features a down counter that allows a watchdog period of up to 16 seconds (512000 cycles). It can generate a
general reset or interrupt request.
Audio-Video-Sync(AVS) counter is used to synchronize video and audio in the player.
Features:
2 Timers for system scheduler counting using OSC24M or INOSC(16MHz) clock
Each Timer could generate individual interrupt
1 Watchdog for resetting whole system or interrupt
2 AVS counters for synchronizing video and audio in the player
4.6.2. Block Diagram
The Timer clock comes from one of the two clock sources that could be pre-scaled up to 128 division. In single mode,
when Current Value counts down to 0 , the enable bit is cleared automatically and Timer stops working. But in
continuous mode, Interval Value will be auto-reloaded into Timer 0 Current Value Register/Timer 1 Current Value
Register and counter counts from the new interval value again when current value is counted down to 0. Every time
current value is counted down to 0, a Pending will be generated. Pending could be sent to GIC only if IRQ Enable bit is
set.
Generally watchdog could not count down to 0 because it would be restart inside Interval Value. Otherwise the
malfunction makes the watchdog counts down to 0, and pending will be generated, which causes a reset for the whole
system or an interrupt (see Watchdog Configuration Register).
AVS has two up-counted counters. The clock source of the counter comes from 24MHz/Divisor_N (Divisor_N is set in
AVS Counter Divisor Register). AVS counter can disable or enable at any time, the Interval Value set in AVS Counter 0
Register or AVS Counter 1 Register and Divisor Value set in AVS Counter Divisor Register. When you enable the AVS
counter, it counts up from Interval Value until you pause it. It doesn't generate any pending.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 165
24M
INOSC/512
Timer 0
Timer 1
Single
Continuous
Interval Value Enable IV=0? Pending
IRQ EN
IRQ
yes
/1
/2
/4
/8
/ 16
/ 32
/ 64
/ 128
Watchdog
Interrupt Enable Pending IRQ
16 k cycles
32 k cycles
64 k cycles
96 k cycles
128 k cycles
160 k cycles
192 k cycles
others cycles
24M/750
Restart
Time out? yes
Reset Enable Pending
Restart
Whole System Reset
yes
Time out?
Figure 4-12. Timer Block Diagram
4.6.3. Operations and Functional Descriptions
4.6.3.1. Timer Reload and Enable Bit
Generally the operation of setting both reload bit and enable bit and writing them into Timer 0 Control Register/Timer
1 Control Register moreover could cause a risk. It had better to enable Timer after Interval Value is loaded into Timer 0
Current Value Register/Timer 1 Current Value Register. Only in timer pause time, when you hope that counter starts
working from a new interval value, the reload bit and enable bit should be set 1 and wrote into TMR0_CTRL_REG/
TMR1_CTRL_REG at the same time.
4.6.3.2. Timing Requirement for Timer Command
For reload and enable operation of Timer, it is necessary to wait some cycles between the same continuous operations.
It has to wait for 2 cycles at least from pause state to start or from start state to pause. To reload operation, it could not
be implemented immediately again until the reload bit is cleared automatically the last operation.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 166
4.6.3.3. Watchdog Restart
Watchdog restart function should be enabled inside Interval Value. Make a restart by writing 1 to Watchdog Restart and
0xA57 to Watchdog Key Field at the same time .
4.6.3.4. Programming Guide
(1) Timer
Take making a Timer0 1ms delay for an example, 24M clock source, single mode and 2 pre-scale will be selected in the
instance.
writel(0x2EE0,TMR0_INTV_VALUE_REG); //Set interval value
writel(0x94, TMR0_CTRL_REG); //Select Single mode,24MHz clock source,2 pre-scale
writel(readl(TMR0_CTRL_REG)|(1<<1), TMR0_CTRL_REG); //Set Reload bit
while((readl(TMR0_CTRL_REG)>>1)&1); //Waiting Reload bit turns to 0
writel(readl(TMR0_CTRL_REG)|(1<<0), TMR0_CTRL_REG); //Enable Timer0
(2) Watchdog Reset
In the following instance making configurations for Watchdog: configurate clock source as 24M/750, configurate Interval
value as 1s and configurate watchdog Configuration as To whole system. This instance indicates that reset system after
1s.
writel(0x1, WDOG0_CFG_REG); //To whole system
writel(0x10, WDOG0_MODE_REG); //Interval Value set 1s
writel(readl(WDOG0_MODE_REG)|(1<<0), WDOG0_MODE_REG); //Enable Watchdog
(3) Watchdog Restart
In the following instance making configurations for Watchdog: configurate clock source as 24M/750, configurate Interval
Value as 1s and configurate Watchdog Configuration as To whole system. In the following instance, if the time of other
codes is larger than 1s, watchdog will reset the whole system. If the sentence of restart watchdog is implemented inside
1s, watchdog will be restarted.
writel(0x1, WDOG0_CFG_REG); //To whole system
writel(0x10, WDOG0_MODE_REG); //Interval Value set 1s
writel(readl(WDOG0_MODE_REG)|(1<<0), WDOG0_MODE_REG); //Enable Watchdog
----other codes---
writel(readl(WDOG0_CTRL_REG)|(0xA57<<1)|(1<<0), WDOG0_CTRL_REG); //Writel 0xA57 at Key Field and Restart
Watchdog
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 167
4.6.4. Register List
Module Name
Base Address
TIMER
0x01C20C00
Register Name
Offset
Description
TMR_IRQ_EN_REG
0x0000
Timer IRQ Enable Register
TMR_IRQ_STA_REG
0x0004
Timer Status Register
TMR0_CTRL_REG
0x0010
Timer 0 Control Register
TMR0_INTV_VALUE_REG
0x0014
Timer 0 Interval Value Register
TMR0_CUR_VALUE_REG
0x0018
Timer 0 Current Value Register
TMR1_CTRL_REG
0x0020
Timer 1 Control Register
TMR1_INTV_VALUE_REG
0x0024
Timer 1 Interval Value Register
TMR1_CUR_VALUE_REG
0x0028
Timer 1 Current Value Register
AVS_CNT_CTL_REG
0x0080
AVS Control Register
AVS_CNT0_REG
0x0084
AVS Counter 0 Register
AVS_CNT1_REG
0x0088
AVS Counter 1 Register
AVS_CNT_DIV_REG
0x008C
AVS Divisor Register
WDOG0_IRQ_EN_REG
0x00A0
Watchdog 0 IRQ Enable Register
WDOG0_IRQ_STA_REG
0x00A4
Watchdog 0 Status Register
WDOG0_CTRL_REG
0x00B0
Watchdog 0 Control Register
WDOG0_CFG_REG
0x00B4
Watchdog 0 Configuration Register
WDOG0_MODE_REG
0x00B8
Watchdog 0 Mode Register
4.6.5. Register Description
4.6.5.1. Timer IRQ Enable Register (Default Value: 0x0000_0000)
Offset:0x0000
Register Name: TMR_IRQ_EN_REG
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
1
R/W1S
0x0
TMR1_IRQ_EN.
Timer 1 Interrupt Enable.
0: No effect.
1: Timer 1 interval value reached interrupt enable.
0
R/W1S
0x0
TMR0_IRQ_EN.
Timer 0 Interrupt Enable.
0: No effect.
1: Timer 0 interval value reached interrupt enable.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 168
4.6.5.2. Timer IRQ Status Register (Default Value: 0x0000_0000)
Offset:0x0004
Register Name: TMR_IRQ_STA_REG
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
1
R/W1C
0x0
TMR1_IRQ_PEND.
Timer 1 IRQ Pending.
Setting 1 to the bit will clear it.
0: No effect.
1: Pending, timer 1 interval value is reached.
0
R/W1C
0x0
TMR0_IRQ_PEND.
Timer 0 IRQ Pending.
Setting 1 to the bit will clear it.
0: No effect.
1: Pending, timer 0 interval value is reached.
4.6.5.3. Timer 0 Control Register (Default Value: 0x0000_0004)
Offset:0x0010
Register Name: TMR0_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
TMR0_MODE.
Timer 0 mode.
0: Continuous mode. When interval value reached, the timer will not disable
automatically.
1: Single mode. When interval value reached, the timer will disable
automatically.
6:4
R/W
0x0
TMR0_CLK_PRES.
Select the pre-scale of timer 0 clock source.
000: /1
001: /2
010: /4
011: /8
100: /16
101: /32
110: /64
111: /128
3:2
R/W
0x1
TMR0_CLK_SRC.
Timer 0 Clock Source.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 169
00: Internal OSC / N
01: OSC24M.
10: /
11: /
Internal OSC / N is about 32KHz.
1
R/W1S
0x0
TMR0_RELOAD.
Timer 0 Reload.
0: No effect
1: Reload timer 0 Interval value.
After the bit is set, it can not be written again before it is cleared
automatically.
0
R/W
0x0
TMR0_EN.
Timer 0 Enable.
0: Stop/Pause
1: Start.
When the timer is started, it will reload the interval value to internal
register, and the current counter will count from interval value to 0.
If the current counter does not reach the zero, the TMR0_EN bit is set to
, the uet alue oute ill pause. At least ait fo  les, the
TMR0_EN bit can be set to 1.
In timer pause state,Timer 0 Interval Value Register can be modified. If the
timer is started again, and the software hope Timer 0 Current Value
Register to down-count from the new interval value, the Timer 0 Reload bit
and the Timer 0 Enable bit should be set to 1 at the same time.
4.6.5.4. Timer 0 Interval Value Register (Default Value: 0x0000_0000)
Offset:0x0014
Register Name: TMR0_INTV_VALUE_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
TMR0_INTV_VALUE.
Timer 0 Interval Value.
Note:The value should consider the system clock and the timer clock source.
4.6.5.5. Timer 0 Current Value Register (Default Value: 0x0000_0000)
Offset:0x0018
Register Name: TMR0_CUR_VALUE_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
TMR0_CUR_VALUE.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 170
Timer 0 Current Value.
Note: Timer0 current value is a 32-bit down-counter (from interval value to 0).
4.6.5.6. Timer 1 Control Register (Default Value: 0x0000_0004)
Offset:0x0020
Register Name: TMR1_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
TMR1_MODE.
Timer 1 mode.
0: Continuous mode. When interval value reached, the timer will not disable
automatically.
1: Single mode. When interval value reached, the timer will disable
automatically.
6:4
R/W
0x0
TMR1_CLK_PRES.
Select the pre-scale of timer 1 clock source.
000: /1
001: /2
010: /4
011: /8
100: /16
101: /32
110: /64
111: /128
3:2
R/W
0x1
TMR1_CLK_SRC.
00: Internal OSC / N
01: OSC24M.
10: /
11: /.
Internal OSC / N is about 32KHz.
1
R/W1S
0x0
TMR1_RELOAD.
Timer 1 Reload.
0: No effect
1: Reload timer 1 Interval value.
Afte the it is set, it a ot e itte agai efoe its leaed
automatically.
0
R/W
0x0
TMR1_EN.
Timer 1 Enable.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 171
0: Stop/Pause
1: Start.
If the timer is started, it will reload the interval value to internal register, and
the current counter will count from interval value to 0.
If the current counter does not reach the zero, the TMR1_EN it is set to ,
the current value counter will pause. At least wait for 2 cycles, the TMR1_EN
bit can be set to 1.
In timer pause state, Timer 1 Interval Value Register can be modified. If the
timer is started again, and the software hope Timer 1 Current Value Register
to down-count from the new interval value, the Timer 1 Reload bit and the
Timer 1 Enable bit should be set to 1 at the same time.
4.6.5.7. Timer 1 Interval Value Register (Default Value: 0x0000_0000)
Offset:0x0024
Register Name: TMR1_INTV_VALUE_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
TMR1_INTV_VALUE.
Timer 1 Interval Value.
Note: The value setting should consider the system clock and the timer clock source.
4.6.5.8. Timer 1 Current Value Register (Default Value: 0x0000_0000)
Offset:0x0028
Register Name: TMR1_CUR_VALUE_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
TMR1_CUR_VALUE.
Timer 1 Current Value.
Note: The current value of Timer1 is a 32-bit down-counter (from interval value to 0).
4.6.5.9. AVS Counter Control Register (Default Value: 0x0000_0000)
Offset:0x0080
Register Name: AVS_CNT_CTL_REG
Bit
Read/Write
Default/Hex
Description
31:10
/
/
/
9
R/W
0x0
AVS_CNT1_PS.
Audio/Video Sync Counter 1 Pause Control
0: Not pause
1: Pause Counter 1.
8
R/W
0x0
AVS_CNT0_PS.
Audio/Video Sync Counter 0 Pause Control
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 172
0: Not pause
1: Pause Counter 0.
7:2
/
/
/
1
R/W
0x0
AVS_CNT1_EN.
Audio/Video Sync Counter 1 Enable/ Disable.
The counter source is OSC24M.
0: Disable
1: Enable.
0
R/W
0x0
AVS_CNT0_EN.
Audio/Video Sync Counter 1 Enable/ Disable.
The counter source is OSC24M.
0: Disable
1: Enable.
4.6.5.10. AVS Counter 0 Register (Default Value: 0x0000_0000)
Offset:0x0084
Register Name: AVS_CNT0_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
AVS_CNT0.
Counter 0 for Audio/ Video Sync Application
The high 32 bits of the internal 33 bits counter register. The initial value of
the internal 33 bits counter register can be set by software. The LSB bit of the
33 bits counter register should be zero when the initial value is updated. It
will count from the initial value. The initial value can be updated at any time.
It can also be paused by setting AVS_CNT0_PS to . Whe it is paused, the
counter will not increase.
4.6.5.11. AVS Counter 1 Register (Default Value: 0x0000_0000)
Offset:0x0088
Register Name: AVS_CNT1_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
AVS_CNT1.
Counter 1 for Audio/ Video Sync Application
The high 32 bits of the internal 33 bits counter register. The initial value of
the internal 33 bits counter register can be set by software. The LSB bit of the
33 bits counter register should be zero when the initial value is updated. It
will count from the initial value. The initial value can be updated at any time.
It can also be paused by setting AVS_CNT1_PS to . Whe it is paused, the
counter will not increase.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 173
4.6.5.12. AVS Counter Divisor Register (Default Value: 0x05DB_05DB)
Offset:0x008C
Register Name: AVS_CNT_DIV_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x5DB
AVS_CNT1_D.
Divisor N for AVS Counter 1
AVS CN1 CLK=24MHz/Divisor_N1.
Divisor N1 = Bit [27:16] + 1.
The number N is from 1 to 0x7ff. The zero value is reserved.
The internal 33 bits counter engine will maintain another 12 bits counter. The
12 bits counter is used for counting the cycle number of one 24MHz clock.
When the 12 bits counter reaches (>= N) the divisor value, the internal 33 bits
counter register will increase 1 and the 12 bits counter will reset to zero and
restart again.
15:12
/
/
/
11:0
R/W
0x5DB
AVS_CNT0_D.
Divisor N for AVS Counter 0
AVS CN0 CLK=24MHz/Divisor_N0.
Divisor N0 = Bit [11:0] + 1
The number N is from 1 to 0x7ff. The zero value is reserved.
The internal 33 bits counter engine will maintain another 12 bits counter. The
12 bits counter is used for counting the cycle number of one 24MHz clock.
When the 12 bits counter reaches (>= N) the divisor value, the internal 33 bits
counter register will increase 1 and the 12 bits counter will reset to zero and
restart again.
Note: AVS_CNT1_D and AVS_CNT0_D can be configured by software at any time.
4.6.5.13. Watchdog0 IRQ Enable Register (Default Value: 0x0000_0000)
Offset:0x00A0
Register Name: WDOG0_IRQ_EN_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
WDOG0_IRQ_EN.
Watchdog0 Interrupt Enable.
0: No effect.
1: Watchdog0 interrupt enable.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 174
4.6.5.14. Watchdog0 Status Register (Default Value: 0x0000_0000)
Offset:0x00A4
Register Name: WDOG0_IRQ_STA_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W1C
0x0
WDOG0_IRQ_PEND.
Watchdog0 n IRQ Pending.
Setting 1 to the bit will clear it.
0: No effect.
1: Pending. Watchdog0 interval value is reached.
4.6.5.15. Watchdog0 Control Register (Default Value: 0x0000_0000)
Offset:0x00B0
Register Name: WDOG0_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:13
/
/
/
12:1
R/W
0x0
WDOG0_KEY_FIELD.
Watchdog0 Key Field.
Should be written at value 0xA57. Writing any other value in this field aborts
the write operation.
0
R/W1S
0x0
WDOG0_RSTART.
Watchdog0 Restart.
0: No effect.
1: Restart watchdog0.
4.6.5.16. Watchdog0 Configuration Register (Default Value: 0x0000_0001)
Offset:0x00B4
Register Name: WDOG0_CFG_REG
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
1:0
R/W
0x1
WDOG0_CONFIG.
Watchdog0 generates a reset signal
00: /
01: To whole system
10: Only interrupt
11: /
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 175
4.6.5.17. Watchdog0 Mode Register (Default Value: 0x0000_0000)
Offset:0x00B8
Register Name: WDOG0_MODE_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:4
R/W
0x0
WDOG0_INTV_VALUE.
Watchdog0 Interval Value
Watchdog0 clock source is OSC24M / 750. If the clock source is turned off,
Watchdog 0 will not work.
0000: 16000 cycles (0.5s)
0001: 32000 cycles (1s)
0010: 64000 cycles (2s)
0011: 96000 cycles (3s)
0100: 128000 cycles (4s)
0101: 160000 cycles (5s)
0110: 192000 cycles (6s)
0111: 256000 cycles (8s)
1000: 320000 cycles (10s)
1001: 384000 cycles (12s)
1010: 448000 cycles (14s)
1011: 512000 cycles (16s)
others: /
3:1
/
/
/
0
R/W1S
0x0
WDOG0_EN.
Watchdog0 Enable.
0: No effect
1: Enable watchdog0.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 176
4.7. Trusted Watchdog
4.7.1. Overview
The trusted watchdog(TWD) is primarily used to protect the trusted world operations from denial of service when
secure services are dependent to the RichOS scheduler. For example, if the trusted world is not entered after a defined
time limit, the SoC is re-started to perform an authentication of the system.
The trusted watchdog can also be used to mask the real cause of a security error thanks to the delayed warm reset it
generates.
4.7.2. Block Diagram
24M
LOSC
TWD
Interval Value
CMP Counter
Value ==
Hi/Low Counter
Value ?
Pending
IRQ Enable IRQ
yes
Cold
Reset
Hi/Low Counter
Rolling-over
Restart
CMP Counter Value =
Hi/Low Counter Value + Interval Value
Reset
Enable Reset
Interval Value
Register
Read Latch Enable
Clear Enable
Stop Enable
Clear
Counter?
Read Value?
Counter Value and Interval Value are
Cleared
Stop?
Hi/Low Counter
Stop Rolling-over Resum? Hi/Low Counter
Continue Rolling-over
Reset Flag
After
Warm
Reset
Figure 4-13. TWD Block Diagram
The trusted watchdog timer must always run when the SoC wakes up from cold reset and can be refreshed, suspended,
or reset only by secure accesses. And a clock of at least 32 KHz is used when the device is not a power saving cycles.
4.7.3. Operations and Functional Descriptions
4.7.3.1. TWD Reset
The trusted watchdog timer is able to generate a SoC warm reset after a duration programmed into the timer or set by
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 177
default in hardware. And the flag indicating the occurrence of a watchdog triggered warm reset has occurred since the
last cold reset.
Clock sources driving the watchdog timer must be controlled or managed by a trusted entity. This means that
non-trusted world accesses are not permitted to turn on, turn off or modify the characteristics of clock source. The
Clear Enable will reset relevant bits in the watchdog registers, except the reset flag.
4.7.3.2. NV-Counter
After a firmware image is validated, the image revision number taken from the certificate extension field, for example,
Trusted Firmware NV-Counter is compared with the corresponding NV-Counter stored in hardware. If the value is:
Less than the associated NV-Counter, then the authentication fail.
Identical to the NV-Counter, then the authentication is successful.
More than the NV-Counter, then the authentication are successful and the NV-Counter is updated.
The 2^32 monotonic counter does not need to be e-Fuses, but it does need to be fully secure. Using the SoC embedded
NVM, or external secure element, or a trusted register, which is always on power.
The Secure Storage NV-Counter Register is used for protecting the trusted world Secure Storage (SST) file from replay
attacks, since SST contains subsidiary relay attacks protection counters for each Trusted Application.
Four 32-bit counters are used for counting 2^32 states for synchronizing data stores against replay attacks. These
counters are optionally required since they can be handled by a Trusted OS service using the secure storage at boot
time or using eMMC Replay Protected Memory Block (RPMB).
4.7.4. Register List
Module Name
Base Address
TWD
0x01F01800
Register Name
Offset
Description
TWD_STATUS_REG
0x0000
TWD Status Register
TWD_CTRL_REG
0x0010
TWD Control Register
TWD_RESTART_REG
0x0014
TWD Restart Register
TWD_LOW_CNT_REG
0x0020
TWD Low Counter Register
TWD_HIGH_CNT_REG
0x0024
TWD High Counter Register
TWD_INTV_VAL_REG
0x0030
TWD Interval Value Register
TWD_LOW_CNT_CMP_REG
0x0040
TWD Low Counter Compare Register
TWD_HIGH_CNT_CMP_REG
0x0044
TWD High Counter Compare Register
SST_NV_CNT_REG
0x0100
Secure Storage NV-Counter Register
SYN_DATA_CNT_REG0
0x0110
Synchronize Data Counter Register 0
SYN_DATA_CNT_REG1
0x0114
Synchronize Data Counter Register 1
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 178
SYN_DATA_CNT_REG2
0x0118
Synchronize Data Counter Register 2
SYN_DATA_CNT_REG3
0x011C
Synchronize Data Counter Register 3
4.7.5. Register Description
4.7.5.1. TWD Status Register (Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: TWD_STATUS_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W1C
0x0
TWD_PEND_FLAG.
Interrupt pending.
Setting 1 to the bit will clear it.
0: No effect.
1: Pending.
4.7.5.2. TWD Control Register (Default Value: 0x0000_0000)
Offset: 0x0010
Register Name: TWD_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
CNT64_CLK_SRC_SEL.
64-bit counter clock source select.
0: LOSC.
1: OSC24M.
30:10
/
/
/
9
R/W
0x0
TWD_RESET_EN.
TWD reset enable.
0: Reset disable.
1: Reset enable.
8
R/W
0x0
TWD_INT_EN.
TWD Interrupt Enable.
0: Interrupt disable.
1: Interrupt enable.
7:2
/
/
/
1
R/W
0x0
TWD_STOP_EN.
TWD stop enable.
0: Resume rolling-over.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 179
1: Stop rolling-over.
0
R/W
0x0
TWD_CLR_EN.
TWD clear enable.
0: No effect.
1: To clear relevant registers, it will change to zero after the registers are
cleared.
4.7.5.3. TWD Restart Register (Default Value: 0x0000_0000)
Offset: 0x0014
Register Name: TWD_RESTART_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
W
0x0
TWD_RESTART_KEYFILED.
It should be written to 0xD14. Writing any other value in this field aborts the
write operation.
15:1
/
/
/
0
W
0x0
TWD_RESTART_EN.
If writing  to this it, the alue of Counter Compare Registers would
change.
0: No effect.
1: Restart enable.
4.7.5.4. TWD Low Counter Register (Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: TWD_LOW_CNT_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
TWD_LOW_CNT.
The TWD low 32-bit counter.
4.7.5.5. TWD High Counter Register (Default Value: 0x0000_0000)
Offset: 0x0024
Register Name: TWD_HIGH_CNT_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
TWD_HIGH_CNT.
The TWD high 32-bit counter.
4.7.5.6. TWD Interval Value Register (Default Value: 0x0000_0000)
Offset: 0x0030
Register Name: TWD_INTV_VAL_REG
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 180
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
TWD_INTV_VAL.
The TWD interval value.
4.7.5.7. TWD Low Counter Compare Register (Default Value: 0x0000_0000)
Offset: 0x0040
Register Name: TWD_LOW_CNT_CMP_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
TWD_LOW_CMP.
The TWD low 32-bit compare counter.
4.7.5.8. TWD High Counter Compare Register (Default Value: 0x0000_0000)
Offset: 0x0044
Register Name: TWD_HIGH_CNT_CMP_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
TWD_HIGH_CMP.
The TWD high 32-bit compare counter.
4.7.5.9. Secure Storage NV-Counter Register (Default Value: 0x0000_0000)
Offset: 0x0100
Register Name: SST_NV_CNT_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
SST_NV_CNT.
This counter protects the trusted world secure storage file from replay
attacks.
4.7.5.10. Synchronize Data Counter Register 0 (Default Value: 0x0000_0000)
Offset: 0x0110
Register Name: SYN_DATA_CNT_REG0
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
SYN_DATA_CNT0.
This counter is used for synchronizing data stores against replay attacks.
4.7.5.11. Synchronize Data Counter Register 1 (Default Value: 0x0000_0000)
Offset: 0x0114
Register Name: SYN_DATA_CNT_REG1
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
SYN_DATA_CNT1.
This counter is used for synchronizing data stores against replay attacks.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 181
4.7.5.12. Synchronize Data Counter Register 2 (Default Value: 0x0000_0000)
Offset: 0x0118
Register Name: SYN_DATA_CNT_REG2
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
SYN_DATA_CNT2.
This counter is used for synchronizing data stores against replay attacks.
4.7.5.13. Synchronize Data Counter Register 3 (Default Value: 0x0000_0000)
Offset: 0x011C
Register Name: SYN_DATA_CNT_REG3
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
SYN_DATA_CNT3.
This counter is used for synchronizing data stores against replay attacks.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 182
4.8. RTC
4.8.1. Overview
The real time clock (RTC) is for calendar usage. It is built around a 30-bit counter and used to count elapsed time in
YY-MM-DD and HH-MM-SS. The unit can be operated by the backup battery while the system power is off. It has a
built-in leap year generator and an independent power pin (RTC-VIO).
The alarm generates an alarm signal at a specified time in the power-off mode or normal operation mode. In normal
operation mode, both the alarm interrupt and the power management wakeup are activated. In power-off mode, the
power management wakeup signal is activated. In this section, there are two kinds of alarm. Alarm 0 is a general alarm,
its counter is based on second. Alarm 1 is a weekly alarm, its counter is based on the real time.
The 32768Hz oscillator is used only to provide a low power, accurate reference for the RTC.
4.8.2. Register List
Module Name
Base Address
RTC
0x01F00000
Register Name
Offset
Description
LOSC_CTRL_REG
0x0000
Low Oscillator Control Register
LOSC_AUTO_SWT_STA_REG
0x0004
LOSC Auto Switch Status Register
INTOSC_CLK_PRESCAL_REG
0x0008
Internal OSC Clock Prescalar Register
RTC_YY_MM_DD_REG
0x0010
RTC Year-Month-Day Register
RTC_HH_MM_SS_REG
0x0014
RTC Hour-Minute-Second Register
ALARM0_COUNTER_REG
0x0020
Alarm 0 Counter Register
ALARM0_CUR_VLU_REG
0x0024
Alarm 0 Counter Current Value Register
ALARM0_ENABLE_REG
0x0028
Alarm 0 Enable Register
ALARM0_IRQ_EN
0x002C
Alarm 0 IRQ Enable Register
ALARM0_IRQ_STA_REG
0x0030
Alarm 0 IRQ Status Register
ALARM1_WK_HH_MM-SS
0x0040
Alarm 1 Week HMS Register
ALARM1_ENABLE_REG
0x0044
Alarm 1 Enable Register
ALARM1_IRQ_EN
0x0048
Alarm 1 IRQ Enable Register
ALARM1_IRQ_STA_REG
0x004C
Alarm 1 IRQ Status Register
ALARM_CONFIG_REG
0x0050
Alarm Configuration Register
LOSC_OUT_GATING_REG
0x0060
LOSC Output Gating Register
GP_DATA_REG
0x0100 + N*0x0004
General Purpose Register (N=0~7)
GPL_HOLD_OUTPUT_REG
0x0180
GPL Hold Output Register
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 183
RTC-VIO_REG
0x0190
RTC-VIO Regulate Register
IC_CHARA_REG
0x01F0
IC Characteristic Register
CRY_CONFIG_REG
0x0210
Crypto Configuration Register
CRY_KEY_REG
0x0214
Crypto Key Register
CRY_EN_REG
0x0218
Crypto Enable Register
4.8.3. Register Description
4.8.3.1. LOSC Control Register (Default Value: 0x0000_4000)
Offset:0x0000
Register Name: LOSC_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:16
W
0x0
KEY_FIELD.
Key Field.
This field should be filled with 0x16AA, and then the bit 0 can be written with
the new value.
15
/
/
/
14
R/W
0x1
LOSC_AUTO_SWT_EN.
LOSC auto switch enable.
0: Disable
1: Enable.
13:10
/
/
/
9
R/W
0x0
ALM_DDHHMMSS_ACCE.
ALARM DD-HH-MM-SS access.
After writing the Alarm 1 Week HH-MM-SS Register, this bit is set and it will
be cleared until the real writing operation is finished.
8
R/W
0x0
RTC_HHMMSS_ACCE.
RTC HH-MM-SS access.
After writing the RTC HH-MM-SS Register, this bit is set and it will be cleared
until the real writing operation is finished.
After writing the RTC HH-MM-SS Register, the RTC HH-MM-SS Register will
be refreshed for at most one second.
7
R/W
0x0
RTC_YYMMDD_ACCE.
RTC YY-MM-DD access.
After writing the RTC YY-MM-DD Register, this bit is set and it will be cleared
until the real writing operation is finished.
After writing the RTC YY-MM-DD Register, the RTC YY-MM-DD Register will
be refreshed for at most one second.
6:4
/
/
/
3:2
R/W
0x0
EXT_LOSC_GSM.
External 32768Hz Crystal GSM.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 184
00: Low
01: /
10: /
11 High
1
/
/
/
0
R/W
0x0
LOSC_SRC_SEL.
LOSC Clok soue Selet. N is the alue of Internal OSC Clock Prescalar
Register.
0: InternalOSC /32/ N
1: External 32.768kHz OSC.
(InternalOSC = 16MHz)
Note: If the bit[9:7] of LOSC_CTRL_REG is set, the corresponding of Alarm 1 Week HH-MM-SS Register, RTC HH-MM-SS
Register, RTC YY-MM-DD Register at e itte.
4.8.3.2. LOSC Auto Switch Status Register (Default Value: 0x0000_0000)
Offset:0x0004
Register Name: LOSC_AUTO_SWT_STA_REG
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
1
R/W1C
0x0
LOSC_AUTO_SWT_PEND.
LOSC auto switch pending.
0: No effect
1: Auto switches pending
Setting 1 to this bit will clear it.
0
R
0x0
LOSC_SRC_SEL_STA.
Chekig LOSC Clok Soue Status. N is the alue of Internal OSC Clock
Prescalar Register.
0: InternalOSC /32/ N
1: External 32.768KHz OSC
(InternalOSC = 16MHz)
4.8.3.3. Internal OSC Clock Prescalar Register (Default Value: 0x0000_000F)
Offset:0x0008
Register Name: INTOSC_CLK_PRESCAL_REG
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xF
INTOSC_CLK_PRESCAL.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 185
Internal OSC Clock Prescalar value N.
0x000: 1
0x001: 2
0x002: 3
............
0x1F: 32
4.8.3.4. RTC YY-MM-DD Register (Default Value: UDF)
Offset:0x0010
Register Name: RTC_YY_MM_DD_REG
Bit
Read/Write
Default/Hex
Description
31:23
/
/
/
22
R/W
0x0
LEAP.
Leap Year.
0: Not
1: Leap year.
This bit can not set by hardware. It should be set or cleared by software.
21:16
R/W
UDF
YEAR.
Year.
Range from 0~63.
15:12
/
/
/
11:8
R/W
UDF
MONTH.
Month.
Range from 1~12.
7:5
/
/
/
4:0
R/W
UDF
DAY.
Day.
Range from 1~31.
Note: If the written value is not from 1 to 31 in Day Area, it turns into 31 automatically. Month Area and Year Area are
similar to Day Area.
The number of days in different month may be different.
4.8.3.5. RTC HH-MM-SS Register (Default Value: UDF)
Offset:0x0014
Register Name: RTC_HH_MM_SS_REG
Bit
Read/Write
Default/Hex
Description
31:29
R/W
0x0
WK_NO.
Week number.
000: Monday
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 186
001: Tuesday
010: Wednesday
011: Thursday
100: Friday
101: Saturday
110: Sunday
111: /
28:21
/
/
/
20:16
R/W
UDF
HOUR.
Range from 0~23
15:14
/
/
/
13:8
R/W
UDF
MINUTE.
Range from 0~59
7:6
/
/
/
5:0
R/W
UDF
SECOND.
Range from 0~59
Note: If the written value is not from 0 to 59 in Second Area, it turns into 59 automatically. Minute Area and Hour Area
are similar to Second Area.
4.8.3.6. Alarm 0 Counter Register (Default Value: 0x0000_0000)
Offset:0x0020
Register Name: ALARM0_COUNTER_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
ALARM0_COUNTER.
Alarm 0 Counter is based on second.
Note: If the second is set to 0, it will be 1 second in fact.
4.8.3.7. Alarm 0 Current Value Register (Default Value: UDF)
Offset:0x0024
Register Name: ALARM0_CUR_VLU_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
x
ALARM0_CUR_VLU.
Check Alarm 0 Counter Current Values.
Note: If the second is set to 0, it will be 1 second in fact.
4.8.3.8. Alarm 0 Enable Register (Default Value: 0x0000_0000)
Offset:0x0028
Register Name: ALARM0_ENABLE_REG
Bit
Read/Write
Default/Hex
Description
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 187
31:1
/
/
/
0
R/W
0x0
ALM_0_EN
Alarm 0 Enable.
If this it is set to , the valid bits of Alarm 0 Counter Register will down
out to zeo, ad the ala pedig it ill e set to .
0: Disable
1: Enable
4.8.3.9. Alarm 0 IRQ Enable Register (Default Value: 0x0000_0000)
Offset:0x002C
Register Name: ALARM0_IRQ_EN
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
ALARM0_IRQ_EN.
Alarm 0 IRQ Enable.
0: Disable
1: Enable
4.8.3.10. Alarm 0 IRQ Status Register (Default Value: 0x0000_0000)
Offset:0x0030
Register Name: ALARM0_IRQ_STA_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W1C
0x0
ALARM0_IRQ_PEND.
Alarm 0 IRQ Pending bit.
0: No effect
1: Pending, alarm 0 counter value is reached
If alarm 0 irq enable is set to 1, the pending bit will be sent to the interrupt
controller.
4.8.3.11. Alarm 1 Week HH-MM-SS Register (Default Value: UDF)
Offset:0x0040
Register Name: ALARM1_WK_HH_MM_SS
Bit
Read/Write
Default/Hex
Description
31:21
/
/
/
20:16
R/W
UDF
HOUR.
Range from 0~23.
15:14
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 188
13:8
R/W
UDF
MINUTE.
Range from 0~59.
7:6
/
/
/
5:0
R/W
UDF
SECOND.
Range from 0~59.
Note: If the written value is not from 0 to 59 in Second Area, it turns into 59 automatically. Minute Area and Hour Area
are similar to Second Area.
4.8.3.12. Alarm 1 Enable Register (Default Value: 0x0000_0000)
Offset:0x0044
Register Name: ALARM1_EN_REG
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6
R/W
0x0
WK6_ALM1_EN.
Week 6 (Sunday) Alarm 1 Enable.
0: Disable
1: Enable
If this it is set to , ol he the alid its of Alarm 1 Week HH-MM-SS
Register is equal to the bit[20:0] of RTC HH-MM-SS Register and the
bit[31:29] of RTC HH-MM-SS Register is 6, the week 6 alarm irq pending bit
ill e set to .
5
R/W
0x0
WK5_ALM1_EN.
Week 5 (Saturday) Alarm 1 Enable.
0: Disable
1: Enable
If this it is set to , ol he the alid its of Alarm 1 Week HH-MM-SS
Register is equal to the bit[20:0] of RTC HH-MM-SS Register and the
bit[31:29] of RTC HH-MM-SS Register is 5, the week 5 alarm irq pending bit
ill e set to .
4
R/W
0x0
WK4_ALM1_EN.
Week 4 (Friday) Alarm 1 Enable.
0: Disable
1: Enable
If this it is set to , ol he the alid its of Alarm 1 Week HH-MM-SS
Register is equal to the bit[20:0] of RTC HH-MM-SS Register and the register
bit[31:29] of RTC HH-MM-SS Register is 4, the week 4 alarm irq pending bit
ill e set to .
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 189
3
R/W
0x0
WK3_ALM1_EN.
Week 3 (Thursday) Alarm 1 Enable.
0: Disable
1: Enable
If this it is set to , ol he the alid its of Alarm 1 Week HH-MM-SS
Register is equal to the bit[20:0] of RTC HH-MM-SS Register and the
bit[31:29] of RTC HH-MM-SS Register is 3, the week 3 alarm irq pending bit
ill e set to .
2
R/W
0x0
WK2_ALM1_EN.
Week 2 (Wednesday) Alarm 1 Enable.
0: Disable
1: Enable
If this it is set to , ol he the alid its of Alarm 1 Week HH-MM-SS
Register is equal to the bit[20:0] of RTC HH-MM-SS Register and the
bit[31:29] of RTC HH-MM-SS Register is 2, the week 2 alarm irq pending bit
ill e set to .
1
R/W
0x0
WK1_ALM1_EN.
Week 1 (Tuesday) Alarm 1 Enable.
0: Disable
1: Enable
If this it is set to , ol he the alid its of Alarm 1 Week HH-MM-SS
Register is equal to the bit[20:0] of RTC HH-MM-SS Register and the
bit[31:29] of RTC HH-MM-SS Register is 1, the week 1 alarm irq pending bit
ill e set to .
0
R/W
0x0
WK0_ALM1_EN.
Week 0 (Monday) Alarm 1 Enable.
0: Disable
1: Enable
If this bit is set to , ol he the alid its of Alarm 1 Week HH-MM-SS
Register is equal to the bit[20:0] of RTC HH-MM-SS Register and the
bit[31:29] of RTC HH-MM-SS Register is 0, the week 0 alarm irq pending bit
ill e set to .
4.8.3.13. Alarm 1 IRQ Enable Register (Default Value: 0x0000_0000)
Offset:0x0048
Register Name: ALARM1_IRQ_EN
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 190
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
ALARM1_IRQ_EN.
Alarm 1 IRQ Enable.
0: Disable
1: Enable
4.8.3.14. Alarm 1 IRQ Status Register (Default Value: 0x0000_0000)
Offset:0x004C
Register Name: ALARM1_IRQ_STA_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W1C
0x0
ALARM1_WEEK_IRQ_PEND.
Alarm 1 Week (0/1/2/3/4/5/6) IRQ Pending.
0: No effect
1: Pending, week counter value is reached
If alarm 1 week irq enable is set to 1, the pending bit will be sent to the
interrupt controller.
4.8.3.15. Alarm Configuration Register (Default Value: 0x0000_0000)
Offset:0x0050
Register Name: ALARM_CONFIG_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
ALARM_WAKEUP.
Configuration of alarm wake up output.
0: Disable alarm wake up output
1: Enable alarm wake up output
4.8.3.16. LOSC Output Gating Register (Default Value: 0x0000_0000)
Offset:0x0060
Register Name: LOSC_OUT_GATING_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
LOSC_OUT_GATING.
Configuration of LOSC output, and without LOSC output by default.
0: Enable LOSC output gating
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 191
1: Disable LOSC output gating
4.8.3.17. General Purpose Register (Default Value: 0x0000_0000)
Offset:0x0100+N*0x0004 (N=0~7)
Register Name: GP_DATA_REGN
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
GP_DATA.
Data [31:0].
Note: General purpose register 0~7 value can be stored if the RTC-VIO is larger than 1.0V.
4.8.3.18. GPL Hold Output Register (Default Value: 0x0000_0000)
Offset:0x0180
Register Name: GPL_HOLD_OUTPUT_REG
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
11
R/W
0x0
GPL11_HOLD_OUTPUT.
Hold the output of GPIOL11 when the power of system is changing. The
output must be low level (0) or high level (1) or High-Z; any other outputs
may not hold on.
0: Hold disable
1: Hold enable
10
R/W
0x0
GPL10_HOLD_OUTPUT.
Hold the output of GPIOL10 when the power of system is changing. The
output must be low level (0) or high level (1) or High-Z; any other outputs
may not hold on.
0: Hold disable
1: Hold enable
9
R/W
0x0
GPL9_HOLD_OUTPUT.
Hold the output of GPIOL9 when the power of system is changing. The
output must be low level (0) or high level (1) or High-Z; any other outputs
may not hold on.
0: Hold disable
1: Hold enable
8
R/W
0x0
GPL8_HOLD_OUTPUT.
Hold the output of GPIOL8 when the power of system is changing. The
output must be low level (0) or high level (1) or High-Z; any other outputs
may not hold on.
0: Hold disable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 192
1: Hold enable
7
R/W
0x0
GPL7_HOLD_OUTPUT.
Hold the output of GPIOL7 when the power of system is changing. The
output must be low level (0) or high level (1) or High-Z; any other outputs
may not hold on.
0: Hold disable
1: Hold enable
6
R/W
0x0
GPL6_HOLD_OUTPUT.
Hold the output of GPIOL6 when the power of system is changing. The
output must be low level (0) or high level (1) or High-Z; any other outputs
may not hold on.
0: Hold disable
1: Hold enable
5
R/W
0x0
GPL5_HOLD_OUTPUT.
Hold the output of GPIOL5 when the power of system is changing. The
output must be low level (0) or high level (1) or High-Z; any other outputs
may not hold on.
0: Hold disable
1: Hold enable
4
R/W
0x0
GPL4_HOLD_OUTPUT.
Hold the output of GPIOL4 when the power of system is changing. The
output must be low level (0) or high level (1) or High-Z; any other output
may not hold on.
0: Hold disable
1: Hold enable
3
R/W
0x0
GPL3_HOLD_OUTPUT.
Hold the output of GPIOL3 when the power of system is changing. The
output must be low level (0) or high level (1) or High-Z; any other outputs
may not hold on.
0: Hold disable
1: Hold enable
2
R/W
0x0
GPL2_HOLD_OUTPUT.
Hold the output of GPIOL2 when the power of system is changing. The
output must be low level (0) or high level (1) or High-Z; any other outputs
may not hold on.
0: Hold disable
1: Hold enable
1
R/W
0x0
GPL1_HOLD_OUTPUT.
Hold the output of GPIOL1 when the power of system is changing. The
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 193
output must be low level (0) or high level (1) or High-Z; any other outputs
may not hold on.
0: Hold disable
1: Hold enable
0
R/W
0x0
GPL0_HOLD_OUTPUT.
Hold the output of GPIOL0 when the power of system is changing. The
output must be low level (0) or high level (1) or High-Z; any other outputs
may not hold on.
0: Hold disable
1: Hold enable
4.8.3.19. RTC-VIO Regulation Register (Default Value: 0x0000_0004)
Offset:0x0190
Register Name: RTC-VIO_REG
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2:0
R/W
0x4
RTC-VIO_REGU.
These bits are useful for regulating the RTC-VIO from 0.776V to 1.535V.
000: 0.235 * VCC-RTC ( 0.776V)
001: 0.265 * VCC-RTC (0.8745V)
010: 0.3 * VCC-RTC (0.99V)
011: 0.335 * VCC-RTC (1.1055V)
100: 0.365 * VCC-RTC (1.205V)
101: 0.4 * VCC-RTC (1.32V)
110: 0.435 * VCC-RTC (1.4355V)
111: 0.465 * VCC-RTC (1.535V)
Note: VCC-RTC = 3.3V
4.8.3.20. IC Characteristic Register (Default Value: 0x0000_0000)
Offset:0x01F0
Register Name: IC_CHARA_REG
Bit
Read/Write
Default/Hex
Description
31:16
R/W
0x0
IC_CHARA.
Key Field.
The field should be written to 0x16AA. Writing any other value in this field
aborts the write operation.
15:0
R/W
0x0
ID_DATA.
Return 0x16AA only if the KEY_FIELD is set as 0x16AA when read those bits,
otherwise return 0x0.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 194
4.8.3.21. Crypto Configuration Register (Default Value: 0x0000_0000)
Offset:0x0210
Register Name: CRY_CONFIG_REG
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0
KEY_FIELD
Key Field
4.8.3.22. Crypto Key Register (Default Value: 0x0000_0000)
Offset:0x0214
Register Name: CRY_KEY_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
CRY_KEY
Crypto Key
4.8.3.23. Crypto Enable Register (Default Value: 0x0000_0000)
Offset:0x0218
Register Name: CRY_EN_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
CRY_EN
Crypto Enable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 195
4.9. High Speed Timer
4.9.1. Overview
The clock sources of High Speed Timer(HSTimer) are fixed to AHBCLK, which is much higher than OSC24M. Compared
with other timers, the clock source of HSTimer is synchronized with AHB clock, and when the bit[31] in the HSTimer
Control Register is set 1, timer goes into the test mode, which is used to system simulation. When the current value in
both HSTimer Current Value Lo Register and HSTimer Current Value Hi Register are counting down to zero, the timer
will generate interrupt if the HS_TMR_INT_EN bit is set.
Features:
1 HSTimer with individual 56-bit counter
56-bit counter that can be separated to 24-bit high register and 32-bit low register
Clock source is synchronized with AHB clock, which means calculating much more accurate than other timers
4.9.2. Operations and Functional Descriptions
4.9.2.1. HSTimer Function Structure
HSTimer
Test mode
AHBCLK
n_mode Single
mode
Continuous
mode
Interval Value Enable IV=0? Pending
IRQ EN
IRQ
Yes
Figure 4-14. HSTimer Function Structure and Work Flow
HSTimer has two work modes. n_mode is used for normal counting and Test mode is used in system simulation. Each
work mode has the two count modes: Single mode and Continuous mode. When Current Value counts down to 0,
HSTimer will be disabled in Single mode , but HSTimer will not be disabled and counts from Interval value again in
Continuous mode. About HSTimer 56-bit counter, it is combined with a low 24-bit counter(HSTimer Current Value Lo
Register) and a high 32-bit counter(HSTimer Current Value Hi Register).
4.9.2.2. HSTimer Clock Gating and Software Reset
By default the clock gating of HSTimer is mask. When it is necessary to use HSTimer, its clock gating should be opened
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 196
in the Bus Clock Gating Register0 and then de-assert the software reset in the Bus Software Reset Register 0 on CCU
module. If it is no need to use HSTimer, both the gating bit and software reset bit should be set 0.
4.9.2.3. HSTimer Reloading Bit
Differing from the reloading of Timer, when the interval value is reloaded into the current value register, the reload bit
would not turn to 0 automatically until you clear it. If software hopes the current value register to down-count from the
new interval value in pause status, the reload bit and the enable bit should be written 1 at the same time.
4.9.3. Programming Guidelines
Take making a 1us delay using HSTimer for an instance as follow, AHB1CLK will be configurated as 100MHz and n_mode,
Single mode and 2 pre-scale will be selected in this instance.
writel(0x0, HS_TMR_INTV_VALUE_HI); //Set interval value Hi 0x0
writel(0x32, HS_TMR_INTV_VALUE_LO); //Set interval value Lo 0x32
writel(0x90, HS_TMR_CTRL_REG); //Select n_mode,2 pre-scale,single mode
writel(readl(HS_TMR_CTRL_REG)|(1<<1), HS_TMR_CTRL_REG); //Set Reload bit
writel(readl(HS_TMR_CTRL_REG)|(1<<0), HS_TMR_CTRL_REG); //Enable HSTimer
While(!(readl(HS_TMR_IRQ_STAS_REG)&1)); //Wait for HSTimer to generate pending
Writel(1,HS_TMR_IRQ_STAS_REG); //Clear HSTimer pending
4.9.4. Register List
Module Name
Base Address
High Speed Timer
0x01C60000
Register Name
Offset
Description
HS_TMR_IRQ_EN_REG
0x0000
HSTimer IRQ Enable Register
HS_TMR_IRQ_STAS_REG
0x0004
HSTimer Status Register
HS_TMR_CTRL_REG
0x0010
HSTimer Control Register
HS_TMR_INTV_LO_REG
0x0014
HSTimer Interval Value Low Register
HS_TMR_INTV_HI_REG
0x0018
HSTimer Interval Value High Register
HS_TMR_CURNT_LO_REG
0x001C
HSTimer Current Value Low Register
HS_TMR_CURNT_HI_REG
0x0020
HSTimer Current Value High Register
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 197
4.9.5. Register Description
4.9.5.1. HSTimer IRQ Enable Register (Default Value: 0x0000_0000)
Offset:0x0000
Register Name: HS_TMR_IRQ_EN_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W1S
0x0
HS_TMR_INT_EN.
High Speed Timer Interrupt Enable.
0: No effect
1: High Speed Timer Interval Value reached interrupt enable.
4.9.5.2. HSTimer IRQ Status Register (Default Value: 0x0000_0000)
Offset:0x0004
Register Name: HS_TMR_IRQ_STAS_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W1C
0x0
HS_TMR_IRQ_PEND.
High Speed Timer IRQ Pending. Setting 1 to the bit will clear it.
0: No effect
1: Pending. High Speed Timer Interval Value is reached.
4.9.5.3. HSTimer Control Register (Default Value: 0x0000_0000)
Offset:0x0010
Register Name: HS_TMR_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
HS_TMR_TEST.
High Speed Timer test mode. In test mode, the low register should be set to
0x1, the high register will down counter. The counter needs to be reloaded.
0: Normal mode
1: Test mode.
30:8
/
/
/
7
R/W
0x0
HS_TMR_MODE.
High Speed Timer mode.
0: Continuous mode. When interval value reached, the timer will not disable
automatically.
1: Single mode. When interval value reached, the timer will disable
automatically.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 198
6:4
R/W
0x0
HS_TMR_CLK
Select the pre-scale of the High Speed Timer clock sources.
000: /1
001: /2
010: /4
011: /8
100: /16
101: /
110: /
111: /
3:2
/
/
/
1
R/W1S
0x0
HS_TMR_RELOAD.
High Speed Timer reload.
0: No effect
1: Reload High Speed Timer Interval Value.
0
R/W
0x0
HS_TMR_EN.
High Speed Timer enable.
0: Stop/Pause
1: Start.
If the timer is started, it will reload the interval value to internal register, and
the current counter will count from interval value to 0.
If the current counter does not reach the zero, the timer enable bit is set to
, the uet alue counter will pause. At least wait for 2 cycles, the start
bit can be set to 1.
In timer pause state, the interval value register can be modified. If the timer
is started again, and the software hope the current value register to
down-count from the new interval value, the reload bit and the enable bit
should be set to 1 at the same time.
4.9.5.4. HSTimer Interval Value Lo Register (Default Value: UDF)
Offset:0x0014
Register Name: HS_TMR_INTV_LO_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
UDF
HS_TMR_INTV_VALUE_LO.
High Speed Timer Interval Value [31:0].
4.9.5.5. HSTimer Interval Value Hi Register (Default Value: UDF)
Offset:0x0018
Register Name: HS_TMR_INTV_HI_REG
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 199
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R/W
UDF
HS_TMR_INTV_VALUE_HI.
High Speed Timer Interval Value [55:32].
Note: The interval value register is a 56-bit register. When reading or writing the interval value, the HSTimer Interval
Value Lo Register should be read or written firstly, the HSTimer Interval Value Hi Register should be written after the
HSTimer Interval Value Lo Register.
4.9.5.6. HSTimer Current Value Lo Register (Default Value: UDF)
Offset:0x001C
Register Name: HS_TMR_CURNT_LO_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
UDF
HS_TMR_CUR_VALUE_LO.
High Speed Timer Current Value [31:0].
4.9.5.7. HSTimer Current Value Hi Register (Default Value: UDF)
Offset:0x0020
Register Name: HS_TMR_CURNT_HI_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R/W
UDF
HS_TMR_CUR_VALUE_HI.
High Speed Timer Current Value [55:32].
Note: HSTimer current value is a 56-bit down-counter (from interval value to 0).When reading or writing the current
value, the HSTimer Current Value Lo Register should be read or written firstly.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 200
4.10. PWM
4.10.1. Overview
The output of the PWM is a toggling signal whose frequency and duty cycle can be modulated by its programmable
registers. Each channel has a dedicated internal 16-bit up counter. If the counter reaches the value stored in the PWM
Channel Period Register, PWM resets. At the beginning of a count period cycle, the PWM is set to active state and
count from 0x0000.The PWM divider divides the clock(24MHz) by 1~4096 according to the pre-scalar bits in the PWM
Control Register.
In PWM cycle mode, the output will be a square waveform, the frequency is set in the PWM Channel Period Register.
In PWM pulse mode, the output will be a positive pulse or a negative pulse.
4.10.2. Block Diagram
Cycle Mode
Entire cycles
Active low
Active cycles
Pulse Mode
Active high
Active cycles
Figure 4-15. PWM Block Diagram
The PWM divider divides the clock (24MHz) by 1-64 according to the pre-scalar bits in the PWM control register. The
PWM output frequency can be divided by 65536 at most. In PWM cycle mode, the output will be a square waveform;
the frequency is set to the period register. In PWM pulse mode, the output will be a positive pulse or a negative pulse.
4.10.3. Register List
Module Name
Base Address
PWM
0x01C21400
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 201
Register Name
Offset
Description
PWM_CH_CTRL
0x0000
PWM Control Register
PWM_CH_PERIOD
0x0004
PWM Channel Period Register
4.10.4. Register Description
4.10.4.1. PWM Control Register(Default Value: 0x0000_0000)
Offset:0x0000
Register Name: PWM_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28
R
0x0
PWM0_RDY.
PWM0 Period Register Ready.
0: PWM0 period register is ready to write
1: PWM0 period register is busy.
27:10
/
/
/
9
R/W
0x0
PWM0_BYPASS.
PWM CH0 Bypass Enable.
If the bit is set to 1, PWM0 output is OSC24MHz.
0: Disable
1: Enable
8
R/W
0x0
PWM_CH0_PUL_START.
PWM Channel 0 Pulse Output Start.
0: No effect
1: Output 1 pulse.
The pulse width should be set by the bit[15:0] of PWM Channel Period
Register,and the pulse state should be set by PWM Channel 0 Active State.
After the pulse is finished, the bit will be cleared automatically.
7
R/W
0x0
PWM_CHANNEL0_MODE.
0: Cycle mode
1: Pulse mode.
6
R/W
0x0
SCLK_CH0_GATING.
Gating the Special Clock for PWM0
0: Mask
1: Pass
5
R/W
0x0
PWM_CH0_ACT_STA.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 202
PWM Channel 0 Active State.
0: Low Level
1: High Level.
4
R/W
0x0
PWM_CH0_EN.
PWM Channel 0 Enable.
0: Disable
1: Enable.
3:0
R/W
0x0
PWM_CH0_PRESCAL.
PWM Channel 0 Prescalar.
These bits should be set before the PWM Channel 0 clock gate on.
0000: /120
0001: /180
0010: /240
0011: /360
0100: /480
0101: /
0110: /
0111: /
1000: /12k
1001: /24k
1010: /36k
1011: /48k
1100: /72k
1101: /
1110: /
1111: /1
4.10.4.2. PWM Channel Period Register (Default Value: UDF)
Offset:0x0004
Register Name: PWM_CH_PERIOD
Bit
Read/Write
Default/Hex
Description
31:16
R/W
UDF
PWM_CH0_ENTIRE_CYS
Number of the entire cycles in the PWM clock.
0 = 1 cycle
1 = 2 cycles
……
N = N+1 cycles
If the register need to be modified dynamically, the PCLK should be faster
than the PWM CLK (PWM CLK = 24MHz/pre-scale).
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 203
15:0
R/W
UDF
PWM_CH0_ENTIRE_ACT_CYS
Number of the active cycles in the PWM clock.
0 = 0 cycle
1 = 1 cycles
……
N = N cycles
Note: The active cycles should be no larger than the period cycles.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 204
4.11. DMA
4.11.1. Overview
The DMA enables data transfers between peripheral I/O devices and memories without using the CPU .This avoids the
CPU intervention and helps maximize system performance by off-loading the CPU. There are 12 DMA channels in the H5
processor. Each DMA channel can generate interrupts. According to different pending status, the referenced DMA
channel generates corresponding interrupt. And the configuration information of every DMA channel stores in the DDR
or SRAM. When start a DMA transfer, the DMA Channel Descriptor Address Register contains the address information
in the DDR or SRAM, where has the relevance configuration information of the DMA transfers.
Features:
DMA transfer supports in either direction between memory and peripheral, between peripheral and memory, or
between memory and memory.
Transfers data width of 8/16/32/64-bit
12 DMA channels
Programs the DMA burst size
Flexible data source and destination address generation
Supports linear and IO address modes
Interrupt generated for each DMA channel
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 205
4.11.2. Block Diagram
Source
Address
Configuration
Destination
Address
Byte Counter
Link
Descriptor information Pending Status
Pkg-pend
End-pend
Commity
Parameter
Half-pend
Request DMA
Any
Idle?
Write Descriptor
Address and Start DMA
Transferring Package
Pause?
Link=fffff 800?
DMA Transfer Progress
Prepare Descriptor Data
1
Link
2
Link
3
Link
4
0xfffff 800
Pkg-pend
Half-pend
Pkg-pend
Half-pend
Pkf-pend
Half-pend
After transferring a half data of a pkg, the pkg half pending bit would set up
After transferring all data of pkg, the pkg end pending bit would set up
After finishing a transmission, the queue end pending bit would set up
Link is used to storing next descriptor address or transmission end flag (0xfffff800)
Pkg-pend
Half-pend
Yes
Resume
No
No
End-pend
Transmission Finish
DMA
DMAC obtains
Descriptor information
Figure 4-16. DMA Block Diagram
4.11.3. Functionalities Description
4.11.3.1. DRQ Type and Corresponding Relation
Table 4-2. DMA DRQ Table
Source DRQ Type
Destination DRQ Type
Port NO.
Module Name
Port NO.
Module Name
Port 0
SRAM
Port 0
SRAM
Port 1
SDRAM
Port 1
SDRAM
Port 2
/
Port 2
OWA_TX
Port 3
I2S/PCM 0_RX
Port 3
I2S/PCM 0_TX
Port 4
I2S/PCM 1_RX
Port 4
I2S/PCM 1_TX
Port 5
NAND
Port 5
NAND
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 206
Port 6
UART0_RX
Port 6
UART0_TX
Port 7
UART1_RX
Port 7
UART1_TX
Port 8
UART2_RX
Port 8
UART2_TX
Port 9
UART3_RX
Port 9
UART3_TX
Port 10
/
Port 10
/
Port 11
/
Port 11
/
Port 12
/
Port 12
/
Port 13
/
Port 13
/
Port 14
/
Port 14
/
Port 15
Audio Codec_ADC
Port 15
Audio Codec_DAC
Port 16
/
Port 16
/
Port 17
USB OTG_Device_EP1
Port 17
USB OTG_Device_EP1
Port 18
USB OTG_Device_EP2
Port 18
USB OTG_Device_EP2
Port 19
USB OTG_Device_EP3
Port 19
USB OTG_Device_EP3
Port20
USB OTG_Device_EP4
Port 20
USB OTG_Device_EP4
Port 21
/
Port 21
/
Port 22
/
Port 22
/
Port 23
SPI0_RX
Port 23
SPI0_TX
Port 24
SPI1_RX
Port 24
SPI1_TX
Port 25
Port 25
Port 26
Port 26
Port 27
Port 27
I2S/PCM 2_TX
Port 28
Port 28
Port 29
Port 29
Port 30
Port 30
4.11.3.2. DMA Descriptor
In this section, the DMA descriptor registers will be introduced in detail.
When started a DMA transmission, the module data are transferred as packages, which has the link data information.
And, by reading the DMA Status Register, the status of a DMA channel could be known. Reading back the DMA
Channel Descriptor Address Register, the value is the link data in the transferring package. If only the value is equal to
0xfffff800, then it can be regarded as NULL, which means the package is the last package in this DMA transmission.
Otherwise, the value means the start address of the next package. And, the DMA Channel Descriptor Address Register
can be changed during a package transferring.
When transferring the half of a package, the relevant pending bit will be set up automatically, and if the corresponding
interrupt is enabled, DMA generates an interrupt to the system. The similar thing would occur when transferring a
package completely. Meanwhile, if DMA has transferred the last package in the data, the relevant pending bit would be
set up, and generates an interrupt if the corresponding interrupt is enabled. The flow-process diagram is shown in DMA
Block Diagram.
During a DMA transmission, the configuration could be obtained by the DMA Channel Configuration Register. And
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 207
behind the address of the configuration register in DDR or SRAM, there are some registers including other information
of a DMA transmission. The structure chart is shown in DMA Block Diagram. Also, other information of a transferring
data can be obtained by reading the DMA Channel Current Source Address Register , DMA Channel Current
Destination Address Register and DMA Channel Byte Counter Left Register. The configuration must be word-aligning.
The transferring data would be paused when setting up the DMA Channel Pause Register, if coming up emergency. And
the pausing data could be presumable when setting 0 to the same bit in the DMA Channel Pause Register.
4.11.4. Register List
Module Name
Base Address
DMA
0x01C02000
Register Name
Offset
Description
DMA_IRQ_EN_REG0
0x0000
DMA IRQ Enable Register0
DMA_IRQ_EN_REG1
0x0004
DMA IRQ Enable Register1
DMA_IRQ_PEND_REG0
0x0010
DMA IRQ Pending Register0
DMA_IRQ_PEND_REG1
0x0014
DMA IRQ Pending Register1
DMA_SEC_REG
0x0020
DMA Security Register
DMA_AUTO_GATE_REG
0x0028
DMA Auto Gating Register
DMA_STA_REG
0x0030
DMA Status Register
DMA_EN_REG
0x0100+N*0x0040
DMA Channel Enable Register
(N=0~11)
DMA_PAU_REG
0x0100+0x0004+N*0x0040
DMA Channel Pause Register
(N=0~11)
DMA_DESC_ADDR_REG
0x0100+0x0008+N*0x0040
DMA Channel Start Address Register
(N=0~11)
DMA_CFG_REG
0x0100+0x000C +N*0x0040
DMA Channel Configuration Register
(N=0~11)
DMA_CUR_SRC_REG
0x0100+0x0010+N*0x0040
DMA Channel Current Source Register
(N=0~11)
DMA_CUR_DEST_REG
0x0100+0x0014+N*0x0040
DMA Channel Current Destination Register
(N=0~11)
DMA_BCNT_LEFT_REG
0x0100+0x0018+N*0x0040
DMA Channel Byte Counter Left Register
(N=0~11)
DMA_PARA_REG
0x0100+0x001C+N*0x0040
DMA Channel Parameter Register
(N=0~11)
DMA_MODE_REG
0x0100+0x0028+N*0x0040
DMA Mode Register
(N=0~11)
DMA_FDESC_ADDR_REG
0x0100+0x002C+N*0x0040
DMA Formar Descriptor Address Register
(N=0~11)
DMA_PKG_NUM_REG
0x0100+0x0030+N*0x0040
DMA Package Number Register
(N=0~11)
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 208
4.11.5. Register Description
4.11.5.1. DMA IRQ Enable Register0 (Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: DMA_IRQ_EN_REG0
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30
R/W
0x0
DMA7_QUEUE_IRQ_EN
DMA 7 Queue End Transfer Interrupt Enable.
0: Disable
1: Enable
29
R/W
0x0
DMA7_PKG_IRQ_EN
DMA 7 Package End Transfer Interrupt Enable.
0: Disable
1: Enable
28
R/W
0x0
DMA7_HLAF_IRQ_EN
DMA 7 Half Package Transfer Interrupt Enable.
0: Disable
1: Enable
27
/
/
/
26
R/W
0x0
DMA6_QUEUE_IRQ_EN
DMA 6 Queue End Transfer Interrupt Enable.
0: Disable
1: Enable
25
R/W
0x0
DMA6_PKG_IRQ_EN
DMA 6 Package End Transfer Interrupt Enable.
0: Disable
1: Enable
24
R/W
0x0
DMA6_HLAF_IRQ_EN
DMA 6 Half Package Transfer Interrupt Enable.
0: Disable
1: Enable
23
/
/
/
22
R/W
0x0
DMA5_QUEUE_IRQ_EN
DMA 5 Queue End Transfer Interrupt Enable.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 209
0: Disable
1: Enable
21
R/W
0x0
DMA5_PKG_IRQ_EN
DMA 5 Package End Transfer Interrupt Enable.
0: Disable
1: Enable
20
R/W
0x0
DMA5_HLAF_IRQ_EN
DMA 5 Half package Transfer Interrupt Enable.
0: Disable
1: Enable
19
/
/
/
18
R/W
0x0
DMA4_QUEUE_IRQ_EN
DMA 4 Queue End Transfer Interrupt Enable.
0: Disable
1: Enable
17
R/W
0x0
DMA4_PKG_IRQ_EN
DMA 4 Package End Transfer Interrupt Enable.
0: Disable
1: Enable
16
R/W
0x0
DMA4_HLAF_IRQ_EN
DMA 4 Half Package Transfer Interrupt Enable.
0: Disable
1: Enable
15
/
/
/
14
R/W
0x0
DMA3_QUEUE_IRQ_EN
DMA 3 Queue End Transfer Interrupt Enable.
0: Disable
1: Enable
13
R/W
0x0
DMA3_PKG_IRQ_EN
DMA 3 Package End Transfer Interrupt Enable.
0: Disable
1: Enable
12
R/W
0x0
DMA3_HLAF_IRQ_EN
DMA 3 Half Package Transfer Interrupt Enable.
0: Disable
1: Enable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 210
11
/
/
/
10
R/W
0x0
DMA2_QUEUE_IRQ_EN
DMA 2 Queue End Transfer Interrupt Enable.
0: Disable
1: Enable
9
R/W
0x0
DMA2_PKG_IRQ_EN
DMA 2 Package End Transfer Interrupt Enable.
0: Disable
1: Enable
8
R/W
0x0
DMA2_HLAF_IRQ_EN
DMA 2 Half Package Transfer Interrupt Enable.
0: Disable
1: Enable
7
/
/
/
6
R/W
0x0
DMA1_QUEUE_IRQ_EN
DMA 1 Queue End Transfer Interrupt Enable.
0: Disable
1: Enable
5
R/W
0x0
DMA1_PKG_IRQ_EN
DMA 1 Package End Transfer Interrupt Enable.
0: Disable
1: Enable
4
R/W
0x0
DMA1_HLAF_IRQ_EN
DMA 1 Half Package Transfer Interrupt Enable.
0: Disable
1: Enable.
3
/
/
/
2
R/W
0x0
DMA0_QUEUE_IRQ_EN
DMA 0 Queue End Transfer Interrupt Enable.
0: Disable
1: Enable
1
R/W
0x0
DMA0_PKG_IRQ_EN
DMA 0 Package End Transfer Interrupt Enable.
0: Disable
1: Enable
0
R/W
0x0
DMA0_HLAF_IRQ_EN
DMA 0 Half Package Transfer Interrupt Enable.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 211
0: Disable
1: Enable
4.11.5.2. DMA IRQ Enable Register1 (Default Value: 0x0000_0000)
Offset: 0x0004
Register Name: DMA_IRQ_EN_REG1
Bit
Read/Write
Default/Hex
Description
31:15
/
/
/
14
R/W
0x0
DMA11_QUEUE_IRQ_EN
DMA 11 Queue End Transfer Interrupt Enable.
0: Disable
1: Enable
13
R/W
0x0
DMA11_PKG_IRQ_EN
DMA 11 Package End Transfer Interrupt Enable.
0: Disable
1: Enable
12
R/W
0x0
DMA11_HLAF_IRQ_EN
DMA 11 Half Package Transfer Interrupt Enable.
0: Disable
1: Enable
11
/
/
/
10
R/W
0x0
DMA10_QUEUE_IRQ_EN
DMA 10 Queue End Transfer Interrupt Enable.
0: Disable
1: Enable
9
R/W
0x0
DMA10_PKG_IRQ_EN
DMA 10 Package End Transfer Interrupt Enable.
0: Disable
1: Enable
8
R/W
0x0
DMA10_HLAF_IRQ_EN
DMA 10 Half Package Transfer Interrupt Enable.
0: Disable
1: Enable
7
/
/
/
6
R/W
0x0
DMA9_QUEUE_IRQ_EN
DMA 9 Queue End Transfer Interrupt Enable.
0: Disable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 212
1: Enable
5
R/W
0x0
DMA9_PKG_IRQ_EN
DMA 9 Package End Transfer Interrupt Enable.
0: Disable
1: Enable
4
R/W
0x0
DMA9_HLAF_IRQ_EN
DMA 9 Half package Transfer Interrupt Enable.
0: Disable
1: Enable
3
/
/
/
2
R/W
0x0
DMA8_QUEUE_IRQ_EN
DMA 8 Queue End Transfer Interrupt Enable.
0: Disable
1: Enable
1
R/W
0x0
DMA8_PKG_IRQ_EN
DMA 8 Package End Transfer Interrupt Enable.
0: Disable
1: Enable
0
R/W
0x0
DMA8_HLAF_IRQ_EN
DMA 8 Half Package Transfer Interrupt Enable.
0: Disable
1: Enable
4.11.5.3. DMA IRQ Pending Status Register0 (Default Value: 0x0000_0000)
Offset:0x0010
Register Name: DMA_IRQ_PEND_REG0
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30
R/W1C
0x0
DMA7_QUEUE_IRQ_PEND.
DMA 7 Queue End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
29
R/W1C
0x0
DMA7_PKG_IRQ_ PEND
DMA 7 Package End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 213
1: Pending.
28
R/W1C
0x0
DMA7_HLAF_IRQ_PEND.
DMA 7 Half Package Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
27
/
/
/
26
R/W1C
0x0
DMA6_QUEUE_IRQ_PEND.
DMA 6 Queue End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
25
R/W1C
0x0
DMA6_PKG_IRQ_ PEND
DMA 6 Package End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
24
R/W1C
0x0
DMA6_HLAF_IRQ_PEND.
DMA 6 Half Package Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
23
/
/
/
22
R/W1C
0x0
DMA5_QUEUE_IRQ_PEND.
DMA 5 Queue End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
21
R/W1C
0x0
DMA5_PKG_IRQ_ PEND
DMA 5 Package End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
20
R/W1C
0x0
DMA5_HLAF_IRQ_PEND.
DMA 5 Half Package Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
19
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 214
18
R/W1C
0x0
DMA4_QUEUE_IRQ_PEND.
DMA 4 Queue End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
17
R/W1C
0x0
DMA4_PKG_IRQ_ PEND
DMA 4 Package End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
16
R/W1C
0x0
DMA4_HLAF_IRQ_PEND.
DMA 4 Half Package Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
15
/
/
/
14
R/W1C
0x0
DMA3_QUEUE_IRQ_PEND.
DMA 3 Queue End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
13
R/W1C
0x0
DMA3_PKG_IRQ_ PEND
DMA 3 Package End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
12
R/W1C
0x0
DMA3_HLAF_IRQ_PEND.
DMA 3 Half Package Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
11
/
/
/
10
R/W1C
0x0
DMA2_QUEUE_IRQ_PEND.
DMA 2 Queue End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
9
R/W1C
0x0
DMA2_PKG_IRQ_ PEND
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 215
DMA 2 Package End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
8
R/W1C
0x0
DMA2_HLAF_IRQ_PEND.
DMA 2 Half Package Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
7
/
/
/
6
R/W1C
0x0
DMA1_QUEUE_IRQ_PEND.
DMA 1 Queue End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
5
R/W1C
0x0
DMA1_PKG_IRQ_ PEND
DMA 1 Package End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
4
R/W1C
0x0
DMA1_HLAF_IRQ_PEND.
DMA 1 Half Package Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
3
/
/
/
2
R/W1C
0x0
DMA0_QUEUE_IRQ_PEND.
DMA 0 Queue End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
1
R/W1C
0x0
DMA0_PKG_IRQ_ PEND
DMA 0 Package End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
0
R/W1C
0x0
DMA0_HLAF_IRQ_PEND.
DMA 0 Half Package Transfer Interrupt Pending.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 216
Setting 1 to the bit will clear it.
0: No effect
1: Pending.
4.11.5.4. DMA IRQ Pending Status Register1 (Default Value: 0x0000_0000)
Offset:0x0014
Register Name: DMA_IRQ_PEND_REG1
Bit
Read/Write
Default/Hex
Description
31:15
/
/
/
14
R/W1C
0x0
DMA11_QUEUE_IRQ_PEND.
DMA 11 Queue End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending
13
R/W1C
0x0
DMA11_PKG_IRQ_PEND
DMA 11 Package End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending
12
R/W1C
0x0
DMA11_HLAF_IRQ_PEND.
DMA 11 Half Package Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending
11
/
/
/
10
R/W1C
0x0
DMA10_QUEUE_IRQ_PEND.
DMA 10 Queue End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending
9
R/W1C
0x0
DMA10_PKG_IRQ_ PEND
DMA 10 Package End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending
8
R/W1C
0x0
DMA10_HLAF_IRQ_PEND.
DMA 10 Half Package Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 217
0: No effect
1: Pending
7
/
/
/
6
R/W1C
0x0
DMA9_QUEUE_IRQ_PEND.
DMA 9 Queue End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending
5
R/W1C
0x0
DMA9_PKG_IRQ_ PEND
DMA 9 Package End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending
4
R/W1C
0x0
DMA9_HLAF_IRQ_PEND.
DMA 9 Half Package Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending
3
/
/
/
2
R/W1C
0x0
DMA8_QUEUE_IRQ_PEND.
DMA 8 Queue End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending
1
R/W1C
0x0
DMA8_PKG_IRQ_ PEND
DMA 8 Package End Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending
0
R/W1C
0x0
DMA8_HLAF_IRQ_PEND.
DMA 8 Half Package Transfer Interrupt Pending.
Setting 1 to the bit will clear it.
0: No effect
1: Pending
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 218
4.11.5.5. DMA Security Register (Default Value: 0x0000_0000)
Offset:0x0020
Register Name: DMA_SECURE_REG
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
11
R/W
0x0
DMA11_SECURE
DMA Channel 11 Security.
0: Secure
1: Non-secure
10
R/W
0x0
DMA10_SECURE
DMA Channel 10 Security.
0: Secure
1: Non-secure
9
R/W
0x0
DMA9_SECURE
DMA Channel 9 Security.
0: Secure
1: Non-secure
8
R/W
0x0
DMA8_SECURE
DMA Channel 8 Security.
0: Secure
1: Non-secure
7
R/W
0x0
DMA7_SECURE
DMA Channel 7 Security.
0: Secure
1: Non-secure
6
R/W
0x0
DMA6_SECURE
DMA Channel 6 Security.
0: Secure
1: Non-secure
5
R/W
0x0
DMA5_SECURE
DMA Channel 5 Security.
0: Secure
1: Non-secure
4
R/W
0x0
DMA4_SECURE.
DMA Channel 4 Security.
0: Secure
1: Non-secure
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 219
3
R/W
0x0
DMA3_SECURE.
DMA Channel 3 Security.
0: Secure
1: Non-secure
2
R/W
0x0
DMA2_SECURE.
DMA Channel 2 Security.
0: Secure
1: Non-secure
1
R/W
0x0
DMA1_SECURE.
DMA Channel 1 Security.
0: Secure
1: Non-secure
0
R/W
0x0
DMA0_SECURE.
DMA Channel 0 Security.
0: Secure
1: Non-secure
4.11.5.6. DMA Auto Gating Register (Default Value: 0x0000_0000)
Offset:0x0028
Register Name: DMA_AUTO_GATE_REG
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2
R/W
0x0
DMA_MCLK_CIRCUIT.
DMA MCLK interface circuit auto gating bit.
0: Auto gating enable
1: Auto gating disable
1
R/W
0x0
DMA_COMMON_CIRCUIT.
DMA common circuit auto gating bit.
0: Auto gating enable
1: Auto gating disable
0
R/W
0x0
DMA_CHAN_CIRCUIT.
DMA channel circuit auto gating bit.
0: Auto gating enable
1: Auto gating disable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 220
4.11.5.7. DMA Status Register (Default Value: 0x0000_0000)
Offset:0x0030
Register Name: DMA_STA_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30
R
0x0
MBUS FIFO Status
0:Empty
1:Not Empty
29:12
/
/
/
11
R
0x0
DMA11_STATUS
DMA Channel 11 Status.
0: Idle
1: Busy
10
R
0x0
DMA10_STATUS
DMA Channel 10 Status.
0: Idle
1: Busy
9
R
0x0
DMA9_STATUS
DMA Channel 9 Status.
0: Idle
1: Busy
8
R
0x0
DMA8_STATUS
DMA Channel 8 Status.
0: Idle
1: Busy
7
R
0x0
DMA7_STATUS
DMA Channel 7 Status.
0: Idle
1: Busy
6
R
0x0
DMA6_STATUS
DMA Channel 6 Status.
0: Idle
1: Busy
5
R
0x0
DMA5_STATUS
DMA Channel 5 Status.
0: Idle
1: Busy
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 221
4
R
0x0
DMA4_STATUS
DMA Channel 4 Status.
0: Idle
1: Busy.
3
R
0x0
DMA3_STATUS
DMA Channel 3 Status.
0: Idle
1: Busy.
2
R
0x0
DMA2_STATUS
DMA Channel 2 Status.
0: Idle,
1: Busy.
1
R
0x0
DMA1_STATUS
DMA Channel 1 Status.
0: Idle,
1: Busy.
0
R
0x0
DMA0_STATUS
DMA Channel 0 Status.
0: Idle,
1: Busy.
4.11.5.8. DMA Channel Enable Register (Default Value: 0x0000_0000)
Offset: 0x0100+N*0x0040 (N=0~11)
Register Name: DMA_EN_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
DMA_EN.
DMA Channel Enable
0: Disable
1: Enable.
4.11.5.9. DMA Channel Pause Register (Default Value: 0x0000_0000)
Offset: 0x0100+0x0004+N*0x0040
(N=0~11)
Register Name: DMA_PAU_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
DMA_PAUSE.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 222
Pausing DMA Channel Transfer Data.
0: Resume Transferring,
1: Pause Transferring.
4.11.5.10. DMA Channel Descriptor Address Register (Default Value: 0x0000_0000)
Offset: 0x0100+0x0008+N*0x0040
(N=0~11)
Register Name: DMA_DESC_ADDR_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
DMA_DESC_ADDR
DMA Channel Descriptor Address.
The Descriptor Address must be word-aligned.
4.11.5.11. DMA Channel Configuration Register (Default Value: 0x0000_0000)
Offset: 0x0100+0x000C+N*0x0040
(N=0~11)
Register Name: DMA_CFG_REG
Bit
Read/Write
Default/Hex
Description
31:27
/
/
/
26:25
R
0x0
DMA_DEST_DATA_WIDTH.
DMA Destination Data Width.
00: 8-bit
01: 16-bit
10: 32-bit
11: 64-bit
24
/
/
/
23:22
R
0x0
DMA_DEST_BST_LEN.
DMA Destination Burst Length.
00: 1
01: 4
10: 8
11: 16
21
R
0x0
DMA_ADDR_MODE.
DMA Destination Address Mode
0: Linear Mode
1: IO Mode
20:16
R
0x0
DMA_DEST_DRQ_TYPE.
DMA Destination DRQ Type
The details is in DMA DRQ Table.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 223
15:11
/
/
/
10:9
R
0x0
DMA_SRC_DATA_WIDTH.
DMA Source Data Width.
00: 8-bit
01: 16-bit
10: 32-bit
11: 64-bit
8
/
/
/
7:6
R
0x0
DMA_SRC_BST_LEN.
DMA Source Burst Length.
00: 1
01: 4
10: 8
11: 16
5
R
0x0
DMA_SRC_ADDR_MODE.
DMA Source Address Mode
0: Linear Mode
1: IO Mode
4:0
R
0x0
DMA_SRC_DRQ_TYPE.
DMA Source DRQ Type
The details is in DMA DRQ Table.
4.11.5.12. DMA Channel Current Source Address Register (Default Value: 0x0000_0000)
Offset: 0x0100+0x0010+N*0x0040
(N=0~11)
Register Name: DMA_CUR_SRC_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DMA_CUR_SRC.
DMA Channel Current Source Address, read only.
4.11.5.13. DMA Channel Current Destination Address Register (Default Value: 0x0000_0000)
Offset: 0x0100+0x0014+N*0x0040
(N=0~11)
Register Name: DMA_CUR_DEST_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DMA_CUR_DEST.
DMA Channel Current Destination Address, read only.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 224
4.11.5.14. DMA Channel Byte Counter Left Register (Default Value: 0x0000_0000)
Offset: 0x0100+0x0018+N*0x0040
(N=0~11)
Register Name: DMA_BCNT_LEFT_REG
Bit
Read/Write
Default/Hex
Description
31:25
/
/
/
24:0
R
0x0
DMA_BCNT_LEFT.
DMA Channel Byte Counter Left, read only.
4.11.5.15. DMA Channel Parameter Register (Default Value: 0x0000_0000)
Offset: 0x0100+0x001C+N*0x0040
(N=0~11)
Register Name: DMA_PARA_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R
0x0
WAIT_CYC.
Wait Clock Cycles n.
4.11.5.16. DMA Mode Register (Default Value: 0x0000_0000)
Offset: 0x0100+0x0028+N*0x0040
(N=0~11)
Register Name: DMA_MODE_REG
Bit
Read/Write
Default/Hex
Description
31:4
/
/
/
3
R/W
0x0
DMA_DST_MODE.
0: Wait mode.
1: Handshake mode.
2
R/W
0x0
DMA_SRC_MODE.
0: Wait mode.
1: Handshake mode.
1:0
/
/
/
4.11.5.17. DMA Former Descriptor Address Register (Default Value: 0x0000_0000)
Offset: 0x0100+0x002C+N*0x0040
(N=0~11)
Register Name: DMA_FDESC_ADDR_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DMA_FDESC_ADDR.
This register is used to store the former value of DMA Channel Descriptor
Address Register.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 225
4.11.5.18. DMA Package Number Register (Default Value: 0x0000_0000)
Offset: 0x0100+0x0030+N*0x0040
(N=0~11)
Register Name: DMA_PKG_NUM_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DMA_PKG_NUM.
This register will record the number of packages which has been completed
in one transmission.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 226
4.12. GIC
4.12.1. Interrupt Source
Interrupt Number
Interrupt Source
Interrupt Vector
Description
0
SGI 0
0x0000
SGI 0 interrupt
1
SGI 1
0x0004
SGI 1 interrupt
2
SGI 2
0x0008
SGI 2 interrupt
3
SGI 3
0x000C
SGI 3 interrupt
4
SGI 4
0x0010
SGI 4 interrupt
5
SGI 5
0x0014
SGI 5 interrupt
6
SGI 6
0x0018
SGI 6 interrupt
7
SGI 7
0x001C
SGI 7 interrupt
8
SGI 8
0x0020
SGI 8 interrupt
9
SGI 9
0x0024
SGI 9 interrupt
10
SGI 10
0x0028
SGI 10 interrupt
11
SGI 11
0x002C
SGI 11 interrupt
12
SGI 12
0x0030
SGI 12 interrupt
13
SGI 13
0x0034
SGI 13 interrupt
14
SGI 14
0x0038
SGI 14 interrupt
15
SGI 15
0x003C
SGI 15 interrupt
16
PPI 0
0x0040
PPI 0 interrupt
17
PPI 1
0x0044
PPI 1 interrupt
18
PPI 2
0x0048
PPI 2 interrupt
19
PPI 3
0x004C
PPI 3 interrupt
20
PPI 4
0x0050
PPI 4 interrupt
21
PPI 5
0x0054
PPI 5 interrupt
22
PPI 6
0x0058
PPI 6 interrupt
23
PPI 7
0x005C
PPI 7 interrupt
24
PPI 8
0x0060
PPI 8 interrupt
25
PPI 9
0x0064
PPI 9 interrupt
26
PPI 10
0x0068
PPI 10 interrupt
27
PPI 11
0x006C
PPI 11 interrupt
28
PPI 12
0x0070
PPI 12 interrupt
29
PPI 13
0x0074
PPI 13 interrupt
30
PPI 14
0x0078
PPI 14 interrupt
31
PPI 15
0x007C
PPI 15 interrupt
32
UART 0
0x0080
UART 0 interrupt
33
UART 1
0x0084
UART 1 interrupt
34
UART 2
0x0088
UART 2 interrupt
35
UART 3
0x008C
UART 3 interrupt
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 227
36
/
0x0090
/
37
/
0x0094
/
38
TWI 0
0x0098
TWI 0 interrupt
39
TWI 1
0x009C
TWI 1 interrupt
40
TWI 2
0x00A0
TWI 2 interrupt
41
/
0x00A4
/
42
/
0x00A8
/
43
PA_EINT
0x00AC
PA interrupt
44
OWA
0x00B0
OWA interrupt
45
I2S/PCM-0
0x00B4
I2S/PCM-0 interrupt
46
I2S/PCM-1
0x00B8
I2S/PCM-1 interrupt
47
I2S/PCM-2
0x00BC
I2S/PCM-2 interrupt
48
/
0x00C0
/
49
PF_EINT
0x00C4
PF_EINT interrupt
50
Timer 0
0x00C8
Timer 0 interrupt
51
Timer 1
0x00CC
Timer 1 interrupt
52
/
0x00D0
/
53
/
0x00D4
/
54
/
0x00D8
/
55
PG_EINT
0x00DC
PG_EINT interrupt
56
/
0x00E0
/
57
Watchdog
0x00E4
Watchdog interrupt
58
/
0x00E8
/
59
/
0x00EC
/
60
/
0x00F0
/
61
Audio Codec
0x00F4
Audio Codec interrupt
62
KEYADC
0x00F8
KEYADC interrupt
63
THS
0x00FC
Thermal Sensor interrupt
64
External NMI
0x0100
External Non-Mask Interrupt
65
R_timer 0
0x0104
R_timer 0 interrupt
66
R_timer 1
0x0108
R_timer 1 interrupt
67
/
0x010C
/
68
R_watchdog
0x0110
R_watchdog interrupt
69
R_CIR-RX
0x0114
R_CIR-RX interrupt
70
R_UART
0x0118
R_UART interrupt
71
/
0x011C
/
72
R_Alarm 0
0x0120
R_Alarm 0 interrupt
73
R_Alarm 1
0x0124
R_Alarm 1 interrupt
74
R_Timer 2
0x0128
R_timer 2 interrupt
75
R_Timer 3
0x012C
R_timer 3 interrupt
76
R_TWI
0x0130
R_TWI interrupt
77
R_PL_EINT
0x0134
R_PL_EINT interrupt
78
R_TWD
0x0138
R_TWD interrupt
79
/
0x013C
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 228
80
/
0x0140
/
81
M-box
0x0144
Message-box interrupt
82
DMA
0x0148
DMA channel interrupt
83
HS Timer
0x014C
HS Timer interrupt
84
/
0x0150
/
85
/
0x0154
/
86
/
0x0158
/
87
/
0x015C
/
88
SMC
0x0160
SMC interrupt
89
/
0x0164
/
90
VE
0x0168
VE interrupt
91
/
0x016C
/
92
SMHC 0
0x0170
SD/MMC Host Controller 0 interrupt
93
SMHC 1
0x0174
SD/MMC Host Controller 1 interrupt
94
SMHC 2
0x0178
SD/MMC Host Controller 2 interrupt
95
/
0x017C
/
96
/
0x0180
/
97
SPI 0
0x0184
SPI 0 interrupt
98
SPI 1
0x0188
SPI 1 interrupt
99
/
0x018C
/
100
/
0x0190
/
101
DRAM_MDFS
0x0194
DRAM_MDFS interrupt
102
NDFC
0x0198
NAND Flash Controller interrupt
103
USB-OTG_Device
0x019C
USB-OTG_Device interrupt
104
USB-OTG_EHCI0
0x01A0
USB-OTG_EHCI0 interrupt
105
USB-OTG_OHCI0
0x01A4
USB-OTG_OHCI0 interrupt
106
USB-EHCI1
0x01A8
USB-EHCI1 interrupt
107
USB-OHCI1
0x01AC
USB-OHCI1 interrupt
108
USB-EHCI2
0x01B0
USB-EHCI2 interrupt
109
USB-OHCI2
0x01B4
USB-OHCI2 interrupt
110
USB-EHCI3
0x01B8
USB-EHCI3 interrupt
111
USB-OHCI3
0x01BC
USB-OHCI3 interrupt
112
CE_S
0x01C0
CE_S interrupt
113
TSC
0x01C4
TSC interrupt
114
EMAC
0x01C8
EMAC interrupt
115
SCR0
0x01CC
SCR0 interrupt
116
CSI
0x01D0
CSI interrupt
117
CSI_CCI
0x01D4
CSI_CCI interrupt
118
TCON0
0x01D8
TCON0 Controller interrupt
119
TCON1
0x01DC
TCON1 Controller interrupt
120
HDMI
0x01E0
HDMI interrupt
121
SCR1
0x01E4
SCR1 interrupt
122
/
0x01E8
/
123
/
0x01EC
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 229
124
TVE
0x01F0
TVE interrupt
125
DIT
0x01F4
DIT interrupt
126
CE_NS
0x01F8
CE_NS interrupt
127
DE
0x01FC
DE interrupt
128
GPU_GP
0x0200
GPU_GP interrupt
129
GPU_GPMMU
0x0204
GPU_GPMMU interrupt
130
GPU_PMU
0x0208
GPU_PMU interrupt
131
GPU_PP
0x020C
GPU_PP interrupt
132
GPU_PP0
0x0210
GPU_PP0 interrupt
133
GPU_PPMMU0
0x0214
GPU_PPMMU0 interrupt
134
GPU_PP1
0x0218
GPU_PP1 interrupt
135
GPU_PPMMU1
0x021C
GPU_PPMMU1 interrupt
136
GPU_PP2
0x0220
GPU_PP2 interrupt
137
GPU_PPMMU2
0x0224
GPU_PPMMU2 interrupt
138
GPU_PP3
0x0228
GPU_PP3 interrupt
139
GPU_PPMMU3
0x022C
GPU_PPMMU3 interrupt
140
CTI0
0x0230
CTI0 interrupt
141
CTI1
0x0234
CTI1 interrupt
142
CTI2
0x0238
CTI2 interrupt
143
CTI3
0x023C
CTI3 interrupt
144
COMMTX0
0x0240
COMMTX0 interrupt
145
COMMTX1
0x0244
COMMTX1 interrupt
146
COMMTX2
0x0248
COMMTX2 interrupt
147
COMMTX3
0x024C
COMMTX3 interrupt
148
COMMRX0
0x0250
COMMRX0 interrupt
159
COMMRX1
0x0254
COMMRX1 interrupt
150
COMMRX2
0x0258
COMMRX2 interrupt
151
COMMRX3
0x025C
COMMRX3 interrupt
152
PMU0
0x0260
PMU0 interrupt
153
PMU1
0x0264
PMU1 interrupt
154
PMU2
0x0268
PMU2 interrupt
155
PMU3
0x026C
PMU3 interrupt
156
AXI_ERROR
0x0270
AXI_ERROR interrupt
Note: For details about GIC, please refer to the GIC PL400 technical reference manual and ARM GIC Architecture
Specification V2.0.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 230
4.13. Message Box
4.13.1. Overview
Message Box provides a MSGBox-interrupt mechanism for on-chip processors intercommunication.
The MSGBox-interrupt mechanism allows the software to establish a communication channel between the two users
through a set of registers and associated interrupt signals by sending or receiving messages.
Features:
• Two users for Message Box instance(User0 for CPUS and User1 for CPU0/CPU1)
• Eight Message Queues for the MSGBox instance
• Each of Queues could be configured as transmitter or receiver for user
• Two interrupts (one per user ) for the MSGBox instance
• Register polling for the MSGBox instance
• 32-bit message width
• Four-message FIFO depth for each message queue
4.13.2. Block Diagram
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 231
MSGBOX_MSG_REG_M
MSGBOX_MSG_STATUS_REG_M
MSGBOX_FIFO_STATUS_REG_M
MSGBox Message Queue m (m
: from 0 to 7)
MSGBox
USER0 USER1
MSGBOX_IRQ_EN_REG_0
MSGBOX_IRQ_STATUS_REG_0
For user0
MSGBOX_CTRL_REG0
MSGBOX_IRQ_EN_REG_1
MSGBOX_IRQ_STATUS_REG_1
For user1
MSGBOX_CTRL_REG1
Four Message FIFO
Figure 4-17. Message Box Block Diagram
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 232
4.13.3. Operations and Functional Descriptions
4.13.3.1. Typical Applications
Typical Application Flow Chart
Set a MSG Queue as a
Transmitter or a receiver?
START
FINISH
Check the MSG status or
FIFO status if it is not full?
Write a message to
the MSG REG
As a transmitter As a receiver
Enable the
RECEPTION IRQ
A new message has
received?
Read the MSG REG
to fetch the message
FINISH
Clear the Reception
IRQ Pending
Y
Y
N
N
IF the Message Queue
FIFO is empty?
Y
N
Figure 4-18. Message Box Typical Application Chart
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 233
4.13.3.2. Message Queue Assignment
To transmit messages from a user to the other user through any Message Queue, set the corresponding bit in the
MSGBOX_CTRL_REG0/MSGBOX_CTRL_REG1 register.
When a 32-bit message is written to the MSGBOXN_MSG_REG register (N is the message queue number, N=0~7), the
message is appended into the FIFO queue. This queue holds 4 messages. If the queue is full, the message is discarded.
The receiver user could read the MSGBOXN_MSG_REG register to retrieve a message from the corresponding Message
Queue FIFO.
It is recommended that register polling be used for a user to send a message:
• Set a Message Queue as a transmitter (in the MSGBOX_CTRL_REG0/MSGBOX_CTRL_REG1 register).
• Check the FIFO status or the message status (in the MSGBOXN_FIFO_STATUS_REG or
MSGBOXN_MSG_STATUS_REG).
• Write the message to the corresponding MSGBOXN_MSG_REG register, if space is available.
The transmit interrupt might be used when the initial MSGBox status indicates that the Message Queue is full. In this
case, the sender can enable the corresponding MSGBOXU_IRQ_EN_REG interrupt for the user. This allows the user to
be notified by interrupt when the message queue is not full.
4.13.3.3. Interrupt Request
An interrupt request allows the user of the MSGBox to be notified when a new message is received or when the
message queue is not full.
An event can generate an interrupt request when enable the corresponding bit in the MSGBOXU_IRQ_EN_REG (U is the
user number, U=0~1) register. Events are reported in the appropriate MSGBOXU_IRQ_STATUS_REG register.
An event stops generating interrupt requests when disable the corresponding bit in the MSGBOXU_IRQ_EN_REG
register.
In case of the MSGBOXU_IRQ_STATUS_REG register, the event is reported in the corresponding bit even if the interrupt
request generation is disabled for this event.
4.13.4. Register List
Module Name
Base Address
MSGBOX
0x01C17000
Register Name
Offset
Description
MSGBOX_CTRL_REG0
0x0000
Message Queue Attribute Control Register 0
MSGBOX_CTRL_REG1
0x0004
Message Queue Attribute Control Register 1
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 234
4.13.5. Register Description
4.13.5.1. MSGBox Control Register 0(Default Value: 0x1010_1010)
Offset: 0x0000
Register Name: MSGBOX_CTRL_REG0
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28
R/W
0x1
TRANSMIT_MQ3.
Message Queue 3 is a transmitter of user u.
0: user0
1: user1
27:25
/
/
/
24
R/W
0x0
RECEPTION_MQ3.
Message Queue 3 is a receiver of user u.
0: user0
1: user1
23:21
/
/
/
20
R/W
0x1
TRANSMIT_MQ2.
Message Queue 2 is a transmitter of user u.
0: user0
1: user1
19:17
/
/
/
16
R/W
0x0
RECEPTION_MQ2.
Message Queue 2 is a receiver of user u.
0: user0
1: user1
15:13
/
/
/
12
R/W
0x1
TRANSMIT_MQ1
MSGBOXU_IRQ_EN_REG
0x0040+N*0x0020
(N=0,1)
IRQ Enable for User U
MSGBOXU_IRQ_STATUS_REG
0x0050+N*0x0020
(N=0,1)
IRQ Status for User U
MSGBOXN_FIFO_STATUS_REG
0x0100+N*0x0004
(N = 0~7)
FIFO Status for Message Queue N
MSGBOXN_MSG_STATUS_REG
0x0140+N*0x0004
(N = 0~7)
Message Status for Message Queue N
MSGBOXN_MSG_REG
0x0180+N*0x0004
(N = 0~7)
Message Register for Message Queue N
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 235
Message Queue 1 is a transmitter of user u.
0: user0
1: user1
11:9
/
/
/
8
R/W
0x0
RECEPTION_MQ1.
Message Queue 1 is a receiver of user u.
0: user0
1: user1
7:5
/
/
/
4
R/W
0x1
TRANSMIT_MQ0.
Message Queue 0 is a transmitter of user u.
0: user0
1: user1
3:1
/
/
/
0
R/W
0x0
RECEPTION_MQ0.
Message Queue 0 is a receiver of user u.
0: user0
1: user1
4.13.5.2. MSGBox Control Register 1(Default Value: 0x1010_1010)
Offset: 0x0004
Register Name: MSGBOX_CTRL_REG1
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28
R/W
0x1
TRANSMIT_MQ7.
Message Queue 7 is a transmitter of user u.
0: user0
1: user1
27:25
/
/
/
24
R/W
0x0
RECEPTION_MQ7.
Message Queue 7 is a receiver of user u.
0: user0
1: user1
23:21
/
/
/
20
R/W
0x1
TRANSMIT_MQ6.
Message Queue 6 is a transmitter of user u.
0: user0
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 236
1: user1
19:17
/
/
/
16
R/W
0x0
RECEPTION_MQ6.
Message Queue 6 is a receiver of user u.
0: user0
1: user1
15:13
/
/
/
12
R/W
0x1
TRANSMIT_MQ5
Message Queue 5 is a transmitter of user u.
0: user0
1: user1
11:9
/
/
/
8
R/W
0x0
RECEPTION_MQ5.
Message Queue 5 is a receiver of user u.
0: user0
1: user1
7:5
/
/
/
4
R/W
0x1
TRANSMIT_MQ4.
Message Queue 4 is a transmitter of user u.
0: user0
1: user1
3:1
/
/
/
0
R/W
0x0
RECEPTION_MQ4.
Message Queue 4 is a receiver of user u.
0: user0
1: user1
4.13.5.3. MSGBox IRQ Enable Register (Default Value: 0x0000_0000)
Offset:0x0040+N*0x0020 (N=0,1)
Register Name: MSGBOXU_IRQ_EN_REG
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15
R/W
0x0
TRANSMIT_MQ7_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 7 is not full.)
14
R/W
0x0
RECEPTION_MQ7_IRQ_EN.
0: Disable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 237
1: Enable (It will notify user u by interrupt when Message Queue 7 has
received a new message.)
13
R/W
0x0
TRANSMIT_MQ6_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 6 is not full.)
12
R/W
0x0
RECEPTION_MQ6_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 6 has
received a new message.)
11
R/W
0x0
TRANSMIT_MQ5_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 5 is not full.)
10
R/W
0x0
RECEPTION_MQ5_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 5 has
received a new message.)
9
R/W
0x0
TRANSMIT_MQ4_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 4 is not full.)
8
R/W
0x0
RECEPTION_MQ4_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 4 has
received a new message.)
7
R/W
0x0
TRANSMIT_MQ3_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 3 is not full.)
6
R/W
0x0
RECEPTION_MQ3_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 3 has
received a new message.)
5
R/W
0x0
TRANSMIT_MQ2_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 2 is not full.)
4
R/W
0x0
RECEPTION_MQ2_IRQ_EN.
0: Disable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 238
1: Enable (It will notify user u by interrupt when Message Queue 2 has
received a new message.)
3
R/W
0x0
TRANSMIT_MQ1_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 1 is not full.)
2
R/W
0x0
RECEPTION_MQ1_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 1 has
received a new message.)
1
R/W
0x0
TRANSMIT_MQ0_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 0 is not full.)
0
R/W
0x0
RECEPTION_MQ0_IRQ_EN.
0: Disable
1: Enable (It will notify user u by interrupt when Message Queue 0 has
received a new message.)
4.13.5.4. MSGBox IRQ Status Register u(Default Value: 0x0000_AAAA)
Offset:0x0050+N*0x0020 (N=0,1)
Register Name: MSGBOXU_IRQ_STATUS_REG
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15
R/W1C
0x1
TRANSMIT_MQ7_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 7 is not
full. Setting 1 to this bit will clear it.
14
R/W1C
0x0
RECEPTION_MQ7_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 7 has
received a new message. Setting 1 to this bit will clear it.
13
R/W1C
0x1
TRANSMIT_MQ6_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 6 is not
full. Setting 1 to this bit will clear it.
12
R/W1C
0x0
RECEPTION_MQ6_IRQ_PEND.
0: No effect
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 239
1: Pending. This bit will be pending for user u when Message Queue 6 has
received a new message. Setting 1 to this bit will clear it.
11
R/W1C
0x1
TRANSMIT_MQ5_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 5 is not
full. Setting 1 to this bit will clear it.
10
R/W1C
0x0
RECEPTION_MQ5_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 5 has
received a new message. Setting 1 to this bit will clear it.
9
R/W1C
0x1
TRANSMIT_MQ4_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 4 is not
full. Setting 1 to this bit will clear it.
8
R/W1C
0x0
RECEPTION_MQ4_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 4 has
received a new message. Setting 1 to this bit will clear it.
7
R/W1C
0x1
TRANSMIT_MQ3_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 3 is not
full. Setting 1 to this bit will clear it.
6
R/W1C
0x0
RECEPTION_MQ3_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 3 has
received a new message. Setting 1 to this bit will clear it.
5
R/W1C
0x1
TRANSMIT_MQ2_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 2 is not
full. Setting 1 to this bit will clear it.
4
R/W1C
0x0
RECEPTION_MQ2_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 2 has
received a new message. Setting 1 to this bit will clear it.
3
R/W1C
0x1
TRANSMIT_MQ1_IRQ_PEND.
0: No effect
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 240
1: Pending. This bit will be pending for user u when Message Queue 1 is not
full. Setting 1 to this bit will clear it.
2
R/W1C
0x0
RECEPTION_MQ1_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 1 has
received a new message. Setting 1 to this bit will clear it.
1
R/W1C
0x1
TRANSMIT_MQ0_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 0 is not
full. Setting 1 to this bit will clear it.
0
R/W1C
0x0
RECEPTION_MQ0_IRQ_PEND.
0: No effect
1: Pending. This bit will be pending for user u when Message Queue 0 has
received a new message. Setting 1 to this bit will clear it.
4.13.5.5. MSGBox FIFO Status Register m(Default Value: 0x0000_0000)
Offset:0x0100+N*0x0004 (N=0~7)
Register Name: MSGBOXN_FIFO_STATUS_REG
Bit
Read/Write
Default/Hex
Description
31: 1
/
/
/
0
R
0x0
FIFO_FULL_FLAG.
0: The Message FIFO queue is not full (space is available).
1: The Message FIFO queue is full.
This FIFO status register has the status related to the message queue.
4.13.5.6. MSGBox Message Status Register m(Default Value: 0x0000_0000)
Offset:0x0140+N*0x0004 (N=0~7)
Register Name: MSGBOXN_MSG_STATUS_REG
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2:0
R
0x0
MSG_NUM.
Number of unread messages in the message queue. Here, limit to four
messages per message queue.
000: There is no message in the message FIFO queue.
001: There is 1 message in the message FIFO queue.
010: There are 2 messages in the message FIFO queue.
011: There are 3 messages in the message FIFO queue.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 241
100: There are 4 messages in the message FIFO queue.
101~111:/
4.13.5.7. MSGBox Message Queue Register (Default Value: 0x0000_0000)
Offset:0x0180+N*0x0004 (N=0~7)
Register Name: MSGBOXN_MSG_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
The message register stores the next to be read message of the message FIFO
queue. Reads remove the message from the FIFO queue.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 242
4.14. Spinlock
4.14.1. Overview
Spinlock provides hardware assistance for synchronizing the processes running on multiple processors in the device.
The SpinLock implements thirty-two 32-bit spinlocks (or hardware semaphores), which provides an efficient way to
perform a lock operation of a device resource using a single read access, and avoid the eed fo a ead-modify-ite
bus transfer that not all the programmable cores are capable of.
Spinlocks are present to solve the need for synchronization and mutual exclusion between heterogeneous processors
and those not operating under a single, shared operating system. There is no alternative mechanism to accomplish
these operations between processors in separate subsystems. However, Spinlocks do not solve all system
synchronization issues. They have limited applicability and should be used with care to implement higher level
synchronization protocols.
A spinlock is appropriate for mutual exclusion for access to a shared data structure. It should be used only when:
1) The time to hold the lock is predictable and small (for example, a maximum hold time of less than 200 CPU cycles
may be acceptable).
2) The locking task can not be preempted, suspended, or interrupted while holding the lock (this would make the
hold time large and unpredictable).
3) The lock is lightly contended, that is the chance of any other process (or processor) trying to acquire the lock while
it is held is small.
If the conditions are not met, then a spinlock is not a good candidate. One alternative is to use a spinlock for critical
section control (engineered to meet the conditions) to implement a higher level semaphore that can support
preemption, notification, timeout or other higher level properties.
Features:
• Spinlock module includes 32 spinlocks
• Two kinds of status of lock register: TAKEN and NOT TAKEN
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 243
4.14.2. Operations and Functional Descriptions
4.14.2.1. Typical Applications
Start
Is the Lock Taken?
(SPINLOCK_LOCK_REG_i[0]=0?)
SPINLOCK_LOCK_REG_i[0]=0
End
Y
NTake a Lock
Free a Lock
Take the Lock
Critical code section
Free the Lock
Figure 4-19. Spinlock Typical Application Flow Chart
4.14.2.2. Lock Register State Diagram
Unlocked State
(TAKEN_bit=0)
Locked State
(TAKEN_bit=1)
Read: 0
Write 1
Read: 1
Write 0
Write 0/1
Reset
Figure 4-20. Spinlock Lock Register State Diagram
Every lock register has two kinds of states: TAKEN(locked) or NOT TAKEN(Unlocked). Only read-0-access and
write-0-access could change the state of lock register and the other accesses have no effect. Just 32-bit read and write
are supported to access all lock registers.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 244
4.14.2.3. Spinlock Clock Gating and Software Reset
Spinlock clock gating should be open before using it. Setting the bit[22] of Bus Clock Gating Register1 to 1 could
activate Spinlock and then de-asserting its software reset. Setting the bit[22] of Bus Software Reset Register 1 to 1
could de-assert the software reset of Spinlock. If it is no need to use spinlock, both the gating bit and software reset bit
should be set 0.
4.14.2.4. Take and Free a Spinlock
Checking out Spinlock Register Status is necessary when a processor would like to take a spinlock. This register stores
the status of all 32 lock registers: TAKEN or NOT TAKEN(free).
In order to request to take a spinlock, a processor has to do a read-access to the corresponding lock register. If lock
register returns 0, the processor takes this spinlock. And if lock register returns 1, the processor must retry.
Writing 0 to a lock register frees the corresponding spinlock. If the lock register is not taken, write-access has no effect.
For a taken spinlock, every processor has the privilege to free this spinlock. But it is suggested that the processor which
has taken the spinlock free it for strictness.
4.14.3. Programming Guidelines
Take CPU0's synchronization with CPUS with Spinlock0 for an example, CPU0 takes the spinlock0 firstly in the instance：
CPU0
Step 1: CPU0 initializes Spinlock
writel(readl(Bus Clock Gating Register1)|(1<<22) , Bus Clock Gating Register1); //open Spinlock clock gating
writel (readl(Bus Software Reset Register 1)|(1<<22) , Bus Software Reset Register 1); //software reset Spinlock
Step 2: CPU0 requests to take spinlock0
rdata=readl(SPINLOCK_SYSTATUS_REG); //check lock register0 status, if it is taken, check till
if(rdata != 0) rdata=readl(SPINLOCK_SYSTATUS_REG); // lock register0 is free
rdata=readl(SPINLOCKN_LOCK_REG); //request to take spinlock0, if fail, retry till
if(rdata != 0) rdata=readl(SPINLOCKN_LOCK_REG); // lock register0 is taken
---------- CPU0 critical code section ----------
Step 3: CPU0 free spinlock0
writel (0, SPINLOCKN_LOCK_REG); //CPU0 frees spinlock0
Step 4: CPU0 waits for CPUS freeing spinlock0
writel (readl(SPINLOCK_STATUS_REG) == 1); // CPU0 waits for CPUS’ freeing spinlock0
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 245
CPUS
Step 1: CPU0 has taken spinlock0, CPUS waits for CPU0 freeing spinlock0
while(readl(SPINLOCK_STATUS_REG) == 1); // CPUS waits for CPU0’ freeing spinlock0
Step 2: CPUS takes spinlock0 and go on
---------- CPUS critical code section ----------
Step 3: CPUS frees spinlock0
writel (0, SPINLOCKN_LOCK_REG); //CPUS frees spinlock0
4.14.4. Register List
Module Name
Base Address
SPINLOCK
0x01C18000
Register Name
Offset
Description
SPINLOCK_SYSTATUS_REG
0x0000
Spinlock System Status Register
SPINLOCK_STATUS_REG
0x0010
Spinlock Status Register
SPINLOCK_LOCK_REGN
0x0100+N*0x0004
Spinlock Register N (N=0~31)
4.14.5. Register Description
4.14.5.1. Spinlock System Status Register (Default Value: 0x1000_0000)
Offset: 0x0000
Register Name: SPINLOCK_SYSTATUS_REG
Bit
Read/Write
Default/Hex
Description
31:30
/
/
/
29:28
R
0x1
LOCKS_NUM.
Number of lock registers implemented.
00: This instance has 32 lock registers.
01: This instance has 64 lock registers.
10: This instance has 128 lock registers.
11: This instance has 256 lock registers.
27:16
/
/
/
15:9
/
/
/
8
R
0x0
IU0.
In-Use flag0, covering lock register0-31.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 246
0: All lock register 0-31 are in the NotTaken state.
1: At least one of the lock register 0-31 is in the Taken state.
7:0
/
/
/
4.14.5.2. Spinlock Register Status (Default Value: 0x0000_0000)
Offset: 0x0010
Register Name: SPINLOCK_STATUS_REG
Bit
Read/Write
Default/Hex
Description
[i]
(i=0~31)
R
0x0
LOCK_REG_STATUS.
SpinLock[i] status (i=0~31)
0: The Spinlock is free
1: The Spinlock is taken.
4.14.5.3. Spinlock Register N (N=0 to 31)(Default Value: 0x0000_0000)
Offset:0x0100+N*0x0004 (N=0~31)
Register Name: SPINLOCKN_LOCK_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
TAKEN.
Lock State.
Read 0x0: The lock was previously Not Taken (free).The requester is
granted the lock.
Write 0x0: Set the lock to Not Taken (free).
Read 0x1: The lock was previously Taken. The requester is not granted
the lock and must retry.
Write 0x1: No update to the lock value.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 247
4.15. Crypto Engine
4.15.1. Overview
The Crypto Engine(CE) is one encrypt/decrypt function accelerator. It is suitable for a variety of applications. It can
support encryption ,decryption and calculate the hash value. Several algorithm modes are supported by the Crypto
Engine. The Crypto Engine has a special internal DMA(IDMA) controller to transfer data .
The Crypto Engine can encrypt or decrypt a large amount of data. And it can encrypt and decrypt one or more blocks at
one time.
Features:
Supports symmetrical algorithm :AES, DES, TDES
Supports asymmetrical algorithm :RSA512/1024/2048-bit
Supports secure Hash algorithm: MD5, SHA-1,SHA-224,SHA-256, HMAC
Supports 160-bit hardware PRNG with 175-bit seed
Supports 256-bit hardware TRNG
Supports ECB, CBC, CTR modes for DES/TDES
Supports ECB, CBC, CTR, CTS modes for AES
Supports 128-bit, 192-bit and 256-bit key size for AES
Supports multi-package mode for MD5/SHA-1/SHA-224/SHA-256
Supports internal DMA controller for data transfer with memory
Supports secure and non-secure interface respectively
4.15.2. Block Diagram
The following figure shows the block diagram of Crypto Engine.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 248
cr
task
Symm: AES, (T)DES, HASH,
RNG, HMAC RSA
DMA
AHB
MBUS
Figure 4-21. CE Block Diagram
4.15.3. Operations and Functional Descriptions
4.15.3.1. Crypto Engine Task Descriptor
Crypto Engine task deccriptor is 44*4 Byte memory. Software make request through task descriptor, providing algorithm
type, mode, key address, source/destination address and size, etc. The task descriptor is as follows.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 249
Task chaining
task chaining id=0
common ctl
symmetric ctl
reserved
key descriptor
iv descriptor
ctr descriptor
data len
src adr0
dst adr7
dst len7
next descriptor(task1)
src len0
reserved[3]
task0 task1 task2 ……
src adr7
src len7
…
dst adr0
dst len0
…
task chaining id=1
common ctl
symmetric ctl
reserved
key descriptor
iv descriptor
ctr descriptor
data len
src adr0
dst adr7
dst len7
next descriptor(task2)
src len0
reserved[3]
src adr7
src len7
…
dst adr0
dst len0
…
Figure 4-22. Crypto Engine Task Chaining
Task chaining id supports 0~3.
4.15.3.2. Task_descriptor_queue Common Control
Bit
Description
31
INTERRUPT_ENABLE
Interrupt enable for current task
0: Disable interrupt
1: Enable interrupt
30:17
/
16
IV_MODE
IV mode for SHA-1/SHA-224/SHA-256 /MD5 or constants
0: Use initial constants defined in FIPS-180
1: Use input iv
15
HMAC_PLAINTEXT_LAST_FLAG
0: Not the last HMAC plaintext package
1: The last HMAC plaintext package
14:9
/
8
OP_DIR
Algorithm Operation Direction
0: Encryption
1: Decryption
7
/
6:0
ALGORITHM_TYPE
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 250
0: AES
1: DES
2: Triple DES (3DES)
3~15: Reserved
16: MD5
17: SHA-1
18: SHA-224
19: SHA-256
20: Reserved
21: Reserved
22: HMAC-SHA1
23: HMAC-SHA256
24~31: Reserved
32: RSA
33~47: Reserved
48: TRNG
49: PRNG
50~62: Reserved
4.15.3.3. Task_descriptor_queue Symmetric Control
Bit
Description
31:24
/
23:20
KEY_SELECT
key select for AES
0000: Select input CE_KEYx (Normal Mode)
0001: Select {SSK}
0010: Select {HUK}
0011: Select {RSSK}
0100-0111: Reserved
1000-1111: Select internal Key n (n from 0 to 7)
19:18
/
17
PRNG_LD
Load new 15bits key into lfsr for PRNG
16
AES_CTS_LAST_PACKAGE_FLAG
When set to 1, it means this is the last package for AES-CTS mode. (the size of the last package >128bit)
15:12
/
11:8
ALGORITHM_MODE
CE Operation Mode
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 251
0000: Electronic Code Book (ECB) mode
0001: Cipher Block Chaining (CBC) mode
0010: Counter (CTR) mode
0011: Ciphertext Stealing (CTS) mode
Other: Reserved
7:4
/
3:2
CTR_WIDTH
Counter Width for CTR Mode
00: 16-bit Counter
01: 32-bit Counter
10: 64-bit Counter
11: 128-bit Counter
1:0
AES_KEY_SIZE
00: 128-bit
01: 192-bit
10: 256-bit
11: Reserved
4.15.3.4. Task_descriptor_queue Asymmetric Control
Bit
Description
31
/
30:28
RSA_WIDTH
RSA Pubic Modulus Width
000: 512 bit
001: 1024 bit
010: 2048 bit
Other: Reserved
27:0
/
4.15.3.5. Task Request
Basically, there are 4 steps for one task handling from software. Firstly, software should configure task descriptor in
memory, including all fields in descriptor. Channel id corresponds to one channel in CE, from 0 to 3 for secure and non
secure world respectively. According to algorithm type, software should set the fields in common control, symmetric
control, asymmetric control, then provide key/iv/ctr address and the data length of this task. Source and destination sg
address and size are set based on upper application. If there is another task concatenating after this task, then set its
descriptor address at next descriptor field. Secondly, software should set registers, including task descriptor address,
interrupt control. Thirdly, software read load register to ensure that the bit0 is zero, then starts request by pulled up the
bit0 of the load register. Lastly, wait interrupt status.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 252
4.15.3.6. Data Length Setting
Data length field in task descriptor has different meaning for different algorithms. For AES-CTS algorithms mode data
length field indicates valid source data byte number, for others indicate source data words number. For PRNG, data
length should be 5 words aligned, For TRNG should be 8 words aligned. Data size in source and destination sg is as
words, whose value should corresponds with data length field, or else CE will report error and stop execution.
4.15.3.7. Security Operation
Whe CPU issues euest to CE odule, CE odule ill egiste CPUs seue ode state. Whe eeutig this euest,
this state bit works as access flag for inner and system resource. For HUK/RSSK/SSK from SID, only secure mode can
access, or else these keys will be used as 0. For access to SID and keysram module through AHB bus, only secure mode
can success, or else will read 0 or can not write. When issuing MBUS read and write requests, CE will use this secure
state bit as mprot signal, so certain secure state accesses corresponding memory space, namely secure request can
access secure and non secure space, but non secure request only can access non secure space.
4.15.3.8. Error Check
CE module includes error detection for task configuration, data computing error, and authentication invalid. When
algorithm type in task description is read into module, CE will check if this type is supported through checking algorithm
type field in common ctrl. If type value is out of support scope, CE will issue interrupt signal and set error state. Each
type has certain input and output data size. After getting task descriptor, input size and output size configuration will be
checked to avoid size error. If size configuration is wrong, CE will issue interrupt signal and set error state. To protect
keys would be put into keysram from disclose, if request using RSSK is for AES decryption and destination address is not
in keysram space, CE would not execute this task. It will issue interrupt signal and set error state.
4.15.3.9. Clock Requirement
Clock Name
Description
Requirement
ahb_clk
AHB bus clock
24MHz ~ 200MHz
m_clk
MBUS clk
24MHz ~ 400MHz
ce_clk
CE work clock
24MHz ~ 300MHz
4.15.4. Register List
Module Name
Base Address
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 253
CE_NS
0x01C15000
CE_S
0x01C15800
Register Name
Offset
Description
CE_TDQ
0x0000
Task Descriptor Address
CE_CTR
0x0004
Gating Control Register
CE_ICR
0x0008
Interrupt Control Register
CE_ISR
0x000C
Interrupt Status Register
CE_TLR
0x0010
Task Load Register
CE_ESR
0x0018
Task Error type Register
CE_CSSGR
0x001C
Current Source Scatter Group Register
CE_CDSGR
0x0020
Current Destination Scatter Group Register
CE_CSAR
0x0024
Current Source Address Register
CE_CDAR
0x0028
Current Destination Address Register
CE_TPR
0x002C
Throughput Register
4.15.5. Register Description
4.15.5.1. Crypto Engine Task Descriptor Address Register (Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: CE_TDA
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
CE_TDA
Task Descriptor Address
4.15.5.2. Crypto Engine Control Register (Default Value: UDF)
Offset: 0x0004
Register Name:CE_CTR
Bit
Read/Write
Default/Hex
Description
31:4
/
/
/
3
R/W
0x0
RSA_CLK_GATING
RSA CLK Gating Enable(only for S world)
0: RSA clk gating enable
1: RSA clk gating disable
2:0
R
UDF
DIE_ID
Die Bonding ID
4.15.5.3. Crypto Engine Interrupt Control Register(Default Value: 0x0000_0000)
Offset: 0x0008
Register Name: CE_ICR
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 254
Bit
Read/Write
Default/Hex
Description
31:4
/
/
/
3:0
R/W
0x0
TASK_INT_EN
Task chaining0~3 interrupt enable
0: Interrupt disable
1: Interrupt enable
4.15.5.4. Crypto Engine Interrupt Status Register(Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: CE_ISR
Bit
Read/Write
Default/Hex
Description
31:4
/
/
/
3:0
R/W1C
0x0
TASK_END_PENDING
Task channel0-3 end pending
0: Not finished
1: Finished
It indicates whether task has been completed .
Note: Wite  to lea it.
4.15.5.5. Crypto Engine Task Load Register(Default Value: 0x0000_0000)
Offset: 0x0010
Register Name: CE_TLR
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
Task_Load
When set , CE starts to load the configure of task from task descriptor queue
and start to perform the task if task FIFO is not full.
4.15.5.6. Crypto Engine Task Status Register(Default Value: 0x0000_0000)
Offset: 0x0014
Register Name: CE_TSR
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
1:0
R
0x0
TASK_CHANNEL
Indicate which channel is running
00: Task channel0
01: Task channel1
10: Task channel2
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 255
11: Task channel3
4.15.5.7. Crypto Engine Error Status Register(Default Value: 0x0000_0000)
Offset: 0x0018
Register Name: CE_ESR
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:12
R/W1C
0x0
CH3_ERROR
Task channel3 error type
xxx1: Algorithm not support
xx1x: Data length error
x1xx: Keysram access error for AES
1xxx: Reserved
Write 1 to clear it.
11:8
R/W1C
0x0
CH2_ERR
Task channel2 error type
xxx1: Algorithm not support
xx1x: Data length error
x1xx: Keysram access error for AES
1xxx: Reserved
Write 1 to clear it.
7:4
R/W1C
0x0
CH1_ERR
Task channel1 error type
xxx1: Algorithm not support
xx1x: Data length error
x1xx: Keysram access error for AES
1xxx: Reserved
Write 1 to clear it.
3:0
R/W1C
0x0
CH0_ERR
Task channel0 error type
xxx1: Algorithm not support
xx1x: Data length error
x1xx: Keysram access error for AES
1xxx: Reserved
Write 1 to clear it.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 256
4.15.5.8. Crypto Engine Current Source Address Register(Default Value: 0x0000_0000)
Offset: 0x0024
Register Name: CE_CSAR
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
SRC_ADR
Current source address of the executing task
4.15.5.9. Crypto Engine Current Destination Address Register(Default Value: 0x0000_0000)
Offset: 0x0028
Register Name: CE_CDAR
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DES_ADR
Current destination address of the executing task
4.15.5.10. Crypto Engine Throughput Register(Default Value: 0x0000_0000)
Offset: 0x002C
Register Name: CE_TPR
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
THROUGHPUT
It indicates the throughput of data from the whole processing.
Wite 0 to lea it by CPU.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 257
4.16. Security ID
4.16.1. Overview
There is one 2Kbits on chip EFUSE, which provides 128-bit, 64-bit and one 32-bit electrical fuses for security application.
The users can use them as root key, security JTAG key and other applications.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 258
4.17. Secure Memory Controller
4.17.1. Overview
The SMC is an Advanced Microcontroller Bus Architecture compliant System-on-Chip peripheral. It is a
high-performance, area-optimized address space controller with on-chip AMBA bus interfaces that conform to the
AMBA Advanced Extensible Interface protocol and the AMBA Advanced Peripheral Bus protocol.
You can configure the SMC to provide the optimum security address region control functions required for your intended
application.
Features:
Enables you to program security access permissions each address region.
Permits the transfer of data between master and slave only if the security status of the AXI transaction matches
the security settings of the memory region it addresses.
4.17.2. Operations and Functional Descriptions
By default, the SMC performs read or write speculative that means it forwards an AXI transaction address to a slave,
before it verifies that the AXI transaction is permitted to read address or write address respectively.
The SMC only permits the transfer of data between its AXI bus interfaces, after verified that the read or write access is
permitted respectively. If the verification fails, then it prevents the transfer of data between the master and slave as
denied AXI transactions.
When the speculative accesses are disabled, the SMC verifies the permissions of the access before it forwards the
access to the salve. If the SMC:
Permits the access, it commences an AXI transaction to the slave, and it adds one clock latency.
Denies the access, it prevents the transfer of data between the master and slave. In this situation, the slave is
unaware when the SMC prevents the master from accessing the slave.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 259
4.17.2.1. DRM Block Diagram
Secure Zone
DRM
Non-secure
Zone
DRAM SPACE
S.M. stands for Secure Mater
G. NS.M stands for General Non-secure Master
D. NS.M stands for Non-secure Master appointed by DRM
G.NS.MNSZ
DRM
SZ
D.NS.MNSZ
DRM
SZ
S.MNSZ
DRM
SZ
G.NS.M only can read data from NSZ and write data into NSZ
D.NS.M can read data from NSZ and DRM, but only can write data into DRM
S.M can read data from the whole DRAM SPACE
Figure 4-23. DRM Block Diagram
4.17.2.2. Master ID Table
Table 4-3. Master and Master ID
ID
Master
ID
Master
0
CPU
13
CSI
1
GPU0
14
NDFC
2
CPUS
15
Crypto Engine
3
ATH (test interface for AHB)
16
DE_RT-MIXER0
4
USB0
17
DE_RT-MIXER1
5
MSTG0 (SD/eMMC0)
18
DE_RT-WB
6
MSTG1 (SD/eMMC1)
19
7
MSTG2 (SD/eMMC2)
20
USB3
8
USB1
21
TSC
9
USB2
22
DE Interlace
10
EMAC
23
11
DMA
24
12
VE
25
GPU1
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 260
4.17.2.3. Region Size Table
Table 4-4. Region Size
Size<n>
Size of Region<n>
Base Address Constraints
b000000-b001101
Reserved
-
b001110
32KB
-
b001111
64KB
Bit [15] must be zero
b010000
128KB
Bits [16:15] must be zero
b010001
256KB
Bits [17:15] must be zero
b010010
512KB
Bits [18:15] must be zero
b010011
1MB
Bits [19:15] must be zero
b010100
2MB
Bits [20:15] must be zero
b010101
4MB
Bits [21:15] must be zero
b010110
8MB
Bits [22:15] must be zero
b010111
16MB
Bits [23:15] must be zero
b011000
32MB
Bits [24:15] must be zero
b011001
64MB
Bits [25:15] must be zero
b011010
128MB
Bits [26:15] must be zero
b011011
256MB
Bits [27:15] must be zero
b011100
512MB
Bits [28:15] must be zero
b011101
1GB
Bits [29:15] must be zero
b011110
2GB
Bits [30:15] must be zero
b011111
4GB
Bits [31:15] must be zero
B100000
8GB
Bits [32:15] must be zero
4.17.2.4. Security Inversion Disabled
Table 4-5. Region Security Permissions when Security Inversion Disabled
SPN Field
Secure Read
Secure Write
Non-secure Read
Non-secure Write
4b0000
No
No
No
No
4b0100
No
Yes
No
No
4b0001, 4b0101
No
Yes
No
Yes
4b1000
Yes
No
No
No
4b0010, 4b1010
Yes
No
Yes
No
4b1100
Yes
Yes
No
No
4b1001, 4b1101
Yes
Yes
No
Yes
4b0110, 4b1110
Yes
Yes
Yes
No
4b0011-4b1111
Yes
Yes
Yes
Yes
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 261
4.17.2.5. Security Inversion Enabled
If you enable security inversion, the SMC permits you to program any combination of security permissions as Table 4-6
shows.
Table 4-6. Region Security Permissions when Security Inversion Enabled
SPN Field
Secure Read
Secure Write
Non-secure Read
Non-secure Write
4b0000
No
No
No
No
4b0001
No
No
No
Yes
4b0010
No
No
Yes
No
4b0011
No
No
Yes
Yes
4b0100
No
Yes
No
No
4b0101
No
Yes
No
Yes
4b0110
No
Yes
Yes
No
4b0111
No
Yes
Yes
Yes
4b1000
Yes
No
No
No
4b1001
Yes
No
No
Yes
4b1010
Yes
No
Yes
No
4b1011
Yes
No
Yes
Yes
4b1100
Yes
Yes
No
No
4b1101
Yes
Yes
No
Yes
4b1110
Yes
Yes
Yes
No
4b1111
Yes
Yes
Yes
Yes
4.17.3. Register List
Module Name
Base Address
SMC
0x01C1E000
Register Name
Offset
Description
SMC_CONFIG_REG
0x0000
SMC Configuration Register
SMC_ACTION_REG
0x0004
SMC Action Register
SMC_LD_RANGE_REG
0x0008
SMC Lock Down Range Register
SMC_LD_SELECT_REG
0x000C
SMC Lock Down Select Register
SMC_INT_STATUS_REG
0x0010
SMC Interrupt Status Register
SMC_INT_CLEAR_REG
0x0014
SMC Interrupt Clear Register
SMC_MST_BYP_REG
0x0018
SMC Master Bypass Register
SMC_MST_SEC_REG
0x001C
SMC Master Secure Register
SMC_FAIL_ADDR_REG
0x0020
SMC Fail Address Register
SMC_FAIL_CTRL_REG
0x0028
SMC Fail Control Register
SMC_FAIL_ID_REG
0x002C
SMC Fail ID Register
SMC_SPECU_CTRL_REG
0x0030
SMC Speculation Control Register
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 262
SMC_SEC_INV_EN_REG
0x0034
SMC Security Inversion Enable Register
SMC_MST_ATTRI_REG
0x0048
SMC Master Attribute Register
DRM_MASTER_EN_REG
0x0050
DRM Master Enable Register
DRM_ILLACCE_REG
0x0058
DRM Illegal Access Register
DRM_STATADDR_REG
0x0060
DRM Start Address Register
DRM_ENDADDR_REG
0x0068
DRM End Address Register
SMC_REGION_SETUP_LO_REG
0x0100+N*0x0010
Region Setup Low Register N
(N=0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15)
SMC_REGION_SETUP_HI_REG
0x0104+N*0x0010
Region Setup High Register N
(N=0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15)
SMC_REGION_ATTR_REG
0x0108+N*0x0010
Region Attribute Register N
(N=0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15)
4.17.4. Register Description
4.17.4.1. SMC Configuration Register (Default Value: 0x0000_1F0F)
Offset: 0x0000
Register Name: SMC_CONFIG_REG
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
13:8
R
0x1F
ADDR_WIDTH_RTN.
Address width.
Return the width of the AXI address bus.
000000~011110 : Reserved.
011111: 32-bit
……
111111: 64-bit
7:4
/
/
/
3:0
R
0xF
REGIONS_RTN.
Returns the number of the regions that the SMC provides.
0000: Reserved
0001: 2 regions
……
1111: 16 regions.
4.17.4.2. SMC Action Register (Default Value: 0x0000_0001)
Offset: 0x0004
Register Name: SMC_ACTION_REG
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 263
1:0
R/W
0x1
SMC_INT_RESP.
Control how the SMC uses the bresps[1:0], rresps[1:0], and smc_int signals
when a region permission fails:
00: Sets smc_int LOW and issues an OKEY response
01: Sets smc_int LOW and issues a DECERR response
10: Sets smc_int HIGH and issues an OKEY response
11: Sets smc_int HIGH and issues a DECERR response
Note:This action is only valid for CPU access, not for MBUS and DMA access.
4.17.4.3. SMC Lockdown Range Register (Default Value: 0x0000_0000)
Offset: 0x0008
Register Name: SMC_LD_RANGE_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
LOCKDOWN_EN.
When setting to 1, it enables the lockdown_regions field to control the
regions that are to be locked.
30:4
/
/
/
3:0
R/W
0x0
NO_REGIONS_LOCKDOWN.
Control the number of regions to lockdown when the enable bit is set to 1.
0000: region no_of_regions-1 is locked
0001: region no_of_regions-1 to region no_of_regions-2 are locked
……
1111: region no_of_regions-1 to region no_of_regions-16 are locked
Note: No_of_regions is the value of the no_of_regions field in the configuration register.
The value programmed in the SMC_LD_RANGE_REG register must not be greater than no_of_regions-1 ,else all regions
are locked.
4.17.4.4. SMC Lockdown Select Register (Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: SMC_LD_SELECT_REG
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2
R/W
0x0
ACCESS_TYPE_SPECU.
Modify the access type of the SMC_SPECU_CTRL_REG register.
0: No effect. The SMC_SPECU_CTRL_REG register remains RW.
1:The SMC_SPECU_CTRL_REG register is RO.
1
R/W
0x0
ACCESS_TYPE_SEC_INV_EN.
Modify the access type of the SMC_SEC_INV_EN_REG register.
0: No effect. The SMC_SEC_INV_EN_REG register remains RW.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 264
1:The SMC_SEC_INV_EN_REG register is RO.
0
R/W
0x0
ACCESS_TYPE_LOCKDOWN_RANGE.
Modify the access type of the SMC_LD_RANGE_REG register.
0: No effect. The SMC_LD_RANGE_REG register remains RW.
1: The SMC_LD_RANGE_REG register is RO.
4.17.4.5. SMC Interrupt Status Register (Default Value: 0x0000_0000)
Offset: 0x0010
Register Name: SMC_INT_STATUS_REG
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
1
R
0x0
INT_OVERRUN.
When setting to 1, it indicates the occurrence of two or more region
permission failure since the interrupt was last cleared.
0
R
0x0
INT_STATUS.
Return the status of the interrupt.
0: Interrupt is inactive.
1: Interrupt is active.
4.17.4.6. SMC Interrupt Clear Register (Default Value: 0x0000_0000)
Offset: 0x0014
Register Name: SMC_INT_CLEAR_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
SMC_CLR_REG.
Write any value to the int_clear register sets the :
Status bit to 0 in the int_status register
Overrun bit to 0 in the int_status register.
Note: It will be automatically cleared after the write operation.
4.17.4.7. SMC Master Bypass Register (Default Value: 0xFFFF_FFFF)
Offset: 0x0018
Register Name: SMC_MST_BYP_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0xFFFFFFFF
SMC_MASTER_BYPASS_EN.
SMC Master n Bypass Enable.
(n = 0~31, see the Master and Master ID in Table 4-3 for detail.)
0: Bypass Disable
1: Bypass Enable.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 265
Note: Bit[31:0] stand for Master ID [31:0].
If the master n bypass enable is set to 0, the master n access must be
through the SMC.
4.17.4.8. SMC Master Secure Register (Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: SMC_MST_SEC_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
SMC_MASTER_SEC.
SMC Master n Secure Configuration.(n = 0~31, see the Master and Master ID
in Table 4-3 for detail)
0: Secure
1: Non-secure.
4.17.4.9. SMC Fail Address Register (Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: SMC_FAIL_ADDR_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
FIRST_ACCESS_FAIL.
Return the address bits [31:0] of the first access to fail a region permission
check after the interrupt was cleared.
For external 16-bit DDR2, the address [2:0] is fixed to zero.
For external 32-bit DDR2 and 16-bit DDR3, the address [3:0] is fixed to zero.
For external 32-bit DDR3, the address [4:0] is fixed to zero.
Note: If the master ID=SRAM ad the egiste alue is etee  to BFFFF, the eal addess should e
divided by 4.
4.17.4.10. SMC Fail Control Register (Default Value: 0x0000_0000)
Offset: 0x0028
Register Name: SMC_FAIL_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:25
/
/
/
24
R
0x0
READ_WRITE.
This bit indicates whether the first access to fail a region permission check
was a write or read as:
0: Read access
1: Write access.
23:22
/
/
/
21
R
0x0
NON_SECURE.
After cleared the interrupt status, this bit indicates whether the first access
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 266
to fail a region permission check was non-secure. Read as:
0: Secure access
1: Non-secure access
20
R
0x0
PRIVILEGED.
After clearing the interrupt status, this bit indicates whether the first access
to fail a region permission check was privileged. Read as:
0: Unprivileged access.
1: Privileged access
19:0
/
/
/
4.17.4.11. SMC Fail ID Register (Default Value: 0x0000_1F00)
Offset: 0x002C
Register Name: SMC_FAIL_ID_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:16
R
0x0
FAIL_BST_LEN.
Fail burst length.
00000000: 1 word length
……
00001111: 16 words length
15:8
/
/
/
7:0
R
0x0
FAIL_MASTER_ID.
Fail Master ID.
The value stands for master id, see the Master and Master ID in Table 4-3 for
detail.
4.17.4.12. SMC Speculation Control Register (Default Value: 0x0000_0000)
Offset: 0x0030
Register Name: SMC_SPECU_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
1
R/W
0x0
WRITE_SPECU.
Write_speculation.
Control the write access speculation.
0: Write access speculation is enabled
1: Write access speculation is disabled.
0
R/W
0x0
READ_SPECU.
Read_speculation.
Control the read access speculation.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 267
0: Read access speculation is enabled
1: Read access speculation is disabled.
4.17.4.13. SMC Security Inversion Enable Register (Default Value: 0x0000_0000)
Offset: 0x0034
Register Name: SMC_SEC_INV_EN_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
SEC_INV_EN.
Security_inversion_en.
Controls whether the SMC permits security inversion to occur.
0: security inversion is not permitted.
1: security inversion is permitted. This enables a region to be accessible to
masters in non-secure state but not accessible to masters in secure state. See
Region Security Permissions when Security Inversion Disabled in Table 4-5
and Region Security Permissions when Security Inversion Enabled in Table
4-6.
4.17.4.14. SMC Master Attribute Register (Default Value: 0x0000_0000)
Offset: 0x0048
Register Name: SMC_MST_ATTRI_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
MST_ATTRI.
0: The secure attribute of master is up to master security extensions.
1: The secure attribute of master is up to SMC Master Secure Register.
4.17.4.15. DRM Master Enable Register (Default Value: 0x0000_0000)
Offset: 0x0050
Register Name: DRM_MASTER_EN_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
DRM_EN.
DRM enable.
30:12
/
/
/
13
R/W
0x0
GPU_WRITE_EN
GPU write enable
12
R/W
0x0
GPU_READ_EN
GPU read enable
11:8
/
/
/
7
R/W
0x0
DE_INTERLACE
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 268
DE_ INTERLACE enable
6
R/W
0x0
DE_RT-WB
DE_RT-WB enable
5
R/W
0x0
DE_RT-MIXER1
DE_RT-MIXER1 enable
4
R/W
0x0
DE_RT-MIXER0
DE_RT-MIXER0 enable
3:1
/
/
/
0
R/W
0x0
VE_ENCODE_EN
VE encode enable
4.17.4.16. DRM Illegal Access Register (Default Value: 0x0000_0000)
Offset: 0x0058
Register Name: DRM_ILLACCE_REG0
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DRM_ILLACCE_REG.
When a master, which is non-secure, accesses the DRM space, then the
relevant bit will be set up. See Master and Master ID in Table 4-3 for detail.
4.17.4.17. DRM Start Address Register (Default Value: 0x0000_0000)
Offset: 0x0060
Register Name: DRM_STATADDR_REG
Bit
Read/Write
Default/Hex
Description
31:15
R/W
0x0
DRM_STATADDR_REG.
14:0
/
/
/
4.17.4.18. DRM End Address Register (Default Value: 0x0000_0000)
Offset: 0x0068
Register Name: DRM_ENDADDR_REG
Bit
Read/Write
Default/Hex
Description
31:15
R/W
0x0
DRM_ENDADDR_REG.
14:0
/
/
/
4.17.4.19. SMC Region Setup Low Register (Default Value: 0x0000_0000)
Offset: 0x0100+N*0x0010(N=0~15)
Register Name: SMC_REGION_SETUP_LO_REG
Bit
Read/Write
Default/Hex
Description
31:15
R/W
0x0
BASE_ADDRESS_LOW.
Controls the base address [31:15] of region<n>.
The SMC only permits a region to start at address 0x0, or at a multiple of its
region size. For example, if the size of a region is 512MB, and it is not at
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 269
address 0x0, the only valid settings for this field are:






17
14:0
/
/
/
Note: For region 0, this field is Read Only (RO). The SMC sets the base address of region 0 to 0x0.
The base address should be equal to the DRAM absolute address.
4.17.4.20. SMC Region Setup High Register (Default Value: 0x0000_0000)
Offset: 0x0104+N*0x0010(N=0~15)
Register Name: SMC_REGION_SETUP_HI_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
BASE_ADDRESS_HIGH
The SMC only permits a region to start at address 0x0, or at a multiple of its
region size. If you program a region size to be 8GB or more, then the SMC
might ignore certain bits depending on the region size.
4.17.4.21. SMC Region Attributes Register (Default Value: 0x0000_0000)
Offset: 0x0108+N*0x0010(N=0~15)
Register Name: SMC_REGION_ATTR_REG
Bit
Read/Write
Default/Hex
Description
31:28
R/W
0x0
REGION_ATTR_SPN.
SP<n>. Permission setting for region <n>.
If an AXI transaction occurs to region n, the value in the sp<n> field controls
whether the SMC permits the transaction to proceed. See Region Security
Permissions when Security Inversion Disabled in Table 4-5 and Region
Security Permissions when Security Inversion Enabled in Table 4-6.
27:16
/
/
/.
15:8
R/W
0x0
SUB_REGION_DISABLE.
Subregion_disable.
Regions are split into eight equal-size sub-regions, and each bit enables the
corresponding subregion to be disabled.
Bit [15] = 1 subregion 7 is disabled.
Bit [14] = 1 subregion 6 is disabled.
Bit [13] = 1 subregion 5 is disabled.
Bit [12] = 1 subregion 4 is disabled.
Bit [11] = 1 subregion 3 is disabled.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 270
Bit [10] = 1 subregion 2 is disabled.
Bit [9] = 1 subregion 1 is disabled.
Bit [8] = 1 subregion 0 is disabled.
7
/
/
/
6:1
R/W
0x0
REGION_ATTR_SIZE.
Size<n>. Size of region<n>, see Region Size in Table 4- 4 for detail.
0
R/W
0x0
REGION_ATTR_EN.
EN<n>. Enable for region<n>.
0: Region < n> is disabled.
1: Region < n> is enabled.
Note: For region 0, this field is reserved except SPN field.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 271
4.18. Secure Peripherals Controller
4.18.1. Overview
The Secure Peripherals Controller(SPC) provides a software interface to the protection bits in a secure system of a
TrustZone design. It provides system flexibility that enables to configure different areas of memory as secure or
non-secure.
Features:
It has protection bits to program some areas of memory as secure or non–secure.
4.18.2. Operations and Functional Descriptions
4.18.2.1. Typical Applications
The SPC provides a software interface to set up memory areas as secure or non-secure. There are two ways:
Programmable protection bits that can be allocated to areas of memory as determined by an external decoder
Programmable region size value for use by an AXI TrustZone Memory Adapter.
4.18.2.2. SPC Configuration Table
The following table shows the configuration region of SPC.
Table 4-7. SPC Configuration Table
Register
Bit
SPC0
SPC1
SPC2
Module Name
Module Name
Module Name
SPC DECPORTx
(x=0,1,2)
[0]
/
NAND
VE SRAM
[1]
TWI0
DMA
R_CPUCFG
[2]
TWI1
Crypto Engine
System Control
[3]
SPI0
SRAM A1
CCU
[4]
SPI1
USB_OTG_Device
DE
[5]
GPIO
USB Host0
RTC
[6]
CPU_CFG
DRAMC
R_INTC
[7]
SMHC0
PRCM
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 272
4.18.3. Register List
Module Name
Base Address
SPC
0x01C23400
Register Name
Offset
Description
SPC_DECPORT0_STA_REG
0x0004
SPC Decode Port0 Status Register
SPC_DECPORT0_SET_REG
0x0008
SPC Decode Port0 Set Register
SPC_DECPORT0_CLR_REG
0x000C
SPC Decode Port0 Clear Register
SPC_DECPORT1_STA_REG
0x0010
SPC Decode Port1 Status Register
SPC_DECPORT1_SET_REG
0x0014
SPC Decode Port1 Set Register
SPC_DECPORT1_CLR_REG
0x0018
SPC Decode Port1 Clear Register
SPC_DECPORT2_STA_REG
0x001C
SPC Decode Port2 Status Register
SPC_DECPORT2_SET_REG
0x0020
SPC Decode Port2 Set Register
SPC_DECPORT2_CLR_REG
0x0024
SPC Decode Port2 Clear Register
4.18.4. Register Description
4.18.4.1. SPC DECPORT0 Status Register (Default Value: 0x0000_0000)
Offset: 0x0004
Register Name: SPC_DECPORT0_STA_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R
0x0
STA_DEC_PROT0_OUT.
Shows the status of the decode protection output
0: Decode region corresponding to the bit is secure
1: Decode region corresponding to the bit is non-secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table in Table 4-7 for detail).
4.18.4.2. SPC DECPORT0 Set Register (Default Value: 0x0000_0000)
Offset: 0x0008
Register Name: SPC_DECPORT0_SET_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/.
7:0
W
0x0
SET_DEC_PORT0_OUT.
Sets the corresponding decode protection output.
0: No effect
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 273
1: Set decode region to non-secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table in Table 4-7 for detail).
4.18.4.3. SPC DECPORT0 Clear Register(Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: SPC_DECPORT0_CLR_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
W
0x0
CLR_DEC_PROT0_OUT.
Clears the corresponding decode protection output.
0: No effect
1: Set decode region to secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table in Table 4-7 for detail).
4.18.4.4. SPC DECPORT1 Status Register (Default Value: 0x0000_0000)
Offset: 0x0010
Register Name: SPC_DECPORT1_STA_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R
0x0
STA_DEC_PROT1_OUT.
Shows the status of the decode protection output.
0: Decode region corresponding to the bit is secure
1: Decode region corresponding to the bit is non-secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table in Table 4-7 for detail).
4.18.4.5. SPC DECPORT1 Set Register(Default Value: 0x0000_0000)
Offset: 0x0014
Register Name: SPC_DECPORT1_SET_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
W
0x0
SET_DEC_PORT1_OUT.
Sets the corresponding decode protection output.
0: No effect
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 274
1: Set decode region to non-secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table in Table 4-7 for detail).
4.18.4.6. SPC DECPORT1 Clear Register(Default Value: 0x0000_0000)
Offset: 0x0018
Register Name: SPC_DECPORT1_CLR_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
W
0x0
CLR_DEC_PROT1_OUT.
Clears the corresponding decode protection output.
0: No effect
1: Set decode region to secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table in Table 4-7 for detail).
4.18.4.7. SPC DECPORT2 Status Register(Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: SPC_DECPORT2_STA_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R
0x0
STA_DEC_PROT2_OUT.
Show the status of the decode protection output.
0: Decode region corresponding to the bit is secure
1: Decode region corresponding to the bit is non-secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table in Table 4-7 for detail).
4.18.4.8. SPC DECPORT2 Set Register(Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: SPC_DECPORT2_SET_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
W
0x0
SET_DEC_PORT2_OUT.
Sets the corresponding decode protection output.
0: No effect
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 275
1: Set decode region to non-secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table in Table 4-7 for detail).
4.18.4.9. SPC DECPORT2 Clear Register(Default Value: 0x0000_0000)
Offset: 0x0024
Register Name: SPC_DECPORT2_CLR_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
W
0x0
CLR_DEC_PROT2_OUT.
Clears the corresponding decode protection output.
0: No effect
1: Set decode region to secure.
There is one bit of the register for each protection output (See the SPC
Configuration Table in Table 4-7 for detail).
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 276
4.19. Thermal Sensor Controller
4.19.1. Overview
Thermal sensors have become common elements in wide range of modern system on chip (SOC) platform. Thermal
sensors are used to constantly monitor the temperature on the chip.
The Thermal Sensor Controller embeds two thermal sensors, sensor0 for CPU,sensor1 for GPU .Thermal sensors can
generate interrupt to SW to lower temperature via DVFS, on reaching a certain thermal threshold.
Features:
Supports APB 32-bit bus width
Temperature Accuracy : ±3℃ from 0℃ to +100℃, ±5℃ from -20℃ to +125℃
Power supply voltage:3.3V
Low power dissipation
Periodic temperature measurement
Averaging filter for thermal sensor reading
Supports over-temperature protection interrupt and over-temperature alarm interrupt
4.19.2. Block Diagram
Figure 4-24 shows a block diagram of the Thermal Sensor.
DAC
Vref
SAR Logic
12bit
12bit
Comp
G
M
U
X
Sensor0
Sensor1
Figure 4-24. Thermal Sensor Block Diagram
4.19.3. Clock and Timing Requirements
CLK_IN = 24MHz/M, M can be set in the CCU
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 277
Conversion Time = 1/(24MHz/M/14Cycles) =0.583 * M (us)
THERMAL_PER (configured by the value of THERMAL_PER) is must be greater than (ACQ1 + ACQ0+Conversion Time)
THERMAL_PER > ACQ1 + ACQ0 + Conversion Time
Figure 4-25. Thermal Conversion Phase
4.19.4. Programming Guidelines
1) Timing must be like this: THERMAL_PER > ACQ1 + ACQ0 + Conversion Time
2) Configure the THS Interrupt Control Register to set the THERMAL_PER and IRQ
3) Configure the Alarm Threshold Control Register and Shutdown Threshold Control Register to set the
ALARM0_T_HOT and SHUT0_T_HOT
4) Configure the THS Control Register0 to set the SENSOR_ACQ0 and enable the sensor
5) THS temperature formula:
When temperature is lower than 70℃ (THS0_DATA or THS1_DATA is higher than 0x500) , then
Tem_THS0 = -0.1191 * THS0_DATA + 223, Tem_THS1 = -0.1191 * THS1_DATA +223
When temperature is higher than 70℃ (THS0_DATA or THS1_DATA is lower than 0x500) , then
Tem_THS0 = -0.1452 * THS0_DATA + 259, Tem_THS1 = -0.159 * THS1_DATA + 276
4.19.5. Register List
Module Name
Base Address
Thermal Sensor
0x01C25000
Register Name
Offset
Description
THS_CTRL0
0x0000
THS Control Register0
THS_CTRL2
0x0040
THS Control Register2
THS_INT_CTRL
0x0044
THS Interrupt Control Register
THS_STAT
0x0048
THS Status Register
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 278
THS0_ALARM_CTRL
0x0050
Alarm Threshold Control Register0
THS1_ALARM_CTRL
0x0054
Alarm Threshold Control Register1
THS0_SHUTDOWN_CTRL
0x0060
Shutdown Threshold Control Register0
THS1_SHUTDOWN_CTRL
0x0064
Shutdown Threshold Control Register1
THS_FILTER
0x0070
Average Filter Control Register
THS_CDATA
0x0074
Thermal Sensor Calibration Data
THS0_DATA
0x0080
THS Data Register0
THS1_DATA
0x0084
THS Data Register1
4.19.6. Register Description
4.19.6.1. THS Control Register0 (Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: THS_CTRL_REG0
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0
SENSOR_ACQ
Sensor acquire time
CLK_IN/(N+1)
4.19.6.2. THS Control Register2 (Default Value: 0x0004_0000)
Offset: 0x0040
Register Name: THS_CTRL_REG2
Bit
Read/Write
Default/Hex
Description
31:16
R/W
0x4
ADC_ACQ.
ADC acquire time
CLK_IN/(N+1)
15:3
/
/
/
2
/
/
/
1
R/W
0x0
SENSE1_EN.
Enable temperature measurement of sensor1
0:Disable
1:Enable
0
R/W
0x0
SENSE0_EN.
Enable temperature measurement of sensor0
0:Disable
1:Enable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 279
4.19.6.3. THS Interrupt Control Register (Default Value: 0x0000_0000)
Offset: 0x0044
Register Name: THS_INT_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:12
R/W
0x0
THERMAL_PER.
4096*(n+1)/CLK_IN
11
/
/
/
10
/
/
/
9
R/W
0x0
THS1_DATA_IRQ_EN.
Enable temperature measurement data of sensor1
0: Disable
1: Enable
8
R/W
0x0
THS0_DATA_IRQ_EN.
Enable temperature measurement data of sensor0
0: Disable
1: Enable
7
/
/
/
6
/
/
/
5
R/W
0x0
SHUT_INT1_EN.
Enable shutdown interrupt of sensor1
0: Disable
1: Enable
4
R/W
0x0
SHUT0_INT_EN.
Enable shutdown interrupt of sensor0
0: Disable
1: Enable
3
/
/
/
2
/
/
/
1
R/W
0x0
ALARM_INT1_EN.
Enable alarm interrupt of sensor1
0: Disable
1: Enable
0
R/W
0x0
ALARM_INT0_EN.
Enable alarm interrupt of sensor0
0: Disable
1: Enable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 280
4.19.6.4. THS Status Register (Default Value: 0x0000_0000)
Offset: 0x0048
Register Name: THS_STAT_REG
Bit
Read/Write
Default/Hex
Description
31:15
/
/
/
14
/
/
/
13
R/W1C
0x0
ALARM1_OFF_STS.
Alarm interrupt off pending for sensor1
Wite  to lea this iteupt o autoatiall lear if interrupt condition
fails
12
R/W1C
0x0
ALARM0_OFF_STS.
Alarm interrupt off pending for sensor0
Wite  to lea this iteupt o autoatiall lea if iteupt oditio
fails
11
/
/
/
10
/
/
/
9
R/W1C
0x0
THS1_DATA_IRQ_STS.
Data interrupt status for sensor1
Wite  to lea this iteupt o autoatiall lea if iteupt oditio
fails
8
R/W1C
0x0
THS0_DATA_IRQ_STS.
Data interrupt status for sensor0
Wite  to lea this iteupt o autoatiall lea if iteupt odition
fails
7:6
/
/
/
5
4
R/W1C
0x0
THS1_SHUT_INT_STS.
Shutdown interrupt status for sensor1
Wite  to lea this iteupt o autoatially clear if interrupt condition
fails
3
R/W1C
0x0
THS0_SHUT_INT_STS.
Shutdown interrupt status for sensor0
Wite  to clear this interrupt or automatically clear if interrupt condition
fails
2
/
/
/
1
R/W1C
0x0
THS1_ALARM_INT_STS.
Alarm interrupt pending for sensor1
Wite  to lea this iteupt o autoatially clear if interrupt condition
fails
0
R/W1C
0x0
THS0_ALARM_INT_STS.
Alarm interrupt pending for sensor0
Wite  to lea this iteupt o autoatially clear if interrupt condition
fails
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 281
4.19.6.5. Alarm Threshold Control Register0 (Default Value: 0x05A0_0684)
Offset: 0x0050
Register Name: THS0_ALARM_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x5A0
ALARM0_T_HOT.
Thermal sensor0 alarm threshold for hot temperature
15:12
/
/
/
11:0
R/W
0x684
ALARM0_T_HYST
Thermal sensor0 alarm threshold for hysteresis temperature
Note: When Tem_THS0 is above ALARM0_T_HOT, THS0 alarm hot IRQ will generate. When Tem_THS0 is less than
ALARM0_T_HYST, THS0 alarm hysteresis IRQ will generate.
4.19.6.6. Alarm Threshold Control Register1 (Default Value: 0x05A0_0684)
Offset: 0x0054
Register Name: THS1_ALARM_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x5A0
ALARM1_T_HOT.
Thermal sensor1 alarm threshold for hot temperature
15:12
/
/
/
11:0
R/W
0x684
ALARM1_T_HYST
Thermal sensor1 alarm threshold for hysteresis temperature
Note: When Tem_THS1 is above ALARM1_T_HOT, THS1 alarm hot IRQ will generate. When Tem_THS1 is less than
ALARM1_T_HYST, THS1 alarm hysteresis IRQ will generate.
4.19.6.7. Shutdown Threshold Control Register0 (Default Value: 0x04E9_0000)
Offset: 0x0060
Register Name: THS0_SHUTDOWN_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x4E9
SHUT0_T_HOT.
Thermal sensor0 shutdown threshold for hot temperature
15:0
/
/
/
Note: When Tem_THS0 is above SHUT0_T_HOT, THS0 shutdown IRQ will generate.
4.19.6.8. Shutdown Threshold Control Register1 (Default Value: 0x04E9_0000)
Offset: 0x0064
Register Name: THS1_SHUTDOWN_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x4E9
SHUT1_T_HOT.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 282
Thermal sensor1 shutdown threshold for hot temperature
15:0
/
/
/
Note: When Tem_THS1 is above SHUT1_T_HOT, THS1 shutdown IRQ will generate.
4.19.6.9. Average Filter Control Register (Default Value: 0x0000_0001)
Offset: 0x0070
Register Name: THS_FILTER _REG
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2
R/W
0x0
FILTER_EN.
Filter Enable
0: Disable
1: Enable
1:0
R/W
0x1
FILTER_TYPE.
Average Filter Type
00: 2
01: 4
10: 8
11: 16
4.19.6.10. Thermal Sensor Calibration Data Register (Default Value: 0x0800_0800)
Offset: 0x0074
Register Name: THS_CDATA _REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x800
THS1_CDATA.
Thermal Sensor1 calibration data
15:12
/
/
/
11:0
R/W
0x800
THS0_CDATA.
Thermal Sensor0 calibration data
4.19.6.11. THS0 Data Register (Default Value: 0x0000_0000)
Offset: 0x0080
Register Name: THS0_DATA_REG
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
11:0
R
0x0
THS0_DATA.
Temperature measurement data of sensor0
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 283
4.19.6.12. THS1 Data Register (Default Value: 0x0000_0000)
Offset: 0x0084
Register Name: THS1_DATA_REG
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
11:0
R
0x0
THS1_DATA.
Temperature measurement data of sensor1
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 284
4.20. KEYADC
4.20.1. Overview
KEYADC is 6-bit resolution ADC for key application. The KEYADC can work up to 250Hz conversion rate.
Features:
Up to 6-bit resolution
Sample rate up to 250Hz
Supports APB 32-bit bus width,reference voltage is 2.2V
Supports interrupt
Supports general key, hold key and already hold key
Supports normal, single and continue work mode
Voltage input range between 0V to 2.2V
4.20.2. Block Diagram
Figure 4-26 shows the block diagram of the KEYADC.
DAC
SAR Logic
6bit
6bit
Comp
KEYADC_IN
Figure 4-26. KEYADC Block Diagram
4.20.3. Operations and Functional Descriptions
4.20.3.1. External Signals
Table 4-8 describes the external signals of KEYADC. KEYADC pin is the analog input signal.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 285
Table 4-8. KEYADC External Signals
Signal
Description
Type
KEYADC
ADC channel for key application
AI
4.20.3.2. Clock Sources
KEYADC has one clock source. Table 4-9 describes the clock source for KEYADC.
Table 4-9. KEYADC Clock Sources
Clock Sources
Description
LOSC
32KHz Clock
4.20.3.3. KEYADC Work Mode
(1).Normal Mode
ADC gathers 8 samples,the average of the 8 samples is updated in data register,and the data interrupt sign is enabled.It
is sampled repeatedly according to this mode until ADC stop.
(2).Continue Mode
ADC gathers 8 samples every other 8*(N+1) sample cycle. The average of every 8 samples is updated in the data register,
and the data interrupt sign is enabled. (N is defined in the bit[19:16] of KEYADC_CTRL_REG).
(3).Single Mode
ADC gathers 8 samples, the average of the 8 samples is updated in data register, and the data interrupt sign is enabled,
since then ADC stops sample.
4.20.3.4. KEYADC Operation Principle
Level A
Level B
ADC_IN
Control
Logic
KEY_DOWN_IRQ
HOLD_KEY_IRQ
ALREADY_HOLD_IRQ
Figure 4-27. KEYADC Converted Data Diagram
Level A: 2.0V
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 286
Level B: Configurable by LEVELB_VOL
When ADC_IN signal is less than Level A and Level B, the key down interrupt will generate. When ADC_IN signal is only
less than Level A, the hold key interrupt will generate. When ADC_IN signal is only less than Level B, the already hold
key interrupt will generate.
If ADC_IN signal is less than Level A, and in a certain time range (configurable by LEVEL_A_B_CNT) ADC_IN signal is not
less than Level B, the hold key interrupt will generate. If ADC_IN signal is less than Level A , and in a certain time range
(configurable by LEVEL_A_B_CNT) ADC_IN signal is less than Level B, the key down interrupt will generate . If ADC_IN
signal is less than Level B, and ADC_IN signal is not less than Level A, the already hold key interrupt will generate.
The KEYADC have three modes, Normal Mode⃝Single Mode and Continue Mode. Normal Mode is that the KEYADC will
report the converted result data all the time when the key is down. Single Mode is that the KEYADC will only report the
first converted result data when the key is down. Continue Mode is that the KEYADC will report the converted result
data every other 8*(N+1) sample when key is down.
The KEYADC supports four sample rate such as 250 Hz⃝125 Hz⃝62.5 Hz and 32.25 Hz, you can configure the value of
KEYADC_SAMPLE_RATE to select the fit sample rate.
4.20.4. Programming Guidelines
(1).The input voltage need be controlled in the range from 0 to LEVELB_VOL (LEVELB_VOL is defined in the bit[5:4] of
KEYADC_CTRL_REG).
(2).KEYADC_DATA = Vin/VREF*63 (VREF=2.2V).
4.20.5. Register List
Module Name
Base Address
KEYADC
0x01C21800
Register Name
Offset
Description
KEYADC_CTRL
0x0000
KEYADC Control Register
KEYADC_INTC
0x0004
KEYADC Interrupt Control Register
KEYADC_INTS
0x0008
KEYADC Interrupt Status Register
KEYADC_DATA
0x000C
KEYADC Data Register
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 287
4.20.6. Register Description
4.20.6.1. KEYADC Control Register (Default Value: 0x0100_0168)
Offset: 0x0000
Register Name: KEYADC_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31: 24
R/W
0x1
FIRST_CONVERT_DLY.
ADC First Convert Delay Setting
ADC conversion is delayed by n samples
23:22
R/W
0x0
Reserved to 0
21:20
/
/
/
19:16
R/W
0x0
CONTINUE_TIME_SELECT.
Continue Mode Time Select
One of 8*(N+1) sample as a valuable sample data
15:14
/
/
/
13:12
R/W
0x0
KEY_MODE_SELECT.
Key Mode Select
00: Normal Mode
01: Single Mode
10: Continue Mode
11:8
R/W
0x1
LEVELA_B_CNT.
Level A to Level B time threshold select, judge ADC convert value in level A to
level B in n+1 samples
7
R/W
0x0
KEYADC_HOLD_KEY_EN
KEYADC Hold Key Enable
0: Disable
1: Enable
6
R/W
0x1
KEYADC_HOLD_EN.
KEYADC Sample Hold Enable
0: Disable
1: Enable
5: 4
R/W
0x2
LEVELB_VOL.
Level B Corresponding Data Value setting (the real voltage value)
00: 0x3C (~2.1V)
01: 0x39 (~1.99V)
10: 0x36 (~1.86V)
11: 0x33 (~1.78V)
3: 2
R/W
0x2
KEYADC_SAMPLE_RATE.
KEYADC Sample Rate
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 288
00: 250 Hz
01: 125 Hz
10: 62.5 Hz
11: 32.25 Hz
1
/
/
/
0
R/W
0x0
KEYADC_EN.
KEYADC Enable
0: Disable
1: Enable
4.20.6.2. KEYADC Interrupt Control Register (Default Value: 0x0000_0000)
Offset: 0x0004
Register Name: KEYADC_INTC_REG
Bit
Read/Write
Default/Hex
Description
31:5
/
/
/
4
R/W
0x0
ADC_KEYUP_IRQ_EN.
ADC Key Up IRQ Enable
0: Disable
1: Enable
3
R/W
0x0
ADC_ALRDY_HOLD_IRQ_EN.
ADC Already Hold IRQ Enable
0: Disable
1: Enable
2
R/W
0x0
ADC_HOLD_IRQ_EN.
ADC Hold Key IRQ Enable
0: Disable
1: Enable
1
R/W
0x0
ADC_KEYDOWN_EN
ADC Key Down Enable
0: Disable
1: Enable
0
R/W
0x0
ADC_DATA_IRQ_EN.
ADC Data IRQ Enable
0: Disable
1: Enable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 289
4.20.6.3. KEYADC Interrupt Status Register (Default Value: 0x0000_0000)
Offset: 0x0008
Register Name:KEYADC_INTS_REG
Bit
Read/Write
Default/Hex
Description
31:5
/
/
/
4
R/W1C
0x0
ADC_KEYUP_PENDING.
ADC Key Up Pending Bit
When the general key pull up, the corresponding interrupt is enabled.
0: No IRQ
1: IRQ Pending
Writing 1 to the bit will clear it and its corresponding interrupt if the
interrupt is enabled.
3
R/W1C
0x0
ADC_ALRDY_HOLD_PENDING.
ADC Already Hold Pending Bit
When hold key is in the pull-down state, at this time the general key is pulled
down, then the ADC_ALRDY_HOLD_PENDING bit is set 1 by hardware if the
ADC_ALRDY_HOLD_IRQ_EN bit is enabled.
0: No IRQ
1: IRQ Pending
Writing 1 to the bit will clear it and its corresponding interrupt if the
interrupt is enabled.
2
R/W1C
0x0
ADC_HOLDKEY_PENDING.
ADC Hold Key Pending Bit
When Hold key pull down, the status bit is set and the interrupt line is set if
the corresponding interrupt is enabled.
0: NO IRQ
1: IRQ Pending
Writing 1 to the bit will clear it and its corresponding interrupt if the
interrupt is enabled.
1
R/W1C
0x0
ADC_KEYDOWN_PENDING.
ADC Key Down IRQ Pending Bit
When General key pull down, the status bit is set and the interrupt line is set
if the corresponding interrupt is enabled.
0: No IRQ
1: IRQ Pending
Writing 1 to the bit will clear it and its corresponding interrupt if the
interrupt is enabled.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 290
0
R/W1C
0x0
ADC_DATA_PENDING.
ADC Data IRQ Pending Bit
0: No IRQ
1: IRQ Pending
Writing 1 to the bit will clear it and its corresponding interrupt if the
interrupt is enabled.
4.20.6.4. KEYADC Data Register (Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: KEYADC_DATA_REG
Bit
Read/Write
Default/Hex
Description
31:6
/
/
/
5:0
R
0x0
KEYADC_DATA.
KEYADC Data
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 291
4.21. Port Controller(CPUx-PORT)
4.21.1. Overview
The chip has 7 ports for multi-functional input/out pins. They are shown below:
Port A(PA): 22 input/output port
Port C(PC): 17 input/output port
Port D(PD): 18 input/output port
Port E(PE) : 16 input/output port
Port F(PF) : 7 input/output port
Port G(PG) : 14 input/output port
Port L(PL) : 12 input/output port
For various system configurations, these ports can be easily configured by software. All these ports can be configured as
GPIO if multiplexed functions are not used. The total 3 group external PIO interrupt sources are supported and interrupt
mode can be configured by software.
4.21.2. Register List
Module Name
Base Address
PIO
0x01C20800
Register Name
Offset
Description
Pn_CFG0
0x0000 + n*0x24
Port n Configure Register 0 (n from 0 to 6)
Pn_CFG1
0x0004 + n*0x24
Port n Configure Register 1 (n from 0 to 6)
Pn_CFG2
0x0008 + n*0x24
Port n Configure Register 2 (n from 0 to 6)
Pn_CFG3
0x000C + n*0x24
Port n Configure Register 3 (n from 0 to 6)
Pn_DAT
0x0010 + n*0x24
Port n Data Register (n from 0 to 6)
Pn_DRV0
0x0014 + n*0x24
Port n Multi-Driving Register 0 (n from 0 to 6)
Pn_DRV1
0x0018 + n*0x24
Port n Multi-Driving Register 1 (n from 0 to 6)
Pn_PUL0
0x001C + n*0x24
Port n Pull Register 0 (n from 0 to 6)
Pn_PUL1
0x0020 + n*0x24
Port n Pull Register 1 (n from 0 to 6)
PA_INT_CFG0
0x0200 + 0x00 + 0*0x20
PIO Interrrupt Configure Register 0
PA _INT_CFG1
0x0200 + 0x04 + 0*0x20
PIO Interrrupt Configure Register 1
PA _INT_CFG2
0x0200 + 0x08 + 0*0x20
PIO Interrrupt Configure Register 2
PA _INT_CFG3
0x0200 + 0x0C + 0*0x20
PIO Interrrupt Configure Register 3
PA _INT_CTL
0x0200 + 0x10 + 0*0x20
PIO Interrupt Control Register
PA _INT_STA
0x0200 + 0x14 + 0*0x20
PIO Interrupt Status Register
PA_INT_DEB
0x0200 + 0x18 + 0*0x20
PIO Interrupt Debounce Register
PF_INT_CFG0
0x0200 + 0x00 + 1*0x20
PIO Interrrupt Configure Register 0
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 292
PF_INT_CFG1
0x0200 + 0x04 + 1*0x20
PIO Interrrupt Configure Register 1
PF_INT_CFG2
0x0200 + 0x08 + 1*0x20
PIO Interrrupt Configure Register 2
PF_INT_CFG3
0x0200 + 0x0C + 1*0x20
PIO Interrrupt Configure Register 3
PF_INT_CTL
0x0200 + 0x10 + 1*0x20
PIO Interrupt Control Register
PF_INT_STA
0x0200 + 0x14 + 1*0x20
PIO Interrupt Status Register
PF_INT_DEB
0x0200 + 0x18 + 1*0x20
PIO Interrupt Debounce Register
PG_INT_CFG0
0x0200 + 0x00 + 2*0x20
PIO Interrrupt Configure Register 0
PG _INT_CFG1
0x0200 + 0x04 + 2*0x20
PIO Interrrupt Configure Register 1
PG _INT_CFG2
0x0200 + 0x08 + 2*0x20
PIO Interrrupt Configure Register 2
PG _INT_CFG3
0x0200 + 0x0C + 2*0x20
PIO Interrrupt Configure Register 3
PG _INT_CTL
0x0200 + 0x10 + 2*0x20
PIO Interrupt Control Register
PG _INT_STA
0x0200 + 0x14 + 2*0x20
PIO Interrupt Status Register
PG _INT_DEB
0x0200 + 0x18 + 2*0x20
PIO Interrupt Debounce Register
4.21.3. Register Description
4.21.3.1. PA Configure Register 0 (Default Value: 0x7777_7777)
Offset: 0x0000
Register Name: PA_CFG0_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PA7_SELECT
000:Input 001:Output
010:SIM0_CLK 011:Reserved
100:Reserved 101:Reserved
110:PA_EINT7 111:IO Disable
27
/
/
/
26:24
R/W
0x7
PA6_SELECT
000:Input 001:Output
010:SIM0_PWREN 011:PCM0_MCLK
100:Reserved 101:Reserved
110:PA_EINT6 111:IO Disable
23
/
/
/
22:20
R/W
0x7
PA5_SELECT
000:Input 001:Output
010:UART0_RX 011:PWM0
100:Reserved 101:Reserved
110:PA_EINT5 111:IO Disable
19
/
/
/
18:16
R/W
0x7
PA4_SELECT
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 293
000:Input 001:Output
010:UART0_TX 011:Reserved
100:Reserved 101:Reserved
110:PA_EINT4 111:IO Disable
15
/
/
/
14:12
R/W
0x7
PA3_SELECT
000:Input 001:Output
010:UART2_CTS 011:JTAG_DI
100:Reserved 101:Reserved
110:PA_EINT3 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PA2_SELECT
000:Input 001:Output
010:UART2_RTS 011:JTAG_DO
100:Reserved 101:Reserved
110:PA_EINT2 111:IO Disable
7
/
/
/
6:4
R/W
0x7
PA1_SELECT
000:Input 001:Output
010:UART2_RX 011:JTAG_CK
100:Reserved 101:Reserved
110:PA_EINT1 111:IO Disable
3
/
/
/
2:0
R/W
0x7
PA0_SELECT
000:Input 001:Output
010:UART2_TX 011:JTAG_MS
100:Reserved 101:Reserved
110:PA_EINT0 111:IO Disable
4.21.3.2. PA Configure Register 1 (Default Value: 0x7777_7777)
Offset: 0x0004
Register Name: PA_CFG1_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PA15_SELECT
000:Input 001:Output
010:SPI1_MOSI 011:UART3_RTS
100:Reserved 101:Reserved
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 294
110:PA_EINT15 111:IO Disable
27
/
/
26:24
R/W
0x7
PA14_SELECT
000:Input 001:Output
010:SPI1_CLK 011:UART3_RX
100:Reserved 101:Reserved
110:PA_EINT14 111:IO Disable
23
/
/
/
22:20
R/W
0x7
PA13_SELECT
000:Input 001:Output
010:SPI1_CS 011:UART3_TX
100:Reserved 101:Reserved
110:PA_EINT13 111:IO Disable
19
/
/
18:16
R/W
0x7
PA12_SELECT
000:Input 001:Output
010:TWI0_SDA 011:DI_RX
100:Reserved 101:Reserved
110:PA_EINT12 111:IO Disable
15
/
/
14:12
R/W
0x7
PA11_SELECT
000:Input 001:Output
010:TWI0_SCK 011:DI_TX
100:Reserved 101:Reserved
110:PA_EINT11 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PA10_SELECT
000:Input 001:Output
010:SIM0_DET 011:Reserved
100:Reserved 101:Reserved
110:PA_EINT10 111:IO Disable
7
/
/
6:4
R/W
0x7
PA9_SELECT
000:Input 001:Output
010:SIM0_RST 011:Reserved
100:Reserved 101:Reserved
110:PA_EINT9 111:IO Disable
3
/
/
2:0
R/W
0x7
PA8_SELECT
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 295
000:Input 001:Output
010:SIM0_DATA 011:Reserved
100:Reserved 101:Reserved
110:PA_EINT8 111:IO Disable
4.21.3.3. PA Configure Register 2 (Default Value: 0x0077_7777)
Offset: 0x0008
Register Name: PA_CFG2_REG
Bit
Read/Write
Default/Hex
Description
31:23
/
/
22:20
R/W
0x7
PA21_SELECT
000:Input 001:Output
010:PCM0_DIN 011:SIM0_VPPPP
100:Reserved 101:Reserved
110:PA_EINT21 111:IO Disable
19
/
/
18:16
R/W
0x7
PA20_SELECT
000:Input 001:Output
010:PCM0_DOUT 011:SIM0_VPPEN
100:Reserved 101:Reserved
110:PA_EINT20 111:IO Disable
15
/
/
14:12
R/W
0x7
PA19_SELECT
000:Input 001:Output
010:PCM0_CLK 011:TWI1_SDA
100:Reserved 101:Reserved
110:PA_EINT19 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PA18_SELECT
000:Input 001:Output
010:PCM0_SYNC 011:TWI1_SCK
100:Reserved 101:Reserved
110:PA_EINT18 111:IO Disable
7
/
/
6:4
R/W
0x7
PA17_SELECT
000:Input 001:Output
010:OWA_OUT 011:Reserved
100:Reserved 101:Reserved
110:PA_EINT17 111:IO Disable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 296
3
/
/
2:0
R/W
0x7
PA16_SELECT
000:Input 001:Output
010:SPI1_MISO 011:UART3_CTS
100:Reserved 101:Reserved
110:PA_EINT16 111:IO Disable
4.21.3.4. PA Configure Register 3 (Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: PA_CFG3_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.5. PA Data Register (Default Value: 0x0000_0000)
Offset: 0x0010
Register Name: PA_DATA_REG
Bit
Read/Write
Default/Hex
Description
31:22
/
/
/
21:0
R/W
0x0
PA_DAT
If the port is configured as input, the corresponding bit is the pin state. If the
port is configured as output, the pin state is the same as the corresponding
bit. The read bit value is the value setup by software. If the port is configured
as functional pin, the undefined value will be read.
4.21.3.6. PA Multi-Driving Register 0 (Default Value: 0x5555_5555)
Offset: 0x0014
Register Name: PA_DRV0_REG
Bit
Read/Write
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x1
PA_DRV
PA[n] Multi-Driving Select (n = 0~15)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
4.21.3.7. PA Multi-Driving Register 1 (Default Value: 0x0000_0555)
Offset: 0x0018
Register Name: PA_DRV1 _REG
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
[2i+1:2i]
R/W
0x1
PA_DRV
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 297
(i=0~5)
PA[n] Multi-Driving Select (n = 16~21)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
4.21.3.8. PA PULL Register 0 (Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: PA_PULL0_REG
Bit
Read/Write
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x0
PA_PULL
PA[n] Pull-up/down Select (n = 0~15)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
4.21.3.9. PA PULL Register 1 (Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: PA_PULL1_REG
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
[2i+1:2i]
(i=0~5)
R/W
0x0
PA_PULL
PA[n] Pull-up/down Select (n = 16~21)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
4.21.3.10. PC Configure Register 0 (Default Value: 0x7777_7777)
Offset: 0x0048
Register Name: PC_CFG0_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PC7_SELECT
000:Input 001:Output
010:NAND_RB1 011:Reserved
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
27
/
/
/
26:24
R/W
0x7
PC6_SELECT
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 298
000:Input 001:Output
010:NAND_RB0 011:SDC2_CMD
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
23
/
/
/
22:20
R/W
0x7
PC5_SELECT
000:Input 001:Output
010:NAND_RE 011:SDC2_CLK
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
19
/
/
/
18:16
R/W
0x7
PC4_SELECT
000:Input 001:Output
010:NAND_CE0 011:Reserved
100:SPI0_MISO 101:Reserved
110:Reserved 111:IO Disable
15
/
/
/
14:12
R/W
0x7
PC3_SELECT
000:Input 001:Output
010:NAND_CE1 011:SPI0_CS
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PC2_SELECT
000:Input 001:Output
010:NAND_CLE 011:SPI0_CLK
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
7
/
/
/
6:4
R/W
0x7
PC1_SELECT
000:Input 001:Output
010:NAND_ALE 011:SPI0_MISO
100:SDC2_DS 101:Reserved
110:Reserved 111:IO Disable
3
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 299
2:0
R/W
0x7
PC0_SELECT
000:Input 001:Output
010:NAND_WE 011:SPI0_MOSI
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
4.21.3.11. PC Configure Register 1 (Default Value: 0x7777_7777)
Offset: 0x004C
Register Name: PC_CFG1_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PC15_SELECT
000:Input 001:Output
010:NAND_DQ7 011:SDC2_D7
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
27
/
/
/
26:24
R/W
0x7
PC14_SELECT
000:Input 001:Output
010:NAND_DQ6 011:SDC2_D6
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
23
/
/
/
22:20
R/W
0x7
PC13_SELECT
000:Input 001:Output
010:NAND_DQ5 011:SDC2_D5
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
19
/
/
/
18:16
R/W
0x7
PC12_SELECT
000:Input 001:Output
010:NAND_DQ4 011:SDC2_D4
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
15
/
/
/
14:12
R/W
0x7
PC11_SELECT
000:Input 001:Output
010:NAND_DQ3 011:SDC2_D3
100:Reserved 101:Reserved
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 300
110:Reserved 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PC10_SELECT
000:Input 001:Output
010:NAND_DQ2 011:SDC2_D2
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
7
/
/
/
6:4
R/W
0x7
PC9_SELECT
000:Input 001:Output
010:NAND_DQ1 011:SDC2_D1
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
3
/
/
/
2:0
R/W
0x7
PC8_SELECT
000:Input 001:Output
010:NAND_DQ0 011:SDC2_D0
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
4.21.3.12. PC Configure Register 2 (Default Value: 0x0000_0777)
Offset: 0x0050
Register Name: PC_CFG2_REG
Bit
Read/Write
Default/Hex
Description
31:11
/
/
/
10:8
R/W
0x7
/
7
/
/
/
6:4
R/W
0x7
/
3
/
/
/
2:0
R/W
0x7
PC16_SELECT
000:Input 001:Output
010:NAND_DQS 011:SDC2_RST
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
4.21.3.13. PC Configure Register 3 (Default Value: 0x0000_0000)
Offset: 0x0054
Register Name: PC_CFG3_REG
Bit
Read/Write
Default/Hex
Description
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 301
31:0
/
/
/
4.21.3.14. PC Data Register (Default Value: 0x0000_0000)
Offset: 0x0058
Register Name: PC_DATA_REG
Bit
Read/Write
Default/Hex
Description
31:19
/
/
/
18:0
R/W
0x0
PC_DAT
If the port is configured as input, the corresponding bit is the pin state. If the
port is configured as output, the pin state is the same as the corresponding
bit. The read bit value is the value setup by software. If the port is configured
as functional pin, the undefined value will be read.
4.21.3.15. PC Multi-Driving Register 0 (Default Value: 0x5555_5555)
Offset: 0x005C
Register Name: PC_DRV0_REG
Bit
Read/Write
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x1
PC_DRV
PC[n] Multi-Driving SELECT (n = 0~15)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
4.21.3.16. PC Multi-Driving Register 1 (Default Value: 0x0000_0015)
Offset: 0x0060
Register Name: PC_DRV1_REG
Bit
Read/Write
Default/Hex
Description
31:6
/
/
/
[2i+1:2i]
(i=0~2)
R/W
0x1
PC_DRV
PC[n] Multi-Driving Select (n = 16~18)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
4.21.3.17. PC PULL Register 0 (Default Value: 0x0000_5140)
Offset: 0x0064
Register Name: PC_PULL0_REG
Bit
Read/Write
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x5140
PC_PULL
PC[n] Pull-up/down Select (n = 0~15)
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 302
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
4.21.3.18. PC PULL Register 1 (Default Value: 0x0000_0014)
Offset: 0x0068
Register Name: PC_PULL1_REG
Bit
Read/Write
Default/Hex
Description
31:6
/
/
Reserved
[2i+1:2i]
(i=0~2)
R/W
0x14
PC_PULL
PC[n] Pull-up/down Select (n = 16~18)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
4.21.3.19. PD Configure Register 0 (Default Value: 0x7777_7777)
Offset: 0x006C
Register Name: PD_CFG0_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PD7_SELECT
000:Input 001:Output
010:RGMII_TXD3/MII_TXD3/RMII_NULL 011:Reserved
100:TS2_D3 101:TS3_CLK
110:Reserved 111:IO Disable
27
/
/
Reserved
26:24
R/W
0x7
PD6_SELECT
000:Input 001:Output
010:RGMII_NULL/MII_RXERR/RMII_RXER 011:Reserved
100:TS2_D2 101:Reserved
110:Reserved 111:IO Disable
23
/
/
/
22:20
R/W
0x7
PD5_SELECT
000:Input 001:Output
010:RGMII_RXCTL/MII_RXDV/RMII_CRS_DV 011:Reserved
100:TS2_D1 101:Reserved
110:Reserved 111:IO Disable
19
/
/
/
18:16
R/W
0x7
PD4_SELECT
000:Input 001:Output
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 303
010:RGMII_RXCK/MII_RXCK/RMII_NULL 011:Reserved
100:TS2_D0 101:Reserved
110:Reserved 111:IO Disable
15
/
/
/
14:12
R/W
0x7
PD3_SELECT
000:Input 001:Output
010:RGMII_RXD0/MII_RXD0/RMII_RXD0 011:Reserved
100:TS2_DVLD 101:Reserved
110:Reserved 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PD2_SELECT
000:Input 001:Output
010:RGMII_RXD1/MII_RXD1/RMII_RXD1 011:Reserved
100:TS2_SYNC 101:Reserved
110:Reserved 111:IO Disable
7
/
/
/
6:4
R/W
0x7
PD1_SELECT
000:Input 001:Output
010:RGMII_RXD2/MII_RXD2/RMII_NULL 011:DI_RX
100:TS2_ERR 101:Reserved
110:Reserved 111:IO Disable
3
/
/
/
2:0
R/W
0x7
PD0_SELECT
000:Input 001:Output
010:RGMII_RXD3/MII_RXD3/RMII_NULL 011:DI_TX
100:TS2_CLK 101:Reserved
110:Reserved 111:IO Disable
4.21.3.20. PD Configure Register 1 (Default Value: 0x7777_7777)
Offset: 0x0070
Register Name: PD_CFG1_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PD15_SELECT
000:Input 001:Output
010:RGMII_CLKIN/MII_COL/RMII_NULL 011:Reserved
100:SIM1_RST 101:Reserved
110:Reserved 111:IO Disable
27
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 304
26:24
R/W
0x7
PD14_SELECT
000:Input 001:Output
010:RGMII_NULL/MII_TXERR/RMII_NULL 011:Reserved
100:SIM1_DATA 101:Reserved
110:Reserved 111:IO Disable
23
/
/
/
22:20
R/W
0x7
PD13_SELECT
000:Input 001:Output
010:RGMII_TXCTL/MII_TXEN/RMII_TXEN 011:Reserved
100:SIM1_CLK 101:Reserved
110:Reserved 111:IO Disable
19
/
/
/
18:16
R/W
0x7
PD12_SELECT
000:Input 001:Output
010:RGMII_TXCK/MII_TXCK/RMII_TXCK 011:Reserved
100:SIM1_PWREN 101:Reserved
110:Reserved 111:IO Disable
15
/
/
/
14:12
R/W
0x7
PD11_SELECT
000:Input 001:Output
010:RGMII_NULL/MII_CRS/RMII_NULL 011:Reserved
100:TS2_D7 101:TS3_D0
110:Reserved 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PD10_SELECT
000:Input 001:Output
010:RGMII_TXD0/MII_TXD0/RMII_TXD0 011:Reserved
100:TS2_D6 101:TS3_DVLD
110:Reserved 111:IO Disable
7
/
/
/
6:4
R/W
0x7
PD9_SELECT
000:Input 001:Output
010:RGMII_TXD1/MII_TXD1/RMII_TXD1 011:Reserved
100:TS2_D5 101:TS3_SYNC
110:Reserved 111:IO Disable
3
/
/
/
2:0
R/W
0x7
PD8_SELECT
000:Input 001:Output
010:RGMII_TXD2/MII_TXD2/RMII_NULL 011:Reserved
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 305
100:TS2_D4 101:TS3_ERR
110:Reserved 111:IO Disable
4.21.3.21. PD Configure Register 2 (Default Value: 0x0000_0077)
Offset: 0x0074
Register Name: PD_CFG2_REG
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6:4
R/W
0x7
PD17_SELECT
000:Input 001:Output
010:MDIO 011:Reserved
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
3
/
/
/
2:0
R/W
0x7
PD16_SELECT
000:Input 001:Output
010:MDC 011:Reserved
100:SIM1_DET 101:Reserved
110:Reserved 111:IO Disable
4.21.3.22. PD Configure Register 3 (Default Value: 0x0000_0000)
Offset: 0x0078
Register Name: PD_CFG3_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.23. PD Data Register (Default Value: 0x0000_0000)
Offset: 0x007C
Register Name: PD_DATA_REG
Bit
Read/Write
Default/Hex
Description
31:18
/
/
/
17:0
R/W
0x0
PD_DAT
If the port is configured as input, the corresponding bit is the pin state. If the
port is configured as output, the pin state is the same as the corresponding
bit. The read bit value is the value setup by software. If the port is configured
as functional pin, the undefined value will be read.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 306
4.21.3.24. PD Multi-Driving Register 0 (Default Value: 0x5555_5555)
Offset: 0x0080
Register Name: PD_DRV0_REG
Bit
Read/Write
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x1
PD_DRV
PD[n] Multi-Driving SELECT (n = 0~15)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
4.21.3.25. PD Multi-Driving Register 1 (Default Value: 0x0000_0005)
Offset: 0x0084
Register Name: PD_DRV1_REG
Bit
Read/Write
Default/Hex
Description
31:4
/
/
/
[2i+1:2i]
(i=0~1)
R/W
0x1
PD_DRV
PD[n] Multi-Driving Select (n = 16~17)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
4.21.3.26. PD PULL Register 0 (Default Value: 0x0000_0000)
Offset: 0x0088
Register Name: PD_PULL0_REG
Bit
Read/Write
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x0
PD_PULL
PD[n] Pull-up/down Select (n = 0~15)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
4.21.3.27. PD PULL Register 1 (Default Value: 0x0000_0000)
Offset: 0x008C
Register Name: PD_PULL1_REG
Bit
Read/Write
Default/Hex
Description
31:4
/
/
Reserved
[2i+1:2i]
(i=0~1)
R/W
0x0
PD_PULL
PD[n] Pull-up/down Select (n = 16~17)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 307
4.21.3.28. PE Configure Register 0 (Default Value: 0x7777_7777)
Offset: 0x0090
Register Name: PE_CFG0_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PE7_SELECT
000:Input 001:Output
010:CSI_D3 011:TS0_D3
100:TS1_CLK 101:Reserved
110:Reserved 111:IO Disable
27
/
/
/
26:24
R/W
0x7
PE6_SELECT
000:Input 001:Output
010:CSI_D2 011:TS0_D2
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
23
/
/
/
22:20
R/W
0x7
PE5_SELECT
000:Input 001:Output
010:CSI_D1 011:TS0_D1
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
19
/
/
/
18:16
R/W
0x7
PE4_SELECT
000:Input 001:Output
010:CSI_D0 011:TS0_D0
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
15
/
/
/
14:12
R/W
0x7
PE3_SELECT
000:Input 001:Output
010:CSI_VSYNC 011:TS0_DVLD
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PE2_SELECT
000:Input 001:Output
010:CSI_HSYNC 011:TS0_SYNC
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 308
7
/
/
/
6:4
R/W
0x7
PE1_SELECT
000:Input 001:Output
010:CSI_MCLK 011:TS0_ERR
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
3
/
/
/
2:0
R/W
0x7
PE0_SELECT
000:Input 001:Output
010:CSI_PCLK 011:TS0_CLK
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
4.21.3.29. PE Configure Register 1 (Default Value: 0x7777_7777)
Offset: 0x0094
Register Name: PE_CFG1_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PE15_SELECT
000:Input 001:Output
010:Reserved 011:SIM1_VPPPP
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
27
/
/
/
26:24
R/W
0x7
PE14_SELECT
000:Input 001:Output
010:Reserved 011:SIM1_VPPEN
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
23
/
/
/
22:20
R/W
0x7
PE13_SELECT
000:Input 001:Output
010:CSI_SDA 011:TWI2_SDA
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
19
/
/
/
18:16
R/W
0x7
PE12_SELECT
000:Input 001:Output
010:CSI_SCK 011:TWI2_SCK
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 309
100:Reserved 101:Reserved
110:Reserved 111:IO Disable
15
/
/
/
14:12
R/W
0x7
PE11_SELECT
000:Input 001:Output
010:CSI_D7 011:TS0_D7
100:TS1_D0 101:Reserved
110:Reserved 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PE10_SELECT
000:Input 001:Output
010:CSI_D6 011:TS0_D6
100:TS1_DVLD 101:Reserved
110:Reserved 111:IO Disable
7
/
/
/
6:4
R/W
0x7
PE9_SELECT
000:Input 001:Output
010:CSI_D5 011:TS0_D5
100:TS1_SYNC 101:Reserved
110:Reserved 111:IO Disable
3
/
/
/
2:0
R/W
0x7
PE8_SELECT
000:Input 001:Output
010:CSI_D4 011:TS0_D4
100:TS1_ERR 101:Reserved
110:Reserved 111:IO Disable
4.21.3.30. PE Configure Register 2 (Default Value: 0x0000_0000)
Offset: 0x0098
Register Name: PE_CFG2_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.31. PE Configure Register 3 (Default Value: 0x0000_0000)
Offset: 0x009C
Register Name: PE_CFG3_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 310
4.21.3.32. PE Data Register (Default Value: 0x0000_0000)
Offset: 0x00A0
Register Name: PE_DATA _REG
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0
PE_DAT
If the port is configured as input, the corresponding bit is the pin state. If the
port is configured as output, the pin state is the same as the corresponding
bit. The read bit value is the value setup by software. If the port is configured
as functional pin, the undefined value will be read.
4.21.3.33. PE Multi-Driving Register 0 (Default Value: 0x5555_5555)
Offset: 0x00A4
Register Name: PE_DRV0_REG
Bit
Read/Write
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x1
PE_DRV
PE[n] Multi-Driving SELECT (n = 0~15)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
4.21.3.34. PE Multi-Driving Register 1 (Default Value: 0x0000_0000)
Offset: 0x00A8
Register Name: PE_DRV1_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.35. PE PULL Register 0 (Default Value: 0x0000_0000)
Offset: 0x00AC
Register Name: PE_PULL0_REG
Bit
Read/Write
Default/Hex
Description
[2i+1:2i]
(i=0~15)
R/W
0x0
PE_PULL
PE[n] Pull-up/down Select (n = 0~15)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
4.21.3.36. PE PULL Register 1 (Default Value: 0x0000_0000)
Offset: 0x00B0
Register Name: PE_PULL1_REG
Bit
Read/Write
Default/Hex
Description
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 311
31:0
/
/
/
4.21.3.37. PF Configure Register 0 (Default Value: 0x0777_7777)
Offset: 0x00B4
Register Name: PF_CFG0_REG
Bit
Read/Write
Default/Hex
Description
31:27
/
/
/
26:24
R/W
0x7
PF6_SELECT
000:Input 001:Output
010:Reserved 011:Reserved
100:Reserved 101:Reserved
110:PF_EINT6 111:IO Disable
23
22:20
R/W
0x7
PF5_SELECT
000:Input 001:Output
010:SDC0_D2 011:JTAG_CK
100:Reserved 101:Reserved
110:PF_EINT5 111:IO Disable
19
/
/
/
18:16
R/W
0x7
PF4_SELECT
000:Input 001:Output
010:SDC0_D3 011:UART0_RX
100:Reserved 101:Reserved
110:PF_EINT4 111:IO Disable
15
/
/
/
14:12
R/W
0x7
PF3_SELECT
000:Input 001:Output
010:SDC0_CMD 011:JTAG_DO
100:Reserved 101:Reserved
110:PF_EINT3 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PF2_SELECT
000:Input 001:Output
010:SDC0_CLK 011:UART0_TX
100:Reserved 101:Reserved
110:PF_EINT2 111:IO Disable
7
/
/
/
6:4
R/W
0x7
PF1_SELECT
000:Input 001:Output
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 312
010:SDC0_D0 011:JTAG_DI
100:Reserved 101:Reserved
110:PF_EINT1 111:IO Disable
3
/
/
/
2:0
R/W
0x7
PF0_SELECT
000:Input 001:Output
010:SDC0_D1 011:JTAG_MS
100:Reserved 101:Reserved
110:PF_EINT0 111:IO Disable
4.21.3.38. PF Configure Register 1 (Default Value: 0x0000_0000)
Offset: 0x00B8
Register Name: PF_CFG1_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.39. PF Configure Register 2 (Default Value: 0x0000_0000)
Offset: 0x00BC
Register Name: PF_CFG2_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.40. PF Configure Register 3 (Default Value: 0x0000_0000)
Offset: 0x00C0
Register Name: PF_CFG3_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.41. PF Data Register (Default Value: 0x0000_0000)
Offset: 0x00C4
Register Name: PF_DATA_REG
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6:0
R/W
0x0
PF_DAT
If the port is configured as input, the corresponding bit is the pin state. If the
port is configured as output, the pin state is the same as the corresponding
bit. The read bit value is the value setup by software. If the port is configured
as functional pin, the undefined value will be read.
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 313
4.21.3.42. PF Multi-Driving Register 0 (Default Value: 0x0000_1555)
Offset: 0x00C8
Register Name: PF_DRV0_REG
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
[2i+1:2i]
(i=0~6)
R/W
0x1
PF_DRV
PF[n] Multi-Driving SELECT (n = 0~6)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
4.21.3.43. PF Multi-Driving Register 1 (Default Value: 0x0000_0000)
Offset: 0x00CC
Register Name: PF_DRV1_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.44. PF PULL Register 0 (Default Value: 0x0000_0000)
Offset: 0x00D0
Register Name: PF_PULL0_REG
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
[2i+1:2i]
(i=0~6)
R/W
0x0
PF_PULL
PF[n] Pull-up/down Select (n = 0~6)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
4.21.3.45. PF PULL Register 1 (Default Value: 0x0000_0000)
Offset: 0x00D4
Register Name: PF_PULL1_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.46. PG Configure Register 0 (Default Value: 0x7777_7777)
Offset: 0x00D8
Register Name: PG_CFG0_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PG7_SELECT
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 314
000:Input 001:Output
010:UART1_RX 011: Reserved
100:Reserved 101:Reserved
110:PG_EINT7 111:IO Disable
27
/
/
/
26:24
R/W
0x7
PG6_SELECT
000:Input 001:Output
010:UART1_TX 011: Reserved
100:Reserved 101:Reserved
110:PG_EINT6 111:IO Disable
23
/
/
/
22:20
R/W
0x7
PG5_SELECT
000:Input 001:Output
010:SDC1_D3 011:Reserved
100:Reserved 101:Reserved
110:PG_EINT5 111:IO Disable
19
/
/
/
18:16
R/W
0x7
PG4_SELECT
000:Input 001:Output
010:SDC1_D2 011:Reserved
100:Reserved 101:Reserved
110:PG_EINT4 111:IO Disable
15
/
/
/
14:12
R/W
0x7
PG3_SELECT
000:Input 001:Output
010:SDC1_D1 011:Reserved
100:Reserved 101:Reserved
110:PG_EINT3 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PG2_SELECT
000:Input 001:Output
010:SDC1_D0 011:Reserved
100:Reserved 101:Reserved
110:PG_EINT2 111:IO Disable
7
/
/
/
6:4
R/W
0x7
PG1_SELECT
000:Input 001:Output
010:SDC1_CMD 011:Reserved
100:Reserved 101:Reserved
110:PG_EINT1 111:IO Disable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 315
3
/
/
/
2:0
R/W
0x7
PG0_SELECT
000:Input 001:Output
010:SDC1_CLK 011:Reserved
100:Reserved 101:Reserved
110:PG_EINT0 111:IO Disable
4.21.3.47. PG Configure Register 1 (Default Value: 0x0077_7777)
Offset: 0x00DC
Register Name: PG_CFG1_REG
Bit
Read/Write
Default/Hex
Description
31:23
/
/
/
22:20
R/W
0x7
PG13_SELECT
000:Input 001:Output
010: PCM1_DIN 011: Reserved
100:Reserved 101:Reserved
110:PG_EINT13 111:IO Disable
19
/
/
/
18:16
R/W
0x7
PG12_SELECT
000:Input 001:Output
010: PCM1_DOUT 011: Reserved
100:Reserved 101:Reserved
110:PG_EINT12 111:IO Disable
15
/
/
/
14:12
R/W
0x7
PG11_SELECT
000:Input 001:Output
010: PCM1_CLK 011: Reserved
100:Reserved 101:Reserved
110:PG_EINT11 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PG10_SELECT
000:Input 001:Output
010: PCM1_SYNC 011: Reserved
100:Reserved 101:Reserved
110:PG_EINT10 111:IO Disable
7
/
/
/
6:4
R/W
0x7
PG9_SELECT
000:Input 001:Output
010:UART1_CTS 011: Reserved
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 316
100:Reserved 101:Reserved
110:PG_EINT9 111:IO Disable
3
/
/
/
2:0
R/W
0x7
PG8_SELECT
000:Input 001:Output
010:UART1_RTS 011: Reserved
100:Reserved 101:Reserved
110:PG_EINT8 111:IO Disable
4.21.3.48. PG Configure Register 2 (Default Value: 0x0000_0000)
Offset: 0x00E0
Register Name: PG_CFG2_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.49. PG Configure Register 3 (Default Value: 0x0000_0000)
Offset: 0x00E4
Register Name: PG_CFG3_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.50. PG Data Register (Default Value: 0x0000_0000)
Offset: 0x00E8
Register Name: PG_DATA_REG
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
13:0
R/W
0x0
PG_DAT
If the port is configured as input, the corresponding bit is the pin state. If the
port is configured as output, the pin state is the same as the corresponding
bit. The read bit value is the value setup by software. If the port is configured
as functional pin, the undefined value will be read.
4.21.3.51. PG Multi-Driving Register 0 (Default Value: 0x0555_5555)
Offset: 0x00EC
Register Name: PG_DRV0_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
[2i+1:2i]
(i=0~13)
R/W
0x1
PG_DRV
PG[n] Multi-Driving SELECT (n = 0~13)
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 317
00: Level 0 01: Level 1
10: Level 2 11: Level 3
4.21.3.52. PG Multi-Driving Register 1 (Default Value: 0x0000_0000)
Offset: 0x00F0
Register Name: PG_DRV1_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.53. PG PULL Register 0 (Default Value: 0x0000_0000)
Offset: 0x00F4
Register Name: PG_PULL0_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
[2i+1:2i]
(i=0~13)
R/W
0x0
PG_PULL
PG[n] Pull-up/down Select (n = 0~13)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
4.21.3.54. PG PULL Register 1 (Default Value: 0x0000_0000)
Offset: 0x00F8
Register Name: PG_PULL1_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.55. PA External Interrupt Configure Register 0 (Default Value: 0x0000_0000)
Offset: 0x0200
Register Name: PA_EINT_CFG0_REG
Bit
Read/Write
Default/Hex
Description
[4i+3:4i]
(i=0~7)
R/W
0x0
EINT_CFG
External INTn Mode (n = 0~7)
0000: Positive Edge
0001: Negative Edge
0010: High Level
0011: Low Level
0100: Double Edge (Positive/ Negative)
Others: Reserved
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 318
4.21.3.56. PA External Interrupt Configure Register 1 (Default Value: 0x0000_0000)
Offset: 0x0204
Register Name: PA_EINT_CFG1_REG
Bit
Read/Write
Default/Hex
Description
[4i+3:4i]
(i=0~7)
R/W
0x0
EINT_CFG
External INTn Mode (n = 8~15)
0000: Positive Edge
0001: Negative Edge
0010: High Level
0011: Low Level
0100: Double Edge (Positive/ Negative)
Others: Reserved
4.21.3.57. PA External Interrupt Configure Register 2 (Default Value: 0x0000_0000)
Offset: 0x0208
Register Name: PA_EINT_CFG2_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
[4i+3:4i]
(i=0~5)
R/W
0x0
EINT_CFG
External INTn Mode (n = 16~21)
0000: Positive Edge
0001: Negative Edge
0010: High Level
0011: Low Level
0100: Double Edge (Positive/ Negative)
Others: Reserved
4.21.3.58. PA External Interrupt Configure Register 3 (Default Value: 0x0000_0000)
Offset: 0x020C
Register Name: PA_EINT_CFG3_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.59. PA External Interrupt Control Register (Default Value: 0x0000_0000)
Offset: 0x210
Register Name: PA_EINT_CTL_REG
Bit
Read/Write
Default/Hex
Description
31:22
/
/
/
[n]
(n=0~21)
R/W
0x0
EINT_CTL
External INTn Enable (n = 0~21)
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 319
0: Disable
1: Enable
4.21.3.60. PA External Interrupt Status Register (Default Value: 0x0000_0000)
Offset: 0x0214
Register Name: PA_EINT_STATUS_REG
Bit
Read/Write
Default/Hex
Description
31:22
/
/
/
[n]
(n=0~21)
R/W1C
0x0
EINT_STATUS
External INTn Pending Bit (n = 0~21)
0: No IRQ pending
1: IRQ pending
Wite  to clear it.
4.21.3.61. PA External Interrupt Debounce Register (Default Value: 0x0000_0000)
Offset: 0x0218
Register Name: PA_EINT_DEB_REG
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6:4
R/W
0x0
DEB_CLK_PRE_SCALE
Debounce Clock Pre-scale n
The selected clock source is prescaled by 2^n.
3:1
/
/
/
0
R/W
0x0
PIO_INT_CLK_SELECT
PIO Interrupt Clock Select
0: LOSC 32KHz
1: HOSC 24MHz
4.21.3.62. PF External Interrupt Configure Register 0 (Default Value: 0x0000_0000)
Offset: 0x0220
Register Name: PF_EINT_CFG0_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
[4i+3:4i]
(i=0~6)
R/W
0x0
EINT_CFG
External INTn Mode (n = 0~6)
0000: Positive Edge
0001: Negative Edge
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 320
0010: High Level
0011: Low Level
0100: Double Edge (Positive/ Negative)
Others: Reserved
4.21.3.63. PF External Interrupt Configure Register 1 (Default Value: 0x0000_0000)
Offset: 0x0224
Register Name: PF_EINT_CFG1_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.64. PF External Interrupt Configure Register 2 (Default Value: 0x0000_0000)
Offset: 0x0228
Register Name: PF_EINT_CFG2_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.65. PF External Interrupt Configure Register 3 (Default Value: 0x0000_0000)
Offset: 0x022C
Register Name: PF_EINT_CFG3_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.66. PF External Interrupt Control Register (Default Value: 0x0000_0000)
Offset: 0x0230
Register Name: PF_EINT_CTL_REG
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
[n]
(n=0~6)
R/W
0x0
EINT_CTL
External INTn Enable (n = 0~6)
0: Disable
1: Enable
4.21.3.67. PF External Interrupt Status Register (Default Value: 0x0000_0000)
Offset: 0x0234
Register Name: PF_EINT_STATUS_REG
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
[n]
(n=0~6)
R/W1C
0x0
EINT_STATUS
External INTn Pending Bit (n = 0~6)
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 321
0: No IRQ pending
1: IRQ pending
Wite  to lea it
4.21.3.68. PF External Interrupt Debounce Register (Default Value: 0x0000_0000)
Offset: 0x0238
Register Name: PF_EINT_DEB_REG
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6:4
R/W
0x0
DEB_CLK_PRE_SCALE
Debounce Clock Pre-scale n
The selected clock source is prescaled by 2^n.
3:1
/
/
/
0
R/W
0x0
PIO_INT_CLK_SELECT
PIO Interrupt Clock Select
0: LOSC 32KHz
1: HOSC 24MHz
4.21.3.69. PG External Interrupt Configure Register 0 (Default Value: 0x0000_0000)
Offset: 0x0240
Register Name: PG_EINT_CFG0_REG
Bit
Read/Write
Default/Hex
Description
[4i+3:4i]
(i=0~7)
R/W
0x0
EINT_CFG
External INTn Mode (n = 0~7)
0000: Positive Edge
0001: Negative Edge
0010: High Level
0011: Low Level
0100: Double Edge (Positive/ Negative)
Others: Reserved
4.21.3.70. PG External Interrupt Configure Register 1 (Default Value: 0x0000_0000)
Offset: 0x0244
Register Name: PG_EINT_CFG1_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
[4i+3:4i]
(i=0~5)
R/W
0x0
EINT_CFG
External INTn Mode (n = 8~13)
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 322
0000: Positive Edge
0001: Negative Edge
0010: High Level
0011: Low Level
0100: Double Edge (Positive/ Negative)
Others: Reserved
4.21.3.71. PG External Interrupt Configure Register 2 (Default Value: 0x0000_0000)
Offset: 0x0248
Register Name: PG_EINT_CFG2_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.72. PG External Interrupt Configure Register 3 (Default Value: 0x0000_0000)
Offset: 0x024C
Register Name: PG_EINT_CFG3_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.21.3.73. PG External Interrupt Control Register (Default Value: 0x0000_0000)
Offset: 0x0250
Register Name: PG_EINT_CTL_REG
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
[n]
(n=0~13)
R/W
0x0
EINT_CTL
External INTn Enable (n = 0~13)
0: Disable
1: Enable
4.21.3.74. PG External Interrupt Status Register (Default Value: 0x0000_0000)
Offset: 0x0254
Register Name: PG_EINT_STATUS_REG
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
[n]
(n=0~13)
R/W1C
0x0
EINT_STATUS
External INTn Pending Bit (n = 0~13)
0: No IRQ pending
1: IRQ pending
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 323
Wite  to lea it
4.21.3.75. PG External Interrupt Debounce Register (Default Value: 0x0000_0000)
Offset: 0x0258
Register Name: PG_EINT_DEB_REG
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6:4
R/W
0x0
DEB_CLK_PRE_SCALE
Debounce Clock Pre-scale n
The selected clock source is prescaled by 2^n.
3:1
/
/
/
0
R/W
0x0
PIO_INT_CLK_SELECT
PIO Interrupt Clock Select
0: LOSC 32KHz
1: HOSC 24MHz
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 324
4.22. Port Controller (CPUs-PORT)
4.22.1. Overview
The chip has 1 port for multi-functional input/out pins. They are shown below:
Port L(PL):12 input/output port
For various system configurations, these ports can be easily configured by software. All these ports can be configured as
GPIO if multiplexed functions not used. The external PIO interrupt sources are supported and interrupt mode can be
configured by software.
4.22.2. Register List
Module Name
Base Address
PIO
0x01F02C00
Register Name
Offset
Description
PL_CFG0
0x0000
Port L Configure Register 0
PL_CFG1
0x0004
Port L Configure Register 1
PL_CFG2
0x0008
Port L Configure Register 2
PL_CFG3
0x000C
Port L Configure Register 3
PL_DAT
0x0010
Port L Data Register
PL_DRV0
0x0014
Port L Multi-Driving Register 0
PL_DRV1
0x0018
Port L Multi-Driving Register 1
PL_PUL0
0x001C
Port L Pull Register 0
PL_PUL1
0x0020
Port L Pull Register 1
PL_INT_CFG0
0x0200 + 0x00
PIO Interrrupt Configure Register 0
PL_INT_CFG1
0x0200 + 0x04
PIO Interrrupt Configure Register 1
PL_INT_CFG2
0x0200 + 0x08
PIO Interrrupt Configure Register 2
PL_INT_CFG3
0x0200 + 0x0C
PIO Interrrupt Configure Register 3
PL_INT_CTL
0x0200 + 0x10
PIO Interrupt Control Register
PL_INT_STA
0x0200 + 0x14
PIO Interrupt Status Register
PL_INT_DEB
0x0200 + 0x18
PIO Interrupt Debounce Register
4.22.3. Register Description
4.22.3.1. PL Configure Register 0 (Default Value: 0x7777_7777)
Offset: 0x0000
Register Name: PL_CFG0_REG
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 325
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x7
PL7_SELECT
000:Input 001:Output
010:S_JTAG_DI 011:Reserved
100:Reserved 101:Reserved
110:S_PL_EINT7 111:IO Disable
27
/
/
/
26:24
R/W
0x7
PL6_SELECT
000:Input 001:Output
010:S_JTAG_DO 011:Reserved
100:Reserved 101:Reserved
110:S_PL_EINT6 111:IO Disable
23
/
/
/
22:20
R/W
0x7
PL5_SELECT
000:Input 001:Output
010:S_JTAG_CK 011:Reserved
100:Reserved 101:Reserved
110:S_PL_EINT5 111:IO Disable
19
/
/
/
18:16
R/W
0x7
PL4_SELECT
000:Input 001:Output
010:S_JTAG_MS 011:Reserved
100:Reserved 101:Reserved
110:S_PL_EINT4 111:IO Disable
15
/
/
/
14:12
R/W
0x7
PL3_SELECT
000:Input 001:Output
010:S_UART_RX 011:Reserved
100:Reserved 101:Reserved
110:S_PL_EINT3 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PL2_SELECT
000:Input 001:Output
010:S_UART_TX 011:Reserved
100:Reserved 101:Reserved
110:S_PL_EINT2 111:IO Disable
7
/
/
/
6:4
R/W
0x7
PL1_SELECT
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 326
000:Input 001:Output
010:S_TWI_SDA 011:Reserved
100:Reserved 101:Reserved
110:S_PL_EINT1 111:IO Disable
3
/
/
/
2:0
R/W
0x7
PL0_SELECT
000:Input 001:Output
010:S_TWI_SCK 011:Reserved
100:Reserved 101:Reserved
110:S_PL_EINT0 111:IO Disable
4.22.3.2. PL Configure Register 1 (Default Value: 0x0000_7777)
Offset: 0x0004
Register Name: PL_CFG1_REG
Bit
Read/Write
Default/Hex
Description
31:15
/
/
/
14:12
R/W
0x7
PL11_SELECT
000:Input 001:Output
010:S_CIR_RX 011:Reserved
100:Reserved 101:Reserved
110:S_PL_EINT11 111:IO Disable
11
/
/
/
10:8
R/W
0x7
PL10_SELECT
000:Input 001:Output
010:S_PWM 011:Reserved
100:Reserved 101:Reserved
110:S_PL_EINT10 111:IO Disable
7
/
/
/
6:4
R/W
0x7
PL9_SELECT
000:Input 001:Output
010:Reserved 011:Reserved
100:Reserved 101:Reserved
110:S_PL_EINT9 111:IO Disable
3
/
/
/
2:0
R/W
0x7
PL8_SELECT
000:Input 001:Output
010:Reserved 011:Reserved
100:Reserved 101:Reserved
110:S_PL_EINT8 111:IO Disable
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 327
4.22.3.3. PL Configure Register 2 (Default Value: 0x0000_0000)
Offset: 0x0008
Register Name: PL_CFG2_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.22.3.4. PL Configure Register 3 (Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: PL_CFG3_REG
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.22.3.5. PL Data Register (Default Value: 0x0000_0000)
Offset: 0x0010
Register Name: PL_DATA_REG
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
11:0
R/W
0x0
PL_DAT
If the port is configured as input, the corresponding bit is the pin state. If the
port is configured as output, the pin state is the same as the corresponding
bit. The read bit value is the value setup by software. If the port is configured
as functional pin, the undefined value will be read.
4.22.3.6. PL Multi-Driving Register 0 (Default Value: 0x0055_5555)
Offset: 0x0014
Register Name: PL_DRV0
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
[2i+1:2i]
(i=0~11)
R/W
0x1
PL_DRV
PL[n] Multi-Driving Select (n = 0~11)
00: Level 0 01: Level 1
10: Level 2 11: Level 3
4.22.3.7. PL Multi-Driving Register 1 (Default Value: 0x0000_0000)
Offset: 0x0018
Register Name: PL_DRV1
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 328
4.22.3.8. PL PULL Register 0 (Default Value: 0x0000_0005)
Offset: 0x001C
Register Name: PL_PULL0
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
[2i+1:2i]
(i=0~11)
R/W
0x5
PL_PULL
PL[n] Pull-up/down Select (n = 0~11)
00: Pull-up/down disable 01: Pull-up
10: Pull-down 11: Reserved
4.22.3.9. PL PULL Register 1 (Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: PL_PULL1
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.22.3.10. PL External Interrupt Configure Register 0 (Default Value: 0x0000_0000)
Offset: 0x0200
Register Name: PL_EINT_CFG0
Bit
Read/Write
Default/Hex
Description
[4i+3:4i]
(i=0~7)
R/W
0x0
EINT_CFG
External INTn Mode (n = 0~7)
0000: Positive Edge
0001: Negative Edge
0010: High Level
0011: Low Level
0100: Double Edge (Positive/ Negative)
Others: Reserved
4.22.3.11. PL External Interrupt Configure Register 1 (Default Value: 0x0000_0000)
Offset: 0x0204
Register Name: PL_EINT_CFG1
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
[4i+3:4i]
(i=0~3)
R/W
0x0
EINT_CFG
External INTn Mode (n = 8~11)
0000: Positive Edge
0001: Negative Edge
0010: High Level
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 329
0011: Low Level
0100: Double Edge (Positive/ Negative)
Others: Reserved
4.22.3.12. PL External Interrupt Configure Register 2 (Default Value: 0x0000_0000)
Offset: 0x0208
Register Name: PL_EINT_CFG2
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.22.3.13. PL External Interrupt Configure Register 3 (Default Value: 0x0000_0000)
Offset: 0x020C
Register Name: PL_EINT_CFG3
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
4.22.3.14. PL External Interrupt Control Register (Default Value: 0x0000_0000)
Offset: 0x0210
Register Name: PL_EINT_CTL
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
[n]
(n=0~11)
R/W
0x0
EINT_CTL
External INTn Enable (n = 0~11)
0: Disable
1: Enable
4.22.3.15. PL External Interrupt Status Register (Default Value: 0x0000_0000)
Offset: 0x0214
Register Name: PL_EINT_STATUS
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
[n]
(n=0~11)
R/W
0x0
EINT_STATUS
External INTn Pending Bit (n = 0~11)
0: No IRQ pending
1: IRQ pending
Wite  to lea
System
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 330
4.22.3.16. PL External Interrupt Debounce Register (Default Value: 0x0000_0000)
Offset: 0x0218
Register Name: PL_EINT_DEB
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6:4
R/W
0x0
DEB_CLK_PRE_SCALE
Debounce Clock Pre-scale n
The selected clock source is prescaled by 2^n.
3:1
/
/
/
0
R/W
0x0
PIO_INT_CLK_SELECT
PIO Interrupt Clock Select
0: LOSC 32KHz
1: HOSC 24MHz
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 331
Chapter 5 Memory
This section describes the H5 memory from three aspects:
DRAMC
NDFC
SMHC
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 332
5.1. SDRAM Controller(DRAMC)
5.1.1. Overview
The SDRAM Controller (DRAMC) provides a simple, flexible, burst-optimized interface to the industy-standard
DDR3/DDR3L SDRAM. It supports up to a 24G bits memory address space.
The DRAMC automatically handles memory management, initialization, and refresh operations. It gives the host CPU a
simple command interface, hiding details of the required address, page, and burst handling procedures. All memory
parameters are runtime-configurable, including timing, memory setting, SDRAM type, and Extended-Mode-Register
settings.
Features:
32-bit bus width
Supports 2 chip selects
Supports DDR3/DDR3L SDRAM
Supports power voltage of 1.5V and 1.35V
Supports clock frequency up to 667 MHz(DDR3-1333)
Supports memory capacity up to 24G bits (3G bytes)
Supports 16 address lines and 3 bank address lines
Automatically generates initialization and refresh sequences
Runtime-configurable parameters setting for application flexibility
Priority of transferring through multiple ports is programmable
Random read or write operation is supported
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 333
5.2. NAND Flash Controller(NDFC)
5.2.1. Overview
The NAND Flash Controller(NDFC) supports all NAND flash memory available in the market. New type flash can be
supported by software re-configuration.
The On-the-fly error correction code (ECC) is built-in NDFC for enhancing reliability. BCH is implemented and it can
detect and correct up to 64 bits error per 512 or 1024 bytes data. The on chip ECC and parity checking circuitry of NDFC
frees CPU for other tasks. The ECC function can be disabled by software.
The data can be transferred by DMA or by CPU memory-mapped IO method. The NDFC provides automatic timing
control for reading or writing external Flash. The NDFC maintains the proper relativity for CLE, CE# and ALE control
signal lines. Three modes are supported for serial read access. Mode 0 is for the conventional serial access and mode 1
is for EDO type and mode 2 for extension EDO type. NDFC can monitor the status of R/B# signal line.
Block management and wear leveling management are implemented in software.
Features:
Supports all SLC/MLC/TLC flash and EF-NAND memory available in the market
Software configure seed for randomize engine
Software configure method for adaptability to a variety of system and memory types
Supports 8-bit data bus width
Supports 1024, 2048, 4096, 8192, 16384 bytes size per page
Supports conventional and EDO serial access method for serial reading Flash
On-the-fly BCH error correction code which correcting up to 64 bits per 512 or 1024 bytes
Corrected error bits number information report
ECC automatic disable function for all 0xff data
NDFC status information is reported by its registers
One Command FIFO
Embedded DMA to do data transfer
External DMA is supported for transferring data
Two 256x32-bit RAM for Pipeline Procession
Support SDR, ONFI DDR and Toggle DDR NAND
Support self–debug for NDFC debug
5.2.2. Block Diagram
The NDFC system block diagram is shown below:
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 334
Sync
Register
File
FIFO
RAM0
(256x32)
ECC
Control
AHB
Slave I/F
Command
FIFO FIFO
Control
DMA & INT
Control
FIFO
RAM1
(256x32)
NAND Flash Basic Operation
Normal
Command
FSM
Spare
Command
FSM
Batch
Command
FSM
User Data
(8x32)
CE[7:0] CLE ALE WE RE RB[1:0] DO[7:0] DI[7:0]
nfc_clk
domain
ahb_clk
domain
Figure 5-1. NDFC Block Diagram
5.2.3. Operations and Functional Descriptions
5.2.3.1. External Signals
Table 5-1 describes the external signals of NDFC.DQ0~DQ7 and DQS are bidirectional I/O.WE,ALE,CLE,CE,RE are output
pin, RB is input pin. The RB pin in the NAND device is an open-drain driver, which must need a pull-up resistor.
Table 5-1. NDFC External Signals
Signals
Description
Type
NAND_WE
Write Enable
O
NAND_ALE
Address Latch Enable,High Active
O
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 335
NAND_CLE
Command Latch Enable,High Active
O
NAND_CE0
Chip Enable 0,Low Active
O
NAND_CE1
Chip Enable 1,Low Active
O
NAND_RE
Read Enable
O
NAND_RB0
Read/Busy 0,Low Active
I
NAND_RB1
Read/Busy 1,Low Active
I
NAND_DQ0
Data Input and Output
I/O
NAND_DQ1
Data Input and Output
I/O
NAND_DQ2
Data Input and Output
I/O
NAND_DQ3
Data Input and Output
I/O
NAND_DQ4
Data Input and Output
I/O
NAND_DQ5
Data Input and Output
I/O
NAND_DQ6
Data Input and Output
I/O
NAND_DQ7
Data Input and Output
I/O
NAND_DQS
Data Strobe
I/O
5.2.3.2. Clock Sources
NDFC gets three different clocks. Users can select one of them to make NDFC clock source. Table 5-2 describles the
clock sources of NDFC. Users can see CCU for clock setting, configuration and gating information.
Table 5-2. NDFC Clock Sources
Clock Sources
Description
OSC24M
24MHz Crystal
PLL_PERIPH0(1X)
Peripheral Clock,the default value is 600MHz
PLL_PERIPH1(1X)
Peripheral Clock,the default value is 600MHz
5.2.3.3. NDFC Timing Diagram
Typically, there are two kinds of serial access methods. One method is conventional method which fetching data at the
rise edge of NDFC_RE# signal line. Another one is EDO type which fetching data at the next fall edge of NDFC_RE# signal
line.
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 336
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE#
NDFC_RB#
NDFC_ALE
NDFC_IOx
t3
t10
t12
t14
t13
t4
sample 0 sample n-1
D(0) D(n-1)

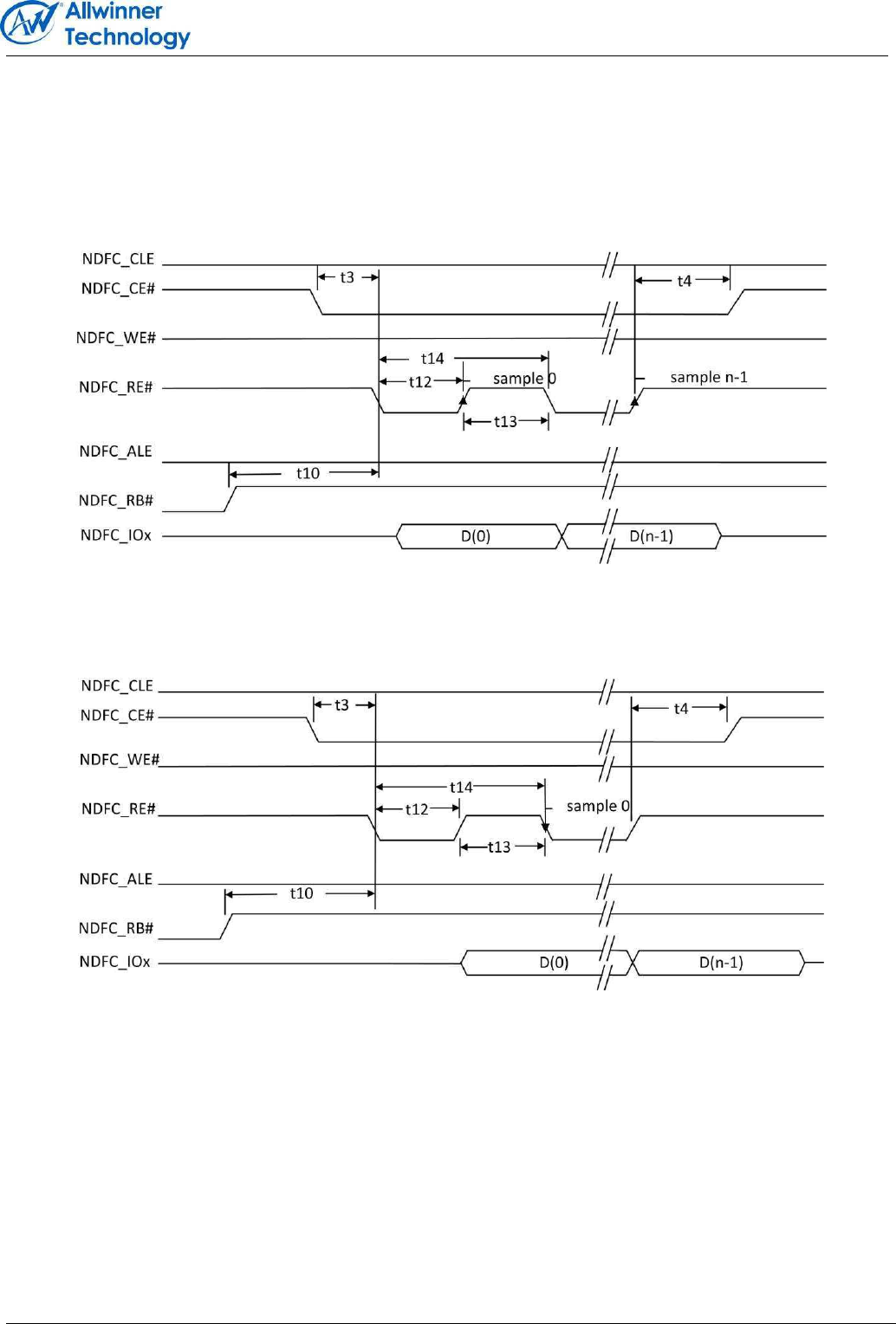

Figure 5-2. Conventional Serial Access Cycle Diagram (SAM0)
t3
t10
t12
t14
t13
t4
sample 0
D(0) D(n-1)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE#
NDFC_RB#
NDFC_ALE
NDFC_IOx
Figure 5-3. EDO Type Serial Access after Read Cycle (SAM1)
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 337
t3
t10
t14
t12
t13
sample 0
D(0) D(n-1)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE#
NDFC_RB#
NDFC_ALE
NDFC_IOx
Figure 5-4. Extending EDO Type Serial Access Mode (SAM2)
t1
t5
t11
t4
t2
t3
t7
t8 t9
COMMAND
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE#
NDFC_ALE
NDFC_IOx
Figure 5-5. Command Latch Cycle
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 338
t5
t6
t15
t1
t3
t7
t8 t9
t4
t11
Addr(0) Addr(n-1)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE#
NDFC_ALE
NDFC_IOx
Figure 5-6. Address Latch Cycle
t5
t6
t15
t1
t3
t7
t8 t9
t4
t11
D(0) D(n-1)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE#
NDFC_ALE
NDFC_IOx
Figure 5-7. Write Data to Flash Cycle
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 339
D(0)
CMD D(n-1)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx
t16
t14
t12 t13
Figure 5-8. Waiting R/B# Ready Diagram
D(0)
CMD D(n-1)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx
t17
Figure 5-9. WE# High to RE# Low Timing Diagram
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 340
D(n-1) 05h
D(n-2) Col1 Col2
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx
t18
Figure 5-10. RE# High to WE# Low Timing Diagram
Addr3 D(0)
Addr2 D(1) D(2)
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx
t19

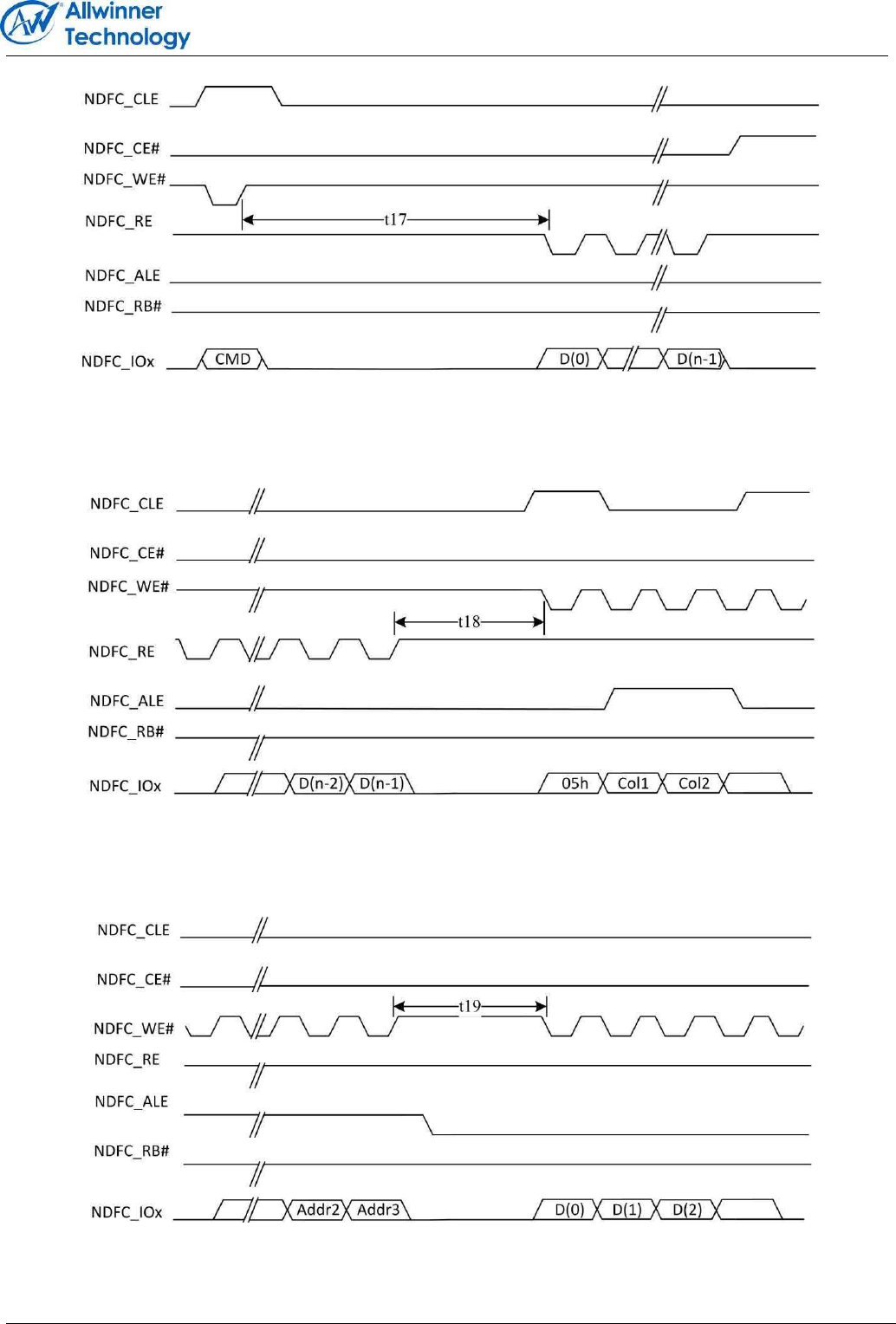

Figure 5-11. Address to Data Loading Timing Diagram
Timing cycle list:
ID
Parameter
Timing
Notes
t1
NDFC_CLE setup time
2T
t2
NDFC_CLE hold time
2T
t3
NDFC_CE setup time
2T
t4
NDFC_CE hold time
2T
t5
NDFC_WE# pulse width
T(1)
t6
NDFC_WE# hold time
T
t7
NDFC_ALE setup time
2T
t8
Data setup time
T
t9
Data hold time
T
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 341
t10
Ready to NDFC_RE# low
3T
t11
NDFC_ALE hold time
2T
t12
NDFC_RE# pulse width
T
t13
NDFC_RE# hold time
T
t14
Read cycle time
2T
t15
Write cycle time
2T
t16
NDFC_WE# high to R/B# busy
T_WB(2)
Specified by timing configure register
(NDFC_TIMING_CFG)
t17
NDFC_WE# high to NDFC_RE# low
T_WHR(3)
Specified by timing configure register
(NDFC_TIMING_CFG)
t18
NDFC_RE# high to NDFC_WE# low
T_RHW(4)
Specified by timing configure register
(NDFC_TIMING_CFG)
t19
Address to Data Loading time
T_ADL(5)
Specified by timing configure register
(NDFC_TIMING_CFG)
Note(1): T is the cycle of the internal clock.
Note(2),(3),(4),(5): These values are configurable in nand flash controller. The value of T_WB could be
14*2T/22*2T/30*2T/38*2T, the value of T_WHR could be 8*2T/16*2T/24*2T/32*2T, the value of T_RHW could be
4*2T/8*2T/12*2T/20*2T, the value of T_ADL could be 0*2T/8*2T/16*2T/24*2T.
5.2.3.4. NDFC Operation Guide
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx 00h Addr(5 cycle) 30h Data output
First Command
cmdio[22]
cmdio[7:0]
Address Cycle
cmdio[18:16]
cmdio[19]=1
Second Command
cmdio[24] Wait RB Signal
cmdio[23]
Sequence Read
cmdio[20]=0
cmdio[25]=1
Page Command
cmdio[31:30]=2
Figure 5-12. Page Read Command Diagram
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 342
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx 80h Addr(5 cycle) Data Input
First Command
cmdio[22]
cmdio[7:0]
Address Cycle
cmdio[18:16]
cmdio[19]=1
Sequence Write
cmdio[20]=1
cmdio[25]=1
Page Command
cmdio[31:30]=2
Wait RB Signal
cmdio[23]
Figure 5-13. Page Program Diagram
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx 00h 30h
First Command
cmdio[22]
cmdio[7:0]
Address Cycle
cmdio[18:16]
cmdio[19]=1
Second Command
cmdio[24] Wait RB Signal
cmdio[23]
Page Command
cmdio[31:30]=2
col0 col1 row0row1row2 70h d(0) 00h Data output
Third Comand
cmdio[28] Forth Comand
cmdio[29]
Sequence Read
cmdio[20]=0
cmdio[25]=1
Figure 5-14. EF-NAND Page Read Diagram
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 343
NDFC_CLE
NDFC_CE#
NDFC_WE#
NDFC_RE
NDFC_ALE
NDFC_RB#
NDFC_IOx 00h 30h Data output
First Command
cmdio[22]
cmdio[7:0]
Address Cycle
cmdio[18:16]
cmdio[19]=1
Second Command
cmdio[24] Wait RB Signal
cmdio[23]
Interleave Read
cmdio[20]=0
cmdio[25]=0
Page Command
cmdio[31:30]=2
col0 col1 row0row1row2 05h col0 col1 E0h Data output
Address set by hardware
automatically
Figure 5-15. Interleave Page Read Diagram
5.2.4. Register List
Module Name
Base Address
NDFC
0x01C03000
Register Name
Offset
Description
NDFC_CTL
0x0000
NDFC Configure and Control Register
NDFC_ST
0x0004
NDFC Status Information Register
NDFC_INT
0x0008
NDFC Interrupt Control Register
NDFC_TIMING_CTL
0x000C
NDFC Timing Control Register
NDFC_TIMING_CFG
0x0010
NDFC Timing Configure Register
NDFC_ADDR_LOW
0x0014
NDFC Low Word Address Register
NDFC_ADDR_HIGH
0x0018
NDFC High Word Address Register
NDFC_BLOCK_NUM
0x001C
NDFC Data Block Number Register
NDFC_CNT
0x0020
NDFC Data Counter for Data Transfer Register
NDFC_CMD
0x0024
Set up NDFC commands Register
NDFC_RCMD_SET
0x0028
Read Command Set Registe fo Vedos NAND Meo
NDFC_WCMD_SET
0x002C
Wite Coad Set Registe fo Vedos NAND Meo
NDFC_ECC_CTL
0x0034
ECC Configure and Control Register
NDFC_ECC_ST
0x0038
ECC Status and Operation information Register
NDFC_EFR
0x003C
Enhanced Feature Register
NDFC_ERR_CNT0
0x0040
Corrected Error Bit Counter Register 0
NDFC_ERR_CNT1
0x0044
Corrected Error Bit Counter Register 1
NDFC_USER_DATAn
0x0050 + N*0x04
User Data Field Register N (N from 0 to 15)
NDFC_EFNAND_STA
0x0090
EFNAND Status Register
NDFC_SPARE_AREA
0x00A0
Spare Area Configure Register
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 344
NDFC_PAT_ID
0x00A4
Pattern ID Register
NDFC_RDATA_STA_CTL
0x00A8
Read Data Status Control Register
NDFC_RDATA_STA_0
0x00AC
Read Data Status Register 0
NDFC_RDATA_STA_1
0x00B0
Read Data Status Register 1
NDFC_MDMA_ADDR
0x00C0
MBUS DMA Address Register
NDFC_MDMA_CNT
0x00C4
MBUS DMA Data Counter Register
NDFC_NDMA_MODE_CTL
0x00D0
NDFC Normal DMA Mode Control Register
NDFC_IO_DATA
0x0300
Data Input/Output Port Address Register
RAM0_BASE
0x0400
1024 Bytes RAM0 Base
RAM1_BASE
0x0800
1024 Bytes RAM1 Base
5.2.5. Register Description
5.2.5.1. NDFC Control Register (Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: NDFC_CTL
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:24
R/W
0x0
NDFC_CE_SEL
Chip Select for 8 NAND Flash Chips
0000~0111: NDFC Chip Select Signal 0-7 is selected
1000~1111: NDFC CS[7:0] not selected. GPIO pins can be used for CS. NDFC
can support up to 16 CS.
23:22
/
/
/
21
R/W
0x0
NDFC_DDR_RM
DDR Repeat data mode
0: Lower byte
1: Higher byte
20
R/W
0x0
NDFC_DDR_REN
DDR Repeat Enable
0: Disable
1: Enable
19:18
R/W
0x0
NF_TYPE
NAND Flash Type
00: Normal SDR NAND
01: Reserved
10: ONFI DDR NAND
11: Toggle DDR NAND
17
R/W
0x0
NDFC_CLE_POL
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 345
NDFC Command Latch Enable (CLE) Signal Polarity Select
0: High active
1: Low active
16
R/W
0x0
NDFC_ALE_POL
NDFC Address Latch Enable (ALE) Signal Polarity Select
0: High active
1: Low active
15
R/W
0x0
NDFC_DMA_TYPE
0: Dedicated DMA
1: Normal DMA
14
R/W
0x0
NDFC_RAM_METHOD
Access internal RAM method
0: Access internal RAM by AHB bus
1: Access internal RAM by DMA bus
13:12
/
/
/
11:8
R/W
0x0
NDFC_PAGE_SIZE
0000: 1024 bytes
0001: 2048 bytes
0010: 4096 bytes
0011: 8192 bytes
0100: 16384 bytes
Note: The page size is for main field data.
7
/
/
/
6
R/W
0x0
NDFC_CE_ACT
Chip select signal CE# control during NAND operation
0: De-active chip select signal NDFC_CE# during data loading, serial access
and other no operation stage for power consumption. NDFC automatically
controls chip select signals.
1: Chip select signal NDFC_CE# is always active after NDFC is enabled.
5
/
/
/
4:3
R/W
0x0
NDFC_RB_SEL
NDFC external R/B signal select
The value 0-3 selects the external R/B signal. The same R/B signal can be
used for multiple chip select flash.
2
R/W
0x0
NDFC_BUS_WIDTH
0: 8-bit bus
1: 16-bit bus
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 346
1
R/W
0x0
NDFC_RESET
NDFC Reset
Write 1 to reset NDFC and clear to 0 after reset
0
R/W
0x0
NDFC_EN
NDFC Enable Control
0: Disable NDFC
1: Enable NDFC
5.2.5.2. NDFC Status Register (Default Value: 0x0000_0F00)
Offset: 0x0004
Register Name: NDFC_ST
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
13
R
0x0
NDFC_RDATA_STA_0
0: The number of bit 1 during current read operation is greater threshold
value.
1: The number of bit 1 during current read operation is less than or equal to
threshold value.
This field only is valid when NDFC_RDATA_STA_EN is 1.
The threshold value is configured in NDFC_RDATA_STA_TH.
12
R
0x0
NDFC_RDATA_STA_1
0: The number of bit 0 during current read operation is greater threshold
value.
1: The number of bit 0 during current read operation is less than or equal to
than threshold value.
This field only is valid when NDFC_RDATA_STA_EN is 1.
The threshold value is configured in NDFC_RDATA_STA_TH.
11
R
0x1
NDFC_RB_STATE3
NAND Flash R/B 3 Line State
0: NAND Flash in BUSY State
1: NAND Flash in READY State
10
R
0x1
NDFC_RB_STATE2
NAND Flash R/B 2 Line State
0: NAND Flash in BUSY State
1: NAND Flash in READY State
9
R
0x1
NDFC_RB_STATE1
NAND Flash R/B 1 Line State
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 347
0: NAND Flash in BUSY State
1: NAND Flash in READY State
8
R
0x1
NDFC_RB_STATE0
NAND Flash R/B 0 Line State
0: NAND Flash in BUSY State
1: NAND Flash in READY State
7:5
/
/
/
4
R
0x0
NDFC_STA
0: NDFC FSM in IDLE State
1: NDFC FSM in BUSY State
When NDFC_STA is 0, NDFC can accept new command and process
command.
3
R
0x0
NDFC_CMD_FIFO_STATUS
0: Command FIFO not full and can receive new command
1: Full and waiting NDFC to process commands in FIFO
Since there is only one 32-bit FIFO for command. When NDFC latches one
command, command FIFO is free and can accept another new command.
2
R/W1C
0x0
NDFC_DMA_INT_FLAG
When it is 1, it means that a pending DMA is completed. It will be cleared
after writing 1 to this bit or it will be automatically clear before FSM
processing an new command.
1
R/W1C
0x0
NDFC_CMD_INT_FLAG
When it is 1, it means that NDFC has finished one Normal Command Mode
or one Batch Command Work Mode. It will be cleared after writing 1 to this
bit or it will be automatically clear before FSM processing an new command.
0
R/W1C
0x0
NDFC_RB_B2R
When it is 1, it means that NDFC_R/B# signal is transferred from BUSY state
to READY state. It will be cleared after writing 1 to this bit.
5.2.5.3. NDFC Interrupt and DMA Enable Register (Default Value: 0x0000_0000)
Offset: 0x0008
Register Name: NDFC_INT
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2
R/W
0x0
NDFC_DMA_INT_ENABLE
Enable or disable interrupt when a pending DMA is completed.
1
R/W
0x0
NDFC_CMD_INT_ENABLE
Enable or disable interrupt when NDFC has finished the procession of a
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 348
single command in Normal Command Work Mode or one Batch Command
Work Mode.
0: Disable
1: Enable
0
R/W
0x0
NDFC_B2R_INT_ENABLE
Enable or disable interrupt when NDFC_RB# signal is transferring from BUSY
state to READY state.
0: Disable
1: Enable
5.2.5.4. NDFC Timing Control Register (Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: NDFC_TIMING_CTL
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
11:8
R/W
0x0
NDFC_READ_PIPE
In SDR mode:
0000: Normal
0001: EDO
0010: E-EDO
Other : Reserved
In DDR mode:
0001~1111 is valid.(These bits configure the number of clock when data is
alid afte RE#s fallig edge
7:6
/
/
/
5:0
R/W
0x0
NDFC_DC_CTL
NDFC Delay Chain Control.
These bits are only valid in DDR data interface, and configure the relative
phase etee DQS ad DQ[…]
5.2.5.5. NDFC Timing Configure Register (Default Value: 0x0000_0095)
Offset: 0x0010
Register Name: NDFC_TIMING_CFG
Bit
Read/Write
Default/Hex
Description
31:20
/
/
/
19:18
R/W
0x0
T_WC
Write Cycle Time
00: 1*2T
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 349
01: 2*2T
10: 3*2T
11: 4*2T
17:16
R/W
0x0
T_CCS
Change Column Setup Time
00: 16*2T
01: 24*2T
10: 32*2T
11: 64*2T
15:14
R/W
0x0
T_CLHZ
CLE High to Output Hi-z
00: 2*2T
01: 8*2T
10: 16*2T
11: 31*2T
13:12
R/W
0x0
T_CS
CE Setup Time
00: 2*2T
01: 8*2T
10: 16*2T
11: 31*2T
11
R/W
0x0
T_CDQSS
DQS Setup Time for Data Input Start
0: 8*2T
1: 24*2T
10:8
R/W
0x0
T_CAD
Command, Address, Data Delay
000: 4*2T
001: 8*2T
010: 12*2T
011: 16*2T
100: 24*2T
101: 32*2T
110/111: 64*2T
7:6
R/W
0x2
T_RHW
RE# High to WE# Low Cycle Number
00: 4*2T
01: 8*2T
10: 12*2T
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 350
11: 20*2T
5:4
R/W
0x1
T_WHR
WE# High to RE# Low Cycle Number
00: 8*2T
01: 16*2T
10: 24*2T
11: 32*2T
3:2
R/W
0x1
T_ADL
Address to Data Loading Cycle Number
00: 0*2T
01: 8*2T
10: 16*2T
11: 24*2T
1:0
R/W
0x1
T_WB
WE# High to Busy Cycle Number
00:14*2T
01:22*2T
10: 30*2T
11:38*2T
5.2.5.6. NDFC Address Low Word Register (Default Value: 0x0000_0000)
Offset: 0x0014
Register Name: NDFC_ADDR_LOW
Bit
Read/Write
Default/Hex
Description
31:24
R/W
0x0
ADDR_DATA4
NAND Flash 4th Cycle Address Data
23:16
R/W
0x0
ADDR_DATA3
NAND Flash 3rd Cycle Address Data
15:8
R/W
0x0
ADDR_DATA2
NAND Flash 2nd Cycle Address Data
7:0
R/W
0x0
ADDR_DATA1
NAND Flash 1st Cycle Address Data
5.2.5.7. NDFC Address High Word Register (Default Value: 0x0000_0000)
Offset: 0x0018
Register Name: NDFC_ADDR_HIGH
Bit
Read/Write
Default/Hex
Description
31:24
R/W
0x0
ADDR_DATA8
NAND Flash 8th Cycle Address Data
23:16
R/W
0x0
ADDR_DATA7
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 351
NAND Flash 7th Cycle Address Data
15:8
R/W
0x0
ADDR_DATA6
NAND Flash 6th Cycle Address Data
7:0
R/W
0x0
ADDR_DATA5
NAND Flash 5th Cycle Address Data
5.2.5.8. NDFC Data Block Number Register (Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: NDFC_DATA_BLOCK_NUM
Bit
Read/Write
Default/Hex
Description
31:6
/
/
/
5:0
R/W
0x0
NDFC_DATA_BLOCK_NUM
DATA BLOCK Number
It is used for batch command procession.
00000: no data
00001: 1 data blocks
000010: 2 data blocks
…
10000: 16 data blocks
Others: Reserved
Note: 1 data block = 512 or 1024 bytes main field data
5.2.5.9. NDFC Data Counter Register (Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: NDFC_CNT
Bit
Read/Write
Default/Hex
Description
31:10
/
/
/
9:0
R/W
0x0
NDFC_DATA_CNT
Transfer Data Byte Counter
The length can be set from 1 byte to 1024 bytes. However, 1024 bytes is set
when it is zero.
5.2.5.10. NDFC Command IO Register (Default Value: 0x0000_0000)
Offset: 0x0024
Register Name: NDFC_CMD
Bit
Read/Write
Default/Hex
Description
31:30
R/W
0x0
NDFC_CMD_TYPE
00: Common Command for normal operation
01: Special Command for Flash Spare Field Operation
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 352
10: Page Command for batch process operation
11: Reserved
29
R/W
0x0
NDFC_SEND_FOURTH_CMD
: Dot sed thid set oad
: Sed it o the eteal eos us
Note: It is used for EF-NAND page read.
28
R/W
0x0
NDFC_SEND_THIRD_CMD
: Dot sed thid set oad
: Sed it o the eteal eos us
Note: It is used for EF-NAND page read.
27
R/W
0x0
NDFC_ROW_ADDR_AUTO
Row address auto increase for page command
0: Normal operation
1: Row address increasing automatically
26
R/W
0x0
NDFC_DATA_METHOD
Data swap method when the internal RAM and system memory
It is only active for common command and special command.
0: No action
1: DMA transfer automatically
It only is active when NDFC_DATA_METHOD is 1.
If this bit is set to 1, NDFC should setup DRQ to fetch data before output to
Flash, or NDFC should setup DRQ to send out to system memory after
fetching data from Flash.
If this bit is set to 0, NDFC outputs the data to internal RAM or do nothing
after fetching data from Flash.
25
R/W
0x0
NDFC_SEQ
User data & BCH check word position.
It ol is atie fo page oad, dot ae aout this it fo othe to
commands.
0: Interleave Method (on page spare area)
1: Sequence Method (following data block)
24
R/W
0x0
NDFC_SEND_SECOND_CMD
0: Dont sed the seod set oad
: Sed it o the eteal eos us
23
R/W
0x0
NDFC_WAIT_FLAG
0: NDFC can transfer data regardless of the internal NDFC_RB wire
1: NDFC can transfer data when the internal NDFC_RB wire is READY;
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 353
otheise it at he the internal NDFC_RB wire is BUSY.
22
R/W
0x0
NDFC_SEND_FIRST_CMD
: Dot sed the fist set oad
: Sed it o the eteal eos us
21
R/W
0x0
NDFC_DATA_TRANS
0: No data transfer on external memory bus
1: Data transfer and direction is decided by the field NDFC_ACCESS_DIR.
20
R/W
0x0
NDFC_ACCESS_DIR
0: Read NAND Flash
1: Write NAND Flash
19
R/W
0x0
NDFC_SEND_ADR
: Dot sed ADDRESS
1: Send N cycles ADDRESS, the number N is specified by the field
NDFC_ADR_NUM.
18:16
R/W
0x0
NDFC_ADR_NUM
Addess Cles Nue
000: 1 cycle address field
001: 2 cycles address field
010: 3 cycles address field
011: 4 cycles address field
100: 5 cycles address field
101: 6 cycles address field
110: 7 cycles address field
111: 8 cycles address field
15:8
R/W
0x0
NDFC_CMD_HIGH_BYTE
NDFC Command High Byte Data
If 8-bit command is supported, the high byte should be zero for 16-bit bus
width NAND Flash. For 8-bit bus width NAND Flash, high byte command is
discarded.
7:0
R/W
0x0
NDFC_CMD_LOW_BYTE
NDFC Command Low Byte Data
This command will be sent to external Flash by NDFC.
5.2.5.11. NDFC Command Set Register 0 (Default Value: 0x00E0_0530)
Offset: 0x0028
Register Name: NDFC_CMD_SET0
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:16
R/W
0xE0
NDFC_RANDOM_READ_CMD1
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 354
Used for batch read operation
15:8
R/W
0x05
NDFC_RANDOM_READ_CMD0
Used for batch read operation
7:0
R/W
0x30
NDFC_READ_CMD
Used for batch read operation
5.2.5.12. NDFC Command Set Register 1 (Default Value: 0x7000_8510)
Offset: 0x002C
Register Name: NDFC_CMD_SET1
Bit
Read/Write
Default/Hex
Description
31:16
R/W
0x70
NDFC_READ_CMD0
Used for EF-NAND page read operation
23:16
R/W
0x00
NDFC_READ_CMD1
Used for EF-NAND page read operation
15:8
R/W
0x85
NDFC_RANDOM_WRITE_CMD
Used for batch write operation
7:0
R/W
0x10
NDFC_PROGRAM_CMD
Used for batch write operation
5.2.5.13. NDFC ECC Control Register (Default Value: 0x4A80_0008)
Offset: 0x0034
Register Name: NDFC_ECC_CTL
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:16
R/W
0x4A80
NDFC_RANDOM_SEED
The seed value for randomize engine. It is only active when
NDFC_RANDOM_EN is set to .
15:12
R/W
0x0
NDFC_ECC_MODE
0000: BCH-16 for one ECC Data Block
0001: BCH-24 for one ECC Data Block
0010 : BCH-28 for one ECC Data Block
0011 : BCH-32 for one ECC Data Block
0100 : BCH-40 for one ECC Data Block
0101 : BCH-48 for one ECC Data Block
0110 : BCH-56 for one ECC Data Block
0111 : BCH-60 for one ECC Data Block
1000 : BCH-64 for one ECC Data Block
Others: Reserved
11
R/W
0x0
NDFC_RANDOM_SIZE
0: ECC block size
1: Page size
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 355
10
R/W
0x0
NDFC_RANDOM_DIRECTION
0: LSB first
1: MSB first
9
R/W
0x0
NDFC_RANDOM_EN
0: Disable Data Randomize
1: Enable Data Randomize
8:6
/
/
/
5
R/W
0x0
NDFC_ECC_BLOCK_SIZE
0: 1024 bytes of one ECC data block
1: 512 bytes of one ECC data block
4
R/W
0x0
NDFC_ECC_EXCEPTION
0: Normal ECC
1: For ECC, there is an exception. If all data is 0xff or 0x00 for the block.
When reading this page, ECC assumes that it is right. For this case, no error
information is reported.
Note: It only is active when ECC is ON
3
R/W
0x1
NDFC_ECC_PIPELINE
Pipeline function enable or disable for batch command
0: Error correction function no pipeline with next block operation
1: Error correction pipeline
2:1
/
/
/
0
R/W
0x0
NDFC_ECC_EN
0: ECC is OFF
1: ECC is ON
5.2.5.14. NDFC ECC Status Register (Default Value: 0x0000_0000)
Offset: 0x0038
Register Name: NDFC_ECC_ST
Bit
Read/Write
Default/Hex
Description
31:16
R
0x0
NDFC_PAT_FOUND
Special Pattern (all 0x00 or all 0xff) Found Flag for 16 Data Blocks
0: No Found
1: Special pattern is found
Whe this field is , this eas that the speial data is foud fo eadig
external NAND flash. The NDFC_PAT_ID register indicates which pattern is
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 356
found.
15:0
R
0x0
NDFC_ECC_ERR
Error information bit of 16 Data Blocks
0: ECC can correct these error bits or there is no error bit
: Eoits ue eod of ECC oetio apailit ad at oet
them
Note: The LSB of this register is corresponding the 1st ECC data block. 1 ECC
Data Block = 512 or 1024 bytes.
5.2.5.15. NDFC Enhanced Feature Register (Default Value: 0x0000_0000)
Offset: 0x003C
Register Name: NDFC_EFR
Bit
Read/Write
Default/Hex
Description
31:9
R/W
0x0
/
8
R/W
0x0
NDFC_WP_CTRL
NAND Flash Write Protect Control Bit
0: Write Protect is active
1: Write Protect is not active
Note: Whe this it is , WP sigal lie is lo leel ad eteal NAND flash
is on protected state.
7
/
/
/
6:0
R/W
0x0
NDFC_ECC_DEBUG
For the purpose of debugging ECC engine, the special bits error are inserted
before writing external Flash Memory.
0: No error is inserted (ECC Normal Operation)
n: N bits error are inserted
5.2.5.16. NDFC Error Counter Register 0 (Default Value: 0x0000_0000)
Offset: 0x0040
Register Name: NDFC_ERR_CNT0
Bit
Read/Write
Default/Hex
Description
31:24
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[3]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 357
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
23:16
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[3]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
15:8
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[3]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
7:0
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[3]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
5.2.5.17. NDFC Error Counter Register 1 (Default Value: 0x0000_0000)
Offset: 0x0044
Register Name: NDFC_ERR_CNT1
Bit
Read/Write
Default/Hex
Description
31:24
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[7]
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 358
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
23:16
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[6]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
15:8
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[5]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
7:0
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[4]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 359
5.2.5.18. NDFC Error Counter Register 2 (Default Value: 0x0000_0000)
Offset: 0x0048
Register Name: NDFC_ERR_CNT2
Bit
Read/Write
Default/Hex
Description
31:24
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[11]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
23:16
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[10]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
15:8
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[9]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
7:0
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[8]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 360
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
5.2.5.19. NDFC Error Counter Register 3 (Default Value: 0x0000_0000)
Offset: 0x004C
Register Name: NDFC_ERR_CNT3
Bit
Read/Write
Default/Hex
Description
31:24
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[15]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
23:16
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[14]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
15:8
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[13]
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
7:0
R
0x0
ECC_COR_NUM
ECC Corrected Bits Number for ECC Data Block[12]
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 361
00000000: No corrected bits
00000001: 1 corrected bit
00000010: 2 corrected bits
…
01000000: 64 corrected bits
Others: Reserved
Note: 1 ECC Data Block = 512 or 1024 bytes
5.2.5.20. NDFC User Data Register [N] (Default Value: 0xFFFF_FFFF)
Offset: 0x0050 + N*0x04 (N=0~15)
Register Name: NDFC_USER_DATAN
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0xffffffff
USER_DATA
User data for ECC Data Block[N] (N from 0 to 15)
Note: 1 ECC Data Block = 512 or 1024 bytes
5.2.5.21. NDFC EFNAND STATUS Register (Default Value: 0x0000_0000)
Offset: 0x0090
Register Name: NDFC_EFNAND_STATUS
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R
0x0
EF_NAND_STATUS
The status value for EF-NAND page read operation
5.2.5.22. NDFC Spare Area Register (Default Value: 0x0000_0400)
Offset: 0x00A0
Register Name: NDFC_SPARE_AREA
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x400
NDFC_SPARE_ADR
This value indicates the first byte address of the spare area for NDFC
interleave page operation.
5.2.5.23. NDFC Pattern ID Register (Default Value: 0x0000_0000)
Offset: 0x00A4
Register Name: NDFC_PAT_ID
Bit
Read/Write
Default/Hex
Description
31:30
R
0x0
PAT_ID
Special Pattern ID for ECC data block[15]
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 362
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
29:28
R
0x0
PAT_ID
Special Pattern ID for ECC data block[14]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
27:26
R
0x0
PAT_ID
Special Pattern ID for ECC data block[13]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
25:24
R
0x0
PAT_ID
Special Pattern ID for ECC data block[12]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
23:22
R
0x0
PAT_ID
Special Pattern ID for ECC data block[11]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
21:20
R
0x0
PAT_ID
Special Pattern ID for ECC data block[10]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
19:18
R
0x0
PAT_ID
Special Pattern ID for ECC data block[9]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
17:16
R
0x0
PAT_ID
Special Pattern ID for ECC data block[8]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 363
15:14
R
0x0
PAT_ID
Special Pattern ID for ECC data block[7]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
13:12
R
0x0
PAT_ID
Special Pattern ID for ECC data block[6]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
11:10
R
0x0
PAT_ID
Special Pattern ID for ECC data block[5]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
9:8
R
0x0
PAT_ID
Special Pattern ID for ECC data block[4]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
7:6
R
0x0
PAT_ID
Special Pattern ID for ECC data block[3]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
5:4
R
0x0
PAT_ID
Special Pattern ID for ECC data block[2]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
3:2
R
0x0
PAT_ID
Special Pattern ID for ECC data block[1]
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
1:0
R
0x0
PAT_ID
Special Pattern ID for ECC data block[0]
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 364
0: All 0x00 is found
1: All 0xFF is found
Others: Reserved
5.2.5.24. NDFC Read Data Status Control Register (Default Value: 0x0100_0000)
Offset: 0x00A8
Register Name: NDFC_RDATA_STA_CTL
Bit
Read/Write
Default/Hex
Description
31:25
/
/
/
24
R/W
0x1
NDFC_RDATA_STA_EN
0: Disable to count the number of bit 1 and bit 0 during current read
operation.
1: Enable to count the number of bit 1 and bit 0 during current read
operation.
The number of bit 1 and bit 0 during current read operation can be used to
check whether a page is blank or bad.
23:18
/
/
/
17:0
R/W
0x0
NDFC_RDATA_STA_TH
The threshold value to generate data status.
If the number of bit 1 during current read operation is less than or equal to
threshold value, the NDFC_RDATA_STA_0 bit will be set.
If the number of bit 0 during current read operation is less than or equal to
threshold value, the NDFC_RDATA_STA_1 bit will be set.
5.2.5.25. NDFC Read Data Status Register 0 (Default Value: 0x0000_0000)
Offset: 0x00AC
Register Name: NDFC_RDATA_STA_0
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
BIT_CNT_1
The number of input bit 1 during current command. It will be cleared
automatically when next command is executed.
5.2.5.26. NDFC Read Data Status Register 1 (Default Value: 0x0000_0000)
Offset: 0x00B0
Register Name: NDFC_RDATA_STA_1
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
BIT_CNT_0
The number of input bit 0 during current command. It will be cleared
automatically when next command is executed.
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 365
5.2.5.27. NDFC MBUS DMA Address Register (Default Value: 0x0000_0000)
Offset: 0x00C0
Register Name: NDFC_MDMA_ADDR
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
MDMA_ADDR
MBUS DMA address
5.2.5.28. NDFC MBUS DMA Byte Counter Register (Default Value: 0x0000_0000)
Offset: 0x00C4
Register Name: NDFC_MDMA_CNT
Bit
Read/Write
Default/Hex
Description
31:15
/
/
/
14:0
R/W
0x0
MDMA_CNT
MBUS DMA data counter
5.2.5.29. NDFC Normal DMA Mode Control Register (Default Value: 0x0000_00A5)
Offset: 0x00D0
Register Name: NDFC_NDMA_MODE_CTL
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0xA5
NDMA_MODE_CTL
0xEA: NDMA handshake mode
Note: NDMA ait ode dot ae this alue.A a e also used i
handshake mode, but 0xEA is better.
5.2.5.30. NDFC IO Data Register (Default Value: 0x0000_0000)
Offset: 0x0300
Register Name: NDFC_IO_DATA
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
NDFC_IO_DATA
Read/Write data into the internal RAM
Access unit is 32-bit.
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 366
5.3. SD/MMC Host Controller(SMHC)
5.3.1. Overview
The SD/MMC Host Controller(SMHC) provides three controllers including SD card,MMC and SDIO device. SMHC
controls the read/write operations on the secure digital(SD) card ,multimedia card(MMC), and supports extended Wi-Fi
devices based on the secure digital input/output(SDIO) protocol.
Features:
SMHC0 controls the devices that comply with the Secure Digital Memory(SD2.0) protocol
SMHC1 controls the devices that comply with the following protocols:
- Secure Digital Memory (SD3.0)
- Secure Digital Input/Output (SDIO 3.0)
SMHC2 controls the devices that comply with the following protocols:
- Secure Digital Memory (SD3.0)
- Multimedia Card (eMMC 5.0/5.1)
Supports hardware CRC generation and error detection
Supports host pull-up control
Supports block size of 1 to 65535 bytes
Supports descriptor-based internal DMA controller
Internal 1024 bytes FIFO for data transfer
5.3.2. Block Diagram
Figure 5-16. SMHC Block Diagram
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 367
5.3.3. Operations and Functional Descriptions
5.3.3.1. External Signals
Table 5-3 describes the external signals of SMHC.
Table 5-3. SMHC External Signals
Port Name
Width
Direction
Description
SDC0_CLK
1
O
Clock output for SD/TF card
SDC0_CMD
1
I/O
CMD line for SD/TF card
SDC0_D[i] (i=0~3)
4
I/O
Data line for SD/TF card
SDC1_CLK
1
O
Clock output for SDIO Wi-Fi
SDC1_CMD
1
I/O
CMD line for SDIO Wi-Fi
SDC1_D[i] (i=0~3)
4
I/O
Data line for SDIO Wi-Fi
SDC2_CLK
1
O
Clock output for MMC
SDC2_CMD
1
I/O
CMD line for MMC
SDC2_D[i] (i=0~7)
8
I/O
Data line for MMC
SDC2_RST
1
O
Reset signal for MMC
5.3.3.2. Clock Sources
Each SMHC gets three different clocks. User can select one of them to make SMHC clock source. Table 5-4 describes the
clock sources of SMHC. Users can see CCU for clock setting, configuration and gating information.
Table 5-4. SMHC Clock Sources
Clock Sources
Description
OSC24M
24MHz Crystal
PLL_PERIPH0(2X)
Peripheral Clock, the default value is 1.2GHz
PLL_PERIPH1(2X)
Peripheral Clock, the default value is 1.2GHz
5.3.3.3. SMHC Timing Diagram
Please refer to relative specifications:
Physical Layer Specification Ver3.00 Final
SDIO Specification Ver3.00
Multimedia Cards (MMC – version 4.2)
JEDEC Standard – JESD84-44, Embedded Multimedia Card(eMMC) Card Product Standard
JEDEC Standard – JESD84-B45, Embedded Multimedia Card(eMMC) Electrical Standard(4.5 Device)
JEDEC Standard – JESD84-B50, Embedded Multimedia Card (eMMC) Electrical Standard(5.0)
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 368
5.3.3.4. Internal DMA Controller Description
SD/MMC controller has an internal DMA controller (IDMAC) to transfer data between host memory and SDMMC port.
With a descriptor, IDMAC can efficiently move data from source to destination by automatically loading next DMA
transfer arguments, which need less CPU intervention. Before transfer data in IDMAC, host driver should construct a
descriptor list, configure arguments of every DMA transfer, then launch the descriptor and start the DMA. IDMAC has an
interrupt controller, when enabled, it can interrupt the HOST CPU in situations such as data transmission completed or
some errors happened.
5.3.3.4.1. IDMAC Descriptor Structure
The IDMAC uses a descriptor with a chain structure, and each descriptor points to a unique buffer and the next
descriptor.
This figure illustrates the internal formats of a descriptor. The descriptor address must be aligned to the bus width used
for 32-bit buses. Each descriptor contains 16 bytes of control and status information.
DES0 is a notation used to denote the [31:0] bits, DES1 to denote [63:32] bits, DES2 to denote [95:64] bits, and DES3 to
denote [127:96] bits in a descriptor.
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 369
5.3.3.4.2. DES0 Definition
Bits
Name
Descriptor
31
HOLD
DES_OWN_FLAG
When set, this bit indicates that the descriptor is owned by the IDMAC.
When this bit is reset, it indicates that the descriptor is owned by the
host. This bit is cleared when transfer is over.
30
ERROR
ERR_FLAG
When some error happened in transfer, this bit will be set.
29:6
/
/
5
/
Not used
4
Chain Flag
CHAIM_MOD
When set, this bit indicates that the second address in descriptor is the
next descriptor address. Must be set 1.
3
First DES Flag
FIRST_FLAG
When set, this bit indicates that this descriptor contains the first buffer
of data. Must be set to 1 in first DES.
2
Last DES Flag
LAST_FLAG
When set, this bit indicates that the buffers pointed to by this
descriptor are the last data buffer
1
Disable Interrupt on completion
CUR_TXRX_OVER_INT_DIS
When set, this bit will prevent the setting of the TX/RX interrupt bit of
the IDMAC status register for data that ends in the buffer pointed to by
this descriptor
0
/
/
5.3.3.4.3. DES1 Definition
Bits
Name
Descriptor
31:16
/
/
15:0
Buffer size
BUFF_SIZE
These bits indicate the data buffer byte size, which must be a multiple
of 4 bytes. If this filed is 0, the DMA ignores this buffer and proceeds to
the next descriptor.
5.3.3.4.4. DES2 Definition
Bits
Name
Descriptor
31:0
Buffer address pointer
BUFF_ADDR
These bits indicate the physical address of data buffer. The IDMAC
ignores DES2[1:0], corresponding to the bus width of 32.
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 370
5.3.3.4.5. DES3 Definition
Bits
Name
Descriptor
31:0
Next descriptor address
NEXT_DESP_ADDR
These bits indicate the pointer to the physical memory where the next
descriptor is present.
5.3.3.5. Calibrate Delay Chain
The sample clock delay chain and Data Strobe delay chain(only in SMHC2) are used to generate delay to make proper
timing between sample clock/Data Strobe and data signals. Each delay chain is made up with 64 delay cells. The delay
time of one delay cell can be estimated through delay chain calibration.
The steps to calibrate delay chain are as follows:
Step1: Enable SMHC. In order to calibrate delay chain by operation registers in SMHC, SMHC must be enabled through
Bus Software Reset Register 0 and Bus Clock Gating Register0.
Step2: Configure a proper clock for SMHC. Calibration delay chain is based on the clock for SMHC from Clock Control
Unit(CCU). Calibration delay chain a internal function in SMHC and dont need device. So, it is unnecessary to open
clock signal for device. The recommended clock frequency is 200MHz.
Step3: Set proper initial delay value. Writing 0xA0 to delay control register enables Delay Software Enable (bit[7]) and
sets initial delay value 0x20 to Delay chain(bit[5:0]). Then write 0x0 to delay control register to clear the value.
Step4: Write 0x8000 to delay control register to start calibrate delay chain.
Step5: Wait until the flag(Bit14 in delay control register) of calibration done is set. The number of delay cells is shown
at Bit8~Bit13 in delay control register. The delay time generated by these delay cells is equal to the cycle of SMHCs
clock nearly. This value is the result of calibration.
Step6: Calculate the delay time of one delay cell according to the cycle of SMHCs clock and the result of calibration.
Note: In the above descriptions,delay control register contains SMHC Sample Delay Control Register and SMHC Data
Strobe Delay Control Register.Delay Software Enable contains Sample Delay Software Enable and Data Strobe Delay
Software Enable. Delay chain contains Sample Delay Software and Data Strobe Delay Software.
5.3.4. Register List
Module Name
Base Address
SMHC0
0x01C0F000
SMHC1
0x01C10000
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 371
SMHC2
0x01C11000
Register Name
Offset
Description
SMHC_GCTL
0x0000
Control Register
SMHC_CKCR
0x0004
Clock Control Register
SMHC_TMOR
0x0008
Time Out Register
SMHC_BWDR
0x000C
Bus Width Register
SMHC_BKSR
0x0010
Block Size Register
SMHC_BYCR
0x0014
Byte Count Register
SMHC_CMDR
0x0018
Command Register
SMHC_CAGR
0x001C
Command Argument Register
SMHC_RESP0
0x0020
Response 0 Register
SMHC_RESP1
0x0024
Response 1 Register
SMHC_RESP2
0x0028
Response 2 Register
SMHC_RESP3
0x002C
Response 3 Register
SMHC_IMKR
0x0030
Interrupt Mask Register
SMHC_MISR
0x0034
Masked Interrupt Status Register
SMHC_RISR
0x0038
Raw Interrupt Status Register
SMHC_STAR
0x003C
Status Register
SMHC_FWLR
0x0040
FIFO Water Level Register
SMHC_FUNS
0x0044
FIFO Function Select Register
SMHC_A12A
0x0058
Auto Command 12 Argument
SMHC_NTSR
0x005C
SD New Timing Set Register
SMHC_SDBG
0x0060
SD New Timing Set Debug Register
SMHC_HWRST
0x0078
Hardware Reset Register
SMHC_DMAC
0x0080
BUS Mode Control
SMHC_DLBA
0x0084
Descriptor List Base Address
SMHC_IDST
0x0088
DMAC Status
SMHC_IDIE
0x008C
DMAC Interrupt Enable
SMHC_CHDA
0x0090
Current Host Descriptor Address Register
SMHC_CBDA
0x0094
Current Buffer Descriptor Address Register
SMHC_THLDC
0x0100
Card Threshold Control Register
SMHC_DSBD
0x010C
eMMC4.5 DDR Start Bit Detection Control
SMHC_RES_CRC
0x0110
Response CRC from Device
SMHC_DATA7_CRC
0x0114
CRC Data7 from Card/eMMC
SMHC_DATA6_CRC
0x0118
CRC Data6 from Card/eMMC
SMHC_DATA5_CRC
0x011C
CRC Data5 from Card/eMMC
SMHC_DATA4_CRC
0x0120
CRC Data4 from Card/eMMC
SMHC_DATA3_CRC
0x0124
CRC Data3 from Card/eMMC
SMHC_DATA2_CRC
0x0128
CRC Data2 from Card/eMMC
SMHC_DATA1_CRC
0x012C
CRC Data1 from Card/eMMC
SMHC_DATA0_CRC
0x0130
CRC Data0 from Card/eMMC
SMHC_CRC_STA
0x0134
CRC Status from Device in Write Operation
SMHC_DRV_DL
0x0140
Drive Delay Control Register
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 372
SMHC_SMAP_DL
0x0144
Sample Delay Control Register
SMHC_DS_DL
0x0148
Data Strobe Delay Control Register
SMHC_FIFO
0x0200
Read/Write FIFO
5.3.5. Register Description
5.3.5.1. SMHC Global Control Register (Default Value: 0x0000_0100)
Offset: 0x0000
Register Name: SMHC_CTRL
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
FIFO_AC_MOD
FIFO Access Mode
0: DMA bus
1: AHB bus
30:13
/
/
/
12
R/W
0x0
TIME_UNIT_CMD
Time unit for command line
Time unit used to calculate command line time out value defined in
RTO_LMT.
0: 1 card clock period
1: 256 card clock period
11
R/W
0x0
TIME_UNIT_DAT
Time unit for data line
Time unit used to calculate data line time out value defined in DTO_LMT.
0: 1card clock period
1: 256 card clock period
10
R/W
0x0
DDR_MOD_SEL
DDR Mode Select
0: SDR mode
1: DDR mode
9
/
/
/
8
R/W
0x1
CD_DBC_ENB
Card Detect (Data[3] status) De-bounce Enable
0: Disable de-bounce
1: Enable de-bounce
7:6
/
/
/
5
R/W
0x0
DMA_ENB
DMA Global Enable
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 373
0: Disable DMA to transfer data, using AHB bus
1: Enable DMA to transfer data
4
R/W
0x0
INT_ENB
Global Interrupt Enable
0: Disable interrupts
1: Enable interrupts
3
/
/
/
2
R/W
0x0
DMA_RST
DMA Reset
1
R/W
0x0
FIFO_RST
FIFO Reset
0: No change
1: Reset FIFO
This bit is auto-cleared after completion of reset operation.
0
R/W
0x0
SOFT_RST
Software Reset
0: No change
1: Reset SD/MMC controller
This bit is auto-cleared after completion of reset operation.
5.3.5.2. SMHC Clock Control Register (Default Value: 0x0000_0000)
Offset: 0x0004
Register Name: SMHC_CLKDIV
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
MASK_DATA0
0: Do not mask data0 when update clock
1: Mask data0 when update clock
30:18
/
/
/
17
R/W
0x0
CCLK_CTRL
Card Clock Output Control
0: Card clock always on
1: Turn off card clock when FSM in IDLE state
16
R/W
0x0
CCLK_ENB
Card Clock Enable
0: Card Clock off
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 374
1: Card Clock on
15:8
/
/
/
7:0
R/W
0x0
CCLK_DIV
Card Clock Divider
n: Source clock is divided by 2*n.(n=0~255)
5.3.5.3. SMHC Timeout Register (Default Value: 0xFFFF_FF40)
Offset: 0x0008
Register Name: SMHC_TMOUT
Bit
Read/Write
Default/Hex
Description
31:8
R/W
0xffffff
DTO_LMT
Data Timeout Limit
7:0
R/W
0x40
RTO_LMT
Response Timeout Limit
5.3.5.4. SMHC Bus Width Register (Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: SMHC_CTYPE
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
1:0
R/W
0x0
CARD_WID
Card Width
00: 1-bit width
01: 4-bit width
1x: 8-bit width
5.3.5.5. SMHC Block Size Register (Default Value: 0x0000_0200)
Offset: 0x0010
Register Name: SMHC_BLKSIZ
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x200
BLK_SZ
Block Size
5.3.5.6. SMHC Block Count Register (Default Value: 0x0000_0200)
Offset: 0x0014
Register Name: SMHC_BYTCNT
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x200
BYTE_CNT
Byte Counter
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 375
Number of bytes to be transferred. It should be integer multiple of Block Size
for block transfers.
5.3.5.7. SMHC Command Register (Default Value: 0x0000_0000)
Offset: 0x0018
Register Name: SMHC_CMD
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
CMD_LOAD
Start Command.
This bit is automatically cleared when current command is sent. If there is no
any response error happened, a command complete interrupt bit
(CMD_OVER) will be set in interrupt register. You should not write any other
command before this bit is cleared, or a command busy interrupt bit
(CMD_BUSY) will be set in interrupt register.
30:29
/
/
/
28
R/W
0x0
VOL_SW
Voltage Switch
0: Normal command
1: Voltage switch command, set for CMD11 only
27
R/W
0x0
BOOT_ABT
Boot Abort
Setting this bit will terminate the boot operation.
26
R/W
0x0
EXP_BOOT_ACK
Expect Boot Acknowledge.
When Software sets this bit along in mandatory boot operation, the
controller expects a boot acknowledge start pattern of 0-1-0 from the
selected card.
25:24
R/W
0x0
BOOT_MOD
Boot Mode
00: Normal command
01: Mandatory Boot operation
10: Alternate Boot operation
11: Reserved
23:22
/
/
/
21
R/W
0x0
PRG_CLK
Change Clock
0: Normal command
1: Change Card Clock. When this bit is set, the controller will change clock
domain and clock output. No command will be sent.
20:16
/
/
/
15
R/W
0x0
SEND_INIT_SEQ
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 376
Send Initialization
0: Normal command sending
1: Send initialization sequence before sending this command.
14
R/W
0x0
STOP_ABT_CMD
Stop Abort Command
0: Normal command sending
1: Send Stop or abort command to stop current data transfer in
progress.(CMD12, CMD52 for writing ‚I/O Abort‛ in SDIO CCCR)
13
R/W
0x0
WAIT_PRE_OVER
Wait Data Transfer Over
0: Send command at once, do not care of data transferring
1: Wait for data transfer completion before sending current command
12
R/W
0x0
STOP_CMD_FLAG
Send Stop CMD Automatically (CMD12)
0: Do not send stop command at end of data transfer
1: Send stop command automatically at end of data transfer
11
R/W
0x0
TRANS_MODE
Transfer Mode
0: Block data transfer command
1: Stream data transfer command
10
R/W
0x0
TRANS_DIR
Transfer Direction
0: Read operation
1: Write operation
9
R/W
0x0
DATA_TRANS
Data Transfer
0: Without data transfer
1: With data transfer
8
R/W
0x0
CHK_RESP_CRC
Check Response CRC
0: Do not check response CRC
1: Check response CRC
7
R/W
0x0
LONG_RESP
Response Type
0: Short Response (48-bit)
1: Long Response (136-bit)
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 377
6
R/W
0x0
RESP_RCV
Response Receive
0: Command without Response
1: Command with Response
5:0
R/W
0x0
CMD_IDX
CMD Index
Command index value
5.3.5.8. SMHC Command Argument Register (Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: SMHC_CMDARG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
CMD_ARG
Command Argument
5.3.5.9. SMHC Response 0 Register (Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: SMHC_RESP0
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
CMD_RESP0
Response 0
Bit[31:0] of response
5.3.5.10. SMHC Response 1 Register (Default Value: 0x0000_0000)
Offset: 0x0024
Register Name: SMHC_RESP1
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
CMD_RESP1
Response 1
Bit[63:31] of response
5.3.5.11. SMHC Response 2 Register (Default Value: 0x0000_0000)
Offset: 0x0028
Register Name: SMHC_RESP2
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
CMD_RESP2
Response 2
Bit[95:64] of response
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 378
5.3.5.12. SMHC Response 3 Register (Default Value: 0x0000_0000)
Offset: 0x002C
Register Name: SMHC_RESP3
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
CMD_RESP3
Response 3
Bit[127:96] of response
5.3.5.13. SMHC Interrupt Mask Register (Default Value: 0x0000_0000)
Offset: 0x0030
Register Name: SMHC_INTMASK
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
CARD_REMOVAL_INT_EN
Card Removed Interrupt Enable
30
R/W
0x0
CARD_INSERT_INT_EN
Card Inserted Interrupt Enable
29:17
/
/
/
16
R/W
0x0
SDIO_INT_EN
SDIO Interrupt Enable
15
R/W
0x0
DEE_INT_EN
Data End-bit Error Interrupt Enable
14
R/W
0x0
ACD_INT_EN
Auto Command Done Interrupt Enable
13
R/W
0x0
DSE_BC_INT_EN
Data Start Error Interrupt Enable
12
R/W
0x0
CB_IW_INT_EN
Command Busy and Illegal Write Interrupt Enable
11
R/W
0x0
FU_FO_INT_EN
FIFO Underrun/Overflow Interrupt Enable
10
R/W
0x0
DSTO_VSD_INT_EN
Data Starvation Timeout/V1.8 Switch Done Interrupt Enable
9
R/W
0x0
DTO_BDS_INT_EN
Data Timeout/Boot Data Start Interrupt Enable
8
R/W
0x0
RTO_BACK_INT_EN
Response Timeout/Boot ACK Received Interrupt Enable
7
R/W
0x0
DCE_INT_EN
Data CRC Error Interrupt Enable
6
R/W
0x0
RCE_INT_EN
Response CRC Error Interrupt Enable
5
R/W
0x0
DRR_INT_EN
Data Receive Request Interrupt Enable
4
R/W
0x0
DTR_INT_EN
Data Transmit Request Interrupt Enable
3
R/W
0x0
DTC_INT_EN
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 379
Data Transfer Complete Interrupt Enable
2
R/W
0x0
CC_INT_EN
Command Complete Interrupt Enable
1
R/W
0x0
RE_INT_EN
Response Error Interrupt Enable
0
/
/
/
5.3.5.14. SMHC Masked Interrupt Status Register (Default Value: 0x0000_0000)
Offset: 0x0034
Register Name: SMHC_MINTSTS
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
M_CARD_REMOVAL_INT
Card Removed
30
R/W
0x0
M_CARD_INSERT
Card Inserted
29:17
/
/
/
16
R/W
0x0
M_SDIO_INT
SDIO Interrupt
15
R/W
0x0
M_DEE_INT
Data End-bit Error
When set during receiving data, it means that host controller does not
receive valid data end bit.
When set during transmitting data, it means that host controller does not
receive CRC status taken or received CRC status taken is negative.
14
R/W
0x0
M_ACD_INT
Auto Command Done
When set, it means auto stop command(CMD12) completed.
13
R/W
0x0
M_DSE_BC_INT
Data Start Error
When set during receiving data, it means that host controller found a error
start bit.
When set during transmitting data, it means that busy signal is cleared.
12
R/W
0x0
M_CB_IW_INT
Command Busy and Illegal Write
11
R/W
0x0
M_FU_FO_INT
FIFO Underrun/Overflow
10
R/W
0x0
M_DSTO_VSD_INT
Data Starvation Timeout/V1.8 Switch Done
9
R/W
0x0
M_DTO_BDS_INT
Data Timeout/Boot Data Start
8
R/W
0x0
M_RTO_BACK_INT
Response Timeout/Boot ACK Received
7
R/W
0x0
M_DCE_INT
Data CRC Error
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 380
When set during receiving data, it means that the received data have data
CRC error.
When set during transmitting data, it means that the received CRC status
taken is negative.
6
R/W
0x0
M_RCE_INT
Response CRC Error
5
R/W
0x0
M_DRR_INT
Data Receive Request
When set, it means that there are enough data in FIFO during receiving data.
4
R/W
0x0
M_DTR_INT
Data Transmit Request
When set, it means that there is enough space in FIFO during transmitting
data.
3
R/W
0x0
M_DTC_INT
Data Transfer Complete
2
R/W
0x0
M_CC_INT
Command Complete
1
R/W
0x0
M_RE_INT
Response Error (no response or response CRC error)
When set, Transmit Bit error or End Bit error or CMD Index error may occur.
0
/
/
/
5.3.5.15. SMHC Raw Interrupt Status Register (Default Value: 0x0000_0000)
Offset: 0x0038
Register Name: SMHC_RINTSTS
Bit
Read/Write
Default/Hex
Description
31
R/W1C
0x0
CARD_REMOVAL
Card Removed
This is write-1-to-clear bit.
30
R/W1C
0x0
CARD_INSERT
Card Inserted
This is write-1-to-clear bit.
29:17
/
/
/
16
R/W1C
0x0
SDIOI_INT
SDIO Interrupt
This is write-1-to-clear bit.
15
R/W1C
0x0
DEE
Data End-bit Error
When set during receiving data, it means that host controller does not
receive valid data end bit.
When set during transmitting data, it means that host controller does not
receive CRC status taken.
This is write-1-to-clear bit.
14
R/W1C
0x0
ACD
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 381
Auto Command Done
When set, it means auto stop command(CMD12) completed.
This is write-1-to-clear bit.
13
R/W1C
0x0
DSE_BC
Data Start Error
When set during receiving data, it means that host controller found a error
start bit.
When set during transmitting data, it means that busy signal is cleared.
This is write-1-to-clear bit.
12
R/W1C
0x0
CB_IW
Command Busy and Illegal Write
This is write-1-to-clear bit.
11
R/W1C
0x0
FU_FO
FIFO Underrun/Overflow
This is write-1-to-clear bit.
10
R/W1C
0x0
DSTO_VSD
Data Starvation Timeout/V1.8 Switch Done
This is write-1-to-clear bit.
9
R/W1C
0x0
DTO_BDS
Data Timeout/Boot Data Start
This is write-1-to-clear bit.
8
R/W1C
0x0
RTO_BACK
Response Timeout/Boot ACK Received
This is write-1-to-clear bit.
7
R/W1C
0x0
DCE
Data CRC Error
When set during receiving data, it means that the received data have data
CRC error.
When set during transmitting data, it means that the received CRC status
taken is negative.
This is write-1-to-clear bit.
6
R/W1C
0x0
RCE
Response CRC Error
This is write-1-to-clear bit.
5
R/W1C
0x0
DRR
Data Receive Request
When set, it means that there are enough data in FIFO during receiving data.
This is write-1-to-clear bit.
4
R/W1C
0x0
DTR
Data Transmit Request
When set, it means that there is enough space in FIFO during transmitting
data.
This is write-1-to-clear bit.
3
R/W1C
0x0
DTC
Data Transfer Complete
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 382
This is write-1-to-clear bit.
2
R/W1C
0x0
CC
Command Complete
This is write-1-to-clear bit.
1
R/W1C
0x0
RE
Response Error (no response or response CRC error)
When set, Transmit Bit error or End Bit error or CMD Index error may occur.
This is write-1-to-clear bit.
0
/
/
/
5.3.5.16. SMHC Status Register (Default Value: 0x0000_0006)
Offset: 0x003C
Register Name: SMHC_STATUS
Bit
Read/Write
Default/Hex
Description
31
R
0x0
DMA_REQ
DMA Request
DMA request signal state
30:26
/
/
/
25:17
R
0x0
FIFO_LEVEL
FIFO Level
Number of filled locations in FIFO
16:11
R
0x0
RESP_IDX
Response Index
Index of previous response, including any auto-stop sent by controller
10
R
0x0
FSM_BUSY
Data FSM Busy
Data transmit or receive state-machine is busy
9
R
0x0
CARD_BUSY
Card Data Busy
Inverted version of DATA[0]
0: Card data not busy
1: Card data busy
8
R
0x0
CARD_PRESENT
Data[3] Status
Level of DATA[3]; checks whether card is present
0: Card not present
1: Card present
7:4
R
0x0
FSM_STA
Command FSM States
0000: Idle
0001: Send init sequence
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 383
0010: TX CMD start bit
0011: TX CMD TX bit
0100: TX CMD index + argument
0101: TX CMD CRC7
0110: TX CMD end bit
0111: RX response start bit
1000: RX response IRQ response
1001: RX response TX bit
1010: RX response CMD index
1011: RX response data
1100: RX response CRC7
1101: RX response end bit
1110: CMD path wait NCC
1111: Wait; CMD-to-response turnaround
3
R
0x0
FIFO_FULL
FIFO Full
0: FIFO not full
1: FIFO full
2
R
0x1
FIFO_EMPTY
FIFO Empty
0: FIFO not empty
1: FIFO empty
1
R
0x1
FIFO_TX_LEVEL
FIFO TX Water Level Flag
0: FIFO didnt reach transmit trigger level
1: FIFO reached transmit trigger level
0
R
0x0
FIFO_RX_LEVEL
FIFO TX Water Level Flag
0: FIFO didnt reach receive trigger level
1: FIFO reached receive trigger level
5.3.5.17. SMHC FIFO Water Level Register (Default Value: 0x000F_0000)
Offset: 0x0040
Register Name: SMHC_FIFOTH
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x0
BSIZE_OF_TRANS
Burst size of multiple transaction
000: 1 transfers
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 384
001: 4
010: 8
011: 16 (only SMHC2 support)
Others: Reserved
Should be programmed same as DMA controller multiple transaction size.
The units for transfers are the DWORD. A single transfer would be signaled
based on this value. Value should be sub-multiple of (RX_TL + 1) and
(FIFO_DEPTH - TX_TL)
Recommended: MSize = 16, TX_TL = 240, RX_TL = 15(SMHC2)
27:24
/
/
/
23:16
R/W
0xF
RX_TL
RX Trigger Level
0x0~0xFE: RX Trigger Level is 0~254
0xFF: Reserved
FIFO threshold when FIFO request host to receive data from FIFO. When FIFO
data level is greater than this value, DMA request is raised if DMA enabled,
or RX interrupt bit is set if interrupt enabled. At the end of packet, if the last
transfer is less than this level, the value is ignored and relative request will
be raised as usual.
Recommended: 15 (means greater than 15)(SMHC2)
15:8
/
/
/
7:0
R/W
0x0
TX_TL
TX Trigger Level
0x1~0xFF: TX Trigger Level is 1~255
0x0: No trigger
FIFO threshold when FIFO requests host to transmit data to FIFO. When FIFO
data level is less than or equal to this value, DMA TX request is raised if DMA
enabled, or TX request interrupt bit is set if interrupt enabled. At the end of
packet, if the last transfer is less than this level, the value is ignored and
relative request will be raised as usual.
Recommended: 240(means less than or equal to 240)(SMHC2)
5.3.5.18. SMHC Function Select Register (Default Value: 0x0000_0000)
Offset: 0x0044
Register Name: SMHC_FUNS
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2
R/W
0x0
ABT_RDATA
Abort Read Data
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 385
0: Ignored
1: After suspend command is issued during read-transfer, software polls card
to find when suspend happened. Once suspend occurs, software sets the bit
to reset data state-machine, which is waiting for next block of data.
Used in SDIO card suspends sequence.
This bit is auto-cleared once controller reset to idle state.
1
R/W
0x0
READ_WAIT
Read Wait
0: Clear SDIO read wait
1: Assert SDIO read wait
0
R/W
0x0
HOST_SEND_MMC_IRQRESQ
Host Send MMC IRQ Response
0: Ignored
1: Send auto IRQ response
When host is waiting MMC card interrupt response, setting this bit will make
controller cancel wait state and return to idle state, at which time, controller
will receive IRQ response sent by itself.
This bit is auto-cleared after response is sent.
5.3.5.19. SMHC Transferred Byte Count Register0 (Default Value: 0x0000_0000)
Offset: 0x0048
Register Name: SMHC_TBC_REG0
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
TBC0
Transferred Count 0
Number of bytes transferred between card and internal FIFO.
The register should be accessed in full to avoid read-coherency problems and
read only after data transfer completes.
5.3.5.20. SMHC Transferred Byte Count Register1 (Default Value: 0x0000_0000)
Offset: 0x004C
Register Name: SMHC_TBC_REG1
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
TBC1
Transferred Count 1
Number of bytes transferred between card and internal FIFO.
The register should be accessed in full to avoid read-coherency problems and
read only after data transfer completes.
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 386
5.3.5.21. SMHC Auto Command 12 Argument Register (Default Value: 0x0000_FFFF)
Offset: 0x0058
Register Name: SMHC_A12A_REG
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xFFFF
SMHC_A12A.
SMHC_A12A set the argument of command 12 automatically send by
controller
5.3.5.22. SMHC New Timing Set Register (Default Value: 0x8171_0000)
Offset: 0x005C
Register Name: SMHC_NTSR_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x1
MODE_SELEC
0: Old mode of Sample/Output Timing
1: New mode of Sample/Output Timing
30:25
/
/
/
24
R/W
0x1
CMD_DAT_RX_PHASE_CLR
During update clock , command and data RX phase clear
0: Disable
1: Enable
23
/
/
/
22
R/W
0x1
DAT_CRC_STATUS_RX_PHASE_CLR
Before receive CRC status, data RX phase clear
0: Disable
1: Enable
21
R/W
0x1
DAT_TRANS_RX_PHASE_CLR
Before transfer data , data RX phase clear
0: Disable
1: Enable
20
R/W
0x1
DAT_RECV_RX_PHASE_CLR
Before receive data , data RX phase clear
0: Disable
1: Enable
19:17
/
/
/
16
R/W
0x1
CMD_SEND_RX_PHASE_CLR
Before send command, command RX phase clear
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 387
0: Disable
1: Enable
15:10
/
/
/
9:8
R/W
0x0
DAT_SAMPLE_TIMING_PHASE(RX)
00: Sample timing phase offset 90⃞
01: Sample timing phase offset 180⃞
10: Sample timing phase offset 270⃞
11: Ignore
7:6
/
/
/
5:4
R/W
0x0
CMD_SAMPLE_TIMING_PHASE(RX)
00: Sample timing phase offset 90⃞
01: Sample timing phase offset 180⃞
10: Sample timing phase offset 270⃞
11: Ignore
3:0
/
/
/
Note: This register is for SMHC0 ,SMHC1 only.
5.3.5.23. SMHC Hardware Reset Register (Default Value: 0x0000_0001)
Offset: 0x0078
Register Name: SMHC_HWRST
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x1
HW_RST.
0: Reset
1: Active mode
These bits cause the cards to enter pre-idle state, which requires them to be
re-initialized.
5.3.5.24. SMHC DMAC Control Register (Default Value: 0x0000_0000)
Offset: 0x0080
Register Name: SMHC_DMAC_REG
Bit
Read/Write
Default/Hex
Description
31
W
0x0
DES_LOAD_CTRL
When DMAC fetches a descriptor, if the valid bit of a descriptor is not set,
DMAC FSM will go to the suspend state. Setting this bit will make DMAC
re-fetch descriptor again and do the transfer normally.
30:11
/
/
/
10:8
R
0x0
PRG_BURST_LEN
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 388
Programmable Burst Length.
These bits indicate the maximum number of beats to be performed in one
IDMAC transaction. The IDMAC will always attempt to burst as specified in
PBL each time it starts a Burst transfer on the host bus. The permissible
values are 1, 4, 8, 16, 32, 64, 128 and 256. This value is the mirror of MSIZE
of FIFOTH register. In order to change this value, write the required value to
FIFOTH register. This is an encode value as follows.
000: 1 transfers
001: 4 transfers
010: 8 transfers
011: 16 transfers
Transfer unit is 32 bits. PBL is a read-only value.
7
R/W
0x0
IDMAC_ENB
IDMAC Enable.
When set, the IDMAC is enabled. DE is read/write.
6:2
R/W
0x0
DES_SKIP_LEN
Descriptor Skip Length.
Specifies the number of Word to skip between two unchained descriptors.
This is applicable only for dual buffer structure.
Default value is set to 4 DWORD.
1
R/W
0x0
FIX_BUST_CTRL
Fixed Burst.
Controls whether the AHB Master interface performs fixed burst transfers or
not. When set, the AHB will use only SINGLE, INCR4, INCR8 during start of
normal burst transfers. When reset, the AHB will use SINGLE and INCR burst
transfer operations.
0
R/W
0x0
IDMAC_RST
DMA Reset.
When set, the DMA Controller resets all its internal registers. SWR is
read/write. It is automatically cleared after 1 clock cycle.
5.3.5.25. SMHC Descriptor List Base Address Register (Default Value: 0x0000_0000)
Offset: 0x0084
Register Name: SMHC_DLBA_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
DES_BASE_ADDR
Start of Descriptor List.
Contains the base address of the First Descriptor. The LSB bit[1:0] are ignored
and taken as all-zero by the IDMAC internally. Hence these LSB bits are
read-only.
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 389
5.3.5.26. SMHC DMAC Status Register (Default Value: 0x0000_0000)
Offset: 0x0088
Register Name: SMHC_DST_REG
Bit
Read/Write
Default/Hex
Description
31:17
/
/
/
16:13
R
0x0
DMAC_FSM_STA
DMAC FSM Present State.
0000: DMA_IDLE
0001: DMA_SUSPEND
0010: DESC_RD
0011: DESC_CHK
0100: DMA_RD_REQ_WAIT
0101: DMA_WR_REQ_WAIT
0110: DMA_RD
0111: DMA_WR
1000: DESC_CLOSE
12:10
R
0x0
DMAC_ERR_STA
Error Bits.
Indicates the type of error that caused a Bus Error. Valid only with Fatal Bus
Error bit (FATAL_BERR_INT) set. This field does not generate an interrupt.
001: Host Abort received during transmission
010: Host Abort received during reception
Others: Reserved EB is read-only.
9
R/W1C
0x0
ABN_INT_SUM
Abnormal Interrupt Summary.
Logical OR of the following:
IDSTS[2]: Fatal Bus Interrupt
IDSTS[4]: DU bit Interrupt
IDSTS[5]: Card Error Summary Interrupt
Only unmasked bits affect this bit.
This is a sticky bit and must be cleared each time a corresponding bit that
causes AIS to be set is cleared. Writing a 1 clears this bit.
8
R/W1C
0x0
NOR_INT_SUM
Normal Interrupt Summary.
Logical OR of the following:
IDSTS[0]: Transmit Interrupt
IDSTS[1]: Receive Interrupt
Only unmasked bits affect this bit.
This is a sticky bit and must be cleared each time a corresponding bit that
causes NIS to be set is cleared. Writing a 1 clears this bit.
7:6
/
/
/
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 390
5
R/W1C
0x0
ERR_FLAG_SUM
Card Error Summary.
Indicates the status of the transaction to/from the card; also present in
RINTSTS.
Indicates the logical OR of the following bits:
EBE: End Bit Error
RTO: Response Timeout/Boot ACK Timeout
RCRC: Response CRC
SBE: Start Bit Error
DRTO: Data Read Timeout/BDS timeout
DCRC: Data CRC for Receive
RE: Response Error
Writing a 1 clears this bit.
4
R/W1C
0x0
DES_UNAVL_INT
Descriptor Unavailable Interrupt.
This bit is set when the descriptor is unavailable due to OWN bit = 0
(DES0[31] =0). Writing a 1 clears this bit.
3
/
/
/
2
R/W1C
0x0
FATAL_BERR_INT
Fatal Bus Error Interrupt.
Indicates that a Bus Error occurred (DMAC_ERR_STA). When this bit is set,
the DMA disables all its bus accesses. Writing a 1 clears this bit.
1
R/W1C
0x0
RX_INT
Receive Interrupt.
Indicates the completion of data reception for a descriptor. Writing a 1
clears this bit.
0
R/W1C
0x0
TX_INT
Transmit Interrupt.
Indicates that data transmission is finished for a descriptor. Writing a 1
clears this bit.
5.3.5.27. SMHC DMAC Interrupt Enable Register (Default Value: 0x0000_0000)
Offset: 0x008C
Register Name: SMHC_IDIE_REG
Bit
Read/Write
Default/Hex
Description
31:10
/
/
/
9
R/W
0x0
ABN_INT_ENB
Abnormal Interrupt Summary Enable.
When set, an abnormal interrupt is enabled.
This bit enables the following bits:
IDINTEN[2]: Fatal Bus Error Interrupt
IDINTEN[4]: DU Interrupt
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 391
IDINTEN[5]: Card Error Summary Interrupt
8
R/W
0x0
NOR_INT_ENB
Normal Interrupt Summary Enable.
When set, a normal interrupt is enabled. When reset, a normal interrupt is
disabled.
This bit enables the following bits:
IDINTEN[0]: Transmit Interrupt
IDINTEN[1]: Receive Interrupt
7:6
/
/
/
5
R/W
0x0
ERR_SUM_INT_ENB
Card Error Summary Interrupt Enable.
When set, it enables the Card Interrupt summary.
4
R/W
0x0
DES_UNAVL_INT_ENB
Descriptor Unavailable Interrupt.
When set along with Abnormal Interrupt Summary Enable, the DU interrupt
is enabled.
3
/
/
/
2
R/W
0x0
FERR_INT_ENB
Fatal Bus Error Enable.
When set with Abnormal Interrupt Summary Enable, the Fatal Bus Error
Interrupt is enabled. When reset, Fatal Bus Error Enable Interrupt is disabled.
1
R/W
0x0
RX_INT_ENB
Receive Interrupt Enable.
When set with Normal Interrupt Summary Enable, Receive Interrupt is
enabled. When reset, Receive Interrupt is disabled.
0
R/W
0x0
TX_INT_ENB
Transmit Interrupt Enable.
When set with Normal Interrupt Summary Enable, Transmit Interrupt is
enabled. When reset, Transmit Interrupt is disabled.
5.3.5.28. SMHC Current Host Descriptor Address Register (Default Value: 0x0000_0000)
Offset: 0x0090
Register Name: SMHC_CHDA_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
CUR_DES_ADDR
Host Descriptor Address Pointer.
Cleared on reset. Pointer updated by IDMAC during operation. This register
points to the start address of the current descriptor read by the IDMAC.
5.3.5.29. SMHC Current Buffer Descriptor Address Register (Default Value: 0x0000_0000)
Offset: 0x0094
Register Name: SMHC_CBDA_REG
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 392
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
CUR_BUFF_ADDR
Host Buffer Address Pointer.
Cleared on Reset. Pointer updated by IDMAC during operation. This register
points to the current Data Buffer Address being accessed by the IDMAC.
5.3.5.30. SMHC Card Threshold Control Register (Default Value: 0x0000_0000)
Offset: 0x0100
Register Name: SMHC_THLD_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x0
CARD_RD_THLD
Card Read Threshold Size
15:3
/
/
/
2
R/W
0x0
CARD_WR_THLD_ENB (only for SMHC2 )
Card Write Threshold Enable(HS400)
0: Card Write Threshold Disable
1: Card Write Threshold Enable
Host controller initiates write transfer only if card threshold amount of data
is available in transmit FIFO.
1
R/W
0x0
BCIG (only for SMHC2)
Busy Clear Interrupt Generation
0: Busy Clear Interrupt Disable
1: Busy Clear Interrupt Enable
The application can disable this feature if it does not want to wait for a Busy
Clear Interrupt.
0
R/W
0x0
CARD_RD_THLD_ENB
Card Read Threshold Enable
0: Card Read Threshold Disable
1: Card Read Threshold Enable
Host controller initiates Read Transfer only if CARD_RD_THLD amount of
space is available in receive FIFO.
5.3.5.31. SMHC eMMC4.5 DDR Start Bit Detection Control Register (Default Value: 0x0000_0000)
Offset: 0x010C
Register Name: SMHC_EDSD_REG
Bit
Read/Write
Default/Hex
Description
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 393
31
R/W
0x0
HS400_MD_EN(for SMHC2 only)
HS400 Mode Enable
0: Disable
1: Enable
It is required to set HS400_MD_EN to '1' before initiating any data transfer
CMD in HS400 mode.
30:1
/
/
/
0
R/W
0x0
HALF_START_BIT
Control for start bit detection mechanism inside mstorage based on duration
of start bit.
For eMMC 4.5, start bit can be:
0: Full cycle
1: Less than one full cycle
Set HALF_START_BIT to 1 for eMMC 4.5 and above; set to 0 for SD
applications.
5.3.5.32. SMHC Response CRC Register (Default Value: 0x0000_0000)
Offset: 0x0110
Register Name: SMHC_RESP_CRC_REG
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6:0
R
0x0
RESP_CRC
Response CRC
Response CRC from device.
Note: This register is for SMHC0, SMHC1 only.
5.3.5.33. SMHC Data7 CRC Register (Default Value: 0x0000_0000)
Offset: 0x0114
Register Name: SMHC_DATA7_CRC_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DAT7_CRC
Data[7] CRC
CRC in data[7] from device.
In 8-bit DDR mode, the higher 16-bit indicates the CRC of even data, and the
lower 16-bit indicates the CRC of odd data.
In 4-bit DDR mode, it is not used.
In SDR mode, the higher 16-bit indicates the CRC of all data.
Note: This register is for SMHC0,SMHC1 only.
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 394
5.3.5.34. SMHC Data6 CRC Register (Default Value: 0x0000_0000)
Offset: 0x0118
Register Name: SMHC_DATA6_CRC_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DAT6_CRC
Data[6] CRC
CRC in data[6] from device.
In 8-bit DDR mode, the higher 16-bit indicates the CRC of even data, and the
lower 16-bit indicates the CRC of odd data.
In 4-bit DDR mode, it is not used.
In SDR mode, the higher 16-bit indicates the CRC of all data.
Note: This register is for SMHC0,SMHC1 only.
5.3.5.35. SMHC Data5 CRC Register (Default Value: 0x0000_0000)
Offset: 0x011C
Register Name: SMHC_DATA5_CRC_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DAT5_CRC
Data[5] CRC
CRC in data[5] from device.
In 8-bit DDR mode, the higher 16-bit indicates the CRC of even data, and the
lower 16-bit indicates the CRC of odd data.
In 4-bit DDR mode, it is not used.
In SDR mode, the higher 16-bit indicates the CRC of all data.
Note: This register is for SMHC0,SMHC1 only.
5.3.5.36. SMHC Data4 CRC Register (Default Value: 0x0000_0000)
Offset: 0x0120
Register Name: SMHC_DATA4_CRC_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DAT4_CRC
Data[4] CRC
CRC in data[4] from device.
In 8-bit DDR mode, the higher 16-bit indicates the CRC of even data, and the
lower 16-bit indicates the CRC of odd data.
In 4-bit DDR mode,the higher 16-bit indicates the CRC of odd data, ,and the
lower 16-bit indicates the CRC of even data.
In SDR mode, the higher 16-bit indicates the CRC of all data.
Note: This register is for SMHC0,SMHC1 only.
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 395
5.3.5.37. SMHC Data3 CRC Register (Default Value: 0x0000_0000)
Offset: 0x0124
Register Name: SMHC_DATA3_CRC_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DAT3_CRC
Data[3] CRC
CRC in data[3] from device.
In 8-bit DDR mode, the higher 16-bit indicates the CRC of even data, and the
lower 16-bit indicates the CRC of odd data.
In 4-bit DDR mode,the higher 16-bit indicates the CRC of odd data, ,and the
lower 16-bit indicates the CRC of even data.
In SDR mode, the higher 16-bit indicates the CRC of all data.
Note: This register is for SMHC0,SMHC1 only.
5.3.5.38. SMHC Data2 CRC Register (Default Value: 0x0000_0000)
Offset: 0x0128
Register Name: SMHC_DATA2_CRC_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DAT2_CRC
Data[2] CRC
CRC in data[2] from device.
In 8-bit DDR mode, the higher 16-bit indicates the CRC of even data, and the
lower 16-bit indicates the CRC of odd data.
In 4-bit DDR mode,the higher 16-bit indicates the CRC of odd data, ,and the
lower 16-bit indicates the CRC of even data.
In SDR mode, the higher 16-bit indicates the CRC of all data.
Note: This register is for SMHC0,SMHC1 only.
5.3.5.39. SMHC Data1 CRC Register (Default Value: 0x0000_0000)
Offset: 0x012C
Register Name: SMHC_DATA1_CRC_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DAT1_CRC
Data[1] CRC
CRC in data[1] from device.
In 8-bit DDR mode, the higher 16-bit indicates the CRC of even data, and the
lower 16-bit indicates the CRC of odd data.
In 4-bit DDR mode,the higher 16-bit indicates the CRC of odd data, ,and the
lower 16-bit indicates the CRC of even data.
In SDR mode, the higher 16-bit indicates the CRC of all data.
Note: This register is for SMHC0,SMHC1 only.
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 396
5.3.5.40. SMHC Data0 CRC Register (Default Value: 0x0000_0000)
Offset: 0x0130
Register Name: SMHC_DATA0_CRC_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
DAT0_CRC
Data[0] CRC
CRC in data[0] from device.
In 8-bit DDR mode, the higher 16-bit indicates the CRC of even data, and the
lower 16-bit indicates the CRC of odd data.
In 4-bit DDR mode,the higher 16-bit indicates the CRC of odd data, ,and the
lower 16-bit indicates the CRC of even data.
In SDR mode, the higher 16-bit indicates the CRC of all data.
Note: This register is for SMHC0,SMHC1 only.
5.3.5.41. SMHC CRC Status Register (Default Value: 0x0000_0000)
Offset: 0x0134
Register Name: SMHC_CRC_STA_REG
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2:0
R
0x0
CRC_STA
CRC Status
CRC status from device in write operation
010: Positive CRC status token
101: Negative CRC status token
Note: This register is for SMHC0,SMHC1 only.
5.3.5.42. SMHC Drive Delay Control Register (Default Value: 0x0001_0000)
Offset: 0x0140
Register Name: SMHC_DRV_DL_REG
Bit
Read/Write
Default/Hex
Description
31:18
/
/
/
17
R/W
0x0
DAT_DRV_PH_SEL
Data Drive Phase Select
0: Drive phase offset is 900
1: Drive phase select is 1800
In DDR mode, only 900 phase offset is valid.
16
R/W
0x1
CMD_DRV_PH_SEL
Command Drive Phase Select
0: Drive phase offset is 900
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 397
1: Drive phase select is 1800
15:0
/
/
/
5.3.5.43. SMHC Sample Delay Control Register (Default Value: 0x0000_2000)
Offset: 0x0144
Register Name: SMHC_SAMP_DL_REG
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15
R/W
0x0
SAMP_DL_CAL_START
Sample Delay Calibration Start
When set, start sample delay chain calibration.
14
R
0x0
SAMP_DL_CAL_DONE
Sample Delay Calibration Done
When set, it means that sample delay chain calibration is done and the result
of calibration is shown in SAMP_DL.
13:8
R
0x20
SAMP_DL
Sample Delay
It indicates the number of delay cells corresponding to current card clock.
The delay time generated by these delay cells is equal to the cycle of card
clock nearly.
Generally, it is necessary to do drive delay calibration when card clock is
changed.
This bit is valid only when SAMP_DL_CAL_DONE is set.
7
RW
0x0
SAMP_DL_SW_EN
Sample Delay Software Enable
When set, enable sample delay specified at SAMP_DL_SW.
6
/
/
/
5:0
RW
0x0
SAMP_DL_SW
Sample Delay Software
The relative delay between clock line and command line, data lines.
It can be determined according to the value of SAMP_DL, the cycle of card
clock and devices input timing requirement.
5.3.5.44. SMHC Data Strobe Delay Control Register (Default Value: 0x0000_2000)
Offset: 0x0148
Register Name: SMHC_DS_DL_REG
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15
RW
0x0
DS_DL_CAL_START
Data Strobe Delay Calibration Start
When set, start sample delay chain calibration.
14
R
0x0
DS_DL_CAL_DONE
Data Strobe Delay Calibration Done
Memory
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 398
When set, it means that sample delay chain calibration is done and the result
of calibration is shown in DS_DL.
13:8
R
0x20
DS_DL
Data Strobe Delay
It indicates the number of delay cells corresponding to current card clock.
The delay time generated by these delay cells is equal to the cycle of SMHCs
clock nearly.
This bit is valid only when SAMP_DL_CAL_DONE is set.
7
RW
0x0
DS_DL_SW_EN
Sample Delay Software Enable
6
/
/
/
5:0
RW
0x0
DS_DL_SW
Data Strobe Delay Software
Note: This register is for SMHC2 only.
5.3.5.45. SMHC FIFO Register (Default Value: 0x0000_0000)
Offset: 0x0200
Register Name: SMHC_FIFO_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
TX/RX_FIFO
Data FIFO
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 399
Chapter 6 Image
This section describes the image input of H5:
CSI
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 400
6.1. CSI
6.1.1. Overview
The CSI includes the following feature:
CSI
Supports 8-bit yuv422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Maximum still capture resolution to 5M
Maximum video capture resolution to 1080@30fps
CCI
Compatible with I2C transmission in 7-bit slave ID and 1-bit R/W
Automatic transmission
0/8/16/32-bit register address supported
8/16/32-bit data supported
64 bytes FIFO input CCI data supported
Synchronized with CSI signal and delay trigger supported
Repeated transmission with sync signal supported
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 401
6.1.2. Block Diagram
CSI
Formatter
System BUS
FIFO 2
FIFO 1
FIFO 0
DMA
CS Data
CS Data Clock
CS Hsync
CS Vsync
Channel 0 CS Field
CSI
IF
Converter
DMA
MUX
Pattern
Generater
YUV Interleaved/Raw IF
CCIR656 IF
Figure 6-1. CSI Block Diagram
SDA CTL
CCI FIFO
PAD
CTL
FMT CTL
SCL CTL
CLD_DIV24MHz CLK
TRIG
SEL
CSI0/1 1st HREF
CSI0/1 last HREF
CSI0/1 Line counter
REGISTER IMMEDIATELY
SDA
SCL
CSI TRIG
DLY CNT
Figure 6-2. CCI Block Diagram
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 402
6.1.3. Operations and Functional Descriptions
6.1.3.1. CSI FIFO Distribution
Table 6-1. CSI FIFO Distribution
Interface
YUYV422 Interleaved/Raw
BT656 Interface
Input format
YUV422
Raw
YUV422
Output format
Planar
UV combined/ MB
Raw/RGB/PRGB
Planar
UV combined/MB
CH0_FIFO0
Y pixel data
Y pixel data
All pixels data
Y
Y
CH0_FIFO1
Cb (U) pixel data
Cb (U) Cr (V)
pixel data
-
Cb (U)
CbCr (UV)
CH0_FIFO2
Cr (V) pixel data
-
-
Cr (V)
6.1.3.2. CSI Timing
VSYNC
HSYNC
DATA
HSYNC
DATA[7/9/11:0]
PCLK
n frame n+1 frame
…
first line second line last line
…
…
…
Figure 6-3. 8/10/12-bit CMOS Sensor Interface Timing
(clock rising edge sample.vsync valid = positive,hsycn valid = positive)
PCLK
D[7:0] Cb0
[7:0]
Y0
[7:0]
Cr0
[7:0]
Y1
[7:0]
Cb2
[7:0]
Y2
[7:0]
Cr2
[7:0] ...
SAV blank
Pixel0~Pixel1 Pixel2~Pixel3 ...
FF 00 00 XY FF
Y3
[7:0]
Figure 6-4. 8-bit YCbCr4:2:2 with Embedded Syncs(BT656) Timing
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 403
6.1.3.3. Bit Definition
CCIR656 Header Data Bit Definition:
Data Bit
First Word(0xFF)
Second Word(0x00)
Third Word(0x00)
Fourth Word
CS D[9] (MSB)
1
0
0
1
CS D[8]
1
0
0
F
CS D[7]
1
0
0
V
CS D[6]
1
0
0
H
CS D[5]
1
0
0
P3
CS D[4]
1
0
0
P2
CS D[3]
1
0
0
P1
CS D[2]
1
0
0
P0
CS D[1]
x
x
x
x
CS D[0]
x
x
x
x
Note: For compatibility with 8-bit interface, CS D[1] and CS D[0] are not defined.
Decode
F
V
H
P3
P2
P1
P0
Field 1 start of active video (SAV)
0
0
0
0
0
0
0
Field 1 end of active video (EAV)
0
0
1
1
1
0
1
Field 1 SAV (digital blanking)
0
1
0
1
0
1
1
Field 1 EAV (digital blanking)
0
1
1
0
1
1
0
Field 2 SAV
1
0
0
0
1
1
1
Field 2 EAV
1
0
1
1
0
1
0
Field 2 SAV (digital blanking)
1
1
0
1
1
0
0
Field 2 EAV (digital blanking)
1
1
1
0
0
0
1
6.1.4. Register list
Module Name
Base Address
CSI0
0x01CB0000
Register Name
Offset
Register name
CSI0_EN_REG
0x0000
CSI Enable Register
CSI0_IF_CFG_REG
0x0004
CSI Interface Configuration Register
CSI0_CAP_REG
0x0008
CSI Capture Register
CSI0_SYNC_CNT_REG
0x000C
CSI Synchronization Counter Register
CSI0_FIFO_THRS_REG
0x0010
CSI FIFO Threshold Register
CSI0_PTN_LEN_REG
0x0030
CSI Pattern Generation Length Register
CSI0_PTN_ADDR_REG
0x0034
CSI Pattern Generation Address Register
CSI0_VER_REG
0x003C
CSI Version Register
CSI0_C0_CFG_REG
0x0044
CSI Channel_0 Configuration Register
CSI0_C0_SCALE_REG
0x004C
CSI Channel_0 Scale Register
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 404
CSI0_C0_F0_BUFA_REG
0x0050
CSI Channel_0 FIFO 0 Output Buffer-A Address Register
CSI0_C0_F1_BUFA_REG
0x0058
CSI Channel_0 FIFO 1 Output Buffer-A Address Register
CSI0_C0_F2_BUFA_REG
0x0060
CSI Channel_0 FIFO 2 Output Buffer-A Address Register
CSI0_C0_CAP_STA_REG
0x006C
CSI Channel_0 Status Register
CSI0_C0_INT_EN_REG
0x0070
CSI Channel_0 Interrupt Enable Register
CSI0_C0_INT_STA_REG
0x0074
CSI Channel_0 Interrupt Status Register
CSI0_C0_HSIZE_REG
0x0080
CSI Channel_0 Horizontal Size Register
CSI0_C0_VSIZE_REG
0x0084
CSI Channel_0 Vertical Size Register
CSI0_C0_BUF_LEN_REG
0x0088
CSI Channel_0 Line Buffer Length Register
CSI0_C0_FLIP_SIZE_REG
0x008C
CSI Channel_0 Flip Size Register
CSI0_C0_FRM_CLK_CNT_REG
0x0090
CSI Channel_0 Frame Clock Counter Register
CSI0_C0_ACC_ITNL_CLK_CNT_REG
0x0094
CSI Channel_0 Accumulated and Internal Clock Counter
Register
CSI0_C0_FIFO_STAT_REG
0x0098
CSI Channel_0 FIFO Statistic Register
CSI0_C0_PCLK_STAT_REG
0x009C
CSI Channel_0 PCLK Statistic Register
CCI_CTRL
0x3000
CCI Control Register
CCI_CFG
0x3004
CCI Transmission Configuration Register
CCI_FMT
0x3008
CCI Packet Format Register
CCI_BUS_CTRL
0x300C
CCI Bus Control Register
CCI_INT_CTRL
0x3014
CCI Interrupt Control Register
CCI_LC_TRIG
0x3018
CCI Line Counter Trigger Register
CCI_FIFO_ACC
0x3100
CCI FIFO Access Register
CCI_RSV_REG
0x3200
CCI Reserved Register
6.1.5. Register Description
6.1.5.1. CSI Enable Register (Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: CSI0_EN_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30
R/W
0x0
VER_EN
CSI Version Register Read Enable
0: Disable
1: Enable
29:24
/
/
/
23:16
R/W
0x0
PTN_CYCLE
Pattern generating cycle counter.
The pattern in dram will be generated in cycles of PTN_CYCLE+1.
15:9
/
/
/
8
R/W
0x0
SRAM_PWDN
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 405
0: SRAM in normal
1: SRAM in power down
7:5
/
/
/
4
R/W
0x0
PTN_START
CSI Pattern Generating Start
0: Finish
1: Start
Software writes this it to to stat patte geeatig fo DRAM. Whe
fiished, the hadae ill lea this it to  autoatiall. Geeatig
cycles depends on PTN_CYCLE.
3
R/W
0x0
CLK_CNT_SPL
Sampling time for CLK counter per frame
0: Sampling clock counter every frame done
1: Sampling clock counter every vsync
2
R/W
0x0
CLK_CNT_EN
CLK count per frame enable
1
R/W
0x0
PTN_GEN_EN
Pattern Generation Enable
0
R/W
0x0
CSI_EN
Enable
0: Reset and disable the CSI module
1: Enable the CSI module
6.1.5.2. CSI Interface Configuration Register (Default Value: 0x0005_0000)
Offset: 0x0004
Register Name: CSI0_IF_CFG_REG
Bit
Read/Write
Default/Hex
Description
31:22
/
/
/
21
R/W
0x0
SRC_TYPE
Source Type
0: Progressed
1: Interlaced
20
R/W
0x0
FPS_DS
Fps Down Sample
0: No down sample
1: 1/2 fps, only receives the first frame every 2 frames
19
R/W
0x0
FIELD
For YUV HV timing, Field polarity
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 406
0: Negative(field=0 indicate odd, field=1 indicate even )
1: Positive(field=1 indicate odd, field=0 indicate even )
For BT656 timing, Field sequence
0: Normal sequence (field 0 first)
1: Inverse sequence (field 1 first)
18
R/W
0x1
VREF_POL
Vref Polarity
0: Negative
1: Positive
The bit does not apply for CCIR656 interface.
17
R/W
0x0
HERF_POL
Href Polarity
0: Negative
1: Positive
The bit does not apply for CCIR656 interface.
16
R/W
0x1
CLK_POL
Data Clock Type
0: Active in rising edge
1: Active in falling edge
15:12
/
/
/
11:10
R/W
0x0
SEQ_8PLUS2
When select IF_DATA_WIDTH to be 8+2bit, odd/even pixel byte at
CSI-D[:] ill eeaaged to D[:]+ at the atual si data us
according to these sequences
: +D[:], D[:]
: D[:], +D[:]
: D[:], D[:]+
: D[:], +D[:]
9:8
R/W
0x0
IF_DATA_WIDTH
00: 8 bits data bus
01: 10 bits data bus
10: 12 bits data bus
11: 8+2 bits data bus
7:5
/
/
/
4:0
R/W
0x0
CSI_IF
YUV:
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 407
00000: YUYV422 Interleaved or RAW (All data in one data bus)
CCIR656:
00100: YUYV422 Interleaved or RAW (All data in one data bus)
Others: Reserved
6.1.5.3. CSI Capture Register (Default Value: 0x0000_0000)
Offset: 0x0008
Register Name: CSI0_CAP_REG
Bit
Read/Write
Default/Hex
Description
31:6
/
/
/
5:2
R/W
0x0
CH0_CAP_MASK
Vsync number masked before capture.
1
R/W
0x0
CH0_VCAP_ON
Video capture control: capture the video image data stream on channel 0.
0: Disable video capture
If video capture is in progress, the CSI stops capturing image data at the end
of the current frame, and all the current frame data is written to output
FIFO.
1: Enable video capture
The CSI starts capturing image data at the start of the next frame.
0
R/W
0x0
CH0_SCAP_ON
Still capture control: capture a single still image frame on channel 0.
0: Disable still capture.
1: Enable still capture
The CSI module starts capturing image data at the start of the next frame.
The CSI module captures only one frame of image data. This bit is self
cleared and always reads as a 0.
6.1.5.4. CSI Synchronization Counter Register (Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: CSI0_SYNC_CNT_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R
0x0
SYNC_CNT
The counter value between vsync of CSI0 channel 0 and vsync of CSI1
channel 0 , using 24MHz.
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 408
6.1.5.5. CSI FIFO Threshold Register (Default Value: 0x040F_0400)
Offset: 0x0010
Register Name: CSI0_FIFO_THRS_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:26
R/W
0x1
FIFO_NEARLY_FULL_TH
The threshold of FIFO being nearly full. Indicates that the ISP should stop
writing. Only valid when ISP is enabled.
The smaller the value of the field, the flag of FIFO being nearly full is easier to
reach.
25:24
R/W
0x0
PTN_GEN_CLK_DIV
Packet generator clock divider
23:16
R/W
0x0f
PTN_GEN_DLY
Clocks delayed before pattern generating start.
15:12
/
/
/
11:00
R/W
0x400
FIFO_THRS
When CSI0 FIFO occupied memory exceed the threshold, dram frequency
can not change.
6.1.5.6. CSI Pattern Generation Length Register (Default Value: 0x0000_0000)
Offset: 0x0030
Register Name: CSI0_PTN_LEN_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
PTN_LEN
The pattern length in byte when generating pattern.
6.1.5.7. CSI Pattern Generation Address Register (Default Value: 0x0000_0000)
Offset: 0x0034
Register Name: CSI0_PTN_ADDR_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
PTN_ADDR
The pattern DRAM address when generating pattern.
6.1.5.8. CSI Version Register (Default Value: 0x0000_0000)
Offset: 0x003C
Register Name: CSI0_VER_REG
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
VER
Version of hardware circuit. Only can be read when version register read
enable is on.
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 409
6.1.5.9. CSI Channel_0 Configuration Register (Default Value: 0x0030_0200)
Offset: 0x0044
Register Name: CSI0_C0_CFG_REG
Bit
Read/Write
Default/Hex
Description
31:24
R/W
0x0
PAD_VAL
Padding value when OUTPUT_FMT is prgb888
23:20
R/W
0x3
INPUT_FMT
Input data format
0000: RAW stream
0001: Reserved
0010: Reserved
0011: YUV422
0100: YUV420
Others: Reserved
19:16
R/W
0x0
OUTPUT_FMT
Output data format
When the input format is set RAW stream
0000: field-raw-8
0001: field-raw-10
0010: field-raw-12
0011: reserved
0100: field-rgb565
0101: field-rgb888
0110: field-prgb888
1000: frame-raw-8
1001: frame-raw-10
1010: frame-raw-12
1011: reserved
1100: frame-rgb565
1101: frame-rgb888
1110: frame-prgb888
When the input format is set YUV422
0000: field planar YCbCr 422
0001: field planar YCbCr 420
0010: frame planar YCbCr 420
0011: frame planar YCbCr 422
0100: field planar YCbCr 422 UV combined
0101: field planar YCbCr 420 UV combined
0110: frame planar YCbCr 420 UV combined
0111: frame planar YCbCr 422 UV combined
1000: field MB YCbCr 422
1001: field MB YCbCr 420
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 410
1010: frame MB YCbCr 420
1011: frame MB YCbCr 422
1100: field planar YCbCr 422 10bit UV combined
1101: field planar YCbCr 420 10bit UV combined
1110: Reserved
1111: Reserved
When the input format is set YUV420
0000: Reserved
0001: field planar YCbCr 420
0010: frame planar YCbCr 420
0011: Reserved
0100: Reserved
0101: field planar YCbCr 420 UV combined
0110: frame planar YCbCr 420 UV combined
0111: Reserved
1000: Reserved
1001: field MB YCbCr 420
1010: frame MB YCbCr 420
1011: Reserved
1100: Reserved
1101: field planar YCbCr 420 10bit UV combined
1110: Reserved
1111: Reserved
15:14
/
/
/
13
R/W
0x0
VFLIP_EN
Vertical flip enable
When enabled, the received data will be arranged in vertical flip.
0:Disable
1:Enable
12
R/W
0x0
HFLIP_EN
Horizontal flip enable
When enabled, the received data will be arranged in horizontal flip.
0:Disable
1:Enable
11:10
R/W
0x0
FIELD_SEL
Field selection.
00: Capturing with field 1.
01: Capturing with field 2.
10: Capturing with either field.
11: Reserved
9:8
R/W
0x2
INPUT_SEQ
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 411
Input data sequence, only valid for YUV422 and YUV420 input format.
All data interleaved in one channel:
00: YUYV
01: YVYU
10: UYVY
11: VYUY
Y and UV in separated channel:
x0: UV
x1: VU
7:2
/
/
/
1:0
R/W
0x0
MIN_SDR_WR_SIZE
Minimum size of SDRAM block write
0: 256 bytes (if hflip is enabled, always select 256 bytes)
1: 512 bytes
2: 1K bytes
3: 2K bytes
6.1.5.10. CSI Channel_0 Scale Register (Default Value: 0x0000_0000)
Offset: 0x004C
Register Name: CSI0_C0_SCALE_REG
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
QUART_EN
When this bit is set to 1, input image will be decimated to quarter size. All
input format are supported.
6.1.5.11. CSI Channel_0 FIFO 0 Output Buffer-A Address Register (Default Value: 0x0000_0000)
Offset: 0x0050
Register Name: CSI0_C0_F0_BUFA_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
C0F0_BUFA
FIFO 0 output buffer-A address
6.1.5.12. CSI Channel_0 FIFO 1 Output Buffer-A Address Register (Default Value: 0x0000_0000)
Offset: 0x0058
Register Name: CSI0_C0_F1_BUFA_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
C0F1_BUFA
FIFO 1 output buffer-A address
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 412
6.1.5.13. CSI Channel_0 FIFO 2 Output Buffer-A Address Register (Default Value: 0x0000_0000)
Offset: 0x0060
Register Name: CSI0_C0_F2_BUFA_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
C0F2_BUFA
FIFO 2 output buffer-A address
6.1.5.14. CSI Channel_0 Status Register (Default Value: 0x0000_0000)
Offset: 0x006C
Register Name: CSI0_C0_CAP_STA_REG
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2
R
0x0
FIELD_STA
The status of the received field
0: Field 0
1: Field 1
1
R
0x0
VCAP_STA
Video capture in progress
Indicates the CSI is capturing video image data (multiple frames). The bit is
set at the start of the first frame after enabling video capture. When
software disables video capture, it clears itself after the last pixel of the
current frame is captured.
0
R
0x0
SCAP_STA
Still capture in progress
Indicates the CSI is capturing still image data (single frame). The bit is set at
the start of the first frame after enabling still frame capture. It clears itself
after the last pixel of the first frame is captured.
For CCIR656 interface, if the output format is frame planar YCbCr 420 mode,
the frame end means the field2 end, the other frame end means filed end.
6.1.5.15. CSI Channel_0 Interrupt Enable Register (Default Value: 0x0000_0000)
Offset: 0x0070
Register Name: CSI0_C0_INT_EN_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
VS_INT_EN
Vsync flag
The bit is set when vsync come. And at this time load the buffer address for
the coming frame. So after the IRQ come, change the buffer address could
only effect next frame.
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 413
6
R/W
0x0
HB_OF_INT_EN
Hblank FIFO overflow
The bit is set when 3 FIFOs still overflow after the hblank.
5
R/W
0x0
MUL_ERR_INT_EN
Multi-channel writing error
Indicates error has been detected for writing data to a wrong channel.
4
R/W
0x0
FIFO2_OF_INT_EN
FIFO 2 overflow
The bit is set when the FIFO 2 become overflow.
3
R/W
0x0
FIFO1_OF_INT_EN
FIFO 1 overflow
The bit is set when the FIFO 1 become overflow.
2
R/W
0x0
FIFO0_OF_INT_EN
FIFO 0 overflow
The bit is set when the FIFO 0 become overflow.
1
R/W
0x0
FD_INT_EN
Frame done
Indicates the CSI has finished capturing an image frame. Applies to video
capture mode. The bit is set after each completed frame capturing data is
written to buffer as long as video capture remains enabled.
0
R/W
0x0
CD_INT_EN
Capture done
Indicates the CSI has completed capturing the image data.
For still capture, the bit is set when one frame data is written to buffer.
For video capture, the bit is set when the last frame is written to buffer after
video capture has been disabled.
For CCIR656 interface, if the output format is frame planar YCbCr 420 mode,
the frame end means the field2 end, the other frame end means field end.
6.1.5.16. CSI Channel_0 Interrupt Status Register (Default Value: 0x0000_0000)
Offset: 0x0074
Register Name: CSI0_C0_INT_STA_REG
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
VS_PD
Vsync flag
6
R/W
0x0
HB_OF_PD
Hblank FIFO overflow
5
R/W
0x0
MUL_ ERR_PD
Multi-channel writing error
4
R/W
0x0
FIFO2_OF_PD
FIFO 2 overflow
3
R/W
0x0
FIFO1_OF_PD
FIFO 1 overflow
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 414
2
R/W
0x0
FIFO0_OF_PD
FIFO 0 overflow
1
R/W
0x0
FD_PD
Frame done
0
R/W
0x0
CD_PD
Capture done
6.1.5.17. CSI Channel_0 Horizontal Size Register (Default Value: 0x0500_0000)
Offset: 0x0080
Register Name: CSI0_C0_INT_STA_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0x500
HOR_LEN
Horizontal pixel unit length. Valid pixel of a line.
15:13
/
/
/
12:0
R/W
0x0
HOR_START
Horizontal pixel unit start. Pixel is valid from this pixel.
6.1.5.18. CSI Channel_0 Vertical Size Register (Default Value: 0x01E0_0000)
Offset: 0x0084
Register Name: CSI0_C0_VSIZE_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0x1E0
VER_LEN
Vertical line length. Valid line number of a frame.
15:13
/
/
/
12:0
R/W
0x0
VER_START
Vertical line start. Data is valid from this line.
6.1.5.19. CSI Channel_0 Buffer Length Register (Default Value: 0x0140_0280)
Offset: 0x0088
Register Name: CSI0_C0_BUF_LEN_REG
Bit
Read/Write
Default/Hex
Description
31:30
/
/
/
29:16
R/W
0x140
BUF_LEN_C
Buffer length of chroma C in a line. Unit is byte.
15:14
/
/
/
13:0
R/W
0x280
BUF_LEN
Buffer length of luminance Y in a line. Unit is byte.
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 415
6.1.5.20. CSI Channel_0 Flip Size Register (Default Value: 0x01E0_0280)
Offset: 0x008C
Register Name: CSI0_C0_FLIP_SIZE_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0x1E0
VER_LEN
Vertical line number when in vflip mode.
15:13
/
/
/
12:00
R/W
0x280
VALID_LEN
Valid components of a line when in flip mode.
6.1.5.21. CSI Channel_0 Frame Clock Counter Register (Default Value: 0x0000_0000)
Offset: 0x0090
Register Name: CSI0_C0_FRM_CLK_CNT_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:00
R
0x0
FRM_CLK_CNT
Counter value between every frame. For instant hardware frame rate statics.
The internal counter is added by 1 every 24MHz clock cycle. When frame
done or vsync comes, the internal counter value is sampled to
FRM_CLK_CNT, and cleared to 0.
6.1.5.22. CSI Channel_0 accumulated and internal clock counter Register (Default Value: 0x0000_0000)
Offset: 0x0094
Register Name: CSI0_C0_ACC_ITNL_CLK_CNT_REG
Bit
Read/Write
Default/Hex
Description
31:24
R
0x0
ACC_CLK_CNT
The accumulated value of FRM_CLK_CNT for software frame rate statics.
Every interrupt of frame done, the software checks this accumulated value
and clears it to 0. If the ACC_CLK_CNT is larger than 1, the software has lost
frame.
When frame done or vsync comes, ACC_CLK_CNT = ACC_CLK_CNT + 1, and
cleared to 0 when writing 0 to this register.
23:0
R
0x0
ITNL_CLK_CNT
The instant value of internal frame clock counter.
When frame-done interrupt comes, the software can query this counter for
judging whether it is the time for updating the double buffer address
registers.
6.1.5.23. CSI Channel_0 FIFO Statistic Register (Default Value: 0x0000_0000)
Offset: 0x0098
Register Name: CSI0_C0_FIFO_STAT_REG
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 416
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
11:0
R
0x0
FIFO_FRM_MAX
Indicates the maximum depth of FIFO being occupied for whole frame.
Update at every vsync or frame-done.
6.1.5.24. CSI Channel_0 PCLK Statistic Register (Default Value: 0x0000_7FFF)
Offset: 0x009C
Register Name: CSI0_C0_PCLK_STAT_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:16
R
0x0
PCLK_CNT_LINE_MAX
Indicates maximum pixel clock counter value for each line.
Update at every vsync or frame-done.
15
/
/
/
14:00
R
0x7fff
PCLK_CNT_LINE_MIN
Indicates minimum pixel clock counter value for each line.
Update at every vsync or frame-done.
6.1.5.25. CCI Control Register (Default Value: 0x0000_0000)
Offset: 0x3000
Register Name: CCI_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
SINGLE_TRAN
0: Transmission idle
1: Start single transmission
Autoatiall leaed to  he fiished. Aot uet tasissio
iediatel if hagig fo  to . If slae does ot espod fo the
expected status over the time defined by TIMEOUT, the current transmission
will stop. PACKET_CNT will return the sequence number when transmission
failed. All format setting and data will be loaded from registers and FIFO
when transmission started.
30
R/W
0x0
REPEAT_TRAN
0: Transmission idle
1: Repeated transmission
When this bit is set to 1, transmission repeats when trigger signal (such as
VSYNC/ VCAP done ) repeats.
If hagig this it fo  to  duig tasissio, the uet
transmission will be guaranteed then stop.
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 417
29
R/W
0x0
RESTART_MODE
0: RESTART
1: STOP+START
Define the CCI action after sent register address.
28
R/W
0x0
READ_TRAN_MODE
0: Send slave_id+W
1: Do not send slave_id+W
Note: Setting this bit to 1 if reading from a slave which register width is
equal to 0.
27:24
R
0x0
TRAN_RESULT
000: OK
001: FAIL
Other: Reserved
23:16
R
/
CCI_STA
0x00: bus error
0x08: START condition transmitted
0x10: Repeated START condition transmitted
0x18: Address + Write bit transmitted, ACK received
0x20: Address + Write bit transmitted, ACK not received
0x28: Data byte transmitted in master mode, ACK received
0x30: Data byte transmitted in master mode, ACK not received
0x38: Arbitration lost in address or data byte
0x40: Address + Read bit transmitted, ACK received
0x48: Address + Read bit transmitted, ACK not received
0x50: Data byte received in master mode, ACK received
0x58: Data byte received in master mode, ACK not received
0x01: Timeout when sending 9th SCL clk
Other: Reserved
15:2
/
/
/
1
R/W
0x0
SOFT_RESET
0: Normal
1: Reset
0
R/W
0x0
CCI_EN
0: Module disable
1: Module enable
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 418
6.1.5.26. CCI Transmission Configuration Register (Default Value: 0x1000_0000)
Offset: 0x3004
Register Name: CCI_CFG_REG
Bit
Read/Write
Default/Hex
Description
31:24
R/W
0x10
TIMEOUT_N
When sending the 9th clock, assert fail signal when slave device does not
response after N*FSCL cycles. And software must reset CCI module and send
a stop condition to slave.
23:16
R/W
0x0
INTERVAL
Define the interval between each packet in 40*FSCL cycles.
15
R/W
0x0
PACKET_MODE
Select where to load slave id / data width
0: Compact mode
1: Complete mode
In compact mode, slave id/register width/data width will be loaded from
CCI_FMT register, only address and data read from memory.
In complete mode, they will be loaded from packet memory.
14:7
/
/
/
6:4
R/W
0x0
TRIG_MODE
Transmit mode
000: Immediately, no trigger
001: Reserved
010: CSI0 int trigger
011: CSI1 int trigger
3:0
R/W
0x0
CSI_TRIG
CSI Int trig signal select
0000: First HREF start
0001: Last HREF done
0010: Line counter trigger
other: Reserved
6.1.5.27. CCI Packet Format Register (Default Value: 0x0011_0001)
Offset: 0x3008
Register Name: CCI_FMT_REG
Bit
Read/Write
Default/Hex
Description
31:25
R/W
0x0
SLV_ID
7bit address
24
R/W
0x0
CMD
0: write
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 419
1: read
23:20
R/W
0x1
ADDR_BYTE
How many bytes be sent as address
0~15
19:16
R/W
0x1
DATA_BYTE
How many bytes be sent/received as data
1~15
Normally use ADDR_DATA with 0_2, 1_1, 1_2, 2_1, 2_2 access mode. If DATA
byte is 0, transmission will not start. In complete mode, the ADDR_BYTE and
DATA_BYTE are defined in the high/low 4bit of a byte.
15:0
R/W
0x1
PACKET_CNT
FIFO data is transmitted as PACKET_CNT packets in current format.
Total bytes must not exceed 32bytes.
6.1.5.28. CCI Bus Control Register (Default Value: 0x0000_2500)
Offset: 0x300C
Register Name: CCI_BUS_REG
Bit
Read/Write
Default/Hex
Description
31:16
R/W
0x0
DLY_CYC
0~65535 FSCL cycles between each transmission
15
R/W
0x0
DLY_TRIG
0: Disable
1: Execute transmission after internal counter delay when triggered
14:12
R/W
0x2
CLK_N
CCI bus sampling clock F0=24MHz/2^CLK_N
11:8
R/W
0x5
CLK_M
CCI output SCL frequency is FSCL=F1/10=(F0/(CLK_M+1))/10
7
R
/
SCL_STA
SCL current status
6
R
/
SDA_STA
SDA current status
5
R/W
0x0
SCL_PEN
SCL PAD enable
4
R/W
0x0
SDA_PEN
SDA PAD enable
3
R/W
0x0
SCL_MOV
SCL manual output value
2
R/W
0x0
SDA_MOV
SDA manual output value
1
R/W
0x0
SCL_MOE
SCL manual output en
0
R/W
0x0
SDA_MOE
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 420
SDA manual output en
6.1.5.29. CCI Interrupt Control Register (Default Value: 0x0000_0000)
Offset: 0x3014
Register Name: CCI_INT_CTRL_REG
Bit
Read/Write
Default/Hex
Description
31:18
/
/
/
17
R/W
0x0
S_TRAN_ERR_INT_EN
16
R/W
0x0
S_TRAN_COM_INT_EN
15:2
/
/
/
1
R/W
0x0
S_TRAN_ERR_PD
0
R/W
0x0
S_TRAN_COM_PD
6.1.5.30. CCI Line Counter Trigger Control Register (Default Value: 0x0000_0000)
Offset: 0x3018
Register Name: CCI_LC_REG
Bit
Read/Write
Default/Hex
Description
31:13
/
/
/
12:0
R/W
0x0
LN_CNT
0~8191: Line counter send trigger when 1st~8192th line is received.
6.1.5.31. CCI FIFO Access Register (Default Value: 0x0000_0000)
Offset: 0x3100~0x313F
Register Name: CCI_FIFO_ACC_REG
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
DATA_FIFO
From 0x3100 to 0x313f, CCI data FIFO is 64 bytes, used in FIFO input mode.
CCI transmission read/write data from/to FIFO in byte.
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 421
Chapter 7 Display
This chapter describes the H5 display system from following perspectives:
DE2.0
TCON
The following figure shows the block diagram of display system:
RT-Mixer
Core 0
RT-Mixer
Core 1
MUX
Write-Back
TCON0
TCON1 HDMI
DE2.0
M
B
U
S
CVBS
Figure 7-1. Display System Block Diagram
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 422
7.1. DE2.0
7.1.1. Overview
The Display Engine 2.0(DE2.0) is a hardware composer to transfer image layers from a local bus or a video buffer to the
LCD interface. The DE2.0 supports four overlay windows to blend, and supports image post-processing in the video
channel.
Features:
Output size up to 4096x4096
Supports four alpha blending channels for main display, two channels for aux display
Supports four overlay layers in each channel, and has a independent scaler
Supports potter-duff compatible blending operation
Supports input format YUV422/YUV420/YUV411/ARGB8888/XRGB8888/RGB888/ARGB4444/ARGB1555 and
RGB565
Supports Frame Packing/Top-and-Bottom/Side-by-Side Full/Side-by-Side Half 3D format data
Supports SmartColor 2.0 for excellent display experience
- Adaptive edge sharping
- Adaptive color enhancement
- Adaptive contrast enhancement and fresh tone rectify
Supports writeback for high efficient dual display and miracast
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 423
7.2. TCON
7.2.1. Overview
The TCON0 module is used for LCD, and TCON1 module is used for TV.
Supports HDMI interface, up to 1080p
Supports TV interface, up to 480p/576p
2 interrupts for programmer single TCON output
7.2.2. Block Diagram
Figure 7-2. TCON Block Diagram
7.2.3. Operations and Functional Descriptions
7.2.3.1. RGB Gamma Correction
Function: This module correct the RGB input data of DE .
A 256*8*3 Byte register file is used to store the gamma table. The following is the layout:
Offset
Value
0x400, 0x401, 0x402
{ B0[7:0], G0[7:0], R0[7:0] }
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 424
0x404,
{ B1[7:0], G1[7:0], R1[7:0] }
......
......
0x4FC
{ B255[7:0], G255[7:0], R255[7:0] }
7.2.3.2. CEU Module
Function: This module enhance color data from DE .
R = Rr*R + Rg*G + Rb*B + Rc
G = Gr*R + Gg*G + Gb*B +Gc
B = Br*R + Bg*G + Bb*B + Bc
Note:
Rr, Rg, Rb, ,Gr, Gg, Gb, Br, Bg, Bb s13 (-16,16)
Rc, Gc, Bc s19 (-16384, 16384)
R, G, B u8 [0-255]
R have the range of [Rmin ,Rmax]
G have the range of [Rmin ,Rmax]
B have the range of [Rmin ,Rmax]
7.2.4. TCON0 Module Register List
Module Name
Base Address
TCON0
0x01C0C000
Register Name
Offset
Description
TCON_GCTL_REG
0x0000
TCON Global Control Register
TCON_GINT0_REG
0x0004
TCON Global Interrupt Register0
TCON_GINT1_REG
0x0008
TCON Global Interrupt Register1
TCON1_CTL_REG
0x0090
TCON1 Control Register
TCON1_BASIC0_REG
0x0094
TCON1 Basic Timing Register0
TCON1_BASIC1_REG
0x0098
TCON1 Basic Timing Register1
TCON1_BASIC2_REG
0x009C
TCON1 Basic Timing Register2
TCON1_BASIC3_REG
0x00A0
TCON1 Basic Timing Register3
TCON1_BASIC4_REG
0x00A4
TCON1 Basic Timing Register4
TCON1_BASIC5_REG
0x00A8
TCON1 Basic Timing Register5
TCON1_PS_SYNC_REG
0x00B0
TCON1 Sync Register
TCON1_IO_POL_REG
0x00F0
TCON1 IO Polarity Register
TCON1_IO_TRI_REG
0x00F4
TCON1 IO Trigger Register
TCON_ECC_FIFO_REG
0x00F8
TCON ECC FIFO Register
TCON_CEU_CTL_REG
0x0100
TCON CEU Control Register
TCON_CEU_COEF_MUL_REG
0x0110+N*0x04
TCON CEU Coefficient Register0(N=0,1,2,4,5,6,8,9,10)
TCON_CEU_COEF_ADD_REG
0x011C+N*0x10
TCON CEU Coefficient Register1(N=0,1,2)
TCON_CEU_COEF_RANG_REG
0x0140+N*0x04
TCON CEU Coefficient Register2(N=0,1,2)
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 425
TCON_SAFE_PERIOD_REG
0x01F0
TCON Safe Period Register
TCON1_FILL_CTL_REG
0x0300
TCON1 Fill Data Control Register
TCON1_FILL_BEGIN_REG
0x0304+N*0x0C
TCON1 Fill Data Begin Register(N=0,1,2)
TCON1_FILL_END_REG
0x0308+N*0x0C
TCON1 Fill Data End Register(N=0,1,2)
TCON1_FILL_DATA0_REG
0x030C+N*0x0C
TCON1 Fill Data Value Register(N=0,1,2)
TCON1_GAMMA_TABLE_REG
0x0400-0x07FF
TCON_ECC_FIFO_BIST_REG
0x0FFC
7.2.5. TCON0 Module Register Description
7.2.5.1. TCON Global Control Register (Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: TCON_GCTL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
TCON_EN
0: Disable
1: Enable
Whe its disaled, the odule ill e eset to idle state.
30
R/W
0x0
TCON_GAMMA_EN
0: Disable
1: Enable
29:0
/
/
/
7.2.5.2. TCON Global Interrupt Register0 (Default Value: 0x0000_0000)
Offset: 0x0004
Register Name: TCON_GINT0_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30
R/W
0x0
TCON1_VB_INT_EN
0: Disable
1: Enable
29
/
/
/
28
R/W
0x0
TCON1_LINE_INT_EN
0: Disable
1: Enable
27:15
/
/
/
14
R/W
0x0
TCON1_VB_INT_FLAG
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 426
Asserted during vertical no-display period every frame.
Write 0 to clear it.
13
/
/
/
12
R/W
0x0
TCON1_LINE_INT_FLAG
Trigger when SY1 match the current TCON1 scan line
Write 0 to clear it.
11:0
/
/
/
7.2.5.3. TCON Global Interrupt Register1 (Default Value: 0x0000_0000)
Offset: 0x0008
Register Name: TCON_GINT1_REG
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
11:0
R/W
0x0
TCON1_LINE_INT_NUM
Scan line for TCON1 line trigger(including inactive lines)
Setting it for the specified line for trigger1.
Note: SY1 is writable only when LINE_TRG1 disable.
7.2.5.4. TCON1 Control Register (Default Value: 0x0000_0000)
Offset: 0x0090
Register Name: TCON1_CTL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
TCON1_EN
0: Disable
1: Enable
30:9
/
/
/
8:4
R/W
0x0
START_DELAY
This is for DE1 and DE2
3:2
/
/
/
1
R/W
0x0
TCON1_SRC_SEL
0: Reserved
1: BLUE data(FIFO2 disable, RGB=0000FF)
0
/
/
/
7.2.5.5. TCON1 Basic Timing Register0 (Default Value: 0x0000_0000)
Offset: 0x0094
Register Name: TCON1_BASIC0_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x0
TCON1_XI
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 427
Source width is X+1
15:12
/
/
/
11:0
R/W
0x0
TCON1_YI
Source height is Y+1
7.2.5.6. TCON1 Basic Timing Register1 (Default Value: 0x0000_0000)
Offset: 0x0098
Register Name: TCON1_BASIC1_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x0
LS_XO
Width is LS_XO+1
15:12
/
/
/
11:0
R/W
0x0
LS_YO
Width is LS_YO+1
Note: This version LS_YO = TCON1_YI
7.2.5.7. TCON1 Basic Timing Register2 (Default Value: 0x0000_0000)
Offset: 0x009C
Register Name: TCON1_BASIC2_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x0
TCON1_XO
Width is TCON1_XO+1
15:12
/
/
/
11:0
R/W
0x0
TCON1_YO
Height is TCON1_YO+1
7.2.5.8. TCON1 Basic Timing Register3 (Default Value: 0x0000_0000)
Offset: 0x00A0
Register Name: TCON1_BASIC3_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0x0
HT
Horizontal total time
Thcycle = (HT+1) * Thdclk
15:12
/
/
/
11:0
R/W
0x0
HBP
Horizontal back porch
Thbp = (HBP +1) * Thdclk
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 428
7.2.5.9. TCON1 Basic Timing Register4 (Default Value: 0x0000_0000)
Offset: 0x00A4
Register Name: TCON1_BASIC4_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0x0
VT
Horizontal total time (in HD line)
Tvt = VT/2 * Th
15:12
/
/
/
11:0
R/W
0x0
VBP
Horizontal back porch (in HD line)
Tvbp = (VBP +1) * Th
7.2.5.10. TCON1 Basic Timing Register5 (Default Value: 0x0000_0000)
Offset: 0x00A8
Register Name: TCON1_BASIC5_REG
Bit
Read/Write
Default/Hex
Description
31:26
/
/
/
25:16
R/W
0x0
HSPW
Horizontal Sync Pulse Width (in dclk)
Thspw = (HSPW+1) * Tdclk
Note: HT> (HSPW+1)
15:10
/
/
/
9:0
R/W
0x0
VSPW
Vertical Sync Pulse Width (in lines)
Tvspw = (VSPW+1) * Th
Note: VT/2 > (VSPW+1)
7.2.5.11. TCON1 SYNC Register (Default Value: 0x0000_0000)
Offset: 0x00B0
Register Name: TCON1_PS_SYNC_REG
Bit
Read/Write
Default/Hex
Description
31:16
R/W
0x0
SYNC_X
15:0
R/W
0x0
SYNC_Y
7.2.5.12. TCON1 IO Polarity Register (Default Value: 0x0000_0000)
Offset: 0x00F0
Register Name: TCON1_IO_POL_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27
R/W
0x0
IO3_INV
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 429
0: Not invert
1: Invert
26
R/W
0x0
IO2_INV
0: Not invert
1: Invert
25
R/W
0x0
IO1_INV
0: Not invert
1: Invert
24
R/W
0x0
IO0_INV
0: Not invert
1: Invert
23:0
R/W
0x0
DATA_INV
TCON output port D[23:0] polarity control, with independent bit control
0s: Normal polarity
1s: Invert the specify output
7.2.5.13. TCON1 IO Trigger Register (Default Value: 0x0FFF_FFFF)
Offset: 0x00F4
Register Name: TCON1_IO_TRI_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27
R/W
0x1
IO3_OUTPUT_TRI_EN
0: Enable
1: Disable
26
R/W
0x1
IO2_OUTPUT_TRI_EN
0: Enable
1: Disable
25
R/W
0x1
IO1_OUTPUT_TRI_EN
0: Enable
1: Disable
24
R/W
0x1
IO0_OUTPUT_TRI_EN
0: Enable
1: Disable
23:0
R/W
0xFFFFFF
DATA_OUTPUT_TRI_EN
TCON output port D[23:0] output enable,with independent bit control.
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 430
0s: Enable
1s: Disable
7.2.5.14. TCON ECC FIFO Register (Default Value: UDF)
Offset: 0x00F8
Register Name: TCON_ECC_FIFO_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
UDF
ECC_FIFO_BIST_EN
0: Disable
1: Enable
30
R/W
UDF
ECC_FIFO_ERR_FLAG
29:24
/
/
/
23:16
R/W
UDF
ECC_FIFO_ERR_BITS
15:9
/
/
/
8
R/W
UDF
ECC_FIFO_BLANK_EN
0: Disable ECC function in blanking
1: Enable ECC function in blanking
ECC futio is tet to tigge i lakig aea at h ode, set  he i h
mode.
7:0
R/W
UDF
ECC_FIFO_SETTING
Bit3
0: Enable
1: Disable
7.2.5.15. TCON CEU Control Register (Default Value: 0x0000_0000)
Offset: 0x0100
Register Name: TCON_CEU_CTL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
CEU_EN
0: Bypass
1: Enable
30:0
/
/
/
7.2.5.16. TCON CEU Coefficient MUL Register (Default Value: 0x0000_0000)
Offset: 0x0110+N*0x04
(N=0,1,2,4,5,6,8,9,10)
Register Name: TCON_CEU_COEF_REG
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 431
Bit
Read/Write
Default/Hex
Description
31:13
/
/
/
12:0
R/W
0x0
CEU_COEF_MUL_VALUE
Signed 13bit value, range of (-16,16)
N=0: Rr
N=1: Rg
N=2: Rb
N=4: Gr
N=5: Gg
N=6: Gb
N=8: Br
N=9: Bg
N=10: Bb
7.2.5.17. TCON CEU Coefficient Add Register (Default Value: 0x0000_0000)
Offset: 0x011C+N*0x10(N=0,1,2)
Register Name: TCON_CEU_COEF_ADD_REG
Bit
Read/Write
Default/Hex
Description
31:19
/
/
/
18:0
R/W
0x0
CEU_Coef_Add_Value
Signed 19bit value, range of (-16384, 16384)
N=0: Rc
N=1: Gc
N=2: Bc
7.2.5.18. TCON CEU Coefficient Range Register (Default Value: 0x0000_0000)
Offset: 0x0140+N*0x04(N=0,1,2)
Register Name: TCON_CEU_COEF_RANGE_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:16
R/W
0x0
CEU_COEF_RANGE_MIN
Unsigned 8bit value, range of [0,255]
15:8
/
/
/
7:0
R/W
0x0
CEU_COEF_RANGE_MAX
Unsigned 8bit value, range of [0,255]
7.2.5.19. TCON Safe Period Register (Default Value: 0x0000_0000)
Offset: 0x01F0
Register Name: TCON_SAFE_PERIOD_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0x0
SAFE_PERIOD_FIFO_NUM
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 432
15:2
/
/
/
1:0
R/W
0x0
SAFE_PERIOD_MODE
00: Unsafe
01: Safe
10: Safe at ECC_FIFO_CUR_NUM > SAFE_PERIOD_FIFO_NUM
11: Safe at 2 and safe at sync active
7.2.5.20. TCON1 Fill Control Register (Default Value: 0x0000_0000)
Offset: 0x0300
Register Name: TCON1_FILL_CTL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
TCON1_FILL_EN
0: Bypass
1: Enable
30:0
/
/
/
7.2.5.21. TCON1 Fill Begin Register (Default Value: 0x0000_0000)
Offset: 0x0304+N*0x0C(N=0,1,2)
Register Name: TCON1_FILL_BEGIN_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0x0
FILL_BEGIN
7.2.5.22. TCON1 Fill End Register (Default Value: 0x0000_0000)
Offset: 0x0308+N*0x0C(N=0,1,2)
Register Name: TCON1_FILL_END_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0x0
FILL_END
7.2.5.23. TCON1 Fill Data Register (Default Value: 0x0000_0000)
Offset: 0x030C+N*0x0C(N=0,1,2)
Register Name: TCON1_FILL_DATA_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0x0
FILL_VALUE
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 433
7.2.6. TCON1 Module Register List
Module Name
Base Address
TCON1
0x01C0D000
Register Name
Offset
Description
TCON_GCTL_REG
0x0000
TCON Global Control Register
TCON_GINT0_REG
0x0004
TCON Global Interrupt Register0
TCON_GINT1_REG
0x0008
TCON Global Interrupt Register1
TCON1_CTL_REG
0x0090
TCON1 Control Register
TCON1_BASIC0_REG
0x0094
TCON1 Basic Timing Register0
TCON1_BASIC1_REG
0x0098
TCON1 Basic Timing Register1
TCON1_BASIC2_REG
0x009C
TCON1 Basic Timing Register2
TCON1_BASIC3_REG
0x00A0
TCON1 Basic Timing Register3
TCON1_BASIC4_REG
0x00A4
TCON1 Basic Timing Register4
TCON1_BASIC5_REG
0x00A8
TCON1 Basic Timing Register5
TCON1_PS_SYNC_REG
0x00B0
TCON1 Sync Register
TCON1_IO_POL_REG
0x00F0
TCON1 IO Polarity Register
TCON1_IO_TRI_REG
0x00F4
TCON1 IO Trigger Register
TCON_ECC_FIFO_REG
0x00F8
TCON ECC FIFO Register
TCON_CEU_CTL_REG
0x0100
TCON CEU Control Register
TCON_CEU_COEF_MUL_REG
0x0110+N*0x04
TCON CEU Coefficient Register0(N=0,1,2,4,5,6,8,9,10)
TCON_CEU_COEF_ADD_REG
0x011C+N*0x10
TCON CEU Coefficient Register1(N=0,1,2)
TCON_CEU_COEF_RANG_REG
0x0140+N*0x04
TCON CEU Coefficient Register2(N=0,1,2)
TCON_SAFE_PERIOD_REG
0x01F0
TCON Safe Period Register
TCON1_FILL_CTL_REG
0x0300
TCON1 Fill Data Control Register
TCON1_FILL_BEGIN_REG
0x0304+N*0x0C
TCON1 Fill Data Begin Register(N=0,1,2)
TCON1_FILL_END_REG
0x0308+N*0x0C
TCON1 Fill Data End Register(N=0,1,2)
TCON1_FILL_DATA0_REG
0x030C+N*0x0C
TCON1 Fill Data Value Register(N=0,1,2)
TCON1_GAMMA_TABLE_REG
0x0400-0x07FF
TCON_ECC_FIFO_BIST_REG
0x0FFC
7.2.7. TCON1 Module Register Description
7.2.7.1. TCON Global Control Register (Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: TCON_GCTL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
TCON_EN
0: Disable
1: Enable
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 434
Whe its disaled, the odule ill e eset to idle state.
30
R/W
0x0
TCON_GAMMA_EN
0: Disable
1: Enable
29:0
/
/
/
7.2.7.2. TCON Global Interrupt Register0 (Default Value: 0x0000_0000)
Offset: 0x0004
Register Name: TCON_GINT0_REG
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30
R/W
0x0
TCON1_VB_INT_EN
0: Disable
1: Enable
29
/
/
/
28
R/W
0x0
TCON1_LINE_INT_EN
0: Disable
1: Enable
27:15
/
/
/
14
R/W
0x0
TCON1_VB_INT_FLAG
Asserted during vertical no-display period every frame.
Write 0 to clear it.
13
/
/
/
12
R/W
0x0
TCON1_LINE_INT_FLAG
Trigger when SY1 match the current TCON1 scan line.
Write 0 to clear it.
11:0
/
/
/
7.2.7.3. TCON Global Interrupt Register1 (Default Value: 0x0000_0000)
Offset: 0x0008
Register Name: TCON_GINT1_REG
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
11:0
R/W
0x0
TCON1_LINE_INT_NUM
Scan line for TCON1 line trigger(including inactive lines)
Setting it for the specified line for trigger 1.
Note: SY1 is writable only when LINE_TRG1 disable.
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 435
7.2.7.4. TCON1 Control Register (Default Value: 0x0000_0000)
Offset: 0x0090
Register Name: TCON1_CTL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
TCON1_EN
0: Disable
1: Enable
30:9
/
/
/
8:4
R/W
0x0
START_DELAY
This is for DE1 and DE2
3:2
/
/
/
1
R/W
0x0
TCON1_SRC_SEL
0: Reserved
1: BLUE data(FIFO2 disable,RGB = 0000FF)
0
/
/
/
7.2.7.5. TCON1 Basic Timing Register0 (Default Value: 0x0000_0000)
Offset: 0x0094
Register Name: TCON1_BASIC0_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x0
TCON1_XI
Source width is X+1
15:12
/
/
/
11:0
R/W
0x0
TCON1_YI
Source height is Y+1
7.2.7.6. TCON1 Basic Timing Register1 (Default Value: 0x0000_0000)
Offset: 0x0098
Register Name: TCON1_BASIC1_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x0
LS_XO
Width is LS_XO+1
15:12
/
/
/
11:0
R/W
0x0
LS_YO
Width is LS_YO+1
Note: This version LS_YO = TCON1_YI
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 436
7.2.7.7. TCON1 Basic Timing Register2 (Default Value: 0x0000_0000)
Offset: 0x009C
Register Name: TCON1_BASIC2_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:16
R/W
0x0
TCON1_XO
Width is TCON1_XO+1
15:12
/
/
/
11:0
R/W
0x0
TCON1_YO
Height is TCON1_YO+1
7.2.7.8. TCON1 Basic Timing Register3 (Default Value: 0x0000_0000)
Offset: 0x00A0
Register Name: TCON1_BASIC3_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0x0
HT
Horizontal total time
Thcycle = (HT+1) * Thdclk
15:12
/
/
/
11:0
R/W
0x0
HBP
Horizontal back porch
Thbp = (HBP +1) * Thdclk
7.2.7.9. TCON1 Basic Timing Register (Default Value: 0x0000_0000)
Offset: 0x00A4
Register Name: TCON1_BASIC4_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0x0
VT
Horizontal total time (in HD line)
Tvt = VT/2 * Th
15:12
/
/
/
11:0
R/W
0x0
VBP
Horizontal back porch (in HD line)
Tvbp = (VBP +1) * Th
7.2.7.10. TCON1 Basic Timing Register5 (Default Value: 0x0000_0000)
Offset: 0x00A8
Register Name: TCON1_BASIC5_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 437
25:16
R/W
0x0
HSPW
Horizontal Sync Pulse Width (in dclk)
Thspw = (HSPW+1) * Tdclk
Note: HT> (HSPW+1)
15:10
/
/
/
9:0
R/W
0x0
VSPW
Vertical Sync Pulse Width (in lines)
Tvspw = (VSPW+1) * Th
Note: VT/2 > (VSPW+1)
7.2.7.11. TCON1 SYNC Register (Default Value: 0x0000_0000)
Offset: 0x00B0
Register Name: TCON1_PS_SYNC_REG
Bit
Read/Write
Default/Hex
Description
31:16
R/W
0x0
SYNC_X
15:0
R/W
0x0
SYNC_Y
7.2.7.12. TCON1 IO Polarity Register (Default Value: 0x0000_0000)
Offset: 0x00F0
Register Name: TCON1_IO_POL_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27
R/W
0x0
IO3_INV
0: Not invert
1: Invert
26
R/W
0x0
IO2_INV
0: Not invert
1: Invert
25
R/W
0x0
IO1_INV
0: Not invert
1: Invert
24
R/W
0x0
IO0_INV
0: Not invert
1: Invert
23:0
R/W
0x0
DATA_INV
TCON output port D[23:0] polarity control,with independent bit control
0s: Normal polarity
1s: Invert the specify output
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 438
7.2.7.13. TCON1 IO Trigger Register (Default Value: 0x0FFF_FFFF)
Offset: 0x00F4
Register Name: TCON1_IO_TRI_REG
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27
R/W
0x1
IO3_OUTPUT_TRI_EN
0: Enable
1: Disable
26
R/W
0x1
IO2_OUTPUT_TRI_EN
0: Enable
1: Disable
25
R/W
0x1
IO1_OUTPUT_TRI_EN
0: Enable
1: Disable
24
R/W
0x1
IO0_OUTPUT_TRI_EN
0: Enable
1: Disable
23:0
R/W
0xFFFFFF
DATA_OUTPUT_TRI_EN
TCON output port D[23:0] output enable,with independent bit control.
0s: Enable
1s: Disable
7.2.7.14. TCON ECC FIFO Register (Default Value: UDF)
Offset: 0x00F8
Register Name: TCON_ECC_FIFO_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
UDF
ECC_FIFO_BIST_EN
0: Disable
1: Enable
30
R/W
UDF
ECC_FIFO_ERR_FLAG
29:24
/
/
/
23:16
R/W
UDF
ECC_FIFO_ERR_BITS
15:9
/
/
/
8
R/W
UDF
ECC_FIFO_BLANK_EN
0: Disable ECC function in blanking
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 439
1: Enable ECC function in blanking
ECC futio is tet to tigge i lakig aea at h ode, set  he i h
mode.
7:0
R/W
UDF
ECC_FIFO_SETTING
Bit3
0: Enable
1: Disable
7.2.7.15. TCON CEU Control Register (Default Value: 0x0000_0000)
Offset: 0x0100
Register Name: TCON_CEU_CTL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
CEU_EN
0: Bypass
1: Enable
30:0
/
/
/
7.2.7.16. TCON CEU Coefficient MUL Register (Default Value: 0x0000_0000)
Offset: 0x0110+N*0x04
(N=0,1,2,4,5,6,8,9,10)
Register Name: TCON_CEU_COEF_MUL_REG
Bit
Read/Write
Default/Hex
Description
31:13
/
/
/
12:0
R/W
0x0
CEU_COEF_MUL_VALUE
Signed 13bit value, range of (-16,16)
N=0: Rr
N=1: Rg
N=2: Rb
N=4: Gr
N=5: Gg
N=6: Gb
N=8: Br
N=9: Bg
N=10: Bb
7.2.7.17. TCON CEU Coefficient Add Register (Default Value: 0x0000_0000)
Offset: 0x011C+N*0x10(N=0,1,2)
Register Name: TCON_CEU_COEF_ADD_REG
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 440
Bit
Read/Write
Default/Hex
Description
31:19
/
/
/
18:0
R/W
0x0
CEU_COEF_ADD_VALUE
Signed 19bit value, range of (-16384, 16384)
N=0: Rc
N=1: Gc
N=2: Bc
7.2.7.18. TCON CEU Coefficient Rang Register (Default Value: 0x0000_0000)
Offset: 0x0140+N*0x04(N=0,1,2)
Register Name: TCON_CEU_COEF_RANG_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:16
R/W
0x0
CEU_COEF_RANGE_MIN
Unsigned 8bit value, range of [0,255]
15:8
/
/
/
7:0
R/W
0x0
CEU_COEF_RANGE_MAX
Unsigned 8bit value, range of [0,255]
7.2.7.19. TCON Safe Period Register (Default Value: 0x0000_0000)
Offset: 0x01F0
Register Name: TCON_SAFE_PERIOD_REG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28:16
R/W
0x0
SAFE_PERIOD_FIFO_NUM
15:2
/
/
/
1:0
R/W
0x0
SAFE_PERIOD_MODE
00: Unsafe
01: Safe
10: Safe at ECC_FIFO_CUR_NUM > SAFE_PERIOD_FIFO_NUM
11: Safe at 2 and safe at sync active
7.2.7.20. TCON1 Fill Control Register (Default Value: 0x0000_0000)
Offset: 0x0300
Register Name: TCON1_FILL_CTL_REG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
TCON1_FILL_EN
0: Bypass
1: Enable
30:0
/
/
/
Display
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 441
7.2.7.21. TCON1 Fill Begin Register (Default Value: 0x0000_0000)
Offset: 0x0304+N*0x0C(N=0,1,2)
Register Name: TCON1_FILL_BEGIN_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0x0
FILL_BEGIN
7.2.7.22. TCON1 Fill End Register (Default Value: 0x0000_0000)
Offset: 0x0308+N*0x0C(N=0,1,2)
Register Name: TCON1_FILL_END_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0x0
FILL_END
7.2.7.23. TCON1 Fill Data Register (Default Value: 0x0000_0000)
Offset: 0x030C+N*0x0C(N=0,1,2)
Register Name: TCON1_FILL_DATA_REG
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0x0
FILL_VALUE
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 442
Chapter 8 Audio
This chapter describes the H5 audio, including:
Audio Codec
I2S/PCM
OWA
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 443
8.1. Audio Codec
8.1.1. Overview
The embedded Audio Codec is a high-quality stereo audio codec designed for embed device. It provides a stereo DAC
for playback, and a stereo ADC for recording.
Features:
Two audio digital-to-analog(DAC) channels
- 100±3dB SNR@A-weight
- Supports DAC sample rate from 8KHz to 192KHz
Two audio analog-to-digital(ADC) channels
- 93±3dB SNR@A-weight
- Supports ADC sample rate from 8KHz to 48KHz
Supports analog/digital volume control
Supports Dynamic Range Controller(DRC) adjusting the DAC playback output
Supports Dynamic Range Control(DRC) adjusting the ADC recording output
Three audio inputs:
- Two differential microphone inputs
- Stereo line-in L/R channel input
One audio output:
- Stereo line-out L/R channel output
Interrupt and DMA support
8.1.2. Block Diagram
Figure 8-1 shows the block diagram of the Audio Codec.
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 444
AReg0B[3:0]
MICIN1P
MICIN1N
LINEINL
LINEINR
G G G
+
M
M
M
M
M
R_ADC
G
G
G
LINEOUTL
LINEOUTR
APB
AReg05[6:4]
AReg0C[6:0]
AReg0F[7]
AReg0F[2:0]
AReg03[7]
AReg03[6]
DReg000[31]
DReg000[31]
DReg010[28]
+
-
MICIN2N
+
M
M
M
M
M
L_ADC
GAPB
AReg0F[6]
+
M
M
M
M
M
+
M
M
M
M
M
G
APB DAC_R
DAC_L
APB
M
U
X
-1
+
-
MICIN2P
AReg01[6:0]
AReg02[6:0]
AReg03[4]
AReg03[5]
AReg05[6:4]
AReg06[6:4]
AReg06[2:0]
AReg09[7:3]
AReg0A[7:4]
AReg07[7]
AReg0A[1]
AReg0A[0]
AReg0D[6:0]
AReg0F[2:0]
DReg010[28]
Areg: Analog Register，Dreg: Digital Register
AReg09[7:3]
M
M
AReg0A[1]
Figure 8-1. Audio Codec Block Diagram
8.1.3. Operations and Functional Descriptions
8.1.3.1. External Signals
The following table describes the external signals of Audio Codec.
Table 8-1. Audio Codec External Signals
Signal Name
Type
Description
Analog I/O Pins
MICIN1P
AI
First microphone positive input
MICIN1N
AI
First microphone negative input
MICIN2P
AI
Second microphone positive input
MICIN2N
AI
Second microphone negative input
LINEINL
AI
Line in left channel input
LINEINR
AI
Line in right channel input
LINEOUTL
AO
Line out left channel output
LINEOUTR
AO
Line out right channel output
Filter/Reference
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 445
MBIAS
AO
Bias voltage output for main microphone
VRA1
AO
Internal reference voltage
VRA2
AO
Internal reference voltage
VRP
AO
Internal reference voltage
Power/Ground
AVCC
P
Analog power
AGND
G
Analog ground
8.1.3.2. Clock Sources
Figure 8-2 describes the clock sources for Audio Codec. Users can see Chapter 4.3 CCU for clock setting, configuration
and gating information.
Digital Control Register
APB1CLK
PLL_Audio
AD/DA Control
24MHz
32KHz
Analog Control Register
AD/DA Function
APB0CLK
Figure 8-2. Audio Codec Clock Sources
8.1.3.3. Reset System
Figure 8-3 describes the Audio Codec analog part reset system, and Figure 8-4 describes the Audio Codec digital part
reset system.
Figure 8-3. Audio Codec Analog Reset System
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 446
Figure 8-4. Audio Codec Digital Reset System
8.1.3.4. Power Domain
Audio Codec system needs three powers, AVCC⃝VDD-SYS and VDD-CPUS, is shown in Figure 8-5. The AVCC provides
power for ADC/DAC and other analog part. VDD-SYS provides power for ADC/DAC digital control register, digital part
and audio codec register. VDD-CPUS provides power for ADC/DAC analog control register .
MICIN1P
MICIN1N
Boost
Input
Mixer DAP
Output
Mixer
LINEOUTL
MICBIAS
MBIAS
VAR2
VRA1 Reference
Voltage
AVCC
AGND
LINEOUTR
Lineout
Power supply is AVCC Power supply is VDD-CPUS
DAC_L
DAC_R
Power supply is VDD-SYS
TXFIFORXFIFO
Digital Control Register
Analog Control Register
APB BUS
LINEINL
LINEINR
ADC_L
G
G
VAP
MICIN2P
MICIN2N
G
G
ADC_R
Figure 8-5. Audio Codec Power Domain
All power supplies are turned on in normal application, such as music play, record.
AVCC and VDD-CPUS are turned on in super standby mode and AA path mode.
All power supplies are closed in shutdown.
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 447
8.1.4. Register List
Module Name
Base Address
Audio Codec
0x01C22C00
Register Name
Offset
Description
AC_DAC_DPC
0x0000
DAC Digital Part Control Register
AC_DAC_FIFOC
0x0004
DAC FIFO Control Register
AC_DAC_FIFOS
0x0008
DAC FIFO Status Register
/
0x000C
Reserved
AC_ADC_FIFOC
0x0010
ADC FIFO Control Register
AC_ADC_FIFOS
0x0014
ADC FIFO Status Register
AC_ADC_RXDATA
0x0018
ADC RX Data Register
AC_DAC_TXDATA
0x0020
DAC TX Data Register
/
0x0024~0x003C
Reserved
AC_DAC_CNT
0x0040
DAC TX FIFO Counter Register
AC_ADC_CNT
0x0044
ADC RX FIFO Counter Register
AC_DAC_DG
0x0048
DAC Debug Register
AC_ADC_DG
0x004C
ADC Debug Register
/
0x0050~0x005C
Reserved
AC_DAC_DAP_CTR
0x0060
DAC DAP Control Register
/
0x0064~0x006C
Reserved
AC_ADC_DAP_CTR
0x0070
ADC DAP Control Register
AC_ADC_DAP_LCTR
0x0074
ADC DAP Left Control Register
AC_ADC_DAP_RCTR
0x0078
ADC DAP Right Control Register
AC_ADC_DAP_PARA
0x007C
ADC DAP Parameter Register
AC_ADC_DAP_LAC
0x0080
ADC DAP Left Average Coef Register
AC_ADC_DAP_LDAT
0x0084
ADC DAP Left Decay and Attack Time Register
AC_ADC_DAP_RAC
0x0088
ADC DAP Right Average Coef Register
AC_ADC_DAP_RDAT
0x008C
ADC DAP Right Decay and Attack Time Register
AC_ADC_DAP_HPFC
0x0090
ADC DAP HPF Coef Register
AC_ADC_DAP_LINAC
0x0094
ADC DAP Left Input Signal Low Average Coef Register
AC_ADC_DAP_RINAC
0x0098
ADC DAP Right Input Signal Low Average Coef Register
AC_ADC_DAP_ORT
0x009C
ADC DAP Optimum Register
/
0x00A0~0x00FC
Reserved
AC_DAC_DRC_HHPFC
0x0100
DAC DRC High HPF Coef Register
AC_DAC_DRC_LHPFC
0x0104
DAC DRC Low HPF Coef Register
AC_DAC_DRC_CTRL
0x0108
DAC DRC Control Register
AC_DAC_DRC_LPFHAT
0x010C
DAC DRC Left Peak Filter High Attack Time Coef Register
AC_DAC_DRC_LPFLAT
0x0110
DAC DRC Left Peak Filter Low Attack Time Coef Register
AC_DAC_DRC_RPFHAT
0x0114
DAC DRC Right Peak Filter High Attack Time Coef Register
AC_DAC_DRC_RPFLAT
0x0118
DAC DRC Peak Filter Low Attack Time Coef Register
AC_DAC_DRC_LPFHRT
0x011C
DAC DRC Left Peak Filter High Release Time Coef Register
AC_DAC_DRC_LPFLRT
0x0120
DAC DRC Left Peak Filter Low Release Time Coef Register
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 448
AC_DAC_DRC_RPFHRT
0x0124
DAC DRC Right Peak filter High Release Time Coef Register
AC_DAC_DRC_RPFLRT
0x0128
DAC DRC Right Peak filter Low Release Time Coef Register
AC_DAC_DRC_LRMSHAT
0x012C
DAC DRC Left RMS Filter High Coef Register
AC_DAC_DRC_LRMSLAT
0x0130
DAC DRC Left RMS Filter Low Coef Register
AC_DAC_DRC_RRMSHAT
0x0134
DAC DRC Right RMS Filter High Coef Register
AC_DAC_DRC_RRMSLAT
0x0138
DAC DRC Right RMS Filter Low Coef Register
AC_DAC_DRC_HCT
0x013C
DAC DRC Compressor Theshold High Setting Register
AC_DAC_DRC_LCT
0x0140
DAC DRC Compressor Slope High Setting Register
AC_DAC_DRC_HKC
0x0144
DAC DRC Compressor Slope High Setting Register
AC_DAC_DRC_LKC
0x0148
DAC DRC Compressor Slope Low Setting Register
AC_DAC_DRC_HOPC
0x014C
DAC DRC Compressor High Output at Compressor Threshold
Register
AC_DAC_DRC_LOPC
0x0150
DAC DRC Compressor Low Output at Compressor Threshold
Register
AC_DAC_DRC_HLT
0x0154
DAC DRC Limiter Theshold High Setting Register
AC_DAC_DRC_LLT
0x0158
DAC DRC Limiter Theshold Low Setting Register
AC_DAC_DRC_HKl
0x015C
DAC DRC Limiter Slope High Setting Register
AC_DAC_DRC_LKl
0x0160
DAC DRC Limiter Slope Low Setting Register
AC_DAC_DRC_HOPL
0x0164
DAC DRC Limiter High Output at Limiter Threshold
AC_DAC_DRC_LOPL
0x0168
DAC DRC Limiter Low Output at Limiter Threshold
AC_DAC_DRC_HET
0x016C
DAC DRC Expander Theshold High Setting Register
AC_DAC_DRC_LET
0x0170
DAC DRC Expander Theshold Low Setting Register
AC_DAC_DRC_HKE
0x0174
DAC DRC Expander Slope High Setting Register
AC_DAC_DRC_LKE
0x0178
DAC DRC Expander Slope Low Setting Register
AC_DAC_DRC_HOPE
0x017C
DAC DRC Expander High Output at Expander Threshold
AC_DAC_DRC_LOPE
0x0180
DAC DRC Expander Low Output at Expander Threshold
AC_DAC_DRC_HKN
0x0184
DAC DRC Linear Slope High Setting Register
AC_DAC_DRC_LKN
0x0188
DAC DRC Linear Slope Low Setting Register
AC_DAC_DRC_SFHAT
0x018C
DAC DRC Smooth Filter Gain High Attack Time Coef Register
AC_DAC_DRC_SFLAT
0x0190
DAC DRC Smooth Filter Gain Low Attack Time Coef Register
AC_DAC_DRC_SFHRT
0x0194
DAC DRC Smooth Filter Gain High Release Time Coef Register
AC_DAC_DRC_SFLRT
0x0198
DAC DRC Smooth Filter Gain Low Release Time Coef Register
AC_DAC_DRC_MXGHS
0x019C
DAC DRC MAX Gain High Setting Register
AC_DAC_DRC_MXGLS
0x01A0
DAC DRC MAX Gain Low Setting Register
AC_DAC_DRC_MNGHS
0x01A4
DAC DRC MIN Gain High Setting Register
AC_DAC_DRC_MNGLS
0x01A8
DAC DRC MIN Gain Low Setting Register
AC_DAC_DRC_EPSHC
0x01AC
DAC DRC Expander Smooth Time High Coef Register
AC_DAC_DRC_EPSLC
0x01B0
DAC DRC Expander Smooth Time Low Coef Register
AC_DAC_DRC_HPFHGAIN
0x01B8
DAC DRC HPF Gain High Coef Register
AC_DAC_DRC_HPFLGAIN
0x01BC
DAC DRC HPF Gain Low Coef Register
/
0x01C0~0x01FC
Reserved
AC_ADC_DRC_HHPFC
0x0200
ADC DRC High HPF Coef Register
AC_ADC_DRC_LHPFC
0x0204
ADC DRC Low HPF Coef Register
AC_ADC_DRC_CTRL
0x0208
ADC DRC Control Register
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 449
AC_ADC_DRC_LPFHAT
0x020C
ADC DRC Left Peak Filter High Attack Time Coef Register
AC_ADC_DRC_LPFLAT
0x0210
ADC DRC Left Peak Filter Low Attack Time Coef Register
AC_ADC_DRC_RPFHAT
0x0214
ADC DRC Right Peak Filter High Attack Time Coef Register
AC_ADC_DRC_RPFLAT
0x0218
ADC DRC Peak Filter Low Attack Time Coef Register
AC_ADC_DRC_LPFHRT
0x021C
ADC DRC Left Peak Filter High Release Time Coef Register
AC_ADC_DRC_LPFLRT
0x0220
ADC DRC Left Peak Filter Low Release Time Coef Register
AC_ADC_DRC_RPFHRT
0x0224
ADC DRC Right Peak filter High Release Time Coef Register
AC_ADC_DRC_RPFLRT
0x0228
ADC DRC Right Peak filter Low Release Time Coef Register
AC_ADC_DRC_LRMSHAT
0x022C
ADC DRC Left RMS Filter High Coef Register
AC_ADC_DRC_LRMSLAT
0x0230
ADC DRC Left RMS Filter Low Coef Register
AC_ADC_DRC_RRMSHAT
0x0234
ADC DRC Right RMS Filter High Coef Register
AC_ADC_DRC_RRMSLAT
0x0238
ADC DRC Right RMS Filter Low Coef Register
AC_ADC_DRC_HCT
0x023C
ADC DRC Compressor Theshold High Setting Register
AC_ADC_DRC_LCT
0x0240
ADC DRC Compressor Slope High Setting Register
AC_ADC_DRC_HKC
0x0244
ADC DRC Compressor Slope High Setting Register
AC_ADC_DRC_LKC
0x0248
ADC DRC Compressor Slope Low Setting Register
AC_ADC_DRC_HOPC
0x024C
ADC DRC Compressor High Output at Compressor Threshold
Register
AC_ADC_DRC_LOPC
0x0250
ADC DRC Compressor Low Output at Compressor Threshold
Register
AC_ADC_DRC_HLT
0x0254
ADC DRC Limiter Theshold High Setting Register
AC_ADC_DRC_LLT
0x0258
ADC DRC Limiter Theshold Low Setting Register
AC_ADC_DRC_HKl
0x025C
ADC DRC Limiter Slope High Setting Register
AC_ADC_DRC_LKl
0x0260
ADC DRC Limiter Slope Low Setting Register
AC_ADC_DRC_HOPL
0x0264
ADC DRC Limiter High Output at Limiter Threshold
AC_ADC_DRC_LOPL
0x0268
ADC DRC Limiter Low Output at Limiter Threshold
AC_ADC_DRC_HET
0x026C
ADC DRC Expander Theshold High Setting Register
AC_ADC_DRC_LET
0x0270
ADC DRC Expander Theshold Low Setting Register
AC_ADC_DRC_HKE
0x0274
ADC DRC Expander Slope High Setting Register
AC_ADC_DRC_LKE
0x0278
ADC DRC Expander Slope Low Setting Register
AC_ADC_DRC_HOPE
0x027C
ADC DRC Expander High Output at Expander Threshold
AC_ADC_DRC_LOPE
0x0280
ADC DRC Expander Low Output at Expander Threshold
AC_ADC_DRC_HKN
0x0284
ADC DRC Linear Slope High Setting Register
AC_ADC_DRC_LKN
0x0288
ADC DRC Linear Slope Low Setting Register
AC_ADC_DRC_SFHAT
0x028C
ADC DRC Smooth filter Gain High Attack Time Coef Register
AC_ADC_DRC_SFLAT
0x0290
ADC DRC Smooth filter Gain Low Attack Time Coef Register
AC_ADC_DRC_SFHRT
0x0294
ADC DRC Smooth filter Gain High Release Time Coef Register
AC_ADC_DRC_SFLRT
0x0298
ADC DRC Smooth filter Gain Low Release Time Coef Register
AC_ADC_DRC_MXGHS
0x029C
ADC DRC MAX Gain High Setting Register
AC_ADC_DRC_MXGLS
0x02A0
ADC DRC MAX Gain Low Setting Register
AC_ADC_DRC_MNGLS
0x02A4
ADC DRC MIN Gain High Setting Register
AC_ADC_DRC_MXGLS
0x02A8
ADC DRC MIN Gain Low Setting Register
AC_ADC_DRC_EPSHC
0x02AC
ADC DRC Expander Smooth Time High Coef Register
AC_ADC_DRC_EPSLC
0x02B0
ADC DRC Expander Smooth Time Low Coef Register
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 450
AC_ADC_DRC_HPFHGAIN
0x02B8
ADC DRC HPF Gain High Coef Register
AC_ADC_DRC_HPFLGAIN
0x02BC
ADC DRC HPF Gain Low Coef Register
Analog Domain Register
AC_PR_CFG
AC Parameter Configuration Register(0x01F015C0)
LINEOUT_PA_GAT
0x00
LINEOUT PA Gating Control Register
LOMIXSC
0x01
Left Output Mixer Source Select Control Register
ROMIXSC
0x02
Right Output Mixer Source Select Control Register
DAC_PA_SCR
0x03
DAC Analog Enable And PA Source Control Register
LINEIN_GCTR
0x05
Linein Gain Control Register
MIC_GCTR
0x06
MIC1 And MIC2 Gain Control Register
PAEN_CTR
0x07
PA Enable And LINEOUT Control Register
LINEOUT_VOLC
0x09
LINEOUT Volume Control Register
MIC2G_LINEOUT_CTR
0x0A
MIC2 Boost And LINEOUT Enable Control Register
MIC1G_MICBAIS_CTR
0x0B
MIC1 Boost And MICBIAS Control Register
LADCMIXSC
0x0C
Left ADC Mixer Source Control Register
RADCMIXSC
0x0D
Right Mixer Source Control Register
RES_REG
0x0E
Reserved Register
ADC_AP_EN
0x0F
ADC Analog Part Enable Register
ADDA_APT0
0x10
ADDA Analog Performance Turning0 Register
ADDA_APT1
0x11
ADDA Analog Performance Turning1 Register
ADDA_APT2
0x12
ADDA Analog Performance Turning2 Register
BIAS_DA16_CTR0
0x13
Bias & DA16 Calibration Control Register0
BIAS_DA16_CTR1
0x14
Bias & DA16 Calibration Control Register1
DA16CAL
0x15
DA16 Calibration Data Register
DA16VERIFY
0x16
DA16 Register Setting Data Register
BIASCALI
0x17
BIAS Calibration Data Register
BIASVERIFY
0x18
BIAS Register Setting Data Register
8.1.5. Register Description
8.1.5.1. 0x00 DAC Digital Part Control Register(Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: AC_DAC_DPC
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
EN_DAC
DAC Digital Part Enable
0: Disable
1 : Enable
30:29
/
/
/
28:25
R/W
0x0
MODQU
Internal DAC Quantization Levels
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 451
Levels=[7*(21+MODQU[3:0])]/128
Default levels=7*21/128=1.15
24:19
/
/
/
18
R/W
0x0
HPF_EN
High Pass Filter Enable
0: Disable
1: Enable
17:12
R/W
0x0
DVOL
Digital volume control: DVC, ATT=DVC[5:0]*(-1.16Db)
64 steps, -1.16Db/step
11:1
/
/
/
0
R/W
0x0
HUB_EN
Audio Hub Enable
0: Disable
1: Enable
8.1.5.2. 0x04 DAC FIFO Control Register (Default Value: 0x0000_4000)
Offset: 0x0004
Register Name: AC_DAC_FIFOC
Bit
Read/Write
Default/Hex
Description
31:29
R/W
0x0
DAC_FS
Sample Rate Of DAC
000: 48KHz
010: 24KHz
100: 12KHz
110: 192KHz
001: 32KHz
011: 16KHz
101: 8KHz
111: 96KHz
44.1KHz/22.05KHz/11.025KHz can be supported by Audio PLL Configure Bit
28
R/W
0x0
FIR_VER
FIR Version
0: 64-Tap FIR
1: 32-Tap FIR
27
/
/
/
26
R/W
0x0
SEND_LASAT
Audio sample select when TX FIFO underrun
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 452
0: Sending zero
1: Sending last audio sample
25:24
R/W
0x0
FIFO_MODE
For 24-bit transmitted audio sample:
00,10: FIFO_I[23:0] = {TXDATA[31:8]}
01,11: Reserved
For 16-bit transmitted audio sample:
,: FIFO_I[:] = {TXDATA[:], }
,: FIFO_I[:] = {TXDATA[:], }
23
/
/
/
22:21
R/W
0x0
DAC_DRQ_CLR_CNT
When TX FIFO Available Room is less than or equal N, DRQ Request will be
de-asserted. N is defined here:
00: IRQ/DRQ de-asserted When WLEVEL > TXTL
01: 4
10: 8
11: 16
20:15
/
/
/
14:8
R/W
0x40
TX_TRIG_LEVEL
TX FIFO Empty Trigger Level (TXTL[12:0])
Interrupt and DMA request trigger level for TX FIFO normal condition.
IRQ/DRQ geeated he WLEVEL ≤ TXTL
Note:
(1). WLEVEL represents the number of valid samples in the TX FIFO
(2). Only TXTL[6:0] valid when TXMODE = 0
7
R/W
0x0
ADDA_LOOP_EN
ADDA Loop Enable
0: Disable
1: Enable
6
R/W
0x0
DAC_MONO_EN
DAC Mono Enable
0: Stereo, 64 Levels FIFO
1: Mono, 128 Levels FIFO
When Enabled, L & R Channel Send Same Data
5
R/W
0x0
TX_SAMPLE_BITS
Transmitting Audio Sample Resolution
0: 16 bits
1: 24 bits
4
R/W
0x0
DAC_DRQ_EN
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 453
DAC FIFO Empty DRQ Enable
0: Disable
1: Enable
3
R/W
0x0
DAC_IRQ_EN
DAC FIFO Empty IRQ Enable
0: Disable
1: Enable
2
R/W
0x0
FIFO_UNDERRUN_IRQ_EN
DAC FIFO Underrun IRQ Enable
0: Disable
1: Enable
1
R/W
0x0
FIFO_OVERRUN_IRQ_EN
DAC FIFO Overrun IRQ Enable
0: Disable
1: Enable
0
R/W1C
0x0
FIFO_FLUSH
DAC FIFO Flush
Wite  to flush TX FIFO, Self lea to 
8.1.5.3. 0x08 DAC FIFO Status Register(Default Value: 0x0080_0088)
Offset: 0x0008
Register Name: AC_DAC_FIFOS
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23
R
0x1
TX_EMPTY
TX FIFO Empty
0: No room for new sample in TX FIFO
1: More than one room for new sample in TX FIFO (>= 1 word)
22:8
R
0x80
TXE_CNT
TX FIFO Empty Space Word Counter
7:4
/
/
/
3
R/W1C
0x1
TXE_INT
TX FIFO Empty Pending Interrupt
0: No Pending IRQ
1: FIFO Empty Pending Interrupt
Wite  to lea this iteupt o autoatiall lea if iteupt oditio
fails
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 454
2
R/W1C
0x0
TXU_INT
TX FIFO Underrun Pending Interrupt
0: No Pending Interrupt
1: FIFO Underrun Pending Interrupt
Write  to lea this iteupt
1
R/W1C
0x0
TXO_INT
TX FIFO Overrun Pending Interrupt
0: No Pending Interrupt
1: FIFO Overrun Pending Interrupt
Wite  to lea this iteupt
0
/
/
/
8.1.5.4. 0x10 ADC FIFO Control Register(Default Value: 0x0000_0F00)
Offset: 0x0010
Register Name: AC_ADC_FIFOC
Bit
Read/Write
Default/Hex
Description
31:29
R/W
0x0
ADFS
Sample Rate of ADC
000: 48KHz
010: 24KHz
100: 12KHz
110: Reserved
001: 32KHz
011: 16KHz
101: 8KHz
111: Reserved
44.1KHz/22.05KHz/11.025KHz can be supported by Audio PLL Configure Bit
28
R/W
0x0
EN_AD
ADC Digital Part Enable
0: Disable
1: Enable
27:25
/
/
/
24
R/W
0x0
RX_FIFO_MODE
RX FIFO Output Mode (Mode 0, 1)
: Epadig  at LSB of TX FIFO egiste
1: Expanding received sample sign bit at MSB of TX FIFO register
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 455
For 24-bit received audio sample:
Mode : RXDATA[:] = {FIFO_O[:], h}
Mode 1: Reserved
For 16-bit received audio sample:
Mode : RXDATA[:] = {FIFO_O[:], h}
Mode 1: RXDATA[31:0] = {16{FIFO_O[23]}, FIFO_O[23:8]}
23:19
/
/
/
18:17
R/W
0x0
ADCFDT
ADC FIFO Delay Time for Writing Data after EN_AD
00:5ms
01:10ms
10:20ms
11:30ms
16
R/W
0x0
ADCDFEN
ADC FIFO Delay Function for Writing Data after EN_AD
0: Disable
1: Enable
15:13
/
/
/
12:8
R/W
0xF
RX_FIFO_TRG_LEVEL
RX FIFO Trigger Level (RXTL[4:0])
Interrupt and DMA request trigger level for RX FIFO normal condition
IRQ/DRQ generated when WLEVEL < RXTL[4:0]
WLEVEL represents the number of valid samples in the RX FIFO.
7
R/W
0x0
ADC_MONO_EN
ADC Mono Enable
0: Stereo, 16 levels FIFO
1: Mono, 32 levels FIFO
Whe it is set to , Ol left hael saples ae eoded
6
R/W
0x0
RX_SAMPLE_BITS
Receiving Audio Sample Resolution
0: 16 bits
1: 24 bits
5
/
/
/
4
R/W
0x0
ADC_DRQ_EN
ADC FIFO Data Available DRQ Enable
0: Disable
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 456
1: Enable
3
R/W
0x0
ADC_IRQ_EN
ADC FIFO Data Available IRQ Enable
0: Disable
1: Enable
2
/
/
1
R/W
0x0
ADC_OVERRUN_IRQ_EN
ADC FIFO Overrun IRQ Enable
0: Disable
1: Enable
0
R/W
0x0
ADC_FIFO_FLUSH
ADC FIFO Flush
Wite  to flush TX FIFO, self lea to 
8.1.5.5. 0x14 ADC FIFO Status Register (Default Value: 0x0000_0000)
Offset: 0x0014
Register Name: AC_ADC_FIFOS
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23
R
0x0
RXA
RX FIFO Available
0: No available data in RX FIFO
1: More than one sample in RX FIFO (>= 1 word)
22:14
/
/
/
13:8
R
0x0
RXA_CNT
RX FIFO Available Sample Word Counter
7:4
/
/
/
3
R/W1C
0x0
RXA_INT
RX FIFO Data Available Pending Interrupt
0: No Pending IRQ
1: Data Available Pending IRQ
Wite  to lea this iteupt o autoatially clear if interrupt condition
fails
2
/
/
/
1
R/W1C
0x0
RXO_INT
RX FIFO Overrun Pending Interrupt
0: No Pending IRQ
1: FIFO Overrun Pending IRQ
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 457
Wite  to lea this iteupt
0
/
/
/
8.1.5.6. 0x18 ADC RX DATA Register (Default Value: 0x0000_0000)
Offset: 0x0018
Register Name: AC_ADC_RXDATA
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
RX_DATA
RX Sample
Host can get one sample by reading this register. The left channel sample
data is first and then the right channel sample.
8.1.5.7. 0x20 DAC TX DATA Register (Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: AC_DAC_TXDATA
Bit
Read/Write
Default/Hex
Description
31:0
W
0x0
TX_DATA
Transmitting left, right channel sample data should be written this register
one by one. The left channel sample data is first and then the right channel
sample.
8.1.5.8. 0x40 DAC TX Counter Register(Default Value: 0x0000_0000)
Offset: 0x0040
Register Name: AC_DAC_CNT
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
TX_CNT
TX Sample Counter
The audio sample number of sending into TXFIFO.
When one sample is put into TXFIFO by DMA or by host IO, the TX sample
counter register increases by one. The TX sample counter register can be set
to any initial value at any time. After been updated by the initial value, the
counter register should count on base of this initial value
Note: It is used for Audio/ Video Synchronization.
8.1.5.9. 0x44 ADC RX Counter Register(Default Value: 0x0000_0000)
Offset: 0x0044
Register Name: AC_ADC_CNT
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
RX_CNT
RX Sample Counter
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 458
The audio sample number of writing into RXFIFO.
When one sample is written by Digital Audio Engine, the RX sample counter
register increases by one. The RX sample counter register can be set to any
initial value at any time. After been updated by the initial value, the counter
register should count on base of this initial value.
Note: It is used for Audio/ Video Synchronization.
8.1.5.10. 0x48 DAC Debug Register (Default Value: 0x0000_0000)
Offset: 0x0048
Register Name: AC_DAC_DG
Bit
Read/Write
Default/Hex
Description
31:12
/
/
/
11
R/W
0x0
DAC_MODU_SELECT
DAC Modulator Debug
0: DAC Modulator Normal Mode
1: DAC Modulator Debug Mode
10:9
R/W
0x0
DAC_PATTERN_SELECT.
DAC Pattern Select
00: Normal (Audio Sample from TX FIFO)
01: -6 dB Sin wave
10: -60 dB Sin wave
11: Silent wave
8
R/W
0x0
CODEC_CLK_SELECT
CODEC Clock Source Select
0: CODEC Clock from PLL
1: CODEC Clock from OSC (for Debug)
7
/
/
/
6
R/W
0x0
DA_SWP
DAC Output Channel Swap Enable
0:Disable
1:Enable
5:0
/
/
/
8.1.5.11. 0x4C ADC Debug Register (Default Value: 0x0000_0000)
Offset: 0x004C
Register Name: AC_ADC_DG
Bit
Read/Write
Default/Hex
Description
31:25
/
/
/
24
R/W
0x0
AD_SWP
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 459
ADC Output Channel Swap Enable (for digital filter)
0: Disable
1: Enable
23:0
/
/
/
8.1.5.12. 0x60 DAC DAP Control Register (Default Value: 0x0000_0000)
Offset: 0x0060
Register Name: AC_DAC_DAP_CTR
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
DDAP _EN
DAP for DAC Enable
0: Bypass
1: Enable
30:16
/
/
/
15
R/W
0x0
DAC_DRC_EN
DRC Enable Control
0: Disable
1: Enable
14
R/W
0x0
DAC_DRC_HPF_EN
HPF Enable Control
0: Disable
1: Enable
13:0
/
/
/
8.1.5.13. 0x70 ADC DAP Control Register (Default Value: 0x0000_0000)
Offset: 0x0070
Register Name: AC_ADC_DAP_CTR
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
ADAP _EN
DAP for ADC Enable
0: Bypass
1: Enable
30
R/W
0x0
ADAP_START.
DAP for ADC Start up
0: Disable
1: Start up
29:27
/
/
/
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 460
26
R/W
0x0
ENADC_DRC
DRC for ADC Enable
0: Bypass
1: Enable
25
R/W
0x0
ADC_DRC_EN
ADC DRC Function Enable
24
R/W
0x0
ADC_DRC_HPF_EN
ADC DRC HPF Function Enable
23:22
/
/
/
21
R
0x0
ADAP_LSATU_FLAG.
Left Channel AGC Saturation Flag
0: No saturation
1: Saturation
20
R
0x0
ADAP_LNOI_FLAG.
Left Channel AGC Noise-Threshold Flag
0: No noise-threshold
1: Noise-threshold
19:12
R
0x0
ADAP_LCHAN_GAIN
Left Channel Gain Applied by AGC
(7.1format 2s component(-20dB – 40dB), 0.5dB/ step)
0x50 : 40dB
0x4F : 39.5dB
---------------
0x00 : 00dB
0xFF : -0.5dB
11:10
/
/
/
9
R
0x0
ADAP_RSATU_FLAG.
Right AGC Saturation Flag
0: No saturation
1: Saturation
8
R
0x0
ADAP_RNOI_FLAG.
Right Channel AGC Noise-Threshold Flag
0: No noise-threshold
1: Noise-threshold
7:0
R
0x0
ADAP_LCHAN_GAIN.
Right Channel Gain Applied by AGC (7.1format 2s component)(0.5dB step)
0x50 : 40dB
0x4F : 39.5dB
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 461
---------------
0x00 : 00dB
0xFF : -0.5dB
8.1.5.14. 0x74 ADC DAP Left Control Register (Default Value: 0x001F_7000)
Offset: 0x0074
Register Name: AC_ADC_DAP_LCTR
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:16
R/W
0x1F
ADAP_LNOI_SET.
Left Channel Noise Threshold Setting
0x00 : -24dB
0x01 : -26dB
0x02 : -28dB
----------------------
0x1D: -82dB
0x1E: -84dB
0x1F: -86dB
15
/
/
/
14
R/W
0x1
AAGC_LCHAN_EN.
Left AGC Function Enable
0: Disable
1: Enable
13
R/W
0x1
ADAP_LHPF_EN.
Left HPF Enable
0: Disable
1: Enable
12
R/W
0x1
ADAP_RNOI_DET.
Left Noise Detect Enable
0: Disable
1:Enable
11:10
/
/
/
9:8
R/W
0x0
ADAP_LCHAN_HYS.
Left Hysteresis Setting
00 : 1dB
01 : 2dB
10 : 4dB
11 : Disable
7:4
R/W
0x0
ADAP_LNOI_DEB.
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 462
Left Noise Debounce Time
0000:0/fs
0001:4/fs
0010:8/fs
------------
1111 :16*4096/fs
T=2(N+1)/fs ,except N=0
3:0
R/W
0x0
ADAP_LSIG_DEB.
Left Signal Debounce Time
0000:0/fs
0001:4/fs
0010:8/fs
------------
1111 :16*4096/fs
T=2(N+1)/fs ,except N=0
8.1.5.15. 0x78 ADC DAP Right Control Register (Default Value: 0x001F_7000)
Offset: 0x0078
Register Name: AC_ADC_DAP_RCTR
Bit
Read/Write
Default/Hex
Description
31:21
/
/
/
20:16
R/W
0x1F
ADAP_RNOI_SET.
Right Channel Noise Threshold Setting
0x00 : -24dB
0x01 : -26dB
0x02 : -28dB
----------------------
0x1D: -82dB
0x1E: -84dB
0x1F: -86dB
15
/
/
/
14
R/W
0x1
AAGC_RCHAN_EN.
Right AGC Enable
0: Disable
1: Enable
13
R/W
0x1
ADAP_RHPF_EN.
Right HPF Enable
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 463
0: Disable
1: Enable
12
R/W
0x1
ADAP_RNOI_DET.
Right Noise Detect Enable
0: Disable
1: Enable
11:10
/
/
/
9:8
R/W
0x0
ADAP_RCHAN_HYS.
Right Hysteresis Setting
00: 1dB
01: 2dB
10: 4dB
11: Disable
7:4
R/W
0x0
ADAP_RNOI_DEB.
Right Noise Debounce Time
0000:0/fs
0001:4/fs
0010:8/fs
------------
1111：16*4096/fs
T=2(N+1)/fs ,except N=0
3:0
R/W
0x0
ADAP_RSIG_DEB.
Right Signal Debounce Time
0000:0/fs
0001:4/fs
0010:8/fs
------------
1111：16*4096/fs
T=2(N+1)/fs ,except N=0
8.1.5.16. 0x7C ADC DAP Parameter Register (Default Value: 0x2C2C_2828)
Offset: 0x007C
Register Name: AC_ADC_DAP_PARA
Bit
Read/Write
Default/Hex
Description
31:30
/
/
/
29:24
R/W
0x2C
ADAP_LTARG_SET.
Left Channel Target Level Setting (-1dB ~ -30dB). (6.0format 2s component)
23:22
/
/
/
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 464
21:16
R/W
0x2C
ADAP_RTARG_SET.
Right Channel Target Level Setting (-1dB ~ -30dB). (6.0format 2s component)
15:8
R/W
0x28
ADAP_LGAIN_MAX.
Left Channel Max Gain Setting (0dB ~ 40dB). (7.1format 2s component)
7:0
R/W
0x28
ADAP_RGAIN_MAX.
Right Channel Max Gain Setting (0dB ~ 40dB). (7.1format 2s component)
8.1.5.17. 0x80 ADC DAP Left Average Coef Register (Default Value: 0x0005_1EB8)
Offset: 0x0080
Register Name: AC_ADC_DAP_LAC
Bit
Read/Write
Default/Hex
Description
31:27
/
/
/
26:0
R/W
0x0051EB8
ADAP_LAC.
Average Level Coefficient Setting(3.24format 2s component)
8.1.5.18. 0x84 ADC DAP Left Decay & Attack Time Register (Default Value: 0x0000_001F)
Offset: 0x0084
Register Name: AC_ADC_DAP_LDAT
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:16
R/W
0x0000
ADAP_LATT_SET
Left Attack Time Coefficient Setting
000000000000000: 1x32/fs
000000000000001: 2x32/fs
------------------------
111111111111111: 215 x32/fs
T=(n+1)*32*fs
When the gain decreases, the actual gain will decrease 0.5dB at every attack
time.
15
/
/
/
14:0
R/W
0x001F
ADAP_LDEC_SET
Left Decay Time Coefficient Setting
000000000000000: 1x32/fs
000000000000001: 2x32/fs
------------------------
000000000011111: 32x32/fs
------------------------
111111111111111: 215 x32/fs
T=(n+1)*32/fs
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 465
When the gain increases, the actual gain will increase 0.5dB at every decay
time.
8.1.5.19. 0x88 ADC DAP Right Average Coef Register (Default Value: 0x0005_1EB8)
Offset: 0x0088
Register Name: AC_ADC_DAP_RAC
Bit
Read/Write
Default/Hex
Description
31:27
/
/
/
26:0
R/W
0x0051EB8
ADAP_RAC.
Average Level Coefficient Setting(3.24fomat)
8.1.5.20. 0x8C ADC DAP Right Decay & Attack Time Register (Default Value: 0x0000_001F)
Offset: 0x008C
Register Name: AC_ADC_DAP_RDAT
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:16
R/W
0x0000
ADAP_RATT_SET.
Right Attack Time Coefficient Setting
000000000000000: 1x32/fs
000000000000001: 2x32/fs
------------------------
111111111111111: 215 x32/fs
T=(n+1)*32/fs
When the gain decreases, the actual gain will decrease 0.5dB at every attack
time.
15
/
/
/
14:0
R/W
0x001F
ADAP_RDEC_SET
Right Decay Time Coefficient Setting
000000000000000: 1x32/fs
000000000000001: 2x32/fs
------------------------
000000000011111: 32x32/fs
------------------------
111111111111111: 215 x32/fs
T=(n+1)*32/fs
When the gain increases, the actual gain will increase 0.5dB at every decay
time.
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 466
8.1.5.21. 0x90 ADC DAP HPF Coef Register (Default Value: 0x00FF_FAC1)
Offset: 0x0090
Register Name: AC_ADC_DAP_HPFC
Bit
Read/Write
Default/Hex
Description
31:27
/
/
/
26:0
R/W
0x0FFFAC1
ADAP_HPFC.
HPF Coefficient Setting (3.24fomat)
8.1.5.22. 0x94 ADC DAP Left Input Signal Low Average Coef Register (Default Value: 0x0005_1EB8)
Offset: 0x0094
Register Name: AC_ADC_DAP_LINAC
Bit
Read/Write
Default/Hex
Description
31:27
/
/
/
26:0
R/W
0x0051EB8
ADAP_LINAC
Left input signal average filter coefficient to check noise or not (the
coefficientis 3.24 format 2s complement) always the same as the left output
signal average filter's.
8.1.5.23. 0x98 ADC DAP Right Input Signal Low Average Coef Register (Default Value: 0x0005_1EB8)
Offset: 0x0098
Register Name: AC_ADC_DAP_RNAC
Bit
Read/Write
Default/Hex
Description
31:27
/
/
/
26:0
R/W
0x0051EB8
ADAP_RINAC
Right input signal average filter coefficient to check noise or not (the
coefficientis 3.24 format 2s complement) always the same as the left output
signal average filter's.
8.1.5.24. 0x9C ADC DAP Optimum Register (Default Value: 0x0000_0000)
Offset: 0x009C
Register Name: AC_ADC_DAP_OPT
Bit
Read/Write
Default/Hex
Description
31:11
/
/
/
10
R/W
0x0
Left Energy Default Value Setting(include the input and output)
0: Min
1: Max
9:8
R/W
0x0
Left Channel Gain Hystersis Setting.
The different between target level and the signal level must larger than the
hystersis when the gain changed.
00: 0.4375dB
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 467
01: 0.9375dB
10: 1.9375dB
11: 3dB
7:6
/
/
/
5
R/W
0x0
Input Signal Average Filter Coefficient Setting
0: The reg94/reg98
1: The reg80/reg88
4
R/W
0x0
AGC Output when the Channel in Noise State
0: Output is zero
1: Output is the input data
3
/
/
/
2
R/W
0x0
Right Energy Default Value Setting(include the input and output)
0 : Min
1 : Max
1:0
R/W
0x0
Right Channel Gain Hysteresis Setting.
The different between target level and the signal level must larger than the
hysteresis when the gain changed.
00 : 0.4375dB
01 : 0.9375dB
10 : 1.9375dB
11 : 3dB
8.1.5.25. 0x100 DAC DRC High HPF Coef Register (Default Value: 0x0000_00FF)
Offset: 0x0100
Register Name: AC_DAC_DRC_HHPFC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0xFF
HPF coefficient setting and the data is 3.24 format.
8.1.5.26. 0x104 DAC DRC Low HPF Coef Register(Default Value: 0x0000_FAC1)
Offset: 0x0104
Register Name: AC_DAC_DRC_LHPFC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xFAC1
HPF coefficient setting and the data is 3.24 format.
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 468
8.1.5.27. 0x108 DAC DRC Control Register(Default Value: 0x0000_0080)
Offset: 0x0108
Register Name: AC_DAC_DRC_CTRL
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15
R
0x0
DRC delay buffer data output state when DRC delay function is enabled and the
DRC funciton is disabled. After disable DRC function and this bit is set to 0, the
user should write the DRC delay function bit to 0.
0 : Not complete
1 : Complete
14:10
/
/
/
13:8
R/W
0x0
Signal Delay Time Setting
000000 : (8x1)fs
000001 : (8x2)fs
000010 : (8x3)fs
----------------------------------------
101110 : (8*47)fs
101111 : (8*48)fs
110000 ~ 111111 : (8*48)fs
Delay time = 8*(n+1)fs, n<6'h30.
When the delay function is disabled, the signal delay time is unused.
7
R/W
0x1
The delay buffer use or not when the DRC disable and the drc buffer data
output completely.
0 : Don't use the buffer
1 : Use the buffer
6
R/W
0x0
DRC Gain Max Limit Enable
0 : Disable
1 : Enable
5
R/W
0x0
DRC Gain Min Limit Enable.
When this function enable, it will overwrite the noise detect function.
0 : Disable
1 : Enable
4
R/W
0x0
Control DRC to Detect Noise when ET Enable
0 : Disable
1 : Enable
3
R/W
0x0
Signal Function Select
0 : RMS filter
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 469
1 : Peak filter
When Signal function Select Peak filter, the RMS parameter is unused.
(AC_DRC_LRMSHAT/AC_DRC_LRMSLAT/AC_DRC_LRMSHAT/AC_DRC_LRMSLAT)
When Signal function Select RMS filter, the Peak filter parameter is
unused.(AC_DRC_LPFHAT/AC_DRC_LPFLAT/AC_DRC_RPFHAT/AC_DRC_RPFLAT
/ AC_DRC_LPFHRT / AC_DRC_LPFLRT / AC_DRC_RPFHRT / AC_DRC_RPFLRT)
2
R/W
0x0
Delay Function Enable
0 : Disable
1 : Enable
When the Delay function enable bit is disabled, the Signal delay time is unused.
1
R/W
0x0
DRC LT Enable
0 : Disable
1 : Enable
When the DRC LT enable bit is disabled, Kl and OPL parameter is unused.
0
R/W
0x0
DRC ET Enable
0 : Disable
1 : Enable
When the DRC ET enable bit is disabled, Ke and OPE parameter is unused.
8.1.5.28. 0x10C DAC DRC Left Peak Filter High Attack Time Coef Register (Default Value: 0x0000_000B)
Offset: 0x010C
Register Name: AC_DAC_DRC_LPFHAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x000B
The left peak filter attack time parameter setting, which is determined by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
8.1.5.29. 0x110 DAC DRC Left Peak Filter Low Attack Time Coef Register (Default Value: 0x0000_77BF)
Offset: 0x0110
Register Name: AC_DAC_DRC_LPFLAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x77BF
The left peak filter attack time parameter setting, which is determined by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 470
8.1.5.30. 0x114 DAC DRC Right Peak Filter High Attack Time Coef Register (Default Value: 0x0000_000B)
Offset: 0x0114
Register Name: AC_DAC_DRC_RPFHAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x000B
The left peak filter attack time parameter setting, which is determined by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
8.1.5.31. 0x118 DAC DRC Peak Filter Low Attack Time Coef Register (Default Value: 0x0000_77BF)
Offset: 0x0118
Register Name: AC_DAC_DRC_RPFLAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x77BF
The left peak filter attack time parameter setting, which is determined by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
8.1.5.32. 0x11C DAC DRC Left Peak Filter High Release Time Coef Register (Default Value: 0x0000_00FF)
Offset: 0x011C
Register Name: AC_DAC_DRC_LPFHRT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x00FF
The left peak filter release time parameter setting, which is determined by
the equation that RT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
8.1.5.33. 0x120 DAC DRC Left Peak Filter Low Release Time Coef Register (Default Value: 0x0000_E1F8)
Offset: 0x0120
Register Name: AC_DAC_DRC_LPFLRT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xE1F8
The left peak filter release time parameter setting, which is determined by
the equation that RT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
8.1.5.34. 0x124 DAC DRC Right Peak filter High Release Time Coef Register (Default Value: 0x0000_00FF)
Offset: 0x0124
Register Name: AC_DAC_DRC_RPFHRT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x00FF
The left peak filter attack time parameter setting, which is determined by the
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 471
equation that RT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
8.1.5.35. 0x128 DAC DRC Right Peak filter Low Release Time Coef Register (Default Value: 0x0000_E1F8)
Offset: 0x0128
Register Name: AC_DAC_DRC_RPFLRT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xE1F8
The left peak filter release time parameter setting, which is determined by
the equation that AT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
8.1.5.36. 0x12C DAC DRC Left RMS Filter High Coef Register (Default Value: 0x0000_0001)
Offset: 0x012C
Register Name: AC_DAC_DRC_LRMSHAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x0001
The left RMS filter average time parameter setting, which is determined by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
8.1.5.37. 0x130 DAC DRC Left RMS Filter Low Coef Register (Default Value: 0x0000_2BAF)
Offset: 0x0130
Register Name: AC_DAC_DRC_LRMSLAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x2BAF
The left RMS filter average time parameter setting, which is determined by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
8.1.5.38. 0x134 DAC DRC Right RMS Filter High Coef Register (Default Value: 0x0000_0001)
Offset: 0x0134
Register Name: AC_DAC_DRC_RRMSHAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x0001
The right RMS filter average time parameter setting, which is determined by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
8.1.5.39. 0x138 DAC DRC Right RMS Filter Low Coef Register (Default Value: 0x0000_2BAF)
Offset: 0x0138
Register Name: AC_DAC_DRC_RRMSLAT
Bit
Read/Write
Default/Hex
Description
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 472
31:16
/
/
/
15:0
R/W
0x2BAF
The right RMS filter average time parameter setting, which is determined by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
8.1.5.40. 0x13C DAC DRC Compressor Threshold High Setting Register (Default Value: 0x0000_06A4)
Offset: 0x013C
Register Name: AC_DAC_DRC_HCT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x06A4
The compressor threshold setting is set by the equation that CTin =
-CT/6.0206. The format is 8.24 (-40dB)
8.1.5.41. 0x140 DAC DRC Compressor Threshold Low Setting Register (Default Value: 0x0000_D3C0)
Offset: 0x0140
Register Name: AC_DAC_DRC_LCT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xD3C0
The compressor threshold setting is set by the equation that CTin =
-CT/6.0206. The format is 8.24 (-40dB)
8.1.5.42. 0x144 DAC DRC Compressor Slope High Setting Register (Default Value: 0x0000_0080)
Offset: 0x0144
Register Name: AC_DAC_DRC_HKC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:14
/
/
/
13:0
R/W
0x0080
The slope of the compressor is determined by the equation that Kc = 1/R, R is
the ratio of the compressor, which always is interger. The format is 6.24. (2 :
1)
8.1.5.43. 0x148 DAC DRC Compressor Slope Low Setting Register (Default Value: 0x0000_0000)
Offset: 0x0148
Register Name: AC_DAC_DRC_LKC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0000
The slope of the compressor is determined by the equation that Kc = 1/R, R is
the ratio of the compressor, which always is interger. The format is 6.24. (2 :
1)
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 473
8.1.5.44. 0x14C DAC DRC Compressor High Output at Compressor Threshold Register (Default Value: 0x0000_F95B)
Offset: 0x014C
Register Name: AC_DAC_DRC_HOPC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xF95B
The output of the compressor is determined by the equation -OPC/6.0206.
The format is 8.24 (-40dB)
8.1.5.45. 0x150 DAC DRC Compressor Low Output at Compressor Threshold Register (Default Value: 0x0000_2C3F)
Offset: 0x0150
Register Name: AC_DAC_DRC_LOPC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x2C3F
The output of the compressor is determined by the equation OPC/6.0206.
The format is 8.24 (-40dB)
8.1.5.46. 0x154 DAC DRC Limiter Theshold High Setting Register (Default Value: 0x0000_01A9)
Offset: 0x0154
Register Name: AC_DAC_DRC_HLT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x01A9
The limiter threshold setting is set by the equation that LTin = -LT/6.0206. The
format is 8.24. (-10dB)
8.1.5.47. 0x158 DAC DRC Limiter Theshold Low Setting Register (Default Value: 0x0000_34F0)
Offset: 0x0158
Register Name: AC_DAC_DRC_LLT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x34F0
The limiter threshold setting is set by the equation that LTin = -LT/6.0206.The
format is 8.24. (-10dB)
8.1.5.48. 0x15C DAC DRC Limiter Slope High Setting Register (Default Value: 0x0000_0005)
Offset: 0x015C
Register Name: AC_DAC_DRC_HKl
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:14
/
/
/
13:0
R/W
0x0005
The slope of the limiter is determined by the equation that Kl = 1/R, R is the
ratio of the limiter, which always is interger. The format is 6.24. (50 :1)
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 474
8.1.5.49. 0x160 DAC DRC Limiter Slope Low Setting Register (Default Value: 0x0000_1EB8)
Offset: 0x0160
Register Name: AC_DAC_DRC_LKl
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x1EB8
The slope of the limiter is determined by the equation that Kl = 1/R, R is the
ratio of the limiter, which always is interger. The format is 6.24. (50 :1)
8.1.5.50. 0x164 DAC DRC Limiter High Output at Limiter Threshold (Default Value: 0x0000_FBD8)
Offset: 0x0164
Register Name: AC_DAC_DRC_HOPL
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xFBD8
The output of the limiter is determined by equation OPT/6.0206. The format
is 8.24 (-25dB)
8.1.5.51. 0x168 DAC DRC Limiter Low Output at Limiter Threshold (Default Value: 0x0000_FBA7)
Offset: 0x0168
Register Name: AC_DAC_DRC_LOPL
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xFBA7
The output of the limiter is determined by equation OPT/6.0206. The format
is 8.24 (-25dB)
8.1.5.52. 0x16C DAC DRC Expander Theshold High Setting Register (Default Value: 0x0000_0BA0)
Offset: 0x016C
Register Name: AC_DAC_DRC_HET
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0BA0
The expander threshold setting is set by the equation that ETin = -ET/6.0206.
The format is 8.24. (-70dB)
8.1.5.53. 0x170 DAC DRC Expander Theshold Low Setting Register (Default Value: 0x0000_7291)
Offset: 0x0170
Register Name: AC_DAC_DRC_LET
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x7291
The expander threshold setting is set by the equation that ETin = -ET/6.0206.
The format is 8.24. (-70dB)
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 475
8.1.5.54. 0x174 DAC DRC Expander Slope High Setting Register (Default Value: 0x0000_0500)
Offset: 0x0174
Register Name: AC_DAC_DRC_HKE
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:14
/
/
/
13:0
R/W
0x0500
The slope of the expander is determined by the equation that Ke = 1/R, R is
the ratio of the expander, which always is interger and the ke must larger
than 1/50. The format is 6.24. (1:5)
8.1.5.55. 0x178 DAC DRC Expander Slope Low Setting Register (Default Value: 0x0000_0000)
Offset: 0x0178
Register Name: AC_DAC_DRC_LKE
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0000
The slope of the expander is determined by the equation that Ke = 1/R, R is
the ratio of the expander, which always is interger and the ke must larger
than 1/50. The format is 6.24. (1:5)
8.1.5.56. 0x17C DAC DRC Expander High Output at Expander Threshold (Default Value: 0x0000_F45F)
Offset: 0x017C
Register Name: AC_DAC_DRC_HOPE
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xF45F
The output of the expander is determined by equation OPE/6.0206. The
format is 8.24 (-70dB)
8.1.5.57. 0x180 DAC DRC Expander Low Output at Expander Threshold (Default Value: 0x0000_8D6E)
Offset: 0x0180
Register Name: AC_DAC_DRC_LOPE
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x8D6E
The output of the expander is determined by equation OPE/6.0206. The
format is 8.24 (-70dB)
8.1.5.58. 0x184 DAC DRC Linear Slope High Setting Register (Default Value: 0x0000_0100)
Offset: 0x0184
Register Name: AC_DAC_DRC_HKN
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:14
/
/
/
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 476
13:0
R/W
0x0100
The slope of the linear is determined by the equation that Kn = 1/R, R is the
ratio of the linear, which always is interger . The format is 6.24. (1:1)
8.1.5.59. 0x188 DAC DRC Linear Slope Low Setting Register (Default Value: 0x0000_0000)
Offset: 0x0188
Register Name: AC_DAC_DRC_LKN
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0000
The slope of the linear is determined by the equation that Kn = 1/R, R is the
ratio of the linear, which always is interger . The format is 6.24. (1:1)
8.1.5.60. 0x18C DAC DRC Smooth Filter Gain High Attack Time Coef Register (Default Value: 0x0000_0002)
Offset: 0x018C
Register Name: AC_DAC_DRC_SFHAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x0002
The smooth filter attack time parameter setting,which is determined by the
equation that AT = 1-exp(-2.2Ts/tr). The format is 3.24. (5ms)
8.1.5.61. 0x190 DAC DRC Smooth Filter Gain Low Attack Time Coef Register (Default Value: 0x0000_5600)
Offset: 0x0190
Register Name: AC_DAC_DRC_SFLAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x5600
The smooth filter attack time parameter setting,which is determined by the
equation that AT = 1-exp(-2.2Ts/tr). The format is 3.24. (5ms)
8.1.5.62. 0x194 DAC DRC Smooth filter Gain High Release Time Coef Register (Default Value: 0x0000_0000)
Offset: 0x0194
Register Name: AC_DAC_DRC_SFHRT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x0000
The gain smooth filter release time parameter setting is determined by the
equation that RT = 1-exp(-2.2Ts/tr). The format is 3.24. (200ms)
8.1.5.63. 0x198 DAC DRC Smooth filter Gain Low Release Time Coef Register (Default Value: 0x0000_0F04)
Offset: 0x0198
Register Name: AC_DAC_DRC_SFLRT
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 477
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0F04
The gain smooth filter release time parameter setting is determined by the
equation that RT = 1-exp(-2.2Ts/tr). The format is 3.24. (200ms)
8.1.5.64. 0x19C DAC DRC MAX Gain High Setting Register (Default Value: 0x0000_FE56)
Offset: 0x019C
Register Name: AC_DAC_DRC_MXGHS
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xFE56
The maximum gain setting is determined by equation MXG/6.0206. The
format is 8.24 and must -20dB <MXG< 30dB (-10dB)
8.1.5.65. 0x1A0 DAC DRC MAX Gain Low Setting Register (Default Value: 0x0000_CB0F)
Offset: 0x01A0
Register Name: AC_DAC_DRC_MXGLS
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xCB0F
The maximum gain setting is determined by equation MXG/6.0206. The
format is 8.24 and must -20dB <MXG < 30dB (-10dB)
8.1.5.66. 0x1A4 DAC DRC MIN Gain High Setting Register (Default Value: 0x0000_F95B)
Offset: 0x01A4
Register Name: AC_DAC_DRC_MNGHS
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xF95B
The minimum gain setting is determined by equation MXG/6.0206. The
format is 8.24 and must -60dB ≤MNG ≤-30dB (-40dB)
8.1.5.67. 0x1A8 DAC DRC MIN Gain Low Setting Register (Default Value: 0x0000_2C3F)
Offset: 0x01A8
Register Name: AC_DAC_DRC_MNGLS
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x2C3F
The minimum gain setting is determined by equation MNG/6.0206. The
format is 8.24 and must -60dB ≤MNG ≤-30dB (-40dB)
8.1.5.68. 0x1AC DAC DRC Expander Smooth Time High Coef Register (Default Value: 0x0000_0000)
Offset: 0x01AC
Register Name: AC_DAC_DRC_EPSHC
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 478
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:12
/
/
/
11:0
R/W
0x0000
The gain smooth filter release and attack time parameter setting in expander
region, which is determined by the equation that RT = 1-exp(-2.2Ts/tr). The
format is 3.24. (30ms)
8.1.5.69. 0x1B0 DAC DRC Expander Smooth Time Low Coef Register(Default Value: 0x0000_640C)
Offset: 0x01B0
Register Name: AC_DAC_DRC_EPSLC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x640C
The gain smooth filter release and attack time parameter setting in expander
region, which is determined by the equation that RT = 1-exp(-2.2Ts/tr). The
format is 3.24. (30ms)
8.1.5.70. 0x1B8 DAC DRC HPF Gain High Coef Register(Default Value: 0x0000_0100)
Offset: 0x01B8
Register Name: AC_DAC_DRC_HPFHGAIN
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x0100
The gain of the HPF high coefficient setting .
The format is 3.24.(gain = 1)
8.1.5.71. 0x1BC DAC DRC HPF Gain Low Coef Register(Default Value: 0x0000_0000)
Offset: 0x01BC
Register Name: AC_DAC_DRC_HPFLGAIN
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0000
The gain of the HPF low coefficient setting.
The format is 3.24.(gain = 1)
8.1.5.72. 0x200 ADC DRC High HPF Coef Register (Default Value: 0x0000_00FF)
Offset: 0x0200
Register Name: AC_ADC_DRC_HHPFC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0xFF
HPF coefficient setting and the data is 3.24 format.
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 479
8.1.5.73. 0x204 ADC DRC Low HPF Coef Register (Default Value: 0x0000_FAC1)
Offset: 0x0204
Register Name: AC_ADC_DRC_LHPFC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xFAC1
HPF coefficient setting and the data is 3.24 format.
8.1.5.74. 0x208 ADC DRC Control Register (Default Value: 0x0000_0080)
Offset: 0x0208
Register Name: AC_ADC_DRC_CTRL
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15
R
0x0
DRC delay buffer data output state when DRC delay function is enabled and the
DRC function is disabled. After disabled DRC function and this bit changed to 0,
the user should write the DRC delay function bit to 0.
0 : Not complete
1 : Complete
14:10
/
/
/
13:8
R/W
0x0
Signal Delay Time Setting
000000 : (8x1)fs
000001 : (8x2)fs
000010 : (8x3)fs
----------------------------------------
101110 : (8*47)fs
101111 : (8*48)fs
110000 ~ 111111 : (8*48)fs
Delay time = 8*(n+1)fs, n<6'h30;
When the delay function is disabled, the signal delay time is unused.
7
R/W
0x1
The delay buffer use or not when the DRC disable and the DRC buffer data
output completely.
0 : Don't use the buffer
1 : Use the buffer
6
R/W
0x0
DRC Gain Max Limit Enable
0 : Disable
1 : Enable
5
R/W
0x0
DRC Gain Min Limit Enable.
When this function enable, it will overwrite the noise detect function.
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 480
0 : Disable
1 : Enable
4
R/W
0x0
Control the DRC to Detect Noise when ET Enable
0 : Disable
1 : Enable
3
R/W
0x0
Signal Function Select
0 : RMS filter
1 : Peak filter
When Signal function selects Peak filter, the RMS parameter is unused.
(AC_DRC_LRMSHAT/AC_DRC_LRMSLAT/AC_DRC_LRMSHAT/AC_DRC_LRMSLAT)
When Signal function selects RMS filter, the Peak filter parameter is
unused.(AC_DRC_LPFHAT/AC_DRC_LPFLAT/AC_DRC_RPFHAT/ AC_DRC_RPFLAT
/ AC_DRC_LPFHRT / AC_DRC_LPFLRT / AC_DRC_RPFHRT / AC_DRC_RPFLRT)
2
R/W
0x0
Delay Function Enable
0 : Disable
1 : Enable
When the Delay function is disabled, the Signal delay time is unused.
1
R/W
0x0
DRC LT Enable
0 : Disable
1 : Enable
When the DRC LT disables the LT, then Kl and OPL parameter is unused.
0
R/W
0x0
DRC ET Enable
0 : Disable
1 : Enable
When the DRC ET disables the ET, then Ke and OPE parameter is unused.
8.1.5.75. 0x20C ADC DRC Left Peak Filter High Attack Time Coef Register (Default Value: 0x0000_000B)
Offset: 0x020C
Register Name: AC_ADC_DRC_LPFHAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x000B
The left peak filter attack time parameter setting, which is determined by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 481
8.1.5.76. 0x210 ADC DRC Left Peak Filter Low Attack Time Coef Register (Default Value: 0x0000_77BF)
Offset: 0x0210
Register Name: AC_ADC_DRC_LPFLAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x77BF
The left peak filter attack time parameter setting, which is determined by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
8.1.5.77. 0x214 ADC DRC Right Peak Filter High Attack Time Coef Register (Default Value: 0x0000_000B)
Offset: 0x0214
Register Name: AC_ADC_DRC_RPFHAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x000B
The left peak filter attack time parameter setting, which is determined by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
8.1.5.78. 0x218 ADC DRC Peak Filter Low Attack Time Coef Register (Default Value: 0x0000_77BF)
Offset: 0x0218
Register Name: AC_ADC_DRC_RPFLAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x77BF
The left peak filter attack time parameter setting, which is determined by the
equation that AT = 1-exp(-2.2Ts/ta). The format is 3.24. (1ms)
8.1.5.79. 0x21C ADC DRC Left Peak Filter High Release Time Coef Register (Default Value: 0x0000_00FF)
Offset: 0x021C
Register Name: AC_ADC_DRC_LPFHRT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x00FF
The left peak filter release time parameter setting, which is determined by the
equation that RT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
8.1.5.80. 0x220 ADC DRC Left Peak Filter Low Release Time Coef Register (Default Value: 0x0000_E1F8)
Offset: 0x0220
Register Name: AC_ADC_DRC_LPFLRT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xE1F8
The left peak filter release time parameter setting, which is determined by the
equation that RT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 482
8.1.5.81. 0x224 ADC DRC Right Peak filter High Release Time Coef Register (Default Value: 0x0000_00FF)
Offset: 0x0224
Register Name: AC_ADC_DRC_RPFHRT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x00FF
The left peak filter attack time parameter setting, which is determined by the
equation that RT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
8.1.5.82. 0x228 ADC DRC Right Peak filter Low Release Time Coef Register (Default Value: 0x0000_E1F8)
Offset: 0x0228
Register Name: AC_ADC_DRC_RPFLRT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xE1F8
The left peak filter release time parameter setting, which is determined by the
equation that AT = exp(-2.2Ts/tr). The format is 3.24. (100ms)
8.1.5.83. 0x22C ADC DRC Left RMS Filter High Coef Register (Default Value: 0x0000_0001)
Offset: 0x022C
Register Name: AC_ADC_DRC_LRMSHAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x0001
The left RMS filter average time parameter setting, which is determined by the
equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
8.1.5.84. 0x230 ADC DRC Left RMS Filter Low Coef Register (Default Value: 0x0000_2BAF)
Offset: 0x0230
Register Name: AC_ADC_DRC_LRMSLAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x2BAF
The left RMS filter average time parameter setting, which is determined by the
equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
8.1.5.85. 0x234 ADC DRC Right RMS Filter High Coef Register (Default Value: 0x0000_0001)
Offset: 0x0234
Register Name: AC_ADC_DRC_RRMSHAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 483
15:11
/
/
/
10:0
R/W
0x0001
The right RMS filter average time parameter setting, which is determined by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
8.1.5.86. 0x238 ADC DRC Right RMS Filter Low Coef Register (Default Value: 0x0000_2BAF)
Offset: 0x0238
Register Name: AC_ADC_DRC_RRMSLAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x2BAF
The right RMS filter average time parameter setting, which is determined by
the equation that AT = 1-exp(-2.2Ts/tav). The format is 3.24. (10ms)
8.1.5.87. 0x23C ADC DRC Compressor Theshold High Setting Register (Default Value: 0x0000_06A4)
Offset: 0x023C
Register Name: AC_ADC_DRC_HCT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x06A4
The compressor threshold setting, which is set by the equation that CTin =
-CT/6.0206. The format is 8.24 (-40dB)
8.1.5.88. 0x240 ADC DRC Compressor Theshold Low Setting Register (Default Value: 0x0000_D3C0)
Offset: 0x0240
Register Name: AC_ADC_DRC_LCT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xD3C0
The compressor threshold setting, which is set by the equation that CTin =
-CT/6.0206. The format is 8.24 (-40dB)
8.1.5.89. 0x244 ADC DRC Compressor Slope High Setting Register (Default Value: 0x0000_0080)
Offset: 0x0244
Register Name: AC_ADC_DRC_HKC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:14
/
/
/
13:0
R/W
0x0080
The slope of the compressor is determined by the equation that Kc = 1/R, R is
the ratio of the compressor, which always is interger. The format is 8.24. (2 : 1)
8.1.5.90. 0x248 ADC DRC Compressor Slope Low Setting Register (Default Value: 0x0000_0000)
Offset: 0x0248
Register Name: AC_ADC_DRC_LKC
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 484
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0000
The slope of the compressor is determined by the equation that Kc = 1/R, R is
the ratio of the compressor, which always is interger. The format is 8.24. (2 : 1)
8.1.5.91. 0x24C ADC DRC Compressor High Output at Compressor Threshold Register (Default Value: 0x0000_F95B)
Offset: 0x024C
Register Name: AC_ADC_DRC_HOPC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xF95B
The output of the compressor is determined by the equation OPC/6.0206. The
format is 8.24. (-40dB)
8.1.5.92. 0x250 ADC DRC Compressor Low Output at Compressor Threshold Register (Default Value: 0x0000_2C3F)
Offset: 0x0250
Register Name: AC_ADC_DRC_LOPC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x2C3F
The output of the compressor is determined by the equation OPC/6.0206. The
format is 8.24. (-40dB)
8.1.5.93. 0x254 ADC DRC Limiter Theshold High Setting Register (Default Value: 0x0000_01A9)
Offset: 0x0254
Register Name: AC_ADC_DRC_HLT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x01A9
The limiter threshold setting is set by the equation that LTin = -LT/6.0206. The
format is 8.24. (-10dB)
8.1.5.94. 0x258 ADC DRC Limiter Theshold Low Setting Register (Default Value: 0x0000_34F0)
Offset: 0x0258
Register Name: AC_ADC_DRC_LLT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x34F0
The limiter threshold setting is set by the equation that LTin = -LT/6.0206. The
format is 8.24. (-10dB)
8.1.5.95. 0x25C ADC DRC Limiter Slope High Setting Register (Default Value: 0x0000_0005)
Offset: 0x025C
Register Name: AC_ADC_DRC_HKl
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 485
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:14
/
/
/
13:0
R/W
0x0005
The slope of the limiter is determined by the equation that Kl = 1/R, R is the
ratio of the limiter, which always is interger. The format is 6.24. (50 :1)
8.1.5.96. 0x260 ADC DRC Limiter Slope Low Setting Register (Default Value: 0x0000_1EB8)
Offset: 0x0260
Register Name: AC_ADC_DRC_LKl
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x1EB8
The slope of the limiter is determined by the equation that Kl = 1/R, R is the
ratio of the limiter, which always is interger. The format is 6.24. (50 :1)
8.1.5.97. 0x264 ADC DRC Limiter High Output at Limiter Threshold Register (Default Value: 0x0000_FBD8)
Offset: 0x0264
Register Name: AC_ADC_DRC_HOPL
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xFBD8
The output of the limiter is determined by equation OPT/6.0206. The format is
8.24. (-25dB)
8.1.5.98. 0x268 ADC DRC Limiter Low Output at Limiter Threshold Register (Default Value: 0x0000_FBA7)
Offset: 0x0268
Register Name: AC_ADC_DRC_LOPL
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xFBA7
The output of the limiter is determined by equation OPT/6.0206. The format is
8.24. (-25dB)
8.1.5.99. 0x26C ADC DRC Expander Theshold High Setting Register (Default Value: 0x0000_0BA0)
Offset: 0x026C
Register Name: AC_ADC_DRC_HET
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0BA0
The expander threshold setting is set by the equation that ETin = -ET/6.0206.
The format is 8.24. (-70dB)
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 486
8.1.5.100. 0x270 ADC DRC Expander Theshold Low Setting Register (Default Value: 0x0000_7291)
Offset: 0x0270
Register Name: AC_ADC_DRC_LET
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x7291
The expander threshold setting is set by the equation that ETin = -ET/6.0206.
The format is 8.24. (-70dB)
8.1.5.101. 0x274 ADC DRC Expander Slope High Setting Register (Default Value: 0x0000_0500)
Offset: 0x0274
Register Name: AC_ADC_DRC_HKE
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:14
/
/
/
13:0
R/W
0x0500
The slope of the expander is determined by the equation that Ke = 1/R, R is the
ratio of the expander, which always is interger and the ke must larger than
1/50. The format is 6.24. (1:5)
8.1.5.102. 0x278 ADC DRC Expander Slope Low Setting Register (Default Value: 0x0000_0000)
Offset: 0x0278
Register Name: AC_ADC_DRC_LKE
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0000
The slope of the expander is determined by the equation that Ke = 1/R, R is the
ratio of the expander, which always is interger and the ke must larger than 1/50.
The format is 6.24. (1:5)
8.1.5.103. 0x27C ADC DRC Expander High Output at Expander Threshold (Default Value: 0x0000_F45F)
Offset: 0x027C
Register Name: AC_ADC_DRC_HOPE
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xF45F
The output of the expander is determined by equation OPE/6.0206. The format
is 8.24. (-70dB)
8.1.5.104. 0x280 ADC DRC Expander Low Output at Expander Threshold (Default Value: 0x0000_8D6E)
Offset: 0x0280
Register Name: AC_ADC_DRC_LOPE
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x8D6E
The output of the expander is determined by equation OPE/6.0206. The format
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 487
is 8.24. (-70dB)
8.1.5.105. 0x284 ADC DRC Linear Slope High Setting Register (Default Value: 0x0000_0100)
Offset: 0x0284
Register Name: AC_ADC_DRC_HKN
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:14
/
/
/
13:0
R/W
0x0100
The slope of the linear is determined by the equation that Kn = 1/R, R is the
ratio of the linear, which always is interger . The format is 6.24. (1:1)
8.1.5.106. 0x288 ADC DRC Linear Slope Low Setting Register (Default Value: 0x0000_0000)
Offset: 0x0288
Register Name: AC_ADC_DRC_LKN
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0000
The slope of the linear is determined by the equation that Kn = 1/R, R is the
ratio of the linear, which always is interger . The format is 6.24. (1:1)
8.1.5.107. 0x28C ADC DRC Smooth Filter Gain High Attack Time Coef Register (Default Value: 0x0000_0002)
Offset: 0x028C
Register Name: AC_ADC_DRC_SFHAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x0002
The smooth filter attack time parameter setting, which is determined by the
equation that AT = 1-exp(-2.2Ts/tr). The format is 3.24. (5ms)
8.1.5.108. 0x290 ADC DRC Smooth Filter Gain Low Attack Time Coef Register (Default Value: 0x0000_5600)
Offset: 0x0290
Register Name: AC_ADC_DRC_SFLAT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x5600
The smooth filter attack time parameter setting, which is determined by the
equation that AT = 1-exp(-2.2Ts/tr). The format is 3.24. (5ms)
8.1.5.109. 0x294 ADC DRC Smooth filter Gain High Release Time Coef Register (Default Value: 0x0000_0000)
Offset: 0x0294
Register Name: AC_ADC_DRC_SFHRT
Bit
Read/Write
Default/Hex
Description
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 488
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x0000
The gain smooth filter release time parameter setting, which is determined by
the equation that RT = 1-exp(-2.2Ts/tr). The format is 3.24. (200ms)
8.1.5.110. 0x298 ADC DRC Smooth filter Gain Low Release Time Coef Register (Default Value: 0x0000_0F04)
Offset: 0x0298
Register Name: AC_ADC_DRC_SFLRT
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0F04
The gain smooth filter release time parameter setting, which is determined by
the equation that RT = 1-exp(-2.2Ts/tr). The format is 3.24. (200ms)
8.1.5.111. 0x29C ADC DRC MAX Gain High Setting Register (Default Value: 0x0000_FE56)
Offset: 0x029C
Register Name: AC_ADC_DRC_MXGHS
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xFE56
The max gain setting is determined by equation MXG/6.0206. The format is
8.24 and must -20dB <MXG< 30dB (-10dB)
8.1.5.112. 0x2A0 ADC DRC MAX Gain Low Setting Register (Default Value: 0x0000_CB0F)
Offset: 0x02A0
Register Name: AC_ADC_DRC_MXGLS
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xCB0F
The max gain setting is determined by equation MXG/6.0206. The format is
8.24 and must -20dB <MXG < 30dB (-10dB)
8.1.5.113. 0x2A4 ADC DRC MIN Gain High Setting Register (Default Value: 0x0000_F95B)
Offset: 0x02A4
Register Name: AC_ADC_DRC_MNGHS
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xF95B
The min gain setting is determined by equation MXG/6.0206. The format is 8.24
and must -60dB ≤MNG ≤ -30dB (-40dB)
8.1.5.114. 0x2A8 ADC DRC MIN Gain Low Setting Register (Default Value: 0x0000_2C3F)
Offset: 0x02A8
Register Name: AC_ADC_DRC_MNGLS
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 489
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x2C3F
The min gain setting is determined by equation MNG/6.0206. The format is
8.24 and must -60dB ≤MNG ≤ -30dB (-40dB)
8.1.5.115. 0x2AC ADC DRC Expander Smooth Time High Coef Register (Default Value: 0x0000_0000)
Offset: 0x02AC
Register Name: AC_ADC_DRC_EPSHC
Bit
Read/Writte
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x0000
The gain smooth filter release and attack time parameter setting in expander
region, which is determined by the equation that RT = 1-exp(-2.2Ts/tr). The
format is 3.24. (30ms)
8.1.5.116. 0x2B0 ADC DRC Expander Smooth Time Low Coef Register (Default Value: 0x0000_640C)
Offset: 0x02B0
Register Name: AC_ADC_DRC_EPSLC
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x640C
The gain smooth filter release and attack time parameter setting in expander
region, which is determined by the equation that RT = 1-exp(-2.2Ts/tr). The
format is 3.24. (30ms)
8.1.5.117. 0x2B8 ADC DRC HPF Gain High Coef Register (Default Value: 0x0000_0100)
Offset: 0x02B8
Register Name: AC_ADC_DRC_HPFHGAIN
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:11
/
/
/
10:0
R/W
0x0100
The gain of the hpf coefficient setting which format is 3.24.(gain = 1)
8.1.5.118. 0x2BC ADC DRC HPF Gain Low Coef Register (Default Value: 0x0000_0000)
Offset: 0x02BC
Register Name: AC_ADC_DRC_HPFLGAIN
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0000
The gain of the hpf coefficient setting which format is 3.24.(gain = 1)
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 490
8.1.6. Analog Part Register Description
8.1.6.1. AC Parameter Configuration Register (Default Value: 0x1000_0000)
Address: 0x01F015C0
Register Name: AC_PR_CFG
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28
R/W
0x1
AC_PR_RST
AC_PR Reset
0: Assert
1: De-assert
27:25
/
/
/
24
R/W
0x0
AC_PR_RW
AC_PR Read or Write
0: Read
1: Write
23:21
/
/
/
20:16
R/W
0x0
AC_PR _ADDR
AC_PR Address [4:0]
15:8
R/W
0x0
ADDA_PR _WDAT
ADDA_PR Write Data [7:0]
7:0
R/W
0x0
ADDA_PR _RDAT
ADDA_PR Read Data [7:0]
Note: The address of this Register is 0x01F015C0, using this register to configure the AC_PR register.
Reset: Reset signal;
ADDR[4:0]: AC_PR Address;
W/R: Write/Read Enable;
WDAT[7:0]: Write Data;
RDAT[7:0]: Read Data.
APB0 W/R
Addr[4:0]
Data_in[7:0]
Data_out[7:0]
Bit
RST
28
32-29
/
27-23
/
24
WR
15-8
Data_in
7-0
Data_out
20-16
Addr
Reset
23-21
/
25 8-bit
registers
CPUS 0x01F015C0
Figure 8-6. Audio Codec Analog Register Diagram
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 491
8.1.6.2. 0x00 LINEOUT PA Gating Control Register (Default Value: 0x00)
Offset:0x00
Register Name: LINEOUT_PA_GAT
Bit
Read/Write
Default/Hex
Description
7
R/W
0x0
PA clock gating control
When system VDD is off and Audio analog channel is working.The bit must be
set to 1, because the PA clock come from system VDD domain. When this bit is
1, the Zero cross over function will be disabled automatically.
0: Not gating
1: Gating
6:0
/
/
/
8.1.6.3. 0x01 Left Output Mixer Source Select Control Register (Default Value: 0x00)
Offset:0x01
Register Name: LOMIXSC
Bit
Read/Write
Default/Hex
Description
7
/
/
/
6:0
R/W
0x0
LMIXMUTE
Left Output Mixer Mute Control
0:Mute
1:Not Mute
Bit 6: MIC1 Boost Stage
Bit 5: MIC2 Boost Stage
Bit 4: /
Bit 3: /
Bit 2: LINEINL
Bit 1: Left Channel DAC
Bit 0: Right Channel DAC
8.1.6.4. 0x02 Right Output Mixer Source Select Control Register (Default Value: 0x00)
Offset:0x02
Register Name: ROMIXSC
Bit
Read/Write
Default/Hex
Description
7
/
/
/
6:0
R/W
0x0
RMIXMUTE
Right Output Mixer Mute Control
0: Mute
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 492
1: Not Mute
Bit 6: MIC1 Boost Stage
Bit 5: MIC2 Boost Stage
Bit 4: /
Bit 3: /
Bit 2: LINEINR
Bit 1: Right Channel DAC
Bit 0: Left Channel DAC
8.1.6.5. 0x03 DAC Analog Enable and PA Source Control Register (Default Value: 0x00)
Offset:0x03
Register Name: DAC_PA_SRC
Bit
Read/Write
Default/Hex
Description
7
R/W
0x0
DACAREN
Internal Analog Right Channel DAC Enable
0:Disable
1:Enable
6
R/W
0x0
DACALEN
Internal Analog Left Channel DAC Enable
0:Disable
1:Enable
5
R/W
0x0
RMIXEN
Right Analog Output Mixer Enable
0:Disable
1:Enable
4
R/W
0x0
LMIXEN
Left Analog Output Mixer Enable
0:Disable
1:Enable
3:0
/
/
/
8.1.6.6. 0x05 Linein and Gain Control Register (Default Value: 0x30)
Offset:0x05
Register Name: LINEIN_GCTR
Bit
Read/Write
Default/Hex
Description
7
/
/
/
6:4
R/W
0x3
LINEING
LINEINL/R to L/R output mixer gain control
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 493
From -4.5dB to 6dB, 1.5dB/step, default is 0dB
3:0
/
/
/
8.1.6.7. 0x06 MIC1 And MIC2 Gain Control Register (Default Value: 0x33)
Offset:0x06
Register Name: MIC_GCTR
Bit
Read/Write
Default/Hex
Description
7
/
/
/
6:4
R/W
0x3
MIC1_GAIN
MIC1 BOOST stage to L or R output mixer gain control
From -4.5dB to 6dB, 1.5dB/step, default is 0dB
3
/
/
/
2:0
R/W
0x3
MIC2G, (volm2)
MIC2 BOOST stage to L or R output mixer gain control
From -4.5dB to 6dB, 1.5dB/step, default is 0dB
8.1.6.8. 0x07 PA Enable and LINEOUT Control Register (Default Value: 0x04)
Offset:0x07
Register Name: PAEN_CTR
Bit
Read/Write
Default/Hex
Description
7
R/W
0x0
LINEOUTEN
Right & Left LINEOUT Enable
0:Disable
1:Enable
6:4
/
/
/
3:2
R/W
0x1
PA_ANTI_POP_CTRL (slopelengthsel)
PA Anti-Pop Time Control
00:131ms
01: 262ms
10: 393ms
11:524ms
1:0
/
/
/
8.1.6.9. 0x09 Lineout Volume Control Register (Default Value: 0x00)
Offset:0x09
Register Name: LINEOUT_VOLC
Bit
Read/Write
Default/Hex
Description
7:3
R/W
0x0
LINEOUTVOL
Line-out Volume Control.
Total 31 level, from 0dB to -48dB, 1.5dB/step, mute when 00000 & 00001
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 494
2:0
/
/
/
8.1.6.10. 0x0A Mic2 Boost and Lineout Enable Control Register (Default Value: 0x40)
Offset:0x0A
Register Name: MIC2G_LINEOUT_CTR
Bit
Read/Write
Default/Hex
Description
7
R/W
0x0
MIC2AMPEN
MIC2 Boost AMP Enable
0: Disable
1: Enable
6:4
R/W
0x4
MIC2BOOST
MIC2 Boost AMP Gain Control
000: 0dB
001~111: 24dB to 42dB(3dB/step)
The default is 33dB
3
R/W
0x0
Line-out Left Select
0: Not select
1: Select
2
R/W
0x0
Line-out Right Select
0: Not select
1: Select
1
R/W
0x0
Left Line-out Source Select
0: Left output mixer
1: Left output mixer + right output mixer
0
R/W
0x0
Right Line-out Source Select
0: Right output mixer
1: Left line-out, for differential output
8.1.6.11. 0x0B MIC1 Boost and MICBIAS Control Register (Default Value: 0x04)
Offset:0x0B
Register Name: MIC1G_MICBAIS_CTR
Bit
Read/Write
Default/Hex
Description
7
/
/
/
6
R/W
0x0
MMICBIASEN
Master Microphone Bias Enable
0: Disable
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 495
1: Enable
5:4
/
/
/
3
R/W
0x0
MIC1AMPEN
MIC1 Boost AMP Enable
0: Disable
1: Enable
2:0
R/W
0x4
MIC1BOOST
MIC1 Boost AMP Gain Control
000: 0dB
001~111: 24dB to 42dB(3dB/step)
The default is 33dB
8.1.6.12. 0x0C Left ADC Mixer Source Control Register (Default Value: 0x00)
Offset:0x0C
Register Name: LADCMIXSC
Bit
Read/Write
Default/Hex
Description
7
/
/
/
6:0
R/W
0x0
RADCMIXMUTE
Right ADC Mixer Mute Control
0: Mute
1: Not Mute
Bit 6: MIC1 Boost Stage
Bit 5: MIC2 Boost Stage
Bit 4: /
Bit 3:/
Bit 2: LINEINL
Bit 1: Left Output Mixer
Bit 0: Right Output Mixer
8.1.6.13. 0x0D Right ADC Mixer Source Control Register (Default Value: 0x00)
Offset:0x0D
Register Name: RADCMIXSC
Bit
Read/Write
Default/Hex
Description
7
/
/
/
6:0
R/W
0x0
RADCMIXMUTE
Right ADC Mixer Mute Control
0: Mute
1: Not Mute
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 496
Bit 6: MIC1 Boost Stage
Bit 5: MIC2 Boost Stage
Bit 4: /
Bit 3:/
Bit 2: LINEINR
Bit 1: Right Output Mixer
Bit 0: Left Output Mixer
8.1.6.14. 0x0E Reserved Register (Default Value: 0x04)
Offset:0x0E
Register Name: Res_Reg
Bit
Read/Write
Default/Hex
Description
7:6
/
/
/
5:4
R/W
0x0
MBIASSEL
MMICBIAS Voltage Level Select
00: 2.068V
01: 2.299V
10: 2.563V
11: 2.73V
3
/
/
/
2:0
R/W
0x4
PA_ANTI_POP
PA ANTI-POP Time Control
000: 131ms
001: 262ms
010: 393ms
011: 524ms
100: 655ms
101: 786ms
110: 917ms
111: 1048ms
8.1.6.15. 0x0F ADC Analog Part Enable Register (Default Value: 0x03)
Offset:0x0F
Register Name: ADC_AP_EN
Bit
Read/Write
Default/Hex
Description
7
R/W
0x0
ADCREN
ADC Right Channel Enable
0: Disable
1: Enable
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 497
6
R/W
0x0
ADCLEN
ADC Left Channel Enable
0: Disable
1: Enable
5:3
/
/
/
2:0
R/W
0x3
ADCG
ADC Input Gain Control
From -4.5dB to 6dB, 1.5dB/step .
The default is 0dB
8.1.6.16. 0x10 ADDA Analog Performance Turning 0 Register (Default Value: 0x55)
Offset:0x10
Register Name: ADDA_APT0
Bit
Read/Write
Default/Hex
Description
7:6
R/W
0x1
OPDRV_OPCOM_CUR.
OPDRV/OPCOM output stage current setting
5:4
R/W
0x1
OPADC1_BIAS_CUR.
OPADC1 Bias Current Select
3:2
R/W
0x1
OPADC2_BIAS_CUR.
OPADC2 Bias Current Select
1:0
R/W
0x1
OPAAF_BIAS_CUR.
OPAAF in ADC Bias Current Select
8.1.6.17. 0x11 ADDA Analog Performance Turning 1 Register (Default Value: 0x45)
Offset:0x11
Register Name: ADDA_APT1
Bit
Read/Write
Default/Hex
Description
7:6
R/W
0x1
OPMIC_BIAS_CUR
OPMIC Bias Current Control
5:4
/
/
/
3:2
R/W
0x1
OPDAC_BIAS_CUR.
OPDAC Bias Current Control
1:0
R/W
0x1
OPMIX_BIAS_CUR.
OPMIX/OPLPF Bias Current Control
8.1.6.18. 0x12 ADDA Analog Performance Turning 2 Register (Default Value: 0x42)
Offset:0x12
Register Name: ADDA_APT2
Bit
Read/Write
Default/Hex
Description
7
R/W
0x0
Function enable for master volume change at zero cross over
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 498
0: Disable
1: Enable
6
R/W
0x1
Timeout control for master volume change at zero cross over
0: 32ms
1: 64ms
5:4
R/W
0x0
PTDBS
HPCOM protect de-bounce time setting
00: 2-3ms
01: 4-6ms
10: 8-12ms
11: 16-24ms
At the same time, bit 17 is used to control the AVCCPORFLAG, writing 1 to this
bit, the flag will be cleared, and the calibration is done again.
3
R/W
0x0
PA_SLOPE_SELECT
PA slope select cosine or ramp
0: Select cosine
1: Select ramp
2:0
R/W
0x2
USB_BIAS_CUR.
USB bias current tuning
From 23uA to 30uA, the default value is 25uA
8.1.6.19. 0x13 Bias & DA16 Calibration Control Register0 (Default Value: 0xD6)
Offset:0x13
Register Name: Bias_DA16_CAL_CTR0
Bit
Read/Write
Default/Hex
Description
7
R/W
0x1
MMIC BIAS Chopper Enable
0: Disable
1: Enable
6:5
R/W
0x2
MMIC BIAS Chopper Clock Select
00: 250KHz
01: 500KHz
10: 1MHz
11: 2MHz
4
R/W
0x1
DITHER
ADC Dither on/off Control
0: Dither off
1: Dither on
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 499
3:2
R/W
0x1
DITHER_CLK_SELECT
ADC Dither Clock Select
00: ADC FS * (8/9), about 43KHz when FS=48KHz
01: ADC FS * (16/15), about 51KHz when FS=48KHz
10: ADC FS * (4/3), about 64KHz when FS=48KHz
11: ADC FS * (16/9), about 85KHz when FS=48KHz
1:0
R/W
0x2
BIHE_CTRL
BIHE Control
00: No BIHE
01: BIHE=7.5 HOSC
10: BIHE=11.5 HOSC
11: BIHE=15.5 HOSC
8.1.6.20. 0x14 Bias & DA16 Calibration Control Register1 (Default Value: 0x00)
Offset:0x14
Register Name: Bias_DA16_CAL_CTR1
Bit
Read/Write
Default/Hex
Description
7
R/W
0x0
PA_SPEED_SELECT
PA Setup Speed Control (for testing)
0: Slow
1: Fast
6
R/W
0x0
CURRENT_TEST_SELECT
Internal Current Sink Test Enable (from LINEIN pin)
0: Normal
1: For Debug
5
R/W
0x0
/
4
R/W
0x0
BIAS and DA16 Calibration Clock Select
0: 1KHz
1: 500Hz
3
R/W
0x0
BIAS Calibration Mode Select
0: Average
1: Single
2
R/W
0x0
BIAS and DA16 Calibration Control
Write 1 to this bit, the calibration will be done again. Then this bit will reset to
zero automatically
1
R/W
0x0
BIASCALIVERIFY
Bias Calibration Verify
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 500
0: Calibration
1: Register setting
0
R/W
0x0
DA16CALIVERIFY
DA16 Calibration Verify
0: Calibration
1: Register setting
8.1.6.21. 0x15 DA16 Calibration Data Register (Default Value: 0x80)
Offset:0x15
Register Name: DA16CALI
Bit
Read/Write
Default/Hex
Description
7:0
R
0x80
DA16CALI
DA16 Calibration Data
8.1.6.22. 0x16 DA16 Register Setting Data Register (Default Value: 0x80)
Offset:0x16
Register Name: DA16VERIFY
Bit
Read/Write
Default/Hex
Description
7:0
R/W
0x80
/
8.1.6.23. 0x17 Bias Calibration Data Register (Default Value: 0x20)
Offset:0x17
Register Name: BIASCALI
Bit
Read/Write
Default/Hex
Description
7:0
R
0x20
BIASCALI
Bias Calibration Data, 6bit
8.1.6.24. 0x18 Bias Register Setting Data Register (Default Value: 0x20)
Offset:0x18
Register Name: BIASVERIFY
Bit
Read/Write
Default/Hex
Description
7:0
R/W
0x20
BIASVERIFY
Bias Register Setting Data, 6bit
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 501
8.2. I2S/PCM
8.2.1. Overview
The I2S/PCM Controller has been designed to transfer streaming audio-data between the system memory and the
codec chip. The controller supports standard I2S format, Left-justified Mode format, Right-justified Mode format, PCM
Mode format and TDM Mode format. The I2S/PCM provides a serial bus interface for stereo and multichannel audio
data. This interface is most commonly used by consumer audio market, including compact disc, digital audio tape,
digital sound processors, and digital TV-sound.
Features:
Compliant with standard Inter-IC sound(I2S) bus specification
Compliant with Left-justified, Right-justified, PCM mode and TDM(Time Division Multiplexing) format
Supports 8-channel in TDM mode
Supports full-duplex synchronous work mode
Supports Master/Slave mode
Supports adjustable interface voltage
Supports clock up to 100MHz
Supports adjustable audio sample rate from 8-bit to 32-bit.
Supports up to 8 slots which has adjustable width from 8-bit to 32-bit.
Supports sample rate from 8KHz to 192KHz
Supports 8-bit u-law and 8-bit A-law companded sample
One 128 x 32-bit width FIFO for data transmit, one 64 x 32-bit width FIFO for data receive
Supports programmable PCM frame width: 1 BCLK width (short frame) and 2 BCLKs width (long frame)
Programmable FIFO thresholds
Interrupt and DMA Support
Supports loopback mode for test
8.2.2. Block Diagram
The I2S/PCM interface block diagram is shown below.
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 502
Register
64x32-bits
RX FIFO
I2S
Engine
PCM
Engine
PCM
Codec
Clock
Divide
M
U
X
S
Y
N
C
MCLK
BCLK
BCLK(CLK)
LRCK(SYNC)
DOUT
DIN
TX_DRQ
RX_DRQ
PLL_AUDIO
DA_INT
APB
128x32-
bits
TX FIFO
Figure 8-7. I2S/PCM Interface System Block Diagram
8.2.3. Operations and Functional Descriptions
8.2.3.1. External Signals
Table 8-2 describes the external signals of I2S/PCM interface. SYNC and CLK are bidirectional I/O, when I2S/PCM
interface is configured as Master device, SYNC and CLK is output pin; when I2S/PCM interface is configured as slave
device, SYNC and CLK is input pin. MCLK is an output pin for external device. DOUT is always the serial data output pin,
and DIN is the serial data input. For information about General Purpose I/O port, see Port Controller.
Table 8-2. I2S/PCM External Signals
Signal Name
Description
Type
PCM0_MCLK
I2S/PCM 0 Master Clock
O
PCM0_CLK
I2S/PCM 0 Sample Rate Serial Clock
I/O
PCM0_SYNC
I2S/PCM 0 Sample Rate Left and Right Channel Select Clock/Sync
I/O
PCM0_DIN
I2S/PCM 0 Serial Data Input
I
PCM0_DOUT
I2S/PCM 0 Serial Data Output
O
PCM1_CLK
I2S/PCM 1 Sample Rate Serial Clock
I/O
PCM1_SYNC
I2S/PCM 1 Sample Rate Left and Right Channel Select Clock/Sync
I/O
PCM1_DIN
I2S/PCM 1 Serial Data Input
I
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 503
PCM1_DOUT
I2S/PCM 1 Serial Data Output
O
8.2.3.2. Clock Sources
Table 8-3 describes the clock sources for I2S/PCM. Users can see Chapter 4.3.CCU for clock setting, configuration and
gating information.
Table 8-3. I2S/PCM Clock Sources
Clock Name
Description
PLL_AUDIO
24.576 MHz or 22.5792 MHz generated by PLL_AUDIO to produce 48 kHz or 44.1 kHz serial
frequency
8.2.3.3. Timing Diagram
BCLK
LRCK
DOUT/DIN
n-1 …10
n-2
MSB LSB
Left Channel Right Channel
1 / fs
8 slot
4 slot
2 slot 0 1
0
0
1
1
2
2
3
3
465 7
DOUT/DIN
DOUT/DIN
[I2S mode]
m m = 0 ~ 7
slot
sample
[TDM-I2S mode]
[TDM-I2S mode]
Figure 8-8. I2S/TDM-I2S Mode Timing
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 504
BCLK
LRCK
n-1 …10
n-2
MSB LSB
Left Channel Right Channel
1 / fs
8 slot
4 slot
2 slot 0 1
0
0
1
1
2
2
3
34 6 5 7
[Left-Justified mode]
m m = 0 ~ 7
slot
sample
[TDM-Left mode]
[TDM-Left mode]
Figure 8-9. Left-Justified/TDM-Left Mode Timing
BCLK
LRCK
n-1 …10
n-2
MSB LSB
Left Channel Right Channel
1 / fs
8 slot
4 slot
2 slot 01
0
0
1
1
2
2
3
3
4 6 5 7
[Right-Justified mode]
m m = 0 ~ 7
slot
sample
[TDM-Right mode]
[TDM-Right mode]
Figure 8-10. Right-Justified/TDM-Right Mode Timing
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 505
BCLK
LRCK
n-1 …10
n-2
MSB LSB
1 / fs
8 slot
4 slot
2 slot
0 1 2 3
[DSP_B stereo]
m m = 0 ~ 7
slot
sample
[TDM-DSP_B mode]
[TDM-DSP_B mode] 4 5 6 7
0 1 2 3
0 1
[DSP_B mono]
1 slot
0
0 1 2 3 4 5 6 7
0 1 2 3
0 1
0
8 slot
4 slot
2 slot
[DSP_A stereo]
[TDM-DSP_A mode]
[TDM-DSP_A mode]
[DSP_A mono]
1 slot
Figure 8-12. Timing Diagram for PCM/TDM-PCM Mode
8.2.3.4. Operation Modes
The software operation of the I2S/PCM is divided into five steps: system setup, I2S/PCM initialization, the channel setup,
DMA setup and Enable/Disable module. These five steps are described in detail in the following sections.
(1). System setup and I2S/PCM initialization
The first step in the system setup is properly programming the GPIO. Because the I2S/PCM port is a multiplex pin. You
can find the function in Port Controller(CPUx-PORT). The clock source for the I2S/PCM should be followed. At first you
must reset the audio PLL though the PLL_ENABLE bit of PLL_AUDIO_CTRL_REG in the Chapter 4.3.CCU. The second step,
you must setup the frequency of the audio PLL in the PLL_AUDIO_CTRL_REG. After that, you must open the I2S/PCM
gating though the I2S/PCM0_CLK_REG/I2S/PCM1_CLK_REG when you checkout that the LOCK bit of
PLL_AUDIO_CTRL_REG becomes to 1. At last, you must reset the I2S/PCM by the bit[13:12] of BUS_SOFT_RST_REG3
and open the I2S/PCM bus gating by the bit[13:12] of BUS_CLK_GATING_REG2.
After the system setup, the register of I2S/PCM can be setup. At first, you should initialization the I2S/PCM. You should
close the Globe Enable bit(I2S/PCM_CTL[0]) , Transmitter Block Enable bit(I2S/PCM_CTL[2]) and Receiver Block Enable
bit(I2S/PCM_CTL[1]) by writing 0 to it. After that, you must clear the TX/RX FIFO by writing 0 to the bit[25:24] of
I2S/PCM_FCTL. At last, you can clear the TX FIFO and RX FIFO counter by writing 0 to I2S/PCM_TXCNT and
I2S/PCM_RXCNT.
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 506
(2). Channel setup and DMA setup
Before the usage and control of I2S/PCM, you must configure the I2C. The configuration of I2C will not describe in this
chapter. But you can only configure I2S/PCM of master and slave through the I2C. The configuration can be referred to
the protocol of I2S/PCM. Then, you can set the translation mode, the sample precision, the wide of slot, the frame
mode and the trigger level.
The I2S/PCM supports three methods to transfer the data. The most common way is DMA, the set of DMA can be found
in the DMA. In this module, you just enable the DRQ.
(3). Enable and Disable I2S/PCM
To enable the function, you can enable TX/RX by writing the bit[2:1] of I2S/PCM_CTL. After that, you must enable
I2S/PCM by writing the Globe Enable bit to 1. Writing the Globe Enable bit to 0 to disable I2S/PCM.
8.2.4. I2S/PCM Register List
Module Name
Base Address
I2S/PCM 0
0x01C22000
I2S/PCM 1
0x01C22400
I2S/PCM 2
0x01C22800 (for HDMI)
Register Name
Offset
Description
I2S/PCM_CTL
0x0000
I2S/PCM Control Register
I2S/PCM_FMT0
0x0004
I2S/PCM Format Register 0
I2S/PCM_FMT1
0x0008
I2S/PCM Format Register 1
I2S/PCM_ISTA
0x000C
I2S/PCM Interrupt Status Register
I2S/PCM_RXFIFO
0x0010
I2S/PCM RX FIFO Register
I2S/PCM_FCTL
0x0014
I2S/PCM FIFO Control Register
I2S/PCM_FSTA
0x0018
I2S/PCM FIFO Status Register
I2S/PCM_INT
0x001C
I2S/PCM DMA & Interrupt Control Register
I2S/PCM_TXFIFO
0x0020
I2S/PCM TX FIFO Register
I2S/PCM_CLKD
0x0024
I2S/PCM Clock Divide Register
I2S/PCM_TXCNT
0x0028
I2S/PCM TX Sample Counter Register
I2S/PCM_RXCNT
0x002C
I2S/PCM RX Sample Counter Register
I2S/PCM_CHCFG
0x0030
I2S/PCM Channel Configuration Register
I2S/PCM_TX0CHCFG
0x0034
I2S/PCM TX0 Channel Configuration Register
I2S/PCM_TX1CHSEL
0x0038
I2S/PCM TX1 Channel Select Register
I2S/PCM_TX2CHSEL
0x003C
I2S/PCM TX2 Channel Select Register
I2S/PCM_TX3CHSEL
0x0040
I2S/PCM TX3 Channel Select Register
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 507
I2S/PCM_TX0CHMAP
0x0044
I2S/PCM TX0 Channel Mapping Register
I2S/PCM_TX0CHMAP
0x0048
I2S/PCM TX1 Channel Mapping Register
I2S/PCM_TX0CHMAP
0x004C
I2S/PCM TX2 Channel Mapping Register
I2S/PCM_TX0CHMAP
0x0050
I2S/PCM TX3 Channel Mapping Register
I2S/PCM_RXCHSEL
0x0054
I2S/PCM RX Channel Select Register
I2S/PCM_RXCHMAP
0x0058
I2S/PCM RX Channel Mapping Register
8.2.5. I2S/PCM Register Description
8.2.5.1. I2S/PCM Control Register(Default Value: 0x0006_0000)
Offset: 0x0000
Register Name: I2S/PCM_CTL
Bit
Read/Write
Default/Hex
Description
31:19
/
/
/
18
R/W
0x1
BCLK_OUT
0: Input
1: Output
17
R/W
0x1
LRCK_OUT
0: Input
1: Output
16
R/W
0x0
LRCKR_OUT
0: Input
1: Output
15:9
/
/
/
8
R/W
0x0
DOUT_EN
0: Disable, Hi-Z state
1: Enable
7
/
/
/
6
R/W
0x0
OUT_MUTE
0: Normal transfer
1: Force DOUT to output 0
5:4
R/W
0x0
MODE_SEL
Mode Selection
00: PCM mode (offset 0: DSP_B; offset 1: DSP_A)
01: Left mode (offset 0: LJ mode; offset 1: I2S mode)
10: Right-Justified mode
11: Reserved
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 508
3
R/W
0x0
LOOP
Loop Back Test
0: Normal mode
1: Loop back test
Whe set , oetig the DOUT with the DIN
2
R/W
0x0
TXEN
Transmitter Block Enable
0: Disable
1: Enable
1
R/W
0x0
RXEN
Receiver Block Enable
0: Disable
1: Enable
0
R/W
0x0
GEN
Globe Enable
A disable on this bit overrides any other block or channel enables.
0: Disable
1: Enable
8.2.5.2. I2S/PCM Format Register0(Default Value: 0x0000_0033)
Offset: 0x0004
Register Name: I2S/PCM_FMT0
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30
R/W
0x0
LRCK_WIDTH
LRCK Width(only apply in PCM mode )
0: LRCK = 1 BCLK width (short frame)
1: LRCK = 2 BCLK width (long frame)
29:20
/
/
/
19
R/W
0x0
LRCK_POLARITY
When apply in I2S / Left-Justified / Right-Justified mode:
0: Left channel when LRCK is low
1: Left channel when LRCK is high
When apply in PCM mode:
0: PCM LRCK asserted at the negative edge
1: PCM LRCK asserted at the positive edge
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 509
18
/
/
/
17:8
R/W
0x0
LRCK_PERIOD
It is used to program the number of BCLKs per channel of sample frame.
This value is interpreted as follow:
PCM mode: Number of BCLKs within (Left + Right) channel width
I2S/Left-Justified/Right-Justified mode: Number of BCLKs within each
individual channel width (Left or Right)
N+1
For example:
n = 7: 8 BCLK width
…
n = 1023: 1024 BCLKs width
7
R/W
0x0
BCLK_POLARITY
0: Normal mode, DOUT drive data at negative edge
1: Invert mode, DOUT drive data at positive edge
6:4
R/W
0x3
SR
Sample Resolution
000: Reserved
001: 8-bit
010: 12-bit
011: 16-bit
100: 20-bit
101: 24-bit
110: 28-bit
111: 32-bit
3
R/W
0x0
EDGE_TRANSFER
0: DOUT drive data and DIN sample data at the different BCLK edge
1: DOUT drive data and DIN sample data at the same BCLK edge
BCLK_POLARITY = 0, EDGE_TRANSFER = 0, DIN sample data at positive
edge
BCLK_POLARITY = 0, EDGE_TRANSFER = 1, DIN sample data at negative
edge
BCLK_POLARITY = 1, EDGE_TRANSFER = 0, DIN sample data at negative
edge
BCLK_POLARITY = 1, EDGE_TRANSFER = 1, DIN sample data at positive
edge
2:0
R/W
0x3
SW
Slot Width Select
000: Reserved
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 510
001: 8-bit
010: 12-bit
011: 16-bit
100: 20-bit
101: 24-bit
110: 28-bit
111: 32-bit
8.2.5.3. I2S/PCM Format Register1(Default Value: 0x0000_0030)
Offset: 0x0008
Register Name: I2S/PCM_FMT1
Bit
Read/Write
Default/Hex
Description
31:8
/
/
7
R/W
0x0
RX MLS
RX MSB / LSB First Select
0: MSB First
1: LSB First
6
R/W
0x0
TX MLS
TX MSB / LSB First Select
0: MSB First
1: LSB First
5:4
R/W
0x3
SEXT
Sign Extend in Slot [sample resolution < slot width]
00: Zeros or audio gain padding at LSB position
01: Sign extension at MSB position
10: Reserved
11: Transfer 0 after each sample in each slot
3:2
R/W
0x0
RX_PDM
PCM Data Mode
00: Linear PCM
01: Reserved
10: 8-bit u-law
11: 8-bit A-law
1:0
R/W
0x0
TX_PDM
PCM Data Mode
00: Linear PCM
01: Reserved
10: 8-bit u-law
11: 8-bit A-law
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 511
8.2.5.4. I2S/PCM Interrupt Status Register(Default Value: 0x0000_0010)
Offset: 0x000C
Register Name: I2S/PCM_ISTA
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6
R/W1C
0x0
TXU_INT
TXFIFO Underrun Pending Interrupt
0: No Pending Interrupt
1: FIFO Underrun Pending Interrupt
Wite  to lea this iteupt.
5
R/W1C
0x0
TXO_INT
TXFIFO Overrun Pending Interrupt
0: No Pending Interrupt
1: FIFO Overrun Pending Interrupt
Wite  to lea this iteupt.
4
R/W1C
0x1
TXE_INT
TXFIFO Empty Pending Interrupt
0: No Pending IRQ
1: FIFO Empty Pending Interrupt when data in TXFIFO are less than TX
trigger level
Wite  to lea this interrupt or automatically clear if interrupt condition
fails.
3
/
/
/
2
R/W1C
0x0
RXU_INT
RXFIFO Underrun Pending Interrupt
0: No Pending Interrupt
1: FIFO Underrun Pending Interrupt
Write 1 to clear this interrupt
1
R/W1C
0x0
RXO_INT
RXFIFO Overrun Pending Interrupt
0: No Pending IRQ
1: FIFO Overrun Pending IRQ
Wite  to lea this iteupt
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 512
0
R/W1C
0x0
RXA_INT
RXFIFO Data Available Pending Interrupt
0: No Pending IRQ
1: Data Available Pending IRQ when data in RXFIFO are more than RX trigger
level
Wite  to lea this iteupt o autoatiall lea if iteupt oditio
fails.
8.2.5.5. I2S/PCM RX FIFO Register(Default Value: 0x0000_0000)
Offset: 0x0010
Register Name: I2S/PCM_RXFIFO
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
RX_DATA
RX Sample
Host can get one sample by reading this register. The left channel sample
data is first and then the right channel sample.
8.2.5.6. I2S/PCM FIFO Control Register(Default Value: 0x0004_00F0)
Offset: 0x0014
Register Name: I2S/PCM_FCTL
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
HUB_EN
Audio Hub Enable
0:Disable
1:Enable
30:26
/
/
/
25
R/W
0x0
FTX
Wite  to flush TXFIFO, self lea to .
24
R/W
0x0
FRX
Wite  to flush RXFIFO, self lea to .
23:19
/
/
/
18:12
R/W
0x40
TXTL
TXFIFO Empty Trigger Level
Interrupt and DMA request trigger level for TXFIFO normal condition
Trigger Level = TXTL
11:10
/
/
/
9:4
R/W
0xF
RXTL
RXFIFO Trigger Level
Interrupt and DMA request trigger level for RXFIFO normal condition
Trigger Level = RXTL + 1
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 513
3
/
/
/
2
R/W
0x0
TXIM
TXFIFO Input Mode (Mode 0, 1)
0: Valid data at the MSB of TXFIFO register
1: Valid data at the LSB of TXFIFO register
Example for 20-bit transmitted audio sample:
Mode : TXFIFO[:] = {APB_WDATA[:], h}
Mode 1:TXFIFO[31:0] = {APB_WDATA[:], h}
1:0
R/W
0x0
RXOM
RXFIFO Output Mode (Mode 0, 1, 2, 3)
: Epadig  at LSB of I2S/PCM_RXFIFO register.
01: Expanding received sample sign bit at MSB of I2S/PCM_RXFIFO register.
10: Truncating received samples at high half-word of I2S/PCM_RXFIFO
register and low half-word of I2S/PCM_RXFIFO egiste is filled  .
11: Truncating received samples at low half-word of I2S/PCM_RXFIFO
register and high half-word of I2S/PCM_RXFIFO register is expanded by its
sign bit.
Example for 20-bit received audio sample:
Mode 0: APB_RDATA[31:0] = {RXFIFO[31:12], h}
Mode 1: APB_RDATA [31:0] = {12{RXFIFO[31]}, RXFIFO[31:12]}
Mode : APB_RDATA [:] = {RXFIFO[:], h}
Mode 3: APB_RDATA [31:0] = {16{RXFIFO[31], RXFIFO[31:16]}
8.2.5.7. I2S/PCM FIFO Status Register(Default Value: 0x1080_0000)
Offset: 0x0018
Register Name: I2S/PCM_FSTA
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28
R
0x1
TXE
TXFIFO Empty
0: No room for new sample in TXFIFO
1: More than one room for new sample in TXFIFO (>= 1 word)
27:24
/
/
/
23:16
R
0x80
TXE_CNT
TXFIFO Empty Space Word Counter
15:9
/
/
/
8
R
0x0
RXA
RXFIFO Available
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 514
0: No available data in RXFIFO
1: More than one sample in RXFIFO (>= 1 word)
7
/
/
/
6:0
R
0x0
RXA_CNT
RXFIFO Available Sample Word Counter
8.2.5.8. I2S/PCM DMA & Interrupt Control Register(Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: I2S/PCM_INT
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
TX_DRQ
TXFIFO Empty DRQ Enable
0: Disable
1: Enable
6
R/W
0x0
TXUI_EN
TXFIFO Underrun Interrupt Enable
0: Disable
1: Enable
5
R/W
0x0
TXOI_EN
TXFIFO Overrun Interrupt Enable
0: Disable
1: Enable
Whe set to , a iteupt happes he itig e audio data if TXFIFO
is full.
4
R/W
0x0
TXEI_EN
TXFIFO Empty Interrupt Enable
0: Disable
1: Enable
3
R/W
0x0
RX_DRQ
RXFIFO Data Available DRQ Enable
0: Disable
1: Enable
Whe set to , RXFIFO DMA Reuest lie is asseted if Data is aailale i RX
FIFO.
2
R/W
0x0
RXUI_EN
RXFIFO Underrun Interrupt Enable
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 515
0: Disable
1: Enable
1
R/W
0x0
RXOI_EN
RXFIFO Overrun Interrupt Enable
0: Disable
1: Enable
0
R/W
0x0
RXAI_EN
RXFIFO Data Available Interrupt Enable
0: Disable
1: Enable
8.2.5.9. I2S/PCM TX FIFO Register(Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: I2S/PCM_TXFIFO
Bit
Read/Write
Default/Hex
Description
31:0
W
0x0
TX_DATA
TX Sample
Transmitting left, right channel sample data should be written this register
one by one. The left channel sample data is first and then the right channel
sample.
8.2.5.10. I2S/PCM Clock Divide Register(Default Value: 0x0000_0000)
Offset: 0x0024
Register Name: I2S/PCM_CLKD
Bit
Read/Write
Default/Hex
Description
31:9
/
/
/
8
R/W
0x0
MCLKO_EN
0: Disable MCLK Output
1: Enable MCLK Output
Note: Whether in slave or master mode, when this bit is set to 1, MCLK should
output.
7:4
R/W
0x0
BCLKDIV
BCLK Divide Ratio from PLL_AUDIO
0000: Reserved
0001: Divide by 1
0010: Divide by 2
0011: Divide by 4
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 516
0100: Divide by 6
0101: Divide by 8
0110: Divide by 12
0111: Divide by 16
1000: Divide by 24
1001: Divide by 32
1010: Divide by 48
1011: Divide by 64
1100: Divide by 96
1101: Divide by 128
1110: Divide by 176
1111: Divide by 192
3:0
R/W
0x0
MCLKDIV
MCLK Divide Ratio from PLL_AUDIO
0000: Reserved
0001: Divide by 1
0010: Divide by 2
0011: Divide by 4
0100: Divide by 6
0101: Divide by 8
0110: Divide by 12
0111: Divide by 16
1000: Divide by 24
1001: Divide by 32
1010: Divide by 48
1011: Divide by 64
1100: Divide by 96
1101: Divide by 128
1110: Divide by 176
1111: Divide by 192
8.2.5.11. I2S/PCM TX Counter Register(Default Value: 0x0000_0000)
Offset: 0x0028
Register Name: I2S/PCM_TXCNT
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
TX_CNT
TX Sample Counter
The audio sample number of sending into TXFIFO.
When one sample is put into TXFIFO by DMA or by host IO, the TX sample
counter register increases by one. The TX sample counter register can be set
to any initial value at any time. After been updated by the initial value, the
counter register should count on base of this initial value.
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 517
8.2.5.12. I2S/PCM RX Counter Register(Default Value: 0x0000_0000)
Offset: 0x002C
Register Name: I2S/PCM_RXCNT
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
RX_CNT
RX Sample Counter
The audio sample number of writing into RXFIFO.
When one sample is written by RXFIFO, the RX sample counter register
increases by one. The RX sample counter register can be set to any initial value
at any time. After been updated by the initial value, the counter register
should count on base of this initial value.
8.2.5.13. I2S/PCM Channel Configuration Register(Default Value: 0x0000_0000)
Offset: 0x0030
Register Name: I2S/PCM_CHCFG
Bit
Read/Write
Default/Hex
Description
31:10
/
/
/
9
R/W
0x0
TX_SLOT_HIZ
0: Normal mode for the last half cycle of BCLK in the slot
1: Turn to hi-z state for the last half cycle of BCLK in the slot
8
R/W
0x0
TX_STATE
0: Transfer level 0 when not transferring slot
1: Turn to hi-z state when not transferring slot
7
/
/
/
6:4
R/W
0x0
RX_SLOT_NUM
RX Channel/Slot Number between CPU/DMA and FIFO
000: 1 channel or slot
...
111: 8 channels or slots
3
/
/
/
2:0
R/W
0x0
TX_SLOT_NUM
TX Channel/Slot Number between CPU/DMA and FIFO
000: 1 channel or slot
...
111: 8 channels or slots
8.2.5.14. I2S/PCM TX Channel Select Register(Default Value: 0x0000_0000)
Offset: 0x0034
Register Name: I2S/PCM_TXCHSEL
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 518
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
13:12
R/W
0x0
TX_OFFSET
TX offset tune, TX data offset to LRCK
00: No offset
01: Data is offset by 1 BCLKs to LRCK
Others: Reserved
11:4
R/W
0x0
TX_CHEN
TX Channel (slot) enable, bit[11:4] refer to slot [7:0]. When one or more slot(s)
is(are) disabled, the affected slot(s) is(are) set to disable state.
0: Disable
1: Enable
3
/
/
/
2:0
R/W
0x0
TX_CHSEL
TX Channel (slot) number select for each output
000: 1 channel / slot
…
111: 8 channels / slots
8.2.5.15. I2S/PCM TX Channel Mapping Register(Default Value: 0x0000_0000)
Offset: 0x0044
Register Name: I2S/PCM_TXCHMAP
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x0
TX_CH7_MAP
TX Channel7 Mapping
000: 1st sample
…
111: 8th sample
27
/
/
/
26:24
R/W
0x0
TX_CH6_MAP
TX Channel6 Mapping
000: 1st sample
…
111: 8th sample
23
/
/
/
22:20
R/W
0x0
TX_CH5_MAP
TX Channel5 Mapping
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 519
000: 1st sample
…
111: 8th sample
19
/
/
/
18:16
R/W
0x0
TX_CH4_MAP
TX Channel4 Mapping
000: 1st sample
…
111: 8th sample
15
/
/
/
14:12
R/W
0x0
TX_CH3_MAP
TX Channel3 Mapping
000: 1st sample
…
111: 8th sample
11
/
/
/
10:8
R/W
0x0
TX_CH2_MAP
TX Channel2 Mapping
000: 1st sample
…
111: 8th sample
7
/
/
/
6:4
R/W
0x0
TX_CH1_MAP
TX Channel1 Mapping
000: 1st sample
…
111: 8th sample
3
/
/
/
2:0
R/W
0x0
TX_CH0_MAP
TX Channel0 Mapping
000: 1st sample
…
111: 8th sample
8.2.5.16. I2S/PCM RX Channel Select Register(Default Value: 0x0000_0000)
Offset: 0x0054
Register Name: I2S/PCM_RXCHSEL
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 520
13:12
R/W
0x0
RX_OFFSET
RX offset tune, RX data offset to LRCK
00: No offset
01: Data is offset by 1 BCLKs to LRCK
Others: Reserved
11:3
/
/
2:0
R/W
0x0
RX_CHSEL
RX channel (slot) number select for input
000: 1 channel / slot
…
111: 8 channels / slots
8.2.5.17. I2S/PCM RX Channel Mapping Register(Default Value: 0x0000_0000)
Offset: 0x0058
Register Name: I2S/PCM_RXCHMAP
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:28
R/W
0x0
RX_CH7_MAP
RX Channel7 Mapping
000: 1st sample
…
111: 8th sample
27
/
/
/
26:24
R/W
0x0
RX_CH6_MAP
RX Channel6 Mapping
000: 1st sample
…
111: 8th sample
23
/
/
/
22:20
R/W
0x0
RX_CH5_MAP
RX Channel5 Mapping
000: 1st sample
…
111: 8th sample
19
/
/
/
18:16
R/W
0x0
RX_CH4_MAP
RX Channel4 Mapping
000: 1st sample
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 521
…
111: 8th sample
15
/
/
/
14:12
R/W
0x0
RX_CH3_MAP
RX Channel3 Mapping
000: 1st sample
…
111: 8th sample
11
/
/
/
10:8
R/W
0x0
RX_CH2_MAP
RX Channel2 Mapping
000: 1st sample
…
111: 8th sample
7
/
/
/
6:4
R/W
0x0
RX_CH1_MAP
TX Channel1 Mapping
000: 1st sample
…
111: 8th sample
3
/
/
/
2:0
R/W
0x0
RX_CH0_MAP
RX Channel0 Mapping
000: 1st sample
…
111: 8th sample
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 522
8.3. OWA
8.3.1. Overview
The OWA(One Wire Audio) provides a serial bus interface for audio data between system. This interface is widely used
for consumer audio.
Features:
IEC-60958 transmitter functionality
Compliance with S/PDIF Interface
Support channel status insertion for the transmitter
Hardware parity generation on the transmitter
One 32×24bits FIFO (TX) for audio data transfer
Programmable FIFO thresholds
Interrupt and DMA support
8.3.2. Block Diagram
The OWA block diagram is shown below.
APB
I/F
Registers
TX FIFO
Channel status
& user data
buffers
DMA & INT
OWA_OUT
Transmitter
FSM & Control
Clock Divider
Figure 8-11. OWA Block Diagram
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 523
8.3.3. Operations and Functional Descriptions
8.3.3.1. External Signals
Table 8-4 describes the external signals of I2S/PCM interface.
Table 8-4. OWA External Signals
Signal Name
Description
Type
OWA_OUT
OWA output
O
8.3.3.2. Clock Sources
Table 8-5 describes the clock sources for OWA. Users can see Chapter 4.3.CCU for clock setting, configuration and gating
information.
Table 8-5. OWA Clock Sources
Clock Name
Description
PLL_AUDIO
24.576 MHz or 22.5792 MHz generated by PLL_AUDIO to produce 48 kHz or 44.1 kHz
serial frequency
8.3.3.3. OWA Frame Format
The OWA supports the transfer of digital audio data. And it supports full-duplex synchronous work mode.
Figure 8-12. Sub-Frame Format
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 524
Figure 8-13. Frame/Block Format
Figure 8-14. Biphase-Mark Encoding
8.3.3.4. Operation Modes
The software operation of the OWA is divided into five steps: system setup, OWA initialization, the channel setup, DMA
setup and enable/disable module. These five steps are described in detail in the following sections.
(1) System Setup and OWA Initialization
The first step in the OWA initialization is properly programming the GPIO. Because the OWA port is a multiplex pin. You
can find the function in the Port Controller. The clock source for the OWA should be followed. At first you must reset
the audio PLL in the CCU. The second step, you must setup the frequency of the Audio PLL. After that, you must open
the OWA gating. At last, you must open the OWA bus gating.
After the system setup, the register of OWA can be setup. At first, you should reset the OWA by writing 1 to OWA_CTL[0]
and clear the TX FIFO by writing 1 to OWA_FCTL[17:16]. After that you should enable the globe enable bit by writing 1
to OWA_CTL[1] and clear the interrupt and TX counter by the OWA_ISTA and OWA_TX_CNT.
(2) Channel Setup and DMA Setup
The OWA support three methods to transfer the data. The most common way is DMA, the configuration of DMA can be
found in the DMA. In this module, you just enable the DRQ.
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 525
(3) Enable and Disable OWA
To enable the function, you can enable TX by writing the OWA_TX_CFIG[31]. After that, you must enable OWA by
writing the GEN bit to 1 in the OWA_CTL register. Writing the GEN bit to 0 disable process.
8.3.4. Register List
Module Name
Base Address
OWA
0x01C21000
Register Name
Offset
Description
OWA_GEN_CTL
0x0000
OWA General Control
OWA_TX_CFIG
0x0004
OWA TX Configuration Register
OWA_ISTA
0x000C
OWA Interrupt Status Register
OWA_FCTL
0x0014
OWA FIFO Control Register
OWA_FSTA
0x0018
OWA FIFO Status Register
OWA_INT
0x001C
OWA Interrupt Control Register
OWA_TX_FIFO
0x0020
OWA TX FIFO Register
OWA_TX_CNT
0x0024
OWA TX Counter Register
OWA_TX_CHSTA0
0x002C
OWA TX Channel Status Register0
OWA_TX_CHSTA1
0x0030
OWA TX Channel Status Register1
8.3.5. Register Description
8.3.5.1. OWA General Control Register (Default Value : 0x0000_0000)
Offset: 0x0000
Register Name: OWA_CTL
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
1
R/W
0x0
GEN
Global Enable
A disable on this bit overrides any other block or channel enables and
flushes all FIFOs.
0: Disable
1: Enable
0
R/W
0x0
RST
Reset
0: Normal
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 526
1: Reset
Self clear to 0.
8.3.5.2. OWA TX Configure Register (Default Value: 0x0000_00F0)
Offset: 0x0004
Register Name: OWA_TX_CFIG
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
TX_SINGLE_MODE
Tx Single Channel Mode
0: Disable
1: Enable
30:18
/
/
/
17
R/W
0x0
ASS
Audio Sample Select with TX FIFO Underrun When
0: Sending 0
1: Sending the last audio
This bit is only valid in PCM mode
16
R/W
0x0
TX_AUDIO
TX Data Type
0: Linear PCM (Valid bit of both sub-frame set to 0 )
1: Non-audio(Valid bit of both sub-frame set to 1)
15:9
/
/
/
8:4
R/W
0xF
TX_RATIO
TX Clock Divide Ratio
Clock divide ratio = TX TATIO +1
3:2
R/W
0x0
TX_SF
TX Sample Format
00: 16 bits
01: 20 bits
10: 24 bits
11: Reserved
1
R/W
0x0
TX_CHM
CHSTMODE
0: Channel status A&B set to 0
1: Channel status A&B generated form TX_CHSTA
0
R/W
0x0
TXEN
0: Disabled
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 527
1: Enabled
8.3.5.3. OWA Interrupt Status Register (Default Value: 0x0000_0010)
Offset: 0x000C
Register Name: OWA_ISTA
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6
R/W
0x0
TXU_INT
TX FIFO Underrun Pending Interrupt
0: No Pending IRQ
1: FIFO Underrun Pending Interrupt
Witig  to lea this iteupt
5
R/W
0x0
TXO_INT
TX FIFO Overrun Pending Interrupt
0: No Pending IRQ
1: FIFO Overrun Pending Interrupt
Witig  to lea this iteupt
4
R/W
0x1
TXE_INT
TX FIFO Empty Pending Interrupt
0: No Pending IRQ
1: FIFO Empty Pending Interrupt
Witig  to lea this iteupt o autoatiall lea if the interrupt
condition fails.
3:0
/
/
/
8.3.5.4. OWA FIFO Control Register (Default Value: 0x0000_1078)
Offset: 0x0014
Register Name: OWA_FCTL
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
HUB_EN
Audio Hub Enable
0 : Disable
1: Enable
30:18
/
/
/
17
R/W
0x0
FTX
Witig  to flush TX FIFO, self lea to 
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 528
16:13
/
/
/
12:8
R/W
0x10
TXTL
TX FIFO Empty Trigger Level
Interrupt and DMA request trigger level for TX FIFO normal condition
Trigger Level = TXTL
7:3
R/W
0x0F
/
2
R/W
0x0
TXIM
TX FIFO Input Mode(Mode0, 1)
0: Valid data at the MSB of OWA_TXFIFO register
1: Valid data at the LSB of OWA_TXFIFO register
Example for 20-bit transmitted audio sample:
Mode 0: TXFIFO[23:0] = {APB_WDATA[:], h}
Mode 1: TXFIFO[23:0] = {APB_WDATA[:], h}
1:0
/
/
/
8.3.5.5. OWA FIFO Status Register (Default Value: 0x0000_6000)
Offset: 0x0018
Register Name: OWA_FSTA
Bit
Read/Write
Default/Hex
Description
31:15
/
/
/
14
R
0x1
TXE
TX FIFO Empty (indicate FIFO is not full)
0: No room for new sample in TX FIFO
1: More than one room for new sample in TX FIFO ( >=1 word )
13:8
R
0x80
TXE_CNT
TX FIFO Empty Space Word Counter
7:0
/
/
/
8.3.5.6. OWA Interrupt Control Register (Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: OWA_INT
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
TX_DRQ
TX FIFO Empty DRQ Enable
0: Disable
1: Enable
6
R/W
0x0
TXUI_EN
TX FIFO Underrun Interrupt Enable
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 529
0: Disable
1: Enable
5
R/W
0x0
TXOI_EN
TX FIFO Overrun Interrupt Enable
0: Disable
1: Enable
4
R/W
0x0
TXEI_EN
TX FIFO Empty Interrupt Enable
0: Disable
1: Enable
3:0
/
/
/
8.3.5.7. OWA TX FIFO Register (Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: OWA_TXFIFO
Bit
Read/Write
Default/Hex
Description
31:0
W
0x0
TX_DATA
Transmitting A, B channel data should be written this register one by one.
The A channel data is first and then the B channel data.
8.3.5.8. OWA TX Counter Register (Default Value: 0x0000_0000)
Offset: 0x0024
Register Name: OWA_TX_CNT
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
TX_CNT
TX Sample Counter
The audio sample number of sending into TXFIFO.
When one sample is put into TXFIFO by DMA or by host IO, the TX sample
counter register increases by one. The TX sample counter register can be
set to any initial value at any time. After updated by the initial value, the
counter register should count on base of this initial value.
8.3.5.9. OWA TX Channel Status Register0 (Default Value: 0x0000_0000)
Offset: 0x002C
Register Name: OWA_TX_CHSTA0
Bit
Read/Write
Default/Hex
Description
31: 30
/
/
/
29:28
R/W
0x0
CA
Clock Accuracy
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 530
00: Level 2
01: Level 1
10: Level 3
11: Not matched
27:24
R/W
0x0
FREQ
Sampling Frequency
0000: 44.1kHz
0001: Not indicated
0010: 48kHz
0011: 32kHz
0100: 22.05kHz
0101: Reserved
0110: 24kHz
0111: Reserved
1000: Reserved
1001: 768kHz
1010: 96kHz
1011: Reserved
1100:176.4kHz
1101: Reserved
1110: 192kHz
1111: Reserved
23:20
R/W
0x0
CN
Channel Number
19:16
R/W
0x0
SN
Source Number
15:8
R/W
0x0
CC
Category Code
Indicates the kind of equipment that generates the digital audio interface
signal.
7:6
R/W
0x0
MODE
Mode
00: Default Mode
01~11: Reserved
5:3
R/W
0x0
EMP
Emphasis
Additional format information
Fo it  = , Liea PCM audio ode:
000: 2 audio channels without pre-emphasis
0:  audio haels ith  μs /  μs pe-emphasis
010: Reserved (for 2 audio channels with pre-emphasis)
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 531
011: Reserved (for 2 audio channels with pre-emphasis)
100~111: Reserved
Fo it  = , othe tha Liea PCM appliatios:
000: Default state
001~111: Reserved
2
R/W
0x0
CP
Copyright
0: Copyright is asserted
1: No copyright is asserted
1
R/W
0x0
TYPE
Audio Data Type
0: Linear PCM Samples
1: For none-linear PCM audio such as AC3, DTS, MPEG audio
0
R/W
0x0
PRO
Application Type
0: Consumer Application
1: Professional Application
This it ust e fied to 
8.3.5.10. OWA TX Channel Status Register1 (Default Value: 0x0000_0000)
Offset: 0x0030
Register Name: OWA_TX_CHSTA1
Bit
Read/Write
Default/Hex
Description
31:10
/
/
/
9:8
R/W
0x0
CGMS_A
00: Copying is permitted without restriction
01: One generation of copies may be made
10: Condition not be used
11: No copying is permitted
7:4
R/W
0x0
ORIG_FREQ
Original Sampling Frequency
0000: Not indicated
0001: 192kHz
0010: 12kHz
0011: 176.4kHz
0100: Reserved
0101: 96kHz
0110: 8kHz
Audio
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 532
0111: 88.2kHz
1000: 16kHz
1001: 24kHz
1010: 11.025kHz
1011: 22.05kHz
1100: 32kHz
1101: 48kHz
1110: Reserved
1111: 44.1kHz
3:1
R/W
0x0
WL
Sample Word Length
Fo it  = :
000: Not indicated
001: 16 bits
010: 18 bits
100: 19 bits
101: 20 bits
110: 17 bits
111: Reserved
Fo it  = :
000: Not indicated
001: 20 bits
010: 22 bits
100: 23 bits
101: 24 bits
110: 21 bits
111: Reserved
0
R/W
0x0
MWL
Max Word Length
0: Maximum audio sample word length is 20 bits
1: Maximum audio sample word length is 24 bits
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 533
Chapter 9 Interfaces
This chapter describes the H5 interfaces, including:
TWI
SPI
UART
CIR Receiver
USB
SCR
EMAC
TSC
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 534
9.1. TWI
9.1.1. Overview
This TWI controller is designed to be used as an interface between CPU host and the serial 2-wire bus. It can support all
the standard 2-wire transfer, including slave and master. The communication of the 2-wire bus is carried out by a
byte-wise mode based on interrupt or polled handshaking. This TWI controller can be operated in standard mode (100
Kbit/s) or fast-mode, supporting data rate up to 400 Kbit/s. Multi-masters and 10-bit addressing mode are supported for
this specified application. General Call Addressing is also supported in slave mode.
Features:
Software-programmable for slave or master
Supports repeated START signal
Multi-master systems supported
Allows 10-bit addressing with TWI bus
Performs arbitration and clock synchronization
Own address and General Call address detection
Interrupt on address detection
Suppots speed up to  Kit/s fast ode
Allows operation from a wide range of input clock frequencies
9.1.2. Operations and Functional Descriptions
9.1.2.1. External Signals
H5 has 3 TWIs in CPUx and 1 TWI in CPUs. Table 9-1 describes the external signals of TWI. TWI_SCK and TWI_SDA are
bidirectional I/O, When TWI is configured as Master device, TWI_SCK is output pin; when TWI is configurable as Slave
device, TWI_SCK is input pin. The unused TWI ports are used as General Purpose I/O ports. For information about
General Purpose I/O ports, see Port Controller(CPUx-PORT) and Port Controller (CPUs-PORT) in chapter4.
Table 9-1. TWI External Signals
Port Name
Direction
Description
TWI0_SCK
I/O
TWI0 clock line
TWI0_SDA
I/O
TWI0 serial data signal
TWI1_SCK
I/O
TWI1 clock line
TWI1_SDA
I/O
TWI1 serial data signal
TWI2_SCK
I/O
TWI2 clock line
TWI2_SDA
I/O
TWI2 serial data signal
S_TWI_SCK
I/O
TWI clock line for CPUs
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 535
S_TWI_SDA
I/O
TWI serial data signal for CPUs
9.1.2.2. Clock Sources
The clock source of each TWI controller is APB2 bus clock. Users can see CCU in chapter4 for clock setting,
configuration and gating information.
Table 9-2. TWI Clock Sources
Clock Sources
Description
APB2
APB2 has three clock sources, including LOSC,OSC24M and PLL_PERIPH0(1X)
9.1.2.3. Timing Diagram
Data transferred are always in a unit of 8-bit (1 byte), followed by an acknowledge bit. The number of bytes that can be
transmitted is unrestricted. Data is transferred in serial with the MSB first. Between each byte of data transfer, a
receiver device will hold the clock line SCL low to force the transmitter into a wait state while waiting the response from
microprocessor.
The clock line is driven by the master all the time, including the acknowledge-related clock cycle, except for the SCL
holding between each byte. After sending each byte, the transmitter releases the SDA line to allow the receiver to pull
down the SDA line and send an acknowledge signal (or pull it high to send a "not acknowledge") to the transmitter.
When a slave receiver does not acknowledge the slave address (unable to receive because of no resource available), the
data line must be pulled high by the slave so that the master can generate a STOP condition to stop the transfer. When
the acknowledge signal is pulled high, slave receiver no longer sends more data. And the master should generate the
STOP condition to stop the transfer.
Figure 9-1 provides an illustration the relation of SDA signal line and SCL signal line on the TWI serial bus.
IIC2IIC5IIC5IIC4IIC4IIC3IIC1
SDA
SCL
Figure 9-1. TWI Timing Diagram
9.1.2.4. TWI Controller Operation
There are four communication operation modes for the TWI bus, including Master Transmit, Master Receive, Slave
Transmit and Slave Receive. In general, CPU host controls TWI by writing commands and data to its registers. TWI
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 536
transmits an interrupt to CPU when each time a byte transfer is done or a START/STOP conditions is detected. The CPU
host can also poll the status register for current status if the interrupt mechanism is not disabled by the CPU host.
When the CPU host wants to start a bus transfer, it initiates a bus START to enter the master mode by setting IM_STA bit
in the 2WIRE_CNTR register to high (before it must be low). The TWI will assert INT line and INT_FLAG to indicate a
completion for the START condition and each consequent byte transfer. At each interrupt, the micro-processor needs to
check the 2WIRE_STAT register for current status. A transfer has to be concluded with STOP condition by setting M_STP
bit to high.
In Slave mode, the TWI also constantly samples the bus and looks for its own slave address during addressing cycles.
Once a match is found, it is addressed and interrupted the CPU host with the corresponding status. Upon request, the
CPU host should read the status, read/write 2WIRE_DATA data register, and set the 2WIRE_CNTR control register. After
each byte transfer, a slave device always halt the operation of remote master by holding the next low pulse on SCL line
until the microprocessor responds to the status of previous byte transfer or START condition.
9.1.3. Register List
Module Name
Base Address
R_TWI
0x01F02400
TWI0
0x01C2AC00
TWI1
0x01C2B000
TWI2
0x01C2B400
Register Name
Offset
Description
TWI_ADDR
0x0000
TWI Slave Address Register
TWI_XADDR
0x0004
TWI Extended Slave Address Register
TWI_DATA
0x0008
TWI Data Byte Register
TWI_CNTR
0x000C
TWI Control Register
TWI_STAT
0x0010
TWI Status Register
TWI_CCR
0x0014
TWI Clock Control Register
TWI_SRST
0x0018
TWI Software Reset Register
TWI_EFR
0x001C
TWI Enhance Feature Register
TWI_LCR
0x0020
TWI Line Control Register
9.1.4. Register Description
9.1.4.1. TWI Slave Address Register(Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: TWI_ADDR
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 537
7:1
R/W
0x0
SLA
Slave address
7-bit addressing
SLA6, SLA5, SLA4, SLA3, SLA2, SLA1, SLA0
10-bit addressing
1, 1, 1, 1, 0, SLAX[9:8]
0
R/W
0x0
GCE
General call address enable
0: Disable
1: Enable
Note:
For 7-bit addressing:
SLA6 – SLA0 is the 7-bit address of the TWI when in slave mode. When the TWI receives this address after a START
condition, it will generate an interrupt and enter slave mode (SLA6 corresponds to the first bit received from the TWI
bus.). If GCE is set to , the TWI ill also eogize the geeal all addess h.
For 10-bit addressing:
When the address received starts with 11110b, the TWI recognizes this as the first part of a 10-bit address and if the
next two bits match TWI_ADDR[:] i.e. SLAX ad SLAX of the deies eteded addess, it seds an ACK (The
device does not generate an interrupt at this point.). If the next byte of the address matches the TWI_XADDR register
(SLAX7 – SLAX0), the TWI generates an interrupt and goes into slave mode.
9.1.4.2. TWI Extend Address Register(Default Value: 0x0000_0000)
Offset: 0x0004
Register Name: TWI_XADDR
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
SLAX
Extend Slave Address
SLAX[7:0]
9.1.4.3. TWI Data Register(Default Value: 0x0000_0000)
Offset: 0x0008
Register Name: TWI_DATA
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
TWI_DATA
Data byte for transmitting or received
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 538
9.1.4.4. TWI Control Register(Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: TWI_CNTR
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
INT_EN
Interrupt Enable
0: The interrupt line always low
1: The interrupt line will go high when INT_FLAG is set.
6
R/W
0x0
BUS_EN
TWI Bus Enable
0: The TWI bus inputs ISDA/ISCL are ignored and the TWI controller will not
respond to any address on the bus
1: The TWI will respond to call to its slave address – and to the general call
address if the GCE bit in the TWI_ADDR register is set.
Note: I aste opeatio ode, this it should e set to .
5
R/W
0x0
M_STA
Master Mode Start
When M_STA is set to , the TWI otolle etes aste ode ad ill
transmit a START condition on the bus when the bus is free.
If M_STA is set to  he the TWI otolle is aleadi aste ode ad
one or more bytes have been transmitted, then a repeated START condition
will be sent.
If M_STA is set to  he the TWI is acessed in slave mode, the TWI will
complete the data transfer in slave mode then enter master mode when the
bus has been released.
M_STA is cleared automatically after a START condition sent.
Witig a  to this it has o effet.
4
R/W
0x0
M_STP
Master Mode Stop
If M_STP is set to  i aste ode, a STOP oditio is tasitted o the
TWI bus.
If M_STP is set to  i slae ode, the TWI ill ehae as if a STOP
condition has been received, but no STOP condition will be transmitted on
the TWI bus.
If both M_STA and M_STP are set, the TWI will first transmit the STOP
condition (if in master mode) then transmit the START condition.
M_STP is cleared automatically.
Witig a  to this it has o effet.
3
R/W
0x0
INT_FLAG
Interrupt Flag
INT_FLAG is autoatiall set to  he aof  out of the possile 29)
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 539
states is eteed see TWI_STAT elo. INT_FLAG can not be set when
TWI code state is F8h.
If the INT_EN bit is set, the interrupt line goes high when INT_FLAG is set to
.
If the TWI is operating in slave mode, data transfer is suspended when
INT_FLAG is set and the low period of the TWI bus clock line (SCL) is
stethed util  is itte to INT_FLAG. The TWI clock line is then released
and the interrupt line goes low.
2
R/W
0x0
A_ACK
Assert Acknowledge
When A_ACK is set to , a Akoledge lo leel oSDA ill e set
during the acknowledge clock pulse on the TWI bus if:
(1). Either the whole of a matching 7-bit slave address or the first or the
second byte of a matching 10-bit slave address has been received.
(2). The general call address has been received and the GCE bit in the
TWI_ADDR egiste is set to .
(3). A data byte has been received in master or slave mode.
When A_ACK is , a Not Akoledge high leel o SDA ill e set he
a data byte is received in master or slave mode.
If A_ACK is leaed to  i slae tansmitter mode, the byte in the DATA
egiste is assued to e the last te. Afte this te has ee tasitted,
the TWI will enter state C8h then return to the idle state (status code F8h)
when INT_FLAG is cleared.
The TWI will not respond as a slave unless A_ACK is set.
1:0
/
/
/
9.1.4.5. TWI Status Register(Default Value: 0x0000_00F8)
Offset: 0x0010
Register Name: TWI_STAT
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R
0xF8
STA
Status Information Byte
Code Status
0x00: Bus error
0x08: START condition transmitted
0x10: Repeated START condition transmitted
0x18: Address + Write bit transmitted, ACK received
0x20: Address + Write bit transmitted, ACK not received
0x28: Data byte transmitted in master mode, ACK received
0x30: Data byte transmitted in master mode, ACK not received
0x38: Arbitration lost in address or data byte
0x40: Address + Read bit transmitted, ACK received
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 540
0x48: Address + Read bit transmitted, ACK not received
0x50: Data byte received in master mode, ACK transmitted
0x58: Data byte received in master mode, ACK not transmitted
0x60: Slave address + Write bit received, ACK transmitted
0x68: Arbitration lost in address as master, slave address + Write bit received,
ACK transmitted
0x70: General Call address received, ACK transmitted
0x78: Arbitration lost in address as master, General Call address received,
ACK transmitted
0x80: Data byte received after slave address received, ACK transmitted
0x88: Data byte received after slave address received, ACK not transmitted
0x90: Data byte received after General Call received, ACK transmitted
0x98: Data byte received after General Call received, ACK not transmitted
0xA0: STOP or repeated START condition received in slave mode
0xA8: Slave address + Read bit received, ACK transmitted
0xB0: Arbitration lost in address as master, slave address + Read bit received,
ACK transmitted
0xB8: Data byte transmitted in slave mode, ACK received
0xC0: Data byte transmitted in slave mode, ACK not received
0xC8: Last byte transmitted in slave mode, ACK received
0xD0: Second Address byte + Write bit transmitted, ACK received
0xD8: Second Address byte + Write bit transmitted, ACK not received
0xF8: No relevant status information, INT_FLAG=0
Others: Reserved
9.1.4.6. TWI Clock Register(Default Value: 0x0000_0000)
Offset: 0x0014
Register Name: TWI_CCR
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6:3
R/W
0x0
CLK_M
2:0
R/W
0x0
CLK_N
The TWI bus is sampled by the TWI at the frequency defined by F0:
Fsamp = F0 = Fin / 2^CLK_N
The TWI OSCL output frequency, in master mode, is F1 / 10:
F1 = F0 / (CLK_M + 1)
Foscl = F1 / 10 = Fin / (2^CLK_N * (CLK_M + 1)*10)
For Example：
Fin = 48MHz (APB clock input)
For 400KHz full speed 2Wire, CLK_N = 2, CLK_M=2
F0 = 48M/2^2=12MHz, F1= F0/(10*(2+1)) = 0.4MHz
For 100KHz standard speed 2Wire, CLK_N=2, CLK_M=11
F0=48M/2^2=12MHz, F1=F0/(10*(11+1)) = 0.1MHz
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 541
9.1.4.7. TWI Soft Reset Register(Default Value: 0x0000_0000)
Offset: 0x0018
Register Name: TWI_SRST
Bit
Read/Write
Default/Hex
Description
31:1
/
/
/
0
R/W
0x0
SOFT_RST
Soft Reset
Wite  to this it to eset the TWI ad lea to  he opletig Soft
Reset operation.
9.1.4.8. TWI Enhance Feature Register(Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: TWI_EFR
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
1:0
R/W
0x0
DBN
Data Byte number follow Read Command Control
00: No Data Byte to be written after read command
01: Only 1 byte data to be written after read command
10: 2 bytes data can be written after read command
11: 3 bytes data can be written after read command
9.1.4.9. TWI Line Control Register(Default Value: 0x0000_003A)
Offset: 0x0020
Register Name: TWI_LCR
Bit
Read/Write
Default/Hex
Description
31:6
/
/
/
5
R
0x1
SCL_STATE
Current state of TWI_SCL
0: Low
1: High
4
R
0x1
SDA_STATE
Current state of TWI_SDA
0: Low
1: High
3
R/W
0x1
SCL_CTL
TWI_SCL line state control bit
When line control mode is enabled (SCL_CTL_EN is set), this bit decide the
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 542
output level of TWI_SCL.
0: Output low level
1: Output high level
2
R/W
0x0
SCL_CTL_EN
TWI_SCL line state control enable
When this bit is set, the state of TWI_SCL is controlled by the value of
SCL_CTL.
0: Disable TWI_SCL line control mode
1: Enable TWI_SCL line control mode
1
R/W
0x1
SDA_CTL
TWI_SDA line state control bit
When line control mode is enabled (SDA_CTL_EN is set), this bit decides the
output level of TWI_SDA.
0: Output low level
1: Output high level
0
R/W
0x0
SDA_CTL_EN
TWI_SDA line state control enable
When this bit is set, the state of TWI_SDA is controlled by the value of
SDA_CTL.
0: Disable TWI_SDA line control mode
1: Enable TWI_SDA line control mode
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 543
9.2. SPI
9.2.1. Overview
The SPI is the Serial Peripheral Interface which allows rapid data communication with fewer software interrupts. It can
interface with up to four slave external devices or one single external master. The SPI module contains one 64x8
receiver buffer (RXFIFO) and one 64x8 transmit buffer (TXFIFO). It can work at two modes: Master mode and Slave
mode.
Features:
Full-duplex synchronous serial interface
Master/Slave configurable
8-bit wide by 64-entry FIFO for both transmit and receive date
Polarity and phase of the Chip Select (SPI_SS) and SPI Clock (SPI_SCLK) are configurable
Mode0~3 are supported for both transmit and receive operations
The maximum frequency is 100MHz
Interrupt or DMA supported
Support single and dual read mode
9.2.2. Block Diagram
Figure 9-2 shows a block diagram of the SPI.
spi_rf
rbuf
tbuf
AHB
TX DMA
RX DMA
txfifo
rxfifo
spi_tx
spi_rx
spi_cmu
INTC
spi_top
hclk
domain
sclk
domain
sckt
sckr
spi_mosi_oen
spi_mosi_out
spi_miso_oen
spi_miso_out
spi_ss_oen
spi_ss_out
spi_ss_in
spi_mosi_in
spi_miso_in
spi_sck_in
spi_sck_out
spi_sck_oen
Figure 9-2. SPI Block Diagram
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 544
The SPI comprises with:
spi_rf: Responsible for implementing the internal register,interrupt and DMA Request.
spi_tbuf: The data length transmitted from AHB to txfifo is converted into 8bits,then the data is written into the rxfifo.
spi_rbuf: The block is used as converted the rxfifo data into read data length of AHB.
txfifo,rxfifo: For transmit and receive transfers,data transmitted from the SPI to the external serial device is written into
the txfifo;data received from the external serial device into SPI is pushed into the rxfifo.
spi_cmu: Responsible for implementing SPI bus clock,chip select,internal sample and the generation of transfer clock.
spi_tx: Responsible for implementing SPI data transfer ,the interface of the internal txfifo and status register.
spi_rx: Responsible for implementing SPI data receive, the interface of the internal rxfifo and status register.
9.2.3. Operations and Functional Descriptions
9.2.3.1. External Signals
Table 9-3 describes the external signals of SPI. MOSI and MISO are bidirectional I/O, when SPI is configured as Master
device, CLK and CS is output pin; when SPI is configurable as Slave device, CLK and CS is input pin. The unused SPI ports
are used as General Purpose I/O ports.
Table 9-3. SPI External Signals
Signal
Description
Type
SPI0_CS
SPI0 Chip Select Signal,Low Active
I/O
SPI0_CLK
SPI0 Clock Signal
I/O
SPI0_MOSI
SPI0 Master Data Out, Slave Data In
I/O
SPI0_MISO
SPI0 Master Data In, Slave Data Out
I/O
SPI1_CS
SPI1 Chip Select Signal,Low Active
I/O
SPI1_CLK
SPI1 Clock Signal
I/O
SPI1_MOSI
SPI1 Master Data Out, Slave Data In
I/O
SPI1_MISO
SPI1 Master Data In, Slave Data Out
I/O
9.2.3.2. Clock Sources
Each SPI controller get three different clocks, users can select one of them to make SPI Clock Source. Table 9-4
describes the clock sources for SPI.
Table 9-4. SPI Clock Sources
Clock Sources
Description
OSC24M
24MHz Crystal
PLL_PERIPH0(1X)
Peripheral Clock, default value is 600MHz
PLL_PERIPH1(1X)
Peripheral Clock, default value is 600MHz
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 545
9.2.3.3. SPI Transmit Format
The SPI supports 4 different formats for data transfer. Software can select one of the four modes in which the SPI
works by setting the bit1(Polarity) and bit0(Phase) of SPI Transfer Control Register. The SPI controller master uses the
SPI_SCLK signal to transfer data in and out of the shift register. Data is clocked using any one of four programmable
clock phase and polarity combinations.
During Phase 0, Polarity 0 and Phase 1, Polarity 1 operations, output data changes on the falling clock edge and input
data is shifted in on the rising edge.
During Phase 1, Polarity 0 and Phase 0, Polarity 1 operations, output data changes on the rising edges of the clock and
is shifted in on falling edges.
The POL defines the signal polarity when SPI_SCLK is in idle state. The SPI_SCLK is high leel he POL is  ad it is lo
leel he POL is . The PHA deides hethe the leadig edge of SPI_SCLK is used fo setup o saple data. The
leadig edge is used fo setup data he PHA is  ad fo saple data he PHA is . The four modes are listed in
Table 9-5.
Table 9-5. SPI Transmit Format
SPI Mode
POL
PHA
Leading Edge
Trailing Edge
0
0
0
Rising, Sample
Falling, Setup
1
0
1
Rising, Setup
Falling, Sample
2
1
0
Falling, Sample
Rising, Setup
3
1
1
Failing, Setup
Rising, Sample
Figure 9-3 and Figure 9-4 describe four waveforms for SPI_SCLK.
Phase 0
SPI_SCLK (Mode 0)
SPI_SCLK (Mode 2)
SPI_MOSI
SPI_MISO
SPI_SS
Sample MOSI/ MISO pin
Figure 9-3. SPI Phase 0 Timing Diagram
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 546
Phase 1
SPI_SCLK (Mode 1)
SPI_SCLK (Mode 3)
SPI_MOSI
SPI_MISO
SPI_SS
Sample MOSI/ MISO pin
Figure 9-4. SPI Phase 1 Timing Diagram
9.2.3.4. SPI Master and Slave Mode
The SPI controller can be configured to a Master or Slave device. Master mode is selected by setting the MODE bit in
the SPI Global Control Register;Slave mode is selected by clearing the MODE bit in the SPI Global Control Register.
In Master mode, SPI_CLK is generated and transmitted to external device, and data from the TX FIFO is transmitted on
the MOSI pin, the data from slave is received on the MISO pin and sent to RX FIFO. Chip Select(SPI_SS) is active low
signal. SPI_SS must be set low before data are transmitted or received. SPI_SS can be selected SPI auto control or
software manual control. When using auto control,SS_OWNER (the bit 6 in the SPI Transfer Control Register) must be
cleared(default value is 0);when using manual control, SS_OWNER must be set, chip Select level is controlled by
SS_LEVEL bit(the bit 7 in the SPI Transfer Control Register).
In Slave mode, after software selects the MODE bit to '0',it waits for master initiate a transaction. When the Master
assert SPI_SS and SPI_CLK is transmitted to the Slave ,the Slave data is transmitted from TX FIFO on MISO pin and data
from MOSI pin is received in RX FIFO.
9.2.3.5. SPI Dual Read Mode
The Dual read mode(SPI x2) is selected when the DRM(bit28) is set in the SPI Master Burst Control Counter
Register.Using the dual mode allows data to be transferred to or from the device at two times the rate of standard
single mode SPI devices, data can be read at fast speed using two data bits(MOSI and MISO) at a time.
9.2.4. Programming Guide
9.2.4.1. Transmit/Receive Burst in Master Mode
In SPI Master mode, the transmit and receive burst(byte in unit) are configured before the SPI transfers serial data
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 547
between the processor and external device. The transmit burst write in MWTC(bit[23:0]) of SPI Master Transmit
Counter Register. The transmit burst in single mode before automatically sending dummy burst write in STC(bit[23:0])
of SPI Master Burst Control Counter Register.For dummy data, SPI controller can automatically sent before receive by
writing DBC(bit[27:24]) in SPI Master Burst Control Counter Register.If users do not use SPI controller to sent
automatically dummy, then dummy burst are used as the transmit counters to write together in MWTC(bit[23:0]) of
SPI Master Transmit Counter Register.In Master mode, the total burst numbers write in MBC(bit[23:0]) of SPI Master
Burst Counter Register.When all master transmit burst and receive burst are transferred, SPI controller will send a
completed interrupt, at the same time, SPI controller will clear DBC, MWTC and MBC.
9.2.4.2. SPI Sample Mode and Run Clock Configuration
The SPI Controller runs at 3KHz~100MHz at its interface to external SPI devices. The internal SPI Clock should run at the
same frequency as the outgoing clock in master mode. The SPI clock is selected different clock sources, SPI must
configure different work mode. There are three work mode: normal sample mode, delay half cycle sample mode, delay
one cycle sample mode. Delay half cycle sample mode is the default mode of SPI controller. When SPI runs at 48MHz or
below 48MHz, SPI can work at normal sample mode or delay half cycle sample mode. When SPI runs over 48MHz,Set
the SDC bit in SPI Transfer Control Register to  to ake the iteal ead saple poit ith a half le delaof
SPI_CLK, which is used in high speed read operation to reduce the error caused by the time delay of SPI_CLK
propagating between master and slave. The different configuration of SPI sample mode shows in Table 9-6.
Table 9-6. SPI Sample Mode and Run Clock
SPI Sample Mode
SDM(bit13)
SDC(bit11)
Run Clock
normal sample
1
0
<=24MHz
delay half cycle sample
0
0
<=48MHz
delay one cycle sample
0
1
>=60MHz
9.2.5. Register List
Module Name
Base Address
SPI0
0x01C68000
SPI1
0x01C69000
Register Name
Offset
Description
SPI_GCR
0x0004
SPI Global Control Register
SPI_TCR
0x0008
SPI Transfer Control register
/
0x000C
Reserved
SPI_IER
0x0010
SPI Interrupt Control Register
SPI_ISR
0x0014
SPI Interrupt Status Register
SPI_FCR
0x0018
SPI FIFO Control Register
SPI_FSR
0x001C
SPI FIFO Status Register
SPI_WCR
0x0020
SPI Wait Clock Counter Register
SPI_CCR
0x0024
SPI Clock Rate Control Register
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 548
/
0x0028
Reserved
/
0x002C
Reserved
SPI_MBC
0x0030
SPI Burst Counter Register
SPI_MTC
0x0034
SPI Transmit Counter Register
SPI_BCC
0x0038
SPI Burst Control Register
SPI_NDMA_CTL
0x0088
SPI Normal DMA Control Register
SPI_TXD
0x0200
SPI TX Data Register
SPI_RXD
0x0300
SPI RX Data Register
9.2.6. Register Description
9.2.6.1. SPI Global Control Register(Default Value: 0x0000_0080)
Offset: 0x0004
Register Name: SPI_GCR
Bit
Read/Write
Default/Hex
Description
31
R/WAC
0x0
SRST
Soft reset
Wite  to this it ill lea the SPI otolle, ad autoatiall lea to 
when reset operation completes.
Witig  has o effet.
30:8
/
/
/
7
R/W
0x1
TP_EN
Transmit Pause Enable
In master mode, it is used to control transmit state machine to stop smart
burst sending when RX FIFO is full.
0: Normal operation, ignore RXFIFO status
1: Stop transmit data when RXFIFO full
Note: Can not be written when XCH=1
6:2
/
/
/
1
R/W
0x0
MODE
SPI Function Mode Select
0: Slave Mode
1: Master Mode
Note: Can not be written when XCH=1
0
R/W
0x0
EN
SPI Module Enable Control
0: Disable
1: Enable
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 549
9.2.6.2. SPI Transfer Control Register(Default Value: 0x0000_0087)
Offset: 0x0008
Register Name: SPI_TCR
Bit
Read/Write
Default/Hex
Description
31
R/WAC
0x0
XCH
Exchange Burst
In master mode it is used to start SPI burst
0: Idle
1: Initiates exchange.
Wite  to this it ill stat the SPI ust, ad ill automatically clear after
finishing the bursts transfe speified  BC. Wite  to SRST will also clear
this it. Witig  to this it has o effet.
Note: Can not be written when XCH=1.
30:15
/
/
/
14
R/W
0x0
SDDM
Sending Data Delay Mode
0: Normal sending
1: Delay sending
Set the it to  to ake the data sed ith a dela of half le of SPI_CLK
in dual IO mode for SPI mode0.
13
R/W
0x0
SDM
Master Sample Data Mode
0: Delay Sample Mode
1: Normal Sample Mode
In Normal Sample Mode, SPI master samples the data at the correct edge for
each SPI mode.
In Delay Sample Mode, SPI master samples data at the edge that is half cycle
delayed by the correct edge defined in respective SPI mode.
12
R/W
0x0
FBS
First Transmit Bit Select
0: MSB first
1: LSB first
Note: Can not be written when XCH=1.
11
R/W
0x0
SDC
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 550
Master Sample Data Control
Set this it to  to ake the iteal ead saple poit ith a dela of half
cycle of SPI_CLK. It is used in high speed read operation to reduce the error
caused by the time delay of SPI_CLK propagating between master and slave.
0: Normal operation, do not delay internal read sample point
1: Delay internal read sample point
Note: Can not be written when XCH=1.
10
R/W
0x0
RPSM
Rapids Mode Select
Select Rapids mode for high speed write.
0: Normal write mode
1: Rapids write mode
Note: Can not be written when XCH=1.
9
R/W
0x0
DDB
Dummy Burst Type
0: The bit value of dummy SPI burst is zero
1: The bit value of dummy SPI burst is one
Note: Can not be written when XCH=1.
8
R/W
0x0
DHB
Discard Hash Burst
In master mode it controls whether discarding unused SPI bursts
0: Receiving all SPI bursts in BC period
1: Discard unused SPI bursts, only fetching the SPI bursts during dummy
burst period. The bursts number is specified by TC.
Note: Can not be written when XCH=1.
7
R/W
0x1
SS_LEVEL
Whe otol SS sigal auall, set this it to  o  to otol the leel
of SS signal.
0: Set SS to low
1: Set SS to high
Note: Can not be written when XCH=1.
6
R/W
0x0
SS_OWNER
SS Output Owner Select
Usually, the controller sends SS signal automatically with data together.
When this bit is set to 1, software must manually write SS_LEVEL to 1 or 0 to
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 551
control the level of SS signal.
0: SPI controller
1: Software
Note: Can not be written when XCH=1.
5:4
R/W
0x0
SS_SEL
SPI Chip Select
Select one of four external SPI Master/Slave Devices
00: SPI_SS0 will be asserted
01: SPI_SS1 will be asserted
10: SPI_SS2 will be asserted
11: SPI_SS3 will be asserted
Note: Can not be written when XCH=1.
3
R/W
0x0
SSCTL
In master mode, this bit selects the output wave for the SPI_SSx signal. Only
valid when SS_OWNER = 0.
0: SPI_SSx remains asserted between SPI bursts
1: Negate SPI_SSx between SPI bursts
Note: Can not be written when XCH=1.
2
R/W
0x1
SPOL
SPI Chip Select Signal Polarity Control
0: Active high polarity (0 = Idle)
1: Active low polarity (1 = Idle)
Note: Can not be written when XCH=1.
1
R/W
0x1
CPOL
SPI Clock Polarity Control
0: Active high polarity (0 = Idle)
1: Active low polarity (1 = Idle)
Note: Can not be written when XCH=1.
0
R/W
0x1
CPHA
SPI Clock/Data Phase Control
0: Phase 0 (Leading edge for sample data)
1: Phase 1 (Leading edge for setup data)
Note: Can not be written when XCH=1.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 552
9.2.6.3. SPI Interrupt Control Register(Default Value: 0x0000_0000)
Offset: 0x0010
Register Name: SPI_IER
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
13
R/W
0x0
SS_INT_EN
SSI Interrupt Enable
Chip Select Signal (SSx) from valid state to invalid state
0: Disable
1: Enable
12
R/W
0x0
TC_INT_EN
Transfer Completed Interrupt Enable
0: Disable
1: Enable
11
R/W
0x0
TF_UDR_INT_EN
TXFIFO Underrun Interrupt Enable
0: Disable
1: Enable
10
R/W
0x0
TF_OVF_INT_EN
TX FIFO Overflow Interrupt Enable
0: Disable
1: Enable
9
R/W
0x0
RF_UDR_INT_EN
RXFIFO Underrun Interrupt Enable
0: Disable
1: Enable
8
R/W
0x0
RF_OVF_INT_EN
RX FIFO Overflow Interrupt Enable
0: Disable
1: Enable
7
/
/
/
6
R/W
0x0
TF_FUL_INT_EN
TX FIFO Full Interrupt Enable
0: Disable
1: Enable
5
R/W
0x0
TX_EMP_INT_EN
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 553
TX FIFO Empty Interrupt Enable
0: Disable
1: Enable
4
R/W
0x0
TX_ERQ_INT_EN
TX FIFO Empty Request Interrupt Enable
0: Disable
1: Enable
3
/
/
/
2
R/W
0x0
RF_FUL_INT_EN
RX FIFO Full Interrupt Enable
0: Disable
1: Enable
1
R/W
0x0
RX_EMP_INT_EN
RX FIFO Empty Interrupt Enable
0: Disable
1: Enable
0
R/W
0x0
RF_RDY_INT_EN
RX FIFO Ready Request Interrupt Enable
0: Disable
1: Enable
9.2.6.4. SPI Interrupt Status Register(Default Value: 0x0000_0032)
Offset: 0x0014
Register Name: SPI_INT_STA
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
13
R/W1C
0x0
SSI
SS Invalid Interrupt
When SSI is 1, it indicates that SS has changed from valid state to invalid
state. Writing 1 to this bit clears it.
12
R/W1C
0x0
TC
Transfer Completed
In master mode, it indicates that all bursts specified by SPI_BC have been
exchanged. In other condition, When set, this bit indicates that all the data in
TXFIFO has been loaded in the Shift register, and the Shift register has shifted
out all the bits. Writing 1 to this bit clears it.
0: Busy
1: Transfer Completed
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 554
11
R/W1C
0x0
TF_UDF
TXFIFO Underrun
This bit is set when if the TXFIFO is underrun. Writing 1 to this bit clears it.
0: TXFIFO is not underrun
1: TXFIFO is underrun
10
R/W1C
0x0
TF_OVF
TXFIFO Overflow
This bit is set when if the TXFIFO is overflow. Writing 1 to this bit clears it.
0: TXFIFO is not overflow
1: TXFIFO is overflow
9
R/W1C
0x0
RX_UDF
RXFIFO Underrun
When set, this bit indicates that RXFIFO is underrun. Writing 1 to this bit
clears it.
0: RXFIFO is not underrun
1: RXFIFO is underrun
8
R/W1C
0x0
RX_OVF
RXFIFO Overflow
When set, this bit indicates that RXFIFO is overflow. Writing 1 to this bit
clears it.
0: RXFIFO is not overflow.
1: RXFIFO is overflow.
7
/
/
/
6
R/W1C
0x0
TX_FULL
TXFIFO Full
This bit is set when if the TXFIFO is full . Writing 1 to this bit clears it.
0: TXFIFO is not Full
1: TXFIFO is Full
5
R/W1C
0x1
TX_EMP
TXFIFO Empty
This bit is set if the TXFIFO is empty. Writing 1 to this bit clears it.
0: TXFIFO contains one or more words.
1: TXFIFO is empty
4
R/W1C
0x1
TX_READY
TXFIFO Ready
0: TX_WL > TX_TRIG_LEVEL
1: TX_WL <= TX_TRIG_LEVEL
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 555
This it is set atie if TX_WL <= TX_TRIG_LEVEL. Witig  to this it
clears it. Where TX_WL is the water level of RXFIFO.
3
/
/
Reserved
2
R/W1C
0x0
RX_FULL
RXFIFO Full
This bit is set when the RXFIFO is full . Writing 1 to this bit clears it.
0: Not Full
1: Full
1
R/W1C
0x1
RX_EMP
RXFIFO Empty
This bit is set when the RXFIFO is empty . Writing 1 to this bit clears it.
0: Not empty
1: empty
0
R/W1C
0x0
RX_RDY
RXFIFO Ready
0: RX_WL < RX_TRIG_LEVEL
1: RX_WL >= RX_TRIG_LEVEL
This bit is set any time if RX_WL >= RX_TRIG_LEVEL. Writing 1 to this bit
clears it. Where RX_WL is the water level of RXFIFO.
9.2.6.5. SPI FIFO Control Register(Default Value: 0x0040_0001)
Offset: 0x0018
Register Name: SPI_FCR
Bit
Read/Write
Default/Hex
Description
31
R/WAC
0x0
TX_FIFO_RST
TX FIFO Reset
Witig  to this it ill eset the otol potio of the TX FIFO ad
autoatiall lea to  he opletig eset opeatio.
Witig to  has o effet.
30
R/W
0x0
TF_TEST
TX Test Mode Enable
0: Disable
1: Enable
Note: I oal ode, TX FIFO a ol e ead  SPI otolle, itig 
to this bit will switch TX FIFO read and write function to AHB bus. This bit is
used to test the TX FIFO. RF_TEST and TF_TEST can not be set at the same
time.
29:26
/
/
/
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 556
25
/
/
/
24
R/W
0x0
TF_ DRQ_EN
TX FIFO DMA Request Enable
0: Disable
1: Enable
23:16
R/W
0x40
TX_TRIG_LEVEL
TX FIFO Empty Request Trigger Level
15
R/WAC
0x0
RF_RST
RXFIFO Reset
Witig  to this it ill eset the otol potio of the eeie FIFO, ad
autoatiall lea to  he opletig eset opeatio, ite  to this
bit has no effect.
14
R/W
0x0
RF_TEST
RX Test Mode Enable
0: Disable
1: Enable
Note: In normal mode, RX FIFO can only be written by SPI controller, writing
 to this it ill sith RX FIFO ead ad ite futio to AHB us. This it
is used to test the RX FIFO. RF_TEST and TF_TEST can not be set at the same
time.
13:9
/
/
/
8
R/W
0x0
RF_ DRQ_EN
RX FIFO DMA Request Enable
0: Disable
1: Enable
7:0
R/W
0x1
RX_TRIG_LEVEL
RX FIFO Ready Request Trigger Level
9.2.6.6. SPI FIFO Status Register(Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: SPI_FSR
Bit
Read/Write
Default/Hex
Description
31
R
0x0
TB_WR
TX FIFO Write Buffer Write Enable
30:28
R
0x0
TB_CNT
TX FIFO Write Buffer Counter
These bits indicate the number of words in TX FIFO Write Buffer
27:24
/
/
/
23:16
R
0x0
TF_CNT
TX FIFO Counter
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 557
These bits indicate the number of words in TX FIFO
00000000: 0 byte in TX FIFO
00000001: 1 byte in TX FIFO
…
01000000: 64 bytes in TX FIFO
Others: Reserved
15
R
0x0
RB_WR
RX FIFO Read Buffer Write Enable
14:12
R
0x0
RB_CNT
RX FIFO Read Buffer Counter
These bits indicate the number of words in RX FIFO Read Buffer.
11:8
R
0x0
Reserved
7:0
R
0x0
RF_CNT
RX FIFO Counter
These bits indicate the number of words in RX FIFO
00000000: 0 byte in RX FIFO
00000001: 1 byte in RX FIFO
…
01000000:64 bytes in RX FIFO
Others: Reserved
9.2.6.7. SPI Wait Clock Register(Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: SPI_WCR
Bit
Read/Write
Default/Hex
Description
31:20
/
/
/
19:16
R/W
0x0
SWC
Dual mode direction switch wait clock counter (for master mode only).
0: No wait states inserted
N: N SPI_SCLK wait states inserted
Note: These bits control the number of wait states to be inserted before start
dual data transfer in dual SPI mode. The SPI module counts SPI_SCLK by SWC
for delaying next word data transfer.
These bits can not be written when XCH=1.
15:0
R/W
0x0
WCC
Wait Clock Counter (In Master mode)
These bits control the number of wait states to be inserted in data transfers.
The SPI module counts SPI_SCLK by WCC for delaying next word data
transfer.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 558
0: No wait states inserted
N: N SPI_SCLK wait states inserted
9.2.6.8. SPI Clock Control Register(Default Value: 0x0000_0002)
Offset: 0x0024
Register Name: SPI_CCTL
Bit
Read/Write
Default/Hex
Description
31:13
/
/
/
12
R/W
0x0
DRS
Divide Rate Select (Master Mode Only)
0: Select Clock Divide Rate 1
1: Select Clock Divide Rate 2
11:8
R/W
0x0
CDR1
Clock Divide Rate 1 (Master Mode Only)
The SPI_SCLK is determined according to the following equation:
SPI_CLK = Source_CLK / 2^n.
7:0
R/W
0x2
CDR2
Clock Divide Rate 2 (Master Mode Only)
The SPI_SCLK is determined according to the following equation:
SPI_CLK = Source_CLK / (2*(n + 1)).
9.2.6.9. SPI Master Burst Counter Register(Default Value: 0x0000_0000)
Offset: 0x0030
Register Name: SPI_BC
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0x0
MBC
Master Burst Counter
In master mode, this field specifies the total burst number.
0: 0 burst
1: 1 burst
…
N: N bursts
9.2.6.10. SPI Master Transmit Counter Register(Default Value: 0x0000_0000)
Offset: 0x0034
Register Name: SPI_TC
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0x0
MWTC
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 559
Master Write Transmit Counter
In master mode, this field specifies the burst number that should be sent to
TXFIFO before automatically sending dummy burst. For saving bus
bandwidth, the dummy burst (all zero bits or all one bits) is sent by SPI
Controller automatically.
0: 0 burst
1: 1 burst
…
N: N bursts
9.2.6.11. SPI Master Burst Control Counter Register(Default Value: 0x0000_0000)
Offset: 0x0038
Register Name: SPI_BCC
Bit
Read/Write
Default/Hex
Description
31:29
/
/
/
28
R/W
0x0
DRM
Master Dual Mode RX Enable
0: RX use single-bit mode
1: RX use dual mode
Note: Can not be written when XCH=1.
27:24
R/W
0x0
DBC
Master Dummy Burst Counter
In master mode, this field specifies the burst number that should be sent
before receive in dual SPI mode. The device does not care the data.
0: 0 burst
1: 1 burst
…
N: N bursts
Note: Can not be written when XCH=1.
23:0
R/W
0x0
STC
Master Single Mode Transmit Counter
In master mode, this field specifies the burst number that should be sent in
single mode before automatically sending dummy burst. This is the first
transmit counter in all bursts.
0: 0 burst
1: 1 burst
…
N: N bursts
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 560
Note: Can not be written when XCH=1.
9.2.6.12. SPI Normal DMA Control Register(Default Value: 0x0000_00A5)
Offset: 0x0088
Register Name: SPI_NDMA_CTL
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0xA5
NDMA_MODE_CTL
0xEA: NDMA handshake mode
Note: NDMA wait mode does not care the value. 0xA5 can be used in
handshake mode, but 0xEA is better.
9.2.6.13. SPI TX Data Register(Default Value: 0x0000_0000)
Offset: 0x0200
Register Name: SPI_TXD
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
TDATA
Transmit Data
This register can be accessed in byte, half-word or word unit by AHB. In byte
accessing method, if there are rooms in RXFIFO, one burst data is written to
RXFIFO and the depth is increased by 1. In half-word accessing method, two
SPI burst data are written and the TXFIFO depth is increased by 2. In word
accessing method, four SPI burst data are written and the TXFIFO depth is
increased by 4.
Note: This address is writing-only if TF_TEST is , ad if TF_TEST is set to ,
this address is readable and writable to test the TX FIFO through the AHB
bus.
9.2.6.14. SPI RX Data Register(Default Value: 0x0000_0000)
Offset: 0x0300
Register Name: SPI_RXD
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
RDATA
Receive Data
This register can be accessed in byte, half-word or word unit by AHB. In byte
accessing method, if there are data in RXFIFO, the top word is returned and
the RXFIFO depth is decreased by 1. In half-word accessing method, two SPI
bursts are returned and the RXFIFO depth is decreased by 2. In word
accessing method, the four SPI bursts are returned and the RXFIFO depth is
decreased by 4.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 561
Note: This address is read-only if RF_TEST is , ad if RF_TEST is set to ,
this address is readable and writable to test the RX FIFO through the AHB
bus.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 562
9.3. UART
9.3.1. Overview
The Universal Asynchronous Receiver and Transmitter(UART) is used for serial communication with a peripheral,
modem (data carrier equipment, DCE) or data set. Data is written from a master (CPU) over the APB bus to the UART
and it is converted to serial form and transmitted to the destination device. Serial data is also received by the UART and
stored for the master (CPU) to read back.
H5 has five UARTs named UART0,UART1,UART2,UART3 and R_UART. Each UART performs serial-to -parallel conversion
on data characters received from a peripheral device or a modem and parallel-to-serial conversion on data characters
received from the master(CPU).
The interface is fully programmable through 8-bit CPU interface. The registers are 32-bit word aligned. The UARTs can
control the character length, baud rate, parity generation/checking, and interrupt generation. It supports word lengths
from 5 to 8bits,an optional parity bit, and 1,1.5 or 2 stop bits. If enabled, parity can be odd, even, or no parity.
Interrupts can be generated for a range of TX Buffer/FIFO, RX Buffer/FIFO, Modem Status and Line Status conditions.
The UARTs support both 16450 and 16550 compatible modes. In 16550 mode, transmit and receive operations are both
buffered by FIFOs. In 16450 mode, these FIFOs are disabled. It also includes a 16-bit programmable baud rate generator
and an 8-bit scratch register, together with separate transmit and receive FIFOs. Eight modem control lines and a
diagnostic loop-back mode are provided.
Features:
Compatible with industry-standard 16550 UARTs
Supports for word length from 5 to 8 bits, an optional parity bit, and 1,1.5 or 2 stop bits
Programmable parity(even, odd and no parity)
64 bytes transmit and receive data FIFOs
DMA controller interface
Software/Hardware flow control
Programmable Transmit Holding Register Empty Interrupt
Interrupt support for FIFOs, Status Change
9.3.2. Block Diagram
Figure 9-5 shows a block diagram of the UART.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 563
System
Bus
Register
Controller
Clock Divisor
PCLK
SCLK
BCLK
INTREQ Pad
I/F
Status
RX FIFO
TX FIFO
RX Block
Control
TX Block
Control
Figure 9-5. UART Block Diagram
9.3.3. Operations and Functional Descriptions
9.3.3.1. External Signals
Table 9-7 describes the external signals of UART.
Table 9-7. UART External Signals
Port Name
Width
Type
Description
UART0_TX
1
O
UART Serial Bit Output
UART0_RX
1
I
UART Serial Bit Input
UART1_TX
1
O
UART Serial Bit Output
UART1_RX
1
I
UART Serial Bit Input
UART1_RTS
1
O
UART Request To Send
This active low output signal informs modem that the UART is ready to send
data.
UART1_CTS
1
I
UART Clear To End
This active low signal is an input signal when modem is ready to accept data.
UART2_TX
1
O
UART Serial Bit Output
UART2_RX
1
I
UART Serial Bit Input
UART2_RTS
1
O
UART Request To Send
This active low output signal informs modem that the UART is ready to send
data.
UART2_CTS
1
I
UART Clear To End
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 564
This active low signal is an input signal when modem is ready to accept data.
UART3_TX
1
O
UART Serial Bit Output
UART3_RX
1
I
UART Serial Bit Input
UART3_RTS
1
O
UART Request To Send
This active low output signal informs modem that the UART is ready to send
data.
UART3_CTS
1
I
UART Clear To End
This active low signal is an input signal when modem is ready to accept data.
S_UART_TX
1
O
UART Serial Bit Output
S_UART_RX
1
I
UART Serial Bit Input
9.3.3.2. Clock Sources
Table 9-8 describes the clock sources of UART. UART is on APB2 Bus. The clock of APB2 Bus has three sources:
LOSC,OSC24M,PLL_PERIPH0(1X).
Table 9-8. UART Clock Sources
Clock Sources
Description
APB2
LOSC
32KHz Crystal
OSC24M
24MHz Crystal
PLL_PERIPH0(1X)
Peripheral Clock, default value of 1X is 600MHz
9.3.3.3. UART Timing Diagram
Serial Data
S
Data bits 5-8
P
S 1,1.5,2
One Character
Bit TimeBit Time
One Character
TX/RX
Figure 9-6. UART Serial Data Format
9.3.4. Register List
Module Name
Base Address
UART0
0x01C28000
UART1
0x01C28400
UART2
0x01C28800
UART3
0x01C28C00
R-UART
0x01F02800
Register Name
Offset
Description
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 565
UART_RBR
0x0000
UART Receive Buffer Register
UART_THR
0x0000
UART Transmit Holding Register
UART_DLL
0x0000
UART Divisor Latch Low Register
UART_DLH
0x0004
UART Divisor Latch High Register
UART_IER
0x0004
UART Interrupt Enable Register
UART_IIR
0x0008
UART Interrupt Identity Register
UART_FCR
0x0008
UART FIFO Control Register
UART_LCR
0x000C
UART Line Control Register
UART_MCR
0x0010
UART Modem Control Register
UART_LSR
0x0014
UART Line Status Register
UART_MSR
0x0018
UART Modem Status Register
UART_SCH
0x001C
UART Scratch Register
UART_USR
0x007C
UART Status Register
UART_TFL
0x0080
UART Transmit FIFO Level
UART_RFL
0x0084
UART Receive FIFO Level
UART_HALT
0x00A4
UART Halt TX Register
9.3.5. Register Description
9.3.5.1. UART Receiver Buffer Register(Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: UART_RBR
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R
0x0
RBR
Receiver Buffer Register
Data byte received on the serial input port (sin) in UART mode, or the serial
infrared input (sir_in) in infrared mode. The data in this register is valid only
if the Data Ready bit in the UART_LSR register is set.
If in FIFO mode and FIFOs are enabled (FIFOE = 1), this register accesses the
head of the receive FIFO. If the receive FIFO is full and this register is not
read before the next data character arrives, then the data already in the
FIFO is preserved, but any incoming data are lost and an overrun error
occurs.
9.3.5.2. UART Transmit Holding Register(Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: UART_THR
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 566
7:0
W
0x0
THR
Transmit Holding Register
Data to be transmitted on the serial output port (sout) in UART mode or the
serial infrared output (sir_out_n) in infrared mode. Data should only be
written to THR when the THRE bit is set.
If in FIFO mode and FIFOs are enabled (FIFOE = 1) and THRE is set, 16
number of characters of data may be written to the THR before the FIFO is
full. Any write data operations when the FIFO is full causes the write data
loss.
9.3.5.3. UART Divisor Latch Low Register(Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: UART_DLL
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
DLL
Divisor Latch Low
Lower 8 bits of a 16-bit, read/write, Divisor Latch register contains the baud
rate divisor for the UART. This register may only be accessed when the DLAB
bit (LCR[7]) is set and the UART is not busy (UART Busy = 0).
The output baud rate is equal to the serial clock (sclk) frequency divided by
sixteen times the value of the baud rate divisor, as follows:
baud rate = (serial clock freq) / (16 * divisor)
Note that with the Divisor Latch Registers (DLL and DLH) set to zero, the
baud clock is disabled and no serial communications occur. Also, once the
DLL is set, at least 8 clock cycles of the slowest UART clock should be allowed
to pass before transmitting or receiving data.
9.3.5.4. UART Divisor Latch High Register(Default Value: 0x0000_0000)
Offset: 0x0004
Register Name: UART_DLH
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
DLH
Divisor Latch High
Upper 8 bits of a 16-bit, read/write, Divisor Latch register contains the baud
rate divisor for the UART. This register may only be accessed when the DLAB
bit (LCR[7]) is set and the UART is not busy (UART Busy = 0).
The output baud rate is equal to the serial clock (sclk) frequency divided by
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 567
sixteen times the value of the baud rate divisor, as follows:
baud rate = (serial clock freq) / (16 * divisor)
Note that with the Divisor Latch Registers (DLL and DLH) set to zero, the
baud clock is disabled and no serial communications occur. Also, once the
DLH is set, at least 8 clock cycles of the slowest UART clock should be allowed
to pass before transmitting or receiving data.
9.3.5.5. UART Interrupt Enable Register(Default Value: 0x0000_0000)
Offset: 0x0004
Register Name: UART_IER
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
PTIME
Programmable THRE Interrupt Mode Enable
This is used to enable/disable the generation of THRE Interrupt.
0: Disable
1: Enable
6:4
/
/
/
3
R/W
0x0
EDSSI
Enable Modem Status Interrupt
This is used to enable/disable the generation of Modem Status Interrupt.
This is the fourth highest priority interrupt.
0: Disable
1: Enable
2
R/W
0x0
ELSI
Enable Receiver Line Status Interrupt
This is used to enable/disable the generation of Receiver Line Status
Interrupt. This is the highest priority interrupt.
0: Disable
1: Enable
1
R/W
0x0
ETBEI
Enable Transmit Holding Register Empty Interrupt
This is used to enable/disable the generation of Transmitter Holding Register
Empty Interrupt. This is the third highest priority interrupt.
0: Disable
1: Enable
0
R/W
0x0
ERBFI
Enable Received Data Available Interrupt
This is used to enable/disable the generation of Received Data Available
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 568
Interrupt and the Character Timeout Interrupt (if in FIFO mode and FIFOs
enabled). These are the second highest priority interrupts.
0: Disable
1: Enable
9.3.5.6. UART Interrupt Identity Register(Default Value: 0x0000_0001)
Offset: 0x0008
Register Name: UART_IIR
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:6
R
0x0
FEFLAG
FIFOs Enable Flag
This is used to indicate whether the FIFOs are enabled or disabled.
00: Disable
11: Enable
5:4
/
/
/
3:0
R
0x1
IID
Interrupt ID
This indicates the highest priority pending interrupt which can be one of the
following types:
0000: modem status
0001: no interrupt pending
0010: THR empty
0100: received data available
0110: receiver line status
0111: busy detect
1100: character timeout
Bit 3 indicates an interrupt can only occur when the FIFOs are enabled and
used to distinguish a Character Timeout condition interrupt.
Interru
pt ID
Priority
Level
Interrupt Type
Interrupt Source
Interrupt Reset
0001
-
None
None
-
0110
Highest
Receiver line
status
Overrun/parity/ framing errors
or break interrupt
Reading the line status register
0100
Second
Received data
available
Receiver data available
(non-FIFO mode or FIFOs
disabled) or RCVR FIFO trigger
level reached (FIFO mode and
Reading the receiver buffer register
(non-FIFO mode or FIFOs disabled) or the
FIFO drops below the trigger level (FIFO
mode and FIFOs enabled)
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 569
FIFOs enabled)
1100
Second
Character
timeout
indication
No characters in or out of the
RCVR FIFO during the last 4
character times and there is at
least 1character in it during
This time
Reading the receiver buffer register
0010
Third
Transmit
holding register
empty
Transmitter holding register
empty (Program THRE Mode
disabled) or XMIT FIFO at or
below threshold (Program
THRE Mode enabled)
Reading the IIR register (if source of
interrupt); or, writing into THR (FIFOs or
THRE Mode not selected or disabled) or
XMIT FIFO above threshold (FIFOs and
THRE Mode selected and enabled).
0000
Fourth
Modem status
Clear to send or data set ready
or ring indicator or data carrier
detect. Note that if auto flow
control mode is enabled, a
change in CTS (that is, DCTS
set) does not cause an
interrupt.
Reading the Modem status Register
0111
Fifth
Busy detect
indication
UART_16550_COMPATIBLE =
NO and master has tried to
write to the Line Control
Register while the UART is busy
(USR[0] is set to one).
Reading the UART status register
9.3.5.7. UART FIFO Control Register(Default Value: 0x0000_0000)
Offset: 0x0008
Register Name: UART_FCR
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:6
W
0x0
RT
RCVR Trigger
This is used to select the trigger level in the receiver FIFO at which the
Received Data Available Interrupt is generated. In auto flow control mode it
is used to determine when the rts_n signal is de-asserted. It also determines
when the dma_rx_req_n signal is asserted in certain modes of operation.
00: 1 character in the FIFO
01: FIFO ¼ full
10: FIFO ½ full
11: FIFO-2 less than full
5:4
W
0x0
TFT
TX Empty Trigger
Writes have no effect when THRE_MODE_USER = Disabled. This is used to
select the empty threshold level at which the THRE Interrupts are generated
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 570
when the mode is active. It also determines when the dma_tx_req_n signal
is asserted when in certain modes of operation.
00: FIFO empty
01: 2 characters in the FIFO
10: FIFO ¼ full
11: FIFO ½ full
3
W
0x0
DMAM
DMA Mode
0: Mode 0
1: Mode 1
2
W
0x0
XFIFOR
XMIT FIFO Reset
This resets the control portion of the transmit FIFO and treats the FIFO as
empty. This also de-asserts the DMA TX request.
It is 'self-clearing'. It is not necessary to clear this bit.
1
W
0x0
RFIFOR
RCVR FIFO Reset
This resets the control portion of the receive FIFO and treats the FIFO as
empty. This also de-asserts the DMA RX request.
It is 'self-clearing'. It is not necessary to clear this bit.
0
W
0x0
FIFOE
Enable FIFOs
This enables/disables the transmit (XMIT) and receive (RCVR) FIFOs.
Whenever the value of this bit is changed both the XMIT and RCVR controller
portion of FIFOs is reset.
9.3.5.8. UART Line Control Register(Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: UART_LCR
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
DLAB
Divisor Latch Access Bit
It is writable only when UART is not busy (UART Busy = 0) and always
readable. This bit is used to enable reading and writing of the Divisor Latch
register (UART_DLL and UART_DLH) to set the baud rate of the UART. This
bit must be cleared after initial baud rate setup in order to access other
registers.
0: Select RX Buffer Register (UART_RBR) / TX Holding Register(UART_THR)
and Interrupt Enable Register (UART_IER)
1: Select Divisor Latch Low Register (UART_DLL) and Divisor Latch High
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 571
Register (UART_DLH)
6
R/W
0x0
BC
Break Control Bit
This is used to cause a break condition to be transmitted to the receiving
device. If set to one the serial output is forced to the spacing (logic 0) state.
When not in Loop Back Mode, as determined by UART_MCR[4], the sout
line is forced low until the Break bit is cleared. If SIR_MODE = Enabled and
active (UART_MCR[6] is set to 1) the sir_out_n line is continuously pulsed.
When in Loop Back Mode, the break condition is internally looped back to
the receiver and the sir_out_n line is forced low.
5:4
R/W
0x0
EPS
Even Parity Select
It is writable only when UART is not busy (UART Busy = 0) .This is used to
select even and odd parity when parity is enabled (PEN is set to one). Setting
the bit5 is to reverse the bit4.
00: Odd Parity
01: Even Parity
1X: Reverse LCR[4]
3
R/W
0x0
PEN
Parity Enable
It is writable only when UART is not busy (UART Busy = 0) and always
readable. This bit is used to enable and disable parity generation and
detection in transmitted and received serial character respectively.
0: Parity disabled
1: Parity enabled
2
R/W
0x0
STOP
Number of stop bits
It is writable only when UART is not busy (UART Busy = 0) and always
readable. This is used to select the number of stop bits per character that the
peripheral transmits and receives. If the bit is set to zero, one stop bit is
transmitted in the serial data. If the bit is set to one and the Data Length
are set to 5 bits (DLS =0) one and a half stop bits is transmitted. Otherwise,
two stop bits are transmitted. Note that regardless of the number of stop
bits selected, the receiver checks only the first stop bit.
0: 1 stop bit
1: 1.5 stop bits when DLS is zero, else 2 stop bit
1:0
R/W
0x0
DLS
Data Length Select
It is writable only when UART is not busy (UART Busy = 0) and always
readable. This is used to select the number of data bits per character that the
peripheral transmits and receives. The number of bit that may be selected is
as follows:
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 572
00: 5 bits
01: 6 bits
10: 7 bits
11: 8 bits
9.3.5.9. UART Modem Control Register(Default Value: 0x0000_0000)
Offset: 0x0010
Register Name: UART_MCR
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6
R/W
0x0
SIRE
SIR Mode Enable
0: IrDA SIR mode disable
1: IrDA SIR mode enable
5
R/W
0x0
AFCE
Auto Flow Control Enable
When FIFOs are enabled and the Auto Flow Control Enable (AFCE) bit is set,
Auto Flow Control features are enabled.
0: Auto Flow Control Mode disable
1: Auto Flow Control Mode enable
4
R/W
0x0
LOOP
Loop Back Mode
0: Normal Mode
1: Loop Back Mode
This is used to put the UART into a diagnostic mode for test purposes. If
operating in UART mode (SIR_MODE != Enabled or not active, UART_MCR[6]
is set to zero), data on the sout line is held high, while serial data output is
looped back to the sin line, internally. In this mode all the interrupts are fully
functional. Also, in Loop Back Mode, the modem control inputs (dsr_n,
cts_n, ri_n, dcd_n) are disconnected and the modem control outputs (dtr_n,
rts_n, out1_n, out2_n) are looped back to the inputs, internally. If operating
in infrared mode (SIR_MODE == Enabled AND active, UART_MCR[6] set to 1),
data on the sir_out_n line is held low, while serial data output is inverted and
looped back to the sir_in line.
3:2
/
/
/
1
R/W
0x0
RTS
Request to Send
This is used to directly control the Request to Send (rts_n) output. The
Request To Send (rts_n) output is used to inform the modem or data set that
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 573
the UART is ready to exchange data. When Auto RTS Flow Control is not
enabled (AFCE = 0), the rts_n signal is set low by programming RTS to a
high.In Auto Flow Control, AFCE_MODE == Enabled and active (AFCE = 1) and
FIFOs enable (FIFOE =1), the rts_n output is controlled in the same way, but
is also gated with the receiver FIFO threshold trigger (rts_n is inactive high
when above the threshold). The rts_n signal is de-asserted when RTS is set
low.
0: rts_n de-asserted (logic 1)
1: rts_n asserted (logic 0)
Note that in Loopback mode (LOOP =1), the rts_n output is held inactive high
while the value of this location is internally looped back to an input.
0
R/W
0x0
DTR
Data Terminal Ready
This is used to directly control the DTR (dtr_n) output. The value written to
this location is inverted and driven out on dtr_n.
0: dtr_n de-asserted (logic 1)
1: dtr_n asserted (logic 0)
The Data Terminal Ready output is used to inform the modem or data set
that the UART is ready to establish communications.
Note that in Loopback mode (LOOP =1), the dtr_n output is held inactive
high while the value of this location is internally looped back to an input.
9.3.5.10. UART Line Status Register(Default Value: 0x0000_0060)
Offset: 0x0014
Register Name: UART_LSR
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R
0x0
FIFOERR
RX Data Error in FIFO
When FIFOs are disabled, this bit is always 0. When FIFOs are enabled, this
bit is set to 1 when there is at least one PE, FE, or BI in the RX FIFO. It is
cleared by a read from the UART_LSR register provided there are no
subsequent errors in the FIFO.
6
R
0x1
TEMT
Transmitter Empty
If the FIFOs are disabled, this bit is set to "1" whenever the TX Holding
Register and the TX Shift Register are empty. If the FIFOs are enabled, this bit
is set whenever the TX FIFO and the TX Shift Register are empty. In both
cases, this bit is cleared when a byte is written to the TX data channel.
5
R
0x1
THRE
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 574
TX Holding Register Empty
If the FIFOs are disabled, this bit is set to "1" whenever the TX Holding
Register is empty and ready to accept new data and it is cleared when the
CPU writes to the TX Holding Register.
If the FIFOs are enabled, this bit is set to "1" whenever the TX FIFO is empty
and it is cleared when at least one byte is written to the TX FIFO.
4
R
0x0
BI
Break Interrupt
This is used to indicate the detection of a break sequence on the serial input
data.
In UART mode (SIRE = 0), it is set whenever the serial input, sin, is held in a
logic '0' state for longer than the sum of start time + data bits + parity +
stop bits.
In infrared mode (SIRE = 1), it is set whenever the serial input, sir_in, is
continuously pulsed to logic '0' for longer than the sum of start time + data
bits + parity + stop bits. A break condition on serial input causes one and
only one character, consisting of all zeros, to be received by the UART.
In the FIFO mode, the character associated with the break condition is
carried through the FIFO and is revealed when the character is at the top of
the FIFO. Reading the LSR clears the BI bit. In the non-FIFO mode, the BI
indication occurs immediately and persists until the LSR is read.
3
R
0x0
FE
Framing Error
This is used to indicate the occurrence of a framing error in the receiver. A
framing error occurs when the receiver does not detect a valid STOP bit in
the received data.
In the FIFO mode, since the framing error is associated with a character
received, it is revealed when the character with the framing error is at the
top of the FIFO. When a framing error occurs, the UART tries to
resynchronize. It does this by assuming that the error was due to the start bit
of the next character and then continues receiving the other bit i.e. data,
and/or parity and stop. It should be noted that the FE bit is set if a break
interrupt has occurred, as indicated by the BI bit.
0: No framing error
1: Framing error
Reading the LSR clears the FE bit.
2
R
0x0
PE
Parity Error
This is used to indicate the occurrence of a parity error in the receiver if the
PEN bit is set. In the FIFO mode, since the parity error is associated with a
character received, it is revealed when the character with the parity error
arrives at the top of the FIFO. It should be noted that the PE bit is set if a
break interrupt has occurred, as indicated by the Break Interrupt bit.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 575
0: No parity error
1: Parity error
Reading the LSR clears the PE bit.
1
R
0x0
OE
Overrun Error
This occurs if a new data character was received before the previous data
was read. In the non-FIFO mode, the OE bit is set when a new character
arrives in the receiver before the previous character was read from the
Receiver Buffer Register. When this happens, the data in the Receiver
Buffer Register is overwritten. In the FIFO mode, an overrun error occurs
when the FIFO is full and a new character arrives at the receiver. The data in
the FIFO is retained and the data in the receive shift register is lost.
0: No overrun error
1: Overrun error
Reading the LSR clears the OE bit.
0
R
0x0
DR
Data Ready
This is used to indicate that the receiver contains at least one character in
the Receiver Buffer Register or the receiver FIFO.
0: No data ready
1: Data ready
This bit is cleared when the Receiver Buffer Register is read in non-FIFO
mode, or when the receiver FIFO is empty, in FIFO mode.
9.3.5.11. UART Modem Status Register(Default Value: 0x0000_0000)
Offset: 0x0018
Register Name: UART_MSR
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R
0x0
DCD
Line State of Data Carrier Detect
This is used to indicate the current state of the modem control line dcd_n.
This bit is the complement of dcd_n. When the Data Carrier Detect input
(dcd_n) is asserted it is an indication that the carrier has been detected by
the modem or data set.
0: dcd_n input is de-asserted (logic 1)
1: dcd_n input is asserted (logic 0)
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 576
6
R
0x0
RI
Line State of Ring Indicator
This is used to indicate the current state of the modem control line ri_n. This
bit is the complement of ri_n. When the Ring Indicator input (ri_n) is
asserted it is an indication that a telephone ringing signal has been received
by the modem or data set.
0: ri_n input is de-asserted (logic 1)
1: ri_n input is asserted (logic 0)
5
R
0x0
DSR
Line State of Data Set Ready
This is used to indicate the current state of the modem control line dsr_n.
This bit is the complement of dsr_n. When the Data Set Ready input (dsr_n)
is asserted it is an indication that the modem or data set is ready to establish
communications with UART.
0: dsr_n input is de-asserted (logic 1)
1: dsr_n input is asserted (logic 0)
In Loop Back Mode (MCR[4] set to one), DSR is the same as MCR[0] (DTR).
4
R
0x0
CTS
Line State of Clear To Send
This is used to indicate the current state of the modem control line cts_n.
This bit is the complement of cts_n. When the Clear To Send input (cts_n) is
asserted it is an indication that the modem or data set is ready to exchange
data with UART.
0: cts_n input is de-asserted (logic 1)
1: cts_n input is asserted (logic 0)
In Loop Back Mode (MCR[4] = 1), CTS is the same as MCR[1] (RTS).
3
R
0x0
DDCD
Delta Data Carrier Detect
This is used to indicate that the modem control line dcd_n has changed since
the last time the MSR was read.
0: no change on dcd_n since last read of MSR
1: change on dcd_n since last read of MSR
Reading the MSR clears the DDCD bit.
Note: If the DDCD bit is not set and the dcd_n signal is asserted (low) and a
reset occurs (software or otherwise), then the DDCD bit is set when the reset
is removed if the dcd_n signal remains asserted.
2
R
0x0
TERI
Trailing Edge Ring Indicator
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 577
This is used to indicate that a change on the input ri_n (from an active-low to
an inactive-high state) has occurred since the last time the MSR was read.
0: no change on ri_n since last read of MSR
1: change on ri_n since last read of MSR
Reading the MSR clears the TERI bit.
1
R
0x0
DDSR
Delta Data Set Ready
This is used to indicate that the modem control line dsr_n has changed since
the last time the MSR was read.
0: no change on dsr_n since last read of MSR
1: change on dsr_n since last read of MSR
Reading the MSR clears the DDSR bit. In Loop Back Mode (MCR[4] = 1),
DDSR reflects changes on MCR[0] (DTR).
Note: If the DDSR bit is not set and the dsr_n signal is asserted (low) and a
reset occurs (software or otherwise), then the DDSR bit is set when the reset
is removed if the dsr_n signal remains asserted.
0
R
0x0
DCTS
Delta Clear to Send
This is used to indicate that the modem control line cts_n has changed since
the last time the MSR was read.
0: no change on ctsdsr_n since last read of MSR
1: change on ctsdsr_n since last read of MSR
Reading the MSR clears the DCTS bit. In Loop Back Mode (MCR[4] = 1), DCTS
reflects changes on MCR[1] (RTS).
Note: If the DCTS bit is not set and the cts_n signal is asserted (low) and a
reset occurs (software or otherwise), then the DCTS bit is set when the reset
is removed if the cts_n signal remains asserted.
9.3.5.12. UART Scratch Register(Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: UART_SCH
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
SCRATCH_REG
Scratch Register
This register is for programmers to use as a temporary storage space. It has
no defined purpose in the UART.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 578
9.3.5.13. UART Status Register(Default Value: 0x0000_0006)
Offset: 0x007C
Register Name: UART_USR
Bit
Read/Write
Default/Hex
Description
31:5
/
/
/
4
R
0x0
RFF
Receive FIFO Full
This is used to indicate that the receive FIFO is completely full.
0: Receive FIFO not full
1: Receive FIFO Full
This bit is cleared when the RX FIFO is no longer full.
3
R
0x0
RFNE
Receive FIFO Not Empty
This is used to indicate that the receive FIFO contains one or more entries.
0: Receive FIFO is empty
1: Receive FIFO is not empty
This bit is cleared when the RX FIFO is empty.
2
R
0x1
TFE
Transmit FIFO Empty
This is used to indicate that the transmit FIFO is completely empty.
0: Transmit FIFO is not empty
1: Transmit FIFO is empty
This bit is cleared when the TX FIFO is no longer empty.
1
R
0x1
TFNF
Transmit FIFO Not Full
This is used to indicate that the transmit FIFO in not full.
0: Transmit FIFO is full
1: Transmit FIFO is not full
This bit is cleared when the TX FIFO is full.
0
R
0x0
BUSY
UART Busy Bit
0: Idle or inactive
1: Busy
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 579
9.3.5.14. UART Transmit FIFO Level Register(Default Value: 0x0000_0000)
Offset: 0x0080
Register Name: UART_TFL
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6:0
R
0x0
TFL
Transmit FIFO Level
This is indicates the number of data entries in the transmit FIFO.
9.3.5.15. UART Receive FIFO Level Register(Default Value: 0x0000_0000)
Offset: 0x0084
Register Name: UART_RFL
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
6:0
R
0x0
RFL
Receive FIFO Level
This is indicates the number of data entries in the receive FIFO.
9.3.5.16. UART Halt TX Register(Default Value: 0x0000_0000)
Offset: 0x00A4
Register Name: UART_HALT
Bit
Read/Write
Default/Hex
Description
31:6
/
/
/
5
R/W
0x0
SIR_RX_INVERT
SIR Receiver Pulse Polarity Invert
0: Not invert receiver signal
1: Invert receiver signal
4
R/W
0x0
SIR_TX_INVERT
SIR Transmit Pulse Polarity Invert
0: Not invert transmit pulse
1: Invert transmit pulse
3
/
/
/
2
R/W
0x0
CHANGE_UPDATE
After the user use HALT[1] to change the baud rate or UART_LCR
configuration.
Write 1 to update the configuration and waiting this bit self clear to 0 to
finish update process.
Writing 0 to this bit has no effect.
1: Update trigger, Self clear to 0 when finish update.
1
R/W
0x0
CHCFG_AT_BUSY
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 580
This is an enable bit for the user to change UART_LCR register configuration
(except for the DLAB bit) and baud rate register (DLL and DLH) when the
UART is busy.
1: Enable change when busy
0
R/W
0x0
HALT_TX
Halt TX
This register is used to halt transmissions for testing, so that the transmit
FIFO can be filled by the master when FIFOs are implemented and enabled.
0 : Halt TX disabled
1 : Halt TX enabled
Note: If FIFOs are not enabled, the setting of the halt TX register has no
effect on operation.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 581
9.4. CIR Receiver
9.4.1. Overview
The CIR (Consumer infrared) Receiver module receives data over the IR interface.
Features:
Full physical layer implementation
Supports IR for remote control
64x8 bits FIFO for data buffer
Programmable FIFO thresholds
For saving CPU resource, CIR receiver is implemented in hardware. The CIR receiver samples the input signal on the
programmable frequency and records these samples into RX FIFO when one CIR signal is found on the air. The CIR
receiver uses Run-Length Code (RLC) to encode pulse width. The encoded data is buffered in a 64 levels and 8-bit width
RX FIFO; the MSB it is used to eod the polait of the eeiig CIR sigal. The high leel is epeseted as  ad the
lo leel is epeseted as . The est  its ae used fo the length of RLC. The maximum length is 128. If the duration
of one level (high or low level) is more than 128, another byte is used.
In the air, there is always some noise. One threshold can be set to filter the noise to reduce system loading and improve
the system stability.
9.4.2. Register List
Module Name
Base Address
CIR
0x01F02000
Register Name
Offset
Description
CIR_CTL
0x0000
CIR Control Register
CIR_RXCTL
0x0010
CIR Receiver Configure Register
CIR_RXFIFO
0x0020
CIR Receiver FIFO Register
CIR_RXINT
0x002C
CIR Receiver Interrupt Control Register
CIR_RXSTA
0x0030
CIR Receiver Status Register
CIR_CONFIG
0x0034
CIR Configure Register
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 582
9.4.3. Register Description
9.4.3.1. CIR Receiver Control Register(Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: CIR_CTL
Bit
Read/Write
Default/Hex
Description
31:9
/
/
/
8
R/W
0x0
CGPO
General Program Output (GPO) Control in CIR mode for TX Pin
0: Low level
1: High level
7:6
/
/
/
5:4
R/W
0x0
CIR_ENABLE
00~10: Reserved
11: CIR mode enable
3:2
/
/
/
1
R/W
0x0
RXEN
Receiver Block Enable
0: Disable
1: Enable
0
R/W
0x0
GEN
Global Enable
A disable on this bit overrides any other block or channel enables and flushes
all FIFOs.
0: Disable
1: Enable
9.4.3.2. CIR Receiver Configure Register(Default Value: 0x0000_0004)
Offset: 0x0010
Register Name: CIR_RXCTL
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2
R/W
0x1
RPPI
Receiver Pulse Polarity Invert
0: Not invert receiver signal
1: Invert receiver signal
1:0
/
/
/
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 583
9.4.3.3. CIR Receiver FIFO Register(Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: CIR_RXFIFO
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R
0x0
Receiver Byte FIFO
9.4.3.4. CIR Receiver Interrupt Control Register(Default Value: 0x0000_0000)
Offset: 0x002C
Register Name: CIR_RXINT
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
13:8
R/W
0x0
RAL
RX FIFO Available Received Byte Level for interrupt and DMA request
TRIGGER_LEVEL = RAL + 1
5
R/W
0x0
DRQ_EN
RX FIFO DMA Enable
0: Disable
1: Enable
Whe set to , the ReeieFIFO DRQ is asseted if eahig RAL. The DRQ
is de-asserted when condition fails.
4
R/W
0x0
RAI_EN
RX FIFO Available Interrupt Enable
0: Disable
1: Enable
Whe set to , the Reeie FIFO IRQ is asseted if eahig RAL. The IRQ is
de-asserted when condition fails.
3:2
/
/
/
1
R/W
0x0
RPEI_EN
Receiver Packet End Interrupt Enable
0: Disable
1: Enable
0
R/W
0x0
ROI_EN
Receiver FIFO Overrun Interrupt Enable
0: Disable
1: Enable
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 584
9.4.3.5. CIR Receiver Status Register(Default Value: 0x0000_0000)
Offset: 0x0030
Register Name: CIR_RXSTA
Bit
Read/Write
Default/Hex
Description
31:15
/
/
/
14:8
R
0x0
RAC
RX FIFO Available Counter
0000000: No available data in RX FIFO
0000001: 1 byte available data in RX FIFO
0000010: 2 byte available data in RX FIFO
…
1000000: 64 byte available data in RX FIFO
7
R
0x0
STAT
Status of CIR
0: Idle
1: Busy
6:5
/
/
/
4
R/W1C
0x0
RA
RX FIFO Available
0: RX FIFO not available according its level
1: RX FIFO available according its level
This it is leaed  itig a .
3:2
/
/
/
1
R/W1C
0x0
RPE
Receiver Packet End Flag
0: One CIR symbol is receiving or not detected.
1: One CIR symbol is received.
This it is leaed  itig a .
0
R/W1C
0x0
ROI
Receiver FIFO Overrun
0: Receiver FIFO not overrun
1: Receiver FIFO overrun
This it is leaed  itig a .
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 585
9.4.3.6. CIR Receiver Configure Register(Default Value: 0x0000_1828)
Offset: 0x0034
Register Name: CIR_RCR
Bit
Read/Write
Default/Hex
Description
31
/
/
/
30:25
/
/
/
24
R/W
0x0
SCS2
Bit2 of Sample Clock Select for CIR
This bit is defined by SCS bits below.
23
R/W
0x0
ATHC
Active Threshold Control for CIR
0: ATHR in Unit of (Sample Clock)
1: ATHR in Unit of (128*Sample Clocks)
22:16
R/W
0x0
ATHR
Active Threshold for CIR
These bits control the duration of CIR from Idle to Active State. The duration
can be calculated by ((ATHR + 1)*(ATHC? Sample Clock: 128*Sample Clock)).
15:8
R/W
0x18
ITHR
Idle Threshold for CIR
The Receiver uses the field to decide whether the CIR command has been
received. If there is no CIR signal on the air, the receiver retains in IDLE
status. One active pulse will bring the receiver from IDLE status to Receiving
status. After the CIR is end, the inputting signal will keep the specified level
(high or low level) for a long time. The receiver can use this idle signal
duration to decide that it has received the CIR command. The corresponding
flag is asserted. If the corresponding interrupt is enabled, the interrupt line is
asserted to CPU.
When the duration of signal keeps one status (high or low level) for the
specified duration ( (ITHR + 1)*128 sample_clk ), this means that the
previous CIR command has been finished.
7:2
R/W
0xa
NTHR
Noise Threshold for CIR
When the duration of signal pulse (high or low level) is less than NTHR, the
pulse is taken as noise and should be discarded by hardware.
000000: All samples are recorded into RX FIFO
000001: If the signal is only one sample duration, it is taken as noise and
discarded.
000010: If the signal is less than (<=) two sample duration, it is taken as noise
and discarded.
…
111101: If the signal is less than (<=) sixty-one sample duration, it is taken as
noise and discarded.
1:0
R/W
0x0
SCS
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 586
Sample Clock Select for CIR
SCS2
SCS[1]
SCS[0]
Sample Clock
0
0
0
ir_clk/64
0
0
1
ir_clk/128
0
1
0
ir_clk/256
0
1
1
ir_clk/512
1
0
0
ir_clk
1
0
1
Reserved
1
1
0
Reserved
1
1
1
Reserved
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 587
9.5. USB
9.5.1. USB OTG Controller
9.5.1.1. Overview
The USB OTG is a Dual-Role Device controller, which supports both device and host functions which can also be
configured as a Host-only or Device-only controller, fully compliant with the USB 2.0 Specification. It can support
high-speed (HS, 480-Mbps), full-speed (FS, 12-Mbps), and low-speed (LS, 1.5-Mbps) transfers in Host mode. It can
support high-speed (HS, 480-Mbps), and full-speed (FS, 12-Mbps) in Device mode. Standard USB transceiver can be
used through its UTMI+PHY Level3 interface. The UTMI+PHY interface is bidirectional with 8-bit data bus. For saving
CPU bandwidth, USB-OTG DMA interface can support external DMA controller to take care of the data transfer between
the memory and USB-OTG FIFO. The USB-OTG core also supports USB power saving functions.
Features:
Complies with USB 2.0 Specification
Supports Device or Host operation at a time
Supports High-Speed (HS, 480-Mbps), Full-Speed (FS, 12-Mbps), and Low-Speed (LS, 1.5-Mbps) in host mode
Complies with Enhanced Host Controller Interface (EHCI) Specification, Version 1.0, and the Open Host Controller
Interface (OHCI) Specification, Version 1.0a for host mode
Supports High-Speed (HS, 480-Mbps), Full-Speed (FS, 12-Mbps) in device mode
Supports bi-directional endpoint0 for Control transfer in device mode
Supports up to 8 User-Configurable Endpoints for Bulk,Isochronousl and Interrupt bi-directional transfers (Endpoint1,
Endpoint2, Endpoint3, Endpoint4) in device mode
Supports up to (4KB+64B) FIFO for EPs (Excluding EP0) in device mode
Supports the UTMI+ Level 3 interface . The 8-bit bidirectional data buses are used
Supports point-to-point and point-to-multipoint transfer in both Host and Peripheral mode
Power Optimization and Power Management capabilities
9.5.1.2. Block Diagram

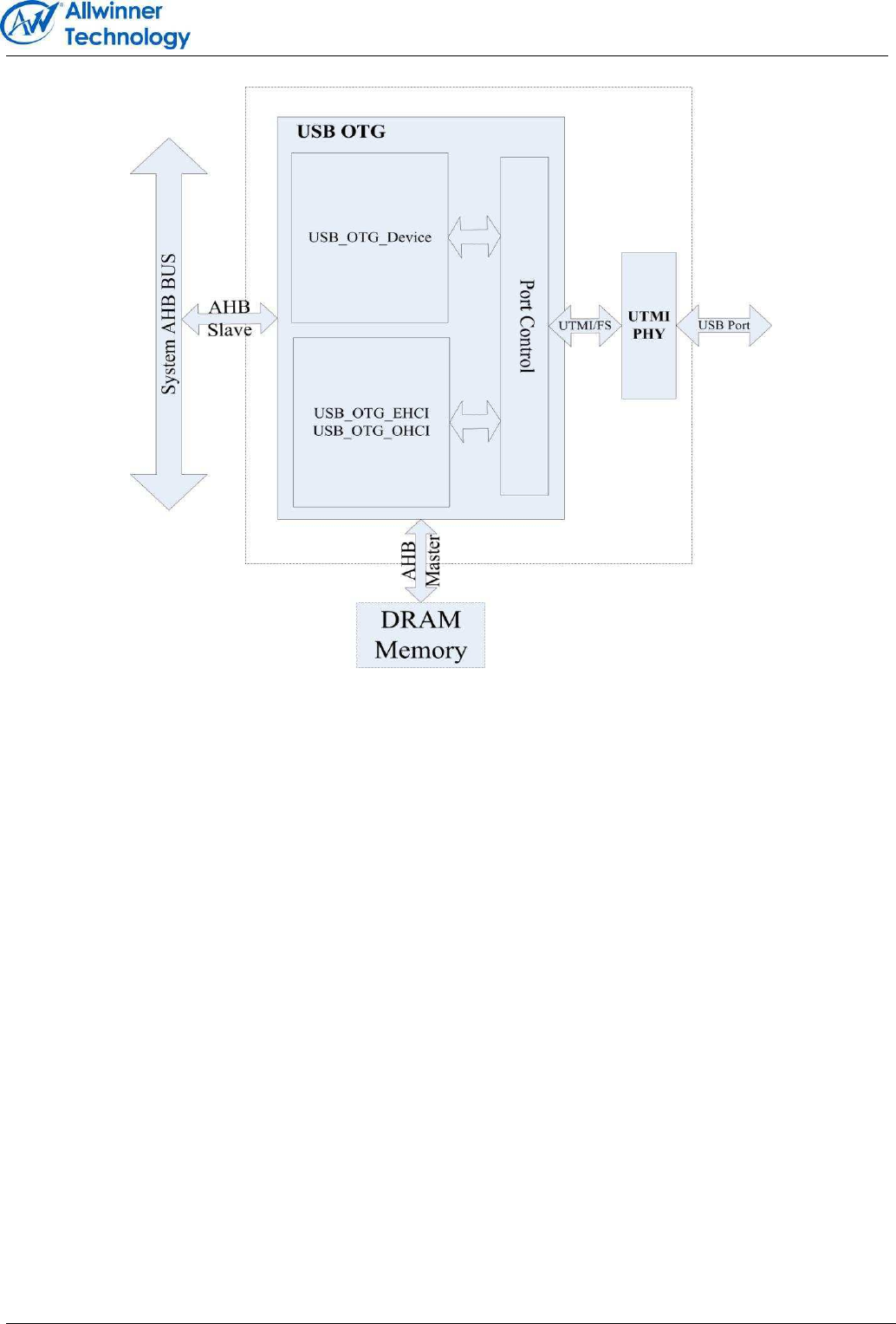

Figure 9-7 shows the block diagram of USB OTG Controller.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 588
Figure 9-7. USB OTG Controller Block Diagram
9.5.2. USB Host Controller
9.5.2.1. Overview
USB Host Controller is fully compliant with the USB 2.0 specification, Enhanced Host Controller Interface (EHCI)
Specification, Revision 1.0, and the Open Host Controller Interface (OHCI) Specification Release 1.0a. The
controller supports high-speed, 480-Mbps transfers (40 times faster than USB 1.1 full-speed mode) using an
EHCI Host Controller, as well as full and low speeds through one or more integrated OHCI Host Controllers.
Features:
Supports industry-standard AMBA High-Performance Bus (AHB) and it is fully compliant with the AMBA Specification,
Revision 2.0.
Supports 32-bit Little Endian AMBA AHB Slave Bus for Register Access.
Supports 32-bit Little Endian AMBA AHB Master Bus for Memory Access.
Including an internal DMA Controller for data transfer with memory.
Complies with Enhanced Host Controller Interface (EHCI) Specification, Version 1.0, and the Open Host Controller
Interface (OHCI) Specification, Version 1.0a.
Supports High-Speed (HS, 480-Mbps), Full-Speed (FS, 12-Mbps), and Low-Speed (LS, 1.5-Mbps) Device.
Supports the UTMI+ Level 3 interface . The 8-bit bidirectional data buses are used.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 589
Supports only 1 USB Root Port shared between EHCI and OHCI.
9.5.2.2. Block Diagram
Figure 9-8 shows the USB Host Controller system-level block diagram.
Figure 9-8. USB Host Controller Block Diagram
9.5.2.3. USB Host Timing Diagram
Please refer USB2.0 Specification, Enhanced Host Controller Interface (EHCI) Specification, Version 1.0, and the Open
Host Controller Interface (OHCI) Specification, Version 1.0a.
9.5.2.4. USB Host Register List
Module Name
Base Address
USB_HCI1
0x01C1B000
USB_HCI2
0x01C1C000
USB_HCI3
0x01C1D000
Register Name
Offset
Description
EHCI Capability Register
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 590
E_CAPLENGTH
0x000
EHCI Capability Length Register
E_HCIVERSION
0x002
EHCI Host Interface Version Number Register
E_HCSPARAMS
0x004
EHCI Host Control Structural Parameter Register
E_HCCPARAMS
0x008
EHCI Host Control Capability Parameter Register
E_HCSPPORTROUTE
0x00C
EHCI Companion Port Route Description
EHCI Operational Register
E_USBCMD
0x010
EHCI USB Command Register
E_USBSTS
0x014
EHCI USB Status Register
E_USBINTR
0x018
EHCI USB Interrupt Enable Register
E_FRINDEX
0x01C
EHCI USB Frame Index Register
E_CTRLDSSEGMENT
0x020
EHCI 4G Segment Selector Register
E_PERIODICLISTBASE
0x024
EHCI Frame List Base Address Register
E_ASYNCLISTADDR
0x028
EHCI Next Asynchronous List Address Register
E_CONFIGFLAG
0x050
EHCI Configured Flag Register
E_PORTSC
0x054
EHCI Port Status/Control Register
OHCI Control and Status Partition Register
O_HcRevision
0x400
OHCI Revision Register
O_HcControl
0x404
OHCI Control Register
O_HcCommandStatus
0x408
OHCI Command Status Register
O_HcInterruptStatus
0x40C
OHCI Interrupt Status Register
O_HcInterruptEnable
0x410
OHCI Interrupt Enable Register
O_HcInterruptDisable
0x414
OHCI Interrupt Disable Register
OHCI Memory Pointer Partition Register
O_HcHCCA
0x418
OHCI HCCA Base
O_HcPeriodCurrentED
0x41c
OHCI Period Current ED Base
O_HcControlHeadED
0x420
OHCI Control Head ED Base
O_HcControlCurrentED
0x424
OHCI Control Current ED Base
O_HcBulkHeadED
0x428
OHCI Bulk Head ED Base
O_HcBulkCurrentED
0x42C
OHCI Bulk Current ED Base
O_HcDoneHead
0x430
OHCI Done Head Base
OHCI Frame Counter Partition Register
O_HcFmInterval
0x434
OHCI Frame Interval Register
O_HcFmRemaining
0x438
OHCI Frame Remaining Register
O_HcFmNumber
0x43C
OHCI Frame Number Register
O_HcPerioddicStart
0x440
OHCI Periodic Start Register
O_HcLSThreshold
0x444
OHCI LS Threshold Register
OHCI Root Hub Partition Register
O_HcRhDescriptorA
0x448
OHCI Root Hub Descriptor Register A
O_HcRhDesriptorB
0x44C
OHCI Root Hub Descriptor Register B
O_HcRhStatus
0x450
OHCI Root Hub Status Register
O_HcRhPortStatus
0x454
OHCI Root Hub Port Status Register
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 591
9.5.2.5. EHCI Register Description
9.5.2.5.1. EHCI Capability Length Register(Default Value: Implementation Dependent)
Offset: 0x0000
Register Name: CAPLENGTH
Bit
Read/Write
Default/Hex
Description
7:0
R
0x10
CAPLENGTH
The value in these bits indicates an offset to add to register base to find the
beginning of the Operational Register Space.
9.5.2.5.2. EHCI Host Interface Version Number Register(Default Value: 0x0100)
Offset: 0x0002
Register Name: HCIVERSION
Bit
Read/Write
Default/Hex
Description
15:0
R
0x0100
HCIVERSION
This is a 16-bit register containing a BCD encoding of the EHCI revision
number supported by this host controller. The most significant byte of this
register represents a major revision and the least significant byte is the
minor revision.
9.5.2.5.3. EHCI Host Control Structural Parameter Register(Default Value: Implementation Dependent)
Offset: 0x0004
Register Name: HCSPARAMS
Bit
Read/Write
Default/Hex
Description
31:24
/
0x0
Reserved.
These bits are reserved and should be set to zero.
23:20
R
0x0
Debug Port Number
This register identifies which of the host controller ports is the debug port.
The value is the port number (one based) of the debug port.
This field will alas e .
19:16
/
0x0
Reserved.
These bits are reserved and should be set to zero.
15:12
R
0x0
Number of Companion Controller (N_CC)
This field indicates the number of companion controllers associated with this
USB2.0 host controller. A zero in this field indicates there are no companion
host controllers. And a value larger than zero in this field indicates there are
companion USB1.1 host controller(s).
This field ill alas e .
11:8
R
0x0
Number of Port per Companion Controller(N_PCC)
This field indicates the number of ports supported per companion host
controller host controller. It is used to indicate the port routing configuration
to system software.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 592
This field ill alas fi ith .
7
R
0x0
Port Routing Rules
This field indicates the method used by this implementation for how all ports
are mapped to companion controllers. The value of this field has the
following interpretation:
Value
Meaning
0
The first N_PCC ports are routed to the lowest numbered
function companion host controller, the next N_PCC port
are routed to the next lowest function companion
controller, and so on.
1
The port routing is explicitly enumerated by the first
N_PORTS elements of the HCSP-PORTTOUTE array.
This field ill alas e .
6:4
/
0x0
Reserved.
These bits are reserved and should be set to zero.
3:0
R
0x1
N_PORTS
This field specifies the number of physical downstream ports implemented
on this host controller. The value of this field determines how many port
registers are addressable in the Operational Register Space. Valid values are
in the range of 0x1 to 0x0f.
This field is always 1.
9.5.2.5.4. EHCI Host Control Capability Parameter Register(Default Value: Implementation Dependent)
Offset: 0x0008
Register Name: HCCPARAMS
Bit
Read/Write
Default/Hex
Description
31:16
/
0x0
Reserved
These bits are reserved and should be set to zero.
15:18
R
0x0
EHCI Extended Capabilities Pointer (EECP)
This optional field indicates the existence of a capabilities list. A value of 00b
indicates no extended capabilities are implemented. A non-zero value in this
register indicates the offset in PCI configuration space of the first EHCI
extended capabiliby. The pointer value must be 40h or greater if
implemented to maintain to consistency of the PCI header defined for this
calss of device.
The alue of this field is alas .
7:4
R
0x0
Isochronous Scheduling Threshold
This field indicates, relative to the current position of the executing host
controller, where software can reliably update the isochronous schedule.
When bit[7] is zero, the value of the least significant 3 bits indicates the
number of micro-frames a host controller can hold a set of isochronous data
structures(one or more) before flushing the state. When bit[7] is a one, then
host software assumes the host controller may cache an isochronous data
structure for an entire frame.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 593
3
R
0x0
Reserved
These bits are reserved and should be set to zero.
2
R
0x0
Asynchronous Schedule Park Capability
If this bit is set to a one, then the host controller supports the park feature
for high-speed queue heads in the Asynchronous Schedule. The feature can
be disabled or enabled and set to a specific level by using the Asynchronous
Schedule Park Mode Enable and Asynchronous Schedule Park Mode Count
fields in the USBCMD register.
1
R
0x0
Programmable Frame List Flag
If this bit is set to a zero, then system software must use a frame list length
of 1024 elements with this host controller.The USBCMD register
Frame List Size field is a read-only register and should be set to zero.
If set to 1,then system software can specify and use the frame list in the
USBCMD register Frame List Size field to cofigure the host controller.
The frame list must always aligned on a 4K page boundary.This requirement
ensures that the frame list is always physically contiguous.
0
R
0x0
Reserved
These bits are reserved for future use and should return a value of zero when
read.
9.5.2.5.5. EHCI Companion Port Route Description(Default Value: UDF)
Offset: 0x000C
Register Name: HCSP-PORTROUTE
Bit
Read/Write
Default/Hex
Description
31:0
R
UDF
HCSP-PORTROUTE
This optional field is valid only if Port Routing Rules field in HCSPARAMS
register is set to a one.
This field is used to allow a host controller implementation to explicitly
describe to which companion host controller each implemented port is
mapped. This field is a 15-element nibble array (each 4 bit is one array
element). Each array location corresponds one-to-one with a physical port
provided by the host controller (e.g. PORTROUTE [0] corresponds to the first
PORTSC port, PORTROUTE [1] to the second PORTSC port, etc.). The value of
each element indicates to which of the companion host controllers this port
is routed. Only the first N_PORTS elements have valid information. A value of
zero indicates that the port is routed to the lowest numbered function
companion host controller. A value of one indicates that the port is routed to
the next lowest numbered function companion host controller, and so on.
9.5.2.5.6. EHCI USB Command Register(Default Value: 0x0008_0000)
The default value is 0x00080B00 if Asynchronous Schedule Park Capability is a one.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 594
Offset: 0x0010
Register Name: USBCMD
Bit
Read/Write
Default/Hex
Description
31:24
/
0x0
Reserved
These bits are reserved and should be set to zero.
23:16
R/W
0x8
Interrupt Threshold Control
The value in this field is used by system software to select the maximum rate
at which the host controller will issue interrupts. The only valid values are
defined below:
Value
Minimum Interrupt Interval
0x00
Reserved
0x01
1 micro-frame
0x02
2 micro-frame
0x04
4 micro-frame
0x08
8 micro-frame(default, equates to 1 ms)
0x10
16 micro-frame(2ms)
0x20
32 micro-frame(4ms)
0x40
64 micro-frame(8ms)
Any other value in this register yields undefined results.
The default value in this field is 0x08 .
Software modifications to this bit while HC Halted bit is equal to zero results
in undefined behavior.
15:12
/
0x0
Reserved
These bits are reserved and should be set to zero.
11
R/W or R
0x0
Asynchronous Schedule Park Mode Enable(OPTIONAL)
If the Asynchronous Park Capability bit in the HCCPARAMS register is a one,
then this bit defaults to a 1 and is R/W. Otherwise the bit must be a zero and
is Read Only. Software uses this bit to enable or disable Park mode. When
this bit is one, Park mode is enabled. When this bit is zero, Park mode is
disabled.
10
/
0x0
Reserved
These bits are reserved and should be set to zero.
9:8
R/W or R
0x0
Asynchronous Schedule Park Mode Count(OPTIONAL)
Asynchronous Park Capability bit in the HCCPARAMS register is a one.Then
this field defaults to 0x3 and is W/R. Otherwise it defaults to zero and is R. It
contains a count of the number of successive transactions the host controller
is allowed to execute from a high-speed queue head on the Asynchronous
schedule before continuing traversal of the Asynchronous schedule.
Valid value are 0x1 to 0x3.Software must not write a zero to this bit when
Park Mode Enable is a one as it will result in undefined behavior.
7
R/W
0x0
Light Host Controller Reset(OPTIONAL)
This control bit is not required.
If implemented, it allows the driver to reset the EHCI controller without
affecting the state of the ports or relationship to the companion host
controllers. For example, the PORSTC registers should not be reset to their
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 595
default values and the CF bit setting should not go to zero (retaining port
ownership relationships).
A host software read of this bit as zero indicates the Light Host Controller
Reset has completed and it si safe for software to re-initialize the host
controller. A host software read of this bit as a one indicates the Light Host
6
R/W
0x0
Interrupt on Async Advance Doorbell
This bit is used as a doorbell by software to tell the host controller to issue
an interrupt the next time it advances asynchronous schedule. Soft-
Ware must write a 1 to this bit to ring the doorbell.
When the host controller has evicted all appropriate cached schedule state,
it sets the Interrupt on Async Advance status bit in the USBSTS. if the
Interrupt on Async Advance Enable bit in the USBINTR register is a one then
the host controller will assert an interrupt at the next interrupt threshold.
The host controller sets this bit to a zero after it has set the Interrupt on
Async Advance status bit in the USBSTS register to a one.
Software should not write a one to this bit when the asynchronous schedule
is disabled. Doing so will yield undefined results.
5
R/W
0x0
Asynchronous Schedule Enable
This bit controls whether the host controller skips processing the
Asynchronous Schedule. Values mean:
Bit Value
Meaning
0
Do not process the Asynchronous Schedule.
1
Use the ASYNLISTADDR register to access the
Asynchronous Schedule.
The default alue of this field is .
4
R/W
0x0
Periodic Schedule Enable
This bit controls whether the host controller skips processing the Periodic
Schedule. Values mean:
Bit Value
Meaning
0
Do not process the Periodic Schedule.
1
Use the PERIODICLISTBASE register to access the
Periodic Schedule.
The default alue of this field is .
3:2
R/W or R
0x0
Frame List Size
This field is R/W only if Programmable Frame List Flag in the HCCPARAMS
registers is set to a one. This field specifies the size of the
Frame list. The size the frame list controls which bits in the Frame Index
Register should be used for the Frame List Current index. Values mean:
Bits
Meaning
00b
1024 elements(4096bytes)Default
01b
512 elements(2048byts)
10b
256 elements(1024bytes)For resource-constrained condition
11b
reserved
The default alue is .
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 596
1
R/W
0x0
Host Controller Reset
This control bit is used by software to reset the host controller. The effects of
this on Root Hub registers are similar to a Chip Hardware Reset.
When software writes a one to this bit, the Host Controller resets its internal
pipelines, timers, counters, state machines, etc. to their initial value. Any
transaction currently in progress on USB is immediately terminated. A USB
reset is not driven on downstream ports.
All operational registers, including port registers and port state machines are
set to their initial values. Port ownership reverts to the companion host
controller(s). Software must reinitialize the host controller as described in
Section 4.1 of the CHEI Specification in order to return the host controller to
an operational state.
This bit is set to zero by the Host Controller when the reset process is
complete. Software cannot terminate the reset process early by writing a
zero to this register.
Software should not set this bit to a one when the HC Halted bit in the
USBSTS register is a zero. Attempting to reset an actively running host
controller will result in undefined behavior.
0
R/W
0x0
Run/Stop
When set to a 1, the Host Controller proceeds with execution of the
schedule. When set to 0, the Host Controller completes the current and any
actively pipelined transactions on the USB and then halts. The Host
Controller must halt within 16 micro-frames after software clears this bit.
The HC Halted bit indicates when the Host Controller has finished its pending
pipelined transactions and has entered the stopped state.
Software must not write a one to this field unless the Host Controller is in
the Halt State.
The default value is 0x0.
9.5.2.5.7. EHCI USB Status Register(Default Value: 0x0000_1000)
Offset: 0x0014
Register Name: USBSTS
Bit
Read/Write
Default/Hex
Description
31:16
/
0x0
Reserved
These bits are reserved and should be set to zero.
15
R
0x0
Asynchronous Schedule Status
The bit reports the current real status of Asynchronous Schedule. If this bit is
a zero then the status of the Asynchronous Schedule is disabled. If this bit is
a one then the status of the Asynchronous Schedule is enabled. The Host
Controller is not required to immediately disable or enable the Asynchronous
Schedule when software transitions the Asynchronous Schedule Enable bit in
the USBCMD register. When this bit and the Asynchronous Schedule Enable
bit are the same value, the Asynchronous Schedule is either enabled (1) or
disabled (0).
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 597
14
R
0x0
Periodic Schedule Status
The bit reports the current real status of the Periodic Schedule. If this bit is a
zero then the status of the Periodic Schedule is disabled. If this bit is a one
then the status of the Periodic Schedule is enabled. The Host Controller is
not required to immediately disable or enable the Periodic Schedule when
software transitions the Periodic Schedule Enable bit in the USBCMD register.
When this bit and the Periodic Schedule Enable bit are the same value, the
Periodic Schedule is either enabled (1) or disabled (0).
13
R
0x0
Reclamation
This is a read-only status bit, which is used to detect an empty asynchronous
schedule.
12
R
0x1
HC Halted
This bit is a zero whenever the Run/Stop bit is a one. The Host Controller
Sets this bit to one after it has stopped executing as a result of the Run/Stop
bit being set to 0, either by software or by the Host Controller Hardware (e.g.
internal error).
The default alue is .
11:6
/
0x0
Reserved
These bits are reserved and should be set to zero.
5
R/WC
0x0
Interrupt on Async Advance
System software can force the host controller to issue an interrupt the next
time the host controller advances the asynchronous schedule by writing a
one to the Interrupt on Async Advance Doorbell bit in the USBCMD register.
This status bit indicates the assertion of that interrupt source.
4
R/WC
0x0
Host System Error
The Host Controller set this bit to 1 when a serious error occurs during a host
system access involving the Host Controller module. When this error occurs,
the Host Controller clears the Run/Stop bit in the Command register to
prevent further execution of the scheduled TDs.
3
R/WC
0x0
Frame List Rollover
The Host Controller sets this bit to a one when the Frame List Index rolls over
from its maximum value to zero. The exact value at which the rollover occurs
depends on the frame list size. For example, if the frame list size is 1024, the
Frame Index Register rolls over every time FRINDEX [13] toggles. Similarly, if
the size is 512, the Host Controller sets this bit to a one every time FRINDEX
[12] toggles.
2
R/WC
0x0
Port Change Detect
The Host Controller sets this bit to a one when any port for which the Port
Owner bit is set to zero has a change bit transition from a zero to a one or a
Force Port Resume bit transition from a zero to a one as a result of a J-K
transition detected on a suspended port. This bit will also be set as a result
of the Connect Status Chang being set to a one after system software has
eliuished oeship of a oeted pot  itig a oe to a pots Pot
Owner bit.
1
R/WC
0x0
USB Error Interrupt(USBERRINT)
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 598
The Host Controller sets this bit to 1 when completion of USB transaction
results in an error condition(e.g. error counter underflow).If the TD on which
the error interrupt occurred also had its IOC bit set, both.
This bit and USBINT bit are set.
0
R/WC
0x0
USB Interrupt(USBINT)
The Host Controller sets this bit to a one on the completion of a USB
transaction, which results in the retirement of a Transfer Descriptor that had
its IOC bit set.
The Host Controller also sets this bit to 1 when a short packet is detected
(actual number of bytes received was less than the expected number of
bytes)
9.5.2.5.8. EHCI USB Interrupt Enable Register (Default Value: 0x0000_0000)
Offset: 0x0018
Register Name: USBINTR
Bit
Read/Write
Default/Hex
Description
31:6
/
0x0
Reserved
These bits are reserved and should be zero.
5
R/W
0x0
Interrupt on Async Advance Enable
When this bit is 1, and the Interrupt on Async Advance bit in the USBSTS
register is 1, the host controller will issue an interrupt at the next interrupt
threshold. The interrupt is acknowledged by software clearing the Interrupt
on Async Advance bit.
4
R/W
0x0
Host System Error Enable
When this bit is 1, and the Host System Error Status bit in the USBSTS
register is 1, the host controller will issue an interrupt. The interrupt is
acknowledged by software clearing the Host System Error bit.
3
R/W
0x0
Frame List Rollover Enable
When this bit is 1, and the Frame List Rollover bit in the USBSTS register is 1,
the host controller will issue an interrupt. The interrupt is acknowledged by
software clearing the Frame List Rollover bit.
2
R/W
0x0
Port Change Interrupt Enable
When this bit is 1, and the Port Chang Detect bit in the USBSTS register is 1,
the host controller will issue an interrupt. The interrupt is acknowledged by
software clearing the Port Chang Detect bit.
1
R/W
0x0
USB Error Interrupt Enable
When this bit is 1, and the USBERRINT bit in the USBSTS register is 1,the host
controller will issue an interrupt at the next interrupt threshold.
The interrupt is acknowledged by software clearing the USBERRINT bit.
0
R/W
0x0
USB Interrupt Enable
When this bit is 1, and the USBINT bit in the USBSTS register is 1,the host
controller will issue an interrupt at the next interrupt threshold.
The interrupt is acknowledged by software clearing the USBINT bit
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 599
9.5.2.5.9. EHCI Frame Index Register (Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: FRINDEX
Bit
Read/Write
Default/Hex
Description
31:14
/
0x0
Reserved
These bits are reserved and should be zero.
13:0
R/W
0x0
Frame Index
The value in this register increment at the end of each time frame
(e.g. micro-frame).Bits[N:3] are used for the Frame List current index. It
Means that each location of the frame list is accessed 8 times(frames or
Micro-frames) before moving to the next index. The following illustrates
Values of N based on the value of the Frame List Size field in the USBCMD
register.
USBCMD[Frame List Size]
Number Elements
N
00b
1024
12
01b
512
11
10b
256
10
11b
Reserved
Note: This register must be written as a DWord. Byte writes produce undefined results.
9.5.2.5.10. EHCI Periodic Frame List Base Address Register (Default Value: UDF)
Offset: 0x0024
Register Name: PERIODICLISTBASE
Bit
Read/Write
Default/Hex
Description
31:12
R/W
UDF
Base Address
These bits correspond to memory address signals [31:12], respectively.
This register contains the beginning address of the Periodic Frame List in the
system memory.
System software loads this register prior to starting the schedule execution
by the Host Controller. The memory structure referenced by this physical
memory pointer is assumed to be 4-K byte aligned. The contents of this
register are combined with the Frame Index Register (FRINDEX) to enable the
Host Controller to step through the Periodic Frame List in sequence.
11:0
/
UDF
Reserved
Must be written as 0x0 during runtime, the values of these bits are
undefined.
Note: Writes must be Dword Writes.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 600
9.5.2.5.11. EHCI Current Asynchronous List Address Register (Default Value: UDF)
Offset: 0x0028
Register Name: ASYNCLISTADDR
Bit
Read/Write
Default/Hex
Description
31:5
R/W
UDF
Link Pointer (LP)
This field contains the address of the next asynchronous queue head to be
executed.
These bits correspond to memory address signals [31:5], respectively.
4:0
/
0x0
Reserved
These bits are reserved and their value has no effect on operation.
Bits in this field cannot be modified by system software and will always
return a zero when read.
Note: Write must be DWord Writes.
9.5.2.5.12. EHCI Configure Flag Register(Default Value: 0x0000_0000)
Offset: 0x0050
Register Name: CONFIGFLAG
Bit
Read/Write
Default/Hex
Description
31:1
/
0x0
Reserved
These bits are reserved and should be set to zero.
0
R/W
0x0
Configure Flag(CF)
Host software sets this bit as the last action in its process of configuring the
Host Controller. This bit controls the default port-routing control logic as
follow:
Value
Meaning
0
Port routing control logic default-routs each port to an
implementation dependent classic host controller.
1
Port routing control logic default-routs all ports to this host
controller.
The default alue of this field is .
Note: This register is not used in the normal implementation.
9.5.2.5.13. EHCI Port Status and Control Register(Default Value: 0x0000_2000(w/PPC set to one))
The default value is 0x00003000 when w/PPC set to a zero.
Offset: 0x0054
Register Name: PORTSC
Bit
Read/Write
Default/Hex
Description
31:22
/
0x0
Reserved
These bits are reserved for future use and should return a value of zero when
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 601
read.
21
R/W
0x0
Wake on Disconnect Enable(WKDSCNNT_E)
Writing this bit to a one enables the port to be sensitive to device
disconnects as wake-up events.
This field is zero if Port Power is zero.
The default alue i this field is .
20
R/W
0x0
Wake on Connect Enable(WKCNNT_E)
Writing this bit to a one enable the port to be sensitive to device connects as
wake-up events.
This field is zero if Port Power is zero.
The default alue i this field is .
19:16
R/W
0x0
Port Test Control
The value in this field specifies the test mode of the port. The encoding of
the test mode bits are as follow:
Bits
Test Mode
0000b
The port is NOT operating in a test mode.
0001b
Test J_STATE
0010b
Test K_STATE
0011b
Test SE0_NAK
0100b
Test Packet
0101b
Test FORCE_ENABLE
0110b-
1111b
Reserved
The default alue i this field is .
15:14
R/W
0x0
Reserved
These bits are reserved for future use and should return a value of zero when
read.
13
R/W
0x1
Port Owner
This bit unconditionally goes to a 0b when the Configured bit in the
CONFIGFLAG register makes a 0b to 1b transition. This bit unconditionally
goes to 1b whenever the Configured bit is zero.
System software uses this field to release ownership of the port to selected
host controller (in the event that the attached device is not a high-speed
device).Software writes a one to this bit when the attached device is not a
high-speed device. A one in this bit means that a companion host controller
owns and controls the port.
Default Value = 1b.
12
/
0x0
Reserved
These bits are reserved for future use and should return a value of zero when
read.
11:10
R
0x0
Line Status
These bits reflect the current logical levels of the D+ (bit11) and D-(bit10)
signal lines. These bits are used for detection of low-speed USB devices prior
to port reset and enable sequence. This read only field is valid only when the
port enable bit is zero and the current connect status bit is set to a one.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 602
The encoding of the bits are:
Bit[11:10]
USB State
Interpretation
00b
SE0
Not Low-speed device, perform EHCI
reset.
10b
J-state
Not Low-speed device, perform EHCI
reset.
01b
K-state
Low-speed device, release ownership of
port.
11b
Undefined
Not Low-speed device, perform EHCI
reset.
This value of this field is undefined if Port Power is zero.
9
/
0x0
Reserved
This bit is reserved for future use, and should return a value of zero when
read.
8
R/W
0x0
Port Reset
1=Port is in Reset. 0=Port is not in Reset. Default = 0.
When software writes a one to this bit (from a zero), the bus reset sequence
as defined in the USB Specification Revision 2.0 is started. Software writes a
zero to this bit to terminate the bus reset sequence. Software must keep this
bit at a one long enough to ensure the reset sequence, as specified in the
USB Specification Revision 2.0, completes. Notes: when software writes this
bit to a one , it must also write a zero to the Port Enable bit.
Note that when software writes a zero to this bit there may be a delay before
the bit status changes to a zero. The bit status will not read as a zero until
after the reset has completed. If the port is in high-speed mode after reset is
complete, the host controller will automatically enable this port (e.g. set the
Port Enable bit to a one). A host controller must terminate the reset and
stabilize the state of the port within 2 milliseconds of software transitioning
this bit from a one to a zero. For example: if the port detects that the
attached device is high-speed during reset, then the host controller must
have the port in the enabled state with 2ms of software writing this bit to a
zero.
The HC Halted bit in the USBSTS register should be a zero before software
attempts to use this bit. The host controller may hold Port Reset asserted to
a one when the HC Halted bit is a one.
This field is zero if Port Power is zero.
7
R/W
0x0
Suspend
Port Enabled Bit and Suspend bit of this register define the port states as
follows:
Bits[Port Enables, Suspend]
Port State
0x
Disable
10
Enable
11
Suspend
When in suspend state, downstream propagation of data is blocked on this
port, except for port reset. The blocking occurs at the end of the current
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 603
transaction, if a transaction was in progress when this bit was written to 1. In
the suspend state, the port is sensitive to resume detection. Not that the bit
status does not change until the port is suspend and that there may be a
delay in suspending a port if there is a transaction currently in progress on
the USB.
A write of zero to this bit is ignored by the host controller. The host controller
will unconditionally set this bit to a zero when:
 Softae sets the Force Port Resume bit to a zero(from a one).
 Softae sets the Pot Reset it to a oefo a zeo.
If host software sets this bit to a one when the port is not enabled(i.e. Port
enabled bit is a zero), the results are undefined.
This field is zero if Port Power is zero.
The default alue i this field is .
6
R/W
0x0
Force Port Resume
1 = Resume detected/driven on port. 0 = No resume (K-state) detected/
driven on port. Default = 0.
This functionality defined for manipulating this bit depends on the value of
the Suspend bit. For example, if the port is not suspend and software
transitions this bit to a one, then the effects on the bus are undefined.
Software sets this bit to a 1 drive resume signaling. The Host Controller sets
this bit to a 1 if a J-to-K transition is detected while the port is in the Suspend
state. When this bit transitions to a one because a J-to-K transition is
detected, the Port Change Detect bit in the USBSTS register is also set to a
one. If software sets this bit to a one, the host controller must not set the
Port Change Detect bit.
Note that when the EHCI controller owns the port, the resume sequence
follows the defined sequence documented in the USB Specification Revision
2.0. The resume signaling (Full-speed K is die on the port as long as this
remains a one. Software must appropriately time the Resume and set this bit
to a zero when the appropriate amount of time has elapsed. Writing a zero
(from one) causes the port to return high-speed mode (forcing the bus below
the port into a high-speed idle). This bit will remain a one until the port has
switched to high-speed idle. The host controller must complete this
transition within 2 milliseconds of software setting this bit to a zero.
This field is zero if Port Power is zero.
5
R/WC
0x0
Over-current Change
Default = 0. This bit gets set to a one when there is a change to Over-current
Active. Software clears this bit by writing a one to this bit position.
4
R
0x0
Over-current Active
0 = This port does not have an over-current condition. 1 = This port currently
has an over-current condition. This bit will automatically transition from a
one to a zero when the over current condition is removed.
The default alue of this it is .
3
R/WC
0x0
Port Enable/Disable Change
Default = 0. 1 = Port enabled/disabled status has changed. 0 = No change.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 604
For the root hub, this bit gets set to a one only when a port is disabled due to
the appropriate conditions existing at the EOF2 point (See Chapter 11 of the
USB Specification for the definition of a Port Error). Software clears this bit
by writing a 1 to it.
This field is zero if Port Power is zero.
2
R/W
0x0
Port Enabled/Disabled
1=Enable, 0=Disable. Ports can only be enabled by the host controller as a
part of the reset and enable. Software cannot enable a port by writing a one
to this field. The host controller will only set this bit to a one when the reset
sequence determines that the attached device is a high-speed device.
Ports can be disabled by either a fault condition(disconnect event or other
fault condition) or by host software. Note that the bit status does not change
until the port state actually changes. There may be a delay in disabling or
enabling a port due to other host controller and bus events.
When the port is disabled, downstream propagation of data is blocked on
this port except for reset.
The default alue of this field is .
This field is zero if Port Power is zero.
1
R/WC
0x0
Connect Status Change
1=Change in Current Connect Status, 0=No change, Default=0.
Indiates a hage has oued i the pots Cuet Coet Status. The
host controller sets this bit for all changes to the port device connect status,
even if system software has not cleared an existing connect status change.
For example, the insertion status changes twice before system software has
leaed the haged oditio, hu hadae ill e settig a alead-set
bit. Software sets this bit to 0 by writing a 1 to it.
This field is zero if Port Power is zero.
0
R
0x0
Current Connect Status
Device is present on port when the value of this field is a one, and no device
is present on port when the value of this field is a zero. This value reflects the
current state of the port, and may not correspond directly to the event that
caused the Connect Status Change(Bit 1) to be set.
This field is zero if Port Power zero.
Note: This register is only reset by hardware or in response to a host controller reset.
9.5.2.6. OHCI Register Description
9.5.2.6.1. HcRevision Register(Default Value: 0x0000_0010)
Offset: 0x400
Register Name: HcRevision
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:8
/
/
0x00
Reserved
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 605
7:0
R
R
0x10
Revision
This read-only field contains the BCD representation of the version of the
HCI specification that is implemented by this HC. For example, a value of
0x11 corresponds to version 1.1. All of the HC implementations that are
compliant with this specification will have a value of 0x10.
9.5.2.6.2. HcControl Register(Default Value: 0x0000_0000)
Offset: 0x404
Register Name: HcRevision
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:11
/
/
0x00
Reserved
10
R/W
R
0x0
RemoteWakeupEnable
This bit is used by HCD to enable or disable the remote wakeup feature
upon the detection of upstream resume signaling. When this bit is set and
the ResumeDetected bit in HcInterruptStatus is set, a remote wakeup is
signaled to the host system. Setting this bit has no impact on the
generation of hardware interrupt.
9
R/W
R/W
0x0
RemoteWakeupConnected
This bit indicates whether HC supports remote wakeup signaling. If remote
wakeup is supported and used by the system, it is the responsibility of
system firmware to set this bit during POST. HC clear the bit upon a
hardware reset but does not alter it upon a software reset. Remote wakeup
signaling of the host system is host-bus-specific and is not described in this
specification.
8
R/W
R
0x0
InterruptRouting
This bit determines the routing of interrupts generated by events registered
in HcInterruptStatus. If clear, all interrupt are routed to the normal host bus
interrupt mechanism. If set interrupts are routed to the System
Management Interrupt. HCD clears this bit upon a hardware reset, but it
does not alter this bit upon a software reset. HCD uses this bit as a tag to
indicate the ownership of HC.
7:6
R/W
R/W
0x0
HostControllerFunctionalState for USB
00b
USBReset
01b
USBResume
10b
USBOperational
11b
USBSuspend
A transition to USBOperational from another state causes SOF generation
to begin 1 ms later. HCD may determine whether HC has begun sending
SOFs by reading the StartoFrame field of
HcInterruptStatus.
This field may be changed by HC only when in the USBSUSPEND state. HC
may move from the USBSUSPEND state to the USBRESUME state after
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 606
detecting the resume signaling from a downstream port.
HC enters USBSUSPEND after a software reset, whereas it enters
USBRESET after a hardware reset. The latter also resets the Root
Hub and asserts subsequent reset signaling to downstream ports.
5
R/W
R
0x0
BulkListEnable
This bit is set to enable the processing of the Bulk list in the next
Frame. If cleared by HCD, processing of the Bulk list does not occur after
the next SOF. HC checks this bit whenever it determines to process the list.
When disabled, HCD may modify the list. If HcBulkCurrentED is pointing to
an ED to be removed, HCD must advance the pointer by updating
HcBulkCurrentED before re-enabling processing of the list.
4
R/W
R
0x0
ControlListEnable
This bit is set to enable the processing of the Control list in the next Frame.
If cleared by HCD, processing of the Control list does not occur after the
next SOF. HC must check this bit whenever it determines to process the list.
When disabled, HCD may modify the list. If HcControlCurrentED is pointing
to an ED to be removed, HCD must advance the pointer by updating
HcControlCurrentED before re-enabling processing of the list.
3
R/W
R
0x0
IsochronousEnable
This bit is used by HCD to enable/disable processing of isochronous EDs.
While processing the periodic list in a Frame, HC checks the status of this
bit when it finds an Isochronous ED (F=1). If set (enabled), HC continues
processing the EDs. If cleared (disabled), HC halts processing of the periodic
list (which now contains only isochronous EDs) and begins processing the
Bulk/Control lists.
Setting this bit is guaranteed to take effect in the next Frame (not the
current Frame).
2
R/W
R
0x0
PeriodicListEnable
This bit is set to enable the processing of periodic list in the next Frame. If
cleared by HCD, processing of the periodic list does not occur after the next
SOF. HC must check this bit before it starts processing the list.
1:0
R/W
R
0x0
ControlBulkServiceRatio
This specifies the service ratio between Control and Bulk EDs. Before
processing any of the nonperiodic lists, HC must compare the ratio
specified with its internal count on how many nonempty Control EDs have
been processed, in determining whether to continue serving another
Control ED or switching to Bulk EDs. The internal count will be retained
when crossing the frame boundary. In case of reset, HCD is responsible for
restoring this value.
CBSR
No. of Control EDs Over Bulk EDs Served
0
1:1
1
2:1
2
3:1
3
4:1
The default value is 0x0.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 607
9.5.2.6.3. HcCommandStatus Register(Default Value: 0x0000_0000)
Offset: 0x408
Register Name: HcCommandStatus
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:18
/
/
0x0
Reserved
17:16
R
R/W
0x0
SchedulingOverrunCount
These bits are incremented on each scheduling overrun error. It is initialized
to 00b and wraps around at 11b. This will be incremented when a
scheduling overrun is detected even if SchedulingOverrun in
HcInterruptStatus has already been set. This is used by HCD to monitor any
persistent scheduling problem.
15:4
/
/
0x0
Reserved
3
R/W
R/W
0x0
OwershipChangeRequest
This bit is set by an OS HCD to request a change of control of the HC. When
set HC will set the OwnershipChange field in HcInterruptStatus. After the
changeover, this bit is cleared and remains so until the next request from
OS HCD.
2
R/W
R/W
0x0
BulklListFilled
This bit is used to indicate whether there are any TDs on the Bulk list. It is
set by HCD whenever it adds a TD to an ED in the Bulk list.
When HC begins to process the head of the Bulk list, it checks BLF. As long
as BulkListFilled is 0, HC will not start processing the Bulk list. If
BulkListFilled is 1, HC will start processing the Bulk list and will set BF to 0. If
HC finds a TD on the list, then HC will set BulkListFilled to 1 causing the Bulk
list processing to continue. If no TD is found on the Bulk list, and if HCD
does not set BulkListFilled, then BulkListFilled will still be 0 when HC
completes processing the Bulk list and Bulk list processing will stop.
1
R/W
R/W
0x0
ControlListFilled
This bit is used to indicate whether there are any TDs on the Control list. It
is set by HCD whenever it adds a TD to an ED in the Control list.
When HC begins to process the head of the Control list, it checks CLF. As
long as ControlListFilled is 0, HC will not start processing the Control list. If
CF is 1, HC will start processing the Control list and will set ControlListFilled
to 0. If HC finds a TD on the list, then HC will set ControlListFilled to 1
causing the Control list processing to continue. If no TD is found on the
Control list, and if the HCD does not set ControlListFilled, then
ControlListFilled will still be 0 when HC completes processing the Control
list and Control list processing will stop.
0
R/W
R/E
0x0
HostControllerReset
This bit is by HCD to initiate a software reset of HC. Regardless of the
functional state of HC, it moves to the USBSuspend state in which most of
the operational registers are reset except those stated otherwise; e.g, the
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 608
InteruptRouting field of HcControl, and no Host bus accesses are allowed.
This bit is cleared by HC upon the completion of the reset operation. The
reset operation must be completed within 10 ms. This bit, when set, should
not cause a reset to the Root Hub and no subsequent reset signaling should
be asserted to its downstream ports.
9.5.2.6.4. HcInterruptStatus Register(Default Value: 0x0000_0000)
Offset: 0x40C
Register Name: HcInterruptStatus
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:7
/
/
0x0
Reserved
6
R/W
R/W
0x0
RootHubStatusChange
This bit is set when the content of HcRhStatus or the content of any of
HcRhPortStatus[NumberofDownstreamPort] has changed.
5
R/W
R/W
0x0
FrameNumberOverflow
This bit is set when the MSb of HcFmNumber (bit 15) changes value, from 0
to 1 or from 1 to 0, and after HccaFrameNumber has been updated.
4
R/W
R/W
0x0
UnrecoverableError
This bit is set when HC detects a system error not related to USB. HC should
not proceed with any processing nor signaling before the system error has
been corrected. HCD clears this bit after HC has been reset.
3
R/W
R/W
0x0
ResumeDetected
This bit is set when HC detects that a device on the USB is asserting resume
signaling. It is the transition from no resume signaling to resume signaling
causing this bit to be set. This bit is not set when HCD sets the USBRseume
state.
2
R/W
R/W
0x0
StartofFrame
This bit is set by HC at each start of frame and after the update of
HccaFrameNumber. HC also generates a SOF token at the same time.
1
R/W
R/W
0x0
WritebackDoneHead
This bit is set immediately after HC has written HcDoneHead to
HccaDoneHead. Further updates of the HccaDoneHead will not occur until
this bit has been cleared. HCD should only clear this bit after it has saved
the content of HccaDoneHead.
0
R/W
R/W
0x0
SchedulingOverrun
This bit is set when the USB schedule for the current Frame overruns and
after the update of HccaFrameNumber. A scheduling overrun will also
cause the SchedulingOverrunCount of HcCommandStatus to be
incremented.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 609
9.5.2.6.5. HcInterruptEnable Register(Default Value: 0x0000_0000)
Offset: 0x410
Register Name: HcInterruptEnable Register
Bit
Read/Write
Default/Hex
Description
HCD
HC
31
R/W
R
0x0
MasterInterruptEnable
A  itte to this field is igoed  HC. A  itte to this field eales
interrupt generation due to events specified in the other bits of this
register. This is used by HCD as Master Interrupt Enable.
30:7
/
/
0x0
Reserved
6
R/W
R
0x0
RootHubStatusChange Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Root Hub Status Change;
5
R/W
R
0x0
FrameNumberOverflow Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Frame Number Over Flow;
4
R/W
R
0x0
UnrecoverableError Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Unrecoverable Error;
3
R/W
R
0x0
ResumeDetected Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Resume Detected;
2
R/W
R
0x0
StartofFrame Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Start of Flame;
1
R/W
R
0x0
WritebackDoneHead Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Write back Done Head;
0
R/W
R
0x0
SchedulingOverrun Interrupt Enable
0
Ignore;
1
Enable interrupt generation due to Scheduling Overrun;
9.5.2.6.6. HcInterruptDisable Register(Default Value: 0x0000_0000)
Offset: 0x414
Register Name: HcInterruptDisable Register
Bit
Read/Write
Default/Hex
Description
HCD
HC
31
R/W
R
0x0
MasterInterruptEnable
A itte  to this field is igoed  HC. A  itte to this field disales
interrupt generation due events specified in the other bits of this register.
This field is set after a hardware or software reset.
30:7
/
/
0x00
Reserved
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 610
6
R/W
R
0x0
RootHubStatusChange Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Root Hub Status Change;
5
R/W
R
0x0
FrameNumberOverflow Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Frame Number Over Flow;
4
R/W
R
0x0
UnrecoverableError Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Unrecoverable Error;
3
R/W
R
0x0
ResumeDetected Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Resume Detected;
2
R/W
R
0x0
StartofFrame Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Start of Flame;
1
R/W
R
0x0
WritebackDoneHead Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Write back Done Head;
0
R/w
R
0x0
SchedulingOverrun Interrupt Disable
0
Ignore;
1
Disable interrupt generation due to Scheduling Overrun;
9.5.2.6.7. HcHCCA Register(Default Value: 0x0000_0000)
Offset: 0x418
Register Name: HcHCCA
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:8
R/W
R
0x0
HCCA[31:8]
This is the base address of the Host Controller Communication Area. This
area is used to hold the control structures and the Interrupt table that are
accessed by both the Host Controller and the Host Controller Driver.
7:0
R
R
0x0
HCCA[7:0]
The alignment restriction in HcHCCA register is evaluated by examining the
number of zeros in the lower order bits. The minimum alignment is 256
bytes, therefore, bits 0 through 7 must always return 0 when read.
9.5.2.6.8. HcPeriodCurrentED Register(Default Value: 0x0000_0000)
Offset: 0x41C
Register Name: HcPeriodCurrentED(PCED)
Bit
Read/Write
Default/Hex
Description
HCD
HC
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 611
31:4
R
R/W
0x0
PCED[31:4]
This is used by HC to point to the head of one of the Periodec list which
will be processed in the current Frame. The content of this register is
updated by HC after a periodic ED has been processed. HCD may read the
content in determining which ED is currently being processed at the time
of reading.
3:0
R
R
0x0
PCED[3:0]
Because the general TD length is 16 bytes, the memory structure for the
TD must be aligned to a 16-byte boundary. So the lower bits in the PCED,
through bit 0 to bit 3 must be zero in this field.
9.5.2.6.9. HcControlHeadED Register(Default Value: 0x0000_0000)
Offset: 0x420
Register Name: HcControlHeadED[CHED]
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:4
R/W
R
0x0
EHCD[31:4]
The HcControlHeadED register contains the physical address of the first
Endpoint Descriptor of the Control list. HC traverse the Control list
starting with the HcControlHeadED pointer. The content is loaded from
HCCA during the initialization of HC.
3:0
R
R
0x0
EHCD[3:0]
Because the general TD length is 16 bytes, the memory structure for the
TD must be aligned to a 16-byte boundary. So the lower bits in the PCED,
through bit 0 to bit 3 must be zero in this field.
9.5.2.6.10. HcControlCurrentED Register(Default Value: 0x0000_0000)
Offset: 0x424
Register Name: HcControlCurrentED[CCED]
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:4
R/W
R/W
0x0
CCED[31:4]
The pointer is advanced to the next ED after serving the present one. HC
will continue processing the list from where it left off in the last Frame.
When it reaches the end of the Control list, HC checks the
ControlListFilled of in HcCommandStatus. If set, it copies the content of
HcControlHeadED to HcControlCurrentED and clears the bit. If not set, it
does nothing.
HCD is allowed to modify this register only when the ControlListEnable of
HcControl is cleared. When set, HCD only reads the instantaneous value
of this register. Initially, this is set to zero to indicate the end of the
Control list.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 612
3:0
R
R
0x0
CCED[3:0]
Because the general TD length is 16 bytes, the memory structure for the
TD must be aligned to a 16-byte boundary. So the lower bits in the PCED,
through bit 0 to bit 3 must be zero in this field.
9.5.2.6.11. HcBulkHeadED Register(Default Value: 0x0000_0000)
Offset: 0x428
Register Name: HcBulkHeadED[BHED]
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:4
R/W
R
0x0
BHED[31:4]
The HcBulkHeadED register contains the physical address of the first
Endpoint Descriptor of the Bulk list. HC traverses the Bulk list starting with
the HcBulkHeadED pointer. The content is loaded from HCCA during the
initialization of HC.
3:0
R
R
0x0
BHED[3:0]
Because the general TD length is 16 bytes, the memory structure for the
TD must be aligned to a 16-byte boundary. So the lower bits in the PCED,
through bit 0 to bit 3 must be zero in this field.
9.5.2.6.12. HcBulkCurrentED Register(Default Value: 0x0000_0000)
Offset: 0x42C
Register Name: HcBulkCurrentED [BCED]
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:4
R/W
R/W
0x0
BulkCurrentED[31:4]
This is advanced to the next ED after the HC has served the present one.
HC continues processing the list from where it left off in the last Frame.
When it reaches the end of the Bulk list, HC checks the ControlListFilled of
HcControl. If set, it copies the content of HcBulkHeadED to
HcBulkCurrentED and clears the bit. If it is not set, it does nothing. HCD is
only allowed to modify this register when the BulkListEnable of HcControl
is cleared. When set, the HCD only reads the instantaneous value of this
register. This is initially set to zero to indicate the end of the Bulk list.
3:0
R
R
0x0
BulkCurrentED [3:0]
Because the general TD length is 16 bytes, the memory structure for the
TD must be aligned to a 16-byte boundary. So the lower bits in the PCED,
through bit 0 to bit 3 must be zero in this field.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 613
9.5.2.6.13. HcDoneHead Register(Default Value: 0x0000_0000)
Offset: 0x430
Register Name: HcDoneHead
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:4
R
R/W
0x0
HcDoneHead[31:4]
When a TD is completed, HC writes the content of HcDoneHead to the
NextTD field of the TD. HC then overwrites the content of HcDoneHead
with the address of this TD. This is set to zero whenever HC writes the
content of this register to HCCA. It also sets the WritebackDoneHead of
HcInterruptStatus.
3:0
R
R
0x0
HcDoneHead[3:0]
Because the general TD length is 16 bytes, the memory structure for the
TD must be aligned to a 16-byte boundary. So the lower bits in the PCED,
through bit 0 to bit 3 must be zero in this field.
9.5.2.6.14. HcFmInterval Register(Default Value: 0x0000_2EDF)
Offset: 0x434
Register Name: HcFmInterval Register
Bit
Read/Write
Default/Hex
Description
HCD
HC
31
R/W
R
0x0
FrameIntervalToggler
HCD toggles this bit whenever it loads a new value to FrameInterval.
30:16
R/W
R
0x0
FSLargestDataPacket
This field specifies a value which is loaded into the Largest Data Packet
Counter at the beginning of each frame. The counter value represents the
largest amount of data in bits which can be sent or received by the HC in a
single transaction at any given time without causing scheduling overrun.
The field value is calculated by the HCD.
15:14
/
/
0x0
Reserved
13:0
R/W
R
0x2edf
FrameInterval
This specifies the interval between two consecutive SOFs in bit times. The
nominal value is set to be 11,999. HCD should store the current value of
this field before resetting HC. By setting the HostControllerReset field of
HcCommandStatus as this will cause the HC to reset this field to its
nominal value. HCD may choose to restore the stored value upon the
completion of the Reset sequence.
9.5.2.6.15. HcFmRemaining Register(Default Value: 0x0000_0000)
Offset: 0x438
Register Name: HcFmRemaining
Bit
Read/Write
Default/Hex
Description
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 614
HCD
HC
31
R
R/W
0x0
FrameRemaining Toggle
This bit is loaded from the FrameIntervalToggle field of HcFmInterval
whenever FrameRemaining reaches 0. This bit is used by HCD for the
synchronization between FrameInterval and FrameRemaining.
30:14
/
/
0x0
Reserved
13:0
R
RW
0x0
FramRemaining
This counter is decremented at each bit time. When it reaches zero, it is
reset by loading the FrameInterval value specified in HcFmInterval at the
next bit time boundary. When entering the USBOPERATIONAL state, HC
re-loads the content with the FrameInterval of HcFmInterval and uses the
updated value from the next SOF.
9.5.2.6.16. HcFmNumber Register(Default Value: 0x0000_0000)
Offset: 0x43c
Register Name: HcFmNumber
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:16
/
/
0x0
Reserved
15:0
R
R/W
0x0
FrameNumber
This is incremented when HcFmRemaining is re-loaded. It will be rolled
over to 0x0 after 0x0ffff. When entering the USBOPERATIONAL state, this
will be incremented automatically. The content will be written to HCCA
after HC has incremented the FrameNumber at each frame boundary and
sent a SOF but before HC reads the first ED in that Frame. After writing to
HCCA, HC will set the StartofFrame in HcInterruptStatus.
9.5.2.6.17. HcPeriodicStart Register(Default Value: 0x0000_0000)
Offset: 0x440
Register Name: HcPeriodicStatus
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:14
/
/
0x0
Reserved
13:0
R/W
R
0x0
PeriodicStart
After a hardware reset, this field is cleared. This is then set by HCD during
the HC initialization. The value is calculated roughly as 10% off from
HcFmInterval. A typical value will be 0x2A3F (0x3e67). When
HcFmRemaining reaches the value specified, processing of the periodic
lists will have priority over Control/Bulk processing. HC will therefore start
processing the Interrupt list after completing the current Control or Bulk
transaction that is in progress.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 615
9.5.2.6.18. HcLSThreshold Register(Default Value: 0x0000_0628)
Offset: 0x444
Register Name: HcLSThreshold
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:12
/
/
0x0
Reserved
11:0
R/W
R
0x0628
LSThreshold
This field contains a value which is compared to the FrameRemaining field
prior to initiating a Low Speed transaction. The transaction is started only
if FrameRemaining ³ this field. The value is calculated by HCD with the
consideration of transmission and setup overhead.
9.5.2.6.19. HcRhDescriptorA Register(Default Value: 0x0200_1201)
Offset: 0x448
Register Name: HcRhDescriptorA
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:24
R/W
R
0x2
PowerOnToPowerGoodTime[POTPGT]
This byte specifies the duration HCD has to wait before accessing a
powered-on port of the Root Hub. It is implementation-specific. The unit
of time is 2 ms. The duration is calculated as POTPGT * 2ms.
23:13
/
/
0x0
Reserved
12
R/W
R
0x1
NoOverCurrentProtection
This bit describes how the overcurrent status for the Root Hub ports are
reported. When this bit is cleared, the OverCurrentProtectionMode field
specifies global or per-port reporting.
0
Over-current status is reported collectively for all downstream
ports.
1
No overcurrent protection supported.
11
R/W
R
0x0
OverCurrentProtectionMode
This bit describes how the overcurrent status for the Root Hub ports are
reported. At reset, these fields should reflect the same mode as
PowerSwitchingMode. This field is valid only if the
NoOverCurrentProtection field is cleared.
0
Over-current status is reported collectively for all downstream
ports.
1
Over-current status is reported on per-port basis.
10
R
R
0x0
Device Type
This bit specifies that the Root Hub is not a compound device. The Root
Hub is not permitted to be a compound device. This field should always
read/write 0.
9
R/W
R
0x1
PowerSwitchingMode
This bit is used to specify how the power switching of the Root Hub ports
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 616
is controlled. It is implementation-specific. This field is only valid if the
NoPowerSwitching field is cleared.
0
All ports are powered at the same time.
1
Each port is powered individually. This mode allows port power
to be controlled by either the global switch or per-port
switching. If the PortPowerControlMask bit is set, the port
responds only to port power commands (Set/ClearPortPower).
If the port mask is cleared, then the port is controlled only by
the global power switch (Set/ClearGlobalPower).
8
R/W
R
0x0
NoPowerSwithcing
These bits are used to specify whether power switching is supported or
ports are always powered. It is implementation-specific. When this bit is
cleared, the PowerSwitchingMode specifies global or per-port switching.
0
Ports are power switched.
1
Ports are always powered on when the HC is powered on.
7:0
R
R
0x01
NumberDownstreamPorts
These bits specify the number of downstream ports supported by the
Root Hub. It is implementation-specific. The minimum number of ports is
1. The maximum number of ports supported.
9.5.2.6.20. HcRhDescriptorB Register(Default Value: 0x0000_0000)
Offset: 0x44C
Register Name: HcRhDescriptorB Register
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:16
R/W
R
0x0
PortPowerControlMask
Each bit indicates if a port is affected by a global power control command
when PowerSwitchingMode is set. When set, the port's power state is
only affected by per-port power control (Set/ClearPortPower). When
cleared, the port is controlled by the global power switch
(Set/ClearGlobalPower). If the device is configured to global switching
mode (PowerSwitchingMode = 0 ), this field is not valid.
Bit0
Reserved
Bit1
Ganged-power mask on Port #1.
Bit2
Ganged-power mask on Port #2.
…
Bit15
Ganged-power mask on Port #15.
15:0
R/W
R
0x0
DeviceRemovable
Each bit is dedicated to a port of the Root Hub. When cleared, the
attached device is removable. When set, the attached device is not
removable.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 617
Bit0
Reserved
Bit1
Device attached to Port #1.
Bit2
Device attached to Port #2.
…
Bit15
Device attached to Port #15.
9.5.2.6.21. HcRhStatus Register(Default Value: 0x0000_0000)
Offset: 0x450
Register Name: HcRhStatus Register
Bit
Read/Write
Default/Hex
Description
HCD
HC
31
W
R
0x0
(write)ClearRemoteWakeupEnable
Wite a  leas DeieReoteWakeupEale. Wite a  has o effet.
30:18
/
/
0x0
Reserved
17
R/W
R
0x0
OverCurrentIndicatorChang
This bit is set by hardware when a change has occurred to the
OverCurrentIndicator field of this register. The HCD clears this bit by
itig a . Witig a  has o effet.
16
R/W
R
0x0
(read)LocalPowerStartusChange
The Root Hub does not support the local power status features, thus, this
it is alas ead as .
(write)SetGlobalPower
In global power ode PoeSithigMode=, This it is itte to 
to turn on power to all ports (clear PortPowerStatus). In per-port power
mode, it sets PortPowerStatus only on ports whose
PotPoeCotolMask it is ot set. Witig a  has o effet.
15
R/W
R
0x0
(read)DeviceRemoteWakeupEnable
This bit enables a ConnectStatusChange bit as a resume event, causing a
USBSUSPEND to USBRESUME state transition and setting the
ResumeDetected interrupt.
0
ConnectStatusChange is not a remote wakeup event.
1
ConnectStatusChange is a remote wakeup event.
(write)SetRemoteWakeupEnable
Witig a  sets DeieReoeWakeupEale. Witig a  has o
effect.
14:2
Reserved
1
R
R/W
0x0
OverCurrentIndicator
This bit reports overcurrent conditions when the global reporting is
implemented. When set, an overcurrent condition exists. When cleared,
all power operations are normal.
If per-pot oeuet potetio is ipleeted this it is alas 
0
R/W
R
0x0
(Read)LocalPowerStatus
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 618
When read, this bit returns the LocalPowerStatus of the Root Hub. The
Root Hub does not support the local power status feature; thus, this bit is
alas ead as .
(Write)ClearGlobalPower
When write, this bit is operated as the ClearGlobalPower. In global power
mode (PowerSwitchingMode=0), This it is itte to  to tu off
power to all ports (clear PortPowerStatus). In per-port power mode, it
clears PortPowerStatus only on ports whose PortPowerControlMask bit is
ot set. Witig a  has o effet.
9.5.2.6.22. HcRhPortStatus Register(Default Value: 0x0000_0100)
Offset: 0x454
Register Name: HcRhPortStatus
Bit
Read/Write
Default/Hex
Description
HCD
HC
31:21
/
/
0x0
Reserved
20
R/W
R/W
0x0
PortResetStatusChange
This bit is set at the end of the 10-ms port reset signal. The HCD writes a
 to lea this it. Witig a  has o effet.
0
port reset is not completed
1
port reset is completed
19
R/W
R/W
0x0
PortOverCurrentIndicatorChange
This bit is valid only if overcurrent conditions are reported on a per-port
basis. This bit is set when Root Hub changes the
PotOeCuetIdiato it. The HCD ites a  to lea this it.
Witig a  has o effet.
0
no change in PortOverCurrentIndicator
1
PortOverCurrentIndicator has changed
18
R/W
R/W
0x0
PortSuspendStatusChange
This bit is set when the full resume sequence has been completed. This
sequence includes the 20-s resume pulse, LS EOP, and 3-ms
eshoizatio dela. The HCD ites a  to lea this it. Witig a 
has no effect. This bit is also cleared when ResetStatusChange is set.
0
resume is not completed
1
resume completed
17
R/W
R/W
0x0
PortEnableStatusChange
This bit is set when hardware events cause the PortEnableStatus bit to be
leaed. Chages fo HCD ites do ot set this it. The HCD ites a 
to clear this it. Witig a  has o effet.
0
no change in PortEnableStatus
1
change in PortEnableStatus
16
R/W
R/W
0x0
ConnectStatusChange
This bit is set whenever a connect or disconnect event occurs. The HCD
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 619
ites a  to lea this it. Witig a  has no effect. If
CurrentConnectStatus is cleared when a SetPortReset,SetPortEnable, or
SetPortSuspend write occurs, this bit is set to force the driver to
re-evaluate the connection status since these writes should not occur if
the port is disconnected.
0
no change in PortEnableStatus
1
change in PortEnableStatus
Note: If the DeviceRemovable[NDP] bit is set, this bit is set only
after a Root Hub reset to inform the system that the device is attached.
15:10
/
/
0x0
Reserved
9
R/W
R/W
-
(read)LowSpeedDeviceAttached
This bit indicates the speed of the device attached to this port. When set,
a Low Speed device is attached to this port. When clear, a Full Speed
device is attached to this port. This field is valid only when the
CurrentConnectStatus is set.
0
full speed device attached
1
low speed device attached
(write)ClearPortPower
The HCD leas the PotPoeStatus it  itig a  to this it. Witig
a  has o effet.
8
R/W
R/W
0x1
(read)PortPowerStatus
This it eflets the pots poe status, egardless of the type of power
switching implemented. This bit is cleared if an overcurrent condition is
detected. HCD sets this bit by writing SetPortPower or SetGlobalPower.
HCD clears this bit by writing ClearPortPower or ClearGlobalPower. Which
power control switches are enabled is determined by
PowerSwitchingMode and
PortPortControlMask[NumberDownstreamPort]. In global switching
mode(PowerSwitchingMode=0), only Set/ClearGlobalPower controls
this bit. In per-port power switching (PowerSwitchingMode=1), if the
PortPowerControlMask[NDP] bit for the port is set, only
Set/ClearPortPower commands are enabled. If the mask is not set, only
Set/ClearGlobalPower commands are enabled. When port power is
disabled, CurrentConnectStatus, PortEnableStatus, PortSuspendStatus,
and PortResetStatus should be reset.
0
port power is off
1
port power is on
(write)SetPortPower
The HCD ites a  to set the PotPoeStatus it. Witig a  has o
effect.
Note: This it is alas eads  if poe sithig is ot supported.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 620
7:5
/
/
0x0
Reserved
4
R/W
R/W
0x0
(read)PortResetStatus
When this bit is set by a write to SetPortReset, port reset signaling is
asserted. When reset is completed, this bit is cleared when
PortResetStatusChange is set. This bit cannot be set if
CurrentConnectStatus is cleared.
0
port reset signal is not active
1
port reset signal is active
(write)SetPortReset
The HCD sets the pot eset sigalig  itig a  to this it. Witig a
 has o effet. If CuetCoetStatus is leaed, this write does not
set PortResetStatus, but instead sets ConnectStatusChange. This informs
the driver that it attempted to reset a disconnected port.
3
R/W
R/W
0x0
(read)PortOverCurrentIndicator
This bit is only valid when the Root Hub is configured in such a way that
overcurrent conditions are reported on a per-port basis. If per-port
overcurrent reporting is not supported, this bit is set to 0. If cleared, all
power operations are normal for this port. If set, an overcurrent condition
exists on this port. This bit always reflects the overcurrent input signal.
0
no overcurrent condition.
1
overcurrent condition detected.
(write)ClearSuspendStatus
The HCD ites a  to iitiate a esue. Witig a  has o effet. A
resume is initiated only if PortSuspendStatus is set.
2
R/W
R/W
0x0
(read)PortSuspendStatus
This bit indicates the port is suspended or in the resume sequence. It is
set by a SetSuspendState write and cleared when
PortSuspendStatusChange is set at the end of the resume interval. This bit
cannot be set if CurrentConnectStatus is cleared. This bit is also cleared
when PortResetStatusChange is set at the end of the port reset or when
the HC is placed in the USBRESUME state. If an upstream resume is in
progress, it should propagate to the HC.
0
port is not suspended
1
port is suspended
(write)SetPortSuspend
The HCD sets the PotSuspedStatus it  itig a  to this it. Witig
a  has o effet. If CuetCoetStatus is leaed, this ite does ot
set PortSuspendStatus; instead it sets ConnectStatusChange. This informs
the driver that it attempted to suspend a disconnected port.
1
R/W
R/W
0x0
(read)PortEnableStatus
This bit indicates whether the port is enabled or disabled. The Root Hub
may clear this bit when an overcurrent condition, disconnect event,
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 621
switched-off power, or operational bus error such as babble is detected.
This change also causes PortEnabledStatusChange to be set. HCD sets this
bit by writing SetPortEnable and clears it by writing ClearPortEnable. This
bit cannot be set when CurrentConnectStatus is cleared. This bit is also
set, if not already, at the completion of a port reset when
ResetStatusChange is set or port suspend when
SuspendStatusChange is set.
0
port is disabled
1
port is enabled
(write)SetPortEnable
The HCD sets PotEaleStatus  itig a . Witig a  has o effet.
If CurrentConnectStatus is cleared, this write does not set
PortEnableStatus, but instead sets ConnectStatusChange. This informs the
driver that it attempted to enable a disconnected Port.
0
R/W
R/W
0x0
(read)CurrentConnectStatus
This bit reflects the current state of the downstream port.
0
No device connected
1
Device connected
(write)ClearPortEnable
The HCD ites a  to lea the PotEaleStatus it. Witig  has o
effect. The CurrentConnectStatus is not affected by any write.
Note: This it is alas ead  he the attahed deie is
nonremovalble(DviceRemoveable[NumberDownstreamPort]).
9.5.2.7. HCI Interface Control and Status Register Description
9.5.2.7.1. HCI Interface Control Register(Default Value: 0x0000_0000)
Offset: 0x800
Register Name: HCI_ICR
Bit
Read/Write
Default/Hex
Description
31:21
/
/
Reserved.
20
R/W
0x0
EHCI HS force
Set 1 to this field force the ehci enter the high speed mode during bus reset.
This field only valid when the bit 1 is set.
19:18
/
/
/
17
R/W
0x0
HSIC Connect detect
1 in this field enable the hsic phy to detect device connect pulse on the bus.
This field only valid when the bit 1 is set.
16
R/W
0x0
HSIC Connect Interrupt Enable
Enable the HSIC connect interrupt.
This field only valid when the bit 1 is set.
15:13
/
/
/
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 622
12
/
/
/
11
R/W
0x0
AHB Master interface INCR16 enable
1: Use INCR16 when appropriate
0: Do not use INCR16,use other enabled INCRX or unspecified length burst
INCR
10
R/W
0x0
AHB Master interface INCR8 enable
1: Use INCR8 when appropriate
0: do not use INCR8,use other enabled INCRX or unspecified length burst INCR
9
R/W
0x0
AHB Master interface burst type INCR4 enable
1: Use INCR4 when appropriate
0: do not use INCR4,use other enabled INCRX or unspecified length burst INCR
8
R/W
0x0
AHB Master interface INCRX align enable
1: Start INCRx burst only on burst x-align address
0: Start burst on any double word boundary
Note: This bit must enable if any bit of 11:9 is enabled
7:2
/
/
Reserved
1
R/W
0x0
HSIC
0:/
1:HSIC
This meaning is only valid when the controller is HCI1.
0
R/W
0x0
ULPI bypass enable
1: Enable UTMI interface, disable ULPI interface(SP used utmi
interface)
0: Enable ULPI interface, disable UTMI interface
9.5.2.7.2. HSIC status Register(Default Value: 0x0000_0000)
Offset: 0x804
Register Name: HSIC_STATUS
Bit
Read/Write
Default/Hex
Description
31:17
/
/
/
16
R/W
0x0
HSIC Connect Status
1 in this field indicates a device connect pulse being detected on the bus. This
field only valid when the EHCI HS force bit and the HSIC Phy Select bit is set.
When the HSIC Connect Interrupt Enable is set, 1 in this bit will generate an
interrupt to the system.
This register is valid on HCI1.
15:0
/
/
/
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 623
9.5.2.8. USB Host Clock Requirement
Name
Description
HCLK
System clock (provided by AHB bus clock). This clock needs to be >30MHz.
CLK60M
Clock from PHY for HS SIE, is constant to be 60MHz.
CLK48M
Clock from PLL for FS/LS SIE, is constant to be 48MHz.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 624
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 625
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 626
9.6. SCR
9.6.1. Overview
The Smart Card Reader (SCR) is a communication controller that transmits data between the system and Smart Card.
The controller can perform a complete smart card session, including card activation, card deactivation. cold/warm reset,
Answer to Reset (ATR) response reception, data transfers, etc.
Features:
Supports APB slave interface for easy integration with AMBA-based host systems
Supports the ISO/IEC 7816-3:1997(E) and EMV2000 (4.0) Specifications
Performs functions needed for complete smart card sessions, including:
- Card activation and deactivation
- Cold/warm reset
- Answer to Reset (ATR) response reception
- Data transfers to and from the card
Supports adjustable clock rate and bit rate
Configurable automatic byte repetition
Supports commonly used communication protocols:
- T=0 for asynchronous half-duplex character transmission
- T=1 for asynchronous half-duplex block transmission
Supports FIFOs for receive and transmit buffers (up to 128 characters) with threshold
Supports configurable timing functions:
- Smart card activation time
- Smart card reset time
- Guard time
- Timeout timers
Supports synchronous and any other non-ISO 7816 and non-EMV cards
9.6.2. Block Diagram
The top diagram of Smart Card Reader is below.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 627
Smart Card Reader
APB
SCR
Registers
TX FIFO
RX FIFO
SCR
Clock
Generator
SCR
Controller
SCR
Interface
SCR_Det
SCR_Vpppp
SCR_Vppen
SCR_Vcc
SCR_Clk
SCR_Rst
SCR_IO
Figure 9-9. SCR Block Diagram
9.6.3. Operations and Functional Descriptions
9.6.3.1. External Signals
The following table describes the external signals of SCR.
Table 9-9. SCR External Signals
Pin Name
Description
Type
SIM0_PWREN
Smart Card 0 Power Enable
O
SIM0_CLK
Smart Card 0 Clock
O
SIM0_DATA
Smart Card 0 Data
I/O
SIM0_RST
Smart Card 0 Reset
O
SIM0_DET
Smart Card 0 Detect
I
SIM0_VPPEN
Smart Card 0 Program Voltage Enable
O
SIM0_VPPPP
Smart Card 0 Program Control
O
SIM1_PWREN
Smart Card 1 Power Enable
O
SIM1_CLK
Smart Card 1 Clock
O
SIM1_DATA
Smart Card 1 Data
I/O
SIM1_RST
Smart Card 1 Reset
O
SIM1_DET
Smart Card 1 Detect
I
SIM1_VPPEN
Smart Card 1 Program Voltage Enable
O
SIM1_VPPPP
Smart Card 1 Program Control
O
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 628
9.6.3.2. SCR Timing Diagram
Please refer ISO/IEC 7816 and EMV2000 Specification.
9.6.3.3. Clock Generator
The Clock Generator generates the SCR clock signal and the Baud Clock Impulse signal, used in the timing of SCR.
The SCR clock signal is used as the main clock for the Smart Card. Its frequency can be adjusted using the Smart Card
Clock Divisor (SCCDIV). This value is used to divide the system clock. The SCCLK frequency is given by the following
equation:
2 * ( 1)
sy sc lk
sc clk
f
fSC C D IV
scc lk
f
-- Smart Card Clock Frequency
sys clk
f
-- System Clock (PCLK) Frequency
The Baud Clock Impulse signal is used to transmit and receive serial between the SCR and the Smart Card. The baud rate
can be modified using the Baud Clock Divisor (BAUDDIV). The value is used to divide the system clock. The BUAD rate is
given by the following equation:
2 * ( 1)
sy sc lk
f
B A U D B A U D D IV
B A U D
-- Baud rate of the data stream between Smart Card and Reader.
The duration of one bit, Elementary Time Unit (ETU), is defined in the ISO/IEC 7816-3 specification. During the first
answer to reset response after the cold reset, the initial ETU must be equal to 372 Smart Card Clock Cycles.
1 37 2
sc clk
E T U
B A U D f

In this case, the BAUDDIV should be
3 7 2 * 1 3 7 2 * ( 1) 1
2*
sy sclk
sc c lk
f
B A U D D IV S C C D IV
f
 
.
After the ATR is completed, the ETU can be changed according to Smart Card abilities.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 629
11
*
sc clk
F
E T U
B A U D D f

Parameters F and D are defined in the ISO/IEC 7816-3 Specification.
9.6.3.4. SCIO Pad Configuration
Figure 9-10. SCIO Pad Configuration Diagram
9.6.4. Register List
Module Name
Base Address
SCR0
0x01C2C400
SCR1
0x01C2C800
Register Name
Offset
Description
SCR_CSR
0x0000
Smart Card Reader Control and Status Register
SCR_INTEN
0x0004
Smart Card Reader Interrupt Enable Register 1
SCR_INTST
0x0008
Smart Card Reader Interrupt Status Register 1
SCR_FCSR
0x000C
Smart Card Reader FIFO Control and Status Register
SCR_FCNT
0x0010
Smart Card Reader RX and TX FIFO Counter Register
SCR_RPT
0x0014
Smart Card Reader RX and TX Repeat Register
SCR_DIV
0x0018
Smart Card Reader Clock and Baud Divisor Register
SCR_LTIM
0x001C
Smart Card Reader Line Time Register
SCR_CTIM
0x0020
Smart Card Reader Character Time Register
SCR_LCTLR
0x0030
Smart Card Reader Line Control Register
SCR_FIFO
0x0100
Smart Card Reader RX and TX FIFO Access Point
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 630
9.6.5. Register Description
9.6.5.1. Smart Card Reader Control and Status Register (Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: SCR_CSR
Bit
Read/Write
Default/Hex
Description
31
R
0x0
SCDET
Smart Card Detected
This it is set to  he the sdetet iput is atie at least fo a deoue
time.
30
/
/
/
24
R/W
0x0
SCDETPOL
Smart Card Detect Polarity
This bit set polarity of scdetect signal.
0: Low Active
1: High Active
23:22
R/W
0x0
Protocol Selection (PTLSEL)
00: T=0.
01: T=1, no character repeating and no guard time is used when T=1
protocol is selected.
10: Reserved
11: Reserved
21
R/W
0x0
ATRSTFLUSH
ATR Start Flush FIFO
When enabled, both FIFOs are flushed before the ATR is started.
20
R/W
0x0
TSRXE
TS Receive Enable
Whe set to , the TS haate the fist ATR haate ill e stoed in
RXFIFO during card session.
19
R/W
0x0
CLKSTPPOL
Clock Stop Polarity
The value of the scclk output during the clock stop state.
18
R/W
0x0
PECRXE
Parity Error Character Receive Enable
Enables storage of the characters received with wrong parity in RX FIFO.
17
R/W
0x0
MSBF
MSB First
When high, inverse bit ordering convention (msb to lsb) is used.
16
R/W
0x0
DATAPOL
Data Plorarity
Whe high, iese leel oetio is used A=, Z=.
15:12
/
/
/
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 631
11
R/W
0x0
DEACT
Deactivation.
Setting of this bit initializes the deactivation sequence. When the
deactivation is finished, the DEACT bit is automatically cleared.
10
R/W
0x0
ACT
Activation.
Setting of this bit initializes the activation sequence. When the activation is
finished, the ACT bit is automatically cleared.
9
R/W
0x0
WARMRST
Warm Reset Command.
Witig to this it iitializes Wa Reset of the Sat Cad. This it is
alas ead as .
8
R/W
0x0
CLKSTOP
Clock Stop.
When this bit is asserted and the Smart Cad I/O lie is i Z state, the SCR
core stops driving of the Smart Card clock signal after the CLKSTOPDELAY
time expires. The Smart Card clock is restarted immediately after the
CLKSTOP signal is deasserted. New character transmission can be started
after CLKSTARTDELAY time. The expiration of both times is signaled by the
CLKSTOPRUN bit in the interrupt registers.
7:3
/
/
Reserved
2
R/W
0x0
GINTEN
Global Interrupt Enable.
When high, IRQ output assertion is enabled.
1
R/W
0x0
RXEN
Receiving Enable.
When enabled the characters sent by the Smart Card are received by the
UART and stored in RX FIFO. Receiving is internally disabled while a
transmission is in progress.
0
R/W
0x0
TXEN
Transmission Enable.
When enabled the characters are read from TX FIFO and transmitted
through UART to the Smart Card.
9.6.5.2. Smart Card Reader Interrupt Enable Register (Default Value: 0x0000_0000)
Offset: 0x0004
Register Name: SCR_INTEN
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23
R/W
0x0
SCDEA
Smart Card Deactivation Interrupt Enable.
22
R/W
0x0
SCACT
Smart Card Activation Interrupt Enable.
21
R/W
0x0
SCINS
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 632
Smart Card Inserted Interrupt Enable.
20
R/W
0x0
SCREM
Smart Card Removed Interrupt Enable.
19
R/W
0x0
ATRDONE
ATR Done Interrupt Enable.
18
R/W
0x0
ATRFAIL
ATR Fail Interrupt Enable.
17
R/W
0x0
C2CFULL
Two Consecutive Characters Limit Interrupt Enable.
16
R/W
0x0
CLKSTOPRUN
Smart Card Clock Stop/Run Interrupt Enable.
15:13
/
/
/
12
R/W
0x0
RXPERR
RX Parity Error Interrupt Enable.
11
R/W
0x0
RXDONE
RX Done Interrupt Enable.
10
R/W
0x0
RXFIFOTHD
RX FIFO Threshold Interrupt Enable.
9
R/W
0x0
RXFIFOFULL
RX FIFO Full Interrupt Enable.
8
/
/
/
7:5
/
/
/
4
R/W
0x0
TXPERR
TX Parity Error Interrupt Enable.
3
R/W
0x0
TXDONE
TX Done Interrupt Enable.
2
R/W
0x0
TXFIFOTHD
TX FIFO Threshold Interrupt Enable.
1
R/W
0x0
TXFIFOEMPTY
TX FIFO Empty Interrupt Enable.
0
R/W
0x0
TXFIFODONE
TX FIFO Done Interrupt Enable.
9.6.5.3. Smart Card Reader Interrupt Status Register(Default Value: 0x0000_0000)
Offset: 0x0008
Register Name: SCR_INTST
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23
R/W
0x0
SCDEA
Smart Card Deactivation Interrupt.
When enabled, this interrupt is asserted after the Smart Card deactivation
sequence completed.
22
R/W
0x0
SCACT
Smart Card Activation Interrupt.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 633
When enabled, this interrupt is asserted after the Smart Card activation
sequence completed.
21
R/W
0x0
SCINS
Smart Card Inserted Interrupt.
When enabled, this interrupt is asserted after the Smart Card inserted.
20
R/W
0x0
SCREM
Smart Card Removed Interrupt.
When enabled, this interrupt is asserted after the Smart Card removed.
19
R/W
0x0
ATRDONE
ATR Done Interrupt.
When enabled, this interrupt is asserted after the ATR sequence
successfully completed.
18
R/W
0x0
ATRFAIL
ATR Fail Interrupt.
When enabled, this interrupt is asserted if the ATR sequence fails.
17
R/W
0x0
C2CFULL
Two Consecutive Characters Limit Interrupt.
When enabled, this interrupt is asserted if the time between two
consecutive characters, transmitted between the Smart Card and the
Reader in both directions, is equal the Two Characters Delay Limit described
below. The C2CFULL interrupt is internally enabled from the ATR start to
the deactivation or ATR restart initialization. It is recommended to use this
counter to detect unresponsive Smart Cards.
16
R/W
0x0
CLKSTOPRUN
Smart Card Clock Stop/Run Interrupt.
When enabled, this interrupt is asserted in two cases:
- When the Smart Card clock is stopped.
- When the new character can be started after the clock restart.
To distinguish between the two interrupt cases, we recommend reading the
CLKSTOP bit in SCR_CSR register.
15:13
/
/
/
12
R/W
0x0
RXPERR
RX Parity Error Interrupt.
When enabled, this interrupt is asserted after the character with wrong
parity was received when the number of repeated receptions exceeds
RXREPEAT value or T=1 protocol is used.
11
R/W
0x0
RXDONE
RX Done Interrupt.
When enabled, this interrupt is asserted after a character was received
from the Smart Card.
10
R/W
0x0
RXFIFOTHD
RX FIFO Threshold Interrupt.
When enabled, this interrupt is asserted if the number of bytes in RX FIFO is
equal or exceeds the RX FIFO threshold.
9
R/W
0x0
RXFIFOFULL
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 634
RX FIFO Full Interrupt.
When enabled, this interrupt is asserted if the RX FIFO is filled up.
8
/
/
/
7:5
/
/
/
4
R/W
0x0
TXPERR
TX Parity Error Interrupt.
When enabled, this interrupt is asserted if the Smart Card signals wrong
character parity during the guard time after the character transmission was
repeated TXREPEAT times or T=1 protocol is used.
3
R/W
0x0
TXDONE
TX Done Interrupt.
When enabled, this interrupt is asserted after one character was
transmitted to the Smart Card.
2
R/W
0x0
TXFIFOTHD
TX FIFO Threshold Interrupt.
When enabled, this interrupt is asserted if the number of bytes in TX FIFO is
equal or less than the TX FIFO threshold.
1
R/W
0x0
TXFIFOEMPTY
TX FIFO Empty Interrupt.
When enabled, this interrupt is asserted if the TX FIFO is emptied out.
0
R/W
0x0
TXFIFODONE
TX FIFO Done Interrupt.
When enabled, this interrupt is asserted after all bytes from TX FIFO are
transferred to the Smart Card.
Note: This register provides information about the state of each interrupt bit. You can clear the register bits individually
 itig  to a it ou ited to lea.
9.6.5.4. Smart Card Reader FIFO Control and Status Register(Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: SCR_FCSR
Bit
Read/Write
Default/Hex
Description
31:11
/
/
/
10
R/W
0x0
RXFIFOFLUSH
Flush RX FIFO. RX FIFO is flushed, he  is itte to this it.
9
R
0x0
RXFIFOFULL
RX FIFO Full.
8
R
0x1
RXFIFOEMPTY
RX FIFO Empty.
7:3
/
/
/
2
R/W
0x0
TXFIFOFLUSH
Flush TX FIFO. TX FIFO is flushed, he  is itte to this it.
1
R
0x0
TXFIFOFULL
TX FIFO Full.
0
R
0x1
TXFIFOEMPTY
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 635
TX FIFO Empty.
9.6.5.5. Smart Card Reader FIFO Counter Register(Default Value: 0x0000_0000)
Offset: 0x0010
Register Name: SCR_FIFOCNT
Bit
Read/Write
Default/Hex
Description
31:24
R/W
0x0
RXFTH
RX FIFO Threshold
These bits set the interrupt threshold of RX FIFO. The interrupt is asserted
when the number of bytes it receives is equal to, or exceeds the threshold.
23:16
R/W
0x0
TXFTH
TX FIFO Threshold
These bits set the interrupt threshold of TX FIFO. The interrupt is asserted
when the number of bytes in TX FIFO is equal to or less than the threshold.
15:8
R
0x0
RXFCNT
RX FIFO Counter
These bits provide the number of bytes stored in the RXFIFO.
7:0
R
0x0
TXFCNT
TX FIFO Counter
These bits provide the number of bytes stored in the TXFIFO.
9.6.5.6. Smart Card Reader Repeat Control Register(Default Value: 0x0000_0000)
Offset: 0x0014
Register Name: SCR_REPEAT
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:4
R/W
0x0
RXRPT
RX Repeat
This is a 4-bit register that specifies the number of attempts to request
character re-transmission after wrong parity was detected. The
re-transmission of the character is requested using the error signal during
the guard time.
3:0
R/W
0x0
TXRPT
TX Repeat
This is a 4-bit register that specifies the number of attempts to re-transmit
the character after the Smart Card signals the wrong parity during the guard
time.
9.6.5.7. Smart Card Reader Clock Divisor Register(Default Value: 0x0000_0000)
Offset: 0x0018
Register Name: SCR_CLKDIV
Bit
Read/Write
Default/Hex
Description
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 636
31:16
R/W
0x0
BAUDDIV
Baud Clock Divisor.
This 16-bit register defines the divisor value used to generate the Baud
Clock impulses from the system clock.
2 * ( 1)
sy sc lk
f
B A U D B A U D D IV
15:0
R/W
0x0
SCCDIV
Smart Card Clock Divisor.
This 16-bit register defines the divisor value used to generate the Smart
Card Clock from the system clock.
2 * ( 1)
sy sc lk
sc clk
f
fSC C D IV
scc lk
f
is the frequency of Smart Card Clock Signal.
sys clk
f
is the frequency of APB Clock.
9.6.5.8. Smart Card Reader Line Time Register(Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: SCR_LTIM
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:16
R/W
0x0
ATR
ATR Start Limit.
This 16-bit register defines the maximum time between the rising edge of
the scrstn signal and the start of ATR response.
ATR Start Limit = 128* ATR*Tscclk
15:8
R/W
0x0
RST
Reset Duration.
This 16-bit register sets the duration of the Smart Card reset sequence. This
value is same for the cold and warm reset.
Cold/Warm Reset Duration = 128* RST* Tscclk
7:0
R/W
0x0
ACT
Activation/Deactivation Time.
This 16-bit register sets the duration of each part of the activation and
deactivation sequence.
Activation/Deactivation Duration = 128* ACT * Tscclk
1
sc clk
sc clk
Tf
is the Smart Card Clock Cycle.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 637
9.6.5.9. Smart Card Reader Character Time Register(Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: SCR_CTIM
Bit
Read/Write
Default/Hex
Description
31:16
R/W
0x0
CHARLIMIT
Character Limit.
This 16-bit register sets the maximum time between the leading edges of
two consecutive characters. The value is ETUs.
15:8
/
/
/
7:0
R/W
0x0
GUARDTIME
Character Guard time.
This 8-bit register sets a delay at the end of each character transmitted from
the Smart Card Reader to the Smart Card. The value is in ETUs. The parity
error is besides signaled during the guard time.
9.6.5.10. Smart Card Reader Line Control Register(Default Value: 0x0000_0000)
Offset: 0x0030
Register Name: SCR_PAD
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7
R/W
0x0
DSCVPPPP
Direct Smart Card Vpp Pause/Prog.
It provides direct access to SCVPPPP output.
6
R/W
0x0
DSCVPPEN
Direct Smart Card Vpp Enable.
It provides direct access to SCVPPEN output.
5
R/W
0x0
AUTOADEAVPP
Automatic Vpp Handling.
When high, it enables automatic handling of DSVPPEN and DSVPPPP signals
during activation and deactivation sequence.
4
R/W
0x0
DSCVCC
Direct Smart Card VCC.
Whe DIRACCPADS=, the DSCVCC it poides direct access to SCVCC
pad.
3
R/W
0x0
DSCRST
Direct Smart Card Clock.
Whe DIRACCPADS=, the DSCRST it poides diet aess to SCRST pad.
2
R/W
0x0
DSCCLK
Direct Smart Card Clock.
Whe DIRACCPADS=, the DSCCLK it poides diet aess to SCCLK pad.
1
R/W
0x0
DSCIO
Direct Smart Card Input/Output.
Whe DIRACCPADS=, the DSCIO it poides diet aess to SCIO pad.
0
R/W
0x0
DIRACCPADS
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 638
Direct Access to Smart Card Pads.
When high, it disables a serial interface functionality and enables direct
control of the Smart Card pads using following 4 bits.
Note: This register provides direct access to Smart Card pads without serial interface assistance. You can use this
register feature with synchronous and any other non-ISO 7816 and non-EMV cards.
9.6.5.11. Smart Card Reader FIFO Data Register(Default Value: 0x0000_0000)
Offset: 0x0100
Register Name: SCR_FIFO
Bit
Read/Write
Default/Hex
Description
31:8
/
/
/
7:0
R/W
0x0
FIFO_DATA
This 8-bit register provides access to the RX and TX FIFO buffers. The TX
FIFO is accessed during the APB write transfer. The RX FIFO is accessed
during the APB read transfer.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 639
9.7. EMAC
9.7.1. Overview
The Ethernet MAC(EMAC) controller enables a host to transmit and receive data over Ethernet in compliance with the
IEEE 802.3-2002 standard. It supports 10M/100M/1000M external PHY with MII/ RGMII interface in both full and half
duplex mode. The Ethernet MAC-DMA is designed for packet-oriented data transfers based on a linked list of descriptors.
4K Byte TXFIFO and 16K Byte RXFIFO are provided to keep continuous transmission and reception. Flow Control, CRC
Pad & Stripping, and address filtering are also supported in this module.
Features:
Supports 10/100/1000Mbps data transfer rates
Supports MII/RGMII PHY interface
Supports both full-duplex and half-duplex operation
Programmable frame length to support Standard or Jumbo Ethernet frames with sizes up to 16 KB
Supports a variety of flexible address filtering modes
Separate 32-bit status returned for transmission and reception packets
Optimization for packet-oriented DMA transfers with frame delimiters
Supports linked-list (chained) descriptor chaining
Descriptor architecture, allowing large blocks of data transfer with minimum CPU intervention; each descriptor can
transfer up to 4 KB of data
Comprehensive status reporting for normal operation and transfers with errors
4KB TXFIFO for transmission packets and 16KB RXFIFO for reception packets
Programmable interrupt options for different operational conditions
9.7.2. Block Diagram
The EMAC Controller block diagram is shown below:
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 640
EMAC
TXFIFO RXFIFO
TXFC RXFCDMA
DMA CSR
MAC CSR
OMR Register
AHB
Master
AHB Slave
MII
RGMII
PHY
Interface
RMII
Figure 9-11. EMAC Block Diagram
9.7.3. Operations and Functional Descriptions
9.7.3.1. External Signals
The following table describes the pin list of EMAC.
Table 9-10. EMAC External Signals
Pin Name
Description
Type
RGMII_RXD3/MII_RXD3
/RMII_NULL
RGMII/MII Receive Data
I
RGMII_RXD2/MII_RXD2/
RMII_NULL
RGMII/MII Receive Data
I
RGMII_RXD1/MII_RXD1/
RMII_RXD1
RGMII/MII/RMII Receive Data
I
RGMII_RXD0/MII_RXD0/
RMII_RXD0
RGMII/MII/RMII Receive Data
I
RGMII_RXCK/MII_RXCK/
RMII_NULL
RGMII/MII Receive Clock
I
RGMII_RXCTL/MII_RXDV/
RMII_CRS_DV
RGMII Receive Control/MII Receive Enable/RMII Carrier
Sense-Receive Data Valid
I
RGMII_NULL/MII_RXERR/
RMII_RXER
MII/RMII Receive Error
I
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 641
RGMII_TXD3/MII_TXD3/
RMII_NULL
RGMII/MII Transmit Data
O
RGMII_TXD2/MII_TXD2/
RMII_NULL
RGMII/MII Transmit Data
O
RGMII_TXD1/MII_TXD1/
RMII_TXD1
RGMII/MII/RMII Transmit Data
O
RGMII_TXD0/MII_TXD0/
RMII_TXD0
RGMII/MII/RMII Transmit Data
O
RGMII_NULL/MII_CRS/
RMII_NULL
MII Carrier Sense
I
RGMII_TXCK/MII_TXCK/
RMII_TXCK
RGMII/MII/RMII Transmit Clock: Output Pin for RGMII, Input
Pin for MII/RMII
I/O
RGMII_TXCTL/MII_TXEN/
RMII_TXEN
RGMII Transmit Control/MII Transmit Enable/RMII Transmit
Enable: Output Pin for RGMII/RMII, Input Pin for MII
I/O
RGMII_NULL/MII_TXERR/
RMII_NULL
MII Transmit Error
O
RGMII_CLKIN/MII_COL/
RMII_NULL
RGMII Transmit Clock from External/MII Collision Detect
I
MDC
RGMII/MII/RMII Management Data Clock
O
MDIO
RGMII/MII/RMII Management Data Input and Output
I/O
9.7.3.2. EMAC RX/TX Descriptor
The internal DMA of EMAC transfers data between host memory and internal RX/TX FIFO with a linked list of descriptors.
Each descriptor is consisted of four words, and contains some necessary information to transfer TX and RX frames. The
descriptor list structure is shown in figure 9-12. The address of each descriptor must be 32-bit aligned.
4th: Next Desc
1st: Status
2nd: Buffer Size
2rd: Buffer Addr
1st Desc 2nd Desc 3rd Desc N-th Desc
…
Desc List Base Addr
4th: Next Desc
1st: Status
2nd: Buffer Size
2rd: Buffer Addr
4th: Next Desc
1st: Status
2nd: Buffer Size
2rd: Buffer Addr
4th: Next Desc
1st: Status
2nd: Buffer Size
2rd: Buffer Addr
Figure 9-12. EMAC RX/TX Descriptor List
9.7.3.3. Transmit Descriptor
(1).1st Word of Transmit Descriptor
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 642
Bits
Description
31
TX_DESC_CTL
When set, current descriptor can be used by DMA. This bit is cleared by DMA when the whole frame is transmitted
o all data i uet desiptos uffe ae tasitted.
30:17
Reserved
16
TX_HEADER_ERR
Whe set, the heksu of tasitted faes heade is og.
15
Reserved
14
TX_LENGHT_ERR
When set, the length of transmitted frame is wrong.
13
Reserved
12
TX_PAYLOAD_ERR
Whe set, the heksu of tasitted faes paload is og.
11
Reserved
10
TX_CRS_ERR
When set, carrier is lost during transmission.
9
TX_COL_ERR_0
When set, the frame is aborted because of collision after contention period.
8
TX_COL_ERR_1
When set, the frame is aborted because of too many collisions.
7
Reserved.
6:3
TX_COL_CNT
The number of collisions before transmission.
2
TX_DEFER_ERR
When set, the frame is aborted because of too much deferral.
1
TX_UNDERFLOW_ERR
When set, the frame is aborted because of TX FIFO underflow error.
0
TX_DEFER
When set in Half-Duplex mode, the EMAC defers the frame transmission.
(2).2nd Word of Transmit Descriptor
Bits
Description
31
TX_INT_CTL
When set and the current frame have been transmitted, the TX_INT in Interrupt Status Register will be set.
30
LAST_DESC
When set, current descriptor is the last one for current frame.
29
FIR_DESC
When set, current descriptor is the first one for current frame.
28:27
CHECKSUM_CTL
These bits control to insert checksums in transmit frame.
26
CRC_CTL
When set, CRC field is not transmitted.
25:11
Reserved
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 643
10:0
BUF_SIZE
The size of buffer specified by current descriptor.
(3).3rd Word of Transmit Descriptor
Bits
Description
31:0
BUF_ADDR
The address of buffer specified by current descriptor.
(4).4th Word of Transmit Descriptor
Bits
Description
31:0
NEXT_DESC_ADDR
The address of next descriptor. It must be 32-bit aligned.
9.7.3.4. Receive Descriptor
(1).1st Word of Receive Descriptor
Bits
Description
31
RX_DESC_CTL
When set, current descriptor can be used by DMA. This bit is cleared by DMA when complete frame is received or
uet desiptos uffe is full.
30
RX_DAF_FAIL
Whe set, uet fae dot pass DA filte.
29:16
RX_FRM_LEN
When LAST_DESC is not set and no error bit is set, this field is the length of received data for current frame.
When LAST_DESC is set, RX_OVERFLOW_ERR and RX_NO_ENOUGH_BUF_ERR are not set, this field is the length of
receive frame.
15
Reserved
14
RX_NO_ENOUGH_BUF_ERR
When set, current frame is clipped because of no enough buffer.
13
RX_SAF_FAIL
Whe set, uet fae dot pass SA filte.
12
Reserved.
11
RX_OVERFLOW_ERR
When set, a buffer overflow error occurred and current frame is wrong.
10
Reserved
9
FIR_DESC
When set, current descriptor is the first descriptor for current frame.
8
LAST_DESC
When set, current descriptor is the last descriptor for current frame.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 644
7
RX_HEADER_ERR
Whe set, the heksu of faes heade is og.
6
RX_COL_ERR
When set, there is a late collision during reception in half-duplex mode.
5
Reserved.
4
RX_LENGTH_ERR
When set, the length of current frame is wrong.
3
RX_PHY_ERR
When set, the receive error signal from PHY is asserted during reception.
2
Reserved.
1
RX_CRC_ERR
When set, the CRC filed of received frame is wrong.
0
RX_PAYLOAD_ERR
Whe set, the heksu o legth of eeied faes paload is og.
(2).2nd Word of Receive Descriptor
Bits
Description
31
RX_INT_CTL
When set and a frame have been received, the RX_INT will not be set.
30:11
Reserved
10:0
BUF_SIZE
The size of buffer specified by current descriptor.
(3).3rd Word of Receive Descriptor
Bits
Description
31:0
BUF_ADDR
The address of buffer specified by current descriptor.
(4).4th Word of Receive Descriptor
Bits
Description
31:0
NEXT_DESC_ADDR
The address of next descriptor. This field must be 32-bit aligned.
9.7.4. Register List
Module Name
Base Address
EMAC
0x01C30000
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 645
Register Name
Offset
Description
BASIC_CTL_0
0x0000
Basic Control 0 Register
BASIC_CTL_1
0x0004
Basic Control 1 Register
INT_STA
0x0008
Interrupt Status Register
INT_EN
0x000C
Interrupt Enable Register
TX_CTL_0
0x0010
Transmit Control 0 Register
TX_CTL_1
0x0014
Transmit Control 1 Register
TX_FLOW_CTL
0x001C
Transmit Flow Control Register
TX_DMA_DESC_LIST
0x0020
Transmit Descriptor List Address Register
RX_CTL_0
0x0024
Receive Control 0 Register
RX_CTL_1
0x0028
Receive Control 1 Register
RX_DMA_DESC_LIST
0x0034
Receive Descriptor List Address Register
RX_FRM_FLT
0x0038
Receive Frame Filter Register
RX_HASH_0
0x0040
Hash Table 0 Register
RX_HASH_1
0x0044
Hash Table 1 Register
MII_CMD
0x0048
Management Interface Command Register
MII_DATA
0x004C
Management Interface Data Register
ADDR_HIGH_0
0x0050
MAC Address High Register 0
ADDR_LOW_0
0x0054
MAC Address High Register 0
ADDR_HIGH_x
0x0050+n*0x08
MAC Address High Register n(n=1~7)
ADDR_LOW_x
0x0054+n*0x08
MAC Address Low Register n(n=1~7)
TX_DMA_STA
0x00B0
Transmit DMA Status Register
TX_CUR_DESC
0x00B4
Current Transmit Descriptor Register
TX_CUR_BUF
0x00B8
Current Transmit Buffer Address Register
RX_DMA_STA
0x00C0
Receive DMA Status Register
RX_CUR_DESC
0x00C4
Current Receive Descriptor Register
RX_CUR_BUF
0x00C8
Current Receive Buffer Address Register
RGMII_STA
0x00D0
RGMII Status Register
9.7.5. Register Description
9.7.5.1. Basic Control 0 Register(Default Value: 0x0000_0000)
Offset: 0x0000
Register Name: BASIC_CTL_0
Bit
Read/Write
Default/Hex
Description
31:4
/
/
/
3:2
R/W
0x0
SPEED
00: 1000Mbps
11: 100Mbps
10: 10Mbps
01: Reserved
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 646
1
R/W
0x0
LOOPBACK
0: Disable
1: Enable
0
R/W
0x0
DUPLEX
0: Half-duplex
1: Full-duplex
9.7.5.2. Basic Control 1 Register(Default Value: 0x0800_0000)
Offset: 0x0004
Register Name: BASIC_CTL_1
Bit
Read/Write
Default/Hex
Description
31:30
/
/
/
29:24
R/W
0x8
BURST_LEN
The burst length of RX and TX DMA transfer.
23:2
/
/
/
1
R/W
0x0
RX_TX_PRI
0: RX DMA and TX DMA have same priority
1: RX DMA has priority over TX DMA
0
R/W
0x0
SOFT_RST
When this bit is set, soft reset all registers and logic. All clock inputs must be
valid before soft rest. This bit is cleared internally when the reset operation
is completed fully. Before write any register, this bit should read a 0.
9.7.5.3. Interrupt Status Register(Default Value: 0x0000_0000)
Offset: 0x0008
Register Name: INT_STA
Bit
Read/Write
Default/Hex
Description
31:17
/
/
/
16
R
0x0
RGMII_LINK_STA_INT
When this bit is asserted, the link status of RGMII interface is changed.
15:14
/
/
/
13
R
0x0
RX_EARLY_INT
When this bit asserted, the RX DMA had filled the first data buffer of the
receive frame.
12
R
0x0
RX_OVERFLOW_INT
When this bit is asserted, the RX FIFO had an overflow error.
11
R
0x0
RX_TIMEOUT_INT
When this bit asserted, the length of receive frame is greater than 2048
bytes(10240 when JUMBO_FRM_EN is set)
10
R
0x0
RX_DMA_STOPPED_INT
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 647
When this bit asserted, the RX DMA FSM is stopped.
9
R
0x0
RX_BUF_UA_INT
Whe this asseted, the RX DMA at auie et RX desipto ad RX
DMA FSM is suspended. The ownership of next RX descriptor should be
changed to RX DMA. The RX DMA FSM will resume when write to
DMA_RX_START bit or next receive frame is coming.
8
R
0x0
RX_INT
When this bit is asserted, a frame reception is completed. The RX DMA FSM
remains in the running state.
7:6
/
/
/
5
R
0x0
TX_EARLY_INT
When this bit asserted , the frame is transmitted to FIFO totally.
4
R
0x0
TX_UNDERFLOW_INT
When this bit is asserted, the TX FIFO had an underflow error.
3
R
0x0
TX_TIMEOUT_INT
When this bit is asserted, the transmitter had been excessively active.
2
R
0x0
TX_BUF_UA_INT
When this asserted, the TX DMA can not acquire next TX descriptor and TX
DMA FSM is suspended. The ownership of next TX descriptor should be
changed to TX DMA. The TX DMA FSM will resume when write to
DMA_TX_START bit.
1
R
0x0
TX_DMA_STOPPED_INT
When this bit is asserted, the TX DMA FSM is stopped.
0
R
0x0
TX_INT
When this bit is asserted, a frame transmission is completed.
9.7.5.4. Interrupt Enable Register(Default Value: 0x0000_0000)
Offset: 0x000C
Register Name: INT_EN
Bit
Read/Write
Default/Hex
Description
31:14
/
/
/
13
R/W
0x0
RX_EARLY_INT_EN
0: Disable early receive interrupt enable
1: Enable early receive interrupt enable
12
R/W
0x0
RX_OVERFLOW_INT_EN
0: Disable overflow interrupt
1: Enable overflow interrupt
11
R/W
0x0
RX_TIMEOUT_INT_EN
0: Disable receive timeout interrupt
1: Enable receive timeout interrupt
10
R/W
0x0
RX_DMA_STOPPED_INT_EN
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 648
0: Disable receive DMA FSM stopped interrupt
1: Enable receive DMA FSM stopped interrupt
9
R/W
0x0
RX_BUF_UA_INT_EN
0: Disable receive buffer unavailable interrupt
1: Enable receive buffer unavailable interrupt
8
R/W
0x0
RX_INT_EN
0: Disable receive interrupt
1: Enable receive interrupt
7:6
5
R/W
0x0
TX_EARLY_INT_EN
0: Disable early transmit interrupt
1: Enable early transmit interrupt
4
R/W
0x0
TX_UNDERFLOW_INT_EN
0: Disable underflow interrupt
1: Enable underflow interrupt
3
R/W
0x0
TX_TIMEOUT_INT_EN
0: Disable transmit timeout interrupt
1: Enable transmit timeout interrupt
2
R/W
0x0
TX_BUF_UA_INT_EN
0: Disable transmit buffer available interrupt
1: Enable transmit buffer available interrupt
1
R/W
0x0
TX_DMA_STOPPED_INT_EN
0: Disable transmit DMA FSM stopped interrupt
1: Enable transmit DMA FSM stopped interrupt
0
R/W
0x0
TX_INT_EN
0: Disable transmit interrupt
1: Enable transmit interrupt
9.7.5.5. Transmit Control 0 Register(Default Value: 0x0000_0000)
Offset: 0x0010
Register Name: TX_CTL_0
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
TX_EN
Enable transmitter.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 649
0: Disable transmitter after current transmission
1: Enable
30
R/W
0x0
TX_FRM_LEN_CTL
0: Allow to transmit frames no more than 2,048 bytes (10,240 if
JUMBO_FRM_EN is set) and cut off any bytes after that
1: Allow to transmit frames of up to 16,384 bytes
29:0
/
/
/
9.7.5.6. Transmit Control 1 Register(Default Value: 0x0000_0000)
Offset: 0x0014
Register Name: TX_CTL_1
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
TX_DMA_START
When set this bit, the TX DMA FSM will go no to work. It is cleared internally
and always read a 0.
30
R/W
0x0
TX_DMA_EN
0: Stop TX DMA after the completion of current frame transmission.
1: Start and run TX DMA.
29:11
/
/
/
10:8
R/W
0x0
TX_TH
The threshold value of TX DMA FIFO. When TX_MD is 0, transmission starts
when the size of frame in TX DMA FIFO is greater than the threshold. In
addition, full frames with a length less than the threshold are transferred
automatically.
000: 64
001: 128
010: 192
011: 256
Others: Reserved
7:2
/
/
/
1
R/W
0x0
TX_MD
0: Transmission starts after the number of data in TX DAM FIFO is greater
than TX_TH
1: Transmission starts after a full frame located in TX DMA FIFO
0
R/W
0x0
FLUSH_TX_FIFO
The functionality that flush the data in the TX FIFO.
0: Enable
1: Disable
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 650
9.7.5.7. Transmit Flow Control Register(Default Value: 0x0000_0000)
Offset: 0x001C
Register Name: TX_FLOW_CTL
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
TX_FLOW_CTL_STA
This bit indicates a pause frame transmission is in progress. When the
configuration of flow control is ready, set this bit to transmit a pause frame
in full-duplex mode or activate the backpressure function. After completion
of transmission, this bit will be cleared automatically. Before write register
TX_FLOW_CTRL, this bit must be read as 0.
30:22
/
/
/
21:20
R/W
0x0
TX_PAUSE_FRM_SLOT
The threshold of the pause timer at which the input flow control signal is
checked for automatic retransmission of pause frame. The threshold values
should be always less than the PAUSE_TIME
19:4
R/W
0x0
PAUSE_TIME
The pause time field in the transmitted control frame.
3:2
/
/
/
1
R/W
0x0
ZQP_FRM_EN
When set, enable the functionality to generate Zero-Quanta Pause control
frame.
0
R/W
0x0
TX_FLOW_CTL_EN
When set, enable flow control operation to transmit pause frames in
full-duplex mode, or enable the back-pressure operation in half-duplex
mode.
0: Disable
1: Enable
9.7.5.8. Transmit DMA Descriptor List Address Register(Default Value: 0x0000_0000)
Offset: 0x0020
Register Name: TX_DMA_LIST
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
TX_DESC_LIST
The base address of transmit descriptor list. It must be 32-bit aligned.
9.7.5.9. Receive Control 0 Register(Default Value: 0x0000_0000)
Offset: 0x0024
Register Name: RX_CTL_0
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
RX_EN
Enable receiver
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 651
0: Disable receiver after current reception
1: Enable
30
R/W
0x0
RX_FRM_LEN_CTL
0: Allow to receive frames less than or equal to 2,048 bytes (10,240 if
JUMBO_FRM_EN is set) and cuts off any bytes received after that
1: Allow to receive frames of up to 16,384 bytes
29
R/W
0x0
JUMBO_FRM_EN
When set, allows Jumbo frames of 9,018 bytes without reporting a giant
frame error in the receive frame status.
28
R/W
0x0
STRIP_FCS
Whe set, stip the Pad/FCS field o eeied faes ol he the legths
field value is less than or equal to 1,500 bytes.
27
R/W
0x0
CHECK_CRC
When set, calculate CRC and check the IPv4 Header Checksum.
26:18
/
/
/
17
R/W
0x0
RX_PAUSE_FRM_MD
0: Only detect multicast pause frame specified in the 802.3x standard.
1: In addition to detect multicast pause frame specified in the 802.3x
standard, also detect unicast pause frame with address specified in MAC
Address 0 High Register and MAC address 0 Low Register.
16
R/W
0x0
RX_FLOW_CTL_EN
When set, enable the functionality that decode the received pause frame
and disable its transmitter for a specified time by pause frame.
15:0
/
/
/
9.7.5.10. Receive Control 1 Register(Default Value: 0x0000_0000)
Offset: 0x0028
Register Name: RX_CTL_1
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
RX_DMA_START
When set, the RX DMA will not go to work. It is cleared internally and always
read a 0.
30
R/W
0x0
RX_DMA_EN
0: Stop RX DMA after finish receiving current frame
1: Start and run RX DMA
29:25
/
/
/
24
R/W
0x0
RX_FIFO_FLOW_CTL
0: Disable RX flow control
1: Enable RX flow control based on RX_FLOW_CTL_TH_DEACT and
RX_FLOW_CTL_TH_ACT
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 652
23:22
R/W
0x0
RX_FLOW_CTL_TH_DEACT
The threshold for deactivating flow control in both half-duplex mode and
full-duplex mode.
00: Full minus 1 KB
01: Full minus 2 KB
10: Full minus 3 KB
11: Full minus 4 KB
21:20
R/W
0x0
RX_FLOW_CTL_TH_ACT
The threshold for activating flow control in both half-duplex mode and
full-duplex mode.
00: Full minus 1 KB
01: Full minus 2 KB
10: Full minus 3 KB
11: Full minus 4 KB
19:6
/
/
/
5:4
R/W
0x0
RX_TH
The threshold value of RX DMA FIFO. When RX_MD is 0, RX DMA starts to
transfer data when the size of received frame in RX DMA FIFO is greater
than the threshold. In addition, full frames with a length less than the
threshold are transferred automatically.
00: 64
01: 32
10: 96
11: 128
3
R/W
0x0
RX_ERR_FRM
0: RX DMA drops frames with error
1: RX DMA forwards frames with error
2
R/W
0x0
RX_RUNT_FRM
When set, forward undersized frames with no error and length less than
64bytes.
1
R/W
0x0
RX_MD
0: RX DMA reads data from RX DMA FIFO to host memory after the number
of data in RX DAM FIFO is greater than RX_TH
1: RX DMA reads data from RX DMA FIFO to host memory after a complete
frame has been written to RX DMA FIFO
0
R/W
0x0
FLUSH_RX_FRM
The functionality that flush the frames when receive descriptors/buffers is
unavailable.
0: Enable
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 653
1: Disable
9.7.5.11. Receive DMA Descriptor List Address Register(Default Value: 0x0000_0000)
Offset: 0x0034
Register Name: RX_DMA_LIST
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
RX_DESC_LIST
The base address of receive descriptor list. It must be 32-bit aligned.
9.7.5.12. Receive Frame Filter Register(Default Value: 0x0000_0000)
Offset: 0x0038
Register Name: RX_FRM_FLT
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
DIS_ADDR_FILTER
0: Enable address filter
1: Disable address filter
30:18
/
/
/
17
R/W
0x0
DIS_BROADCAST
0: Receive all broadcast frames
1: Drop all broadcast frames
16
R/W
0x0
RX_ALL_MULTICAST
0: Filter multicast frame according to HASH_MULTICAST
1: Receive all multicast frames
15:14
/
/
13:12
R/W
0x0
CTL_FRM_FILTER
00, 01: Drop all control frames
10: Receive all control frames
11: Receive all control frames when pass the address filter
11:10
/
/
/
9
R/W
0x0
HASH_MULTICAST
0: Filter multicast frames by comparing the DA field with the values in DA
MAC address registers
1: Filter multicast frames according to the hash table
8
R/W
0x0
HASH_UNICAST
0: Filter unicast frames by comparing the DA field with the values in DA MAC
address registers
1: Filter unicast frames according to the hash table
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 654
7
/
/
/
6
R/W
0x0
SA_FILTER_EN
0: Receive frames and update the result of SA filter
1: Update the result of SA filter. In addition, if the SA field of received frame
does not match the values in SA MAC address registers, drop this frame.
5
R/W
0x0
SA_INV_FILTER
0: When the SA field of current frame matches the values in SA MAC
address registers, it passes the SA filter
1: When the SA filed of current frame does not match the values in SA MAC
address registers,, it passes the SA filter
4
R/W
0x0
DA_INV_FILTER
0: Normal filtering of frames is performed
1: Filter both unicast and multicast frames by comparing DA field in inverse
filtering mode
3:2
/
/
/
1
R/W
0x0
FLT_MD
0: If the HASH_MULTICAST or HASH_UNICAST is set, the frame is passed
only when it matches the Hash filter
1: Receive the frame when it pass the address register filter or the hash
filter(set by HASH_MULTICAST or HASH_UNICAST)
0
R/W
0x0
RX_ALL
0: Receive the frames that pass the SA/DA address filter
1: Receive all frames and update the result of address filter(pass or fail) in
the receive status word
9.7.5.13. Receive Hash Table 0 Register(Default Value: 0x0000_0000)
Offset: 0x0040
Register Name: RX_HASH_0
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
HASH_TAB_0
The upper 32 bits of hash table for receive frame filter.
9.7.5.14. Receive Hash Table 1 Register(Default Value: 0x0000_0000)
Offset: 0x0044
Register Name: RX_HASH_1
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
HASH_TAB_1
The lower 32 bits of hash table for receive frame filter.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 655
9.7.5.15. MII Command Register(Default Value: 0x0000_0000)
Offset: 0x0048
Register Name: MII_CMD
Bit
Read/Write
Default/Hex
Description
31:23
/
/
/
22:20
R/W
0x0
MDC_DIV_RATIO_M
MDC clock divide ration(m). The source of MDC clock is AHB clock.
000: 16
001: 32
010: 64
011: 128
Others: Reserved
19:17
/
/
/
16:12
R/W
0x0
PHY_ADDR
Select a PHY device from 32 possible candidates.
11:9
/
/
/
8:4
R/W
0x0
PHY_REG_ADDR
Select register in the selected PHY device
3:2
/
/
/
1
R/W
0x0
MII_WR
0: Read register in selected PHY and return data in EMAC_GMII_DATA
1: Write register in selected PHY using data in EMAC_GMII_DATA
0
R/W
0x0
MII_BUSY
This bit indicates that a read or write operation is in progress. When
prepared the data and register address for a write operation or the register
address for a read operation, set this bit and start to access register in PHY.
When this bit is cleared automatically, the read or write operation is over
and the data in EMAC_GMII_DATA is valid for a read operation.
9.7.5.16. MII Data Register(Default Value: 0x0000_0000)
Offset: 0x004C
Register Name: MII_DATA
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0x0
MII_DATA
The 16-bit data to be written to or read from the register in the selected
PHY.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 656
9.7.5.17. MAC Address 0 High Register(Default Value: 0x0000_FFFF)
Offset: 0x0050
Register Name: ADDR0_HIGH
Bit
Read/Write
Default/Hex
Description
31:16
/
/
/
15:0
R/W
0xFFFF
MAC_ADDR_0_HIGH
The upper 16bits of the 1st MAC address.
9.7.5.18. MAC Address 0 Low Register(Default Value: 0xFFFF_FFFF)
Offset: 0x0054
Register Name: ADDR0_LOW
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0xFFFFFFFF
MAC_ADDR_0_LOW
The lower 32bits of 1st MAC address.
9.7.5.19. MAC Address N High Register(Default Value: 0x0000FFFF)
Offset: 0x0050+N*0x08 (N=1~7)
Register Name: ADDRN_HIGH
Bit
Read/Write
Default/Hex
Description
31
R/W
0x0
MAC_ADDR_CTL
0: MAC address N(N: 1~7) is not valid, and it will be ignored by the address
filter
1: MAC address N(N:1~7) is valid
30
R/W
0x0
MAC_ADDR_TYPE
1: MAC address N(N:1~7) is used to compare with the source address of the
received frame
0: MAC address n(N:1~7) is used to compare with the destination address of
the received frame
29:24
R/W
0x0
MAC_ADDR_BYTE_CTL
MAC address byte control mask.
The lower bit of mask controls the lower byte of in MAC address N(N:1~7).
When the bit of mask is 1, do not compare the corresponding byte.
23:16
/
/
/
15:0
R/W
0xFFFF
MAC_ADDR_N_HIGH
The upper 16bits of the MAC address N(N:1~7).
9.7.5.20. MAC Address N Low Register(Default Value: 0xFFFF_FFFF)
Offset: 0x0054+N* 0x08 (N=1~7)
Register Name: ADDRN_LOW
Bit
Read/Write
Default/Hex
Description
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 657
31:0
R/W
0xFFFFFFFF
MAC_ADDR_N_LOW
The lower 32bits of MAC address N(N:1~7).
9.7.5.21. Transmit DMA Status Register(Default Value: 0x0000_0000)
Offset: 0x00B0
Register Name: TX_DMA_STA
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2:0
R
0x0
TX_DMA_STA
The state of Transmit DMA FSM.
000: STOP: When reset or disable TX DMA
001: RUN_FETCH_DESC: Fetching TX DMA descriptor
010: RUN_WAIT_STA: Waiting for the status of TX frame
011: RUN_TRANS_DATA: Passing frame from host memory to TX DMA FIFO
111: RUN_CLOSE_DESC: Closing TX descriptor.
110: SUSPEND: TX descriptor unavailable or TX DMA FIFO underflow
100, 101: Reserved
9.7.5.22. Transmit DMA Current Descriptor Register(Default Value: 0x0000_0000)
Offset: 0x00B4
Register Name: TX_DMA_CUR_DESC
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
The address of current transmit descriptor.
9.7.5.23. Transmit DMA Current Buffer Address Register(Default Value: 0x0000_0000)
Offset: 0x00B8
Register Name: TX_DMA_CUR_BUF
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
The address of current transmit DMA buffer
9.7.5.24. Receive DMA Status Register(Default Value: 0x0000_0000)
Offset: 0x00C0
Register Name: RX_DMA_STA
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2:0
R
0x0
RX_DMA_STA
The state of RX DMA FSM.
000: STOP. When reset or disable RX DMA
001: RUN_FETCH_DESC. Fetching RX DMA descriptor
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 658
011: RUN_WAIT_FRM. Waiting for frame
100: SUSPEND. RX descriptor unavailable
101: RUN_CLOSE_DESC. Closing RX descriptor
111: RUN_TRANS_DATA. Passing frame from host memory to RX DMA FIFO
010, 110: Reserved
9.7.5.25. Receive DMA Current Descriptor Register(Default Value: 0x0000_0000)
Offset: 0x00C4
Register Name: RX_DMA_CUR_DESC
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
The address of current receive descriptor
9.7.5.26. Receive DMA Current Buffer Address Register(Default Value: 0x0000_0000)
Offset: 0x00C8
Register Name: RX_DMA_CUR_BUF
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
The address of current receive DMA buffer
9.7.5.27. RGMII Status Register(Default Value: 0x0000_0000)
Offset: 0x00D0
Register Name: RGMII_STA
Bit
Read/Write
Default/Hex
Description
31:4
/
/
/
3
R
0x0
RGMII_LINK
The link status of RGMII interface
0: Down
1: Up
2:1
R
0x0
RGMII_LINK_SPD
The link speed of RGMII interface
00: 2.5 MHz
01: 25 MHz
10: 125 MHz
0
R
0x0
RGMII_LINK_MD
The link Mode of RGMII interface
0: Half-Duplex
1: Full-Duplex
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 659
9.8. TSC
9.8.1. Overview
The transport stream controller(TSC) is responsible for de-multiplexing and pre-processing the inputting multimedia
data defined in ISO/IEC 13818-1.
The transport stream controller receives multimedia data stream from SSI (Synchronous Serial Port)/SPI (Synchronous
Parallel Port) inputs and de-multiplexing the data into Packets by PID (Packet Identify). Before the Packet to be store to
memory by DMA, it can be pre-processing by the Transport Stream Descrambler.
The transport stream controller can be used for almost all multi-media application cases, example: DVB Set top Box,
IPTV, Streaming-media Box, multi-media players and so on.
Features:
Supports industry-standard AMBA Host Bus (AHB) and it is fully compliant with the AMBA Specification, Revision
2.0. Supports 32-bit Little Endian bus.
Supports AHB 32-bit bus width
One external Synchronous Parallel Interface (SPI) or one external Synchronous Serial Interface (SSI)
32 channels PID filter for TSF
Multiple transport stream packet (188, 192, 204) format support
SPI and SSI timing parameters are configurable
Hardware packet synchronous byte error detecting
Hardware PCR packet detecting
Configurable SPI transport stream generator for streams in DRAM memory
DMA is supported for transferring data
Interrupt is supported
Supports DVB-CSA V1.1 Descrambler
9.8.2. Block Diagram
Figure 9-13 shows a block diagram of the TSC.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 660
PORT0PORT0
PORT1
PORT2
PORT3
TSF0
TSF1
TSF2
TSF3
MUX
MUX
SPI/S
SI
SPI/S
SI
SSI
SSI
MUX
MUX
TSG
Internal
DMA
TSD0
TSD1
TSD2
TSD3
To Memory
TSC Register
Control
To AHB
MUX TSF4 TSD4
Figure 9-13. TSC Block Diagram
Note:
TSC – TS Controller
TSF – TS Filter
TSD – TS Descrambler
TSG – TS Generator
9.8.3. Operations and Functional Descriptions
9.8.3.1. External Signals
Table 9-11 describes the external signals of TSC.
Table 9-11. TSC External Signals
Pin Name
Description
Type
TS0_CLK
Transport Stream0 Clock
I
TS0_ERR
Transport Stream0 Error Indicate
I
TS0_SYNC
Transport Stream0 Sync
I
TS0_DVLD
Transport Stream0 Valid Signal
I
TS0_D[7:0]
Transport Stream0 Data
I
TS1_CLK
Transport Stream1 Clock
I
TS1_ERR
Transport Stream1 Error Indicate
I
TS1_SYNC
Transport Stream1 Sync
I
TS1_DVLD
Transport Stream1 Valid Signal
I
TS1_D0
Transport Stream1 Data
I
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 661
TS2_CLK
Transport Stream2 Clock
I
TS2_ERR
Transport Stream2 Error Indicate
I
TS2_SYNC
Transport Stream2 Sync
I
TS2_DVLD
Transport Stream2 Valid Signal
I
TS2_D[7:0]
Transport Stream2 Data
I
TS3_CLK
Transport Stream3 Clock
I
TS3_ERR
Transport Stream3 Error Indicate
I
TS3_SYNC
Transport Stream3 Sync
I
TS3_DVLD
Transport Stream3 Valid Signal
I
TS3_D0
Transport Stream3 Data
I
9.8.3.2. Clock Sources
The following table describes the clock sources of TSC.
Table 9-12. TSC Clock Sources
Clock Sources
Description
OSC24M
24MHz Crystal
PLL_PERIPH0(1X)
Peripheral Clock,default value is 600MHz
9.8.3.3. TSC Timing Diagram
Figure 9-14. Input Timing for SPI Mode
(CLOCK = Rising Edge, PSYNC = High Active, DVALID = High Active, Packet Size = 188 Bytes)
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 662
Figure 9-15. Alternative Input Timing for SPI Mode
(CLOCK = Rising Edge, PSYNC = High Active, DVALID = High Active, Packet Size = 188 Bytes)
Figure 9-16. Alternative Input Timing for SSI Mode
(CLOCK = Rising Edge, PSYNC = High Active, DVALID = High Active, Packet Size = 188 Bytes)
9.8.4. Register List
Module Name
Base Address
TSC
0x01C06000
TSG
0x01C06040
TSF0
0x01C06100
TSD0
0x01C06180
TSF1
0x01C06200
TSD1
0x01C06280
TSF2
0x01C06300
TSD2
0x01C06380
TSF3
0x01C06400
TSD3
0x01C06480
TSF4
0x01C06500
TSD4
0x01C06580
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 663
Register Name
Offset
Description
TSC
TSC_CTLR
TSC + 0x00
TSC Control Register
TSC_STAR
TSC + 0x04
TSC Status Register
TSC_PCTLR
TSC + 0x10
TSC Port Control Register
TSC_PPARR
TSC + 0x14
TSC Port Parameter Register
TSC_TSFMUXR
TSC + 0x20
TSC TSF Input Multiplex Control Register
TSC_OUTMUXR
TSC + 0x28
TSC Port Output Multiplex Control Register
TSC_INTSTSR
TSC + 0x30
TSC Interrupt Status Register
TSG
TSG_CTLR
TSG + 0x00
TSG Control Register
TSG_PPR
TSG + 0x04
TSG Packet Parameter Register
TSG_STAR
TSG + 0x08
TSG Status Register
TSG_CCR
TSG + 0x0C
TSG Clock Control Register
TSG_BBAR
TSG + 0x10
TSG Buffer Base Address Register
TSG_BSZR
TSG + 0x14
TSG Buffer Size Register
TSG_BPR
TSG + 0x18
TSG Buffer Pointer Register
TSF
TSF_CTLR
TSF + 0x00
TSF Control Register
TSF_PPR
TSF + 0x04
TSF Packet Parameter Register
TSF_STAR
TSF + 0x08
TSF Status Register
TSF_DIER
TSF + 0x10
TSF DMA Interrupt Enable Register
TSF_OIER
TSF + 0x14
TSF Overlap Interrupt Enable Register
TSF_DISR
TSF + 0x18
TSF DMA Interrupt Status Register
TSF_OISR
TSF + 0x1C
TSF Overlap Interrupt Status Register
TSF_PCRCR
TSF + 0x20
TSF PCR Control Register
TSF_PCRDR
TSF + 0x24
TSF PCR Data Register
TSF_CENR
TSF + 0x30
TSF Channel Enable Register
TSF_CPER
TSF + 0x34
TSF Channel PES Enable Register
TSF_CDER
TSF + 0x38
TSF Channel Descramble Enable Register
TSF_CINDR
TSF + 0x3C
TSF Channel Index Register
TSF_CCTLR
TSF + 0x40
TSF Channel Control Register
TSF_CSTAR
TSF + 0x44
TSF Channel Status Register
TSF_CCWIR
TSF + 0x48
TSF Channel CW Index Register
TSF_CPIDR
TSF + 0x4C
TSF Channel PID Register
TSF_CBBAR
TSF + 0x50
TSF Channel Buffer Base Address Register
TSF_CBSZR
TSF + 0x54
TSF Channel Buffer Size Register
TSF_CBWPR
TSF + 0x58
TSF Channel Buffer Write Pointer Register
TSF_CBRPR
TSF + 0x5C
TSF Channel Buffer Read Pointer Register
TSD
TSD_CTLR
TSD + 0x00
TSD Control Register
TSD_STAR
TSD + 0x04
TSD Status Register
TSD_CWIR
TSD + 0x1C
TSD Control Word Index Register
TSD_CWR
TSD + 0x20
TSD Control Word Register
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 664
9.8.5. Register Description
9.8.5.1. TSC Control Register(Default Value: 0x0000_0000)
Offset: TSC+0x00
Register Name: TSC_CTLR
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
9.8.5.2. TSC Status Register(Default Value: 0x0000_0000)
Offset: TSC+0x04
Register Name: TSC_STAR
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
9.8.5.3. TSC Port Control Register(Default Value: 0x0000_000A)
Offset: TSC+0x10
Register Name: TSC_PCTLR
Bit
Read/Write
Default/Hex
Description
31:4
/
/
/
3
R/W
0x1
TSInPort3Ctrl
TS Input Port3 Control
0: Reserved
1: SSI
2
R/W
0x0
TSInPort2Ctrl
TS Input Port2 Control
0: SPI
1: SSI
1
R/W
0x1
TSInPort1Ctrl
TS Input Port1 Control
0: Reserved
1: SSI
0
R/W
0x0
TSInPort0Ctrl
TS Input Port0 Control
0: SPI
1: SSI
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 665
9.8.5.4. TSC Port Parameter Register(Default Value: 0x0000_0000)
Offset: TSC+0x14
Register Name: TSC_PPARR
Bit
Read/Write
Default/Hex
Description
31:24
R/W
0x0
TSInPort3Par
TS Input Port3 Parameters
Bit
Definition
7:5
Reserved
4
SSI data order
0: MSB first for one byte data
1: LSB first for one byte data
3
CLOCK signal polarity
0: Rise edge capturing
1: Fall edge capturing
2
ERROR signal polarity
0: High level active
1: Low level active
1
DVALID signal polarity
0: High level active
1: Low level active
0
PSYNC signal polarity
0: High level active
1: Low level active
23:16
R/W
0x0
TSInPort2Par
TS Input Port2 Parameters
Bit
Definition
7:5
Reserved
4
SSI data order
0: MSB first for one byte data
1: LSB first for one byte data
3
CLOCK signal polarity
0: Rise edge capturing
1: Fall edge capturing
2
ERROR signal polarity
0: High level active
1: Low level active
1
DVALID signal polarity
0: High level active
1: Low level active
0
PSYNC signal polarity
0: High level active
1: Low level active
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 666
15:8
R/W
0x0
TSInPort1Par
TS Input Port1 Parameters
Bit
Definition
7:5
Reserved
4
SSI data order
0: MSB first for one byte data
1: LSB first for one byte data
3
CLOCK signal polarity
0: Rise edge capturing
1: Fall edge capturing
2
ERROR signal polarity
0: High level active
1: Low level active
1
DVALID signal polarity
0: High level active
1: Low level active
0
PSYNC signal polarity
0: High level active
1: Low level active
7:0
R/W
0x0
TSInPort0Par
TS Input Port0 Parameters
Bit
Definition
7:5
Reserved
4
SSI data order
0: MSB first for one byte data
1: LSB first for one byte data
3
CLOCK signal polarity
0: Rise edge capturing
1: Fall edge capturing
2
ERROR signal polarity
0: High level active
1: Low level active
1
DVALID signal polarity
0: High level active
1: Low level active
0
PSYNC signal polarity
0: High level active
1: Low level active
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 667
9.8.5.5. TSC TSF Input Multiplex Control Register(Default Value: 0x0000_0000)
Offset: TSC+0x20
Register Name: TSC_TSFMUXR
Bit
Read/Write
Default/Hex
Description
31:20
/
/
/
19:16
R/W
0x0
TSF4InputMuxCtrl
TSF4 Input Multiplex Control
0000: Data from TSG
0001: Data from TS IN Port0
0010: Data from TS IN Port1
0011: Data from TS IN Port2
0100: Data from TS IN Port3
Others: Reserved
15:12
R/W
0x0
TSF3InputMuxCtrl
TSF3 Input Multiplex Control
0000: Data from TSG
0001: Data from TS IN Port2
0010: Data from TS IN Port3
Others: Reserved
11:8
R/W
0x0
TSF2InputMuxCtrl
TSF2 Input Multiplex Control
0000: Data from TSG
0001: Data from TS IN Port2
Others: Reserved
7:4
R/W
0x0
TSF1InputMuxCtrl
TSF1 Input Multiplex Control
0000: Data from TSG
0001: Data from TS IN Port0
0010: Data from TS IN Port1
Others: Reserved
3:0
R/W
0x0
TSF0InputMuxCtrl
TSF0 Input Multiplex Control
0000: Data from TSG
0001: Data from TS IN Port0
Others: Reserved
9.8.5.6. TSC Port Output Multiplex Control Register(Default Value: 0x0000_0000)
Offset: TSC+0x28
Register Name: TSC_TSFMUXR
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 668
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
9.8.5.7. TSC Interrupt Status Register(Default Value: 0x0000_0000)
Offset: TSC+0x30
Register Name: TSC_INTSTSR
Bit
Read/Write
Default/Hex
Description
31:7
/
/
/
16
R
0x0
TSG Interrupt Global Status
When all TSG interrupt status bits are cleared,the bit will be cleared by
hardware.
15:5
/
/
/
4
R
0x0
TSF4 Interrupt Global Status
When all TSF4 interrupt status bits are cleared,the bit will be cleared by
hardware.
3
R
0x0
TSF3 Interrupt Global Status
When all TSF3 interrupt status bits are cleared,the bit will be cleared by
hardware.
2
R
0x0
TSF2 Interrupt Global Status
When all TSF2 interrupt status bits are cleared,the bit will be cleared by
hardware.
1
R
0x0
TSF1 Interrupt Global Status
When all TSF1 interrupt status bits are cleared,the bit will be cleared by
hardware.
0
R
0x0
TSF0 Interrupt Global Status
When all TSF0 interrupt status bits are cleared,the bit will be cleared by
hardware.
9.8.5.8. TSG Control and Status Register(Default Value: 0x0000_0000)
Offset: TSG+0x00
Register Name: TSC_CSR
Bit
Read/Write
Default/Hex
Description
31:26
/
/
/
25:24
R
0x0
TSGSts
Status for TS Generator
00: IDLE state
01: Running state
10: PAUSE state
Others: Reserved
23:10
/
/
/
9
R/W
0x0
TSGLBufMode
Loop Buffer Mode
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 669
Whe set to , the TSG eteal uffe is i loop ode.
8
R/W
0x0
TSGSyncByteChkEn
Sync Byte Check Enable
Enable/Disable check SYNC byte for receiving new packet
0: Disable
1: Enable
If enable check SYNC byte and an error SYNC byte is receiver, TS Generator
would come into PAUSE state. If the correspond interrupt is enable, the
interrupt would happen.
7:3
/
/
/
2
R/W
0x0
TSGPauseBit
Pause Bit for TS Generator
Wite  to pause TS Generator. TS Generator would stop fetch new data
from DRAM. After finishing this operation, this bit will clear to zero by
hadae. I PAUSE state, ite  to esue this state.
1
R/W
0x0
TSGStopBit
Stop Bit for TS Generator
Wite  to stop TS Generator. TS Generator would stop fetch new data
from DRAM. The data already in its FIFO should be sent to TS filter. After
finishing this operation, this bit will clear to zero by hardware.
0
R/W
0x0
TSGStartBit
Start Bit for TS Generator
Write  to stat TS Geeato. TS Geeato ould feth data fo DRAM
and generate SPI stream to TS filter. This bit will clear to zero by hardware
after TS Generator is running.
9.8.5.9. TSG Packet Parameter Register(Default Value: 0x0047_0000)
Offset: TSG+0x04
Register Name: TSG_PPR
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:16
R/W
0x47
SyncByteVal
Sync Byte Value
This is the value of sync byte used in the TS Packet.
15:8
/
/
/
7
R/W
0x0
SyncBytePos
Sync Byte Position
0: the 1st byte position
1: the 5th byte position
Note: This bit is only used for 192 bytes packet size.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 670
6:2
/
/
/
1:0
R/W
0x0
PktSize
Packet Size
Byte Size for one TS packet
0: 188 bytes
Others: Reserved
9.8.5.10. TSG Interrupt Enable and Status Register(Default Value: 0x0000_0000)
Offset: TSG+0x08
Register Name: TSG_IESR
Bit
Read/Write
Default/Hex
Description
31:20
/
/
/
19
R/W
0x0
TSGEndIE
TS Generator (TSG) End Interrupt Enable
0: Disable
1: Enable
If set this bit, the interrupt would assert to CPU when all data in external
DRAM are sent to TS PID filter.
18
R/W
0x0
TSGFFIE
TS Generator (TSG) Full Finish Interrupt Enable
0: Disable
1: Enable
17
R/W
0x0
TSGHFIE
TS Generator (TSG) Half Finish Interrupt Enable
0: Disable
1: Enable
16
R/W
0x0
TSGErrSyncByteIE
TS Generator (TSG) Error Sync Byte Interrupt Enable
0: Disable
1: Enable
15:4
/
/
/
3
R/W
0x0
TSGEndSts
TS Generator (TSG) End Status
Wite  to lea it.
2
R/W
0x0
TSGFFSts
TS Generator (TSG) Full Finish Status
Wite  to lea it.
1
R/W
0x0
TSGHFSts
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 671
TS Generator (TSG) Half Finish Status
Wite  to lea it.
0
R/W
0x0
TSGErrSyncByteSts
TS Generator (TSG) Error Sync Byte Status
Wite  to lea it.
9.8.5.11. TSG Clock Control Register(Default Value: 0x0000_0000)
Offset: TSG+0x0C
Register Name: TSG_CCR
Bit
Read/Write
Default/Hex
Description
31:16
R/W
0x0
TSGCDF_N
TSG Clock Divide Factor (N)
The Numerator part of TSG Clock Divisor Factor.
15:0
R/W
0x0
TSGCDF_D
TSG Clock Divide Factor (D)
The Denominator part of TSG Clock Divisor Factor.
Frequency of output clock:
Fo = (Fi*(N+1))/(8*(D+1)).
Fi is the input special clock of TSC, and D must not less than N.
9.8.5.12. TSG Buffer Base Address Register(Default Value: 0x0000_0000)
Offset: TSG+0x10
Register Name: TSG_BBAR
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
TSGBufBase
Buffer Base Address
This value is a start address of TSG buffer.
Note: This value should be 4-word (16Bytes) align, and the lowest 4 bits of
this value should be zero.
9.8.5.13. TSG Buffer Size Register(Default Value: 0x0000_0000)
Offset: TSG+0x14
Register Name: TSG_BSZR
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R/W
0x0
TSGBufSize
Data Buffer Size for TS Generator
It is in byte unit.
The size should be 4-word (16Bytes) align, and the lowest 4 bits should be
zero.
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 672
9.8.5.14. TSG Buffer Point Register(Default Value: 0x0000_0000)
Offset: TSG+0x18
Register Name: TSG_BPR
Bit
Read/Write
Default/Hex
Description
31:24
/
/
/
23:0
R
0x0
TSGBufPtr
Data Buffer Pointer for TS Generator
Current TS generator data buffer read pointer (in byte unit)
9.8.5.15. TSF Control and Status Register(Default Value: 0x0000_0000)
Offset: TSF+0x00
Register Name: TSF_CSR
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2
R/W
0x0
TSF Enable
0: Disable TSF Input
1: Enable TSF Input
1
/
/
/
0
R/W
0x0
TSFGSR
TSF Global Soft Reset
Witig  by software will reset all status and state machine of TSF. And it
is cleared by hardware after reset.
Witig  by software has no effect.
9.8.5.16. TSF Packet Parameter Register(Default Value: 0x0047_0000)
Offset: TSF+0x04
Register Name: TSF_PPR
Bit
Read/Write
Default/Hex
Description
31:28
R/W
0x0
LostSyncThd
Lost Sync Packet Threshold
It is used for packet sync lost by checking the value of sync byte.
27:24
R/W
0x0
SyncThd
Sync Packet Threshold
It is used for packet sync by checking the value of sync byte.
23:16
R/W
0x47
SyncByteVal
Sync Byte Value
This is the value of sync byte used in the TS Packet.
15:10
/
/
/
9:8
R/W
0x0
SyncMthd
Packet Sync Method
00: By PSYNC signal
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 673
01: By Sync byte
10: By both PSYNC and Sync Byte
11: Reserved
7
R/W
0x0
SyncBytePos
Sync Byte Position
0: The 1st byte position
1: The 5th byte position
Note: This bit is only used for 192 bytes packet size.
6:2
/
/
/
1:0
R/W
0x0
PktSize
Packet Size
Byte Size for one TS packet
00: 188 bytes
01: 192 bytes
10: 204 bytes
11: Reserved
9.8.5.17. TSF Interrupt Enable and Status Register(Default Value: 0x0000_0000)
Offset: TSF+0x08
Register Name: TSF_IESR
Bit
Read/Write
Default/Hex
Description
31:20
/
/
/
19
R/W
0x0
TSFFOIE
TS PID Filter (TSF) Internal FIFO Overrun Interrupt Enable
0: Disable
1: Enable
18
R/W
0x0
TSFPPDIE
TS PCR Packet Detect Interrupt Enable
0: Disable
1: Enable
17
R/W
0x0
TSFCOIE
TS PID Filter (TSF) Channel Overlap Interrupt Global Enable
0: Disable
1: Enable
16
R/W
0x0
TSFCDIE
TS PID Filter (TSF) Channel DMA Interrupt Global Enable
0: Disable
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 674
1: Enable
15:4
/
/
/
3
R/W
0x0
TSFFOIS
TS PID Filter (TSF) Internal FIFO Overrun Status
Wite  to lea it.
2
R/W
0x0
TSFPPDIS
TS PCR Packet Found Status
Whe it is , oe TS PCR Paket is foud. Wite  to lea it.
1
R
0x0
TSFCOIS
TS PID Filter (TSF) Channel Overlap Status
It is global status for 32 channel. It would clear to zero after all channels
status bits are cleared.
0
R
0x0
TSFCDIS
TS PID Filter (TSF) Channel DMA status
It is global status for 32 channel. It would clear to zero after all channels
status bits are cleared.
9.8.5.18. TSF DMA Interrupt Enable Register(Default Value: 0x0000_0000)
Offset: TSF+0x10
Register Name: TSF_DIER
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
DMAIE
DMA Interrupt Enable
DMA interrupt enable bits for channel 0~31.
9.8.5.19. TSF Overlap Interrupt Enable Register(Default Value: 0x0000_0000)
Offset: TSF+0x14
Register Name: TSF_OIER
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
OLPIE
Overlap Interrupt Enable
Overlap interrupt enable bits for channel 0~31.
9.8.5.20. TSF DMA Interrupt Status Register(Default Value: 0x0000_0000)
Offset: TSF+0x18
Register Name: TSF_DISR
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
DMAIS
DMA Interrupt Status
DMA interrupt status bits for channel 0~31.
Set by hardware, and write 1 to clear it by software.
When both these bits and the corresponding DMA Interrupt Enable bits set,
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 675
the TSF interrupt will generate.
9.8.5.21. TSF Overlap Interrupt Status Register(Default Value: 0x0000_0000)
Offset: TSF+0x1C
Register Name: TSF_OISR
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
OLPIS
Overlap Interrupt Status
Overlap interrupt status bits for channel 0~31.
Set  hadae, ad a e leaed  softae itig .
When both these bits and the corresponding Overlap Interrupt Enable bits
set, the TSF interrupt will generate.
9.8.5.22. TSF PCR Control Register(Default Value: 0x0000_0000)
Offset: TSF+0x20
Register Name: TSF_PCRCR
Bit
Read/Write
Default/Hex
Description
31:17
/
/
/
16
R/W
0x0
PCRDE
PCR Detecting Enable
0: Disable
1: Enable
15:13
/
/
/
12:8
R/W
0x0
PCRCIND
Channel Index m for detecting PCR packet (m from 0 to 31)
7:1
/
/
/
0
R
0x0
PCRLSB
PCR Contest LSB 1 bit
PCR[0]
9.8.5.23. TSF PCR Data Register(Default Value: 0x0000_0000)
Offset: TSF+0x24
Register Name: TSF_PCRDR
Bit
Read/Write
Default/Hex
Description
31:0
R
0x0
PCRMSB
PCR Data High 32 bits
PCR[33:1]
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 676
9.8.5.24. TSF Channel Enable Register(Default Value: 0x0000_0000)
Offset: TSF+0x30
Register Name: TSF_CENR
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
FilterEn
Filter Enable for Channel 0~31
0: Disable
1: Enable
From Disable to Enable, internal status of the corresponding filter channel
will be reset.
9.8.5.25. TSF PES Enable Register(Default Value: 0x0000_0000)
Offset: TSF+0x34
Register Name: TSF_CPER
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
PESEn
PES Packet Enable for Channel 0~31
0: Disable
1: Enable
These bits should not be changed during the corresponding channel enable.
9.8.5.26. TSF Channel Descramble Enable Register(Default Value: 0x0000_0000)
Offset: TSF+0x38
Register Name: TSF_CDER
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
DescEn
Descramble Enable for Channel 0~31
0: Disable
1: Enable
These bits should not be changed during the corresponding channel enable.
9.8.5.27. TSF Channel Index Register(Default Value: 0x0000_0000)
Offset: TSF+0x3C
Register Name: TSF_CINDR
Bit
Read/Write
Default/Hex
Description
31:5
/
/
/
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 677
4:0
R/W
0x0
CHIND
Channel Index
This value is the channel index for channel private registers access.
Range is from 0x00 to 0x1f.
Address range of channel private registers is 0x40~0x7f.
9.8.5.28. TSF Channel Control Register(Default Value: 0x0000_0000)
Offset: TSF+0x40
Register Name: TSF_CCTLR
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
9.8.5.29. TSF Channel Status Register(Default Value: 0x0000_0000)
Offset: TSF+0x44
Register Name: TSF_CSTAR
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
9.8.5.30. TSF Channel CW Index Register(Default Value: 0x0000_0000)
Offset: TSF+0x48
Register Name: TSF_CCWIR
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
2:0
R/W
0x0
CWIND
Related Control Word Index
Index to the control word used by this channel when Descramble Enable of
this channel enable.
This alue is useless he the oespodig Desale Eale is .
9.8.5.31. TSF Channel PID Register(Default Value: 0x1FFF_0000)
Offset: TSF+0x4C
Register Name: TSF_CPIDR
Bit
Read/Write
Default/Hex
Description
31:16
R/W
0x1FFF
PIDMSK
Filter PID Mask for Channel
15:0
R/W
0x0
PIDVAL
Filter PID value for Channel
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 678
9.8.5.32. TSF Channel Buffer Base Address Register(Default Value: 0x0000_0000)
Offset: TSF+0x50
Register Name: TSF_CBBAR
Bit
Read/Write
Default/Hex
Description
31:28
/
/
/
27:0
R/W
0x0
TSFBufBAddr
Data Buffer Base Address for Channel
It is 4-word (16Bytes) align address. The LSB four bits should be zero.
9.8.5.33. TSF Channel Buffer Size Register(Default Value: 0x0000_0000)
Offset: TSF+0x54
Register Name: TSF_CBSZR
Bit
Read/Write
Default/Hex
Description
31:26
/
/
/
25:24
R/W
0x0
CHDMAIntThd
DMA Interrupt Threshold for Channel
The unit is TS packet size. When received packet (has also stored in DRAM)
size is beyond (>=) threshold value, the corresponding channel interrupt is
generated to CPU. TSC should count the new received packet again, when
exceed the specified threshold value, one new interrupt is generated again.
00: 1/2 data buffer packet size
01: 1/4 data buffer packet size
10: 1/8 data buffer packet size
11: 1/16 data buffer packet size
23:21
/
/
/
20:0
R/W
0x0
CHBufPktSz
Data Buffer Packet Size for Channel
The exact buffer size of buffer is N+1 bytes.
The maximum buffer size is 2MB.
This size should be 4-word (16Bytes) aligned. The LSB four bits should be
zero.
9.8.5.34. TSF Channel Write Pointer Register(Default Value: 0x0000_0000)
Offset: TSF+0x58
Register Name: TSF_CBWPR
Bit
Read/Write
Default/Hex
Description
31:21
/
/
/
20:0
R/W
0x0
BufWrPtr
Data Buffer Write Pointer (in Bytes)
This value is changed by hardware, when data is filled into buffer, this
pointer is increased.
And this pointer can be set by software, but it should not be changed by
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 679
software during the corresponding channel is enabled.
9.8.5.35. TSF Channel Read Pointer Register(Default Value: 0x0000_0000)
Offset: TSF+0x5C
Register Name: TSF_CBRPR
Bit
Read/Write
Default/Hex
Description
31:21
/
/
/
20:0
R/W
0x0
BufRdPtr
Data Buffer Read Pointer (in Bytes)
This pointer should be changed by software after the data of buffer is read.
9.8.5.36. TSD Control Register(Default Value: 0x0000_0000)
Offset: TSD+0x00
Register Name: TSD_CTLR
Bit
Read/Write
Default/Hex
Description
31:2
/
/
/
1:0
R/W
0x0
DescArith
Descramble Arithmetic
00: DVB CSA V1.1
Others: Reserved
9.8.5.37. TSD Status Register(Default Value: 0x00000000)
Offset: TSD+0x04
Register Name: TSD_STAR
Bit
Read/Write
Default/Hex
Description
31:0
/
/
/
9.8.5.38. TSD Control Word Index Register(Default Value: 0x0000_0000)
Offset: TSD+0x1C
Register Name: TSD_CWIR
Bit
Read/Write
Default/Hex
Description
31:3
/
/
/
6:4
R/W
0x0
CWI
Control Word Index
This value is the Control index for Control word access.
Range is from 0x0 to 0x7.
3:2
/
/
/
1:0
R/W
0x0
CWII
Control Word Internal Index
Interfaces
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 680
00: Odd Control Word Low 32-bit, OCW[31:0]
01: Odd Control Word High 32-bit, OCW[63:32]
10: Even Control Word Low 32-bit, ECW[31:0]
11: Even Control Word High 32-bit, ECW[63:0]
9.8.5.39. TSD Control Word Register(Default Value: 0x0000_0000)
Offset: TSD+0x20
Register Name: TSD_CWR
Bit
Read/Write
Default/Hex
Description
31:0
R/W
0x0
CWD
Content of Control Word corresponding to the TSD_CWIR value
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 681
Chapter 10 Electrical Characteristics
This section describes electrical characteristics of H5 processor.
Absolute Maximum Ratings
Recommended Operating Conditions
DC Electrical Characteristics
ADC Electrical Characteristics
Oscillator Electrical Characteristics
Maximum Current Consumption
External Memory AC Electrical Characteristics
External Peripheral AC Electrical Characteristics
Power-up and Power-down Sequence
Package Thermal Characteristics
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 682
10.1. Absolute Maximum Ratings
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Table 10-1 specifies the
absolute maximum ratings over the operating junction temperature range of commercial and extended temperature
devices. Functional operation of the device at these or any other conditions beyond those indicated in the operational
sections of this standard may damage to the device.
Table 10-1. Absolute Maximum Ratings
Symbol
Parameter
MIN
Max
Unit
II/O
In/Out Current for Input and Output
-40
40
mA
TSTG
Storage Temperature
-40
125
° C
AVCC
Power Supply for Analog Part
-0.3
3.4
V
EPHY-VCC
Power Supply for EPHY
-0.3
3.8
V
EPHY-VDD
Power Supply for EPHY
-0.3
1.4
V
HVCC
Power Supply for HDMI
-0.3
3.6
V
V33-TV
Power Supply for TV
-0.3
3.6
V
VCC-IO
Power Supply for Port A
-0.3
3.6
V
VCC-PC
Power Supply for Port C
-0.3
3.6
V
VCC-PD
Power Supply for Port D
-0.3
3.6
V
VCC-PG
Power Supply for Port G
-0.3
3.6
V
VCC-PLL
Power Supply for System PLL
-0.3
3.6
V
VCC-RTC
Power Supply for RTC
-0.3
3.6
V
VCC-USB
Power Supply for USB
-0.3
3.6
V
VCC-DRAM
Power Supply for DDR3/DDR3L
-0.3
1.65
V
VDD-CPUS
Power Supply for CPUS
-0.3
1.5
V
VDD-CPUX
Power Supply for CPU
-0.3
1.5
V
VDD-EFUSE
Power Supply for EFUSE
-0.3
3.6
V
VDD-SYS
Power Supply for System
-0.3
1.4
V
VESD
Electrostatic Discharge
Human Body Model(HBM)(1)
-4000
4000
V
Charged Device Model(CDM)(2)
-250
250
V
ILatch-up
Latch-up I-test performance current-pulse injection on each IO pin(3)
Pass
Latch-up over-voltage performance voltage injection on each IO pin(4)
Pass
(1). Test method: JEDEC JS-001-2012(Class-3A). JEDEC publication JEP155 states that 500V HBM allows safe
manufacturing with a standard ESD control process.
(2). Test method: JESD22-C101F(Class-C1). JEDEC publication JEP157 states that 250V CDM allows safe manufacturing
with a standard ESD control process.
(3). Current test performance: Pins stressed per JEDEC JESD78D(Class I, Level A) and passed with I/O pin injection
current as defined in JEDEC.
(4). Over voltage performance: Supplies stressed per JEDEC JESD78D(Class I, Level A) and passed voltage injection as
defined in JEDEC.
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 683
10.2. Recommended Operating Conditions
All H5 modules are used under the operating Conditions contained in Table 10-2.
Table 10-2. Recommended Operating Conditions
Symbol
Parameter
Min
Typ
Max
Unit
Ta
Ambient Operating Temperature
-20
-
+70
° C
Tj
Junction Temperature Range
TBD
-
TBD
° C
AVCC
Power Supply for Analog Part
-
3.3
-
V
EPHY-VCC
3.3V Power Supply for EPHY
3.0
3.3
3.6
V
EPHY-VDD
1.1V Power Supply for EPHY
1.0
1.1
1.2
V
HVCC
Power Supply for HDMI
3.24
3.3
3.36
V
V33-TV
Power Supply for TV
3.24
3.3
3.36
V
VCC-IO
Power Supply for 3.3V Digital Part
3.0
3.3
3.6
V
VCC-PC
Power Supply for Port C
1.7
1.8~3.3
3.6
V
VCC-PD
Power Supply for Port D
2.25
2.5~3.3
3.6
V
VCC-PG
Power Supply for Port G
1.7
1.8~3.3
3.6
V
VCC-PLL
Power Supply for System PLL
3.0
-
3.3
V
VCC-RTC
Power Supply for RTC
3.0
-
3.3
V
VCC-USB
Power Supply for USB
3.0
3.3
3.6
V
VCC-DRAM
Power Supply for DDR3 IO Domain
1.425
1.5
1.575
V
Power Supply for DDR3L IO Domain
1.283
1.35
1.575
V
VDD-CPUS
Power Supply for CPUS
1.04
1.1
1.4
V
VDD-CPUX
Power Supply for CPU
1.1
1.1
1.4
V
VDD-EFUSE
Power Supply for EFUSE
-
3.3
-
V
VDD-SYS
Power Supply for System
1.1
1.2
1.3
V
10.3. DC Electrical Characteristics
Table 10-3 summarizes the DC electrical characteristics of H5.
Table 10-3. DC Electrical Characteristics
Symbol
Parameter
Min
Typ
Max
Unit
VIH
High-Level Input Voltage
0.7 * VCC-IO
-
VCC-IO + 0.3
V
VIL
Low-Level Input Voltage
-0.3
-
0.3 * VCC-IO
V
RPU
Input pull-up resistance
50
100
150
KΩ
RPD
Input pull-down resistance
50
100
150
KΩ
IIH
High-Level Input Current
-
-
10
uA
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 684
IIL
Low-Level Input Current
-
-
10
uA
VOH
High-Level Output Voltage
VCC-IO - 0.2
-
VCC-IO
V
VOL
Low-Level Output Voltage
0
-
0.2
V
IOZ
Tri-State Output Leakage
Current
-10
-
10
uA
CIN
Input Capacitance
-
-
5
pF
COUT
Output Capacitance
-
-
5
pF
10.4. ADC Electrical Characteristics
KEYADC is an analog-to-digital(ADC) converter for key application. Table 10-4 lists KEYADC electrical characteristics.
Table 10-4. KEYADC Electrical Characteristics
Parameter
Min
Typ
Max
Unit
ADC Resolution
-
6
-
bits
Full-scale Input Range
0
-
0.667*AVCC
V
Quantizing Error
-
1
-
LSB
Clock Frequency
-
-
250
Hz
Conversion Time
-
14
-
ADC Clock Cycles
10.5. Oscillator Electrical Characteristics
H5 contains two external input clocks:X24MIN and X32KIN, two output clocks:X24MOUT and X32KOUT.The 24.000MHz
frequency is used to generate the main source clock for PLL and the main digital blocks, the clock is provided through
X24MIN.Table 10-5 lists the 24MHz crystal specifications.
Table 10-5. 24MHz Crystal Characteristics
Symbol
Parameter
Min
Typ
Max
Unit
1/(tCPMAIN)
Crystal Oscillator Frequency Range
-
24.000
-
MHz
tST
Startup Time
-
-
-
ms
Frequency Tolerance at 25 °C
-50
-
+50
ppm
Oscillation Mode
Fundamental
-
Maximum Change Over Temperature Range
-50
-
+50
ppm
PON
Drive Level
-
-
300
uW
CL
Equivalent Load Capacitance
12
18
22
pF
RS
Series Resistance(ESR)
-
25
-
Ω
Duty Cycle
30
50
70
%
CM
Motional Capacitance
-
-
-
pF
CSHUT
Shunt Capacitance
5
6.5
7.5
pF
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 685
RBIAS
Internal Bias Resistor
0.5
0.6
0.7
MΩ
The 32768Hz frequency is used for low frequency operation. It supplies the wake-up domain for operation in lowest
power mode. The clock is provided through X32KIN. Table 10-6 lists the 32768Hz crystal specifications.
Table 10-6. 32768Hz Crystal Characteristics
Symbol
Parameter
Min
Typ
Max
Unit
1/(tCPMAIN)
Crystal Oscillator Frequency Range
-
32768
-
Hz
tST
Startup Time
-
-
-
ms
Frequency Tolerance at 25 °C
-40
-
+40
ppm
Oscillation Mode
Fundamental
-
Maximum Change Over Temperature Range
-50
-
+50
ppm
PON
Drive Level
-
-
50
uW
CL
Equivalent Load Capacitance
-
-
-
pF
RS
Series Resistance(ESR)
-
-
-
Ω
Duty Cycle
30
50
70
%
CM
Motional Capacitance
-
-
-
pF
CSHUT
Shunt Capacitance
-
-
-
pF
RBIAS
Internal Bias Resistor
-
-
-
MΩ
10.6. Maximum Current Consumption
Table 10-7 lists the peak power consumption of H5.
Table 10-7. Maximum Current Consumption
Parameter
Sub Parameter
Power Supply
Condition
Min
Typ
Max
Unit
Internal Core
Power
CPU
VDD-CPUX
@1.1V
-
-
TBD
mA
SYS
VDD-SYS
@1.2V
-
-
TBD
mA
GPIO Power
VCC-IO,
VCC-PC,
VCC-PD,
VCC-PG
@3.3V
@2.5V
@1.8V
-
-
TBD
mA
Memory I/O Power
VCC-DRAM
@1.5V
-
-
TBD
mA
Oscillator
VCC-PLL
@3.3V
-
-
TBD
mA
USB 3.0V Power of PHY
VCC-USB
@3.3V
-
-
TBD
mA
HDMI
HVCC
@3.3V
-
-
TBD
mA
RTC Power
VCC-RTC
@3.3V
-
-
TBD
mA
ADC Analog Power
AVCC
@3.3V
-
-
TBD
mA
DAC Analog Power
AVCC
@3.3V
-
-
TBD
mA
PLL Power
VCC-PLL
@3.3V
-
-
TBD
mA
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 686
10.7. External Memory AC Electrical Characteristics
10.7.1. Nand Flash AC Electrical Characteristics
Figure 10-1. Conventional Serial Access Cycle Timing (SAM0)
Figure 10-2. EDO Type Serial Access after Read Cycle Timing (SAM1)
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 687
Figure 10-3. Extending EDO Type Serial Access Mode Timing (SAM2)

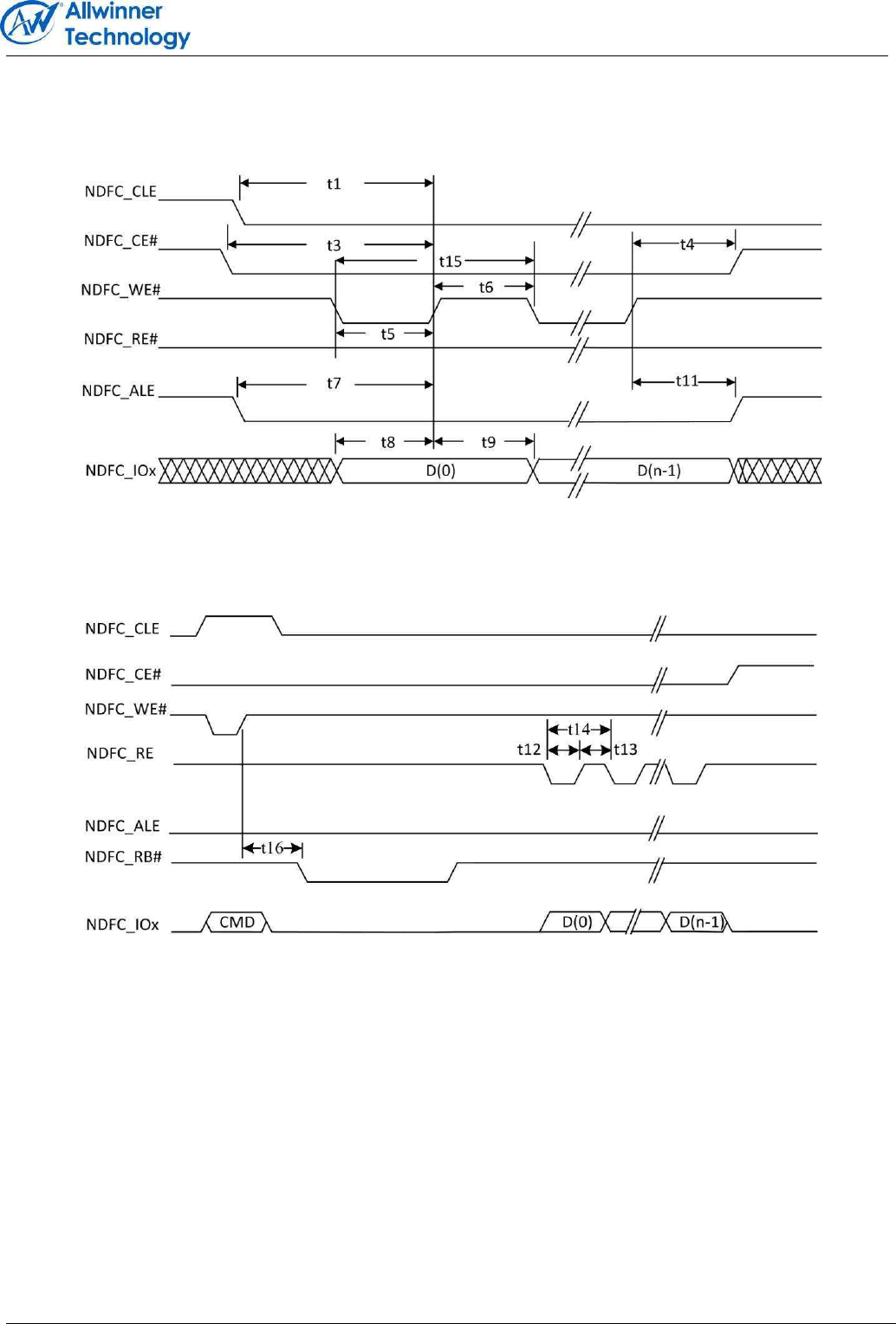

Figure 10-4. Command Latch Cycle Timing
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 688
Figure 10-5. Address Latch Cycle Timing
Figure 10-6. Write Data to Flash Cycle Timing
Figure 10-7. Waiting R/B# Ready Timing
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 689
Figure 10-8. WE# High to RE# Low Timing
Figure 10-9. RE# High to WE# Low Timing
Figure 10-10. Address to Data Loading Timing
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 690
Table 10-8. NAND Timing Constants
Parameter
Symbol
Timing
Unit
NDFC_CLE setup time
t1
2T
ns
NDFC_CLE hold time
t2
2T(1)
ns
NDFC_CE setup time
t3
2T
ns
NDFC_CE hold time
t4
2T
ns
NDFC_WE# pulse width
t5
T
ns
NDFC_WE# hold time
t6
T
ns
NDFC_ALE setup time
t7
2T
ns
Data setup time
t8
T
ns
Data hold time
t9
T
ns
Ready to NDFC_RE# low
t10
3T
ns
NDFC_ALE hold time
t11
2T
ns
NDFC_RE# pulse width
t12
T
ns
NDFC_RE# hold time
t13
T
ns
Read cycle time
t14
2T
ns
Write cycle time
t15
2T
ns
NDFC_WE# high to R/B# busy
t16
T_WB(2)
ns
NDFC_WE# high to NDFC_RE# low
t17
T_WHR(3)
ns
NDFC_RE# high to NDFC_WE# low
t18
T_RHW(4)
ns
Address to Data Loading time
t19
T_ADL(5)
ns
NOTE (1):T is the cycle of clock.
NOTE (2),(3),(4),(5):This values is configurable in Nand flash controller. The value of T_WB could be 28T/44T/60T/76T, the
value of T_WHR could be 0T/12T/28T/44T, the value of T_RHW could be 8T/24T/40T/56T, the value of T_ADL could be
0T/12T/28T/44T.
10.7.2. SMHC AC Electrical Characteristics
tODLY
tOSKEW
CLK
CMD, DATA
tCK
Figure 10-11. SMHC in SDR Mode Output Timing
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 691
tIDLY
tISKEW
CLK
CMD, DATA
tCK
Figure 10-12. SMHC in SDR Mode Input Timing
Table 10-9. SMHC Timing Constants
Parameter
Symbol
Min
Type
Max
Unit
Clock frequency
tCK
0
50
50
MHz
Duty Cycle
DC
45
50
55
%
CMD, Data output delay time
tODLY
-
-
12
ns
Data output delay skew time
tOSKEW
-
-
0.5
ns
Data input delay in SDR mode. It
iludes Cloks PCB dela tie,
Datas PCB dela tie ad
deies data output dela.
tIDLY
-
-
21
ns
Data input skew time in SDR
mode
tISKEW
-
-
0.8
ns
Note (1): Output CMD, DATA is referenced to CLK.
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 692
10.8. External Peripheral AC Electrical Characteristics
10.8.1. LCD AC Electrical Characteristics
Vsync
LD[23..0]
Hsync
tVSPW tVBP tVT
Vsync
LD[23..0]
Hsync
tVSPW
tVBP
tVT
Vertical invalid data period Vertical invalid data periodDH1 DH2 DHy
1//2H
Vertical invalid data period Vertical invalid data periodDH1 DH2 DHy
Odd/Even field
Even field
Figure 10-13. HV_IF Interface Vertical Timing
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 693
Hsync
LD[23..0]
DCLK
tHSPW tHBP tHT
Invalid D1 D2 D3
LDE
tDCLK
D320
Figure 10-14. HV_IF Interface Parallel Mode Horizontal Timing
Hsync
LD[7..0]
DCLK
tHSPW
tHBP tHT
Invalid R0 G1 B2
LDE
tDCLK
B959
R3
One Pixel
Figure 10-15. HV_IF Interface Serial Mode Horizontal Timing
Table 10-10. LCD HV_IF Interface Timing Constants
Parameter
Symbol
Min
Typ
Max
Unit
DCLK cycle time
tDCLK
5
-
-
ns
HSYNC period time
tHT
-
HT+1
-
tDCLK
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 694
HSYNC width
tHSPW
-
HSPW+1
-
tDCLK
HSYNC back porch
tHBP
-
HBP+1
-
tDCLK
VSYNC period time
tVT
-
VT/2
-
tHT
VSYNC width
tVSPW
-
VSPW+1
-
tHT
VSYNC back porch
tVBP
-
VBP+1
-
tHT
Note:
(1). Vsync: Vertical sync, indicates one new frame
(2). Hsync: Horizontal sync, indicate one new scan line
(3). DCLK: Dot clock, pixel data are sync by this clock
(4). LDE: LCD data enable
(5). LD[23..0]: 24Bit RGB/YUV output from input FIFO for panel
10.8.2. CSI AC Electrical Characteristics
PCLK
DATA
tperiod
tdst tdhd
thigh-level
Figure 10-16. Data Sample Timing
Table 10-11. CSI Interface Timing Constants
Parameter
Symbol
Min
Typ
Max
Unit
Pclk Period
tperiod
5.95
-
-
ns
Pclk Frequency
1/tperiod
-
-
168
MHz
Pclk Duty
thigh-level/tperiod
40
50
60
%
Data input Setup time
tdst
0.6
-
-
ns
Data input Hold time
tdhd
0.6
-
-
ns
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 696
10.8.4. CIR Receiver AC Electrical Characteristics
Tlh Tll Tp T0T1
Address #Address Command #Command
Tf
IR_NEC
Figure 10-19. CIR Receiver Timing
Table 10-14. CIR Receiver Timing Constants
Parameter
Symbol
Min
Type
Max
Unit
Frame Period
Tf
-
67.5
-
ms
Lead Code High Time
Tlh
-
9
-
ms
Lead Code Low Time
Tll
-
4.5
-
ms
Pulse Time
Tp
-
560
-
us
Logical 1 Low Time
T1
-
1680
-
us
Logical 0 Low Time
T0
-
560
-
us
10.8.5. SPI AC Electrical Characteristics
Figure 10-20. SPI MOSI Timing
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 697
Figure 10-21. SPI MISO Timing
Table 10-15. SPI Timing Constants
Parameter
Symbol
Min
Typ
Max
Unit
CS# Active Setup Time
tSLCH
-
2T
-
ns
CS# Active Hold Time
tCHSH
-
2T(1)
-
ns
Data In Setup Time
tDVCH
-
T/2-3
-
ns
Data In Hold Time
tCHDX
-
T/2-3
-
ns
Note (1):T is the cycle of clock.
10.8.6. UART AC Electrical Characteristics
start data parity stop
vaild data
tRXSF
RX
RX FIFO
DATA
Register Setting:
Data length(DLS in LCR[1:0]) = 3 (8bit)
Stop bit length(STOP in LCR[2]) = 1 (2bit)
Parity enable(PEN in LCR[3]) = 1
Figure 10-22. UART RX Timing
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 698
data parity stop TX
nCTS
start
tDCTS tACTS
start
Figure 10-23. UART nCTS Timing
FD -3
tDRTS tARTS
RX FIFO
DATA NUM
nRTS
FD-2 0
Register Setting:
RTS Trigger level(RT in FCR[7:6]) = 3 (De-asserted nRTS when FIFO valid data number reach FIFO depth-2)
(1)
Note (1): FD: FIFO Depth
Figure 10-24. UART nRTS Timing
Table 10-16. UART Timing Constants
Parameter
Symbol
Min
Typ
Max
Unit
RX start to RX FIFO
tRXSF
10.5× BRP(1)
-
11× BRP(1)
ns
Delay time of de-asserted nCTS to TX start
tDCTS
-
-
BRP(1)
ns
Step time of asserted nCTS to stop next
transmission
tACTS
BRP(1)/4
-
-
ns
Delay time of de-asserted nRTS
tDRTS
-
-
BRP(1)
ns
Delay time of asserted nRTS
tARTS
-
-
BRP(1)
ns
Note (1): BRP(Baud-Rate Period).
10.8.7. TWI AC Electrical Characteristics
tSTH
SDA
SCL
tCL tSOS
tDHtDS
tCH
Figure 10-25. TWI Timing
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 699
Table 10-17. TWI Timing Constants
Parameter
Symbol
Min
Typ
Max
Unit
High period of SCL
tCH
0.96
-
-
μs
Low period of SCL
tCL
1.5
-
-
μs
SCL hold time for START condition
tSTH
1.5
-
-
μs
SCL step time for STOP condition
tSOS
1.6
-
-
μs
SDA hold time
tDH
0.82
-
-
μs
SDA step time
tDS
0.72
-
-
μs
10.8.8. TSC AC Electrical Characteristics
Data
Clock
T1
T2
T
Figure 10-26. TSC Data and Clock Timing
Table 10-18. TSC Timing Constants
Parameter
Symbol
Min
Type
Max
Unit
Data hold time
T1
T/2-T/10
T(1)/2
T/2+T/10
us
Clock pulse width
T2
T/2-T/10
T/2
T/2+T/10
us
Note (1):T is the cycle of clock.
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 700
10.8.9. SCR AC Electrical Characteristics
Undefined
I/O
CLK
tb
tc
RST
VCC
ta
Card Answer
T1 T2 T3
Figure 10-27. SCR Activation and Cold Reset Timing
Undefined
I/O
CLK
te
tf
RST
VCC
td Card Answer
T4 T5
Figure 10-28. SCR Warm Reset Timing
Table 10-19. SCR Timing Constants
Symbol
Min
Type
Max
Unit
ta
-
-
200/f
us
tb
400/f
-
-
us
tc
400/f
-
40000/f
us
td
-
-
200/f
us
te
400/f
-
-
us
tf
400/f
-
40000/f
us
Note:
(1). Activation: Before time T1
(2). Cold Reset: After time T1
(3). T1: The clock signal is applied to CLK at time T1.
(4). T2: The RST is put to state H.
(5). T3: The card begin answer at time T3
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 701
(6). ta: The card shall set I/O to state H within 200 clock cycles (delay ta) after the clock signal is applied to CLK (at time
T1+ta).
(7). tb: The cold reset results from maintaining RST at state L for at least 400 clock cycles (delay tb) after the clock signal
is applied to CLK (at time T1+tb).
(8). tc: The answer on I/O shall begin between 400 and 40000 clock cycles (delay tc) after the rising edge of the signal
on RST (at time T2+tc).
(9). td: The card shall set I/O to state H within 200 clock cycles (delay td) after state L is applied to RST (at time T4+td).
(10). te: The controller initiates a warm reset (at time T4) by putting RST to state L for at least 400 clock cycles (delay te)
while VCC remains powered and CLK provided with a suitable and stabled clock signal.
(11). tf: The card answer on I/O shall begin between 400 and 40000 clock cycles (delay tf) after the rising edge of the
signal on RST (at time T5+tf).
(12). f is the frequency of clock.
10.9. Power-up and Power-down Sequence
The following figure shows an example of the power-up sequence for H5 device. During the entire power-up sequence,
the RESET pin must be held on low until all power domains are stable. The other power domains not in Figure 10-29 can
be turned on upon the software request.
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 702
Figure 10-29. Power On Sequence
Power-down sequence is not special restrictions for H5.
10.10. Package Thermal Characteristics
For reliability and operability concerns, the absolute maximum junction temperature of H5 has to be below 125°C.The
testing PCB is based on 4 layers. The following thermal resistance characteristics in Table 10-20 is based on JEDEC
JESD51 standard, because the system design and temperature could be different with JEDEC JESD51 , the simulating
result data is a reference only, please prevail in the actual application condition test.
Table 10-20. H5 Thermal Resistance Characteristics
Symbol
Parameter
Min
Typ
Max
Unit
Ta
Ambient Operating Temperature
-20
-
+70
° C
TJ
Junction Temperature
-
-
+125
° C
Electrical Characteristics
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 703
θJA
Junction-to-Ambient Thermal Resistance
-
27.9
-
°C/W
θJB
Junction-to-Board Thermal Resistance
-
TBD
-
°C/W
θJC
Junction-to-Case Thermal Resistance
-
TBD
-
°C/W
ψJT
Junction-to-Top Characterization Parameter
-
TBD
-
°C/W
ψJB
Junction-to-Board Characterization Parameter
-
TBD
-
°C/W
(1). These values are based on a JEDEC-defined 2S2P system and will change based on environment as well as
application.
(2). °C/W : degrees Celsius per watt.
Appendix
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 704
Appendix
Pin Map
The following figure shows the pin maps of the 347-pin FBGA package of H5 processor.
Appendix
H5 Datasheet(Revision 1.0) Copyright©2016 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 705
Package Dimension
The following diagram shows the package dimension of H5 processor, includes the top, bottom, side views and details of the 14mmx14mm package.
