TC80 - High Temperature Thermocouple Assembly
Sensor Element:
Type R (Pt-13%Rh/Pt),
Type S (Pt-10%Rh/Pt),
Type B (Pt/30%Rh-Pt/6%Rh),
Type K (NiCr-Ni),
Type J (Fe-CuNi),
Type E (NiCr-CuNi),
Type N (NiCrSi-NiSi)
Temperature range:
0 °C to +1700 °C
(depending upon element
and tube material)
Number of sensors: 2-wire single circuit
4-wire dual circuit
Classification
tolerance:
Class 3, class 2 and class
1 per DIN EN 60584
ISA standard and special
to ANSI MC96.1-1982
Options:
Lengths and
diameters standard or
customer specific
Transmitter mounted
directly within connection
head or on measuring
insert DIN plate
Calibration - single point
and multiple points
Material traceability of the
thermocouple alloys and
inner/outer tube material
Selectable accuracy
tolerance
Exchangeable
measuring insert
Special designs
and materials
Thermocouple
transmitter matching
Air or inert gas purge
system / pressure
test connection
Pressure seal
Protective outer tube
Flanged or threaded
connections
Metal support sleeve
Various thermocouple
wire sizes
Features:
The assembly can be supplied with or
without a transmitter. Transmitters convert
the millivolt input from the thermocouple to a
linear analogue or digital output (commonly
4-20 mA). This signal reduces potential
inaccuracies in the circuit and negates the
requirement for thermocouple extension wire.
Thermocouple temperature ranges
are dependent on element calibration
and inner/outer tube material.
A variety of neck extensions are possible
providing a fixture from the enclosure
(connection head) to the assembly.
Manufactured from the finest high purity,
high temperature ceramics and materials.
Pure ceramic insulators and tubes are used in
conjunction with noble metal thermocouples.
These provide greater resistance against
contamination and premature degradation.
A purge assembly option is available to remove
any contaminant gasses that may pass from the
process to the inside of the assembly tubes.
An optional pressure seal is available to prevent
the potential migration of contaminant gasses
from entering the electrical enclosure.

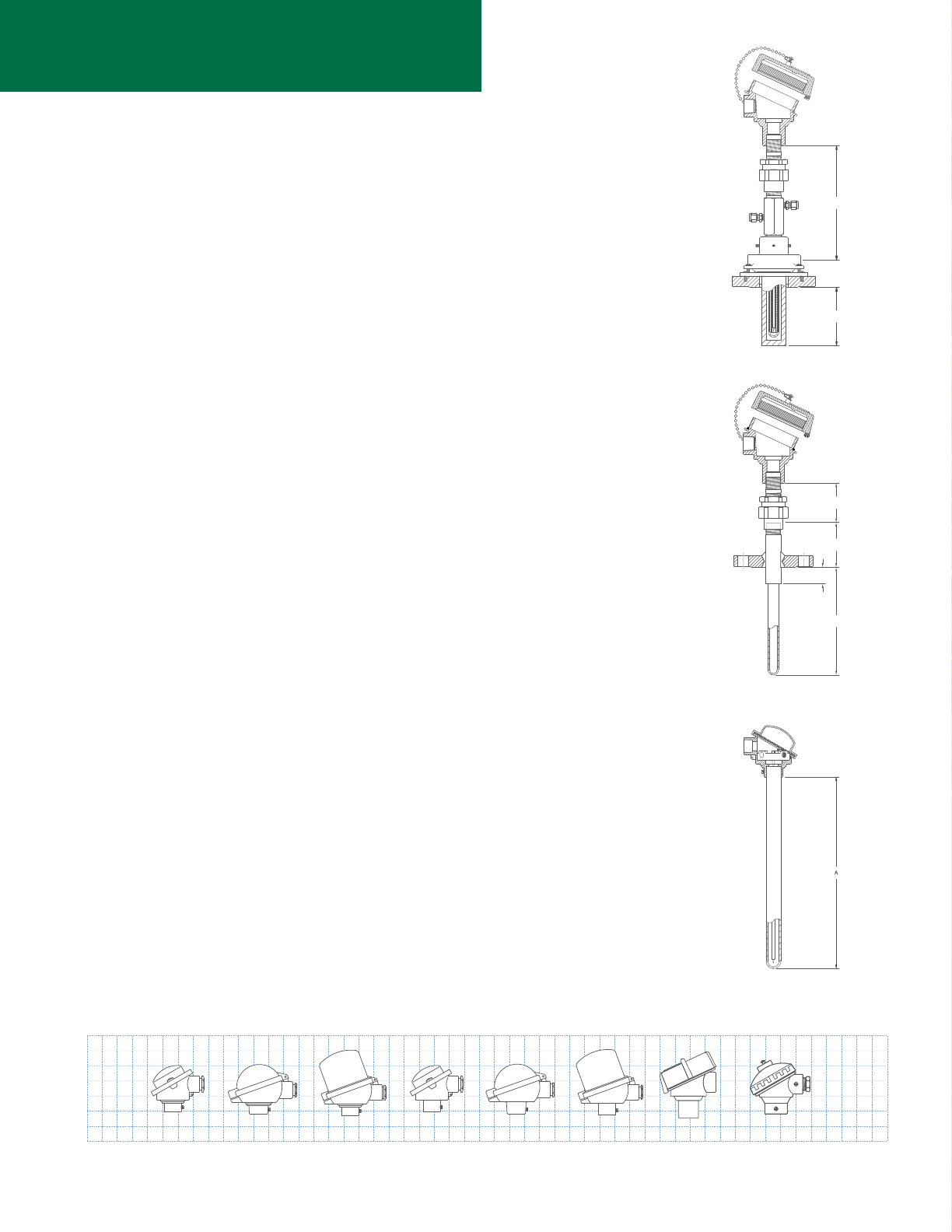

A variety of process connections to
suit the desired application.
Secondary sealing can be included as an
extra safeguard in the event of thermal or
mechanical fatigue of the protective tube.
The tubes available provide good thermal
and mechanical shock resistance.
A metal support tube can be attached over the
ceramic tube when there is the possibility of any
movement of the refractory lining. The length of
the metal support tube should be comparable
to the thickness of the refractory wall.
A variety of wire sizes are available.
Thermocouples
TC80 High Temperature Thermocouple Assembly
WIKA worldwide
Electrical
Temperature
Measurement
103-02033 11/2007 CA
North America
Canada
WIKA Instruments Canada Ltd.
Edmonton, Alberta
Tel.: (+1) 780 463 7035
Fax: (+1) 780 462 0017
E-mail: info@wika.ca
www.wika.ca
Mexico
Instrumentos WIKA México,
S.A. de C.V.
Álvaro Obregón
Tel.: (+52) 55 5020 5300
Fax: (+52) 55 5020 5301
E-mail: ventas@wika.com
www.wika.com.mx
USA
WIKA Instrument Corporation
Lawrenceville, Georgia
Tel.: (+1) 770-513 8200
Fax: (+1) 770-338 5118
E-mail: info@wika.com
www.wika.com
South America
Argentina
WIKA Argentina S.A.
Buenos Aires
Tel.: (+54) 11 4730-1800
Fax: (+54) 11 4761-0050
E-mail: info@wika.com.ar
www.wika.com.ar
Brazil
WIKA DO BRASIL
Iperó - SP
Tel.: (+55) 15 3459 9700
Fax: (+55) 15 3266 1650
E-mail: marketing@wika.com.br
www.wika.com.br
Europe
Austria
WIKA Meßgerätevertrieb
Ursula Wiegand GmbH & Co. KG
Wien
Tel.: (+43) 1-8 69 16 31
Fax: (+43) 1-8 69 16 34
E-mail: info@wika.at
www.wika.at
Benelux
WIKA Benelux
Echt
Tel.: (+31) 475 53 55 00
Fax: (+31) 475 53 54 46
E-mail: info@wika.nl
www.wika.nl
Bulgaria
WIKA Bulgaria EOOD
Sofia
Tel.: (+359) 2 82138-10
Fax: (+359) 2 82138-13
E-mail: t.antonov@wika.bg
www.wika.bg
Finland
WIKA Finland Oy
Helsinki
Tel.: (+358) 9-682 49 20
Fax: (+358) 9-682 49 270
E-mail: info@wika.fi
www.wika.fi
France
WIKA Instruments s.a.r.l.
Eragny-sur-Oise
Tel.: (+33) 1/34 30 84 84
Fax: (+33) 1/34 30 84 94
E-mail: info@wika.fr
www.wika.fr
Germany - Head Office
WIKA Alexander Wiegand
GmbH & Co. KG
Klingenberg
Tel.: (+49) 9372 132-0
Fax: (+49) 9372 132-406
E-mail: info@wika.de
www.wika.de
Italy
WIKA Italiana SRL
Arese (Milano)
Tel.: (+39) 02-93 86 11
Fax: (+39) 02-93 86 174
E-mail: info@wika.it
www.wika.it
Poland
Kujawska Fabryka Manometrow
Wloclawek
Tel.: (+48) 54230 11 00
Fax: (+48) 54230 11 01
E-mail: info@manometry.com.p
l
www.manometry.com.pl
Romania
WIKA Instruments Romania S.R.L.
Bucuresti
Tel.: (+40) 21-456 31 38
Fax: (+40) 21-456 31 37
E-mail: m.anghel@wika.ro
www.wika.ro
Russia
ZAO “WIKA MERA”
Moskau
Tel.: (+7) 495-648 01 80
Fax: (+7) 495-648 01 81
E-mail: info@wika.ru
www.wika.ru
Serbia
WIKA Merna Tehnika d.o.o.
Beograd
Tel.: (+381) 11 2763 722
Fax: (+381) 11-753 674
E-mail: info@wika.co.yu
www.wika.co.yu
Spain
Instrumentos WIKA, S.A.
Sabadell (Barcelona)
Tel.: (+34) 902 902 577
Fax: (+34) 933 938 666
E-mail: info@wika.es
www.wika.es
Switzerland
MANOMETER AG
Hitzkirch
Tel.: (+41) 41 919 72 72
Fax: (+41) 41 919 72 73
E-mail: info@manometer.ch
www.manometer.ch
Ukraine
WIKA Pribor GmbH
Donetsk
Tel.: (+38) 062 345-34-16
Fax: (+38) 062 345-34-17
E-mail: info@wika.donetsk.ua
www.wika.donetsk.ua
United Kingdom
WIKA Instruments Limited
Merstham, Redhill
Tel.: (+44) (0) 1737 644 008
Fax: (+44) (0) 1737 644 403
E-mail: info@wika.co.uk
www.wika.co.uk
Africa/Middle East
Egypt
WIKA Alexander Wiegand
GmbH & Co. KG
Nasr City, Cairo
Tel.: (+20) 2-227 33 140
Fax: (+20) 2-227 33 140
E-mail: Ahmed.Azab@wika.de
Iran
WIKA Instrumentation Pars
Kish Ltd.
Tehran
Tel.: (+98) 21- 8852 6730 3
Fax: (+98) 21- 8875 7413
E-mail: info@wika.ir
www.wika.ir
South Africa
WIKA Instruments (Pty.) Ltd.
Gardenview, Johannesburg
Tel.: (+27) 11-621 00 00
Fax: (+27) 11-621 00 59
E-mail: sales@wika.co.za
www.wika.co.za
United Arab Emirates
WIKA Middle East FZE
Jebel Ali, Dubai
Tel.: (+971) 4-883 90 90
Fax: (+971) 4-883 91 98
E-mail: wikame@emirates.net.ae
Asia
China
WIKA International Trading
(Shanghai) Co., Ltd.
Shanghai
Tel.: (+86) 21 53 85 25 72
Fax: (+86) 21 53 85 25 75
E-mail: wikash@online.sh.cn
India
WIKA Instruments India Pvt. Ltd
.
Wagholi, Pune
Tel.: (+91) 20-66293200
Fax: (+91) 20-66293325
E-mail: sales@wika.co.in
www.wika.co.in
Japan
WIKA Japan K.K.
Minato-ku, Tokyo
Tel.: (+81) 3-5439-6673
Fax: (+81) 3-5439-6674
E-mail: t-shimane@wika.co.jp
Kazakhstan
TOO WIKA Kasachstan
Almaty
Tel.: (+7) 3272 33 08 48
Fax: (+7) 3272 78 99 05
E-mail: info@wika.kz
www.wika.kz
Korea
WIKA Korea Ltd.
Seoul
Tel.: (+82) 2-869 05 05
Fax: (+82) 2-869 05 25
E-mail: info@wika.co.kr
www.wika.co.kr
Malaysia
WIKA Instrumentation (M) Sdn Bhd
Puchong, Selangor
Tel.: (+03) 80631080
Fax: (+03) 80631070
E-mail: info@wika.com.my
www.wika.com.my
Singapore
WIKA Instrumentation PTE. LTD.
Singapore
Tel.: (+65) 6844 55 06
Fax: (+65) 6844 55 07
E-mail: info@wika.com.sg
www.wika.com.sg
Taiwan
WIKA Instrumentation Taiwan Ltd.
Pinjen, Taoyuan
Tel.: (+886) 3 420 6052
Fax: (+886) 3 490 0080
E-mail: info@wika.com.tw
www.wika.com.tw
Australia
Australia
WIKA Australia Pty. Ltd.
Rydalmere NSW
Tel.: (+61) 2 8845 5222
Fax: (+61) 2 9684 4767
E-mail: sales@wika.com.au
www.wika.com.au
U
N
N
H
U
X
~2"
(~50 mm)
Part of Your Business

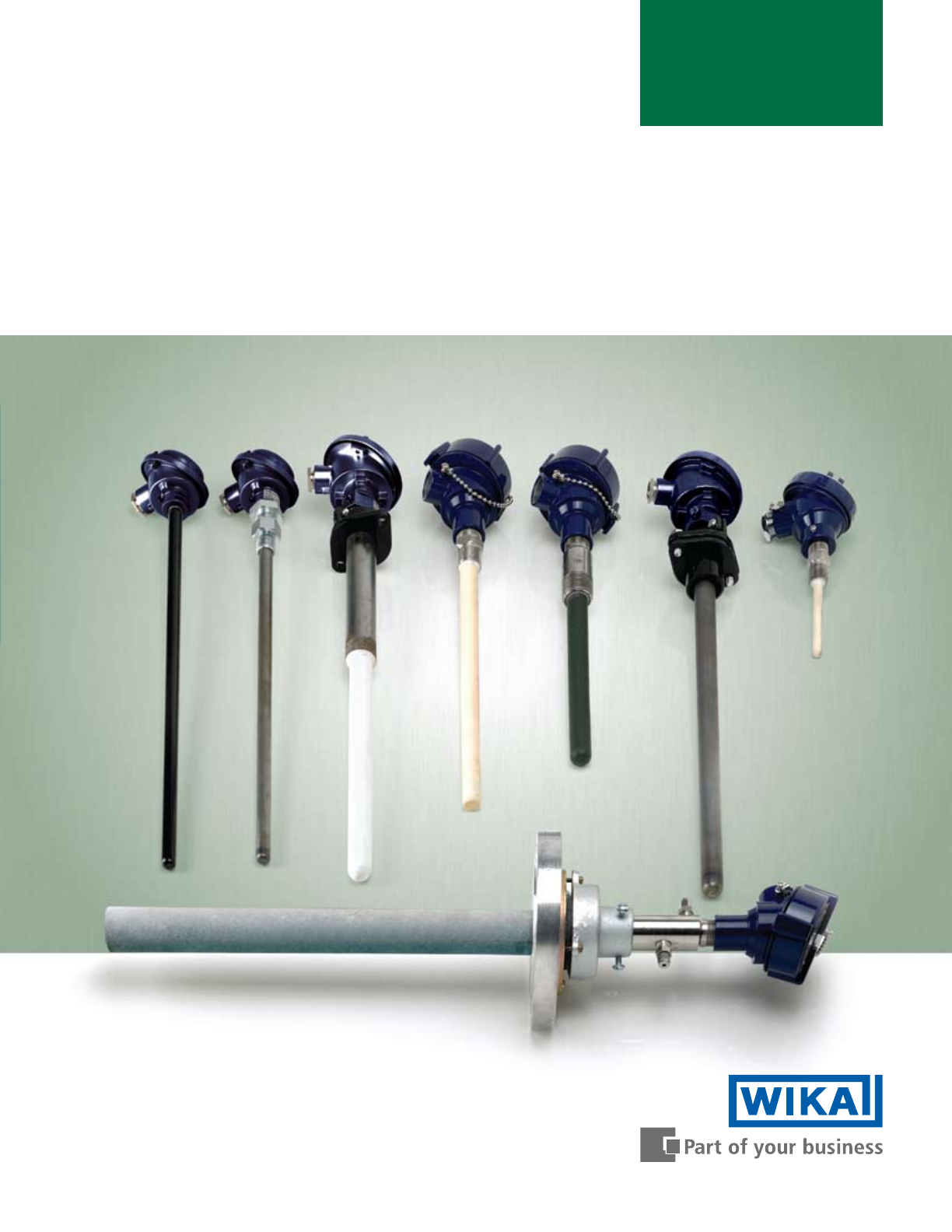

TC80 High Temperature
Thermocouple Assembly
TC80 series thermocouple assemblies are designed for measuring
extreme high temperatures. They are manufactured using high purity
and high temperature ceramics as well as oxidation and corrosion
resistant metals.
High purity and high temperature ceramics must be used when
there is contact with noble metal thermocouple sensors (Types R, S,
and B having platinum and platinum/rhodium elements). Oxidation
and corrosion resistant metals can be used when there is contact
with standard thermocouple sensors or as outer protection tubes.
A wide variety of designs are available that include connection to
process flanges, threaded fittings and direct mounting into a furnace
refractory wall. These designs have options for air or inert gas
purging, pressure seals, and rugged outer protection tubes.
Applications:
TC80 series assemblies are suitable for measuring the
radiant temperatures in most industrial and commercial
high temperature applications including:
Cement Plants
Chemical and petrochemical industries
Energy and power plant technology
Furnaces, kilns, ovens and boilers
Glass, porcelain and ceramics industries
Incinerators
Power and Utilities
Reactors
Semi-Conductor Industries
Smelting Plants
Sulphur Recovery Plants
TC80
Part
Number
TC80-XXXXXXXXX-XXXX-XX-XXXX-
XXXXXXXXXXXXXXXXXX-XX
1Thermocouple assembly
description
Code
YPTA ceramic protection tube (North
American standard)
XPTA silicon carbide protection tube
(North American standard)
VPTA metal/ceramic protection tube
(North American standard)
PAM per DIN 43733 (metal protection
tube, head form A)
QAMK per DIN 43733 (metal
protection tube with ceramic inner
tube, head form A)
OAK per DIN 43733 (ceramic
protection tube, head form A)
RAKK per DIN 43733 (ceramic
protection tube with ceramic inner
tube, head form A)
SBM per DIN 43733 (metal protection
tube, head form B)
TBMK per DIN 43733 (metal
protection tube with ceramic inner
tube, head form B)
UBK per DIN 43733 (ceramic
protection tube, head form B)
2 Unit of measure
IImperial
MMetric
3 Connection head
51000 F (Aluminum)
61000 S (Stainless steel)
7KN4-A (Aluminum)
TAS (Aluminum) with set screws
UASZ (Aluminum) with set screws
VASZ-H (Aluminum) with set screws
WBS (Aluminum) with set screws
CBSZ (Aluminum) with set screws
XBSZ-H (Aluminum) with set screws
ZWithout
4 Cable entry
S1/2 NPT
F3/4 NPT
TM20 x 1.5
ZWithout
5 Head instrument connection
S1/2 NPT
F3/4 NPT
EStraight, fixed with two set screws
ZWithout
6 Terminal block / Transmitter
1Crastin terminal block
2Ceramic terminal block
3T12 (Programmable Digital
Transmitter)
8T19 (Analogue Transmitter)
6T32 (HART® Transmitter)
9T53 (Fieldbus Foundation /
PROFIBUS PA Transmitter)
BT91.10 (Analogue Transmitter, DIN
form B)
XWithout / prepared for transmitter
7 Neck extension
ENipple
ANipple-Union
PThreaded pipe sleeve
BMetallic support tube
ZWithout
8 Neck material
SStainless steel 316 (1.4401)
ECarbon steel
ZWithout
9 Assembly option
1Standard
2With air purge
3With pressure test connection
4With ceramic seal
5With ceramic seal and pressure test
connection
10 Outer tube material
AAlumina Ceramic (99.7 % purity)
IC610 Ceramic (approx. 60 % purity)
MMullite (approx. 60 % purity)
BMetal Ceramic
CHexaloy
KSilicon Carbide RSiC
JC799 Ceramic (99.7 % purity)
HC530 Ceramic (approx. 73 - 75 %
purity)
DCarbon steel (1.0305)
ECarbon steel (1.0305), enamelled
FSteel (1.4762)
GSteel (1.4841)
11 Outer tube diameter (See Notes *)
13/8 inch x 1/4 inch *1
211/16 inch x 7/16 inch *1
33/4 inch x 9/16 inch *1
47/8 inch x 5/8 inch *2
65/8 inch x 3/8 inch *3
73/4 inch x 1/2 inch *3
81 inch x 1/2 inch *3
91 1/4 inch x 3/4 inch *3
51 3/4 inch x 1 inch *4
F26 mm x 18 mm *5
G24 mm x 19 mm *6
D16 mm x 12 mm *6
I15 mm x 11 mm *7
K10 mm x 7 mm *6
A24 mm x 18 mm *8
C15 mm x 10 mm *9
E10 mm x 6 mm *9
B22 mm x 18 mm *10
12 Inner tube material
AAlumina Ceramic (99.7 % purity)
IC610 Ceramic (approx. 60 % purity)
JC799 Ceramic (99.7 % purity)
MMullite (approx. 60 % purity)
ZWithout
13 Inner tube diameter (See Notes *)
13/8 inch x 1/4 inch *11
211/16 inch x 7/16 inch *11
33/4 inch x 9/16 inch *11
D16 mm x 12 mm *12
I15 mm x 11 mm *12
K10 mm x 7 mm *12
C15 mm x 10 mm *13
E10 mm x 6 mm *13
ZWithout
14 Process connection design
6Double threaded hex bushing
7Flange (full penetration welded)
8Flange (partial penetration welded,
6 mm fillet)
9Flange (cemented)
4Threaded bushing (adjustable)
5Stop flange DIN 43734 (adjustable)
ZWithout
15 Process connection (See Notes *)
71/2 NPT, stainless steel *14
83/4 NPT, stainless steel *14
A1 1/2 inch, 150 lbs, RF, 316 SS *15
B
1 1/2 inch, 150 lbs, RF, A105 C/S
*15
C1 1/2 inch, 300 lbs, RF, 316 SS *15
D1
1/2 inch, 300 lbs, RF, A105 C/S
*15
E2 inch, 150 lbs, RF, 316 SS *15
F2 inch, 150 lbs, RF, A105 C/S *15
G2 inch, 300 lbs, RF, 316 SS *15
H2 inch, 300 lbs, RF, A105 C/S *15
I3 inch, 150 lbs, RF, 316 SS *15
J3 inch, 150 lbs, RF, A105 C/S *15
K3 inch, 300 lbs, RF, 316 SS *15
L3 inch, 300 lbs, RF, A105 C/S *15
M4 inch, 150 lbs, RF, 316 SS *15
N4 inch, 150 lbs, RF, A105 C/S *15
O4 inch, 300 lbs, RF, 316 SS *15
P4 inch, 300 lbs, RF, A105 C/S *15
1G 1/2, carbon steel *16
2G 3/4, carbon steel *16
3G 1, carbon steel *16
4G 1 1/4, carbon steel *16
5Dimensions adapted to thermowell,
malleable cast iron *17
6
With mating flange, dimensions adapted
to thermowell, malleable cast iron
*17
ZWithout
16 Element
RType R (Pt-13%Rh/Pt) 0...+1480 °C
(ANSI), 0...+1600 °C (DIN)
SType S (Pt-10%Rh/Pt) 0...+1480 °C
(ANSI), 0...+1600 °C (DIN)
B
Type B (Pt/30%Rh-Pt/6%Rh)
+870...1700 °C (ANSI), +600...+1700
°C (DIN)
1Type K (NiCr-Ni) / 0...+1260 °C
3Type J (Fe-CuNi) / 0...+760 °C
5Type N (NiCrSi-NiSi) / 0...+1260 °C
7Type E (NiCr-CuNi) / 0...+870 °C
17 Number of sensors
2Dual
1Single
18 Classification tolerance
8ISA standard to ANSI MC96.1-1982
9ISA special to ANSI MC96.1-1982
2Class 2 per DIN EN 60584
1Class 1 per DIN EN 60584
3Class 3 per DIN EN 60584
19 Wire gauge of sensor
O24 AWG
P26 AWG
G8 AWG
J14 AWG
M20 AWG
1Ø 0.35 mm
2Ø 0.50 mm
3Ø 0.20 mm
4Ø 1.00 mm
5Ø 3.00 mm
20 H-Dimension (H)
Imperial
A2.0 inch
B3.0 inch
C4.0 inch
D5.0 inch
E6.0 inch
Metric
F50 mm
G75 mm
H100 mm
I125 mm
J150 mm
ZWithout
21 X-Dimension (X)
**** Please specify (e.g. 84 mm = 0084)
(e.g. 9.5 inch = 0950)
ZZZZ Without
22 U-Dimension (U)
***** Please specify (e.g. 84 mm = 00084)
(e.g. 9.5 inch = 00950)
ZZZZZ Without
23 N-Dimension (N)
010 1.0 inch
042 4.2 inch
075 7.5 inch (Air Purge only)
080 80 mm
150 150 mm
200 200 mm
300 300 mm
350 350 mm
ZZZ Without
24 A-Dimension (A)
***** Please specify (e.g. 844 mm =
00844) (e.g. 9.5 inch = 00950)
00355 355 mm
00500 500 mm
00710 710 mm
01000 1000 mm
01400 1400 mm
02000 2000 mm
ZZZZZ Without
25 Certificates
1Quality certificates
ZWithout
26 Additional order details
TAdditional Text
ZWithout
Notes
1Use only with codes A, I or M for
Outer tube material (Field 10)
2Use only with code B for Outer tube
material (Field 10)
3Use only with code C for Outer tube
material (Field 10)
4Use only with code K for Outer tube
material (Field 10)
5Use only with codes H or K for
Outer tube material (Field 10)
6Use only with code I for Outer tube
material (Field 10)
7Use only with codes D, E, F, G or I
for Outer tube material (Field 10)
8Use only with codes D, E, F, G or J
for Outer tube material (Field 10)
9Use only with code J for Outer tube
material (Field 10)
10 Use only with codes D, E, F or G for
Outer tube material (Field 10)
11 Use only with codes A or M for
Inner tube material (Field 12)
12 Use only with code I for Inner tube
material (Field 12)
13 Use only with code J for Inner tube
material (Field 12)
14 Use only with code 6 for Process
connection design (Field 14)
15
Use only with codes 7, 8 or 9 for
Process connection design (Field
14)
16 Use only with code 4 for Process
connection design (Field 14)
17 Use only with code 5 for Process
connection design (Field 14)
AS ASZ ASZ-H BS BSZ BSZ-H 1000F
1000S
KN4-A
Connection Heads
Imperial Grid 1” x 1”
Create your product part number by selecting the appropriate assembly items from each of the
categories below. Enter the item code into the applicable box to generate the part number.
Note: Some configurations are unavailable.
Your WIKA sales person will notify you if you have made an incorrect selection
Create your product part number by selecting the appropriate assembly items from each of the
categories below. Enter the item code into the applicable box to generate the part number.
Note: Some configurations are unavailable.
Your WIKA sales person will notify you if you have made an incorrect selection
12 14 16 17 18 21 22
32 4 5 6 7 8 9 10 11113 15 19 20 23 24 25 26
TC80 - High Temperature Thermocouple Assembly
Sensor Element:
Type R (Pt-13%Rh/Pt),
Type S (Pt-10%Rh/Pt),
Type B (Pt/30%Rh-Pt/6%Rh),
Type K (NiCr-Ni),
Type J (Fe-CuNi),
Type E (NiCr-CuNi),
Type N (NiCrSi-NiSi)
Temperature range:
0 °C to +1700 °C
(depending upon element
and tube material)
Number of sensors: 2-wire single circuit
4-wire dual circuit
Classification
tolerance:
Class 3, class 2 and class
1 per DIN EN 60584
ISA standard and special
to ANSI MC96.1-1982
Options:
Lengths and
diameters standard or
customer specific
Transmitter mounted
directly within connection
head or on measuring
insert DIN plate
Calibration - single point
and multiple points
Material traceability of the
thermocouple alloys and
inner/outer tube material
Selectable accuracy
tolerance
Exchangeable
measuring insert
Special designs
and materials
Thermocouple
transmitter matching
Air or inert gas purge
system / pressure
test connection
Pressure seal
Protective outer tube
Flanged or threaded
connections
Metal support sleeve
Various thermocouple
wire sizes
Features:
The assembly can be supplied with or
without a transmitter. Transmitters convert
the millivolt input from the thermocouple to a
linear analogue or digital output (commonly
4-20 mA). This signal reduces potential
inaccuracies in the circuit and negates the
requirement for thermocouple extension wire.
Thermocouple temperature ranges
are dependent on element calibration
and inner/outer tube material.
A variety of neck extensions are possible
providing a fixture from the enclosure
(connection head) to the assembly.
Manufactured from the finest high purity,
high temperature ceramics and materials.
Pure ceramic insulators and tubes are used in
conjunction with noble metal thermocouples.
These provide greater resistance against
contamination and premature degradation.
A purge assembly option is available to remove
any contaminant gasses that may pass from the
process to the inside of the assembly tubes.
An optional pressure seal is available to prevent
the potential migration of contaminant gasses
from entering the electrical enclosure.
A variety of process connections to
suit the desired application.
Secondary sealing can be included as an
extra safeguard in the event of thermal or
mechanical fatigue of the protective tube.
The tubes available provide good thermal
and mechanical shock resistance.
A metal support tube can be attached over the
ceramic tube when there is the possibility of any
movement of the refractory lining. The length of
the metal support tube should be comparable
to the thickness of the refractory wall.
A variety of wire sizes are available.
Thermocouples
TC80 High Temperature Thermocouple Assembly
WIKA worldwide
Electrical
Temperature
Measurement
103-02033 11/2007 CA
North America
Canada
WIKA Instruments Canada Ltd.
Edmonton, Alberta
Tel.: (+1) 780 463 7035
Fax: (+1) 780 462 0017
E-mail: info@wika.ca
www.wika.ca
Mexico
Instrumentos WIKA México,
S.A. de C.V.
Álvaro Obregón
Tel.: (+52) 55 5020 5300
Fax: (+52) 55 5020 5301
E-mail: ventas@wika.com
www.wika.com.mx
USA
WIKA Instrument Corporation
Lawrenceville, Georgia
Tel.: (+1) 770-513 8200
Fax: (+1) 770-338 5118
E-mail: info@wika.com
www.wika.com
South America
Argentina
WIKA Argentina S.A.
Buenos Aires
Tel.: (+54) 11 4730-1800
Fax: (+54) 11 4761-0050
E-mail: info@wika.com.ar
www.wika.com.ar
Brazil
WIKA DO BRASIL
Iperó - SP
Tel.: (+55) 15 3459 9700
Fax: (+55) 15 3266 1650
E-mail: marketing@wika.com.br
www.wika.com.br
Europe
Austria
WIKA Meßgerätevertrieb
Ursula Wiegand GmbH & Co. KG
Wien
Tel.: (+43) 1-8 69 16 31
Fax: (+43) 1-8 69 16 34
E-mail: info@wika.at
www.wika.at
Benelux
WIKA Benelux
Echt
Tel.: (+31) 475 53 55 00
Fax: (+31) 475 53 54 46
E-mail: info@wika.nl
www.wika.nl
Bulgaria
WIKA Bulgaria EOOD
Sofia
Tel.: (+359) 2 82138-10
Fax: (+359) 2 82138-13
E-mail: t.antonov@wika.bg
www.wika.bg
Finland
WIKA Finland Oy
Helsinki
Tel.: (+358) 9-682 49 20
Fax: (+358) 9-682 49 270
E-mail: info@wika.fi
www.wika.fi
France
WIKA Instruments s.a.r.l.
Eragny-sur-Oise
Tel.: (+33) 1/34 30 84 84
Fax: (+33) 1/34 30 84 94
E-mail: info@wika.fr
www.wika.fr
Germany - Head Office
WIKA Alexander Wiegand
GmbH & Co. KG
Klingenberg
Tel.: (+49) 9372 132-0
Fax: (+49) 9372 132-406
E-mail: info@wika.de
www.wika.de
Italy
WIKA Italiana SRL
Arese (Milano)
Tel.: (+39) 02-93 86 11
Fax: (+39) 02-93 86 174
E-mail: info@wika.it
www.wika.it
Poland
Kujawska Fabryka Manometrow
Wloclawek
Tel.: (+48) 54230 11 00
Fax: (+48) 54230 11 01
E-mail: info@manometry.com.p
l
www.manometry.com.pl
Romania
WIKA Instruments Romania S.R.L.
Bucuresti
Tel.: (+40) 21-456 31 38
Fax: (+40) 21-456 31 37
E-mail: m.anghel@wika.ro
www.wika.ro
Russia
ZAO “WIKA MERA”
Moskau
Tel.: (+7) 495-648 01 80
Fax: (+7) 495-648 01 81
E-mail: info@wika.ru
www.wika.ru
Serbia
WIKA Merna Tehnika d.o.o.
Beograd
Tel.: (+381) 11 2763 722
Fax: (+381) 11-753 674
E-mail: info@wika.co.yu
www.wika.co.yu
Spain
Instrumentos WIKA, S.A.
Sabadell (Barcelona)
Tel.: (+34) 902 902 577
Fax: (+34) 933 938 666
E-mail: info@wika.es
www.wika.es
Switzerland
MANOMETER AG
Hitzkirch
Tel.: (+41) 41 919 72 72
Fax: (+41) 41 919 72 73
E-mail: info@manometer.ch
www.manometer.ch
Ukraine
WIKA Pribor GmbH
Donetsk
Tel.: (+38) 062 345-34-16
Fax: (+38) 062 345-34-17
E-mail: info@wika.donetsk.ua
www.wika.donetsk.ua
United Kingdom
WIKA Instruments Limited
Merstham, Redhill
Tel.: (+44) (0) 1737 644 008
Fax: (+44) (0) 1737 644 403
E-mail: info@wika.co.uk
www.wika.co.uk
Africa/Middle East
Egypt
WIKA Alexander Wiegand
GmbH & Co. KG
Nasr City, Cairo
Tel.: (+20) 2-227 33 140
Fax: (+20) 2-227 33 140
E-mail: Ahmed.Azab@wika.de
Iran
WIKA Instrumentation Pars
Kish Ltd.
Tehran
Tel.: (+98) 21- 8852 6730 3
Fax: (+98) 21- 8875 7413
E-mail: info@wika.ir
www.wika.ir
South Africa
WIKA Instruments (Pty.) Ltd.
Gardenview, Johannesburg
Tel.: (+27) 11-621 00 00
Fax: (+27) 11-621 00 59
E-mail: sales@wika.co.za
www.wika.co.za
United Arab Emirates
WIKA Middle East FZE
Jebel Ali, Dubai
Tel.: (+971) 4-883 90 90
Fax: (+971) 4-883 91 98
E-mail: wikame@emirates.net.ae
Asia
China
WIKA International Trading
(Shanghai) Co., Ltd.
Shanghai
Tel.: (+86) 21 53 85 25 72
Fax: (+86) 21 53 85 25 75
E-mail: wikash@online.sh.cn
India
WIKA Instruments India Pvt. Ltd
.
Wagholi, Pune
Tel.: (+91) 20-66293200
Fax: (+91) 20-66293325
E-mail: sales@wika.co.in
www.wika.co.in
Japan
WIKA Japan K.K.
Minato-ku, Tokyo
Tel.: (+81) 3-5439-6673
Fax: (+81) 3-5439-6674
E-mail: t-shimane@wika.co.jp
Kazakhstan
TOO WIKA Kasachstan
Almaty
Tel.: (+7) 3272 33 08 48
Fax: (+7) 3272 78 99 05
E-mail: info@wika.kz
www.wika.kz
Korea
WIKA Korea Ltd.
Seoul
Tel.: (+82) 2-869 05 05
Fax: (+82) 2-869 05 25
E-mail: info@wika.co.kr
www.wika.co.kr
Malaysia
WIKA Instrumentation (M) Sdn Bhd
Puchong, Selangor
Tel.: (+03) 80631080
Fax: (+03) 80631070
E-mail: info@wika.com.my
www.wika.com.my
Singapore
WIKA Instrumentation PTE. LTD.
Singapore
Tel.: (+65) 6844 55 06
Fax: (+65) 6844 55 07
E-mail: info@wika.com.sg
www.wika.com.sg
Taiwan
WIKA Instrumentation Taiwan Ltd.
Pinjen, Taoyuan
Tel.: (+886) 3 420 6052
Fax: (+886) 3 490 0080
E-mail: info@wika.com.tw
www.wika.com.tw
Australia
Australia
WIKA Australia Pty. Ltd.
Rydalmere NSW
Tel.: (+61) 2 8845 5222
Fax: (+61) 2 9684 4767
E-mail: sales@wika.com.au
www.wika.com.au
U
N
N
H
U
X
~2"
(~50 mm)
Part of Your Business
TC80 High Temperature
Thermocouple Assembly
TC80 series thermocouple assemblies are designed for measuring
extreme high temperatures. They are manufactured using high purity
and high temperature ceramics as well as oxidation and corrosion
resistant metals.
High purity and high temperature ceramics must be used when
there is contact with noble metal thermocouple sensors (Types R, S,
and B having platinum and platinum/rhodium elements). Oxidation
and corrosion resistant metals can be used when there is contact
with standard thermocouple sensors or as outer protection tubes.
A wide variety of designs are available that include connection to
process flanges, threaded fittings and direct mounting into a furnace
refractory wall. These designs have options for air or inert gas
purging, pressure seals, and rugged outer protection tubes.
Applications:
TC80 series assemblies are suitable for measuring the
radiant temperatures in most industrial and commercial
high temperature applications including:
Cement Plants
Chemical and petrochemical industries
Energy and power plant technology
Furnaces, kilns, ovens and boilers
Glass, porcelain and ceramics industries
Incinerators
Power and Utilities
Reactors
Semi-Conductor Industries
Smelting Plants
Sulphur Recovery Plants
TC80
Part
Number
TC80-XXXXXXXXX-XXXX-XX-XXXX-
XXXXXXXXXXXXXXXXXX-XX
1Thermocouple assembly
description
Code
YPTA ceramic protection tube (North
American standard)
XPTA silicon carbide protection tube
(North American standard)
VPTA metal/ceramic protection tube
(North American standard)
PAM per DIN 43733 (metal protection
tube, head form A)
QAMK per DIN 43733 (metal
protection tube with ceramic inner
tube, head form A)
OAK per DIN 43733 (ceramic
protection tube, head form A)
RAKK per DIN 43733 (ceramic
protection tube with ceramic inner
tube, head form A)
SBM per DIN 43733 (metal protection
tube, head form B)
TBMK per DIN 43733 (metal
protection tube with ceramic inner
tube, head form B)
UBK per DIN 43733 (ceramic
protection tube, head form B)
2 Unit of measure
IImperial
MMetric
3 Connection head
51000 F (Aluminum)
61000 S (Stainless steel)
7KN4-A (Aluminum)
TAS (Aluminum) with set screws
UASZ (Aluminum) with set screws
VASZ-H (Aluminum) with set screws
WBS (Aluminum) with set screws
CBSZ (Aluminum) with set screws
XBSZ-H (Aluminum) with set screws
ZWithout
4 Cable entry
S1/2 NPT
F3/4 NPT
TM20 x 1.5
ZWithout
5 Head instrument connection
S1/2 NPT
F3/4 NPT
EStraight, fixed with two set screws
ZWithout
6 Terminal block / Transmitter
1Crastin terminal block
2Ceramic terminal block
3T12 (Programmable Digital
Transmitter)
8T19 (Analogue Transmitter)
6T32 (HART® Transmitter)
9T53 (Fieldbus Foundation /
PROFIBUS PA Transmitter)
BT91.10 (Analogue Transmitter, DIN
form B)
XWithout / prepared for transmitter
7 Neck extension
ENipple
ANipple-Union
PThreaded pipe sleeve
BMetallic support tube
ZWithout
8 Neck material
SStainless steel 316 (1.4401)
ECarbon steel
ZWithout
9 Assembly option
1Standard
2With air purge
3With pressure test connection
4With ceramic seal
5With ceramic seal and pressure test
connection
10 Outer tube material
AAlumina Ceramic (99.7 % purity)
IC610 Ceramic (approx. 60 % purity)
MMullite (approx. 60 % purity)
BMetal Ceramic
CHexaloy
KSilicon Carbide RSiC
JC799 Ceramic (99.7 % purity)
HC530 Ceramic (approx. 73 - 75 %
purity)
DCarbon steel (1.0305)
ECarbon steel (1.0305), enamelled
FSteel (1.4762)
GSteel (1.4841)
11 Outer tube diameter (See Notes *)
13/8 inch x 1/4 inch *1
211/16 inch x 7/16 inch *1
33/4 inch x 9/16 inch *1
47/8 inch x 5/8 inch *2
65/8 inch x 3/8 inch *3
73/4 inch x 1/2 inch *3
81 inch x 1/2 inch *3
91 1/4 inch x 3/4 inch *3
51 3/4 inch x 1 inch *4
F26 mm x 18 mm *5
G24 mm x 19 mm *6
D16 mm x 12 mm *6
I15 mm x 11 mm *7
K10 mm x 7 mm *6
A24 mm x 18 mm *8
C15 mm x 10 mm *9
E10 mm x 6 mm *9
B22 mm x 18 mm *10
12 Inner tube material
AAlumina Ceramic (99.7 % purity)
IC610 Ceramic (approx. 60 % purity)
JC799 Ceramic (99.7 % purity)
MMullite (approx. 60 % purity)
ZWithout
13 Inner tube diameter (See Notes *)
13/8 inch x 1/4 inch *11
211/16 inch x 7/16 inch *11
33/4 inch x 9/16 inch *11
D16 mm x 12 mm *12
I15 mm x 11 mm *12
K10 mm x 7 mm *12
C15 mm x 10 mm *13
E10 mm x 6 mm *13
ZWithout
14 Process connection design
6Double threaded hex bushing
7Flange (full penetration welded)
8Flange (partial penetration welded,
6 mm fillet)
9Flange (cemented)
4Threaded bushing (adjustable)
5Stop flange DIN 43734 (adjustable)
ZWithout
15 Process connection (See Notes *)
71/2 NPT, stainless steel *14
83/4 NPT, stainless steel *14
A1 1/2 inch, 150 lbs, RF, 316 SS *15
B
1 1/2 inch, 150 lbs, RF, A105 C/S
*15
C1 1/2 inch, 300 lbs, RF, 316 SS *15
D1
1/2 inch, 300 lbs, RF, A105 C/S
*15
E2 inch, 150 lbs, RF, 316 SS *15
F2 inch, 150 lbs, RF, A105 C/S *15
G2 inch, 300 lbs, RF, 316 SS *15
H2 inch, 300 lbs, RF, A105 C/S *15
I3 inch, 150 lbs, RF, 316 SS *15
J3 inch, 150 lbs, RF, A105 C/S *15
K3 inch, 300 lbs, RF, 316 SS *15
L3 inch, 300 lbs, RF, A105 C/S *15
M4 inch, 150 lbs, RF, 316 SS *15
N4 inch, 150 lbs, RF, A105 C/S *15
O4 inch, 300 lbs, RF, 316 SS *15
P4 inch, 300 lbs, RF, A105 C/S *15
1G 1/2, carbon steel *16
2G 3/4, carbon steel *16
3G 1, carbon steel *16
4G 1 1/4, carbon steel *16
5Dimensions adapted to thermowell,
malleable cast iron *17
6
With mating flange, dimensions adapted
to thermowell, malleable cast iron
*17
ZWithout
16 Element
RType R (Pt-13%Rh/Pt) 0...+1480 °C
(ANSI), 0...+1600 °C (DIN)
SType S (Pt-10%Rh/Pt) 0...+1480 °C
(ANSI), 0...+1600 °C (DIN)
B
Type B (Pt/30%Rh-Pt/6%Rh)
+870...1700 °C (ANSI), +600...+1700
°C (DIN)
1Type K (NiCr-Ni) / 0...+1260 °C
3Type J (Fe-CuNi) / 0...+760 °C
5Type N (NiCrSi-NiSi) / 0...+1260 °C
7Type E (NiCr-CuNi) / 0...+870 °C
17 Number of sensors
2Dual
1Single
18 Classification tolerance
8ISA standard to ANSI MC96.1-1982
9ISA special to ANSI MC96.1-1982
2Class 2 per DIN EN 60584
1Class 1 per DIN EN 60584
3Class 3 per DIN EN 60584
19 Wire gauge of sensor
O24 AWG
P26 AWG
G8 AWG
J14 AWG
M20 AWG
1Ø 0.35 mm
2Ø 0.50 mm
3Ø 0.20 mm
4Ø 1.00 mm
5Ø 3.00 mm
20 H-Dimension (H)
Imperial
A2.0 inch
B3.0 inch
C4.0 inch
D5.0 inch
E6.0 inch
Metric
F50 mm
G75 mm
H100 mm
I125 mm
J150 mm
ZWithout
21 X-Dimension (X)
**** Please specify (e.g. 84 mm = 0084)
(e.g. 9.5 inch = 0950)
ZZZZ Without
22 U-Dimension (U)
***** Please specify (e.g. 84 mm = 00084)
(e.g. 9.5 inch = 00950)
ZZZZZ Without
23 N-Dimension (N)
010 1.0 inch
042 4.2 inch
075 7.5 inch (Air Purge only)
080 80 mm
150 150 mm
200 200 mm
300 300 mm
350 350 mm
ZZZ Without
24 A-Dimension (A)
***** Please specify (e.g. 844 mm =
00844) (e.g. 9.5 inch = 00950)
00355 355 mm
00500 500 mm
00710 710 mm
01000 1000 mm
01400 1400 mm
02000 2000 mm
ZZZZZ Without
25 Certificates
1Quality certificates
ZWithout
26 Additional order details
TAdditional Text
ZWithout
Notes
1Use only with codes A, I or M for
Outer tube material (Field 10)
2Use only with code B for Outer tube
material (Field 10)
3Use only with code C for Outer tube
material (Field 10)
4Use only with code K for Outer tube
material (Field 10)
5Use only with codes H or K for
Outer tube material (Field 10)
6Use only with code I for Outer tube
material (Field 10)
7Use only with codes D, E, F, G or I
for Outer tube material (Field 10)
8Use only with codes D, E, F, G or J
for Outer tube material (Field 10)
9Use only with code J for Outer tube
material (Field 10)
10 Use only with codes D, E, F or G for
Outer tube material (Field 10)
11 Use only with codes A or M for
Inner tube material (Field 12)
12 Use only with code I for Inner tube
material (Field 12)
13 Use only with code J for Inner tube
material (Field 12)
14 Use only with code 6 for Process
connection design (Field 14)
15
Use only with codes 7, 8 or 9 for
Process connection design (Field
14)
16 Use only with code 4 for Process
connection design (Field 14)
17 Use only with code 5 for Process
connection design (Field 14)
AS ASZ ASZ-H BS BSZ BSZ-H 1000F
1000S
KN4-A
Connection Heads
Imperial Grid 1” x 1”
Create your product part number by selecting the appropriate assembly items from each of the
categories below. Enter the item code into the applicable box to generate the part number.
Note: Some configurations are unavailable.
Your WIKA sales person will notify you if you have made an incorrect selection
Create your product part number by selecting the appropriate assembly items from each of the
categories below. Enter the item code into the applicable box to generate the part number.
Note: Some configurations are unavailable.
Your WIKA sales person will notify you if you have made an incorrect selection
12 14 16 17 18 21 22
32 4 5 6 7 8 9 10 11113 15 19 20 23 24 25 26
U
N
N
H
U
X
~2"
(~50 mm)
Part of Your Business
TC80 High Temperature
Thermocouple Assembly
TC80 series thermocouple assemblies are designed for measuring
extreme high temperatures. They are manufactured using high purity
and high temperature ceramics as well as oxidation and corrosion
resistant metals.
High purity and high temperature ceramics must be used when
there is contact with noble metal thermocouple sensors (Types R, S,
and B having platinum and platinum/rhodium elements). Oxidation
and corrosion resistant metals can be used when there is contact
with standard thermocouple sensors or as outer protection tubes.
A wide variety of designs are available that include connection to
process flanges, threaded fittings and direct mounting into a furnace
refractory wall. These designs have options for air or inert gas
purging, pressure seals, and rugged outer protection tubes.
Applications:
TC80 series assemblies are suitable for measuring the
radiant temperatures in most industrial and commercial
high temperature applications including:
Cement Plants
Chemical and petrochemical industries
Energy and power plant technology
Furnaces, kilns, ovens and boilers
Glass, porcelain and ceramics industries
Incinerators
Power and Utilities
Reactors
Semi-Conductor Industries
Smelting Plants
Sulphur Recovery Plants
TC80
Part
Number
TC80-XXXXXXXXX-XXXX-XX-XXXX-
XXXXXXXXXXXXXXXXXX-XX
1Thermocouple assembly
description
Code
YPTA ceramic protection tube (North
American standard)
XPTA silicon carbide protection tube
(North American standard)
VPTA metal/ceramic protection tube
(North American standard)
PAM per DIN 43733 (metal protection
tube, head form A)
QAMK per DIN 43733 (metal
protection tube with ceramic inner
tube, head form A)
OAK per DIN 43733 (ceramic
protection tube, head form A)
RAKK per DIN 43733 (ceramic
protection tube with ceramic inner
tube, head form A)
SBM per DIN 43733 (metal protection
tube, head form B)
TBMK per DIN 43733 (metal
protection tube with ceramic inner
tube, head form B)
UBK per DIN 43733 (ceramic
protection tube, head form B)
2 Unit of measure
IImperial
MMetric
3 Connection head
51000 F (Aluminum)
61000 S (Stainless steel)
7KN4-A (Aluminum)
TAS (Aluminum) with set screws
UASZ (Aluminum) with set screws
VASZ-H (Aluminum) with set screws
WBS (Aluminum) with set screws
CBSZ (Aluminum) with set screws
XBSZ-H (Aluminum) with set screws
ZWithout
4 Cable entry
S1/2 NPT
F3/4 NPT
TM20 x 1.5
ZWithout
5 Head instrument connection
S1/2 NPT
F3/4 NPT
EStraight, fixed with two set screws
ZWithout
6 Terminal block / Transmitter
1Crastin terminal block
2Ceramic terminal block
3T12 (Programmable Digital
Transmitter)
8T19 (Analogue Transmitter)
6T32 (HART® Transmitter)
9T53 (Fieldbus Foundation /
PROFIBUS PA Transmitter)
BT91.10 (Analogue Transmitter, DIN
form B)
XWithout / prepared for transmitter
7 Neck extension
ENipple
ANipple-Union
PThreaded pipe sleeve
BMetallic support tube
ZWithout
8 Neck material
SStainless steel 316 (1.4401)
ECarbon steel
ZWithout
9 Assembly option
1Standard
2With air purge
3With pressure test connection
4With ceramic seal
5With ceramic seal and pressure test
connection
10 Outer tube material
AAlumina Ceramic (99.7 % purity)
IC610 Ceramic (approx. 60 % purity)
MMullite (approx. 60 % purity)
BMetal Ceramic
CHexaloy
KSilicon Carbide RSiC
JC799 Ceramic (99.7 % purity)
HC530 Ceramic (approx. 73 - 75 %
purity)
DCarbon steel (1.0305)
ECarbon steel (1.0305), enamelled
FSteel (1.4762)
GSteel (1.4841)
11 Outer tube diameter (See Notes *)
13/8 inch x 1/4 inch *1
211/16 inch x 7/16 inch *1
33/4 inch x 9/16 inch *1
47/8 inch x 5/8 inch *2
65/8 inch x 3/8 inch *3
73/4 inch x 1/2 inch *3
81 inch x 1/2 inch *3
91 1/4 inch x 3/4 inch *3
51 3/4 inch x 1 inch *4
F26 mm x 18 mm *5
G24 mm x 19 mm *6
D16 mm x 12 mm *6
I15 mm x 11 mm *7
K10 mm x 7 mm *6
A24 mm x 18 mm *8
C15 mm x 10 mm *9
E10 mm x 6 mm *9
B22 mm x 18 mm *10
12 Inner tube material
AAlumina Ceramic (99.7 % purity)
IC610 Ceramic (approx. 60 % purity)
JC799 Ceramic (99.7 % purity)
MMullite (approx. 60 % purity)
ZWithout
13 Inner tube diameter (See Notes *)
13/8 inch x 1/4 inch *11
211/16 inch x 7/16 inch *11
33/4 inch x 9/16 inch *11
D16 mm x 12 mm *12
I15 mm x 11 mm *12
K10 mm x 7 mm *12
C15 mm x 10 mm *13
E10 mm x 6 mm *13
ZWithout
14 Process connection design
6Double threaded hex bushing
7Flange (full penetration welded)
8Flange (partial penetration welded,
6 mm fillet)
9Flange (cemented)
4Threaded bushing (adjustable)
5Stop flange DIN 43734 (adjustable)
ZWithout
15 Process connection (See Notes *)
71/2 NPT, stainless steel *14
83/4 NPT, stainless steel *14
A1 1/2 inch, 150 lbs, RF, 316 SS *15
B
1 1/2 inch, 150 lbs, RF, A105 C/S
*15
C1 1/2 inch, 300 lbs, RF, 316 SS *15
D1
1/2 inch, 300 lbs, RF, A105 C/S
*15
E2 inch, 150 lbs, RF, 316 SS *15
F2 inch, 150 lbs, RF, A105 C/S *15
G2 inch, 300 lbs, RF, 316 SS *15
H2 inch, 300 lbs, RF, A105 C/S *15
I3 inch, 150 lbs, RF, 316 SS *15
J3 inch, 150 lbs, RF, A105 C/S *15
K3 inch, 300 lbs, RF, 316 SS *15
L3 inch, 300 lbs, RF, A105 C/S *15
M4 inch, 150 lbs, RF, 316 SS *15
N4 inch, 150 lbs, RF, A105 C/S *15
O4 inch, 300 lbs, RF, 316 SS *15
P4 inch, 300 lbs, RF, A105 C/S *15
1G 1/2, carbon steel *16
2G 3/4, carbon steel *16
3G 1, carbon steel *16
4G 1 1/4, carbon steel *16
5Dimensions adapted to thermowell,
malleable cast iron *17
6
With mating flange, dimensions adapted
to thermowell, malleable cast iron
*17
ZWithout
16 Element
RType R (Pt-13%Rh/Pt) 0...+1480 °C
(ANSI), 0...+1600 °C (DIN)
SType S (Pt-10%Rh/Pt) 0...+1480 °C
(ANSI), 0...+1600 °C (DIN)
B
Type B (Pt/30%Rh-Pt/6%Rh)
+870...1700 °C (ANSI), +600...+1700
°C (DIN)
1Type K (NiCr-Ni) / 0...+1260 °C
3Type J (Fe-CuNi) / 0...+760 °C
5Type N (NiCrSi-NiSi) / 0...+1260 °C
7Type E (NiCr-CuNi) / 0...+870 °C
17 Number of sensors
2Dual
1Single
18 Classification tolerance
8ISA standard to ANSI MC96.1-1982
9ISA special to ANSI MC96.1-1982
2Class 2 per DIN EN 60584
1Class 1 per DIN EN 60584
3Class 3 per DIN EN 60584
19 Wire gauge of sensor
O24 AWG
P26 AWG
G8 AWG
J14 AWG
M20 AWG
1Ø 0.35 mm
2Ø 0.50 mm
3Ø 0.20 mm
4Ø 1.00 mm
5Ø 3.00 mm
20 H-Dimension (H)
Imperial
A2.0 inch
B3.0 inch
C4.0 inch
D5.0 inch
E6.0 inch
Metric
F50 mm
G75 mm
H100 mm
I125 mm
J150 mm
ZWithout
21 X-Dimension (X)
**** Please specify (e.g. 84 mm = 0084)
(e.g. 9.5 inch = 0950)
ZZZZ Without
22 U-Dimension (U)
***** Please specify (e.g. 84 mm = 00084)
(e.g. 9.5 inch = 00950)
ZZZZZ Without
23 N-Dimension (N)
010 1.0 inch
042 4.2 inch
075 7.5 inch (Air Purge only)
080 80 mm
150 150 mm
200 200 mm
300 300 mm
350 350 mm
ZZZ Without
24 A-Dimension (A)
***** Please specify (e.g. 844 mm =
00844) (e.g. 9.5 inch = 00950)
00355 355 mm
00500 500 mm
00710 710 mm
01000 1000 mm
01400 1400 mm
02000 2000 mm
ZZZZZ Without
25 Certificates
1Quality certificates
ZWithout
26 Additional order details
TAdditional Text
ZWithout
Notes
1Use only with codes A, I or M for
Outer tube material (Field 10)
2Use only with code B for Outer tube
material (Field 10)
3Use only with code C for Outer tube
material (Field 10)
4Use only with code K for Outer tube
material (Field 10)
5Use only with codes H or K for
Outer tube material (Field 10)
6Use only with code I for Outer tube
material (Field 10)
7Use only with codes D, E, F, G or I
for Outer tube material (Field 10)
8Use only with codes D, E, F, G or J
for Outer tube material (Field 10)
9Use only with code J for Outer tube
material (Field 10)
10 Use only with codes D, E, F or G for
Outer tube material (Field 10)
11 Use only with codes A or M for
Inner tube material (Field 12)
12 Use only with code I for Inner tube
material (Field 12)
13 Use only with code J for Inner tube
material (Field 12)
14 Use only with code 6 for Process
connection design (Field 14)
15
Use only with codes 7, 8 or 9 for
Process connection design (Field
14)
16 Use only with code 4 for Process
connection design (Field 14)
17 Use only with code 5 for Process
connection design (Field 14)
AS ASZ ASZ-H BS BSZ BSZ-H 1000F
1000S
KN4-A
Connection Heads
Imperial Grid 1” x 1”
Create your product part number by selecting the appropriate assembly items from each of the
categories below. Enter the item code into the applicable box to generate the part number.
Note: Some configurations are unavailable.
Your WIKA sales person will notify you if you have made an incorrect selection
Create your product part number by selecting the appropriate assembly items from each of the
categories below. Enter the item code into the applicable box to generate the part number.
Note: Some configurations are unavailable.
Your WIKA sales person will notify you if you have made an incorrect selection
12 14 16 17 18 21 22
32 4 5 6 7 8 9 10 11113 15 19 20 23 24 25 26
WIKA worldwide
North America
Canada
WIKA Instruments Canada Ltd.
Edmonton, Alberta
Tel.: (+1) 780 463 7035
Fax: (+1) 780 462 0017
E-mail: info@wika.ca
www.wika.ca
Mexico
Instrumentos WIKA México,
S.A. de C.V.
Álvaro Obregón
Tel.: (+52) 55 5020 5300
Fax: (+52) 55 5020 5301
E-mail: ventas@wika.com
www.wika.com.mx
USA
WIKA Instrument Corporation
Lawrenceville, Georgia
Tel.: (+1) 770 513 8200
Fax: (+1) 770 338 5118
E-mail: info@wika.com
www.wika.com
USA
WIKA Instrument Corporation
Houston Facility
Deer Park, Texas
Tel.: (+1) 713 475 0022
Fax: (+1) 713 475 0011
E-mail: info@wikahouston.com
www.wika.com
South America
Argentina
WIKA Argentina S.A.
Buenos Aires
Tel.: (+54) 11 4730-1800
Fax: (+54) 11 4761-0050
E-mail: info@wika.com.ar
www.wika.com.ar
Brazil
WIKA DO BRASIL
Iperó - SP
Tel.: (+55) 15 3459 9700
Fax: (+55) 15 3266 1650
E-mail: marketing@wika.com.br
www.wika.com.br
Europe
Austria
WIKA Meßgerätevertrieb
Ursula Wiegand GmbH & Co. KG
Wien
Tel.: (+43) 1-8 69 16 31
Fax: (+43) 1-8 69 16 34
E-mail: info@wika.at
www.wika.at
Benelux
WIKA Benelux
Echt
Tel.: (+31) 475 53 55 00
Fax: (+31) 475 53 54 46
E-mail: info@wika.nl
www.wika.nl
Bulgaria
WIKA Bulgaria EOOD
Sofia
Tel.: (+359) 2 82138-10
Fax: (+359) 2 82138-13
E-mail: t.antonov@wika.bg
www.wika.bg
Finland
WIKA Finland Oy
Helsinki
Tel.: (+358) 9-682 49 20
Fax: (+358) 9-682 49 270
E-mail: info@wika.fi
www.wika.fi
France
WIKA Instruments s.a.r.l.
Eragny-sur-Oise
Tel.: (+33) 1/34 30 84 84
Fax: (+33) 1/34 30 84 94
E-mail: info@wika.fr
www.wika.fr
Germany - Head Office
WIKA Alexander Wiegand
GmbH & Co. KG
Klingenberg
Tel.: (+49) 9372 132-0
Fax: (+49) 9372 132-406
E-mail: info@wika.de
www.wika.de
Italy
WIKA Italiana SRL
Arese (Milano)
Tel.: (+39) 02-93 86 11
Fax: (+39) 02-93 86 174
E-mail: info@wika.it
www.wika.it
Poland
Kujawska Fabryka Manometrow
Wloclawek
Tel.: (+48) 54230 11 00
Fax: (+48) 54230 11 01
E-mail: info@manometry.com.p
l
www.manometry.com.pl
Romania
WIKA Instruments Romania S.R.L.
Bucuresti
Tel.: (+40) 21-456 31 38
Fax: (+40) 21-456 31 37
E-mail: m.anghel@wika.ro
www.wika.ro
Russia
ZAO “WIKA MERA”
Moskau
Tel.: (+7) 495-648 01 80
Fax: (+7) 495-648 01 81
E-mail: info@wika.ru
www.wika.ru
Serbia
WIKA Merna Tehnika d.o.o.
Beograd
Tel.: (+381) 11 2763 722
Fax: (+381) 11-753 674
E-mail: info@wika.co.yu
www.wika.co.yu
Spain
Instrumentos WIKA, S.A.
Sabadell (Barcelona)
Tel.: (+34) 902 902 577
Fax: (+34) 933 938 666
E-mail: info@wika.es
www.wika.es
Switzerland
MANOMETER AG
Hitzkirch
Tel.: (+41) 41 919 72 72
Fax: (+41) 41 919 72 73
E-mail: info@manometer.ch
www.manometer.ch
Ukraine
WIKA Pribor GmbH
Donetsk
Tel.: (+38) 062 345-34-16
Fax: (+38) 062 345-34-17
E-mail: info@wika.donetsk.ua
www.wika.donetsk.ua
United Kingdom
WIKA Instruments Limited
Merstham, Redhill
Tel.: (+44) (0) 1737 644 008
Fax: (+44) (0) 1737 644 403
E-mail: info@wika.co.uk
www.wika.co.uk
Asia
China
WIKA International Trading
(Shanghai) Co., Ltd.
Shanghai
Tel.: (+86) 21 53 85 25 72
Fax: (+86) 21 53 85 25 75
E-mail: wikash@online.sh.cn
India
WIKA Instruments India Pvt. Ltd
.
Wagholi, Pune
Tel.: (+91) 20-66293200
Fax: (+91) 20-66293325
E-mail: sales@wika.co.in
www.wika.co.in
Japan
WIKA Japan K.K.
Minato-ku, Tokyo
Tel.: (+81) 3-5439-6673
Fax: (+81) 3-5439-6674
E-mail: t-shimane@wika.co.jp
Kazakhstan
TOO WIKA Kasachstan
Almaty
Tel.: (+7) 3272 33 08 48
Fax: (+7) 3272 78 99 05
E-mail: info@wika.kz
www.wika.kz
Korea
WIKA Korea Ltd.
Seoul
Tel.: (+82) 2-869 05 05
Fax: (+82) 2-869 05 25
E-mail: info@wika.co.kr
www.wika.co.kr
Malaysia
WIKA Instrumentation (M) Sdn Bhd
Puchong, Selangor
Tel.: (+03) 80631080
Fax: (+03) 80631070
E-mail: info@wika.com.my
www.wika.com.my
Singapore
WIKA Instrumentation PTE. LTD.
Singapore
Tel.: (+65) 6844 55 06
Fax: (+65) 6844 55 07
E-mail: info@wika.com.sg
www.wika.com.sg
Taiwan
WIKA Instrumentation Taiwan Ltd.
Pinjen, Taoyuan
Tel.: (+886) 3 420 6052
Fax: (+886) 3 490 0080
E-mail: info@wika.com.tw
www.wika.com.tw
Africa/Middle East
Egypt
WIKA Alexander Wiegand
GmbH & Co. KG
Nasr City, Cairo
Tel.: (+20) 2-227 33 140
Fax: (+20) 2-227 33 140
E-mail: Ahmed.Azab@wika.de
Iran
WIKA Instrumentation Pars
Kish Ltd.
Tehran
Tel.: (+98) 21- 8852 6730 3
Fax: (+98) 21- 8875 7413
E-mail: info@wika.ir
www.wika.ir
South Africa
WIKA Instruments (Pty.) Ltd.
Gardenview, Johannesburg
Tel.: (+27) 11-621 00 00
Fax: (+27) 11-621 00 59
E-mail: sales@wika.co.za
www.wika.co.za
United Arab Emirates
WIKA Middle East FZE
Jebel Ali, Dubai
Tel.: (+971) 4-883 90 90
Fax: (+971) 4-883 91 98
E-mail: wikame@emirates.net.ae
Australia
Australia
WIKA Australia Pty. Ltd.
Rydalmere NSW
Tel.: (+61) 2 8845 5222
Fax: (+61) 2 9684 4767
E-mail: sales@wika.com.au
www.wika.com.au
