Not for

Reproduction

Parts Manual

7800510 - BTPV22675E

Revision -

Manual Part No. 7103421

Rev. Date: 4/1/2009

Not for

Reproduction

Table Of Content

s

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Handles and Controls .......................................................................................................................................... 4

Engine and Blade Assembly ................................................................................................................................ 6

Transmission & Grass Bag .................................................................................................................................. 8

Decals Group ....................................................................................................................................................... 10

Deck Assembly .................................................................................................................................................... 12

Wiring Schematic ................................................................................................................................................. 14

Not for

Reproduction

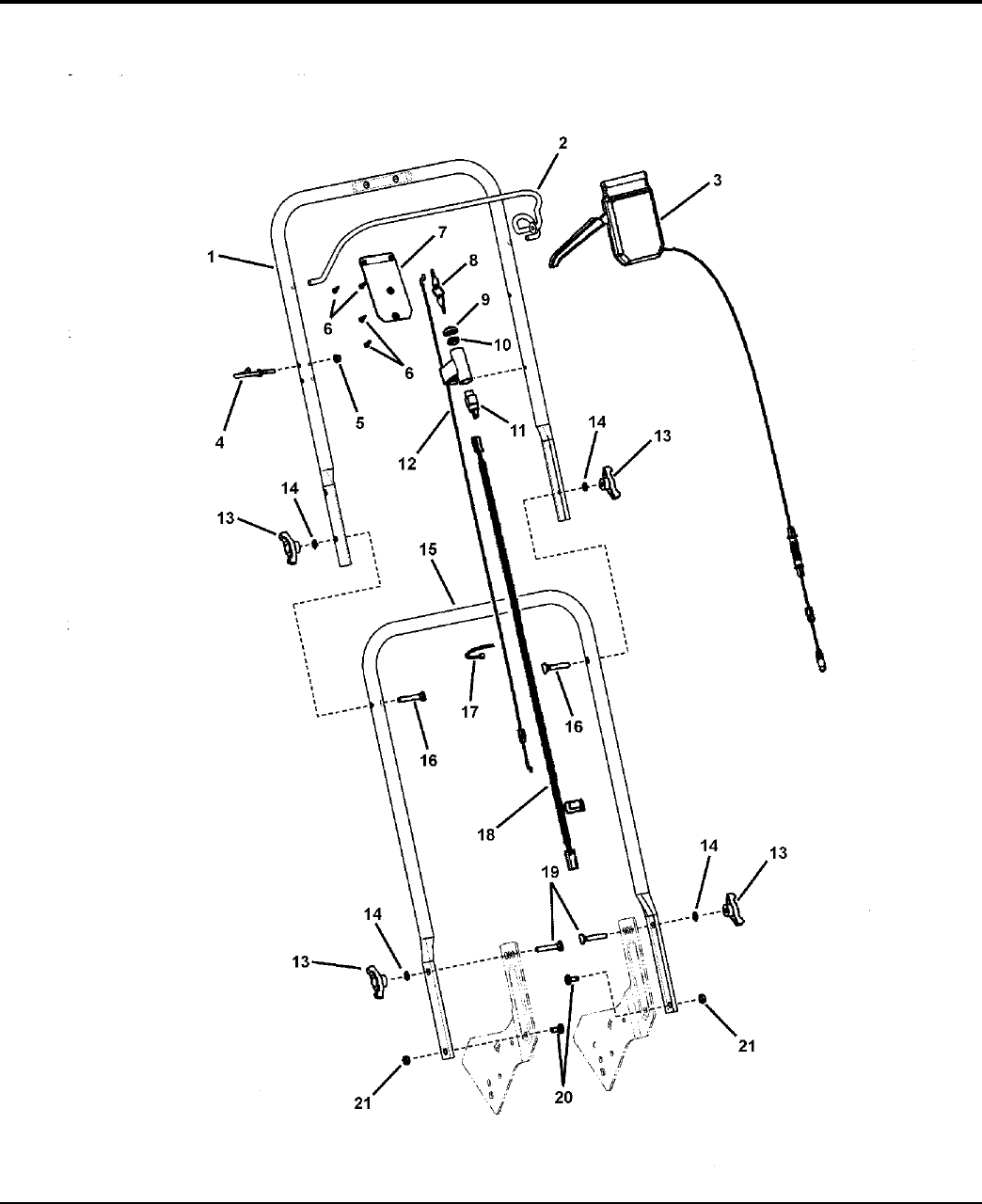

Handles and Controls

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

3

2009Copyright © by Briggs and Stratton Corporation

Briggs and Stratton Yard Power Products Group

Milwaukee, WI, USA. All rights reserved

7800510 - BTPV22675E

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Handles and Controls

Footnotes

HANDLE, Upper, Flat 1 7078247AYP 1

BAIL, Operator Presence Control 2 7101675AYP 1

ASSY, Control Head, VS, Brute 22” 3 7102962YP 1

GUIDE, Rope (1/4-20 thread) 4 7028488MA 1

NUT,1/4-20 Hex Nyloc 5 7076978SM 1

SCREW, #8-16 Recessed Pan Head (Torxplus) 6 7100225YP 4

PLATE, Control Panel 7 7300130AMA 1

IGNITION KEY (Pair) 8 7011138YP 1

CAP, E-Start <added> 9 7100330YP 1

NUT, 5/8-32, E-Start 10 7100329YP 1

IGNITION SWITCH, E/S (Start/Run) 11 7028765YP 1

CABLE, Bail, 22”, WBM, Brute, E/S Part number is stamped on part. 12 7102961YP 1

KNOB, 5/16-18 Wing Nut 13 071294MA 4

WASHER, 5/16” Internal Tooth Lock 14 7090391SM 4

HANDLE, Lower Murray, MY09” 15 7301013AYP 1

BOLT, 5/16-18 x 2” Curved Head Square Neck 16 7091189YP 2

WIRE TIE,11 Inch Std Blk Nylon 17 7024649YP 3

WIRING HARNESS, RD, 21”/22” WBM 18 7101504YP 1

BOLT, 5/16-18 x 1” Round Head Square Neck 19 7091714YP 2

BOLT, 5/16-18 x 5/8” Round Head Square Neck, GR 5 20 7091077YP 2

NUT, 5/16-18 Hex Large Flange Center Lock 21 7090951SM 2

The above parts group applies to the following Mfg. Nos.:

4

2009Copyright © by Briggs and Stratton Corporation

Briggs and Stratton Yard Power Products Group

Milwaukee, WI, USA. All rights reserved

7800510 - BTPV22675E

Not for

Reproduction

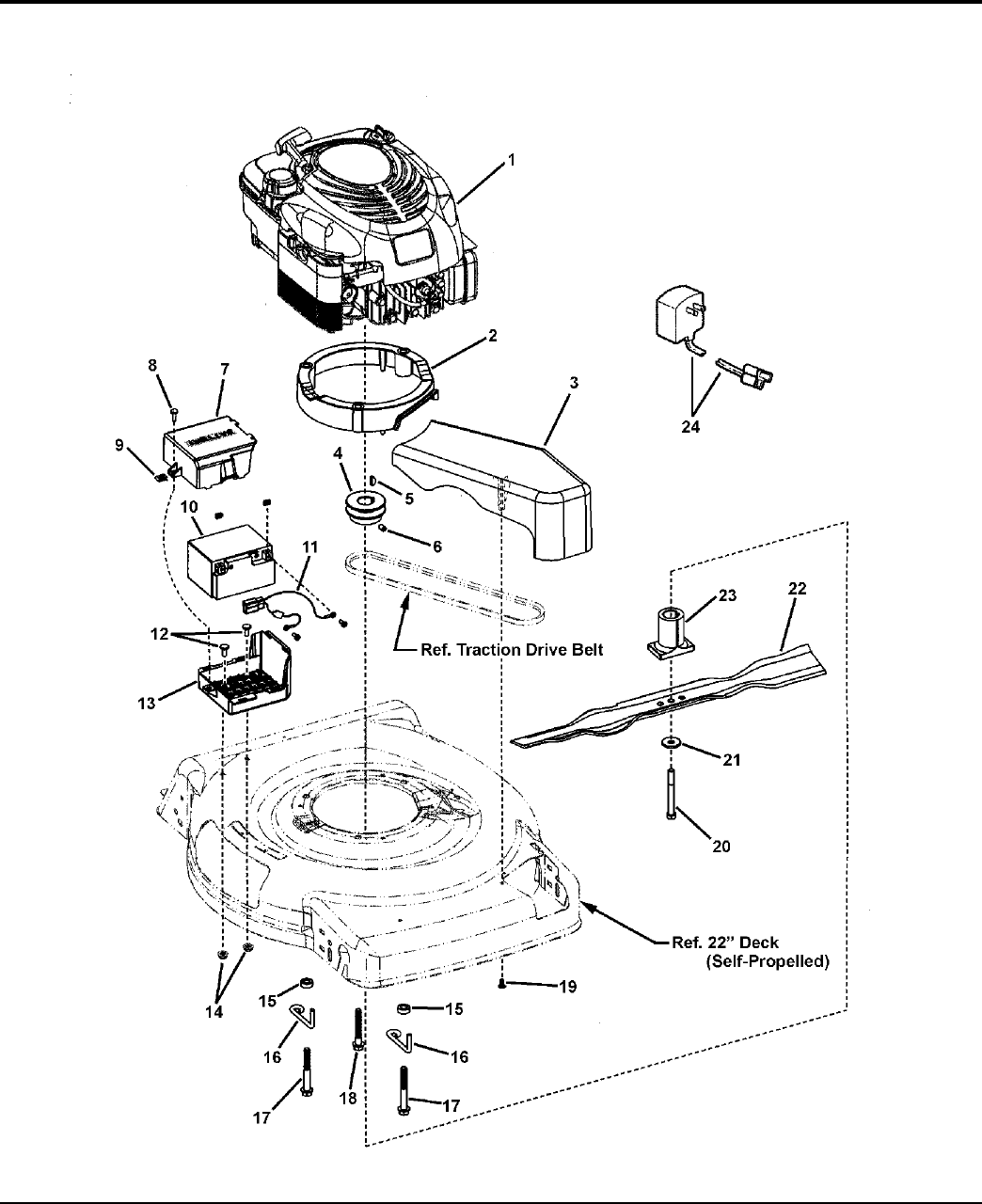

Engine and Blade Assembly

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

5

2009Copyright © by Briggs and Stratton Corporation

Briggs and Stratton Yard Power Products Group

Milwaukee, WI, USA. All rights reserved

7800510 - BTPV22675E

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Engine and Blade Assembly

Footnotes

ENGINE, B&S, 675 Series, ES, X, B3 1 126T05-4678-B3 1

ASSY, Engine Spacer (incl. 3 bushings, p/n 7101448) 2 7101449YP 1

COVER, Belt (Plastic) 3 1101596MA 1

PULLEY, Engine 4 7100437YP 1

KEY, #HP-506 Hi-Pro 5 7091214YP 1

SET SCREW, 5/16-18 x 1/2” Hex Recess 6 7092086YP 1

TOP, Battery Box, WBM 7 7102918YP 1

SCREW, #10-24 x 5/8” Hex Washer Face Self-Tap, GR 5 8 7091075SM 1

SPEED NUT, #10-24 Retainer w/Extrusion 9 1960593SM 1

ASSY, Battery w/Harness (incl. items 10 & 11) also includes 2 screws (7043977) and n

u

(7090932)

10 7101320YP 1

BATTERY, Sealed Lead Acid, 12V 10 ----- 1

HARNESS, Battery 11 7015488YP 1

BOLT, 1/4-20 x 5/8” Flat Head Square Neck, GR 5 12 7090803YP 2

BOTTOM, Battery Box, WBM 13 7102917YP 1

NUT, 1/4-20 Hex Flange Lock 14 780285MA 2

SPACER, Belt Guide, 22” VS 15 7101302YP 2

BELT GUIDE, Engine, 22” VS 16 7101024YP 2

SCREW 3/8-16 x 3” Hex Washer Self-Tap 17 7101451YP 2

BOLT, 3/8-16 NS x 2-1/2” Hex Washer Face 18 025X11MA 1

SCREW, 4.8 x 1.59 x 13mm, Round Washer Head Hi-Lo (Torx) 19 7900018YP 1

BOLT, 3/8-24 x 3-1/4” Hex Head GR 8 20 01X144MA 1

WASHER, .38” I.D. x 1.183 O.D. Bellville 21 1101989MA 1

BLADE, 22”, Walk Mower 22 7100851AYP 1

BLADE HUB, 22” Deck 23 7100740YP 1

CHARGER, Battery 24 206838YP 1

NOTE: * Purchase engine parts from engine manufacturer dealer.

The above parts group applies to the following Mfg. Nos.:

6

2009Copyright © by Briggs and Stratton Corporation

Briggs and Stratton Yard Power Products Group

Milwaukee, WI, USA. All rights reserved

7800510 - BTPV22675E

Not for

Reproduction

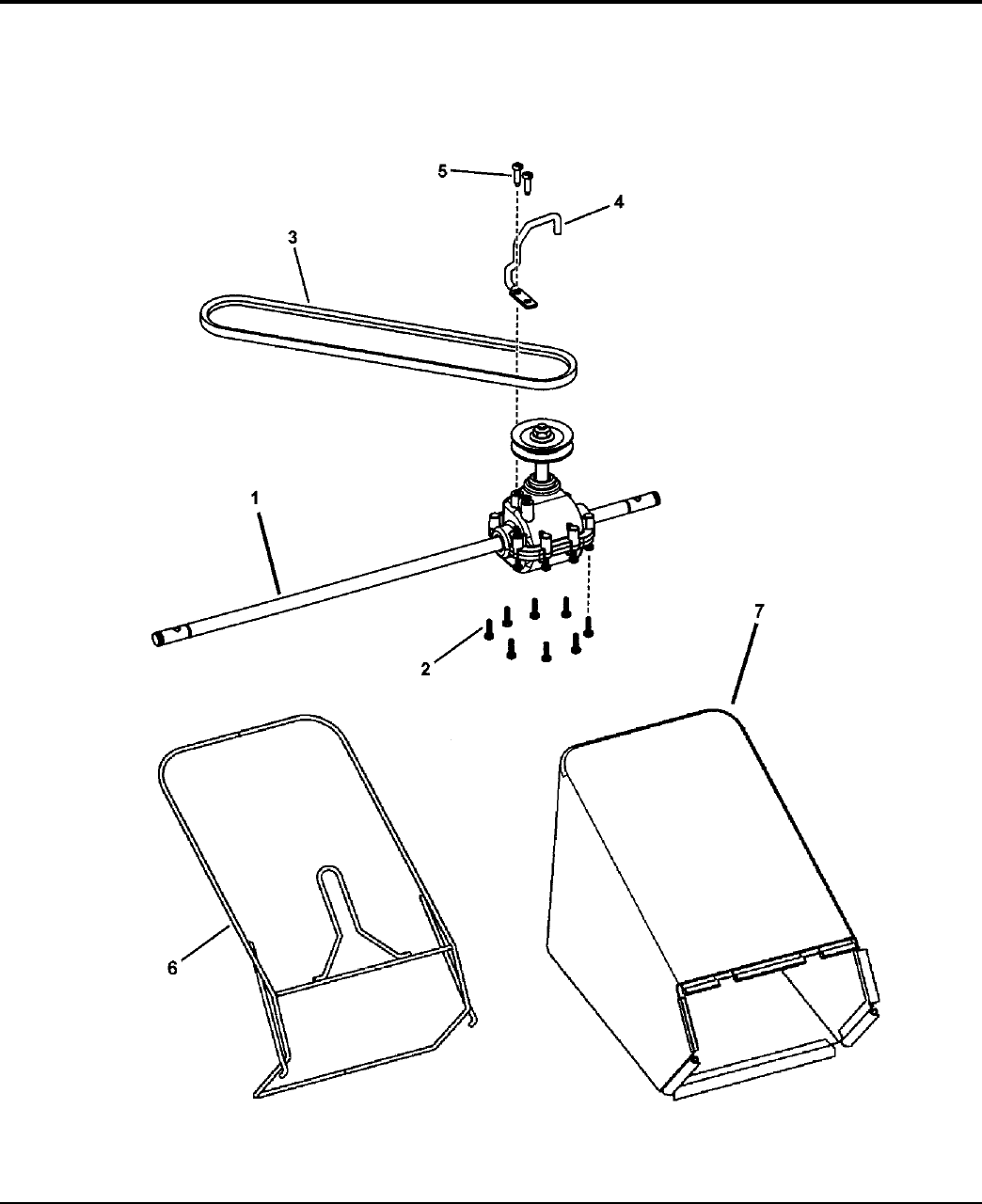

Transmission & Grass Bag

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

7

2009Copyright © by Briggs and Stratton Corporation

Briggs and Stratton Yard Power Products Group

Milwaukee, WI, USA. All rights reserved

7800510 - BTPV22675E

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Transmission & Grass Bag

Footnotes

TRANSMISSION, Rocker, 22” WBM, VS (Ref. Deck Assembly Page, item 35) 1 7100857YP 1

SCREW, 7mm x 1 x .550 AB Point 2 7900032YP 8

BELT, 3L, 31.94” Effective Length (Traction Drive, Pivot Handle) 3 7100913YP 1

BELT GUIDE, Transmission, 22” WBM 4 7101009YP 1

SCREW, Pan Head Cross Recess, Tapping 5 691138 2

BAG FRAME, 22” WBM 6 7101230AYP 1

GRASS BAG, 22” Rear Discharge 7 7102573YP 1

The above parts group applies to the following Mfg. Nos.:

8

2009Copyright © by Briggs and Stratton Corporation

Briggs and Stratton Yard Power Products Group

Milwaukee, WI, USA. All rights reserved

7800510 - BTPV22675E

Not for

Reproduction

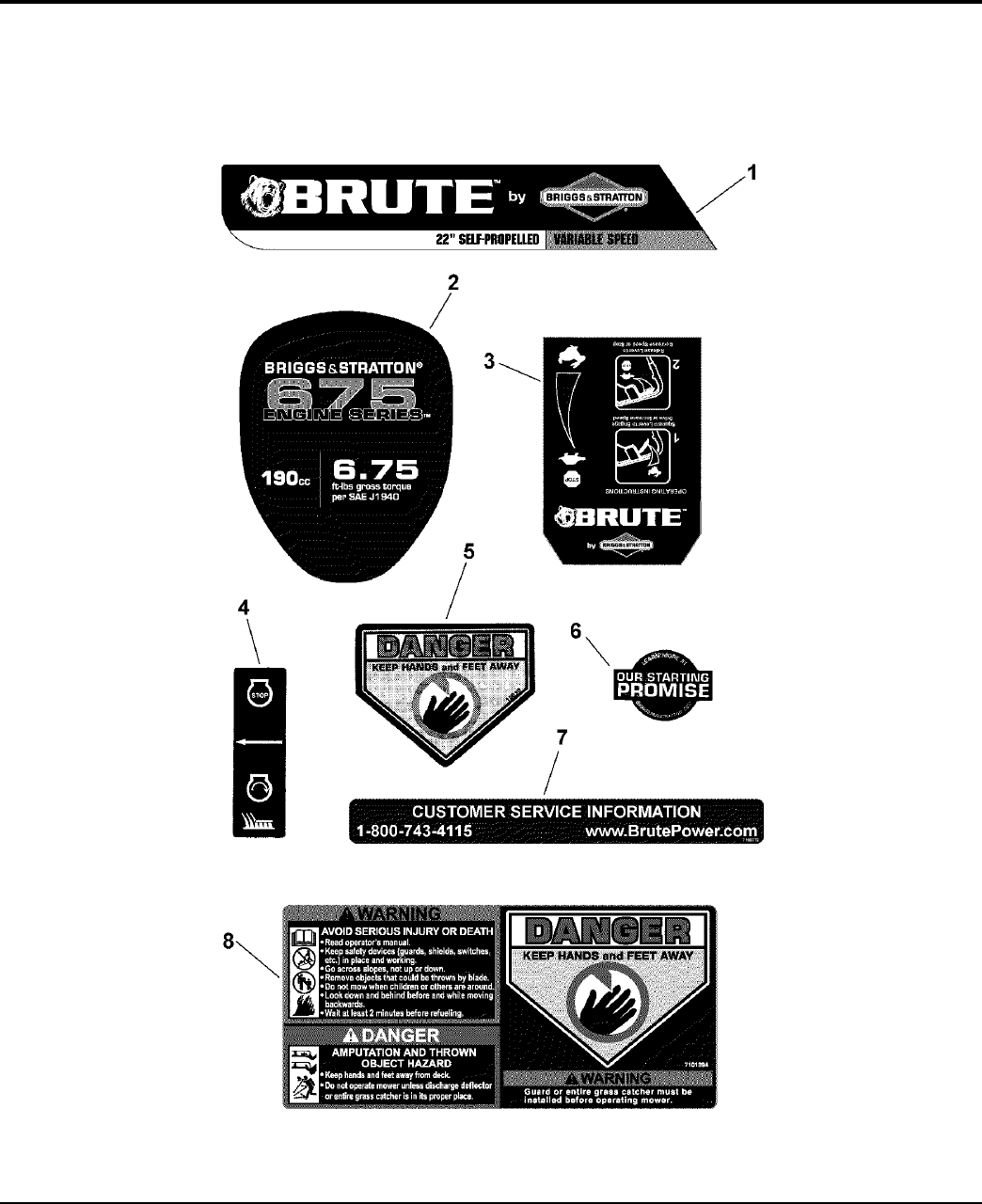

Decals Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

9

2009Copyright © by Briggs and Stratton Corporation

Briggs and Stratton Yard Power Products Group

Milwaukee, WI, USA. All rights reserved

7800510 - BTPV22675E

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Decals Group

Footnotes

DECAL, 22” Deck, Front Wheel Drive, Electric Start 1 7102959YP 1

DECAL, Engine, TP, Brute 675 2 7101911MA 1

DECAL, Control Head 3 7101814MA 1

DECAL, OPC Bail International Symbol 4 7029782MA 1

DECAL, Danger, Cut Finger 5 7013010SM 1

DECAL, Starting Promise 6 277878YP 1

DECAL, Customer Service, Brute 7 7102372YP 1

DECAL, Warning, Rear Discharge Door 8 7101394YP 1

The above parts group applies to the following Mfg. Nos.:

10

2009Copyright © by Briggs and Stratton Corporation

Briggs and Stratton Yard Power Products Group

Milwaukee, WI, USA. All rights reserved

7800510 - BTPV22675E

Not for

Reproduction

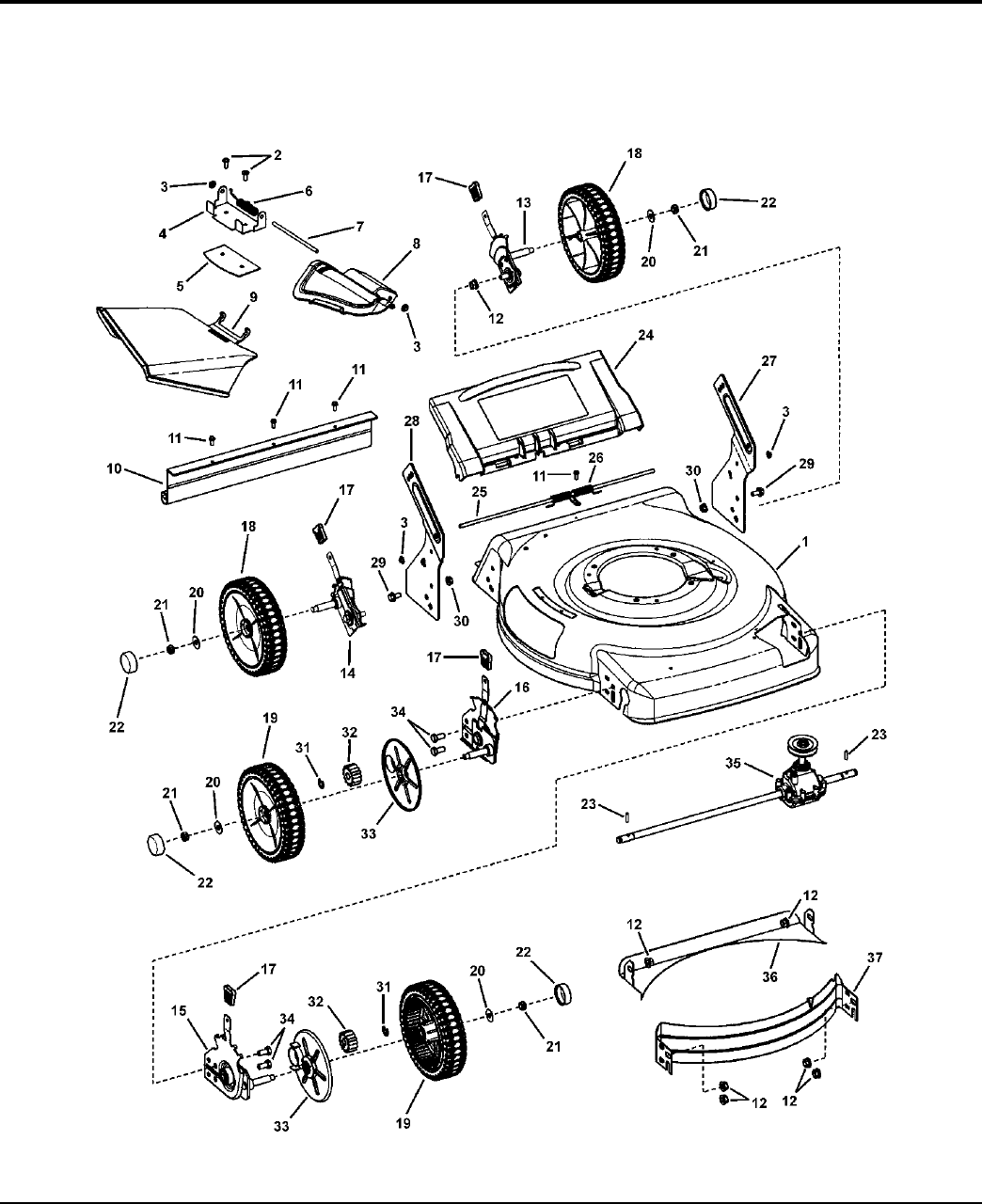

Deck Assembly

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

11

2009Copyright © by Briggs and Stratton Corporation

Briggs and Stratton Yard Power Products Group

Milwaukee, WI, USA. All rights reserved

7800510 - BTPV22675E

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Deck Assembly

Footnotes

DECK, 22” Walk, 3-N-1, Electric Start 1 7301035ZYP 1

SCREW, 1/4-20 x .550 Pan Head Torx (T-30) 2 7900067YP 3

PUSHNUT, 1/4” 3 7091020YP 4

BRACKET, Chute 4 7300855ZMA 1

PLATE, Mulch 22” RB Scotts 5 7300856ZMA 1

SPRING, Chute (Torsion) 6 166X38MA 1

ROD, Chute Pivot 7 215X19ZMA 1

COVER, Mulch, Plastic, Black 8 1101098MA 1

SIDE CHUTE, Plastic, Black 9 1101097MA 1

GUARD, Rear, 22” Mower Deck 10 7103347YP 1

SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Sems) 11 7091286YP 4

NUT, 3/8-16, Hex Flange Lock GR 5 12 7900053MA 10

ASSY, Height-Of-Cut, Left Rear, 22” S.P. 13 7501055YP 1

ASSY, Height-Of-Cut, Right Rear, 22” S.P. 14 7501056YP 1

ASSY, Height-Of-Cut, Left Front, 22 S.P. 15 7501058YP 1

ASSY, Height-Of-Cut, Right Front, 22 S.P. 16 7501057YP 1

GRIP, Height Latch 17 7100633YP 4

WHEEL, 8” x 2” Idle, w/Db Tread (Brute yellow) 18 7101712MA 2

WHEEL, 8” x 2” Drive, w/Db Tread (Brute yellow) 19 7101710MA 2

WASHER, 1” O.D. x .387 I.D. Flat 20 17X169MA 4

NUT, 3/8-16 Hex Center Lock, GR 5 or B 21 7091585SM 4

HUBCAP, Round, Black 22 7101351MA 4

DRIVE PIN, 22” WBM, Front Wheel Drive 23 7101270YP 2

DOOR, 22” Rear 24 7101243YP 1

ROD, Pivot, Rear Door (1/4” Dia. X 17-1/2”) 25 7101070YP 1

SPRING, Torsion, Rear Door, 22” WBM 26 7101461YP 1

BRACKET, Lower Handle, LH, 22” WBM 27 7300668AYP 1

BRACKET, Lower Handle, RH, 22” WBM 28 7300669AYP 1

BOLT, 5/16-18 x 5/8” Hex Flange Lock 29 7090606SM 2

NUT, 5/16-18 Hex Flange Lock, GR 5 30 7090585MA 2

RING, External Retaining 31 7014341YP 4

GEAR, Pinion, 22” WBM, Front Wheel Drive 32 7101207YP 2

DUST SHIELD, Forward, 22” WBM 33 7101402YP 2

SCREW, 3/8-16 x 3/4” Hex Head Cap, GR 5 34 7090134MA 4

TRANSMISSION, Rocker, 22” WBM, VS 35 7100857YP 1

BAFFLE, Rear, 22” Deck 36 7300854ZMA 1

BAFFLE, Front, 22” WBM 37 7300440ZMA 1

The above parts group applies to the following Mfg. Nos.:

12

2009Copyright © by Briggs and Stratton Corporation

Briggs and Stratton Yard Power Products Group

Milwaukee, WI, USA. All rights reserved

7800510 - BTPV22675E

Not for

Reproduction

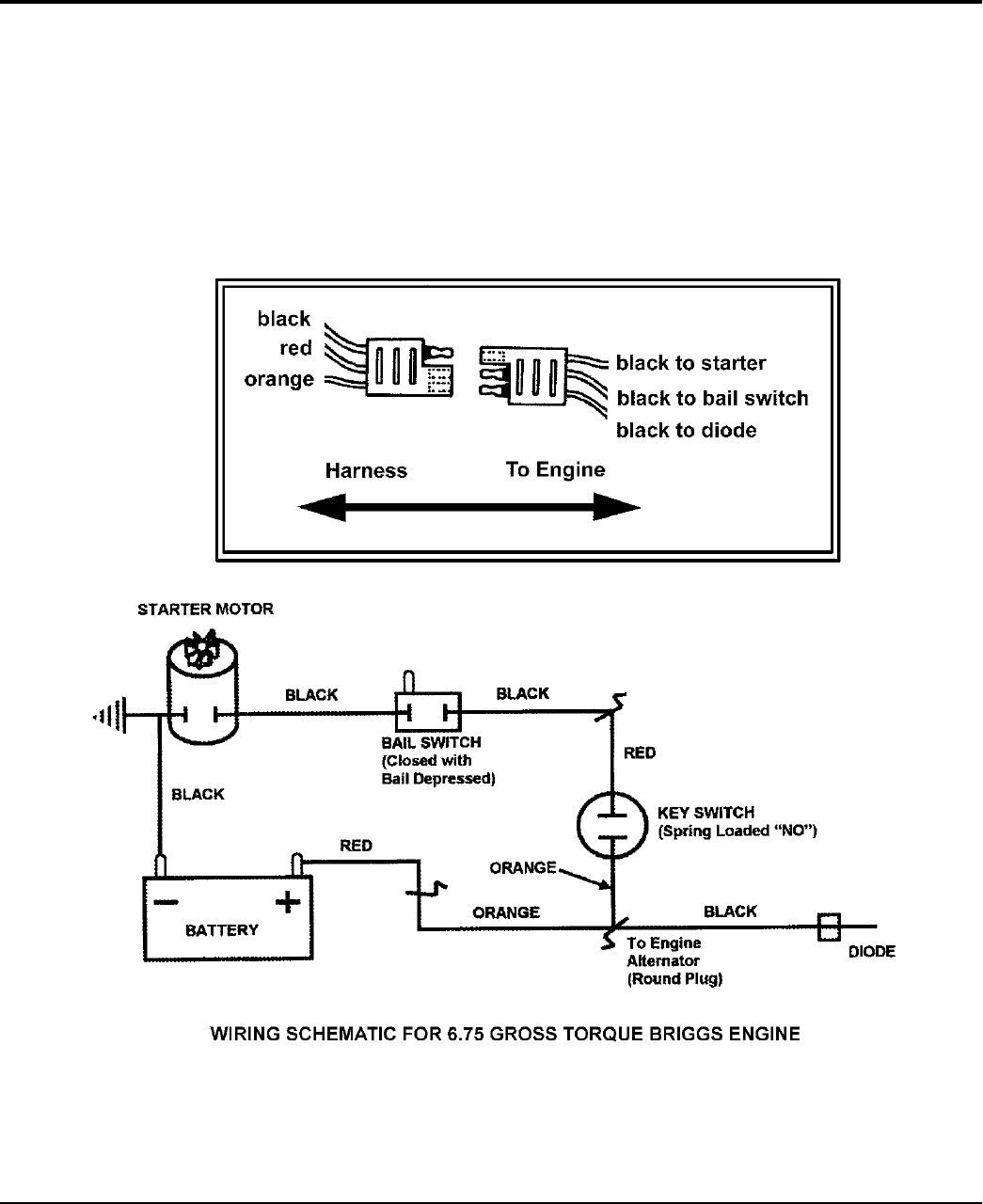

Wiring Schematic

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

13

2009Copyright © by Briggs and Stratton Corporation

Briggs and Stratton Yard Power Products Group

Milwaukee, WI, USA. All rights reserved

7800510 - BTPV22675E

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Wiring Schematic

Footnotes

WIRING HARNESS, RD, 21”/22” WBM (Ref. Handles and Controls page, item 18) 1 7101504YP 1

The above parts group applies to the following Mfg. Nos.:

14

2009Copyright © by Briggs and Stratton Corporation

Briggs and Stratton Yard Power Products Group

Milwaukee, WI, USA. All rights reserved

7800510 - BTPV22675E

Not for

Reproduction

Not for

Reproduction

Not for

Reproduction

BRITISH COLUMBIA ALBERTA SASKATCHEWAN MANITOBA

ONTARIO QUEBEC

Small Engine Clinic

12/07

HAWAII

INCLUDES TRUST ISLANDS WITH

UNITED STATES ZIPCODES

Magneto Power

Atlantic Power

MWE

Central Power

Preferred Power

SEDCO

Power Source Canada

(800) 733-7388

(800) 456-5692

(800) 683-8484 (800) 331-7164 (905) 829-0006

(800) 444-7774 (800) 346-4260

Not for

Reproduction

Briggs & Stratton Corporation

INTEGRATED DISTRIBUTOR NETWORK

Midwest Engines 700 Enterprise Rd Aurora, IL 60504 www.mwe.net (800) 683-8484

Central Power Systems 3700 Paragon Dr Columbus, OH 43228 www.centralpower.com (800) 444-7774

Atlantic Power 20 Empire Stat Rd Castleton, NY 12033 www.atlanticpowerinc.com (800) 456-5692

Preferred Power Inc 6509-A Northpark Blvd Charlotte, NC 28216 www.centralpower.com (800) 331-7164

Central Power Systems 3700 Paragon Dr Columbus, OH 43228 www.centralpower.com (800) 444-7774

Magneto Power LLC 1000 W. Donges Bay Rd Suite 100 Mequon, WI 53092 www.magnetopower.com (800) 733-7388

Sedco, Inc 225 Henry D. Robinson Blvd Pendergrass, GA 30567 www.sedcoinc.com (800) 346-4260

Power Source Canada, LTD 2815 Bristol Circle, Unit 1 Oakville, ON L6H 6X5 www.powersourcecanada.ca (905) 829-0006

Not for

Reproduction

in/lbs

ft/lbs

3

Torque Specification Chart

FOR STANDARD METRIC MACHINE HARDWARE (Tolerance ± 20%)

Property

Class

Class 8.8 Class 10.9 Class 12.9

Size Of

Hardware Nm. Nm. Nm. Nm.

M3

1.28

2.90

5.75

9.9

16.5

24

48

83

132

200

275

390

530

375

995

1350

1830

2360

3050

13.44 1.80

4.10

8.10

14

23

34

67

117

185

285

390

550

745

960

1400

1900

2580

3310

4290

19.2 22.92

2.15

M4

30.72 43.44 52.56

4.95

M5

60.96

5.97 7.15

16.5

9.7

M6 7.3 10.3 12.1

M7 12.1 16.9 19.9 27

M8 17.7 25 29 40

M10 35 50 59 81

M12 61 86.2 103 140

M14 101 136 162 220

M16 147 210 250 340

M18 202 287 346 470

M20 290 405 486 660

M22 390 559 656 890

M24 497 708 840 1140

M27 733 1032 1239 1680

M30 995 1401 1681 2280

M33 1349 1902 2278 3090

M36 1740 2441

3798

2935 3980

M39 2249 3163

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs

ft/lbs

in/lbs

ft/lbs

in/lbs

ft/lbs

in/lbs in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

19

2.1

30

3.4

41

4.6

8-36

20

2.3

31

3.5

43

4.9

10-24

27

3.1

43

4.9

60

6.8

10-32

31

3.5

49

5.5

68

7.7

1/4-20

66

7.6 810.9 12 16.3

1/4-28

76

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 29 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

Hardware Identification & Torque Specifications

Common Hardware Types

No

Marks

The guides and ruler furnished below are designed to

help you select the appropriate hardware.

8.8 10.9 12.9

Class 5.6

5.6

5150

13.44 1.28

5.88

26.4 2.50

44.64 4.3

5.2

7.1

7.7

10.5

15

21

988

1340

759

1030

590

800

435

590

320

435

217

295

169

230

126

171

89

121

64

88

42

58

26

36

.56

Thread

Diameter (mm)

Screw, 1/2- 16 x 2

Body

Diameter

Diameter

Inside

Diameter (in)

Nut, 1/2-16

0

1/4 3/4

1/2

21

1/4 3/4

1/2 1/4 3/4

1/2 1/4 3/4

1/2

4

90 10070 80

50 60

30 40

01020

Thread

Diameter (mm)

Nut, M8 Screw, M8- 1.25 x 25

Distance between

threads (mm)

Body

Length (in)

Body

Length (mm)

3/8” Bolt or Nut

Wrench—9/16”

5/16” Bolt or Nut

Wrench—1/2”

1/4” Bolt or Nut

Wrench—7/16”

1/2” Bolt or Nut

Wrench—3/4”

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

in/lbs

Threads

per inch

Threads

per inch

Body Length

Body

When a washer or nut is identified as 1/2” (M8), this is

the

Nominal size

, meaning the

inside diameter

is 1/2 inch

(8mm metric thread diameter); if a second number is present

it represents the

threads per inch

(distance between threads).

When bolt or capscrew is identified as 1/2 - 16 x 2” (M8 - 1.25 x 50 ),

this means the

Nominal size

, or body diameter is 1/2 inch (8mm

metric thread diameter), the second number,16, represents the

threads per inch, (1.25 thread diameter).

The final number is the

body length of the bolt or screw, 2 inches (50mm).

Standard Hardware Sizing

M6 Bolt or Nut

Wrench—10mm

M8 Bolt or Nut

Wrench—13mm

M10 Bolt or Nut

Wrench—17mm

M12 Bolt or Nut

Wrench—19mm

M14 Bolt or Nut

Wrench—22 mm

Wrench & Fastener Size Guide

Not for

Reproduction

3515 N. 124 Street / PO Box 702

Wauwatosa, WI 53222 USA

www.brutepower.com

2009

Milwaukee, WI, USA. All rights reserved

Briggs & Stratton Yard Power Products Group

© Copyright by Briggs & Stratton Corporation

IT IS THE POLICY OF BRIGGS & STRATTON CORP. TO IMPROVE ITS PRODUCTS

WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO

MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS.

BRUTE™ is a trademark of Briggs & Stratton Yard Power Products.

Copyright© 2008 Briggs & Stratton Power Products Group. All rights reserved. No part of this page can be

reproduced or transmitted in any form by any means without the express written permission of Briggs &

Stratton Power Products Group.
