bellissimo door entry colour video telephone 2

bellfree ‘handsfree’ colour video apartment station 6

bellissimo audio telephone 10

801 door entry telephone 14

bellini panel range 18

door entry panels – SPA range (standard panel alluminium) 22

door entry panels – VRP & LCP range (vandal resistant & laser cut) 26

bellini systems 30

900 series audio door entry systems 34

VRK series vandal resistant door entry systems 38

belltone door entry telephone interface 42

DDA door entry systems (DDA - disability discrimination act) 46

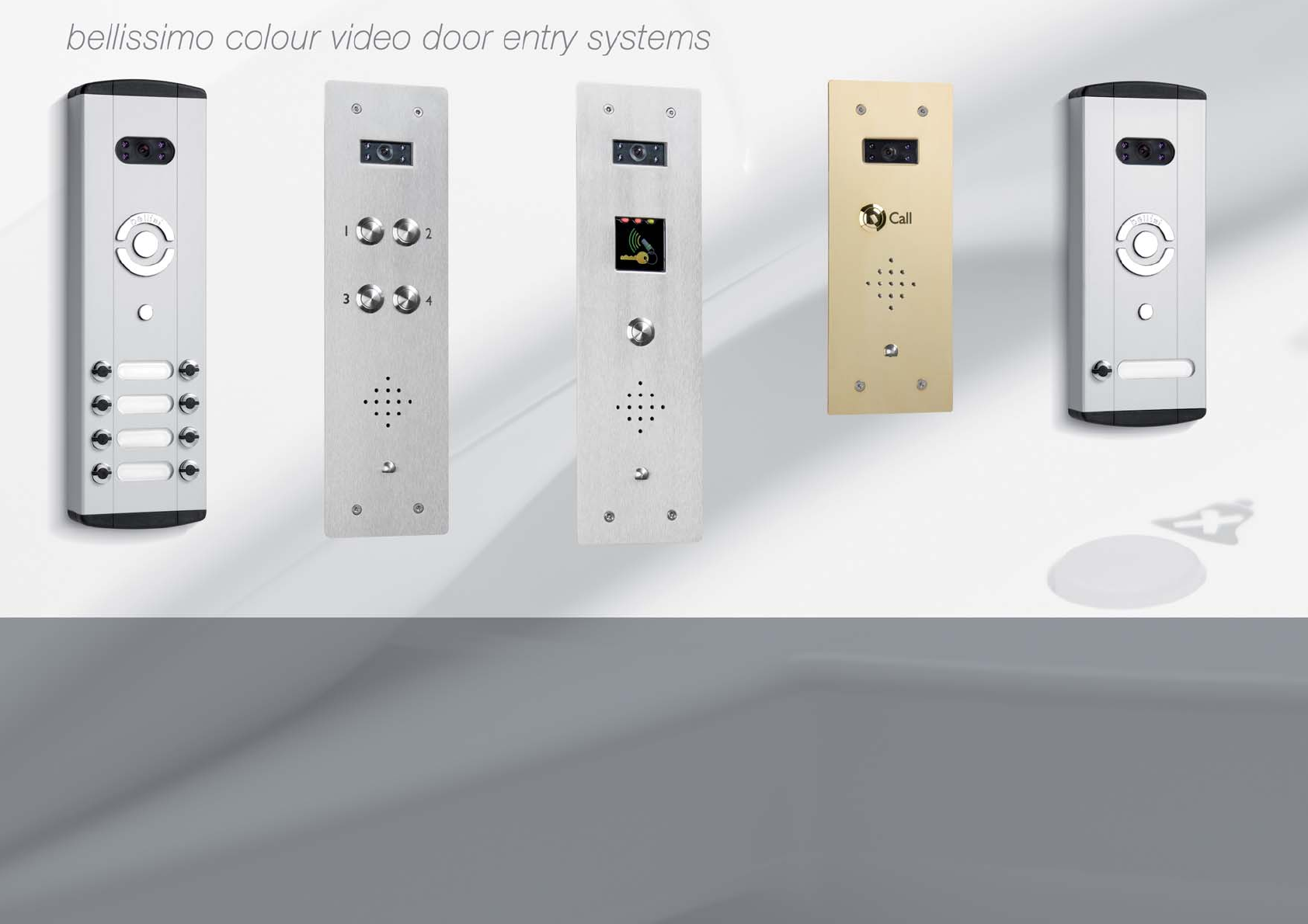

bellissimo colour video door entry systems 52

digibell digital door entry systems 58

BSX & DAX isolating exchange door entry systems 62

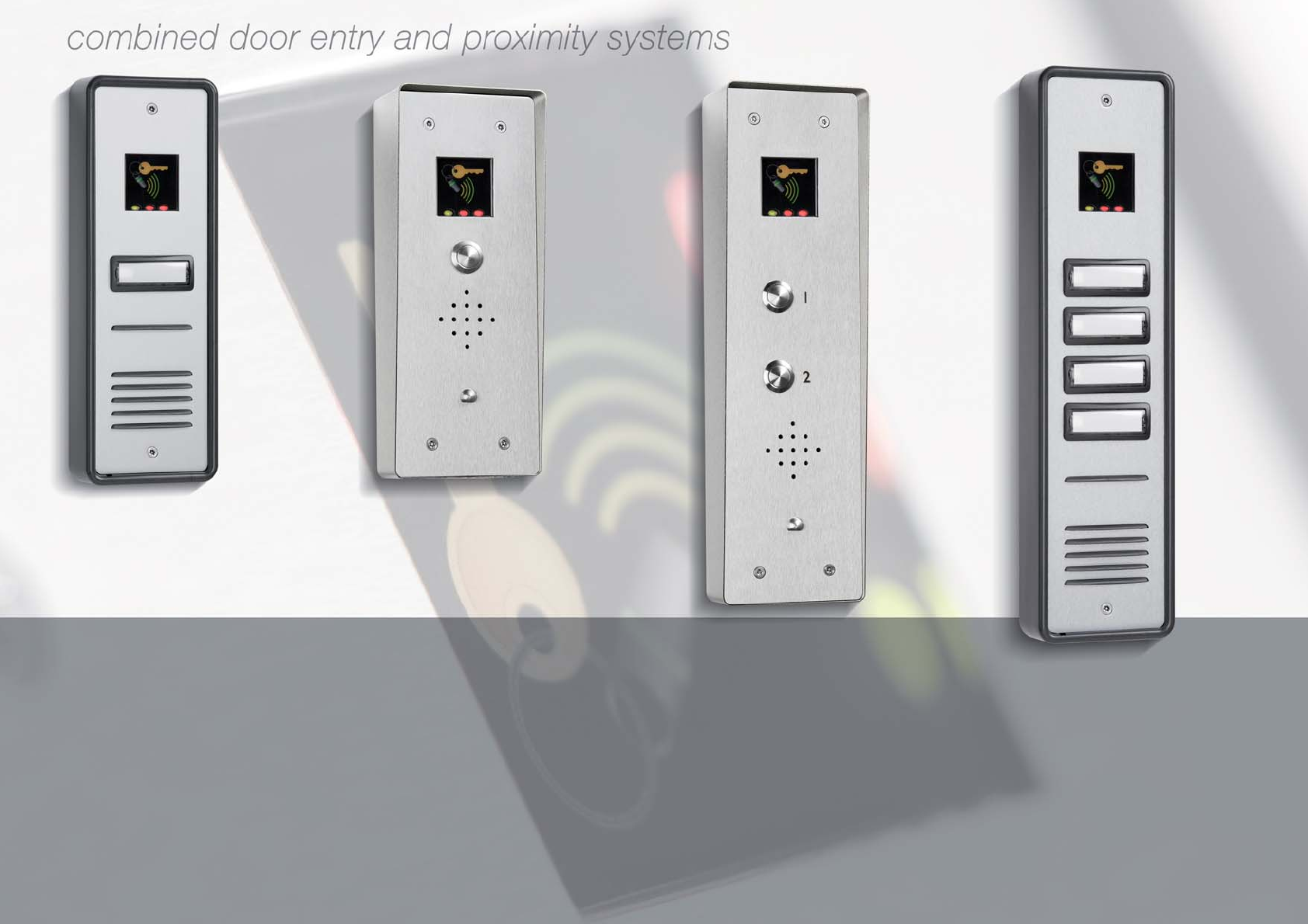

combined door entry and proximity systems 68

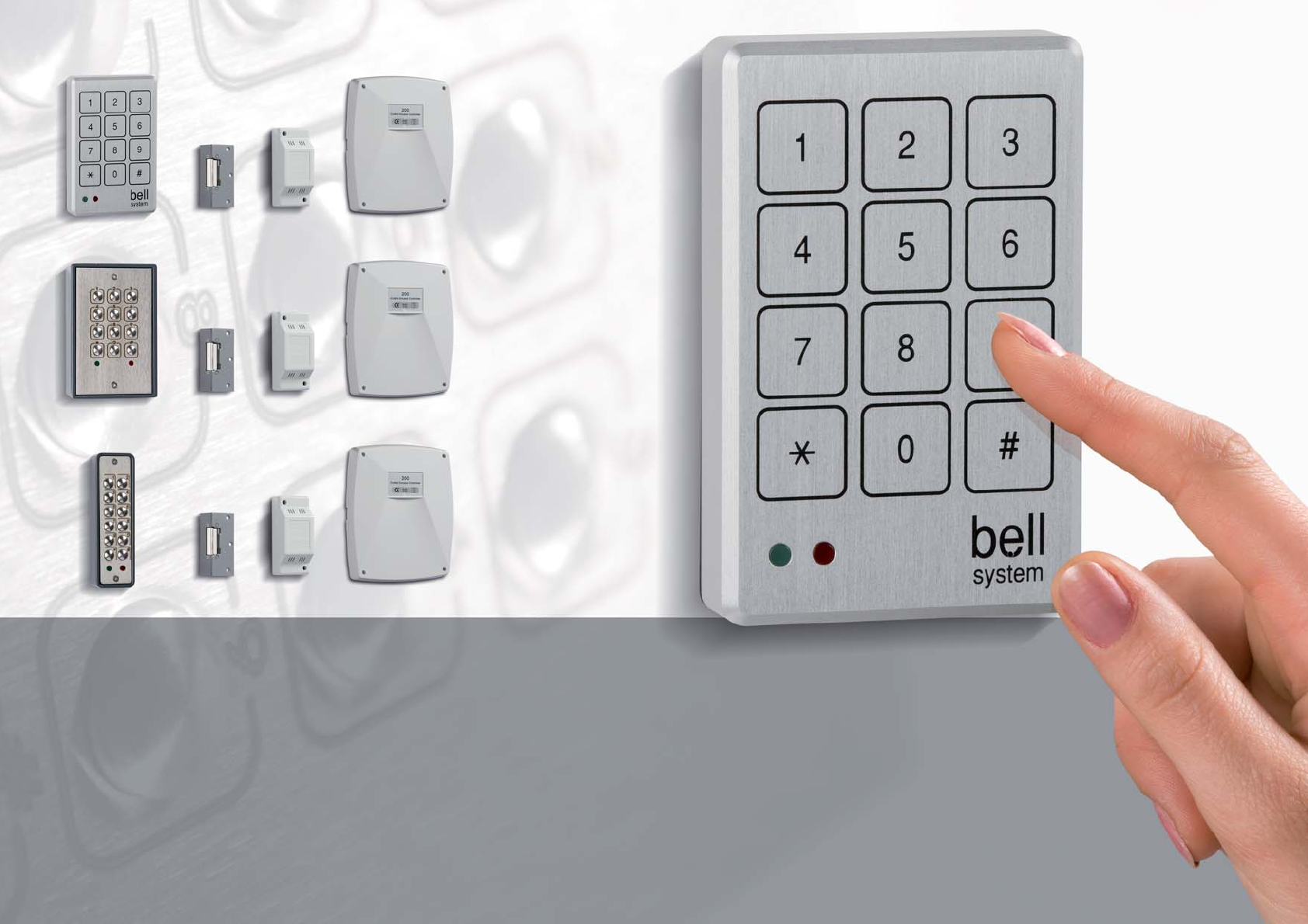

bellcode coded access systems 74

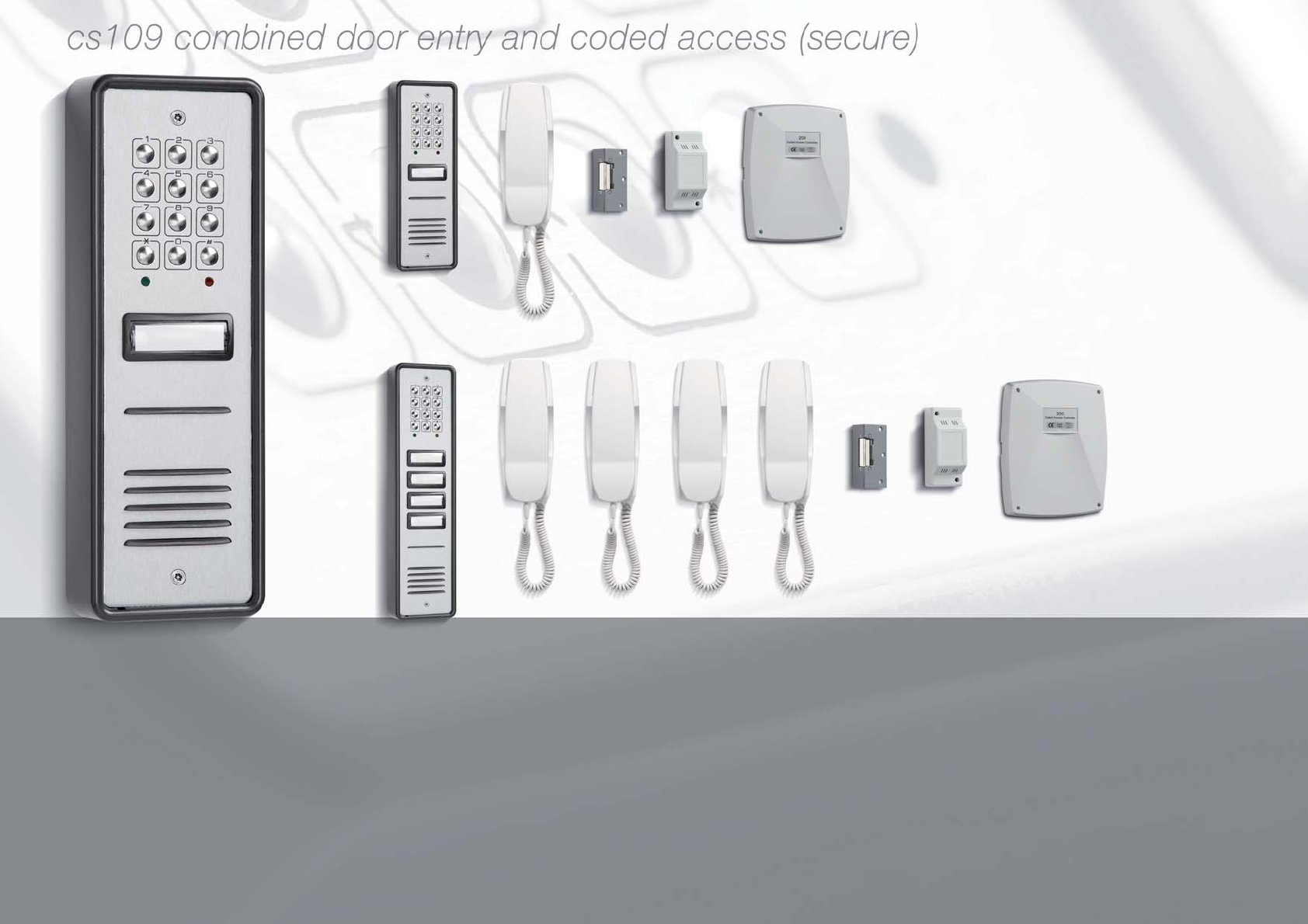

cs109 combined door entry and coded access (secure) 78

cs106 combined door entry and coded access (standalone) 82

door entry components and accessories 86

bellcall emergency call system 89

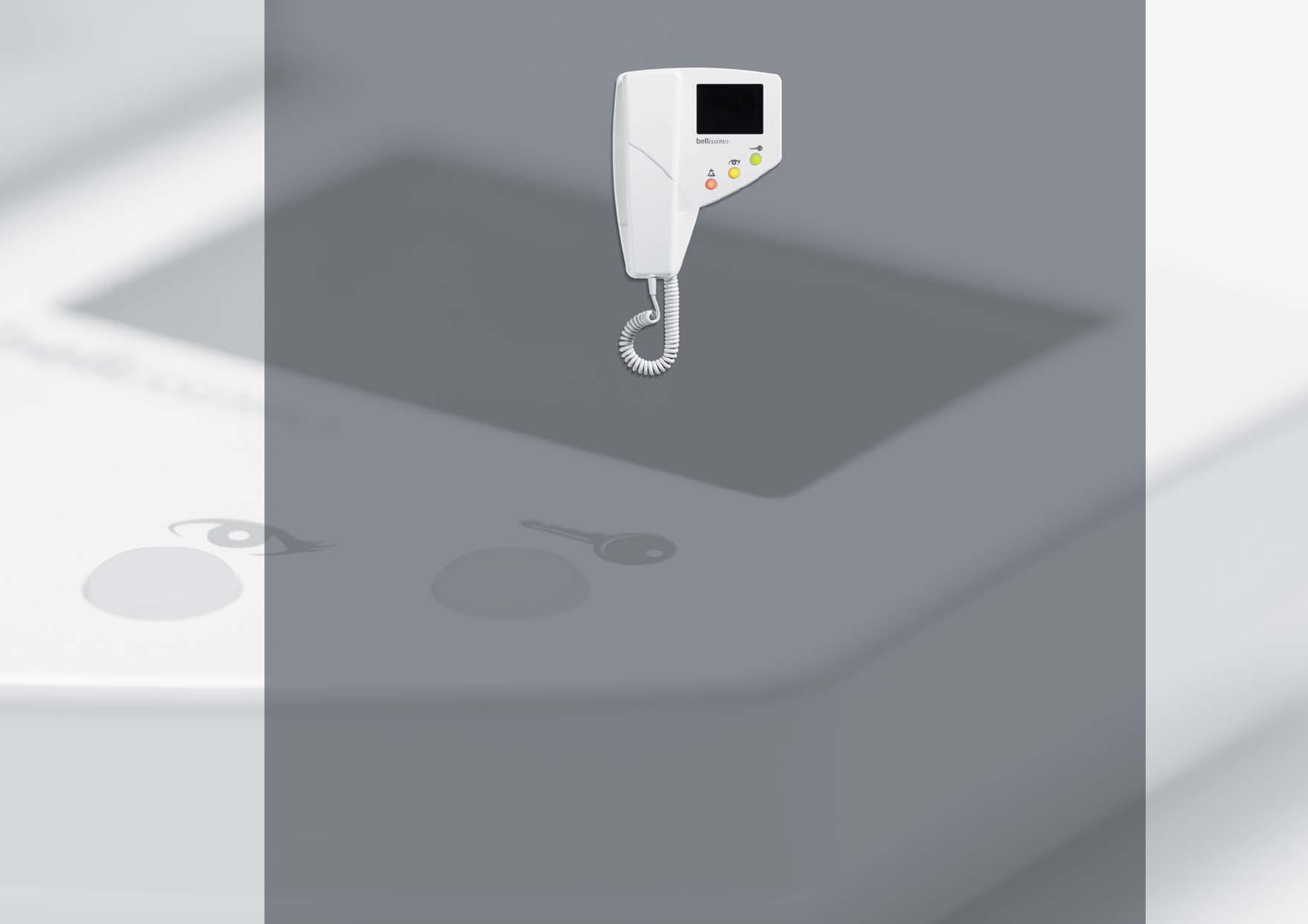

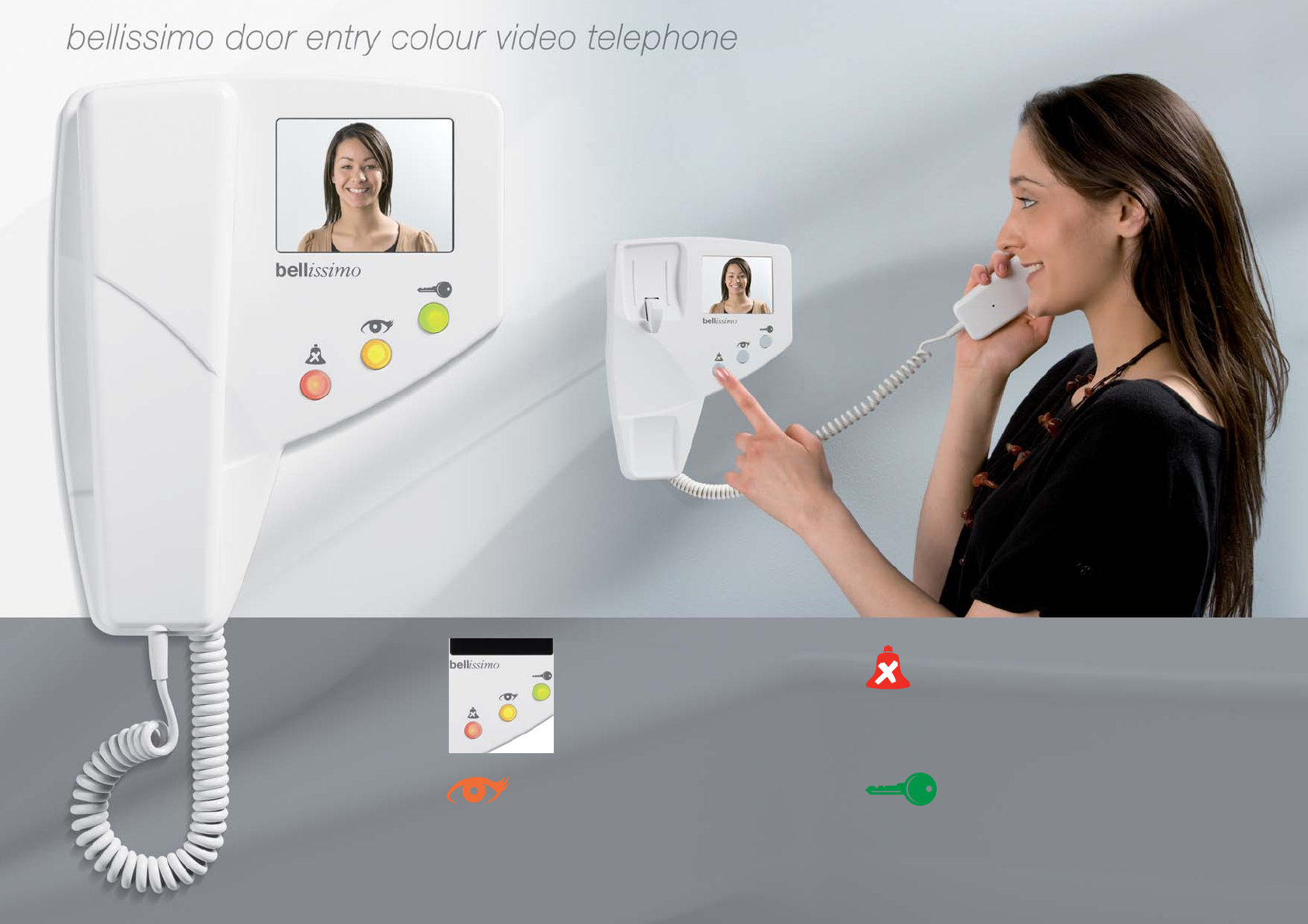

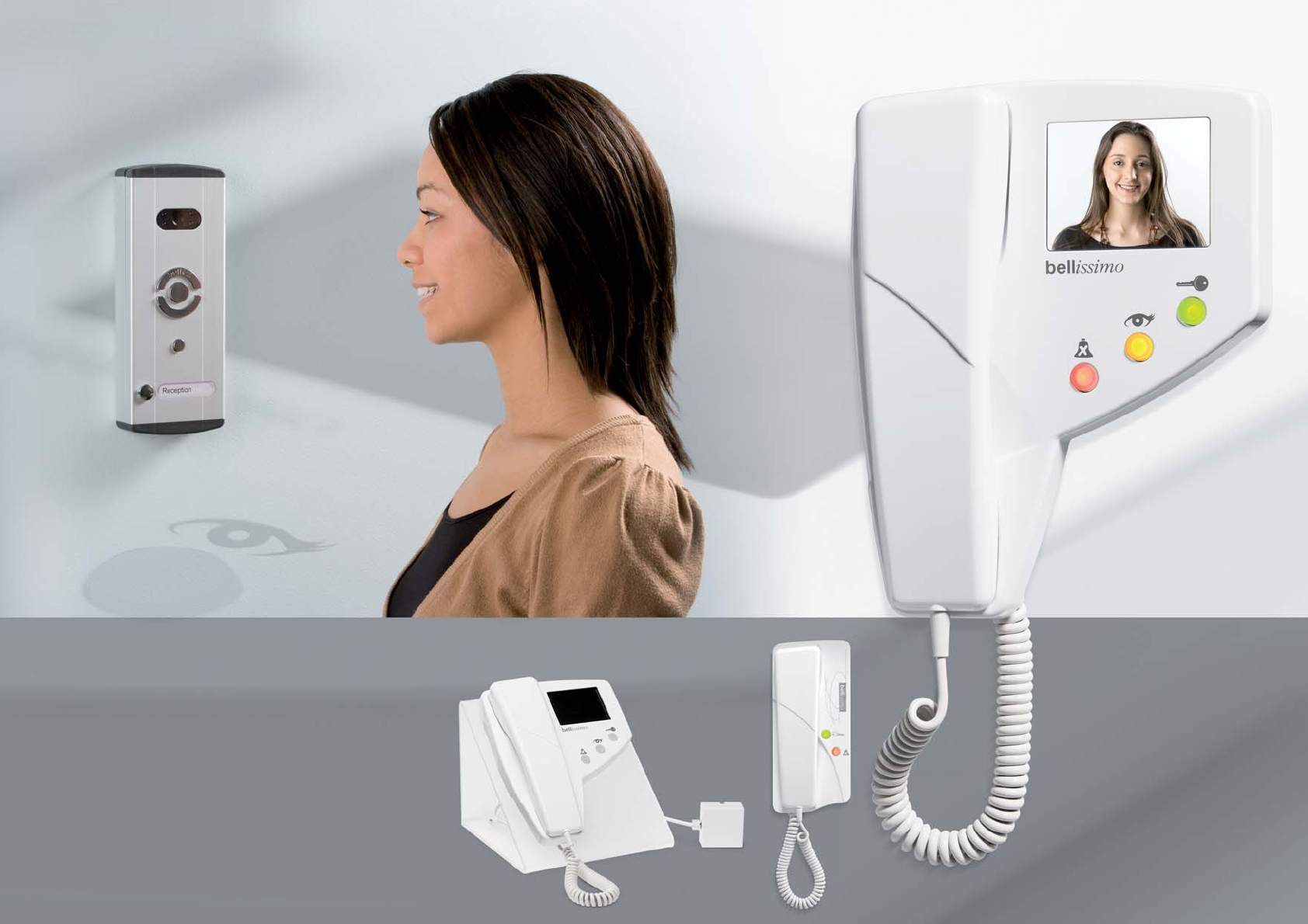

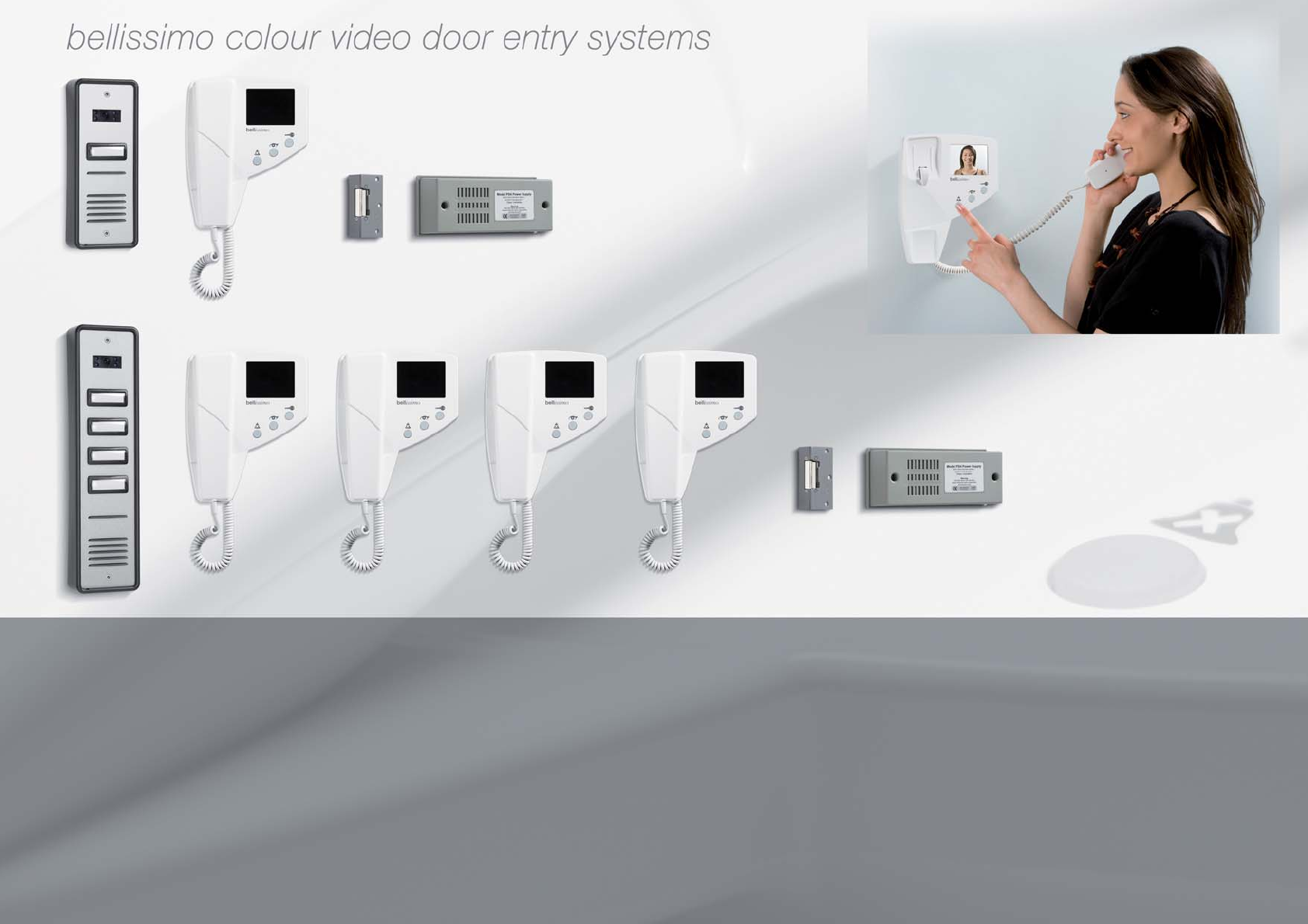

The contemporary and stylistic bellissimo video telephone has a slim

and curvaceous profile. It is supplied in white to complement most

modern wall furnishings and is now the preferred choice of many of

the UK new build property developers.

The bellissimo model BS video telephone is manufactured in white

high-impact ABS plastic for high durability and has a 3.5” LCD colour

display providing a high definition quality picture.

With a fresh modern look the video telephone has soft silicone backlit

buttons and a ringer volume control. Privacy of speech is included

whereby only the called resident can converse with the caller.

These telephones can operate over long distances with standard CAT5

cables. They are wall mounted without the need for additional brackets

and connections to the telephone use removable connecting blocks.

Privacy of speech is included

whereby only the called resident

can converse with the caller.

When called the telephone

activates the display and enables

speech for a fixed period

(adjustable 15 – 180 seconds).

The telephone has three ‘soft-touch’ silicone

rubber push buttons that can be backlit and

each has a clear and precise function symbol;

View

This button will flash in AMBER whilst the telephone is

ringing. The telephone will normally display the picture from the

panel camera unless the auto-picture option has been disabled and

in this instance the resident must press the flashing amber button or

lift the handset for the display to appear.

Private

To avoid disturbance the resident can push this button to mute

the ringing tone and the button will illuminate in RED. The

telephone will revert to normal operating mode after a selectable fixed

period (adjustable between 1 minute and 10 hours, or indefinitely).

Door

A momentary press of this button will provide a timed

output to the lock release (adjustable at the panel controller, typically

3 seconds). The button will flash in GREEN to indicate that the door

may be released and will be lit permanently in GREEN if the door has

been left in an open state (door contact required).

Model BS

The model BS-DESK is available for table top mounting. The BS-DESK

is factory fitted on a sloped pedestal for ease of use and has a captive

cable with plug-in connector for the supplied telephone wall

mounting socket.

The model BS video telephone can be connected to further model BS

video telephones for extension purposes. Alternatively, a model BS-A

audio telephones can be considered. In addition, a flashing beacon

(model BS-FB) and an extension sounder (model BS-RT) can also be

used as extensions.

Telephone Dimensions:

H = 225mm, W = 180mm, D = 60mm

Model BS-A

Audio phone

for extension

Model BS-DESK

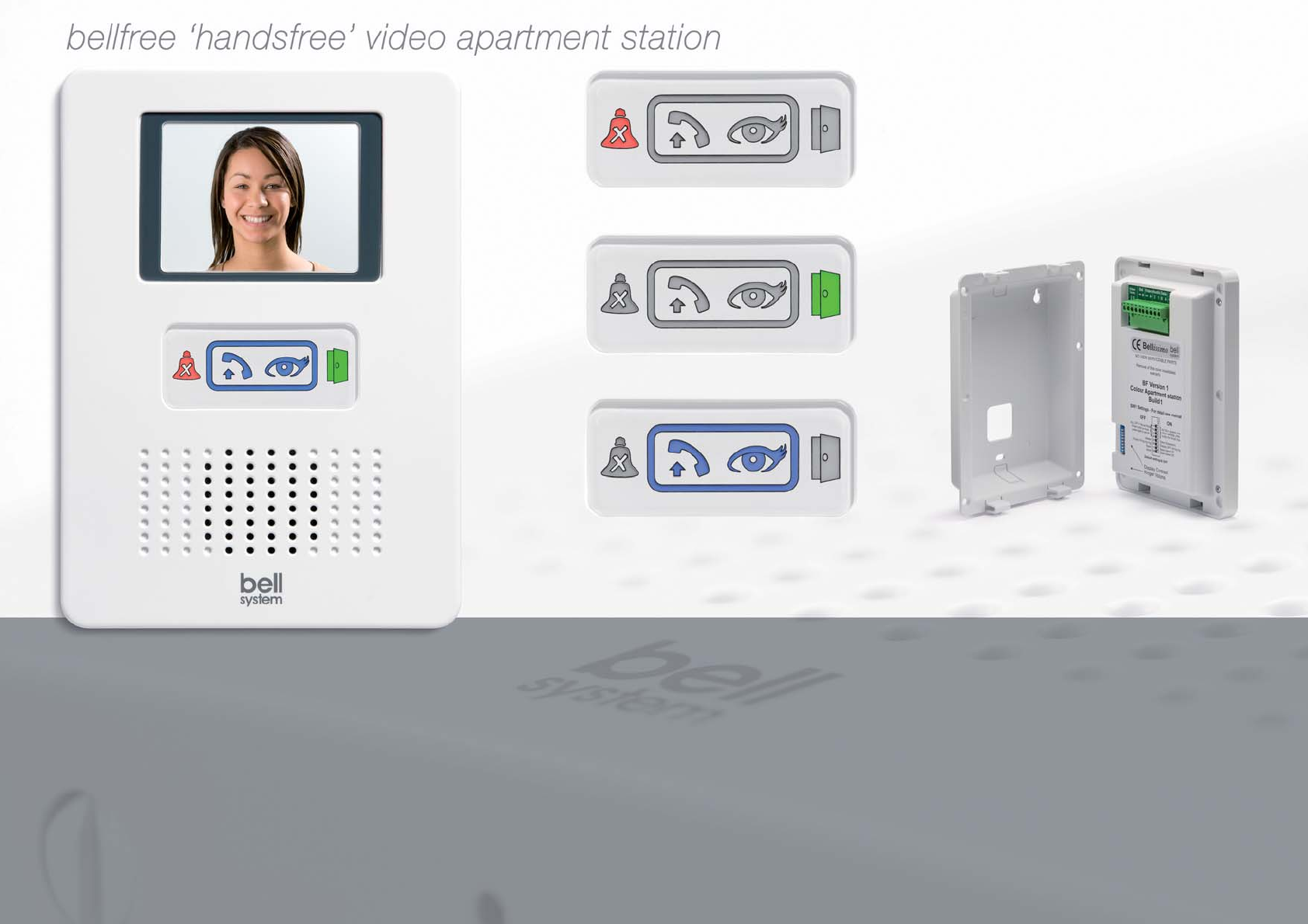

The bellfree colour video apartment station is a welcome addition to

our range of door entry systems. It operates with true ‘hands-free’

speech with outstanding clarity. Its sophisticated and universal appeal

makes it the ideal choice for new build apartment blocks and

refurbishments.

The bellfree system is compatible with the Bellissimo video telephone

(model BS) and the Bellissimo audio telephone (model BS-A). This

makes it a perfect solution for mixed housing developments and also

allows for added options for extension telephones.

The model BF apartment station is supplied for both surface and flush

fitting without additional brackets or connectors.

The bellfree apartment station has a contemporary and slim profile to

complement modern apartments. It has true ‘hands-free’ speech

operation utilising a semi-custom Digital Processor with ‘Adaptive

Acoustic Echo & Ambient Noise Cancellation’.

Some of the notable features of the bellfree apartment station

and system are;

• High quality colour video with a 3.5” TFT screen.

• True ‘hands-free’ speech.

• A sensitive Touch Pad for user operation with multi-coloured back-

lighting and universal graphic symbols.

• White satin-gloss finish to complement most wall furnishings.

• Discreet contrast and call-tone volume controls

• Supplied for both surface and flush fitting without the need for

additional boxes, brackets or connectors.

• It requires standard CAT5 cable and has removable connectors for

ease of installation.

• Compatible with bellissimo video and audio telephones for

installation in mixed housing developments.

• Available with a range of vandal resistant stainless steel door

panels with options for digital panels, DDA compliant panels,

proximity and coded access.

Each standard BF packaged system provides all necessary components

to install a complete video door entry system.

A standard multi-way BF system comprises of;

• model BF bellfree apartment stations

• model BSC4 telephone controller (one for every 4 units)

• model BFP stainless steel front door panel

• relevant BFD panel controller

• model CAMBS-C colour CCD day/night camera with infra-red lamps

• speech unit

• model PS4 12v DC power supplies

Model BF

Sensitive Touch Pad for user operation Surface or Flush fitting without additional

brackets or connectors

• model 203 surface lock release

• full wiring and installation manual

Ordering information

Order a model BF1 for a complete single station system. For multi-

station systems order a model BFn, where n is the number of stations.

Append /S for surface panels.

e.g. a model BF6 is a complete 6 station flush system

a model BF6/S is a complete 6 station surface system

For tradesmen facility, add the code TRBF (a model TS2000-BST time

clock is included).

Model BSC4 Controller

The model BSC4 interfaces up to 4 bellfree apartment stations on to

the CAT5 distribution and provides line isolation. Each bellfree unit

has its own designated port with removable terminal blocks.

Door Panel Controllers

Each door panel on a system is connected to a door controller for

connection to the CAT5 distribution network and provides all inputs

and outputs to the door and panel.

BFD1 - one button panel controller

BFD8 - two to eight panel controller

BFD72 - nine to seventy two button panel controller

BFD-DIG - digital panel controller

Please request a copy of the installation and operation manual

prior to installation to ascertain full cable specification and layout.

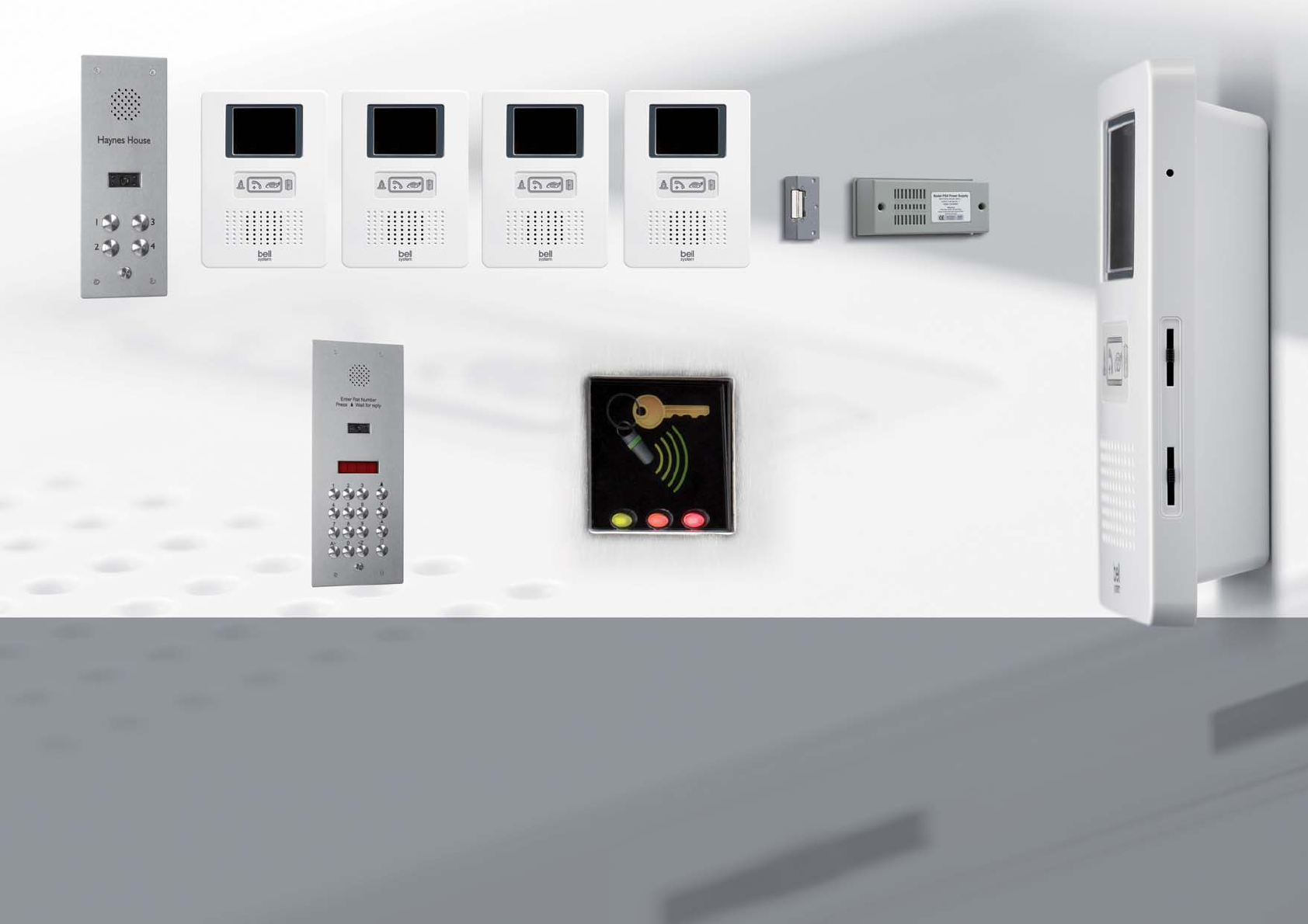

Model BF4/VR

4 way system

Digital option Proximity option

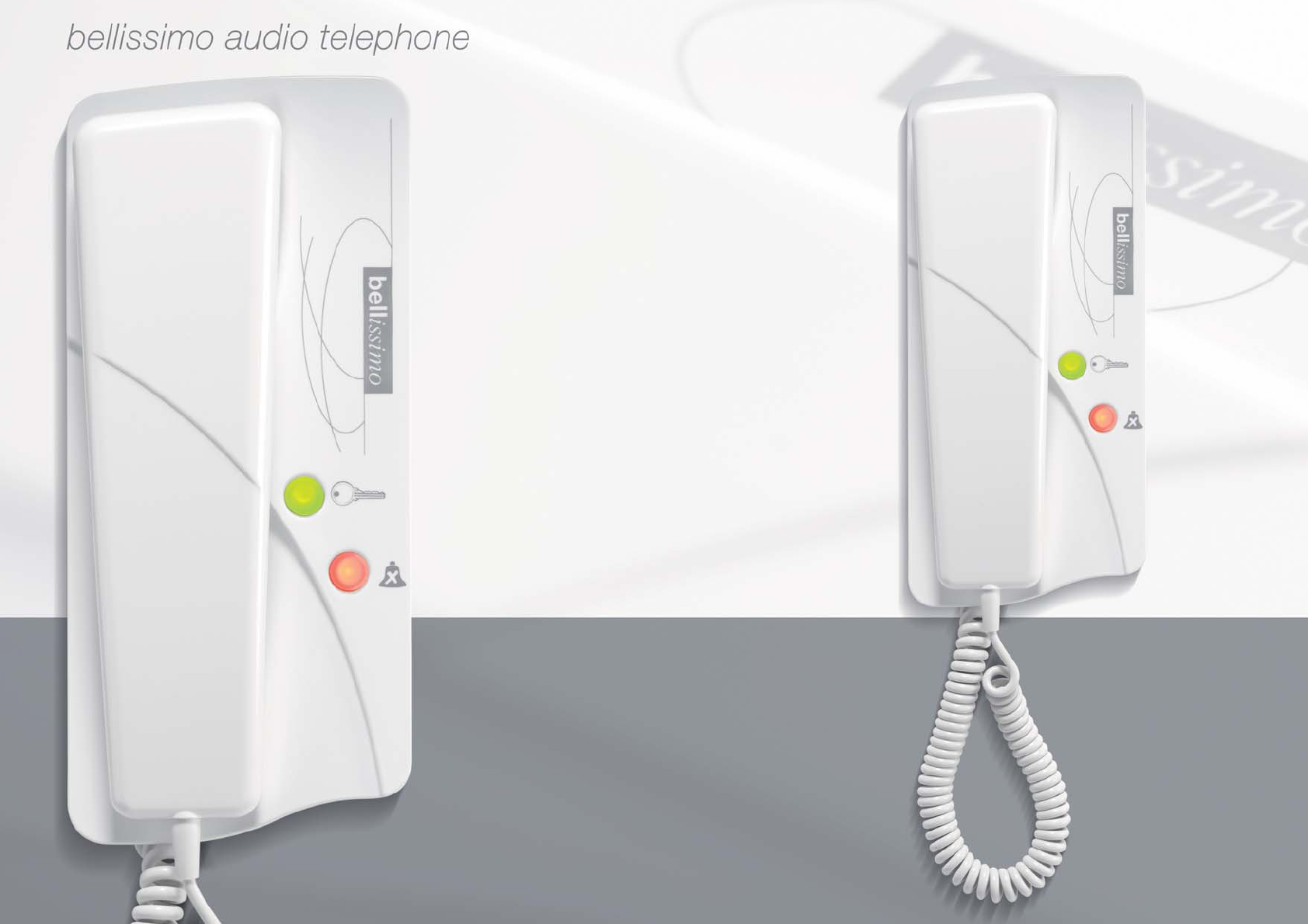

The bellissimo audio telephone complements the bellissimo video

range. It incorporates the extra functions and features of the video

system which is often requested by specifiers for audio systems.

The contemporary design has an extremely slim profile giving the

telephone a flush-effect when mounted on the wall. The telephone is

manufactured from high impact white ABS plastic with two ‘soft-

touch’ silicone rubber push-buttons that are selectively backlit and

clearly marked with symbols.

Two models are currently available;

model BS-A for audio extensions on the bellissimo video systems or

for connection to the bellcall digital systems.

model BS-LX available for connection to any of our standard 12v DC

door entry systems and can be considered as a direct replacement for

the model 500LX telephone previously supplied.

The slim-line white bellissimo audio telephones are manufactured

from high impact ABS plastic and have a flush effect profile when

mounted on the wall.

The white handset cord is coiled and has a plug-in connector at the

telephone base. No wires or parts are connected to the removable

cover so that that when it is removed there is no risk of damage.

Model BS-LX Model BS-A

Standard features on these telephones are ‘privacy

of speech’, ‘ringing tone muting’ with timing

options, ‘adjustable ring volume’ and ‘door open’

indication. Two ‘soft-touch’ silicone rubber push-

buttons are provided that are selectively backlit

and clearly marked with symbols;

Private

To avoid disturbance from nuisance calls the resident may

push this button to mute the ringing tone. The telephone

will revert to normal operating mode after a selectable fixed period

(adjustable between 1 minute and 10 hours, or indefinitely).

The button is permanently lit in RED when the telephone ringing tone

is muted

Door

A momentary press of this button will release the lock

mechanism. The button will be permanently lit in GREEN if the door

has been left in an open state (door contact required).

Telephone Dimensions: H = 235mm, W = 105mm, D = 25mm

Two models are currently available;

Model BS-A

This model is used for audio extensions on the bellissimo video

systems and also for connection to the digital systems when the extra

function afforded by the telephone is specified.

Model BS-LX

A full function telephone designed for connection to our standard 12v

DC door entry systems. This telephone is commonly used on the BSX

and DAX full line isolation systems and is a direct replacement for the

model 500LX telephone previously supplied.

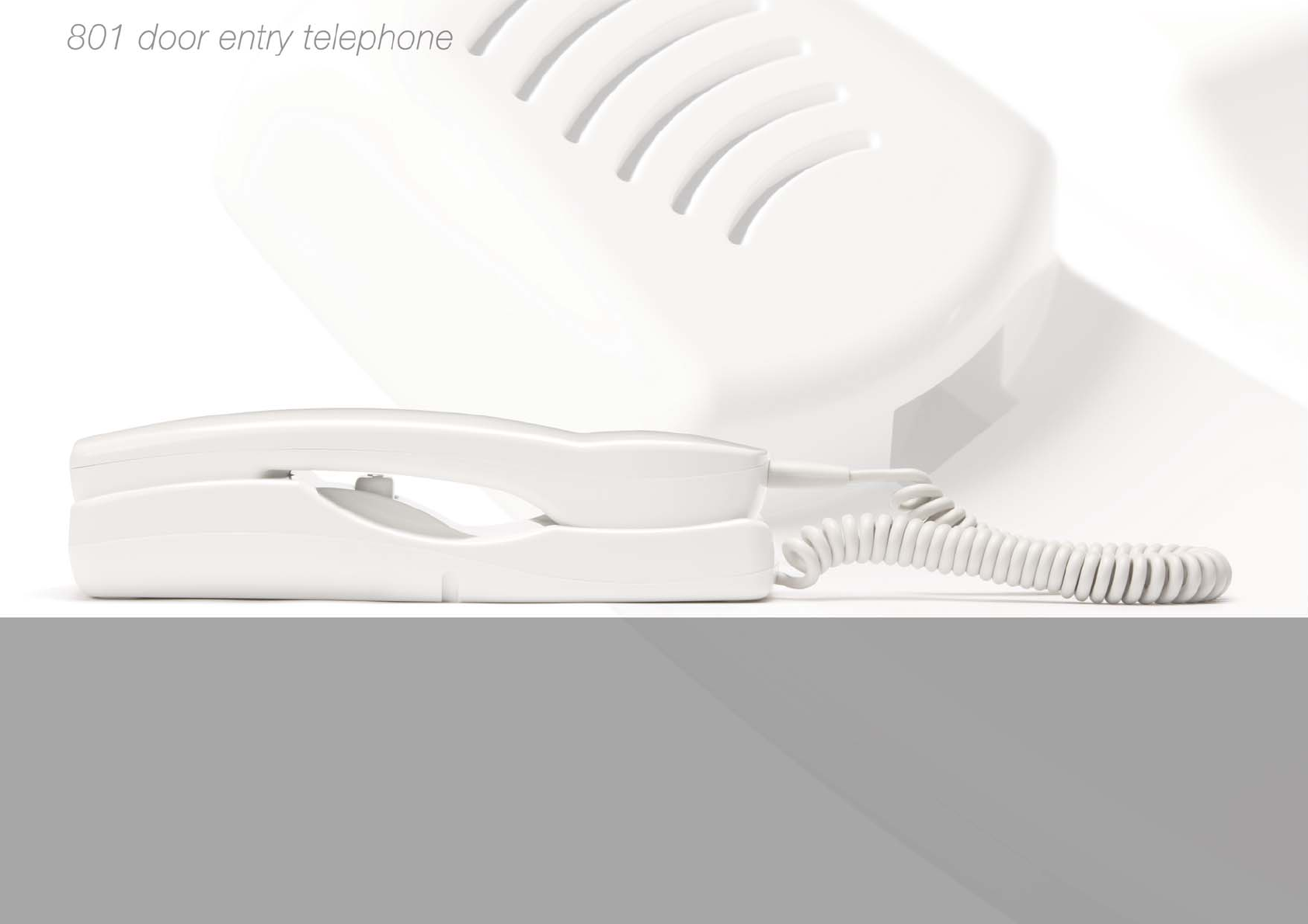

The model 801 is Bell Systems’ original door entry telephone. It has

been re-styled a number of times over the years and still maintains

its classic design. The 801 telephone continues to be the most

popular in the UK market owing to its exceptional reliability and

economical price.

The model 801 telephone operates from both12v AC or 12v DC and is

included in the standard model 900 and VRK audio door entry

systems as well as the CS and CSP series of combined keypad and

proximity door entry systems.

The telephone is manufactured in white high-impact ABS plastic for

high durability and complements most wall furnishings. It incorporates

a 'lock release' push-button discreetly positioned on the base, and

under the handset, to prevent inadvertent use. With its wide handset

the model 801 is especially recommended for the elderly.

The Electronic Ringing Tone has a useful safety feature whereby the

tone is reduced when the handset is ‘off the hook’.

The telephone has two levels for the ringing tone. A HI or LO position

can be set within the telephone on installation or at future date.

The model 801 telephone operates from both12v AC or 12v DC and is

included in the standard model 900 and VRK audio door entry

systems. It is also included in the CS series of combined keypad and

proximity door entry systems.

Dimensions: H = 212mm, W = 85mm, D = 55mm

Available models;

• Model 801 (standard)

• Model 801PS (with mute + privacy)

• Model 801-DESK (desk mount)

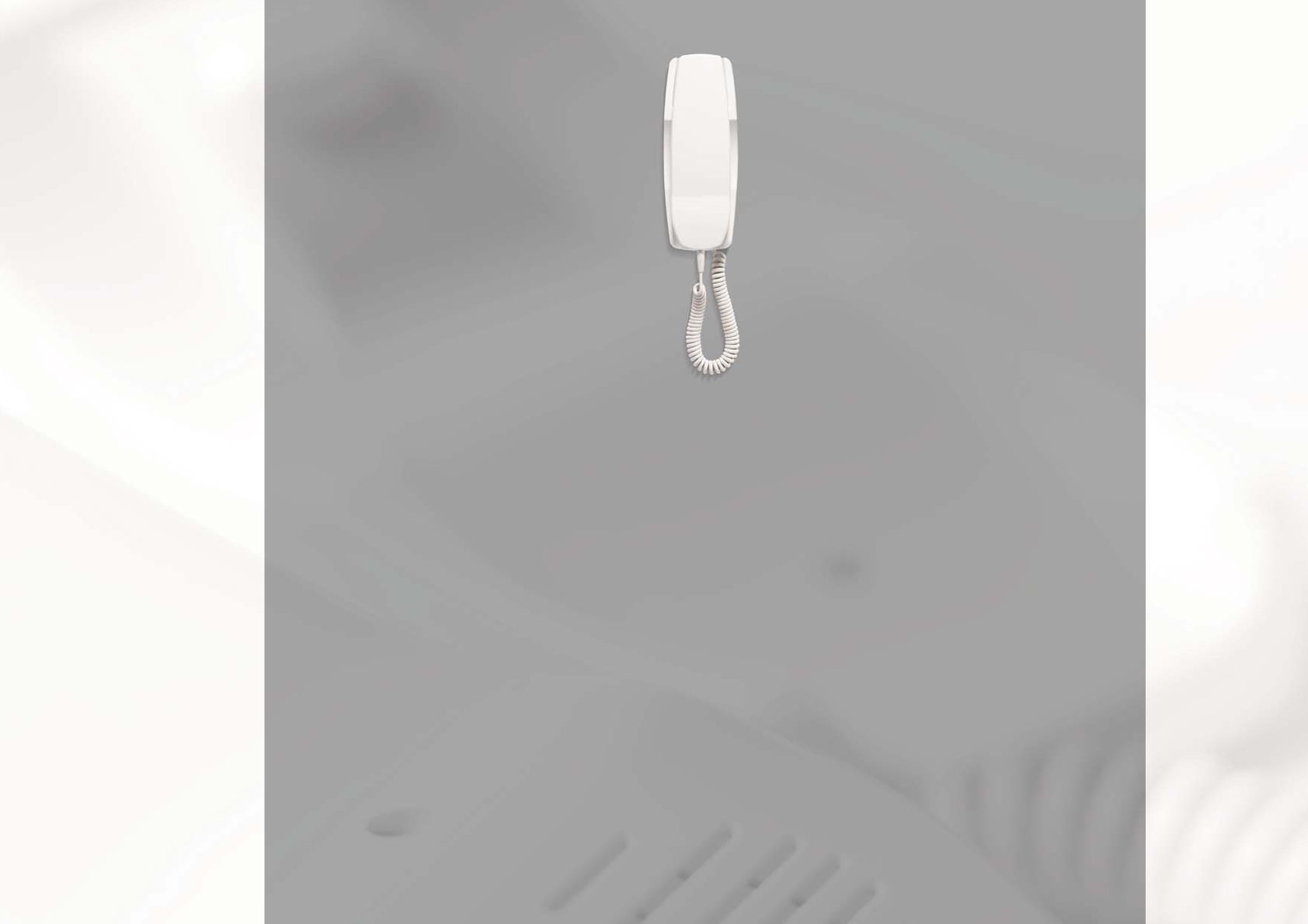

Model 801

801S - Mute Switch.

A switch is included on the side of the telephone to allow the user to

mute the call-tone and prevent disturbances from nuisance calls.

801P - Privacy of Speech.

Any conversation between the visitor and the resident on the called

telephone is totally private. The telephone will remain 'live' for a set

period after being called and will then automatically close down the

speech connection. The 'privacy of speech' feature is highly

recommended on systems that have in excess of 10 stations. Without

this feature, the speech clarity of the system will be impaired if

telephones are left 'off the hook’; this is more likely on a larger system.

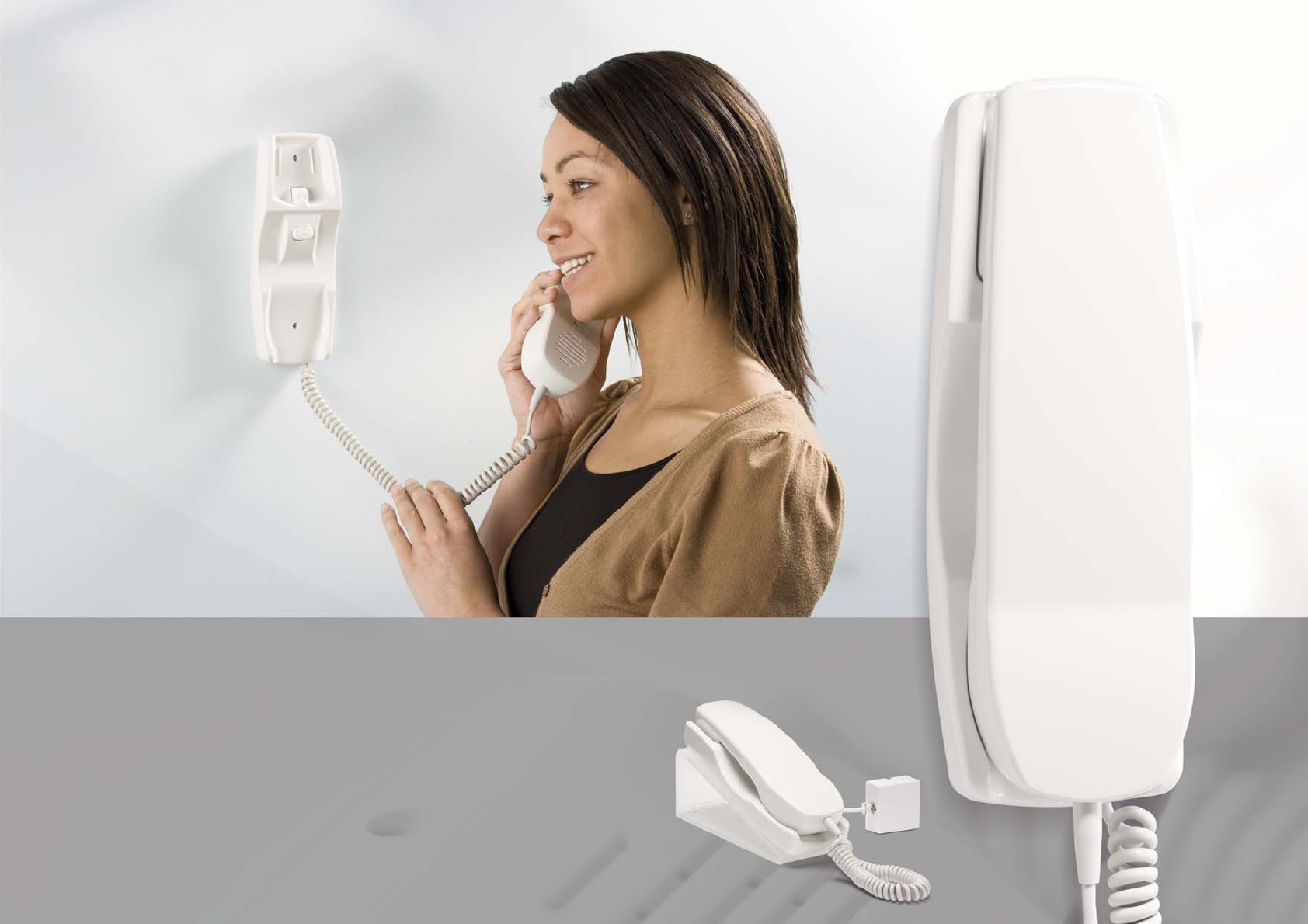

The model 801-DESK is available for

table top mounting. The model

801-DESK is factory fitted on a

sloped pedestal for ease of use and

has a captive cable with plug-in

connector for the supplied

telephone wall mounting socket.

Model 801

Model 801-DESK

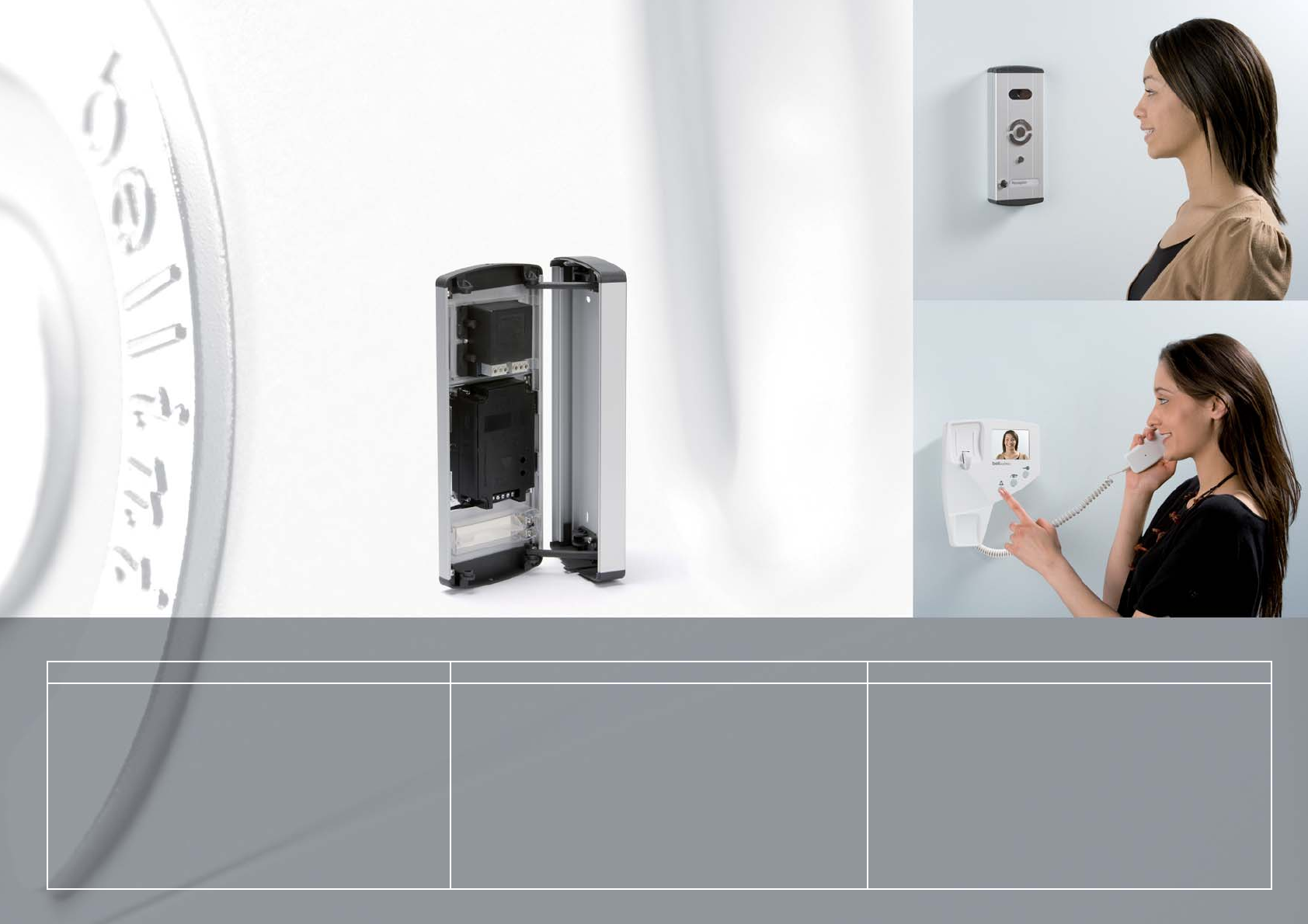

Bell System is pleased to announce the launch of the new bellini

range of door entry surface mounting panels. These new stylish

panels can be considered as an elegant alternative to the traditional

SPA series of panels.

The bellini panels are designed for installations at low-rise

apartments, maisonettes and conversions making them an ideal

choice for the private building sector and property developers. The

range currently includes audio, audio combined with a keypad and

video panels.

All panels are manufactured from anodised aluminium in a

contemporary design and have black plastic trims with contrasting

chromed pushbuttons and speech grill. The front panels are hinged

from the back box for ease of installation and the hinges can easily be

changed from one side to the other to assist in tight locations

The front panels are hinged from the back box and the hinges can

easily be changed from one side to the other to assist their

installation in tight locations.

The bellini video panels include a protected CCD colour camera for

connection to the bellissimo video system.

The bellini audio combined panels include an integral model C106

keypad for a residents’ coded access facility.

Optional nameplate illumination is available with the model BLP-LAMP

lighting module.

Panels do not included the speech unit and a model 61 speech unit

should be ordered with each panel.

The bellini panels can be purchased independently or as part of a

packaged system. Three styles of panel are immediately available;

• Audio panel; 1, 2, 3, 4, 6, 8, 10 and 12 buttons

• Audio and video panel; 1, 2, 3, 4, 6 and 8 buttons

• Audio panel with integral keypad; 1, 2, 3, 4 and 6 buttons

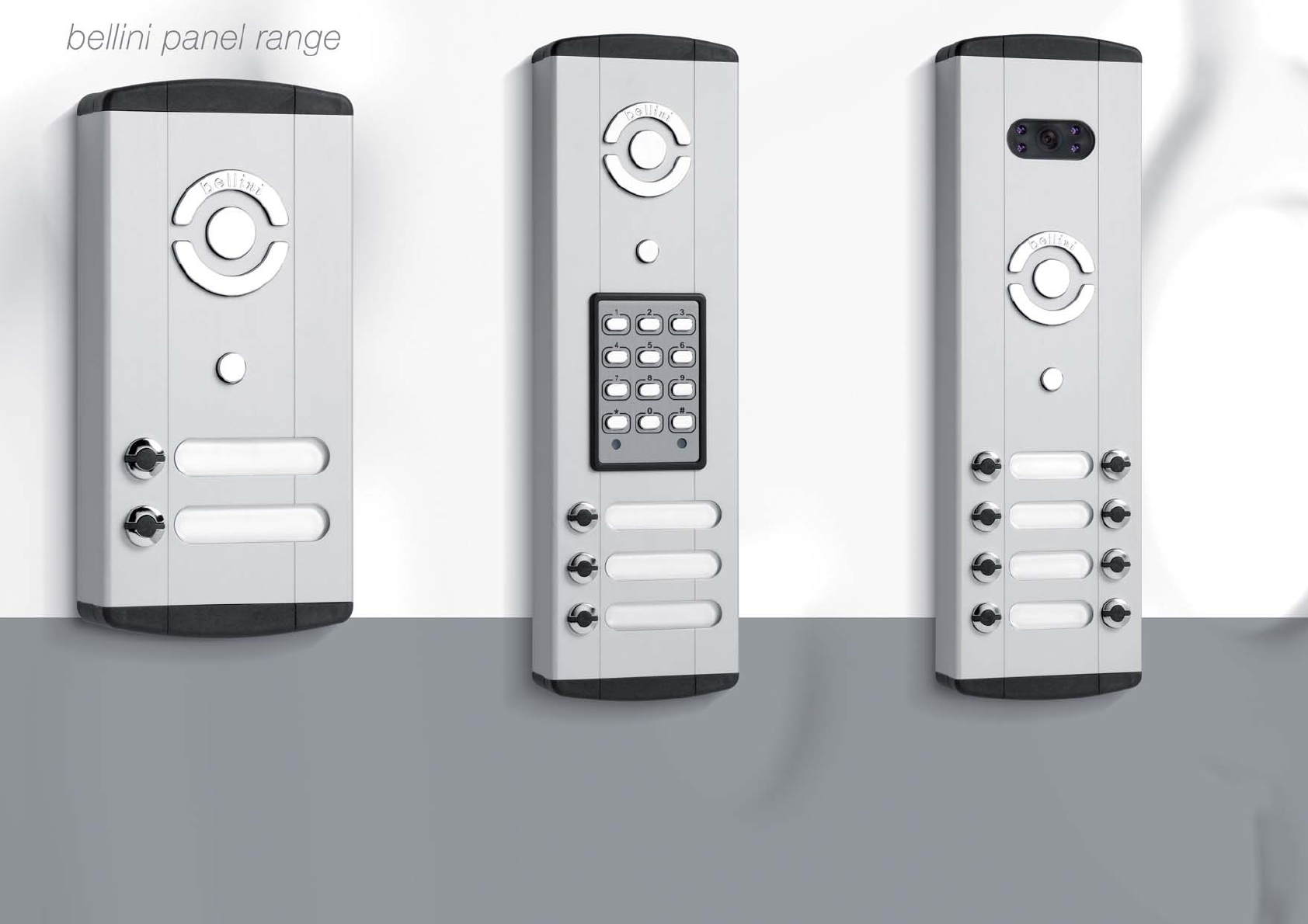

Model BLP2

Audio Panel

Model BLP106-3

Combined Panel

Model BLVP8

Video Panel

AUDIO

CODE Height Width Depth

BLP1 185 100 35

BLP2 210 100 35

BLP3 235 100 35

BLP4 210 100 35

BLP6 235 100 35

BLP8 260 100 35

BLP10 285 100 35

BLP12 310 100 35

VIDEO

CODE Height Width Depth

BLVP1 260 100 35

BLVP2 285 100 35

BLVP3 310 100 35

BLVP4 285 100 35

BLVP6 310 100 35

BLVP8 335 100 35

KEYPAD

CODE Height Width Depth

BLP106-1 285 100 35

BLP106-2 310 100 35

BLP106-3 335 100 35

BLP106-4 310 100 35

BLP106-6 335 100 35

Bellini Panel Dimensions (mm) panels up to 3 buttons are single pushbuttons, panels above are double pushbuttons.

Innovative hinged assembly

for ease of wiring

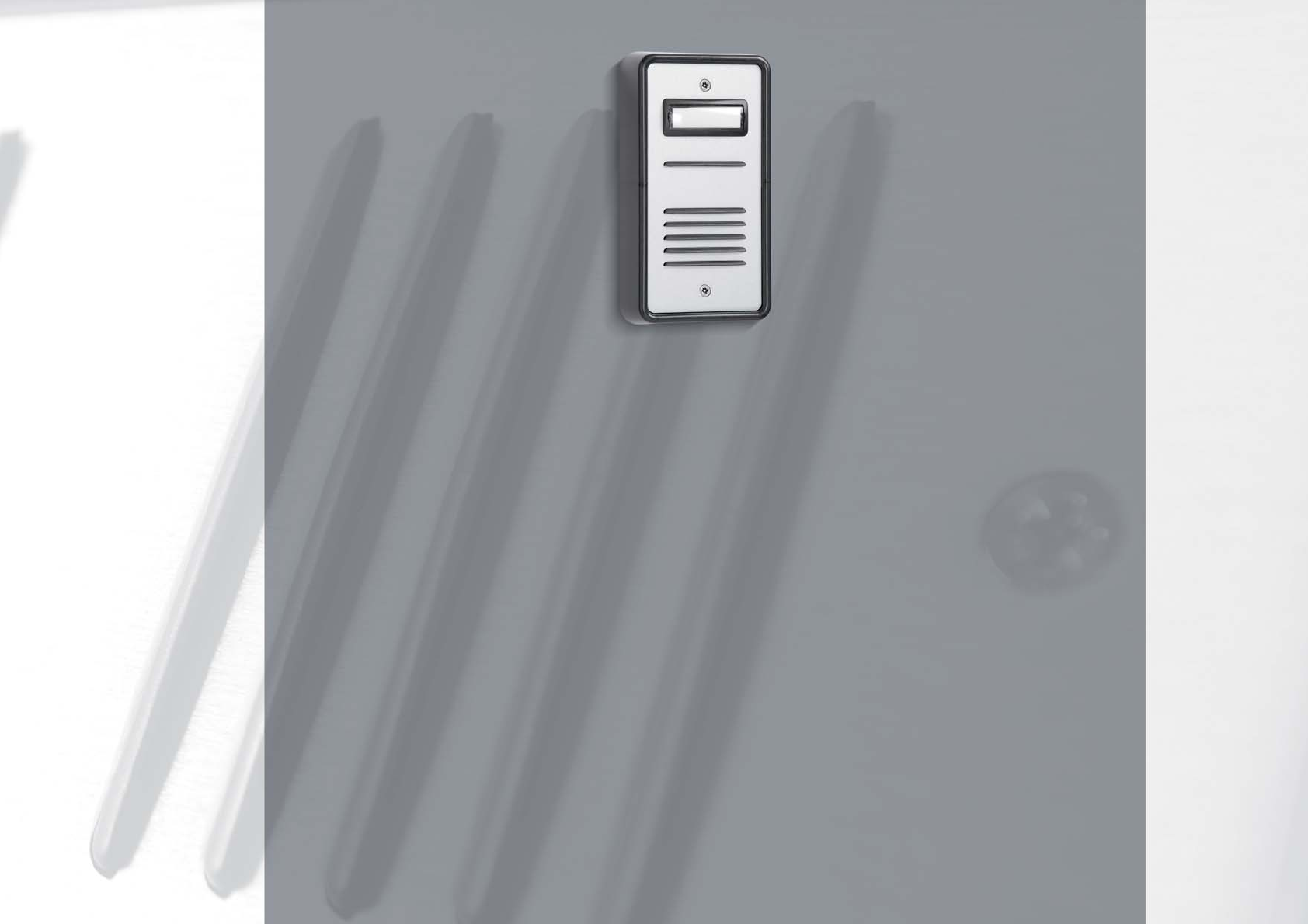

The SPA panels are supplied in the model 900 series door entry

systems and are a popular choice due to their high durability,

resistance to corrosion and low cost.

These panels offer a contemporary and attractive style. The panels up

to 10 buttons are manufactured from 3 mm brushed anodised

aluminum with an integral grill that protects the speech unit and

complements the surface back box. The grill has fixings on the rear to

firmly secure the speech unit.

As standard, the panels are supplied with a low-profile surface-

mounting box moulded in black to complement the push-buttons.

Alternatively, the panels can be supplied with a flush fitting zintec

back box and vandal resistant bolts.

Panels 1 to 10 buttons

They are manufactured from 3 mm brushed anodised aluminium with

an integral grill that protects the speech unit and complements the

surface back box. The grill has fixings on the rear to firmly secure a

model 61 speech unit.

A single push-button with integral nameplate is provided for each

station including an optional Tradesman’s button. This push-button

has a versatile design whereby pressure from any part of the

nameplate will initiate a call. The nameplate can easily be removed

from the front for replacement or amendment of the name or number

on the paper insert (included with each button).

Optional backlighting can be achieved by fitting a model SPA-LAMP

lamp unit to each push-button.

Panels above 10 buttons

These panels are manufactured from 4mm brushed anodised

aluminium and are available in even numbers and for flush-fitting only.

A single push-button is provided for each station including an optional

Tradesman’s button. A nameplate is positioned adjacent to the push-

buttons. Optional backlighting can be achieved by fitting festoon lamp

units to the back-box; specify model 37 holder and model 36 bulb.

The back box is manufactured from Zintec, a coated steel material

that prevents tarnishing and rusting. The panel is attached to the back

box by means of vandal resistant bolts (model 38) requiring a special

tool (model 39) for their removal. These bolts and one special tool are

supplied with each panel.

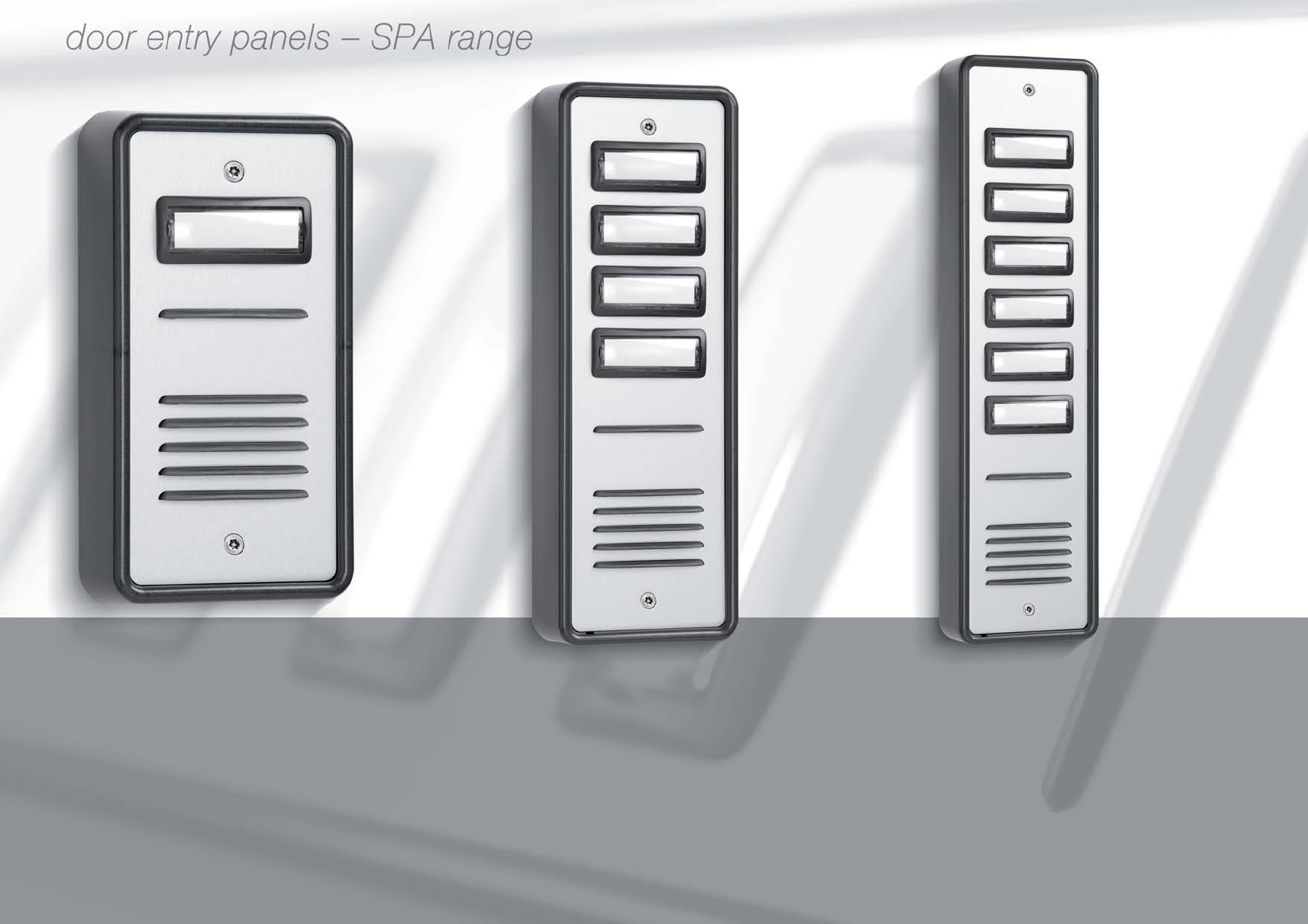

Model SPA1 Model SPA4 Model SPA6

Ordering information

Order a model SPA n, where n is the number of push-buttons required

e.g. a 9 button unit would be a model SPA9.

(Please include an extra push-button should a Tradesmen/Services

button be required).

All panels up to 10 buttons require a model 61 speech unit.

Panels above 10 buttons require a model 51 speech unit.

SPA Door Entry Panel Dimensions SPA1 to SPA10 and SPA1F to SPA10F

Flush Panel (F) Surface Panel

Code Panel (mm) Backbox (mm) Backbox (mm)

HW HWD H W D

SPA1 170 83 159 73 35 190 102 38

SPA2 230 83 219 73 35 248 100 43

SPA3 270 83 259 73 35 288 100 43

SPA4 270 83 259 73 35 288 100 43

SPA5 370 83 359 73 35 388 100 43

SPA6 370 83 359 73 35 388 100 43

SPA7 370 83 359 73 35 388 100 43

SPA8 470 83 459 73 35 488 100 43

SPA9 470 83 459 73 35 488 100 43

SPA10 470 83 459 73 35 488 100 43

Sizes above 10 buttons use a

different style panel and are

flush fitting only.

Sizes on application.

Panel dimensions are

approximate and may change

without notice.

Model SPA12

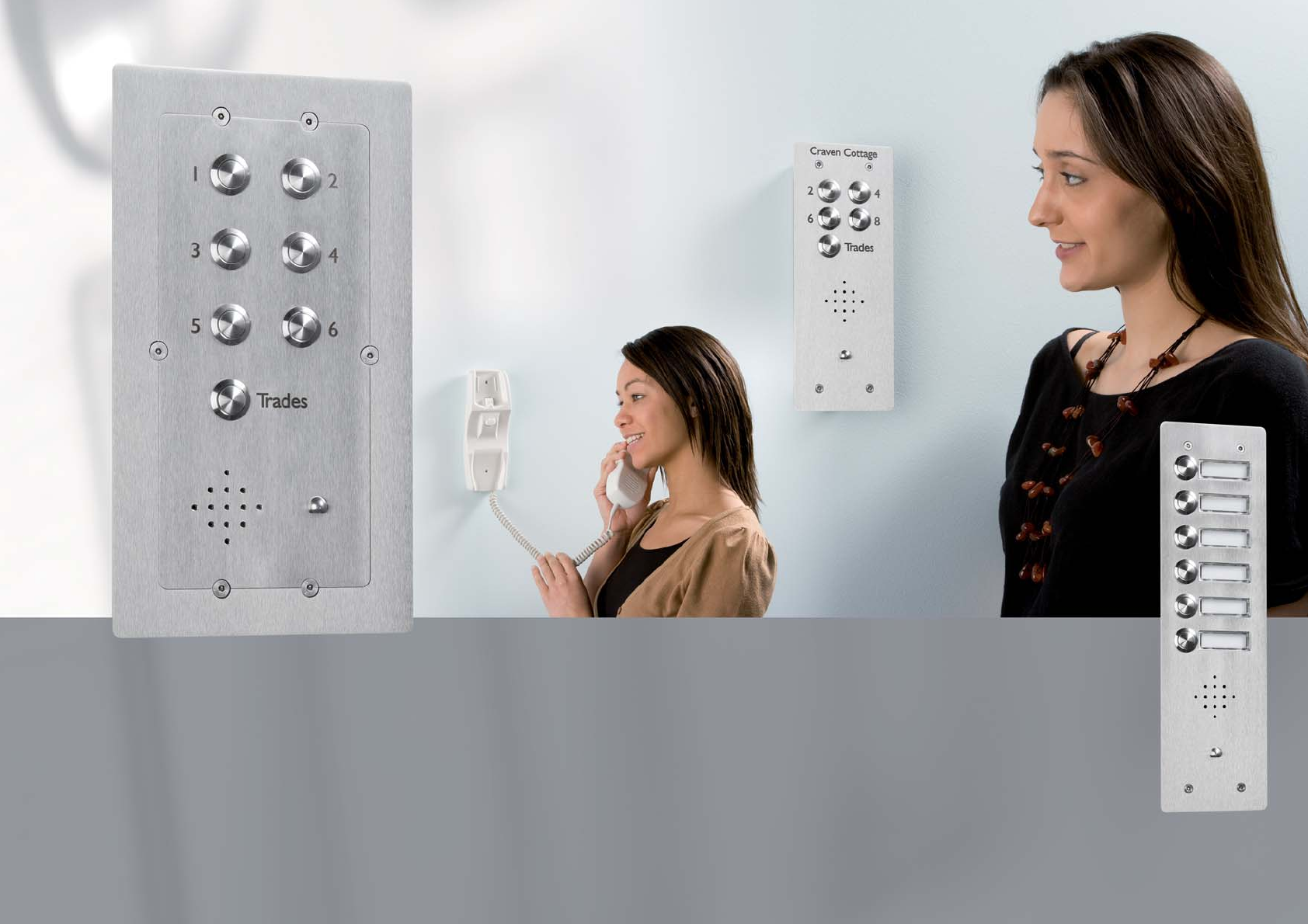

In vulnerable areas the entrance panel may be subject to vandalism.

This is common with local authority and public housing. Although it

is impossible to withstand extreme acts of vandalism, our VRP panels

are designed to resist all but the most determined of vandals. The LCP

panel offers even greater protection than the VRP panels and will

resist most attacks of vandalism.

The VRP panels are manufactured in our factory from 2.5mm 316

marine grade stainless steel. A stainless steel vandal resistant push-

button is provided for each station and optionally for Trades. For each

push-button a number or letter can be engraved on the panel for

permanent identification. Many options are available for these panels

including keypads, proximity readers and cameras.

The VRP panels are manufactured from 2.5 mm 316 marine grade*

stainless steel or optionally in solid brass. They are supplied for flush

mounting with a zintec back-box or optionally for surface fitting

with a stainless steel cowling. The panel is fixed to its back-box

with tamper proof bolts (a special ¼” hex bit is supplied).

A single stainless steel vandal resistant push-button (or brass button

for brass panel) is provided for each station and optionally for Trades.

These buttons are individually attached by means of a nut on the rear

of the panel.

For each push-button a number or letter can be engraved on the

panel for permanent identification. The engraving of flat numbers is

included in the price but any further engraving, e.g. building names

or instructions will incurr a modest surcharge.

Although we generally supply panels to fit standard back boxes, they

can be manufactured to custom dimensions; prices for this can be

obtained on application.

Since there are many variations with vandal panels an illustrative and

dimensioned drawing is provided for approval prior to manufacture.

Custom layouts can include;

• Custom engraving with numbers and text

• Trades facility

• Cut out for CCD camera

• Cut out for Proximity readers with stud fixings

• Keypads for access control

Model VRP1 Model VRP4 Model VRP9-S

*Despite the fact that the highest quality of 316 marine grade

stainless steel is used in the manufacture of our panels they can

still be prone to tarnishing in some coastal locations or in areas

of industrial pollution. If in doubt about the suitability of these

panels in your area please contact us for advice.

LCP Laser Cut Panels

The LCP panel offers even greater protection than the VRP panels and

will resist most attacks of vandalism. The front-plate consists of an

overlapping bezel and a removable plate cut by a laser from the same

sheet of 2.5 mm 316 marine grade stainless steel. This leaves a gap of

just 0.3 mm rejecting implements that could be used to force the

panel from its box. The bezel is securely welded to the back-box

providing an extremely strong fixing to the wall. The removable

plate is fixed to the bezel and back box with countersunk A2

stainless steel security bolts requiring the use of a specialist tool for

their removal (supplied).

Vandal resistant push-buttons are included which are individually

attached by means of a back nut on the rear of the panel. For each

push-button a number or letter can be engraved on the panel for

permanent identification. The engraving of flat numbers is included in

the price but any further engraving can be

included for a modest surcharge.

Ordering information

Order a model VRP n or LCP n, where n is the

number of push-buttons required.

e.g. a 4 button unit would be a model VRP4.

(Please include an extra push-button should a

Tradesmen/Services button be required.)

For surface panels add –S to the order code e.g. VRP4-S

All panels require a model 61 speech unit.

Model LCP7

Model VRP5

with extra engraving

Model VRP6-WIN

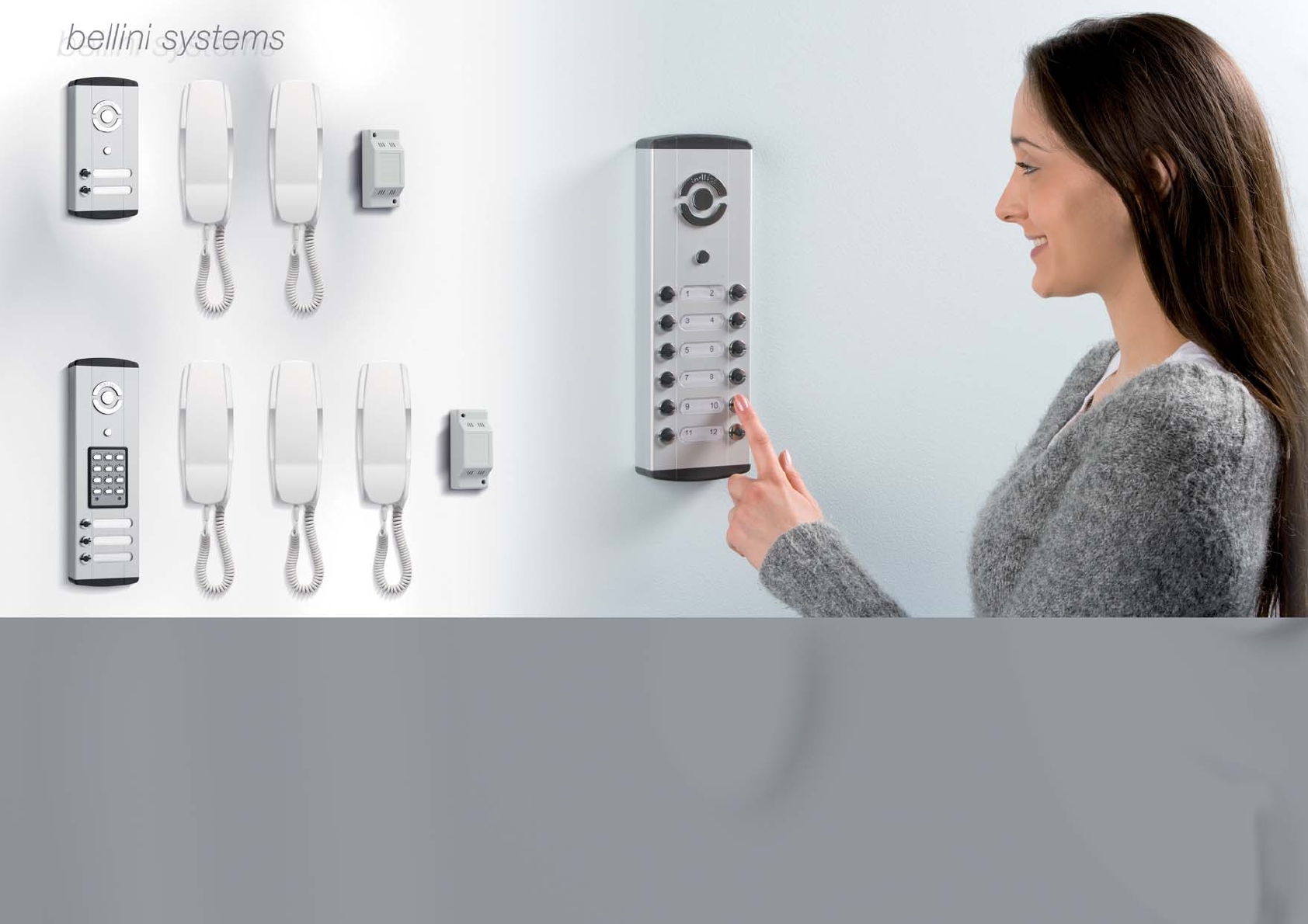

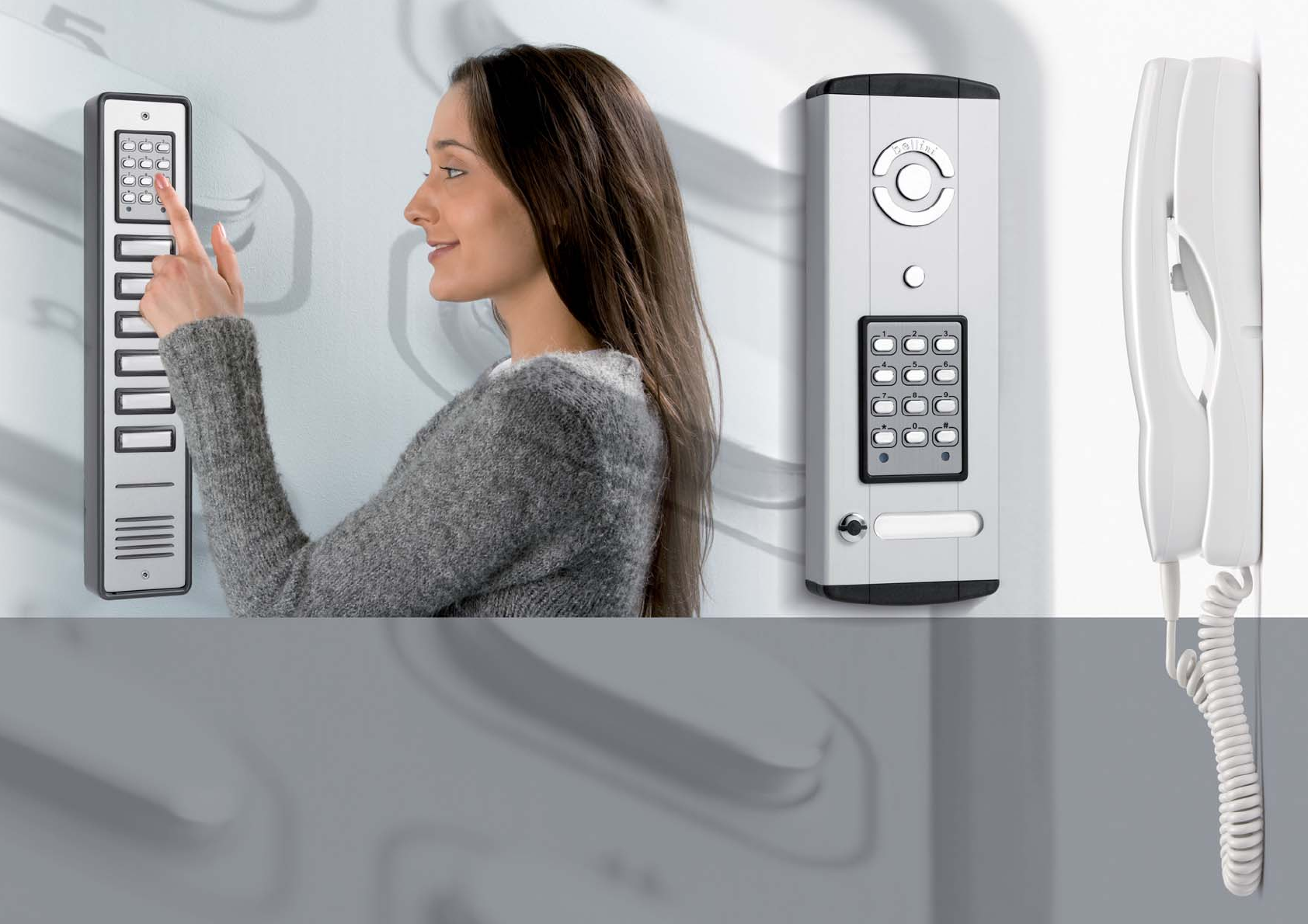

The bellini systems are designed for installations in low-rise

apartments, maisonettes and conversions making them an ideal

choice for the private building sector and property developers. The

range currently includes audio systems, audio and keypad combined

systems and video systems.

The surface mounted panels are manufactured from anodised

aluminium with a contemporary design and profile. The panels have

curved black plastic trims which contrast with the distinctive chromed

pushbuttons and speech grill. The front panels are hinged from the

back box and the hinges can easily be changed from one side to the

other to assist their installation in tight locations.

These new stylish systems can be considered as an elegant alternative

to the traditional 900 series systems. An optional tradesmen facility is

available on all but the largest system size in each version.

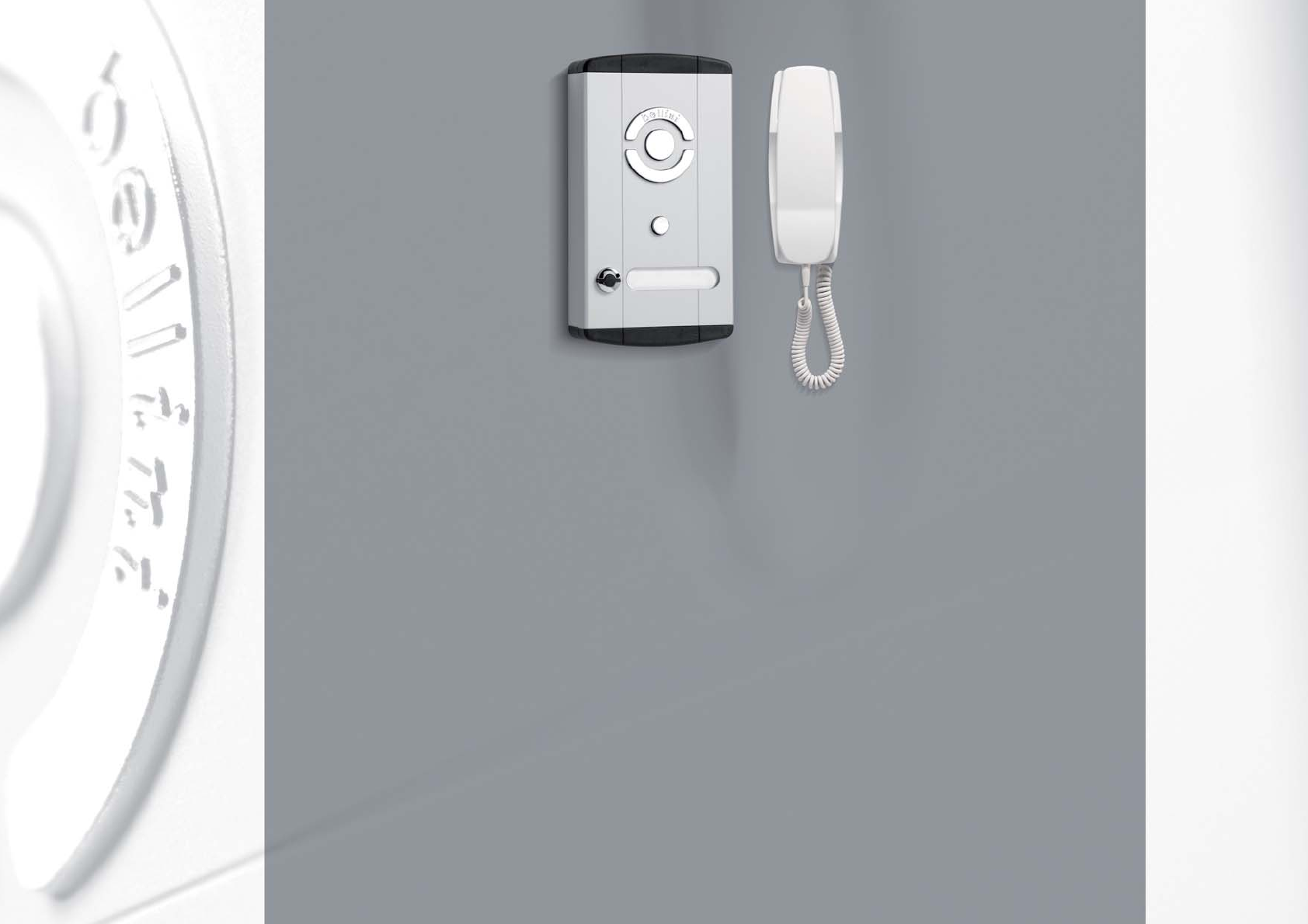

bellini audio systems

The bellini audio systems include the new contemporary surface

mounted bellini panels. Each audio system includes a bellini audio

panel, the popular model 801 white wall-mounting telephones, a

model 61 speech unit and a power supply. A fail-secure lock output is

available and the model 210 lock release is recommended.

Panel sizes include 1, 2, and 3 with single buttons and, 4, 6, 8, 10, and

12 with double buttons to keep panel dimensions to a minimum.

Optional nameplate illumination is available with the model BLP-LAMP

lighting module.

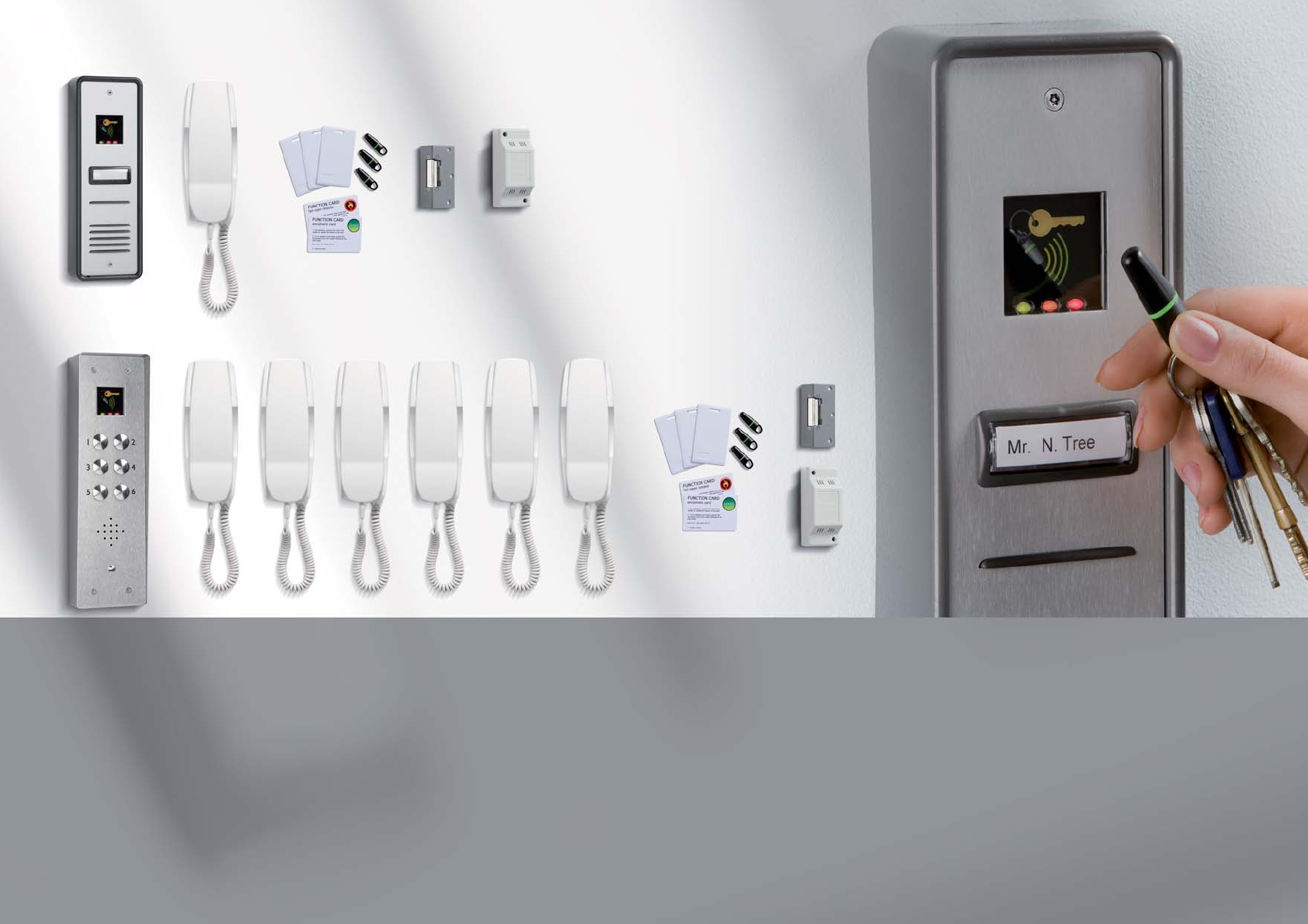

bellini combined audio and coded access systems

The bellini combined systems include the new contemporary surface

mounted bellini panels. A complementary chromed model C106

keypad with LED indicators is included for coded access functions. The

C106 keypad may be programmed with up to 10 unique access codes

and has many programmed functions including lock duration, lock

delay and timed restrictions.

Each combined system includes a bellini panel with keypad, the popular

model 801 white wall-mounting telephones, a model 61 speech unit

and a power supply. A fail-secure and a fail-safe lock output are

available and the model 210 (fail-secure) or the model 206 (fail-safe)

lock release is recommended.

Panel sizes include 1, 2, and 3 with single buttons and, 4 and 6 with

double buttons to keep panel dimensions to a minimum.

Optional nameplate illumination is available with the model BLP-LAMP

lighting module.

Model BL2

2 way audio system

Model BL106-3

3 way combined system

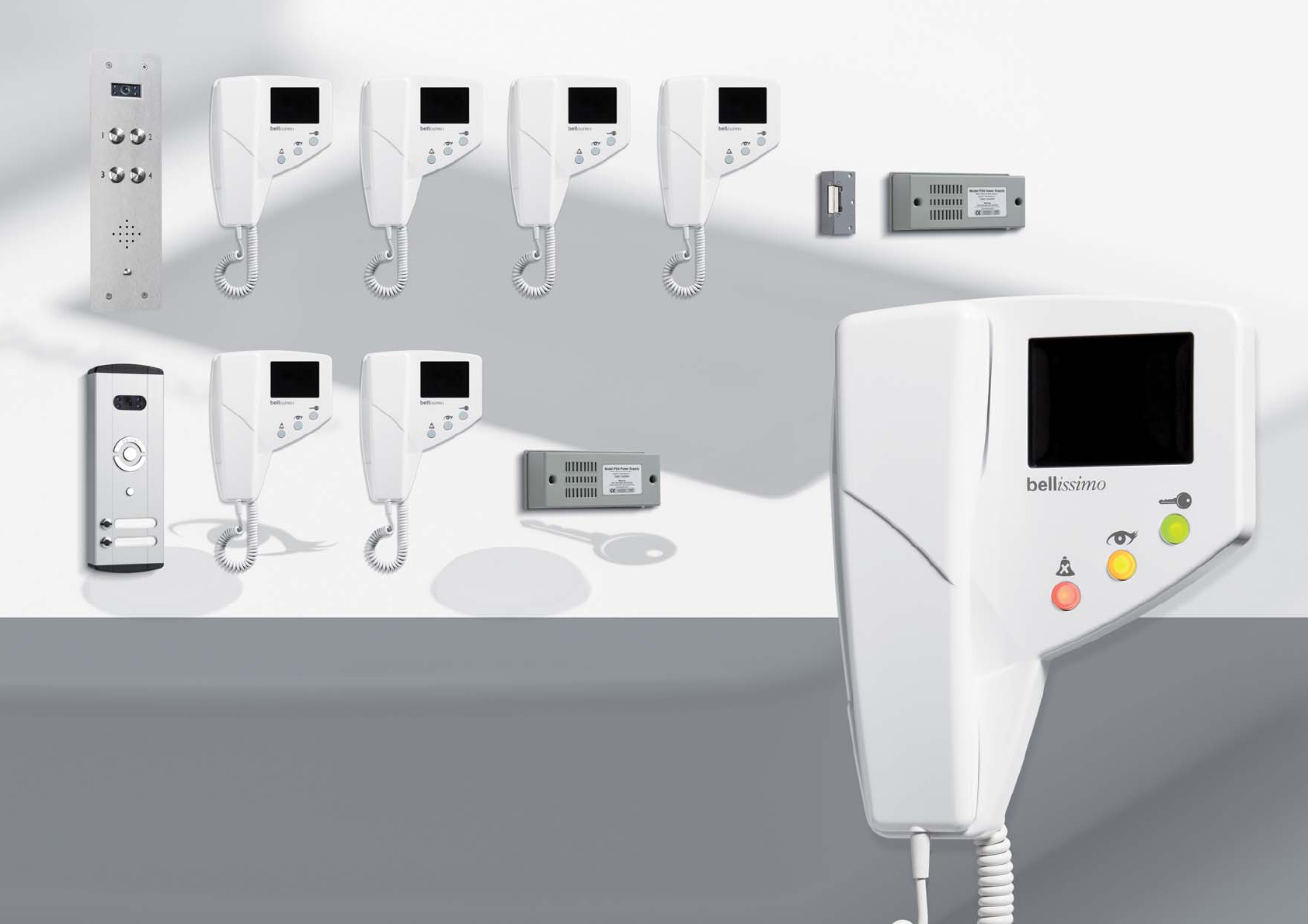

Bellini colour video systems

The bellini colour video systems include the new contemporary

surface mounted bellini panels.

A protected ‘day-night’ colour CCD camera with infra-red lamps is

mounted in the panel for connection to the video telephone giving a

great colour picture of the visitor during the day and automatically

reverting to black and white at night to ensure a clear picture.

Each video system includes a bellini panel with camera, the popular

bellissimo video telephones with a 3.5" colour TFT screen and soft

silicone backlit buttons, a model 61 speech unit, all necessary

controllers and a power supply. A fail-secure and a fail-safe lock

output are available and the model 210 (fail-secure) or the model 206

(fail-safe) lock release is recommended.

Panel sizes include 1, 2, and 3 with single buttons and, 4, 6 and 8 with

double buttons to keep panel dimensions to a minimum.

Optional nameplate illumination is available with the model BLP-LAMP

lighting module.

Ordering information

Audio systems;

Order a model BL n, where n is the number of stations required

e.g. a 4 station audio system is a model BL4

For tradesmen entry add the code TRBL

Combined Audio and keypad systems;

Order a model BL106-n, where n is the number of stations required

e.g. a 4 station combined system is a model BL106-4

For tradesmen entry add the code TRBL

Video systems;

Order a model BLV n, where n is the number of stations required

e.g. a 4 station video system is a model BLV4

For tradesmen entry add the code TRBLV

bellini systems do not include a lock release

Model BLV2

2 way video system

The 900 Series audio door entry systems are recognised for their high

quality and competitive pricing and are widely accepted as the

industry standard.

Each system provides all of the components necessary to install a

complete audio door entry system; including a surface lock release as

standard. The packaging of these complete systems allows for ease of

specifying, tendering, distribution and installation.

These systems are available from a one way (model 901) up to any size.

Each 900 series system comprises of;

• model 801 telephone, one for each station

• model SPA front door panel

• model 61 speech unit (model 51above 10 ways)

• model 203 surface lock release

• model 212 12v AC PSU (model 225 above 10 stations)

• full wiring and installation instructions

The SPA panels supplied in the 900 kits are a popular choice due to

their high durability, resistance to corrosion and low cost. These

panels are designed with an attractive and contemporary style and are

available surface or flush up to 10 ways. The larger panels are of a

more classic style and are available flush fitting only.

The model 801 telephone is included as standard in each system.

The telephone is manufactured in white high-impact ABS plastic that

imparts high durability and complements most wall furnishings.

With its wide handset the model 801 is especially recommended for

the elderly.

It incorporates a 'lock release' push-button discreetly positioned on

the base, and under the handset, to prevent inadvertent use.

The Electronic Ringing Tone has a useful safety feature wherein the

tone is reduced when the handset is ‘off the hook’.

Model 901

1 way system

Model 902

2 way system

Ordering Information

Order a model 901 for a complete single station system.

For multi-way systems order a model 900 + n, where n is the number

of stations, e.g. a model 914 is a complete 14 station system.

(For systems above 20 stations please append the code P for inclusion

of privacy telephones)

For tradesmen entry facility, simply add TR900 to any given system,

e.g. a six station system with trades facility is a model 906 +TR900

(A model TS2000-BST time clock is included).

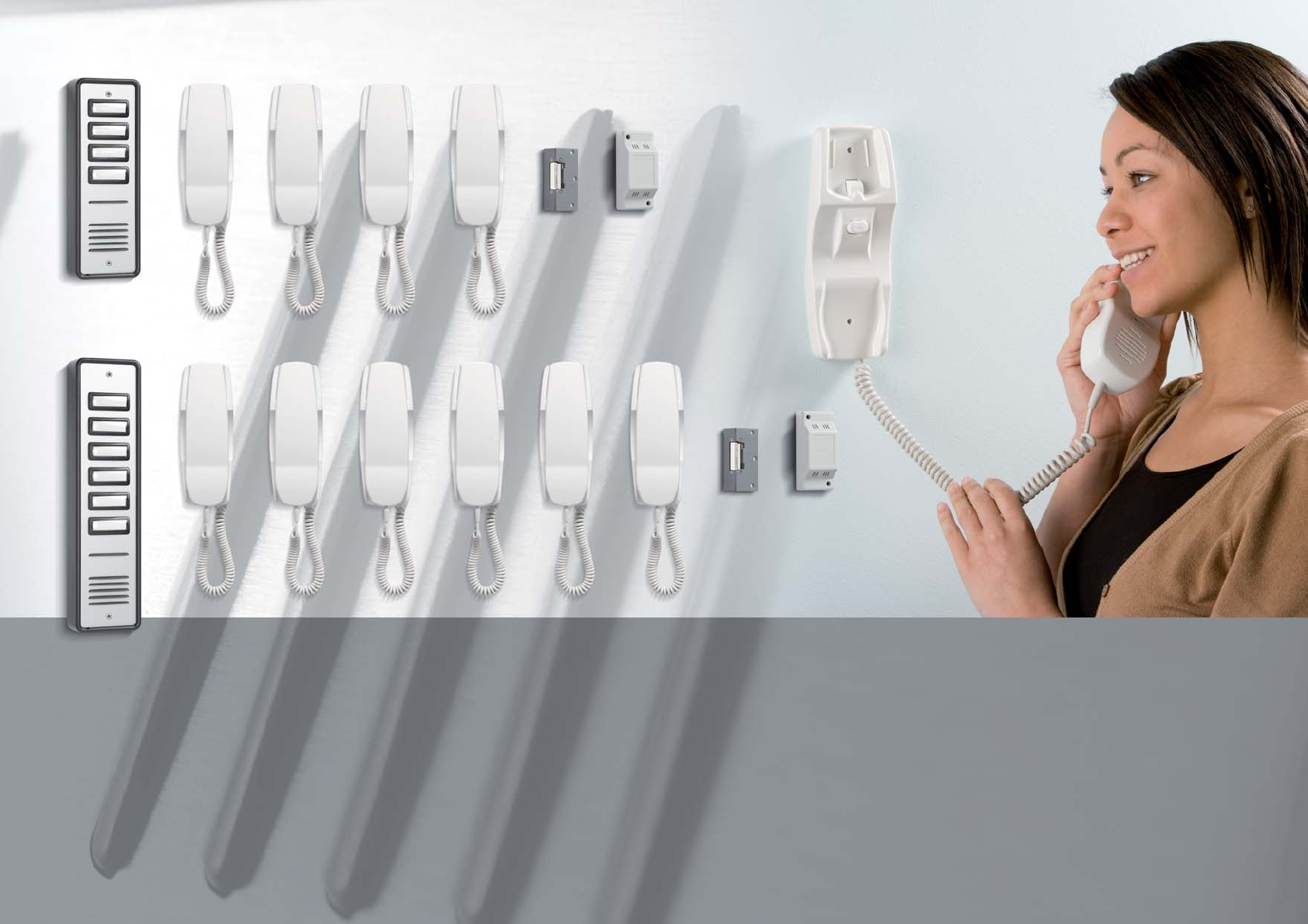

Model 904

4 way system

Model 906

6 way system

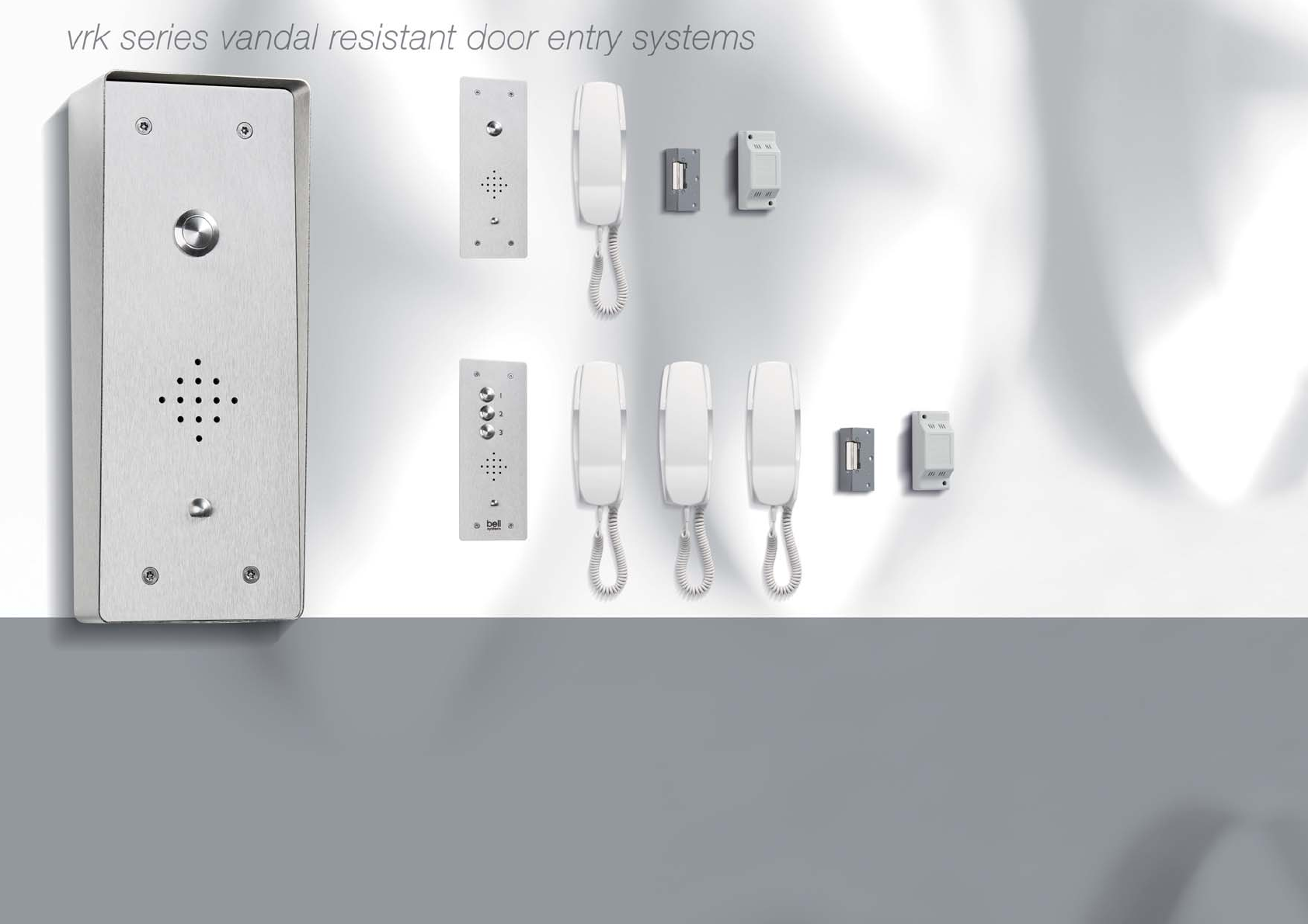

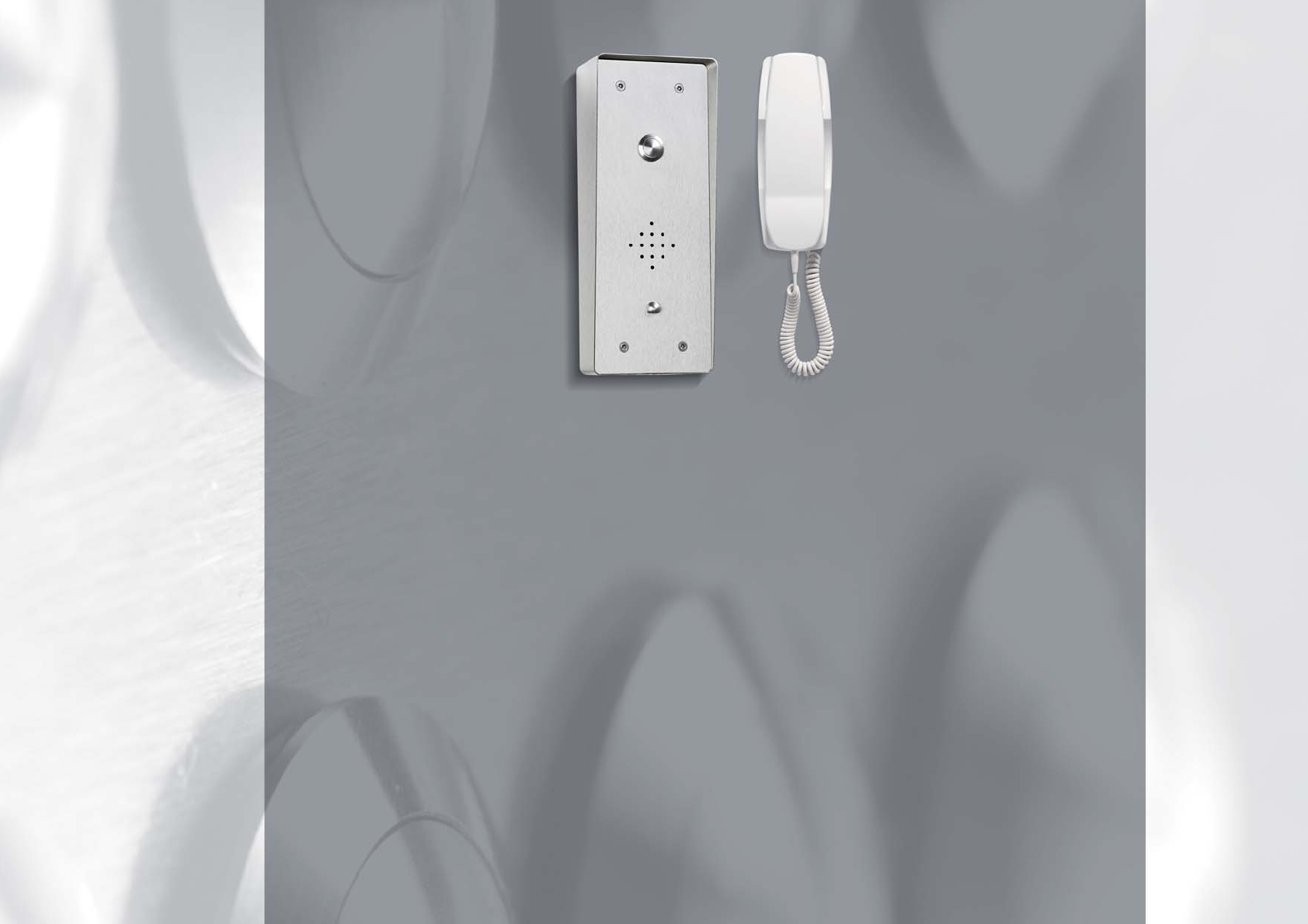

The VRK Vandal Resistant Door Entry Systems have been devised for

buildings that are prone to external vandalism.

Each system provides all of the components necessary to install a

complete audio door entry system; including a surface lock release as

standard. The packaging of these complete systems allows for ease of

specifying, tendering, distribution and installation.

The system can have a range of options including; surface mounting

panels, extra engraving and a tradesmen entry facility. These systems

are available from a one way (model VRK1) up to any size.

Each VRK series system comprises of;

• model 801 telephone, one for each station

• model VRP front door panel

• model 61 speech unit

• model 203 surface lock release

• model 212 12v AC PSU (model 225 above 10 stations)

• full wiring and installation instructions

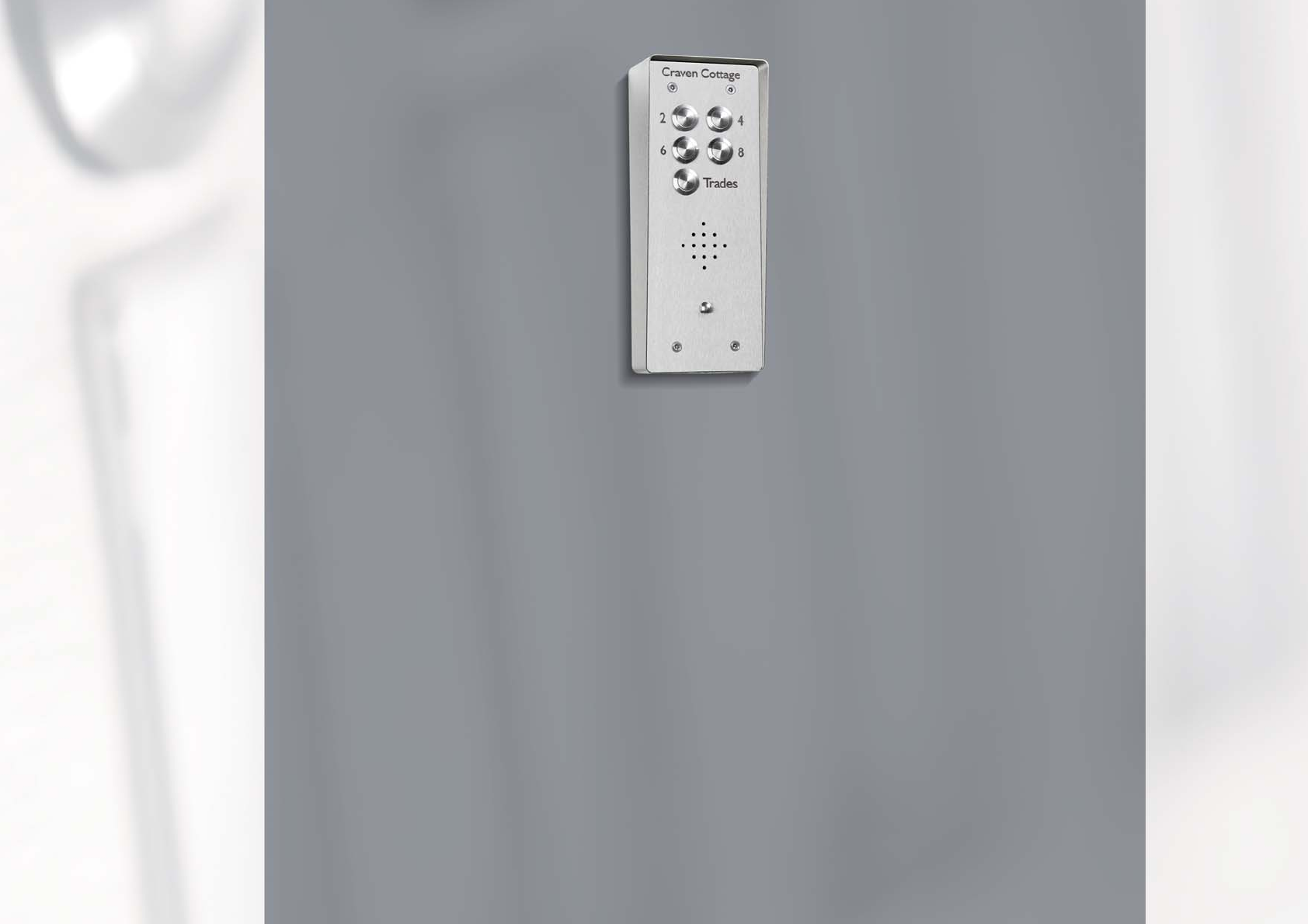

The model VRP panels are manufactured from 2.5 mm 316 marine

grade* stainless steel. All panels are flush mounted and fixed to the

back-box by tamper proof bolts (a special key is required to remove

the panel). A vandal resistant button is provided for each flat and

optionally one for Tradesmen.

Each panel is custom engraved to client's specifications using the

Panel Designer software, which creates a dimensioned drawing of the

panel for customer approval prior to manufacture. The engraving of

flat numbers is included in the price of each system. Further engraving

(e.g. Block names) can be included for a modest surcharge.

The model 801 telephones are included as standard for systems up to

20 stations and the model 801P with privacy function for larger systems.

The telephone is manufactured in white high-impact ABS plastic

which imparts high durability and complements most wall

furnishings. It incorporates a 'lock release' push-button discreetly

positioned on the base, and under the handset, to prevent

inadvertent use. With its wide handset the model 801 is especially

recommended for the elderly.

The Electronic Ringing Tone has a useful safety feature wherein the

tone is reduced when the handset is ‘off the hook’.

Model VRK1

1 way system

Model VRK3+LOGO

3 way system

Ordering Information

Order a model VRK1 for a complete single station system.

For multi-way systems order a model VRK n, where n is the number

of stations

e.g. a model VRK14 is a complete 14 station system.

For surface systems add –S to the order code e.g. VRK14-S

For tradesmen entry facility, simply add TRVRK to any given system

e.g. a six station system with trades facility is a model VRK6 + TRVRK

(A model TS2000-BST time clock is included).

*Despite the fact that the highest quality of 316 marine grade

stainless steel is used in the manufacture of our panels they can

still be prone to tarnishing in some coastal locations or in areas

of industrial pollution. If in doubt about the suitability of these

panels in your area please contact us for advice.

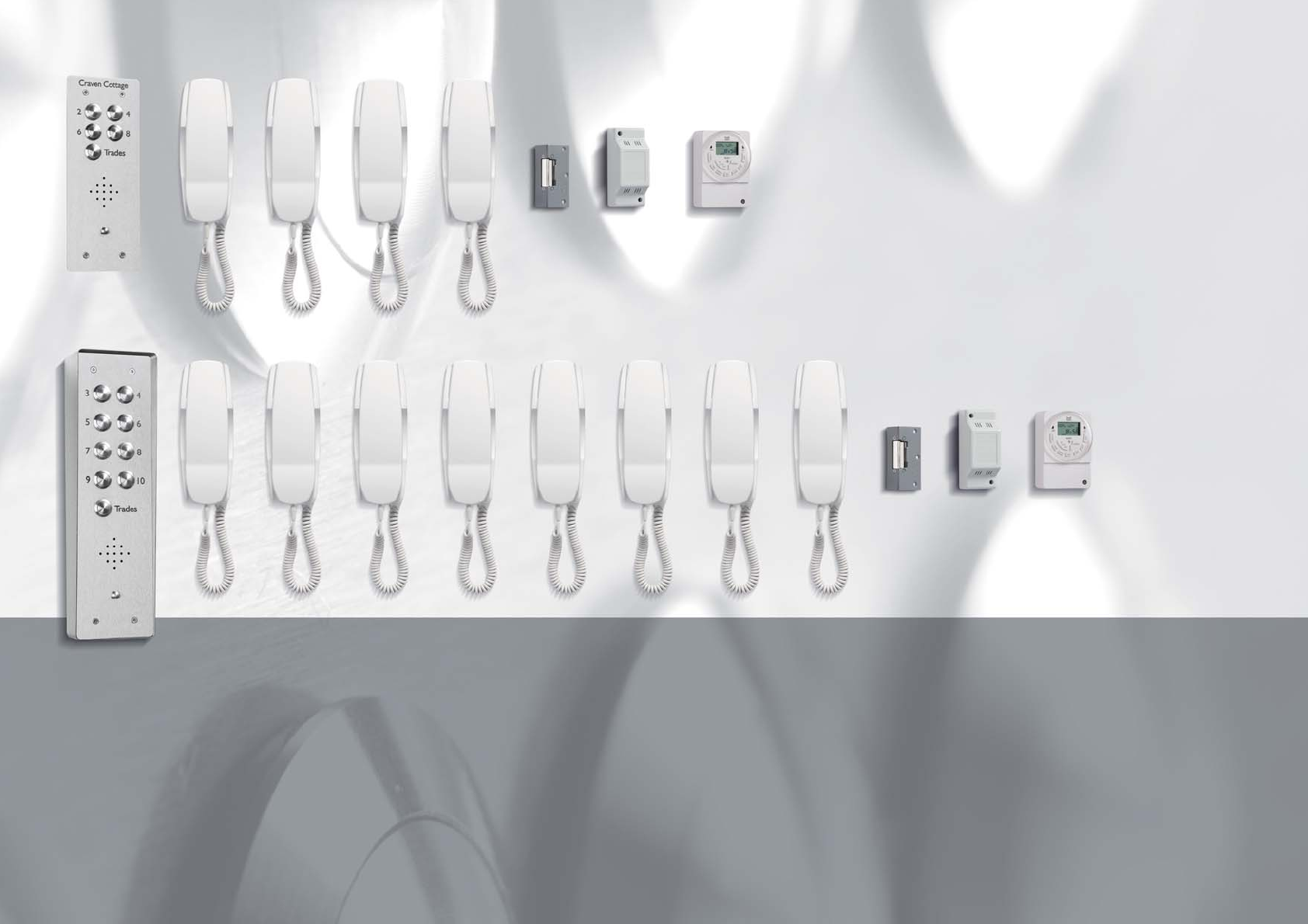

Model VRK4 with extra engraving

+ Model TRVRK

4 way system with trade facility

Model VRK8-S

+ Model TRVRK

8 way surface system with trade facility

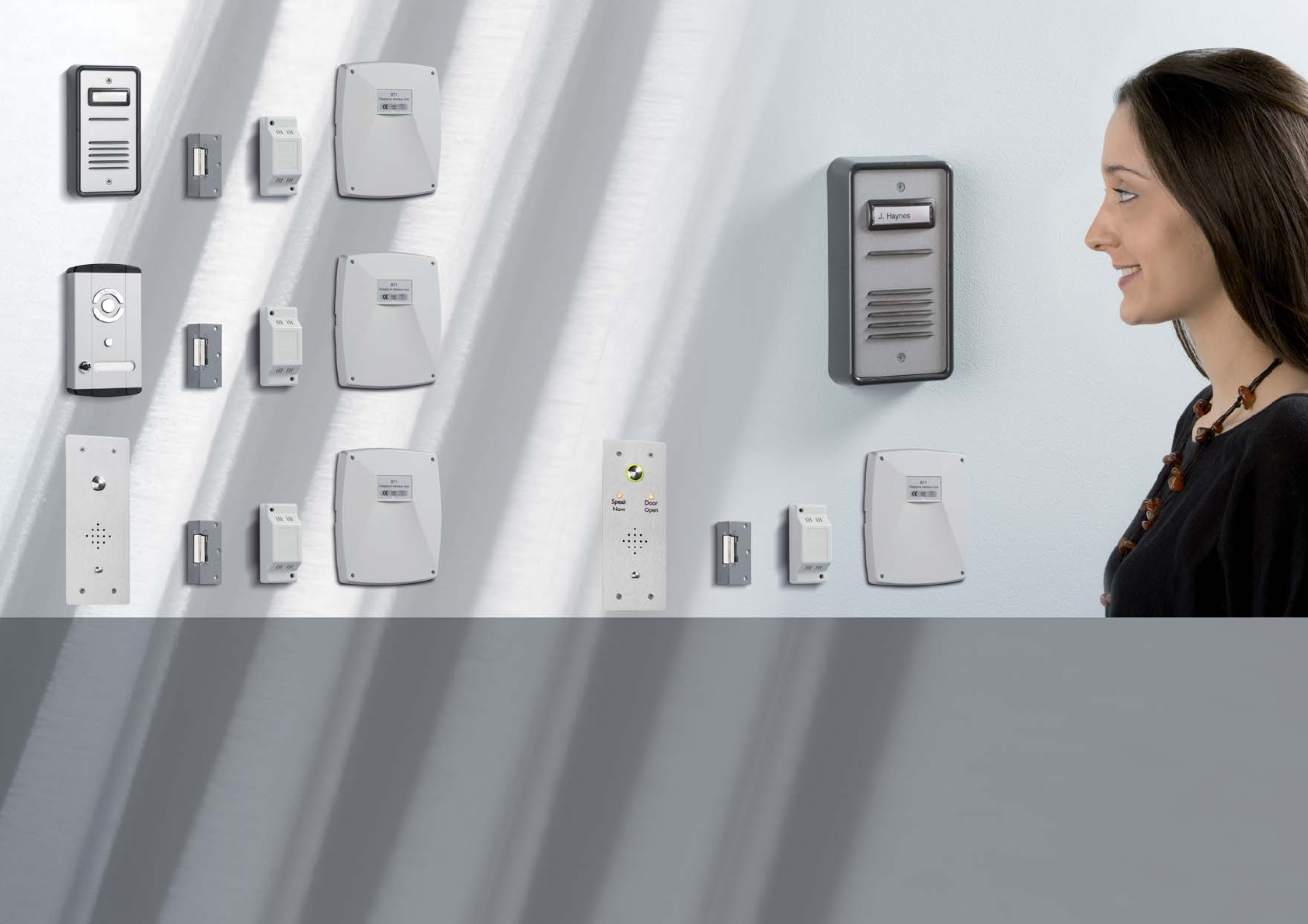

The BT1 Telephone interface offers the convenience of operating

a door entry system from an existing BT style telephone without

interfering with its normal usage. Most domestic tone-dialling

telephones are compatible with the BT1 including cordless DECT

telephones which are of great benefit to those people with

limited mobility.

The interface may also be connected onto many telephone

switchboards (PABX) via a dedicated trunk line input, but not an

extension connection.

In addition to conversing with a caller at the front door panel the

resident may allow them access by operating the lock release directly

from their telephone.

Operation

The BT1 interface appears transparent to the phone line, even if the

BT1 is not powered. When a call is made from the entrance panel the

telephone will ring for a maximum of 30 seconds. When the

telephone is picked up the resident can converse with the visitor and

operate the lock release by pressing ‘1’ on the telephone to allow

access. Should an external telephone call be received during this

operation the resident has the ability to switch between both calls.

BT1 Interface Unit

The interface is housed in a discreet ABS plastic enclosure which is

designed for wall mounting in any indoor location, preferably next to

the telephone line and a power point.

Dimensions: H = 230mm, W = 190mm, D = 45mm

Model BT901 belltone entry system

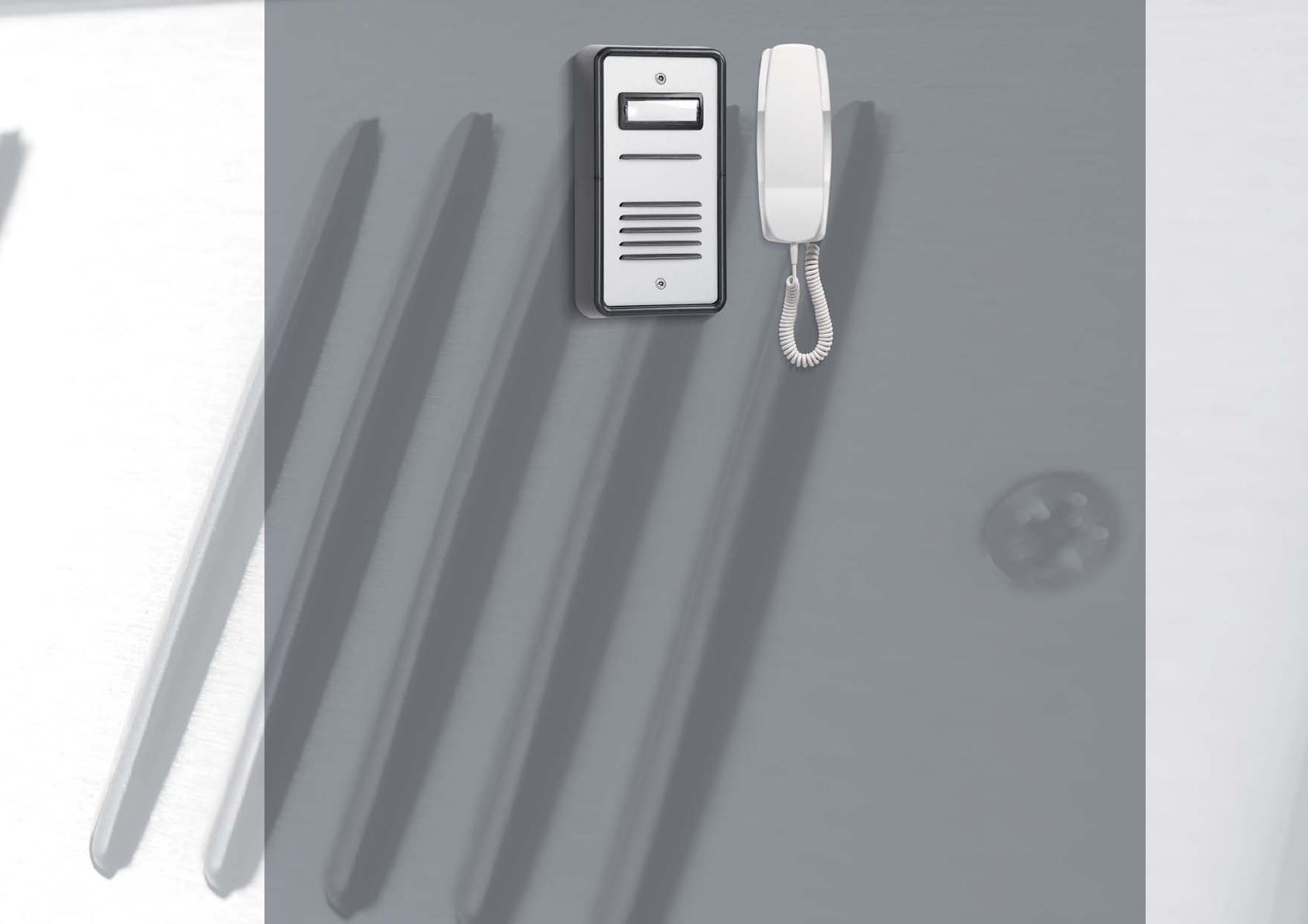

For a standard domestic application we offer a complete system that

includes all the necessary parts to complete an installation.

• model BT1 interface unit

• model SPA1 one button surface panel

• model 61 speech unit

• model 340C 12v DC power supply

• model 203 surface lock release

Model BL1

For connecting a one button

door entry panel to own home

telephone including cordless

DECT phones

Model BTBL1 Belltone entry system

As an alternative for a domestic application we offer a complete bellini

system that includes all the necessary parts.

• model BT1 interface unit

• model BLP1 one button surface bellini panel

• model 61 speech unit

• model 340C 12v DC power supply

• model 203 surface lock release

Model BTVRK1 belltone entry system

For external areas that may be prone to vandalism we offer a

complete VR system that includes all the necessary parts.

• model BT1 interface unit

• model VRP1 one button flush panel (surface optional)

• model 61 speech unit

• model 340C 12v DC power supply

• model 203 surface lock release

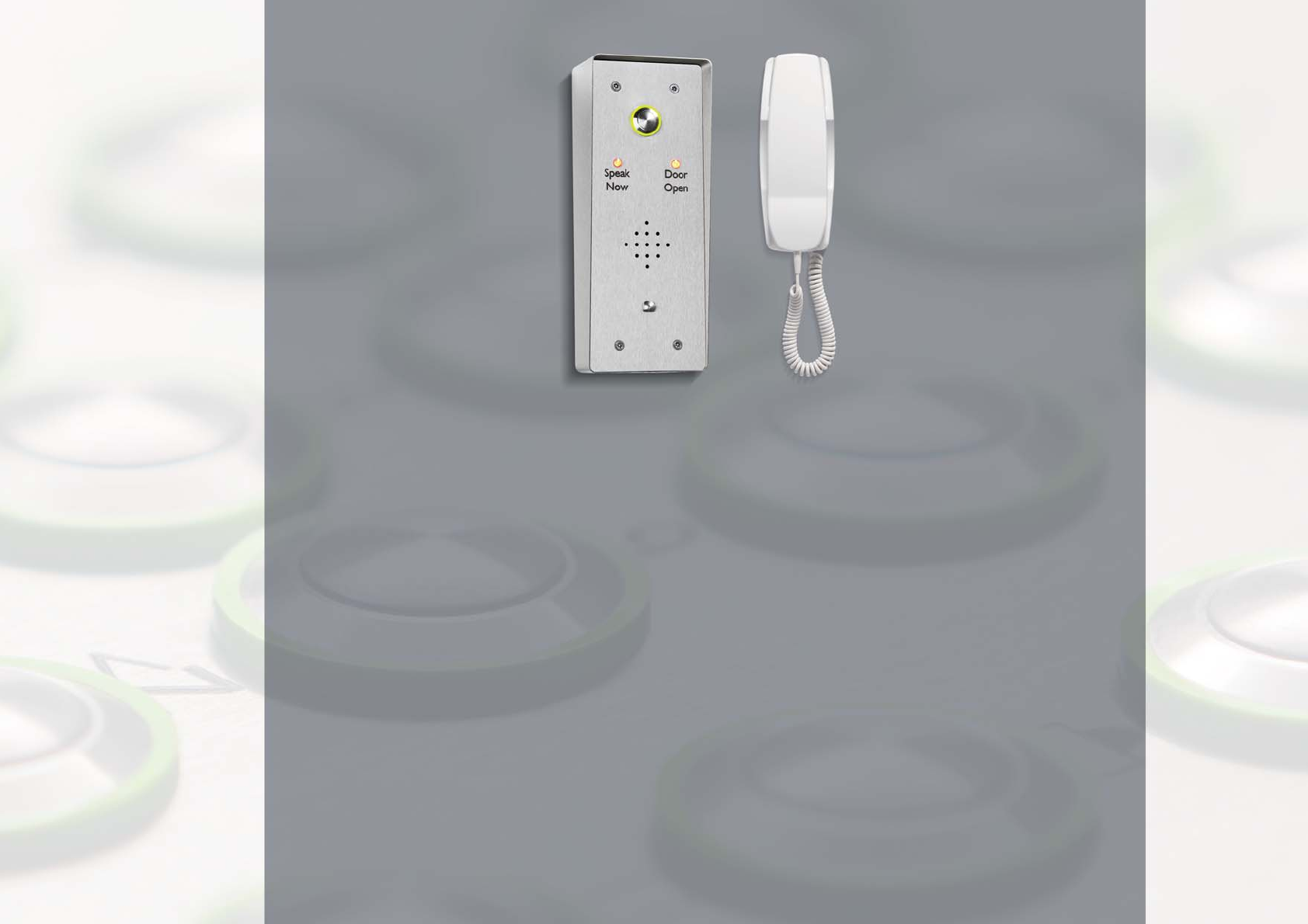

Model BTDDA1 belltone entry system

For an installation that requires attention to DDA regulations we offer

a complete system that includes all the necessary parts.

• model BT1 interface unit

• model DDAP1/VR one button flush DDA panel (surface optional)

• model 61 speech unit

• model 340C 12v DC power supply

• model 203 surface lock release

Model BT901

complete BT system

with SPA panel

Model BTBL1

complete BT system

with bellini panel

Model BTVRK1

complete BT system

with VRP panel

Model BTDDA1

complete BT system

with DDA panel

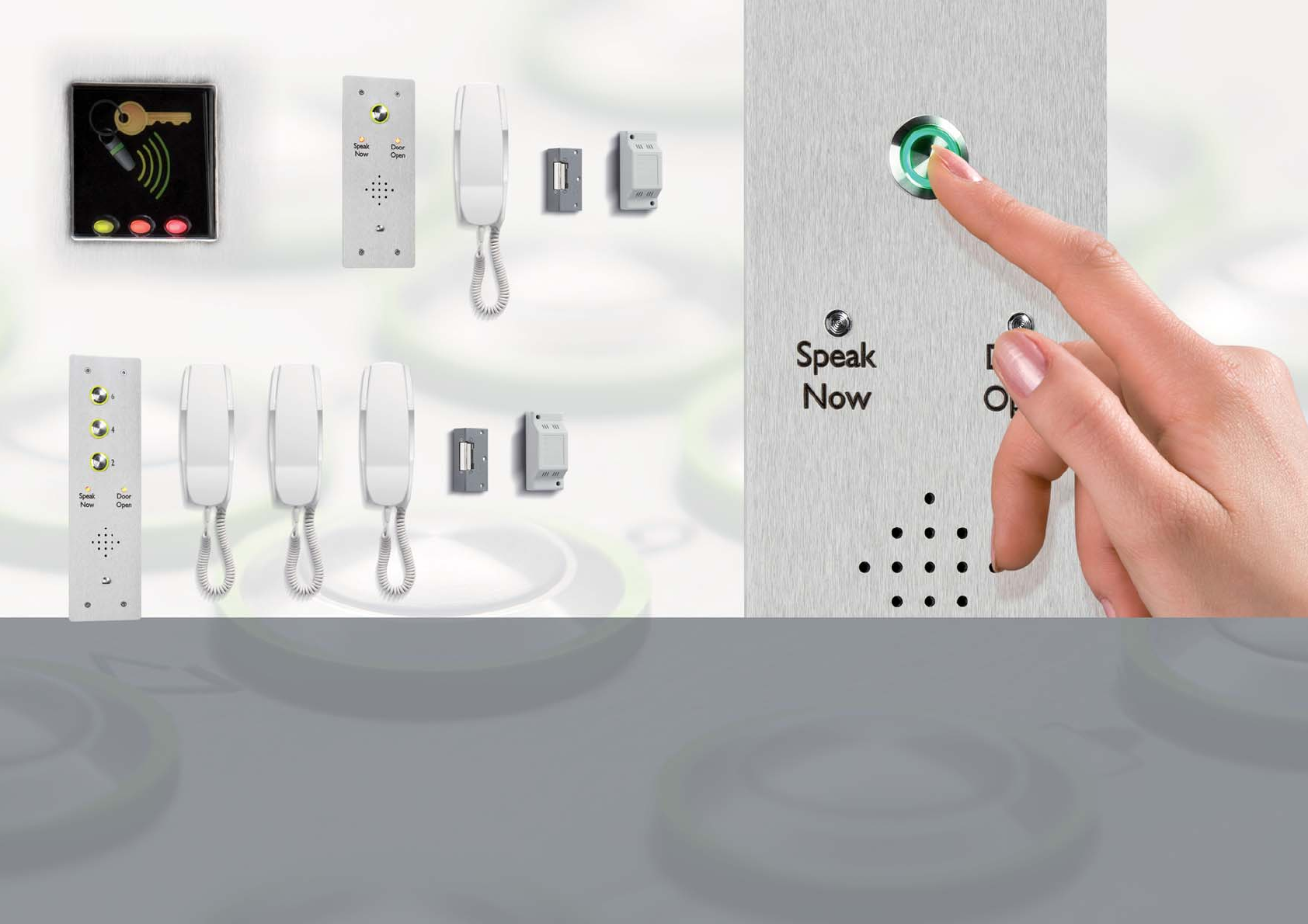

These door entry panels and systems are designed to meet the

requirements of the final part of the Disability Discrimination Act

(DDA). This Act requires service providers and landlords to consider

making reasonable adjustments to the physical features of their

premises to overcome physical barriers to access.

The DDA stipulates that a disabled person cannot be restricted from

gaining access to a site to obtain ‘goods or services’. This includes

people who use wheelchairs, blind and partially sighted people, deaf

people, people with arthritis, people with long-term illnesses and

people with learning disabilities. This obviously has an impact on the

installation of new and existing Access Control Systems and these

issues need to be considered at any Public building.

The Bell DDA range has been designed to address the varying

interpretations and to assist compliance with door entry systems in a

cost effective manner.

The Bell DDA panels have been designed to address the varying

interpretations and compliance with the legislation with regards to

door entry systems. All panels are manufactured in 2.5 mm 316 marine

grade stainless steel and can be flush or surface mounted.

Each panel has one or more of the following;

For the partially sighted;

Each vandal resistant pushbutton has a ‘high-visibility’ halo ring. Options

include permanently illuminated buttons, Braille characters and the

connection of a 12V DC tone for indication of lock release operation.

For the deaf or ‘hard of hearing’;

Each panel includes two bright indicator lights; one permanently

engraved with ‘Speak Now’ when a call has been answered, and the

other engraved ‘Door Open’ for when the resident has triggered the

lock release. The option of a Panel Inductive Loop is also available.

For wheelchair users;

Panels with an extended length can be used that allows operation from

both able-bodied and wheelchair users at different heights; the one station

panel includes two high visibility ‘halo’ buttons at differing heights.

Resident or Employee facilities;

Added options include; a panel-mount proximity reader for resident or

employee access, keypad for resident access, a CCD camera for

connection to a video telephone and Tradesmen facilities.

Options;

Panel Inductive Loop

Many door entry specifications now require the inclusion of an

inductive loop facility on the door panel for benefit of hearing aid

users. The model PANEL-IDL can be included on any of our vandal

resistant panels. The weather resistant module is permanently fixed to

the rear of the panel with the front being engraved with the

internationally recognised symbol.

Illuminated push-buttons

These vandal resistant stainless steel pushbuttons are offered as an

alternative to the standard high-visibility ‘halo’ buttons. They are

permanently lit with a bright green ring to aid partially sighted visitors.

Braille

In addition to the two styles of pushbutton some building specifiers

request additional characters in Braille. Braille can be included on any

of our vandal resistant style panels with permanent raised steel ‘pin-

heads’. Any Braille character can be used including numbers and text.

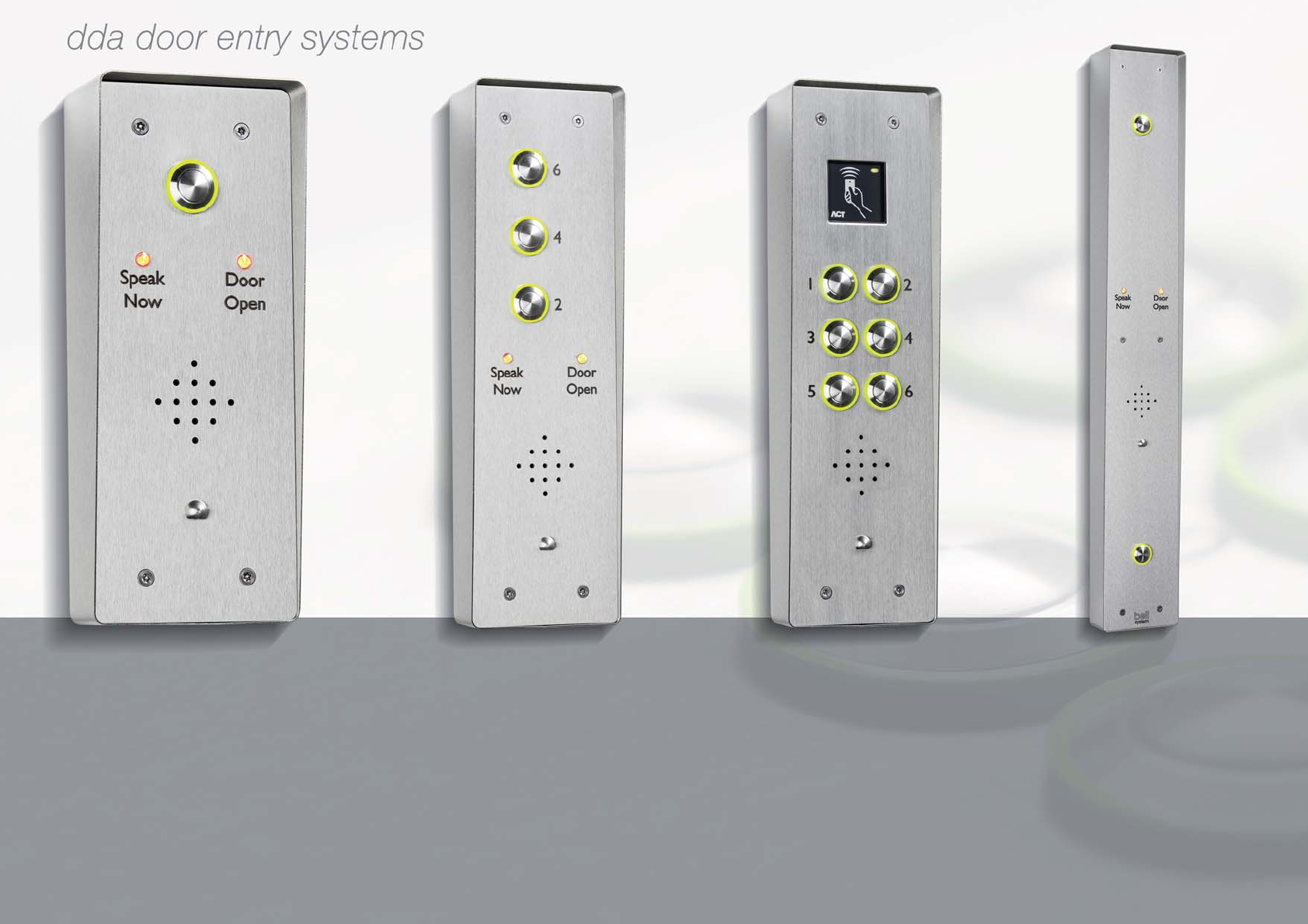

The Bell standard budget DDA systems include audio and video

telephones, coded and proximity access.

1. Standard DDA systems - model DDA/VR

These are general DDA door entry systems that include;

• DDA panel with ‘halo’ buttons and indicator lights

• integral speech unit

• 12v DC power supply

• model 801 standard wall-mounting telephones

• model 203 fail-secure lock release

Model

DDAP-1/VRS

surface panel

Model

DDAP-3/VRS

surface panel

Model

DDAP-6/VRS+Proximity

surface panel

Model

DDAP-EXT-1/VRS

surface panel

Ordering information

Order using model DDA-n/VR where n is the number of stations for

systems with a flush panel.

Order using model DDA-n/VRs where n is the number of stations for

systems with a surface panel.

e.g. DDA-1/VR is a complete 1 station flush system and DDA-4/VRS is

a 4 station surface system

For tradesmen facility, add the code TRDDA (A model TS200-BST time

clock is included).

2. ‘Wheelchair’ dual height door entry systems

- model DDA-EXT/VR

These single station DDA systems have two call buttons on an

extended panel to enable operation from both able-bodied and

wheelchair users. Each system includes;

• DDA long panel with two ‘halo’ buttons and indicator lights

• integral speech unit

• 12v DC power supply

• model 801 standard wall-mounting telephone

• model 203 fail-secure lock release

Ordering information: Order using model DDA-EXT-1/VR for a flush

system or DDA-EXT-1/VRS for a surface system.

3. Combined DDA door entry and proximity systems

- model CSP- DDA/VR

These are complete DDA door entry systems that include a proximity

access system as a secondary form of access control for resident use.

For further information on the proximity system and for extra keyfob

packs please refer to the ‘combined door entry & proximity systems’

section of the catalogue.

proximity reader

Model DDA1/VR

1 way system

Model DDA3/VR

3 way system

Optional illuminated

vandal resistant button

Each system includes;

• DDA door panel with Paxton compact proximity reader.

• integral speech unit

• 12v DC power supply

• model 801 standard wall-mounting telephones

• model 203 fail-secure lock release

• starter fob pack (includes a ‘pack enable’ card, ‘fail-open’ card and

3 user keyfobs and shadow cards)

• full installation and programming instructions

Ordering information

Order using model CSP-DDA-n/VR, where n is the number of stations

required

e.g. CSP-DDA-1/VR for a single station system or CSP-DDA-5/VR for

five station system

For tradesmen facility, add the code TRDDA (A model TS200-BST time

clock is included).

4. Combined ‘Wheelchair’ dual height DDA door

entry and proximity systems

- model CSP-DDA-EXT/VR

These are complete DDA dual height door entry systems that include

a proximity access system as a secondary form of access control for

resident use. For further information on the proximity system and for

extra keyfob packs please refer to the ‘combined door entry &

proximity systems’ section of the catalogue.

Extended Model DDA-EXT-1/VR

1 way system

Proximity Model CSP-DDA-1/VR/ILL

1 way system

Video Model DDA-BS1/VR

1 way system

Each system includes;

• DDA extended door panel with Paxton compact

proximity reader.

• integral speech unit

• 12v DC power supply

• model 801 standard wall-mounting telephone

• model 203 fail-secure lock release

• starter fob pack (includes a ‘pack enable’ card, ‘fail-open’ card and

3 user keyfobs and shadow cards)

• full installation and programming instructions

Ordering information

Order using model CSP-DDA-EXT-1/VR for a flush system or

CSP-DDA-EXT-1S for a surface system

5. Video DDA door entry systems - model DDA-BS/VR

These are general DDA video door entry systems. For further

information on the video system and for extra keyfob packs please

refer to the ‘combined door entry & proximity systems’ section of the

catalogue. Each system includes;

• DDA panel with CCD camera and infra-red lamps

and indicator lights

• integral speech unit

• 12v DC power supply

• model BS bellissimo standard wall-mounting video telephones

• panel and telephone controllers

• model 203 fail-secure lock release

Ordering information

Order using model DDA-BSn/VR where n is the number of stations

e.g. DDA-BS1/VR is a complete 1 station video system and DDA-

BS4/VR is a 4 station system

For tradesmen facility, add the code TRDDA (A model TS200-BST time

clock is included).

Proximity option with

illuminated button

Video option with

‘Halo’ button

Panel Inductive

Loop option with

Braille and ‘Halo’

button

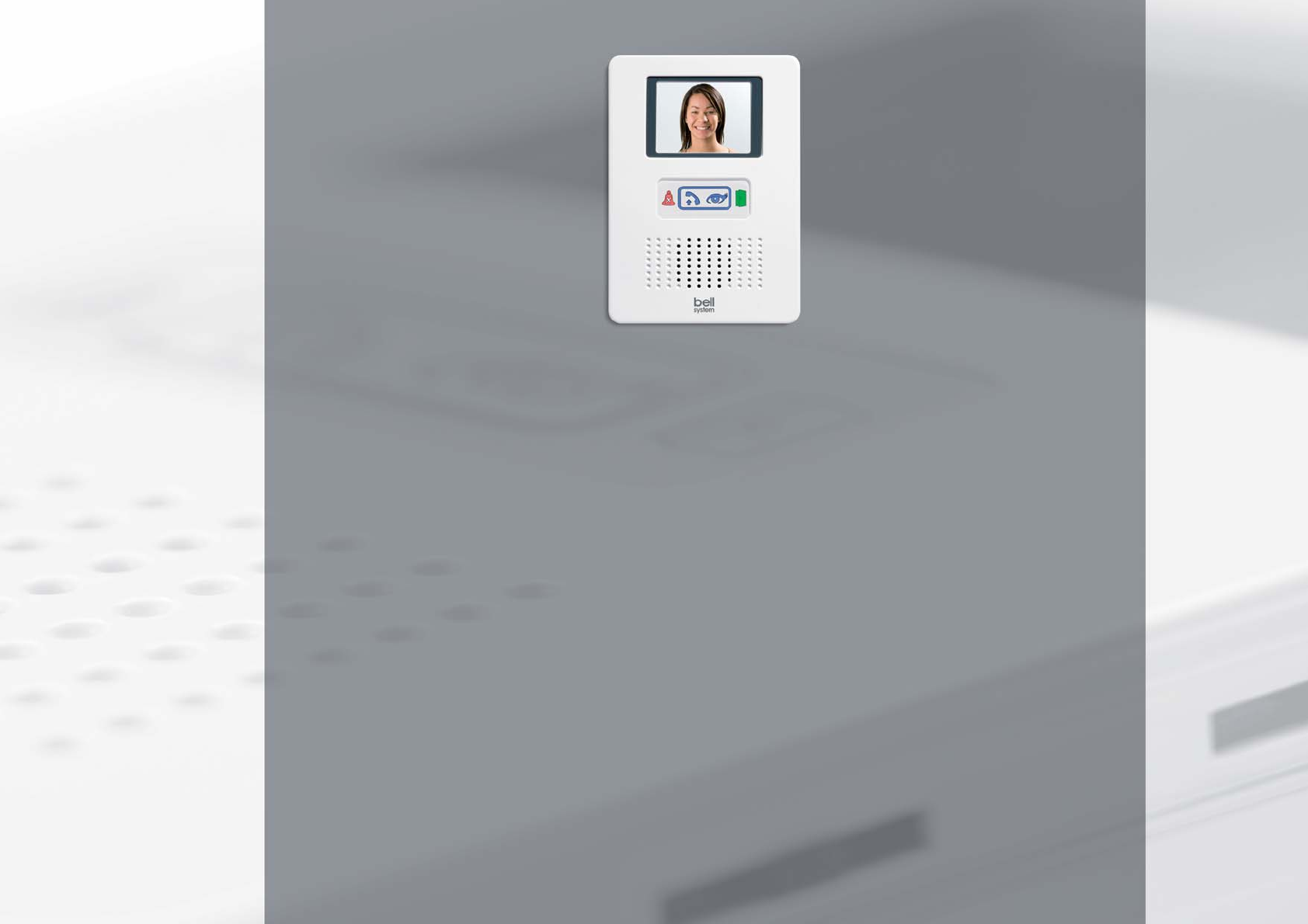

The bellissimo video door entry system is a versatile security product

for controlling access to residential homes, blocks of flats and

commercial premises. The video telephone allows the resident to view

a caller at the entrance, speak with them and control their access.

The contemporary and stylistic bellissimo video telephone has a slim

and curvaceous profile complementing most wall furnishings.

The ‘soft-touch’ silicone rubber push buttons are backlit and have clear

operating symbols. The telephone is wall-mounted directly without

additional mounting brackets or connectors.

System Features;

• System generally connected with standard CAT5 cables

• No need for separate co-axial cable

• 3.5” flat screen high resolution LCD colour display

• Ringer mute function and volume control

• High resolution CCD colour day/night camera with infrared lamps

• Timed outputs for fail-safe and fail-secure lock release devices

• Optional Tradesmen facility

• One videophone per call button and up to three extension

videophones (more with additional power supplies).

• The model BS bellissimo video telephone can be connected to a

conventional or digital panel

• Multiple entrances can be supported with the addition of one

panel and one door controller for each entrance.

Each standard BS packaged system provides all of the components

necessary to install a complete video door entry system. A standard

multiway BS system comprises of:

• model BS bellissimo video telephones

• model BSC4 telephone controller (one for every 4 telephones)

• model BSP front door panel and

• relevant BSD panel controller

• model CAMBS-C CCD colour camera with infrared lamps

• model 61 speech unit

• model PS4 12v DC power supplies

• model 203 surface lock release

• full wiring and installation manual

Ordering information

Order a model BS1 for a complete single station system. For multi-

station systems order a model BS n, where n is the number of stations

e.g. a model BS8 is a complete 8 station system.

For tradesmen facility add the code TRBS

(a model TS2000-BST time clock is included).

Please request a copy of the installation and operation manual

prior to installation to ascertain full cable specification.

Video telephone controller model BSC4

The model BSC4 interfaces up to 4 video telephones on to the CAT5

distribution and provides line isolation. Each telephone has its own

designated port with removable terminal blocks for ease of installation.

Model BS1

1 way system

Model BS4

4 way system

Door Panel Controllers

Each panel on a system is connected to a door controller for

connection to the CAT 5 distribution network and provides all inputs

and outputs to the panel including lock output, exit, door monitor etc.;

BSD1 - one button panels

BSD8 – two to eight button panels

BSD72 – nine to seventy two button panels

BSD-DIG – digital panels

Model CAMBS-C camera unit

The CAMBS is a solid state day/night colour CCD camera housed

in the BSP panel and protected by high- impact strength lexan

window. The camera includes high intensity infra-red lamps for

illumination of the caller at night.

Model BS4/VR

4 way V/R system

Model BLV2

2 way bellini system

Bellissimo video panels:

Standard Aluminium (BSP)

These aluminium panels are supplied as standard in the BS1 – BS8

systems for surface fitting and are of the same specification as the SPA

series of audio panels. A flush-fitting back-box is available on request.

Vandal Resistant (BSP/VR)

Manufactured in 2.5mm marine grade 316 stainless steel these panels

are supplied as standard on panels with over 8 buttons but can also

be manufactured for smaller systems if required. All panels are

supplied for flush fitting but can optionally be supplied for surface

mounting. These panels have the same specification as the standard

VRP panels

Combined Video and Keypad (CS-BSP)

A stainless steel keypad is included on these panels for resident’

access. The panels are supplied for flush-fitting and with the option

for surface mounting. The keypad is connected to the model 200

controller as outlined in the ‘bellcode’ section.

Combined Video and Proximity (CSP-BSP series)

A panel-mount proximity reader is included on these panels for

resident’ access. The panels are supplied for flush-fitting and with

the option for surface mounting. The features of the compact

proximity reader are outlined in the ‘combined door entry and

proximity’ section.

DDA compliant (DDA-BSP)

The DDA panels as outlined in ‘dda door entry systems’ can also be

used for video door entry systems.

bellini options

V/R options proximity options

brass options

Digital (BSP-DIG)

For large block of apartments a digital panel should be considered.

These stainless steel panels give clear and concise user instructions

from its bright LED. The LED dot matrix module offers excellent

visibility with large red characters. A transparent Lexan window gives

maximum protection. Stainless steel vandal resistant buttons are

used throughout.

Concierge Station

The Concierge Station allows visitors to be pre-screened by on-site

personnel for enhanced security.

All Video panels can be independently purchased but complete

packaged systems are available for most applications.

Please request a copy of the installation and operation manual prior

to installation to ascertain full cable specification on all video systems.

combined brass options

digital V/R options digital LCP options

BSC4 controller

BSD8 controller

concierge station

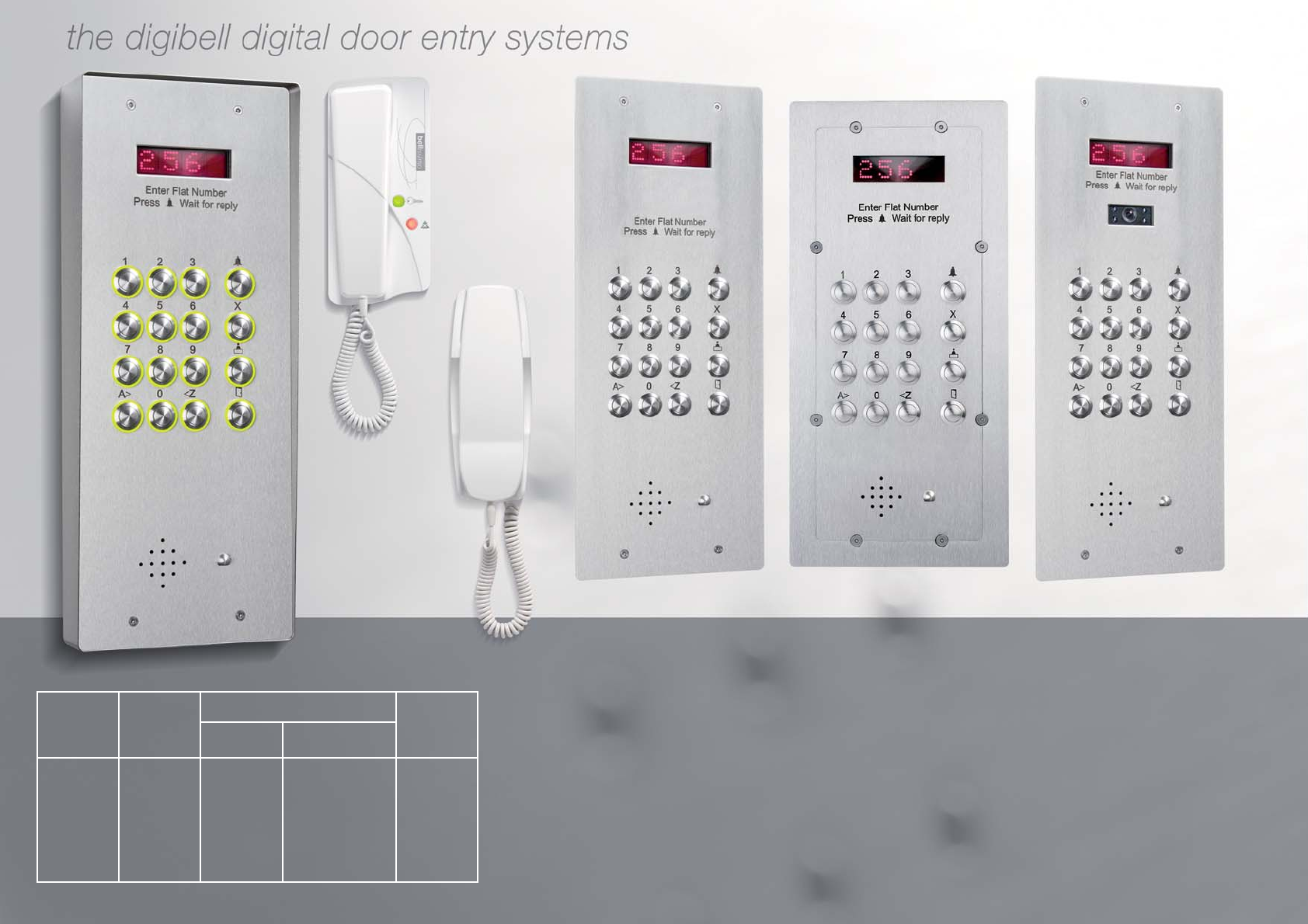

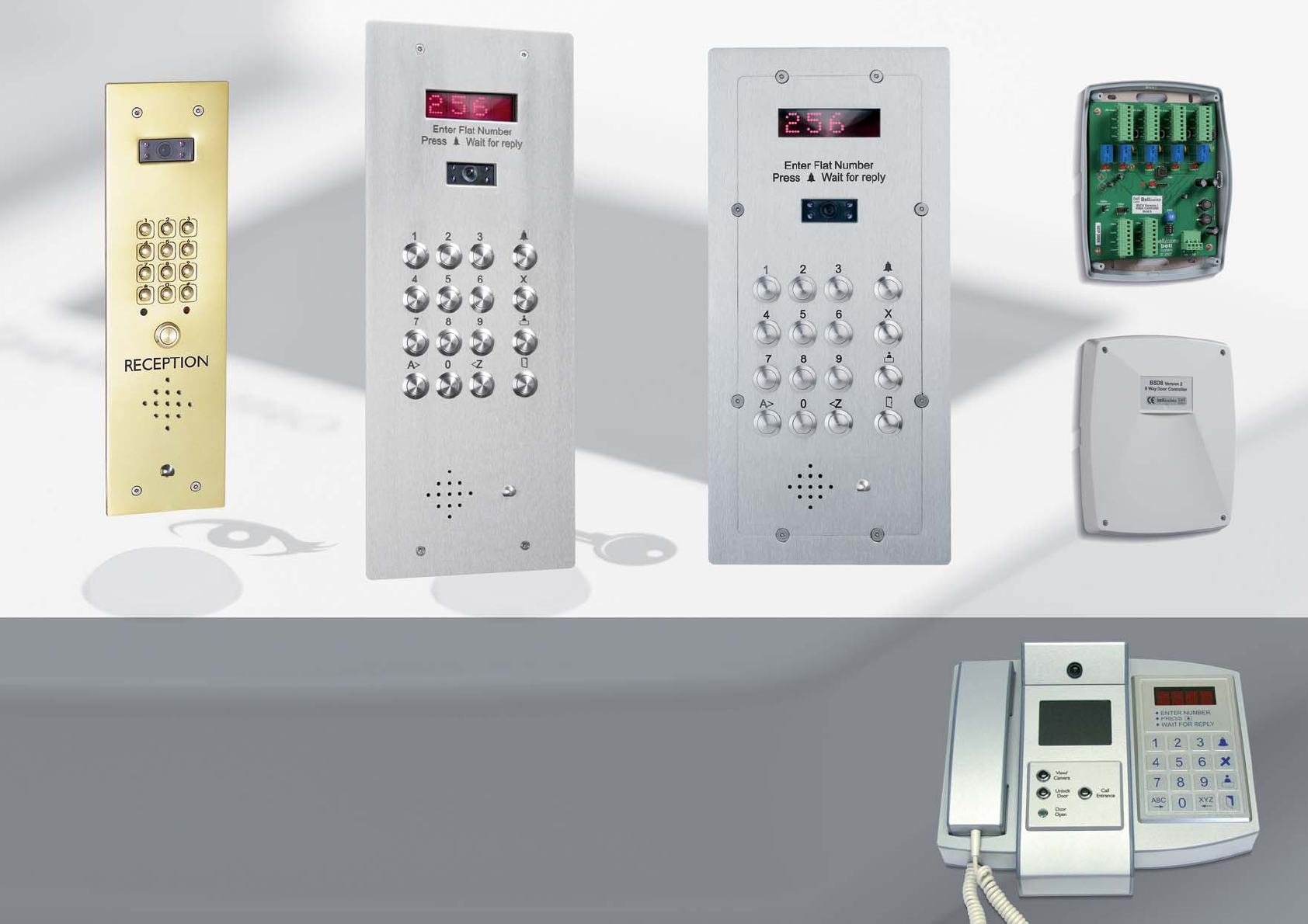

The Digibell door entry telephone system is designed primarily for

large apartment blocks in the private or public housing sector where

reliability and serviceability are of prime importance.

The use of a digital entrance panel with keypad and display affords a

more compact solution when compared with a standard panel with

one button per station which may be impractical due to its size.

The Digibell system offers two levels of cable isolation;

• Full or Phone Isolation – between individual dwellings for

buildings where vandalism from residents or tenants may

be expected.

• Zonal Isolation – between floors or zones for a more cost

effective system.

Standard Features of the Digibell panel and system;

• Capacity for over 400 apartments and 16 entrances per block.

• Large 4-digit LED display with informative messages e.g. CALL

TALK OPEN.

• Alphanumeric apartment numbers e.g. 21A, A21.

• High quality full duplex speech.

• Vandal resistant stainless steel pushbuttons.

• Ring and lock reassurance tones.

• 4-digit coded entry facility for residents or tenants.

• Dedicated Porter/Reception call button.

• Operates from a 12v DC power supply.

• Uses standard CAT5 cables.

• Compatible with standard model 801 telephones .

• Tradesmens facility with access code.

Optional Features of the Digibell;

• Choice of Phone Isolation or Zone Isolation.

• Time restricted Tradesmen facility (with model TS200-BST

time clock).

• Battery Backup.

• Control equipment supplied in lockable steel cabinets for

greater security.

• Compliance with Disability Discrimination Act (DDA).

• Extension tones and Flashing Beacons.

• Firemans Switches.

• Vehicle and Pedestrian Gate Integration.

Our standard telephones are suitable for use with the digibell

system. Telephones connected to a DBA-4I isolator have

privacy of speech inherent in the design and models 801P and

801PS should not be used. All telephones connected to the

same DBA-8Z isolator must be the same model. As standard a

maximum of two telephones are allowed in each apartment.

The entrance panel should be sited in a semi-sheltered

location. All of its electronics are encapsulated in a single

module providing protection against environmental

conditions.

Digibell Panels Options

All door panels are manufactured from marine grade stainless steel

and have vandal resistant pushbuttons. A 4-digit red LED dot-matrix

display is mounted behind a LEXAN window. Both flush and surface

fitting panels are available in the standard version and these are also

suitable for factory fitting to one of our stainless steel posts. All panels

include security screw fixings.

Model DBAP/DDA-S Model DBAP/VR Model DBAP/LCP Video option

Model 801

Model BS-A

Telephone Options:

Telephone Privacy Ring Tone Mute Door Open

Model Of Speech Slide Switch Button with indicator; Indicator

adjustable mute time

801 X X X X

801S X 3XX

801P 3XXX

801PS 33 XX

BS-LX 3X33

Panel Model Description

DBAP/VR Flush stainless steel standard digital panel

DBAP/VRS Surface stainless steel standard digital panel

DBAP/DDA Flush stainless steel DDA digital panel

with halo buttons

DBAP/DDA-S Surface stainless steel DDA digital panel

with halo buttons

DBAP/LCP Flush stainless steel digital ‘Laser Cut’ digital panel

Proximity Fob readers can optionally be integrated into any of the

digital panels. We can either supply the panels with the reader or just

include the cut out and studs for retrofit.

System and Panel Controllers

Each digital controller requires it own controller and telephones are

connected to the system with a choice of two isolator controllers.

Part No. Description

BSD-DIG Digital door controller (1 required for each

digital panel)

DBA-4I 4 way phone isolator (1 required every 4

apartments)

DBA-8Z 8 way zone isolator (1 required every 8

apartments)

An example of the parts required for a typical system;

One block of 32 flats with one entrance

32 - model 801 telephones

1 - model DBAP/VR digital panel

1 - model BSD-DIG panel controller

4 - model DBA-8Z isolator controllers

1 - model PS4 12v DC power supply

1 - model 203 lock release

Digital systems with bellissimo colour video telephones or bellfree

colour apartment stations are also readily available. Please contact our

sales department for further information and for parts lists.

Model DBAP/VR

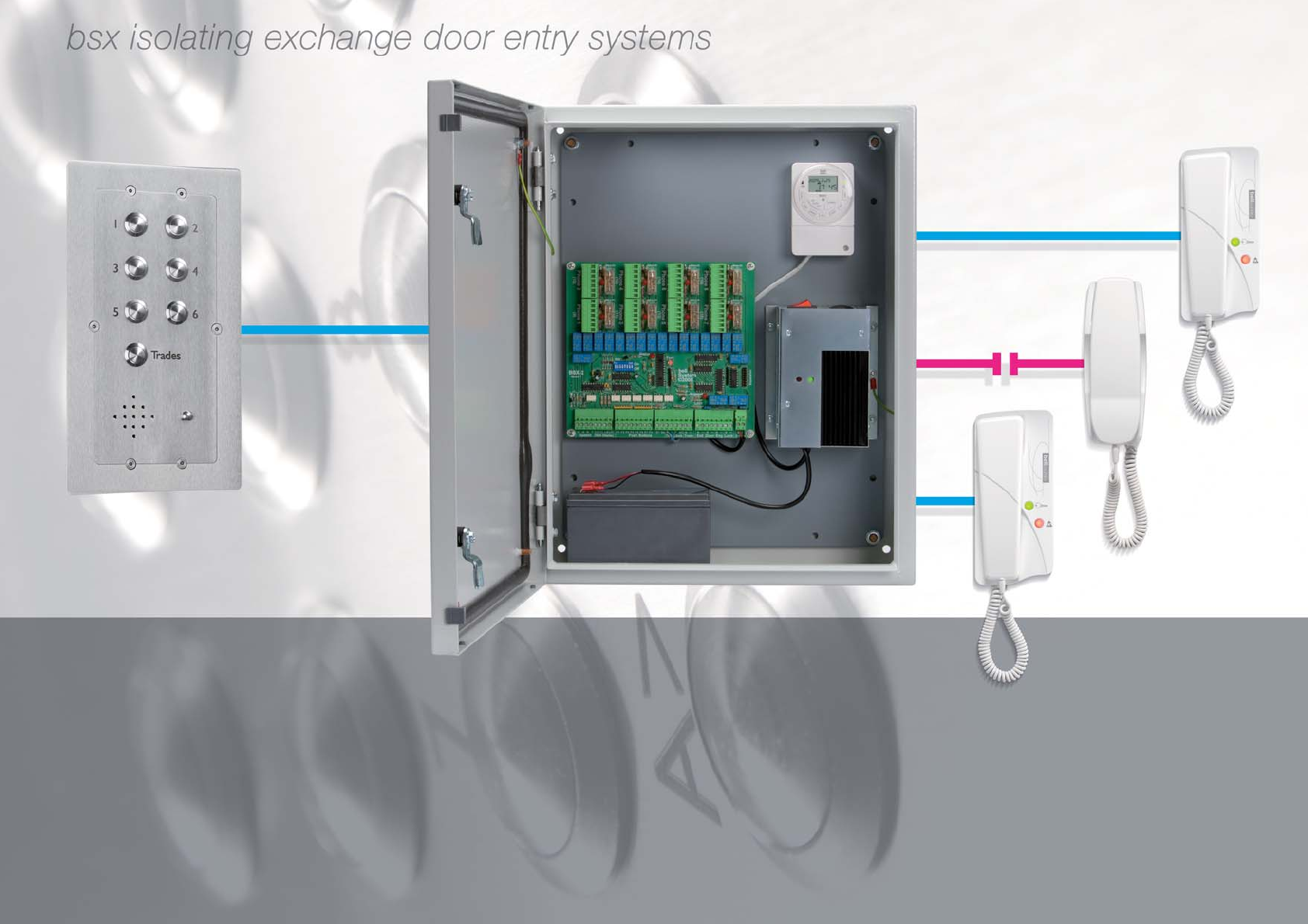

BSX (Bell System Exchange) and DAX Digital Isolating

Door Entry Systems

The BSX and DAX door entry systems are designed to overcome a

common problem experienced in local authority and public housing

where door entry systems are subject to vandalism from visitors and

tenants. These systems operate on the Line Isolation principle which

has two advantages over common-wired systems:

• Any malicious damage sustained to an individual telephone or

its associated cable will not affect the operation of the rest of

the system.

• The telephone conversation between the tenant and the caller is

totally private.

Each system includes Tradesmen/Service entry, a battery standby

facility and timed lock output (failsafe and failsecure) as standard. The

central exchange unit with diagnostic LED’s simplifies maintenance

and any part is easily exchanged with readily available spares.

The BSX control unit

The BSX control equipment is housed in a secure lockable steel IP55

rated cabinet and can include the following:

• Isolating fused PCB removable connectors for the telephones.

• A model TS2000-BST 7 day quartz reserve time clock for trades access.

• Regulated PSU with isolation switch.

• A control PCB for each entrance providing timed output for door

releases (failsafe and failsecure), output tones and inputs for

trades buttons.

• A 12V 7A/H battery when battery standby is specified.

• Optional access control e.g. Proximity controllers.

• Adjustable lock, ring and talk times.

Four BSX Control units are available;

BSX8 8 station single door

BSX8-2 8 station two door

BSX16 16 station single door

BSX16-2 16 station two door

Telephones

Any of our standard telephones may be used with the BSX exchange.

Each telephone connected to the BSX control will have ‘privacy of

speech’ due to the line isolation. To achieve full 'line-isolation', the

telephones must be individually cabled directly to the control unit. The

standard model 801 telephones can be used for economy but the

model BS-LX is highly recommended due to its added functions.

Telephones must be rung and answered before the lock can be

released. A stuck unlocked button is ignored.

Model LCP7

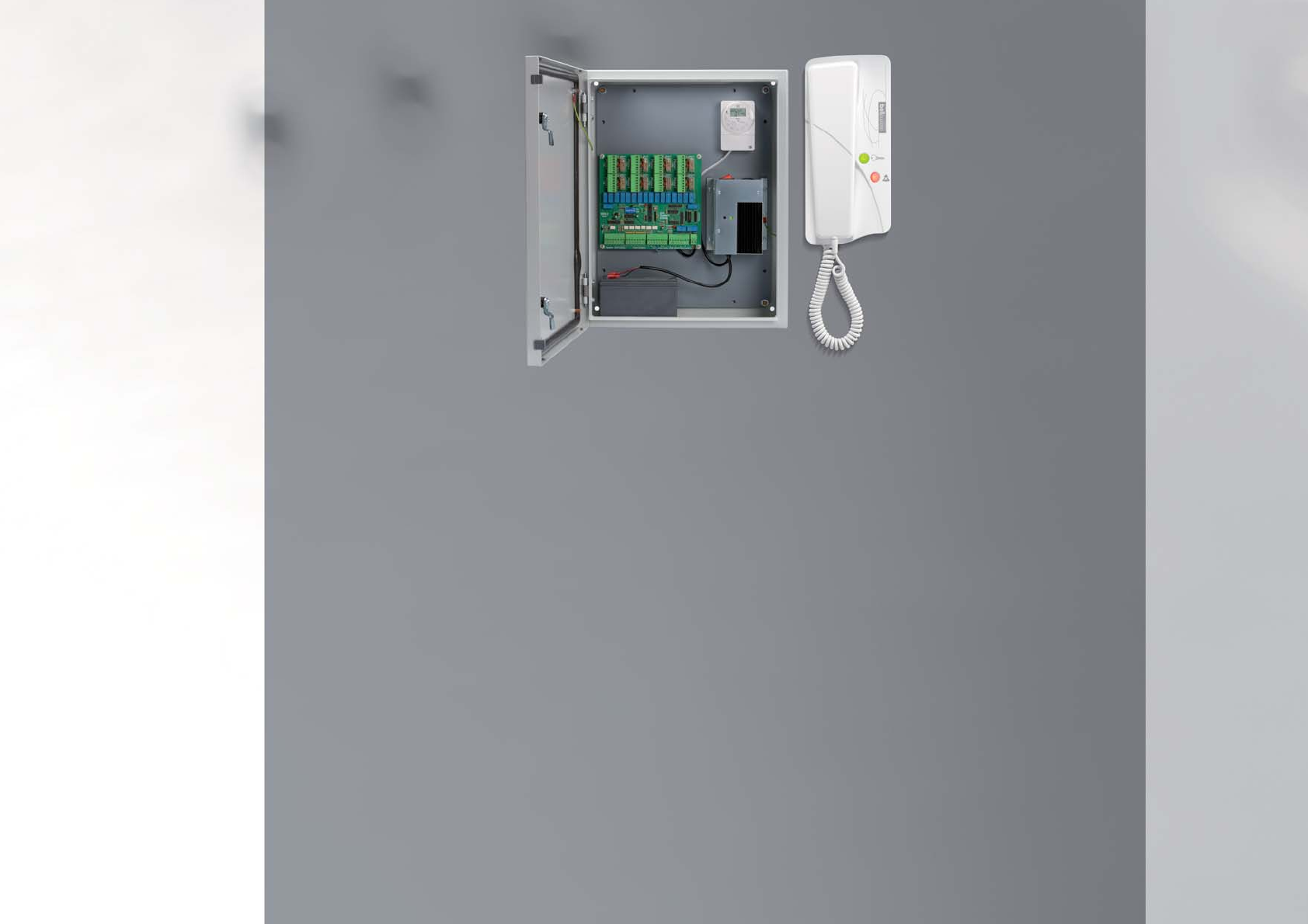

BSX8 Cabinet

Model 801

Model BS-LX

Front door panels

The model VRP and model LCP panels are recommended for use with

the BSX system due to their resistance to vandalism.

Reassurance tone

A reassurance to the visitor that a call has been made and to indicate

when the lock release has been operated.

Tradesmen facility

The facility for a time-restricted entry for tradesmen is included on the

BSX control. The operation of the Trades push-button will only trigger

the door release when the time clock within the BSX control is set to

an ON period.

Electric lock release

The BSX control provides an outputs for both failsecure and failsafe

lock releases (including magnetic locks).

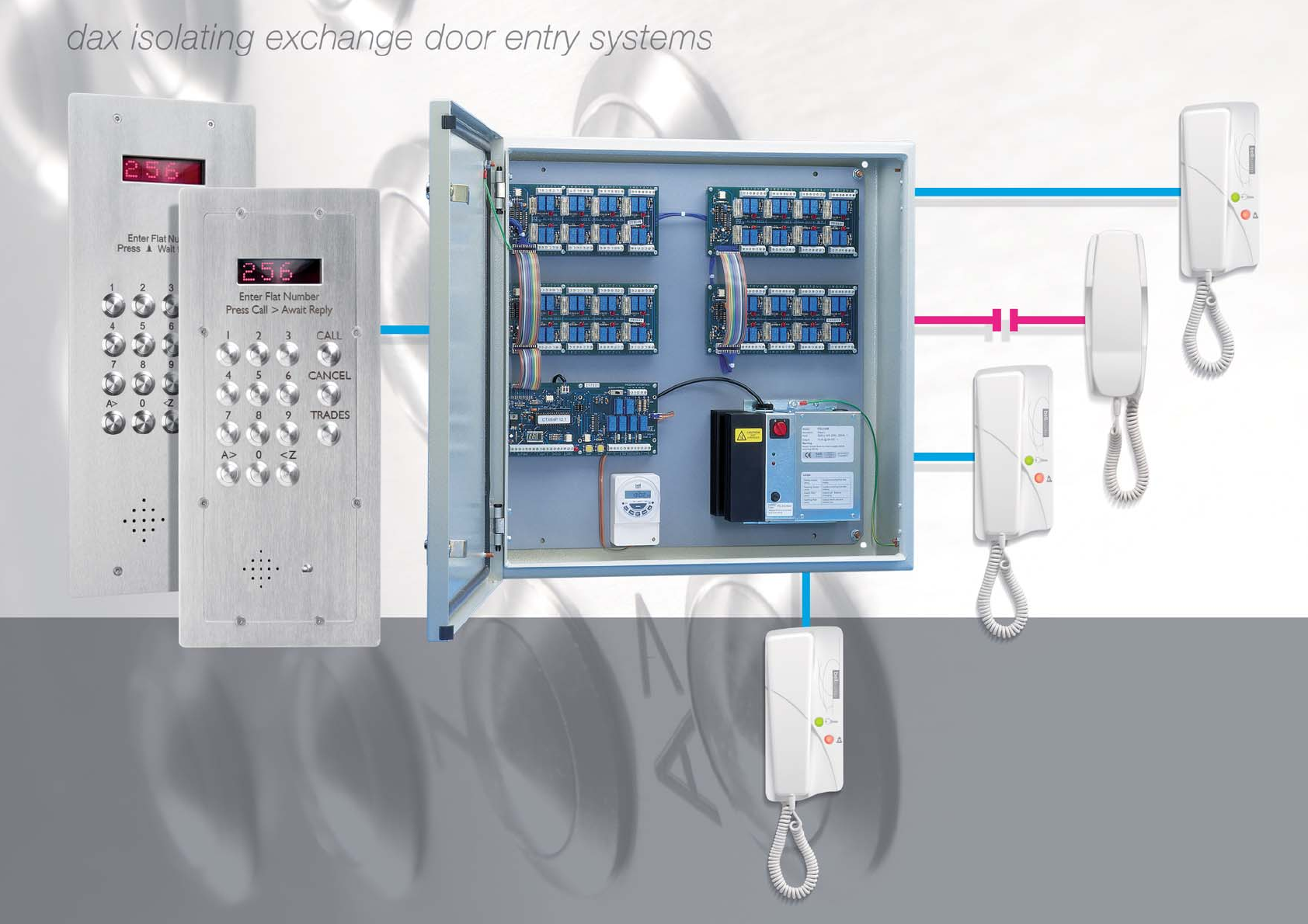

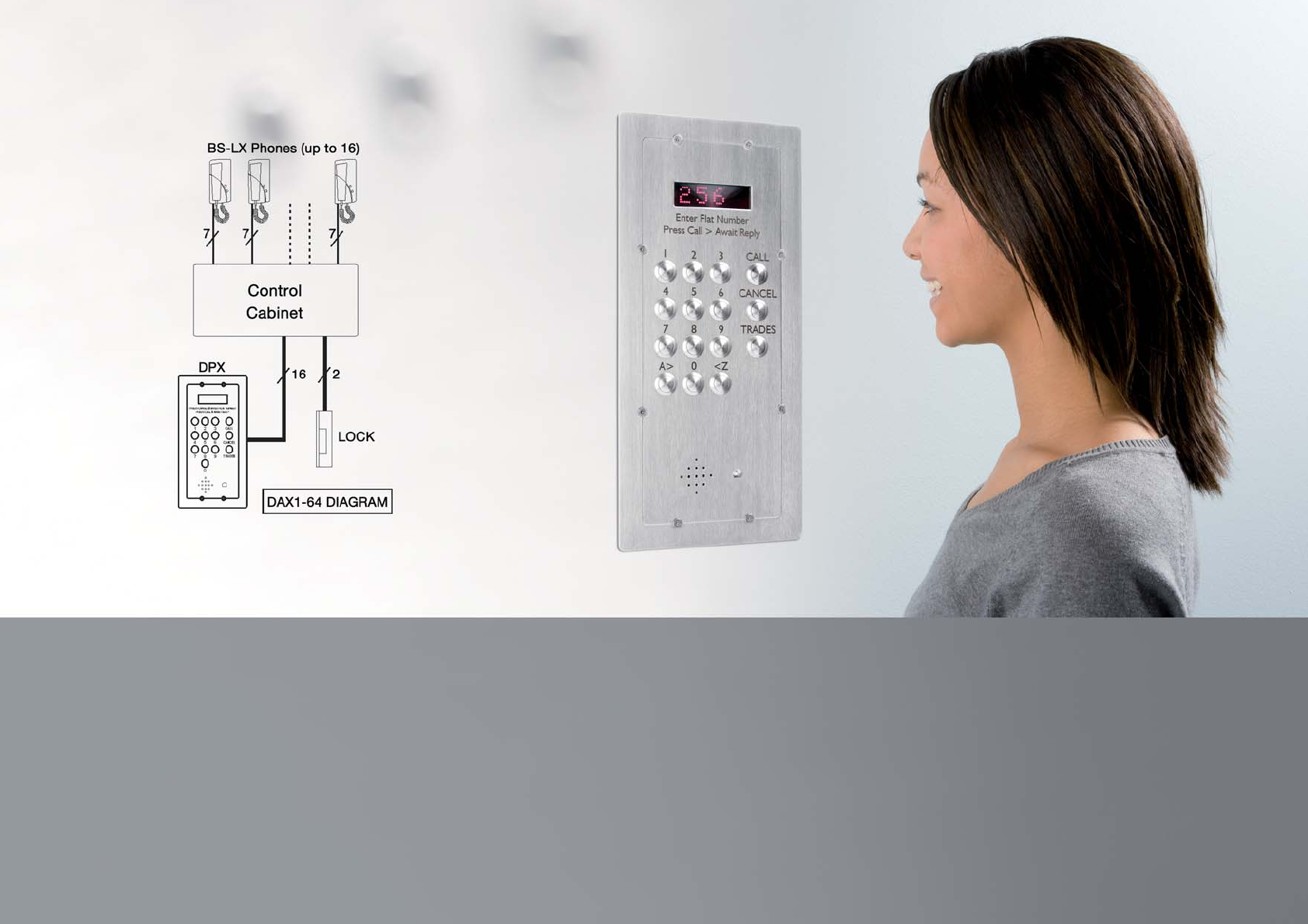

The DAX digital system operates on the Line Isolation principle which

has two advantages over common-wired systems;

• Any malicious damage sustained to an individual telephone or its

associated cable will not affect the operation of the rest of the system.

• The telephone conversation between the tenant and the caller is

totally private.

System features;

• up to 256 flats

• up to 4 entrances

• large LED dot matrix display

• 4 digit alpha-numeric flat numbers

• 4 digit coded access facility

• trades facility

• porter facility (optional)

• standby battery backup

• outputs for fail safe and fail secure releases

Model DAX exchange control

All the control equipment is installed in one or more IP55 rated secure

lockable steel cabinets. Each control contains one or more of the

following components;

• All necessary control equipment

• 8 way Relay PCB’s for connection of telephones

• Model TS2000-BST 7 day quartz reserve Time Clock for trades access

• 12v DC 5A power supply with standby facility

• optional 12v 7A/H lead-acid battery

The control has LED diagnostics and Test modes for commissioning

and maintenance purposes

Model DPX-VR

Model DPX-LED

DAX32 Cabinet

Model 801

Model BS-LX

Model DPX-LED Front Door Panel

The front-plate consists of an overlapping bezel and a removable plate

cut by a laser from the same sheet of 2.5 mm 316 marine grade

stainless steel. This leaves a gap of just 0.35 mm rejecting implements

that could be used to force the panel from its box.

The bezel is securely welded to a back-box of 1.5 mm 316 grade

stainless steel. This provides an extremely strong fixing to the wall. The

removable plate is fixed to the bezel and back box with countersunk

A2 stainless steel security bolts requiring the use of a specialist tool for

their removal (supplied).

The LED dot matrix display module offers excellent visibility with large

red characters. A transparent LEXAN window gives maximum

protection from vandals. Stainless steel vandal resistant push-buttons

are used throughout. Clear operating instructions are engraved on the

panel in black.

For economy, the standard Model DPX-VR can also be considered.

Options can include cutouts for a Video camera and Proximity.

Telephones

Any of our standard telephones may be used with the DAX

exchange. Each telephone connected to the DAX control will have

‘privacy of speech’ due to the line isolation. To achieve full isolation,

each telephone station must be individually and directly cabled to

the DAX control. However, the system is able to operate in partial

isolation mode commonly referred as ‘zone isolation’ for more

economic cable installation.

The standard model 801 telephones can be used for economy but the

model BS-LX is highly recommended due to its added functions.

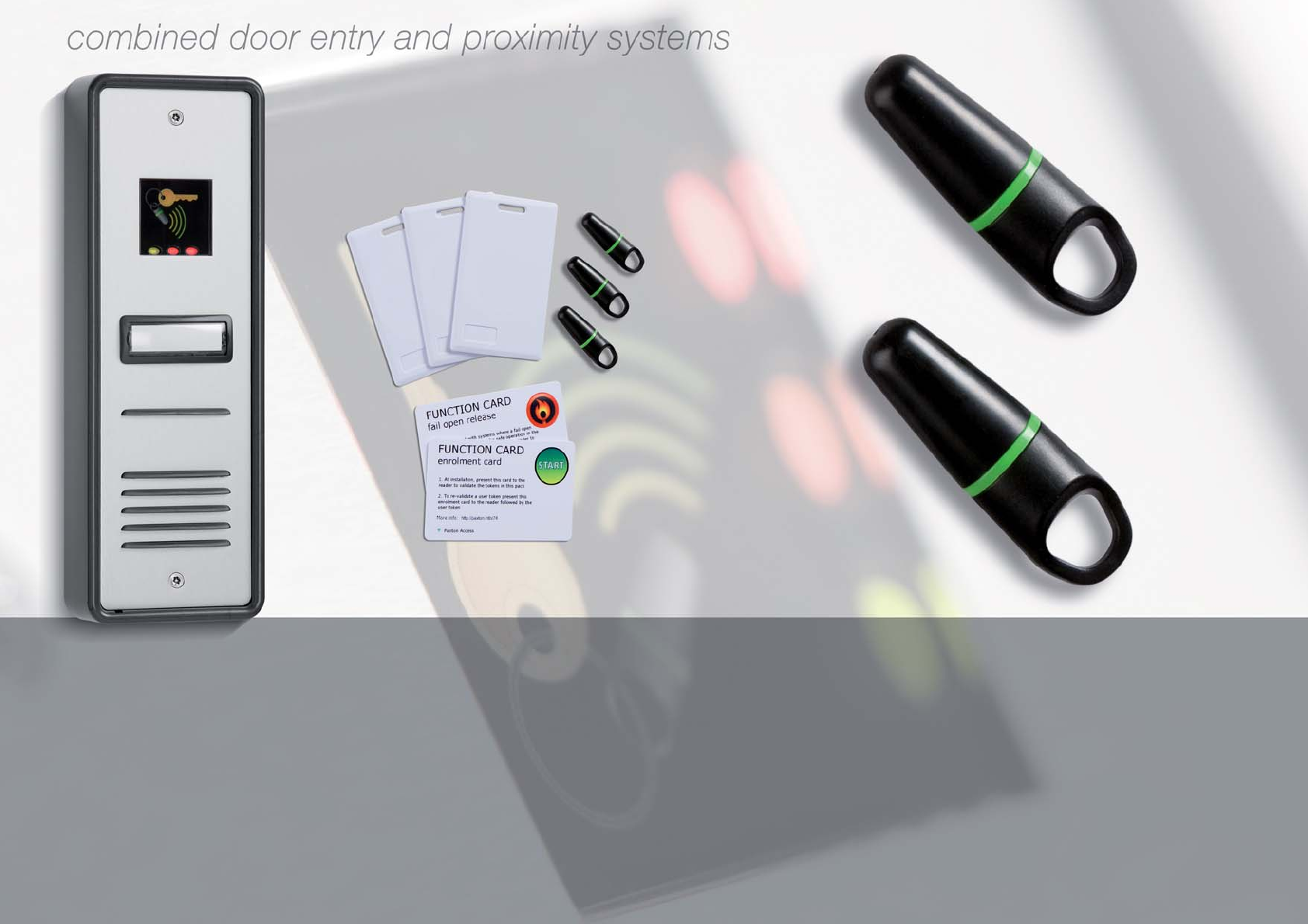

It is common for a door entry telephone system to be combined with

a proximity access system to allow easy access by residents, tenants

or staff.

Distributors have sourced products from two manufacturers but now

two Great British manufacturers have combined their leading

products to offer an outstanding integrated access control system.

The inclusion of an exclusive Paxton compact standalone reader on

door entry panel allows authorised personnel free entry to the

building by means of a keyfob whilst visitors’ access can be controlled

by the Bell System door entry telephone.

The proximity system is the ideal access control solution in situations

where no central programming or reporting is required. Validating

and voiding of users is achieved with a unique shadow card system,

and all system programming is performed with the easy to use

function cards. All packaged systems include a starter pack of keyfobs

and additional keyfobs can be purchased as required.

Paxton Compact panel Mount Reader

This compact panel-mount reader is manufactured by Paxton Access

for exclusive use in Bell System door entry systems. It is mounted on

the rear of the panel by four secure threaded studs and nuts and

protected on the front by a Lexan window. The proximity compact

reader contains all the electronics inside the reader, from which come

three cable pairs connecting to the power, electric release and,

optionally, an exit button. The lock output is fail-secure by default

with a timed lock output set at 5 seconds. Alternatively, the fail-open

card (included in the starter keyfob pack) can be used to change the

lock output to operate a fail-safe lock

Starter Keyfob Pack

Each CSP system includes a starter keyfob pack consisting of;

• One Enrolment card

• Three Proximity user keyfobs

• Three user shadows

• One fail-open release card

Additional keyfob packs can be purchased as required.

The full Function Card Pack can be considered for further features

or functions.

Keyfob Packs

A ‘shadow card' system is used for ease of management and the

keyfobs are supplied with a wallet for storing the shadow cards.

When installing the system the Starter keyfob pack is added by

presenting the Enrolment card from that pack. Subsequent packs are

added by presenting the original Enrolment card followed by the

Enrolment card from the new pack. Further configuration is done

using the other cards in the pack

Door open time card: Sets the amount of time the lock is energized for.

Fail open release card: Presenting this card reverses the operation of

the lock output to make it suitable for operating a fail open release.

Presenting this card again reverts operation to the default.

Silent operation card: Disable the sounder in the reader. Presenting

this card again enable the sounder.

Each keyfob is packaged with a corresponding shadow card. Once

installation of the system is complete all user cards are valid and ready

to be issued. Keyfobs are available in packs of 10, 25, 50 or 100 users.

Proximity Function Card Pack – model 820-000.

Starter Keyfob Pack

The starter keyfob pack included in the system is sufficient to get the

system started and in many installations no further features or functions

are required. However, the full function card pack allows the more

advanced features of the proximity system to be utilised including

zoning with three differing coloured fobs and timing options.

CSP Standard Front Door Panels (7 buttons maximum)

These panels are similar to the standard audio SPA style panels and are

manufactured from 3 mm anodised aluminium with an integral grill

protecting the speech unit. The compact proximity reader is protected

by a Lexan window.

As standard, the panels are supplied with a low-profile surface

mounting box moulded in black. Alternatively, the panels can be

supplied with a flush fitting zintec back-box and vandal resistant

bolts. The largest available panel has 7 buttons and thereafter the

vandal resistant style should be used.

CSP Vandal Resistant Front Door Panels (any size)

The vandal resistant panels are manufactured from 2.5 mm 316

marine grade stainless steel. Panels are flush mounted and fixed to the

back-box by tamper proof bolts (a special key is required to remove

the panel). Optionally, the panels can be supplied with stainless steel

housing for surface mounting.

A single model IP68 stainless steel vandal resistant button is provided

for each flat and the option of one for Tradesmen. The engraving of

flat numbers is included in the price of each system. Further engraving

(e.g. Block names) can be included for a modest surcharge.

Model CSP1

1 way system

Model CSP6/VRS

6 way system

CSP Series proximity systems

These systems are conveniently packaged with all necessary components

to complete an installation including a starter pack of keyfobs.

Additional packs of keyfobs can be purchased to the required number.

A standard CSP series system comprises of;

• model 801 standard wall telephones

• model CSP aluminium door panel with compact proximity reader.

(Panels above 7 buttons are vandal resistant).

• model 61 speech unit

• 12v DC power supply

• model 203 surface lock release

• starter keyfob pack (includes an ‘enrolment’ card, a ‘fail-open’ card

and 3 user keyfobs and shadow cards)

• full installation and programming instructions

Combined video systems

The convenient range of packaged systems can also include video

telephones. These systems include;

• model BS bellissimo video telephones

• model CSP stainless steel vandal resistant style panel with colour

CCD day/night camera

• compact proximity reader

• model 61 speech unit

• relevant video controllers

• 12v DC power supply

• model 203 surface lock release

• starter keyfob pack

(includes an ‘enrolment’ card, a ‘fail-open’ card and 3 user keyfobs

with their shadow cards)

• full installation and programming instructions

Model CSPP1 Model CSPP1/VRS

Model CSPP2/VRS Model CSPP4

Model PROX-REAR Rear door Paxton proximity system

This kit includes all the basic components to achieve proximity access at a

single door. This system is ideal for giving proximity access at the rear door

when a complete model CSP system has been installed at the front entrance.

This PROX-REAR system comprises of;

• stainless steel panel with compact proximity reader and flush back-

box (surface option available)

• 12v DC power supply

• model 203 surface lock release

• starter keyfob pack (includes an ‘enrolment’ card, a ‘fail-open’ card

and 3 user keyfobs with their shadow cards)

• full installation and programming instructions

Ordering information:

Standard CSP systems

Order using CSP-n, where n is the number of stations

e.g. CSP-1 for a one station CSP-2 for two stations

Vandal Resistant CSP systems

Order using CSP-n/VR, where n is the number of stations

e.g. CSP-1/VR for a one station CSP-10/VR for ten stations

For surface use /VRS

Video CSP systems

Order using CSP-BSn/VR, where n is the number of stations

e.g. CSP-BS1/VR for a one station CSP-BS10/VR for two stations

For surface use /VRS

For tradesmen facility us ethe code TRCP

(A model TS2000-BST time clock is included)

Additional keyfobs;

No.of fobs in Pack = Code

10 = 820-010G 25 = 820-025G 50 = 820-050G 100 = 820-100G

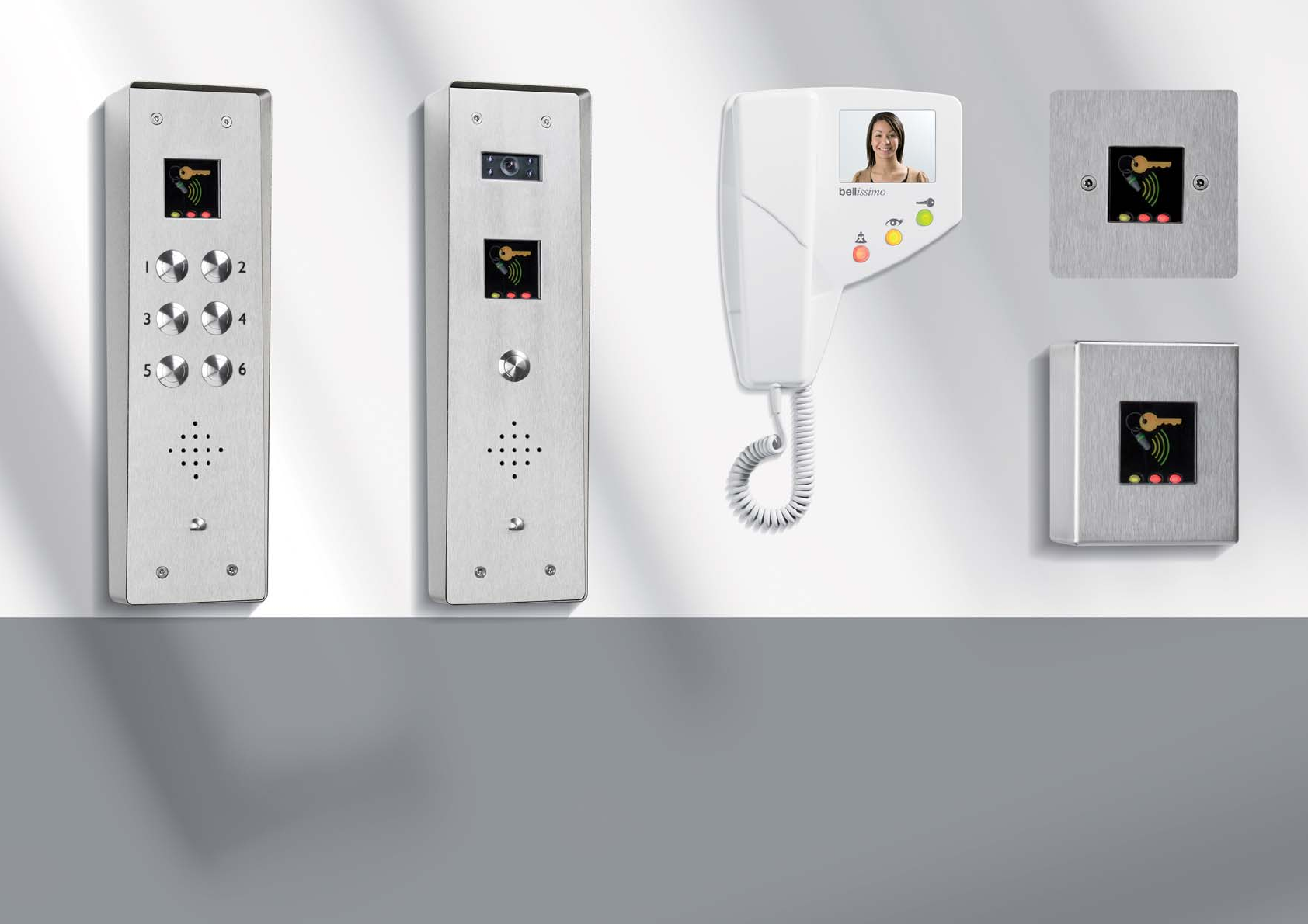

V/R option Video option Model PAX-2-S reader

in surface V/R housing

Model PAX-2 reader in

flush V/R housing

Bellissimo

Video Telephone

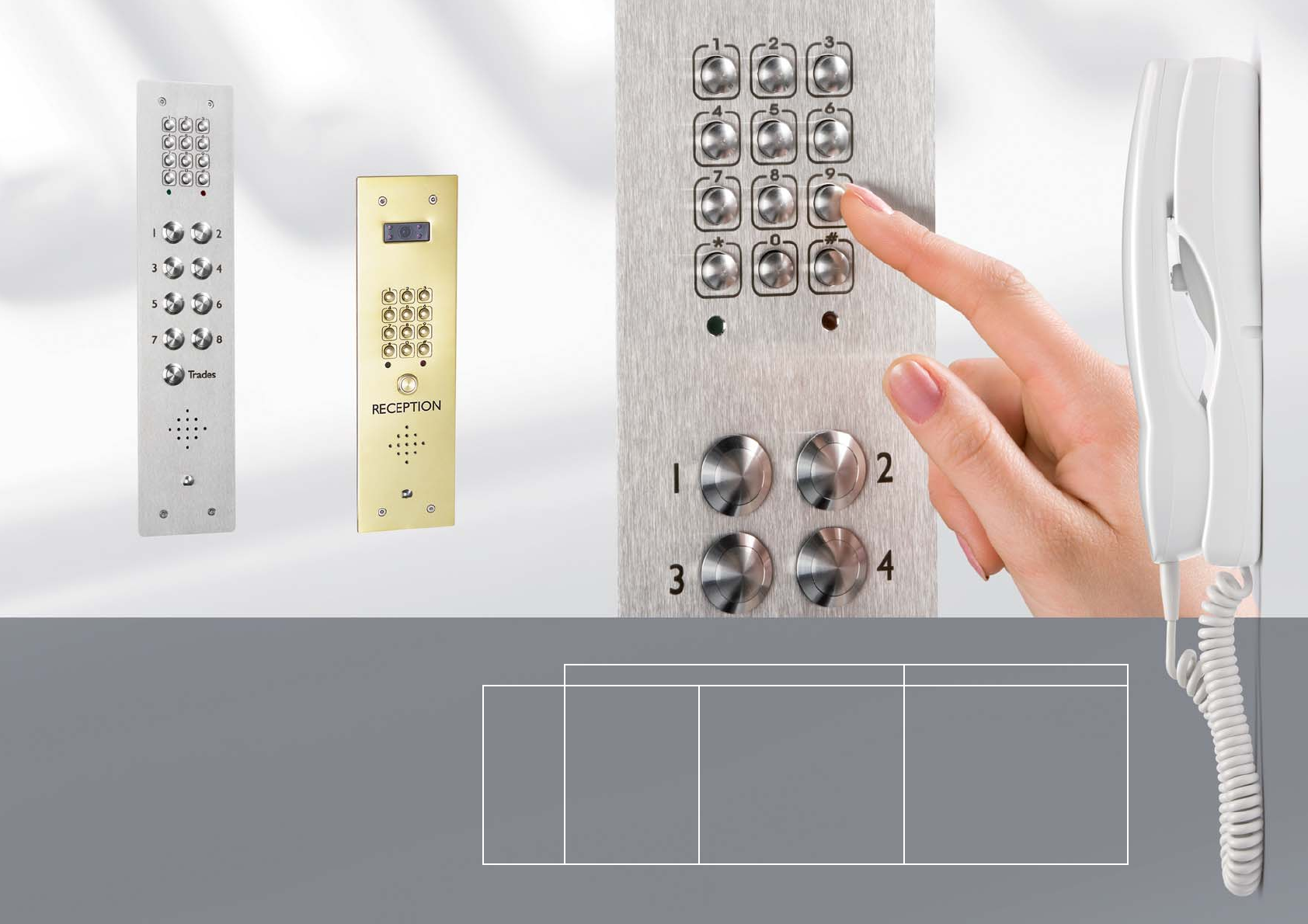

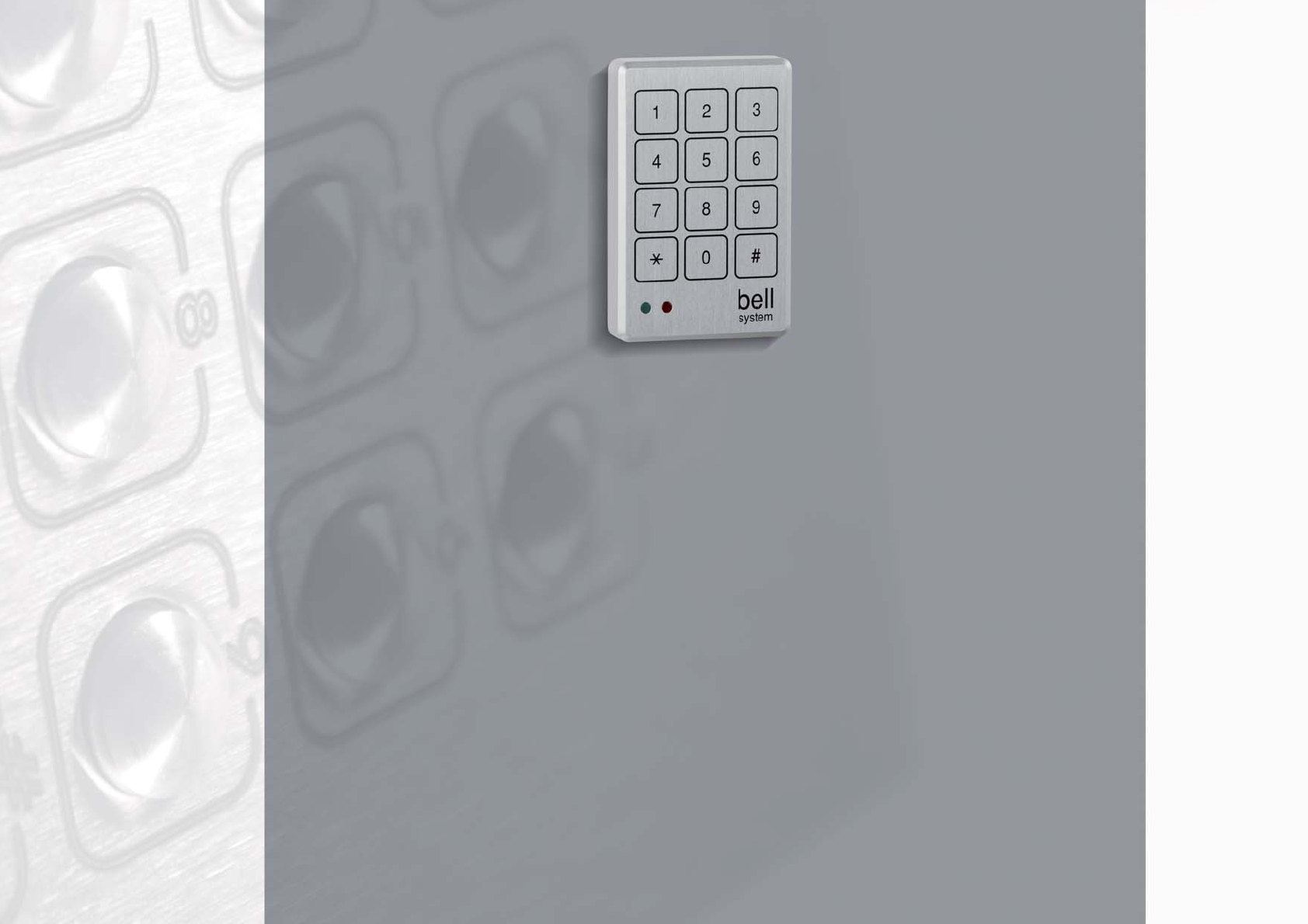

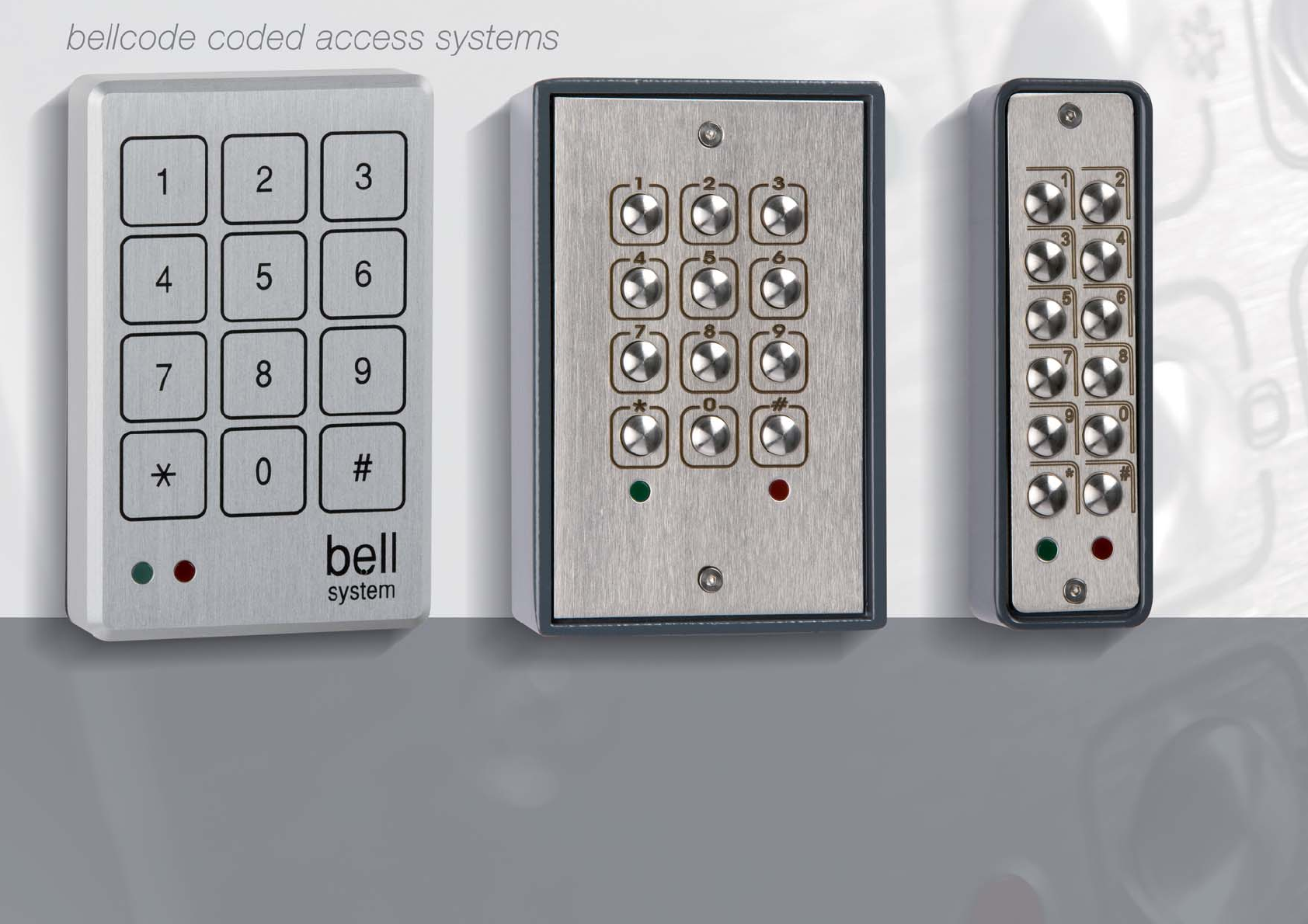

These bellcode access control systems are high quality versatile security

product controlling access through doors by means of a digital keypad

and electric lock release. The use of a separate controller ensures that

no amount of tampering with the keypad will undermine the system’s

security. For convenience the system is programmed from the keypad

and offers a wide range of useful functions.

The secure model 200 controller may be programmed with up to ten

unique codes. If a valid code is entered on the keypad, the lock release

will operate for a preset duration. The controller may be programmed

to operate an audible alarm under various circumstances and disable,

the lock output if necessary. The access codes and other programmable

parameters are retained indefinitely without power.

The keypads have a green and red LED to indicate the system status to

the user; the green indicates that the lock release is operating, whilst

the red LED indicates an invalid entry or alarm condition.

The model 200 Controller

The model 200 controller is housed in a stylish and discrete plastic

box. Security is further enhanced by placing the controller in a secured

area. This arrangement provides a superior level of security when

compared to many combined keypad/controllers in the market.

Programming is easily achieved by entering a ‘security code’ and then

a sequence of simple codes at the keypad.

The main features are;

• Ten access codes (programmable from 1 to 8 digits).

• Timed lock outputs for fail-secure and fail-safe lock releases.

• All functions are stored in a protected non-volatile 'EEPROM'

memory. The access codes and other programmable parameters

are retained indefinitely without power.

• Provisions for a ‘push to exit’ egress switch input.

• Space for an extra model 201 control PCB for second door and keypad

• Additional programming functions include;

Lock duration (1 - 99 seconds)

Lock delay time (0 - 99 seconds)

Alarm duration (1 - 99 seconds)

Key limit (0 - 99 keystrokes)

Code entry time limit (0 - 99 seconds.)

Duress access mode

Dimensions: H = 230mm, W = 185mm, D = 45mm

Model 218 bellcode keypad

The bellcode 218 keypad is a slim-line touch sensitive keypad with

no moving parts (uses Piezo technology) designed for operation in

all environments. It is manufactured in aluminium and anodised for

complete weather protection. The electronics are potted making

the keypad waterproof and rated at IP68. Each push-button is

clearly defined and a re-assurance tone is available to indicate a

positive key-stroke. A green and a red LED are included to indicate

operational status.

Dimensions: H =103mm, W = 66mm, D = 20mm

Model 216 stainless steel keypad

The keypad and push-buttons are manufactured in a high grade 316

stainless steel and is ideal for sheltered external locations. The back-

box is a robust alloy casting which is aluchromed and then powder

coated for maximum protection.

The keypad is fixed to the box with Allen type security bolts. It is

recommended for most sheltered environments. A green and a red

LED are included to indicate operational status.

Dimensions: H = 135mm, W = 90mm, D = 30mm

Model 216F flush stainless steel keypad

A flush mounting keypad supplied with a metal flush back box. It is of

identical design to the standard 216 keypad but has larger overall

dimensions to ensure an adequate overlap.

Dimensions (mm):

Keypad H = 141mm, W = 95mm

Flush box H = 117mm, W = 71mm, D = 25mm

Model 218 keypad

Model 216 keypad

Model 217 keypad

Model 217 slim-line keypad

This keypad is manufactured in similar fashion to the 216 but has two

columns of 6 keys (instead of 3x4) in order to produce a slimmer

product suitable for door frames.

Dimensions: H = 132mm, W = 40mm, D = 27mm

Complete boxed systems, ideal for the both distributor and installer;

Model CK200 coded access system

• model 218 Touch sensitive slim-line keypad

• model 200 boxed controller

• model 340C 12v DC power supply

• model 203 standard rim lock release

Model CK109 coded access system

• model 216 stainless steel surface keypad

• model 200 boxed controller

• model 340C 12v DC power supply

• model 203 standard rim lock release

Model CK200 one door system

Model CK109 one door system

Model CK110 one door system

Model CK110 coded access system

• model 217 stainless steel slim-line

surface keypad

• model 200 boxed controller

• model 340C 12v DC power supply

• model 203 standard rim lock release

A frequent requirement for a door entry system is the facility of a

coded access system. This allows residents, tenants or staff the means

to enter to the building by the operation of an integral keypad

at the main entrance panel.

The CS109 are combined door entry and coded access systems utilising

a panel mounted stainless steel keypad. The system has an independent,

secure controller and therefore can be considered when a high level of

security is necessary. It is available from a single station system up to any

number of telephone stations. However, the keypad feature is available

on any of our door entry systems and can be included with vandal

resistant VRP or LCP style panels, video and brass panels.

The CP109 keypad may be programmed with up to ten unique access

codes. If a valid code is entered on the keypad, the lock release will

operate for a preset duration. The keypad has one green LED and one

red LED to indicate the system status to the user: the green LED

indicates that the lock release is operating, whilst the red LED

indicates an invalid entry. There are ten user access codes and a wide

range of programmable functions.

Model 200 controller

This controls access to one door by means of the stainless steel keypad

on the front door panel and is housed in an attractive and discreet

plastic box. The programming is easily achieved by entering a security

code and a sequence of simple codes at the keypad. The controller has

ten codes available each of which can be 1 to 8 digits. Please refer to

the Coded Access Control section for a list of features and

programmable functions.

Model CP109 Front door panels

The standard panel is attractively designed and manufactured in 3

mm brushed anodised aluminium. It has an integral robust stainless

steel keypad of similar design to the model 216 keypad and should be

sited in a sheltered location. The panel has a push-button for each

telephone station and can be supplied for surface or flush-mounting

up to 7 buttons and in vandal resistant up to any size. These panels

can also be manufactured in stainless steel or and include a camera

for connection to the bellissimo video entry systems.

A CS109 series systems comprise of

• model 801 wall mounting telephones

• model CP109 aluminium door panel with stainless steel keypad

• model 51 speech unit

• model 200 independent boxed controller

• model 340C power supply

• model 203 surface lock release

• full installation and programming instructions

Model CS109-1

1 way system

Model CS109-4

4 way system

Ordering information

Order using model CS109-n, where n is the number of stations required

e.g. CS109-1 for a single station system or CS109-12 for a

12 station system.

For tradesmen facility append the code TRCS.

(A model TS2000 time clock is included).

CS 109 Series Combined Coded Access & Door Entry Panel Dimensions

CP109-1 to CP109-7 and CP109-1F to CP109-7F

Flush Panel (F) Surface Panel

Panel Panel (mm) Backbox (mm) Backbox (mm)

HW H W D H W D

CP109-1 270 83 259 73 35 288 100 43

CP109-2 370 83 359 73 35 388 100 43

CP109-3 370 83 359 73 35 388 100 43

CP109-4 370 83 359 73 35 388 100 43

CP109-5 470 83 459 73 35 488 100 43

CP109-6 470 83 459 73 35 488 100 43

CP109-7 470 83 459 73 35 488 100 43

Sizes above 7 buttons are vandal resistant.

Panel dimensions are approximate and may change without notice.

V/R option Brass option

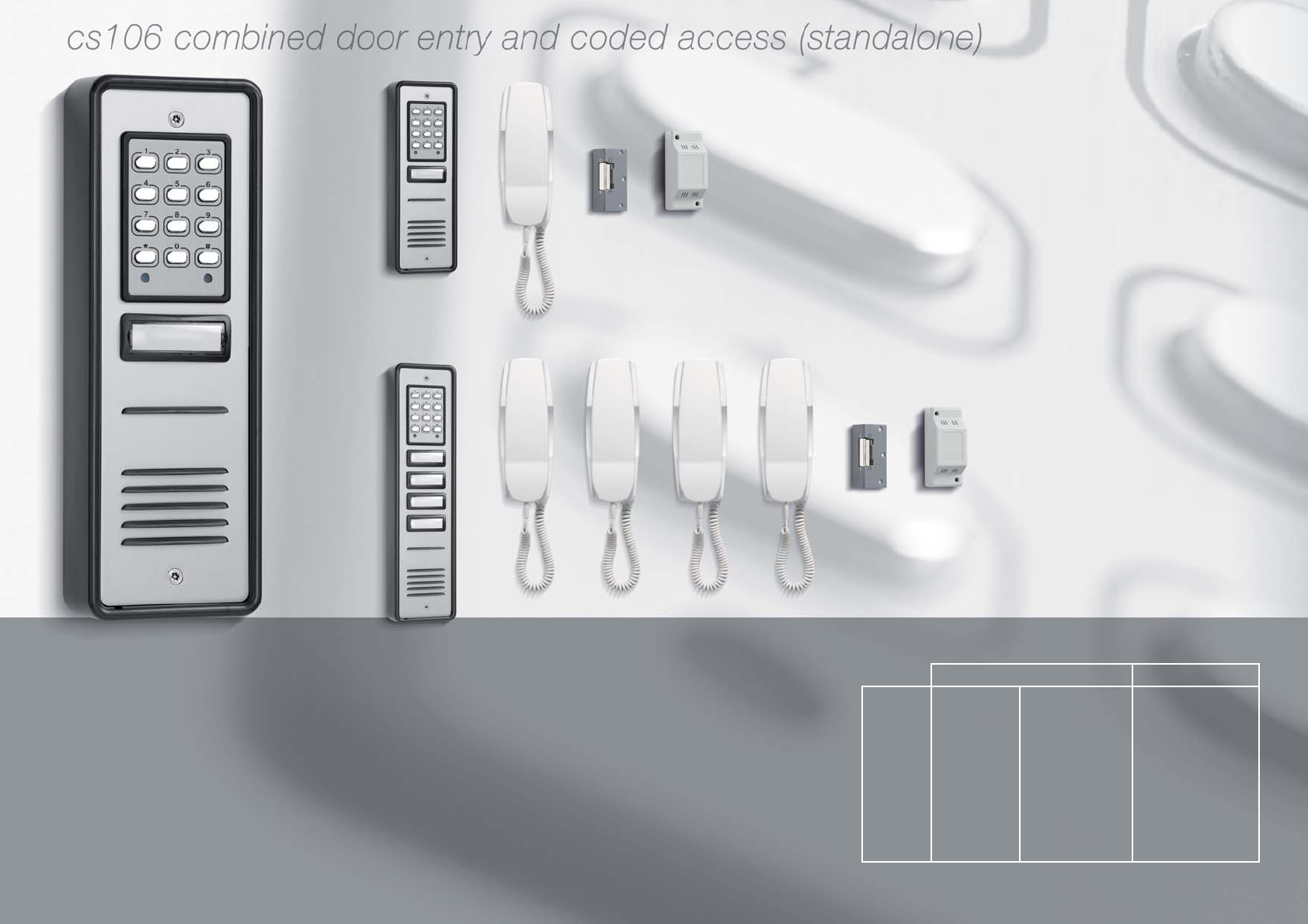

The CS106 are combined door entry and coded access systems

utilising an economic C106 standalone keypad module. These can be

considered where a low level of security is deemed to be adequate.

Should a high level of security be necessary then the CS109 combined

systems should be used.

The C106 keypad may be programmed with up to ten unique access

codes. If a valid code is entered on the keypad, the lock release will

operate for a preset duration. The keypad has one green LED and one

red LED to indicate the system status to the user: the green LED

indicates that the lock release is operating, whilst the red LED

indicates an invalid entry. There are ten user access codes and a wide

range of programmable functions.

Two panels are available the CP106 (SPA style) with a maximum of

7 buttons and the BL106 (bellini style) with a maximum of 6 buttons.

For larger systems the CS109 combined systems should be used.

The C106 standalone keypad may be programmed with up to ten

access codes of between 1 to 8 digits. The extra codes are provided

for multi-user application or for timed restricted access (additional

time clock required). The keypad has both fail secure and fail safe lock

outputs and an exit facility from a remote push-button. Other

programmable features include lock duration and lock delay time.

The access and user programs are stored in a protected non-volatile

EEPROM memory and all programmed features are retained

indefinitely without power.

Model CP106 front door panels

These panels are similar to the SPA style panels and are manufactured

from 3 mm anodised aluminium. They should be sited in a position

that is protected from adverse weather conditions. They are available

for either surface or flush fitting.The C106 keypad module is designed

to complement the panel, push-button and surface box in a

contemporary style. The module has outputs for both failsafe and

failsecure lock releases and connection for an exit button.

The largest available panel is of 7 buttons and the CS109 series should be

considered on any larger system.

Standard combined system – CS106 series

Each systems comprise of;

• model 801 wall mounting telephones

• model CP106 aluminium door panel with integral keypad module

• model 61 speech unit

• model 340C power supply

• model 203 surface lock release

• full installation and programming instructions

Ordering information

Order using model CS106-n, where n is the number of stations required

e.g. CS106-1 for a single station system or CS106-5 for five station system

For tradesmen facility append the code TRCS

(A model TS2000-BST time clock is included).

Flush Panel (F) Surface Panel

Panel Panel (mm) Backbox (mm) Backbox (mm)

HW HWD H WD

CP106-1 270 83 259 73 35 288 100 43

CP106-2 370 83 359 73 35 388 100 43

CP106-3 370 83 359 73 35 388 100 43

CP106-4 370 83 359 73 35 388 100 43

CP106-5 470 83 459 73 35 488 100 43

CP106-6 470 83 459 73 35 488 100 43

CP106-7 470 83 459 73 35 488 100 43

Sizes above 7 buttons are not available – see CS109 page 74

Panel dimensions are approximate and may change without notice.

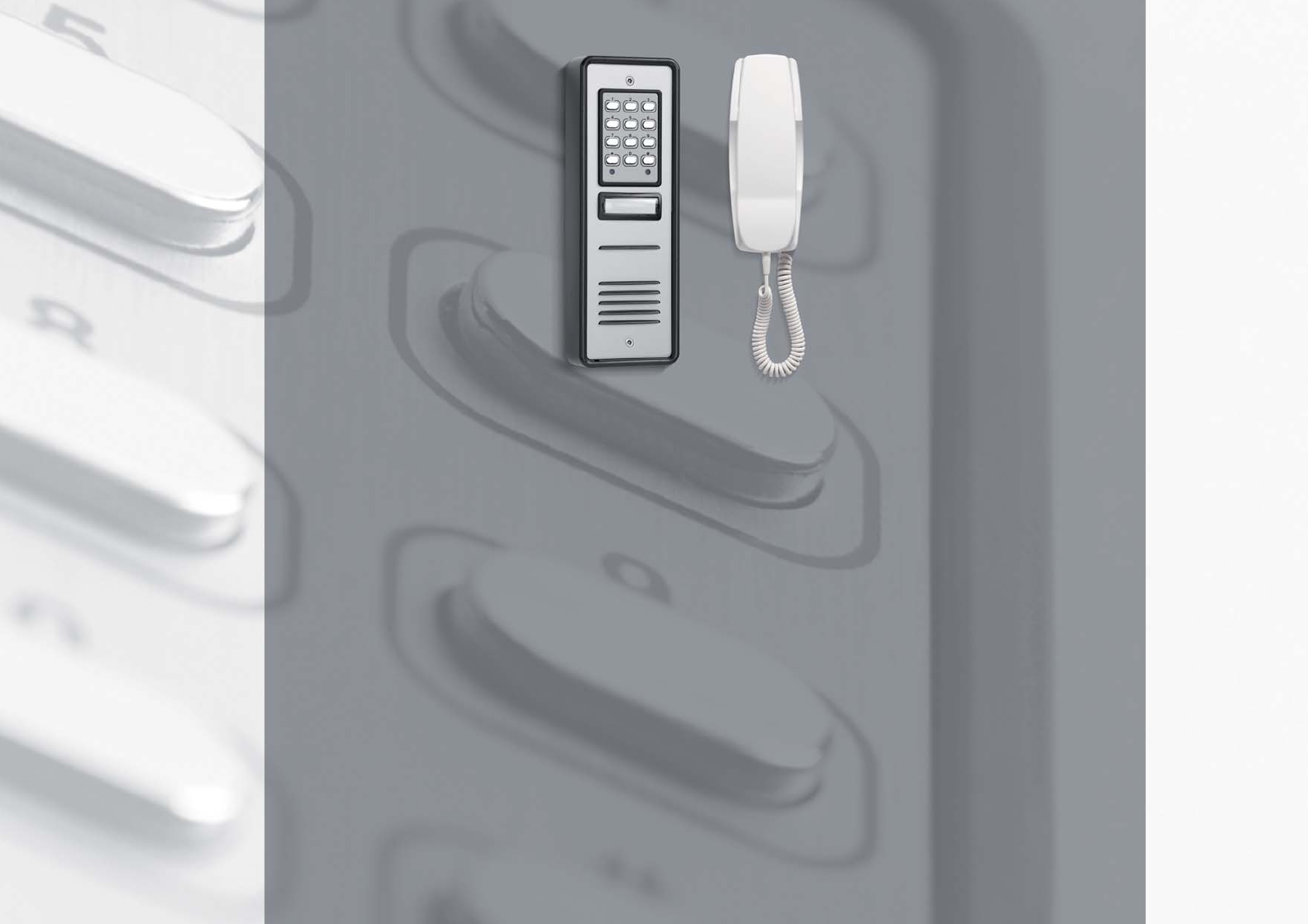

Model CS106-1

1 way system

Model CS106-4

4 way system

CS106 Standalone Door Entry & Coded Access Combined Panel Dimensions

CP106-1 to CP106-7 and CP106-1F to CP106-7F

Model BLP106 surface front door panels

These new stylish panels can be considered as an elegant alternative

to the traditional CP106 panels. These surface mounted panels are

manufactured from anodised aluminium with a contemporary design

and profile. The largest available panel is of 6 buttons and the CS109

series should be considered on any larger system. Panel dimensions are

given in the bellini panel section of the catalogue.

Bellini combined system – BL106 series

Each systems comprise of;

• model 801 telephones

• model BLP106 aluminium door panel with integral keypad module

• model 61 speech unit

• model 340C power supply

• model 203 surface lock release

• full installation and programming instructions

Ordering information

Order using model BL106-n, where n is the number

of stations required

e.g. BL106-1 for a single station system or BL106-5 for five

station system

For tradesmen facility append the code TRBL

(A model TS2000-BST time clock is included).

BLP106 series

Posts

The mounting of an entrance panel on a post is often required for a variety of applications e.g. for buildings where

a wall mounting panel is not suitable or for entrances to car parks.

The posts are manufactured from polished stainless steel and are designed to accommodate surface vandal

resistant panels of all sizes. The posts have a stainless steel pedestal welded to the base with fixing holes pre-drilled.

All posts are supplied with surface vandal resistant panels pre-fitted and cable entries pre-drilled. Select the

appropriate post and order together with the chosen panel design. The panels can be multi-button, video, digital

or combined with proximity or coded keypad.

Please contact the Sales Department for guidance on suitable panel designs.

Code Description Height mm

CHP1 Car Height Post 1200

PHP1 Pedestrian Height Post 1600

DHP1 Dual Height Post - Pedestrian / Car 1600 / 1200

DHP2 Dual Height Post - HGV / Car 2000 / 1200

Post Width: 80mm

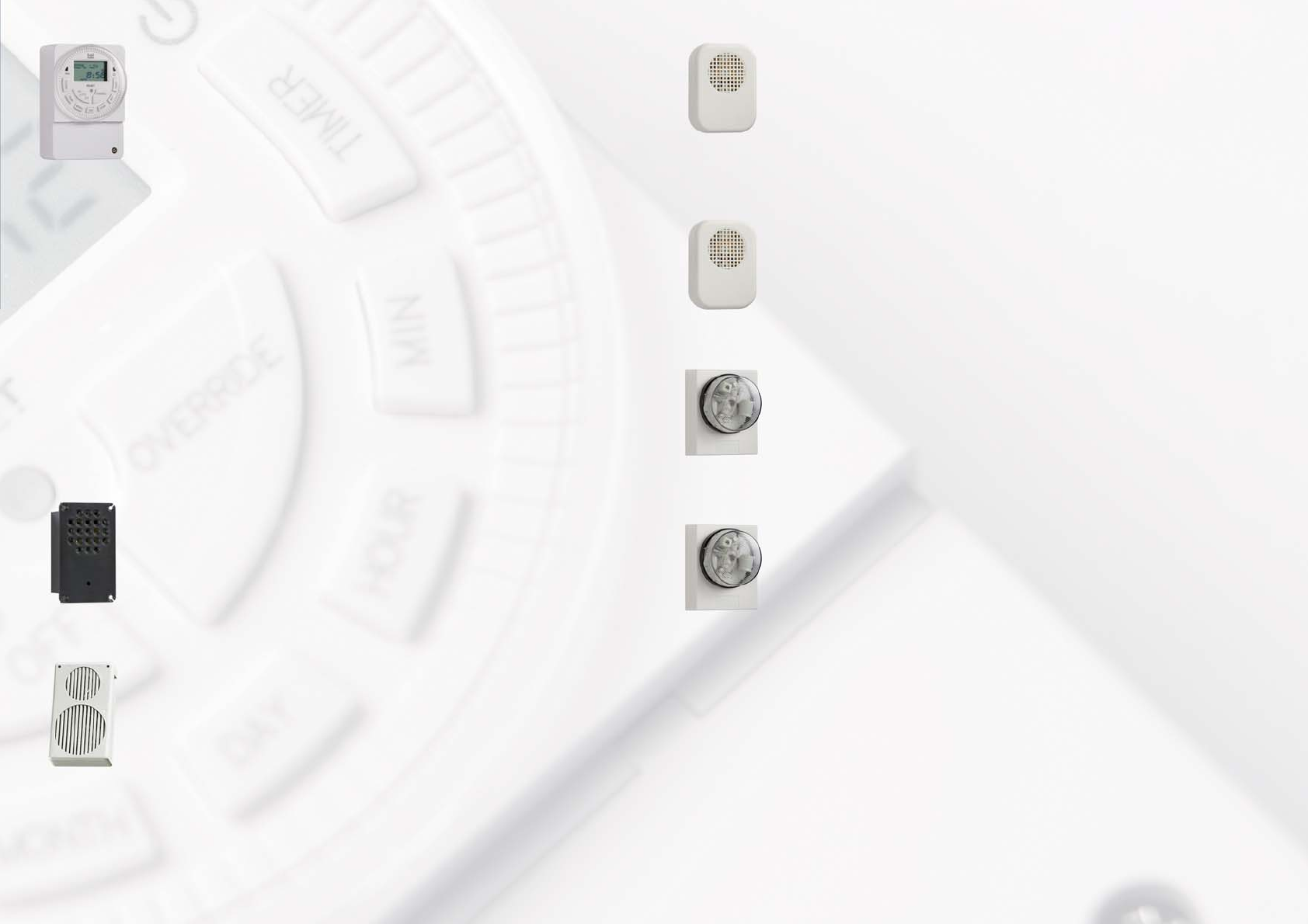

Model TS2000-BST

12V quartz reserve time clock with auto British Summer Time settings.

The TS2000-BST time clock has the facility of automatically adjusting to European/British

time settings. Once the user has programmed the date the clock will automatically adjust

each spring and autumn. This digital timer is purpose made for access control systems

as it operates from a supply voltage of 12v AC/DC. The clock is designed for wall-

mounting and its main features are;

• Automatic European Time adjustment

• 12V AC/DC operating voltage

• LCD display

• Quartz crystal timing with reserve

• Daily and weekly programs

• 7 day programming

• 8 on/off periods

• 15 repeat options: day, week, weekend, odd weekdays etc.

• manual override

• switching capacity 10A/30V DC

Dimensions: H = 98mm, W = 66mm, D = 40mm

Speech unit model 61

This compact unit is fitted to the entrance panel on all our current door entry systems

(except as indicated below). The unit provides two-way speech and has an individual

volume control for both microphone and speaker. This universal product can be powered

from either 12V AC or 12V DC depending on the model of telephone used.

Dimensions: H = 97mm, W = 58mm, D = 24mm

Speech unit model 51

This unit is generally required as a replacement unit for older systems or for SPA panels

above 10 buttons. The unit provides two-way speech and has an individual volume

control for both microphone and speaker. This universal product can be powered from

either 12V AC or 12V DC depending on the model of telephone used.

Dimensions: H = 136mm, W = 81mm, D = 30mm

Extension sounders

These units extend the call tone of a door entry telephone to other areas of the premises

to improve audibility. The unit is fabricated in white ABS plastic and can be wall mounted

in a convenient indoor location. Available models;

Model RT27 for extensions to the standard 801 telephones

Model BS-RT for extensions to the bellissimo telephones

Dimensions: H = 120mm, W = 90mm, D = 38mm

Sound Generator and extension tone model SG1

Like the models above this unit provides an extension of the call tone on a door entry

telephone. In addition to an output of 80 dB at one metre it has 8 user selectable tones.

The unit can be triggered either from a 12 Volts source or from a switch.

Dimensions: H = 120mm, W = 90mm, D = 38mm

Flashing beacon model FB31

This unit gives an effective visual indication of a call at the door entry telephone. This

unit is ideal for the 'hard of hearing' or areas with a high level of background noise.

The beacon includes a timer circuit that can be set for between 4 and 40 seconds.

(A model 212 power supply may be required).

Dimensions: H = 113mm, W = 80mm, D = 60mm

Flashing beacon model BS-FB (bellissimo)

This unit gives an effective visual indication of a call at the bellissimo door entry video

telephone. This unit is ideal for the 'hard of hearing' or areas with a high level of

background noise.

Dimensions: H = 113mm, W = 80mm, D = 60mm

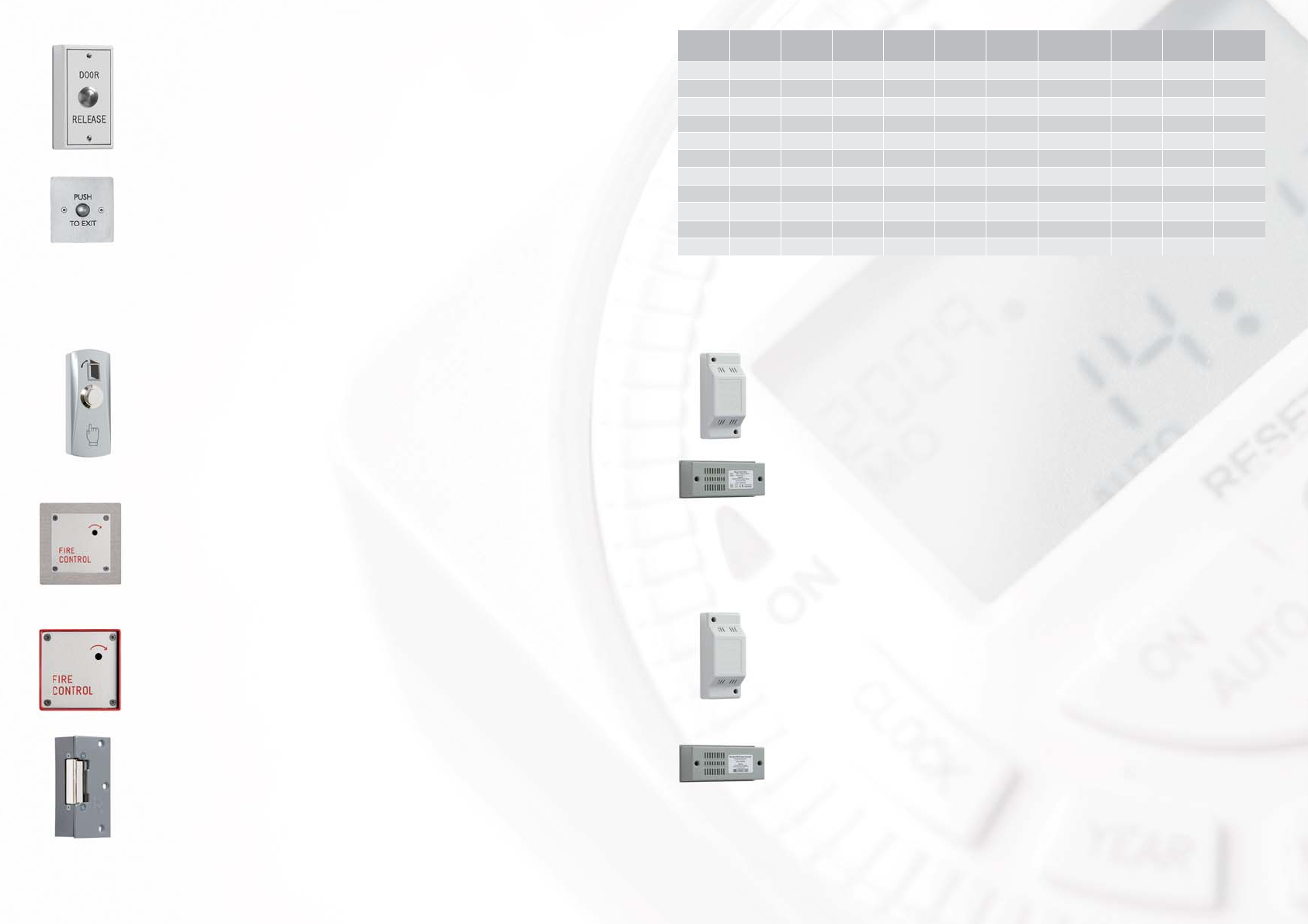

Exit Switch model 5077 and model 5077L (LED indication)

These switches are typically used an access control system to release the door upon

exiting in the absence of a manual lock release. The model B24S stainless steel push-

button is incorporated and is designed for heavy use.

Dimensions: H = 110mm, W = 60mm, D = 34mm

Exit Switch (flush mounting) model 5078

An alternative style exit switch with the panel manufactured in 2.5 mm 316 marine

grade stainless steel and designed to fit a standard single-gang back-box. The panel is

permanently engraved and includes a model B24S vandal resistant push-button

designed for heavy use.

Plate Dimensions: H = 100mm, W = 100mm

Back-box dimensions: H = 75mm, W = 75mm, D = 45mm

Exit Switch (miniature surface mounting) model 5080

This slim-line surface fitting exit switch is manufactured in a robust alloy casting and has

universal graphic symbols and is perfect for architrave fitting. The switch is rated at 3A

with 12v – 24v.

Dimensions: H = 83mm, W = 32mm, D = 25

Fire Switch (Flush) model FS1-F

Flush mounting stainless steel Fireman’s Drop-Key Switch with security fixings and

permanently engraved with FIRE CONTROL.

Dimensions: Plate H = 150mm, W = 150mm

Box H = 107mm, W = 107mm, D = 65

Fire Switch (Surface) model FS1-S

Surface mounting red powder coated Fireman’s Drop-Key Switch with stainless steel

plate and security fixings, permanently engraved with FIRE CONTROL.

Dimensions: H = 115mm, W = 115mm, D = 72

Lock Releases

The standard lock releases are designed to operate with night latch locks on timber

framed doors. Each release is fabricated from a variety of materials;

• Main mechanism - plated zinc • Latch - chrome-plated mazac zinc alloy.

• Faceplate - epoxy painted steel • Side cover - stainless steel

Standard Release Pressure: withstands up to 300 Kg of impact (breakdown at 600 Kg)

Heavy Duty Release Pressure: withstands up to 500 Kg of impact (breakdown at 1000 Kg)

Power Supplies

Model 212 (12v AC)

A wall-mounting, double insulated, fused transformer included in basic audio door entry

systems up to 10 stations. It has a nominal output of 12v AC @ 1A. Compliant with EN60950.

Dimensions: H = 140mm, W = 60mm, D = 53mm

Model 225 (12v AC)

A wall mounting, double insulated, fused transformer for use with door entry telephone

systems. This supply incorporates a relay for the direct operation of the lock release to

overcome possible voltage drop on larger systems. It has a nominal output of 12V AC @

2 Amps. Compliant with EN60950.

Dimensions: H = 110mm, W = 235mm, D = 80mm

Model 340C (12v DC)

A wall-mounting fused 12v DC regulated power supply rated at 1.5 Amp for use on DC

door entry systems and our Access Control systems. It can also be used for directly

powering failsafe and continuously rated lock releases. Compliant with EN60950.

Dimensions: H = 140mm, W = 60mm, D = 53mm

Model PS4 (12v DC)

A wall-mounting fused 12v DC regulated power supply rated at 4 Amps for use on video

entry systems and for powering high current door release mechanisms.

Compliant with EN60950. Dimensions: H = 110mm, W = 235mm, D = 80mm

Model 12V AC 12V DC Surface Mortice Fail- Fail- Continuously Monitor Delayed Heavy

Secure Safe Rated Switch Action Duty

202 ✔✔ ✔ ✔

203 ✔✔ ✔ ✔

204 ✔✔ ✔ ✔

205 ✔✔ ✔ ✔ ✔ ✔

206 ✔✔✔ ✔ ✔

209 ✔✔✔✔ ✔

210 ✔✔ ✔ ✔ ✔

2208 ✔✔ ✔ ✔ ✔

2208 M ✔✔ ✔ ✔ ✔ ✔

2208 F ✔✔✔✔ ✔

2208 FM ✔✔✔✔✔✔

The Bellcall is a versatile emergency call system which lends itself to a

multitude of applications in a number of different markets. Although

these systems are typically installed in care and nursing homes there

are other market sectors that have emergency call systems installed;

• Care Homes • Nursing Homes • Private Hospitals and Hostels

• Housing, Employment and Benefit offices • Interview Rooms

• Doctor Surgeries and Medical Centres • Disabled Toilets

• Leisure, Fitness, Health, Spa and Beauty Centres

• Police Stations • Remand Centres • Immigration Centres

The Bellcall emergency call system allows individuals, be they patients,

residents or staff, to initiate an alarm call in order to obtain assistance.

An indicator panel will alert an attendant by sounding an alarm and

by illuminating an LED lamp. Each Lamp has a nameplate label to

identify the caller or room. The call is generally cleared by attending

the room where the call originated and by resetting the callpoint.

Calls can be made from either a wall-mounted callpoint, a ceiling pull

switch or a pendant (pear-drop) switch.

Some of the features of the Bellcall system;

• Manufactured in the UK.

• Hard-wired; standard alarm cable or CAT5.

• Call point units fit standard single or double gang electrical boxes

(surface or flush).

• Operates on 12v DC with optional standby battery.

• Two call levels; standard or emergency with differing alarm tones.

• Call reset using pushbutton and/or magnetic key

• Alarm Tone mute.

• External alarm relay.

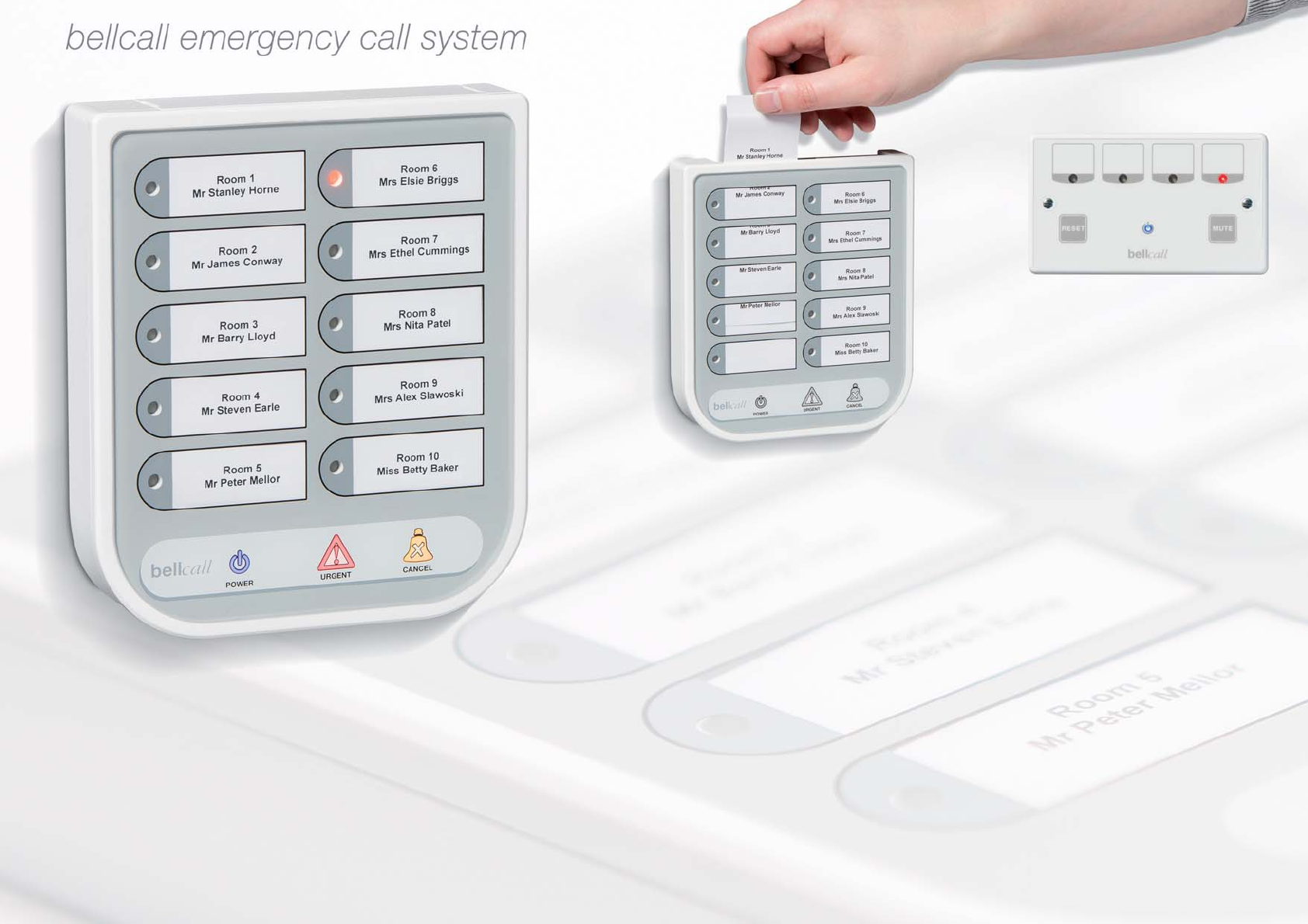

Model BC-10

Model BC-04

Simple identification label replacement

Indicator Panels

There are four models of indicator panel available; 4-zone, 10-zone, 20-

zone and 30-zone. Up to four indicator panels (10, 20, 30-zone) can be

connected together to give a maximum of 120 zones on one system.

The 10, 20 and 30-zone panels are of a contemporary style in white

with grey contrasting background to aid identification of the caller.

These Indicator panels are designed for surface fitting onto any

convenient wall to maximise visibility for the attendants. The panels

have touch-sensitive buttons for the attendant functions such as

alarm mute.

The 4-zone panel (model BC-04) is an attractively designed, compact

unit which can be flush or surface-mounted onto a double gang

electrical box.

The 10, 20, 30-zone panels all have replaceable strips which can be

printed with a description of the alarm zone, or for example a patients

name or a room number. This flexible system allows the attendants to

make regular changes without damaging or marking the panels.

Each panel has three back-lit symbols;

Power Blue Power On

Urgent Red Flashes in response to an Emergency Call

Cancel Amber Flashes in response to a standard Alarm

(also press to mute)

Model Description Dimensions

BC-04 4-zone indicator panel 85 x 145 x 35 mm

BC-10 10-zone indicator panel 180 x 160 x 35 mm

BC-20 20-zone indicator panel 180 x 290 x 35 mm

BC-30 30-zone indicator panel 180 x 420 x 35 mm

Call Point Units

All call points fit standard surface or flush fitting single gang

electrical boxes. Any number of call points can be can be wired into

a single zone. There are essentially three types of callpoint models

available, each available with or without a jack socket; the jack socket

is for the connection of a pendant switch also commonly known as a

‘pear push’ switch:

Standard Call Point – generates standard calls.

Emergency Call Point – generates emergency calls. Commonly used

in Care Homes.

Alert Call Point – allows a user-generated standard call or an alert call

by staff in order to call for assistance. Commonly used in Nursing

Homes and Hospitals.

All call points offer two methods of Call Reset which are selectable at

installation;

Button Reset For general use

Magnetic Key Reset For use generally in Nursing Homes to

prevent patients or the caller cancelling

their call.

Model Description Dimensions

BC-CP Standard Call Point 85 x 85 x 35 mm

BC-CPJ Standard Call Point with Jack Socket 85 x 85 x 35 mm

BC-EP Emergency Call Point 85 x 85 x 35 mm

BC-EPJ Emergency Call Point with Jack Socket 85 x 85 x 35 mm

BC-AP Call Point with Alert 85 x 85 x 35 mm

BC-APJ Call Point with Alert with Jack Socket 85 x 85 x 35 mm

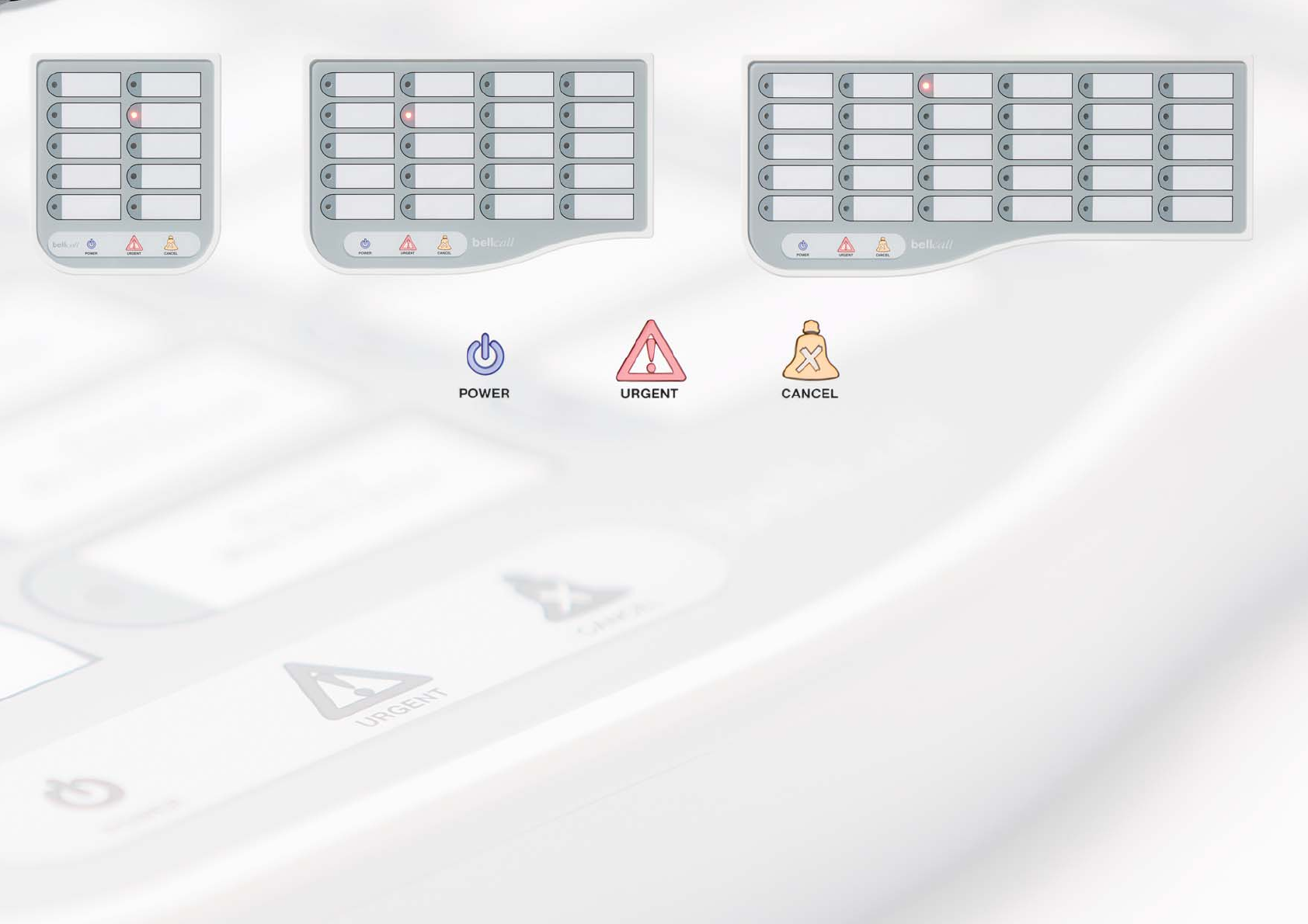

Model BC-10 Model BC-20 Model BC-30

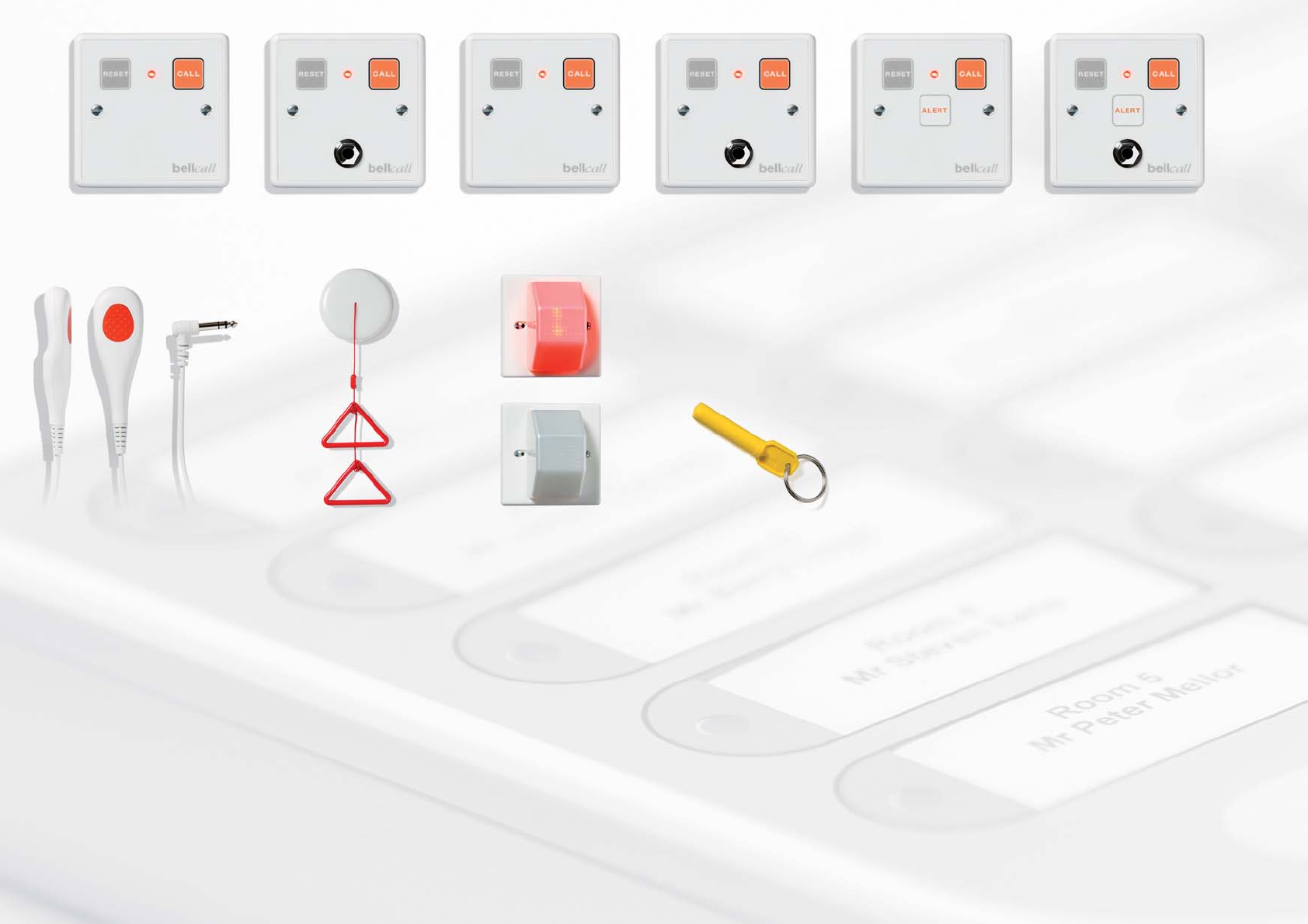

Standard range of peripherals and accessories

Model BC-PD2

Model BC-PD3 Model BC-CS

Model BC-OD (illuminated)

Model BC-CP Model BC-CPJ Model BC-EP Model BC-EPJ Model BC-AP Model BC-APJ

Model BC-ODS

Model BC-K10

Model BC-K50

Pendant switch BC-PD2 and BC-PD3

A hand-held switch typically used for patients in bed or seated on a chair.

The switch has been ergonomically designed for comfort and has a

reassurance light when operated. If the lead is inadvertently removed from

its socket on the call point a call will automatically be generated. Two

models are available one with a 2 metre lead and one with a 3 metre lead.

Over-door light BC-OD and BC-ODS

These lights are typically installed in corridors outside rooms or wards

to indicate when a call has been generated. Up to 4 zones can be

combined to cover common areas. Two model are available; a

standard model and a model that includes a sounder.

Ceiling pull switch BC-CS

Ceiling pull-switches provide auxiliary call points within a room. These

switches are surface mounted and are typically installed in bathrooms

or toilets. They are supplied with two red triangles to aid pulling the

cord; one for standing use and one for prone use. A red re-assurance

light illuminates on the ceiling unit when a call is made.

Magnetic reset keys BC-K10 and BC-K50

All call points can be reset using either a Push-Button or a Magnetic

Key. These bright yellow keys are typically required in care and nursing

homes, to prevent the patient from cancelling their call. The keys are

supplied in packs of 10 or 50 each with a key ring.

Model Description Dimensions

BC-PD2 Pendant Switch with 2m lead & jack 140 x 40 x 20 mm

BC-PD3 Pendant Switch with 3m lead & jack 140 x 40 x 20 mm

BC-CS Ceiling Pull Switch 85mm diam. x 25mm

BC-OD Over-door indicator light 85 x 85 x 45 mm

BC-ODS Over-door indicator light with sounder 85 x 85 x 45 mm

BC-K10 Magnetic Reset Keys (pack of 10) 60 x 15 mm

BC-K50 Magnetic Reset Keys (pack of 50) 60 x 15 mm

Power supply requirements

The system is powered by 12v DC power supplies only;

Model 340C 12v 1.5A for basic systems

Model 640 12v 1A battery backup supply

Model PS4 12v 4A for system with more than 10 Over-door lamps

Model 840 12v 4A battery backup supply

BELL_2014_catalogue_Aw_inner_Bell_2009_catalogue_aw Bell System Full Product Catalogue

Navigation menu

Versions of this User Manual:

Views

Navigation
