TYPE DESCRIPTION LAMP MANUF. VOLT. TOTAL
WATTS BALLAST
A1
2X4 RECESSED, LENSED, GRID CEILING,
STATIC, FLUSH STEEL DOOR, TRIPLE
GASKETING, STEEL HOUSING WITH WHITE
ENAMEL, SPEC. GRADE
(2) F32T8/35000K LITHONIA SP8 120 73 ELECTRONIC
RAPID START

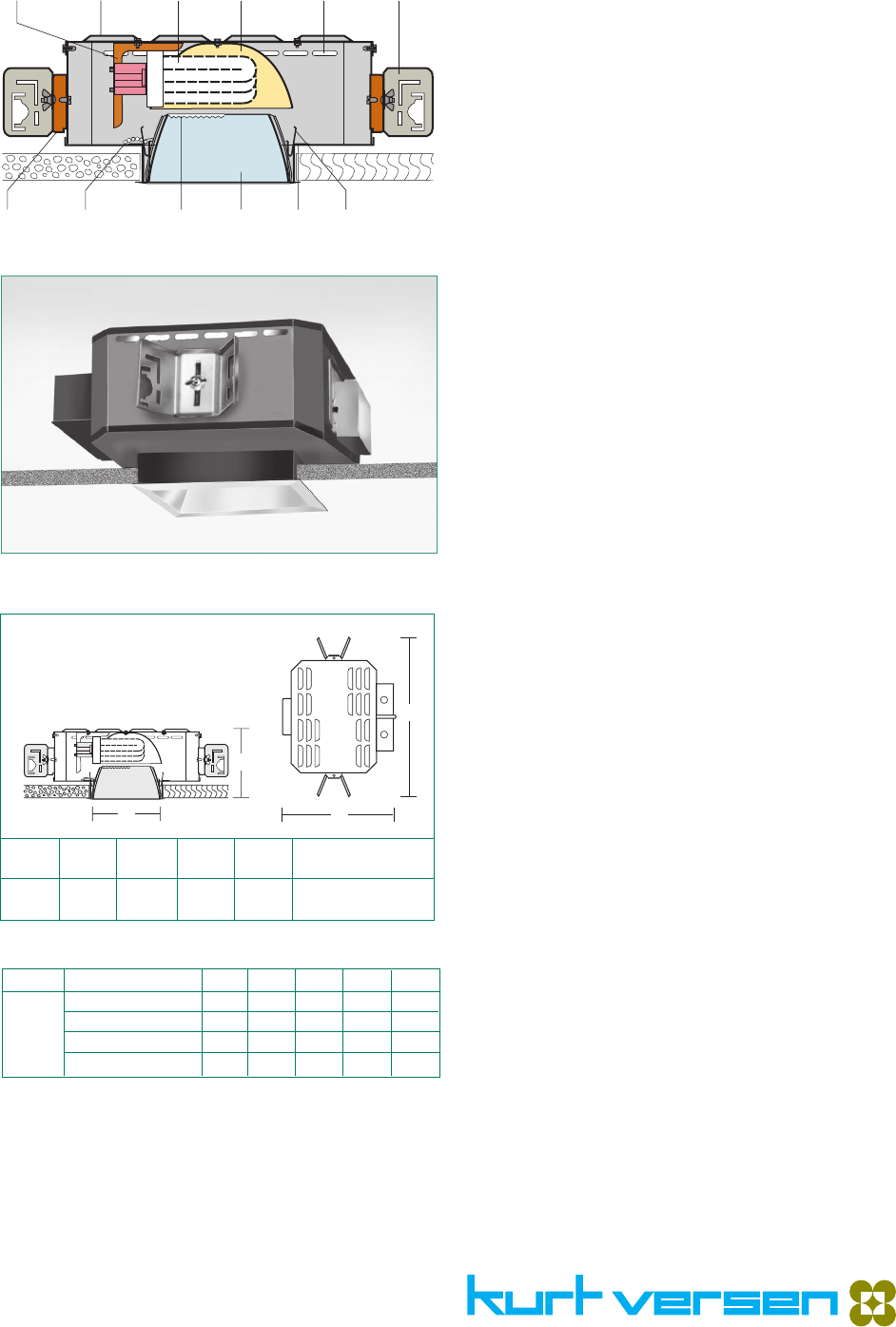

B1 6" SQUARE RECESSED DOWNLIGHT, CLEAR
SPECULAR REFLECTOR (2) F32TBX/3000K 4PIN KURT VERSON 120 67 DIMMING

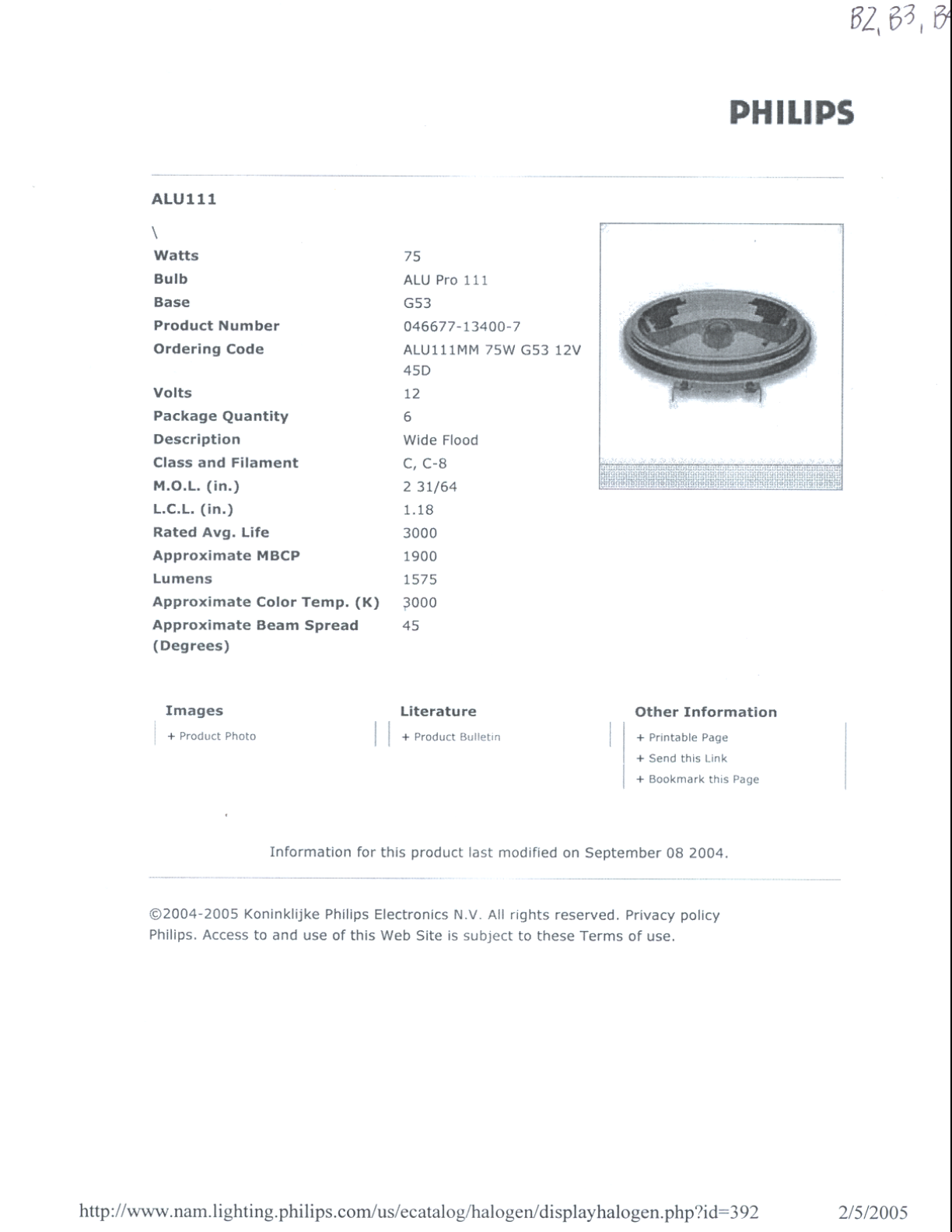

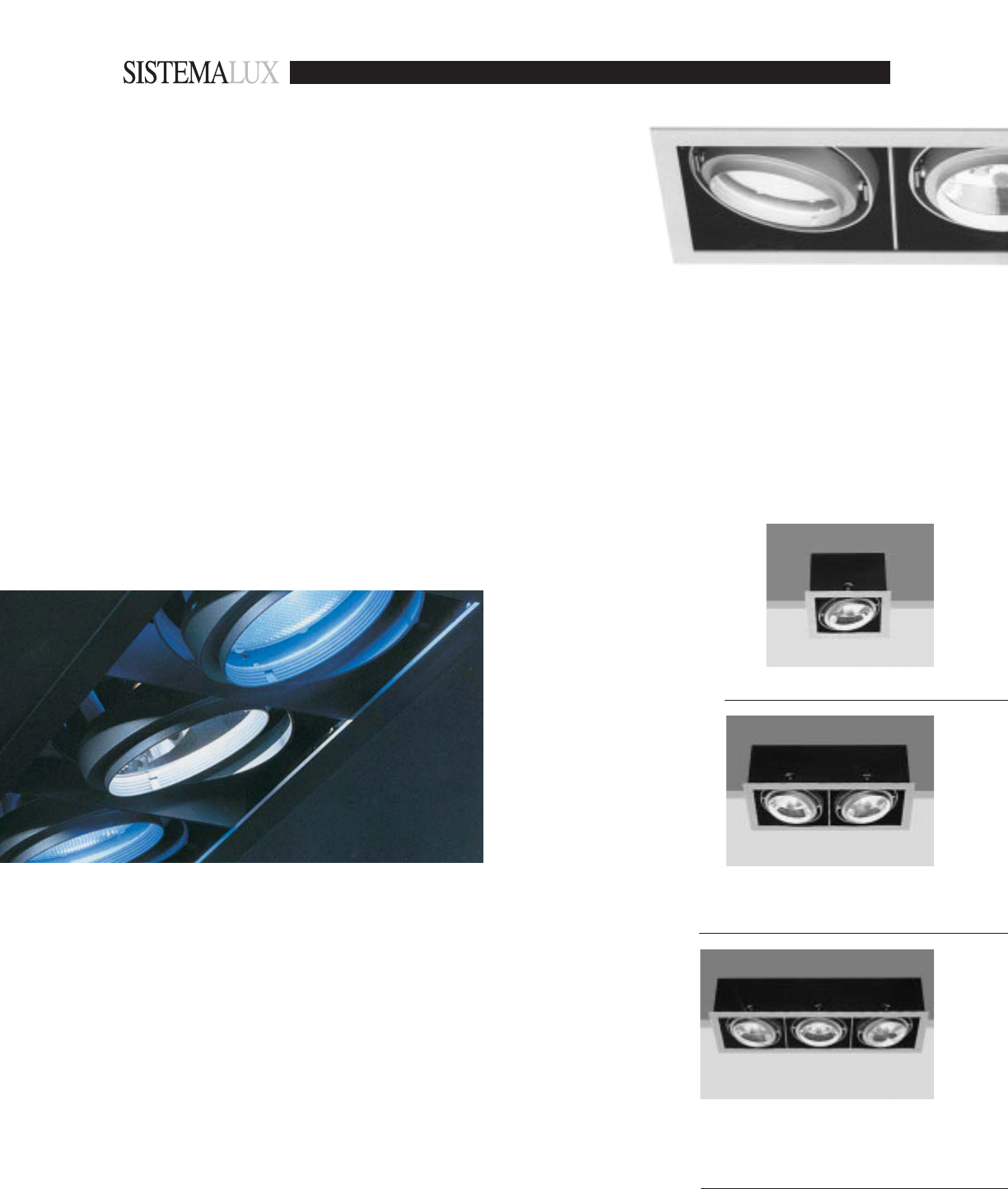

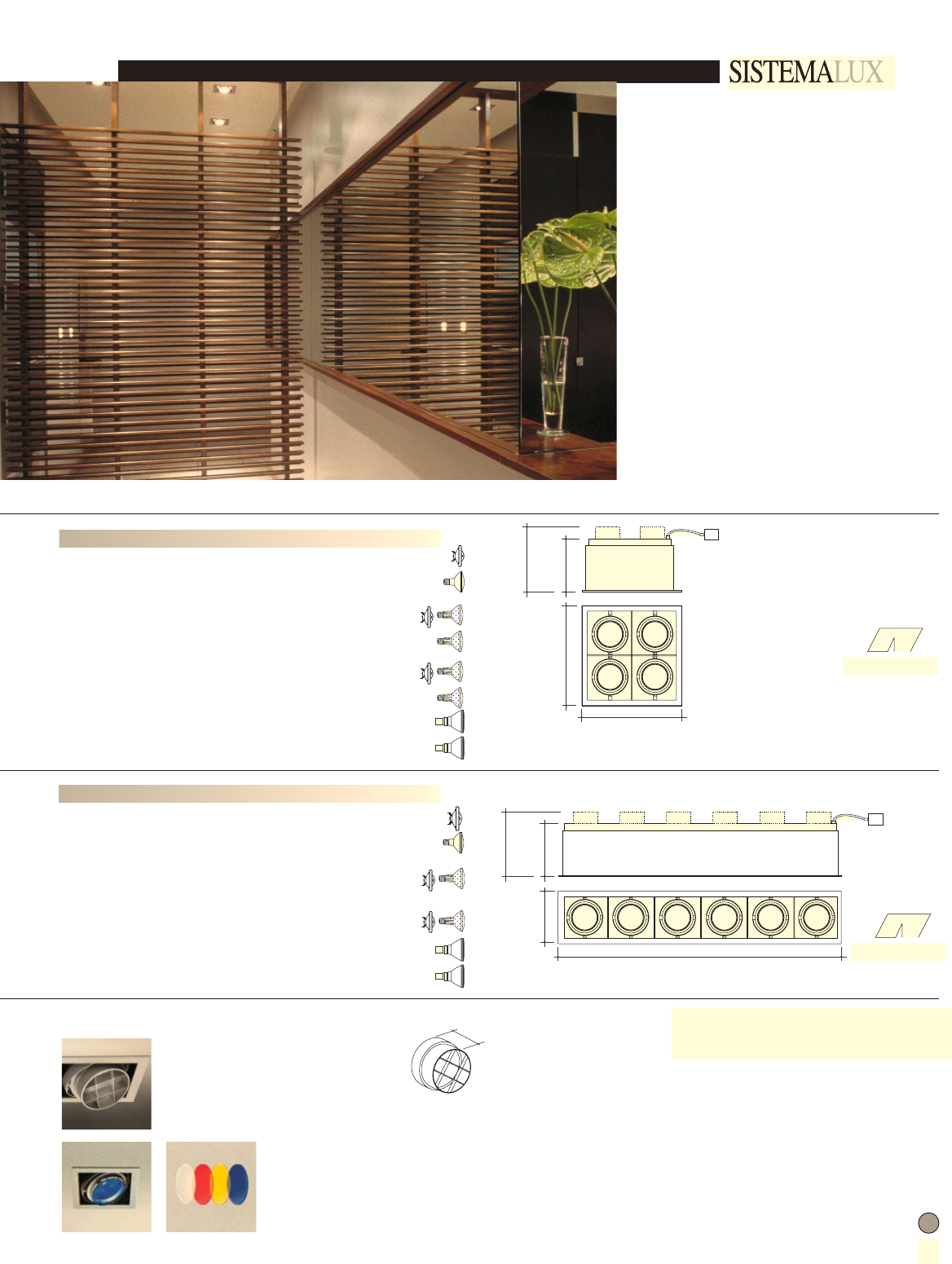

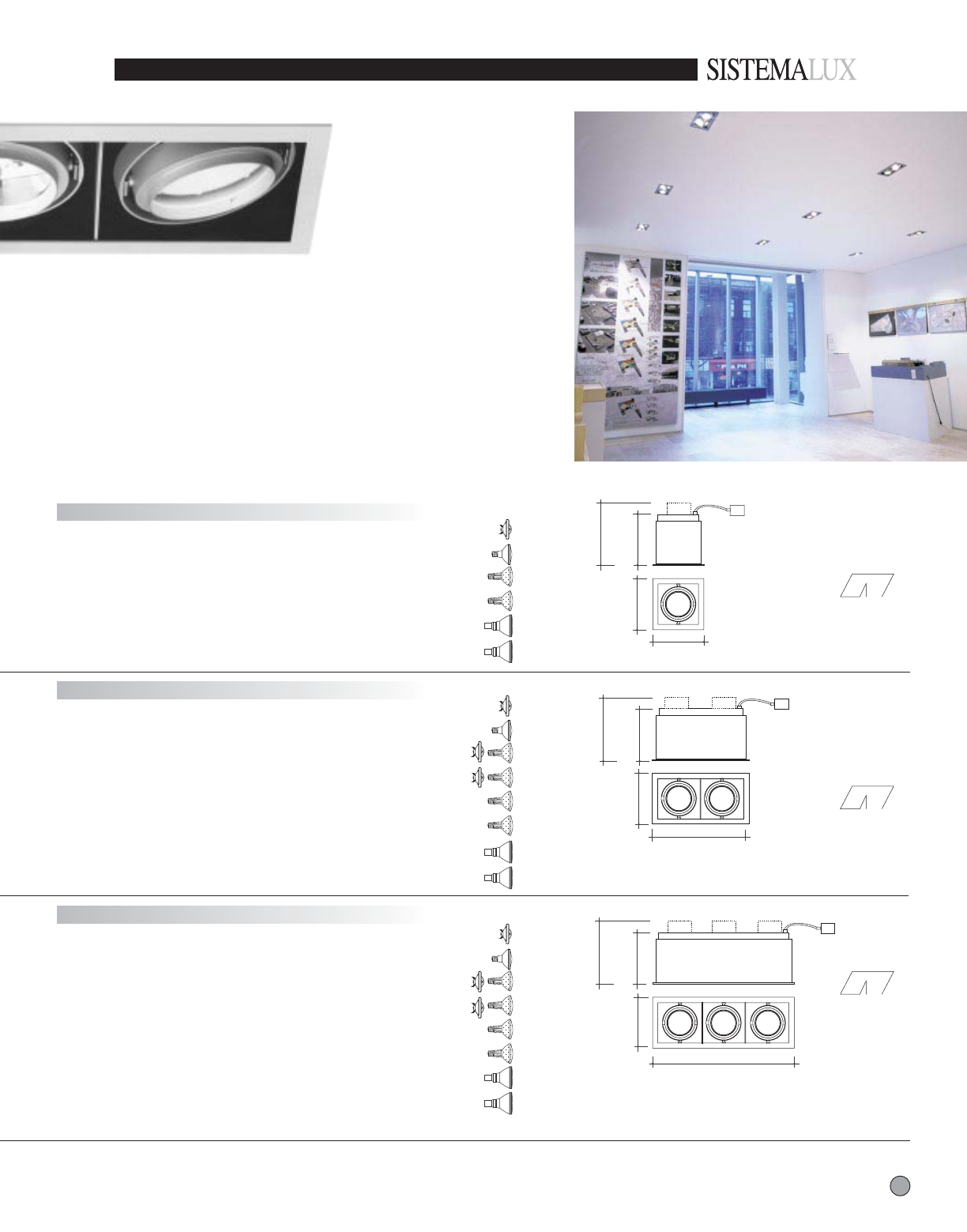

B2 DIRECTIONAL RECESSED DOWNLIGHT, DIE
CAST ALUMINUM OPTICAL ASSEMBLY
(2) PAR30 35MH/3000K +
(2) AR111 75W/3000K
SISTEMA 8240-
MH30 120 232 MH DUAL
B3 DIRECTIONAL RECESSED DOWNLIGHT, DIE
CAST ALUMINUM OPTICAL ASSEMBLY
(2) PAR30 70MH/3000K +
(2) AR111 75W/3000K
SISTEMA 8240-
MH70 120 326 MH DUAL
B4 DIRECTIONAL RECESSED DOWNLIGHT, DIE
CAST ALUMINUM OPTICAL ASSEMBLY (2) AR111 75W/3000K SISTEMA 8220-AR 120 150 NA
B5

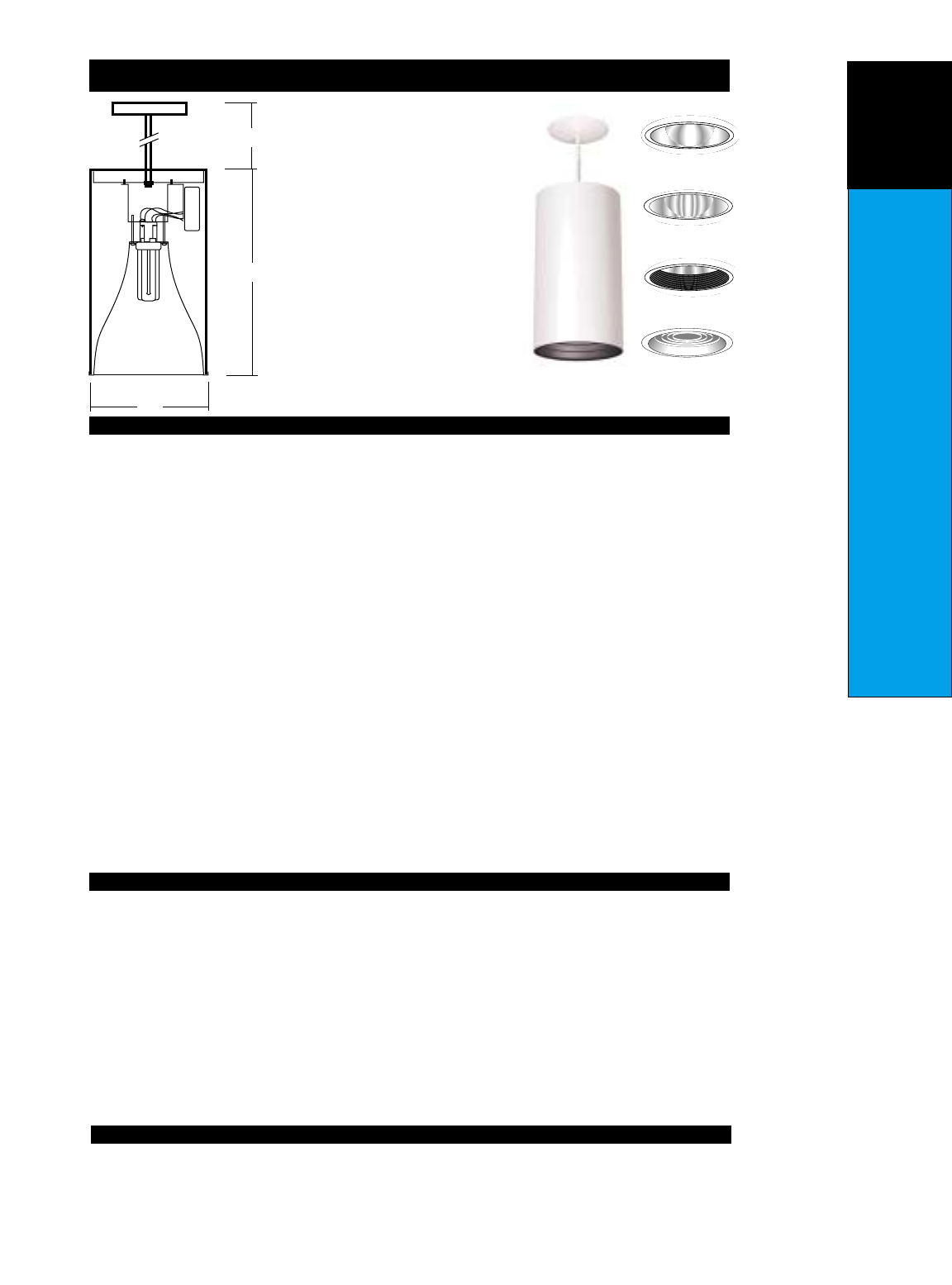

CYLINDRICAL DOWNLIGHT, PENDANT
MOUNTED, CLEAR ALZAK REFLECTOR,
BLACK FINISH, MOUNTING HEIGHT 10' FROM
FLOOR
(1) F32TBX/3000K 4 PIN DELRAY CP8100 120 32 DIMMING
B6
DECORATIVE 9"X9" SQUARE DOWNLIGHT,
CLEAR ACRYLIC FINISH WITH TRANSLUCENT
DIFFUSED COATING
(2) 32WTBX/3000K LIGHTOLIER
SL207A 120 67 ELECTRONIC
RAPID START

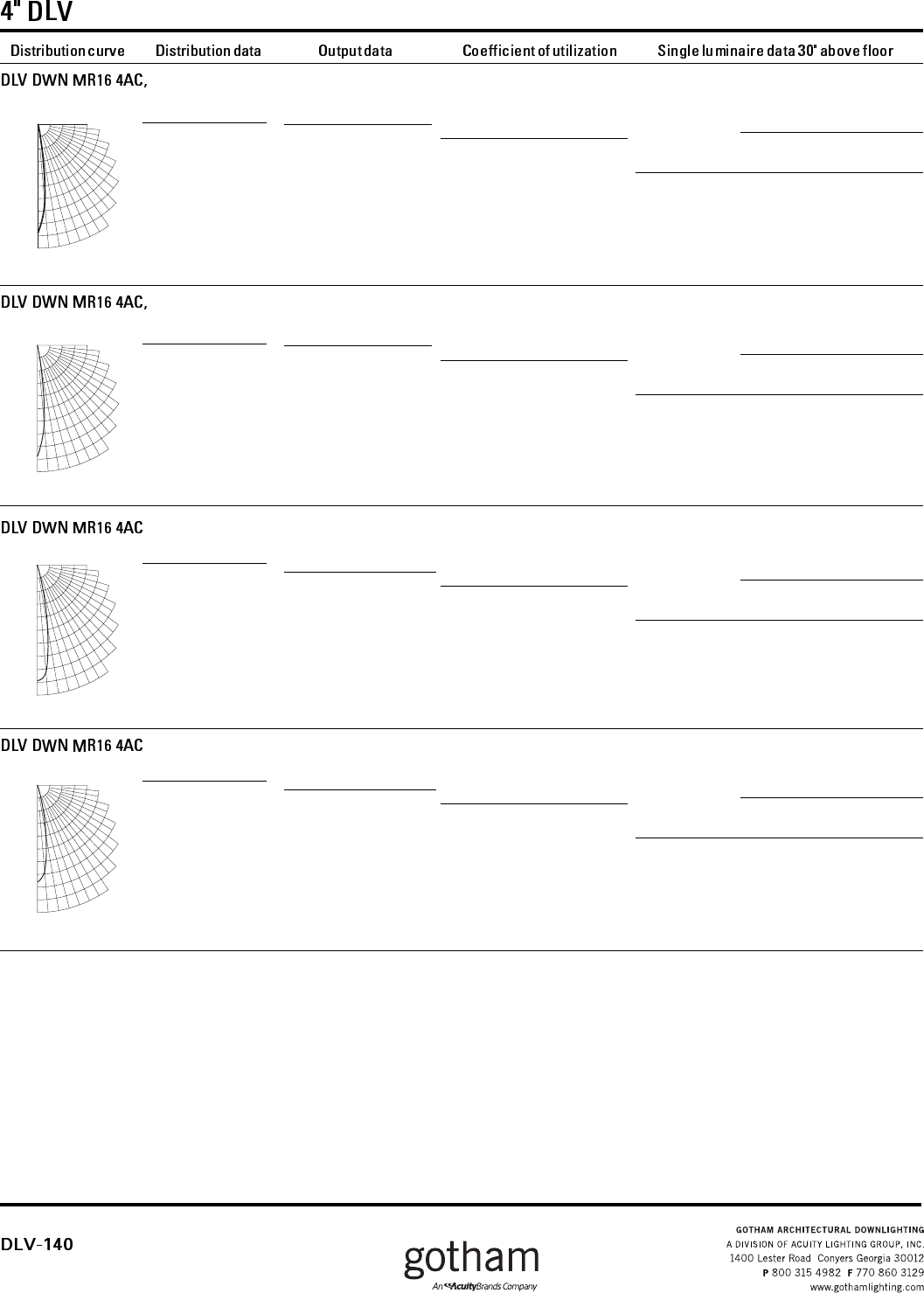

B7

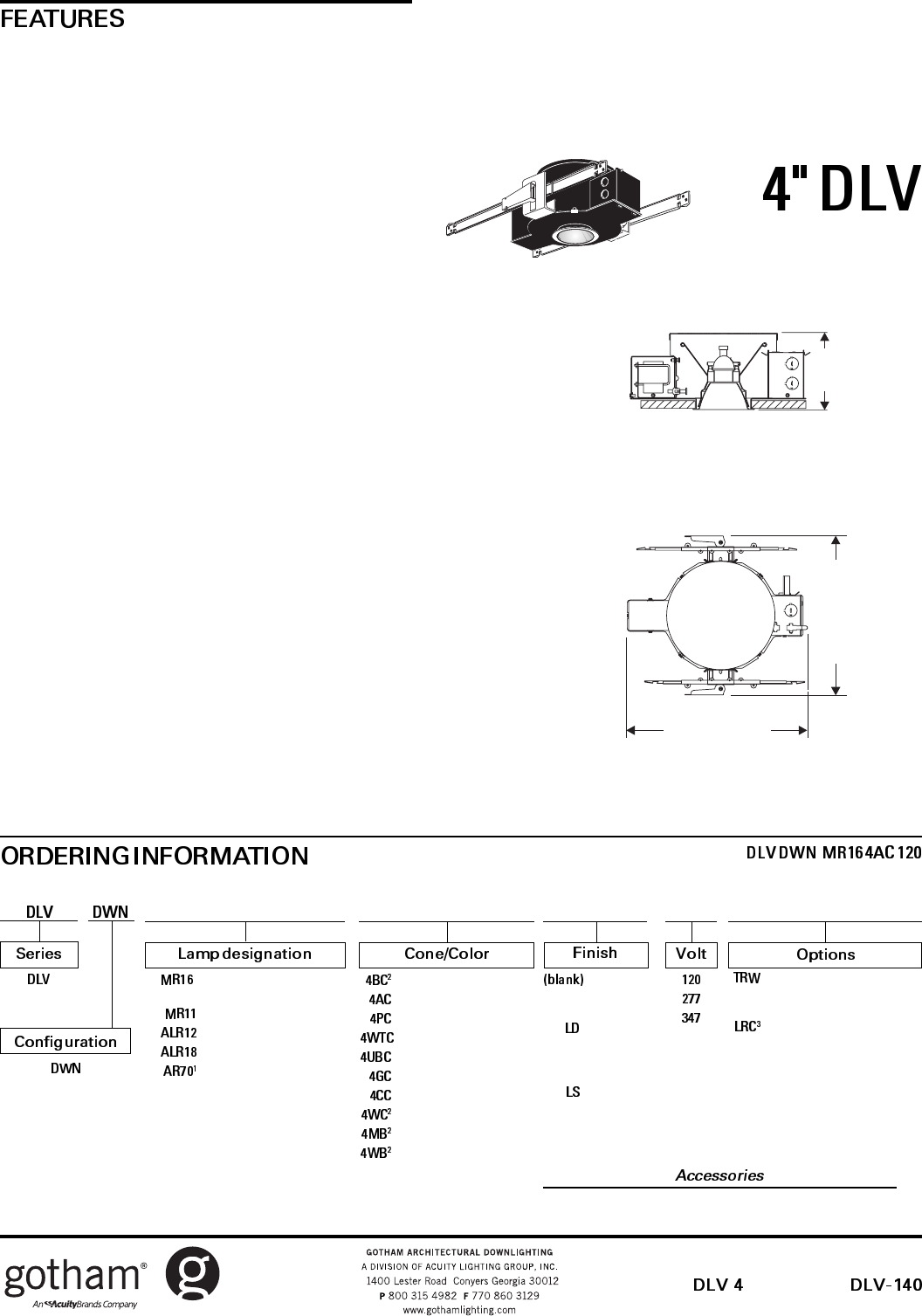

4" LOW VOLTAGE DOWNLIGHT, OPEN CLEAR
CONE, SPECULAR LOW IRIDESCENT FINISH,
LENS OPTION
(1) 20WMR16 FL GOTHAM DLV 120 20 NA
B8 1" RECESSED DOWNLIGHT, LENSED
PINHOLE, FLOOD DISTRIBUTION (1) 20WMR16 FL GOTHAM DLV 120 20 NA

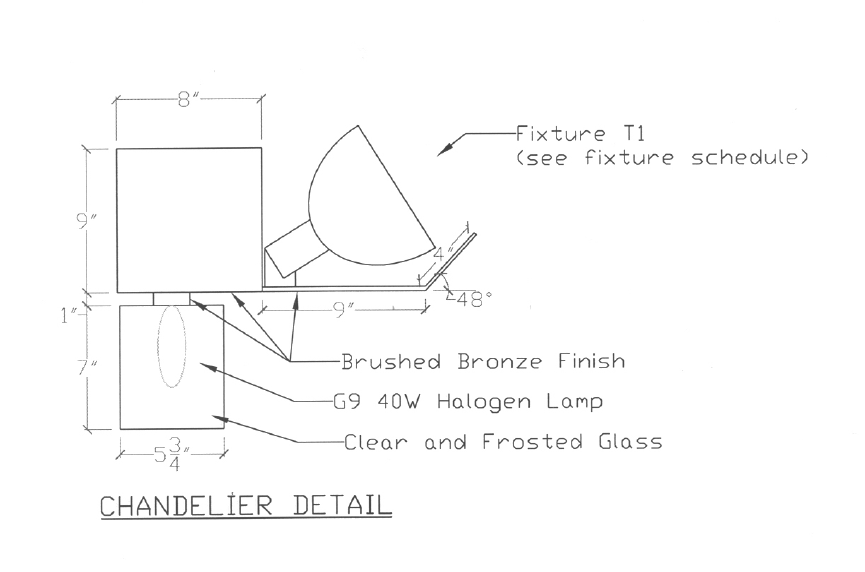

D1

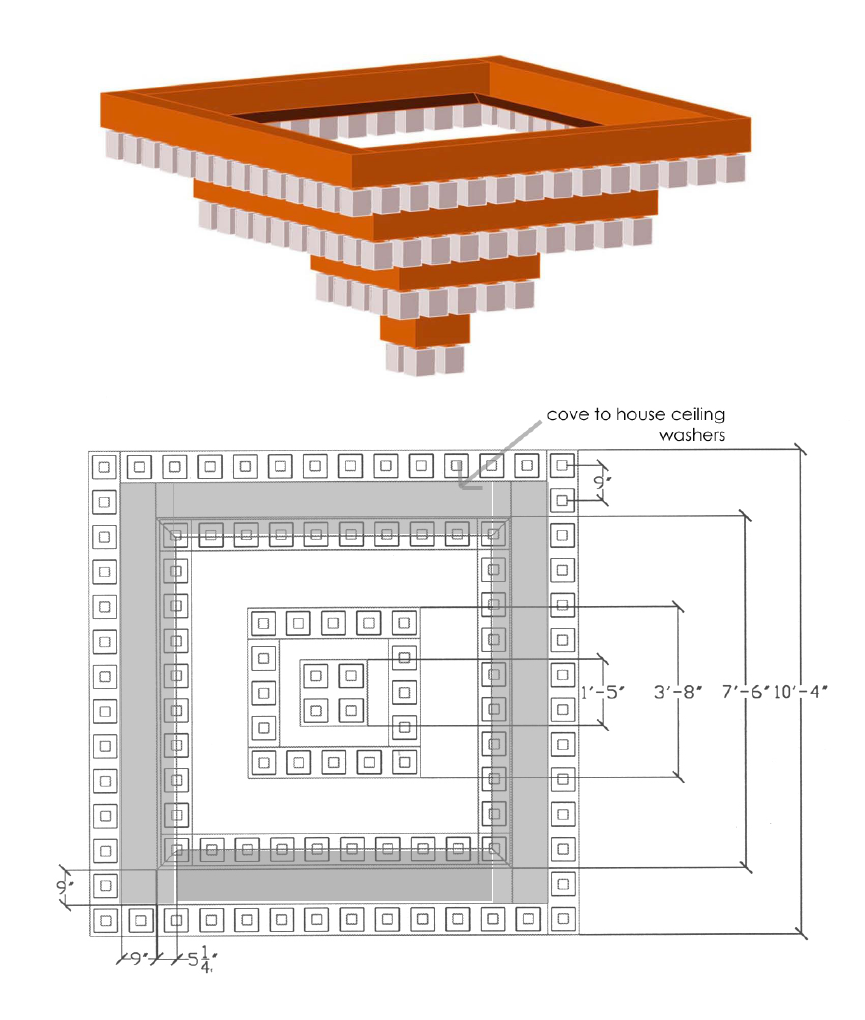

CUSTOM DECORATIVE CHANDELIER,
FROSTED SQUARE LAMP SHADE, SQUARE
SHAPE, COVE FOR HOUSING CEILING
HIGHLIGHT FIXTURES, DARK BRONZE FINISH

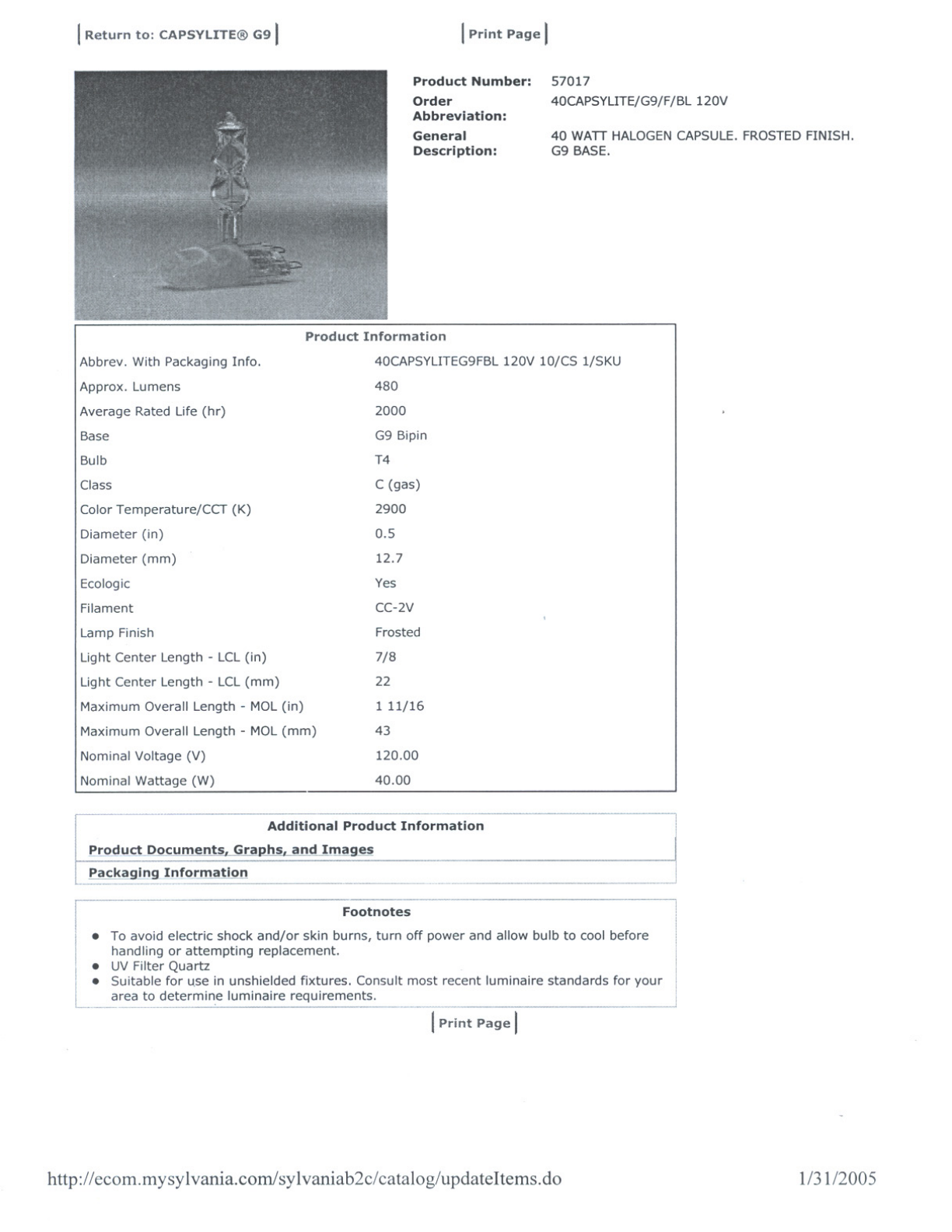

(108) 40W HALOGEN G9
FROSTED SEE DETAIL 120 4320 NA

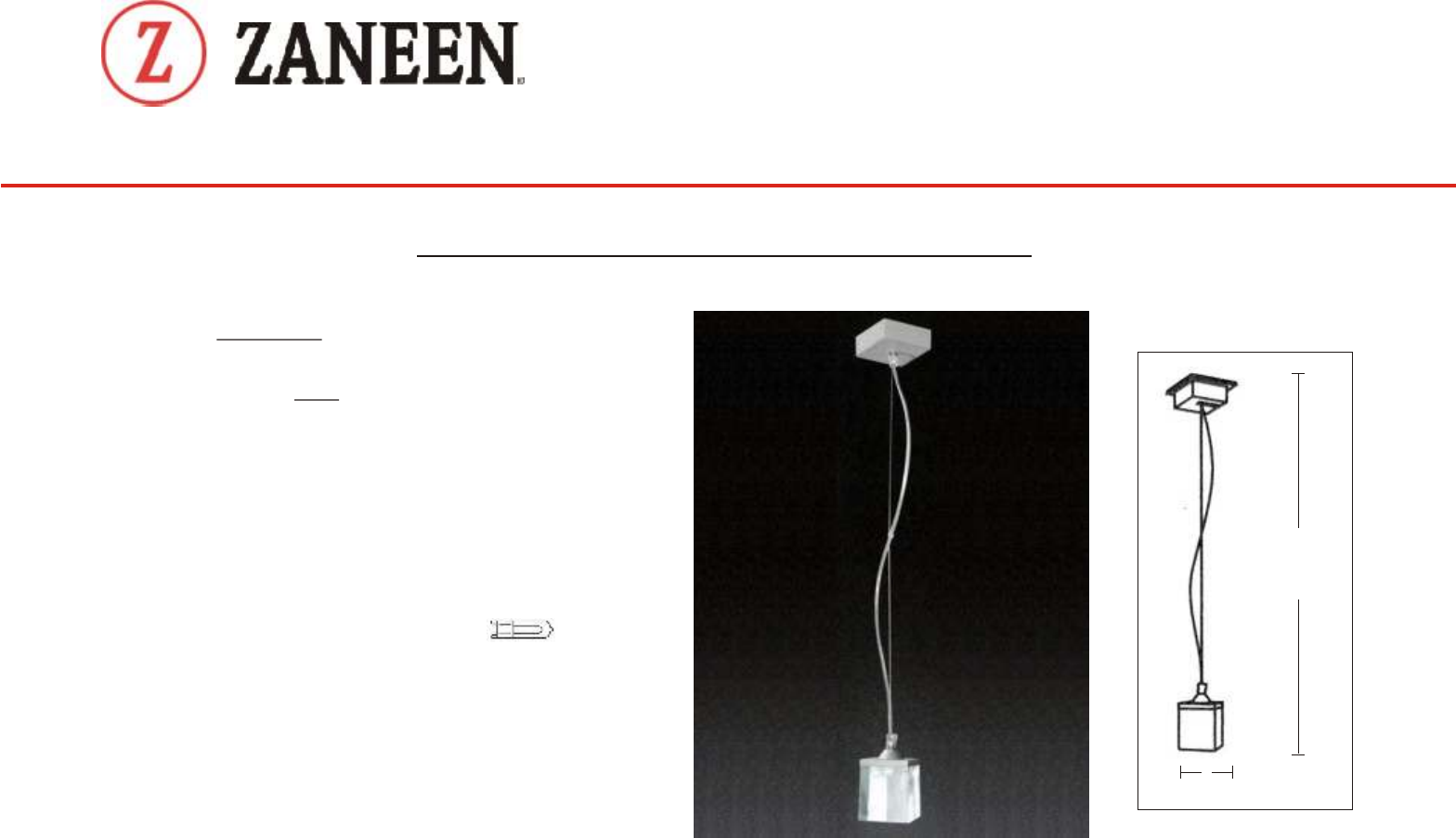

D2 DECORATIVE PENDANT, BRONZE FINISH,
CLEAR AND FROSTED GLASS DIFFUSER
(1)40W HALOGEN G9
FROSTED ZANEEN D4-1027 120 40 NA

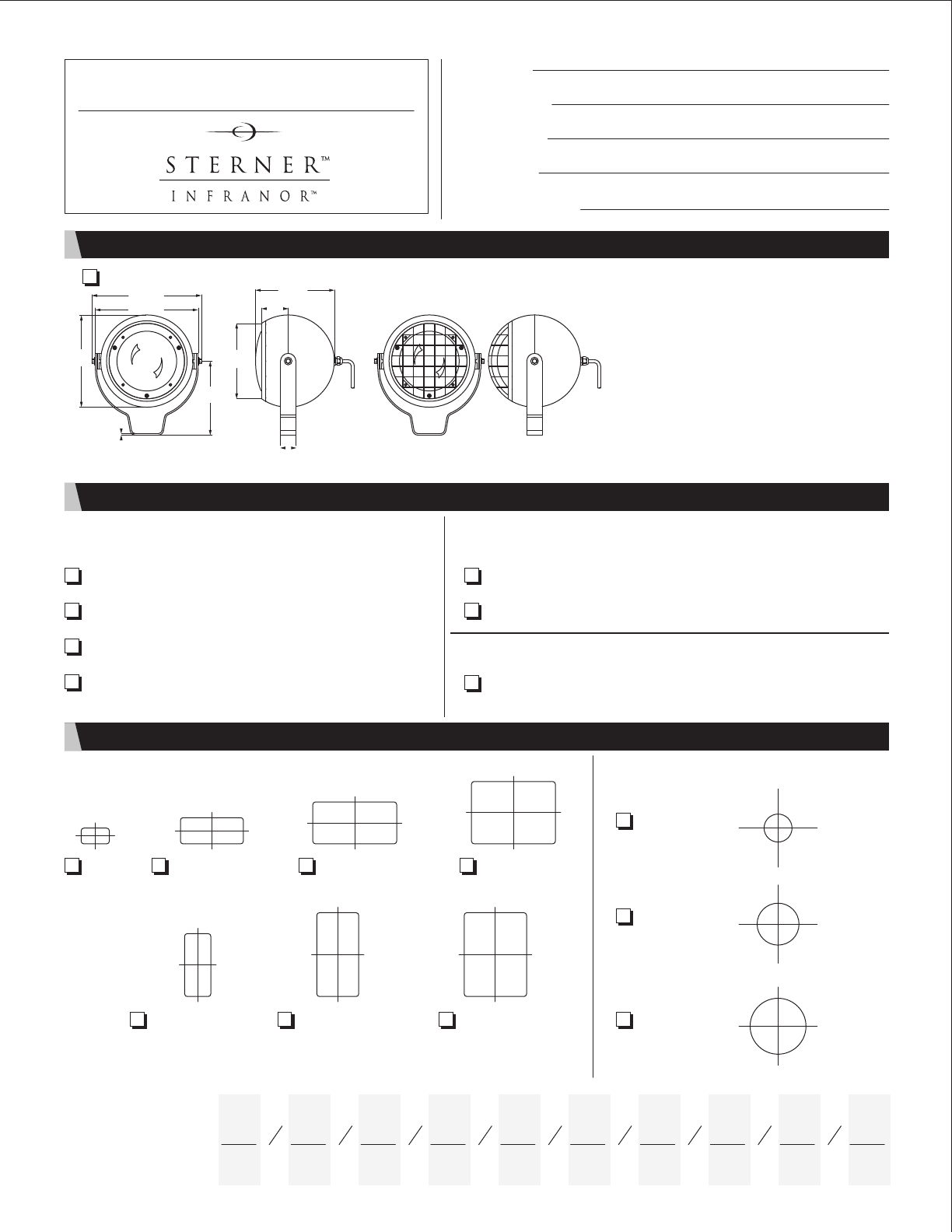

O1
SPHERE SHAPED DIE-CAST ALUMINUM
HOUSING, PRISMATIC GLASS LENS,
RECTANGULAR WIDE DISTRIBUTION, DARK
BRONZE FINISH, UL LISTED FOR WET
LOCATIONS, FOUR FIXTURE HEADS, ONE
MOUNTED AT 19'-8", ONE AT 18'-8", TWO
MOUNTED ON SIDES AT 17'-8"
(1) PAR56 100MH/3000K STERNER
CALLISTOR-12 120 125 MH DUAL
O2

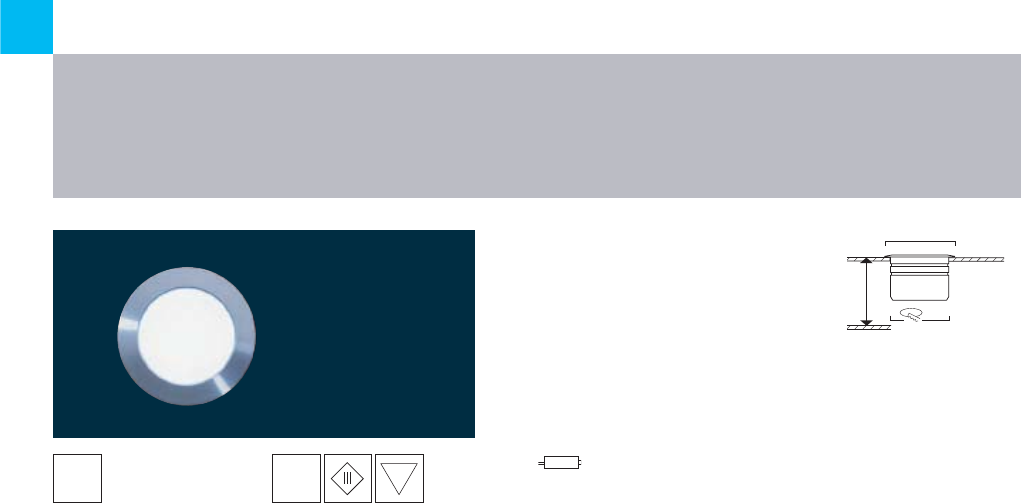

LIGHT SPOT WITH 9 LED IN STAINLESS
STEEL, OPAL OPTIC COVER, TRANSFORMER
INCLUDE IN FIXTURE
(9) WHITE LEDS
INCLUDED WITH
FIXTURE
ANSORG
LED DOT 24 2 NA
O3
COMPACT LINE VOLTAGE FIXTURE, FULLY
ADJUSTABLE MOUNTING, SIPHONE
PROTECTION SYSTEM, BRONZE FINISH,
LANDSCAPE ACCENT, UL LISTED FOR WET
LOCATIONS

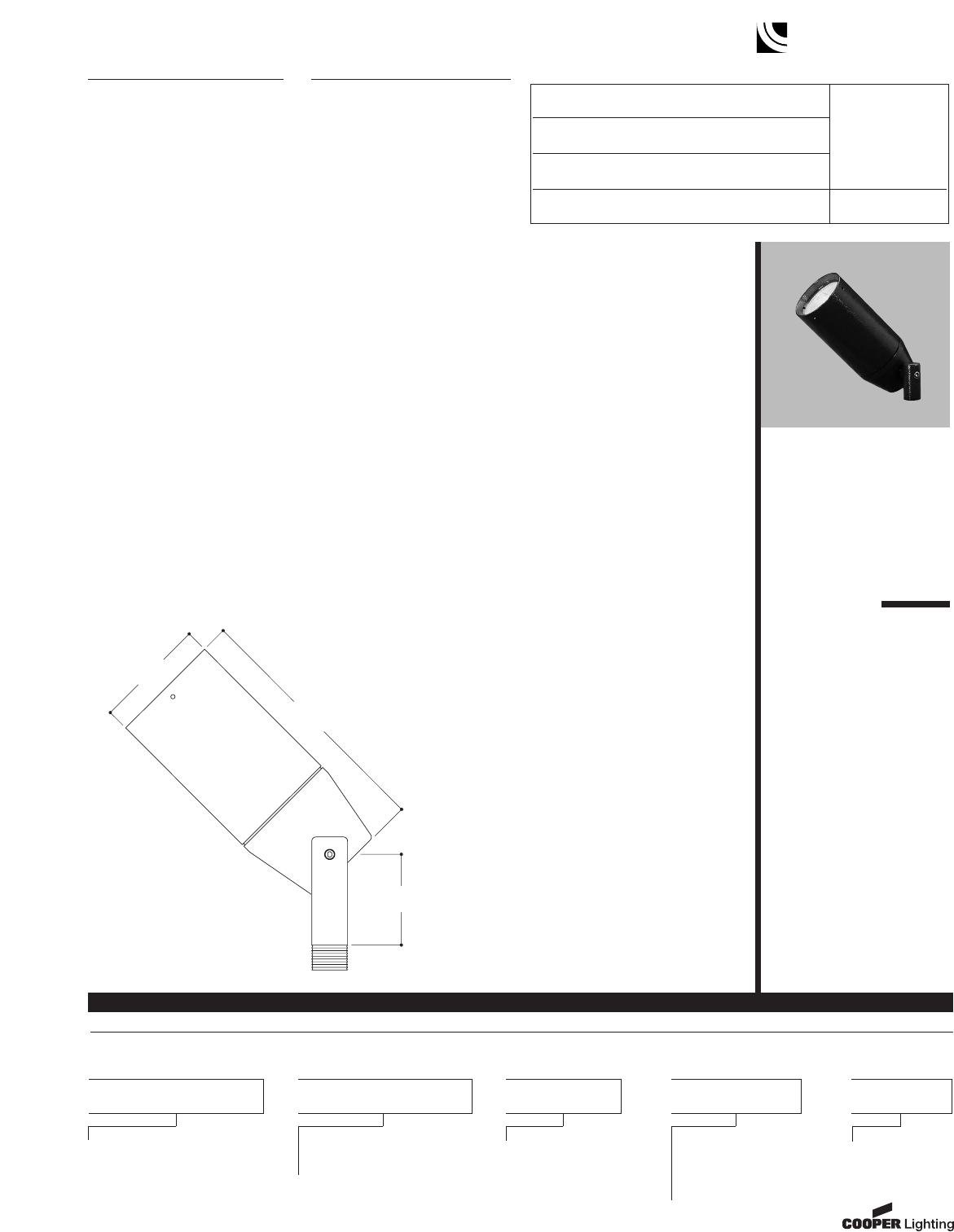

(1) PAR20 50W LUMIERE
CORONADO 806 120 50 NA

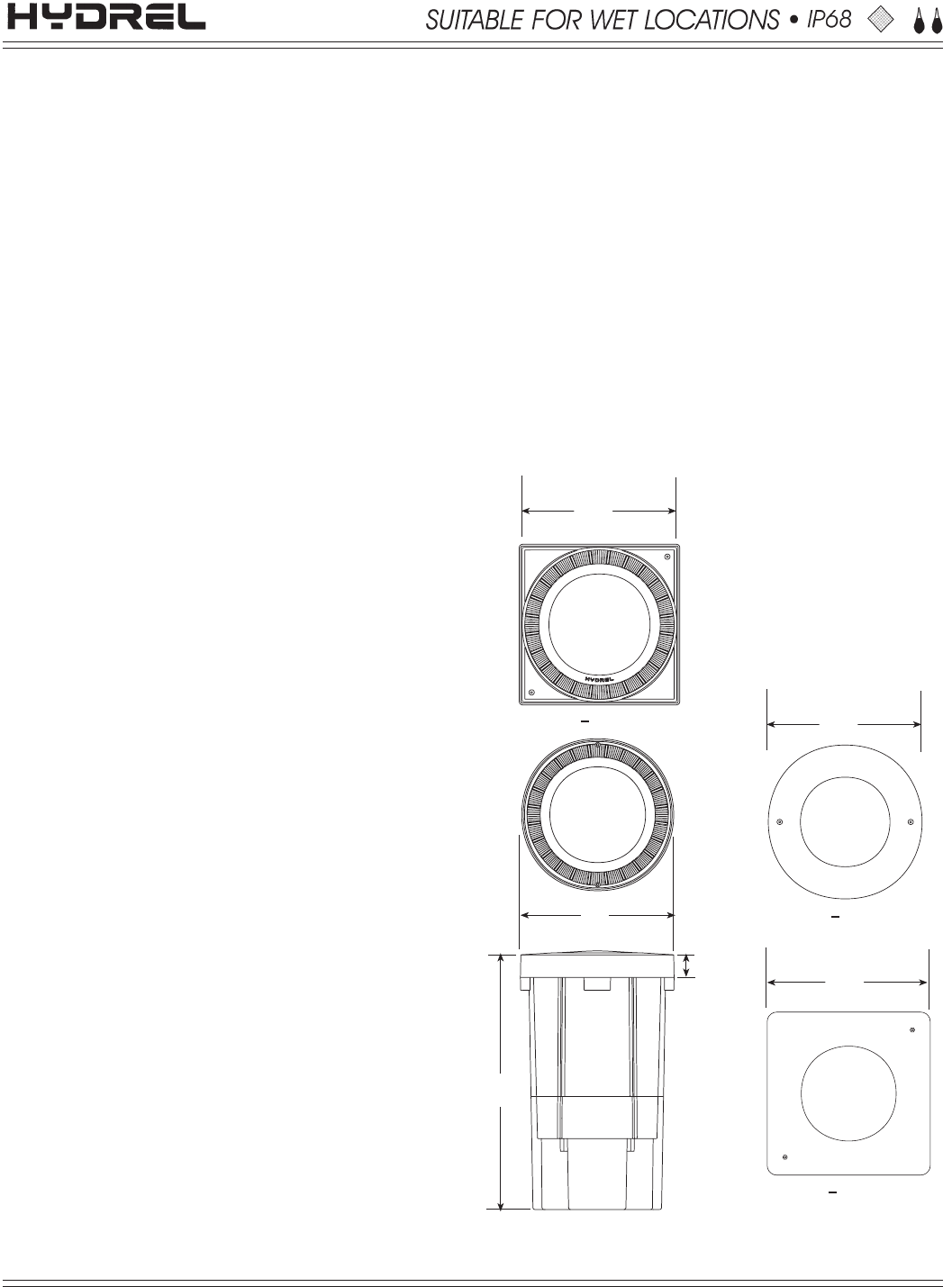

O4
RERCESSED INGRADE WELL UPLIGHT
FIXTURE, CAST BRONZE DOOR, SPOT
DISTRIBUTION, DOUBLE LENS, UL LISTED
FOR WET LOCATION
(1) PAR56 100MH
ED17/3000K HYDRELL M9700 120 125 MH DUAL
O5

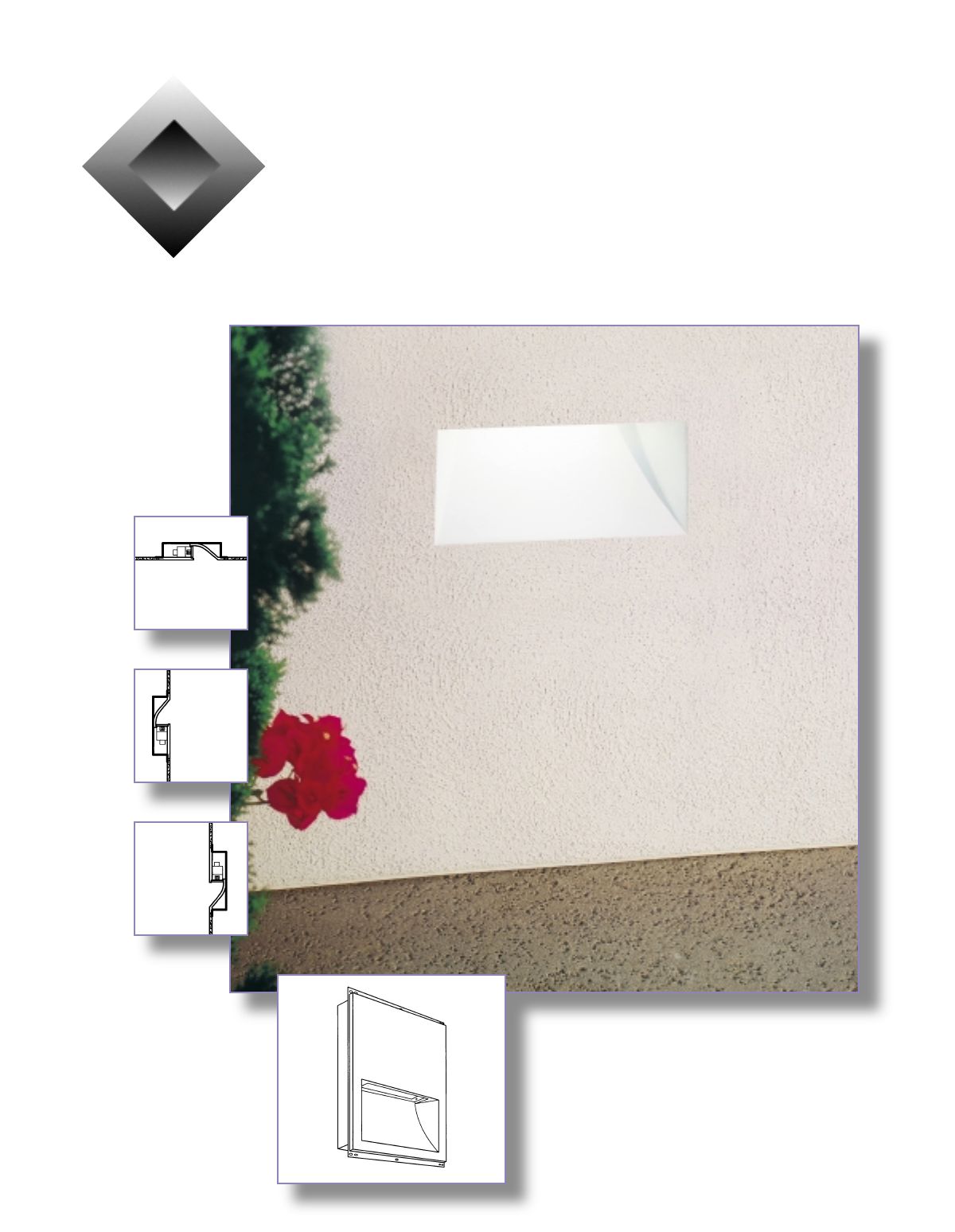

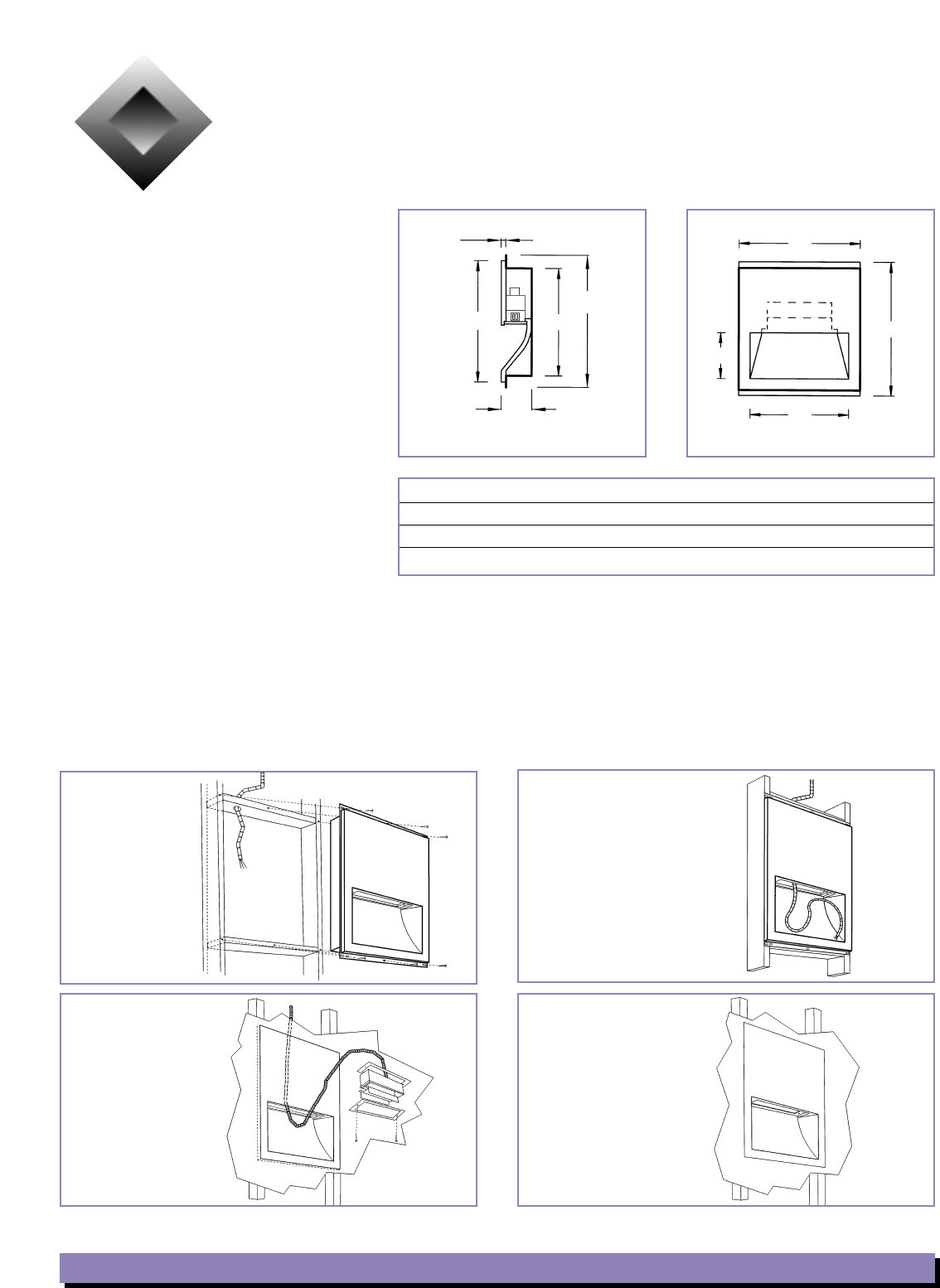

INDIRECT RECESSED HOLE IN THE WALL
LIGHT NICHE FOR EXTERIOR STUCCO
CONSTRUCTION, UL LISTED FOR WE
LOCATIONS
(1) F32TBX/3000K 4 PIN
ENGINEERED
LIGHT PRODUCTS
HITW-EX
120 36 ELECTRONIC
RAPID START
![](asset-3.png)
O6

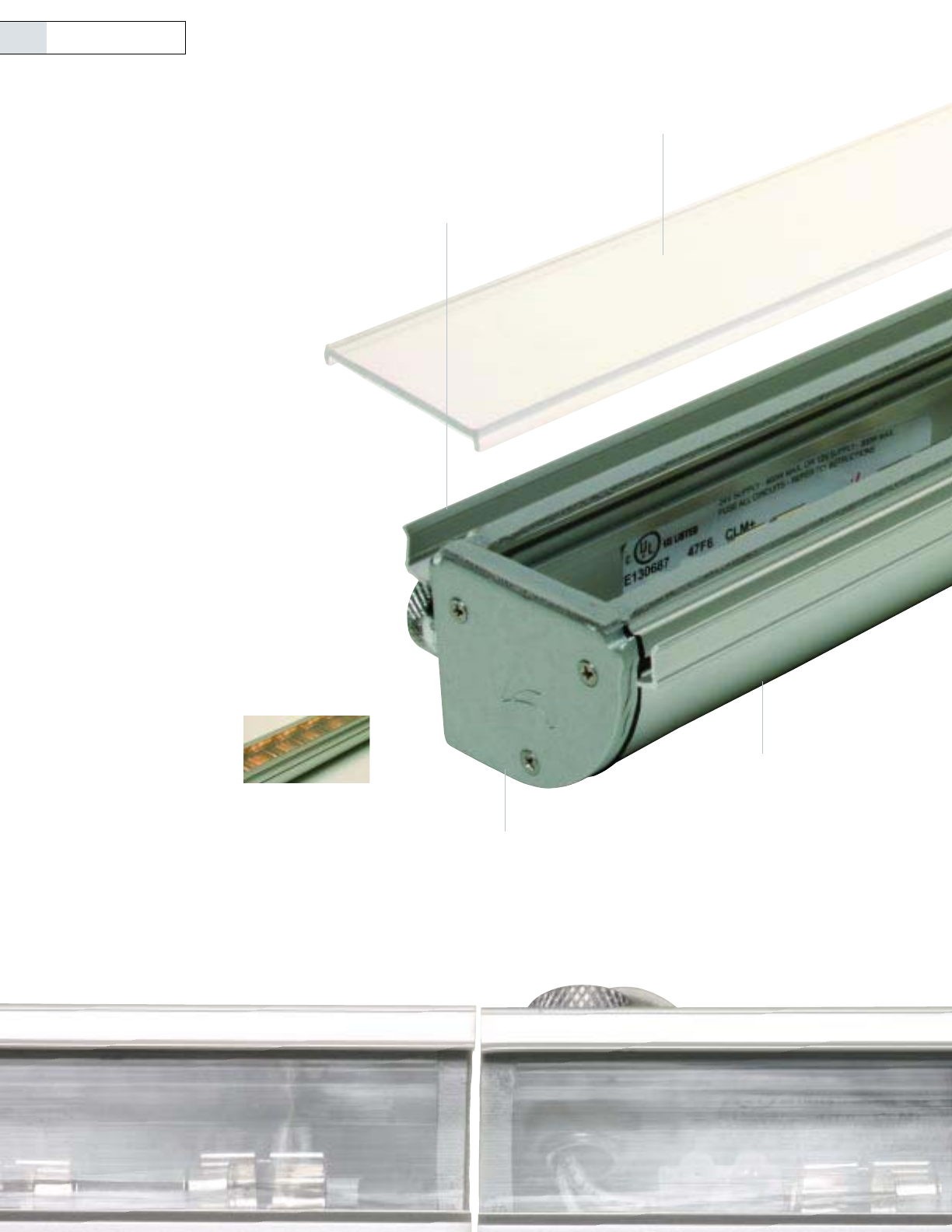

FLEXIBLE LED COMPACT LINEAR RAIL
FIXTURE, CLEAR POLYCARBONATE LENS, 8'
SECTIONS, UL LISTED FOR WET LOCATIONS,
INCLUDE TRANSFORMER
LED OPTION ARDEE CLM 12 48 48
O7
SPHERE SHAPED DIE-CAST ALUMINUM
HOUSING, PRISMATIC GLASS LENS,
RECTANGULAR WIDE DISTRIBUTION, DARK
BRONZE FINISH, UL LISTED FOR WET
LOCATIONS, TWO FIXTURE HEADS, ONE
MOUNTED AT 15'-8", ONE MOUNTED AT 14'-8"
(1) PAR56 70MH/3000K STERNER
CALLISTOR-12 120 88 MH DUAL

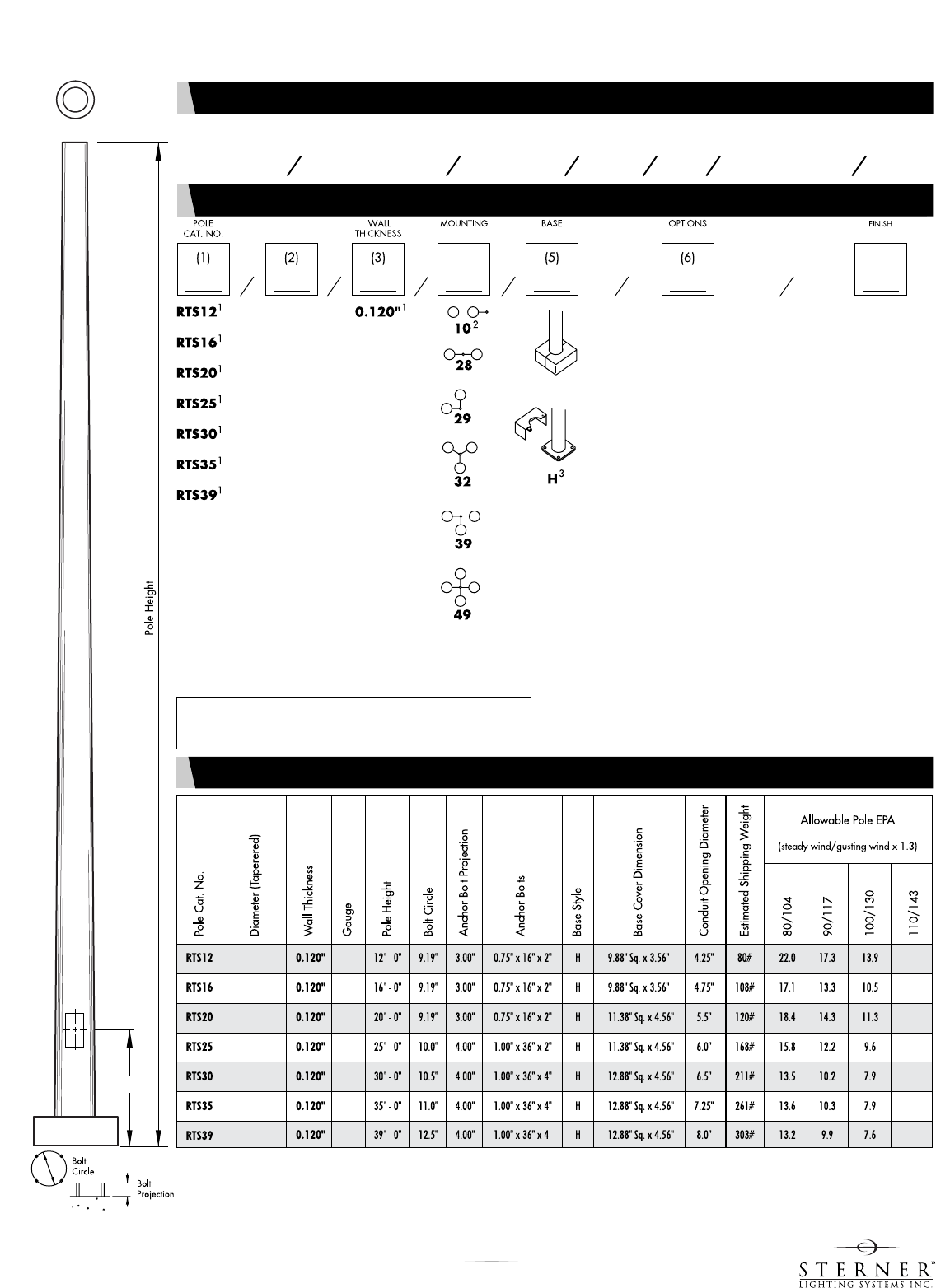

P1 ROUND TAPERED STELL POLE, DARK
BRONZE FINISH, 20' POLE HEIGHT NA STERNAR RTS NA NA NA
P2 ROUND TAPERED STELL POLE, DARK
BRONZE FINISH, 16' POLE HEIGHT NA STERNAR RTS NA NA NA
T1

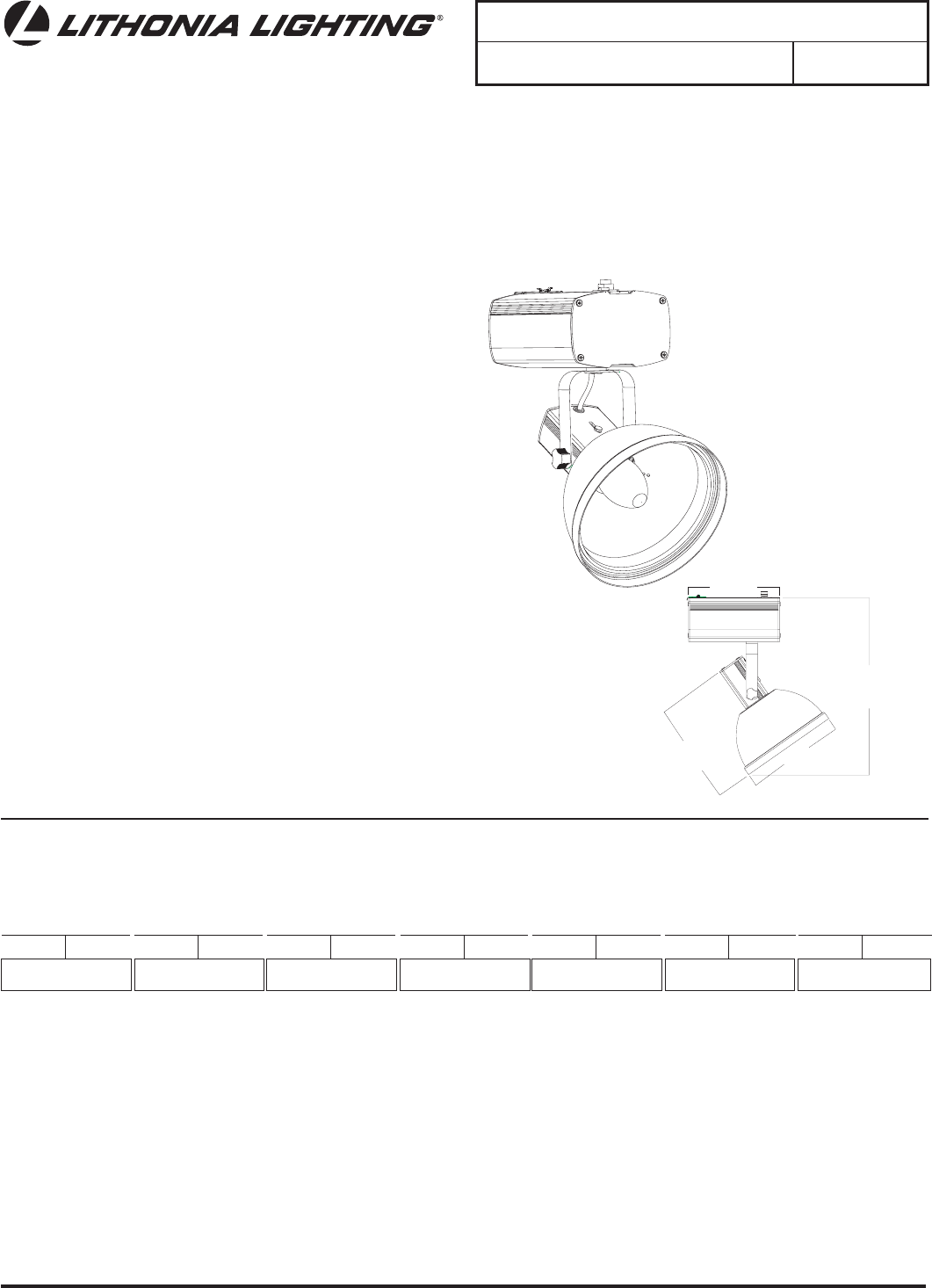

8" OPEN TRACK FIXTURE, DIFFUSE
ALLUMINUM REFL., WIDE FLOOD
DISTRIBUTION
(1) PAR30 70MH/3000K LITHONIA LTD
REFL 120 85 MH SINGLE
T2B SURFACE MOUNTED 120V TRACK SYSTEM, 4'
SECTIONS, BLACK FINISH NA NORDIC
ALUMINUM 120 NA NA
T3

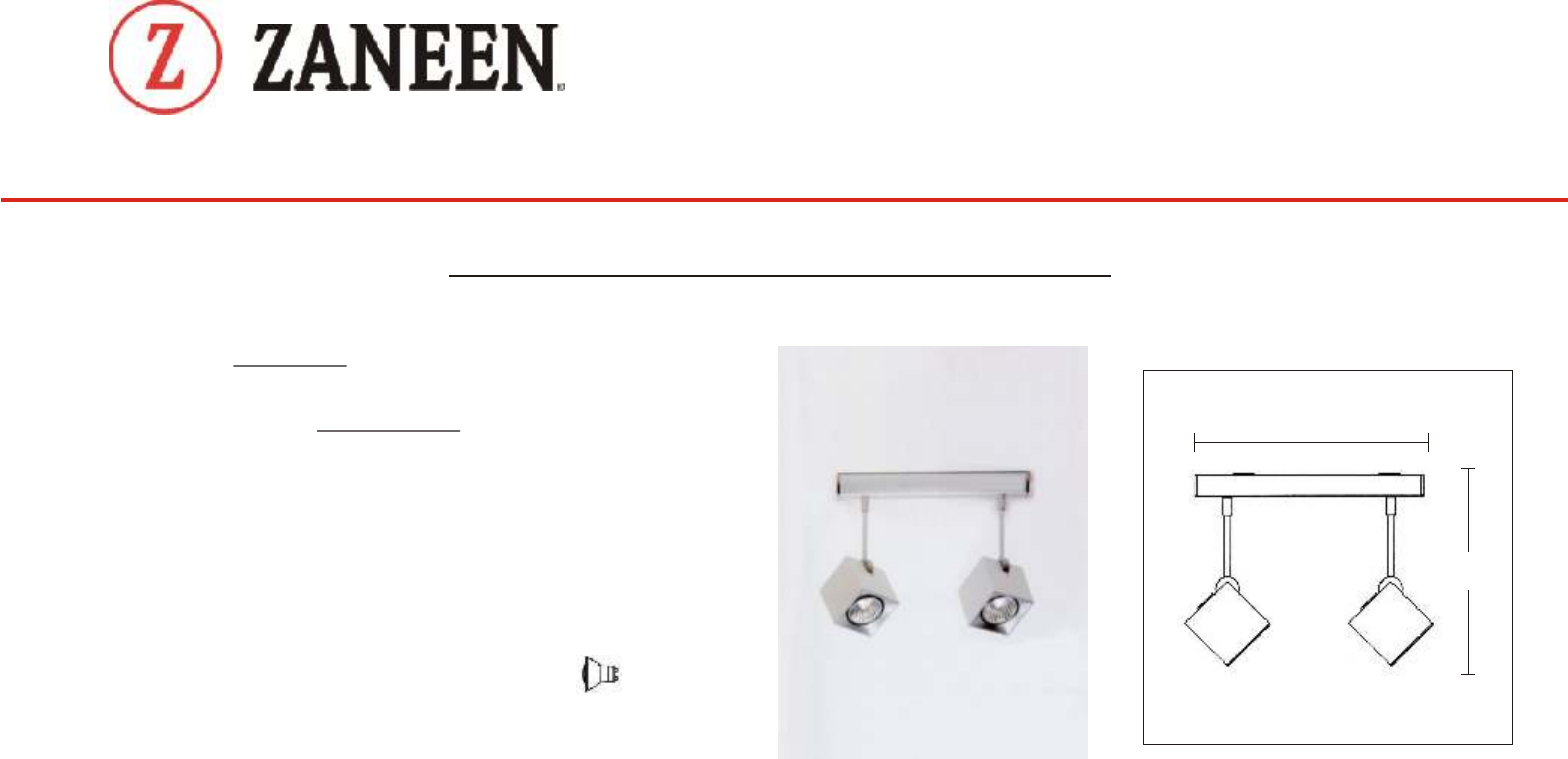

LOW VOLTAGE DECORATIVE SPOT,
SURFACED MOUNTED, WHITE FNISH,
SQUARE SHAPED
(1)75W HALOGEN MR20 ZANEEN D9-2018 120 75 NA
![](asset-4.png)
35

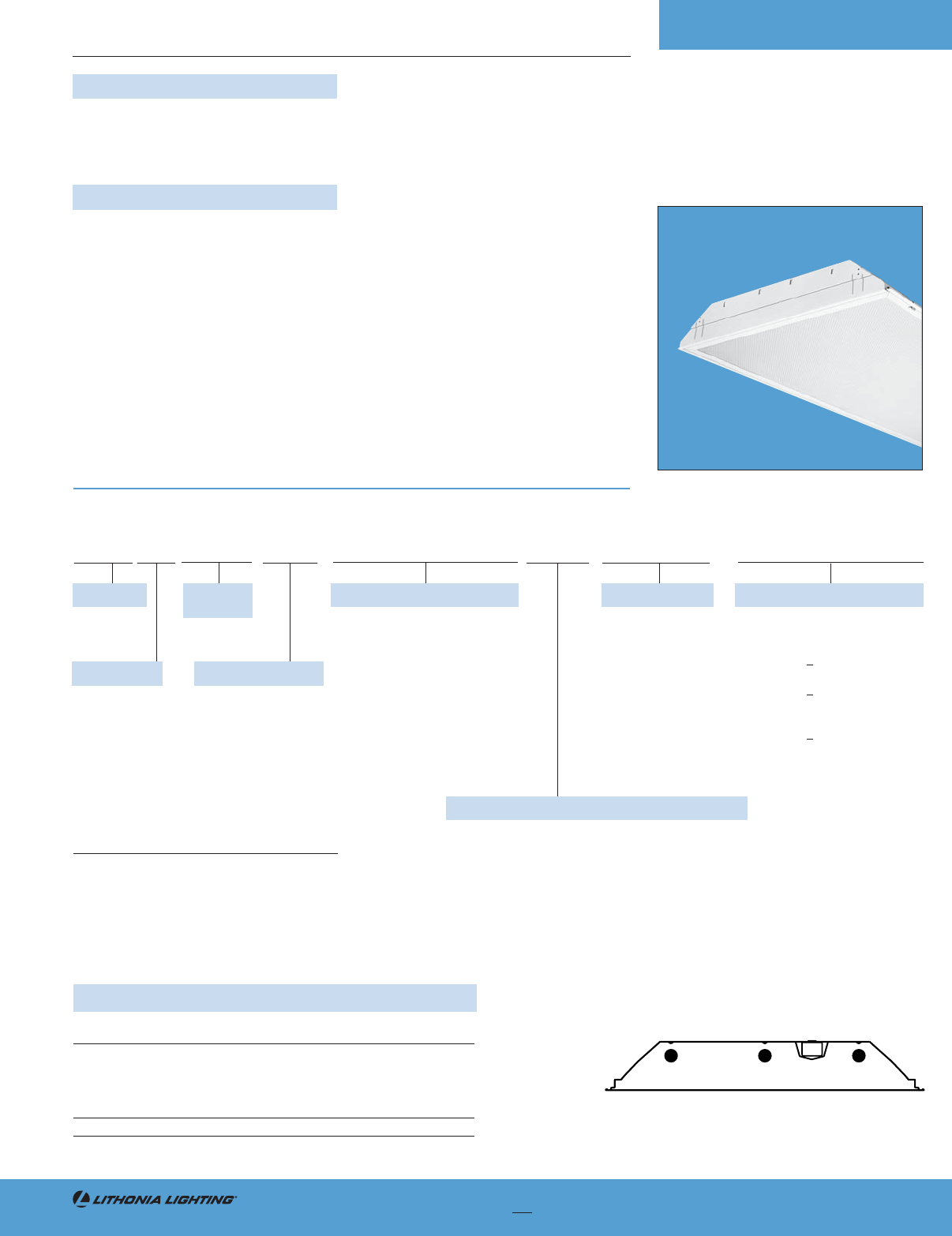

Fluorescent / PSG8
Features
Innovative low-profile design optimized
around T8 lamps, low-profile electronic
ballasts and T8 compact sockets.
Hemmed sides provide smooth edges for
easy handling during installation.
Standard steel door frame features pre-
cise flush-mitered corners.
Unique door frame design delivers a pre-
mium extruded appearance.
Housing and door frame interface pro-
vides a superior mechanical light seal
without the use of foam gasketing.
Specification Premium T8 Troffers
Availability and Dimensions
Nominal Number Lamp Height
Size Series of Lamps Type in.(cm)
2SP8 2 17, U31, U316, CF39 311/16 (9.3)
2SP8 2 CF40, CF50, CF55 311/16 (9.3)
2x2 2SP8 3 17, U31, CF39 311/16 (9.3)
2SP8 3 CF40, CF50, CF55 311/16 (9.3)
2SP8 4 17 311/16 (9.3)
2x4 2SP8 2, 3, 4, 6 32 311/16 (9.3)
Intended Use
Specification premium, high perfor-
mance, static T8 luminaires provide gen-
eral illumination for recessed applica-
tions; ideal for restricted plenum spaces.
NOTES:
1 4- and 6-lamp models available with 17W and 32W
straight tubes only.
2 Not available on 3-lamp fixtures. Use U31.
3 Standard A12 diffuser has reverse apex technology.
Ordering Information Example: 2SP8 G 3 32 A12 120 1/3 GEB
Trim type
GGrid
FFlanged
MT Modular
fit-in
Series
2SP8 2' wide
Number
of lamps
2, 3, 41, 61
Not included.
Diffuser type
A12 #12 pattern acrylic3
A12125 #12 pattern acrylic, .125" thick
RA125 #12 pattern acrylic, .125" thick (reverse apex)
A19 #19 pattern acrylic, .156" thick
K20 #20 pattern acrylic, .140" thick
84Y Holophane 8224 with overlay
PC1S ½"x½"x½" plastic cube louver, silver
PC2S 1½"x1½"x1" plastic cube louver, silver with flange
PC3S ¾"x¾"x½" plastic cube louver, silver
Frame type
(blank) Flush steel, white
FN Flush aluminum, natural
FM Flush aluminum, matte
black
FW Flush aluminum, white
RN Regressed aluminum,
natural
RM Regressed aluminum,
matte black
RW Regressed aluminum,
white
Lamp type
17 17W T8 (24")
U31 31W T8 U (15/8"
leg)
U316 31W T8 U (6" leg)2
32 32W T8 (48")
CF39 39W TT5 (16")
CF40 40W TT5 (24")
CF50 50W TT5 (24")
CF55 55W TT5 (24")
Standard latch provides spring action.
Door latches and hinges from either side.
Improved performance – higher fixture
efficiency and reduced lamp image.
Integral T-bar safety clips are standard
– no need to install separate clips.
Aluminum door frames available, flush or
regressed.
Compatible with virtually all ceiling types.
Field trim modification kits also available.
See page 48.
U.S. patents – 6,210,025; 6,231,213;
6,213,625; 2,288,471.
Listings – UL Listed (standard). CSA Cer-
tified or NOM Certified (see Options).
Options
1/3 One 3-lamp ballast
1/4 One 4-lamp ballast
GEB Electronic ballast,
<20% THD
GEB10IS T8 electronic ballast,
<10% THD, instant
start
GEB10RS T8 electronic ballast,
<10% THD, rapid start
CSA CSA Certified
NOM NOM Certified
See pages 90 & 91 for others.
Voltage
120
277
347
MVOLT*
Others available.
* 120-277V. Must specify
GEB10IS.
Lensed Troffers
SP8
Static
www.lithonia.com
keyword: SP8
A1
![](asset-5.png)

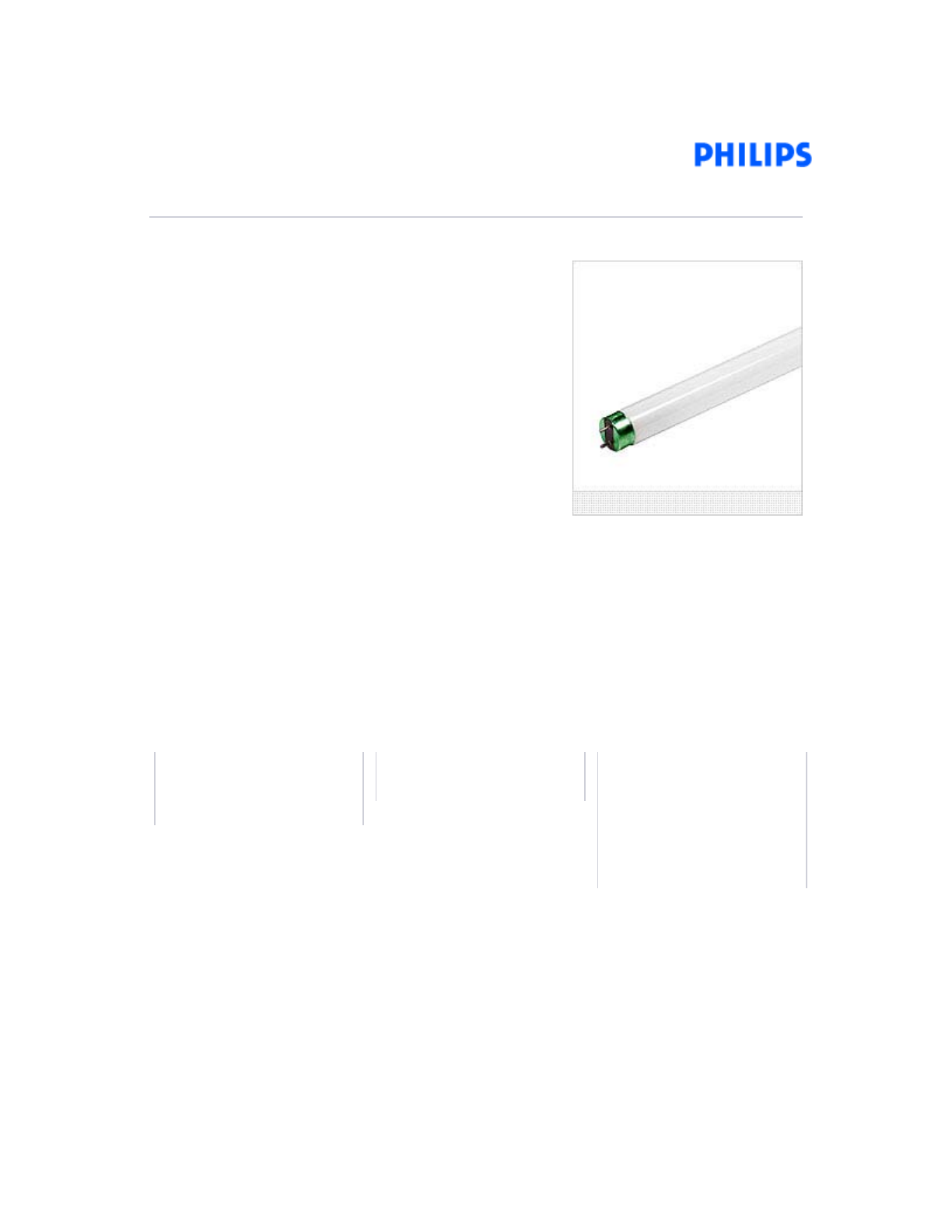

Universal Start Fluorescent Lamps
Feature T8 Medium Bipin featuring HI-
VISION® Phosphor
Watts 32
Bulb T8
Base Med. Bipin
Product Number 046677-27274-0
Ordering Code F32T8/TL735/ALTO UPC
Package Quantity 25
Description TL 735, 3500K
CRI 78
Design Lumens 2710
Nominal Length 48
Approximate Initial
Lumens 2850
Rated Avg. Life
(Hrs.),
3-Hr. Start
20,000
Rated Avg. Life
(Hrs.),
12-Hr. Start
20,000
Images
+ Family Photo
+ Product Logo
+ Product Photo
Literature
+ Family Brochure
+ MSDS S09-98001
Other Information
• Energy Saving Product
• Meets US Federal Minimum
Efficiency Standard
+ Printable Page
+ View Compatible Ballasts
+ Send this Link
+ Bookmark this Page
Footnotes
+ Rated average life under specified test conditions with Programmed Start ballasts with lamps
turned off and restarted no more frequently than once every 3 operating hours. Lamp life is
appreciably longer if lamps are started less frequently.
+ Approximate Initial Lumens. The lamp lumen output is based upon lamp performance after 100
hours of operating life, when the output is measured during operation on a reference ballast under
standard laboratory conditions.
+ For expected lamp lumen output, commercial ballast manufacturers can advise the appropriate
Ballast Factor for each of their ballasts when they are informed of the designated lamp. The Ballast
Pa
g
e 1 of 2Universal Start Fluorescent Lam
p
s 32 Watts Bulb T8 Base Med. Bi
p
in Product Number 0...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/fluor/dis
p
la
y
fluor.
p
h
p
?id=107
A1
![](asset-6.png)
Information for this product last modified on November 20 2002.
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
Factor is a multiplier applied to the designated lamp lumen output.
+ Design Lumens are the approximate lamp lumen output at 40% of the lamp's Rated Average Life.
This output is based upon measurements obtained during lamp operation on a reference ballast
under standard laboratory conditions.
+ Universal T8 lamps have full rated life on Instant Start, Rapid Start and Programmed Start
ballasts.
+ Features ALTO® Lamp Technology
+ High Color Rendering Lamps (CRI 70-79)
Pa
g
e 2 of 2Universal Start Fluorescent Lam
p
s 32 Watts Bulb T8 Base Med. Bi
p
in Product Number 0...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/fluor/dis
p
la
y
fluor.
p
h
p
?id=107
![](asset-7.png)

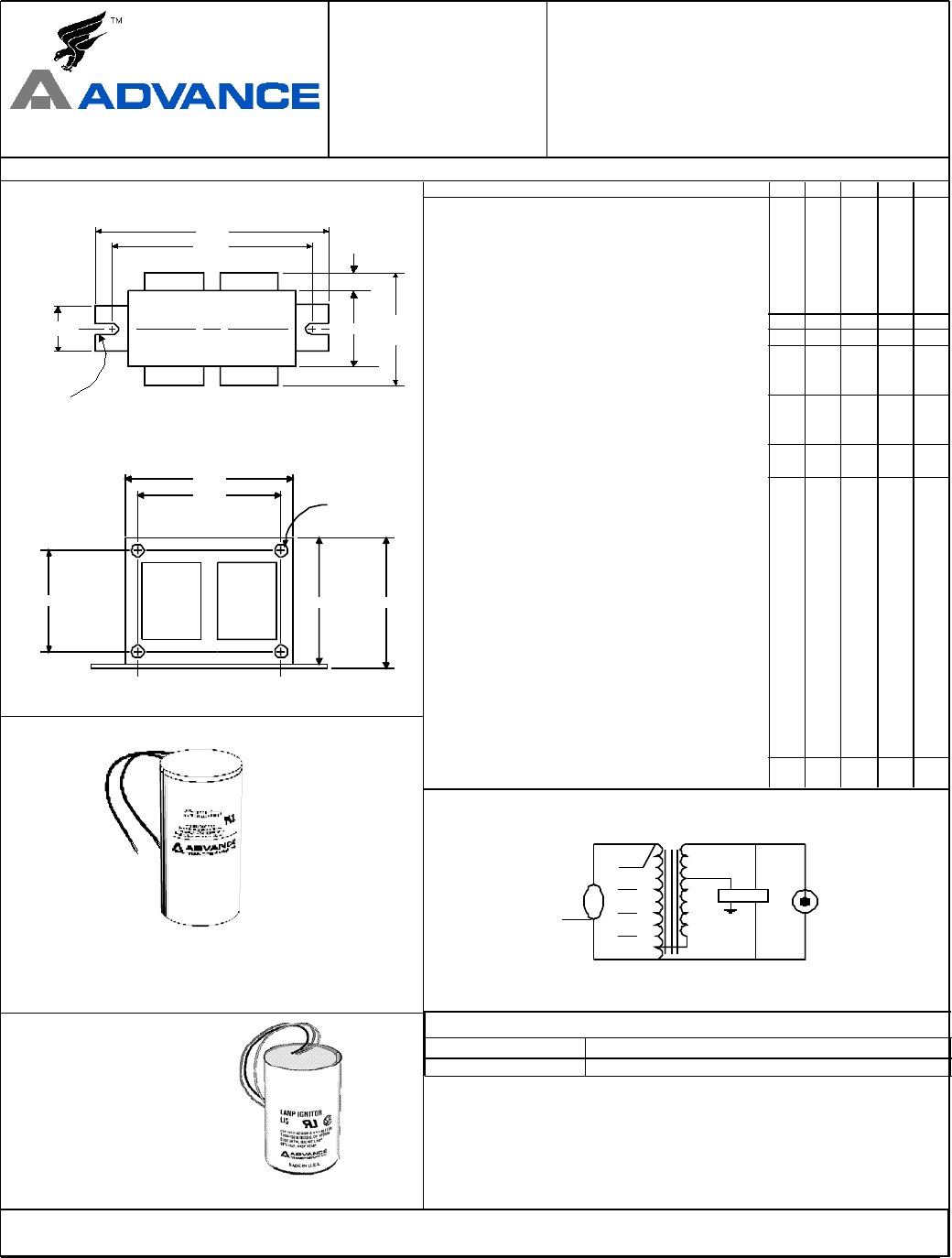

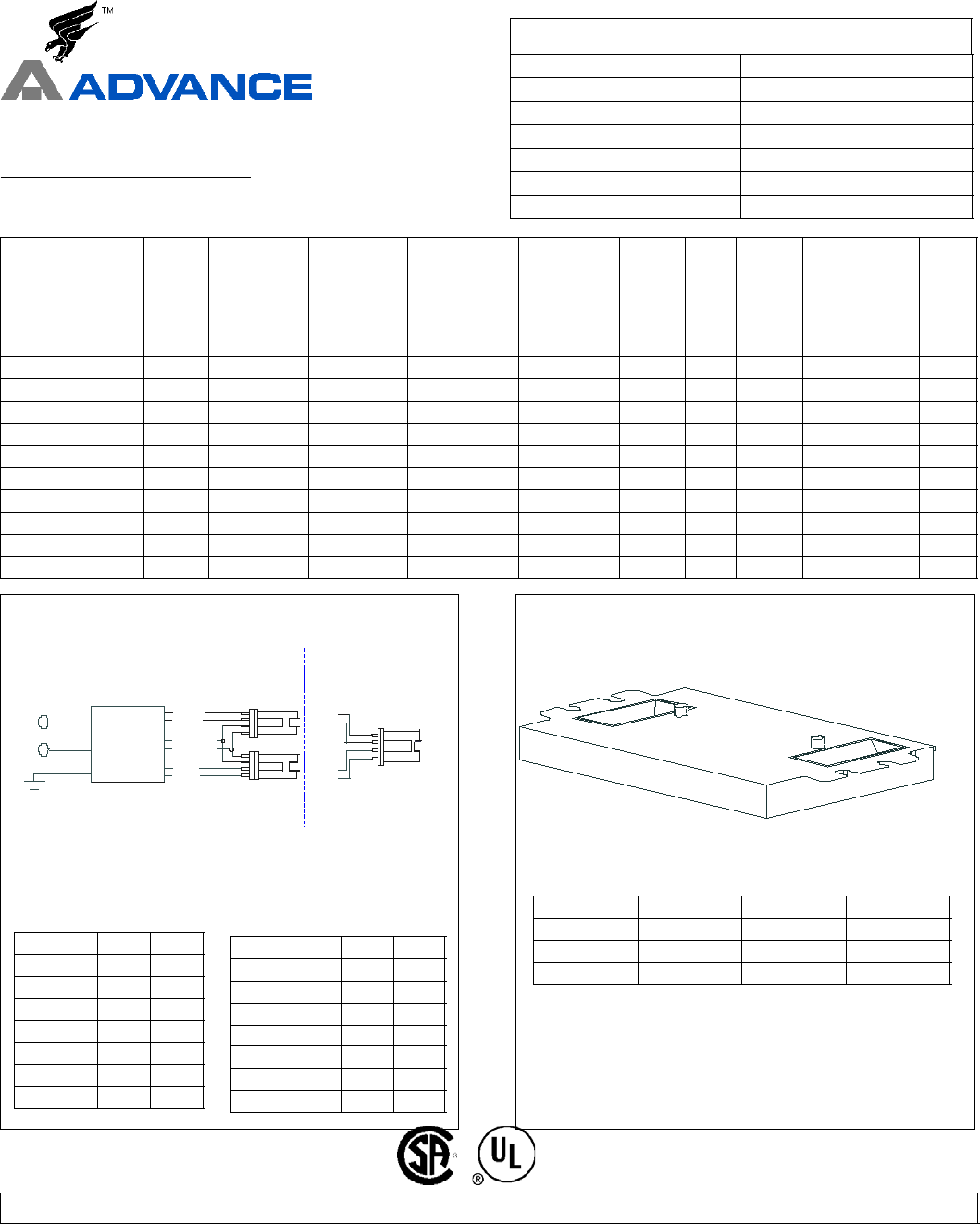

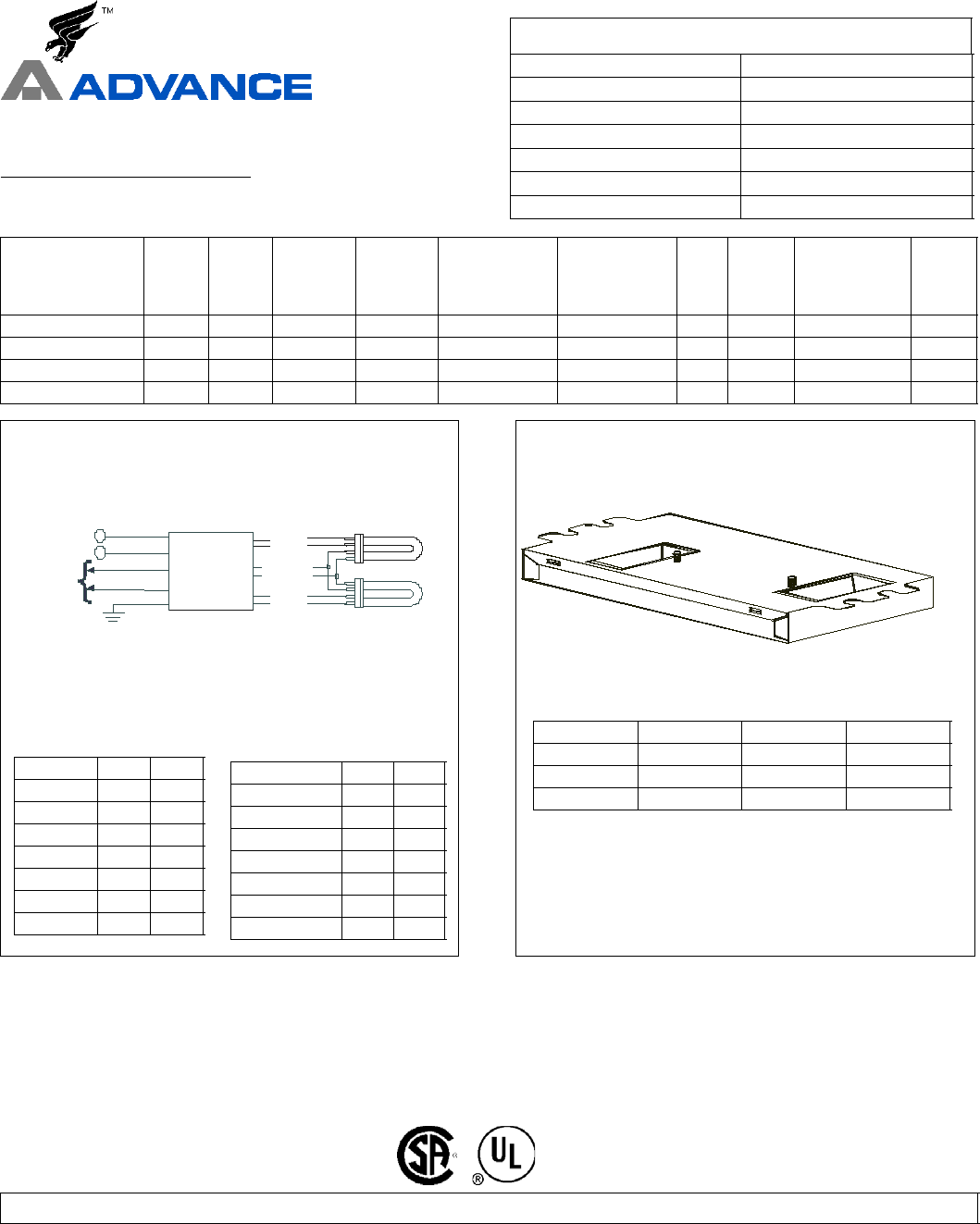

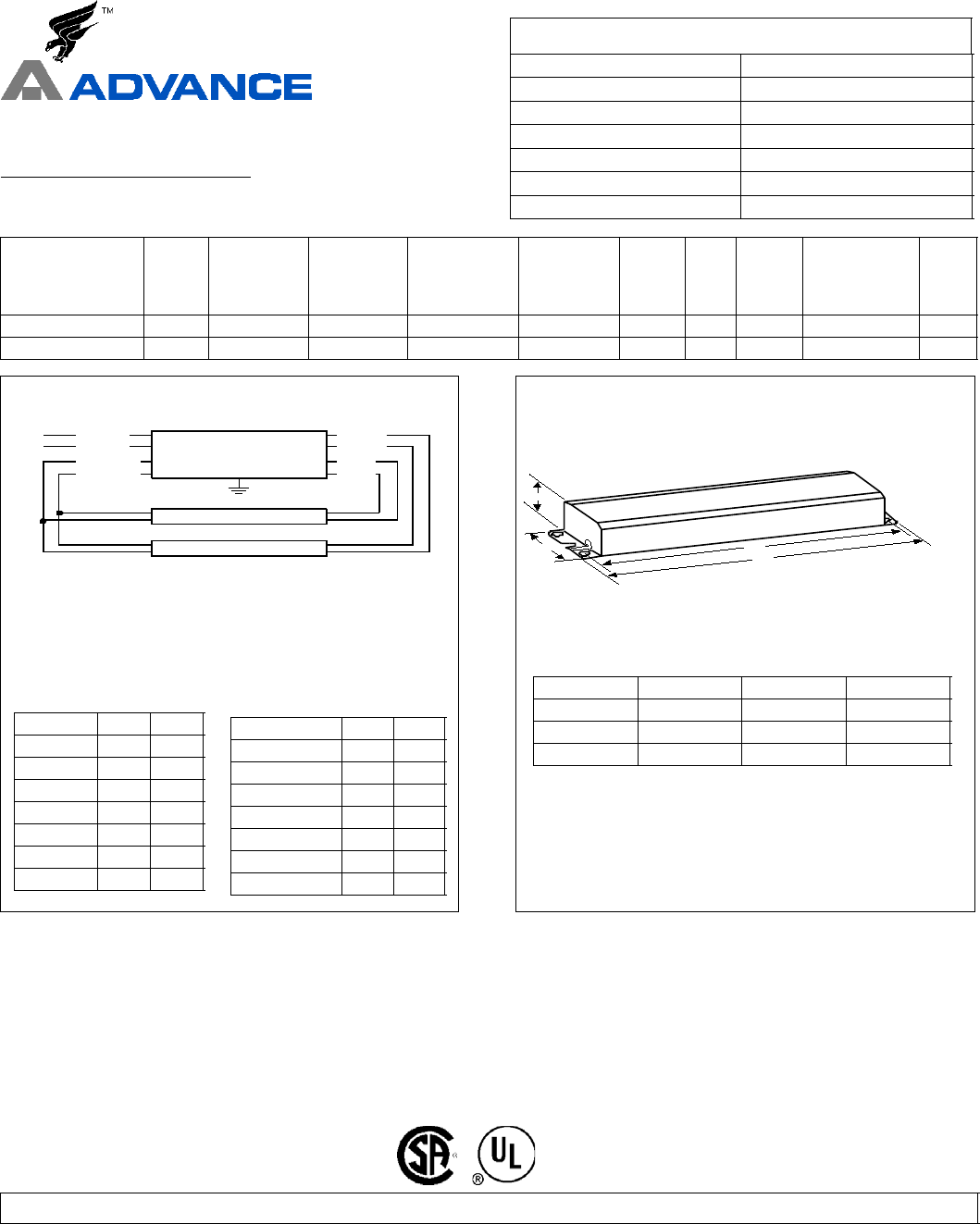

Revised 08/14/2003
Data is based upon tests performed by Advance Transformer in a controlled environment and representative of relative performance. Actual performance
can vary depending on operating conditions. Specifications are subject to change without notice. All specifications are nominal unless otherwise noted.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER · 10275 WEST HIGGINS ROAD · ROSEMONT, IL 60018
Customer Support/Technical Service: Phone: 800-372-3331 · Fax: 630-307-3071
Corporate Offices: Phone: 800-322-2086
R-2P32-TP
Brand Name MARK III
Ballast Type Magnetic
Starting Method Rapid Start
Lamp Connection Series
Input Voltage 120
Input Frequency 60 HZ
Status Active
Electrical Specifications
Lamp Type Num.
of
Lamp
s
Rated
Lamp
Watts
Min. Start
Temp
(°F/C)
Input
Current
(Amps)
Input
Power
(Watts)
Ballast
Factor
MAX
THD
%
Power
Factor
Lamp
Current
Crest Factor
B.E.F.
* F32T8 2 32 50/10 0.64 73 0.94 10 0.97 1.4 1.29
F32T8/U 2 31.2 50/10 0.64 73 0.94 10 0.97 1.4 1.29
Wiring Diagram
BALLAST
LAMP
LAMP
Diag. 21
RED
RED
BLUE
BLUE
YELLOW
YELLOW
BLACK
WHITE
LINE
The wiring diagram that appears above is
for the lamp type denoted by the asterisk (*)
Standard Lead Length (inches)
in. cm.
Black 20 50.8
White 20 50.8
Blue 24 61
Red 24 61
Yellow 36 91.4
Gray 0
Violet 0
in. cm.
Yellow/Blue 0
Blue/White 0
Brown 0
Orange 0
Orange/Black 0
Black/White 0
Red/White 0
Enclosure
H
WM
L
CASE "T"
Enclosure Dimensions
OverAll (L) Width (W) Height (H) Mounting (M)
9.50 " 2.375 " 1.5 " 8.90625 "
9 1/2 2 3/8 1 1/2 8 29/32
24.1 cm 6 cm 3.8 cm 22.6 cm
A1
![](asset-8.png)
Kurt Versen Company Point Source Lighting
Westwood, New Jersey 07675
H8643
Shallow Depth, Wide Beam Downlight
One 26-32-42W Triple Tube Compact Fluorescent
6" Square Parabolic Trim
Optics and Applications
The socket is mounted horizontally in an ellipsoidal primary
reflector for wide distribution and reduced recess depth in
shallow plenums. Use in low to medium height ceilings for
corridors, entries and for general and area lighting.
Design Features
A steel housing protects and aligns reflectors and lamps.
The socket and ballast will accept all triple tube wattages
interchangeably. The square trim is stabilized by a
proprietary steel web to prevent racking and is held to the
ceiling by constant pressure springs. Maximum ceiling
thickness 11/2". Ballast and lamp service from below.
Finish
Housings and structural parts are painted matte black to
suppress stray light leaks. Standard trims are anodized
Softglow®clear. Special finishes, textures and colors are
available, see below under Accessories.
Trim Textures
Textured trims create a subtle new aperture appearance.
Select among different embossed patterns to match the
ambiance of the space being illuminated. Refer to Squares
brochure for descriptive photos.
Ballasts
Fully electronic, microprocessor controlled with programmed
start to assure rated lamp life. Input voltage ranges from
120V through 277V. Operates 26, 32 or 42W lamps
interchangeably. Power factor .98, starting temperature
0°F (-18°C), THD<10%. Pre-heat start < 1.0 second. End
of lamp life protection. Rated for > 50,000 starts.
General
Fixtures are pre-wired, UL and C-UL listed for eight wire
75°C branch circuit wiring. Union made IBEW. Luminaire
Efficiency Rating (LER) data is in the photometric directory
located in Section Z.
Accessories
R2 26" support rails. WT White trim flange.
R5 52" support rails.
WHT
White complete trim.
SB Softglow black. BP Ball Peen texture.
SG Softglow gold. CG Corrugated texture.
SH Softglow mocha. DS Distressed texture.
SP Softglow graphite. WV Woven texture.
ST Softglow titanium. LL Linear spread lens.
SW Softglow wheat. LP Large prism lens.
SY Softglow pewter. MP Microprism lens.
SZ Softglow bronze.
V347
347 volt ballast.
BR Bright trim finish. FC Four cell cross baffle.
FR Frosting on lens. DM Dimming ballast.
F Fuse. Specify watts and volts.
EM
Emergency power includes integral charger light
and
test switch visible through aperture. Battery
operation for 90 minutes.
FLT6
Full lens trim, specify lens type, e.g. H8643-FLT6LL.
WRL
Wattage restriction label, specify wattage.
H23
Alzak
Reflector
Venting
Slot
Vertical
Adjustment
Aperture
Frame
Safety
Chain
Rail
Support (2)
Lamp
(By Others)
Square
Trim
Full Lens Trim
(Optional)
Cone Retaining
Spring
H8643 6 " sq.
153mm
131/2"
343mm
19"
483mm
26-32-42W TripleTube
compact fluorescent
LampsNumber A
Depth
B
Aperture
C
Width
D
Length
61/2"
165mm
Dimensions and Lamps
Vented
Top
Socket
Bracket
B
A
C
D
Matching Square Units
Vertical lamp fluorescent Page H22
Low voltage Pages H5, H6
PAR lamps Pages H7, H8, H9
Directional Page H9
Halogena, A lamps Page H10
Tungsten halogen Page H11
Metal halide Pages H26, H27, H28
Wall washer Page H37
Number Lamps 85° 75° 65° 55° 45°
32W T/E Osram/Syl 31 97 203 1221 10019
H8643 32W PL-T Philips 37 108 218 6698 13729
42W PL-T Philips 40 151 273 6857 19941
42W T/E Osram/Syl 53 185 367 4566 17420
Data in footlamberts. Photometer readings, Maximum Brightness Method.
Brightness
Section H fronts_UG 12/6/02 11:58 PM Page 15
Custom (2) 32W Triple Tube
Compact Fluorescent,
consulted manufacture.
B1
![](asset-9.png)
H8643 One 42W Philips Triple Tube Read Bottom Data
10°20°30°
29
18
16
12
10
27
19
14
11
9
2'
2'
3'
3'
3'
21
15
11
9
7
4'
5'
5'
6'
7'
13
10
7
6
4
6'
8'
9'
10'
11'
8'
9'
10'
11'
12'
6'
7'
8'
9'
10'
38
27
20
16
13
32
23
17
14
11
21
15
11
9
7
H8643 One 32W Philips Triple Tube Read Top Data
19
21
10
8
6
18
13
10
8
6
2'
2'
3'
3'
3'
16
11
8
7
5
4'
5'
5'
6'
7'
10
7
5
4
3
6'
8'
9'
10'
11'
7'
8'
9'
10'
12'
23
16
12
10
8
19
14
10
8
6
15
11
8
6
5
H23
Performance Datachart
Ceiling to FloorSingle Unit Initial Footcandles, 30" Work Plane Multiple Units Initial Footcandles, 30" Work Plane
Ceiling 80% Walls 50% Floor 20%
FC FC Diam Spacing RCR 1 RCR 3 RCR 8
Nadir
FC Diam FC Diam
Spacing is Maximum Over Work Plane
See notes 2, 3 and 4.
Candlepower Distribution
H8643 One 32W Triple Tube Philips
Eff. 39% S/M 0° 1.30 S/M 90° 1.14
H8643 One 42W Triple Tube Philips
Eff. 38% S/M 0° 1.07 S/M 90° 1.06
H8643 One 32W Triple Tube Osram Sylvania
Eff. 33% S/M 0° 1.36 S/M 90° 1.24
H8643 One 42W Triple Tube Osram Sylvania
Eff. 35% S/M 0° 1.21 S/M 90° 1.13
88
176
264
352
440
528
616
704
792
880
55°
35°
45°
75°
65°
85°
25°15°5°
Coefficients of Utilization
H8643 One 42W Philips H8643 One 42W Osram x .93
H8643 One 32W Philips x 1.00 H8643 One 42W Osram x .86
Ceiling
Wall % 70 50 30 10 10 50 10 10 0
80% 70% 50% 30% 0
Zonal Cavity Method - Floor Reflectance 20%
RCR
50
1
2
3
4
5
6
7
8
9
10
50
.43
.40
.38
.35
.33
.31
.29
.28
.26
.25
.41
.38
.35
.32
.29
.27
.25
.23
.22
.20
.40
.36
.33
.30
.27
.25
.23
.21
.19
.18
.39
.35
.31
.28
.25
.23
.21
.19
.18
.16
.41
.37
.34
.32
.29
.27
.25
.23
.22
.20
.39
.34
.31
.28
.25
.23
.21
.19
.18
.16
.39
.36
.33
.31
.28
.26
.24
.23
.21
.20
.38
.34
.30
.27
.25
.22
.21
.19
.17
.16
.38
.35
.32
.30
.28
.26
.24
.22
.21
.20
.36
.33
.30
.27
.24
.22
.20
.19
.17
.16
.35
.31
.29
.26
.24
.22
.20
.18
.17
.16
Candelas
90°0°
880
869
843
816
781
710
602
461
322
235
173
113
50
17
0
0
0
0
0
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
°Vertical Angles
*Initial Lamp Lumens
3200*
3200*
°
880
866
842
813
768
694
619
508
386
266
172
107
50
19
0
0
0
0
0
757
761
741
704
647
625
569
454
315
194
128
81
36
15
0
0
0
0
0
757
750
751
746
725
718
632
529
408
288
185
102
40
15
0
0
0
0
0
1 Softglow® cone multipliers: Gold x .89, Wheat x .87, Pewter x .73,
Mocha x .75, Graphite x .70, Titanium x .70, Bronze x .68.
2 Single unit Datachart pattern diameters are determined by the number
of degrees from each side of nadir. Therefore a 20° diameter
represents a total 40° pattern width at the work plane 30" above the
floor. Footcandle values are at the edge of that diameter.
3 Datachart spacing is rounded off to the nearest foot.
4 Data by IES methods. Compact fluorescent data vary due to lamp
lumen differences, power input, burning position, ambient temperature
and ballast characteristics. A modification factor should be applied.
5 Brightness data from the Average Luminance Method are inaccurate
for small aperture downlights. They are theoretical calculations derived
for large surfaces such as troffers. For a complete discussion refer to
section Z brochure Z1.
Notes
60
120
180
240
300
360
420
480
540
600
55°
35°
45°
75°
65°
85°
25°15°5°
90°0°
560
565
579
581
567
516
431
359
283
194
124
59
21
12
0
0
0
0
0
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
°Vertical Angles
*Initial Lamp Lumens
2400*
2400*
°
560
561
568
585
588
558
521
455
358
256
165
92
22
9
0
0
0
0
0
Kurt Versen Company, Westwood, New Jersey
0°
90°
°Vertical Angles
*Initial Lamp Lumens
48
96
144
192
240
288
336
384
432
480
55°
35°
45°
75°
65°
85°
25°15°5°
90°0°
457
460
470
476
473
452
399
337
255
170
99
34
14
9
7
0
0
0
0
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
2400*
2400*
°
457
466
464
469
475
448
457
396
316
233
136
52
13
8
6
0
0
0
0
0°
90°
90°
0°
90°
75
150
225
300
375
450
525
600
675
750
55°
35°
45°
75°
65°
85°
25°15°5°
90°0°
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
3200*
3200*
°
°Vertical Angles
*Initial Lamp Lumens
0°
H8643
Section H backs_UG 12/3/02 1:43 AM Page 15
![](asset-a.png)

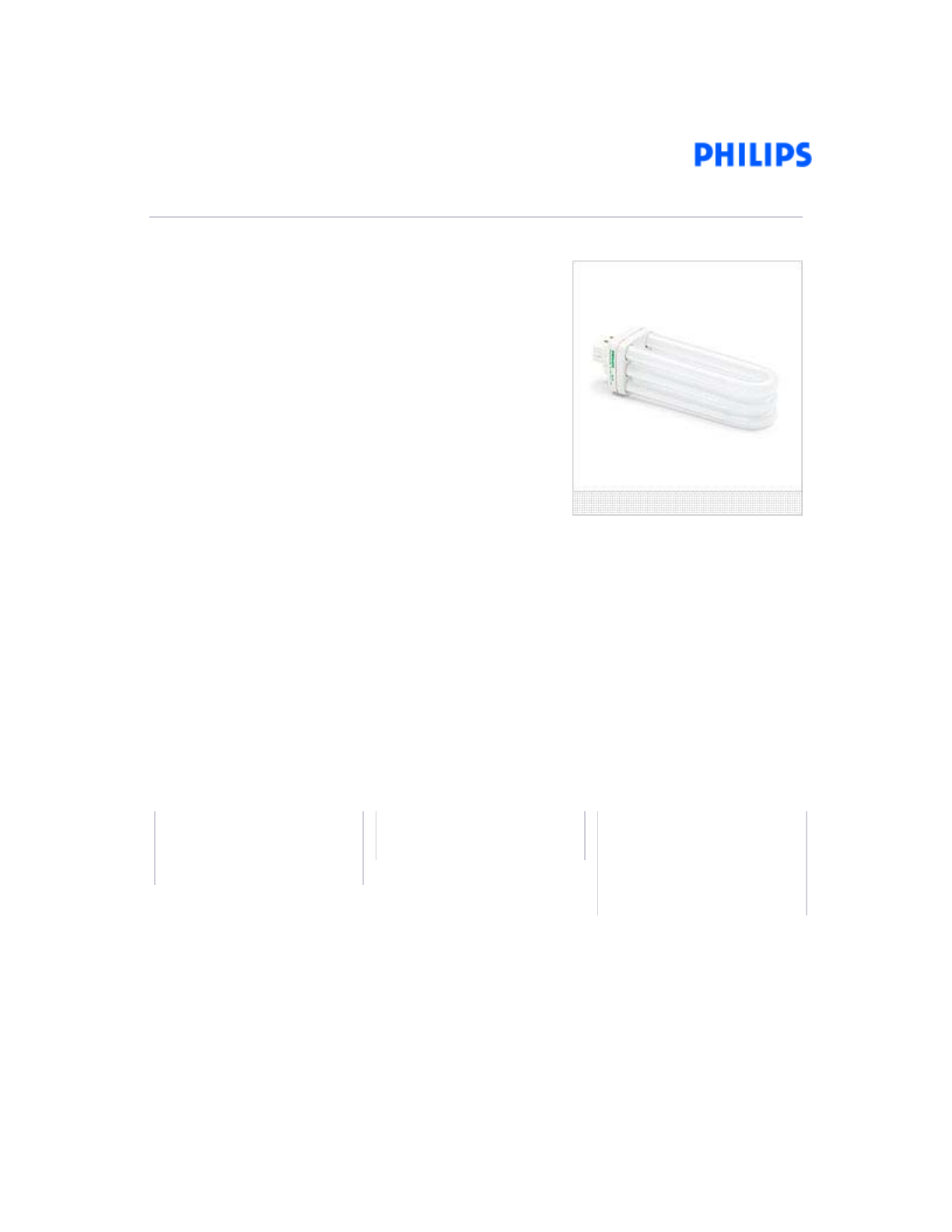

PL-T Triple 4-Pin Fluorescent Lamp
Feature High color rendering, high efficacy lamps
feature 4-pin base for use with preheat, rapid
start, electronic and dimming circuits.
Featuring ALTO® Lamp Technology
Watts 32
Bulb PL-T
Base GX24q-3
Product
Number 046677-26832-6
Ordering
Code PL-T 32W/830/4P/ALTO
Generic
Designation CFTR32W/GX24q/830
Package
Quantity 12
Description 3000K
CRI 82
Avg. Hrs.
Life 10,000
Design
Lumens 2040
M.O.L. 5 5/8
Lumens 2400
Images
+ ALTO Product Logo
+ Family Photo
+ Product Photo
Literature
+ ALTO Family Brochure
+ MSDS S08-98001
Other Information
• Energy Saving Product
+ Printable Page
+ View Compatible Ballasts
+ Send this Link
+ Bookmark this Page
Footnotes
+ This Product Contains Amalgam
+ High Color Rendering Lamp
+ Features ALTO® Lamp Technology
+ Rated average life under specified test conditions with Programmed Start ballasts with lamps
turned off and restarted no more frequently than once every 3 operating hours. Lamp life is
appreciably longer if lamps are started less frequently.
Pa
g
e 1 of 2PL-T Tri
p
le 4-Pin Fluorescent Lam
p
32 Watts Bulb PL-T Base GX24
q
-3 Product Numbe...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/cfl/dis
p
la
y
cfl.
p
h
p
?id=131
B1
![](asset-b.png)
Information for this product last modified on September 25, 2001
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
+ Approximate Initial Lumens. The lamp lumen output is based upon lamp performance after 100
hours of operating life, when the output is measured during operation on a reference ballast under
standard laboratory conditions.
+ Design Lumens are the approximate lamp lumen output at 40% of the lamp's Rated Average Life.
This output is based upon measurements obtained during lamp operation on a reference ballast
under standard laboratory conditions.
Pa
g
e 2 of 2PL-T Tri
p
le 4-Pin Fluorescent Lam
p
32 Watts Bulb PL-T Base GX24
q
-3 Product Numbe...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/cfl/dis
p
la
y
cfl.
p
h
p
?id=131
![](asset-c.png)
Revised 08/27/2003
Data is based upon tests performed by Advance Transformer in a controlled environment and representative of relative performance. Actual performance
can vary depending on operating conditions. Specifications are subject to change without notice. All specifications are nominal unless otherwise noted.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER · 10275 WEST HIGGINS ROAD · ROSEMONT, IL 60018
Customer Support/Technical Service: Phone: 800-372-3331 · Fax: 630-307-3071
Corporate Offices: Phone: 800-322-2086
IZT-2T42-M3-BS@120
Brand Name MARK VII 0-10V
Ballast Type Electronic Dimming
Starting Method Programmed Start
Lamp Connection Series
Input Voltage 120-277
Input Frequency 50/60 HZ
Status Active
Electrical Specifications
Lamp Type Num.
of
Lamp
s
Rated
Lamp
Watts
Min.
Start
Temp
(°F/C)
Input
Current
(Amps)
Input Power
(Watts)
(min/max)
Ballast Factor
(min/max)
MAX
THD
%
Power
Factor
Lamp
Current
Crest Factor
B.E.F.
* CFM32W/GX24Q 2 32 50/10 0.63 19/75 0.05/1.00 10 0.99 1.4 1.33
CFM42W/GX24Q 2 42 50/10 0.82 18/98 0.05/1.00 10 0.99 1.4 1.02
CFTR57W/GX24Q 1 57 50/10 0.55 18/66 0.05/1.00 10 0.99 1.7 1.52
CFTR70W/GX24Q 1 70 50/10 0.67 18/80 0.05/1.00 10 0.99 1.7 1.25
Wiring Diagram
WIRING: (2) TRIPLE LAMPS
Green Terminal must be Grounded
GREEN
GREY (-)
BLACK
WHITE
VIOLET(+) BALLAST
LINE BLUE
RED
YELLOW
CLASS 1&2
CIRCUIT
10V, 0.5mA
The wiring diagram that appears above is
for the lamp type denoted by the asterisk (*)
Standard Lead Length (inches)
in. cm.
Black 0 0
White 0 0
Blue 0 0
Red 0 0
Yellow 0 0
Gray 0 0
Violet 0 0
in. cm.
Yellow/Blue 0
Blue/White 0
Brown 0
Orange 0
Orange/Black 0
Black/White 0
Red/White 0
Enclosure
Enclosure Dimensions
OverAll (L) Width (W) Height (H) Mounting (M)
6.28 " 3.00 " 1.29 " 2.00 "
6 7/25 3 1 29/100 2
16 cm 7.6 cm 3.3 cm 5.1 cm
B1
![](asset-d.png)
IZT-2T42-M3-BS@120
Brand Name MARK VII 0-10V
Ballast Type Electronic Dimming
Starting Method Programmed Start
Lamp Connection Series
Input Voltage 120-277
Input Frequency 50/60 HZ
Status Active
Electrical Specifications
Notes:
Section I - Physical Characteristics
1.1 Ballast shall be physically interchangeable with standard electromagnetic or standard electronic ballasts, where applicable.
1.2 Ballast shall be available in a plastic/metal can or all metal can construction to meet all plenum requirements.
1.3 Ballast shall be provided with poke-in wire trap connectors or integral leads color coded per ANSI C82.11.
Section II - Performance Requirements
2.1 Ballast shall be Programmed Start.
2.2 Ballast shall be provided with integral protection circuitry to withstand connection of low voltage control leads to mains power supply. In
this event, ballast shall default to maximum light output.
2.3 Ballast shall contain auto restart circuitry in order to restart lamps without resetting power.
2.4 Ballast shall operate from 50/60 Hz input source of 120V or 277V with sustained variations of +/- 10% (voltage and frequency) with no
damage to the ballast. IntelliVolt models shall operate from 50/60 Hz input source of 120V through 277V with sustained variations of +/- 10%
(voltage and frequency) with no damage to the ballast.
2.5 Ballast shall be high frequency electronic type and operate lamps at a frequency above 42 kHz to avoid interference with infrared devices
and eliminate visible flicker.
2.6 Ballast shall have a Power Factor greater than 0.98 at full light output and greater than 0.90 throughout the dimming range for primary lamp.
2.7 Ballast shall have a maximum ballast factor of 1.00 (1.18 for HL versions) at maximum light output and 0.03 at minimum light output for
primary lamp application.
2.8 Ballast shall provide for a Lamp Current Crest Factor of 1.7 or less throughout the dimming range in accordance with lamp manufacturer
recommendations.
2.9 Ballast input current shall have Total Harmonic Distortion (THD) of less than 10% when operated at nominal line voltage with primary lamp.
2.10 Ballast shall have a Class A sound rating.
2.11 Ballast shall have a minimum starting temperature of 10C (50F) for primary lamp.
2.12 Ballast shall provide Lamp EOL Protection Circuit for all T5, T5/HO, CFL lamps, and T8 lamps operating on 4-lamp ballast.
2.13 Ballast shall control lamp light output from 100% - 3% relative light output for T8 and CFL lamps and 100% - 1% relative light output for
T5/HO lamps.
2.14 Ballast shall ignite the lamps at any light output setting without first going to another output setting.
2.15 Ballast shall tolerate sustained open circuit and short circuit output conditions without damage.
Section III - Regulatory Requirements
3.1 Ballast shall not contain any Polychlorinated Biphenyl (PCB).
3.2 Ballast shall be Underwriters Laboratories (UL) listed, Class P and Type 1 Outdoor; and Canadian Standards Association (CSA) certified
where applicable.
3.3 Ballast shall comply with ANSI C62.41 Category A for Transient protection.
3.4 Ballast shall comply with ANSI C82.11 where applicable.
3.5 Ballast shall comply with the requirements of the Federal Communications Commission (FCC) rules and regulations, Title 47 CFR part 18,
Non-Consumer (Class A) for EMI/RFI (conducted and radiated).
Section IV - Other
4.1 Ballast shall be manufactured in a factory certified to ISO 9002 Quality System Standards.
4.2 Ballast shall carry a five-year warranty from date of manufacture against defects in material or workmanship, including replacement, for
operation at a maximum case temperature of 70C.
![](asset-e.png)
4.3 Manufacturer shall have a fifteen-year history of producing electronic ballasts for the North American market.
4.4 Ballast shall be controlled by a Class 1 or Class 2 low voltage 0-10VDC controller.
4.5 Ballast shall be Advance Transformer part # _____________ or approved equal.
Revised 08/27/2003
Data is based upon tests performed by Advance Transformer in a controlled environment and representative of relative performance. Actual performance can vary
depending on operating conditions. Specifications are subject to change without notice. All specifications are nominal unless otherwise noted.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER - 10275 WEST HIGGINS ROAD
ROSEMONT, ILLINOIS 60018
TELEPHONE: (847) 390-5000 FAX: (847) 390-5109
![](asset-f.png)
20
MULTIPLE LARGE
Toronto University Architecture Dept.
B2
![](asset-10.png)
21
Multiple Large Six
8260-AR 6 x AR 111 75 W
8260-PAR 6 x PAR 30 75 W
8260-MH35 4 x AR 111 75 W +
2 x Metal Halide PAR 30 35 W
8260-MH70 4 x AR 111 75 W+
2 x Metal Halide PAR 30 70 W
8360-PAR 6 x PAR 38 90 W
8360-MH 2 x Metal Halide PAR 38 70W +
4 x PAR 38 90 W
6-1/2" x 38"
10
MULTIPLE LARGE
These are standard configurations.
Custom configurations available upon request.
Multiple Large Four
8240-AR 4 x AR 111 75 W
8240-PAR 4 x PAR 30 75 W
8240-MH35 2 x AR 111 75 W +
2 x Metal Halide PAR 30 35 W
8240-4MH35 4 x Metal Halide PAR 30 35 W
8240-MH70 2 x AR 111 75 W +
2 x Metal Halide PAR 30 70 W
8240-4MH70 4 x Metal Halide PAR 30 70 W
8340-PAR 4 x PAR 38 90W
8340-MH 4 x Metal Halide PAR 38 70W
12-5/8" x 12-5/8"
8211 Cross Baffle for PAR 30
8311 Cross Baffle for PAR 38
13-3/4"
13-3/4"
(PAR/AR)
7-3/8"
(MH)
8-7/8"
39"
7-1/4"
(PAR/AR)
7-3/8"
(MH)
8-7/8"
Newtown restaurant, Foti & Drouin designers
8812 for PAR, AR 111
00 frosted
05 red
06 yellow
09 blue
24 clear
ACCESSORIES FOR MULTIPLE LARGE
1"
Fixture to be oriented linearly as
multiply large six below but with
4 lamps.
![](asset-11.png)

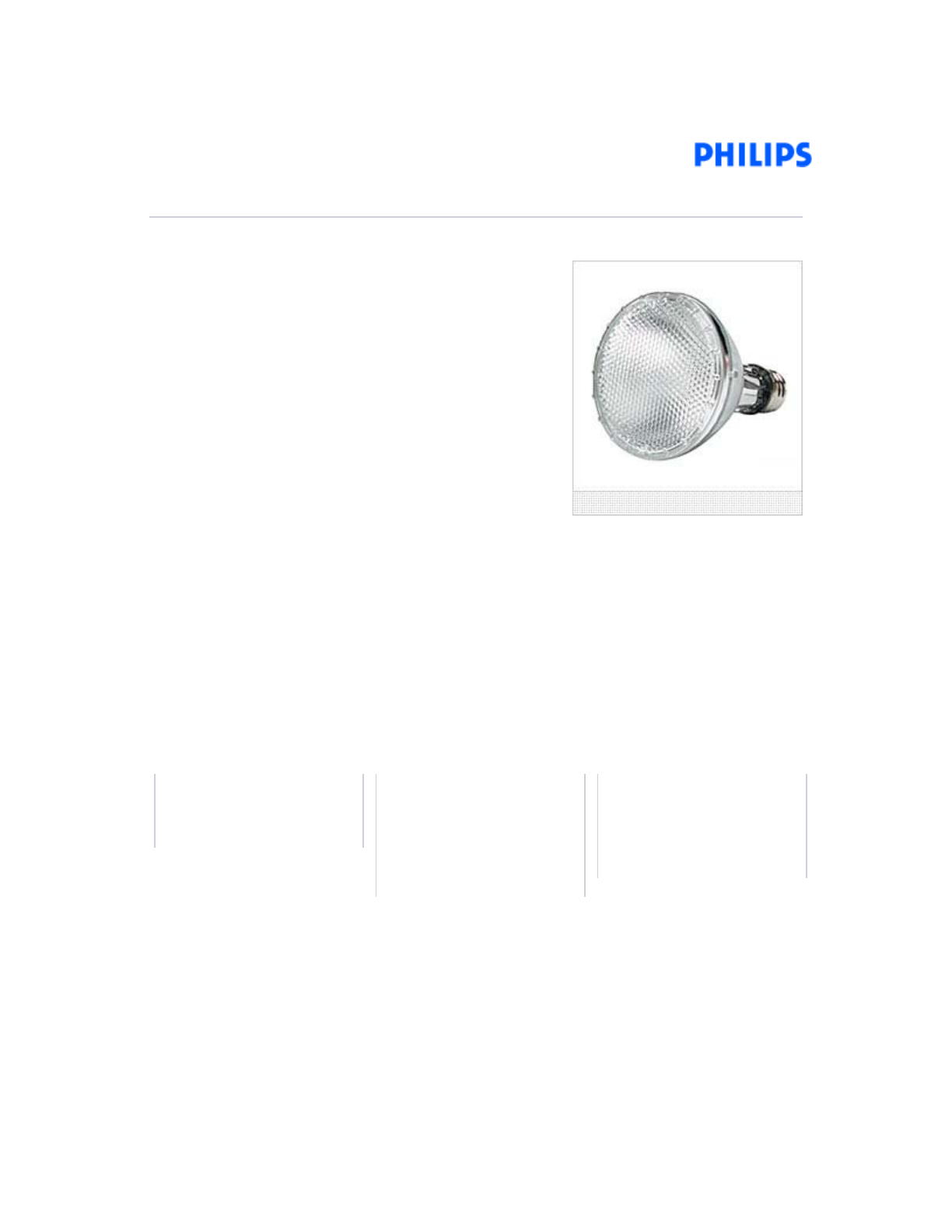

Protected MasterColor® Ceramic Metal Halide Lam
p
Feature PAR Style. Open or Enclosed Luminaires.
Lifetime Color Stability Within +/- 200K
Watts 39
Bulb PAR-30L
Base Med.
Product Number 046677-22330-5
Ordering Code CDM35/PAR30L/M/FL
Package Quantity 6
Description G, PAR WISO Flood 30 degrees
FadeBlock 7400 MBCP
ANSI
Code/Ballast Ref. M130/O
CRI 81
Rated Avg. Life
(Hrs.) 9000
M.O.L. 4 3/4
Approximate
Initial Lumens 2200
Approximate
Mean Lumens 1760
CCT 3000
Images
+ Family Photo
+ Product Logo
+ Product Photo
Literature
+ Family Brochure
+ MSDS S15-95005
+ Photometric Data
+ Technical Data Sheet
Other Information
+ Printable Page
+ View Compatible Ballasts
+ Send this Link
+ Bookmark this Page
† Heat resisting glass bulb
Footnotes
+ MasterColor® Metal Halide Lamps are not recommended for use on dimmers and are not
warranted if used on dimmer systems.
+ "Operate only on thermally protected ballasts"
+ UV filtered design (Fade-Block™).
+ Click here for Recommended Warnings, Cautions and Operating Instructions.
+ Supply volts must be +/- 5% of rated ballast line volts for reactor type and +/- 10% for CWA or
electronic ballasts.
+ Requires a ballast specified or approved for Philips Metal Halide lamp or one designed to the
Pa
g
e 1 of 2Protected MasterColor Ceramic Metal Halide Lam
p
39 Watts Bulb PA
R
-30L Base Med. ...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/hid/dis
p
la
y
hid.
p
h
p
?id=26
B3
![](asset-12.png)
Information for this product last modified on June 22 2004.
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
indicated ANSI Standard. A pulse ignitor is required. Sockets and wiring must withstand starting
pulse.
+ Approximate lumen output at 40% of lamp rated average life.
+ Approximate lumen values listed are for vertical operation of the lamp.
+ Rated average life is the life obtained, on the average, from large representative groups of lamps
in laboratory tests under controlled conditions at 10 or more operating hours per start. It is based
on survival of at least 50% of the lamps and allows for individual lamps or groups of lamps to vary
considerably from the average. For lamps with a rated average life of 24,000 hours, life is based on
survival of 67% of the lamps.
+ ANSI CODE RATING, E - Enclosed, O - Open, S - Open or Enclosed
+ Click here for specific product and ordering information on this lamp.
+ Heat resisting glass bulb
+ Excellent color rendition - up to 92 CRI
Pa
g
e 2 of 2Protected MasterColor Ceramic Metal Halide Lam
p
39 Watts Bulb PA
R
-30L Base Med. ...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/hid/dis
p
la
y
hid.
p
h
p
?id=26
![](asset-13.png)

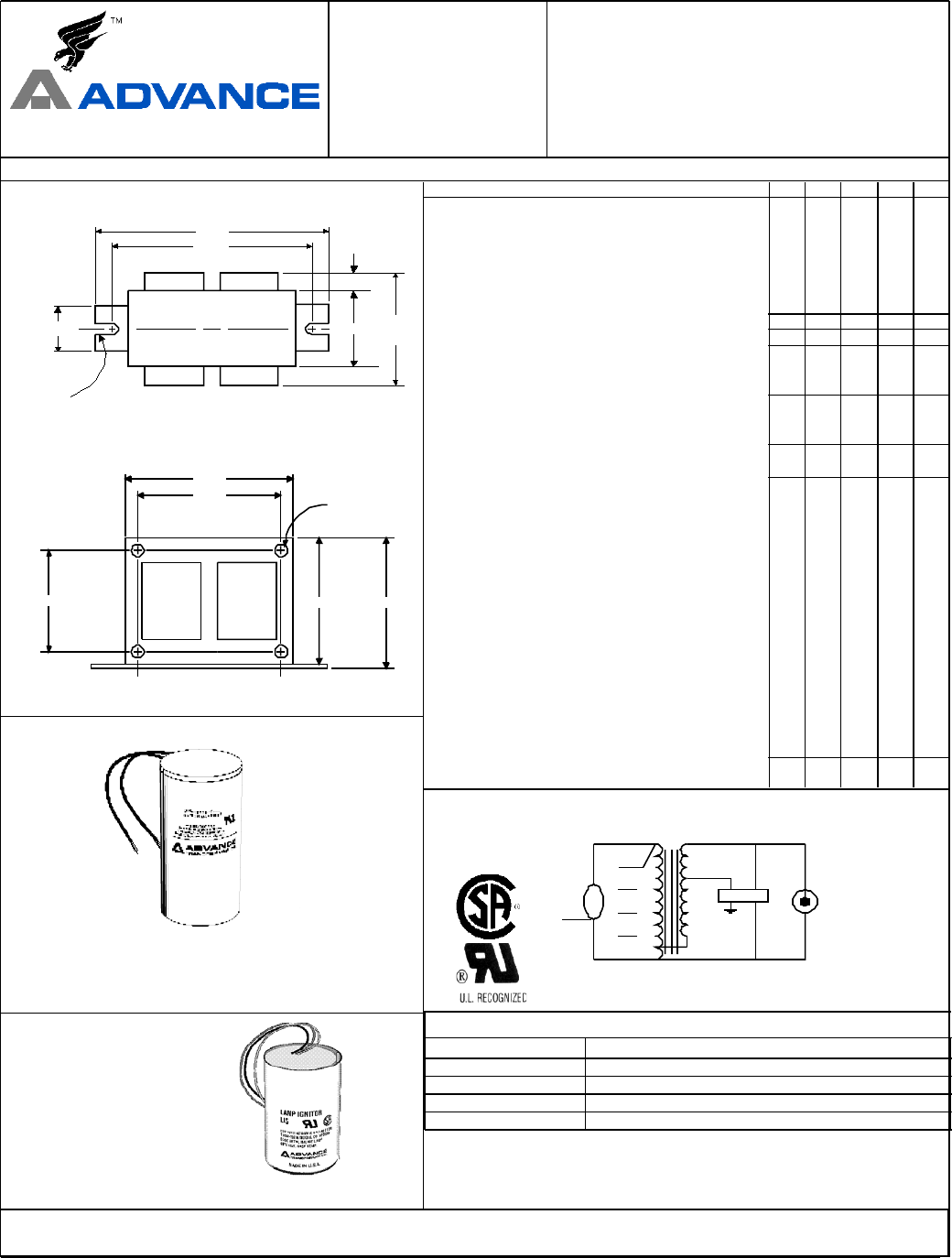

Metal
Halide
Lamp Ballast
Catalog Number 71A50Y1
For 39W M130
60 Hz HX-HPF
Status: Active
DIMENSIONS AND DATA
1.0"
5.10 "
4.50"
B
MAX.
A
0.7"
0.25" WIDE
2 SLOTS
3 X 4 CORE - 2 COIL UNIT
2.45"
3.95"
3.50"
2.90"2.80"
4 HOLES
CLEARED
FOR #10
THRU-BOLTS
Capacitor: 7C100M30-R
Capacitance: 10
Dia/Oval Dim: 1.5
Height: 2.9
Temp Rating: 105°C
Ballast to Lamp Distance
(BTL) = 5 feet
Temp Rating: 105°C
Ignitor: LI533-H4
Data is based upon tests performed by Advance Transformer in a controlled environment and representitive of relative performance.
Actual performance can vary depending on operating conditions. Specifications are subject to change without notice.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER · 10275 WEST HIGGINS ROAD · ROSEMONT, IL 60018
Customer Support/Technical Service: Phone: 800-372-3331 · Fax: 630-307-3071
Corporate Offices: Phone: 800-322-2086
INPUT VOLTS 100 200
CIRCUIT TYPE
POWER FACTOR (min)
REGULATION
Line Volts
Lamp Watts
LINE CURRENT (Amps)
Operating................................................... 0.56 0.28
Open Circuit............................................... 1.30 0.70
Starting...................................................... 0.50 0.25
UL TEMPERATURE RATINGS
Insulation Class
Coil Temperature Code A A
MIN. AMBIENT STARTING TEMP.
NOM. OPEN CIRCUIT VOLTAGE
INPUT VOLTAGE AT LAMP DROPOUT........................... 70 140
INPUT WATTS
RECOMMENDED FUSE (Amps)..................................... 3 2
CORE and COIL
Dimension (A)
Dimension (B)
Weight (lbs.)
Lead Lengths
CAPACITOR REQUIREMENT
Microfarads
Volts (min.)
Fault Current Withstand (amps)
60 Hz TEST PROCEDURES (Refer to Advance Test
Procedure for HID Ballasts - Form 1270)
High Potential Test (Volts)
1 minute
2 seconds
Open Circuit Voltage Test (Volts)
Short-Circuit Current Test (Amps)
Secondary Current
Input Current.............................................. 0.38 0.19 - - -
0.58 0.29
HX-HPF
90%
±5%
±10%
H(180°C)
1029
-30°F or -35°C
248
53
0.85
1.95
3
12"
10.0
280
1500
2500
223-273
0.60-0.74
Wiring Diagram:
Fig. K
LAMP
CAP LAMP
COM COM
LINE V
LINE V
COM
LINE V
CAP
LINE V
IGNITOR
X1X3
X2
Ordering Information
Order Suffix Description
500D. Ballast With Ignitor and Dry Film Capacitor
04/15/02
B2
![](asset-14.png)
B2,B3,B4
![](asset-15.png)
20
MULTIPLE LARGE
Toronto University Architecture Dept.
B3
![](asset-16.png)
21
Multiple Large Six
8260-AR 6 x AR 111 75 W
8260-PAR 6 x PAR 30 75 W
8260-MH35 4 x AR 111 75 W +
2 x Metal Halide PAR 30 35 W
8260-MH70 4 x AR 111 75 W+
2 x Metal Halide PAR 30 70 W
8360-PAR 6 x PAR 38 90 W
8360-MH 2 x Metal Halide PAR 38 70W +
4 x PAR 38 90 W
6-1/2" x 38"
10
MULTIPLE LARGE
These are standard configurations.
Custom configurations available upon request.
Multiple Large Four
8240-AR 4 x AR 111 75 W
8240-PAR 4 x PAR 30 75 W
8240-MH35 2 x AR 111 75 W +
2 x Metal Halide PAR 30 35 W
8240-4MH35 4 x Metal Halide PAR 30 35 W
8240-MH70 2 x AR 111 75 W +
2 x Metal Halide PAR 30 70 W
8240-4MH70 4 x Metal Halide PAR 30 70 W
8340-PAR 4 x PAR 38 90W
8340-MH 4 x Metal Halide PAR 38 70W
12-5/8" x 12-5/8"
8211 Cross Baffle for PAR 30
8311 Cross Baffle for PAR 38
13-3/4"
13-3/4"
(PAR/AR)
7-3/8"
(MH)
8-7/8"
39"
7-1/4"
(PAR/AR)
7-3/8"
(MH)
8-7/8"
Newtown restaurant, Foti & Drouin designers
8812 for PAR, AR 111
00 frosted
05 red
06 yellow
09 blue
24 clear
ACCESSORIES FOR MULTIPLE LARGE
1"
Fixture to be oriented linearly as
multiply large six below, but with four
lamps.
![](asset-17.png)
Protected MasterColor® Ceramic Metal Halide Lam
p
Feature PAR Style. Open or Enclosed Luminaires.
Lifetime Color Stability Within +/- 200K
Watts 70
Bulb PAR-30L
Base Med.
Product Number 046677-23221-5
Ordering Code CDM70/PAR30L/M/FL
Package Quantity 6
Description G, PAR WISO Flood 40 degrees
FadeBlock 10,000 MBCP
ANSI
Code/Ballast Ref. M143/M98/O
CRI 82
Rated Avg. Life
(Hrs.) 9000
M.O.L. 4 3/4
Approximate
Initial Lumens 4850
Approximate
Mean Lumens 3880
CCT 3000
Images
+ Family Photo
+ Product Logo
+ Product Photo
Literature
+ Family Brochure
+ MSDS S15-95004
+ MSDS S15-95005
+ Photometric Data
+ Technical Data Sheet
Other Information
+ Printable Page
+ View Compatible Ballasts
+ Send this Link
+ Bookmark this Page
† Heat resisting glass bulb
Footnotes
+ ANSI CODE RATING, E - Enclosed, O - Open, S - Open or Enclosed
+ Rated average life is the life obtained, on the average, from large representative groups of lamps
in laboratory tests under controlled conditions at 10 or more operating hours per start. It is based
on survival of at least 50% of the lamps and allows for individual lamps or groups of lamps to vary
considerably from the average. For lamps with a rated average life of 24,000 hours, life is based on
survival of 67% of the lamps.
+ Approximate lumen values listed are for vertical operation of the lamp.
Pa
g
e 1 of 2Protected MasterColor Ceramic Metal Halide Lam
p
70 Watts Bulb PA
R
-30L Base Med. ...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/hid/dis
p
la
y
hid.
p
h
p
?id=28
B3
![](asset-18.png)
Information for this product last modified on June 22 2004.
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
+ Click here for Recommended Warnings, Cautions and Operating Instructions.
+ Approximate lumen output at 40% of lamp rated average life.
+ Requires a ballast specified or approved for Philips Metal Halide lamp or one designed to the
indicated ANSI Standard. A pulse ignitor is required. Sockets and wiring must withstand starting
pulse.
+ Supply volts must be +/- 5% of rated ballast line volts for reactor type and +/- 10% for CWA or
electronic ballasts.
+ UV filtered design (Fade-Block™).
+ MasterColor® Metal Halide Lamps are not recommended for use on dimmers and are not
warranted if used on dimmer systems.
+ Excellent color rendition - up to 92 CRI
+ Heat resisting glass bulb
+ Click here for specific product and ordering information on this lamp.
Pa
g
e 2 of 2Protected MasterColor Ceramic Metal Halide Lam
p
70 Watts Bulb PA
R
-30L Base Med. ...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/hid/dis
p
la
y
hid.
p
h
p
?id=28
![](asset-19.png)
Metal
Halide
Lamp Ballast
Catalog Number 71A5282
For 70W M98/M143
60 Hz HX-HPF
Status: Active
DIMENSIONS AND DATA
1.0"
5.10 "
4.50"
B
MAX.
A
0.7"
0.25" WIDE
2 SLOTS
3 X 4 CORE - 2 COIL UNIT
2.45"
3.95"
3.50"
2.90"2.80"
4 HOLES
CLEARED
FOR #10
THRU-BOLTS
Capacitor: 7C080L33-R
Capacitance: 8
Dia/Oval Dim: 1.25
Height: 2.9
Temp Rating: 105°C
Ballast to Lamp Distance
(BTL) = 15 feet
Temp Rating: 105°C
Ignitor: LI533-H4
Data is based upon tests performed by Advance Transformer in a controlled environment and representitive of relative performance.
Actual performance can vary depending on operating conditions. Specifications are subject to change without notice.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER · 10275 WEST HIGGINS ROAD · ROSEMONT, IL 60018
Customer Support/Technical Service: Phone: 800-372-3331 · Fax: 630-307-3071
Corporate Offices: Phone: 800-322-2086
INPUT VOLTS 120 277
CIRCUIT TYPE
POWER FACTOR (min)
REGULATION
Line Volts
Lamp Watts
LINE CURRENT (Amps)
Operating................................................... 0.80 0.35
Open Circuit............................................... 1.90 0.80
Starting...................................................... 0.55 0.25
UL TEMPERATURE RATINGS
Insulation Class
Coil Temperature Code A A
MIN. AMBIENT STARTING TEMP.
NOM. OPEN CIRCUIT VOLTAGE
INPUT VOLTAGE AT LAMP DROPOUT........................... 90 208
INPUT WATTS
RECOMMENDED FUSE (Amps)..................................... 4 2
CORE and COIL
Dimension (A)
Dimension (B)
Weight (lbs.)
Lead Lengths
CAPACITOR REQUIREMENT
Microfarads
Volts (min.)
Fault Current Withstand (amps)
60 Hz TEST PROCEDURES (Refer to Advance Test
Procedure for HID Ballasts - Form 1270)
High Potential Test (Volts)
1 minute
2 seconds
Open Circuit Voltage Test (Volts)
Short-Circuit Current Test (Amps)
Secondary Current
Input Current.............................................. 0.55 0.25 - - -
0.80 0.45
HX-HPF
90%
±5%
±7%
H(180°C)
1029
-20°F or -30°C
255
88
1.45
2.75
5
12"
8.0
280
2000
2500
230-280
0.95-1.25
Wiring Diagram:
Fig. K
LAMP
CAP LAMP
COM COM
LINE V
LINE V
COM
LINE V
CAP
LINE V
IGNITOR
X1X3
X2
Ordering Information
Order Suffix Description
500D. Ballast With Ignitor and Dry Film Capacitor
510D. Ballast w/Welded Bracket, Ignitor, & Dry Film Capacitor
600. Ballast and Ignitor, No Capacitor
610. Ballast with Welded Bracket and Ignitor, No Capacitor
11/08/00
B3
![](asset-1a.png)
Designed for use in commercial spaces, like shops, restaurants,and displays, the
multiple downlights are suitable in all projects where directional lighting is desired.
Available in halogen, metal halide or a combination of both, the multiple is
a versatile solution for applications where more than one lamp type is needed.
This new serie of multi lamp downlights supports up to six independently
directional units.
Optical assemblies are adjustable in virtually all directions. This series are
supplied with new construction plaster frame and integral electronic transformers
and/or electronic ballasts, 120 volts (277-347 volts upon request).
Relamping is simple and does not require tools.
Directional recessed downlight provides
direct light.
Die cast aluminum optical assembly,
steel frame, body and fastener.
Uses PAR 30 and PAR 38 halogen, PAR 30,
PAR 38 metal halide and AR111 low voltage.
Available in grey.
MULTIPLE LARGE
18
B4
![](asset-1b.png)
Multiple Large Triple
8230-AR 3 x AR 111 75 W
8230-PAR 3 x PAR 30 75 W
8230-1MH35 2 x AR 111 75 W+Metal Halide PAR 30 35 W
8230-1MH70 2 x AR 111 75 W+Metal Halide PAR 30 70 W
8230-3MH35 3 x Metal Halide PAR 30 35 W
8230-3MH70 3 x Metal Halide PAR 30 70 W
8330-PAR 3 x PAR 38 90W
8330-MH 3 x Metal Halide PAR 38 70W
(PAR/AR)
7-3/8"
(MH)
8-7/8"
7-1/4"
7-1/4"
20-1/8"
7-1/4"
(PAR/AR)
7-3/8"
(MH)
8-7/8"
Multiple Large Single
8210-AR 1 x AR 111 75 W
8210-PAR 1 x PAR 30 75 W
8210-MH35 1 x Metal Halide PAR 30 35 W
8210-MH70 1 x Metal Halide PAR 30 70 W
8310-PAR 1 x PAR 38 90W
8310-MH 1 x Metal Halide PAR 38 70W
Multiple Large Double
8220-AR 2 x AR 111 75 W
8220-PAR 2 x PAR 30 75 W
8220-1MH35 1 x AR 111 75 W+Metal Halide PAR 30 35 W
8220-1MH70 1 x AR 111 75 W+Metal Halide PAR 30 70 W
8220-2MH35 2 x Metal Halide PAR 30 35 W
8220-2MH70 2 x Metal Halide PAR 30 70 W
8320-PAR 2 x PAR 38 90W
8320-MH 2 x Metal Halide PAR 38 70W
6-1/2"x 6-1/2"
6-1/2" x 12-5/8"
6-1/2" x 19"
10
MULTIPLE LARGE
These are standard configurations. Custom configurations available upon request.
19
(PAR/AR)
7-3/8"
(MH)
8-7/8"
13-3/4"
7-1/4 "
Toronto University Architecture Dept.
![](asset-1c.png)
Designed for use in commercial spaces, like shops, restaurants,and displays, the
multiple downlights are suitable in all projects where directional lighting is desired.
Available in halogen, metal halide or a combination of both, the multiple is
a versatile solution for applications where more than one lamp type is needed.
This new serie of multi lamp downlights supports up to six independently
directional units.
Optical assemblies are adjustable in virtually all directions. This series are
supplied with new construction plaster frame and integral electronic transformers
and/or electronic ballasts, 120 volts (277-347 volts upon request).
Relamping is simple and does not require tools.
Directional recessed downlight provides
direct light.
Die cast aluminum optical assembly,
steel frame, body and fastener.
Uses PAR 30 and PAR 38 halogen, PAR 30,
PAR 38 metal halide and AR111 low voltage.
Available in grey.
MULTIPLE LARGE
18
B4
![](asset-1d.png)
Multiple Large Triple
8230-AR 3 x AR 111 75 W
8230-PAR 3 x PAR 30 75 W
8230-1MH35 2 x AR 111 75 W+Metal Halide PAR 30 35 W
8230-1MH70 2 x AR 111 75 W+Metal Halide PAR 30 70 W
8230-3MH35 3 x Metal Halide PAR 30 35 W
8230-3MH70 3 x Metal Halide PAR 30 70 W
8330-PAR 3 x PAR 38 90W
8330-MH 3 x Metal Halide PAR 38 70W
(PAR/AR)
7-3/8"
(MH)
8-7/8"
7-1/4"
7-1/4"
20-1/8"
7-1/4"
(PAR/AR)
7-3/8"
(MH)
8-7/8"
Multiple Large Single
8210-AR 1 x AR 111 75 W
8210-PAR 1 x PAR 30 75 W
8210-MH35 1 x Metal Halide PAR 30 35 W
8210-MH70 1 x Metal Halide PAR 30 70 W
8310-PAR 1 x PAR 38 90W
8310-MH 1 x Metal Halide PAR 38 70W
Multiple Large Double
8220-AR 2 x AR 111 75 W
8220-PAR 2 x PAR 30 75 W
8220-1MH35 1 x AR 111 75 W+Metal Halide PAR 30 35 W
8220-1MH70 1 x AR 111 75 W+Metal Halide PAR 30 70 W
8220-2MH35 2 x Metal Halide PAR 30 35 W
8220-2MH70 2 x Metal Halide PAR 30 70 W
8320-PAR 2 x PAR 38 90W
8320-MH 2 x Metal Halide PAR 38 70W
6-1/2"x 6-1/2"
6-1/2" x 12-5/8"
6-1/2" x 19"
10
MULTIPLE LARGE
These are standard configurations. Custom configurations available upon request.
19
(PAR/AR)
7-3/8"
(MH)
8-7/8"
13-3/4"
7-1/4 "
Toronto University Architecture Dept.
![](asset-1e.png)
CCPP88110000
DELRAY
LIGHTING
INCORPORATED
11916
VALERIO ST.
NORTH
HOLLYWOOD,
CALIFORNIA
91605
PHONE
818 982 3701
FAX
818 982 3715
8" CYLINDER VERTICAL LAMP DOWNLIGHT
SPECIFICATION INFORMATION
ORDERING INFORMATION
SUBMITTAL INFORMATION
LAMP
1-18
18 watt triple tube
1-26
26 watt triple tube
1-32
32 watt triple tube
1-42
42 watt triple tube
120V ELECT.
CP8118.1E
18watt triple tube
CP8126.1E
26watt triple tube
CP8132.1E
32watt triple tube
CP8142.1E
42watt triple tube
FINISH MUST BE SPECIFIED
277V ELECT.
CP8118.2E
18watt triple tube
CP8126.2E
26watt triple tube
CP8132.2E
32watt triple tube
CP8142.2E
42watt triple tube
TYPE:
DESCRIPTION:
PROJECT:
NOTES:
CYLINDER HOUSING
Pendant mounted cylinder is
constructed of seamless extruded
aluminum with a powder coat
finish. Standard height is 14” ,
dimming and emergency ballast
add 4” to height. Fixture mounts
to standard juction box. Pendant is
1/8 IPS steel and is standard in 18”
(optional length can be specified)
REFLECTOR
Reflector is available in thirty
degree cutoff
.30
. Finishes are
Clear
A
or Gold
G
Alzak for
anodized, specular, durable and
anti-iridescent reflectors.
TRIM OPTIONS
B
black baffle
G
gold Alzak
SP
splay fesnel lens
BALLAST
Electronic enclosed, class P, HPF
is supplied standard in 120V or
277V. Ballasts use 4 pin lamps
and provide rapid start, .99 power
factor with THD<10%. Dimming
ballast controls lumen output
down to+
-5% and is available from
Lutron
D1
and
D4
and Advance
D3
.
All require compatible dimmers.
ELECTRICAL
U.L. listed for use in damp
locations.
ACCESSORIES
B
black baffle
BA
ball aligner canopy
D1
Lutron Hi-Lume dimming
ballast adds 4” to length
D3
Advance dimming ballast adds
4” to length
D4
Lutron Tu-Wire dimming
ballast 120V only
EM
emergency power pack ignites
1 lamp for 90 minutes adds 4” to
length
RC
retro-fit for existing cylinder
(consult factory)
X
custom pendant length (specify
length)
FINISHES
BM
brushed metal
BZ
bronze
K
black
W
white
14"
18"
8"
Clear Alzak®
Gold Alzak®
Black Baffle
Splay with
Fresnel Lens
Pendant mount
Cylinder
NOTE:
D1, D3,
and
EM
Accessories
add 4” to height
B5

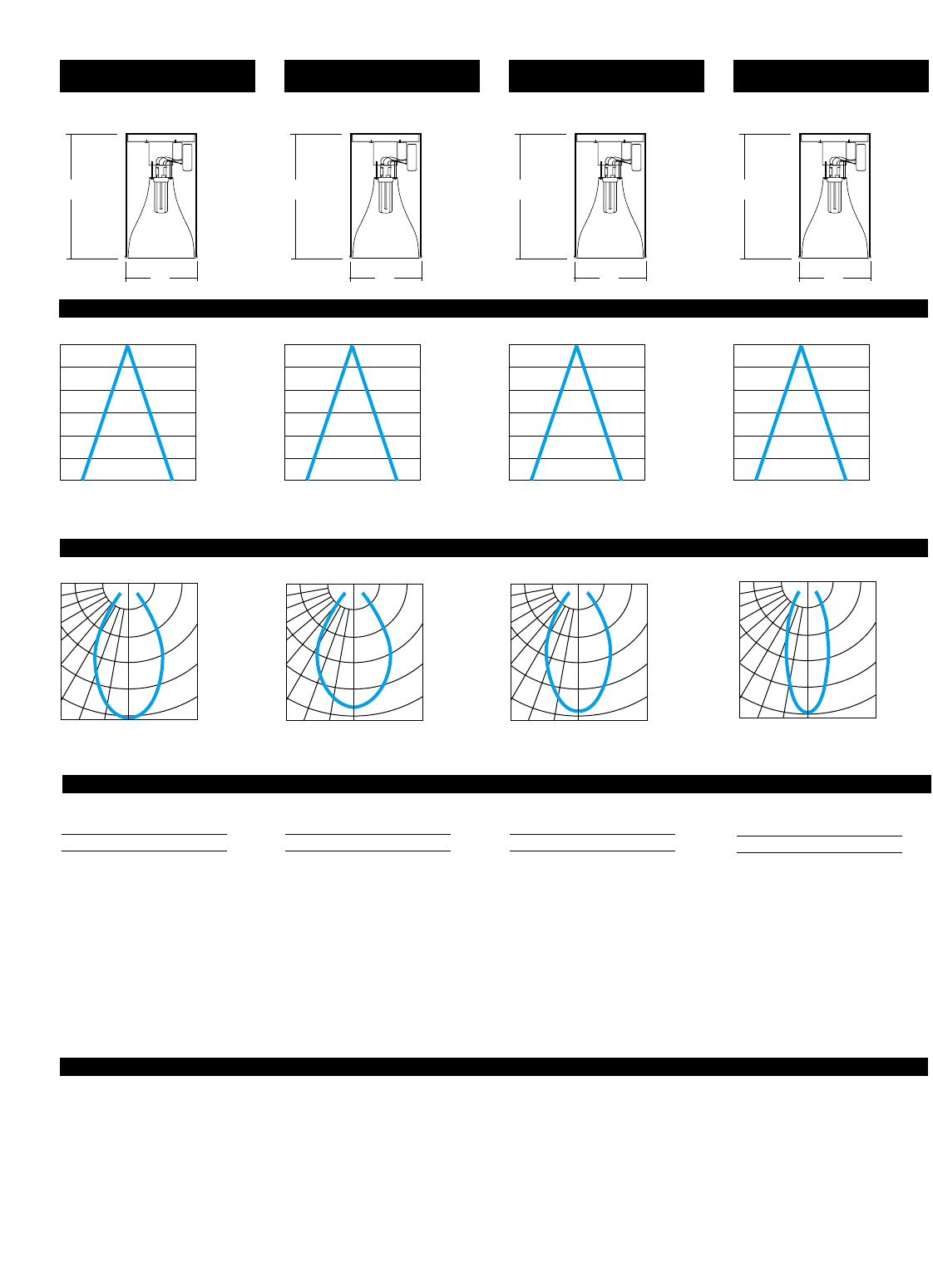

![](asset-1f.png)
CLEAR ALZAK 30°
CONE OF LIGHT
CP DISTRIBUTION
NOTES
CLEAR ALZAK 30° CLEAR ALZAK 30° CLEAR ALZAK 30°
14"
8"
14"
8"
14"
8"
14"
8"
30°
60°
400
600
90°
800
1000
200
30°
60°
520
780
90°
1040
1300
260
30°
60°
620
930
90°
1240
310
1550
CP8118
1-18 watt
triple
tube
G24q-2 electronic socket
Total lumens-1250
Spacing criteria-.9
Gold Alzak x.90
CP8126
1-26 watt
triple
tube
G24q-3 electronic socket
Total lumens-1800
Spacing criteria-.9
Gold Alzak x.90
CP8132
1-32 watt triple tube
G24q-3 electronic socket
Total lumens-2400
Spacing criteria-.9
Gold Alzak x.90
MTG. HT. FC/0•DIA.
4' 65 3.7
6' 29 5.5
8' 17 7.3
10' 11 9.2
12' 8 11.0
50% FC at edge
MTG. HT. FC/0•DIA.
4' 81 3.7
6' 39 5.5
8' 19 7.3
10' 12 9.2
12' 9 11.0
50% FC at edge
MTG. HT. FC/0•DIA.
4' 95 4.2
6' 42 6.4
8' 24 8.5
10' 15 10.7
12' 11 12.8
50% FC at edge
CP8118
30°
60°
800
1200
90°
1600
2000
400
CP8142
1-42 watt triple tube
G24q-4 electronic socket
Total lumens-3200
Spacing criteria-.9
Gold Alzak x.90
MTG. HT. FC/0•DIA.
4' 123 4.3
6' 54 6.6
8' 31 8.8
10' 19 10.9
12' 14 12.9
50% FC at edge
CP8126 CP8132 CP8142
COEFFICIENTS OF UTILIZATION
% CEILING 80 (20% FLOOR)
% WALL 70 50 30
0 757575
1 727170
2 706765
3 676461
4 646058
5 625754
6 595552
7 575249
8 544946
9 524743
10 50 44 41
% CEILING 80 (20% FLOOR)
% WALL 70 50 30
0 717171
1 696766
2 666361
3 636057
4 615754
5 585350
6 555148
7 534845
8 504542
9 484339
10 46 40 37
% CEILING 80 (20% FLOOR)
% WALL 70 50 30
0 848484
1 807877
2 777471
3 736966
4 706562
5 676157
6 635854
7 605450
8 575046
9 544743
10 51 44 40
% CEILING 80 (20% FLOOR)
% WALL 70 50 30
0 797979
1 767473
2 737067
3 696663
4 666258
5 635855
6 605551
7 575148
8 544844
9 514541
10 49 42 39
![](asset-20.png)
PL-T Triple 4-Pin Fluorescent Lamp
Feature High color rendering, high efficacy lamps
feature 4-pin base for use with preheat, rapid
start, electronic and dimming circuits.
Featuring ALTO® Lamp Technology
Watts 32
Bulb PL-T
Base GX24q-3
Product
Number 046677-26832-6
Ordering
Code PL-T 32W/830/4P/ALTO
Generic
Designation CFTR32W/GX24q/830
Package
Quantity 12
Description 3000K
CRI 82
Avg. Hrs.
Life 10,000
Design
Lumens 2040
M.O.L. 5 5/8
Lumens 2400
Images
+ ALTO Product Logo
+ Family Photo
+ Product Photo
Literature
+ ALTO Family Brochure
+ MSDS S08-98001
Other Information
• Energy Saving Product
+ Printable Page
+ View Compatible Ballasts
+ Send this Link
+ Bookmark this Page
Footnotes
+ This Product Contains Amalgam
+ High Color Rendering Lamp
+ Features ALTO® Lamp Technology
+ Rated average life under specified test conditions with Programmed Start ballasts with lamps
turned off and restarted no more frequently than once every 3 operating hours. Lamp life is
appreciably longer if lamps are started less frequently.
Pa
g
e 1 of 2PL-T Tri
p
le 4-Pin Fluorescent Lam
p
32 Watts Bulb PL-T Base GX24
q
-3 Product Numbe...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/cfl/dis
p
la
y
cfl.
p
h
p
?id=131
B5
![](asset-21.png)
Information for this product last modified on September 25, 2001
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
+ Approximate Initial Lumens. The lamp lumen output is based upon lamp performance after 100
hours of operating life, when the output is measured during operation on a reference ballast under
standard laboratory conditions.
+ Design Lumens are the approximate lamp lumen output at 40% of the lamp's Rated Average Life.
This output is based upon measurements obtained during lamp operation on a reference ballast
under standard laboratory conditions.
Pa
g
e 2 of 2PL-T Tri
p
le 4-Pin Fluorescent Lam
p
32 Watts Bulb PL-T Base GX24
q
-3 Product Numbe...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/cfl/dis
p
la
y
cfl.
p
h
p
?id=131
![](asset-22.png)
Revised 08/27/2003
Data is based upon tests performed by Advance Transformer in a controlled environment and representative of relative performance. Actual performance
can vary depending on operating conditions. Specifications are subject to change without notice. All specifications are nominal unless otherwise noted.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER · 10275 WEST HIGGINS ROAD · ROSEMONT, IL 60018
Customer Support/Technical Service: Phone: 800-372-3331 · Fax: 630-307-3071
Corporate Offices: Phone: 800-322-2086
IZT-2T42-M3-BS@120
Brand Name MARK VII 0-10V
Ballast Type Electronic Dimming
Starting Method Programmed Start
Lamp Connection Series
Input Voltage 120-277
Input Frequency 50/60 HZ
Status Active
Electrical Specifications
Lamp Type Num.
of
Lamp
s
Rated
Lamp
Watts
Min.
Start
Temp
(°F/C)
Input
Current
(Amps)
Input Power
(Watts)
(min/max)
Ballast Factor
(min/max)
MAX
THD
%
Power
Factor
Lamp
Current
Crest Factor
B.E.F.
* CFM32W/GX24Q 2 32 50/10 0.63 19/75 0.05/1.00 10 0.99 1.4 1.33
CFM42W/GX24Q 2 42 50/10 0.82 18/98 0.05/1.00 10 0.99 1.4 1.02
CFTR57W/GX24Q 1 57 50/10 0.55 18/66 0.05/1.00 10 0.99 1.7 1.52
CFTR70W/GX24Q 1 70 50/10 0.67 18/80 0.05/1.00 10 0.99 1.7 1.25
Wiring Diagram
WIRING: (2) TRIPLE LAMPS
Green Terminal must be Grounded
GREEN
GREY (-)
BLACK
WHITE
VIOLET(+) BALLAST
LINE BLUE
RED
YELLOW
CLASS 1&2
CIRCUIT
10V, 0.5mA
The wiring diagram that appears above is
for the lamp type denoted by the asterisk (*)
Standard Lead Length (inches)
in. cm.
Black 0 0
White 0 0
Blue 0 0
Red 0 0
Yellow 0 0
Gray 0 0
Violet 0 0
in. cm.
Yellow/Blue 0
Blue/White 0
Brown 0
Orange 0
Orange/Black 0
Black/White 0
Red/White 0
Enclosure
Enclosure Dimensions
OverAll (L) Width (W) Height (H) Mounting (M)
6.28 " 3.00 " 1.29 " 2.00 "
6 7/25 3 1 29/100 2
16 cm 7.6 cm 3.3 cm 5.1 cm
B5
![](asset-23.png)
IZT-2T42-M3-BS@120
Brand Name MARK VII 0-10V
Ballast Type Electronic Dimming
Starting Method Programmed Start
Lamp Connection Series
Input Voltage 120-277
Input Frequency 50/60 HZ
Status Active
Electrical Specifications
Notes:
Section I - Physical Characteristics
1.1 Ballast shall be physically interchangeable with standard electromagnetic or standard electronic ballasts, where applicable.
1.2 Ballast shall be available in a plastic/metal can or all metal can construction to meet all plenum requirements.
1.3 Ballast shall be provided with poke-in wire trap connectors or integral leads color coded per ANSI C82.11.
Section II - Performance Requirements
2.1 Ballast shall be Programmed Start.
2.2 Ballast shall be provided with integral protection circuitry to withstand connection of low voltage control leads to mains power supply. In
this event, ballast shall default to maximum light output.
2.3 Ballast shall contain auto restart circuitry in order to restart lamps without resetting power.
2.4 Ballast shall operate from 50/60 Hz input source of 120V or 277V with sustained variations of +/- 10% (voltage and frequency) with no
damage to the ballast. IntelliVolt models shall operate from 50/60 Hz input source of 120V through 277V with sustained variations of +/- 10%
(voltage and frequency) with no damage to the ballast.
2.5 Ballast shall be high frequency electronic type and operate lamps at a frequency above 42 kHz to avoid interference with infrared devices
and eliminate visible flicker.
2.6 Ballast shall have a Power Factor greater than 0.98 at full light output and greater than 0.90 throughout the dimming range for primary lamp.
2.7 Ballast shall have a maximum ballast factor of 1.00 (1.18 for HL versions) at maximum light output and 0.03 at minimum light output for
primary lamp application.
2.8 Ballast shall provide for a Lamp Current Crest Factor of 1.7 or less throughout the dimming range in accordance with lamp manufacturer
recommendations.
2.9 Ballast input current shall have Total Harmonic Distortion (THD) of less than 10% when operated at nominal line voltage with primary lamp.
2.10 Ballast shall have a Class A sound rating.
2.11 Ballast shall have a minimum starting temperature of 10C (50F) for primary lamp.
2.12 Ballast shall provide Lamp EOL Protection Circuit for all T5, T5/HO, CFL lamps, and T8 lamps operating on 4-lamp ballast.
2.13 Ballast shall control lamp light output from 100% - 3% relative light output for T8 and CFL lamps and 100% - 1% relative light output for
T5/HO lamps.
2.14 Ballast shall ignite the lamps at any light output setting without first going to another output setting.
2.15 Ballast shall tolerate sustained open circuit and short circuit output conditions without damage.
Section III - Regulatory Requirements
3.1 Ballast shall not contain any Polychlorinated Biphenyl (PCB).
3.2 Ballast shall be Underwriters Laboratories (UL) listed, Class P and Type 1 Outdoor; and Canadian Standards Association (CSA) certified
where applicable.
3.3 Ballast shall comply with ANSI C62.41 Category A for Transient protection.
3.4 Ballast shall comply with ANSI C82.11 where applicable.
3.5 Ballast shall comply with the requirements of the Federal Communications Commission (FCC) rules and regulations, Title 47 CFR part 18,
Non-Consumer (Class A) for EMI/RFI (conducted and radiated).
Section IV - Other
4.1 Ballast shall be manufactured in a factory certified to ISO 9002 Quality System Standards.
4.2 Ballast shall carry a five-year warranty from date of manufacture against defects in material or workmanship, including replacement, for
operation at a maximum case temperature of 70C.
![](asset-24.png)
4.3 Manufacturer shall have a fifteen-year history of producing electronic ballasts for the North American market.
4.4 Ballast shall be controlled by a Class 1 or Class 2 low voltage 0-10VDC controller.
4.5 Ballast shall be Advance Transformer part # _____________ or approved equal.
Revised 08/27/2003
Data is based upon tests performed by Advance Transformer in a controlled environment and representative of relative performance. Actual performance can vary
depending on operating conditions. Specifications are subject to change without notice. All specifications are nominal unless otherwise noted.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER - 10275 WEST HIGGINS ROAD
ROSEMONT, ILLINOIS 60018
TELEPHONE: (847) 390-5000 FAX: (847) 390-5109
![](asset-25.png)
04-05
9" x 9" Floating Paper Spectral
Optic Forms Architectural Lighting
2-26/32/42W Triple Twin Tube
Ceiling Cutout : 9 5/8" (245mm) X 9 5/8" (245mm)
Ordering Guide (complete unit only)
Cat. No. Lamp (Triple Twin Tube) Volts Finish
SL207CTEU 120/277V
SL207CTE3 347V
SL207CPPU 2-26W TTT 120/277V (HDF)
SL207CPOU 2-32/42W TTT 120/277V (HDF) Clear acrylic with white lacquer lens and brushed stainless steel square trim.
SL207CTZ1 120V (MARK-10) Stainless steel screws .
SL207CTZ2 277V (MARK-10)
SL207CTR1 120V (MARK-10)
SL207CTR2 277V (MARK-10)
Features Electrical
1. Lens : 40mm thick clear acrylic finished with a translucent diffused coating. Ballast : Electronic Program Rapid Start T4 quad lamp ballast. Universal
2. Trim Ring : 18 ga. Steel. Brushed Stainless finish. voltage "U" ballast automatically detect 120 volts or 277 volts operation. No
3. Upper Reflector: High efficiency, 97%, Specular Clear. visible flicker on starting, internally fused and protection circuit for lamp end of
4. Housing: 20ga. Galvanized formed steel. Centerline notches and life. Sound rated “A”. Designed for removal without tools from inside of luminaire
holes for consistent alignment of multiple fixtures. Accommodates for easy field inspection or service replacement.
ceilings up to 1 1/4" (31mm) thick. TE : 26/32/42W TTT non-dimming
5. Ballast Assembly: Door-mounted for easy service, allows replacement PP : 26W TTT HDF dimming
from inside of fixture. PO : 32/42W TTT HDF dimming
6. Junction Box: 14 ga. Galvanized steel. Accessible from inside and TZ : 26W TTT MARK-10 dimming
outside of the fixture. Outside J-box door is hinged for easy access. TR : 32/42W TTT MARK-10 dimming
7. Mounting Brackets: 16 ga. steel. Use 18" (457 mm) mounting bars
(optional) or with standard 3/4" (19 mm), 1-1/2" (38 mm) lathing channels Lampholder : 26/32W : G24q-3 base, 42W : G24q-4 (4-pins)
(by others) or 1/2” (13 mm) tubing (by others). Adjust vertically from
inside of fixture. Options and Accessories
8. Junction Box: CSA certified for through branch circuit wiring Mounting bars: 1950 (set of 2) 18" (457 mm) long. 1951 (set of 2) 30"
with maximum of 8 no. 12, 90º C conductors. (762 mm) long.
T-Bar Anchor Clips : 1956 (set of 4) For anchoring mounting bars to
T-Bar runners.
Mounting
Recessed, Non-IC Type (non thermal insulation contact).
Finish
Lens : Clear acrylic with white lacquer
Square Trim : Brushed Stainless steel
Labels
UL "c/us" Listed. Suitable for wet locations.
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH, IN ANY WAY
THAT WILL NOT ALTER INSTALLED APPEARANCE OR REDUCE FUNCTION AND PERFORMANCE.
Lightolier Canada, 3015 Louis Amos Lachine, (Quebec) H8T 1C4
2-32/42W TTT
2-26/32/42W TTT
2-26W TTT
SL207C
B6

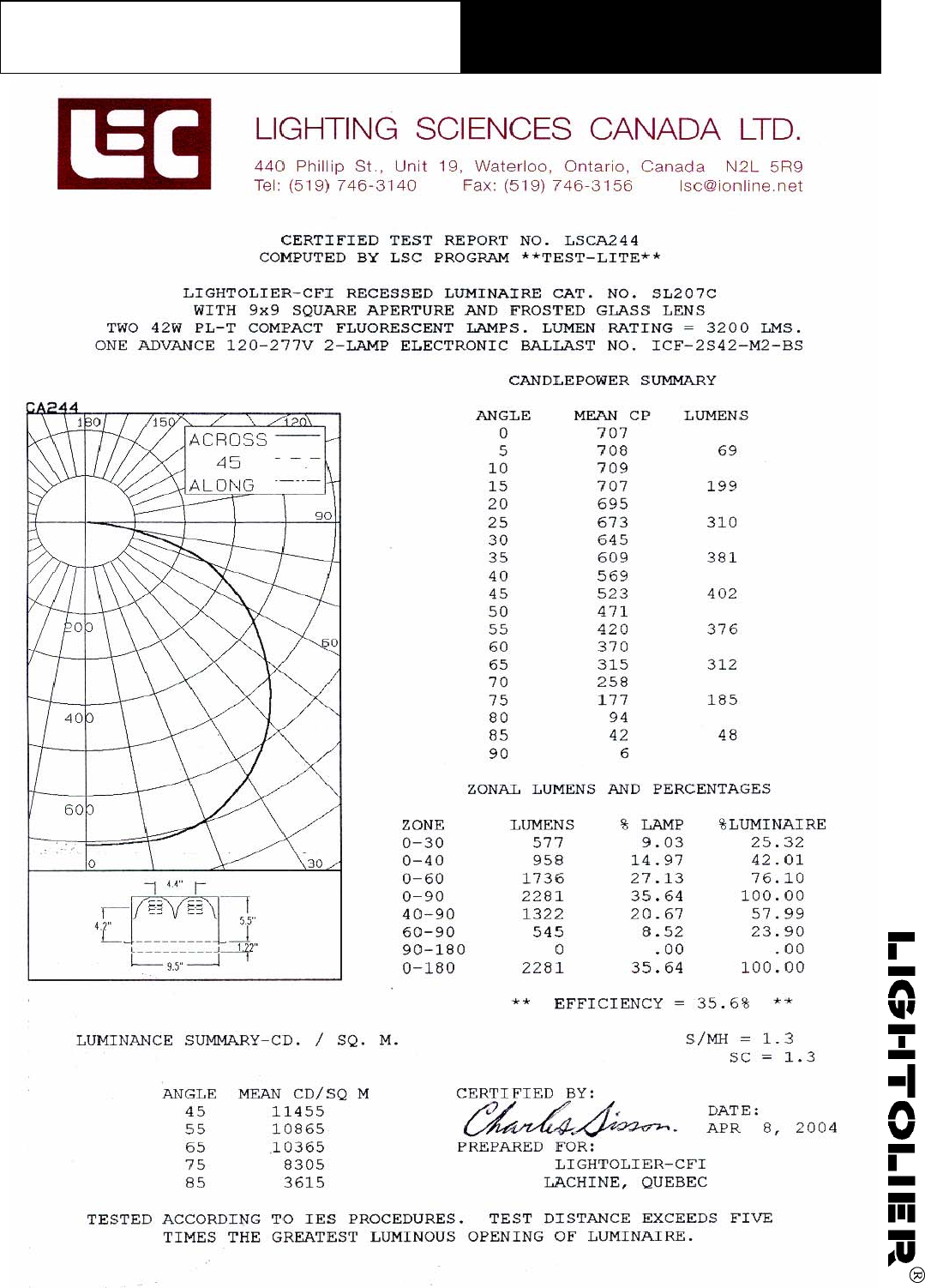

![](asset-26.png)
04-05
Floating Paper 9" x 9" Spectral
Optic Forms Architectural Lighting
2-26/32/42W Triple Twin Tube
SL207C
![](asset-27.png)
PL-T Triple 4-Pin Fluorescent Lamp
Feature High color rendering, high efficacy lamps
feature 4-pin base for use with preheat, rapid
start, electronic and dimming circuits.
Featuring ALTO® Lamp Technology
Watts 32
Bulb PL-T
Base GX24q-3
Product
Number 046677-26832-6
Ordering
Code PL-T 32W/830/4P/ALTO
Generic
Designation CFTR32W/GX24q/830
Package
Quantity 12
Description 3000K
CRI 82
Avg. Hrs.
Life 10,000
Design
Lumens 2040
M.O.L. 5 5/8
Lumens 2400
Images
+ ALTO Product Logo
+ Family Photo
+ Product Photo
Literature
+ ALTO Family Brochure
+ MSDS S08-98001
Other Information
• Energy Saving Product
+ Printable Page
+ View Compatible Ballasts
+ Send this Link
+ Bookmark this Page
Footnotes
+ This Product Contains Amalgam
+ High Color Rendering Lamp
+ Features ALTO® Lamp Technology
+ Rated average life under specified test conditions with Programmed Start ballasts with lamps
turned off and restarted no more frequently than once every 3 operating hours. Lamp life is
appreciably longer if lamps are started less frequently.
Pa
g
e 1 of 2PL-T Tri
p
le 4-Pin Fluorescent Lam
p
32 Watts Bulb PL-T Base GX24
q
-3 Product Numbe...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/cfl/dis
p
la
y
cfl.
p
h
p
?id=131
B6
![](asset-28.png)
Information for this product last modified on September 25, 2001
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
+ Approximate Initial Lumens. The lamp lumen output is based upon lamp performance after 100
hours of operating life, when the output is measured during operation on a reference ballast under
standard laboratory conditions.
+ Design Lumens are the approximate lamp lumen output at 40% of the lamp's Rated Average Life.
This output is based upon measurements obtained during lamp operation on a reference ballast
under standard laboratory conditions.
Pa
g
e 2 of 2PL-T Tri
p
le 4-Pin Fluorescent Lam
p
32 Watts Bulb PL-T Base GX24
q
-3 Product Numbe...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/cfl/dis
p
la
y
cfl.
p
h
p
?id=131
![](asset-29.png)
Revised 09/02/2004
Data is based upon tests performed by Advance Transformer in a controlled environment and representative of relative performance. Actual performance
can vary depending on operating conditions. Specifications are subject to change without notice. All specifications are nominal unless otherwise noted.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER · 10275 WEST HIGGINS ROAD · ROSEMONT, IL 60018
Customer Support/Technical Service: Phone: 800-372-3331 · Fax: 630-307-3071
Corporate Offices: Phone: 800-322-2086
ICF-2S42-M2-BS@120
Brand Name SMARTMATE
Ballast Type Electronic
Starting Method Programmed Start
Lamp Connection Series
Input Voltage 120-277
Input Frequency 50/60 HZ
Status Active
Electrical Specifications
Lamp Type Num.
of
Lamp
s
Rated
Lamp
Watts
Min. Start
Temp
(°F/C)
Input
Current
(Amps)
Input
Power
(ANSI
Watts)
Ballast
Factor
MAX
THD
%
Power
Factor
MAX Lamp
Current
Crest Factor
B.E.F.
(1) FC9T5 & (1)
FC12T5
2 62 0/-18 0.51 61 0.85 10 0.98 1.5 1.39
CFM26W/GX24Q 2 26 0/-18 0.46 55 1.00 10 0.98 1.5 1.82
* CFM32W/GX24q 2 32 0/-18 0.57 68 0.98 10 0.98 1.5 1.44
CFM42W/GX24q 2 42 0/-18 0.78 93 0.97 10 0.99 1.5 1.04
CFM57W/GX24Q 1 57 32/00 0.50 59 0.94 10 0.98 1.5 1.59
CFM70W/GX24Q 1 70 14/-10 0.63 75 0.96 10 0.98 1.6 1.28
CFQ26W/G24q 2 26 0/-18 0.43 52 1.00 10 0.98 1.5 1.92
CFS28W/GR10q 2 28 0/-18 0.48 57 1.00 10 0.98 1.5 1.75
CFS38W/GR10q 2 38 0/-18 0.55 62 0.80 10 0.98 1.5 1.29
FT24W/2G11 2 24 0/-18 0.40 48 0.93 15 0.98 1.5 1.94
FT40W/2G11/RS 2 40 0/-18 0.66 78 0.95 10 0.99 1.5 1.22
Wiring Diagram
WIRING: (2) LAMPS (1) LAMP
Green Terminal must be Grounded
GREEN
BLACK
WHITE BALLAST
LINE
BLUE
RED
YELLOW
RED
BLUE
The wiring diagram that appears above is
for the lamp type denoted by the asterisk (*)
Standard Lead Length (inches)
in. cm.
Black 0.0
White 0.0
Blue 0.0
Red 0.0
Yellow 0
Gray
Violet
in. cm.
Yellow/Blue
Blue/White
Brown
Orange
Orange/Black
Black/White
Red/White
Enclosure
Enclosure Dimensions
OverAll (L) Width (W) Height (H) Mounting (M)
4.98 " 3.00 " 1.29 " 2.00 "
4 49/50 3 1 29/100 2
12.6 cm 7.6 cm 3.3 cm 5.1 cm
B6
![](asset-2a.png)
ICF-2S42-M2-BS@120
Brand Name SMARTMATE
Ballast Type Electronic
Starting Method Programmed Start
Lamp Connection Series
Input Voltage 120-277
Input Frequency 50/60 HZ
Status Active
Electrical Specifications
Notes:
Section I - Physical Characteristics
1.1 Ballast shall be physically interchangeable with standard electromagnetic or standard electronic ballasts, where applicable.
1.2 Ballast shall be available in a plastic/metal can or all metal can construction to meet all plenum requirements.
1.3 Ballast shall be provided with poke-in wire trap connectors color coded per ANSI C82.11.
Section II - Performance Requirements
2.1 Ballast shall be Programmed Start except for ballasts with -QS suffix, which shall be Rapid Start.
2.2 Ballast shall contain auto restart circuitry in order to restart lamps without resetting power.
2.3 Ballast shall operate from 50/60 Hz input source of 120V through 277V with sustained variations of +/- 10% (voltage and frequency) with
no damage to the IntelliVolt ballast. RCF models shall operate from 60 Hz input source of 120V with sustained variations of +/- 10% (voltage
and frequency) with no damage to the ballast.
2.4 Ballast shall be high frequency electronic type and operate lamps at a frequency above 42 kHz to avoid interference with infrared devices
and eliminate visible flicker.
2.5 Ballast shall have a Power Factor greater than 0.98 for primary lamp.
2.6 Ballast shall have a minimum ballast factor of 1.00 for primary lamp application.
2.7 Ballast shall provide for a Lamp Current Crest Factor of 1.7 or less in accordance with lamp manufacturer recommendations.
2.8 Ballast input current shall have Total Harmonic Distortion (THD) of less than 10% when operated at nominal line voltage with primary lamp.
2.9 Ballast shall have a Class A sound rating.
2.10 Ballast shall have a minimum starting temperature of -18C (0F) for primary lamp. Ballasts for PL-H lamps shall have a minimum starting
temperature of -30C (-20F) for primary lamp.
2.11 Ballast shall provide Lamp EOL Protection Circuit which meets NEMA recommendations.
2.12 Ballast shall tolerate sustained open circuit and short circuit output conditions without damage.
Section III - Regulatory Requirements
3.1 Ballast shall not contain any Polychlorinated Biphenyl (PCB).
3.2 Ballast shall be Underwriters Laboratories (UL) listed, Class P and Type 1 Outdoor; and Canadian Standards Association (CSA) certified
where applicable.
3.3 Ballast shall be Underwriters Laboratories (UL) rated for use in air-handling spaces.
3.4 Ballast shall comply with ANSI C62.41 Category A for Transient protection.
3.5 Ballast shall comply with ANSI C82.11 where applicable.
3.6 Ballast shall comply with the requirements of the Federal Communications Commission (FCC) rules and regulations, Title 47 CFR part 18,
Non-Consumer (Class A) for EMI/RFI (conducted and radiated) except for RCF models which shall be Consumer (Class B).
Section IV - Other
4.1 Ballast shall be manufactured in a factory certified to ISO 9002 Quality System Standards.
4.2 Ballast shall carry a five-year warranty from date of manufacture against defects in material or workmanship, including replacement, for
operation at a maximum case temperature of 75C and three-years for a maximum case temperature of 85C (90C 3year warranty for ICF1H120-
XX-XX, ICF2S70-XX-XX and ICF2S4290C-XX-XX modesls).
4.3 Manufacturer shall have a fifteen-year history of producing electronic ballasts for the North American market.
4.4 Ballast shall be Advance Transformer part # _____________ or approved equal.
Revised 09/02/2004
Data is based upon tests performed by Advance Transformer in a controlled environment and representative of relative performance. Actual performance can vary
depending on operating conditions. Specifications are subject to change without notice. All specifications are nominal unless otherwise noted.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER - 10275 WEST HIGGINS ROAD
ROSEMONT, ILLINOIS 60018
TELEPHONE: (847) 390-5000 FAX: (847) 390-5109
![](asset-2b.png)
Type Catalog number
......................... ................................................................................
......................... ................................................................................
OPTICAL SYSTEM
• Internal housing components painted matte black. Lamp
snoot minimizes stray light in housing.
• Finishing trim is microgroove black baffle with white painted
flange or specular, semi-diffuse or highly specular cone
with flange that matches cone finish. White painted flange
optional.
• Optical system retained by self-aligning butterfly support
springs.
• Accommodates up to two lenses, filters or louvers.
• Softening lens standard (supplied).
MECHANICAL SYSTEM
• Black painted housing features tool-less top access and
accommodates a maximum 2" ceiling thickness.
• Re-lamp capability from above or below ceiling.
• Mounting bars are 16-gauge galvanized steel with continu-
ous 4" vertical adjustment, held in place with tool-less, inte-
gral cam-action locking. Post installation adjustment pos-
sible without the use of tools from above or below the ceil-
ing. Shipped pre-installed.
• Secondary housing adjustment system for precise, final
flange to ceiling alignment.
• Painted steel junction box with bottom-hinged access cov-
ers and spring latches. Four combination 1/2"-3/4" knockouts
for straight-through conduit runs. Capacity: 8(4 in, 4 out) No.
12 AWG conductors, rated for 90°C.
ELECTRICAL SYSTEM
• Tool-less access door provides access to junction box
through the aperture.
• Replaceable socket assembly. MR16 socket assembly stan-
dard (20W - 75W).
• Magnetic step-down transformer (replaceable without the
use of tools).
• Thermally-activated insulation detector (replaceable with-
out the use of tools).
LISTING
• Fixtures are UL listed for thru-branch wiring, recessed mount-
ing and damp locations. Listed and labeled to comply with
Canadian Standards.
Low Voltage Downlights
Downlight
Open Cone
Aperture: 4-5/16 (11.0)
Ceiling opening: 4-7/8 (12.4)
Overlap trim: 5-7/16 (13.8)
13-3/4
(34.9)
16-1/8 (41.0)
All dimensions are
inches (centimeters).
6-3/4 (17.1)
Example:
Choose the boldface catalog nomenclature that best suits your needs and write it on the appropriate line.
Order accessories as separate catalog numbers (shipped separately).
Specular
low
iridescent
Semi-
diffuse
low
iridescent
Highly
specular
White painted flange.
(Standard with WC, MB,
and WB.)
Provides compatibility
with Lithonia Reloc Sys-
tem.
NOTES
1 Clear safety lens standard with AR70 lamp designation.
2 Not available with finishes.
3 For compatible Reloc systems, refer to options and
accessories tab.
MR16 capability
(Standard)
MR11 capability
ALR12 capability
ALR18 capability
AR70 capability
Black
Clear
Pewter
Wheat
Umber
Gold
Champagne gold
White
Contoured black baffle
Contoured white baffle
• For lens accessories, refer to options and accessories tab.
• For lamp options, refer to options and accessories tab.
B7
![](asset-2c.png)
©2003 Gotham, Rev. 01/03
DLV-140.P65
From 0° cp. Lumens
0° 5263
5° 3805 301
15° 936 262
25° 114 58
35° 12 8
45° 3 2
55° 4 5
65° 8 6
75° 5 5
85° 3 5
90° 0
Zone Lumens %lamp
0°-30° 622 70.7
0°-40° 630 71.6
0°-60° 637 72.4
0°-90° 654 74.3
90°-180° 0 0.0
0°-180° 654 74.3*
* Efficiency
Q50MR16/C/NSP15 (EXT) lamp, 0.3 s/mh, 880 rated lumens, test no. 2198043004
50% 10%
beam angle 15.6° beam angle 35.1°
Initial fc fc at fc at
Mount at beam Beam beam Beam beam
height center diameter edge diameter edge
8' 174.0 1.5' 87.0 3.5' 17.4
10' 93.6 2.1' 46.8 4.8' 9.4
12' 58.3 2.6' 29.2 6.0' 5.8
14' 39.8 3.2' 19.9 7.3' 4.0
16' 28.9 3.7' 14.4 8.6' 2.9
rf 20%
rc 80% 70% 50%
rw 50% 30% 50% 30% 50% 30%
1848282817978
2807879777675
3777476737472
4747173717270
5726971687068
6706769666866
7686567656764
8666366636563
9656264626461
10 63 61 63 60 63 60
Downlight, Gotham Series
90°
45°
0°
1200
2400
3600
4800
6000
From 0° cp. Lumens
0° 7027
5° 5017 398
15° 1182 334
25° 126 74
35° 15 11
45° 0 0
55° 0 0
65° 0 0
75° 0 0
85° 0 0
90° 0
Zone Lumens %lamp
0°-30° 806 73.2
0°-40° 817 74.2
0°-60° 817 74.2
0°-90° 817 74.2
90°-180° 0 0.0
0°-180° 817 74.2*
* Efficiency
65MR16Q/10/NSP (FPA) lamp, 0.3 s/mh, 1100 rated lumens, test no. 2198040602
50% 10%
beam angle 15.3° beam angle 34.2°
Initial fc fc at fc at
Mount at beam Beam beam Beam beam
height center diameter edge diameter edge
8' 232.3 1.5' 116.1 3.4' 23.2
10' 124.9 2.0' 62.5 4.6' 12.5
12' 77.9 2.6' 38.9 5.8' 7.8
14' 53.1 3.1' 26.6 7.1' 5.3
16' 38.6 3.6' 19.3 8.3' 3.9
rf 20%
rc 80% 70% 50%
rw 50% 30% 50% 30% 50% 30%
1848383828079
2817980787776
3787677757574
4767375737372
5737173707270
6726971697068
7706769676966
8686668656765
9676466646664
10 65 63 65 63 65 62
Zone Lumens %lamp
0°-30° 696 63.3
0°-40° 738 67.1
0°-60° 741 67.3
0°-90° 744 67.6
90°-180° 0 0.0
0°-180° 744 67.6*
* Efficiency
, Q71MR16/C/FL40 (EYC) lamp, 0.5 s/mh, 1100 rated lumens, test no. 2198043005
50% 10%
beam angle 28.6° beam angle 52.9°
Initial fc fc at fc at
Mount at beam Beam beam Beam beam
height center diameter edge diameter edge
8' 75.4 2.8' 37.7 5.5' 7.5
10' 40.5 3.8' 20.3 7.5' 4.1
12' 25.3 4.8' 12.6 9.5' 2.5
14' 17.2 5.9' 8.6 11.4' 1.7
16' 12.5 6.9' 6.3 13.4' 1.3
From 0° cp. Lumens
0° 2280
5° 2027 182
15° 1190 325
25° 405 189
35° 62 42
45° 0 1
55° 1 1
65° 1 1
75° 1 1
85° 1 1
90° 0
90°
45°
0°
90°
45°
0°
rf 20%
rc 80% 70% 50%
rw 50% 30% 50% 30% 50% 30%
1767574737271
2727071696967
3686668656664
4656265626361
5635962596158
6605759575956
7585457545654
8555255525452
9535053505350
10 52 48 51 48 51 48
1600
3200
4800
6400
8000
600
1200
1800
2400
3000
NOTES
1 Tested to current IES and NEMA standards under stabilized laboratory
conditions. Various operating factors can cause differences between
laboratory data and actual field measurements. Dimensions and
specifications are based on the most current available data and are
subject to change without notice.
Zone Lumens %lamp
0°-30° 548 62.3
0°-40° 577 65.6
0°-60° 578 65.7
0°-90° 578 65.7
90°-180° 0 0.0
0°-180° 578 65.7*
* Efficiency
, 50MR16Q/40/FL (EXN) lamp, 0.5 s/mh, 880 rated lumens, test no. 2198040605
50% 10%
beam angle 29.5° beam angle 52.1°
Initial fc fc at fc at
Mount at beam Beam beam Beam beam
height center diameter edge diameter edge
8' 58.6 2.9' 29.3 5.4' 5.9
10' 31.5 4.0' 15.8 7.3' 3.2
12' 19.6 5.0' 9.8 9.3' 2.0
14' 13.4 6.1' 6.7 11.2' 1.3
16' 9.7 7.1' 4.9 13.2' 1.0
From 0° cp. Lumens
0° 1773
5° 1646 147
15° 962 262
25° 291 139
35° 43 29
45° 1 1
55° 0 0
65° 0 0
75° 0 0
85° 0 0
90° 0
90°
45°
0°
rf 20%
rc 80% 70% 50%
rw 50% 30% 50% 30% 50% 30%
1747373717069
2706869676765
3676466646462
4646163616260
5615861586057
6595658565755
7575456535553
8545254515451
9535052495249
10 51 48 51 48 50 48
400
800
1200
1600
2000
![](asset-2d.png)
General
Long Life ESX 20W GU5.3 12V MR16 10D CL 1CT
| Save PDF | Open PDF
PRODUCT DATA
Product Number 378141
Full product name Long Life ESX 20W GU5.3 12V MR16 10D CL 1CT
Ordering Code 20MRC16/SP10
Pack type 1 Lamp in a Folding Carton
Pieces per pack 1
Packs per case 50
Pack UPC 046677378141
EAN2US -
Case Bar Code 50046677378146
Successor Product number -
ANSI Code Halogen ESX
Wattage[W ] 20W
Base GU5.3 [GU5.3]
Voltage[V ] 12V
Bulb MR16 [MR 16inch/50mm]
Beam Angle[D ] 10D
Bulb Finish CL [Clear]
Packing Type 1CT [1 Lamp in a Folding Carton]
Operating Position Universal[Universal]
Packing Configuration 10X5F
Rated Avg. Life[hr ] -
Dimmable Yes
Approx. MBCP[cd ] -
Color Rendering Index[Ra8 ] 100
Color Temperature[K ] 3000
Overall Length C[mm ] 46
Diameter D[mm ] 50
Pa
g
e 1 of 3Lon
g
Life ESX 20W GU5.3 12V MR16 10D CL 1CT
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
B7,B8
![](asset-2e.png)
Pa
g
e 2 of 3Lon
g
Life ESX 20W GU5.3 12V MR16 10D CL 1CT
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
![](asset-2f.png)

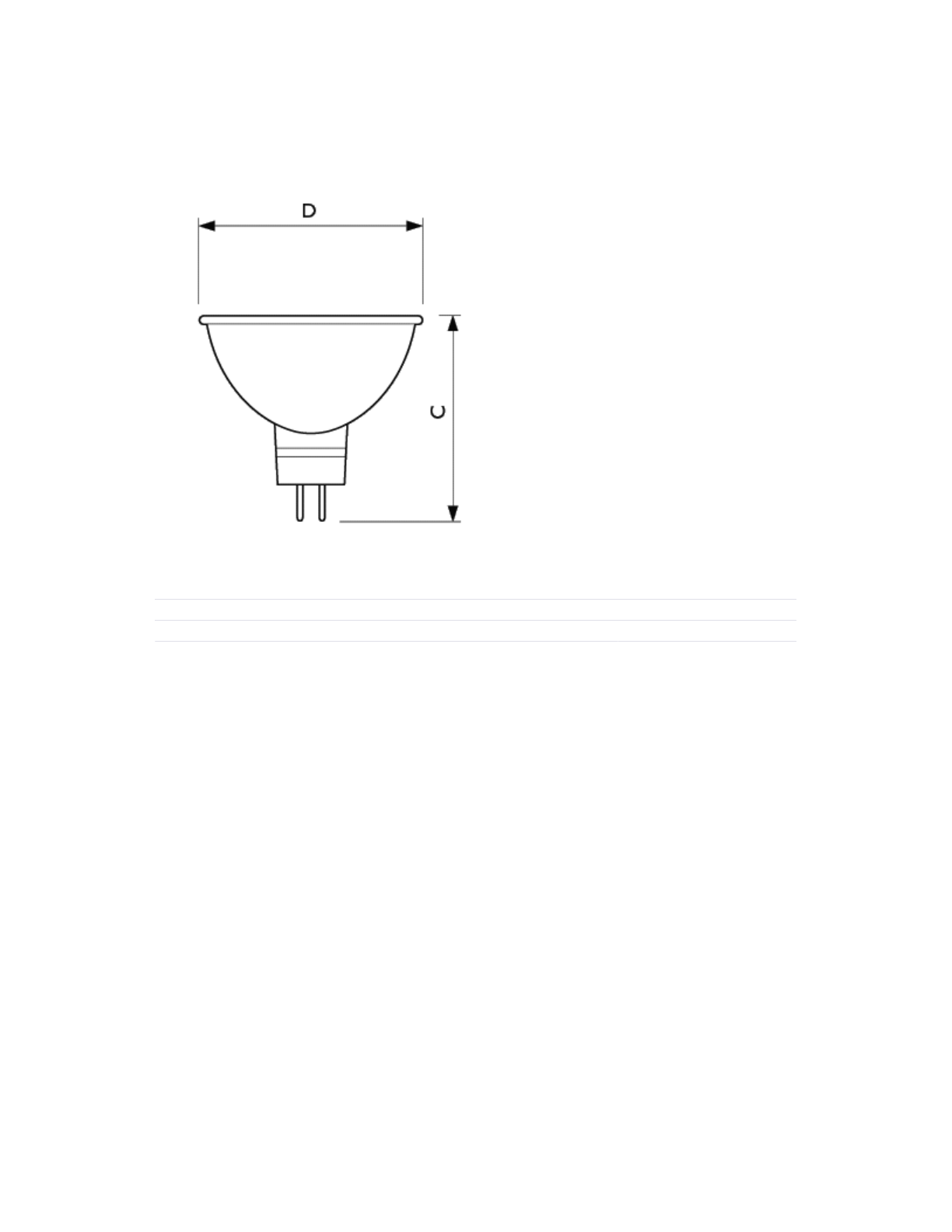

Dimensions
PRODUCT DIMENSIONS
Characteristic Value
Overall Length C (DTB) 46 mm
Diameter D (DTB) 50 mm
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
Pa
g
e 3 of 3Lon
g
Life ESX 20W GU5.3 12V MR16 10D CL 1CT
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
![](asset-30.png)
FIXTURE D1 CUSTOM
D1
![](asset-31.png)
![](asset-32.png)
D1
![](asset-33.png)
ZANEEN LIGHTING 65 DENSLEY AVE. TORONTO, ONTARIO, CANADA M6M 2P5
PH: 800.388.3382 / 416.247.9221 FAX: 416.247.9319 www.zaneen.com zaneen@zaneen.com
JOB: __________________________
LOCATION: ____________________
DATE: _________________________
PRODUCT SPECIFICATIONS
NOTES: _________________________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
CATALOG: DECORATIVE D4 2003/04
STYLE # D4-1027
SERIES NAME: ICE
STRUCTURE: Metal
COLOR /FINISH: Aluminum
DIFFUSER: Clear and Frost Glass
LAMP TYPE: Halogen G9 Frost
MAX WATT: 1 x 40W
DIMENSIONS: W. 4 ½” x Ht. 43” x Ext. 4 ½”
APPROVALS: Approved by CSA for
North American Standards.
ADA
4 ½” / 11 cm
43” / 112 cm
Custom Bronze Finish
D2
![](asset-34.png)
D2
![](asset-35.png)
1. H O U S I N G
C A L L I S T O - 1 2 Job Name:
Fixture Type:
Job Number:
Distributor:
Distributor P.O. :
Housing: two-piece die-cast aluminum with
internal component mounting bosses.
Door frame: one-piece die-cast aluminum
secured with three phillips head screws.
Lens assembly: various clear or prismatic glass
lens (beam dependant) gasketed
to door to ensure a tight seal.
The luminaire shall be cULus listed for wet
locations and manufactured from UL-recognized
components.
10.39"
3.45"
9.81"
9.62"
12"
2"
14.30"
13.38"
0.18"
CL12
EPA (fixture only): 0.62 FIXTURE WEIGHT: 28 LBS.
(shown with optional
eggcrate shield)
2. L A M P W A T T A G E
METAL HALIDE (H.I.D.) ED17
500 WATT QUARTZ HALOGEN (500QTZ)
150 WATT HIGH PRESSURE SODIUM (150HPS)
100 WATT HIGH PRESSURE SODIUM (100HPS)
HIGH PRESSURE SODIUM (H.I.D.) ED17
Quartz WATTAGE PAR56
3. B E A M P A T T E R N
RECTANGULAR
NARROW (RN) MEDIUM (RM)
RECTANGULAR
WIDE (RW)
RECTANGULAR
NARROW
RECTANGULAR MEDIUM
RECTANGULAR WIDE
RECTANGULAR
SPOT
(SP)
VERTICAL (RNV) VERTICAL (RMV) VERTICAL (RWV)
METAL HALIDE & HIGH PRESSURE SODIUM INCANDESCENT
NARROW
SPOT (NSP)
MEDIUM
FLOOD (MFL)
FLOOD (WFL)
WIDE
Item Number:
ORDER NUMBER: CL12
1 2 3 4 5 6
YK
7 8 9 10
HOUSING LAMP BEAM VOLTAGE BALLAST MODEL MOUNTING SHIELD GENERALFINISH
WATTAGE PATTERN (FOR HID) STYLE OPTION OPTION OPTION
(Electronic ballast available only in 70MH or 100MH)
70 WATT METAL HALIDE (70MH)
100 WATT METAL HALIDE (100MH)
150 WATT METAL HALIDE (150MH)
175 WATT METAL HALIDE (175MH)
O1
![](asset-36.png)
SURFACE BASE
CAST DUCTILE IRON
6.00"
1.38"
HARDWARE
.38"
3/ 4" MOUNTING
BOLT CIRCLE
6.00" DIA.
0.56"
(4)
CAN BE MOUNTED
BY OTHERS)
U-BOLTS (U-BOLTS
TO 2" PIPE (MAX) WITH
HORIZONTAL SECTOR
WALL BRACKET AND
CAST DUCTILE IRON
1.50"
5.50"
4.50"
3.50"
8.00"
5/ 8" PIVOT
BOLT
3/ 4" MOUNTING
HARDWARE
1.81" 1.16" 3/8" LOCKING
BOLT
(4)
0.56"
3.50"
1.50"
FITTER
CAST TENZALLOY
SPLICE INSPECTION
REMOVABLE
COVER
5.63"
3.13"
3.44"
CONNECTOR
REMOVABLE
MOUNTING
SIDE YOKE
HOLE PLUG FOR
1/ 2" SET
SCREWS
REMOVABLE
WATER-TITE
(SUPPLIED)
CONNECTOR
WATER-TITE
INSTALLING
PIPE PLUG FOR
3/ 4" MOUNTING
PIPE TENON X 4.00" LONG
TO FIT 2" (2.38" O.D.)
HARDWARE
(MIN.)
6.00"
2.06"
WELD CONSTRUCTION
ALL COMPONENTS STEEL.
6.25"
.25"
2.38"
O.D. STEEL PIPE)
(2" SCH. 40
I.D.
6.00" DIA.
BOLT CIRCLE
0.56"
(4)
(for use with SF option)

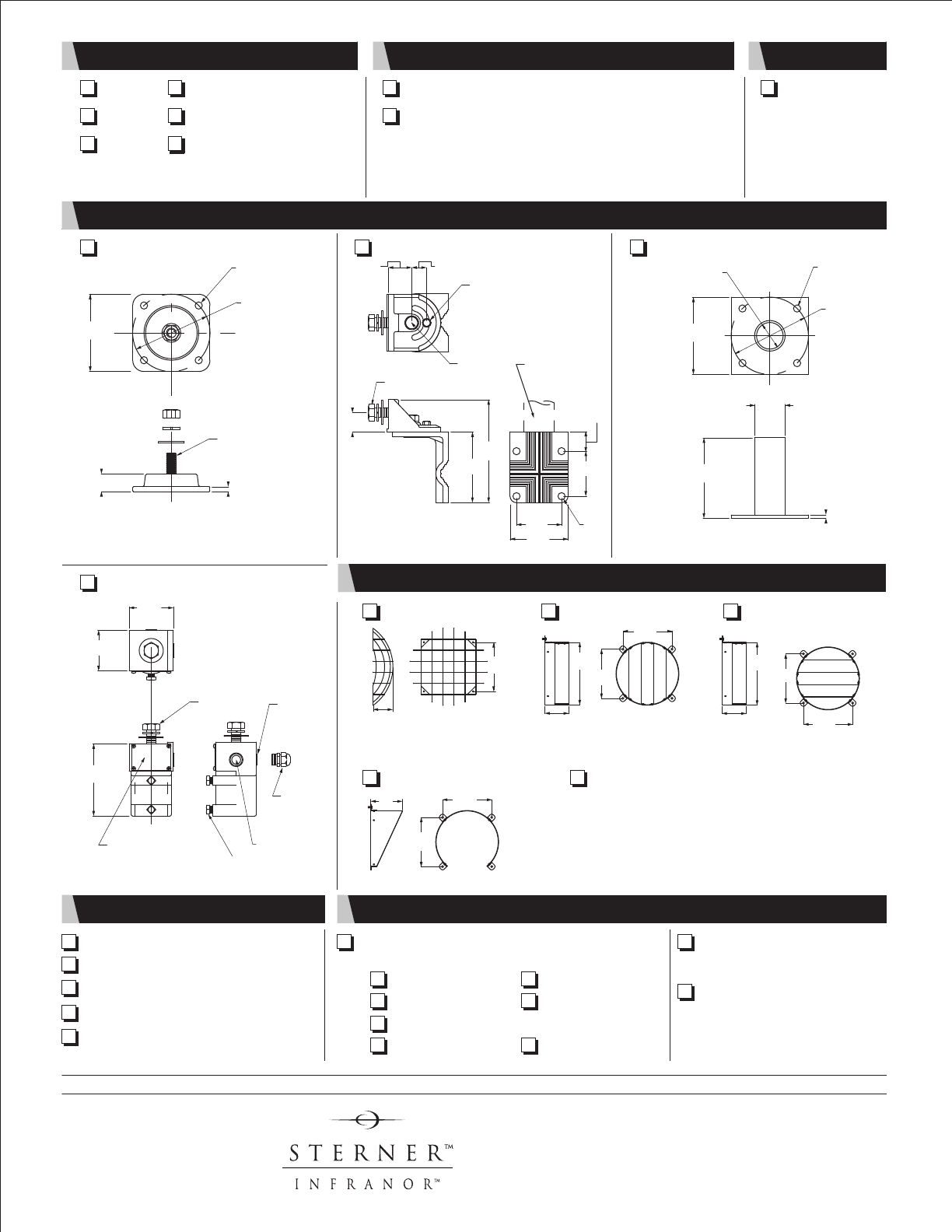

4. V O L T A G E
120
208
(Electronic ballast available only in 70WMH and 100WMH,
(Ballast is an integral part of the fixture housing.)
CORE & COIL (C)
ELECTRONIC (EB)
277
240
347
(Electronic ballast available only in 120 or 277 volts.)
(Quartz available in 120 volt only.) and in 120 or 277 volt. Rated for -20 F (-28.9 C).)
7. M O U N T I N G O P T I O N S
YOKE (YK)
BASE PLATE (BP) WALL BRACKET (WB) BASE PAD (PD)
SLIP FITTER (SF)
WHITE (WH)
NATURAL ALUMINUM (AL)
NON-STANDARD (NS)
9. F I N I S H
DARK BRONZE (BZ)
BLACK (BK)
70MH ED17
100MH ED17
150MH ED17
175MH ED17
(SELECT 'LP' ONLY IF A LAMP IS TO BE INCLUDED)
100HPS ED17
150HPS ED17
500QTZ PAR56
INCLUDE LAMP (LP)
REMARKS:
2.46"
6.17"
4.0" 6.17"
6.17"
6.17""
6.17"
3.0"
7.90"
6.17"
6.17"
3.0"
7.90"
EGGCRATE (EC)
TOP SHIELD (TS)
HOR. LOUVER (HL)VER. LOUVER (VL)
The eggcrate is the only shield finished to match luminaire.
Standard shield finish is black unless otherwise specified.
CUSTOM SHIELD (CS)
(Core and coil ballast is high-power factor and rated for -20 F (-28.9 C).)
SAFETY CABLE (SC)
FUSE LUMINAIRE (FL)
480
5. B A L L A S T (H.I.D. ONLY) 6. M O D E L
10. G E N E R A L O P T I O N S
8. O P T I O N A L S H I E L D S
Sterner Lighting Systems Incorporated
351 LEWIS AVENUE WEST, P.O. BOX 805 WINSTED, MN 55395-0805
TEL 320.485.2141 FAX 320.485.2881 TOLL-FREE 800.328.7480
2/2002 www.sternerlighting.com
![](asset-37.png)
General
MasterColor CDM 100W/830 Med ED17P CL ALTO+FB
| Save PDF | Open PDF
PRODUCT DATA
Product Number 233684
Full product name MasterColor CDM 100W/830 Med ED17P CL ALTO+FB
Ordering Code MHC100/U/MP/3K ALTO
Pack type 1 Sleeve Open End
Pieces per pack 1
Packs per case 12
Pack UPC 046677233686
EAN2US -
Case Bar Code 50046677233681
Successor Product number -
Wattage[W ] 100W
Color Code 830 [CCT of 3000K]
Base Med [Medium]
Bulb ED17P [Diameter: 2.125 inch Protected]
Bulb Finish CL [Clear]
Feature ALTO+FB [ALTO® + FadeBlock™]
Base Information Brass[Brass Base]
Bulb Material Hard Glass
Execution Protected
Operating Position Universal[Universal]
Packing Type 1SL[1 Sleeve Open End]
Packing Configuration 12
Rated Avg. Life[hr ] 16000
Mercury Weight[mg ] 7.2
ANSI Code HID M140/M90/O
Lamp Voltage[V ] 101
Color Rendering Index[Ra8 ] 85
Color Designation Warm White
Color Temperature[K ] 3000
Pa
g
e 1 of 3MasterColor CDM 100W/830 Med ED17P CL ALTO+FB
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
O1
![](asset-38.png)
Initial Lumens[Lm ] 8600
Design Mean Lumens[Lm ] 6450
Light Center Length L [inch][in ] 3.438
Max Overall Length (MOL) - C[in ] 5.438
Diameter D[in ] 2.125
Pa
g
e 2 of 3MasterColor CDM 100W/830 Med ED17P CL ALTO+FB
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
![](asset-39.png)
Dimensions
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
Pa
g
e 3 of 3MasterColor CDM 100W/830 Med ED17P CL ALTO+FB
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
![](asset-3a.png)
Metal
Halide
Lamp Ballast
Catalog Number 72C5381
For 100W M90/M140
60 Hz HX-HPF
Status: Active
DIMENSIONS AND DATA
11.75"
11.13"
CASE "F-1"
3.19"
2.63"
10.50"
Capacitor:
The capacitor is included as
part of the potted assembly.
The ignitor is included as
part of the potted assembly.
Ballast to Lamp Distance
(BTL) = 15 feet
Temp Rating: 90°C
Ignitor: IN CAN
Data is based upon tests performed by Advance Transformer in a controlled environment and representitive of relative performance.
Actual performance can vary depending on operating conditions. Specifications are subject to change without notice.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER · 10275 WEST HIGGINS ROAD · ROSEMONT, IL 60018
Customer Support/Technical Service: Phone: 800-372-3331 · Fax: 630-307-3071
Corporate Offices: Phone: 800-322-2086
INPUT VOLTS 120 277
CIRCUIT TYPE
POWER FACTOR (min)
REGULATION
Line Volts
Lamp Watts
LINE CURRENT (Amps)
Operating................................................... 1.10 0.48
Open Circuit............................................... 2.55 1.10
Starting...................................................... 2.20 0.95
UL TEMPERATURE RATINGS
Insulation Class
Coil Temperature Code A A
MIN. AMBIENT STARTING TEMP.
NOM. OPEN CIRCUIT VOLTAGE
INPUT VOLTAGE AT LAMP DROPOUT........................... 72 166
INPUT WATTS
RECOMMENDED FUSE (Amps)..................................... 6 3
CORE and COIL
Dimension (A)
Dimension (B)
Weight (lbs.)
Lead Lengths
CAPACITOR REQUIREMENT
Microfarads
Volts (min.)
Fault Current Withstand (amps)
60 Hz TEST PROCEDURES (Refer to Advance Test
Procedure for HID Ballasts - Form 1270)
High Potential Test (Volts)
1 minute
2 seconds
Open Circuit Voltage Test (Volts)
Short-Circuit Current Test (Amps)
Secondary Current
Input Current.............................................. 0.70 0.30 - - -
1.10 0.50
HX-HPF
90%
±5%
±12%
A (105°C)
1029
-20°F or -30°C
277
125
11
12"
1600
2000
250-305
1.30-1.60
Wiring Diagram:
BALLAST
GROUND CASE
YELLOW/BLUE
LAMP
277 V
RED
WHITE
COMMON
F-Can Wiring Diagram
All Lead Lengths 12" 120V
BLACK
Ordering Information
Order Suffix Description
09/03/99
O1
![](asset-3b.png)
Lichtpunkt mit 9 LED aus Edelstahl, mit klarem Abdeckglas zur punktuellen Beleuchtung oder in opaler Optik mit
homogener Leuchtdichte.
Light spot with 9 LED in stainless steel, with clear glass cover for point illumination or in opal optic with homoge-
nous luminance.
Spot lumineux avec 9 LED en acier inoxidable, avec verre de protection transparent pour un éclairage ponctuel,
ou verre de couleur opale pour une luminosité homogène.
LEDdot
LEDdot
24 V DC
1,2 W
0,1 kg
Anschluß mit 2-poligem Kabel.
Begeh- und überrollbar, jedoch
nicht für Verkehrswege zugelassen.
Connection via 2-pole cable. Drive-
over proof but not approved for
traffic ways.
Connexion par câble 2-pôle.
Resistant à la charge à court terme.
IP65
F
03 LBS 4201 rot/red/rouge
03 LBS 4211 gelb/yellow/jaune
03 LBS 4221 grün/green/vert
03 LBS 4231 blau/blue/bleu
03 LBS 4241 weiß/white/blanc
Sonderfarben auf Anfrage.
Special colours on request.
Couleurs spéciaux sur demande.
ø 40
ø 48
min. 40
230/240 V
15 LE 0026 24 V/20 W/IP 20
15 LE 0059 24 V/75 W/IP 20
15 LE 9120 24 V/120 W/IP 20
NV
LED
144 Farbcodierung und technische Hinweise siehe Anhang/Colour code and technical informations see appendix/Code de couleur et informations techniques voir notes annexe
Technische Änderungen vorbehalten! Subject to technical alterations! Sous réserve de modification technique! ©Ansorg GmbH
O2
![](asset-3c.png)
Lumière
®
Catalog # Type
Project
Comments
Prepared by Date
CORONADO
806
50W (max.) PAR20
Halogen
LINE VOLTAGE
ACCENT/FLOOD
SPECIFICATION FEATURESDESCRIPTION
Coronado 806 is a ultra-compact
line voltage fixture for use with
PAR20 halogen lamps. The fully
adjustable mounting stem
provides 340° tilt and 360°
rotation for easy aiming. Various
lenses, louvers and color or
dichroic filters can be combined –
up to three at once – to create
multiple lighting effects. Lumière’s
exclusive Siphon Protection
System (S.P.S.) prevents water
from siphoning into the fixture
through its own lead wires.
MATERIAL
Hood and mounting stem are
precision-machined from
corrosion-resistant 6061-T6
aluminum billet. Housing is
die-cast aluminum.
FINISH
Fixtures are double protected
by a chromate conversion
undercoating and polyester
powdercoat paint finish,
surpassing the rigorous
demands of the outdoor
environment. A variety of
standard colors are available.
HOOD
Hood is removable for easy
relamping and accepts up to
three internal accessories at
once (lenses, louvers, filters)
to achieve multiple lighting
effects. Weep holes prevent
water and mineral stains from
collecting on the lens, even in
the straight-up position.
GASKET
Housing and hood are sealed with
a high temperature silicone o-ring
gasket to prevent water intrusion.
LENS
Tempered glass lens, factory
sealed with high temperature
adhesive to prevent water
intrusion and breakage due to
thermal shock.
MOUNTING STEM
Adjustable side-mounted
swivel stem provides 340° tilt
and 360° rotation for easy
aiming. Equipped with standard
1/2" NPS threaded male fitting.
Stainless steel aim-locking
mechanisms are standard.
Lumière’s exclusive Siphon
Protection System (S.P.S.)
prevents water from siphoning
into the fixture through its own
lead wires.
HARDWARE
Stainless steel hardware is
standard to provide maximum
corrosion-resistance.
SOCKET
Ceramic socket with 200° C
Teflon®coated lead wires and
medium base.
ELECTRICAL
Operates with 120V line voltage.
LAMP
Not included. Available from
Lumière as an accessory – see
Lamps under Optical Accessories
on the reverse side of this page.
LABELS & APPROVALS
UL and cUL listed, standard
wet label. Manufactured to
ISO 9001-2000 Quality Systems
Standard. IBEW union made.
WARRANTY
Lumière warrants its fixtures
against defects in materials &
workmanship for three (3)
years. Auxiliary equipment
such as transformers, ballasts
and lamps carry the original
manufacturer’s warranty.
ADL032489
WWW.COOPERLIGHTING.COM Consult your representative for additional options and finishes.
ORDERING INFORMATION
SAMPLE NUMBER: 806-50PAR20-120-BK
120 = 120V
806
806
120
Volts
Halogen
50PAR20 = 50W/PAR20/medium
Lamp not included
50PAR20
Source
Painted
BK =Black
BZ =Bronze
CS =City silver
VE =Verde
WT=White
Finish
See reverse page
(Order Separately)
AccessoriesModel
6-3/8"
[162mm]
1-3/4"
[44mm]
ø2-3/4"
[70mm]
Coronado 806
O3
![](asset-3d.png)

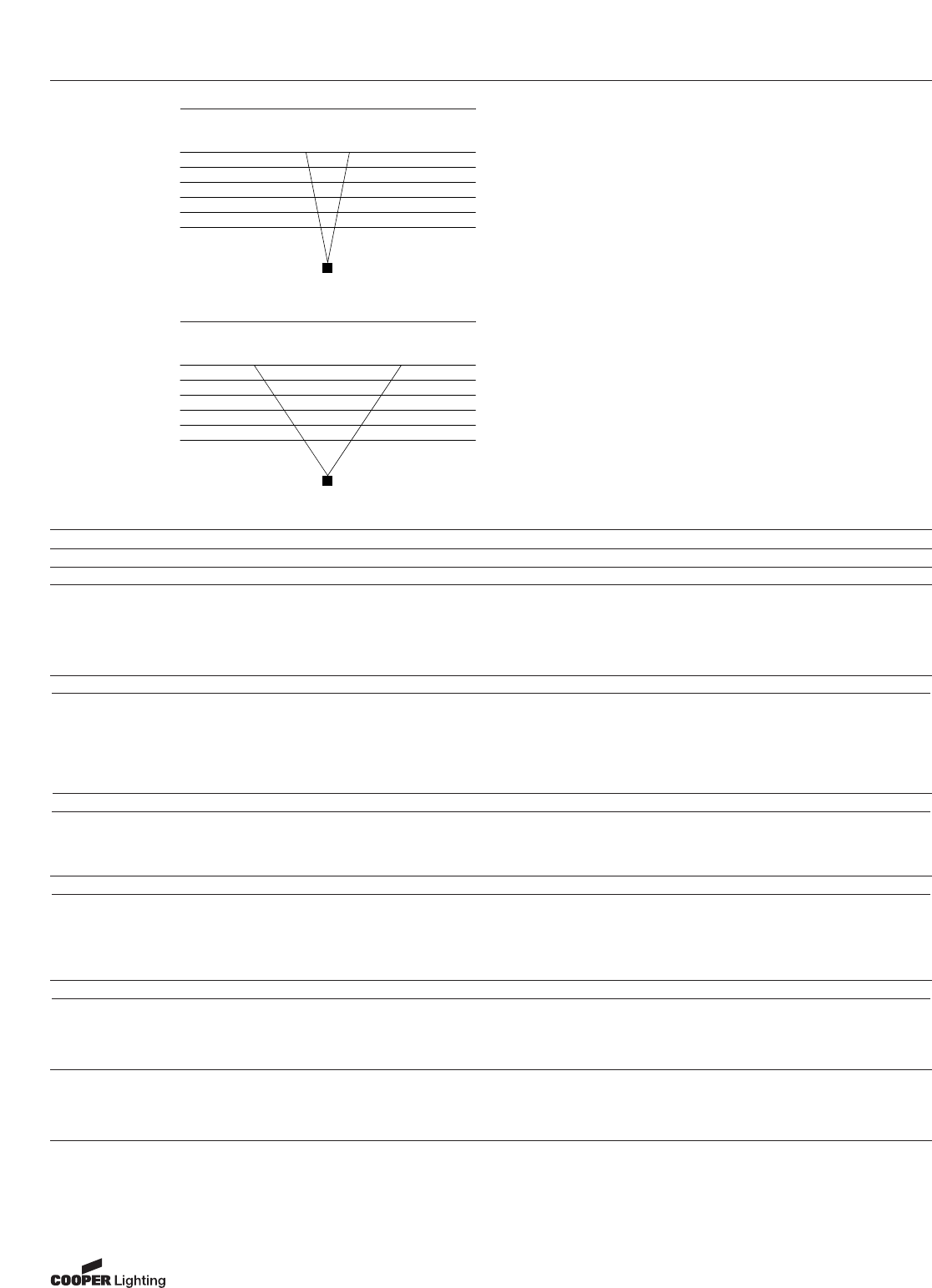

CORONADO 806
ADL032489Lumière • Customer First Center • 1121 Highway 74 South • Peachtree City, GA 30269 • TEL 770.486.4800 • FAX 770.486.4801
NOTES AND FORMULAS
MOUNTING ACCESSORIES
See the Accessories & Technical Data section of this catalog for details.
•Beam diameter is to 50% of maximum footcandles, rounded to the nearest half-foot.
•Footcandle values are initial. Apply appropriate light loss factors where necessary.
•Bare lamp data shown. Consult lamp manufacturers to obtain detailed specifications for their lamps.
Specifications and Dimensions subject to change without notice.
Lamp ANSI Code Watts Beam Spread CBCP °K Life (hrs.) Base Volts
50PAR20/NSP --- 50 10° 5000 --- 2000 medium 120
50PAR20/NFL --- 50 30° 1400 --- 2000 medium 120
LAMP INFORMATION
PHOTOMETRIC DATA
NOTE: Inferior quality lamps may adversely affect the performance of this product. Use only name brand lamps from reputable lamp manufacturers.
OPTICAL ACCESSORIES
Color & Dichroic Filters
F22-20 =Red color
F33-20 =Blue color
F44-20 =Green color
F55-20 =Yellow color
F66-20 =Mercury vapor color
F71-20 =Peach dichroic
F72-20 =Amber dichroic
F73-20 =Green dichroic
F74-20 =Medium blue dichroic
F75-20 =Yellow dichroic
F76-20 =Red dichroic
F77-20 =Dark blue dichroic
F78-20 =Light blue dichroic
F79-20 =Neutral density dichroic
F80-20 =Magenta dichroic
Lamps
HP2050-NSP =50-watt PAR20 lamp - narrow spot
HP2050-NFL =50-watt PAR20 lamp - narrow flood
Lower wattage lamps and/or additional distributions may be available. See the Accessories & Technical Data section of this catalog for details.
Lenses & Louvers
DIF-20 =Diffused lens
LSL-20 =Linear spread lens
OSL-20 =Overall spread lens
LVR-20 =Hex cell louver
25'0"
20'0"
15'0"
12'0"
10'0"
8'0"
10'0"
8'0"
6'0"
5'0"
4'0"
3'0"
8
13
23
35
50
80
Cone of Light
Distance to
Illuminated Plane Initial Nadir
Footcandles Beam
Diameter
Coronado 806
Lamp=50PAR20/NSP
CBCP=5000
25'0"
20'0"
15'0"
12'0"
10'0"
8'0"
20'0"
16'0"
12'0"
9'6"
8'0"
6'6"
2
3
6
9
13
20
Cone of Light
Distance to
Illuminated Plane Initial Nadir
Footcandles Beam
Diameter
Coronado 806
Lamp=50PAR20/NFL
CBCP=1400
Glare Shields
FH20 =Angled glare shield (specify finish: BK, BZ, CS, VE, WT)
![](asset-3e.png)

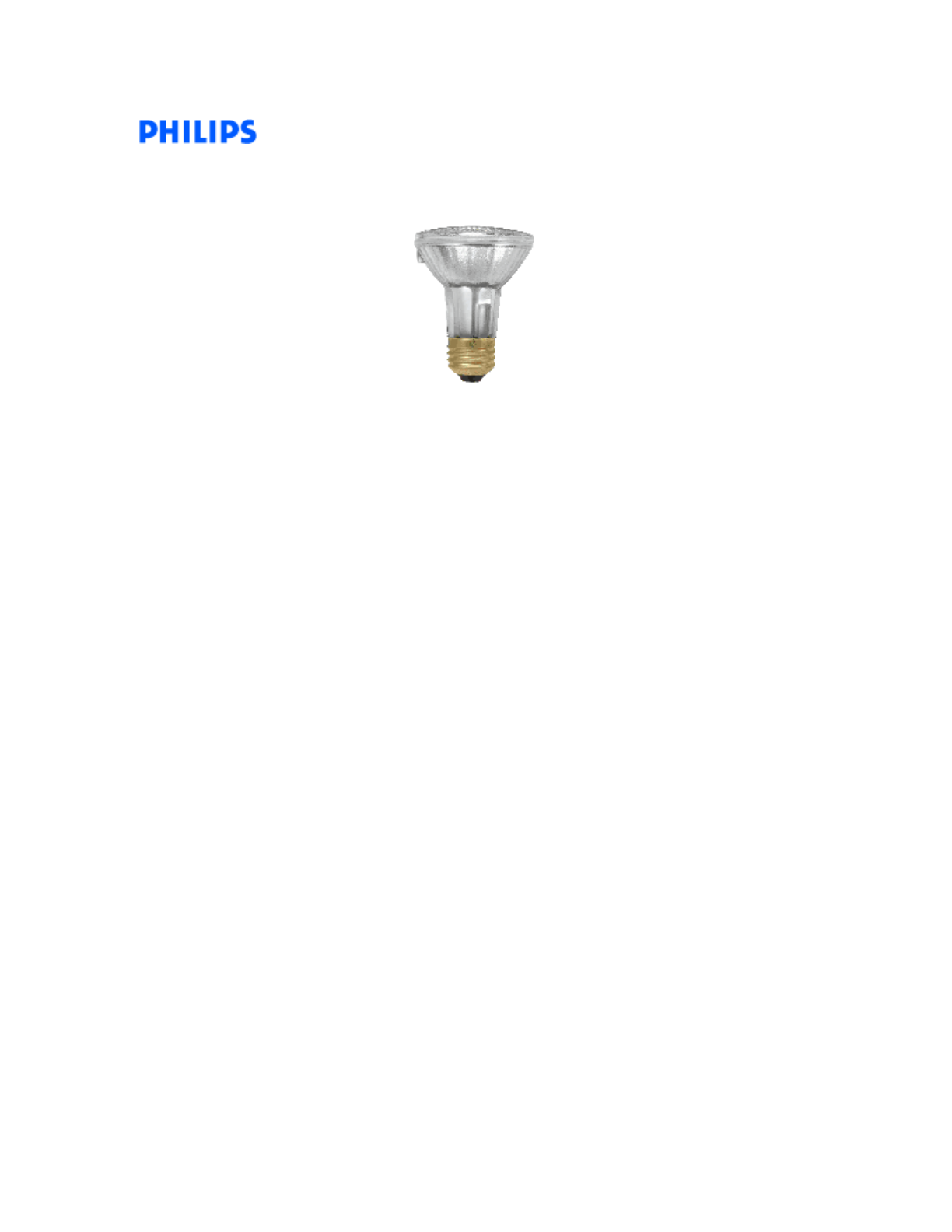

General
Halogena 50W Med 120V PAR20 FL 25D CL 1CT
| Save PDF | Open PDF
PRODUCT DATA
Product Number 389163
Full product name Halogena 50W Med 120V PAR20 FL 25D CL 1CT
Ordering Code 50PAR20/HAL/NFL30
Pack type 1 Lamp in a Folding Carton
Pieces per pack 1
Packs per case 6
Pack UPC 046677229115
EAN2US -
Case Bar Code 50046677389166
Successor Product number -
Wattage[W ] 50W
Base Med [Medium]
Voltage[V ] 120V
Bulb PAR20 [PAR 20inch/63mm]
Beam Description FL [Flood]
Beam Angle[D ] 25D
Bulb Finish CL [Clear]
Packing Type 1CT [1 Lamp in a Folding Carton]
Base Information Brass[Brass Base]
Bulb Material Hard Glass
Reflector Finish Aluminized
Filament Shape CC-8[Axial]
Operating Position Universal[Universal]
Packing Configuration 6
Atmosphere Gas
Rated Avg. Life[hr ] 3000
Approx. MBCP[cd ] 900
Color Rendering Index[Ra8 ] 100
Color Temperature[K ] 2800
Pa
g
e 1 of 3Halo
g
ena 50W Med 120V PAR20 FL 25D CL 1CT
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
O3
![](asset-3f.png)
Initial Lumens[Lm ] 525
Max Overall Length (MOL) - C[in ] 3.375
Diameter D[in ] 2.5
Pa
g
e 2 of 3Halo
g
ena 50W Med 120V PAR20 FL 25D CL 1CT
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
![](asset-40.png)
Dimensions
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
Pa
g
e 3 of 3Halo
g
ena 50W Med 120V PAR20 FL 25D CL 1CT
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
![](asset-41.png)
12881 BRADLEY AVENUE, SYLMAR, CALIFORNIA 91342 • PHONE: 818/362-9465 • FAX: 818/362-6548
HYDREL is a registered trademark of Lithonia Lighting
M9700 SERIES
METAL HALIDE 175 WATT MAX.
MODULAR IN-GRADE LUMINAIRE
DOUBLE LENS
DESCRIPTION:
The M9700 series modular in-grade lights are Multi-Purpose units
designed for Flush Mounting in a variety of substrates or materials.
The M9700’s are used to uplight Architectural and Landscape
features. The units consist of a Factory –Sealed, thermally protected
Lamp Module. Power Module is in a secured Rough-In section (RIS)
which includes Channeled Convective Cooling, an integral Junction
Box, and Door Assembly. The double lensed version offers Lamp
Module Aiming and feature Aim-Lock™ to allow maintenance and
relamping without re-aiming. The M9700 has a small footprint with a
cylinder configuration.
SPECIFICATIONS:
DOOR FINISH: Cast aluminum, cast bronze, cast aluminum or
bronze with stainless perforated trim insert or Stainless Steel. Round
or square with two stainless steel captive fasteners that lock the Lamp
Module into the Rough-In Section.
ROUGH-IN SECTION: Injection molded polymer with integral
junction box for branch wiring, U.V. stabilized, impact and corrosion
resistant for use in all types of environ- ments. Houses Power
Module, Lamp Modules and finishing components. Adjustment ring
provides 360° aim rotation with keyed section to receive Lamp
Module. Ring locks into position with stainless steel fasteners. RIS
has a cylinder/vault configuration.
LAMP MODULE: Stainless steel, sealed and purged of all moisture
with silicone gaskets, stainless steel clamp band and single fastener.
Electrical connection to Lamp Module is done through submersible
connector with gold-plated contacts. THERMALLY PROTECTED.
LAMP INCLUDED
LAMP TYPES: See ordering guide. If a specific lamp is desired,
specify manufacturer's lamp number, most lamps can be supplied.
LAMP INCLUDED.
VOLTAGES: 120V, 208V, 240V, 277V, 347V - 60 Hz, 220V, 230V,
240V - 50 Hz. Some restrictions may apply.
LIGHT DISTRIBUTIONS (Non Reflectorized Lamps):
TSP (G-12 T6 Lamps)
SP (E-17, Elliptical)
NFL (E-17, Elliptical, T6)
MFL (E-17, Elliptical, T6)
WFL (E-17, Elliptical)
WWD (E-17, Elliptical)
FINISHING SECTION:
Double Lens: Includes 360° Aim-LockTM Module Support Ring,
Door Assembly, Tilt Ring, and Module Indexing Segment
providing maintenance and relamping without re-aiming. The
Lamp Module is suspended below the door lens in a surface
adjustable, 15° tilt mechanism. The insulating air layer reduces
surface temperatures. Active lenses are available to bend beams
(10° tilt and 20° tilt).
POWER MODULE: Ballast is encapsulated in a custom-heat
dissipating epoxy resin to eliminate all moisture intrusion to the
ballast. Provided with submersible rated cord/connector for
connection to integral junction box and lamp module. HID ballasts are
magnetic. THERMALLY PROTECTED.
TYPE ___________________________________
MODEL #: ______________________________
ELECTRICAL ENTRIES/JUNCTION BOX: Two PG 16 or two
3/4" NPT bottom openings, standard. One hole is provided with
IP68 cord seal that accepts ø10mm to ø14 mm cable (outside
U.S. only). Second hole plugged. Box suitable for through branch
wiring. Splicing volume 52 cu. in.
ACCESSORIES: Internal Glare Control, Internal Honeycomb
Louvers, Rock Guards, Trim Rings, Re-enterable Potting
Compound, Polycarbonate Covers, External Glare Shields are
available.
HYDREL STANDARD DATA SHEET/M9720 1/2002
PATENT PENDING
UL/CE
NOTE: HYDREL RESERVES THE RIGHT TO CHANGE
ANY SPECIFICATION WITHOUT NOTICE.
Any dimension on this sheet is to be assumed as a reference dimension:
“Used for information purposes only. It does not govern manufacturing or
inspection requirements.” (ANSI Y14.5-1973)
M9740 MODEL
STAINLESS STEEL DOOR
12
(305)
20
(508)
1 3/4
(45)
M9740 MODEL
M9720 MODEL
STAINLESS STEEL DOOR
12
(305)
13
(330)
13
(330)
O4
![](asset-42.png)
12881 BRADLEY AVENUE, SYLMAR, CALIFORNIA 91342 • PHONE: 818/362-9465 • FAX: 818/362-6548
HYDREL is a registered trademark of Lithonia Lighting
HYDREL STANDARD DATA SHEETS/M9720 1/2002
Model:
M9720 Round Double Lens
M9740 Square Double Lens
Material:
A Aluminum
B Bronze
ABL Aluminum with black paint
ASP Aluminum with stainless perf.*
BBP Bronze with brass perf.*
BSP Bronze with stainless perf.*
SS Stainless steel
*ASP, BBP, BSP not available with M9740
(square double lens) model
Lamp Type: (Lamp Included)
US European
HID
50S (HPS) E17, med. base Elliptical, E27 base
70S (HPS) E17, med. base Elliptical, E27 base*
100S (HPS) E17, med. base Elliptical, E27 base*
150S (HPS) E17, med. base E26**
50M (MH) E17, med. base N/A
70M (MH) E17, med. base Elliptical, E27 base
100M (MH) E17, med. base Elliptical, E27 base
150M (MH) E17, med. base Elliptical, E27 base
175M (MH) E17, med. base N/A
50H (MV) E17, med. base Elliptical, E27 base
75H (MV) E17, med. base N/A
80H (MV) N/A Elliptical, E27 base
100H (MV) E17, med. base Elliptical, E27 base
175H (MV) E17, med. base N/A
35MT6 (MH) T6, G-12 base T-6, G12 base
70MT6 (MH) T6, G-12 base T-6, G12 base
150MT6 (MH) T6, G-12 base T-6, G12 base
HID, PAR Lamps (PAR-38, med. base)***
P3870M WFL (MH, 70W, wide flood)
P3870M FL (MH, 70W, flood)
P3870M SP (MH, 70W, spot)
P38100M WFL (MH, 100W, wide flood)
P38100M FL (MH, 100W, flood)
P38100M SP (MH, 100W, spot)
P38100H FL (MV, 100W, flood)
P38100H SP (MV, 100W, spot)
P38175H FL (MV, 175W, flood)
P38175H SP (MV, 175W, spot)
P38175M FL (MH, 175W, flood)
P38175M SP (MH, 175W, spot)
***HID PAR lamps not available with E27 base
**Not CE listed
*Note: No internal accessories available with E27
base 70S or 100S
Voltage:
60HZ 50HZ
120 22050HZ
208 23050HZ
220 24050HZ
240
277
347
Not all Voltage/Lamp combinations are available,
consult factory for more information.
FIXTURE OPTIONS
Ordering and Specification Guide
M9720 A 35MT6 120 TSP 34BNPT STR
For Replacement Parts Consult Factory
Distributions:
TSP (G-12 T6 Lamps)
SP (E-17, Elliptical, PAR-38)
NFL (E-17, Elliptical, T6)
MFL (E-17, Elliptical, T6, PAR-38)
WFL (E-17, Elliptical, PAR-38)
WWD (E-17, Elliptical)
Conduit Entries:
12BNPT 1/2" NPT bottom
12SNPT 1/2" NPT side
34BNPT 3/4" NPT bottom
34SNPT 3/4" NPT side
1BNPT 1" NPT bottom
PG16B PG16 bottom
PG16S PG16 side
Accessories:
FLC5 5° Axial Spread Lens
GS Glare Shield++
IHL38 Internal Honeycomb Louver (PAR-38 Lamps)
IHL Internal Honeycomb Louver (Non-Adjustable)
ISS Internal Source Shield (150W max, Elliptical
and T-6 lamps only)
LC Polycarbonate Protective Cover++
RG Rockguard++
STR Stainless Steel Trim Ring, Round
STS Stainless Steel Trim Ring, Square
FLC10 10° Tilt Lens
FLC20 20° Tilt Lens
PC2112 20 cu. in. Re-enterable Potting Compound
WWL Wall Wash Louver
++Not available with Stainless Steel (SS) model
![](asset-43.png)

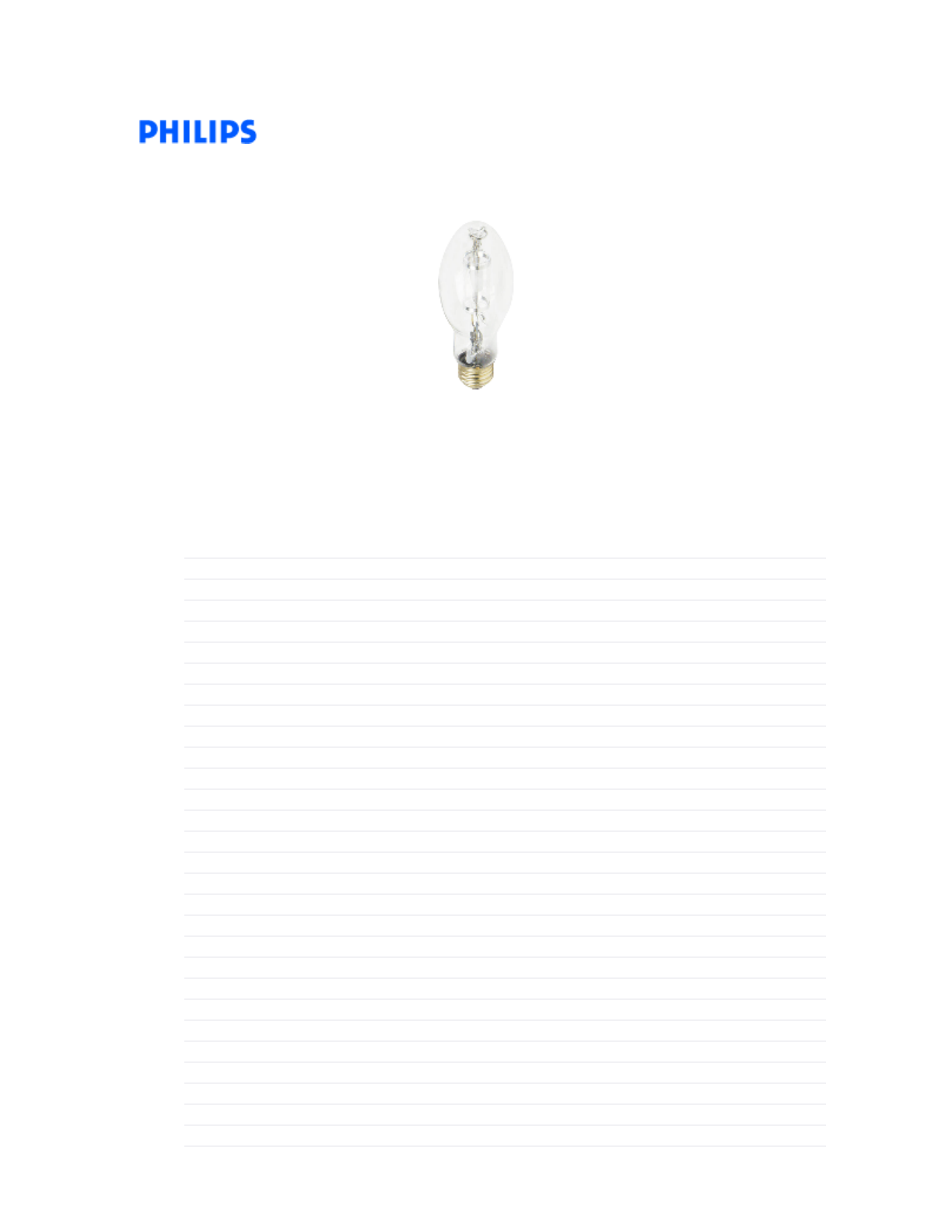

General
MasterColor CDM 100W/830 Med ED17P CL ALTO+FB
| Save PDF | Open PDF
PRODUCT DATA
Product Number 233684
Full product name MasterColor CDM 100W/830 Med ED17P CL ALTO+FB
Ordering Code MHC100/U/MP/3K ALTO
Pack type 1 Sleeve Open End
Pieces per pack 1
Packs per case 12
Pack UPC 046677233686
EAN2US -
Case Bar Code 50046677233681
Successor Product number -
Wattage[W ] 100W
Color Code 830 [CCT of 3000K]
Base Med [Medium]
Bulb ED17P [Diameter: 2.125 inch Protected]
Bulb Finish CL [Clear]
Feature ALTO+FB [ALTO® + FadeBlock™]
Base Information Brass[Brass Base]
Bulb Material Hard Glass
Execution Protected
Operating Position Universal[Universal]
Packing Type 1SL[1 Sleeve Open End]
Packing Configuration 12
Rated Avg. Life[hr ] 16000
Mercury Weight[mg ] 7.2
ANSI Code HID M140/M90/O
Lamp Voltage[V ] 101
Color Rendering Index[Ra8 ] 85
Color Designation Warm White
Color Temperature[K ] 3000
Pa
g
e 1 of 3MasterColor CDM 100W/830 Med ED17P CL ALTO+FB
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
O4
![](asset-44.png)
Initial Lumens[Lm ] 8600
Design Mean Lumens[Lm ] 6450
Light Center Length L [inch][in ] 3.438
Max Overall Length (MOL) - C[in ] 5.438
Diameter D[in ] 2.125
Pa
g
e 2 of 3MasterColor CDM 100W/830 Med ED17P CL ALTO+FB
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
![](asset-45.png)
Dimensions
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
Pa
g
e 3 of 3MasterColor CDM 100W/830 Med ED17P CL ALTO+FB
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
![](asset-46.png)
Metal
Halide
Lamp Ballast
Catalog Number 72C5381
For 100W M90/M140
60 Hz HX-HPF
Status: Active
DIMENSIONS AND DATA
11.75"
11.13"
CASE "F-1"
3.19"
2.63"
10.50"
Capacitor:
The capacitor is included as
part of the potted assembly.
The ignitor is included as
part of the potted assembly.
Ballast to Lamp Distance
(BTL) = 15 feet
Temp Rating: 90°C
Ignitor: IN CAN
Data is based upon tests performed by Advance Transformer in a controlled environment and representitive of relative performance.
Actual performance can vary depending on operating conditions. Specifications are subject to change without notice.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER · 10275 WEST HIGGINS ROAD · ROSEMONT, IL 60018
Customer Support/Technical Service: Phone: 800-372-3331 · Fax: 630-307-3071
Corporate Offices: Phone: 800-322-2086
INPUT VOLTS 120 277
CIRCUIT TYPE
POWER FACTOR (min)
REGULATION
Line Volts
Lamp Watts
LINE CURRENT (Amps)
Operating................................................... 1.10 0.48
Open Circuit............................................... 2.55 1.10
Starting...................................................... 2.20 0.95
UL TEMPERATURE RATINGS
Insulation Class
Coil Temperature Code A A
MIN. AMBIENT STARTING TEMP.
NOM. OPEN CIRCUIT VOLTAGE
INPUT VOLTAGE AT LAMP DROPOUT........................... 72 166
INPUT WATTS
RECOMMENDED FUSE (Amps)..................................... 6 3
CORE and COIL
Dimension (A)
Dimension (B)
Weight (lbs.)
Lead Lengths
CAPACITOR REQUIREMENT
Microfarads
Volts (min.)
Fault Current Withstand (amps)
60 Hz TEST PROCEDURES (Refer to Advance Test
Procedure for HID Ballasts - Form 1270)
High Potential Test (Volts)
1 minute
2 seconds
Open Circuit Voltage Test (Volts)
Short-Circuit Current Test (Amps)
Secondary Current
Input Current.............................................. 0.70 0.30 - - -
1.10 0.50
HX-HPF
90%
±5%
±12%
A (105°C)
1029
-20°F or -30°C
277
125
11
12"
1600
2000
250-305
1.30-1.60
Wiring Diagram:
BALLAST
GROUND CASE
YELLOW/BLUE
LAMP
277 V
RED
WHITE
COMMON
F-Can Wiring Diagram
All Lead Lengths 12" 120V
BLACK
Ordering Information
Order Suffix Description
09/03/99
O4
![](asset-47.png)
HITW-EX SERIES
ENGINEERED
LIGHTING PRODUCTS
RECESSED Hole In The Wall Light Niche
For Exterior Stucco Construction
WL-2
Floor
Washer
Indirect
Wall Washer
Ideal placement is
18˝ to 30˝ from the
bottom edge of
fixture to the ground.
HITW-EX SERIES
05
![](asset-48.png)
HITW-EX SERIES
HITW-EX SERIES
RECESSED Hole In The Wall Light Niche
For Exterior Stucco Construction
ENGINEERED
LIGHTING PRODUCTS
Section Front View
Model No. Lamp
120 IN-HITW-EX 20 watt Mini Can Incandescent
113 PL-HITW-EX 13 watt PL
126 QD-HITW-EX 26 watt Quad
①
Fixture mounts
directly to studs
that are 16˝ on
center.
③
Finish & paint,
then carefully
make electrical
connections.
②
Allow at least 16˝ of
additional conduit to
connect power.
④
The finished fixture
blends with any
architecture.
SYSTEM
Recessed, fiberglass reinforced, composite fixture
for use in exterior stucco construction. The cast
fixture appears to be part of the architecture and
looks like a custom formed “light niche”that blends
with any exterior motif. Non I.C. Rated.
UL/CUL Wet Location listed.
SPECIFICATIONS
Recessed fixture for use with a 20 watt Incandescent,
13 watt PL, or 26 watt Quad lamp. The cast fixture
houses a ballast box with heat sink that includes
wiring, socket, ballast and reflector. Incandescent
fixture also has thermal protector. Fluorescent fixtures
provide knock-outs for through wiring. Casting is
secured to the 20 gauge electro-plated galvanized
steel fixture back box and a 18 gauge electro-plated
galvanized steel frame with lexan lens and silicone
gaskets seal the lamp compartment.
Frame, ballast box, and fixture back box are TGIC
polyester powder coated. Composite casting is water
and high impact resistant. Use “Weld-crete”to finish
surface to match exterior stucco.
OPTIONS
Ballast Low Temp 120 HPF Electronic (Standard)
Low Temp 277 HPF Electronic
Installation should be coordinated between
electrician and exterior finish contractor.
The exterior finish contractor must provide
waterproof seal where fixture joins the building.
7/8˝
16˝
4-1/16˝
14-1/4˝
17-1/2˝
17-1/2˝
13˝
16˝
6˝
NOTE: All fluorescent fixtures have electronic ballast with -20°starting temperature.
© 2003 Engineered Lighting Products. 1997/Rev. 2002
10768 LOWER AZUSA ROAD • EL MONTE • CA 91731 • 626-579-0943 • FAX: 626-579-6803 • E-mail:
elp2@aol.com
• WEB: www.elplighting.com
See Installation Instructions.
32W Triple Tube,
consulted
manufacturer.
O5
![](asset-49.png)
PL-T Triple 4-Pin Fluorescent Lamp
Feature High color rendering, high efficacy lamps
feature 4-pin base for use with preheat, rapid
start, electronic and dimming circuits.
Featuring ALTO® Lamp Technology
Watts 32
Bulb PL-T
Base GX24q-3
Product
Number 046677-26832-6
Ordering
Code PL-T 32W/830/4P/ALTO
Generic
Designation CFTR32W/GX24q/830
Package
Quantity 12
Description 3000K
CRI 82
Avg. Hrs.
Life 10,000
Design
Lumens 2040
M.O.L. 5 5/8
Lumens 2400
Images
+ ALTO Product Logo
+ Family Photo
+ Product Photo
Literature
+ ALTO Family Brochure
+ MSDS S08-98001
Other Information
• Energy Saving Product
+ Printable Page
+ View Compatible Ballasts
+ Send this Link
+ Bookmark this Page
Footnotes
+ This Product Contains Amalgam
+ High Color Rendering Lamp
+ Features ALTO® Lamp Technology
+ Rated average life under specified test conditions with Programmed Start ballasts with lamps
turned off and restarted no more frequently than once every 3 operating hours. Lamp life is
appreciably longer if lamps are started less frequently.
Pa
g
e 1 of 2PL-T Tri
p
le 4-Pin Fluorescent Lam
p
32 Watts Bulb PL-T Base GX24
q
-3 Product Numbe...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/cfl/dis
p
la
y
cfl.
p
h
p
?id=131
O5
![](asset-4a.png)
Information for this product last modified on September 25, 2001
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
+ Approximate Initial Lumens. The lamp lumen output is based upon lamp performance after 100
hours of operating life, when the output is measured during operation on a reference ballast under
standard laboratory conditions.
+ Design Lumens are the approximate lamp lumen output at 40% of the lamp's Rated Average Life.
This output is based upon measurements obtained during lamp operation on a reference ballast
under standard laboratory conditions.
Pa
g
e 2 of 2PL-T Tri
p
le 4-Pin Fluorescent Lam
p
32 Watts Bulb PL-T Base GX24
q
-3 Product Numbe...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/cfl/dis
p
la
y
cfl.
p
h
p
?id=131
![](asset-4b.png)
Metal
Halide
Lamp Ballast
Catalog Number 71A5282
For 70W M98/M143
60 Hz HX-HPF
Status: Active
DIMENSIONS AND DATA
1.0"
5.10 "
4.50"
B
MAX.
A
0.7"
0.25" WIDE
2 SLOTS
3 X 4 CORE - 2 COIL UNIT
2.45"
3.95"
3.50"
2.90"2.80"
4 HOLES
CLEARED
FOR #10
THRU-BOLTS
Capacitor: 7C080L33-R
Capacitance: 8
Dia/Oval Dim: 1.25
Height: 2.9
Temp Rating: 105°C
Ballast to Lamp Distance
(BTL) = 15 feet
Temp Rating: 105°C
Ignitor: LI533-H4
Data is based upon tests performed by Advance Transformer in a controlled environment and representitive of relative performance.
Actual performance can vary depending on operating conditions. Specifications are subject to change without notice.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER · 10275 WEST HIGGINS ROAD · ROSEMONT, IL 60018
Customer Support/Technical Service: Phone: 800-372-3331 · Fax: 630-307-3071
Corporate Offices: Phone: 800-322-2086
INPUT VOLTS 120 277
CIRCUIT TYPE
POWER FACTOR (min)
REGULATION
Line Volts
Lamp Watts
LINE CURRENT (Amps)
Operating................................................... 0.80 0.35
Open Circuit............................................... 1.90 0.80
Starting...................................................... 0.55 0.25
UL TEMPERATURE RATINGS
Insulation Class
Coil Temperature Code A A
MIN. AMBIENT STARTING TEMP.
NOM. OPEN CIRCUIT VOLTAGE
INPUT VOLTAGE AT LAMP DROPOUT........................... 90 208
INPUT WATTS
RECOMMENDED FUSE (Amps)..................................... 4 2
CORE and COIL
Dimension (A)
Dimension (B)
Weight (lbs.)
Lead Lengths
CAPACITOR REQUIREMENT
Microfarads
Volts (min.)
Fault Current Withstand (amps)
60 Hz TEST PROCEDURES (Refer to Advance Test
Procedure for HID Ballasts - Form 1270)
High Potential Test (Volts)
1 minute
2 seconds
Open Circuit Voltage Test (Volts)
Short-Circuit Current Test (Amps)
Secondary Current
Input Current.............................................. 0.55 0.25 - - -
0.80 0.45
HX-HPF
90%
±5%
±7%
H(180°C)
1029
-20°F or -30°C
255
88
1.45
2.75
5
12"
8.0
280
2000
2500
230-280
0.95-1.25
Wiring Diagram:
Fig. K
LAMP
CAP LAMP
COM COM
LINE V
LINE V
COM
LINE V
CAP
LINE V
IGNITOR
X1X3
X2
Ordering Information
Order Suffix Description
500D. Ballast With Ignitor and Dry Film Capacitor
510D. Ballast w/Welded Bracket, Ignitor, & Dry Film Capacitor
600. Ballast and Ignitor, No Capacitor
610. Ballast with Welded Bracket and Ignitor, No Capacitor
11/08/00
O7
![](asset-4c.png)
HITW-EX SERIES
ENGINEERED
LIGHTING PRODUCTS
RECESSED Hole In The Wall Light Niche
For Exterior Stucco Construction
WL-2
Floor
Washer
Indirect
Wall Washer
Ideal placement is
18˝ to 30˝ from the
bottom edge of
fixture to the ground.
HITW-EX SERIES
05
![](asset-4d.png)
HITW-EX SERIES
HITW-EX SERIES
RECESSED Hole In The Wall Light Niche
For Exterior Stucco Construction
ENGINEERED
LIGHTING PRODUCTS
Section Front View
Model No. Lamp
120 IN-HITW-EX 20 watt Mini Can Incandescent
113 PL-HITW-EX 13 watt PL
126 QD-HITW-EX 26 watt Quad
①
Fixture mounts
directly to studs
that are 16˝ on
center.
③
Finish & paint,
then carefully
make electrical
connections.
②
Allow at least 16˝ of
additional conduit to
connect power.
④
The finished fixture
blends with any
architecture.
SYSTEM
Recessed, fiberglass reinforced, composite fixture
for use in exterior stucco construction. The cast
fixture appears to be part of the architecture and
looks like a custom formed “light niche”that blends
with any exterior motif. Non I.C. Rated.
UL/CUL Wet Location listed.
SPECIFICATIONS
Recessed fixture for use with a 20 watt Incandescent,
13 watt PL, or 26 watt Quad lamp. The cast fixture
houses a ballast box with heat sink that includes
wiring, socket, ballast and reflector. Incandescent
fixture also has thermal protector. Fluorescent fixtures
provide knock-outs for through wiring. Casting is
secured to the 20 gauge electro-plated galvanized
steel fixture back box and a 18 gauge electro-plated
galvanized steel frame with lexan lens and silicone
gaskets seal the lamp compartment.
Frame, ballast box, and fixture back box are TGIC
polyester powder coated. Composite casting is water
and high impact resistant. Use “Weld-crete”to finish
surface to match exterior stucco.
OPTIONS
Ballast Low Temp 120 HPF Electronic (Standard)
Low Temp 277 HPF Electronic
Installation should be coordinated between
electrician and exterior finish contractor.
The exterior finish contractor must provide
waterproof seal where fixture joins the building.
7/8˝
16˝
4-1/16˝
14-1/4˝
17-1/2˝
17-1/2˝
13˝
16˝
6˝
NOTE: All fluorescent fixtures have electronic ballast with -20°starting temperature.
© 2003 Engineered Lighting Products. 1997/Rev. 2002
10768 LOWER AZUSA ROAD • EL MONTE • CA 91731 • 626-579-0943 • FAX: 626-579-6803 • E-mail:
elp2@aol.com
• WEB: www.elplighting.com
See Installation Instructions.
32W Triple Tube,
consulted
manufacturer.
O5
![](asset-4e.png)
PL-T Triple 4-Pin Fluorescent Lamp
Feature High color rendering, high efficacy lamps
feature 4-pin base for use with preheat, rapid
start, electronic and dimming circuits.
Featuring ALTO® Lamp Technology
Watts 32
Bulb PL-T
Base GX24q-3
Product
Number 046677-26832-6
Ordering
Code PL-T 32W/830/4P/ALTO
Generic
Designation CFTR32W/GX24q/830
Package
Quantity 12
Description 3000K
CRI 82
Avg. Hrs.
Life 10,000
Design
Lumens 2040
M.O.L. 5 5/8
Lumens 2400
Images
+ ALTO Product Logo
+ Family Photo
+ Product Photo
Literature
+ ALTO Family Brochure
+ MSDS S08-98001
Other Information
• Energy Saving Product
+ Printable Page
+ View Compatible Ballasts
+ Send this Link
+ Bookmark this Page
Footnotes
+ This Product Contains Amalgam
+ High Color Rendering Lamp
+ Features ALTO® Lamp Technology
+ Rated average life under specified test conditions with Programmed Start ballasts with lamps
turned off and restarted no more frequently than once every 3 operating hours. Lamp life is
appreciably longer if lamps are started less frequently.
Pa
g
e 1 of 2PL-T Tri
p
le 4-Pin Fluorescent Lam
p
32 Watts Bulb PL-T Base GX24
q
-3 Product Numbe...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/cfl/dis
p
la
y
cfl.
p
h
p
?id=131
O5
![](asset-4f.png)
Information for this product last modified on September 25, 2001
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
+ Approximate Initial Lumens. The lamp lumen output is based upon lamp performance after 100
hours of operating life, when the output is measured during operation on a reference ballast under
standard laboratory conditions.
+ Design Lumens are the approximate lamp lumen output at 40% of the lamp's Rated Average Life.
This output is based upon measurements obtained during lamp operation on a reference ballast
under standard laboratory conditions.
Pa
g
e 2 of 2PL-T Tri
p
le 4-Pin Fluorescent Lam
p
32 Watts Bulb PL-T Base GX24
q
-3 Product Numbe...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/cfl/dis
p
la
y
cfl.
p
h
p
?id=131
![](asset-50.png)
Revised 09/02/2004
Data is based upon tests performed by Advance Transformer in a controlled environment and representative of relative performance. Actual performance
can vary depending on operating conditions. Specifications are subject to change without notice. All specifications are nominal unless otherwise noted.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER · 10275 WEST HIGGINS ROAD · ROSEMONT, IL 60018
Customer Support/Technical Service: Phone: 800-372-3331 · Fax: 630-307-3071
Corporate Offices: Phone: 800-322-2086
ICF-2S26-H1-LD@120
Brand Name SMARTMATE
Ballast Type Electronic
Starting Method Programmed Start
Lamp Connection Series
Input Voltage 120-277
Input Frequency 50/60 HZ
Status Active
Electrical Specifications
Lamp Type Num.
of
Lamp
s
Rated
Lamp
Watts
Min. Start
Temp
(°F/C)
Input
Current
(Amps)
Input
Power
(ANSI
Watts)
Ballast
Factor
MAX
THD
%
Power
Factor
MAX Lamp
Current
Crest Factor
B.E.F.
CFM26W/GX24Q 1 26 0/-18 0.24 29 1.10 10 0.98 1.5 3.79
CFM26W/GX24q 2 26 0/-18 0.45 54 1.00 10 0.99 1.5 1.85
* CFM32W/GX24q 1 32 0/-18 0.31 36 0.98 10 0.98 1.5 2.72
CFM42W/GX24q 1 42 0/-18 0.38 46 0.98 10 0.98 1.5 2.13
CFQ26W/G24q 1 26 0/-18 0.23 27 1.00 10 0.98 1.5 3.70
CFQ26W/G24q 2 26 0/-18 0.43 51 1.00 10 0.99 1.5 1.96
CFS21W/GR10q 2 21 0/-18 0.42 51 1.12 10 0.99 1.5 2.20
FT24W/2G11 2 24 0/-18 0.41 48 0.93 10 0.99 1.5 1.94
Wiring Diagram
WIRING: (2) LAMPS (1) LAMP
Green Terminal must be Grounded
GREEN
BLACK
WHITE BALLAST
LINE
BLUE
RED
YELLOW
RED
BLUE
The wiring diagram that appears above is
for the lamp type denoted by the asterisk (*)
Standard Lead Length (inches)
in. cm.
Black 0.0
White 0.0
Blue 0.0
Red 0.0
Yellow 0
Gray
Violet
in. cm.
Yellow/Blue
Blue/White
Brown
Orange
Orange/Black
Black/White
Red/White
Enclosure
Enclosure Dimensions
OverAll (L) Width (W) Height (H) Mounting (M)
4.98 " 2.4 " 1.0 " 4.6 "
4 49/50 2 2/5 1 4 3/5
12.6 cm 6.1 cm 2.5 cm 11.7 cm
B5
![](asset-51.png)
ICF-2S26-H1-LD@120
Brand Name SMARTMATE
Ballast Type Electronic
Starting Method Programmed Start
Lamp Connection Series
Input Voltage 120-277
Input Frequency 50/60 HZ
Status Active
Electrical Specifications
Notes:
Section I - Physical Characteristics
1.1 Ballast shall be physically interchangeable with standard electromagnetic or standard electronic ballasts, where applicable.
1.2 Ballast shall be available in a plastic/metal can or all metal can construction to meet all plenum requirements.
1.3 Ballast shall be provided with poke-in wire trap connectors color coded per ANSI C82.11.
Section II - Performance Requirements
2.1 Ballast shall be Programmed Start except for ballasts with -QS suffix, which shall be Rapid Start.
2.2 Ballast shall contain auto restart circuitry in order to restart lamps without resetting power.
2.3 Ballast shall operate from 50/60 Hz input source of 120V through 277V with sustained variations of +/- 10% (voltage and frequency) with
no damage to the IntelliVolt ballast. RCF models shall operate from 60 Hz input source of 120V with sustained variations of +/- 10% (voltage
and frequency) with no damage to the ballast.
2.4 Ballast shall be high frequency electronic type and operate lamps at a frequency above 42 kHz to avoid interference with infrared devices
and eliminate visible flicker.
2.5 Ballast shall have a Power Factor greater than 0.98 for primary lamp.
2.6 Ballast shall have a minimum ballast factor of 1.00 for primary lamp application.
2.7 Ballast shall provide for a Lamp Current Crest Factor of 1.7 or less in accordance with lamp manufacturer recommendations.
2.8 Ballast input current shall have Total Harmonic Distortion (THD) of less than 10% when operated at nominal line voltage with primary lamp.
2.9 Ballast shall have a Class A sound rating.
2.10 Ballast shall have a minimum starting temperature of -18C (0F) for primary lamp. Ballasts for PL-H lamps shall have a minimum starting
temperature of -30C (-20F) for primary lamp.
2.11 Ballast shall provide Lamp EOL Protection Circuit which meets NEMA recommendations.
2.12 Ballast shall tolerate sustained open circuit and short circuit output conditions without damage.
Section III - Regulatory Requirements
3.1 Ballast shall not contain any Polychlorinated Biphenyl (PCB).
3.2 Ballast shall be Underwriters Laboratories (UL) listed, Class P and Type 1 Outdoor; and Canadian Standards Association (CSA) certified
where applicable.
3.3 Ballast shall be Underwriters Laboratories (UL) rated for use in air-handling spaces.
3.4 Ballast shall comply with ANSI C62.41 Category A for Transient protection.
3.5 Ballast shall comply with ANSI C82.11 where applicable.
3.6 Ballast shall comply with the requirements of the Federal Communications Commission (FCC) rules and regulations, Title 47 CFR part 18,
Non-Consumer (Class A) for EMI/RFI (conducted and radiated) except for RCF models which shall be Consumer (Class B).
Section IV - Other
4.1 Ballast shall be manufactured in a factory certified to ISO 9002 Quality System Standards.
4.2 Ballast shall carry a five-year warranty from date of manufacture against defects in material or workmanship, including replacement, for
operation at a maximum case temperature of 75C and three-years for a maximum case temperature of 85C (90C 3year warranty for ICF1H120-
XX-XX, ICF2S70-XX-XX and ICF2S4290C-XX-XX modesls).
4.3 Manufacturer shall have a fifteen-year history of producing electronic ballasts for the North American market.
4.4 Ballast shall be Advance Transformer part # _____________ or approved equal.
Revised 09/02/2004
Data is based upon tests performed by Advance Transformer in a controlled environment and representative of relative performance. Actual performance can vary
depending on operating conditions. Specifications are subject to change without notice. All specifications are nominal unless otherwise noted.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER - 10275 WEST HIGGINS ROAD
ROSEMONT, ILLINOIS 60018
TELEPHONE: (847) 390-5000 FAX: (847) 390-5109
![](asset-52.png)
CLM Series
CLM Series delivers low voltage linear lighting for outdoor
applications such as building facades, signage, pedestrian
walkways and landscape accenting. The small scale
shallow profile aluminum extrusion houses Clikstrip™and
offers many options for outdoor as well as indoor lighting.
Features
• Gasketed aluminum housing finished in
satin anodized or painted. Blends well in all
architectural environments.
• Gasketed stamped aluminum end plates maintain a
water resistant enclosure.
• Extruded aluminum lens clasps, patent pending.
Permits servicing of the fixture by removing
the lens without tools. Consult factory for tamper-
proof option.
• UV-protected clear polycarbonate lens.
• Choice of mounting provides installation flexibility.
• Choice of shielding options.
• Delivered from factory with
Clikstrip™installed – order separately.
• Optional factory-installed parabolic lamp reflectors.
• Requires remote power supply.
• UL/c Listed wet location and IP64 rated for use with
10 watt max lamps in base up or base down position.
Clikstrip
Extruded lens clasps
UV-protected lens
Gasketed aluminum housing
Gasketed end plates
O6
![](asset-53.png)
Clikstrip™LED Element
LEDs are the newest choice of designers for
energy efficient, low maintenance lighting
applications. Our LED Elements combine
energy efficiency and long life with low heat
generation and high light intensity in a “lamp”
specially designed to install into Clikstrip.
™
White LED elements are standard but other
colors are available for custom applications.
Features
• LED lamp color: 5000°K. LED lamp life: 60,000 hours.
Consult factory for LED lamp color options.
• Total power consumption: 1 watt.
• Patent pending.
CLM Series
Clikstrip™miniature wet location
CLX
Series
CLX - TB for wiring
in CLM Series housing
0
Mounting
0- mounted
to CLM Series
housing
X
Color
W- white
B- black
C- standard
profile
chrome
G- standard
profile gold
N- high
profile
chrome
R- high
profile gold
X
Clip Type
XX
Nominal Length
standard sizes
in 1'
increments
from 01' to 16'
or half meter
increments
from 0.5 to
4.5 meters
X
Unit of
Measurement
F- feet
M- metric
S- standard
17/8" o.c.
A- alternate
33/4" o.c.
C- custom (O.C.
dimension to be
called out in
product
description)
I- incandescent
X - xenon
A- argon
L- looped
W- LED element
C- clear
F- frosted
R- red
B- blue
G- green
Y- yellow
W- solar blue
or
LED element
X
Center-to-Center
Lamp Spacing
-X
Festoon
Lamp Type*
C
Lamp Style
X
Lamp
Voltage
2- 12 volt
4- 24 volt
X
Lamp
Wattage
3- 3 watt
5- 5 watt
6- 6 watt
8- 8.5 watt
1- 10 watt
A- LED
element AC
D- LED
element DC
Ardee’s Clikstrip™product specification formula allows you to specify each com-
ponent that will best achieve the lighting results you need. To specify a complete
catalog number choose one item from the selection available in each module.
Clikstrip™Materials Specification
extrusion UL/C recognized PES (polyethersulfone) with a thermal
deflection temperature of 397°F.
conductors Solid hard drawn copper.
terminal block UL/C recognized part made with nylon (insulator polyamide)
casing with nickel-plated brass contacts.
lampholder clips Tempered spring steel finished in bright nickel or gold.
CLM Series is delivered with factory installed
Clikstrip™which must be ordered separately
0
0
45
90
10.4
ZONAL
LUMENS
28.4
38.2
36.3
29.2
21.2
10.9
5.6
3.1
10
20
30
40
50
60
70
80
90
Ordering information
Part
Numbers Description
WW2A White LEDs 12 VAC
WW4A White LEDs 24 VAC
WW2D White LEDs 12 VDC Class II only
Photometric report: WW2D
Test report number: 11729.0
Description: 18 1-watt white LED elements installed on 3' Clikstrip
12 volt DC power supply
Rated lumens: 10.2 per element
432
FC
SPREAD
108
48
27
17
12
9
7
DISTANCE
4
3
2
6"
152 mm
12"
305 mm
18"
457 mm
24"
610 mm
30"
762 mm
36"
914 mm
42"
1066 mm
48"
1219 mm
60"
1524 mm
72"
1829 mm
84"
2134 mm
actual size
08'
O6
![](asset-54.png)
1. H O U S I N G
C A L L I S T O - 1 2 Job Name:
Fixture Type:
Job Number:
Distributor:
Distributor P.O. :
Housing: two-piece die-cast aluminum with
internal component mounting bosses.
Door frame: one-piece die-cast aluminum
secured with three phillips head screws.
Lens assembly: various clear or prismatic glass
lens (beam dependant) gasketed
to door to ensure a tight seal.
The luminaire shall be cULus listed for wet
locations and manufactured from UL-recognized
components.
10.39"
3.45"
9.81"
9.62"
12"
2"
14.30"
13.38"
0.18"
CL12
EPA (fixture only): 0.62 FIXTURE WEIGHT: 28 LBS.
(shown with optional
eggcrate shield)
2. L A M P W A T T A G E
METAL HALIDE (H.I.D.) ED17
500 WATT QUARTZ HALOGEN (500QTZ)
150 WATT HIGH PRESSURE SODIUM (150HPS)
100 WATT HIGH PRESSURE SODIUM (100HPS)
HIGH PRESSURE SODIUM (H.I.D.) ED17
Quartz WATTAGE PAR56
3. B E A M P A T T E R N
RECTANGULAR
NARROW (RN) MEDIUM (RM)
RECTANGULAR
WIDE (RW)
RECTANGULAR
NARROW
RECTANGULAR MEDIUM
RECTANGULAR WIDE
RECTANGULAR
SPOT
(SP)
VERTICAL (RNV) VERTICAL (RMV) VERTICAL (RWV)
METAL HALIDE & HIGH PRESSURE SODIUM INCANDESCENT
NARROW
SPOT (NSP)
MEDIUM
FLOOD (MFL)
FLOOD (WFL)
WIDE
Item Number:
ORDER NUMBER: CL12
1 2 3 4 5 6
YK
7 8 9 10
HOUSING LAMP BEAM VOLTAGE BALLAST MODEL MOUNTING SHIELD GENERALFINISH
WATTAGE PATTERN (FOR HID) STYLE OPTION OPTION OPTION
(Electronic ballast available only in 70MH or 100MH)
70 WATT METAL HALIDE (70MH)
100 WATT METAL HALIDE (100MH)
150 WATT METAL HALIDE (150MH)
175 WATT METAL HALIDE (175MH)
O7
![](asset-55.png)
SURFACE BASE
CAST DUCTILE IRON
6.00"
1.38"
HARDWARE
.38"
3/ 4" MOUNTING
BOLT CIRCLE
6.00" DIA.
0.56"
(4)
CAN BE MOUNTED
BY OTHERS)
U-BOLTS (U-BOLTS
TO 2" PIPE (MAX) WITH
HORIZONTAL SECTOR
WALL BRACKET AND
CAST DUCTILE IRON
1.50"
5.50"
4.50"
3.50"
8.00"
5/ 8" PIVOT
BOLT
3/ 4" MOUNTING
HARDWARE
1.81" 1.16" 3/8" LOCKING
BOLT
(4)
0.56"
3.50"
1.50"
FITTER
CAST TENZALLOY
SPLICE INSPECTION
REMOVABLE
COVER
5.63"
3.13"
3.44"
CONNECTOR
REMOVABLE
MOUNTING
SIDE YOKE
HOLE PLUG FOR
1/ 2" SET
SCREWS
REMOVABLE
WATER-TITE
(SUPPLIED)
CONNECTOR
WATER-TITE
INSTALLING
PIPE PLUG FOR
3/ 4" MOUNTING
PIPE TENON X 4.00" LONG
TO FIT 2" (2.38" O.D.)
HARDWARE
(MIN.)
6.00"
2.06"
WELD CONSTRUCTION
ALL COMPONENTS STEEL.
6.25"
.25"
2.38"
O.D. STEEL PIPE)
(2" SCH. 40
I.D.
6.00" DIA.
BOLT CIRCLE
0.56"
(4)
(for use with SF option)
4. V O L T A G E
120
208
(Electronic ballast available only in 70WMH and 100WMH,
(Ballast is an integral part of the fixture housing.)
CORE & COIL (C)
ELECTRONIC (EB)
277
240
347
(Electronic ballast available only in 120 or 277 volts.)
(Quartz available in 120 volt only.) and in 120 or 277 volt. Rated for -20 F (-28.9 C).)
7. M O U N T I N G O P T I O N S
YOKE (YK)
BASE PLATE (BP) WALL BRACKET (WB) BASE PAD (PD)
SLIP FITTER (SF)
WHITE (WH)
NATURAL ALUMINUM (AL)
NON-STANDARD (NS)
9. F I N I S H
DARK BRONZE (BZ)
BLACK (BK)
70MH ED17
100MH ED17
150MH ED17
175MH ED17
(SELECT 'LP' ONLY IF A LAMP IS TO BE INCLUDED)
100HPS ED17
150HPS ED17
500QTZ PAR56
INCLUDE LAMP (LP)
REMARKS:
2.46"
6.17"
4.0" 6.17"
6.17"
6.17""
6.17"
3.0"
7.90"
6.17"
6.17"
3.0"
7.90"
EGGCRATE (EC)
TOP SHIELD (TS)
HOR. LOUVER (HL)VER. LOUVER (VL)
The eggcrate is the only shield finished to match luminaire.
Standard shield finish is black unless otherwise specified.
CUSTOM SHIELD (CS)
(Core and coil ballast is high-power factor and rated for -20 F (-28.9 C).)
SAFETY CABLE (SC)
FUSE LUMINAIRE (FL)
480
5. B A L L A S T (H.I.D. ONLY) 6. M O D E L
10. G E N E R A L O P T I O N S
8. O P T I O N A L S H I E L D S
Sterner Lighting Systems Incorporated
351 LEWIS AVENUE WEST, P.O. BOX 805 WINSTED, MN 55395-0805
TEL 320.485.2141 FAX 320.485.2881 TOLL-FREE 800.328.7480
2/2002 www.sternerlighting.com
07
![](asset-56.png)
General
MasterColor CDM 70W/830 Med ED17P CL ALTO+FB
| Save PDF | Open PDF
PRODUCT DATA
Product Number 233668
Full product name MasterColor CDM 70W/830 Med ED17P CL ALTO+FB
Ordering Code MHC70/U/MP/3K ALTO
Pack type 1 Sleeve Open End
Pieces per pack 1
Packs per case 12
Pack UPC 046677233662
EAN2US -
Case Bar Code 50046677233667
Successor Product number -
Wattage[W ] 70W
Color Code 830 [CCT of 3000K]
Base Med [Medium]
Bulb ED17P [Diameter: 2.125 inch Protected]
Bulb Finish CL [Clear]
Feature ALTO+FB [ALTO® + FadeBlock™]
Base Information Brass[Brass Base]
Bulb Material Hard Glass
Execution Protected
Operating Position Universal[Universal]
Packing Type 1SL[1 Sleeve Open End]
Packing Configuration 12
Rated Avg. Life[hr ] 16000
Mercury Weight[mg ] 6.6
ANSI Code HID M143/M98/O
Lamp Voltage[V ] 100
Color Rendering Index[Ra8 ] 85
Color Designation Warm White
Color Temperature[K ] 3000
Pa
g
e 1 of 3MasterColor CDM 70W/830 Med ED17P CL ALTO+FB
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
O7
![](asset-57.png)
Initial Lumens[Lm ] 5900
Design Mean Lumens[Lm ] 4365
Light Center Length L [inch][in ] 3.438
Max Overall Length (MOL) - C[in ] 5.438
Diameter D[in ] 2.125
Pa
g
e 2 of 3MasterColor CDM 70W/830 Med ED17P CL ALTO+FB
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
![](asset-58.png)
Dimensions
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
Pa
g
e 3 of 3MasterColor CDM 70W/830 Med ED17P CL ALTO+FB
4/3/2005htt
p
://www.
p
rismaecat.li
g
htin
g
.
p
hili
p
s.com/Li
g
htSite/Whirlwind.as
p
x?eca=LNPPLA&c
p
f=...
![](asset-59.png)
Metal
Halide
Lamp Ballast
Catalog Number 71A5282
For 70W M98/M143
60 Hz HX-HPF
Status: Active
DIMENSIONS AND DATA
1.0"
5.10 "
4.50"
B
MAX.
A
0.7"
0.25" WIDE
2 SLOTS
3 X 4 CORE - 2 COIL UNIT
2.45"
3.95"
3.50"
2.90"2.80"
4 HOLES
CLEARED
FOR #10
THRU-BOLTS
Capacitor: 7C080L33-R
Capacitance: 8
Dia/Oval Dim: 1.25
Height: 2.9
Temp Rating: 105°C
Ballast to Lamp Distance
(BTL) = 15 feet
Temp Rating: 105°C
Ignitor: LI533-H4
Data is based upon tests performed by Advance Transformer in a controlled environment and representitive of relative performance.
Actual performance can vary depending on operating conditions. Specifications are subject to change without notice.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER · 10275 WEST HIGGINS ROAD · ROSEMONT, IL 60018
Customer Support/Technical Service: Phone: 800-372-3331 · Fax: 630-307-3071
Corporate Offices: Phone: 800-322-2086
INPUT VOLTS 120 277
CIRCUIT TYPE
POWER FACTOR (min)
REGULATION
Line Volts
Lamp Watts
LINE CURRENT (Amps)
Operating................................................... 0.80 0.35
Open Circuit............................................... 1.90 0.80
Starting...................................................... 0.55 0.25
UL TEMPERATURE RATINGS
Insulation Class
Coil Temperature Code A A
MIN. AMBIENT STARTING TEMP.
NOM. OPEN CIRCUIT VOLTAGE
INPUT VOLTAGE AT LAMP DROPOUT........................... 90 208
INPUT WATTS
RECOMMENDED FUSE (Amps)..................................... 4 2
CORE and COIL
Dimension (A)
Dimension (B)
Weight (lbs.)
Lead Lengths
CAPACITOR REQUIREMENT
Microfarads
Volts (min.)
Fault Current Withstand (amps)
60 Hz TEST PROCEDURES (Refer to Advance Test
Procedure for HID Ballasts - Form 1270)
High Potential Test (Volts)
1 minute
2 seconds
Open Circuit Voltage Test (Volts)
Short-Circuit Current Test (Amps)
Secondary Current
Input Current.............................................. 0.55 0.25 - - -
0.80 0.45
HX-HPF
90%
±5%
±7%
H(180°C)
1029
-20°F or -30°C
255
88
1.45
2.75
5
12"
8.0
280
2000
2500
230-280
0.95-1.25
Wiring Diagram:
Fig. K
LAMP
CAP LAMP
COM COM
LINE V
LINE V
COM
LINE V
CAP
LINE V
IGNITOR
X1X3
X2
Ordering Information
Order Suffix Description
500D. Ballast With Ignitor and Dry Film Capacitor
510D. Ballast w/Welded Bracket, Ignitor, & Dry Film Capacitor
600. Ballast and Ignitor, No Capacitor
610. Ballast with Welded Bracket and Ignitor, No Capacitor
11/08/00
O7
![](asset-5a.png)
BK
(7)
0.120
(3)
5.9 x 3.1
(2)
28
(4)
H
(5) (6)
PRP
(1)
RTS20
(7)
Polyurethane
Finish
BK Black
BZ Dark Bronze
WH White
AL Natural
Aluminum
NS Non-Standard
Finish
(consult factory)
DF Duplex Groundfault
Receptacle
(15 amp, mounted
24" above grade)
PRP Pole Top Photocell
Receptacle
(arm mount fixtures only)
BN Break-Away Banner
Arm Coupling
(can use 0.75" or 1.25"
pipe arms)
(consult factory for specific
ordering info.)
(4)
DIAMETER
(TAPERED)
See Pole
Data Table
Below
14"
10.9
8.5
9.2
7.7
6.2
6.3
6.0
11 ga.
11 ga.
11 ga.
11 ga.
11 ga.
11 ga.
11 ga.
NOTES:
1) RTS12, 16, 20, 25, 30, 35, & 39 are available in 0.120" wall standard.
2) '10' applies to both arm & yoke mount fixtures.
3) See below table for dimensions & bolt info.
NOTES: Responsibility lies with the specifier for correct pole selection based on local codes and standards for the job location.
(see Wind Map on page 13 for details)
4.6" x 3.0"
5.2" x 3.0"
5.9" x 3.1"
6.5" x 3.0"
6.9" x 3.0"
7.6" x 3.0"
8.4" x 3.0"
9
ORDER EXAMPLE
ORDERING SEQUENCE
POLE DATA
RTs – ROUND TAPERED STEEL POLES
RTS16
SEE FIXTURE
DETAIL
BZ
PRP
P1
![](asset-5b.png)
BK
(7)
0.120
(3)
5.9 x 3.1
(2)
28
(4)
H
(5) (6)
PRP
(1)
RTS20
(7)
Polyurethane
Finish
BK Black
BZ Dark Bronze
WH White
AL Natural
Aluminum
NS Non-Standard
Finish
(consult factory)
DF Duplex Groundfault
Receptacle
(15 amp, mounted
24" above grade)
PRP Pole Top Photocell
Receptacle
(arm mount fixtures only)
BN Break-Away Banner
Arm Coupling
(can use 0.75" or 1.25"
pipe arms)
(consult factory for specific
ordering info.)
(4)
DIAMETER
(TAPERED)
See Pole
Data Table
Below
14"
10.9
8.5
9.2
7.7
6.2
6.3
6.0
11 ga.
11 ga.
11 ga.
11 ga.
11 ga.
11 ga.
11 ga.
NOTES:
1) RTS12, 16, 20, 25, 30, 35, & 39 are available in 0.120" wall standard.
2) '10' applies to both arm & yoke mount fixtures.
3) See below table for dimensions & bolt info.
NOTES: Responsibility lies with the specifier for correct pole selection based on local codes and standards for the job location.
(see Wind Map on page 13 for details)
4.6" x 3.0"
5.2" x 3.0"
5.9" x 3.1"
6.5" x 3.0"
6.9" x 3.0"
7.6" x 3.0"
8.4" x 3.0"
9
ORDER EXAMPLE
ORDERING SEQUENCE
POLE DATA
RTs – ROUND TAPERED STEEL POLES
RTS16
SEE FIXTURE
DETAIL
PRP
BZ
P2
![](asset-5c.png)
All dimensions are inches (centimeters).
ORDERING INFORMATION
Choose the boldface catalog nomenclature that best suits your needs and
write it on the appropriate line.
Example: LTD REFL 150M NFL EMB WH
NOTES:
1 Supplied with socket designed for protected lamp unless CGL option is selected.
2 Available with clear anodized finish only.
3 Philips ceramic metal halide lamp shipped standard. Consult factory for other lamp options.
4 CM option with EMB ballast uses 120/277 dual tap ballast.
FEATURES & SPECIFICATIONS
INTENDED USE
Accent lighting applications where color, extended lamp life and
efficiency are important.
CONSTRUCTION
Polyester powder painted aluminum ballast housing.
Polyester powder painted aluminum socket housing and protective cowl.
Metal yoke rotates 330° horizontally and up to 90° from vertical.
Two opposed knobs lock vertical position.
Injection-molded track mounting adaptor for easy attachment to 1 or 2
circuit Lithonia Track. Available with optional direct J-box mount.
Track mounted fixtures include a secondary locking clip.
Available in white or black finishes.
OPTICAL SYSTEM
Optical system designed specifically for clear, medium-base metal halide
lamp.
Spun, clear anodized aluminum reflector available in spot, narrow flood
or wide flood distributions.
ELECTRICAL SYSTEM
Medium-base porcelain socket with nickel-plated screw shell (open
reflector requires protected lamp).
Available for 50, 70, 100 or 150 watt metal halide lamps (see sheet 115-LTD-
REFL for 50 watt, 120-LTD-REFL for 70 watt, and 125-LTD-REFL for 100 watt).
High power factor, core and coil ballast.
CM option provides direct J-box mount and ballast that operates with
either 120 or 277 volt.
LISTING
Fixtures are UL 1574 or 1598 listed.
Listed and labeled to comply with Canadian Standards.
Options
150M
Wattage/lamp1
150M 150W metal
halide
Distribution2
SP Spot
NFL Narrow flood
WFL Wide flood
Ballast
EMB Electromag-
netic ballast
CM4For direct
mount to 4"
octagon
J-box (by
others)
CGL Clear
tempered
glass lens
WLP3With lamp
(shipped
separately)
Finish
WH White
DBL Black
REFL
Head Style
REFL Open reflector
LTD
Series
LTD
EMB: 15-1/16 (38.
3)
8-3/8 (21.3)
E
MB: 8-5/8 (14.3)
7-3/4 (19.7)
Downlighting and Track HID-160
Sheet#:LTD-REFL-150M
Catalog Number
Notes Type
H.I.D.
LTD REFL
Open Reflector
Color-Corrected or Standard Metal Halide
ED-17, E-17 or BD-17 Lamp
T1
![](asset-5d.png)

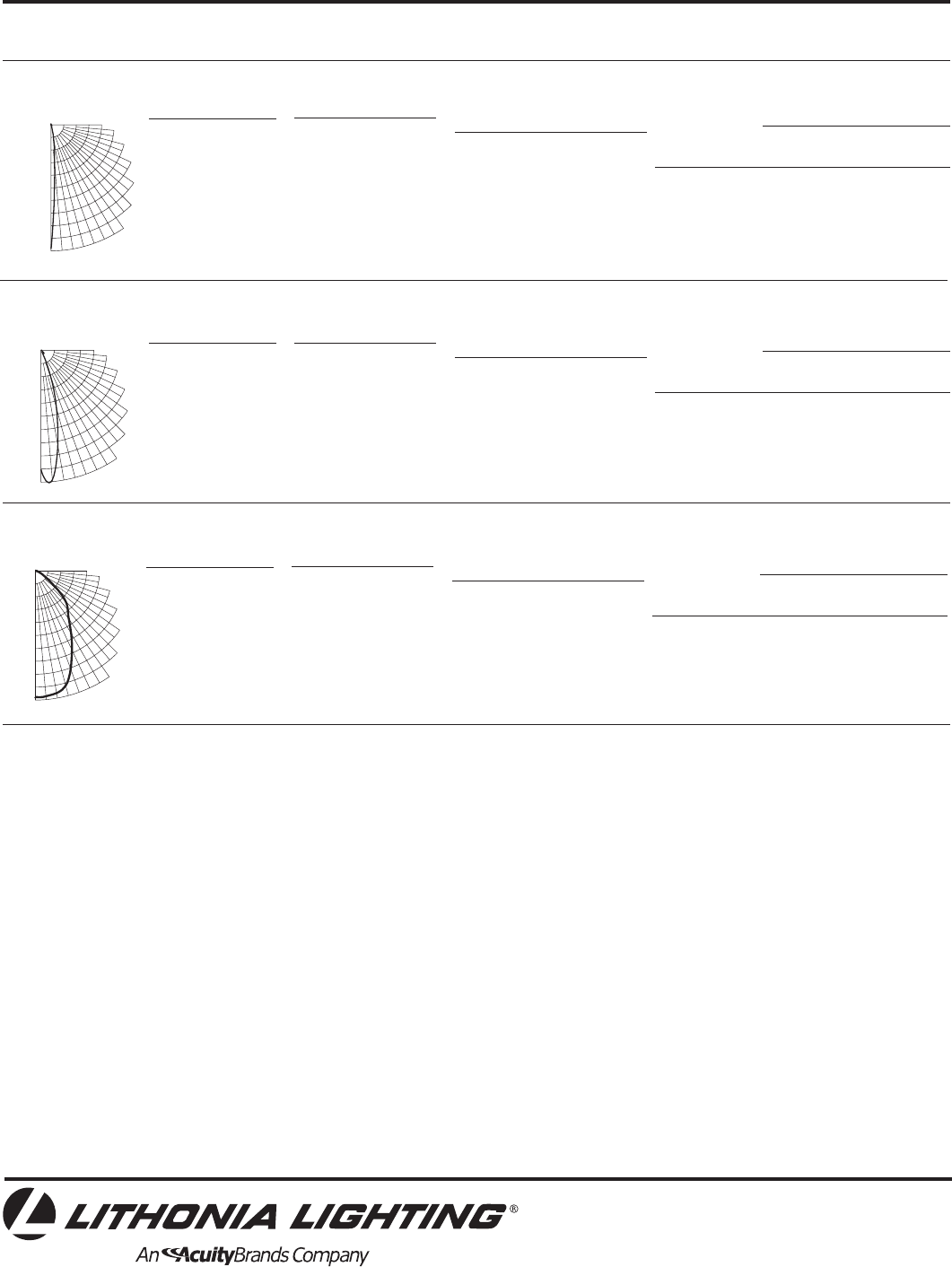

LTD REFL Open Reflector/Color Corrected or Standard Metal Halide
Distribution curve Distribution data Output data Coefficient of utilization Illuminance Data at 30" Above Floor for
a Single Luminaire
NOTES:
1 For electrical characteristics, refer to electrical data tab.
2 Tested to current IES and NEMA standards under stabilized laboratory
conditions. Various operating factors can cause differences between
laboratory data and actual field measurements. Dimensions and specifica-
tions are based on the most current available data and are subject to
change without notice.
LTD REFL 150M SP, (1) MHC150/U/MP/4K, 12400 lumens per lamp, 0.13 s/mh, test no. LTL8975
Philips MHC150/U/MP/3K has a rated lamp life of 9,000 hours.
LTD REFL 150M WFL, (1) MHC150/U/MP/4K, 12400 lumens per lamp, 0.95 s/mh, test no. LTL8978
From 0° cp. Lumens
0° 5852
5° 5845 556
15° 5512 1528
25° 4058 1860
35° 2742 1729
45° 2016 1563
55° 814 847
65° 345 346
75° 142 155
85° 43 45
90° 0
ρf 20%
ρc 80% 70% 50%
ρw 50% 30% 50% 30% 50% 30%
1757374727169
2686467636462
3625761565955
4565155515450
5 51 46 51 446 49 45
6474246424541
7433843383934
8403540353934
9373237323632
10 35 30 35 30 34 30
Zone Lumens %lamp
0°-30° 3944.1 31.8
0°-40° 5673.6 45.8
0°-60° 8083.7 65.2
0°-90° 8630.4 69.6
90°-180° 0.0 0.0
0°-180° 8630.4 69.6*
*Efficiency
50% 10%
beam angle 51° beam angle 94.9°
Initial fc fc at fc at
Mount at beam Beam beam Beam beam
height center diameter edge diameter edge
8' 193.5 5.2 96.7 12.0 19.3
10' 104.0 7.2 52.0 16.3 10.4
12' 64.8 9.1 32.4 20.7 6.5
14' 44.2 11.0 22.1 25.0 4.4
16' 32.1 12.9 16.1 29.4 3.2
1200
2400
3600
4800
6000
90
o
45
o
0
o
LTD REFL 150M NFL, (1) MHC150/U/MP/4K, 12400 lumens per lamp, 0.51 s/mh, test no. LTL8976
From 0° cp. Lumens
0° 28913
5° 31549 2769
15° 14470 3786
25° 1567 867
35° 996 631
45° 983 757
55° 311 376
65° 80 82
75° 59 58
85° 29 37
90° 0
ρf 20%
ρc 80% 70% 50%
ρw 50% 30% 50% 30% 50% 30%
1 8482 8381 7978
2 7976 7875 7573
3 7571 7471 7269
4 7167 7067 6966
5 6864 6763 6663
6 6561 6461 6360
7 6258 6258 6157
8 6056 5956 5955
9 5854 5754 5753
10 56 52 55 52 55 52
Zone Lumens %lamp
0°-30° 7422.7 59.9
0°-40° 8053.8 64.9
0°-60° 9186.3 74.1
0°-90° 9363.3 75.5
90°-180° 0.0 0.0
0°-180° 9363.3 75.5*
*Efficiency
50% 10%
beam angle 28.7° beam angle 41.9°
Initial fc fc at fc at
Mount at beam Beam beam Beam beam
height center diameter edge diameter edge
8' 955.8 2.8 477.9 4.2 95.6
10' 514.0 3.8 257.0 5.7 51.4
12' 320.4 4.9 160.2 7.3 32.0
14' 218.6 5.9 109.3 8.8 21.9
16' 158.6 6.9 79.3 10.3 15.9
0o
6400
12800
19200
25600
32000
90o
45o
From 0° cp. Lumens
0° 206295
5° 66831 4860
15° 3082 1094
25° 1279 576
35° 1138 734
45° 1885 1311
55° 397 533
65° 142 136
75° 76 117
85° 13 52
90° 0
ρf 20%
ρc 80% 70% 50%
ρw 50% 30% 50% 30% 50% 30%
1 8483 8381 8078
2 7976 7875 7573
3 7571 7471 7269
4 7167 7067 6966
5 6864 6764 6663
6 6561 6561 6360
7 6359 6259 6158
8 6157 6057 6056
9 5955 5955 5855
10 57 54 57 54 57 54
Zone Lumens %lamp
0°-30° 6529.9 52.7
0°-40° 7263.6 58.6
0°-60° 9107.5 73.4
0°-90° 9412.5 75.9
90°-180° 0.0 0.0
0°-180° 9412.5 75.9*
*Efficiency
50% 10%
beam angle 7.5° beam angle 16.6°
Initial fc fc at fc at
Mount at beam Beam beam Beam beam
height center diameter edge diameter edge
8' 6819.7 0.7 3409.8 1.6 682.0
10' 3667.5 1.0 1833.7 2.2 366.7
12' 2285.8 1.2 1142.9 2.8 228.6
14' 1559.9 1.5 779.9 3.4 156.0
16' 1131.9 1.8 566.0 3.9 113.2
42000
84000
126000
168000
210000
90
o
45
o
0
o
Sheet#:LTD-REFL-150M ©2001 Acuity Lighting Group, Inc. 06/03 LTD-REFL-150M.p65
Lithonia Lighting
Acuity Lighting Group, Inc.
Recessed Downlighting
One Lithonia Way, Conyers, GA 30012
Phone: 800-315-4935 Fax: 770-860-3106
In Canada: 1100 50th Ave., Lachine, Quebec H8T 2V3
www.lithonia.com
![](asset-5e.png)
Protected MasterColor® Ceramic Metal Halide Lam
p
Feature PAR Style. Open or Enclosed Luminaires.
Lifetime Color Stability Within +/- 200K
Watts 70
Bulb PAR-30L
Base Med.
Product Number 046677-23221-5
Ordering Code CDM70/PAR30L/M/FL
Package Quantity 6
Description G, PAR WISO Flood 40 degrees
FadeBlock 10,000 MBCP
ANSI
Code/Ballast Ref. M143/M98/O
CRI 82
Rated Avg. Life
(Hrs.) 9000
M.O.L. 4 3/4
Approximate
Initial Lumens 4850
Approximate
Mean Lumens 3880
CCT 3000
Images
+ Family Photo
+ Product Logo
+ Product Photo
Literature
+ Family Brochure
+ MSDS S15-95004
+ MSDS S15-95005
+ Photometric Data
+ Technical Data Sheet
Other Information
+ Printable Page
+ View Compatible Ballasts
+ Send this Link
+ Bookmark this Page
† Heat resisting glass bulb
Footnotes
+ ANSI CODE RATING, E - Enclosed, O - Open, S - Open or Enclosed
+ Rated average life is the life obtained, on the average, from large representative groups of lamps
in laboratory tests under controlled conditions at 10 or more operating hours per start. It is based
on survival of at least 50% of the lamps and allows for individual lamps or groups of lamps to vary
considerably from the average. For lamps with a rated average life of 24,000 hours, life is based on
survival of 67% of the lamps.
+ Approximate lumen values listed are for vertical operation of the lamp.
Pa
g
e 1 of 2Protected MasterColor Ceramic Metal Halide Lam
p
70 Watts Bulb PA
R
-30L Base Med. ...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/hid/dis
p
la
y
hid.
p
h
p
?id=28
T1
![](asset-5f.png)
Information for this product last modified on June 22 2004.
©2004-2005 Koninklijke Philips Electronics N.V. All rights reserved. Privacy policy
Philips. Access to and use of this Web Site is subject to these Terms of use.
+ Click here for Recommended Warnings, Cautions and Operating Instructions.
+ Approximate lumen output at 40% of lamp rated average life.
+ Requires a ballast specified or approved for Philips Metal Halide lamp or one designed to the
indicated ANSI Standard. A pulse ignitor is required. Sockets and wiring must withstand starting
pulse.
+ Supply volts must be +/- 5% of rated ballast line volts for reactor type and +/- 10% for CWA or
electronic ballasts.
+ UV filtered design (Fade-Block™).
+ MasterColor® Metal Halide Lamps are not recommended for use on dimmers and are not
warranted if used on dimmer systems.
+ Excellent color rendition - up to 92 CRI
+ Heat resisting glass bulb
+ Click here for specific product and ordering information on this lamp.
Pa
g
e 2 of 2Protected MasterColor Ceramic Metal Halide Lam
p
70 Watts Bulb PA
R
-30L Base Med. ...
4/3/2005htt
p
://www.nam.li
g
htin
g
.
p
hili
p
s.com/us/ecatalo
g
/hid/dis
p
la
y
hid.
p
h
p
?id=28
![](asset-60.png)
Metal
Halide
Lamp Ballast
Catalog Number 71A5282
For 70W M98/M143
60 Hz HX-HPF
Status: Active
DIMENSIONS AND DATA
1.0"
5.10 "
4.50"
B
MAX.
A
0.7"
0.25" WIDE
2 SLOTS
3 X 4 CORE - 2 COIL UNIT
2.45"
3.95"
3.50"
2.90"2.80"
4 HOLES
CLEARED
FOR #10
THRU-BOLTS
Capacitor: 7C080L33-R
Capacitance: 8
Dia/Oval Dim: 1.25
Height: 2.9
Temp Rating: 105°C
Ballast to Lamp Distance
(BTL) = 15 feet
Temp Rating: 105°C
Ignitor: LI533-H4
Data is based upon tests performed by Advance Transformer in a controlled environment and representitive of relative performance.
Actual performance can vary depending on operating conditions. Specifications are subject to change without notice.
ADVANCE TRANSFORMER CO.
O'HARE INTERNATIONAL CENTER · 10275 WEST HIGGINS ROAD · ROSEMONT, IL 60018
Customer Support/Technical Service: Phone: 800-372-3331 · Fax: 630-307-3071
Corporate Offices: Phone: 800-322-2086
INPUT VOLTS 120 277
CIRCUIT TYPE
POWER FACTOR (min)
REGULATION
Line Volts
Lamp Watts
LINE CURRENT (Amps)
Operating................................................... 0.80 0.35
Open Circuit............................................... 1.90 0.80
Starting...................................................... 0.55 0.25
UL TEMPERATURE RATINGS
Insulation Class
Coil Temperature Code A A
MIN. AMBIENT STARTING TEMP.
NOM. OPEN CIRCUIT VOLTAGE
INPUT VOLTAGE AT LAMP DROPOUT........................... 90 208
INPUT WATTS
RECOMMENDED FUSE (Amps)..................................... 4 2
CORE and COIL
Dimension (A)
Dimension (B)
Weight (lbs.)
Lead Lengths
CAPACITOR REQUIREMENT
Microfarads
Volts (min.)
Fault Current Withstand (amps)
60 Hz TEST PROCEDURES (Refer to Advance Test
Procedure for HID Ballasts - Form 1270)
High Potential Test (Volts)
1 minute
2 seconds
Open Circuit Voltage Test (Volts)
Short-Circuit Current Test (Amps)
Secondary Current
Input Current.............................................. 0.55 0.25 - - -
0.80 0.45
HX-HPF
90%
±5%
±7%
H(180°C)
1029
-20°F or -30°C
255
88
1.45
2.75
5
12"
8.0
280
2000
2500
230-280
0.95-1.25
Wiring Diagram:
Fig. K
LAMP
CAP LAMP
COM COM
LINE V
LINE V
COM
LINE V
CAP
LINE V
IGNITOR
X1X3
X2
Ordering Information
Order Suffix Description
500D. Ballast With Ignitor and Dry Film Capacitor
510D. Ballast w/Welded Bracket, Ignitor, & Dry Film Capacitor
600. Ballast and Ignitor, No Capacitor
610. Ballast with Welded Bracket and Ignitor, No Capacitor
11/08/00
T1
![](asset-61.png)
ZANEEN LIGHTING 65 DENSLEY AVE. TORONTO, ONTARIO, CANADA M6M 2P5
PH: 800.388.3382 / 416.247.9221 FAX: 416.247.9319 www.zaneen.com zaneen@zaneen.com
JOB: __________________________
LOCATION: ____________________
DATE: _________________________
PRODUCT SPECIFICATIONS
NOTES: _________________________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
CATALOG: DECORATIVE D9 SUPPLEMENT 2004/05
STYLE # D9-2016
SERIES NAME: DAU SPOT
STRUCTURE: Metal
COLOR /FINISH: Brushed Aluminum
DIFFUSER: N/A
LAMP TYPE: Halogen GZ10 MR20
MAX WATT: 2 x 75W
DIMENSIONS: D. 12” x Ht. 10”
APPROVALS: Approved by CSA for
North American Standards.
12” / 30.8 cm
10” / 26 cm
MATT WHITE FINISH
T3
![](asset-62.png)
Luminaire Comparison
Metal Halide
Max/Min ratio for
shadows:
2:1
Halogen
Max/Min ratio for
shadows:
6:1
![](asset-63.png)
Halogen
Max/Min ratio for
sparkle:
15:1
Metal Halide
Max/Min ratio for
sparkle:
2:1
