Test Report issued under the responsibility of:
TEST REPORT
IEC 60335-2-40
Safety of household and similar electrical appliances
Part 2-40: Particular requirements for electrical heat pumps, air
conditioners and dehumidifiers
Report Reference No. ...................... : GZES120900879606
Date of issue ....................................... : 2013-06-26
Total number of pages ........................ 41
CB Testing Laboratory .................... : SGS-CSTC Standards Technical Services Co., Ltd. - E&E Lab
Guangzhou
Address ............................................... : 198 Kezhu Road, Scientech Park, Guangzhou Economic &
Technology Development District, Guangzhou, Guangdong, China
510663
Applicant's name .............................. : Gree Electric Appliances, Inc. of Zhuhai
Address ............................................... : Jinji West Road, Qianshan, Zhuhai, Guangdong, China
Test specification:
Standard ............................................. : IEC 60335-2-40:2002 (4. Edition) + A1:2005 (incl. Corr.1:2006) +
A2:2005 with
IEC 60335-1:2001 (4. Edition) (incl. Corr.1:2002) + A1:2004 (incl.
Corr.1:2005) + A2:2006 (incl. Corr.1:2006)
IEC 62233:2005 (1. Edition)
Test procedure ................................... : SGS-CSTC
Non-standard test method…………..: N/A
Test Report Form No. ...................... : IEC60335_2_40F
Test Report Form(s) Originator .......... : VDE Testing and Certification Institute
Master TRF ......................................... : Dated 2009-11
Copyright © 2009 IEC System for Conformity Testing and Certification of Electrical Equipment
(IECEE), Geneva, Switzerland. All rights reserved.
This publication may be reproduced in whole or in part for non-commercial purposes as long as the IECEE is acknowledged as copyright
owner and source of the material. IECEE takes no responsibility for and will not assume liability for damages resulting from the reader's
interpretation of the reproduced material due to its placement and context.
If this Test Report Form is used by non-IECEE members, the IECEE/IEC logo and the reference to the CB Scheme
procedure shall be removed.
This report is not valid as a CB Test Report unless signed by an approved CB Testing Laboratory and appended
to a CB Test Certificate issued by an NCB in accordance with IECEE 02.
Page 2 of 41 Report No. GZES120900879606
TRF No. IEC60335_2_40F
Test item description……………….: Split-Type Air-Conditioner
Trade Mark……………………………:
Manufacturer/Address………………: Same as applicant
Factory/Address……………………...: Same as applicant
Model/Type reference ........................ : GWH09MB-K3DNA3K (Indoor unit: GWH09MB-K3DNA3K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DND3K (Indoor unit: GWH09MB-K3DND3K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DNA2K (Indoor unit: GWH09MB-K3DNA2K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DNA5K (Indoor unit: GWH09MB-K3DNA5K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DND8D (Indoor unit: GWH09MB-K3DND8D/I,
Outdoor unit: GWH09MB-K3DND8D/O);
GWH09MB-K3DNB3K(Indoor unit: GWH09MB-K3DNB3K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DNE1K(Indoor unit: GWH09MB-K3DNE1K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DNC9K(Indoor unit: GWH09MB-K3DNC9K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DNA4K(Indoor unit: GWH09MB-K3DNA4K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DNE2K (Indoor unit: GWH09MB-K3DNE2K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DNE3K (Indoor unit: GWH09MB-K3DNE3K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DNB7K (Indoor unit: GWH09MB-K3DNB7K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DNC5K (Indoor unit: GWH09MB-K3DNC5K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DNC1K (Indoor unit: GWH09MB-K3DNC1K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH09MB-K3DNC8K (Indoor unit: GWH09MB-K3DNC8K/I, Outdoor
unit: GWH09MB-K3DNA3K/O);
GWH12MB-K3DNA3K (Indoor unit: GWH12MB-K3DNA3K/I, Outdoor
unit: GWH12MB-K3DNA3K/O);
GWH12MB-K3DND3K (Indoor unit: GWH12MB-K3DND3K/I, Outdoor
unit: GWH12MB-K3DNA3K/O);
GWH12MB-K3DNA2K (Indoor unit: GWH12MB-K3DNA2K/I, Outdoor
unit: GWH12MB-K3DNA3K/O);
GWH12MB-K3DNA5K (Indoor unit: GWH12MB-K3DNA5K/I, Outdoor
unit: GWH12MB-K3DNA3K/O);
GWH12MB-K3DND8D (Indoor unit: GWH12MB-K3DND8D/I,
Outdoor unit: GWH12MB-K3DND8D/O)
GWH12MB-K3DNB3K(Indoor unit: GWH12MB-K3DNB3K/I, Outdoor
unit: GWH12MB-K3DNA3K/O);
GWH12MB-K3DNE1K(Indoor unit: GWH12MB-K3DNE1K/I, Outdoor
unit: GWH12MB-K3DNA3K/O);
GWH12MB-K3DNC9K(Indoor unit: GWH12MB-K3DNC9K/I, Outdoor
unit: GWH12MB-K3DNA3K/O);
GWH12MB-K3DNA4K(Indoor unit: GWH12MB-K3DNA4K/I, Outdoor
unit: GWH12MB-K3DNA3K/O);
GWH12MB-K3DNE2K (Indoor unit: GWH12MB-K3DNE2K/I, Outdoor
unit: GWH12MB-K3DNA3K/O);
GWH12MB-K3DNE3K (Indoor unit: GWH12MB-K3DNE3K/I, Outdoor
unit: GWH12MB-K3DNA3K/O);
GWH12MB-K3DNB7K (Indoor unit: GWH12MB-K3DNB7K/I, Outdoor
unit: GWH12MB-K3DNA3K/O);
GWH12MB-K3DNC5K (Indoor unit: GWH12MB-K3DNC5K/I, Outdoor
Page 3 of 41 Report No. GZES120900879606
TRF No. IEC60335_2_40F
unit: GWH12MB-K3DNA3K/O)
GWH12MB-K3DNC1K (Indoor unit: GWH12MB-K3DNC1K/I, Outdoor
unit: GWH12MB-K3DNA3K/O)
GWH12MB-K3DNC8K (Indoor unit: GWH12MB-K3DNC8K/I, Outdoor
unit: GWH12MB-K3DNA3K/O)
Ratings ................................................ : 220-240 V~; 50 Hz;
1, GWH09MB-K3DNA3K, GWH09MB-K3DND3K, GWH09MB-
K3DNA2K, GWH09MB-K3DNA5K, GWH09MB-K3DNB3K,
GWH09MB-K3DNE1K, GWH09MB-K3DNC9K, GWH09MB-
K3DNA4K, GWH09MB-K3DNE2K, GWH09MB-K3DNE3K,
GWH09MB-K3DNB7K, GWH09MB-K3DNC5K, GWH09MB-
K3DNC1K, GWH09MB-K3DNC8K:
Cooling: 1300 W; Heating: 1400 W;
2, GWH09MB-K3DND8D: Cooling: 1550 W, Heating: 1400 W;
3, GWH12MB-K3DNA3K, GWH12MB-K3DND3K, GWH12MB-
K3DNA2K, GWH12MB-K3DNA5K, GWH12MB-K3DNB3K,
GWH12MB-K3DNE1K, GWH12MB-K3DNC9K, GWH12MB-
K3DNA4K, GWH12MB-K3DNE2K, GWH12MB-K3DNE3K,
GWH12MB-K3DNB7K, GWH12MB-K3DNC5K, GWH12MB-
K3DNC1K, GWH12MB-K3DNC8K:
Cooling: 1400 W; Heating: 1550 W;
4, GWH12MB-K3DND8D: Cooling: 1600 W; Heating: 1550 W
Page 4 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Testing procedure and testing location:
CB Testing Laboratory: SGS-CSTC Standards Technical Services Co., Ltd. - E&E Lab
Guangzhou
Testing location/ address ......................... : 198 Kezhu Road, Scientech Park, Guangzhou Economic &
Technology Development District, Guangzhou, Guangdong,
China 510663
Associated CB Laboratory: N/A
Testing location/ address ......................... :
Tested by (name + signature) ....... :
Approved by (+ signature) ............. :
Testing procedure: TMP
Tested by (name + signature) ....... : George Gu
Approved by (+ signature) .............. : Gaven Deng
Testing location/ address ......................... : Gree Electric Appliances, Inc. of Zhuhai
Jinji West Road, Qianshan, Zhuhai, Guangdong, China
Testing procedure: WMT N/A
Tested by (name + signature) ....... :
Witnessed by (+ signature) ............ :
Approved by (+ signature) ............. :
Testing location/ address ......................... :
Testing procedure: SMT N/A
Tested by (name + signature) ....... :
Approved by (+ signature) .............. :
Supervised by (+ signature) .......... :
Testing location/ address .................. :
Testing procedure: RMT N/A
Tested by (name + signature) ....... :
Approved by (+ signature) .............. :
Supervised by (+ signature) .......... :
Testing location/ address ......................... :
Page 5 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Summary of testing:
Tests performed (name of test and test clause):
Tests according to the following standards were
carried out:
EN 60335-2-40: 2003 + A11: 2004 + A12: 2005 +
A1: 2006 + A2: 2009 + A13: 2012;
EN 60335-1: 2002 + A11: 2004 + A1: 2004 + A12:
2006 + A2: 2006 + A13: 2008 + A14: 2010 + A15:
2011;
EN 62233: 2008
Tests of clause 10, 11, 13, 19.2, 24, 29 and 30 were
conducted on model GWH09MB-K3DNC1K,
GWH12MB-K3DNC1K.
The submitted samples complied with above
standards.
Testing location:
Tests of clause 10, 11, 13, 19.2, 29 and were carried
out at:
Gree Electric Appliances, Inc. of Zhuhai
Jinji West Road, Qianshan, Zhuhai, Guangdong,
China
Other clauses were carried out at CBTL.
Summary of compliance with National Differences:
European group differences had been taken into account.

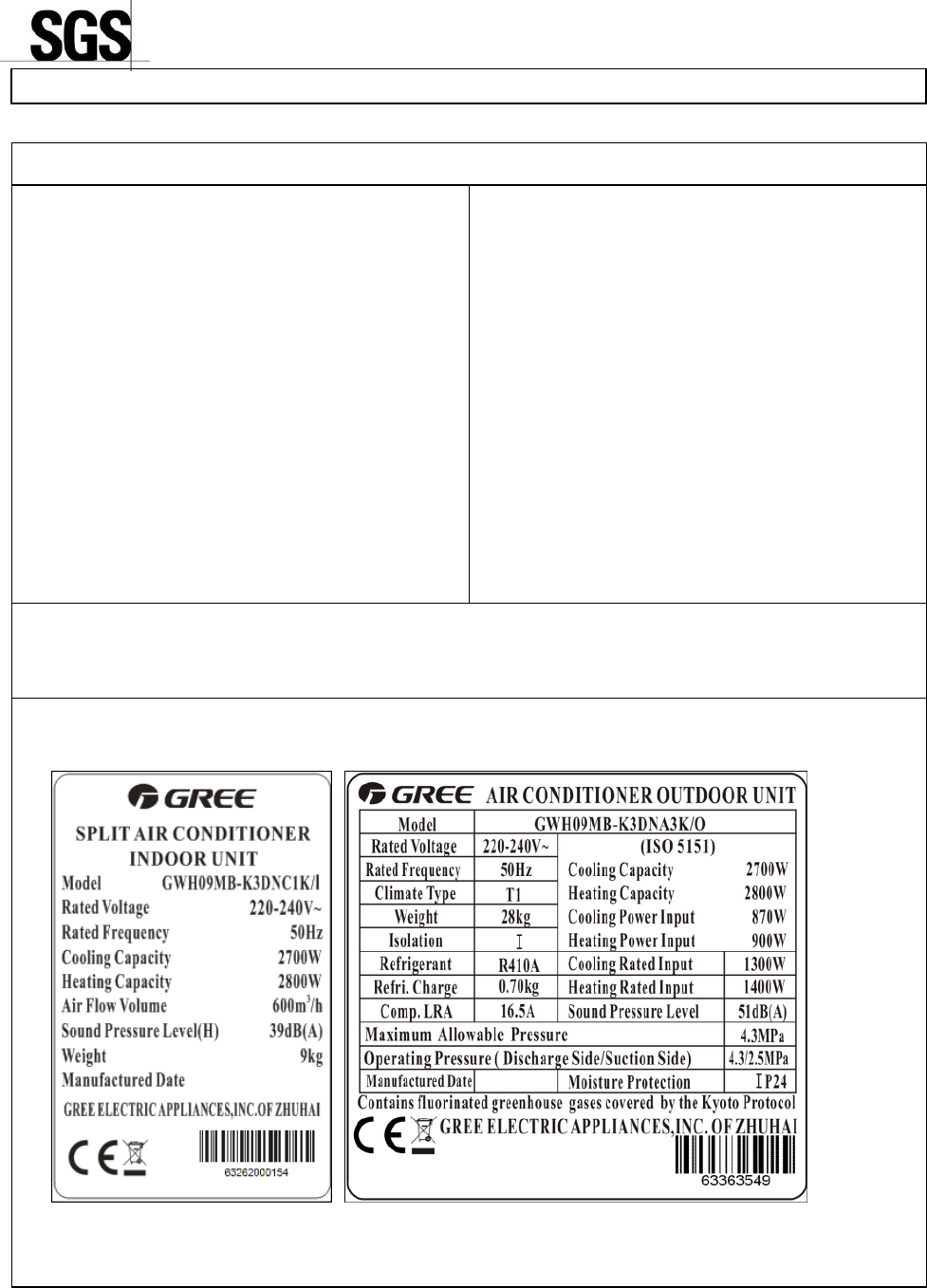

Copy of marking plate:
Labels for model GWH09MB-K3DNC1K:

Page 6 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F

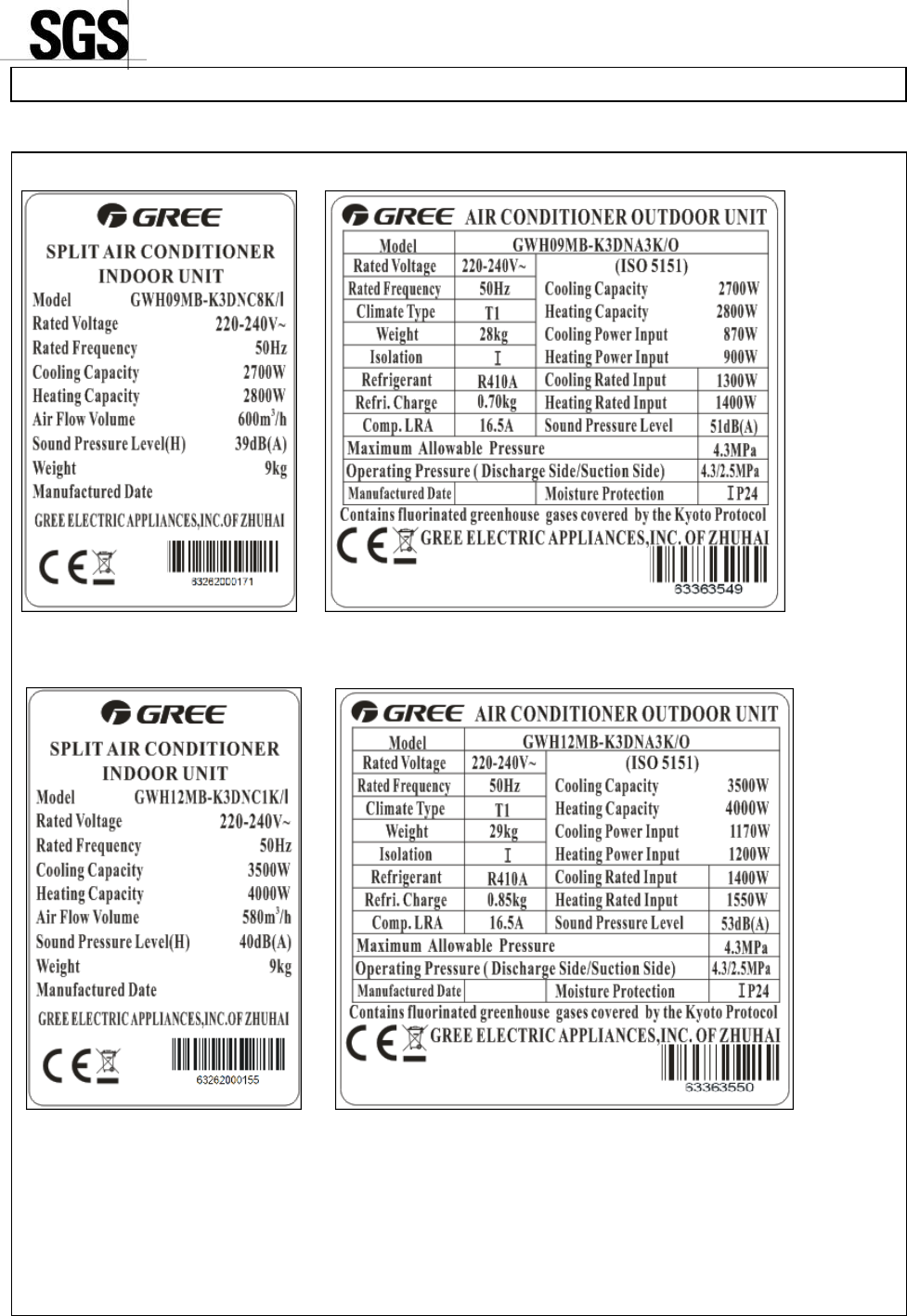

Labels for model GWH09MB-K3DNC8K:
Labels for model GWH12MB-K3DNC1K:
Page 7 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F

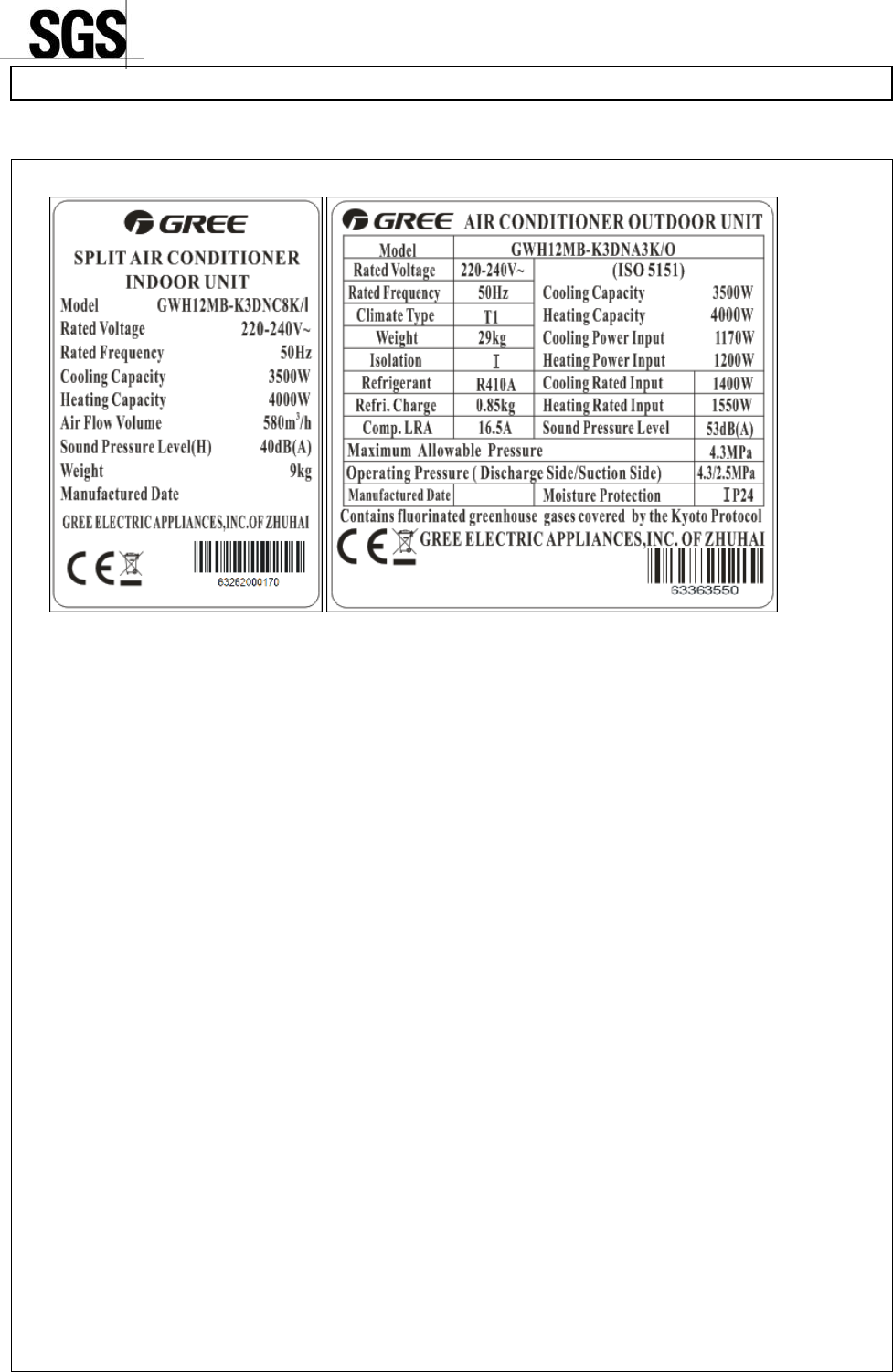

Labels for model GWH12MB-K3DNC8K:
Page 8 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Test item particulars .................................................. :
Classification of installation and use ............................ : Fixed appliance
Supply Connection ....................................................... : Non-detachable flexible cord fitted with a plug
...................................................................................... :
Possible test case verdicts:
- test case does not apply to the test object ................. : N/A
- test object does meet the requirement ....................... : P (Pass)
- test object does not meet the requirement ................. : F (Fail)
Testing .......................................................................... :
Date of receipt of test item ............................................ : 2013-04-20
Date (s) of performance of tests ................................... : From 2013-04-20 to 2013-06-20
General remarks:
The test results presented in this report relate only to the object tested.
This report shall not be reproduced, except in full, without the written approval of the Issuing testing laboratory.
"(See Enclosure #)" refers to additional information appended to the report.
"(See appended table)" refers to a table appended to the report.
Throughout this report a comma is used as the decimal separator.
This document is issued by the company under its General Conditions of Service accessible at
http://www.sgs.com/terms_and_conditions.htm. Attention is drawn to the limitation of liability, indemnification
and jurisdiction issues defined therein.
Any holder of this document is advised that information contained hereon reflects the Company’s findings at
the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole
responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all
their rights and obligations under the transaction documents. Any unauthorized alteration, forgery or
falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the
fullest extent of the law.
Unless otherwise stated: (a) the results shown in this document refer only to the sample(s) tested and (b) such
sample(s) are retained for 3 months. This document cannot be reproduced except in full, without prior
approval of the company.
The test report includes the following additional documents to the original TRF:

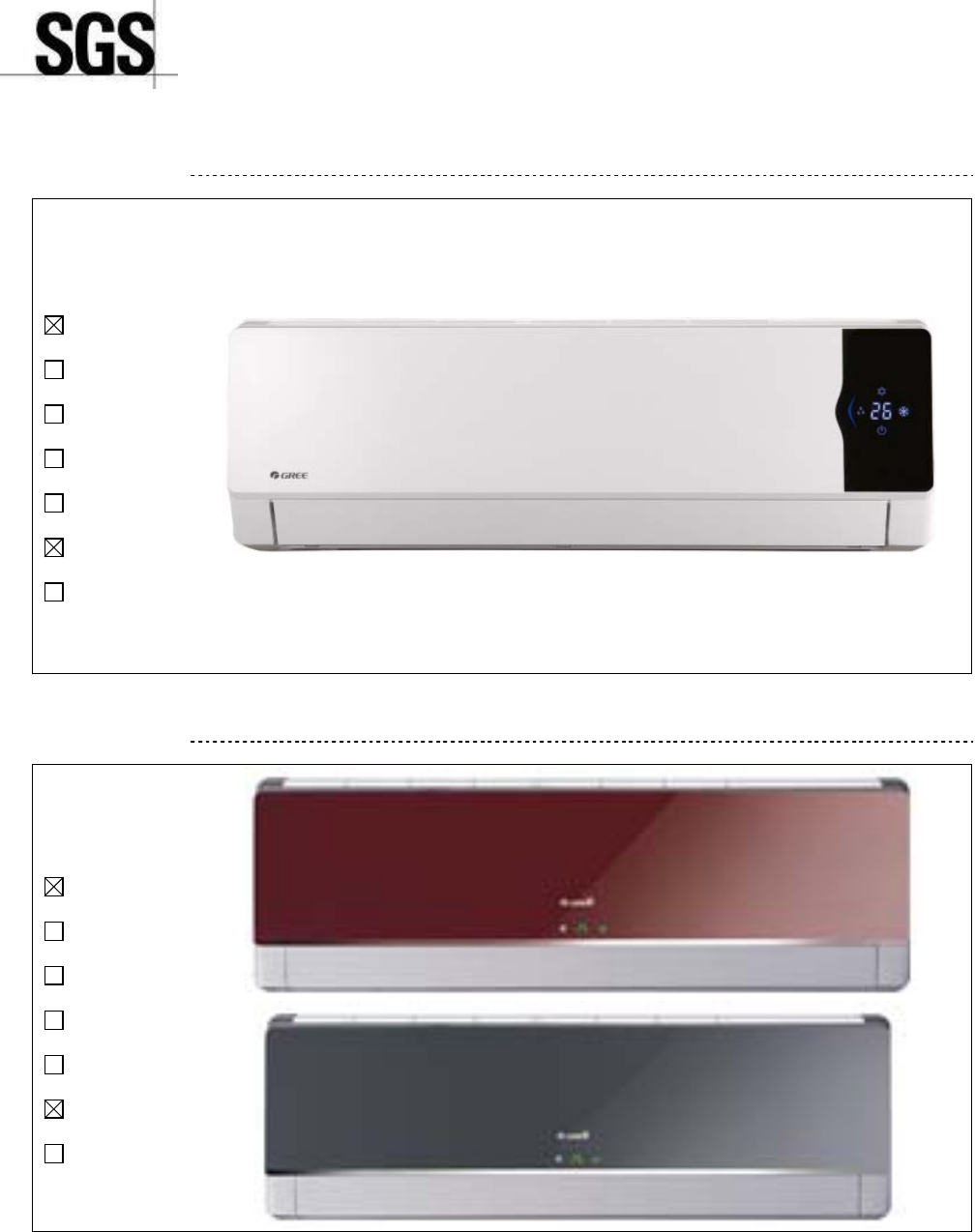

Attachment I: 2 pages of photo documentation;
Attachment II: 1 page of equipment list for TMP
General product information:
Split-type air-conditioner for household used only, the refrigerant is R410A.
The appliances have cooling and heating functions.
Model GWH09MB-K3DNA3K is all the same as model GWH12MB-K3DNA3K except for mass of refrigerant,
rating labels and programme of outdoor unit main board.
Model GWH09MB-K3DND3K is all the same as model GWH09MB-K3DNA3K except for display panel of
indoor unit.
Model GWH12MB-K3DND3K is all the same as model GWH12MB-K3DNA3K except for display panel of
indoor unit.
Amendment-1:
The original test report Ref. No. GZES120900879601, dated Nov. 23, 2012 was modified on Dec. 12, 2012 to
include the following additions, which were considered technical modifications:
1, Added six models: GWH09MB-K3DNA2K, GWH09MB-K3DNA5K, GWH09MB-K3DND8D, GWH12MB-
K3DNA2K, GWH12MB-K3DNA5K, GWH12MB-K3DND8D.
Page 9 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
The differences between new models and original models were listed as below:
1) Models GWH09MB-K3DNA2K and GWH09MB-K3DNA5K were all same as original model
GWH09MB-K3DNA3K except for the appearance of indoor unit display panel.
2) Model GWH09MB-K3DND8D was all the same as original model GWH09MB-K3DNA3K except for the
appearance of indoor unit display panel, indoor unit main board and rated power input of cooling mode.
(The indoor unit main board of model GWH09MB-K3DND8D was all the same as model GWH09MB-
K3DNA3K except for the indoor fan motor running capacitor on main board.)
3) Models GWH12MB-K3DNA2K and GWH12MB-K3DNA5K were all same as original model
GWH12MB-K3DNA3K except for the appearance of indoor unit display panel.
4) Model GWH12MB-K3DND8D was all the same as original model GWH12MB-K3DNA3K except for the
appearance of indoor unit display panel, indoor unit main board and rated power input of cooling mode.
(The indoor unit main board of model GWH12MB-K3DND8D was all the same as model GWH12MB-
K3DNA3K except for the indoor fan motor running capacitor on main board.)
2, Alternative power cord and interconnection cord for models GWH09MB-K3DNA2K, GWH09MB-K3DNA5K,
GWH12MB-K3DNA2K, GWH12MB-K3DNA5K. Details see the table 24.1.
After reviewing, test of clause 30 was considered to carry out on the alternative fan motor running capacitors.
Amendment-2:
The original test report Ref. No. GZES120900879601, dated Nov. 23, 2012 was modified on Dec. 28, 2012 to
include the following additions, which were considered technical modifications:
1, Added eight models: GWH09MB-K3DNB3K, GWH09MB-K3DNE1K, GWH09MB-K3DNC9K, GWH09MB-
K3DNA4K, GWH12MB-K3DNB3K, GWH12MB-K3DNE1K, GWH12MB-K3DNC9K, GWH12MB-K3DNA4K.
The differences between new models and original models were listed as below:
1) Models GWH09MB-K3DNB3K, GWH09MB-K3DNE1K, GWH09MB-K3DNC9K and GWH09MB-
K3DNA4K were all same as original model GWH09MB-K3DNA3K except for the appearance of indoor
unit display panel.
2) Models GWH12MB-K3DNB3K, GWH12MB-K3DNE1K, GWH12MB-K3DNC9K and GWH12MB-
K3DNA4K were all same as original model GWH12MB-K3DNA3K except for the appearance of indoor
unit display panel.
2, Alternative power cord and interconnection cord for models GWH09MB-K3DNB3K, GWH09MB-K3DNE1K,
GWH09MB-K3DNC9K, GWH09MB-K3DNA4K, GWH12MB-K3DNB3K, GWH12MB-K3DNE1K, GWH12MB-
K3DNC9K and GWH12MB-K3DNA4K. Details see the table 24.1.
3, Alternative a panel for model GWH09MB-K3DNA2K and GWH12MB-K3DNA2K.
After reviewing, no test was considered to carry out.
Amendment-3:
The original test report Ref. No. GZES120900879601, dated Nov. 23, 2012 was modified on Jan. 21, 2013 to
include the following additions, which were considered technical modifications:
1, Added four new models: GWH09MB-K3DNE2K, GWH09MB-K3DNE3K, GWH12MB-K3DNE2K,
GWH12MB-K3DNE3K.
The differences between new models and original models were listed as below:
1) Model GWH09MB-K3DNE2K was all the same as original model GWH09MB-K3DNA3K except for the
appearance of indoor unit display panel and the shape of display board.
2) Model GWH09MB-K3DNE3K was all the same as original model GWH09MB-K3DNA3K except for the
appearance of indoor unit display panel.
3) Model GWH12MB-K3DNE2K was all the same as original model GWH12MB-K3DNA3K except for the
appearance of indoor unit display panel and the shape of display board.
4) Model GWH12MB-K3DNE3K was all the same as original model GWH12MB-K3DNA3K except for the
appearance of indoor unit display panel.
2, Alternative one panel for models GWH09MB-K3DND8D and GWH12MB-K3DND8D.
3, Alternative power cord and interconnection cord for the four new models. Details see the components in
bold in table 24.1.
After reviewing, no test was considered to be carried out.
Page 10 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Amendment-4:
The original test report Ref. No. GZES120900879601, dated Nov. 23, 2012 was modified on April 09, 2013 to
include the following additions and changes, which were considered technical modifications:
1, Added four new models: GWH09MB-K3DNB7K, GWH09MB-K3DNC5K, GWH12MB-K3DNB7K,
GWH12MB-K3DNC5K.
Models GWH09MB-K3DNB7K and GWH09MB-K3DNC5K were all the same as original model GWH09MB-
K3DNA3K except for the appearance of indoor unit display panel and the shape of display board. Details see
attachment I.
Models GWH12MB-K3DNB7K and GWH12MB-K3DNC5K were all the same as original model GWH12MB-
K3DNA3K except for the appearance of indoor unit display panel and the shape of display board. Details see
attachment I.
2, Added reactor, interconnection cord, power cord as alternative ones, details see the components in bold in
table 24.1.
3, Added chassis electrical heater for models GWH09MB-K3DNA4K, GWH09MB-K3DNA5K, GWH12MB-
K3DNA4K, GWH12MB-K3DNA5K, details see attachment I and table 24.1. The electrical heater would not
work during the appliance normal operation.
4, Updated the label of indoor fan motor. (the current mark on label was corrected from 0,215 A to 0,180 A,
detail see attachment I)
After reviewing, tests of clause 8, 16.3, 19.10, 22, 24, 25, 29 and 30 were considered to be necessary.
Amendment-5:
The original test report Ref. No. GZES120900879601, dated Nov. 23, 2012 was modified on Jun 26, 2013 to
include the following additions and changes, which were considered technical modifications:
1, Added four new models: GWH09MB-K3DNC1K, GWH09MB-K3DNC8K, GWH12MB-K3DNC1K,
GWH12MB-K3DNC8K.
Models GWH09MB-K3DNC1K and GWH09MB-K3DNC8K are all the same as original model GWH09MB-
K3DNA3K except for the appearance of indoor unit display panel. Details see attachment I.
Models GWH12MB-K3DNC1K and GWH12MB-K3DNC8K are all the same as original model GWH12MB-
K3DNA3K except for the appearance of indoor unit display panel. Details see attachment I.
There are two colours for indoor unit display panels of models GWH09MB-K3DNC8K and GWH12MB-
K3DNC8K, Details see attachment I.
2, Added outdoor fan motor, Y1 capacitor as alternative ones, details see the components in bold in table
24.1.
After reviewing, tests of clause 10, 11, 13, 19.2, 24, 29 and 30 were considered to be necessary.
Page 11 of 41 Report No. GZES120900879606
IEC 60335-2-40
Clause Requirement + Test Result Verdict
TRF No. IEC60335_2_40F
10 POWER INPUT AND CURRENT —
10.1 Power input at normal operating temperature, rated
voltage and normal operation not deviating from rated
power input by more than shown in table 1
(See appended table) P
Deviation of appliance with one or more rated voltage
ranges (IEC 60335-1/A2)
N/A
10.2 Current at normal operating temperature, rated voltage
and normal operation not deviating from rated current
by more than shown in table 2
N/A
Deviation of appliance with one or more rated voltage
ranges (IEC 60335-1/A2)
N/A
11 HEATING —
11.1 No excessive temperatures in normal use
(IEC 60335-2-40)
P
Compliance is checked by the tests of annex C, if (IEC 60335-2-40): —
- temperature of motor winding exceeds values shown
in table 3 (IEC 60335-2-40)
N/A
- there is doubt about classification of insulation system
of the motor (IEC 60335-2-40)
N/A
11.2 Placing and mounting of appliance (IEC 60335-2-40): —
- clearances to adjacent surfaces (IEC 60335-2-40); P
- flow rates for liquid source or sink equipment be
minimum, except for fan coils where flow rates and
liquid temperatures be maximum
(IEC 60335-2-40/A2);
N/A
- static pressures (IEC 60335-2-40); N/A
- means of adjusting the flow, flow for tests be
minimum obtainable (IEC 60335-2-40);
N/A
- adjustable limit controls set at maximum cut-out
setting and minimum differential (IEC 60335-2-40).
P
Appliances with supplementary heaters, use test
casing of clause 11.9 (IEC 60335-2-40)
N/A
11.2.1 Appliances with supplementary heaters, inlet duct
connected to inlet air opening (IEC 60335-2-40)
N/A
11.2.2 Appliance without supplementary heaters, air outlet
used (IEC 60335-2-40)
N/A
11.3 Temperature rise determine by thermocouples or
resistance method (IEC 60335-2-40)
P
11.4 Test performed at supply voltage between 0,94 and
1,06 times the rated voltage (IEC 60335-2-40)
240 V x 1,06 = 254,4 V P
Heating elements energized at voltage which gives an
electrical input of 1,15 times maximum rated power
input (IEC 60335-2-40)
N/A
Page 12 of 41 Report No. GZES120900879606
IEC 60335-2-40
Clause Requirement + Test Result Verdict
TRF No. IEC60335_2_40F
11.5 Test conducted in heating mode and cooling mode, if
both exist (IEC 60335-2-40)
P
All supplementary heating elements operative
simultaneously (IEC 60335-2-40)
N/A
11.6 Defrost test in most unfavourable conditions, if needed
(IEC 60335-2-40)
N/A
11.7 Appliances operated continuously until steady
conditions except for defrost tests (IEC 60335-2-40)
P
11.8 Temperatures not exceeding values of table 3
(IEC 60335-2-40/A2)
(See appended tables) P
Protective devices do not operate (IEC 60335-2-40) P
Sealing compound not flowing out (IEC 60335-2-40) P
Temperature of air in outlet duct not exceed 90 °C
(IEC 60335-2-40)
N/A
11.9 Test casing and installation of appliances in
accordance with manufacturer’s instructions
(IEC 60335-2-40)
N/A
Glass fibre insulation for appliances without indication
of minimum clearances according to manufacturer;
thermocouple in contact with enclosure
(IEC 60335-2-40)
N/A
13 LEAKAGE CURRENT AND ELECTRIC STRENGTH AT OPERATING
TEMPERATURE
—
13.1 Leakage current not excessive and electric strength
adequate
P
Heating appliances operated at 1,15 times rated power
input .......................................................................... :
N/A
Motor-operated appliances and combined appliances
supplied at 1,06 times rated voltage ........................ :
240 V x 1,06 = 254,4 V P
Protective impedance and radio interference filters
disconnected before carrying out the tests
N/A
13.2 Leakage current measured by means of the circuit
described in figure 4 of IEC 60990
P
Leakage current measurements (IEC 60335-2-40) (See appended table) P
13.3 Appliance disconnected from supply and insulation is
immediately subjected to voltage having frequency of
50 Hz or 60 Hz for 1 min, in accordance with
IEC 61180-1 (IEC 60335-1/A1)
P
High-voltage source used for test is to be capable of
supplying short circuit current Is between the output
terminals after output voltage adjusted to appropriate
test voltage (IEC 60335-1/A1)
P
Page 13 of 41 Report No. GZES120900879606
IEC 60335-2-40
Clause Requirement + Test Result Verdict
TRF No. IEC60335_2_40F
Overload release of circuit is not to be operated by any
current below tripping current Ir. Values of Is and Ir
given in table 5 for various high-voltage sources
(IEC 60335-1/A1)
P
No breakdown during the tests (See appended table) P
19 ABNORMAL OPERATION —
19.1 The risk of fire or mechanical damage under abnormal
or careless operation obviated (tests 19.2-19.14)
(IEC 60335-2-40)
P
Failure of transfer medium flow or of any control device
not result in a hazard (IEC 60335-2-40)
P
Electronic circuits so designed and applied that a fault
will not render the appliance unsafe (electric shock, fire
or mechanical hazard, dangerous malfunction) (test
19.11 and 19.12) (IEC 60335-2-40)
P
19.2 Test of appliance with motor rotors, other than
motor-compressors, operated for 15 days (360 h) or
until protection device opens circuit (IEC 60335-2-40)
P
Insulation of motor windings (IEC 60335-2-40) .......: (See appended table) P
Temperature of enclosure does not exceed (C)
(IEC 60335-2-40) ......................................................:
(See appended table) P
Temperature of the windings does not exceed the
values shown in the table ; temperature (C)
(IEC 60335-2-40) ......................................................:
(See appended table) P
Electric strength test as specified in 16.3, 72 h after the
beginning of the test (IEC 60335-2-40)
P
30 mA residual current device does not open
(IEC 60335-2-40)
P
At the end, leakage current between windings and
enclosure does not exceed 2 mA (IEC 60335-2-40)
P
24 COMPONENTS —
24.1 Components comply with safety requirements in
relevant IEC standards
P
List of components (See appended table) P
Components not tested and found to comply with
relevant IEC standard for number of cycles specified,
tested in accordance with clause 24.1.1 to 24.1.9
(IEC 60335-1/A2)
N/A
Components not tested and found to comply with
relevant IEC standard, components not marked or not
used in accordance with its marking, tested under the
conditions occurring in the appliance
P
Page 14 of 41 Report No. GZES120900879606
IEC 60335-2-40
Clause Requirement + Test Result Verdict
TRF No. IEC60335_2_40F
Lampholders and starterholders not being tested and
found to comply with relevant IEC standard, tested as a
part of appliance and additionally according to gauging
and interchangeability requirements of relevant IEC
standard (IEC 60335-1/A2)
N/A
Motor-compressors not tested according to
IEC 60335-2-34 (not necessary to meet all
requirements of IEC 60335-2-34) (IEC 60335-2-40)
N/A
24.1.1 Capacitors likely to be permanently subjected to the
supply voltage and used for radio interference
suppression or for voltage dividing, complying with
IEC 60384-14, or
P
tested according to annex F N/A
24.1.2 Safety isolating transformers complying with
IEC 61558-2-6, or
N/A
tested according to annex G N/A
24.1.3 Switches complying with IEC 61058-1, the number of
cycles of operation being at least
10 000, or
N/A
tested according to annex H N/A
If the switch operates a relay or contactor, the complete
switching system is subjected to the test
N/A
24.1.4 Automatic controls complying with IEC 60730-1 with relevant part 2. The number of
cycles of operation being:
—
- thermostats: ................................................. 10 000 N/A
- temperature limiters: ...................................... 1000 N/A
- self-resetting thermal cut-outs (IEC 60335-2-40):3000 N/A
- voltage maintained non-self-resetting thermal
cut-outs: .......................................................... 1000
N/A
- other non-self-resetting thermal cut-outs
(IEC 60335-2-40): ............................................ 300
N/A
- timers: ............................................................. 3000 N/A
- energy regulators: ....................................... 10 000 N/A
- thermostats which control motor-compressor
(IEC 60335-2-40): ..................................... 100 000
N/A
- motor-compressor starting relays (IEC 60335-2-40):
................................................................... 100 000
N/A
- automatic thermal motor-protectors for hermetic and
semi-hermetic type motor-compressors (not less than
number of operations during locked rotor test)
(IEC 60335-2-40): ................................... min 2000
N/A
- manual reset thermal motor-protectors for hermetic
and semi-hermetic type motor-compressors
(IEC 60335-2-40): .............................................. 50
N/A
Page 15 of 41 Report No. GZES120900879606
IEC 60335-2-40
Clause Requirement + Test Result Verdict
TRF No. IEC60335_2_40F
- other automatic thermal motor-protectors
(IEC 60335-2-40): .......................................... 2000
Protector for fan motors P
- other manual reset thermal motor-protectors
(IEC 60335-2-40): .............................................. 30
N/A
Thermal motor protectors are tested in combination
with their motor under the conditions specified in
annex D (IEC 60335-1/A1)
N/A
For water valves containing live parts and that are
incorporated in external hoses for connection of an
appliance to the water mains, the degree of protection
declared for subclause 6.5.2 of IEC 60730-2-8 is IPX7
(IEC 60335-1/A1)
N/A
24.1.5 Appliance couplers complying with IEC 60320-1 N/A
However, appliances classified higher than IPX0, the
appliance couplers complying with IEC 60320-2-3
(IEC 60335-1/A1)
N/A
Interconnection couplers complying with IEC 60320-2-2 N/A
24.1.6 Small lamp holders similar to E10 lampholders
complying with IEC 60238, the requirements for E10
lampholders being applicable
N/A
24.1.7 Remote operation of appliance via telecommunication
network, relevant standard for telecommunication
interface circuitry in appliance is IEC 62151
(IEC 60335-1/A2)
N/A
24.1.8 Standard for thermal links IEC 60691 (IEC 60335-1/A2) N/A
Thermal links not complying with IEC 60691
considered to be an intentionally weak part for
purposes of clause 19 (IEC 60335-1/A2)
N/A
24.1.9 Relays, other than motor starting relays, tested as part
of appliance (IEC 60335-1/A2)
P
They also tested in accordance with clause 17 of
IEC 60730-1, number of operations in clause 24.1.4
selected according to relay function in the appliance
(IEC 60335-1/A2) .....................................................:
P
24.2 No switches or automatic controls in flexible cords P
No devices causing the protective device in the fixed
wiring to operate in the event of a fault in the appliance
P
No thermal cut-outs that can be reset by soldering P
24.3 Switches intended for all-pole disconnection of
stationary appliances are directly connected to the
supply terminals and having a contact separation in all
poles, providing full disconnection under
overvoltage category III conditions
N/A
24.4 Plugs and socket-outlets for extra-low voltage circuits
and heating elements, not interchangeable with plugs
and socket-outlets listed in IEC 60083 or IEC 60906-1
or with connectors and appliance inlets complying with
the standard sheets of IEC 60320-1
N/A
Page 16 of 41 Report No. GZES120900879606
IEC 60335-2-40
Clause Requirement + Test Result Verdict
TRF No. IEC60335_2_40F
24.5 Capacitors in auxiliary windings of motors marked with
their rated voltage and capacitance and used
accordingly
P
Voltage across capacitors in series with a motor
winding does not exceed 1,1 times rated voltage, when
the appliance is supplied at 1,1 times rated voltage
under minimum load
P
24.6 Working voltage of motors connected to the supply
mains and having basic insulation that is inadequate for
the rated voltage of the appliance, not exceeding 42 V
N/A
In addition, the motors are complying with the
requirements of annex I
N/A
24.7 Hose-sets for connection of appliances to the water
mains, complying with IEC 61770 and supplied with the
appliance (IEC 60335-1/A1)
N/A
24.101 Replaceable parts of thermal control devices identified
by marking (IEC 60335-2-40)
N/A
29 CLEARANCES, CREEPAGE DISTANCES AND SOLID INSULATION —
Clearances, creepage distances and solid insulation
withstand electrical stress
P
Coatings used on printed circuits boards to protect
microenvironment (Type 1 coating) or
(IEC 60335-1/A2)
N/A
to provide basic insulation (Type 2 coating), annex J
applies (IEC 60335-1/A2)
N/A
Microenvironment is pollution degree 1 under Type 1
coating (IEC 60335-1/A2)
N/A
No clearance or creepage distance requirements under
Type 2 coating (IEC 60335-1/A2)
N/A
For motor-compressor complies with IEC 60335-2-34,
parts related not checked (IEC 60335-2-40)
P
For motor-compressor not complying with
IEC 60335-2-34, additions and modifications as
specified (IEC 60335-2-40)
N/A
29.1 Clearances not less than the values specified in
table 16, taking into account the rated impulse voltage
for overvoltage categories of table 15, unless
(IEC 60335-1/A1)
P
for basic insulation and functional insulation, they
comply with the impulse voltage test of clause 14
(IEC 60335-1/A1)
N/A
However, if construction is affected by wear, distortion,
movement of the parts or during assembly, the
clearances for rated impulse voltages of 1 500 V and
above are increased by 0,5 mm and the impulse
voltage test is not applicable (IEC 60335-1/A1)
P
Page 17 of 41 Report No. GZES120900879606
IEC 60335-2-40
Clause Requirement + Test Result Verdict
TRF No. IEC60335_2_40F
Impulse voltage test not applicable (IEC 60335-1/A1): —
- when the microenvironment is pollution degree 3
(IEC 60335-1/A1)
P
- for basic insulation of class 0 and class 0I appliances
(IEC 60335-1/A1)
N/A
Appliances are in overvoltage category II P
Compliance is checked by inspection and
measurements as specified
(See appended table) P
29.1.1 Clearances of basic insulation withstand the
overvoltage, taking into account the rated impulse
voltage
P
Clearance at the terminals of tubular sheathed heating
elements may be reduced to 1 mm if the
microenvironment is pollution degree 1
N/A
Lacquered conductors of windings considered to be
bare conductors (IEC 60335-1/A1)
P
29.1.2 Clearances of supplementary insulation not less than
those specified for basic insulation in table 16
P
29.1.3 Clearances of reinforced insulation not less than those
specified for basic insulation in table 16, but using the
next higher step for rated impulse voltage
P
29.1.4 For functional insulation, the values of table 16 are
applicable, unless
P
the appliance complies with clause 19 with the
functional insulation short-circuited
N/A
Lacquered conductors of windings considered to be
bare conductors (IEC 60335-1/A1)
P
However, clearances at crossover points are not
measured
P
Clearance between surfaces of PTC heating elements
may be reduced to 1 mm
N/A
Lacquered conductors of windings assumed to be bare
conductors, but the clearances specified in table 16 are
reduced by 0,5 mm for rated impulse voltages of at
least 1500 V
P
29.1.5 Appliances having higher working voltage than rated
voltage, the voltage used for determining clearances
from table 16 is the sum of the rated impulse voltage
and the difference between the peak value of the
working voltage and the peak value of the rated voltage
P
If the secondary winding of a step-down transformer is
earthed, or if there is an earthed screen between the
primary and secondary windings, clearances of basic
insulation on the secondary side not less than those
specified in table 16, but using the next lower step for
rated impulse voltage
N/A
Page 18 of 41 Report No. GZES120900879606
IEC 60335-2-40
Clause Requirement + Test Result Verdict
TRF No. IEC60335_2_40F
Circuits supplied with a voltage lower than rated
voltage, clearances of functional insulation based on
the working voltage used as the rated voltage in
table 15
N/A
29.2 Creepage distances not less than those appropriate for
the working voltage, taking into account the material
group and the pollution degree
P
Pollution degree 2 applies, unless For PCB of indoor unit only P
precautions taken to protect the insulation;
pollution degree 1
N/A
insulation subjected to conductive pollution;
pollution degree 3
For parts except PCB of indoor
unit
P
Compliance is checked by inspection and
measurements as specified
P
Insulation located in airflow, pollution degree 3 unless
(IEC 60335-2-40)
P
insulation enclosed or located so that unlikely to be
exposed to pollution due to normal use
(IEC 60335-2-40)
For PCB of indoor unit only P
29.2.1 Creepage distances of basic insulation not less than
specified in table 17
P
For pollution degree 1, creepage distance not less than
the minimum specified for the clearance in table 16, if
the clearance has been checked according to the test
of clause 14
N/A
29.2.2 Creepage distances of supplementary insulation at
least as specified for basic insulation in table 17
P
29.2.3 Creepage distances of reinforced insulation at least
double as specified for basic insulation in table 17
P
29.2.4 Creepage distances of functional insulation not less
than specified in table 18
P
Creepage distances may be reduced if the appliance
complies with clause 19 with the functional insulation
short-circuited
N/A
30 RESISTANCE TO HEAT AND FIRE —
30.1 External parts of non-metallic material, P
parts supporting live parts, and P
thermoplastic material providing supplementary or
reinforced insulation,
P
sufficiently resistant to heat P
Ball-pressure test according to IEC 60695-10-2 P
External parts: at 40 °C plus the maximum temperature
rise determined during the test of clause 11, or at
75 °C, whichever is the higher; temperature (°C) ....:
P
Page 19 of 41 Report No. GZES120900879606
IEC 60335-2-40
Clause Requirement + Test Result Verdict
TRF No. IEC60335_2_40F
Parts supporting live parts: at 40 °C plus the maximum
temperature rise determined during the test of
clause 11, or at 125 °C, whichever is the higher;
temperature (°C) .......................................................:
P
Parts of thermoplastic material providing
supplementary or reinforced insulation, 25 °C plus the
maximum temperature rise determined during
clause 19, if higher; temperature (°C) ......................:
N/A
30.2 Parts of non-metallic material adequately resistant to
ignition and spread of fire
P
Requirement does not apply to decorative trims, knobs
and other parts unlikely to be ignited or to propagate
flames that originate inside the appliance
P
Compliance checked by test of clause 30.2.1. In addition: —
- attended appliances, clause 30.2.2 N/A
- unattended appliances, clause 30.2.3 applies P
Appliances for remote operation, clause 30.2.3 applies
(IEC 60335-1/A2)
N/A
Base material of printed circuit board, clause 30.2.4
applies
P
30.2.1 Glow-wire test of IEC 60695-2-11 at 550 C, unless P
material is classified at least HB40 according to
IEC 60695-11-10 (IEC 60335-1/A2)
N/A
Parts for which the glow-wire test cannot be carried out
meet the requirements in ISO 9772 for category HBF
material (IEC 60335-1/A1)
N/A
30.2.3 Appliances operated while unattended, tested as
specified in 30.2.3.1 and 30.2.3.2
P
Test not applicable to conditions as specified N/A
30.2.3.1 Parts of non-metallic material supporting connections
carrying a current exceeding 0,2 A during normal
operation, and (IEC 60335-1/A2)
P
parts of non-metallic material within a distance of
3 mm, (IEC 60335-1/A2)
P
subjected to glow-wire test of IEC 60695-2-11 with a
test severity of 850 °C (IEC 60335-1/A2)
P
However, glow-wire test not carried out on parts of
material classified as having a glow-wire flammability
index of at least 850 C according to IEC 60695-2-12
(IEC 60335-1/A2)
N/A
Glow-wire flammability index only used if in specified
range of thickness (IEC 60335-1/A2)
N/A
Glow-wire test not carried out on small parts comply
with needle-flame test of annex E or on small parts of
material classified as V-0 or (IEC 60335-1/A2)
N/A
V-1 according to IEC 60695-1-10 (IEC 60335-1/A2) N/A
Page 20 of 41 Report No. GZES120900879606
IEC 60335-2-40
Clause Requirement + Test Result Verdict
TRF No. IEC60335_2_40F
Classified V-0 or V-1 material only used if in specified
range of thickness (IEC 60335-1/A2)
N/A
Test as specified for an interposed shielding material
(IEC 60335-1/A2)
N/A
30.2.3.2 Parts of non-metallic material supporting
current-carrying connections, and (IEC 60335-1/A2)
P
parts of non-metallic material within a distance of
3 mm, (IEC 60335-1/A2)
P
subjected to glow-wire test of IEC 60695-2-11 P
However, glow-wire test not carried out on material
having a glow-wire ignition temperature according to
IEC 60695-2-13 of at least:
N/A
Glow-wire test of IEC 60695-2-11, the temperature being: —
- 775 °C, for connections carrying a current exceeding
0,2 A during normal operation
N/A
- 675 °C, for other connections N/A
Glow-wire ignition temperature only used if in specified
range of thickness (IEC 60335-1/A2)
N/A
Test as specified for an interposed shielding material
(IEC 60335-1/A2)
N/A
When glow-wire test of IEC 60695-2-11 carried out, temperatures are: —
- 750 °C, for connections carrying a current exceeding
0,2 A during normal operation
N/A
- 650 °C, for other connections N/A
If a flame persists longer than 2 s during test, then
these parts and adjacent parts further subjected to
needle-flame test of annex E, unless (IEC 60335-1/A1
corr.1)
N/A
material is classified as V-0 or V-1 according to
IEC 60695-11-10 (IEC 60335-1/A2)
N/A
Classified V-0 or V-1 material only used if in specified
range of thickness (IEC 60335-1/A2)
N/A
30.2.4 Base material of printed circuit boards subjected to
needle-flame test of annex E (IEC 60335-1/A2)
P
Test not carried out by specified items ....................: N/A
Page 21 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
10.1 TABLE: Power input deviation P
Input deviation
of/at:
P rated (W) P measured (W) P Required P Remark
230 V, 50 Hz 1300 1078,9 -17,0%
+15% GWH09MB-K3DNC1K
(Cooling mode)
230 V, 50 Hz 1400 519,8 -62,9%
+15% GWH09MB-K3DNC1K
(Heating mode)
230 V, 50 Hz 1400 1247,9 -10,9%
+15% GWH12MB-K3DNC1K
(Cooling mode)
230 V, 50 Hz 1550 522,8 -66,3%
+15% GWH12MB-K3DNC1K
(Heating mode)
Supplementary information:
The data listed in the table were the maximum measured values for the test samples assembled with all
alternative fan motors.
11.8 TABLE: Heating test, thermocouples (GWH09MB-K3DNC1K) P
Tested voltage .......................................................... : 240 V x 1,06 = 254,4 V —
Ambient, t (°C) .......................................................... : Cooling mode:
Indoor: DB: 32, WB: 23;
Outdoor: DB: 43, WB: 26
Heating mode:
Indoor: DB: 27, WB: -
Outdoor: DB: 24, WB: 18
—
Thermocouple locations T (°C) Max. T (°C)
Cooling Heating
Indoor unit
Power cord 39,0 33,4 75
Plastic enclosure 31,8 27,2 For clause 30.1
Terminal block 33,5 27,9 85
Swing motor 33,5 35,1 90 (Class A)
Indoor fan motor enclosure 40,6 36,2 105 (Class E)
Main PCB 34,2 30,2 145
High frequency transformer 43,9 41,2 105 (Class E)
Fan motor running capacitor 37,9 33,4 T70
Relay for compressor 36.8 33.0 T50
Relay for fan motor 37,2 33,1 T85
Outdoor unit
Interconnection cord 43,3 24,1 75
Terminal block 44,0 24,4 85
Lead wiring for compressor 57,4 34,1 75
Compressor housing 86,8 61,5 For reference
Discharge pipe of compressor 89,0 62,2 For reference
Page 22 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Outdoor fan motor winding
(FW30J-ZL NIDEC SHIBAURA) 71,2 23,3 105 (Class E)
4-way valve winding 58,7 73,0 110 (Class B)
Reactor winding 51,9 30,4 165 (Class H)
Main PCB 47,6 26,9 145
X capacitor 47,2 23,5 T100
Varistor 42,8 26,4 T85
High frequency transformer 53,7 31,8 105 (Class E)
Relay on main board 51,4 27,3 T70
Test floor 47,3 20,8 90
Supplementary information: ——
11.8 TABLE: Heating test, thermocouples (GWH12MB-K3DNC1K) P
Tested voltage .......................................................... : 240 V x 1,06 = 254,4 V —
Ambient, t (°C) .......................................................... : Cooling mode:
Indoor: DB: 32, WB: 23;
Outdoor: DB: 43, WB: 26
Heating mode:
Indoor: DB: 27, WB: -
Outdoor: DB: 24, WB: 18
—
Thermocouple locations T (°C) Max. T (°C)
Cooling Heating
Indoor unit
Power cord 32,2 28,2 75
Plastic enclosure 33,2 28,2 For clause 30.1
Terminal block 32,7 28,7 85
Swing motor 37,4 27,9 90 (Class A)
Indoor fan motor enclosure 40,3 37,1 105 (Class E)
Main PCB 32,3 28,6 145
High frequency transformer 43,6 41,2 105 (Class E)
Fan motor running capacitor 36,1 29,6 T70
Outdoor unit
Terminal block 37,2 22,7 85
Lead wiring for compressor 51,0 30,3 75
Compressor housing 87,5 63,2 For reference
Discharge pipe of compressor 86,6 61,8 For reference
Outdoor fan motor winding
(FW30J-ZL Panasonic) 55,0 23,5 105 (Class E)
Outdoor fan motor winding
(FW30J-ZL Shinano) 56,9 25,3 105 (Class E)
4-way valve winding 51,3 73,4 110 (Class B)
Page 23 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Main PCB 50,4 27,5 145
High frequency transformer 59,0 32,9 105 (Class E)
Relay on main board 50,9 28,3 T70
Test floor 48,8 22,4 90
Supplementary information: the recorded values are the max value of alternative fan motor
13.2 TABLE: Leakage current P
Heating appliances: 1,15 x rated power input ....... :
Motor-operated and combined appliances:
1,06 x rated voltage ................................................ :
240 V x 1,06 = 254,4 V
Leakage current between I (mA) Max. allowed I (mA)
For model GWH09MB-K3DNC1K
L/N and earthed metal enclosure 0,37 3,5
L/N and plastic enclosure of indoor unit 0,08 0,25
L/N and plastic handle of outdoor unit 0,08 0,25
For model GWH12MB-K3DNC1K
L/N and earthed metal enclosure 0,38 3,5
L/N and plastic enclosure of indoor unit 0,09 0,25
L/N and plastic handle of outdoor unit 0,08 0,25
Supplementary information:
The data listed in the table were the maximum measured values for the samples assembled with all
alternative fan motors.
13.3 TABLE: Electric strength P
Test voltage applied between: Voltage (V) Breakdown
(Yes/No)
Live parts and earthed metal enclosure 1000 No
Live parts on display board and insulation cover of display board 1750 No
L/N and surface of display panel 3000 No
Supplementary information:
The data listed in the table were the maximum measured values for the samples assembled with all
alternative fan motors.
Page 24 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
19.2 TABLE: Abnormal operation P
Tested voltage 240 V
t1 (C)......................................................................... : 23,0
t2 (C)......................................................................... : 23,0
Temperature T of part / at: T (C) Required T (C)
Outdoor fan motor winding
(FW30J-ZL Panasonic) 93,8 165 (class E)
fan motor enclosure
(FW30J-ZL Panasonic) 85,6 150
Outdoor fan motor winding
(FW30J-ZL Shinano) 28,8 165 (class E)
fan motor enclosure
(FW30J-ZL Shinano) 27,5 150
Outdoor fan motor winding
(FW30J-ZL NIDEC SHIBAURA) 98,6 165 (class E)
fan motor enclosure
(FW30J-ZL NIDEC SHIBAURA) 91,5 150
Remark: ——
24.1 TABLE: Components P
Object / part No. Manufacturer/
trademark
Type / model Technical data Standard Mark(s) of
conformity
Indoor unit
Plug
Guangdong
Huasheng
Electrical
Appliances Co.,
Ltd.
CT-104 AC 250 V, 16 A DIN VDE 0620-1:
2010-02
VDE
40006002
Plug
(Alternative)
Changzhou Hong
Chang
Electronics Co.,
Ltd.
DTIII-2P-05 AC 250 V, 16 A DIN VDE 0620-1:
2010-02
VDE
40015536
Power cord
Guangdong
Huasheng
Electrical
Appliances Co.,
Ltd.
H05VV-F 3G 1,5 mm2 DIN VDE 0281-5:
2002-09
VDE
40005362
Power cord
(Alternative)
Changzhou Hong
Chang
Electronics Co.,
Ltd.
H05VV-F 3G 1,5 mm2 DIN VDE 0281-5:
2002-09 VDE 124978
Page 25 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Power cord
(Alternative for
models
GWH09MB-
K3DNA2K,
GWH12MB-
K3DNA2K,
GWH09MB-
K3DNA5K,
GWH12MB-
K3DNA5K,
GWH09MB-
K3DNB3K,
GWH09MB-
K3DNE1K,
GWH09MB-
K3DNC9K,
GWH09MB-
K3DNA4K,
GWH12MB-
K3DNB3K,
GWH12MB-
K3DNE1K,
GWH12MB-
K3DNC9K,
GWH12MB-
K3DNA4K)
Guangdong
Huasheng
Electrical
Appliances Co.,
Ltd.
H05VV-F 3G 1,0 mm2 DIN VDE 0281-5:
2002-09
VDE
40005362
Power cord
(Alternative for
models
GWH09MB-
K3DNE2K,
GWH09MB-
K3DNE3K,
GWH12MB-
K3DNE2K,
GWH12MB-
K3DNE3K)
Guangdong
Huasheng
Electrical
Appliances Co.,
Ltd.
H05VV-F 3G 1,0 mm2 DIN VDE 0281-5:
2002-09
VDE
40005362
Power cord
(Alternative for
models
GWH09MB-
K3DNB7K,
GWH09MB-
K3DNC5K,
GWH12MB-
K3DNB7K,
GWH12MB-
K3DNC5K)
Guangdong
Huasheng
Electrical
Appliances Co.,
Ltd.
H05VV-F 3G 1,0 mm2 DIN VDE 0281-5:
2002-09
VDE
40005362
Terminal block
Changzhou
Changheng
Kaidu Electric
Appliances Co.,
Ltd.
JX-G-4C AC 250 V, 2,5 mm2
EN 60998-1:
2004;
EN 60998-2-1:
2004;
EN 60335-2-40;
EN 60335-1
Tested with
appliance
VDE
40020936
Page 26 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Terminal block
(Alternative)
Zhen jiang
Honglian
Electrician Co.,
Ltd.
JX1239 AC 250 V, 2,5 mm2EN 60335-2-40;
EN 60335-1
Tested with
appliance
Terminal block
(Alternative)
Nantong
Huaguan Electric
Co., Ltd.
JXW-4-G1 AC 250 V, 2,5 mm2
EN 60998-1:
2004;
EN 60998-2-1:
2004;
EN 60335-2-40;
EN 60335-1
Tested with
appliance
VDE
40013197
Swing motor
Changzhou LeiLi
Electrical
Equipment Co.,
Ltd.
MP24AA 12 VDC, Class A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Swing motor
(Alternative)
Jiangsu Huayang
Electrical
Appliance Co.,
Ltd.
MP24AA 12 VDC, Class A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Swing motor
(Alternative)
Changzhou
Oukai Electrical
Appliance Co.,
Ltd.
MP24AA 12 VDC, Class A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Swing motor
(Alternative)
Hefei Rishang
Electrical Co.,
Ltd.
MP24AA 12 VDC, Class A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Swing motor
(Alternative)
Zhongshan
Huilipu Motor
Co., Ltd.
MP24AA 12 VDC, Class A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Indoor fan motor Jiangsu Shangqi
Group Co., Ltd. FN20J-PG 220-240 V, 50 Hz,
20 W, Class E
EN 60335-2-40;
EN 60335-1
Tested with
appliance
Indoor fan motor
(Alternative)
Zhongshan
Broad-Ocean
Motor Co., Ltd.
FN20J-PG 220-240 V, 50 Hz,
20 W, Class E
EN 60335-2-40;
EN 60335-1
Tested with
appliance
Indoor fan motor
(Alternative)
Zhuhai Kaibang
Motor
Manufacture Co.,
Ltd.
FN20J-PG 220-240 V, 50 Hz,
20 W, Class E
EN 60335-2-40;
EN 60335-1
Tested with
appliance
Indoor fan motor
(Alternative)
Changzhou
Regal-Beloit
Sinya Motor Co.,
Ltd.
FN20J-PG 220-240 V, 50 Hz,
20 W, Class E
EN 60335-2-40;
EN 60335-1
Tested with
appliance
Indoor fan motor
(Alternative)
Zhejiang Wolong
Home Appliance
Motor Co., Ltd.
FN20J-PG 220-240 V, 50 Hz,
20 W, Class E
EN 60335-2-40;
EN 60335-1
Tested with
appliance
Indoor fan motor
(Alternative)
Zhuhai City
Tongde Electric
Equipment Co.,
Ltd.
FN20J-PG 220-240 V, 50 Hz,
20 W, Class E
EN 60335-2-40;
EN 60335-1
Tested with
appliance
Motor protector
Jiangsu
Changsheng
Electric
Appliance Co.,
Ltd.
BR Series AC 250 V, 5 A,
Operation: 100 ℃
EN 60730-1;
EN 60730-2-2 VDE 132813
Page 27 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Motor protector
(Alternative)
Changzhou
Changhong
Tongli Electric
Appliance Co.,
Ltd.
KW Series AC 250 V, 8 A,
Operation: 100 ℃
EN 60730-1;
EN 60730-2-2
VDE
40020906
Motor protector
(Alternative)
Sensata
Technologies
Holland B.V.
BRL Series AC 250 V, 8 A;
Operation: 100 ℃
EN 60730-1;
EN 60730-2-2
KEMA
2089558.01
Main board
for models other
than GWH12MB-
K3DND8D,
GWH09MB-
K3DND8D
Gree Electric
Appliances, Inc.
of Zhuhai
M839F2PJ — EN 60335-2-40;
EN 60335-1
Tested with
appliance
- Indoor fan
motor running
capacitor
Wuxi Xixi
Capacitor Co.,
Ltd.
CBB61 AC 500 V, 1,0 uF,
T70
EN 60252-1:
2001
TUV
R50128479
- Indoor fan
motor running
capacitor
(Alternative)
Zhuhai Gree
Xinyuan
Electronic Co.,
Ltd.
CBB61 AC 500 V, 1,0 uF,
T70
EN 60252-1:
2001
TUV
R50120798
- Indoor fan
motor running
capacitor
(Alternative)
Xiamen
Faratronic Co.,
Ltd.
CBB61 AC 500 V, 1,0 uF,
T70
EN 60252-1:
2001
VDE
40004094
- Indoor fan
motor running
capacitor
(Alternative)
Ningbo Shine
Electronical Co.,
Ltd.
CBB61A AC 500 V, 1,0 uF,
T70
EN 60252-1:
2001
TUV
R50065558
- Indoor fan
motor running
capacitor
(Alternative)
AnHui FeiDa
Industry Stock
Co., Ltd.
CBB61 AC 450 V, 1 uF, T85 EN 60252-1:
2001
VDE
40012579
- Indoor fan
motor running
capacitor
(Alternative)
Shanghai Haoye
Capacitors Co.,
Ltd.
MKNS105 AC 450 V, 1,0 uF,
T70
EN 60252-1:
2001
TUV
R50035566
- Indoor fan
motor running
capacitor
(Alternative)
Foshan Shunde
Fongming
Electronic Tech.
Co., Ltd.
CBB61 AC 450 V, 1,0 uF,
T70
EN 60252-1:
2001
VDE
40006835
Main board
for models
GWH12MB-
K3DND8D,
GWH09MB-
K3DND8D
Gree Electric
Appliances, Inc.
of Zhuhai
M839F2GJ — EN 60335-2-40;
EN 60335-1
Tested with
appliance
Page 28 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
- Indoor fan
motor running
capacitor
Ningbo Shine
Electrical Co.,
Ltd.
CBB61S AC 450 V, 1,0 uF,
T70
EN 60252-1:
2001
TUV
R50076953
- Indoor fan
motor running
capacitor
(Alternative)
Shanghai Haoye
Capacitors Co.,
Ltd.
MKPS105 AC 450 V, 1,0 uF,
T70
EN 60252-1:
2001
TUV
R50035566
X2 capacitor 1#
Xiamen
Faratronic Co.,
Ltd.
MKP62 AC 275 V, 104M,
T110
EN 132400
EN 60384-14
VDE
40000358
X2 capacitor 1#
(Alternative)
OKAYA Electric
Industries Co.,
Ltd.
LE104 AC 275 V, 0,1 uF,
T100
EN 132400
EN 60384-14
SEMKO
SE/0142-1
X2 capacitor 1#
(Alternative)
Anhui Xinyang
electronics Co.,
Ltd.
MKP AC 275 V, 0,1 uF,
T100
EN 60384-14:
2005-08
VDE
40024537
X2 Capacitor 2#
Xiamen
Faratronic Co.,
Ltd.
MKP62 AC 275 V, 105K,
T110
EN 132400;
EN 60384-14
VDE
40000358
X2 Capacitor 2#
(Alternative)
Pilkor Electronics
Co., Ltd. PCX2 335M AC 275 V, 1,0 uF,
T85
EN 132400;
EN 60384-14
SEMKO
SE/0256-2
X2 Capacitor 2#
(Alternative)
Anhui Xinyang
Electronics Co.,
Ltd.
MKP AC 275 V, 1,0 uF,
T100
EN 60384-14:
2005-08
VDE
40024537
Varistor
Chengdu Tieda
Electroni Co.,
Ltd.
MYN15-621K AC 385 V, T85
IEC 61051-1
IEC 61051-2
IEC 61051-2-2
CECC 42000/A1
CECC 42200/A1
CECC 42201/A1
VDE
40008571
Varistor
(Alternative)
Xianhua
Advanced
Technology
Holding) Co.,
Ltd.
FNR-14K621 AC 380 V, T85
IEC 61051-1
IEC 61051-2
IEC 61051-2-2
CECC 42000
CECC 42200
CECC 42201
VDE
40008242
Optocoupler 1# Toshiba
Corporation TLP781 Vceo: 80 V; If: 60
mA; Ic: 50 mA
DIN EN 60747-5-
2: 2003
VDE
40021173
Optocoupler 2# Sharp
Corporation PC817 Vceo: 80 V; If: 50
mA; Ic: 50 mA
DIN EN 60747-5-
2: 2003
VDE
40008087
High frequency
transformer
Xinji Electronics
Component
(HangZhou) Co.,
Ltd.
EE25-9PA
Input: 80 V-260 V,
65KHz, 1,26Ω;
Output: 18 V, 100
mA; 12 V 500 mA;
5 V, 500 mA;
Class E
EN 60335-2-40;
EN 60335-1
Tested with
appliance
High-frequency
transformer
(Alternative)
Huizhou Jiayang
Electronic New-
tech Co., Ltd.
EE25-9PA
Input: 85 V-265 V,
65 KHz, 1,26Ω;
Output: 18 V, 100
mA; 12 V, 500 mA;
5 V, 500 mA;
Class B
EN 60335-2-40;
EN 60335-1
Tested with
appliance
Page 29 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
High-frequency
transformer
(Alternative)
Dongguan
Dazhong
Electronic Co.,
Ltd.
EE25-9PA
Input: 85 V-265 V,
65 KHz, 1,26Ω;
Output: 18 V, 100
mA; 12 V, 500 mA;
5 V, 500 mA;
Class B
EN 60335-2-40;
EN 60335-1
Tested with
appliance
High-frequency
transformer
(Alternative)
Shenzhen
Jingquanhua
Electronic Co.,
Ltd.
EE25-9PA
Input: 85 V-265 V,
65 KHz, 1,26Ω;
Output: 18 V, 100
mA; 12 V, 500 mA;
5 V, 500 mA; Class
E
EN 60335-2-40;
EN 60335-1
Tested with
appliance
Inductance
Hangzhou
Ruichuang
Industry And
Trade Co., Ltd.
200uH/2A 200 uH, 2 A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Inductance
(Alternative)
Xinji Electronics
Component
(Hangzhou) Co.,
Ltd.
200uH/2A 200 uH, 2 A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Inductance
(Alternative)
Shenzhen
Yamaxi
Electronic Co.,
Ltd.
T50-26 200 uH, 2 A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Inductance
(Alternative)
Huizhou Jiayang
Electronic New-
tech Co., Ltd.
200uH/2A 200 uH, 2 A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Inductance
(Alternative)
Fenghua
Advanced
Technology
(Holding) Co.,
Ltd.
200uH/2A 200 uH, 2 A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Inductance
(Alternative)
Dongguan
Dazhong
Electronic Co.,
Ltd.
200uH/2A 200 uH, 2 A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Filter
Xinji Electronics
Component
(Hangzhou) Co.,
Ltd.
SF2022A-
05220 AC 250 V, 0,5 A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Filter (Alternative)
Shenzhen
Yamaxi
Electronic Co.,
Ltd.
SF2022A-
05220 AC 250 V, 0,5 A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Filter (Alternative)
Dongguan
Dazhong
Electronic Co.,
Ltd.
SF2022A052
20 AC 250 V, 0,5 A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Relay for
compressor
Xiamen Hongfa
Electroacoustic
Co., Ltd.
JQX-102F
250 V~; 20 A; T85;
DC 12 V; cycles:
10E4
EN 61810-1:
2004;
IEC 61810-1:
2004
VDE
40024142
Relay for
compressor
(Alternative)
Omron
Electronic
Components
(Shenzhen) Ltd.
G4A-1A-E-
CN
250 V~; 20 A; T85;
DC 12 V; cycles:
10E4
EN 61810-1:
2008
TUV
R50214482
Relay for
compressor
(Alternative)
Omron
Corporation
G4A-1A-E-
CN
250 V~; 20 A; T50;
DC 12 V; cycles:
10E4
EN 61810-1
EN 60255-23 VDE 107293
Page 30 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Relay for
compressor
(Alternative)
Dongguan
Sanyou
Electrical
Appliances Co.,
Ltd.
SFK-112DM
250 V~; 20 A; T85;
DC 12 V; cycles:
10E4
EN 61810-1:
2004
IEC 61810-1:
2004
VDE
40007481
Relay for
compressor
(Alternative)
Songchuan
Precision Co.,
Ltd.
891WP-1A-C
250 V~; 25 A; T85;
DC 12 V; cycles:
10E4
EN 61810-1:
2004
TÜV
R3-50003966
Relay for
compressor
(Alternative)
Tyco Electronics
(Shenzhen) Co.
Ltd.
EF00-1A2-
D012-F
250 V~;20 A; T85;
DC 12 V; cycles:
10E4
EN 61810-1:
2004;
IEC 61810-1:
2003
TUV
R50117320
Relay for indoor
fan motor
Xiamen Hongfa
Electroacoustic
Co., Ltd.
JZC-43F
250 VAC, 3 A, 12
VDC, cycles: 10E4,
T85
EN 61810-1
EN 60255-23
VDE
40002220
Relay for indoor
fan motor
(Alternative)
Omron
Corporation G5NB-1A
250 VAC, 3 A,
12 VDC, cycles:
10E4, T85
EN 61810-1
EN 60255-23 VDE 137575
Relay for indoor
fan motor
(Alternative)
Dongguan
Sanyou Electrical
Appliances Co.,
Ltd.
SRB-S-
112DM
277 VAC, 5 A,
12 VDC, cycles:
10E4, T85
EN 61810-1:
2004
TUV
R50138320
Relay for indoor
fan motor
(Alternative)
Songchuan
Precision Co.,
Ltd.
202N-1AC-C
250 VAC, 5 A, 12
VDC, cycles: 3E4,
T85
EN 61810-1
EN 60255-23
VDE
40008369
Relay for indoor
fan motor
(Alternative)
Tyco Electronics
(Shenzhen) Co.,
Ltd.
PCJ-112D3M
250 VAC, 3 A, 12
VDC, cycles: 10E4,
T90
EN 61810-1
EN 60255-23
VDE
40009151
Optical isolator
Panasonic
Electric Works
Co., Ltd.
AQH2223 250 VAC, 0,9A, T85 EN 60950: 2000 VDE
40004928
Fuse link Hollyland
Company Limited 50T AC 250 V, T 3,15
AL
EN 60127-1:
1991+A1+A2;
EN 60127-2:
2003+A1
VDE
40014460
Fuse link
(Alternative)
Suzhou Walter
Electronic Co.,
Ltd.
TSD AC 250 V, T 3,15
AL
EN 60127-1:
1991+A1+A2;
EN 60127-2:
2003+A1
VDE
40016851
Rectifier
Shindengen
Electric MFG
Co., Ltd.
NC 80 AC 600 V, 1,5 A EN 60335-2-40;
EN 60335-1
Tested with
appliance
PCB 1#
CHANG CHUN
PLASTICS CO
LTD
CCP-508U CEM-1, 94V-0 EN 60335-2-40
EN 60335-1
Tested with
appliance
UL E108591
PCB 1#
(Alternative)
SHENGYI
TECHNOLOGY
CO LTD
S3116 CEM-1, 94V-0
EN 60335-2-40
EN 60335-1
Tested with
appliance
UL E109769
PCB 1#
(Alternative)
SHENGYI
TECHNOLOGY
CO LTD
S1141 FR-4, 94V-0 EN 60335-2-40;
EN 60335-1
Tested with
appliance
UL E109769
PCB 1#
(Alternative)
SHENGYI
TECHNOLOGY
CO LTD
S3110 CEM-1, 94V-0
EN 60335-2-40
EN 60335-1
Tested with
appliance
UL E109769
PCB 1#
(Alternative)
KINGBOARD
LAMINATES
LTD
KB3151C FR-1, 94V-0 EN 60335-2-40
EN 60335-1
Tested with
appliance
UL E123995
Page 31 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
PCB 2#
SHENGYI
TECHNOLOGY
CO LTD
S2130 CEM-3, 94V-0
EN 60335-2-40;
EN 60335-1
Tested with
appliance
UL E109769
PCB 2#
(Alternative)
KINGBOARD
LAMINATES
LTD
KB6160 FR-4, 94V-0 EN 60335-2-40;
EN 60335-1
Tested with
appliance
UL E123995
PCB 2#
(Alternative)
SHENGYI
TECHNOLOGY
CO LTD
S1141 FR-4, 94V-0 EN 60335-2-40;
EN 60335-1
Tested with
appliance
UL E109769
PCB 2#
(Alternative)
NAN YA
PLASTICS
CORP CCL
DEPT
ELECTRONIC
MATERIAL DIV
FR-4-86 FR-4, 94V-0 EN 60335-2-40;
EN 60335-1
Tested with
appliance
UL
E98983(S)
Cold plasma
generator
Shandong
Xuesheng
Technology Co.,
Ltd.
XS-PL-06 AC 220-240 V,
50/60 Hz, ≤ 2 W
EN 60335-1
EN 60335-2-65
TUV
R50172899
Outdoor unit
Interconnection
cord
Guangdong
Huasheng
Electrical
Appliances Co.,
Ltd.
H07RN-F 4G 1,5 mm2 DIN VDE 0282-4:
2005-02
VDE
40016788
Interconnection
cord
(Alternative for
models
GWH09MB-
K3DNA2K,
GWH12MB-
K3DNA2K,
GWH09MB-
K3DNA5K,
GWH12MB-
K3DNA5K,
GWH09MB-
K3DNB3K,
GWH09MB-
K3DNE1K,
GWH09MB-
K3DNC9K,
GWH09MB-
K3DNA4K,
GWH12MB-
K3DNB3K,
GWH12MB-
K3DNE1K,
GWH12MB-
K3DNC9K,
GWH12MB-
K3DNA4K)
Guangdong
Huasheng
Electrical
Appliances Co.,
Ltd.
H07RN-F 4G 1,0 mm2 DIN VDE 0282-4:
2005-02
VDE
40016788
Page 32 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Interconnection
cord
(Alternative for
models
GWH09MB-
K3DNE2K,
GWH09MB-
K3DNE3K,
GWH12MB-
K3DNE2K,
GWH12MB-
K3DNE3K)
Guangdong
Huasheng
Electrical
Appliances Co.,
Ltd.
H07RN-F 4G 1,0 mm2 DIN VDE 0282-4:
2005-02
VDE
40016788
Interconnection
cord
(Alternative for
models
GWH09MB-
K3DNB7K,
GWH09MB-
K3DNC5K,
GWH12MB-
K3DNB7K,
GWH12MB-
K3DNC5K)
Guangdong
Huasheng
Electrical
Appliances Co.,
Ltd.
H07RN-F 4G 1,0 mm2 DIN VDE 0282-4:
2005-02
VDE
40016788
Compressor
Zhuhai Landa
Compressor Co.,
Ltd.
QXA-
A091zE190A
DC 260-350 V, 15-
120 Hz, 3Phase,
Class B, R410A
EN 60335-2-34:
2002+A11+A1+A
2;
EN 60335-1:
2002+A1+A11+A
12+A2+A13+A14
TUV
R50135262
Compressor
protector
Sensata
Technoloies
(Baoying) Co.,
Ltd.
1NT11L-6233
AC 250 V, 100000
cycles;
Open: (115±3) ,℃
Close: (95±5)℃
EN60730-2-9
EN60730-1
KEMA NO.
2014531.16
Compressor
protector
(Alternative)
Changzhou
Changrong
Electrical
Appliance Co.,
Ltd.
HPC
AC 250 V, 5 A;
10000 cycles;
Operation: 115 ; ℃
Reset: 95 ℃
EN 60730-2-9
EN 60730-1
VDE
40032296
Compressor
protector
(Alternative)
Jiangsu
Changheng
(Group) Control
Devices &
Products Co.,
Ltd.
KSD
AC 250 V, 10 A;
35000 cycles;
Operation: 115 ; ℃
Reset: 95 ℃
EN 60730-2-9
EN 60730-1
VDE
40022995
Outdoor fan
motor
Zhuhai Kaibang
Motor
Manufacture Co.,
Ltd.
FW30J-ZL DC 176-375 V, 30
W, Class E
EN 60335-2-40
EN 60335-1
Tested with
appliance
Outdoor fan
motor
(Alternative)
Dongguan
Shinano Motor
Co., Ltd.
FW30J-ZL DC 310 V, 30 W,
Class E
EN 60335-2-40
EN 60335-1
Tested with
appliance
Outdoor fan
motor
(Alternative)
NIDEC
SHIBAURA
(Zhejiang)
CORP
FW30J-ZL 310V,0,36A, 30W,
Class E, 76Ω
EN 60335-2-40
EN 60335-1
Tested with
appliance
Page 33 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Outdoor fan
motor
(Alternative)
Panasonic
Appliances
Motor
(Hangzhou) Co.,
Ltd.
FW30J-ZL 310V, 30W, Class
E, 76Ω
EN 60335-2-40
EN 60335-1
Tested with
appliance
Outdoor fan
motor
(Alternative)
Hefei Shinano
Motor Co., LTD. FW30J-ZL 310V, 30W, 0,13A,
Class E, 76Ω
EN 60335-2-40
EN 60335-1
Tested with
appliance
4-way valve
Zhejiang Duan
Precision
Industries Group
Co., Ltd.
DSF-4-R410A
AC 220-240 V;
50/60 Hz; 7/5 W;
Class B
EN 60730-1 VDE
40013212
4-way valve
(Alternative)
Zhejiang Sanhua
Climate and
Appliance
Controls Group
Co., Ltd.
SHF-4H-23U-
P
AC 220-240 V,
50/60 Hz, 4,5/3,5 W,
Class B
EN 60730-1 VDE
40003240
Main board
for models
GWH09MB-
K3DNA3K,
GWH09MB-
K3DND3K,
GWH09MB-
K3DNA2K,
GWH09MB-
K3DNA5K,
GWH09MB-
K3DNB3K,
GWH09MB-
K3DNE1K,
GWH09MB-
K3DNC9K,
GWH09MB-
K3DNA4K,
GWH09MB-
K3DNE2K,
GWH09MB-
K3DNE3K,
GWH09MB-
K3DND8D,
GWH09MB-
K3DNB7K,
GWH09MB-
K3DNC5K,
GWH09MB-
K3DNC1K,
GWH09MB-
K3DNC8K
Gree Electric
Appliances, Inc.
of Zhuhai
W8283BX — EN 60335-2-40
EN 60335-1
Tested with
appliance
Page 34 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Main board
for models
GWH12MB-
K3DNA3K,
GWH12MB-
K3DND3K,
GWH12MB-
K3DNA2K,
GWH12MB-
K3DNA5K,
GWH12MB-
K3DNB3K,
GWH12MB-
K3DNE1K,
GWH12MB-
K3DNC9K,
GWH12MB-
K3DNA4K,
GWH12MB-
K3DNE2K,
GWH12MB-
K3DNE3K,
GWH12MB-
K3DND8D,
GWH12MB-
K3DNB7K,
GWH12MB-
K3DNC5K,
GWH12MB-
K3DNC1K,
GWH12MB-
K3DNC8K
Gree Electric
Appliances, Inc.
of Zhuhai
W8283BW — EN 60335-2-40
EN 60335-1
Tested with
appliance
Y1 Capacitor
TDK-EPC
Corporation,
Capacitors Group
CD472M AC 250 V, 472M,
T70
EN 60384-14:
2005-08
VDE
40029780
Y1 Capacitor
Murata Mfg. Co.,
Ltd.
(Headquarters)
KX472M 250VAC, 472M EN 60384-14:
2005-08
VDE
40002831
Y2 Capacitor
TDK-EPC
Corporation,
Capacitors Group
CS472M AC 250 V, 472M,
T70
EN 60384-14:
2005-08
VDE
40029781
X2 capacitor 1#
Xiamen
Faratronic Co.,
Ltd.
MKP62 AC 275 V, 104M,
T110
EN 132400
EN 60384-14
VDE
40000358
X2 capacitor 1#
(Alternative)
OKAYA Electric
Industries Co.,
Ltd.
LE104 AC 275 V, 0,1 uF,
T100
EN 132400
EN 60384-14
SEMKO
SE/0142-1
X2 capacitor 1#
(Alternative)
Anhui Xinyang
electronics Co.,
Ltd.
MKP AC 275 V, 0,1 uF,
T100
EN 60384-14:
2005-08
VDE
40024537
X2 Capacitor 2#
Xiamen
Faratronic Co.,
Ltd.
MKP62 AC 275 V, 105K,
T110
EN 132400;
EN 60384-14
VDE
40000358
X2 Capacitor 2#
(Alternative)
Pilkor Electronics
Co., Ltd. PCX2 335M AC 275 V, 1,0 uF,
T85
EN 132400;
EN 60384-14
SEMKO
SE/0256-2
Page 35 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
X2 Capacitor 2#
(Alternative)
Anhui Xinyang
Electronics Co.,
Ltd.
MKP AC 275 V, 1,0 uF,
T100
EN 60384-14:
2005-08
VDE
40024537
PTC Resistance
Gaoli Electronic
Branch of
Huagong Tech
Co., Ltd.
MZ8IV-
B470N
R=47Ω±20%;
Ts=120±10℃ ;
Umax=275VAC;
Imax=8Arms
EN 60335-2-40
EN 60335-1
Tested with
appliance
PTC Resistance
(Alternative)
Dandong
Guotong
Electronic
Components Co.,
Ltd.
MZ-47R-A R=47(1±20%) EN 60335-2-40
EN 60335-1
Tested with
appliance
Varistor
Chengdu Tieda
Electroni Co.,
Ltd.
MYN15-621K AC 385 V, T85
IEC 61051-1
IEC 61051-2
IEC 61051-2-2
CECC 42000/A1
CECC 42200/A1
CECC 42201/A1
VDE
40008571
Varistor
(Alternative)
Xianhua
Advanced
Technology
Holding) Co.,
Ltd.
FNR-14K621 AC 380 V, T85
IEC 61051-1
IEC 61051-2
IEC 61051-2-2
CECC 42000
CECC 42200
CECC 42201
VDE
40008242
Optocoupler 1# Toshiba
Corporation TLP781 Vceo: 80 V; If: 60
mA; Ic: 50 mA
DIN EN 60747-5-
2: 2003
VDE
40021173
Optocoupler 2# Sharp
Corporation PC817 Vceo: 80 V; If: 50
mA; Ic: 50 mA
DIN EN 60747-5-
2: 2003
VDE
40008087
Optocoupler 3#
AVAGO
TECHNOLOGIE
S
MANUFACTURI
NG
(SINGAPORE)
PTE. LTD
HCPL-817
130%<CTR<260%;
High input-output
isolation voltage:
5000V; Vceo: 70V;
If: 50mA; Ic: 50mA
DIN EN 60747-5-
2: 2003-01
VDE
40016429
Relay on filter
board
Xiamen Hongfa
Electroacoustic
Co., Ltd.
JQX-14FW
250 VAC, 16 A, DC
12 V, cycles:10E4,
T70
EN 61810-1:
2008
VDE
40023508
Relay on filter
board
(Alternative)
Songchuan
Precision Co.,
Ltd.
793-P-1A
250 VAC, 16 A, DC
12 V, cycles:10E4,
T60
EN 61810-1
EN 61810-5
EN 60255-23
TÜV
R50056914
Relay on filter
board
(Alternative)
Tyco Electronics
(Shenzhen) Co.,
Ltd.
OZT-SS-
112LM1
240 VAC, 16 A, DC
12 V, cycles:10E4,
T60
EN 61810-1:
2004;
IEC 61810-1:
2003
TÜV
R50139112
Relay for 4-way
valve
Xiamen Hongfa
Electroacoustics
Co., Ltd.
JZC-32F
250 VAC, 5 A, 12
VDC, cycles: 10E4,
T70
EN 61810-1:
2004;
IEC 61810-1:
2004
VDE
40012204
Relay for 4-way
valve
(Alternative)
Dongguan
Sanyou Electrical
Appliances Co.,
Ltd.
SJ-S-112DM
250 VAC, 5 A, 12
VDC, cycles: 10E4,
T85
EN 61810-1:
2008;
IEC 61810-1:
2008
TUV
R50142420
VDE
40002146
Page 36 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Relay for 4-way
valve
(Alternative)
Songchuan
Precision Co.,
Ltd.
307-1AH-C
250 VAC, 5 A, 12
VDC, cycles: 1E4,
T85
EN 61810-1:
2004;
IEC 61810-1:
2003
TUV
R50128391
Relay for 4-way
valve
(Alternative)
Tyco Electronics
(Shenzhen) Co.,
Ltd.
OJE-SS-
112DM
250 VAC, 5 A, 12
VDC, cycles: 10E4,
T70
EN 61810-1:
2004;
IEC 61810-1:
2003
TUV
R50139166
Fuse link 1# Walter Electronic
Co., Ltd. ICP AC 250 V, T3,15 AL EN 60127-1;
EN 60127-3
VDE
40012824
Fuse link 2# Hollyland Co.,
Ltd. 65TS AC 250 V, T15 AH EN 60127-1;
EN 60127-2
TUV
J50136250
IPM 1#
MITSUBISHI
ELECTRIC
CORP
SEMICONDUCT
OR DIV
PS219A4-
ASTX
Vces: 600 V;
Ic: 15 A
EN 60335-2-40;
EN 60335-1
Tested with
appliance
IPM 2# Toshiba
Corporation TPD4124K
Operation: 500 V,
2A; Fsw=20 KHz;
Viso=1500 V
EN 60335-2-40;
EN 60335-1
Tested with
appliance
High frequency
transformer
Xinji Electronics
Component
(HangZhou) Co.,
Ltd.
EE25-9PA
Input: 85 V-265 V,
65KHz, 1,26Ω;
Output: 18 V, 100
mA; 12 V 500 mA;
5 V, 500 mA; Class
E
EN 60335-2-40;
EN 60335-1
Tested with
appliance
High frequency
transformer
(Alternative)
Dongguan
Dazhong
Electronic Co.,
Ltd.
EE25-9PA
Input: 85 V-265 V,
65 KHz, 1,26Ω;
Output: 18 V, 100
mA; 12 V, 500 mA;
5 V, 500 mA; Class
B
EN 60335-2-40;
EN 60335-1
Tested with
appliance
High frequency
transformer
(Alternative)
Shenzhen
Jingquanhua
Electronic Co.,
Ltd.
EE25-9PA
Input: 85 V-265 V,
65 KHz, 1,26Ω;
Output: 18 V, 100
mA; 12 V, 500 mA;
5 V, 500 mA; Class
B
EN 60335-2-40;
EN 60335-1
Tested with
appliance
High-frequency
transformer
(Alternative)
Huizhou Jiayang
Electronic New-
tech Co., Ltd.
EE25-9PA
Input: 85 V-265 V,
65 KHz, 1,26Ω;
Output: 18 V, 100
mA; 12 V, 500 mA;
5 V, 500 mA; Class
E
EN 60335-2-40;
EN 60335-1
Tested with
appliance
Rectifier
Shanghai
Microsemi
Semiconductor
Co., Ltd.
GBJ15J AC 600 V, 15 A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Rectifier
(Alternative)
Shindengen
Electric MFG Co.,
Ltd.
D15XB 60 AC 600 V, 15 A EN 60335-2-40;
EN 60335-1
Tested with
appliance
Page 37 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
Terminal block
Changzhou
Changheng
Kaidu Electric
Appliance Co.,
Ltd.
JXD-3 AC 450 V, 2,5 mm2EN 60335-2-40;
EN 60335-1
Tested with
appliance
Terminal block
(Alternative)
Nantong
Huaguan Electric
Co., Ltd.
JXW AC 450 V, 2,5 mm2EN 60335-2-40;
EN 60335-1
Tested with
appliance
Reactor
QINGDAO
YUNLU
ENERGY
TECHNOLOGY
CO LTD
R 315D 8 mH, 10 A, Class H EN 60335-2-40;
EN 60335-1
Tested with
appliance
Reactor
(Alternative)
HUIZHOU
JIAYANG
ELECTRONIC
NEW-TECH CO
LTD
L8mH/10A 8 mH, 10 A, Class H EN 60335-2-40;
EN 60335-1
Tested with
appliance
Reactor
(Alternative)
SHANGHAI
TABUCHI
TRANSFORMER
CO LTD
L8mH/10A 8 mH, 10 A, Class H EN 60335-2-40;
EN 60335-1
Tested with
appliance
Reactor
(Alternative)
HEFEI ECRIEE-
TAMURA
ELECTRIC CO
LTD
L8mH/10A 8 mH, 10 A, Class H EN 60335-2-40;
EN 60335-1
Tested with
appliance
Reactor
(Alternative for
models
GWH09MB-
K3DNA4K,
GWH09MB-
K3DNA5K,
GWH09MB-
K3DNA3K,
GWH09MB-
K3DNB7K,
GWH09MB-
K3DNC5K,
GWH09MB-
K3DNC1K,
GWH09MB-
K3DNC8K,GWH1
2MB-K3DNA4K,
GWH12MB-
K3DNA5K,
GWH12MB-
K3DNA3K,
GWH12MB-
K3DNB7K,
GWH12MB-
K3DNC5K,
GWH12MB-
K3DNC1K,
GWH12MB-
K3DNC8K
Zhuhai Kaibang
Motor
Manufacturing
Co., Ltd.
L8mH/10A 8 mH, 10 A, Class H EN 60335-2-40;
EN 60335-1
Tested with
appliance
Page 38 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
PCB 1#
CHANG CHUN
PLASTICS CO
LTD
CCP-508U CEM-1, 94V-0 EN 60335-2-40
EN 60335-1
Tested with
appliance
UL E108591
PCB 1#
(Alternative)
SHENGYI
TECHNOLOGY
CO LTD
S3116 CEM-1, 94V-0
EN 60335-2-40
EN 60335-1
Tested with
appliance
UL E109769
PCB 1#
(Alternative)
SHENGYI
TECHNOLOGY
CO LTD
S1141 FR-4, 94V-0 EN 60335-2-40;
EN 60335-1
Tested with
appliance
UL E109769
PCB 1#
(Alternative)
SHENGYI
TECHNOLOGY
CO LTD
S3110 CEM-1, 94V-0
EN 60335-2-40
EN 60335-1
Tested with
appliance
UL E109769
PCB 1#
(Alternative)
KINGBOARD
LAMINATES
LTD
KB3151C FR-1, 94V-0 EN 60335-2-40
EN 60335-1
Tested with
appliance
UL E123995
PCB 2#
SHENGYI
TECHNOLOGY
CO LTD
S2130 CEM-3, 94V-0
EN 60335-2-40;
EN 60335-1
Tested with
appliance
UL E109769
PCB 2#
(Alternative)
KINGBOARD
LAMINATES
LTD
KB6160 FR-4, 94V-0 EN 60335-2-40;
EN 60335-1
Tested with
appliance
UL E123995
PCB 2#
(Alternative)
SHENGYI
TECHNOLOGY
CO LTD
S1141 FR-4, 94V-0 EN 60335-2-40;
EN 60335-1
Tested with
appliance
UL E109769
PCB 2#
(Alternative)
NAN YA
PLASTICS
CORP CCL
DEPT
ELECTRONIC
MATERIAL DIV
FR-4-86 FR-4, 94V-0 EN 60335-2-40;
EN 60335-1
Tested with
appliance
UL
E98983(S)
Chassis electrical
heater for models
GWH09MB-
K3DNA4K,
GWH09MB-
K3DNA5K,
GWH12MB-
K3DNA4K,
GWH12MB-
K3DNA5K
Zhenjiang
Dongfang
Electric Heating
Technology Co.,
Ltd.
DYQ-02-I-230 AC 230 V, 72 W EN 60335-2-40;
EN 60335-1
Tested with
appliance
1) An asterisk indicates a mark which assures the agreed level of surveillance
Page 39 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
29.1 TABLE: Clearances P
Overvoltage category….: II
Type of insulation:
Rated impulse
voltage (V)
Min. cl
(mm)
Basic Functional Supplementary Reinforced Verdict /
Remark
330 0,5
1) — — — — N/A
500 0,5
1) — — — — N/A
800 0,5
1) — — — — N/A
1500 0,5
1), 2) — — — — N/A
2500 1,5
2) B1 — — — P
4000 3,0 2) — — — — N/A
6000 5,5
2) — — — — N/A
8000 8,0
2) — — — — N/A
10000 11,0
2) — — — — N/A
1) Value is increased to 0,8 mm for pollution degree 3
2) If the construction is affected by wear, by distortion, by movement of the parts or during assembly, the
value is increased by 0,5 mm
supplementary information:
B1: Between motor winding and metal enclosure for all outdoor fan motor: min. 3,2 mm;
Page 40 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
29.2 TABLE: Creepage distances, basic, supplementary and reinforced insulation P
Working voltage
(V)
Creepage distance
(mm)
Pollution degree
1 2 3 Type of insulation Verdict
Material group Material group
I II IIIa/IIIb I II IIIa/IIIb B*) S*) R*)
50 0,2 0,6 0,9 1,2 1,5 1,7 1,9 N/A
50 0,2 0,6 0,9 1,2 1,5 1,7 1,9 N/A
50 0,4 1,2 1,8 2,4 3,0 3,4 3,8 N/A
50 and 125 0,3 0,8 1,1 1,5 1,9 2,1 2,4 N/A
50 and 125 0,3 0,8 1,1 1,5 1,9 2,1 2,4 N/A
50 and 125 0,6 1,6 2,2 3,0 3,8 4,2 4,8 N/A
125 and 250 0,6 1,3 1,8 2,5 3,2 3,6 4,0 N/A
125 and 250 0,6 1,3 1,8 2,5 3,2 3,6 2,0 (for
motor
windin
g only)
B1 P
125 and 250 0,6 1,3 1,8 2,5 3,2 3,6 4,0 N/A
125 and 250 1,2 2,6 3,6 5,0 6,4 7,2 8,0 N/A
250 and 400 1,0 2,0 2,8 4,0 5,0 5,6 6,3 N/A
250 and 400 1,0 2,0 2,8 4,0 5,0 5,6 6,3 N/A
250 and 400 2,0 4,0 5,6 8,0 10,0 11,2 12,6 N/A
*), B=Basic, S=Supplementary and R=Reinforced
supplementary information:
B1: Between motor winding and metal enclosure for all outdoor fan motor: min. 3,2 mm
Page 41 of 41 Report No. GZES120900879606
IEC 60335-2-40
TRF No. IEC60335_2_40F
30 TABLE: RESISTANCE TO HEAT, FIRE AND TRACKING (appended table) P
Component Manufacturer Type
Ball pressure test Tracking
test
[CTI/ PTI]
Glow wire test Needle-
flame
test
Verdict
75°C cl. 11
+40°C 125°C cl. 19
+25°C
GWT
550°C
GWT
650°C
GWT
750°C
GWFI
850°C GWIT
Fan motor bobbin
NIDEC
SHIBAURA
(Zhejiang)
CORP
FW30J-ZL — —
— — — X — — — — — P
Fan motor bobbin
Panasonic
Appliances
Motor
(Hangzhou)
Co., Ltd.
FW30J-ZL — —
— — — X — — — — — P
Fan motor bobbin
Hefei Shinano
Motor Co.,
LTD.
FW30J-ZL — —
— — — X — — — — — P
1) Flame persisting longer than 2 s
2) Surrounding parts are subjected to the needle-flame test of annex E
3) These parts subjected to the needle-flame test of annex E
4) Adjacent parts subjected to the needle-flame test of annex E
5) Parts of material classified as V-0 or V-1
6) Base material classified as V-0
supplementary information:
---End of report---
Page 1 of 2 Report No.: GZES120900879606
Attachment I
Photo documentation
Type of equipment,
model: Split-Type Air-conditioner
GWH09MB-K3DNA3K (Indoor unit: GWH09MB-K3DNA3K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DND3K (Indoor unit: GWH09MB-K3DND3K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DNA2K (Indoor unit: GWH09MB-K3DNA2K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DNA5K (Indoor unit: GWH09MB-K3DNA5K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DND8D (Indoor unit: GWH09MB-K3DND8D/I, Outdoor unit:
GWH09MB-K3DND8D/O);
GWH09MB-K3DNB3K(Indoor unit: GWH09MB-K3DNB3K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DNE1K(Indoor unit: GWH09MB-K3DNE1K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DNC9K(Indoor unit: GWH09MB-K3DNC9K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DNA4K(Indoor unit: GWH09MB-K3DNA4K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DNE2K (Indoor unit: GWH09MB-K3DNE2K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DNE3K (Indoor unit: GWH09MB-K3DNE3K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DNB7K (Indoor unit: GWH09MB-K3DNB7K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DNC5K (Indoor unit: GWH09MB-K3DNC5K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DNC1K (Indoor unit: GWH09MB-K3DNC1K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH09MB-K3DNC8K (Indoor unit: GWH09MB-K3DNC8K/I, Outdoor unit:
GWH09MB-K3DNA3K/O);
GWH12MB-K3DNA3K (Indoor unit: GWH12MB-K3DNA3K/I, Outdoor unit:
GWH12MB-K3DNA3K/O);
GWH12MB-K3DND3K (Indoor unit: GWH12MB-K3DND3K/I, Outdoor unit:
GWH12MB-K3DNA3K/O);
GWH12MB-K3DNA2K (Indoor unit: GWH12MB-K3DNA2K/I, Outdoor unit:
GWH12MB-K3DNA3K/O);
GWH12MB-K3DNA5K (Indoor unit: GWH12MB-K3DNA5K/I, Outdoor unit:
GWH12MB-K3DNA3K/O);
GWH12MB-K3DND8D (Indoor unit: GWH12MB-K3DND8D/I, Outdoor unit:
GWH12MB-K3DND8D/O)
GWH12MB-K3DNB3K(Indoor unit: GWH12MB-K3DNB3K/I, Outdoor unit:
GWH12MB-K3DNA3K/O);
GWH12MB-K3DNE1K(Indoor unit: GWH12MB-K3DNE1K/I, Outdoor unit:
GWH12MB-K3DNA3K/O);
GWH12MB-K3DNC9K(Indoor unit: GWH12MB-K3DNC9K/I, Outdoor unit:
GWH12MB-K3DNA3K/O);
GWH12MB-K3DNA4K(Indoor unit: GWH12MB-K3DNA4K/I, Outdoor unit:
GWH12MB-K3DNA3K/O);
GWH12MB-K3DNE2K (Indoor unit: GWH12MB-K3DNE2K/I, Outdoor unit:
GWH12MB-K3DNA3K/O);
GWH12MB-K3DNE3K (Indoor unit: GWH12MB-K3DNE3K/I, Outdoor unit:
GWH12MB-K3DNA3K/O);
GWH12MB-K3DNB7K (Indoor unit: GWH12MB-K3DNB7K/I, Outdoor unit:
GWH12MB-K3DNA3K/O);
GWH12MB-K3DNC5K (Indoor unit: GWH12MB-K3DNC5K/I, Outdoor unit:
GWH12MB-K3DNA3K/O)
GWH12MB-K3DNC1K (Indoor unit: GWH12MB-K3DNC1K/I, Outdoor unit:
GWH12MB-K3DNA3K/O)
GWH12MB-K3DNC8K (Indoor unit: GWH12MB-K3DNC8K/I, Outdoor unit:
GWH12MB-K3DNA3K/O)
Page 2 of 2 Report No.: GZES120900879606
Attachment I
Details of: Display panel for GWH09MB-K3DNC1K and GWH12MB-K3DNC1K
View:
general
front
rear
right
left
top
bottom
Details of: Display panel for GWH09MB-K3DNC8K and GWH12MB-K3DNC8K
View:
general
front
rear
right
left
top
bottom
--- End of Attachment I ---

Navigation menu
