2009 / 2010 Product Catalog
Media Converters,
Multiplexers and
Network Interface Devices
for Carrier Ethernet and
Enterprise Networks
2
3
About Omnitron
Omnitron was founded in 1992 and is headquartered in Irvine
California.
Omnitron provides carrier-class ber access connectivity solutions
for Service Providers, Governments, Enterprises and Utilities
who are driving ber to the network’s edge to deliver advanced
services, bandwidth and security.
Omnitron solutions improve the exibility, scalability and
performance of any size network, from Enterprise Local Area
Networks to Wide Area Networks, and Fiber Access Networks to
Metropolitan Ethernet Networks.
Omnitron’s managed and unmanaged ber access media
converters, Network Interface Devices, T1/E1 and CWDM
multiplexers provide reliable ber connectivity and leverage
existing assets and infrastructure to reduce costs. This broad
and diverse product offering supports a wide variety of network
protocols, data rates and cabling media.
Omnitron’s knowledgeable and dependable technical support
staff is available 24/7 to assist you with your network applications
or installations. Omnitron products are available through resellers,
VARs, system integrators and distributors worldwide.
Table of Contents
iConverter
®
Managed Media Converters, Network
Interface Devices, CWDM and T1 Multiplexers
iConverter Product Family Overview......................................4
NetOutlook SNMP Management Software........................... 6
♦NMM2 Network Management Module....................................7

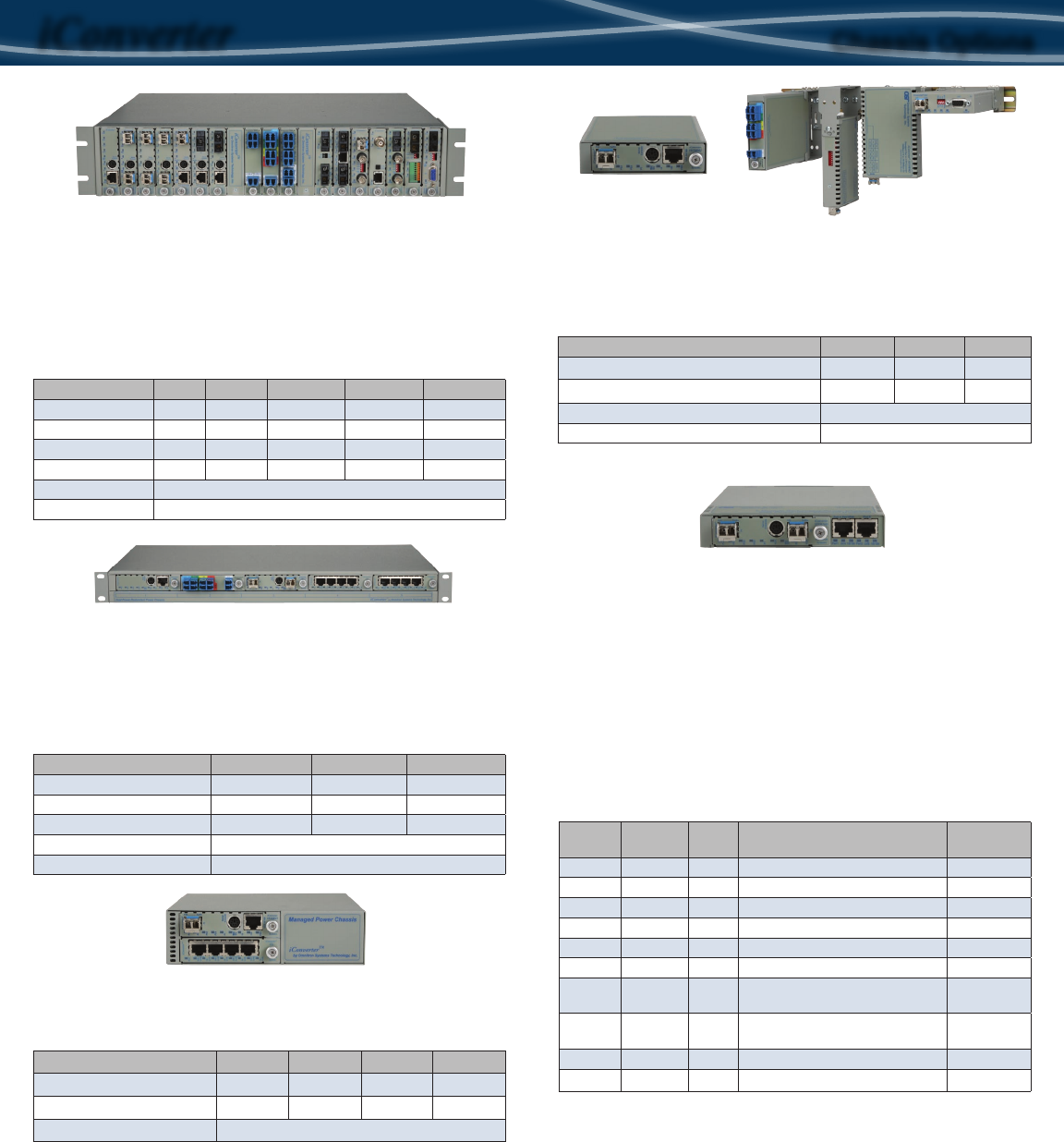

iConverter Chassis Options...................................................8

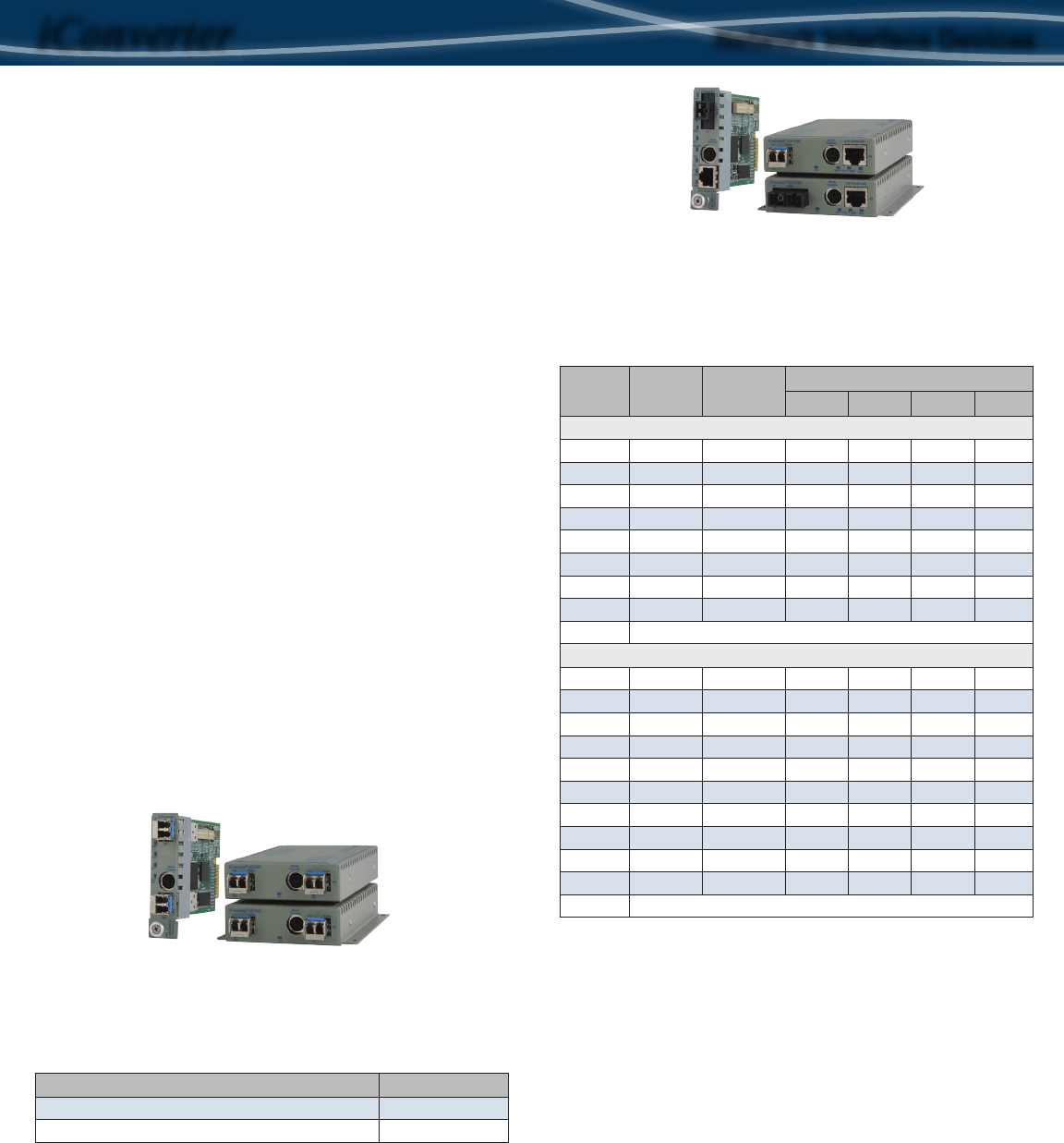

♦GM3 Ethernet Network Interface Devices (NIDs)................10
2FXM2 and 2GXM2 Fiber to Fiber NIDs...............................12
10/100M2 and GX/TM2 Copper to Fiber NIDs......................13
♦XG 10 Gigabit Copper to Fiber or Fiber to Fiber..................14
GX/T 10/100/1000 Copper to Fiber........................................15
♦GX AN Gigabit Copper to Fiber............................................16
GX/X and GX/F Fiber to Fiber................................................17
100FF and 1000FF Fiber to Fiber..........................................18
2Fx 100Mbps Fiber to Fiber...................................................19
10/100VT & 10/100 Copper to Fiber......................................20
100Fx/Tx, 10FL/T and 10T/2 Copper to Fiber.......................21

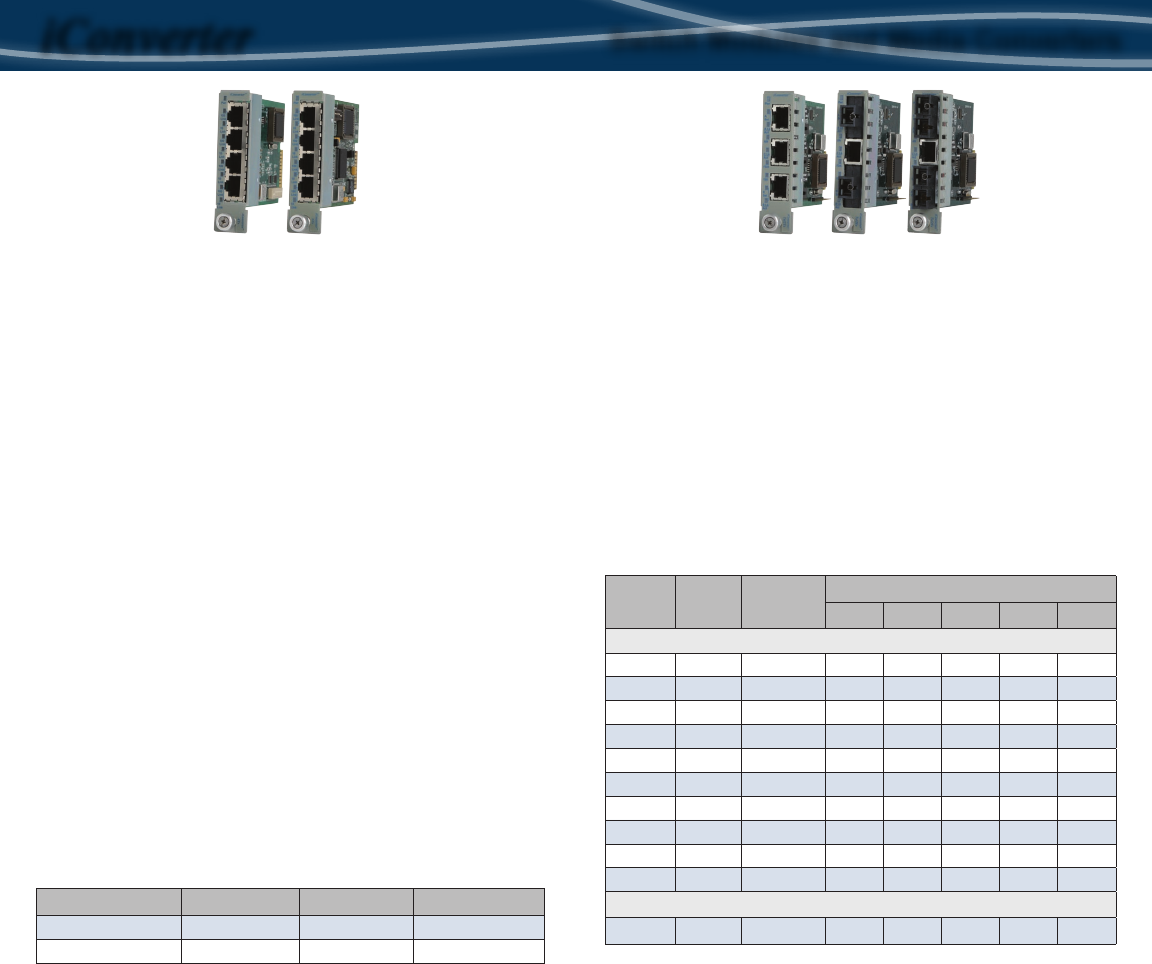

4Tx and 4TxVT 10/100 4-Port Switch Modules.....................22
Tx/2Fx and Tx/2Tx Redundant Fast Ethernet.......................23
iConverter Ethernet Module Comparison Chart...................24
T1/E1 and T3/E3 Copper to Fiber..........................................26
♦4xT1/E1 MUX and TM3 T1/E1 Modular Multiplexer..............28
♦T1/E1 MUX/M Up to 16 T1/E1 Circuits over Fiber................29
♦4xT1/E1 MUX and 4xT1/E1MUX/M Four T1/E1s over Fiber..30
♦X21/RS530 Serial to Fiber....................................................32
RS232 and RS422/485 Serial to Fiber...................................33
OC3FF and OC12FF Fiber to Fiber.......................................34
♦xFF SFP to SFP Converter/Wavelength Transponder.........35
♦
OC3/STM1
Coax to Fiber......................................................35

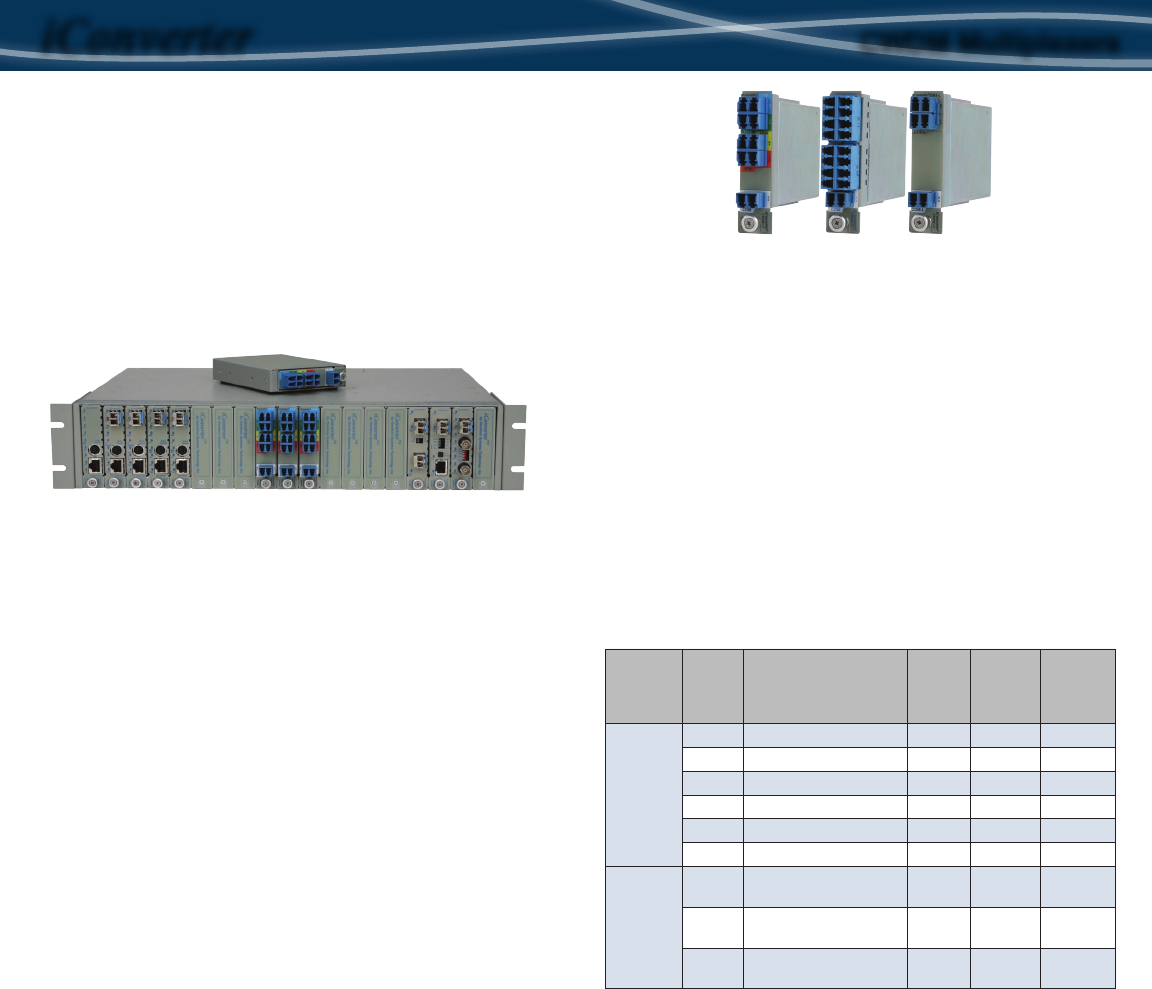

♦CWDM/X Multiplexers/Demultiplexers for Dual Fiber..........36
♦CWDM/AD Optical Add Drop Multiplexers for Dual Fiber....38
♦CWDM/X and ♦CWDM/AD for Single Fiber..........................39
miConverter
TM
Miniature Unmanaged Media Converters
♦GX/T 10/100/1000 Copper to Fiber.......................................40
Gx Gigabit Copper to Fiber....................................................40
10/100 and 10/100 Plus 10/100 Copper to Fiber....................41
FlexPoint
TM
Modular Unmanaged Media Converters

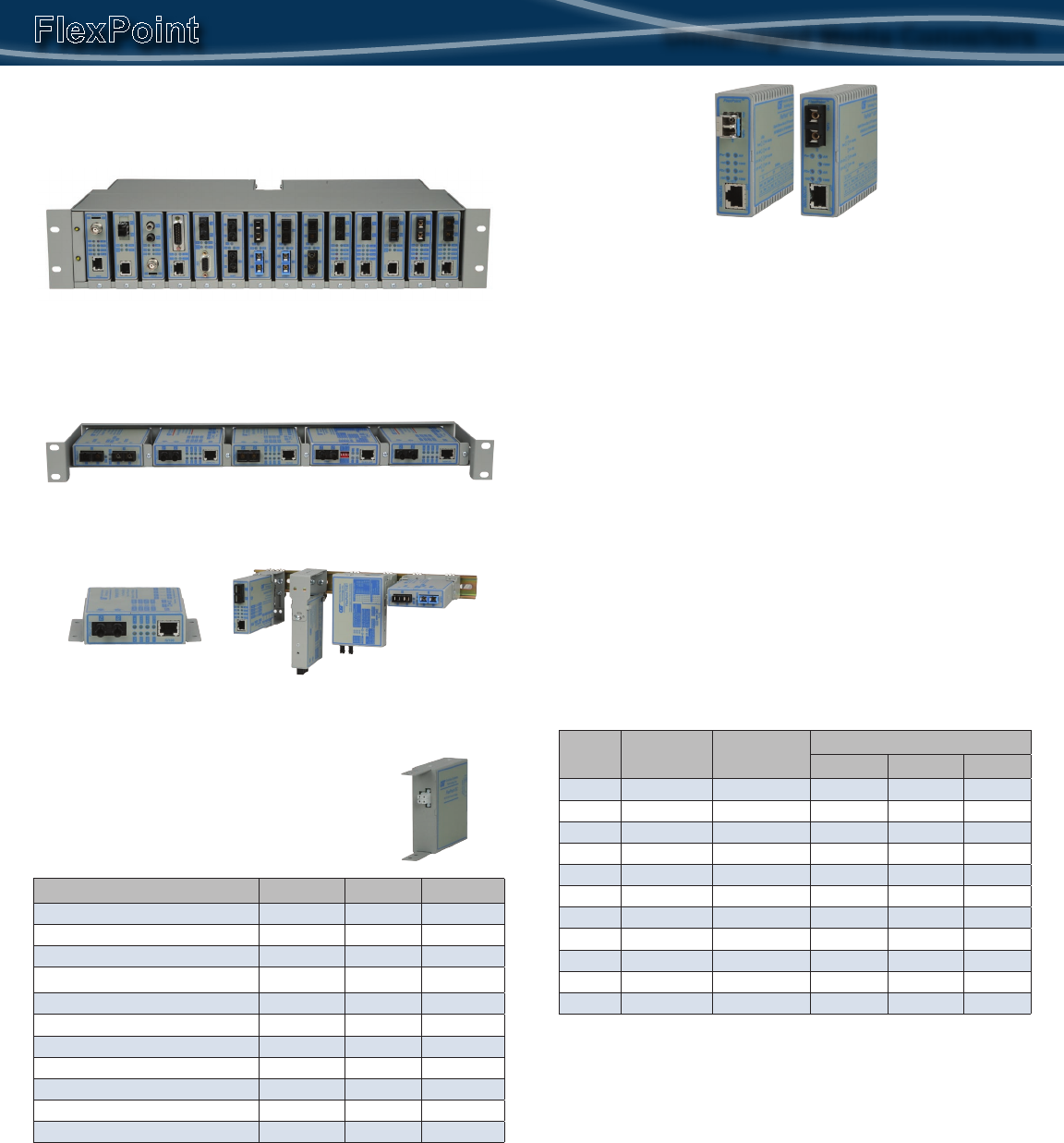

FlexPoint Chassis and Mounting Options..............................42

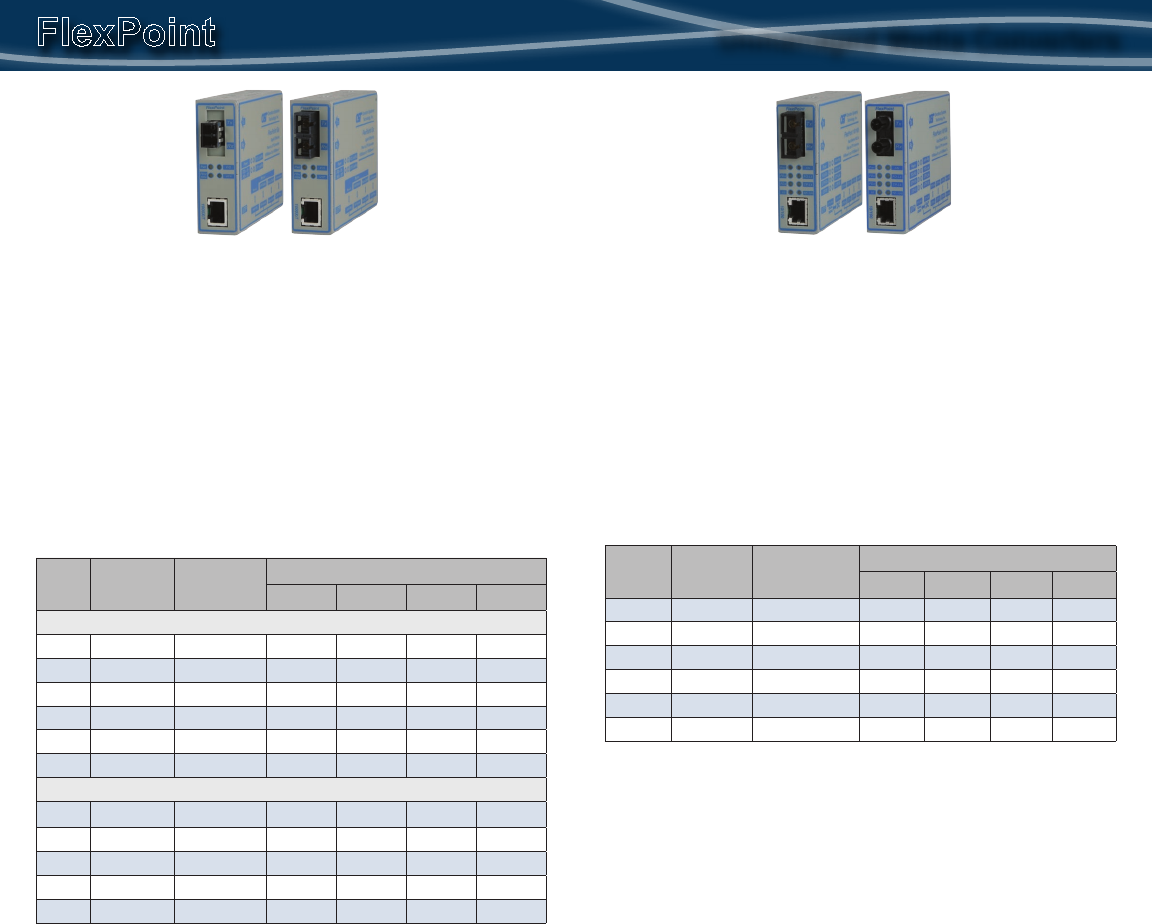

♦GX/T 10/100/1000 Copper to 100/1000 Fiber......................43
Gx and 100Fx/Tx Copper to Fiber.........................................44
10/100 Copper to Fiber..........................................................45
10FL/T, 10FL/2, 10T/2 and 10AUI/T Copper to Fiber...........46
100FF, 1000FF, OC3FF and OC12FF Fiber to Fiber............47
T1/E1 Copper to Fiber............................................................48
232 Serial to Fiber..................................................................48
OmniConverter
TM
PoE Media Converters
♦GPoE/S 10/100/1000 Copper to 100 or 1000 Fiber.............49
Omnitron Small Form Pluggable Transceivers

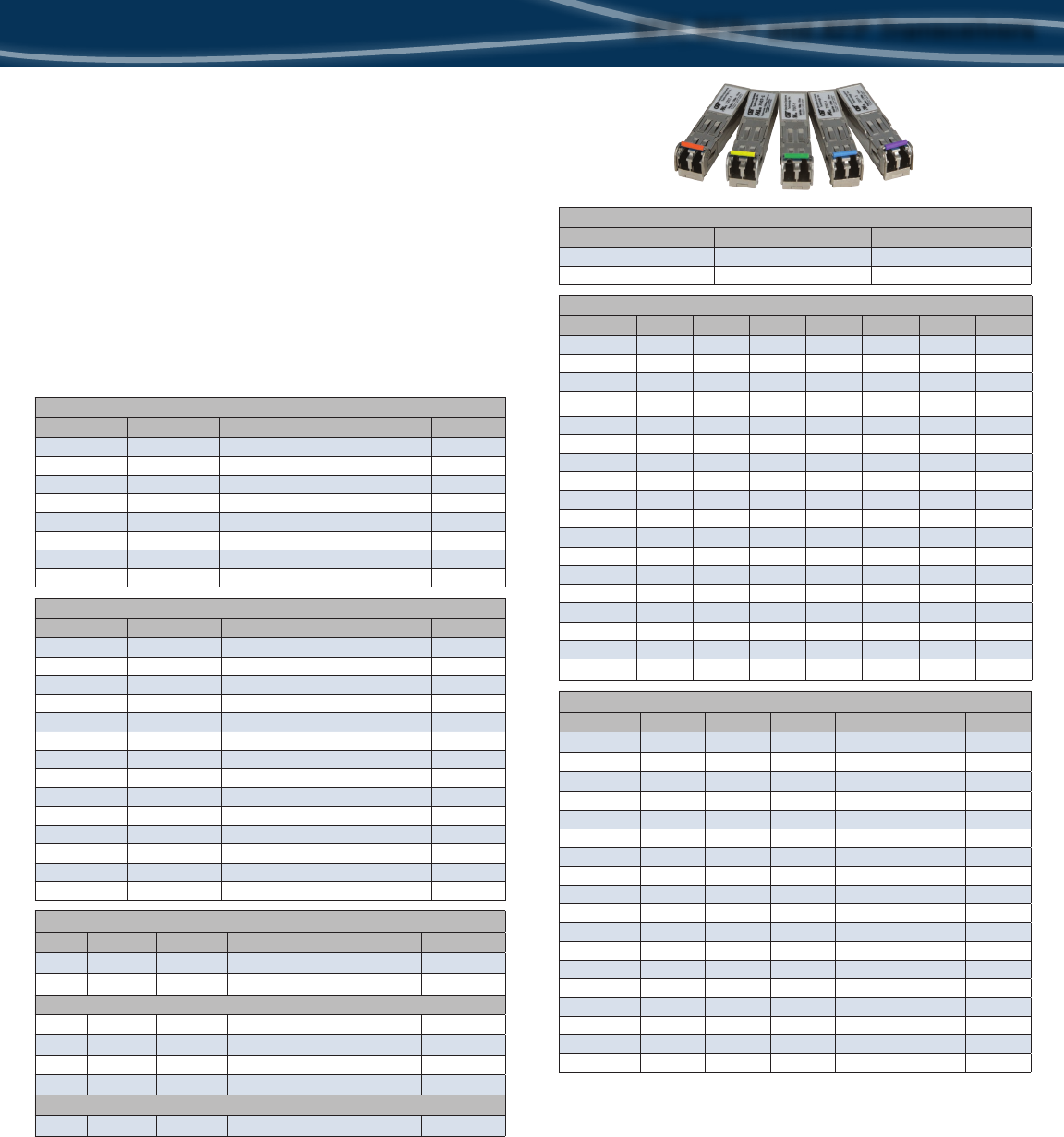

SFP Transceivers Standard Wavelengths............................50
SFP Transceivers CWDM Wavelengths...............................51
♦XFP and ♦SFP+ Transceivers for 10 Gigabit......................50
♦New Products
Contact a Technical Specialist for more information:
Toll-free: 800-675-8410
International: +1 949-250-6510
Fax: 949-250-6514
Email: info@omnitron-systems.com
Website: www.omnitron-systems.com
iConverter
4
5
Service Provider Access Networks
To support Carrier-Grade Ethernet services, iConverter Network
Interface Devices feature:
IEEE 802.3ah Link OAM monitoring and trouble-shooting•
IEEE 802.1ag End-to-End Service OAM Fault Detection and •
Management
ITU-T Y.1731 End-to-End Service OAM Performance Monitoring•
CE-VLAN to Provider VLAN (Q-in-Q) mapping to enable •
E-LINE and E-LAN service multiplexing
Quality of Service (QoS) Prioritization •
Class of Service (CoS) Trafc Classication•
Optical and Port statistics for performance monitoring•
Granular Rate Limiting per port, per service and per CoS•
Jumbo Frames up to 10,240 bytes•
Next-Generation Enterprise Networks
iConverter media converters and multiplexers provide advanced
ber connectivity for Enterprise LAN and WAN networks.
iConverter media converters support managed copper to ber,
multimode ber to single-mode ber, or dual ber to single-ber
conversion applications.
iConverter modules and chassis are used for point-to-point
ber connectivity, or to distribute high-density ber links from
the Network Core to standalone or compact, multi-module
congurations at the Network Edge.
To support Next-Generation networks, select iConverter media
converters feature:
Pluggable transceivers for standard and CWDM wavelengths •
(available in SFP, SFP+ and XFP)
Quality of Service (QoS) Prioritization •
VLAN Technology •
Port VLAN and Port Access Controls •
Auto Negotiation•
Auto Crossover (MDI/MDI-X)•
Bandwidth Control•
Jumbo Frames up to 10,240 bytes•
Technologies Supported:
10, 100, 1000 and 10 Gigabit Ethernet
1/2/4/10 Gigabit Fibre Channel
T1(DS1)/E1, T3(DS3)/E3
OC-3, OC-12, OC-48, OC-192
STM-1, STM-4, STM-16, STM-64
Serial RS-232/422/485 and X21
Standard & CWDM SFP/SFP+/XFPs
Module Types:
Copper UTP to Fiber
Fiber to Fiber
Coax to Fiber
4-Port Copper Switch
T1/E1 Multiplexer
CWDM Multiplexer
CWDM Transponder

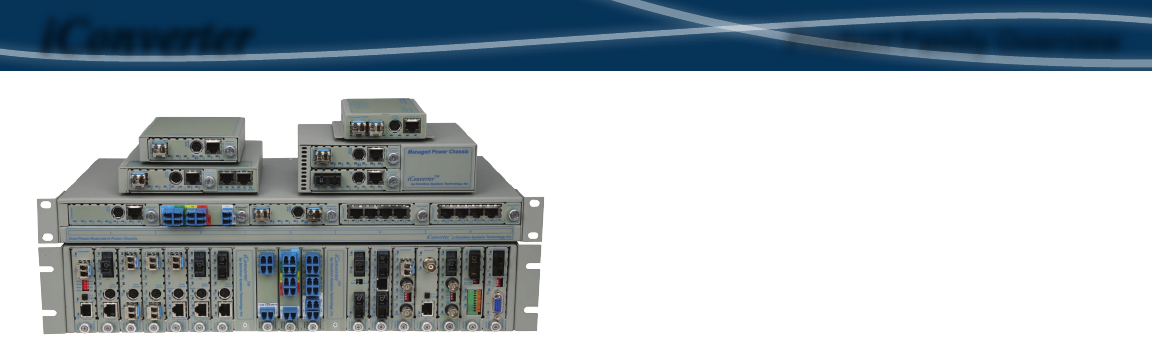

Product Family Overview
The iConverter® family consists of managed media converters,
Network Interface Devices (NIDs), CWDM Multiplexers and T1/E1
Multiplexers. This modular system provides ber connectivity in
Broadband Metropolitan, First Mile Fiber-to-the-X and Enterprise
Local Area Network (LAN) applications.
iConverter modules create a true multi-service platform that
transports a variety of network protocols over existing fiber
infrastructure and equipment. Flexible and easily scalable,
iConverter modules are hot-swappable and can be mounted in a
19-Module, 5-Module, 2-Module or 1-Module powered chassis.
Management for iConverter media converters and multiplexers is
enabled by installing a management module in the same chassis
as the media converters and multiplexers. iConverter Network
Interface Devices (NIDs) are media converters with integrated
management functions for service provisioning and Operation,
Administration and Maintenance (OAM). The NIDs can also serve
as a management module for other iConverter modules when
installed in a chassis.
Management functions can be accessed locally through the serial
console port, or remotely through IP-based management protocols,
including SNMPv1/2c/3, TELNET and FTP. Management VLAN
provides protection for IP-based protocols by isolating the
management data from user data.
Management functions can also be accessed remotely through one
of the supported IP-less protocols, either 802.3ah OAM extensions
or Omnitron’s Secure OAM. Up to 18 remote NIDs and chassis can
be managed by a single IP address using an IP-less protocol.
SNMP management can be accessed either via Omnitron's
NetOutlook® SNMP-based network management software, or
third-party SNMP software.
iConverter equipment is MEF 9, MEF 14, MEF 21, NEBS Level
3, UL and CE certied. Modules and chassis support a standard
commercial temperature range of 0 to +50°C. Models are also
available supporting a wide temperature range (-40 to +60°C) or
an extended temperature range (-40 to +75°C).
Visit www.omnitron-systems.com for detailed specifications,
application examples, white papers and the latest information on
new products.
iConverter
6
7

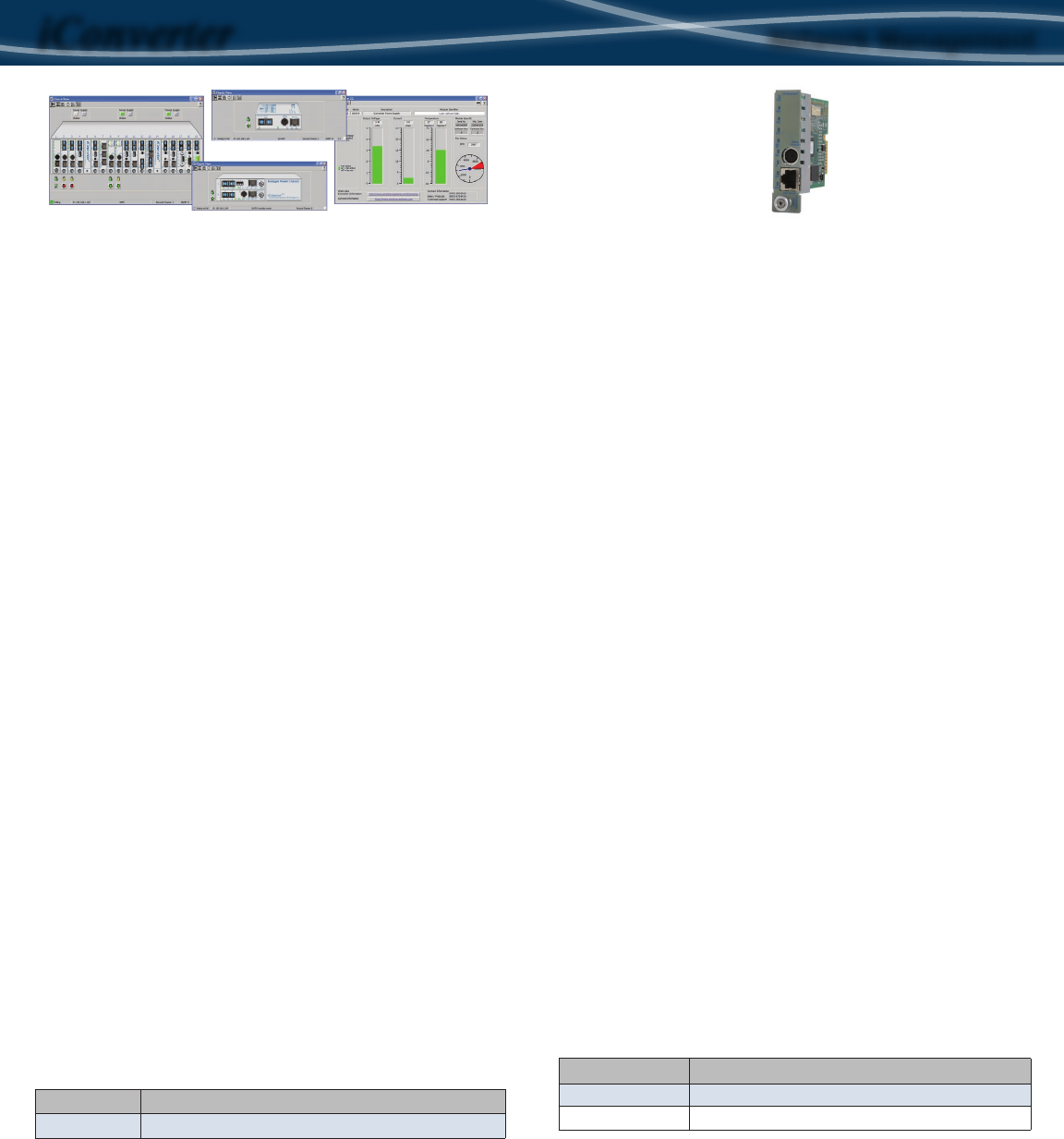

NetOutlook ®
SNMP Management Software
NetOutlook is an intuitive, SNMP-based Network Management
Software application that provides detailed, real-time network
status and control of iConverter equipment. Managing a chassis
and its modules requires the installation of an iConverter
Network Management Module (NMM2) or a media converter with
integrated management in the chassis. NetOutlook supports
IP-based and IP-less (Secure OAM or 802.3ah) management
access of iConverter Network Interface Devices.
Using NetOutlook, network managers can monitor and congure a
wide variety of chassis, module and port-level functions, including
the ability to override physical DIP-switch settings. Traps can be
reported for specic events such as individual module and link
status, temperature range violation, and power supply failure
(including Dying Gasp).
NetOutlook supports SNMPv1, SNMPv2c and SNMPv3. SNMPv3
provides secure access to network devices by a combination of
authenticating and encrypting packets over the network.
With NetOutlook, network managers can lower operational costs
(OPEX) associated with truck rolls to edge equipment locations,
reduce down time by quickly detecting and diagnosing network
problems, and remotely congure network parameters to restore
services.
SNMP-based GUI management software (SNMPv1/2c/3)•
Supports IP-based and IP-less management access of •
iConverter NID modules
Remotely monitors and congures chassis, module and port •
functions and operational modes
Enables Ethernet services by provisioning Provider VLANs, •
Rate-Limiting, CoS Mapping and Trafc Filtering
Reports trap notications of user-specied network events•
Ethernet service fault monitoring and performance statistics •
reporting
Displays digital diagnostic information for pluggable •
transceivers
Loads and saves congurations to and from local les•
Compatible with Windows 2000/XP/Vista•
Model Description
8100-0 NetOutlook SNMP Network Management Software
iConverter NMM2
Network Management Module
The iConverter NMM2 provides comprehensive remote
monitoring, conguration and alarm notication functions for all
iConverter managed media converters and Network Interface
Devices (NIDs). Installed in any slot of an iConverter chassis, the
NMM2 manages all other modules and power supplies installed
in the chassis through a management backplane. Additionally, all
remote NIDs linked to the managed iConverter chassis may be
managed by the installed NMM2 through a secure IP-less OAM
channel.
Through the 10/100 RJ-45 Ethernet port, the NMM2 can be
remotely accessed by IP-based management protocols, including
SNMPv1/2c/3, TELNET and FTP. The serial console port can
provide local access and conguration from a PC or modem.
Management is accessed either via NetOutlook®, Omnitron’s
SNMP-Based Network Management Software, or third party SNMP
management software. An intuitive Command Line Interface (CLI)
can be accessed either via the serial port or TELNET.
The NMM2 provides comprehensive provisioning support for all
local and remote iConverter modules, including port settings,
VLANs and rate limiting.
The NMM2 manages remote NIDs connected to the managed
chassis via an IP-less OAM channel. Using a single IP address,
an NMM2 installed in a 19-Module chassis can manage up to 18
local plug-in modules and 18 remote NIDs.
Provides management via SNMP, TELNET or FTP•
Managed via Omnitron’s • NetOutlook SNMP GUI, or third-
party SNMP management software
In-band management via the chassis Ethernet backplane port •
or out-of-band via the front-panel RJ-45 Ethernet port
Built-in management VLAN support prioritizes and isolates •
management trafc from user trafc
Enables Remote OAM (Secure IP-less or 802.3ah) for •
iConverter NID modules
Firmware upgrades via serial port or FTP•
Supports Dying Gasp and a variety of other traps•
Description Model
8000N-0 Network Management Module (NMM2)
8081-3 NMM2 Serial Cable (DB-9, 3 ft.)
Network Management
iConverter
8
9
iConverter 1-Module Chassis and DIN Rail Brackets
The 1 inch high 1-Module Chassis uses an external AC/DC power
adapter, is tabletop or wall-mountable and supports a single
iConverter module. DIN-Rail brackets for 1-Module chassis and
standalone modules support four mounting orientations.
Conguration US AC UNIV AC 48VDC
1-Module Chassis* 8240-1 8240-2 8242-9
1-Module Chassis with Dying Gasp Support 8241-1 8241-2 8243-9
Wall Mounting Hardware Kit 8249-0
DIN Rail Mounting Kit 8250-0
* See the 1-Module Chassis Data Sheet for additional power options and model numbers.
iConverter 1-Module Redundant Power Chassis
with PoE/PD
The 1-Module Redundant Power Chassis with PoE features
redundant DC or DC/PoE power with load sharing. Two optional
10/100BASE-T UTP ports connect to the installed module via the
Ethernet backplane, and support auto-negotiation, Full/Half-Duplex
and auto-crossover. LEDs provide power status, UTP data rate and
link activity.
Supports 9-28VDC (terminal or barrel) or 24-60VDC (terminal)•
PoE power (PD type of device) via optional Ethernet port•
Four optional contact closure alarm sensors•
Model Contact
Closures
UTP
Ports Redundant Power AC Power
Supply
8245-111 - - (2) 9-28VDC Barrel (2) US
8245-112 - - (2) 9-28VDC Barrel (2) Universal
8247-220 X -(2) 9-28VDC Terminal -
8248-111 X X (2) 9-28VDC Barrel (2) US
8248-112 X X (2) 9-28VDC Barrel (2) Universal
8248-220 X X (2) 9-28VDC Terminal -
8248-312 X X 9-28VDC Barrel
+ 24-60VDC Terminal (1) Universal
8248-320 X X 9-28VDC Terminal
+ 24-60VDC Terminal -
8248-512 X X PoE + 9-28VDC Barrel (1) Universal
8248-520 X X PoE + 9-28VDC Terminal -
Modules not included with chassis. Consult data sheet or factory for additional congurations.
Dying Gasp functionality requires installation of a management module that supports Dying Gasp.
For Wide Temperature chassis (-40 to +60°C), add a “W” to the end of the part number. Contact
Omnitron for extended temperature chassis (-40 to +75°C).
iConverter 19-Module Managed Chassis
The 2U (3.5 inch) high
iConverter
19-Module Managed Chassis
can be mounted in a 19 or 23-inch rack, and features three
redundant, load-sharing power supplies. The high-density chassis
supports universal AC, 24VDC or 48VDC hot-swappable power
supplies that can be used in any combination, and features an
Ethernet backplane for connectivity between modules.
Conguration 60W AC 120W AC 24VDC/66W 48VDC/66W 48VDC/120W
1 Power Supply 8200-1 8201-1 8206-1 8205-1 8207-1
2 Power Supplies 8200-2 8201-2 8206-2 8205-2 8207-2
3 Power Supplies 8200-3 8201-3 8206-3 8205-3 8207-3
Spare Power Supply 8200-9 8201-9 8206-9 8205-9 8207-9
23” Rack Mount Kit 8091-2
Blank Module Panel 8090-0
iConverter 5-Module Managed Chassis
The 1U (1.75 inch) high
iConverter
5-Module Managed Chassis
features an Ethernet backplane for connectivity between modules,
and dual power supplies for load-sharing and power redundancy.
Universal AC, 24VDC or 48VDC power supplies are hot-swappable
and can be used in any combination.
Conguration 33W AC 24VDC/33W 48VDC/33W
1 Power Supply 8220-1 8226-1 8225-1
2 Power Supplies 8220-2 8226-2 8225-2
Spare Power Supply 8220-9 8226-9 8225-9
23” Rack Mount Kit 8092-2
Blank Module Panel 8090-0
iConverter 2-Module Managed Chassis
The iConverter 2-Module Chassis features a single internal
universal AC or DC power supply and an Ethernet backplane.
Conguration AC/6.5W AC/16.5W DC/6.6W DC/16.5W
One (1) Power Supply 8230-0 8235-0 8235-0 8236-0
1 Power Supply w/ Dying Gasp 8230-1 8235-1 8235-1 8236-1
Wall Mounting Hardware Kit 8249-0
Chassis Options
iConverter
10
11

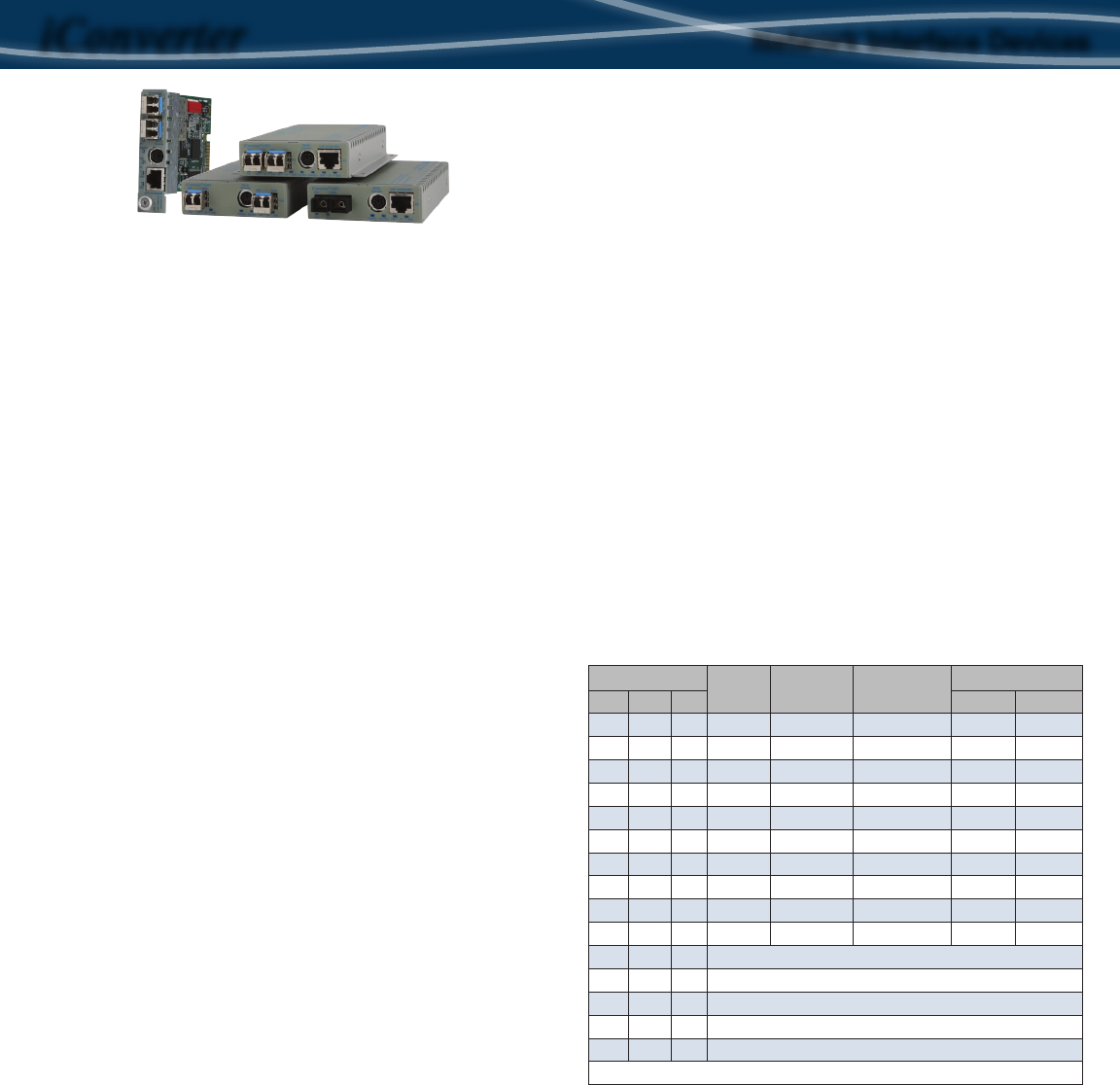

iConverter GM3 Network Interface Devices (NIDs)
iConverter GM3 Ethernet NIDs ensure end-to-end carrier-class
Ethernet services by supporting multi-service provisioning and
operation, administration and maintenance (OAM) features, right
at the customer premise.
The GM3 meets today’s demand for high-capacity and scalable
optical Ethernet service delivery, while providing the fault detection
and performance monitoring OAM capabilities expected by the
service provider. Meeting MEF, ITU and industry requirements
for Ethernet User to Network Interface (UNI), the GM3 terminates
metro optical Ethernet access over Fast or Gigabit Ethernet ber
networks (dual-ber, single-ber, CWDM).
Service provisioning allows the provider to offer tiered revenue
generation according to Service Level Agreements (SLA)
based on data rate, Class of Service prioritization and service
differentiation. Ethernet OAM provides the fault detection and
performance monitoring necessary to ensure proper enforcement
and compliance to SLAs.
Functions as a multi-service NID or transport NID•
Available as a chassis plug-in module or standalone unit•
Supports IEEE 802.1ag and ITU-T Y.1731 Service OAM for •
end-to-end fault detection and performance monitoring
Supports IEEE 802.3ah Link OAM•
Remote management through TELNET, SNMPv1/2c/3 and •
IP-less 802.3ah OAM extensions
IEEE 802.1ad Provider VLAN and Q-in-Q tag stacking for •
E-Line and E-LAN service multiplexing
Granular Rate Limiting using Committed Information Rate •
(CIR) and Committed Burst Size (CBS)
Quality of Service (QoS) Prioritization •
Class of Service (CoS) Trafc Classication•
Small Form Pluggable (SFP) transceivers for standard or •
CWDM applications
Supports Gigabit and Fast Ethernet ber access networks•
Customer network service port available in copper RJ-45 or •
SFP Fiber interfaces
Supports uplink redundancy with Rapid Spanning Tree protocol•
10,240 byte Jumbo frames •
Commercial, wide and extended temperature ranges •
MEF 9, MEF 14 and MEF 21 Certied Compliant •
Network Interface Devices
Service OAM Functions
IEEE 802.1ag "Connectivity Fault Management" denes multi-
level, continuous fault monitoring of Ethernet services for
subscriber, service provider and network operator. Key features
include:
Continuity Check – A periodic keep-alive message exchanged •
between end-points of an Ethernet service in a domain level.
Link Trace – An Administrator initiated command to trace •
intermediate points from one end-point to another end-point of
an Ethernet service.
Loop Back – An Administrator initiated command for an •
end-point to request response from an intermediate-point or
another end-point of an Ethernet service.
ITU-T Y.1731 denes continuous performance monitoring to
ensure compliance to SLAs established between the service
provider and the subscriber. Key SLA parameters include:
Frame Delay – The amount of time it takes a frame to travel •
from end-point to end-point of an Ethernet service.
Frame Delay Variation (Jitter) – The statistical difference in the •
collection of Frame Delay readings between the end-points.
Frame Loss – The number of frames lost between the end-•
points of an Ethernet service.
Availability - The percentage of the time the service is •
operational.
Port Fiber Distance Wavelength
(nm)
Connector Type
P1 P2 P3 ST SC
FF UTP -MM/DF 220/550m 850 8920P-0 8922P-0
FF UTP -SM/DF 12km 1310 8921P-1 8923P-1
FF UTP -SM/DF 34km 1310 - 8923P-2
FF UTP -SM/DF 80km 1550 - 8923P-3
FF UTP -SM/DF 110km 1550 - 8923P-4
FF UTP -SM/DF 140km 1550 - 8923P-5
FF UTP -SM/SF 20km 1310/1550 - 8930P-1
FF UTP -SM/SF 20km 1550/1310 - 8931P-1
FF UTP -SM/SF 40km 1310/1550 - 8930P-2
FF UTP -SM/SF 40km 1550/1310 - 8931P-2
SFP UTP - 8939P-0**
SFP SFP UTP 8975P-0**
UTP UTP SFP 8970P-0**
UTP UTP - 8989P-0
SFP SFP - 8999P-0**
UTP = Unshielded Twisted Pair, FF = Fixed Fiber, SPF = Small Form Pluggable
** Order Fiber or Copper SFPs separately. See SFP ordering information on pages 50 and 51.
To order a standalone model, add a sufx to the model number as follows:
- A: Tabletop with US AC to DC Power Supply Adapter (supports DIN-rail Bracket)
- B: Tabletop with Universal AC to DC Power Supply Adapter (supports DIN-rail Bracket)
- C: Tabletop with DC Power Terminal Connector (supports DIN-rail Bracket)
- D: Wall-mount with US AC to DC Power Supply Adapter
- E: Wall-mount with Universal AC to DC Power Supply Adapter
- F: Wall-mount with DC Power Terminal Connector
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Contact Omnitron for other ber options and extended temperature (-40 to +75°C) models.
iConverter
12
13

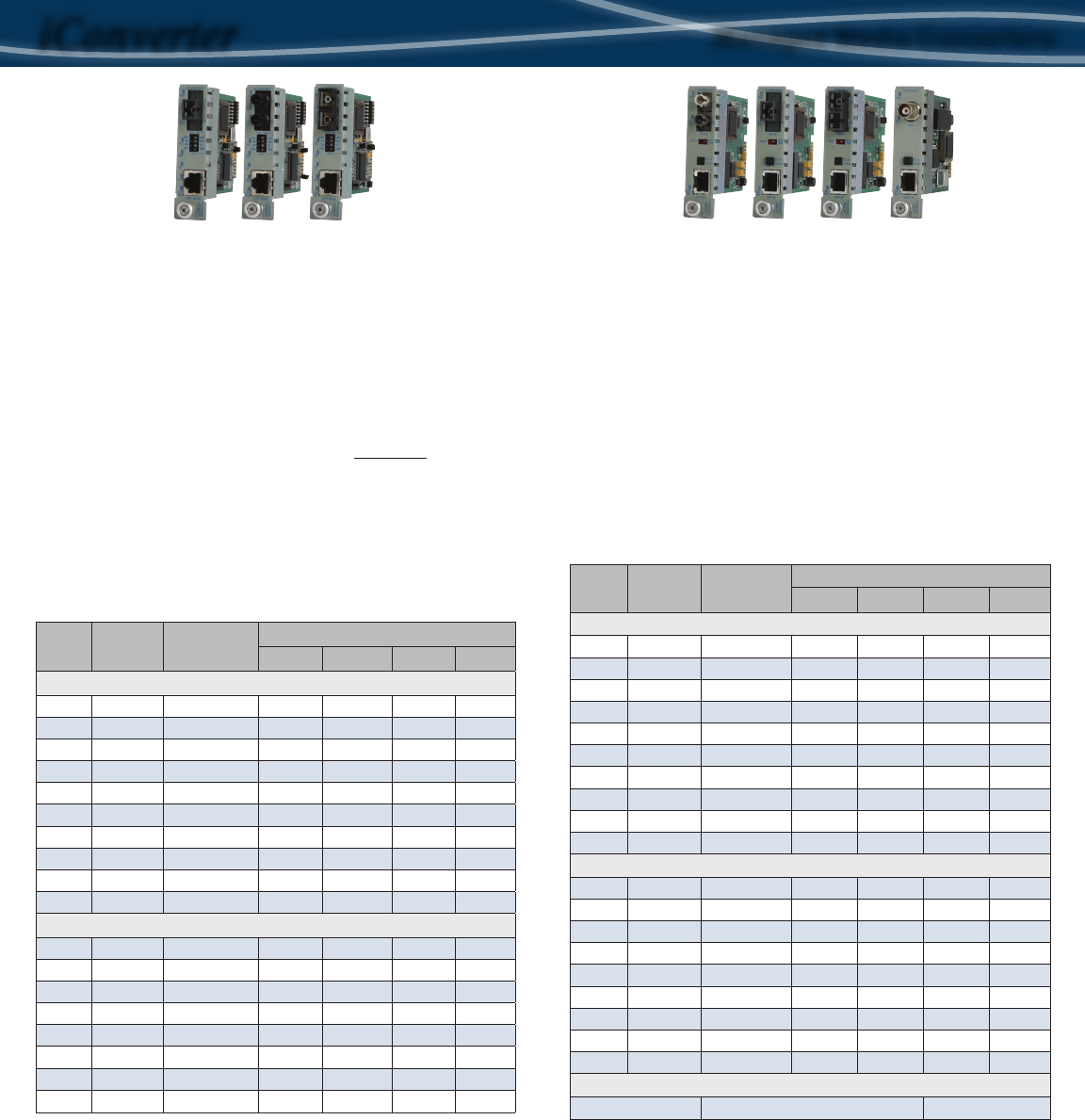

Copper to Fiber Ethernet NIDs
10/100M2 10/100BASE-TX to 100Base-FX NIDs
GX/TM2 10/100/1000BASE-T to 1000BASE-X NIDs
The 10/100Mbps 10/100M2 and the 10/100/1000Mbps GX/TM2
are copper to ber Ethernet demarcation NIDs.
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC
iConverter 10/100M2
MM 5km 1310 8900N-0 8902N-0 8904N-0 8906N-0
SM 30km 1310 8901N-1 8903N-1 8905N-1 8907N-1
SM 60km 1310 8901N-2 8903N-2 - 8907N-2
SM 120km 1550 - 8903N-3 - 8907N-3
SM-SF 20km 1310/1550 - 8910N-1* - -
SM-SF 20km 1550/1310 - 8911N-1* - -
SM-SF 40km 1310/1550 - 8910N-2* - -
SM-SF 40km 1550/1310 - 8911N-2* - -
SFP** 8919N-0
iConverter GX/TM2
MM 220m/500m 850 8920N-0 8922N-0 8924-0 8926-0
SM 12km 1310 8921N-1 8923N-1 8925-1 8927N-1
SM 34km 1310 - 8923N-2 - 8927N-2
SM 80km 1550 - 8923N-3 - 8927N-3
SM 110km 1550 - 8923N-4 - 8927N-4
SM 140km 1550 - 8923N-5 - 8927N-5
SM-SF 20km 1310/1550 - 8930N-1* - -
SM-SF 20km 1550/1310 - 8931N-1* - -
SM-SF 40km 1310/1550 - 8930N-2* - -
SM-SF 40km 1550/1310 - 8931N-2* - -
SFP 8939N-0**
* Single-ber converters must be used in pairs.
** Order SFPs separately. See SFP ordering information on pages 50 and 51.
To order a standalone model, add a sufx to the model number as follows:
- A: Tabletop with US AC to DC Power Supply Adapter (supports DIN-rail Bracket)
- B: Tabletop with Universal AC to DC Power Supply Adapter (supports DIN-rail Bracket)
- C: Tabletop with DC Power Terminal Connector (supports DIN-rail Bracket)
- D: Wall-mount with US AC to DC Power Supply Adapter
- E: Wall-mount with Universal AC to DC Power Supply Adapter
- F: Wall-mount with DC Power Terminal Connector
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Contact Omnitron for other ber options and extended temperature (-40 to +75°C) models.
iConverter M2 Network Interface Devices
iConverter M2 Class Network Interface Devices (NIDs) are
intelligent media converters with integrated IP-based and IP-less
(Secure OAM or 802.3ah) management that support advanced
networking capabilities.
The M2 NIDs provide MEF 9 and 14 certied Ethernet service
demarcation in telecom networks, and mission critical managed
ber links in Next-Generation enterprise networks. The carrier-
grade M2 NIDs support 802.3ah Link OAM performance
monitoring and fault detection. They are available as plug-
in modules, or as standalone wall-mounted or tabletop units
with optional DIN-rail mount. The iConverter standalone NID
provides a managed demarcation point, and the plug-in module
can manage a chassis of modules or be managed as a regular
converter by another management module.
Remote management through TELNET, SNMPv1/2c/3 and •
IP-less 802.3ah OAM extensions
802.3ah Link OAM Fault Detection and Performance Monitoring•
802.1Q Tag VLAN with Q-in-Q and 802.1ad Provider VLAN •
for terminating Ethernet Virtual Circuits
Secure IP-less and 802.3ah OAM Management Channels •
802.1p Quality of Service (QoS) prioritization•
Port Rate Limiting, Port Access Control and MIB statistics•
Advanced Link Fault Detection and Propagation modes•
Fixed ber connectors for dual or single-ber•
Small Form Pluggable (SFP) ber transceivers for standard •
and CWDM wavelengths
2,048 byte (Fast Ethernet modules) and 10,240 byte (Gigabit •
modules) Jumbo Frames
Granular 64Kbps Rate Limiting•
L2CP Policy Control •
Fiber to Fiber Ethernet NIDs
2FXM2 100BASE-FX to 100BASE-FX NIDs
2GXM2 1000BASE-X to 1000BASE-X NIDs
The 100Mbps 2FXM2 and the Gigabit 2GXM2 are ber to ber
Ethenet demarcation NIDs.
Description Model
2FXM2 100Mbps Fiber to Fiber NID 8959N-0
2GXM2 Gigabit Fiber to Fiber NID 8999N-0
Network Interface Devices
iConverter
14
15
iConverter GX/T
10/100/1000 Ethernet UTP to Fiber Converter Modules
The iConverter GX/T provides
10/100/1000
BASE-T UTP copper
to 1000BASE-X
Gigabit ber conversion, and supports advanced
networking features and link fault detection modes.
Supports the IEEE 802.1Q VLAN and the IEEE 802.1p QoS •
prioritization standards
Port Access Control and reporting of MIB Statistics•
Multimode (MM), single-mode (SM) and single-ber (SF) •
ST, SC, MT-RJ or LC ber connectors•
User-selectable or auto-negotiation for Pause and •
Full/Half-Duplex
Advanced Fault Detection modes for quick fault detection, •
isolation and reporting
Ethernet backplane ports for expansion to adjacent modules•
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC
MM 220m/550m 850 8520-0 8522-0 8524-0 8526-0
SM 12km 1310 8521-1 8523-1 8525-1 8527-1
SM 34km 1310 - 8523-2 - 8527-2
SM 80km 1550 - 8523-3 - 8527-3
SM 110km 1550 - 8523-4 - 8527-4
SM 140km 1550 - 8523-5 - 8527-5
SM-SF 20km 1310/1550 - 8530-1* - -
SM-SF 20km 1550/1310 - 8531-1* - -
SM-SF 40km 1310/1550 - 8530-2* - -
SM-SF 40km 1550/1310 - 8531-2* - -
* Single-ber converters must be used in pairs.
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Contact Omnitron for other ber options and extended temperature (-40 to +75°C) models.

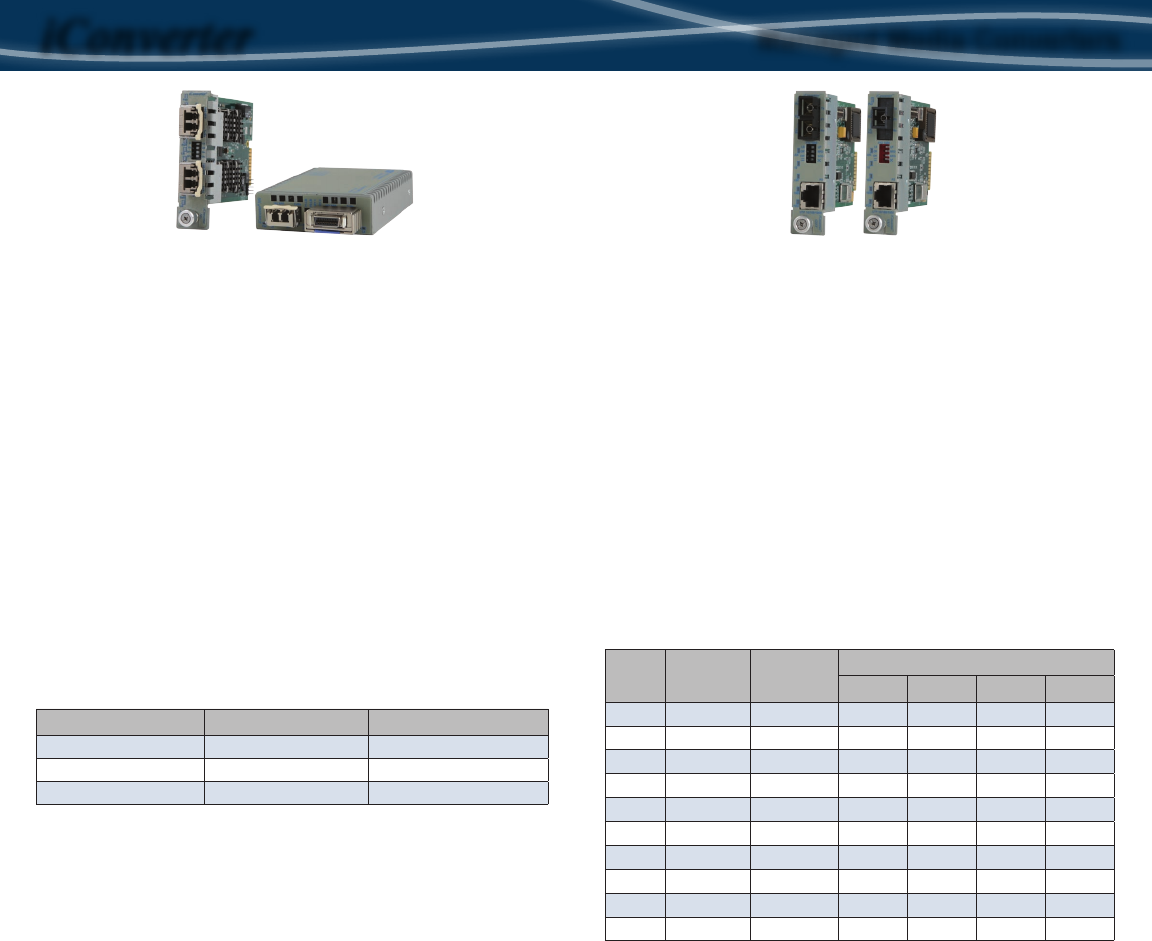

iConverter XG
10 Gigabit Converter/Transponder Modules
The iConverter XG is a 10 Gigabit, protocol-transparent media
converter with two pluggable transceiver ports. The iConverter
XG is available as a compact, unmanaged standalone unit, or as
a managed plug-in module. The XG can be used as a copper-to-
ber converter, a ber mode converter, a SFP+ to XFP adapter,
a WDM transponder or a ber repeater supporting the three
Rs (regeneration, retiming and reshaping). Built-in loopback
functions, on-board status LEDs and link fault propagation modes
facilitate easy setup and quick troubleshooting.
Supports 100% trafc throughput with no packet size limits•
Protocol transparent from 9.95Gbps to 11.32Gbps•
Supports XFP and SFP+ transceivers•
Compatible with SFP+ copper direct attach cable (Twinax)•
Supports ber transceiver digital diagnostics reporting and •
alarm notication
10GBASE-CX4 XFPs enable 10G copper to ber conversion•
Port 1 Port 2 Model #
SFP+ SFP+ 8599-00
SFP+ XFP 8599-01
XFP XFP 8599-11
** Order SFP+ and XFP transceivers separately. See ordering information on page 50.
To specify standalone module type and power options, add a sufx to the model number:
- A: Tabletop with US AC to DC Power Supply Adapter (supports DIN-rail Bracket)
- B: Tabletop with Universal AC to DC Power Supply Adapter (supports DIN-rail Bracket)
- C: Tabletop with DC Power Terminal Connector (supports DIN-rail Bracket)
- D: Wall-mount with US AC to DC Power Supply Adapter
- E: Wall-mount with Universal AC to DC Power Supply Adapter
- F: Wall-mount with DC Power Terminal Connector
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
For extended temperature (-40 to +75°C), add a "Z" to the end of the model number.
Managed Media Converters
iConverter
16
17

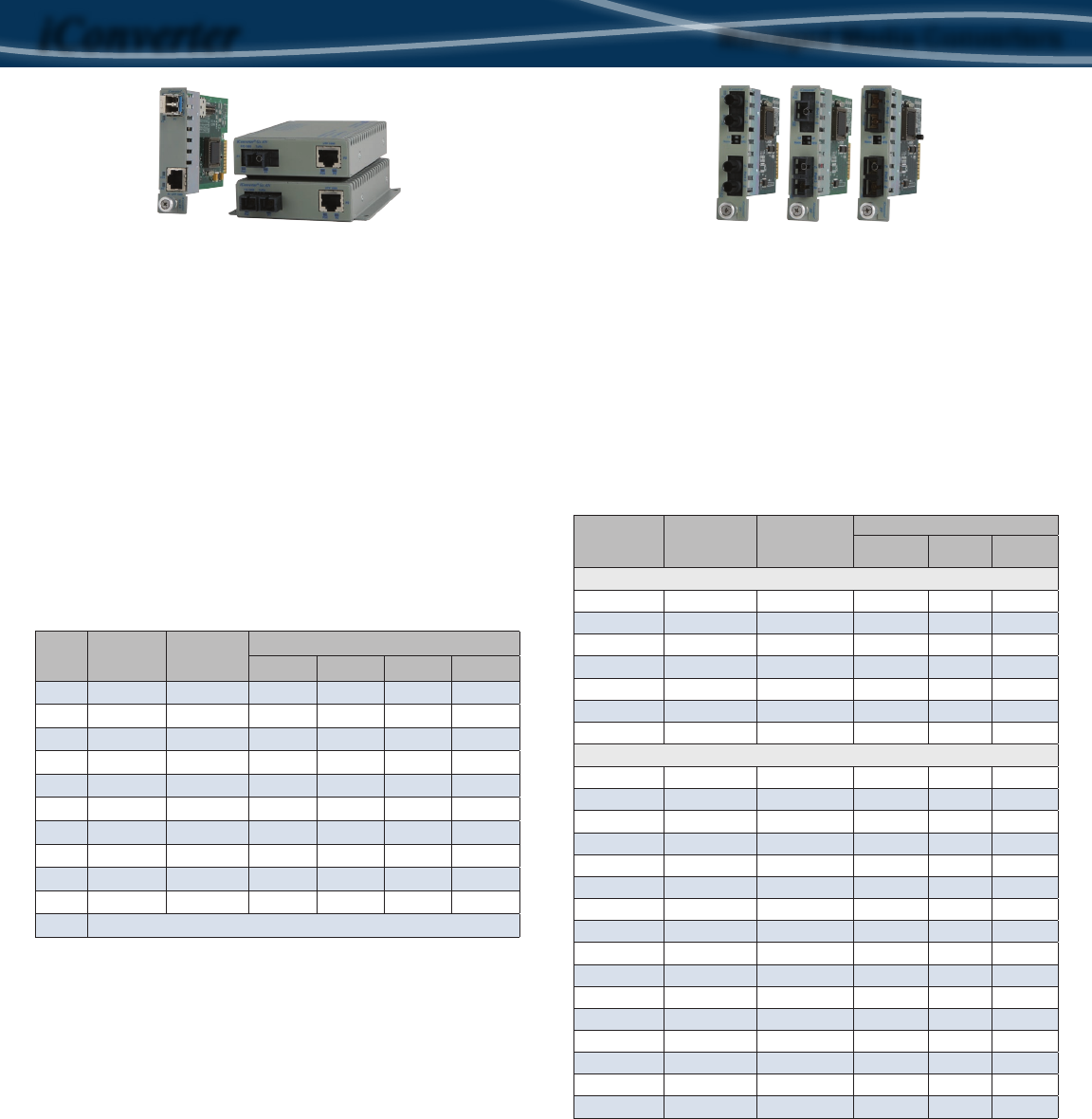

iConverter Gx AN
Gigabit Ethernet UTP to Fiber Converter Modules
The iConverter Gx AN provides 1000BASE-T UTP copper to
1000BASE-X
Gigabit ber conversion, and is available as a
unmanaged standalone unit, or as a managed chassis plug-in
module. The Gx AN supports auto-negotiation on both ports, and
a variety of link fault detection modes for easy fault detection and
isolation.
Multimode (MM), single-mode (SM) and single-ber (SF)•
ST, SC, MT-RJ and LC ber connectors•
SFP transceivers for standard and CWDM wavelengths•
User-selectable UTP port auto-negotiation for Pause and •
Full/Half-Duplex
Fiber port manual or auto-negotiation•
Advanced Fault Detection modes for quick fault detection, •
isolation and reporting
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC
MM 220m/550m 850 8500N-0 8502N-0 8504N-0 8506N-0
SM 12km 1310 8501N-1 8503N-1 8505N-1 8507N-1
SM 34km 1310 8503N-2 - 8507N-2
SM 80km 1550 8503N-3 - 8507N-3
SM 110km 1550 8503N-4 - 8507N-4
SM 140km 1550 8503N-5 - 8507N-5
SM-SF 20km 1310/1550 8510N-1* - -
SM-SF 20km 1550/1310 8511N-1* - -
SM-SF 40km 1310/1550 8510N-2* - -
SM-SF 40km 1550/1310 8511N-2* - -
SFP 8519N-0**
*Single-ber converters must be used in pairs.
** Order SFP separately. See SFP ordering information on pages 50 and 51.
To order a standalone Gx AN model, add a sufx to the model number as follows:
- A: Tabletop with US AC to DC Power Supply Adapter (supports DIN-rail Bracket)
- B: Tabletop with Universal AC to DC Power Supply Adapter (supports DIN-rail Bracket)
- C: Tabletop with DC Power Terminal Connector (supports DIN-rail Bracket)
- D: Wall-mount with US AC to DC Power Supply Adapter
- E: Wall-mount with Universal AC to DC Power Supply Adapter
- F: Wall-mount with DC Power Terminal Connector
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Example 8502N-0-AW = MM, 220m/550m, 850nm, SC, Tabletop with US AC Power Supply,
wide temperature.
Contact Omnitron for other ber options and extended temperature (-40 to +75°C) models.
iConverter GX/X and GX/F
Gigabit Switch/Fiber Converters and
Gigabit to Fast Ethernet Switch/Fiber Converters
The iConverter GX/X is a Gigabit to Gigabit Ethernet ber to
ber converter, and the iConverter GX/F is a Gigabit to Fast
Ethernet bridging ber to ber converter. They provide single
mode to multimode and dual ber to single-ber conversion, and
perform regeneration, retiming and reshaping of the ber optic
signal.
Supports IEEE 802.1Q VLAN and the 802.1p QoS standards•
Ethernet backplane ports for expansion to adjacent modules•
Fiber
Port 1/Port 2
Distance
Port 1/Port 2
Wavelength
(nm)
Port 1/Port 2
Connector Type
SC MT-RJ LC
iConverter GX/X
MM/MM 550m/550m 850/850 8542-00 8544-00 -
SM/MM 12km/550m 1310/850 8543-10 - -
SM/SM 12km/12km 1310/1310 8543-11 8545-11 8547-11
SM/SM 34km/34km 1310/1310 8543-22 - 8547-22
SM/SM 80km/80km 1550/1550 8543-33 - 8547-33
2 X SM-SF 20km/20km 13,15/13,15 8554-11* - -
2 X SM-SF 20km/20km 15,13/15,13 8557-11* - -
iConverter GX/F
MM/MM 550m/5km 850/1310 8562-00 8564-00 -
MM/SM 550m/30km 850/1310 8562-01 8564-01 -
MM/SM 550m/60km 850/1310 8562-02 - -
MM/SM 550m/120km 850/1550 8562-03 - -
SM/MM 12km/5km 1310/1310 8563-10 8565-10 -
SM/SM 12km/30km 1310/1310 8563-11 8565-11 8567-11
SM/SM 12km/60km 1310/1310 8563-12 - 8567-12
SM/SM 12km/120km 1310/1550 8563-13 - 8567-13
MM/SM-SF 550m/20km 850/13,15 8562-05* - -
MM/SM-SF 550m/20km 850/15,13 8562-07* - -
MM/SM-SF 550m/40km 850/13,15 8562-06* - -
MM/SM-SF 550m/40km 850/15,13 8562-08* - -
SM/SM-SF 12km/20km 1310/13,15 8563-15* - -
SM/SM-SF 12km/20km 1310/15,13 8563-17* - -
SM/SM-SF 12km/40km 1310/13,15 8563-16* - -
SM/SM-SF 12km/40km 1310/15,13 8563-18* - -
* Single-ber converters must be used in pairs.
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Contact Omnitron for other ber options and extended temperature (-40 to +75°C) models.
Managed Media Converters
iConverter
18
19

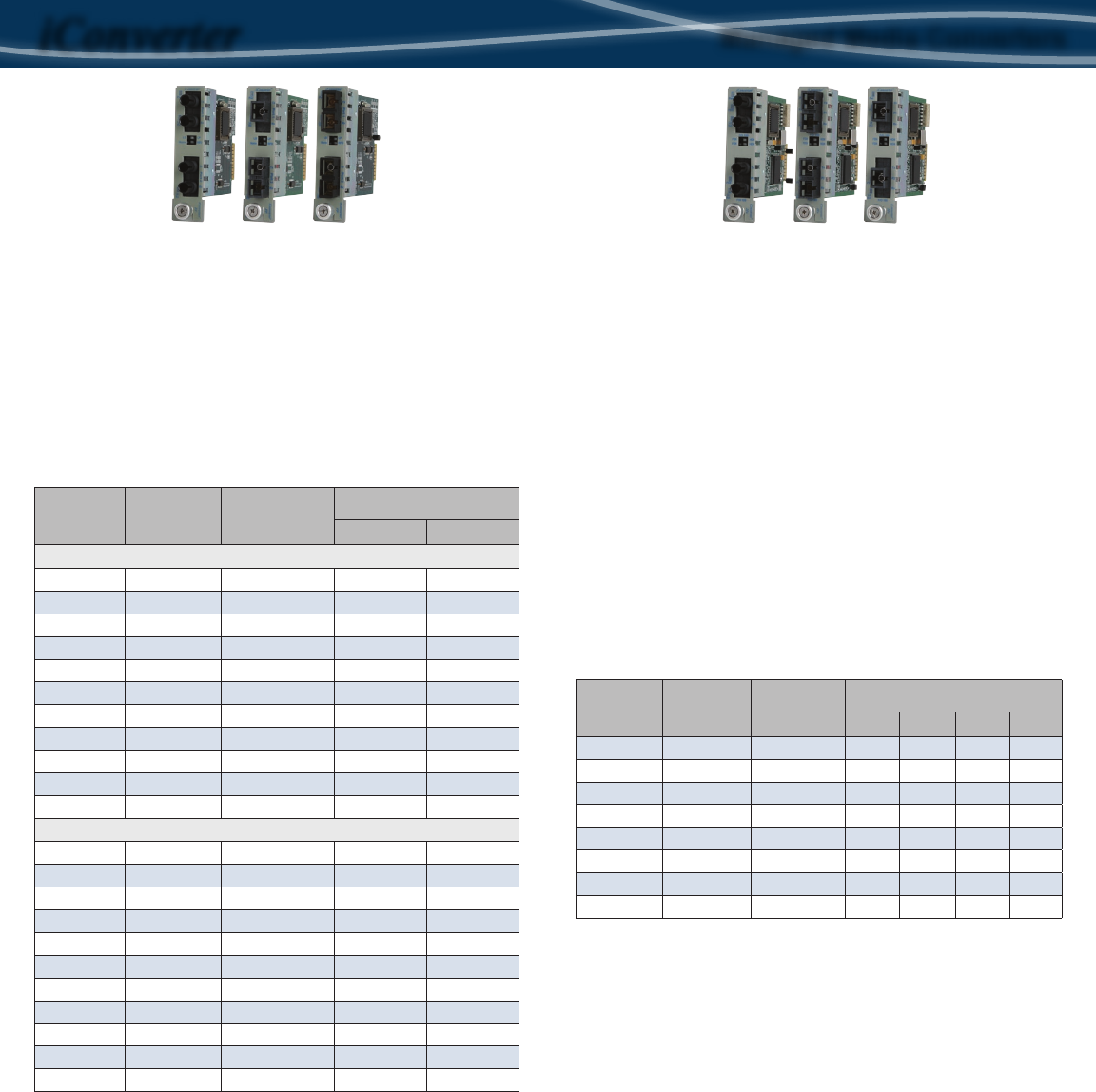

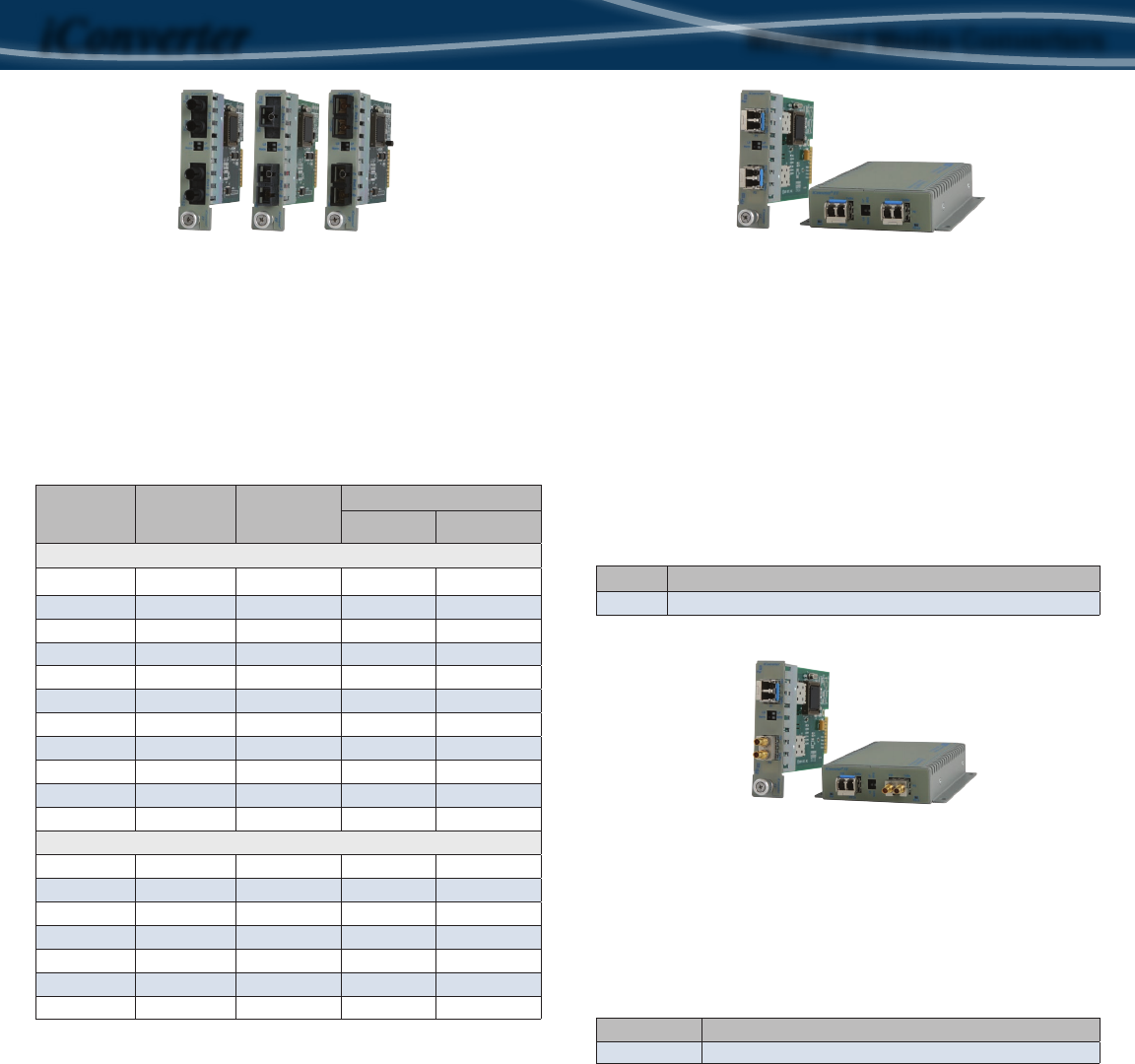

iConverter 100FF and 1000FF
Fast and Gigabit Ethernet Fiber to Fiber Converter Modules
The iConverter 100FF and 1000FF multimode to single-mode
ber converter modules extend network distances and connect
dissimilar ber network cabling. Modules are available to support
Fast Ethernet and Gigabit Ethernet.
Converts multimode (MM) to single-mode (SM) dual ber and •
dual ber to single-ber (SF)
Advanced Fault Detection modes for quick fault detection, •
isolation and reporting
Fiber
Port 1/Port 2
Distance
Port 1/Port 2
Wavelength
(nm)
Port 1/Port 2
Connector Type
ST SC
iConverter 100FF
MM/SM 5km/30km 1310/1310 8620-1 8622-1
MM/SM 5km/60km 1310/1310 8620-2 8622-2
MM/SM 5km/120km 1310/1550 - 8622-3
MM/SM-SF* 5km/20km 1310/1310-1550 8630-1** 8634-1**
MM/SM-SF* 5km/20km 1310/1550-1310 8631-1** 8635-1**
MM/SM-SF* 5km/40km 1310/1310-1550 8630-2** 8634-2**
MM/SM-SF* 5km/40km 1310/1550-1310 8631-2** 8635-2**
SM/SM-SF* 30km/20km 1310/1310-1550 8632-1** 8636-1**
SM/SM-SF* 30km/20km 1310/1550-1310 8633-1** 8637-1**
SM/SM-SF* 30km/40km 1310/1310-1550 8632-2** 8636-2**
SM/SM-SF* 30km/40km 1310/1550-1310 8633-2** 8637-2**
iConverter 1000FF
MM/SM 550m/12km 850/1310 - 8642-1
MM/SM 550m/34km 850/1310 - 8642-2
MM/SM 550m/80km 850/1550 - 8642-3
SM/SM 12km/34km 1310/1310 - 8643-2
SM/SM 12km/80km 1310/1550 - 8643-3
MM/SM-SF 550m/20km 850/1310-1550 - 8650-1**
MM/SM-SF 550m/20km 850/1550-1310 - 8651-1**
SM/SM-SF 12km/20km 1310/1310-1550 - 8652-1**
SM/SM-SF 12km/20km 1310/1550-1310 - 8653-1**
SM/SM-SF 12km/40km 1310/1310-1550 - 8652-2**
SM/SM-SF 12km/40km 1310/1550-1310 - 8653-2**
* All single-ber ports are SC connectors.
** Single-ber converters must be used in pairs.
Refer to OC3FF and OC12FF on page 34 for Standalone module ordering information.
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Contact Omnitron for other ber options and extended temperature (-40 to +75°C) models.
iConverter 2Fx
Two-Port Fast Ethernet Fiber Converter/Repeater Modules
The iConverter 2Fx is a two-port, 100BASE-FX to 100BASE-FX
managed optical switch module that operates as a ber to ber
repeater and converter. It performs regeneration, retiming and
reshaping of the Ethernet signals. The 2Fx features two Ethernet
backplane ports for connectivity to adjacent modules, enabling
scalable, multi-module congurations such as redundant rings or
ber distribution switches.
Supports IEEE 802.1Q VLAN with Q-in-Q and IEEE 802.1p •
QoS prioritization standards
Individual Port Bandwidth and Port Access Controls•
Reporting of MIB Statistics•
Multimode (MM), single-mode (SM) and single-ber (SF)•
ST, SC, MT-RJ and LC ber connectors•
Advanced Fault Detection modes for quick fault detection, •
isolation and reporting
Ethernet backplane ports for connectivity to adjacent modules•
Fiber
Port 1/Port 2
Distance
Port 1/Port 2
Wavelength
(nm)
Port 1/Port 2
Connector Type
ST SC MT-RJ LC
MM/MM 5km 1310/1310 8440-0 8442-0 8444-0 8446-0
SM/SM 30km 1310/1310 8441-1 8443-1 8445-1 8447-1
SM/SM 60km 1310/1310 8441-2 8443-2 - 8447-2
SM/SM 120km 1550/1550 - 8443-3 - 8447-3
2 X SM-SF 20km 13-15/13-15 - 8450-1* - -
2 X SM-SF 20km 15-13/15-13 - 8451-1* - -
2 X SM-SF 40km 13-15/13-15 - 8450-2* - -
2 X SM-SF 40km 15-13/15-13 - 8451-2* - -
* Single-ber converters must be used in pairs.
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Contact Omnitron for other ber options and extended temperature (-40 to +75°C) models.
Managed Media Converters
iConverter
20
21

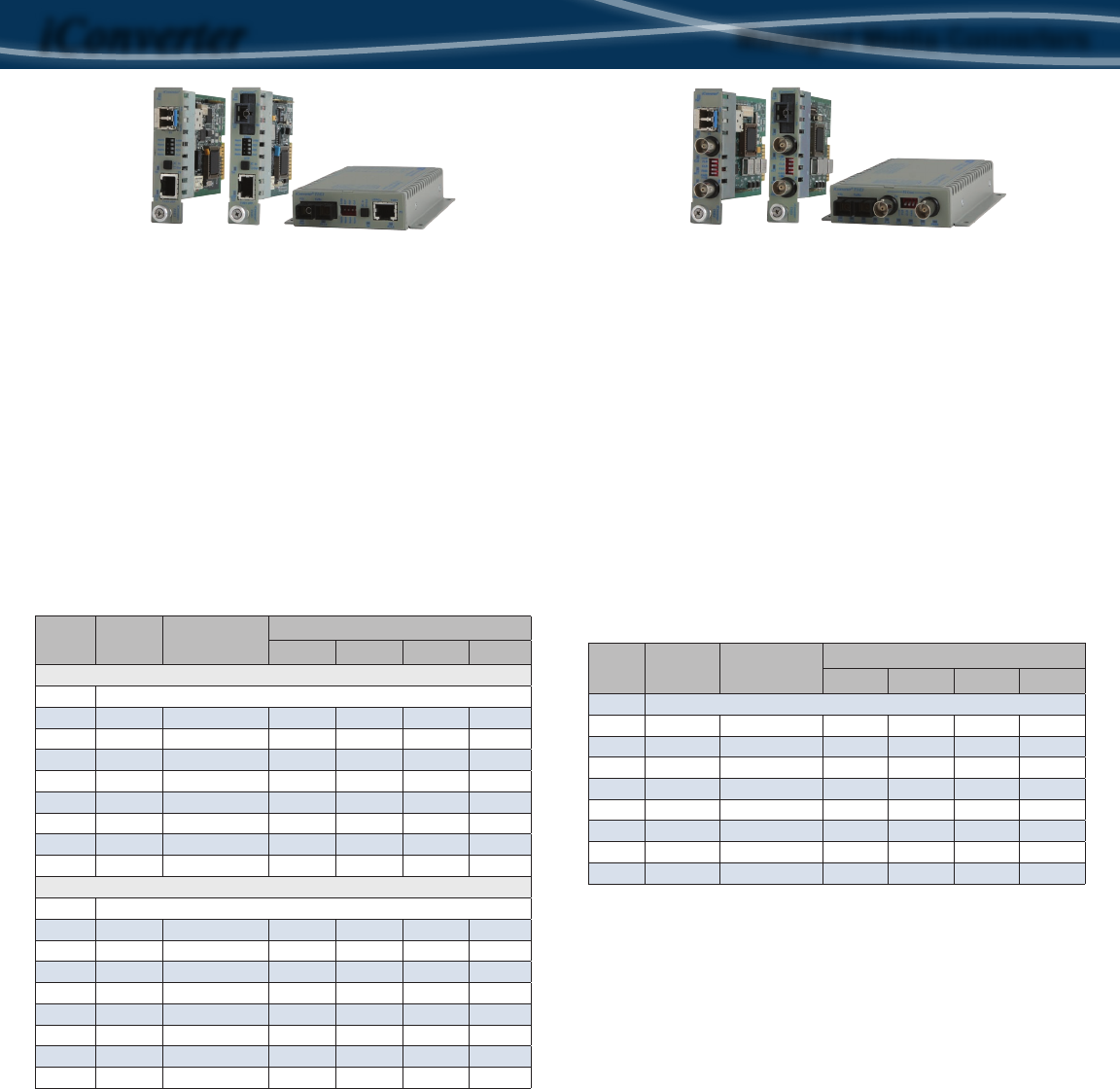

iConverter 100Fx/Tx, 10FL/T and 10T/2
100Mbps and 10Mbps Ethernet Converter Modules
The iConverter 100Fx/Tx provides 100BASE-TX UTP copper to
100BASE-FX ber conversion with auto-negotiation for Full/Half-
Duplex. It supports Link Segmentation, Link Propagation and
Remote Fault Detection modes, and features a crossover switch.
The 10FL/T is a 10BASE-FL ber to 10BASE-T UTP media
converter that supports Full/Half-Duplex and auto-crossover. It
features Remote Fault Detection, Link Segmentation and Link
Propagation modes.
The 10T/2 is a 10BASE-T UTP to 10BASE-2 coax media converter
that supports 50 ohm coax to a distance of 185m, and up to 30
workstations. It features Ethernet backplane ports for expansion
to adjacent modules.
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC
iConverter 100Fx/Tx
MM 5km 1310 8360-0 8362-0 8364-0 8366-0
SM 30km 1310 8361-1 8363-1 8365-1 8367-1
SM 60km 1310 8361-2 8363-2 - 8367-2
SM 120km 1550 - 8363-3 - 8367-3
SM-SF 20km 1310/1550 - 8370-1* - -
SM-SF 20km 1550/1310 - 8371-1* - -
SM-SF 40km 1310/1550 - 8370-2* - -
SM-SF 40km 1550/1310 - 8371-2* - -
SM-SF 60km 1310/1550 - 8370-3* - -
SM-SF 60km 1550/1310 - 8371-3* - -
iConverter 10FL/T
MM 2km 850 8300-0 8302-0 - -
MM 5km 1310 8300-1 - 8304-1 -
SM 30km 1310 8301-1 8303-1 8305-1 8307-1
SM 60km 1310 8301-2 8303-2 - 8307-2
SM 120km 1550 - 8303-3 - 8307-3
SM-SF 20km 1310/1550 - 8310-1* - -
SM-SF 20km 1550/1310 - 8311-1* - -
SM-SF 40km 1310/1550 - 8310-2* - -
SM-SF 40km 1550/1310 - 8311-2* - -
iConverter 10T/2
8340-0 100m UTP 185m Coax
*Single-Fiber converters must be used in pairs.
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Contact Omnitron for other ber options and extended temperature (-40 to +75°C) models.
iConverter 10/100 and 10/100VT
10/100 Ethernet UTP to Fiber Converter Modules
The iConverter 10/100 and 10/100VT convert 10/100Mbps UTP
copper to 100BASE-FX ber.
Multimode (MM), single-mode (SM) and single-ber (SF)•
Advanced Fault Detection modes for quick fault detection, •
isolation and reporting
Ethernet backplane ports for expansion to adjacent modules•
The iConverter 10/100VT supports these additional features:
UTP Auto-crossover•
IEEE 802.1Q VLAN with Q-in-Q and the IEEE 802.1p QoS •
prioritization standards
Individual Port Bandwidth and Port Access Controls•
Reporting of MIB Statistics•
Symmetrical Fault Detection mode•
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC
iConverter 10/100
MM 5km 1310 8380-0 8382-0 8384-0 8386-0
SM 30km 1310 8381-1 8383-1 8385-1 8387-1
SM 60km 1310 8381-2 8383-2 - 8387-2
SM 120km 1550 - 8383-3 - 8387-3
SM-SF 20km 1310/1550 - 8390-1* - -
SM-SF 20km 1550/1310 - 8391-1* - -
SM-SF 40km 1310/1550 - 8390-2* - -
SM-SF 40km 1550/1310 - 8391-2* - -
SM-SF 60km 1310/1550 - 8390-3* - -
SM-SF 60km 1550/1310 - 8391-3* - -
iConverter 10/100VT
MM 5km 1310 8800-0 8802-0 8804-0 8806-0
SM 30km 1310 8801-1 8803-1 8805-1 8807-1
SM 60km 1310 8801-2 8803-2 - 8807-2
SM 120km 1550 - 8803-3 - 8807-3
SM-SF 20km 1310/1550 - 8810-1* - -
SM-SF 20km 1550/1310 - 8811-1* - -
SM-SF 40km 1310/1550 - 8810-2* - -
SM-SF 40km 1550/1310 - 8811-2* - -
*Single-Fiber converters must be used in pairs.
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Contact Omnitron for other ber options and extended temperature (-40 to +75°C) models.
Managed Media Converters
iConverter
22
23
iConverter Tx/2Fx and Tx/2Tx
Fast Ethernet UTP to Redundant Fiber and
Fast Ethernet UTP to Redundant UTP Converter Modules
The iConverter Fast Ethernet redundant link modules convert
a single copper cable to redundant copper or redundant ber
links, and are designed for resilient networks that require link
redundancy.
100 microseconds hot fail-over backup•
User-selectable or auto-negotiation for Full/Half-Duplex •
Link Segmentation, Link Propagation and Remote Fault •
Detection modes
Crossover switch for easy installation•
Fiber/UTP Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC RJ-45
iConverter Tx/2Fx
MM 5km 1310 8420-0 8422-0 8424-0 8426-0 -
SM 30km 1310 8421-1 8423-1 8425-1 8427-1 -
SM 60km 1310 8421-2 8423-2 - 8427-2 -
SM 120km 1550 - 8423-3 - 8427-3 -
SM-SF 20km 1310/1550 -8430-1* - - -
SM-SF 20km 1550/1310 -8431-1* - - -
SM-SF 40km 1310/1550 -8430-2* - - -
SM-SF 40km 1550/1310 -8431-2* - - -
SM-SF 60km 1310/1550 -8430-3* - - -
SM-SF 60km 1550/1310 -8431-3* - - -
iConverter Tx/2Tx
UTP 100m N/A - - - - 8400-0
*Single-Fiber converters must be used in pairs.
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Contact Omnitron for other ber options and extended temperature (-40 to +75°C) models.
iConverter 4Tx and 4TxVT
4-Port 10/100 Ethernet Switch Modules
The iConverter 4Tx and 4TxVT are compact, managed 4-port
10/100 Ethernet switches with backplane ports for expansion to
adjacent modules in the chassis. They provide plug-and-play
capability with auto-negotiation and auto-crossover features
that eliminate the need for manual port conguration and
crossover cables. When used in a 2 or 5-Module Chassis with
an iConverter NID module, the 4Tx or 4TxVT provide a remotely
managed, multi-port demarcation switch. They can also be used
as unmanaged standalone switches in a 1-Module iConverter
chassis.
The iConverter 4Tx features Port VLAN, Port Access Control
and reporting of MIB Statistics.
The
iConverter
4TxVT extends the capabilities of the 4Tx with
per-port based Bandwidth Control and support of the IEEE
802.1Q VLAN (including Q-in-Q multi-stacking) and the IEEE
802.1p QoS standards.
10/100BASE-TX 4-Port UTP switch module with 1,536 bytes •
maximum frame size
Supports Port VLAN, Port Access Control and reporting of •
MIB Statistics
RJ-45 auto-crossover eliminates need for a crossover cable•
Ethernet backplane ports for expansion to adjacent modules•
4TxVT also supports Tag VLAN with Q-in-Q, QoS and per-•
port based Bandwidth Control
Module Ports Distance Model Number
iConverter 4Tx 4 UTP 100m 8480-4
iConverter 4TxVT 4 UTP 100m 8481-4
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Contact Omnitron for extended temperature (-40 to +75°C) models.
Switch Modules and Media Converters
iConverter
24
25
Module
Name Model Number
Data Rates Ports Management
Access
10 Mbps
100 Mbps
1000 Mbps
10 Gbps
# Fiber
SFP/SFP+/XFP
# Copper
Backplane
IP-Based (TELNET/SNMP)
with Management VLAN
Secure IP-Less OAM
NMM2 8000N 1
GM3 8920P-8999P See Ordering Table on Page 11
GX/TM2 8920N-8939N 1** 1
2GXM2 8999N 2**
10/100M2 8900N-8919N 11
2FXM2 8959N 2
XG 8599 **
xFF 8699 Up to 4 Gbps 2
GX/T 8520-8529 1 1
Gx AN 8500N-8519N 11
GX/X 8540-8559 2
GX/F 8560-8569 2
1000FF 8640-8659 2
10/100VT 8800-8819 1 1
10/100 8380-8399 1 1
100Fx/Tx 8360-8379 1 1
2Fx 8440-8459 2
100FF 8620-8639 2
10FL/T 8300-8319 1 1
10T/2 8340 2
4Tx 8480 4
4TxVT 8481 4
Tx/2Fx 8420-8439 2 1
Tx/2Tx 8400 3
Legend
UNL Unlimited frame packet size
* Enhanced Rate Limiting in 64k increments
** Supports Copper pluggable transceivers
Link Modes:
LP Link Propagation
RFD Remote Fault Detection
SFD Symmetrical Fault Detection
ASY Asymmetrical Link Propagation
Ethernet Module Comparison Chart
Ethernet
OAM Port Features
Link Modes
(Fault
Propagation)
Catalog
Page
Number
IEEE 802.3ah
IEEE 802.1ag/ITU-T Y.1731
Port Access Control
Port VLAN
Tag VLAN
Provider VLAN (Q-in-Q)
QoS/Prioritization
Maximum Packet Size
Rate Limiting
MIB Statistics
LP & RFD
SFD
ASY
7
10,240 * 10
10,240 * 13
10,240 * 12
2,048 * 13
2,048 * 12
UNL 14
UNL 35
1,536 15
UNL 16
1,536 17
1,536 17
UNL 18
1,536 20
1,522 20
UNL 21
1,536 19
UNL 18
UNL 21
6,250 21
1,536 22
1,536 22
UNL 23
UNL 23
iConverter
26
27
iConverter T3/E3
T3/E3 Media Converter Modules
The iConverter T3/E3 converts T3/DS3 or E3 coax to ber. The
T3/E3 operates with framed or unframed data, and can operate
with channelized or unchannelized data streams. The T3/E3
operates in pairs extending distances up to 120km.
T3 or E3 copper to ber converter•
ST, SC, MT-RJ and LC ber connectors •
SFP transceivers for standard and CWDM wavelengths•
Multimode (MM), single-mode (SM) and single-ber (SF)•
Distances up to 120km•
Supports ANSI, ETSI and ITU specications•
Supports B3ZS for T3 (DS3) and HDB3 for E3 codes•
Individual coax and ber port enable/disable•
Local and remote loopback for easy installation•
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC
SFP 8759-0**
MM 5km 1310 8740-0 8742-0 8744-0 8746-0
SM 30km 1310 8741-1 8743-1 8745-1 8747-1
SM 60km 1310 8741-2 8743-2 -8747-2
SM 120km 1550 - 8743-3 - 8747-3
SM-SF 20km 1310/1550 - 8750-1* - -
SM-SF 20km 1550/1310 - 8751-1* - -
SM-SF 40km 1310/1550 - 8750-2* - -
SM-SF 40km 1550/1310 - 8751-2* - -
* Single-Fiber converters must be used in pairs.
** Order SFP separately. See SFP ordering information on pages 50 and 51.
To order an unmanaged standalone module, add a sufx the model number as follows:
D = Wall-Mount with External US AC Power Supply
E = Wall-Mount with External Universal AC Power Supply
F = Wall-Mount with DC Terminal Power
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
For extended temperature (-40 to +75°C), add a “Z” to the end of the model number.
Example: 8740-0-DW = T3/E3, MM, 5km, 1310, Wall-Mount External US AC Power Supply, wide
temperature
For other congurations, please contact Omnitron.
iConverter T1/E1
T1/E1 Copper to Fiber Media Converter Modules
The iConverter T1/E1 converts UTP or coax copper to multimode
or single-mode ber to extend T1 or E1 to distances up to 120km.
A variety of test modes facilitate easy installation and testing of
the ber link without the need for external test equipment.
Converts UTP or coax T1 or E1 to ber•
ST, SC, MT-RJ and LC ber connectors•
SFP transceivers for standard and CWDM wavelengths •
Multimode (MM), single-mode (SM) and single-ber (SF)•
Supports ANSI, AT&T, ITU and ETSI standards•
Supports AMI, B8ZS and HDB3 line codes•
User-selectable Local Loopback and a variety of test modes•
Crossover switch on RJ-45/RJ-48 port for easy conguration•
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC
iConverter T1/E1 Copper RJ-45/RJ-48 to Fiber
SFP 8719-0**
MM 5km 1310 8700-0 8702-0 8704-0 8706-0
SM 30km 1310 8701-1 8703-1 8705-1 8707-1
SM 60km 1310 8701-2 8703-2 - 8707-2
SM 120km 1550 - 8703-3 - 8707-3
SM-SF 20km 1310/1550 -8710-1* - -
SM-SF 20km 1550/1310 -8711-1* - -
SM-SF 40km 1310/1550 -8710-2* - -
SM-SF 40km 1550/1310 -8711-2* - -
iConverter T1/E1 Copper Coax + RJ-45/RJ-48 to Fiber*
SFP 8739-0**
MM 5km 1310 8720-0 8722-0 8724-0 8726-0
SM 30km 1310 8721-1 8723-1 8725-1 8727-1
SM 60km 1310 8721-2 8723-2 - 8727-2
SM 120km 1550 - 8723-3 - 8727-3
SM-SF 20km 1310/1550 - 8730-1* - -
SM-SF 20km 1550/1310 - 8731-1* - -
SM-SF 40km 1310/1550 - 8730-2* - -
SM-SF 40km 1550/1310 - 8731-2* - -
*The T1/E1 Copper Coax + RJ-45/RJ-48 to Fiber converter is only available as a 2-slot chassis
plug-in module, and not compatible with 5-Module or 1-Module chassis.
** Order SFPs separately. See SFP ordering information on pages 50 and 51.
See additional ordering information on page 27.
Managed Media Converters
iConverter
28
29
T1/E1 Multiplexers
iConverter 4xT1/E1 MUX and TM3 Transport
Modular T1/E1 Multiplexer Solution
iConverter T1/E1 multiplexer and transport modules combine to
provide a exible and scalable T1/E1 ber multiplexer.
This modular solution is comprised of the iConverter TM3 ber
transport module and the iConverter 4xT1/E1 4-port multiplexer
module installed in a 2, 5 or 19-module chassis. Each TM3 can
support up to four 4xT1/E1 MUX modules, for multiplexing up to sixteen
T1/E1 circuits per ber transport link. Ethernet trafc can also be
multiplexed with the T1/E1 trafc through a 10/100/1000 UTP port.
The modular T1/E1 multiplexers operate in a back-to-back
conguration, with one TM3 transport module at each end of the
ber link
.
Monitoring, conguration and remote testing is accessed through the
TM3 serial console port, IP-based SNMP or IP-less OAM channels.
24 hour T1/E1 statistic logging•
Supports remotely-initiated T1 loop-up commands•
Manageable via SNMP, TELNET or serial port•
Optional external clock I/O port•
iConverter TM3 Transport Module
Fiber Distance Wavelength
(nm)
Connector Type
ST SC SFP
SFP - - - - 2439-0-T**
MM-DF 220/550m 850 2420-0-T 2422-0-T -
MM-DF 12km 1310 2421-1-T 2423-1-T -
SM-DF 34km 1310 2421-2-T 2423-2-T -
SM-DF 80km 1550 - 2423-3-T -
SM-DF 110km 1550 - 2423-4-T* -
SM-DF 140km 1550 - 2423-5-T* -
SM-SF 20km 1550/1310 -2430-1-T* -
SM-SF 20km 1310/1550 2431-1-T* -
SM-SF 40km 1310/1550 -2430-2-T* -
SM-SF 40km 1550/1310 -2431-2-T* -
* Single-Fiber modules must be ordered in pairs.
** Order SFP separately. See SFP ordering information on pages 50 and 51.
To order a wide temperature (-40 to 60°C) TM3 module, add a “W” to the end of the model number.
iConverter 4xT1/E1 MUX Module
Number of Ports 4 T1/E1 4 T1/E1 with Clock I/O
Model Number 8485-4 8486-4
To order a wide temperature (-40 to 60°C) 4xT1/E1 module, add a “W” to the end of the model number.
iConverter T1/E1 MUX/M
16-Port T1/E1 Fixed-Conguration Multiplexers
The iConverter T1/E1 MUX multiplexes up to sixteen T1s or E1s
and one 10/100/1000 Ethernet onto a ber optic transport link.
The T1/E1 MUXes
operate in a back-to-back conguration, with one
multiplexer at each end of the ber transport link
. The T1/E1 copper
interfaces are available in 4, 8, 12 or 16 RJ-48 port congurations.
Small Form Pluggable (SFP) transceivers or xed ber •
connectors
Supports multimode, single-mode dual ber and single-mode •
single-ber in standard and CWDM wavelengths
Manageable via SNMP, TELNET or serial port•
Congurable alarm relay contacts for audio/visual fault •
notication
Supports local and remote loop-back modes•
Fiber Distance Wavelength
(nm)
Connector Type
ST SC SFP
SFP - - - - 2439-0**
MM-DF 220/550m 850 2420-0 2422-0 -
MM-DF 12km 1310 2421-1 2423-1 -
SM-DF 34km 1310 - 2423-2 -
SM-DF 80km 1550 - 2423-3 -
SM-DF 110km 1550 - 2423-4 -
SM-DF 140km 1550 - 2423-5 -
SM-SF 20km 1550/1310 -2430-1* -
SM-SF 20km 1310/1550 2431-1* -
SM-SF 40km 1310/1550 - 2430-2* -
SM-SF 40km 1550/1310 -2431-2* -
9140-3 Adapter Cable RJ-48 to BNC 3 ft
To order the number of T1/E1 ports in the
chassis, add a number from the list below
to the part number as shown: 24xx-x-Yz
To order AC or DC power supplies, add a
number from the list below to the end of the
part number as shown: 24xx-x-yZ
1 - 4 ports total
2 - 8 ports total
3 - 12 ports total
4 - 16 ports total
1 - One AC Power Supply
2 - Two AC Power Supplies
3 - One 48VDC Power Supply
4 - Two 48VDC Power Supplies
5 - One 24VDC Power Supply
6 - Two 24VDC Power Supplies
For wide temperature (-40 to 60°C), add a “W” to the end of the model number - 24xx-x-yzW
Example: 2421-0-46W = MM-DF, 12km, 850nm, Four 4-Port MUX Modules (16 ports total),
Two 24VDC Power Supplies, wide temperature.
* Single-Fiber MUXes Tx and Rx are reversed at each end. For example the 2430-1 must be
ordered with the 2431-1
** Order SFP separately. See SFP ordering information on pages 50 and 51.
iConverter
30
31

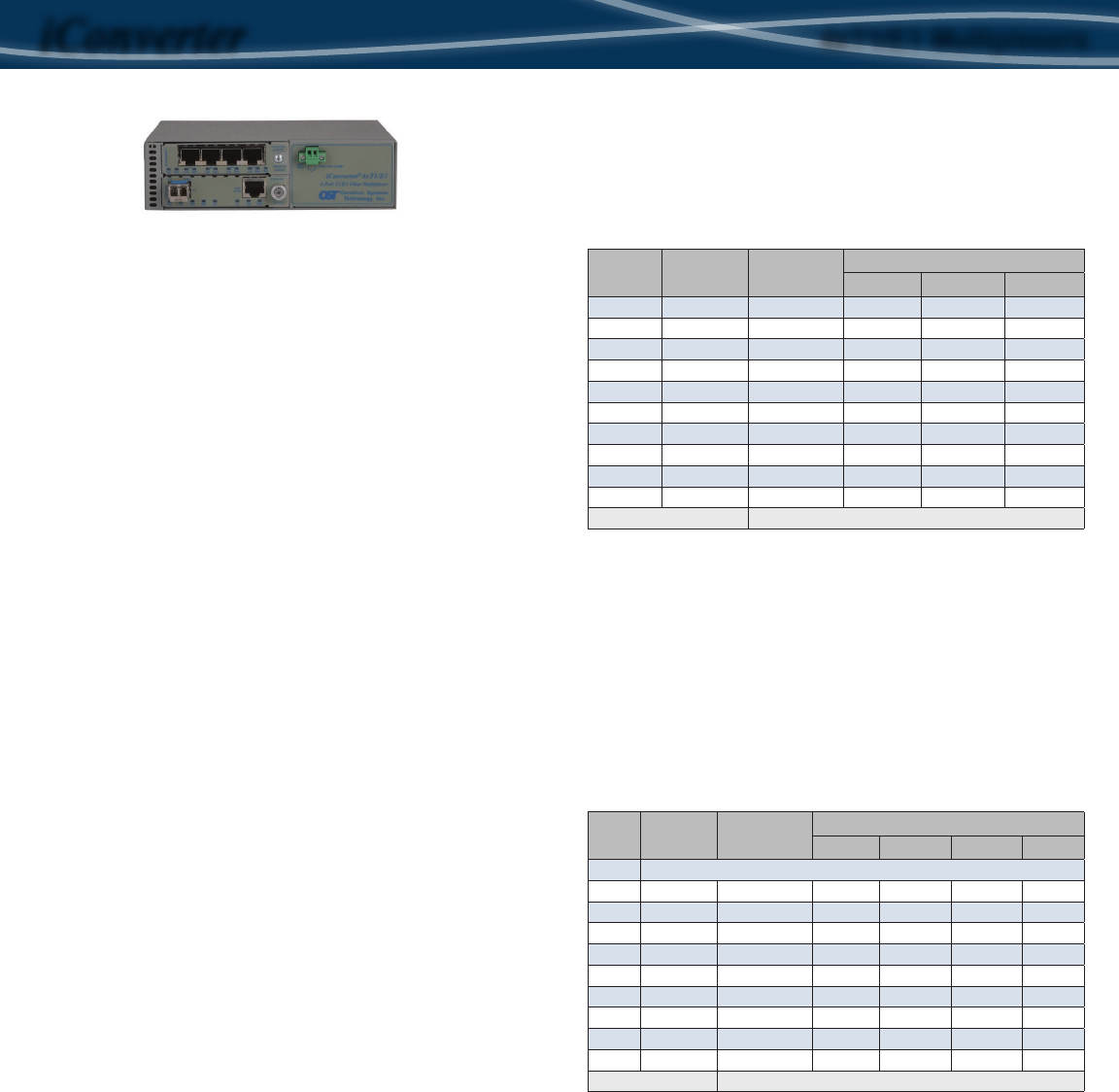

iConverter 4xT1/E1 MUX/M
Managed Fixed-Conguration T1/E1 Multiplexers
10/100/1000 UTP Ethernet multiplexed with up to four •
independent T1 or E1 circuits
Managed via local serial port, TELNET or SNMP•
Fiber Distance Wavelength
(nm)
Connector Type
ST SC SFP
MM-DF 220/550m 850 8820N-5 8822N-5 8839N-0**
MM-DF 12km 1310 8820N-0 8822N-0
SM-DF 34km 1310 8821N-1 8823N-1
SM-DF 80km 1310 8823N-2
SM-DF 110km 1550 - 8823N-3
SM-DF 140km 1550 - 8823N-5
SM-SF 20km 1310/1550 - 8830N-1* -
SM-SF 20km 1550/1310 - 8831N-1* -
SM-SF 40km 1310/1550 - 8830N-2* -
SM-SF 40km 1550/1310 - 8831N-2* -
9140-3 Adapter Cable RJ-48 to BNC 3 ft
* Single-Fiber MUXes have the Tx and Rx reversed at each end. For example, the 8830N-1
must be ordered with the 8831N-1.
** Order SFP separately. See SFP ordering information on pages 50 and 51.
To order AC power, add a "B" to the model number - 88xx-x-B
To order DC power, add a "C" to the model number - 88xx-x-C
To order wide temperature (-40 to 60°C), add a “W” to the end of the model number - 88xxN-x-xW
Example: 8820N-0-BW = MM-DF, 12km, 1310nm, ST, AC power, wide temperature
iConverter 4xT1/E1 MUX
Unmanaged Fixed-Conguration T1/E1 Multiplexers
Optional 10/100 UTP Ethernet multiplexed with up to four •
independent T1 or E1 circuits
Cost-effective, unmanaged T1/E1 Multiplexer•
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC
SFP 8839-0**
MM-DF 2km 850 8820-5 8822-5 - -
MM-DF 5km 1310 8820-0 8822-0 8824-0 8826-0
SM-DF 30km 1310 8821-1 8823-1 8825-1 8827-1
SM-DF 60km 1310 8823-2 - 8827-2
SM-DF 120km 1550 - 8823-3 - 8827-3
SM-SF 20km 1310/1550 - 8830-1* - -
SM-SF 20km 1550/1310 - 8831-1* - -
SM-SF 40km 1310/1550 - 8830-2* - -
SM-SF 40km 1550/1310 - 8831-2* - -
9140-3 Adapter Cable RJ-48 to BNC 3 ft
* Single-Fiber MUXes have the Tx and Rx reversed at each end. For example, the 8830-1 must
be ordered with the 8831-1.
** Order SFP separately. See SFP ordering information on pages 50 and 51.
To order an optional 10/100 Ethernet port, add a "U" to the model number - 88xxU-x-x
To order AC power, add a "B" to the model number - 88xx-x-B
To order DC power, add a "C" to the model number - 88xx-x-C
To order wide temperature (-40 to 60°C), add a “W” to the end of the model number - 88xx-x-xW
Example: 8820U-5-BW = MM-DF, 2km, 850nm, ST, 10/100 Ethernet port, AC power,
wide temperature
iConverter 4xT1/E1 MUX and 4xT1/E1 MUX/M
T1/E1 Managed and Unmnaged Fixed-Conguration
Multiplexers
The iConverter Managed and Unmanaged 4xT1/E1 MUXes
multiplex up to four T1/E1 copper circuits and an Ethernet UTP
service onto a ber optic transport link. The 4xT1/E1 MUXes
operate in a back-to-back conguration, with one multiplexer at
each end of the ber link.
The four copper ports support RJ-48 connectors for balanced
T1/E1 applications. An optional adapter cable is available to convert
to BNC interfaces for unbalanced E1 transport applications.
The 4xT1/E1 MUXes are available with AC or DC power. The AC
models accept AC power input ranging from 100VAC to 240VAC,
50/60Hz, and the DC models accept 18VDC to 60VDC.
Supports multimode, single-mode dual ber and single-mode •
single-ber in standard and CWDM wavelengths
Small Form Pluggable (SFP) transceivers or xed ber •
connectors
Congurable alarm relay contacts for audio/visual fault •
notication
AMI, B8ZS and HDB3 line codes•
Local and remote loop-back, and circuit test modes•
Alarm relay and LEDs provide fault notication for loss of •
power, LOS and AIS
4xT1/E1 Multiplexers
iConverter
32
33

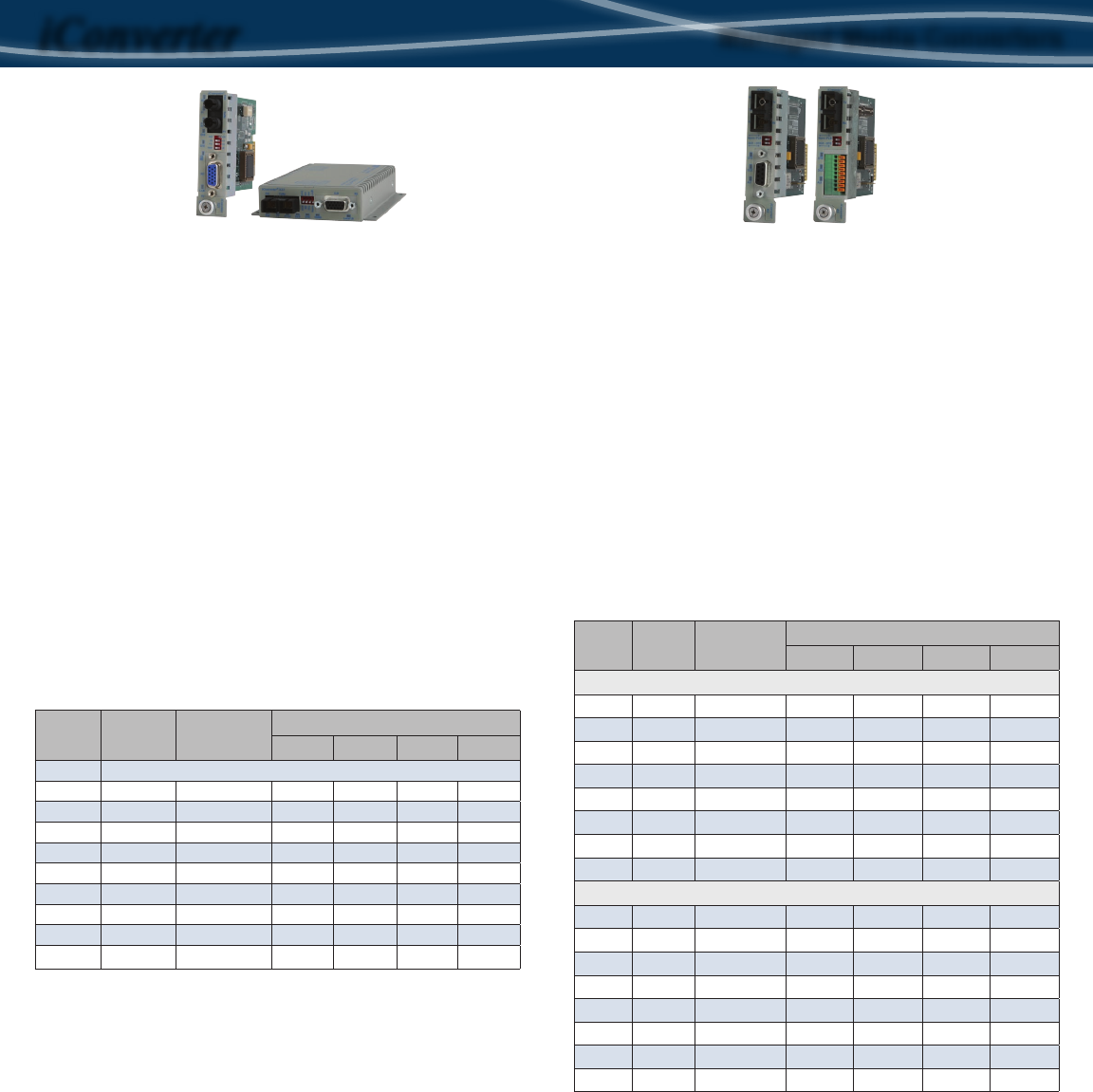

iConverter RS232 and RS422/485
Serial RS232 & RS422/485 to Fiber Converter Modules
The iConverter RS232 and iConverter RS422/485 are serial
to ber converters that extend serial protocol over ber. They
provide easy connection to serial devices with a full complement
of control signaling lines and DIP-switch selection for DTE or
DCE connections. The serial port interface is available with a
DB-9 connector or a terminal block connector for eld wiring.
The RS232 provides automatic baud rate detection•
The RS422/485 provides automatic Full-Duplex baud rate •
detection in Point-to-Point operation
The RS422/485 supports point-to-multipoint operation in Half-•
Duplex and Full-Duplex at baud rates up to 921,600 baud
Both the RS232 and RS422/485 feature a remote ber •
loopback switch for easy testing of ber link, even during
serial transmission
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC
iConverter RS232
MM 5km 1310 8760-0 8762-0 8764-0 8766-0
SM 30km 1310 8761-1 8763-1 8765-1 8767-1
SM 60km 1310 8761-2 8763-2 - 8767-2
SM 120km 1550 - 8763-3 - 8767-3
SM-SF 20km 1310/1550 - 8770-1* - -
SM-SF 20km 1550/1310 - 8771-1* - -
SM-SF 40km 1310/1550 - 8770-2* - -
SM-SF 40km 1550/1310 - 8771-2* - -
iConverter RS422/485
MM 5km 1310 8780-0 8782-0 8784-0 8786-0
SM 30km 1310 8781-1 8783-1 8785-1 8787-1
SM 60km 1310 8781-2 8783-2 - 8787-2
SM 120km 1550 - 8783-3 - 8787-3
SM-SF 20km 1310/1550 - 8790-1* - -
SM-SF 20km 1550/1310 - 8791-1* - -
SM-SF 40km 1310/1550 - 8790-2* - -
SM-SF 40km 1550/1310 - 8791-2* - -
* Single-Fiber converters must be used in pairs.
For modules with terminal block serial ports, add a “T” before the dash “-” in the model number.
Examples: 8760T-0, 8780T-0.
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Contact Omnitron for other ber options and extended temperature (-40 to +75°C) models.
Managed Media Converters
iConverter X21
Serial X.21 to Fiber Converter Modules
The iConverter X21 serial-to-ber media converter supports
X.21 and RS-530 applications, and features several conguration
modes to enable connections with a wide variety of X.21 and
RS-530 devices. The X21 can auto-detect and congure itself to
match the baud rate of the connected device up to 8.192Mbps.
X.21 and RS-530•
1
serial to ber media converter
Auto-conguration of baud rates•
DCE-sourced or terminal clock modes•
Supports serial data rates up to 8.192Mbps•
Supports different serial interface genders•
Features local loop-back for easy testing of ber and •
serial interfaces
Available as a manageable plug-in module and unmanaged •
standalone unit
Small Form Pluggable (SFP) transceivers for standard or •
CWDM wavelengths
ST, SC, LC and MT-RJ xed-ber connectors•
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC
SFP 8859-0**
MM 2km 850 8840-5 - - -
MM 5km 1310 8840-0 8842-0 8844-0 8846-0
SM 30km 1310 8841-1 8843-1 8845-7 8847-1
SM 60km 1310 8841-2 8843-2 -8847-2
SM 120km 1550 - 8843-3 -8847-3
SM-SF 20km 1310/1550 - 8850-1* - -
SM-SF 20km 1550/1310 - 8851-1* - -
SM-SF 40km 1310/1550 - 8850-2* - -
SM-SF 40km 1550/1310 - 8851-2* - -
1
Supports RS-530 DCE and DTE co-directional timing, Tx and Rx data, and two control lines.
* Single-ber converters must be used in pairs.
** Order SFP separately. See SFP ordering information on pages 50 and 51.
To order an unmanaged standalone model, add a sufx to the model number as follows:
- A: Tabletop with US AC Power Supply Adapter (supports DIN-rail Bracket)
- B: Tabletop with Universal AC Power Supply Adapter (supports DIN-rail Bracket)
- C: Tabletop with DC Power Terminal Connector (supports DIN-rail Bracket)
- D: Wall-mount with US AC Power Supply Adapter
- E: Wall-mount with Universal AC Power Supply Adapter
- F: Wall-mount with DC Power Terminal Connector
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
For extended temperature (-40 to +75°C), add a “Z” to the end of the model number.
Example: 8840-0-AW = MM, 5km, 1310, ST, Wall-mount with US AC Power Supply Adapter, wide
temperature.
iConverter
34
35
iConverter OC3FF and OC12FF
Multimode to Single-mode Converter Modules
The iConverter OC3FF and OC12FF multimode to single-mode
ber converter modules extend network distances and connect
dissimilar ber cabling. Modules are available to support OC3/
STM-1 and OC12/STM-4 technologies.
Converts multimode (MM) to single-mode (SM) dual ber and •
dual ber to single-ber (SF)
Remote Fault Detection and Link Propagation modes•
Fiber
Port 1/Port 2
Distance
Port 1/Port2
Wavelength
(nm)
Port 1/Port2
Connector Type
ST SC
iConverter OC3FF
MM/SM 5km/30km 1310/1310 8660-1 8661-1
MM/SM 5km/60km 1310/1310 8660-2 8661-2
MM/SM 5km/120km 1310/1550 - 8661-3
MM/SM-SF 5km/20km 1310/13-15 8670-1* 8674-1*
MM/SM-SF 5km/20km 1310/15-13 8671-1* 8675-1*
MM/SM-SF 5km/40km 1310/13-15 8670-2* 8674-2*
MM/SM-SF 5km/40km 1310/15-13 8671-2* 8675-2*
SM/SM-SF 30km/20km 1310/13-15 8672-1* 8676-1*
SM/SM-SF 30km/20km 1310/15-13 8673-1* 8677-1*
SM/SM-SF 30km/40km 1310/13-15 8672-2* 8676-2*
SM/SM-SF 30km/40km 1310/15-13 8673-2* 8677-2*
iConverter OC12FF
MM/SM 550m/12km 1310/1310 - 8681-1
MM/SM 550m/34km 1310/1310 - 8681-2
MM/SM 550m/80km 1310/1550 - 8681-3
MM/SM-SF 550m/20km 1310/13-15 - 8690-1*
MM/SM-SF 550m/20km 1310/15-13 - 8691-1*
SM/SM-SF 12km/20km 1310/13-15 - 8692-1*
SM/SM-SF 12km/20km 1310/15-13 - 8693-1*
* Single-ber converters must be used in pairs. All single-ber ports are SC connectors.
To order an unmanaged standalone model, add a sufx to the model number as follows:
D = Wall-Mount with External US AC Power Supply Adapter
E = Wall-Mount with External Universal AC Power Supply Adapter
F = Wall-Mount with DC Terminal Power
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Example: 8660-1-DW = MM/SM, 5km/30km, 1310, ST Connector, Wall-Mount External US AC
Power Supply, wide temperature
Contact Omnitron for other ber options and extended temperature (-40 to +75°C) models.
iConverter xFF
SFP to SFP Media Converter/Transponder Modules
The iConverter xFF is a protocol-transparent, SFP to SFP media
converter that provides reliable and cost-effective conversion
between different optical wavelengths, multimode and single-
mode ber, and dual and single-ber networks.
SFP to SFP ber converter and wavelength transponder •
Supports data rates of 1Mbps to 4.25Gbps •
Supports Fast and Gigabit Ethernet, OC-3 (STM-1), OC-12 •
(STM-4), OC-48 (STM-16) and 1/2/4 Gigabit Fibre Channel
Wavelength conversion for CWDM and DWDM applications•
User-selectable link fault detection modes •
Model # Description
8699-0* xFF Chassis Plug-in Module
iConverter OC3/STM1
OC-3/STM-1 Coax to Fiber Media Converter Modules
The iConverter OC3/STM1 converts OC-3/STM-1e coax to
OC-3/STM-1 ber.
Mini-BNC connectors with standard BNC adapters•
SFP transceivers for standard and CWDM wavelengths•
Multimode, single-mode and single-ber•
Model # Description
8899S-0* OC3/STM1 Chassis Plug-In Module
* Order SFP separately. See SFP ordering information on pages 50 and 51.
The iConverter xFF and STM1 media converters are available as chassis managed plug-in
modules or compact, unmanaged standalone units. To order an unmanaged standalone unit,
add a sufx to the model number as follows:
D = Wall-Mount with External US AC Power Supply
E = Wall-Mount with External Universal AC Power Supply
F = Wall-Mount with DC Terminal Power
For wide temperature (-40 to 60°C), add a “W” to the end of the model number.
Contact Omnitron for extended temperature (-40 to +75°C) models.
Managed Media Converters
iConverter
36
37
iConverter CWDM Multiplexer/Demultiplexer Modules
iConverter Coarse Wave Division Multiplexing (CWDM)
Multiplexer/Demultiplexer modules support ITU-T G694.2 wave-
lengths between 1270nm to 1610nm in 20nm increments.
iConverter CWDM modules are protocol and rate transparent
allowing different services up to 10Gbps each to be transported
across the same ber link. They provide a reliable and cost-
effective solution for increasing bandwidth capacity over existing
ber infrastructure in Service Provider, Municipal, Utility and
Enterprise networks.
iConverter CWDM modules utilize a small and scalable plug-
in form factor, and can be installed in any iConverter chassis
achieving some of the highest port densities in the industry. The
modules are designed to be integrated with other iConverter
media converters and transponders to provide a true multi-service
platform capable of delivering 10, 100, Gigabit and 10 Gigabit
Ethernet, Serial, TDM, SONET and other services across a CWDM
common link. They are passive devices that can be installed in a
powered chassis for managed applications.
Protocol and rate transparent for applications up to 10Gbps•
Highly compact form factor with up to 120 ports in a 2U •
chassis
Seamless integration with other • iConverter SFP media
converters and chassis for multi-service platforms
Minimal and uniform optical loss for easy network planning•
Industry standard LC connectors•
Manageable via SNMPv1/2c/3 or TELNET•
One (1) Year Warranty and Free 24/7 Technical Support•
For CWDM Transponder modules, see the iConverter XG (page
14) and the iConverter xFF (page 35).
iConverter CWDM/X
CWDM Multiplexer Modules for Duplex Fiber
The passive iConverter CWDM/X modules are available in 4
and 8-Channel (wavelength) models, supporting a variety of
wavelength combinations and port congurations.
The CWDM/X features an optional Expansion Port that enables
cascading two MUX/DEMUX modules, doubling the channel
capacity on the common dual fiber link. For example, two
4-Channel modules can be cascaded to create a 8-Channel ber
common link.
The CWDM/X also features an optional 1310nm Pass Band
Port that allocates 1260nm to 13160nm for a standard 1310nm
network (such as SDH or SONET). CWDM channels in the range
of 1470nm to 1610nm can be overlaid on the same ber pair
as the existing 1310nm network with no changes to the legacy
equipment.
Module
Type
Model
Number
Channel Port
ITU Center Wavelength
(nm)
# of
Chassis
Slots
1310
Pass
Band
Port1
Expansion
Port2
CWDM/X
4-Channel
8860-0 1471, 1491, 1591, 1611 1 No No
8860-1 1471, 1491, 1591, 1611 1Yes No
8860-2 1471, 1491, 1591, 1611 1Yes Yes
8860-3 1471, 1491, 1591, 1611 1 No Yes
8861-0 1511, 1531, 1551, 1571 1 No No
8861-1 1511, 1531, 1551, 1571 1Yes No
CWDM/X
8-Channel
8862-0 1271, 1291, 1311, 1331,
1351, 1371, 1431, 1451 1 No No
8863-0 1471, 1491, 1511, 1531,
1551, 1571, 1591, 1611 1 No No
8863-1 1471, 1491, 1511, 1531,
1551, 1571, 1591, 1611 2Yes No
1 1310 Pass Band port supports 1310 +/- 50nm. Use with legacy 1310 device.
2 EXP port supports 1511nm to 1571nm. Use with 8861-0 or legacy 1550 device.
Contact Omnitron for customized CWDM models.
CWDM Multiplexers
iConverter
38
39

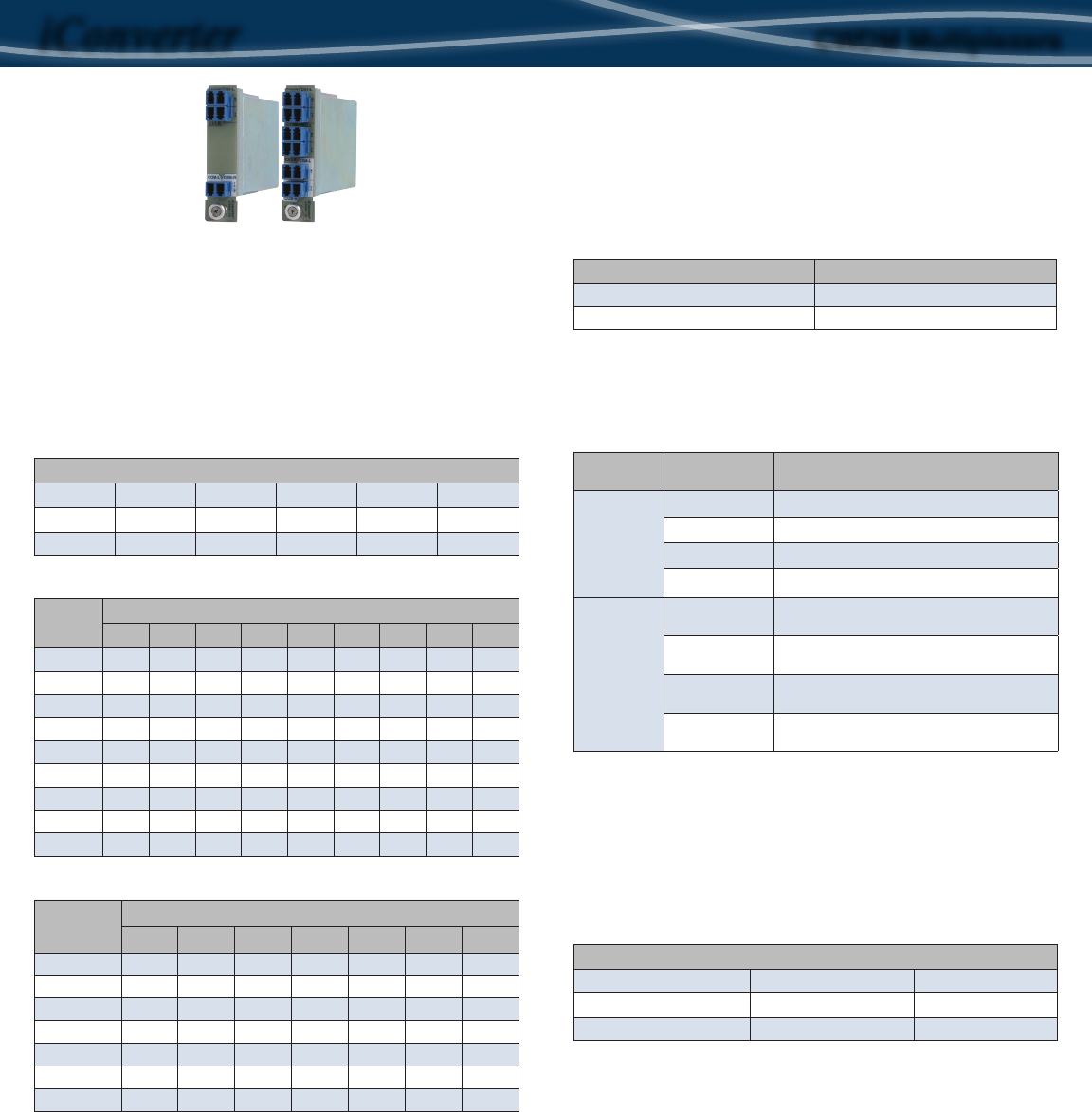

iConverter Band-Splitter and 1310 Pass Band OADM
The iConverter Band Splitter module combines and separates
the upper CWDM Channels (1470nm to 1610nm) and the lower
CWDM Channels (1270nm to 1450nm).
The iConverter 1310 Pass Band OADM adds and drops the
1310 Pass Band (1260nm to 1360nm) on both directions of the
CWDM ber link.
Model Number Module Type
8865-0 CWDM Band Splitter
8867-1 1310 Pass Band OADM
iConverter Single-Fiber CWDM/X
Single-Fiber iConverter CWDM/X modules are available in 2 and
4-Channel models.
Model Type Model
Number
Channel Port
ITU Center Wavelength Tx/Rx (nm)
2-Channels
8870-0 1471/1491, 1511/1531
8871-0 1491/1471, 1531/1511
8872-0 1551/1571, 1591/1611
8873-0 1571/1551, 1611/1591
4-Channels
8874-0 1271/1291, 1311/1331,
1351/1371, 1431/1451
8875-0 1291/1271, 1331/1311,
1371/1351, 1451/1431
8876-0 1471/1491, 1511/1531,
1551/1571, 1591/1611
8877-0 1491/1471, 1531/1511,
1571/1551, 1611/1591
Single-ber CWDM/X models must be used in pairs.
iConverter Single-Fiber CWDM/AD
iConverter 1-Channel Single-Fiber CWDM/AD modules add and
drop one channel on one or both directions of a CWDM single-
ber link.
1-Channel CWDM/AD (ITU Center Wavelength in nm)
Channel Port Wavelength Pairing - Model # 8878-xx
27 = 1271/1291 39 = 1391/1411 51 = 1511/1531
31 = 1311/1331 43 = 1431/1451 55 = 1551/1571
35 = 1351/1371 47 = 1471/1491 59 = 1591/1611
Contact Omnitron for custom CWDM modules.
iConverter CWDM/AD
CWDM Add/Drop Multiplexer Modules for Duplex Fiber
iConverter CWDM/AD modules are Optical Add/Drop Multiplexers
(OADM) that add (multiplex) and drop (demultiplex) selected
channels on one or both directions of a duplex CWDM ber link.
iConverter CWDM/AD modules enable adding new access points
anywhere on a CWDM network, without impacting the remaining
channels traversing the network.
1-Channel CWDM/AD (ITU Center wavelength in nm)
Channel Port - Model # 8867-xx (xx= two digit number below)
27 = 1271 33 = 1331 39 = 1391 45 = 1451 51 = 1511 57 = 1571
29 = 1291 35 = 1351 41 = 1411 47 = 1471 53 = 1531 59 = 1591
31 = 1311 37 = 1371 43 = 1431 49 = 1491 55 = 1551 61 = 1611
2-Channel CWDM/AD
(lower band - ITU Center wavelength in nm)
Channel
Port 1
Model # 8868-xx (xx= two digit number below)
1291 1311 1331 1351 1371 1391 1411 1431 1451
1271 01 02 03 04 05 06 07 08 09
1291 - 12 13 14 15 16 17 18 19
1311 - - 23 24 25 26 27 28 29
1331 - - - 34 35 36 37 38 39
1351 - - - - 45 46 47 48 49
1371 - - - - - 56 57 58 59
1391 - - - - - - 67 68 69
1411 -------78 79
1431 - - - - - - - - 89
2-Channel CWDM/AD
(upper band ITU Center wavelength in nm)
Channel
Port 1
Model # 8869-xx (xx= two digit number below)
1491 1511 1531 1551 1571 1591 1611
1471 01 02 03 04 05 06 07
1491 - 12 13 14 15 16 17
1511 - - 23 24 25 26 27
1531 - - - 34 35 36 37
1551 - - - - 45 46 47
1571 -----5657
1591 - - - - - - 67
NOTE: When using with 1310nm legacy SDH/SONET, wavelengths between
1260nm to 1360nm should not be used.
Contact Omnitron for custom CWDM modules.
CWDM Multiplexers
40
miConverter
41
miConverter Miniature Media Converters
The miniature (less than 5 ounces) miConverter copper UTP to
ber media converters provide cost-effective ber connectivity to
a desktop computer or a portable laptop. A special USB power
adapter cable allows the miConverter to be powered by a
computer USB port. Models with external AC power supplies in
US and International versions are also available.
miConverter GX/T and miConverter Gx
UTP to Fiber Gigabit Media Converters
The miConverter GX/T converts 10/100/1000BASE-T UTP copper
to 1000BASE-X ber and supports jumbo frames up to 10,240 bytes.
It features xed ber connectors or SFP transceivers for standard
and CWDM wavelengths. Both the ber and UTP ports support auto-
negotiation, Pause and link fault modes that can be congured with
DIP-switches.
The miConverter Gx converts 1000BASE-T UTP copper to
1000BASE-X ber. It features a UTP port that auto-detects
the duplex and Pause modes which can be congured with
DIP-switches, and features advanced fault detection modes for
link failure notication.
Powered from an AC/DC power adapter or a USB port•
Auto or manual UTP conguration •
Advanced fault detection modes•
The • miConverter GX/T supports 10,240 byte jumbo frames
and features xed ber connectors or SFPs
Fiber Distance Wavelength
(nm)
miConverter Gx miConverter GX/T
ST SC ST SC
SFP - - - 1239-0-x**
MM 220m/550m 850 1200-0-x 1202-0-x 1220-0-x 1222-0-x
SM 12km 1310 1201-1-x 1203-1-x 1221-1-x 1223-1-x
SM 34km 1310 - 1203-2-x -1223-2-x
SM 80km 1550 - 1203-3-x -1223-3-x
SM 110km 1550 - 1203-4-x -1223-4-x
SM 140km 1550 - 1203-5-x -1223-5-x
SM-SF 20km 1310/1550 - 1210-1-x* -1230-1-x*
SM-SF 20km 1550/1310 - 1211-1-x* -1231-1-x*
SM-SF 40km 1310/1550 - 1210-2-x* -1230-2-x*
SM-SF 40km 1550/1310 - 1211-2-x* -1231-2-x*
*Single-ber converters must be used in pairs.
** Order the required SFPs separately. See SFP ordering information on pages 50 and 51.
To order a power supply, add a sufx to the model number as shown on page 41.
miConverter 10/100 and 10/100 Plus
10/100 UTP to Fast Ethernet Fiber Media Converters
The miniature miConverter 10/100 is a rate-switching copper
UTP to ber media converter. The miConverter 10/100 provides
plug-and-play set up with a UTP port that auto-detects the speed,
duplex mode and crossover function of the connected device.
In addition to the features listed above, the miConverter 10/100
Plus features DIP-switches for manual UTP port conguration
and advanced link fault detection modes.
Supports 10BASE-T, 100BASE-TX and 100BASE-FX•
Multimode (MM), single-mode (SM) and single-ber (SF)•
Powered from an AC/DC power adapter or a USB port•
The • miConverter 10/100 Plus features manual UTP
conguration and advanced fault detection modes
Fiber Distance
Wavelength
(nm)
miConverter 10/100 miConverter 10/100 Plus
ST SC ST SC
MM 5km 1310 1100-0-x 1102-0-x 1120-0-x 1122-0-x
SM 30km 1310 1101-1-x 1103-1-x 1121-1-x 1123-1-x
SM 60km 1310 1101-2-x 1103-2-x 1121-2-x 1123-2-x
SM 120km 1550 - 1103-3-x - 1123-3-x
SM-SF 20km 1310/1550 - 1110-1-x* - 1130-1-x*
SM-SF 20km 1550/1310 - 1111-1-x* - 1131-1-x*
SM-SF 40km 1310/1310 - 1110-2-x* - 1130-2-x*
SM-SF 40km 1550/1310 - 1111-2-x* - 1131-2-x*
*Single-ber converters must be used in pairs.
To order a power supply, add a sufx to the model number (replace "x") as follows:
-1 External US AC Power Adapter
-2 External Universal Power Adapter
-3 External European Power Adapter
-4 External UK AC Power Adapter
-5 External Australian AC Power Adapter
-6 USB Power Adapter Cable
-8 External Japan/US AC Power Adapter
-9 2-pin 5-12VDC terminal connector (Available only with GX/T)
Wall mount brackets model number 1091-0.
Example: 1100-0-1 = miConverter 10/100 MM/DF/5km/1310/ST with External US AC Power Adapter.
Contact Omnitron for other ber options and wide temperature (-40 to +60°C) models.
Miniature Media Converters
42
FlexPoint
43
Description 14-Module 5-Module 1-Module
1 Power Supply/AC 4396 - -
1 Power Supply/DC 4386 - -
2 Power Supplies/AC 4395 - -
Spare Power Supply/AC 4399 - -
2 Power Supplies/DC 4385 - -
Spare Power Supply/DC 4389 - -
FlexPoint Rack Mounting Shelf - 4392 -
FlexPoint DC Adapter (18 to 60VDC) - - 4384
Wall Mount Kit (Stand Alone AC) - - 4380
Wall Mount Kit (for DC Adapter) - - 4381
DIN Rail Mounting Bracket - - 8250-0
FlexPoint GX/T
10/100/1000 Mbps UTP to Gigabit Fiber Media Converters
The FlexPoint GX/T is a 10/100/1000BASE-T UTP copper to
1000BASE-X modular ber media converter that supports jumbo
frames up to 10,240 bytes. The GX/T supports both 100BASE-
FX and 1000BASE-X SFP transceivers for interoperability with
Fast Ethernet and Gigabit ber equipment.
Conforms to 10BASE-T, 100BASE-TX, 1000BASE-T, •
100BASE-FX1 and 1000BASE-X specications
Supports jumbo frames up to 10,240 bytes•
Supports dual and single-ber 100BASE-FX or 1000BASE-X •
SFP transceivers for standard or CWDM wavelengths
Multimode (MM) and single-mode (SM) ber with ST and SC •
connectors and single-ber (SF) with SC connectors
Both the ber and UTP ports support auto-negotiation•
Auto or manually congured Pause function for ow control•
Loopback mode supports end-to-end testing•
User-selectable Link Modes with Remote Fault Indicators •
signal loss of link for Far-End Fault and Link Fault conditions
Diagnostic and DIP-switch congurations are displayed with •
status LEDs for quick and easy installation
Fiber Distance Wavelength
(nm)
Connector Type
ST SC SFP
- - - - - 4719-x**
MM 220/550m 850 4706-x 4700-x -
SM 12km 1310 4707-x 4701-x -
SM 34km 1310 - 4702-x -
SM 80km 1550 - 4703-x -
SM 110km 1550 - 4704-x -
SM 140km 1550 - 4705-x -
SM-SF 20km 1310/1550 -4710-x* -
SM-SF 20km 1550/1310 -4711-x* -
SM-SF 40km 1310/1550 -4712-x* -
SM-SF 40km 1550/1310 -4713-x* -
1100BASE-FX is supported on SFP models only.
* Single-ber converters must be used in pairs.
** Order the required SFPs separately. See SFP ordering information on pages 50 and 51.
POWER OPTIONS (-x)
-0 No Power Supply
-1 110V (US Standard)
-2 110V/230V Auto-sensing (Universal)
Contact Omnitron for other ber options and wide temperature (-40 to +60°C) models.
FlexPointTM self-contained media converter modules provide
unmanaged copper-to-ber and ber-to-ber media conversion.
Network administrators can mix and match FlexPoint modules in
a chassis for ber access in a variety of network congurations.
FlexPoint 5-Module Rack-Mounting Shelf
The rack-mounting shelf provides a exible, low-cost solution for
up to ve individually-powered FlexPoint converter modules.
FlexPoint DC Adapter
The FlexPoint DC Adapter allows a FlexPoint
media converter to be powered from an 18 to
60VDC power source.
FlexPoint Wall-Mount and DIN-rail kits
Wall and DIN-rail mounting kits are available for FlexPoint
modules and FlexPoint modules with DC adapters.
FlexPoint 14-Module Power-Redundant Chassis
Available in 110/230VAC or 48VDC, the Powered Chassis
holds 14 individually secured and hot-swappable FlexPoint
converters. Two redundant hot-swappable power supplies
ensure continuous and reliable network operation.
Unmanaged Media Converters
44
FlexPoint
45
FlexPoint Gx and 100Fx/Tx
1000Mbps Ethernet UTP to Fiber Media Converters
Fast Ethernet UTP to Fiber Media Converters
The FlexPoint Gx UTP copper to ber media converters provide
transparent integration between 1000BASE-X Gigabit ber and
1000BASE-T Gigabit UTP devices. The Gx supports jumbo
packets and transparently passes VLAN frames.
The FlexPoint 100Fx/Tx converts 100BASE-TX UTP copper
to Fast Ethernet ber and supports Half or Full-Duplex auto-
negotiation with manual override. The 100Fx/Tx supports jumbo
packets, transparently passes VLAN frames, and features a UTP
crossover switch.
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC
FlexPoint Gx
MM 220m/550m 850 4376-x 4370-x 4670-x 4672-x
SM 12km 1310 4377-x 4371-x 4671-x 4673-x
SM 34km 1310 - 4372-x - 4674-x
SM 80km 1550 - 4373-x - 4675-x
SM 110km 1550 - 4374-x -4676-x
SM 140km 1550 - 4375-x -4677-x
FlexPoint 100Fx/Tx
MM 5km 1310 4332-x 4330-x 4336-x -
SM 30km 1310 4333-x 4331-x 4337-x -
SM 60km 1310 4335-x 4334-x - -
SM 85km 1550 - 4350-x - -
SM 120km 1550 - 4351-x - -
POWER OPTIONS (-x)
-0 No Power Supply
-1 110V (US Standard)
-2 110V/230V Auto-sensing (Universal)
Contact Omnitron for other ber options and wide temperature (-40 to +60°C) models.
FlexPoint 10/100
10/100 UTP to Fast Ethernet Fiber Media Converters
The FlexPoint 10/100 media converters allow connection between
any Half and Full-Duplex, copper-based Ethernet devices
operating at either 10 or 100Mbps via Fast Ethernet ber.
UTP 10/100 and Full/Half-Duplex auto-sensing with manual •
override controls
UTP crossover switch•
The ber port supports 100Mbps Full/Half-Duplex, •
multimode or single-mode ber, SC, ST or MT-RJ connectors
The ber port supports distances up to 120km •
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ LC
MM 5km 1310 4342-x 4340-x 4346-x 4355-1x
SM 30km 1310 4343-x 4341-x 4348-x 4355-2x
SM 60km 1310 4345-x 4344-x -4355-3x
SM 120km 1550 - 4349-x - 4355-4x
SM/SF 20km 1310/1550 - 4357-1x* - -
SM/SF 20km 1550/1310 - 4357-2x* - -
* Single-ber converters must be used in pairs.
POWER OPTIONS (-x)
-0 No Power Supply
-1 110V (US Standard)
-2 110V/230V Auto-sensing (Universal)
Contact Omnitron for other ber options and wide temperature (-40 to +60°C) models.
Unmanaged Media Converters
46
FlexPoint
47
FlexPoint 10FL/T, 10FL/2, 10T/2 & 10AUI/T
Ethernet Media Converters
The FlexPoint 10Mbps converters provide media conversion
between ber (multimode or single-mode) and UTP or coax.
The FlexPoint 10FL/T connects 10BASE-FL ber and •
10BASE-T UTP copper. It features a UTP crossover switch
and supports distances up to 120km
The FlexPoint 10FL/2 connects 10BASE-FL ber and •
10BASE-2 coax with a coax termination switch
The FlexPoint 10T/2 connects 10BASE-2 coax and 10BASE-T •
UTP copper, and features a UTP crossover switch and a coax
termination switch
The FlexPoint 10AUI/T connects AUI and 10BASE-T UTP •
copper
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ Coax
FlexPoint 10FL/T
MM 2km 850 4300-x 4303-x - -
MM 5km 1310 4302-x - 4305-x -
SM 30km 1310 4301-x - 4308-x -
SM 60km 1310 4304-x - - -
SM 85km 1550 - 4306-x - -
SM 120km 1550 - 4307-x - -
FlexPoint 10FL/2
MM 2km 850 4310-x - - -
MM 5km 1310 4312-x - - -
SM 30km 1310 4311-x - - -
FlexPoint 10T/2
UTP/Coax 100m/185m - - - - 4320-x
FlexPoint 10AUI/T (AUI Connector)
UTP/AUI 100m/50m -4321-x
POWER OPTIONS (-x)
-0 No Power Supply
-1 110V (US Standard)
-2 110V/230V Auto-sensing (Universal)
Contact Omnitron for other ber options and wide temperature (-40 to +60°C) models.
FlexPoint 100FF, 1000FF, OC3FF, OC12FF
Single-mode to Multimode Fiber Converters
The FlexPoint ber to ber converters convert between single-
mode and multimode ber. They support 10, 100 and Gigabit
Ethernet, OC-3/STM-1, OC-12/STM-4, SONET, Token Ring, FDDI
and Fibre Channel.
The FlexPoint 100FF supports Ethernet, Fast Ethernet, Token •
Ring and FDDI, and is available with ST and SC connectors
The FlexPoint 1000FF supports Gigabit Ethernet and Fibre •
Channel, and is available with SC connectors
The FlexPoint OC3FF supports OC-3/STM-1 and is •
available with ST and SC connectors
The FlexPoint OC12FF supports OC-12/STM-4 and is •
available with SC connectors
Fiber
Port 1/Port 2
Distance
Port 1/Port2
Wavelength
(nm)
Port 1/Port2
Connector Type
ST SC
FlexPoint 100FF
MM/MM 5km/5km 1310/1310 4420-x 4421-x
MM/MM 2km/5km 850/1310 4418-x 4419-x
MM/SM 5km/30km 1310/1310 4410-x 4411-x
MM/SM 5km/60km 1310/1310 4412-x 4413-x
MM/SM 2km/30km 850/1310 4414-x 4415-x
MM/SM 2km/60km 850/1310 4416-x 4417-x
FlexPoint 1000FF
MM/SM 220-550m/12km 850/1310 - 4433-x
MM/SM 220-550m/34km 850/1310 - 4440-x
MM/SM 220-550m/80km 850/1550 - 4437-x
SM/SM 12km/34km 1310/1310 - 4441-x
FlexPoint OC3FF
MM/SM 5km/30km 1310/1310 4450-x 4451-x
MM/SM 5km/60km 1310/1310 4452-x 4453-x
MM/SM 2km/30km 850/1310 4454-x 4455-x
MM/SM 2km/60km 850/1310 4456-x 4457-x
FlexPoint OC12FF
MM/SM 550m/12km 1310/1310 - 4461-x
MM/SM 550m/34km 1310/1310 - 4463-x
MM/SM 550m/80km 1310/1550 - 4469-x
POWER OPTIONS (-x)
-0 No Power Supply
-1 110V (US Standard)
-2 110V/230V Auto-sensing (Universal)
Contact Omnitron for other ber options and wide temperature (-40 to +60°C) models.
Unmanaged Media Converters
48
FlexPoint
49
FlexPoint 232
RS-232 to Fiber Media Converter
The FlexPoint 232 is a serial RS-232 to ber converter with
support for ve control signals that enables exible RS-232
network connectivity for a variety of serial applications.
Fiber Distance Wavelength
(nm)
Connector Type
ST SC MT-RJ
MM 2.5km 850 4481-x 4480-x -
MM 5km 1310 4483-x 4482-x 4487-x
SM 30km 1310 4485-x 4484-x 4488-x
SM 60km 1310 - 4486-x -
POWER OPTIONS (-x)
-0 No Power Supply
-1 110V (US Standard)
-2 110V/230V Auto-sensing (Universal)
Contact Omnitron for other ber options and wide temperature (-40 to +60°C) models.
FlexPoint T1/E1
T1/E1 Copper to Fiber Media Converter
The T1/E1 extends twisted pair and coax distances over ber. It
supports ANSI, AT&T, ITU and ETSI standards, and AMI, B8ZS
and HDB3 line codes. The T1/E1 features a crossover switch, ber
loopback and relay contacts for connection to alarm equipment.
Fiber Distance Wavelength
(nm)
Connector Type
ST SC
FlexPoint T1/E1 Copper RJ-45/RJ-48 to Fiber
MM 5km 1310 4472-x 4470-x
SM 30km 1310 4473-x 4471-x
SM 60km 1310 - 4474-x
FlexPoint T1/E1 Copper Coax + RJ-45/RJ-48 to Fiber
MM 5km 1310 4492-x 4490-x
SM 30km 1310 4493-x 4491-x
SM 60km 1310 - 4494-x
OmniConverter
OmniConverter GPoE/S
Multi-port Gigabit Media Converter with PoE/PSE
The OmniConverter GPoE/S is a multi-port media converter
that provides 10/100/1000BASE-T UTP to 100BASE-FX or
1000BASE-X ber and supports Power-over-Ethernet (PoE). A
variety of port congurations are available, including single or dual
UTP or SFP ports.
The OmniConverter GPoE/S supports both the IEEE 802.3af
Power-over-Ethernet (PoE) and IEEE 802.3at (PoE+) standards.
Classied as Power Sourcing Equipment (PSE), the GPoE/S
can provide power to one or two Powered Devices (PDs) using
standard UTP cables that carry the Ethernet data.
The GPoE/S can be used to power a variety of PDs such as IP
phones, wireless access points and network cameras.
The GPoE/S standard models (802.3af) provide up to 15.4W of
power per port. The high power GPoE/S models support the new
IEEE 802.3at (PoE+) standard and provide up to 25.5W per port.
Supports IEEE 802.3af PoE and IEEE 802.3at PoE+•
Supports legacy non-IEEE compatible powered devices•
Models available with redundant SFP port option•
Fiber Distance
Wave-
length
(nm)
Connector Type
ST SC 100/1000 SFP
PoE PoE+ PoE PoE+ PoE PoE+
MM 220/550m 850 9400-0 9420-0 9402-0 9422-0
SM 12km 1310 9401-0 9421-1 9403-1 9423-1
SM 34km 1310 - - 9403-2 9423-2
SM 80km 1550 - - 9403-3 9423-3
SM 110km 1550 - - 9403-4 9423-4
SM 140km 1550 - - 9403-5 9423-5
SM-SF 20km 13/15 - - 9410-1* 9430-1*
SM-SF 20km 15/13 - - 9411-1* 9431-1*
SM-SF 40km 13/15 - - 9410-2* 9430-2*
SM-SF 40km 15/13 - - 9411-2* 9431-2*
100/1000 SFP 9419-0** 9439-0**
100/1000 SFP (x2) 9419-1** 9439-1**
*Single-ber converters must be used in pairs.
** Order the required SFPs separately. See SFP ordering information on pages 50 and 51
To order number of UTP ports, add a number below to the model number - 94xx-x-Yz
1 - One (1) UTP Port
2 - Two (2) UTP Ports
To order an external power supply, add a number below to the model number - 94xx-x-yZ
1 - External PS, 100-240VAC, with US Power Cord
2 - External PS, 100-240VAC, with no Power Cord
9 - No external PS, direct 48VDC input, with 3 pos. terminal block
To order wide operating temperature range (-40 to 60°C) add a "W" to the end of the model
number - 94xx-x-yzW. Contact Omnitron for other ber options and extended operating
temperature range (-40 to 75°C) models.
50
51
Small Form Pluggable Transceivers
Omnitron SFPs are interchangeable compact ber transceivers
that enable connectivity to a wide variety of ber optic cables and
wavelengths, including single-ber, single-mode, multimode and
Coarse Wave Division Multiplexing (CWDM).
Based on the MSA SFF-8472 standard, Omnitron SFPs provide
enhanced digital diagnostic information not available on most
SFPs. SNMP management software, such as NetOutlook,
can collect real-time diagnostic information including ber optic
power, voltage and temperature of the SFP transceiver.
For use with • iConverter, miConverter, FlexPoint,
OmniConverter, and third party equipment that supports SFPs
LC Connectors•
Hot-pluggable with durable metal enclosure•
SFPs for Fast Ethernet, SONET OC-3, SDH STM-1, T1/E1, T3/E3 and X21
Fiber Type Distance Model # Tx Rx
MM/DF 5km 7006-0 1310 1310
SM/DF 30km 7007-1 1310 1310
SM/DF 60km 7007-2 1310 1310
SM/DF 120km 7007-3 1550 1550
SM/SF 30km 7014-1 1310 1550
SM/SF 30km 7015-1 1550 1310
SM/SF 50km 7014-2 1310 1550
SM/SF 50km 7015-2 1550 1310
SFPs for Gigabit Ethernet, SONET OC-12 and SDH STM-4
Fiber Type Distance Model # Tx Rx
MM/DF 220/550m 7206-0 850 850
SM/DF 12km 7207-1 1310 1310
SM/DF 34km 7207-2 1310 1310
SM/DF 80km 7207-3 1550 1550
SM/DF 110km 7207-4 1550 1550
SM/DF 140km 7207-5 1550 1550
SM/SF 20km 7214-1 1310 1550
SM/SF 20km 7215-1 1550 1310
SM/SF 40km 7214-2 1310 1550
SM/SF 40km 7215-2 1550 1310
SM/SF 60km 7214-3 1310 1550
SM/SF 60km 7215-3 1550 1310
SM/SF 20km 7216-1 1310 1490
SM/SF 20km 7217-1 1490 1310
10 Gigabit SFP+ (Ethernet, Fibre Channel, SONET) with Digital Diagnostics
Fiber Distance Model # Description Wavelength
MM 300m* 7406-0 10GBASE-SR SFP+ 850
SM 10km 7407-1 10GBASE-LR SFP+ 1310
10 Gigabit XFP (Ethernet, Fibre Channel, SONET) with XFI-side Digital Diagnostics
MM 300m* 7426-0 10GBASE-SR XFP 850
SM 10km 7427-1 10GBASE-LR XFP 1310
SM 40km 7427-2 10GBASE-ER XFP 1550
SM 80km 7427-3 10GBASE-ZR XFP 1550
10 Gigabit Copper XFP
N/A 15m 7499-CX4 10GBASE-CX4 XFP N/A
* Distance obtained with OM3 multimode cable
Gigabit Ethernet SFP Copper Transceivers
RJ-45 Connector Data Rate Distance
7299-RJ 1000 Mbps 100m (UTP)
7299-RJ-GI* 10/100/1000 Mbps 100m (UTP)
CWDM SFPs for Fast Ethernet, SONET OC-3, SDH STM-1, T1/E1, T3/E3 and X21
Wavelength Latch 60km 80km 100km 120km 140km 150km
1271 - 7127-1 7127-2 7127-3 - - -
1291 - 7129-1 7129-2 7129-3
1311 - 7131-1 7131-2 7131-3 - - -
1331 - 7133-1 7133-2 7133-3 - - -
1351 - 7135-1 7135-2 7135-3 - - -
1371 - 7137-1 7137-2 7137-3 - - -
1391 - 7139-1** 7139-2** 7139-3** - - -
1411 - 7141-1 7141-2 7141-3 - - -
1431 - 7143-1 7143-2 7143-3 - - -
1451 - 7145-1 7145-2 7145-3 - - -
1471 Gray - - - 7147-4 7147-5 7147-6
1491 Violet - - - 7149-4 7149-5 7149-6
1511 Blue - - - 7151-4 7151-5 7151-6
1531 Green - - - 7153-4 7153-5 7153-6
1551 Yellow - - - 7155-4 7155-5 7155-6
1571 Orange - - - 7157-4 7157-5 7157-6
1591 Red - - - 7159-4 7159-5 7159-6
1611 Brown - - - 7161-4 7161-5 7161-6
CWDM SFPs for Gigabit Ethernet, SONET OC-12 and SDH STM-4
Wavelength Latch 40km 50km 70km 100km 130km
1271 - 7327-1 7327-2 7327-3 - -
1291 - 7329-1 7329-2 7329-3 - -
1311 - 7331-1 7331-2 7331-3 - -
1331 - 7333-1 7333-2 7333-3 - -
1351 - 7335-1 7335-2 7335-3 - -
1371 - 7337-1 7337-2 7337-3 - -
1391 - 7339-1** 7339-2** 7339-3** - -
1411 - 7341-1 7341-2 7341-3 - -
1431 - 7343-1 7343-2 7343-3 - -
1451 - 7345-1 7345-2 7345-3 - -
1471 Gray - - 7347-3 7347-4 7347-5
1491 Violet - - 7349-3 7349-4 7349-5
1511 Blue - - 7351-3 7351-4 7351-5
1531 Green - - 7353-3 7353-4 7353-5
1551 Yellow - - 7355-3 7355-4 7355-5
1571 Orange - - 7357-3 7357-4 7357-5
1591 Red - - 7359-3 7359-4 7359-5
1611 Brown - - 7361-3 7361-4 7361-5
* Compatible only with iConverter GX/TM2 and GM3 NIDs.
** Not suitable for use with G.652 ber (water peak).
See Omnitron website for complete listing of SFPs. Contact Omnitron for other SFP options and
extended temperature (-40 to +75°C) models.
SFP, SFP+ and XFP Transceivers
