POLICY & PROCEDURES

WARRANTY

October 2015

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

Table of Contents Page

Keys to a Successful Warranty Call 3

Warranty Agreement 4

Warranty Exclusions 6

Warranty Process 7-8

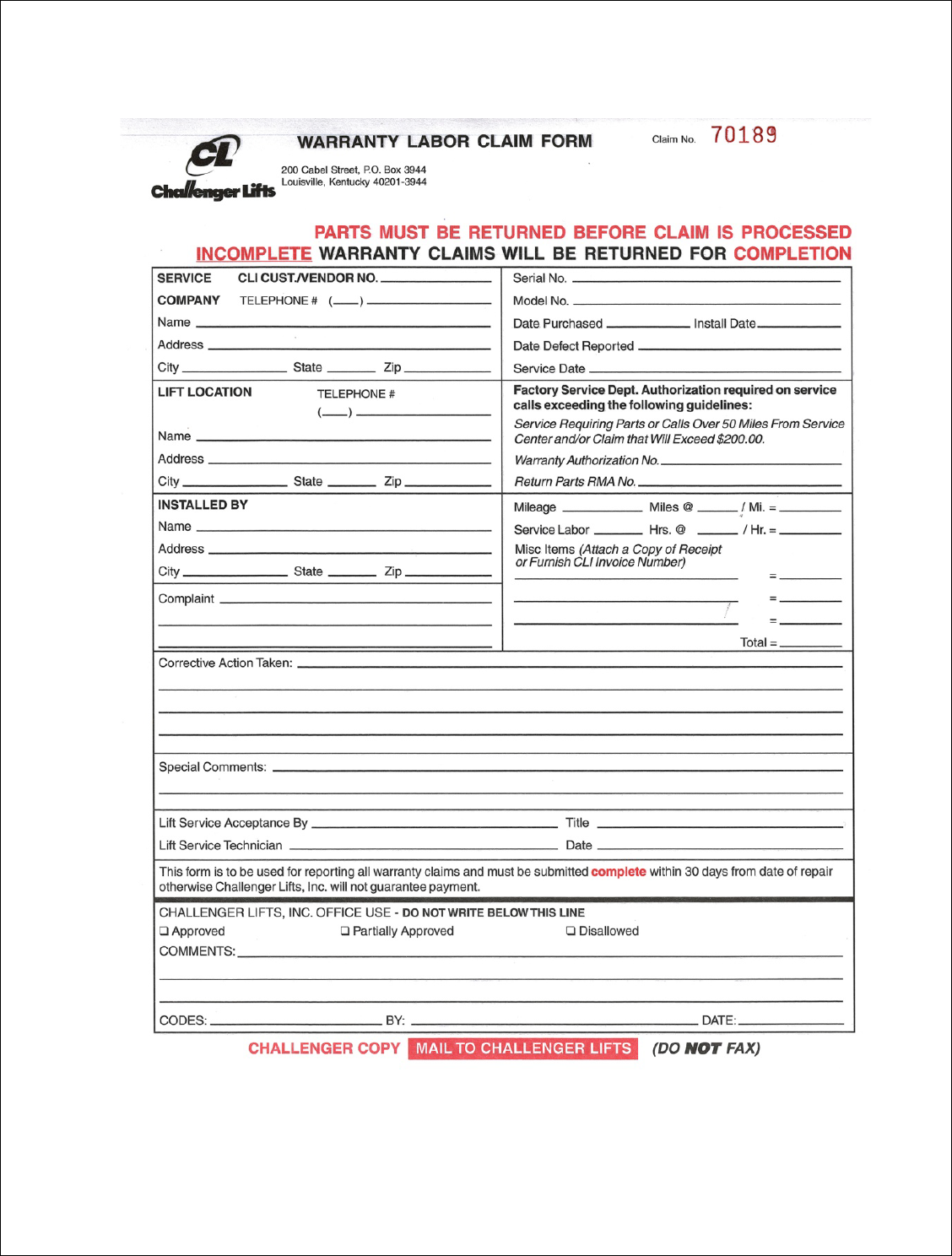

Warranty Labor Claim Form 9-10

Warranty Labor Allowances 11-13

Warranty Part Returns 14

Recommended Stocking List 15-18

Notes 19

Parts and Service

Part orders should be faxed or emailed to the Service Department’s

attention.

For service, technical support, and information regarding returned parts and

warranty claims please contact Challenger Lifts Inc. Service Department at:

Phone: 800-648-5438 Fax: (502) 625-0758

The service department can also be reached by emailing:

service@challengerlifts.com

If the Service Department is unavailable, please leave a detailed message

including 15 digit serial number, claim numbers, contact phone numbers

and names.

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

KEYS TO A SUCCESSFUL WARRANTY CALL

• IMPORTANT: Know the Serial Number of the lift needing service. Challenger is serial

number driven

• Challenger reserves the right to use the closest service company to the end user

All warranty service calls that will exceed $250.00 in total expenses or is located over

200 miles roundtrip must be called or faxed into Challenger Lifts Customer Service

department. The service company will need to furnish the serial number of the

equipment involved, a description of the problem and a description of the proposed

repair. The Service Department will assign you a Service Authorization number.

• Know the Warranty Terms of the Challenger product being worked on

o Freight terms on warranty parts follows the labor period

• Know that it is a warrantable issue before you submit a Claim form

o A dispatch call from Challenger does not necessarily mean that the

problem an end user is experiencing is a warrantable issue

• If you encounter a problem while at the lift location that requires help from Challenger

Technical Service, call from the site, do not leave and then call. Identify to the

Challenger receptionist that you are at the site. If the service tech does not answer have

them paged or ask for another service tech. Please do not leave message for at times

the call volume is high and might not be able to return call immediately.

• On returning an RMA part please mark outside of the box with the RMA number clearly.

• Ensure that any RMA parts have been returned – RMA parts must be received back to

Challenger before the Labor Claim form is processed. If the parts are not back, then

Challenger will return the form to the Service Company

o Challenger sends a Return Call Tag with all small parts and for larger

or heavier parts includes instructions for a Truck Pickup on the

shipping and invoice documents

• Use a Challenger Warranty Claim form

o It ensures all the required information is included in the claim

o Ensure an adequate description of the complaint and the work done to

remedy is included on the form

o Explain any reasons which required your service technician to spend

more time than the approved labor allowance for the service activity

o Use the Warranty rates Challenger and your company has agreed

upon

• Submit the Warranty Claim Form on a timely basis.

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

Warranty Agreement

Each Challenger Lift is shipped with a written Limited Warranty form, which includes a general

warranty statement, a statement of the periods of coverage, and general conditions. Please

refer to this form for complete terms. The Limited Warranty Form constitutes the entire

agreement between Challenger Lifts, Inc and the buyer of the warranted lift product. The

following table outlines the warranty periods for all product lines within the Continental United

States and Canada.

Warranty Periods begin from the date the lift, part or accessory is invoiced by Challenger Lifts,

Inc. For lifts, this date can be later if the Warranty Registration Card is completed and returned

to Challenger within a reasonable time after Challenger has invoiced this lift. Challenger has

the sole discretion in determining if a lift is registered within a reasonable period of time. This

also applies to lifts registered on Challenger’s web site, www.challengerlifts.com.

Warranty Periods

Product Line Model(s) Parts

Labor,

Mile, Freight

2 Post

(CLXP9/CL10/CL12/15/18) 2 Years

1 Year

2 Post (CLFP9/E10/SA10/E12) 1 Year 1 Year

4 Post

(4P14/4015/44012LR) 2 Years

1 Year

4 Post (44018/30/40/50/60) 1 Year 1 Year

4 Post Parking Lift

(CL4P Series) 1 Year

1 Year

Cassettes

(AV/EV Series) 2 Years 1 Year

Rolling Jacks

(RJ & SAJ Series) 1 Year

1 Year

Short/ Mid Rise/Scissor

(SRM10/MR6/DX77) 1 Year 1 Year

Mobiles (CLHM Series) 1 Year

1 Year

Power Stations 90 Days None

Accessories &

Purchased Parts

90 Days None

(1) – Filter, Lubricator & Regulators (FLR) shipped as part of the Rolling Jacks are warranted for

the same period as the Rolling Jack, as long as the FLR is not contaminated by wet or dirty air.

Export Shipments: (shipments other than to Continental United States and Canada)

are warranted for 1 year (parts only), Freight & Labor NOT included. Terms are Ex-Works,

Challenger Lifts, Inc.’s factory.

National & Key Accounts: Please contact Challenger Lifts, Inc. for warranty

policies.

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

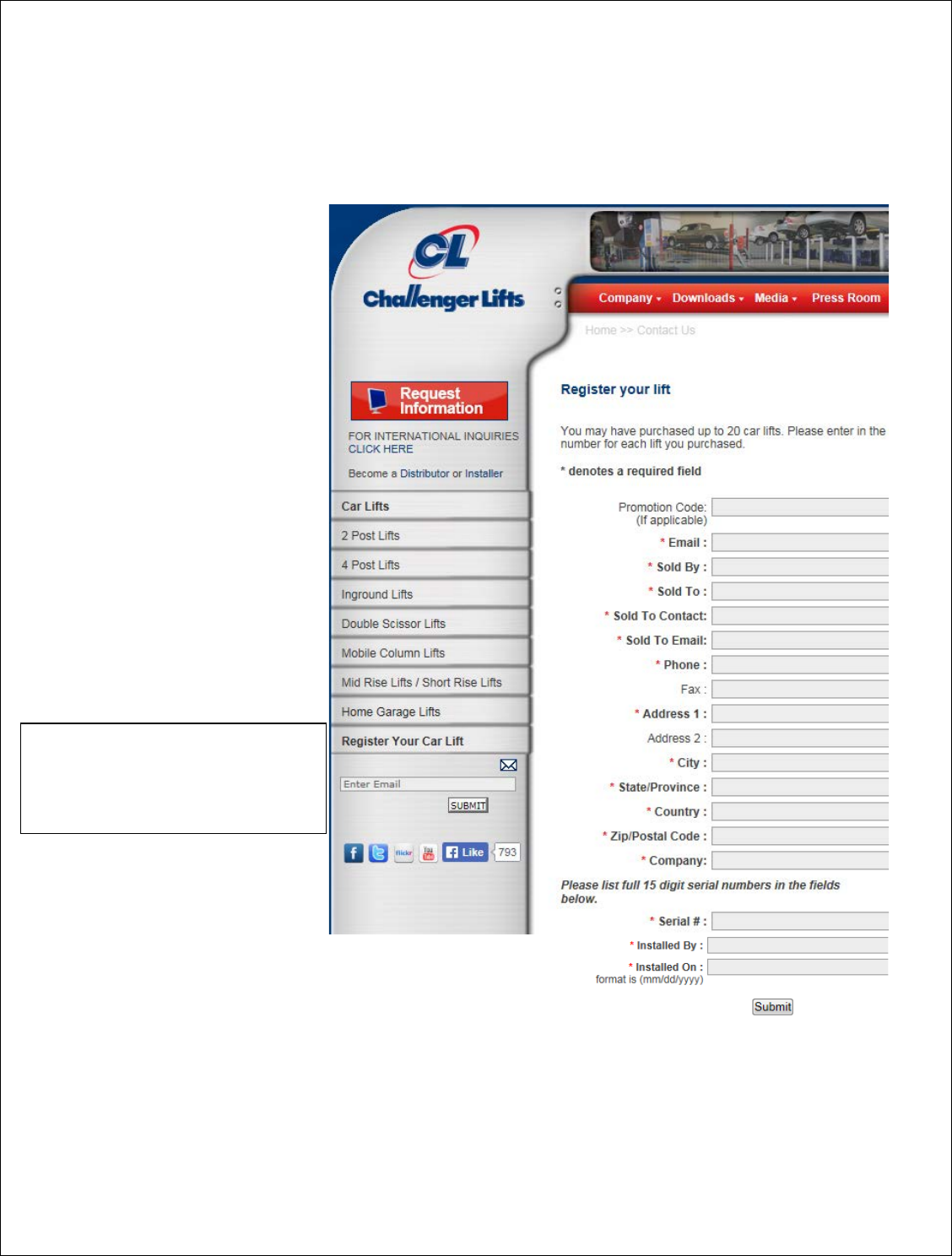

To register your lift to start the warranty you can.

1) Fill out the warranty registration online.

2) If you do not fill out your warranty registration within 90 days of install the warranty

period will start from date of invoice.

1) Go to Challenger Lifts Web Site

2) Click on Register Your Car Lift

3) Fill out the information listed

4) You can register up to 20 lifts

at one location

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

LIMITED WARRANTY EXCLUSIONS

In keeping with the practice of the automotive industry in general, selected items are

excluded from warranty coverage. These items include, but are not limited to, the items

listed below:

• Normal wear and tear items such as sheaves and cables are not covered under the

terms of the Limited Warranty

• Items such as air cylinders, air valves and palm buttons that are subject to water

corrosion.

• Replacement of hydraulic fluid, rubber pads, corner pads, and other wear guards.

• Tightening of hoses, hydraulic lines and field installed fittings – factory installed

fittings are only covered for 30 days

• Adjusting cables or chains

• Greasing of posts

• Lock Adjustment

• Resetting of circuit breaker

• Inadequate wiring/voltage

• Touch – up of painted surfaces

• Faulty concrete

• Improper anchoring

• Problems resulting from failure to install the lift in accordance with Challenger’s

Installation and Operating Manuals

• Damage to components incurred in transportation and unloading

• Damage caused by failure to observe the provisions of the operating and

maintenance instructions

• Damage Arms resulting from not using all four arms when lifting

• Damage related to the overloading of the lift’s capacity

• Damage caused by high or low voltage, lightning strikes, or other irregularities in the

electrical power supply

• Damage caused by unauthorized alterations, repairs, modifications, or additions to

the equipment

• Damage arising from misuse, abuse, neglect, or accident

• Lifts installed outside and/or not protected from the weather

• Damage or deterioration resulting from corrosion

• Time spent “trouble shooting” without authorization

See the Limited Warranty Statement for full terms and conditions.

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

Warranty Process

Challenger Lifts Inc. (CLI) is a major manufacturer of automotive lifts, known

throughout the automotive industry for its quality products. CLI stands behind its

lift products with a comprehensive warranty program. As part of an effort to

streamline the administration of our warranty program and increase our

responsiveness to both installers and the end users, certain guidelines have been

implemented. These guidelines will result in a warranty program that is both

effective and easy to administer.

1) All warranty service calls that will exceed $250.00 in total expenses or is located over 200 miles

roundtrip must be called into Challenger Lifts Customer Service department. The service

company will need to furnish:

a. 15 digit serial number of the equipment involved. (If you cannot locate on cassette and

short rise lifts the last 6 digits is stamped on corner of center cover on cassette lifts and

base of lift by hydraulic cylinder.)

b. Description of the problem and a description of the proposed repair.

c. The Service Department will assign you a Service Authorization number if deemed to be

a warranted situation.

2) It is the responsibility of the service company to determine if the service activity is covered

under Challenger’s warranty terms. If there is any uncertainty as to the terms of the specific

product warranty contact the Challenger Service Department before making the service call.

3) IMPORTANT: If you are sent a dispatch from Challenger Service Department it is NOT

authorization to treat as warranty. At that time you as a representative of Challenger lifts will

determine if true warranty or not and proceed accordingly. If not warranty you will be paid for the

mileage and labor to diagnose the situation.

4) IMPORTANT: If you perform a warranty repair that is authorized by someone other than

Challenger Lifts Service Department, there is no guarantee your claim will be accepted and

processed as warranty.

5) Mileage and labor rates will be paid in accordance with CLI’s and the service company’s written

agreement on file. No changes in the mileage and labor rates may be made by the service

company without written authorization from Challenger. No overtime will be allowed without prior

authorization.

6) The mileage rate will include drive time. Mileage will not be allowed on warranty repairs

performed with new installations and routine service calls. CLI reserves the right to combine

mileage on warranty repairs performed in the same vicinity on the same day. Mileage totals over

200 miles will be determined using the web site Google Maps as a standard.

7) Labor time will be paid in accordance with Challenger’s Warranty Allowances contained in this

book. If service time claimed on the Warranty Claim Form exceeds the time allowed then a

detail explanation must be included on the form. It is Challenger’s sole discretion to determine

the reasonability of the extra time charged.

8) All warranty repairs must be made by the nearest factory authorized Service Company. In

any case, mileage will be determined, by Challenger, from the closest available service

center to the lift location.

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

9) If a part is to be returned a RMA number will be issued.

a. If part is UPS or FedEx able then a call tag will be shipped with warranty part

for return.

b. If the part needs to be picked up LTL or flat bed then:

i. Once part is properly packaged call Service Department

ii. Will need the RMA number, location of part, contact and phone number

c. The RMA part will be billed on your account and credited once the defective

part(s) is received at Challenger.

d. All RMA parts need to be received at Challenger Lifts in a timely manner to be

properly credited.

10) IMPORTANT: Warranty claims will NOT be processed until RMA part has been returned

11) Warranty claims must be filed on Challenger Lifts Warranty Claim Forms within 60

days of the completion of repairs. Claims submitted after 60 days of the completion of

the repairs may, at Challenger’s discretion, not be honored.

12) All claims must be properly and completely filled out with a detailed explanation of the

problem and repair. If the Warranty Claim form is not filled out completely it will be

returned to the service company.

13) Parts (RMA’s) requested to be returned by the Challenger Service Department must be

returned to Challenger in accordance with Challenger’s Policies and Procedures. See

Page 11 in this book. All RMA’s must be returned to Challenger using an authorized

Challenger freight company for those parts still in the labor & freight warranty period,

and accepted by Challenger before the related service labor claim will be processed.

RMA’s must be returned within 45 days from the date of Challenger’s shipment of the

parts or payment for the RMA parts invoice is expected to be paid.

14) CLI reserves the right to effect warranty repairs with factory personnel.

15) All freight must be counted and inspected upon delivery. Any damages or shortages

must be noted on the freight bill before signing. If possible, contact CLI’s logistics

department before signing the bill. Also, remember to check for hidden damage. If

hidden damage is suspected, the freight documents should be marked as such to

protect both the service center and CLI.

16) If CLI receives a warranty claim for a diagnosis trip and CLI determines it could have

been diagnosed over the phone, then that claim will not be paid unless preauthorized

by CLI service department.

17) Multiple trips for the same service activity are not paid unless special circumstances

exist and are pre-approved by the Challenger Service Department. CLI reserves the

right to not pay for return trips because the service center did not have commonly used

service parts. See pages 12-14 for the recommended stocking list.

18) Warranty service calls are paid by Challenger by credit or check, at Challenger’s sole

discretion.

19) Service parts used in the warranty service call may be paid for or replaced at

Challenger’s sole discretion. If paid for, the cost will be the service company’s cost to

purchase from Challenger. For replacement part(s) call the service department. Do Not

request replacement part(s) on warranty labor claim.

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

Warranty Labor Claim Form

#10

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

Warranty Labor Claim Form

#1) Service center performing the warranty work

#2) Physical location of lift

#3) If you know who installed please provide. If not then not necessary.

#4) Complaint that was reported by end user or service dispatcher.

#5) Actual work performed. If you exceed the allotted time needs to be noted in this

block of what caused the extra time and will be considered.

#6) Anything that would affect the proper performance of the lift.

#7) Signature of end user and service technician

#8) 15 digit serial number of the lift location

• Model number of lift

• Date of purchase if known

• Install date if known

• Date defect was reported to you

• Actual date the warranty work was completed

#9) If location over 50 miles or work being performed is estimated over $250.00

need to call Challenger in advanced to be authorized.

If a part needs to be returned for inspection and credit then provide RMA number

#10) Mileage: calculated round trip. No windshield time. If more than one trip please

provide number of trips.

Labor: calculated in man hours as shown on pages 11 thru 13.

Times are shown in man hours. If it takes 4 hours and you used 2 men this would

be 8 man hours.

Misc items: any parts purchased for use on this lift. Need to provide receipt or

invoice number.

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

AUTHORIZED WARRANTY LABOR ALLOWANCES

Allowances for specific warranty repairs have been established by analysis of historical

records and time studies conducted on Challenger Lift’s facilities. Any repair exceeding the

established repair time must be preauthorized or have an explanation for additional time to

resolve the problem, otherwise the claim will automatically be adjusted and credited

accordingly.

TIME ALLOWANCES NOT LISTED, CONSULT WITH SERVICE DEPARTMENT

Universal Items

Repair Service

Total Man Hours

Lowering Valve or Check Valve

.50

Power Unit Run - Micro Switch

.50

Power Unit

1.00

Power Unit – Bench Mount and Dual Pendant

2.00

Control Relay – Bench Mount and Dual Pendant

1.00

Reservoir & Pick Up Tube

.50

Pressure Relief Valve

.50

2-Post Lifts

Repair Service

Total Man Hours

Arm – Male

.50

Arm – Female

.75

(1) Cylinder

1.00

(2) Cylinders

1.50

(1) Cylinder (12, 15 & 18K)

1.50

(2) Cylinders (12, 15 & 18K)

2.50

(1) Carriage, Column or Slide Blocks set

(excludes 15k & 18k)

5.00*

(2) Carriages or Slide Block sets

(excludes 15k & 18k)

7.00*

(1) Carriage, Column or Slide Blocks set (15k & 18k)

6.00

(2) Carriages, Column or Slide Blocks set (15k & 18k)

8.00

(1) Synch. Cables

1.00

(2) Synch. Cables or Chains

1.50

Hydraulic Line or Hose – Power Side / Power Unit

.50

Hydraulic Line or Hose – Idler Side

1.00

Dual Pendant Control

.50

Overhead Limit Switch

1.00

Lock Release Cable

1.00

Factory Installed Hyd. Fittings (First 30 Days)

.50

** Denotes (1) extra hour for Models CL10-3 and 12000 any series **

All times listed reflect total man-hours allowed, regardless of crew size. Total man hours

should not exceed these allotted times without an explanation of the special circumstances.

These circumstances will be evaluated in the normal manner and it is Challenger’s sole

discretion to determine.

TIME ALLOWANCES NOT LISTED, CONSULT WITH SERVICE DEPARTMENT

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

4-Post Lifts

4 Post Closed Front Series

Repair Service

Total Man Hours

Chain or Cable

1.50

Hydraulic Cylinder

1.50

Safety Rods or Ladder

.50

Column Replacement

1.00

Overhead Beam

3.00

Hydraulic Hose

.50

Drive on Ramp

.50

Runway

3.00

2 Runways

5.00

Latch Air Cylinder or Latch Replacement (each corner)

.75

Sheaves – Each Column

1.00

Sheaves – Runway Stack

2.00

4 Post Open Front Series

Repair Service

Total Man Hours

Cable (each)

1.50

Hydraulic Cylinder

1.50

Safety Ladder (each corner)

.50

Column Replacement – Front

1.50

Column Replacement – Rear

1.00

Hydraulic Hose

.50

Drive on Ramp

.50

Runway

3.00

2 Runways

5.00

Latch Air Cyl or Latch Replacement (front column, each corner)

1.50

Latch Air Cyl or Latch Replacement (rear columns, each corner)

1.00

Sheaves – Each Column

1.00

Sheaves – Runway Stack

2.00

Rolling Jacks

Repair Service

Total Man Hours

Hydraulic Jack Pump

1.00

Cylinder Replacement

1.50

Hydraulic Jack Side Member

.50

Hydraulic Jack F/L/R

.50

All times listed reflect total man-hours allowed, regardless of crew size. Total man-hours

should not exceed these allotted times without an explanation of the special circumstances.

These circumstances will be evaluated in the normal manner and it is Challenger’s sole

discretion to determine.

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

TIME ALLOWANCES NOT LISTED, CONSULT WITH SERVICE DEPARTMENT

EV Cassette Lifts

Repair Service

Total Man Hours

Hydraulic Cylinder – 1or 2

8.00

Hydraulic Hose/Line

7.00

Plunger/Cylinder/Equalizer kit

8.00

Super Structure - complete

1.00

Arm – Super Structure

.50

Bearing Weld Assembly (1 Bearing)

1.00

Bearing Weld Assembly (2 Bearings)

1.50

Air Lock Cylinder

1.50

AV Cassette Lifts

Repair Service

Total Man Hours

Controls

1.00

Plunger/Equalizer kit

8.00

Super Structure - complete

1.00

Arm – Super Structure

.50

Bearing Weld Assembly (1 Bearing)

1.00

Bearing Weld Assembly (2 Bearings)

1.50

Air Lock Cylinder

1.50

Water Valve

4.00

Short & Mid Rise

Repair Service

Total Man Hours

Cylinder Replacement

1.00

Lock Leg

1.00

Scissor

Repair Service

Total Man Hours

Cylinder Replacement

2.00

Lock System

1.00

All times listed reflect total man-hours allowed, regardless of crew size. Total man-hours

should not exceed these allotted times without an explanation of the special circumstances.

These circumstances will be evaluated in the normal manner and it is Challenger’s sole

discretion to determine.

Warranty Policy and Procedures 2015

Part numbers and descriptions are all copyrighted materials. Unauthorized use is prohibited.

IMPORTANT

WARRANTY PARTS RETURNS

Very few warranty parts are required for return to the factory. When a part is required back.

Prior to return, the part must be tagged with the appropriate RMA number assigned by the

service department. If the part is returned to Challenger without the RMA number, it will be

refused and all shipping cost will be your responsibility.

If the package is less than 150 pounds, use the Return Label sent with the replacement part and

follow the directions on the back of the label to call for a pickup.

When the package is over 150 pounds and ready to be picked up, contact the Challenger

Service Department to schedule the pickup.

Prior to calling please have:

• RMA number

• Physical address

• phone number

• Contact for pick-up

All parts requiring return must be received within (45) days of the receipt of the replacement

part. Failure to do so will result in the following:

• The invoice for the RMA part will be due and immediately payable.

• The labor claim related to that RMA part will not be paid until the part is returned or the

invoice paid.

Ship to address is: Challenger Lifts, Inc.

200 Cabel St.

Louisville, KY 40206

If you need any assistance in returning parts, please contact Challenger’s Traffic Department at

502-625-0700

Challenger reserves the right to require the return of any parts

Recommended Stocking Parts List

To serve the customer in the best and most economical way, Challenger is providing a recommended parts list for

Current Production Lifts. This is a accumulation or historical data for both purchased parts and those that are warranty items.

Please make provisions to keep these parts in stock. With these items, a need for second trip can be eliminated.

CLI will not pay a second trip to install these items.

2 Post Lifts

Part Number

Model

Description

Qty

Part Number

Model

Description

Qty

SPX Power Unit Components

Hydraulic Cylinders

VF-9021

Excluding DPC

Manual Release Valve

16138R

CL10/SA10

Hydraulic Cylinder

EF-1091

CL10DPC

Solenoid Lowering Coil

JSJ5-07-00CH

E10

Hydraulic Cylinder

2506-AA

All Models

Check Valve

39097R

12000/CL12

Hydraulic Cylinder

2001917

Excluding DPC

Mircoswitch

15075

15/18000

Hydraulic Cylinder

3000860

Excluding DPC

Wiring Assembly

QY31265

CLFP9

Hydraulic Cylinder

3000866

CL10DPC

Wiring Assembly

16138R-SK

CL10/12000

Seal Kit

K-40

All Models

Pump O-ring Kit

JSJ4-07-00SK

E10

Seal Kit

A1206-10-1X

CL10DPC

Pendant Assembly

15075SK

15/18000

Seal Kit

A1206-15

CL10DPC

Junction Box Assembly

QY31265-SK

CLFP9

Seal Kit

12045

CL10/E10/E12

Mercury Switch

Synchronization

12045-DPC

CL10DPC

Mercury Switch

12100 (Std Ht)

15/18

Synch Cable Assembly

11329

CL10 DPC

Estop replacement kit

12019 (Ext Ht)

15/18

Synch Cable Assembly

Wuxi Deli Power Unit Components

31019

12/15/18

Pulley Assembly

DLH-010

E10 / SA10

Manual Release Valve

12531

Synch Cable Assembly

DLH-009

E10 / SA10

Check Valve

A2115-(0/2/3)

CL10/CL10DPC

Synch Cable Assembly

DLH-012

E10 / SA10

Switch Assembly

36025

CL10/CL10DPC

Sheave Assembly

DLH-013

E10 / SA10

Contactor

JSJ5-04-00CH

E10

Synch Cable Assembly

Hydraulic Fittings

JSJ3-03-02

E10

Synch Sheave

16167

All Models

#6 SAE x #6 JIC 90 Elbow

JSJ6-04-00

E12

Synch Cable Assembly

A2128

CL10

#6 SAE x #6 JIC 45 Elbow

JSJ6-03-08

E12

Synch Sheave

39103

CL10

#6 SAE Union Tee

B26052

CLFP9

Synch Cable Assembly

11088

All Models

O-Ring for #6 SAE

B26008

CLFP9

Synch Sheave

JSJ4-15

E10/E12

Union Tee

3W-06-08A (Std Ht)

SA10

Synch Cable Assembly

JSJ5-19

E10/E12

O-Ring Elbow

3W-06-28A (Ext Ht)

SA10

Synch Cable Assembly

JSJ6-19

E10/E12

Power Cyl Elbow

3W-01-04-03

SA10

Sync Sheave

B31116

CLFP9

#6 SAE x #6 JIC Straight

JSS3-19

CLFP9

#6 SAE x #6 JIC 90 Elbow

B26000-01

CLFP9

#6 Bulkhead Elbow

JSJ6-21

E12

5/8-18 Idler Cyl Elbow

2 Post Lifts

Part Number

Model

Description

Qty

Part Number

Model

Description

Qty

Pneumatics

Lock Release

37025

12/15/18

Air Cylinder Assembly

A2135-(0/2/3)

CL10/CL10DPC

Lock Release Cable Ass'y

37016

12/15/18

Mac Valve

12656-0

CL12

Lock Release Cable Ass'y

12105

12/15/18

1/8" dia Nylon Air Line

A1131

CL10

Lock Spring

Arm Restraint

A1132

CL10

Cable Spring

A1070TC

CL10/CLFP9/CL12

Inner Gear

B31150

CLFP9

Soft Latch Release

A1072TC

CL10/CLFP9/CL12

Outer Gear

X10-034

E10

Nut (M6)

12093

15/18000

Arm Restraint Assembly

JSJ5-06-01

E10

Bolt (Cable Clamp)

31052

12000

Arm Restraint Assembly

JSJ5-06-02

E10

Sleeve

JSJ5-09-07

E10

Inner Gear

JSJ5-06CH

E10

Lock Release Cable

JSJ4-12

E10

Outer Gear

JSJ4-02-09

E10

Pulley

JSJ6-09-07

E12

Inner Gear

JSJ5-02-13

E10/E12

Lock Release Spring 1

JSJ6-12

E12

Outer Gear

JSJ5-02-07

E10/E12

Lock Release Spring 2

3W-02-13

SA10

Outer Gear

JSJ6-06

E12

Lock Release Cable Ass'y

3W-04-17

SA10

Inner Gear

3W-06-11A

SA10

Lock Release Cable

Short / Mid-Rise / Scissor

Power Unit Components

Hydraulics

VF-9021

All Models

Manual Release Valve

GTYJ3-04-00L

MR6

Hydraulic Cylinder (left)

EF-1092 DX77 Solenoid Lowering Coil

GTYJ3-04-00R MR6 Hydraulic Cylinder (Right)

2506-AA

All Models

Check Valve

TYJ3-26

MR6

Hydraulic Hose (Long)

2001917

All Models

Mircoswitch

TYJ3-25

MR6

Hydraulic Hose (Short)

3000852

All Models

Wiring Assembly 115V

16167

All Models

#6 SAE x #6 JIC 90 Elbow

3000860

All Models

Wiring Assembly 220V

MR6-011

MR6

3/8MPT x #6 JIC Swivel

3000866

DX77

Wiring Assembly

TYJ3-21

MR6

M14 Male x 3/8NPTM

K-40

All Models

Pump O-ring Kit

63-0022

SRM10

Hydraulic Cylinder

Lock Release

60-0105

SRM10

#6 JIC Male Branch Tee

GTYJ3-31X

MR6

Lock Release Cable

62-0011-22/30

SRM10

Hydraulic Hose

1251041005

DX77

Lock Release Air Cylinder

3036025801

DX77

Hydraulic Cylinder

DX77-hose-3

DX77

DX77 Hose, 3ft

DX77-75-178

DX77

Platform Hyd Hose

DX77-49 DX77 Hyd Fitting #6 JIC x BSPP

EV Cassette Lifts

Part Number

Model

Description

Qty

Part Number

Model

Description

Qty

Power Unit Components

Hydraulics

VF-9021 Excluding BMC Manual Release Valve

16138R EV1020/ EV1220 Hydraulic Cylinder

EF-1091 BMC Solenoid Lowering Coil

15075 EV1520 Hydraulic Cylinder

2507-AA All Models Check Vavle

17201

All Models

Hose & Fitting Kit

2001917 Excluding BMC Mircoswitch

16167 All Models #6 SAE x #6 JIC 90 Elbow

3000860 Excluding BMC Wiring Assembly

3000866 BMC Wiring Assembly

Pneumatics

K-40 All Models Pump O-ring Kit

40142

All Models

Air Cylinder

17151 CS/EV BMC 3 Button Control

37016 Excluding BMC Mac Valve

40239

All Models

Coiled Air Hose

16127EV

CS9200/0920/1020

6 1/2" Dia Wiper

16165

All Models

1/8NPTM x 1/4NPTF Elbow

16128EV

CS9200/0920/1020

6 1/2" Dia Bearing

17110 CS/EV BMC Lock Release Air Valve

16485EV

EV1020/1220/1520

8 1/2" Dia Wiper

16486EV

EV1020/1220/1520

8 1/2" Dia Bearing

AV Cassette Lifts

Bearings & Wipers

Fittings

CAL015

All Models

6mm Union Tee

TOP24007

All Models

Wiper

CAL016

All Models

6mm Union Elbow

TOP24006

All Models

Bearing

CAL017

All Models

16mm Union Tee

CAL018

All Models

16mm Union Elbow

Hoses

CAL019

All Models

1/2" NPT Push Lock

CAL012

All Models

16mm x 22' Tubing

TOP20173-6

All Models

G1/8 Male x 6mm (Straight)

CAL011

All Models

6mm x 22' Tubing (Black)

TOP20173-7

All Models

G1/8 Male x 6mm (Elbow)

CAL014

All Models

6mm x 10' Tubing (Blue)

TOP24004-V7

All Models

Water Control Valve

4 Post Lifts

Part Number

Model

Description

Qty

Part Number

Model

Description

Qty

Power Unit Components

Hydraulics

VF-9021

All Models

Manual Release Valve

B44011 4P14 Hydraulic Cylinder

2506-AA

All Models

Check Valve

A1121

4P14

#6 O-Ring Union Adapter

2001917

All Models

Mircoswitch

16167

4P12/4015 Series

#6 SAE x #6JIC Elbow

3000860

All Models

Wiring Assembly

40349

4P14

#6 JIC Hose Assembly

K-40

All Models

Pump O-ring Kit

40611

4015 Series

Hydraulic Cylinder

40349

4015 Series

Hydraulic Hose #6JIC

Cables

A2128

4015 Series

#6 SAE x #6JIC Elbow

JZQ7-09-01 4P14E Right Front Cable

JZQ7A-09-01 4P14X Right Front Cable

Sheaves

JZQ7-09-02 4P14E

Left Front Cable

B40055

4P14/4015 Series

Runway Sheave Pin

JZQ7A-09-02 4P14X

Left Front Cable

B40116

4P14/4015 Series

Crossbeam Sheave Pin

JZQ7-09-03 4P14E & X Right Rear Cable

B40650

4P14/4015 Series

Sheave

JZQ7-09-04 4P14E & X Left Rear Cable

40672-E1/X1-0

4015 Open Front

Right Front Cable

Pneumatics

40672-E2/X2-0

4015 Open Front

Left Front Cable

40142

4P14/4015 Series

Air Cylinder

40672-E1/X1-X 4015 Closed Front Right Front Cable

37016

4P14/4015 Series

Mac Valve

40672-E2/X2-X 4015 Closed Front Left Front Cable

40672-3

4015 Series

Right Rear Cable

40672-4

4015 Series

Left Rear Cable

NOTES:

Warranty Policy And Procedures Challenger_Warranty_Policy Challenger

Navigation menu

Versions of this User Manual:

Views

Navigation
