REV:1.0
Compal Confidential
Brazos PCW20 LA7491 Schematics Document
2011-03-29
AMD APU Ontario-FT1+ FCH Hudson-M1
ZZZ1
LA-7491P
DA60000N810
ZZZ1
LA-7491P
DA60000N810
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
23
6Friday, May 06, 2011
2010/05/06
Compal Electronics,Ltd.
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
23
6Friday, May 06, 2011
2010/05/06
Compal Electronics,Ltd.
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
23
6Friday, May 06, 2011
2010/05/06
Compal Electronics,Ltd.
Custom
4019D2

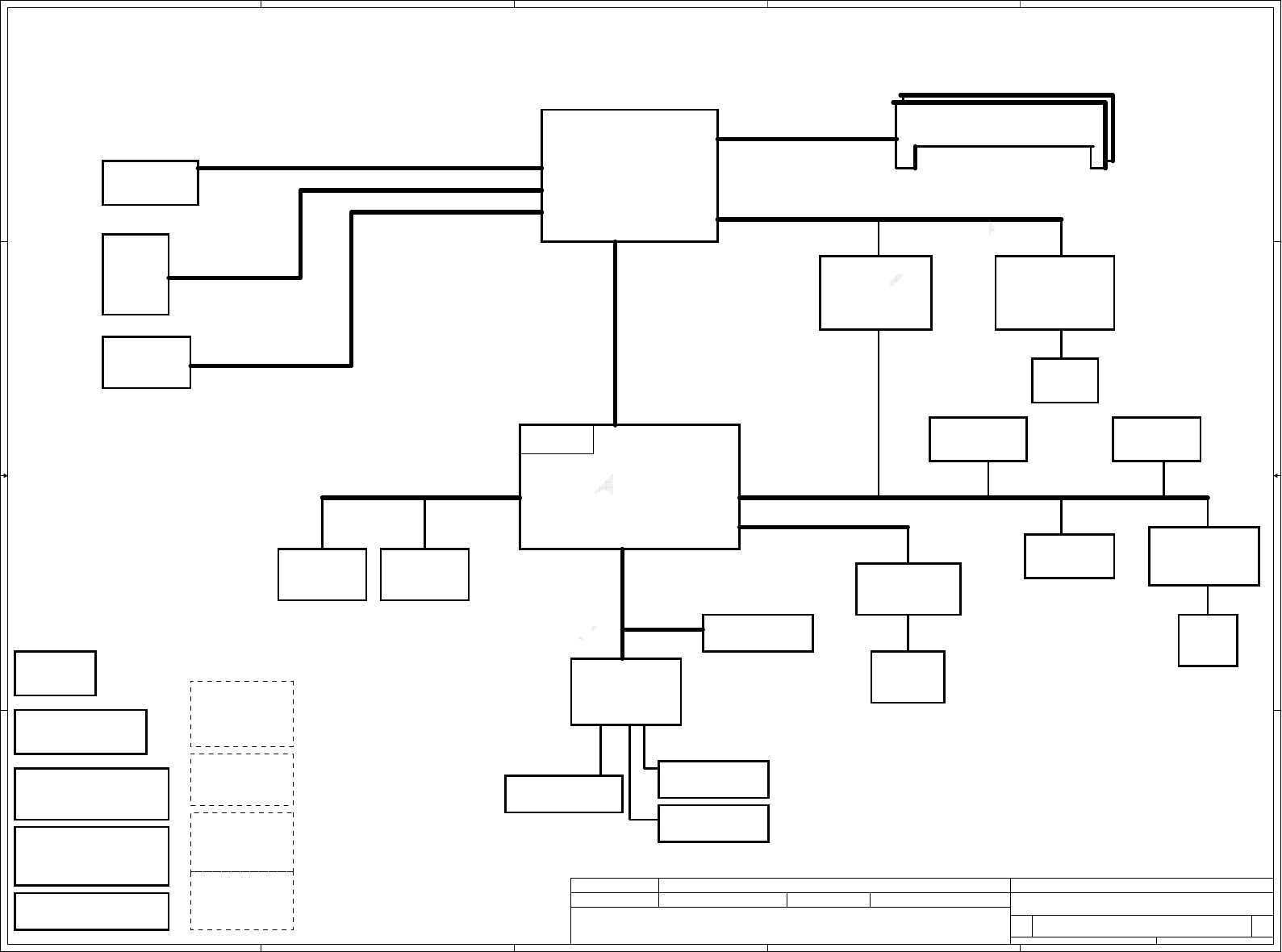

Compal Confidential
Model Name :
File Name :
DDR3-800/1066(1.5V)
USB
S-ATA
3.3V 24.576MHz/48Mhz
3.3V 48MHz
HD Audio
port 0
S-ATA HDD
Conn.
page 18
page 24page 12
USB conn x3CMOS Camera
BANK 0, 1, 2, 3
DDR3-SO-DIMM X2
page 8,9
LPC BUS
Int.KBD
ENE KB926D3
Touch Pad
BIOS
Single Channel
EC
page 23
page 23
page5~7
AMD FUSION APU
Ontario FT1
BGA-413
RJ45
LAN(10/100)
RTL8105E-VC-GR
page 19
MINI Card
WLAN&BT
PCI-Express
page 20
page 19
page 9
HDMI
CRT
page 10
page 11
LVDS Conn.
Debug port
page 21
LED
CHARGER
page 19
USB I/O Conn.
Power On/Off CKT.
DC/DC Interface CKT.
Power Circuit DC/DC
page 24
RTC CKT.
page 13
page 23
page 26,28,29
30,31,32,33
page 25
page 27
Power/B
Brazos
LA7491
AMD HUDSON-M1
page12~16
605-BALL
page 23
page 23
Card Reader
RTS5138
page 17
3 in 1
socket
page 17
UMI*8
Internal
clock GEN
DDR3-800/1066(1.35V)
page 24
S-ATA ODD
Conn.
page 18
port 1
page 22
TPM
page 21
Audio Codec
ALC259-GR
page 18
Smart Card
page 22
SPK
CONN
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
33
6Friday, May 06, 2011
2009/05/06
Compal Electronics, Inc.
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
33
6Friday, May 06, 2011
2009/05/06
Compal Electronics, Inc.
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
33
6Friday, May 06, 2011
2009/05/06
Compal Electronics, Inc.
Custom
4019D2
O
O
X
S3
+3VS
X
X
+3VALW
+5VS
S1
O
+CPU_CORE
OO
OO
X
XX
power
plane
O
O
O
O
O
X
S5 S4/ Battery only
XX X
+B
State
+1.5VS
+1.5V
S5 S4/AC & Battery
don't exist
S5 S4/AC
+5VALW
S0
O
O
+NB_CORE
+1.8VS
DDR3 Voltage Rails
Address
0001 011X b
Address
APU internal themal sensor
EC SM Bus1 address
Device Device
Smart Battery
EC SM Bus2 address
+0.75VS
+1.1VS
+1.0VS
+1.1VALW
+3VL
+5VL
+RTCVCC
TDP1_AUXP
TDP1_AUXN
LTDP0_AUXP
LTDP1_AUXN
DAC_SCL
DAC_SDA
SIC
SID
SVC
SVD
SMB_FCH_CK0
SMB_FCH_DA0
SMB_FCH_CK1
SMB_FCH_DA1
SMB_EC_CK1
SMB_EC_DA1
SMB_EC_CK2
SMB_EC_DA2
SOURCE
APU
APU
APU
APU
APU
FCH
FCH
EC
EC
POWER
PLAN
+3VS
+3VS
+3VS
+3VS
+1.8VS
+3VS
+3VALW
+5VALW
+3VS
HDMI LVDS CRT FCH CPU
CORE SDDIM
I/II BATTWLAN
V
V
+5VS
V
+3VALW
V
V
V
V
+5VS
V
@Reserve
CONN@
ME CONNECTOR
V
APU
AddressAddress
WLAN
FCH SM Bus0 address
Device Device
SDDIM I
FCH SM Bus1 address
SDDIM II
HEX HEX
HEX HEX
1010 0000
1010 0010
A0
A2
16H 1001 100X b
8111E@
GLAN function
ROM@
not support flash ROM
FROM@
Support flash ROM
8105E@
100M LAN function
REAL@
VIA@
ALC259-GR
V1802T
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
43
6Friday, May 06, 2011
2010/05/06
Compal Electronics,Ltd.
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
43
6Friday, May 06, 2011
2010/05/06
Compal Electronics,Ltd.
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
43
6Friday, May 06, 2011
2010/05/06
Compal Electronics,Ltd.
Custom
4019D2
UP618CQAG
+3VL
+5VL
+3VALW
+5VALW
SY8033BDBC
SUSP#
+1.8VS
SI4800BDY
SUSP#
+5VS
AP2301GN
EN_WOL#
+3V_LAN
SI4800BDY
SUSP#
+3VS
SI4800BDY
ENVDD
+LCDVDD
RT8209BGQW
POK
+1.1VALW
IRF8113PBF
1.1VSON#
+1.1VS
STS11N3LLH5
SUSP#
+1.0VS
ISL6265AH
RTZ
VR_ON
+CPU_CORE
+CPU_CORE_NB
RT8209BGQW
SYSON
+1.5V
SI4800BDY
SUSP#
+1.5VS
VDTT11V8
SUSP
+0.75VS
B+
VIN
B+
+3VL
+3VALW,+5VALW
+1.1VALW
ON/OFFBTN#
EC_RSMRST#
PBTN_OUT#
FCH_SLP_S5#
SYSON
+1.5V
FCH_SLP_S3#
SUSP#
+3VS,+5VS,+0.75VS
+1.8VS
+1.1VS
VR_ON
+CPU_CORE
+CPU_CORE_NB
VGATE
EC_FCH_PWROK
KB_RST#
APU_PWRGD
A_RST#
LDT_RST#
T1

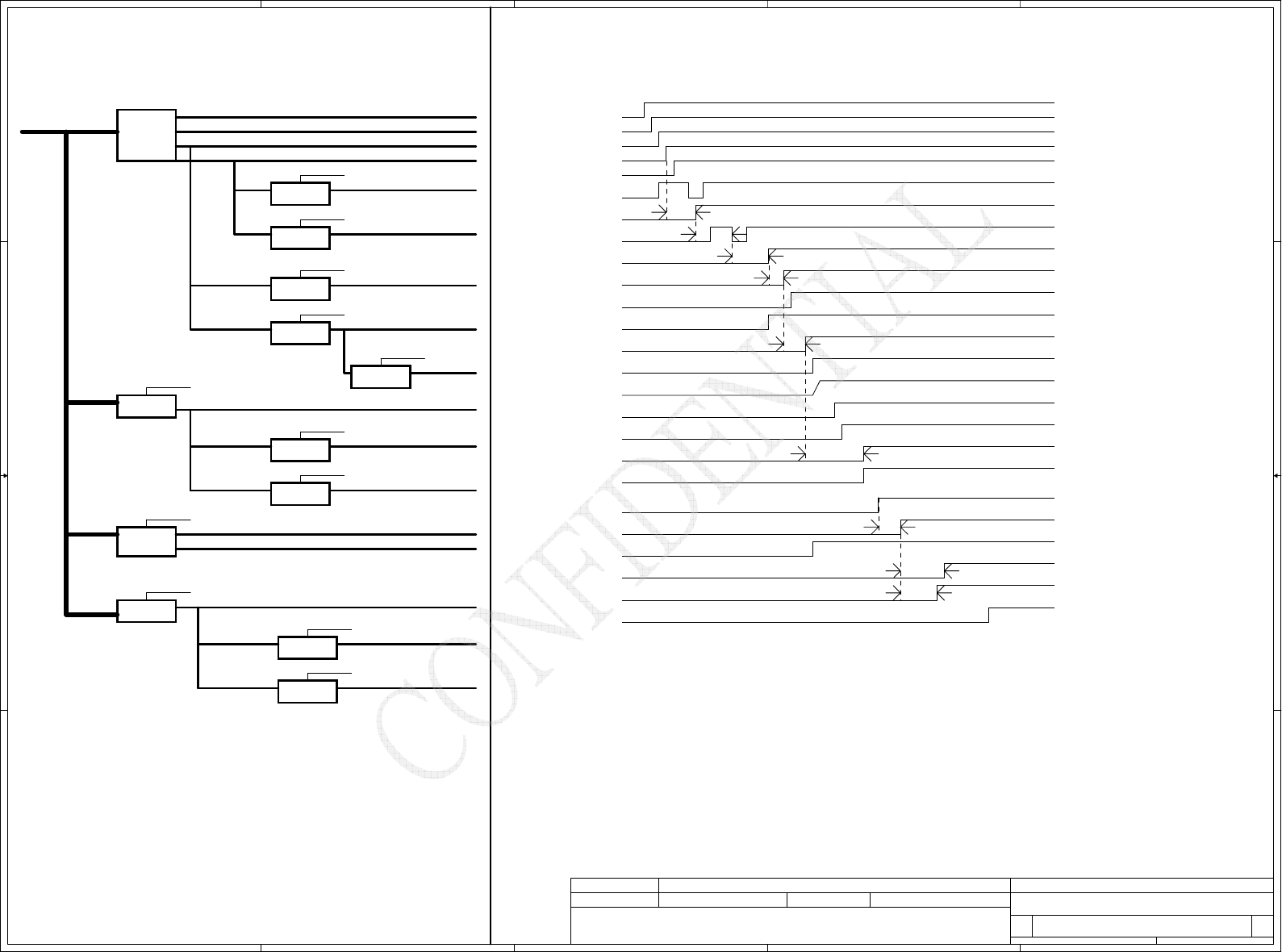

POWER MAP POWER SEQUENCE
EC->FCH
EC->FCH
FCH->EC
FCH->EC
EC->PWR
EC->PWR
EC->PWR
PWR->EC
EC->FCH
EC->FCH
FCH->APU
FCH->APU
FCH->DEVICE
T1>10ms, +3VALW to RSMRST#
T3 T3>100ns, PBTN_OUT# to SLP_S5#
+1.1VS_ON
EC->PWR
T2 T2>100ms, RSMRST# to PBTN_OUT#
T4 T4>10ms, SLP_S5# to SYSON
The same with SLP_S5#
T5 T5>10ms, SYSON to SUSP#
T6 T6>100ms, SUSP# to VR_ON
T7 T7>50ms, VGATE to EC_FCH_PWROK
T8 98ms>T7>150ms, EC_FCH_PWROK to APU_PWRGD
T9 101ms>T7>113ms, EC_FCH_PWROK to A_RST#
NOTE1
NOTE2
NOTE1: RSMRST# rise time(10% to 90%)<50ms
fail time<1ms
NOTE2: EC_FCH_PWROK rise time(10% to 90%)<50ms
fail time<1ms
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
APU_PROCHOT
APU_SIC
APU_SID
LDT_RST#_R
APU_PWRGD_R
APU_SVC
APU_SVD
LDT_RST#
APU_PWRGD
APU_PROCHOT
APU_SIC
APU_SID
APU_TRST#_RAPU_TRST#
APU_TDI
APU_TDO
APU_TCLK
APU_TMS
APU_TRST#
DBRDY
DBREQ#
APU_TCLK
APU_TMS
APU_TDI
APU_TDO
APU_PWRGD
LDT_RST#
DBRDY
DBREQ#
J108_PLLTST0
J108_PLLTST1
TEST_19
TEST_18
TEST_18
TEST_19
TEST_25_H
TEST_25_L
TEST_25_L
TEST_18
TEST_19
TEST_25_H
TEST_28_H
TEST_28_L
TEST_31
TEST_36
TEST_37
TEST_35
TEST_35
TEST_34_H
TEST_34_L
TEST_33_H
TEST_33_L
TEST_33_H
TEST_33_L
HDMI_DAT
HDMI_SCL
LVDS_DAT
LVDS_SCL
+VCC_FAN1
+VCC_FAN1
TEST_4
TEST_5
TEST_14
TEST_15
TEST_15
TEST_16
TEST_17
APU_LDT_STP#
APU_LDT_STP#
TEST_36
APU_ALERT#_R
APU_ALERT#_R
APU_SIC
APU_SID
APU_THERMTRIP#_R
APU_THERMTRIP#_R
TEST_35
+1.8VS
+3VS
+1.8VS+1.8VS
+1.8VS
+5VS
+3VS
+3VS
+3VS
+3VS
CLK_APU<14> CLK_APU#<14>
CLK_APU_DP#<14> CLK_APU_DP<14>
CRT_G <11>
CRT_R <11>
CRT_VSYNC <11>
CRT_DDC_CLK <11>
CRT_HSYNC <11>
CRT_DDC_DATA <11>
CRT_B <11>
ENVDD <12>
ENBKL <12>
INV_PWM <12>
APU_SVC<35>
APU_SVD<35>
LDT_RST#<14> APU_PWRGD<14>
LVDS_TX0+<12> LVDS_TX0-<12>
LVDS_TX1-<12> LVDS_TX1+<12>
LVDS_TX2+<12> LVDS_TX2-<12>
LVDS_CLK+<12> LVDS_CLK-<12>
APU_LDT_STP# <14>
EN_FAN1<23>
FAN_SPEED1<23>
HDMI_TX0+<10> HDMI_TX0-<10>
HDMI_TX1+<10> HDMI_TX1-<10>
HDMI_TX2+<10> HDMI_TX2-<10>
HDMI_HPD <10>
VDDCR_NB_SENSE_L<35>
VDDCR_NB_SENSE_H<35> VDDCR_APU_SENSE_H<35>
VDDCR_APU_SENSE_L<35>
APU_ALERT#<13>
HDMI_CLK+<10> HDMI_CLK-<10>
HDMI_DAT <10>
HDMI_SCL <10>
LVDS_DAT <12>
LVDS_SCL <12>
SCL3_LV <15>
SDA3_LV <15>
EC_SMB_CK2 <23>
EC_SMB_DA2 <23>
APU_THERMTRIP# <15>
APU_PROCHOT_FCH#<14> APU_PROCHOT_EC#<23>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
53
6Friday, May 06, 2011
2009/05/06
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
53
6Friday, May 06, 2011
2009/05/06
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
53
6Friday, May 06, 2011
2009/05/06
Compal Electronics, Inc.
40mil
1A
HDT CONNECTOR
AMD APU DEBUG PORT
FCH
EC
FCH
EC
U2
G996RD1U_TDFN8_3X3
U2
G996RD1U_TDFN8_3X3
VEN
1
VIN
2
VO
3
VSET
4
GND 8
GND 7
GND 6
GND 5
Thermal Pad 9
R19 4.7K_0402_5%
R19 4.7K_0402_5%
1 2
R273 0_0402_5%
R273 0_0402_5%
1 2
R9 51_0402_1%
R9 51_0402_1%
1 2
R302 0_0402_5%
@
R302 0_0402_5%
@
1 2
U1
1.5G
1.5G@U1
1.5G
1.5G@
E
B
C
Q212
MMBT3904_NL_SOT23-3
E
B
C
Q212
MMBT3904_NL_SOT23-3
2
3 1
R14 1K_0402_5%
R14 1K_0402_5%
1 2
R367
0_0402_5%
R367
0_0402_5%
1 2
R364 0_0402_5%
R364 0_0402_5%
1 2
R33
1K_0402_5%
R33
1K_0402_5%
1 2
T6
PAD T6
PAD
R274 0_0402_5%
R274 0_0402_5%
1 2
C4
10U_0805_6.3V6M
C4
10U_0805_6.3V6M
1
2
R18 4.7K_0402_5%
R18 4.7K_0402_5%
1 2
TEST VGA DAC
JTAG CTRL SER CLK
DP MISC
DISPLAYPORT 0 DISPLAYPORT 1
U1B
ONTARIO-2M161000-1.6G_BGA413
@
TEST VGA DAC
JTAG CTRL SER CLK
DP MISC
DISPLAYPORT 0 DISPLAYPORT 1
U1B
ONTARIO-2M161000-1.6G_BGA413
@
RSVD_3
V5 RSVD_2
W11 RSVD_1
B4
VSS_SENSE
F1
VDDIO_MEM_S_SENSE
F3 VDDCR_CPU_SENSE
G1 VDDCR_NB_SENSE
F4
DBREQ_L
M1 DBRDY
M3 TRST_L
M4
TCK
P1 TDO
N1 TDI
N2
ALERT_L
T2 THERMTRIP_L
U2 PROCHOT_L
U1
PWROK
T4 RESET_L
T3
SID
P4 SIC
P3
SVD
J2 SVC
J1
DISP_CLKIN_L
D1 DISP_CLKIN_H
D2
CLKIN_L
V1 CLKIN_H
V2
LTDP0_TXN3
C8 LTDP0_TXP3
D8
LTDP0_TXN2
B6 LTDP0_TXP2
A6
LTDP0_TXN1
C6 LTDP0_TXP1
D6
LTDP0_TXN0
A5 LTDP0_TXP0
B5
TDP1_TXP3
A10
TDP1_TXN2
C10
TDP1_TXN1
A9 TDP1_TXP1
B9
TDP1_TXN0
B8 TDP1_TXP0
A8
DMAACTIVE_L T1
TEST38 K3
TEST37 R5
TEST36 N5
TEST35 H4
TEST34_L T15
TEST34_H U15
TEST33_L J19
TEST33_H J18
TEST31 M21
TEST28_L M5
TEST28_H L5
TEST25_L K2
TEST25_H K1
TEST19 M2
TEST18 L2
TEST17 L1
TEST16 K4
TEST15 E4
TEST14 T5
TEST6 R6
TEST5 R2
TEST4 R1
DAC_ZVSS D12
DAC_SDA D4
DAC_SCL F2
DAC_VSYNC E2
DAC_HSYNC E1
DAC_BLUEB B13
DAC_BLUE A13
DAC_GREENB B12
DAC_GREEN A12
DAC_REDB D13
DAC_RED C12
LTDP0_HPD D3
LTDP0_AUXN B3
LTDP0_AUXP A3
TDP1_HPD C1
TDP1_AUXN C2
TDP1_AUXP B2
DP_VARY_BL H1
DP_DIGON H2
DP_BLON G2
DP_ZVSS H3
TDP1_TXP2
D10
TDP1_TXN3
B10
TMS
P2
R23 0_0402_5%
R23 0_0402_5% 1 2
C7
1000P_0402_50V7K
C7
1000P_0402_50V7K
1
2
R365 0_0402_5%
R365 0_0402_5%
1 2
R42 300_0402_5%
R42 300_0402_5%
1 2
R40 10K_0402_5%
R40 10K_0402_5%
12
Q1A
2N7002DW-T/R7_SOT363-6
@Q1A
2N7002DW-T/R7_SOT363-6
@
61
2
R32
10K_0402_5%
R32
10K_0402_5%
12
R26 1K_0402_5%
R26 1K_0402_5%
12
R38 0_0402_5%
R38 0_0402_5%
1 2
R22 4.7K_0402_5%
R22 4.7K_0402_5%
1 2
R30 1K_0402_5%
R30 1K_0402_5%
12
Q1B
2N7002DW-T/R7_SOT363-6
@Q1B
2N7002DW-T/R7_SOT363-6
@
3
5
4
R27 1K_0402_5%
R27 1K_0402_5%
12
T7
PAD T7
PAD
C6
1000P_0402_50V7K
@ C6
1000P_0402_50V7K
@
1 2
R34 1K_0402_5%
R34 1K_0402_5%
12
R24 0_0402_5%
R24 0_0402_5% 1 2
U1
1.6G
1.6G@U1
1.6G
1.6G@
R25
1K_0402_5%
R25
1K_0402_5%
1 2
T8
PAD T8
PAD
R41 10K_0402_5%
R41 10K_0402_5%
12
R366
0_0402_5%
R366
0_0402_5%
1 2
T10
PAD T10
PAD
R44 0_0402_5%
R44 0_0402_5%
1 2
R35 0_0402_5%@R35 0_0402_5%@ 1 2
R16 1K_0402_5%@R16 1K_0402_5%@ 1 2
R21 4.7K_0402_5%
R21 4.7K_0402_5%
1 2
T13
PAD T13
PAD
R20 499_0402_1%
R20 499_0402_1%
1 2
T11
PAD T11
PAD
R74 1K_0402_5%
R74 1K_0402_5%
12
R36 1K_0402_5%
R36 1K_0402_5%
12
R13 150_0402_1%
R13 150_0402_1%
1 2
R29 1K_0402_5%@R29 1K_0402_5%@ 12
R2 1K_0402_5%
R2 1K_0402_5%
1 2
R12 150_0402_1%
R12 150_0402_1%
1 2
R28 510_0402_1%
R28 510_0402_1%
1 2
R368 0_0402_5%
@
R368 0_0402_5%
@
1 2
JP1
SAMTE_ASP-136446-07-B
CONN@JP1
SAMTE_ASP-136446-07-B
CONN@
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
22
44
66
88
10 10
12 12
14 14
16 16
18 18
20 20
R3 1K_0402_5%
R3 1K_0402_5%
1 2
R8 150_0402_1%
R8 150_0402_1%
1 2
U1
1.0G
1.0G@U1
1.0G
1.0G@
T1
PAD T1
PAD
R37 1K_0402_5%
R37 1K_0402_5%
12
R45 0_0402_5%
R45 0_0402_5%
1 2
T4
PAD T4
PAD
R363 0_0402_5%
@
R363 0_0402_5%
@
1 2
R5 51_0402_1%
R5 51_0402_1%
1 2
R7 510_0402_1%
R7 510_0402_1%
1 2
R6 300_0402_5%
R6 300_0402_5%
1 2
R43 0_0402_5%
R43 0_0402_5%
1 2
C3
10U_0805_10V4Z C3
10U_0805_10V4Z 1 2
JFAN
ACES_85205-03001
CONN@
JFAN
ACES_85205-03001
CONN@
1
1
2
2
3
3
GND
4
GND
5
R39 10K_0402_5%
R39 10K_0402_5%
12
R333 1K_0402_5%
R333 1K_0402_5%
1 2
T2
PAD T2
PAD
T5
PAD T5
PAD
R64 1K_0402_5%
R64 1K_0402_5%
1 2
R17 1K_0402_5%@R17 1K_0402_5%@ 1 2
R271 0_0402_5%
R271 0_0402_5%
1 2
T9
PAD T9
PAD
C2 0.1U_0402_16V4Z
C2 0.1U_0402_16V4Z
1 2
R1 1K_0402_5%
R1 1K_0402_5%
1 2
T28 PAD
T28 PAD
R15 150_0402_1%
R15 150_0402_1%
1 2
U1
1.2G
1.2G@U1
1.2G
1.2G@
R63 0_0402_5%
R63 0_0402_5%1 2
C1 0.1U_0402_16V4Z
C1 0.1U_0402_16V4Z
1 2
R10 100K_0402_5%
R10 100K_0402_5%
12
R272 0_0402_5%
R272 0_0402_5%
1 2
R31 1K_0402_5%@R31 1K_0402_5%@ 12
R4 300_0402_5%
R4 300_0402_5%
1 2
R70
10K_0402_5%
R70
10K_0402_5%
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

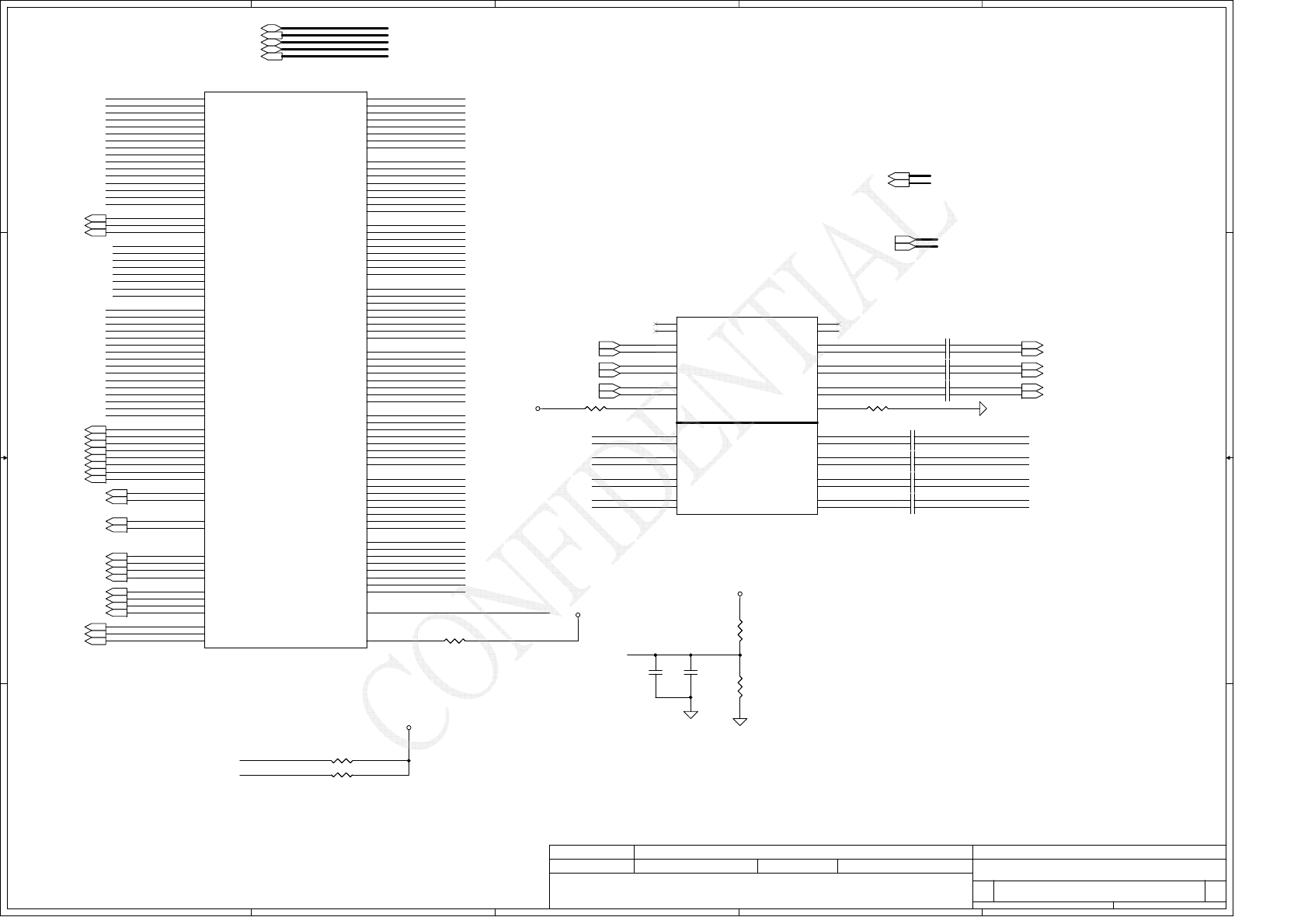

DDR_DQS#0
DDR_DQS0
UMI_C_RXP0
UMI_C_RXN0
DDR_D63
DDR_D62
DDR_D8
DDR_D5
DDR_D4
DDR_D3
DDR_D7
DDR_D6
DDR_D59
DDR_D58
DDR_D57
DDR_D56
DDR_D47
DDR_D46
DDR_D43
DDR_D42
DDR_D41
DDR_D40
DDR_D45
DDR_D44
DDR_D39
DDR_D38
DDR_D35
DDR_D34
DDR_D33
DDR_D32
DDR_D37
DDR_D36
DDR_D61
DDR_D60
DDR_D2
DDR_D1
DDR_D0
DDR_D55
DDR_D54
DDR_D51
DDR_D50
DDR_D49
DDR_D48
DDR_D53
DDR_D52
DDR_D31
DDR_D30
DDR_D27
DDR_D26
DDR_D25
DDR_D24
DDR_D15
DDR_D14
DDR_D11
DDR_D10
DDR_D9
DDR_D13
DDR_D12
DDR_D29
DDR_D28
DDR_D23
DDR_D22
DDR_D19
DDR_D18
DDR_D17
DDR_D16
DDR_D21
DDR_D20
DDR_MA14
DDR_MA0
DDR_MA1
DDR_MA4
DDR_MA2
DDR_MA3
DDR_MA5
DDR_MA6
DDR_MA7
DDR_MA8
DDR_MA9
DDR_MA12
DDR_MA13
DDR_MA11
DDR_MA10
DDR_MA15
DDR_DQS#1
DDR_DQS1
DDR_DQS#2
DDR_DQS2
DDR_DQS#3
DDR_DQS3
DDR_DQS#4
DDR_DQS4
DDR_DQS#5
DDR_DQS5
DDR_DQS#6
DDR_DQS6
DDR_DQS#7
DDR_DQS7
DDR_DM7
DDR_DM5
DDR_DM6
DDR_DM4
DDR_DM3
DDR_DM2
DDR_DM1
DDR_DM0
UMI_C_RXP1
UMI_C_RXN1
UMI_C_RXP2
UMI_C_RXN2
UMI_C_RXN3
UMI_C_RXP3
UMI_TXP0
UMI_TXN0
UMI_TXN1
UMI_TXP1
UMI_TXN2
UMI_TXP2
UMI_TXN3
UMI_TXP3
UMI_C_TXP0
UMI_C_TXN0
UMI_C_TXN1
UMI_C_TXP1
UMI_C_TXN2
UMI_C_TXP2
UMI_C_TXN3
UMI_C_TXP3
+M_VREF
+M_VREF
DDR_EVENT#
DDR_RST#
PCIE_ITX_PRX_N2
PCIE_ITX_PRX_P2
PCIE_ITX_PRX_N3
PCIE_ITX_PRX_P3
PCIE_ITX_PRX_N1
PCIE_ITX_PRX_P1
+1.0VS
+1.5V
+1.5V
+1.5V
DDR_MA[0..15]<8,9>
DDR_DM[0..7]<8,9> DDR_D[0..63]<8,9>
DDR_A_ODT0<8> DDR_A_ODT1<8>
DDR_A_CS0#<8> DDR_A_CS1#<8>
DDR_A_CLK1<8>
DDR_CKE1<8,9>
DDR_A_CLK1#<8>
DDR_A_CLK0<8>
DDR_CKE0<8,9>
DDR_A_CLK0#<8>
DDR_DQS#[0..7]<8,9> DDR_DQS[0..7]<8,9>
DDR_BS0<8,9> DDR_BS1<8,9> DDR_BS2<8,9>
DDR_RAS#<8,9> DDR_CAS#<8,9> DDR_WE#<8,9>
DDR_B_CLK0<9> DDR_B_CLK0#<9> DDR_B_CLK1<9> DDR_B_CLK1#<9>
DDR_B_ODT0<9> DDR_B_ODT1<9>
DDR_B_CS0#<9> DDR_B_CS1#<9>
DDR_EVENT#<8,9> DDR_RST#<8,9>
UMI_C_RXP[0..3]<14> UMI_C_RXN[0..3]<14>
UMI_C_TXP[0..3]<14> UMI_C_TXN[0..3]<14>
PCIE_PTX_C_IRX_P2<19> PCIE_PTX_C_IRX_N2<19>
PCIE_PTX_C_IRX_P3<20> PCIE_PTX_C_IRX_N3<20>
PCIE_ITX_C_PRX_N2 <19>
PCIE_ITX_C_PRX_P2 <19>
PCIE_ITX_C_PRX_N3 <20>
PCIE_ITX_C_PRX_P3 <20>
PCIE_PTX_C_USB30RX_P4 <25>
PCIE_PTX_C_USB30RX_N4 <25>
PCIE_PRX_C_USB30TX_P4<25> PCIE_PRX_C_USB30TX_N4<25>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
636Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
636Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
636Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
LANLAN
WLAN WLAN
USB3.0USB3.0
R49 39.2_0402_1%R49 39.2_0402_1%
1 2
R47 1.27K_0402_1%R47 1.27K_0402_1%
1 2
C442 0.1U_0402_16V7K
USB3.0@
C442 0.1U_0402_16V7K
USB3.0@
1 2
C172
1000P_0402_50V7K
C172
1000P_0402_50V7K
1
2
C338 0.1U_0402_16V7KC338 0.1U_0402_16V7K
1 2
C15 0.1U_0402_16V7KC15 0.1U_0402_16V7K
1 2
C339 0.1U_0402_16V7KC339 0.1U_0402_16V7K
1 2
R69 1K_0402_1%
@
R69 1K_0402_1%
@12
R50
1K_0402_1%
R50
1K_0402_1%
12
C340 0.1U_0402_16V7KC340 0.1U_0402_16V7K
1 2
C9 0.1U_0402_16V7KC9 0.1U_0402_16V7K
1 2
R48
1K_0402_1%
R48
1K_0402_1%
12
C341 0.1U_0402_16V7KC341 0.1U_0402_16V7K
1 2
C10 0.1U_0402_16V7KC10 0.1U_0402_16V7K
1 2
R46 2K_0402_1%R46 2K_0402_1%
1 2
C16 0.1U_0402_16V7KC16 0.1U_0402_16V7K
1 2
C13 0.1U_0402_16V7KC13 0.1U_0402_16V7K
1 2
C428
0.1U_0402_16V4Z
C428
0.1U_0402_16V4Z
1
2
UMI I/F PCIE I/F
U1A
ONTARIO-2M161000-1.6G_BGA413 @
UMI I/F PCIE I/F
U1A
ONTARIO-2M161000-1.6G_BGA413 @
P_UMI_RXN3
AB7 P_UMI_RXP3
AC7
P_UMI_RXN2
AC10 P_UMI_RXP2
AB10
P_UMI_RXN1
Y10 P_UMI_RXP1
AA10
P_UMI_RXN0
Y12 P_UMI_RXP0
AA12
P_ZVDD_10
Y14
P_GPP_RXN3
Y3 P_GPP_RXP3
Y4
P_GPP_RXN2
AA2 P_GPP_RXP2
AA1
P_GPP_RXN1
AC4 P_GPP_RXP1
AB4
P_GPP_RXN0
Y6 P_GPP_RXP0
AA6
P_UMI_TXN3 AC8
P_UMI_TXP3 AB8
P_UMI_TXN2 Y8
P_UMI_TXP2 AA8
P_UMI_TXN1 AB11
P_UMI_TXP1 AC11
P_UMI_TXN0 AC12
P_UMI_TXP0 AB12
P_ZVSS AA14
P_GPP_TXN3 V4
P_GPP_TXP3 V3
P_GPP_TXN2 Y2
P_GPP_TXP2 Y1
P_GPP_TXN1 AC3
P_GPP_TXP1 AB3
P_GPP_TXN0 AC6
P_GPP_TXP0 AB6
C14 0.1U_0402_16V7KC14 0.1U_0402_16V7K
1 2
C11 0.1U_0402_16V7KC11 0.1U_0402_16V7K
1 2
R51 1K_0402_1%R51 1K_0402_1%
12
C12 0.1U_0402_16V7KC12 0.1U_0402_16V7K
1 2
C441 0.1U_0402_16V7K
USB3.0@
C441 0.1U_0402_16V7K
USB3.0@
1 2
DDR SYSTEM MEMORY
U1E
ONTARIO-2M161000-1.6G_BGA413 @
DDR SYSTEM MEMORY
U1E
ONTARIO-2M161000-1.6G_BGA413 @
M_WE_L
V17 M_CAS_L
V19
M1_CS_L1
V16 M1_CS_L0
U17 M0_CS_L1
W16 M0_CS_L0
T17
M1_ODT1
W15 M1_ODT0
U19 M0_ODT1
V15 M0_ODT0
W19
M_CKE1
E15 M_CKE0
F15
M_EVENT_L
N17 M_RESET_L
L23
M_CLK_H3
L18 M_CLK_L2
N19 M_CLK_H2
N18 M_CLK_L1
M18 M_CLK_H1
M19 M_CLK_L0
M16 M_CLK_H0
M17
M_DQS_L7
AC16
M_DQS_L6
AC21 M_DQS_H6
AC20 M_DQS_L5
V22 M_DQS_H5
W22 M_DQS_L4
P22 M_DQS_H4
R22 M_DQS_L3
J23 M_DQS_H3
J22 M_DQS_L2
E22 M_DQS_H2
E23 M_DQS_L1
A20 M_DQS_H1
B20 M_DQS_L0
B16 M_DQS_H0
A16
M_DM7
AA16 M_DM6
AB20 M_DM5
V23 M_DM4
P23 M_DM3
H22 M_DM2
D21 M_DM1
B19 M_DM0
D15
M_BANK2
F16 M_BANK1
T18 M_BANK0
R18
M_ADD15
G15 M_ADD14
E16 M_ADD13
W17 M_ADD12
E18 M_ADD11
F17 M_ADD10
T19 M_ADD9
E19 M_ADD8
F19 M_ADD7
G18 M_ADD6
H15 M_ADD5
G17 M_ADD4
H17 M_ADD3
H18 M_ADD2
J17 M_ADD1
H19 M_ADD0
R17
M_ZVDDIO_MEM_S M22
M_VREF M23
M_DATA63 AC15
M_DATA62 AB15
M_DATA61 AB18
M_DATA60 AC18
M_DATA59 AC14
M_DATA58 AB14
M_DATA57 Y16
M_DATA56 AC17
M_DATA55 Y18
M_DATA54 AB19
M_DATA53 AA20
M_DATA52 AA23
M_DATA51 AA18
M_DATA50 AC19
M_DATA49 AB22
M_DATA48 Y20
M_DATA47 Y21
M_DATA46 W23
M_DATA45 U23
M_DATA44 T21
M_DATA43 Y22
M_DATA42 Y23
M_DATA41 V21
M_DATA40 V20
M_DATA39 T22
M_DATA38 R23
M_DATA37 P20
M_DATA36 M20
M_DATA35 T23
M_DATA34 T20
M_DATA33 P21
M_DATA32 N23
M_DATA31 K23
M_DATA30 K20
M_DATA29 H20
M_DATA28 G23
M_DATA27 K21
M_DATA26 K22
M_DATA25 H23
M_DATA24 H21
M_DATA23 F21
M_DATA22 F20
M_DATA21 D22
M_DATA20 C22
M_DATA19 F22
M_DATA18 F23
M_DATA17 D23
M_DATA16 C23
M_DATA15 C20
M_DATA14 A21
M_DATA13 B18
M_DATA12 A18
M_DATA11 D20
M_DATA10 B21
M_DATA9 A19
M_DATA8 C18
M_DATA7 D16
M_DATA6 C16
M_DATA5 C14
M_DATA4 A14
M_DATA3 D18
M_DATA2 A17
M_DATA1 A15
M_DATA0 B14
M_CLK_L3
L17
M_DQS_H7
AB16
M_RAS_L
U18
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

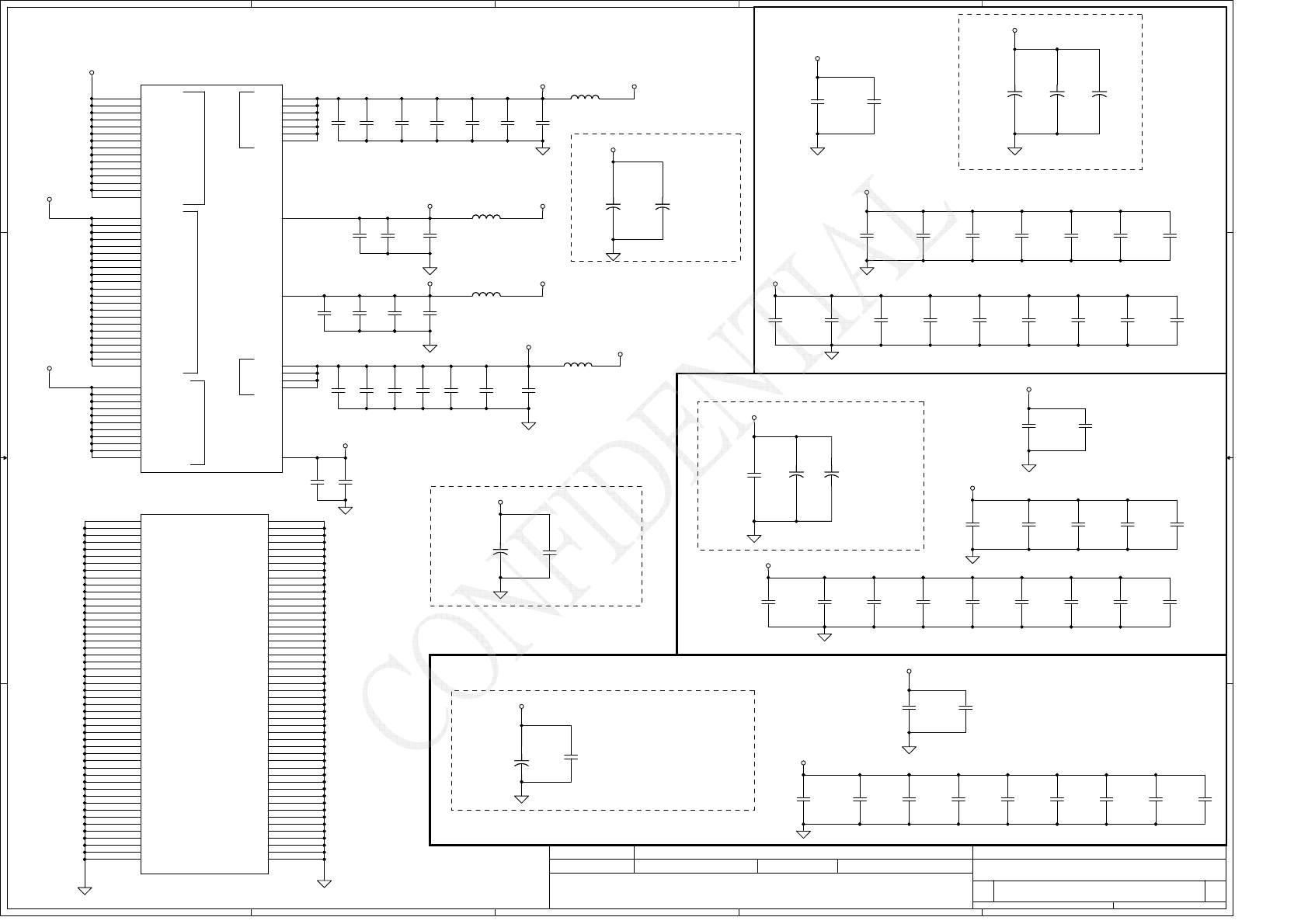

+CPU_CORE
+CPU_CORE
+CPU_CORE
+1.8VS
+1.0VS
+3VS
+CPU_CORE_NB
+CPU_CORE_NB
+CPU_CORE_NB
+1.5V
+1.5V
+1.8VS
+1.8VS_DAC
+1.0VS_VDDPL
+CPU_CORE
+CPU_CORE_NB
+1.5V
+1.8VS
+1.0VS
+1.8VS_VDD
+1.0VS
+1.0VS_VDD
+CPU_CORE
+CPU_CORE_NB
+1.5V
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
736Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
736Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
736Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
11000mA
10000mA
2000mA
2000mA
150mA
200mA
5500mA
500mA
ESR:9ohm(MAX)
ESR:9ohm(MAX)
ESR:9ohm(MAX)
ESR:17ohm(MAX)
ESR:9ohm(MAX)
220
次
_3A
DCR:0.04
次
120
次
_5A
DCR:0.02
次
220
次
_3A
DCR:0.04
次
120
次
_5A
DCR:0.02
次
C38
0.1U_0402_16V4Z
C38
0.1U_0402_16V4Z
1
2
C81
1U_0402_6.3V4Z
C81
1U_0402_6.3V4Z
1
2
C934
180P_0402_50V8J
@
C934
180P_0402_50V8J
@
1
2
C937
180P_0402_50V8J
@
C937
180P_0402_50V8J
@
1
2
C932
180P_0402_50V8J
@
C932
180P_0402_50V8J
@
1
2
+
C26
330U_D2_2.5VY_R9M
+
C26
330U_D2_2.5VY_R9M
1
2
L1
FBMA-L11-201209-121LMA50
L1
FBMA-L11-201209-121LMA50
1 2
L3
FBMA-L11-201209-221LMA30T_0805
L3
FBMA-L11-201209-221LMA30T_0805
1 2
C48
10U_0805_6.3V6M
C48
10U_0805_6.3V6M
1
2
+
C56
330U_D2_2.5VY_R9M
+
C56
330U_D2_2.5VY_R9M
1
2
C426
0.1U_0402_16V4Z
C426
0.1U_0402_16V4Z
1
2
C27
10U_0805_6.3V6M
C27
10U_0805_6.3V6M
1
2
C37
1U_0402_6.3V4Z
C37
1U_0402_6.3V4Z
1
2
+
C74
330U_D2_2.5VY_R9M
+
C74
330U_D2_2.5VY_R9M
1
2
C49 10U_0805_6.3V6M
C49 10U_0805_6.3V6M
1
2
C929
180P_0402_50V8J
@
C929
180P_0402_50V8J
@
1
2
C47
0.1U_0402_16V4Z
C47
0.1U_0402_16V4Z
1
2
C54 1U_0402_6.3V4ZC54 1U_0402_6.3V4Z
1
2
C75 10U_0805_6.3V6M
@C75 10U_0805_6.3V6M
@
1
2
C39
1U_0402_6.3V4Z
C39
1U_0402_6.3V4Z
1
2
C44
0.1U_0402_16V4Z
C44
0.1U_0402_16V4Z
1
2
C930
180P_0402_50V8J
@
C930
180P_0402_50V8J
@
1
2
C28
1U_0402_6.3V4Z
C28
1U_0402_6.3V4Z
1
2
C65
1U_0402_6.3V4Z
C65
1U_0402_6.3V4Z
1
2
C40
1U_0402_6.3V4Z
C40
1U_0402_6.3V4Z
1
2
C51
1U_0402_6.3V4Z
C51
1U_0402_6.3V4Z
1
2
C66
1U_0402_6.3V4Z
C66
1U_0402_6.3V4Z
1
2
C60
10U_0805_6.3V6M
C60
10U_0805_6.3V6M
1
2
C20
1U_0402_6.3V4Z
C20
1U_0402_6.3V4Z
1
2
C82
0.1U_0402_16V4Z
C82
0.1U_0402_16V4Z
1
2
C936
180P_0402_50V8J
@
C936
180P_0402_50V8J
@
1
2
C41
1U_0402_6.3V4Z
C41
1U_0402_6.3V4Z
1
2
C31
10U_0805_6.3V6M
C31
10U_0805_6.3V6M
1
2
C67
1U_0402_6.3V4Z
C67
1U_0402_6.3V4Z
1
2
C70
0.1U_0402_16V4Z
C70
0.1U_0402_16V4Z
1
2
CPU CORE GPU AND NB CORE DDR3
TSense/PLL/DP/PCIE/IO DIS PLL PCIE/IO/DDR3 Phy
DAC
DP Phy/IO
POWER
U1C
ONTARIO-2M161000-1.6G_BGA413
@
CPU CORE GPU AND NB CORE DDR3
TSense/PLL/DP/PCIE/IO DIS PLL PCIE/IO/DDR3 Phy
DAC
DP Phy/IO
POWER
U1C
ONTARIO-2M161000-1.6G_BGA413
@
VDDIO_MEM_S_11
U16 VDDIO_MEM_S_10
W18 VDDIO_MEM_S_9
R19 VDDIO_MEM_S_8
R16 VDDIO_MEM_S_7
N16 VDDIO_MEM_S_6
L19 VDDIO_MEM_S_5
L16 VDDIO_MEM_S_4
J16 VDDIO_MEM_S_3
E17 VDDIO_MEM_S_2
G19 VDDIO_MEM_S_1
G16
VDDCR_NB_22
P13 VDDCR_NB_21
P11 VDDCR_NB_20
N14 VDDCR_NB_19
N12 VDDCR_NB_18
N10 VDDCR_NB_17
M13 VDDCR_NB_16
M12 VDDCR_NB_15
M11 VDDCR_NB_14

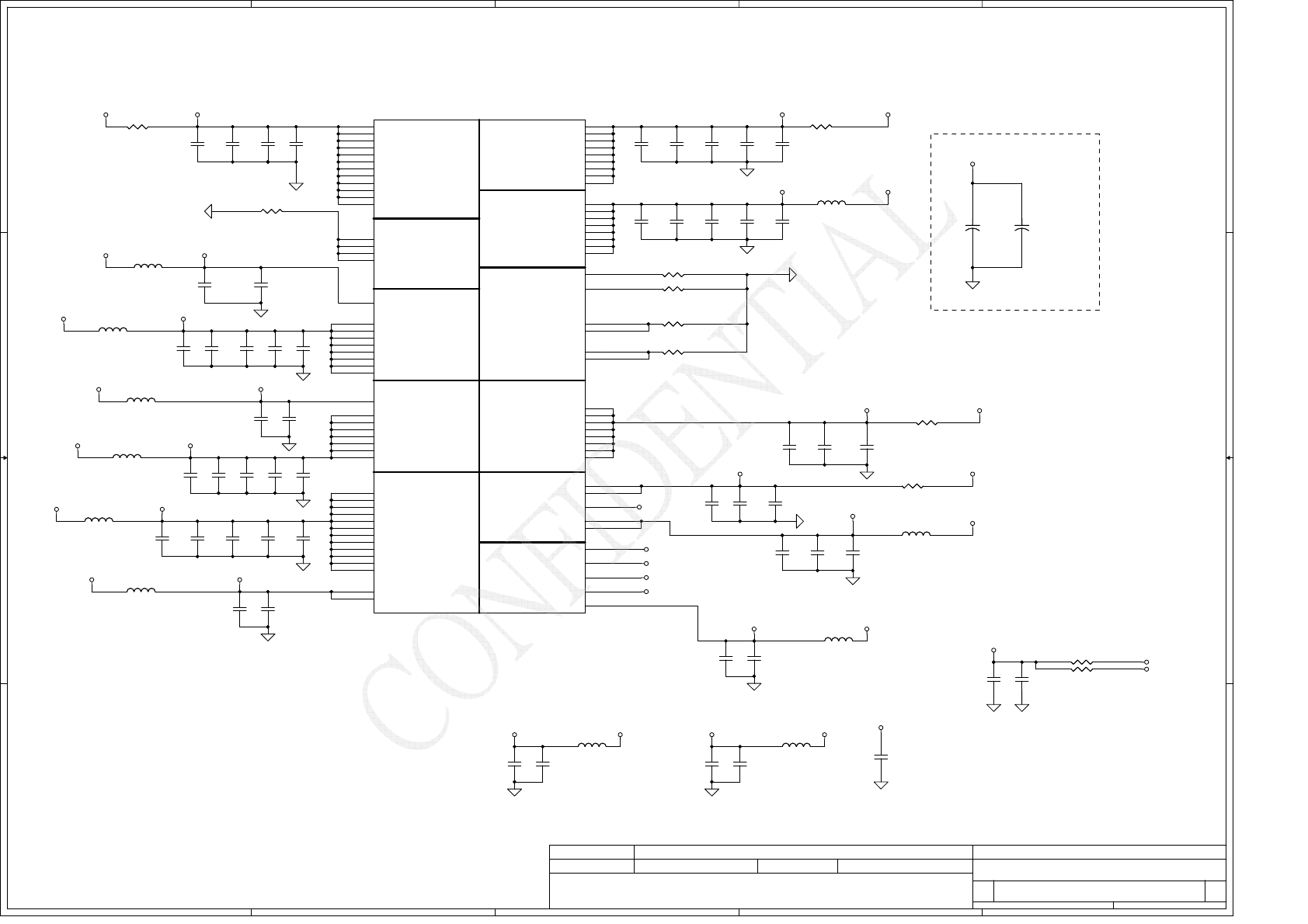

L14 VDDCR_NB_13
L12 VDDCR_NB_12
L10 VDDCR_NB_11
K13 VDDCR_NB_10
K11 VDDCR_NB_9
H12 VDDCR_NB_8
H9 VDDCR_NB_7
G13 VDDCR_NB_6
G11 VDDCR_NB_5
F12 VDDCR_NB_4
F9 VDDCR_NB_3
E13 VDDCR_NB_2
E11 VDDCR_NB_1
E8
VDDCR_CPU_15
R8 VDDCR_CPU_14
N7 VDDCR_CPU_13
M8 VDDCR_CPU_12
M6 VDDCR_CPU_11
L7 VDDCR_CPU_10
J8 VDDCR_CPU_9
J6 VDDCR_CPU_8
H7 VDDCR_CPU_7
H5 VDDCR_CPU_6
G8 VDDCR_CPU_5
G6 VDDCR_CPU_4
F7 VDDCR_CPU_3
F5 VDDCR_CPU_2
E6 VDDCR_CPU_1
E5
VDD_33 A4
VDD_10_4 T12
VDD_10_3 V12
VDD_10_2 W13
VDD_10_1 U13
VDDPL_10 U11
VDD_18_DAC W9
VDD_18_7 V7
VDD_18_6 T7
VDD_18_5 W6
VDD_18_4 U9
VDD_18_3 U6
VDD_18_2 W8
VDD_18_1 U8
C21
1U_0402_6.3V4Z
C21
1U_0402_6.3V4Z
1
2
C46
0.1U_0402_16V4Z
C46
0.1U_0402_16V4Z
1
2
C83
0.1U_0402_16V4Z
C83
0.1U_0402_16V4Z
1
2
+
C25
330U_D2_2.5VY_R9M
+
C25
330U_D2_2.5VY_R9M
1
2
C50
1U_0402_6.3V4Z
C50
1U_0402_6.3V4Z
1
2
+
C23
330U_D2_2.5VY_R9M
@
+
C23
330U_D2_2.5VY_R9M
@1
2
C68
1U_0402_6.3V4Z
C68
1U_0402_6.3V4Z
1
2
C34
10U_0805_6.3V6M
C34
10U_0805_6.3V6M
1
2
C71
0.1U_0402_16V4Z
C71
0.1U_0402_16V4Z
1
2
C58
10U_0805_6.3V6M
C58
10U_0805_6.3V6M
1
2
C43
0.1U_0402_16V4Z
C43
0.1U_0402_16V4Z
1
2
+
C22
330U_D2_2.5VY_R9M
+
C22
330U_D2_2.5VY_R9M
1
2
C42
1U_0402_6.3V4Z
C42
1U_0402_6.3V4Z
1
2
C84
0.1U_0402_16V4Z
C84
0.1U_0402_16V4Z
1
2
C62
10U_0805_6.3V6M
C62
10U_0805_6.3V6M
1
2
L4
FBMA-L11-201209-121LMA50
L4
FBMA-L11-201209-121LMA50
1 2
C938
180P_0402_50V8J
@
C938
180P_0402_50V8J
@
1
2
C55
10U_0805_6.3V6M
C55
10U_0805_6.3V6M
1
2
C78
1U_0402_6.3V4Z
C78
1U_0402_6.3V4Z
1
2
C36 10U_0805_6.3V6M
C36 10U_0805_6.3V6M
1
2
C69
1U_0402_6.3V4Z
C69
1U_0402_6.3V4Z
1
2
C72
0.1U_0402_16V4Z
C72
0.1U_0402_16V4Z
1
2
L2
FBMA-L11-201209-221LMA30T_0805
L2
FBMA-L11-201209-221LMA30T_0805
1 2
C35
10U_0805_6.3V6M
C35
10U_0805_6.3V6M
1
2
C59
10U_0805_6.3V6M
C59
10U_0805_6.3V6M
1
2
C17
10U_0805_6.3V6M
C17
10U_0805_6.3V6M
1
2
+
C24
330U_D2_2.5VY_R9M
+
C24
330U_D2_2.5VY_R9M
1
2
C33
10U_0805_6.3V6M
C33
10U_0805_6.3V6M
1
2
C76
10U_0805_6.3V6M
C76
10U_0805_6.3V6M
1
2
C52
0.1U_0402_16V4Z
C52
0.1U_0402_16V4Z
1
2
C79
1U_0402_6.3V4Z
C79
1U_0402_6.3V4Z
1
2
C30
10U_0805_6.3V6M
C30
10U_0805_6.3V6M
1
2
C19
1U_0402_6.3V4Z
C19
1U_0402_6.3V4Z
1
2
C29
10U_0805_6.3V6M
C29
10U_0805_6.3V6M
1
2
C61
10U_0805_6.3V6M
C61
10U_0805_6.3V6M
1
2
C18 1U_0402_6.3V4Z
C18 1U_0402_6.3V4Z
1
2
C939
180P_0402_50V8J
@
C939
180P_0402_50V8J
@
1
2
C77
10U_0805_6.3V6M
C77
10U_0805_6.3V6M
1
2
C933
180P_0402_50V8J
@
C933
180P_0402_50V8J
@
1
2
+
C63
220U_D2_4VM_R15
+
C63
220U_D2_4VM_R15
1
2
+
C57
330U_D2_2.5VY_R9M
@
+
C57
330U_D2_2.5VY_R9M
@
1
2
C32
10U_0805_6.3V6M
C32
10U_0805_6.3V6M
1
2
C53
0.1U_0402_16V4Z
C53
0.1U_0402_16V4Z
1
2
C80
1U_0402_6.3V4Z
C80
1U_0402_6.3V4Z
1
2
C45
0.1U_0402_16V4Z
C45
0.1U_0402_16V4Z
1
2
C931
180P_0402_50V8J
@
C931
180P_0402_50V8J
@
1
2
C73
0.1U_0402_16V4Z
C73
0.1U_0402_16V4Z
1
2
GND
U1D
ONTARIO-2M161000-1.6G_BGA413
@
GND
U1D
ONTARIO-2M161000-1.6G_BGA413
@
VSS_49
N11 VSS_48
N8 VSS_47
N6 VSS_46
N4 VSS_45
M7 VSS_44
L22 VSS_43
L20 VSS_42
L13 VSS_41
L11 VSS_40
L8 VSS_39
L6 VSS_38
L4 VSS_37
K14 VSS_36
K10 VSS_35
J20 VSS_34
J7 VSS_33
J5 VSS_32
J4 VSS_31
H13 VSS_30
H11 VSS_29
H6 VSS_28
G22 VSS_27
G20 VSS_26
G12 VSS_25
G9 VSS_24
G7 VSS_23
G5 VSS_22
G4 VSS_21
F13 VSS_20
F11 VSS_19
F8 VSS_18
E20 VSS_17
E12 VSS_16
E9 VSS_15
E7 VSS_14
D19 VSS_13
D17 VSS_12
B15 VSS_11
D14 VSS_10
D11 VSS_9
D9 VSS_8
D7 VSS_7
D5 VSS_6
C4 VSS_5
B22 VSS_4
B17 VSS_3
B11 VSS_2
B7 VSS_1
A7
VSSBG_DAC A11
VSS_97 AC13
VSS_96 AC9
VSS_95 AC5
VSS_94 AB21
VSS_93 AB17
VSS_92 AB13
VSS_91 AB9
VSS_90 AB5
VSS_89 AB2
VSS_88 AA22
VSS_87 AA4
VSS_86 Y19
VSS_85 Y17
VSS_84 Y15
VSS_83 Y13
VSS_82 Y11
VSS_81 Y9
VSS_80 Y7
VSS_79 Y5
VSS_78 W20
VSS_77 W12
VSS_76 W7
VSS_75 W5
VSS_74 W4
VSS_73 W2
VSS_72 W1
VSS_71 V13
VSS_70 V11
VSS_69 V9
VSS_68 V8
VSS_67 U22
VSS_66 U20
VSS_65 U12
VSS_64 U7
VSS_63 U5
VSS_62 U4
VSS_61 T13
VSS_60 T11
VSS_59 T9
VSS_58 T6
VSS_57 R20
VSS_56 R7
VSS_55 R4
VSS_54 P14
VSS_53 P10
VSS_52 N22
VSS_51 N20
VSS_50 N13
C167
0.1U_0402_16V4Z
C167
0.1U_0402_16V4Z
1
2
C64 10U_0805_6.3V6M@
C64 10U_0805_6.3V6M@
1
2

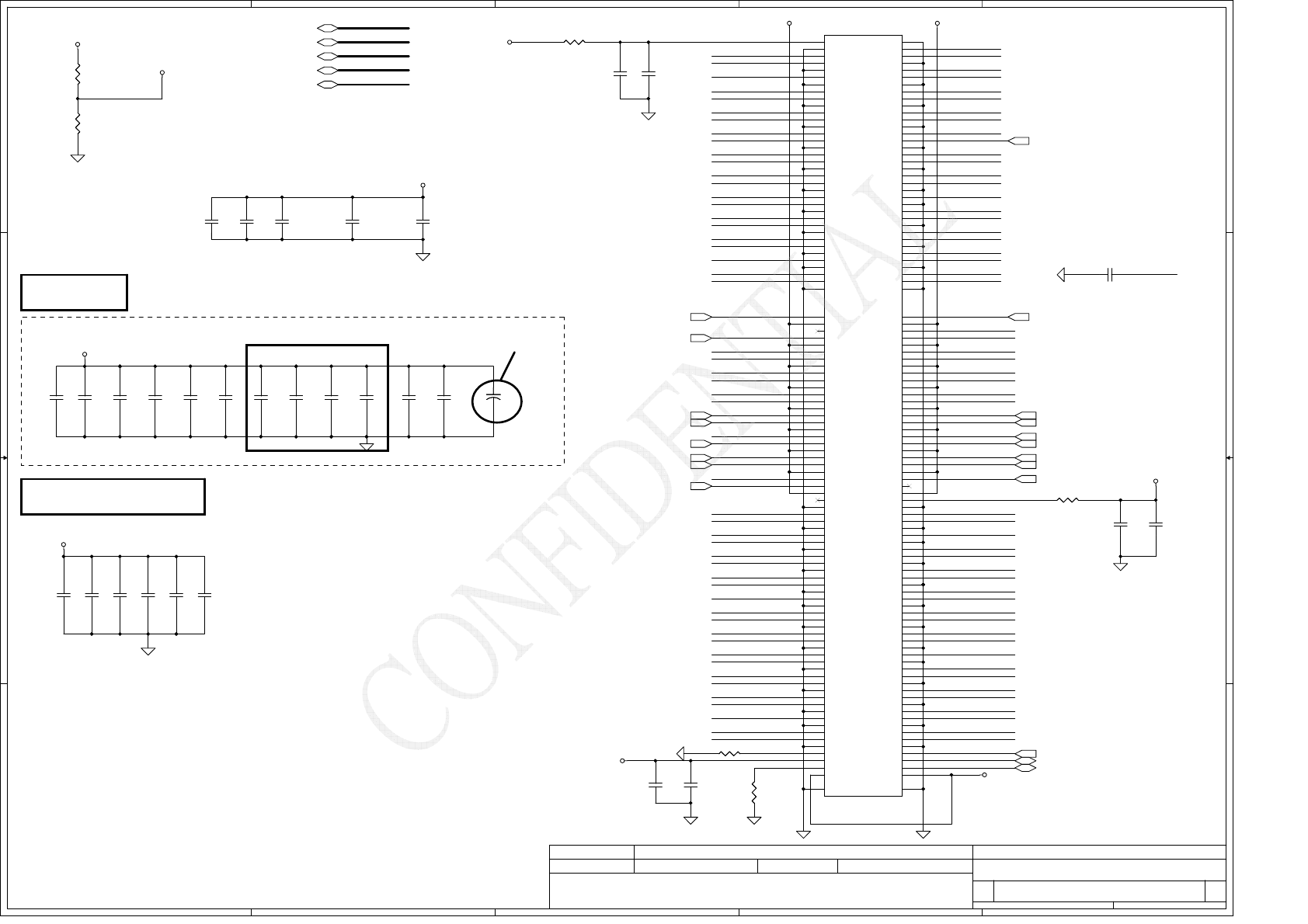

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

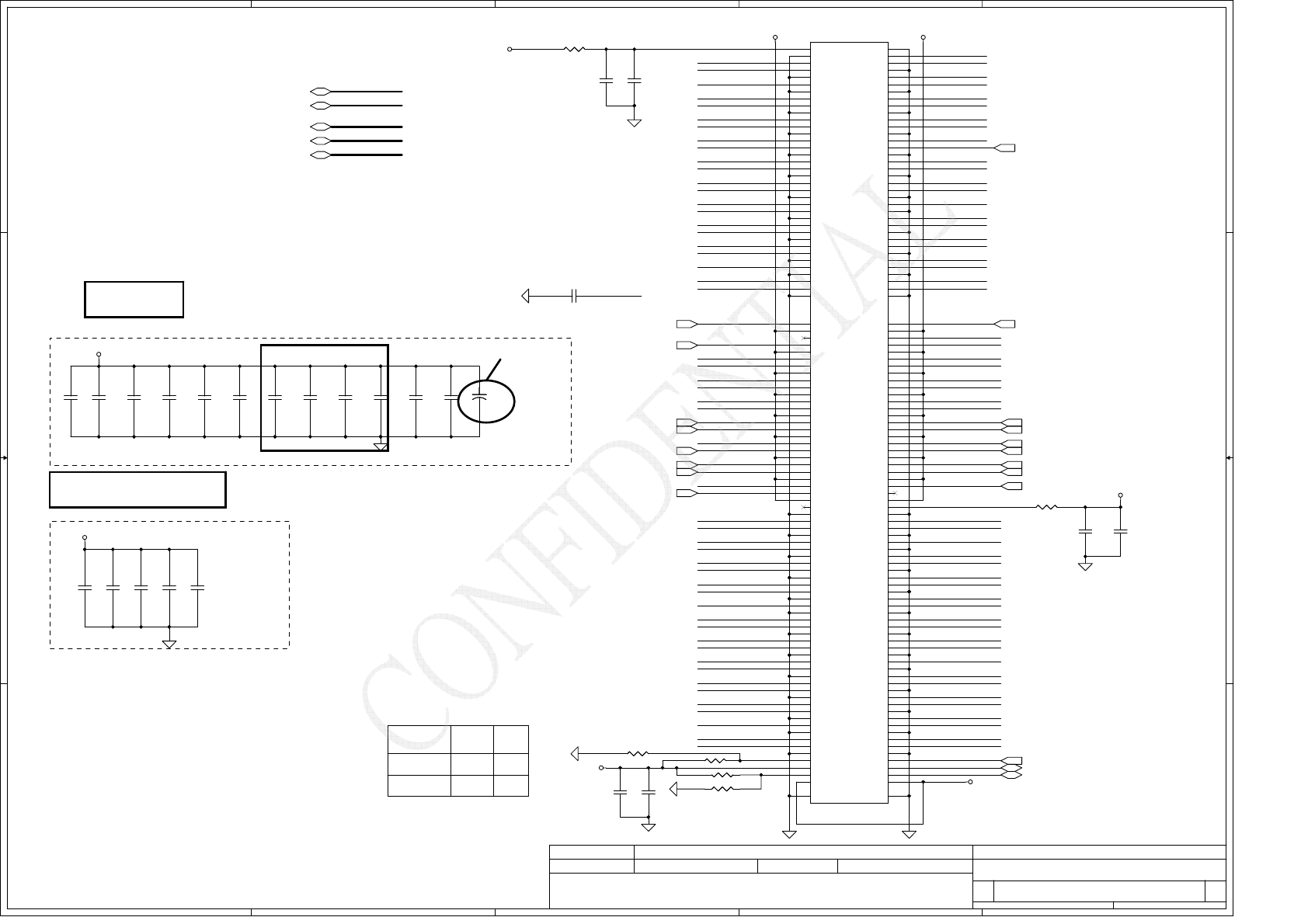

DDR_D31
DDR_D12
DDR_D59
DDR_D6
DDR_MA3
DDR_D39
DDR_DQS0
DDR_MA7
DDR_MA0
DDR_DM2
DDR_DM1
DDR_DQS7
DDR_D0
DDR_D57
DDR_D46
DDR_D28
DDR_DM0
DDR_D19
DDR_DQS#5
DDR_D51
DDR_D4
DDR_DM4
DDR_D30
DDR_DQS2
DDR_D44
DDR_D33
DDR_D58
DDR_DM5
DDR_DQS3
DDR_MA8
DDR_D10
DDR_MA6
DDR_D3
DDR_MA10
DDR_DQS#7
DDR_D1
DDR_DQS#6
DDR_D40
DDR_MA9
DDR_D16
DDR_D29
DDR_DQS#4
DDR_D52
DDR_DM3
DDR_DQS5
DDR_D54
DDR_D49
DDR_D45
DDR_D9
DDR_DM7
DDR_D7
DDR_MA1
DDR_D13
DDR_D20
DDR_D60
+DDR_VREF_CA_DIMMA
DDR_D37
DDR_MA5
DDR_DQS#1
DDR_MA14
DDR_D55
DDR_MA4
DDR_D21
DDR_D62
DDR_D24
DDR_D15
DDR_D23
DDR_D56
DDR_D53
DDR_D47
DDR_D18
DDR_D43
DDR_D34
DDR_D48
DDR_DQS#2
DDR_D11
DDR_D38
DDR_DQS#3
DDR_D32
DDR_D8
DDR_DQS1
DDR_MA13
DDR_MA11
DDR_D50
DDR_D61
DDR_MA2
DDR_D41
DDR_D17
DDR_D36
DDR_D26
DDR_D63
DDR_D2
DDR_D5
DDR_D22
DDR_D25
DDR_DQS6
DDR_D35
DDR_D14
DDR_MA12
DDR_DQS#0
DDR_DQS4
DDR_DM6
DDR_D42
DDR_MA15
DDR_D27
+V_DDR3_DIMM_REF
+VREF_DQA
DDR_CKE1
+0.75VS
+1.5V +1.5V
+V_DDR3_DIMM_REF
+3VS
+V_DDR3_DIMM_REF
+1.5V +V_DDR3_DIMM_REF
+1.5V
+0.75VS
+1.5V
DDR_DQS#[0..7]<6,9>
DDR_D[0..63]<6,9>
DDR_DM[0..7]<6,9>
DDR_DQS[0..7]<6,9>
DDR_MA[0..15]<6,9>
DDR_CKE0<6,9>
DDR_BS2<6,9>
DDR_A_CS1#<6>
DDR_CAS#<6,9> DDR_WE#<6,9>
DDR_BS0<6,9>
DDR_A_CLK0<6> DDR_A_CLK0#<6>
DDR_CKE1 <6,9>
DDR_A_CLK1 <6>
DDR_A_CLK1# <6>
DDR_BS1 <6,9>
DDR_RAS# <6,9>
DDR_A_CS0# <6>
DDR_A_ODT0 <6>
DDR_A_ODT1 <6>
DDR_RST# <6,9>
DDR_EVENT# <6,9>
SMB_FCH_CK0 <9,15>
SMB_FCH_DA0 <9,15>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
836Friday, May 06, 2011
2010/05/06 2010/02/04
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
836Friday, May 06, 2011
2010/05/06 2010/02/04
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
836Friday, May 06, 2011
2010/05/06 2010/02/04
Compal Electronics, Inc.
Standard Type
DDR3 SO-DIMM A
4.0mm
Layout Note: Place these 4 Caps near Command
and Control signals of DIMMA
Layout Note:
Place near JDDR1.203 & JDDR1.204
Layout Note:
Place near JDDR1
change two 100U to one 220U
06/21
Need close to JDDR1
Put it between DDR3 +1.5VS shape and GND shape
JDDR1
DAN06-K4406-0102
CONN@
JDDR1
DAN06-K4406-0102
CONN@
VREF_DQ
1VSS1 2
VSS2
3DQ4 4
DQ0
5DQ5 6
DQ1
7VSS3 8
VSS4
9DQS#0 10
DM0
11 DQS0 12
VSS5
13 VSS6 14
DQ2
15 DQ6 16
DQ3
17 DQ7 18
VSS7
19 VSS8 20
DQ8
21 DQ12 22
DQ9
23 DQ13 24
VSS9
25 VSS10 26
DQS#1
27 DM1 28
DQS1
29 RESET# 30
VSS11
31 VSS12 32
DQ10
33 DQ14 34
DQ11
35 DQ15 36
VSS13
37 VSS14 38
DQ16
39 DQ20 40
DQ17
41 DQ21 42
VSS15
43 VSS16 44
DQS#2
45 DM2 46
DQS2
47 VSS17 48
VSS18
49 DQ22 50
DQ18
51 DQ23 52
DQ19
53 VSS19 54
VSS20
55 DQ28 56
DQ24
57 DQ29 58
DQ25
59 VSS21 60
VSS22
61 DQS#3 62
DM3
63 DQS3 64
VSS23
65 VSS24 66
DQ26
67 DQ30 68
DQ27
69 DQ31 70
VSS25
71 VSS26 72
A12/BC#
83 A11 84
A9
85 A7 86
VDD5
87 VDD6 88
A8
89 A6 90
CKE0
73 CKE1 74
VDD1
75 VDD2 76
NC1
77 A15 78
BA2
79 A14 80
VDD3
81 VDD4 82
A5
91 A4 92
VDD7
93 VDD8 94
A3
95 A2 96
A1
97 A0 98
VDD9
99 VDD10 100
CK0
101 CK1 102
CK0#
103 CK1# 104
VDD11
105 VDD12 106
A10/AP
107 BA1 108
BA0
109 RAS# 110
VDD13
111 VDD14 112
WE#
113 S0# 114
CAS#
115 ODT0 116
VDD15
117 VDD16 118
A13
119 ODT1 120
S1#
121 NC2 122
VDD17
123 VDD18 124
NCTEST
125 VREF_CA 126
VSS27
127 VSS28 128
DQ32
129 DQ36 130
DQ33
131 DQ37 132
VSS29
133 VSS30 134
DQS#4
135 DM4 136
DQS4
137 VSS31 138
VSS32
139 DQ38 140
DQ34
141 DQ39 142
DQ35
143 VSS33 144
VSS34
145 DQ44 146
DQ40
147 DQ45 148
DQ41
149 VSS35 150
VSS36
151 DQS#5 152
DM5
153 DQS5 154
VSS37
155 VSS38 156
DQ42
157 DQ46 158
DQ43
159 DQ47 160
VSS39
161 VSS40 162
DQ48
163 DQ52 164
DQ49
165 DQ53 166
VSS41
167 VSS42 168
DQS#6
169 DM6 170
DQS6
171 VSS43 172
VSS44
173 DQ54 174
DQ50
175 DQ55 176
DQ51
177 VSS45 178
VSS46
179 DQ60 180
DQ56
181 DQ61 182
DQ57
183 VSS47 184
VSS48
185 DQS#7 186
DM7
187 DQS7 188
VSS49
189 VSS50 190
DQ58
191 DQ62 192
DQ59
193 DQ63 194
VSS51
195 VSS52 196
SA0
197 EVENT# 198
VDDSPD
199 SDA 200
SA1
201 SCL 202
VTT1
203 VTT2 204
G1
205 G2 206
C98
0.1U_0402_16V4Z
C98
0.1U_0402_16V4Z
1
2
C100
0.1U_0402_16V4Z
C100
0.1U_0402_16V4Z
1
2
C90
0.1U_0402_16V4Z
C90
0.1U_0402_16V4Z
1
2
C329
0.01U_0402_16V7K
@C329
0.01U_0402_16V7K
@
1
2
C96
10U_0603_6.3V6M
C96
10U_0603_6.3V6M
1
2
C95
10U_0603_6.3V6M
C95
10U_0603_6.3V6M
1
2
R56 10K_0402_5%R56 10K_0402_5%
1 2
C101
10U_0603_6.3V6M
C101
10U_0603_6.3V6M
1
2
C86
1000P_0402_50V7K
C86
1000P_0402_50V7K
1
2
R55 0_0402_5%R55 0_0402_5%
1 2
C92
10U_0603_6.3V6M
C92
10U_0603_6.3V6M
1
2
R52 0_0402_5%R52 0_0402_5%
1 2
C89
1000P_0402_50V7K
C89
1000P_0402_50V7K
1
2
C97
0.1U_0402_16V4Z
C97
0.1U_0402_16V4Z
1
2
C85 0.1U_0402_16V4Z
C85 0.1U_0402_16V4Z
1
2
+
C87
220U_D2_4VM_R15
@
+
C87
220U_D2_4VM_R15
@
1
2
C108
1U_0402_6.3V6K
C108
1U_0402_6.3V6K
1
2
R53
1K_0402_1%
R53
1K_0402_1%
12
R57
10K_0402_5%
R57
10K_0402_5%
12
C113
0.1U_0402_16V4Z
@
C113
0.1U_0402_16V4Z
@
1
2
C102
10U_0603_6.3V6M
C102
10U_0603_6.3V6M
1
2
C330
0.1U_0402_16V4Z
@
C330
0.1U_0402_16V4Z
@
1
2
C103
2.2U_0603_6.3V6K
C103
2.2U_0603_6.3V6K
1
2
C105
1U_0402_6.3V6K
C105
1U_0402_6.3V6K
1
2
C109
10U_0805_6.3V6M
C109
10U_0805_6.3V6M
1
2
C110
10U_0805_6.3V6M
C110
10U_0805_6.3V6M
1
2
C93
10U_0603_6.3V6M
C93
10U_0603_6.3V6M
1
2
C104
0.1U_0402_16V4Z
C104
0.1U_0402_16V4Z
1
2
C293
0.01U_0402_16V7K
@C293
0.01U_0402_16V7K
@
1
2
C94
10U_0603_6.3V6M
C94
10U_0603_6.3V6M
1
2
C107
1U_0402_6.3V6K
C107
1U_0402_6.3V6K
1
2
C264
33P_0402_50V8J
@C264
33P_0402_50V8J
@
1 2
C106
1U_0402_6.3V6K
C106
1U_0402_6.3V6K
1
2
C99
0.1U_0402_16V4Z
C99
0.1U_0402_16V4Z
1
2
C91
10U_0603_6.3V6M
C91
10U_0603_6.3V6M
1
2
C328
0.01U_0402_16V7K
@C328
0.01U_0402_16V7K
@
1
2
R54
1K_0402_1%
R54
1K_0402_1%
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
DDR_D26
DDR_D2
DDR_D5
DDR_D22
DDR_D25
DDR_D14
DDR_DQS#0
DDR_D31
DDR_D12
DDR_D6
DDR_DQS0
DDR_DM2
DDR_DM1
DDR_D0
DDR_D28
DDR_DM0
DDR_D19
DDR_D4
DDR_D30
DDR_DQS2
DDR_DQS3
DDR_D10
DDR_D27
DDR_D3
DDR_D1
DDR_D16
DDR_D29
DDR_DM3
DDR_D9
DDR_D7
DDR_D13
DDR_D20
DDR_DQS#1
DDR_D21
DDR_D24
DDR_D15
DDR_D23DDR_D18
DDR_DQS#2
DDR_D11
DDR_DQS#3
DDR_D8
DDR_DQS1
DDR_D17
DDR_DQS6
DDR_D35
DDR_MA12
DDR_DQS4
DDR_D42
DDR_D59
DDR_MA3
DDR_D57
DDR_D51
DDR_D33
DDR_D58
DDR_DM5
DDR_MA8
DDR_MA10
DDR_DQS#6
DDR_D40
DDR_MA9
DDR_DQS#4
DDR_D49
DDR_DM7
DDR_MA1
DDR_MA5
DDR_D56
DDR_D43
DDR_D34
DDR_D48
DDR_D32
DDR_MA13
DDR_D50
DDR_D41
DDR_D62
DDR_D36
DDR_DM6
DDR_D39
DDR_MA7
DDR_MA0
DDR_DQS7
DDR_D46
DDR_DQS#5
DDR_DM4
DDR_D44
DDR_MA6
DDR_DQS#7
DDR_D52
DDR_DQS5
DDR_D54
DDR_D45
DDR_D60
DDR_VREF_CA_DIMMB
DDR_D37
DDR_MA14
DDR_D55
DDR_MA4
DDR_D63
DDR_D53
DDR_D47
DDR_D38
DDR_MA11
DDR_D61
DDR_MA2
DDR_MA15
VREF_DQB
DDR_CKE0
+1.5V +1.5V
+V_DDR3_DIMM_REF
+1.5V
+0.75VS
+3VS
+0.75VS
+V_DDR3_DIMM_REF
DDR_DQS#[0..7]<6,8>
DDR_D[0..63]<6,8>
DDR_DM[0..7]<6,8>
DDR_DQS[0..7]<6,8>
DDR_MA[0..15]<6,8>
DDR_RST# <6,8>
DDR_WE#<6,8> DDR_CAS#<6,8>
DDR_BS2<6,8>
DDR_B_CS1#<6>
DDR_BS0<6,8>
DDR_CKE0<6,8>
DDR_B_CLK0<6> DDR_B_CLK0#<6>
DDR_BS1 <6,8>
DDR_RAS# <6,8>
DDR_EVENT# <6,8>
DDR_B_CLK1 <6>
DDR_B_CLK1# <6>
DDR_B_ODT1 <6>
DDR_CKE1 <6,8>
DDR_B_CS0# <6>
DDR_B_ODT0 <6>
SMB_FCH_CK0 <8,15>
SMB_FCH_DA0 <8,15>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
936Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
936Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
936Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
DDR3 SO-DIMM B
REV Type
Layout Note:
Place near JP3
Layout Note:
Place near JP3.203 & JP3.204
Layout Note: Place these 4 Caps near Command
and Control signals of DIMMA
8.0mm
change two 100U to one 220U
06/21
Need close to JDDR2
SA0 SA1
01
10
Compal
common design
ADM CRB
C120
10U_0603_6.3V6M
C120
10U_0603_6.3V6M
1
2
R59 0_0402_5%R59 0_0402_5%
1 2
C134
2.2U_0603_6.3V6K
C134
2.2U_0603_6.3V6K
1
2
C129
1U_0402_6.3V6K
C129
1U_0402_6.3V6K
1
2
C288
33P_0402_50V8J
@C288
33P_0402_50V8J
@
1 2
C118
10U_0603_6.3V6M
C118
10U_0603_6.3V6M
1
2
+
C114
220U_D2_4VM_R15
+
C114
220U_D2_4VM_R15
1
2
C133
10U_0805_6.3V6M
C133
10U_0805_6.3V6M
1
2
C131
1U_0402_6.3V6K
C131
1U_0402_6.3V6K
1
2
C115
1000P_0402_50V7K
C115
1000P_0402_50V7K
1
2
C126
0.1U_0402_16V4Z
C126
0.1U_0402_16V4Z
1
2
C122
10U_0603_6.3V6M
C122
10U_0603_6.3V6M
1
2
JDDR2
DAN06-K4806-0102
CONN@
JDDR2
DAN06-K4806-0102
CONN@
VREF_DQ
1VSS1 2
VSS2
3DQ4 4
DQ0
5DQ5 6
DQ1
7VSS3 8
VSS4
9DQS#0 10
DM0
11 DQS0 12
VSS5
13 VSS6 14
DQ2
15 DQ6 16
DQ3
17 DQ7 18
VSS7
19 VSS8 20
DQ8
21 DQ12 22
DQ9
23 DQ13 24
VSS9
25 VSS10 26
DQS#1
27 DM1 28
DQS1
29 RESET# 30
VSS11
31 VSS12 32
DQ10
33 DQ14 34
DQ11
35 DQ15 36
VSS13
37 VSS14 38
DQ16
39 DQ20 40
DQ17
41 DQ21 42
VSS15
43 VSS16 44
DQS#2
45 DM2 46
DQS2
47 VSS17 48
VSS18
49 DQ22 50
DQ18
51 DQ23 52
DQ19
53 VSS19 54
VSS20
55 DQ28 56
DQ24
57 DQ29 58
DQ25
59 VSS21 60
VSS22
61 DQS#3 62
DM3
63 DQS3 64
VSS23
65 VSS24 66
DQ26
67 DQ30 68
DQ27
69 DQ31 70
VSS25
71 VSS26 72
A12/BC#
83 A11 84
A9
85 A7 86
VDD5
87 VDD6 88
A8
89 A6 90
CKE0
73 CKE1 74
VDD1
75 VDD2 76
NC1
77 A15 78
BA2
79 A14 80
VDD3
81 VDD4 82
A5
91 A4 92
VDD7
93 VDD8 94
A3
95 A2 96
A1
97 A0 98
VDD9
99 VDD10 100
CK0
101 CK1 102
CK0#
103 CK1# 104
VDD11
105 VDD12 106
A10/AP
107 BA1 108
BA0
109 RAS# 110
VDD13
111 VDD14 112
WE#
113 S0# 114
CAS#
115 ODT0 116
VDD15
117 VDD16 118
A13
119 ODT1 120
S1#
121 NC2 122
VDD17
123 VDD18 124
NCTEST
125 VREF_CA 126
VSS27
127 VSS28 128
DQ32
129 DQ36 130
DQ33
131 DQ37 132
VSS29
133 VSS30 134
DQS#4
135 DM4 136
DQS4
137 VSS31 138
VSS32
139 DQ38 140
DQ34
141 DQ39 142
DQ35
143 VSS33 144
VSS34
145 DQ44 146
DQ40
147 DQ45 148
DQ41
149 VSS35 150
VSS36
151 DQS#5 152
DM5
153 DQS5 154
VSS37
155 VSS38 156
DQ42
157 DQ46 158
DQ43
159 DQ47 160
VSS39
161 VSS40 162
DQ48
163 DQ52 164
DQ49
165 DQ53 166
VSS41
167 VSS42 168
DQS#6
169 DM6 170
DQS6
171 VSS43 172
VSS44
173 DQ54 174
DQ50
175 DQ55 176
DQ51
177 VSS45 178
VSS46
179 DQ60 180
DQ56
181 DQ61 182
DQ57
183 VSS47 184
VSS48
185 DQS#7 186
DM7
187 DQS7 188
VSS49
189 VSS50 190
DQ58
191 DQ62 192
DQ59
193 DQ63 194
VSS51
195 VSS52 196
SA0
197 EVENT# 198
VDDSPD
199 SDA 200
SA1
201 SCL 202
VTT1
203 VTT2 204
G1
205 G2 206
C135
0.1U_0402_16V4Z
C135
0.1U_0402_16V4Z
1
2
R58 0_0402_5%R58 0_0402_5%
1 2
C111
1000P_0402_50V7K
C111
1000P_0402_50V7K
1
2
C130
1U_0402_6.3V6K
C130
1U_0402_6.3V6K
1
2
R139 10K_0402_5%
@
R139 10K_0402_5%
@
1 2
R203 10K_0402_5%R203 10K_0402_5%
1 2
C116
0.1U_0402_16V4Z
C116
0.1U_0402_16V4Z
1
2
C119
10U_0603_6.3V6M
C119
10U_0603_6.3V6M
1
2
C123
0.1U_0402_16V4Z
C123
0.1U_0402_16V4Z
1
2
C121
10U_0603_6.3V6M
C121
10U_0603_6.3V6M
1
2
R60 10K_0402_5%R60 10K_0402_5%
1 2
C112 0.1U_0402_16V4Z
C112 0.1U_0402_16V4Z
1
2
C127
10U_0603_6.3V6M
C127
10U_0603_6.3V6M
1
2
C132
1U_0402_6.3V6K
C132
1U_0402_6.3V6K
1
2
C117
10U_0603_6.3V6M
C117
10U_0603_6.3V6M
1
2
C124
0.1U_0402_16V4Z
C124
0.1U_0402_16V4Z
1
2
C125
0.1U_0402_16V4Z
C125
0.1U_0402_16V4Z
1
2
R61 10K_0402_5%@R61 10K_0402_5%@1 2
C128
10U_0603_6.3V6M
C128
10U_0603_6.3V6M
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
HDMI_TX1+_CONN
HDMI_CLK-_CONN
HDMI_TX0+_CONN
HDMI_TX0-_CONN
HDMI_CLK+_CONN
HDMI_TX2+_CONN
HDMI_TX2-_CONN
HDMI_DET
+5VS_HDMI
HDMIDAT_R
HDMICLK_R
HDMI_TX1-_CONN
+VCC_HDMI
HDMI_DET
HDMI_DET
HDMIDAT_R
HDMICLK_R
HDMI_TX1+_CONN
HDMI_TX2+_CONN
HDMI_TX1-_CONN
HDMI_TX0+_CONN
HDMI_TX0-_CONN
HDMI_TX2-_CONN
HDMI_CLK+_CONN
HDMI_CLK-_CONN
HDMI_CLK-
HDMI_CLK+
HDMI_C_TX2+
HDMI_C_TX1+
HDMI_TX2+
HDMI_TX2- HDMI_C_TX2-
HDMI_C_CLK-
HDMI_TX1+
HDMI_TX1- HDMI_C_TX1-
HDMI_C_TX1-
HDMI_TX0+
HDMI_TX0-
HDMI_C_TX0+
HDMI_C_TX1+
HDMI_C_TX0-
HDMI_C_CLK-
HDMI_C_TX1-
HDMI_C_TX0+
HDMI_C_TX1+
HDMI_C_TX0-
HDMI_C_TX2-
HDMI_C_CLK+
HDMI_C_TX2+ HDMI_TX1-_CONN
HDMI_TX2-_CONN
HDMI_TX1+_CONN
HDMI_CLK+_CONN
HDMI_TX0-_CONN
HDMI_TX0+_CONN
HDMI_TX2+_CONN
HDMI_CLK-_CONN
HDMI_C_TX2-
HDMI_TX1-_CONN
HDMI_C_TX0-
HDMI_TX2-_CONN
HDMI_TX1+_CONN
HDMI_CLK+_CONN
HDMI_TX0-_CONN
HDMI_TX0+_CONN
HDMI_TX2+_CONN
HDMI_CLK-_CONN
HDMI_C_CLK+
HDMI_C_TX2+
HDMI_C_CLK-
HDMI_C_TX0+
HDMI_C_CLK+
+5VS
+5VS_HDMI
+3VS
+5VS +3VS
+5VS
+5VS
+3VS
HDMI_DAT<5>
HDMI_SCL<5>
HDMI_HPD <5>
HDMI_CLK-<5> HDMI_CLK+<5>
HDMI_TX2+<5> HDMI_TX2-<5>
HDMI_TX1+<5> HDMI_TX1-<5>
HDMI_TX0+<5> HDMI_TX0-<5>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
10 36Friday, May 06, 2011
2010/05/06
Compal Electronics,Ltd.
2010/02/04
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
10 36Friday, May 06, 2011
2010/05/06
Compal Electronics,Ltd.
2010/02/04
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
10 36Friday, May 06, 2011
2010/05/06
Compal Electronics,Ltd.
2010/02/04
Custom
4019D2
NEAR CONNECT
R98
0_0402_5%
R98
0_0402_5%
12
G
D
S
Q10
2N7002W-T/R7_SOT323-3
G
D
S
Q10
2N7002W-T/R7_SOT323-3
2
13
Q2A
2N7002DW-T/R7_SOT363-6
Q2A
2N7002DW-T/R7_SOT363-6
61
2
C138 0.1U_0402_16V7KC138 0.1U_0402_16V7K
1 2
C165
0.1U_0402_16V4Z
@C165
0.1U_0402_16V4Z
@
1
2
R89 499_0402_1%R89 499_0402_1%
1 2
R84
2.2K_0402_5%
@R84
2.2K_0402_5%
@
12
C136 0.1U_0402_16V7KC136 0.1U_0402_16V7K
1 2
C141 0.1U_0402_16V7KC141 0.1U_0402_16V7K
1 2
C166
0.1U_0402_16V4Z
@C166
0.1U_0402_16V4Z
@
1
2
L6
WCM-2012-670T
L6
WCM-2012-670T
1
122
33
4
4
R85 499_0402_1%R85 499_0402_1%
1 2
R68 0_0402_5%@ R68 0_0402_5%@ 1 2
JHDMI
SUYIN_100042MR019S153ZL
CONN@
JHDMI
SUYIN_100042MR019S153ZL
CONN@
D2+
1D2_shield
2D2-
3D1+
4D1_shield
5D1-
6D0+
7D0_shield
8D0-
9CK+
10 CK_shield
11 CK-
12 CEC
13 Reserved
14 SCL
15 SDA
16 DDC/CEC_GND
17 +5V
18 HP_DET
19
GND 20
GND 21
GND 22
GND 23
R79
2.2K_0402_5%
R79
2.2K_0402_5%
12
R88
0_0402_5%
R88
0_0402_5%
12
L7
WCM-2012-670T
L7
WCM-2012-670T
1
122
33
4
4
R72 0_0402_5%@ R72 0_0402_5%@ 1 2
R1562 470_0402_1%@R1562 470_0402_1%@ 1 2
R93
0_0402_5%
@R93
0_0402_5%
@12
R75 0_0402_5%@ R75 0_0402_5%@ 1 2
R90
0_0402_5%@ R90
0_0402_5%@
12
L8
WCM-2012-670T
L8
WCM-2012-670T
1
122
33
4
4
U7
74AHCT1G125GW_SOT353-5
@U7
74AHCT1G125GW_SOT353-5
@
A
2Y4
OE# 1
G
3P5
C144
0.1U_0402_16V4Z
C144
0.1U_0402_16V4Z
1
2
R1561 470_0402_1%@R1561 470_0402_1%@ 1 2
R83 499_0402_1%R83 499_0402_1%
1 2
C142 0.1U_0402_16V7KC142 0.1U_0402_16V7K
1 2
L5
WCM-2012-670T
L5
WCM-2012-670T
1
122
33
4
4
R78
2.2K_0402_5%
R78
2.2K_0402_5%
12
C139 0.1U_0402_16V7KC139 0.1U_0402_16V7K
1 2
R91
0_0402_5%
@R91
0_0402_5%
@12
R82 499_0402_1%R82 499_0402_1%
1 2
R119
100K_0402_5%
R119
100K_0402_5%
12
R81 499_0402_1%R81 499_0402_1%
1 2
R1560 470_0402_1%@R1560 470_0402_1%@ 1 2
C143 0.1U_0402_16V7KC143 0.1U_0402_16V7K
1 2
R73 0_0402_5%@ R73 0_0402_5%@ 1 2
Q2B
2N7002DW-T/R7_SOT363-6
Q2B
2N7002DW-T/R7_SOT363-6
3
5
4
R87 499_0402_1%R87 499_0402_1%
1 2
D5
PMEG2010ET SOT23
D5
PMEG2010ET SOT23
21
3
D11 BAT54S-7-F_SOT23-3@D11 BAT54S-7-F_SOT23-3@
2
3
1
R67 0_0402_5%@ R67 0_0402_5%@ 1 2
R66 0_0402_5%@ R66 0_0402_5%@ 1 2
R80 499_0402_1%R80 499_0402_1%
1 2
R1559 470_0402_1%@R1559 470_0402_1%@ 1 2
R1192
100K_0402_5%
@
R1192
100K_0402_5%
@
12
C140 0.1U_0402_16V7KC140 0.1U_0402_16V7K
1 2
C137 0.1U_0402_16V7KC137 0.1U_0402_16V7K
1 2
F1
1.1A_6VDC_FUSE
F1
1.1A_6VDC_FUSE
21
R92 499_0402_1%R92 499_0402_1%
1 2
R62 0_0402_5%R62 0_0402_5%
1 2
R71 0_0402_5%@ R71 0_0402_5%@ 1 2
R65 0_0402_5%@ R65 0_0402_5%@ 1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

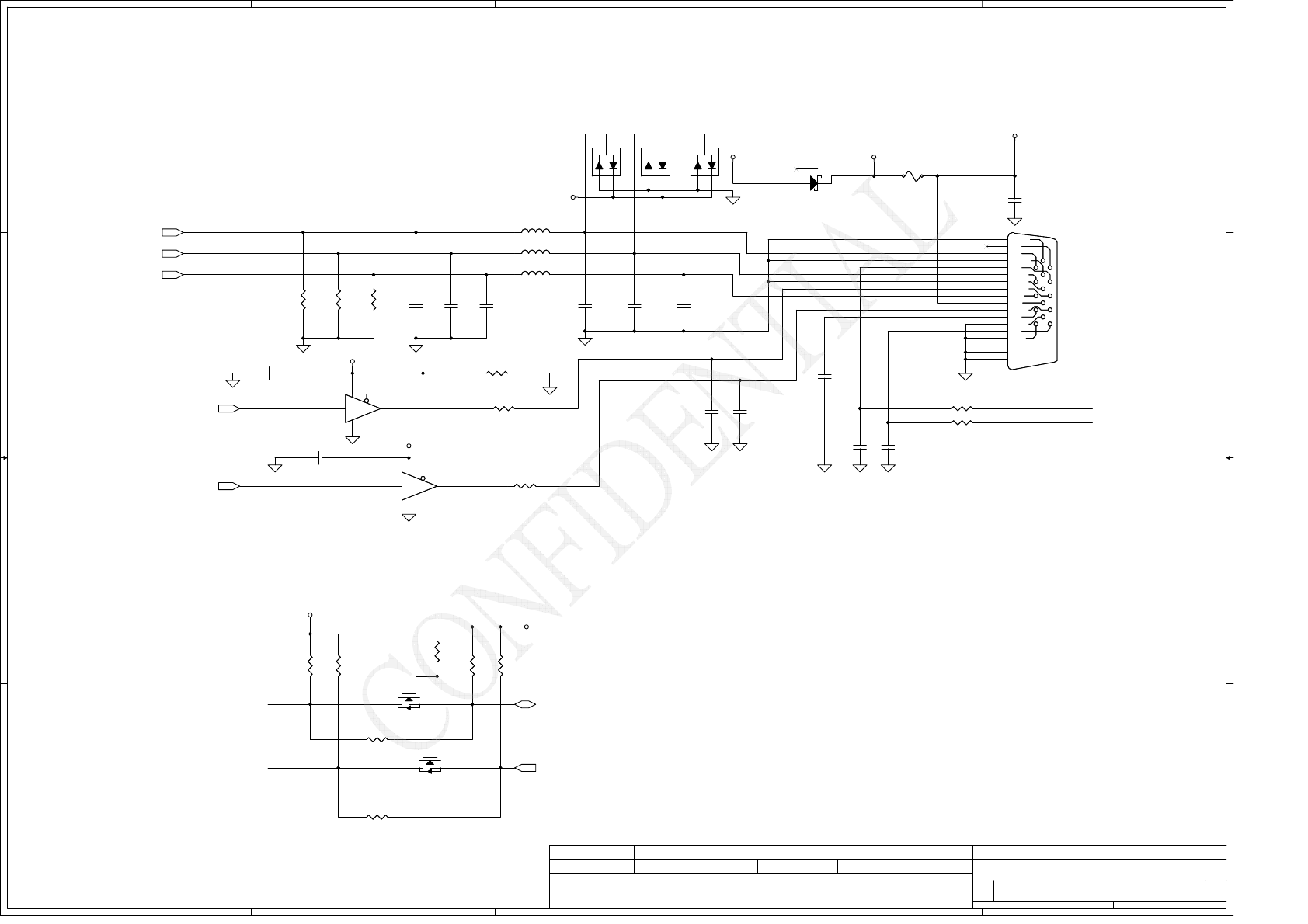

CRT_R_2
DAT_R
CLK_R
CRT_G_2
CRT_B_2
CRT_VSYNC_1
CRT_HSYNC_0
CRT_VSYNC_0
CRT_HSYNC_1
CLK
DAT
CLK
DAT
+CRT_VCC
+R_CRT_VCC
+CRT_VCC
+CRT_VCC
+3VS
+5VS
+3VS
+CRT_VCC
CRT_DDC_CLK <5>
CRT_DDC_DATA <5>
CRT_HSYNC<5>
CRT_VSYNC<5>
CRT_G<5>
CRT_B<5>
CRT_R<5>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
11 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
B
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
11 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
B
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
11 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
B
4019D2
W=40mils
CRT Connector
W=40mils
R99 27_0402_5%R99 27_0402_5%
1 2
L14
FBMA-L10-160808-600LMT_2P
L14
FBMA-L10-160808-600LMT_2P
1 2
R96
150_0402_1%
R96
150_0402_1%
12
R97 10K_0402_5%R97 10K_0402_5%
12
C148
5P_0402_50V8C
C148
5P_0402_50V8C
1
2
R95
150_0402_1%
R95
150_0402_1%
12
Q3A
2N7002DW-T/R7_SOT363-6
Q3A
2N7002DW-T/R7_SOT363-6
6 1
2
C155
10P_0402_50V8J
C155
10P_0402_50V8J
1
2
C150
5P_0402_50V8C
C150
5P_0402_50V8C
1
2
C152
100P_0402_50V8J
C152
100P_0402_50V8J
1
2
R106
4.7K_0402_5%
R106
4.7K_0402_5%
12
C153 0.1U_0402_16V4ZC153 0.1U_0402_16V4Z
1 2
C147
5P_0402_50V8C
C147
5P_0402_50V8C
1
2
D9
DAN217_SC59
@
D9
DAN217_SC59
@
2
31
JCRT
SUYIN_070546FR015S293ZR
CONN@
JCRT
SUYIN_070546FR015S293ZR
CONN@
RGND
6
ID0
11
Red
1
GGND
7
SDA
12
Green
2
BGND
8
Hsync
13
Blue
3
+5V
9
Vsync
14
res
4
SGND
10
SCL
15
GND
5
GND
16
GND
17
D7
DAN217_SC59
@
D7
DAN217_SC59
@
2
31
C157
68P_0402_50V8K
C157
68P_0402_50V8K
1
2
U5
74AHCT1G125GW_SOT353-5
U5
74AHCT1G125GW_SOT353-5
A
2Y4
OE# 1
G
3P5
C146
5P_0402_50V8C
C146
5P_0402_50V8C
1
2
F2
1.1A_6VDC_FUSE
F2
1.1A_6VDC_FUSE
21
D10
PMEG2010ET SOT23
D10
PMEG2010ET SOT23
21
3
Q3B
2N7002DW-T/R7_SOT363-6
Q3B
2N7002DW-T/R7_SOT363-6
3
5
4
R102
0_0402_5%
R102
0_0402_5%
1 2
L11
FBMA-L10-160808-600LMT_2P
L11
FBMA-L10-160808-600LMT_2P
1 2
R101 0_0402_5%
@
R101 0_0402_5%
@
1 2
R105
4.7K_0402_5%
R105
4.7K_0402_5%
12
C158 0.1U_0402_16V4ZC158 0.1U_0402_16V4Z
1 2
U4
74AHCT1G125GW_SOT353-5
U4
74AHCT1G125GW_SOT353-5
A
2Y4
OE# 1
G
3P5
R94
150_0402_1%
R94
150_0402_1%
12
R294 33_0402_5%R294 33_0402_5%
1 2
R100 27_0402_5%R100 27_0402_5%
1 2
L12
FBMA-L10-160808-600LMT_2P
L12
FBMA-L10-160808-600LMT_2P
1 2
R104
4.7K_0402_5%
R104
4.7K_0402_5%
12
C156
10P_0402_50V8J
C156
10P_0402_50V8J
1
2
D8
DAN217_SC59
@
D8
DAN217_SC59
@
2
31
R86 0_0402_5%
@
R86 0_0402_5%
@
1 2
C145
0.1U_0402_16V4Z
C145
0.1U_0402_16V4Z
1
2
R103
4.7K_0402_5%
R103
4.7K_0402_5%
12
C151
5P_0402_50V8C
C151
5P_0402_50V8C
1
2
R254 33_0402_5%R254 33_0402_5%
1 2
C149
5P_0402_50V8C
C149
5P_0402_50V8C
1
2
C154
68P_0402_50V8K
C154
68P_0402_50V8K
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
USB20_N1_R
USB20_P1_R
INVTPWM
BKOFF#
USB20_N1_R
USB20_P1_R
ENVDD
INVTPWM
USB20_P1_R
USB20_N1_R
CE_EN_R CE_EN
CE_EN_R
+3VS
+LCDVDD
+LCDVDD +3VALW
+5VS
+5VS_LVDS_CAM
+LCD_INV
B+
+LCDVDD
+3VS
+LCD_INV
+5VS_LVDS_CAM
+LCD_INV
EC_ENBKL <23>
USB20_P1<15> USB20_N1<15>
ENBKL<5>
INV_PWM<5>
EC_INVT_PWM<23>
ENVDD<5>
LVDS_TX1+<5> LVDS_TX0-<5> LVDS_TX0+<5>
LVDS_TX1-<5>
LVDS_CLK- <5>
LVDS_CLK+ <5>
LVDS_TX2-<5> LVDS_TX2+<5>
BKOFF# <23>
LVDS_SCL <5>
LVDS_DAT <5>
CE_EN <14>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
12 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
12 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
12 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
Custom
4019D2

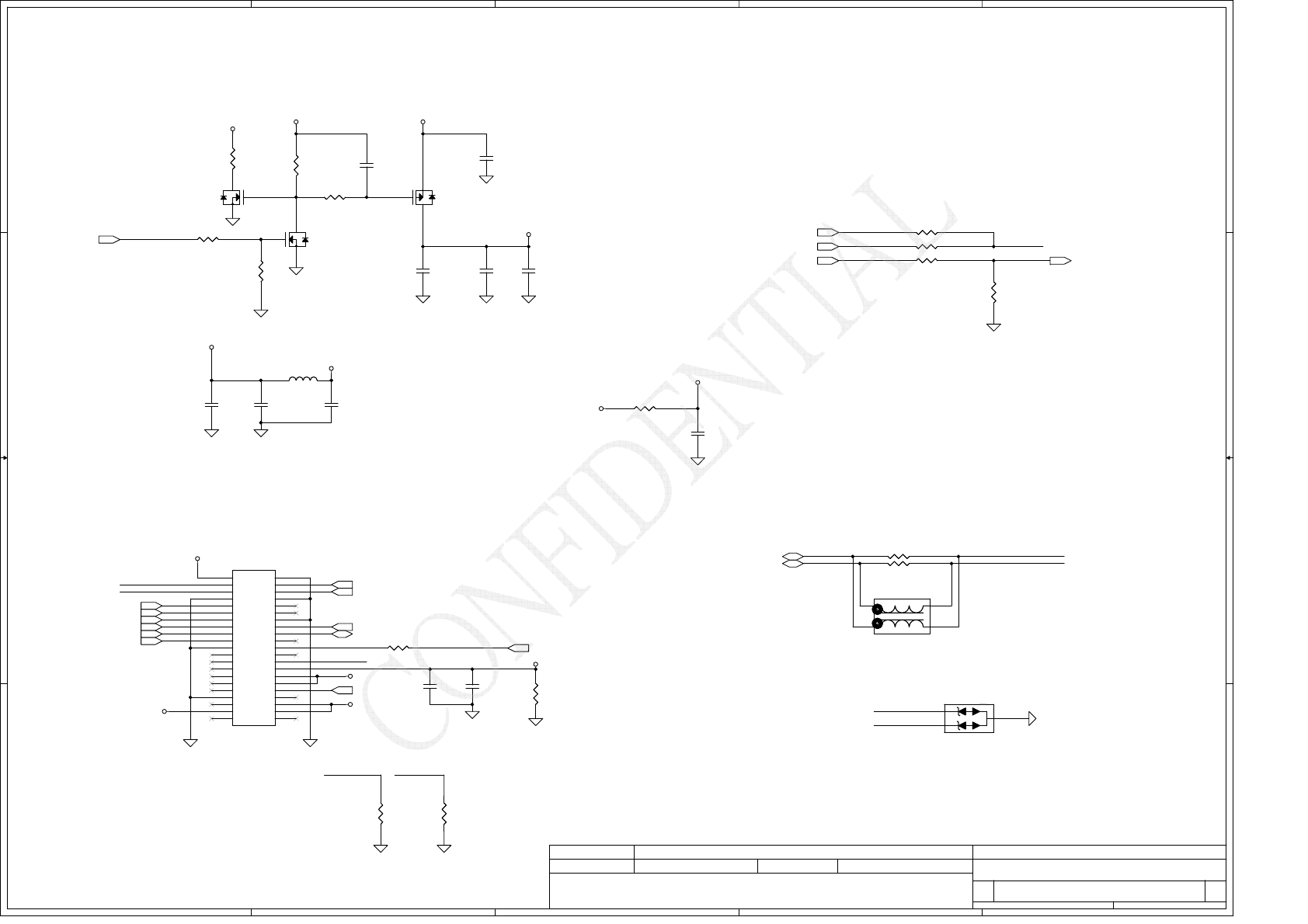

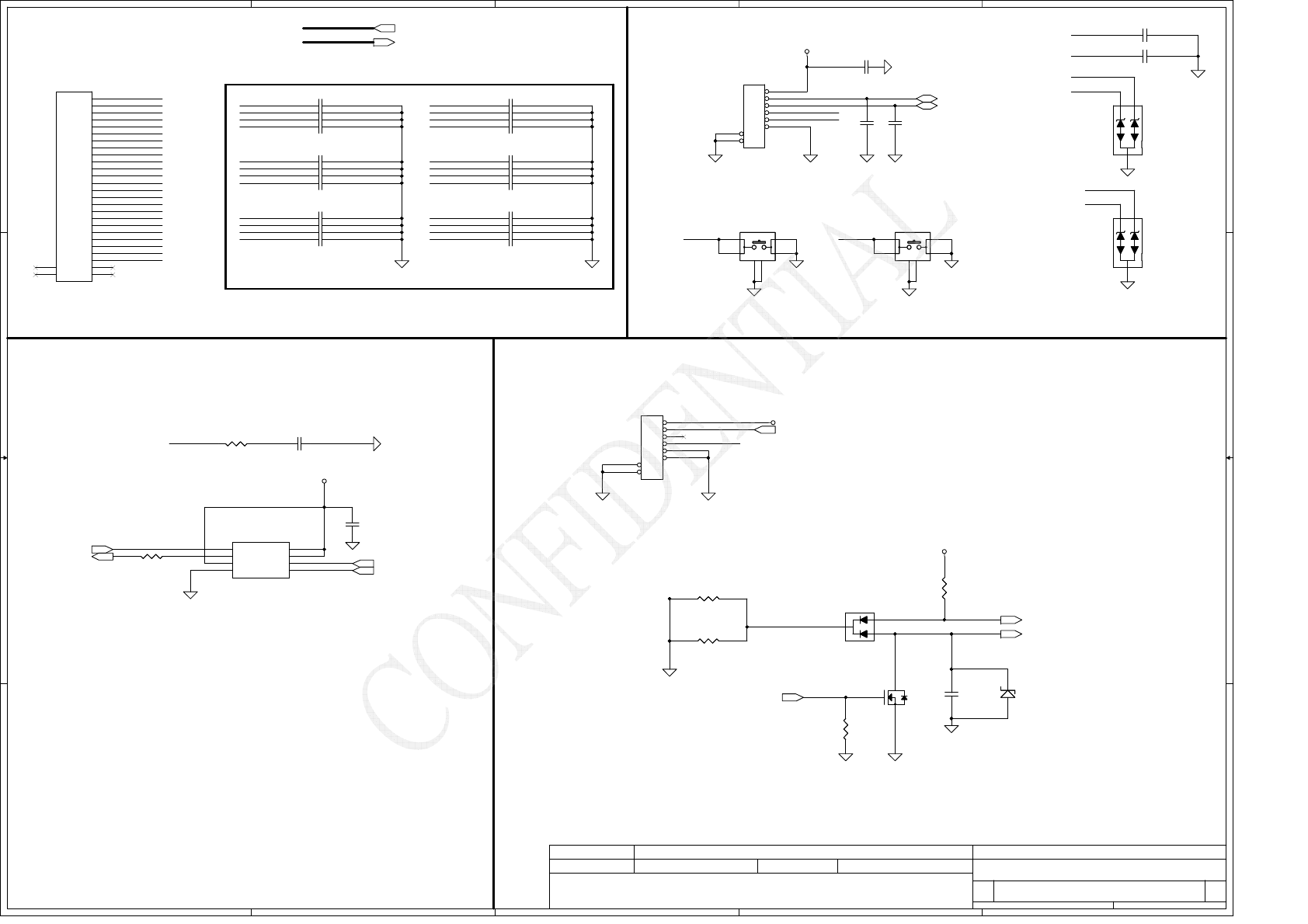

LCD POWER CIRCUIT
W=60mils
1.5A
W=30mils
Rated Current MAX:3000mA
C159
0.1U_0402_16V4Z
C159
0.1U_0402_16V4Z
1
2
G
D
S
Q12
AO3413_SOT23-3
G
D
S
Q12
AO3413_SOT23-3
2
1 3
C714
0.1U_0402_16V4Z
C714
0.1U_0402_16V4Z
1
2
R116 0_0402_5%R116 0_0402_5%
12
G
D
S
Q11
2N7002W-T/R7_SOT323-3
G
D
S
Q11
2N7002W-T/R7_SOT323-3 2
13
R115 0_0402_5%R115 0_0402_5%
1 2
C169
68P_0402_50V8J
C169
68P_0402_50V8J
1
2
R113 0_0603_5%R113 0_0603_5%
12
C431
0.1U_0402_16V4Z
@C431
0.1U_0402_16V4Z
@1
2
R369 1K_0402_5%@R369 1K_0402_5%@
1 2
C171
680P_0402_50V7K
@C171
680P_0402_50V7K
@
1
2
R121 0_0402_5%R121 0_0402_5%
1 2
L20
WCM2012F2SF-121T04_0805
@L20
WCM2012F2SF-121T04_0805
@
1
122
33
4
4
R107
300_0603_5%
R107
300_0603_5%
12
JLVDS
ACES_87242-4001-09
CONN@
JLVDS
ACES_87242-4001-09
CONN@
11
2
2
33
4
4
55
6
6
77
8
8
99
10
10
11 11
12
12
13 13
14
14
17 17
18
18
19 19
21 21
22
22
23 23
24
24
25 25
26
26
27 27
28
28
29 29
30
30
31 31
32
32
33 33
34
34
35 35
36
36
37 37
38
38
39 39
40
40
GMD 41
GND
42
15 15
20
20
16
16
R110 0_0402_5%R110 0_0402_5%
1 2
D28
PJDLC05_SOT23-3
@D28
PJDLC05_SOT23-3
@
2
31
G
D
S
Q13
2N7002W-T/R7_SOT323-3
G
D
S
Q13
2N7002W-T/R7_SOT323-3
2
13
R1193
100K_0402_5%
R1193
100K_0402_5%
12
C343
0.1U_0402_16V4Z
C343
0.1U_0402_16V4Z
1
2
R108
100K_0402_5%
R108
100K_0402_5%
12
C160
4.7U_0805_10V4Z
C160
4.7U_0805_10V4Z
1
2
R111
100K_0402_5%
R111
100K_0402_5%
12
R120 0_0402_5%R120 0_0402_5%
1 2
C168
0.1U_0603_25V7K
C168
0.1U_0603_25V7K
1
2
R112
10K_0402_5%
R112
10K_0402_5%
12
R109 100K_0402_5%R109 100K_0402_5%
12
R117
10K_0402_5%
R117
10K_0402_5%
12
C161
4.7U_0805_10V4Z
@ C161
4.7U_0805_10V4Z
@1
2
C162
0.1U_0402_16V4Z
C162
0.1U_0402_16V4Z
1
2
C170
47P_0402_50V8J
C170
47P_0402_50V8J
1 2
R1191
100K_0402_5%
R1191
100K_0402_5%
12
L18
FBMA-L11-201209-221LMA30T_0805
L18
FBMA-L11-201209-221LMA30T_0805
12
R114 0_0402_5%@R114 0_0402_5%@ 1 2

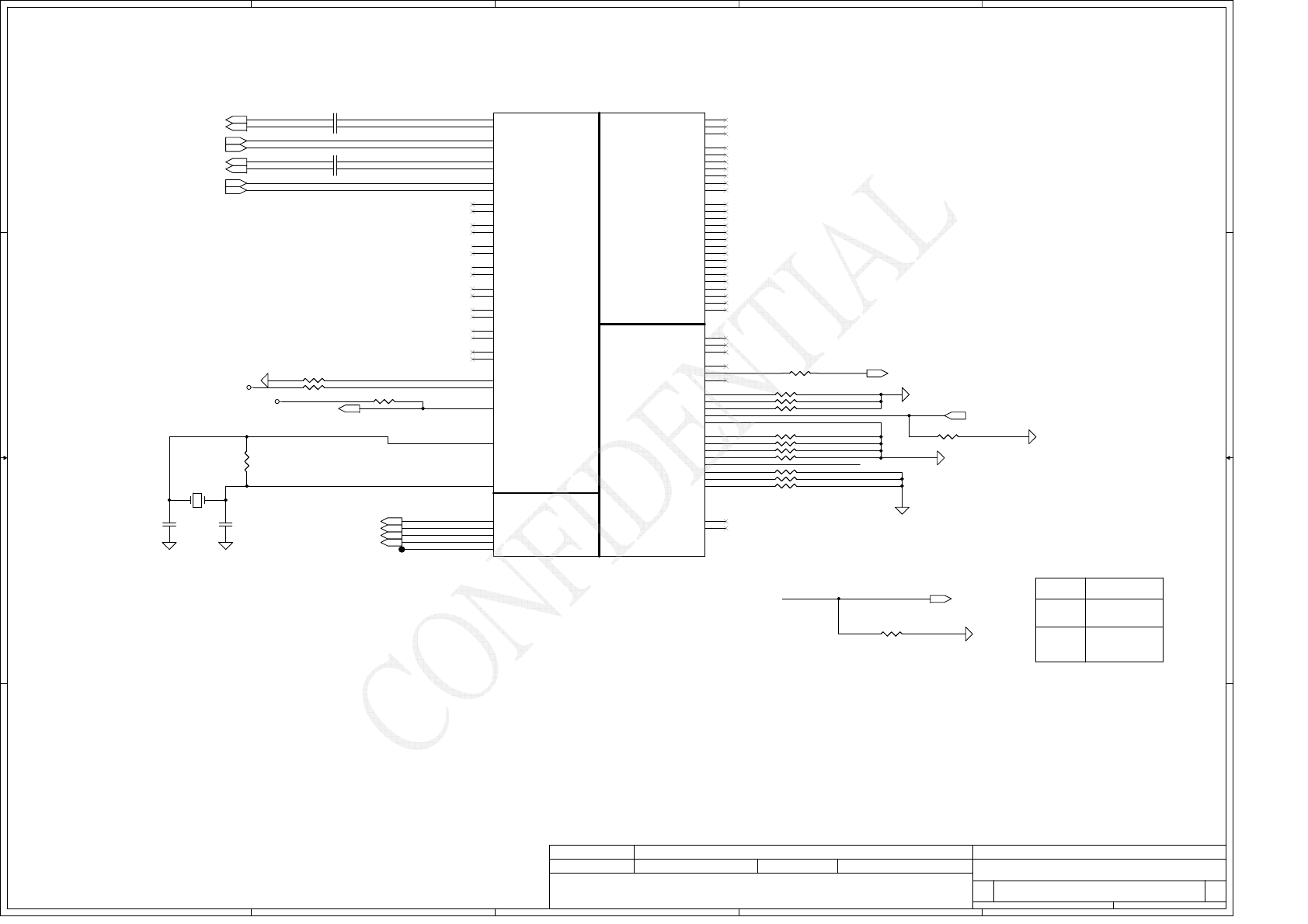

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SATA_DTX_C_IRX_P0
SATA_DTX_C_IRX_N0
SATA_ITX_DRX_P0
SATA_ITX_DRX_N0
SATA_ITX_C_DRX_P0
SATA_ITX_C_DRX_N0
SATA_CALRP
SATA_CALRN
SATA_LED#
SATA_X2
SATA_X1
DDR_VID
DDR_VID
SATA_ITX_DRX_P1
SATA_DTX_C_IRX_P1
SATA_DTX_C_IRX_N1
SATA_ITX_DRX_N1
SATA_ITX_C_DRX_P1
SATA_ITX_C_DRX_N1
+1.1VS
+3VS
SATA_DTX_C_IRX_P0<18> SATA_DTX_C_IRX_N0<18>
SATA_ITX_C_DRX_P0<18> SATA_ITX_C_DRX_N0<18>
SATA_LED#<26>
FCH_SPI_DO<17> FCH_SPI_DI<17> FCH_SPI_CLK<17> FCH_SPI_CS1#<17>
APU_ALERT# <5>
DDR_VID <32>
SATA_DTX_C_IRX_P1<18> SATA_DTX_C_IRX_N1<18>
SATA_ITX_C_DRX_P1<18> SATA_ITX_C_DRX_N1<18>
ODD_EN# <18>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
13 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
13 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
13 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
4019D2
SATA for HDD
DDR_VID
1
0+1.5V
+1.35V
DDR voltage
SATA for ODD
C5
27P_0402_50V8J
@
C5
27P_0402_50V8J
@
1
2
R133 10K_0402_5%R133 10K_0402_5%
1 2
R400
0_0402_5%
@
R400
0_0402_5%
@
12
R129 10K_0402_5%R129 10K_0402_5%
1 2
R136 10K_0402_5%R136 10K_0402_5%
1 2
R281 10K_0402_5%R281 10K_0402_5%
1 2
R182 10K_0402_5%R182 10K_0402_5%
1 2
C174
0.01U_0402_16V7K C174
0.01U_0402_16V7K 12
R132 10K_0402_5%R132 10K_0402_5%
1 2
T15
PAD T15
PAD
Y3
25MHZ_20PF_7A25000012
@
Y3
25MHZ_20PF_7A25000012
@
1 2
R130 10K_0402_5%R130 10K_0402_5%
1 2
R122 1K_0402_1%R122 1K_0402_1%
1 2
R128 10K_0402_5%R128 10K_0402_5%
1 2
R12410K_0402_5% R12410K_0402_5% 12
SPI ROM
GPIOD
SERIAL ATA
HW MONITOR
U6B
21807-A11-HUDSON-M1_FCBGA605
SPI ROM
GPIOD
SERIAL ATA
HW MONITOR
U6B
21807-A11-HUDSON-M1_FCBGA605
ROM_RST_L/GPIO161
G2 SPI_CS1_L/GPIO165
K9 SPI_CLK/GPIO162
K4 SPI_DO/GPIO163
E2 SPI_DI/GPIO164
J5
SATA_X2
AC16
SATA_X1
AD16
SATA_ACT_L/GPIO67
AD11
SATA_CALRN
AA14 SATA_CALRP
AB14
SATA_RX5P
AJ19 SATA_RX5N
AH19
SATA_TX5N
AH18 SATA_TX5P
AJ18
SATA_RX4P
AH17 SATA_RX4N
AJ17
SATA_TX4N
AF17 SATA_TX4P
AG17
SATA_RX3P
AF14 SATA_RX3N
AG14
SATA_TX3N
AJ14 SATA_TX3P
AH14
SATA_RX2P
AH12 SATA_RX2N
AJ12
SATA_TX2N
AF12 SATA_TX2P
AG12
SATA_RX1P
AF10 SATA_RX1N
AG10
SATA_TX1N
AJ10 SATA_TX1P
AH10
SATA_RX0P
AH8 SATA_RX0N
AJ8
SATA_TX0N
AJ9 SATA_TX0P
AH9
NC2 Y2
NC1 G27
VIN7/GBE_LED3/GPIO182 A8
VIN6/GBE_STAT3/GPIO181 B8
VIN5/GPIO180 B7
VIN4/GPIO179 A7
VIN3/GPIO178 C5
VIN2/GPIO177 A4
VIN1/GPIO176 B4
VIN0/GPIO175 A3
TEMP_COMM C7
TEMPIN3/TALERT_L/GPIO174 B5
TEMPIN2/GPIO173 A5
TEMPIN1/GPIO172 A6
TEMPIN0/GPIO171 B6
FANIN2/GPIO58 W8
FANIN1/GPIO57 V9
FANIN0/GPIO56 W7
FANOUT2/GPIO54 Y9
FANOUT1/GPIO53 W6
FANOUT0/GPIO52 W5
FC_ADQ15/GPIOD143 AH26
FC_ADQ14/GPIOD142 AG25
FC_ADQ13/GPIOD141 AJ25
FC_ADQ12/GPIOD140 AJ24
FC_ADQ11/GPIOD139 AF23
FC_ADQ10/GPIOD138 AJ23
FC_ADQ9/GPIOD137 AH22
FC_ADQ8/GPIOD136 AF21
FC_ADQ7/GPIOD135 AG21
FC_ADQ6/GPIOD134 AJ22
FC_ADQ5/GPIOD133 AH23
FC_ADQ4/GPIOD132 AG23
FC_ADQ3/GPIOD131 AH24
FC_ADQ2/GPIOD130 AH25
FC_ADQ1/GPIOD129 AJ26
FC_ADQ0/GPIOD128 AJ27
FC_INT2/GPIOD147 AH27
FC_INT1/GPIOD144 AF29
FC_CE2_L/GPIOD150 AE29
FC_CE1_L/GPIOD149 AF27
FC_WE_L/GPIOD148 AG26
FC_AVD_L/GPIOD146 AG29
FC_OE_L/GPIOD145 AF28
FC_FBCLKIN AF26
FC_FBCLKOUT AG28
FC_CLK AH28
R127 10K_0402_5%R127 10K_0402_5%
1 2
R126
1M_0402_5%
@ R126
1M_0402_5%
@
1 2
C173
0.01U_0402_16V7K C173
0.01U_0402_16V7K
12
R125 10K_0402_5%
@
R125 10K_0402_5%
@
1 2
R134 10K_0402_5%
1.5V@
R134 10K_0402_5%
1.5V@
1 2
R123 931_0402_1%R123 931_0402_1%
1 2
C443
0.01U_0402_16V7K C443
0.01U_0402_16V7K 12
C210
27P_0402_50V8J
@
C210
27P_0402_50V8J
@
1
2
C444
0.01U_0402_16V7K C444
0.01U_0402_16V7K
12
R131 10K_0402_5%R131 10K_0402_5%
1 2

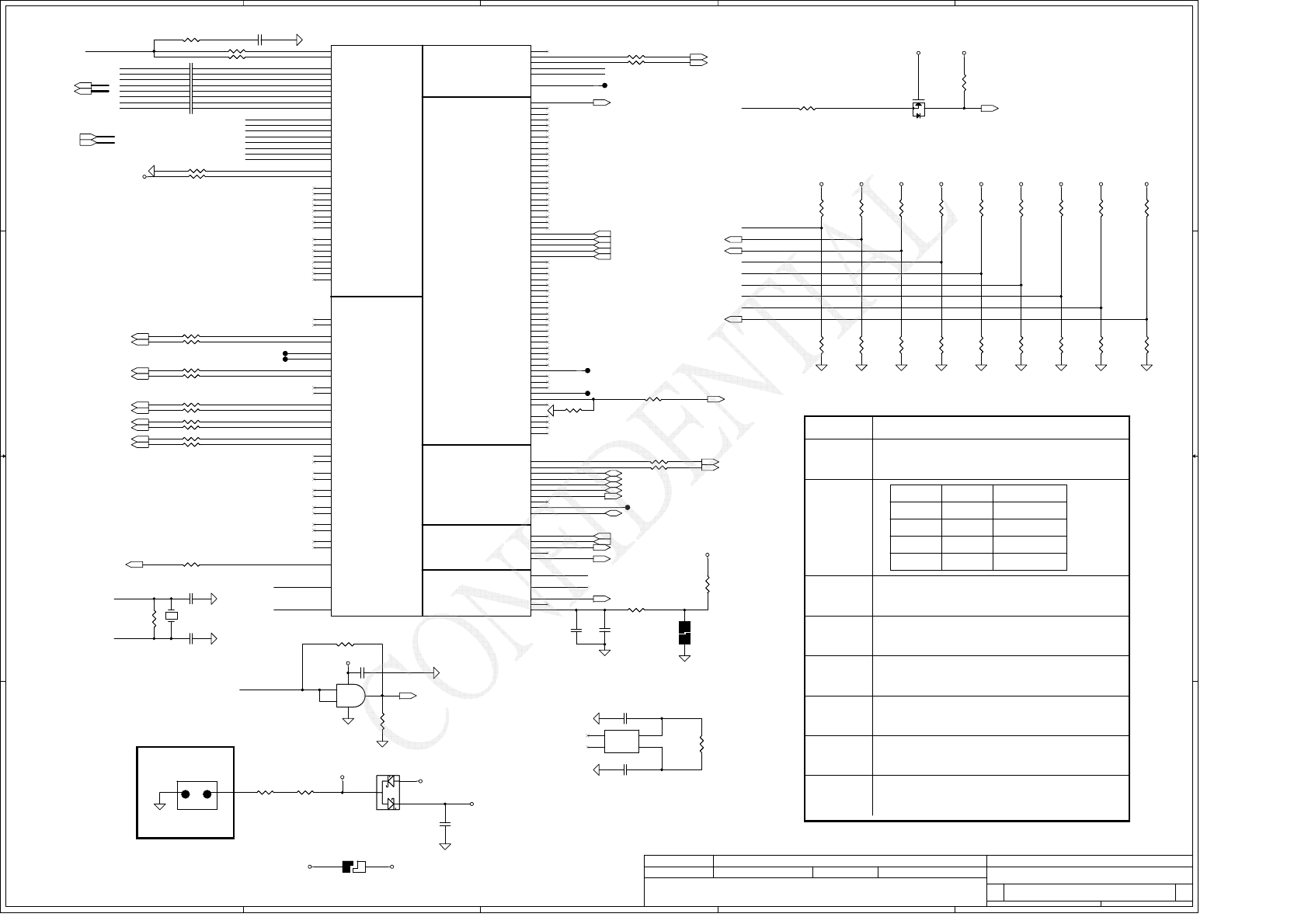

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

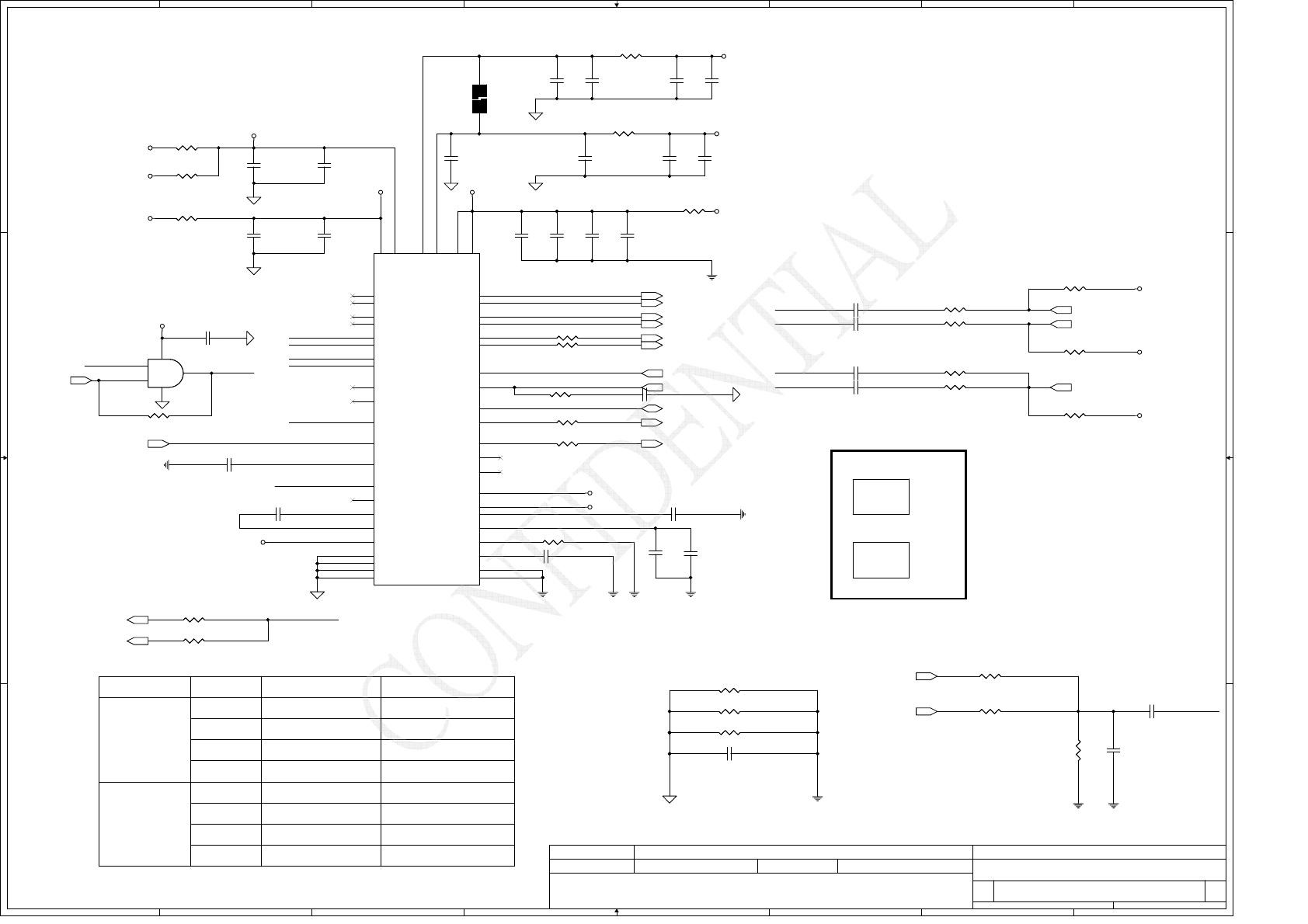

FCH_RTCX1
PCIE_CALRP
PCIE_CALRN
UMI_C_RXP2
UMI_C_RXN2
UMI_C_RXN3
UMI_C_RXP3
UMI_C_RXP1
UMI_C_RXN1
UMI_C_RXP0
UMI_C_RXN0
UMI_C_TXN0
UMI_C_TXN1
UMI_C_TXP1
UMI_C_TXP0
UMI_C_TXN2
UMI_C_TXP2
UMI_C_TXN3
UMI_C_TXP3
CLK_PCIE_LAN_R
CLK_PCIE_LAN#_R
CLK_APU_R
UMI_RXP2
UMI_RXN2
UMI_RXN3
UMI_RXP3
UMI_RXP1
UMI_RXN1
UMI_RXP0
UMI_RXN0
CLK_APU#_R
CLK_APU_DP#_R
CLK_APU_DP_R
LPC_FRAME#
SERIRQ
FCH_RTCX2
APU_PWRGD
LPC_AD0
XTAL25_IN
LPC_AD3
LPC_AD2
LPC_AD1
XTAL25_OUT
CLK_PCI_EC_R
CLK_PCI_TPM_R
CLK_SD_48M_R
PCICLK4
CLK_PCI_EC_R
CLK_PCI_TPM_R
PCICLK1
PCICLK2
PCICLK3
PCICLK1
PCICLK2
PCICLK3
PCICLK4
APU_PWRGD_QAPU_PWRGD
PLT_RST#
CLK_PCIE_WAN_R
CLK_PCIE_WAN#_R
PLT_RST#
XTAL25_IN
XTAL25_OUT
FCH_RTCX1
FCH_RTCX2
CLK_PCIE_USB30#_R
CLK_PCIE_USB30_R
+1.1VS +3VALW+3VS +3VS+3VALW +3VS +3VS +3VS +3VS +3VS
+1.8VS +3VS
+3VS
+RTCVCC
+RTCVCC
+CHGRTC
+RTCBATT
+3VL
+CHGRTC
UMI_C_TXP[0..3]<6> UMI_C_TXN[0..3]<6>
UMI_C_RXP[0..3]<6> UMI_C_RXN[0..3]<6>
CLK_APU_DP<5> CLK_APU_DP#<5>
CLK_PCIE_LAN#<19> CLK_PCIE_LAN<19>
CLK_APU#<5> CLK_APU<5>
LPC_FRAME# <20,22,23>
SERIRQ <22,23>
LPC_AD0 <20,22,23>
LPC_AD1 <20,22,23>
LPC_AD2 <20,22,23>
LPC_AD3 <20,22,23>
CLK_PCI_TPM <22>
CLK_PCI_EC <14,23>
EC_PWM3<15>
EC_PWM2<15>
HDA_SDOUT_R<15>
APU_PWRGD <5>
APU_PWRGD_CORE <35>
CLK_SD_48M<18>
CLK_PCIE_WLAN#<20> CLK_PCIE_WLAN<20>
PLT_RST_BUF# <19,20,22,23,25>
PCI_AD23 <17>
PCI_AD24 <17>
PCI_AD25 <17>
PCI_AD26 <17>
PCI_AD27 <17>
LDT_RST# <5>
APU_PROCHOT_FCH# <5>
APU_LDT_STP# <5>
SUSCLK <23>
CLK_PCI_DB <20>
PM_CLKRUN# <22>
CLK_PCI_EC <14,23>
CE_EN <12>
CLK_PCIE_USB30#<25> CLK_PCIE_USB30<25>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
14 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
14 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
14 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
4019D2
PCICLK1
PCICLK3
PCICLK4
EC_PWM3 EC_PWM2
*

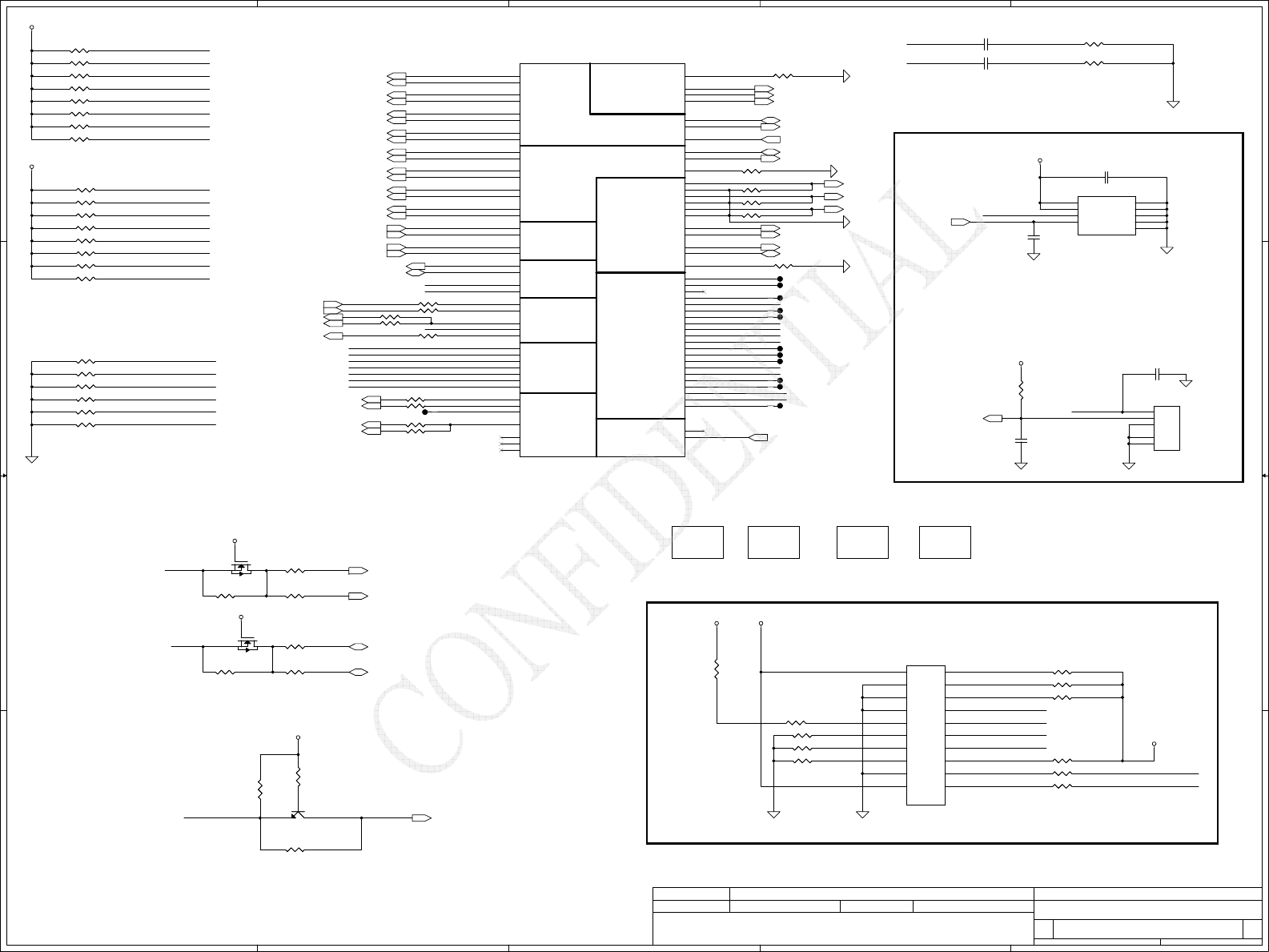

ROM TYPE
1
0 : Force PCIe interface at Gen I mode.
1 : PCIe interface is at Gen II mode.
11
1
0
0
*
0
0
SPI ROM
Net Name
Reserved
PCICLK2
Reserved
0 : Disable the boot fail timer function.
1 : Enable the boot fail timer function.
LPC ROM
*
CLK_PCI_DB_R
*
HDA_SDOUT_R 1 : Reserved (Hudson-1 does not support
the lower power mode).
0 : Required setting for integrated clock mode.
1 : Select external Debug Straps.
0 : Disable Debug Straps. *
*
*
Description
1 : Reserved.
0 : Required setting for integrated clock mode.
0 : Integrated Microcontroller (IMC) Disabled
CLK_PCI_EC_R
*
0 : External clock mode.
1 : Integrated clock mode.
1 : Integrated Microcontroller (IMC) Enabled
EC_PWM3
EC_PWM2
-+
RTC Battery
SP093MX0000
R161
10K_0402_5%
R161
10K_0402_5%
12
R156
10K_0402_5%
@
R156
10K_0402_5%
@
12
R17233_0402_5% R17233_0402_5% 12
R175 510_0402_5%R175 510_0402_5%
1 2
R167 0_0402_5%R167 0_0402_5%
12
C190 27P_0402_50V8J
C190 27P_0402_50V8J
1 2
C184 0.1U_0402_16V7KC184 0.1U_0402_16V7K
1 2
R162 0_0402_5%R162 0_0402_5%
1 2
R157
10K_0402_5%
R157
10K_0402_5%
12
R154
2.2K_0402_5%
@
R154
2.2K_0402_5%
@
1 2
R143
2.2K_0402_5%
@R143
2.2K_0402_5%
@
1 2
R228 0_0402_5%
IN_TPM@
R228 0_0402_5%
IN_TPM@
1 2
C191
18P_0402_50V8J
C191
18P_0402_50V8J
12
R158
10K_0402_5%
R158
10K_0402_5%
12
R155
2.2K_0402_5%
R155
2.2K_0402_5%
1 2
R163 0_0402_5%R163 0_0402_5%
12
C354
0.1U_0402_16V7K
C354
0.1U_0402_16V7K
1
2
R177
20M_0603_5%
R177
20M_0603_5%
1 2
T34 PADT34 PAD
R159
10K_0402_5%
R159
10K_0402_5%
12
R178
560_0603_5%
R178
560_0603_5%
1 2
R204 22_0402_5%R204 22_0402_5%
1 2
R248
10K_0402_5%
@R248
10K_0402_5%
@
12
R176
1M_0402_5%
R176
1M_0402_5%
12
R138 0_0402_5%R138 0_0402_5%
1 2
PCI I/F
PCI EXPRESS I/F
PCI CLKS
LPC RTC
CLOCK GENERATOR
CPU
U6E
21807-A11-HUDSON-M1_FCBGA605
PCI I/F
PCI EXPRESS I/F
PCI CLKS
LPC RTC
CLOCK GENERATOR
CPU
U6E
21807-A11-HUDSON-M1_FCBGA605
25M_X2
L27
25M_X1
L26
14M_25M_48M_OSC
L25
GPP_CLK8N
T28 GPP_CLK8P
T29
GPP_CLK7N
N27 GPP_CLK7P
N26
GPP_CLK6N
P28 GPP_CLK6P
P29
GPP_CLK5N
M25 GPP_CLK5P
P25
GPP_CLK4N
L23 GPP_CLK4P
L24
GPP_CLK3N
V25 GPP_CLK3P
T25
GPP_CLK2N
M28 GPP_CLK2P
M29
GPP_CLK1N
N28 GPP_CLK1P
N29
False
GPP_CLK0N
L28 GPP_CLK0P
L29
SLT_GFX_CLKN
T23 SLT_GFX_CLKP
V23
CPU_HT_CLKN
T21 CPU_HT_CLKP
V21
NB_HT_CLKN
T27 NB_HT_CLKP
T26
NB_DISP_CLKN
U28 NB_DISP_CLKP
U29
PCIE_RCLKN/NB_LNK_CLKN
P23 PCIE_RCLKP/NB_LNK_CLKP
M23
GPP_RX3N
W25 GPP_RX3P
W24 GPP_RX2N
V24 GPP_RX2P
W23 GPP_RX1N
AA24 GPP_RX1P
AA25 GPP_RX0N
Y21 GPP_RX0P
AA22
GPP_TX3N
W29 GPP_TX3P
W28 GPP_TX2N
Y27 GPP_TX2P
Y26 GPP_TX1N
Y28 GPP_TX1P
Y29 GPP_TX0N
AA29 GPP_TX0P
AA28
PCIE_CALRN
AD28 PCIE_CALRP
AD29
UMI_RX3N
AB24 UMI_RX3P
AB25 UMI_RX2N
AC25 UMI_RX2P
AC24 UMI_RX1N
AD24 UMI_RX1P
AD25 UMI_RX0N
AE23 UMI_RX0P
AE24
UMI_TX3N
AB27 UMI_TX3P
AB26 UMI_TX2N
AB28 UMI_TX2P
AB29 UMI_TX1N
AC29 UMI_TX1P
AC28 UMI_TX0N
AD27 UMI_TX0P
AD26
A_RST_L
L1 PCIE_RST_L
P1
VDDBT_RTC_G B1
INTRUDER_ALERT_L B2
RTCCLK D2
32K_X2 C2
32K_X1 C1
LDT_RST_L J24
LDT_STP_L G22
LDT_PG K19
PROCHOT_L H21
ALLOW_LDTSTP/DMA_ACTIVE_L G21
SERIRQ/GPIO48 AB19
LDRQ1_L/CLK_REQ6_L/GPIO49 AA18
LDRQ0_L J25
LFRAME_L G28
LAD3 H28
LAD2 H29
LAD1 J26
LAD0 J27
LPCCLK1 H25
LPCCLK0 H24
INTH_L/GPIO35 AJ4
INTG_L/GPIO34 AG4
INTF_L/GPIO33 AG6
INTE_L/GPIO32 AJ6
LOCK_L AD7
CLKRUN_L AB11
GNT3_L/CLK_REQ7_L/GPIO46 AB12
GNT2_L/GPO45 AH6
GNT1_L/GPO44 AJ5
GNT0_L AD12
REQ3_L/CLK_REQ5_L/GPIO42 AC12
REQ2_L/CLK_REQ8_L/GPIO41 AH4
REQ1_L/GPIO40 AH5
REQ0_L AE11
SERR_L AE4
PERR_L AE6
STOP_L AF5
PAR AC5
TRDY_L AE7
IRDY_L AJ3
DEVSEL_L AB9
FRAME_L AE8
CBE3_L AA10
CBE1_L AD5
CBE0_L AA8
AD31/GPIO31 AH3
AD30/GPIO30 AG2
AD29/GPIO29 AH2
AD28/GPIO28 AF3
AD27/GPIO27 AF4
AD26/GPIO26 AF6
AD25/GPIO25 AC11
AD24/GPIO24 AD9
AD23/GPIO23 AE9
AD22/GPIO22 AF2
AD21/GPIO21 AG1
AD20/GPIO20 AF1
AD19/GPIO19 AE3
AD18/GPIO18 AF8
AD17/GPIO17 AE1
AD16/GPIO16 AE2
AD15/GPIO15 AC6
AD14/GPIO14 AD2
AD12/GPIO12 AC1
AD11/GPIO11 AC4
AD10/GPIO10 AC3
AD9/GPIO9 AC2
AD8/GPIO8 AA6
AD7/GPIO7 AB5
AD6/GPIO6 AB6
AD5/GPIO5 AB2
AD4/GPIO4 AA5
AD3/GPIO3 AB1
AD2/GPIO2 AA3
AD1/GPIO1 AA4
AD0/GPIO0 AA1
PCIRST_L V2
PCICLK4/14M_OSC/GPO39 Y1
PCICLK3/GPO38 W4
PCICLK2/GPO37 W3
PCICLK1/GPO36 W1
PCICLK0 W2
AD13/GPIO13 AD1
CBE2_L AD8
R160
10K_0402_5%
R160
10K_0402_5%
12
R135
10K_0402_5%
R135
10K_0402_5%
12
R208 22_0402_5%@R208 22_0402_5%@
1 2
C176 150P_0402_50V8JC176 150P_0402_50V8J
1 2
C179 0.1U_0402_16V7KC179 0.1U_0402_16V7K
1 2
R227
560_0603_5%
R227
560_0603_5%
1 2
R174 33_0402_5%R174 33_0402_5%
12
C187 0.1U_0402_16V7K
@
C187 0.1U_0402_16V7K
@
1 2
R17333_0402_5% IN_TPM@
R17333_0402_5% IN_TPM@
12
J10
JUMP_43X39
@J10
JUMP_43X39
@
1 2
R169 0_0402_5%R169 0_0402_5%
1 2
T18 PADT18 PAD
C180 0.1U_0402_16V7KC180 0.1U_0402_16V7K
1 2
C188
0.1U_0402_16V7K
C188
0.1U_0402_16V7K
1
2
T17 PADT17 PAD
G
D
S
Q14
BSS138W-7-F_SOT323-3
G
D
S
Q14
BSS138W-7-F_SOT323-3
2
13
R144
10K_0402_5%
R144
10K_0402_5%
12
C177 0.1U_0402_16V7KC177 0.1U_0402_16V7K
1 2
R147
10K_0402_5%
@
R147
10K_0402_5%
@
12
T16
PAD T16
PAD
R385 0_0402_5%
USB3.0@
R385 0_0402_5%
USB3.0@
1 2
R145
10K_0402_5%
@R145
10K_0402_5%
@
12
Y1
25MHZ_20PF_7A25000012
Y1
25MHZ_20PF_7A25000012
12
R168 0_0402_5%R168 0_0402_5%
1 2
T35 PADT35 PAD
PBJ1
MAXEL_ML1220T10
@PBJ1
MAXEL_ML1220T10
@
12
C181 0.1U_0402_16V7KC181 0.1U_0402_16V7K
1 2
R142
2.2K_0402_5%
@
R142
2.2K_0402_5%
@
1 2
R151
10K_0402_5%
@
R151
10K_0402_5%
@
12
R149 590_0402_1%R149 590_0402_1%
1 2
R171 0_0402_5%R171 0_0402_5%
1 2
R146
10K_0402_5%
@
R146
10K_0402_5%
@
12
R386 0_0402_5%
USB3.0@
R386 0_0402_5%
USB3.0@
1 2
R150 33_0402_5%R150 33_0402_5%
12
C178 0.1U_0402_16V7KC178 0.1U_0402_16V7K
1 2
R164 0_0402_5%R164 0_0402_5%
12
U9
NC7SZ08P5X_NL_SC70-5
@
U9
NC7SZ08P5X_NL_SC70-5
@
B
2
A
1Y4
P5
G
3
R170 0_0402_5%R170 0_0402_5%
1 2
R153
10K_0402_5%
R153
10K_0402_5%
12
C182 0.1U_0402_16V7KC182 0.1U_0402_16V7K
1 2
R152 2K_0402_1%R152 2K_0402_1%
1 2
R140 0_0402_5%@ R140 0_0402_5%@ 12
J3
PAD-OPEN 2x2m
J3
PAD-OPEN 2x2m
2 1
R141
10K_0402_5%
@
R141
10K_0402_5%
@
12
R137 0_0402_5%R137 0_0402_5%
1 2
D29
BAS40-04_SOT23
D29
BAS40-04_SOT23
1
2
3
C183 0.1U_0402_16V7KC183 0.1U_0402_16V7K
1 2
T39 PADT39 PAD
R166 0_0402_5%R166 0_0402_5%
12
C189
1U_0402_6.3V4Z
C189
1U_0402_6.3V4Z
1
2
R148
10K_0402_5%
@ R148
10K_0402_5%
@
12
R165
100K_0402_5%
R165
100K_0402_5%
12
C193
18P_0402_50V8J
C193
18P_0402_50V8J
12
C192 27P_0402_50V8J
C192 27P_0402_50V8J
1 2
R1554
120_0402_5%
R1554
120_0402_5%
12
X1
32.768KHZ_12.5PF_9H03200413
X1
32.768KHZ_12.5PF_9H03200413
OSC 4
OSC 1
NC
3
NC
2

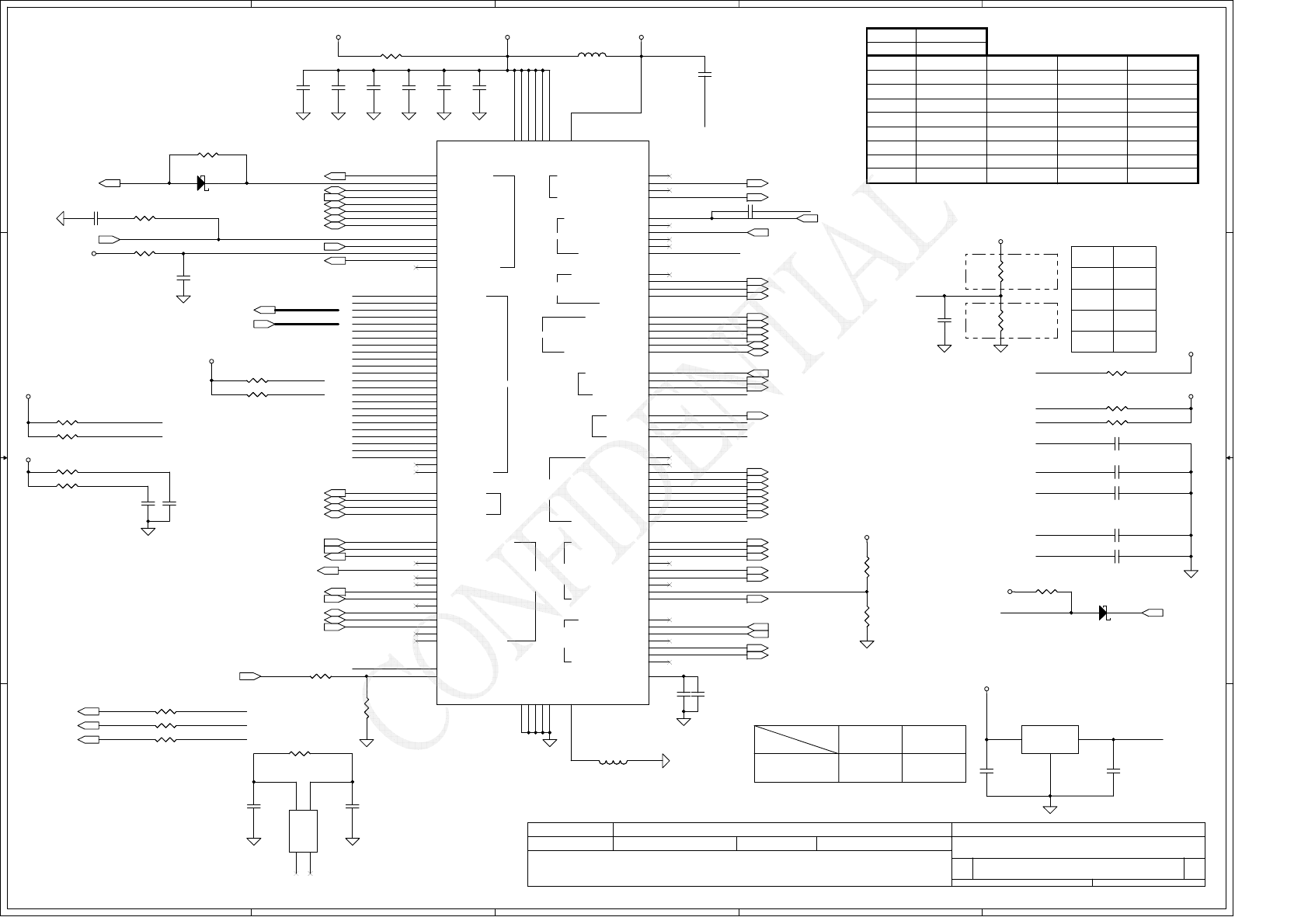

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
USB_PCOMP
SDA3_LV
USB_OC#7
USB_OC#0
SCL3_LV
HDA_BITCLK_R
HDA_SDOUT_R
HDA_RST#_R
HDA_SYNC_R
FCH_RSMRST#
EC_RSMRST#
FCH_PWROK
SMB_FCH_CK0
SMB_FCH_DA0
NB_PWRGD
SMB_FCH_CK1
SMB_FCH_DA1
NB_PWRGD
GBE_COL
GBE_CRS
GBE_RXERR
GBE_COL
GBE_CRS
GBE_RXERR
HDA_SDOUT_R
FCH_PCIE_WAKE#
FCH_RSMRST#
HDA_BITCLK_R
GBE_MDIO
GBE_MDIO
GBE_PHY_INTR
GBE_PHY_INTR
SCL2
SDA2
SCL2
SDA2
EC_SMI#
USB30_SMI# EC_SMI#
+3VALW
+3VS
+3VS
+3VS
USB_OC#0<25>
USB20_P2 <18>
USB20_N2 <18>
APU_THERMTRIP#<5>
USB20_P0 <25>
USB20_N0 <25>
USB20_P1 <12>
USB20_N1 <12>
HDA_SDIN0<21>
HDA_BITCLK<21> HDA_SDOUT<21>
HDA_RST#<21> HDA_SYNC<21>
GATEA20<23>
EC_SCI#<23>
FCH_SLP_S3#<23> FCH_SLP_S5#<23>
KB_RST#<23>
PBTN_OUT#<23>
SMB_FCH_CK0<8,9>
SMB_FCH_CK1<20> SMB_FCH_DA0<8,9>
SMB_FCH_DA1<20>
LAN_CLKREQ0#<19>
FCH_SPK<21>
EC_LID_OUT#<23>
FCH_PCIE_WAKE#<19,20,25>
HDA_SDOUT_R<14>
EC_PWM2 <14>
EC_PWM3 <14>
EC_RSMRST# <23>
EC_FCH_PWROK <23>
VGATE <23,35>
SCL3_LV <5>
SDA3_LV <5>
WLAN_CLKREQ1#<20>
FCH_PWROK<22,35>
USB20_P8 <26>
USB20_N8 <26>
USB20_P9 <26>
USB20_N9 <26>
USB20_P7 <20>
USB20_N7 <20>
USB_OC#7<26>
USB20_P3 <18>
USB20_N3 <18>
USB30_CLKREQ2#<25>
EC_SMI#<23>USB30_SMI#<25>
ODD_EN# <18>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
15 36Friday, May 06, 2011
2009/02/04 2010/02/04
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
15 36Friday, May 06, 2011
2009/02/04 2010/02/04
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
15 36Friday, May 06, 2011
2009/02/04 2010/02/04
Compal Electronics, Inc.
4019D2

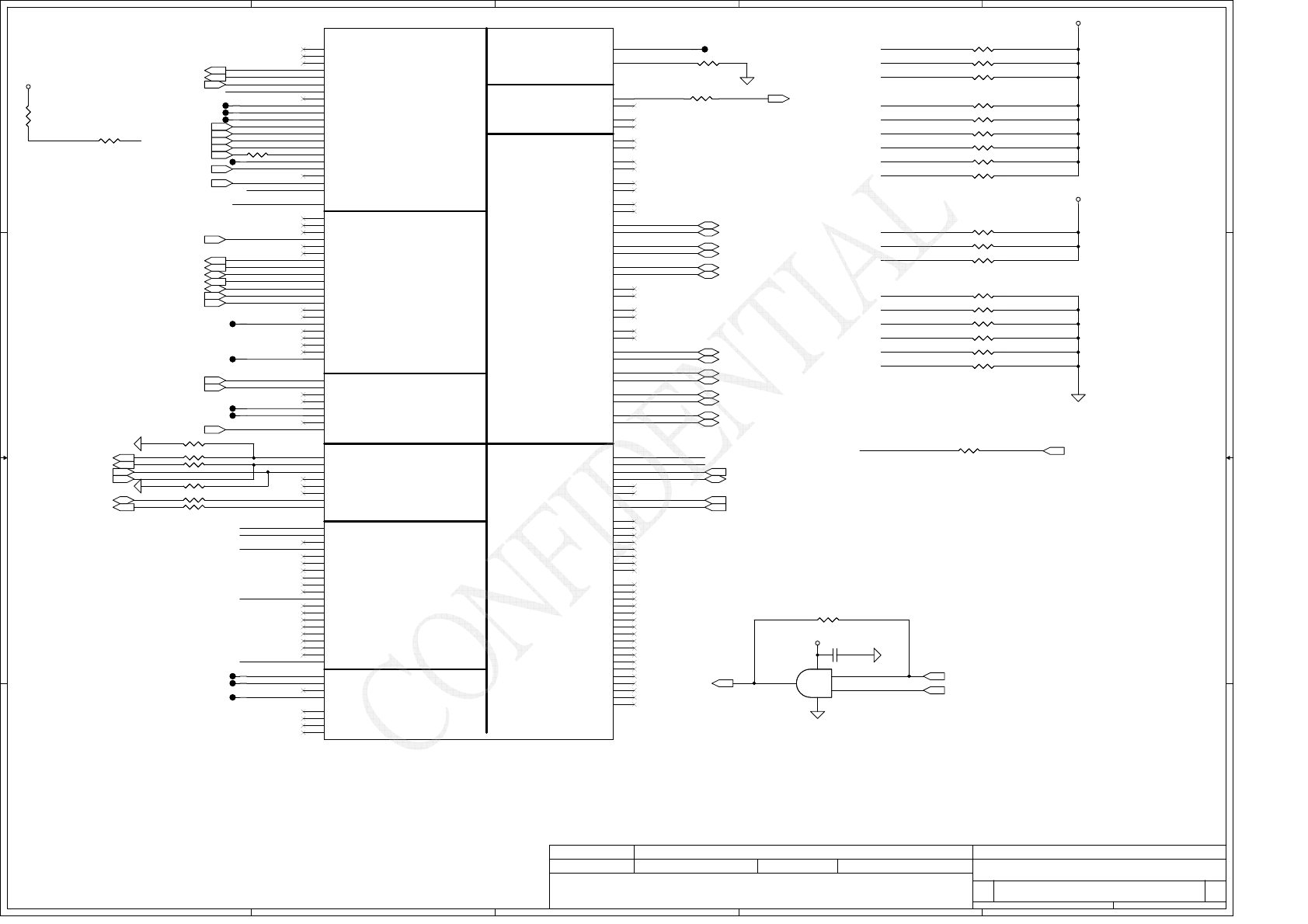

USB(MB)
USB(USB/B1)
USB(USB/B2)
Camera
CardReader
BT(MINI CARD)
Smart Card
R185 2.2K_0402_5%R185 2.2K_0402_5%
1 2
T36
PAD T36
PAD
T26
PAD T26
PAD
R198 10K_0402_5%R198 10K_0402_5%
12
R195 2.2K_0402_5%R195 2.2K_0402_5%
1 2
R181 10K_0402_5%R181 10K_0402_5%
12
USB OC
ACPI/WAKE UP EVENTS
USB MISC
USB 1.1 USB 2.0
GBE LAN
GPIO
EMBEDDED CTRL
HD AUDIO
U6A
21807-A11-HUDSON-M1_FCBGA605
USB OC
ACPI/WAKE UP EVENTS
USB MISC
USB 1.1 USB 2.0
GBE LAN
GPIO
EMBEDDED CTRL
HD AUDIO
U6A
21807-A11-HUDSON-M1_FCBGA605
PS2M_CLK/GPIO192
E27 PS2M_DAT/GPIO191
F29 PS2KB_CLK/GPIO190
F28 PS2KB_DAT/GPIO189
D27
FC_RST_L/GPO160
G29 SPI_CS2_L/GBE_STAT2/GPIO166
F21 PS2_CLK/SCL4/GPIO188
E24 PS2_DAT/SDA4/GPIO187
E23
GBE_PHY_INTR
V7 GBE_PHY_RST_L
M9 GBE_PHY_PD
P4 GBE_TXCTL/TXEN
M7 GBE_TXD0
P7 GBE_TXD1
T7 GBE_TXD2
P9 GBE_TXD3
M5 GBE_TXCLK
P5 GBE_RXERR
V5 GBE_RXCTL/RXDV
T5 GBE_RXD0
U2 GBE_RXD1
T2 GBE_RXD2
U3 GBE_RXD3
U1 GBE_RXCLK
T9 GBE_MDIO
L5 GBE_MDCK
L6 GBE_CRS
T4 GBE_COL
T1
AZ_RST_L
P2 AZ_SYNC
N2 AZ_SDIN3/GPIO170
M4 AZ_SDIN2/GPIO169
M1 AZ_SDIN1/GPIO168
M2 AZ_SDIN0/GPIO167
L2 AZ_SDOUT
N1 AZ_BITCLK
M3
USB_OC0_L/TRST_L/GEVENT12_L
F8 USB_OC1_L/TDI/GEVENT13_L
E7 USB_OC2_L/TCK/GEVENT14_L
F7 USB_OC3_L/AC_PRES/TDO/GEVENT15_L
E8 USB_OC4_L/IR_RX0/GEVENT16_L
D4 USB_OC5_L/IR_TX0/GEVENT17_L
E4 USB_OC6_L/IR_TX1/GEVENT6_L
D1 BLINK/USB_OC7_L/GEVENT18_L
H3
CLK_REQG_L/GPIO65_OSCIN
AA20 GBE_STAT0/GEVENT11_L
K3 GBE_LED2/GEVENT10_L
G5 GBE_LED1/GEVENT9_L
D7 GBE_LED0/GPIO183
D5 DDR3_RST_L/GEVENT7_L
H4 SMARTVOLT2/SHUTDOWN_L/GPIO51
AJ21 IR_LED_L/LLB_L/GPIO184
E1 CLK_REQ1_L/FANOUT4_GPIO61
AB18 CLK_REQ2_L/FANIN4_GPIO62
AH21 SDA1_GPIO228
F4 SCL1_GPIO227
F5 SDA0_GPIO47
AE22 SCL0_GPIO43
AD22 SPKR_GPIO66
AF19 SATA_IS5_L/FANIN3/GPIO59
AE19 SATA_IS4_L/FANOUT3/GPIO55
AF20 CLK_REQ0_L/SATA_IS3_L/GPIO60
AC18 SMARTVOLT1/SATA_IS2_L/GPIO50
AB21 CLK_REQ3_L/SATA_IS1_L/GPIO63
AA16 CLK_REQ4_L/SATA_IS0_L/GPIO64
AD19
RSMRST_L
G1
NB_PWRGD
AC19 THRMTRIP_L/SMBALERT_L/GEVENT2_L
J6 IR_RX1/GEVENT20_L
F3 WAKE_L/GEVENT8_L
H6 SYS_RESET_L/GEVENT19_L
J1 GEVENT5_L
H2 LPC_SMI_L/GEVENT23_L
J29 LPC_PME_L/GEVENT3_L
K2 KBRST_L/GEVENT1_L
AE21 GA20IN/GEVENT0_L
AD21 TEST2
F6 TEST1/TMS
C4 TEST0
B3 SUS_STAT_L
G6 PWR_GOOD
H5 PWR_BTN_L
F2 SLP_S5_L
H1 SLP_S3_L
F1 SPI_CS3_L/GBE_STAT1/GEVENT21_L
D3 RI_L/GEVENT22_L
K1 PCI_PME_L/GEVENT4_L
J2
KSO_17/GPIO226 B22
KSO_16/GPIO225 A22
KSO_15/GPIO224 C22
KSO_14/GPIO223 D22
KSO_13/GPIO222 A23
KSO_12/GPIO221 B23
KSO_11/GPIO220 C24
KSO_10/GPIO219 B24
KSO_9/GPIO218 D24
KSO_8/GPIO217 A25
KSO_7/GPIO216 B25
KSO_6/GPIO215 A24
KSO_5/GPIO214 C26
KSO_4/GPIO213 A26
KSO_3/GPIO212 D26
KSO_2/GPIO211 B27
KSO_1/GPIO210 A27
KSO_0/GPIO209 B28
KSI_7/GPIO208 C28
KSI_6/GPIO207 C29
KSI_5/GPIO206 D28
KSI_4/GPIO205 D29
KSI_3/GPIO204 E29
KSI_2/GPIO203 E28
KSI_1/GPIO202 G25
KSI_0/GPIO201 G24
EC_PWM3/EC_TIMER3/GPIO200 E21
EC_PWM2/EC_TIMER2/GPIO199 F22
EC_PWM1/EC_TIMER1/GPIO198 E22
EC_PWM0/EC_TIMER0/GPIO197 F25
SDA3_LV/GPIO196 E26
SCL3_LV/GPIO195 B26
SDA2/GPIO194 F23
SCL2/GPIO193 D25
USB_HSD0N B16
USB_HSD0P A16
USB_HSD1N A17
USB_HSD1P B17
USB_HSD2N J18
USB_HSD2P J16
USB_HSD3N E16
USB_HSD3P E18
USB_HSD4N A14
USB_HSD4P B14
USB_HSD5N C16
USB_HSD5P D16
USB_HSD6N G18
USB_HSD6P G16
USB_HSD7N G14
USB_HSD7P G12
USB_HSD8N C13
USB_HSD8P D13
USB_HSD9N B13
USB_HSD9P A13
USB_HSD10N J14
USB_HSD10P J12
USB_HSD11N E12
USB_HSD11P E14
USB_HSD12N E11
USB_HSD12P F11
USB_HSD13N A12
USB_HSD13P B12
USB_FSD0N J8
USB_FSD0P/GPIO185 H9
USB_FSD1N H11
USB_FSD1P/GPIO186 J10
USB_RCOMP G19
USBCLK/14M_25M_48M_OSC A10
T33
PAD T33
PAD
R202 33_0402_5%R202 33_0402_5%
1 2
R390
0_0402_5%
@ R390
0_0402_5%
@12
R191 2.2K_0402_5%R191 2.2K_0402_5%
1 2
R200 10K_0402_5%@R200 10K_0402_5%@ 12
R188 10K_0402_5%R188 10K_0402_5%
12
R209 0_0402_5%R209 0_0402_5%
12
R194 10K_0402_5%R194 10K_0402_5%
12
R186 200K_0402_5%R186 200K_0402_5%
12
R183 200K_0402_5%R183 200K_0402_5%
12
T41
PAD T41
PAD
T38
PAD T38
PAD
R190 2.2K_0402_5%R190 2.2K_0402_5%
1 2
C194 0.1U_0402_16V7K
@
C194 0.1U_0402_16V7K
@
1 2
T29
PAD T29
PAD
R193 10K_0402_5%R193 10K_0402_5%
12
T32
PAD T32
PAD
R399
0_0402_5%
SC@
R399
0_0402_5%
SC@
12
T30
PAD T30
PAD
R189 10K_0402_5%R189 10K_0402_5%
12
R196 10K_0402_5%R196 10K_0402_5%
12
T31
PAD T31
PAD
R180 11.8K_0402_1%R180 11.8K_0402_1%
1 2
R187 10K_0402_5%R187 10K_0402_5%
12
U10
NC7SZ08P5X_NL_SC70-5
@
U10
NC7SZ08P5X_NL_SC70-5
@
B2
A1
Y
4
P5
G
3
R389
10K_0402_5%
@
R389
10K_0402_5%
@
12
T24
PAD T24
PAD
R179 10K_0402_5%R179 10K_0402_5%
12
R206 33_0402_5%R206 33_0402_5%
1 2
R192 4.7K_0402_5%R192 4.7K_0402_5%
1 2
R205 10K_0402_5%@R205 10K_0402_5%@ 12
R197 10K_0402_5%R197 10K_0402_5%
12
T25
PAD T25
PAD
R207 33_0402_5%R207 33_0402_5%
1 2
R199 0_0402_5%R199 0_0402_5%
12
R201 33_0402_5%R201 33_0402_5%
1 2
R388 0_0402_5%
USB3.0@
R388 0_0402_5%
USB3.0@
12
T20
PAD T20
PAD
R184 2.2K_0402_5%R184 2.2K_0402_5%
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+3VS
+3VALW
+VDDIO_AZ
+1.1VS
+3VS_VDDPL
+1.1VALW
+1.1VALW
+3VALW
+3VS_VDDPL
+1.1VALW_VDDP
+1.1VALW_VDDP +1.1VALW
+VDDIO_AZ
+3VALW_USB_AVDD
+1.1VS
+3VALW
+3VALW
+1.5V
+1.1VS
+3VS_SB
+1.1VS
+3VALW
+3VS
+3VS
+3VS
+3VS
+3VS_PCIE_VDDPL
+1.1VS_PCIE
+3VS_SATA_VDDPL
+1.1VS_SATA
+3VALW_USB_AVDD
+1.1VS_VDDCR
+1.1VS_CLK
+1.1VALW_USB_VDDAN
+3VALW_VDDIO
+3VS_VDDXL
+1.1VALW_USB_VDDCR
+1.1VALW_VDDCR
+1.1VS
+1.1VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
16 36Friday, May 06, 2011
2009/02/04 2010/02/04
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
16 36Friday, May 06, 2011
2009/02/04 2010/02/04
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
16 36Friday, May 06, 2011
2009/02/04 2010/02/04
Compal Electronics, Inc.
4019D2
42mA
0.16mA
22.5mA
1115.6mA
15.5mA
1354.2mA
534.5mA
88.6mA
979.4mA
382.9mA
49.5mA
165.2mA
15.3mA
58mA
46.5mA
65.3mA
16.1mA
11.4mA
5.0mA
ESR:9ohm(MAX)
220
次
_0.2A
DCR:0.2
次
220
次
_3A
DCR:0.04
次
220
次
_0.2A
DCR:0.2
次
220
次
_0.2A
DCR:0.2
次
220
次
_0.2A
DCR:0.2
次
220
次
_0.2A
DCR:0.2
次
120
次
_5A
DCR:0.02
次
120
次
_5A
DCR:0.02
次
120
次
_5A
DCR:0.02
次
close pin D6
220
次
_0.2A
DCR:0.2
次
220
次
_0.2A
DCR:0.2
次
R210
0_0603_5%
R210
0_0603_5%
12
C227
1U_0402_6.3V6K
C227
1U_0402_6.3V6K
1
2
R214 0_0603_5%R214 0_0603_5%
12
C221 2.2U_0402_6.3VM
C221 2.2U_0402_6.3VM
1
2
L27
FBMA-L11-160808-221LMT_2P
L27
FBMA-L11-160808-221LMT_2P
1 2
C195
22U_0805_6.3V6M
C195
22U_0805_6.3V6M
1
2
C243
0.1U_0402_16V4Z
C243
0.1U_0402_16V4Z
1
2
C215
0.1U_0402_16V4Z
C215
0.1U_0402_16V4Z
1
2
C219
0.1U_0402_16V4Z
C219
0.1U_0402_16V4Z 1
2
L24
FBMA-L11-160808-221LMT_2P
L24
FBMA-L11-160808-221LMT_2P
1 2
C235
0.1U_0402_16V4Z
C235
0.1U_0402_16V4Z
1
2
+
C185
330U_D2_2.5VY_R9M
+
C185
330U_D2_2.5VY_R9M
1
2
C199
10U_0603_6.3V6M
C199
10U_0603_6.3V6M
1
2
C241
330P_0402_50V8J
C241
330P_0402_50V8J
1
2
C242
2.2U_0402_6.3VM
C242
2.2U_0402_6.3VM
1
2
C207
0.1U_0402_16V4Z
C207
0.1U_0402_16V4Z
1
2
C220
2.2U_0402_6.3VM
C220
2.2U_0402_6.3VM
1
2
C217
2.2U_0402_6.3VM
C217
2.2U_0402_6.3VM
1
2
R220 0_0603_5%
@
R220 0_0603_5%
@12
C234
10U_0603_6.3V6M
C234
10U_0603_6.3V6M
1
2
C213
1U_0402_6.3V6K
C213
1U_0402_6.3V6K
1
2
C228 1U_0402_6.3V6K
C228 1U_0402_6.3V6K
1
2
C205
1U_0402_6.3V6K
C205
1U_0402_6.3V6K
1
2
L34
FBMA-L11-201209-121LMA50
L34
FBMA-L11-201209-121LMA50
1 2
R212 0_0402_5%R212 0_0402_5%
1 2
C240
0.1U_0402_16V4Z
C240
0.1U_0402_16V4Z
1
2
+
C186
330U_D2_2.5VY_R9M
@
+
C186
330U_D2_2.5VY_R9M
@
1
2
L25
FBMA-L11-201209-121LMA50
L25
FBMA-L11-201209-121LMA50
1 2
R216 0_0603_5%R216 0_0603_5%
12
R213 0_0603_5%R213 0_0603_5%
12
C237
2.2U_0402_6.3VM
C237
2.2U_0402_6.3VM
1
2
C216
0.1U_0402_16V4Z
C216
0.1U_0402_16V4Z
1
2
R211
0_0805_5%
R211
0_0805_5%
1 2
C229
10U_0603_6.3V6M
C229
10U_0603_6.3V6M
1
2
C204
22U_0805_6.3V6M
C204
22U_0805_6.3V6M
1
2
L29
FBMA-L11-160808-221LMT_2P
L29
FBMA-L11-160808-221LMT_2P
1 2
C238
0.1U_0402_16V4Z
C238
0.1U_0402_16V4Z
1
2
C212
22U_0805_6.3V6M
C212
22U_0805_6.3V6M
1
2
C236
0.1U_0402_16V4Z
C236
0.1U_0402_16V4Z
1
2
C239
2.2U_0402_6.3VM
C239
2.2U_0402_6.3VM
1
2
C223
1U_0402_6.3V6K
C223
1U_0402_6.3V6K
1
2
C206
1U_0402_6.3V6K
C206
1U_0402_6.3V6K
1
2
L23
FBMA-L11-201209-121LMA50
L23
FBMA-L11-201209-121LMA50
1 2
C203
0.1U_0402_16V4Z
C203
0.1U_0402_16V4Z
1
2
C244
2.2U_0402_6.3VM
C244
2.2U_0402_6.3VM
1
2
C218 0.1U_0402_16V4ZC218 0.1U_0402_16V4Z
1
2
L32
FBMA-L11-160808-221LMT_2P
L32
FBMA-L11-160808-221LMT_2P
1 2
C246
0.1U_0402_16V4Z
C246
0.1U_0402_16V4Z
1
2
R219 0_0603_5%R219 0_0603_5%
12
C201
1U_0402_6.3V6K
C201
1U_0402_6.3V6K
1
2
R218 0_0603_5%R218 0_0603_5%
12
C225
0.1U_0402_16V4Z
C225
0.1U_0402_16V4Z
1
2
C230
10U_0603_6.3V6M
C230
10U_0603_6.3V6M
1
2
C1004
2.2U_0402_6.3VM
C1004
2.2U_0402_6.3VM
1
2
C200
1U_0402_6.3V6K
C200
1U_0402_6.3V6K
1
2
R217
0_0603_5%
R217
0_0603_5%
12
C245
0.1U_0402_16V4Z
C245
0.1U_0402_16V4Z
1
2
C232
1U_0402_6.3V6K
C232
1U_0402_6.3V6K
1
2
C222
22U_0805_6.3V6M
C222
22U_0805_6.3V6M
1
2
C247
0.1U_0402_16V4Z
C247
0.1U_0402_16V4Z
1
2
C209
2.2U_0402_6.3VM
C209
2.2U_0402_6.3VM
1
2
L22
FBMA-L11-160808-221LMT_2P
L22
FBMA-L11-160808-221LMT_2P
1 2
C196
0.1U_0402_16V4Z
C196
0.1U_0402_16V4Z
1
2
C202
0.1U_0402_16V4Z
C202
0.1U_0402_16V4Z
1
2
C214
1U_0402_6.3V6K
@
C214
1U_0402_6.3V6K
@
1
2
C226 0.1U_0402_16V4Z
C226 0.1U_0402_16V4Z
1
2
C231
1U_0402_6.3V6K
C231
1U_0402_6.3V6K
1
2
C208
0.1U_0402_16V4Z
C208
0.1U_0402_16V4Z
1
2
L28
FBMA-L11-160808-221LMT_2P
L28
FBMA-L11-160808-221LMT_2P
1 2
C198
0.1U_0402_16V4Z
C198
0.1U_0402_16V4Z
1
2
L30
FBMA-L11-160808-221LMT_2P
L30
FBMA-L11-160808-221LMT_2P
1 2
C197
0.1U_0402_16V4Z
C197
0.1U_0402_16V4Z
1
2
C224
1U_0402_6.3V6K
C224
1U_0402_6.3V6K
1
2
PCI/GPIO I/O PCI EXPRESS
GBE LAN
FLASH I/O
CORE S5CORE S0 CLKGEN I/O 3.3V_S5 I/O
SERIAL ATA
POWER
PLL
USB I/O
U6C
21807-A11-HUDSON-M1_FCBGA605
PCI/GPIO I/O PCI EXPRESS
GBE LAN
FLASH I/O
CORE S5CORE S0 CLKGEN I/O 3.3V_S5 I/O
SERIAL ATA
POWER
PLL
USB I/O
U6C
21807-A11-HUDSON-M1_FCBGA605
VDDAN_11_USB_S_2
D11 VDDAN_11_USB_S_1
C11
VDDAN_33_USB_S_12
E19 VDDAN_33_USB_S_11
D20 VDDAN_33_USB_S_10
D19 VDDAN_33_USB_S_9
D18 VDDAN_33_USB_S_8
C20 VDDAN_33_USB_S_7
C18 VDDAN_33_USB_S_6
B20 VDDAN_33_USB_S_5
B19 VDDAN_33_USB_S_4
B18 VDDAN_33_USB_S_3
A20 VDDAN_33_USB_S_2
A19 VDDAN_33_USB_S_1
A18
VDDAN_11_SATA_7
AE16 VDDAN_11_SATA_6
AD18 VDDAN_11_SATA_5
AE18 VDDAN_11_SATA_3
AG19 VDDAN_11_SATA_2
AH20 VDDAN_11_SATA_4
AF18 VDDAN_11_SATA_1
AJ20
VDDPL_33_SATA
AD14
VDDAN_11_PCIE_8
W26 VDDAN_11_PCIE_7
W22 VDDAN_11_PCIE_6
V29 VDDAN_11_PCIE_5
V28 VDDAN_11_PCIE_4
V27 VDDAN_11_PCIE_3
V26 VDDAN_11_PCIE_2
V22 VDDAN_11_PCIE_1
U26
VDDPL_33_PCIE
AE28
VDDIO_18_FC_4
AC22 VDDIO_18_FC_3
AF24 VDDIO_18_FC_2
AE25 VDDIO_18_FC_1
AF22
VDDIO_33_PCIGP_12
AA19 VDDIO_33_PCIGP_11
AF7 VDDIO_33_PCIGP_10
AA9 VDDIO_33_PCIGP_9
AA7 VDDIO_33_PCIGP_8
AC8 VDDIO_33_PCIGP_7
AB4 VDDIO_33_PCIGP_6
AA2 VDDIO_33_PCIGP_5
AC21 VDDIO_33_PCIGP_4
AE5 VDDIO_33_PCIGP_3
Y19 VDDIO_33_PCIGP_2
V6 VDDIO_33_PCIGP_1
AH1
VDDXL_33_S L20
VDDAN_33_HWM_S D6
VDDPL_33_USB_S F19
VDDPL_11_SYS_S L22
VDDPL_33_SYS M21
VDDCR_11_USB_S_2 B11
VDDCR_11_USB_S_1 A11
VDDIO_AZ_S M8
VDDCR_11_S_2 G26
VDDCR_11_S_1 F26
VDDIO_33_S_8 T8
VDDIO_33_S_7 T6
VDDIO_33_S_6 J9
VDDIO_33_S_5 L10
VDDIO_33_S_4 K10
VDDIO_33_S_3 B21
VDDIO_33_S_2 D21
VDDIO_33_S_1 A21
VDDIO_GBE_S_2 P8
VDDIO_GBE_S_1 M6
VDDCR_11_GBE_S_2 L9
VDDCR_11_GBE_S_1 L7
VDDIO_33_GBE_S M10
VDDRF_GBE_S V1
VDDAN_11_CLK_8 J22
VDDAN_11_CLK_7 K21
VDDAN_11_CLK_6 J20
VDDAN_11_CLK_5 J21
VDDAN_11_CLK_4 K26
VDDAN_11_CLK_3 J28
VDDAN_11_CLK_2 K29
VDDAN_11_CLK_1 K28
VDDCR_11_9 W18
VDDCR_11_8 W12
VDDCR_11_7 V18
VDDCR_11_6 V12
VDDCR_11_5 U17
VDDCR_11_4 U13
VDDCR_11_3 N17
VDDCR_11_2 R15
VDDCR_11_1 N13
C211
0.1U_0402_16V4Z
C211
0.1U_0402_16V4Z
1
2
C233
0.1U_0402_16V4Z
C233
0.1U_0402_16V4Z
1
2
L26
FBMA-L11-201209-221LMA30T_0805
L26
FBMA-L11-201209-221LMA30T_0805
1 2
R215 0_0603_5%R215 0_0603_5%
12

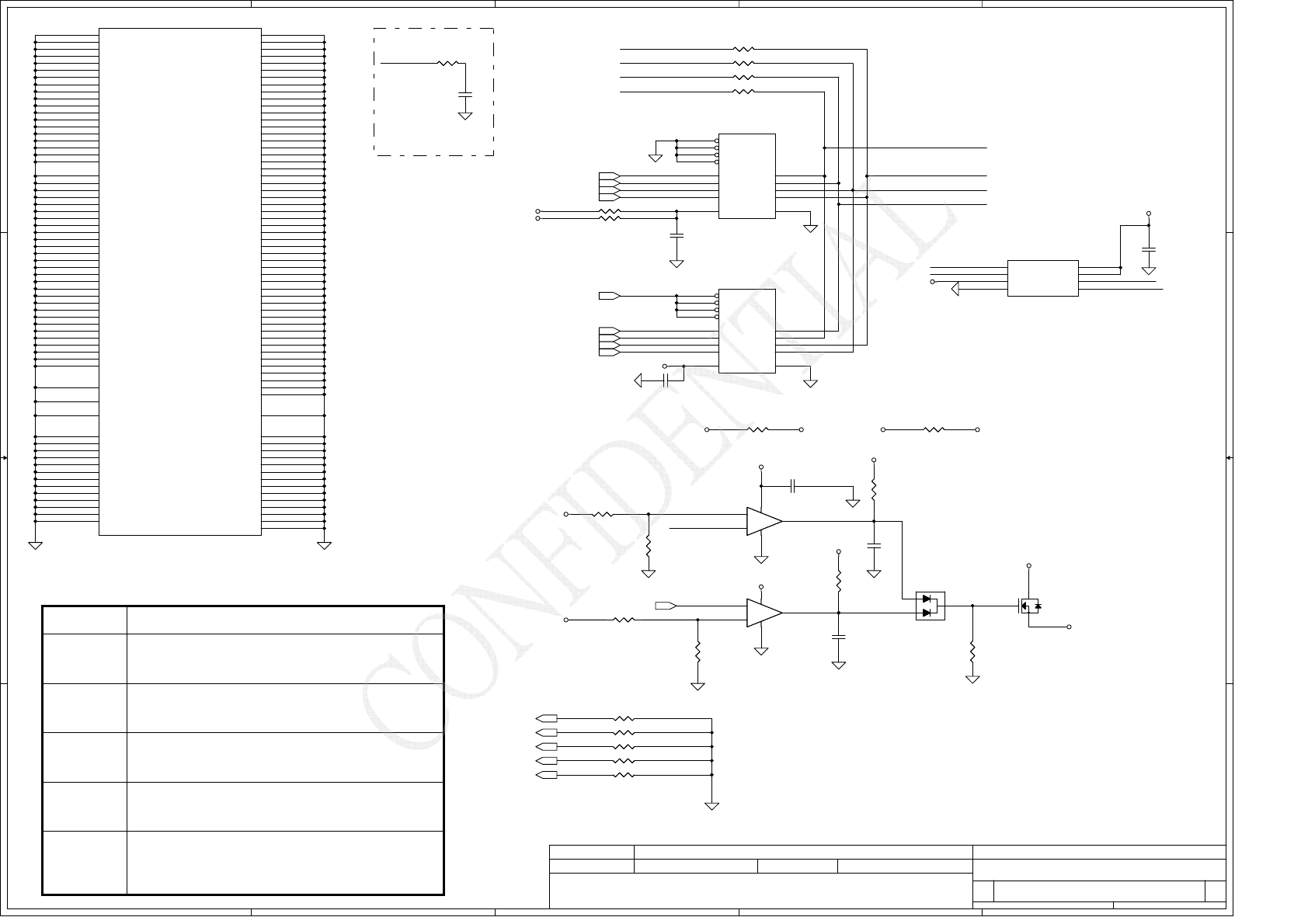

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
FCH_SPI_CLK
FCH_SPI_CLK_R
FCH_SPI_CS1#_R
FCH_SPI_DO_R
FCH_SPI_DI_R
FCH_SPI_DI
FCH_SPI_CLK
FCH_SPI_CS1#
FCH_SPI_DO
EC_ON
FCH_SPI_CS1#_R
FCH_SPI_DO_R
FCH_SPI_DI_R
FCH_SPI_CLK_R
+3V_SPI+3VS
+3V_SPI
+3VALW
+3V_SPI
+5VALW
+5VALW
+5VALW
+5VALW
+3V_SPI
+3V_SPI
+3V_SPI+3VALW
+3VS
+3VALW
+5VALW
+5VALW
KSI3<23,24> KSI7<23,24> KSI6<23,24> KSI5<23,24>
EC_ON<23,24,30>
FCH_SPI_DO<13> FCH_SPI_CS1#<13> FCH_SPI_CLK<13> FCH_SPI_DI<13>
PCI_AD23<14>
PCI_AD24<14>
PCI_AD25<14>
PCI_AD26<14>
PCI_AD27<14>
SUSP#<23,25,27,31,34>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
17 36Friday, May 06, 2011
2009/02/04 2010/02/04
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
17 36Friday, May 06, 2011
2009/02/04 2010/02/04
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
17 36Friday, May 06, 2011
2009/02/04 2010/02/04
Compal Electronics, Inc.
4019D2
PCI_AD24 0 : Getting the value from I2C EPROM
1 : Disable I2C ROM
Net Name
PCI_AD23 0 : Reserved
1 : Required setting (use ROMTYPE straps to
determine the ROM type)
PCI_AD27
Description
0 : Bypass internal PLL clock
PCI_AD25
*
0 : Bypass internal FC Clk
1 : Use internal PLL FC Clk
1 : Use internal PLL-generated PLL CLK
PCI_AD26 0 : ILA auto run enable
1 : ILA auto run disable *
*
*
*
NEED CHECK
NEED CHECK
For EMI close U59
2MB
R337 2.2K_0402_5%@ R337 2.2K_0402_5%@ 12
R1549
0_0402_5%
ROM@R1549
0_0402_5%
ROM@
12
R422 10K_0402_5%
FROM@
R422 10K_0402_5%
FROM@
12
R1550 0_0402_5%
ROM@
R1550 0_0402_5%
ROM@
12
D6
RB715F_SOT323-3
FROM@D6
RB715F_SOT323-3
FROM@
2
31
C594 0.1U_0402_16V4Z
FROM@
C594 0.1U_0402_16V4Z
FROM@
1 2
U22
SN74CBT3125PWRG4_TSSOP14
FROM@U22
SN74CBT3125PWRG4_TSSOP14
FROM@
1OE#
1
1A
21B 3
2OE#
4
2A
52B 6
GND 7
3B 8
3A
9
3OE#
10
4B 11
4A
12
4OE#
13
VCC
14
R417
100K_0402_5%
FROM@R417
100K_0402_5%
FROM@
12
C928
10P_0402_50V8J
@
C928
10P_0402_50V8J
@1
2
U142B
LM393DG_SO8
FROM@
U142B
LM393DG_SO8
FROM@
+
5
-
6O7
P8
G
4
R418
100K_0402_5%
FROM@R418
100K_0402_5%
FROM@
12
U21
W25Q16BVSSIG_SO8
U21
W25Q16BVSSIG_SO8
CS#
1
DO(IO1)
2
WP#(IO2)
3
GND
4
VCC 8
HOLD#(IO3) 7
CLK 6
DI(IO0) 5
R1455 0_0402_5%
@
R1455 0_0402_5%
@
1 2
U142A
LM393DG_SO8
FROM@U142A
LM393DG_SO8
FROM@
+
3
-
2O1
P8
G
4
C434
0.1U_0402_16V4Z
FROM@C434
0.1U_0402_16V4Z
FROM@
1
2
R1551 0_0402_5%
ROM@
R1551 0_0402_5%
ROM@
12
R336 2.2K_0402_5%@ R336 2.2K_0402_5%@ 12
C435 0.1U_0402_16V4Z
FROM@
C435 0.1U_0402_16V4Z
FROM@
1
2
R1552 0_0402_5%
ROM@
R1552 0_0402_5%
ROM@
12
R1553 0_0402_5%
ROM@
R1553 0_0402_5%
ROM@
12
GND
U6D
21807-A11-HUDSON-M1_FCBGA605
GND
U6D
21807-A11-HUDSON-M1_FCBGA605
VSSIO_PCIECLK_13
J23 VSSIO_PCIECLK_12
V20 VSSIO_PCIECLK_11
T24 VSSIO_PCIECLK_10
T22 VSSIO_PCIECLK_9
T20 VSSIO_PCIECLK_8
P26 VSSIO_PCIECLK_7
P24 VSSIO_PCIECLK_6
P22 VSSIO_PCIECLK_5
M26 VSSIO_PCIECLK_4
M24 VSSIO_PCIECLK_3
M22 VSSIO_PCIECLK_2
P20 VSSIO_PCIECLK_1
P21
VSSXL
M19
VSSAN_HWM
D8
EFUSE
Y4
VSSIO_USB_28
H19 VSSIO_USB_27
K18 VSSIO_USB_26
K16 VSSIO_USB_25
K14 VSSIO_USB_24
K12 VSSIO_USB_23
J19 VSSIO_USB_22
J11 VSSIO_USB_21
H18 VSSIO_USB_20
H16 VSSIO_USB_19
H14 VSSIO_USB_18
H12 VSSIO_USB_17
D9 VSSIO_USB_16
F18 VSSIO_USB_15
G11 VSSIO_USB_14
C9 VSSIO_USB_13
F16 VSSIO_USB_12
F14 VSSIO_USB_11
F12 VSSIO_USB_10
F9 VSSIO_USB_9
E9 VSSIO_USB_8
D17 VSSIO_USB_7
D14 VSSIO_USB_6
D12 VSSIO_USB_5
D10 VSSIO_USB_4
B9 VSSIO_USB_3
K11 VSSIO_USB_2
B10 VSSIO_USB_1
A9
VSSIO_SATA_19
AJ16 VSSIO_SATA_18
AJ13 VSSIO_SATA_17
AJ11 VSSIO_SATA_16
AJ7 VSSIO_SATA_15
AH16 VSSIO_SATA_14
AH13 VSSIO_SATA_13
AH11 VSSIO_SATA_12
AH7 VSSIO_SATA_11
AG8 VSSIO_SATA_10
AF16 VSSIO_SATA_9
AF13 VSSIO_SATA_8
AF11 VSSIO_SATA_7
AF9 VSSIO_SATA_6
AE14 VSSIO_SATA_5
AE12 VSSIO_SATA_4
AC14 VSSIO_SATA_3
AB16 VSSIO_SATA_2
Y16 VSSIO_SATA_1
Y14
VSSIO_PCIECLK_27 K20
VSSIO_PCIECLK_26 L21
VSSIO_PCIECLK_25 AE26
VSSIO_PCIECLK_24 W20
VSSIO_PCIECLK_23 W21
VSSIO_PCIECLK_22 Y20
VSSIO_PCIECLK_21 AC26
VSSIO_PCIECLK_20 AA26
VSSIO_PCIECLK_19 AD23
VSSIO_PCIECLK_18 AB23
VSSIO_PCIECLK_17 AA23
VSSIO_PCIECLK_16 AA21
VSSIO_PCIECLK_15 H26
VSSIO_PCIECLK_14 H23
VSSPL_SYS M20
VSS_52 L8
VSS_51 L4
VSS_50 N4
VSS_49 P6
VSS_48 V10
VSS_47 AH29
VSS_46 H7
VSS_45 AF25
VSS_44 M12
VSS_43 G9
VSS_42 G8
VSS_41 J4
VSS_40 G4
VSS_39 AA12
VSS_38 AA11
VSS_37 Y11
VSS_36 Y12
VSS_35 Y10
VSS_34 Y18
VSS_33 U4
VSS_32 B29
VSS_31 AJ28
VSS_30 W10
VSS_29 W9
VSS_28 V8
VSS_27 AC9
VSS_26 AB7
VSS_25 AD4
VSS_24 AD6
VSS_23 V4
VSS_22 P3
VSS_21 J7
VSS_20 L18
VSS_19 L12
VSS_18 M11
VSS_17 V19
VSS_16 M18
VSS_15 U15
VSS_14 V11
VSS_13 P10
VSS_12 T10
VSS_11 R17
VSS_10 R13
VSS_9 N15
VSS_8 F24
VSS_7 E6
VSS_6 E25
VSS_5 D23
VSS_4 E5
VSS_3 A2
VSS_2 A28
VSS_1 AJ2
C436
0.1U_0402_16V4Z
FROM@C436
0.1U_0402_16V4Z
FROM@
1 2
R338 2.2K_0402_5%@ R338 2.2K_0402_5%@ 12
C595
0.1U_0402_16V4Z
FROM@
C595
0.1U_0402_16V4Z
FROM@
1
2
R1556
0_0402_5%
@R1556
0_0402_5%
@
12
R419
10K_0402_5%
FROM@
R419
10K_0402_5%
FROM@
1 2
R416
10K_0402_5%
FROM@R416
10K_0402_5%
FROM@
1 2
C593
0.1U_0402_16V4Z
C593
0.1U_0402_16V4Z
1
2
R334 2.2K_0402_5%@ R334 2.2K_0402_5%@ 12
R335 2.2K_0402_5%@ R335 2.2K_0402_5%@ 12
G
D
S
Q28
AO3416_SOT23-3
FROM@
G
D
S
Q28
AO3416_SOT23-3
FROM@
2
13
R1558 0_0402_5%@R1558 0_0402_5%@ 12
U20
SN74CBT3125PWRG4_TSSOP14
FROM@
U20
SN74CBT3125PWRG4_TSSOP14
FROM@
1OE#
1
1A
21B 3
2OE#
4
2A
52B 6
GND 7
3B 8
3A
9
3OE#
10
4B 11
4A
12
4OE#
13
VCC
14
R420
100K_0402_5%
FROM@
R420
100K_0402_5%
FROM@
1 2
R421
10K_0402_5%
FROM@
R421
10K_0402_5%
FROM@
1 2
R1557 0_0402_5%FROM@R1557 0_0402_5%FROM@ 12

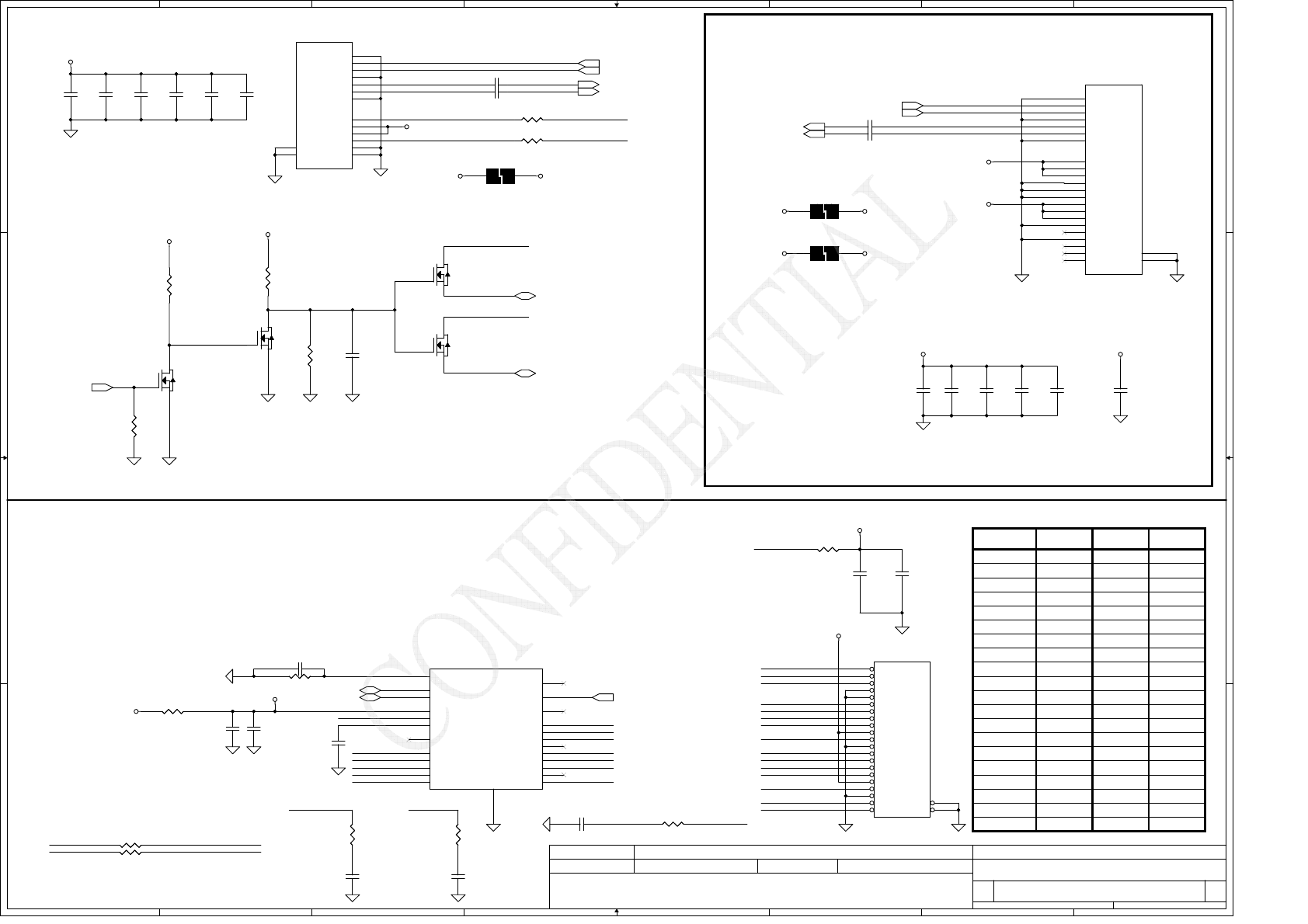

A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
1 1
2 2
3 3
4 4
SATA_DTX_IRX_N0
SATA_ITX_C_DRX_P0
SATA_ITX_C_DRX_N0
SD_CLK/MSD2
SD_CLK/MSD2
SDDAT0
MS_BS
MSD3
SDDAT2
MS_INS# SD_CMD
SD_CD#
SD_WP/MS_CLK
SDDAT1 MSD0
SDDAT3/MSD1
+VCC_OUT
SD_WP/MS_CLK
SD_CLK/MSD2
SD_WP/MS_CLK SD_WP/MS_CLK_R
SD_CLK/MSD2_R
SD_WP/MS_CLK_R
SDDAT1
SDDAT0
SDDAT3/MSD1
SD_CLK/MSD2_R
SDDAT2
MS_BS
CLK_48M
SD_CD#
MS_INS#
SD_CMD
SD_WP/MS_CLK_R
SD_CLK/MSD2_R
+VCC_OUT
MSD0
MSD3
SDDAT3/MSD1
SATA_DTX_IRX_P0
CLK_SD_48M
SATA_DTX_IRX_P1
SATA_DTX_IRX_N1
SATA_ITX_C_DRX_P1
SATA_ITX_C_DRX_N1
USB20_P3_Q
USB20_N3_QUSB20_N3_R
USB20_P3_R
USB20_P3_Q
USB20_N3_Q
+5VS +3VS
+3VS
+3VS_CR_VCC
+VCC_3IN1
+VCC_3IN1
+5VS_ODD
+5VS_ODD
+5VS_ODD +5VS
+3VS
+5VS
+3VS_HDD
+5VS_HDD
+3VS_HDD
+5VS_HDD
+VSB
+5VS
SATA_DTX_C_IRX_P0<13> SATA_DTX_C_IRX_N0<13>
SATA_ITX_C_DRX_P0<13> SATA_ITX_C_DRX_N0<13>
USB20_N2<15> USB20_P2<15> CLK_SD_48M <14>
SATA_ITX_C_DRX_P1 <13>
SATA_ITX_C_DRX_N1 <13>
SATA_DTX_C_IRX_N1 <13>
SATA_DTX_C_IRX_P1 <13>
ODD_EN#<15>
USB20_N3 <15>
USB20_P3 <15>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
18 36Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
18 36Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
18 36Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
AV_PLL 20mil (+1.8V internal regulator)
40mil
40mil
SP1 SP1
MDIO
PIN Name
SP5
SP6
SP3
SP4
SP1
SP2
SP9
SP7
SP8
SP11
SP12
SP10
SD Card
PIN Name
SP18
SP14
SP15
SP13
SP19
SP16
SP17
MMC Card
PIN Name
SD,MMC,MS muti-function pin define
MS Card
PIN Name
HDD
Place components close to ODD CONN.
ODD
J11
PAD-OPEN 3x3m
J11
PAD-OPEN 3x3m
1 2
C402
1U_0402_6.3V4Z
@
C402
1U_0402_6.3V4Z
@
1
2
Q215A
2N7002DW-T/R7_SOT363-6
SC@
Q215A
2N7002DW-T/R7_SOT363-6
SC@
61
2
C404
10U_0805_10V4Z
C404
10U_0805_10V4Z
1
2
C257
10P_0402_50V8J
C257
10P_0402_50V8J
1
2
J13
PAD-OPEN 3x3m
J13
PAD-OPEN 3x3m
1 2
R396
470K_0402_5%
SC@
R396
470K_0402_5%
SC@
12
RTS5138-GR_QFN24_4X4
U11
RTS5138-GR_QFN24_4X4
U11
REFE
1
DM
2
DP
3
3V3_IN
4
CARD_3V3
5
V18
6
XD_CD#
7
SP1
8
SP2
9
SP3
10
SP4
11
SP5
12 SP6 13
SP7 14
SP8 15
SP9 16
GPIO0 17
SP10 18
SP11 19
SP12 20
SP13 21
SP14 22
XD_D7 23
CLK_IN 24
EPAD
25
Q215B
2N7002DW-T/R7_SOT363-6
SC@
Q215B
2N7002DW-T/R7_SOT363-6
SC@
3
5
4
C250
1000P_0402_50V7K
C250
1000P_0402_50V7K
1
2
J12
PAD-OPEN 3x3m
J12
PAD-OPEN 3x3m
1 2
R221
10_0402_5%
R221
10_0402_5%
12
JREAD
TAITW_R009-025-LR_NR
CONN@JREAD
TAITW_R009-025-LR_NR
CONN@
SD-WP
1
SD-DAT1
2
SD-DAT0
3
SD-GND
4
MS-GND
5
MS-BS
6
SD-CLK
7
MS-DAT1
8
MS-DAT0
9
SD-VCC
10
MS-DAT2
11
SD-GND
12
MS-INS
13
MS-DAT3
14
MS-SCLK
16
MS-VCC
17
SD-DAT3
18
SD-CMD
15
SD-DAT2
20 MS-GND
19
SD-CD
21 GND1 22
GND2 23
C252
1U_0603_10V4Z
C252
1U_0603_10V4Z
1
2
C406 0.01U_0402_16V7KC406 0.01U_0402_16V7K
1 2
C261
1U_0603_10V4Z
C261
1U_0603_10V4Z
1
2
R398
10K_0402_5%
SC@R398
10K_0402_5%
SC@
12
C248 0.01U_0402_16V7KC248 0.01U_0402_16V7K
1 2
C258 100P_0402_50V8J@C258 100P_0402_50V8J@
12
C407 0.01U_0402_16V7KC407 0.01U_0402_16V7K
1 2
C259
4.7U_0805_10V4Z
C259
4.7U_0805_10V4Z
12
C265
0.1U_0402_16V4Z
C265
0.1U_0402_16V4Z
1
2
R226
0_0603_5%
R226
0_0603_5%
1 2
C254
10U_0805_10V4Z
C254
10U_0805_10V4Z
1
2
C249 0.01U_0402_16V7KC249 0.01U_0402_16V7K
1 2
JODD
SANTA_203601-1
CONN@
JODD
SANTA_203601-1
CONN@
GND 1
A+ 2
A- 3
GND 4
B- 5
B+ 6
GND 7
DP 8
+5V 9
+5V 10
MD 11
GND 12
GND 13
GND
14 GND
15
R397
1.5M_0402_5%
SC@
R397
1.5M_0402_5%
SC@
12
R395
100K_0402_5%
SC@ R395
100K_0402_5%
SC@
12
C262
15P_0402_50V8J
C262
15P_0402_50V8J
C263
0.1U_0402_16V4Z
C263
0.1U_0402_16V4Z
1
2
R3590_0402_5% SC@
R3590_0402_5% SC@
12
C255
0.1U_0402_16V4Z
@
C255
0.1U_0402_16V4Z
@
1
2
R222
10_0402_5%
R222
10_0402_5%
12
R3600_0402_5% SC@
R3600_0402_5% SC@
12
R224 0_0402_5%R224 0_0402_5%
1 2
C355
10U_0805_10V4Z
@
C355
10U_0805_10V4Z
@
1
2
C260
0.1U_0402_16V4Z
C260
0.1U_0402_16V4Z
1
2
R223 0_0402_5%R223 0_0402_5%
1 2
C256
10P_0402_50V8J
C256
10P_0402_50V8J
1
2
C383
10U_0805_10V4Z
C383
10U_0805_10V4Z
1
2
C251
0.1U_0402_16V4Z
C251
0.1U_0402_16V4Z
1
2
R361
0_0402_5%
R361
0_0402_5%
12
R225 6.19K_0402_1%R225 6.19K_0402_1%
1 2
R229
0_0603_5%
R229
0_0603_5%
1 2
C397
0.1U_0402_16V4Z
C397
0.1U_0402_16V4Z
1
2
Q214A
2N7002DW-T/R7_SOT363-6
SC@
Q214A
2N7002DW-T/R7_SOT363-6
SC@
61
2
JHDD
C-H_13-22202201CP_22P
CONN@
JHDD
C-H_13-22202201CP_22P
CONN@
GND
1
A+
2
A-
3
GND
4
B-
5
B+
6
GND
7
V33
8
V33
9
V33
10
GND
11
GND
12
GND
13
V5
14
V5
15
V5
16
GND
17
Reserved
18
GND
19
V12
20
V12
21
V12
22 GND 23
GND 24
C401
0.1U_0402_16V4Z
C401
0.1U_0402_16V4Z
1
2
C445
0.1U_0402_16V4Z
SC@
C445
0.1U_0402_16V4Z
SC@
1
2
Q214B 2N7002DW-T/R7_SOT363-6
SC@
Q214B 2N7002DW-T/R7_SOT363-6
SC@
3
5
4
C253
10U_0805_10V4Z
C253
10U_0805_10V4Z
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
LAN_X1
LAN_X2
ISOLATEB
+LAN_REGOUT
ISOLATEB
LAN_MDI0+
LAN_MDI0-
LAN_MDI1+
LAN_MDI1-
ENSWREG
ENSWREG
RJ45_MIDI0-
RJ45_MIDI0+
RJ45_MIDI1-
RJ45_MIDI1+
RJ45_GND LANGND
LAN_X1 LAN_X2
PCIE_PTX_IRX_P2
PCIE_PTX_IRX_N2
+LAN_REGOUT
LAN_CLKREQ0#
LAN_MDI0-
LAN_MDI2-
LAN_MDI3+
LAN_MDI2+
LAN_MDI0+
LAN_MDI3-
LAN_MDI1+
LAN_MDI1-
RJ45_MIDI3-
RJ45_MIDI1+
RJ45_MIDI2-
RJ45_MIDI0+
RJ45_MIDI0-
RJ45_MIDI3+
RJ45_MIDI2+
RJ45_MIDI1- RJ45_MIDI2+
RJ45_MIDI2-
RJ45_MIDI3+
RJ45_MIDI3-
LAN_MDI2+
LAN_MDI2-
LAN_MDI3+
LAN_MDI3-
RJ45_GND
LANGND
+3V_LAN
+3V_LAN
+3VS
+3V_LAN
+3VALW
+3V_LAN
+LAN_VDD10
+LAN_VDDREG
+LAN_VDD10
+3V_LAN
+3V_LAN
+3VALW +3V_LAN
+3V_LAN
+LAN_VDD10
+LAN_EVDD10
+LAN_VDD10
+LAN_VDD10 +LAN_EVDD10
+LAN_VDDREG
+3VS
LAN_CLKREQ0#<15>
PLT_RST_BUF#<14,20,22,23,25>
CLK_PCIE_LAN<14> CLK_PCIE_LAN#<14>
EN_WOL#<23>
PCIE_PTX_C_IRX_P2<6>
PCIE_PTX_C_IRX_N2<6>
PCIE_ITX_C_PRX_P2<6> PCIE_ITX_C_PRX_N2<6>
FCH_PCIE_WAKE#<15,20,25>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
SCHEMATIC MB A7491
19 36
2009/02/04 2010/02/04
Custom B
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
SCHEMATIC MB A7491
19 36
2009/02/04 2010/02/04
Custom B
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
Compal Electronics, Inc.
SCHEMATIC MB A7491
19 36
2009/02/04 2010/02/04
Custom B
4019D2
Close to Pin27,39,47 and 48.
L6 must be within 200mil to
Pin36, C276, C277must be
within 200mil to L6;
+LAN_REGOUT: Width=60mil
Close to Pin 34 and 35
Close to pin3, pin13, pin 29
and pin45.
Close to Pin 21
USE SA00003PO00 footprint
06-30
Pin14
RTL8105E
NC
1K ohm Pull-high
RTL8111E
Pin15
Pin38
NC
NC 10K ohm PD
Pin12 NC +3V_LAN
For P/N and footprint
Please place them to ISPD page
C283 0.1U_0402_16V4Z 8111E@C283 0.1U_0402_16V4Z 8111E@
12
R252
10K_0402_5%
@
R252
10K_0402_5%
@
1 2
L33 4.7UH_1008HC-472EJFS-A_5%_1008L33 4.7UH_1008HC-472EJFS-A_5%_1008
1 2
C267 0.1U_0402_16V7KC267 0.1U_0402_16V7K
1 2
C268
0.1U_0402_16V7K
@
C268
0.1U_0402_16V7K
@
1
2
C290 0.1U_0402_16V4Z 8111E@C290 0.1U_0402_16V4Z 8111E@
12
T27
10/100M/1000M transformer
8111E@
T27
10/100M/1000M transformer
8111E@
R283 0_0402_5%8111E@R283 0_0402_5%8111E@
1 2
J2 JUMP_43X79@J2 JUMP_43X79@
1
122
R358
0_0603_5%
@R358
0_0603_5%
@
1 2
U12
8111E 10/100M/1000M
8111E@
U12
8111E 10/100M/1000M
8111E@
C385 0.1U_0402_16V4Z 8111E@C385 0.1U_0402_16V4Z 8111E@
12
C291
4.7U_0603_6.3V6K
C291
4.7U_0603_6.3V6K
1
2
R236 1K_0402_5%R236 1K_0402_5%
1 2
C274 0.1U_0402_16V4ZC274 0.1U_0402_16V4Z
12
C281
33P_0402_50V8J
C281
33P_0402_50V8J
1
2
R232 0_0402_5%R232 0_0402_5%
1 2 C270
1U_0402_6.3V4Z
@C270
1U_0402_6.3V4Z
@1
2
C277
0.1U_0402_16V4Z
C277
0.1U_0402_16V4Z
1
2
R235 10K_0402_5%@R235 10K_0402_5%@
1 2
C1000 1000P_1808_3KV7K
C1000 1000P_1808_3KV7K
1 2
JLAN
SANTA_130451-Y
CONN@JLAN
SANTA_130451-Y
CONN@
PR1-
2
PR1+
1
PR2+
3
PR3+
4
PR3-
5
PR2-
6
PR4+
7
PR4-
8SHLD4 12
SHLD3 11
SHLD2 10
SHLD1 9
C272 0.1U_0402_16V4ZC272 0.1U_0402_16V4Z
12
R341
0_0603_5%
@R341
0_0603_5%
@
1 2
C273 0.1U_0402_16V4ZC273 0.1U_0402_16V4Z
12
R244
0_0603_5%
R244
0_0603_5%
1 2
D33
AZC199-02S.R7G C/C SOT23
D33
AZC199-02S.R7G C/C SOT23
2
3
1
C289
0.1U_0603_25V7K
C289
0.1U_0603_25V7K
1
2
R233
100K_0402_5%
@R233
100K_0402_5%
@
12
C269
0.01U_0402_25V7K
@C269
0.01U_0402_25V7K
@
1 2
R245
0_0603_5%
R245
0_0603_5%
1 2
R238
1K_0402_1%
R238
1K_0402_1%
12
C1001
150P_0402_50V8J
C1001
150P_0402_50V8J
1
2
R237 2.49K_0402_1%R237 2.49K_0402_1%
1 2
C1002
4.7U_0603_6.3V6K
@C1002
4.7U_0603_6.3V6K
@
1
2
R230 10K_0402_5%R230 10K_0402_5%
1 2
R242
15K_0402_5%
R242
15K_0402_5%
12
C285
1U_0402_6.3V4Z
C285
1U_0402_6.3V4Z
1
2
C271
4.7U_0805_10V4Z
@
C271
4.7U_0805_10V4Z
@
1
2
C275 0.1U_0402_16V4ZC275 0.1U_0402_16V4Z
12
R240 10K_0402_5%
8111E@
R240 10K_0402_5%
8111E@
1 2
C386 0.1U_0402_16V4Z
8111E@
C386 0.1U_0402_16V4Z
8111E@ 12
R282 0_0402_5%8111E@R282 0_0402_5%8111E@
1 2
C279 0.1U_0402_16V4ZC279 0.1U_0402_16V4Z
12
RTL8105E/8111E
U12
RTL8105E-VC-GR_QFN48_6X6
8105E@
RTL8105E/8111E
U12
RTL8105E-VC-GR_QFN48_6X6
8105E@
AVDD10 3
AVDD10 6
AVDD10 9
AVDD33 12
DVDD10 13
SMBCLK(NC)
14
SMBDATA(NC)
15
CLKREQB
16
EVDD10 21
GND
24
VDDREG
35 VDDREG
34
ENSWREG
33
LED3/EEDO 31
DVDD10 29
DVDD33 27
PERSTB
25
AVDD33 48
AVDD33 47
RSET
46 AVDD10 45
AVDD33 42
DVDD10 41
LED0 40
DVDD33 39
GPO/SMBALERT
38
LED1/EESK 37
HSOP
22
HSON
23
HSIP
17
HSIN
18
REFCLK_P
19
REFCLK_N
20
CKXTAL1
43
CKXTAL2
44
LANWAKEB
28
ISOLATEB
26
EECS/SCL 30
EEDI/SDA 32
MDIP0 1
MDIN0 2
MDIP1 4
MDIN1 5
MDIP2(NC) 7
MDIN2(NC) 8
MDIP3(NC) 10
MDIN3(NC) 11
REGOUT 36
GND
49
Q16 AP2301GN_SOT23-3
@
Q16 AP2301GN_SOT23-3
@
2
3 1
R239
0_0402_5%
R239
0_0402_5%
12
C286
0.1U_0402_16V4Z
C286
0.1U_0402_16V4Z
1
2
C282 0.1U_0402_16V4ZC282 0.1U_0402_16V4Z
12
C292
0.1U_0402_16V4Z
C292
0.1U_0402_16V4Z
1
2
R243
0_0402_5%
@R243
0_0402_5%
@
12
C266 0.1U_0402_16V7KC266 0.1U_0402_16V7K
1 2
C278 0.1U_0402_16V4ZC278 0.1U_0402_16V4Z
12
T27
X'FORM_ NS892404
8105E@T27
X'FORM_ NS892404
8105E@
TCT1
1
TD1+
2
TD1-
3
TCT2
4
TD2+
5
TD2-
6MX2- 19
MX2+ 20
MCT2 21
MX1- 22
MX1+ 23
MCT1 24
TCT3
7
TD3+
8
TD3-
9
TCT4
10
TD4+
11
TD4-
12
MCT3 18
MX3+ 17
MX3- 16
MCT4 15
MX4+ 14
MX4- 13
R234
47K_0402_5%
@
R234
47K_0402_5%
@
1 2
R1000 75_0402_1%R1000 75_0402_1%
1 2
C284 0.1U_0402_16V4ZC284 0.1U_0402_16V4Z
12
C280
33P_0402_50V8J
C280
33P_0402_50V8J
1
2
C276
22U_0805_6.3V6M
C276
22U_0805_6.3V6M
1
2
C287 1000P_0402_50V7KC287 1000P_0402_50V7K
12
R231 10K_0402_5%R231 10K_0402_5%
1 2
D32
AZC199-02S.R7G C/C SOT23 @
D32
AZC199-02S.R7G C/C SOT23 @
2
3
1
Y2
25MHZ_20PF_7A25000012
Y2
25MHZ_20PF_7A25000012
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
WLAN_WAKE#
WLAN_CLKREQ1#
EC_TX_P80_DATA
CLK_PCI_DB
+3VS
+3V_WLAN
+1.5VS+3V_WLAN
+3V_WLAN
+1.5VS
+3V_WLAN
+3VS
+3V_WLAN
LPC_AD0 <14,22,23>
LPC_AD1 <14,22,23>
LPC_AD2 <14,22,23>
LPC_AD3 <14,22,23>
LPC_FRAME# <14,22,23>
PLT_RST_BUF# <14,19,20,22,23,25>
CLK_PCIE_WLAN#<14> CLK_PCIE_WLAN<14>
WLAN_CLKREQ1#<15>
PCIE_ITX_C_PRX_N3<6> PCIE_ITX_C_PRX_P3<6>
PCIE_PTX_C_IRX_N3<6> PCIE_PTX_C_IRX_P3<6>
EC_RX_P80_CLK<23>
FCH_PCIE_WAKE#<15,19,25>
BT_PWR<23>
CLK_PCI_DB<14>
EC_TX_P80_DATA<23>
PLT_RST_BUF#<14,19,20,22,23,25>
SMB_FCH_CK1 <15>
SMB_FCH_DA1 <15>
WL_OFF# <23>
USB20_P7 <15>
USB20_N7 <15>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
SCHEMATIC MB A7491
20 36
Compal Electronics, Inc.
Custom
2010/02/042009/02/04
B
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
SCHEMATIC MB A7491
20 36
Compal Electronics, Inc.
Custom
2010/02/042009/02/04
B
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
SCHEMATIC MB A7491
20 36
Compal Electronics, Inc.
Custom
2010/02/042009/02/04
B
4019D2

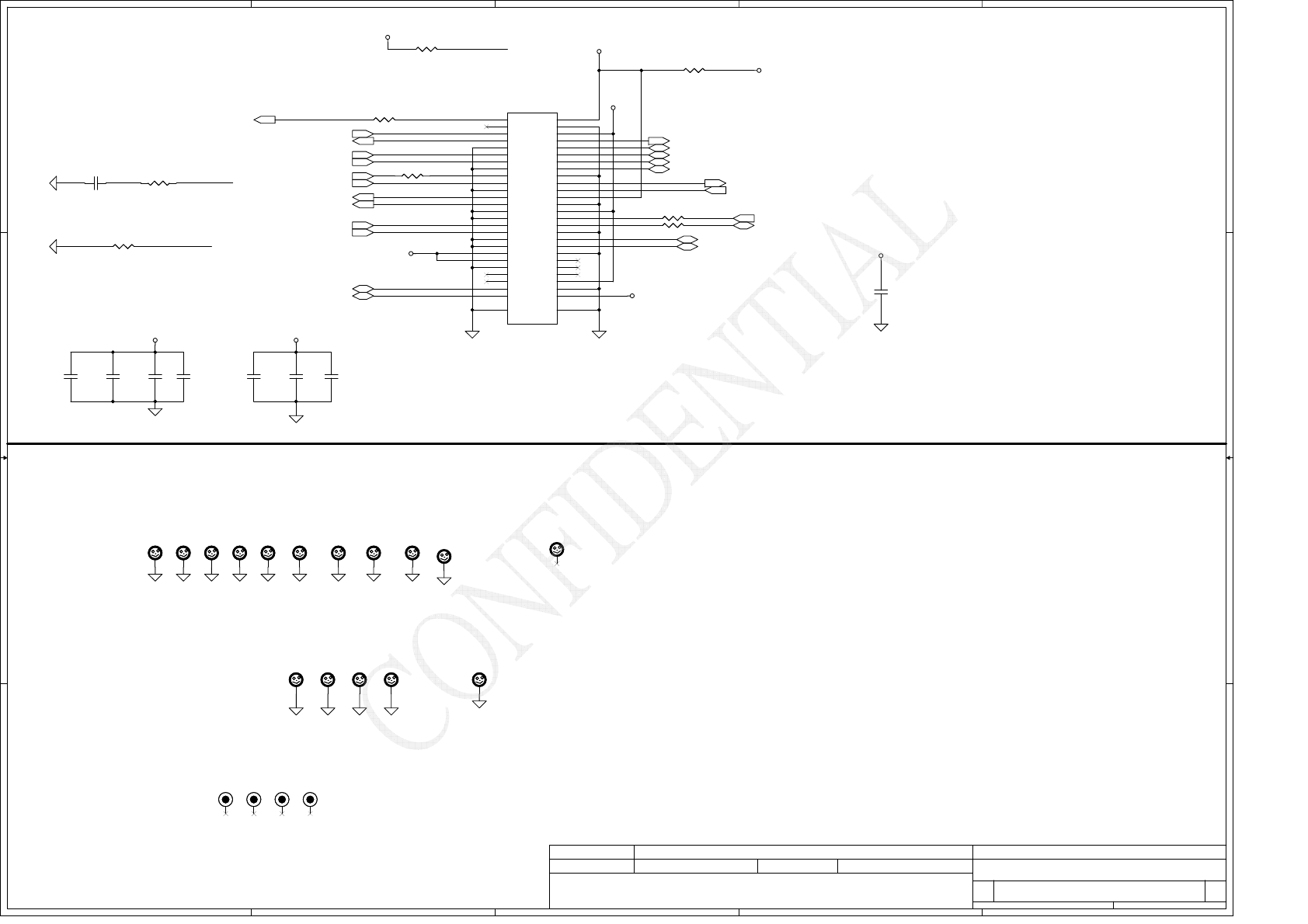

WLAN&BT
CPU
PCB Fedical Mark PAD
JWLAN
Screw Hole NPTH
R357
33_0402_5%
@
R357
33_0402_5%
@
12
H2
H_3P0
@
H2
H_3P0
@
1
H6
H_3P0
@
H6
H_3P0
@
1
H7
H_3P0
@
H7
H_3P0
@
1
H16
H_3P3
@
H16
H_3P3
@
1
R339 0_0402_5%R339 0_0402_5%
1 2
H8
H_3P0
@
H8
H_3P0
@
1
H13
H_4P5
@
H13
H_4P5
@
1
C295
0.1U_0402_16V7K
C295
0.1U_0402_16V7K
12
FD4
@
FD4
@
1
R246 10K_0402_5%
@
R246 10K_0402_5%
@
1 2
FD1
@
FD1
@
1
H14
H_4P5
@
H14
H_4P5
@
1
H3
H_3P0
@
H3
H_3P0
@
1
R249 0_0402_5%R249 0_0402_5%
1 2
H15
H_4P5
@
H15
H_4P5
@
1
C298
47P_0402_50V8J
@
C298
47P_0402_50V8J
@
12
FD3
@
FD3
@
1
C296
0.1U_0402_16V7K
C296
0.1U_0402_16V7K
12
H11
H_3P0N@
H11
H_3P0N@
1
H5
H_3P0
@
H5
H_3P0
@
1
C294
0.1U_0402_16V4Z
C294
0.1U_0402_16V4Z
1
2
C299
0.1U_0402_16V7K
C299
0.1U_0402_16V7K
12
H12
H_4P5
@
H12
H_4P5
@
1
R340 0_0402_5%R340 0_0402_5%
1 2
H1
H_3P0
@
H1
H_3P0
@
1
C297
4.7U_0603_6.3V6K
C297
4.7U_0603_6.3V6K
12
H9
H_3P0
@
H9
H_3P0
@
1
R253
100K_0402_5%
R253
100K_0402_5%
1 2
R251 0_0402_5%R251 0_0402_5%
H10
H_3P0X3P5N
@
H10
H_3P0X3P5N
@
1
H4
H_3P0
@
H4
H_3P0
@
1
C300
0.1U_0402_16V7K
C300
0.1U_0402_16V7K
12
R247 0_0805_5%R247 0_0805_5%
C301
47P_0402_50V8J
@
C301
47P_0402_50V8J
@
12
FD2
@
FD2
@
1
C736
33P_0402_50V8J
@
C736
33P_0402_50V8J
@
12
JWLAN
ACES_88910-5204
CONN@JWLAN
ACES_88910-5204
CONN@
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
31
31
33
33
35
35
37
37
39
39
41
41
43
43
45
45
47
47
49
49
51
51
GND1
53
22
44
66
88
10 10
12 12
14 14
16 16
18 18
20 20
22 22
24 24
26 26
28 28
30 30
32 32
34 34
36 36
38 38
40 40
42 42
44 44
46 46
48 48
50 50
52 52
GND2 54
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
1 1
2 2
3 3
4 4
+PVDD1
MIC1_R_C
SENSE_A
PD#
MONO_IN
MONO_IN
+PVDD2
SENSE_A
MIC1_L_C
MIC2_L_C
MIC2_R_C
MIC1_R_RMIC1_R_C
MIC1_L_C MIC1_L_R
MIC2_L_C
MIC2_R_C
MIC2_L_R
MIC2_R_R
PD#
HDA_RST#
+AVDD
+5VS
+3VS
+1.5VS
+5VS
+DVDD_IO
+3VS
+3VS_DVDD
+5VS
MIC1_VREFO_R
MIC1_VREFO_L
MIC2_VREFO
MIC1_VREFO_L
MIC1_VREFO_R
MIC2_VREFO
+3VS
HP_L <26>
HP_R <26>
EC_BEEP#<23>
FCH_SPK<15>
HDA_SYNC <15>
HDA_BITCLK <15>
HDA_SDOUT <15>
HDA_RST#<15>
HDA_SDIN0 <15>
EAPD <23>
SPKL+ <22>
SPKL- <22>
SPKR+ <22>
SPKR- <22>
MIC1_R <26>
MIC1_L <26>
INT_MIC <22>
EC_MUTE#<23>
HP_PLUG#<26>
MIC_PLUG#<26>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
21 36Friday, May 06, 2011
2009/02/04 2010/02/04
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
21 36Friday, May 06, 2011
2009/02/04 2010/02/04
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
21 36Friday, May 06, 2011
2009/02/04 2010/02/04
Compal Electronics, Inc.
4019D2
Sense Pin
SENSE A
SENSE B
Impredance
39.2K
20K
10K
5.1K
39.2K
20K
10K
Codec Signals
Headphone out
EXT.MIC
PORT-I (PIN 32,33)
Function
Place close to chip
5.1K
PORT-I (PIN 21,22)
USE SA00003QR00 footprint
For P/N and footprint
Please place them to ISPD page
C325 2.2U_0603_6.3V4ZC325 2.2U_0603_6.3V4Z
1 2
R348 4.7K_0402_5%R348 4.7K_0402_5%
1 2
R270 0_0603_5%R270 0_0603_5%
12
R349 4.7K_0402_5%R349 4.7K_0402_5%
1 2
C326
0.1U_0402_16V4Z
C326
0.1U_0402_16V4Z
1
2
R265 33_0402_5%R265 33_0402_5%
1 2
C331 0.1U_0603_50V7K@C331 0.1U_0603_50V7K@ 1 2
R280 0_0603_5%R280 0_0603_5%
12
C305
10U_0805_10V4Z
C305
10U_0805_10V4Z
1
2
R263 47K_0402_5%R263 47K_0402_5%
1 2
C323 2.2U_0603_6.3V4ZC323 2.2U_0603_6.3V4Z
1 2
R264
10K_0402_5%
R264
10K_0402_5%
12
U13
ALC259-GR_QFN48_7X7
REAL@
U13
ALC259-GR_QFN48_7X7
REAL@
AVDD1 25
AVDD2 38
AVSS1 26
AVSS2 37
DVDD 1
DVDD_IO 9
DVSS1
7
PVDD1 39
PVDD2 46
PVSS1
42 PVSS2
43 CPVEE 34
JDREF 19
VREF 27
LDO_CAP 28
MIC1_VREFO_R 30
MIC2_VREFO 29
MIC1_VREFO_L
31
CBN
35
CBP
36
SENSE A
13
SENSE B
18
SPK_OUT_L+ 40
SPK_OUT_L- 41
SPK_OUT_R+ 45
SPK_OUT_R- 44
HP_OUT_L 32
HP_OUT_R 33
PCBEEP
12
LINE1_L
23
LINE1_R
24
LINE2_L
14
LINE2_R
15
MIC1_L
21
MIC1_R
22
MIC2_L
16
MIC2_R
17
MONO_OUT 20
RESET#
11
GPIO0/DMIC_DATA
2
GPIO1/DMIC_CLK
3
PD#
4
SYNC 10
BCLK 6
SDATA_OUT 5
SDATA_IN 8
EAPD 47
SPDIFO 48
DVSS2
49
C321
0.1U_0402_16V4Z
C321
0.1U_0402_16V4Z
1
2
C309
10U_0805_10V4Z
C309
10U_0805_10V4Z
1
2
C311
10U_0805_10V4Z
@
C311
10U_0805_10V4Z
@
1
2
C303
10U_0805_10V4Z
C303
10U_0805_10V4Z
1
2
C310
0.1U_0402_16V4Z
C310
0.1U_0402_16V4Z
1
2
C319
10U_0805_10V4Z
C319
10U_0805_10V4Z
1
2
R350 1K_0402_1%R350 1K_0402_1%
1 2
C327
2.2U_0603_6.3V4Z
C327
2.2U_0603_6.3V4Z
1
2
R355 0_0402_5%R355 0_0402_5%
1 2
R267 20K_0402_1%REAL@R267 20K_0402_1%REAL@
1 2
R310
0_0603_5%
R310
0_0603_5%
12
R261 75_0402_1%R261 75_0402_1%
1 2
R268 20K_0402_1%R268 20K_0402_1%
1 2
C302
0.1U_0402_16V4Z
C302
0.1U_0402_16V4Z
1
2
R351 1K_0402_1%R351 1K_0402_1%
1 2
R257
0_0603_5%
@R257
0_0603_5%
@
1 2
C304
0.1U_0402_16V4Z
C304
0.1U_0402_16V4Z
1
2
C314
10U_0805_10V4Z
C314
10U_0805_10V4Z
1
2
C430 4.7U_0805_10V4Z
C430 4.7U_0805_10V4Z
1 2
R269 39.2K_0402_1%R269 39.2K_0402_1%
1 2
C320
0.1U_0402_16V4Z
C320
0.1U_0402_16V4Z
1 2
R256
0_0603_5%
@R256
0_0603_5%
@
1 2
R352 4.7K_0402_5%R352 4.7K_0402_5%
1 2
R258
0_0603_5%
R258
0_0603_5%
12
C429
4.7U_0805_10V4Z
C429
4.7U_0805_10V4Z
1 2
C318
4.7U_0805_10V4Z
C318
4.7U_0805_10V4Z
1 2
C306
0.1U_0402_16V4Z
C306
0.1U_0402_16V4Z
1
2
C315
0.1U_0402_16V4Z
C315
0.1U_0402_16V4Z
1
2
C324
10U_0805_10V4Z
REAL@
C324
10U_0805_10V4Z
REAL@
12
C558
0.1U_0402_16V4Z
@C558
0.1U_0402_16V4Z
@1 2
C322 100P_0402_50V8J
@
C322 100P_0402_50V8J
@
1 2
C308
0.1U_0402_16V4Z
@ C308
0.1U_0402_16V4Z
@1
2
R259
0_0603_5%
REAL@R259
0_0603_5%
REAL@
1 2
R266 0_0402_5%R266 0_0402_5%
1 2
C735 22P_0402_50V8JC735 22P_0402_50V8J
1 2
C317 4.7U_0805_10V4Z
C317 4.7U_0805_10V4Z
1 2
R286 0_0603_5%@R286 0_0603_5%@ 12
R255
0_0603_5%
R255
0_0603_5%
1 2
C316
0.1U_0402_16V4Z
C316
0.1U_0402_16V4Z
1
2
R353 0_0402_5%R353 0_0402_5%
1 2
R346 1K_0402_1%R346 1K_0402_1%
1 2
R262 75_0402_1%R262 75_0402_1%
1 2
R267
5.1K_0402_1%
VIA@R267
5.1K_0402_1%
VIA@
R260 47K_0402_5%R260 47K_0402_5%
1 2
C312
10U_0805_10V4Z
C312
10U_0805_10V4Z
1
2
J1
JUMP_43X39
@
J1
JUMP_43X39
@
11
2
2
C307
10U_0805_10V4Z
@C307
10U_0805_10V4Z
@1
2
R347 1K_0402_1%R347 1K_0402_1%
1 2
U26
SN74AHC1G08DCKR_SC70-5
@U26
SN74AHC1G08DCKR_SC70-5
@
IN1
1
IN2
2
G
3
O4
P5
U13
S IC VT1802P QFN 48P CODEC
VIA@U13
S IC VT1802P QFN 48P CODEC
VIA@
C313
0.1U_0402_16V4Z
C313
0.1U_0402_16V4Z
1
2

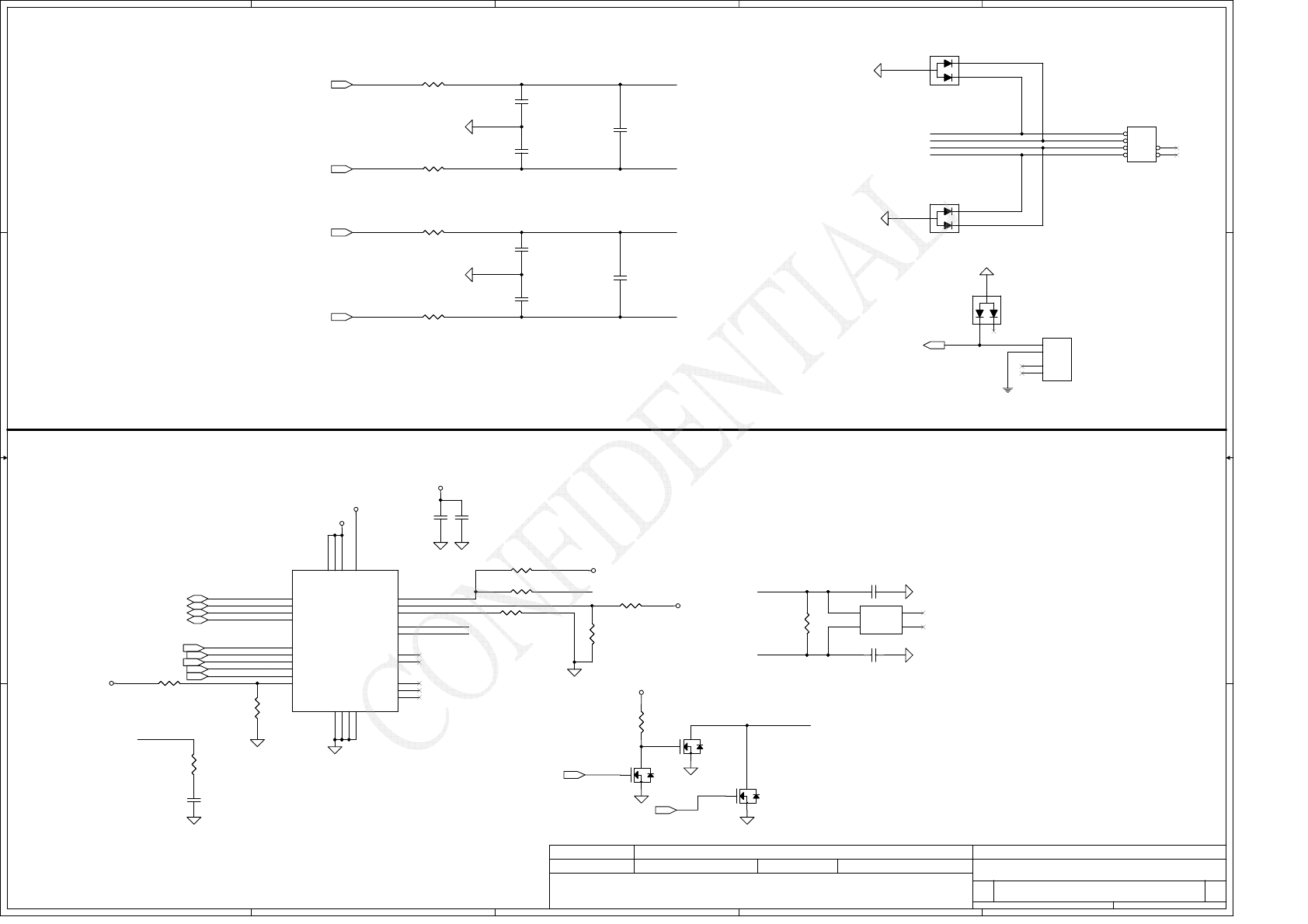

A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
SPKL+
SPKL-
SPK_L+
SPK_L-
SPKR+
SPKR-
SPK_R+
SPK_R-
SPK_R-
SPK_L+
SPK_R+
TPM_PD#_R
PLT_RST_BUF#
LPC_AD2
LPC_AD1
SERIRQ
LPC_AD3
LPC_AD0
LPC_FRAME#
CLK_PCI_TPM
CLK_PCI_TPM
PM_CLKRUN#
TPM_XTALI
TPM_XTALO
TPM_TEST1
TPM_XTALI
TPM_XTALO
TPM_PD#
SPK_L-
TPM_PD#
+3VS
+3VS
+3VALW
+3VS
+3VS
+3VS
+3VS
SPKL+<21>
SPKL-<21>
SPKR+<21>
SPKR-<21>
INT_MIC<21>
LPC_AD0<14,20,23> LPC_AD1<14,20,23> LPC_AD2<14,20,23> LPC_AD3<14,20,23>
LPC_FRAME#<14,20,23>
SERIRQ<14,23> PM_CLKRUN#<14,22>
PLT_RST_BUF#<14,19,20,23,25>
CLK_PCI_TPM<14>
PM_CLKRUN#<14,22>
FCH_PWROK<15,35>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
B
22 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
B
22 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
B
22 36Friday, May 06, 2011
2010/05/06
Compal Electronics, Inc.
4019D2
*
0 = 02Eh
Base I/O Address
TPM 1.2
1 = 04Eh
close pin 10close pin 24
X4
32.768KHZ_12.5PF_Q13MC14610002
IN_TPM@
X4
32.768KHZ_12.5PF_Q13MC14610002
IN_TPM@
OSC
4
OSC
1
NC 3
NC 2
R372
0_0402_5%
@
R372
0_0402_5%
@
1 2
R343 0_0603_5%
R343 0_0603_5%
1 2
G
D
S
Q17
2N7002W-T/R7_SOT323-3
@
G
D
S
Q17
2N7002W-T/R7_SOT323-3
@
2
13
R373 0_0402_5%
IN_TPM@
R373 0_0402_5%
IN_TPM@
1 2
G
D
S
Q15
2N7002W-T/R7_SOT323-3
@
G
D
S
Q15
2N7002W-T/R7_SOT323-3
@
2
13
C332
10U_0805_10V4Z
@
C332
10U_0805_10V4Z
@
1
2
R374 0_0402_5%
@
R374 0_0402_5%
@
1 2
C334
10U_0805_10V4Z
@
C334
10U_0805_10V4Z
@
1
2
R375
4.7K_0402_5%
@
R375
4.7K_0402_5%
@
12
R344 0_0603_5%
R344 0_0603_5%
1 2
R376
4.7K_0402_5%
IN_TPM@
R376
4.7K_0402_5%
IN_TPM@
1 2
R345 0_0603_5%
R345 0_0603_5%
1 2
G
D
S
Q23
2N7002W-T/R7_SOT323-3
@
G
D
S
Q23
2N7002W-T/R7_SOT323-3
@
2
13
R377
10M_0402_5%
IN_TPM@
R377
10M_0402_5%
IN_TPM@
12
D16
PACDN042Y3R_SOT23-3
@
D16
PACDN042Y3R_SOT23-3
@
2
3
1
TPM
SLB 9635 TT 1.1
U17
SLB-9635-TT-1.2_TSSOP28
IN_TPM@
TPM
SLB 9635 TT 1.1
U17
SLB-9635-TT-1.2_TSSOP28
IN_TPM@
GND
4
GND
11
GND
18
GND
25
VDD 24
VDD 19
LAD0
26
LAD1
23
LAD2
20
LAD3
17
LCLK
21
LFRAME#
22
LRESET#
16
SERIRQ
27
CLKRUN#
15
PP
7NC 1
NC 3
NC 12
VDD 10
VSB 5
TESTB1/BADD 9
TEST1 8
GPIO 6
XTALO 14
XTALI 13
LPCPD# 28
GPIO2 2
C335
10U_0805_10V4Z
@
C335
10U_0805_10V4Z
@
1
2
C437
0.1U_0402_16V4Z
IN_TPM@
C437
0.1U_0402_16V4Z
IN_TPM@
1
2
C398
15P_0402_50V8J@C398
15P_0402_50V8J@
1
2
D17
PACDN042Y3R_SOT23-3
@
D17
PACDN042Y3R_SOT23-3
@
2
3
1
R378
10_0402_5%@R378
10_0402_5%@
1 2
C337
10U_0805_10V4Z
@
C337
10U_0805_10V4Z
@
1
2
R370 4.7K_0402_5%
IN_TPM@
R370 4.7K_0402_5%
IN_TPM@
1 2
C333
1U_0402_6.3V4Z
@
C333
1U_0402_6.3V4Z
@
1
2
R371 10K_0402_5%
IN_TPM@
R371 10K_0402_5%
IN_TPM@
1 2
JMIC1
ACES_88231-02001
CONN@
JMIC1
ACES_88231-02001
CONN@
1
1
2
2
GND
3
GND
4
C438
1U_0402_6.3V4Z
IN_TPM@
C438
1U_0402_6.3V4Z
IN_TPM@
1
2
C425
15P_0402_50V8J
IN_TPM@C425
15P_0402_50V8J
IN_TPM@
D18
PACDN042Y3R_SOT23-3
@
D18
PACDN042Y3R_SOT23-3
@
2
31
C336
1U_0402_6.3V4Z
@
C336
1U_0402_6.3V4Z
@
1
2
R342 0_0603_5%
R342 0_0603_5%
1 2
JSPK
ACES_87213-0400G
CONN@JSPK
ACES_87213-0400G
CONN@
1
1
2
2
3
3
4
4GND 5
GND 6
C433
15P_0402_50V8J
IN_TPM@C433
15P_0402_50V8J
IN_TPM@
R241
100K_0402_5%
@R241
100K_0402_5%
@
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
XCLKO XCLKI
SPI_CS# FSEL#SPICS#
SPI_CLK
FWR#SPI_SI
SPI_CLK_R
SPI_SI
ADP_I
TP_CLK
XCLKI
TP_DATA
MB_ID
SUSP#
ECAGND
EC_ON
FWR#SPI_SI
FRD#SPI_SO
EC_FCH_PWROK
FSTCHG
ON/OFF_BTN#
FSEL#SPICS#
BATT_FULL_LED#
LPC_AD2
EC_RST#
KSI0
EC_SCI#
KSO3
LPC_FRAME#
LPC_AD3
CLK_PCI_EC
LPC_AD1
KSO0
KSI1
GATEA20
KSO[0..15]
LPC_AD0
SERIRQ
KSI7
KSI2
KSI6
KSI5
KSI4
KSO4
KSO2
KSI[0..7]
KSO1
KSI3
KSO8
KSO7
KSO6
KSO5
KSO13
KSO12
KSO11
KSO10
KSO9
KSO15
KSO14
FAN_SPEED1
EC_SMB_CK1
EC_SMB_DA1
TP_CLK
TP_DATA
SYSON
EC_LID_OUT#
LID_SW#
FCH_SLP_S3# EC_RSMRST#
EC_SMI#
FCH_SLP_S5#
EC_TX_P80_DATA
CAPS_LED#
BKOFF#
EC_RX_P80_CLK
SPI_CLK
ACIN_D
CHARGE_LOW_LED#
EC_ENBKL
VR_ON_EC
ECAGND
EC_BEEP#
EN_FAN1
IREF
PWR_ON_LED#
KB_RST#
EN_WOL#
PBTN_OUT#
CHGVADJ
KSO1
KSO2
EC_SMB_CK2
EC_SMB_DA2
EC_MUTE#
SUSP#
BATT_TEMP
FSTCHG
EC_ENBKL
ACIN_D
EC_INVT_PWM
USB2_ON
EC_REV_SEL
WL_OFF#
ECAGND
WL_BT_LED#
BT_PWR
MB_ID
ACIN_D
+1.1VS_ON
APU_PROCHOT_EC
LID_SW#
XCLKO
LID_SW#
+EC_AVCC+EC_DVCC+3VALW
+3VALW
+3VALW
+5VS
+3VALW
+3VALW
+3VS
+3VALW
+3VALW
+3VALW
+3VALW
LPC_FRAME#<14,20,22>
GATEA20<15>
KB_RST#<15>
LPC_AD1<14,20,22> LPC_AD2<14,20,22> LPC_AD3<14,20,22>
SERIRQ<14,22>
LPC_AD0<14,20,22>
CLK_PCI_EC<14>
EC_SCI#<15>
KSI[0..7]<17,24>
KSO[0..15]<24>
EC_SMB_DA2<5> EC_SMB_CK2<5> EC_SMB_DA1<28>
FCH_SLP_S5#<15> FCH_SLP_S3#<15>
EC_SMI#<15>
SPI_CLK_R<24>
SPI_SI<24>
SPI_CS#<24>
BATT_TEMP <28>
EN_FAN1 <5>
IREF <29>
EC_BEEP# <21>
EC_ON <17,24,30>
EC_FCH_PWROK <15>
FSTCHG <29>
VR_ON_EC <35>
ADP_I <29>
BATT_FULL_LED# <26>
CHARGE_LOW_LED# <26>
PWR_ON_LED# <24,26>
SYSON <25,32>
CAPS_LED# <26>
EC_LID_OUT# <15>
BKOFF# <12>
ON/OFF_BTN#<24>
FAN_SPEED1<5>
EC_RSMRST# <15>
EN_WOL# <19>
SUSP# <17,25,27,31,34>
PBTN_OUT# <15>
ACOFF <29>
EC_ENBKL <12>
CHGVADJ <29>
VGATE <15,35>
EC_TX_P80_DATA<20> EC_RX_P80_CLK<20>
EC_MUTE# <21>
EC_INVT_PWM<12>
USB2_ON <26>
TP_DATA <24>
TP_CLK <24>
FRD#SPI_SO <24>
BT_PWR <20>
EC_SMB_CK1<28>
PLT_RST_BUF#<14,19,20,22,25>
WL_OFF# <20>
EAPD <21>
WL_BT_LED#<26>
ACIN <29>
+1.1VS_ON <27>
APU_PROCHOT_EC# <5>
SUSCLK<14>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
23 36
Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
23 36
Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
23 36
Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
EVT
MB_ID
0
DVT
PVT
PreMP
1
2
3
Ra
Rb
Vcc
Ra
Board ID Rb / Rd VAD_BRD min
3.3V
VAD_BRD typ VAD_BRD max
100K_5%
0
1
2
3
4
5
6
7
0
8.2K_5%
18K_5%
33K_5%
56K_5%
100K_5%
200K_5%
NC
0.216V
0.436V
0.712V
1.036V
1.453V
1.935V
2.500V
0V
0.250V
0.503V
0.819V
1.185V
1.650V
2.200V
3.300V
0V
0.289V
0.538V
0.875V
1.264V
1.759V
2.341V
3.300V
0V
Board ID / SKU ID Table for AD channel
EC_REV_SEL
EC_REV
Signal KB926D3 KB926E0
10
LID SWITCH
R118 100K_0402_5%R118 100K_0402_5%
1 2
C365 100P_0402_50V8J
C365 100P_0402_50V8J
1 2
R275 0_0402_5%R275 0_0402_5%
1 2
C367
27P_0402_50V8J
@C367
27P_0402_50V8J
@
1
2
C364
0.1U_0402_16V4Z
@
C364
0.1U_0402_16V4Z
@
1
2
C366
27P_0402_50V8J
@C366
27P_0402_50V8J
@
1
2
R297 0_0402_5%R297 0_0402_5%
1 2
X2
32.768KHZ_12.5PF_9H03200413
@X2
32.768KHZ_12.5PF_9H03200413
@
OSC 4
OSC 1
NC
3
NC
2
R1555 150K_0402_5%
R1555 150K_0402_5%
1 2
C440
0.1U_0402_16V4Z
C440
0.1U_0402_16V4Z
1
2
R293
100K_0402_5%
R293
100K_0402_5%
12
L40
FBM-11-160808-601-T_0603
L40
FBM-11-160808-601-T_0603
1 2
D23
RB751V-40_SOD323-2
D23
RB751V-40_SOD323-2
2 1
R279
33K_0402_5%
R279
33K_0402_5%
12
R277 0_0402_5%R277 0_0402_5%
1 2
C349
0.1U_0402_16V4Z
C349
0.1U_0402_16V4Z
1
2
U24
APX9132ATI-TRL_SOT23-3
U24
APX9132ATI-TRL_SOT23-3
GND
1
VDD
2VOUT 3
C357
100P_0402_50V8J
@
C357
100P_0402_50V8J
@
1
2
D20
RB751V-40_SOD323-2
@D20
RB751V-40_SOD323-2
@
2 1
C352
0.01U_0402_16V7K
C352
0.01U_0402_16V7K
1 2
R278
100K_0402_5%
R278
100K_0402_5%
12
R330
100K_0402_5%
R330
100K_0402_5%
12
C348
0.1U_0402_16V4Z
C348
0.1U_0402_16V4Z
1
2
R285 47K_0402_5%R285 47K_0402_5%
1 2
R298 0_0402_5%R298 0_0402_5%
1 2
C342
0.1U_0402_16V4Z
C342
0.1U_0402_16V4Z 1
2
LPC & MISC
Int. K/B
Matrix
SM Bus
GPIO
GPIO
AD Input
PWM Output
DA Output
PS2 Interface
SPI Device Interface
SPI Flash ROM
GPO
GPI
U14
KB926QFD3 LQFP 128P
LPC & MISC
Int. K/B
Matrix
SM Bus
GPIO
GPIO
AD Input
PWM Output
DA Output
PS2 Interface
SPI Device Interface
SPI Flash ROM
GPO
GPI
U14
KB926QFD3 LQFP 128P
GA20/GPIO00
1
KBRST#/GPIO01
2
SERIRQ#
3
LFRAME#
4
LAD3
5
PM_SLP_S3#/GPIO04
6
LAD2
7
LAD1
8
VCC 9
LAD0
10
GND
11
PCICLK
12
PCIRST#/GPIO05
13
PM_SLP_S5#/GPIO07
14
EC_SMI#/GPIO08
15
LID_SW#/GPIO0A
16
SUSP#/GPIO0B
17
PBTN_OUT#/GPIO0C
18
EC_PME#/GPIO0D
19
SCI#/GPIO0E
20
INVT_PWM/PWM1/GPIO0F 21
VCC 22
BEEP#/PWM2/GPIO10 23
GND
24
EC_THERM#/GPIO11
25
FANPWM1/GPIO12 26
ACOFF/FANPWM2/GPIO13 27
FAN_SPEED1/FANFB1/GPIO14
28
FANFB2/GPIO15
29
EC_TX/GPIO16
30
EC_RX/GPIO17
31
ON_OFF/GPIO18
32
VCC 33
PWR_LED#/GPIO19
34
GND
35
NUMLED#/GPIO1A
36
ECRST#
37
CLKRUN#/GPIO1D
38
KSO0/GPIO20
39
KSO1/GPIO21
40
KSO2/GPIO22
41
KSO3/GPIO23
42
KSO4/GPIO24
43
KSO5/GPIO25
44
KSO6/GPIO26
45
KSO7/GPIO27
46
KSO8/GPIO28
47
KSO9/GPIO29
48
KSO10/GPIO2A
49
KSO11/GPIO2B
50
KSO12/GPIO2C
51
KSO13/GPIO2D
52
KSO14/GPIO2E
53
KSO15/GPIO2F
54
KSI0/GPIO30
55
KSI1/GPIO31
56
KSI2/GPIO32
57
KSI3/GPIO33
58
KSI4/GPIO34
59
KSI5/GPIO35
60
KSI6/GPIO36
61
KSI7/GPIO37
62
BATT_TEMP/AD0/GPIO38 63
BATT_OVP/AD1/GPIO39 64
ADP_I/AD2/GPIO3A 65
AD3/GPIO3B 66
AVCC 67
DAC_BRIG/DA0/GPIO3C 68
AGND
69
EN_DFAN1/DA1/GPIO3D 70
IREF/DA2/GPIO3E 71
DA3/GPIO3F 72
CIR_RX/GPIO40 73
CIR_RLC_TX/GPIO41 74
AD4/GPIO42 75
SELIO2#/AD5/GPIO43 76
SCL1/GPIO44
77
SDA1/GPIO45
78
SCL2/GPIO46
79
SDA2/GPIO47
80
KSO16/GPIO48
81
KSO17/GPIO49
82
PSCLK1/GPIO4A 83
PSDAT1/GPIO4B 84
PSCLK2/GPIO4C 85
PSDAT2/GPIO4D 86
TP_CLK/PSCLK3/GPIO4E 87
TP_DATA/PSDAT3/GPIO4F 88
FSTCHG/SELIO#/GPIO50 89
BATT_CHGI_LED#/GPIO52 90
CAPS_LED#/GPIO53 91
BATT_LOW_LED#/GPIO54 92
SUSP_LED#/GPIO55 93
GND
94
SYSON/GPIO56 95
VCC 96
SDICS#/GPXOA00 97
SDICLK/GPXOA01 98
SDIDO/GPXOA02 99
EC_RSMRST#/GPXO03 100
EC_LID_OUT#/GPXO04 101
EC_ON/GPXO05 102
EC_SWI#/GPXO06 103
ICH_PWROK/GPXO06 104
BKOFF#/GPXO08 105
WL_OFF#/GPXO09 106
GPXO10 107
GPXO11 108
SDIDI/GPXID0 109
PM_SLP_S4#/GPXID1 110
VCC 111
ENBKL/GPXID2 112
GND
113
GPXID3 114
GPXID4 115
GPXID5 116
GPXID6 117
GPXID7 118
SPIDI/RD# 119
SPIDO/WR# 120
VR_ON/XCLK32K/GPIO57 121
XCLK1
122
XCLK0
123 V18R 124
VCC 125
SPICLK/GPIO58 126
AC_IN/GPIO59 127
SPICS# 128
R288 2.2K_0402_5%R288 2.2K_0402_5%
1 2 C358 100P_0402_50V8J@ C358 100P_0402_50V8J@ 1 2
R300 0_0402_5%R300 0_0402_5%
1 2
C356
100P_0402_50V8J
@
C356
100P_0402_50V8J
@
1
2
R276 47K_0402_5%
R276 47K_0402_5%
1 2
R290 2.2K_0402_5%R290 2.2K_0402_5%
1 2
R292 4.7K_0402_5%R292 4.7K_0402_5%
1 2
R326 0_0402_5%R326 0_0402_5%
1 2
R354 0_0805_5%R354 0_0805_5%
C347
1000P_0402_50V7K
C347
1000P_0402_50V7K
1
2
C345
0.1U_0402_16V4Z
C345
0.1U_0402_16V4Z
1
2
L41
FBM-11-160808-601-T_0603
L41
FBM-11-160808-601-T_0603
12
C344
0.1U_0402_16V4Z
C344
0.1U_0402_16V4Z
1
2
R291 4.7K_0402_5%R291 4.7K_0402_5%
1 2
C346
1000P_0402_50V7K
C346
1000P_0402_50V7K
1
2
C351
0.1U_0402_16V4Z
C351
0.1U_0402_16V4Z
1
2
C359 100P_0402_50V8J@ C359 100P_0402_50V8J@ 1 2
C363
4.7U_0805_10V4Z
C363
4.7U_0805_10V4Z 1
2
C350
22P_0402_50V8J
C350
22P_0402_50V8J
12
C353
0.1U_0402_16V4Z
@
C353
0.1U_0402_16V4Z
@
1
2
R284 47K_0402_5%R284 47K_0402_5%
1 2
C362 100P_0402_50V8J@ C362 100P_0402_50V8J@ 1 2
C439
0.1U_0402_16V4Z
C439
0.1U_0402_16V4Z
1
2
R299
20M_0603_5%
@
R299
20M_0603_5%
@
1 2
R289 2.2K_0402_5%R289 2.2K_0402_5%
1 2
R287 2.2K_0402_5%R287 2.2K_0402_5%
1 2
R296
100K_0402_5%
@
R296
100K_0402_5%
@
12
C360 100P_0402_50V8J@ C360 100P_0402_50V8J@ 1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
KSO[0..15]
KSI[0..7]
KSO0
KSO1
KSO2
KSO3
KSO8
KSO9
KSO10
KSO13
KSO15
KSO4 KSO14
KSO5
KSO7
KSO6
KSO11
KSO12
KSI0
KSI7
KSI1
KSI6
KSI2
KSI5
KSI3
KSI4
TP_DATA
SPI_CLK_R
EC_ON
SPI_CLK_R
SPI_SI
SPI_CS#
SPI_SO
ON/OFFBTN# ON/OFF_BTN#
KSO7
KSO8
KSO6
KSI3
KSO5
KSO1
KSI0
KSO2
KSO4
KSO9
KSI4
KSI5
KSO0
KSI2
KSO10
KSO15
KSI1
KSI7
KSI6
KSO3
KSO12
KSO13
KSO14
KSO11
RIGHT_BTN#
LEFT_BTN#
RIGHT_BTN#LEFT_BTN#
LEFT_BTN#
RIGHT_BTN#
TP_CLK
TP_DATA
TP_CLK
ON/OFFBTN#
+3VALW
+3VALW
+5VS
+5VALW
KSI[0..7] <17,23>
KSO[0..15] <23>
ON/OFF_BTN# <23>
51_ON# <28>
EC_ON<17,23,30>
SPI_CLK_R <23>
SPI_SI <23>
SPI_CS#<23> FRD#SPI_SO<23>
TP_DATA <23>
TP_CLK <23>
PWR_ON_LED# <23,26>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
24 36Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
24 36Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
24 36Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
INT_KBD Conn.
Power BTN Board Conn
EC ROM
TOP SIDE
BOT SIDE
1M-Bit
D30
RLZ20A_LL34
@D30
RLZ20A_LL34
@
12
C394 100P_0402_50V8JC394 100P_0402_50V8J
1 2
C389 100P_0402_50V8JC389 100P_0402_50V8J
1 2
C374 100P_0402_50V8JC374 100P_0402_50V8J
1 2
C368 100P_0402_50V8JC368 100P_0402_50V8J
1 2
C379 100P_0402_50V8JC379 100P_0402_50V8J
1 2
C392 100P_0402_50V8JC392 100P_0402_50V8J
1 2
C387 100P_0402_50V8JC387 100P_0402_50V8J
1 2
JTP
ACES_85201-0605N
CONN@
JTP
ACES_85201-0605N
CONN@
11
22
33
44
55
66
GND
7
GND
8
U15
MX25L1005AMC-12G_SO8
U15
MX25L1005AMC-12G_SO8
CS#
1
SO
2
WP#
3
GND
4
VCC 8
HOLD# 7
SCLK 6
SI 5
C382 100P_0402_50V8JC382 100P_0402_50V8J
1 2
C377 100P_0402_50V8JC377 100P_0402_50V8J
1 2
C381 100P_0402_50V8JC381 100P_0402_50V8J
1 2
JKB
ACES_88514-02601-071
CONN@JKB
ACES_88514-02601-071
CONN@
11
22
33
44
55
66
77
88
99
10 10
12 12
11 11
13 13
14 14
15 15
16 16
17 17
18 18
19 19
20 20
21 21
22 22
23 23
24 24
25 25
26 26
GND
27
GND
28
JPWR
ACES_85201-0605N
CONN@
JPWR
ACES_85201-0605N
CONN@
11
22
33
44
55
66
GND
7
GND
8
C378 100P_0402_50V8JC378 100P_0402_50V8J
1 2
C396 100P_0402_50V8J@ C396 100P_0402_50V8J@ 1 2
C393 100P_0402_50V8JC393 100P_0402_50V8J
1 2
R309
10K_0402_5%
R309
10K_0402_5%
1 2
C376 100P_0402_50V8JC376 100P_0402_50V8J
1 2
SW2
SMT1-05-A_4P
SW2
SMT1-05-A_4P
3
2
1
4
5
6
R311
0_0603_5%
@
R311
0_0603_5%
@
1 2
C371 100P_0402_50V8JC371 100P_0402_50V8J
1 2
C375 100P_0402_50V8JC375 100P_0402_50V8J
1 2
C370 100P_0402_50V8JC370 100P_0402_50V8J
1 2 D19
PJDLC05C_SOT23-3
D19
PJDLC05C_SOT23-3
2
3
1
R322
0_0603_5%
@
R322
0_0603_5%
@
1 2
R3040_0402_5% @
R3040_0402_5% @
1 2
D21
PJDLC05C_SOT23-3
D21
PJDLC05C_SOT23-3
2
3
1
C372 100P_0402_50V8JC372 100P_0402_50V8J
1 2
D31
BAV70W_SOT323-3
D31
BAV70W_SOT323-3
2
3
1
C384 100P_0402_50V8JC384 100P_0402_50V8J
1 2
C399
0.1U_0402_16V4Z
C399
0.1U_0402_16V4Z
1
2
C380 100P_0402_50V8JC380 100P_0402_50V8J
1 2
SW1
SMT1-05-A_4P
SW1
SMT1-05-A_4P
3
2
1
4
5
6
C391 100P_0402_50V8J@ C391 100P_0402_50V8J@ 1 2
G
D
S
Q19
2N7002W-T/R7_SOT323-3
G
D
S
Q19
2N7002W-T/R7_SOT323-3
2
13
C414
0.1U_0402_16V4Z
C414
0.1U_0402_16V4Z
1 2
C390 100P_0402_50V8JC390 100P_0402_50V8J
1 2
C373 100P_0402_50V8JC373 100P_0402_50V8J
1 2
C415
100P_0402_50V8J
@
C415
100P_0402_50V8J
@
1
2
C395 100P_0402_50V8JC395 100P_0402_50V8J
1 2
R303
0_0402_5%
R303
0_0402_5%
1 2
C708
1000P_0402_50V7K
@
C708
1000P_0402_50V7K
@
1
2
R308
100K_0402_5%
R308
100K_0402_5%
1 2
C369 100P_0402_50V8JC369 100P_0402_50V8J
1 2
C424
100P_0402_50V8J
@
C424
100P_0402_50V8J
@
1
2
C388 100P_0402_50V8JC388 100P_0402_50V8J
1 2
C400
22P_0402_50V8J
@C400
22P_0402_50V8J
@
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

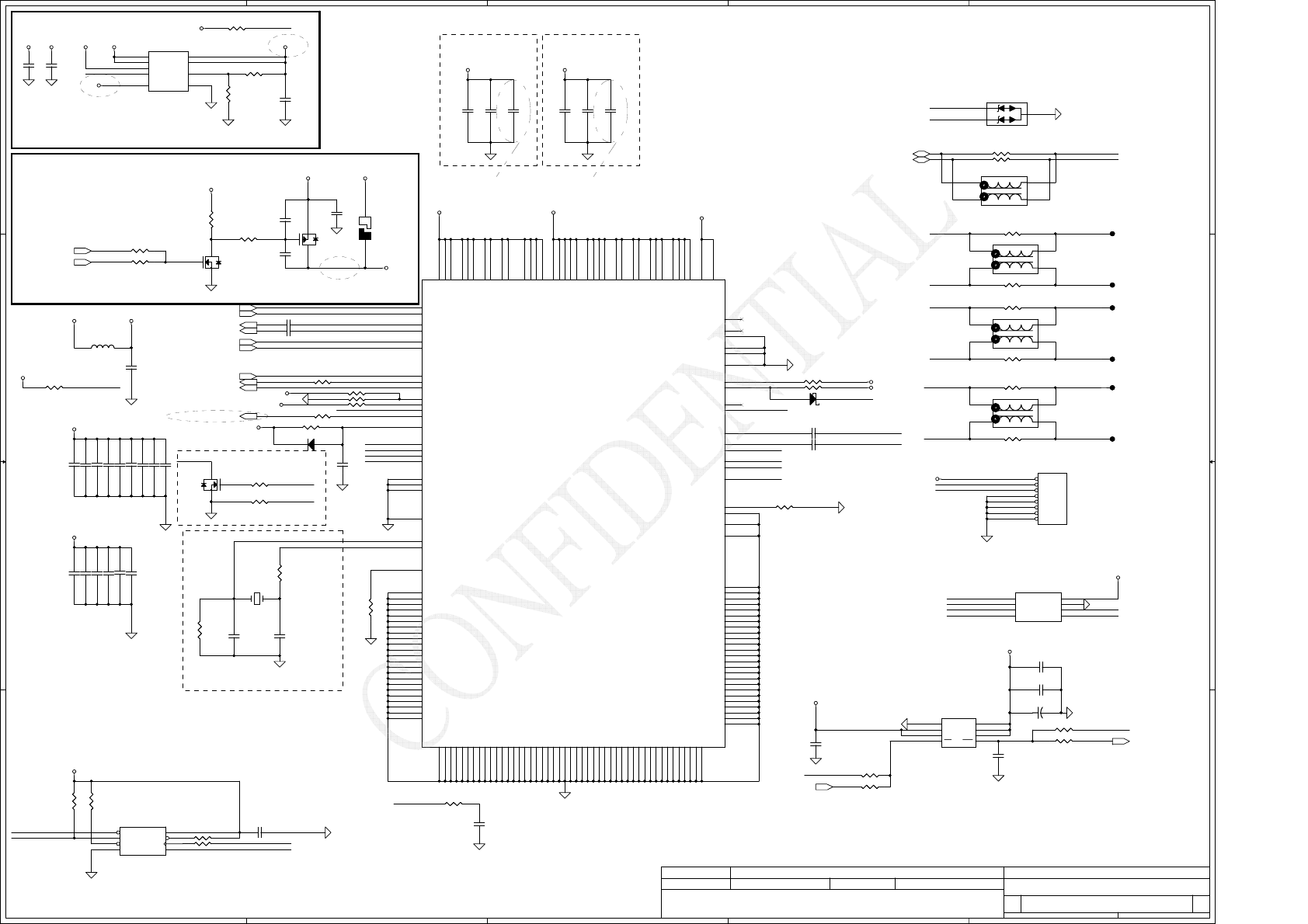

USB30_SMI_R
SPI_CLK_USB
SPI_SO_USB
U2D_DN1_R
U2D_DP1_R
SPI_CLK_USB
SPI_CS_USB#
SPI_SI_USB
SPI_CS_USB#
SPI_SO_USB
SPI_SI_USB
PCIE_PRX_USBTX_N4
PCIE_PRX_USBTX_P4
CLK_48M_USB
USB30_WAKE#
USB30_SMI_R USB30PWRON
USB30_SMI#_R
USB30_SMI#_R
U3TX_C_DN1
U3RXDP1_R
U3TXDP1
U3TXDN1
U3TX_C_DP1
U3RXDN1_R
USB30_POK
OCL2#
SPI_CLK_USB
USB30_POK
USB30_SMI#
U3TXDP2_L
U3RXDP2_R_L
U2DP2_L
U2DN2_L
U3RXDN2_R_L
U3TXDN2_L
U3TXDP2_L
U3TXDN2_L
U3RXDP2_R_L
U2DP2_L
U3RXDN2_R_L
U2DN2_L
USB30PWRON
U3TXDP1
U3TXDN1
U2D_DP1_R
U2D_DN1_R
U3RXDP1_R
U3RXDN1_R
OCL1#
USB30_OCL1#USB30_CLKREQ2#
USB20_R_N0
USB20_R_P0
USB20_R_P0
USB20_R_N0
OCL1#
OC#
USB20_R_P0
USB20_R_N0
+3V
+5VALW
+1.05V
+3V
+3VALW
+3V
+3VALW
+3V
+3V
+3V
+3V +1.05V +3VA
+3VA +3VA
+3V
+3V
+5VALW+1.5V+5VALW +1.5V +1.05V
+3V +3VA
+5VALW
+3V
+3VS
+3VS
+USB_VCCB
+5VALW
+USB_VCCB
CLK_PCIE_USB30<14> CLK_PCIE_USB30#<14>
PLT_RST_BUF#<14,19,20,22,23>
FCH_PCIE_WAKE#<15,19,20>
USB30_SMI#<15>
USB2_ON#<26>
SYSON<23,32>
SUSP#<17,23,27,31,34>
PCIE_PRX_C_USB30TX_P4<6> PCIE_PRX_C_USB30TX_N4<6>
PCIE_PTX_C_USB30RX_P4<6> PCIE_PTX_C_USB30RX_N4<6>
USB30_CLKREQ2#<15>
USB20_P0<15> USB20_N0<15>
USB_OC#0 <15>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
25 36Friday, May 06, 2011
2010/05/27 2011/03/04
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
25 36Friday, May 06, 2011
2010/05/27 2011/03/04
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
25 36Friday, May 06, 2011
2010/05/27 2011/03/04
Compal Electronics, Inc.
35mA
+3V & +1.05V has power sequence timing:
0.1*VDD(+3V) ~ 0.9*VDD(+1.05V) < 100ms
+3VALW to +3V Transfer
+1.5V to +1.05V Transfer
Vout=0.8(1+10K/32.4K)
1.042 ~ 1.0469 ~ 1.0519V
Spec: 0.9975 ~ 1.05 ~ 1.1025
1A
For UPD720200:
SMI high active
CSEL=0
：
24MHz XTAL
CSEL=1
：
48MHz Clock
UPD720200A:
SMIB Low active
Close to U102.D7 Close to U102.P13
Place as close as possibile to
UU2.N14 and UU2.M14
Close to UU2.6
+3V:200mA
+1.05V:800mA
Follow Vendor recommend.
must to close to JUSB30
2.5A
W=60mils W=60mils
CU37 0.1U_0402_16V7K
USB3.0@CU37 0.1U_0402_16V7K
USB3.0@
1 2
CU38
0.1U_0402_16V7K
@
CU38
0.1U_0402_16V7K
@
1
2
RU10 47K_0402_5%
USB3.0@
RU10 47K_0402_5%
USB3.0@
1 2
R306 0_0402_5%R306 0_0402_5%
1 2
JP2
PAD-OPEN 2x2m
@JP2
PAD-OPEN 2x2m
@
2 1
RU41 0_0402_5%
USB3.0@
RU41 0_0402_5%
USB3.0@
1 2
RU2
10K_0402_1%
USB3.0@
RU2
10K_0402_1%
USB3.0@
12
UU1
APL5930KAI-TRG_SO8
USB3.0@UU1
APL5930KAI-TRG_SO8
USB3.0@
VIN
5
EN
8
VOUT 3
VOUT 4
GND 1
FB 2
VCNTL
6
POK
7
VIN
9
CU30 0.01U_0402_25V7K
USB3.0@
CU30 0.01U_0402_25V7K
USB3.0@
1
2
DU4
RB751V-40_SOD323-2
USB3.0@
DU4
RB751V-40_SOD323-2
USB3.0@
12
DU3
1SS355TE-17_SOD323-2
USB3.0@
DU3
1SS355TE-17_SOD323-2
USB3.0@
22
1
1
RU47 0_0402_5%@RU47 0_0402_5%@
1 2
CU20 0.1U_0402_16V4Z
USB3.0@
CU20 0.1U_0402_16V4Z
USB3.0@
12
RU22 10K_0402_5%
USB3.0@
RU22 10K_0402_5%
USB3.0@
1 2
RU15 10K_0402_5%USB3.0@RU15 10K_0402_5%USB3.0@ 1 2
CU5
8P_0402_50V8D
@
CU5
8P_0402_50V8D
@
1
2
RU19 0_0402_5%USB3.0@ RU19 0_0402_5%USB3.0@ 1 2
LU6
WCM-2012-121T_0805
USB3.0@
LU6
WCM-2012-121T_0805
USB3.0@
1
122
33
4
4
T12
PAD T12
PAD
CU21 0.01U_0402_25V7K
USB3.0@
CU21 0.01U_0402_25V7K
USB3.0@
1
2
YU1
24MHZ_12PF_X5H024000DC1H
USB3.0@
YU1
24MHZ_12PF_X5H024000DC1H
USB3.0@
1 2
RU30
100_0402_5%
USB3.0@RU30
100_0402_5%
USB3.0@
12
CT2 0.1U_0402_16V7K
USB3.0@
CT2 0.1U_0402_16V7K
USB3.0@
1
2
D27
PJDLC05_SOT23-3
@D27
PJDLC05_SOT23-3
@
2
31
RU23 0_0402_5%
@
RU23 0_0402_5%
@
1 2
RU37
47K_0402_5%
USB3.0@
RU37
47K_0402_5%
USB3.0@
1 2
RU43 0_0402_5%
USB30@
RU43 0_0402_5%
USB30@
1 2
RU21 10K_0402_5%
USB3.0@RU21 10K_0402_5%
USB3.0@
1 2
RU46 0_0402_5%@RU46 0_0402_5%@
1 2
CU27 0.01U_0402_25V7K
USB3.0@
CU27 0.01U_0402_25V7K
USB3.0@
1
2
G
D
S
QU1
AO3413_SOT23
USB3.0@
G
D
S
QU1
AO3413_SOT23
USB3.0@
2
1 3
CU2
1U_0603_10V6K
USB3.0@
CU2
1U_0603_10V6K
USB3.0@
1
2
CT4
1U_0603_10V6K
USB3.0@CT4
1U_0603_10V6K
USB3.0@
1
2
T14
PAD T14
PAD
CU33 0.01U_0402_25V7K
USB3.0@
CU33 0.01U_0402_25V7K
USB3.0@
1
2
RU16 100_0402_1%@RU16 100_0402_1%@1 2
RU33 0_0402_5%
USB3.0@
RU33 0_0402_5%
USB3.0@
1 2
RU40 10K_0402_5%
USB3.0@
RU40 10K_0402_5%
USB3.0@
1 2
RU20 10K_0402_5%
USB3.0@RU20 10K_0402_5%
USB3.0@
1 2
RU3
32.4K_0402_1%
USB3.0@
RU3
32.4K_0402_1%
USB3.0@
12
RU39
0_0402_5%
@
RU39
0_0402_5%
@
1 2
RU24 0_0402_5%
@
RU24 0_0402_5%
@
1 2
T19
PAD T19
PAD
RU49 0_0402_5%@RU49 0_0402_5%@
1 2
CU12
0.01U_0402_25V7K
USB3.0@
CU12
0.01U_0402_25V7K
USB3.0@ 1
2
RU1
4.7K_0402_5%
USB3.0@
RU1
4.7K_0402_5%
USB3.0@
1 2
CU9
10U_0603_6.3V6M
USB3.0@CU9
10U_0603_6.3V6M
USB3.0@
1
2
C427 0.1U_0402_16V7K
C427 0.1U_0402_16V7K
1 2
CU32 0.1U_0402_16V7K
USB3.0@
CU32 0.1U_0402_16V7K
USB3.0@
1
2
RU17 10K_0402_5%USB3.0@RU17 10K_0402_5%USB3.0@ 1 2
CU23 0.01U_0402_25V7K
USB3.0@
CU23 0.01U_0402_25V7K
USB3.0@
1
2
CU3
0.1U_0402_16V7K
USB3.0@
CU3
0.1U_0402_16V7K
USB3.0@
1
2
T21
PAD T21
PAD
RU29 0_0402_5%@RU29 0_0402_5%@ 12
CU4
0.01U_0402_25V7K
USB3.0@
CU4
0.01U_0402_25V7K
USB3.0@
1
2
JUSB2
ACON_UAR4E-4K1920
CONN@JUSB2
ACON_UAR4E-4K1920
CONN@
1
1
2
2
3
3
4
4
GND
5
GND
6
GND
7
GND
8
C164
4.7U_0805_10V4Z
@C164
4.7U_0805_10V4Z
@
1
2
RU28 0_0402_5%
USB3.0@
RU28 0_0402_5%
USB3.0@
12
CU6
0.1U_0402_16V7K
USB3.0@
CU6
0.1U_0402_16V7K
USB3.0@
1
2
R76 0_0402_5%R76 0_0402_5%
1 2
CU25 0.01U_0402_25V7K
USB3.0@
CU25 0.01U_0402_25V7K
USB3.0@
1
2
LU7
WCM-2012-121T_0805
USB3.0@
LU7
WCM-2012-121T_0805
USB3.0@
1
122
33
4
4
RU34
0_0402_5%
@
RU34
0_0402_5%
@
1 2
R387 10K_0402_5%
@
R387 10K_0402_5%
@
1 2
CU18
10U_0805_6.3V6K
USB3.0@
CU18
10U_0805_6.3V6K
USB3.0@ 1
2
CU1
10U_0603_6.3V6M
USB3.0@CU1
10U_0603_6.3V6M
USB3.0@
1
2
CU34
15P_0402_50V8J
USB3.0@
CU34
15P_0402_50V8J
USB3.0@
CU22 0.1U_0402_16V7K
USB3.0@
CU22 0.1U_0402_16V7K
USB3.0@
1
2
T22
PAD T22
PAD
RU38
10K_0402_5%
USB3.0@
RU38
10K_0402_5%
USB3.0@
12
CU17 0.1U_0402_16V7K
USB3.0@
CU17 0.1U_0402_16V7K
USB3.0@
12
LU5
WCM-2012-121T_0805
USB3.0@LU5
WCM-2012-121T_0805
USB3.0@
1
122
33
4
4
C175 1000P_0402_50V7K
C175 1000P_0402_50V7K
1 2
CU31 0.01U_0402_25V7K
USB3.0@
CU31 0.01U_0402_25V7K
USB3.0@
1
2
RU48 0_0402_5%@RU48 0_0402_5%@
1 2
U16
AP2301SG-13 SO
U16
AP2301SG-13 SO
FLG 5
VIN
3VOUT 6
GND
1
EN
4
VOUT 7
VIN
2VOUT 8
RU25 0_0402_5%
@
RU25 0_0402_5%
@
1 2
RU27 0_0402_5%RU27 0_0402_5%
1 2
T23
PAD T23
PAD
CU10
0.1U_0402_16V7K
USB3.0@
CU10
0.1U_0402_16V7K
USB3.0@
1
2
RU26 1.6K_0402_1%
USB3.0@
RU26 1.6K_0402_1%
USB3.0@
1 2
CT3 0.1U_0402_16V7K
USB3.0@
CT3 0.1U_0402_16V7K
USB3.0@
1
2
UU2
UPD720200AF1-DAP-SSA-A
USB3.0@
UU2
UPD720200AF1-DAP-SSA-A
USB3.0@
GND
C12
GND
C13
GND
D3
GND
D4
GND
D11
GND
D12
GND
D13
GND
D14
GND
E1
GND
E2
GND
E13
GND
E14
GND
G1
GND
G2
GND
G6
GND
G7
GND
G8
GND
G13
GND
G11
GND
H6
GND
G12
GND
G9
GND
F4
GND
F6
GND
F7
GND
F8
GND
F9
GND
F11
GND
F12
GND
H7
GND
H8
GND
H9
GND
H12
GND
J3
GND
J4
GND
J6
GND
J7
GND
J8
GND
J9
GND
J11
GND
J12
GND
K3
GND
K4
GND
L1
GND
L2
GND
L3
GND
L4
GND
A1
GND
A2
GND
A3
GND
A4
GND
A5
GND
A7
GND
A9
GND
A11
GND
A13
GND
A14
GND
B3
GND
B4
GND
B5
GND
B7
GND
B9
GND
B11
GND
B13
GND
B14
GND
C1
GND
C2
GND
C3
GND
C10
GND
C11
GND P14
GND P11
GND P9
GND P7
GND P2
GND P1
GND N13
GND N9
GND N7
GND N3
GND M13
GND M12
GND M11
GND M10
GND M9
GND M8
GND M7
GND M6
GND M5
GND M4
GND M3
GND L12
GND L11
GND L7
GND L6
VDD33 D10
VDD33 F13
VDD33 F14
VDD33 F3
VDD33 G3
VDD33 G4
VDD33 L9
VDD33 L10
VDD33 L13
VDD33 L14
VDD33 N4
VDD33 N5
VDD33 N6
VDD33 P3
VDD10 C4
VDD10 C5
VDD10 C6
VDD10 C7
VDD10 D5
VDD10 C8
VDD10 C9
VDD10 D8
VDD10 D9
VDD10 E3
VDD10 E4
VDD10 E11
VDD10 E12
VDD10 H3
VDD10 H4
VDD10 L5
VDD10 H11
VDD10 K11
VDD10 K12
VDD10 L8
PECLKP
B2
PECLKN
B1
PETXP
D2
PETXN
D1
PERXP
F2
PERXN
F1
PERSTB
H2
PEWAKEB
K1
PECREQB
K2
AUXDET
J2
PSEL
J1
SMI
H1
PONRSTB
P5
SPISCK
M2
SPISCB
N2
SPISI
N1
SPISO
M1
GND
K13
GND
K14
GND
J13
SMIB
P4
GND
C14
XT1
N14
XT2
M14
CSEL
P6
U3TXDP2 B6
U3TXDN2 A6
U2DM2 N8
U3RXDN2 A8
U3RXDP2 B8
U2DP2 P8
OCI2B G14
OCI1B H13
PPON2 H14
PPON1 J14
U2DM1 N10
U2DP1 P10
U3RXDP1 B12
U3RXDN1 A12
RREF P12
U2AVSS N12
U2PVSS N11
U3AVSS D6
U3TXDN1 A10
U3TXDP1 B10
U3AVDO33 D7
U2AVDD10 P13
CT6
15P_0402_50V8J
USB3.0@CT6
15P_0402_50V8J
USB3.0@
UU5
AT25F512AN-10SU-2.7_SO8~D
USB3.0@
UU5
AT25F512AN-10SU-2.7_SO8~D
USB3.0@
CS#
1
SO
2
WP#
3
GND
4
VCC 8
HOLD# 7
SCK 6
SI 5
RU8
100K_0402_5%USB3.0@ RU8
100K_0402_5%USB3.0@
1 2
CT5 0.01U_0402_25V7K
USB3.0@
CT5 0.01U_0402_25V7K
USB3.0@
1
2
L42
WCM2012F2SF-121T04_0805
USB30@L42
WCM2012F2SF-121T04_0805
USB30@
1
122
33
4
4
+
C1003 150U_D2_6.3VY_R15M@
+
C1003 150U_D2_6.3VY_R15M@
1 2
RU44 0_0402_5%@RU44 0_0402_5%@
1 2
CU24 0.01U_0402_25V7K
USB3.0@
CU24 0.01U_0402_25V7K
USB3.0@
1
2
CU19 0.1U_0402_16V4Z
USB3.0@
CU19 0.1U_0402_16V4Z
USB3.0@
12
RU180_0402_5% USB3.0@
RU180_0402_5% USB3.0@
1 2
G
D
S
QU2 2N7002_SOT23-3
USB3.0@
G
D
S
QU2 2N7002_SOT23-3
USB3.0@
2
13
CU26 0.01U_0402_25V7K
USB3.0@
CU26 0.01U_0402_25V7K
USB3.0@
1
2
LU4
BLM18AG601SN1D_2P
USB3.0@
LU4
BLM18AG601SN1D_2P
USB3.0@
1 2
CU7
0.01U_0402_25V7K
USB3.0@
CU7
0.01U_0402_25V7K
USB3.0@
1
2
CU11
0.1U_0402_16V4Z
USB3.0@
CU11
0.1U_0402_16V4Z
USB3.0@
RU45 0_0402_5%@RU45 0_0402_5%@
1 2
CU8
8P_0402_50V8D
@
CU8
8P_0402_50V8D
@
1
2
CU29 0.01U_0402_25V7K
USB3.0@
CU29 0.01U_0402_25V7K
USB3.0@
1
2
G
D
S
QU3
2N7002_SOT23-3
@
G
D
S
QU3
2N7002_SOT23-3
@2
13
CU16 0.1U_0402_16V7K
USB3.0@
CU16 0.1U_0402_16V7K
USB3.0@ 12
R305 0_0402_5%R305 0_0402_5%
1 2
C403
0.1U_0402_16V7K
C403
0.1U_0402_16V7K
1
2
DU5
LXES4XBAA6-027_MSOP8
@
DU5
LXES4XBAA6-027_MSOP8
@
R-
1
R+
2
D+ 5
D- 6
VCC 8
T-
3
T+
4
GND 7

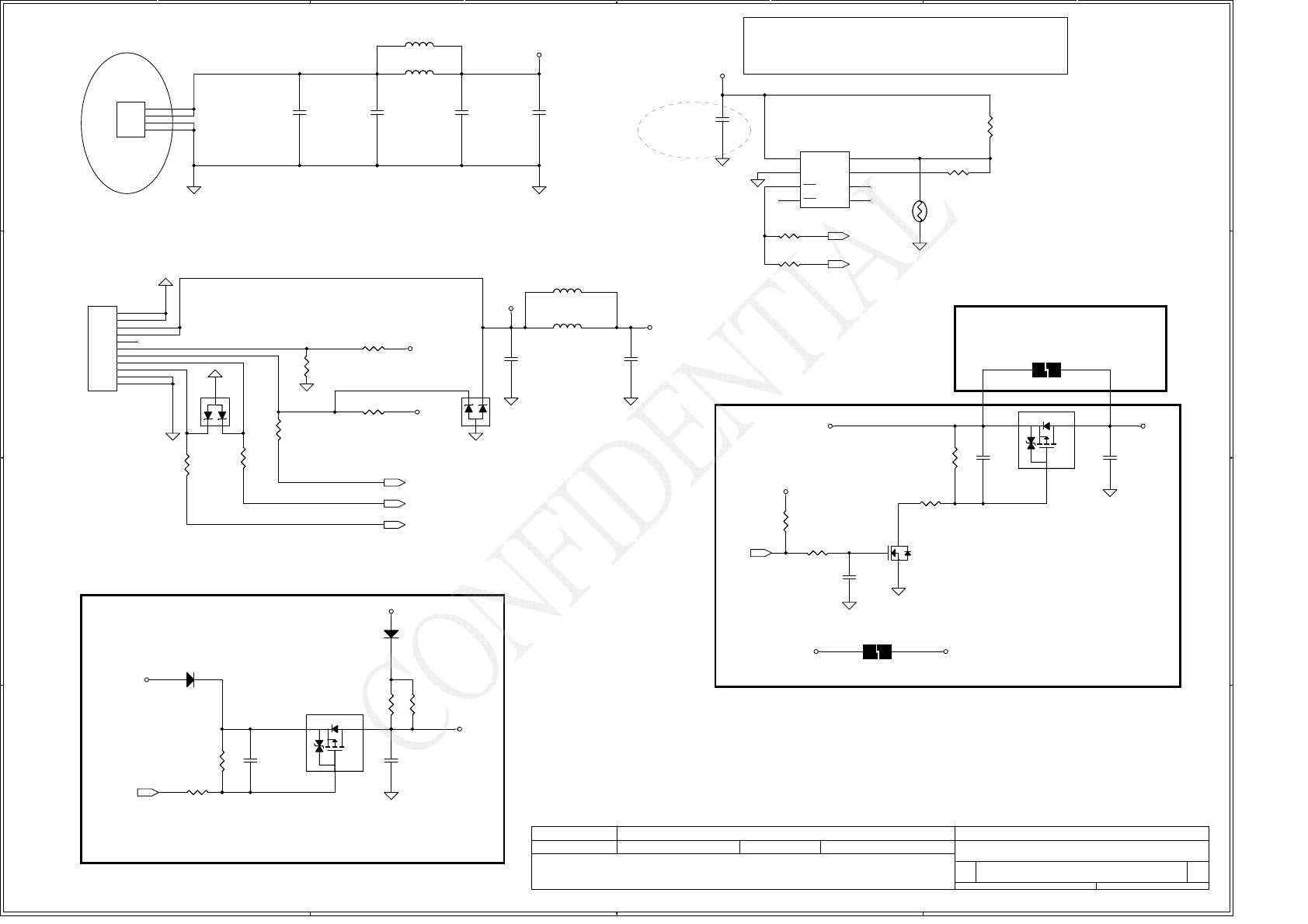

A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
MIC_PLUG#
HP_PLUG#
MIC1_R
MIC1_L
USB20_R_N9
USB20_R_P8
USB20_R_N8
USB20_R_P9
CAPS_LED#
SATA_LED#
PWR_ON_LED#
USB2_ON#
USB20_R_P9
USB20_R_N9
USB20_R_P8
USB20_R_N8
+USB_VCCA
+5VALW
+USB_VCCA
+5VS
+3VS
+5VS
+5VALW
+5VS
+5VALW
USB2_ON<23>
USB_OC#7 <15>
MIC1_L<21> MIC1_R<21> HP_PLUG#<21> MIC_PLUG#<21>
HP_L<21> HP_R<21>
BATT_FULL_LED# <23>
CHARGE_LOW_LED# <23>
CAPS_LED# <23>
PWR_ON_LED# <23,24>
WL_BT_LED# <23>
SATA_LED# <13>
USB2_ON#<25>
USB20_P9<15> USB20_N9<15>
USB20_P8<15> USB20_N8<15>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
26 36Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
26 36Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
26 36Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
USB/B Conn
80 mils
80mils
CAP LOCK LED
AMB
BLUE
BATT LED
HDD LED
Power on LED
WL&BT LED
LEDs
C405 100P_0402_50V8J
@
C405 100P_0402_50V8J
@
12
R780
220_0402_5%
R780
220_0402_5%
1 2
Q213B 2N7002DW-T/R7_SOT363-6
@
Q213B 2N7002DW-T/R7_SOT363-6
@
3
5
4
R391 0_0402_5%R391 0_0402_5%
1 2
R379 0_0402_5%R379 0_0402_5%
1 2
R77
0_0402_5%
R77
0_0402_5%
12
R382
10K_0402_5%
@
R382
10K_0402_5%
@
12
R392 0_0402_5%R392 0_0402_5%
1 2
R380 220_0402_5%R380 220_0402_5%
1 2
R778
300_0402_5%
R778
300_0402_5%
1 2
R383
220_0402_5%
R383
220_0402_5%
1 2
D25
HT-110NBQA_BULE_1204
D25
HT-110NBQA_BULE_1204
12
3
D35
HT-110NBQA_BULE_1204
D35
HT-110NBQA_BULE_1204
12
3
U19
AP2301SG-13 SO
U19
AP2301SG-13 SO
FLG 5
VIN
3VOUT 6
GND
1
EN
4
VOUT 7
VIN
2VOUT 8
D34
LED 19-213A/T1D-CP2Q2HY/3T 0603 WHITE
D34
LED 19-213A/T1D-CP2Q2HY/3T 0603 WHITE
2 1
R384 220_0402_5%R384 220_0402_5%
1 2
C163
4.7U_0805_10V4Z
@C163
4.7U_0805_10V4Z
@
1 2
R381 220_0402_5%R381 220_0402_5%
1 2
L44
WCM2012F2SF-121T04_0805
USB20@L44
WCM2012F2SF-121T04_0805
USB20@
1
122
33
4
4
R393 0_0402_5%R393 0_0402_5%
1 2
C432
0.1U_0402_16V7K
C432
0.1U_0402_16V7K
1
2
G
D
S
Q18
2N7002W-T/R7_SOT323-3
G
D
S
Q18
2N7002W-T/R7_SOT323-3
2
13
UD
NB
D26
HT-210UD/NB_AMB/BLUE
UD
NB
D26
HT-210UD/NB_AMB/BLUE
1
3
2
R307
10K_0402_5%
R307
10K_0402_5%
12
R394 0_0402_5%R394 0_0402_5%
1 2
JUSB
ACES_85201-2005N
CONN@
JUSB
ACES_85201-2005N
CONN@
1
12
23
34
45
56
67
78
89
910
10 11
11 12
12 13
13 14
14
16
16 17
17 18
18
15
15
20
20
19
19
G
21 G
22
Q213A
2N7002DW-T/R7_SOT363-6
@
Q213A
2N7002DW-T/R7_SOT363-6
@
6 1
2
D24
HT-110UD_1204
D24
HT-110UD_1204
12
L43
WCM2012F2SF-121T04_0805
USB20@L43
WCM2012F2SF-121T04_0805
USB20@
1
122
33
4
4
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

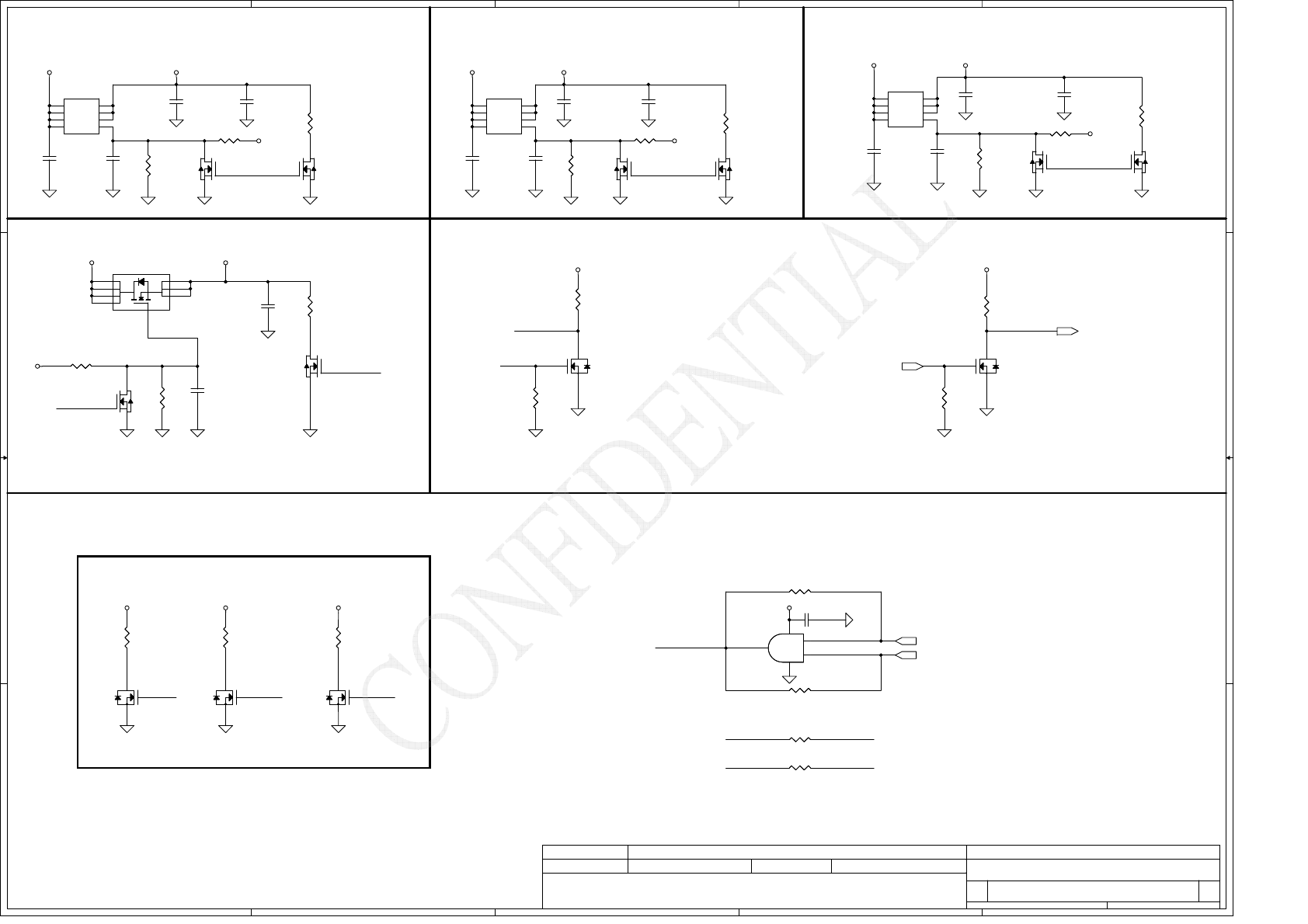

SUSP
SUSPSUSP
+1.1VSON#
+1.1VSON#
+1.1VS_GATE
+3VS_GATE
SUSPSUSP
+5VS_GATE
SUSP
+1.5VS_GATE
+1.1VSON
+1.1VS_ON#
+1.1VSON
+1.1VSON#
+1.1VSON# SUSP
+1.1VS_ON#
SUSP
+5VALW
+1.0VS
+1.1VALW
+VSB
+1.1VS
+VSB
+3VALW +3VS
+VSB
+5VALW +5VS
+VSB
+1.5V +1.5VS
+0.75VS
+5VALW
+3VS+1.8VS
SUSP#<17,23,25,31,34>
SUSP <34>
+1.1VS_ON <23>
+1.8VS_PG <31>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
27 36Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
27 36Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
27 36Friday, May 06, 2011
2009/02/04
Compal Electronics, Inc.
2010/02/04
Custom
4019D2
+3VALW TO +3VS+5VALW TO +5VS +1.5V TO +1.5VS
+1.1VALW TO +1.1VS
DISCHARGE
R323
100K_0402_5%
R323
100K_0402_5%
1 2
Q22
AO4468_SO8
1.5V@Q22
AO4468_SO8
1.5V@
S1
S2
S3
G4
D
8
D
7
D
6
D
5
R324
220K_0402_5%
R324
220K_0402_5%
1 2
R329
470_0603_5%
R329
470_0603_5%
1 2
G
D
S
Q27
2N7002W-T/R7_SOT323-3
G
D
S
Q27
2N7002W-T/R7_SOT323-3
2
13
U23
NC7SZ08P5X_NL_SC70-5
@
U23
NC7SZ08P5X_NL_SC70-5
@
B2
A1
Y
4
P5
G
3
Q20
AO4468_SO8
Q20
AO4468_SO8
S1
S2
S3
G4
D
8
D
7
D
6
D
5
C423
0.1U_0603_25V7K
C423
0.1U_0603_25V7K
1
2
R362
10K_0402_5%
@R362
10K_0402_5%
@
12
Q5B
2N7002DW-T/R7_SOT363-6
Q5B
2N7002DW-T/R7_SOT363-6
3
5
4
R312
470_0603_5%
R312
470_0603_5%
1 2
R321
470_0603_5%
R321
470_0603_5%
1 2
R325
820K_0402_5%
R325
820K_0402_5%
12
C418
4.7U_0805_10V4Z
C418
4.7U_0805_10V4Z
1
2
C409
4.7U_0805_10V4Z
C409
4.7U_0805_10V4Z
1
2
G
D
S
Q29
2N7002W-T/R7_SOT323-3
@
G
D
S
Q29
2N7002W-T/R7_SOT323-3
@
2
13
C419
0.022U_0402_25V7K
C419
0.022U_0402_25V7K
1
2
Q8B
2N7002DW-T/R7_SOT363-6 1.5V@
Q8B
2N7002DW-T/R7_SOT363-6 1.5V@
3
5
4
C416
4.7U_0805_10V4Z
C416
4.7U_0805_10V4Z
1
2
C361 0.1U_0402_16V7K
@
C361 0.1U_0402_16V7K
@
1 2
R316
220K_0402_5%
R316
220K_0402_5%
1 2
R313
470_0603_5%
R313
470_0603_5%
1 2
Q21
AO4468_SO8
Q21
AO4468_SO8
S1
S2
S3
G4
D
8
D
7
D
6
D
5
R314
470_0603_5%
1.5V@
R314
470_0603_5%
1.5V@
1 2
C420
4.7U_0805_10V4Z
1.5V@
C420
4.7U_0805_10V4Z
1.5V@
1
2
R332
470_0603_5%
R332
470_0603_5%
1 2
R317
220K_0402_5%
R317
220K_0402_5%
1 2
Q6B
2N7002DW-T/R7_SOT363-6
Q6B
2N7002DW-T/R7_SOT363-6
3
5
4
G
D
S
Q24
2N7002W-T/R7_SOT323-3
G
D
S
Q24
2N7002W-T/R7_SOT323-3
2
13
C421
0.1U_0603_25V7K
1.5V@
C421
0.1U_0603_25V7K
1.5V@
1
2
R301 0_0402_5%R301 0_0402_5%
1 2
R328 0_0402_5%@ R328 0_0402_5%@ 1 2
Q4A
2N7002DW-T/R7_SOT363-6
Q4A
2N7002DW-T/R7_SOT363-6
61
2
R331
470_0603_5%
R331
470_0603_5%
1 2
C417
0.01U_0402_25V7K
C417
0.01U_0402_25V7K
1
2
R250 0_0402_5%@R250 0_0402_5%@ 12
C422
1U_0603_10V4Z
C422
1U_0603_10V4Z
1
2
R295 0_0402_5%@R295 0_0402_5%@ 1 2
Q5A
2N7002DW-T/R7_SOT363-6
Q5A
2N7002DW-T/R7_SOT363-6
61
2
Q6A
2N7002DW-T/R7_SOT363-6
Q6A
2N7002DW-T/R7_SOT363-6
61
2
R356
100K_0402_5%
@R356
100K_0402_5%
@
1 2
G
D
S
Q26
2N7002W-T/R7_SOT323-3
G
D
S
Q26
2N7002W-T/R7_SOT323-3
2
13
C411 4.7U_0805_10V4ZC411 4.7U_0805_10V4Z
1
2
C413
4.7U_0805_10V4Z
1.5V@
C413
4.7U_0805_10V4Z
1.5V@
1
2
R315
100K_0402_5%
1.5V@
R315
100K_0402_5%
1.5V@
12
Q4B
2N7002DW-T/R7_SOT363-6
Q4B
2N7002DW-T/R7_SOT363-6
3
5
4
C412
1U_0402_6.3V4Z
1.5V@C412
1U_0402_6.3V4Z
1.5V@
1
2
C408
1U_0402_6.3V4Z
C408
1U_0402_6.3V4Z
1
2
C410
1U_0402_6.3V4Z
C410
1U_0402_6.3V4Z
1
2
G
D
S
Q30
2N7002W-T/R7_SOT323-3
G
D
S
Q30
2N7002W-T/R7_SOT323-3
2
13
R318
820K_0402_5%
R318
820K_0402_5%
12
R327
10K_0402_5%
R327
10K_0402_5%
12
R320
820K_0402_5%
1.5V@
R320
820K_0402_5%
1.5V@
12
Q8A
2N7002DW-T/R7_SOT363-6
1.5V@Q8A
2N7002DW-T/R7_SOT363-6
1.5V@
61
2
R319
820K_0402_5%
R319
820K_0402_5%
12
U18
IRF8113PBF_SO8
U18
IRF8113PBF_SO8
36
5
7
82
4
1
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
VS_N_001
VS_N_002
N1
ADPIN
OTP_N_002
OTP_N_003
OTP_N_001
VSB_N_002
VSB_N_003
VSB_N_001
GND
TS_A
GND
BATT_1
BATT_P4
EC_SMB_CK1_1
EC_SMB_DA1_1
VIN
VIN
VS
BATT+
VL
B+
VL
+VSBP
+VSBP +VSB
BATT+
VMB
+3VALW
+3VALW
51_ON#<24>
POK<29,32>
EN0 <29>
VS_ON <29>
EC_SMB_CK1 <23>
EC_SMB_DA1 <23>
BATT_TEMP <23>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
27 35Friday, May 06, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
27 35Friday, May 06, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
27 35Friday, May 06, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
4019D2
Reserve when EC use +3VL.
Install when EC use +3VALW.
CPU thermal protection at 93 +-3 degree C
Recovery at 56 +-3 degree C
PH1 under CPU botten side :
X7R type
Reserve when EC use +3VL.
Install when EC use +3VALW.
Install when EC use +3VL
and SUSP was Pull high to +3VL.
Reserve when EC use +3VALW.
(120mA,40mils ,Via NO.= 1)
If EC use 3VL and can not detect VGATE,
must connect EN0
need confirm: ME give us battery
connector P/N is DC040006H00
PC2
100P_0402_50V8J
PC2
100P_0402_50V8J
12
PC1
1000P_0402_50V7K
PC1
1000P_0402_50V7K
12
PR6
100K_0402_1%
@PR6
100K_0402_1%
@
1 2
PJPDC1
SINGA_4TRJWT-R2513
@
PJPDC1
SINGA_4TRJWT-R2513
@
11
33
44
22
PU1
G718TM1U_SOT23-8
PU1
G718TM1U_SOT23-8
RHYST2 5
OT1
3
OT2
4
GND
2
VCC
1
TMSNS2 6
RHYST1 7
TMSNS1 8
PH1
100K_0402_1%_NCP15WF104F03RC
PH1
100K_0402_1%_NCP15WF104F03RC
12
PR13
100K_0402_1%
PR13
100K_0402_1%
1 2
PR14
100_0402_1%
PR14
100_0402_1%
12
PR22
22K_0402_1%
PR22
22K_0402_1%
1 2
PR4 0_0402_5%PR4 0_0402_5%
12
PR12
22K_0402_1%
PR12
22K_0402_1%
1 2
PR21
100K_0402_1%
PR21
100K_0402_1%
12
PR16
0_0402_5%
PR16
0_0402_5%
1 2
PL4
HCB2012KF-121T50_0805
PL4
HCB2012KF-121T50_0805
1 2
PR2 9.53K_0402_1%PR2 9.53K_0402_1%
12
PL2
HCB2012KF-121T50_0805
PL2
HCB2012KF-121T50_0805
1 2
PJ2
JUMP_43X39
PJ2
JUMP_43X39
11
2
2
PR15
100_0402_1%
PR15
100_0402_1%
12
PR1
21K_0402_1%
PR1
21K_0402_1%
12
PR3 0_0402_5%@PR3 0_0402_5%@
12
G
D
S
PQ2
SSM3K7002FU_SC70-3
G
D
S
PQ2
SSM3K7002FU_SC70-3
2
13
PC11
0.22U_0603_25V7K
PC11
0.22U_0603_25V7K
12
PQ1
TP0610K-T1-E3_SOT23-3
PQ1
TP0610K-T1-E3_SOT23-3
2
13
PD2
PJSOT24CW_SOT323-3
@
PD2
PJSOT24CW_SOT323-3
@
2
3
1
PR10
100K_0402_1%
PR10
100K_0402_1%
12
PR17
68_1206_5%
PR17
68_1206_5%
12
PC7
0.01U_0402_25V7K
PC7
0.01U_0402_25V7K
12
PQ3
TP0610K-T1-E3_SOT23-3
PQ3
TP0610K-T1-E3_SOT23-3
2
13
PD3
RLS4148_LL34-2
PD3
RLS4148_LL34-2
1 2
PR11
1K_0402_1%
PR11
1K_0402_1%
12
PC3
1000P_0402_50V7K
PC3
1000P_0402_50V7K
12
PC4
100P_0402_50V8J
PC4
100P_0402_50V8J
12
PL3
HCB2012KF-121T50_0805
PL3
HCB2012KF-121T50_0805
1 2
PR18
68_1206_5%
PR18
68_1206_5%
12
PR7
1K_0402_1%
PR7
1K_0402_1%
1 2
PC12
0.1U_0603_25V7K
PC12
0.1U_0603_25V7K
12
PL1
HCB2012KF-121T50_0805
PL1
HCB2012KF-121T50_0805
1 2
PD1
PJSOT24CW_SOT323-3
@
PD1
PJSOT24CW_SOT323-3
@
2
31
PC8
0.22U_0603_25V7K
PC8
0.22U_0603_25V7K
12
PC9
0.1U_0603_25V7K
PC9
0.1U_0603_25V7K
12
PD4
RLS4148_LL34-2
PD4
RLS4148_LL34-2
12
PC5
0.1U_0603_16V7K
PC5
0.1U_0603_16V7K
12
PR9
6.49K_0402_1%
PR9
6.49K_0402_1%
12
PJ1
JUMP_43X39
PJ1
JUMP_43X39
11
2
2
PC10
0.1U_0402_16V7K
PC10
0.1U_0402_16V7K
12
PC6
1000P_0402_50V7K
PC6
1000P_0402_50V7K
12
PJP1
SUYIN_200275MR009G10PZR
PJP1
SUYIN_200275MR009G10PZR
11
33
44
55
66
88
99
22
77
GND 10
GND 11
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
ACOFF
CHG_VCOMP
CSON
6251_EN CSON
CHG_VCOMP1
6251VDD
CHG_ICM
6251VDD
CHG_N_008
6251VREF
CHG_CSIN
6251VREF
PACIN
BST_CHG
6251aclim
DH_CHG
CSIP
DL_CHG
CSIN
CHG_CHLIM
LX_CHG
6251VDDP
BST_CHGA
CHG_N_003
CHG_ICOMP
CHG_N_010
CHG_N_009
CHG
CHG_VADJ
CHG_SNUB
CHG_CSIP
CSOPCHG_CSOP
CHG_CSON
CHG_N_005
PACIN
ACPRN
ACSETIN
ACPRN
CHG_VIN
DCIN
ACSETIN
CHG_N_001
CHG_N_002
CHG_N_001
ACPRN
VIN
VIN
BATT+
P2 P3
B+
CHG_B+
B+
6251VDD
VIN
ACIN <23>
ACOFF<23>
IREF<23>
CHGVADJ<23>
FSTCHG<23>
ADP_I<23>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
28 35Friday, May 06, 2011
2009/01/23 2010/01/23
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
28 35Friday, May 06, 2011
2009/01/23 2010/01/23
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
28 35Friday, May 06, 2011
2009/01/23 2010/01/23
Compal Electronics, Inc.
4019D2
Vcell
CHGVADJ=(Vcell-4)/0.10627
CHGVADJ
4V
4.2V
0V
1.882V
CC=0.25A~3A
IREF=0.254V~3.048V
IREF=1.016*Icharge
VCHLIM need over 95mV
Rtop
Add
PC120 must close EC pin.
Iinput=(1/Racdet)*((0.05*Vaclim/VREF+0.05))
65W,Iinput=(1/0.02)*(0.05*0.38914/2.39+0.05)=2.92A
CP mode
Vaclim=VREF*(Rbot//Rinternal/(Rtop//Rinternal+Rbot//Rinternal))
65W Vaclim=2.39*(20K//152K/(20K//152K+226K//152K))=0.38914V
Iada=0~3.421A(65W);CP=2.91A;
CP= 85%*Iada;
PD106
RB751V-40_SOD323-2
PD106
RB751V-40_SOD323-2
2 1
PQ103
AO4435L_SO8
PQ103
AO4435L_SO8
3 6
5
7
8
2
4
1
PD103
1SS355_SOD323-2
@PD103
1SS355_SOD323-2
@
1 2
PR123 47K_0402_1%PR123 47K_0402_1%
1 2
PR131
47K_0402_1%
PR131
47K_0402_1%
12
PL102
HCB2012KF-121T50_0805
@PL102
HCB2012KF-121T50_0805
@
1 2
PC103
10U_0805_25V6K
PC103
10U_0805_25V6K
1
2
PR114
10K_0402_1%
PR114
10K_0402_1%
12 PU101
ISL6251AHAZ-T_QSOP24
PU101
ISL6251AHAZ-T_QSOP24
EN
3
CELLS
4
VDD
1
ACSET
2
ICOMP
5
VCOMP
6
CHLIM
9
ACPRN 23
CSIP 19
UGATE 17
PHASE 18
BOOT 16
PGND 13
GND
12
ICM
7
VREF
8
VADJ
11
DCIN 24
CSIN 20
ACLIM
10
LGATE 14
VDDP 15
CSOP 21
CSON 22 PC113
0.047U_0603_16V7K
PC113
0.047U_0603_16V7K
1 2
PD104
GLZ27D_LL34-2@PD104
GLZ27D_LL34-2@
1 2
PC122
0.01U_0402_25V7K
PC122
0.01U_0402_25V7K
12
PR128
20K_0402_1%
PR128
20K_0402_1%
12
PR107
200K_0402_1%
PR107
200K_0402_1%
12
PR101
0.02_1206_1%
PR101
0.02_1206_1%
1
3
4
2
PR117
100K_0402_1%
PR117
100K_0402_1%
12
PR133
10K_0402_1%
PR133
10K_0402_1%
1 2
PR103
150K_0402_1%
PR103
150K_0402_1%
12
PR124
22K_0402_5%
PR124
22K_0402_5%
1 2
PL101
10U_LF919AS-100M-P3_5.3A_20%
PL101
10U_LF919AS-100M-P3_5.3A_20%
1 2
PC101
10U_0805_25V6K
PC101
10U_0805_25V6K
1
2
PC112
1U_0603_25V6K
PC112
1U_0603_25V6K
1 2
PR105
18.2K_0402_1%
PR105
18.2K_0402_1%
1 2
PR111
14.3K_0402_1%
PR111
14.3K_0402_1%
12
PC120
0.1U_0402_16V7K
PC120
0.1U_0402_16V7K
1 2 PQ110
AON7406L_DFN8-5
PQ110
AON7406L_DFN8-5
4
5
1
2
3
PC117
0.01U_0402_25V7K
PC117
0.01U_0402_25V7K
1 2
PR109
47K_0402_1% PR109
47K_0402_1%
12
PR113
10_1206_5%
PR113
10_1206_5%
1 2
G
D
S
PQ109
SSM3K7002FU_SC70-3
@
G
D
S
PQ109
SSM3K7002FU_SC70-3
@
2
13
PR118
20_0603_5%
PR118
20_0603_5%
1 2
PQ107A
SSM6N7002FU-2N_SOT363-6
PQ107A
SSM6N7002FU-2N_SOT363-6
61
2
PR116
150K_0402_1%
PR116
150K_0402_1%
12
PQ111
DTC115EUA_SC70-3
PQ111
DTC115EUA_SC70-3
2
13
PR108
191K_0402_1%
PR108
191K_0402_1%
1 2
PC121
0.1U_0603_25V7K
PC121
0.1U_0603_25V7K
12
PR132
10K_0402_1%
PR132
10K_0402_1%
12
PR125
4.7_1206_5%
@PR125
4.7_1206_5%
@
12
PC104
4.7U_0805_25V6-K
PC104
4.7U_0805_25V6-K
12
PQ105
DTC115EUA_SC70-3
PQ105
DTC115EUA_SC70-3
2
13
PC102
10U_0805_25V6K
PC102
10U_0805_25V6K
1
2
PC114
0.1U_0603_25V7K
@PC114
0.1U_0603_25V7K
@
12
PR102
0.02_1206_1%
PR102
0.02_1206_1%
1
3
4
2
PC107
5600P_0402_25V7K
@
PC107
5600P_0402_25V7K
@
1 2
PD101
RB751V-40_SOD323-2
PD101
RB751V-40_SOD323-2
21
PC111
0.1U_0402_16V7K
@PC111
0.1U_0402_16V7K
@
1 2
PR106
31.6K_0402_1%
PR106
31.6K_0402_1%
12
PR110
200K_0402_1%
PR110
200K_0402_1%
1 2
PR119
20_0603_5%
PR119
20_0603_5%
1 2
PC105
0.1U_0402_25V6
PC105
0.1U_0402_25V6
12
PR112
47K_0402_1%
PR112
47K_0402_1%
1 2
PC110
1000P_0402_25V8J
PC110
1000P_0402_25V8J
1 2
PC106
2200P_0402_25V7K
PC106
2200P_0402_25V7K
12
PL403
1.2UH +-30% 1231AS-H-1R2N=P3 2.9A
PL403
1.2UH +-30% 1231AS-H-1R2N=P3 2.9A
1 2
PR121 6.81K_0402_1%PR121 6.81K_0402_1%
1 2
PQ106
DTC115EUA_SC70-3
PQ106
DTC115EUA_SC70-3 2
13
PQ108
AON7408L_DFN8-5
PQ108
AON7408L_DFN8-5
3 5
2
4
1
PR127
226K_0402_1%
PR127
226K_0402_1%
1 2
PC119 100P_0402_50V8J@PC119 100P_0402_50V8J@
1 2
PR104
140K_0402_1%
PR104
140K_0402_1%
12
PC124
680P_0603_50V7K@PC124
680P_0603_50V7K@
12
PC116 6800P_0402_25V7KPC116 6800P_0402_25V7K
1 2
PQ102
AO4409_SO8
PQ102
AO4409_SO8
3 6
5
7
8
2
4
1
PC108
0.1U_0603_25V7K
PC108
0.1U_0603_25V7K
12
PQ101
AO4435L_SO8
PQ101
AO4435L_SO8
36
5
7
82
4
1
PR130
100K_0402_1%
PR130
100K_0402_1%
1 2
E
B
C
PQ112
MMBT3904W_SOT323-3
E
B
C
PQ112
MMBT3904W_SOT323-3
2
3 1
PC115
680P_0402_50V7K
@PC115
680P_0402_50V7K
@
1 2
PR136
20K_0402_1%
PR136
20K_0402_1%
12
PR120
20_0603_5%
PR120
20_0603_5%
12
PQ104
DTA144EUA_SC70-3
PQ104
DTA144EUA_SC70-3
2
1 3
PR122
2.2_0603_1%
PR122
2.2_0603_1%
1 2
PC109
2.2U_0603_6.3V6K
PC109
2.2U_0603_6.3V6K
12
PC118
0.1U_0603_25V7K
PC118
0.1U_0603_25V7K
1 2
PC123
4.7U_0805_6.3V6K
PC123
4.7U_0805_6.3V6K
1 2
PR129
4.7_0603_5%
PR129
4.7_0603_5%
1 2
PR126
0_0603_5%
PR126
0_0603_5%
1 2
PQ107B
SSM6N7002FU-2N_SOT363-6
PQ107B
SSM6N7002FU-2N_SOT363-6
34
5
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
BST_5V
LX_5V
BST1_5VBST1_3V
UG_5V
BST_3V
ENTRIP2
ENTRIP1
FB_3V
LG_5V
SNUB_3V
SNUB_5V
ENTRIP1ENTRIP1
ENTRIP2
FB_5V
N_3_5V_001
UG_3V
LX_3V
LG_3V
B++
+5VALWP
VL
+3VALWP
B++
B++
2VREF_51125
B+
+3VL
+3VLP
+3VLP
2VREF_51125
+5VALWP
+3VALW
+5VALW
+3VALWP
B++
VL
VS
POK <27,32>
EC_ON<17,23,24>
VS_ON<27>
EN0<27>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
29 35Friday, May 06, 2011
2007/08/02 2008/08/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
29 35Friday, May 06, 2011
2007/08/02 2008/08/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
Custom
29 35Friday, May 06, 2011
2007/08/02 2008/08/02
Compal Electronics, Inc.
(4A,160mils ,Via NO.= 8)
(3A,120mils ,Via NO.= 6)
EC:+3VL, reserve PR319, install PR318, PR320 100K
EC:+3VALW, reserve PR318, install PR319, PR320 40.2K
+3VALWP
Imax=3A
Ipeak=3.8A
Iocp(minimum)=5A
+5VALWP
Imax=4A
Ipeak=5.2A
Iocp(minimum)=6.5A
PR301
13.7K_0402_1%
PR301
13.7K_0402_1%
1 2
PR318
100K_0402_1%
@PR318
100K_0402_1%
@
1 2
PR320
42.2K_0402_1%
PR320
42.2K_0402_1%
12
PC308
1U_0603_16V6K
PC308
1U_0603_16V6K
12
PC317
680P_0603_50V7K
PC317
680P_0603_50V7K
12
PR311
100K_0402_1%
PR311
100K_0402_1%
12
PC319
0.1U_0603_25V7K
PC319
0.1U_0603_25V7K
12
PQ305
AON7408L_DFN8-5
PQ305
AON7408L_DFN8-5
3 5
2
4
1
PJP305
PAD-OPEN 4x4m
PJP305
PAD-OPEN 4x4m
1 2
PJP303
PAD-OPEN 4x4m
PJP303
PAD-OPEN 4x4m
1 2
PQ306
IRF8707GTRPBF_SO8
PQ306
IRF8707GTRPBF_SO8
4
6
1
2
35
7
8
PC307
10U_0805_25V6K
PC307
10U_0805_25V6K
1
2
PQ308
DTC115EUA_SC70-3
PQ308
DTC115EUA_SC70-3
2
13
PC313
10U_0805_6.3V6M
PC313
10U_0805_6.3V6M
12
PC315
0.1U_0402_10V7K
PC315
0.1U_0402_10V7K
1 2
PQ304
AO4468L_SO8
PQ304
AO4468L_SO8
4
7
8
6
5
1
2
3
PR319
100K_0402_1%
PR319
100K_0402_1%
1 2
PR309
2.2_0402_5%
PR309
2.2_0402_5%
1 2
PR303
102K_0402_1%
PR303
102K_0402_1%
1 2
PR317
100K_0402_5%
PR317
100K_0402_5%
1 2
PR313
4.7_1206_5%
PR313
4.7_1206_5%
12
PC309
0.1U_0402_25V6
PC309
0.1U_0402_25V6
12
PL303
4.7UH_PCMC063T-4R7MN_5.5A_20%
PL303
4.7UH_PCMC063T-4R7MN_5.5A_20%
12
PQ303
AON7408L_DFN8-5
PQ303
AON7408L_DFN8-5
3 5
2
4
1
PR314
499K_0402_1%
PR314
499K_0402_1%
1 2
PR308
0_0402_5%
PR308
0_0402_5%
1 2
PR307
110K_0402_1%
PR307
110K_0402_1%
1 2
PC320
1U_0603_10V6K
PC320
1U_0603_10V6K
12
PL305
4.7UH_PCMC063T-4R7MN_5.5A_20%
PL305
4.7UH_PCMC063T-4R7MN_5.5A_20%
12
PC306
4.7U_0805_25V6-K
@PC306
4.7U_0805_25V6-K
@
12
PC318
4.7U_0805_10V6K
PC318
4.7U_0805_10V6K
12
PC314
0.1U_0402_10V7K
PC314
0.1U_0402_10V7K
1 2
PC311
0.1U_0402_25V6
PC311
0.1U_0402_25V6
12
PJP302
PAD-OPEN 2x2m
PJP302
PAD-OPEN 2x2m
2 1
PC310
2200P_0402_50V7K
PC310
2200P_0402_50V7K
12
+
PC303
220U_6.3V_M
+
PC303
220U_6.3V_M
1
2
PC321
2.2U_0603_10V6K
PC321
2.2U_0603_10V6K
1
2
+
PC305
220U_6.3V_M
+
PC305
220U_6.3V_M
1
2
PQ307B
SSM6N7002FU-2N_SOT363-6
PQ307B
SSM6N7002FU-2N_SOT363-6
34
5
PU301
S IC RT8205LZQW WQFN 24P PWM
PU301
S IC RT8205LZQW WQFN 24P PWM
VREF 3
TONSEL 4
ENTRIP1 1
VFB1 2
VFB2 5
ENTRIP2 6
VREG3
8
DRVL1 19
VREG5
17
GND
15
VBST1 22
VIN
16
SKIPSEL
14
DRVL2
12
LL2
11
VO2
7
DRVH2
10 DRVH1 21
PGOOD 23
LL1 20
VCLK
18
VBST2
9
VO1 24
EN0
13
P PAD
25
PC316
680P_0603_50V7K@PC316
680P_0603_50V7K@
12
PC312
2200P_0402_50V7K
PC312
2200P_0402_50V7K
12
PL301
HCB2012KF-121T50_0805
PL301
HCB2012KF-121T50_0805
1 2
PR302
20K_0402_1%
PR302
20K_0402_1%
1 2
PR312
4.7_1206_5%@PR312
4.7_1206_5%@
12
PR305
30.9K_0402_1%
PR305
30.9K_0402_1%
1 2
PQ307A
SSM6N7002FU-2N_SOT363-6
PQ307A
SSM6N7002FU-2N_SOT363-6
61
2
PR306
20K_0402_1%
PR306
20K_0402_1%
1 2
PC304
4.7U_0805_25V6-K
PC304
4.7U_0805_25V6-K
12
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
1.8VSP_FB
1.8VSP_VIN
1.8VSP_LX
SNUB_1.8VSP
EN_1.8VSP
+1.8VSP
+1.8VSP +1.8VS
+5VALW
+3VALW
SUSP#<17,23,26,33>
+1.8VS_PG <26>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
30 35Friday, May 06, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
30 35Friday, May 06, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
30 35Friday, May 06, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
4019D2
<Vo=1.8V> VFB=0.6V
Vo=VFB*(1+PR401/PR402)=0.6*(1+20K/10K)=1.8V
(2A, 80mils, Via NO.= 4)
PR405
1M_0402_5%
@
PR405
1M_0402_5%
@
1 2
PL401
1UH_MMD-06CZ-1R0M-V1_11A_20%
PL401
1UH_MMD-06CZ-1R0M-V1_11A_20%
1 2
PJP401
PAD-OPEN 3x3m
PJP401
PAD-OPEN 3x3m
1 2
PU401
SY8033BDBC_DFN10_3X3
PU401
SY8033BDBC_DFN10_3X3
EN
5
PG 4
LX 3
FB 6
SVIN
8
TP
11
LX 2
PVIN
10
NC
7
PVIN
9
NC
1
PC404
68P_0402_50V8J
PC404
68P_0402_50V8J
1
2
PR406
100K_0402_1%
PR406
100K_0402_1%
1 2
PC402
22U_0805_6.3VAM
PC402
22U_0805_6.3VAM
12
PR404 47K_0402_1%PR404 47K_0402_1%
1 2
PC403
22U_0805_6.3VAM
PC403
22U_0805_6.3VAM
12
PL402
HCB2012KF-121T50_0805
PL402
HCB2012KF-121T50_0805
12
PC401
22U_0805_6.3VAM
PC401
22U_0805_6.3VAM
12
PC405
2200P_0402_25V7K
PC405
2200P_0402_25V7K
12
PR402
10K_0402_1%
PR402
10K_0402_1%
12
PR403
4.7_1206_5%
PR403
4.7_1206_5%
12
PR401
20K_0402_1%
PR401
20K_0402_1%
12
PC406
680P_0603_50V7K
PC406
680P_0603_50V7K
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TRIP_1.5V
LG_1.5V
UG_1.5V
BST1_1.5VBST_1.5V
TON_1.5V
EN_1.5V
V5FILT_1.5V+5VALW
LX_1.5V
SNUB_1.5V
+5VALW
VOUT_1.5V
+1.5V
+1.5VP
+1.5VP
1.5V_B+ B+
+1.5VP
+5VALW
+5VALW
+3VALW
+3VALW
+3VALW
DDR_VID <13>
SYSON<23>
+1.5VP_PWRGD
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
31 35Friday, May 06, 2011
2007/05/29 2008/05/29
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
31 35Friday, May 06, 2011
2007/05/29 2008/05/29
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
31 35Friday, May 06, 2011
2007/05/29 2008/05/29
Compal Electronics, Inc.
(6.5A,260mils ,Via NO.= 13)
DDR_VID
0
1
+1.5V
+1.35V
DDR voltage
+1.5VP
Imax=6.5A
Ipeak=9A
Iocp(minimum)=10.2A
Voltage Select
PC509
4.7U_0603_6.3V6M
PC509
4.7U_0603_6.3V6M
12
PC504
4.7U_0805_25V6-K
@PC504
4.7U_0805_25V6-K
@
12
PJP501
PAD-OPEN 4x4m
PJP501
PAD-OPEN 4x4m
1 2
PU501
S IC RT8209MGQW WQFN 14P PWM
PU501
S IC RT8209MGQW WQFN 14P PWM
VOUT
3
VDD
4
EN/DEM 1
TON
2
FB
5
PGOOD
6LGATE 9
UGATE 13
PHASE 12
GND
7
PGND
8
CS 11
VDDP 10
BOOT 14
NC 15
PR514
100K_0402_1%
1.35V@ PR514
100K_0402_1%
1.35V@
1 2
PC508
0.1U_0402_10V7K
PC508
0.1U_0402_10V7K
1 2
PR501
2.21K_0402_1%
PR501
2.21K_0402_1%
1 2
PQ502
IRF8707GTRPBF_SO8
PQ502
IRF8707GTRPBF_SO8
4
6
1
2
35
7
8
PR516
162K_0402_1%
1.35V@PR516
162K_0402_1%
1.35V@
1 2
PR503
0_0402_5%
PR503
0_0402_5%
12
PQ501
AON7408L_DFN8-5
PQ501
AON7408L_DFN8-5
3 5
2
4
1
PR505 0_0402_5%PR505 0_0402_5%
1 2
PR517
100K_0402_1%
@PR517
100K_0402_1%
@
12
PR511
4.7K_0402_5%
1.35V@PR511
4.7K_0402_5%
1.35V@
12
PR515
180K_0402_1%
1.35V@ PR515
180K_0402_1%
1.35V@
1 2
PL501
2.2UH_MMD-06CZ-2R2M-V1_8A_20%
PL501
2.2UH_MMD-06CZ-2R2M-V1_8A_20%
1 2
PR504
2.2_0603_5%
PR504
2.2_0603_5%
12
PQ503
PMBT2222A_SOT23-3
1.35V@ PQ503
PMBT2222A_SOT23-3
1.35V@
1
2
3
G
D
S
PQ504
2N7002W-T/R7_SOT323-3
1.35V@
G
D
S
PQ504
2N7002W-T/R7_SOT323-3
1.35V@
2
13
PR507
100_0603_1%
PR507
100_0603_1%
1 2
PC507
0.1U_0402_25V6
PC507
0.1U_0402_25V6
12
PC502
0.1U_0402_16V7K
1.35V@ PC502
0.1U_0402_16V7K
1.35V@
12
PR509
4.7_1206_5%
PR509
4.7_1206_5%
12
PC510
4.7U_0805_10V6K
PC510
4.7U_0805_10V6K
12
PR506
255K_0402_1%
PR506
255K_0402_1%
1 2
PR512
100K_0402_1%
1.35V@ PR512
100K_0402_1%
1.35V@
1 2
PC503
10U_0805_25V6K
PC503
10U_0805_25V6K
1
2
+
PC501
220U_D2_2VY_R15M
+
PC501
220U_D2_2VY_R15M
1
2
PC512
0.01U_0402_25V7K
1.35V@ PC512
0.01U_0402_25V7K
1.35V@
12
PR502
2.15K_0402_1%
PR502
2.15K_0402_1%
12
PR513
10K_0402_5%
1.35V@PR513
10K_0402_5%
1.35V@
12
PL502
HCB2012KF-121T50_0805
PL502
HCB2012KF-121T50_0805
12
PR508 15K_0402_1%PR508 15K_0402_1%
1 2
PC506
2200P_0402_50V7K
PC506
2200P_0402_50V7K
12
PC511
680P_0603_50V7K
PC511
680P_0603_50V7K
12
PC505
0.1U_0402_10V7K@
PC505
0.1U_0402_10V7K@
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TRIP_1.1V
LG_1.1V
UG_1.1V
BST1_1.1VBST_1.1V
TON_1.1V
FB_1.1V
EN_1.1V
V5FILT_1.1V+5VALW
LX_1.1V
SNUB_1.1V
+5VALW
VOUT_1.1V
+1.1VALW
+1.1VALWP
+1.1VALWP
1.1V_B+ B+
+1.1VALWP
+1.1VALWP
+5VALW
+5VALW
+3VALW
POK<27,29>
+1.1VAlwP_PWRGD
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
32 35Friday, May 06, 2011
2007/05/29 2008/05/29
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
32 35Friday, May 06, 2011
2007/05/29 2008/05/29
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
32 35Friday, May 06, 2011
2007/05/29 2008/05/29
Compal Electronics, Inc.
(7A,280mils ,Via NO.=14)
+1.1VALWP
Imax=7A
Ipeak=9.93A
Iocp(minimum)=11.3A
PC707
0.1U_0402_10V7K
PC707
0.1U_0402_10V7K
1 2
PR707
100_0603_1%
PR707
100_0603_1%
1 2
PC705
2200P_0402_50V7K
PC705
2200P_0402_50V7K
12
PR703
0_0402_5%
PR703
0_0402_5%
12
PC708
4.7U_0603_6.3V6M
PC708
4.7U_0603_6.3V6M
12
PC709
4.7U_0805_10V6K
PC709
4.7U_0805_10V6K
12
PC703
4.7U_0805_25V6-K
@
PC703
4.7U_0805_25V6-K
@
12
PC706
0.1U_0402_25V6
PC706
0.1U_0402_25V6
12
+
PC701
220U_D2_2VY_R15M
+
PC701
220U_D2_2VY_R15M
1
2
PJP701
PAD-OPEN 4x4m
PJP701
PAD-OPEN 4x4m
1 2
PC704
0.1U_0402_10V7K
@PC704
0.1U_0402_10V7K
@
12
PQ702
FDS6690AS-G_SO8
PQ702
FDS6690AS-G_SO8
3 6
5
7
8
2
4
1
PR709
4.7_1206_5%@
PR709
4.7_1206_5%@
12
PR704
0_0402_5%
PR704
0_0402_5%
1 2
PR710
100K_0402_1%
@
PR710
100K_0402_1%
@
1 2
PR705
255K_0402_1%
PR705
255K_0402_1%
1 2
PR706 0_0402_5%PR706 0_0402_5%
1 2
PL702
HCB2012KF-121T50_0805
PL702
HCB2012KF-121T50_0805
12
PU701
S IC RT8209MGQW WQFN 14P PWM
PU701
S IC RT8209MGQW WQFN 14P PWM
VOUT
3
VDD
4
EN/DEM 1
TON
2
FB
5
PGOOD
6LGATE 9
UGATE 13
PHASE 12
GND
7
PGND
8
CS 11
VDDP 10
BOOT 14
NC 15
PC710
680P_0603_50V7K@ PC710
680P_0603_50V7K@
12
PR701
4.64K_0402_1%
PR701
4.64K_0402_1%
1 2
PL701
1UH_MMD-06CZ-1R0M-V1_11A_20%
PL701
1UH_MMD-06CZ-1R0M-V1_11A_20%
1 2
PC702
10U_0805_25V6K
PC702
10U_0805_25V6K
1
2
PQ701
AON7408L_DFN8-5
PQ701
AON7408L_DFN8-5
3 5
2
4
1
PR702
10K_0402_1%
PR702
10K_0402_1%
12
PR708 15K_0402_1%PR708 15K_0402_1%
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
0.75VS_N_002
VREF_G2992
1.5VSP_EN 1.5VS_FB
SUSP
1.5VSP_EN 1.5VS_FB
+0.75VS
+0.75VSP
+3VALW
+0.75VSP
+1.5V
+1.5VSP +1.5VS
+3VS
+1.5VSP
+1.8VSP
+5VALW
+1.0VS
+1.0VSP
+1.1VALW +1.0VSP
+VSB
+1.0VP
+1.1VALW
+5VALW
+3VS
+1.0VS
+1.0VP
SUSP<26>
1.5VS_POK
SUSP#<17,23,26,30>
1.0VSP_POK
SUSP#<17,23,26,30>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
33 35Friday, May 06, 2011
2006/11/23 2007/11/23
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
33 35Friday, May 06, 2011
2006/11/23 2007/11/23
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
4019D2
B
SCHEMATIC MB A7491
33 35Friday, May 06, 2011
2006/11/23 2007/11/23
Compal Electronics, Inc.
(2A,80mils ,Via NO.= 4)
(2A,120mils ,Via NO.= 4)
For low power DDR 1.35V, WLAN need 1.5V support
(5A,200mils ,Via NO.= 10)
+1.1VALW TO +1.0VSP
double check sequence
Reserve 1.0VSP backup solution
(5A,200mils ,Via NO.= 10)
Follow HW request 1.0V change to 1.05V 0824
Follow HW request 1.0V change to 1.05V 0824
FB=0.8V
PJP603
PAD-OPEN 3x3m
PJP603
PAD-OPEN 3x3m
1 2
PC608
4.7U_0603_6.3V6K
PC608
4.7U_0603_6.3V6K
12
PR602
1K_0402_1%
PR602
1K_0402_1%
12
PQ601
IRF8707GTRPBF_SO8
PQ601
IRF8707GTRPBF_SO8
4
6
1
2
3
5
7
8
PC616
47P_0402_50V8J@
PC616
47P_0402_50V8J@
12
PC609
4.7U_0603_6.3V6K
PC609
4.7U_0603_6.3V6K
12
PR616
31.6K_0402_1%
@PR616
31.6K_0402_1%
@
12
PR612
39.2K_0402_1%
@PR612
39.2K_0402_1%
@
12
PR617
10K_0402_5%
@PR617
10K_0402_5%
@
1 2
G
D
S
PQ602
SSM3K7002FU_SC70-3
G
D
S
PQ602
SSM3K7002FU_SC70-3
2
13
PR601
1K_0402_1%
PR601
1K_0402_1%
12
G
D
S
PQ603
SSM3K7002FU_SC70-3
G
D
S
PQ603
SSM3K7002FU_SC70-3
2
13
PR605
330K_0402_5%
PR605
330K_0402_5%
12
PJP604
PAD-OPEN 4x4m
PJP604
PAD-OPEN 4x4m
1 2
PC615
0.1U_0402_10V7K
@PC615
0.1U_0402_10V7K
@
12
PC619
10U_0805_10V6K
@PC619
10U_0805_10V6K
@
12
PU603
APL5930KAI-TRG_SO8
@
PU603
APL5930KAI-TRG_SO8
@
VIN
9
EN
8
VCNTL
6
VIN
5
POK
7
GND
1
FB 2
VOUT 4
VOUT 3
PC604
0.1U_0402_16V7K
PC604
0.1U_0402_16V7K
12
PC607
0.1U_0402_25V6
PC607
0.1U_0402_25V6
12
PR610
10K_0402_1%
@
PR610
10K_0402_1%
@
12
PR611
10K_0402_1%
@
PR611
10K_0402_1%
@
12
PC613
1U_0603_10V6K
@PC613
1U_0603_10V6K
@
12
PC602
1U_0402_6.3V6K
PC602
1U_0402_6.3V6K
12
PC617
22U_0805_6.3V6M
@PC617
22U_0805_6.3V6M
@
12
PC618
22U_0805_6.3V6M
@PC618
22U_0805_6.3V6M
@
12
PC614
10U_0805_10V6K
@PC614
10U_0805_10V6K
@
12
PR614
10K_0402_5%@
PR614
10K_0402_5%@
1 2
PJP602
PAD-OPEN 4x4m
PJP602
PAD-OPEN 4x4m
1 2
PR604
10K_0402_1%
PR604
10K_0402_1%
1 2
PC621
0.1U_0402_10V7K
@PC621
0.1U_0402_10V7K
@
12
PR613
0_0402_5%
@ PR613
0_0402_5%
@
1 2
PU601
G2992F1U_SO8
PU601
G2992F1U_SO8
VOUT
4
NC 5
GND
2
VREF
3
VIN
1VCNTL 6
NC 7
NC 8
TP 9
PC603
1U_0603_10V6K
PC603
1U_0603_10V6K
12
PC606
0.1U_0402_10V7K
PC606
0.1U_0402_10V7K
12
PJP601
PAD-OPEN 3x3m
PJP601
PAD-OPEN 3x3m
1 2
PU604
APL5916KAI-TRL_SO8
@PU604
APL5916KAI-TRL_SO8
@
VIN
9
EN
8
VCNTL
6
VIN
5
POK
7
GND
1
FB 2
VOUT 4
VOUT 3
PR603
47K_0402_5%
PR603
47K_0402_5%
1 2
PC605
10U_0805_6.3V6M
PC605
10U_0805_6.3V6M
12
PC601
4.7U_0805_6.3V6K
PC601
4.7U_0805_6.3V6K
12
PC622
33P_0402_50V8J
@
PC622
33P_0402_50V8J
@
12
PC620
1U_0603_10V6K
@PC620
1U_0603_10V6K
@
12
PR615
0_0402_5%
@PR615
0_0402_5%
@
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
COMP_NB
VFIX/DRPSEL
RGND_NB
OCSET
FB_NB
COMP
TON
OCSET_NB
VFIX/DRPSEL
OCSET_NB
BOOT0
UGATE0
PHASE0
LGATE0
BOOT0
ISP0
ISN0
TON
PHASE_NB
UGATE_NB
LGATE_NB
TON_NB
ISP_NB
BOOT_NB
SNUB_NB
LGATE0
ISN_NB
RGND_NB
ENABLE
COMP_NB
FB_NB
UGATE0
ISP0
PHASE0
SNUB_CPU
TON_NB
VCC
ISN0
ISP_NB
ISP1
ISN_NB
RBIAS
LGATE_NB
ISN1
PGOOD
PHASE_NB
RGND
UGATE_NB
FB
PVCC
BOOT_NB
+CPU_CORE 7
+CPU_CORE_NB7
CPU_B+
B+
+5VS
+5VS
+1.5V
CPU_B+
+5VS
+5VS
+5VS
+3VS
+3VS
+CPU_CORE
+CPU_CORE_NB
VGATE<15,23>
FCH_PWROK<15>
APU_PWRGD_CORE<14>
APU_SVD<5>
APU_SVC<5>
VR_ON_EC<23>
VDDCR_NB_SENSE_H
<5>
VDDCR_NB_SENSE_L
<5>
VDDCR_APU_SENSE_H
<5>
VDDCR_APU_SENSE_L
<5>
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
C
34 34Friday, May 06, 2011
2008/9/25 2009/9/25
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
C
34 34Friday, May 06, 2011
2008/9/25 2009/9/25
Compal Electronics, Inc.
4019D2
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
C
34 34Friday, May 06, 2011
2008/9/25 2009/9/25
Compal Electronics, Inc.
4019D2
+CPU_CORE_NB
Imax=7A
Ipeak=10A
Iocp(minimum)=12A
DCR=10mohm
Rdson = 22mohm
(10A, 400mils, via no = 20)
10uF_0603 * 6
1uF_0402 * 5
0.1uF_0402 * 4
180P_0402 * 2
390uF * 1
Reserve 390uF
+CPU_CORE
Imax=7.7A
Ipeak=11A
Iocp(minimum)=13.2A
DCR=4.2mohm
Rdson = 7mohm
10uF_0603 * 7
1uF_0402 * 4
0.1uF_0402 * 5
180P_0402 * 2
390uF * 3
Reserve 330uF * 2
(14A, 560mils, via no = 28)
PR247
1_0402_5%
PR247
1_0402_5%
12
PR234
0_0402_5%
PR234
0_0402_5%
12
PR240
22K_0402_1%
PR240
22K_0402_1%
1 2
PC226
68P_0402_50V8J
PC226
68P_0402_50V8J
1 2
+
PC24868U_25V_M_R0.44@
+
PC24868U_25V_M_R0.44@
1
2
PR221
0_0402_5%
PR221
0_0402_5%
1 2
PC216
0.22U_0603_10V7K
PC216
0.22U_0603_10V7K
12
PR220
0_0402_5%
PR220
0_0402_5%
1 2
PR217
0_0402_5%
PR217
0_0402_5%
12
PQ206
AON7408L_DFN8-5
PQ206
AON7408L_DFN8-5
3 5
2
4
1
PC250
0.1U_0402_25V6
PC250
0.1U_0402_25V6
12
PR207
1_0402_5%
PR207
1_0402_5%
12
PC238
68P_0402_50V8J
@PC238
68P_0402_50V8J
@
1 2
PL204
0.47UH_MMD-06CZ-R47M-V1_17.5A_20%
PL204
0.47UH_MMD-06CZ-R47M-V1_17.5A_20%
1 2
PC234
0.01U_0402_25V7K
PC234
0.01U_0402_25V7K
1 2
PC244
10U_0805_25V6K
PC244
10U_0805_25V6K
1
2
PR231
47K_0402_1%
PR231
47K_0402_1%
1 2
PR236
100_0402_5%
PR236
100_0402_5%
12
PQ205
AON6788_DFN8-5
PQ205
AON6788_DFN8-5
3 5
2
4
1
PR226
100_0402_5%
PR226
100_0402_5%
12
PC230
0.1U_0402_25V6
PC230
0.1U_0402_25V6
1 2
PR237
51_0402_1%@ PR237
51_0402_1%@
1 2
PC206
0.1U_0402_25V6
PC206
0.1U_0402_25V6
12
PR239
5.1K_0402_1%
PR239
5.1K_0402_1%
1 2
PR254
10K_0402_1%
@PR254
10K_0402_1%
@
1 2
PC229
68P_0402_50V8J
@PC229
68P_0402_50V8J
@
1 2
PQ203
AO4468L_SO8
PQ203
AO4468L_SO8
4
7
8
6
5
1
2
3
PR224
0_0402_5%
PR224
0_0402_5%
1 2
PR208
100K_0402_1%
PR208
100K_0402_1%
1 2
PU201
RT8870AZQW_WQFN40_5X5
PU201
RT8870AZQW_WQFN40_5X5
SVC
3
SVD
4
RBIAS
1
EN
2
PWORK
5
PGOOD
6
OCSET_NB
8
UGATE_NB
19
LGATE_NB
17
RGND_NB
15
UGATE0 22
PGND_NB
16
ISN_NB
14
TON_NB
12
COMP_NB
11
VFIX/DRPSEL
7
FB_NB
10 BOOT0 21
PHASE0 23
BOOT_NB
20
PHASE_NB
18
VCC
9
PGND0 24
ISP_NB
13
PVCC 26
LGATE1 27
PGND1 28
PHASE1 29
UGATE1 30
ISN1 32
ISP1 33
RGND 34
ISN0 35
ISP0 36
TON 37
COMP 38
FB 39
OCSET 40
GND 41
LGATE0 25
BOOT1 31
PC204
4.7U_0805_25V6-K@PC204
4.7U_0805_25V6-K@
12
PC241
0.1U_0402_25V6
PC241
0.1U_0402_25V6
1 2
PR256
10K_0402_1%
PR256
10K_0402_1%
1 2
PR225
100_0402_5%
PR225
100_0402_5%
1 2
PC239
68P_0402_50V8J
@PC239
68P_0402_50V8J
@
1 2
PC220
680P_0603_50V7K@PC220
680P_0603_50V7K@
12
PC251
680P_0603_50V7K@PC251
680P_0603_50V7K@
12
PR232
10K_0402_1%
PR232
10K_0402_1%
1 2
PR244
2.43K_0402_1%
PR244
2.43K_0402_1%
1 2
PR250
2_0603_5%
PR250
2_0603_5%
12
PC231
0.01U_0402_25V7K
PC231
0.01U_0402_25V7K
1 2
PR238
0_0402_5%
PR238
0_0402_5%
1 2
PC237
68P_0402_50V8J
@PC237
68P_0402_50V8J
@
1 2
PC223
0.1U_0402_25V6
PC223
0.1U_0402_25V6
1 2
PR233 0_0402_5%@PR233 0_0402_5%@
1 2
PR255
10K_0402_1%
PR255
10K_0402_1%
1 2
+
PC218
220U_D2_2VY_R15M
+
PC218
220U_D2_2VY_R15M
1
2
PR213
2K_0402_1%
PR213
2K_0402_1%
12
PC246
4.7U_0805_25V6-K
@PC246
4.7U_0805_25V6-K
@
12
PC236
470P_0402_50V8J
PC236
470P_0402_50V8J
1 2
PR230
0_0402_5%
PR230
0_0402_5%
12
PC240
0.22U_0603_10V7K
PC240
0.22U_0603_10V7K
12
PR227
0_0402_5%
PR227
0_0402_5%
1 2
PC245
0.1U_0402_25V6
PC245
0.1U_0402_25V6
12
PC203
1U_0603_10V6K
PC203
1U_0603_10V6K
12
PC227
68P_0402_50V8J
@PC227
68P_0402_50V8J
@
1 2
PR242
2.43K_0402_1%
PR242
2.43K_0402_1%
1 2
PR219
100_0402_5%
PR219
100_0402_5%
1 2
PR252
10K_0402_1%
PR252
10K_0402_1%
1 2
PR202
2_0603_5%
PR202
2_0603_5%
12
PR206
2.2_0603_5%
PR206
2.2_0603_5%
12
PR246
0_0402_5%
PR246
0_0402_5%
1 2
PC243
2200P_0402_50V7K
PC243
2200P_0402_50V7K
12
PR222
10K_0402_1%
PR222
10K_0402_1%
1 2
PR249
4.7_1206_5%
@PR249
4.7_1206_5%
@
12
PR210
4.7_1206_5%@
PR210
4.7_1206_5%@
12
PR248
2.2_0603_5%
PR248
2.2_0603_5%
12
PR205
130K_0402_1%
PR205
130K_0402_1%
12
PC211
2200P_0402_50V7K
PC211
2200P_0402_50V7K
12
PC232
0.01U_0402_25V7K
PC232
0.01U_0402_25V7K
1 2
PR253
7.15K_0402_1%
PR253
7.15K_0402_1%
1 2
PC242
0.1U_0402_25V6
PC242
0.1U_0402_25V6
1 2
PC215
0.1U_0402_25V6
PC215
0.1U_0402_25V6
12
PC235
68P_0402_50V8J
PC235
68P_0402_50V8J
1 2
PC252
1U_0603_10V6K
PC252
1U_0603_10V6K
12
PR228
10K_0402_1%
PR228
10K_0402_1%
1 2
PR251
8.2K_0402_1%
PR251
8.2K_0402_1%
1 2
PC253
0.01U_0402_25V7K
PC253
0.01U_0402_25V7K
1 2
PC249
2200P_0402_50V7K
PC249
2200P_0402_50V7K
12
PR245
110K_0402_1%
PR245
110K_0402_1%
1 2
PL205
HCB2012KF-121T50_0805
PL205
HCB2012KF-121T50_0805
12
PR223
47K_0402_1%
PR223
47K_0402_1%
1 2
PQ202
AON7408L_DFN8-5
PQ202
AON7408L_DFN8-5
3 5
2
4
1
PL202
1UH_MMD-06CZ-1R0M-V1_11A_20%
PL202
1UH_MMD-06CZ-1R0M-V1_11A_20%
1 2
PR241 51_0402_1%@PR241 51_0402_1%@
1 2
PR229
33K_0402_1%
PR229
33K_0402_1%
1 2
+
PC24768U_25V_M_R0.44@
+
PC24768U_25V_M_R0.44@
1
2
PC222
0.1U_0402_25V6
PC222
0.1U_0402_25V6
1 2
PC205
10U_0805_25V6K
PC205
10U_0805_25V6K
1
2
PC225
470P_0402_50V8J
PC225
470P_0402_50V8J
1 2
PR235 0_0402_5%PR235 0_0402_5%
1 2
PC228
68P_0402_50V8J
@PC228
68P_0402_50V8J
@
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
35 35Friday, May 06, 2011
Compal Electronics, Inc.
4019CQ
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
35 35Friday, May 06, 2011
Compal Electronics, Inc.
4019CQ
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
B
SCHEMATIC MB A7491
Custom
35 35Friday, May 06, 2011
Compal Electronics, Inc.
4019CQ
Change PQ205 from AO4726L AON6788
24
22
25
15
Reason for change
Version Change List ( P. I. R. List ) for Power Circuit
Page# Rev.modifyItem phase
1
2
3
16
17
18
19
Description
Change PQ205 from AO4726L AON6788
4
5
6
7
20
21
8
9
10
11
12
13
14
Follow ME request change PQ205 for height issue
31
34
Follow EMI request to add PR54, PR59, PC511
for EMI issue. add PR54, PR59, PC511 PVT add PR54, PR59, PC511
PVT
28 For common desgin Pre-MP Remove PC107
Pre-MPFor common desgin PR110 from 47K change to 200K
Delete PC107
PR110 from 47K change to 200K
For common desgin Pre-MPPR112 from 10K change to 47K PR110 from 10K change to 47K
28
28
