Connector Installation Guide

Compression and Mechanical

Connectors

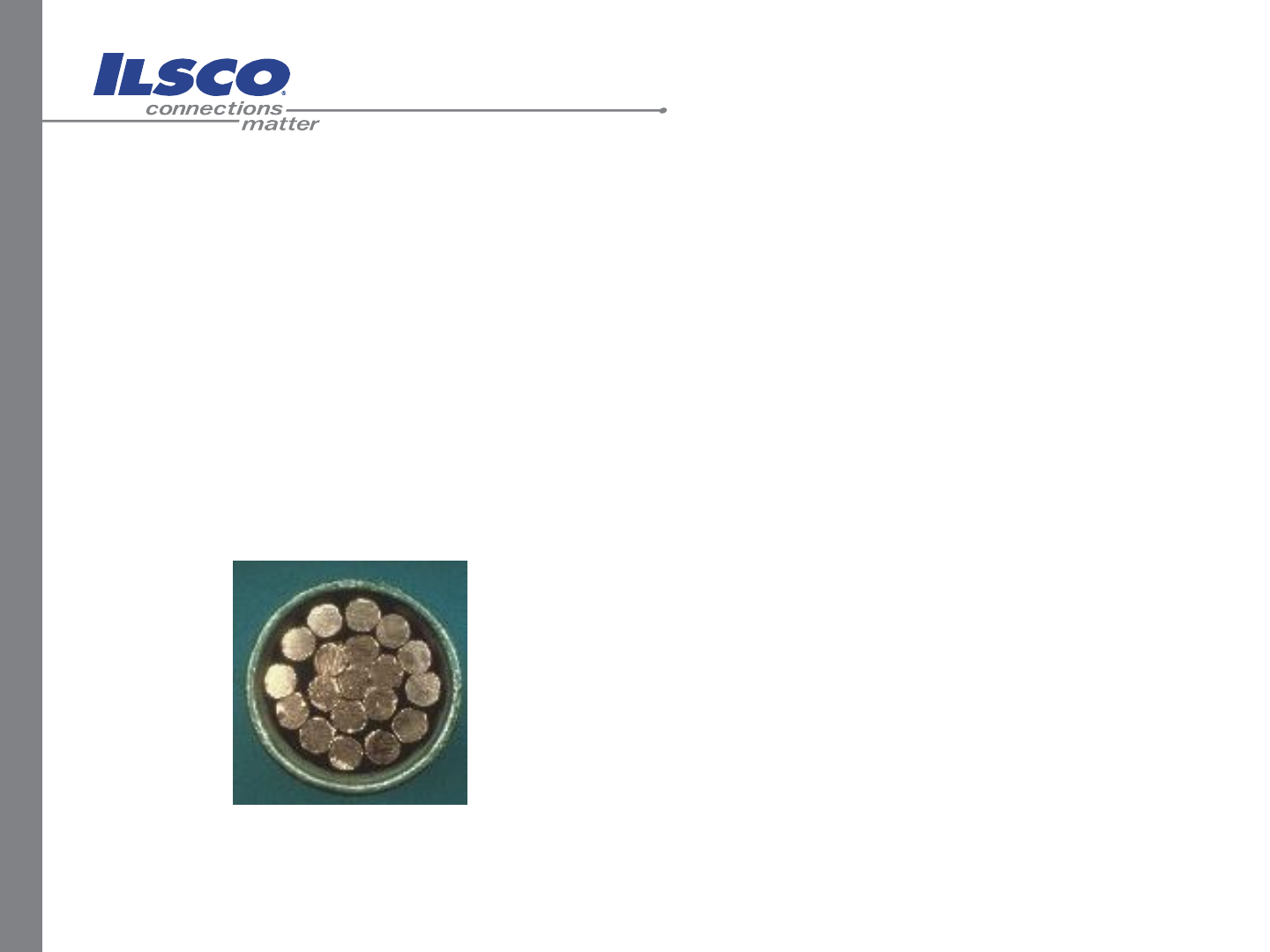

Typical Cross Section of a

Compression Connector Before

Installation

Before compression, a

typical cross section of

cable consists of 75%

metal and 25% air

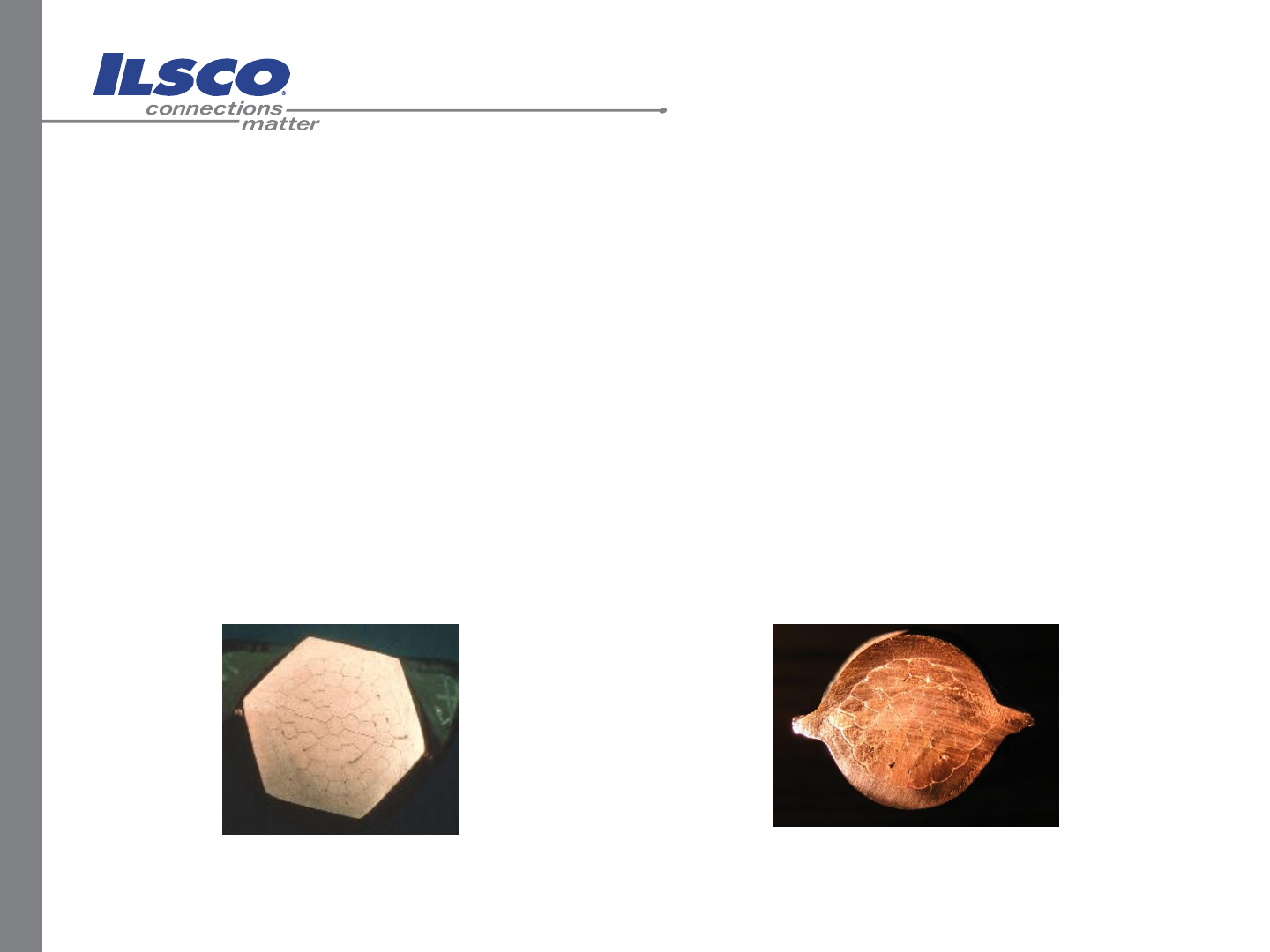

Typical Cross Section of a

Compression Connector After

Installation

After compression, little air is left.

1 - 2 hole lug

H-Taps

C-Taps Narrow Tongue

Single & Dual

Mounting holes

Grid Grounding

Splices

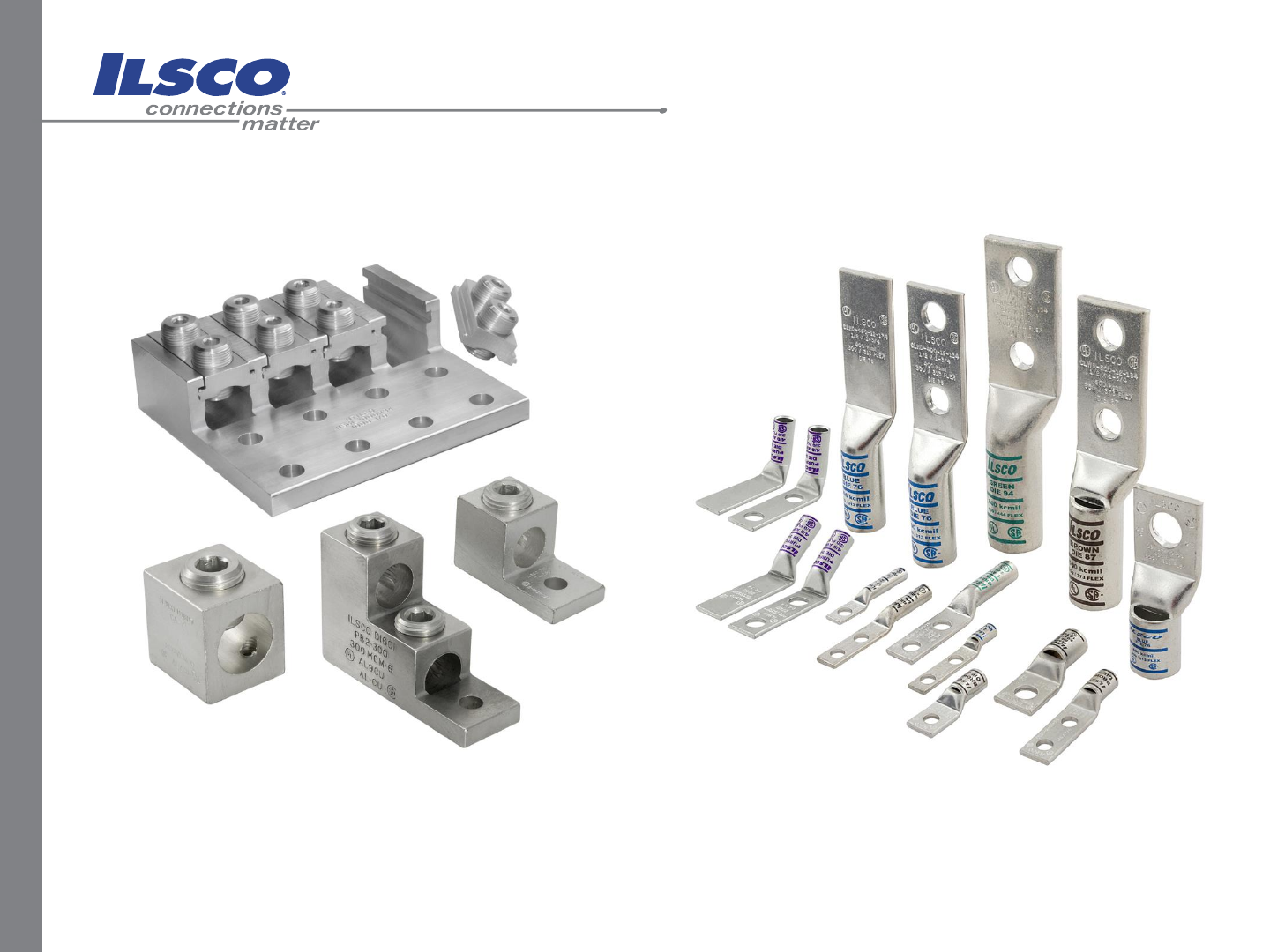

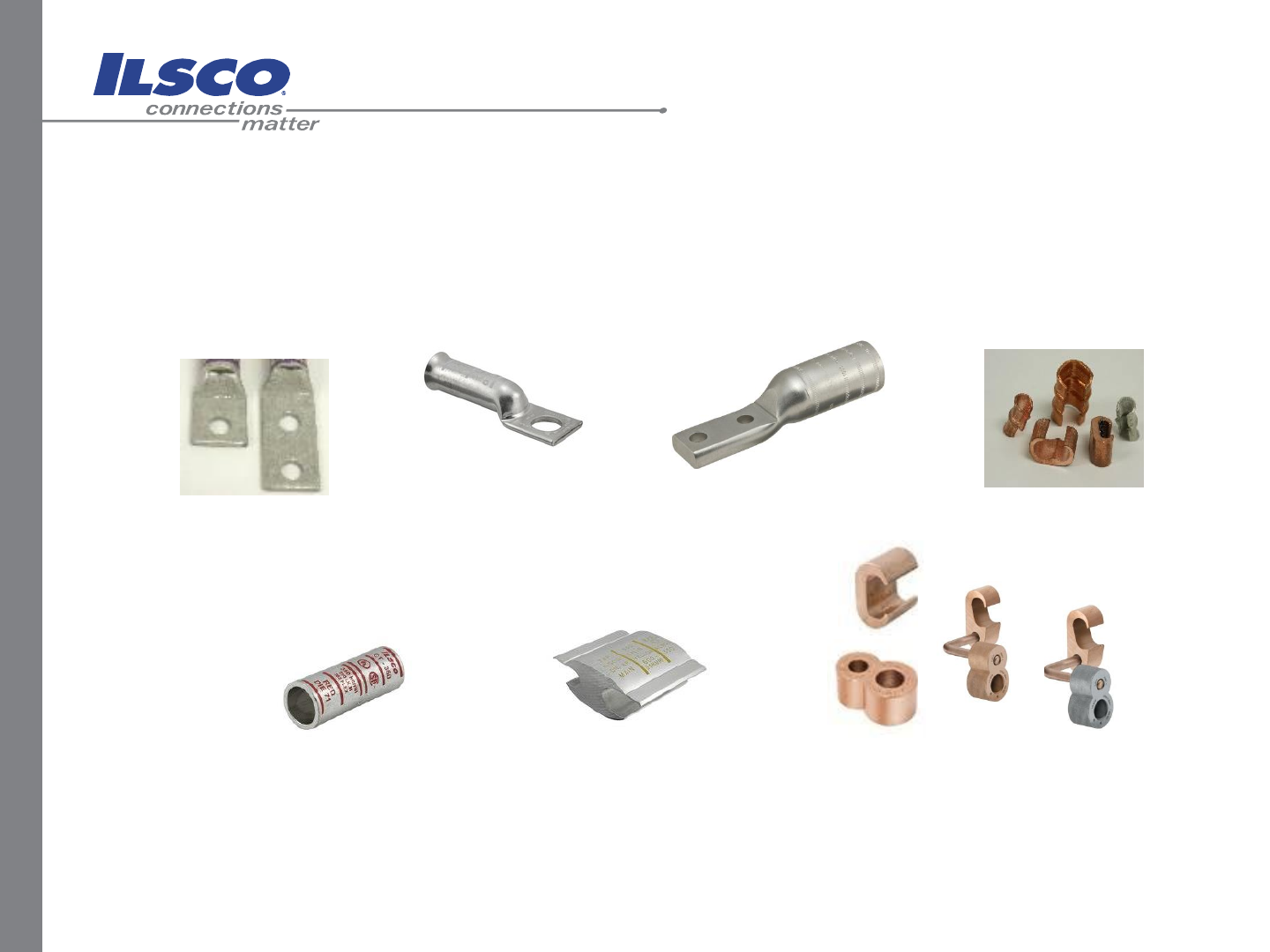

Compression

Connector Types

Flared-End

1. Determine Proper Connector For Cable

•Conductor size and CU = Copper conductors only

•Conductor size and “AL9” = Aluminum conductors only

•Conductor size and “AL9CU” = Aluminum or Copper

conductors

•Match size and type of conductor to proper lug

Note: Consult manufacturers instructions on whether fine stranded conductors

or welding cable conductor types may be used.

•Manufacturer

•Wire Size

•Wire material- CU, AL, or AL9CU (indicates

Dual Rating and 90° C)

•Optional Crimp Indicator Bands

•Listing Information

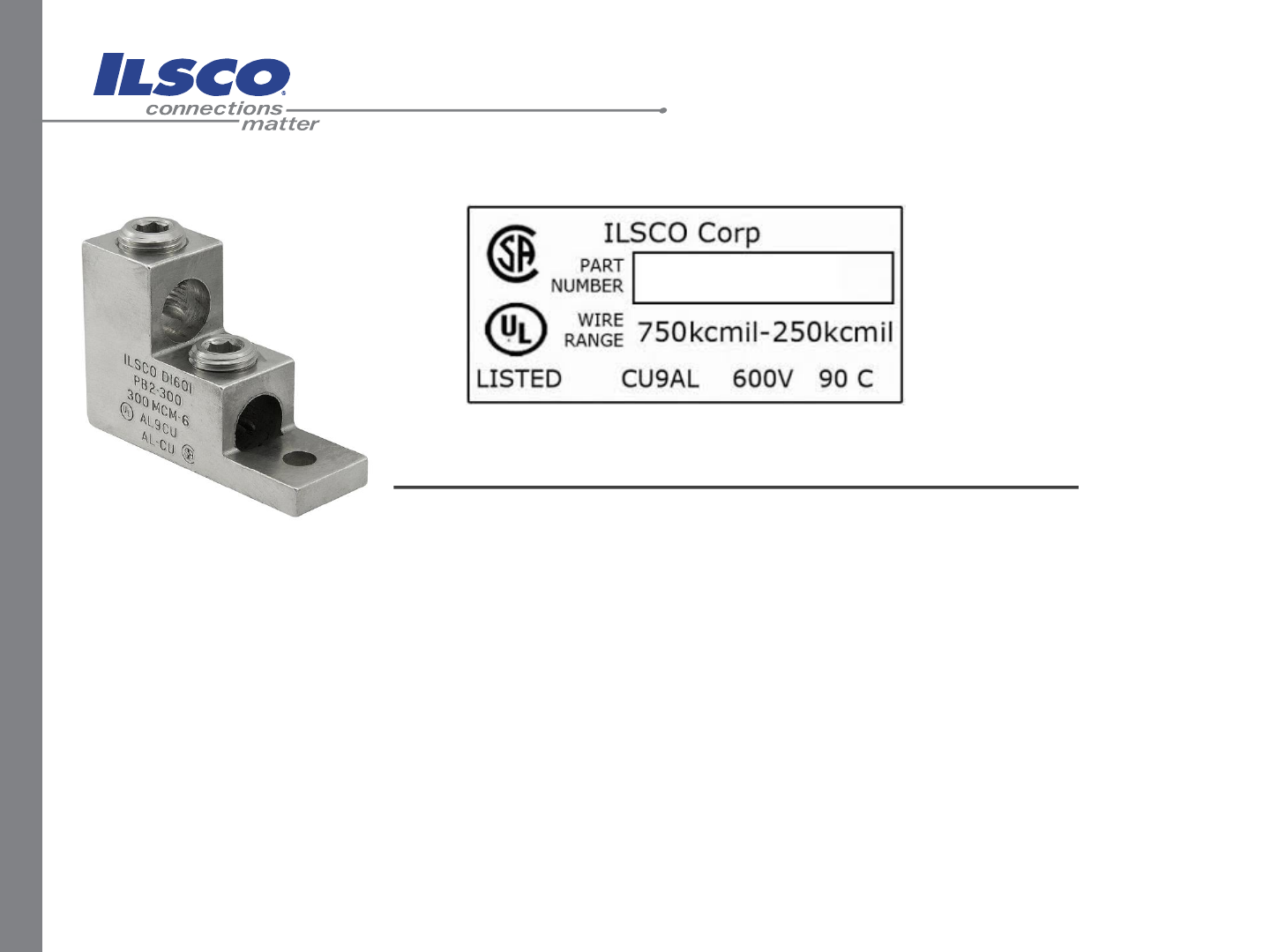

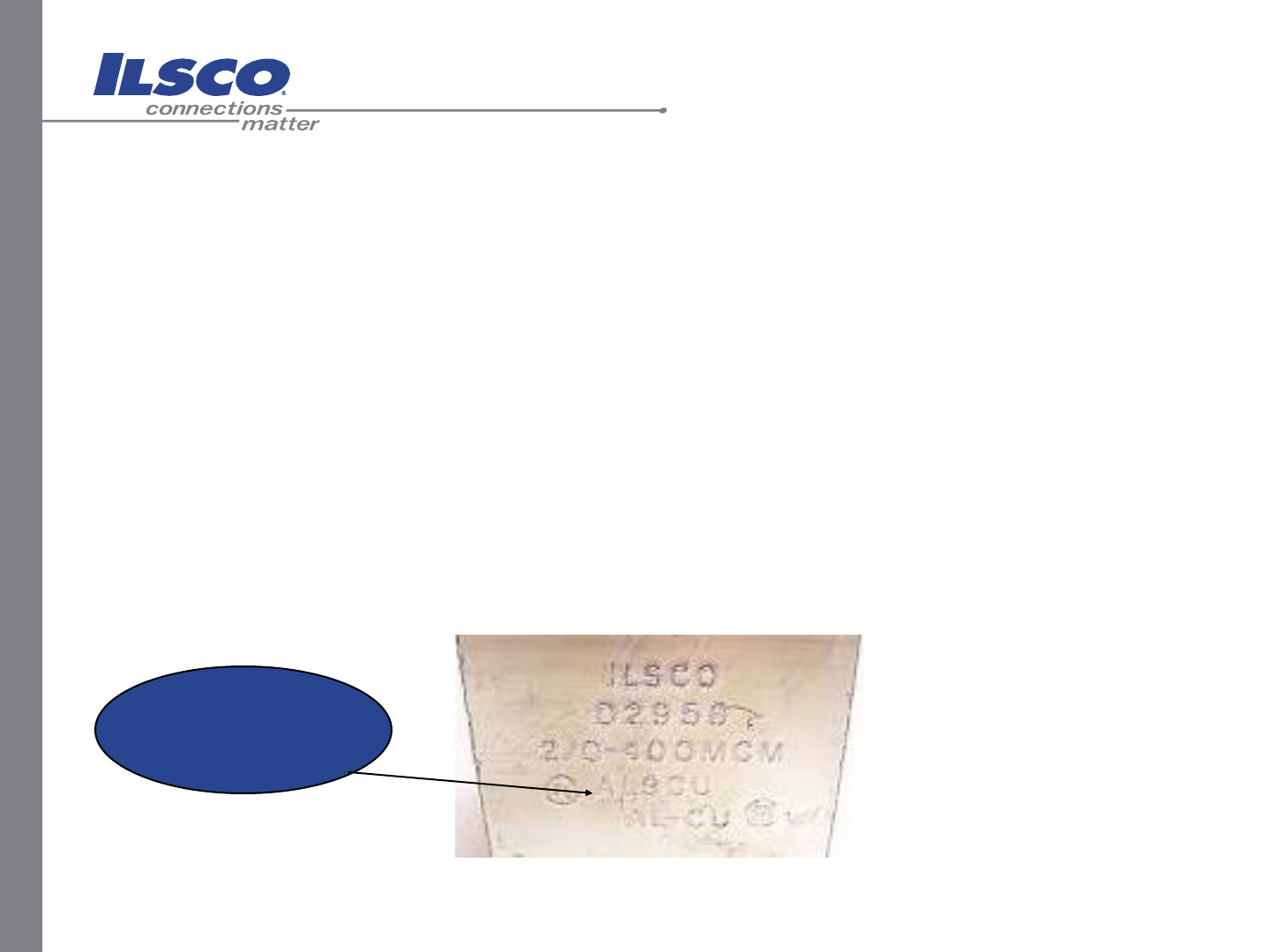

Marking Information on Connectors:

2. Strip and Properly Prepare Cable

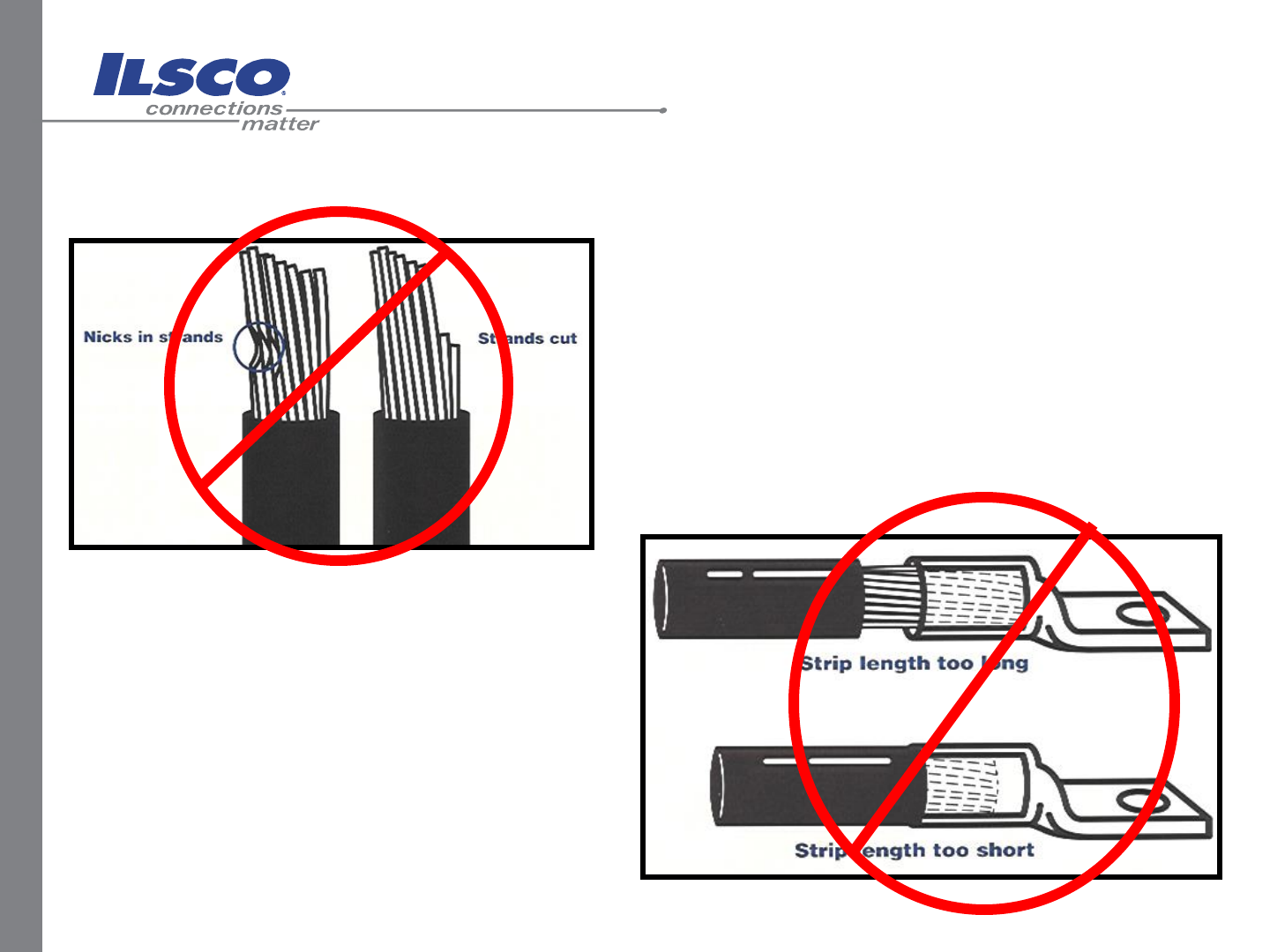

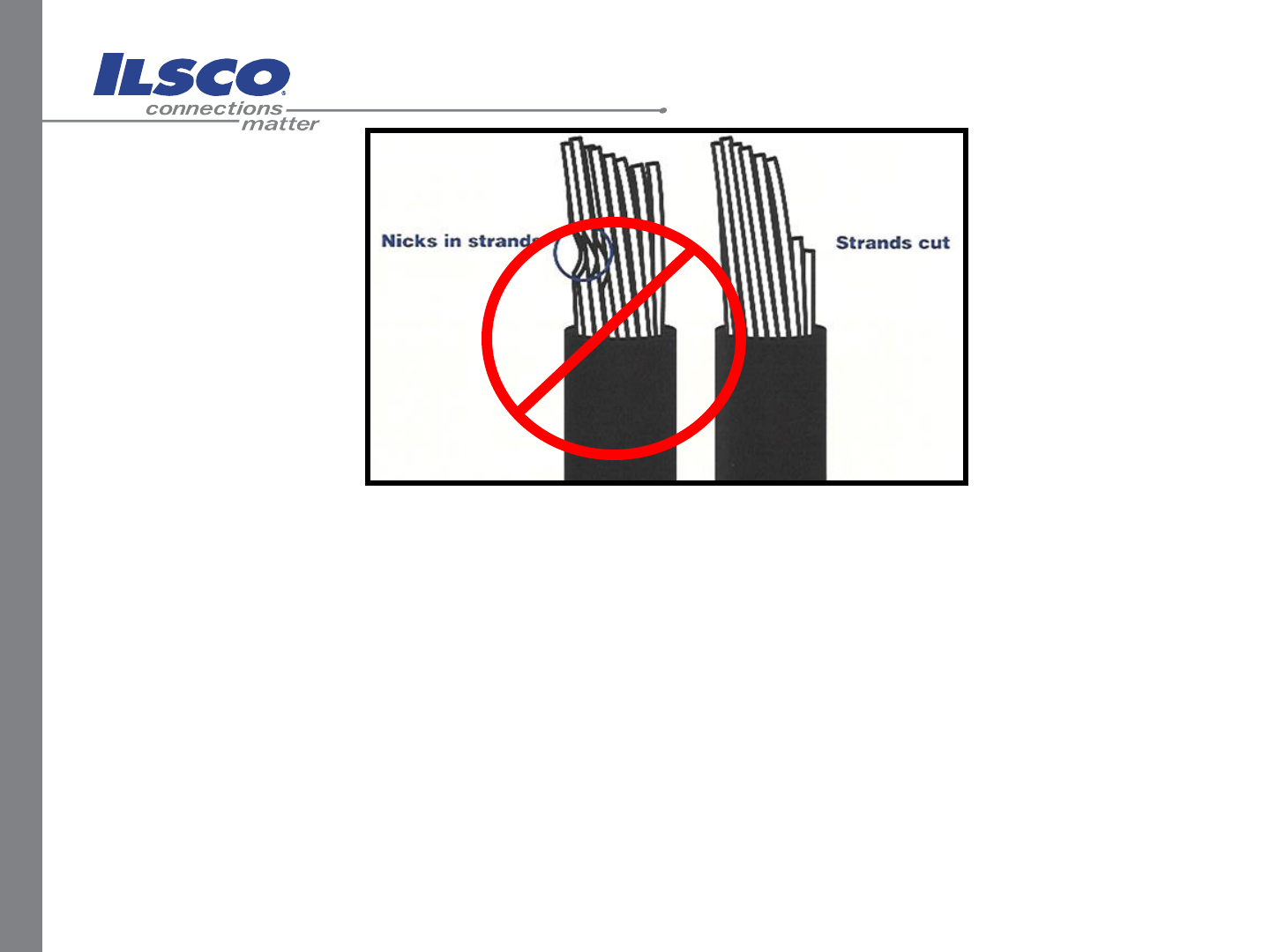

•Strip insulation carefully to avoid nicking strands.

•Strip to proper length so conductor can be fully inserted.

•Refer to manufacturer’s instructions for strip length.

•Most connectors are suitable for one conductor. Never

install more than one conductor unless specifically

allowed by the manufacturer’s instructions.

Aluminum Conductor –

•Brush the stripped portion of the conductor to

remove oxide film using a stainless steel wire brush.

•Apply oxide inhibitor compound and wire brush into

the stranding. Do not remove pre-filled inhibitor from

the barrel.

Installation Guide for

Compression

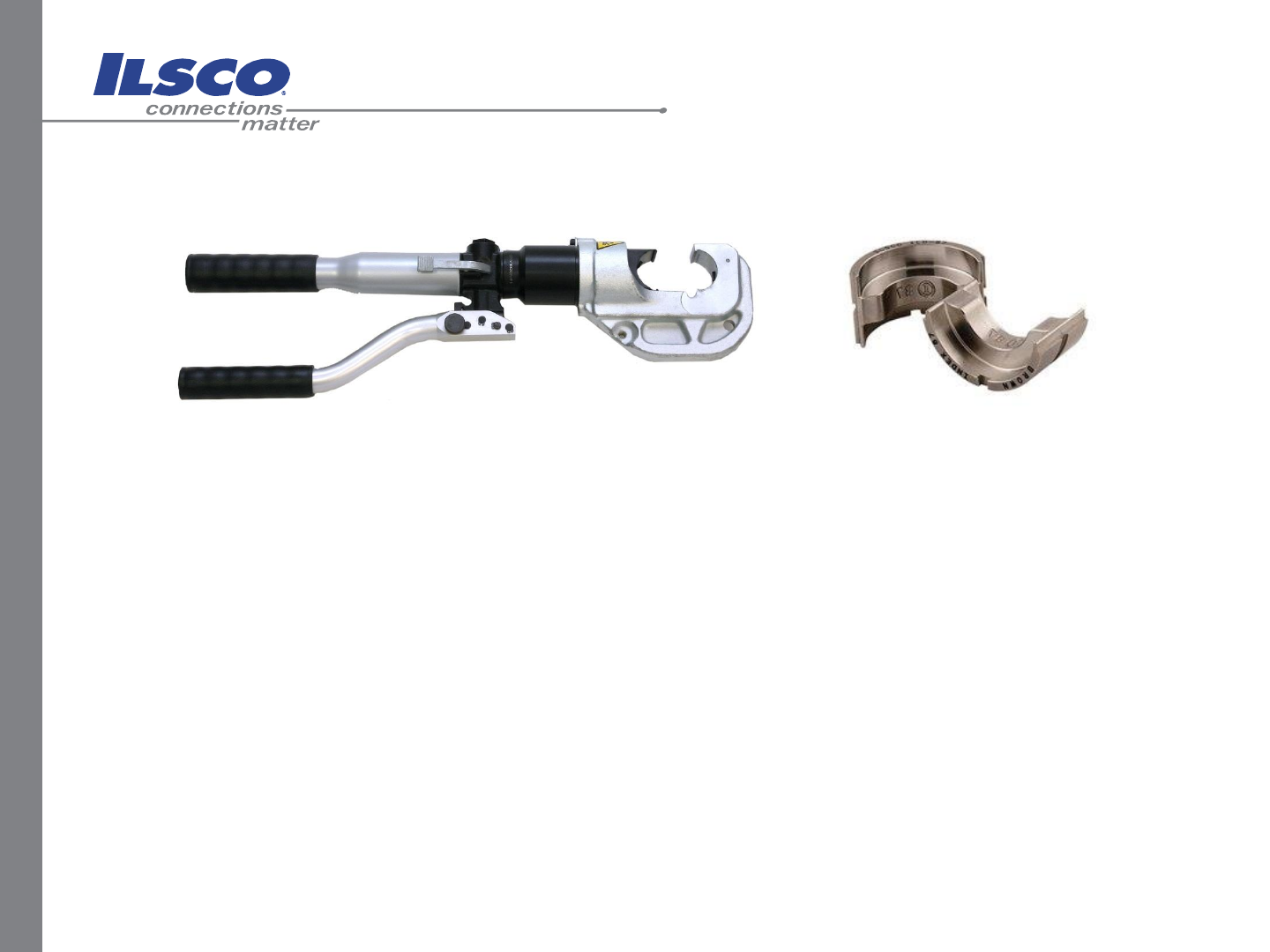

3. Select proper installing die tool

•Always refer to the connector manufacturer’s instructions for the

proper compression die that is intended for the connector.

• Manufacturer’s may use colored bands or dots that correspond

to color markings on dies.

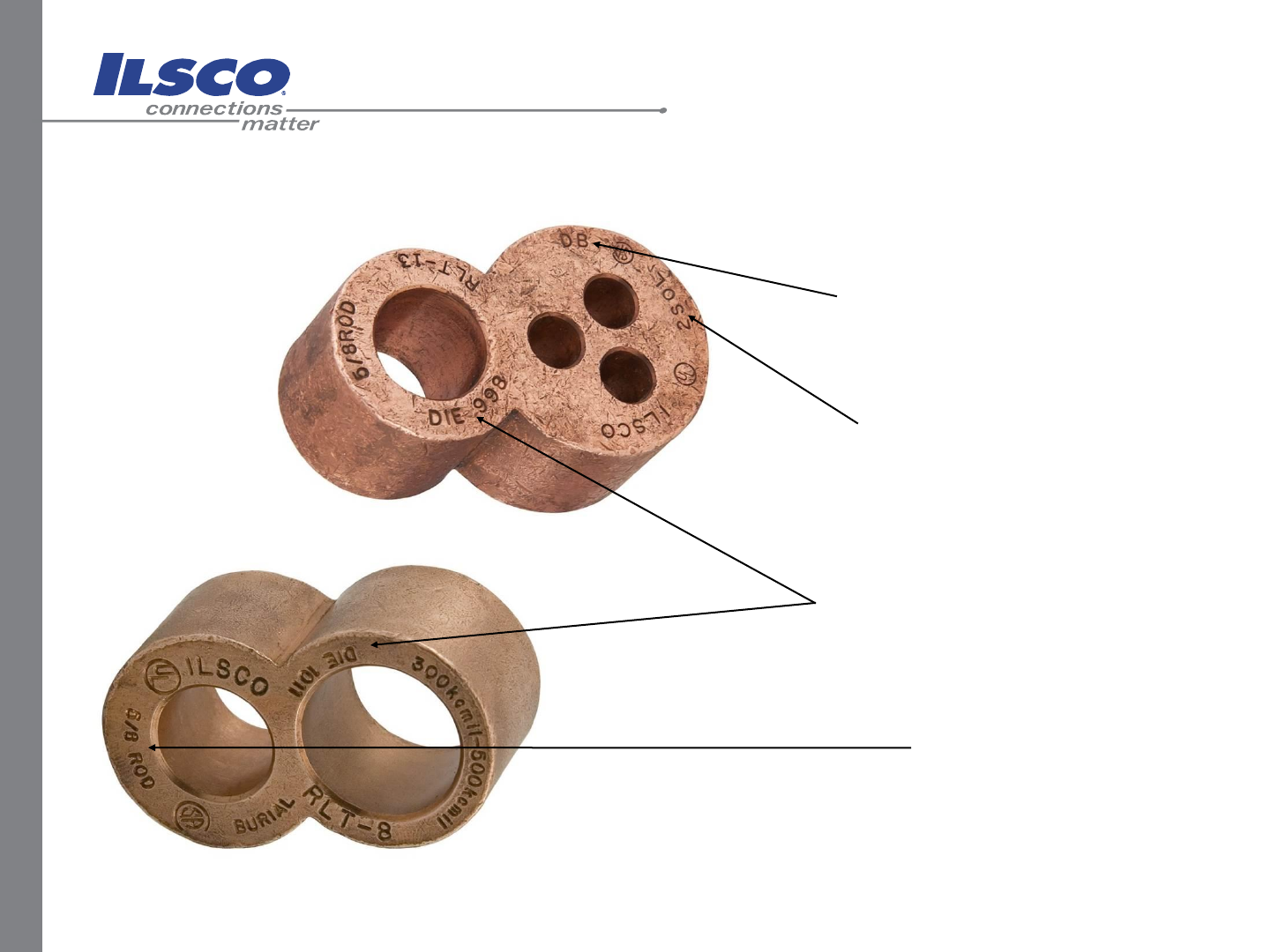

• Manufacturer’s may use die code number marked or stamped on

the connector.

•Knurls may be used in place of colored bands.

4. Locate tool with correct die in proper position on connector

and activate tool

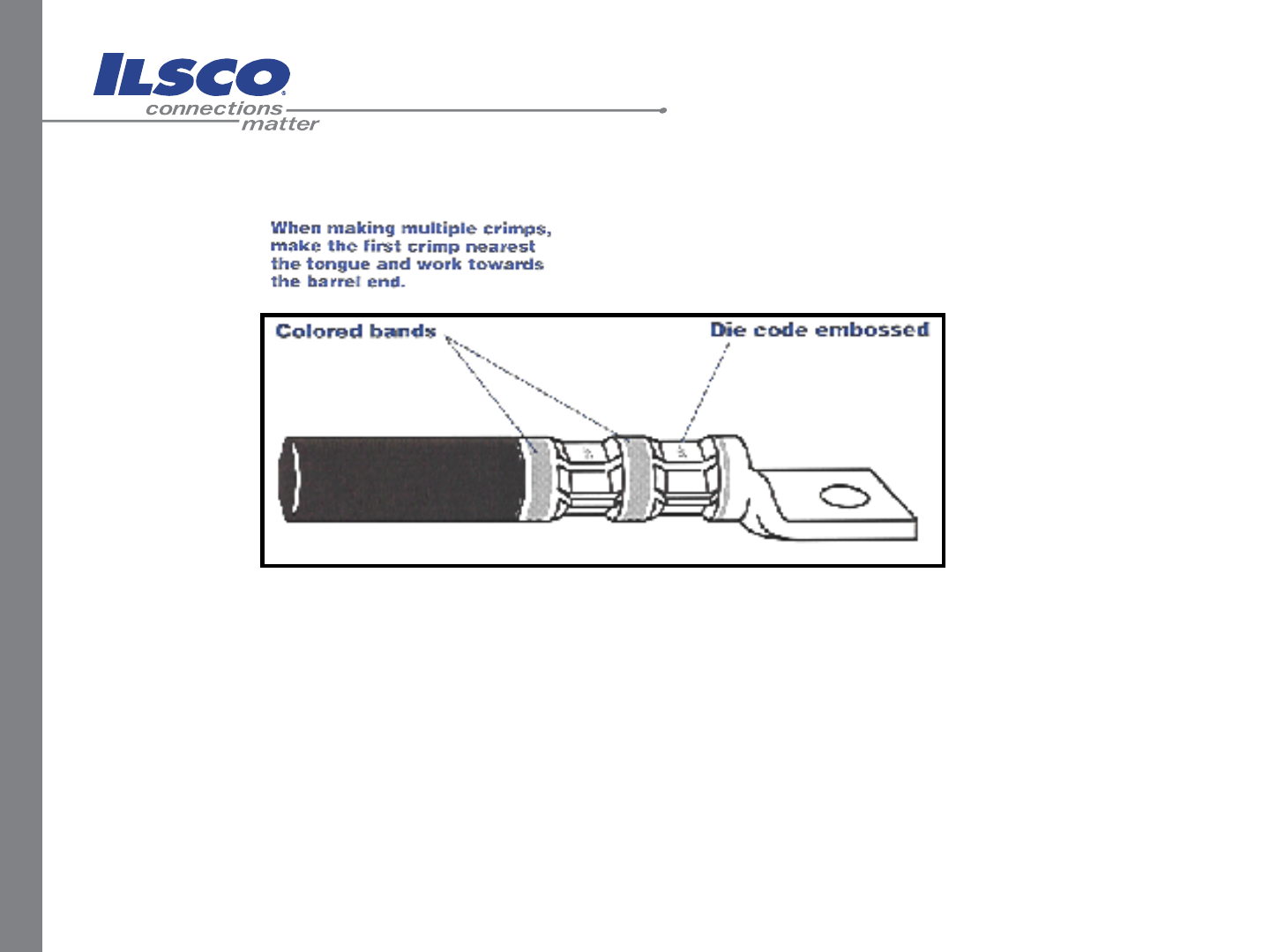

•Connectors that are banded with colored stripes to indicate

number and location of each crimp.

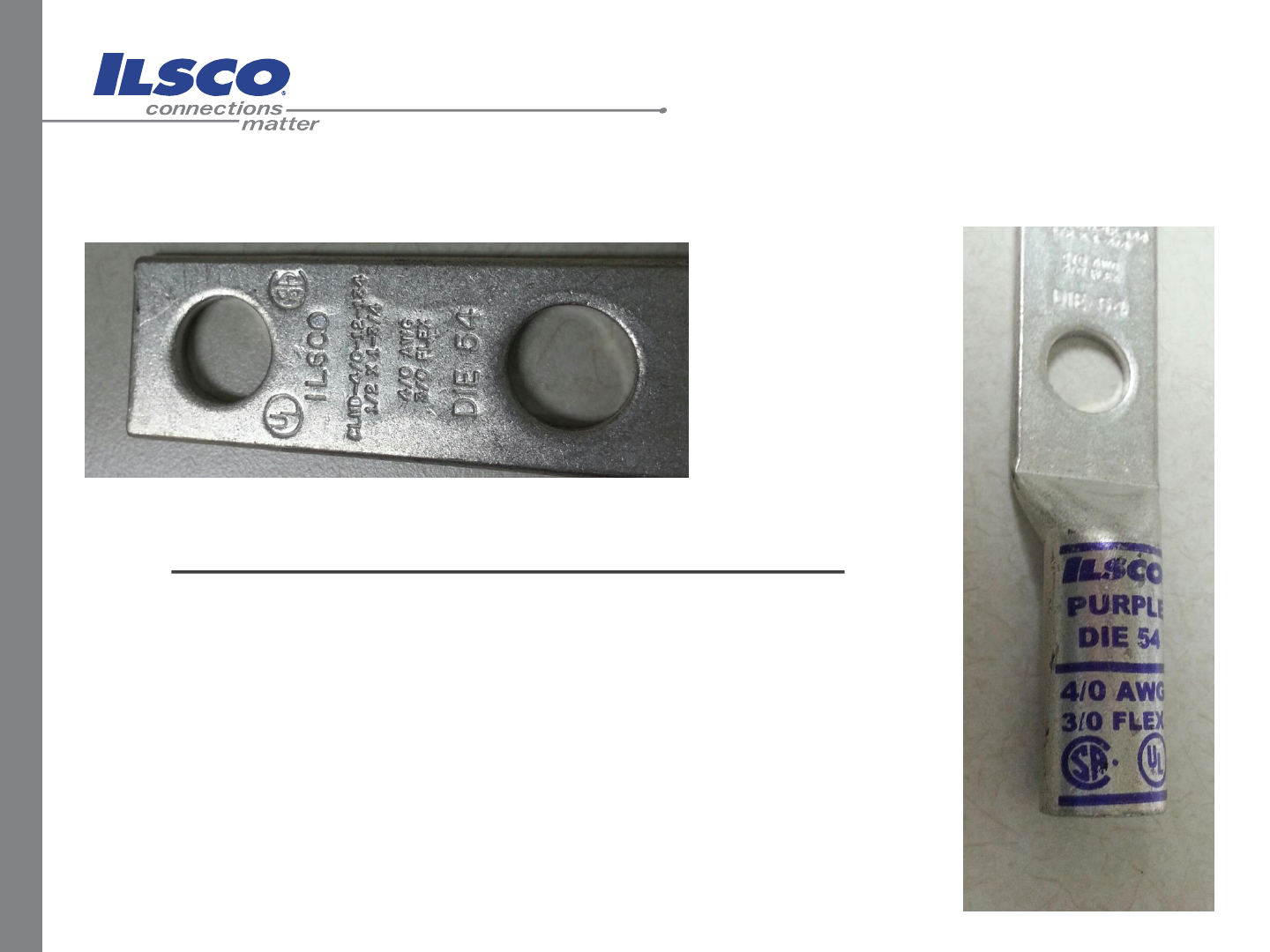

•Connectors may also be marked with the die code number at

each compression location.

•Follow manufacturers instructions whether to crimp on the

colored bands or between the colored bands.

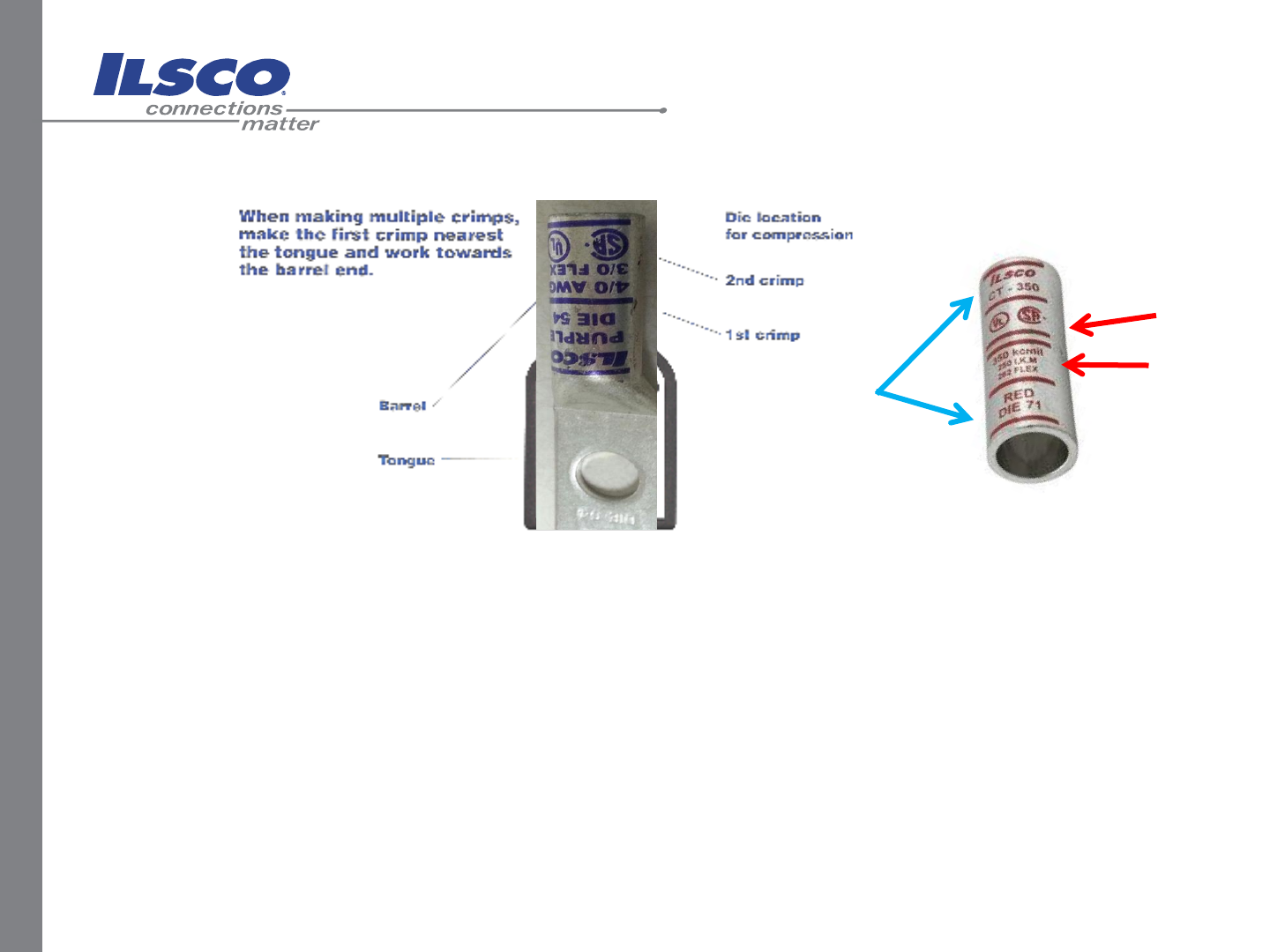

1st Crimps

2nd Crimps

4. Continued….

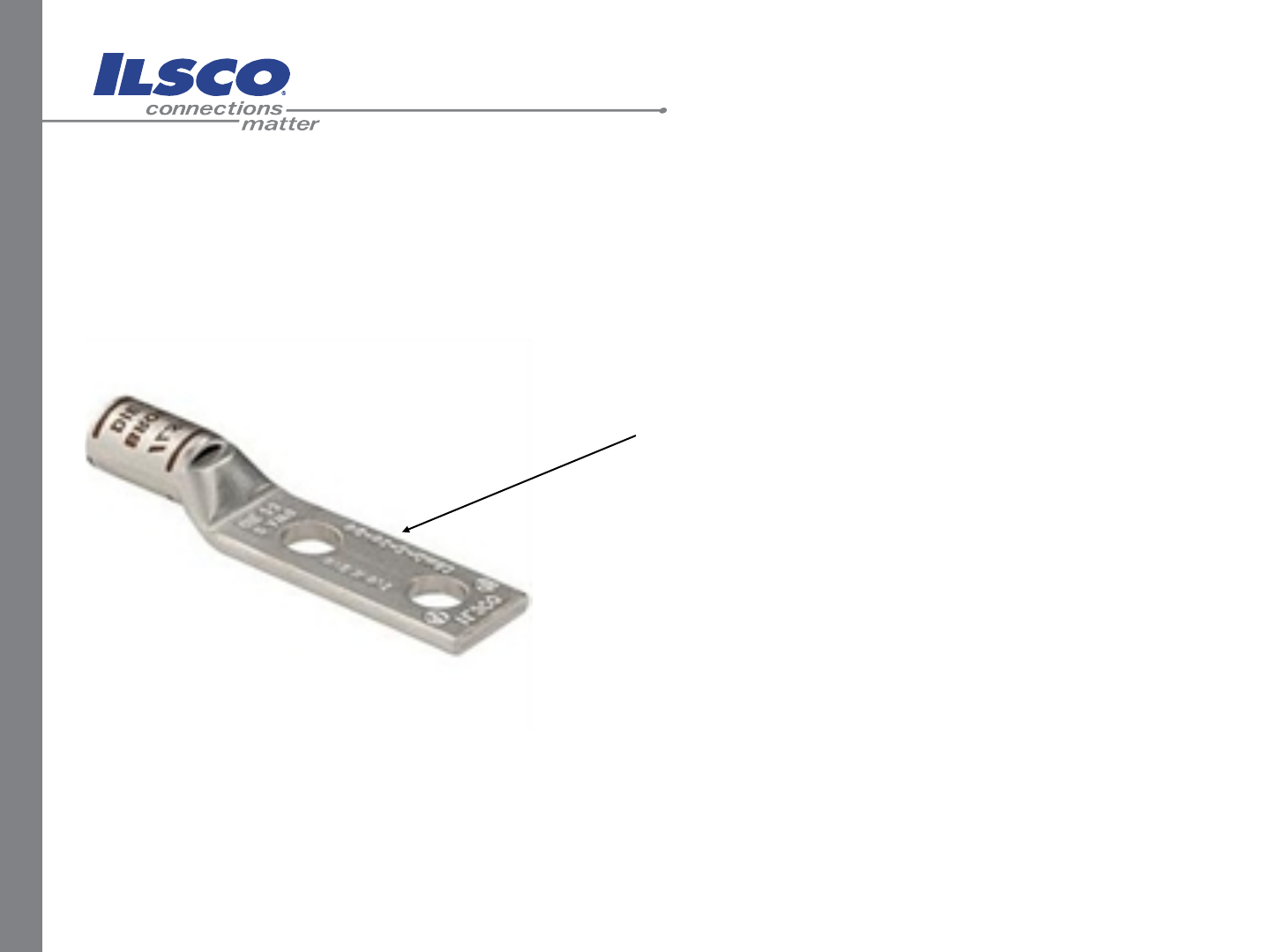

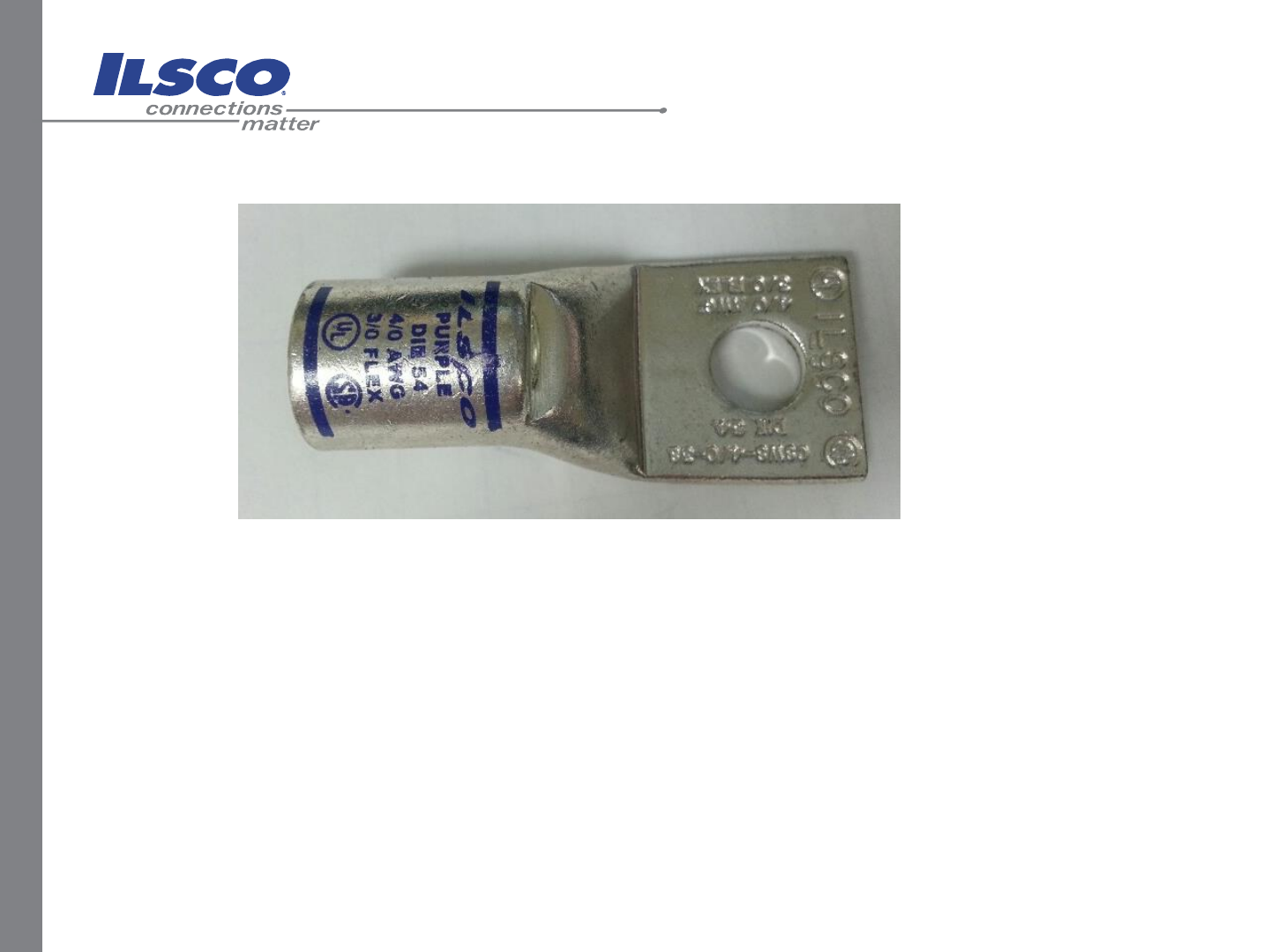

When crimped, the die code number or other marking will be

embossed on connector for easy inspection to determine if

correct die and connector combination were used.

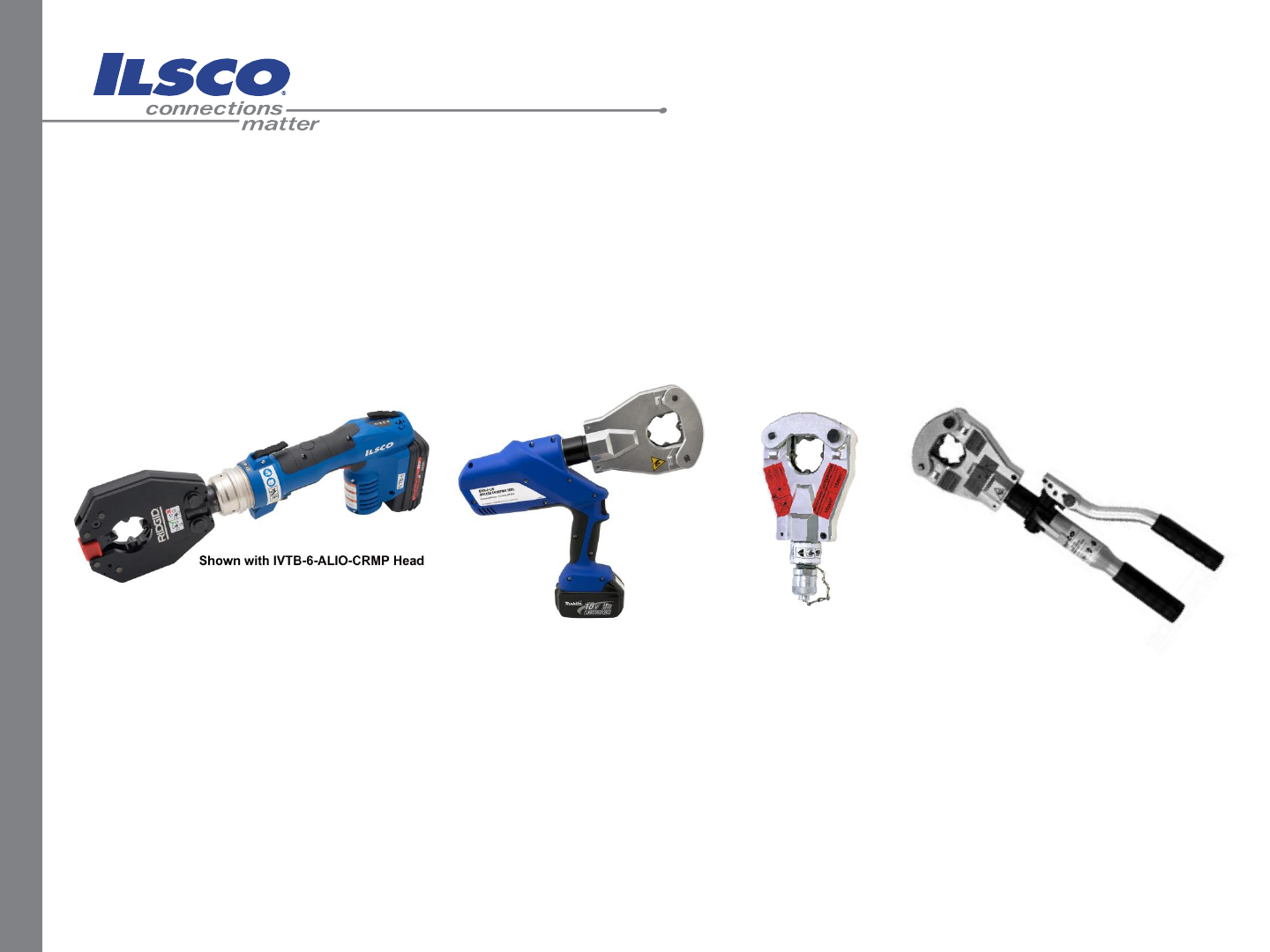

Select proper installing dieless tool

•Crimp as directed by the manufacturer’s instructions.

Dieless Tools

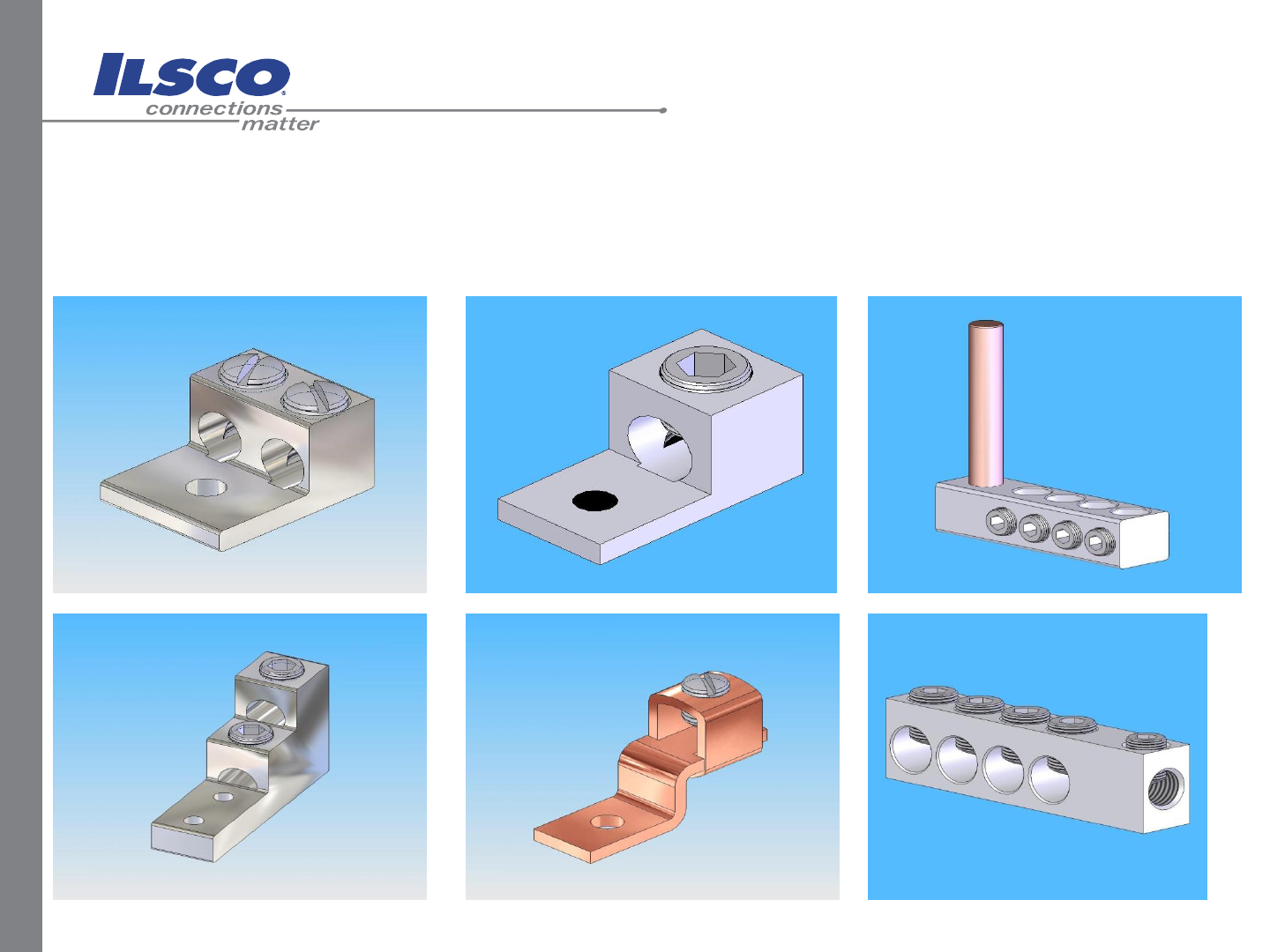

Use a 2-hole connector if there is a

concern for twisting the connection.

5. Connector Securement

Installation Guide

for Mechanical

Overhead

Transformer

Single

Conductor

Lug

Stud Type Transformer

Double

Conductor

Lug

Double

Conductor

Lug, NEMA

Pad

Copper

Single

Conductor

Lug

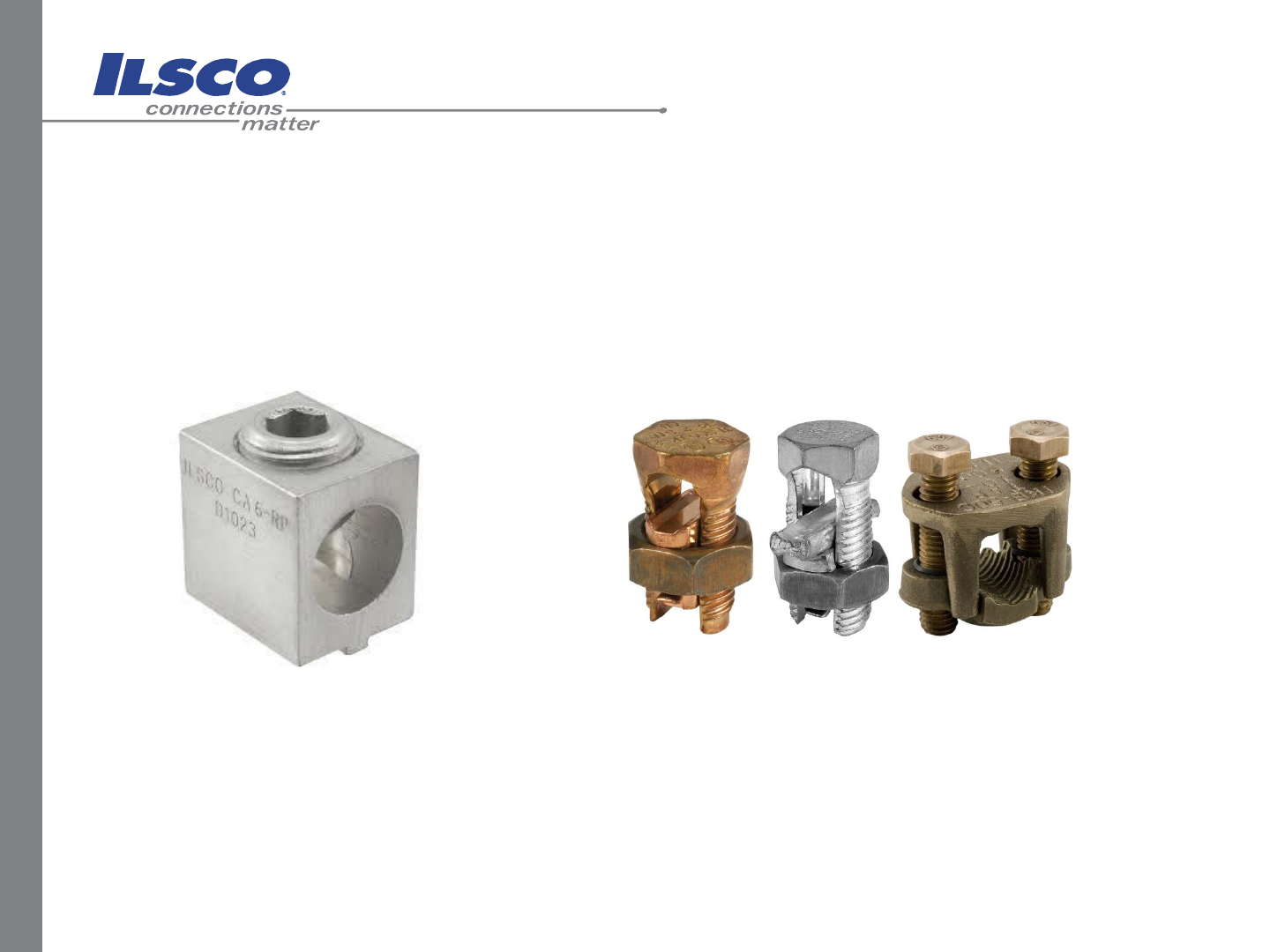

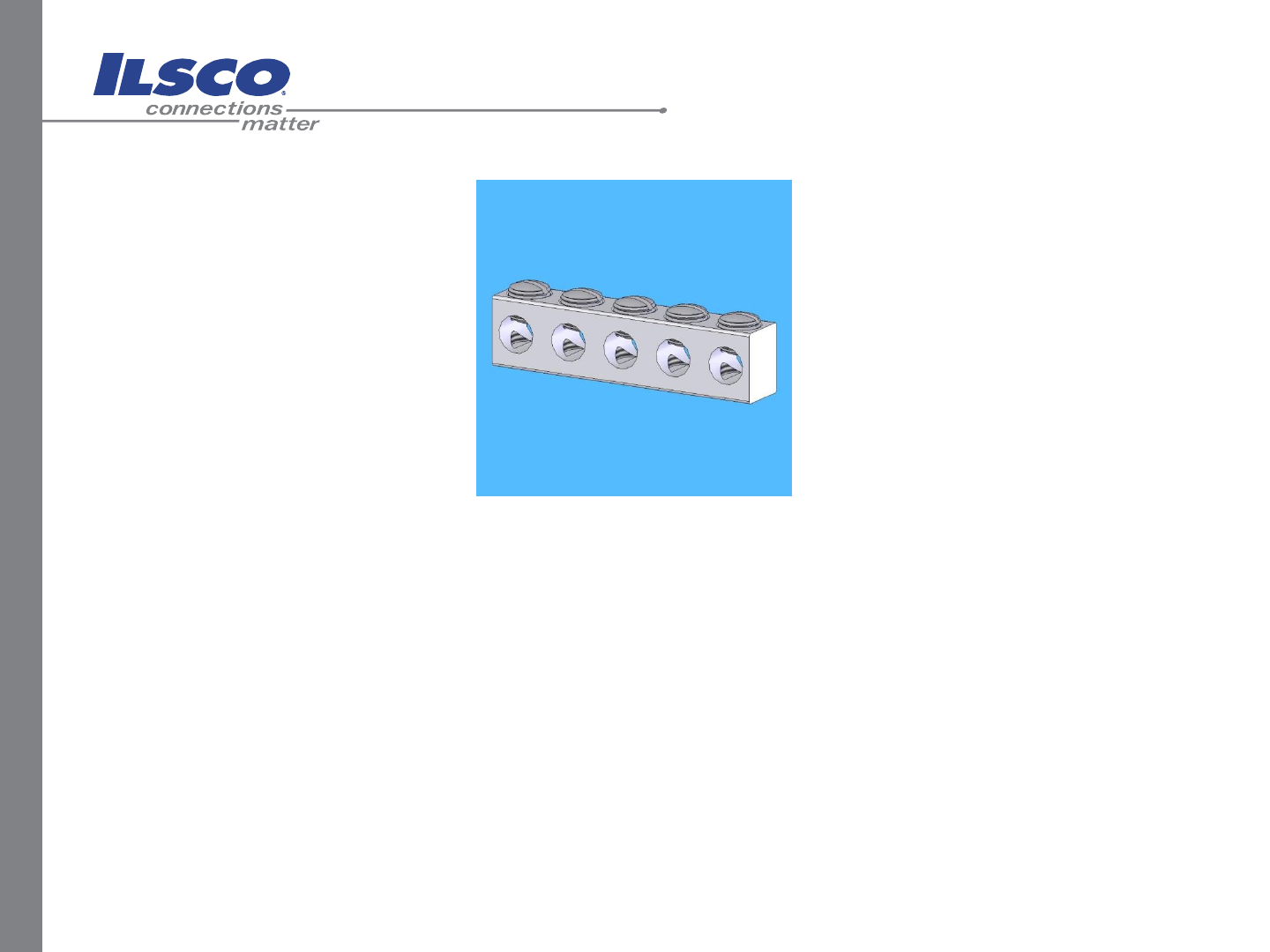

Mechanical

Connector Types

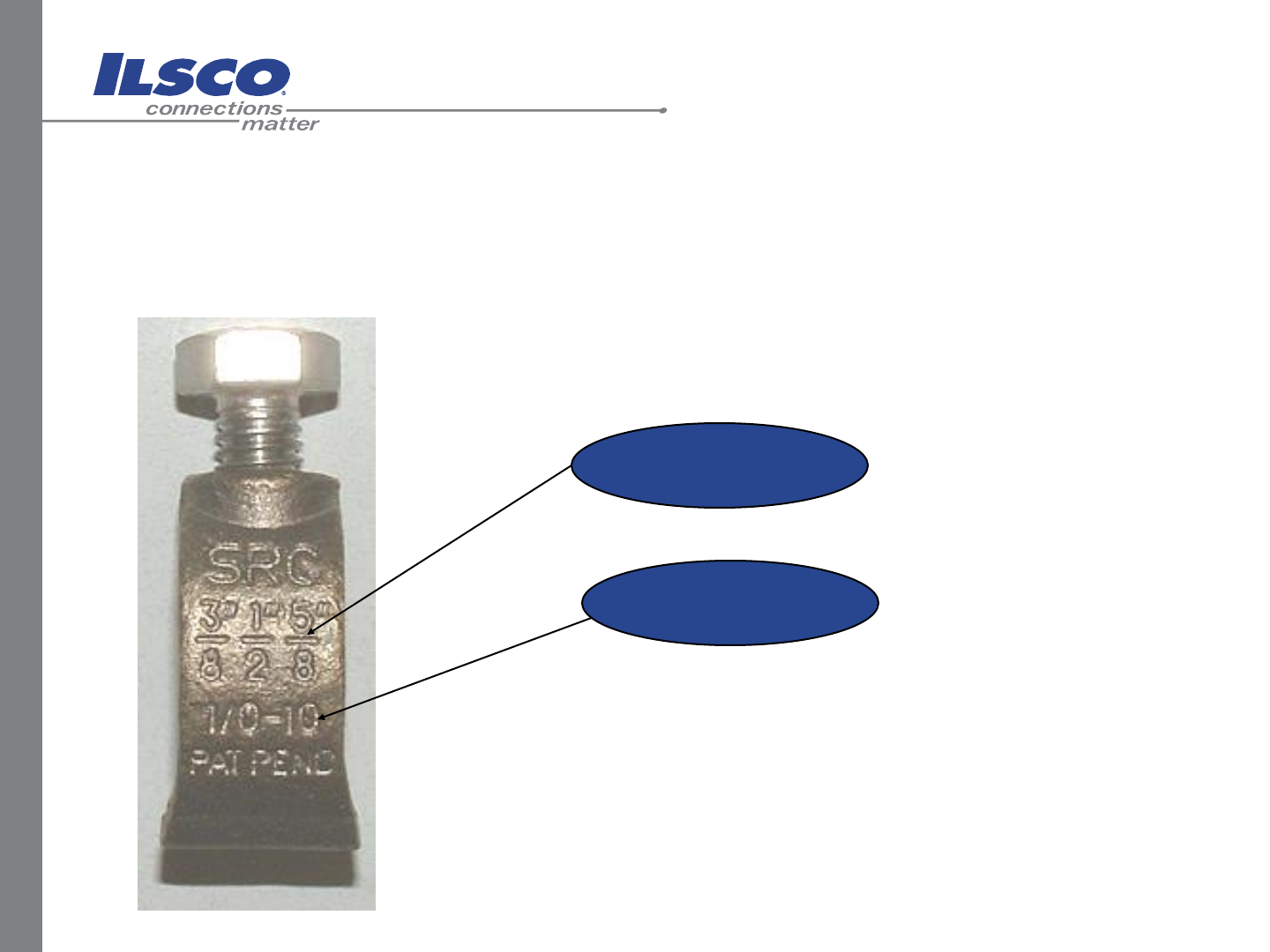

• Manufacturer’s name or Symbol

•Wire Size or range

•Wire material- CU, AL, or Both

•Temperature Rating if applicable

•AL9CU Shows Dual Rating (Al & Cu) and 90°C

•UL and/or CSA if it is a listed connector

Marking Information on Connectors:

1. Unlike Compression connectors, mechanical connectors

typically take a range of conductors. It is important to check

that the cable falls within the cable range listed on the

connector.

2. If the connector is intended to be used on a bus, pad or

equipment, mount the connector and tighten the mounting

hardware per the manufacturer’s specifications.

3.Strip and Properly Prepare Cable

•Strip insulation carefully to avoid nicking strands

•Strip to proper length so conductors can be fully

inserted

•Refer to manufacturers instructions for strip length

•Aluminum Conductor –

•Brush the stripped portion of the conductor to

remove oxide film with a stainless steel wire brush.

Apply oxide inhibitor compound and wire brush into

the stranding

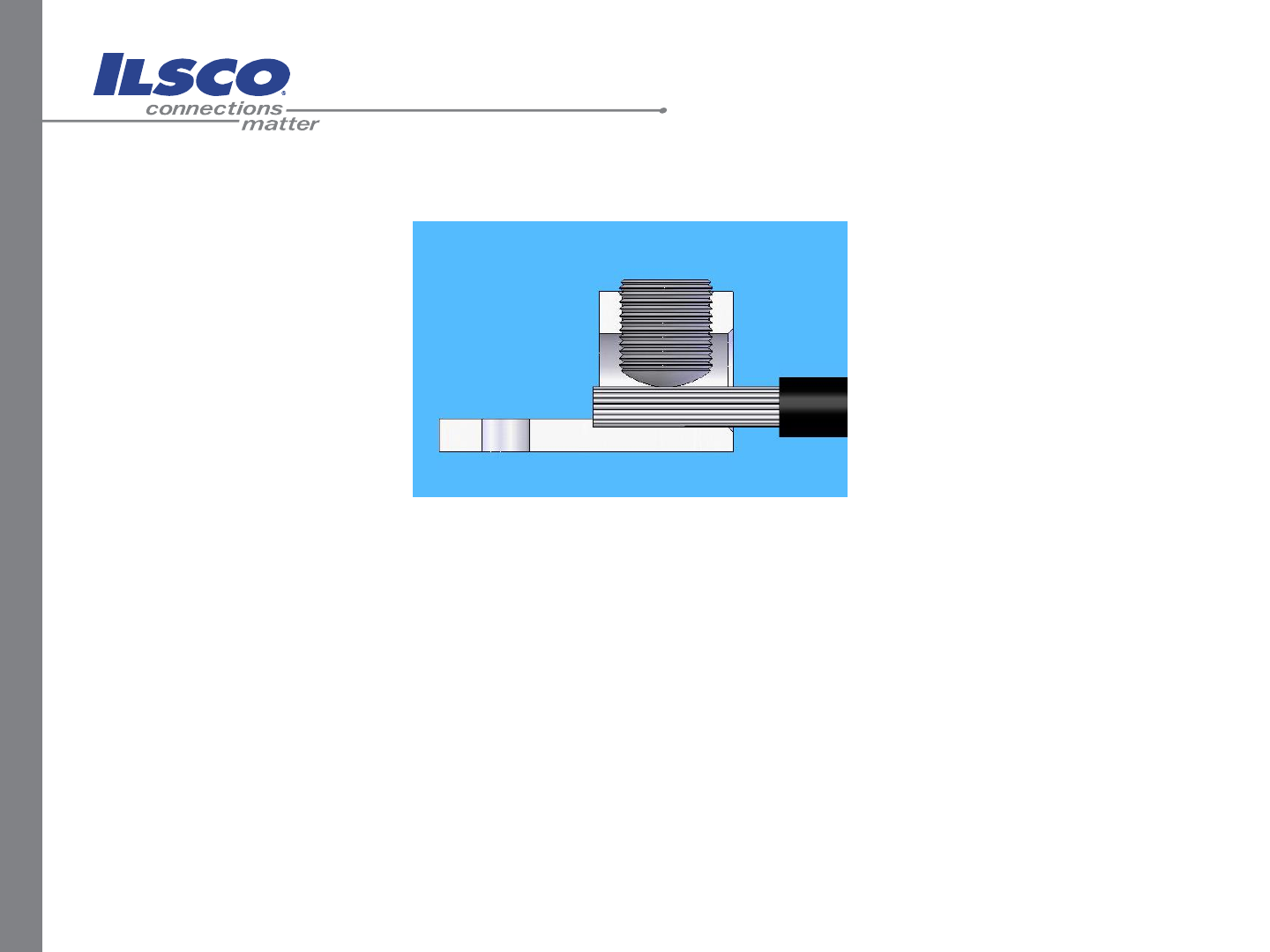

4. Insert the conductor(s) and tighten all set screws per the

manufacturer’s recommendations.

•Do not retighten after properly torqued.

•Most connectors are suitable for one conductor. Never

install more than one conductor unless specifically

allowed by the manufacturers instructions.

•Use the mounting bolt size as recommended by the

manufacturer.

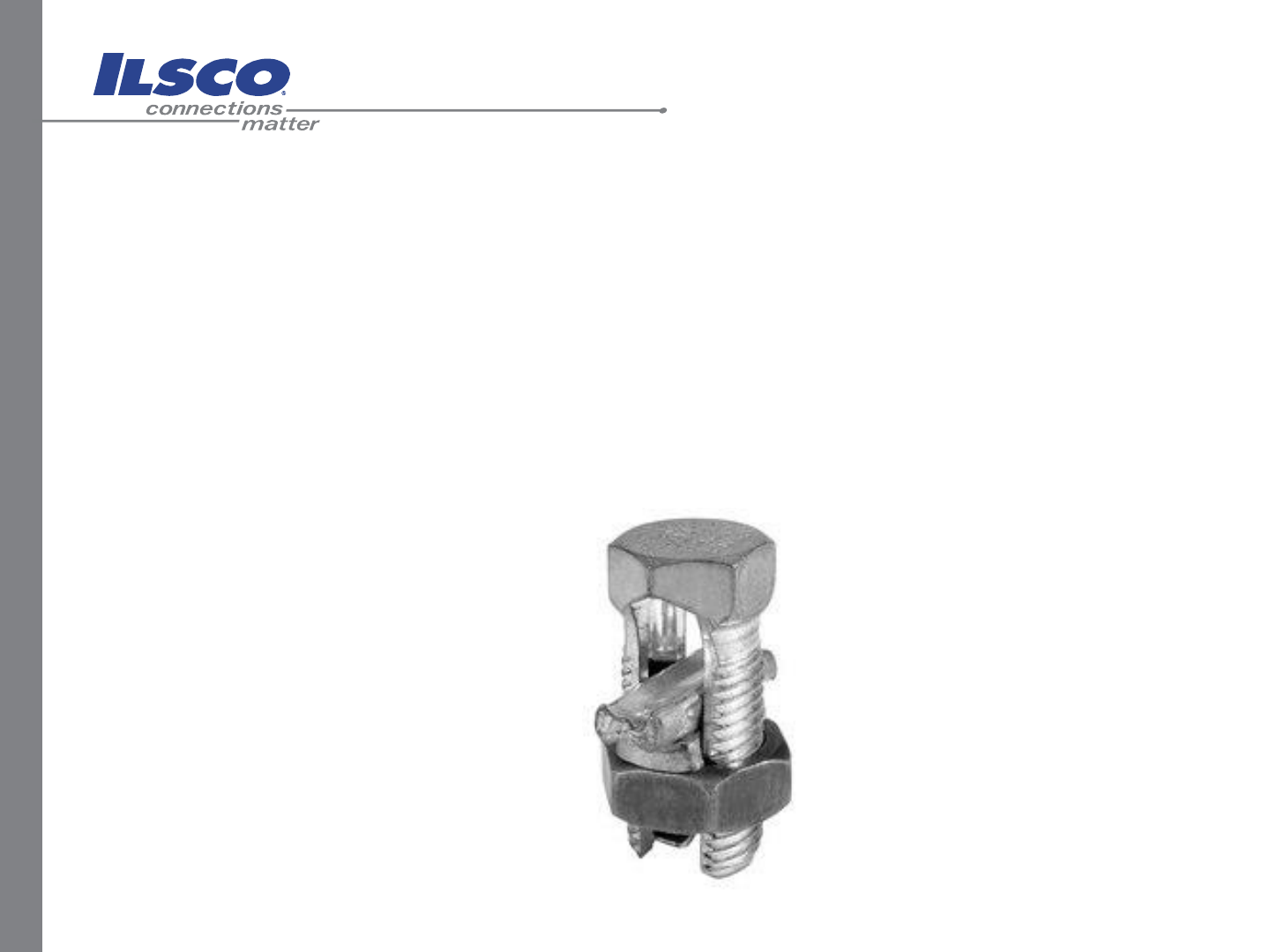

Split Bolts

•Generally used as taps.

•If conductors are different materials, a spacer bar

is included. Aluminum conductor should always be

positioned on top.

•Voltage Rating (Insulated Only)

•300 volts

•600 volts

•1000 volts signs/luminaires

•Note: NOT MARKED

•Non-insulated listed connectors are suitable for

2,000 volts. They may be used over 2,000 volts up

to 35,000 volts where the effects of corona have

been investigated.

•Non-insulated Temperature Rating

•75°C - Use the connector at 75°C ampacity

•90°C - Use the connector at 90°C ampacity

•Higher temp rated conductors at higher ambient

temperatures may be used as long as the ampacity

levels are used per the connector rating.

•Use the NEC® to obtain the conductor ampacity ratings.

•Insulated Temperature Rating

–Never exceed the temperature rating of

an insulated connector. See Packaging

or Product for the marking.

Conductor Material

–AL 9 Aluminum 90°C

–AL9CU CU9AL Aluminum/Copper 90°C

–AL7 Aluminum 75°C

–AL7CU CU7AL Aluminum/Copper 75°C

AL9CU

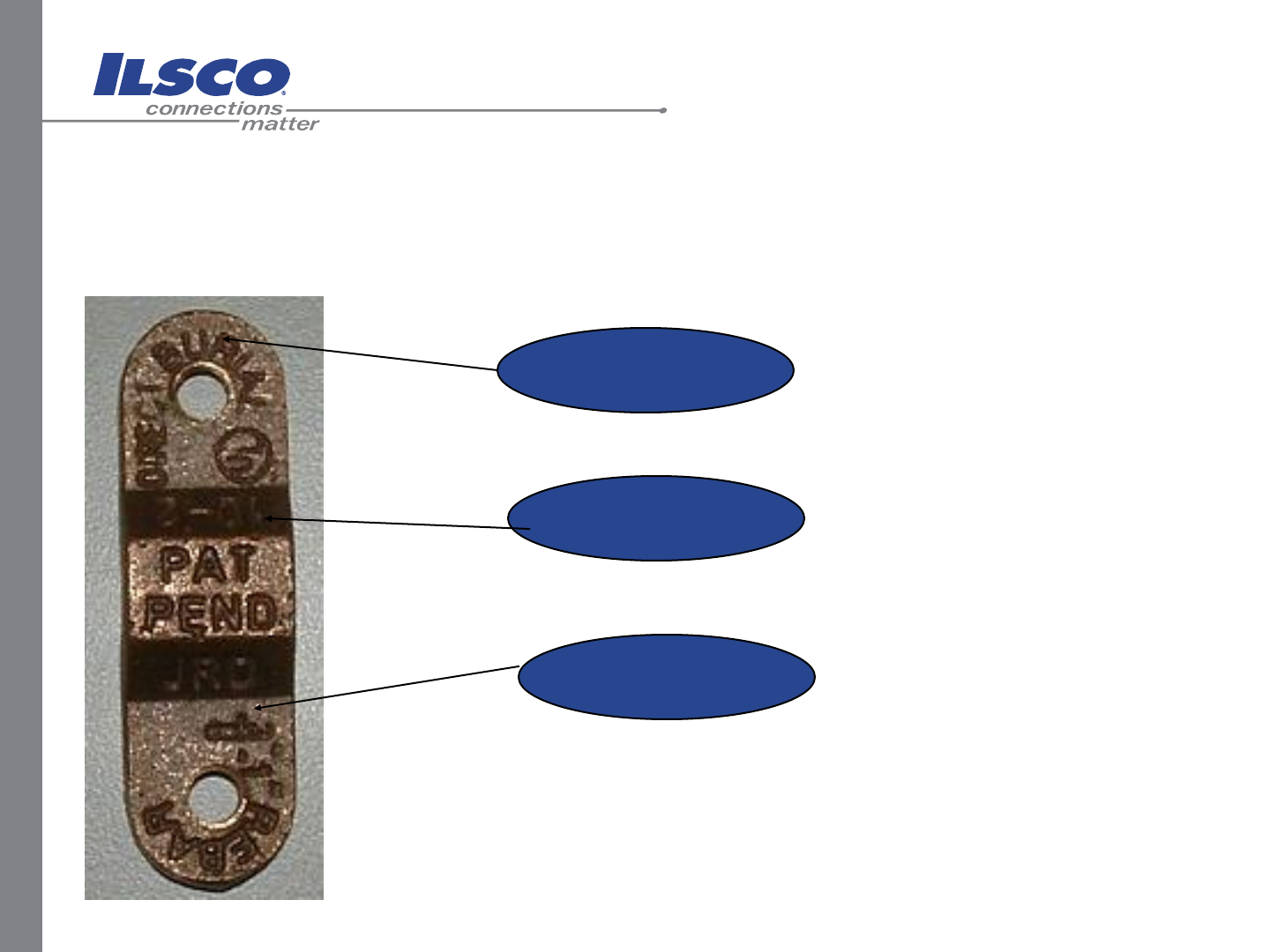

•Grounding

•DB Direct Burial

•The connector is suitable for

direct burial in the soil or

embedded in concrete.

Installation Guide

for Grounding

DB = Direct Burial

Suitable Conductor

Compression Die Information

Rod size Information

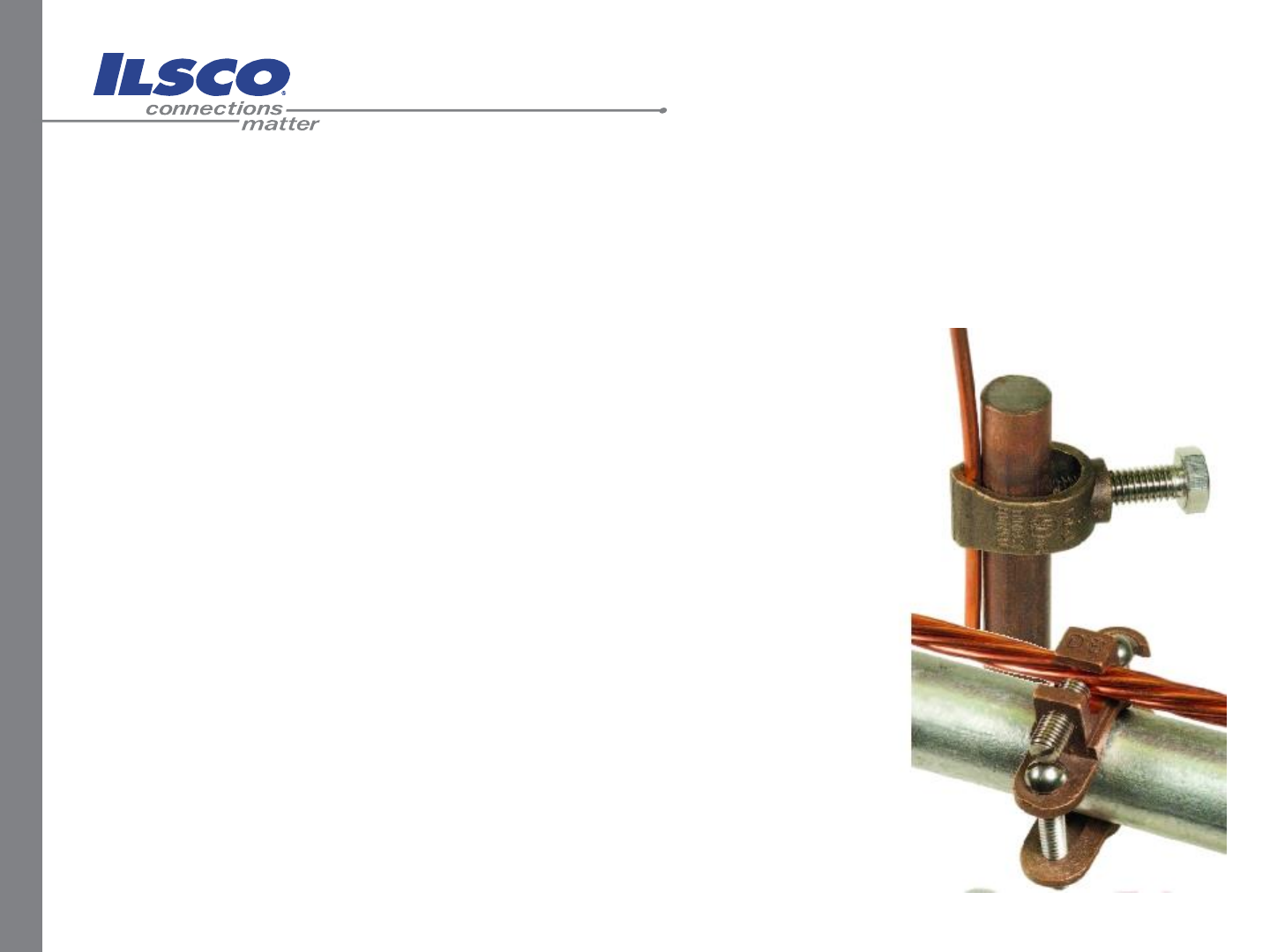

Look for the product markings for suitability for

attachment to rods, pipe, and concrete encased

reinforcement steel.

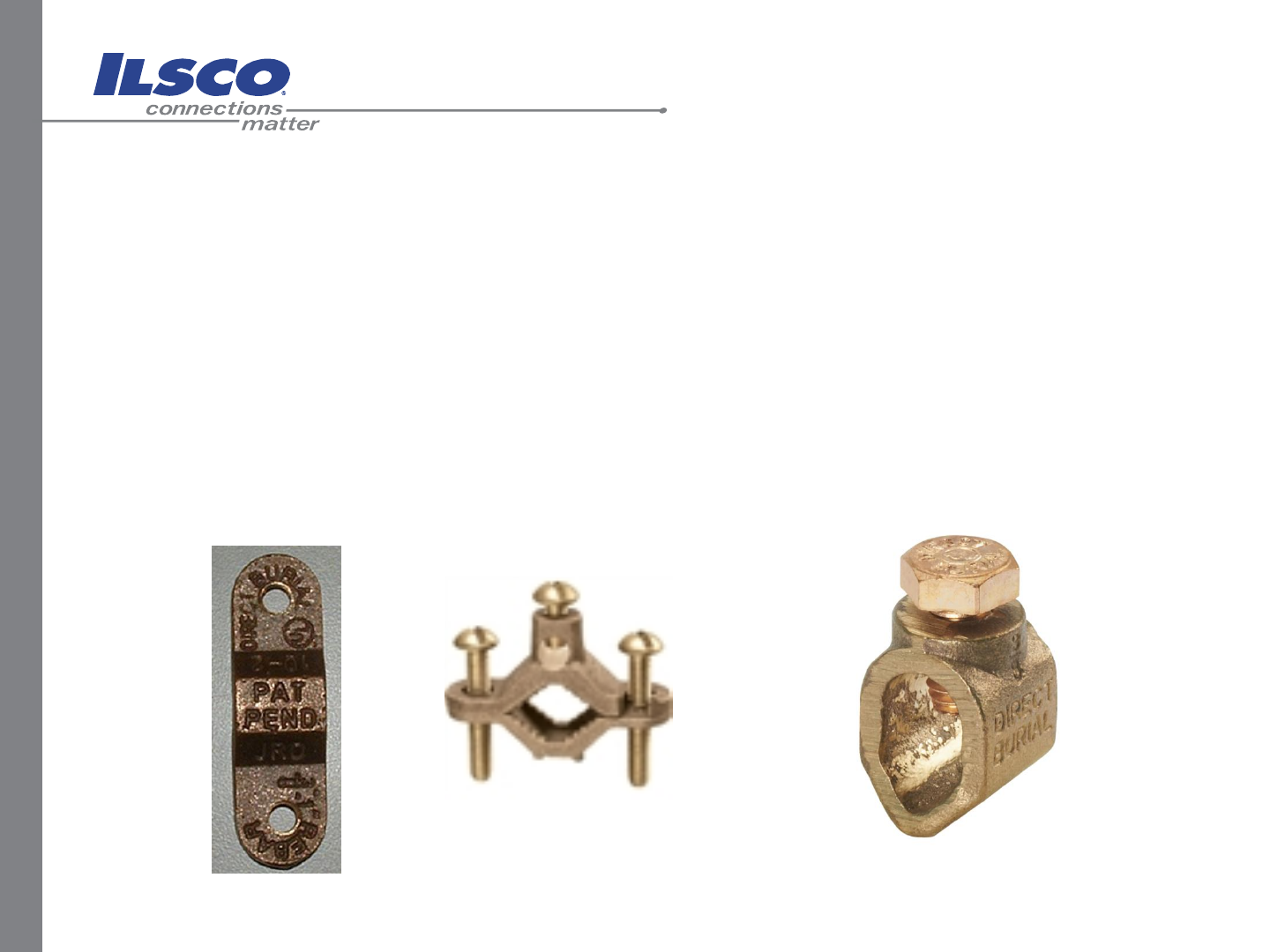

Grounding Connections

Rod size

Conductor size

Direct burial

Conductor size

Rebar size

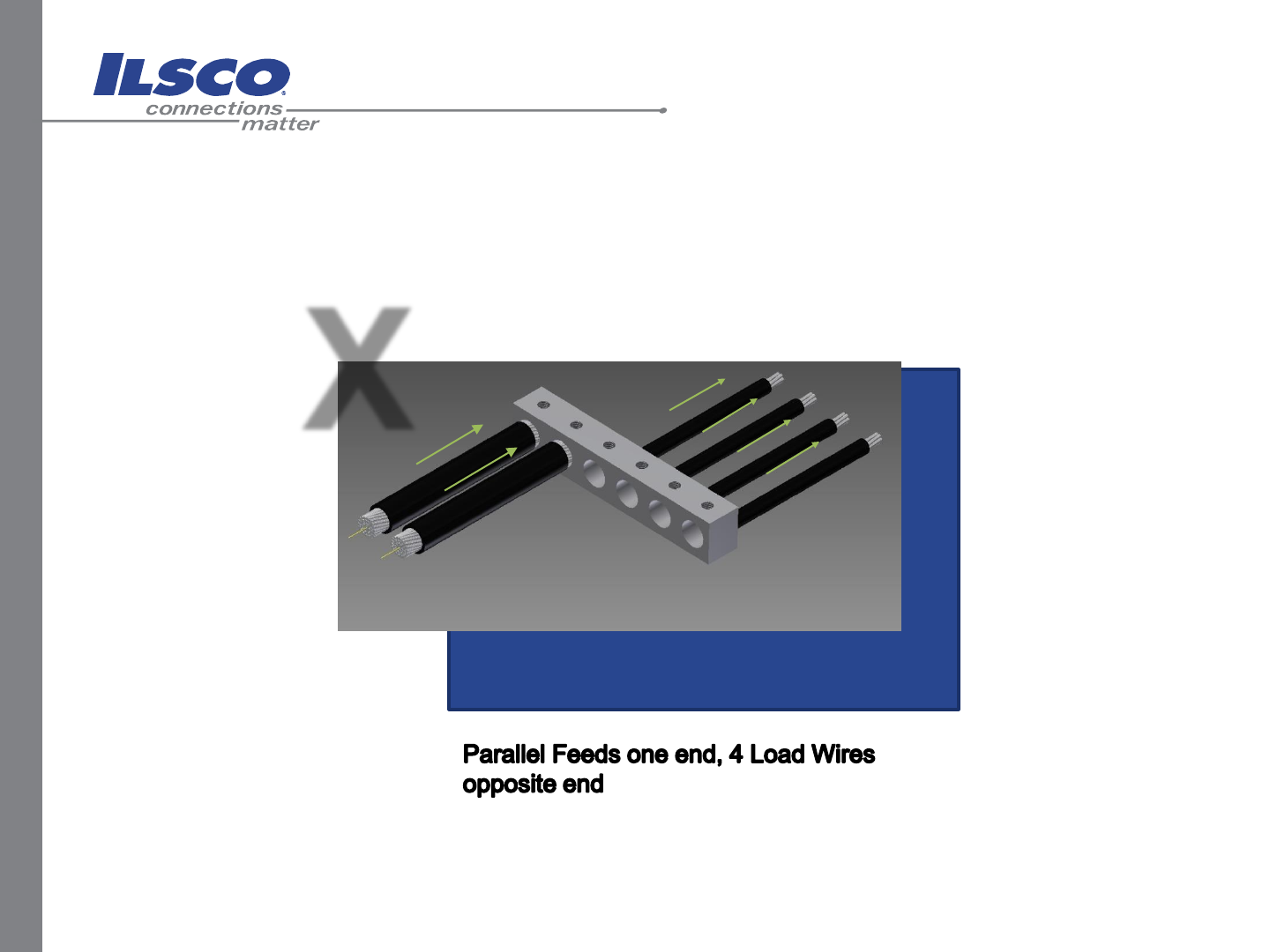

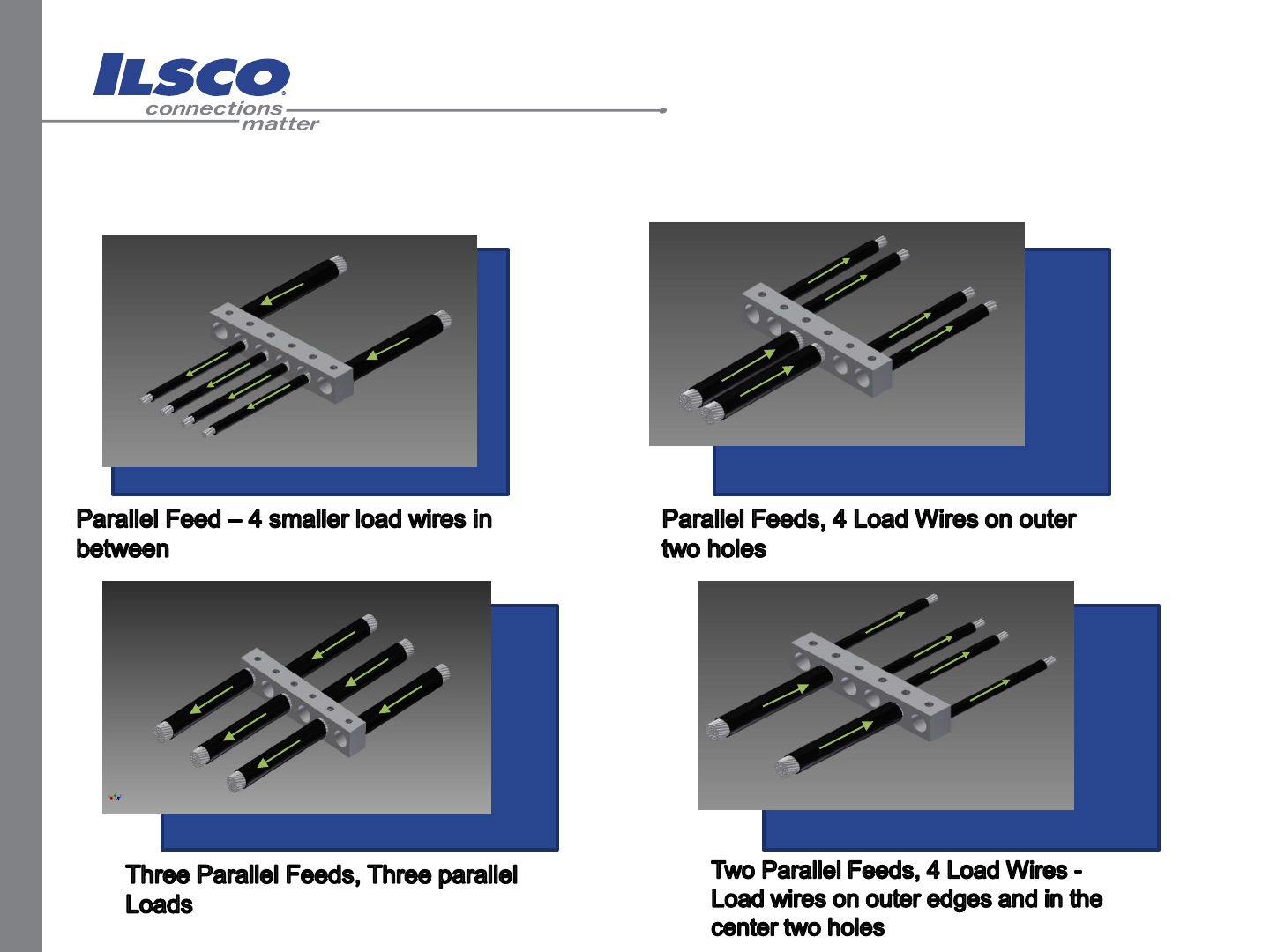

Suggested Ways to

Load or Balance

X Incorrect application

Improper Way to

Load or Balance

Straight Cut

Correct

Angled Cut

Incorrect 2. Not fully inserted 3. Straight Cut

on end of wire

5. Correct

insulation

strip length

1.

Fully

inserted

4. Missing wire plugs or

screw plugs

Wire

Plugs

Screw

Plugs

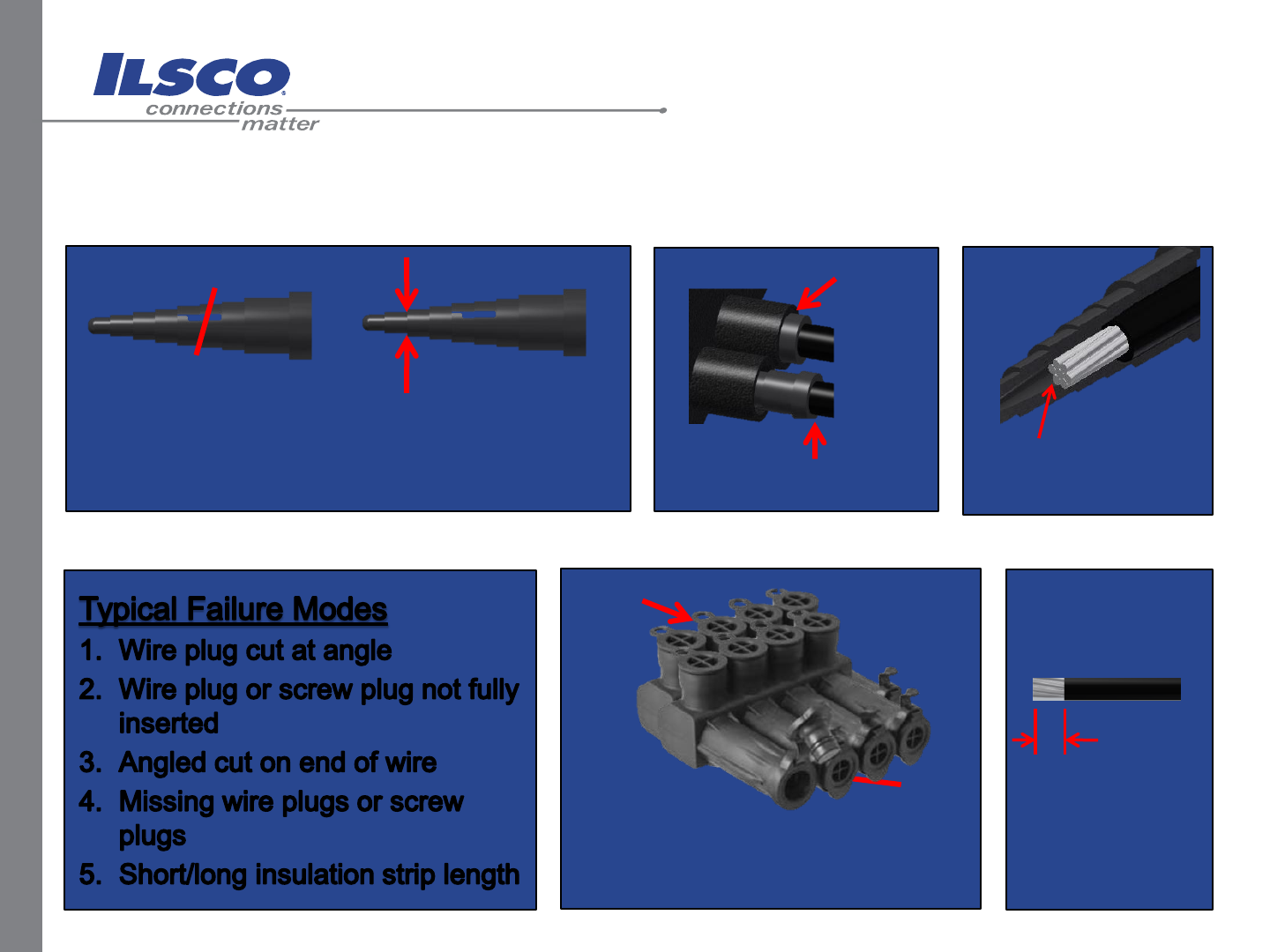

Typical Failure Modes

in Sealed Connectors

Safety Standards

Wire Connectors

•UL 486A-486B

•CSA C22.2 No. 65

•ANCE NMX-J-543

•ANSI C119.1, C119.4,

C119.5, C119.6

Splicing Wire Connectors

•UL 486C

•CSA C22.2 No. 188

•ANCE NMX-J-548

Grounding and Bonding Equipment

•UL 467

•CSA C22.2 No. 41

•ANCE NMX-J-567
