for general and special service
Control valves
Spirax Sarco provides a comprehensive range of control valves to suit
most industrial fluids including general and special service.
The hallmark of Spirax Sarco control valves:
• Choice
• Quick delivery
• Quality
• Reliability
• Ease of maintenance
• Service and knowledge
• Value for money
Spirax Sarco’s multi-power,
multi-service control valves
providing the right valve for the duty
through local stocks and setting.
of control valve design and manufacture
(tested to international quality assured
standards).
from attention to detail in design,
manufacture and correct application of
the valve.
through design and parts
interchangeability, and local stock of
spares.
from a worldwide network of
expert controls.
specialists and sales and service
engineers.
by providing all of the above at a
competitive price.
2

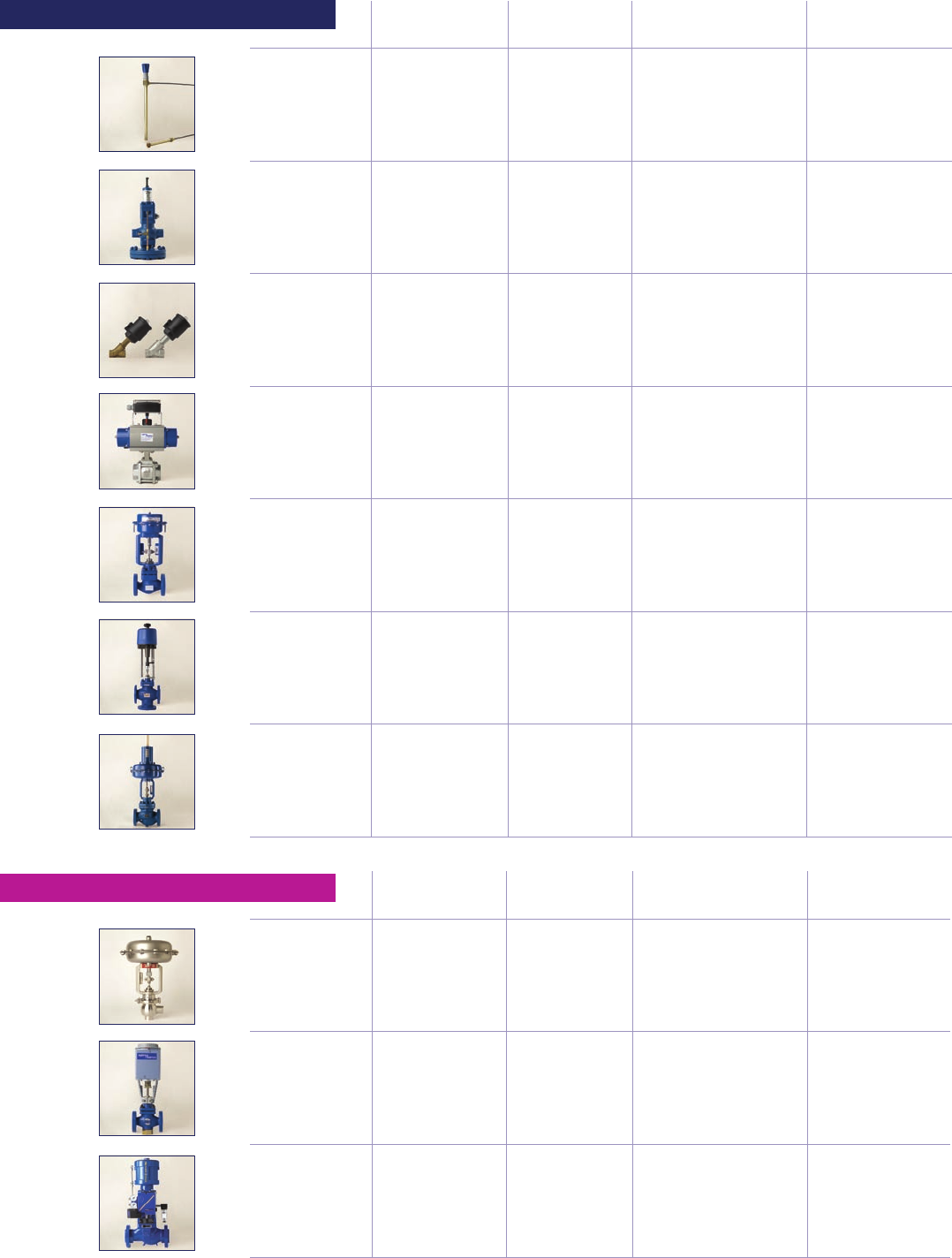

Valve type Duty Valve size Maximum body
design rating
SA temperature
control series
2-port and
3-port globe Modulating DN15 to DN100
(½" to 4") PN40
SA pressure
control series 2-port valve Modulating DN15 to DN150
(½" to 3") PN40
PAV series Piston actuated
2-port valve On / Off DN15 to DN50
( ½" to 2") PN25
M series Ball valve On / Off DN8 to DN200
(¼" to 8")
PN63 and
ASME (ANSI) 300
SPIRA-TROL 2-port globe Modulating
On / Off
DN15 to DN200
(½" to 8")
PN40 and
ASME (ANSI) 300
Q series 3-port globe
Mixing
Diverting
Modulating
On / Off
DN15 to DN200
(½" to 8") PN40
C series 2-port globe Modulating
On / Off
1" to 8"
(DN25 to DN200)
ASME (ANSI) 600
(PN100)
Valve type Duty Valve size Maximum body
design rating

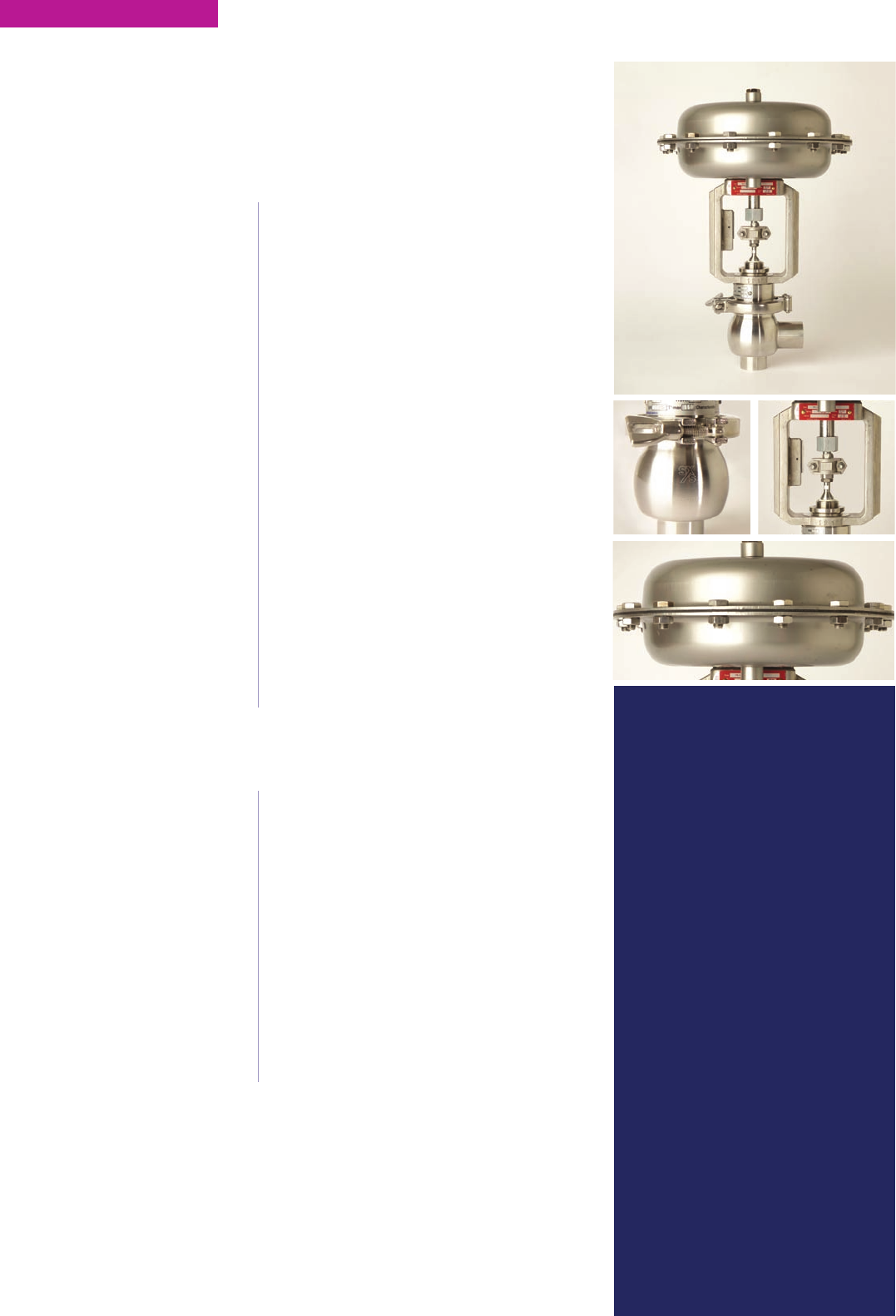

STERI-TROL
2-port and 3-port
angle pattern
or straight through
configuration
Clean service
Modulating
On / Off
DN15 to DN100
(½" to 4") PN16
Boiler house
series Linear or rotary
Boiler blowdown
Feedwater
control
TDS control
DN20 to DN65
(¾" to 2")
PN40 and
ASME (ANSI) 300
Severe service
series
2-port globe
angle pattern
and swept angle
Modulating
DN15 to DN400
(½" to 16")
other sizes available
to order
ASME (ANSI) 4500
other sizes available
to order
The range at a glance
Special service valves
General service valves
3
SA temperature control valve
Self-actuating general service control valves for the control
of a wide range of industrial fluids.
Valve specification
Sizes Flanged DN15 to DN100
Screwed ½" to 3"
Styles 2-port and 3-port globe
End connections Screwed BSP and NPT
Flanged PN16, PN25, ASME (ANSI) 150 and 300
Body materials Cast iron
Bronze
Carbon steel
Maximum temperature 232°C (450°F)
Maximum PN40
body design rating
Trim 2-port balanced or unbalanced
3-port diverting and mixing piston
Actuator specification
Types Self-acting liquid expansion
Maximum differential 17.2 bar (249 psi)
pressure
Set temperature range -20°C to +140°C (-4°F to +338°F)
Supply No power supply required
Options Set temperature range
Capillary length
Automatic shut-off facility
High temperature spacer
For further technical information, search our website using the
following key words 'TEMPERATURE CONTROLS'
Key features
• Proportional control action with
high rangeability.
• No power supply required.
• Intrinsically safe and explosion
proof.
• Many capillary lengths and
combinations to meet the needs
of a wide range of applications.
• Quick and easy to install and
commission.
• Supported by knowledgeable
and experienced design
application engineers.
General service
4

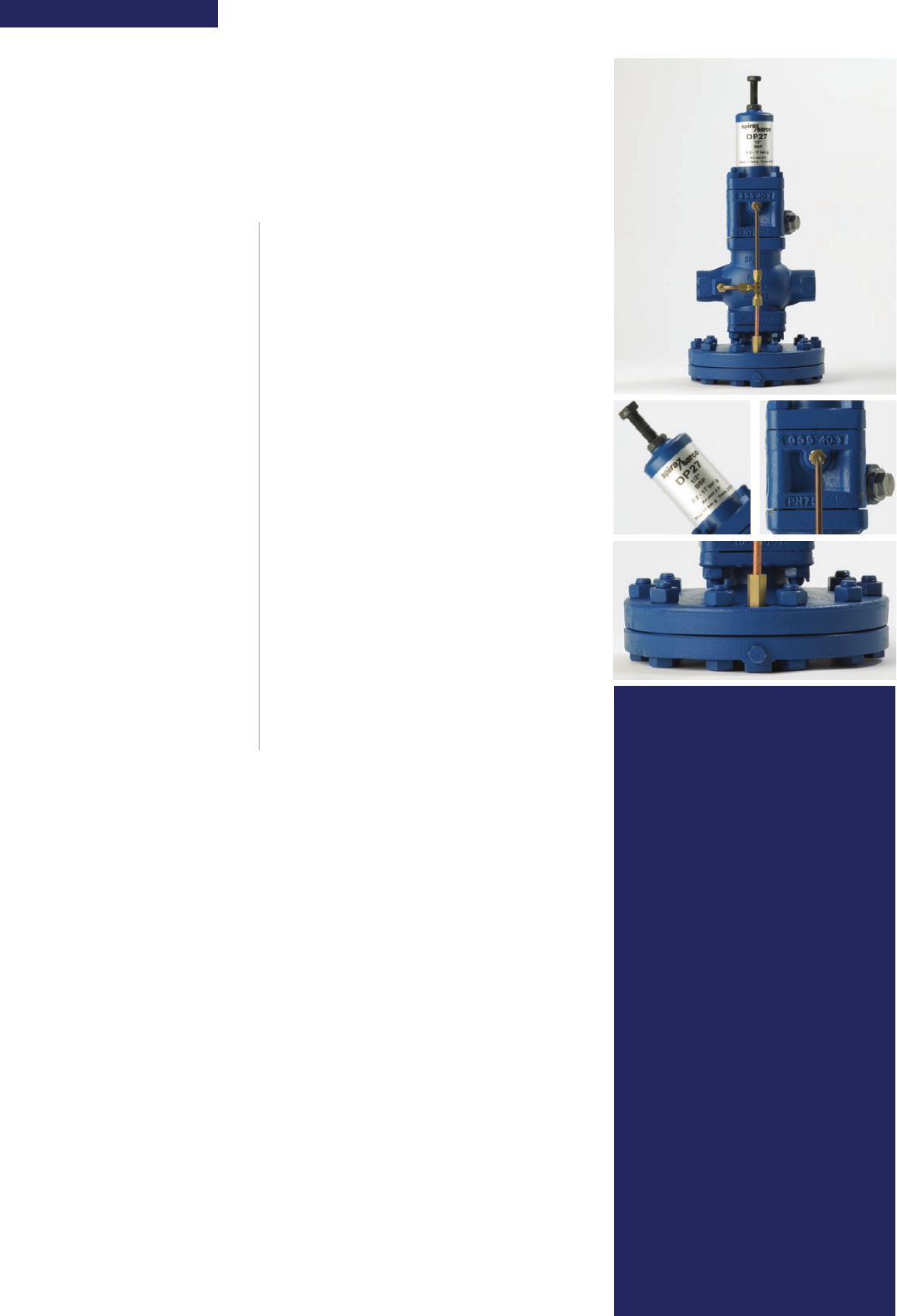

SA pressure control series
A comprehensive range of self-actuating pressure reducing valves
for steam and a wide range of liquids and inert gases.
Valve specification
Sizes Flanged DN15 to DN150
Screwed ½" to 2"
Styles 2-port valve
End connections Screwed BSP and NPT
Flanged PN16, PN25 and PN40
Body materials Bronze
SG iron
Carbon steel
Stainless steel
Maximum temperature 350°C (662°F)
Maximum PN40
body design rating
Control pressure range 0.1 bar to 25 bar (1.45 psi to 343 psi)
Options Temperature and pressure control
Solenoid operation
Soft seal for high shut-off
For further technical information, search our website using the
following key words 'REDUCING VALVES'
Key features
• Proportional control action with
high turndown.
• Close and consistent control
under varying load conditions.
• Pressure and backpressure
control, separate or in
combination.
• Large number of sizes, material
and connection options to meet
the requirements of a wide
range of applications.
• Quick and easy to install and
commission.
• Supported by knowledgeable
and experienced design
application engineers.
General service
5

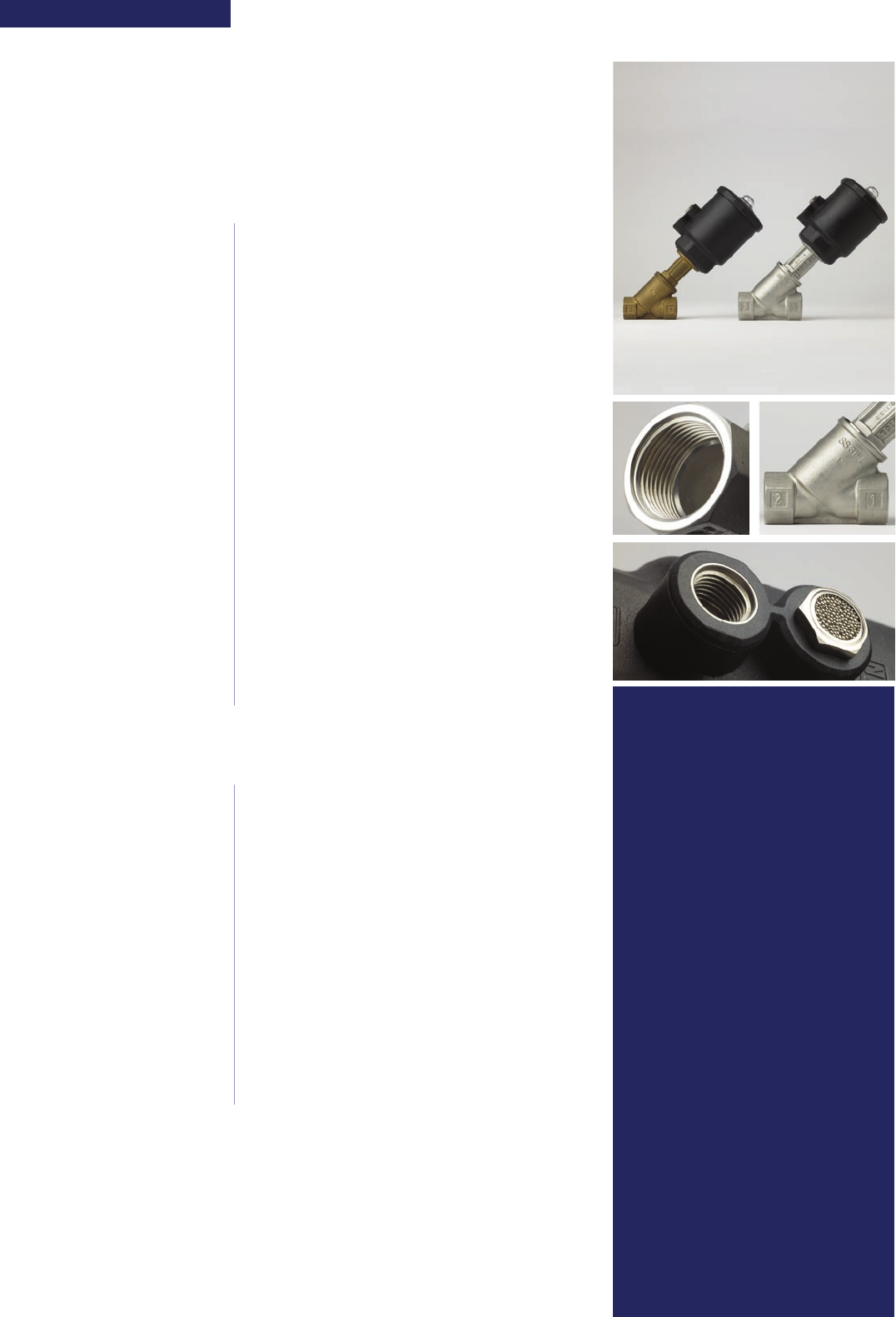

PAV series
High quality piston actuated valves for automatic isolation utility and
process fluids.
Valve specification
Sizes Flanged DN15 to DN50
All other available end connections ½" to 2"
Styles 2-port, angle pattern
End connections Screwed BSP and NPT
Butt weld
Socket weld
Sanitary clamp
Flanged ASME (ANSI) 150
Body materials Bronze
Stainless steel AISI 316L
Maximum temperature 180°C (354°F)
Maximum PN25
body design rating
Trim Fast opening
PTFE soft seal
Actuator specification
Types Piston
Maximum differential 20 bar (290 psi)
pressure
Action Spring-to-close
Spring-to-open on air failure
Bi-directional (anti-waterhammer)
Supply Compressed air: 10 bar (145 psi) maximum
Options Solenoid valves (seperate supply)
Flow regulator
Travel switch
For further technical information, search our website using the
following key words 'PISTON ACTUATED'
Key features
• On / Off duty.
• Stainless steel or bronze body
with angle seat and high flow
capacity.
• Wide range of valve body
connections, including sanitary
clamp to meet practically all
customer needs.
• Soft seal construction providing
a high degree of isolation.
• Supported by knowledgeable
and experienced design
application engineers.
General service
6
For further technical information, search our website
using the following key words 'BALL VALVES'

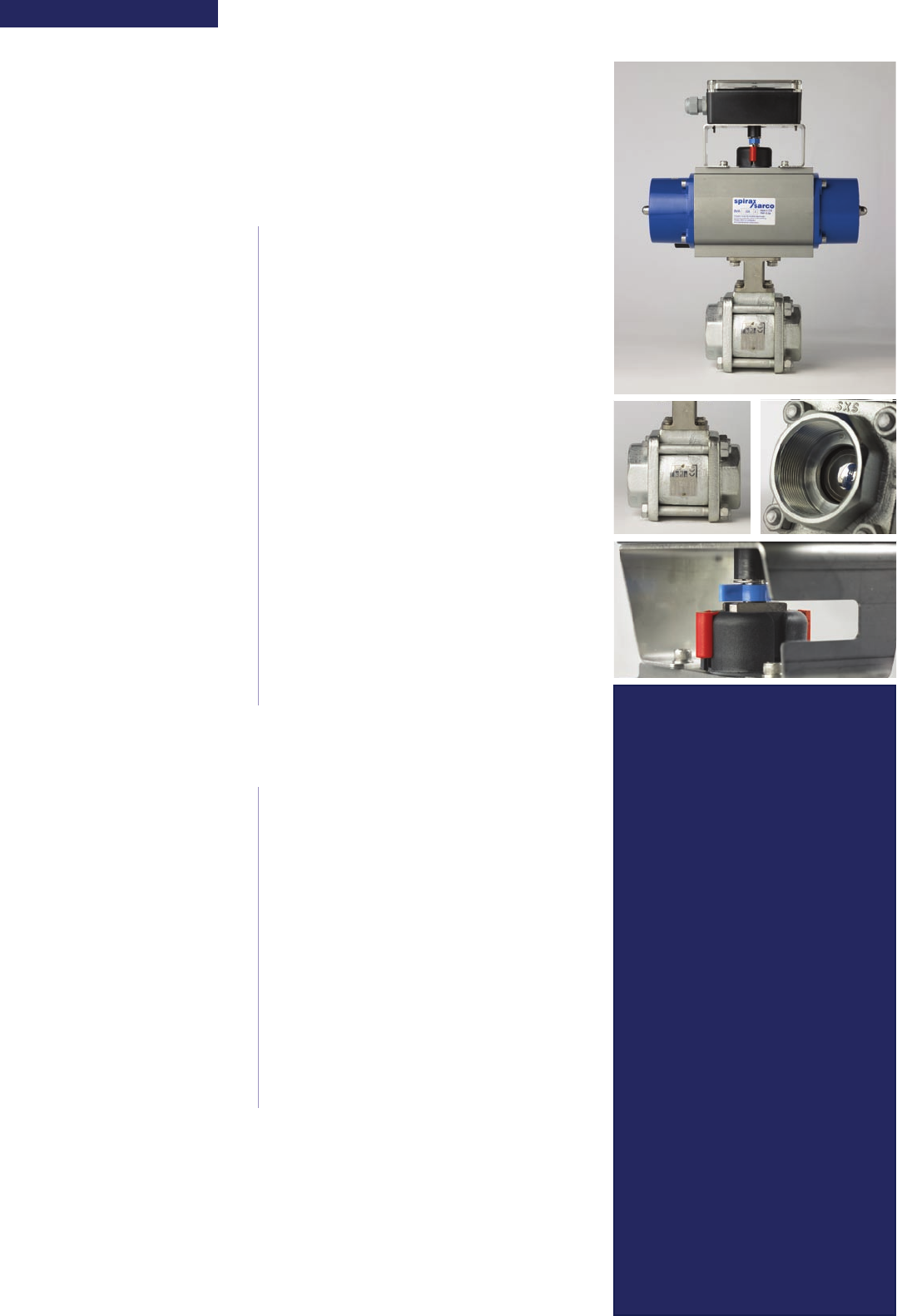

M series
A comprehensive range of 2-port ball valves for the automated
isolation of utility and process fluids.
Valve specification
Sizes Flanged DN8 to DN200
All other available end connections ¼" to 2½"
Styles Full or reduced bore
1 piece or 3 piece construction
End connections Screwed NPT and BSP
Butt weld
Socket weld
Sanitary clamp
Flanged PN16, PN40, ASME (ANSI) 150 and 300
Body materials Carbon steel
Stainless steel
Maximum temperature 315°C (600°F)
Maximum PN63 and ASME (ANSI) 300
body design rating
Trim Modified equal percentage
Actuator specification
Types Single acting and double acting
Maximum differential Standard 20 bar (290 psi)
pressure Higher pressures available on request
Action Spring-to-close or
Spring-to-open on air failure
Supply Compressed air: 4 to 10 bar (58 to 145 psi)
Electric: 24 V ac, 110 V ac and 240 V ac
Options Solenoid operation
Interface device with numerous switching
options and potentiometric feedback
Key features
• Compliant with ISO 5208, rate 3
(no visible leakage).
• Firesafe design.
• Static free design.
• ISO mounted electric and
pneumatic actuators.
• Range of industry standard
interface devices for remote
operation and feedback.
• Supported by knowledgeable
and experienced design
application engineers.
General service
7

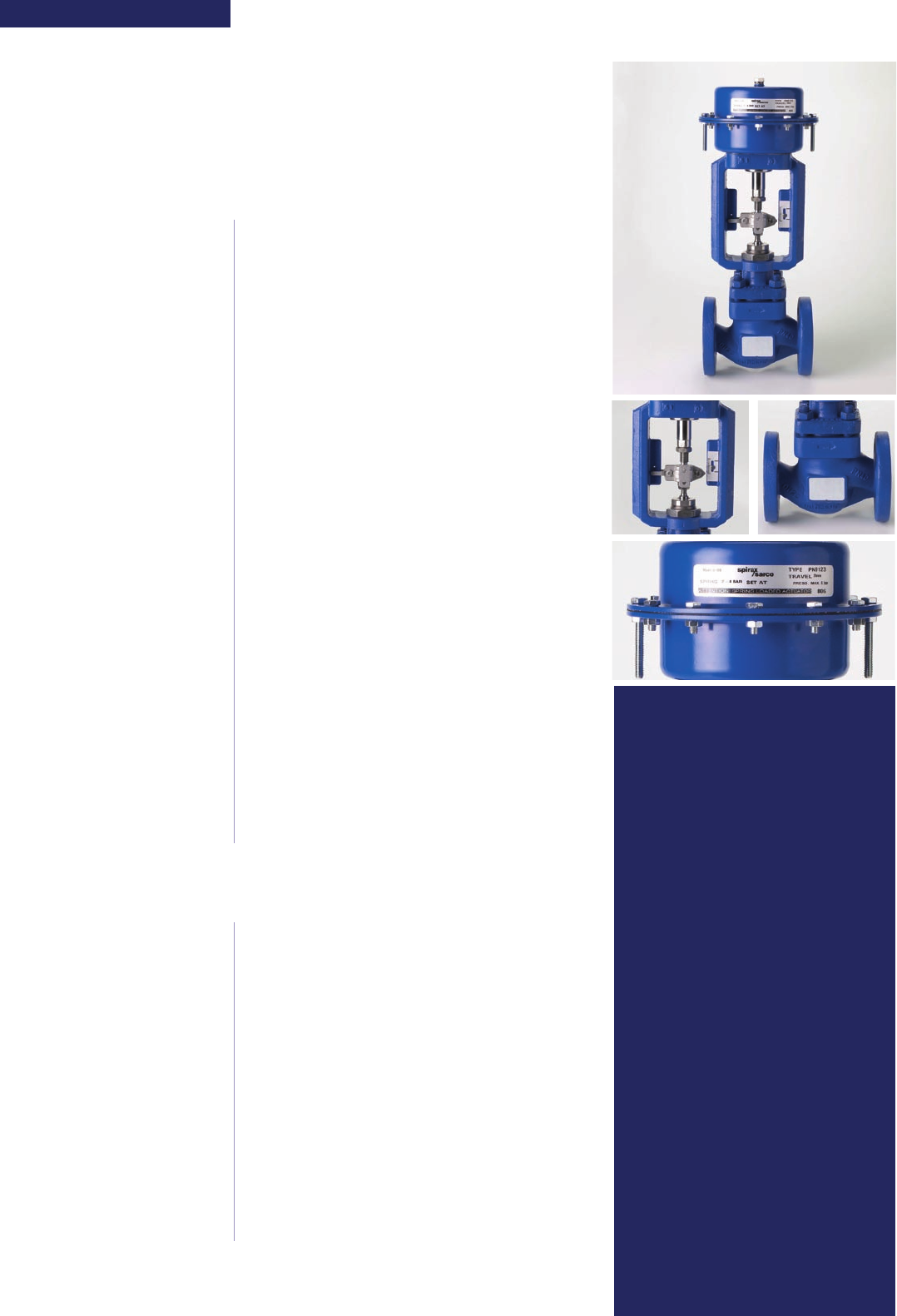

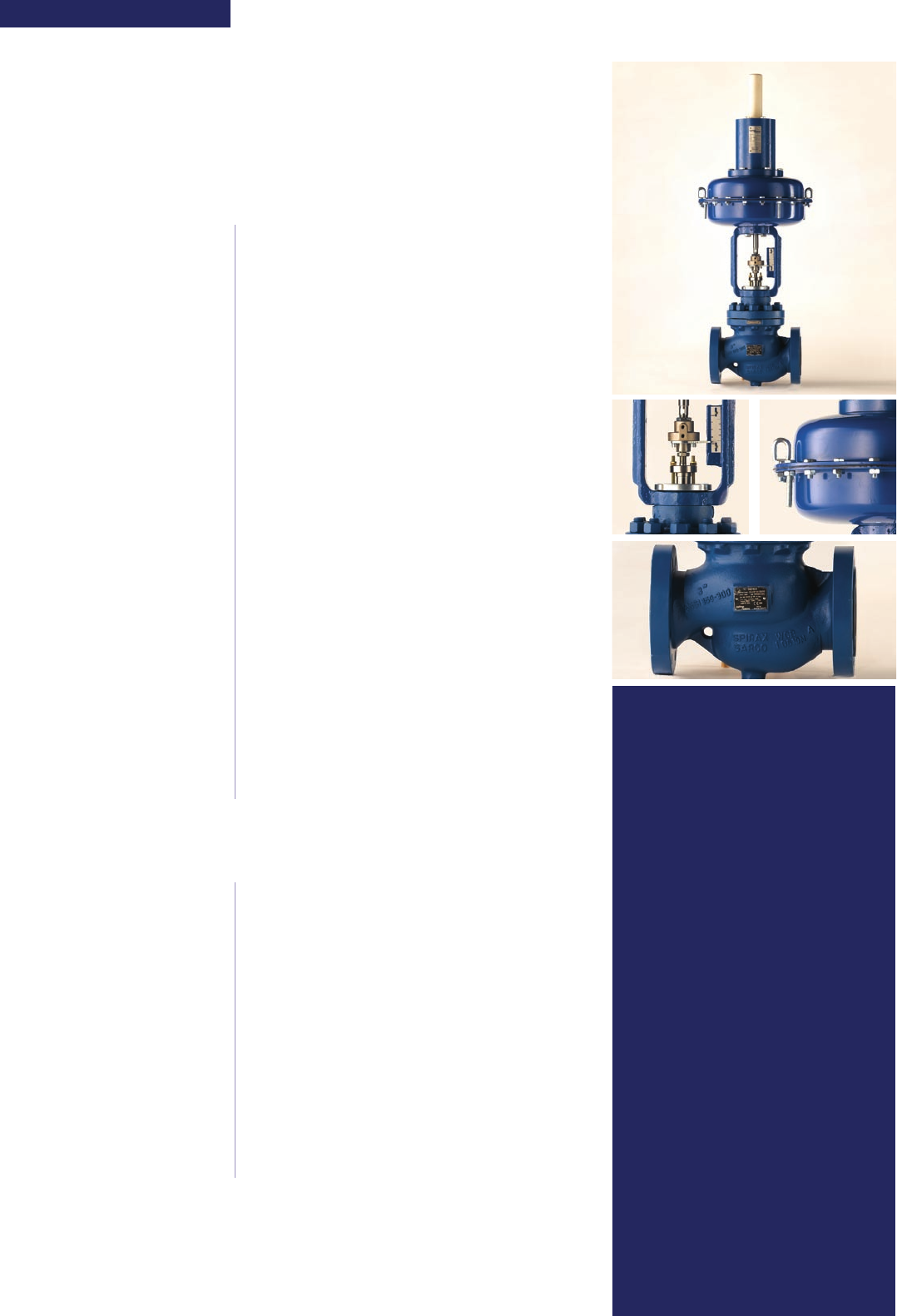

SPIRA-TROL
General service, modular design, globe control valve with
EN and ASME (ANSI) compatible design and materials.
Valve specification
Sizes Flanged DN15 to DN200
(larger sizes available to order)
Screwed and socket weld ½" to 2"
Styles 2-port globe
End connections Screwed BSP and NPT
Socket weld
Flanged PN16, PN25 and PN40
ASME (ANSI) 125, 150 and 300
JIS 10 and JIS 20
KS 10 and KS 20
Body materials Cast iron
SG iron
Carbon steel
Stainless steel
Maximum temperature 400°C (752°F)
Maximum PN40 and ASME (ANSI) 300
body design rating
Trim Balanced and unbalanced plug
Equal %, linear and quick
opening flow characteristics
Five stages of flow reduction
Low noise
Actuator specification
Types Pneumatic
Electric
Maximum differential 40 bar (580 psi)
pressure
Action Spring-to-close or spring-to-open
in both electric and pneumatic
Supply Compressed air: 4.5 bar (65 psi)
Electric: 24 V ac, 110 V ac and 240 V ac
Options Handwheel
All industrial standard control
interface devices
For further technical information, search our website using the
following key words 'SPIRA-TROL'
Key features
• Large number of body materials,
stem seal and trim options to
meet the requirement of a wide
range of applications.
• Modular design clamped
in place internals for ease of
maintenance
• Electric and pneumatic
operation.
• Used across all industries
in low and medium pressure
applications.
• Supported by knowledgeable
and experienced design
application engineers.
General service
8
For further technical information, search our website
using the following key words 'QL'

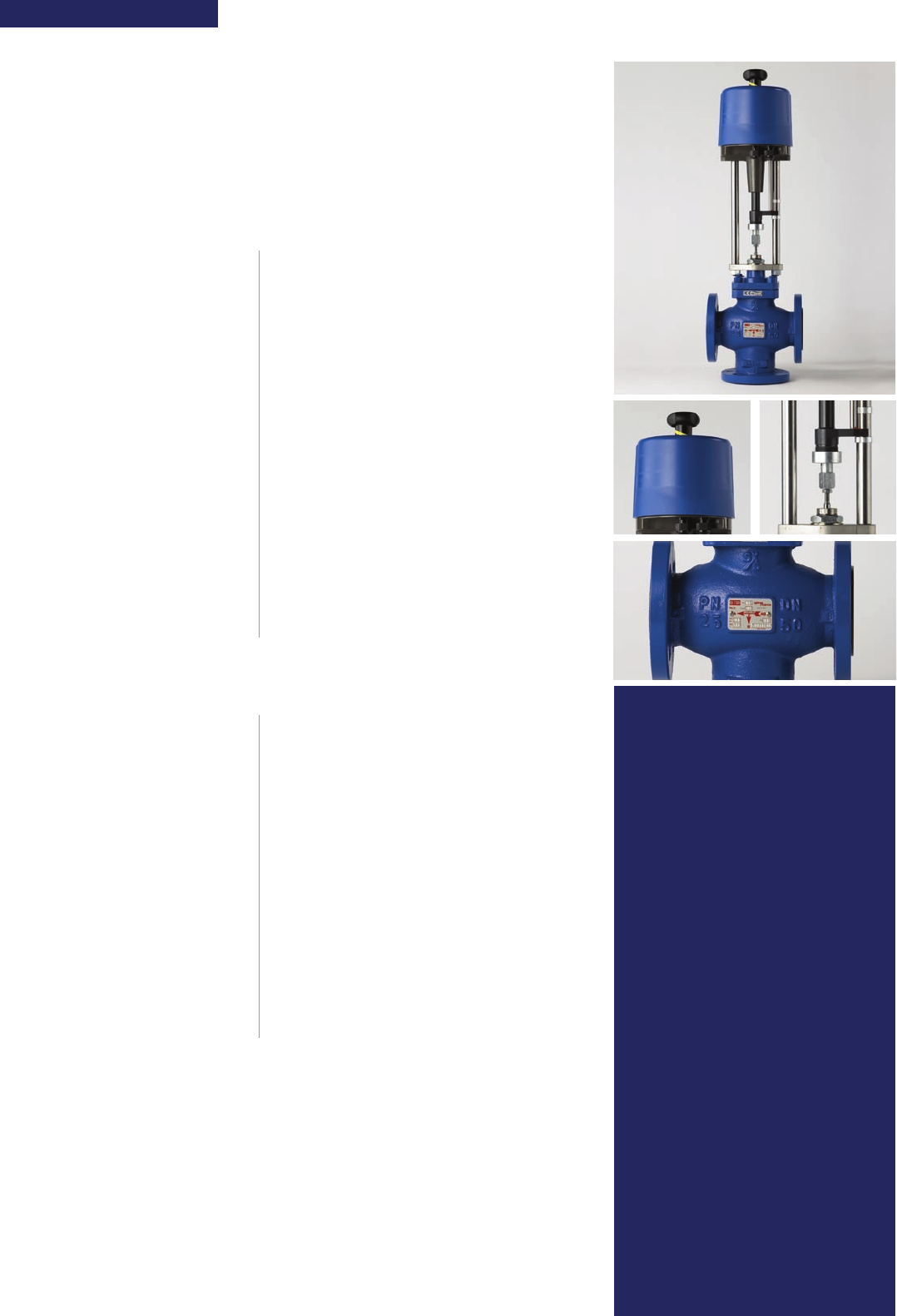

Q series
EN standard 3-port control valve, with ASME (ANSI) flange options,
suitable for use in heating and cooling liquid systems, including thermal oil
and contamination control of condensate.
Valve specification
Sizes Flanged DN15 to DN200 (½" to 8")
Styles 3-port globe
End connections Flanged PN16, PN25 and PN40
Body materials Cast iron
SG iron
Carbon steel
Stainless steel
Maximum temperature 400°C (752°F)
Maximum PN40
body design rating
Trim Linear, mixing or diverting
Actuator specification
Types Pneumatic
Electric
Maximum differential 40 bar (580 psi)
pressure
Action Spring-to-extend or spring-to-retract,
in both electric and pneumatic
Supply Compressed air: 4.5 bar (65 psi)
Electric: 24 V ac, 110 V ac and 240 V ac
Options Handwheel for manual operation
All industrial standard control interface devices
Key features
• Mixing and diverting services.
• Large number of body materials
and stem seal options to meet
the requirements of a wide
range of applications.
• Electric and pneumatic
actuations.
• All industry standard interface
devices.
• Supported by knowledgeable
and experienced design
application engineers.
General service
9

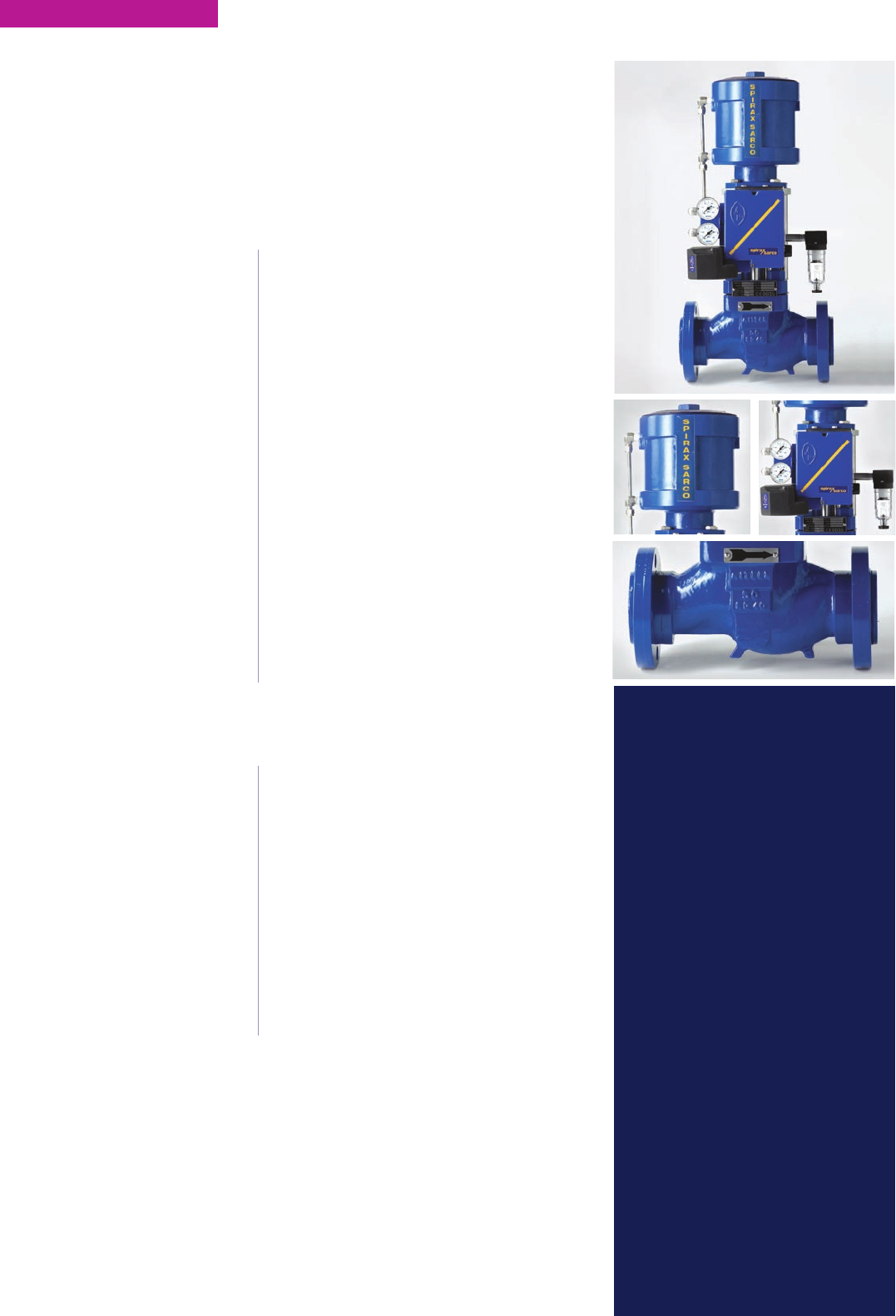

C series
Rugged cage design, 2-port control valves designed to ASME (ANSI)
B 16.34, for erosive, noisy and cavitating applications
Valve specification
Sizes 1" to 8" (DN25 to DN200)
Styles 2-port globe
End connections Butt weld
Socket weld
Ring type joint
Flanged ASME (ANSI) 150, 300 and 600
PN16, PN25, PN63 and PN100
Body materials Carbon steel WCB
Stainless steel CF8M
Alloy steel WC6
Maximum temperature 1004°C (540°F)
Maximum ASME (ANSI) 600 (PN100)
body design rating
Trim Balanced and unbalanced plug
Equal %, linear and quick
opening flow characteristics
Three stages of flow reduction
Cavitation control
Noise control
Actuator specification
Types York mounted, pneumatic, single spring
Maximum differential 1 494 psi (103 bar)
pressure
Action Spring-to-close or spring-to-open on air failure
Supply pressure Compressed air:
Spring-to-close 79.8 psi (5.5 bar)
Spring-to-open 43.5 psi (3 bar)
Options Handwheel for manual operation
All industry standard control interface devices
For further technical information, search our website using the
following key words 'CAGE DESIGN'
Key features
• Designed to ASME (ANSI) B 16.34.
• Cage guided for excellent
control over high differential
pressure and ease of
maintenance.
• Many different body materials,
stem seal and trim options to
meet the requirements of a wide
range of applications.
• Clamped in place internals for
ease of maintenance.
• Supported by knowledgeable
and experienced design
application engineers.
General service
10
For further technical information, search our website
using the following key words 'STERI-TROL'
STERI-TROL
2-port clean service control valves.
Valve specification
Sizes DN15 to DN100
(½" to 4")
Styles 2-port and 3-port, angle pattern or
straight through configuration
End connections Sanitary clamp
Tube weld
Screwed aseptic thread BSP and NPT
Flanged
Body materials Stainless steel AISI 316L
Maximum temperature 250°C (482°F)
Maximum PN16
body design rating
Trim Equal %, linear fast opening flow characteristics
Soft seal option
Reduced Kv and micro flow
Actuator specification
Types Pneumatic
Maximum differential 16 bar (232 psi)
pressure
Action Spring-to-close on air failure
Spring-to-open on air failure
Supply Compressed air: 4.5 bar (psi)
Options Handwheel
Painted, ENP and stainless steel actuator
All industrial standard control interface devices
Key features
• Angle pattern or straight through
body configuration.
• Valve and actuator in stainless
steel.
• No dead corners.
• Self-draining design.
• Easy in-line maintenance.
• 0.4 micron internals finish as
standard.
• EN 10204 3.1 surface roughness
certification as standard.
• Supported by knowledgeable
and experienced design
application engineers.
Special service
11
Boiler house series
A range of control valves designed specifically for boiler control duties.
Valve specification
Sizes Flanged DN20 to DN65
Screwed ¾" to 2"
Styles 2-port linear
2-port rotary
End connections Flanged PN40 and ASME (ANSI) 300
Screwed BSP and NPT
Body materials Carbon steel
Maximum temperature 239°C (462°F)
Maximum PN40 and ASME (ANSI) 300
body design rating
Trim Cone
Ball
Actuator specification
Types Pneumatic linear
Pneumatic rotary
Electric linear
Maximum differential 32 bar (464 psi)
pressure
Action Fail close
Supply pressure Compressed air: 10 bar (145 psi)
Electric: 24 V ac, 110 V ac and 240 V ac
50 / 60 Hz
Options Manual key operation control valve
interface devices
For further technical information, search our website using the
following key words 'BLOWDOWN'
Key features
• Feedwater control valves.
• Boiler blowdown valves.
• TDS control valves.
• Specifically developed cone and
ball trim design to ensure
excellent control and shut-off on
suspended solid application.
• Manual key operation.
• Part of a complete boiler house
system.
• Supported by knowledgeable
and experienced design
application engineers.
Special service
12
For further technical information, search our website
using the following key words 'SEVERE SERVICE'

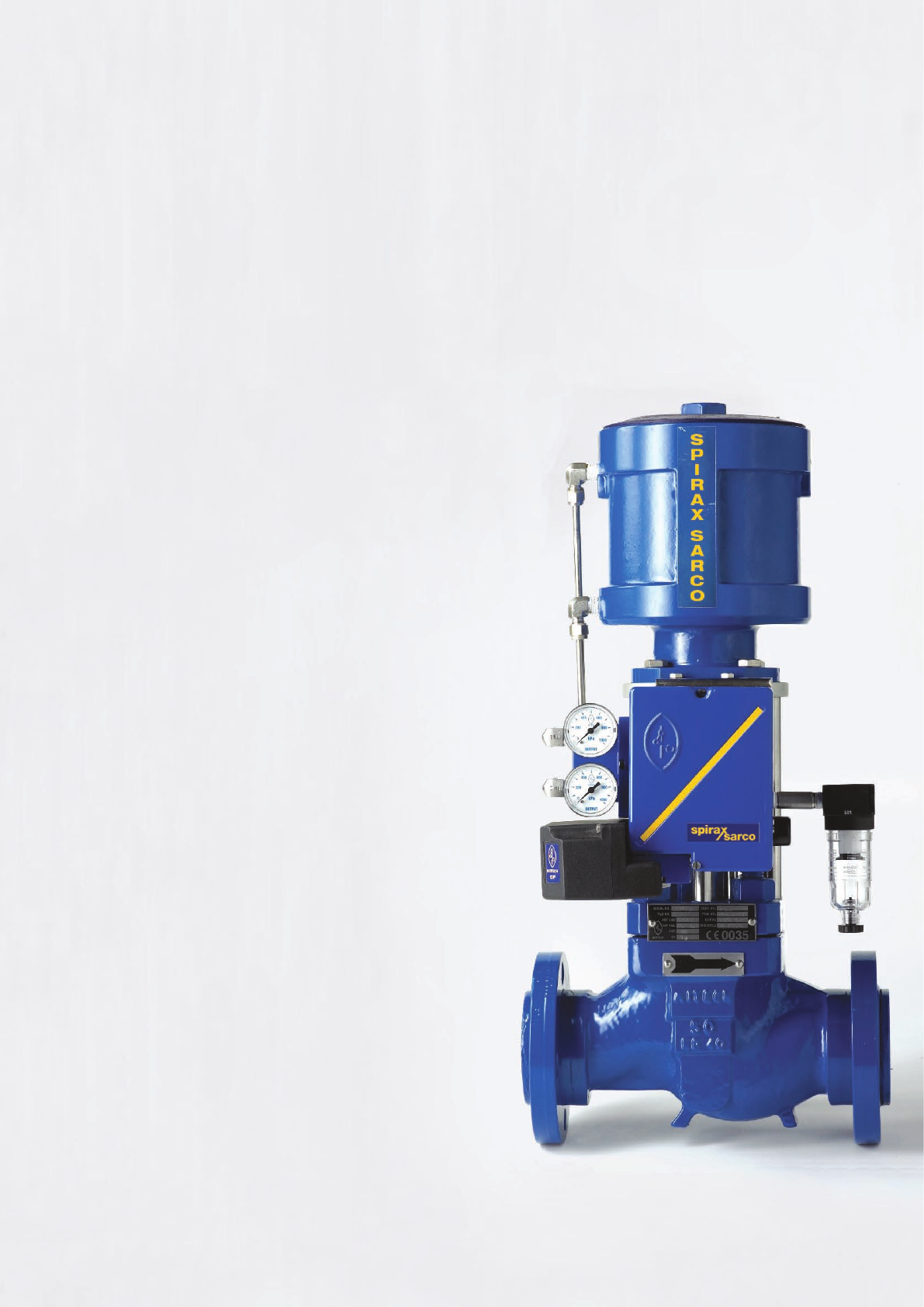

Severe service series
A 2-port and 3-port control valve in globe or angle pattern for use in
severe service duty. Incorporating an energy-dissipating disc, each valve
is designed specifically for the customers application.
Valve specification
Sizes ½" to 16" (DN15 to DN400)
other sizes available to order
Styles 2-port and 3-port globe,
angle or swept angle pattern
End connections To customer order
Body materials Carbon steel
Stainless steel
(other materials are available to order)
Maximum temperature To customer order
Maximum To ASME (ANSI) 4500, (higher available to order)
body design rating
Trim Energy-dissipating disc, ZZ,
unbalanced, pressure balanced
Actuator specification
Types Pneumatic piston
Maximum differential To customer order
pressure
Action Double acting or single acting
Fail open or fail close
Supply Compressed air: 10 bar (150 psi)
Electric: Single and three phase
Options All industrial standard control interface devices
Key features
• Globe, angle and swept angle
body design.
• Application specific energy
dissipating disc stack for severe
service duty.
• Clamp in place, and cleanable,
disc stack for quick and easy
maintenance.
• Fixed and separable flange
options.
• High force piston actuator -
small size and weight with
precise control.
• Supported by knowledgeable
and experienced design
application engineers.
Special service
13

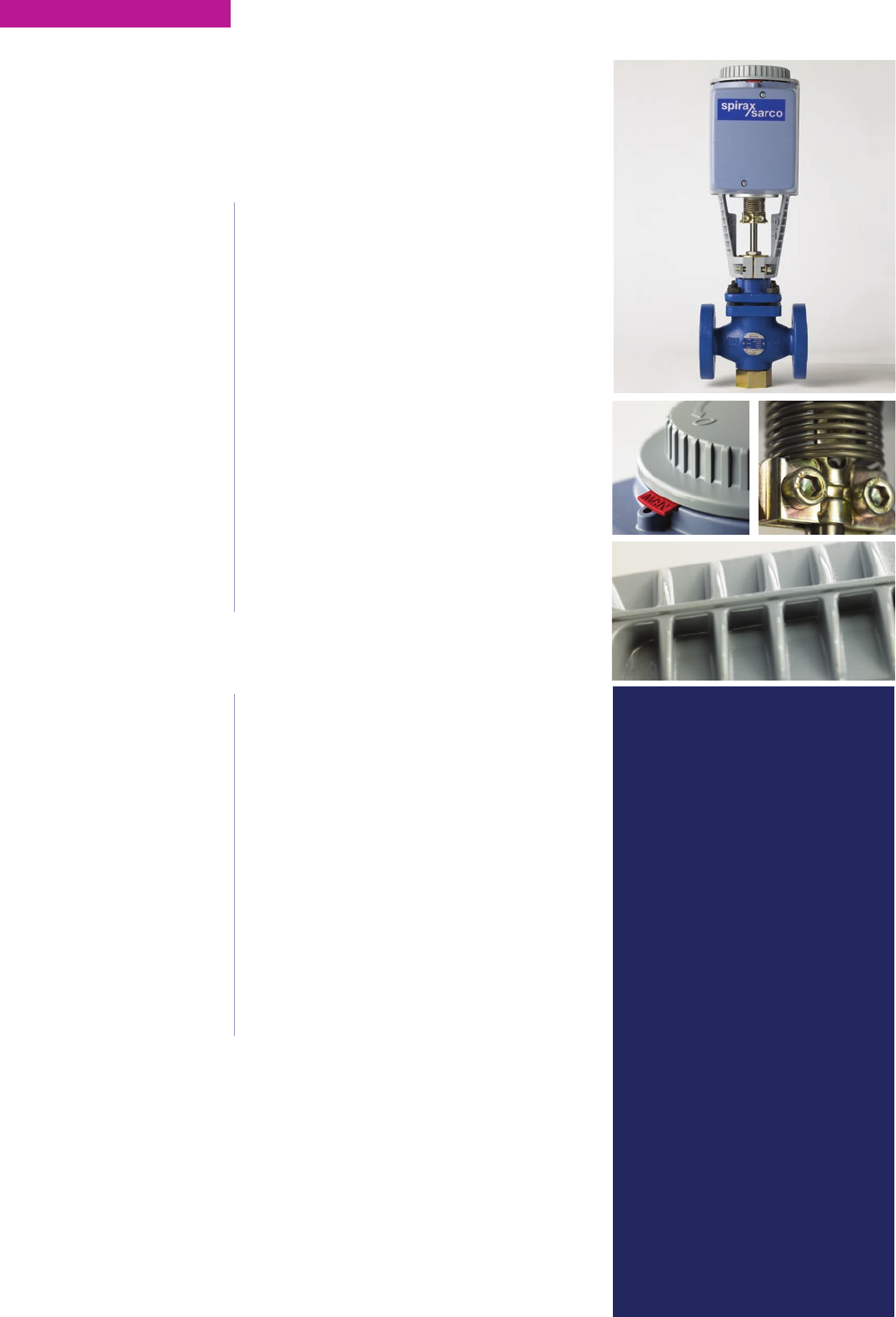

Our commitment to you
Manufacturing and quality
Spirax Sarco controls are designed and manufactured by
Spirax Sarco in one of 15 manufacturing plants located
around the world. We also have dedicated fabrication facilities
so we can build compact, high performance, skid mounted
solutions tailored to your specific requirements.
All Spirax Sarco facilities employ the latest in technology and
production best practice, to ensure we have direct control
over our product and service quality.
Product quality

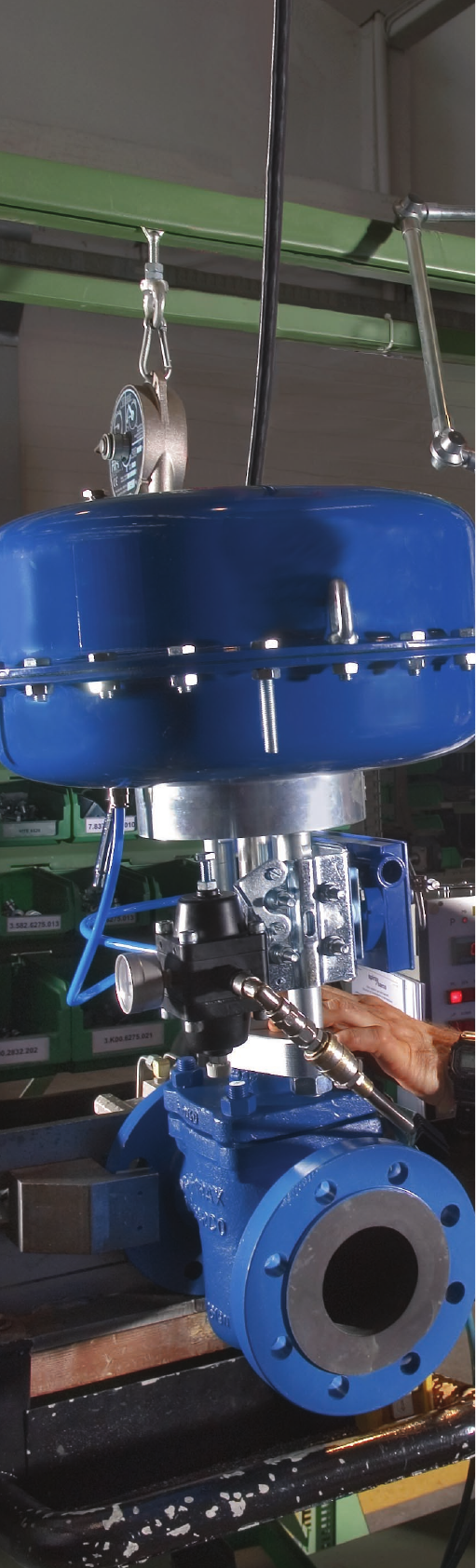

Assembly is automated, testing is computerised and every
controls product and system is set using skilled personnel
to ensure a consistently high quality. For example every
Spirax Sarco control valve receives a computerised hydraulic
pressure test at 1.5 times the nominal rating of the valve,
and the shut-off is tested to ensure it complies with the class
specified. Over 100 separate checks are carried out on a
control valve assembly before it is despatched.
Sizing and selection software
Correct product selection and system design is key to
achieving good performance and long service life. Depending
on the process conditions this can be a complex decision.
In order to allow our engineers to make these decisions
quickly and reliably Spirax Sarco has developed its own
software systems to ensure you achieve the best price
performance from your investment.
Severe service applications
Suitable for applications that have high pressure-drop
requirements, aggressive process conditions or media. These
applications may require special materials of construction or
use an energy dissipating disc stack system.
14
Documentation
Spirax Sarco has ISO accreditation and complies
to all leading standards, such as PED, NACE, ATEX
and Lloyds Register.
QA systems, health and safety requirements,
insurance needs, environmental policies and an
increasing risk of litigation, have all increased the
amount of documentation needed to support our
products and services.
Spirax Sarco understands this need and provides
the documentation required for each customer
situation, from simple certificates of conformity
through to full manufacturing documentation
dossiers.
Local stocks and settings
Certainty in delivery and a quick response to
last minute changes are frequently the key to the
successful implementation of a project. In order to
meet customer’s delivery requirements Spirax Sarco
locally stocks and sets control products in each of
its worldwide companies, and through its network
of distribution and service partners.
High levels of personal service
Our dedicated and highly trained service personnel have
knowledge second to none in the industry.
And with over 1,200 direct sales engineers around the world,
controls specialists in 34 countries and a network of approved
valve repair partners, you can be assured of receiving the
highest quality of service.
Spirax Sarco, a supplier you can trust
• Spirax Sarco direct design and manufacture to international
standards
• Employing the latest in technology and best practice
• 100% test and inspection before despatch
• Comprehensive documentation
• Local stocks and setting
• 1,200 direct sales engineers worldwide
• Controls specialists in 34 countries
• Highly trained worldwide network of direct service engineers
and service partners
15
Spirax-Sarco Limited
Cheltenham UK
GL53 8ER
t: +44 (0)1242 521361
f: +44 (0)1242 573342
e: controls@uk.spiraxsarco.com
www.spiraxsarco.com /controls
© Copyright 2010
Spirax Sarco is a registered trademark of Spirax-Sarco Limited
SB-GCM-24 CM Issue 2
Some products, services or solutions may not be available in certain markets
Distributors
Africa
Algeria
Cameroon
Ethiopia
Ghana
Ivory Coast
Libya
Malawi
Mauritius
Morocco
Namibia
Senegal
Sudan
Tanzania
Tunisia
Uganda
Zambia
Zimbabwe
Americas
Bolivia
Chile
Colombia
Costa Rica
Dominican Republic
Ecuador
El Salvador
Guatemala
Honduras
Jamaica
Nicaragua
Panama
Paraguay
Peru
Trinidad and Tobago
Uruguay
Venezuela
Sales offices
Africa
Egypt
Kenya
Nigeria
Americas
Colombia
Venezuela
Asia
Hong Kong
Indonesia
Pakistan
Philippines
Vietnam
Europe
Austria
Hungary
Ireland
Middle East
UAE
Group companies
Africa
South Africa
Americas
Argentina
Brazil
Canada
Mexico
USA
Asia
China
India
Japan
Korea
Malaysia
Singapore
Taiwan
Thailand
Australasia
Australia
New Zealand
Europe
Austria
Belgium
Czech Republic
Denmark
Finland
France
Germany
Italy
Norway
Poland
Portugal
Russia
Slovak Republic
Spain
Sweden
Switzerland
Turkey
UK
Asia
Bangladesh
Australasia
Fiji
Europe
Bulgaria
Croatia
Cyprus
Estonia
Greece
Iceland
Latvia
Lithuania
Malta
Netherlands
Romania
Slovenia
Middle East
Bahrain
Iran
Israel
Jordan
Kuwait
Lebanon
Oman
Qatar
Saudi Arabia
Syria

Navigation menu
