Preface

This preface introduces the Cortex-M4 Devices Generic User Guide. It contains the following

sections:

•About this book on page vi

•Feedback on page ix.

Preface

ID121610 Non-Confidential

About this book

This book is a generic user guide for devices that implement the ARM Cortex-M4 processor.

Implementers of Cortex-M4 designs make a number of implementation choices, that can affect

the functionality of the device. This means that, in this book:

• some information is described as implementation-defined

• some features are described as optional.

In this book, unless the context indicates otherwise:

Processor Refers to the Cortex-M4 processor, as supplied by ARM.

Device Refers to an implemented device, supplied by an ARM partner, that incorporates

a Cortex-M4 processor. In particular, your device refers to the particular

implementation of the Cortex-M4 that you are using. Some features of your

device depend on the implementation choices made by the ARM partner that

made the device.

Product revision status

The rnpn identifier indicates the revision status of the product described in this book, where:

rn Identifies the major revision of the product.

pn Identifies the minor revision or modification status of the product.

Intended audience

This book is written for application and system-level software developers, familiar with

programming, who want to program a device that includes the Cortex-M4 processor.

Using this book

This book is organized into the following chapters:

Chapter 1 Introduction

Read this for an introduction to the Cortex-M4 processor and its features.

Chapter 2 The Cortex-M4 Processor

Read this for information about how to program the processor, the processor

memory model, exception and fault handling, and power management.

Chapter 3 The Cortex-M4 Instruction Set

Read this for information about the processor instruction set.

Chapter 4 Cortex-M4 Peripherals

Read this for information about Cortex-M4 peripherals.

Appendix A Cortex-M4 Options

Read this for information about the processor implementation and configuration

options.

Glossary Read this for definitions of terms used in this book.

Preface

ID121610 Non-Confidential

Typographical conventions

The typographical conventions used in this document are:

italic Highlights important notes, introduces special terminology, denotes

internal cross-references, and citations.

bold Used for terms in descriptive lists, where appropriate.

monospace

Denotes text that you can enter at the keyboard, such as commands, file

and program names, and source code.

monospace

italic

Denotes arguments to monospace text where the argument is to be

replaced by a specific value.

< and > Enclose replaceable terms for assembler syntax where they appear in code

or code fragments. For example:

CMP Rn, <Rm|#imm>

Preface

ID121610 Non-Confidential

Additional reading

This section lists publications by ARM and by third parties.

See Infocenter, http://infocenter.arm.com, for access to ARM documentation.

See onARM, http://onarm.com, for embedded software development resources including the

Cortex Microcontroller Software Interface Standard (CMSIS).

ARM publications

This book contains information that is specific to this product. See the following documents for

other relevant information:

•Cortex-M4 Technical Reference Manual (ARM DDI 0439)

•ARMv7-M Architecture Reference Manual (ARM DDI 0403).

Other publications

This guide only provides generic information for devices that implement the ARM Cortex-M4

processor. For information about your device see the documentation published by the device

manufacturer.

Preface

ID121610 Non-Confidential

Feedback

ARM welcomes feedback on this product and its documentation.

Feedback on content

If you have comments on content then send an e-mail to

errata@arm.com

. Give:

• the title

• the number, ARM DUI 0553A

• the page numbers to which your comments apply

• a concise explanation of your comments.

ARM also welcomes general suggestions for additions and improvements.

ID121610 Non-Confidential

Chapter 1

Introduction

This chapter introduces the Cortex-M4 processor and its features. It contains the following section:

•About the Cortex-M4 processor and core peripherals on page 1-2.

Introduction

ID121610 Non-Confidential

1.1 About the Cortex-M4 processor and core peripherals

The Cortex-M4 processor is a high performance 32-bit processor designed for the

microcontroller market. It offers significant benefits to developers, including:

• outstanding processing performance combined with fast interrupt handling

• enhanced system debug with extensive breakpoint and trace capabilities

• efficient processor core, system and memories

• ultra-low power consumption with integrated sleep mode and an optional deep sleep

mode

• platform security robustness, with optional integrated Memory Protection Unit (MPU).

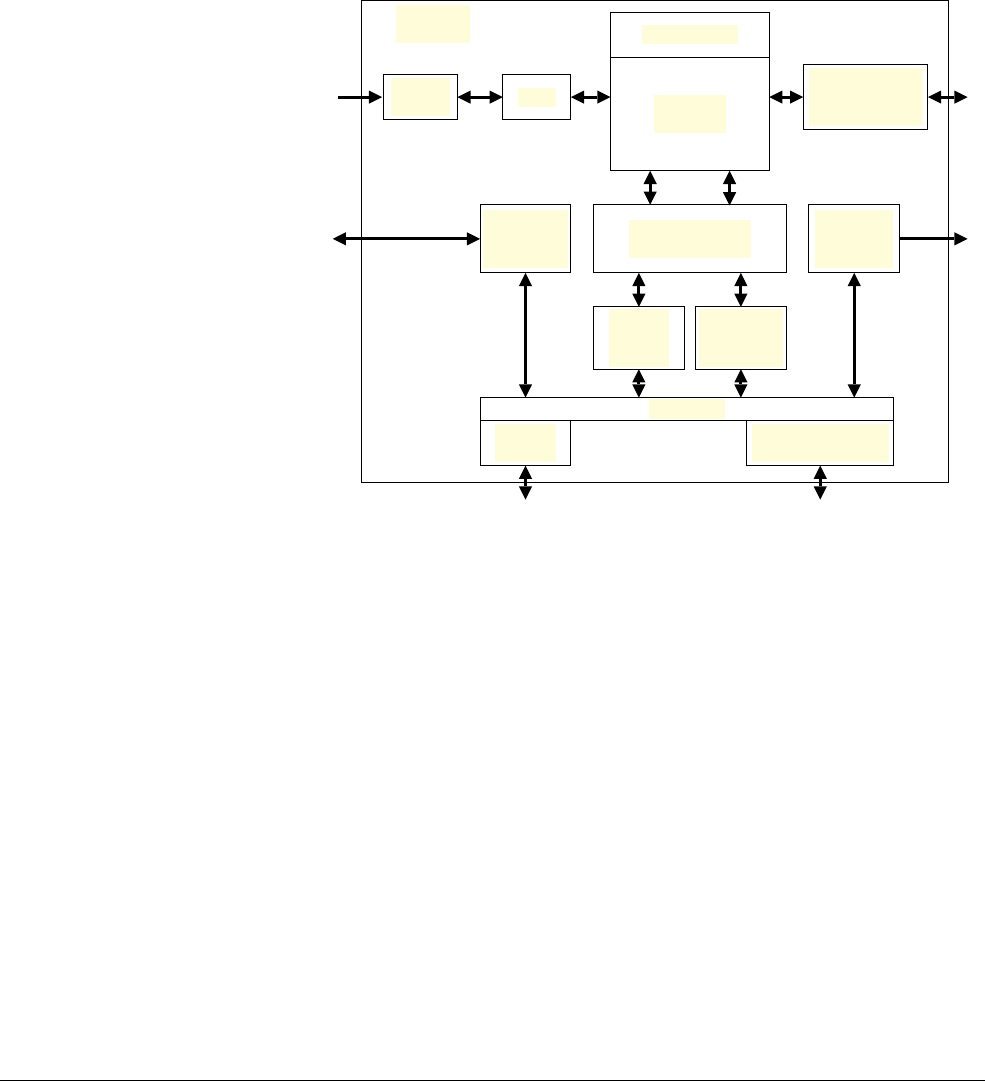

Figure 1-1 Cortex-M4 implementation

The Cortex-M4 processor is built on a high-performance processor core, with a 3-stage pipeline

Harvard architecture, making it ideal for demanding embedded applications. The processor

delivers exceptional power efficiency through an efficient instruction set and extensively

optimized design, providing high-end processing hardware including optional

IEEE754-compliant single-precision floating-point computation, a range of single-cycle and

SIMD multiplication and multiply-with-accumulate capabilities, saturating arithmetic and

dedicated hardware division.

To facilitate the design of cost-sensitive devices, the Cortex-M4 processor implements

tightly-coupled system components that reduce processor area while significantly improving

interrupt handling and system debug capabilities. The Cortex-M4 processor implements a

version of the Thumb® instruction set based on Thumb-2 technology, ensuring high code density

and reduced program memory requirements. The Cortex-M4 instruction set provides the

exceptional performance expected of a modern 32-bit architecture, with the high code density

of 8-bit and 16-bit microcontrollers.

The Cortex-M4 processor closely integrates a configurable Nested Vectored Interrupt

Controller (NVIC), to deliver industry-leading interrupt performance. The NVIC includes a

Non Maskable Interrupt (NMI) that can provide up to 256 interrupt priority levels. The tight

integration of the processor core and NVIC provides fast execution of Interrupt Service

Optional

Embedded

Trace Macrocell

NVIC

Optional

Debug

Access Port

Optional Memory

protection unit

Optional

WIC

Optional

Serial Wire

viewer

Bus matrix

Code

interface

SRAM and

peripheral interface

Optional

Data

watchpoints

Optional

Flash

patch

Cortex-M4

processor Optional FPU

Processor

core

Introduction

ID121610 Non-Confidential

Routines (ISRs), dramatically reducing the interrupt latency. This is achieved through the

hardware stacking of registers, and the ability to suspend load-multiple and store-multiple

operations. Interrupt handlers do not require wrapping in assembler code, removing any code

overhead from the ISRs. A tail-chain optimization also significantly reduces the overhead when

switching from one ISR to another.

To optimize low-power designs, the NVIC integrates with the sleep modes, that includes an

optional deep sleep function. This enables the entire device to be rapidly powered down while

still retaining program state.

1.1.1 System-level interface

The Cortex-M4 processor provides multiple interfaces using AMBA® technology to provide

high speed, low latency memory accesses. It supports unaligned data accesses and implements

atomic bit manipulation that enables faster peripheral controls, system spinlocks and thread-safe

Boolean data handling.

The Cortex-M4 processor has an optional Memory Protection Unit (MPU) that permits control

of individual regions in memory, enabling applications to utilize multiple privilege levels,

separating and protecting code, data and stack on a task-by-task basis. Such requirements are

becoming critical in many embedded applications such as automotive.

1.1.2 Optional integrated configurable debug

The Cortex-M4 processor can implement a complete hardware debug solution. This provides

high system visibility of the processor and memory through either a traditional JTAG port or a

2-pin Serial Wire Debug (SWD) port that is ideal for microcontrollers and other small package

devices.

For system trace the processor integrates an Instrumentation Trace Macrocell (ITM) alongside

data watchpoints and a profiling unit. To enable simple and cost-effective profiling of the system

events these generate, a Serial Wire Viewer (SWV) can export a stream of software-generated

messages, data trace, and profiling information through a single pin.

The optional Embedded Trace Macrocell™ (ETM) delivers unrivalled instruction trace capture

in an area far smaller than traditional trace units, enabling many low cost MCUs to implement

full instruction trace for the first time.

The optional Flash Patch and Breakpoint Unit (FPB) provides up to eight hardware breakpoint

comparators that debuggers can use. The comparators in the FPB also provide remap functions

of up to eight words in the program code in the CODE memory region. This enables applications

stored on a non-erasable, ROM-based microcontroller to be patched if a small programmable

memory, for example flash, is available in the device. During initialization, the application in

ROM detects, from the programmable memory, whether a patch is required. If a patch is

required, the application programs the FPB to remap a number of addresses. When those

addresses are accessed, the accesses are redirected to a remap table specified in the FPB

configuration, which means the program in the non-modifiable ROM can be patched.

1.1.3 Cortex-M4 processor features and benefits summary

• tight integration of system peripherals reduces area and development costs

• Thumb instruction set combines high code density with 32-bit performance

• optional IEEE754-compliant single-precision FPU

• code-patch ability for ROM system updates

• power control optimization of system components

• integrated sleep modes for low power consumption

Introduction

ID121610 Non-Confidential

• fast code execution permits slower processor clock or increases sleep mode time

• hardware division and fast digital-signal-processing orientated multiply accumulate

• saturating arithmetic for signal processing

• deterministic, high-performance interrupt handling for time-critical applications

• optional Memory Protection Unit (MPU) for safety-critical applications

• extensive implementation-defined debug and trace capabilities:

— Serial Wire Debug and Serial Wire Trace reduce the number of pins required for

debugging, tracing, and code profiling.

1.1.4 Cortex-M4 core peripherals

These are:

Nested Vectored Interrupt Controller

The NVIC is an embedded interrupt controller that supports low latency interrupt

processing.

System Control Block

The System Control Block (SCB) is the programmers model interface to the

processor. It provides system implementation information and system control,

including configuration, control, and reporting of system exceptions.

System timer

The system timer, SysTick, is a 24-bit count-down timer. Use this as a Real Time

Operating System (RTOS) tick timer or as a simple counter.

Memory Protection Unit

The Memory Protection Unit (MPU) improves system reliability by defining the

memory attributes for different memory regions. It provides up to eight different

regions, and an optional predefined background region.

Floating-point Unit

The Floating-Point Unit (FPU) provides IEEE754-compliant operations on

single-precision, 32-bit, floating-point values.

ID121610 Non-Confidential

Chapter 2

The Cortex-M4 Processor

This chapter describes the Cortex-M4 processor. It contains the following sections:

•Programmers model on page 2-2

•Memory model on page 2-12

•Exception model on page 2-21

•Fault handling on page 2-29

•Power management on page 2-32.

The Cortex-M4 Processor

ID121610 Non-Confidential

2.1 Programmers model

This section describes the Cortex-M4 programmers model. In addition to the individual core

software execution and stacks.

2.1.1 Processor mode and privilege levels for software execution

The processor modes are:

Thread mode Used to execute application software. The processor enters Thread mode

when it comes out of reset.

Handler mode Used to handle exceptions. The processor returns to Thread mode when it

has finished all exception processing.

The privilege levels for software execution are:

Unprivileged The software:

• has limited access to the

MSR

and

MRS

instructions, and cannot use the

CPS

instruction

• cannot access the system timer, NVIC, or system control block

• might have restricted access to memory or peripherals.

Unprivileged software executes at the unprivileged level.

Privileged The software can use all the instructions and has access to all resources.

Privileged software executes at the privileged level.

In Thread mode, the CONTROL register controls whether software execution is privileged or

unprivileged, see CONTROL register on page 2-9. In Handler mode, software execution is

always privileged.

Only privileged software can write to the CONTROL register to change the privilege level for

software execution in Thread mode. Unprivileged software can use the

SVC

instruction to make

a supervisor call to transfer control to privileged software.

2.1.2 Stacks

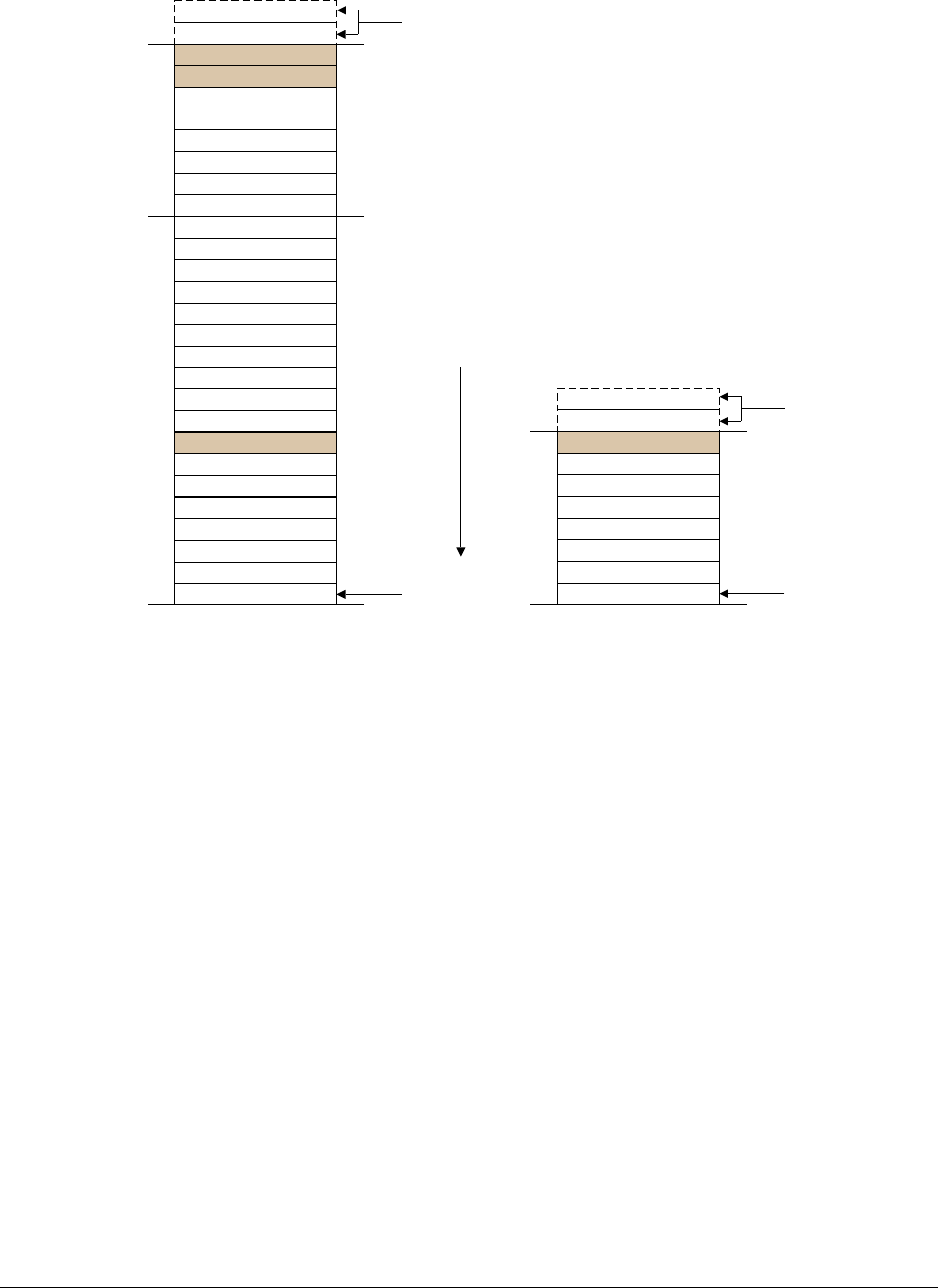

The processor uses a full descending stack. This means the stack pointer holds the address of

the last stacked item in memory. When the processor pushes a new item onto the stack, it

decrements the stack pointer and then writes the item to the new memory location. The

processor implements two stacks, the main stack and the process stack, with a pointer for each

held in independent registers, see Stack Pointer on page 2-4.

In Thread mode, the CONTROL register controls whether the processor uses the main stack or

the process stack, see CONTROL register on page 2-9. In Handler mode, the processor always

uses the main stack. The options for processor operations are:

Table 2-1 Summary of processor mode, execution privilege level, and stack use options

Processor

mode Used to execute Privilege level for

software execution Stack used

Thread Applications Privileged or unprivilegeda

a. See CONTROL register on page 2-9.

Main stack or process stacka

Handler Exception handlers Always privileged Main stack

The Cortex-M4 Processor

ID121610 Non-Confidential

2.1.3 Core registers

The processor core registers are:

SP (R13)

LR (R14)

PC (R15)

R10

R11

R12

Low registers

High registers

MSP

‡

PSP

‡

PSR

PRIMASK

FAULTMASK

BASEPRI

CONTROL

General-purpose registers

Stack Pointer

Link Register

Program Counter

Program status register

Exception mask registers

CONTROL register

Special registers

‡

Banked version of SP

Table 2-2 Core register set summary

Name Type aRequired privilegebReset value Description

R0-R12 RW Either Unknown General-purpose registers on page 2-4

MSP RW Privileged See description Stack Pointer on page 2-4

PSP RW Either Unknown Stack Pointer on page 2-4

LR RW Either

0xFFFFFFFF

Link Register on page 2-4

PC RW Either See description Program Counter on page 2-4

PSR RW Privileged

0x01000000

Program Status Register on page 2-4

ASPR RW Either Unknown Application Program Status Register on page 2-5

IPSR RO Privileged

0x00000000

Interrupt Program Status Register on page 2-6

EPSR RO Privileged

0x01000000

Execution Program Status Register on page 2-6

PRIMASK RW Privileged

0x00000000

Priority Mask Register on page 2-8

FAULTMASK RW Privileged

0x00000000

Fault Mask Register on page 2-8

BASEPRI RW Privileged

0x00000000

Base Priority Mask Register on page 2-9

CONTROL RW Privileged

0x00000000

CONTROL register on page 2-9

a. Describes access type during program execution in thread mode and Handler mode. Debug access can differ.

b. An entry of Either means privileged and unprivileged software can access the register.

The Cortex-M4 Processor

ID121610 Non-Confidential

General-purpose registers

R0-R12 are 32-bit general-purpose registers for data operations.

Stack Pointer

The Stack Pointer (SP) is register R13. In Thread mode, bit[1] of the CONTROL register

indicates the stack pointer to use:

•0 = Main Stack Pointer (MSP). This is the reset value.

•1 = Process Stack Pointer (PSP).

On reset, the processor loads the MSP with the value from address

0x00000000

Link Register

The Link Register (LR) is register R14. It stores the return information for subroutines, function

calls, and exceptions. On reset, the processor sets the LR value to

0xFFFFFFFF.

Program Counter

The Program Counter (PC) is register R15. It contains the current program address. On reset,

the processor loads the PC with the value of the reset vector, which is at address

0x00000004

Bit[0] of the value is loaded into the EPSR T-bit at reset and must be 1.

Program Status Register

The Program Status Register (PSR) combines:

•Application Program Status Register (APSR)

•Interrupt Program Status Register (IPSR)

•Execution Program Status Register (EPSR).

These registers are mutually exclusive bitfields in the 32-bit PSR. The bit assignments are:

Access these registers individually or as a combination of any two or all three registers, using

the register name as an argument to the

MSR

MRS

instructions. For example:

• read all of the registers using

PSR

with the

MRS

instruction

• write to the APSR N, Z, C, V, and Q bits using

APSR_nzcvq

with the

MSR

instruction.

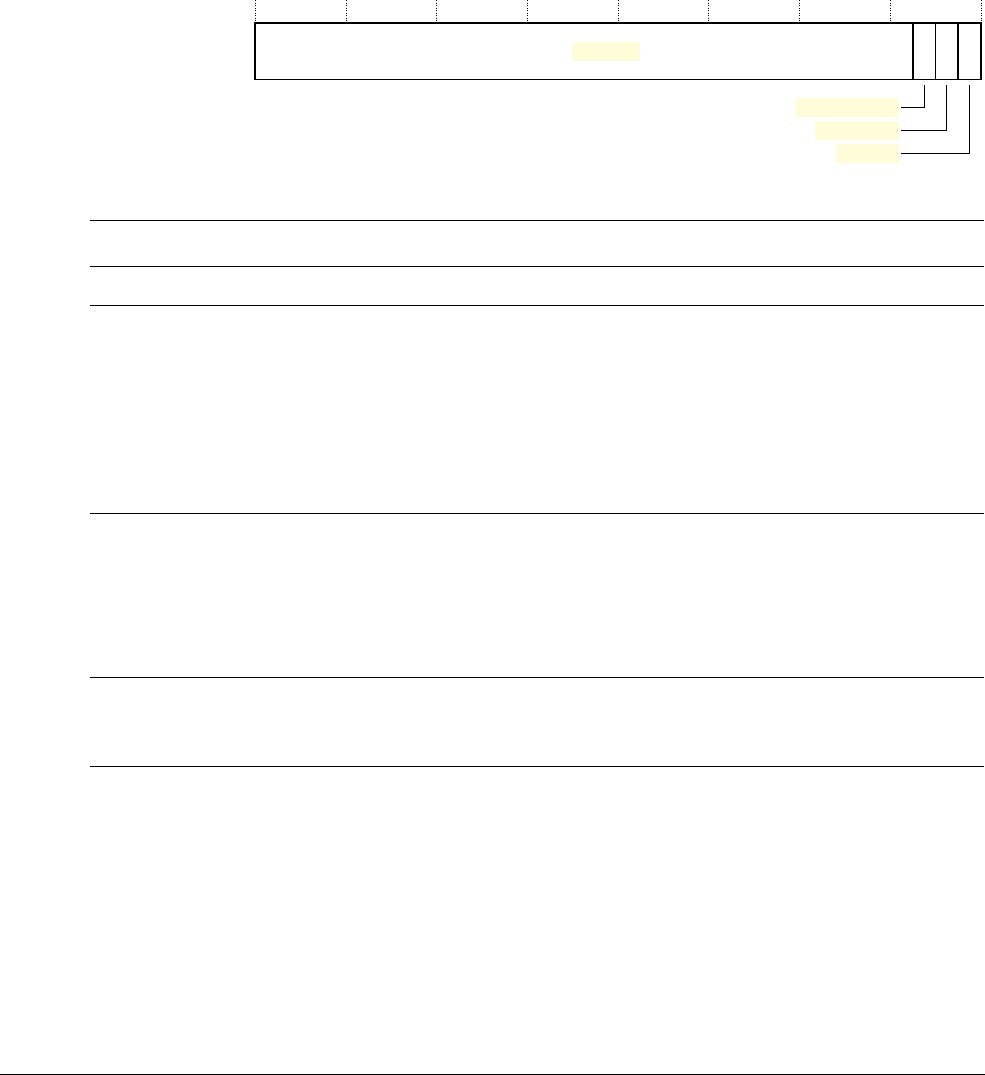

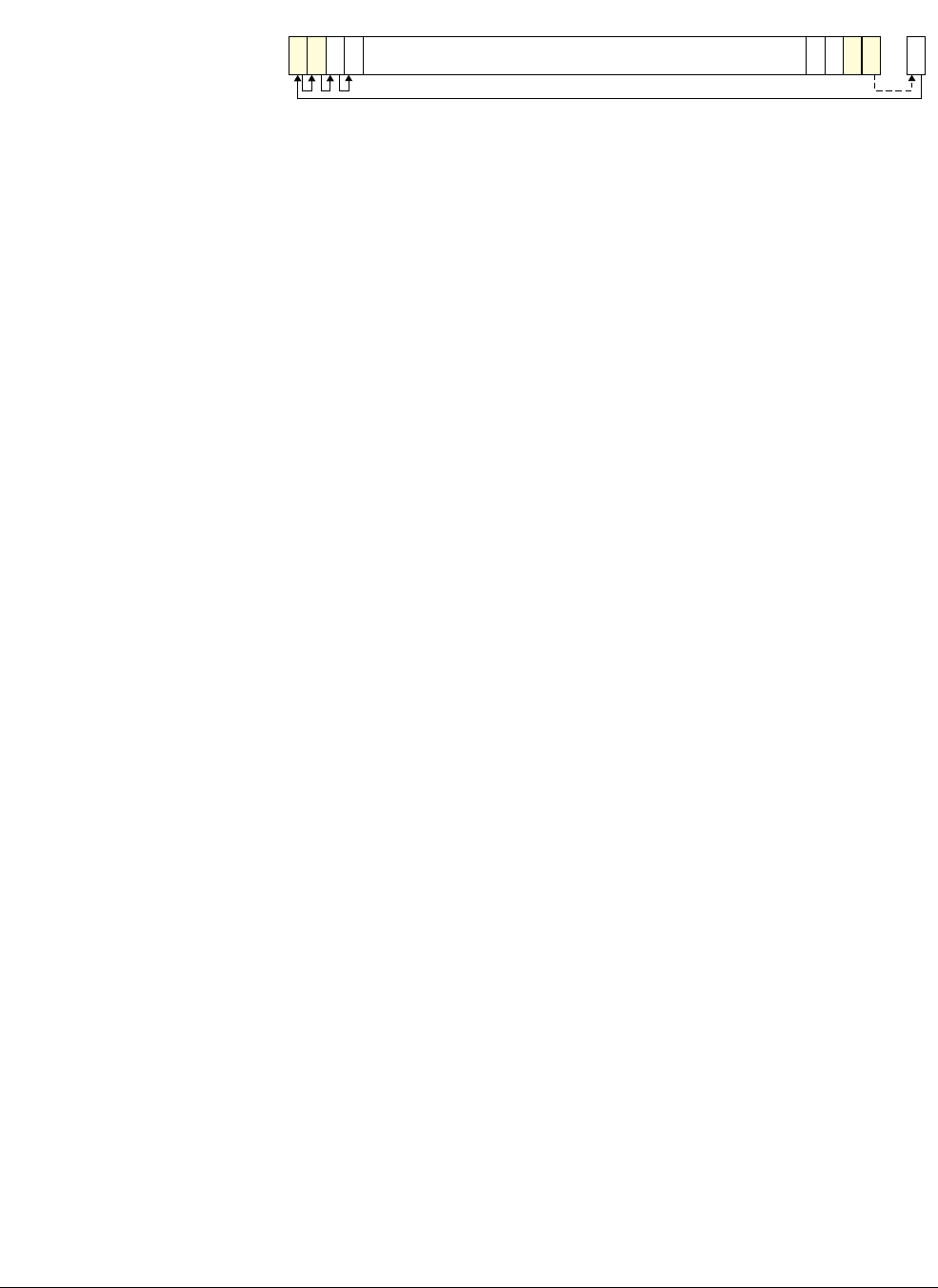

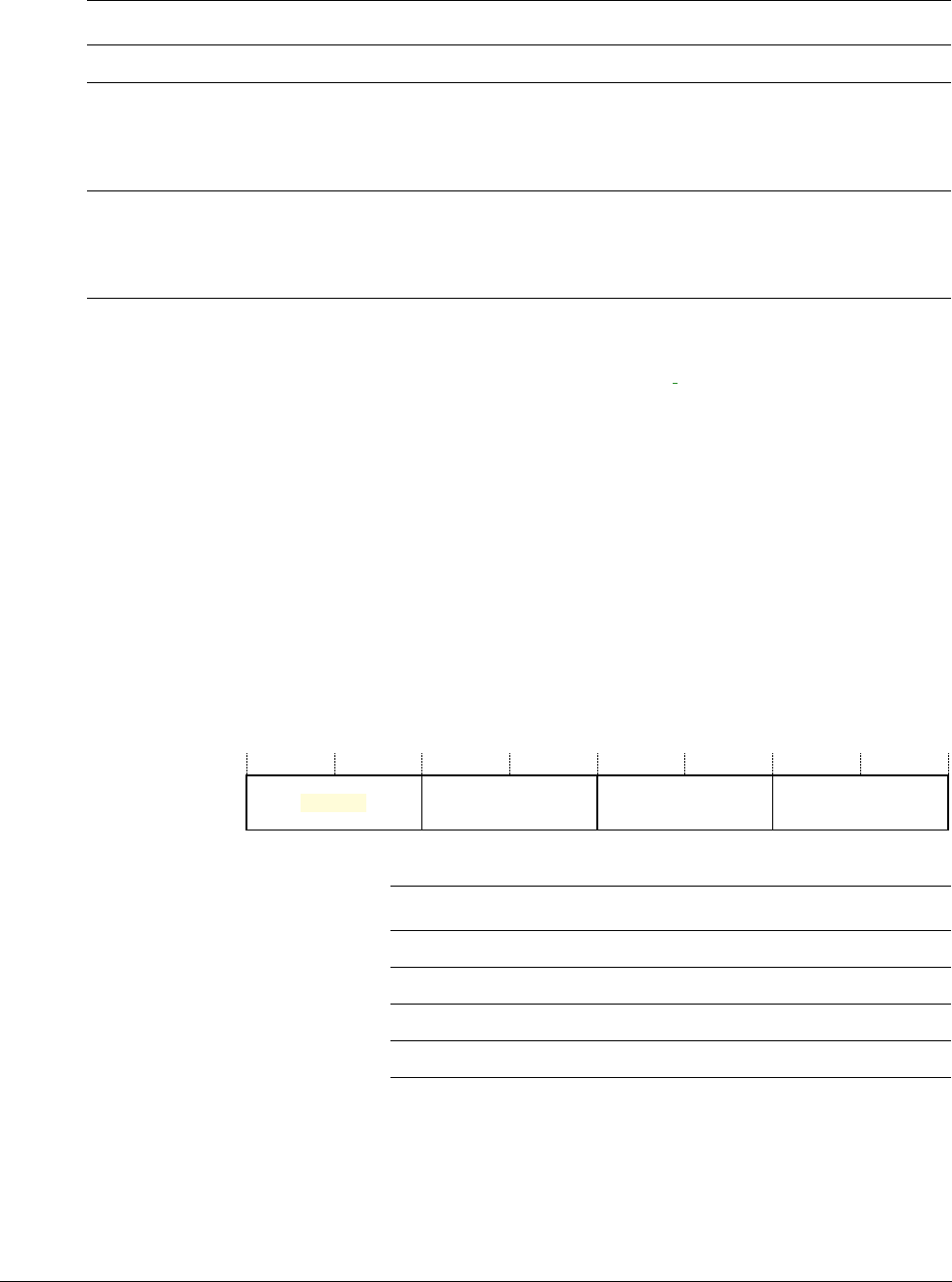

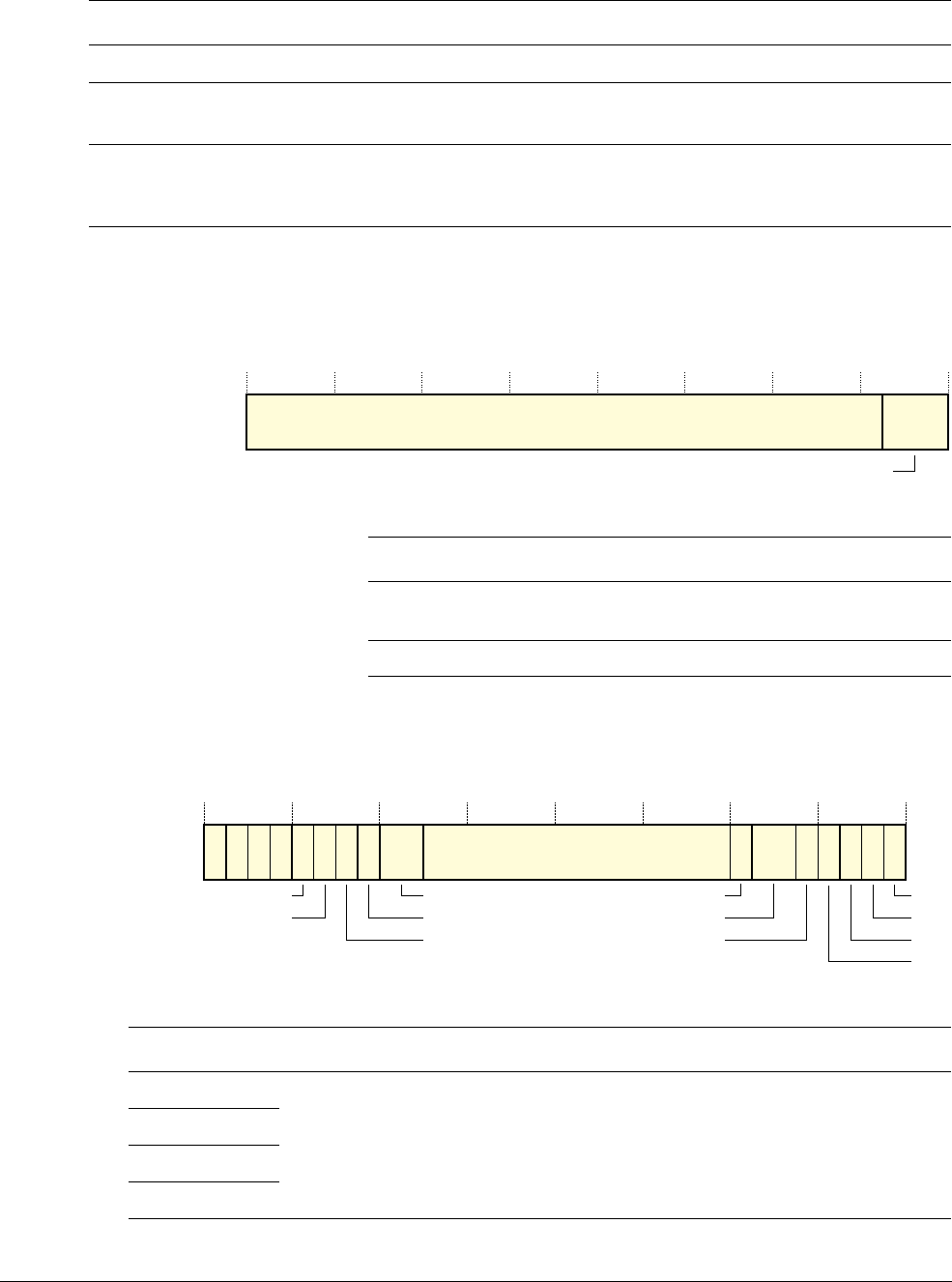

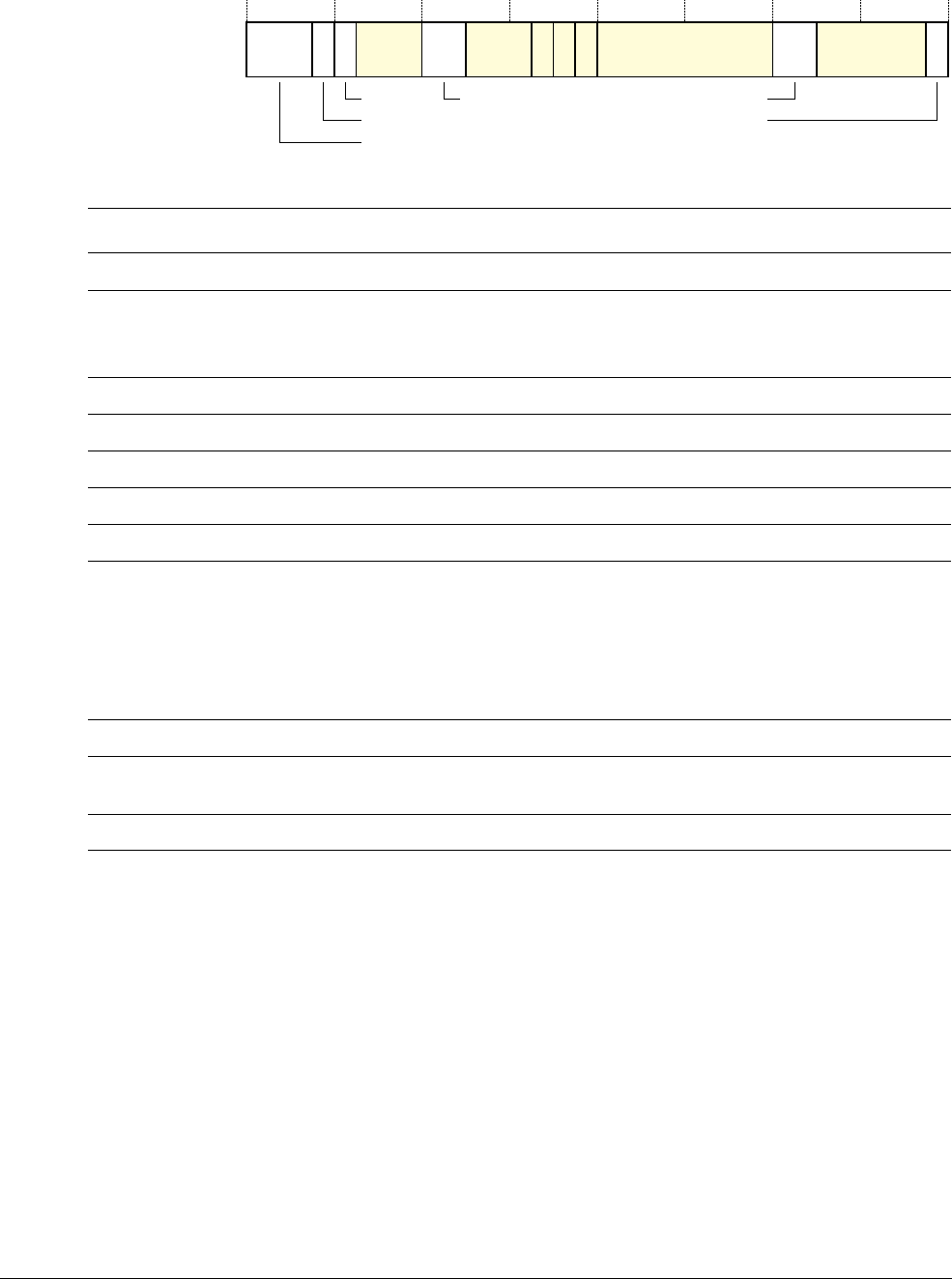

25 24 23

Reserved ISR_NUMBER

31 30 29 28 27

NZCV

Reserved

APSR

IPSR

EPSR Reserved Reserved

26 16 15 10 9

ReservedICI/IT ICI/ITT

The Cortex-M4 Processor

ID121610 Non-Confidential

The PSR combinations and attributes are:

See the instruction descriptions MRS on page 3-163 and MSR on page 3-164 for more

information about how to access the program status registers.

Application Program Status Register

The APSR contains the current state of the condition flags from previous instruction executions.

See the register summary in Table 2-2 on page 2-3 for its attributes. The bit assignments are:

Table 2-3 PSR register combinations

PSR RWa, b

a. The processor ignores writes to the IPSR

bits.

b. Reads of the EPSR bits return zero, and the

processor ignores writes to the these bits

APSR, EPSR, and IPSR

IEPSR RO EPSR and IPSR

IAPSR RWaAPSR and IPSR

EAPSR RWbAPSR and EPSR

Table 2-4 APSR bit assignments

Bits Name Function

[31] N Negative flag

[30] Z Zero flag

[29] C Carry or borrow flag

[28] V Overflow flag

[27] Q DSP overflow and saturation flag

[26:20] - Reserved

[19:16] GE[3:0] Greater than or Equal flags. See SEL on

page 3-70 for more information.

[15:0] - Reserved

The Cortex-M4 Processor

ID121610 Non-Confidential

Interrupt Program Status Register

The IPSR contains the exception type number of the current Interrupt Service Routine (ISR).

See the register summary in Table 2-2 on page 2-3 for its attributes. The bit assignments are:

Execution Program Status Register

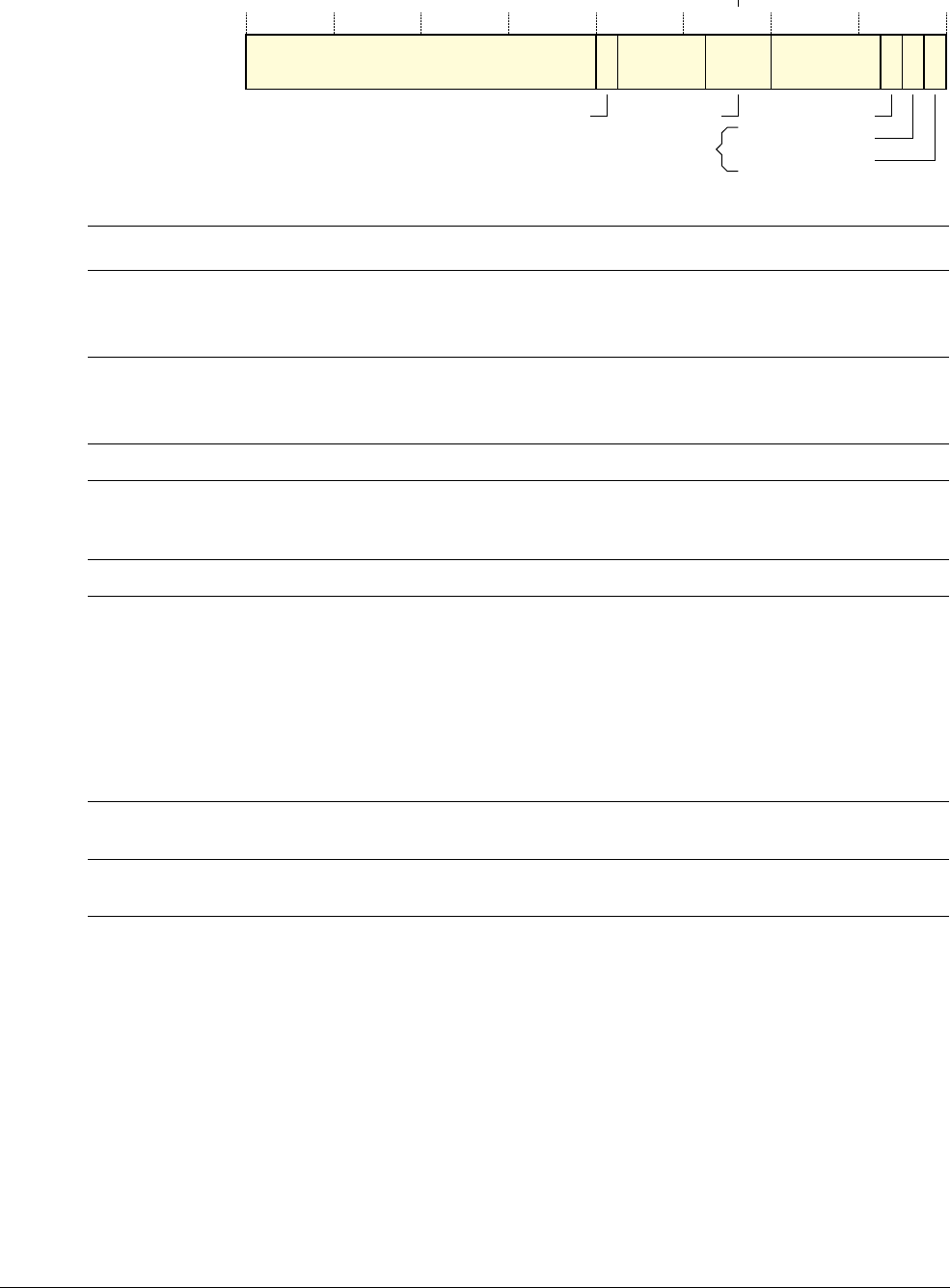

The EPSR contains the Thumb state bit, and the execution state bits for either the:

•If-Then (IT) instruction

•Interruptible-Continuable Instruction (ICI) field for an interrupted load multiple or store

multiple instruction.

See the register summary in Table 2-2 on page 2-3 for the EPSR attributes. The bit assignments

are:

Table 2-5 IPSR bit assignments

Bits Name Function

[31:9] - Reserved

[8:0] ISR_NUMBER This is the number of the current exception:

0 = Thread mode

1 = Reserved

2 = NMI

3 = HardFault

4 = MemManage

5 = BusFault

6 = UsageFault

7-10 = Reserved

11 = SVCall

12 = Reserved for Debug

13 = Reserved

14 = PendSV

15 = SysTick

16 = IRQ0.

n+15 = IRQ(n-1)a

see Exception types on page 2-21 for more information.

a. The number of interrupts, n, is implementation-defined, in the range 1-240.

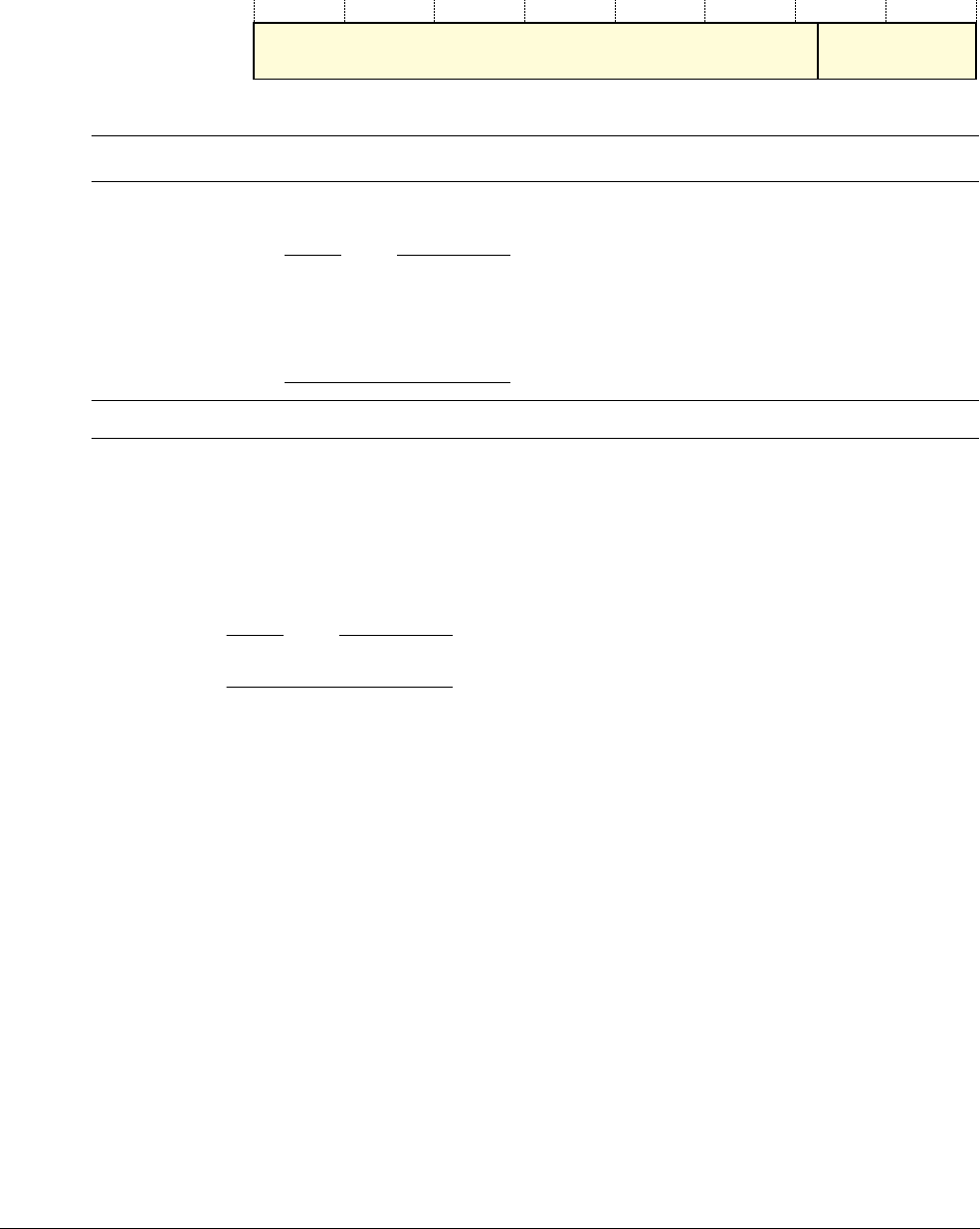

Table 2-6 EPSR bit assignments

Bits Name Function

[31:27] - Reserved.

[26:25], [15:10] ICI Interruptible-continuable instruction bits, see Interruptible-continuable instructions

on page 2-7.

[26:25], [15:10] IT Indicates the execution state bits of the

instruction, see IT on page 3-122.

The Cortex-M4 Processor

ID121610 Non-Confidential

Attempts to read the EPSR directly through application software using the

MSR

instruction

always return zero. Attempts to write the EPSR using the

MSR

instruction in application software

are ignored.

Interruptible-continuable instructions

When an interrupt occurs during the execution of an

LDM

STM

PUSH

, or

POP

instruction, and when

an FPU is implemented an

VLDM

VSTM

VPUSH

, or

VPOP

instruction, the processor:

• stops the load multiple or store multiple instruction operation temporarily

• stores the next register operand in the multiple operation to EPSR bits[15:12].

After servicing the interrupt, the processor:

• returns to the register pointed to by bits[15:12]

• resumes execution of the multiple load or store instruction.

When the EPSR holds ICI execution state, bits[26:25,11:10] are zero.

If-Then block

The If-Then block contains up to four instructions following an

instruction. Each instruction

in the block is conditional. The conditions for the instructions are either all the same, or some

can be the inverse of others. See IT on page 3-122 for more information.

Thumb state

The Cortex-M4 processor only supports execution of instructions in Thumb state. The following

can clear the T bit to 0:

• instructions

BLX

and

POP{PC

}

• restoration from the stacked xPSR value on an exception return

• bit[0] of the vector value on an exception entry or reset.

Attempting to execute instructions when the T bit is 0 results in a fault or lockup. See Lockup

on page 2-31 for more information.

Exception mask registers

The exception mask registers disable the handling of exceptions by the processor. Disable

exceptions where they might impact on timing critical tasks.

To access the exception mask registers use the

MSR

and

MRS

instructions, or the

CPS

instruction to

change the value of PRIMASK or FAULTMASK. See MRS on page 3-163, MSR on page 3-164,

and CPS on page 3-159 for more information.

[24] T Thumb state bit, see Thumb state.

[23:16] - Reserved.

[9:0] - Reserved.

Table 2-6 EPSR bit assignments (continued)

Bits Name Function

The Cortex-M4 Processor

ID121610 Non-Confidential

Priority Mask Register

The PRIMASK register prevents activation of all exceptions with configurable priority. See the

Fault Mask Register

The FAULTMASK register prevents activation of all exceptions except for Non-Maskable

Interrupt (NMI). See the register summary in Table 2-2 on page 2-3 for its attributes. The bit

assignments are:

The processor clears the FAULTMASK bit to 0 on exit from any exception handler except the

NMI handler.

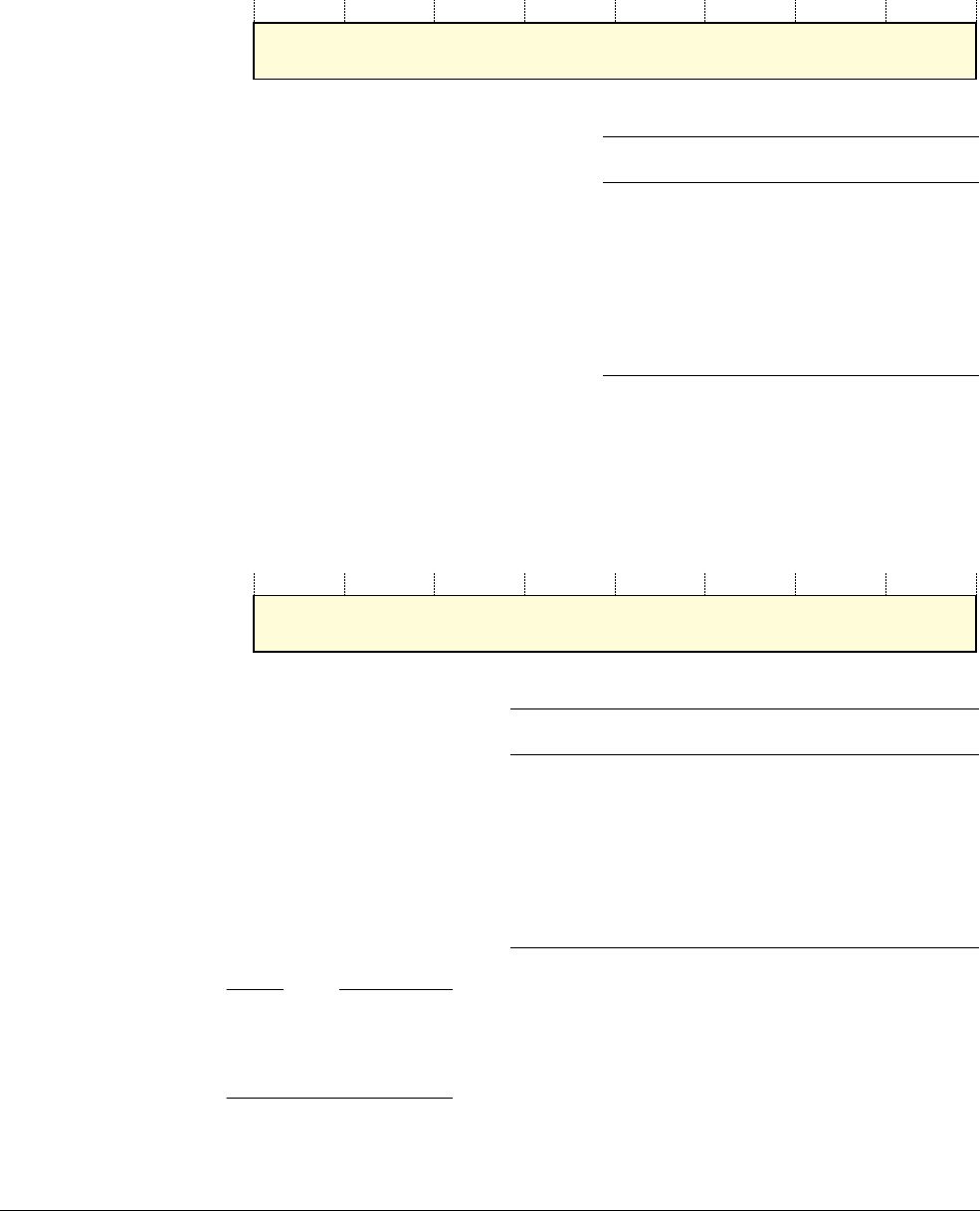

Table 2-7 PRIMASK register bit assignments

Bits Name Function

[31:1] - Reserved

[0] PRIMASK 0 = no effect

1 = prevents the activation of all exceptions with configurable priority.

Table 2-8 FAULTMASK register bit assignments

Bits Name Function

[31:1] - Reserved

[0] FAULTMASK 0 = no effect

1 = prevents the activation of all exceptions except for NMI.

Reserved

PRIMASK

Reserved

131

FAULTMASK

The Cortex-M4 Processor

ID121610 Non-Confidential

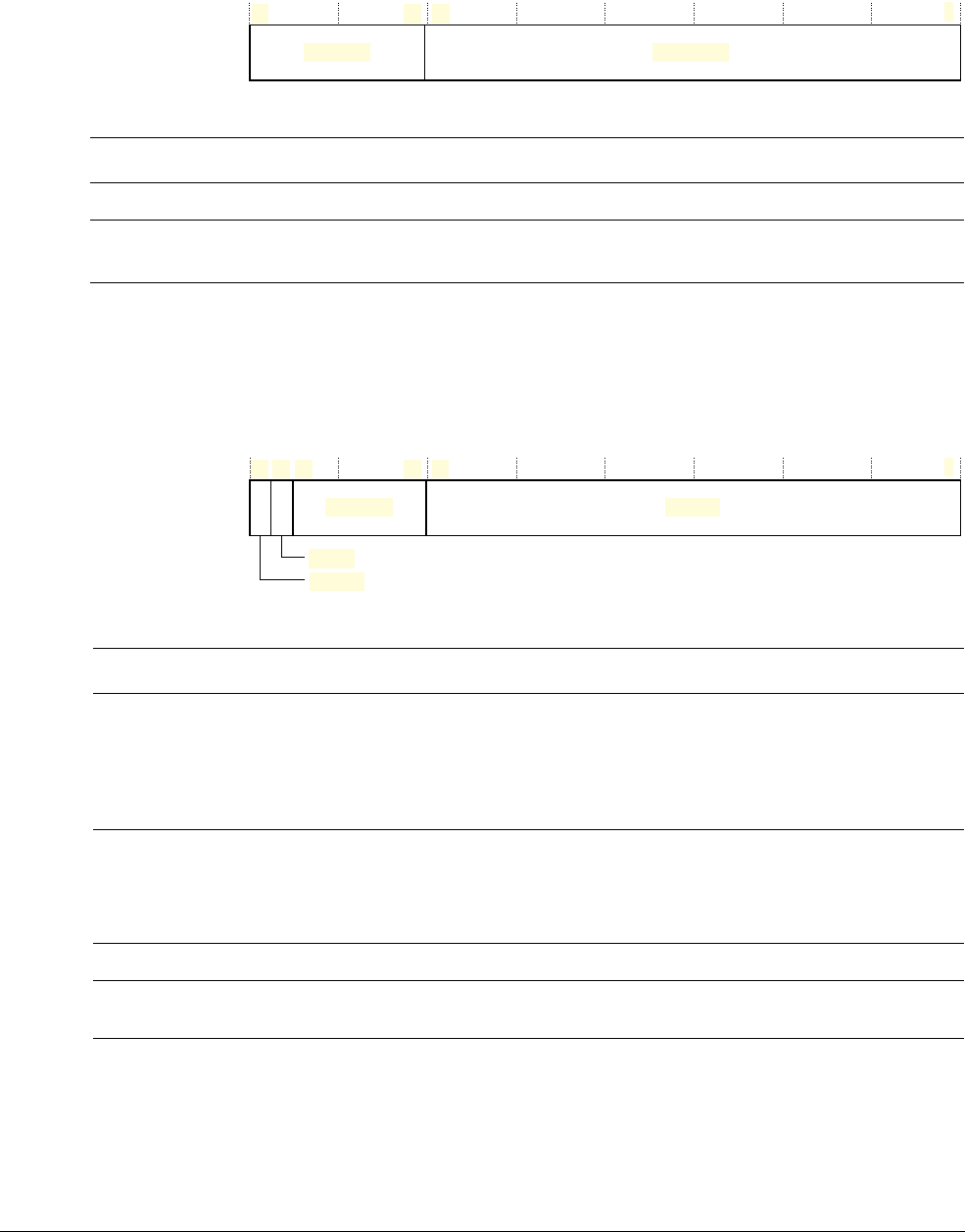

Base Priority Mask Register

The BASEPRI register defines the minimum priority for exception processing. When BASEPRI

is set to a nonzero value, it prevents the activation of all exceptions with the same or lower

priority level as the BASEPRI value. See the register summary in Table 2-2 on page 2-3 for its

attributes. The bit assignments are:

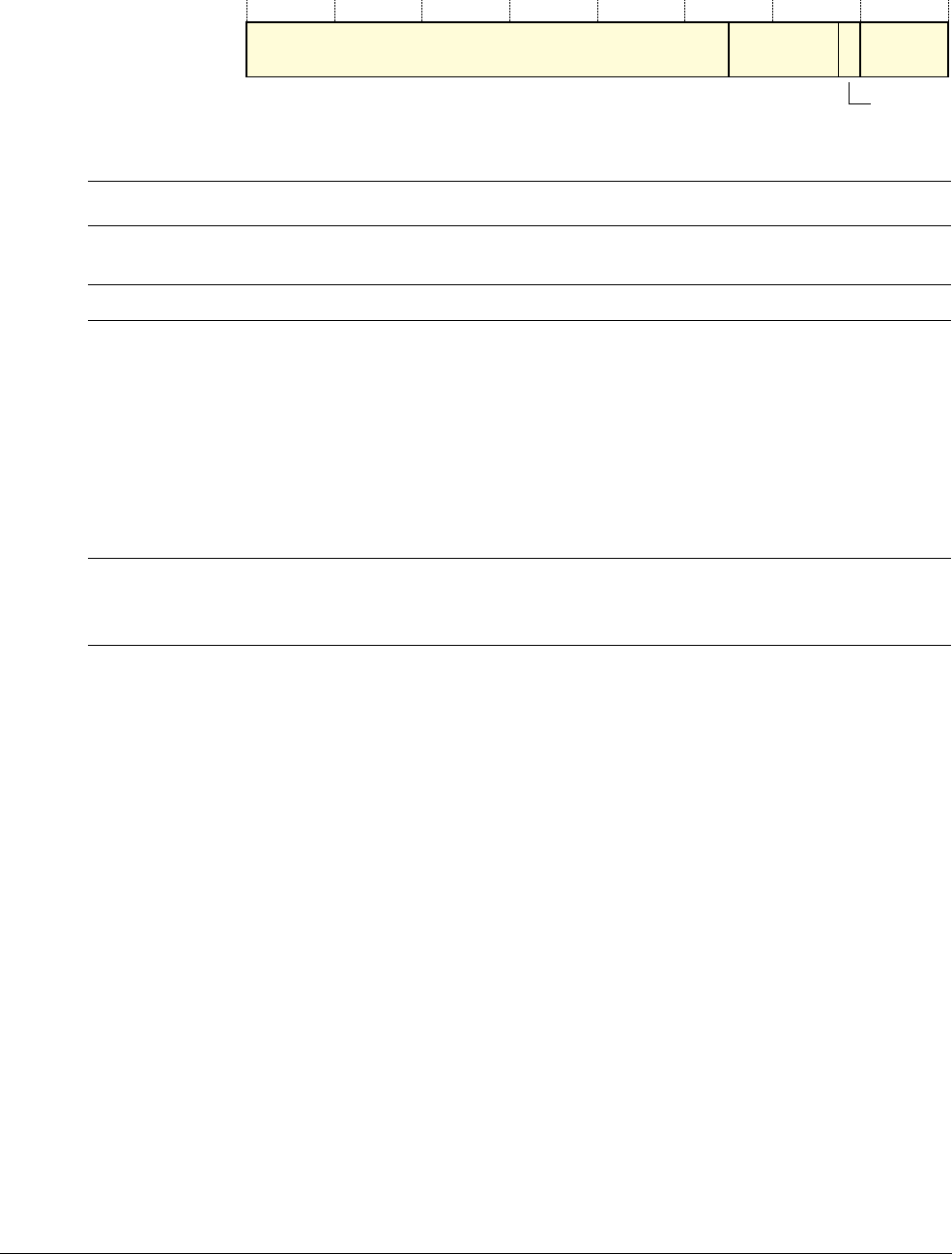

CONTROL register

The CONTROL register controls the stack used and the privilege level for software execution

when the processor is in Thread mode and, if implemented, indicates whether the FPU state is

active. See the register summary in Table 2-2 on page 2-3 for its attributes. The bit assignments

are:

Handler mode always uses the MSP, so the processor ignores explicit writes to the active stack

pointer bit of the CONTROL register when in Handler mode. The exception entry and return

mechanisms automatically update the CONTROL register based on the EXC_RETURN value,

see Table 2-17 on page 2-28.

BASEPRIReserved

31 078

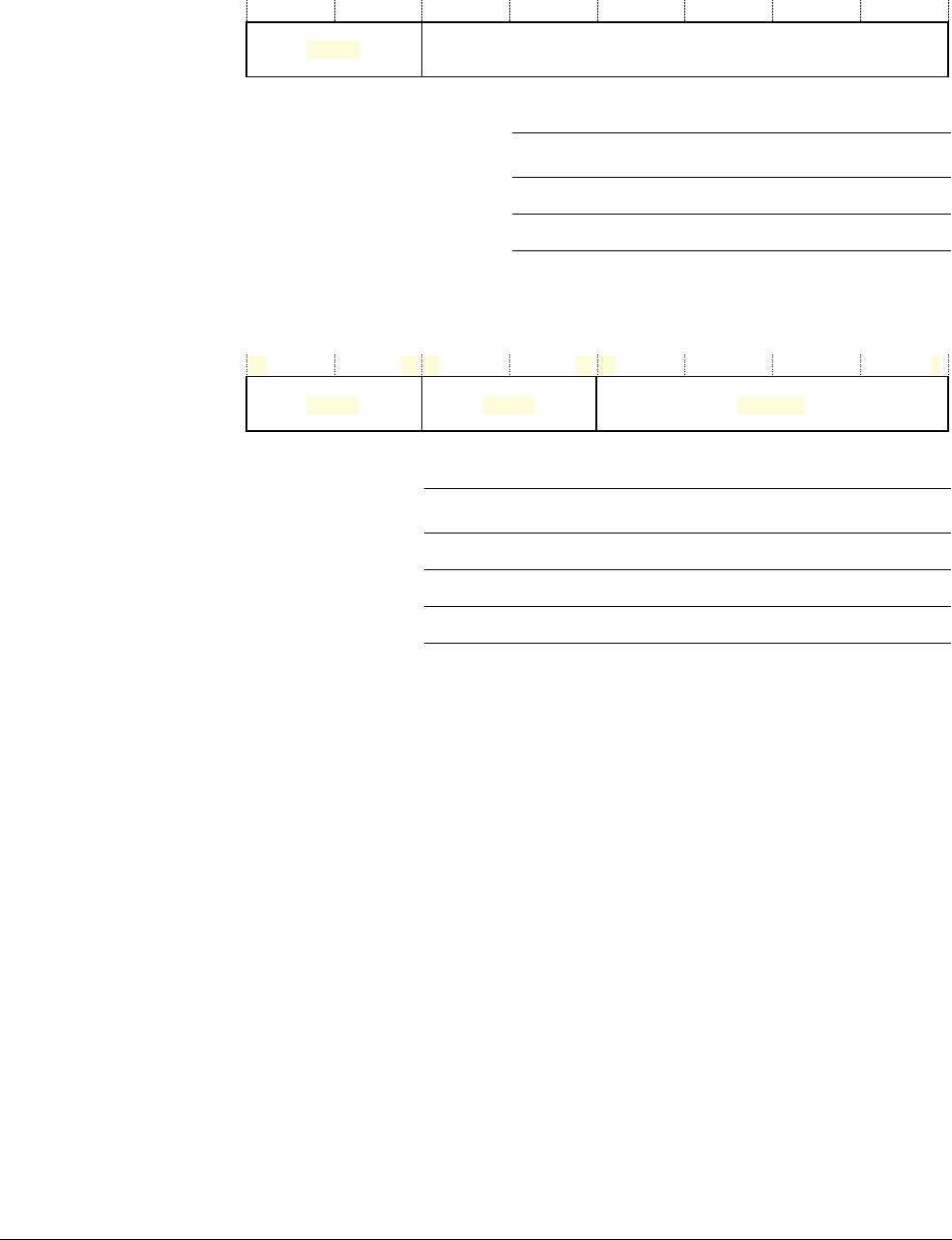

Table 2-9 BASEPRI register bit assignments

Bits Name Function

[31:8] - Reserved

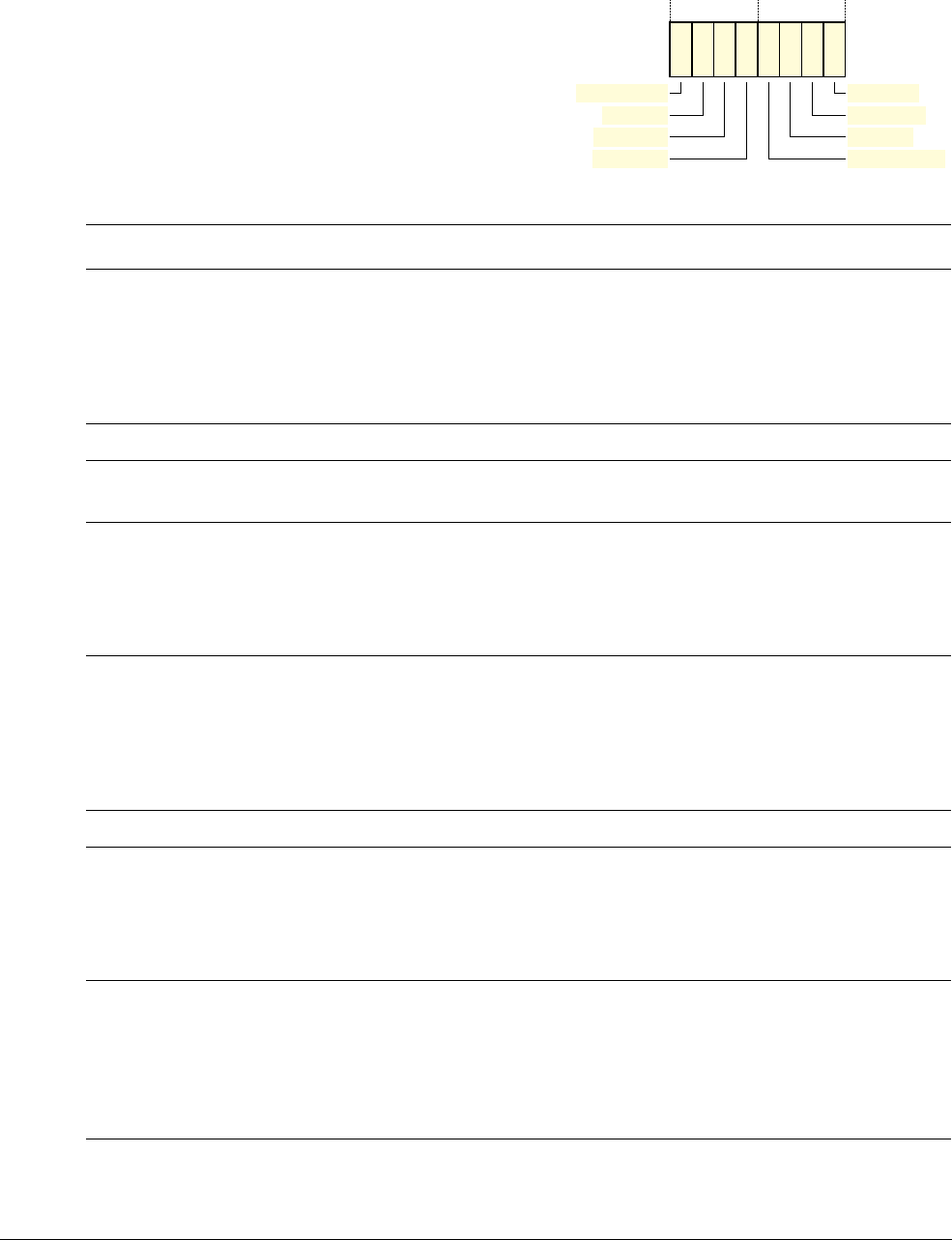

[7:0] BASEPRIaPriority mask bits:

0x00

= no effect

Nonzero = defines the base priority for exception processing.

The processor does not process any exception with a priority value greater than or equal to BASEPRI.

a. This field is similar to the priority fields in the interrupt priority registers. Register priority value fields are eight bits wide, and

non-implemented low-order bits read as zero and ignore writes. See Interrupt Priority Registers on page 4-7 for more information.

Remember that higher priority field values correspond to lower exception priorities.

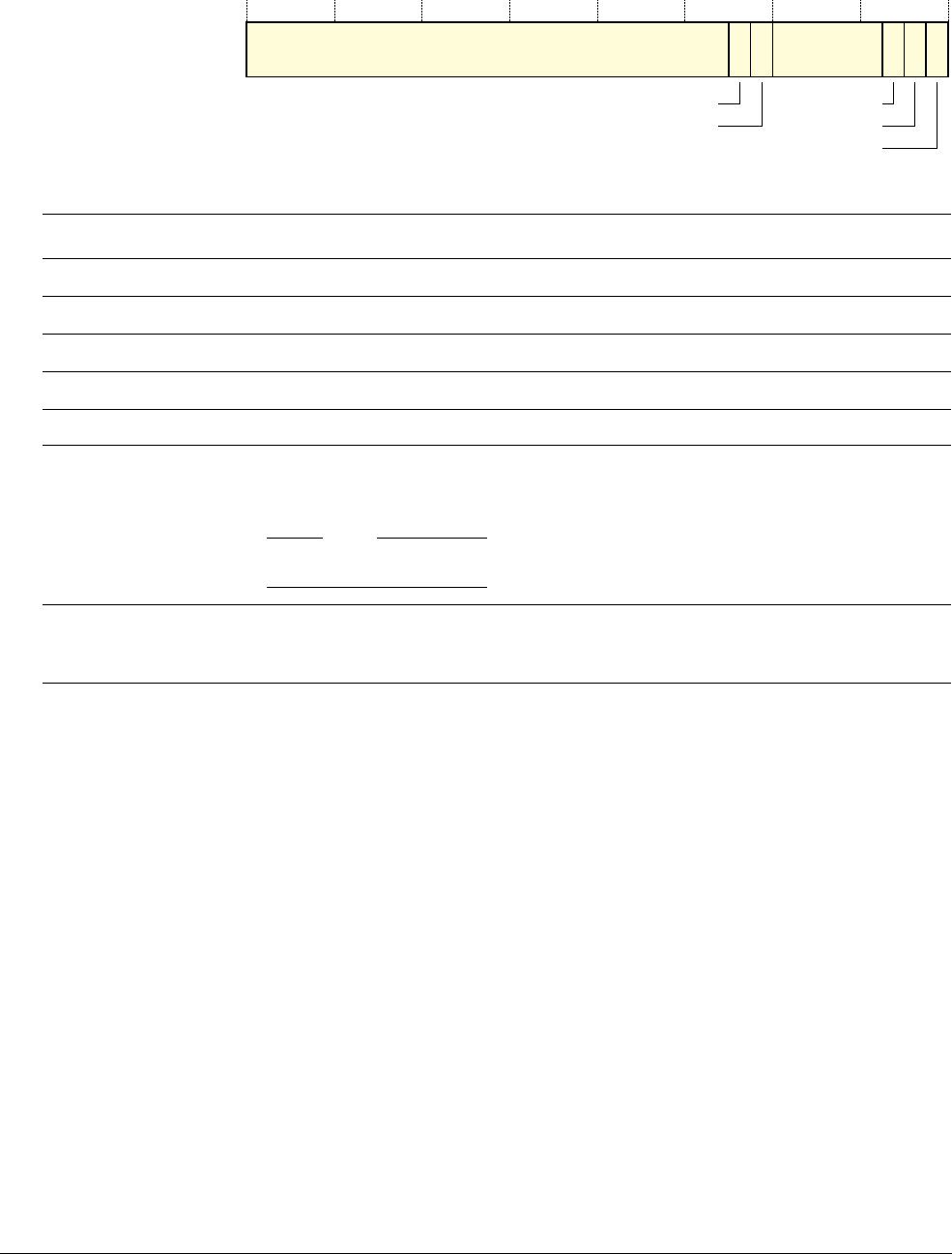

Table 2-10 CONTROL register bit assignments

Bits Name Function

[31:3] - Reserved.

[2] FPCA When floating-point is implemented this bit indicates whether context floating-point is currently active:

0 = no floating-point context active

1 = floating-point context active.

The Cortex-M4 uses this bit to determine whether to preserve floating-point state when processing an exception.

[1] SPSEL Defines the currently active stack pointer: In Handler mode this bit reads as zero and ignores writes. The

Cortex-M4 updates this bit automatically on exception return:

0 = MSP is the current stack pointer

1 = PSP is the current stack pointer.

[0] nPRIV Defines the Thread mode privilege level:

0 = privileged

1 = unprivileged.

The Cortex-M4 Processor

ID121610 Non-Confidential

In an OS environment, ARM recommends that threads running in Thread mode use the process

stack and the kernel and exception handlers use the main stack.

By default, Thread mode uses the MSP. To switch the stack pointer used in Thread mode to the

PSP, either:

•use the

MSR

instruction to set the Active stack pointer bit to 1, see MSR on page 3-164.

• perform an exception return to Thread mode with the appropriate EXC_RETURN value,

see Table 2-17 on page 2-28.

Note

When changing the stack pointer, software must use an

ISB

instruction immediately after the

MSR

instruction. This ensures that instructions after the

ISB

instruction execute using the new stack

pointer. See ISB on page 3-162

2.1.4 Exceptions and interrupts

The Cortex-M4 processor supports interrupts and system exceptions. The processor and the

NVIC prioritize and handle all exceptions. An exception changes the normal flow of software

control. The processor uses Handler mode to handle all exceptions except for reset. See

Exception entry on page 2-26 and Exception return on page 2-28 for more information.

The NVIC registers control interrupt handling. See Nested Vectored Interrupt Controller on

page 4-3 for more information.

2.1.5 Data types

The processor:

• supports the following data types:

— 32-bit words

— 16-bit halfwords

— 8-bit bytes

• manages all data memory accesses as little-endian or big-endian. Instruction memory and

Private Peripheral Bus (PPB) accesses are always performed as little-endian. See

Memory regions, types and attributes on page 2-12 for more information.

2.1.6 The Cortex Microcontroller Software Interface Standard

For a Cortex-M4 microcontroller system, the Cortex Microcontroller Software Interface

Standard (CMSIS) defines:

• a common way to:

— access peripheral registers

— define exception vectors.

• the names of:

— the registers of the core peripherals

— the core exception vectors.

• a device-independent interface for RTOS kernels, including a debug channel.

The CMSIS includes address definitions and data structures for the core peripherals in the

Cortex-M4 processor.

The Cortex-M4 Processor

ID121610 Non-Confidential

CMSIS simplifies software development by enabling the reuse of template code and the

combination of CMSIS-compliant software components from various middleware vendors.

Software vendors can expand the CMSIS to include their peripheral definitions and access

functions for those peripherals.

This document includes the register names defined by the CMSIS, and gives short descriptions

of the CMSIS functions that address the processor core and the core peripherals.

Note

This document uses the register short names defined by the CMSIS. In a few cases these differ

from the architectural short names that might be used in other documents.

The following sections give more information about the CMSIS:

•Power management programming hints on page 2-34

•CMSIS functions on page 3-9

•Accessing the Cortex-M4 NVIC registers using CMSIS on page 4-4

•NVIC programming hints on page 4-9.

The Cortex-M4 Processor

ID121610 Non-Confidential

2.2 Memory model

This section describes the processor memory map, the behavior of memory accesses, and the

optional bit-banding features. The processor has a fixed default memory map that provides up

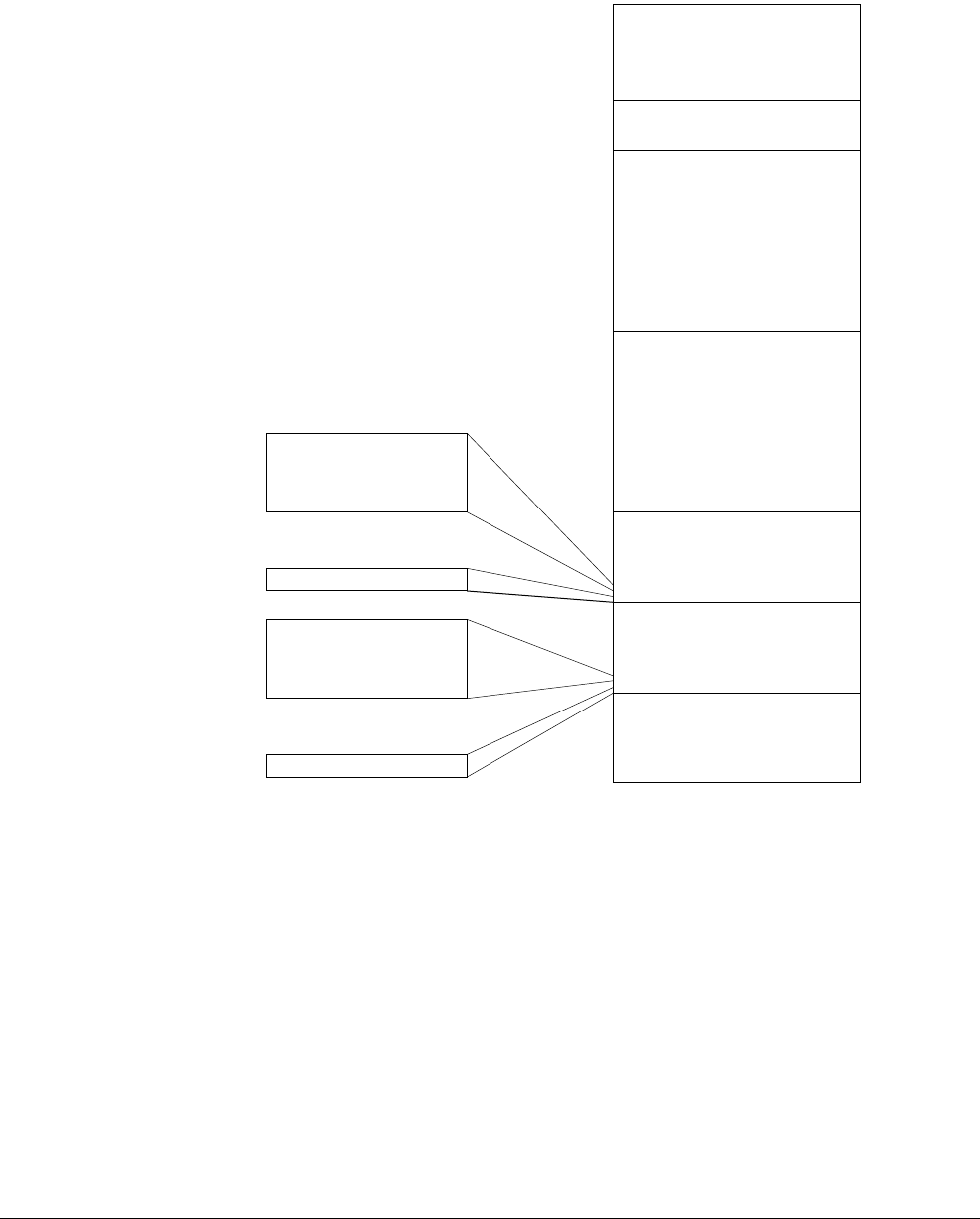

to 4GB of addressable memory. The memory map is:

The regions for SRAM and peripherals include optional bit-band regions. Bit-banding provides

atomic operations to bit data, see Optional bit-banding on page 2-16.

The processor reserves regions of the Private Peripheral Bus (PPB) address range for core

peripheral registers, see About the Cortex-M4 peripherals on page 4-2.

2.2.1 Memory regions, types and attributes

The memory map and programming the optional MPU splits the memory map into regions.

Each region has a defined memory type, and some regions have additional memory attributes.

The memory type and attributes determine the behavior of accesses to the region.

The memory types are:

Normal The processor can re-order transactions for efficiency, or perform

speculative reads.

Vendor-specific

memory

External device

External RAM

Peripheral

SRAM

Code

0xFFFFFFFF

Private peripheral

bus

0xE0100000

0xE00FFFFF

0x9FFFFFFF

0xA0000000

0x5FFFFFFF

0x60000000

0x3FFFFFFF

0x40000000

0x1FFFFFFF

0x20000000

0x00000000

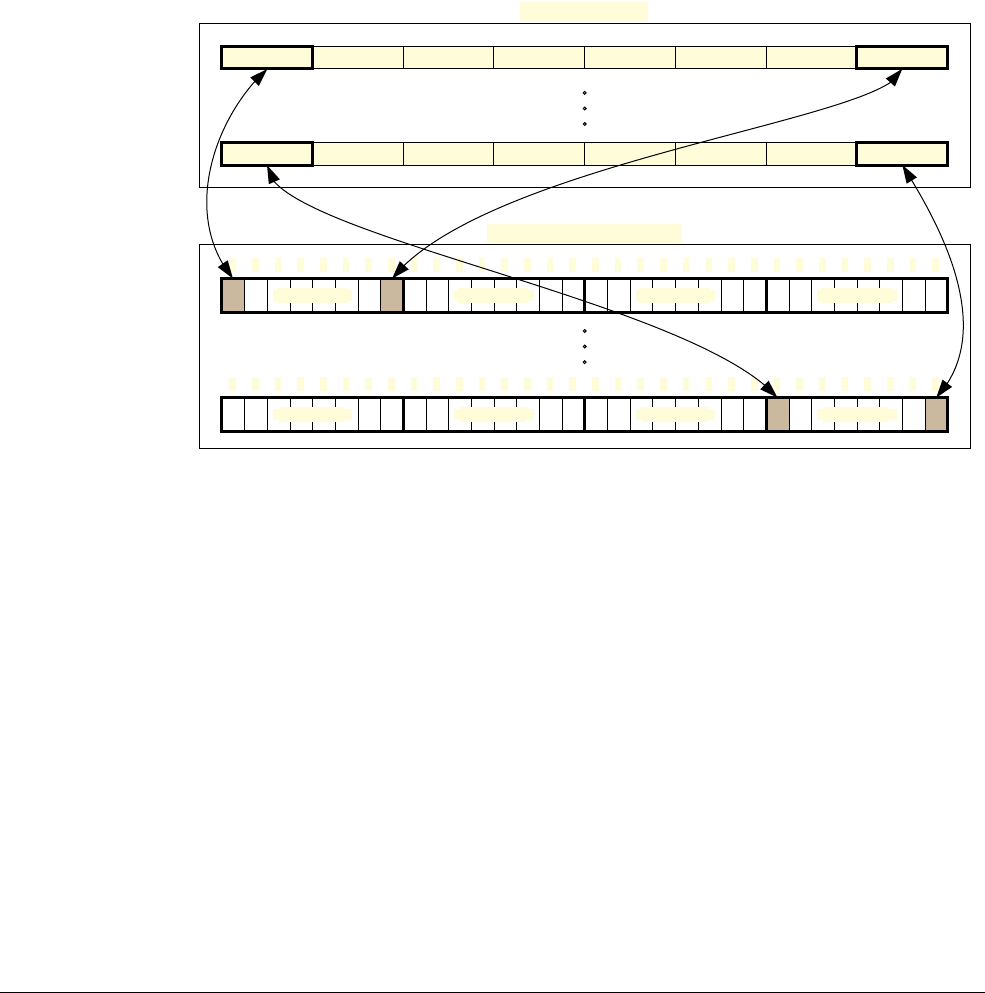

0x40000000 Bit band region

Bit band alias

32MB

1MB

0x400FFFFF

0x42000000

0x43FFFFFF

Bit band region

Bit band alias

32MB

1MB

0x20000000

0x200FFFFF

0x22000000

0x23FFFFFF

1.0GB

0.5GB

0xDFFFFFFF

0xE0000000

1.0MB

511MB

The Cortex-M4 Processor

ID121610 Non-Confidential

Device The processor preserves transaction order relative to other transactions to

Device or Strongly-ordered memory.

Strongly-ordered The processor preserves transaction order relative to all other transactions.

The different ordering requirements for Device and Strongly-ordered memory mean that the

memory system can buffer a write to Device memory, but must not buffer a write to

Strongly-ordered memory.

The additional memory attributes include:

Shareable For a shareable memory region that is implemented, the memory system

provides data synchronization between bus masters in a system with

multiple bus masters, for example, a processor with a DMA controller.

Strongly-ordered memory is always shareable.

If multiple bus masters can access a non-shareable memory region,

software must ensure data coherency between the bus masters.

Note

This attribute is relevant only if the device is likely to be used in systems

where memory is shared between multiple processors.

Execute Never (XN) Means the processor prevents instruction accesses. A fault exception is

generated only on execution of an instruction executed from an XN

region.

2.2.2 Memory system ordering of memory accesses

For most memory accesses caused by explicit memory access instructions, the memory system

does not guarantee that the order in which the accesses complete matches the program order of

the instructions, providing this does not affect the behavior of the instruction sequence.

Normally, if correct program execution depends on two memory accesses completing in

program order, software must insert a memory barrier instruction between the memory access

instructions, see Software ordering of memory accesses on page 2-15.

However, the memory system does guarantee some ordering of accesses to Device and

Strongly-ordered memory. For two memory access instructions A1 and A2, if A1 occurs before

A2 in program order, the ordering of the memory accesses caused by two instructions is:

Where:

- Means that the memory system does not guarantee the ordering of the accesses.

< Means that accesses are observed in program order, that is, A1 is always observed

before A2.

Normal access

Device access, non-shareable

Device access, shareable

Strongly-ordered access

Normal

access Non-shareable Shareable

Strongly-

ordered

access

Device access

The Cortex-M4 Processor

ID121610 Non-Confidential

2.2.3 Behavior of memory accesses

The behavior of accesses to each region in the memory map is:

The Code, SRAM, and external RAM regions can hold programs. However, ARM recommends

that programs always use the Code region. This is because the processor has separate buses that

enable instruction fetches and data accesses to occur simultaneously.

The optional MPU can override the default memory access behavior described in this section.

For more information, see Optional Memory Protection Unit on page 4-37.

Additional memory access constraints for caches and shared memory

When a system includes caches or shared memory, some memory regions might have additional

access constraints, and some regions are subdivided, as Table 2-12 shows:

Table 2-11 Memory access behavior

Address

range Memory region Memory

typeaXNaDescription

0x00000000

0x1FFFFFFF

Code Normal - Executable region for program code. You can also put data here.

0x20000000

0x3FFFFFFF

SRAM Normal - Executable region for data. You can also put code here. This region

includes bit band and bit band alias areas, see Table 2-13 on

page 2-16.

0x40000000

0x5FFFFFFF

Peripheral Device XN This region includes bit band and bit band alias areas, see

Table 2-14 on page 2-16.

0x60000000

0x9FFFFFFF

External RAM Normal - Executable region for data.

0xA0000000

0xDFFFFFFF

External device Device XN External Device memory.

0xE0000000

0xE00FFFFF

Private Peripheral Bus Strongly-

ordered

XN This region includes the NVIC, System timer, and system control

block.

0xE0100000

0xFFFFFFFF

Device Device XN Implementation-specific.

a. See Memory regions, types and attributes on page 2-12 for more information.

Table 2-12 Memory region shareability and cache policies

Address range Memory region Memory type Shareability Cache policy

0x00000000

0x1FFFFFFF

Code Normala-WTb

0x20000000

0x3FFFFFFF

SRAM Normala-WBWAb

0x40000000

0x5FFFFFFF

Peripheral Devicea--

0x60000000

0x7FFFFFFF

External RAM Normala-WBWAb

0x80000000

0x9FFFFFFF

WTb

The Cortex-M4 Processor

ID121610 Non-Confidential

Instruction prefetch and branch prediction

The Cortex-M4 processor:

• prefetches instructions ahead of execution

• speculatively prefetches from branch target addresses.

2.2.4 Software ordering of memory accesses

The order of instructions in the program flow does not always guarantee the order of the

corresponding memory transactions. This is because:

• the processor can reorder some memory accesses to improve efficiency, providing this

does not affect the behavior of the instruction sequence.

• the processor has multiple bus interfaces

• memory or devices in the memory map have different wait states

• some memory accesses are buffered or speculative.

Memory system ordering of memory accesses on page 2-13 describes the cases where the

memory system guarantees the order of memory accesses. Otherwise, if the order of memory

accesses is critical, software must include memory barrier instructions to force that ordering.

The processor provides the following memory barrier instructions:

DMB

The Data Memory Barrier (DMB) instruction ensures that outstanding

memory transactions complete before subsequent memory transactions.

See DMB on page 3-160.

DSB

The Data Synchronization Barrier (DSB) instruction ensures that

outstanding memory transactions complete before subsequent instructions

execute. See DSB on page 3-161.

ISB

The Instruction Synchronization Barrier (ISB) ensures that the effect of all

completed memory transactions is recognizable by subsequent

instructions. See ISB on page 3-162.

MPU programming

Use a

DSB

followed by an

ISB

instruction or exception return to ensure that the new MPU

configuration is used by subsequent instructions.

0xA0000000

0xBFFFFFFF

External device DeviceaShareablea-

0xC0000000

0xDFFFFFFF

Non-shareablea

0xE0000000

0xE00FFFFF

Private Peripheral Bus Strongly- orderedaShareablea-

0xE0100000

0xFFFFFFFF

Device Device - -

a. See Memory regions, types and attributes on page 2-12 for more information.

b. WT = Write through, no write allocate. WBWA = Write back, write allocate. See the Glossary for more information.

Table 2-12 Memory region shareability and cache policies (continued)

Address range Memory region Memory type Shareability Cache policy

The Cortex-M4 Processor

ID121610 Non-Confidential

2.2.5 Optional bit-banding

A bit-band region maps each word in a bit-band alias region to a single bit in the bit-band

region. The bit-band regions occupy the lowest 1MB of the SRAM and peripheral memory

regions.

The memory map has two 32MB alias regions that map to two 1MB bit-band regions:

• accesses to the 32MB SRAM alias region map to the 1MB SRAM bit-band region, as

shown in Table 2-13

• accesses to the 32MB peripheral alias region map to the 1MB peripheral bit-band region,

as shown in Table 2-14.

Note

• A word access to the SRAM or peripheral bit-band alias regions maps to a single bit in the

SRAM or peripheral bit-band region

• Bit band accesses can use byte, halfword, or word transfers. The bit band transfer size

matches the transfer size of the instruction making the bit band access.

The following formula shows how the alias region maps onto the bit-band region:

bit_word_offset = (byte_offset x 32) + (bit_number x 4)

bit_word_addr = bit_band_base + bit_word_offset

where:

•

Bit_word_offset

is the position of the target bit in the bit-band memory region

•

Bit_word_addr

is the address of the word in the alias memory region that maps to the

targeted bit.

•

Bit_band_base

is the starting address of the alias region

•

Byte_offset

is the number of the byte in the bit-band region that contains the targeted bit

Table 2-13 SRAM memory bit-banding regions

Address

range Memory region Instruction and data accesses

0x20000000

0x200FFFFF

SRAM bit-band region Direct accesses to this memory range behave as SRAM memory accesses, but

this region is also bit addressable through bit-band alias.

0x22000000

0x23FFFFFF

SRAM bit-band alias Data accesses to this region are remapped to bit band region. A write operation

is performed as read-modify-write. Instruction accesses are not remapped.

Table 2-14 Peripheral memory bit-banding regions

Address

range Memory region Instruction and data accesses

0x40000000-

0x400FFFFF

Peripheral bit-band alias Direct accesses to this memory range behave as peripheral memory

accesses, but this region is also bit addressable through bit-band alias.

0x42000000-

0x43FFFFFF

Peripheral bit-band region Data accesses to this region are remapped to bit band region. A write

operation is performed as read-modify-write. Instruction accesses are not

permitted.

The Cortex-M4 Processor

ID121610 Non-Confidential

•

Bit_number

is the bit position, 0-7, of the targeted bit.

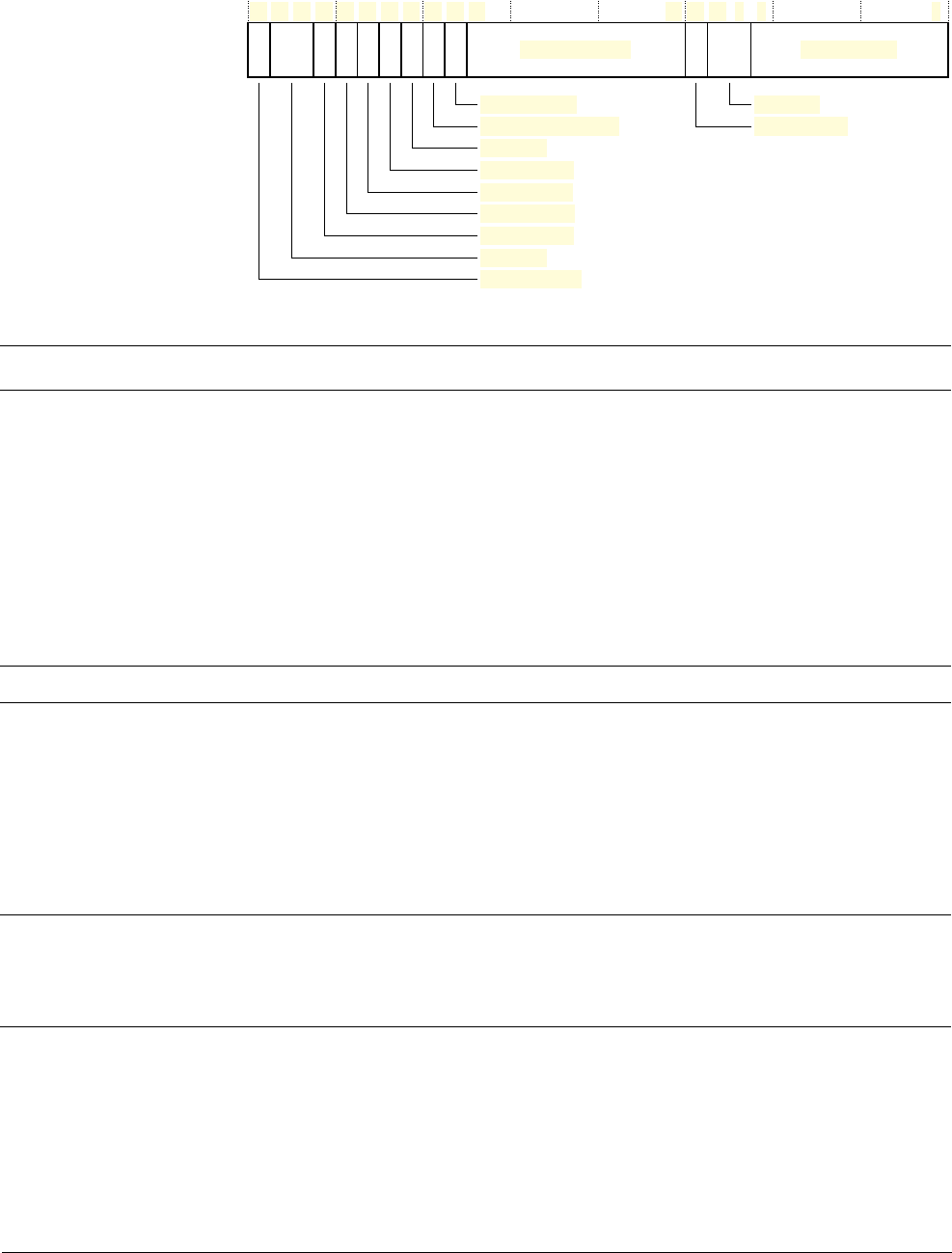

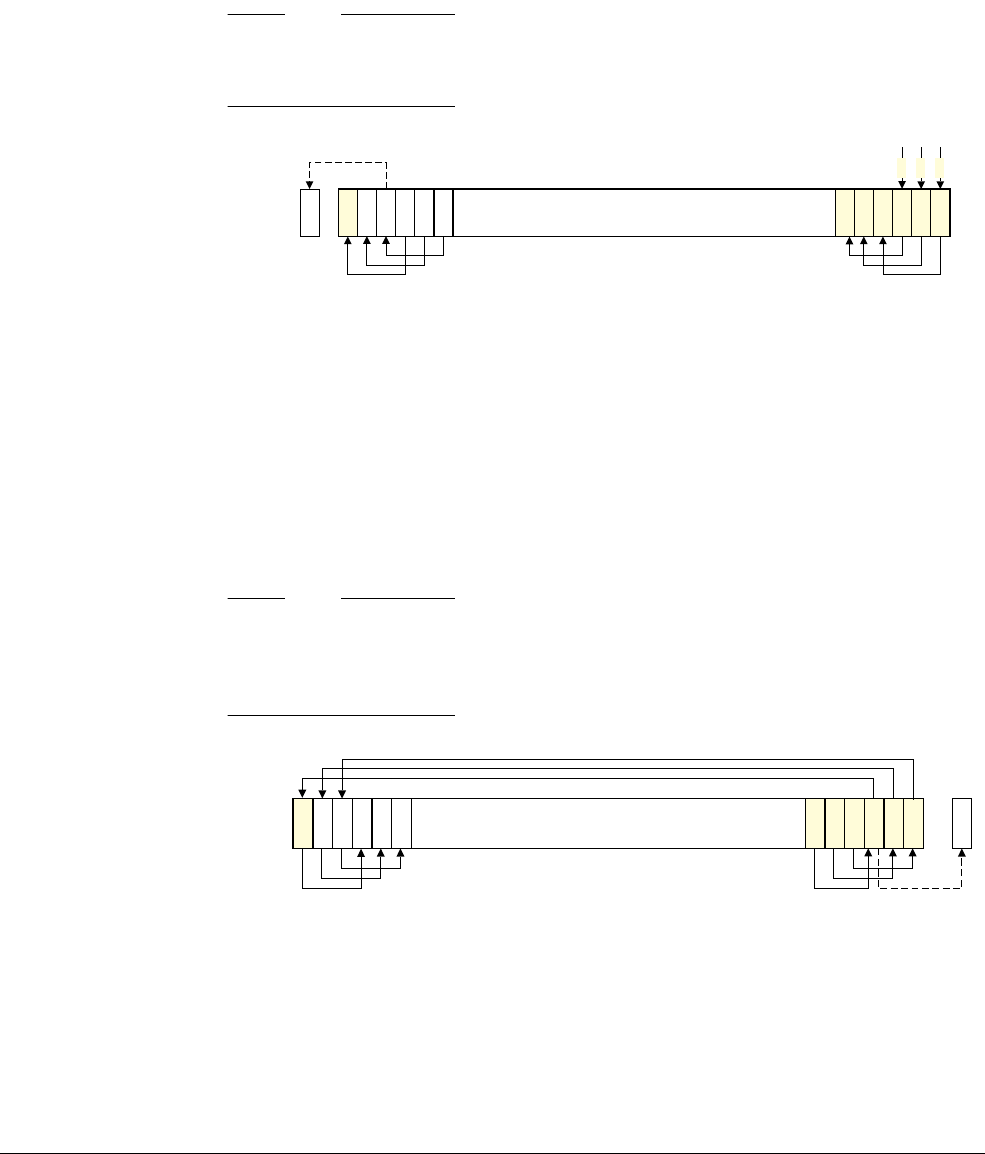

Figure 2-1 shows examples of bit-band mapping between the SRAM bit-band alias region and

the SRAM bit-band region:

• the alias word at

0x23FFFFE0

maps to bit[0] of the bit-band byte at

0x200FFFFF

0x23FFFFE0

0x22000000

+ (

0xFFFFF

*32) + (0*4)

• the alias word at

0x23FFFFFC

maps to bit[7] of the bit-band byte at

0x200FFFFF

0x23FFFFFC

0x22000000

+ (

0xFFFFF

*32) + (7*4)

• the alias word at

0x22000000

maps to bit[0] of the bit-band byte at

0x20000000

0x22000000

+ (0*32) + (0 *4)

• the alias word at

0x2200001C

maps to bit[7] of the bit-band byte at

0x20000000

0x2200001C

0x22000000

+ (0*32) + (7*4).

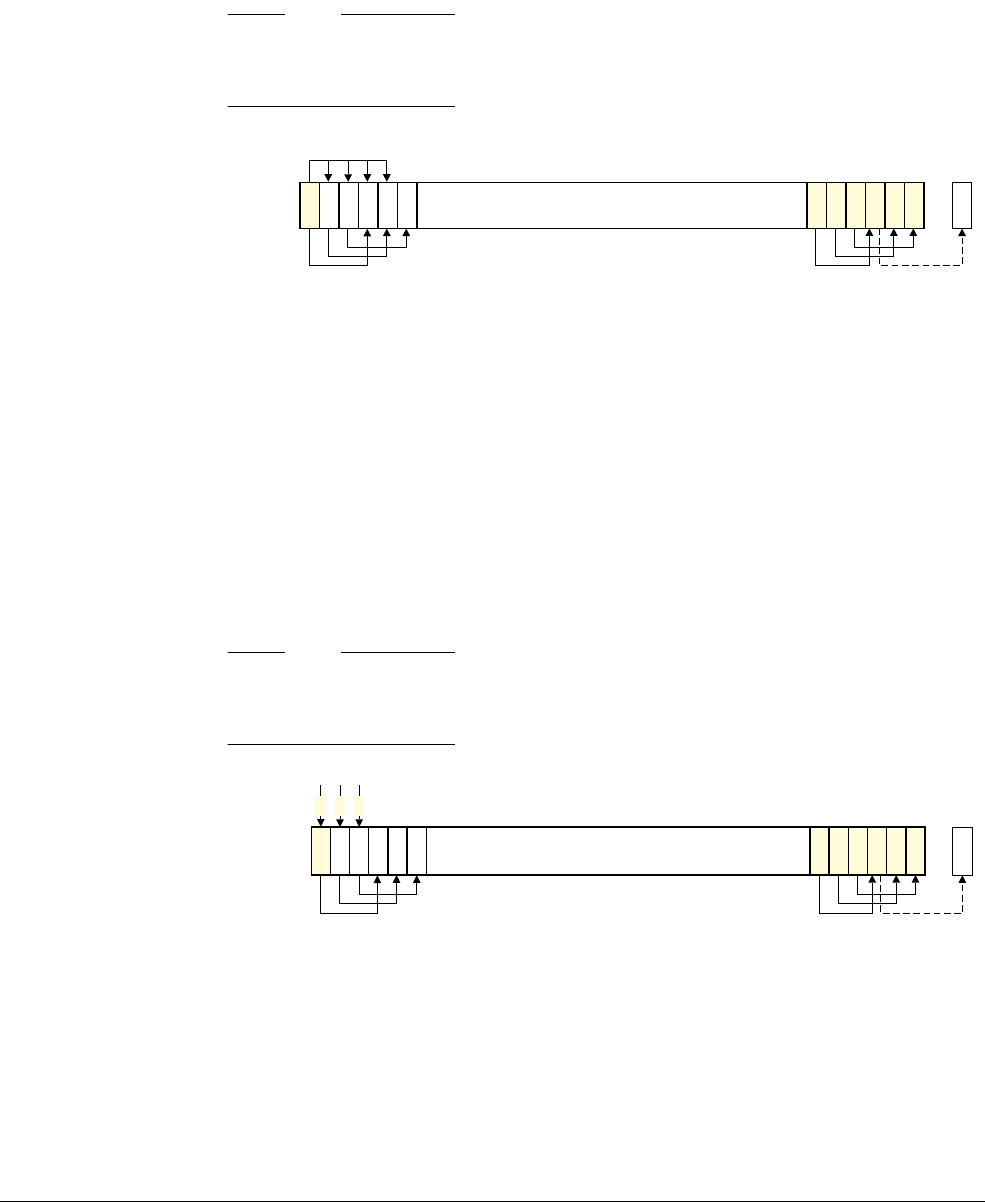

Figure 2-1 Bit-band mapping

Directly accessing an alias region

Writing to a word in the alias region updates a single bit in the bit-band region.

Bit[0] of the value written to a word in the alias region determines the value written to the

targeted bit in the bit-band region. Writing a value with bit[0] set to 1 writes a 1 to the bit-band

bit, and writing a value with bit[0] set to 0 writes a 0 to the bit-band bit.

Bits[31:1] of the alias word have no effect on the bit-band bit. Writing

0x01

has the same effect

as writing

0xFF

. Writing

0x00

has the same effect as writing

0x0E

Reading a word in the alias region:

•

0x00000000

indicates that the targeted bit in the bit-band region is set to zero

•

0x00000001

indicates that the targeted bit in the bit-band region is set to 1

Directly accessing a bit-band region

Behavior of memory accesses on page 2-14 describes the behavior of direct byte, halfword, or

word accesses to the bit-band regions.

0x23FFFFE4

0x22000004

0x23FFFFE00x23FFFFE80x23FFFFEC0x23FFFFF00x23FFFFF40x23FFFFF80x23FFFFFC

0x220000000x220000140x220000180x2200001C 0x220000080x22000010 0x2200000C

32MB alias region

7 0

0x200000000x200000010x200000020x20000003

6 5 4 3 2 1 07 6 5 4 3 2 1 7 6 5 4 3 2 1 07 6 5 4 3 2 1

07 6 5 4 3 2 1 6 5 4 3 2 107 6 5 4 3 2 1 07 6 5 4 3 2 1

0x200FFFFC0x200FFFFD0x200FFFFE0x200FFFFF

1MB SRAM bit-band region

The Cortex-M4 Processor

ID121610 Non-Confidential

2.2.6 Memory endianness

The processor views memory as a linear collection of bytes numbered in ascending order from

zero. For example, bytes 0-3 hold the first stored word, and bytes 4-7 hold the second stored

word. The memory endianness used is implementation-defined, and the following subsections

describe the possible implementations:

•Byte-invariant big-endian format

•Little-endian format.

Read the AIRCR.ENDIANNESS field to find the implemented endianness, see Application

Interrupt and Reset Control Register on page 4-16.

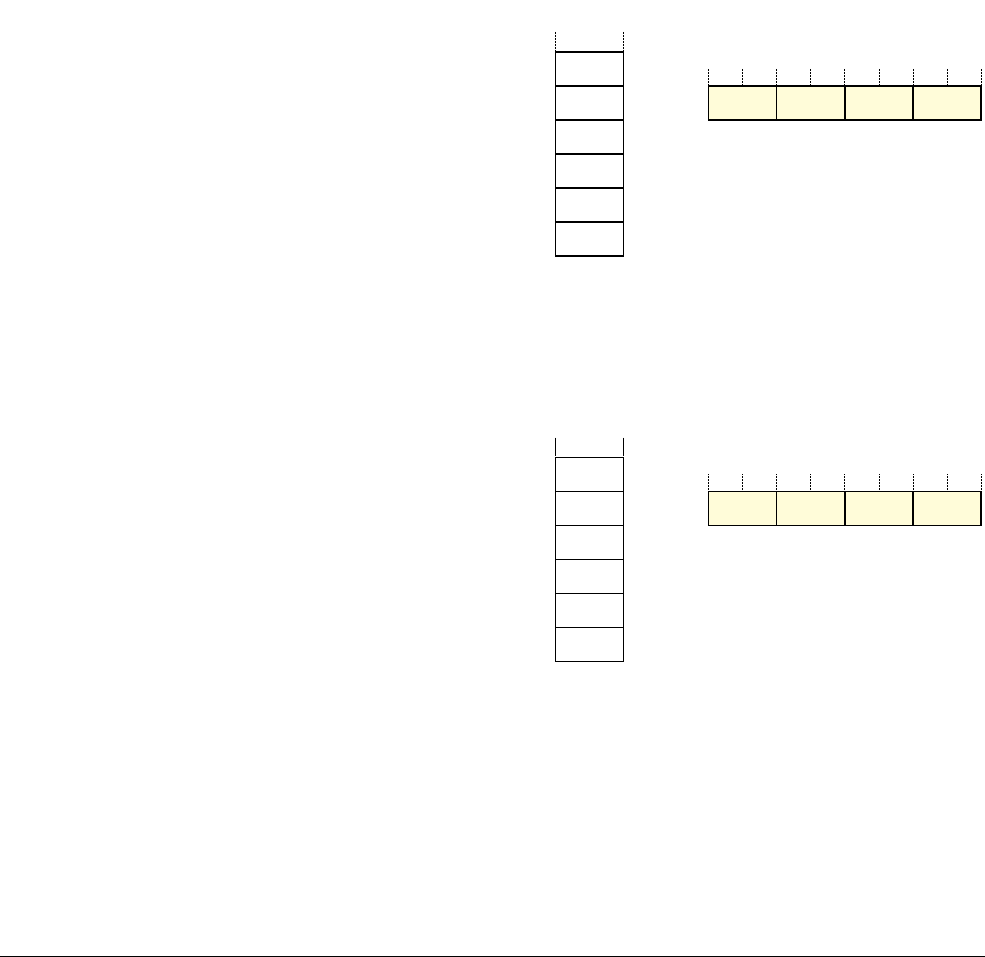

Byte-invariant big-endian format

In byte-invariant big-endian format, the processor stores the most significant byte of a word at

the lowest-numbered byte, and the least significant byte at the highest-numbered byte. For

example:

Little-endian format

In little-endian format, the processor stores the least significant byte of a word at the

lowest-numbered byte, and the most significant byte at the highest-numbered byte. For

example:

2.2.7 Synchronization primitives

The Cortex-M4 instruction set includes pairs of synchronization primitives. These provide a

non-blocking mechanism that a thread or process can use to obtain exclusive access to a memory

location. Software can use them to perform a guaranteed read-modify-write memory update

sequence, or for a semaphore mechanism.

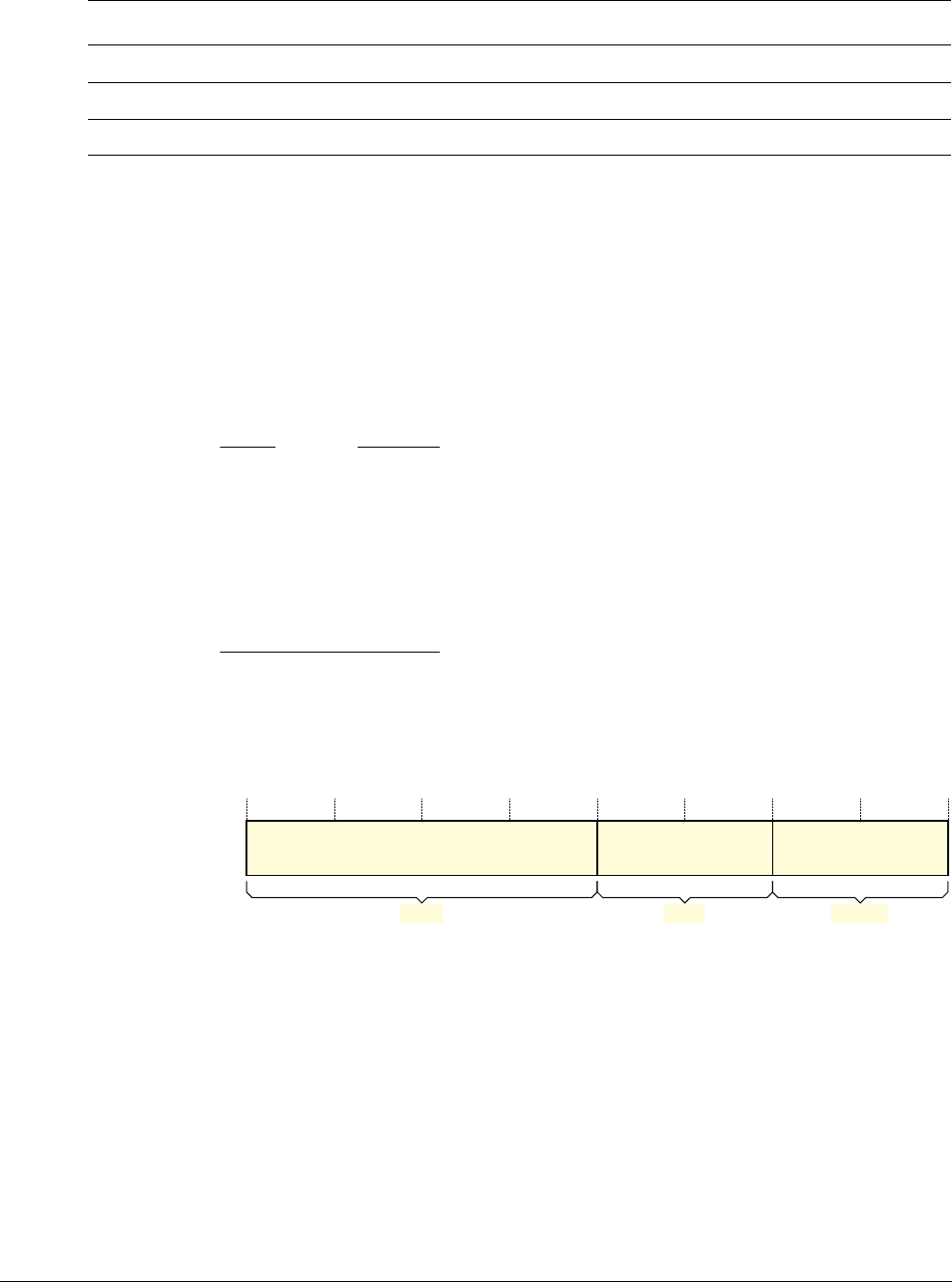

Memory Register

Address A

A+1

msbyte

lsbyte

A+2

A+3

B3B2B0 B1

31 24 23 16 15 8 7 0

Memory Register

Address A

A+1

lsbyte

msbyte

A+2

A+3

B0B1B3 B2

31 24 23 16 15 8 7 0

The Cortex-M4 Processor

ID121610 Non-Confidential

A pair of synchronization primitives comprises:

A Load-Exclusive instruction

Used to read the value of a memory location, requesting exclusive access to that

location.

A Store-Exclusive instruction

Used to attempt to write to the same memory location, returning a status bit to a

0 It indicates that the thread or process gained exclusive access to the

memory, and the write succeeds.

1 It indicates that the thread or process did not gain exclusive access to

the memory, and no write was performed.

The pairs of Load-Exclusive and Store-Exclusive instructions are:

• the word instructions

LDREX

and

STREX

• the halfword instructions

LDREXH

and

STREXH

• the byte instructions

LDREXB

and

STREXB

Software must use a Load-Exclusive instruction with the corresponding Store-Exclusive

instruction.

To perform an exclusive read-modify-write of a memory location, software must:

1. Use a Load-Exclusive instruction to read the value of the location.

2. Modify the value, as required.

3. Use a Store-Exclusive instruction to attempt to write the new value back to the memory

location.

4. Test the returned status bit. If this bit is:

0 The read-modify-write completed successfully.

1 No write was performed. This indicates that the value returned at step 1 might

be out of date. The software must retry the entire read-modify-write sequence.

Software can use the synchronization primitives to implement a semaphores as follows:

1. Use a Load-Exclusive instruction to read from the semaphore address to check whether

the semaphore is free.

2. If the semaphore is free, use a Store-Exclusive to write the claim value to the semaphore

address.

3. If the returned status bit from step 2 indicates that the Store-Exclusive succeeded then the

software has claimed the semaphore. However, if the Store-Exclusive failed, another

process might have claimed the semaphore after the software performed step 1.

The Cortex-M4 includes an exclusive access monitor, that tags the fact that the processor has

executed a Load-Exclusive instruction. If the processor is part of a multiprocessor system, the

system also globally tags the memory locations addressed by exclusive accesses by each

processor.

The processor removes its exclusive access tag if:

• It executes a

CLREX

instruction.

• It executes a Store-Exclusive instruction, regardless of whether the write succeeds.

The Cortex-M4 Processor

ID121610 Non-Confidential

• An exception occurs. This means the processor can resolve semaphore conflicts between

different threads.

In a multiprocessor implementation:

• executing a

CLREX

instruction removes only the local exclusive access tag for the processor

• executing a Store-Exclusive instruction, or an exception. removes the local exclusive

access tags, and global exclusive access tags for the processor.

For more information about the synchronization primitive instructions, see LDREX and STREX

on page 3-36 and CLREX on page 3-38.

2.2.8 Programming hints for the synchronization primitives

ISO/IEC C cannot directly generate the exclusive access instructions. CMSIS provides

functions for generation of these instructions:

Table 2-15 CMSIS functions for exclusive access instructions

Instruction CMSIS function

LDREX uint32_t __LDREXW (uint32_t *addr)

LDREXH uint16_t __LDREXH (uint16_t *addr)

LDREXB uint8_t __LDREXB (uint8_t *addr)

STREX uint32_t __STREXW (uint32_t value, uint32_t *addr)

STREXH uint32_t __STREXH (uint16_t value, uint16_t *addr)

STREXB uint32_t __STREXB (uint8_t value, uint8_t *addr)

CLREX void __CLREX (void)

The Cortex-M4 Processor

ID121610 Non-Confidential

2.3 Exception model

This section describes the exception model. It describes:

•Exception states

•Exception types

•Exception handlers on page 2-23

•Vector table on page 2-23

•Exception priorities on page 2-24

•Interrupt priority grouping on page 2-25

•Exception entry and return on page 2-25.

2.3.1 Exception states

Each exception is in one of the following states:

Inactive The exception is not active and not pending.

Pending The exception is waiting to be serviced by the processor.

An interrupt request from a peripheral or from software can change the

state of the corresponding interrupt to pending.

Active An exception that is being serviced by the processor but has not

completed.

Note

An exception handler can interrupt the execution of another exception

handler. In this case both exceptions are in the active state.

Active and pending

The exception is being serviced by the processor and there is a pending

exception from the same source.

2.3.2 Exception types

The exception types are:

Reset Reset is invoked on power up or a warm reset. The exception model treats

reset as a special form of exception. When reset is asserted, the operation

of the processor stops, potentially at any point in an instruction. When

reset is deasserted, execution restarts from the address provided by the

reset entry in the vector table. Execution restarts as privileged execution

in Thread mode.

NMI A Non Maskable Interrupt (NMI) can be signalled by a peripheral or

triggered by software. This is the highest priority exception other than

reset. It is permanently enabled and has a fixed priority of -2. NMIs cannot

be:

• masked or prevented from activation by any other exception

• preempted by any exception other than Reset.

HardFault A HardFault is an exception that occurs because of an error during

exception processing, or because an exception cannot be managed by any

other exception mechanism. HardFaults have a fixed priority of -1,

meaning they have higher priority than any exception with configurable

priority.

The Cortex-M4 Processor

ID121610 Non-Confidential

MemManage

A MemManage fault is an exception that occurs because of a memory

protection related fault. The the fixed memory protection constraints

determines this fault, for both instruction and data memory transactions.

This fault is always used to abort instruction accesses to Execute Never

(XN) memory regions.

BusFault A BusFault is an exception that occurs because of a memory related fault

for an instruction or data memory transaction. This might be from an error

detected on a bus in the memory system.

UsageFault A UsageFault is an exception that occurs because of a fault related to

instruction execution. This includes:

• an undefined instruction

• an illegal unaligned access

• invalid state on instruction execution

• an error on exception return.

The following can cause a UsageFault when the core is configured to

report them:

• an unaligned address on word and halfword memory access

• division by zero.

SVCall A supervisor call (SVC) is an exception that is triggered by the

SVC

instruction. In an OS environment, applications can use

SVC

instructions to

access OS kernel functions and device drivers.

PendSV PendSV is an interrupt-driven request for system-level service. In an OS

environment, use PendSV for context switching when no other exception

is active.

SysTick A SysTick exception is an exception the system timer generates when it

reaches zero. Software can also generate a SysTick exception. In an OS

environment, the processor can use this exception as system tick.

Interrupt (IRQ) A interrupt, or IRQ, is an exception signalled by a peripheral, or generated

by a software request. All interrupts are asynchronous to instruction

execution. In the system, peripherals use interrupts to communicate with

the processor.

Table 2-16 Properties of the different exception types

Exception

numbera

IRQ

numberaException type Priority Vector address

or offsetbActivation

1 - Reset -3, the highest

0x00000004

Asynchronous

2 -14 NMI -2

0x00000008

Asynchronous

3 -13 HardFault -1

0x0000000C

4 -12 MemManage Configurablec

0x00000010

Synchronous

5-11BusFault

Configurablec

0x00000014

Synchronous when precise,

asynchronous when imprecise

6 -10 UsageFault Configurablec

0x00000018

Synchronous

7-10 - Reserved - - -

The Cortex-M4 Processor

ID121610 Non-Confidential

For an asynchronous exception, other than reset, the processor can execute another instruction

between when the exception is triggered and when the processor enters the exception handler.

Privileged software can disable the exceptions that Table 2-16 on page 2-22 shows as having

configurable priority, see:

•System Handler Control and State Register on page 4-23

•Interrupt Clear-enable Registers on page 4-5.

For more information about HardFaults, MemManage faults, BusFaults, and UsageFaults, see

Fault handling on page 2-29.

2.3.3 Exception handlers

The processor handles exceptions using:

Interrupt Service Routines (ISRs)

The IRQ interrupts are the exceptions handled by ISRs.

Fault handlers HardFault, MemManage fault, UsageFault, and BusFault are fault

exceptions handled by the fault handlers.

System handlers NMI, PendSV, SVCall SysTick, and the fault exceptions are all system

exceptions that are handled by system handlers.

2.3.4 Vector table

The vector table contains the reset value of the stack pointer, and the start addresses, also called

exception vectors, for all exception handlers. Figure 2-2 on page 2-24 shows the order of the

exception vectors in the vector table. The least-significant bit of each vector must be 1,

indicating that the exception handler is Thumb code, see Thumb state on page 2-7.

11 -5 SVCall Configurablec

0x0000002C

Synchronous

12-13 - Reserved - - -

14 -2 PendSV Configurablec

0x00000038

Asynchronous

15 -1 SysTick Configurablec

0x0000003C

Asynchronous

16 0 Interrupt (IRQ) Configurabled

0x00000040

eAsynchronous

a. To simplify the software layer, the CMSIS only uses IRQ numbers and therefore uses negative values for exceptions other than

interrupts. The IPSR returns the Exception number, see Interrupt Program Status Register on page 2-6.

b. See Vector table for more information.

c. See System Handler Priority Registers on page 4-21.

d. See Interrupt Priority Registers on page 4-7.

e. Increasing in steps of 4.

Table 2-16 Properties of the different exception types (continued)

Exception

numbera

IRQ

numberaException type Priority Vector address

or offsetbActivation

The Cortex-M4 Processor

ID121610 Non-Confidential

Figure 2-2 Vector table

On system reset, the vector table is fixed at address

0x00000000

. Privileged software can write to

the VTOR to relocate the vector table start address to a different memory location, in the range

0x00000080

0x3FFFFF80

, see Vector Table Offset Register on page 4-16.

2.3.5 Exception priorities

As Table 2-16 on page 2-22 shows, all exceptions have an associated priority, with:

• a lower priority value indicating a higher priority

• configurable priorities for all exceptions except Reset, HardFault, and NMI.

If software does not configure any priorities, then all exceptions with a configurable priority

have a priority of 0. For information about configuring exception priorities see

•System Handler Priority Registers on page 4-21

•Interrupt Priority Registers on page 4-7.

Note

Configurable priority values are in the range 0-. This means that the Reset, HardFault, and NMI

exceptions, with fixed negative priority values, always have higher priority than any other

exception.

Initial SP value

Reset

Hard fault

NMI

Memory management fault

Usage fault

Bus fault

0x0000

0x0004

0x0008

0x000C

0x0010

0x0014

0x0018

Reserved

SVCall

PendSV

Reserved for Debug

Systick

IRQ0

Reserved

0x002C

0x0038

0x003C

0x0040

OffsetException number

Vector

IRQ1

IRQ2

0x0044

IRQn

0x0048

0x004C

16+n

0x0040+4n

IRQ number

-14

-13

-12

-11

-10

-5

-2

-1

The Cortex-M4 Processor

ID121610 Non-Confidential

For example, assigning a higher priority value to IRQ[0] and a lower priority value to IRQ[1]

means that IRQ[1] has higher priority than IRQ[0]. If both IRQ[1] and IRQ[0] are asserted,

IRQ[1] is processed before IRQ[0].

If multiple pending exceptions have the same priority, the pending exception with the lowest

exception number takes precedence. For example, if both IRQ[0] and IRQ[1] are pending and

have the same priority, then IRQ[0] is processed before IRQ[1].

When the processor is executing an exception handler, the exception handler is preempted if a

higher priority exception occurs. If an exception occurs with the same priority as the exception

being handled, the handler is not preempted, irrespective of the exception number. However, the

status of the new interrupt changes to pending.

2.3.6 Interrupt priority grouping

To increase priority control in systems with interrupts, the NVIC supports priority grouping.

This divides each interrupt priority register entry into two fields:

• an upper field that defines the group priority

• a lower field that defines a subpriority within the group.

Only the group priority determines preemption of interrupt exceptions. When the processor is

executing an interrupt exception handler, another interrupt with the same group priority as the

interrupt being handled does not preempt the handler,

If multiple pending interrupts have the same group priority, the subpriority field determines the

order in which they are processed. If multiple pending interrupts have the same group priority

and subpriority, the interrupt with the lowest IRQ number is processed first.

For information about splitting the interrupt priority fields into group priority and subpriority,

see Application Interrupt and Reset Control Register on page 4-16.

2.3.7 Exception entry and return

Descriptions of exception handling use the following terms:

Preemption When the processor is executing an exception handler, an exception can

preempt the exception handler if its priority is higher than the priority of

the exception being handled. See Interrupt priority grouping for more

information about preemption by an interrupt.

When one exception preempts another, the exceptions are called nested

exceptions. See Exception entry on page 2-26 more information.

Return This occurs when the exception handler is completed, and:

• there is no pending exception with sufficient priority to be serviced

• the completed exception handler was not handling a late-arriving

exception.

The processor pops the stack and restores the processor state to the state it

had before the interrupt occurred. See Exception return on page 2-28 for

more information.

Tail-chaining This mechanism speeds up exception servicing. On completion of an

exception handler, if there is a pending exception that meets the

requirements for exception entry, the stack pop is skipped and control

transfers to the new exception handler.

The Cortex-M4 Processor

ID121610 Non-Confidential

Late-arriving This mechanism speeds up preemption. If a higher priority exception

occurs during state saving for a previous exception, the processor switches

to handle the higher priority exception and initiates the vector fetch for

that exception. State saving is not affected by late arrival because the state

saved is the same for both exceptions. Therefore the state saving continues

uninterrupted. The processor can accept a late arriving exception until the

first instruction of the exception handler of the original exception enters

the execute stage of the processor. On return from the exception handler

of the late-arriving exception, the normal tail-chaining rules apply.

Exception entry

Exception entry occurs when there is a pending exception with sufficient priority and either:

• the processor is in Thread mode

• the new exception is of higher priority than the exception being handled, in which case

the new exception preempts the original exception.

When one exception preempts another, the exceptions are nested.

Sufficient priority means the exception has more priority than any limits set by the mask

registers, see Exception mask registers on page 2-7. An exception with less priority than this is

pending but is not handled by the processor.

When the processor takes an exception, unless the exception is a tail-chained or a late-arriving

exception, the processor pushes information onto the current stack. This operation is referred to

as stacking and the structure of eight data words is referred as the stack frame.

When using floating-point routines the Cortex-M4 processor automatically stacks the

architected floating-point state on exception entry. Figure 2-3 on page 2-27 shows the

Cortex-M4 stack frame layout when floating-point state is preserved on the stack as the result

of an interrupt or an exception.

Note

Where stack space for floating-point state is not allocated, the stack frame is the same as that of

ARMv7-M implementations without an FPU. Figure 2-3 on page 2-27 shows this stack frame

also.

The Cortex-M4 Processor

ID121610 Non-Confidential

Figure 2-3 Exception stack frame

Immediately after stacking, the stack pointer indicates the lowest address in the stack frame. The

alignment of the stack frame is controlled via the STKALIGN bit of the Configuration Control

The stack frame includes the return address. This is the address of the next instruction in the

interrupted program. This value is restored to the PC at exception return so that the interrupted

program resumes.

In parallel to the stacking operation, the processor performs a vector fetch that reads the

exception handler start address from the vector table. When stacking is complete, the processor

starts executing the exception handler. At the same time, the processor writes an

EXC_RETURN value to the LR. This indicates which stack pointer corresponds to the stack

frame and what operation mode the processor was in before the entry occurred.

If no higher priority exception occurs during exception entry, the processor starts executing the

exception handler and automatically changes the status of the corresponding pending interrupt

to active.

If another higher priority exception occurs during exception entry, the processor starts executing

the exception handler for this exception and does not change the pending status of the earlier

exception. This is the late arrival case.

Pre-IRQ top of stack

xPSR

R12

{aligner}

IRQ top of stack

Decreasing

memory

address

xPSR

R12

FPSCR

S15

S14

S13

S12

S11

S10

{aligner}

IRQ top of stack

...

Exception frame with

floating-point storage

Exception frame without

floating-point storage

Pre-IRQ top of stack

...

The Cortex-M4 Processor

ID121610 Non-Confidential

Exception return

Exception return occurs when the processor is in Handler mode and executes one of the

following instructions to load the EXC_RETURN value into the PC:

•an

LDM

POP

instruction that loads the PC

•an

LDR

instruction with PC as the destination

•a

instruction using any register.

EXC_RETURN is the value loaded into the LR on exception entry. The exception mechanism

relies on this value to detect when the processor has completed an exception handler. The lowest

five bits of this value provide information on the return stack and processor mode. Table 2-17

shows the EXC_RETURN values with a description of the exception return behavior.

All EXC_RETURN values have bits[31:5] set to one. When this value is loaded into the PC it

indicates to the processor that the exception is complete, and the processor initiates the

appropriate exception return sequence.

Table 2-17 Exception return behavior

EXC_RETURN[31:0] Description

0xFFFFFFF1

Return to Handler mode, exception return uses non-floating-point state

from the MSP and execution uses MSP after return.

0xFFFFFFF9

Return to Thread mode, exception return uses non-floating-point state from

MSP and execution uses MSP after return.

0xFFFFFFFD

Return to Thread mode, exception return uses non-floating-point state from

the PSP and execution uses PSP after return.

0xFFFFFFE1

Return to Handler mode, exception return uses floating-point-state from

MSP and execution uses MSP after return.

0xFFFFFFE9

Return to Thread mode, exception return uses floating-point state from

MSP and execution uses MSP after return.

0xFFFFFFED

Return to Thread mode, exception return uses floating-point state from PSP

and execution uses PSP after return.

The Cortex-M4 Processor

ID121610 Non-Confidential

2.4 Fault handling

Faults are a subset of the exceptions, see Exception model on page 2-21. Faults are generated by:

• a bus error on:

— an instruction fetch or vector table load

— a data access.

• an internally-detected error such as an undefined instruction

• attempting to execute an instruction from a memory region marked as Execute-never

(XN).

• If your device contains an MPU, a privilege violation or an attempt to access an

unmanaged region causing an MPU fault.

2.4.1 Fault types

Table 2-18 shows the types of fault, the handler used for the fault, the corresponding fault status

Status Register on page 4-24 for more information about the fault status registers.

Table 2-18 Faults

Fault Handler Bit name Fault status register

Bus error on a vector read HardFault VECTTBL HardFault Status Register on

page 4-30

Fault escalated to a hard fault FORCED

MPU or default memory map mismatch: MemManage - -

on instruction access IACCVIOLaMemManage Fault Address

on data access DACCVIOL

during exception stacking MSTKERR

during exception unstacking MUNSKERR

during lazy floating-point state preservation MLSPERR

Bus error: BusFault - -

during exception stacking STKERR BusFault Status Register on

page 4-26

during exception unstacking UNSTKERR

during instruction prefetch IBUSERR

during lazy floating-point state preservation LSPERR

Precise data bus error PRECISERR

Imprecise data bus error IMPRECISERR

The Cortex-M4 Processor

ID121610 Non-Confidential

2.4.2 Fault escalation and hard faults

All faults exceptions except for HardFault have configurable exception priority, see System

Handler Priority Registers on page 4-21. Software can disable execution of the handlers for

these faults, see System Handler Control and State Register on page 4-23.

Usually, the exception priority, together with the values of the exception mask registers,

determines whether the processor enters the fault handler, and whether a fault handler can

preempt another fault handler. as described in Exception model on page 2-21.

In some situations, a fault with configurable priority is treated as a HardFault. This is called

priority escalation, and the fault is described as escalated to HardFault. Escalation to HardFault

occurs when:

• A fault handler causes the same kind of fault as the one it is servicing. This escalation to

HardFault occurs because a fault handler cannot preempt itself because it must have the

same priority as the current priority level.

• A fault handler causes a fault with the same or lower priority as the fault it is servicing.

This is because the handler for the new fault cannot preempt the currently executing fault

handler.

• An exception handler causes a fault for which the priority is the same as or lower than the

currently executing exception.

• A fault occurs and the handler for that fault is not enabled.

If a BusFault occurs during a stack push when entering a BusFault handler, the BusFault does

not escalate to a HardFault. This means that if a corrupted stack causes a fault, the fault handler

executes even though the stack push for the handler failed. The fault handler operates but the

stack contents are corrupted.

Note

Only Reset and NMI can preempt the fixed priority HardFault. A HardFault can preempt any

exception other than Reset, NMI, or another HardFault.

Attempt to access a coprocessor UsageFault NOCP UsageFault Status Register on

page 4-28

Undefined instruction UNDEFINSTR

Attempt to enter an invalid instruction set statebINVSTATE

Invalid EXC_RETURN value INVPC

Illegal unaligned load or store UNALIGNED

Divide By 0 DIVBYZERO

a. Occurs on an access to an XN region even if the processor does not include an MPU or if the MPU is disabled.

b. Attempting to use an instruction set other than the Thumb instruction set or returns to a non load/store-multiple instruction with

ICI continuation.

Table 2-18 Faults (continued)

Fault Handler Bit name Fault status register

The Cortex-M4 Processor

ID121610 Non-Confidential

2.4.3 Fault status registers and fault address registers

The fault status registers indicate the cause of a fault. For BusFaults and MemManage faults,

the fault address register indicates the address accessed by the operation that caused the fault,

as shown in Table 2-19.

2.4.4 Lockup

The processor enters a lockup state if a fault occurs when executing the NMI or HardFault

handlers. When the processor is in lockup state it does not execute any instructions. The

processor remains in lockup state until either:

• it is reset

• an NMI occurs

• it is halted by a debugger.

Note

If lockup state occurs from the NMI handler a subsequent NMI does not cause the processor to

leave lockup state.

Table 2-19 Fault status and fault address registers

Handler Status register

name

Address register

name Register description

HardFault HFSR - HardFault Status Register on page 4-30

MemManage MMFSR MMFAR MemManage Fault Status Register on page 4-25

MemManage Fault Address Register on page 4-30

BusFault BFSR BFAR BusFault Status Register on page 4-26

BusFault Address Register on page 4-31

UsageFault UFSR - UsageFault Status Register on page 4-28

The Cortex-M4 Processor

ID121610 Non-Confidential

2.5 Power management

The Cortex-M4 processor sleep modes reduce power consumption. The sleep modes your

device implements are implementation-defined. The modes can be one or both of the following:

• sleep mode stops the processor clock

• deep sleep mode stops the system clock and switches off the PLL and flash memory.

If your device implements two sleep modes providing different levels of power saving, the

SLEEPDEEP bit of the SCR selects which sleep mode is used, see System Control Register on

page 4-19. For more information about the behavior of the sleep modes see the documentation

supplied by your device vendor.

This section describes the mechanisms for entering sleep mode, and the conditions for waking

up from sleep mode.

2.5.1 Entering sleep mode

This section describes the mechanisms software can use to put the processor into sleep mode.

The system can generate spurious wakeup events, for example a debug operation wakes up the

processor. Therefore software must be able to put the processor back into sleep mode after such

an event. A program might have an idle loop to put the processor back to sleep mode.

Wait for interrupt

The Wait For Interrupt instruction,

WFI

, causes immediate entry to sleep mode unless the

wake-up condition is true, see Wakeup from WFI or sleep-on-exit on page 2-33. When the

processor executes a

WFI

instruction it stops executing instructions and enters sleep mode. See

WFI on page 3-169 for more information.

Wait for event

The Wait For Event instruction,

WFE

, causes entry to sleep mode depending on the value of a

one-bit event register. When the processor executes a

WFE

instruction, it checks the value of the

event register:

0 The processor stops executing instructions and enters sleep mode.

1 The processor clears the register to 0 and continues executing instructions without

entering sleep mode.

See WFE on page 3-168 for more information.

If the event register is 1, this indicates that the processor must not enter sleep mode on execution

of a

WFE

instruction. Typically, this is because an external event signal is asserted, or a processor

in the system has executed an

SEV

instruction, see SEV on page 3-166. Software cannot access

this register directly.

Sleep-on-exit

If the SLEEPONEXIT bit of the SCR is set to 1, when the processor completes the execution of

all exception handlers it returns to Thread mode and immediately enters sleep mode. Use this

mechanism in applications that only require the processor to run when an exception occurs.

The Cortex-M4 Processor

ID121610 Non-Confidential

2.5.2 Wakeup from sleep mode

The conditions for the processor to wakeup depend on the mechanism that cause it to enter sleep

mode.

Wakeup from WFI or sleep-on-exit

Normally, the processor wakes up only when it detects an exception with sufficient priority to

cause exception entry. Some embedded systems might have to execute system restore tasks after

the processor wakes up, and before it executes an interrupt handler. To achieve this set the

PRIMASK bit to 1 and the FAULTMASK bit to 0. If an interrupt arrives that is enabled and has

a higher priority than current exception priority, the processor wakes up but does not execute the

interrupt handler until the processor sets PRIMASK to zero. For more information about

PRIMASK and FAULTMASK see Exception mask registers on page 2-7.

Wakeup from WFE

The processor wakes up if:

• it detects an exception with sufficient priority to cause exception entry

• it detects an external event signal, see The external event input

• in a multiprocessor system, another processor in the system executes an

SEV

instruction.

In addition, if the SEVONPEND bit in the SCR is set to 1, any new pending interrupt triggers

an event and wakes up the processor, even if the interrupt is disabled or has insufficient priority

to cause exception entry. For more information about the SCR see System Control Register on

page 4-19.

2.5.3 The optional Wakeup Interrupt Controller

Your device might include a Wakeup Interrupt Controller (WIC), an optional peripheral that can

detect an interrupt and wake the processor from deep sleep mode. The WIC is enabled only

when the DEEPSLEEP bit in the SCR is set to 1, see System Control Register on page 4-19.

The WIC is not programmable, and does not have any registers or user interface. It operates

entirely from hardware signals.

When the WIC is enabled and the processor enters deep sleep mode, the power management unit

in the system can power down most of the Cortex-M4 processor. This has the side effect of

stopping the SysTick timer. When the WIC receives an interrupt, it takes a number of clock

cycles to wakeup the processor and restore its state, before it can process the interrupt. This

means interrupt latency is increased in deep sleep mode.

Note

If the processor detects a connection to a debugger it disables the WIC.

2.5.4 The external event input

Your device might include an external event input signal, so that device peripherals can signal

the processor, to either:

• wake the processor from WFE

• set the internal WFE event register to one to indicate that the processor must not enter

sleep mode on a later

WFE

instruction.

The Cortex-M4 Processor

ID121610 Non-Confidential

See Wait for event on page 2-32 and the documentation supplied by your device vendor for more

information about this signal.

2.5.5 Power management programming hints

ISO/IEC C cannot directly generate the

WFI

and

WFE

instructions. The CMSIS provides the

following functions for these instructions:

void __WFE(void) // Wait for Event

void __WFI(void) // Wait for Interrupt

ID121610 Non-Confidential

Chapter 3

The Cortex-M4 Instruction Set

This chapter is the reference material for the Cortex-M4 instruction set description in a User Guide.

The following sections give general information:

•Instruction set summary on page 3-2

•CMSIS functions on page 3-9

•About the instruction descriptions on page 3-11.

Each of the following sections describes a functional group of Cortex-M4 instructions. Together

they describe all the instructions supported by the Cortex-M4 processor:

•Memory access instructions on page 3-22

•General data processing instructions on page 3-39

•Multiply and divide instructions on page 3-74

•Saturating instructions on page 3-95

•Packing and unpacking instructions on page 3-107

•Bitfield instructions on page 3-114

•Branch and control instructions on page 3-118

•Miscellaneous instructions on page 3-157

•Floating-point instructions on page 3-126.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.1 Instruction set summary

The processor implements a version of the Thumb instruction set. Table 3-1 lists the supported

instructions.

Note

In Table 3-1:

• angle brackets, <>, enclose alternative forms of the operand

• braces, {}, enclose optional operands

• the Operands column is not exhaustive

•

Op2

is a flexible second operand that can be either a register or a constant

• most instructions can use an optional condition code suffix.

For more information on the instructions and operands, see the instruction descriptions.

Table 3-1 Cortex-M4 instructions

Mnemonic Operands Brief description Flags Page

ADC, ADCS {Rd,}

Rn,

Op2

Add with Carry N,Z,C,V page 3-41

ADD, ADDS {Rd,}

Rn, Op2

Add N,Z,C,V page 3-41

ADD, ADDW {Rd,}

Rn, #imm12

Add - page 3-41

ADR Rd, label

Load PC-relative Address - page 3-23

AND, ANDS {Rd,} Rn, Op2

Logical AND N,Z,C page 3-44

ASR, ASRS Rd, Rm, <Rs|#n>

Arithmetic Shift Right N,Z,C page 3-46

B label

Branch - page 3-119

BFC Rd, #lsb, #width

Bit Field Clear - page 3-115

BFI Rd, Rn, #lsb, #width

Bit Field Insert - page 3-115

BIC, BICS {Rd,}

Rn, Op2

Bit Clear N,Z,C page 3-44

BKPT #imm

Breakpoint - page 3-158

BL label

Branch with Link - page 3-119

BLX Rm

Branch indirect with Link - page 3-119

BX Rm

Branch indirect - page 3-119

CBNZ Rn, label

Compare and Branch if Non Zero - page 3-121

CBZ Rn, label

Compare and Branch if Zero - page 3-121

CLREX

- Clear Exclusive - page 3-38

CLZ Rd, Rm

Count Leading Zeros - page 3-48

CMN Rn, Op2

Compare Negative N,Z,C,V page 3-49

CMP Rn, Op2

Compare N,Z,C,V page 3-49

CPSID i

Change Processor State, Disable Interrupts - page 3-159

CPSIE i

Change Processor State, Enable Interrupts - page 3-159

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

DMB -

Data Memory Barrier - page 3-160

DSB -

Data Synchronization Barrier - page 3-161

EOR, EORS {Rd,} Rn, Op2

Exclusive OR N,Z,C page 3-44

ISB -

Instruction Synchronization Barrier - page 3-162

- If-Then condition block - page 3-122

LDM Rn{!}, reglist

Load Multiple registers, increment after - page 3-32

LDMDB, LDMEA Rn{!}, reglist

Load Multiple registers, decrement before - page 3-32

LDMFD, LDMIA Rn{!}, reglist

Load Multiple registers, increment after - page 3-32

LDR Rt, [Rn, #offset]

Load Register with word - page 3-22

LDRB, LDRBT Rt, [Rn, #offset]

Load Register with byte - page 3-22

LDRD Rt, Rt2, [Rn, #offset]

Load Register with two bytes - page 3-24

LDREX Rt, [Rn, #offset]

Load Register Exclusive - page 3-36

LDREXB Rt, [Rn]

Load Register Exclusive with Byte - page 3-36

LDREXH Rt, [Rn]

Load Register Exclusive with Halfword - page 3-36

LDRH, LDRHT Rt, [Rn, #offset]

Load Register with Halfword - page 3-22

LDRSB, LDRSBT Rt, [Rn, #offset]

Load Register with Signed Byte - page 3-22

LDRSH, LDRSHT Rt, [Rn, #offset]

Load Register with Signed Halfword - page 3-22

LDRT Rt, [Rn, #offset]

Load Register with word - page 3-22

LSL, LSLS Rd, Rm, <Rs|#n>

Logical Shift Left N,Z,C page 3-46

LSR, LSRS Rd, Rm, <Rs|#n>

Logical Shift Right N,Z,C page 3-46

MLA Rd, Rn, Rm, Ra

Multiply with Accumulate, 32-bit result - page 3-75

MLS Rd, Rn, Rm, Ra

Multiply and Subtract, 32-bit result - page 3-75

MOV, MOVS Rd, Op2

Move N,Z,C page 3-50

MOVT Rd, #imm16

Move Top - page 3-52

MOVW, MOV Rd, #imm16

Move 16-bit constant N,Z,C page 3-50

MRS Rd, spec_reg

Move from Special Register to general register - page 3-163

MSR spec_reg, Rm

Move from general register to Special Register N,Z,C,V page 3-164

MUL, MULS {Rd,} Rn, Rm

Multiply, 32-bit result N,Z page 3-75

MVN, MVNS Rd, Op2

Move NOT N,Z,C page 3-50

NOP

- No Operation - page 3-165

ORN, ORNS {Rd,} Rn, Op2

Logical OR NOT N,Z,C page 3-44

ORR, ORRS {Rd,} Rn, Op2

Logical OR N,Z,C page 3-44

PKHTB

PKHBT {Rd,} Rn, Rm, Op2

Pack Halfword - page 3-108

Table 3-1 Cortex-M4 instructions (continued)

Mnemonic Operands Brief description Flags Page

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

POP reglist

Pop registers from stack - page 3-34

PUSH reglist

Push registers onto stack - page 3-34

QADD {Rd,} Rn, Rm

Saturating double and Add Q page 3-98

QADD16 {Rd,} Rn, Rm

Saturating Add 16 - page 3-98

QADD8 {Rd,} Rn, Rm

Saturating Add 8 - page 3-98

QASX {Rd,} Rn, Rm

Saturating Add and Subtract with Exchange - page 3-100

QDADD {Rd,} Rn, Rm

Saturating Add Q page 3-102

QDSUB {Rd,} Rn, Rm

Saturating double and Subtract Q page 3-102

QSAX {Rd,} Rn, Rm

Saturating Subtract and Add with Exchange - page 3-100

QSUB {Rd,} Rn, Rm

Saturating Subtract Q page 3-102

QSUB16 {Rd,} Rn, Rm

Saturating Subtract 16 - page 3-102

QSUB8 {Rd,} Rn, Rm

Saturating Subtract 8 - page 3-102

RBIT Rd, Rn

Reverse Bits - page 3-53

REV Rd, Rn

Reverse byte order in a word - page 3-53

REV16 Rd, Rn

Reverse byte order in each halfword - page 3-53

REVSH Rd, Rn

Reverse byte order in bottom halfword and sign extend - page 3-53

ROR, RORS Rd, Rm, <Rs|#n>

Rotate Right N,Z,C page 3-46

RRX, RRXS Rd, Rm

Rotate Right with Extend N,Z,C page 3-46

RSB, RSBS {Rd,} Rn, Op2

Reverse Subtract N,Z,C,V page 3-41

SADD16 {Rd,} Rn, Rm

Signed Add 16 GE page 3-54

SADD8 {Rd,} Rn, Rm

Signed Add 8 GE page 3-54

SASX {Rd,} Rn, Rm

Signed Add and Subtract with Exchange GE page 3-60

SBC, SBCS {Rd,} Rn, Op2

Subtract with Carry N,Z,C,V page 3-41

SBFX Rd, Rn, #lsb, #width

Signed Bit Field Extract - page 3-116

SDIV {Rd,} Rn, Rm

Signed Divide - page 3-94

SEL {Rd,} Rn, Rm

Select bytes - page 3-70

SEV

- Send Event - page 3-166

SHADD16 {Rd,} Rn, Rm

Signed Halving Add 16 - page 3-55

SHADD8 {Rd,} Rn, Rm

Signed Halving Add 8 - page 3-55

SHASX {Rd,} Rn, Rm

Signed Halving Add and Subtract with Exchange - page 3-56

SHSAX {Rd,} Rn, Rm

Signed Halving Subtract and Add with Exchange - page 3-56

SHSUB16 {Rd,} Rn, Rm

Signed Halving Subtract 16 - page 3-58

SHSUB8 {Rd,} Rn, Rm

Signed Halving Subtract 8 - page 3-58

Table 3-1 Cortex-M4 instructions (continued)

Mnemonic Operands Brief description Flags Page

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

SMLABB, SMLABT,

SMLATB, SMLATT

Rd, Rn, Rm, Ra

Signed Multiply Accumulate Long (halfwords) Q page 3-79

SMLAD

SMLADX Rd, Rn, Rm, Ra

Signed Multiply Accumulate Dual Q page 3-81

SMLAL RdLo, RdHi, Rn, Rm

Signed Multiply with Accumulate (32 x 32 + 64), 64-bit

result

-page 3-93

SMLALBB, SMLALBT,

SMLALTB, SMLALTT

RdLo, RdHi, Rn, Rm

Signed Multiply Accumulate Long, halfwords - page 3-82

SMLALD

SMLALDX RdLo, RdHi, Rn, Rm

Signed Multiply Accumulate Long Dual - page 3-82

SMLAWB, SMLAWT Rd, Rn, Rm, Ra

Signed Multiply Accumulate, word by halfword Q page 3-79

SMLSD Rd, Rn, Rm, Ra

Signed Multiply Subtract Dual Q page 3-84

SMLSLD RdLo, RdHi, Rn, Rm

Signed Multiply Subtract Long Dual page 3-84

SMMLA Rd, Rn, Rm, Ra

Signed Most significant word Multiply Accumulate - page 3-86

SMMLS

SMMLR Rd, Rn, Rm, Ra

Signed Most significant word Multiply Subtract - page 3-86

SMMUL, SMMULR {Rd,} Rn, Rm

Signed Most significant word Multiply - page 3-88

SMUAD {Rd,} Rn, Rm

Signed dual Multiply Add Q page 3-89

SMULBB, SMULBT

SMULTB, SMULTT

{Rd,} Rn, Rm

Signed Multiply (halfwords) - page 3-91

SMULL RdLo, RdHi, Rn, Rm

Signed Multiply (32 x 32), 64-bit result - page 3-93

SMULWB, SMULWT {Rd,} Rn, Rm

Signed Multiply word by halfword - page 3-91

SMUSD

SMUSDX {Rd,} Rn, Rm

Signed dual Multiply Subtract - page 3-89

SSAT Rd, #n, Rm {,shift #s}

Signed Saturate Q page 3-96

SSAT16 Rd, #n, Rm

Signed Saturate 16 Q page 3-97

SSAX {Rd,} Rn, Rm

Signed Subtract and Add with Exchange GE page 3-60

SSUB16 {Rd,} Rn, Rm

Signed Subtract 16 - page 3-59

SSUB8 {Rd,} Rn, Rm

Signed Subtract 8 - page 3-59

STM Rn{!}, reglist

Store Multiple registers, increment after - page 3-32

STMDB, STMEA Rn{!}, reglist

Store Multiple registers, decrement before - page 3-32

STMFD, STMIA Rn{!}, reglist

Store Multiple registers, increment after - page 3-32

STR Rt, [Rn, #offset]

Store Register word - page 3-22

STRB, STRBT Rt, [Rn, #offset]

Store Register byte - page 3-22

STRD Rt, Rt2, [Rn, #offset]

Store Register two words - page 3-24

STREX Rd, Rt, [Rn, #offset]

Store Register Exclusive - page 3-36

STREXB Rd, Rt, [Rn]

Store Register Exclusive Byte - page 3-36

STREXH Rd, Rt, [Rn]

Store Register Exclusive Halfword - page 3-36

Table 3-1 Cortex-M4 instructions (continued)

Mnemonic Operands Brief description Flags Page

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

STRH, STRHT Rt, [Rn, #offset]

Store Register Halfword - page 3-22

STRT Rt, [Rn, #offset]

Store Register word - page 3-22

SUB, SUBS {Rd,} Rn, Op2

Subtract N,Z,C,V page 3-41

SUB, SUBW {Rd,} Rn, #imm12

Subtract - page 3-41

SVC #imm

Supervisor Call - page 3-167

SXTAB {Rd,} Rn, Rm,{,ROR #}

Extend 8 bits to 32 and add - page 3-112

SXTAB16 {Rd,} Rn, Rm,{,ROR #}

Dual extend 8 bits to 16 and add - page 3-112

SXTAH {Rd,} Rn, Rm,{,ROR #}

Extend 16 bits to 32 and add - page 3-112

SXTB16 {Rd,} Rm {,ROR #n}

Signed Extend Byte 16 - page 3-110

SXTB {Rd,} Rm {,ROR #n}

Sign extend a byte - page 3-117

SXTH {Rd,} Rm {,ROR #n}

Sign extend a halfword - page 3-117

TBB [Rn, Rm]

Table Branch Byte - page 3-124

TBH [Rn, Rm, LSL #1]

Table Branch Halfword - page 3-124

TEQ Rn, Op2

Test Equivalence N,Z,C page 3-62

TST Rn, Op2

Test N,Z,C page 3-62

UADD16 {Rd,} Rn, Rm

Unsigned Add 16 GE page 3-63

UADD8 {Rd,} Rn, Rm

Unsigned Add 8 GE page 3-63

USAX {Rd,} Rn, Rm

Unsigned Subtract and Add with Exchange GE page 3-64

UHADD16 {Rd,} Rn, Rm

Unsigned Halving Add 16 - page 3-66

UHADD8 {Rd,} Rn, Rm

Unsigned Halving Add 8 - page 3-66

UHASX {Rd,} Rn, Rm

Unsigned Halving Add and Subtract with Exchange - page 3-67

UHSAX {Rd,} Rn, Rm

Unsigned Halving Subtract and Add with Exchange - page 3-67

UHSUB16 {Rd,} Rn, Rm

Unsigned Halving Subtract 16 - page 3-69

UHSUB8 {Rd,} Rn, Rm

Unsigned Halving Subtract 8 - page 3-69

UBFX Rd, Rn, #lsb, #width

Unsigned Bit Field Extract - page 3-116

UDIV {Rd,} Rn, Rm

Unsigned Divide - page 3-94

UMAAL RdLo, RdHi, Rn, Rm

Unsigned Multiply Accumulate Accumulate Long (32 x

32 + 32 +32), 64-bit result

-page 3-77

UMLAL RdLo, RdHi, Rn, Rm

Unsigned Multiply with Accumulate (32 x 32 + 64),

64-bit result

-page 3-93

UMULL RdLo, RdHi, Rn, Rm

Unsigned Multiply (32 x 32), 64-bit result - page 3-93

UQADD16 {Rd,} Rn, Rm

Unsigned Saturating Add 16 - page 3-105

UQADD8 {Rd,} Rn, Rm

Unsigned Saturating Add 8 - page 3-105

Table 3-1 Cortex-M4 instructions (continued)

Mnemonic Operands Brief description Flags Page

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

UQASX {Rd,} Rn, Rm

Unsigned Saturating Add and Subtract with Exchange - page 3-103

UQSAX {Rd,} Rn, Rm

Unsigned Saturating Subtract and Add with Exchange - page 3-103

UQSUB16 {Rd,} Rn, Rm

Unsigned Saturating Subtract 16 - page 3-105

UQSUB8 {Rd,} Rn, Rm

Unsigned Saturating Subtract 8 - page 3-105

USAD8 {Rd,} Rn, Rm

Unsigned Sum of Absolute Differences - page 3-71

USADA8 {Rd,} Rn, Rm, Ra

Unsigned Sum of Absolute Differences and Accumulate - page 3-72

USAT Rd, #n, Rm {,shift #s}

Unsigned Saturate Q page 3-96

USAT16

Rd, #n, Rm Unsigned Saturate 16 Q page 3-97

UASX {Rd,} Rn, Rm

Unsigned Add and Subtract with Exchange GE page 3-64

USUB16 {Rd,} Rn, Rm

Unsigned Subtract 16 GE page 3-73

USUB8 {Rd,} Rn, Rm

Unsigned Subtract 8 GE page 3-73

UXTAB {Rd,} Rn, Rm,{,ROR #}

Rotate, extend 8 bits to 32 and Add - page 3-112

UXTAB16 {Rd,} Rn, Rm,{,ROR #}

Rotate, dual extend 8 bits to 16 and Add - page 3-112

UXTAH {Rd,} Rn, Rm,{,ROR #}

Rotate, unsigned extend and Add Halfword - page 3-112

UXTB {Rd,} Rm {,ROR #n}

Zero extend a Byte - page 3-117

UXTB16 {Rd,} Rm {,ROR #n}

Unsigned Extend Byte 16 - page 3-117

UXTH {Rd,} Rm {,ROR #n}

Zero extend a Halfword - page 3-117

VABS.F32 Sd, Sm

Floating-point Absolute - page 3-128

VADD.F32 {Sd,} Sn, Sm

Floating-point Add - page 3-129

VCMP.F32 Sd, <Sm | #0.0>

Compare two floating-point registers, or one

floating-point register and zero

FPSCR page 3-130

VCMPE.F32 Sd, <Sm | #0.0>

Compare two floating-point registers, or one

floating-point register and zero with Invalid Operation

check

FPSCR page 3-130

VCVT.S32.F32 Sd, Sm

Convert between floating-point and integer - page 3-131

VCVT.S16.F32 Sd, Sd, #fbits

Convert between floating-point and fixed point - page 3-132

VCVTR.S32.F32 Sd, Sm

Convert between floating-point and integer with

rounding

-page 3-131

VCVT<B|H>.F32.F16 Sd, Sm

Converts half-precision value to single-precision - page 3-133

VCVTT<B|T>.F32.F16 Sd, Sm

Converts single-precision register to half-precision - page 3-133

VDIV.F32 {Sd,} Sn, Sm

Floating-point Divide - page 3-134

VFMA.F32 {Sd,} Sn, Sm

Floating-point Fused Multiply Accumulate - page 3-135

VFNMA.F32 {Sd,} Sn, Sm

Floating-point Fused Negate Multiply Accumulate - page 3-136

VFMS.F32 {Sd,} Sn, Sm

Floating-point Fused Multiply Subtract - page 3-135

Table 3-1 Cortex-M4 instructions (continued)

Mnemonic Operands Brief description Flags Page

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

VFNMS.F32 {Sd,} Sn, Sm

Floating-point Fused Negate Multiply Subtract - page 3-136

VLDM.F<32|64> Rn{!}, list

Load Multiple extension registers - page 3-137

VLDR.F<32|64>

Dd|Sd>, [Rn]

Load an extension register from memory - page 3-138

VLMA.F32 {Sd,} Sn, Sm

Floating-point Multiply Accumulate - page 3-139

VLMS.F32 {Sd,} Sn, Sm

Floating-point Multiply Subtract - page 3-139

VMOV.F32 Sd, #imm

Floating-point Move immediate - page 3-140

VMOV Sd, Sm

Floating-point Move register - page 3-141

VMOV Sn, Rt

Copy ARM core register to single precision - page 3-143

VMOV Sm, Sm1, Rt, Rt2

Copy 2 ARM core registers to 2 single precision - page 3-144

VMOV Dd[x], Rt

Copy ARM core register to scalar - page 3-145

VMOV Rt, Dn[x]

Copy scalar to ARM core register - page 3-142

VMRS Rt, FPSCR

Move FPSCR to ARM core register or APSR N,Z,C,V page 3-146

VMSR FPSCR, Rt

Move to FPSCR from ARM Core register FPSCR page 3-147

VMUL.F32 {Sd,} Sn, Sm

Floating-point Multiply - page 3-148

VNEG.F32 Sd, Sm

Floating-point Negate - page 3-149

VNMLA.F32 Sd, Sn, Sm

Floating-point Multiply and Add - page 3-150

VNMLS.F32 Sd, Sn, Sm

Floating-point Multiply and Subtract - page 3-150

VNMUL {Sd,} Sn, Sm

Floating-point Multiply - page 3-150

VPOP list

Pop extension registers - page 3-151

VPUSH list

Push extension registers - page 3-152

VSQRT.F32 Sd, Sm

Calculates floating-point Square Root - page 3-153

VSTM Rn{!}, list

Floating-point register Store Multiple - page 3-154

VSTR.F<32|64> Sd, [Rn]

Stores an extension register to memory - page 3-155

VSUB.F<32|64> {Sd,} Sn, Sm

Floating-point Subtract - page 3-156

WFE

- Wait For Event - page 3-168

WFI

- Wait For Interrupt - page 3-169

Table 3-1 Cortex-M4 instructions (continued)

Mnemonic Operands Brief description Flags Page

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.2 CMSIS functions

ISO/IEC C code cannot directly access some Cortex-M4 instructions. This section describes

intrinsic functions that can generate these instructions, provided by the CMSIS and that might

be provided by a C compiler. If a C compiler does not support an appropriate intrinsic function,

you might have to use inline assembler to access some instructions.

The CMSIS provides the following intrinsic functions to generate instructions that ISO/IEC C

code cannot directly access:

The CMSIS also provides a number of functions for accessing the special registers using

MRS

and

MSR

instructions:

Table 3-2 CMSIS functions to generate some Cortex-M4 instructions

Instruction CMSIS function

CPSIE I void __enable_irq(void)

CPSID I void __disable_irq(void)

CPSIE F void __enable_fault_irq(void)

CPSID F void __disable_fault_irq(void)

ISB void __ISB(void)

DSB void __DSB(void)

DMB void __DMB(void)

REV uint32_t __REV(uint32_t int value)

REV16 uint32_t __REV16(uint32_t int value)

REVSH uint32_t __REVSH(uint32_t int value)

RBIT uint32_t __RBIT(uint32_t int value)

SEV void __SEV(void)

WFE void __WFE(void)

WFI void __WFI(void)

Table 3-3 CMSIS functions to access the special registers

Special register Access CMSIS function

PRIMASK Read

uint32_t __get_PRIMASK (void)

Write

void __set_PRIMASK (uint32_t value)

FAULTMASK Read

uint32_t __get_FAULTMASK (void)

Write

void __set_FAULTMASK (uint32_t value)

BASEPRI Read

uint32_t __get_BASEPRI (void)

Write

void __set_BASEPRI (uint32_t value)

CONTROL Read

uint32_t __get_CONTROL (void)

Write

void __set_CONTROL (uint32_t value)

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

MSP Read

uint32_t __get_MSP (void)

Write

void __set_MSP (uint32_t TopOfMainStack)

PSP Read

uint32_t __get_PSP (void)

Write

void __set_PSP (uint32_t TopOfProcStack)

Table 3-3 CMSIS functions to access the special registers (continued)

Special register Access CMSIS function

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.3 About the instruction descriptions

The following sections give more information about using the instructions:

•Operands on page 3-12

•Restrictions when using PC or SP on page 3-12

•Flexible second operand on page 3-12

•Shift Operations on page 3-13

•Address alignment on page 3-17

•PC-relative expressions on page 3-17

•Conditional execution on page 3-18

•Instruction width selection on page 3-21.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.3.1 Operands

An instruction operand can be an ARM register, a constant, or another instruction-specific

parameter. Instructions act on the operands and often store the result in a destination register.

When there is a destination register in the instruction, it is usually specified before the operands.

Operands in some instructions are flexible in that they can either be a register or a constant. See

Flexible second operand.

3.3.2 Restrictions when using PC or SP

Many instructions have restrictions on whether you can use the Program Counter (PC) or Stack

Pointer (SP) for the operands or destination register. See instruction descriptions for more

information.

Note

Bit[0] of any address you write to the PC with a

BLX

LDM

LDR

, or

POP

instruction must be 1

for correct execution, because this bit indicates the required instruction set, and the Cortex-M4

processor only supports Thumb instructions.

3.3.3 Flexible second operand

Many general data processing instructions have a flexible second operand. This is shown as

Operand2

in the descriptions of the syntax of each instruction.

Operand2

can be a:

•Constant

•Register with optional shift on page 3-13

Constant

You specify an Operand2 constant in the form:

#constant

where

constant

can be:

• any constant that can be produced by shifting an 8-bit value left by any number of bits

within a 32-bit word

• any constant of the form

0x00XY00XY

• any constant of the form

0xXY00XY00

• any constant of the form

0xXYXYXYXY

Note

In the constants shown above,

and

are hexadecimal digits.

In addition, in a small number of instructions,

constant

can take a wider range of values. These

are described in the individual instruction descriptions.

When an Operand2 constant is used with the instructions

MOVS

MVNS

ANDS

ORRS

ORNS

EORS

BICS

TEQ

TST

, the carry flag is updated to bit[31] of the constant, if the constant is greater than 255

and can be produced by shifting an 8-bit value. These instructions do not affect the carry flag if

Operand2 is any other constant.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Instruction substitution

Your assembler might be able to produce an equivalent instruction in cases where you specify a

constant that is not permitted. For example, an assembler might assemble the instruction

CMP

#0xFFFFFFFE

as the equivalent instruction

CMN

#0x2

You specify an Operand2 register in the form:

Rm {, shift}

where:

The register holding the data for the second operand.

shift

An optional shift to be applied to

. It can be one of:

ASR #n

Arithmetic shift right

bits, 1 ≤

≤ 32.

LSL #n

Logical shift left

bits, 1 ≤

≤ 31.

LSR #n

Logical shift right

bits, 1 ≤

≤ 32.

ROR #n

Rotate right

bits, 1 ≤

≤ 31.

RRX

Rotate right one bit, with extend.

If omitted, no shift occurs, equivalent to

LSL #0

If you omit the shift, or specify

LSL #0

, the instruction uses the value in

If you specify a shift, the shift is applied to the value in

, and the resulting 32-bit value is used

by the instruction. However, the contents in the register

remains unchanged. Specifying a

information on the shift operations and how they affect the carry flag, see Shift Operations.

3.3.4 Shift Operations

the shift length. Register shift can be performed:

• directly by the instructions

ASR

LSR

LSL

ROR

, and

RRX

, and the result is written to a

destination register

• during the calculation of

Operand2

by the instructions that specify the second operand as a

instruction.

The permitted shift lengths depend on the shift type and the instruction, see the individual

instruction description or Flexible second operand on page 3-12. If the shift length is 0, no shift

occurs. Register shift operations update the carry flag except when the specified shift length is

0. The following sub-sections describe the various shift operations and how they affect the carry

flag. In these descriptions,

is the register containing the value to be shifted, and

is the shift

length.

ASR

Arithmetic shift right by

bits moves the left-hand

bits of the register

, to the right by

places, into the right-hand

bits of the result. And it copies the original bit[31] of the register

into the left-hand

bits of the result. See Figure 3-1 on page 3-14.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

You can use the

ASR #n

operation to divide the value in the register

by 2n, with the result being

rounded towards negative-infinity.

When the instruction is

ASRS

or when

ASR #n

is used in

Operand2

with the instructions

MOVS

MVNS

ANDS

ORRS

ORNS

EORS

BICS

TEQ

TST

, the carry flag is updated to the last bit shifted out, bit[

-1],

of the register

Note

• If

is 32 or more, then all the bits in the result are set to the value of bit[31] of

• If

is 32 or more and the carry flag is updated, it is updated to the value of bit[31] of

Figure 3-1 ASR #3

LSR

Logical shift right by

bits moves the left-hand

bits of the register

, to the right by

places, into the right-hand

bits of the result. And it sets the left-hand

bits of the result to

0. See Figure 3-2.

You can use the

LSR #n

operation to divide the value in the register

by 2n, if the value is

regarded as an unsigned integer.

When the instruction is

LSRS

or when

LSR #n

is used in

Operand2

with the instructions

MOVS

MVNS

ANDS

ORRS

ORNS

EORS

BICS

TEQ

TST

, the carry flag is updated to the last bit shifted out, bit[

-1],

of the register

Note

• If

is 32 or more, then all the bits in the result are cleared to 0.

• If

is 33 or more and the carry flag is updated, it is updated to 0.

Figure 3-2 LSR #3

LSL

Logical shift left by

bits moves the right-hand

bits of the register

, to the left by

places,

into the left-hand

bits of the result. And it sets the right-hand

bits of the result to 0. See

Figure 3-3 on page 3-15.

Carry

Flag

031 5 4 3 2 1

Carry

Flag

031 5 4 3 2 1

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

You can use he

LSL #n

operation to multiply the value in the register

by 2n, if the value is

regarded as an unsigned integer or a two’s complement signed integer. Overflow can occur

without warning.

When the instruction is

LSLS

or when

LSL #n

, with non-zero

, is used in

Operand2

with the

instructions

MOVS

MVNS

ANDS

ORRS

ORNS

EORS

BICS

TEQ

TST

, the carry flag is updated to the

last bit shifted out, bit[

], of the register

. These instructions do not affect the carry flag

when used with

LSL #0

Note

• If

is 32 or more, then all the bits in the result are cleared to 0.

• If

is 33 or more and the carry flag is updated, it is updated to 0.

Figure 3-3 LSL #3

ROR

Rotate right by

bits moves the left-hand

bits of the register

, to the right by

places, into

the right-hand

bits of the result. And it moves the right-hand

bits of the register into the

left-hand

bits of the result. See Figure 3-4.

When the instruction is

RORS

or when

ROR #n

is used in

Operand2

with the instructions

MOVS

MVNS

ANDS

ORRS

ORNS

EORS

BICS

TEQ

TST

, the carry flag is updated to the last bit rotation, bit[

-1],

of the register

Note

• If

is 32, then the value of the result is same as the value in

, and if the carry flag is

updated, it is updated to bit[31] of

•

ROR

with shift length,

, more than 32 is the same as

ROR

with shift length

-32.

Figure 3-4 ROR #3

RRX

Rotate right with extend moves the bits of the register

to the right by one bit. And it copies

the carry flag into bit[31] of the result. See Figure 3-5 on page 3-16.

When the instruction is

RRXS

or when

RRX

is used in

Operand2

with the instructions

MOVS

MVNS

ANDS

ORRS

ORNS

EORS

BICS

TEQ

TST

, the carry flag is updated to bit[0] of the register

031 5 4 3 2 1

Carry

Flag

Carry

Flag

031 5 4 3 2 1

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Figure 3-5 RRX

Carry

Flag

031 1

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.3.5 Address alignment

An aligned access is an operation where a word-aligned address is used for a word, dual word,

or multiple word access, or where a halfword-aligned address is used for a halfword access. Byte

accesses are always aligned.

The Cortex-M4 processor supports unaligned access only for the following instructions:

•

LDR

LDRT

•

LDRH

LDRHT

•

LDRSH

LDRSHT

•

STR

STRT

•

STRH

STRHT

All other load and store instructions generate a UsageFault exception if they perform an

unaligned access, and therefore their accesses must be address aligned. For more information

about UsageFaults see Fault handling on page 2-29.

Unaligned accesses are usually slower than aligned accesses. In addition, some memory regions

might not support unaligned accesses. Therefore, ARM recommends that programmers ensure

that accesses are aligned. To trap accidental generation of unaligned accesses, use the

UNALIGN_TRP bit in the Configuration and Control Register, see Configuration and Control

3.3.6 PC-relative expressions

A PC-relative expression or label is a symbol that represents the address of an instruction or

literal data. It is represented in the instruction as the PC value plus or minus a numeric offset.

The assembler calculates the required offset from the label and the address of the current

instruction. If the offset is too big, the assembler produces an error.

Note

• For

CBNZ

, and

CBZ

instructions, the value of the PC is the address of the current

instruction plus 4 bytes.

• For all other instructions that use labels, the value of the PC is the address of the current

instruction plus 4 bytes, with bit[1] of the result cleared to 0 to make it word-aligned.

• Your assembler might permit other syntaxes for PC-relative expressions, such as a label

plus or minus a number, or an expression of the form

[PC, #number]

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.3.7 Conditional execution

Most data processing instructions can optionally update the condition flags in the Application

Program Status Register (APSR) according to the result of the operation, see Application

Program Status Register on page 2-5. Some instructions update all flags, and some only update

a subset. If a flag is not updated, the original value is preserved. See the instruction descriptions

for the flags they affect.

You can execute an instruction conditionally, based on the condition flags set in another

instruction, either:

• immediately after the instruction that updated the flags

• after any number of intervening instructions that have not updated the flags.

Conditional execution is available by using conditional branches or by adding condition code

suffixes to instructions. See Table 3-4 on page 3-19 for a list of the suffixes to add to instructions

to make them conditional instructions. The condition code suffix enables the processor to test a

condition based on the flags. If the condition test of a conditional instruction fails, the

instruction:

• does not execute

• does not write any value to its destination register

• does not affect any of the flags

• does not generate any exception.

Conditional instructions, except for conditional branches, must be inside an If-Then instruction

block. See IT on page 3-122 for more information and restrictions when using the

instruction.

Depending on the vendor, the assembler might automatically insert an

instruction if you have

conditional instructions outside the IT block.

Use the

CBZ

and

CBNZ

instructions to compare the value of a register against zero and branch on

the result.

This section describes:

•The condition flags on page 3-19

•Condition code suffixes on page 3-19.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

The condition flags

The APSR contains the following condition flags:

N Set to 1 when the result of the operation was negative, cleared to 0 otherwise.

Z Set to 1 when the result of the operation was zero, cleared to 0 otherwise.

C Set to 1 when the operation resulted in a carry, cleared to 0 otherwise.

V Set to 1 when the operation caused overflow, cleared to 0 otherwise.

For more information about the APSR see Program Status Register on page 2-4.

A carry occurs:

• if the result of an addition is greater than or equal to 232

• if the result of a subtraction is positive or zero

• as the result of an inline barrel shifter operation in a move or logical instruction.

Overflow occurs when the sign of the result, in bit[31], does not match the sign of the result had

the operation been performed at infinite precision, for example:

• if adding two negative values results in a positive value

• if adding two positive values results in a negative value

• if subtracting a positive value from a negative value generates a positive value

• if subtracting a negative value from a positive value generates a negative value.

The Compare operations are identical to subtracting, for

CMP

, or adding, for

CMN

, except that the

result is discarded. See the instruction descriptions for more information.

Note

Most instructions update the status flags only if the S suffix is specified. See the instruction

descriptions for more information.

Condition code suffixes

The instructions that can be conditional have an optional condition code, shown in syntax

descriptions as

{cond}

. Conditional execution requires a preceding

instruction. An instruction

with a condition code is only executed if the condition code flags in the APSR meet the specified

condition. Table 3-4 shows the condition codes to use.

You can use conditional execution with the

instruction to reduce the number of branch

instructions in code.

Table 3-4 also shows the relationship between condition code suffixes and the N, Z, C, and V

flags.

Table 3-4 Condition code suffixes

Suffix Flags Meaning

Z = 1 Equal

Z = 0 Not equal

CS or HS

C = 1 Higher or same, unsigned

CC or LO

C = 0 Lower, unsigned

N = 1 Negative

N = 0 Positive or zero

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Example 3-1 shows the use of a conditional instruction to find the absolute value of a number.

abs

(

Example 3-1 Absolute value

MOVS R0, R1 ; R0 = R1, setting flags

IT MI ; skipping next instruction if value 0 or positive

RSBMI R0, R0, #0 ; If negative, R0 = -R0

Example 3-2 shows the use of conditional instructions to update the value of

if the signed

values

is greater than

and

is greater than

Example 3-2 Compare and update value

CMP R0, R1 ; Compare R0 and R1, setting flags

ITT GT ; Skip next two instructions unless GT condition holds

CMPGT R2, R3 ; If 'greater than', compare R2 and R3, setting flags

MOVGT R4, R5 ; If still 'greater than', do R4 = R5

V = 1 Overflow

V = 0 No overflow

C = 1 and Z = 0 Higher, unsigned

C = 0 or Z = 1 Lower or same, unsigned

N = V Greater than or equal, signed

N != V Less than, signed

Z = 0 and N = V Greater than, signed

Z = 1 and N != V Less than or equal, signed

Can have any value Always. This is the default when no suffix is specified.

Table 3-4 Condition code suffixes (continued)

Suffix Flags Meaning

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.3.8 Instruction width selection

There are many instructions that can generate either a 16-bit encoding or a 32-bit encoding

depending on the operands and destination register specified. For some of these instructions,

you can force a specific instruction size by using an instruction width suffix. The

suffix forces

a 32-bit instruction encoding. The

suffix forces a 16-bit instruction encoding.

If you specify an instruction width suffix and the assembler cannot generate an instruction

encoding of the requested width, it generates an error.

Note

In some cases it might be necessary to specify the

suffix, for example if the operand is the

label of an instruction or literal data, as in the case of branch instructions. This is because the

assembler might not automatically generate the right size encoding.

To use an instruction width suffix, place it immediately after the instruction mnemonic and

condition code, if any. Example 3-3 shows instructions with the instruction width suffix.

Example 3-3 Instruction width selection

BCS.W label ; creates a 32-bit instruction even for a short branch

ADDS.W R0, R0, R1 ; creates a 32-bit instruction even though the same

; operation can be done by a 16-bit instruction

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.4 Memory access instructions

Table 3-5 shows the memory access instructions:

Table 3-5 Memory access instructions

Mnemonic Brief description See

ADR

Generate PC-relative address ADR on page 3-23

CLREX

Clear Exclusive CLREX on page 3-38

LDM{mode}

Load Multiple registers LDM and STM on page 3-32

LDR{type}

Load Register using immediate offset LDR and STR, immediate offset on page 3-24

LDR{type}

Load Register using register offset LDR and STR, register offset on page 3-27

LDR{type}T

Load Register with unprivileged access LDR and STR, unprivileged on page 3-29

LDR

Load Register using PC-relative address LDR, PC-relative on page 3-30

LDREX{type}

Load Register Exclusive LDREX and STREX on page 3-36

POP

Pop registers from stack PUSH and POP on page 3-34

PUSH

Push registers onto stack PUSH and POP on page 3-34

STM{mode}

Store Multiple registers LDM and STM on page 3-32

STR{type}

Store Register using immediate offset LDR and STR, immediate offset on page 3-24

STR{type}

Store Register using register offset LDR and STR, register offset on page 3-27

STR{type}T

Store Register with unprivileged access LDR and STR, unprivileged on page 3-29

STREX{type}

Store Register Exclusive LDREX and STREX on page 3-36

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.4.1 ADR

Generate PC-relative address.

Syntax

ADR{cond} Rd, label

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

label

Is a PC-relative expression. See PC-relative expressions on page 3-17.

Operation

ADR

generates an address by adding an immediate value to the PC, and writes the result to the

destination register.

ADR

provides the means by which position-independent code can be generated, because the

address is PC-relative.

If you use

ADR

to generate a target address for a

BLX

instruction, you must ensure that bit[0]

of the address you generate is set to 1 for correct execution.

Values of

label

must be within the range of −4095 to +4095 from the address in the PC.

Note

You might have to use the

suffix to get the maximum offset range or to generate addresses

that are not word-aligned. See Instruction width selection on page 3-21.

Restrictions

must not be SP and must not be PC.

Condition flags

This instruction does not change the flags.

Examples

ADR R1, TextMessage ; Write address value of a location labelled as

; TextMessage to R1.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.4.2 LDR and STR, immediate offset

Load and Store with immediate offset, pre-indexed immediate offset, or post-indexed

immediate offset.

Syntax

op{type}{cond} Rt, [Rn {, #offset}] ; immediate offset

op{type}{cond} Rt, [Rn, #offset]! ; pre-indexed

op{type}{cond} Rt, [Rn], #offset ; post-indexed

opD{cond} Rt, Rt2, [Rn {, #offset}] ; immediate offset, two words

opD{cond} Rt, Rt2, [Rn, #offset]! ; pre-indexed, two words

opD{cond} Rt, Rt2, [Rn], #offset ; post-indexed, two words

where:

Is one of:

LDR

Load Register.

STR

Store Register.

type

Is one of:

unsigned byte, zero extend to 32 bits on loads.

signed byte, sign extend to 32 bits (

LDR

only).

unsigned halfword, zero extend to 32 bits on loads.

signed halfword, sign extend to 32 bits (

LDR

only).

omit, for word.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the register to load or store.

Specifies the register on which the memory address is based.

offset

Specifies an offset from

. If

offset

is omitted, the address is the contents of

Rt2

Specifies the additional register to load or store for two-word operations.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Operation

LDR

instructions load one or two registers with a value from memory.

STR

instructions store one or two register values to memory.

Load and store instructions with immediate offset can use the following addressing modes:

Offset addressing

The offset value is added to or subtracted from the address obtained from the

. The result is used as the address for the memory access. The register

is unaltered. The assembly language syntax for this mode is:

[Rn, #offset]

Pre-indexed addressing

The offset value is added to or subtracted from the address obtained from the

. The result is used as the address for the memory access and written

back into the register

. The assembly language syntax for this mode is:

[Rn, #offset]!

Post-indexed addressing

The address obtained from the register

is used as the address for the memory

access. The offset value is added to or subtracted from the address, and written

back into the register

. The assembly language syntax for this mode is:

[Rn], #offset

The value to load or store can be a byte, halfword, word, or two words. Bytes and halfwords can

either be signed or unsigned. See Address alignment on page 3-17.

Table 3-6 shows the ranges of offset for immediate, pre-indexed and post-indexed forms.

Table 3-6 Offset ranges

Instruction type Immediate offset Pre-indexed Post-indexed

Word, halfword, signed

halfword, byte, or signed byte

−255 to 4095 −255 to 255 −255 to 255

Two words multiple of 4 in the

range −1020 to 1020

multiple of 4 in the

range −1020 to 1020

multiple of 4 in the

range −1020 to 1020

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Restrictions

For load instructions:

•

can be SP or PC for word loads only

•

must be different from

Rt2

for two-word loads

•

must be different from

and

Rt2

in the pre-indexed or post-indexed forms.

When

is PC in a word load instruction:

• bit[0] of the loaded value must be 1 for correct execution

• a branch occurs to the address created by changing bit[0] of the loaded value to 0

• if the instruction is conditional, it must be the last instruction in the IT block.

For store instructions:

•

can be SP for word stores only

•

must not be PC

•

must not be PC

•

must be different from

and

Rt2

in the pre-indexed or post-indexed forms.

Condition flags

These instructions do not change the flags.

Examples

LDR R8, [R10] ; Loads R8 from the address in R10.

LDRNE R2, [R5, #960]! ; Loads (conditionally) R2 from a word

; 960 bytes above the address in R5, and

; increments R5 by 960

STR R2, [R9,#const-struc] ; const-struc is an expression evaluating

; to a constant in the range 0-4095.

STRH R3, [R4], #4 ; Store R3 as halfword data into address in

; R4, then increment R4 by 4

LDRD R8, R9, [R3, #0x20] ; Load R8 from a word 32 bytes above the

; address in R3, and load R9 from a word 36

; bytes above the address in R3

STRD R0, R1, [R8], #-16 ; Store R0 to address in R8, and store R1 to

; a word 4 bytes above the address in R8,

; and then decrement R8 by 16.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.4.3 LDR and STR, register offset

Load and Store with register offset.

Syntax

op{type}{cond} Rt, [Rn, Rm {, LSL #n}]

where:

Is one of:

LDR

Load Register.

STR

Store Register.

type

Is one of:

unsigned byte, zero extend to 32 bits on loads.

signed byte, sign extend to 32 bits (

LDR

only).

unsigned halfword, zero extend to 32 bits on loads.

signed halfword, sign extend to 32 bits (

LDR

only).

omit, for word.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the register to load or store.

Specifies the register on which the memory address is based.

Specifies the register containing a value to be used as the offset.

LSL #n

Is an optional shift, with n in the range 0 to 3.

Operation

LDR

instructions load a register with a value from memory.

STR

instructions store a register value into memory.

The memory address to load from or store to is at an offset from the register

. The offset is

specified by the register

and can be shifted left by up to 3 bits using

LSL

The value to load or store can be a byte, halfword, or word. For load instructions, bytes and

halfwords can either be signed or unsigned. See Address alignment on page 3-17.

Restrictions

In these instructions:

•

must not be PC

•

must not be SP and must not be PC

•

can be SP only for word loads and word stores

•

can be PC only for word loads.

When

is PC in a word load instruction:

• bit[0] of the loaded value must be 1 for correct execution, and a branch occurs to this

halfword-aligned address

• if the instruction is conditional, it must be the last instruction in the IT block.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Condition flags

These instructions do not change the flags.

Examples

STR R0, [R5, R1] ; Store value of R0 into an address equal to

; sum of R5 and R1

LDRSB R0, [R5, R1, LSL #1] ; Read byte value from an address equal to

; sum of R5 and two times R1, sign extended it

; to a word value and put it in R0

STR R0, [R1, R2, LSL #2] ; Stores R0 to an address equal to sum of R1

; and four times R2.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.4.4 LDR and STR, unprivileged

Load and Store with unprivileged access.

Syntax

op{type}T{cond} Rt, [Rn {, #offset}] ; immediate offset

where:

Is one of:

LDR

Load Register.

STR

Store Register.

type

Is one of:

unsigned byte, zero extend to 32 bits on loads.

signed byte, sign extend to 32 bits (

LDR

only).

unsigned halfword, zero extend to 32 bits on loads.

signed halfword, sign extend to 32 bits (

LDR

only).

omit, for word.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the register to load or store.

Specifies the register on which the memory address is based.

offset

Specifies an offset from

and can be 0 to 255. If

offset

is omitted, the address

is the value in

Operation

These load and store instructions perform the same function as the memory access instructions

with immediate offset, see LDR and STR, immediate offset on page 3-24. The difference is that

these instructions have only unprivileged access even when used in privileged software.

When used in unprivileged software, these instructions behave in exactly the same way as

normal memory access instructions with immediate offset.

Restrictions

In these instructions:

•

must not be PC

•

must not be SP and must not be PC.

Condition flags

These instructions do not change the flags.

Examples

STRBTEQ R4, [R7] ; Conditionally store least significant byte in

; R4 to an address in R7, with unprivileged access

LDRHT R2, [R2, #8] ; Load halfword value from an address equal to

; sum of R2 and 8 into R2, with unprivileged access.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.4.5 LDR, PC-relative

Load register from memory.

Syntax

LDR{type}{cond} Rt, label

LDRD{cond} Rt, Rt2, label ; Load two words

where:

type

Is one of:

unsigned byte, zero extend to 32 bits.

signed byte, sign extend to 32 bits.

unsigned halfword, zero extend to 32 bits.

signed halfword, sign extend to 32 bits.

omit, for word.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the register to load or store.

Rt2

Specifies the second register to load or store.

label

Is a PC-relative expression. See PC-relative expressions on page 3-17.

Operation

LDR

loads a register with a value from a PC-relative memory address. The memory address is

specified by a label or by an offset from the PC.

The value to load or store can be a byte, halfword, or word. For load instructions, bytes and

halfwords can either be signed or unsigned. See Address alignment on page 3-17.

label

must be within a limited range of the current instruction. Table 3-7 shows the possible

offsets between

label

and the PC.

Note

You might have to use the

suffix to get the maximum offset range. See Instruction width

selection on page 3-21.

Restrictions

In these instructions:

•

can be SP or PC only for word loads

•

Rt2

must not be SP and must not be PC

•

must be different from

Rt2.

Table 3-7 Offset ranges

Instruction type Offset range

Word, halfword, signed halfword, byte, signed byte −4095 to 4095

Two words −1020 to 1020

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

When

is PC in a word load instruction:

• bit[0] of the loaded value must be 1 for correct execution, and a branch occurs to this

halfword-aligned address

• if the instruction is conditional, it must be the last instruction in the IT block.

Condition flags

These instructions do not change the flags.

Examples

LDR R0, LookUpTable ; Load R0 with a word of data from an address

; labelled as LookUpTable

LDRSB R7, localdata ; Load a byte value from an address labelled

; as localdata, sign extend it to a word

; value, and put it in R7.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.4.6 LDM and STM

Load and Store Multiple registers.

Syntax

op{addr_mode}{cond} Rn{!}, reglist

where:

Is one of:

LDM

Load Multiple registers.

STM

Store Multiple registers.

addr_mode

Is any one of the following:

Increment address After each access. This is the default.

Decrement address Before each access.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the register on which the memory addresses are based.

Is an optional writeback suffix. If

is present the final address, that is loaded from

or stored to, is written back into

reglist

Is a list of one or more registers to be loaded or stored, enclosed in braces. It can

contain register ranges. It must be comma separated if it contains more than one

LDM

and

LDMFD

are synonyms for

LDMIA

LDMFD

refers to its use for popping data from Full

Descending stacks.

LDMEA

is a synonym for

LDMDB

, and refers to its use for popping data from Empty Ascending

stacks.

STM

and

STMEA

are synonyms for

STMIA

STMEA

refers to its use for pushing data onto Empty

Ascending stacks.

STMFD

is s synonym for

STMDB

, and refers to its use for pushing data onto Full Descending stacks

Operation

LDM

instructions load the registers in

reglist

with word values from memory addresses based on

STM

instructions store the word values in the registers in

reglist

to memory addresses based on

For

LDM

LDMIA

LDMFD

STM

STMIA

, and

STMEA

the memory addresses used for the accesses are at

4-byte intervals ranging from

+ 4 * (

-1), where

is the number of registers in

reglist

The accesses happens in order of increasing register numbers, with the lowest numbered register

using the lowest memory address and the highest number register using the highest memory

address. If the writeback suffix is specified, the value of

+ 4 * (

-1) is written back to

For

LDMDB

LDMEA

STMDB

, and

STMFD

the memory addresses used for the accesses are at 4-byte

intervals ranging from

- 4 * (

-1), where

is the number of registers in

reglist

. The

accesses happen in order of decreasing register numbers, with the highest numbered register

using the highest memory address and the lowest number register using the lowest memory

address. If the writeback suffix is specified, the value of

- 4 * (

-1) is written back to

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

The

PUSH

and

POP

instructions can be expressed in this form. See PUSH and POP on page 3-34

for details.

Restrictions

In these instructions:

•

must not be PC

•

reglist

must not contain SP

• in any

STM

instruction,

reglist

must not contain PC

• in any

LDM

instruction,

reglist

must not contain PC if it contains LR

•

reglist

must not contain

if you specify the writeback suffix.

When PC is in

reglist

in an

LDM

instruction:

• bit[0] of the value loaded to the PC must be 1 for correct execution, and a branch occurs

to this halfword-aligned address

• if the instruction is conditional, it must be the last instruction in the IT block.

Condition flags

These instructions do not change the flags.

Examples

LDM R8,{R0,R2,R9} ; LDMIA is a synonym for LDM

STMDB R1!,{R3-R6,R11,R12}

Incorrect examples

STM R5!,{R5,R4,R9} ; Value stored for R5 is unpredictable

LDM R2, {} ; There must be at least one register in the list.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.4.7 PUSH and POP

Push registers onto, and pop registers off a full-descending stack.

Syntax

PUSH{cond} reglist

POP{cond} reglist

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

reglist

Is a non-empty list of registers, enclosed in braces. It can contain register ranges.

It must be comma separated if it contains more than one register or register range.

PUSH

and

POP

are synonyms for

STMDB

and

LDM

(or

LDMIA

) with the memory addresses for the access

based on SP, and with the final address for the access written back to the SP.

PUSH

and

POP

are

the preferred mnemonics in these cases.

Operation

PUSH

stores registers on the stack, with the lowest numbered register using the lowest memory

address and the highest numbered register using the highest memory address.

POP

loads registers from the stack, with the lowest numbered register using the lowest memory

address and the highest numbered register using the highest memory address.

PUSH

uses the value in the SP register minus four as the highest memory address,

POP

uses the

value in the SP register as the lowest memory address, implementing a full-descending stack.

On completion,

PUSH

updates the SP register to point to the location of the lowest store value,

POP

updates the SP register to point to the location above the highest location loaded.

If a

POP

instruction includes PC in its reglist, a branch to this location is performed when the POP

instruction has completed. Bit[0] of the value read for the PC is used to update the APSR T-bit.

This bit must be 1 to ensure correct operation.

See LDM and STM on page 3-32 for more information.

Restrictions

In these instructions:

•

reglist

must not contain SP

•for the

PUSH

instruction,

reglist

must not contain PC

•for the

POP

instruction,

reglist

must not contain PC if it contains LR.

When PC is in

reglist

in a

POP

instruction:

• bit[0] of the value loaded to the PC must be 1 for correct execution, and a branch occurs

to this halfword-aligned address

• if the instruction is conditional, it must be the last instruction in the IT block.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

PUSH {R0,R4-R7} ; Push R0,R4,R5,R6,R7 onto the stack

PUSH {R2,LR} ; Push R2 and the link-register onto the stack

POP {R0,R6,PC} ; Pop r0,r6 and PC from the stack, then branch to the new PC.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.4.8 LDREX and STREX

Load and Store Register Exclusive.

Syntax

LDREX{cond} Rt, [Rn {, #offset}]

STREX{cond} Rd, Rt, [Rn {, #offset}]

LDREXB{cond} Rt, [Rn]

STREXB{cond} Rd, Rt, [Rn]

LDREXH{cond} Rt, [Rn]

STREXH{cond} Rd, Rt, [Rn]

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register for the returned status.

Specifies the register to load or store.

Specifies the register on which the memory address is based.

offset

Is an optional offset applied to the value in

. If

offset

is omitted, the address is

the value in

Operation

LDREX

LDREXB

, and

LDREXH

load a word, byte, and halfword respectively from a memory address.

STREX

STREXB

, and

STREXH

attempt to store a word, byte, and halfword respectively to a memory

address. The address used in any Store-Exclusive instruction must be the same as the address in

the most recently executed Load-exclusive instruction. The value stored by the Store-Exclusive

instruction must also have the same data size as the value loaded by the preceding

Load-exclusive instruction. This means software must always use a Load-exclusive instruction

and a matching Store-Exclusive instruction to perform a synchronization operation, see

Synchronization primitives on page 2-18.

If an Store-Exclusive instruction performs the store, it writes 0 to its destination register. If it

does not perform the store, it writes 1 to its destination register. If the Store-Exclusive

instruction writes 0 to the destination register, it is guaranteed that no other process in the system

has accessed the memory location between the Load-exclusive and Store-Exclusive

instructions.

For reasons of performance, keep the number of instructions between corresponding

Load-Exclusive and Store-Exclusive instruction to a minimum.

Note

The result of executing a Store-Exclusive instruction to an address that is different from that

used in the preceding Load-Exclusive instruction is unpredictable.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Restrictions

In these instructions:

• do not use PC

• do not use SP for

and

• for

STREX

must be different from both

and

• the value of

offset

must be a multiple of four in the range 0-1020.

Condition flags

These instructions do not change the flags.

Examples

MOV R1, #0x1 ; Initialize the ‘lock taken’ value

try

LDREX R0, [LockAddr] ; Load the lock value

CMP R0, #0 ; Is the lock free?

ITT EQ ; IT instruction for STREXEQ and CMPEQ

STREXEQ R0, R1, [LockAddr] ; Try and claim the lock

CMPEQ R0, #0 ; Did this succeed?

BNE try ; No – try again

.... ; Yes – we have the lock.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.4.9 CLREX

Clear Exclusive.

Syntax

CLREX{cond}

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Operation

Use

CLREX

to make the next

STREX

STREXB

, or

STREXH

instruction write 1 to its destination register

and fail to perform the store. It is useful in exception handler code to force the failure of the store

exclusive if the exception occurs between a load exclusive instruction and the matching store

exclusive instruction in a synchronization operation.

See Synchronization primitives on page 2-18 for more information.

Condition flags

This instruction does not change the flags.

Examples

CLREX

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5 General data processing instructions

Table 3-8 shows the data processing instructions:

Table 3-8 Data processing instructions

Mnemonic Brief description See

ADC

Add with Carry ADD, ADC, SUB, SBC, and RSB on page 3-41

ADD

Add ADD, ADC, SUB, SBC, and RSB on page 3-41

ADDW

Add ADD, ADC, SUB, SBC, and RSB on page 3-41

AND

Logical AND AND, ORR, EOR, BIC, and ORN on page 3-44

ASR

Arithmetic Shift Right ASR, LSL, LSR, ROR, and RRX on page 3-46

BIC

Bit Clear AND, ORR, EOR, BIC, and ORN on page 3-44

CLZ

Count leading zeros CLZ on page 3-48

CMN

Compare Negative CMP and CMN on page 3-49

CMP

Compare CMP and CMN on page 3-49

EOR

Exclusive OR AND, ORR, EOR, BIC, and ORN on page 3-44

LSL

Logical Shift Left ASR, LSL, LSR, ROR, and RRX on page 3-46

LSR

Logical Shift Right ASR, LSL, LSR, ROR, and RRX on page 3-46

MOV

Move MOV and MVN on page 3-50

MOVT

Move Top MOVT on page 3-52

MOVW

Move 16-bit constant MOV and MVN on page 3-50

MVN

Move NOT MOV and MVN on page 3-50

ORN

Logical OR NOT AND, ORR, EOR, BIC, and ORN on page 3-44

ORR

Logical OR AND, ORR, EOR, BIC, and ORN on page 3-44

RBIT

Reverse Bits REV, REV16, REVSH, and RBIT on page 3-53

REV

Reverse byte order in a word REV, REV16, REVSH, and RBIT on page 3-53

REV16

Reverse byte order in each halfword REV, REV16, REVSH, and RBIT on page 3-53

REVSH

Reverse byte order in bottom halfword and sign extend REV, REV16, REVSH, and RBIT on page 3-53

ROR

Rotate Right ASR, LSL, LSR, ROR, and RRX on page 3-46

RRX

Rotate Right with Extend ASR, LSL, LSR, ROR, and RRX on page 3-46

RSB

Reverse Subtract ADD, ADC, SUB, SBC, and RSB on page 3-41

SADD16

Signed Add 16 SADD16 and SADD8 on page 3-54

SADD8

Signed Add 8 SADD16 and SADD8 on page 3-54

SASX

Signed Add and Subtract with Exchange SASX and SSAX on page 3-60

SSAX

Signed Subtract and Add with Exchange SASX and SSAX on page 3-60

SBC

Subtract with Carry ADD, ADC, SUB, SBC, and RSB on page 3-41

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

SHADD16

Signed Halving Add 16 SHADD16 and SHADD8 on page 3-55

SHADD8

Signed Halving Add 8 SHADD16 and SHADD8 on page 3-55

SHASX

Signed Halving Add and Subtract with Exchange SHASX and SHSAX on page 3-56

SHSAX

Signed Halving Subtract and Add with Exchange SHASX and SHSAX on page 3-56

SHSUB16

Signed Halving Subtract 16 SHSUB16 and SHSUB8 on page 3-58

SHSUB8

Signed Halving Subtract 8 SHSUB16 and SHSUB8 on page 3-58

SSUB16

Signed Subtract 16 SSUB16 and SSUB8 on page 3-59

SSUB8

Signed Subtract 8 SSUB16 and SSUB8 on page 3-59

SUB

Subtract ADD, ADC, SUB, SBC, and RSB on page 3-41

SUBW

Subtract ADD, ADC, SUB, SBC, and RSB on page 3-41

TEQ

Test Equivalence TST and TEQ on page 3-62

TST

Test TST and TEQ on page 3-62

UADD16

Unsigned Add 16 UADD16 and UADD8 on page 3-63

UADD8

Unsigned Add 8 UADD16 and UADD8 on page 3-63

UASX

Unsigned Add and Subtract with Exchange UASX and USAX on page 3-64

USAX

Unsigned Subtract and Add with Exchange UASX and USAX on page 3-64

UHADD16

Unsigned Halving Add 16 UHADD16 and UHADD8 on page 3-66

UHADD8

Unsigned Halving Add 8 UHADD16 and UHADD8 on page 3-66

UHASX

Unsigned Halving Add and Subtract with Exchange UHASX and UHSAX on page 3-67

UHSAX

Unsigned Halving Subtract and Add with Exchange UHASX and UHSAX on page 3-67

UHSUB16

Unsigned Halving Subtract 16 UHSUB16 and UHSUB8 on page 3-69

UHSUB8

Unsigned Halving Subtract 8 UHSUB16 and UHSUB8 on page 3-69

USAD8

Unsigned Sum of Absolute Differences USAD8 on page 3-71

USADA8

Unsigned Sum of Absolute Differences and Accumulate USADA8 on page 3-72

USUB16

Unsigned Subtract 16 USUB16 and USUB8 on page 3-73

USUB8

Unsigned Subtract 8 USUB16 and USUB8 on page 3-73

Table 3-8 Data processing instructions (continued)

Mnemonic Brief description See

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.1 ADD, ADC, SUB, SBC, and RSB

Add, Add with carry, Subtract, Subtract with carry, and Reverse Subtract.

Syntax

op{S}{cond} {Rd,} Rn, Operand2

op{cond} {Rd,} Rn, #imm12 ; ADD and SUB only

where:

Is one of:

ADD

Add.

ADC

Add with Carry.

SUB

Subtract.

SBC

Subtract with Carry.

RSB

Reverse Subtract.

Is an optional suffix. If

is specified, the condition code flags are updated on the

result of the operation, see Conditional execution on page 3-18.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register. If

is omitted, the destination register is

Specifies the register holding the first operand.

Operand2

Is a flexible second operand. See Flexible second operand on page 3-12 for

details of the options.

imm12

Is any value in the range 0-4095.

Operation

The

ADD

instruction adds the value of

Operand2

imm12

to the value in

The

ADC

instruction adds the values in

and

Operand2

, together with the carry flag.

The

SUB

instruction subtracts the value of

Operand2

imm12

from the value in

The

SBC

instruction subtracts the value of

Operand2

from the value in

. If the carry flag is clear,

the result is reduced by one.

The

RSB

instruction subtracts the value in

from the value of

Operand2

. This is useful because

of the wide range of options for

Operand2

Use

ADC

and

SBC

to synthesize multiword arithmetic, see Multiword arithmetic examples on

page 3-42.

See also ADR on page 3-23.

Note

ADDW

is equivalent to the

ADD

syntax that uses the

imm12

operand.

SUBW

is equivalent to the

SUB

syntax that uses the

imm12

operand.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Restrictions

In these instructions:

•

Operand2

must not be SP and must not be PC

•

can be SP only in

ADD

and

SUB

, and only with the additional restrictions:

—

must also be SP

— any shift in

Operand2

must be limited to a maximum of 3 bits using

LSL

•

can be SP only in

ADD

and

SUB

•

can be PC only in the

ADD{cond} PC, PC, Rm

instruction where:

— you must not specify the S suffix

—

must not be PC and must not be SP

— if the instruction is conditional, it must be the last instruction in the IT block

• with the exception of the

ADD{cond} PC, PC, Rm

instruction,

can be PC only in

ADD

and

SUB

, and only with the additional restrictions:

— you must not specify the S suffix

— the second operand must be a constant in the range 0 to 4095.

Note

— When using the PC for an addition or a subtraction, bits[1:0] of the PC are rounded

0b00

before performing the calculation, making the base address for the

calculation word-aligned.

— If you want to generate the address of an instruction, you have to adjust the constant

based on the value of the PC. ARM recommends that you use the

ADR

instruction

instead of

ADD

SUB

with

equal to the PC, because your assembler automatically

calculates the correct constant for the

ADR

instruction.

When

is PC in the

ADD{cond} PC, PC, Rm

instruction:

• bit[0] of the value written to the PC is ignored

• a branch occurs to the address created by forcing bit[0] of that value to 0.

Condition flags

is specified, these instructions update the N, Z, C and V flags according to the result.

Examples

ADD R2, R1, R3

SUBS R8, R6, #240 ; Sets the flags on the result

RSB R4, R4, #1280 ; Subtracts contents of R4 from 1280

ADCHI R11, R0, R3 ; Only executed if C flag set and Z

; flag clear.

Multiword arithmetic examples

Example 3-4 on page 3-43 shows two instructions that add a 64-bit integer contained in

and

to another 64-bit integer contained in

and

, and place the result in

and

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Example 3-4 64-bit addition

ADDS R4, R0, R2 ; add the least significant words

ADC R5, R1, R3 ; add the most significant words with carry

Multiword values do not have to use consecutive registers. Example 3-5 shows instructions that

subtract a 96-bit integer contained in R9, R1, and R11 from another contained in R6, R2, and

R8. The example stores the result in R6, R9, and R2.

Example 3-5 96-bit subtraction

SUBS R6, R6, R9 ; subtract the least significant words

SBCS R9, R2, R1 ; subtract the middle words with carry

SBC R2, R8, R11 ; subtract the most significant words with carry

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.2 AND, ORR, EOR, BIC, and ORN

Logical AND, OR, Exclusive OR, Bit Clear, and OR NOT.

Syntax

op{S}{cond} {Rd,} Rn, Operand2

where:

Is one of:

AND

logical AND.

ORR

logical OR, or bit set.

EOR

logical Exclusive OR.

BIC

logical AND NOT, or bit clear.

ORN

logical OR NOT.

Is an optional suffix. If

is specified, the condition code flags are updated on the

result of the operation, see Conditional execution on page 3-18.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the register holding the first operand.

Operand2

Is a flexible second operand. See Flexible second operand on page 3-12 for

details of the options.

Operation

The

AND

EOR

, and

ORR

instructions perform bitwise AND, Exclusive OR, and OR operations on

the values in

and

Operand2

The

BIC

instruction performs an AND operation on the bits in

with the complements of the

corresponding bits in the value of

Operand2

The

ORN

instruction performs an OR operation on the bits in

with the complements of the

corresponding bits in the value of

Operand2

Restrictions

Do not use SP and do not use PC.

Condition flags

is specified, these instructions:

• update the N and Z flags according to the result

• can update the C flag during the calculation of

Operand2

, see Flexible second operand on

page 3-12

• do not affect the V flag.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

AND R9, R2, #0xFF00

ORREQ R2, R0, R5

ANDS R9, R8, #0x19

EORS R7, R11, #0x18181818

BIC R0, R1, #0xab

ORN R7, R11, R14, ROR #4

ORNS R7, R11, R14, ASR #32

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.3 ASR, LSL, LSR, ROR, and RRX

Arithmetic Shift Right, Logical Shift Left, Logical Shift Right, Rotate Right, and Rotate Right

with Extend.

Syntax

op{S}{cond} Rd, Rm, Rs

op{S}{cond} Rd, Rm, #n

RRX{S}{cond} Rd, Rm

where:

Is one of:

ASR

Arithmetic Shift Right.

LSL

Logical Shift Left.

LSR

Logical Shift Right.

ROR

Rotate Right.

Is an optional suffix. If

is specified, the condition code flags are updated on the

result of the operation, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the register holding the value to be shifted.

Specifies the register holding the shift length to apply to the value in

. Only the

least significant byte is used and can be in the range 0 to 255.

Specifies the shift length. The range of shift length depends on the instruction:

ASR

shift length from 1 to 32

LSL

shift length from 0 to 31

LSR

shift length from 1 to 32

ROR

shift length from 1 to 31.

Note

MOVS Rd, Rm

is the preferred syntax for

LSLS Rd, Rm, #0

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Operation

ASR

LSL

LSR

, and

ROR

move the bits in the register

to the left or right by the number of places

specified by constant

or register

RRX

moves the bits in register

to the right by 1.

In all these instructions, the result is written to

, but the value in register

remains

unchanged. For details on what result is generated by the different instructions, see Shift

Operations on page 3-13.

Restrictions

Do not use SP and do not use PC.

Condition flags

is specified:

• these instructions update the N and Z flags according to the result

• the C flag is updated to the last bit shifted out, except when the shift length is 0, see Shift

Operations on page 3-13.

Examples

ASR R7, R8, #9 ; Arithmetic shift right by 9 bits

LSLS R1, R2, #3 ; Logical shift left by 3 bits with flag update

LSR R4, R5, #6 ; Logical shift right by 6 bits

ROR R4, R5, R6 ; Rotate right by the value in the bottom byte of R6

RRX R4, R5 ; Rotate right with extend.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.4 CLZ

Count Leading Zeros.

Syntax

CLZ{cond} Rd, Rm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the operand register.

Operation

The

CLZ

instruction counts the number of leading zeros in the value in

and returns the result

. The result value is 32 if no bits are set and zero if bit[31] is set.

Restrictions

Do not use SP and do not use PC.

Condition flags

This instruction does not change the flags.

Examples

CLZ R4,R9

CLZNE R2,R3

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.5 CMP and CMN

Compare and Compare Negative.

Syntax

CMP{cond} Rn, Operand2

CMN{cond} Rn, Operand2

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the register holding the first operand.

Operand2

Is a flexible second operand. See Flexible second operand on page 3-12 for

details of the options.

Operation

These instructions compare the value in a register with

Operand2

. They update the condition

flags on the result, but do not write the result to a register.

The

CMP

instruction subtracts the value of

Operand2

from the value in

. This is the same as a

SUBS

instruction, except that the result is discarded.

The

CMN

instruction adds the value of

Operand2

to the value in

. This is the same as an

ADDS

instruction, except that the result is discarded.

Restrictions

In these instructions:

• do not use PC

•

Operand2

must not be SP.

Condition flags

These instructions update the N, Z, C and V flags according to the result.

Examples

CMP R2, R9

CMN R0, #6400

CMPGT SP, R7, LSL #2

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.6 MOV and MVN

Move and Move NOT.

Syntax

MOV{S}{cond} Rd, Operand2

MOV{cond} Rd, #imm16

MVN{S}{cond} Rd, Operand2

where:

Is an optional suffix. If

is specified, the condition code flags are updated on the

result of the operation, see Conditional execution on page 3-18.

cond

Is an optional condition code. See Conditional execution on page 3-18.

Specifies the destination register.

Operand2

Is a flexible second operand, see Flexible second operand on page 3-12 for details

of the options.

imm16

Is any value in the range 0-65535.

Operation

The

MOV

instruction copies the value of

Operand2

into

When

Operand2

in a

MOV

instruction is a register with a shift other than

LSL #0

, the preferred

syntax is the corresponding shift instruction:

•

ASR{S}{cond} Rd, Rm, #n

is the preferred syntax for

MOV{S}{cond} Rd, Rm, ASR #n

•

LSL{S}{cond} Rd, Rm, #n

is the preferred syntax for

MOV{S}{cond} Rd, Rm, LSL #n

!= 0

•

LSR{S}{cond} Rd, Rm, #n

is the preferred syntax for

MOV{S}{cond} Rd, Rm, LSR #n

•

ROR{S}{cond} Rd, Rm, #n

is the preferred syntax for

MOV{S}{cond} Rd, Rm, ROR #n

•

RRX{S}{cond} Rd, Rm

is the preferred syntax for

MOV{S}{cond} Rd, Rm, RRX

Also, the

MOV

instruction permits additional forms of

Operand2

as synonyms for shift instructions:

•

MOV{S}{cond} Rd, Rm, ASR Rs

is a synonym for

ASR{S}{cond} Rd, Rm, Rs

•

MOV{S}{cond} Rd, Rm, LSL Rs

is a synonym for

LSL{S}{cond} Rd, Rm, Rs

•

MOV{S}{cond} Rd, Rm, LSR Rs

is a synonym for

LSR{S}{cond} Rd, Rm, Rs

•

MOV{S}{cond} Rd, Rm, ROR Rs

is a synonym for

ROR{S}{cond} Rd, Rm, Rs

See ASR, LSL, LSR, ROR, and RRX on page 3-46.

The

MVN

instruction takes the value of

Operand2

, performs a bitwise logical NOT operation on the

value, and places the result into

Note

The

MOVW

instruction provides the same function as

MOV

, but is restricted to using the

imm16

operand.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Restrictions

You can use SP and PC only in the

MOV

instruction, with the following restrictions:

• the second operand must be a register without shift

• you must not specify the S suffix.

When

is PC in a

MOV

instruction:

• bit[0] of the value written to the PC is ignored

• a branch occurs to the address created by forcing bit[0] of that value to 0.

Note

Though it is possible to use

MOV

as a branch instruction, ARM strongly recommends the use of

BLX

instruction to branch for software portability to the ARM instruction set.

Condition flags

is specified, these instructions:

• update the N and Z flags according to the result

• can update the C flag during the calculation of

Operand2

, see Flexible second operand on

page 3-12

• do not affect the V flag.

Example

MOVS R11, #0x000B ; Write value of 0x000B to R11, flags get updated

MOV R1, #0xFA05 ; Write value of 0xFA05 to R1, flags are not updated

MOVS R10, R12 ; Write value in R12 to R10, flags get updated

MOV R3, #23 ; Write value of 23 to R3

MOV R8, SP ; Write value of stack pointer to R8

MVNS R2, #0xF ; Write value of 0xFFFFFFF0 (bitwise inverse of 0xF)

; to the R2 and update flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.7 MOVT

Move Top.

Syntax

MOVT{cond} Rd, #imm16

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

imm16

Is a 16-bit immediate constant.

Operation

MOVT

writes a 16-bit immediate value,

imm16

, to the top halfword,

[31:16], of its destination

[15:0].

The

MOV

MOVT

instruction pair enables you to generate any 32-bit constant.

Restrictions

must not be SP and must not be PC.

Condition flags

This instruction does not change the flags.

Examples

MOVT R3, #0xF123 ; Write 0xF123 to upper halfword of R3, lower halfword

; and APSR are unchanged.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.8 REV, REV16, REVSH, and RBIT

Reverse bytes and Reverse bits.

Syntax

op{cond} Rd, Rn

where:

Is any of:

REV

Reverse byte order in a word.

REV16

Reverse byte order in each halfword independently.

REVSH

Reverse byte order in the bottom halfword, and sign extend to 32 bits.

RBIT

Reverse the bit order in a 32-bit word.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the register holding the operand.

Operation

Use these instructions to change endianness of data:

REV

Converts either:

• 32-bit big-endian data into little-endian data

• 32-bit little-endian data into big-endian data.

REV16

Converts either:

• 16-bit big-endian data into little-endian data

• 16-bit little-endian data into big-endian data.

REVSH

Converts either:

• 16-bit signed big-endian data into 32-bit signed little-endian data

• 16-bit signed little-endian data into 32-bit signed big-endian data.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

REV R3, R7 ; Reverse byte order of value in R7 and write it to R3

REV16 R0, R0 ; Reverse byte order of each 16-bit halfword in R0

REVSH R0, R5 ; Reverse Signed Halfword

REVHS R3, R7 ; Reverse with Higher or Same condition

RBIT R7, R8 ; Reverse bit order of value in R8 and write the result to R7.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.9 SADD16 and SADD8

Signed Add 16 and Signed Add 8.

Syntax

op{cond}{Rd,} Rn, Rm

where:

Is any of:

SADD16

Performs two 16-bit signed integer additions.

SADD8

Performs four 8-bit signed integer additions.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the first register holding the operand.

Specifies the second register holding the operand.

Operation

Use these instructions to perform a halfword or byte add in parallel:

The

SADD16

instruction:

1. Adds each halfword from the first operand to the corresponding halfword

of the second operand.

2. Writes the result in the corresponding halfwords of the destination register.

The

SADD8

instruction:

1. Adds each byte of the first operand to the corresponding byte of the second

operand.

2. Writes the result in the corresponding bytes of the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

SADD16 R1, R0 ; Adds the halfwords in R0 to the corresponding halfwords of

; R1 and writes to corresponding halfword of R1.

SADD8 R4, R0, R5 ; Adds bytes of R0 to the corresponding byte in R5 and writes

; to the corresponding byte in R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.10 SHADD16 and SHADD8

Signed Halving Add 16 and Signed Halving Add 8.

Syntax

op{cond}{Rd,} Rn, Rm

where:

Is any of:

SHADD16

Signed Halving Add 16

SHADD8

Signed Halving Add 8

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the first operand register.

Specifies the second operand register.

Operation

Use these instructions to add 16-bit and 8-bit data and then to halve the result before writing the

result to the destination register:

The

SHADD16

instruction:

1. Adds each halfword from the first operand to the corresponding halfword

of the second operand.

2. Shuffles the result by one bit to the right, halving the data.

3. Writes the halfword results in the destination register.

The

SHADDB8

instruction:

1. Adds each byte of the first operand to the corresponding byte of the second

operand.

2. Shuffles the result by one bit to the right, halving the data.

3. Writes the byte results in the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

SHADD16 R1, R0 ; Adds halfwords in R0 to corresponding halfword of R1 and

; writes halved result to corresponding halfword in R1

SHADD8 R4, R0, R5 ; Adds bytes of R0 to corresponding byte in R5 and

; writes halved result to corresponding byte in R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.11 SHASX and SHSAX

Signed Halving Add and Subtract with Exchange and Signed Halving Subtract and Add with

Exchange.

Syntax

op{cond} {Rd}, Rn, Rm

where:

Is any of:

SHASX

Add and Subtract with Exchange and Halving.

SHSAX

Subtract and Add with Exchange and Halving.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and second operands.

Operation

The

SHASX

instruction:

1. Adds the top halfword of the first operand with the bottom halfword of the second

operand.

2. Writes the halfword result of the addition to the top halfword of the destination register,

shifted by one bit to the right causing a divide by two, or halving.

3. Subtracts the top halfword of the second operand from the bottom highword of the first

operand.

4. Writes the halfword result of the division in the bottom halfword of the destination

The

SHSAX

instruction:

1. Subtracts the bottom halfword of the second operand from the top highword of the first

operand.

2. Writes the halfword result of the addition to the bottom halfword of the destination

3. Adds the bottom halfword of the first operand with the top halfword of the second

operand.

4. Writes the halfword result of the division in the top halfword of the destination register,

shifted by one bit to the right causing a divide by two, or halving.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not affect the condition code flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

SHASX R7, R4, R2 ; Adds top halfword of R4 to bottom halfword of R2

; and writes halved result to top halfword of R7

; Subtracts top halfword of R2 from bottom halfword of

; R4 and writes halved result to bottom halfword of R7

SHSAX R0, R3, R5 ; Subtracts bottom halfword of R5 from top halfword

; of R3 and writes halved result to top halfword of R0

; Adds top halfword of R5 to bottom halfword of R3 and

; writes halved result to bottom halfword of R0.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.12 SHSUB16 and SHSUB8

Signed Halving Subtract 16 and Signed Halving Subtract 8.

Syntax

op{cond}{Rd,} Rn, Rm

where:

Is any of:

SHSUB16

Signed Halving Subtract 16

SHSUB8

Signed Halving Subtract 8

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the first operand register.

Specifies the second operand register

Operation

Use these instructions to add 16-bit and 8-bit data and then to halve the result before writing the

result to the destination register:

The

SHSUB16

instruction:

1. Subtracts each halfword of the second operand from the corresponding

halfwords of the first operand.

2. Shuffles the result by one bit to the right, halving the data.

3. Writes the halved halfword results in the destination register.

The

SHSUBB8

instruction:

1. Subtracts each byte of the second operand from the corresponding byte of

the first operand,

2. Shuffles the result by one bit to the right, halving the data,

3. Writes the corresponding signed byte results in the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

SHSUB16 R1, R0 ; Subtracts halfwords in R0 from corresponding halfword

; of R1 and writes to corresponding halfword of R1

SHSUB8 R4, R0, R5 ; Subtracts bytes of R0 from corresponding byte in R5,

; and writes to corresponding byte in R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.13 SSUB16 and SSUB8

Signed Subtract 16 and Signed Subtract 8.

Syntax

op{cond}{Rd,} Rn, Rm

where:

Is any of:

SSUB16

Performs two 16-bit signed integer subtractions.

SSUB8

Performs four 8-bit signed integer subtractions.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the first operand register.

Specifies the second operand register.

Operation

Use these instructions to change endianness of data:

The

SSUB16

instruction:

1. Subtracts each halfword from the second operand from the corresponding

halfword of the first operand.

2. Writes the difference result of two signed halfwords in the corresponding

halfword of the destination register.

The

SSUB8

instruction:

1. Subtracts each byte of the second operand from the corresponding byte of

the first operand

2. Writes the difference result of four signed bytes in the corresponding byte

of the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

SSUB16 R1, R0 ; Subtracts halfwords in R0 from corresponding halfword of R1

; and writes to corresponding halfword of R1

SSUB8 R4, R0, R5 ; Subtracts bytes of R5 from corresponding byte in

; R0, and writes to corresponding byte of R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.14 SASX and SSAX

Signed Add and Subtract with Exchange and Signed Subtract and Add with Exchange.

Syntax

op{cond} {Rd}, Rm, Rn

where:

Is any of:

SASX

Signed Add and Subtract with Exchange.

SSAX

Signed Subtract and Add with Exchange.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and second operands.

Operation

The

SASX

instruction:

1. Adds the signed top halfword of the first operand with the signed bottom halfword of the

second operand.

2. Writes the signed result of the addition to the top halfword of the destination register.

3. Subtracts the signed bottom halfword of the second operand from the top signed highword

of the first operand.

4. Writes the signed result of the subtraction to the bottom halfword of the destination

The

SSAX

instruction:

1. Subtracts the signed bottom halfword of the second operand from the top signed highword

of the first operand.

2. Writes the signed result of the addition to the bottom halfword of the destination register.

3. Adds the signed top halfword of the first operand with the signed bottom halfword of the

second operand.

4. Writes the signed result of the subtraction to the top halfword of the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not affect the condition code flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

SASX R0, R4, R5 ; Adds top halfword of R4 to bottom halfword of R5 and

; writes to top halfword of R0

; Subtracts bottom halfword of R5 from top halfword of R4

; and writes to bottom halfword of R0

SSAX R7, R3, R2 ; Subtracts top halfword of R2 from bottom halfword of R3

; and writes to bottom halfword of R7

; Adds top halfword of R3 with bottom halfword of R2 and

; writes to top halfword of R7.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.15 TST and TEQ

Test bits and Test Equivalence.

Syntax

TST{cond} Rn, Operand2

TEQ{cond} Rn, Operand2

where:

cond

Is an optional condition code. See Conditional execution on page 3-18.

Specifies the register holding the first operand.

Operand2

Is a flexible second operand. See Flexible second operand on page 3-12 for

details of the options.

Operation

These instructions test the value in a register against

Operand2

. They update the condition flags

based on the result, but do not write the result to a register.

The

TST

instruction performs a bitwise AND operation on the value in

and the value of

Operand2

. This is the same as the

ANDS

instruction, except that it discards the result.

To test whether a bit of

is 0 or 1, use the

TST

instruction with an

Operand2

constant that has

that bit set to 1 and all other bits cleared to 0.

The

TEQ

instruction performs a bitwise Exclusive OR operation on the value in

and the value

Operand2

. This is the same as the

EORS

instruction, except that it discards the result.

Use the

TEQ

instruction to test if two values are equal without affecting the V or C flags.

TEQ

is also useful for testing the sign of a value. After the comparison, the N flag is the logical

Exclusive OR of the sign bits of the two operands.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions:

• update the N and Z flags according to the result

• can update the C flag during the calculation of

Operand2

, see Flexible second operand on

page 3-12

• do not affect the V flag.

Examples

TST R0, #0x3F8 ; Perform bitwise AND of R0 value to 0x3F8,

; APSR is updated but result is discarded

TEQEQ R10, R9 ; Conditionally test if value in R10 is equal to

; value in R9, APSR is updated but result is discarded.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.16 UADD16 and UADD8

Unsigned Add 16 and Unsigned Add 8.

Syntax

op{cond}{Rd,} Rn, Rm

where:

Is any of:

UADD16

Performs two 16-bit unsigned integer additions.

UADD8

Performs four 8-bit unsigned integer additions.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the first register holding the operand.

Specifies the second register holding the operand.

Operation

Use these instructions to add 16- and 8-bit unsigned data:

The

UADD16

instruction:

1. Adds each halfword from the first operand to the corresponding halfword of the second

operand.

2. Writes the unsigned result in the corresponding halfwords of the destination register.

The

UADD16

instruction:

1. Adds each byte of the first operand to the corresponding byte of the second operand.

2. Writes the unsigned result in the corresponding byte of the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

UADD16 R1, R0 ; Adds halfwords in R0 to corresponding halfword of R1,

; writes to corresponding halfword of R1

UADD8 R4, R0, R5 ; Adds bytes of R0 to corresponding byte in R5 and writes

; to corresponding byte in R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.17 UASX and USAX

Add and Subtract with Exchange and Subtract and Add with Exchange.

Syntax

op{cond} {Rd}, Rn, Rm

where:

Is one of:

UASX

Add and Subtract with Exchange.

USAX

Subtract and Add with Exchange.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and second operands.

Operation

The

UASX

instruction:

1. Subtracts the top halfword of the second operand from the bottom halfword of the first

operand.

2. Writes the unsigned result from the subtraction to the bottom halfword of the destination

3. Adds the top halfword of the first operand with the bottom halfword of the second

operand.

4. Writes the unsigned result of the addition to the top halfword of the destination register.

The

USAX

instruction:

1. Adds the bottom halfword of the first operand with the top halfword of the second

operand.

2. Writes the unsigned result of the addition to the bottom halfword of the destination

3. Subtracts the bottom halfword of the second operand from the top halfword of the first

operand.

4. Writes the unsigned result from the subtraction to the top halfword of the destination

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not affect the condition code flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

UASX R0, R4, R5 ; Adds top halfword of R4 to bottom halfword of R5 and

; writes to top halfword of R0

; Subtracts bottom halfword of R5 from top halfword of R0

; and writes to bottom halfword of R0

USAX R7, R3, R2 ; Subtracts top halfword of R2 from bottom halfword of R3

; and writes to bottom halfword of R7

; Adds top halfword of R3 to bottom halfword of R2 and

; writes to top halfword of R7.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.18 UHADD16 and UHADD8

Unsigned Halving Add 16 and Unsigned Halving Add 8.

Syntax

op{cond}{Rd,} Rn, Rm

where:

Is any of:

UHADD16

Unsigned Halving Add 16.

UHADD8

Unsigned Halving Add 8.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the register holding the first operand.

Specifies the register holding the second operand.

Operation

Use these instructions to add 16- and 8-bit data and then to halve the result before writing the

result to the destination register:

The

UHADD16

instruction:

1. Adds each halfword from the first operand to the corresponding halfword of the second

operand.

2. Shuffles the halfword result by one bit to the right, halving the data.

3. Writes the unsigned results to the corresponding halfword in the destination register.

The

UHADD8

instruction:

1. Adds each byte of the first operand to the corresponding byte of the second operand.

2. Shuffles the byte result by one bit to the right, halving the data.

3. Writes the unsigned results in the corresponding byte in the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

UHADD16 R7, R3 ; Adds halfwords in R7 to corresponding halfword of R3

; and writes halved result to corresponding halfword in R7

UHADD8 R4, R0, R5 ; Adds bytes of R0 to corresponding byte in R5 and writes

; halved result to corresponding byte in R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.19 UHASX and UHSAX

Unsigned Halving Add and Subtract with Exchange and Unsigned Halving Subtract and Add

with Exchange.

Syntax

op{cond} {Rd}, Rn, Rm

where:

Is one of:

UHASX

Add and Subtract with Exchange and Halving.

UHSAX

Subtract and Add with Exchange and Halving.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and second operands.

Operation

The

UHASX

instruction:

1. Adds the top halfword of the first operand with the bottom halfword of the second

operand.

2. Shifts the result by one bit to the right causing a divide by two, or halving.

3. Writes the halfword result of the addition to the top halfword of the destination register.

4. Subtracts the top halfword of the second operand from the bottom highword of the first

operand.

5. Shifts the result by one bit to the right causing a divide by two, or halving.

6. Writes the halfword result of the division in the bottom halfword of the destination

The

UHSAX

instruction:

1. Subtracts the bottom halfword of the second operand from the top highword of the first

operand.

2. Shifts the result by one bit to the right causing a divide by two, or halving.

3. Writes the halfword result of the subtraction in the top halfword of the destination register.

4. Adds the bottom halfword of the first operand with the top halfword of the second

operand.

5. Shifts the result by one bit to the right causing a divide by two, or halving.

6. Writes the halfword result of the addition to the bottom halfword of the destination

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not affect the condition code flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

UHASX R7, R4, R2 ; Adds top halfword of R4 with bottom halfword of R2

; and writes halved result to top halfword of R7

; Subtracts top halfword of R2 from bottom halfword of

; R7 and writes halved result to bottom halfword of R7

UHSAX R0, R3, R5 ; Subtracts bottom halfword of R5 from top halfword of

; R3 and writes halved result to top halfword of R0

; Adds top halfword of R5 to bottom halfword of R3 and

; writes halved result to bottom halfword of R0.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.20 UHSUB16 and UHSUB8

Unsigned Halving Subtract 16 and Unsigned Halving Subtract 8.

Syntax

op{cond}{Rd,} Rn, Rm

where:

Is any of:

UHSUB16

Performs two unsigned 16-bit integer additions, halves the results, and

writes the results to the destination register.

UHSUB8

Performs four unsigned 8-bit integer additions, halves the results, and

writes the results to the destination register.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the first register holding the operand.

Specifies the second register holding the operand.

Operation

Use these instructions to add 16-bit and 8-bit data and then to halve the result before writing the

result to the destination register:

The

UHSUB16

instruction:

1. Subtracts each halfword of the second operand from the corresponding halfword of the

first operand.

2. Shuffles each halfword result to the right by one bit, halving the data.

3. Writes each unsigned halfword result to the corresponding halfwords in the destination

The

UHSUB8

instruction:

1. Subtracts each byte of second operand from the corresponding byte of the first operand.

2. Shuffles each byte result by one bit to the right, halving the data.

3. Writes the unsigned byte results to the corresponding byte of the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

UHSUB16 R1, R0 ; Subtracts halfwords in R0 from corresponding halfword of

; R1 and writes halved result to corresponding halfword in

; R1

UHSUB8 R4, R0, R5 ; Subtracts bytes of R5 from corresponding byte in R0 and

; writes halved result to corresponding byte in R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.21 SEL

Select Bytes. Selects each byte of its result from either its first operand or its second operand,

according to the values of the GE flags.

Syntax

SEL{<c>}{<q>} {<Rd>,} <Rn>, <Rm>

where:

Is a standard assembler syntax fields.

<Rd>

Specifies the destination register.

<Rn>

Specifies the first operand register.

<Rm>

Specifies the second operand register.

Operation

The

SEL

instruction:

1. Reads the value of each bit of APSR.GE.

2. Depending on the value of APSR.GE, assigns the destination register the value of either

the first or second operand register.

Restrictions

None.

Condition flags

These instructions do not change the flags.

Examples

SADD16 R0, R1, R2 ; Set GE bits based on result

SEL R0, R0, R3 ; Select bytes from R0 or R3, based on GE.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.22 USAD8

Unsigned Sum of Absolute Differences.

Syntax

USAD8{cond}{Rd,} Rn, Rm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the first operand register.

Specifies the second operand register.

Operation

The

USAD8

instruction:

1. Subtracts each byte of the second operand register from the corresponding byte of the first

operand register.

2. Adds the absolute values of the differences together.

3. Writes the result to the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

USAD8 R1, R4, R0 ; Subtracts each byte in R0 from corresponding byte of R4

; adds the differences and writes to R1

USAD8 R0, R5 ; Subtracts bytes of R5 from corresponding byte in R0,

; adds the differences and writes to R0.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.23 USADA8

Unsigned Sum of Absolute Differences and Accumulate.

Syntax

USADA8{cond}{Rd,} Rn, Rm, Ra

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the first operand register.

Specifies the second operand register.

Specifies the register that contains the accumulation value.

Operation

The

USADA8

instruction:

1. Subtracts each byte of the second operand register from the corresponding byte of the first

operand register.

2. Adds the unsigned absolute differences together.

3. Adds the accumulation value to the sum of the absolute differences.

4. Writes the result to the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

USADA8 R1, R0, R6 ; Subtracts bytes in R0 from corresponding halfword of R1

; adds differences, adds value of R6, writes to R1

USADA8 R4, R0, R5, R2 ; Subtracts bytes of R5 from corresponding byte in R0

; adds differences, adds value of R2 writes to R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.5.24 USUB16 and USUB8

Unsigned Subtract 16 and Unsigned Subtract 8.

Syntax

op{cond}{Rd,} Rn, Rm

where:

Is any of:

USUB16

Unsigned Subtract 16.

USUB8

Unsigned Subtract 8.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the first operand register.

Specifies the second operand register.

Operation

Use these instructions to subtract 16-bit and 8-bit data before writing the result to the destination

The

USUB16

instruction:

1. Subtracts each halfword from the second operand register from the corresponding

halfword of the first operand register.

2. Writes the unsigned result in the corresponding halfwords of the destination register.

The

USUB8

instruction:

1. Subtracts each byte of the second operand register from the corresponding byte of the first

operand register.

2. Writes the unsigned byte result in the corresponding byte of the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

USUB16 R1, R0 ; Subtracts halfwords in R0 from corresponding halfword of R1

; and writes to corresponding halfword in R1USUB8 R4, R0, R5

; Subtracts bytes of R5 from corresponding byte in R0 and

; writes to the corresponding byte in R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6 Multiply and divide instructions

Table 3-9 shows the multiply and divide instructions:

Table 3-9 Multiply and divide instructions

Mnemonic Brief description See

MLA

Multiply with Accumulate, 32-bit result MUL, MLA, and MLS on page 3-75

MLS

Multiply and Subtract, 32-bit result MUL, MLA, and MLS on page 3-75

MUL

Multiply, 32-bit result MUL, MLA, and MLS on page 3-75

SDIV

Signed Divide SDIV and UDIV on page 3-94

SMLA[B,T]

Signed Multiply Accumulate (halfwords) SMLA and SMLAW on page 3-79

SMLAD

SMLADX

Signed Multiply Accumulate Dual SMLAD on page 3-81

SMLAL

Signed Multiply with Accumulate (32x32+64),

64-bit result

UMULL, UMLAL, SMULL, and SMLAL on page 3-93

SMLAL[B,T]

Signed Multiply Accumulate Long (halfwords) SMLAL and SMLALD on page 3-82

SMLALD

SMLALDX

Signed Multiply Accumulate Long Dual SMLAL and SMLALD on page 3-82

SMLAW[B|T]

Signed Multiply Accumulate (word by halfword) SMLA and SMLAW on page 3-79

SMLSD

Signed Multiply Subtract Dual SMLSD and SMLSLD on page 3-84

SMLSLD

Signed Multiply Subtract Long Dual SMLSD and SMLSLD on page 3-84

SMMLA

Signed Most Significant Word Multiply

Accumulate

SMMLA and SMMLS on page 3-86

SMMLS

SMMLSR

Signed Most Significant Word Multiply Subtract SMMLA and SMMLS on page 3-86

SMUAD, SMUADX

Signed Dual Multiply Add SMUAD and SMUSD on page 3-89

SMUL[B,T]

Signed Multiply (word by halfword) SMUL and SMULW on page 3-91

SMMUL

SMMULR

Signed Most Significant Word Multiply SMMUL on page 3-88

SMULL

Signed Multiply (32x32), 64-bit result UMULL, UMLAL, SMULL, and SMLAL on page 3-93

SMULWB, SMULWT

Signed Multiply (word by halfword) SMUL and SMULW on page 3-91

SMUSD, SMUSDX

Signed Dual Multiply Subtract SMUAD and SMUSD on page 3-89

UDIV

Unsigned Divide SDIV and UDIV on page 3-94

UMAAL

Unsigned Multiply Accumulate Accumulate Long

(32x32+32+32), 64-bit result

UMULL, UMAAL, UMLAL on page 3-77

UMLAL

Unsigned Multiply with Accumulate (32x32+64),

64-bit result

UMULL, UMLAL, SMULL, and SMLAL on page 3-93

UMULL

Unsigned Multiply (32x32), 64-bit result UMULL, UMLAL, SMULL, and SMLAL on page 3-93

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6.1 MUL, MLA, and MLS

Multiply, Multiply with Accumulate, and Multiply with Subtract, using 32-bit operands, and

producing a 32-bit result.

Syntax

MUL{S}{cond} {Rd,} Rn, Rm ; Multiply

MLA{cond} Rd, Rn, Rm, Ra ; Multiply with accumulate

MLS{cond} Rd, Rn, Rm, Ra ; Multiply with subtract

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Is an optional suffix. If

is specified, the condition code flags are updated on the

result of the operation, see Conditional execution on page 3-18.

Specifies the destination register. If

is omitted, the destination register is

Rn, Rm

Are registers holding the values to be multiplied.

Is a register holding the value to be added or subtracted from.

Operation

The

MUL

instruction multiplies the values from

and

, and places the least significant 32 bits

of the result in

The

MLA

instruction multiplies the values from

and

, adds the value from

, and places the

least significant 32 bits of the result in

The

MLS

instruction multiplies the values from

and

, subtracts the product from the value

from

, and places the least significant 32 bits of the result in

The results of these instructions do not depend on whether the operands are signed or unsigned.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Restrictions

In these instructions, do not use SP and do not use PC.

If you use the S suffix with the

MUL

instruction:

•

, and

must all be in the range

•

must be the same as

• you must not use the

cond

suffix.

Condition flags

is specified, the

MUL

instruction:

• updates the N and Z flags according to the result

• does not affect the C and V flags.

Examples

MUL R10, R2, R5 ; Multiply, R10 = R2 x R5

MLA R10, R2, R1, R5 ; Multiply with accumulate, R10 = (R2 x R1) + R5

MULS R0, R2, R2 ; Multiply with flag update, R0 = R2 x R2

MULLT R2, R3, R2 ; Conditionally multiply, R2 = R3 x R2

MLS R4, R5, R6, R7 ; Multiply with subtract, R4 = R7 - (R5 x R6)

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6.2 UMULL, UMAAL, UMLAL

Unsigned Long Multiply, with optional Accumulate, using 32-bit operands and producing a

64-bit result.

Syntax

op{cond} RdLo, RdHi, Rn, Rm

where:

Is one of:

UMULL

Unsigned Long Multiply.

UMAAL

Unsigned Long Multiply with Accumulate Accumulate.

UMLAL

Unsigned Long Multiply, with Accumulate.

cond

Is an optional condition code, see Conditional execution on page 3-18.

RdHi, RdLo

Are the destination registers. For

UMAAL

UMLAL

and

UMLAL

they also hold the

accumulating value.

Rn, Rm

Are registers holding the first and second operands.

Operation

These instructions interpret the values from

and

as unsigned 32-bit integers. The

UMULL

instruction:

• Multiplies the two unsigned integers in the first and second operands.

• Writes the least significant 32 bits of the result in

RdLo.

• Writes the most significant 32 bits of the result in

RdHi

The

UMAAL

instruction:

• Multiplies the two unsigned 32-bit integers in the first and second operands.

• Adds the unsigned 32-bit integer in

RdHi

to the 64-bit result of the multiplication.

• Adds the unsigned 32-bit integer in

RdLo

to the 64-bit result of the addition.

• Writes the top 32-bits of the result to

RdHi.

• Writes the lower 32-bits of the result to

RdLo

The

UMLAL

instruction:

• multiplies the two unsigned integers in the first and second operands.

• Adds the 64-bit result to the 64-bit unsigned integer contained in

RdHi

and

RdLo

• Writes the result back to

RdHi

and

RdLo

Restrictions

In these instructions:

• do not use SP and do not use PC.

•

RdHi

and

RdLo

must be different registers.

Condition flags

These instructions do not affect the condition code flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

UMULL R0, R4, R5, R6 ; Multiplies R5 and R6, writes the top 32 bits to R4

; and the bottom 32 bits to R0

UMAAL R3, R6, R2, R7 ; Multiplies R2 and R7, adds R6, adds R3, writes the

; top 32 bits to R6, and the bottom 32 bits to R3

UMLAL R2, R1, R3, R5 ; Multiplies R5 and R3, adds R1:R2, writes to R1:R2.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6.3 SMLA and SMLAW

Signed Multiply Accumulate (halfwords).

Syntax

op{XY}{cond} Rd, Rn, Rm

op{Y}{cond} Rd, Rn, Rm, Ra

where:

Is one of:

SMLA

Signed Multiply Accumulate Long (halfwords)

and

specifies which half of the source registers

and

are used

as the first and second multiply operand.

, then the bottom halfword, bits [15:0], of

is used. If

then the top halfword, bits [31:16], of

is used.

, then the bottom halfword, bits [15:0], of

is used. If

then the top halfword, bits [31:16], of

is used.

SMLAW

Signed Multiply Accumulate (word by halfword)

specifies which half of the source register

is used as the second

multiply operand.

, then the top halfword, bits [31:16] of

is used.

, then the bottom halfword, bits [15:0] of

is used.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register. If

is omitted, the destination register is

Rn, Rm

Are registers holding the values to be multiplied.

Is a register holding the value to be added or subtracted from.

Operation

The

SMALBB

SMLABT

SMLATB

SMLATT

instructions:

• Multiplies the specified signed halfword, top or bottom, values from

and

• Adds the value in

to the resulting 32-bit product.

• Writes the result of the multiplication and addition in

The non-specified halfwords of the source registers are ignored.

The

SMLAWB

and

SMLAWT

instructions:

• Multiply the 32-bit signed values in

with:

— The top signed halfword of

instruction suffix.

— The bottom signed halfword of

instruction suffix.

• Add the 32-bit signed value in

to the top 32 bits of the 48-bit product

• Writes the result of the multiplication and addition in

The bottom 16 bits of the 48-bit product are ignored.

If overflow occurs during the addition of the accumulate value, the instruction sets the Q flag in

the APSR. No overflow can occur during the multiplication.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Restrictions

In these instructions, do not use SP and do not use PC.

Condition flags

If an overflow is detected, the

flag is set.

Examples

SMLABB R5, R6, R4, R1 ; Multiplies bottom halfwords of R6 and R4, adds

; R1 and writes to R5

SMLATB R5, R6, R4, R1 ; Multiplies top halfword of R6 with bottom halfword

; of R4, adds R1 and writes to R5

SMLATT R5, R6, R4, R1 ; Multiplies top halfwords of R6 and R4, adds

; R1 and writes the sum to R5

SMLABT R5, R6, R4, R1 ; Multiplies bottom halfword of R6 with top halfword

; of R4, adds R1 and writes to R5

SMLABT R4, R3, R2 ; Multiplies bottom halfword of R4 with top halfword of

; R3, adds R2 and writes to R4

SMLAWB R10, R2, R5, R3 ; Multiplies R2 with bottom halfword of R5, adds

; R3 to the result and writes top 32-bits to R10

SMLAWT R10, R2, R1, R5 ; Multiplies R2 with top halfword of R1, adds R5

; and writes top 32-bits to R10.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6.4 SMLAD

Signed Multiply Accumulate Long Dual.

Syntax

op{X}{cond} Rd, Rn, Rm, Ra ;

where:

Is one of:

SMLAD

Signed Multiply Accumulate Dual

SMLADX

Signed Multiply Accumulate Dual Reverse

X specifies which halfword of the source register

is used as the multiply

operand. If

is omitted, the multiplications are bottom × bottom and top × top. If

is present, the multiplications are bottom × top and top × bottom.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the first operand register holding the values to be multiplied.

Specifies the second operand register.

Specifies the accumulate value.

Operation

The

SMLAD

and

SMLADX

instructions regard the two operands as four halfword 16-bit values. The

SMLAD

and

SMLADX

instructions:

• If

is not present, multiply the top signed halfword value in

with the top signed

halfword of

and the bottom signed halfword values in

with the bottom signed

halfword of

•Or if

is present, multiply the top signed halfword value in

with the bottom signed

halfword of

and the bottom signed halfword values in

with the top signed halfword

• Add both multiplication results to the signed 32-bit value in

• Writes the 32-bit signed result of the multiplication and addition to

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

SMLAD R10, R2, R1, R5 ; Multiplies two halfword values in R2 with

; corresponding halfwords in R1, adds R5 and writes to

; R10

SMLALDX R0, R2, R4, R6 ; Multiplies top halfword of R2 with bottom halfword

; of R4, multiplies bottom halfword of R2 with top

; halfword of R4, adds R6 and writes to R0.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6.5 SMLAL and SMLALD

Signed Multiply Accumulate Long, Signed Multiply Accumulate Long (halfwords) and Signed

Multiply Accumulate Long Dual.

Syntax

op{cond} RdLo, RdHi, Rn, Rm

op{XY}{cond} RdLo, RdHi, Rn, Rm

op{X}{cond} RdLo, RdHi, Rn, Rm

where:

Is one of:

SMLAL

Signed Multiply Accumulate Long

SMLAL

Signed Multiply Accumulate Long (halfwords, X and Y)

X and Y specify which halfword of the source registers

and

are used as the

first and second multiply operand:

, then the bottom halfword, bits [15:0], of

is used. If

, then the top

halfword, bits [31:16], of

is used.

, then the bottom halfword, bits [15:0], of

is used. If

, then the top

halfword, bits [31:16], of

is used.

SMLALD

Signed Multiply Accumulate Long Dual

SMLALDX

Signed Multiply Accumulate Long Dual Reversed

If the

is omitted, the multiplications are bottom × bottom and top × top.

is present, the multiplications are bottom × top and top × bottom.

cond

Is an optional condition code, see Conditional execution on page 3-18.

RdHi, RdLo

Are the destination registers.

RdLo

is the lower 32 bits and

RdHi

is the upper 32 bits

of the 64-bit integer. For

SMLAL

SMLALBB

SMLALBT

SMLALTB

SMLALTT

SMLALD

and

SMLALDX,

they also hold the accumulating value.

Rn, Rm

Are registers holding the first and second operands.

Operation

The

SMLAL

instruction:

• Multiplies the two’s complement signed word values from

and

• Adds the 64-bit value in

RdLo

and

RdHi

to the resulting 64-bit product.

• Writes the 64-bit result of the multiplication and addition in

RdLo and RdHi

The

SMLALBB

SMLALBT

SMLALTB

and

SMLALTT

instructions:

• Multiplies the specified signed halfword, Top or Bottom, values from

and

• Adds the resulting sign-extended 32-bit product to the 64-bit value in

RdLo

and

RdHi

• Writes the 64-bit result of the multiplication and addition in

RdLo

and

RdHi

The non-specified halfwords of the source registers are ignored.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

The

SMLALD

and

SMLALDX

instructions interpret the values from

and

as four halfword two’s

complement signed 16-bit integers. These instructions:

•if

is not present, multiply the top signed halfword value of

with the top signed

halfword of

and the bottom signed halfword values of

with the bottom signed

halfword of

•Or if

is present, multiply the top signed halfword value of

with the bottom signed

halfword of

and the bottom signed halfword values of

with the top signed halfword

• Add the two multiplication results to the signed 64-bit value in

RdLo

and

RdHi

to create the

resulting 64-bit product.

• Write the 64-bit product in

RdLo

and

RdHi

Restrictions

In these instructions:

• do not use SP and do not use PC.

•

RdHi

and

RdLo

must be different registers.

Condition flags

These instructions do not affect the condition code flags.

Examples

SMLAL R4, R5, R3, R8 ; Multiplies R3 and R8, adds R5:R4 and writes to

; R5:R4

SMLALBT R2, R1, R6, R7 ; Multiplies bottom halfword of R6 with top

; halfword of R7, sign extends to 32-bit, adds

; R1:R2 and writes to R1:R2

SMLALTB R2, R1, R6, R7 ; Multiplies top halfword of R6 with bottom

; halfword of R7, sign extends to 32-bit, adds R1:R2

; and writes to R1:R2

SMLALD R6, R8, R5, R1 ; Multiplies top halfwords in R5 and R1 and bottom

; halfwords of R5 and R1, adds R8:R6 and writes to

; R8:R6

SMLALDX R6, R8, R5, R1 ; Multiplies top halfword in R5 with bottom

; halfword of R1, and bottom halfword of R5 with

; top halfword of R1, adds R8:R6 and writes to

; R8:R6.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6.6 SMLSD and SMLSLD

Signed Multiply Subtract Dual and Signed Multiply Subtract Long Dual.

Syntax

op{X}{cond} Rd, Rn, Rm, Ra

where:

Is one of:

SMLSD

Signed Multiply Subtract Dual.

SMLSDX

Signed Multiply Subtract Dual Reversed.

SMLSLD

Signed Multiply Subtract Long Dual.

SMLSLDX

Signed Multiply Subtract Long Dual Reversed.

is present, the multiplications are bottom × top and top × bottom. If the

omitted, the multiplications are bottom × bottom and top × top.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and second operands.

Specifies the register holding the accumulate value.

Operation

The

SMLSD

instruction interprets the values from the first and second operands as four signed

halfwords. This instruction:

• Optionally rotates the halfwords of the second operand.

• Performs two signed 16 × 16-bit halfword multiplications.

• Subtracts the result of the upper halfword multiplication from the result of the lower

halfword multiplication.

• Adds the signed accumulate value to the result of the subtraction.

• Writes the result of the addition to the destination register.

The

SMLSLD

instruction interprets the values from

and

as four signed halfwords. This

instruction:

• Optionally rotates the halfwords of the second operand.

• Performs two signed 16 × 16-bit halfword multiplications.

• Subtracts the result of the upper halfword multiplication from the result of the lower

halfword multiplication.

• Adds the 64-bit value in

RdHi

and

RdLo

to the result of the subtraction.

• Writes the 64-bit result of the addition to the

RdHi

and

RdLo

Restrictions

In these instructions:

• Do not use SP and do not use PC.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Condition flags

This instruction sets the Q flag if the accumulate operation overflows. Overflow cannot occur

during the multiplications or subtraction.

For the Thumb instruction set, these instructions do not affect the condition code flags.

Examples

SMLSD R0, R4, R5, R6 ; Multiplies bottom halfword of R4 with bottom

; halfword of R5, multiplies top halfword of R4

; with top halfword of R5, subtracts second from

; first, adds R6, writes to R0

SMLSDX R1, R3, R2, R0 ; Multiplies bottom halfword of R3 with top

; halfword of R2, multiplies top halfword of R3

; with bottom halfword of R2, subtracts second from

; first, adds R0, writes to R1

SMLSLD R3, R6, R2, R7 ; Multiplies bottom halfword of R6 with bottom

; halfword of R2, multiplies top halfword of R6

; with top halfword of R2, subtracts second from

; first, adds R6:R3, writes to R6:R3

SMLSLDX R3, R6, R2, R7 ; Multiplies bottom halfword of R6 with top

; halfword of R2, multiplies top halfword of R6

; with bottom halfword of R2, subtracts second from

; first, adds R6:R3, writes to R6:R3.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6.7 SMMLA and SMMLS

Signed Most Significant Word Multiply Accumulate and Signed Most Significant Word

Multiply Subtract.

Syntax

op{R}{cond} Rd, Rn, Rm, Ra

where:

Is one of:

SMMLA

Signed Most Significant Word Multiply Accumulate.

SMMLS

Signed Most Significant Word Multiply Subtract.

Is a rounding error flag. If

is specified, the result is rounded instead of being

truncated. In this case the constant

0x80000000

is added to the product before the

high word is extracted.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and second multiply operands.

Specifies the register holding the accumulate value.

Operation

The

SMMLA

instruction interprets the values from

and

as signed 32-bit words.

The

SMMLA

instruction:

• Multiplies the values in

and

• Optionally rounds the result by adding

0x80000000

• Extracts the most significant 32 bits of the result.

• Adds the value of

to the signed extracted value.

• Writes the result of the addition in

The

SMMLS

instruction interprets the values from

and

as signed 32-bit words.

The

SMMLS

instruction:

• Multiplies the values in

and

• Optionally rounds the result by adding

0x80000000

• Extracts the most significant 32 bits of the result.

• Subtracts the extracted value of the result from the value in

• Writes the result of the subtraction in

Restrictions

In these instructions:

• Do not use SP and do not use PC.

Condition flags

These instructions do not affect the condition code flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

SMMLA R0, R4, R5, R6 ; Multiplies R4 and R5, extracts top 32 bits, adds

; R6, truncates and writes to R0

SMMLAR R6, R2, R1, R4 ; Multiplies R2 and R1, extracts top 32 bits, adds

; R4, rounds and writes to R6

SMMLSR R3, R6, R2, R7 ; Multiplies R6 and R2, extracts top 32 bits,

; subtracts R7, rounds and writes to R3

SMMLS R4, R5, R3, R8 ; Multiplies R5 and R3, extracts top 32 bits,

; subtracts R8, truncates and writes to R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6.8 SMMUL

Signed Most Significant Word Multiply.

Syntax

op{R}{cond} Rd, Rn, Rm

where:

Is one of:

SMMUL

Signed Most Significant Word Multiply

Is a rounding error flag. If

is specified, the result is rounded instead of being

truncated. In this case the constant

0x80000000

is added to the product before the

high word is extracted.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and second operands.

Operation

The

SMMUL

instruction interprets the values from

and

as two’s complement 32-bit signed

integers. The

SMMUL

instruction:

• Multiplies the values from

and

• Optionally rounds the result, otherwise truncates the result.

• Writes the most significant signed 32 bits of the result in

Restrictions

In this instruction:

• do not use SP and do not use PC.

Condition flags

This instruction does not affect the condition code flags.

Examples

SMULL R0, R4, R5 ; Multiplies R4 and R5, truncates top 32 bits

; and writes to R0

SMULLR R6, R2 ; Multiplies R6 and R2, rounds the top 32 bits

; and writes to R6.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6.9 SMUAD and SMUSD

Signed Dual Multiply Add and Signed Dual Multiply Subtract.

Syntax

op{X}{cond} Rd, Rn, Rm

where:

Is one of:

SMUAD

Signed Dual Multiply Add.

SMUADX

Signed Dual Multiply Add Reversed.

SMUSD

Signed Dual Multiply Subtract.

SMUSDX

Signed Dual Multiply Subtract Reversed.

is present, the multiplications are bottom × top and top × bottom. If the

omitted, the multiplications are bottom × bottom and top × top.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and the second operands.

Operation

The

SMUAD

instruction interprets the values from the first and second operands as two signed

halfwords in each operand. This instruction:

• Optionally rotates the halfwords of the second operand.

• Performs two signed 16 × 16-bit multiplications.

• Adds the two multiplication results together.

• Writes the result of the addition to the destination register.

The

SMUSD

instruction interprets the values from the first and second operands as two’s

complement signed integers. This instruction:

• Optionally rotates the halfwords of the second operand.

• Performs two signed 16 × 16-bit multiplications.

• Subtracts the result of the top halfword multiplication from the result of the bottom

halfword multiplication.

• Writes the result of the subtraction to the destination register.

Restrictions

In these instructions:

• Do not use SP and do not use PC.

Condition flags

Sets the Q flag if the addition overflows. The multiplications cannot overflow.

Examples

SMUAD R0, R4, R5 ; Multiplies bottom halfword of R4 with the bottom

; halfword of R5, adds multiplication of top halfword

; of R4 with top halfword of R5, writes to R0

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

SMUADX R3, R7, R4 ; Multiplies bottom halfword of R7 with top halfword

; of R4, adds multiplication of top halfword of R7

; with bottom halfword of R4, writes to R3

SMUSD R3, R6, R2 ; Multiplies bottom halfword of R4 with bottom halfword

; of R6, subtracts multiplication of top halfword of R6

; with top halfword of R3, writes to R3

SMUSDX R4, R5, R3 ; Multiplies bottom halfword of R5 with top halfword of

; R3, subtracts multiplication of top halfword of R5

; with bottom halfword of R3, writes to R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6.10 SMUL and SMULW

Signed Multiply (halfwords) and Signed Multiply (word by halfword).

Syntax

op{XY}{cond} Rd,Rn, Rm

op{Y}{cond} Rd. Rn, Rm

For

SMULXY

only:

Is one of:

SMUL{XY}

Signed Multiply (halfwords)

and

specify which halfword of the source registers

and

is used as the first

and second multiply operand. If

, then the bottom halfword, bits [15:0] of

is used. If

, then the top halfword, bits [31:16] of

is used. If

, then the

bottom halfword, bits [15:0], of

is used. If

, then the top halfword, bits

[31:16], of

is used.

SMULW{Y}

Signed Multiply (word by halfword)

Y specifies which halfword of the source register

is used as the second multiply

operand. If

, then the bottom halfword (bits [15:0]) of

is used. If

then the top halfword (bits [31:16]) of

is used.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and second operands.

Operation

The

SMULBB

SMULTB

SMULBT

and

SMULTT

instructions interprets the values from

and

as four

signed 16-bit integers. These instructions:

• Multiplies the specified signed halfword, Top or Bottom, values from

and

• Writes the 32-bit result of the multiplication in

Rd.

The

SMULWT

and

SMULWB

instructions interprets the values from

as a 32-bit signed integer and

as two halfword 16-bit signed integers. These instructions:

• Multiplies the first operand and the top, T suffix, or the bottom, B suffix, halfword of the

second operand.

• Writes the signed most significant 32 bits of the 48-bit result in the destination register.

Restrictions

In these instructions:

• Do not use SP and do not use PC.

•

RdHi

and

RdLo

must be different registers.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

SMULBT R0, R4, R5 ; Multiplies the bottom halfword of R4 with the

; top halfword of R5, multiplies results and

; writes to R0

SMULBB R0, R4, R5 ; Multiplies the bottom halfword of R4 with the

; bottom halfword of R5, multiplies results and

; writes to R0

SMULTT R0, R4, R5 ; Multiplies the top halfword of R4 with the top

; halfword of R5, multiplies results and writes

; to R0

SMULTB R0, R4, R5 ; Multiplies the top halfword of R4 with the

; bottom halfword of R5, multiplies results and

; and writes to R0

SMULWT R4, R5, R3 ; Multiplies R5 with the top halfword of R3,

; extracts top 32 bits and writes to R4

SMULWB R4, R5, R3 ; Multiplies R5 with the bottom halfword of R3,

; extracts top 32 bits and writes to R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6.11 UMULL, UMLAL, SMULL, and SMLAL

Signed and Unsigned Long Multiply, with optional Accumulate, using 32-bit operands and

producing a 64-bit result.

Syntax

op{cond} RdLo, RdHi, Rn, Rm

where:

Is one of:

UMULL

Unsigned Long Multiply.

UMLAL

Unsigned Long Multiply, with Accumulate.

SMULL

Signed Long Multiply.

SMLAL

Signed Long Multiply, with Accumulate.

cond

Is an optional condition code, see Conditional execution on page 3-18.

RdHi, RdLo

Are the destination registers. For

UMLAL

and

SMLAL

they also hold the accumulating

value.

Rn, Rm

Are registers holding the operands.

Operation

The

UMULL

instruction interprets the values from

and

as unsigned integers. It multiplies

these integers and places the least significant 32 bits of the result in

RdLo

, and the most

significant 32 bits of the result in

RdHi

The

UMLAL

instruction interprets the values from

and

as unsigned integers. It multiplies

these integers, adds the 64-bit result to the 64-bit unsigned integer contained in

RdHi

and

RdLo

and writes the result back to

RdHi

and

RdLo

The

SMULL

instruction interprets the values from

and

as two’s complement signed integers.

It multiplies these integers and places the least significant 32 bits of the result in

RdLo

, and the

most significant 32 bits of the result in

RdHi

The

SMLAL

instruction interprets the values from

and

as two’s complement signed integers.

It multiplies these integers, adds the 64-bit result to the 64-bit signed integer contained in

RdHi

and

RdLo

, and writes the result back to

RdHi

and

RdLo

Restrictions

In these instructions:

• do not use SP and do not use PC

•

RdHi

and

RdLo

must be different registers.

Condition flags

These instructions do not affect the condition code flags.

Examples

UMULL R0, R4, R5, R6 ; Unsigned (R4,R0) = R5 x R6

SMLAL R4, R5, R3, R8 ; Signed (R5,R4) = (R5,R4) + R3 x R8

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.6.12 SDIV and UDIV

Signed Divide and Unsigned Divide.

Syntax

SDIV{cond} {Rd,} Rn, Rm

UDIV{cond} {Rd,} Rn, Rm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register. If

is omitted, the destination register is

Specifies the register holding the value to be divided.

Is a register holding the divisor.

Operation

SDIV

performs a signed integer division of the value in

by the value in

UDIV

performs an unsigned integer division of the value in

by the value in

For both instructions, if the value in

is not divisible by the value in

, the result is rounded

towards zero.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not change the flags.

Examples

SDIV R0, R2, R4 ; Signed divide, R0 = R2/R4

UDIV R8, R8, R1 ; Unsigned divide, R8 = R8/R1

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.7 Saturating instructions

Table 3-10 shows the saturating instructions:

For signed n-bit saturation, this means that:

• if the value to be saturated is less than −2n−1, the result returned is −2n-1

• if the value to be saturated is greater than 2n−1−1, the result returned is 2n-1−1

• otherwise, the result returned is the same as the value to be saturated.

For unsigned n-bit saturation, this means that:

• if the value to be saturated is less than 0, the result returned is 0

• if the value to be saturated is greater than 2n−1, the result returned is 2n−1

• otherwise, the result returned is the same as the value to be saturated.

If the returned result is different from the value to be saturated, it is called saturation. If

saturation occurs, the instruction sets the Q flag to 1 in the APSR. Otherwise, it leaves the Q flag

unchanged. To clear the Q flag to 0, you must use the

MSR

instruction, see MSR on page 3-164.

To read the state of the Q flag, use the

MRS

instruction, see MRS on page 3-163.

Table 3-10 Saturating instructions

Mnemonic Brief description See

SSAT

Signed Saturate SSAT and USAT on page 3-96

SSAT16

Signed Saturate Halfword SSAT16 and USAT16 on page 3-97

USAT

Unsigned Saturate SSAT and USAT on page 3-96

USAT16

Unsigned Saturate Halfword SSAT16 and USAT16 on page 3-97

QADD

Saturating Add QADD and QSUB on page 3-98

QSUB

Saturating Subtract QADD and QSUB on page 3-98

QSUB16

Saturating Subtract 16 QADD and QSUB on page 3-98

QASX

Saturating Add and Subtract with Exchange QASX and QSAX on page 3-100

QSAX

Saturating Subtract and Add with Exchange QASX and QSAX on page 3-100

QDADD

Saturating Double and Add QDADD and QDSUB on page 3-102

QDSUB

Saturating Double and Subtract QDADD and QDSUB on page 3-102

UQADD16

Unsigned Saturating Add 16 UQADD and UQSUB on page 3-105

UQADD8

Unsigned Saturating Add 8 UQADD and UQSUB on page 3-105

UQASX

Unsigned Saturating Add and Subtract with Exchange UQASX and UQSAX on page 3-103

UQSAX

Unsigned Saturating Subtract and Add with Exchange UQASX and UQSAX on page 3-103

UQSUB16

Unsigned Saturating Subtract 16 UQADD and UQSUB on page 3-105

UQSUB8

Unsigned Saturating Subtract 8 UQADD and UQSUB on page 3-105

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.7.1 SSAT and USAT

Signed Saturate and Unsigned Saturate to any bit position, with optional shift before saturating.

Syntax

op{cond} Rd, #n, Rm {, shift #s}

where:

Is one of:

SSAT

Saturates a signed value to a signed range.

USAT

Saturates a signed value to an unsigned range.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the bit position to saturate to:

•

ranges from 1 to 32 for

SSAT

•

ranges from 0 to 31 for

USAT

Specifies the register containing the value to saturate.

shift #s

Is an optional shift applied to

before saturating. It must be one of the following:

ASR #s

where

is in the range 1 to 31

LSL #s

where

is in the range 0 to 31.

Operation

These instructions saturate to a signed or unsigned

-bit value.

The

SSAT

instruction applies the specified shift, then saturates to the signed range

−2n–1 ≤x≤2n–1−1.

The

USAT

instruction applies the specified shift, then saturates to the unsigned range

0≤x≤2n−1.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not affect the condition code flags.

If saturation occurs, these instructions set the Q flag to 1.

Examples

SSAT R7, #16, R7, LSL #4 ; Logical shift left value in R7 by 4, then

; saturate it as a signed 16-bit value and

; write it back to R7

USATNE R0, #7, R5 ; Conditionally saturate value in R5 as an

; unsigned 7 bit value and write it to R0.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.7.2 SSAT16 and USAT16

Signed Saturate and Unsigned Saturate to any bit position for two halfwords.

Syntax

op{cond} Rd, #n, Rm

where:

Is one of:

SSAT16

Saturates a signed halfword value to a signed range.

USAT16

Saturates a signed halfword value to an unsigned range.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the bit position to saturate to:

•

ranges from 1 to 16 for

SSAT

•

ranges from 0 to 15 for

USAT

Specifies the register containing the value to saturate.

Operation

The

SSAT16

instruction:

1. Saturates two signed 16-bit halfword values of the register with the value to saturate from

selected by the bit position in n.

2. Writes the results as two signed 16-bit halfwords to the destination register.

The

USAT16

instruction:

1. Saturates two unsigned 16-bit halfword values of the register with the value to saturate

from selected by the bit position in n.

2. Writes the results as two unsigned halfwords in the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not affect the condition code flags.

If saturation occurs, these instructions set the Q flag to 1.

Examples

SSAT16 R7, #9, R2 ; Saturates the top and bottom highwords of R2

; as 9-bit values, writes to corresponding halfword

; of R7

USAT16NE R0, #13, R5 ; Conditionally saturates the top and bottom

; halfwords of R5 as 13-bit values, writes to

; corresponding halfword of R0.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.7.3 QADD and QSUB

Saturating Add and Saturating Subtract, signed.

Syntax

op{cond} {Rd}, Rn, Rm

where:

Is one of:

QADD

Saturating 32-bit add.

QADD8

Saturating four 8-bit integer additions.

QADD16

Saturating two 16-bit integer additions.

QSUB

Saturating 32-bit subtraction.

QSUB8

Saturating four 8-bit integer subtraction.

QSUB16

Saturating two 16-bit integer subtraction.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and second operands.

Operation

These instructions add or subtract two, four or eight values from the first and second operands

and then writes a signed saturated value in the destination register.

The

QADD

and

QSUB

instructions apply the specified add or subtract, and then saturate the result to

the signed range −2n–1 ≤x≤2n–1−1, where

is given by the number of bits applied in the

instruction, 32, 16 or 8.

If the returned result is different from the value to be saturated, it is called saturation. If

saturation occurs, the

QADD

and

QSUB

instructions set the Q flag to 1 in the APSR. Otherwise, it

leaves the Q flag unchanged. The 8-bit and 16-bit

QADD

and

QSUB

instructions always leave the Q

flag unchanged.

To clear the Q flag to 0, you must use the

MSR

instruction, see MSR on page 3-164.

To read the state of the Q flag, use the

MRS

instruction, see MRS on page 3-163.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not affect the condition code flags.

If saturation occurs, these instructions set the Q flag to 1.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

QADD16 R7, R4, R2 ; Adds halfwords of R4 with corresponding halfword of

; R2, saturates to 16 bits and writes to corresponding

; halfword of R7

QADD8 R3, R1, R6 ; Adds bytes of R1 to the corresponding bytes of R6,

; saturates to 8 bits and writes to corresponding byte of

; R3

QSUB16 R4, R2, R3 ; Subtracts halfwords of R3 from corresponding halfword

; of R2, saturates to 16 bits, writes to corresponding

; halfword of R4

QSUB8 R4, R2, R5 ; Subtracts bytes of R5 from the corresponding byte in

; R2, saturates to 8 bits, writes to corresponding byte of

; R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.7.4 QASX and QSAX

Saturating Add and Subtract with Exchange and Saturating Subtract and Add with Exchange,

signed.

Syntax

op{cond} {Rd}, Rm, Rn

where:

Is one of:

QASX

Add and Subtract with Exchange and Saturate.

QSAX

Subtract and Add with Exchange and Saturate.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and second operands.

Operation

The

QASX

instruction:

1. Adds the top halfword of the source operand with the bottom halfword of the second

operand.

2. Subtracts the top halfword of the second operand from the bottom highword of the first

operand.

3. Saturates the result of the subtraction and writes a 16-bit signed integer in the range –215

≤ x ≤ 215 – 1, where

equals 16, to the bottom halfword of the destination register.

4. Saturates the results of the sum and writes a 16-bit signed integer in the range –215 ≤ x ≤

215 – 1, where

equals 16, to the top halfword of the destination register.

The

QSAX

instruction:

1. Subtracts the bottom halfword of the second operand from the top highword of the first

operand.

2. Adds the bottom halfword of the source operand with the top halfword of the second

operand.

3. Saturates the results of the sum and writes a 16-bit signed integer in the range –215 ≤ x ≤

215 – 1, where

equals 16, to the bottom halfword of the destination register.

4. Saturates the result of the subtraction and writes a 16-bit signed integer in the range –215

≤ x ≤ 215 – 1, where

equals 16, to the top halfword of the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not affect the condition code flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

QASX R7, R4, R2 ; Adds top halfword of R4 to bottom halfword of R2,

; saturates to 16 bits, writes to top halfword of R7

; Subtracts top highword of R2 from bottom halfword of

; R4, saturates to 16 bits and writes to bottom halfword

; of R7

QSAX R0, R3, R5 ; Subtracts bottom halfword of R5 from top halfword of

; R3, saturates to 16 bits, writes to top halfword of R0

; Adds bottom halfword of R3 to top halfword of R5,

; saturates to 16 bits, writes to bottom halfword of R0.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.7.5 QDADD and QDSUB

Saturating Double and Add and Saturating Double and Subtract, signed.

Syntax

op{cond} {Rd}, Rm, Rn

where:

Is one of:

QDADD

Saturating Double and Add.

QDSUB

Saturating Double and Subtract.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rm, Rn

Are registers holding the first and second operands.

Operation

The

QDADD

instruction:

• Doubles the second operand value.

• Adds the result of the doubling to the signed saturated value in the first operand.

• Writes the result to the destination register.

The

QDSUB

instruction:

• Doubles the second operand value.

• Subtracts the doubled value from the signed saturated value in the first operand.

• Writes the result to the destination register.

Both the doubling and the addition or subtraction have their results saturated to the 32-bit signed

integer range –231 ≤ x ≤ 231– 1. If saturation occurs in either operation, it sets the Q flag in the

APSR.

Restrictions

Do not use SP and do not use PC

Condition flags

If saturation occurs, these instructions set the Q flag to 1.

Examples

QDADD R7, R4, R2 ; Doubles and saturates R4 to 32 bits, adds R2,

; saturates to 32 bits, writes to R7

QDSUB R0, R3, R5 ; Subtracts R3 doubled and saturated to 32 bits

; from R5, saturates to 32 bits, writes to R0.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.7.6 UQASX and UQSAX

Saturating Add and Subtract with Exchange and Saturating Subtract and Add with Exchange,

unsigned.

Syntax

op{cond} {Rd}, Rm, Rn

where:

type

Is one of:

UQASX

Add and Subtract with Exchange and Saturate.

UQSAX

Subtract and Add with Exchange and Saturate.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and second operands.

Operation

The

UQASX

instruction:

1. Adds the bottom halfword of the source operand with the top halfword of the second

operand.

2. Subtracts the bottom halfword of the second operand from the top highword of the first

operand.

3. Saturates the results of the sum and writes a 16-bit unsigned integer in the range 0 ≤ x ≤

216 – 1, where

equals 16, to the top halfword of the destination register.

4. Saturates the result of the subtraction and writes a 16-bit unsigned integer in the range 0

≤ x ≤ 216 – 1, where

equals 16, to the bottom halfword of the destination register.

The

UQSAX

instruction:

1. Subtracts the bottom halfword of the second operand from the top highword of the first

operand.

2. Adds the bottom halfword of the first operand with the top halfword of the second

operand.

3. Saturates the result of the subtraction and writes a 16-bit unsigned integer in the range 0

≤ x ≤ 216 – 1, where

equals 16, to the top halfword of the destination register.

4. Saturates the results of the addition and writes a 16-bit unsigned integer in the range 0 ≤

x ≤ 216 – 1, where

equals 16, to the bottom halfword of the destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not affect the condition code flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

UQASX R7, R4, R2 ; Adds top halfword of R4 with bottom halfword of R2,

; saturates to 16 bits, writes to top halfword of R7

; Subtracts top halfword of R2 from bottom halfword of

; R4, saturates to 16 bits, writes to bottom halfword of R7

UQSAX R0, R3, R5 ; Subtracts bottom halfword of R5 from top halfword of R3,

; saturates to 16 bits, writes to top halfword of R0

; Adds bottom halfword of R4 to top halfword of R5

; saturates to 16 bits, writes to bottom halfword of R0.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.7.7 UQADD and UQSUB

Saturating Add and Saturating Subtract Unsigned.

Syntax

op{cond} {Rd}, Rn, Rm

where:

Is one of:

UQADD8

Saturating four unsigned 8-bit integer additions.

UQADD16

Saturating two unsigned 16-bit integer additions.

UDSUB8

Saturating four unsigned 8-bit integer subtractions.

UQSUB16

Saturating two unsigned 16-bit integer subtractions.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Rn, Rm

Are registers holding the first and second operands.

Operation

These instructions add or subtract two or four values and then writes an unsigned saturated value

in the destination register.

The

UQADD16

instruction:

• Adds the respective top and bottom halfwords of the first and second operands.

• Saturates the result of the additions for each halfword in the destination register to the

unsigned range 0 ≤x≤216−1, where x is 16.

The

UQADD8

instruction:

• Adds each respective byte of the first and second operands.

• Saturates the result of the addition for each byte in the destination register to the unsigned

range 0 ≤x≤28−1, where x is 8.

The

UQSUB16

instruction:

• Subtracts both halfwords of the second operand from the respective halfwords of the first

operand.

• Saturates the result of the differences in the destination register to the unsigned range

0≤x≤216−1, where x is 16.

The

UQSUB8

instructions:

• Subtracts the respective bytes of the second operand from the respective bytes of the first

operand.

• Saturates the results of the differences for each byte in the destination register to the

unsigned range 0 ≤x≤28−1, where x is 8.

Restrictions

Do not use SP and do not use PC

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Condition flags

These instructions do not affect the condition code flags.

Examples

UQADD16 R7, R4, R2 ; Adds halfwords in R4 to corresponding halfword in R2,

; saturates to 16 bits, writes to corresponding halfword

; of R7

UQADD8 R4, R2, R5 ; Adds bytes of R2 to corresponding byte of R5, saturates

; to 8 bits, writes to corresponding bytes of R4

UQSUB16 R6, R3, R0 ; Subtracts halfwords in R0 from corresponding halfword

; in R3, saturates to 16 bits, writes to corresponding

; halfword in R6

UQSUB8 R1, R5, R6 ; Subtracts bytes in R6 from corresponding byte of R5,

; saturates to 8 bits, writes to corresponding byte of R1.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.8 Packing and unpacking instructions

Table 3-11shows the instructions that operate on packing and unpacking data:

Table 3-11 Packing and unpacking instructions

Mnemonic Brief description See

PKH

Pack Halfword PKHBT and PKHTB on page 3-108

SXTAB

Extend 8 bits to 32 and add SXTA and UXTA on page 3-112

SXTAB16

Dual extend 8 bits to 16 and add SXTA and UXTA on page 3-112

SXTAH

Extend 16 bits to 32 and add SXTA and UXTA on page 3-112

SXTB

Sign extend a byte SXT and UXT on page 3-117

SXTB16

Dual extend 8 bits to 16 and add SXT and UXT on page 3-117

SXTH

Sign extend a halfword SXT and UXT on page 3-117

UXTAB

Extend 8 bits to 32 and add SXTA and UXTA on page 3-112

UXTAB16

Dual extend 8 bits to 16 and add SXTA and UXTA on page 3-112

UXTAH

Extend 16 bits to 32 and add SXTA and UXTA on page 3-112

UXTB

Zero extend a byte SXT and UXT on page 3-117

UXTB16

Dual zero extend 8 bits to 16 and add SXT and UXT on page 3-117

UXTH

Zero extend a halfword SXT and UXT on page 3-117

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.8.1 PKHBT and PKHTB

Pack Halfword.

Syntax

op{cond} {Rd}, Rn, Rm {, LSL #imm}

op{cond} {Rd}, Rn, Rm {, ASR #imm}

where:

Is one of:

PKHBT

Pack Halfword, bottom and top with shift.

PKHTB

Pack Halfword, top and bottom with shift.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the first operand register.

Specifies the second operand register holding the value to be optionally shifted.

imm

Specifies the shift length. The type of shift length depends on the instruction:

For

PKHBT

LSL

A left shift with a shift length from 1 to 31, 0 means no shift.

For

PKHTB

ASR

An arithmetic shift right with a shift length from 1 to 32, a shift of

32-bits is encoded as

0b00000

Operation

The PKHBT

instruction:

1. Writes the value of the bottom halfword of the first operand to the bottom halfword of the

destination register.

2. If shifted, the shifted value of the second operand is written to the top halfword of the

destination register.

The

PKHTB

instruction:

1. Writes the value of the top halfword of the first operand to the top halfword of the

destination register.

2. If shifted, the shifted value of the second operand is written to the bottom halfword of the

destination register.

Restrictions

must not be SP and must not be PC.

Condition flags

This instruction does not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

PKHBT R3, R4, R5 LSL #0 ; Writes bottom halfword of R4 to bottom halfword of

; R3, writes top halfword of R5, unshifted, to top

; halfword of R3

PKHTB R4, R0, R2 ASR #1 ; Writes R2 shifted right by 1 bit to bottom halfword

; of R4, and writes top halfword of R0 to top

; halfword of R4.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.8.2 SXT and UXT

Sign extend and Zero extend.

Syntax

op{cond} {Rd,} Rm {, ROR #n}

op{cond} {Rd}, Rm {, ROR #n}

where:

Is one of:

SXTB

Sign extends an 8-bit value to a 32-bit value.

SXTH

Sign extends a 16-bit value to a 32-bit value.

SXTB16

Sign extends two 8-bit values to two 16-bit values.

UXTB

Zero extends an 8-bit value to a 32-bit value.

UXTH

Zero extends a 16-bit value to a 32-bit value.

UXTB16

Zero extends two 8-bit values to two 16-bit values.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the register holding the value to extend.

ROR #n

Is one of:

ROR #8

Value from

is rotated right 8 bits.

ROR #16

Value from

is rotated right 16 bits.

ROR #24

Value from

is rotated right 24 bits.

ROR #n

is omitted, no rotation is performed.

Operation

These instructions do the following:

1. Rotate the value from

right by 0, 8, 16 or 24 bits.

2. Extract bits from the resulting value:

•

SXTB

extracts bits[7:0] and sign extends to 32 bits.

•

UXTB

extracts bits[7:0] and zero extends to 32 bits.

•

SXTH

extracts bits[15:0] and sign extends to 32 bits.

•

UXTH

extracts bits[15:0] and zero extends to 32 bits.

•

SXTB16

extracts bits[7:0] and sign extends to 16 bits, and extracts bits [23:16] and

sign extends to 16 bits.

•

UXTB16

extracts bits[7:0] and zero extends to 16 bits, and extracts bits [23:16] and

zero extends to 16 bits.

Restrictions

Do not use SP and do not use PC.

Condition flags

These instructions do not affect the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

SXTH R4, R6, ROR #16 ; Rotates R6 right by 16 bits, obtains bottom halfword of

; of result, sign extends to 32 bits and writes to R4

UXTB R3, R10 ; Extracts lowest byte of value in R10, zero extends, and

; writes to R3.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.8.3 SXTA and UXTA

Signed and Unsigned Extend and Add.

Syntax

op{cond} {Rd,} Rn, Rm {, ROR #n}

where:

Is one of:

SXTAB

Sign extends an 8-bit value to a 32-bit value and add.

SXTAH

Sign extends a 16-bit value to a 32-bit value and add.

SXTAB16

Sign extends two 8-bit values to two 16-bit values and add.

UXTAB

Zero extends an 8-bit value to a 32-bit value and add.

UXTAH

Zero extends a 16-bit value to a 32-bit value and add.

UXTAB16

Zero extends two 8-bit values to two 16-bit values and add.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the first operand register.

Specifies the register holding the value to rotate and extend.

ROR #n

Is one of:

ROR #8

Value from

is rotated right 8 bits.

ROR #16

Value from

is rotated right 16 bits.

ROR #24

Value from

is rotated right 24 bits.

ROR #n

is omitted, no rotation is performed.

Operation

These instructions do the following:

1. Rotate the value from

right by 0, 8, 16 or 24 bits.

2. Extract bits from the resulting value:

•

SXTAB

extracts bits[7:0] from Rm and sign extends to 32 bits.

•

UXTAB

extracts bits[7:0] from Rm and zero extends to 32 bits.

•

SXTAH

extracts bits[15:0] from Rm and sign extends to 32 bits.

•

UXTAH

extracts bits[15:0] from Rm and zero extends to 32 bits.

•

SXTAB16

extracts bits[7:0] from Rm and sign extends to 16 bits, and extracts bits

[23:16] from Rm and sign extends to 16 bits.

•

UXTAB16

extracts bits[7:0] from Rm and zero extends to 16 bits, and extracts bits

[23:16] from Rm and zero extends to 16 bits.

3. Adds the signed or zero extended value to the word or corresponding halfword of Rn and

writes the result in Rd.

Restrictions

Do not use SP and do not use PC.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Condition flags

These instructions do not affect the flags.

Examples

SXTAH R4, R8, R6, ROR #16 ; Rotates R6 right by 16 bits, obtains bottom

; halfword, sign extends to 32 bits, adds R8, and

; writes to R4

UXTAB R3, R4, R10 ; Extracts bottom byte of R10 and zero extends to 32

; bits, adds R4, and writes to R3.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.9 Bitfield instructions

Table 3-12 shows the instructions that operate on adjacent sets of bits in registers or bitfields:

Table 3-12 Packing and unpacking instructions

Mnemonic Brief description See

BFC

Bit Field Clear BFC and BFI on page 3-115

BFI

Bit Field Insert BFC and BFI on page 3-115

SBFX

Signed Bit Field Extract SBFX and UBFX on page 3-116

SXTB

Sign extend a byte SXT and UXT on page 3-117

SXTH

Sign extend a halfword SXT and UXT on page 3-117

UBFX

Unsigned Bit Field Extract SBFX and UBFX on page 3-116

UXTB

Zero extend a byte SXT and UXT on page 3-117

UXTH

Zero extend a halfword SXT and UXT on page 3-117

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.9.1 BFC and BFI

Bit Field Clear and Bit Field Insert.

Syntax

BFC{cond} Rd, #lsb, #width

BFI{cond} Rd, Rn, #lsb, #width

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the source register.

lsb

Specifies the position of the least significant bit of the bitfield.

lsb

must be in the

range 0 to 31.

width

Specifies the width of the bitfield and must be in the range 1 to 32−

lsb

Operation

BFC

clears a bitfield in a register. It clears

width

bits in

, starting at the low bit position

lsb

Other bits in

are unchanged.

BFI

copies a bitfield into one register from another register. It replaces

width

bits in

starting

at the low bit position

lsb

, with

width

bits from

starting at bit[0]. Other bits in

are

unchanged.

Restrictions

Do not use SP and do not use PC.

Condition flags

These instructions do not affect the flags.

Examples

BFC R4, #8, #12 ; Clear bit 8 to bit 19 (12 bits) of R4 to 0

BFI R9, R2, #8, #12 ; Replace bit 8 to bit 19 (12 bits) of R9 with

; bit 0 to bit 11 from R2.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.9.2 SBFX and UBFX

Signed Bit Field Extract and Unsigned Bit Field Extract.

Syntax

SBFX{cond} Rd, Rn, #lsb, #width

UBFX{cond} Rd, Rn, #lsb, #width

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the source register.

lsb

Specifies the position of the least significant bit of the bitfield.

lsb

must be in the

range 0 to 31.

width

Specifies the width of the bitfield and must be in the range 1 to 32−

lsb

Operation

SBFX

extracts a bitfield from one register, sign extends it to 32 bits, and writes the result to the

destination register.

UBFX

extracts a bitfield from one register, zero extends it to 32 bits, and writes the result to the

destination register.

Restrictions

Do not use SP and do not use PC

Condition flags

These instructions do not affect the flags.

Examples

SBFX R0, R1, #20, #4 ; Extract bit 20 to bit 23 (4 bits) from R1 and sign

; extend to 32 bits and then write the result to R0.

UBFX R8, R11, #9, #10 ; Extract bit 9 to bit 18 (10 bits) from R11 and zero

; extend to 32 bits and then write the result to R8.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.9.3 SXT and UXT

Sign extend and Zero extend.

Syntax

SXTextend{cond} {Rd,} Rm {, ROR #n}

UXTextend{cond} {Rd}, Rm {, ROR #n}

where:

extend

Is one of:

Extends an 8-bit value to a 32-bit value.

Extends a 16-bit value to a 32-bit value.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the register holding the value to extend.

ROR #n

Is one of:

ROR #8

Value from

is rotated right 8 bits.

ROR #16

Value from

is rotated right 16 bits.

ROR #24

Value from

is rotated right 24 bits.

ROR #n

is omitted, no rotation is performed.

Operation

These instructions do the following:

1. Rotate the value from

right by 0, 8, 16 or 24 bits.

2. Extract bits from the resulting value:

•

SXTB

extracts bits[7:0] and sign extends to 32 bits.

•

UXTB

extracts bits[7:0] and zero extends to 32 bits.

•

SXTH

extracts bits[15:0] and sign extends to 32 bits.

•

UXTH

extracts bits[15:0] and zero extends to 32 bits.

Restrictions

Do not use SP and do not use PC.

Condition flags

These instructions do not affect the flags.

Examples

SXTH R4, R6, ROR #16 ; Rotate R6 right by 16 bits, then obtain the lower

; halfword of the result and then sign extend to

; 32 bits and write the result to R4.

UXTB R3, R10 ; Extract lowest byte of the value in R10 and zero

; extend it, and write the result to R3.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.10 Branch and control instructions

Table 3-13 shows the branch and control instructions:

Table 3-13 Branch and control instructions

Mnemonic Brief description See

Branch B, BL, BX, and BLX on page 3-119

Branch with Link B, BL, BX, and BLX on page 3-119

BLX

Branch indirect with Link B, BL, BX, and BLX on page 3-119

Branch indirect B, BL, BX, and BLX on page 3-119

CBNZ

Compare and Branch if Non Zero CBZ and CBNZ on page 3-121

CBZ

Compare and Branch if Zero CBZ and CBNZ on page 3-121

If-Then IT on page 3-122

TBB

Table Branch Byte TBB and TBH on page 3-124

TBH

Table Branch Halfword TBB and TBH on page 3-124

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.10.1 B, BL, BX, and BLX

Branch instructions.

Syntax

B{cond} label

BL{cond} label

BX{cond} Rm

BLX{cond} Rm

where:

Is branch (immediate).

Is branch with link (immediate).

Is branch indirect (register).

BLX

Is branch indirect with link (register).

cond

Is an optional condition code, see Conditional execution on page 3-18.

label

Is a PC-relative expression. See PC-relative expressions on page 3-17.

Is a register that indicates an address to branch to. Bit[0] of the value in

must

be 1, but the address to branch to is created by changing bit[0] to 0.

Operation

All these instructions cause a branch to

label

, or to the address indicated in

. In addition:

•The

and

BLX

instructions write the address of the next instruction to LR (the link

•The

and

BLX

instructions result in a UsageFault exception if bit[0] of

is 0.

Bcond label

is the only conditional instruction that can be either inside or outside an IT block.

All other branch instructions must be conditional inside an IT block, and must be unconditional

outside the IT block, see IT on page 3-122.

Table 3-14 shows the ranges for the various branch instructions.

Table 3-14 Branch ranges

Instruction Branch range

B label

−16 MB to +16 MB

Bcond label

(outside IT block) −1 MB to +1 MB

Bcond label

(inside IT block) −16 MB to +16 MB

BL{cond} label

−16 MB to +16 MB

BX{cond} Rm

Any value in register

BLX{cond} Rm

Any value in register

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Note

You might have to use the

suffix to get the maximum branch range. See Instruction width

selection on page 3-21.

Restrictions

The restrictions are:

• do not use PC in the

BLX

instruction

• for

and

BLX

, bit[0] of

must be 1 for correct execution but a branch occurs to the target

address created by changing bit[0] to 0

• when any of these instructions is inside an IT block, it must be the last instruction of the

IT block.

Note

Bcond

is the only conditional instruction that is not required to be inside an IT block. However,

it has a longer branch range when it is inside an IT block.

Condition flags

These instructions do not change the flags.

Examples

B loopA ; Branch to loopA

BLE ng ; Conditionally branch to label ng

B.W target ; Branch to target within 16MB range

BEQ target ; Conditionally branch to target

BEQ.W target ; Conditionally branch to target within 1MB

BL funC ; Branch with link (Call) to function funC, return address

; stored in LR

BX LR ; Return from function call

BXNE R0 ; Conditionally branch to address stored in R0

BLX R0 ; Branch with link and exchange (Call) to a address stored

; in R0.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.10.2 CBZ and CBNZ

Compare and Branch on Zero, Compare and Branch on Non-Zero.

Syntax

CBZ Rn, label

CBNZ Rn, label

where:

Specifies the register holding the operand.

label

Specifies the branch destination.

Operation

Use the

CBZ

CBNZ

instructions to avoid changing the condition code flags and to reduce the

number of instructions.

CBZ Rn, label

does not change condition flags but is otherwise equivalent to:

CMP Rn, #0

BEQ label

CBNZ Rn, label

does not change condition flags but is otherwise equivalent to:

CMP Rn, #0

BNE label

Restrictions

The restrictions are:

•

must be in the range of

• the branch destination must be within 4 to 130 bytes after the instruction

• these instructions must not be used inside an IT block.

Condition flags

These instructions do not change the flags.

Examples

CBZ R5, target ; Forward branch if R5 is zero

CBNZ R0, target ; Forward branch if R0 is not zero

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.10.3 IT

If-Then condition instruction.

Syntax

IT{x{y{z}}} cond

where:

Specifies the condition switch for the second instruction in the IT block.

Specifies the condition switch for the third instruction in the IT block.

Specifies the condition switch for the fourth instruction in the IT block.

cond

Specifies the condition for the first instruction in the IT block.

The condition switch for the second, third and fourth instruction in the IT block can be either:

Then. Applies the condition

cond

to the instruction.

Else. Applies the inverse condition of

cond

to the instruction.

Note

It is possible to use

(the always condition) for

cond

in an

instruction. If this is done, all of

the instructions in the IT block must be unconditional, and each of x, y, and z must be

omitted but not

Operation

The

instruction makes up to four following instructions conditional. The conditions can be

all the same, or some of them can be the logical inverse of the others. The conditional

instructions following the

instruction form the IT block.

The instructions in the IT block, including any branches, must specify the condition in the

{cond}

part of their syntax.

Note

Your assembler might be able to generate the required

instructions for conditional

instructions automatically, so that you do not have to write them yourself. See your assembler

documentation for details.

BKPT

instruction in an IT block is always executed, even if its condition fails.

Exceptions can be taken between an

instruction and the corresponding IT block, or within an

IT block. Such an exception results in entry to the appropriate exception handler, with suitable

return information in LR and stacked PSR.

Instructions designed for use for exception returns can be used as normal to return from the

exception, and execution of the IT block resumes correctly. This is the only way that a

PC-modifying instruction is permitted to branch to an instruction in an IT block.

Restrictions

The following instructions are not permitted in an IT block:

•

CBZ

and

CBNZ

•

CPSID

and

CPSIE.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Other restrictions when using an IT block are:

• a branch or any instruction that modifies the PC must either be outside an IT block or must

be the last instruction inside the IT block. These are:

—

ADD PC, PC, Rm

—

MOV PC, Rm

—

BLX

—any

LDM

LDR

, or

POP

instruction that writes to the PC

—

TBB

and

TBH

• do not branch to any instruction inside an IT block, except when returning from an

exception handler

• all conditional instructions except

Bcond

must be inside an IT block.

Bcond

can be either

outside or inside an IT block but has a larger branch range if it is inside one

• each instruction inside the IT block must specify a condition code suffix that is either the

same or logical inverse as for the other instructions in the block.

Note

Your assembler might place extra restrictions on the use of IT blocks, such as prohibiting the

use of assembler directives within them.

Condition flags

This instruction does not change the flags.

Example

ITTE NE ; Next 3 instructions are conditional

ANDNE R0, R0, R1 ; ANDNE does not update condition flags

ADDSNE R2, R2, #1 ; ADDSNE updates condition flags

MOVEQ R2, R3 ; Conditional move

CMP R0, #9 ; Convert R0 hex value (0 to 15) into ASCII

; ('0'-'9', 'A'-'F')

ITE GT ; Next 2 instructions are conditional

ADDGT R1, R0, #55 ; Convert 0xA -> 'A'

ADDLE R1, R0, #48 ; Convert 0x0 -> '0'

IT GT ; IT block with only one conditional instruction

ADDGT R1, R1, #1 ; Increment R1 conditionally

ITTEE EQ ; Next 4 instructions are conditional

MOVEQ R0, R1 ; Conditional move

ADDEQ R2, R2, #10 ; Conditional add

ANDNE R3, R3, #1 ; Conditional AND

BNE.W dloop ; Branch instruction can only be used in the last

; instruction of an IT block

IT NE ; Next instruction is conditional

ADD R0, R0, R1 ; Syntax error: no condition code used in IT block

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.10.4 TBB and TBH

Table Branch Byte and Table Branch Halfword.

Syntax

TBB [Rn, Rm]

TBH [Rn, Rm, LSL #1]

where:

Specifies the register containing the address of the table of branch lengths.

is PC, then the address of the table is the address of the byte immediately

following the

TBB

TBH

instruction.

Specifies the index register. This contains an index into the table. For halfword

tables,

LSL #1

doubles the value in

to form the right offset into the table.

Operation

These instructions cause a PC-relative forward branch using a table of single byte offsets for

TBB

or halfword offsets for

TBH

provides a pointer to the table, and

supplies an index into the

table. For

TBB

the branch offset is twice the unsigned value of the byte returned from the table.

and for

TBH

the branch offset is twice the unsigned value of the halfword returned from the table.

The branch occurs to the address at that offset from the address of the byte immediately after

the

TBB

TBH

instruction.

Restrictions

The restrictions are:

•

must not be SP

•

must not be SP and must not be PC

• when any of these instructions is used inside an IT block, it must be the last instruction of

the IT block.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

Examples

ADR.W R0, BranchTable_Byte

TBB [R0, R1] ; R1 is the index, R0 is the base address of the

; branch table

Case1

; an instruction sequence follows

Case2

; an instruction sequence follows

Case3

; an instruction sequence follows

BranchTable_Byte

DCB 0 ; Case1 offset calculation

DCB ((Case2-Case1)/2) ; Case2 offset calculation

DCB ((Case3-Case1)/2) ; Case3 offset calculation

TBH [PC, R1, LSL #1] ; R1 is the index, PC is used as base of the

; branch table

BranchTable_H

DCI ((CaseA - BranchTable_H)/2) ; CaseA offset calculation

DCI ((CaseB - BranchTable_H)/2) ; CaseB offset calculation

DCI ((CaseC - BranchTable_H)/2) ; CaseC offset calculation

CaseA

; an instruction sequence follows

CaseB

; an instruction sequence follows

CaseC

; an instruction sequence follows

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11 Floating-point instructions

Table 3-15 shows the floating-point instructions.

Note

These instructions are only available if the FPU is included, and enabled, in the system. See

Enabling the FPU on page 4-52 for information about enabling the floating-point unit.

Table 3-15 Floating-point instructions

Mnemonic Brief description See

VABS

Floating-point Absolute VABS on page 3-128

VADD

Floating-point Add VADD on page 3-129

VCMP

Compare two floating-point registers, or one floating-point

VCMP, VCMPE on page 3-130

VCMPE

Compare two floating-point registers, or one floating-point

VCMP, VCMPE on page 3-130

VCVT

Convert between floating-point and integer VCVT, VCVTR between floating-point and integer on

page 3-131

VCVT

Convert between floating-point and fixed point VCVT between floating-point and fixed-point on

page 3-132

VCVTR

Convert between floating-point and integer with rounding VCVT, VCVTR between floating-point and integer on

page 3-131

VCVTB

Converts half-precision value to single-precision VCVTB, VCVTT on page 3-133

VCVTT

Converts single-precision register to half-precision VCVTB, VCVTT on page 3-133

VDIV

Floating-point Divide VDIV on page 3-134

VFMA

Floating-point Fused Multiply Accumulate VFMA, VFMS on page 3-135

VFNMA

Floating-point Fused Negate Multiply Accumulate VFNMA, VFNMS on page 3-136

VFMS

Floating-point Fused Multiply Subtract VFMA, VFMS on page 3-135

VFNMS

Floating-point Fused Negate Multiply Subtract VFNMA, VFNMS on page 3-136

VLDM

Load Multiple extension registers VLDM on page 3-137

VLDR

Loads an extension register from memory VLDR on page 3-138

VLMA

Floating-point Multiply Accumulate VLMA, VLMS on page 3-139

VLMS

Floating-point Multiply Subtract VLMA, VLMS on page 3-139

VMOV

Floating-point Move Immediate VMOV Immediate on page 3-140

VMOV

Floating-point Move Register VMOV Register on page 3-141

VMOV

Copy ARM core register to single precision VMOV ARM Core register to single precision on

page 3-143

VMOV

Copy 2 ARM core registers to 2 single precision VMOV Two ARM Core registers to two single precision

on page 3-144

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

VMOV

Copies between ARM core register to scalar VMOV ARM Core register to scalar on page 3-145

VMOV

Copies between Scalar to ARM core register VMOV Scalar to ARM Core register on page 3-142

VMRS

Move to ARM core register from floating-point System

VMRS on page 3-146

VMSR

Move to floating-point System Register from ARM Core

VMSR on page 3-147

VMUL

Multiply floating-point VMUL on page 3-148

VNEG

Floating-point negate VNEG on page 3-149

VNMLA

Floating-point multiply and add VNMLA, VNMLS, VNMUL on page 3-150

VNMLS

Floating-point multiply and subtract VNMLA, VNMLS, VNMUL on page 3-150

VNMUL

Floating-point multiply VNMLA, VNMLS, VNMUL on page 3-150

VPOP

Pop extension registers VPOP on page 3-151

VPUSH

Push extension registers VPUSH on page 3-152

VSQRT

Floating-point square root VSQRT on page 3-153

VSTM

Store Multiple extension registers VSTM on page 3-154

VSTR

Stores an extension register to memory VSTR on page 3-155

VSUB

Floating-point Subtract VSUB on page 3-156

Table 3-15 Floating-point instructions (continued)

Mnemonic Brief description See

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.1 VABS

Floating-point Absolute.

Syntax

VABS{cond}.F32 Sd, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Sd, Sm

Are the destination floating-point value and the operand floating-point value.

Operation

This instruction:

1. Takes the absolute value of the operand floating-point register.

2. Places the results in the destination floating-point register.

Restrictions

There are no restrictions.

Condition flags

The floating-point instruction clears the sign bit.

Examples

VABS.F32 S4, S6

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.2 VADD

Floating-point Add.

Syntax

VADD{cond}.F32 {Sd,} Sn, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination floating-point value.

Sn, Sm

Are the operand floating-point values.

Operation

This instruction:

1. Adds the values in the two floating-point operand registers.

2. Places the results in the destination floating-point register.

Restrictions

There are no restrictions.

Condition flags

This instruction does not change the flags.

Examples

VADD.F32 S4, S6, S7

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.3 VCMP, VCMPE

Compares two floating-point registers, or one floating-point register and zero.

Syntax

VCMP{E}{cond}.F32 Sd, Sm

VCMP{E}{cond}.F32 Sd, #0.0

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

If present, any

NaN

operand causes an

Invalid Operation

exception. Otherwise,

only a signaling

NaN

causes the exception.

Specifies the floating-point operand to compare.

Specifies the floating-point operand that is compared with.

Operation

This instruction:

1. Compares:

• Two floating-point registers.

• One floating-point register and zero.

2. Writes the result to the

FPSCR

flags.

Restrictions

This instruction can optionally raise an

Invalid Operation

exception if either operand is any type

NaN

. It always raises an

Invalid Operation

exception if either operand is a signaling

NaN

Condition flags

When this instruction writes the result to the

FPSCR

flags, the values are normally transferred to

the ARM flags by a subsequent

VMRS

instruction, see VMRS on page 3-146.

Examples

VCMP.F32 S4, #0.0VCMP.F32 S4, S2

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.4 VCVT, VCVTR between floating-point and integer

Converts a value in a register from floating-point to a 32-bit integer.

Syntax

VCVT{R}{cond}.Tm.F32 Sd, Sm

VCVT{cond}.F32.Tm Sd, Sm

where:

is specified, the operation uses the rounding mode specified by the

FPSCR

. If

is omitted. the operation uses the

Round towards Zero

rounding mode.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the data type for the operand. It must be one of:

•

S32

signed 32-bit value.

•

U32

unsigned 32-bit value.

Sd, Sm

Are the destination register and the operand register.

Operation

These instructions:

1. Either

• Converts a value in a register from floating-point value to a 32-bit integer.

• Converts from a 32-bit integer to floating-point value.

2. Places the result in a second register.

The floating-point to integer operation normally uses the

Round towards Zero

rounding mode,

but can optionally use the rounding mode specified by the

FPSCR

The integer to floating-point operation uses the rounding mode specified by the

FPSCR

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.5 VCVT between floating-point and fixed-point

Converts a value in a register from floating-point to and from fixed-point.

Syntax

VCVT{cond}.Td.F32 Sd, Sd, #fbits

VCVT{cond}.F32.Td Sd, Sd, #fbits

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the data type for the fixed-point number. It must be one of:

•

S16

signed 16-bit value.

•

U16

unsigned 16-bit value.

•

S32

signed 32-bit value.

•

U32

unsigned 32-bit value.

Specifies the destination register and the operand register.

fbits

Specifies the number of fraction bits in the fixed-point number:

•If

S16

U16

fbits

must be in the range 0-16.

•I f

S32

U32

fbits

must be in the range 1-32.

Operation

These instructions:

1. Either:

• converts a value in a register from floating-point to fixed-point

• converts a value in a register from fixed-point to floating-point.

2. Places the result in a second register.

The floating-point values are single-precision.

The fixed-point value can be 16-bit or 32-bit. Conversions from fixed-point values take their

operand from the low-order bits of the source register and ignore any remaining bits.

Signed conversions to fixed-point values sign-extend the result value to the destination register

width.

Unsigned conversions to fixed-point values zero-extend the result value to the destination

The floating-point to fixed-point operation uses the

Round towards Zero

rounding mode. The

fixed-point to floating-point operation uses the

Round to Nearest

rounding mode.

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.6 VCVTB, VCVTT

Converts between a half-precision value and a single-precision value.

Syntax

VCVT{y}{cond}.F32.F16 Sd, Sm

VCVT{y}{cond}.F16.F32 Sd, Sm

where:

Specifies which half of the operand register

or destination register

is used

for the operand or destination:

• If y is

, then the bottom half, bits [15:0], of

is used.

•If

, then the top half, bits [31:16], of

is used.

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Specifies the operand register.

Operation

This instruction with the

.F16.32

suffix:

1. Converts the half-precision value in the top or bottom half of a single-precision. register

to single-precision.

2. Writes the result to a single-precision register.

This instruction with the

.F32.F16

suffix:

1. Converts the value in a single-precision register to half-precision.

2. Writes the result into the top or bottom half of a single-precision register, preserving the

other half of the target register.

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.7 VDIV

Divides floating-point values.

Syntax

VDIV{cond}.F32 {Sd,} Sn, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Sn, Sm

Are the operand registers.

Operation

This instruction:

1. Divides one floating-point value by another floating-point value.

2. Writes the result to the floating-point destination register.

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.8 VFMA, VFMS

Floating-point Fused Multiply Accumulate and Subtract.

Syntax

VFMA{cond}.F32 {Sd,} Sn, Sm

VFMS{cond}.F32 {Sd,} Sn, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Sn, Sm

Are the operand registers.

Operation

The

VFMA

instruction:

1. Multiplies the floating-point values in the operand registers.

2. Accumulates the results into the destination register.

The result of the multiply is not rounded before the accumulation.

The

VFMS

instruction:

1. Negates the first operand register.

2. Multiplies the floating-point values of the first and second operand registers.

3. Adds the products to the destination register.

4. Places the results in the destination register.

The result of the multiply is not rounded before the addition.

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.9 VFNMA, VFNMS

Floating-point Fused Negate Multiply Accumulate and Subtract.

Syntax

VFNMA{cond}.F32 {Sd,} Sn, Sm

VFNMS{cond}.F32 {Sd,} Sn, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

Sn, Sm

Are the operand registers.

Operation

The

VFNMA

instruction:

1. Negates the first floating-point operand register.

2. Multiplies the first floating-point operand with second floating-point operand.

3. Adds the negation of the floating -point destination register to the product

4. Places the result into the destination register.

The result of the multiply is not rounded before the addition.

The

VFNMS

instruction:

1. Multiplies the first floating-point operand with second floating-point operand.

2. Adds the negation of the floating-point value in the destination register to the product.

3. Places the result in the destination register.

The result of the multiply is not rounded before the addition.

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.10 VLDM

Floating-point Load Multiple.

Syntax

VLDM{mode}{cond}{.size} Rn{!}, list

where:

mode

Specifies the addressing mode:

•IAIncrement After. The consecutive addresses start at the address specified

in Rn.

•DB Decrement Before. The consecutive addresses end just before

the address specified in Rn.

cond

Is an optional condition code, see Conditional execution on page 3-18.

size

Is an optional data size specifier.

Specifies the base register. The

can be used.

Is the command to the instruction to write a modified value back to

. This is

required if

mode == DB

, and is optional if

mode == IA

list

Specifies the list of extension registers to be loaded, as a list of consecutively

numbered doubleword or singleword registers, separated by commas and

surrounded by brackets.

Operation

This instruction loads:

• Multiple extension registers from consecutive memory locations using an address from an

ARM core register as the base address.

Restrictions

The restrictions are:

• If

size

is present, it must be equal to the size in bits,

, of the registers in

list

• For the base address, the SP can be used. In the ARM instruction set, if

is not specified

the

can be used.

•

list

must contain at least one register. If it contains doubleword registers, it must not

contain more than 16 registers.

• If using the

Decrement Before

addressing mode, the write back flag,

, must be appended

to the base register specification.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.11 VLDR

Loads a single extension register from memory.

Syntax

VLDR{cond}{.64} Dd, [Rn{#imm}]

VLDR{cond}{.64} Dd, label

VLDR{cond}{.64} Dd, [PC, #imm}]

VLDR{cond}{.32} Sd, [Rn {, #imm}]

VLDR{cond}{.32} Sd, label

VLDR{cond}{.32} Sd, [PC, #imm]

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

64, 32

Are the optional data size specifiers.

Specifies the destination register for a doubleword load.

Specifies the destination register for a singleword load.

Specifies the base register. The SP can be used.

imm

Is the + or - immediate offset used to form the address. Permitted address values

are multiples of 4 in the range 0 to 1020.

label

Specifies the label of the literal data item to be loaded.

Operation

This instruction:

• Loads a single extension register from memory, using a base address from an ARM core

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.12 VLMA, VLMS

Multiplies two floating-point values, and accumulates or subtracts the results.

Syntax

VLMA{cond}.F32 Sd, Sn, Sm

VLMS{cond}.F32 Sd, Sn, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination floating-point value.

Sn, Sm

Are the operand floating-point values.

Operation

The floating-point Multiply Accumulate instruction:

1. Multiplies two floating-point values.

2. Adds the results to the destination floating-point value.

The floating-point Multiply Subtract instruction:

1. Multiplies two floating-point values.

2. Subtracts the products from the destination floating-point value.

3. Places the results in the destination register.

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.13 VMOV Immediate

Move floating-point Immediate.

Syntax

VMOV{cond}.F32 Sd, #imm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the branch destination.

imm

Is a floating-point constant.

Operation

This instruction copies a constant value to a floating-point register.

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.14 VMOV Register

Copies the contents of one register to another.

Syntax

VMOV{cond}.F64 Dd, Dm

VMOV{cond}.F32 Sd, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register, for a doubleword operation.

Specifies the source register, for a doubleword operation.

Specifies the destination register, for a singleword operation.

Specifies the source register, for a singleword operation.

Operation

This instruction copies the contents of one floating-point register to another.

Restrictions

There are no restrictions

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.15 VMOV Scalar to ARM Core register

Transfers one word of a doubleword floating-point register to an ARM core register.

Syntax

VMOV{cond} Rt, Dn[x]

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination ARM core register.

Specifies the 64-bit doubleword register.

Specifies which half of the doubleword register to use:

•If x is 0, use lower half of doubleword register

•If x is 1, use upper half of doubleword register.

Operation

This instruction transfers:

• one word from the upper or lower half of a doubleword floating-point register to an ARM

core register.

Restrictions

Rt cannot be PC or SP.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.16 VMOV ARM Core register to single precision

Transfers a single-precision register to and from an ARM core register.

Syntax

VMOV{cond} Sn, Rt

VMOV{cond} Rt, Sn

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the single-precision floating-point register.

Specifies the ARM core register.

Operation

This instruction transfers:

• The contents of a single-precision register to an ARM core register.

• The contents of an ARM core register to a single-precision register.

Restrictions

Rt cannot be PC or SP.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.17 VMOV Two ARM Core registers to two single precision

Transfers two consecutively numbered single-precision registers to and from two ARM core

registers.

Syntax

VMOV{cond} Sm, Sm1, Rt, Rt2

VMOV{cond} Rt, Rt2, Sm, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the first single-precision register.

Sm1

Specifies the second single-precision register. This is the next single-precision

Specifies the ARM core register that

is transferred to or from.

Rt2

Specifies the The ARM core register that

Sm1

is transferred to or from.

Operation

This instruction transfers:

• The contents of two consecutively numbered single-precision registers to two ARM core

registers.

• The contents of two ARM core registers to a pair of single-precision registers.

Restrictions

The restrictions are:

• The floating-point registers must be contiguous, one after the other.

• The ARM core registers do not have to be contiguous.

•Rt cannot be PC or SP.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.18 VMOV ARM Core register to scalar

Transfers one word to a floating-point register from an ARM core register.

Syntax

VMOV{cond}{.32} Dd[x], Rt

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Is an optional data size specifier.

Dd[x]

Specifies the destination, where [x] defines which half of the doubleword is

transferred, as follows:

•If x is 0, the lower half is extracted

•If x is 1, the upper half is extracted.

Specifies the source ARM core register.

Operation

This instruction transfers one word to the upper or lower half of a doubleword floating-point

Restrictions

Rt cannot be PC or SP.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.19 VMRS

Move to ARM Core register from floating-point System Register.

Syntax

VMRS{cond} Rt, FPSCR

VMRS{cond} APSR_nzcv, FPSCR

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination ARM core register. This register can be R0-R14.

APSR_nzcv

Transfer floating-point flags to the APSR flags.

Operation

This instruction performs one of the following actions:

• Copies the value of the

FPSCR

to a general-purpose register.

• Copies the value of the

FPSCR

flag bits to the APSR N, Z, C, and V flags

Restrictions

Rt cannot be PC or SP.

Condition flags

These instructions optionally change the flags: N, Z, C, V

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.20 VMSR

Move to floating-point System Register from ARM Core register.

Syntax

VMSR{cond} FPSCR, Rt

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the general-purpose register to be transferred to the FPSCR.

Operation

This instruction moves the value of a general-purpose register to the FPSCR. See Floating-point

Status Control Register on page 4-50 for more information.

Restrictions

The restrictions are:

•Rt cannot be PC or SP.

Condition flags

This instruction updates the FPSCR.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.21 VMUL

Floating-point Multiply.

Syntax

VMUL{cond}.F32 {Sd,} Sn, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination floating-point value.

Sn, Sm

Are the operand floating-point values.

Operation

This instruction:

1. Multiplies two floating-point values.

2. Places the results in the destination register.

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.22 VNEG

Floating-point Negate.

Syntax

VNEG{cond}.F32 Sd, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination floating-point value.

Specifies the operand floating-point value.

Operation

This instruction:

1. Negates a floating-point value.

2. Places the results in a second floating-point register.

The floating-point instruction inverts the sign bit.

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.23 VNMLA, VNMLS, VNMUL

Floating-point multiply with negation followed by add or subtract.

Syntax

VNMLA{cond}.F32 Sd, Sn, Sm

VNMLS{cond}.F32 Sd, Sn, Sm

VNMUL{cond}.F32 {Sd,} Sn, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination floating-point register.

Sn, Sm

Are the operand floating-point registers.

Operation

The

VNMLA

instruction:

1. Multiplies two floating-point register values.

2. Adds the negation of the floating-point value in the destination register to the negation of

the product.

3. Writes the result back to the destination register.

The

VNMLS

instruction:

1. Multiplies two floating-point register values.

2. Adds the negation of the floating-point value in the destination register to the product.

3. writes the result back to the destination register.

The

VNMUL

instruction:

1. Multiplies together two floating-point register values.

2. Writes the negation of the result to the destination register.

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.24 VPOP

Floating-point extension register Pop.

Syntax

VPOP{cond}{.size} list

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

size

Is an optional data size specifier. If present, it must be equal to the size in bits, 32

or 64, of the registers in

list

Is a list of extension registers to be loaded, as a list of consecutively numbered

doubleword or singleword registers, separated by commas and

surrounded by brackets.

Operation

This instruction loads multiple consecutive extension registers from the stack.

Restrictions

The list must contain at least one register, and not more than sixteen registers.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.25 VPUSH

Floating-point extension register Push.

Syntax

VPUSH{cond}{.size} list

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

size

Is an optional data size specifier. If present, it must be equal to the size in bits, 32

or 64, of the registers in

list

Is a list of the extension registers to be stored, as a list of consecutively numbered

doubleword or singleword registers, separated by commas and surrounded by

brackets.

Operation

This instruction:

• Stores multiple consecutive extension registers to the stack.

Restrictions

The restrictions are:

•

list

must contain at least one register, and not more than sixteen.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.26 VSQRT

Floating-point Square Root.

Syntax

VSQRT{cond}.F32 Sd, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination floating-point value.

Specifies the operand floating-point value.

Operation

This instruction:

• Calculates the square root of the value in a floating-point register.

• Writes the result to another floating-point register.

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.27 VSTM

Floating-point Store Multiple.

Syntax

VSTM{mode}{cond}{.size} Rn{!}, list

where:

mode

Specifies the addressing mode:

•IA Increment After. The consecutive addresses start at the address specified

. This is the default and can be omitted.

•DB Decrement Before. The consecutive addresses end just before the

address specified in

cond

Is an optional condition code, see Conditional execution on page 3-18.

size

Is an optional data size specifier. If present, it must be equal to the size in bits, 32

or 64, of the registers in

list

Specifies the base register. The SP can be used.

is the function that causes the instruction to write a modified value back to

Required if

mode == DB

list

Is a list of the extension registers to be stored, as a list of consecutively numbered

doubleword or singleword registers, separated by commas and surrounded by

brackets.

Operation

This instruction:

• Stores multiple extension registers to consecutive memory locations using a base address

from an ARM core register.

Restrictions

The restrictions are:

•

list

must contain at least one register. If it contains doubleword registers it must not

contain more than 16 registers.

• Use of the PC as

is deprecated.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.28 VSTR

Floating-point Store.

Syntax

VSTR{cond}{.32} Sd, [Rn{, #imm}]

VSTR{cond}{.64} Dd, [Rn{, #imm}]

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

32, 64

Are the optional data size specifiers.

Specifies the source register for a singleword store.

Specifies the source register for a doubleword store.

Specifies the base register. The SP can be used.

imm

Is the + or - immediate offset used to form the address. Values are multiples of 4

in the range 0-1020.

imm

can be omitted, meaning an offset of

Operation

This instruction:

• Stores a single extension register to memory, using an address from an ARM core register,

with an optional offset, defined in

imm

Restrictions

The restrictions are:

• The use of PC for

is deprecated.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.11.29 VSUB

Floating-point Subtract.

Syntax

VSUB{cond}.F32 {Sd,} Sn, Sm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination floating-point value.

Sn, Sm

Are the operand floating-point value.

Operation

This instruction:

1. Subtracts one floating-point value from another floating-point value.

2. Places the results in the destination floating-point register.

Restrictions

There are no restrictions.

Condition flags

These instructions do not change the flags.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12 Miscellaneous instructions

Table 3-16 shows the remaining Cortex-M4 instructions:

Table 3-16 Miscellaneous instructions

Mnemonic Brief description See

BKPT

Breakpoint BKPT on page 3-158

CPSID

Change Processor State, Disable Interrupts CPS on page 3-159

CPSIE

Change Processor State, Enable Interrupts CPS on page 3-159

DMB

Data Memory Barrier DMB on page 3-160

DSB

Data Synchronization Barrier DSB on page 3-161

ISB

Instruction Synchronization Barrier ISB on page 3-162

MRS

Move from special register to register MRS on page 3-163

MSR

Move from register to special register MSR on page 3-164

NOP

No Operation NOP on page 3-165

SEV

Send Event SEV on page 3-166

SVC

Supervisor Call SVC on page 3-167

WFE

Wait For Event WFE on page 3-168

WFI

Wait For Interrupt WFI on page 3-169

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12.1 BKPT

Breakpoint.

Syntax

BKPT #imm

where:

imm

Is an expression evaluating to an integer in the range 0-255 (8-bit value).

Operation

The

BKPT

instruction causes the processor to enter Debug state. Debug tools can use this to

investigate system state when the instruction at a particular address is reached.

imm

is ignored by the processor. If required, a debugger can use it to store additional information

about the breakpoint.

The

BKPT

instruction can be placed inside an IT block, but it executes unconditionally, unaffected

by the condition specified by the

instruction.

Condition flags

This instruction does not change the flags.

Examples

BKPT #0x3 ; Breakpoint with immediate value set to 0x3 (debugger can

; extract the immediate value by locating it using the PC)

Note

ARM does not recommend the use of the BKPT instruction with an immediate value set to

0xAB for any purpose other than Semi-hosting.

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12.2 CPS

Change Processor State.

Syntax

CPSeffect iflags

where:

effect

Is one of:

Clears the special purpose register.

Sets the special purpose register.

iflags

Is a sequence of one or more flags:

Set or clear PRIMASK.

Set or clear FAULTMASK.

Operation

CPS

changes the PRIMASK and FAULTMASK special register values. See Exception mask

registers on page 2-7 for more information about these registers.

Restrictions

The restrictions are:

•use

CPS

only from privileged software, it has no effect if used in unprivileged software

•

CPS

cannot be conditional and so must not be used inside an IT block.

Condition flags

This instruction does not change the condition flags.

Examples

CPSID i ; Disable interrupts and configurable fault handlers (set PRIMASK)

CPSID f ; Disable interrupts and all fault handlers (set FAULTMASK)

CPSIE i ; Enable interrupts and configurable fault handlers (clear PRIMASK)

CPSIE f ; Enable interrupts and fault handlers (clear FAULTMASK)

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12.3 DMB

Data Memory Barrier.

Syntax

DMB{cond}

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Operation

DMB

acts as a data memory barrier. It ensures that all explicit memory accesses that appear, in

program order, before the

DMB

instruction are completed before any explicit memory accesses

that appear, in program order, after the

DMB

instruction.

DMB

does not affect the ordering or

execution of instructions that do not access memory.

Condition flags

This instruction does not change the flags.

Examples

DMB ; Data Memory Barrier

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12.4 DSB

Data Synchronization Barrier.

Syntax

DSB{cond}

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Operation

DSB

acts as a special data synchronization memory barrier. Instructions that come after the

DSB

in program order, do not execute until the

DSB

instruction completes. The

DSB

instruction

completes when all explicit memory accesses before it complete.

Condition flags

This instruction does not change the flags.

Examples

DSB ; Data Synchronisation Barrier

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12.5 ISB

Instruction Synchronization Barrier.

Syntax

ISB{cond}

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Operation

ISB

acts as an instruction synchronization barrier. It flushes the pipeline of the processor, so that

all instructions following the

ISB

are fetched from cache or memory again, after the

ISB

instruction has been completed.

Condition flags

This instruction does not change the flags.

Examples

ISB ; Instruction Synchronisation Barrier

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12.6 MRS

Move the contents of a special register to a general-purpose register.

Syntax

MRS{cond} Rd, spec_reg

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the destination register.

spec_reg

Can be any of:

APSR

IPSR

EPSR

IEPSR

IAPSR

EAPSR

PSR

MSP

PSP

PRIMASK

BASEPRI

BASEPRI_MAX

FAULTMASK

, or

CONTROL

Note

All the

EPSR

and

IPSR

fields are zero when read by the

MRS

instruction.

Operation

Use

MRS

in combination with

MSR

as part of a read-modify-write sequence for updating a PSR,

for example to clear the Q flag.

In process swap code, the programmers model state of the process being swapped out must be

saved, including relevant PSR contents. Similarly, the state of the process being swapped in

must also be restored. These operations use

MRS

in the state-saving instruction sequence and

MSR

in the state-restoring instruction sequence.

Note

BASEPRI_MAX

is an alias of

BASEPRI

when used with the

MRS

instruction.

See MSR on page 3-164.

Restrictions

must not be SP and must not be PC.

Condition flags

This instruction does not change the flags.

Examples

MRS R0, PRIMASK ; Read PRIMASK value and write it to R0

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12.7 MSR

Move the contents of a general-purpose register into the specified special register.

Syntax

MSR{cond} spec_reg, Rn

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Specifies the source register.

spec_reg

Can be any of:

APSR_nzcvq

APSR_g

APSR_nzcvqg

MSP

PSP

PRIMASK

BASEPRI

BASEPRI_MAX

FAULTMASK

, or

CONTROL

Note

You can use

APSR

to refer to

APSR_nzcvq

Operation

The register access operation in

MSR

depends on the privilege level. Unprivileged software can

only access the

APSR

, see Table 2-4 on page 2-5. Privileged software can access all special

registers.

In unprivileged software writes to unallocated or execution state bits in the

PSR

are ignored.

Note

When you write to

BASEPRI_MAX

, the instruction writes to

BASEPRI

only if either:

•

is non-zero and the current

BASEPRI

value is 0

•

is non-zero and less than the current

BASEPRI

value.

See MRS on page 3-163.

Restrictions

must not be SP and must not be PC.

Condition flags

This instruction updates the flags explicitly based on the value in Rn.

Examples

MSR CONTROL, R1 ; Read R1 value and write it to the CONTROL register

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12.8 NOP

No Operation.

Syntax

NOP{cond}

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Operation

NOP

does nothing.

NOP

is not necessarily a time-consuming

NOP

. The processor might remove it

from the pipeline before it reaches the execution stage.

Use

NOP

for padding, for example to place the following instruction on a 64-bit boundary.

Condition flags

This instruction does not change the flags.

Examples

NOP ; No operation

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12.9 SEV

Send Event.

Syntax

SEV{cond}

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Operation

SEV

is a hint instruction that causes an event to be signaled to all processors within a

multiprocessor system. It also sets the local event register to 1, see Power management on

page 2-32.

Condition flags

This instruction does not change the flags.

Examples

SEV ; Send Event

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12.10 SVC

Supervisor Call.

Syntax

SVC{cond} #imm

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

imm

Is an expression evaluating to an integer in the range 0-255 (8-bit value).

Operation

The

SVC

instruction causes the

SVC

exception.

imm

is ignored by the processor. If required, it can be retrieved by the exception handler to

determine what service is being requested.

Condition flags

This instruction does not change the flags.

Examples

SVC #0x32 ; Supervisor Call (SVCall handler can extract the immediate value

; by locating it through the stacked PC)

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12.11 WFE

Wait For Event.

Syntax

WFE{cond}

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Operation

WFE

is a hint instruction.

If the event register is 0,

WFE

suspends execution until one of the following events occurs:

• an exception, unless masked by the exception mask registers or the current priority level

• an exception enters the Pending state, if

SEVONPEND

in the System Control Register is set

• a Debug Entry request, if Debug is enabled

• an event signaled by a peripheral or another processor in a multiprocessor system using

the

SEV

instruction.

If the event register is 1,

WFE

clears it to 0 and returns immediately.

For more information see Power management on page 2-32.

Condition flags

This instruction does not change the flags.

Examples

WFE ; Wait for event

The Cortex-M4 Instruction Set

ID121610 Non-Confidential

3.12.12 WFI

Wait for Interrupt.

Syntax

WFI{cond}

where:

cond

Is an optional condition code, see Conditional execution on page 3-18.

Operation

WFI

is a hint instruction that suspends execution until one of the following events occurs:

• a non-masked interrupt occurs and is taken

• an interrupt masked by PRIMASK becomes pending

• a Debug Entry request.

Condition flags

This instruction does not change the flags.

Examples

WFI ; Wait for interrupt

ID121610 Non-Confidential

Chapter 4

Cortex-M4 Peripherals

This chapter describes the ARM Cortex-M4 core peripherals. It contains the following sections:

•About the Cortex-M4 peripherals on page 4-2

•Nested Vectored Interrupt Controller on page 4-3

•System control block on page 4-11

•System timer, SysTick on page 4-33.

•Optional Memory Protection Unit on page 4-37

•Floating Point Unit (FPU) on page 4-48.

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.1 About the Cortex-M4 peripherals

The address map of the Private Peripheral Bus (PPB) is:

In register descriptions:

• the register type is described as follows:

RW Read and write.

RO Read-only.

WO Write-only.

• the required privilege gives the privilege level required to access the register, as follows:

Privileged

Only privileged software can access the register.

Unprivileged

Both unprivileged and privileged software can access the register.

Table 4-1 Core peripheral register regions

Address Core peripheral Description

0xE000E008

0xE000E00F

SyStem Control Block Table 4-12 on page 4-11

0xE000E010

0xE000E01F

System timer Table 4-32 on page 4-33

0xE000E100

0xE000E4EF

Nested Vectored Interrupt Controller Table 4-2 on page 4-3

0xE000ED00

0xE000ED3F

System Control Block Table 4-12 on page 4-11

0xE000ED90

0xE000ED93

MPU Type Register Reads as zero, indicating MPU is not implementeda

0xE000ED90

0xE000EDB8

Memory Protection Unit Table 4-38 on page 4-38

0xE000EF00

0xE000EF03

Nested Vectored Interrupt Controller Table 4-2 on page 4-3

0xE000EF30

0xE000EF44

Floating Point Unit Table 4-49 on page 4-48

a. Software can read the MPU Type Register at

0xE000ED90

to test for the presence of a Memory Protection Unit (MPU)

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.2 Nested Vectored Interrupt Controller

This section describes the NVIC and the registers it uses. The NVIC supports:

• An implementation-defined number of interrupts, in the range 1-240 interrupts.

• A programmable priority level of 0-255 for each interrupt. A higher level corresponds to

a lower priority, so level 0 is the highest interrupt priority.

• Level and pulse detection of interrupt signals.

• Dynamic reprioritization of interrupts.

• Grouping of priority values into group priority and subpriority fields.

• Interrupt tail-chaining.

• An external Non Maskable Interrupt (NMI)

• Optional WIC, providing ultra-low power sleep mode support.

The processor automatically stacks its state on exception entry and unstacks this state on

exception exit, with no instruction overhead. This provides low latency exception handling. The

hardware implementation of the NVIC registers is:

Table 4-2 NVIC register summary

Address Name Type Required

privilege Reset value Description

0xE000E100

0xE000E11C

NVIC_ISER0-

NVIC_ISER7

RW Privileged

0x00000000

Interrupt Set-enable Registers on page 4-4

0XE000E180

0xE000E19C

NVIC_ICER0-

NVIC_ICER7

RW Privileged

0x00000000

Interrupt Clear-enable Registers on page 4-5

0XE000E200

0xE000E21C

NVIC_ISPR0-

NVIC_ISPR7

RW Privileged

0x00000000

Interrupt Set-pending Registers on page 4-5

0XE000E280

0xE000E29C

NVIC_ICPR0-

NVIC_ICPR7

RW Privileged

0x00000000

Interrupt Clear-pending Registers on page 4-6

0xE000E300

0xE000E31C

NVIC_IABR0-

NVIC_IABR7

RW Privileged

0x00000000

Interrupt Active Bit Registers on page 4-7

0xE000E400

0xE000E4EF

NVIC_IPR0-

NVIC_IPR59

RW Privileged

0x00000000

Interrupt Priority Registers on page 4-7

0xE000EF00

STIR WO Configurablea

0x00000000

Software Trigger Interrupt Register on page 4-8

a. See the register description for more information.

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.2.1 Accessing the Cortex-M4 NVIC registers using CMSIS

CMSIS functions enable software portability between different Cortex-M profile processors. To

access the NVIC registers when using CMSIS, use the following functions:

4.2.2 Interrupt Set-enable Registers

The NVIC_ISER0-NVIC_ISER7 registers enable interrupts, and show which interrupts are

enabled. See the register summary in Table 4-2 on page 4-3 for the register attributes.

The bit assignments are:

If a pending interrupt is enabled, the NVIC activates the interrupt based on its priority. If an

interrupt is not enabled, asserting its interrupt signal changes the interrupt state to pending, but

the NVIC never activates the interrupt, regardless of its priority.

Table 4-3 CMSIS access NVIC functions

CMSIS function Description

void NVIC_EnableIRQ(IRQn_Type IRQn)

aEnables an interrupt or exception.

void NVIC_DisableIRQ(IRQn_Type IRQn)

aDisables an interrupt or exception.

void NVIC_SetPendingIRQ(IRQn_Type IRQn)

aSets the pending status of interrupt or exception to 1.

void NVIC_ClearPendingIRQ(IRQn_Type IRQn)

aClears the pending status of interrupt or exception to 0.

uint32_t NVIC_GetPendingIRQ(IRQn_Type IRQn)

aReads the pending status of interrupt or exception. This

function returns non-zero value if the pending status is

set to 1.

void NVIC_SetPriority(IRQn_Type IRQn, uint32_t priority)

aSets the priority of an interrupt or exception with

configurable priority level to 1.

uint32_t NVIC_GetPriority(IRQn_Type IRQn)

aReads the priority of an interrupt or exception with

configurable priority level. This function return the

current priority level.

a. The input parameter

IRQn

is the IRQ number, see Table 2-16 on page 2-22 for more information.

Table 4-4 ISER bit assignments

Bits Name Function

[31:0] SETENA Interrupt set-enable bits.

Write:

0 = no effect

1 = enable interrupt.

Read:

0 = interrupt disabled

1 = interrupt enabled.

SETENA bits

31 0

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.2.3 Interrupt Clear-enable Registers

The NVIC_ICER0-NVIC_ICER7 registers disable interrupts, and show which interrupts are

enabled. See the register summary in Table 4-2 on page 4-3 for the register attributes.

The bit assignments are:

4.2.4 Interrupt Set-pending Registers

The NVIC_ISPR0-NVIC_ISPR7 registers force interrupts into the pending state, and show

which interrupts are pending. See the register summary in Table 4-2 on page 4-3 for the register

attributes.

The bit assignments are:

Note

Writing 1 to the ISPR bit corresponding to:

• an interrupt that is pending has no effect

• a disabled interrupt sets the state of that interrupt to pending.

Table 4-5 ICER bit assignments

Bits Name Function

[31:0] CLRENA Interrupt clear-enable bits.

Write:

0 = no effect

1 = disable interrupt.

Read:

0 = interrupt disabled

1 = interrupt enabled.

CLRENA bits

31 0

Table 4-6 ISPR bit assignments

Bits Name Function

[31:0] SETPEND Interrupt set-pending bits.

Write:

0 = no effect

1 = changes interrupt state to pending.

Read:

0 = interrupt is not pending

1 = interrupt is pending.

SETPEND bits

31 0

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.2.5 Interrupt Clear-pending Registers

The NVIC_ICPR0-NCVIC_ICPR7 registers remove the pending state from interrupts, and

show which interrupts are pending. See the register summary in Table 4-2 on page 4-3 for the

The bit assignments are:

Note

Writing 1 to an ICPR bit does not affect the active state of the corresponding interrupt.

Table 4-7 ICPR bit assignments

Bits Name Function

[31:0] CLRPEND Interrupt clear-pending bits.

Write:

0 = no effect

1 = removes pending state an interrupt.

Read:

0 = interrupt is not pending

1 = interrupt is pending.

CLRPEND bits

31 0

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.2.6 Interrupt Active Bit Registers

The NVIC_IABR0-NVIC_IABR7 registers indicate which interrupts are active. See the register

summary in Table 4-2 on page 4-3 for the register attributes.

The bit assignments are:

A bit reads as one if the status of the corresponding interrupt is active or active and pending.

4.2.7 Interrupt Priority Registers

The NVIC_IPR0-NVIC_IPR59 registers provide an 8-bit priority field for each interrupt and

each register holds four priority fields. These registers are byte-accessible. See the register

summary in Table 4-2 on page 4-3 for their attributes. Each register holds four priority fields as

shown:

See Accessing the Cortex-M4 NVIC registers using CMSIS on page 4-4 for more information

about the access to the interrupt priority array, which provides the software view of the interrupt

priorities.

Table 4-8 IABR bit assignments

Bits Name Function

[31:0] ACTIVE Interrupt active flags:

0 = interrupt not active

1 = interrupt active.

ACTIVE bits

31 0

Table 4-9 IPR bit assignments

Bits Name Function

[31:24] Priority, byte offset 3 Each implementation-defined priority field can hold a priority value, 0-255. The

lower the value, the greater the priority of the corresponding interrupt. Register

priority value fields are eight bits wide, and non-implemented low-order bits read as

zero and ignore writes.

[23:16] Priority, byte offset 2

[15:8] Priority, byte offset 1

[7:0] Priority, byte offset 0

PRI_239

31 24 23 16 15 8 7 0

PRI_238 PRI_237 PRI_236

IPR59

PRI_4n+3 PRI_4n+2 PRI_4n+1 PRI_4n

IPRn

PRI_3 PRI_2 PRI_1 PRI_0

IPR0

. . . . . .

Cortex-M4 Peripherals

ID121610 Non-Confidential

Find the IPR number and byte offset for interrupt m as follows:

• the corresponding IPR number, see Table 4-8 on page 4-7 n is given by n = m DIV 4

• the byte offset of the required Priority field in this register is m MOD 4, where:

— byte offset 0 refers to register bits[7:0]

— byte offset 1 refers to register bits[15:8]

— byte offset 2 refers to register bits[23:16]

— byte offset 3 refers to register bits[31:24].

4.2.8 Software Trigger Interrupt Register

Write to the STIR to generate an interrupt from software. See the register summary in Table 4-2

on page 4-3 for the STIR attributes.

When the USERSETMPEND bit in the SCR is set to 1, unprivileged software can access the

STIR, see System Control Register on page 4-19.

Note

Only privileged software can enable unprivileged access to the STIR.

The bit assignments are:

4.2.9 Level-sensitive and pulse interrupts

A Cortex-M4 device can support both level-sensitive and pulse interrupts. Pulse interrupts are

also described as edge-triggered interrupts.

A level-sensitive interrupt is held asserted until the peripheral deasserts the interrupt signal.

Typically this happens because the ISR accesses the peripheral, causing it to clear the interrupt

request. A pulse interrupt is an interrupt signal sampled synchronously on the rising edge of the

processor clock. To ensure the NVIC detects the interrupt, the peripheral must assert the

interrupt signal for at least one clock cycle, during which the NVIC detects the pulse and latches

the interrupt.

When the processor enters the ISR, it automatically removes the pending state from the

interrupt, see Hardware and software control of interrupts on page 4-9. For a level-sensitive

interrupt, if the signal is not deasserted before the processor returns from the ISR, the interrupt

becomes pending again, and the processor must execute its ISR again. This means that the

peripheral can hold the interrupt signal asserted until it no longer requires servicing.

See the documentation supplied by your device vendor for details of which interrupts are

level-based and which are pulsed.

Table 4-10 STIR bit assignments

Bits Field Function

[31:9] - Reserved.

[8:0] INTID Interrupt ID of the interrupt to trigger, in

the range 0-239. For example, a value of

0x03

specifies interrupt IRQ3.

931 0

Reserved INTID

Cortex-M4 Peripherals

ID121610 Non-Confidential

Hardware and software control of interrupts

The Cortex-M4 latches all interrupts. A peripheral interrupt becomes pending for one of the

following reasons:

• the NVIC detects that the interrupt signal is HIGH and the interrupt is not active

• the NVIC detects a rising edge on the interrupt signal

• software writes to the corresponding interrupt set-pending register bit, see Interrupt

Set-pending Registers on page 4-5, or to the STIR to make an interrupt pending, see

Software Trigger Interrupt Register on page 4-8.

A pending interrupt remains pending until one of the following:

• The processor enters the ISR for the interrupt. This changes the state of the interrupt from

pending to active. Then:

— For a level-sensitive interrupt, when the processor returns from the ISR, the NVIC

samples the interrupt signal. If the signal is asserted, the state of the interrupt

changes to pending, which might cause the processor to immediately re-enter the

ISR. Otherwise, the state of the interrupt changes to inactive.

— For a pulse interrupt, the NVIC continues to monitor the interrupt signal, and if this

is pulsed the state of the interrupt changes to pending and active. In this case, when

the processor returns from the ISR the state of the interrupt changes to pending,

which might cause the processor to immediately re-enter the ISR.

If the interrupt signal is not pulsed while the processor is in the ISR, when the

processor returns from the ISR the state of the interrupt changes to inactive.

• Software writes to the corresponding interrupt clear-pending register bit.

For a level-sensitive interrupt, if the interrupt signal is still asserted, the state of the

interrupt does not change. Otherwise, the state of the interrupt changes to inactive.

For a pulse interrupt, state of the interrupt changes to:

— inactive, if the state was pending

— active, if the state was active and pending.

4.2.10 NVIC usage hints and tips

Ensure software uses correctly aligned register accesses. The processor does not support

unaligned accesses to NVIC registers. See the individual register descriptions for the supported

access sizes.

A interrupt can enter pending state even if it is disabled. Disabling an interrupt only prevents the

processor from taking that interrupt.

Before programming VTOR to relocate the vector table, ensure the vector table entries of the

new vector table are setup for fault handlers, NMI and all enabled exception like interrupts. For

more information see Vector Table Offset Register on page 4-16.

NVIC programming hints

Software uses the CPSIE I and CPSID I instructions to enable and disable interrupts. The

CMSIS provides the following intrinsic functions for these instructions:

void __disable_irq(void) // Disable Interrupts

void __enable_irq(void) // Enable Interrupts

Cortex-M4 Peripherals

ID121610 Non-Confidential

In addition, the CMSIS provides a number of functions for NVIC control, including:

The input parameter IRQn is the IRQ number, see Table 2-16 on page 2-22. For more

information about these functions see the CMSIS documentation.

Table 4-11 CMSIS functions for NVIC control

CMSIS interrupt control function Description

void NVIC_SetPriorityGrouping(uint32_t priority_grouping)

Set the priority grouping

void NVIC_EnableIRQ(IRQn_t IRQn)

Enable IRQn

void NVIC_DisableIRQ(IRQn_t IRQn)

Disable IRQn

uint32_t NVIC_GetPendingIRQ (IRQn_t IRQn)

Return true (IRQ-Number) if IRQn is pending

void NVIC_SetPendingIRQ (IRQn_t IRQn)

Set IRQn pending

void NVIC_ClearPendingIRQ (IRQn_t IRQn)

Clear IRQn pending status

uint32_t NVIC_GetActive (IRQn_t IRQn)

Return the IRQ number of the active interrupt

void NVIC_SetPriority (IRQn_t IRQn, uint32_t priority)

Set priority for IRQn

uint32_t NVIC_GetPriority (IRQn_t IRQn)

Read priority of IRQn

void NVIC_SystemReset (void)

Reset the system

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.3 System control block

The System Control Block (SCB) provides system implementation information, and system

control. This includes configuration, control, and reporting of the system exceptions. The

system control block registers are:

4.3.1 Auxiliary Control Register

The ACTLR provides disable bits for the following processor functions:

• IT folding

• write buffer use for accesses to the default memory map

• interruption of multi-cycle instructions.

By default this register is set to provide optimum performance from the Cortex-M4 processor,

and does not normally require modification.

Table 4-12 Summary of the system control block registers

Address Name Type Required

privilege Reset value Description

0xE000E008

ACTLR RW Privileged

0x00000000

Auxiliary Control Register

0xE000ED00

CPUID RO Privileged

0x410FC240

CPUID Base Register on page 4-13

0xE000ED04

ICSR RWaPrivileged

0x00000000

Interrupt Control and State Register on page 4-13

0xE000ED08

VTOR RW Privileged

0x00000000

Vector Table Offset Register on page 4-16

0xE000ED0C

AIRCR RW aPrivileged

0xFA050000

Application Interrupt and Reset Control Register on page 4-16

0xE000ED10

SCR RW Privileged

0x00000000

System Control Register on page 4-19

0xE000ED14

CCR RW Privileged

0x00000200

Configuration and Control Register on page 4-19

0xE000ED18

SHPR1 RW Privileged

0x00000000

System Handler Priority Register 1 on page 4-21

0xE000ED1C

SHPR2 RW Privileged

0x00000000

System Handler Priority Register 2 on page 4-22

0xE000ED20

SHPR3 RW Privileged

0x00000000

System Handler Priority Register 3 on page 4-22

0xE000ED24

SHCRS RW Privileged

0x00000000

System Handler Control and State Register on page 4-23

0xE000ED28

CFSR RW Privileged

0x00000000

Configurable Fault Status Register on page 4-24

0xE000ED28

MMSRbRW Privileged

0x00

MemManage Fault Status Register on page 4-25

0xE000ED29

BFSRbRW Privileged

0x00

BusFault Status Register on page 4-26

0xE000ED2A

UFSRbRW Privileged

0x0000

UsageFault Status Register on page 4-28

0xE000ED2C

HFSR RW Privileged

0x00000000

HardFault Status Register on page 4-30

0xE000ED34

MMAR RW Privileged Unknown MemManage Fault Address Register on page 4-30

0xE000ED38

BFAR RW Privileged Unknown BusFault Address Register on page 4-31

0xE000ED3C

AFSR RW Privileged

0x00000000

Auxiliary Fault Status Register on page 4-31

a. See the register description for more information.

b. A subregister of the CFSR.

Cortex-M4 Peripherals

ID121610 Non-Confidential

See the register summary in Table 4-12 on page 4-11 for the ACTLR attributes. The bit

assignments are:

About IT folding

In some situations, the processor can start executing the first instruction in an IT block while it

is still executing the

instruction. This behavior is called IT folding, and improves

performance, However, IT folding can cause jitter in looping. If a task must avoid jitter, set the

DISFOLD bit to 1 before executing the task, to disable IT folding.

ReservedReserved

31 3210

DISFOLD

DISDEFWBUF

DISMCYCINT

10 9 8 7

DISFPCA

DISOOFP

Table 4-13 ACTLR bit assignments

Bits Name Function

[31:10] - Reserved.

[9] DISOOFPaDisables floating point instructions completing out of order with respect to integer instructions.

[8] DISFPCAaDisables automatic update of CONTROL.FPCA.

[7:3] - Reserved.

[2] DISFOLD When set to 1, disables IT folding. see About IT folding for more information.

[1] DISDEFWBUF When set to 1, disables write buffer use during default memory map accesses. This causes all

BusFaults to be precise BusFaults but decreases performance because any store to memory must

complete before the processor can execute the next instruction.

Note

This bit only affects write buffers implemented in the Cortex-M4 processor.

[0] DISMCYCINT When set to 1, disables interruption of load multiple and store multiple instructions. This increases

the interrupt latency of the processor because any LDM or STM must complete before the

processor can stack the current state and enter the interrupt handler.

a. Only implemented in a Cortex-M4F device

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.3.2 CPUID Base Register

The CPUID register contains the processor part number, version, and implementation

information. See the register summary in Table 4-12 on page 4-11 for its attributes. The bit

assignments are:

4.3.3 Interrupt Control and State Register

The ICSR:

• provides:

— a set-pending bit for the Non-Maskable Interrupt (NMI) exception

— set-pending and clear-pending bits for the PendSV and SysTick exceptions

• indicates:

— the exception number of the exception being processed

— whether there are preempted active exceptions

— the exception number of the highest priority pending exception

— whether any interrupts are pending.

Table 4-14 CPUID register bit assignments

Bits Name Function

[31:24] Implementer Implementer code:

0x41

= ARM

[23:20] Variant Variant number, the r value in the rnpn product revision identifier:

0x0

= Revision 0

[19:16] Constant Reads as

0xF

[15:4] PartNo Part number of the processor:

0xC24

= Cortex-M4

[3:0] Revision Revision number, the p value in the rnpn product revision identifier:

0x0

= Patch 0

31 16 15 4 3 0

Implementer RevisionPartNo

24 23 20 19

Variant Constant

Cortex-M4 Peripherals

ID121610 Non-Confidential

See the register summary in Table 4-12 on page 4-11, and the Type descriptions in Table 4-15,

for the ICSR attributes. The bit assignments are:

31 28 22 21 910 0

VECTACTIVE

30 29 27 26 2324 12 11

VECTPENDING

NMIPENDSET

PENDSVSET

PENDSVCLR

Reserved for Debug

ISRPENDING Reserved

RETTOBASE

PENDSTSET

PENDSTCLR

Reserved

Table 4-15 ICSR bit assignments

Bits Name Type Function

[31] NMIPENDSET RW NMI set-pending bit.

Write:

0 = no effect

1 = changes NMI exception state to pending.

Read:

0 = NMI exception is not pending

1 = NMI exception is pending.

Because NMI is the highest-priority exception, normally the processor enter the NMI

exception handler as soon as it registers a write of 1 to this bit, and entering the handler clears

this bit to 0. A read of this bit by the NMI exception handler returns 1 only if the NMI signal

is reasserted while the processor is executing that handler.

[30:29] - - Reserved.

[28] PENDSVSET RW PendSV set-pending bit.

Write:

0 = no effect

1 = changes PendSV exception state to pending.

Read:

0 = PendSV exception is not pending

1 = PendSV exception is pending.

Writing 1 to this bit is the only way to set the PendSV exception state to pending.

[27] PENDSVCLR WO PendSV clear-pending bit.

Write:

0 = no effect

1 = removes the pending state from the PendSV exception.

[26] PENDSTSET RW SysTick exception set-pending bit.

Write:

0 = no effect

1 = changes SysTick exception state to pending.

Read:

0 = SysTick exception is not pending

1 = SysTick exception is pending.

Cortex-M4 Peripherals

ID121610 Non-Confidential

When you write to the ICSR, the effect is Unpredictable if you:

• write 1 to the PENDSVSET bit and write 1 to the PENDSVCLR bit

• write 1 to the PENDSTSET bit and write 1 to the PENDSTCLR bit.

[25] PENDSTCLR WO SysTick exception clear-pending bit.

Write:

0 = no effect

1 = removes the pending state from the SysTick exception.

This bit is WO. On a register read its value is

Unknown

[24] - - Reserved.

[23] Reserved for

Debug use

RO This bit is reserved for Debug use and reads-as-zero when the processor is not in Debug.

[22] ISRPENDING RO Interrupt pending flag, excluding NMI and Faults:

0 = interrupt not pending

1 = interrupt pending.

[21:18] - - Reserved.

[17:12] VECTPENDING RO Indicates the exception number of the highest priority pending enabled exception:

0 = no pending exceptions

Nonzero = the exception number of the highest priority pending enabled exception.

The value indicated by this field includes the effect of the BASEPRI and FAULTMASK

registers, but not any effect of the PRIMASK register.

[11] RETTOBASE RO Indicates whether there are preempted active exceptions:

0 = there are preempted active exceptions to execute

1 = there are no active exceptions, or the currently-executing exception is the only active

exception.

[10:9] - - Reserved.

[8:0] VECTACTIVEaRO Contains the active exception number:

0 = Thread mode

Nonzero = The exception numbera of the currently active exception.

Note

Subtract 16 from this value to obtain the CMSIS IRQ number required to index into the

Interrupt Clear-Enable, Set-Enable, Clear-Pending, Set-Pending, or Priority Registers, see

Table 2-5 on page 2-6.

a. This is the same value as IPSR bits[8:0], see Interrupt Program Status Register on page 2-6.

Table 4-15 ICSR bit assignments (continued)

Bits Name Type Function

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.3.4 Vector Table Offset Register

The VTOR indicates the offset of the vector table base address from memory address

0x00000000

. See the register summary in Table 4-12 on page 4-11 for its attributes. The bit

assignments are:

When setting TBLOFF, you must align the offset to the number of exception entries in the vector

table. The minimum alignment is 32 words, enough for up to 16 interrupts. For more interrupts,

adjust the alignment by rounding up to the next power of two. For example, if you require 21

interrupts, the alignment must be on a 64-word boundary because the required table size is 37

words, and the next power of two is 64. See your vendor documentation for the alignment details

of your device.

Note

Table alignment requirements mean that bits[6:0] of the table offset are always zero.

4.3.5 Application Interrupt and Reset Control Register

The AIRCR provides priority grouping control for the exception model, endian status for data

accesses, and reset control of the system. See the register summary in Table 4-12 on page 4-11

and Table 4-17 on page 4-17 for its attributes.

To write to this register, you must write

0x5FA

to the VECTKEY field, otherwise the processor

ignores the write.

31 76 0

TBLOFF Reserved

Table 4-16 VTOR bit assignments

Bits Name Function

[31:7] TBLOFF Vector table base offset field. It contains bits[29:7] of the offset of the table base from the bottom

of the memory map.

Note

Bit[29] determines whether the vector table is in the code or SRAM memory region:

• 0 = code

•1 = SRAM.

In implementations bit[29] is sometimes called the TBLBASE bit.

[6:0] - Reserved.

Cortex-M4 Peripherals

ID121610 Non-Confidential

The bit assignments are:

On read: VECTKEYSTAT

On write: VECTKEY

31 16 15 14 11 10 8 7 3 2 1 0

Reserved Reserved

ENDIANNESS PRIGROUP SYSRESETREQ

VECTCLRACTIVE

VECTRESET

Reserved for Debug use

Table 4-17 AIRCR bit assignments

Bits Name Type Function

[31:16] Write: VECTKEYSTAT

Read: VECTKEY

RW Register key:

Reads as

0xFA05

On writes, write

0x5FA

to VECTKEY, otherwise the write is ignored.

[15] ENDIANNESS RO Data endianness bit is implementation defined:

0 = Little-endian

1 = Big-endian.

[14:11] - - Reserved.

[10:8] PRIGROUP R/W Interrupt priority grouping field is implementation defined. This field

determines the split of group priority from subpriority, see Binary point on

page 4-18.

[7:3] - - Reserved.

[2] SYSRESETREQ WO System reset request bit is implementation defined:

0 = no system reset request

1 = asserts a signal to the outer system that requests a reset.

This is intended to force a large system reset of all major components

except for debug.

This bit reads as 0.

See you vendor documentation for more information about the use of this

signal in your implementation.

[1] VECTCLRACTIVE WO Reserved for Debug use. This bit reads as 0. When writing to the register

you must write 0 to this bit, otherwise behavior is Unpredictable.

[0] VECTRESET WO Reserved for Debug use. This bit reads as 0. When writing to the register

you must write 0 to this bit, otherwise behavior is Unpredictable.

Cortex-M4 Peripherals

ID121610 Non-Confidential

Binary point

The PRIGROUP field indicates the position of the binary point that splits the PRI_n fields in

the Interrupt Priority Registers into separate group priority and subpriority fields. Table 4-18

shows how the PRIGROUP value controls this split. Implementations having fewer than 8-bits

of interrupt priority treat the least significant bits as zero

Note

Determining preemption of an exception uses only the group priority field, see Interrupt priority

grouping on page 2-25.

Table 4-18 Priority grouping

Interrupt priority level value, PRI_N[7:0] Number of

PRIGROUP Binary pointaGroup priority bits Subpriority bits Group priorities Subpriorities

0b000

bxxxxxxx.y [7:1] [0] 128 2

0b001

bxxxxxx.yy [7:2] [1:0] 64 4

0b010

bxxxxx.yyy [7:3] [2:0] 32 8

0b011

bxxxx.yyyy [7:4] [3:0] 16 16

0b100

bxxx.yyyyy [7:5] [4:0] 8 32

0b101

bxx.yyyyyy [7:6] [5:0] 4 64

0b110

bx.yyyyyyy [7] [6:0] 2 128

0b111

b.yyyyyyyy None [7:0] 1 256

a. PRI_n[7:0] field showing the binary point. x denotes a group priority field bit, and y denotes a subpriority field bit.

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.3.6 System Control Register

The SCR controls features of entry to and exit from low power state. See the register summary

in Table 4-12 on page 4-11 for its attributes. The bit assignments are:

4.3.7 Configuration and Control Register

The CCR controls entry to Thread mode and enables:

• the handlers for NMI, hard fault and faults escalated by FAULTMASK to ignore

BusFaults

• trapping of divide by zero and unaligned accesses

• access to the STIR by unprivileged software, see Software Trigger Interrupt Register on

page 4-8.

See the register summary in Table 4-12 on page 4-11 for the CCR attributes.

31 4 3 2 1 0

Reserved

SLEEPDEEP

SLEEPONEXIT

Reserved

SEVONPEND

Table 4-19 SCR bit assignments

Bits Name Function

[31:5] - Reserved.

[4] SEVONPEND Send Event on Pending bit:

0 = only enabled interrupts or events can wakeup the processor, disabled interrupts are

excluded

1 = enabled events and all interrupts, including disabled interrupts, can wakeup the

processor.

When an event or interrupt enters pending state, the event signal wakes up the processor

from WFE. If the processor is not waiting for an event, the event is registered and affects the

next WFE.

The processor also wakes up on execution of an

SEV

instruction or an external event.

[3] - Reserved.

[2] SLEEPDEEP Controls whether the processor uses sleep or deep sleep as its low power mode:

0 = sleep

1 = deep sleep.

[1] SLEEPONEXIT Indicates sleep-on-exit when returning from Handler mode to Thread mode:

0 = do not sleep when returning to Thread mode.

1 = enter sleep, or deep sleep, on return from an ISR.

Setting this bit to 1 enables an interrupt driven application to avoid returning to an empty

main application.

[0] - Reserved.

Cortex-M4 Peripherals

ID121610 Non-Confidential

The bit assignments are:

DIV_0_TRP

Reserved

UNALIGN_TRP

NONBASETHRDENA

USERSETMPEND

BFHFNMIGN

STKALIGN

Reserved

31 10 9 8 7 5 4 3 2 1 0

Reserved

Table 4-20 CCR bit assignments

Bits Name Function

[31:10] - Reserved.

[9] STKALIGN Indicates stack alignment on exception entry:

0 = 4-byte aligned

1 = 8-byte aligned.

On exception entry, the processor uses bit[9] of the stacked PSR to indicate the

stack alignment. On return from the exception it uses this stacked bit to restore

the correct stack alignment.

[8] BFHFNMIGN Enables handlers with priority -1 or -2 to ignore data BusFaults caused by load

and store instructions. This applies to the hard fault, NMI, and FAULTMASK

escalated handlers:

0 = data bus faults caused by load and store instructions cause a lock-up

1 = handlers running at priority -1 and -2 ignore data bus faults caused by load

and store instructions.

Set this bit to 1 only when the handler and its data are in absolutely safe memory.

The normal use of this bit is to probe system devices and bridges to detect control

path problems and fix them.

[7:5] - Reserved.

[4] DIV_0_TRP Enables faulting or halting when the processor executes an

SDIV

UDIV

instruction with a divisor of 0:

0 = do not trap divide by 0

1 = trap divide by 0.

When this bit is set to 0, a divide by zero returns a quotient of 0.

[3] UNALIGN_TRP Enables unaligned access traps:

0 = do not trap unaligned halfword and word accesses

1 = trap unaligned halfword and word accesses.

If this bit is set to 1, an unaligned access generates a UsageFault.

Unaligned

LDM

STM

LDRD

, and

STRD

instructions always fault irrespective of

whether UNALIGN_TRP is set to 1.

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.3.8 System Handler Priority Registers

The SHPR1-SHPR3 registers set the priority level, 0 to 255, of the exception handlers that have

configurable priority.

SHPR1-SHPR3 are byte accessible. See the register summary in Table 4-12 on page 4-11 for

their attributes.

To access to the system exception priority level using CMSIS, use the following CMSIS

functions:

•

uint32_t NVIC_GetPriority(IRQn_Type IRQn)

•

void NVIC_SetPriority(IRQn_Type IRQn, uint32_t priority)

The input parameter IRQn is the IRQ number, see Table 2-16 on page 2-22 for more

information.

System Handler Priority Register 1

The bit assignments are:

[2] - Reserved.

[1] USERSETMPEND Enables unprivileged software access to the STIR, see Software Trigger Interrupt

0 = disable

1 = enable.

[0] NONBASETHRDENA Indicates how the processor enters Thread mode:

0 = processor can enter Thread mode only when no exception is active.

1 = processor can enter Thread mode from any level under the control of an

EXC_RETURN value, see Exception return on page 2-28.

Table 4-20 CCR bit assignments (continued)

Bits Name Function

Table 4-21 SHPR1 register bit assignments

Bits Name Function

[31:24] PRI_7 Reserved.

[23:16] PRI_6 Priority of system handler 6, UsageFault

[15:8] PRI_5 Priority of system handler 5, BusFault

[7:0] PRI_4 Priority of system handler 4, MemManage

31 24 23 0

Reserved PRI_6 PRI_5 PRI_4

16 15 8 7

Cortex-M4 Peripherals

ID121610 Non-Confidential

System Handler Priority Register 2

The bit assignments are:

System Handler Priority Register 3

The bit assignments are:

Table 4-22 SHPR2 register bit assignments

Bits Name Function

[31:24] PRI_11 Priority of system handler 11, SVCall

[23:0] - Reserved.

Table 4-23 SHPR3 register bit assignments

Bits Name Function

[31:24] PRI_15 Priority of system handler 15, SysTick exception

[23:16] PRI_14 Priority of system handler 14, PendSV

[15:0] - Reserved.

31 24 23 0

PRI_11 Reserved

PRI_15

31 15 01624 23

PRI_14 Reserved

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.3.9 System Handler Control and State Register

The SHCSR enables the system handlers, and indicates:

• the pending status of the BusFault, MemManage fault, and SVC exceptions

• the active status of the system handlers.

See the register summary in Table 4-12 on page 4-11 for the SHCSR attributes. The bit

assignments are:

Table 4-24 SHCSR bit assignments

Bits Name Function

[31:19] - Reserved.

[18] USGFAULTENA UsageFault enable bit, set to 1 to enablea

[17] BUSFAULTENA BusFault enable bit, set to 1 to enablea

[16] MEMFAULTENA MemManage enable bit, set to 1 to enablea

[15] SVCALLPENDED SVCall pending bit, reads as 1 if exception is pendingb

[14] BUSFAULTPENDED BusFault exception pending bit, reads as 1 if exception is pendingb

[13] MEMFAULTPENDED MemManage exception pending bit, reads as 1 if exception is pendingb

[12] USGFAULTPENDED UsageFault exception pending bit, reads as 1 if exception is pendingb

[11] SYSTICKACT SysTick exception active bit, reads as 1 if exception is activec

[10] PENDSVACT PendSV exception active bit, reads as 1 if exception is active

[9] - Reserved.

[8] MONITORACT Debug monitor active bit, reads as 1 if Debug monitor is active

[7] SVCALLACT SVCall active bit, reads as 1 if SVC call is active

[6:4] - Reserved.

[3] USGFAULTACT UsageFault exception active bit, reads as 1 if exception is active

USGFAULTENA

SVCALLPENDED

BUSFAULTENA

MEMFAULTENA

BUSFAULTPENDED

SYSTICKACT

PENDSVACT

MONITORACT

SVCALLACT

USGFAULTACT

BUSFAULTACT

MEMFAULTACT

MEMFAULTPENDED

USGFAULTPENDED

Reserved

31 19 18 17 16 15 14 13 12 11 10 9 8 7 6 4 3 2 1 0

Cortex-M4 Peripherals

ID121610 Non-Confidential

If you disable a system handler and the corresponding fault occurs, the processor treats the fault

as a hard fault.

You can write to this register to change the pending or active status of system exceptions. An

OS kernel can write to the active bits to perform a context switch that changes the current

exception type.

Caution

• Software that changes the value of an active bit in this register without correct adjustment

to the stacked content can cause the processor to generate a fault exception. Ensure

software that writes to this register retains and subsequently restores the current active

status.

• After you have enabled the system handlers, if you have to change the value of a bit in this

required bit.

4.3.10 Configurable Fault Status Register

The CFSR indicates the cause of a MemManage fault, BusFault, or UsageFault. See the register

summary in Table 4-12 on page 4-11 for its attributes. The bit assignments are:

The following subsections describe the subregisters that make up the CFSR:

•MemManage Fault Status Register on page 4-25

•BusFault Status Register on page 4-26

•UsageFault Status Register on page 4-28.

The CFSR is byte accessible. You can access the CFSR or its subregisters as follows:

• access the complete CFSR with a word access to

0xE000ED28

• access the MMFSR with a byte access to

0xE000ED28

• access the MMFSR and BFSR with a halfword access to

0xE000ED28

• access the BFSR with a byte access to

0xE000ED29

• access the UFSR with a halfword access to

0xE000ED2A

[2] - Reserved.

[1] BUSFAULTACT BusFault exception active bit, reads as 1 if exception is active

[0] MEMFAULTACT MemManage exception active bit, reads as 1 if exception is active

a. Enable bits, set to 1 to enable the exception, or set to 0 to disable the exception.

b. Pending bits, read as 1 if the exception is pending, or as 0 if it is not pending. You can write to these bits to change the pending

status of the exceptions.

c. Active bits, read as 1 if the exception is active, or as 0 if it is not active. You can write to these bits to change the active status

of the exceptions, but see the Caution in this section.

Table 4-24 SHCSR bit assignments (continued)

Bits Name Function

Memory Management

Fault Status Register

31 16 15 8 7 0

Usage Fault Status Register Bus Fault Status

UFSR BFSR MMFSR

Cortex-M4 Peripherals

ID121610 Non-Confidential

MemManage Fault Status Register

The flags in the MMFSR indicate the cause of memory access faults. The bit assignments are:

MMARVALID

Reserved

MSTKERR MUNSTKERR

76543210

IACCVIOL

DACCVIOL

ReservedMLSPERR

Table 4-25 MMFSR bit assignments

Bits Name Function

[7] MMARVALID MemManage Fault Address Register (MMFAR) valid flag:

0 = value in MMAR is not a valid fault address

1 = MMAR holds a valid fault address.

If a MemManage fault occurs and is escalated to a HardFault because of priority, the HardFault

handler must set this bit to 0. This prevents problems on return to a stacked active MemManage

fault handler whose MMAR value has been overwritten.

[6] - Reserved.

[5] MLSPERRa0 = no MemManage fault occurred during floating-point lazy state preservation

1 = a MemManage fault occurred during floating-point lazy state preservation.

[4] MSTKERR MemManage fault on stacking for exception entry:

0 = no stacking fault

1 = stacking for an exception entry has caused one or more access violations.

When this bit is 1, the SP is still adjusted but the values in the context area on the stack might

be incorrect. The processor has not written a fault address to the MMAR.

[3] MUNSTKERR MemManage fault on unstacking for a return from exception:

0 = no unstacking fault

1 = unstack for an exception return has caused one or more access violations.

This fault is chained to the handler. This means that when this bit is 1, the original return stack

is still present. The processor has not adjusted the SP from the failing return, and has not

performed a new save. The processor has not written a fault address to the MMAR.

[2] - Reserved.

[1] DACCVIOL Data access violation flag:

0 = no data access violation fault

1 = the processor attempted a load or store at a location that does not permit the operation.

When this bit is 1, the PC value stacked for the exception return points to the faulting

instruction. The processor has loaded the MMAR with the address of the attempted access.

[0] IACCVIOL Instruction access violation flag:

0 = no instruction access violation fault

1 = the processor attempted an instruction fetch from a location that does not permit execution.

This fault occurs on any access to an XN region, even when the MPU is disabled or not present.

When this bit is 1, the PC value stacked for the exception return points to the faulting

instruction. The processor has not written a fault address to the MMAR.

a. Only present in a Cortex-M4F device.

Cortex-M4 Peripherals

ID121610 Non-Confidential

BusFault Status Register

The flags in the BFSR indicate the cause of a bus access fault. The bit assignments are:

BFARVALID

LSPERR

STKERR UNSTKERR

76543210

IBUSERR

PRECISERR

IMPRECISERR

Reserved

Table 4-26 BFSR bit assignments

Bits Name Function

[7] BFARVALID BusFault Address Register (BFAR) valid flag:

0 = value in BFAR is not a valid fault address

1 = BFAR holds a valid fault address.

The processor sets this bit to 1 after a BusFault where the address is known. Other faults can set this bit to

0, such as a MemManage fault occurring later.

If a BusFault occurs and is escalated to a hard fault because of priority, the hard fault handler must set this

bit to 0. This prevents problems if returning to a stacked active BusFault handler whose BFAR value has

been overwritten.

[6] - Reserved.

[5] LSPERRa0 = no bus fault occurred during floating-point lazy state preservation

1 = a bus fault occurred during floating-point lazy state preservation.

[4] STKERR BusFault on stacking for exception entry:

0 = no stacking fault

1 = stacking for an exception entry has caused one or more BusFaults.

When the processor sets this bit to 1, the SP is still adjusted but the values in the context area on the stack

might be incorrect. The processor does not write a fault address to the BFAR.

[3] UNSTKERR BusFault on unstacking for a return from exception:

0 = no unstacking fault

1 = unstack for an exception return has caused one or more BusFaults.

This fault is chained to the handler. This means that when the processor sets this bit to 1, the original return

stack is still present. The processor does not adjust the SP from the failing return, does not performed a

new save, and does not write a fault address to the BFAR.

Cortex-M4 Peripherals

ID121610 Non-Confidential

[2] IMPRECISERR Imprecise data bus error:

0 = no imprecise data bus error

1 = a data bus error has occurred, but the return address in the stack frame is not related to the instruction

that caused the error.

When the processor sets this bit to 1, it does not write a fault address to the BFAR.

This is an asynchronous fault. Therefore, if it is detected when the priority of the current process is higher

than the BusFault priority, the BusFault becomes pending and becomes active only when the processor

returns from all higher priority processes. If a precise fault occurs before the processor enters the handler

for the imprecise BusFault, the handler detects both IMPRECISERR set to 1 and one of the precise fault

status bits set to 1.

[1] PRECISERR Precise data bus error:

0 = no precise data bus error

1 = a data bus error has occurred, and the PC value stacked for the exception return points to the instruction

that caused the fault.

When the processor sets this bit is 1, it writes the faulting address to the BFAR.

[0] IBUSERR Instruction bus error:

0 = no instruction bus error

1 = instruction bus error.

The processor detects the instruction bus error on prefetching an instruction, but it sets the IBUSERR flag

to 1 only if it attempts to issue the faulting instruction.

When the processor sets this bit is 1, it does not write a fault address to the BFAR.

a. Only present in a Cortex-M4F device.

Table 4-26 BFSR bit assignments (continued)

Bits Name Function

Cortex-M4 Peripherals

ID121610 Non-Confidential

UsageFault Status Register

The UFSR indicates the cause of a UsageFault. The bit assignments are:

NOCP

INVPC

INVSTATE

UNDEFINSTR

DIVBYZERO

UNALIGNED

15 10987 43210

Reserved Reserved

Table 4-27 UFSR bit assignments

Bits Name Function

[15:10] - Reserved.

[9] DIVBYZERO Divide by zero UsageFault:

0 = no divide by zero fault, or divide by zero trapping not enabled

1 = the processor has executed an

SDIV

UDIV

instruction with a divisor of 0.

When the processor sets this bit to 1, the PC value stacked for the exception return points to the instruction

that performed the divide by zero.

Enable trapping of divide by zero by setting the DIV_0_TRP bit in the CCR to 1, see Configuration and

Control Register on page 4-19.

[8] UNALIGNED Unaligned access UsageFault:

0 = no unaligned access fault, or unaligned access trapping not enabled

1 = the processor has made an unaligned memory access.

Enable trapping of unaligned accesses by setting the UNALIGN_TRP bit in the CCR to 1, see

Configuration and Control Register on page 4-19.

Unaligned

LDM

STM

LDRD

, and

STRD

instructions always fault irrespective of the setting of UNALIGN_TRP.

[7:4] - Reserved.

[3] NOCP No coprocessor UsageFault. The processor does not support coprocessor instructions:

0 = no UsageFault caused by attempting to access a coprocessor

1 = the processor has attempted to access a coprocessor.

Cortex-M4 Peripherals

ID121610 Non-Confidential

Note

The UFSR bits are sticky. This means as one or more fault occurs, the associated bits are set to

1. A bit that is set to 1 is cleared to 0 only by writing 1 to that bit, or by a reset.

[2] INVPC Invalid PC load UsageFault, caused by an invalid PC load by EXC_RETURN:

0 = no invalid PC load UsageFault

1 = the processor has attempted an illegal load of EXC_RETURN to the PC, as a result of an invalid

context, or an invalid EXC_RETURN value.

When this bit is set to 1, the PC value stacked for the exception return points to the instruction that tried

to perform the illegal load of the PC.

[1] INVSTATE Invalid state UsageFault:

0 = no invalid state UsageFault

1 = the processor has attempted to execute an instruction that makes illegal use of the EPSR.

When this bit is set to 1, the PC value stacked for the exception return points to the instruction that

attempted the illegal use of the EPSR.

This bit is not set to 1 if an undefined instruction uses the EPSR.

[0] UNDEFINSTR Undefined instruction UsageFault:

0 = no undefined instruction UsageFault

1 = the processor has attempted to execute an undefined instruction.

When this bit is set to 1, the PC value stacked for the exception return points to the undefined instruction.

An undefined instruction is an instruction that the processor cannot decode.

Table 4-27 UFSR bit assignments (continued)

Bits Name Function

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.3.11 HardFault Status Register

The HFSR gives information about events that activate the HardFault handler. See the register

summary in Table 4-12 on page 4-11 for its attributes.

This register is read, write to clear. This means that bits in the register read normally, but writing

1 to any bit clears that bit to 0. The bit assignments are:

Note

The HFSR bits are sticky. This means as one or more fault occurs, the associated bits are set to

1. A bit that is set to 1 is cleared to 0 only by writing 1 to that bit, or by a reset.

4.3.12 MemManage Fault Address Register

The MMFAR contains the address of the location that generated a MemManage fault. See the

31 30 210

Reserved

DEBUGEVT

FORCED VECTTBL

Reserved

Table 4-28 HFSR bit assignments

Bits Name Function

[31] DEBUGEVT Reserved for Debug use. When writing to the register you must write 0 to this bit, otherwise

behavior is Unpredictable.

[30] FORCED Indicates a forced hard fault, generated by escalation of a fault with configurable priority that

cannot be handles, either because of priority or because it is disabled:

0 = no forced HardFault

1 = forced HardFault.

When this bit is set to 1, the HardFault handler must read the other fault status registers to find

the cause of the fault.

[29:2] - Reserved.

[1] VECTTBL Indicates a BusFault on a vector table read during exception processing:

0 = no BusFault on vector table read

1 = BusFault on vector table read.

This error is always handled by the hard fault handler.

When this bit is set to 1, the PC value stacked for the exception return points to the instruction

that was preempted by the exception.

[0] - Reserved.

Table 4-29 MMFAR bit assignments

Bits Name Function

[31:0] ADDRESS When the MMARVALID bit of the MMFSR is set to 1, this field holds the address of the location

that generated the MemManage fault

Cortex-M4 Peripherals

ID121610 Non-Confidential

When an unaligned access faults, the address is the actual address that faulted. Because a single

read or write instruction can be split into multiple aligned accesses, the fault address can be any

address in the range of the requested access size.

Flags in the MMFSR indicate the cause of the fault, and whether the value in the MMFAR is

valid. See MemManage Fault Status Register on page 4-25.

4.3.13 BusFault Address Register

The BFAR contains the address of the location that generated a BusFault. See the register

summary in Table 4-12 on page 4-11 for its attributes. The bit assignments are:

When an unaligned access faults the address in the BFAR is the one requested by the instruction,

even if it is not the address of the fault.

Flags in the BFSR indicate the cause of the fault, and whether the value in the BFAR is valid.

See BusFault Status Register on page 4-26.

4.3.14 Auxiliary Fault Status Register

The AFSR contains additional system fault information. See the register summary in Table 4-12

on page 4-11 for its attributes.

This register is read, write to clear. This means that bits in the register read normally, but writing

1 to any bit clears that bit to 0.

The bit assignments are:

Each AFSR bit maps directly to an AUXFAULT input of the processor, and a single-cycle

HIGH signal on the input sets the corresponding AFSR bit to one. It remains set to 1 until you

write 1 to the bit to clear it to zero. See your vendor documentation for more information.

When an AFSR bit is latched as one, an exception does not occur. Use an interrupt if an

exception is required.

4.3.15 System control block usage hints and tips

Ensure software uses aligned accesses of the correct size to access the system control block

registers:

• except for the CFSR and SHPR1-SHPR3, it must use aligned word accesses

• for the CFSR and SHPR1-SHPR3 it can use byte or aligned halfword or word accesses.

The processor does not support unaligned accesses to system control block registers.

Table 4-30 BFAR bit assignments

Bits Name Function

[31:0] ADDRESS When the BFARVALID bit of the BFSR is set to 1, this field holds the address of the location that

generated the BusFault

Table 4-31 AFSR bit assignments

Bits Name Function

[31:0] IMPDEF Implementation defined. The bits map to the AUXFAULT input signals.

Cortex-M4 Peripherals

ID121610 Non-Confidential

In a fault handler. to determine the true faulting address:

1. Read and save the MMFAR or BFAR value.

2. Read the MMARVALID bit in the MMFSR, or the BFARVALID bit in the BFSR. The

MMFAR or BFAR address is valid only if this bit is 1.

Software must follow this sequence because another higher priority exception might change the

MMFAR or BFAR value. For example, if a higher priority handler preempts the current fault

handler, the other fault might change the MMFAR or BFAR value.

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.4 System timer, SysTick

The processor has a 24-bit system timer, SysTick, that counts down from the reload value to

zero, reloads, that is wraps to, the value in the SYST_RVR register on the next clock edge, then

counts down on subsequent clocks.

Note

When the processor is halted for debugging the counter does not decrement.

The system timer registers are:

4.4.1 SysTick Control and Status Register

The SysTick SYST_CSR register enables the SysTick features. The register resets to

0x00000000

, or to

0x00000004

if your device does not implement a reference clock. See the

Table 4-32 System timer registers summary

Address Name Type Required

privilege Reset value Description

0xE000E010

SYST_CSR RW Privileged aSysTick Control and Status Register

0xE000E014

SYST_RVR RW Privileged Unknown SysTick Reload Value Register on page 4-34

0xE000E018

SYST_CVR RW Privileged Unknown SysTick Current Value Register on page 4-35

0xE000E01C

SYST_CALIB RO Privileged

aSysTick Calibration Value Register on page 4-35

a. See the register description for more information.

0Reserved

31 17 16 15 3 2 1 0

Reserved 0 0

COUNTFLAG CLKSOURCE

TICKINT

ENABLE

Table 4-33 SysTick SYST_CSR register bit assignments

Bits Name Function

[31:17] - Reserved.

[16] COUNTFLAG Returns 1 if timer counted to 0 since last time this was read.

[15:3] - Reserved.

Cortex-M4 Peripherals

ID121610 Non-Confidential

When ENABLE is set to 1, the counter loads the RELOAD value from the SYST_RVR register

and then counts down. On reaching 0, it sets the COUNTFLAG to 1 and optionally asserts the

SysTick depending on the value of TICKINT. It then loads the RELOAD value again, and

begins counting.

4.4.2 SysTick Reload Value Register

The SYST_RVR register specifies the start value to load into the SYST_CVR register. See the

Calculating the RELOAD value

The RELOAD value can be any value in the range

0x00000001

0x00FFFFFF

. A start value of 0 is

possible, but has no effect because the SysTick exception request and COUNTFLAG are

activated when counting from 1 to 0.

The RELOAD value is calculated according to its use. For example, to generate a multi-shot

timer with a period of N processor clock cycles, use a RELOAD value of N-1. If the SysTick

interrupt is required every 100 clock pulses, set RELOAD to 99.

[2] CLKSOURCE Indicates the clock source:

0 = external clock

1 = processor clock.

[1] TICKINT Enables SysTick exception request:

0 = counting down to zero does not assert the SysTick exception request

1 = counting down to zero asserts the SysTick exception request.

Software can use COUNTFLAG to determine if SysTick has ever counted to zero.

[0] ENABLE Enables the counter:

0 = counter disabled

1 = counter enabled.

Table 4-33 SysTick SYST_CSR register bit assignments (continued)

Bits Name Function

31 0

RELOADReserved

2324

Table 4-34 SYST_RVR register bit assignments

Bits Name Function

[31:24] - Reserved.

[23:0] RELOAD Value to load into the SYST_CVR register when the counter is enabled and when it reaches 0, see

Calculating the RELOAD value.

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.4.3 SysTick Current Value Register

The SYST_CVR register contains the current value of the SysTick counter. See the register

summary in Table 4-32 on page 4-33 for its attributes. The bit assignments are:

4.4.4 SysTick Calibration Value Register

The SYST_CALIB register indicates the SysTick calibration properties. See the register

summary in Table 4-32 on page 4-33 for its attributes. The reset value of this register is

implementation-defined. See the documentation supplied by your device vendor for more

information about the meaning of the SYST_CALIB field values. The bit assignments are:

If calibration information is not known, calculate the calibration value required from the

frequency of the processor clock or external clock.

31 0

CURRENTReserved

2324

Table 4-35 SYST_CVR register bit assignments

Bits Name Function

[31:24] - Reserved.

[23:0] CURRENT Reads return the current value of the SysTick counter.

A write of any value clears the field to 0, and also clears the SYST_CSR COUNTFLAG bit to 0.

31 0

TENMSReserved

2324

SKEW

NOREF

Table 4-36 SYST_CALIB register bit assignments

Bits Name Function

[31] NOREF Indicates whether the device provides a reference clock to the processor:

0 = reference clock provided

1 = no reference clock provided.

If your device does not provide a reference clock, the SYST_CSR.CLKSOURCE bit reads-as-one

and ignores writes.

[30] SKEW Indicates whether the TENMS value is exact:

0 = TENMS value is exact

1 = TENMS value is inexact, or not given.

An inexact TENMS value can affect the suitability of SysTick as a software real time clock.

[29:24] - Reserved.

[23:0] TENMS Reload value for 10ms (100Hz) timing, subject to system clock skew errors. If the value reads as

zero, the calibration value is not known.

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.4.5 SysTick usage hints and tips

Some implementations stop all the processor clock signals during deep sleep mode. If this

happens, the SysTick counter stops.

Ensure software uses aligned word accesses to access the SysTick registers.

The SysTick counter reload and current value are not initialized by hardware. This means the

correct initialization sequence for the SysTick counter is:

1. Program reload value.

2. Clear current value.

3. Program Control and Status register.

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.5 Optional Memory Protection Unit

This section describes the optional Memory Protection Unit (MPU).

The MPU divides the memory map into a number of regions, and defines the location, size,

access permissions, and memory attributes of each region. It supports:

• independent attribute settings for each region

• overlapping regions

• export of memory attributes to the system.

The memory attributes affect the behavior of memory accesses to the region. The Cortex-M4

MPU defines:

• eight separate memory regions, 0-7

• a background region.

When memory regions overlap, a memory access is affected by the attributes of the region with

the highest number. For example, the attributes for region 7 take precedence over the attributes

of any region that overlaps region 7.

The background region has the same memory access attributes as the default memory map, but

is accessible from privileged software only.

The Cortex-M4 MPU memory map is unified. This means instruction accesses and data

accesses have same region settings.

If a program accesses a memory location that is prohibited by the MPU, the processor generates

a MemManage fault. This causes a fault exception, and might cause termination of the process

in an OS environment. In an OS environment, the kernel can update the MPU region setting

dynamically based on the process to be executed. Typically, an embedded OS uses the MPU for

memory protection.

Configuration of MPU regions is based on memory types, see Memory regions, types and

attributes on page 2-12.

Table 4-37 shows the possible MPU region attributes. These include Shareability and cache

behavior attributes are not relevant to most microcontroller implementations. See MPU

configuration for a microcontroller on page 4-47 and your vendor documentation for

programming guidelines if implemented.

Table 4-37 Memory attributes summary

Memory type Shareability Other attributes Description

Strongly- ordered - - All accesses to Strongly-ordered memory occur in program

order. All Strongly-ordered regions are assumed to be shared.

Device Shared - Memory-mapped peripherals that several processors share.

Non-shared - Memory-mapped peripherals that only a single processor uses.

Normal Shared Non-cacheable

Write-through Cacheable

Write-back Cacheable

Normal memory that is shared between several processors.

Non-shared Non-cacheable

Write-through Cacheable

Write-back Cacheable

Normal memory that only a single processor uses.

Cortex-M4 Peripherals

ID121610 Non-Confidential

Use the MPU registers to define the MPU regions and their attributes. The MPU registers are:

4.5.1 MPU Type Register

The MPU_TYPE register indicates whether the MPU is present, and if so, how many regions it

supports. See the register summary in Table 4-38 for its attributes. The bit assignments are:

Table 4-38 MPU registers summary

Address Name Type Required

privilege

Reset

value Description

0xE000ED90

MPU_TYPE RO Privileged

0x00000800

MPU Type Register

0xE000ED94

MPU_CTRL RW Privileged

0x00000000

MPU Control Register on page 4-39

0xE000ED98

MPU_RNR RW Privileged

0x00000000

MPU Region Number Register on page 4-40

0xE000ED9C

MPU_RBAR RW Privileged

0x00000000

MPU Region Base Address Register on page 4-40

0xE000EDA0

MPU_RASR RW Privileged

0x00000000

MPU Region Attribute and Size Register on page 4-41

0xE000EDA4

MPU_RBAR_A1 RW Privileged

0x00000000

Alias of RBAR, see MPU Region Base Address Register on

page 4-40

0xE000EDA8

MPU_RASR_A1 RW Privileged

0x00000000

Alias of RASR, see MPU Region Attribute and Size Register

on page 4-41

0xE000EDAC

MPU_RBAR_A2 RW Privileged

0x00000000

Alias of RBAR, see MPU Region Base Address Register on

page 4-40

0xE000EDB0

MPU_RASR_A2 RW Privileged

0x00000000

Alias of RASR, see MPU Region Attribute and Size Register

on page 4-41

0xE000EDB4

MPU_RBAR_A3 RW Privileged

0x00000000

Alias of RBAR, see MPU Region Base Address Register on

page 4-40

0xE000EDB8

MPU_RASR_A3 RW Privileged

0x00000000

Alias of RASR, see MPU Region Attribute and Size Register

on page 4-41

Reserved

31 24 23 16 15 8 7 1 0

IREGION DREGION Reserved

SEPARATE

Table 4-39 TYPE register bit assignments

Bits Name Function

[31:24] - Reserved.

[23:16] IREGION Indicates the number of supported MPU instruction regions.

Always contains

0x00

. The MPU memory map is unified and is described by the DREGION field.

[15:8] DREGION Indicates the number of supported MPU data regions:

0x08

= Eight MPU regions.

[7:1] - Reserved.

[0] SEPARATE Indicates support for unified or separate instruction and date memory maps:

0 = unified.

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.5.2 MPU Control Register

The MPU_CTRL register:

• enables the MPU

• enables the default memory map background region

• enables use of the MPU when in the hard fault, Non-maskable Interrupt (NMI), and

FAULTMASK escalated handlers.

See the register summary in Table 4-38 on page 4-38 for the MPU_CTRL attributes. The bit

assignments are:

When ENABLE and PRIVDEFENA are both set to 1:

• For privileged accesses, the default memory map is as described in Memory model on

page 2-12. Any access by privileged software that does not address an enabled memory

region behaves as defined by the default memory map.

• Any access by unprivileged software that does not address an enabled memory region

causes a MemManage fault.

XN and Strongly-ordered rules always apply to the System Control Space regardless of the

value of the ENABLE bit.

31 10

Reserved

HFNMIENA

ENABLE

PRIVDEFENA

Table 4-40 MPU_CTRL register bit assignments

Bits Name Function

[31:3] - Reserved.

[2] PRIVDEFENA Enables privileged software access to the default memory map:

0 = If the MPU is enabled, disables use of the default memory map. Any memory access to a

location not covered by any enabled region causes a fault.

1 = If the MPU is enabled, enables use of the default memory map as a background region for

privileged software accesses.

When enabled, the background region acts as if it is region number -1. Any region that is

defined and enabled has priority over this default map.

If the MPU is disabled, the processor ignores this bit.

[1] HFNMIENA Enables the operation of MPU during hard fault, NMI, and FAULTMASK handlers.

When the MPU is enabled:

0 = MPU is disabled during hard fault, NMI, and FAULTMASK handlers, regardless of the

value of the ENABLE bit

1 = the MPU is enabled during hard fault, NMI, and FAULTMASK handlers.

When the MPU is disabled, if this bit is set to 1 the behavior is Unpredictable.

[0] ENABLE Enables the MPU:

0 = MPU disabled

1 = MPU enabled.

Cortex-M4 Peripherals

ID121610 Non-Confidential

When the ENABLE bit is set to 1, at least one region of the memory map must be enabled for

the system to function unless the PRIVDEFENA bit is set to 1. If the PRIVDEFENA bit is set

to 1 and no regions are enabled, then only privileged software can operate.

When the ENABLE bit is set to 0, the system uses the default memory map. This has the same

memory attributes as if the MPU is not implemented, see Table 2-11 on page 2-14. The default

memory map applies to accesses from both privileged and unprivileged software.

When the MPU is enabled, accesses to the System Control Space and vector table are always

permitted. Other areas are accessible based on regions and whether PRIVDEFENA is set to 1.

Unless HFNMIENA is set to 1, the MPU is not enabled when the processor is executing the

handler for an exception with priority –1 or –2. These priorities are only possible when handling

a hard fault or NMI exception, or when FAULTMASK is enabled. Setting the HFNMIENA bit

to 1 enables the MPU when operating with these two priorities.

4.5.3 MPU Region Number Register

The MPU_RNR selects which memory region is referenced by the MPU_RBAR and

MPU_RASR registers. See the register summary in Table 4-38 on page 4-38 for its attributes.

The bit assignments are:

Normally, you write the required region number to this register before accessing the

MPU_RBAR or MPU_RASR. However you can change the region number by writing to the

MPU RBAR with the VALID bit set to 1, see MPU Region Base Address Register. This write

updates the value of the REGION field.

4.5.4 MPU Region Base Address Register

The MPU_RBAR defines the base address of the MPU region selected by the MPU_RNR, and

can update the value of the MPU_RNR. See the register summary in Table 4-38 on page 4-38

for its attributes.

Reserved

31 8 7 0

REGION

Table 4-41 MPU_RNR bit assignments

Bits Name Function

[31:8] - Reserved.

[7:0] REGION Indicates the MPU region referenced by the MPU_RBAR and MPU_RASR registers.

The MPU supports 8 memory regions, so the permitted values of this field are 0-7.

Cortex-M4 Peripherals

ID121610 Non-Confidential

Write MPU_RBAR with the VALID bit set to 1 to change the current region number and update

the MPU_RNR. The bit assignments are:

The ADDR field

The ADDR field is bits[31:N] of the MPU_RBAR. The region size, as specified by the SIZE

field in the MPU_RASR, defines the value of N:

N = Log2(Region size in bytes),

If the region size is configured to 4GB, in the MPU_RASR, there is no valid ADDR field. In

this case, the region occupies the complete memory map, and the base address is

0x00000000

The base address is aligned to the size of the region. For example, a 64KB region must be

aligned on a multiple of 64KB, for example, at

0x00010000

0x00020000

4.5.5 MPU Region Attribute and Size Register

The MPU_RASR defines the region size and memory attributes of the MPU region specified by

the MPU_RNR, and enables that region and any subregions. See the register summary in

Table 4-38 on page 4-38 for its attributes.

MPU_RASR is accessible using word or halfword accesses:

• the most significant halfword holds the region attributes

• the least significant halfword holds the region size and the region and subregion enable

bits.

VALID

ADDR

31 N N-1 5 4 3 0

Reserved REGION

If the region size is 32B, the ADDR field is bits [31:5] and there is no Reserved field

Table 4-42 MPU_RBAR bit assignments

Bits Name Function

[31:N] ADDR Region base address field. The value of N depends on the region size. For more information see

The ADDR field.

[(N-1):5] - Reserved.

[4] VALID MPU Region Number valid bit:

Write:

0 = MPU_RNR not changed, and the processor:

• updates the base address for the region specified in the MPU_RNR

• ignores the value of the REGION field

1 = the processor:

• updates the value of the MPU_RNR to the value of the REGION field

• updates the base address for the region specified in the REGION field.

Always reads as zero.

[3:0] REGION MPU region field:

For the behavior on writes, see the description of the VALID field.

On reads, returns the current region number, as specified by the RNR.

Cortex-M4 Peripherals

ID121610 Non-Confidential

The bit assignments are:

For information about access permission, see MPU access permission attributes on page 4-43.

SIZE field values

The SIZE field defines the size of the MPU memory region specified by the RNR. as follows:

(Region size in bytes) = 2(SIZE+1)

Reserved

31 29 28 27 26 24 23 22 21 19 18 17 16 15 8 7 6 5 1 0

AP TEX S C B SRD SIZE

ENABLE

Reserved

Table 4-43 MPU_RASR bit assignments

Bits Name Function

[31:29] - Reserved.

[28] XN Instruction access disable bit:

0 = instruction fetches enabled

1 = instruction fetches disabled.

[27] - Reserved.

[26:24] AP Access permission field, see Table 4-47 on page 4-44.

[23:22] - Reserved.

[21:19, 17, 16] TEX, C, B Memory access attributes, see Table 4-45 on page 4-43.

[18] S Shareable bit, see Table 4-45 on page 4-43.

[15:8] SRD Subregion disable bits. For each bit in this field:

0 = corresponding sub-region is enabled

1 = corresponding sub-region is disabled

See Subregions on page 4-46 for more information.

Region sizes of 128 bytes and less do not support subregions. When writing the attributes

for such a region, write the SRD field as

0x00

[7:6] - Reserved.

[5:1] SIZE Specifies the size of the MPU protection region. The minimum permitted value is 3

(

0b00010

). See SIZE field values for more information.

[0] ENABLE Region enable bit.

Cortex-M4 Peripherals

ID121610 Non-Confidential

The smallest permitted region size is 32B, corresponding to a SIZE value of 4. Table 4-44 gives

example SIZE values, with the corresponding region size and value of N in the MPU_RBAR.

4.5.6 MPU access permission attributes

This section describes the MPU access permission attributes. The access permission bits, TEX,

C, B, S, AP, and XN, of the RASR, control access to the corresponding memory region. If an

access is made to an area of memory without the required permissions, then the MPU generates

a permission fault. Table 4-45 shows encodings for the TEX, C, B, and S access permission bits.

Table 4-44 Example SIZE field values

SIZE value Region size Value of Na

a. In the MPU_RBAR, see MPU Region Base Address Register on page 4-40.

Note

0b00100

(4) 32B 5 Minimum permitted size

0b01001

(9) 1KB 10 -

0b10011

(19) 1MB 20 -

0b11101

(29) 1GB 30 -

0b11111

(31) 4GB 32 Maximum possible size

Table 4-45 TEX, C, B, and S encoding

TEX C B S Memory type Shareability Other attributes

0b000

0 0 xaStrongly-ordered Shareable -

1 xaDevice Shareable -

1 0 0 Normal Not shareable Outer and inner write-through. No write allocate.

1Shareable

1 0 Normal Not shareable Outer and inner write-back. No write allocate.

1Shareable

0b001

0 0 0 Normal Not shareable Outer and inner noncacheable.

1Shareable

1 xaReserved encoding -

1 0 xaImplementation defined attributes. -

1 0 Normal Not shareable Outer and inner write-back. Write and read allocate.

1Shareable

0b010

00 xaDevice Not shareable Nonshared Device.

1 xaReserved encoding -

1xaxaReserved encoding -

0b1BB

A A 0 Normal Not shareable Cached memory, BB = outer policy, AA = inner policy.

See Table 4-46 on page 4-44 for the encoding of the AA

and BB bits.

1Shareable

a. The MPU ignores the value of this bit.

Cortex-M4 Peripherals

ID121610 Non-Confidential

Table 4-46 shows the cache policy for memory attribute encodings with a TEX value is in the

range 4-7.

Table 4-47 shows the AP encodings that define the access permissions for privileged and

unprivileged software.

4.5.7 MPU mismatch

When an access violates the MPU permissions, the processor generates a MemManage fault, see

Exceptions and interrupts on page 2-10. The MMFSR indicates the cause of the fault. See

MemManage Fault Status Register on page 4-25 for more information.

4.5.8 Updating an MPU region

To update the attributes for an MPU region, update the MPU_RNR, MPU_RBAR and

MPU_RASR registers. You can program each register separately, or use a multiple-word write

to program all of these registers. You can use the MPU_RBAR and MPU_RASR aliases to

program up to four regions simultaneously using an

STM

instruction.

Updating an MPU region using separate words

Simple code to configure one region:

; R1 = region number

; R2 = size/enable

; R3 = attributes

; R4 = address

LDR R0,=MPU_RNR ; 0xE000ED98, MPU region number register

Table 4-46 Cache policy for memory attribute encoding

Encoding, AA or BB Corresponding cache policy

00 Non-cacheable

01 Write back, write and read allocate

10 Write through, no write allocate

11 Write back, no write allocate

Table 4-47 AP encoding

AP[2:0] Privileged

permissions

Unprivileged

permissions Description

000 No access No access All accesses generate a permission fault

001 RW No access Access from privileged software only

010 RW RO Writes by unprivileged software generate a permission fault

011 RW RW Full access

100 Unpredictable Unpredictable Reserved

101 RO No access Reads by privileged software only

110 RO RO Read only, by privileged or unprivileged software

111 RO RO Read only, by privileged or unprivileged software

Cortex-M4 Peripherals

ID121610 Non-Confidential

STR R1, [R0, #0x0] ; Region Number

STR R4, [R0, #0x4] ; Region Base Address

STRH R2, [R0, #0x8] ; Region Size and Enable

STRH R3, [R0, #0xA] ; Region Attribute

Disable a region before writing new region settings to the MPU if you have previously enabled

the region being changed. For example:

; R1 = region number

; R2 = size/enable

; R3 = attributes

; R4 = address

LDR R0,=MPU_RNR ; 0xE000ED98, MPU region number register

STR R1, [R0, #0x0] ; Region Number

BIC R2, R2, #1 ; Disable

STRH R2, [R0, #0x8] ; Region Size and Enable

STR R4, [R0, #0x4] ; Region Base Address

STRH R3, [R0, #0xA] ; Region Attribute

ORR R2, #1 ; Enable

STRH R2, [R0, #0x8] ; Region Size and Enable

Software must use memory barrier instructions:

• before MPU setup if there might be outstanding memory transfers, such as buffered

writes, that might be affected by the change in MPU settings

• after MPU setup if it includes memory transfers that must use the new MPU settings.

However, memory barrier instructions are not required if the MPU setup process starts by

entering an exception handler, or is followed by an exception return, because the exception entry

and exception return mechanism cause memory barrier behavior.

Software does not require any memory barrier instructions during MPU setup, because it

accesses the MPU through the PPB, which is a Strongly-Ordered memory region.

For example, if you want all of the memory access behavior to take effect immediately after the

programming sequence, use a

DSB

instruction and an

ISB

instruction. A

DSB

is required after

changing MPU settings, such as at the end of context switch. An

ISB

is required if the code that

programs the MPU region or regions is entered using a branch or call. If the programming

sequence is entered using a return from exception, or by taking an exception, then you do not

require an

ISB

Updating an MPU region using multi-word writes

You can program directly using multi-word writes, depending on how the information is

divided. Consider the following reprogramming:

; R1 = region number

; R2 = address

; R3 = size, attributes in one

LDR R0, =MPU_RNR ; 0xE000ED98, MPU region number register

STR R1, [R0, #0x0] ; Region Number

STR R2, [R0, #0x4] ; Region Base Address

STR R3, [R0, #0x8] ; Region Attribute, Size and Enable

Use an

STM

instruction to optimize this:

; R1 = region number

; R2 = address

; R3 = size, attributes in one

LDR R0, =MPU_RNR ; 0xE000ED98, MPU region number register

STM R0, {R1-R3} ; Region Number, address, attribute, size and enable

Cortex-M4 Peripherals

ID121610 Non-Confidential

You can do this in two words for pre-packed information. This means that the MPU_RBAR

contains the required region number and had the VALID bit set to 1, see MPU Region Base

Address Register on page 4-40. Use this when the data is statically packed, for example in a boot

loader:

; R1 = address and region number in one

; R2 = size and attributes in one

LDR R0, =MPU_RBAR ; 0xE000ED9C, MPU Region Base register

STR R1, [R0, #0x0] ; Region base address and

; region number combined with VALID (bit 4) set to 1

STR R2, [R0, #0x4] ; Region Attribute, Size and Enable

Subregions

Regions of 256 bytes or more are divided into eight equal-sized subregions. Set the

corresponding bit in the SRD field of the MPU_RASR to disable a subregion, see MPU Region

Attribute and Size Register on page 4-41. The least significant bit of SRD controls the first

subregion, and the most significant bit controls the last subregion. Disabling a subregion means

another region overlapping the disabled range matches instead. If no other enabled region

overlaps the disabled subregion the MPU issues a fault.

Regions of 32, 64, and 128 bytes do not support subregions, With regions of these sizes, you

must set the SRD field to

0x00

, otherwise the MPU behavior is Unpredictable.

Example of SRD use

Two regions with the same base address overlap. Region one is 128KB, and region two is

512KB. To ensure the attributes from region one apply to the first 128KB region, set the SRD

field for region two to

0b00000011

to disable the first two subregions, as the figure shows.

4.5.9 MPU usage hints and tips

To avoid unexpected behavior, disable the interrupts before updating the attributes of a region

that the interrupt handlers might access.

Ensure software uses aligned accesses of the correct size to access MPU registers:

• except for the MPU_RASR, it must use aligned word accesses

• for the MPU_RASR it can use byte or aligned halfword or word accesses.

The processor does not support unaligned accesses to MPU registers.

When setting up the MPU, and if the MPU has previously been programmed, disable unused

regions to prevent any previous region settings from affecting the new MPU setup.

Region 1

Disabled subregion

Region 2, with

subregions

Base address of both regions

Offset from

base address

64KB

128KB

192KB

256KB

320KB

384KB

448KB

512KB

Cortex-M4 Peripherals

ID121610 Non-Confidential

MPU configuration for a microcontroller

Usually, a microcontroller system has only a single processor and no caches. In such a system,

program the MPU as follows:

In most microcontroller implementations, the shareability and cache policy attributes do not

affect the system behavior. However, using these settings for the MPU regions can make the

application code more portable. The values given are for typical situations. In special systems,

such as multiprocessor designs or designs with a separate DMA engine, the shareability attribute

might be important. In these cases see the recommendations of the memory device

manufacturer.

Table 4-48 Memory region attributes for a microcontroller

Memory region TEX C B S Memory type and attributes

Flash memory

0b000

1 0 0 Normal memory, Non-shareable, write-through

Internal SRAM

0b000

1 0 1 Normal memory, Shareable, write-through

External SRAM

0b000

1 1 1 Normal memory, Shareable, write-back, write-allocate

Peripherals

0b000

0 1 1 Device memory, Shareable

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.6 Floating Point Unit (FPU)

This section describes the optional Floating Point Unit (FPU) in a Cortex-M4F device. The FPU

implements the FPv4-SP floating-point extension.

The FPU fully supports single-precision add, subtract, multiply, divide, multiply and

accumulate, and square root operations. It also provides conversions between fixed-point and

floating-point data formats, and floating-point constant instructions.

The FPU provides floating-point computation functionality that is compliant with the

ANSI/IEEE Std 754-2008, IEEE Standard for Binary Floating-Point Arithmetic, referred to as

the IEEE 754 standard.

The FPU contains 32 single-precision extension registers, which you can also access as 16

doubleword registers for load, store, and move operations.

Table 4-49 shows the floating-point system registers in the Cortex-M4F FPU.

The following sections describe the floating-point system registers whose implementation is

specific to this processor.

4.6.1 Coprocessor Access Control Register

The CPACR register specifies the access privileges for coprocessors. See the register summary

in Cortex-M4F floating-point system registers for its attributes. The bit assignments are:

Table 4-49 Cortex-M4F floating-point system registers

Address Name Type Reset Description

0xE000ED88

CPACR RW

0x00000000

Coprocessor Access Control Register

0xE000EF34

FPCCR RW

0xC0000000

Floating-point Context Control Register on page 4-49

0xE000EF38

FPCAR RW - Floating-point Context Address Register on page 4-50

- FPSCR RW - Floating-point Status Control Register on page 4-50

0xE000EF3C

FPDSCR RW

0x00000000

Floating-point Default Status Control Register on page 4-52

Table 4-50 CPACR register bit assignments

Bits Name Function

[31:24] - Reserved. Read as Zero, Write Ignore.

[2n+1:2n] for

n values10

and 11

CPnAccess privileges for coprocessor n. The possible values of each field are:

0b00

= Access denied. Any attempted access generates a NOCP

UsageFault.

0b01

= Privileged access only. An unprivileged access generates a NOCP

fault.

0b10

= Reserved. The result of any access is

Unpredictable

0b11

= Full access.

[19:0] - Reserved. Read as Zero, Write Ignore.

Reserved

31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

CP11 CP10 Reserved

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.6.2 Floating-point Context Control Register

The FPCCR register sets or returns FPU control data. See the register summary in Cortex-M4F

floating-point system registers on page 4-48 for its attributes. The bit assignments are:

31 210

Reserved

MONRDY

Reserved

BFRDY

LSPEN

ASPEN

MMRDY

HFRDY

THREAD

USER

LSPACT

30 654789

Reserved

Table 4-51 FPCCR register bit assignments

Bits Name Function

[31] ASPEN Enables

CONTROL<2>

setting on execution of a floating-point instruction. This results in automatic

hardware state preservation and restoration, for floating-point context, on exception entry and

exit.

0 = Disable

CONTROL<2>

setting on execution of a floating-point instruction.

1 = Enable

CONTROL<2>

setting on execution of a floating-point instruction.

[30] LSPEN 0 = Disable automatic lazy state preservation for floating-point context.

1 = Enable automatic lazy state preservation for floating-point context.

[29:9] - Reserved.

[8] MONRDY 0 = DebugMonitor is disabled or priority did not permit setting

MON_PEND

when the floating-point

stack frame was allocated.

1 = DebugMonitor is enabled and priority permits setting

MON_PEND

when the floating-point stack

frame was allocated.

[7] - Reserved.

[6] BFRDY 0 = BusFault is disabled or priority did not permit setting the BusFault handler to the pending

state when the floating-point stack frame was allocated.

1 = BusFault is enabled and priority permitted setting the BusFault handler to the pending state

when the floating-point stack frame was allocated.

[5] MMRDY 0 = MemManage is disabled or priority did not permit setting the MemManage handler to the

pending state when the floating-point stack frame was allocated.

1 = MemManage is enabled and priority permitted setting the MemManage handler to the

pending state when the floating-point stack frame was allocated.

[4] HFRDY 0 = Priority did not permit setting the HardFault handler to the pending state when the

floating-point stack frame was allocated.

1 = Priority permitted setting the HardFault handler to the pending state when the floating-point

stack frame was allocated.

[3] THREAD 0 = Mode was not Thread Mode when the floating-point stack frame was allocated.

1 = Mode was Thread Mode when the floating-point stack frame was allocated.

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.6.3 Floating-point Context Address Register

The FPCAR register holds the location of the unpopulated floating-point register space

allocated on an exception stack frame. See the register summary in Cortex-M4F floating-point

system registers on page 4-48 for its attributes. The bit assignments are:

4.6.4 Floating-point Status Control Register

The FPSCR register provides all necessary User level control of the floating-point system. The

bit assignments are:

[2] - Reserved.

[1] USER 0 = Privilege level was not user when the floating-point stack frame was allocated.

1 = Privilege level was user when the floating-point stack frame was allocated.

[0] LSPACT 0 = Lazy state preservation is not active.

1 = Lazy state preservation is active. floating-point stack frame has been allocated but saving

state to it has been deferred.

Table 4-51 FPCCR register bit assignments (continued)

Bits Name Function

Table 4-52 FPCAR register bit assignments

Bits Name Function

[31:3] ADDRESS The location of the unpopulated floating-point register

space allocated on an exception stack frame.

[2:0] - Reserved. Read as Zero, Writes Ignored.

31 20

ADDRESS

Reserved

RMode IOC

DZC

OFC

Reserved

UFC

IXC

IDC

31 30 29 28 27 26 25 24 23 22 21 8 7 6 5 4 3 2 1 0

Z C V Reserved

AHP

Table 4-53 FPSCR bit assignments

Bits Name Function

[31] N Condition code flags. Floating-point comparison operations update these flags.

N Negative condition code flag.

Z Zero condition code flag.

C Carry condition code flag.

V Overflow condition code flag.

[30] Z

[29] C

[28] V

[27] - Reserved.

Cortex-M4 Peripherals

ID121610 Non-Confidential

[26] AHP Alternative half-precision control bit:

0 IEEE half-precision format selected.

1 Alternative half-precision format selected.

[25] DN Default NaN mode control bit:

0 NaN operands propagate through to the output of a floating-point operation.

1 Any operation involving one or more NaNs returns the Default NaN.

[24] FZ Flush-to-zero mode control bit:

0 Flush-to-zero mode disabled. Behavior of the floating-point system is fully

compliant with the IEEE 754 standard.

1 Flush-to-zero mode enabled.

[23:22] RMode Rounding Mode control field. The encoding of this field is:

0b00 Round to Nearest (RN) mode

0b01 Round towards Plus Infinity (RP) mode

0b10 Round towards Minus Infinity (RM) mode

0b11 Round towards Zero (RZ) mode.

The specified rounding mode is used by almost all floating-point instructions.

[21:8] - Reserved.

[7] IDC Input Denormal cumulative exception bit, see bits [4:0].

[6:5] - Reserved.

[4] IXC Cumulative exception bits for floating-point exceptions, see also bit [7]. Each of these bits is

set to 1 to indicate that the corresponding exception has occurred since 0 was last written to it.

IDC, bit[7] Input Denormal cumulative exception bit.

IXC Inexact cumulative exception bit.

UFC Underflow cumulative exception bit.

OFC Overflow cumulative exception bit.

DZC Division by Zero cumulative exception bit.

IOC Invalid Operation cumulative exception bit.

[3] UFC

[2] OFC

[1] DZC

[0] IOC

Table 4-53 FPSCR bit assignments (continued)

Bits Name Function

Cortex-M4 Peripherals

ID121610 Non-Confidential

4.6.5 Floating-point Default Status Control Register

The FPDSCR register holds the default values for the floating-point status control data. See the

The bit assignments are:

4.6.6 Enabling the FPU

The FPU is disabled from reset. You must enable it before you can use any floating-point

instructions. Example 4-1 shows an example code sequence for enabling the FPU in both

privileged and user modes. The processor must be in privileged mode to read from and write to

the CPACR.

Example 4-1 Enabling the FPU

; CPACR is located at address 0xE000ED88

LDR.W R0, =0xE000ED88

; Read CPACR

LDR R1, [R0]

; Set bits 20-23 to enable CP10 and CP11 coprocessors

ORR R1, R1, #(0xF << 20)

; Write back the modified value to the CPACR

STR R1, [R0]; wait for store to complete

DSB

;reset pipeline now the FPU is enabled

ISB

Table 4-54 FPDSCR register bit assignments

Bits Name Function

[31:27] - Reserved

[26] AHP Default value for

FPSCR.AHP

[25] DN Default value for

FPSCR.DN

[24] FZ Default value for

FPSCR.FZ

[23:22] RMode Default value for

FPSCR.RMode

[21:0] - Reserved

0Reserved

31 27 26 25 24 23 22 21 0

0 0 0 0 Reserved

AHP RMode

DN FZ

ID121610 Non-Confidential

Appendix A

Cortex-M4 Options

This appendix describes the configuration options for a Cortex-M4 processor implementation. It

shows what features of a Cortex-M4 implementation are determined by the device manufacturer. It

contains the following section:

•Cortex-M4 implementation options on page A-2.

Cortex-M4 Options

ID121610 Non-Confidential

A.1 Cortex-M4 implementation options

Table A-1 shows the Cortex-M4 implementation options:

Table A-1 Effects of the Cortex-M4 implementation options

Option Description, and affected documentation

Inclusion of

MPU

The implementer decides whether to include the Memory Protection Unit (MPU). See the Optional

Memory Protection Unit on page 4-37.

Inclusion of FPU Only the Cortex-M4F includes the Floating Point Unit (FPU). See:

•Floating-point instructions on page 3-126

• Interruptible-continuable instructions in Core registers on page 2-3

• The FPACTV bit in the CONTROL register

•Table 2-17 on page 2-28

• the MLSPERR bit in the MemManage Fault Status Register (MMFSR)

• the LSPERR bit in the BusFault Status Register (BFSR).

Number of

interrupts

The implementer decides how many interrupts the Cortex-M4 implementation supports Cortex-M4

implementation supports, in the range 1-240. This affects:

The range of IRQ values in Table 2-5 on page 2-6

Entries in the last row of Table 2-16 on page 2-22, particularly if only one interrupt is implemented.

The maximum interrupt number, and associated information where appropriate, in:

•Exception handlers on page 2-23

•Figure 2-2 on page 2-24

•Nested Vectored Interrupt Controller on page 4-3.

The number of implemented Nested Vectored Interrupt Controller (NVIC) registers in:

•Table 4-2 on page 4-3

• The appropriate register descriptions in sections Interrupt Set-enable Registers on page 4-4

to Interrupt Priority Registers on page 4-7.

Vector Table Offset Register on page 4-16, including the figure and Table 4-16 on page 4-16. See the

configuration information in the section for guidance on the required configuration.

Number of

priority bits

The implementer decides how many priority bits are implemented in priority value fields, in the range

3-8. This affects The maximum priority level value in Nested Vectored Interrupt Controller on

page 4-3.

Inclusion of the

WIC

The implementer decides whether to include the Wakeup interrupt Controller (WIC), see The optional

Wakeup Interrupt Controller on page 2-33.

Sleep mode

power-saving

The implementer decides what sleep modes to implement, and the power-saving measures associated

with any implemented mode, See Power management on page 2-32.

Sleep mode power saving might also affect the SysTick behavior, see SysTick usage hints and tips on

page 4-36.

values

The implementer decides whether all registers in the register bank can be reset. This affects the reset

values, see Table 2-2 on page 2-3.

Endianness The implementer decides whether the memory system is little-endian or big-endian, see on

page 2-10Data types on page 2-10 and Memory endianness on page 2-18.

Memory features Some features of the memory system are implementation-specific. This means that the Memory model

on page 2-12 cannot completely describe the memory map for a specific Cortex-M4 implementation.

Cortex-M4 Options

ID121610 Non-Confidential

Bit-banding The implementer decides whether bit-banding is implemented., see Optional bit-banding on

page 2-16 and Memory model on page 2-12.

SysTick timer The SYST_CALIB register is implementation- defined. This can affect:

•SysTick Calibration Value Register on page 4-35

• The entry for SYST_CALIB in Table 4-32 on page 4-33.

Table A-1 Effects of the Cortex-M4 implementation options (continued)

Option Description, and affected documentation

ID121610 Non-Confidential

Glossary

This glossary describes some of the terms used in technical documents from ARM.

Abort A mechanism that indicates to a processor that the value associated with a memory access is

invalid. An abort can be caused by the external or internal memory system as a result of attempting

to access invalid instruction or data memory.

Aligned A data item stored at an address that is divisible by the number of bytes that defines the data size

is said to be aligned. Aligned words and halfwords have addresses that are divisible by four and

two respectively. The terms word-aligned and halfword-aligned therefore stipulate addresses that

are divisible by four and two respectively.

Banked register A register that has multiple physical copies, where the state of the processor determines which copy

is used. The Stack Pointer, SP (R13) is a banked register.

Base register In instruction descriptions, a register specified by a load or store instruction that is used to hold the

base value for the address calculation for the instruction. Depending on the instruction and its

addressing mode, an offset can be added to or subtracted from the base register value to form the

address that is sent to memory.

Cortex M4 Devices Generic User Guide

Cortex-M4%20Devices%20Generic%20User%20Guide

Cortex_m4%20Generic%20User%20Guide

DUI0553A_cortex_m4_Generic_User_Guide

cortex_m4_User_Guide

CortexM4_Generic_Users_Guide_DUI0553A_cortex_m4_dgug

Navigation menu

Versions of this User Manual:

Views

Navigation
