SERVICE MANUAL
LEVEL 2
Link
SERVICE NOTE
MODEL INFORMATION TABLE
SPECIFICATIONS

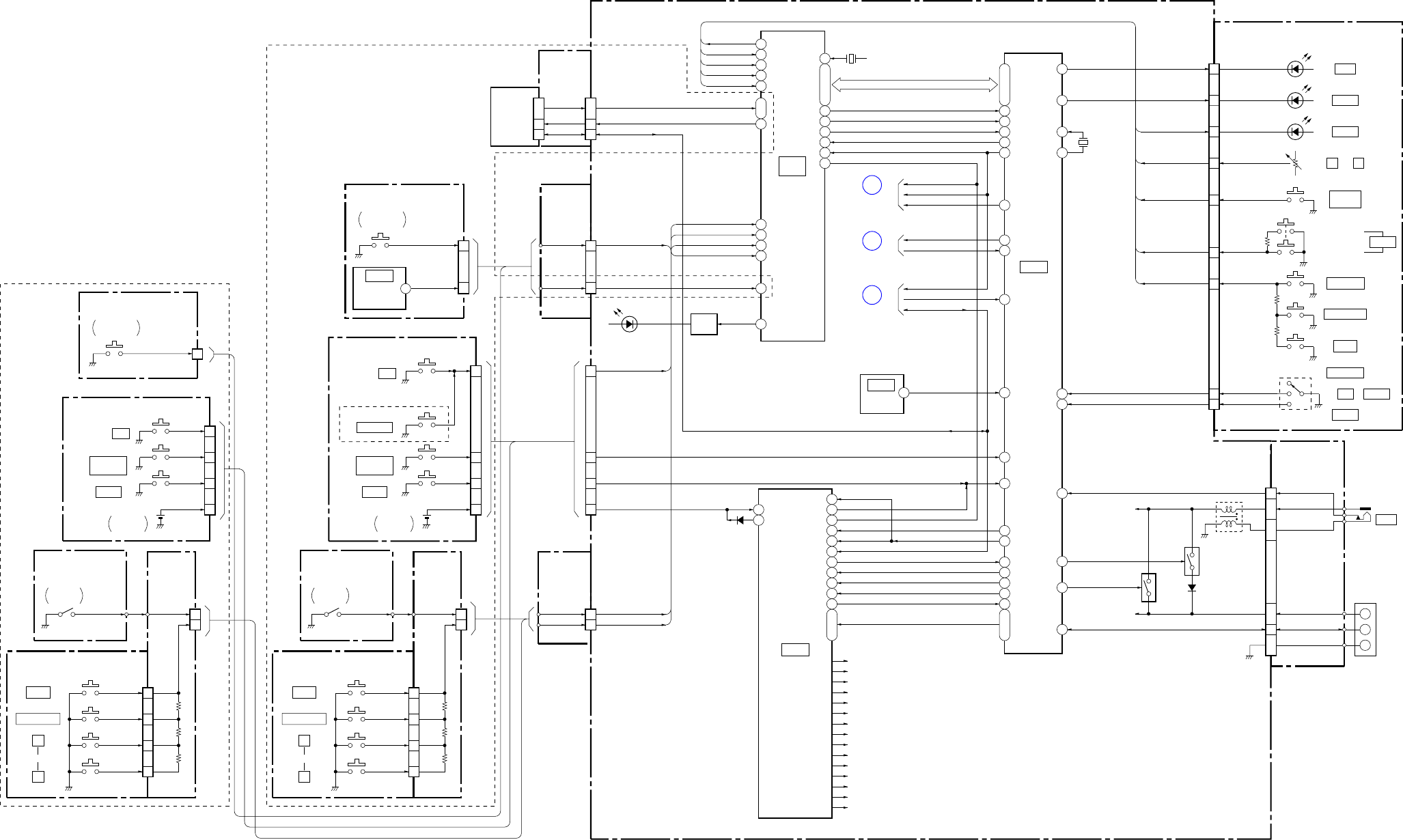

FRAME SCHEMATIC DIAGRAM
BLOCK DIAGRAMS

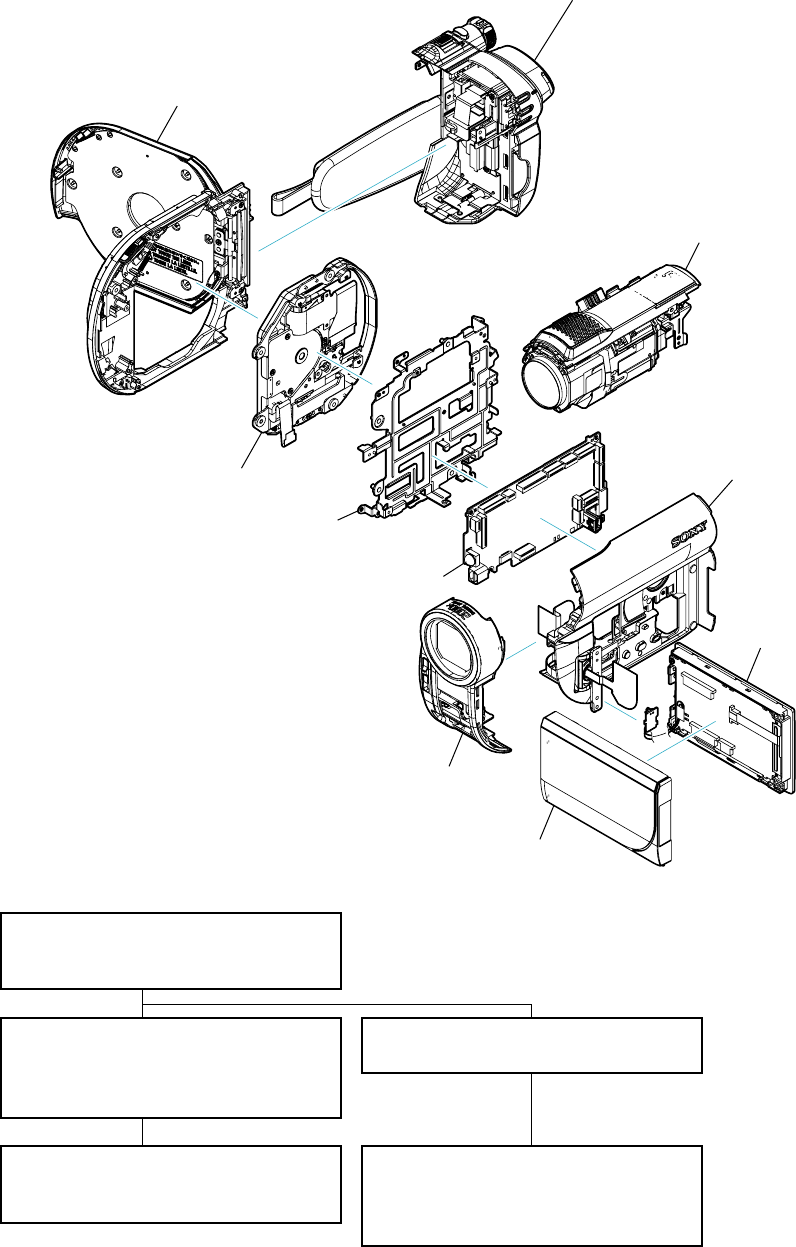

DISASSEMBLY
PRINTED WIRING BOARDS
REPAIR PARTS LIST

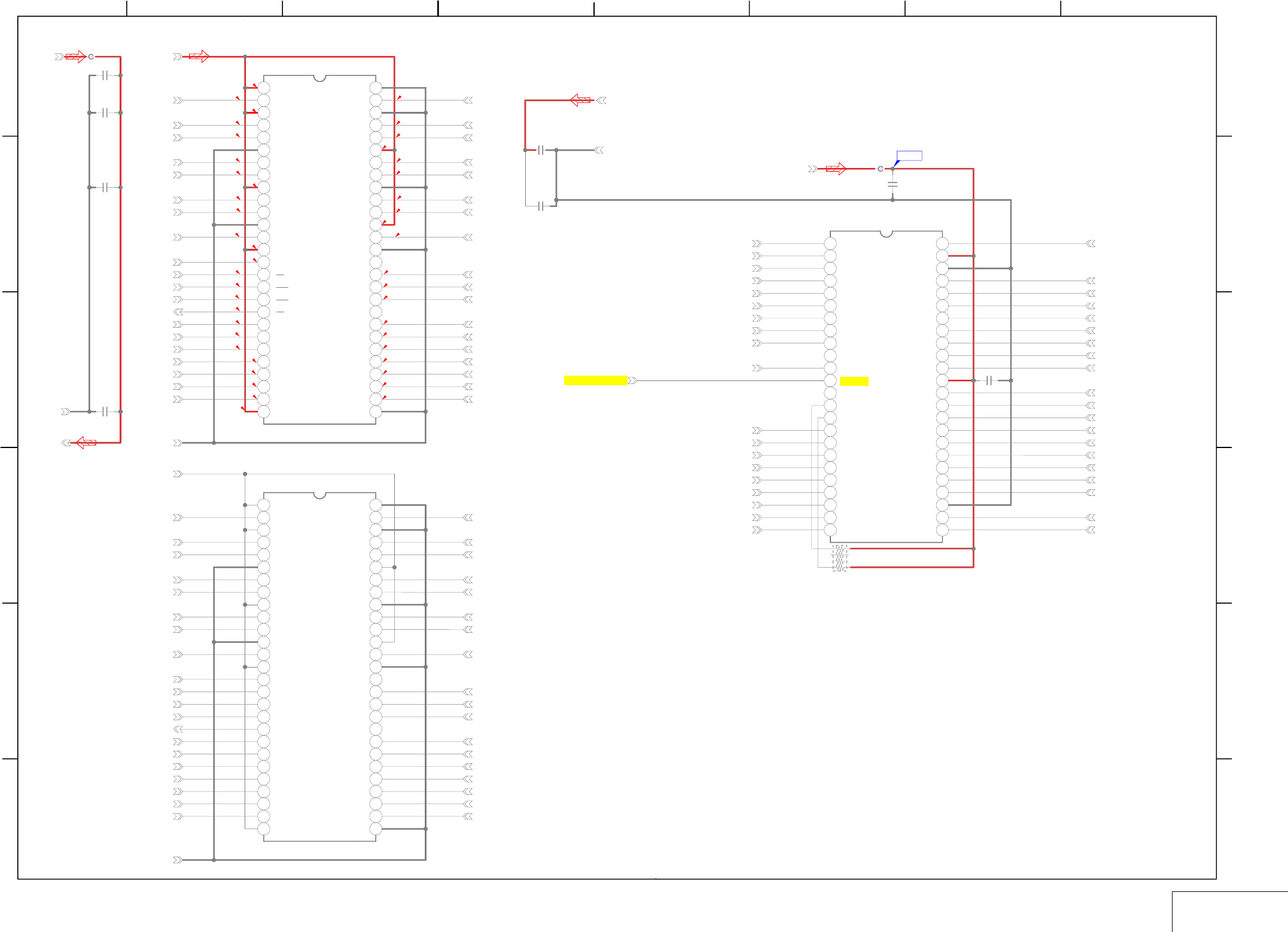

SCHEMATIC DIAGRAMS
Link
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
Ver. 1.1 2008.03
2008C0500-1
© 2008.3
Published by Kohda TEC9-852-249-32
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
•Precaution on Replacing the VC-520 Board
US Model
Canadian Model
AEP Model
UK Model
East European Model
North European Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Argentine Model
Brazilian Model
Tourist Model
Japanese Model
Photo: DCR-DVD810
RMT-835
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E
DIGITAL VIDEO CAMERA RECORDER
Revised-1
Replace the previously issued
SERVICE MANUAL 9-852-249-31
with this manual.
— 2 —
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
SPECIFICATIONS
These specifications are extracted from instruction manual of DCR-
DVD110E/DVD115E/DVD310E/DVD410E/DVD610E/DVD710E/DVD810E.
System
Video compression format
MPEG2/JPEG (Still images)
Audio compression format
DCR-DVD110E/DVD610E
Dolby Digital 2ch
Dolby Digital Stereo Creator
DCR-DVD115E/DVD310E/DVD410E/
DVD710E/DVD810E
Dolby Digital 2/5.1ch
Dolby Digital 5.1 Creator
Video signal
PAL color, CCIR standards
Internal memory (DCR-DVD410E/
DVD810E)
8GB
When measuring media capacity, 1 GB equals
1 billion bytes, a portion of which is used for
data management.
Usable discs
8 cm DVD-RW/DVD+RW/DVD-R/
DVD+R DL
Movie recording format
Internal memory (DCR-DVD410E/
DVD810E)
MPEG2-PS
Disc
DVD-RW: DVD-VIDEO (VIDEO mode),
DVD-Video Recording (VR mode)
DVD+RW: DVD+RW Video
DVD-R/DVD+R DL: DVD-VIDEO
“Memory Stick PRO Duo”
MPEG2-PS
Still image recording format
Exif Ver.2.2*
Viewfinder
Electric viewfinder (color)
Image device
DCR-DVD110E/DVD115E/DVD610E
2.25 mm (1/8 type) CCD (Charge Coupled
Device)
Gross:
Approx. 800 000 pixels
Effective (Movie, 16:9)
Approx. 490 000 pixels
Effective (Still, 16:9)
Approx. 310 000 pixels
Effective (Still, 4:3)
Approx. 410 000 pixels
DCR-DVD310E/DVD410E/DVD710E/
DVD810E
3mm (1/6 type) CCD (Charge Coupled
Device)
Gross:
Approx. 1 070 000 pixels
Effective (Movie, 16:9)
Approx. 670 000 pixels
Effective (Still, 16:9)
Approx. 750 000 pixels
Effective (Still, 4:3)
Approx. 1 000 000 pixels
Lens
Carl Zeiss Vario-Tessar
DCR-DVD110E/DVD115E/DVD610E
Optical: 40×, Digital: 80×, 2000×
DCR-DVD310E/DVD410E/DVD710E/
DVD810E
Optical: 25×, Digital: 50×, 2000×
Filter diameter: 30 mm (1 3/16 in.)
Focal length
DCR-DVD110E/DVD115E/DVD610E
F1.8 - 4.1
f=1.9 - 76 mm (3/32 - 3 in.)
When converted to a 35 mm still camera
For movies:
41 - 1 640 mm (1 5/8 - 64 5/8 in.) (16:9)
For still images:
48 - 1 920 mm (1 15/16 - 75 5/8 in.) (4:3)
DCR-DVD310E/DVD410E/DVD710E/
DVD810E
F1.8 - 3.2
f=2.5 - 62.5 mm (1/8 - 2 1/2 in.)
When converted to a 35 mm still camera
For movies:
41 - 1 189 mm (1 5/8 - 46 7/8 in.) (16:9)**
For still images:
36 - 900 mm (1 7/16 - 35 1/2 in.) (4:3)
Color temperature
[AUTO], [ONE PUSH], [INDOOR]
(3 200 K), [OUTDOOR] (5 800 K)
Minimum illumination
DCR-DVD110E/DVD115E/DVD610E
6lx (lux) (AUTO SLW SHUTTR ON, Shutter
speed 1/25 second)
0lx (lux) (during NightShot plus function)
DCR-DVD310E/DVD410E/DVD710E/
DVD810E
8lx (lux) (AUTO SLW SHUTTR ON, Shutter
speed 1/25 second)
0lx (lux) (during NightShot plus function)
*“Exif” is a file format for still images,
established by the JEITA (Japan Electronics and
Information Technology Industries
Association). Files in this format can have
additional information such as your camcorder’s
setting information at the time of recording.
**The focal length figures are actual figures
resulting from wide angle pixel readout.
•Manufactured under license from Dolby
Laboratories.
Input/Output connectors
A/V Remote Connector
Video/audio output jack
USB jack
mini-B
(DCR-DVD110E/DVD115E/DVD310E/
DVD410E: output only)
LCD screen
6.7 cm (2.7 type, aspect ratio 16:9)
Total number of pixels
123 200 (560 × 220)
General
Power requirements
DC 6.8 V/7.2 V (battery pack)
DC 8.4 V (AC Adaptor)
Average power consumption
Using the LCD screen or the viewfinder with
normal brightness
DCR-DVD110E/DVD115E/DVD610E
LCD: 2.9 W
Viewfinder: 2.7 W
DCR-DVD310E/DVD710E
LCD: 3.2 W
Viewfinder: 2.8 W
DCR-DVD410E/DVD810E
LCD: 2.8 W
Viewfinder: 2.4 W
Operating temperature
0°C to +40 °C (32 °F to 104 °F)
Storage temperature
-20 °C to +60 °C (-4 °F to +140 °F)
Dimensions (Approx.)
55 × 89 × 130mm (2 1/4 × 3 5/8 × 5 1/8 in.)
(w × h × d) including the projecting parts
55 × 89 × 130mm (2 1/4 × 3 5/8 × 5 1/8 in.)
(w × h × d) including the projecting parts with
the rechargeable battery pack NP-FH40
attached
Mass (Approx.)
DCR-DVD110E/DVD115E/DVD610E
390 g (13oz) main unit only
440 g (15oz) including the rechargeable
battery pack NP-FH40 and a disc
DCR-DVD310E/DVD710E
400 g (14oz) main unit only
450 g (15oz) including the rechargeable
battery pack NP-FH40 and a disc
DCR-DVD410E/DVD810E
400 g (14oz)main unit only
445 g (15oz) including the rechargeable
battery pack NP-FH40

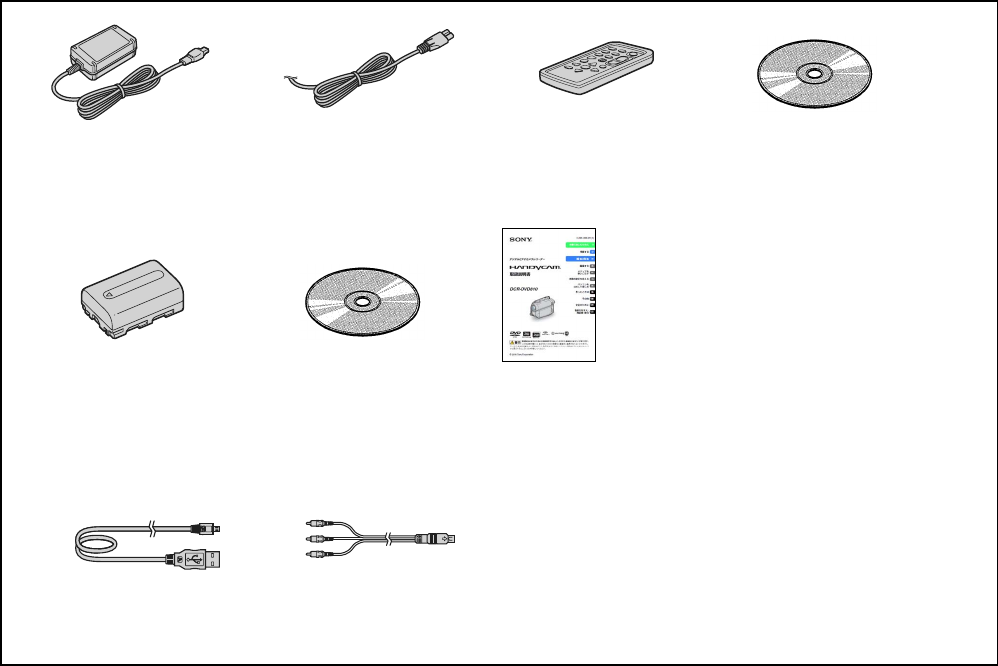

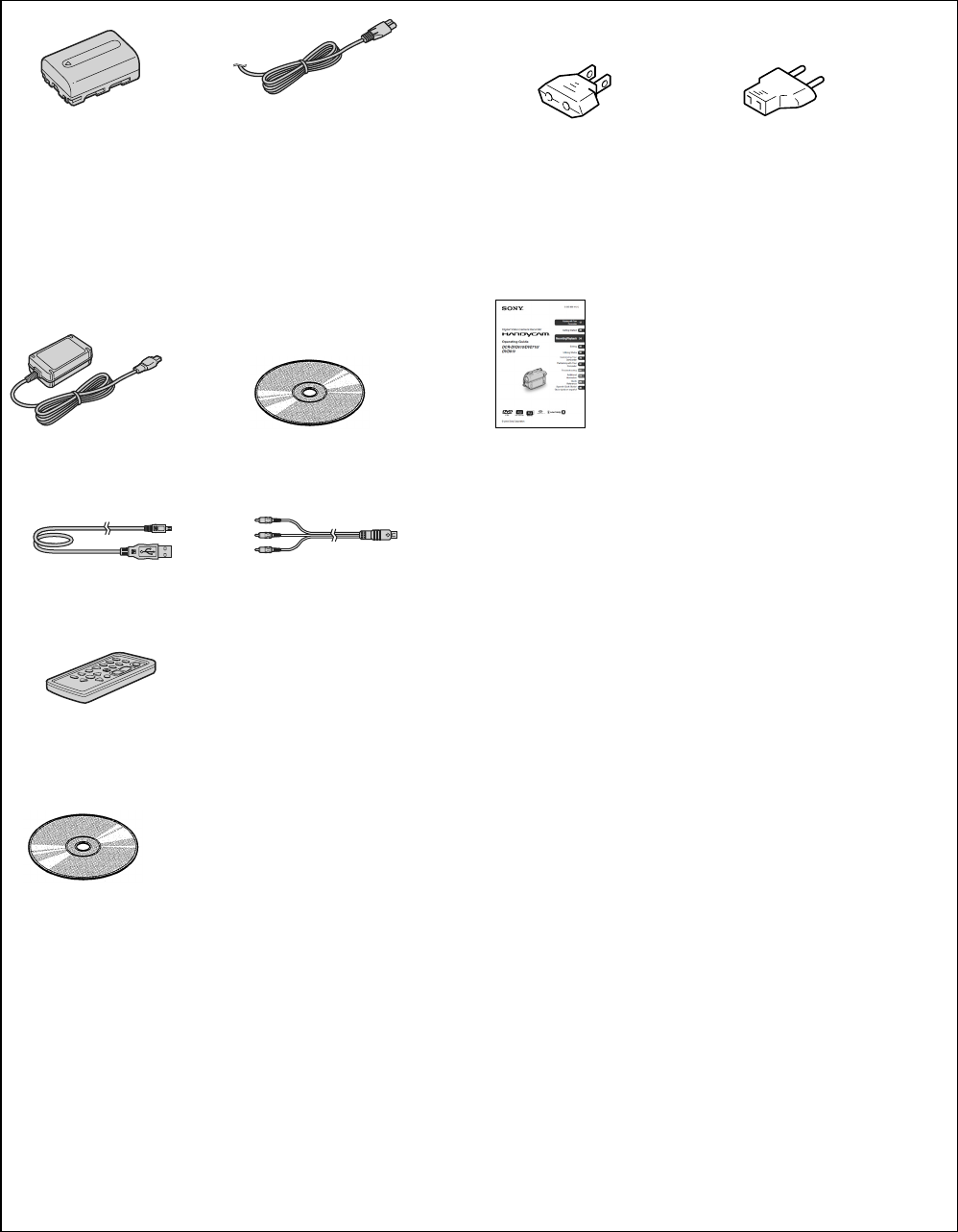

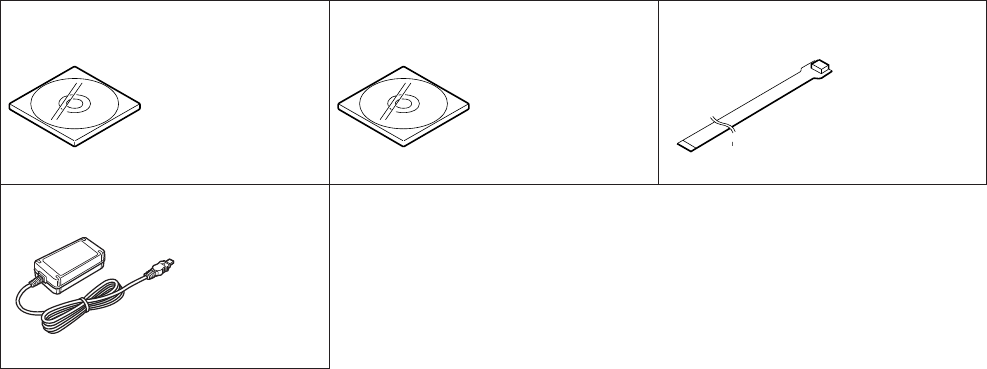

Supplied accessories
See page 5-25.
AC Adaptor (1)
Power cord (mains lead) (1)
A/V connecting cable (1)
USBcable (1)
Wireless Remote Commander (DCR-
DVD310E/DVD410E/DVD710E/DVD810E)
(1)
Rechargeable battery pack NP-FH40 (1)
CD-ROM “Handycam Application Software”
(1)
Operating Guide (1)
AC Adaptor AC-L200/L200B
Power requirements
AC 100 V - 240 V, 50/60 Hz
Current consumption
0.35 A - 0.18 A
Power consumption
18 W
Output voltage
DC 8.4 V*
Operating temperature
0°C to +40 °C (32 °F to 104 °F)
Storage temperature
-20 °C to +60 °C (-4 °F to +140 °F)
Dimensions (Approx.)
48 × 29 × 81mm (1 15/16 × 1 3/16 × 3 1/4in.)
(w × h × d) excluding the projecting parts
Mass (Approx.)
170g (6oz) excluding the power cord
(mains lead)
*See at the label of the AC Adaptor for other
specifications.
Rechargeable battery pack NP-FH40
Maximum output voltage
DC 8.4 V
Output voltage
DC 7.2 V
Capacity
4.9 Wh (680 mAh)
Type
Li-ion
Design and specifications are subject to change
without notice.
— 3 —
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
SPECIFICATIONS
These specifications are extracted from instruction
manual of DCR-DVD610/DVD710/DVD810.
System
Video compression format
MPEG2/JPEG (Still images)
Audio compression format
DCR-DVD610
Dolby Digital 2ch
Dolby Digital Stereo Creator
DCR-DVD710/DVD810
Dolby Digital 2/5.1ch
Dolby Digital 5.1 Creator
Video signal
NTSC color, EIA standards
Internal memory (DCR-DVD810)
8GB
When measuring media capacity, 1 GB equals
1 billion bytes, a portion of which is used for
data management.
Usable discs
8 cm DVD-RW/DVD+RW/DVD-R/
DVD+R DL
Movie recording format
Internal memory (DCR-DVD810)
MPEG2-PS
Disc
DVD-RW: DVD-VIDEO (VIDEO mode),
DVD-Video Recording (VR mode)
DVD+RW: DVD+RW Video
DVD-R/DVD+R DL: DVD-VIDEO
“Memory Stick PRO Duo”
MPEG2-PS
Still image recording format
Exif Ver.2.2
*
Viewfinder
Electric viewfinder (color)
Image device
DCR-DVD610
2.25 mm (1/8 type) CCD (Charge Coupled
Device)
Gross:
Approx. 680 000 pixels
Effective (Movie, 16:9)
Approx. 410 000 pixels
Effective (Still, 16:9)
Approx. 250 000 pixels
Effective (Still, 4:3)
Approx. 340 000 pixels
DCR-DVD710/DVD810
3mm (1/6 type) CCD (Charge Coupled
Device)
Gross:
Approx. 1 070 000 pixels
Effective (Movie, 16:9)
Approx. 670 000 pixels
Effective (Still, 16:9)
Approx. 750 000 pixels
Effective (Still, 4:3)
Approx. 1 000 000 pixels
Lens
Carl Zeiss Vario-Tessar
DCR-DVD610
Optical: 40×, Digital: 80×, 2000×
DCR-DVD710/DVD810
Optical: 25×, Digital: 50×, 2000×
Filter diameter: 30 mm (1 3/16 in.)
Focal length
DCR-DVD610
F1.8 - 4.1
f=1.9 - 76 mm (3/32 - 3 in.)
When converted to a 35 mm still camera
For movies:
41 - 1 640 mm (1 5/8 - 64 5/8 in.) (16:9)
For still images:
48 - 1 920 mm (1 15/16 - 75 5/8 in.) (4:3)
DCR-DVD710/DVD810
F1.8 - 3.2
f=2.5 - 62.5 mm (1/8 - 2 1/2 in.)
When converted to a 35 mm still camera
For movies:
41 - 1 189 mm (1 5/8 - 46 7/8 in.) (16:9)
**
For still images:
36 - 900 mm (1 7/16 - 35 1/2 in.) (4:3)
Color temperature
[AUTO], [ONE PUSH], [INDOOR]
(3 200 K), [OUTDOOR] (5 800 K)
Minimum illumination
DCR-DVD610
6lx (lux) (AUTO SLW SHUTTR ON, Shutter
speed 1/30 second)
0lx (lux) (during NightShot plus function)
DCR-DVD710/DVD810
8lx (lux) (AUTO SLW SHUTTR ON, Shutter
speed 1/30 second)
0lx (lux) (during NightShot plus function)
*“Exif” is a file format for still images,
established by the JEITA (Japan Electronics and
Information Technology Industries
Association). Files in this format can have
additional information such as your camcorder’s
setting information at the time of recording.
**The focal length figures are actual figures
resulting from wide angle pixel readout.
•Manufactured under license from Dolby
Laboratories.
Input/Output connectors
A/V Remote Connector
Video/audio output jack
USB jack
mini-B
LCD screen
6.7 cm (2.7 type, aspect ratio 16:9)
Total number of pixels
123 200 (560 × 220)
General
Power requirements
DC 6.8 V/7.2 V (battery pack)
DC 8.4 V (AC Adaptor)
Average power consumption
Using the LCD screen or the viewfinder with
normal brightness
DCR-DVD610
LCD: 2.9 W
Viewfinder: 2.7 W
DCR-DVD710
LCD: 3.3 W
Viewfinder: 2.9 W
DCR-DVD810
LCD: 2.9 W
Viewfinder: 2.5 W
Operating temperature
0°C to +40 °C (32 °F to 104 °F)
Storage temperature
-20 °C to +60 °C (-4 °F to +140 °F)
Dimensions (Approx.)
55 × 89 × 130mm (2 1/4 × 3 5/ × 5 1/8 in.)
(w × h × d) including the projecting parts
55 × 89 × 130mm (2 1/4 × 3 5/8 × 5 1/8 in.)
(w × h × d) including the projecting parts with
the rechargeable battery pack NP-FH40
attached
Mass (Approx.)
DCR-DVD610
390 g (13oz) main unit only
440g (15 oz) including the rechargeable
battery pack NP-FH40 and a disc
DCR-DVD710
400 g (14oz) main unit only
450g (15 oz) including the rechargeable
battery pack NP-FH40 and a disc
DCR-DVD810
400g (14 oz)main unit only
445g (15 oz) including the rechargeable
battery pack NP-FH40
Supplied accessories
See page 5-25.
AC Adaptor (1)
Power cord (mains lead) (1)
A/V connecting cable (1)
USB cable (1)
Wireless Remote Commander (DCR-
DVD710/DVD810) (1)
Rechargeable battery pack NP-FH40 (1)
CD-ROM “Handycam Application Software”
(1)
Operating Guide (1)
AC Adaptor AC-L200/L200B
Power requirements
AC 100 V - 240 V, 50/60 Hz
Current consumption
0.35 A - 0.18 A
Power consumption
18 W
Output voltage
DC 8.4 V*
Operating temperature
0°C to +40 °C (32 °F to 104 °F)
Storage temperature
-20 °C to +60 °C (-4 °F to +140 °F)
Dimensions (Approx.)
48 × 29 × 81mm (1 15/16 × 1 3/16 × 3 1/4 in.)
(w × h × d) excluding the projecting parts
Mass (Approx.)
170g (6 oz) excluding the power cord (mains
lead)
*See at the label of the AC Adaptor for other
specifications.
Rechargeable battery pack NP-FH40
Maximum output voltage
DC 8.4 V
Output voltage
DC 7.2 V
Capacity
4.9Wh (680 mAh)
Type
Li-ion
Design and specifications are subject to change
without notice.
— 4 —
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
概略仕様
シス テム
映像圧縮 方式
MPEG2/JPEG
（静止画 ）
音声圧縮 方式
Dolby Digital2/5.1ch
ドルビーデジ タル
5.1
クリ エーター搭載
映像信号
NTSC
カラー、
EIA
標準 方式
内蔵メ モリー
8GB
容 量は、
1GB
を
10
億バイト で計算した場合
の数値です。 ま た管理用ファ イルなどを含 む
ため、 実際使用 できる容量は 若干減少する 場
合 があります。
使用可能 ディスク
8cm
の
DVD-RW/DVD+RW/DVD-R/
DVD+R DL
動画記録 方式
内 蔵メモリー ：
MPEG2-PS
ディスク ：
DVD-RW:
DVD-VIDEO
（
VIDEO
モー ド）
DVD-Video Recording
（
VR
モード）
DVD+RW: DVD+RW Video
DVD-R/DVD+R DL: DVD-VIDEO
“メモリーステ ィック
PRO
デュオ” ：
MPEG2-PS
静止画記 録方式
Exif Ver.2.2*
ファイ ンダー
電 子ファイン ダー （カラー）
撮像素子
3.0mm
（
1/6
型）
CCD
固体映像 素子
総 画素数 ： 約
107
万画素
動 画時有効画素 数 （
16
：
9
モード） ：
約
67
万画素
静 止画時有効画 素数 （
16
：
9
モード） ：
約
75
万画素
静 止画時有効画 素数 （
4
：
3
モ ード） ：
約
100
万画 素
ズ ームレ ンズ
カー ル
ツァイ ス バリオテ ッサー
25
倍 （光学）
50
倍、
2 000
倍 （デ ジタル）
フィ ルター径
30mm
F1.8
∼
3.2
f=2.5
∼
62.5mm
35mm
カメラ換 算では
動画 撮影時 ：
41
∼
1 189mm
（
16:9
モード）
**
静止 画撮影時 ：
36
∼
900mm
（
4:3
モ ード）
色温度切り 換え
［オー ト］ 、 ［ワンプ ッシュ］ 、
［屋内 ］ （
3 200K
） 、 ［屋外］ （
5 800K
）
最低被写体 照度
8 lx
（ルクス ） （オートスロ ーシャッター
入、
シャ ッタースピー ド
1/30
秒）
0 lx
（ルクス ） （
NightShot plus
時）
入
/
出 力端子
A/V
リモ ート端子
映像 音声出力端子
USB
端子
mini-B
液 晶画面
画面サイズ
6.7cm
（
2.7
型、 アスペクト 比
16:9
）
総ドット数
123 200
ドット
横
560
×縦
220
*
（社） 電子情 報技術産業協 会 （
JEITA
） にて制定
された、 撮影 情報などの 付帯情報を追 加する
ことができ る静止画用の ファイルフォ ーマッ
ト。
**
広角画素読 み出しによる 実動作値
電源部 、 その 他
電源 電圧
バッテリー 端子入力
DC6.8V/7.2V
DC
端子入力
DC8.4V
消費 電力
ファインダ ー使用時、 明 るさ標準 ：
2.5W
液晶画面使 用時、 明るさ標 準 ：
2.9W
動作 温度
0
℃∼
+40
℃
保存 温度
−
20
℃∼
+60
℃
外形 寸法
55
×
89
×
130mm
（幅×高さ× 奥行き） （突
起部含む）
55
×
89
×
130mm
（幅×高さ× 奥行き） （突
起部含む、 付 属バッテリ ー
NP-FH40
装着状
態）
本体 質量
約
400g
（本体のみ）
撮影時 総質量
約
445g
（バッテリー
NP-FH40
含む）
付属 品
AC
アダプ ター 
AC-L200/L200B
電源
AC100V−
240V、
50/60Hz
消費 電力
18W
定格 出力
DC8.4V*
動作 温度
0℃∼
+40℃
保存 温度
−
20℃∼
+60℃
外形 寸法
約
48×
29×
81mm
（最 大突起部をの ぞく）
（幅×高さ ×奥行き）
質量
約
170g
（本体のみ）
*その他の仕 様については AC アダプ ターのラ
ベルをご覧 ください。
リチ ャージ ャブル バッテ リ ーパ ック
NP-FH40
最大電圧
DC8.4V
公称電圧
DC7.2V
容量
4.9Wh
（
680mAh）
使用電池
Li-ion
本機の仕 様および外観 は、 改良のた め予告なく変
更するこ とがありま すが、 ご了承く ださい。
•ドルビ ーラ ボラ トリ ーズ から の実施 権に 基づ
き製造されて います。
ACアダプター（1）
電源コード（1）
A/V接続ケーブル（1）
USBケーブル（1）
ワイヤレスリモコン（1）
リチャージャブルバッテリーパック
NP-FH40（1）
CD-ROM「Handycam Application
Software」（1）
取扱説明書（1）
保証書 （1）
— 5 —
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
Model information table
Non MEGA model
•Abbreviation
AR : Argentine model
AUS: Australian model
BR : Brazilian model
CH : Chinese model
CND : Canadian model
EE : East European model
HK : Hong Kong model
J: Japanese model
JE : Tourist model
KR : Korea model
MX : Mexican model
NE : North European model
Model DCR-DVD110E DCR-DVD115E DCR-DVD610 DCR-DVD610E
Destination AEP, UK, AEP, UK, US, CND, E, AEP, E, AUS,
EE, NE EE, NE AR, BR HK, CH
Color system PAL PAL NTSC PAL
5.1ch recording ×a××
Data CAM → PC aaaa
copy PC → CAM ××aa
Remote commander ××××
Active Interface Shoe ××××
Internal flash memory ××××
BL board BL-021 BL-021 BL-021 BL-021
CD board CD-731 CD-731 CD-731 CD-731
CK board CK-191 CK-191 CK-191 CK-191
MS board MS-391 MS-391 MS-391 MS-391
PD board PD-351 PD-351 PD-351 PD-351
RV board RV-011 RV-011 RV-011 RV-011
Model DCR-DVD310E DCR-DVD410E DCR-DVD710 DCR-DVD710E DCR-DVD810 DCR-DVD810E
Destination AEP, UK, AEP, UK, US, CND, E, AR AEP, E, CH US, CND, E, KR, AEP, E, AUS,
EE, NE EE, NE AR, JE, J HK, JE
Color system PAL PAL NTSC PAL NTSC PAL
5.1ch recording aaaaaa
Data CAM → PC aaaaaa
copy PC → CAM ××aaaa
Remote commander aaaaaa
Active Interface Shoe aaaaaa
Internal flash memory ×a××aa
BL board BL-022 BL-022 BL-022 BL-022 BL-022 BL-022
CD board CD-687 CD-687 CD-687 CD-672/CD-687 CD-687 CD-672/CD-687
CK board CK-192 CK-192 CK-192 CK-192 CK-192 CK-192
MS board MS-392 MS-392 MS-392 MS-392 MS-392 MS-392
PD board PD-352 PD-352 PD-352 PD-352 PD-352 PD-352
RV board RV-012 RV-012 RV-012 RV-012 RV-012 RV-012
MEGA model
— 6 —
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
1. Check the area of your repair for unsoldered or poorly-soldered
connections. Check the entire board surface for solder splashes
and bridges.
2. Check the interboard wiring to ensure that no wires are
"pinched" or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly
transistors, that were installed during a previous repair. Point
them out to the customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs
of deterioration. Point them out to the customer and
recommend their replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270˚C
during repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
Unleaded solder
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

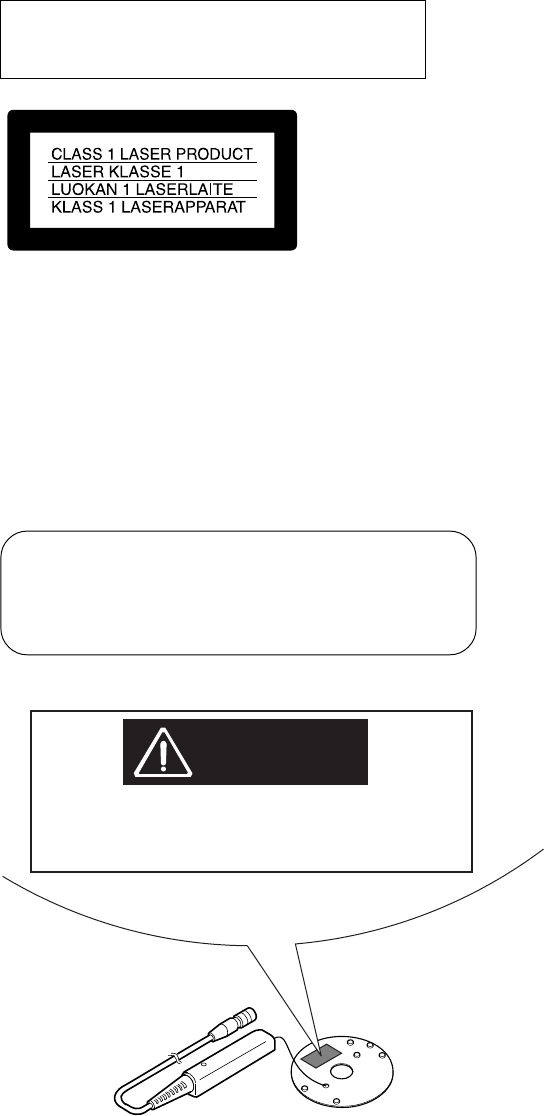

WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION,
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30 cm FROM THE SURFACE OF THE
OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.
CAUTION :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
CAUTION
Use of controls or adjustments or performance
procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION:
The use of optical instrument with this product will increase eye
hazard.
— 7 —
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
1. 注意事項をお守りください。
サービスのとき特に注意を要する個所については，
キャビネット，シャーシ，部品などにラベルや捺印で
注意事項を表示しています。これらの注意書き及び取
扱説明書等の注意事項を必ずお守り下さい。
2. 指定部品のご使用を
セットの部品は難燃性や耐電圧など安全上の特性を
持ったものとなっています。従って交換部品は，使用
されていたものと同じ特性の部品を使用して下さい。
特に回路図，部品表に0印で指定されている安全上重要
な部品は必ず指定のものをご使用下さい。
3. 部品の取付けや配線の引きまわしはもとどおりに
安全上，チューブやテープなどの絶縁材料を使用した
り，プリント基板から浮かして取付けた部品がありま
す。また内部配線は引きまわしやクランパによって発
熱部品や高圧部品に接近しないよう配慮されています
ので，これらは必ずもとどおりにして下さい。
4. サービス後は安全点検を
サービスのために取外したネジ，部品，配線がもとど
おりになっているか，またサービスした個所の周辺を
劣化させてしまったところがないかなどを点検し，安
全性が確保されていることを確認して下さい。
5. チップ部品交換時の注意
•取外した部品は再使用しないで下さい。
•タンタルコンデンサのマイナス側は熱に弱いため交
換時は注意して下さい。
サービス，点検時には次のことにご注意下さい。
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
6. フレキシブルプリント基板の取扱いについて
•コテ先温度を270℃前後にして行なって下さい。
•同一パターンに何度もコテ先を当てないで下さい。
（3回以内）
•パターンに力が加わらないよう注意して下さい。
7. 無鉛半田について
無鉛半田を使用している基板には，無鉛（Lead Free）を意
味するレッドフリーマークがプリントされています。
（注意：基板サイズによっては，無鉛半田を使用して
いてもレッドフリーマークがプリントされて
いないものがあります）
：レッドフリーマーク
無鉛半田には，以下の特性があります。
•融点が従来の半田よりも約40℃高い。
従来の半田こてをそのまま使用することは可能です
が，少し長めにこてを当てる必要があります。
温度調節機能のついた半田こてを使用する場合，約
350℃に設定して下さい。
注意： 半田こてを長く当てすぎると，基板のパター
ン（銅箔）がはがれてしまうことがあります
ので，注意して下さい。
•粘性が強い
従来の半田よりも粘性が強いため，IC端子などが半田
ブリッジしないように注意して下さい。
•従来の半田と混ぜて使用可能
無鉛半田には無鉛半田を追加するのが最適ですが，
従来の半田を追加しても構いません。
1-1
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
1. SERVICE NOTE
1-1. POWER SUPPLY DURING REPAIRS
In this unit, about 10 seconds after power is supplied to the battery terminal using the regulated power supply (8.4 V), the power is shut off so
that the unit cannot operate.
These following method is available to prevent this.
Method:
Use the AC power adaptor (AC-L200/L200B).

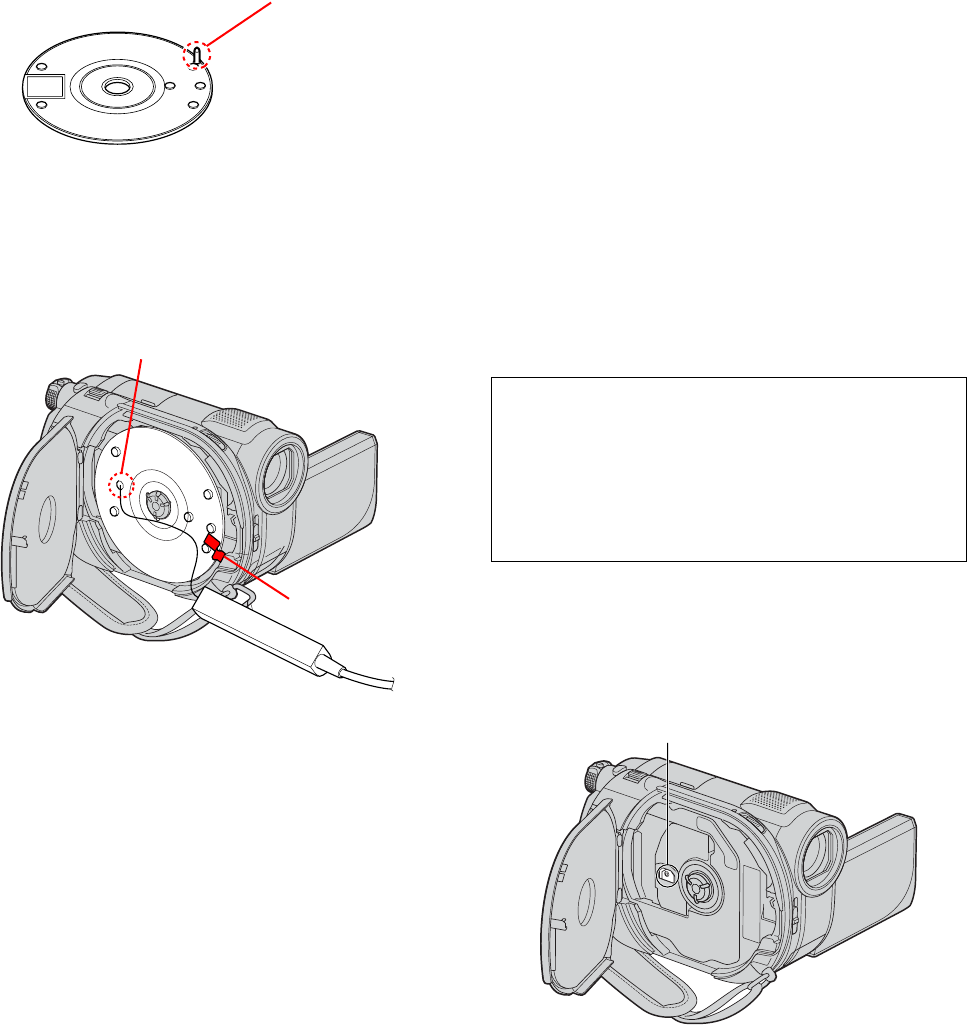

1-2. TO TAKE OUT A DISC WHEN NOT EJECT (FORCE EJECT)
1Open the jack cover and remove the remote control window.
2Insert the wire etc. in the hole and down the eject slider by it.
1-3. PRECAUTION ON REPLACING THE VC-520 BOARD

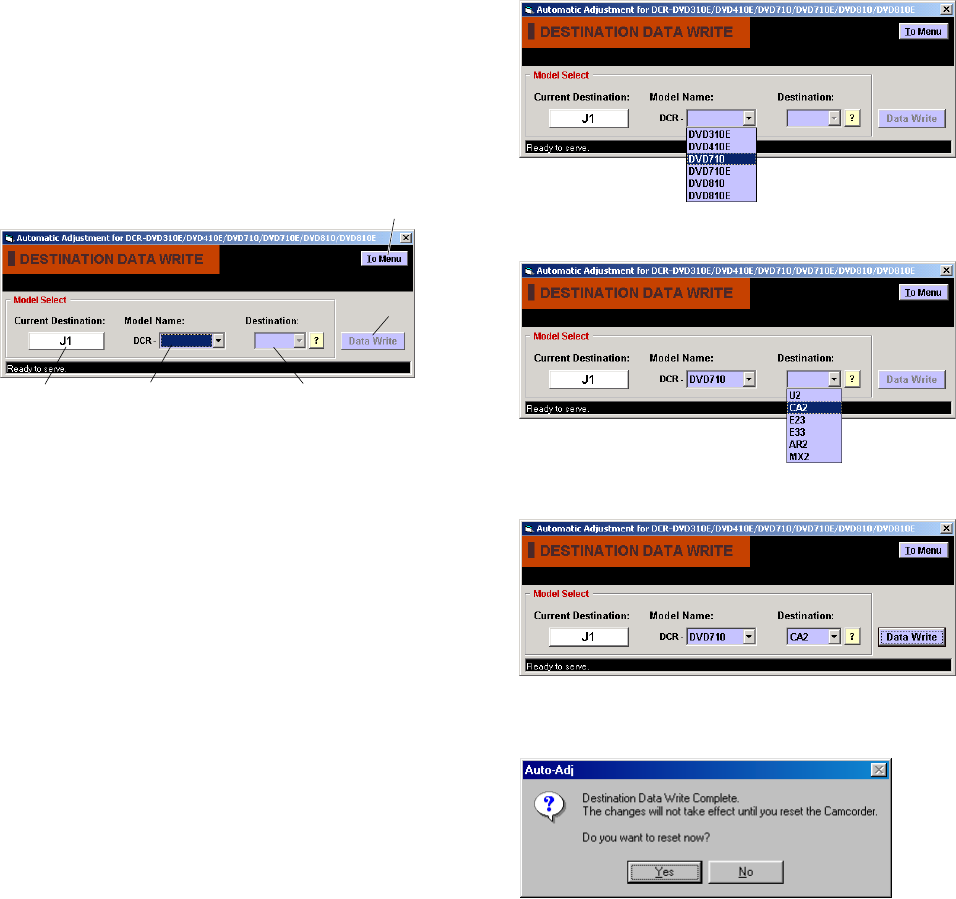

DESTINATION DATA
When you replace to the repairing board, the written destination data of repairing board also might be changed to original setting.
Refer to Service Manual ADJ, and perform “DESTINATION DATA WRITE”.

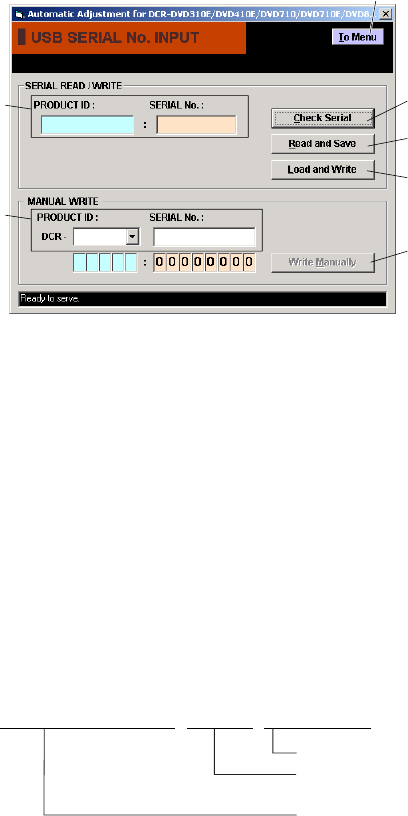

USB SERIAL No.
The set is shipped with a unique ID (USB Serial No.) written in it.
This ID has not been written in a new board for service, and therefore it must be entered after the board replacement.
Refer to Service Manual ADJ, and perform “USB SERIAL No. INPUT”.

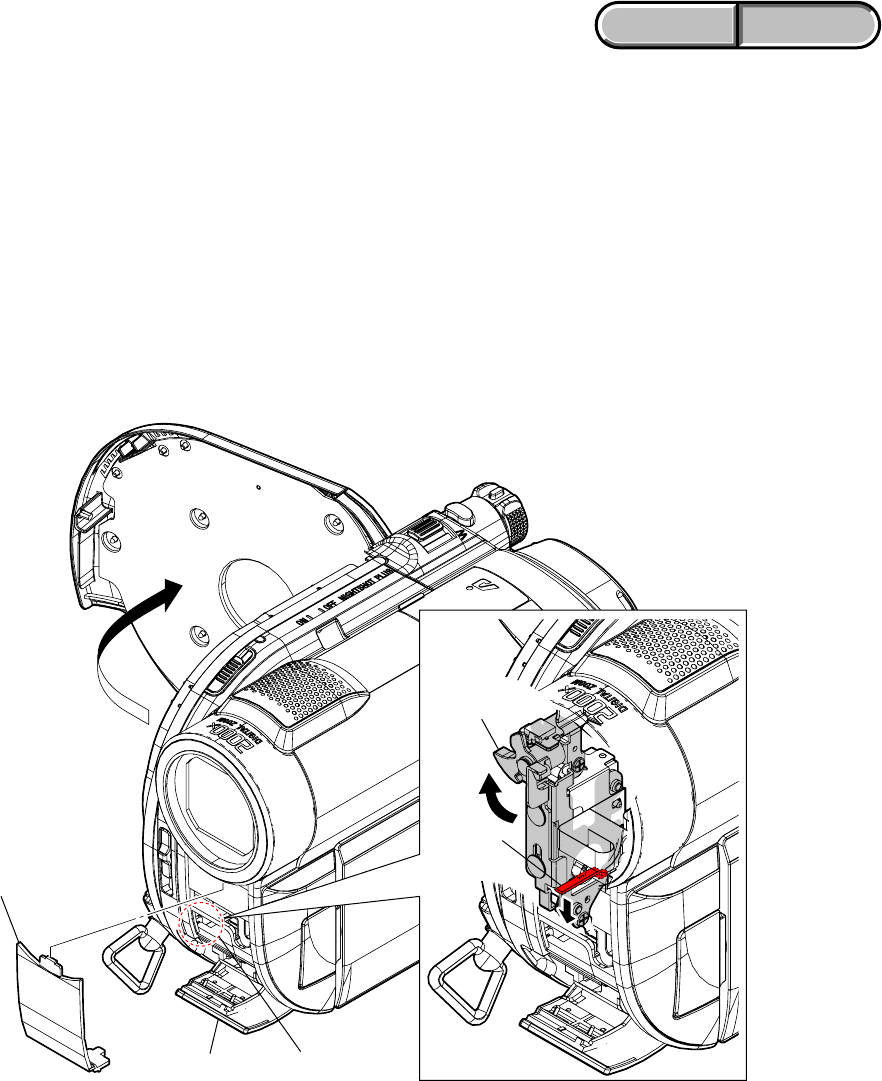

Hole
Remote Control Window
Jack Cover
Charge Lever
Eject Slider
1-2
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
1-4. USING SERVICE JIG

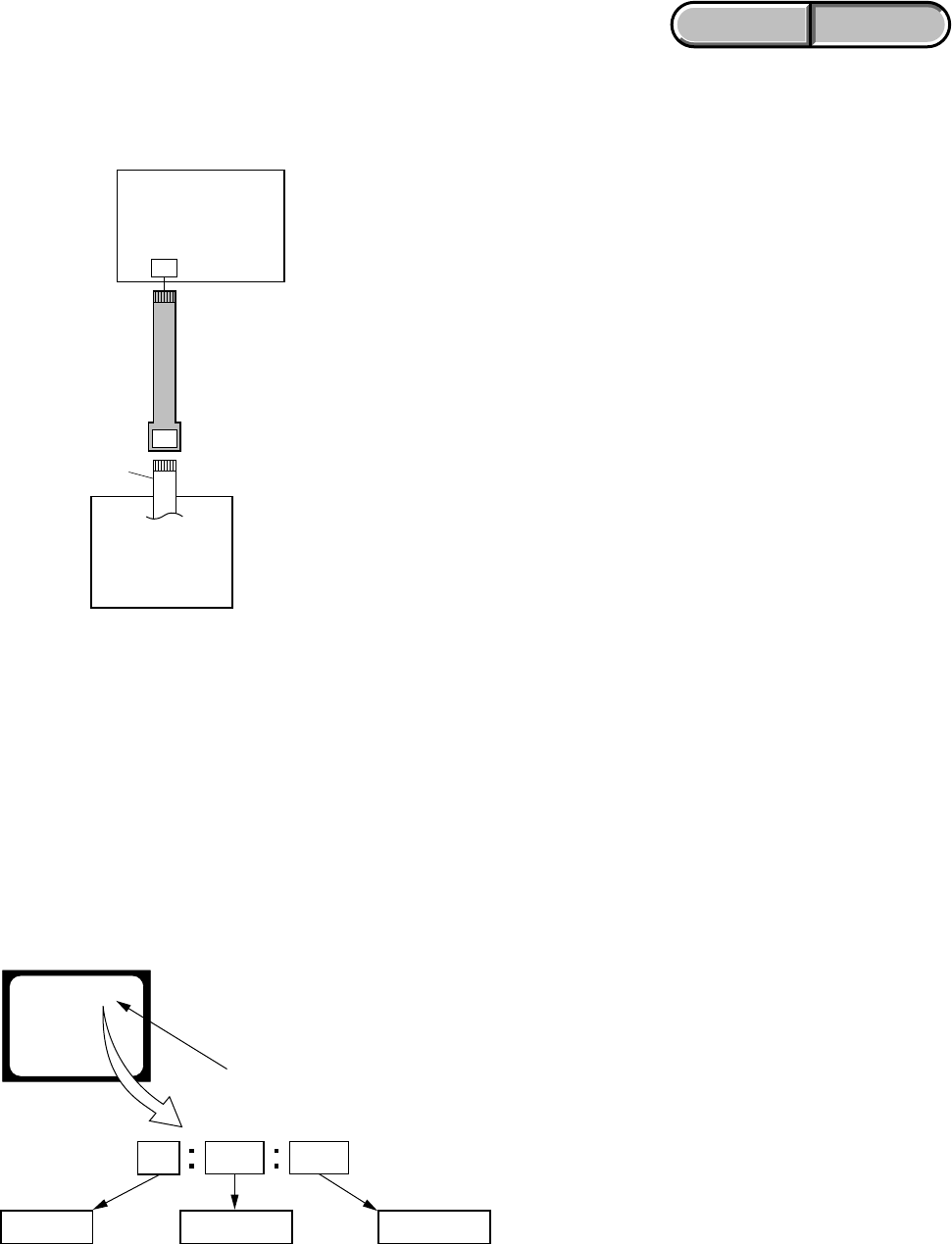

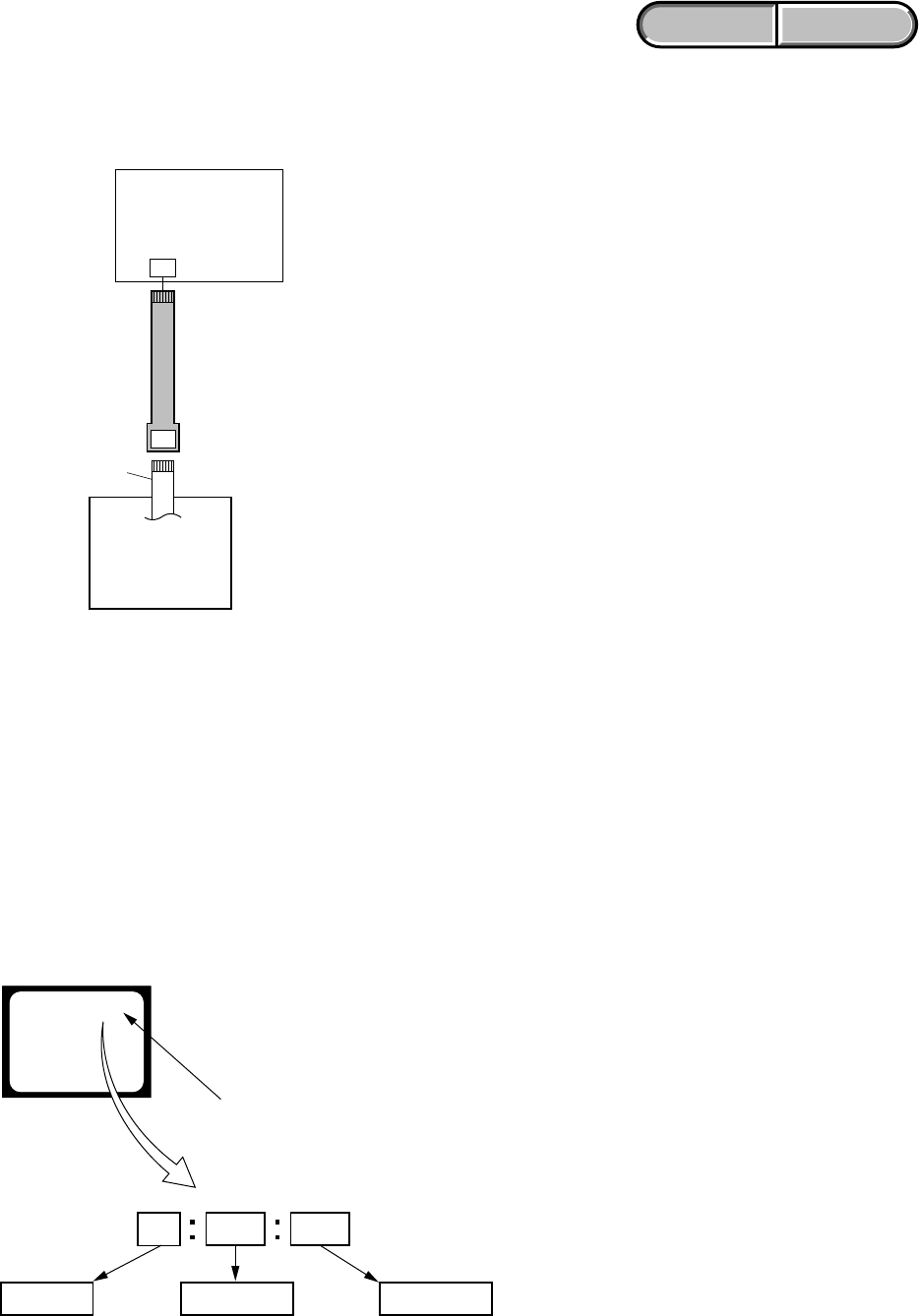

Connect the extension cable (J-6082-572-A) between the DVD mechanism deck and CN4401 on the VC-520 board.
DVD mechanism deck
VC-520 board (side A)
Flexible board (10P)
Extension cable (10P)
(J-6082-572-A)
CN4401
1 1
3 1C
Repaired by:
Refer to “1-5-3. Self-diagnosis Code Table”.
Indicates the appropriate
step to be taken.
E.g.
31 ....Reload the tape.
32 ....Turn on power again.
Block Detailed Code
Blinks at 3.2 Hz
C : Corrected by customer
H : Corrected by dealer
E : Corrected by service
engineer
Viewfinder or LCD screen
C : 3 1 : 1 1
1-5. SELF-DIAGNOSIS FUNCTION
1-5-1. Self-diagnosis Function
When problems occur while the unit is operating, the self-diagnosis
function starts working, and displays on the viewfinder or LCD
screen what to do.
Details of the self-diagnosis functions are provided in the Instruction
manual.
1-5-2. Self-diagnosis Display
When problems occur while the unit is operating, the counter of the
viewfinder or LCD screen shows a 4-digit display consisting of an
alphabet and numbers, which blinks at 3.2 Hz. This 5-character
display indicates the “repaired by:”, “block” in which the problem
occurred, and “detailed code” of the problem.
1-3
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
1-5-3. Self-diagnosis Code Table
C
C
C
E
E
E
E
E
E
E
E
E
Block
Function
04
13
13
20
31
61
61
61
62
62
94
94
Detailed
Code
00
01
02
00
00
00
10
11
00
01
00
01
Symptom/State
Non-standard battery is used.
“Memory Stick Duo” is unformatted.
“Memory Stick Duo” is broken.
Disc access error
Flash memory data are rewritten.
Drive fault
Difficult to adjust focus
(Cannot initialize focus.)
Zoom operations fault
(Cannot initialize zoom lens.)
The abnormalities in initialization of
the focus lens and the abnormalities in
initialization of the zoom lens occurred
simultaneously.
Handshake correction function does not
work well. (With PITCH angular
velocity sensor output stopped.)
Handshake correction function does not
work well. (With YAW angular velocity
sensor output stopped.)
Fault of writing to or erasing the flash
memory
Internal flash memory fault
Self-diagnosis Code
Repaired by:
Correction
Use the InfoLITHIUM battery.
Format the “Memory Stick Duo”.
Insert a new “Memory Stick Duo”.
Clean the disc with the supplied cleaning cloth.
Use a compatible disc with the camcorder.
Make flash memory data correct value. (Note 1)
Inspect or replacement of the mechanism deck, IC (IC4401 on
the VC-520 board) and drive block.
Inspect the lens block focus reset sensor (pin 7 of CN5101 on
the VC-520 board) when focusing is performed when the focus
buttons of the touch panel are pressed in the focus manual mode,
and the focus motor drive circuit (IC5401 (Non MEGA model)
or IC5301 (MEGA model) on the VC-520 board) when the
focusing is not performed.
Inspect the lens block zoom reset sensor (pin qa of CN5101 on
the VC-520 board) when zooming is performed when the zoom
lever is operated, and the zoom motor drive circuit (IC5401 (Non
MEGA model) or IC5301 (MEGA model) on the VC-520 board)
when zooming is not performed.
Check whether the flexible board of the lens is broken, and
check whether it is inserted imperfectly. If there is no problem in
the flexible board, inspect the focus/zoom motor drive circuit
(IC5401 (Non MEGA model) or IC5301 (MEGA model) on the
VC-520 board).
Inspect PITCH angular velocity sensors (SE7002 on the CD-
672/CD-687 board) peripheral circuits. (MEGA model only)
Inspect YAW angular velocity sensors (SE7001 on the CD-672/
CD-687 board) peripheral circuits. (MEGA model only)
Inspect the flash memory (IC2101 on the VC-520 board). (Note 1)
Inspect the internal flash memory (MDL4060S3C) (DVD410E/
DVD810/DVD810E only)
Note 1: Refer to “1-3. DESTINATION DATA WRITE”, ADJ (9-852-249-51).
Note 2: Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
1-4
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
1. SERVICE NOTE
1-2. イジェクトしない時のディスク取出し方法（強制イジェクト）
1ジャックカバーを開き，リモコン窓を外す。
2穴に針金等を差し込み，イジェクトスライダを下げる。
1-1. 修理時の電源供給について
本機では，安定化電源（8.4Vdc）からバッテリ端子に電源を供給した場合，約10秒後にシャットオフし，動作しなくなります。
これを避けるため，下記の方法を用いてください。
方法：
DC入力端子を使用する。（ACアダプタ（AC-L200/L200B）を使用する。）
リモコン窓
ジャックカバー
イジェクト
スライダ
チャージ
レバー
穴
1-3. VC-520基板交換時の注意
仕向けデータ
補修用基板と交換する時，補修用基板に書かれている仕向けデータは元の設定と違っている場合があります。
ADJ編を参照して，「DESTINATION DATA WRITE」を行ってください。
USBシリアルNo.
セットは，1台毎に異なる固有のID（USB Serial No.）を書き込んだ後，出荷されています。
新品の補修用基板には，このIDが書き込まれていないので，基板交換後にIDを入力する必要があります。
ADJ編を参照して，「USB SERIAL No. INPUT」を行ってください。
1-5
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
1-4. 使用サービス治具
延長ケーブル（J-6082-572-A）をVC-520基板CN4401とDVDメカデッキの間に接続します。
VC-520基板（A面側）
フレキシブル基板（10P）
延長ケーブル（10P）
（J-6082-572-A）
CN4401
DVDメカデッキ
1-5. 自己診断機能
1-5-1. 自己診断機能について
本機の動作に不具合が生じたとき，自己診断機能が働き，
ビューファインダまたはL C D 画面に，どう処置したらよい
か判断できる表示を行います。自己診断機能については取扱
説明書にも掲載されています。
1-5-2. 自己診断表示
本機の動作に不具合が生じたとき，ビューファインダまたは
LCD画面のカウンタ表示部分がアルファベットと数字の4桁
表示になり，3.2Hzで点滅します。この5文字の表示によっ
て対応者分類および不具合の生じたブロックの分類，不具合
の詳細コードを示します。
1 1
3 1C
対応者分類
「1-5-3. 自己診断コード表」
を参照
対応方法の違いにより分類
例 31 ･･ ･テープを入れ直す
32 ･･ ･電源を入れ直す
ブロック分類 詳細コード
3.2Hz点滅
C ：お客さま自身で対応
H ：販売店で対応
E ：サービスエンジニア
で対応
ビューファインダまたはLCD画面
C : 3 1 : 1 1
1-6E
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
1-5-3. 自己診断コード表
C
C
C
E
E
E
E
E
E
E
E
E
ブロック
機能
04
13
13
20
31
61
61
61
62
62
94
94
詳細
コード
00
01
02
00
00
00
10
11
00
01
00
01
症状／状態
標準以外のバッテリを使用している
フォーマットしていない“メモリー
ステック デュオ”を入れた
“メモリーステック デュオ”が壊
れている
ディスクアクセスエラー
フラッシュメモリが書き換えられて
いる
ドライブ不良
フォーカスが合いにくい
（フォーカスの初期化ができない）
ズーム動作の異常（ズームレンズの
初期化ができない）
フォーカス，ズーム異常
手振れ補正が効きにくい（PITCH
角速度センサ出力張り付き）
手振れ補正が効きにくい（YAW 角
速度センサ出力張り付き）
フラッシュメモリの書込み/消去動
作不良
内蔵フラッシュメモリ不良
自己診断コード
対応／方法
インフォリチウムバッテリを使用する。
“メモリーステック デュオ”をフォーマットする。
新しい“メモリーステック デュオ”に交換する。
ディスククリーニングをする。または本機に対応したディ
スクに交換する。
フラッシュメモリのデータを元の値に戻す（注）
メカデッキ駆動IC（VC-520基板 IC4401）周辺回路および
駆動部分を点検または交換する。
タッチパネルでフォーカス操作をしたときにフォーカス動
作をすれば，レンズブロックのフォーカスリセットセンサ
（VC-520基板CN5101 7ピン）を点検する。フォーカス動
作をしなければフォーカスモータ駆動回路（VC-520基板
IC5301）を点検する。
ズームレバーを操作したときにズーム動作をすれば，レン
ズブロックのズームリセットセンサ（VC-520基板CN5101
qaピン）を点検する。ズーム動作をしなければズームモー
タ駆動回路（VC-520基板IC5301）を点検する。
フレキ切れ，半差し等の点検を行う。問題がない場合は
フォーカス/ズームモータ駆動IC（VC-520基板IC5301）周
辺回路を点検する。
PITCH角速度センサ（CD-672/CD-687基板SE7002）周辺回
路を点検する。
YAW角速度センサ（CD-672/CD-687基板SE7001）周辺回
路を点検する。
フラッシュメモリ（VC-520基板IC2101）を点検する。
（注）
内蔵フラッシュメモリ（MDL4060S3C）を点検する。
対
応
者
注：調整編（9-852-249-51）「1-3. DESTINATION DATA WRITE」を参照してください。
2-1
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
2. DISASSEMBLY
NOTE FOR REPAIR
• Make sure that the flat cable and flexible board are not cracked of bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
• When remove a connector, don’t pull at wire of connector. It is possible that a wire is snapped.
•When installing a connector, don’t press down at wire of connector.
It is possible that a wire is snapped.

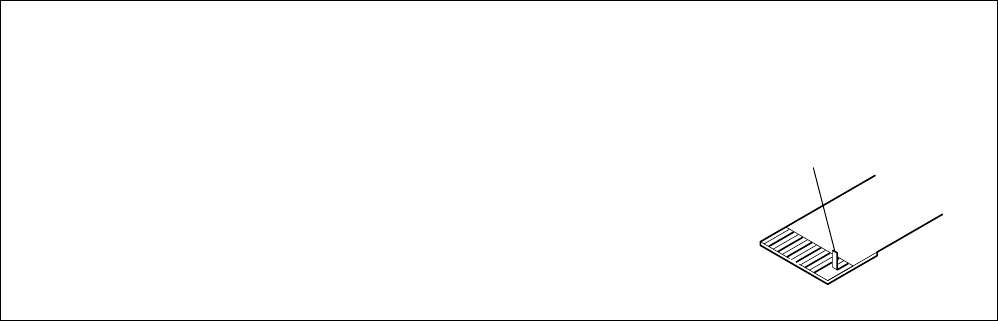

Cut and remove the part of gilt
which comes off at the point.
(Be careful or some
pieces of gilt may be left inside)
2-2
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

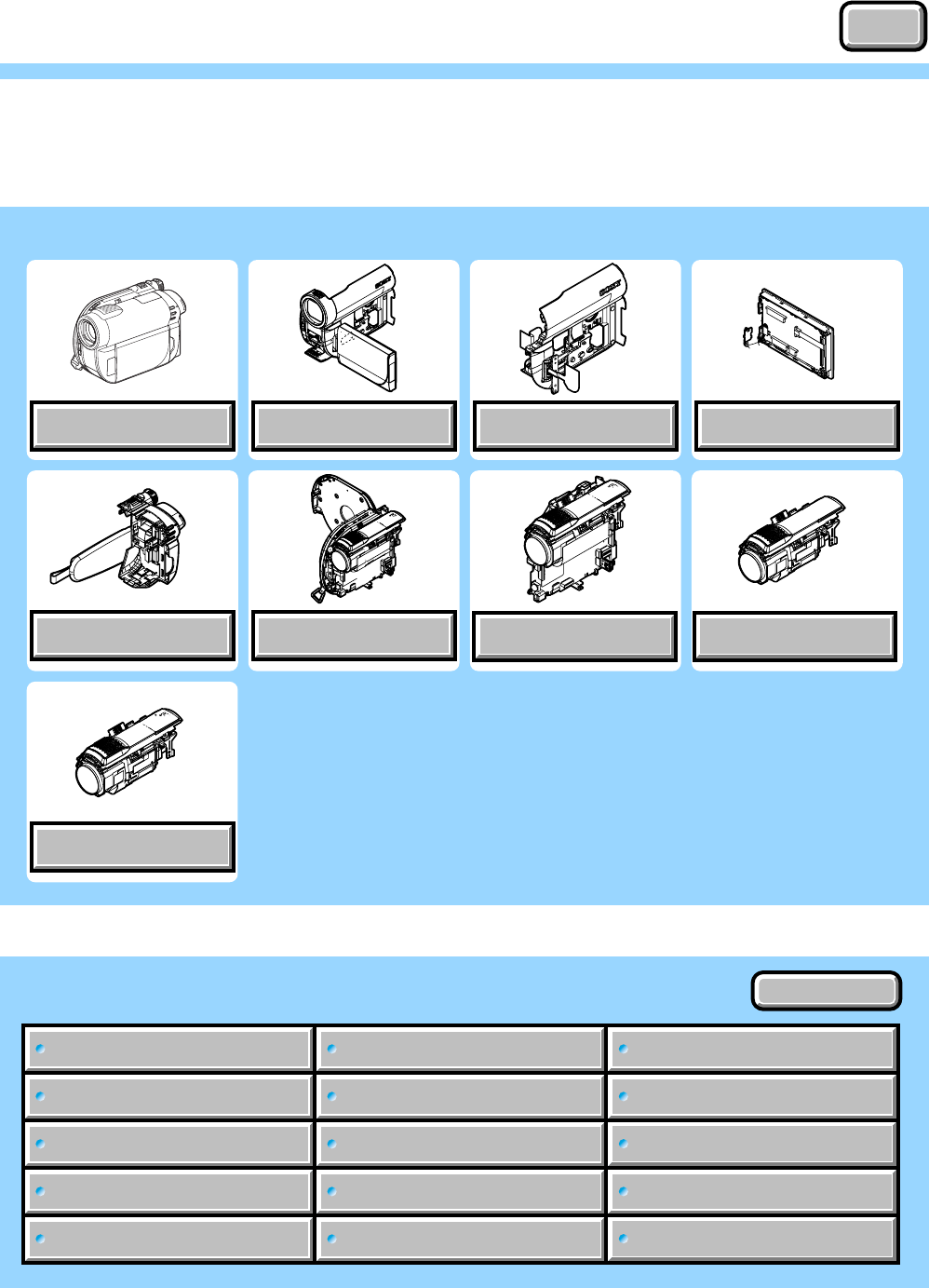

2-1. IDENTIFYING PARTS
2-2-1. OVERALL SECTION
⋅Cabinet R
⋅BT/EVF Block
2-2-3. CABINET R SECTION-2
⋅Hinge Block
⋅CK-191/192 Board
2-2-2. CABINET R SECTION-1
⋅Front Panel
⋅MS-391/392 Board
⋅LCD Block
2-2-4. CABINET L SECTION
⋅Cabinet L
2-2-5. MD Section
⋅Lens Block
⋅VC-520 Board
⋅Mechanism Deck
- DISASSEMBLY FLOW -
LCD Block
⋅ PD-351 Board
⋅ PD-352 Board
⋅ RV-011 Board
⋅ RV-012 Board
Front Panel
P Cabinet
Main Frame
Mechanism Deck
Cabinet R
⋅ CK-191 Board
⋅ CK-192 Board
⋅ FP-573 Flexible Board
⋅ FP-842 Flexible Board
⋅ MS-391 Board
⋅ MS-392 Board
Lens Block
⋅ CD-672 Board
⋅ CD-687 Board
⋅ CD-731 Board
⋅ FP-838 Flexible Board
⋅ FP-840 Flexible Board
BT/EVF Block
⋅ BL-021 Board
⋅ BL-022 Board
⋅ FP-839 Flexible Board
⋅ FP-841 Flexible Board
Cabinet L
⋅ FP-569 Flexible Board
VC-520 Board
2-3
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
2-2. DISASSEMBLY

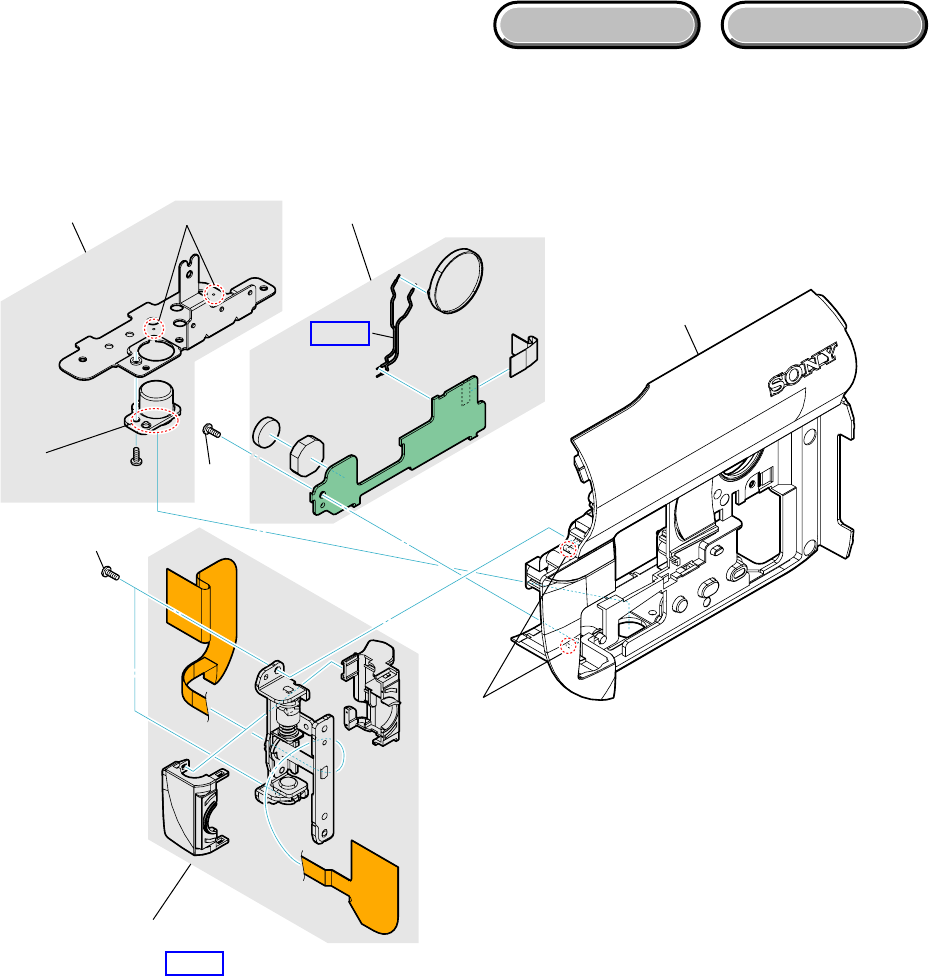

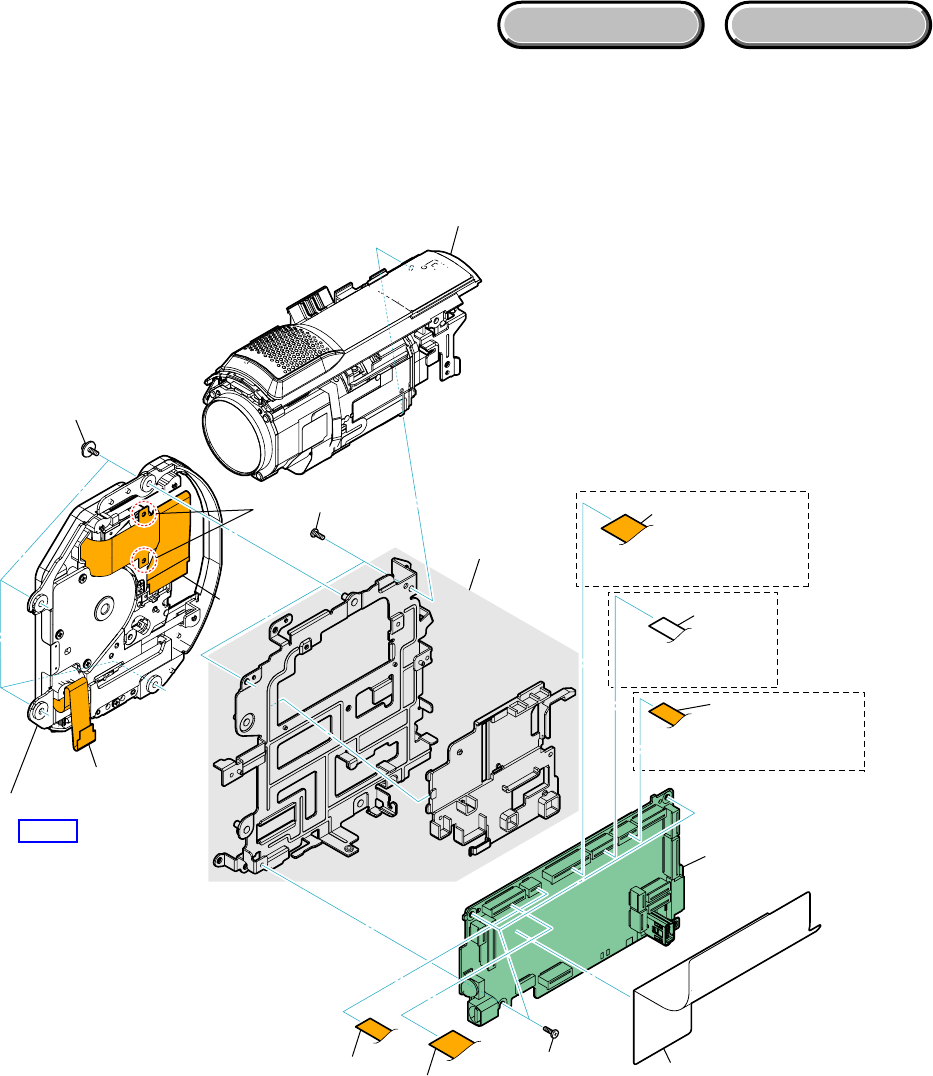

2-2-1. OVERALL SECTION
Follow the disassembly in the numerical order given.
1Cabinet R (1-1 to 1-18)
2BT/EVF Block (2-1 to 2-8)
HELP
HELP

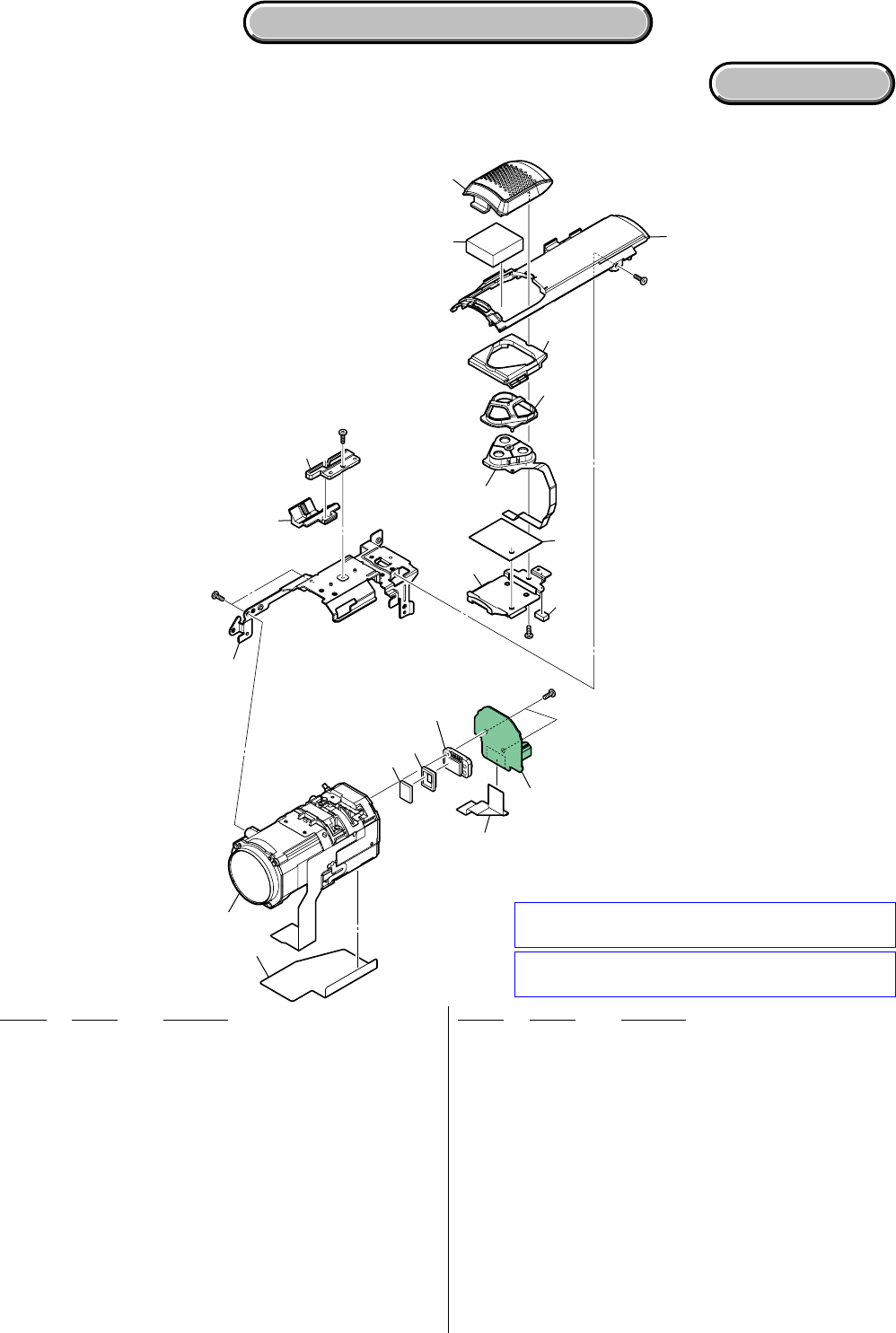

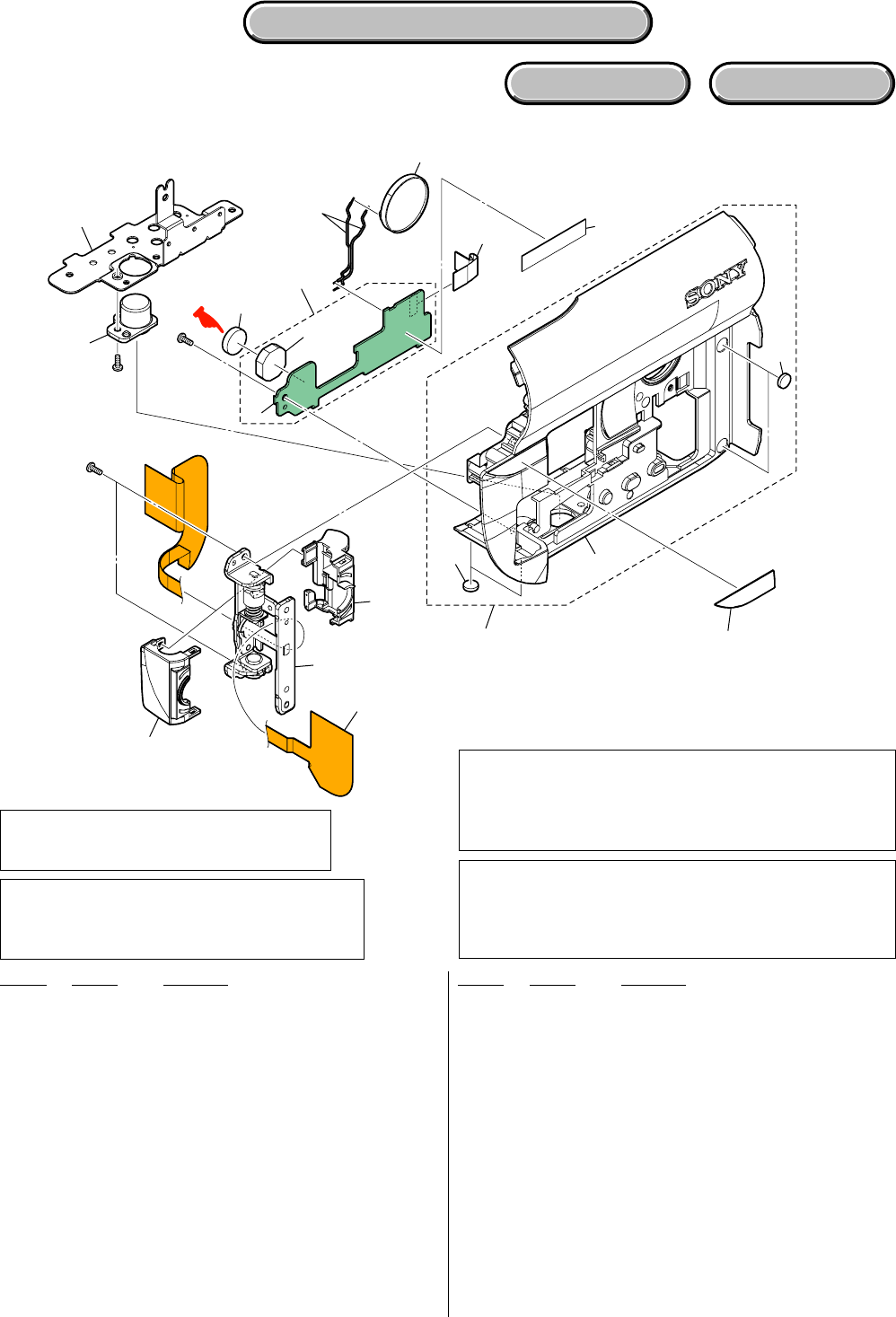

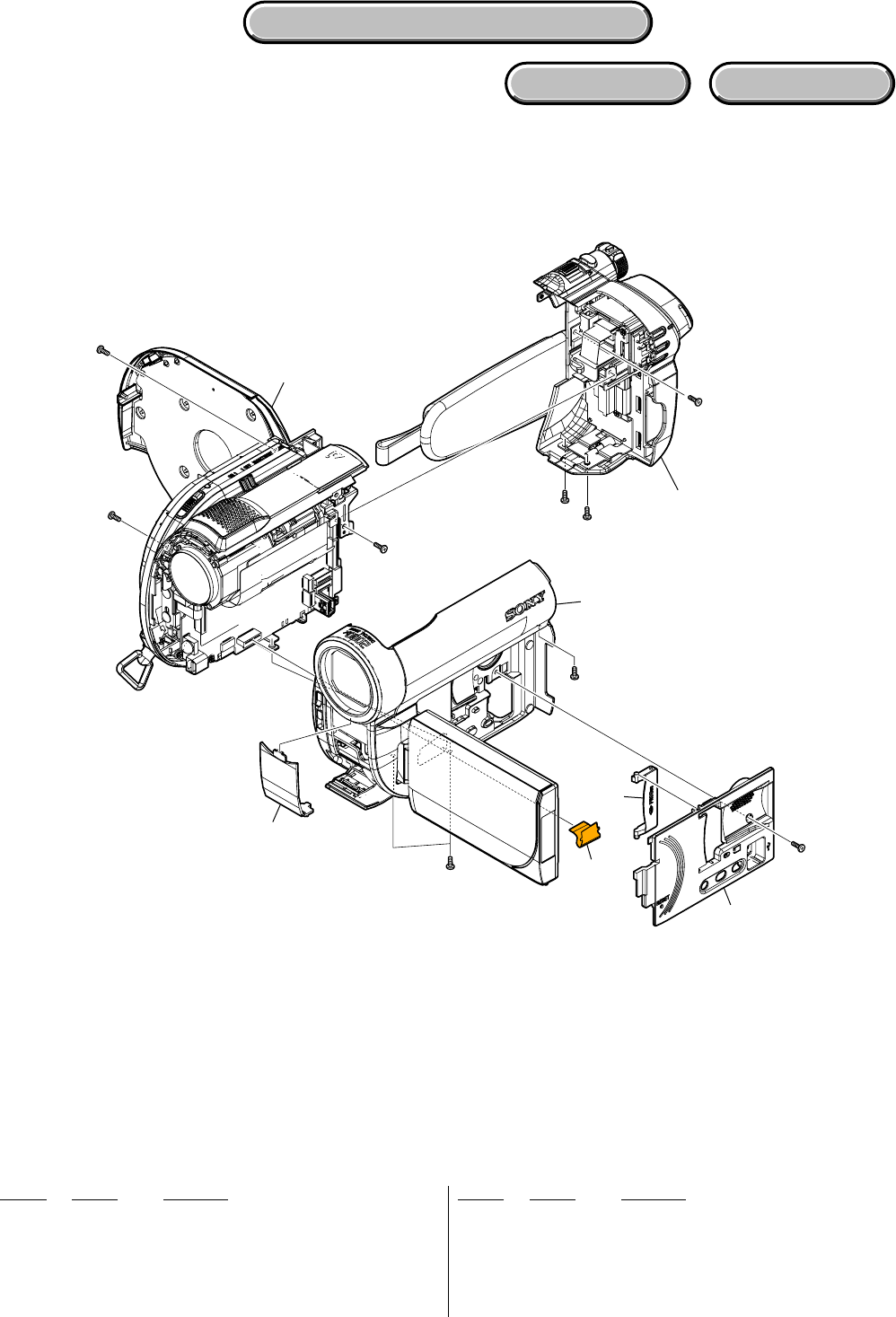

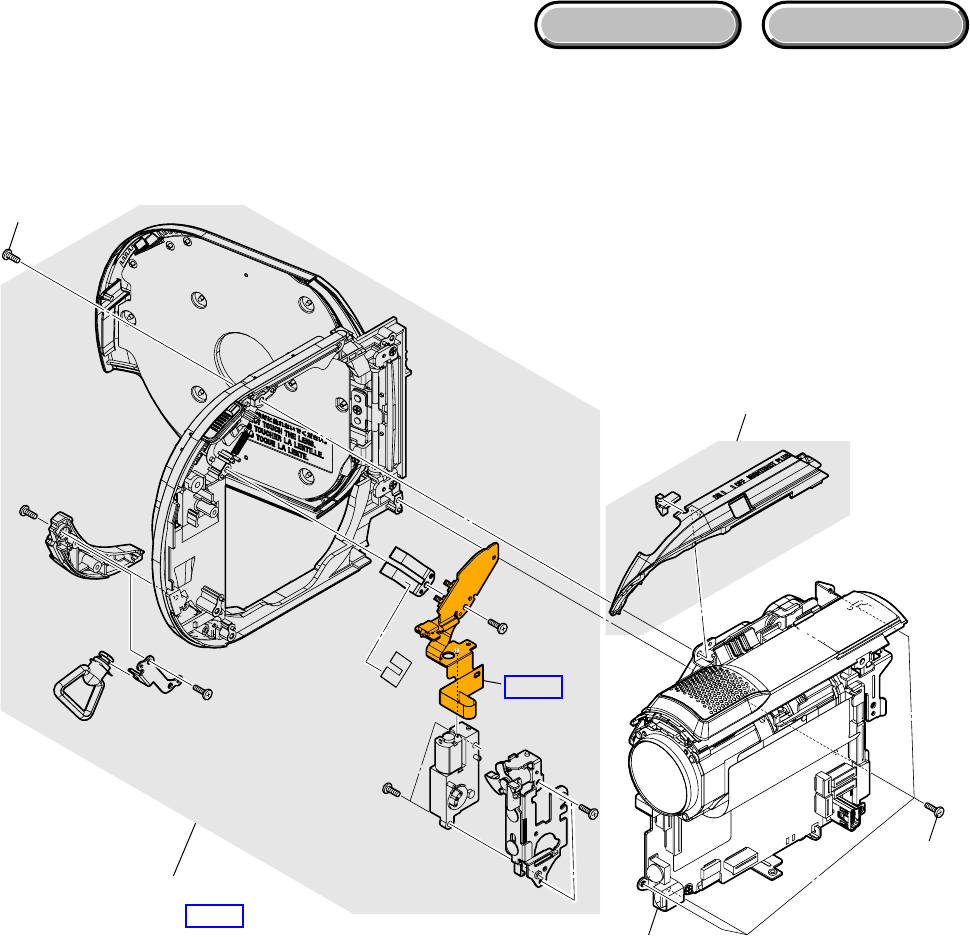

EXPLODED VIEW

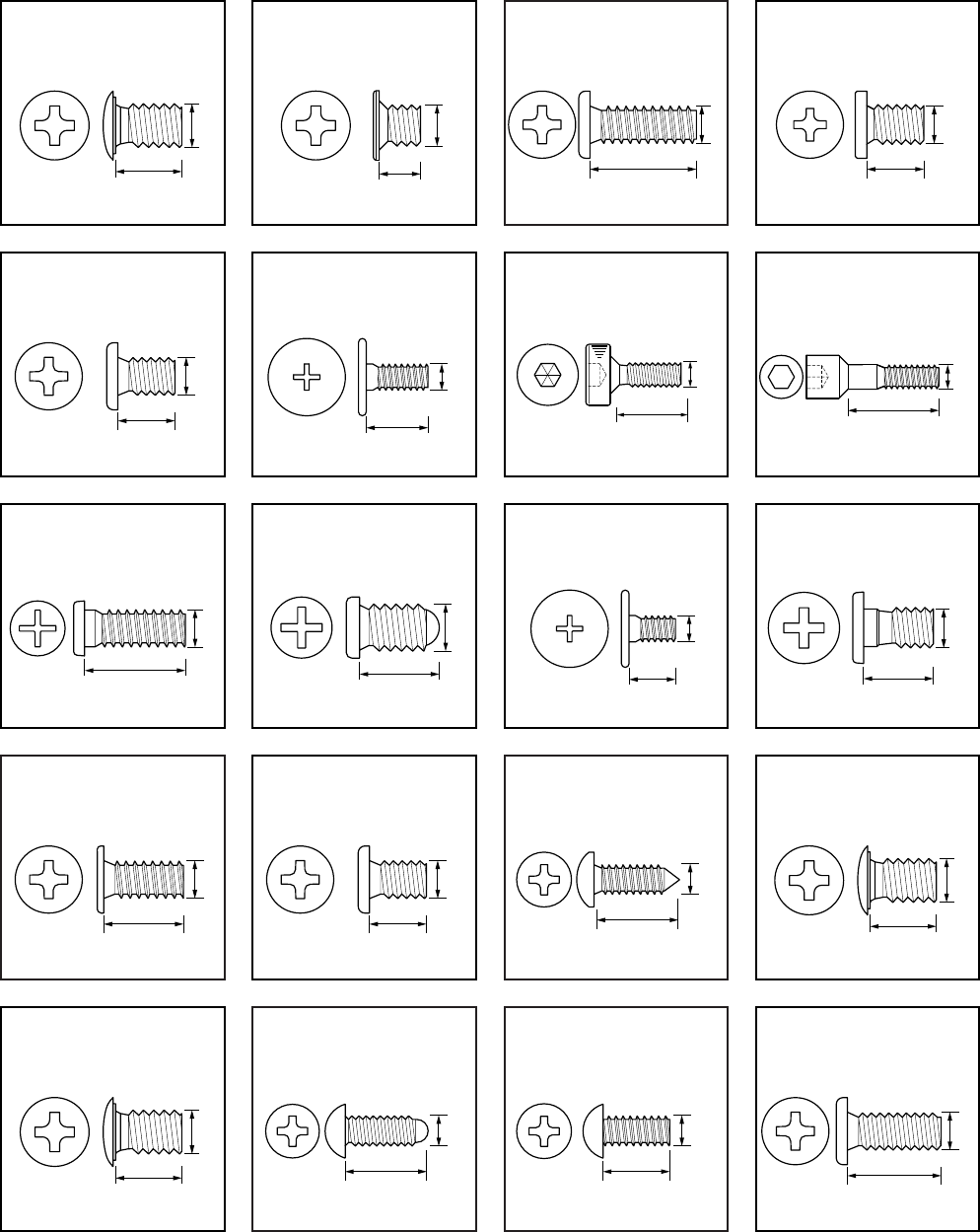

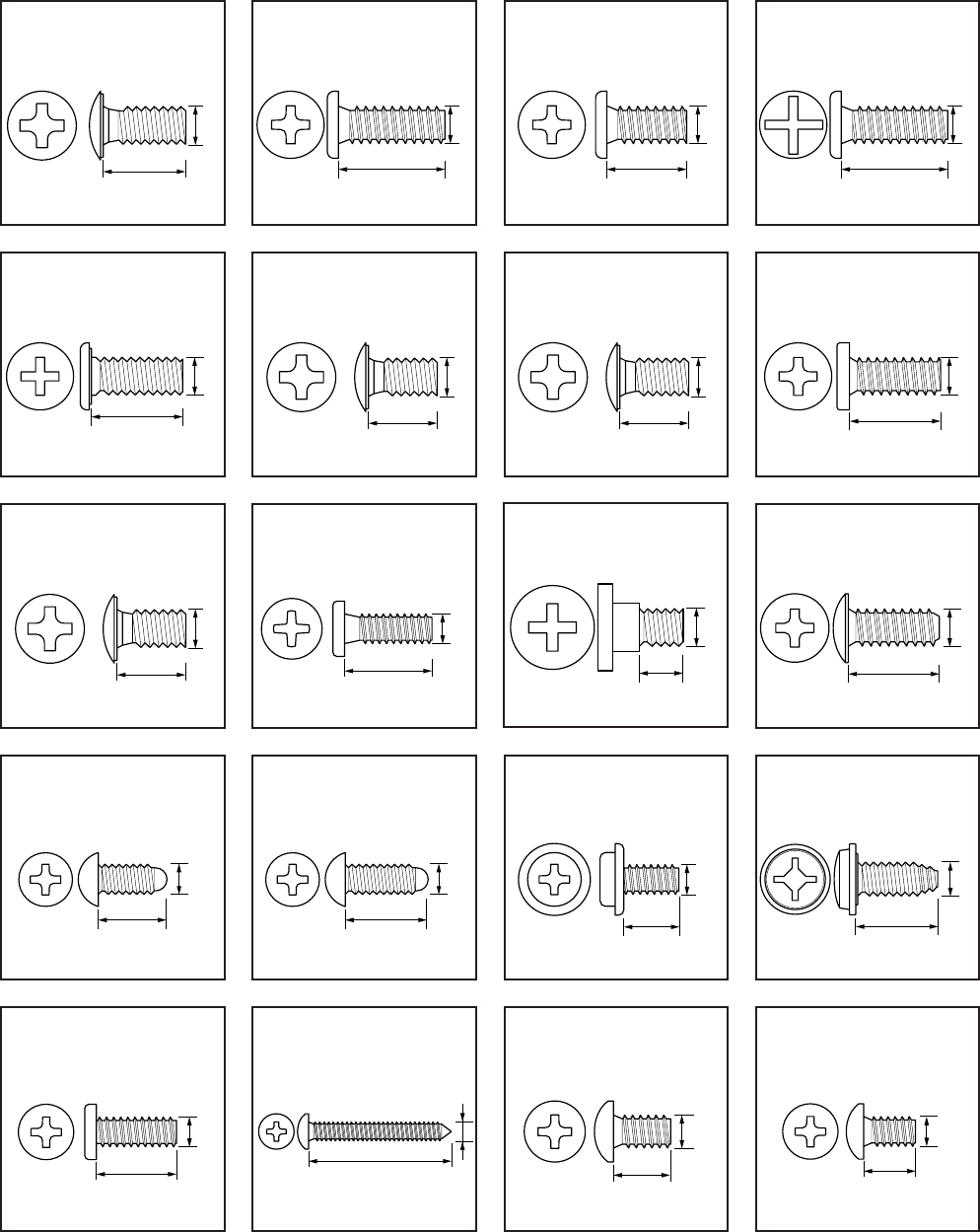

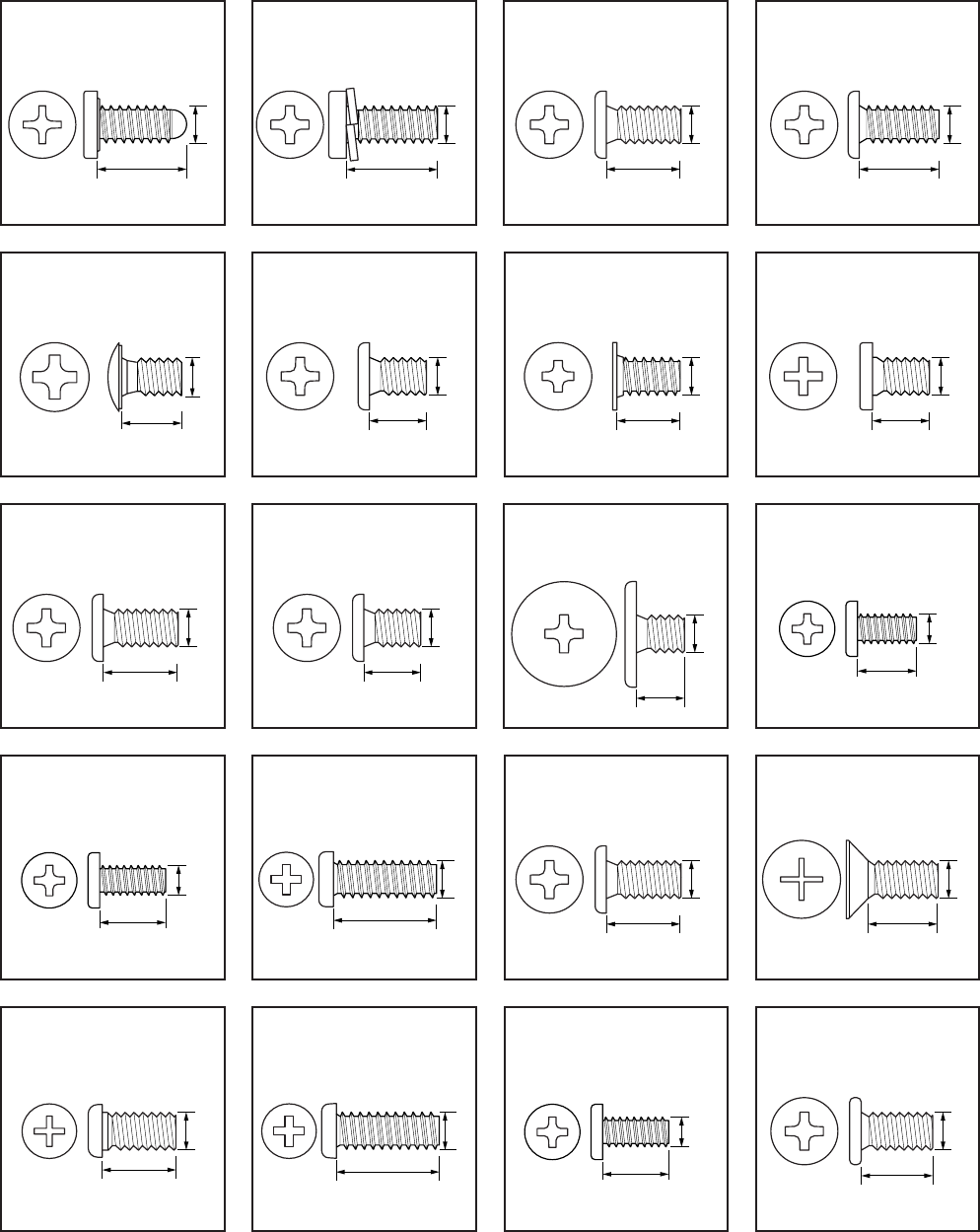

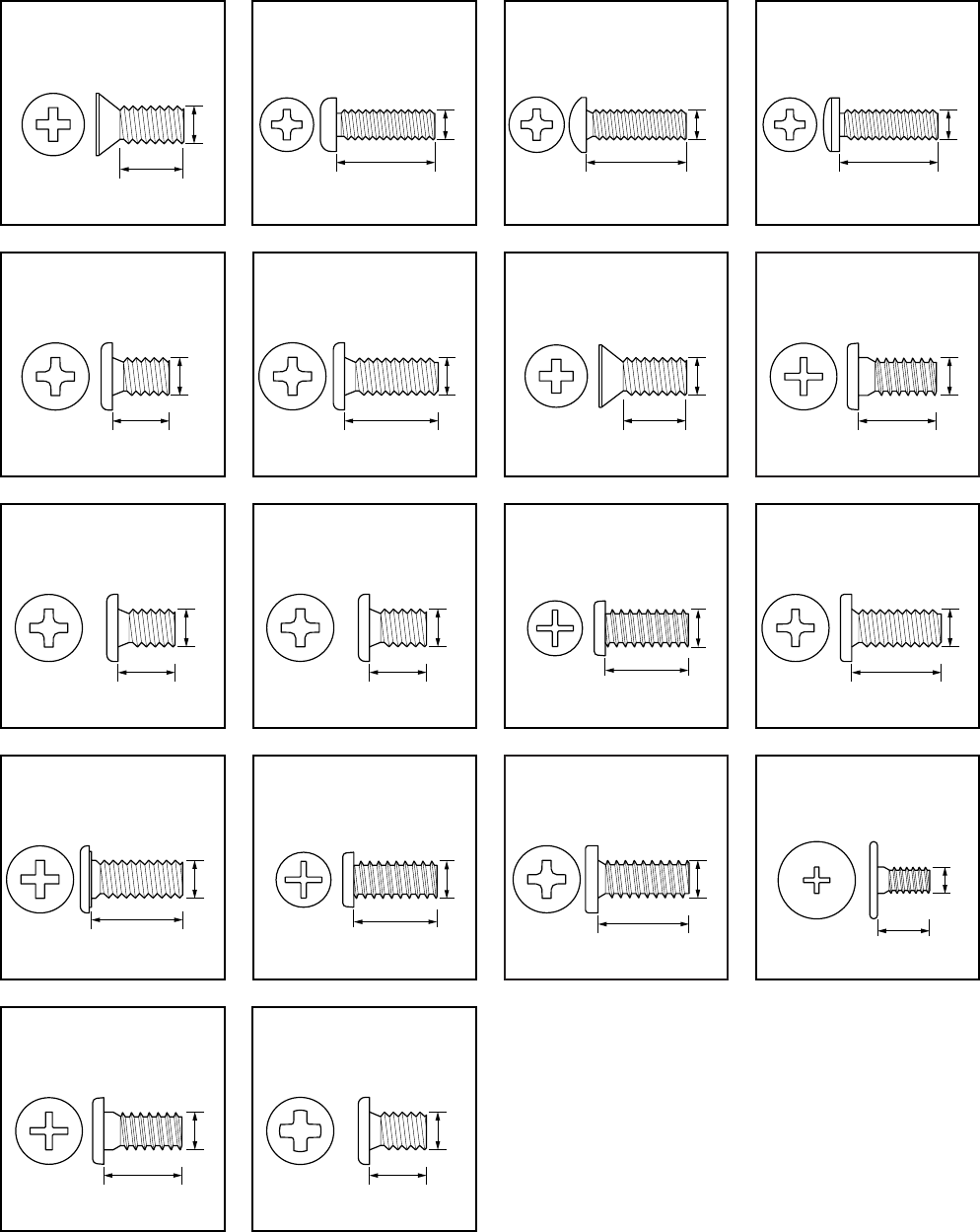

HARDWARE LIST
DVD410E/DVD810/
DVD810E
1-2 (#2)
1-8 (#2)
1-16 (#2)
1-9 (#2)
1-10 (#2)
1-3 (Claw)
1-1 (Open)
1-11 (Open)
1-15 (Open)
1-4
(Claw)
1-12
(Claw)
1-13
(Claw)
1-14
1-17
1-18
1-5
1-6
1-7
1Cabinet R
(See Page 2-4)
2BT/EVF Block
2-1
2-3 (#2)
2-4
(#3)
2-5 (#3)
2-7
2-8
2-6 (#11)
2-2
Cabinet L
Section
(See Page 2-6)
Refer to page 1-1 “1-2. To take out
a disc when not eject (force eject)".
2-4
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

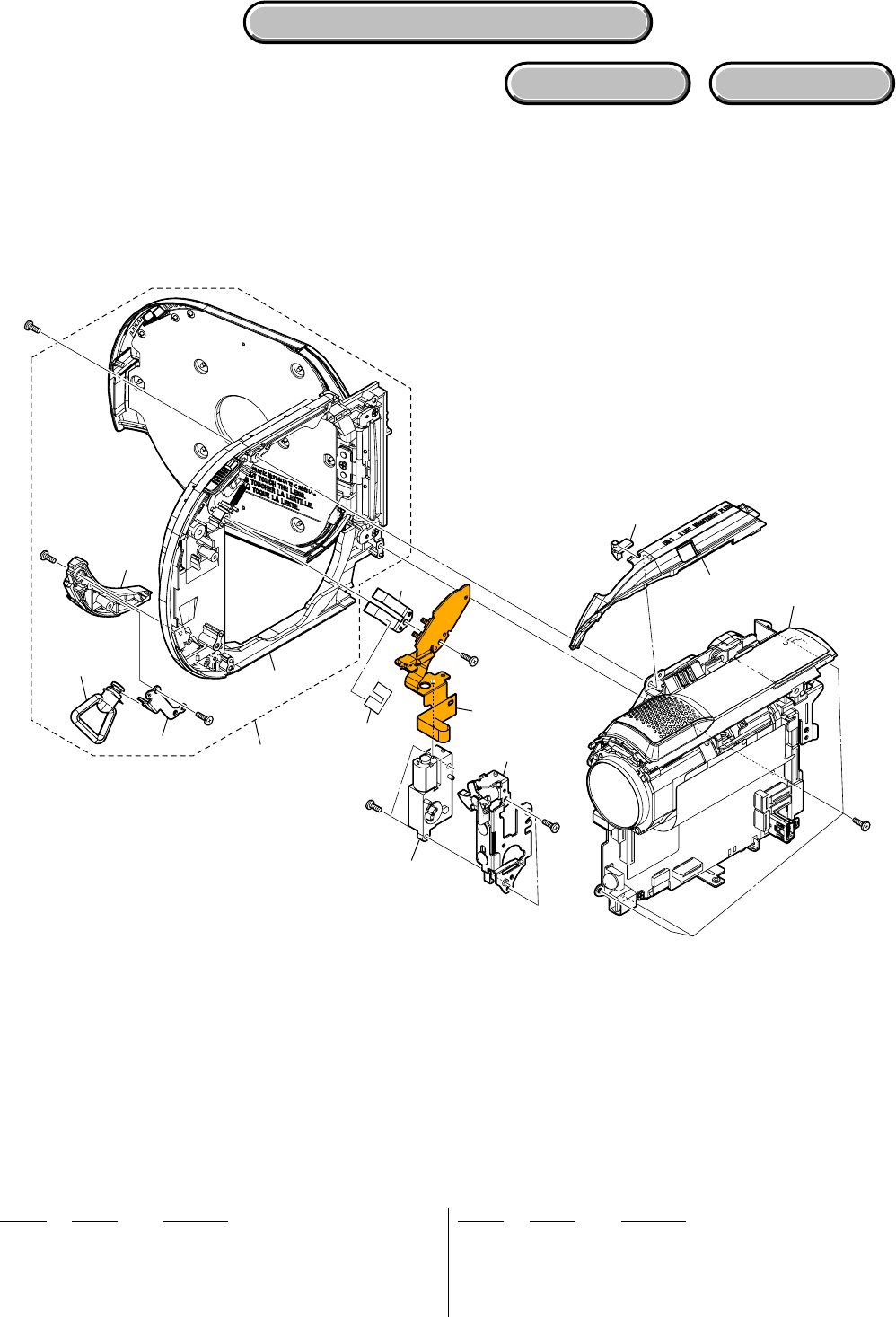

2-2-2. CABINET R SECTION-1
Follow the disassembly in the numerical order given.
1Front Panel (1-1 to 1-5)
2MS-391/392 Board (2-1 to 2-2)
3LCD Block (3-1 to 3-9)
EXPLODED VIEW

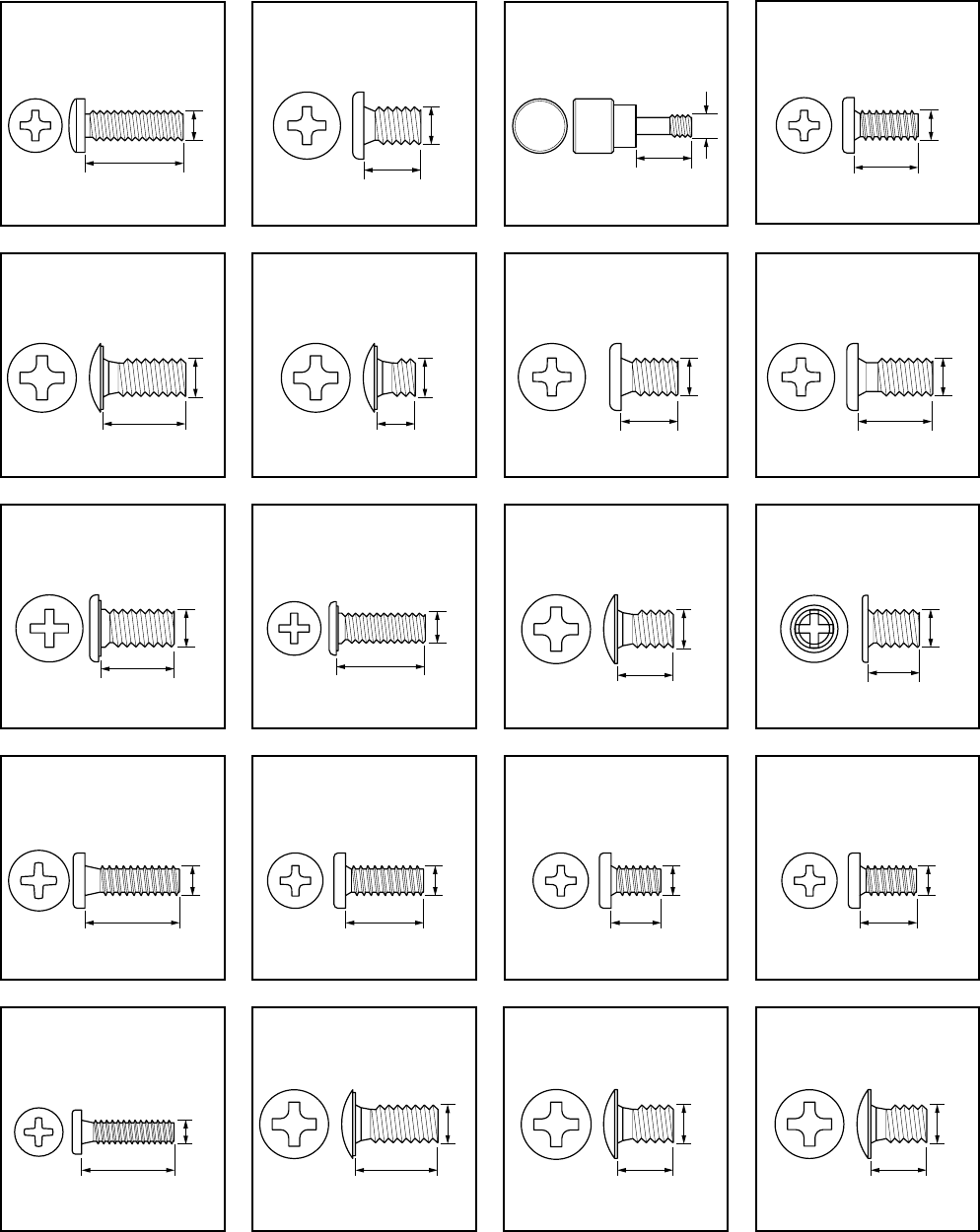

HARDWARE LIST
3LCD Block
3-1
(Rotate)
3-3
(Claw)
3-9
(Claw)
3-6
3-8
3-7
3-5
(Claw)
3-4
(Claw)
3-2 (#2)
2-1 (#11)
2-2
(Claw)
2MS-391/392 Board
1-1 (#11)
1-2
(Claw)
1-4
(Claw)
1-3
(Boss)
1-5 (Claw)
1Front Panel
Cabinet R Section-2
(See Page 2-5)
2-5
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
2-2-3. CABINET R SECTION-2
Follow the disassembly in the numerical order given.
1Hinge Block (1-1 to 1-2)
2CK-191/192 Board (2-1 to 2-5)
EXPLODED VIEW

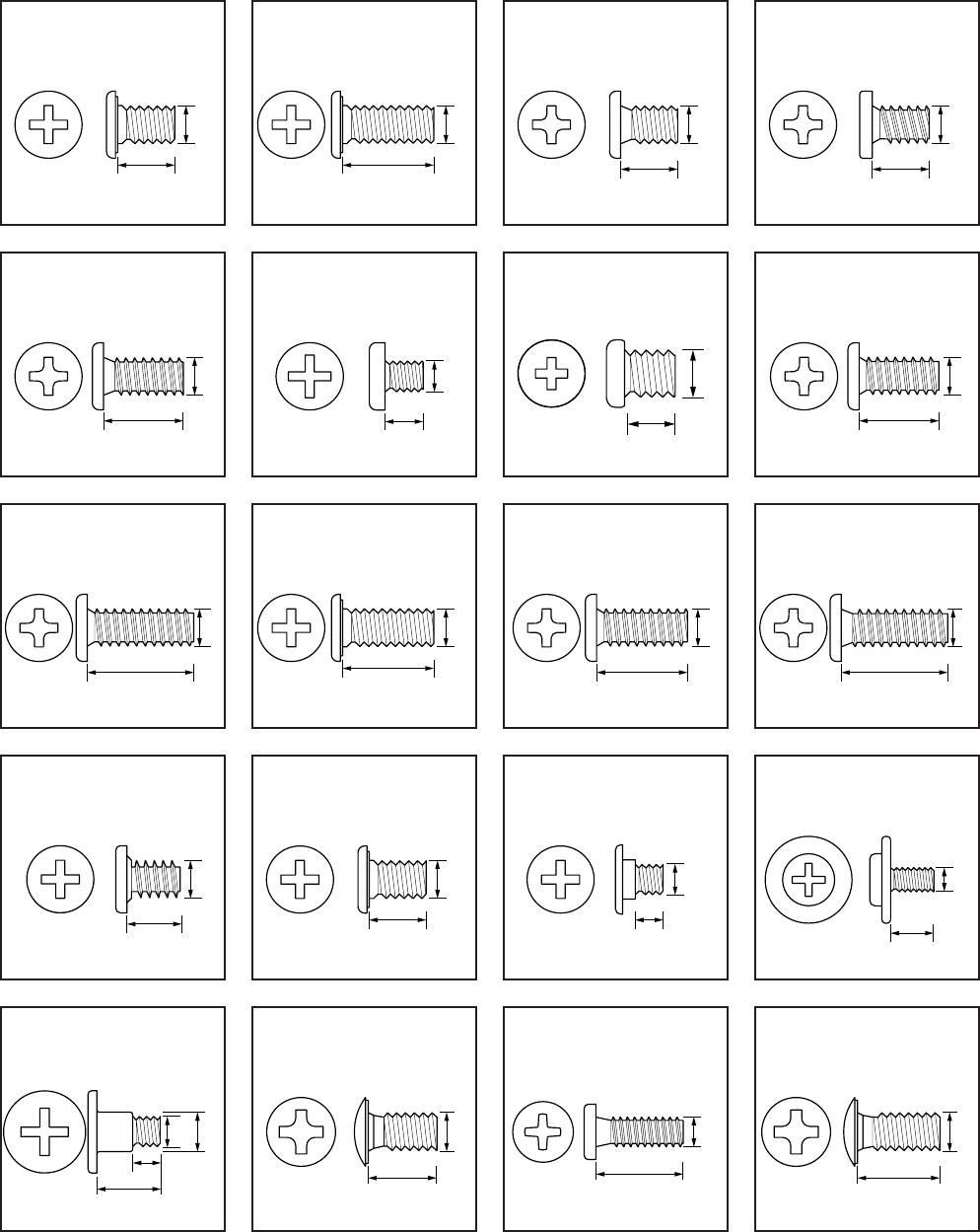

HARDWARE LIST
2-1 (Boss)
2-4
(#11)
2-3
2-2
(Tripod Screw Ledge)
2CK-191/192 Board
1-1 (#11)
1-2 (Boss)
1Hinge Block
2-5
HELP 1
HELP 2
2-6
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

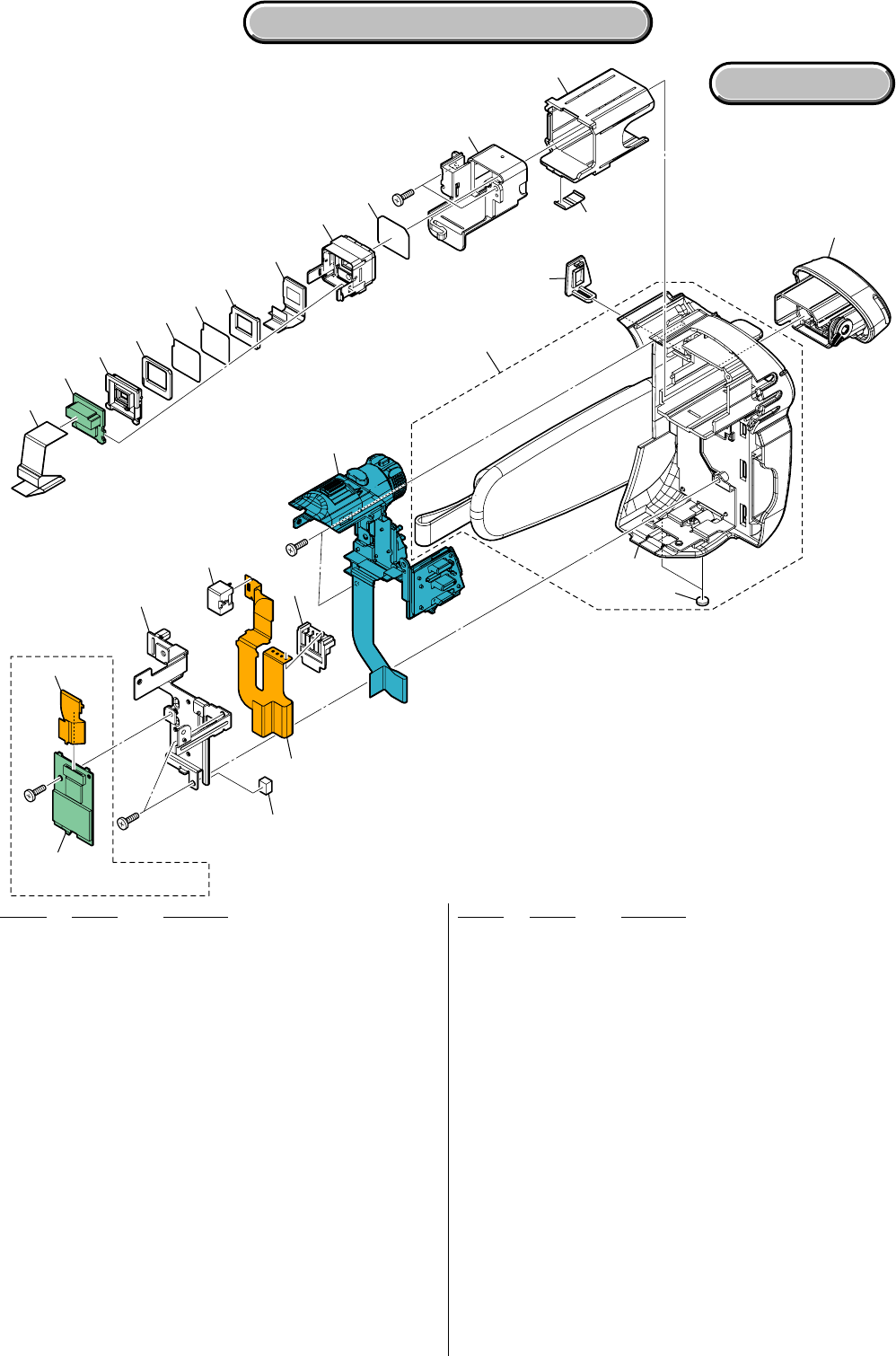

2-2-4. CABINET L SECTION
Follow the disassembly in the numerical order given.
1Cabinet L (1-1 to 1-3)
EXPLODED VIEW
HARDWARE LIST
1-1 (#11)
1Cabinet L
1-3
(#11)
1-2
MD Section
(See Page 2-7)
HELP 4
HELP 3
2-7E
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
EXPLODED VIEW
HARDWARE LIST
2-2-5. MD SECTION
Follow the disassembly in the numerical order given.
1Lens Block (1-1 to 1-7)
2VC-520 Board (2-1 to 2-3)
3Mechanism Deck (3-1 to 3-3)
VC-520
1-1
1-6
1-5
1-4
1-7 (#3)
1-2
1-3
1Lens Block
2VC-520 Board
2-1 (#3)
2-2
2-3
DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E
DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E
DVD110E/DVD115E/
DVD610/DVD610E
3Mechanism Deck
3-1 (#16)
3-2
3-3
HELP 5
HELP
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
HELP

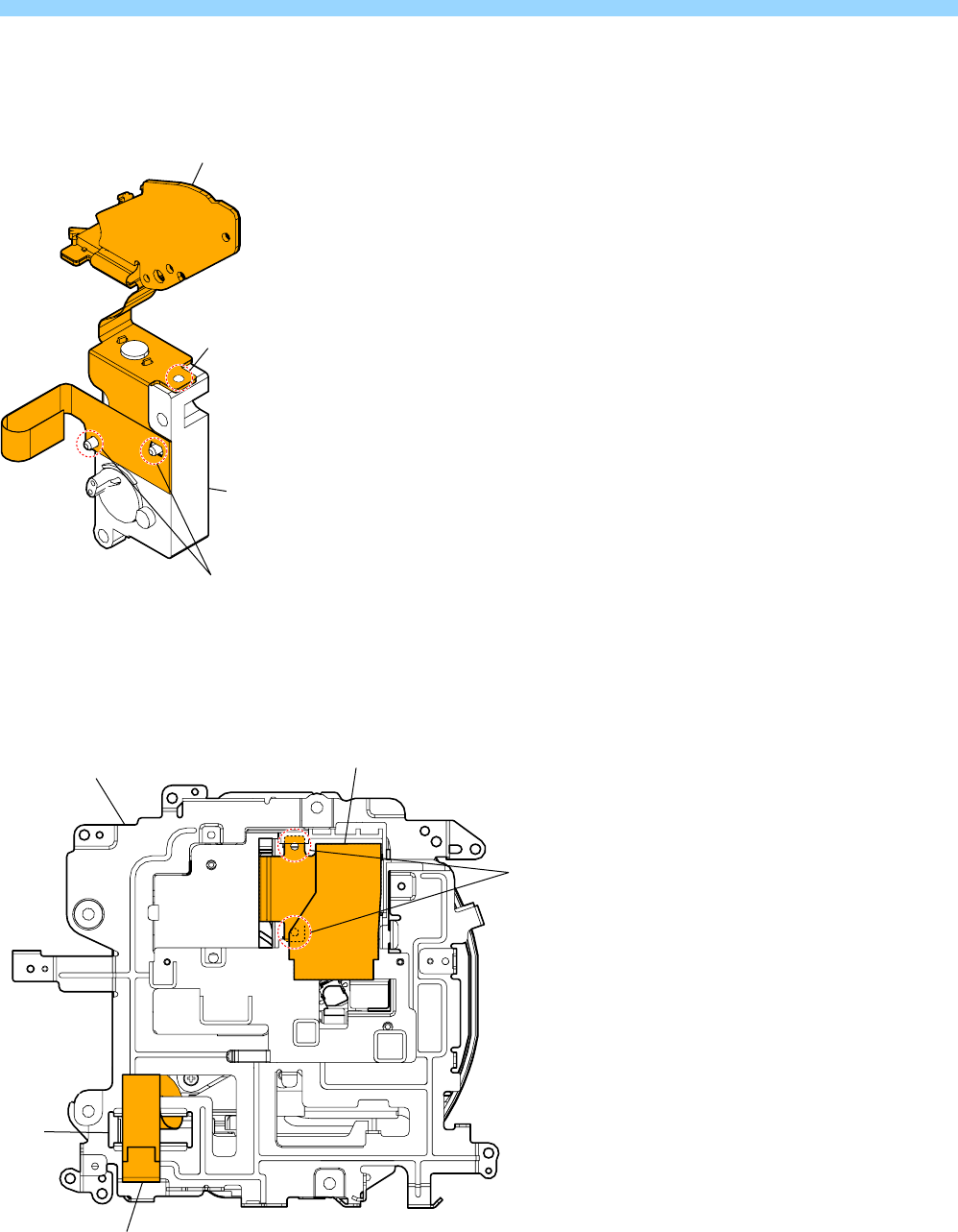

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.

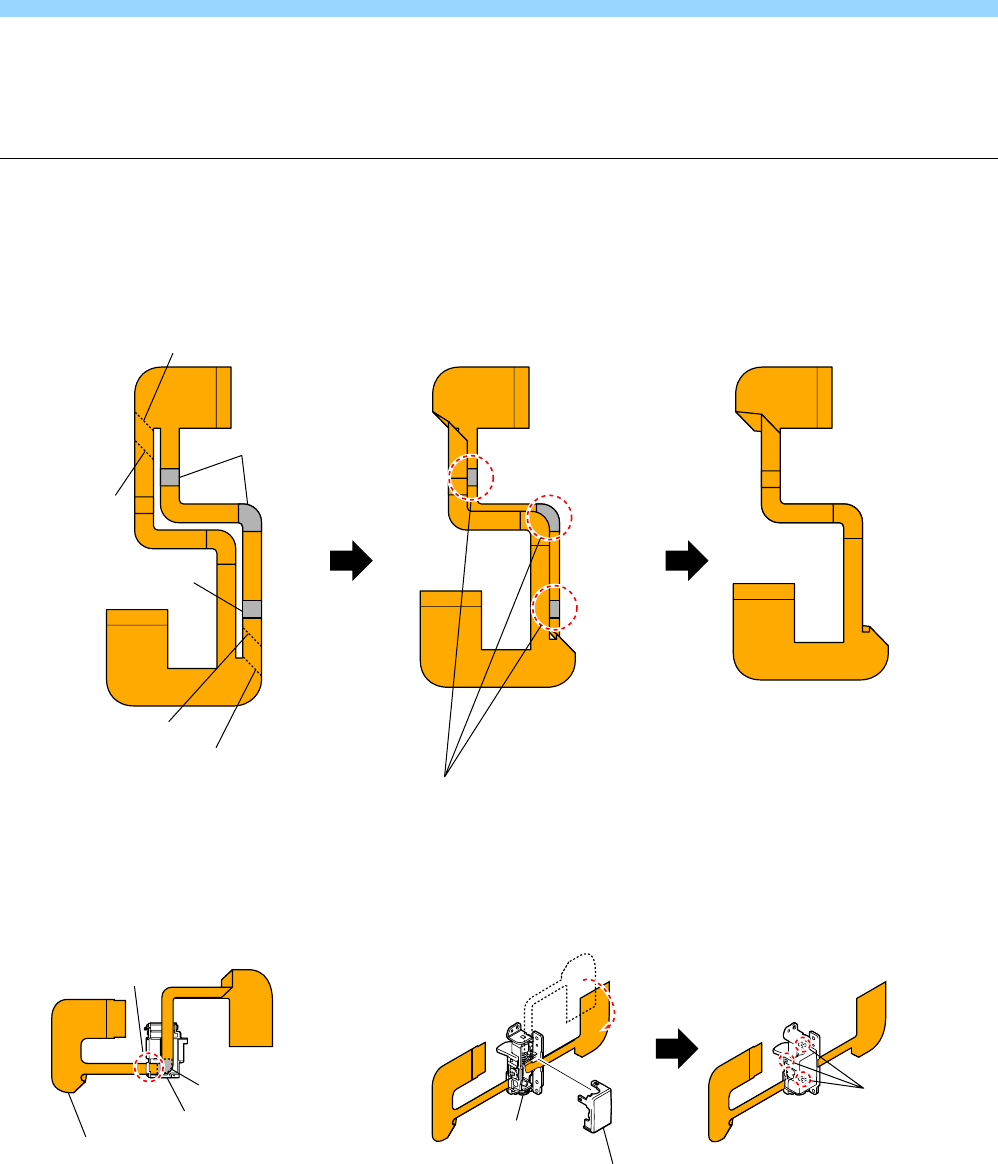

HELP 1: THE METHOD OF ATTACHMENT OF FP-573 FLEXIBLE BOARD
FP-573
Hinge Cover (M)
Hinge Cover (C)
2Install FP-573 flexible board
in the Hinge Cover (M).
3Install the Hinge Cover (C).
Adhesive tape
Claw
Claw
Hinge Assy
1Fold dotted line parts of the FP-573 flexible board
as shown in figure.
Valley fold
Mountain
fold
Stick it together in the adhesive tape
while bending the FP-573 flexible board.
Mountain fold
Valley fold
Adhesive tape
Adhesive tape
HELP
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
HELP 2: SPEAKER HARNESS
Speaker Harness Claw
HELP 3: PRECAUTION WHEN INSTALLING THE CABINET L ASSY FOR SERVICE
Cabinet D
block
D lid block
Cabinet L assy for service
When the eject block is installed on the cabinet L assy
for service, a discrepancy could be made between the
cabinet D block and the D lid block, and as a result,
the D lid may not to be closed.
In case of such discrepancy, loosen the screws on the
hinge to eliminate the discrepancy of the D lid block,
and then retighten the screws.
Screws
M903
Eject block
FP-569 flexible
complete board
HELP
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
HELP 4: FP-569 FLEXIBLE BOARD
Boss
Boss
Motor Unit
FP-569 Flexible Board
HELP 5: MECHANISM DECK FLEXIBLE BOARD
Hook
Hole
Mechanism Deck Flexible Board
Mechanism Deck Flexible Board
MD Frame
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
Link
Link
3. BLOCK DIAGRAMS
OVERALL BLOCK DIAGRAM (4/6)
OVERALL BLOCK DIAGRAM (5/6)
OVERALL BLOCK DIAGRAM (3/6)
OVERALL BLOCK DIAGRAM (2/6)
OVERALL BLOCK DIAGRAM (1/6)
POWER BLOCK DIAGRAM (3/3)
POWER BLOCK DIAGRAM (2/3)
POWER BLOCK DIAGRAM (1/3)
OVERALL BLOCK DIAGRAM (6/6)
3-1
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
3. BLOCK DIAGRAMS

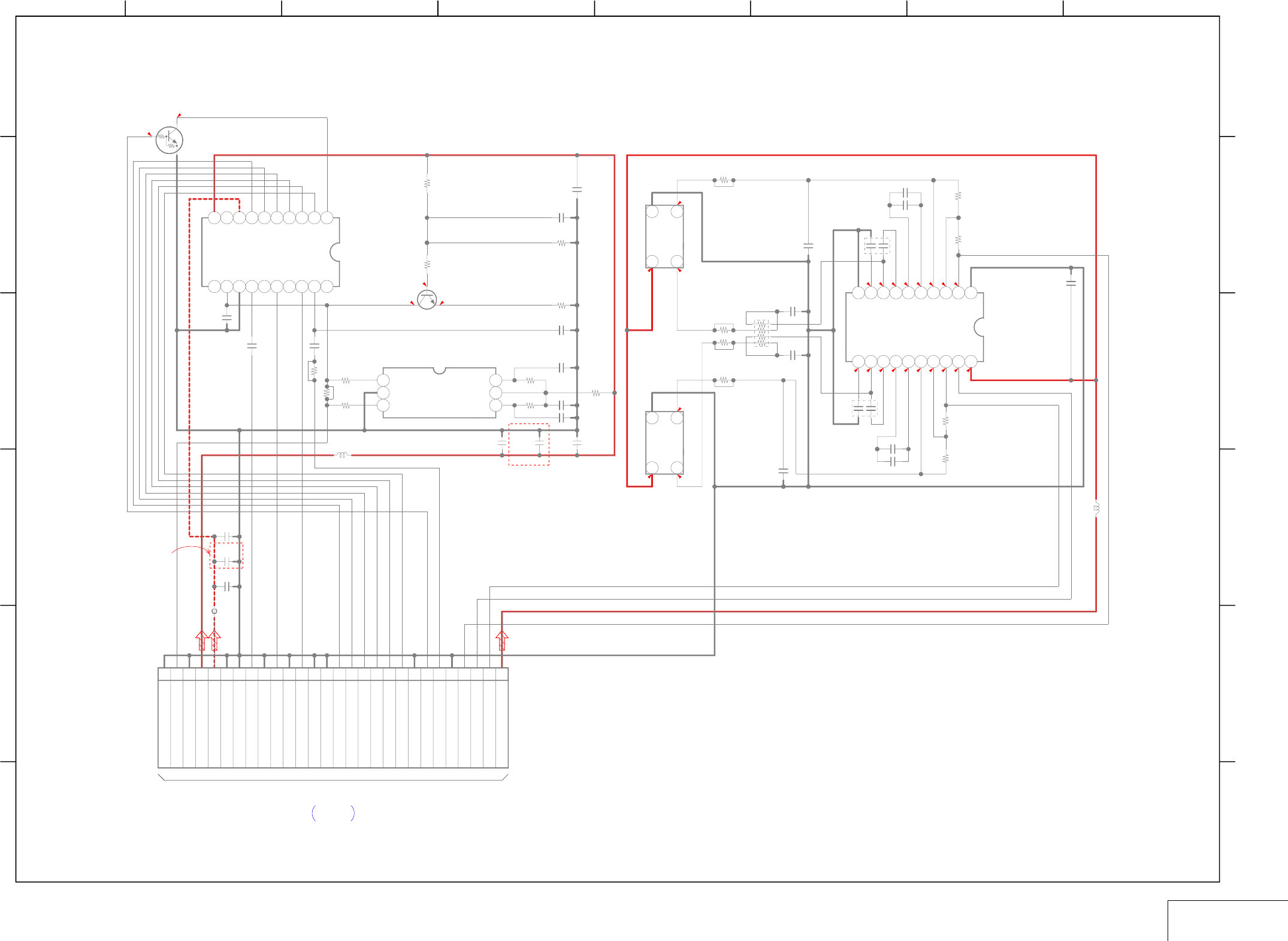

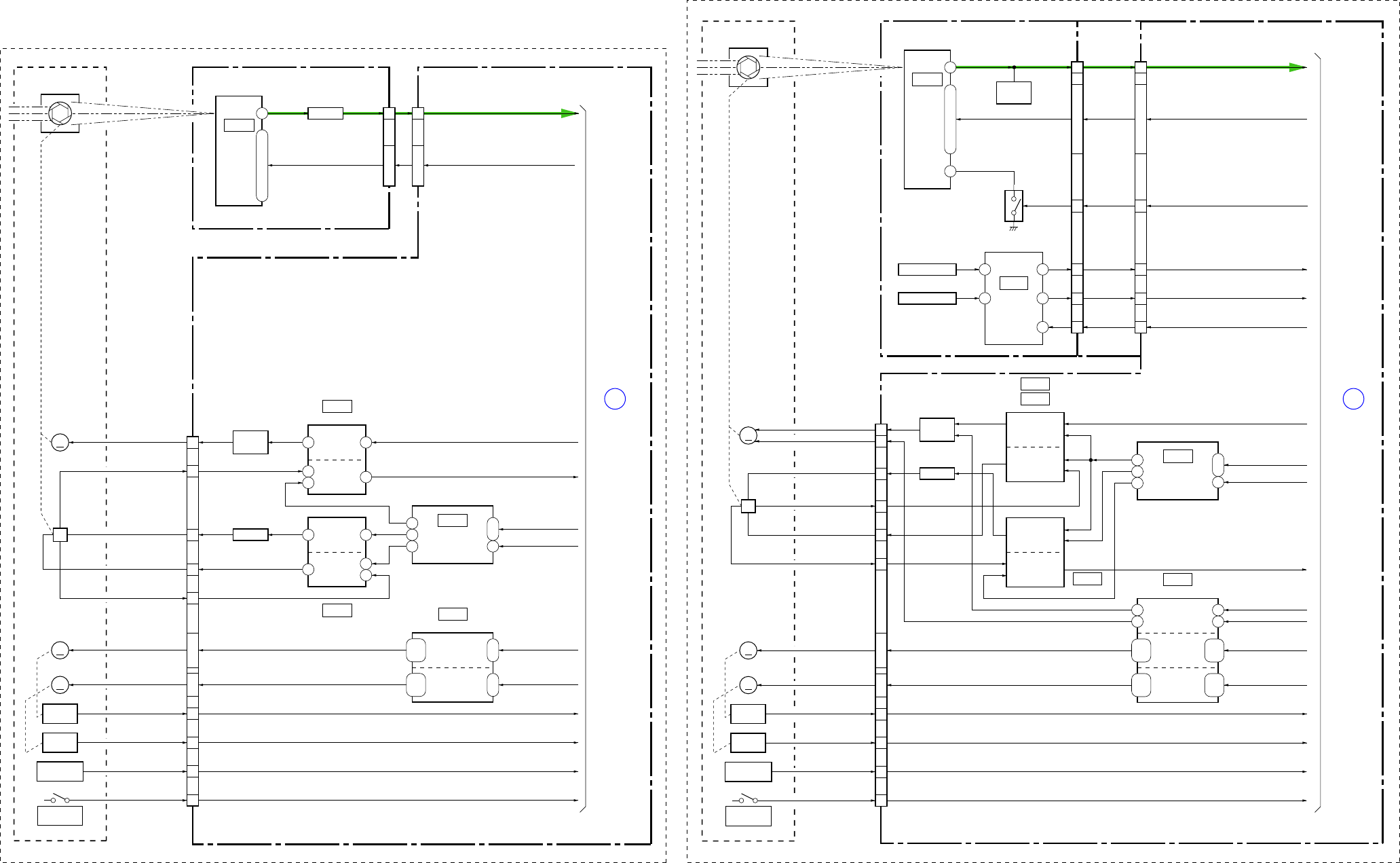

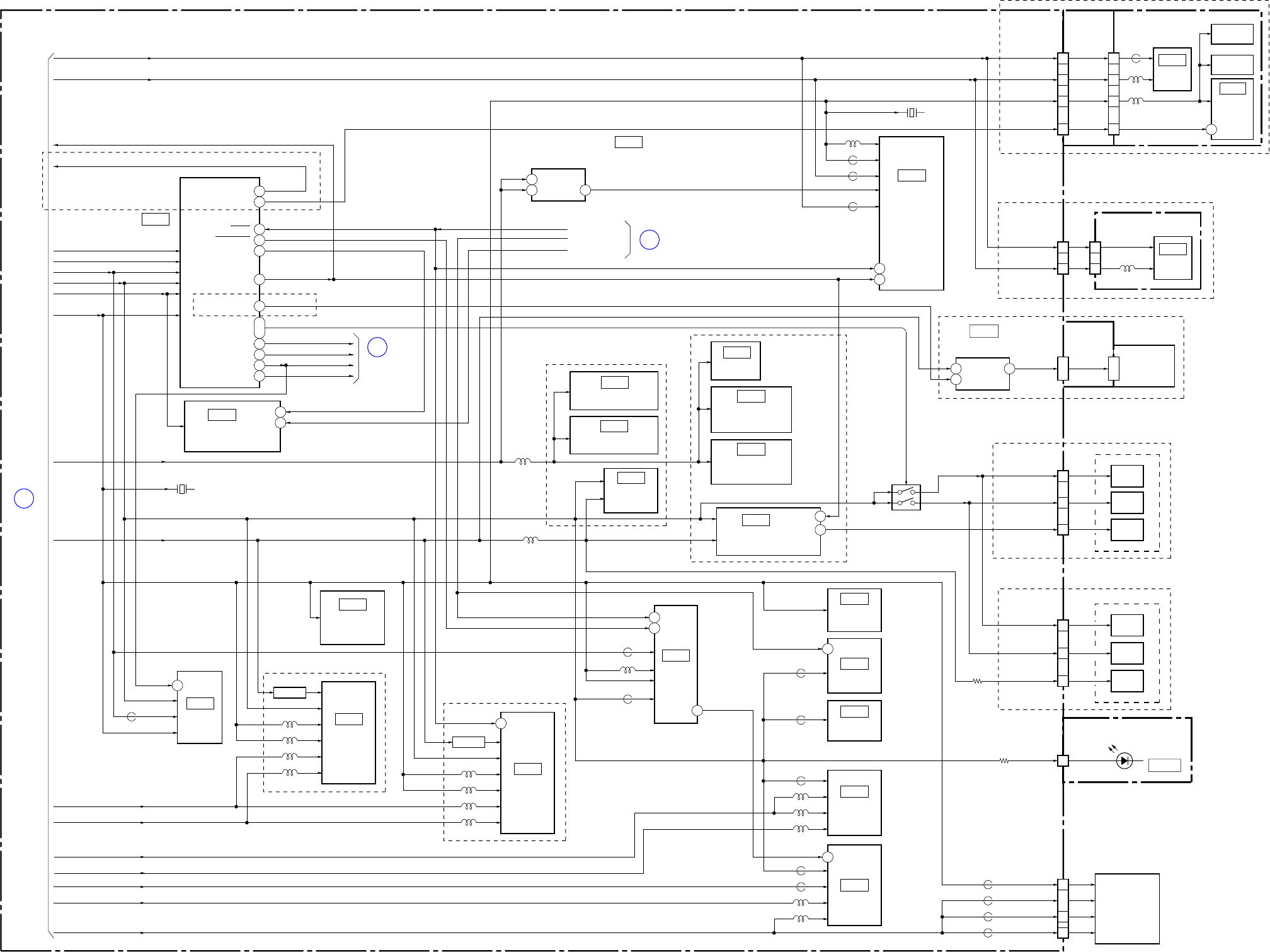

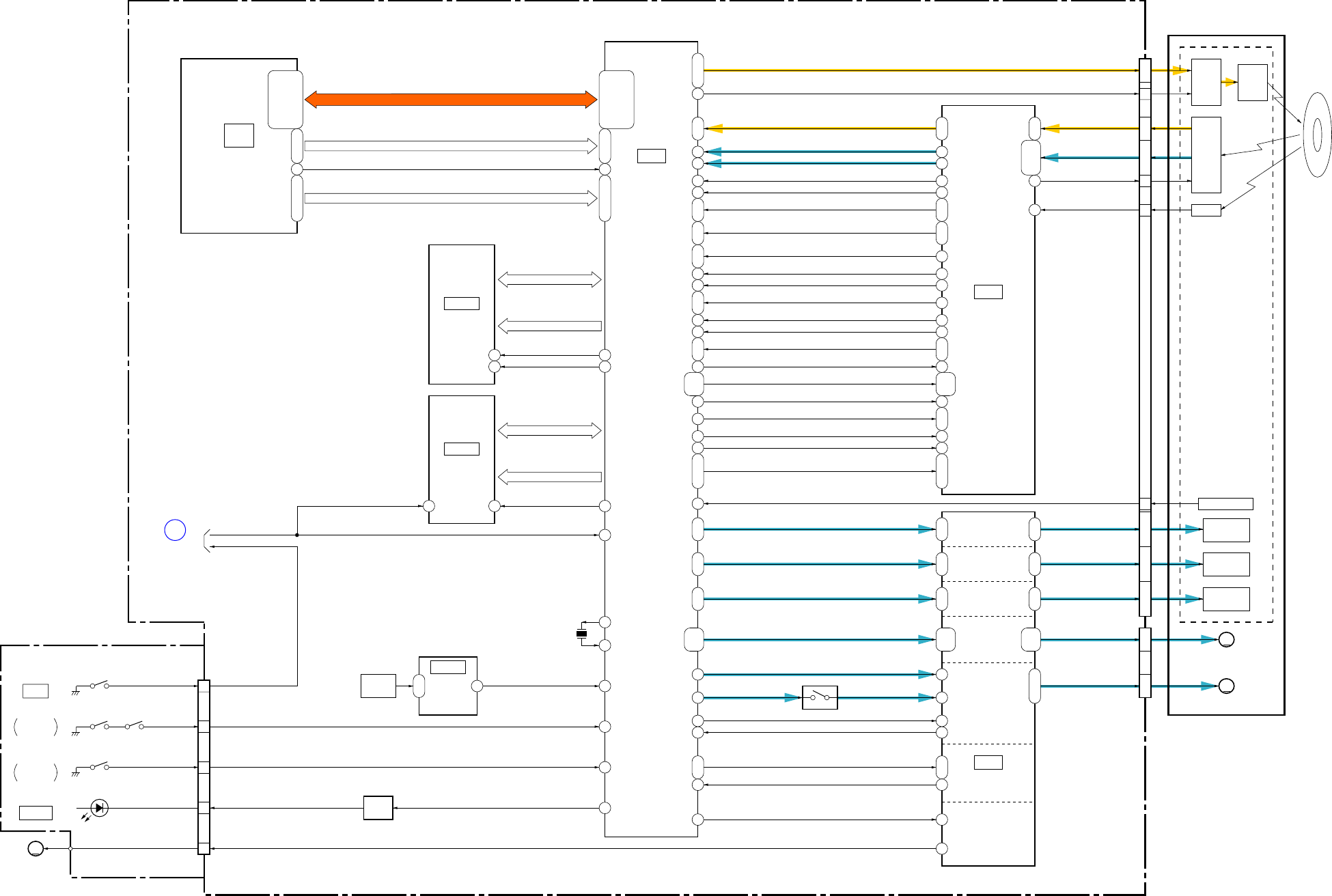

3-1. OVERALL BLOCK DIAGRAM (1/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
SE7001
SE7002
PITCH SENSOR
YAW SENSOR PITCH/YAW
SENSOR
AMP
IC7003
EVR
(D/A CONVERTER)
(2/20)
IC5101
CN7001
CD-672/CD-687 BOARD FP-838
FLEXIBLE
BOARD
VC-520 BOARD (2/7)
V1 - V6, RG, H1, H2, SUB V1 - V6, RG, H1, H2, SUB
CCD
IMAGER
IRIS
(SHUTTER)
LENS BLOCK
CCD_OUT+
RCSUB
IC7002
CLAMP
Q7002
CSUB
YAW_AD
PITCH_AD
VST_C_RESET
OVERALL (2/6)
(PAGE 3-2)
2
OVERALL (2/6)
(PAGE 3-2)
1
CN1201
A : VIDEO SIGNAL
Q7001
CAM_SO, CAM_SCK
12
8
12
2
18
19
7 - 2, 14, 18, 16, 19
1
27
6, 9 - 14, 17, 19, 21
7
4
2
3
2
23, 20 - 15, 12, 10, 8
22
25
27
26
H
M
IRIS
METER
M
FOCUS
SENSOR
ZOOM
SENSOR
FOCUS
MOTOR
ZOOM
MOTOR
M
CN5101
14
13
17
18
16
7
11
6
19
15
LENS TEMP
SENSOR
IRIS
DRIVE
Q5301
AMP
Q5102
NIGHTSHOT
PLUS
(4/20)
(2/20)
IRIS DRIVE
IRIS DRIVE
IRIS_DRIVE (-)
IRIS_DRIVE (+)
IRIS_BIAS (-)
IRIS_BIAS (+)
IRIS_HALL (-)
I_HALL_AD
IRIS_HALL (+)
FOCUS_XA, FOCUS_A,
FOCUS_XB, FOCUS_B
ZOOM_A, ZOOM_XA,
ZOOM_XB, ZOOM_B
FC_SENSE_OUT
ZM_SENSE_OUT
TEMP_OUT
IR_SWITCH_OUT
FC_RST
ZM_RST
LENS_TEMP_AD
XNS_SW
HALL BIAS
IC5302
IC5102
(4/20)
IC5301
(2/20)
IC5103
FOCUS
MOTOR
DRIVE
ZOOM
MOTOR
DRIVE
EN0, DIR0A, DIR0B
SHUTTER_ON
EN01, DIR1A, DIR1B
HALL GAIN
HALL AMP
IRIS_PWM
F3
3
2
1
6, 7
8
G1
CAM_DD_ON
DA_STRB
E4
F4
21 - 241 - 4
C6, B7,
E6, D6
F2, E2,
D2, B1
F5, G6,
D3, E3
D5, B6,
A6, C5
EVR
(D/A CONVERTER)
(2/20)
IC5101
CN7101
CD-731 BOARD VC-520 BOARD (1/7)
V1 - V6, RG, VSHT, H1, H2 V1 - V6, RG, VSHT, H1, H2
CCD
IMAGER
IRIS
(SHUTTER)
LENS BLOCK
CCD_OUT+CCD_OUT
IC7101
BUFFER
Q7101
05
CN1203
8
1 - 6, 10, 12, 14, 15
15
3 - 10, 12, 13
2
14 - 7, 5, 4
H
M
IRIS
METER
M
FOCUS
SENSOR
ZOOM
SENSOR
FOCUS
MOTOR
ZOOM
MOTOR
M
CN5101
13
18
15
16
7
11
6
19
17
LENS TEMP
SENSOR
IRIS
DRIVE
Q5401
AMP
Q5102
NIGHTSHOT
PLUS
(2/20)
IRIS DRIVE
I_DRIVE (-)
I_HALL (-)
I_BIAS (-)
I_BIAS (+)
I_HALL_AD
I_HALL (+)
FC_XA, FC_A,
FC_XB, FC_B
ZM_A, ZM_XA,
ZM_XB, ZM_B
FC_SENS_OUT
ZM_SENS_OUT
THERMO_OUT
IR_SWITCH_OUT
FC_RST
ZM_RST
LENS_TEMP_AD
XNS_SW
HALL AMP
IC5102
(3/20)
IC5401
(2/20)
IC5103
FOCUS
MOTOR
DRIVE
ZOOM
MOTOR
DRIVE
EN0, DIR0A, DIR0B
EN01, DIR1A, DIR1B
HALL GAIN
HALL BIAS
IRIS_PWM
1
7
3
7
5
6
31
2
5
3
2
1
6, 7
8DA_STRB
21 - 241 - 4
5, 19,
17, 7
23, 2,
21, 4
13 - 16 9 - 12
CAM_SO, CAM_SCK
Non MEGA model
MEGA model
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
3-2
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

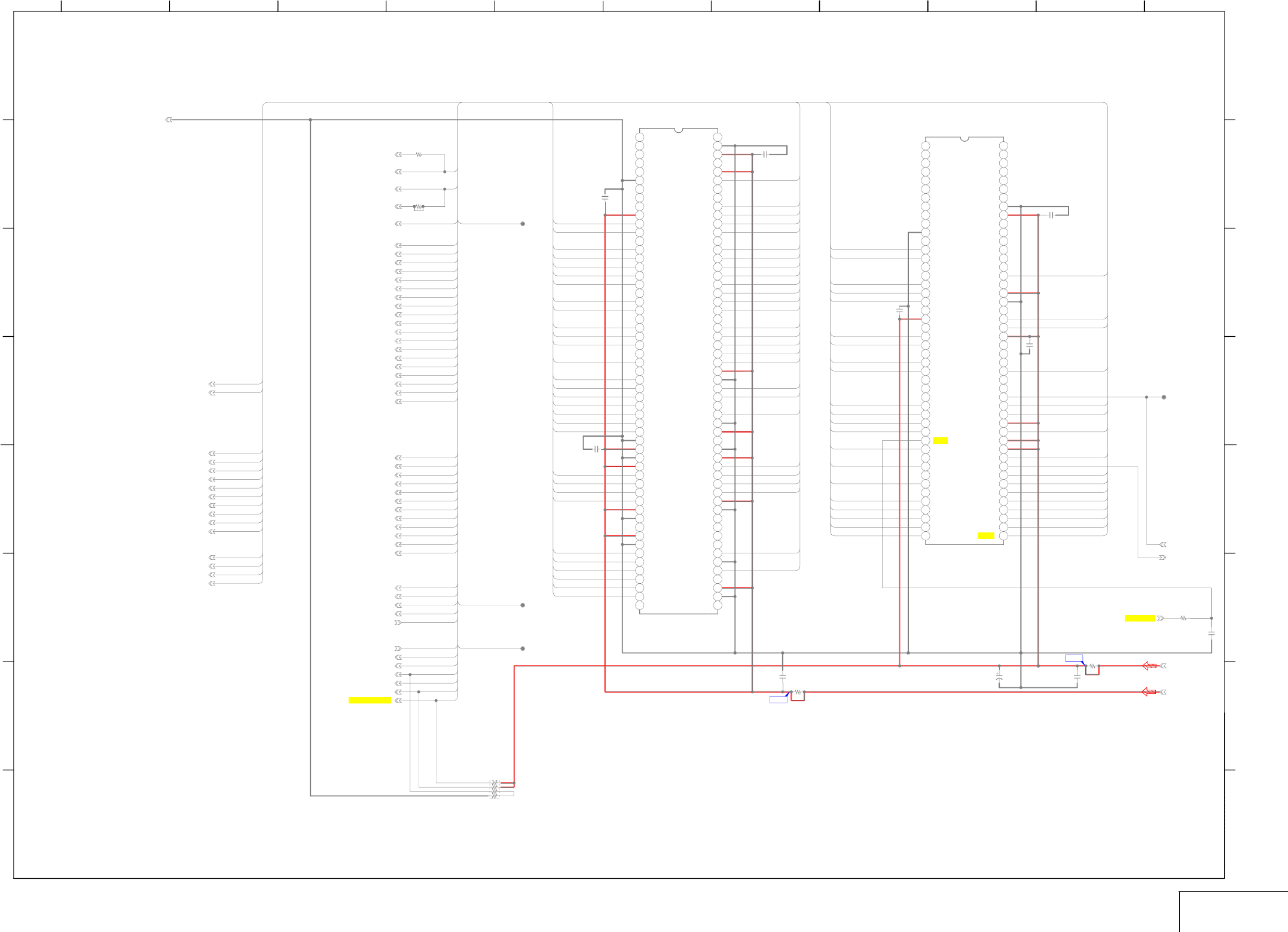

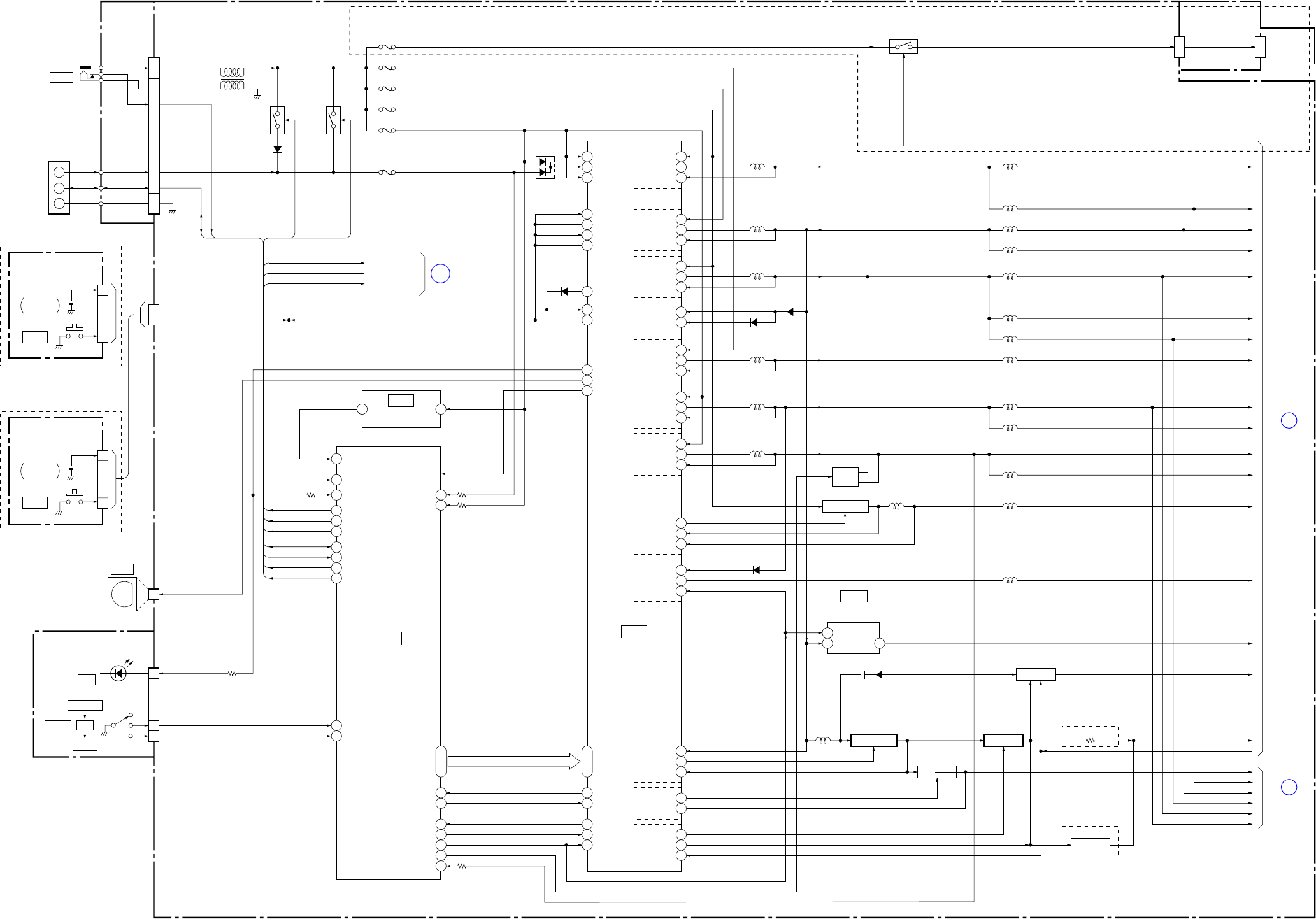

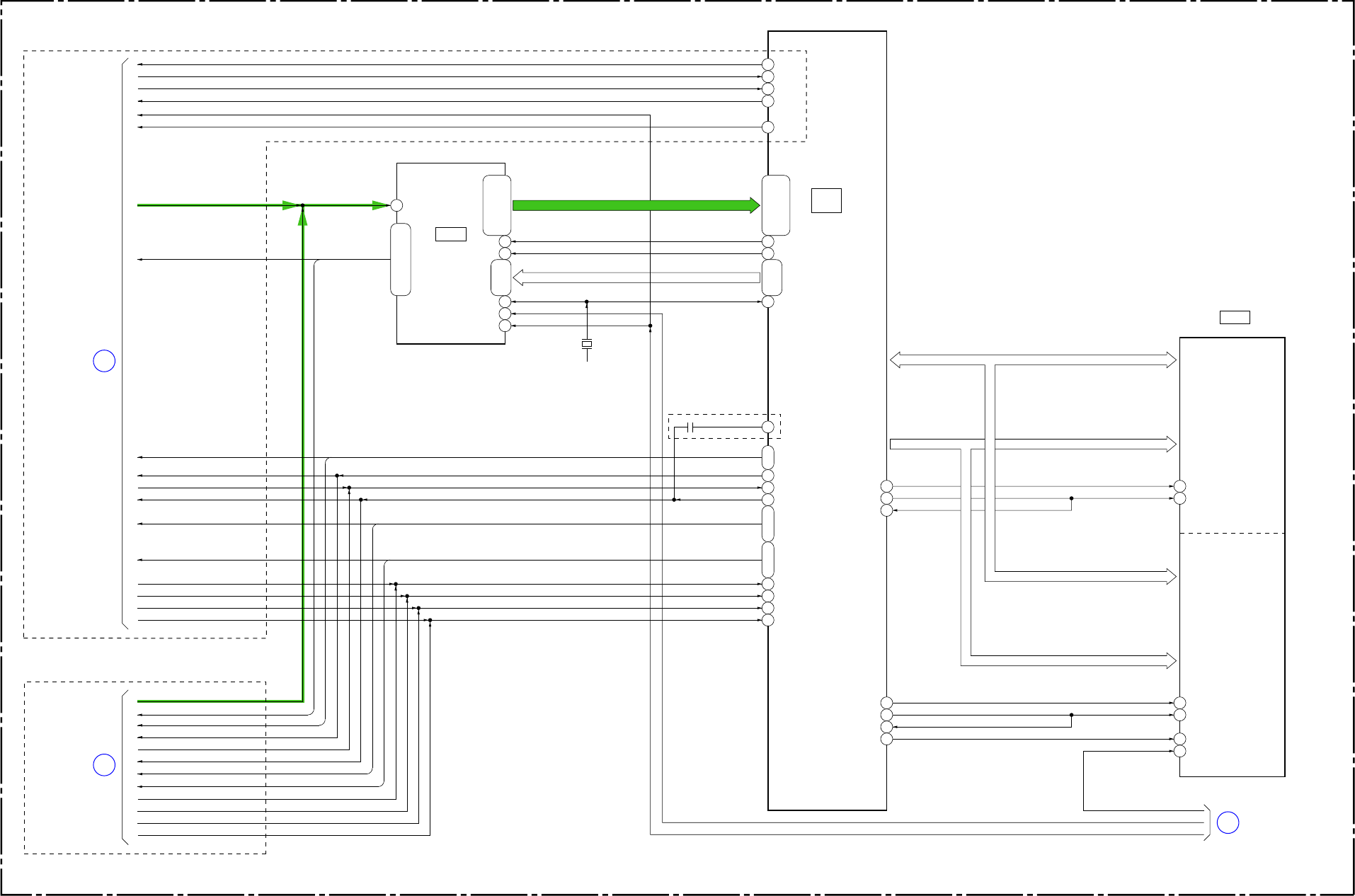

3-2. OVERALL BLOCK DIAGRAM (2/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
A/D CONVERTER,
TIMING
GENERATOR
(1/20)
IC1201
VC-520 BOARD (3/7)
V1 - V6, RG, H1, H2, SUB
CCD_OUT+
CSUB
YAW_AD
PITCH_AD
VST_C_RESET
05
OVERALL (6/6)
(PAGE 3-6)
3
OVERALL (1/6)
(PAGE 3-1)
2
CAM_DD_ON
CAM_DD_ON
XSYS_RST
CAM_DD_ON
XFLASH_RST
XFLASH_RST
XSYS_RST
TG_HD
CHCK
A : VIDEO SIGNAL
CPU
(5/20 - 7/20)
IC1701
(1/5)
CH_CS, CH_SI, CH_SO, CH_SCK
CAM_SO, CAM_SCK
(8/20)
512M SDRAM
512M OneNAND FLASH
IC2101
EMC_ADDR [0] - EMC_ADDR [12],
EMC_ADDR [14], EMC_ADDR [15]
EMC_XCS [1]
EMC_ADDR [0] - EMC_ADDR [15]
K4
D10
B10
R4
J13
AF10
EMC_CLK0_OUT
K11
W25
W26
TG_VD
C4
AK33
W1
G10
AK34
AL35
C6
AL34
H21
D9
F4
AE32
A5
C5
A8 XSYS_RST
B6
H2
A14, C14, D12, A13,
D13, C12, A12, B13,
C13, D11, B12, B11
M7, N7, K8
L8, L9, J8
H10, G8, F8, E8, C9,
C8, C1, B7, B1, A1
B8 - B10, C7,
C10, D8, D9, E9,
E10, F9, F10, G9
L17, M17,
K16, L16
K9, H9,
J10, J6
I_HALL_AD
FC_RST
ZM_RST
LENS_TEMP_AD
XNS_SW
EN0, DIR0A, DIR0B
SHUTTER_ON
CSUB
YAW_AD
PITCH_AD
VST_C_RESET
SHUTTER_ON
EN01, DIR1A, DIR1B
IRIS_PWM
W2
IRIS_COM
K17, J17
CAM_DD_ON
DA_STRB
CAM_SO, CAM_SCK
I_HALL_AD
FC_RST
ZM_RST
LENS_TEMP_AD
XNS_SW
EN0, DIR0A, DIR0B
EN01, DIR1A, DIR1B
IRIS_PWM
DA_STRB
V1 - V6, RG, VHST, H1, H2
CCD_OUT+
OVERALL (1/6)
(PAGE 3-1)
1
CAM_SO, CAM_SCK
I_HALL_AD
FC_RST
ZM_RST
LENS_TEMP_AD
XNS_SW
EN0, DIR0A, DIR0B
EN01, DIR1A, DIR1B
IRIS_PWM
DA_STRB
EMC_DATA [0] - EMC_DATA [31]
EMC_DATA [0] - EMC_DATA [15]
EMC_XCS [0] U3
AG10
EMC_XRESET_OUT
P11
AF16
EMC_CLK1_OUT T4
E8
Y25
Y26
MEGA model
Non MEGA model
AD2 - AD13
Non MEGA model
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
24MHz: Non MEGA model
33MHz: MEGA model (NTSC)
27MHz: MEGA model (PAL)
X1201
EMC_ADDR [0] -
EMC_ADDR [15]
EMC_CLK0_IN
EMC_DATA [0] -
EMC_DATA [31]
EMC_CLK1_OUT
3-3
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
3-3. OVERALL BLOCK DIAGRAM (3/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
A : VIDEO/AUDIO/SERVO SIGNAL
A : VIDEO/AUDIO SIGNAL
A : SERVO SIGNAL
LID OPEN
DETECT
S5694
EJECT
DETECT
OPEN
S5691
S5693 S5692
ACCESS
D5691
05
OVERALL (6/6)
(PAGE 3-6)
4
M
8
1
3
M
M
5
6
ATA_A0 - ATA_A2
TXD_TO_IC_4201, RXD_TO_IC_4201, XSCK_IC_4201, XCS_IC_4201
VC-520 BOARD (4/7)
FP-569 FLEXIBLE BOARD
DVD MECHANISM DECK
(DDX-C2000)
ATA_D0 - ATA_D15
IC4201 K4
Y12
L4
DVD DSP,
DVD DRIVE
CONTROL
(9/20)
IC4303
64M SDRAM
(10/20)
SDDQ0 - SDDQ15
SDA0 - SDA11
XSDCS
AC12
AC13
X4201
33.8688MHz
XIC_4201_RESETXIC_4201_RESET
XIC_4201_RESET_A
B19
19 SDCLK
A16
38
IC4101
RF PROCESS
(11/20)
Y5, AB5, AA5
H21, J21, H22
AM9 - AM11
D13, B13, C13, B14
G19, H18, G18, H19
G11, H12
CN4103
N2, P4K2, K3B2, T4
C12
D11
MPXOUT1, MPXOUT2
FE
TE
J4
C11
PI
L1
E11
CE
H1 A8
EQRF_S
R1
H11
SWRF
AB6
AB8
L2
ATTPLS
B1 M4
RFMCLK
Y8 H2
APCLOAD
AC7
L8
B5B3
XRST_IC_4101
R23AL4
XATA_RESET
SDAT, SCS, SCLK
MSPDSH, WFPDSH, ROPCSH, RFPDSH
U2
J12
AWBL
P2 TEMP
AB2
L9
DWBL
M9
RECD1
L11, M11
L6, L7, M6
Y7, AA6, AB7
WLDON
M1
VC
J2, P1
B11, A12
PH1, PH2
J3, N3
B12, A11
BH1, BH2
AA3, AA8
M10, L10
LPP, LPP2
12
3 - 127, 2625 - 18
50
37 - 3441 - 3845 - 42
LASER
DIODE
PD IC
B1, C1
D2, E1, E2, F1,
F2, G1, G2, H1
Y6, AA4,
AB4, AB3
L22, L20, M22, N21,
P20, P21, P23, R22,
R21, P22, N20, N22,
M21, M20, L21, R20
AH12, AH14, AJ12, AN12,
AH11, AJ11, AJ13, AH9,
AJ14, AH8, AH13, AH10,
AJ8, AJ10, AM12, AJ9
IC4302
16M FLASH
(10/20)
FDQ0 - FDQ15
FEA0 - FEA19
FCE1Z
AA17
F1
L3, L4,
M2, M3
G4, F4,
G5, F5
E4, F2,
G1, G2
B7, D6,
A5, C6
FPD ICA2
ENBLLD_EN
RF±
A - H
FPDIC_OUT
IC4401
FOCUS
DRIVE
C7, D5
E5, H6
C8, D7
D6, D7
G6, H7
A6, C7
E7, F6
G7, H8B4, C4
AB11, AA11
C4, C3
FFDR, FRDR
TFDR, TRDR TRACKING
DRIVE
FCS±
TEMP
TRK±
TLT±
TILT
DRIVE
SLSTFD1, SLSTRD1, SLSTFD2, SLSTRD2
XMUTE0, XMUTE1
SP_SPFD
A4B6 SV_FS4SV
H1
F3
B12
PLG
B7D5 FGINI
B8
C11
DRV_SEL
B3D4 SP_SPRD
FOCUS
COIL
SLED
MOTOR
DRIVE
FMPWN_OUT0, FMPWN_OUT1
A2
SPINDLE
MOTOR
DRIVE
EJECT
MOTOR
DRIVE
C3, D3, E1
2 - 58 - 6
CN4401
SLED1 - SLED4
U, V, W
SLED MOTOR
SPINDLE MOTOR
IC4501
SHOCK
SENSOR
AMP
(18/20)
10 GSHCK
2, 3
SHOCK
SENSOR
SE4501
Q4401
CN4402
XEJECT_SW
LID_OPEN
EJECT_DET
LID_OPEN
EJECT_DET
LED
DRIVE
ACCS_LEDACCS_LED
XEJECT_SW
EJECT_DRV
M903
MOTOR UNIT
(GEARD MOTOR)
Q4402
DVD MECHA DRIVE
(12/20)
PDIC_GAIN 30
C2
LDD_W1DIS - LDD_W3DISWP1_OP - WP3_OP
LD
DRIVE
TRACKING
COIL
TILT COIL
11 THERMISTOR
B4
AA13
Y11
D12
C12
CPU
(5/20 - 7/20)
IC1701
(2/5)
3-4
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
3-4. OVERALL BLOCK DIAGRAM (4/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
FP-573 FLEXIBLE
BOARD (1/2)
D6203 – D6205
(BACKLIGHT)
VC-520 BOARD (5/7)
CN3102
(1/2)
05
A : VIDEO SIGNAL
1
2
3
14
27 - 25
16
15
TP_Y
TP_SEL1
BL_H1 - BL_H3
TP_X
TP_Y
TP_SEL1
TP_X
PANEL_G
PANEL_HD, PANEL_VD
BL-021 BOARD
EVF
BACKLIGHT
DRIVE
Q3105
COLOR
EVF
UNIT
21
22
26
28
10
20
42, 45, 44 48, 1
11 - 9
PANEL_VR
PANEL_VG
PANEL_VB
COM
PD-351 BOARD (1/2)
CN6201
(1/2)
30
29
28
CN6204
2
1
4
5
TP_L
TP_R
TP_BOT
TP_TOP
TOUCH
PANEL
TOUCH
PANEL
I/F
Q6201, Q6202
2.7 inch
WIDE
COLOR
LCD
UNIT
R
G
B
COM, CS
PSIG, HCK1, HCK2,
REF, HST, PCG,
EN, VCK, VST
30 1
LCD901
17
15
16
VR
VG
VB
CS, COM
18
16
5 - 7, 10, 12 - 15, 20 19, 21
17
5
3
24, 236 - 8, 11 - 13, 20 - 22
4
CN5702
CN6205
D5702
(BACKLIGHT)
EVF_VR
EVF_VG
EVF_VB
EVF_COM
14
12
16
2 - 4, 6, 8 - 11, 15
13
CN3101
EVF_HST, EVF_HCK1,
EVF_HCK2,EVF_VCK,
EVF_PCG, EVF_REF, EVF_VST,
EVF_EN, EVF_PSIG
HST, HCK1,
HCK2, VCK,
PCG, REF, VST,
EN, PSIG
HST, HCK1, HCK2,
VCK, PCG, REF,
VST, EN, PSIG
RGT, DWN, XSTBY RGT, DWN, XSTBY
LCD/EVF
DRIVE
(16/20)
IC3101
XCS_LCD
33
6 - 9, 12, 14,
16, 30, 24
LCD902
31
43
XBB_RST 3
XCS_LCD
PANEL_BL_ON
EVF_BL_ON
EXTDA
LED_K
EVF_BL_ON
EVF BACKLIGHT
CONTROL
(16/20)
7
6
5
IC3102
(2/2)
–
+
LCD
BACKLIGHT
DRIVE
Q3101 - Q3104
LCD BACKLIGHT
CONTROL
(16/20)
1
3
2
IC3102
(1/2)
+
–
18
5
7
3
STB 11
EVF_STB
712
6
CN5701
1
PANEL_BL_ON
OVERALL (5/6)
(PAGE 3-5)
5
IC1701
(3/5)
CPU
(5/20 - 7/20)
TP_SEL2
AM35
B29
AN34
B28
TOUCH PANEL
SELECT SWITCH
Q1701
D/A
CONVERTER
(13/20)
IC2401
PANEL_R 34
PANEL_B 32
IC_2401_Y_OUT
IC_2401_C/PB_OUT
AA9
AA11
AA2
AA4
AA5
K1, K2
4, 8 - 11, 13, 15 - 17
BL-022 BOARD
WIDE
COLOR
EVF
UNIT
EVF_VR
EVF_VG
EVF_VB
EVF_COM
19
17
21
5 - 7, 11, 13 - 16, 20
18
CN5702
D5701
(BACKLIGHT)
EVF_HST, EVF_HCK1,
EVF_HCK2,EVF_VCK,
EVF_PCG, EVF_REF, EVF_VST,
EVF_EN, EVF_PSIG
LCD902
5
7
3
EVF_STB 12
12
6
CN5701
1
4, 8 - 11, 13, 15 - 17
17, 19 - 24, 28, 29
14, 12 - 7, 3, 2
20 - 22
4 - 6
2, 19, 14
D6203 – D6205
(BACKLIGHT)
PD-352 BOARD (1/2)
CN6201
(1/2)
30
29
28
CN6204
2
1
4
5
TP_L
TP_R
TP_BOT
TP_TOP
TOUCH
PANEL
TOUCH
PANEL
I/F
Q6201, Q6202
2.7 inch
WIDE
COLOR
LCD
UNIT
R
G
B
COM, CS
PSIG, HCK1, HCK2,
REF, HST, PCG,
EN, VCK, VST
1
LCD901
17
15
16
5
3
1, 24, 236 - 8, 11 - 13, 20 - 22
4
CN6205
RGT, DWN, XSTBY
14, 12 - 7, 3, 2
20 - 22
4 - 6
2, 19, 14
5, 11, 18
D35, E34, D33, D34,
D32, C34, B33, C33
B17, A17, D18, B18,
A18, B19, A20, B21
E32, G33,
E33, F33
B16, A16,
A15, A14
G32, G34,
F32, F34
D14, B14,
D13, A13
DR_VDATA0 – DR_VDATA7
DR_GHDATA0 – DR_GHDATA3
DR_GSDATA0 – DR_GSDATA3
H35 B15
DR_GHPILOT
G35 D12
DR_GSPILOT
F35
DR_VINCK
E21
U27
XCS_IC_2401
G20
T27
D26
Y4
XBB_RST
L18, M19, M18
H2
J21
J1, G2, H1
BB_SI, BB_SO, XBB_SCK
BB_SO, XBB_SCK
BB_SI, BB_SO, XBB_SCK
Non MEGA model MEGA model
Non MEGA model MEGA model
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
3-5
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
3-5. OVERALL BLOCK DIAGRAM (5/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
A : VIDEO SIGNAL
A : AUDIO SIGNAL
VC-520 BOARD (6/7)
2
10
5
9
1
6
7
S_Y/D3_Y
S_C/D3_Pb
VIDEO/D3_Pr
AUDIO_L
AUDIO_R
JACK_AD
JACK_AD
LANC_SIG
CN1012
LANC_SIG
IC2801
VIDEO, AUDIO
I/O
(15/20)
MIC901
MICROPHONE
UNIT
CN901
HOT SHOE
(1/2)
IC_2401_Y_OUT
IC_2401_C/PB_OUT
XCS_IC_2801/IC_2901
N4 K1
M2
L1
F2
C14
C13
AJ34
U26
G1
CN1005
B14
B13
ADA_SOA0
N28 N13
ADA_SOA1
P29 P13
N3
J14
SYS_SOUND
R35
XSYS_RST
A4
K14
M29
M28
N14
M14
ADA_FCK
ADA_BCK
ADA_LRCK
M13N29
ADA_SIA0
P12
A10
R29
B1, C2
CK-191 BOARD (1/2)
CN5801
(1/2)
SP±
CN1002
(1/2)
2, 3
FP-840
FLEXIBLE
BOARD (1/2)
INT_MIC_L
SP±
INT_MIC_R
INT_MIC_F
A11
SHOE_MIC_FL
B10
SHOE_MIC_FR
Y_TO_Y
C_TO_PB
V_TO_PR
2, 3
SP901
SPEAKER
K13, J13
IC2901
VIDEO OUT,
AUDIO I/O
(14/20)
18 11
14
12
42
36
34
44
21
16
28
47
23
24
22
20
32
33
2, 4
27, 26
6
2
4
MIC_FL
CN1008
(1/2)
MIC_FR
3
2
3
2
FLASH
MEMORY
(MDL4060S3C)
(8GB)
FP-841
FLEXIBLE
BOARD
INS
BS
CN1006
SCLK
FM_BS
FM_CLK
8
11
L
R
FRONT
A/V R
IC1701
(4/5)
CPU
(5/20 - 7/20)
OVERALL (4/6)
(PAGE 3-4)
5
OVERALL (6/6)
(PAGE 3-6)
6
05
FP-842
FLEXIBLE
BOARD (1/2)
CN1004
CN1003
(1/2)
9, 10, 8, 6
5
11
7
MS-392 BOARD (1/2)
3, 2
1
CN7301
(1/2) CN7302
4, 3, 5, 7
8
2
8, 7, 9, 11
12
6MS_SCLK
MSBS
610
99
XMS_IN
Q1001
USB
DETECT
G25
H23
AM31
AR32
W35, V35
MSDATA0 - MSDATA3
USB_D±
USB_VCCXVBUS_DET
MS_SCLK
MS_BS
XMS_IN
ACCESS_LED
XMS_IN
MSDATA0 - MSDATA3
USB_D±
MSX_CLK
MSX_BS
XMS_ACC_LED
MSX_BIO0 - MSX_BIO3
SDIO/DATA0,
DATA1 - DATA3
D5801
(MS ACCESS)
CK-192 BOARD (1/2)
CN5801
(1/2)
SP±
2, 3
SP901
SPEAKER
9D5801
(MS ACCESS)
AM30, AN33,
AN30, AM32
AE29
XFM_IN
AP6
AG29
AE28, AF28,
AH28, AG28
(USB)
MEMORY
STICK
DUO
MS-391 BOARD (1/2)
CN7301
(1/2) CN7302
4, 3, 5, 7
8
2
8, 7, 9, 11
12
6MS_SCLK
MSBS
610 XMS_IN
MSDATA0 - MSDATA3 MEMORY
STICK
DUO
2
3, 5, 7, 9
7
4
13
12, 10, 8, 6
DVD410E/DVD810/DVD810E
DVD110E/DVD610/DVD610E
Non MEGA model
MEGA model
DVD115E/DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E
DVD115E/DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E
MEGA model
Non MEGA model
MEGA model
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
FM_BIO0 - FM_BIO3
BB_SO, XBB_SCK
3-6
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
3-6. OVERALL BLOCK DIAGRAM (6/6) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
CN5801
(2/2) CN1002
(2/2)
FP-842
FLEXIBLE
BOARD
(2/2)
IR_LED_
ON
XSYS_RST
CAM_DD_ON
14
MS-392 BOARD (2/2)
CONTROL KEY BLOCK
(PS26100)
FP-839
FLEXIBLE
BOARD
VC-520 BOARD (7/7)
SIRCS_SIG
OVERALL (2/6)
(PAGE 3-2)
3
OVERALL (3/6)
(PAGE 3-3)
4
OVERALL (5/6)
(PAGE 3-5)
6
D003
XPHOTO_LED
7
CN1013
13
S5803
S7301
PANEL
OPEN/CLOSE
DUBBING
W T
y
RV001
(ZOOM)
S001
S002
(PHOTO FREEZE)
START/
STOP
3
CN7301
(2/2)
S/S
S003
(PHOTO REC)
8
2
17
D002
CAM
XCAM_LED
16
D001
CHG
J001
DC IN
ON POWER
MODE
OFF (CHG)
r
r
XCHARGE_LED
ACV_UNREG
ACV_GND
BATT_XEXT
15
KEY_AD1
10 XPOWER_SW
11
CN1001
12
19
7 - 11
13 - 1720 - 24 1 - 5
XMODE_SW
ZOOM_VR_AD
XPHOTO_LED
START/STOP
XCAM_LED
XCHARGE_LED
KEY_AD1
KEY_AD2
XPOWER_SW
XUNREG_RESET
XMODE_SW
ZOOM_VR_AD
Q1002
LED
DRIVE
3
REMOTE
COMMANDER
RECEIVER
IC7301 HI CONTROL
(17/20)
IC4901
DC CONTROL,
RESET,
LANC DRIVE
(19/20)
IC4801
D1005 (NIGHTSHOT)
+
−
BH001
BATTERY
TERMINAL
C
BATT_UNREG
BATT_SIG
BATT_GND
BATT_SIG
BATT/XEXT
INIT_CHARGE_ON
SHOE_UNREG,
DRV_UNREG,
MT_BL_UNREG,
VTR2_UNREG,
VTR_UNREG
AU_4.6V, A_4.6V
MT_5.0V, DRV_MT_5.0V
D_2.8V, AU_2.8V, A_2.8V
DRV_MT_4.3V
D_2.5V, A_2.5V
D_1.2V, A_1.2V
DRV_A_3.9V
D_1.8V
D_3.3V
CAM_-7.5V
CAM_15/12V
EP_8.5V
VOUT
LANC_DC
EVER_3.0V
BATT_UNREG
LANC
LANC_SIG
LANC_SIG
LANC_SIG
CN901
HOT SHOE
(2/2)
ID1, ID2
FP-840
FLEXIBLE
BOARD
(2/2)
CN1008
(2/2)
11
7, 10
5, 8
12
9
10
CONTROL SWITCH BLOCK
(SB22100)
RV-012 BOARD PD-352
BOARD
(2/2)
FP-573
FLEXIBLE
BOARD
(2/2)
CK-192 BOARD
(2/2)
6
3
5
4
CN6202
CN6201
(2/2)
CN3102
(2/2)
2ND_
ZOOM (T)
2ND_
ZOOM (W)
2ND_SS
_SW
HOME
_SW
13
18
7
5
NOR_REV
KEY_AD0
PANEL_NOR/REV
BATT_LI_3V
AH35
AM34, AM33
A22, B22, C22, D22
K5, J4, L5, H3D2, D1, G1
C3, B3, D4
A8
S5806
N
START/STOP
S001
8
RESET
S5801
6
HI_XRESET
KEY_AD3
XBATT_VIEW XBATT_VIEW
FR_XRESET
DISP/
BATT INFO
S5802
HOME
S004
S003
S002
(ZOOM)
W
T
18
13
BT901
LITHIUM
BATTERY
5
2PANEL_O/C
PANEL_O/C 15
XFLASH_RST B8
F2
B11
E10
E9
C7
F10
FAST_CHARGE
E11
A4
F8
J5
C8
B4
F11
B6
B2
H9
G11
A2
XEJECT_SW B3
HOTSHOE_ID1,
HOTSHOE_ID2
KEY_AD0
AH34
KEY_AD1
AJ35
KEY_AD2
AH33
KEY_AD3
H25
PANEL_NOR/REV
AJ33
ZOOM_VR_AD
N3
AA1
G2
AM7
EXT_STROBE
STROBE
Y3
SIRCS_SIG
D30
AK3
XPHOTO_LED
H26
START/STOP
G24
STABLE_RUN
V2 E9
WD_DIS
G23
D9
XHOT_STBY
VTR_DD_ON
CAM_DD_ON
K2
D9 FR_XRESET
B10D10
LANC_IN
C10D11
LANC_OUT
H2G9 XLANC_ON
C1
C10
XLANC_PWR_ON
A7E8 BATT_IN
C11
K5 1.8/3VCTRL
H6 1.8/3VCTRL
C23 E10
7
8
6
XMS_IN
BOOT_MODE_PORT0
CAM_DD_ON
XSYS_RST
XSYS_RST
XFR_SCK, FR_SI, FR_SO, XCS_EX
FR_EVER_SO,
FR_EVER_SCK, XCS_DD
XIC_4201_RESET
LF1002
Q4601,
Q4602
D4601
Q4603,
Q4604
D4802
PANEL_O/C
L2
L3
X4901
32.768kHz
IC1701
(5/5)
CPU
(5/20 - 7/20)
05
S7601
PANEL
REVERSE
S005
KEY_AD2
BACK LIGHT
QUICK ON
S004
EASY
S006
CN1003
(2/2)
X1701
12MHz
A_2.8V
B3
DVD410E/DVD810/DVD810E
CN5801
(2/2)
MS-391 BOARD (2/2)
S7301
PANEL
OPEN/CLOSE CN7301
(2/2)
CONTROL SWITCH BLOCK
(SB22100)
RV-011 BOARD PD-351
BOARD
(2/2)
CK-191 BOARD
(2/2)
6
3
5
4
CN6202
CN6201
(2/2)
2ND_
ZOOM (T)
2ND_
ZOOM (W)
2ND_SS
_SW
HOME
_SW
7
5
NOR_REV
S5806
N
START/STOP
S001
8
RESET
S5801
6
DISP/
BATT INFO
S5802
HOME
S004
S003
S002
(ZOOM)
W
T
18
13
BT901
LITHIUM
BATTERY
PANEL_O/C
S7601
PANEL
REVERSE
MEGA model
Non MEGA model
2
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
RESET
(18/20)
IC4601
C21
3-7
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
3-7. POWER BLOCK DIAGRAM (1/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
BH001
BATTERY
TERMINAL
D001
ACV_REG_GND
BATT_XEXT
INIT_CHARGE_ON
BATT_UNREG
BATT_SIG
BATT_XEXT
BATT_SIG
CN1001
CN1013
(1/2)
CHARGE_LED_VDD
LANC_DC
EVER_3.0V
FR_XRESET
LANC_DC
VOUT
BATT_UNREG
VTR_UNREG
XPOWER_SW
CN1012
05
LF1002
ACV_UNREG
+
C
–
J001
DC IN
FP-839
FLEXIBLE
BOARD
CONTROL KEY BLOCK
(PS26100) (1/2)
VC-520 BOARD (1/3)
12
14
10
19
7 - 11
13 - 1720 - 24
1 - 5
Q4605, Q4606
FAST_CHARGE
Q4603,
Q4604
Q4601,
Q4602
D4601
SHOE_ON
F001
L4801
VTR_UNREG
VTR2_UNREG
MT_BL_UNREG
DRV_UNREG
SHOE_UNREG
L4811
SWITCHING
Q4802
D4806
1.8/3VCTRL
CLAMP_ON
-7.5V REG
Q4806, Q4808
DRV_MT_4.3V
MT_5.0V
CAM_-7.5V
L4807
F002
F003
F004
F006
F005
D4804
15V REG
Q4803 R4835
12V REG
Q4807
8.5V REG
Q4805
SWITCHING
Q4801
CLAMP
Q4804
L4808
D4802
4
SIO2
BATT_SIG
XUNREG_RESET
A4
VOUT
B10
VOUT4F9
VRO
C9
PVCC1 L3
WAKE_UP
C10
P71_INT01
C7
P53
E11
P52
F10
BATT/XEXT
FAST_CHARGE
INIT_CHARGE_ON
P00_INT04
B4
HI CONTROL
(17/20)
IC4901 DC CONTROL,
RESET,
LANC DRIVE
(19/20)
IC4801
SW1 J4
IN1 G8
VBAT
B11
VCHE9
XRESET
D9
P23 XLANC_ON
H2
P07_INT11 XLANC_POWER_ON
C1
P22 G2
P61_PPG11
C11
P20_PPG00 F2
P31_AN01
P11_SO1
P12_SCK1
P21_PPG01
L6
P30_AN00
VDD
J5
VCC3
E11
VCC2
A10
D_3.3V
CAM_15/12V
CAM_DD_ON
EP_8.5V
A_4.6V
SHOE_ON
D_1.2V
D_2.5V
AU_4.6V
UNREG
A_2.8V
DRV_A_3.9V
D_1.8V
CLAMP_ON
1.8/3VCTRL
VTR_DD_ON
L4813 A_4.6V
L4822
L4821
DRV_MT_5.0V
L4818 D_2.8V
D_2.8V
L4823 AU_2.8V
L4824
L4817
L4819
A_2.8V
L4820 A_2.5V
L4814
L4809
L4815
A_1.2V
A
POWER (2/3)
(PAGE 3-8)
B
POWER (3/3)
(PAGE 3-9)
P64B8
P66
C8
P65
XSYS_RST
XIC_4201_RESET
XFLASH_RST
XSYS_RST
XIC_4201_RESET
XFLASH_RST
XFLASH_RST
XIC_4201_RESET
XSYS_RST A8
XCTL2
G9
CS
E8
P70_INT00 BATT_IN
A7
STBY6F8
STBK5
L4803
PVCC3 B1
SW3 C2
IN3 C6
SW8 C5
IN8 J8
GATE8 D5
VREG8
K11
REG78CTL H6
VREG7 H8
IN7
H10
VCONT6 L7
VOUT6 J6
VCONT5 H7
VOUT5 K7
REG6CTL J5
SW7 K6
D_2.5V
L4805
PVCC5 A2
SW5 B4
IN5 J7
L4804
PVCC4 L2
SW4 K1
IN4 B9
MT_5.0V
L4802
PVCC2 F1
SW2 F2
IN2 D7
PVCC7 L6
VREGD F4
HVREG E3
L4806
PVCC6 G1
SW6 G2
IN6
J10
POWER
OFF (CHG)
ON
CHG
MODE
XMODE_SW
11 P03_INT07
P34_AN04 L7
A2
VCC1A9
CH5LHH5
CH7L/HK4
CH8AK2
RSTC4
3.3V REG
(19/20)
IC4802
3
1
VOUT
CE
4VDD
D4801
BT901
LITHIUM
BATTERY
7
8
CK-191 BOARD
(1/2)
CN5801
(1/2)
BT901
LITHIUM
BATTERY
7
CK-192 BOARD
(1/2)
CN5801
(1/2)
7
8
CN1002
(1/2)
BATT_LI_3V
HI_XRESET
FR_XRESET
A/V R
G1, D1, D2
DIN
CLK
LD
D4, B3, C3
FR_EVER_SO, FR_EVER_SCK, XCS_DD
CN1008
UNREG
FP-840 FLEXIBLE
BOARD
6, 7
8, 9
CN901
HOT SHOE
P06_INT10
C2
P33_AN03
J7
RSTX
K2
RESET
(18/20)
IC4601
1 2
MEGA model
MEGA model
MEGA model
Non MEGA model
Non MEGA model
RESET
S5801
8
RESET
S5801
POWER (2/3)
(PAGE 3-8)
D
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
R1008
OUT
D4805
D4803
3-8
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
3-8. POWER BLOCK DIAGRAM (2/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
FB7001
CAM_-7.5V
CAM_15V
CAM_-7.5V
CAM_15/12V
SE_2.8V
IRIS_DRIVE (+)
ACCS_VCC
ZM_SENSE_VCC
FC_SENSE_VCC
CAM_-7.5V
CAM_15/12V
A_2.8V
CN7001
CN1201
CD-672/CD-687 BOARD
VC-520 BOARD (2/3)
FP-569 FLEXIBLE BOARD
DVD
MECHANISM
DECK
(DDX-C2000)
CCD
IMAGER
IC7002
A/D CONVERTER,
TIMING
GENERATOR
(1/20)
IC1201
FOCUS/ZOOM MOTOR
DRIVE, IRIS DRIVE
(4/20)
IC5301
FOCUS/ZOOM
MOTOR DRIVE
(3/20)
IC5401
HALL AMP,
HALL GAIN CONTROL
(2/20)
IC5103
EVR
(D/A CONVERTER)
(2/20)
IC5101
CPU
(5/20 - 7/20)
IC1701
512M SDRAM,
512M OneNAND FLASH
(8/20)
IC2101
IRIS DRIVE
(4/20)
IC5302
IRIS DRIVE,
HALL BIAS CONTROL
(2/20)
IC5102
RF PROCESS
(11/20)
IC4101
L7001
SE7001
SE7002
PITCH
SENSOR
YAW
SENSOR
PITCH/YAW
SENSOR
AMP
IC7003
L7002
24
25
1
5
4
28
VST_C_RESET 326
CAM_-7.5V
CAM_12.0V
CN7101
CN1203
CD-731 BOARD
CCD
IMAGER
IC7101
L7101
1
2
16
15
FB1204
FB1203
FB1201
FB4106
FB4105 LDD_AVDD
CN4103
CN5101
LDD_LVDD
DRV_A_3.9VDRV_A_3.9V
A_2.5V
D_2.5V
D_2.8V
PDIC_VCC
FPDIC_VCC
FB4102
CN4402
FB4101
L1201
FB4103
D_1.2V
FB4201
FB4203
FB4301
D_2.8V
D_2.8V
A_2.8V
MT_5.0V
FB2401
FB4302
FB4104
L4102
L4103
DVD MECHA
DRIVE
(12/20)
IC4401
DVD DSP,
DVD DRIVE
CONTROL
(9/20)
IC4201
D/A
CONVERTER
(13/20)
IC2401
VIDEO, AUDIO
I/O
(15/20)
3.6V REG
Q2801
IC2801
64M SDRAM
(10/20)
IC4303
16M FLASH
(10/20)
IC4302
SHOCK SENSOR
AMP
(18/20)
IC4501
DRV_MT_4.3V
FB4401
L4403
L4402
DRV_MT_5.0V
A_2.5V
D_2.5V
DRV_MT_4.3V
DRV_MT_5.0V
L4404
A_2.8V
L2803
L2805
AU_2.8V L2801
AU_4.6V
AU_2.8V
AU_4.6V L2802
D_2.8V
MT_5.0V
VIDEO OUT,
AUDIO I/O
(14/20)
3.6V REG
Q2901
IC2901
A_2.8V
L2902
L2903
L2904
L2905
L4202
X1201
X1701
3
H2
4
V_OUT
AM7
G13, G12
EXIO_ADDR[14]
AF16
EMC_XRESET_OUT
H20
GPIO_S[14]
AP11
EXIO/CF_ADDR[9]
STL_ADDR[8]
STL_ADDR[7]
DS_GATE
B6 RESET
AA13
XRST
R23
ATXRST
CAM_DD_ON
EMC_XRESET_OUT
CAM_DD_ON
SHOE_ON
H21
GPIO_S[11] VST_C_RESET
AR10
EXIO/CF_ADDR[8] FM_PWR_ON FM_PWR_ON
SHOE_ON
MS_PWR_ON
AN6
EXIO_DIR XQUICKREC_LED
G20
GPIO_S[13] XBB_RST
Y4SIR_TXD PANEL_BL_ON
A_2.8V
D_1.8V
D_3.3V
D_2.8V
D_1.2V
A_1.2V
A_4.6V
MT_5.0V
MT_5.0V
D_1.2V
MT_5.0V
A_2.8V
D_2.8V
A_4.6V VCC
1CE
LENS BLOCK
ZOOM
SENSOR
FOCUS
SENSOR
IRIS
METER
ZM_RST_LED, FC_RST_LED
ZM_RST_LED, FC_RST_LED
13
10
VCC
CN1006
13, 14
8
10
2
6, 7
29
51
Q5101
L5301
L5101
ACCESS
D5691
POWER (1/3)
(PAGE 3-7)
A
POWER (3/3)
(PAGE 3-9)
C
POWER (1/3)
(PAGE 3-7)
D
05
2.9V REG
(20/20)
IC1002
VOUT
CE
VDD
1
3
4
CRST
19
FP-841
FLEXIBLE
BOARD
FP-838
FLEXIBLE
BOARD
FLASH
MEMORY
(MDL4060S3C)
(8GB)
DVD410E/DVD810/DVD810E
DVD410E/DVD810/DVD810E
DVD110E/DVD610/DVD610E
Non MEGA model
Non MEGA model
1, 2
DVD115E/DVD310E/DVD410E/
DVD710/DVD710E/
DVD810/DVD810E
IRIS DRIVE, HALL AMP
(2/20)
IC5102
HALL BIAS/GAIN CONTROL
(2/20)
IC5103
MEGA model
MEGA model
MEGA model
MEGA model
I_DRIVE (+)
ZM_SENS_Vcc
FC_SENS_Vcc
CN5101
LENS BLOCK
ZOOM
SENSOR
FOCUS
SENSOR
IRIS
METER
12
10
8
Non MEGA model
B4 RESET#
L8 XRST
XSYS_RST
RESET G2
XFLASH_RST
F_/RP E8
XRST_IC_4101
XIC_4201_RESET
J21
XRST
XBB_RST
XIC_4201_RESET_A
XATA_RESET
XRST_IC_4101
PD1
AC7
AL4
CF_Reset/ATA_RESET XATA_RESET
EMC_XRESET_OUT
F_INTo
P11
XSYS_RST XRST
K14
XFLASH_RST
XIC_4201_RESET
XSYS_RST
(1/20)
2.9V REG: Non MEGA model
3.4V REG: MEGA model
IC1202
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
A_2.8V
MT_5.0V_LD
OUT7A
F4
EN7
E4
XSYS_RST
CAM_DD_ON
R5402
R4413
3-9E
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
3-9. POWER BLOCK DIAGRAM (3/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
VC-520 BOARD (3/3)
POWER (1/3)
(PAGE 3-7)
B
POWER (2/3)
(PAGE 3-8)
C
CONTROL KEY BLOCK
(PS26100) (2/2)
D_2.8V
D_2.8V
CN1013
(2/2)
QUICKREC_
LED_VDD
MODE_LED_VDD
RV001
(ZOOM)
T W
D_2.5V
MT_5.0V
MS_PWR_ON
D1005
(NIGHTSHOT)
05
QUICK ON
D004
CAM
D002
D003
FP-573
FLEXIBLE
BOARD
FP-842
FLEXIBLE
BOARD
6
CN3102
25
VDD_P
XSTBY
PD-351 BOARD
18
CN6205
VDD
14 XSTBY
CN6201
25
6
7EP_2.8V
8D_2.8V 23
POFF 2.7 inch
WIDE
COLOR
LCD UNIT
LCD901
Q3106, Q3107
BL-021
BOARD
2
CN5702
VDD
1
CN3101
17
CN5701
2
18
L3102
L3101
L3103 EVF_VDD
11 STB
7 12
EVF_STB
EP_4.6V
EVF_VDD
EVF_STB
EP_4.6V
COLOR
EVF UNIT
D5702
(BACKLIGHT)
LCD902
LCD/EVF
DRIVE
(16/20)
IC3101
LCD/EVF
BACKLIGHT
CONTROL
(16/20)
IC3102
EP_8.5V
A_4.6V
A_2.8V
2
XSTBY_P 18
XSTBY_E 10
LCD
BACKLIGHT
DRIVE
Q3101 - Q3104
LED
DRIVE
Q1003
D6203 - D6205
(BACKLIGHT)
BL_H1 - BL_H3
VDD_P
XSTBY
EP_2.8V
D_2.8V
BL_H1 - BL_H3
11 - 9
20 - 22
TOUCH
PANEL I/F
Q6201, Q6202
CK-191 BOARD (2/2)
CN5801
(2/2)
CN1002
(2/2)
D_2.8V D_2.8V
10 10 D5801
(MS ACCESS)
MS-391 BOARD
MS_VCC
3, 4
CN7301
CN1003
D_2.8V
13, 14
CN7302
9
MS_VCC
XBB_RST
PANEL_BL_ON
MEMORY
STICK
DUO
16
2.9V REG
(20/20)
IC1001
VOUT
CE
VDD
1
3
4
XCLR
3
XQUICKREC_LED
4
18
6
Non MEGA model
PD-352 BOARD
18
CN6205
VDD
14
15
XSTBY
17 VSS
VSSG
CN6201
25
6
24
23
2.7 inch
WIDE
COLOR
LCD UNIT
LCD901
BL-022
BOARD
2
CN5702
EVF_VDD
CN5701
2
18
12 EVF_STB
12
EVF_VDD
EVF_STB
EP_4.6V
COLOR
EVF UNIT
D5701
(BACKLIGHT)
LCD902
D6203 - D6205
(BACKLIGHT)
20 - 22
TOUCH
PANEL I/F
Q6201, Q6202
Q6203
CK-192 BOARD (2/2)
CN5801
(2/2)
D_2.8V
10 D5801
(MS ACCESS)
MS-392 BOARD
CN7301
D_2.8V
13, 14
CN7302
9
MS_VCC MEMORY
STICK
DUO
1REMOTE
COMMANDER
RECEIVER
IC7301
MEGA model
MEGA model
MEGA model
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
R3110, R3113, R3114
R1006
R1018
R5802
R1023, R1024
VDD_P
XSTBY
D_2.8V
BL_H1 - BL_H3
R5802
4-1
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

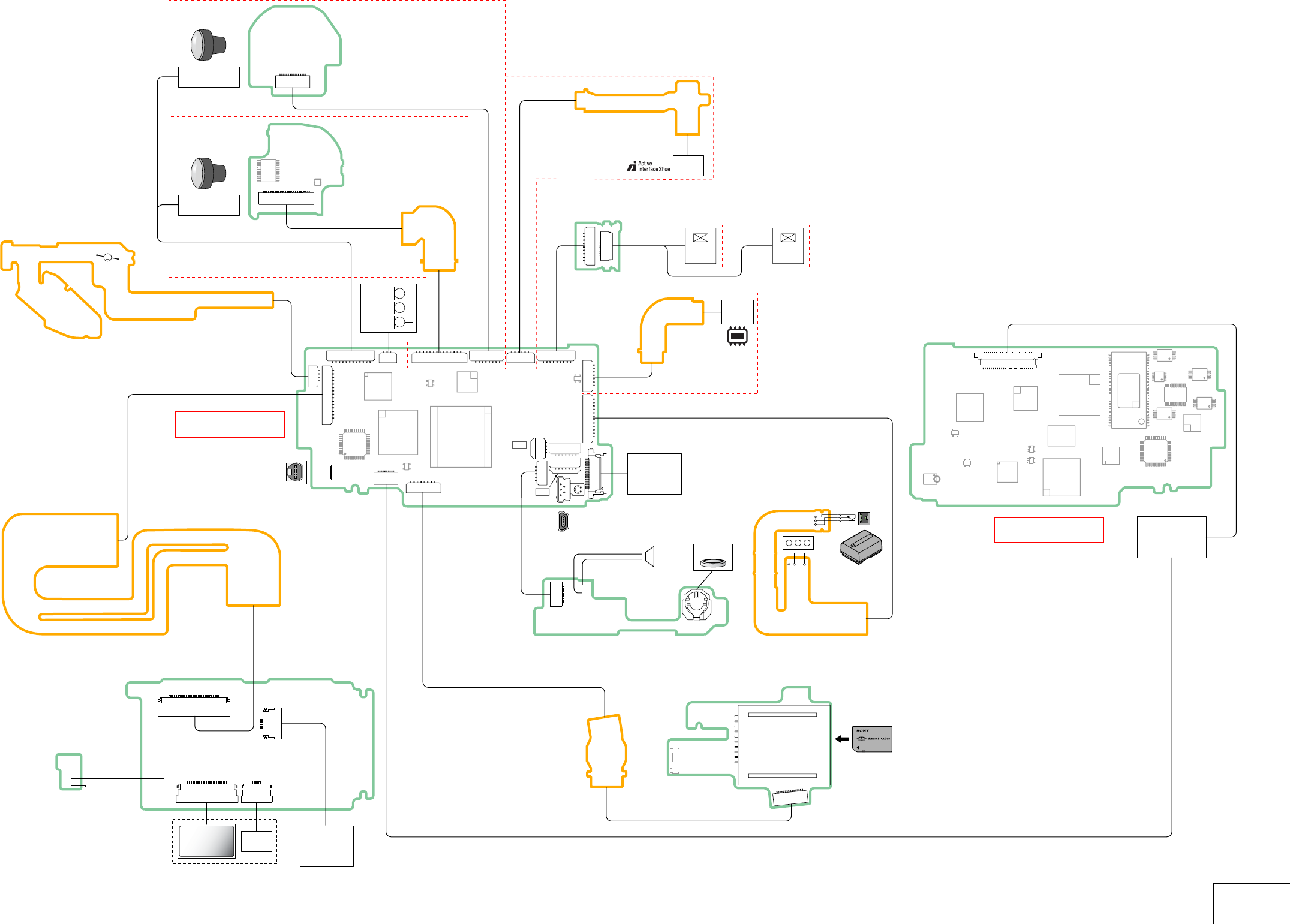

4-1. FRAME SCHEMATIC DIAGRAM
FRAME
4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
M
2.7 INCH
WIDE COLOR
LCD UNIT
MIC901
MICROPHONE
UNIT
LCD902
COLOR
EVF UNIT
LCD902
WIDE COLOR
EVF UNIT
FLASH
MEMORY
(MDL4060S3C)
(8GB)
C
BT901
LITHIUM BATTERY
CN901
HOT SHOE
2
1
50
51
CN4103
IC4901
(Not supplied)
IC4302
(Not supplied)
1
2
13
14
118
CN1009
CN1013
1
2
9
10 1
2
7
8
CN1002
CN1010
1
2
13
14
CN1011
1
2
23
24
CN1001
1
2
13
14
CN1006
1
2
17
18
1
2
11
12
CN3101
CN1008
1
2
15
16
CN1203
1
2
27
28
CN1201
1
2
5
6
CN1005
1
2
23
24
CN5101
1
2
7
8
CN4402
1
2
29
30
CN3102
110
CN4401
1
2
15
16
CN1003
IC2101
(Not supplied)
CN1012
A/V R
LEVEL3
VC-520 BOARD (SIDE A)
LEVEL3
VC-520 BOARD (SIDE B)
FP-569 FLEXIBLE BOARD
1
8
M903
MOTOR UNIT
(GEARD MOTOR)
FP-573 FLEXIBLE BOARD
1
1
30
30
301
16
16
124
CN6201
CN6202
CN6204CN6205
HARNESS (HN-024) (Gray)
HARNESS (HN-024) (Gray)
RV-011 BOARD
: Non MEGA model
RV-012 BOARD
: MEGA model
TOUCH
PANEL
LCD901
PD-351 BOARD (SIDE A): Non MEGA model
PD-352 BOARD (SIDE A): MEGA model
DVD
MECHANISM
DECK
(DDX-C2000)
LENS BLOCK
LENS BLOCK
CN7001
128
CD-672/
CD-687
BOARD
(SIDE A)
1
12
128
FP-840 FLEXIBLE BOARD
16 1
1
2
17
18
1
220
21
CN5701
CN5702
BL-021 BOARD (SIDE A)
: Non MEGA model
BL-022 BOARD (SIDE A)
: MEGA model
114
1
14
1
24
FP-839
FLEXIBLE
BOARD
CONTROL
KEY
BLOCK
(PS26100)
110
CN5801
HARNESS (HN-024) (Gray)
HARNESS (HN-024) (Gray)
SP901
SPEAKER
CPC
(For Check)
CPC
(For Check)
28
1
CK-191 BOARD (SIDE B): Non MEGA model
CK-192 BOARD (SIDE B): MEGA model
110
12
11
116
CN7301
MS-391 BOARD (SIDE A): Non MEGA model
MS-392 BOARD (SIDE A): MEGA model
116
16
1
FP-842
FLEXIBLE
BOARD
FP-838
FLEXIBLE
BOARD
FP-841
FLEXIBLE
BOARD
CN7302
MEMORY STICK
CONNECTOR
FLEXIBLE FLAT CABLE
(FFC-140)
DVD410E/DVD810/DVD810E
MEGA modelNon MEGA model
BH001
BATTERY
TERMINAL
J001
DC IN
FLEXIBLE FLAT CABLE
(FFC-089)
CD-731
BOARD
(SIDE A)
FLEXIBLE FLAT CABLE
(FFC-133)
116
CN7101
Non MEGA model
MEGA model
MEGA model
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
CN1004
USB
CONTROL
SWITCH
BLOCK
(SB22100)
05
4-2. SCHEMATIC DIAGRAMS
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
Link
Link
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVE610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
FP-838 FLEXIBLE BOARD: MEGA model
(VC-CD CONNECTION)
CD-672/CD-687 BOARD: MEGA model
(CCD IMAGER)
BL-022 BOARD: MEGA model
(EVF, EVF BACKLIGHT)
BL-021 BOARD: Non MEGA model
(EVF, EVF BACKLIGHT)
CD-731 BOARD: Non MEGA model
(CCD IMAGER)
FP-842 FLEXIBLE BOARD
(VC-MS CONNECTION)
PD-351 BOARD: Non MEGA model
(LCD, LCD BACKLIGHT)
RV-011: Non MEGA model
(PANEL REVERSE DETECT)
PD-352 BOARD: MEGA model
(LCD, LCD BACKLIGHT)
RV-012: MEGA model
(PANEL REVERSE DETECT)
FP-573 FLEXIBLE BOARD
(VC-PD CONNECTION) CONTROL SWITCH BLOCK (SB22100)
FP-569 FLEXIBLE BOARD
(EJECT SWITCH/MOTOR)
FP-840 FLEXIBLE BOARD (HOT SHOE)
CK-191 BOARD: Non MEGA model
(CONTROL SWITCH)
FP-839 FLEXIBLE BOARD (DC IN)
CONTROL KEY BLOCK (PS26100)
CK-192 BOARD: MEGA model
(CONTROL SWITCH)
MS-391 BOARD: Non MEGA model
(MS CONNECTOR)
MS-392 BOARD: MEGA model (MS CONNECTOR,
REMOTE COMMANDER RECEIVER)
FP-841 FLEXIBLE BOARD: DVD410E/
DVD810/DVD810E (FLASH MEMORY)

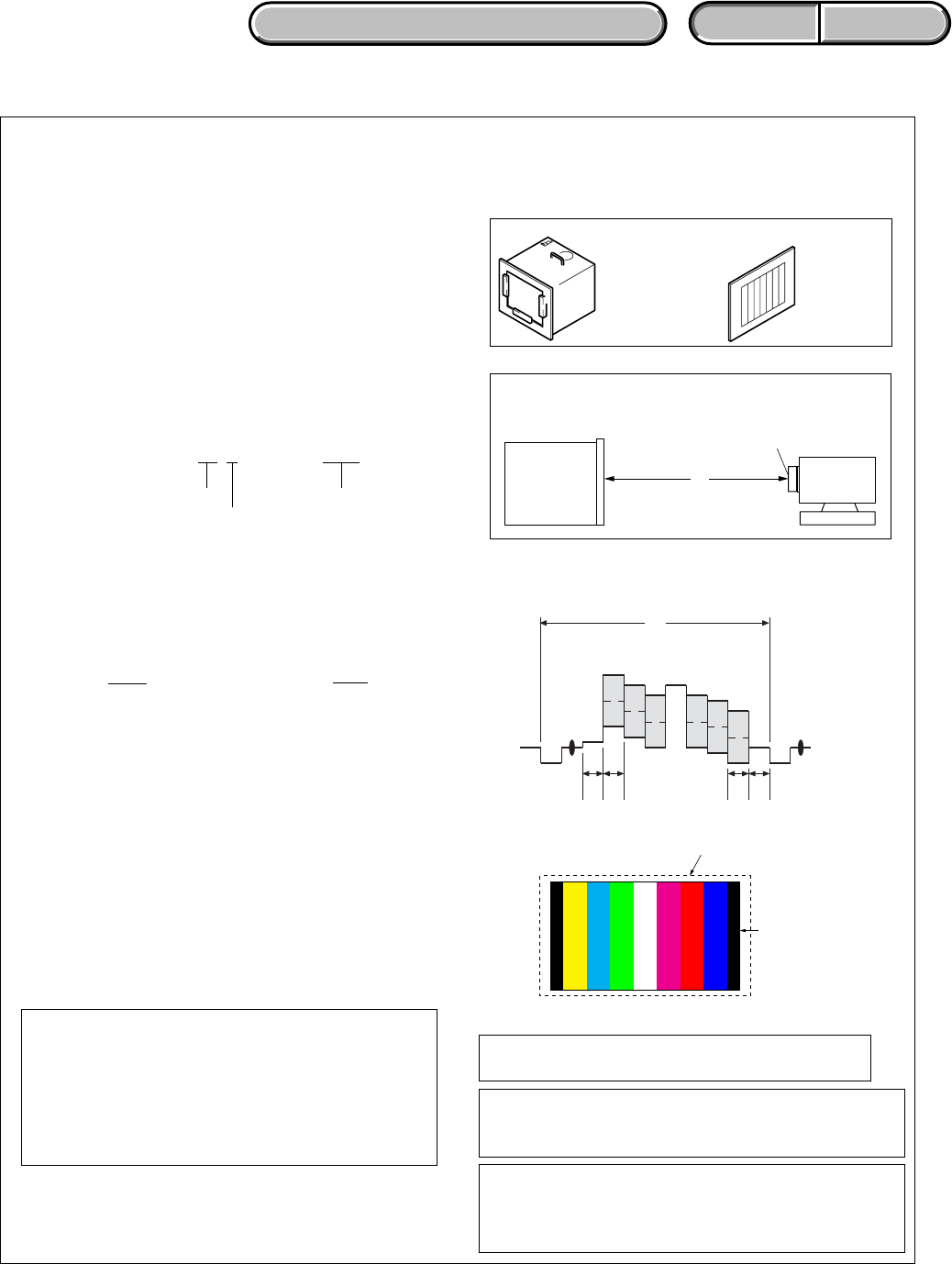

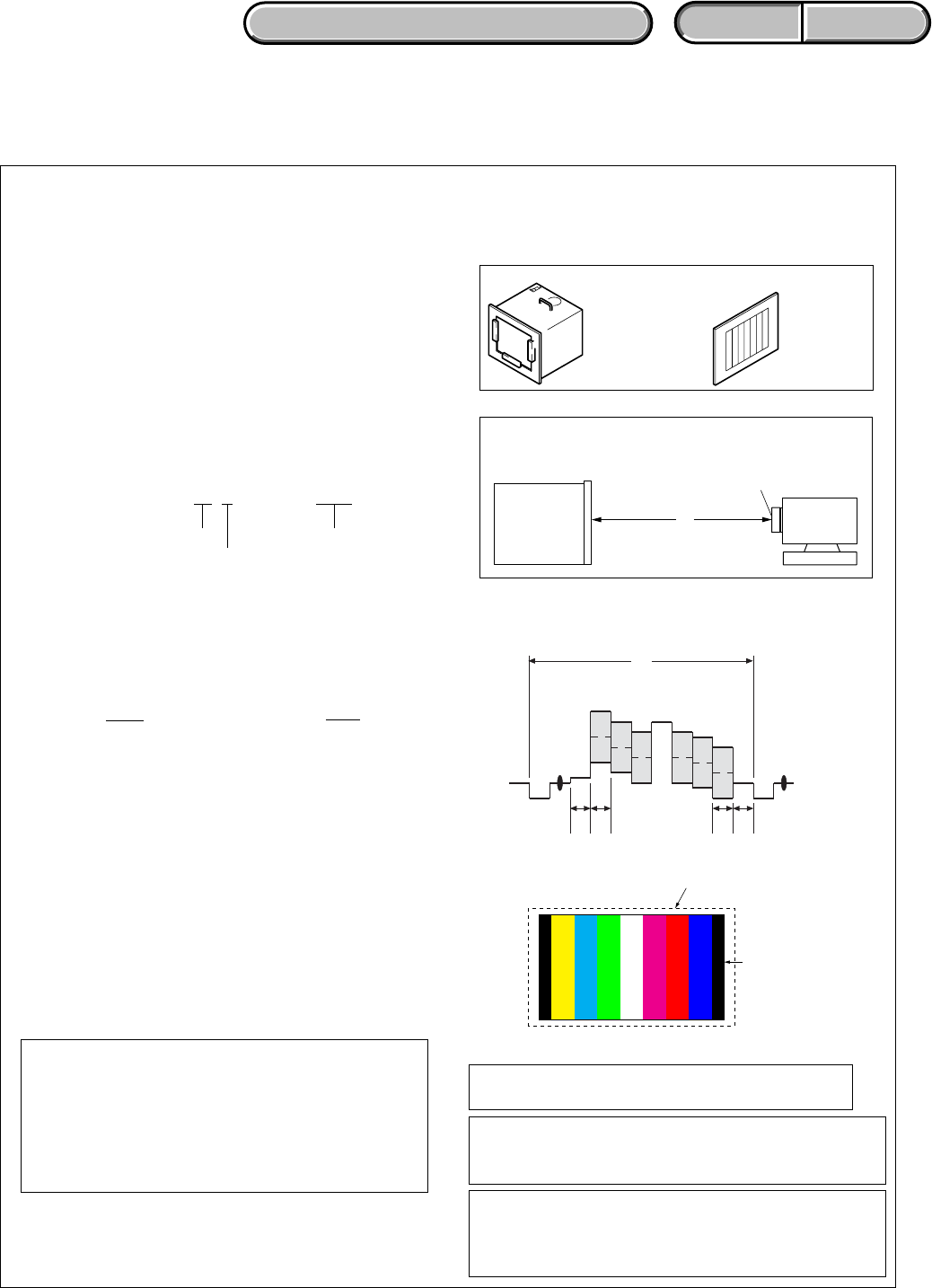

COMMON NOTE FOR SCHEMATIC DIAGRAMS
4-2
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
4-2. SCHEMATIC DIAGRAMS
4-2. SCHEMATIC DIAGRAMS
ENGLISH JAPANESE
ENGLISH JAPANESE
4-2. SCHEMATIC DIAGRAMS
(ENGLISH)
1. Connection
2. Adjust the distance so that the output waveform of
Fig. a and the Fig. b can be obtain.
When indicating parts by reference number, please
include the board name.
(For schematic diagrams)
•All capacitors are in µF unless otherwise noted. pF : µ
µF. 50 V or less are not indicated except for electrolytics
and tantalums.
•Chip resistors are 1/10 W unless otherwise noted.
kΩ=1000 Ω, MΩ=1000 kΩ.
• Caution when replacing chip parts.
New parts must be attached after removal of chip.
Be careful not to heat the minus side of tantalum
capacitor, Because it is damaged by the heat.
• Some chip part will be indicated as follows.
Example C541 L452
22U 10UH
TA A2520
•Constants of resistors, capacitors, ICs and etc with XX
indicate that they are not used.
In such cases, the unused circuits may be indicated.
•Parts with ★ differ according to the model/destination.
Refer to the mount table for each function.
•All variable and adjustable resistors have characteristic
curve B, unless otherwise noted.
•Signal name
XEDIT → EDIT PB/XREC → PB/REC
•2: non flammable resistor
•5: fusible resistor
•C: panel designation
•A: B+ Line
•B: B– Line
•J: IN/OUT direction of (+,–) B LINE.
•C: adjustment for repair.
(Measuring conditions voltage and waveform)
•Voltages and waveforms are measured between the
measurement points and ground when camera shoots
color bar chart of pattern box. They are reference values
and reference waveforms.
(VOM of DC 10 MΩ input impedance is used)
•Voltage values change depending upon input
impedance of VOM used.)
Kinds of capacitor
Case size
External dimensions (mm)
Yellow
AABBA=B

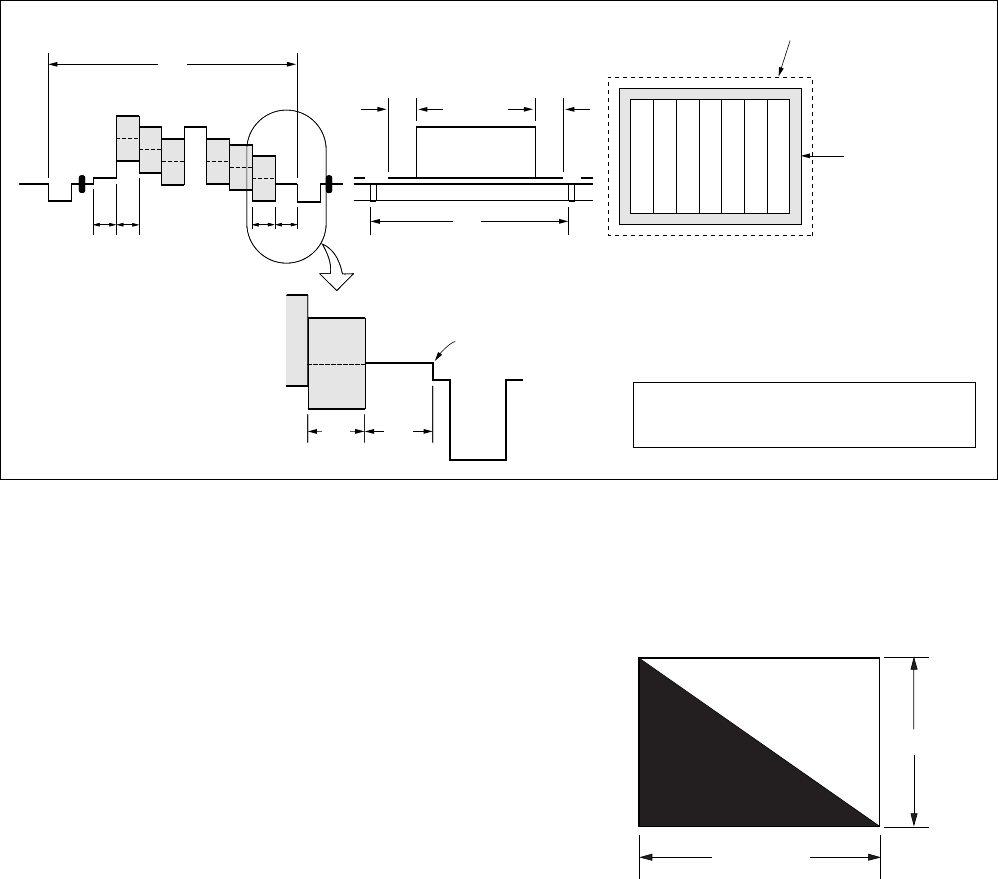

Fig. a (Video output terminal output waveform)
H
Cyan
Green
White
Magenta
Red
Blue
Fig.b (Picture on monitor TV)
CRT picture frame
Electronic beam scanning frame
THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS
(In addition to this, the necessary note is printed in each block)
Pattern box
Pattern box PTB-450
J-6082-200-A
or
Small pattern box
PTB-1450
J-6082-557-A
Color bar chart
For PTB-450:
J-6020-250-A
For PTB-1450:
J-6082-559-A
Pattern box Front of the lens
L = 1 m (PTB-450)
L = 40 cm (PTB-1450)
LCamera
Precautions for Replacement of Imager
•If the imager has been replaced, carry out all the adjustments
for the camera section.
•As the imager may be damaged by static electricity from
its structure, handle it carefully like for the MOS IC.
In addition, ensure that the receiver is not covered with
dusts nor exposed to strong light.
The components identified by mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0 sont
critiques pour la sécurité.
Ne les remplacer que par une pièce portant le numéro
spécifie.
4-3
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
4-2. SCHEMATIC DIAGRAMS
4-2. SCHEMATIC DIAGRAMS
(JAPANESE)
回路図共通ノート
（他に必要なノートは各ブロックに記載してあります）
【回路図ノート】
・ケミコン，タンタルを除くコンデンサで，耐圧50V以下のもの
はその耐圧を省略。単位はすべてμF（pはpF）。
・チップ抵抗で指示のないものは，1／10W以下。
kΩ＝1000Ω，MΩ＝1000kΩ
・チップ部品交換時の注意
取り外した部品は再使用せず，未使用の部品をご使用くださ
い。
タンタルコンデンサのマイナス側は熱に弱いため注意してくだ
さい。
・チップ部品には下記のように表示したものがあります。
 例 C 541 L 452
22U 10UH
TA A 2520
↑↑ ↑
種類 ケースサイズ 外形寸法（mm）
・抵抗，コンデンサ，ICなど定数にXXがあるものは，使用して
いない事を示しています。このため，使用していない回路が記
載されている事があります。
・★印のある部品は，機種などにより異なりますので機能別マウ
ント一覧表を参照してください。
・可変抵抗と半固定抵抗で，B特性の表示を省略。
・信号名表記について，下記のような場合があります。
XEDIT → EDIT     PB/XREC → PB/REC
・2は不燃性抵抗。
・1はヒューズ抵抗。
・Cはパネル表示名称。
・AはB＋ライン。
・BはB−ライン。
・JはBライン（＋，−）の入出力方向を示す。
・Cは調整名称。
【電圧・波形測定条件ノート】
・電圧値及び信号波形はパターンボックスのカラーバーチャート
を被写体としたときの測定点対アース間の参考値。
（デジタルマルチメータ；入力インピーダンス DC10MΩ使
用）
・使用テスタの入力インピーダンスにより電圧値が多少異なりま
す。
0印の部品，または0印付きの点線で囲まれた部品は，
安全性を維持するために重要な部品です。
従って交換時は，必ず指定の部品を使用して下さい。
お願い
図面番号で部品を指定するときは基板名又はブロック
を併せて指定して下さい。
1. 接続図
2. 図a及び図bの波形が得られるように画枠調整して下さい。
イメージャ交換時の注意
・イメージャを交換した場合は，カメラ部の全調整を
行ってください。
・イメージャは構造上，静電気により破壊される恐れが
あるため，MOS ICと同様に注意して取り扱ってくだ
さい。
また，受光部にはゴミの付着，および強い光がはいる
ことのないように注意してください。
パターンボックス
Pattern box PTB-450
J-6082-200-A
or
Small pattern box
PTB-1450
J-6082-557-A
カラーバーチャート
For PTB-450:
J-6020-250-A
For PTB-1450:
J-6082-559-A
パターンボックス レンズ前面
L = 1 m (PTB-450)
L = 40 cm (PTB-1450)
Lカメラ
AABBA=B
図a（映像入出力端子出力波形）
図b（テレビモニタの映像）
H
黄
シ
ア
ン白
緑
マ
ゼ
ン
ダ赤青
ブラウン管の画像枠
電子ビーム走査線
ENGLISH JAPANESE
ENGLISH JAPANESE
4-4
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/

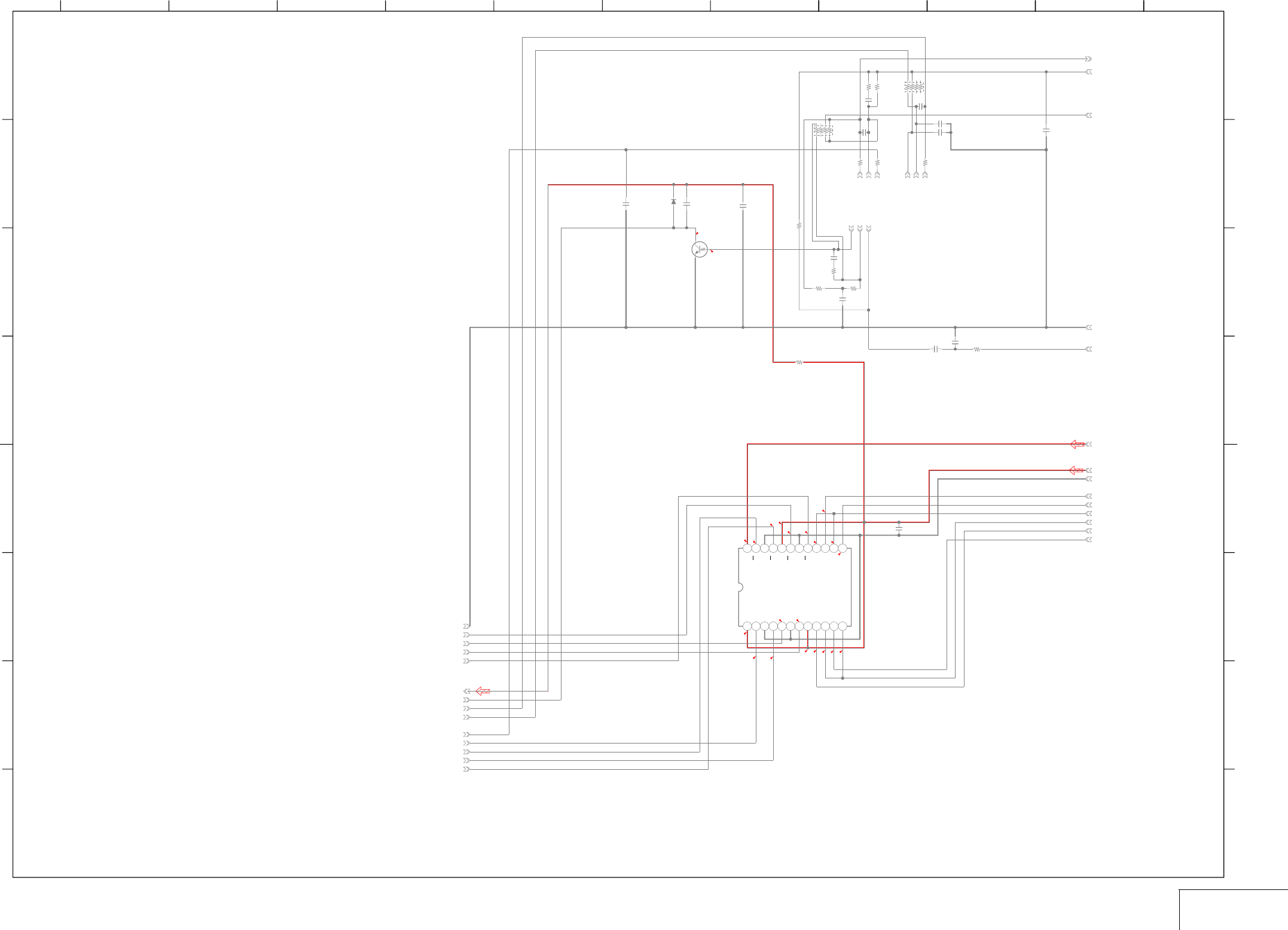

DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 CD-672/CD-687
FLEXIBLE
Page 4-5
of Level 2
FP-838
R7/P0R12.1/P0.1
R7.7/P0.1
0
R10.8/P0.1
1.3
2.8 1.3
1.3
1.32.8
0.7
0.9
1.3
1.3
1.3
1.3
1.3
1.3
NO MARK:REC/PB MODE
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
Note: CD-672 complete board is supplied instead of CD-687 complete board,
because CD-672 complete board and CD-687 complete board are compatible.
R:REC MODE
P:PB MODE
Note: IC7002 is supplied including in CCD block assy.
Note: Voltages of IC7002 can not be measured,
because this is mounted by the side of the lens.
CD-672
CD-672
: MEGA model
0.8
1
1.5
1.5
1.3
1.3
1.3
1.3
0
2.8
R7001
XX
C7001
XX
R7007 XX
C7013
XX
R7008 XX
C7008
XX
R7010
XX
R7012
XX
C7004
XX
R7011
XX
C7014
XX
R7009
XX
C7009
XX
C7012
XX
IC7001
XX
1
IN
2
GND
3
OUT IDRV
4
VCC
5
ISF
6
R7017
XX
R7018
XX
R7019
XX
R7020
XX
C7030
XX
C7007
4.7u
C7011
10u
SE7002
4
12
3
RB7001
22k
12
34
56
78
R7015
1M
R7005
1k
R7006
12k
C7015
0.1u
C7003
0.1u
R7014
1M
C7023
4.7u
C7005
0.1u
C7024
10u
R7013
10k
L7001
10uH
1
PASS
2
OUT1
3
AM1
4
Vref1
5
HO1
6
HI1
7
LO1
8
LIA1
9
LIB2
10
GND
11
LIB2
12
LIA2
13
LO2
14
HI2
15
HO2
16
Vref2
17
AM2
18
OUT2
19
CRST
20
VCC
C7025
10u R7016
10k
Q7001
UNR32A300LS0
1
RCSUB
2
V6
3
V5
4
V4
5
V3
6
V2
7
V1
8
VL
9
N.C
10
VDD
11
N.C
12
V_OUT
13
GND
14
RG
15
N.C
16
H2
17
N.C
18
H1
19
SUB
20
N.C
CN7001 28P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
FB7001
Q7002
2SC5096-O/R(TE85L)
C7016
0.1u
R7004
10k
R7002
1200
C7018
0.1u
SE7001
4
12
3
L7002
10uH
C7017
0.1u
C7002
0.1u
C7027
0.047u
1
2
3
4
C7026
0.047u
1
2
3
4
C7028
10u
C7029
10u
PITCH SENSOR
Vref
OUT
GND
OUT
Vcc GND
Vref
YAW SENSOR
Vcc
CLAMP
SWITCH
XX MARK:NO MOUNT
CCD IMAGER
CD-672/CD-687 BOARD
C7006
1u
C7010
0.1u
GND
SE_2.8V
YAW_AD
VST_C_RESET
PITCH_AD
SE_GND
GND
GND
V5
V6
SUB
CAM_15V
CAM_-7.5V
GND
GND
GND
GND
V3
RCSUB
H1
V4
GND
H2
GND
V2
CCD_OUT+
V1
RG
IC7002
ICX617AKF-J
CCD IMAGER
IC7003
NJM3230V(TE2)
PITCH/YAW SENSOR
AMP
05
A
D
7
CC
6
D
B
E
A
5
B
34
F
2
F
E
1 8
4-5
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/

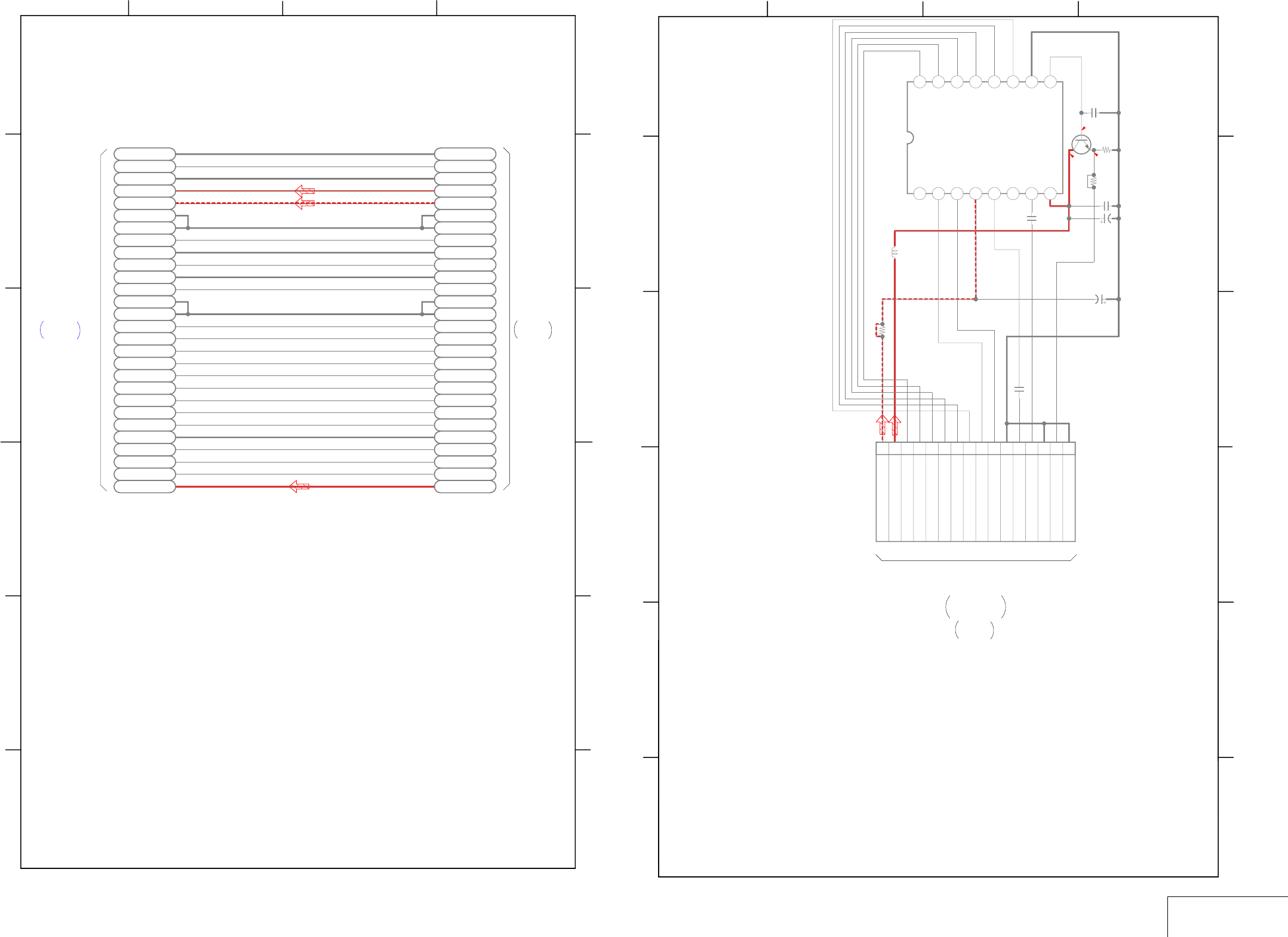

DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 FP-838, CD-731
(PRINTED WIRING BOARD is omitted.)
MEGA model:DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
: MEGA model
A
D
3
F
C
2
E
B
1
E
B
D
F
A
C
4
RG
GND
GND
GND
V2
H1
SE_2.8V
V6
RCSUB
YAW_AD
CAM_-7.5V
VST_C_RESET
V3
V4
GND
PITCH_AD
GND
GND
SUB
CCD_OUT+
V5
GND
GND
H2
V1
CAM_15V
GND
SE_GND
CAM_-7.5V
GND
VST_C_RESET
GND
V3
SUB
V6
RCSUB
YAW_AD
RG
CCD_OUT+
V5
GND
GND
H2
V1
CAM_15V
GND
GND
V4
GND
PITCH_AD
GND
GND
GND
V2
H1
SE_2.8V
1PIN
28PIN
1PIN
28PIN
CN1201
VC-520
(1/20)
Page 4-6
of Level 3
VC-CD CONNECTION
FP-838 FLEXIBLE BOARD
05
CN7001
CD-672/CD-687
Page 4-4
of Level 2
Note: IC7101 is not included in
CD-731 complete board.
: NTSC
: PAL
Note: Voltages of IC7101 can not
be measured, because this
is mounted by side of the
lens.
NO MARK:REC/PB MODE
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
R:REC MODE
P:PB MODE
: Non MEGA model
R12/
P0
R8/P0
R8.8/P0
XX MARK:NO MOUNT
CCD IMAGER
CD-731 BOARD
Through the
Flexible Flat Cable
(FFC-133)
CN1203
VC-520
(1/20)
Page 4-6
of Level 3
A
D
3
F
C
2
E
B
1
E
B
D
F
A
C
05
4
C7101
10u 16V
L7101
10uH
C7105
15p
CH
Q7101
2SC3931G0LS0
BUFFER
C7106
XX
R7101
3300
C7103
0.01u
BC7104
10u 16V
R7102
XX
R7103
XX
IC7101
12345678
910111213141516
CN7101 16P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
C7108
0.1u
B
ICX650NKF-H
ICX651NKF-H
CCD IMAGER
CAM_-7.5V
CAM_12.0V
V6
V5
V4
V3
V2
V1
H2
H1
REG_GND
VSHT
RG
REG_GND
CCD_OUT
REG_GND
V6
V5
V4
V3
V2
V1
GND
VOUT
VDD
RG
NC
SUB
VL
H1
H2
RCSUB
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

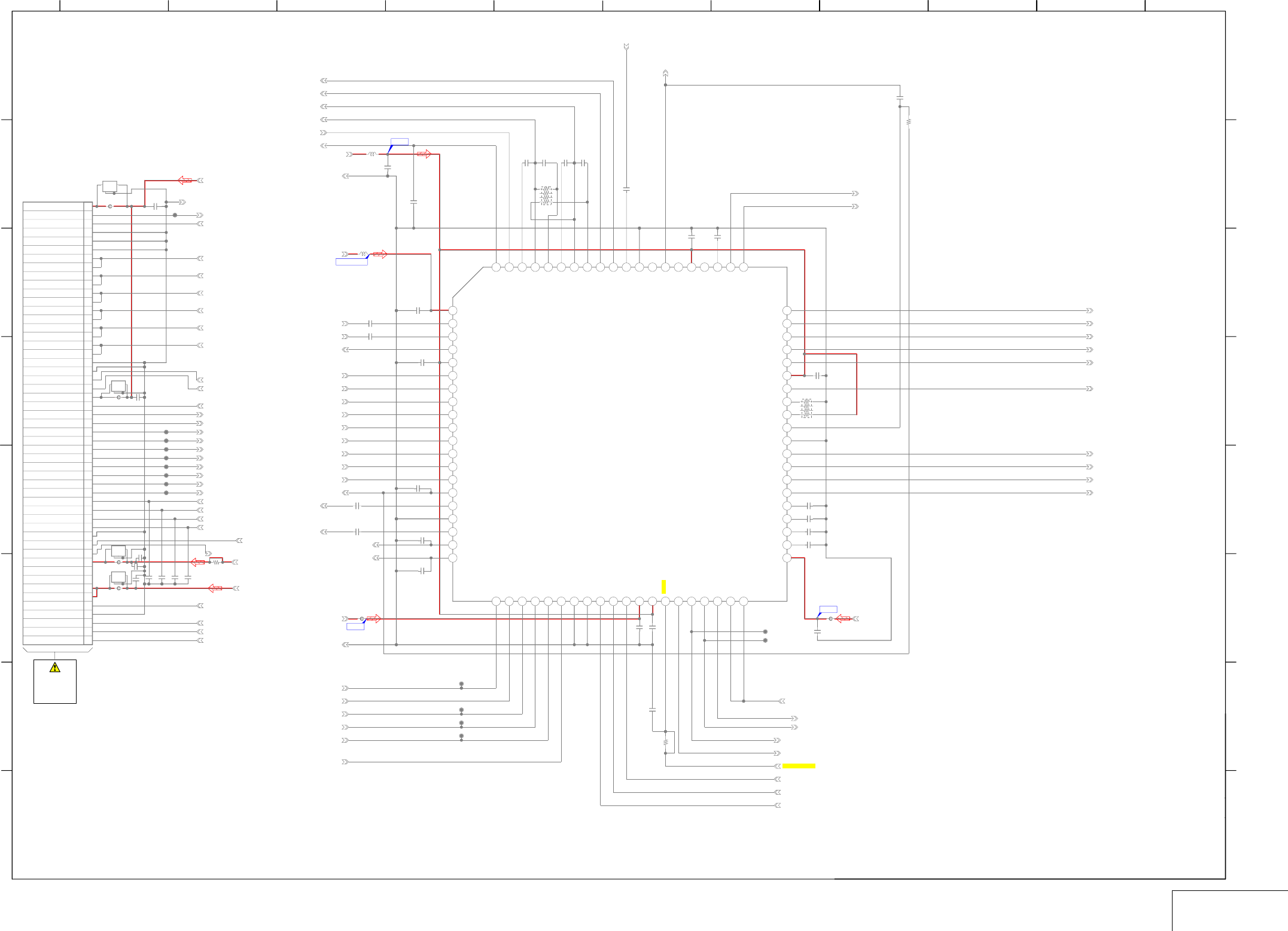

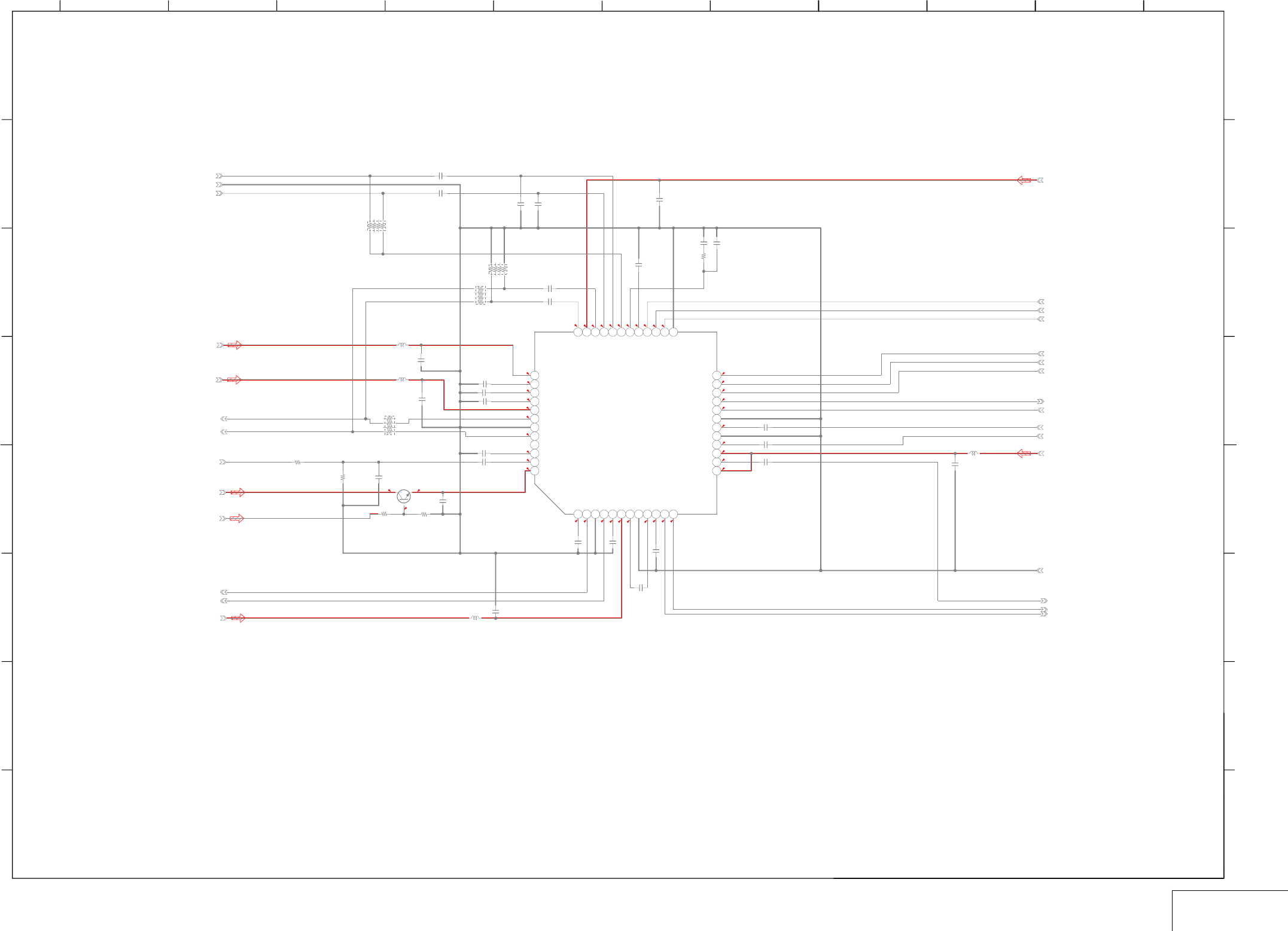

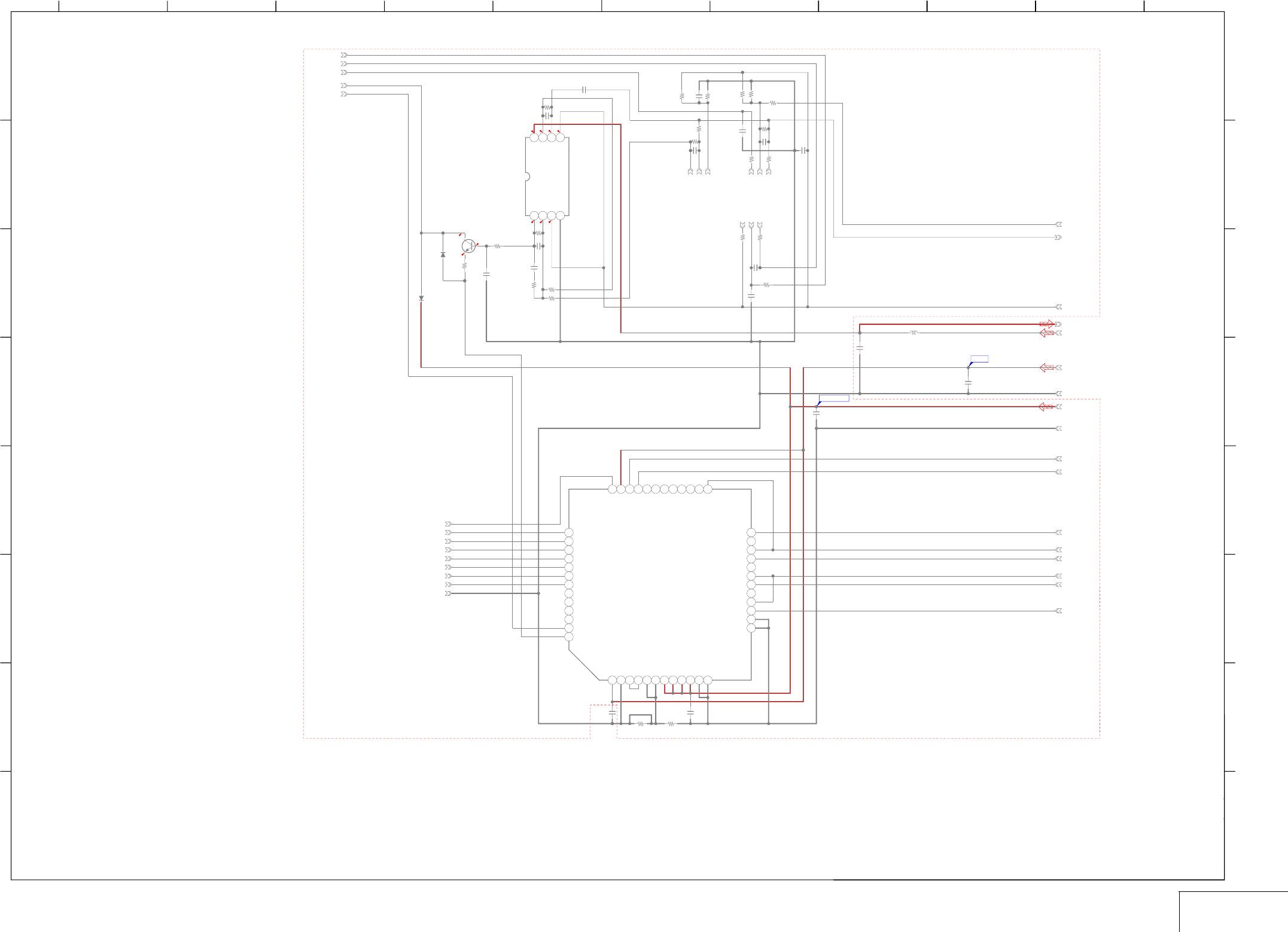

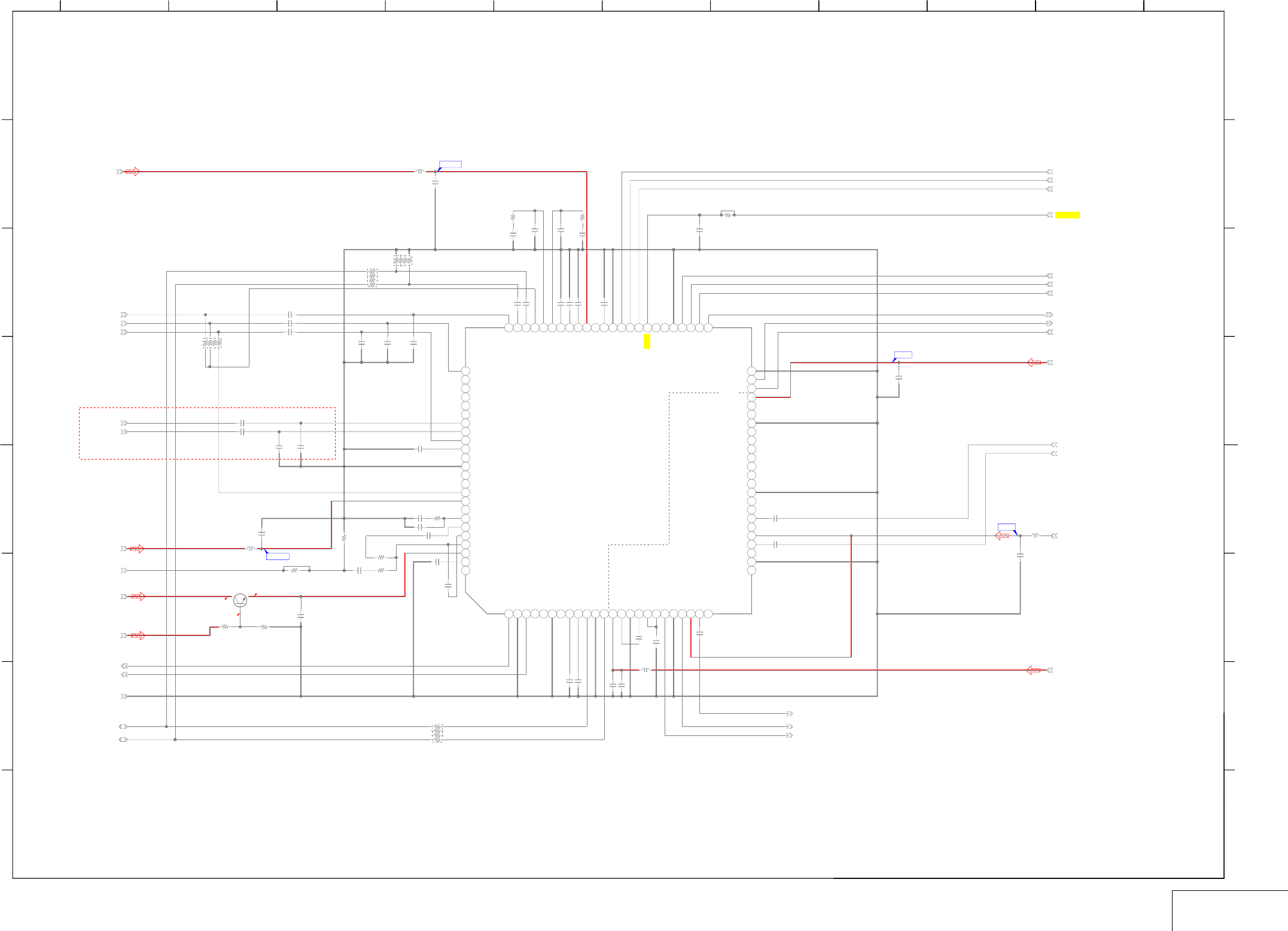

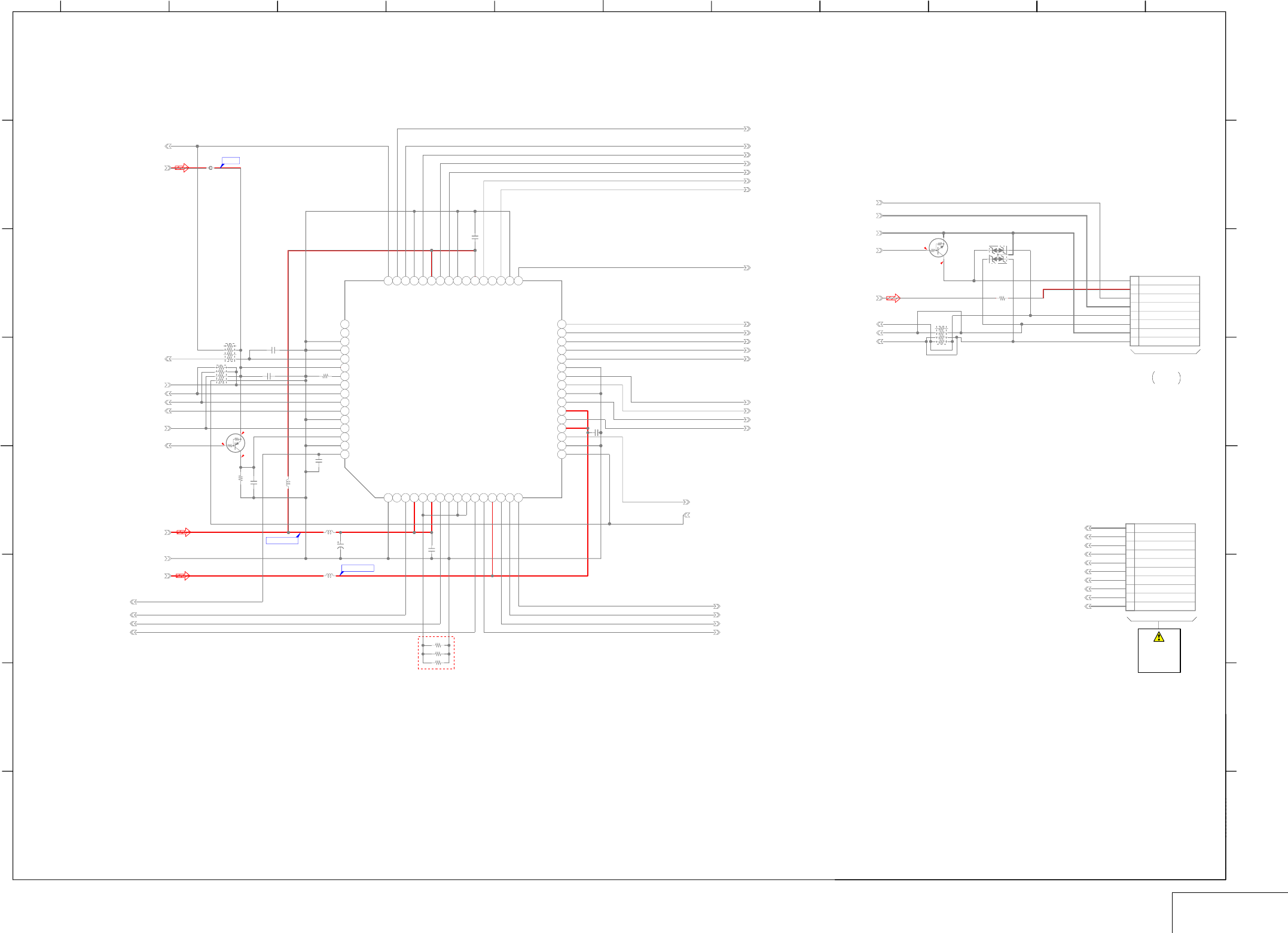

Schematic diagrams of the VC-520 board are not shown.
Pages from 4-6 to 4-25 are not shown.
4-26
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/

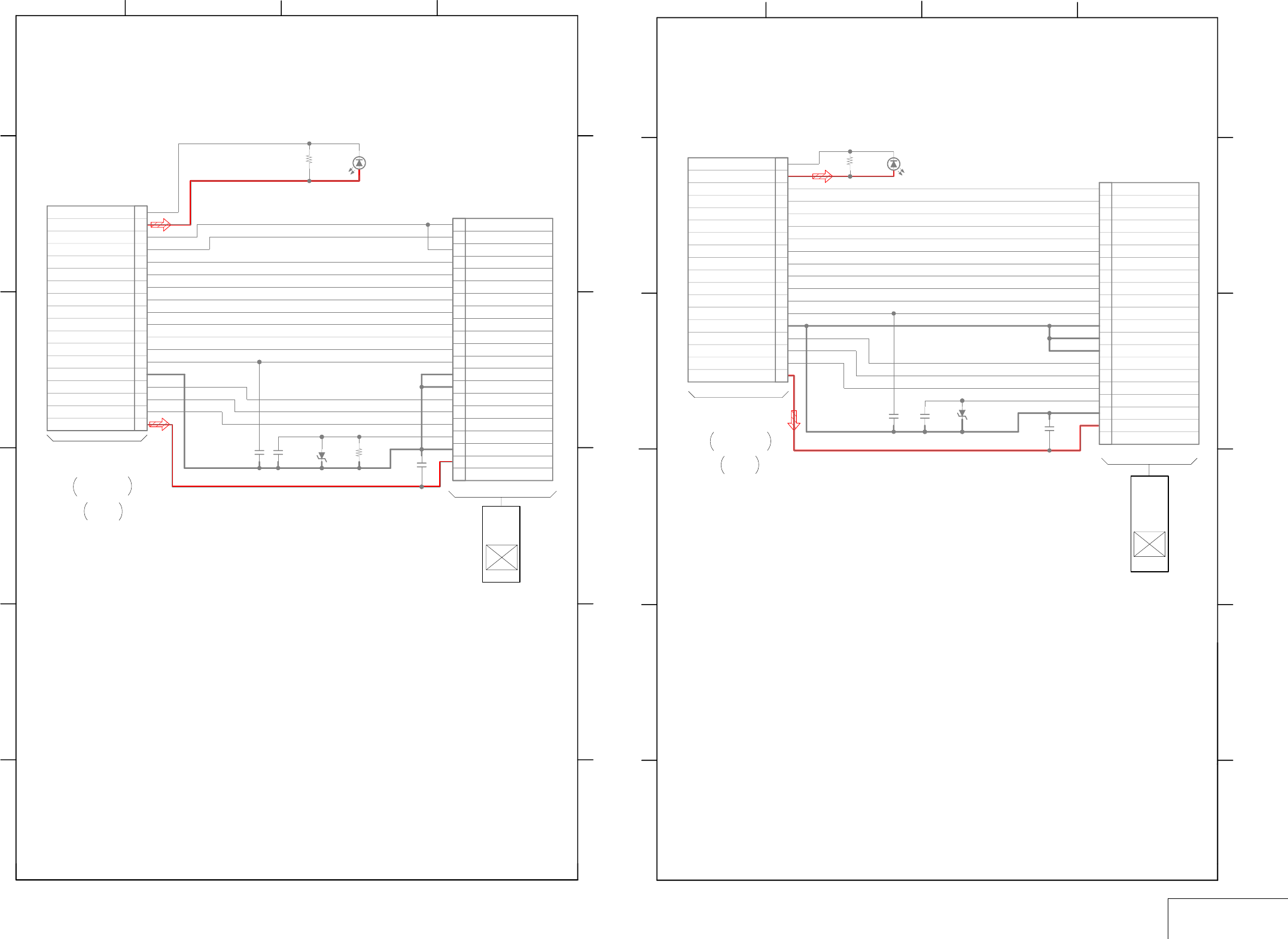

DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 BL-021, BL-022
Non MEGA model:DCR-DVD110E/DVD115E/DVD610/DVD610E
: Non MEGA model
Note: LCD902 is not included in
BL-021 complete board.
BL-021 BOARD
XX MARK:NO MOUNT
EVF, EVF BACKLIGHT
COLOR
LCD902
EVF
UNIT
Through the
Flexible Flat Cable
(FFC-140)
CN3101
VC-520
(16/20)
Page 4-21
of Level 3
A
D
3
F
C
2
E
B
1
E
B
D
F
A
C
05
4
C5701
0.1u
B
C5702
1u
BC5703
XX
CN5702 21P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
D5702
NESW007AT-T099
D5701
EDZ-TE61-5.6B
R5702
1M
R5701
XX
CN5701 18P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
COM
HCK2
VR
HCK1
PSIG
VDD
STB
VSS
EN
VB
RGT
VST
PCG
VSSG
HST
N.C.
WIDE
REF
VCK
VG
CS
(BACKLIGHT)
EVF_VB
LED_K
EVF_PSIG
EP_4.6V
EVF_COM
EVF_VG
EVF_VR
EVF_STB
EVF_EN
EVF_HST
EVF_HCK2
EVF_REF
EVF_HCK1
EVF_VDD
EVF_VCK
EVF_VST
EVF_GND
EVF_PCG
: MEGA model
MEGA model:DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
Note: LCD902 is not included in
BL-022 complete board.
XX MARK:NO MOUNT
EVF, EVF BACKLIGHT
BL-022 BOARD
COLOR
WIDE
LCD902
EVF
UNIT
Through the
Flexible Flat Cable
(FFC-140)
CN3101
Page 4-21
of Level 3
A
D
3
F
C
2
E
B
1
E
B
D
F
A
C
05
4
EVF_COM
EVF_PSIG
EVF_VG
EVF_VR
EVF_VB
EVF_PCG
EVF_REF
EVF_HCK1
EVF_HCK2
EVF_HST
EVF_VST
EVF_EN
EVF_STBY
EVF_VCK
C5701
0.1u
BC5703
XX
D5702
EDZ-TE61-5.6B
R5701
XX
C5702
1u
B
D5701
NESW007AT-T099
CN5702 21P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
CN5701 18P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
VSS
N.C.
VSSG
EVF_VST
EVF_REF
EVF_HCK2
EVF_HCK1
EVF_EN
EVF_VR
EVF_NRW
EVF_PSIG
EVF_DWN
EVF_VG
EVF_HST
EVF_VDD
EVF_VCK
EVF_PCG
EVF_RGT
EVF_COM
EVF_STB
EVF_VB
(BACKLIGHT)
EVF_VDD
EP_4.6V
LED_K
EVF_GND
EVF_HST
EVF_COM
EVF_HCK2
EVF_REF
EVF_PSIG
EVF_VR
EVF_VG
EVF_VCK
EVF_VB
EVF_PCG
EVF_HCK1
EVF_STB
EVF_VST
EVF_EN
VC-520
(16/20)
4-27
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/

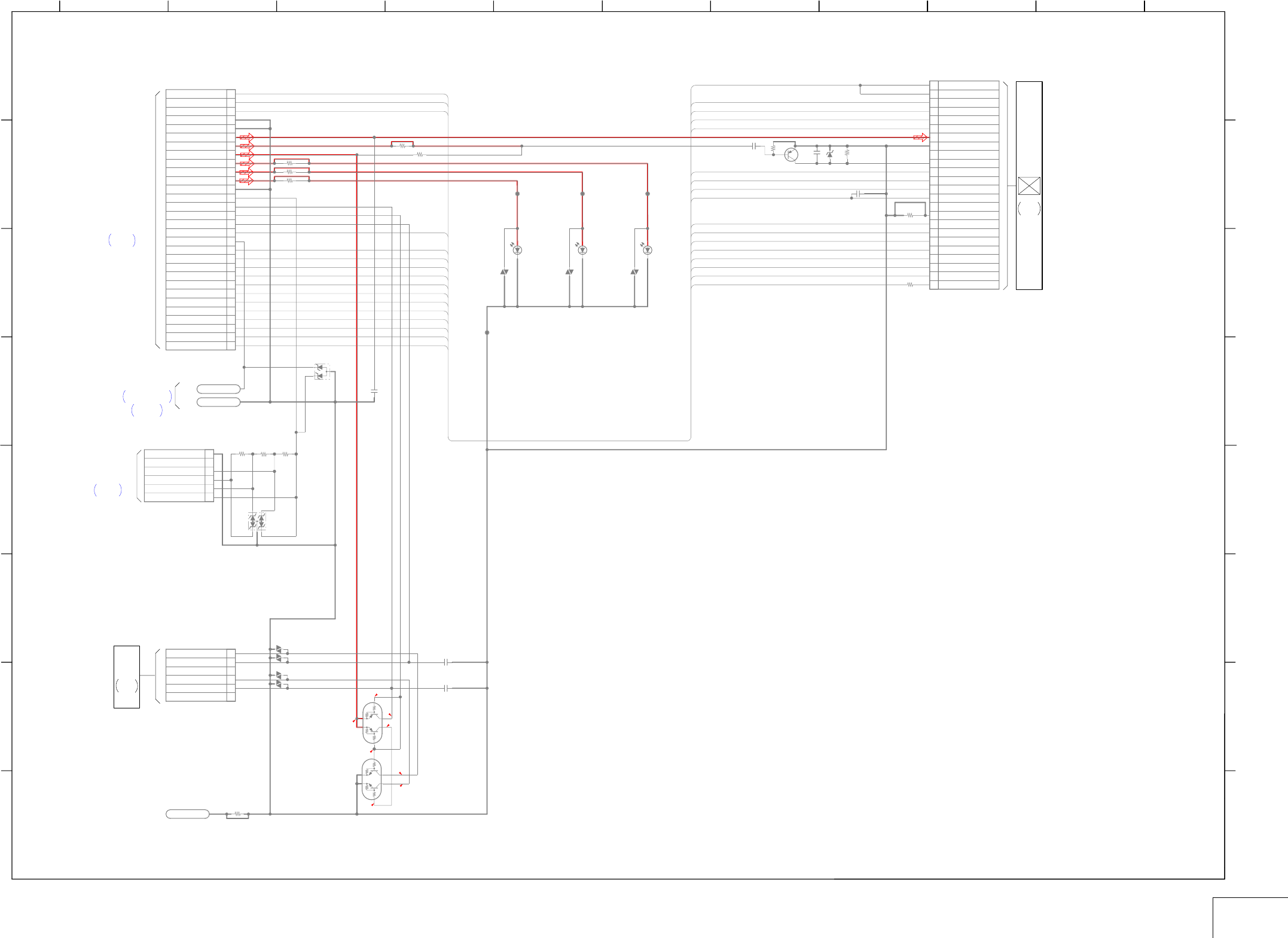

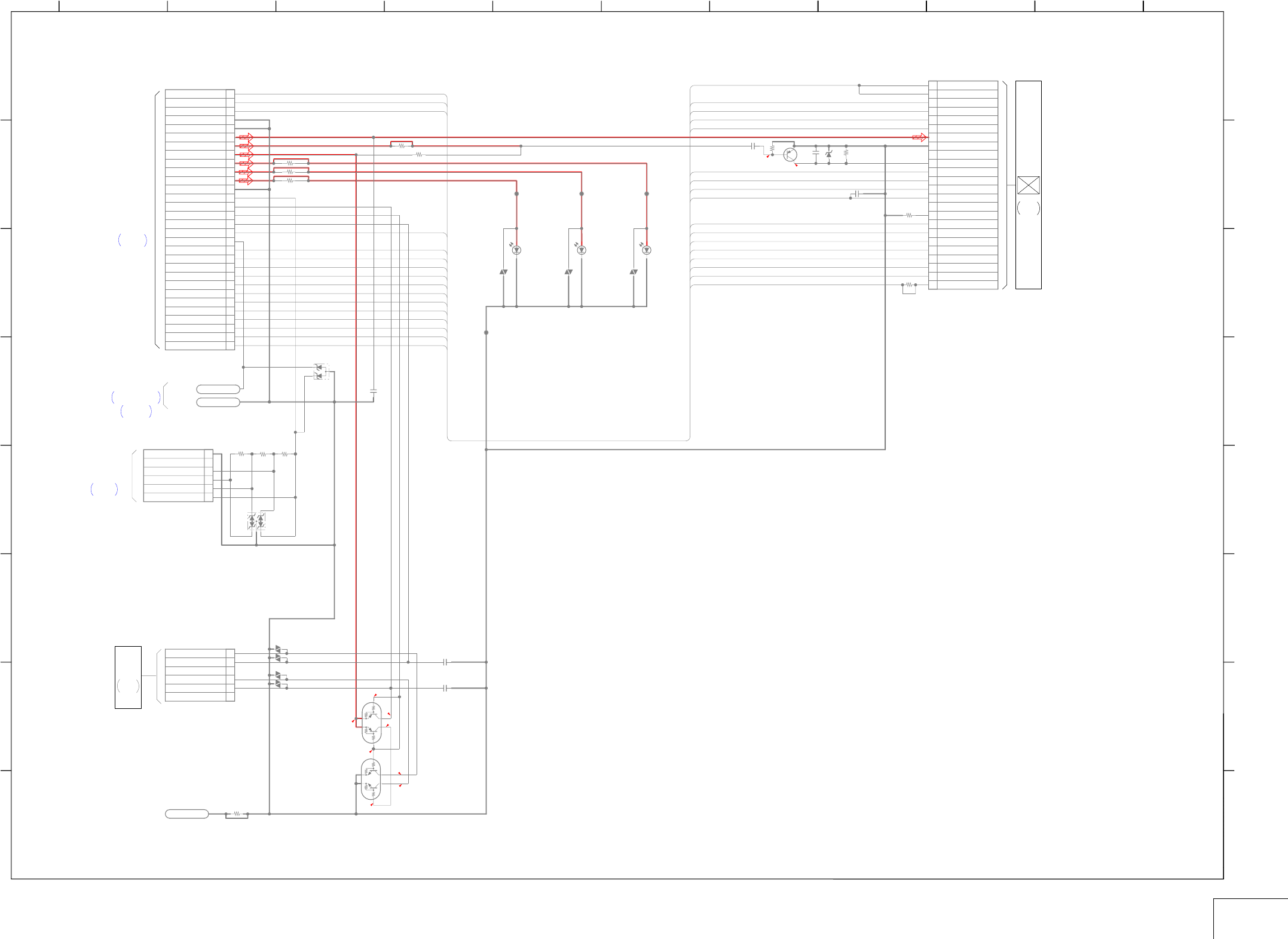

DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 PD-351
LND001-LND006
CONTROL
SWITCH BLOCK
(SB22100)
Page 4-34
of Level 2
LN7601, LN7602
RV-011
Through the Harness
(HN-024) ×2
Page 4-33
of Level 2
LND001-LND030
FP-573
FLEXIBLE
Page 4-29
of Level 2
2.8
0
0
2.8
2.8
0
2.8
2.8
NO MARK:REC/PB MODE
: Non MEGA model
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
Note: LCD901 is not included in
PD-351 complete board.
3
G
6 9
F
B
H
7 10
C
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
COM_P
VST_P
DWN_P
PCG_P
HST_P
REF_P
HCK2_P
HCK1_P
VP_P
RGT_P
EN_P
VG_P
VR_P
VB_P
VR_P
VG_P
VB_P
EN_P
REF_P
HCK1_P
HCK2_P
HST_P
PCG_P
DWN_P
XSTBY_P
VP_P
RGT_P
VST_P
VCK_P
COM_P
XSTBY_P
VCK_P
COM_P
C6201
XX
C6206
0.1u
B
C6203
0.0047u
B
C6204
XX
C6205
1u
B
C6202
0.0047u
B
CN6204 6P
1
2
3
4
5
6
CN6205 24P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CN6201 30P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
D6202
EDZ-TE61-5.6B
LN6201
CH_GND
Q6203
XX
Q6202
XP411F-TXE
Q6201, Q6202
TOUCH PANEL
I/F
6
2
1
3
5
4
Q6201
XP421F-TXE
6
2
1
3
5
4
R6207
XX R6209
1M
R6226
XX
R6214 XX
R6215 XX
D6210
XX
3
2
1
R6230 XX
D6203
NSSW008CT-P1-T177
R6229 XX
CL6202
D6205
NSSW008CT-P1-T177
R6231 XX
CL6204
D6204
NSSW008CT-P1-T177
D6203-D6205
(BACKLIGHT)
CL6201 CL6203
VD6204
XX
VD6203
XX
VD6202
XX
VD6201
XX
LN6202 NOR_REV
LN6203 REG_GND
VD6207
XX
VD6206
XX
VD6205
XX
R6203
2200
R6201
1200
R6202
1500
D6201
XX
5
4
3
2
1
CN6202 6P
1
2
3
4
5
6
R6232
XX
R6233
XX
VST
TEST2
VDD
G
HCK1
RGT
CS
TEST1
HST
COM
DWN
PCG
COM
EN
R
VSSG
PSIG
VSS
B
N.C.
VCK
HCK2
REF
XSTBY
COLOR
TOUCH
(1/2)
LCD901
LCD
with
PANEL
WIDE
2.7inch
UNIT
TOUCH
(2/2)
LCD901
LCD
with
PANEL
UNIT
XX MARK:NO MOUNT
LCD, LCD BACKLIGHT
PD-351 BOARD
05
TP_X
REG_GND
HCK1
TP_Y
REG_GND
COM
VST
PANEL_VB
PSIG
PCG
VCK
HCK2
RGT
D_2.8V
PANEL_VR
TP_SEL1
KEY_AD0
EP_2.8V
EN
REG_GND
PANEL_VG
REF
DWN
XSTBY
VDD_P
HST
PANEL_NOR/REV
BL_H2
BL_H1
BL_H3
REG_GND
N.C
2ND_SS_SW
2ND_ZOOM(T)
2ND_ZOOM(W)
HOME_SW
TP_R
TP_BOT
TP_TOP
N.C.
N.C.
TP_L
4-28
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 PD-352
2.8
0
0
2.8
2.8
0
2.8
2.8
-5.5
0
NO MARK:REC/PB MODE
: MEGA model
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
Note: LCD901 is not included in
PD-352 complete board.
LND001-LND006
CONTROL
SWITCH BLOCK
(SB22100)
Page 4-34
of Level 2
LN7601, LN7602
RV-012
Page 4-33
of Level 2
LND001-LND030
FP-573
FLEXIBLE
Page 4-29
of Level 2
Through the Harness
(HN-024) ×2
TOUCH
(2/2)
LCD901
LCD
with
PANEL
UNIT
COLOR
TOUCH
(1/2)
LCD901
LCD
with
PANEL
WIDE
2.7inch
UNIT
3
G
6 9
F
B
H
7 10
C
05
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
COM_P
VST_P
DWN_P
PCG_P
HST_P
REF_P
HCK2_P
HCK1_P
VP_P
RGT_P
EN_P
VG_P
VR_P
VB_P
VR_P
VG_P
VB_P
EN_P
REF_P
HCK1_P
HCK2_P
HST_P
PCG_P
DWN_P
XSTBY_P
VP_P
RGT_P
VST_P
VCK_P
COM_P
XSTBY_P
VCK_P
COM_P
C6201
XX
C6206
0.1u
B
C6203
0.0047u
B
C6204
1u C6205
1u
B
B
C6202
0.0047u
B
CN6204 6P
1
2
3
4
5
6
CN6205 24P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CN6201 30P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
D6202
EDZ-TE61-5.6B
LN6201
CH_GND
Q6203
2SA2078G0LSO
SWITCH
Q6202
XP411F-TXE
6
2
1
3
5
4
Q6201
XP421F-TXE
6
2
1
3
5
4
R6207
120k R6209
1M
R6226
XX
R6214 XX
R6215 XX
D6210
XX
3
2
1
R6230 XX
D6203
NSSW008CT-P1-T177
R6229 XX
CL6202
D6205
NSSW008CT-P1-T177
R6231 XX
CL6204
D6204
NSSW008CT-P1-T177
CL6201 CL6203
VD6204
XX
VD6203
XX
VD6202
XX
VD6201
XX
LN6202 NOR_REV
LN6203 REG_GND
VD6207
XX
VD6206
XX
VD6205
XX
R6203
2200
R6201
1200
R6202
1500
D6201
XX
5
4
3
2
1
CN6202 6P
1
2
3
4
5
6
R6232
xx
R6233
XX
VST
N.C.
VDD
G
HCK1
RGT
CS
TEST1
HST
COM
DWN
PCG
COM
EN
R
VSSG
PSIG
VSS
B
N.C.
VCK
HCK2
REF
XSTBY
Q6201, Q6202
TOUCH PANEL
I/F
D6203-D6205
(BACKLIGHT)
XX MARK:NO MOUNT
LCD, LCD BACKLIGHT
PD-352 BOARD
TP_X
REG_GND
HCK1
TP_Y
REG_GND
COM
VST
PANEL_VB
PSIG
PCG
VCK
HCK2
RGT
D_2.8V
PANEL_VR
TP_SEL1
KEY_AD0
EP_2.8V
EN
REG_GND
PANEL_VG
REF
DWN
XSTBY
VDD_P
HST
PANEL_NOR/REV
BL_H2
BL_H1
BL_H3
REG_GND
N.C
2ND_SS_SW
2ND_ZOOM(T)
2ND_ZOOM(W)
HOME_SW
TP_R
TP_BOT
TP_TOP
N.C.
N.C.
TP_L
4-29
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/

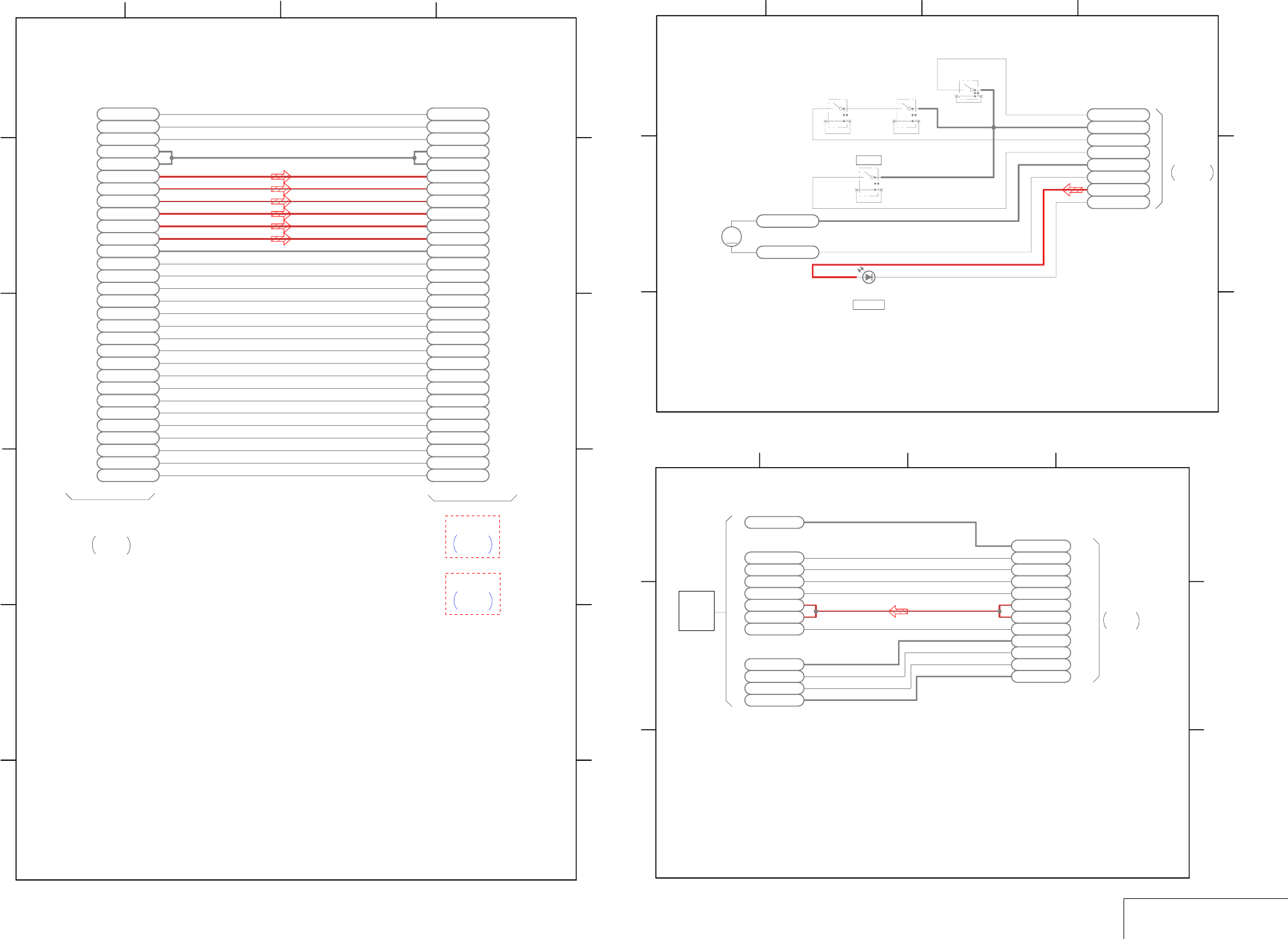

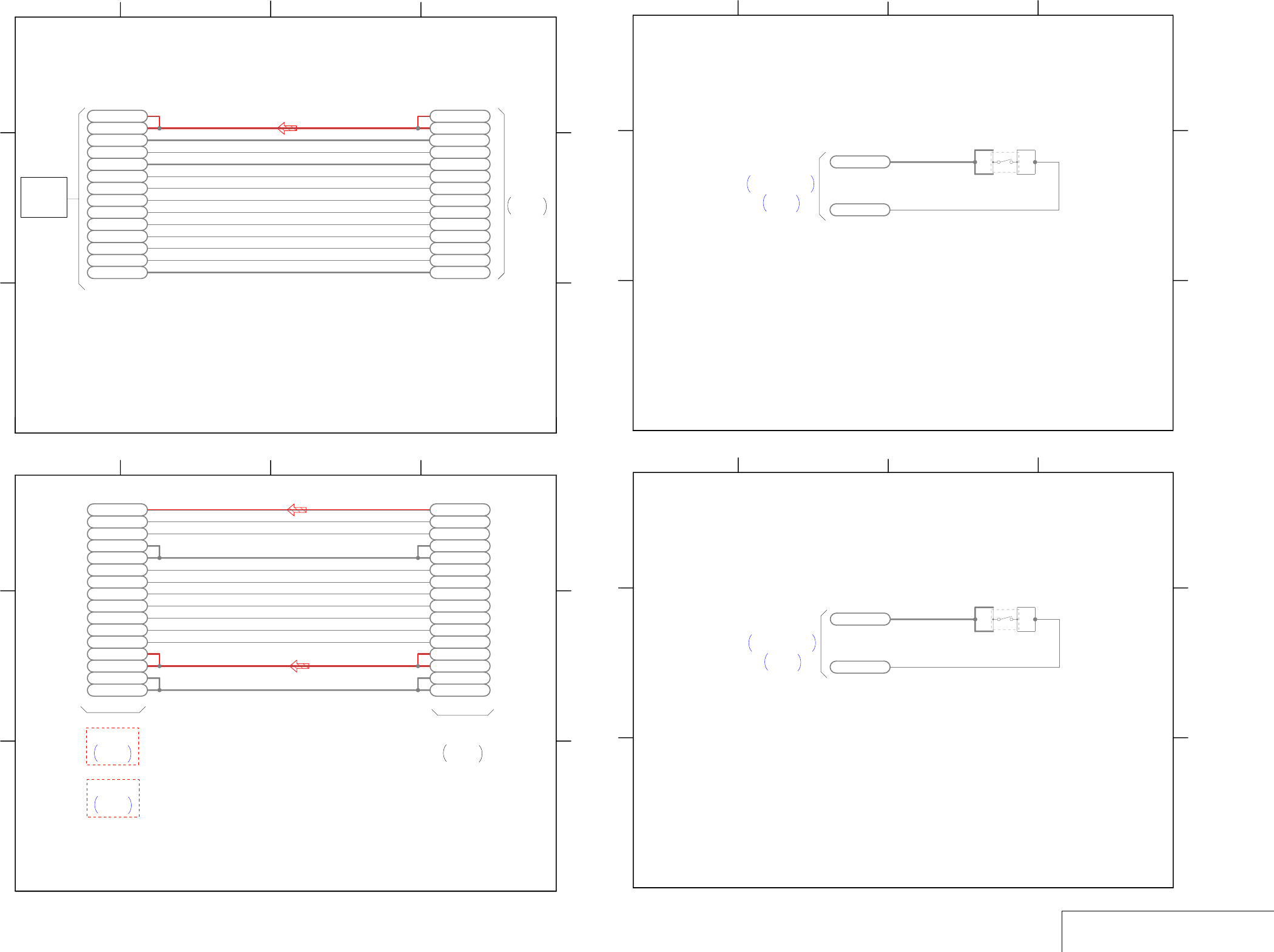

DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 FP-573, FP-569, FP-840
Non MEGA model
MEGA model
(PRINTED WIRING BOARD is omitted.)
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
CN3102
VC-520
(16/20)
Page 4-21
of Level 3
A
D
3
F
C
2
E
B
1
E
B
D
F
A
C
4
LND020
LND006
LND014
LND019
LND016
LND049
LND010
LND052
LND032
LND017
LND034
LND018
LND050
LND036
LND048
LND028
LND007
LND045
LND041
LND001
LND051
LND033
LND025
LND037
LND024
LND029
LND002
LND015
LND008
LND004
LND038
LND058
LND026
LND030
LND005
LND023
LND035
LND059
LND060
LND047
LND039
LND055
LND046
LND011
LND040
LND022
LND057
LND043
LND027
LND012
LND021
LND054
LND042
LND053
LND031
LND013
LND056
LND044
LND003
LND009
1PIN
30PIN
1PIN
30PIN
VST
VCK
HCK1
TP_X
PANEL_NOR/REV
PANEL_VR
TP_SEL1
PANEL_VB
BL_H3
BL_H1
RGT
D_2.8V
PANEL_VG
REF
VDD_P
HST
REG_GND
DWN
XSTBY
EN
REG_GND
COM
REG_GND
BL_H2
PSIG
KEY_AD0
PCG
EP_2.8V
TP_Y
HCK2
VST
VCK
HCK1
TP_X
PANEL_NOR/REV
PANEL_VR
TP_SEL1
PANEL_VB
BL_H3
BL_H1
RGT
D_2.8V
PANEL_VG
REF
VDD_P
HST
REG_GND
DWN
XSTBY
EN
REG_GND
COM
REG_GND
BL_H2
PSIG
KEY_AD0
PCG
EP_2.8V
TP_Y
HCK2
VC-PD CONNECTION
FP-573 FLEXIBLE BOARD
05
CN6201
PD-351
Page 4-27
of Level 2
CN6201
PD-352
Page 4-28
of Level 2
Note: M903 is not included in
FP-569 flexible complete board.
M
C
C
C
C
LND001
GND
LND002
DRV
S5693
1
3
2
4
1
3
2
4
1
3
2
4
1
3
2
4
S5694
S5692
S5691
D5691
SML-512UWT86
EJECT_DET
REG_GND
REG_GND(D_MT_GND)
EJECT_DRV
ACCS_LED
ACCS_VCC
LID_OPEN
XEJECT_SW
1
5
2
8
6
7
4
3
EJECT SWITCH/MOTOR
(12/20)
VC-520
of Level 3
Page 4-17
CN4402
(EJECT DETECT)
OPEN
ACCESS
FP-569 FLEXIBLE BOARD
S5692, S5693
(LID OPEN DETECT)
(GEARD MOTOR)
M903
MOTOR UNIT
A
3
C
2
B
1
B
A
C
4
05
(PRINTED WIRING BOARD is omitted.)
MEGA model:DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
: MEGA model
Note: CN901 (HOT SHOE) is not included in FP-840 flexible board.
HOT SHOE
FP-840 FLEXIBLE BOARD
CN1008
VC-520
(20/20)
Page 4-25
of Level 3
CN901
HOT
SHOE
A
3
C
2
B
1
B
A
C
05
4
1PIN
12PIN
16PIN
1PIN
ID1
ID2
LANC
MIC_FR
MIC_FL
SHOE_CONT
GND
UNREG
GND
STROBE
UNREG
MIC_GND
STROBE
ID2
UNREG
UNREG
ID1
GND
MIC_FR
MIC_FL
MIC_GND
MIC_RR
MIC_RL
GND
USB+
SHOE_CONT
LANC
USB-
4-30

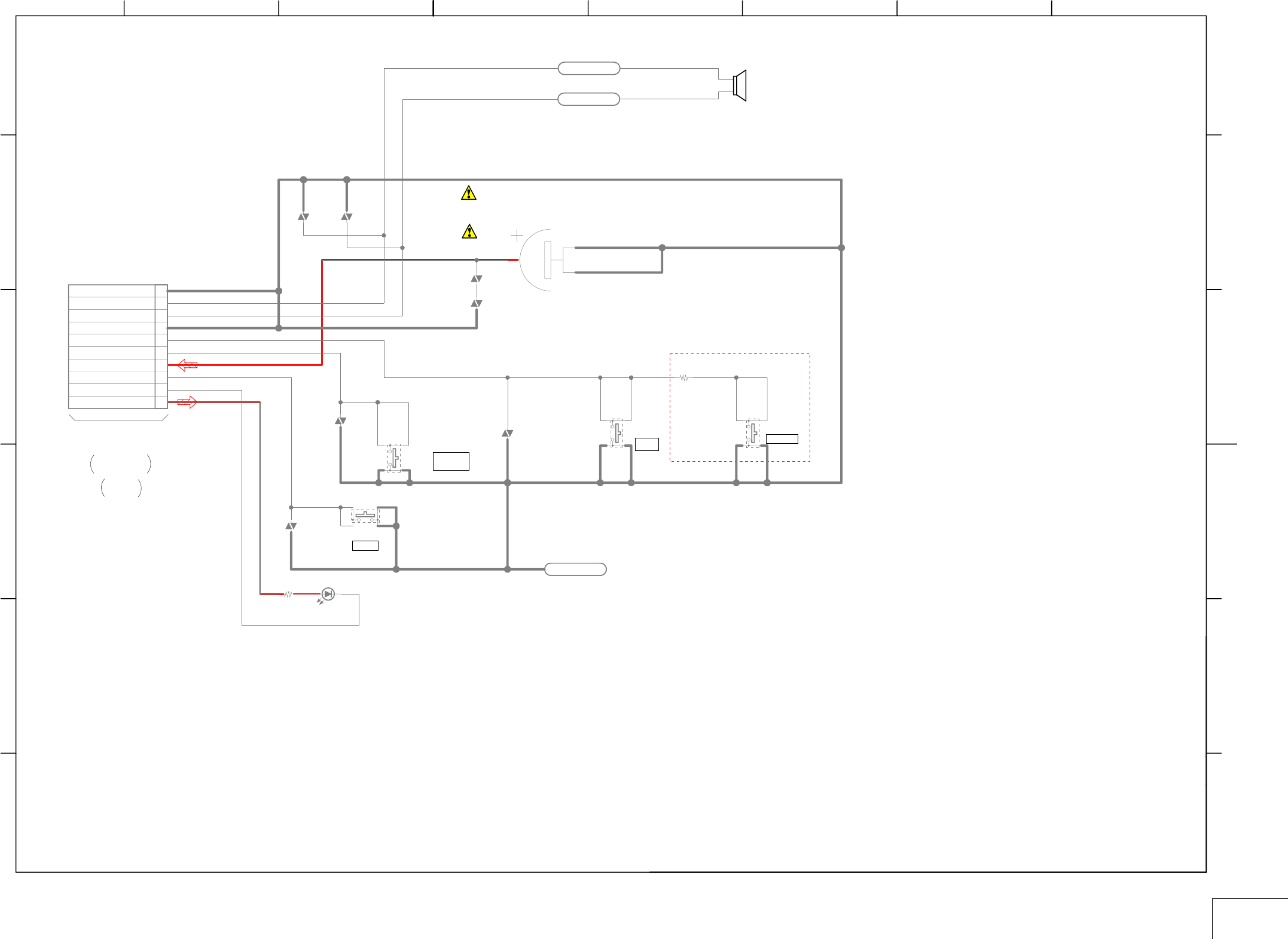

DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 CK-191
: Non MEGA model
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
Note: BT901 (lithium battery) and SP901 are
not included in CK-191 complete board.
N
SP901
SPEAKER
Harness(HN-024)(Gray)
Harness(HN-024)(Gray)
DISP/
BATT INFO
RESET
Through the
Flexible Flat Cable
(FFC-089)
CN1002
VC-520
(20/20)
Page 4-25
of Level 3
XX MARK:NO MOUNT
CONTROL SWITCH
CK-191 BOARD
A
D
7
CC
6
D
B
E
A
5
B
34
05
F
2
F
E
1 8
VD5802
XX
VD5803
XX
VD5806
XX
BH5801
(BATTERY HOLDER)
BT901
(LITHIUM BATTERY)
VD5801
XX
VD5804
XX
LN5802
LN5801
S5803
S5801
S5802
VD5805
XX
LN5803
CHASSIS_GND
R5801
XX
S5806
VD5807
XX
R5802
220
D5801
CL-196HR-CD-T
(MS ACCESS)
CN5801 10P
1
2
3
4
5
6
7
8
9
10
SP+
SP-
REG_GND
SP+
SP-
KEY_AD3
BATT_LI_3V
XBATT_VIEW
HI_XRESET
REG_GND
ACCCESS_LED
D_2.8V
XX
13
24
13
24
13
24
1
3
2
4
1
2
3
•Refer to page 4-2 (English), 4-3 (Japanese) for mark 0.
4-31
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 CK-192
DVD410E/DVD810/DVD810E
: MEGA model
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
Note: BT901 (lithium battery) and SP901 are
not included in CK-192 complete board.
N
SP901
SPEAKER
Harness(HN-024)(Gray)
Harness(HN-024)(Gray)
DISP/
BATT INFO
DUBBING
RESET
Through the
Flexible Flat Cable
(FFC-089)
CN1002
VC-520
(20/20)
Page 4-25
of Level 3
XX MARK:NO MOUNT
CONTROL SWITCH
CK-192 BOARD
A
D
7
CC
6
D
B
E
A
5
B
34
05
F
2
F
E
1 8
VD5802
XX
VD5803
XX
VD5806
XX
BH5801
(BATTERY HOLDER)
BT901
(LITHIUM BATTERY)
VD5801
XX
VD5804
XX
LN5802
LN5801
S5803
S5801
S5802
VD5805
XX
LN5803
CHASSIS_GND
R5801
1200
S5806
VD5807
XX
R5802
220
D5801
CL-196HR-CD-T
(MS ACCESS)
CN5801 10P
1
2
3
4
5
6
7
8
9
10
SP+
SP-
REG_GND
SP+
SP-
KEY_AD3
BATT_LI_3V
XBATT_VIEW
HI_XRESET
REG_GND
ACCCESS_LED
D_2.8V
13
24
13
24
13
24
1
3
2
4
1
2
3
•Refer to page 4-2 (English), 4-3 (Japanese) for mark 0.
4-32

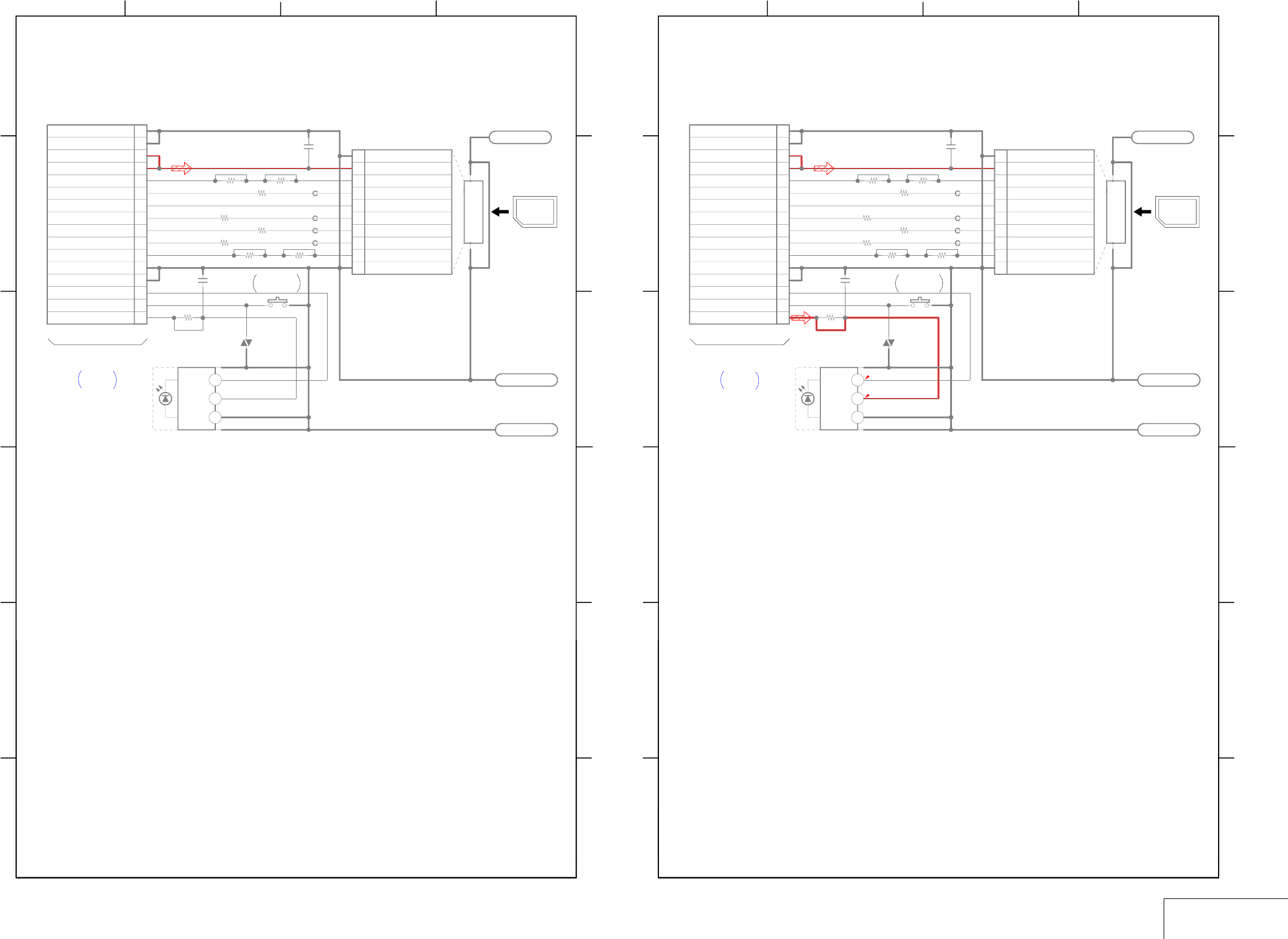

DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 MS-391, MS-392
: Non MEGA model
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
XX MARK:NO MOUNT
MS CONNECTOR
MS-391 BOARD
A
D
3
F
C
2
E
B
1
E
B
D
F
A
C
05
4
LN7301
REG_GND
LN7302
REG_GND
C7301
XX
CN7302 10P
1
2
3
4
5
6
7
8
9
10
11 12
R7306 120
R7302
120 R7307
120
R7303 120
FB7301
FB7302
FB7303
FB7304
R7301
XX
R7305
XX
R7308
XX
R7304
XX
IC7301
123
C7302
XX
R7310
XX
CN7301 16P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
LN7303
REG_GND
VD7301
XX
MSBS
VCC
MSDATA2
MSDATA3
VSS
MSDATA1
MS_SCLK
MSDATA0
VSS
XMS_IN
GND
OUT
VCC
DUO
STICK
MEMORY
S7301
OPEN/CLOSE
PANEL
MSDATA1
REG_GND
D_2.8V
MSDATA3
XMS_IN
REG_GND
MS_BS
REG_GND
MSDATA2
REG_GND
MS_SCLK
MSDATA0
MS_VCC
MS_VCC
SIRCS_SIG
PANEL_O/C
XX
FP-842
FLEXIBLE
Page 4-33
of Level 2
: MEGA model
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
NO MARK:REC/PB MODE
2.8
2.8
XX MARK:NO MOUNT
MS CONNECTOR,
REMOTE COMMANDER RECEIVER
MS-392 BOARD
A
D
3
F
C
2
E
B
1
E
B
D
F
A
C
05
4
LN7301
REG_GND
LN7302
REG_GND
C7301
XX
CN7302 10P
1
2
3
4
5
6
7
8
9
10
11 12
R7306 120
R7302
120 R7307
120
R7303 120
FB7301
FB7302
FB7303
FB7304
R7301
XX
R7305
XX
R7308
XX
R7304
XX
RS-450-T
IC7301
REMOTE
COMMANDER
RECEIVER
123
C7302
XX
R7310
XX
CN7301 16P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
LN7303
REG_GND
VD7301
XX
MSBS
VCC
MSDATA2
MSDATA3
VSS
MSDATA1
MS_SCLK
MSDATA0
VSS
XMS_IN
GND
OUT
VCC
DUO
STICK
MEMORY
S7301
OPEN/CLOSE
PANEL
MSDATA1
REG_GND
D_2.8V
MSDATA3
XMS_IN
REG_GND
MS_BS
REG_GND
MSDATA2
REG_GND
MS_SCLK
MSDATA0
MS_VCC
MS_VCC
SIRCS_SIG
PANEL_O/C
FP-842
FLEXIBLE
Page 4-33
of Level 2
4-33
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 FP-841, FP-842, RV-011, RV-012
(PRINTED WIRING BOARD is omitted.)
: DVD410E/DVD810/DVD810E
FLASH MEMORY
FP-841 FLEXIBLE BOARD
CN1006
VC-520
(20/20)
Page 4-25
of Level 3
FLASH
MEMORY
(MDL4060S3C)
(8GB)
A
3
C
2
B
1
B
A
C
05
4
14pin
1pin
1pin
14pin
REG_GND
BS
DATA2
DATA3
REG_GND
INS
VCC
DATA1
SDIO/DATA0
VCC
SCLK
REG_GND
REG_GND
REG_GND
BS
DATA1
INS
REG_GND
REG_GND
REG_GND
REG_GND
VCC
VCC
DATA3
DATA2
SCLK
REG_GND
SDIO/DATA0
(PRINTED WIRING BOARD is omitted.)
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
Non MEGA model
MEGA model
CN1003
VC-520
(20/20)
Page 4-25
of Level 3
VC-MS CONNECTION
FP-842 FLEXIBLE BOARD
A
3
C
2
B
1
B
A
C
05
4
16Pin
1Pin
1Pin
16Pin
MS_BS
MSDATA0
MSDATA3
REG_GND
REG_GND
XMS_IN
SIRCS_SIG
MSDATA2
REG_GND
MS_VCC
REG_GND
MS_SCLK
MSDATA1
D_2.8V
PANEL_O/C
MS_VCC
SIRCS_SIG
MS_BS
MSDATA2
MSDATA3
REG_GND
MS_VCC
REG_GND
MS_SCLK
XMS_IN
D_2.8V
REG_GND
MS_VCC
MSDATA1
REG_GND
MSDATA0
PANEL_O/C
CN7301
MS-391
Page 4-32
of Level 2
CN7301
MS-392
Page 4-32
of Level 2
: Non MEGA model
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
A
3
C
2
B
1
B
A
C
05
4
LN7601
LN7602
(PANEL REVERSE)
S7601
2
3
1
4
REG_GND
NOR_REV
PANEL REVERSE DETECT
RV-011 BOARD
LN6202, LN6203
PD-351
Page 4-27
of Level 2
Through the Harness
(HN-024) ×2
: MEGA model
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
A
3
C
2
B
1
B
A
C
05
4
LN7601
LN7602
(PANEL REVERSE)
S7601
2
3
1
4
REG_GND
NOR_REV
PANEL REVERSE DETECT
RV-012 BOARD
LN6202, LN6203
PD-352
Page 4-28
of Level 2
Through the Harness
(HN-024) ×2
4-34

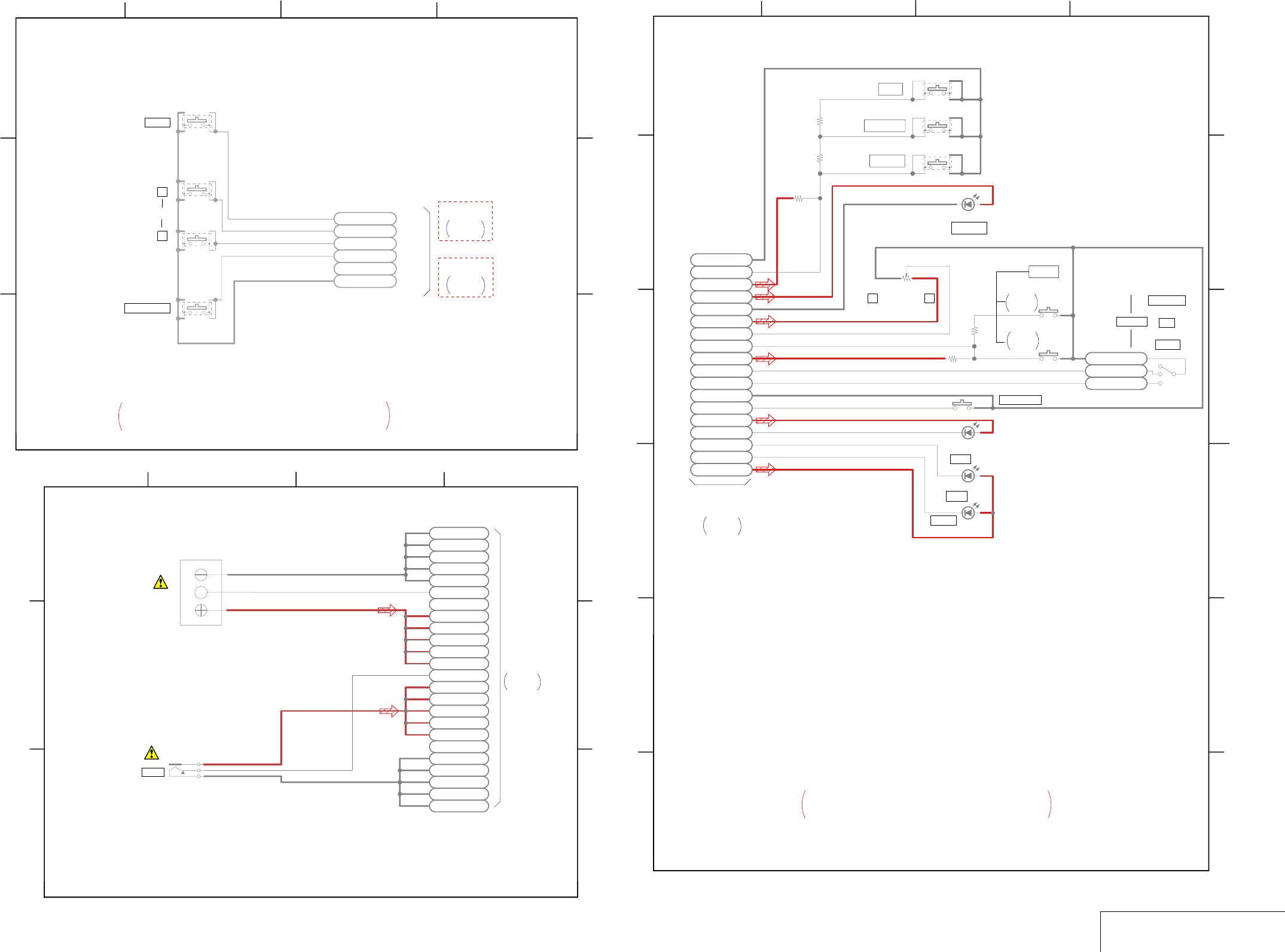

DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 SB22100, FP-839, PS26100
•Refer to page 4-2 (English), 4-3 (Japanese) for mark 0.
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
Non MEGA model
MEGA model
CONTROL SWITCH BLOCK (SB22100) is replaced as block,
so that PRINTED WIRING BOARD is omitted.
CONTROL SWITCH BLOCK (SB22100)
(ZOOM)
T
W
HOME
START/STOP
A
3
C
2
B
1
B
A
C
05
4
LND004
LND005
LND002
LND006
1P
6P
LND001
LND003
S004
S003
S001
S002
REG_GND
2ND_ZOOM(W)
HOME_SW
2ND_SS_SW
N.C
2ND_ZOOM(T)
CN6202
PD-351
Page 4-27
of Level 2
CN6202
PD-352
Page 4-28
of Level 2
Note: BH001 and J001 are not included in FP-839 flexible board.
A
3
C
2
B
1
B
A
C
05
4
J001 HOT
2
SW
3
1COLD
2
1
4
BATT_SIG
1Pin
BATT_UNREG
BATT_GND
BATT_UNREG
BATT_GND
N.C
BATT_UNREG
BATT_GND
BATT_UNREG
BATT_GND
BATT_GND
BATT_UNREG
24pin
ACV_GND
ACV_GND
ACV_GND
ACV_GND
ACV_GND
BATT_XEXT
ACV_UNREG
ACV_UNREG
ACV_UNREG
ACV_UNREG
ACV_UNREG
N.C
C
DC IN
BH001
BATTERY
TERMINAL
CN1001
VC-520
(20/20)
Page 4-25
of Level 3
DC IN
FP-839 FLEXIBLE BOARD
CONTROL KEY BLOCK (PS26100) is replaced as block,
so that PRINTED WIRING BOARD is omitted.
POWER
tt
(ZOOM) T
WTt OFF (CHG)
CAM
CHG
ON
MODE
CONTROL KEY BLOCK (PS26100)
CN1013
VC-520
(20/20)
Page 4-25
of Level 3
A
D
3
F
C
2
E
B
1
E
B
D
F
A
C
05
4
D004
SML-512WWT86
D003
SML-412MWT86
D002
SML-412MWT86
D001
SML-512WWT86
R002
2.7k
R003
10k
R005
10k
R004
2.7k
R001
6.1k
RV001
S002
S001
S003
S005
S006
S004
XMODE_SW
XPOWER_SW
REG_GND
EASY
BACK LIGHT
QUICK ON
REG_GND
KEY_AD1
XPOWER_SW
XMODE_SW
D_2.8V
ZOOM_VR_AD
XCHARGE_LED
CHARGE_LED_VDD
XCAM_LED
XPHOTO_LED
MODE_LED_VDD
S/S
REG_GND
KEY_AD2
D_2.8V
QUICKREC_LED_VDD
REG_GND
D_2.8V
REC
S003
S002
FREEZE
START/STOP
QUICK ON
1
28
4-3. PRINTED WIRING BOARDS
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
Link
Link
CD-731 BOARD: Non MEGA model
CD-672/CD-687 BOARD: MEGA model
PD-352 BOARD (SIDE B): MEGA model
PD-352 BOARD (SIDE A): MEGA model
BL-021 BOARD: Non MEGA model
FP-569 FLEXIBLE BOARD
BL-022 BOARD: MEGA model
CK-191 BOARD: Non MEGA model
CK-192 BOARD: MEGA model
RV-011 BOARD: Non MEGA model
PD-351 BOARD (SIDE A): Non MEGA model
PD-351 BOARD (SIDE B): Non MEGA model
MS-392 BOARD: MEGA model
FP-839 FLEXIBLE BOARD
MS-391 BOARD: Non MEGA model
RV-012 BOARD: MEGA model
COMMON NOTE FOR PRINTED WIRING BOARDS
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVE610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
4-35
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
4-3. PRINTED WIRING BOARDS

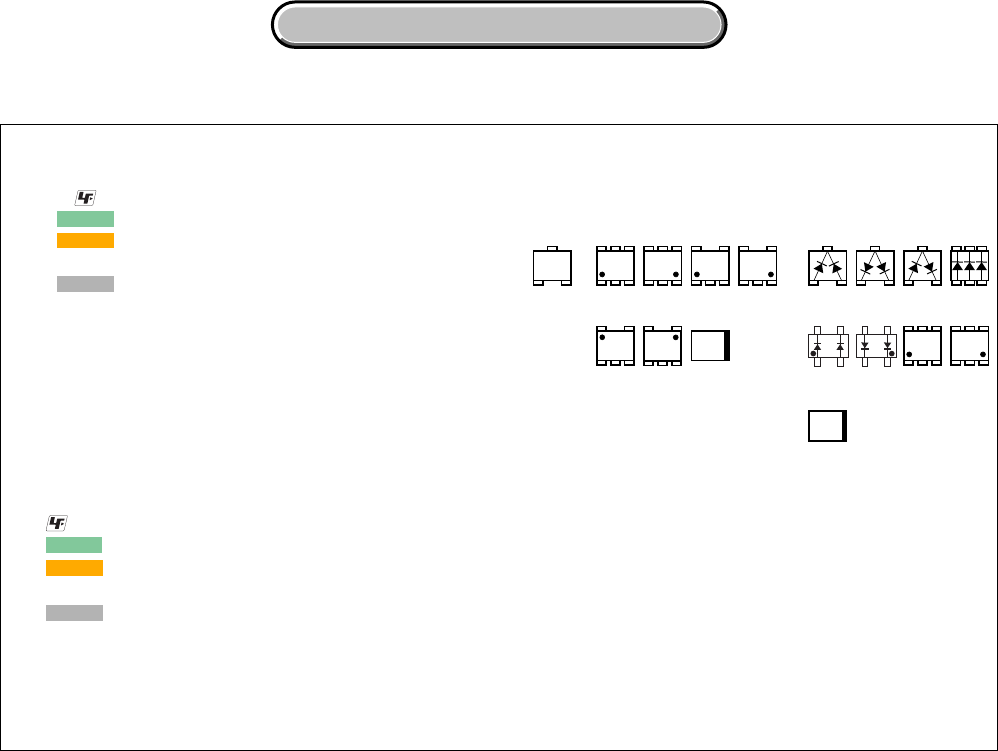

4-3. PRINTED WIRING BOARDS
•: Uses unleaded solder.
•: Circuit board
: Flexible board
Pattern from the side which enables seeing.
: pattern of the rear side
(The other layers’ patterns are not indicated)
•Through hole is omitted.
•There are a few cases that the part printed on diagram
isn’t mounted in this model.
•C: panel designation
(ENGLISH)
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS
(JAPANESE)
21
3
21
3
21
3
345
21
123
654
EB
C
31
5
2
46
123
654
31
5
2
46
123
54
43
12
312
45
534
12
14
23
46
2
5
31
12
4
3
14
23
•Chip parts.
Transistor Diode
プリント図共通ノート
【プリント図ノート】
・ ：無鉛半田を使用しています。
・ ：基板
：フレキシブル配線板
見ている面側のパターン。
：裏側のパターン
（他のパターンについては表示されていません）
・スルーホールは省略。
・プリント図には，本機で使用していない部品が記載されている
場合があります。
・Cはパネル表示名称。
4-36
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

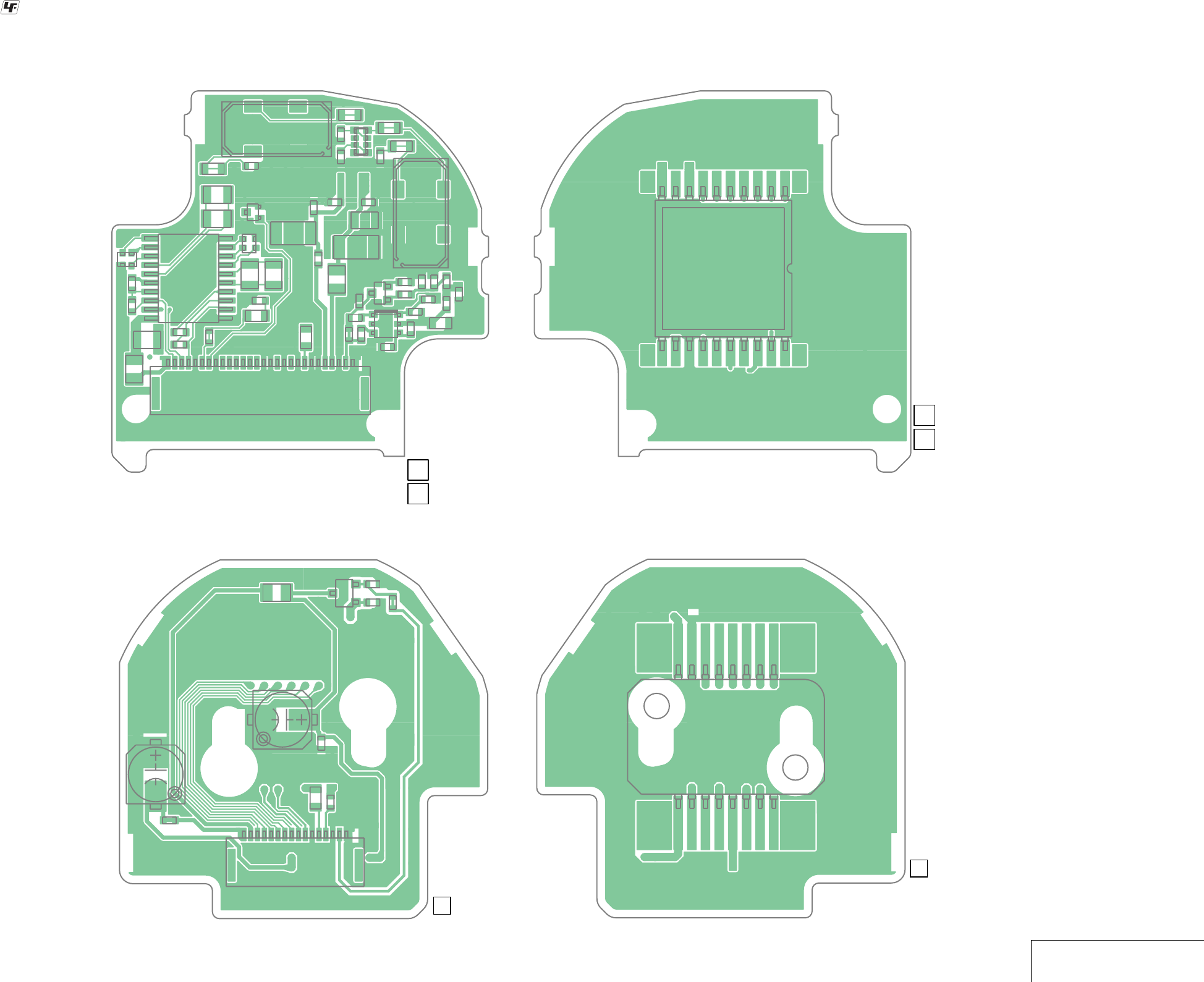

CD-672/CD-687 (4 layers): MEGA model, CD-731 (2 layers): Non MEGA model
: Uses unleaded solder.
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E, Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
CD-672/CD-687, CD-731
FB7001
L7001
L7002
SE7001
SE7002
CN7001
C7001
C7002
C7003
C7004
C7005
Q7001
C7006
Q7002
C7007
C7008
C7009
C7010
C7011
C7012
C7013
C7014
C7015
C7016
C7017 C7018
C7023
C7024
C7025
C7026
C7027
C7028
C7029
R7001
R7002
R7004
R7005
R7006
R7007
C7030
R7008
R7009
IC7001
IC7003
R7010
R7011
R7012
R7013
R7014
R7015 R7016
R7017
R7018
R7019
R7020
RB7001
43
12
4
3
12
17
28
13
46
C
BE
C
BE
24
13
1
20
10
11
24
13
128
(PITCH)
(YAW)
CD-672/CD-687 BOARD (SIDE A)
11CD-672: 1-871-068-
11CD-687: 1-871-276-
05
(MEGA model)
IC7002
2011
1
10
CD-672/CD-687 BOARD (SIDE B)
11CD-672: 1-871-068-
11CD-687: 1-871-276-
05
Note: IC7002 is supplied including
in CCD block assy.
Note: CD-672 complete board is supplied
instead of CD-687 complete board,
because CD-672 complete board and
CD-687 complete board are compatible.
(MEGA model)
116
CN7101
C7101
C7103
C7104
C7105
Q7101
C7106
C7108
R7101
R7102
R7103
L7101
05
E
C
B
CD-731 BOARD (SIDE A)
11
1-874-671-
(Non MEGA model)
1
169
8
IC7101
05
CD-731 BOARD (SIDE B)
11
1-874-671-
(Non MEGA model)
Note: IC7101 is not included in CD-731 complete board.
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

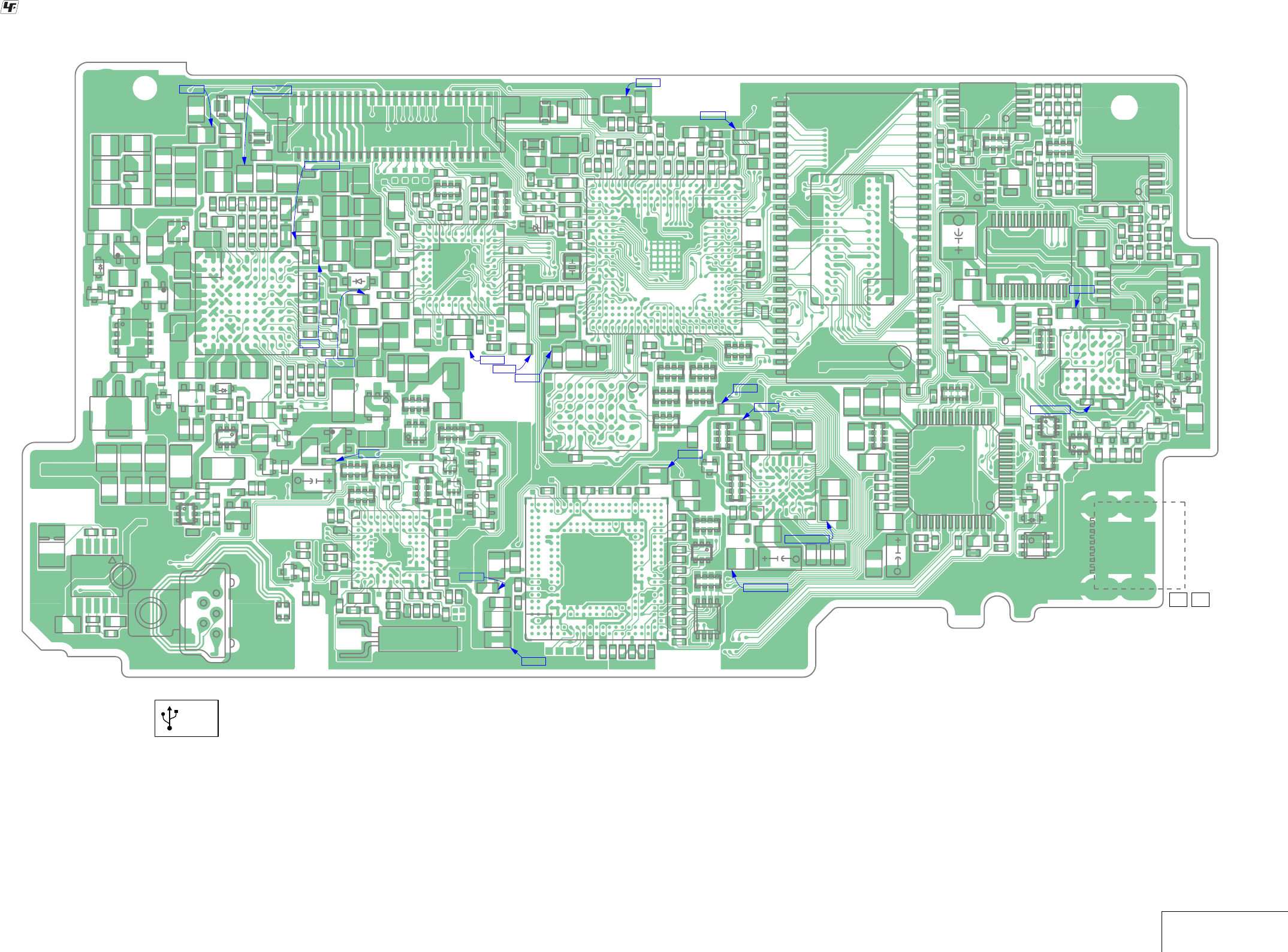

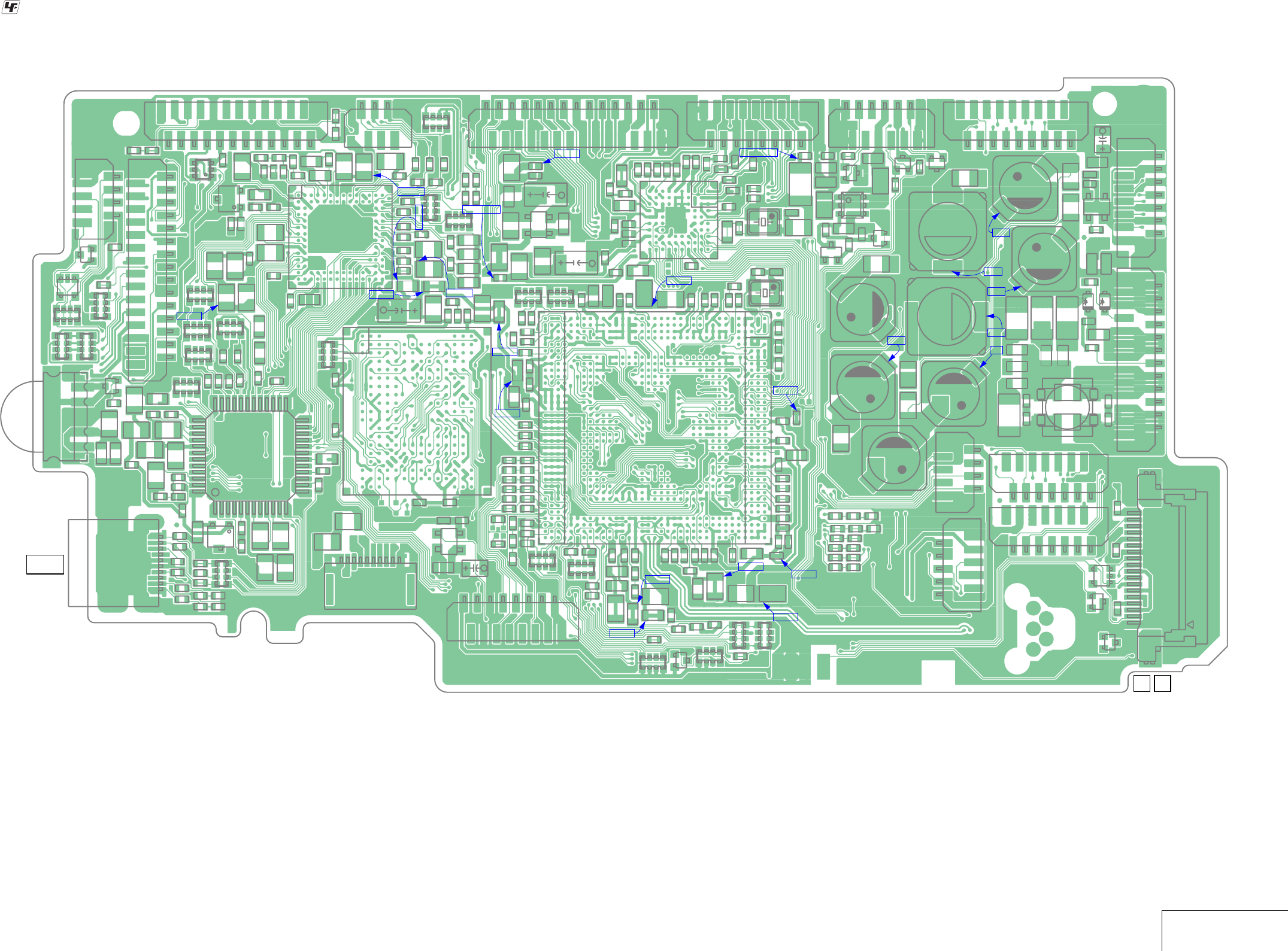

Printed wiring boards of the VC-520 boards are not shown.
Pages from 4-37 to 4-38 are not shown.
4-39
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
FP-569 (1 layer), BL-021 (2 layers): Non MEGA model, BL-022 (2 layers): MEGA model
: Uses unleaded solder.
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
FP-569, BL-021, BL-022
>PI<
FP-569
D5691
S5691
S5692
S5693
S5694
ACCESS
OPEN
S5692, S5693
(LID OPEN DETECT)
S5694
(EJECT DETECT)
2
1
4
3
2
1
4
3
2
1
4
3
1
2
LND001
1
8
LND002
3
4
M
M903
MOTOR UNIT
(GEARD MOTOR)
FP-569 FLEXIBLE BOARD
05
111-871-283-
Note: M903 is not included in
FP-569 flexible complete board.
1
2
17
18
1
220
21
CN5701
CN5702
05
BL-021 BOARD (SIDE A)
(Non MEGA model)
1-874-571- 11
C5701
C5702 C5703
D5701
R5701
R5702
1-874-571- 11
05
BL-021 BOARD (SIDE B)
(Non MEGA model)
K
A
D5702
(BACKLIGHT)
1
2
17
18
1
220
21
CN5701
CN5702
1-874-572- 11
05
BL-022 BOARD (SIDE A)
(MEGA model)
1-874-572- 11
05
C5701
C5702 C5703
D5702
R5701
BL-022 BOARD (SIDE B)
(MEGA model)
K
A
D5701
(BACKLIGHT)
4-40
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

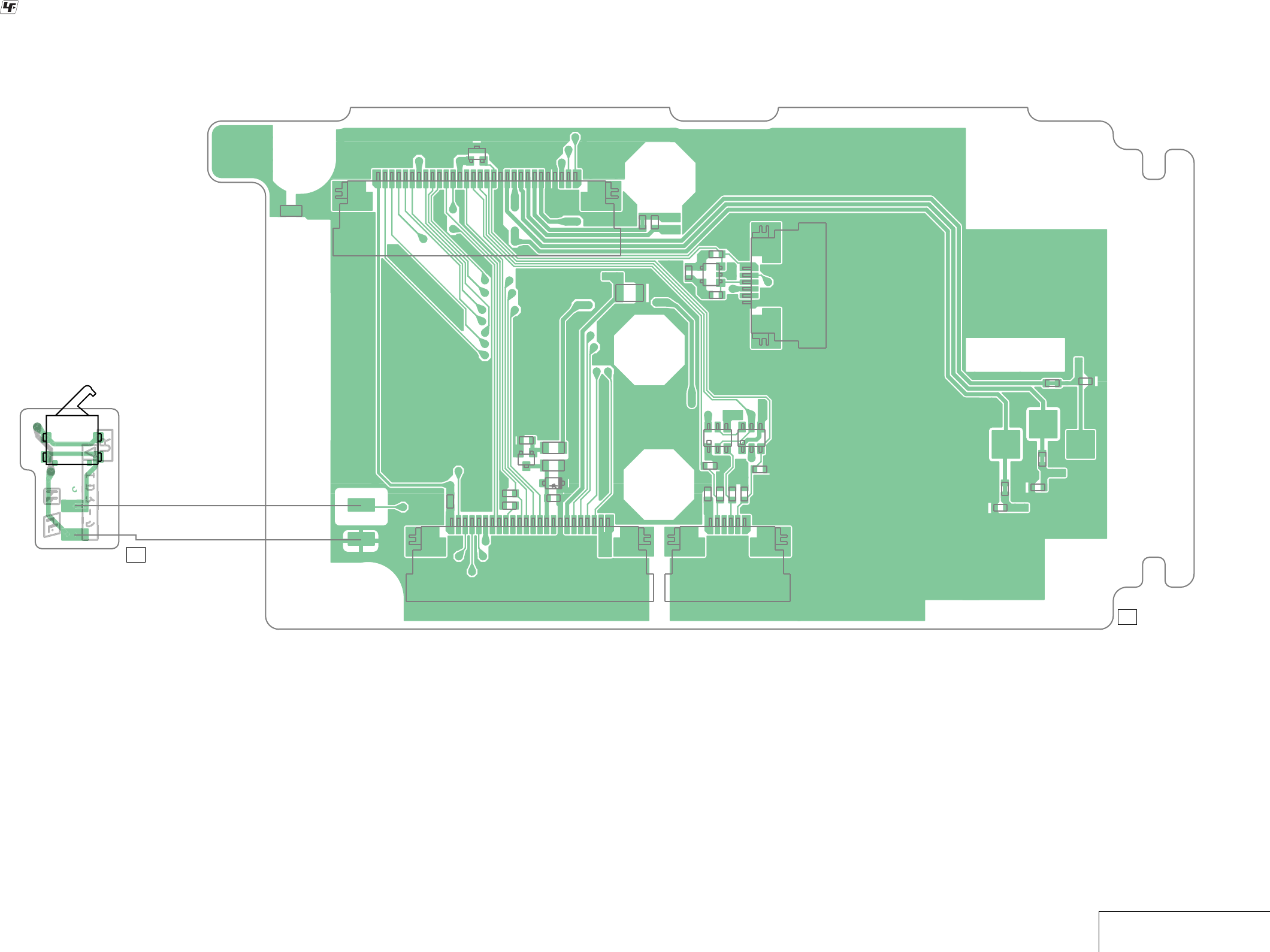

RV-011 (2 layers), PD-351 (2 layer): Non MEGA model
: Uses unleaded solder.
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
RV-011, PD-351 (SIDE A)
>EP GW
011
011
011
G
G
G
G
S
G
G
S
S
-
RV
RV
R
R
RV
RV
W<
W
301
16
16124
CL6201
CL6202 CL6203
CL6204
CN6201
CN6202
CN6204CN6205
C6201
C6202 C6203
C6204
Q6201
C6205
Q6202
C6206
Q6203
D6201
D6202
R6201
R6202
R6203
R6207
R6209
D6210
R6214
R6215
VD6201
VD6202
VD6203
VD6204
VD6205
VD6206
R6226
VD6207
R6229
R6230
R6231
R6232
R6233
LN6201
LN6202
LN6203
LN7601 LN7602
S7601
05
05
HARNESS (HN-024) (Gray)
HARNESS (HN-024) (Gray)
PD-351 BOARD (SIDE A)
(Non MEGA model)
RV-011 BOARD
(Non MEGA model)
1-874-583- 11
1-874-594- 11
S7601
(PANEL REVERSE)
C
B
E
13
46
13
46
4
5
13
1
23
4-41

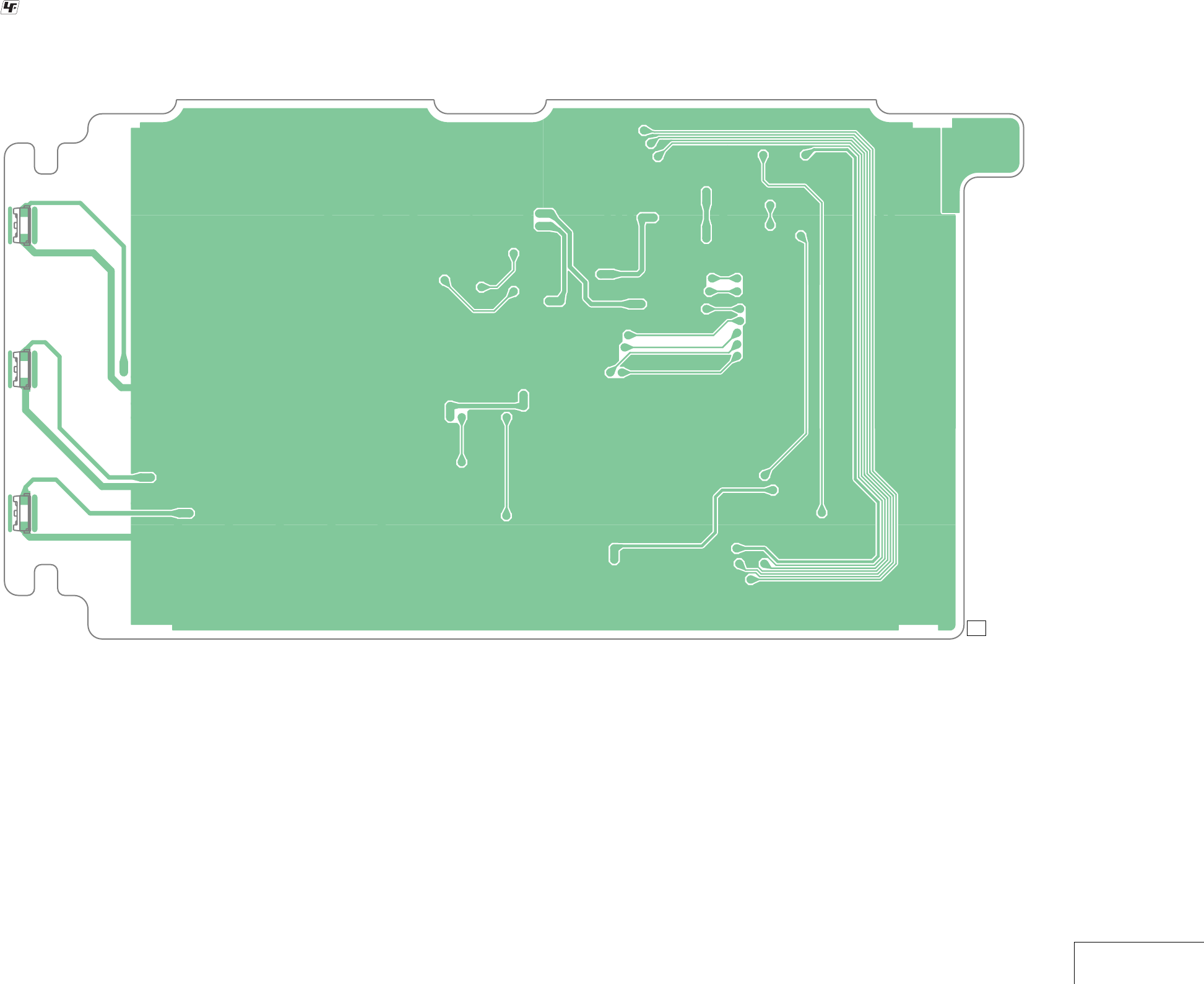

DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 PD-351 (SIDE B)
PD-351 (2 layers): Non MEGA model
: Uses unleaded solder.
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
D6203
D6204 D6205
05
PD-351 BOARD (SIDE B)
(Non MEGA model)
1-874-583- 11
D6203-D6205
(BACKLIGHT)
K
K
K
A
A
A
4-42
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 RV-012, PD-352 (SIDE A)
RV-012 (2 layers), PD-352 (2 layers): MEGA model
: Uses unleaded solder.
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
>EP GW
012
012
012
G
G
G
G
S
G
G
S
S
-
RV
RV
R
R
RV
RV
W<
W<
W
<
W<
W
W
301
16
16124
CL6201
CL6202 CL6203
CL6204
CN6201
CN6202
CN6204CN6205
C6201
C6202 C6203
C6204
Q6201
C6205
Q6202
C6206
Q6203
D6201
D6202
R6201
R6202
R6203
R6207
R6209
D6210
R6214
R6215
VD6201
VD6202
VD6203
VD6204
VD6205
VD6206
R6226
VD6207
R6229
R6230
R6231
R6232
R6233
LN6201
LN6202
LN6203
05
05
LN7601 LN7602
S7601
E
C
B
HARNESS (HN-024) (Gray)
HARNESS (HN-024) (Gray)
PD-352 BOARD (SIDE A)
(MEGA model)
(MEGA model)
RV-012 BOARD
1-874-584- 11
1-874-595- 11
S7601
(PANEL REVERSE)
13
46
13
46
4
5
13
1
23
4-43
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 PD-352 (SIDE B)
PD-352 (2 layers): MEGA model
: Uses unleaded solder.
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
D6203
D6204 D6205
05
PD-352 BOARD (SIDE B)
(MEGA model)
1-874-584- 11
D6203-D6205
(BACKLIGHT)
K
K
K
A
A
A
4-44
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/

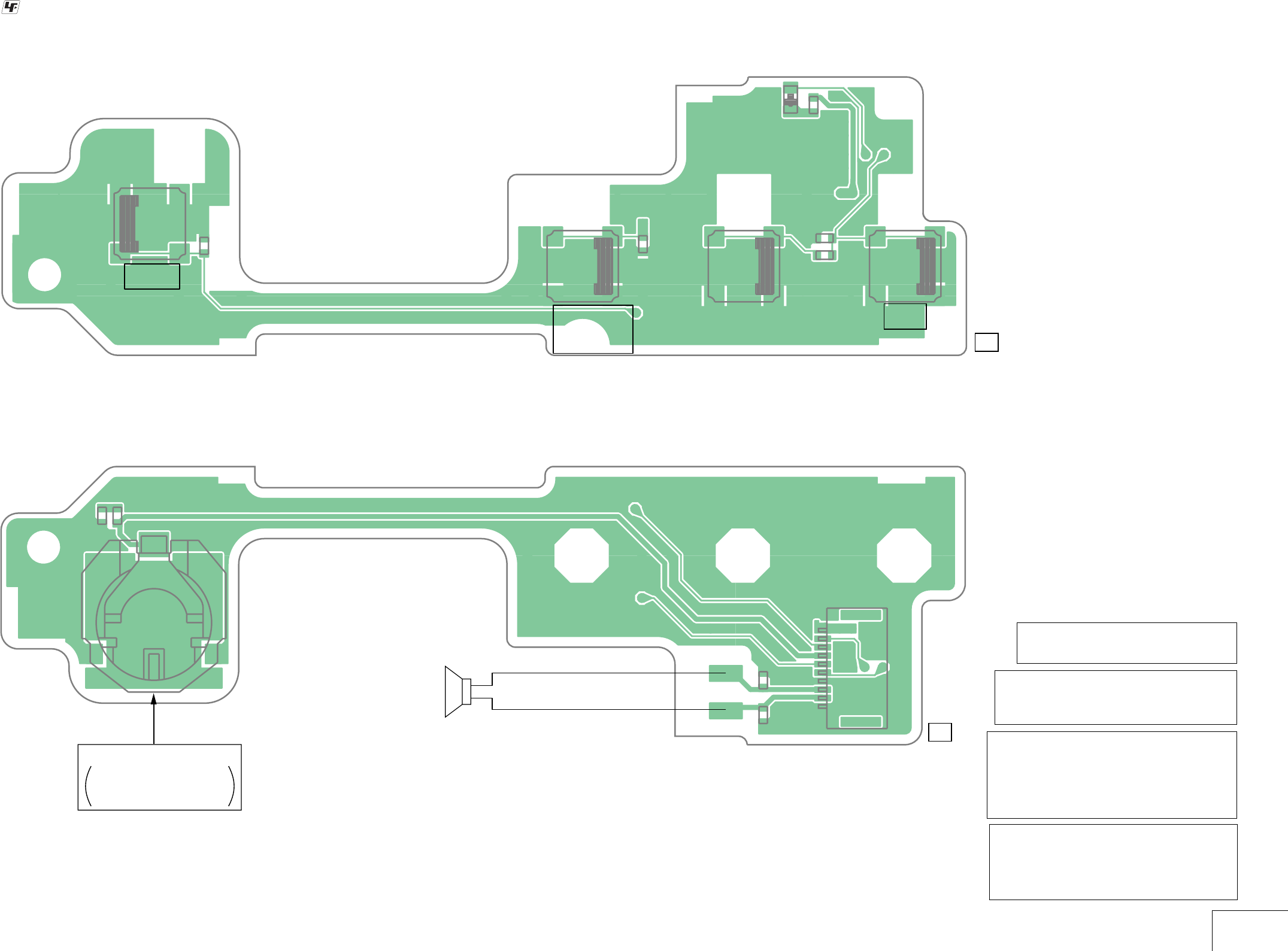

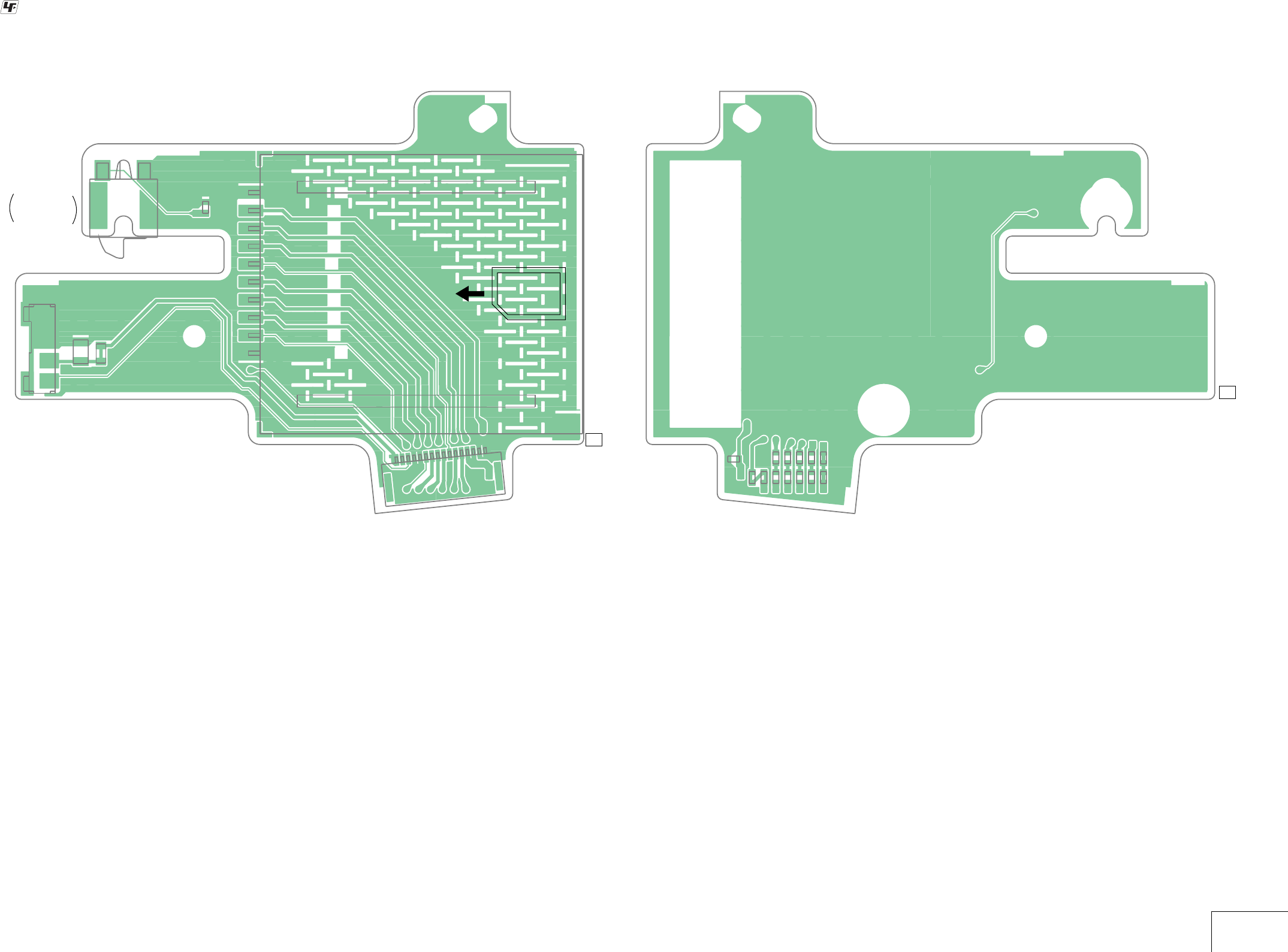

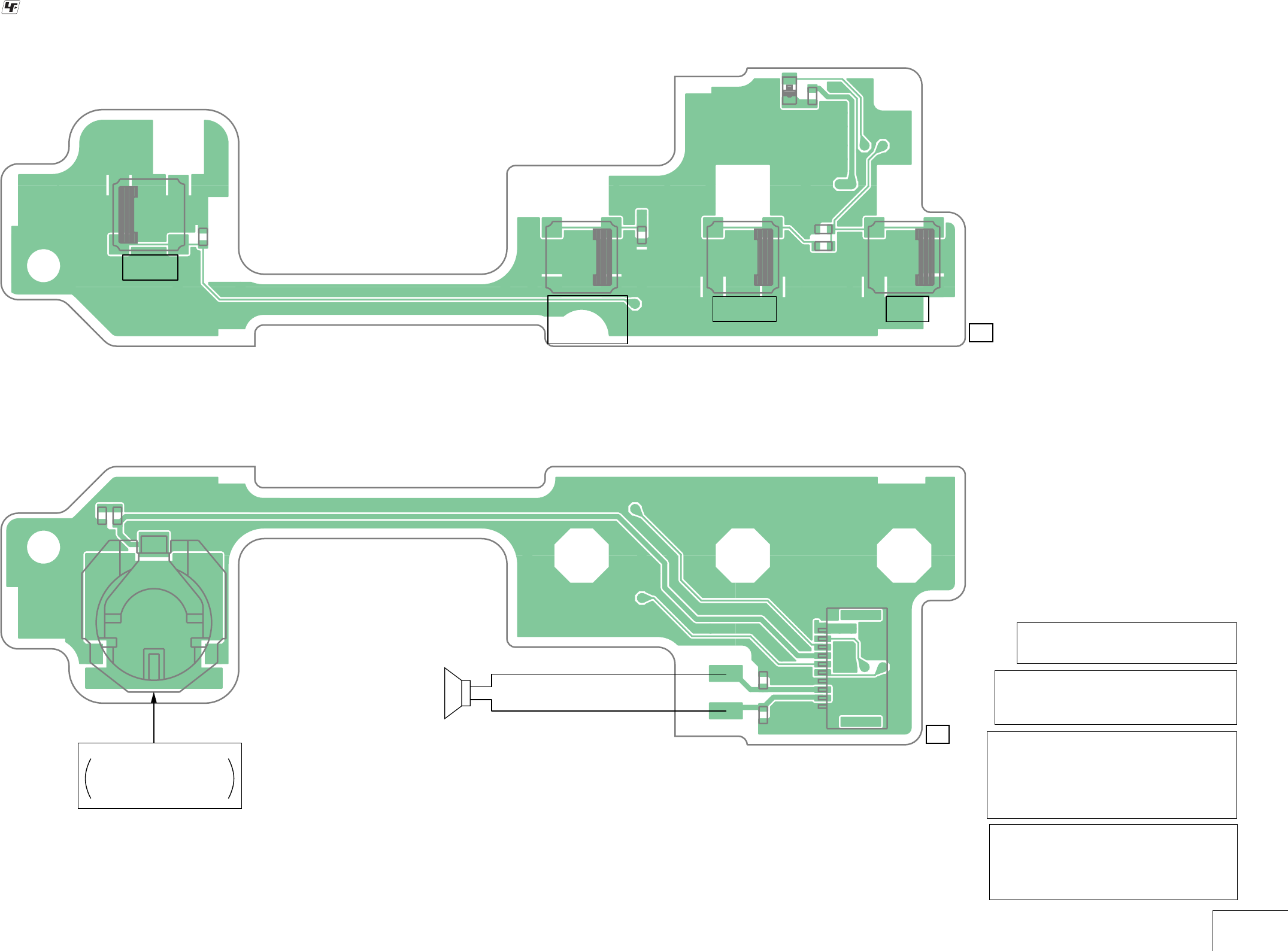

DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 CK-191
CK-191 (2 layers): Non MEGA model
: Uses unleaded solder.
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
Note: Replace the battery holder (BH5801) together
when replacing the lithium battery (BT901) on
the CK-191 board. (The battery holder removed
once cannot be used again.)
When mounting these parts, mount new bat-
tery holder first and attach new lithium battery
next.
ノート: CK-191基板のリチウム電池（BT901）を交換
する場合はバッテリホルダ（BH5801）も同時
に新品に交換して下さい。（一度使用した
バッテリホルダは再使用できません。）
部品取り付けの際は，先にバッテリホルダを
取り付けてからリチウム電池を装着してくだ
さい。
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
R5801
R5802
VD5801 VD5803
S5801
S5802
VD5807
S5803 S5806
LN5803
05
CK-191 BOARD (SIDE A) (Non MEGA model)
1-874-576- 11
N
RESET
DISP/
BATT INFO
(MS ACCESS) A
K
D5801
42
13
42
13
42
13
42
13
110
CN5801
VD5802
VD5804
VD5805
VD5806
LN5801
LN5802
BT901
BH5801
05
BT901
BATTERY,
LITHIUM SECONDARY
HARNESS (HN-024) (Gray)
HARNESS (HN-024) (Gray)
SP901
SPEAKER
CK-191 BOARD (SIDE B)
(Non MEGA model)
1-874-576- 11
Note: BT901 (lithium battery) is not included in
CK-191 complete board.
1
23
4-45
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/

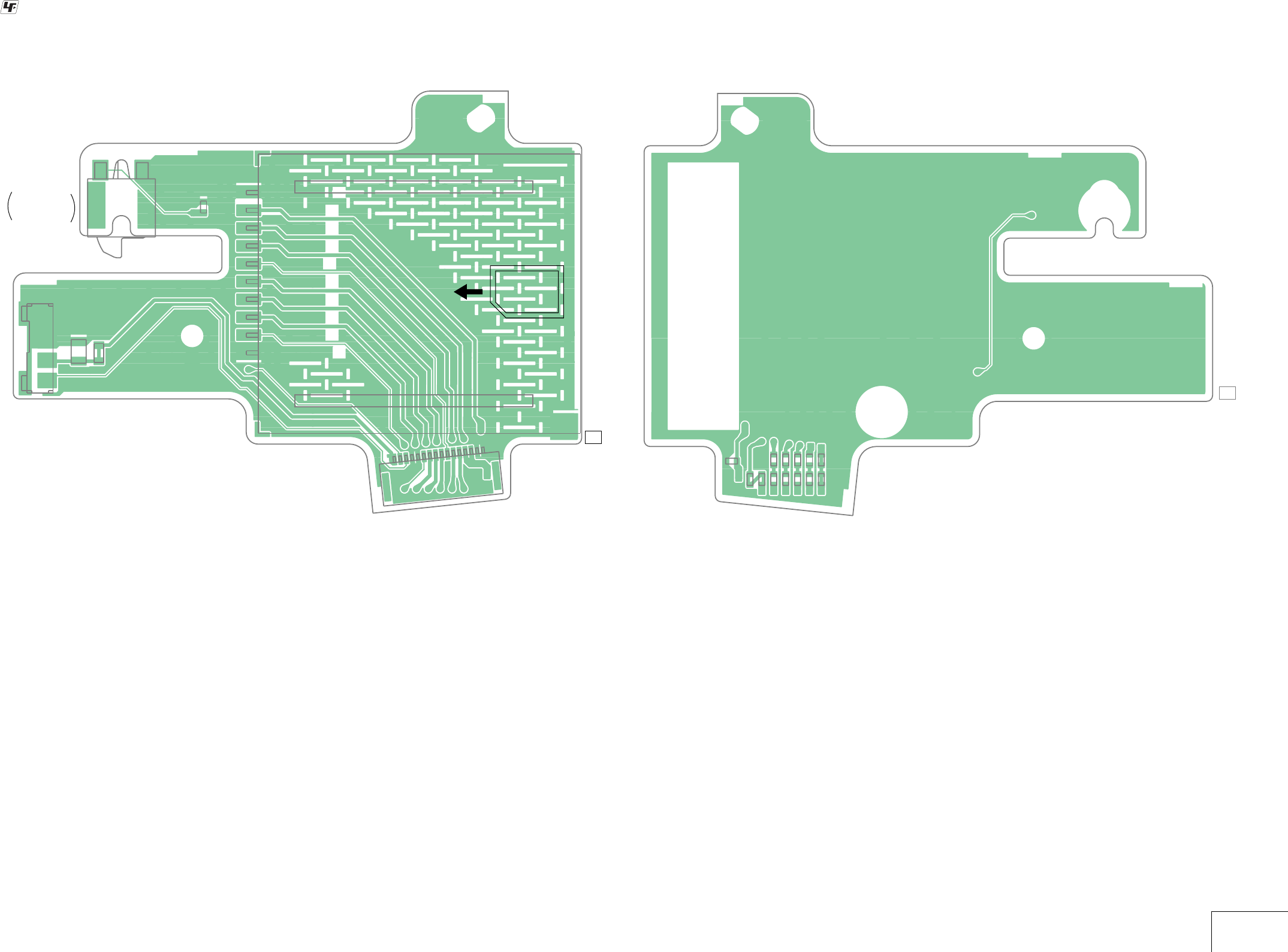

DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 CK-192
CK-192 (2 layers): MEGA model
: Uses unleaded solder.
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
Note: Replace the battery holder (BH5801) together
when replacing the lithium battery (BT901) on
the CK-192 board. (The battery holder removed
once cannot be used again.)
When mounting these parts, mount new bat-
tery holder first and attach new lithium battery
next.
ノート: CK-192基板のリチウム電池（BT901）を交換
する場合はバッテリホルダ（BH5801）も同時
に新品に交換して下さい。（一度使用した
バッテリホルダは再使用できません。）
部品取り付けの際は，先にバッテリホルダを
取り付けてからリチウム電池を装着してくだ
さい。
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
R5801
R5802
VD5801 VD5803
S5801
S5802 S5803
VD5807
S5806
LN5803
05
CK-192 BOARD (SIDE A)
1-874-577- 11
N
RESET
DUBBING
DISP/
BATT INFO
(MS ACCESS) A
K
D5801
(MEGA model)
42
13
42
13
42
13
42
13
110
CN5801
VD5802
VD5804
VD5805
VD5806
LN5801
LN5802
BT901
BH5801
05
BT901
BATTERY,
LITHIUM SECONDARY
HARNESS (HN-024) (Gray)
HARNESS (HN-024) (Gray)
SP901
SPEAKER
CK-192 BOARD (SIDE B)
1-874-577- 11
Note: BT901 (lithium battery) is not included in
CK-192 complete board.
(MEGA model)
1
23
4-46
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 MS-391
MS-391 (2 layers): Non MEGA model
: Uses unleaded solder.
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
116
110
12
11
CN7301
CN7302
IC7301
R7310
VD7301
S7301
LN7301
LN7302
LN7303
C7302
05
MEMORY
STICK
DUO
S7301
PANEL
OPEN/CLOSE
MS-391 BOARD (SIDE A)
(Non MEGA model)
1-874-627- 11
32 1
45
C7301
R7301
R7302
R7303
R7304
R7305
R7306
R7307
R7308
FB7301
FB7302
FB7303
FB7304
05
MS-391 BOARD (SIDE B)
(Non MEGA model)
1-874-627- 11
4-47
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 MS-392
MS-392 (2 layers): MEGA model
: Uses unleaded solder.
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
116
110
12
11
CN7301
CN7302
IC7301
R7310
VD7301
S7301
LN7301
LN7302
LN7303
C7302
05
MEMORY
STICK
DUO
S7301
PANEL
OPEN/CLOSE
MS-392 BOARD (SIDE A)
(MEGA model)
1-874-628- 11
32 1
45
C7301
R7301
R7302
R7303
R7304
R7305
R7306
R7307
R7308
FB7301
FB7302
FB7303
FB7304
05
MS-392 BOARD (SIDE B)
(MEGA model)
1-874-628- 11
4-48E

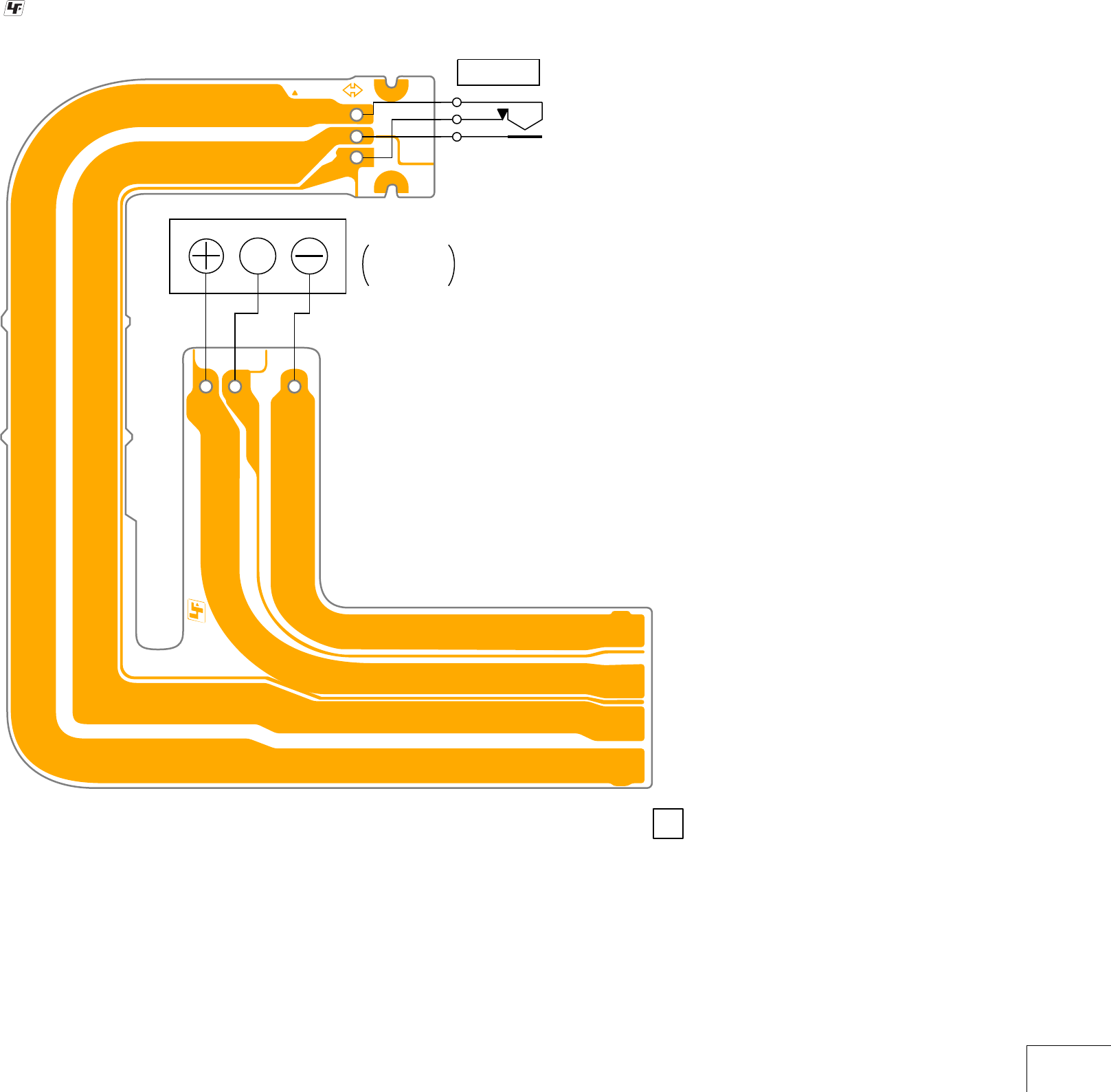

DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2 FP-839
FP-839 (1 layer)
: Uses unleaded solder.
XX 1-874-948- >P1<
FP-839
mk OR
2
C
J001
123
DC IN
BH001
BATTERY
TERMINAL
124
C
FP-839 FLEXIBLE BOARD
1
24
111-874-948-
05
Note: BH001 and J001 are not included in
FP-839 flexible board.
NOTE
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
Link
Link
OVERALL SECTION
CABINET R SECTION-1 CABINET R SECTION-2
LCD SECTION
BT/EVF SECTION
CABINET L SECTION MD SECTION
LENS SECTION (DVD110E/
DVD115E/DVD610/DVD610E)
EXPLODED VIEWS
EXPLODED VIEWS
NOTE: Characters A to Z of the electrical parts list indicate location of exploded views in which the desired part is shown.
LENS SECTION (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
ABCD
EF H
I
G
ACCESSORIES
BL-022 BOARD
BL-021 BOARD
CK-192 BOARD
CK-191 BOARD
FP-569 FLEXIBLE BOARD
CD-687 BOARD
CD-672 BOARD
RV-011 BOARD
RV-012 BOARD
FP-839 FLEXIBLE BOARD
CD-731 BOARD MS-391 BOARD
MS-392 BOARD
PD-352 BOARD
PD-351 BOARD
E
E
C
C
F
I
I
D
D
E
HB
B
D
D
Link
Link ELECTRICAL PARTS LIST
ELECTRICAL PARTS LIST
5. REPAIR PARTS LIST
5-1
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
(ENGLISH)
NOTE:
•-XX, -X mean standardized parts, so they may have some differences from
the original one.
•Items marked “*” are not stocked since they are seldom required for routine
service. Some delay should be anticipated when ordering these items.
•The mechanical parts with no reference number in the exploded views are not
supplied.
•Due to standardization, replacements in the parts list may be different from
the parts specified in the diagrams or the components used on the set.
•CAPACITORS:
uF: µF
•COILS
uH: µH
•RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
•SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
When indicating parts by reference number,
please include the board name.
(JAPANESE)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
【使用上の注意】
•ここに記載されている部品は, 補修用部品であるため, 回路図及び
セットに付いている部品と異なる場合があります。
•-XX, -Xは標準化部品のため, セットに付いている部品と異なる場合
があります。
•*印の部品は常備在庫しておりません。
•コンデンサの単位でuFはμFを示します。
•抵抗の単位Ωは省略してあります。
金  被：金属被膜抵抗。
サンキン：酸化金属被膜抵抗。
•インダクタの単位でuHはμHを示します。
•半導体の名称でuA..., uPA..., uPB..., uPC..., uPD...等はそれぞれμ
A..., μPA..., μPB..., μPC..., μPD...を示します。
0印の部品，または0印付の点線で囲まれた部品は，
安全性を維持するために，重要な部品です。
従って交換時は，必ず指定の部品を使用してください。
図面番号で部品を指定するときは基板名又はブロック
を併せて指定してください。
お願い
•Color Indication of Appearance Parts
Example:
(SILVER) : Cabinet’s Color
(Silver) : Parts Color
•外装部品色表示
例：
(SILVER):セットの色を表す。
(Silver) : 部品の色を表す。
•Abbreviation
AR : Argentine model
AUS: Australian model
BR : Brazilian model
CH : Chinese model
CND : Canadian model
EE : East European model
HK : Hong Kong model
J: Japanese model
JE : Tourist model
KR : Korea model
NE : North European model
5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
13-281-796-01 WINDOW, REMOTE CONTROL
21-874-951-11 FP-842 FLEXIBLE BOARD
33-281-791-01 COVER, R
(DVD110E/DVD115E/DVD610/DVD610E)
33-281-791-11 COVER, R (DVD310E/DVD710/DVD710E)
33-281-791-21 COVER, R (DVD410E/DVD810/DVD810E)
43-281-795-01 LID, MS
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#11 3-078-890-11 SCREW, TAPPING (Silver)
5-1-1. OVERALL SECTION
5-1. EXPLODED VIEWS
#11
#3
#2
#2
#2
#2
#2
#
2
#3
1
2
4
3
Cabinet R Section-1
(See page 5-3)
Cabinet L Section
(See page 5-7)
BT/EVF Section
(See page 5-6)
5-3
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
51 3-281-848-01 CABINET (C), P (261)
(DVD110E/DVD115E/DVD610/DVD610E)
51 3-281-848-11 CABINET (C), P (261)
(DVD310E/DVD710/DVD710E)
51 3-281-848-21 CABINET (C), P (261)
(DVD410E/DVD810/DVD810E)
52 3-281-849-01 BELT, (P) CABINET (C) (DVD110E)
52 3-281-849-11 BELT, (P) CABINET (C) (DVD115E)
52 3-281-849-21 BELT, (P) CABINET (C) (DVD610/DVD610E)
52 3-281-849-31 BELT, (P) CABINET (C) (DVD310E)
52 3-281-849-41 BELT, (P) CABINET (C) (DVD710/DVD710E)
52 3-281-849-51 BELT, (P) CABINET (C) (DVD410E)
52 3-281-849-61 BELT, (P) CABINET (C) (DVD810/DVD810E)
53 A-1438-687-A COVER ASSY (261), JACK
(DVD110E/DVD115E/DVD610/DVD610E)
53 A-1438-690-A COVER ASSY (262), JACK (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
54 A-1436-155-A PANEL ASSY (261), F
(DVD110E/DVD115E/DVD610/DVD610E)
54 A-1436-156-A PANEL ASSY (262), F (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
55 A-1439-631-A MS-391 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
55 A-1439-645-A MS-392 BOARD, COMPLETE
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
*56 3-281-850-01 FRAME, MS
*57 3-291-848-01 GASKET (TO)
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#11 3-078-890-11 SCREW, TAPPING (Silver)
5-1-2. CABINET R SECTION-1
#11
#11
#3
#2
52
53
54
55 57
56
51
Cabinet R Section-2
(See page 5-4)
LCD Section
(See page 5-5)
5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
5-1-3. CABINET R SECTION-2
ns: not supplied
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
*101 3-290-774-01 SHEET (261), MUFFLE
102 1-871-287-11 FP-573 FLEXIBLE BOARD
103 3-281-846-01 COVER (C), HINGE
(DVD110E/DVD115E/DVD610/DVD610E)
103 3-281-846-11 COVER (C), HINGE (DVD310E/DVD710/DVD710E)
103 3-281-846-21 COVER (C), HINGE (DVD410E/DVD810/DVD810E)
104 X-2187-937-1 HINGE ASSY (281M)
105 3-281-847-01 COVER (M), HINGE
106 A-1519-609-A CABINET (R) ASSY (261) (SERVICE)
(DVD110E/DVD115E/DVD610/DVD610E)
106 A-1519-610-A CABINET (R) ASSY (262) (SERVICE)
(DVD310E/DVD710/DVD710E)
106 A-1519-611-A CABINET (R) ASSY (263) (SERVICE)
(DVD410E/DVD810/DVD810E)
107 2-589-376-01 FOOT (395), RUBBER
108 3-281-841-01 CABINET (R), ORNAMENTAL BELT
109 3-283-643-01 SCREW, TRIPOD
*110 3-281-851-01 FRAME, BOTTOM
111 A-1439-630-A CK-191 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
111 A-1439-643-A CK-192 BOARD, COMPLETE
(DVD310E/DVD710/DVD710E)
111 A-1439-644-A CK-192 BOARD, COMPLETE
(DVD410E/DVD810/DVD810E)
112 1-964-966-11 HARNESS (HN-024)
113 1-833-210-11 CABLE, FLEXIBLE FLAT (FFC-089)
0*BH5801 1-756-615-51 HOLDER, BATTERY (Note)
0BT901 1-756-134-12 BATTERY, STORAGE, LITHIUM (Note)
SP901 1-825-260-41 LOUD SPEAKER (1.6CM)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#11 3-078-890-11 SCREW, TAPPING (Silver)
• Refer to page 5-1 for mark 0.
108
102
103
104
105
106
107
107
#11
#11
BT901
(Note)
SP901
BH5801
(Note)
#3
ns
ns
109
111
113 101
112
110
!
: BT901 (BATTERY, STORAGE, LITHIUM)
Board on the mount position. (See page 4-44, 45
)
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Note: Replace the battery holder (BH5801) together when replac-
ing the lithium battery (BT901) on the CK-191/192 board.
(The battery holder removed once cannot be used again.)
When mounting these parts, mount new battery holder first
and attach new lithium battery next.
Note: CK-191/192基板のリチウム電池（BT901）を交換する場合
はバッテリホルダ（BH5801）も同時に新品に交換して下
さい。（一度使用したバッテリホルダは再使用できませ
ん。）
部品取り付けの際は，先にバッテリホルダを取り付けてか
らリチウム電池を装着してください。
5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
5-1-4. LCD SECTION
ns: not supplied
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
151 A-1439-627-A PD-351 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
151 A-1439-640-A PD-352 BOARD, COMPLETE
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
*152 3-083-393-01 TAPE (P)
153 1-964-966-11 HARNESS (HN-024)
154 A-1439-628-A RV-011 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
154 A-1439-641-A RV-012 BOARD, COMPLETE
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
155 2-694-515-01 REFLECTION SHEET (2.7)
156 2-666-801-11 LIGHT GUIDE (2.7)
157 2-694-514-01 DIFFUSION SHEET (2.7)
158 2-694-513-01 PRISM SHEET H (2.7)
159 2-694-512-01 PRISM SHEET V (2.7)
160 2-694-516-01 FRONT FRAME (2.7)
*161 3-281-839-01 PLATE (261), LCD GROUND
162 3-281-838-01 CABINET (M), P (261)
163 1-479-926-11 SWITCH BLOCK, CONTROL (SB22100)
LCD901 A-1363-616-A TP BLOCK ASSY (27STMG08H)
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
LCD901 A-1363-617-A TP BLOCK ASSY (27STMG08T)
(DVD110E/DVD115E/DVD610/DVD610E)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#11
ns
151
152 153
154
155 156157 158
159 160
161
162
163
LCD901
5-6
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
5-1-5. BT/EVF SECTION
ns: not supplied
HARDWARE LIST
•Refer to page 5-1 for mark 0.
Ref. No. Part No. Description Ref. No. Part No. Description
201 1-834-868-11 CABLE, FLEXIBLE FLAT (FFC-140)
202 A-1439-629-A BL-021 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
202 A-1439-642-A BL-022 BOARD, COMPLETE
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
*203 2-638-820-02 GUIDE, LAMP
*204 2-638-819-01 CUSHION, LCD
*205 2-638-818-01 ILLUMINATOR
*206 2-638-816-01 PLATE (TFT), DEFLECTION
*207 2-638-815-01 SPACER, LCD
208 2-899-658-01 CAP (212), INNER
(DVD110E/DVD115E/DVD610/DVD610E)
208 2-899-659-01 CAP (215), INNER (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
209 2-899-660-01 PANEL (CF), POLARIZATION
210 3-281-818-01 CABINET, INNER
211 3-281-825-01 CABINET, VF
212 2-664-667-01 SPRING, VF SLIDE
213 X-2187-715-1 EYE CUP ASSY
214 2-699-246-01 COVER, DC (IN)
215 A-1519-607-A PANEL ASSY (261) (SERVICE), BT
216 2-589-376-01 FOOT (395), RUBBER
217 1-480-495-11 KEY BLOCK, CONTROL (PS26100)
218 1-874-948-11 FP-839 FLEXIBLE BOARD
219 1-874-950-11 FP-841 FLEXIBLE BOARD
(DVD410E/DVD810/DVD810E)
220 A-1538-642-A MDL4060S3C COMPLETE ASSY (SERVICE)
(FLASH MEMORY) (DVD410E/DVD810/DVD810E)
*221 3-096-097-01 CUSHION (P), EMC
0BH001 1-780-064-21 BATTERY TERMINAL BOARD
0J001 1-815-792-11 CONNECTOR, DC-IN (7.2V) (DC IN)
LCD902 8-753-241-14 LCX076AKE-1
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
LCD902 8-753-245-09 LCX059CKK-1
(DVD110E/DVD115E/DVD610/DVD610E)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
(DVD410E/DVD810/DVD810E)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#12
#11
#11
#3
ns
ns
J001
BH001
LCD902
201
202
203 204 205206207
208
209
210
211
212
214
213
215
217
218
220
219
216
221
DVD410E/DVD810/DVD810E
5-7
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
5-1-6. CABINET L SECTION
ns: not supplied
HARDWARE LIST
DISASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
251 2-699-266-01 LIGHT, ACCESS GUIDE,
252 A-1519-608-A CABINET (L) ASSY (261) (SERVICE)
253 3-090-616-01 SHAFT (F), STRAP
254 A-1228-528-A FP-569 FLEXIBLE BOARD, COMPLETE
*255 2-699-262-01 SHEET METAL, LID
256 3-281-794-01 CABINET (L (UPPER))
M903 1-787-237-11 MOTOR UNIT (GEARD MOTOR)
#2 2-635-562-31 SCREW (M1.7) (Black)
#11 3-078-890-11 SCREW, TAPPING (Silver)
252
254
255
253
#11
#11
#11
#2
ns
ns
ns
M903
ns
ns
#11
#11
#11
256
251
MD Section
(See page 5-8)
5-8
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
HARDWARE LIST
5-1-7. MD SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
*301 3-281-793-01 LABEL, REPLACEMENT CAUTION
302 A-1439-718-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD110E)
302 A-1439-719-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD115E)
302 A-1439-720-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD610/DVD610E)
302 A-1439-739-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD310E)
302 A-1439-741-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD710)
302 A-1439-742-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD710E)
302 A-1439-744-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD410E)
302 A-1439-745-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD810)
302 A-1439-746-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD810E)
*303 3-281-792-01 GUARD, OP FLEXIBLE
304 X-2187-713-1 FRAME ASSY, MD
*305 2-596-924-11 GASKET (MD)
0306 A-1212-602-A SERVICE (DDX-C2000) BLOCK ASSY
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#16 2-586-337-01 SCREW, MD (Silver)
• Refer to page 5-1 for mark 0.
VC-520
301
302
303
#3
#3
Lens Section
(DVD110E/DVD115E/DVD610/DVD610E: See page 5-9)
(DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E: See page 5-10
)
#16
304
305
306
DISASSEMBLY
5-9
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
HARDWARE LIST
5-1-8. LENS SECTION (DVD110E/DVD115E/DVD610/DVD610E)
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
*351 3-281-814-01 SHEET, LENS TERMINAL PROTECTION
352 8-848-839-01 DEVICE, LENS LSV-1171A
353 1-788-706-11 OPTICAL FILTER BLOCK (OFB-08-02)
354 3-271-382-01 SEAL RUBBER 1171
355 1-834-363-11 CABLE, FLEXIBLE FLAT (FFC-133)
356 A-1439-626-A CD-731 BOARD, COMPLETE
*357 3-281-802-01 FRAME, LENS
358 3-281-803-01 KNOB (261), NS
*359 2-699-280-01 PLATE, NS CLICK
360 3-281-805-01 GRILLE, MICROPHONE (261)
(DVD110E/DVD610/DVD610E)
360 3-281-806-01 GRILLE, MICROPHONE (262) (DVD115E)
361 3-281-812-01 CABINET, TOP (261)
(DVD110E/DVD610/DVD610E)
361 3-281-812-11 CABINET, TOP (261) (DVD115E)
*362 3-281-810-01 INSULATOR
*363 3-281-808-01 HOLDER, MICROPHONE
*364 3-281-811-01 CUSHION, MICROPHONE
*365 2-898-042-01 GASKET (MIC)
366 3-281-807-01 SCREEN, WIND
IC7101 8-753-289-10 ICX651NKF-H (CCD IMAGER)
(DVD110E/DVD115E/DVD610E) (Note)
IC7101 8-753-288-68 ICX650NKF-H (CCD IMAGER) (DVD610) (Note)
MIC901 1-542-723-31 MICROPHONE UNIT (DVD115E)
MIC901 1-542-723-41 MICROPHONE UNIT
(DVD110E/DVD610/DVD610E)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
351
352
353354
357
358
359
355
356
IC7101
(Note)
#12
#11
#11
MIC901
ns
#3
#3
360
366 361
362
363
364
365
Note : Be sure to read “Precautions for Replacement of
Imager” on page 4-2 when changing the imager.
Note : イメージャの交換時は4 - 3 ページの“イメージャ
交換時の注意”を必ずお読みください。
5-10
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
HARDWARE LIST
5-1-9. LENS SECTION (DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E)
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
*401 3-281-814-01 SHEET, LENS TERMINAL PROTECTION
402 A-1248-849-A LENS (BLOCK ASSY 1180 (J1))
403 1-788-523-11 OPTICALFILTER BLOCK (OFB-06-11)
404 3-088-645-01 RUBBER (Z), SEAL
405 A-1511-867-A CCD BLOCK ASSY (1M SSGE) (CCD IMAGER)
(Note 1)
406 1-874-947-11 FP-838 FLEXIBLE BOARD
407 A-1244-919-A CD-672 BOARD, COMPLETE
(DVD710E/DVD810E)
407 A-1244-919-A CD-687 BOARD, COMPLETE (Note 2)
408 1-874-949-11 FP-840 FLEXIBLE BOARD
*409 3-281-802-01 FRAME, LENS
410 3-281-804-01 KNOB (262), NS
*411 2-699-280-01 PLATE, NS CLICK
413 3-281-806-01 GRILLE, MICROPHONE (262)
414 A-1438-988-A COVER ASSY (262), SHOE
(DVD310E/DVD710/DVD710E)
414 A-1438-989-A COVER ASSY (263), SHOE
(DVD410E/DVD810/DVD810E)
415 3-281-813-01 CABINET, TOP (262)
(DVD310E/DVD710/DVD710E)
415 3-281-813-11 CABINET, TOP (262)
(DVD410E/DVD810/DVD810E)
*416 3-281-810-01 INSULATOR
*417 3-281-808-01 HOLDER, MICROPHONE
*418 3-281-811-01 CUSHION, MICROPHONE
*419 2-898-042-01 GASKET (MIC)
*420 3-096-097-01 CUSHION (P), EMC
421 3-281-807-01 SCREEN, WIND
CN901 1-818-890-11 CONNECTOR, EXTERNAL (HOT SHOE)
MIC901 1-542-723-31 MICROPHONE UNIT
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
Note 1: Be sure to read “Precautions for Replacement of
Imager” on page 4-2 when changing the imager.
Note 1: イメージャの交換時は4-3ページの“イメージャ
交換時の注意”を必ずお読みください。
401
402
403
404
408
409
410
411
406
405
(Note 1)
407
(Note 2)
ns
(IC7002) #12
#3
#3
CN901
#11
#11
MIC901
ns
#3
#2 #3
ns
420
413 414
415
416
417
418
419
421
Note 2: CD-687基板は供給されません。代わりにCD-672
基板が供給されます。
Note 2: CD-672 complete board is supplied instead of
CD-687 complete board, because CD-672 complete
board and CD-687 complete board are compatible.
5-11
Ref. No. Part No. Description Ref. No. Part No. Description
5-2. ELECTRICAL PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
A-1439-629-A BL-021 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
**********************
< CAPACITOR >
C5701 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5702 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
< CONNECTOR >
*CN5701 1-779-333-51 CONNECTOR, FFC/FPC 18P
*CN5702 1-817-698-81 CONNECTOR, FPC (ZIF) 21P
< DIODE >
D5701 8-719-074-67 DIODE EDZ-TE61-5.6B
*D5702 6-501-591-01 DIODE NESW007AT-T099 (BACKLIGHT)
< RESISTOR >
R5702 1-218-989-11 RES-CHIP 1M 5% 1/16W
A-1439-642-A BL-022 BOARD, COMPLETE
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
**********************
< CAPACITOR >
C5701 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C5702 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
< CONNECTOR >
*CN5701 1-779-333-51 CONNECTOR, FFC/FPC 18P
*CN5702 1-817-698-81 CONNECTOR, FPC (ZIF) 21P
< DIODE >
*D5701 6-501-591-01 DIODE NESW007AT-T099 (BACKLIGHT)
D5702 8-719-074-67 DIODE EDZ-TE61-5.6B
A-1244-919-A CD-672 BOARD, COMPLETE
(DVD710E/DVD810E)
A-1244-919-A CD-687 BOARD, COMPLETE
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E) (Note 1)
**********************
(IC7002 (CCD imager) is not included in
CD-672/CD-687 complete board.
Included in CCD block assy.)
< CAPACITOR >
C7002 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C7003 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C7005 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C7006 1-100-591-91 CERAMIC CHIP 1uF 10% 25V
(CD-672)
C7007 1-127-820-11 CERAMIC CHIP 4.7uF 10% 16V
C7010 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(CD-672)
C7011 1-165-875-11 CERAMIC CHIP 10uF 10% 10V
C7015 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C7016 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C7017 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C7018 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C7023 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C7024 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C7025 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C7026 1-100-251-11 CERAMIC CHIP 0.047uF 10% 10V
C7027 1-100-251-11 CERAMIC CHIP 0.047uF 10% 10V
C7028 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C7029 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
< CONNECTOR >
CN7001 1-820-586-51 CONNECTOR, FFC/FPC 28P
< FERRITE BEAD >
FB7001 1-400-331-11 FERRITE, EMI (SMD) (1005)
< IC >
IC7002 (Not supplied) ICX617AKF-H (CCD IMAGER) (Note 2)
(IC7002 is supplied including in CCD block assy.)
IC7003 8-759-489-19 IC uPC6756GR-8JG-E2
< COIL >
L7001 1-400-588-11 INDUCTOR 10uH
L7002 1-400-588-11 INDUCTOR 10uH
< TRANSISTOR >
Q7001 6-550-234-01 TRANSISTOR UNR32A300LS0
Q7002 8-729-055-21 TRANSISTOR 2SC5096-O/R (TE85L)
< RESISTOR >
R7002 1-218-954-11 RES-CHIP 1.2K 5% 1/16W
R7004 1-218-965-11 RES-CHIP 10K 5% 1/16W
R7005 1-218-953-11 RES-CHIP 1K 5% 1/16W
R7006 1-218-966-11 RES-CHIP 12K 5% 1/16W
R7013 1-218-965-11 RES-CHIP 10K 5% 1/16W
R7014 1-218-989-11 RES-CHIP 1M 5% 1/16W
R7015 1-218-989-11 RES-CHIP 1M 5% 1/16W
R7016 1-218-965-11 RES-CHIP 10K 5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
*RB7001 1-234-379-21 RES, NETWORK 22K (1005X4)
< ANGULAR VELOCITY SENSOR >
*SE7001 1-479-022-61 SENSOR, ANGULAR VELOCITY (YAW)
*SE7002 1-479-022-51 SENSOR, ANGULAR VELOCITY (PITCH)
BL-021 BL-022 CD-672 CD-687
Note 2: イメージャの交換時は4-3ページの“イメージャ
交換時の注意”を必ずお読みください。
Note 1: CD-687基板は供給されません。代わりにCD-672
基板が供給されます。
Note 2: Be sure to read “Precautions for Replacement of
Imager” on page 4-2 when changing the imager.
Note 1: CD-672 complete board is supplied instead of
CD-687 complete board, because CD-672
complete board and CD-687 complete board are
compatible.
5-12
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
A-1439-626-A CD-731 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
**********************
(IC7101 is not included in CD-731 complete
board.)
< CAPACITOR >
C7101 1-124-779-00 ELECT CHIP 10uF 20% 16V
C7103 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C7104 1-124-779-00 ELECT CHIP 10uF 20% 16V
C7105 1-164-854-11 CERAMIC CHIP 15PF 5% 50V
C7108 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
< CONNECTOR >
*CN7101 1-816-646-51 FFC/CONNECTOR, FPC (LIF) 16P
< IC >
IC7101 8-753-288-68 ICX650NKF-H (CCD IMAGER) (DVD610)
(Note 1)
IC7101 8-753-289-10 ICX651NKF-H (CCD IMAGER)
(DVD110E/DVD115E/DVD610E) (Note 1)
< COIL >
L7101 1-400-588-11 INDUCTOR 10uH
< TRANSISTOR >
*Q7101 6-551-873-01 TRANSISTOR 2SC3931G0LS0
< RESISTOR >
R7101 1-218-959-11 RES-CHIP 3.3K 5% 1/16W
A-1439-630-A CK-191 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
**********************
(BT901 (lithium battery) is not included in
CK-191 complete board.)
< BATTERY HOLDER >
0* BH5801 1-756-615-51 HOLDER, BATTERY (Note 2)
< BATTERY >
0BT901 1-756-134-12 BATTERY, STORAGE, LITHIUM ION (Note 2)
< CONNECTOR >
*CN5801 1-816-643-51 FFC/CONNECTOR, FPC (LIF) 10P
< DIODE >
D5801 8-719-077-09 DIODE CL-196HR-CD-T (MS ACCESS)
< RESISTOR >
R5802 1-218-945-11 RES-CHIP 220 5% 1/16W
< SWITCH >
S5801 1-771-844-21 SWITCH, TACTILE (SMD) (RESET)
S5802 1-771-844-21 SWITCH, TACTILE (SMD) (DISP/BATT INFO)
S5806 1-771-844-21 SWITCH, TACTILE (SMD) (N)
A-1439-643-A CK-192 BOARD, COMPLETE
(DVD310E/DVD710/DVD710E)
A-1439-644-A CK-192 BOARD, COMPLETE
(DVD410E/DVD810/DVD810E)
**********************
(BT901 (lithium battery) is not included in
CK-192 complete board.)
< BATTERY HOLDER >
0* BH5801 1-756-615-51 HOLDER, BATTERY (Note 2)
< BATTERY >
0BT901 1-756-134-12 BATTERY, STORAGE, LITHIUM ION (Note 2)
< CONNECTOR >
*CN5801 1-816-643-51 FFC/CONNECTOR, FPC (LIF) 10P
< DIODE >
D5801 8-719-077-09 DIODE CL-196HR-CD-T (MS ACCESS)
< RESISTOR >
R5801 1-218-954-11 RES-CHIP 1.2K 5% 1/16W
(DVD410E/DVD810/DVD810E)
R5802 1-218-945-11 RES-CHIP 220 5% 1/16W
< SWITCH >
S5801 1-771-844-21 SWITCH, TACTILE (SMD) (RESET)
S5802 1-771-844-21 SWITCH, TACTILE (SMD) (DISP/BATT INFO)
S5803 1-771-844-21 SWITCH, TACTILE (SMD) (DUBBING)
(DVD410E/DVD810/DVD810E)
S5806 1-771-844-21 SWITCH, TACTILE (SMD) (N)
CD-731 CK-191 CK-192
Note 1: イメージャの交換時は4- 3ページの“イメージャ
交換時の注意”を必ずお読みください。
Note 1: Be sure to read “Precautions for Replacement of
Imager” on page 4-2 when changing the imager.
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Note 2: CK-191基板およびCK-192基板のリチウム電池（BT901）
を交換する場合はバッテリホルダ（BH5801）も同時に
新品に交換して下さい。（一度使用したバッテリホルダ
は再使用できません。）
部品取り付けの際は，先にバッテリホルダを取り付けて
からリチウム電池を装着してください。
Note 2: Replace the battery holder (BH5801) together when re-
placing the lithium battery (BT901) on the CK-191 board
and CK-192 board. (The battery holder removed once
cannot be used again.)
When mounting these parts, mount new battery holder
first and attach new lithium battery next.
• Refer to page 5-1 for mark 0.
5-13
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
A-1228-528-A FP-569 FLEXIBLE BOARD, COMPLETE
*******************************
< DIODE >
D5691 6-500-817-01 DIODE SML-512UWT86 (ACCESS)
< SWITCH >
S5691 1-786-148-11 SWITCH, PUSH (1 KEY) (OPEN)
S5692 1-786-148-11 SWITCH, PUSH (1 KEY) (LID OPEN DETECT)
S5693 1-786-148-11 SWITCH, PUSH (1 KEY) (LID OPEN DETECT)
S5694 1-786-179-31 SWITCH, PUSH (1 KEY) (EJECT DETECT)
1-874-948-11 FP-839 FLEXIBLE BOARD
********************
(BH001 and J001 are not included in
FP-839 flexible board.)
< BATTERY TERMINAL >
0BH001 1-780-064-21 BATTERY TERMINAL BOARD
< CONNECTOR >
0J001 1-815-792-11 CONNECTOR, DC-IN (7.2V) (DC IN)
A-1439-631-A MS-391 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
***********************
< CONNECTOR >
*CN7301 1-816-646-51 FFC/CONNECTOR, FPC (LIF) 16P
CN7302 1-819-613-22 MEMORY STICK DUO CONNECTOR 10P
< FERRITE BEAD >
FB7301 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB7302 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB7303 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB7304 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
< RESISTOR >
R7302 1-218-942-11 RES-CHIP 120 5% 1/16W
R7303 1-218-942-11 RES-CHIP 120 5% 1/16W
R7306 1-218-942-11 RES-CHIP 120 5% 1/16W
R7307 1-218-942-11 RES-CHIP 120 5% 1/16W
< SWITCH >
*S7301 1-786-545-41 SWITCH, PUSH LEVER (S)
(PANEL OPEN/CLOSE)
A-1439-645-A MS-392 BOARD, COMPLETE
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
**********************
< CONNECTOR >
*CN7301 1-816-646-51 FFC/CONNECTOR, FPC (LIF) 16P
CN7302 1-819-613-22 MEMORY STICK DUO CONNECTOR 10P
< FERRITE BEAD >
FB7301 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB7302 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB7303 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB7304 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
< IC >
*IC7301 6-600-563-01 IC RS-450-T
< RESISTOR >
R7302 1-218-942-11 RES-CHIP 120 5% 1/16W
R7303 1-218-942-11 RES-CHIP 120 5% 1/16W
R7306 1-218-942-11 RES-CHIP 120 5% 1/16W
R7307 1-218-942-11 RES-CHIP 120 5% 1/16W
< SWITCH >
*S7301 1-786-545-41 SWITCH, PUSH LEVER (S)
(PANEL OPEN/CLOSE)
A-1439-627-A PD-351 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
**********************
< CAPACITOR >
C6202 1-100-581-81 CERAMIC CHIP 0.0047uF 10% 50V
C6203 1-100-581-81 CERAMIC CHIP 0.0047uF 10% 50V
C6205 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C6206 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
< CONNECTOR >
*CN6201 1-818-072-61 CONNECTOR, FFC/FPC (ZIF) 30P
*CN6202 1-818-069-61 CONNECTOR, FFC/FPC (ZIF) 6P
*CN6204 1-818-069-61 CONNECTOR, FFC/FPC (ZIF) 6P
CN6205 1-815-031-51 FFC/CONNECTOR, FPC (ZIF) 24P
< DIODE >
D6202 8-719-074-67 DIODE EDZ-TE61-5.6B
*D6203 6-501-476-01 DIODE NSSW008CT-T071 (BACKLIGHT)
*D6204 6-501-476-01 DIODE NSSW008CT-T071 (BACKLIGHT)
*D6205 6-501-476-01 DIODE NSSW008CT-T071 (BACKLIGHT)
< TRANSISTOR >
Q6201 8-729-427-67 TRANSISTOR XP421F-TXE
Q6202 8-729-427-37 TRANSISTOR XP411F-TXE
< RESISTOR >
R6201 1-218-954-11 RES-CHIP 1.2K 5% 1/16W
R6202 1-218-955-11 RES-CHIP 1.5K 5% 1/16W
R6203 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
R6209 1-218-989-11 RES-CHIP 1M 5% 1/16W
• Refer to page 5-1 for mark 0.
FP-569 FP-839 MS-391 MS-392 PD-351
5-14
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
A-1439-640-A PD-352 BOARD, COMPLETE
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
**********************
< CAPACITOR >
C6202 1-100-581-81 CERAMIC CHIP 0.0047uF 10% 50V
C6203 1-100-581-81 CERAMIC CHIP 0.0047uF 10% 50V
C6204 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C6205 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C6206 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
< CONNECTOR >
*CN6201 1-818-072-61 CONNECTOR, FFC/FPC (ZIF) 30P
*CN6202 1-818-069-61 CONNECTOR, FFC/FPC (ZIF) 6P
*CN6204 1-818-069-61 CONNECTOR, FFC/FPC (ZIF) 6P
CN6205 1-815-031-51 FFC/CONNECTOR, FPC (ZIF) 24P
< DIODE >
D6202 8-719-074-67 DIODE EDZ-TE61-5.6B
*D6203 6-501-476-01 DIODE NSSW008CT-T071 (BACKLIGHT)
*D6204 6-501-476-01 DIODE NSSW008CT-T071 (BACKLIGHT)
*D6205 6-501-476-01 DIODE NSSW008CT-T071 (BACKLIGHT)
< TRANSISTOR >
Q6201 8-729-427-67 TRANSISTOR XP421F-TXE
Q6202 8-729-427-37 TRANSISTOR XP411F-TXE
*Q6203 6-551-836-01 TRANSISTOR 2SA2078G0LS0
< RESISTOR >
R6201 1-218-954-11 RES-CHIP 1.2K 5% 1/16W
R6202 1-218-955-11 RES-CHIP 1.5K 5% 1/16W
R6203 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
R6207 1-218-978-11 RES-CHIP 120K 5% 1/16W
R6209 1-218-989-11 RES-CHIP 1M 5% 1/16W
A-1439-628-A RV-011 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
**********************
< SWITCH >
S7601 1-786-707-11 SWITCH, DETECTION (SMD) (PANEL REVERSE)
A-1439-641-A RV-012 BOARD, COMPLETE
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
**********************
< SWITCH >
S7601 1-786-707-11 SWITCH, DETECTION (SMD) (PANEL REVERSE)
PD-352 RV-011 RV-012
Electrical parts list of the VC-520 board is
not shown.
Pages 5-15 to 5-24 are not shown.
5-25
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
• EXCEPT J MODEL to J MODEL
Checking supplied accessories.
• Refer to page 5-1 for mark 0.
AC Adaptor
(AC-L200/L200B)
01-479-285-21
Power Cord
01-555-074-91 (AUS)
01-783-952-61 (AR)
01-790-107-61 (US, CND)
01-792-549-41 (JE)
01-824-910-71 (AEP, EE, NE,
E: PAL, E: NTSC (Latin America))
01-832-169-31 (UK, HK)
01-832-121-31 (CH)
01-833-892-21 (KR)
01-834-852-11 (E: NTSC (Except
Latin America))
Conversion (2P) Adaptor
01-569-007-12
(E: NTSC (Except Latin
America))
Conversion (2P) Adaptor
01-569-008-12
(E: NTSC (Latin America))
USB Cable
1-829-868-31
CD-ROM
“Handycam Application Software”
3-286-118-01
Rechargeable Battery Pack
NP-FH40
0A-1201-658-A (US, CND)
0A-1201-659-B
(EXCEPT US, CND, CH)
0A-1201-660-A (CH)
Wireless Remote Commander
RMT-835
1-479-275-41
(DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E)
DVD-ROM
“ENJOY HANDYCAM”
3-282-264-01 (KR)
ENGLISH/KOREAN/JAPANESE
3-282-264-11 (US, CND, E, AR)
ENGLISH/FRENCH/SPANISH/PORTUGUESE
3-282-264-21 (AEP, EE, NE, UK)
ENGLISH/RUSSIAN/GERMAN
3-282-264-31 (AEP)
ENGLISH/SPANISH/PORTUGUESE/ITALIAN
3-282-264-41 (AEP)
ENGLISH/FRENCH/PORTUGUESE/DUTCH
3-282-264-61 (E, HK, AUS, CH)
ENGLISH/FRENCH/SIMPLIFIED CHINESE for CHINA/
TRADITIONAL CHINESE for HONG KONG
3-282-264-71 (E)
ENGLISH/TRADITIONAL CHINESE for TAIWAN/
SPANISH/PORTUGUESE
A/V Connecting Cable
1-831-553-11
Operating Guide
3-285-366-11 (ENGLISH) (DVD610: US, CND, E/
DVD710: US, CND, E/DVD810: US, CND, E, JE)
3-285-366-21 (FRENCH) (DVD610: CND/DVD710: CND/
DVD810: CND)
3-285-366-31 (SPANISH) (DVD610: E, AR/DVD710: E, AR/
DVD810: E, AR, JE)
3-285-366-41 (PORTUGUESE) (DVD810: JE)
3-285-366-51 (TRADITIONAL CHINESE) (DVD610: E/
DVD710: E/DVD810: E)
3-285-366-61 (KOREAN) (DVD810: KR, JE)
3-285-367-11 (ENGLISH) (DVD110E/DVD115E/DVD310E/
DVD410E/DVD610E: E, HK, AUS/DVD710E: E/
DVD810E: E, HK, AUS, JE)
3-285-367-21 (FRENCH) (DVD110E: AEP/DVD115E: AEP/
DVD310E: AEP/DVD410E: AEP)
3-285-367-31 (GERMAN, DUTCH) (DVD110E: AEP/
DVD115E: AEP/DVD310E: AEP/DVD410E: AEP)
3-285-367-41 (SPANISH, PORTUGUESE) (DVD110E: AEP/
DVD115E: AEP/DVD310E: AEP/DVD410E: AEP)
3-285-367-51 (ITALIAN, GREEK) (DVD110E: AEP/
DVD115E: AEP/DVD310E: AEP/DVD410E: AEP)
3-285-367-61 (RUSSIAN, SWEDISH) (DVD110E: NE/
DVD115E: NE/DVD310E: NE/DVD410E: NE/
DVD610E: NE/DVD810E: NE, JE)
3-285-367-71 (DANISH, FINNISH) (DVD110E: NE/
DVD115E: NE/DVD310E: NE/DVD410E: NE/
DVD610E: NE/DVD810E: NE)
3-285-367-81 (UKRAINIAN) (DVD110E: NE/DVD115E: NE/
DVD310E: NE/DVD410E: NE/DVD610E: NE/
DVD810E: NE)
3-285-367-91 (POLISH, CZECH) (DVD110E: EE/
DVD115E: EE/DVD310E: EE/DVD410E: EE)
3-285-368-11 (HUNGARIAN, SLOVAK) (DVD110E: EE/
DVD115E: EE/DVD310E: EE/DVD410E: EE)
3-285-368-21 (TURKISH) (DVD110E: EE/DVD115E: EE/
DVD310E: EE/DVD410E: EE)
3-285-368-31 (SIMPLIFIED CHINESE) (DVD610E: E, CH/
DVD710E: E, CH/DVD810E: E, JE)
3-285-368-41 (TRADITIONAL CHINESE)
(DVD610E: HK/DVD810E: HK)
3-285-368-51 (ARABIC, PERSIAN)
(DVD610E: E/DVD710E: E/DVD810E: E)
5-26E
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
• J MODEL
付属品
• 0マークについては，5-1ページを参照してください。
AC アダプター
(AC-L200/L200B)
01-479-285-41
電源コード
01-792-549-41
USB ケーブル
1-829-868-31
CD-ROM
「Handycam Application
Software」
3-286-118-01
リチャージブルバッテリー
パック
NP-FH40
0A-1201-657-A
ワイヤレスリモコン
RMT-835
1-479-275-41
A/V 接続ケーブル
1-831-553-11
DVD-ROM
「エンジョイハンディーカム」
3-282-264-01
英語/韓国語/日本語
取扱説明書
3-285-366-01 (日本語)
Ver. 1.1 2008.03
Ver. 1.0からの変更部分は
青色で記載されています。
#1: M1.7 X 2.5
(Black)
2-635-562-11
2.5
1.7
#10: M1.7 X 4.0
(Silver)
2-599-475-31
1.6
1.7
#6: M1.4 X 1.7
(Silver)
2-598-474-01
1.7
1.4
#7: M1.7 X 1.6
(Black)
7-627-552-18
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
4.0
1.7
#5: M1.7 X 3.5 (Tapping)
(Black)
3-080-204-01
3.5
1.7
#4: M1.4 X 2.5 (Tapping)
(Dark Silver)
3-348-998-81
2.5
1.4
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
#9: M1.7 X 5.0 (Tapping)
(Silver)
3-078-890-21
5.0
1.7
#14: M1.7 X 2.5
(Silver)
2-599-475-11
#13: M1.7 X 2.5 (Tapping)
(Silver)
3-085-397-01
2.5
1.7
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
#8: M1.7 X 3.5 (Tapping)
(Silver)
3-078-890-01
3.5
1.7
4.0
1.7
5.0
2.5
#17: M1.7 X 1.5
(Silver)
2-586-389-01
2.5
1.7
#15: M1.4 X 1.5
(Silver)
3-062-214-01
1.5
1.4 1.4
#16: M1.4 X 2.5
(Silver)
2-586-337-01
1.5
3.5
1.7 2.2
#18: M1.4 X 2.5
(Silver)
2-635-591-21
2.5
1.4
#19: M1.2 X 4.0 (Tapping)
(Red)
3-086-156-21
4.0
1.2
#20: M1.4 X 3.0
(Silver)
2-635-591-31
3.0
1.4
HARDWARE LIST (1/6)
HARDWARE LIST (2/6)
#21: M1.4 X 3.0
(Black)
2-662-396-21
3.0
1.4
#22: M1.7 X 5.0 (Tapping)
(Silver)
3-083-261-01
1.7
5.0
1.7
5.5
#23: M1.7 X 4.0 (Tapping)
(Black)
3-080-204-11
4.0
1.7
#24: B1.7 X 5.5 (Tapping)
(Black)
4-679-805-11
#25: M1.7 X 3.0
(Black)
2-635-562-21
3.0
1.7
#26: M1.4 X 2.0
(Silver)
2-635-591-11
2.0
1.4
#27: M1.4 X 2.0
(Black)
2-662-396-11
2.0
1.4
#28: M1.4 X 4.0 (Tapping)
(Silver)
3-348-998-61
1.4
4.0
#29: M1.4 X 2.5
(Black)
2-662-396-01
#31: M3.0 X 4.0
(Silver)
2-102-434-01
2.5
1.4
#30: M1.2 X 3.5 (Tapping)
(White)
3-086-156-11
3.5
1.2
#32: M2.0 X 4.5 (Tapping)
(Silver)
2-102-498-01
#33: M3.0 X 6.0
(Silver)
3-077-331-21
#35: M4.0 X 6.0 (Tapping)
(Silver)
3-975-291-02
#34: M3.0 X 8.0
(Black)
3-077-331-41
#36: M3.0 X 6.0
(Silver)
4-886-821-11
#37: M2.0 X 6.0 (Tapping)
(Black)
3-080-206-31
#38: M3.0 X 20.0 (Tapping)
(Silver)
7-685-651-79
#40: M2.0 X 4.0 (Tapping)
(Silver)
7-685-851-04
#39: M2.6 X 5.0 (Tapping)
(Black)
7-685-791-09
4.0
3.0
4.5
2.0
6.0
3.0
8.0
3.0 4.0
6.0 6.0
3.0
6.0
2.0
20.0
3.0
4.0
2.0
5.0
2.6
HARDWARE LIST (3/6)
#41: M3.0 X 8.0 (Tapping)
(Silver)
3-065-748-01
8.0
3.0
#42: M2.0 X 4.0 (Tapping)
(Silver)
7-628-253-00
2.0
4.0
#43: M1.7 X 4.0
(Red)
2-660-401-31
4.0
1.7
#46: M1.7 X 3.0
(Red)
2-660-401-11
#45: M1.4 X 2.5
(Silver)
2-587-151-01
#47: M1.4 X 3.0 (Tapping)
(Silver)
2-665-774-01
3.0
1.4
#44: M1.7 X 3.0 (Tapping)
(Silver)
3-078-890-61
3.0
1.7
3.0
1.7
2.5
1.4
#48: M1.7 X 2.5
(Silver)
3-973-497-91
2.5
1.7
#49: M2.0 X 4.0
(Black)
2-630-005-31
#50: M2.0 X 3.0
(Red)
2-891-494-11
#51: M2.0 X 2.5
(Silver)
3-073-686-01
#54: M1.75 X 6.0 (Tapping)
(Black)
3-318-203-11
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
#55: M2.0 X 4.0
(Silver)
2-655-582-11
#52: M2.0 X 4.0 (Tapping)
(Black)
3-080-206-11
#56: M2.0 X 3.5
(Silver)
3-067-187-11
4.0
2.0
3.0
2.0
2.5
2.0
5.0
2.0
4.0
2.0
6.0
1.75
4.0
2.0
3.5
2.0
#57: M1.7 X 4.0
(Black)
7-627-852-18
4.0
1.7
#58: M2.0 X 6.0 (Tapping)
(Silver)
3-719-408-11
6.0
2.0
#59: M2.0 X 5.0 (Tapping)
(Silver)
3-080-205-21
#60: M2.6 X 5.0
(Black)
3-061-062-11
5.0
2.0
5.0
2.6
HARDWARE LIST (4/6)
#61: M3.0 X 10.0
(Black)
7-682-549-09
10.0
3.0
#62: M2.0 X 3.0
(Silver)
3-080-202-21
3.0
2.0
#63: M5.0 X 12.5
(Black)
3-060-811-21
12.5
5.0
#64: M1.7 X 5.0 (Tapping)
(Silver)
2-666-551-21
5.0
1.7
#65: M1.4 X 3.5
(Silver)
2-635-591-01
3.5
1.4
#66: M1.4 X 1.4
(Silver)
2-635-591-41
1.4
1.4
#71: M1.4 X 2.0
(Red)
3-208-537-01
2.0
1.4
2.0
1.4
2.0
1.4
#67: M1.4 X 2.0
(Silver)
3-389-523-16
2.0
1.4
#68: M1.7 X 4.0
(Silver)
2-655-581-01
4.0
1.7
#72: M1.4 X 2.0
(Silver)
4-663-621-41
2.0
1.4
#69: M1.7 X 3.0
(Silver)
2-599-475-21
3.0
1.7
#70: M1.7 X 5.0
(Silver)
2-599-475-41
5.0
1.7
#75: M1.7 X 3.5 (Tapping)
(Silver)
2-666-551-01
#76: M1.7 X 4.0 (Tapping)
(Silver)
2-666-551-11
#73: M1.2 X 4.0 (Tapping)
(Black)
3-086-156-61
#74: M1.7 X 6.0 (Tapping)
(Silver)
2-666-551-31
#78: M1.4 X 3.5
(Red)
3-208-537-11
#79: M1.4X 2.0
(Silver)
2-587-151-11
#80: M1.4X 2.0
(Black)
3-279-411-01
6.0
1.7
3.5
1.7
4.0
1.7
4.0
1.2
#77: M1.2 X 5.0 (Tapping)
(Silver)
3-086-156-31
5.0
1.2
3.5
1.4
HARDWARE LIST (5/6)
#81: M1.7 X 2.5
(Silver)
2-515-756-01
2.5
1.7
#82: M1.4 X 1.4
(Silver)
3-272-251-01
1.4
1.4
#83: M1.7 X 7.0 (Tapping)
(Black)
3-080-204-41
#84: M2.0 X 3.0
(Silver)
3-072-453-11
#85: M1.7 X 2.5
(Black)
2-515-483-11
#86: M1.7 X 4.0 (Tapping)
(Silver)
2-695-434-21
4.0
1.7
#87: M1.6 X 5.3
(Black)
2-689-328-01
5.3
1.6
#88: M1.6 X 5.9 (Tapping)
(Silver)
2-689-015-01
5.9
1.6
#89: M2.0 X 5.5 (Tapping)
(Silver)
2-695-575-01
5.0
2.0
#90: M1.7 X 3.0
(Silver)
3-271-395-01
3.0
1.7
#91: M1.7 X 3.0 (Tapping)
(Silver)
2-695-434-11
#92: M2.0 X 3.9
(Black)
3-268-954-01
3.9
2.0
#93: M1.7 X 3.5 (Tapping)
(Silver)
3-254-082-01
#94: M1.7 X 4.0
(Black)
2-515-483-31
1.7
7.0 3.0
2.0
2.5
1.7
4.0
1.7
3.5
1.7
3.5
1.7
#95: M3.0 X 8.0 (Tapping)
(Black)
7-685-646-79
8.0
3.0
#99: M2.5 X 6.0 (Tapping)
(Silver)
3-776-750-02
6.0
2.5
#96: M1.4 X 2.5
(Silver)
2-587-151-21
2.5
1.4
#97: M1.4 X 2.5
(Black)
2-662-396-31
2.5
1.4
#98: M3.0 X 8.0
(Silver)
3-077-331-01
8.0
3.8
#100: M2.0 X 6.0
(Black)
3-080-203-51
6.0
2.0
HARDWARE LIST (6/6)
#101: M2.0 X 5.0
(Silver)
7-621-555-39
5.0
2.0
#107: M2.0 X 5.0
(Silver)
3-032-750-01
5.0
2.0
#108: M1.7 X 3.0 (Tapping)
(Black)
2-695-430-01
#111: M1.7 X 4.0 (Tapping)
(Black)
2-887-124-01
#102: M2.6 X 8.0
(Black)
7-621-284-30
8.0
2.6
#105: M2.0 X 4.0
(Red)
2-891-494-31
#106: M2.0 X 6.0
(Black)
3-713-786-11
#103: M2.6 X 10.0
(Silver)
7-685-794-09
10.0
2.6
#104: M3.0 X 8.0
(Black)
7-682-548-09
8.0
3.0
4.0
2.0
6.0
2.0
3.0
1.7
#109: M1.7 X 3.0
(Black)
2-515-483-21
3.0
1.7
3.0
2.0
#110: M2.0 X 3.0
(Black)
2-630-005-21
4.0
1.7
#114: M2.0 X 5.5 (Tapping)
(Silver)
2-698-464-01
5.5
2.0
#112: M1.4 X 5.0
(Black)
2-178-410-11
5.0
1.4
#113: M1.7 X 5.0
(Black)
2-635-562-41
5.0
1.7
#115: M1.4 X 3.5 (Tapping)
(Silver)
3-348-998-51
1.4
3.5
#116: M2.0 X 3.5 (Tapping)
(Silver)
2-695-435-01
3.5
2.0
#117: M1.7 X 4.5 (Tapping)
(Silver)
2-695-429-31
#118: M1.4 X 2.0
(Black)
2-655-580-01
4.5
1.7
2.0
1.4
Revision History
Reverse
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
Ver.
1.0
1.1
Date
2007.12
2008.03
History
Official Release
Revised-1
(A1 DI07-306)
Contents
—
•Correction of Repair Parts
S.M. revised: Page 5-26
S.M. Rev.
issued
—
Yes
985224932.pdf
Revision History
Revision History
Sony EMCS Co.
SERVICE MANUAL
LEVEL 3
Link
Link
MODEL INFORMATION TABLE
PRINTED WIRING BOARDS
SCHEMATIC DIAGRAMS
REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
Ver. 1.1 2008.01
2008A0500-1
© 2008.1
Published by Kohda TEC9-852-249-12
US Model
Canadian Model
AEP Model
UK Model
East European Model
North European Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Argentine Model
Brazilian Model
Tourist Model
Japanese Model
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Photo: DCR-DVD810
DIGITAL VIDEO CAMERA RECORDER
RMT-835
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E
Revised-1
Replace the previously issued
SERVICE MANUAL 9-852-249-11
with this manual.
— 2 —
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
Model information table
Non MEGA model
•Abbreviation
AR : Argentine model
AUS: Australian model
BR : Brazilian model
CH : Chinese model
CND : Canadian model
EE : East European model
HK : Hong Kong model
J: Japanese model
JE : Tourist model
KR : Korea model
MX : Mexican model
NE : North European model
Model DCR-DVD110E DCR-DVD115E DCR-DVD610 DCR-DVD610E
Destination AEP, UK, AEP, UK, US, CND, E, AEP, E, AUS,
EE, NE EE, NE AR, BR HK, CH
Color system PAL PAL NTSC PAL
5.1ch recording ×a××

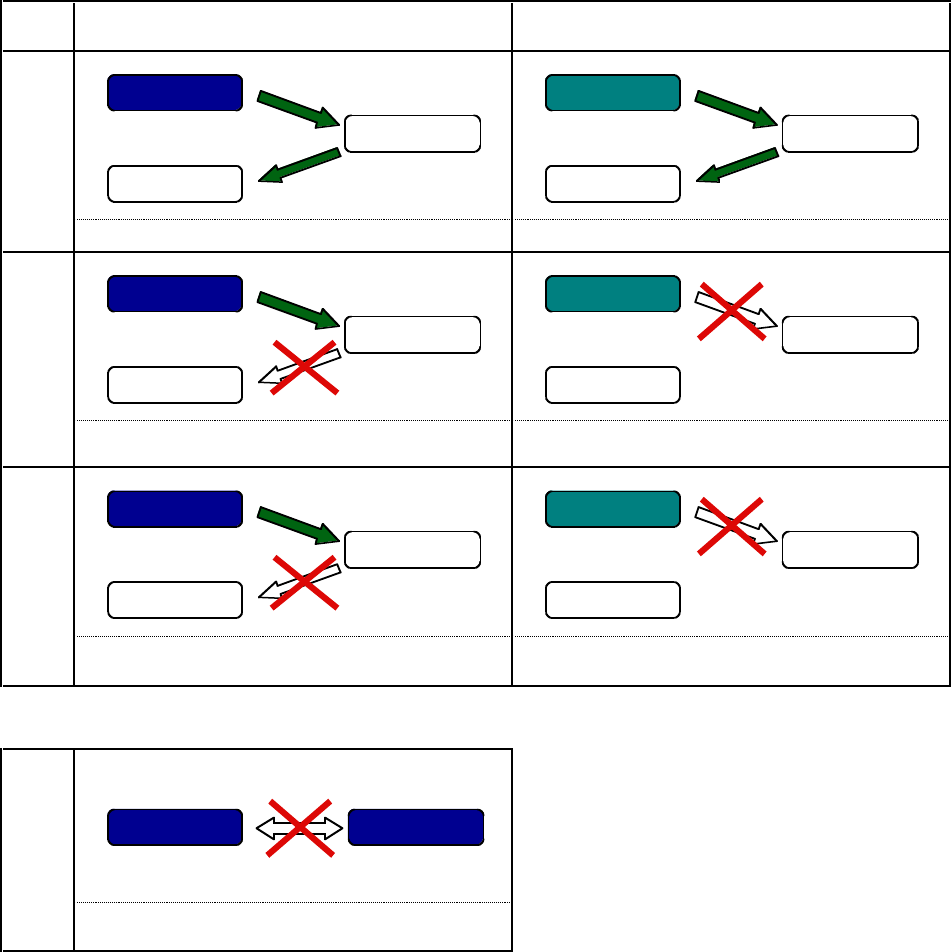

Data CAM → PC aaaa
copy PC → CAM ××aa
Remote commander ××××
Active Interface Shoe ××××
Internal flash memory ××××
BL board BL-021 BL-021 BL-021 BL-021
CD board CD-731 CD-731 CD-731 CD-731
CK board CK-191 CK-191 CK-191 CK-191
MS board MS-391 MS-391 MS-391 MS-391
PD board PD-351 PD-351 PD-351 PD-351
RV board RV-011 RV-011 RV-011 RV-011
Model DCR-DVD310E DCR-DVD410E DCR-DVD710 DCR-DVD710E DCR-DVD810 DCR-DVD810E
Destination AEP, UK, AEP, UK, US, CND, E, AR AEP, E, CH US, CND, E, KR, AEP, E, AUS,
EE, NE EE, NE AR, JE, J HK, JE
Color system PAL PAL NTSC PAL NTSC PAL
5.1ch recording aaaaaa
Data CAM → PC aaaaaa
copy PC → CAM ××aaaa
Remote commander aaaaaa
Active Interface Shoe aaaaaa
Internal flash memory ×a××aa
BL board BL-022 BL-022 BL-022 BL-022 BL-022 BL-022
CD board CD-687 CD-687 CD-687 CD-672/CD-687 CD-687 CD-672/CD-687
CK board CK-192 CK-192 CK-192 CK-192 CK-192 CK-192
MS board MS-392 MS-392 MS-392 MS-392 MS-392 MS-392
PD board PD-352 PD-352 PD-352 PD-352 PD-352 PD-352
RV board RV-012 RV-012 RV-012 RV-012 RV-012 RV-012
MEGA model
— 3 —
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
1. Check the area of your repair for unsoldered or poorly-soldered
connections. Check the entire board surface for solder splashes
and bridges.
2. Check the interboard wiring to ensure that no wires are
"pinched" or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly
transistors, that were installed during a previous repair. Point
them out to the customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs
of deterioration. Point them out to the customer and
recommend their replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270˚C
during repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
Unleaded solder
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION,
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30 cm FROM THE SURFACE OF THE
OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.
CAUTION :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
CAUTION
Use of controls or adjustments or performance
procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION:
The use of optical instrument with this product will increase eye
hazard.
— 4 —
ENGLISH JAPANESE
ENGLISH JAPANESE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
1. 注意事項をお守りください。
サービスのとき特に注意を要する個所については，
キャビネット，シャーシ，部品などにラベルや捺印で
注意事項を表示しています。これらの注意書き及び取
扱説明書等の注意事項を必ずお守り下さい。
2. 指定部品のご使用を
セットの部品は難燃性や耐電圧など安全上の特性を
持ったものとなっています。従って交換部品は，使用
されていたものと同じ特性の部品を使用して下さい。
特に回路図，部品表に0印で指定されている安全上重要
な部品は必ず指定のものをご使用下さい。
3. 部品の取付けや配線の引きまわしはもとどおりに
安全上，チューブやテープなどの絶縁材料を使用した
り，プリント基板から浮かして取付けた部品がありま
す。また内部配線は引きまわしやクランパによって発
熱部品や高圧部品に接近しないよう配慮されています
ので，これらは必ずもとどおりにして下さい。
4. サービス後は安全点検を
サービスのために取外したネジ，部品，配線がもとど
おりになっているか，またサービスした個所の周辺を
劣化させてしまったところがないかなどを点検し，安
全性が確保されていることを確認して下さい。
5. チップ部品交換時の注意
•取外した部品は再使用しないで下さい。
•タンタルコンデンサのマイナス側は熱に弱いため交
換時は注意して下さい。
サービス，点検時には次のことにご注意下さい。
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
6. フレキシブルプリント基板の取扱いについて
•コテ先温度を270℃前後にして行なって下さい。
•同一パターンに何度もコテ先を当てないで下さい。
（3回以内）
•パターンに力が加わらないよう注意して下さい。
7. 無鉛半田について
無鉛半田を使用している基板には，無鉛（Lead Free）を意
味するレッドフリーマークがプリントされています。
（注意：基板サイズによっては，無鉛半田を使用して
いてもレッドフリーマークがプリントされて
いないものがあります）
：レッドフリーマーク
無鉛半田には，以下の特性があります。
•融点が従来の半田よりも約40℃高い。
従来の半田こてをそのまま使用することは可能です
が，少し長めにこてを当てる必要があります。
温度調節機能のついた半田こてを使用する場合，約
350℃に設定して下さい。
注意： 半田こてを長く当てすぎると，基板のパター
ン（銅箔）がはがれてしまうことがあります
ので，注意して下さい。
•粘性が強い
従来の半田よりも粘性が強いため，IC端子などが半田
ブリッジしないように注意して下さい。
•従来の半田と混ぜて使用可能
無鉛半田には無鉛半田を追加するのが最適ですが，
従来の半田を追加しても構いません。
4-2. SCHEMATIC DIAGRAMS
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
Link
Link
VC-520 BOARD (1/20)
(A/D CONVERTER, TIMING GENERATOR)
VC-520 BOARD (5/20)
(CPU (SIGNAL PROCESS 1))
VC-520 BOARD (7/20)
(CPU (POWER SUPPLY))
VC-520 BOARD (10/20) (SDRAM, FLASH)
VC-520 BOARD (8/20)
(SDRAM, OneNAND FLASH)
VC-520 BOARD (11/20) (RF PROCESS )
VC-520 BOARD (12/20) (DVD MECHA DRIVE)
VC-520 BOARD (2/20) (LENS DRIVE, EVR)
VC-520 BOARD (3/20): Non MEGA model
(LENS DRIVE)
VC-520 BOARD (4/20) (LENS DRIVE)
VC-520 BOARD (6/20)
(CPU (SIGNAL PROCESS 2))
VC-520 BOARD (9/20)
(DVD DSP, DVD DRIVE CONTROL)
VC-520 BOARD (13/20)
(D/A CONVERTER)
VC-520 BOARD (15/20): DVD115E/DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E (VIDEO, AUDIO I/O)
VC-520 BOARD (14/20): DVD110E/DVD610/
DVD610E (VIDEO OUT, AUDIO I/O)
VC-520 BOARD (16/20) (LCD/EVF DRIVE)
VC-520 BOARD (17/20) (HI CONTROL)
VC-520 BOARD (18/20) (DC IN, CHARGE)
VC-520 BOARD (19/20)
(DC/DC CONVERTER)
VC-520 BOARD (20/20) (CONNECTOR)
COMMON NOTE FOR SCHEMATIC DIAGRAMS
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVE610E
4-2
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
4-2. SCHEMATIC DIAGRAMS
4-2. SCHEMATIC DIAGRAMS
ENGLISH JAPANESE
ENGLISH JAPANESE
4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
4-2. SCHEMATIC DIAGRAMS
(ENGLISH)

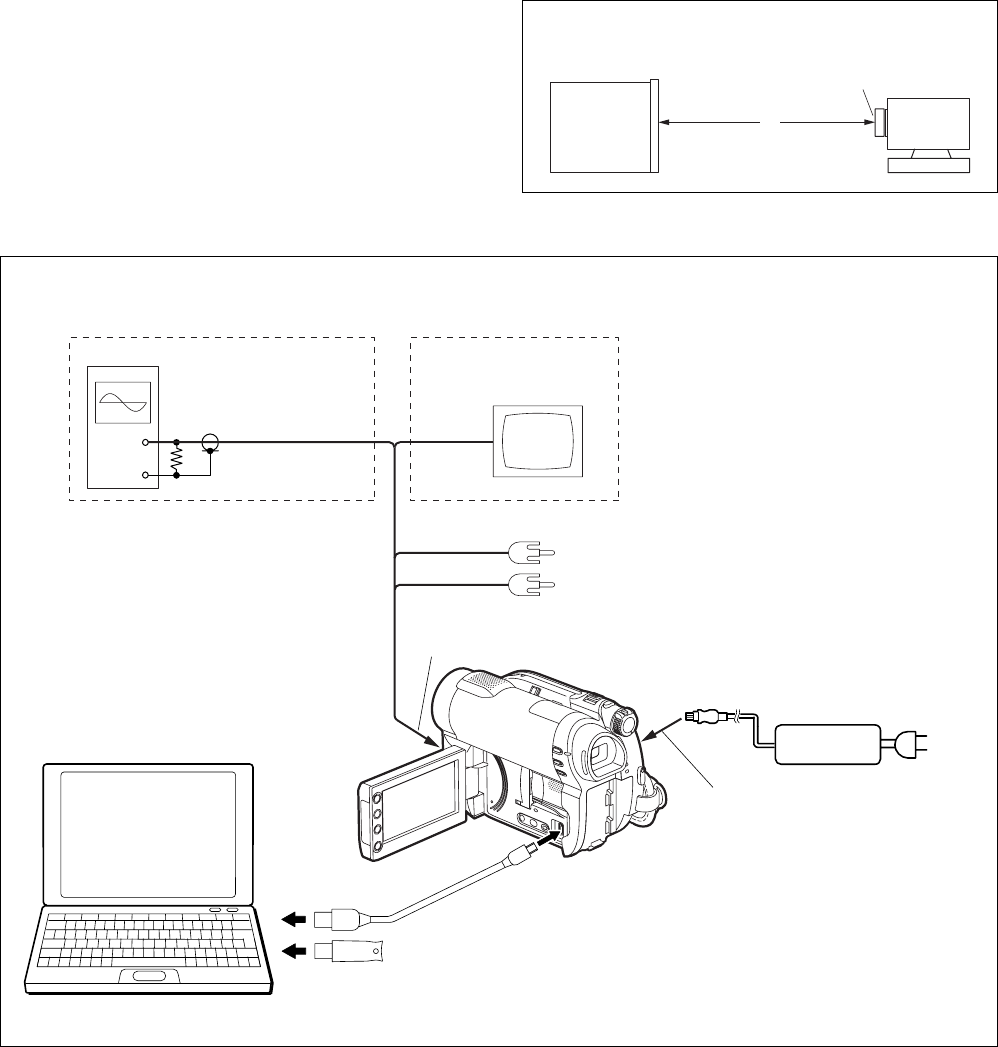

1. Connection
2. Adjust the distance so that the output waveform of
Fig. a and the Fig. b can be obtain.
When indicating parts by reference number, please
include the board name.
(For schematic diagrams)
•All capacitors are in µF unless otherwise noted. pF : µ
µF. 50 V or less are not indicated except for electrolytics
and tantalums.
•Chip resistors are 1/10 W unless otherwise noted.
kΩ=1000 Ω, MΩ=1000 kΩ.
•Caution when replacing chip parts.
New parts must be attached after removal of chip.
Be careful not to heat the minus side of tantalum
capacitor, Because it is damaged by the heat.
• Some chip part will be indicated as follows.
Example C541 L452
22U 10UH
TA A2520
•Constants of resistors, capacitors, ICs and etc with XX
indicate that they are not used.
In such cases, the unused circuits may be indicated.
•Parts with ★ differ according to the model/destination.
Refer to the mount table for each function.
•All variable and adjustable resistors have characteristic
curve B, unless otherwise noted.
•Signal name
XEDIT → EDIT PB/XREC → PB/REC
•2: non flammable resistor
•5: fusible resistor
•C: panel designation
•A: B+ Line
•B: B– Line
•J: IN/OUT direction of (+,–) B LINE.
•C: adjustment for repair.
(Measuring conditions voltage and waveform)
•Voltages and waveforms are measured between the
measurement points and ground when camera shoots
color bar chart of pattern box. They are reference values
and reference waveforms.
(VOM of DC 10 MΩ input impedance is used)
•Voltage values change depending upon input
impedance of VOM used.)
Kinds of capacitor
Case size
External dimensions (mm)
Yellow
AABBA=B
Fig. a (Video output terminal output waveform)
H
Cyan
Green
White
Magenta
Red
Blue
Fig.b (Picture on monitor TV)
CRT picture frame
Electronic beam scanning frame
THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS
(In addition to this, the necessary note is printed in each block)
Pattern box
Pattern box PTB-450
J-6082-200-A
or
Small pattern box
PTB-1450
J-6082-557-A
Color bar chart
For PTB-450:
J-6020-250-A
For PTB-1450:
J-6082-559-A
Pattern box Front of the lens
L = 1 m (PTB-450)
L = 40 cm (PTB-1450)
LCamera
Precautions for Replacement of Imager
•If the imager has been replaced, carry out all the adjustments
for the camera section.
•As the imager may be damaged by static electricity from
its structure, handle it carefully like for the MOS IC.
In addition, ensure that the receiver is not covered with
dusts nor exposed to strong light.
The components identified by mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0 sont
critiques pour la sécurité.
Ne les remplacer que par une pièce portant le numéro
spécifie.
4-3
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
4-2. SCHEMATIC DIAGRAMS
4-2. SCHEMATIC DIAGRAMS
ENGLISH JAPANESE
ENGLISH JAPANESE
(JAPANESE)
回路図共通ノート
（他に必要なノートは各ブロックに記載してあります）
【回路図ノート】
・ケミコン，タンタルを除くコンデンサで，耐圧50V以下のもの
はその耐圧を省略。単位はすべてμF（pはpF）。
・チップ抵抗で指示のないものは，1／10W以下。
kΩ＝1000Ω，MΩ＝1000kΩ
・チップ部品交換時の注意
取り外した部品は再使用せず，未使用の部品をご使用くださ
い。
タンタルコンデンサのマイナス側は熱に弱いため注意してくだ
さい。
・チップ部品には下記のように表示したものがあります。
 例 C 541 L 452
22U 10UH
TA A 2520
↑↑ ↑
種類 ケースサイズ 外形寸法（mm）
・抵抗，コンデンサ，ICなど定数にXXがあるものは，使用して
いない事を示しています。このため，使用していない回路が記
載されている事があります。
・★印のある部品は，機種などにより異なりますので機能別マウ
ント一覧表を参照してください。
・可変抵抗と半固定抵抗で，B特性の表示を省略。
・信号名表記について，下記のような場合があります。
XEDIT → EDIT     PB/XREC → PB/REC
・2は不燃性抵抗。
・1はヒューズ抵抗。
・Cはパネル表示名称。
・AはB＋ライン。
・BはB−ライン。
・JはBライン（＋，−）の入出力方向を示す。
・Cは調整名称。
【電圧・波形測定条件ノート】
・電圧値及び信号波形はパターンボックスのカラーバーチャート
を被写体としたときの測定点対アース間の参考値。
（デジタルマルチメータ；入力インピーダンス DC10MΩ使
用）
・使用テスタの入力インピーダンスにより電圧値が多少異なりま
す。
0印の部品，または0印付きの点線で囲まれた部品は，
安全性を維持するために重要な部品です。
従って交換時は，必ず指定の部品を使用して下さい。
お願い
図面番号で部品を指定するときは基板名又はブロック
を併せて指定して下さい。
1. 接続図
2. 図a及び図bの波形が得られるように画枠調整して下さい。
AABBA=B
図a（映像入出力端子出力波形）
図b（テレビモニタの映像）
H
黄
シ
ア
ン白
緑
マ
ゼ
ン
ダ赤青
ブラウン管の画像枠
電子ビーム走査線
イメージャ交換時の注意
・イメージャを交換した場合は，カメラ部の全調整を
行ってください。
・イメージャは構造上，静電気により破壊される恐れが
あるため，MOS ICと同様に注意して取り扱ってくだ
さい。
また，受光部にはゴミの付着，および強い光がはいる
ことのないように注意してください。
パターンボックス
Pattern box PTB-450
J-6082-200-A
or
Small pattern box
PTB-1450
J-6082-557-A
カラーバーチャート
For PTB-450:
J-6020-250-A
For PTB-1450:
J-6082-559-A
パターンボックス レンズ前面
L = 1 m (PTB-450)
L = 40 cm (PTB-1450)
Lカメラ
4-6
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/

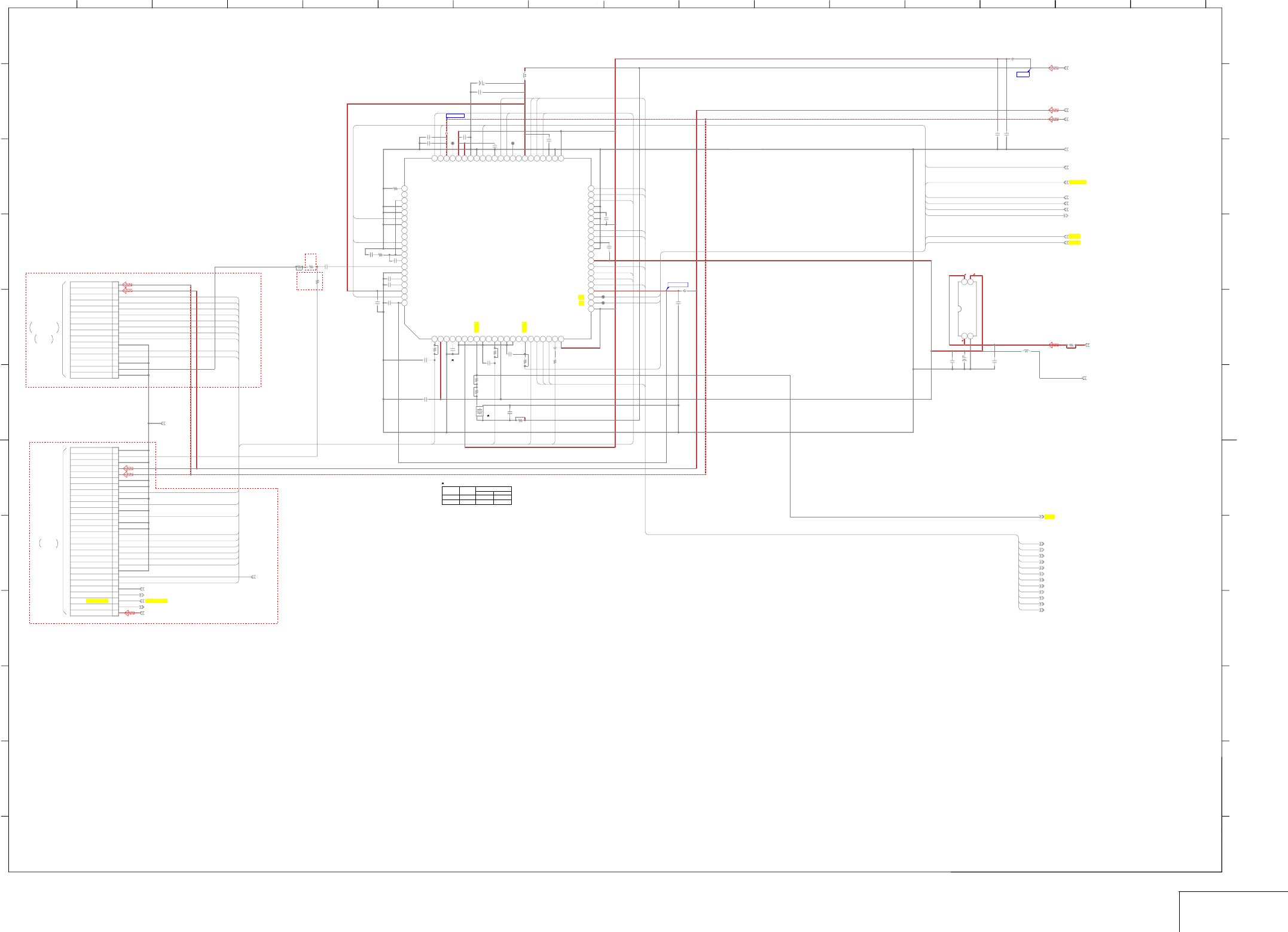

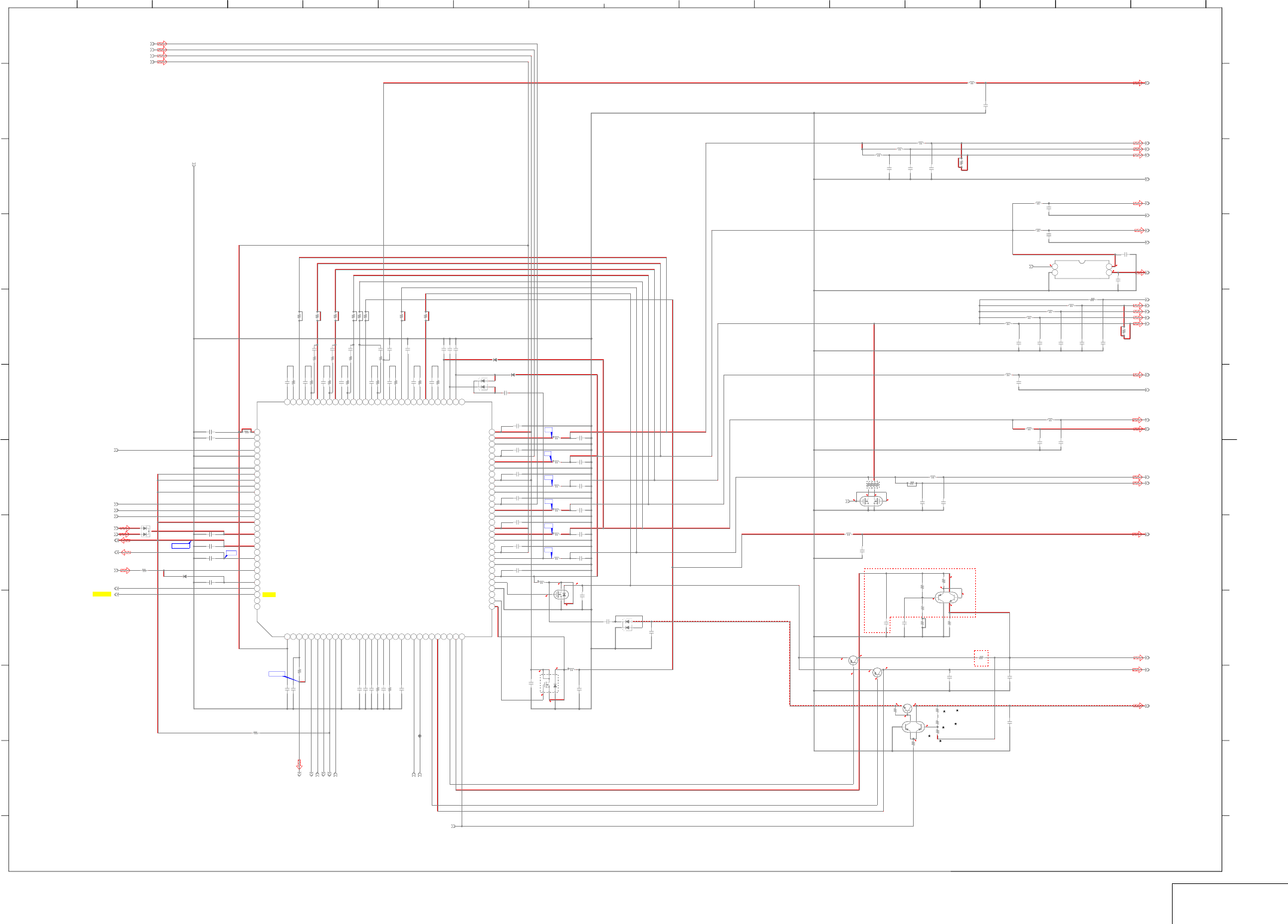

DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (1/20)
Non MEGA model
Non MEGA model
MEGA model
MEGA model
MEGA model
Non MEGA
model NTSC PAL
: Non MEGA model
: MEGA model
4.6
4.6 <3.4>
(2.9)
NO MARK:REC/PB MODE
( ):Non MEGA model
< >:MEGA model
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
B
C
9
A
I
H
F
5
F
L
3
H
K
G
13
J
C
7
A
62
I
E
16124
L
D
1
D
G
1511
K
B
E
14108
J
X1201 24MHz 33MHz 27MHz
0.001u
MARKED:MOUNT TABLE
C1213 0.01u 0.001u
CN7101
CD-731
Page 4-5
of Level 2
FP-838
FLEXIBLE
Page 4-5
of Level 2
2.9V REG
3.4V REG
XX MARK:NO MOUNT
A/D CONVERTER, TIMING GENERATOR
VC-520 BOARD (1/20)
YAW_AD
PITCH_AD
REG_GND
A_2.8V
GND
CCD_OUT+
GND
CAM_15V
CAM_-7.5V
GND
GND
RG
GND
H2
GND
H1
GND
GND
V1
V2
V3
V4
V5
V6
GND
RCSUB
SUB
SE_GND
PITCH_AD
VST_C_RESET
YAW_AD
SE_2.8V
05
R1114Q291D-TR-FA
IC1202
R1114Q341D-TR-FA
C1202
47p
CH
IC1201
A/D CONVERTER, TIMING GENERATOR
R2J45015AHBGW0
C1212
4.7u
B
C1221
0.1u
B
DVDD1
DVSS1
DVSS4
V5
D3
D0
AVDD1
ZSG1
MON2
V6
D1
DVSS12
LINE
DS_GATE
AVSS12
AVSS12
DVDD1
DVDD1
MON
VL
SDO
SUB
VDR_VDD
VD
HD
VH
D9
V3
V2
D8
DVDD4
HL
DVSS4
VM
D4
D6
DVDD2
DVSS4
DVSS4
DVSS4
V4
D5
D2
R1218
0
REG_GND
CCD_OUT
REG_GND
RG
VSHT
REG_GND
H1
H2
V1
V2
V3
V4
V5
V6
CAM_12.0V
CAM_-7.5V
Through the
Flexible Flat Cable
(FFC-133)
TG_HD
TG_VD
RG
CH_CS
CH_SO
SUB
AD5
CH_CS
SUB
AD10
AD13
CAM_DD_ON
AD11
AD2
AD11
V1
CH_SO
AD6
AD9
AD8
AD5
AD6
TG_HD
AD12
TG_HD
AD8
V5
AD12
CH_SCK
AD7
CH_SI
AD4
AD4
V4
AD9
CH_SI
AD3
AD10
TG_VD
AD13
TG_VD
AD7
V6
CH_SCK
V3
V2
AD2
V1
V3
V2
V6
V5
V4
AD3
CAM_DD_ON
XSYS_RST
H2
H1
RG
SUB
V6
V5
V4
V3
V2
V1
RG
H2
H1
H2
H1
XSYS_RST
R1203 33k
AD4
AD3
C1206
0.1u
B
CAM_15/12V
R1206
XX
CL1203
A1
H1
A2
DVDD5
A3
DVSS5
A4
DLLC
A5
DVSS3
A6
DVDD3
A7
OSC_O
A8
OSC_I
A9
SCAN
A10
NC
B1
H2
B2
DVDD5
B3
DVSS5
B4
DVSS5
B5
CLK_O
B6
RESET
B7
V1
B8
D7
B9
D11
B10
D10
C1
RG
C2
VDR_VDD
C3 C4 C5 C6 C7 C8 C9 C10 D1 D2 D3 D4 D8 D9 D10 E1 E2 E3 E8 E9 E10
F1F2F3F8F9F10G1G2G3G8G9G10H1H2H3H4H5H6H7H8H9H10
J1
BIAS
J2
ZV1
J3
SHC
J4
AVSS12
J5
AVSS12
J6
SCK
J7
LINECK
J8
ADCK
J9
ID
J10
SDI
K1
CCD_GND
K2
SHC
K3
FBC
K4
CCD_IN
K5
AVSS12
K6
VRT
K7
VRB
K8
AVDD2
K9
CS
K10
VHH
CL1202
X1201
C1215
XX
CH_CS
C1209 0.1u B
CH_SCK
C1230
XX
R1205
XX
CL1204
A_2.8V
R1211
XX
C1223
XX
C1207
0.1u
B
AD2
A_4.6V
C1213
C1211
0.1u
B
C1222
0.1u
B
CAM_DD_ON
CN1201 28P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
AD12
R1202
47
C1204
0.001u
B
R1204
XX
C1227
1u B
REG_GND
REG_GND
R1208
XX
AD8
C1233
1u
B
CL1201
CAM_-7.5V
AD5
CH_SO
AD13
R1201
0
AD11
AD10
CSUB
1
CE
2
GND
V_OUT
3
VCC
4
C1205
0.1u
B
C1217
XX
AD9
AD6
AD7
C1210
XX
C1220
4.7u
32
41
C1214
0.1u
C1203
0.1u
B
C1219
XX
CH_SI
C1225
4.7u
B
C1208
0.1u
B
FB1201
FB1203
C1201
47p
CH
R1212
47
C1231
4.7u
B
FB1204
FB1202
R1209
XX
C1216
22u
6.3V
TA
L1201
10uH
L1203
XX
D_2.8V_1
CN1203 16P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
R1219
XX
R1220
XX
C1228
22u
6.3V
A_2.8V
CAM_15/12V
CAM_-7.5V
VST_C_RESET
XSYS_RST
CHCK
4-7

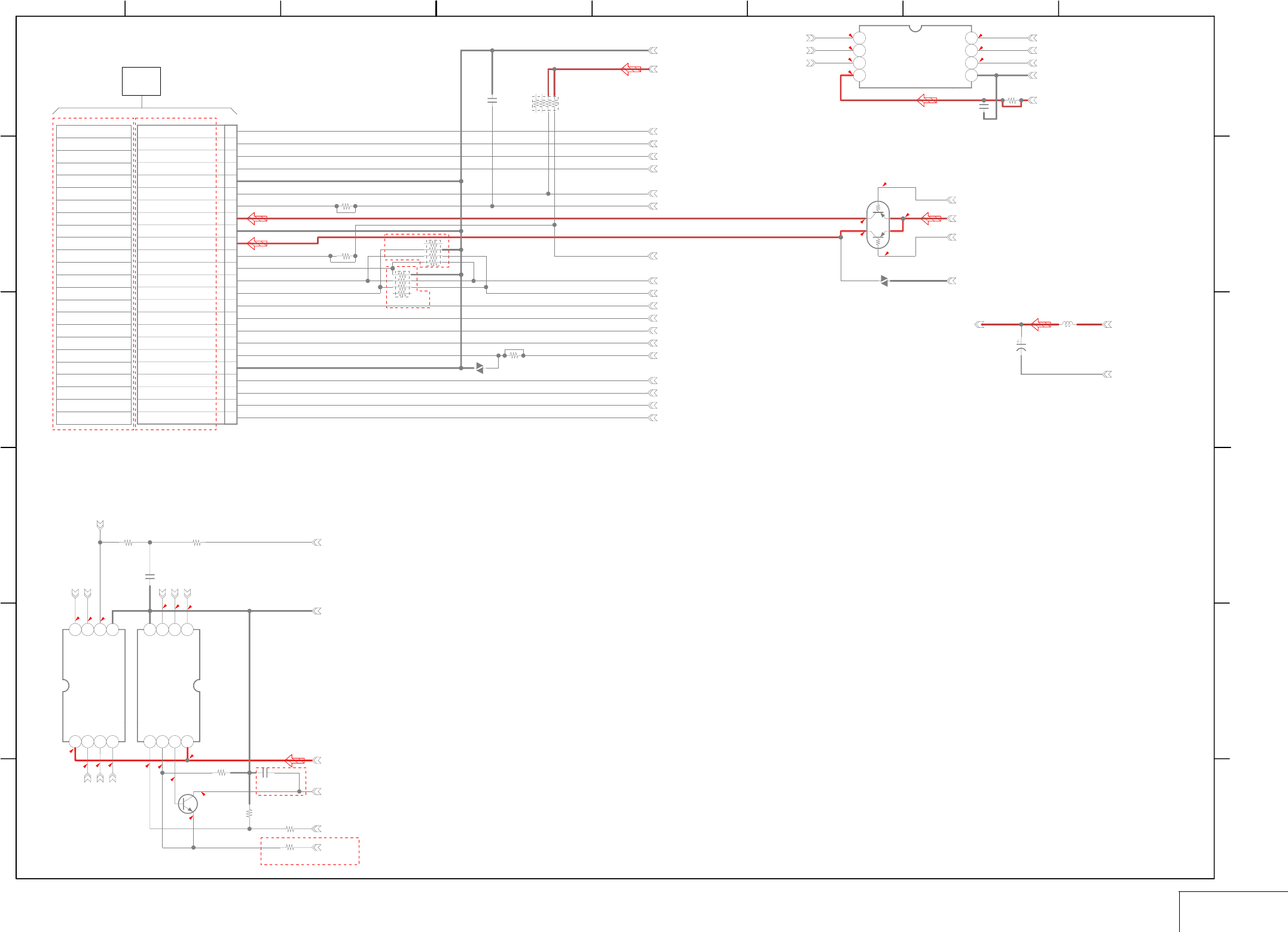

DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (2/20)
0.7
4.6
0.9
0.9
0.9
0.9
(1.1)<R0.5/P1.5>
(R1.3/P0)<R0.6/P0.2>
(R1.3/P0.3)<R0.5/P1.2>
(R0.3/P0 )<R1.3/P0>
0.1
0.1
0.1
0.6
( R1.3/P0.9)<1.2>
-0.9
-0.9
4.6
2.8
0
2.8
2.8
2.8
(0.8)<1.6>
(1)<1.2>
0.9
2.8
(1.9)<2.8>
: Non MEGA model
: MEGA model
: Non MEGA model
: MEGA model
: Non MEGA model
: MEGA model
Non MEGA model Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
Non MEGA model
MEGA model
MEGA model
LENS BLOCK is replaced as
block, so that there PRINTED
WIRING BOARD and SCHEMATIC
DIAGRAM are omitted.
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
MEGA model
MEGA model NO MARK:REC/PB MODE
R:REC MODE
P:PB MODE
( ):Non MEGA model
< >:MEGA model
A
D
7
CC
6
D
B
E
A
5
B
34
F
2
F
E
1 8
REG_GND
IC5103
NJM12904V(TE2)
123
4
5
B_IN+
6
B_IN-
7
B_OUT
8
Vcc
IC5102
NJM12904V(TE2)
1234
5
B_IN+
6
B_IN-
7
B_OUT
8
Vcc
OP1_B+
OP2_A-
OP2_AOUT
OP1_A-
OP1_A+
OP2_A+
OP1_B-
OP1_AOUT
OP1_BOUT
A_4.6V_LD
REG_GND
C5107
XX
ZM_RST
XNS_SW
L5101
4.7uH
IRIS_BIAS_-
RB5101
47k
12
34
56
78
FC_RST
REG_GND
ZOOM_XA
FOCUS_XA
FOCUS_XB
MT_5.0V
ZOOM_XB
IRIS_HALL_-
IRIS_DRIVE_+
ZOOM_B
IRIS_BIAS_+
IRIS_HALL_+
FOCUS_B
D_2.8V
IRIS_DRIVE_-
REG_GND
R5165XX
FOCUS_A
R5172
XX
MT_5.0V_LD
LENS_TEMP_AD
ZOOM_A
CAM_SO
REG_GND
A_2.8V
CAM_SCK
DA_STRB
1
AO1
2
AO2
3
AO3
4
VCC
5
GND
6
DI
7
CLK
8
LD
IRIS_PWM
R5135
22k
R5136
HALL_GAIN
R5137
10k
R5138
1k
R5139 330
R5140 22k
05
HALL_REF
Q5102
AMP
2SC5846G0LS0
C5106 0.1u
IRIS_BIAS_-
CN5101 24P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
C5101
4.7u
B
R5173
XX
C5104
33u
10V
VD5101
XX
VD5102
XX
RB5103
0
12
34
56
78
RB5102
0
12
34
56
78
R5174
XX
ZM_SENS_Vcc
GND
FOCUS_XB
FOCUS_B
GND
I_BIAS(-)
FC_XB
IRIS_BIAS(+)
IRIS_HALL(+)
IRIS_BIAS(-)
GND
ZOOM_A
FOCUS_XA
GND
THERMO_OUT
FOCUS_A
I_DRIVE(+)
ZM_SENSE_OUT
ZM_XB
I_BIAS(+)
FC_SENS_OUT
GND
FC_A
I_HALL(-)
ZM_SENS_OUT
ZM_A
I_DRIVE(-)
ZM_B
I_HALL(+)
ZOOM_B
IRIS_HALL(-)
IR_SWITCH_OUT
GND
GND
FC_SENSE_VCC
TEMP_OUT
GND
ZM_XA
ZOOM_XB
IR_SWITCH_OUT
IRIS_DRIVE(-)
ZM_SENSE_VCC
IRIS_DRIVE(+)
FC_XA
FC_SENSE_OUT
FC_B
ZOOM_XA
FC_SENS_Vcc
HALL BIAS/GAIN
CONTROL
HALL AMP,
HALL GAIN CONTROL
IRIS DRIVE,
HALL AMP
IRIS DRIVE,
HALL BIAS
CONTROL
22k
18k
LENS
BLOCK
XX MARK:NO MOUNT
LENS DRIVE, EVR
VC-520 BOARD (2/20)
A_OUT
A_IN-
A_IN+
GND
C5105
0.47u
B
A_OUT
A_IN-
A_IN+
GND
HALL_GAIN
HALL_REF
HALL_OFFSET
Q5101
UP04116G08S0
SENSOR SWITCH FC_RST_LED
ZM_RST_LED
D_2.8V
IC5101
NJW5210RB1
(D/A CONVERTER)
EVR
1
2
5
4
6
3
4-8
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (3/20)
4.8
4.8
2.8
0.2
0.2
R1.6/P0.1
R1.7/P4.2
R0.5/P0
0
R2/P0
0
R0.5/P0
4.8
0.2
0.2
R1.7/P0.1
R1.7/P0.1
0
R2.4/P0
0
NO MARK:REC/PB MODE
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
:Non MEGA model
R:REC MODE
P:PB MODE
R0.3/P0
R3.9/P4.9
3
G
6 9
F
B
H
7 10
C
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
D_2.8V
C5403
4.7u
B
C5409
0.001u
B
R5411 15k
R5403
1M
R5410
0
D5401
MA2S1110G8S0
R5405
220k
123456789101112
131415161718192021222324
C5411
XX
C5413
0.0022u
B
R5402
0R5415
47k
C5404
0.1u
B
C5410
0.01u
B
C5402
0.0047U
B
R5406
10k
C5405
0.1u
B
C5412
XX
C5401
XX
C5408
XX
R5404
2200
C5414
XX
RB5401
1k
12
34
56
78
R5409
0
R5412
0
R5414
0
C5407
0.047u
B
RB5402
470k
1
2
3
4
5
6
7
8
XX MARK:NO MOUNT
LENS DRIVE
VC-520 BOARD (3/20)
REG_GND
I_HALL_AD
DIR1A
IRIS_COM
MT_5.0V_LD
REG_GND
EN01
EN0
DIR0A
DIR1B
DIR0B
HALL_REF
HALL_OFFSET
D_2.8V
C5406
470p
B
OP1_B+
OP1_B-
OP1_BOUT
OP2_A-
OP2_AOUT
OP2_A+
OP1_A-
OP1_A+
OP1_AOUT
Q5401
RN1119FV(TL3SONY)
IRIS DRIVE
IC5401
R2A30406SP-W00T
FOCUS/ZOOM
MOTOR DRIVE
IN3
EN3
IN4
EN4
OUT4B
PGND
OUT3B
VM23
OUT2B
PGND
OUT1B
VDD
VM1
OUT 1A
PGND
OUT2A
OUT3A
PGND
OUT4A
VM4
IN1
EN1
IN2
EN2
FOCUS_B
ZOOM_XA
FOCUS_XA
FOCUS_XB
ZOOM_XB
ZOOM_B
FOCUS_A
ZOOM_A
IRIS_BIAS_+
IRIS_HALL_-
IRIS_DRIVE_+
IRIS_HALL_+
IRIS_DRIVE_-
REG_GND
05
4-9
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (4/20)
R0.1/
P3.2
R3.7/
P3.1 R0.8/P3.4
4.6
0.9
0.9
0.9
0.9
0.9
R0.8/P3.4
NO MARK:REC/PB MODE
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
MEGA model
R:REC MODE
P:PB MODE
3
G
6 9
F
B
H
7 10
C
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
HALL_OFFSET
A_4.6V_LD
HALL_REF
REG_GND
MT_5.0V_LD
R5314
5600
C5317
XX
R5316
180k
R5305
100k
C5311
0.01u
R5320
180k
R5310
180k
C5301
0.22u
C5302
0.1u
R5309
XX
L5301
10uH
C5313
0.001u
C5306
0.1u
B
C5312
XX
C5314
0.01u
C5303
1u
R5312
180k
C5310
XX
R5318
180k
C5308
0.1u
R5311
39k
G2
VCC
F7
DGND
F6
VREF
G7
VLIM
G3
RNFS
G4
RNF
D1
VM1
D7
VM2
A4
VM3
G5
VM4
C1
PGND1
E1
PGND1
C7
PGND2
E7
PGND2
F5
IN1
G6
EN1
E5
BR1
D3
IN2
E3
EN2
F1
BR2
D5
IN3
B6
EN3
A7
BR3
A6
IN4
C5A5A2C4B2C3A1C2G1E4D4F2
E2
OUT1B
D2
OUT2A
B1
OUT2B
D6
OUT3A
E6
OUT3B
B7
OUT4A
C6
OUT4B
B4
OUT5A
B5
OUT5B
B3
OUT6A
A3
OUT6B
F4
OUT7A
F3
OUT7B
C5315
4.7u
B
R5307
33k
R5302
100
R5301
10
R5322
10k
R5308
XX
R5306
4700
R5304
10k
C5307
0.033u
C5309
0.01u
C5305
0.033u
C5304
0.0033u
R5313
XX
1
A_OUT
2
A_IN-
3
A_IN+
4
GND
5
678
MA2S1110G8S0
C5316
XX
R5317
0
R5321
0
R5315
0
R5319
0
D5301
MT_5V
XX MARK:NO MOUNT
LENS DRIVE
VC-520 BOARD (4/20)
IC5301
LV8053LG-TLM-E
FOCUS/ZOOM
MOTOR DRIVE,
IRIS DRIVE
EN4
BR4
IN5
EN5
BR5
IN6
EN6
BR6
IN7
EN7
PS
OUT1A
D5302
MA2S1110G8S0 Q5301
IRIS DRIVE
2SC5846GOLSO R5303
100k
B_IN+
B_IN-
B_OUT
Vcc
IC5302
NJM12904V(TE2)
IRIS DRIVE
OP1_A+
OP1_A-
OP1_AOUT
OP2_A-
OP2_A+
OP2_AOUT
OP1_B-
OP1_BOUT
OP1_B+
REG_GND
MT_5.0V_LD
DIR0A
DIR1A
DIR1B
DIR0B
SHUTTER_ON
D_2.8V
REG_GND
A_4.6V
EN0
CAM_DD_ON
EN01
I_HALL_AD
HALL_REF
HALL_OFFSET
A_4.6V_LD
IRIS_DRIVE_-
IRIS_HALL_+
IRIS_DRIVE_+
IRIS_HALL_-
IRIS_BIAS_+
FOCUS_B
ZOOM_XA
FOCUS_XA
FOCUS_XB
ZOOM_XB
ZOOM_B
ZOOM_A
FOCUS_A
REG_GND
05
MT_5.0V_LD
D_2.8V
Ver. 1.1 2008.01
4-10
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/

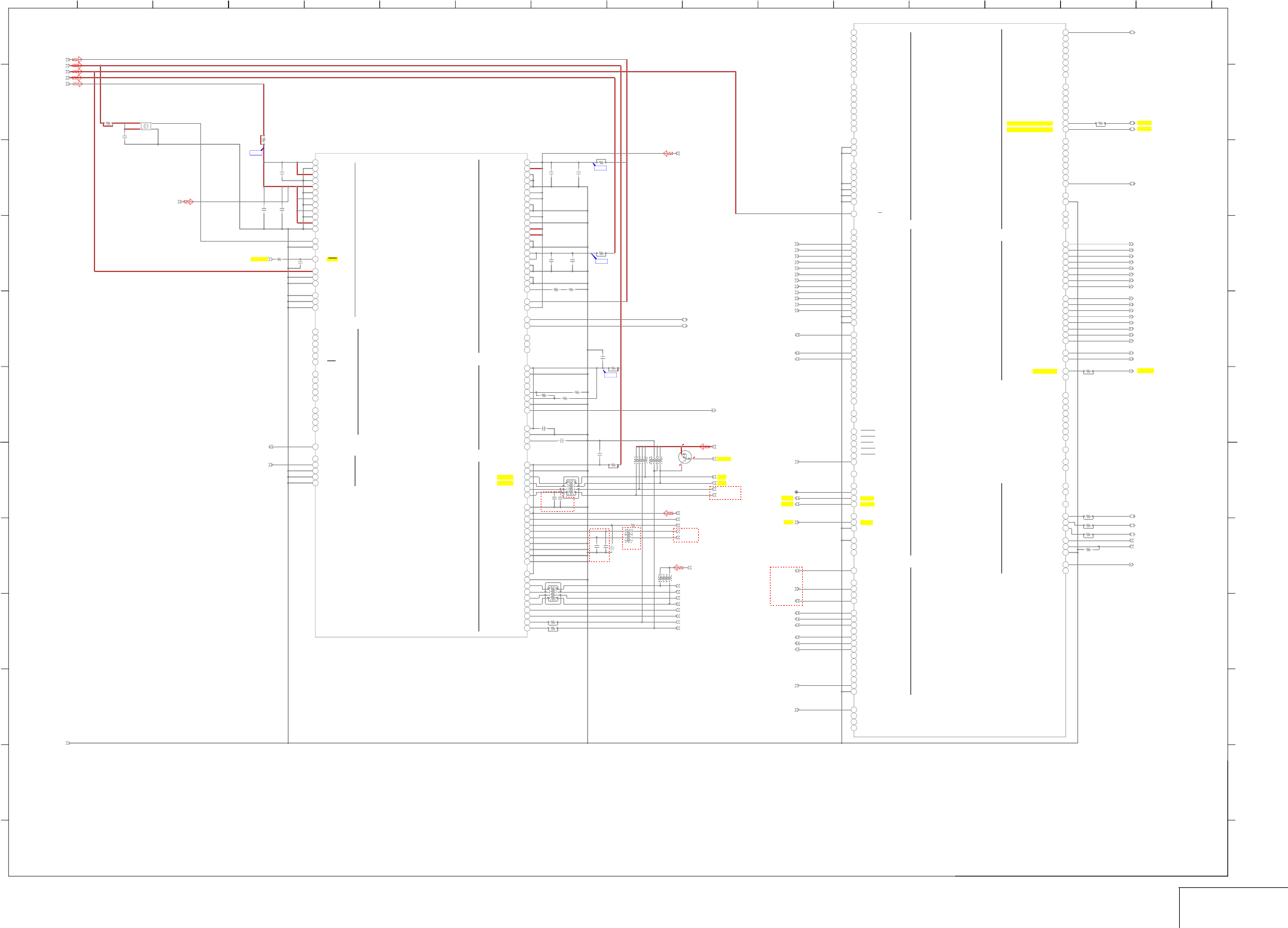

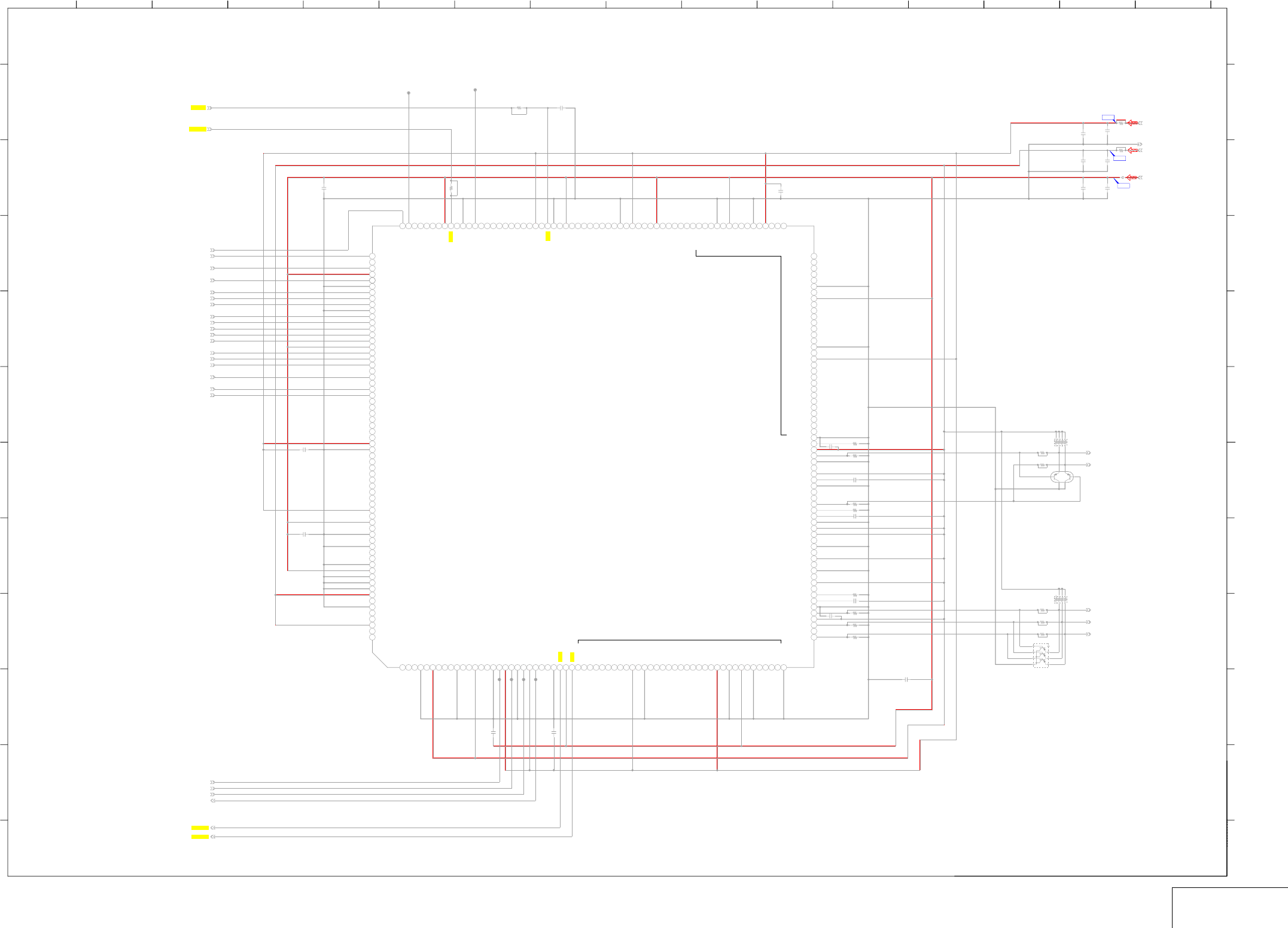

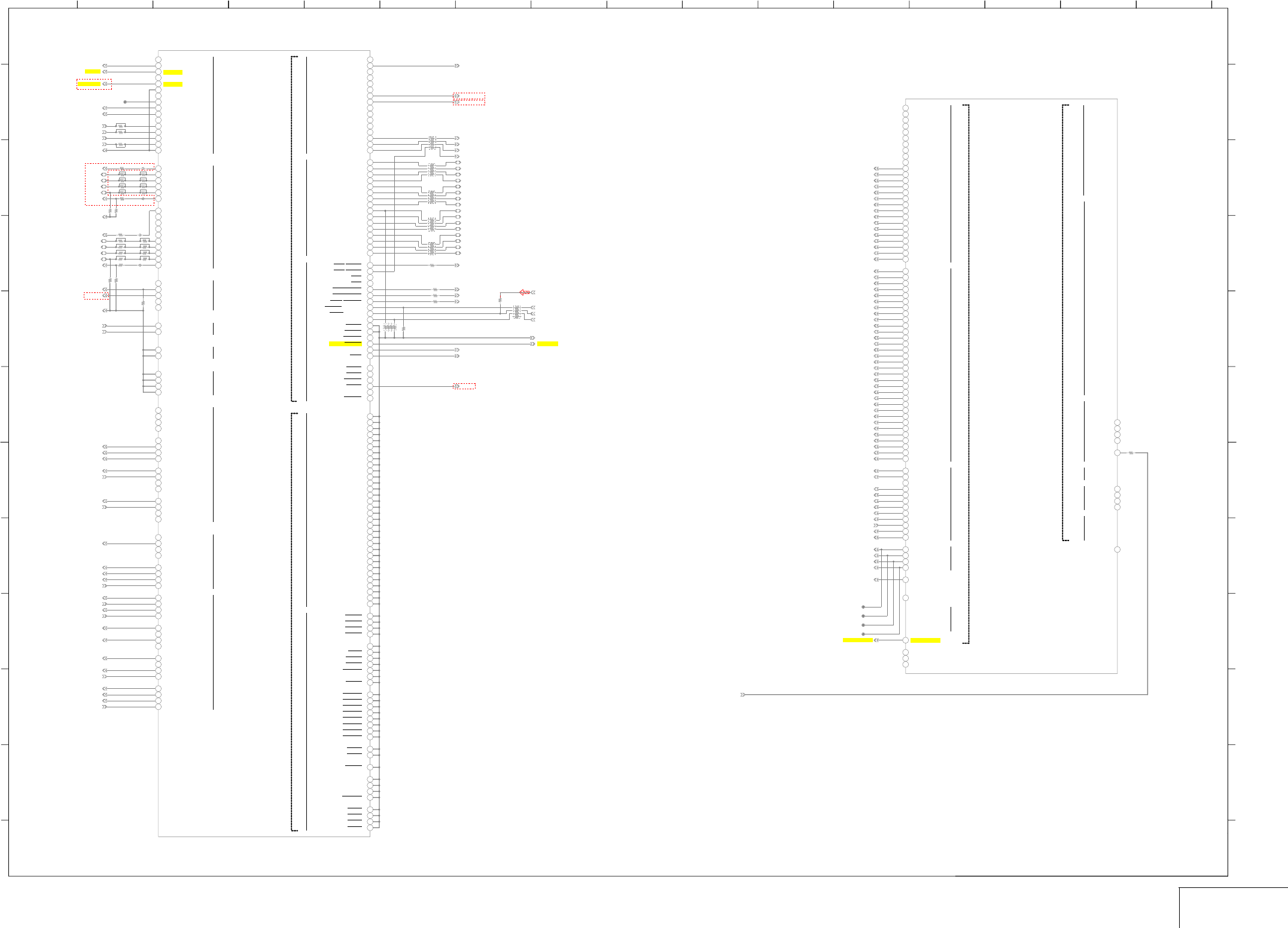

DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (5/20)
0
2.8
2.8
MEGA model
MEGA model
MEGA model
MEGA model
NO MARK:REC/PB MODE
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710EDVD810/DVD810E
MEGA model
MEGA model
B
C
9
A
I
H
F
5
F
L
3
H
K
G
13
J
C
7
A
62
I
E
16124
L
D
1
D
G
1511
K
B
E
14108
J
D_2.8V
D_3.3V
D_1.2V
A_2.8V
C1724
1u
B
C1717
0.001u
B
C1714
0.001u
B
C1720
0.01u
B
C1723
4.7u
B
C1702
0.001u
B
C1703
10p
CH
C1725
0.01u
B
C1726
0.01u
B
ZOOM_VR_AD
HOTSHOE_ID2
KEY_AD1
KEY_AD0
ADA_SOA1
HOTSHOE_ID1
REG_GND
05
KEY_AD3
ADA_SOA0
JACK_AD
KEY_AD2
D_2.8V
ADA_SIA0
SYS_SOUND
ADA_FCK
EVF_BL_ON
ADA_LRCK
ADA_BCK
A7
B7
A6
B6
E1
D1
G1
F1
H1
J1
K1
L1
B3
C2
G2
E3
V4
U3
W3
T4
W4
T3
V1
T2
U2
U1
T1
R1
R2
P2
P1
V2
AA4
AA1
AA3
Y1
AA2
AA32
AB32
V32
W32
Y32
V33
V34
U35
Y35
AA35
W34
AA33
AA34
Y33
Y34
AB33
AB34
AC32
AD32
AC33
AC34
AB35
AC35
U32
W35
V35
T34
U33
U34
R33
R32
N34
P34
R34
N35
P35
R35
P33
P32
N33
N32
AG33
AE33
AM35
AN34
AM34
AM33
AD35
AJ32
AL35
AK34
AL34
AK33
AG35
AF35
AK35
AL33
AG32
AD34
D2
H2
E2
F2
F3
AH35
AH34
AJ35
AH33
AG34
AF34
AJ34
AJ33
D15
C15
B17
B16
B15
A15
C16
D16
C17
D17
C19
C18
A19
D18
D19
B19
A16
A18
A20
A17
D20
C20
C21
B21
D21
B20
A21
A11
C11
B11
B12
D11
C13
B13
A12
C12
D13
A13
D12
C14
A14
B14
D14
G10
H13
G11
G12
G13
H11
H12
K10
H14
J10
H10
J11
G14
J15
G15
J16
H15
D6
C7
C6
A8
A9
C10
B10
D10
C9
D9
B9
D7
C8
D8
F4
M1
N3
N4
R4
N7
K8
M7
H8
L9
J8
L8
H9
P8
L7
K7
J7
A5
B5
AE32
AF32
AE35
AE34
D26
C26
C27
B26
B27
A26
A27
D27
C29
C28
D29
A28
A29
D28
B29
B28
A31
C30
A30
D31
B30
B31
C31
D30
A32
A25
D24
C33
B33
C34
D32
D34
D33
E34
D35
F33
E33
G33
E32
F34
F32
G34
G32
H35
G35
F35
E35
J32
K33
K32
L34
L33
L32
M33
M32
K34
K35
L35
H32
H33
J33
M29
M28
N29
N28
P29
P28
R29
R28
C25
D25
RB1704
10k
12
34
56
78
RB1703
XX
12
34
56
78
R1746 XX
R1745 XX
R1722 10k
R1724
100
R1739 XX
R1744 XX
R1721
620
R1725
1k
R1726
1k
R1717
1k
X1701
12MHz
1
43
2
D_2.8V
Q1701
UNR31AF00LS0
SELECT SWITCH
TOUCH PANEL
R1768 1k
I_HALL_AD
LENS_TEMP_AD
C1729
0.1u
B
YAW_AD
PITCH_AD
C1731
0.01u
C1730
0.01u
USB_D-
USB_D+
MEM_SEL1
MEM_SEL2
R1783
XX
R1787
XX
R1785
XX
R1784
XX
R1782
XX
R1781
XX
RB1705
100k
12
34
56
78
RB1707
1M
1
2
3
4
5
6
7
8
RB1706
4700
1
2
3
4
5
6
7
8
C1716
1u
B
C1715
1u
B
RB1701 XX
12
34
56
78
A_1.2V
R1737
XX
R1735 XX
R1736 XX
R1789 XX
C1709
0.001u
B
D_3.3V
A_2.8V
CAM Peripheral
GND GUARD
I2S I/F
Boot Mode
Select
PLL1_VCC
PLL1_GND
PLL2_GND
PLL2_VCC
PLL3_VCC
PLL3_GND
PLL4_VCC
PLL4_GND
PLL5_VCC
PLL5_GND
PLL6_VCC
PLL6_GND
CLK_SYS_IN
CLK_AUDIO_IN
RESET
PLL_MODE2
PLL_MODE1
PLL_MODE0
PLL_BYPASS
PCV
TESTMODE
TDI_1
TCK_1
TMS_1
TDO_1
RTCK_1
TRST/BKTGIO_1
TDI_0
TCK_0
TMS_0
TDO_0
BKTGIO_0
JTAG SEL[3]
JTAG SEL[2]
JTAG SEL[0]
JTAG SEL[1]
STABLE_RUN
BOOT_MODE[4]
BOOT_MODE[3]
BOOT_MODE[2]
BOOT_MODE[1]
BOOT_MODE[0]
VIN_Y[7]
VIN_C[7]
VIN_Y[6]
VIN_Y[5]
VIN_Y[4]
VIN_Y[3]
VIN_Y[2]
VIN_Y[1]
VIN_Y[0]
VIN_C[6]
VIN_C[4]
VIN_C[5]
VIN_C[2]
VIN_C[3]
VIN_C[0]
VIN_C[1]
DOLCE_VCLK_OUT
VIN_CLK_IN
EXT_CAM_CLK_IN
VIN_FLD
VIN_VD
VIN_HD
MILANO_FLD
MILANO_VD
MILANO_FD
EXT_CAM_VD
HD/SD_IN
STL_DATA[15]
STL_DATA[14]
STL_DATA/CCDIN_A[13]
STL_DATA/CCDIN_A[12]
STL_DATA/CCDIN_A[10]
STL_DATA/CCDIN_A[11]
STL_DATA/CCDIN_A[6]
STL_DATA/CCDIN_A[7]
STL_DATA/CCDIN_A[8]
STL_DATA/CCDIN_A[9]
STL_DATA/CCDIN_A[5]
STL_DATA/CCDIN_A[2]
STL_DATA/CCDIN_A[3]
STL_DATA/CCDIN_A[4]
STL_DATA/CCDIN_A[0]
STL_DATA/CCDIN_A[1]
STL_ADDR[11]
STL_ADDR[10]
STL_ADDR[9]
STL_ADDR[8]
STL_ADDR[7]
STL_ADDR[6]
STL_ADDR[5]
STL_ADDR[4]
STL_ADDR[3]
STL_ADDR[2]
STL_ADDR[1]
STL_ADDR[0]
STL_BS[1]
STL_BS[0]
STL_RAS
STL_CAS
STL_WE
STL_CS1
STL_CS0
STL_CKE
STL_CLK_OUT
STL_BUS_CTRL
CCD_FLD
CCD_FD
CCD_HD
CKTG_O
CKTG_I
CKTG_EXT
CK_AD
CLAMP_DUMMY
CLAMP_OPB
MSHUT_EN
STRB_ON1
STRB_ON2
CAM_V/STRB_ON3
VSUB_CONT
DIR0A
DIR0B
BRK0A/EN0
BRK0B
DIR1A
DIR1B
BRK1A/EN1
BRK1B
BRK2B
DIR2A
BRK2A/EN2
DIR2B
SENS1A
SENS1B
SENS0
SENS2
FG1A
FG1B
LCD_PDR[7]
LCD_PDR[6]
LCD_PDR[5]
LCD_PDR[4]
LCD_PDR[3]
LCD_PDR[2]
LCD_PDR[1]
LCD_PDR[0]
LCD_PDG/LCD_Y/LCD_SNE[7]
LCD_PDG/LCD_Y/LCD_SNE[6]
LCD_PDG/LCD_Y/LCD_SNE[5]
LCD_PDG/LCD_Y/LCD_SNE[4]
LCD_PDG/LCD_Y/LCD_SNE[2]
LCD_PDG/LCD_Y/LCD_SNE[3]
LCD_PDG/LCD_Y/LCD_SNE[0]
LCD_PDG/LCD_Y/LCD_SNE[1]
LCD_PDB/LCD_C[7]
LCD_PDB/LCD_C[6]
LCD_PDB/LCD_C[5]
LCD_PDB/LCD_C[4]
LCD_PDB/LCD_C[3]
LCD_PDB/LCD_C[2]
LCD_PDB/LCD_C[0]
LCD_PDB/LCD_C[1]
LCD_CLK_OUT
LCD_EXT_CLK_IN
LCD_HS
LCD_VS/SYS_V
LCD_PDEN
DR_VDATA[7]
DR_VDATA[6]
DR_VDATA[4]
DR_VDATA[5]
DR_VDATA[3]
DR_VDATA[2]
DR_VDATA[0]
DR_VDATA[1]
DR_GHDATA[3]
DR_GSDATA[3]
DR_GSDATA[2]
DR_GHDATA[2]
DR_GSDATA[1]
DR_GHDATA[1]
DR_GHDATA[0]
DR_GSDATA[0]
DR_GHPILOT
DR_GSPILOT/SYS_V
DR_VINCK_OUT
DR_SCK54_OUT
DATA[7]
DATA[6]
DATA[4]
DATA[5]
DATA[2]
DATA[3]
DATA[0]
DATA[1]
FLD
VCLK_OUT
SYSCLK_OUT
MCK_OUT
LRCK_INOUT
ADATA
256fs_OUT
BCK_OUT
LRCK_OUT
SDI0
SDI1
SDI2
SDO0
SDO1
GND GUARD
GND GUARD
GND GUARD
ADC
IC_2401 I/F
CAMIN I/F
LCD I/F
VIN I/F
USB I/F
JTAG PLL
ADC/DAC
XX MARK:NO MOUNT
CPU (SIGNAL PROCESS 1)
VC-520 BOARD (5/20)
IC1701
(1/6)
CXD4218GG-TL
CPU
IC1701 (2/6)
CXD4218GG-TL
CPU
AVDD1
AGND1
AVDD2
AGND2
AVDD3
AGND3
ADVDD
ADGND
DVDD
DVSS
GNDS
RREF
AVDD1
AGND1
AGND1
AVDD2
AGND2
ADVDD
ADGND
DVDD
DVSS
GNDS
VBUS
USB_ID
DP
DM
USB_VBUS_CHG
USB_VBUS_DISCHG
USB_VBUS_EN
AVCC
AVSSQ
VRH
VRL
VRN
VRP
AIN
AOUT
AVCC_DAC
AVSS_DAC
VREF
V_OUT
AVCC_ADC2
AVSS_ADC2
ADC2_IN1
ADC2_IN2
ADC2_IN3
ADC2_IN4
AVSS_ADC1
AVCC_ADC1
ADC1_IN1
ADC1_IN2
ADC1_IN3
ADC1_IN4
ADC1_IN5
ADC1_IN6
ADC1_IN7
ADC1_IN8
AVCC_ADC0
AVSS_ADC0
ADC0_IN1
ADC0_IN2
ADC0_IN3
ADC0_IN4
ADC0_IN6
ADC0_IN5
ADC0_IN7
ADC0_IN8
EXT_STROBE
SHUTTER_ON
DIR1A
EN01
DIR1B
EN0
ZM_RST
DIR0B
DIR0A
CSUB
FC_RST
DA_STRB
ZM_RST_LED
FC_RST_LED
XNS_SW
CL1717
AD10
AD12
AD11
AD13
AD6
AD8
AD7
AD9
AD2
AD4
AD3
AD5
DR_GSDATA0
DR_VDATA4
DR_VDATA0
DR_VDATA3
DR_GSDATA3
DR_VDATA2
DR_GHDATA3
DR_VDATA1
DR_GHPILOT
DR_VDATA6
DR_VDATA7
DR_VDATA5
DR_GSPILOT
DR_GHDATA0
IR_LED_ON
DR_GHDATA2
DR_GHDATA1
DR_GSDATA1
DR_GSDATA2
BOOT_MODE_PORT0
STABLE_RUN
A_2.8V
D_2.8V
D_3.3V
A_1.2V
D_1.2V
C1728
0.001u
B
C1705
4.7u
B
C1706
0.001u
B
±0.5% ±0.5%
±0.5% ±0.5%
±0.5%
A_1.2V
D_3.3V
D_1.2V
A_2.8V
TP_SEL2
TP_Y
TP_X
XSYS_RST
TG_HD
TG_VD
CHCK
TP_SEL1
TP_SEL2
DR_VINCK
4-11
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (6/20)
MEGA model
DVD410E/DVD810/DVD810E
Non MEGA model
MEGA model
DVD410E/DVD810/DVD810E
DVD410E/DVD810/DVD810E
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
B
C
9
A
I
H
F
5
F
L
3
H
05
K
G
13
J
C
7
A
62
I
E
16124
L
D
1
D
G
1511
K
B
E
14108
J
CL1801
REG_GND
MSX_CLK
IC1701
(4/6)
CXD4218GG-TL
AA8
Y7
W8
W9
U9
R9
AB8
T9
AA7
U10
Y8
Y10
W11
T11
V10
V9
T10
Y11
Y9
W12
W10
V11
U11
V12
U12
AA9
AG18
AF20
AJ19
AE19
AH18
AF19
AJ20
AE18
AF18
AH19
AH20
AE20
AG19
AH26
AJ21
AD18
AD19
AH25
AG20
AJ24
AH22
AG26
AG21
AH24
AG25
AH21
AF26
AJ23
AJ26
AH23
AJ25
AG15
AF17
AG11
AF10
AG10
AH15
AD17
AH16
AE17
AG16
AE16
AJ15
W25
W26
Y25
Y26
AG17
AH17
AF16
E5
E4
K4
T8
V7
V8
U8
U7
AC8
AB7
N8
M8
AG7
AJ22
IC1701
(3/6)
CXD4218GG-TL
J20
H20
G20
J21
H21
G21
H22
G22
H23
G23
H24
G24
H25
G25
H26
G26
AE28
AF28
AG28
AH28
AG29
AM31
AN32
AP31
AP32
AN31
AM32
AN30
AN33
AM30
AR32
V3
W1
W2
U4
Y2
Y4
Y3
AR12
AR13
AH2
AH1
AJ2
AJ1
U25
U24
T25
T26
R27
T27
U27
U26
G27
H27
H28
J27
K26
J25
J26
K27
A23
C23
D23
B23
G18
H19
G19
H18
A22
D22
B22
C22
J17
G17
K17
H17
M18
L19
M19
L18
L16
L17
M17
K16
AP10
AM7
AN10
AN7
AR11
AM8
AP11
AR10
AN9
AN11
AP9
AN8
AR9
AM11
AM10
AM9
AJ9
AM12
AJ10
AJ8
AH10
AH13
AH8
AJ14
AH9
AJ13
AJ11
AH11
AN12
AJ12
AH14
AH12
AL1
AM1
AL2
AK2
AM4
AN4
AM3
AK1
AJ4
AM2
AK4
AN3
AL3
AL4
AN6
AK3
AM5
AP5
AN5
AP6
AM6
AR6
AR26
AM22
AP26
AN22
AN27
AP22
AM27
AR22
AR27
AM23
AN23
AP23
AP27
AR23
AN28
AM24
AM28
AN24
AN26
AP28
AM26
AR28
AR25
AN29
AP25
AN25
AM29
AM25
AR29
AP24
AP29
AR24
AP15
AM17
AN16
AM16
AM15
AN13
AN14
AM13
AM14
AN15
AN17
AM20
AP17
AN20
AP18
AN18
AM18
AR18
AP21
AR19
AR21
AP19
AN19
AR16
AR17
AM19
AR20
AM21
AP20
AN21
AE29
R1803
1k
R1829
100k
R1830
5600
R1838
47k
RB1803
33
12
34
56
78
RB1801
82
12
34
56
78
RB1804
33
12
34
56
78
RB1805
33
12
34
56
78
RB1802
33
12
34
56
78
R1840 180
R1841 180
R1843 180
R1842 180
CL1802
CL1805
CL1803
CL1804
R1845
XX
R1844
120
FB1802
R1847 XX
R1846
XX
RB1806
10k
1
23
45
6
7
8
R1860 XX
R1858 XX
R1850 120
R1854 XX
R1855 120
R1857 XX
R1859 XX
R1853 XX
R1851 XX
R1852 XX
R1801
XX
MSX_BIO0
R1868 XX
MSX_BS
R1869 XX
R1865 120
MSX_BIO2
R1866 XX R1870 XX
R1862 XX R1867 XX
MSX_BIO1 R1863 XX
MSX_BIO3
R1864 XX
R1871 XX
R1872
XX
R1873
XX
FB1801
RB1807
22
FB1803
FB1804
SSP I2C SIRCS
Control Address/Data
MSX/MS I/FJOG
Control
UART
Data
PWM GPIO
Address
SIO
DDR
DQS DDR_Data
EMC_Data
EMC
Clock
DDR
DQM
EMC_Address
DDR_Control DDR_Address
EMC_Control
EMC
NAND
DDR
Clock
EMC_ADDR[24]
EMC_ADDR[25]
EMC_ADDR[23]
EMC_ADDR[22]
EMC_ADDR[21]
EMC_ADDR[20]
EMC_ADDR[18]
EMC_ADDR[19]
EMC_ADDR[15]
EMC_ADDR[14]
EMC_ADDR[16]
EMC_ADDR[17]
EMC_ADDR[13]
EMC_ADDR[12]
EMC_ADDR[10]
EMC_ADDR[11]
EMC_ADDR[7]
EMC_ADDR[6]
EMC_ADDR[8]
EMC_ADDR[9]
EMC_ADDR[5]
EMC_ADDR[4]
EMC_ADDR[2]
EMC_ADDR[3]
EMC_ADDR[1]
EMC_ADDR[0]
EMC_DATA[31]
EMC_DATA[30]
EMC_DATA[29]
EMC_DATA[26]
EMC_DATA[27]
EMC_DATA[28]
EMC_DATA[20]
EMC_DATA[23]
EMC_DATA[24]
EMC_DATA[22]
EMC_DATA[25]
EMC_DATA[21]
EMC_DATA[14]
EMC_DATA[17]
EMC_DATA[18]
EMC_DATA[9]
EMC_DATA[13]
EMC_DATA[10]
EMC_DATA[12]
EMC_DATA[11]
EMC_DATA[8]
EMC_DATA[16]
EMC_DATA[19]
EMC_DATA[15]
EMC_DATA[5]
EMC_DATA[3]
EMC_DATA[6]
EMC_DATA[4]
EMC_DATA[7]
EMC_DATA[0]
EMC_DATA[2]
EMC_DATA[1]
EMC_XOE
EMC_XRST
EMC_XCS[2]
EMC_XCS[1]
EMC_XCS[0]
EMC_XDQM[1]
EMC_XDQM[3]
EMC_XDQM[2]
EMC_XDQM[0]
EMC_XRAS
EMC_XCAS
EMC_CKE
EMC_CLK0_OUT
EMC_CLK0_IN
EMC_CLK1_IN
EMC_CLK1_OUT
EMC_RDY0
EMC_XWE
EMC_XRESET_OUT
F_CE0
F_XAVD
F_XRP
DDR_XWE
DDR_XCS[1]
DDR_XCS[0]
DDR_XRAS
DDR_CKE1
DDR_DQS[3]
DDR_DQS[2]
DDR_DQS[0]
DDR_DQS[1]
GPIO_S[15]
GPIO_S[14]
GPIO_S[12]
GPIO_S[13]
GPIO_S[10]
GPIO_S[11]
GPIO_S[9]
GPIO_S[8]
GPIO_S[6]
GPIO_S[7]
GPIO_S[5]
GPIO_S[4]
GPIO_S[0]
GPIO_S[1]
GPIO_S[3]
GPIO_S[2]
MS_BS
MS_BIO[3]
MS_CLK
MS_BIO[2]
MS_BIO[0]
MS_BIO[1]
MSX_BS
MSX_BIO[7]
MSX_CLK
MSX_BIO[6]
MSX_BIO[5]
MSX_BIO[4]
MSX_BIO[3]
MSX_BIO[2]
MSX_BIO[0]
MSX_BIO[1]
TPU0_OUT
SIR_TXD
SIR_RXD
I2C_SCK
I2C_SDA
TPU1_OUT
TPU2_OUT
TPU3_OUT
TPU4_OUT
JOG0_A/TPU0_INA
JOG1_A/TPU1_INA
JOG0_B/TPU0_INB
JOG1_B/TPU1_INB
UART0_TXD
UART0_RXD
UART0_CTS
UART0_RTS
UART1_TXD
UART1_RTS
UART1_CTS
UART1_RXD
UART2_RXD
UART2_CTS
UART2_RTS
UART2_TXD
UART3_TXD
UART3_RTS
UART3_CTS
UART3_RXD
SSP0_CLK
SSP0_FRM
SSP0_TXD
SSP0_RXD
SSP1_TXD
SSP1_RXD
SSP1_CLK
SSP1_FRM
SIO0_SCK
SIO0_SCS
SIO0_TXD
SIO0_RXD
SIO1_RXD
SIO1_SCK
SIO1_SCS
SIO1_TXD
SIO2_SCS
SIO2_SCK
SIO2_RXD
SIO2_TXD
SIO3_TXD
SIO3_RXD
SIO3_SCK
SIO3_SCS
TEMP
EXIO/CF/ATA I/FPCI I/F
CPU
EMC
DDR
CPU
CF_CE2/ATA_CS[1]
CF_CE1/ATA_CS[0]
CF_OE
CF_WE
EXIO/CF/ATA_IORD
EXIO/CF/ATA_IOWR
CF_REG/ATA_DMACK
CF_INPACK/ATA_DMARQ
CF_WAIT/ATA_IORDY
CF_RDY/ATA_TRQ
CF_BVD2/ATA_DASP
CF_BVD1/ATA_PDIAG
CF_WP/ATA_IOCS16
CF_Reset/ATA_RESET
EXIO_DIR
CF_DRV
XX MARK:NO MOUNT
CPU (SIGNAL PROCESS 2)
VC-520 BOARD (6/20)
EMC_ADDR[4]
EMC_ADDR[3]
EMC_ADDR[15]
EMC_ADDR[8]
EMC_ADDR[14]
EMC_ADDR[6]
EMC_ADDR[12]
EMC_ADDR[0]
EMC_ADDR[9]
EMC_ADDR[2]
EMC_ADDR[1]
EMC_ADDR[5]
EMC_ADDR[11]
EMC_ADDR[7]
EMC_ADDR[10]
EMC_DATA[31]
EMC_DATA[30]
EMC_DATA[29]
EMC_DATA[28]
EMC_DATA[27]
EMC_DATA[26]
EMC_DATA[25]
EMC_DATA[24]
EMC_DATA[23]
EMC_DATA[22]
EMC_DATA[21]
EMC_DATA[20]
EMC_DATA[19]
EMC_DATA[18]
EMC_DATA[17]
EMC_DATA[16]
EMC_DATA[15]
EMC_DATA[14]
EMC_DATA[13]
EMC_DATA[12]
EMC_DATA[11]
EMC_DATA[10]
EMC_DATA[9]
EMC_DATA[8]
EMC_DATA[7]
EMC_DATA[6]
EMC_DATA[5]
EMC_DATA[4]
EMC_DATA[3]
EMC_DATA[2]
EMC_DATA[1]
EMC_DATA[0]
EMC_XCS[1]
EMC_XCS[0]
EMC_XOE
EMC_XWE
EMC_XDQM[2]
EMC_XDQM[0]
EMC_XCAS
EMC_CLK0_OUT
EMC_CLK0_IN
EMC_CLK1_OUT
EMC_CLK1_OUT
EMC_ADDR[13]
EMC_XDQM[3]
EMC_XDQM[1]
EMC_CKE
EMC_RDY0
EMC_XRAS
EXIO_ADDR[15]
EXIO/CF_ADDR[10]
EXIO/CF_ADDR/ATA_ADDR[2]
EXIO/CF_ADDR/ATA_ADDR[1]
EXIO_ADDR[14]
EXIO/CF_ADDR[9]
EXIO/CF_ADDR[8]
EXIO_ADDR[13]
EXIO/CF_ADDR/ATA_ADDR[0]
EXIO/CF_ADDR[7]
EXIO_ADDR[12]
EXIO/CF_ADDR[6]
EXIO_ADDR[11]
EXIO/CF_ADDR[3]
EXIO/CF_ADDR[5]
EXIO/CF_ADDR[4]
EXIO/CF_DATA/ATA_DATA[15]
EXIO/CF_DATA/ATA_DATA[14]
EXIO/CF_DATA/ATA_DATA[13]
EXIO/CF_DATA/ATA_DATA[12]
EXIO/CF_DATA/ATA_DATA[11]
EXIO/CF_DATA/ATA_DATA[9]
EXIO/CF_DATA/ATA_DATA[10]
EXIO/CF_DATA/ATA_DATA[8]
EXIO/CF_DATA/ATA_DATA[7]
EXIO/CF_DATA/ATA_DATA[5]
EXIO/CF_DATA/ATA_DATA[6]
EXIO/CF_DATA/ATA_DATA[4]
EXIO/CF_DATA/ATA_DATA[3]
EXIO/CF_DATA/ATA_DATA[1]
EXIO/CF_DATA/ATA_DATA[2]
EXIO/CF_DATA/ATA_DATA[0]
EXIO_CS0
EXIO_CS1
EXIO_WAIT
EXIO_IRQ
EXIO_DREQ
EXIO_DACK
PCI_AD[31]
PCI_AD[30]
PCI_AD[29]
PCI_AD[28]
PCI_AD[27]
PCI_AD[26]
PCI_AD[25]
PCI_AD[24]
PCI_AD[23]
PCI_AD[22]
PCI_AD[21]
PCI_AD[20]
PCI_AD[19]
PCI_AD[18]
PCI_AD[17]
PCI_AD[16]
PCI_AD[15]
PCI_AD[14]
PCI_AD[13]
PCI_AD[12]
PCI_AD[11]
PCI_AD[10]
PCI_AD[9]
PCI_AD[8]
PCI_AD[7]
PCI_AD[6]
PCI_AD[5]
PCI_AD[4]
PCI_AD[3]
PCI_AD[2]
PCI_AD[1]
PCI_AD[0]
PCT_BE[3]
PCT_BE[2]
PCT_BE[0]
PCT_BE[1]
PCI_PAR
PCI_FRM
PCI_TRDY
PCI_SERR
PCI_DEVSEL
PCI_IDSEL
PCI_PERR
PCI_REQFS0
PCI_GNTTS0
PCI_GNTTS1
PCI_REQFS1
PCI_GNTTS2
PCI_GNTTS3
PCI_REQFS2
PCI_REQFS3
PCI_STOP
PCI_IRDY
PCI_RESET
PCI_CLKEN
PCI_CLKIN
PCI_CLKOUT
PCI_CLKRUN
PCI_INTA
PCI_INTB
PCI_INTC
PCI_INTD
FR_SO
XCS_EX
RXD_TO_IC_4201
BB_SI
XBB_SCK
CAM_SO
FR_SI
CAM_SCK
BB_SO
XFR_SCK
XCS_IC_4201
TXD_TO_IC_4201
XSCK_IC_4201
XHOT_STBY
CH_CS
CH_SCK
CH_SO
CH_SI
UART2_SI
UART3_SI
UART2_SO
XCS_IC_2401
UART3_SO
XCS_IC_2801/IC_2901
XCS_LCD
SIRCS_SIG
REG_GND
IRIS_PWM
PANEL_BL_ON
IRIS_COM
XVBUS_DET
MS_PWR_ON
XMS_ACC_LED
REG_GND
WD_DIS
PANEL_NOR/REV
PANEL_O/C
START/STOP
FM_BIO0
FM_BS
FM_CLK
FM_BIO2
FM_BIO1
FM_BIO3
REG_GND
SHOE_ON
CAM_DD_ON
ATA_D8
ATA_D13
ATA_D14
ATA_D10
ATA_D3
ATA_D12
ATA_D15
XATA_CS1
ATA_D1
ATA_A0
ATA_D4
ATA_A1
ATA_D11
ATA_D2
ATA_D0
ATA_D6
ATA_D9
ATA_A2
ATA_D7
XATA_CS0
ATA_D5
XATA_DMACK
XATA_DIOR
XATA_DIOW
FM_PWR_ON
XPHOTO_LED
XFM_IN
XQUICKREC_LED
ATA_IORDY
ATA_INTRQ
ATA_DMARQ
D_2.8V
REG_GND
21
43
65
8
7
XBB_RST
VST_C_RESET
XATA_RESET
EMC_XRESET_OUT
4-12
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (7/20)
3
G
6 9
F
B
H
7 10
C
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
C2043
2.2u
B
C2042
2.2u
B
C2039
2.2u
B
C2038
2.2u
B
C2019
0.1u
B
C2015
0.001u
B
D_1.2V
D_2.8V
D_2.8V
D_1.8V
D_3.3V
A_2.8V
D_2.8V
D_1.2V
REG_GND
05
D_2.8V
D_2.8V
D_2.8V
D_2.8V
D_1.8V
D_1.8V
IC1701 (5/6) CPUCXD4218GG-TL
AD3
AD4
AE3
AE4
AN2
AP3
AP4
AR4
AR5
AR7
M34
AF33
AD33
J2
J3
J4
G4
H3
H4
R8
T7
AD7
AD8
P7
R7
AE7
AE8
AF2
AF3
AF4
AG1
AG2
AG3
AG4
AE1
AF1
AC1
AD1
K28
K29
L29
B32
C32
J28
J29
AE9
AF9
AG8
AG9
U28
U29
V28
V29
Y28
Y29
AA28
AA29
AC28
AC29
V24
V25
V26
W24
AJ16
AJ17
AJ18
AR15
G9
L3
J9
AF29
AP33
H34
J34
J35
AG27
AH27
AJ27
AP14
AR14
L2
M2
T35
N1
N2
P3
P4
R3
A24
B24
C24
B18
G16
H16
A1
A35
AR1
AR35
G3
IC1701 (6/6) CPU
CXD4218GG-TL
D3
D4
D5
K20
L4
L20
L28
M3
M4
W27
W28
W29
Y27
AA27
AC2
AC3
AD28
AF7
AF8
AP7
AP30
A2
A3
A4
A10
A33
A34
B1
B2
B4
B8
B25
B34
B35
C1
C3
C4
C5
C35
G7
G8
G28
G29
H7
H29
J18
J19
K2
K3
K9
K18
K19
L27
M35
T28
T29
T32
T33
V27
W7
W33
AB1
AB2
AB3
AB4
AB28
AB29
AC7
AD2
AD29
AE2
AE27
AF27
AH3
AH4
AH7
AH29
AH32
AJ3
AJ7
AJ28
AJ29
AK32
AL32
AN1
AN35
AP1
AP2
AP8
AP12
AP13
AP16
AP34
AP35
AR2
AR3
AR8
AR30
AR31
AR33
AR34
AC4
D_1.2V
R2001 XX
A_2.8V
C2017
0.001u
C2045
4.7u
B
R2014 XX
R2013 XX
R2012 XX
R2011 XX
R2015 XX
C2014
0.001u
B
A_1.2V
D_1.8V
R2016 XX
D_2.8V
D_2.8V
R2017 XX
ALGCOREVDDT
ALGCOREVDDT
ALGCOREVDDT
ALGCOREVDDT
ATAIOVDD
ATAIOVDD
ATAIOVDD
ATAIOVDD
ATAIOVDD
ATAIOVDD
AUDIOVDD
AVCC_PI
AVSS_PI
CAMCOREVDDT
CAMCOREVDDT
CAMCOREVDDT
CAMINIOVDD
DDRVDDQ
DDRVDDQ
DDRVDDQ
DDRVDDQ
DDRVDD
DDRVDD
DDRVDD
DDRVDD
DDRIOVDD
DDRIOVDD
DDRIOVDD
DDRIOVDD
DDRIOVDD
DDRIOVDD
DDRIOVDD
DLL1_VCC
DLL1_GND
DLL2_VCC
DLL2_GND
DRIOVDD
DRIOVDD
DRIOVDD
LCDIOVDD
LCDIOVDD
LCDIOVDD
LCDIOVDD
MPGCOREVDDT
MPGCOREVDDT
MPGCOREVDDT
MPGCOREVDDT
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREVDD
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
COREGND
CAMINIOVDD
CAMINIOVDD
CAMINIOVDD
XX MARK:NO MOUNT
CPU (POWER SUPPLY)
VC-520 BOARD (7/20)
D_1.8V
D_2.8V
D_1.2V
A_2.8V
D_1.2V
D_2.8V
A_2.8V
D_1.2V
D_1.8V
D_1.2V
D_1.8V
D_2.8V
D_2.8V
D_1.2V
S_VDDQ
S_VDDQ
S_VDDQ
S_VDDQ
S_VDD
S_VDD
F_VCCQ
F_VCCQ
F_VCC
F_VCC
EMCIOVDD
EMCIOVDD
EMCIOVDD
EMCIOVDD
EMCIOVDD
EMCIOVDD
EMCIOVDD
I2CIOVDD
GCIOVDD
GCCOREVDD
GCCOREGND
MSIOVDD
MSXIOVDD
NICEIOVDD
NICEIOVDD
NICEIOVDD
PCIIOVDD
PCIIOVDD
PCIIOVDD
PCIIOVDD
PCIIOVDD
PLLTOPCOREVDDT
PLLTOPCOREVDDT
USBIOVDD
PERIIOVDD1
PERIIOVDD1
PERIIOVDD2
PERIIOVDD2
PERIIOVDD2
PERIIOVDD3
PERIIOVDD3
PERIIOVDD3
VINIOVDD
VINIOVDD
VINIOVDD
C2024
0.001u
B
C2025
0.001u
B
C2026
0.001u
B
C2032
0.001u
B
C2034
0.001u
B
C2031
0.001u
B
C2033
0.001u
B
C2010
0.001u
B
C2003
0.001u
B
C2012
0.001u
B
C2013
0.001u
B
C2002
0.001u
B
C2006
0.001u
B
A_2.8V
D_1.2V
D_1.8V
D_2.8V
4-13
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (8/20)
Note: IC2101 is not supplied, but this
included in VC-520 complete board.
3
G
6 9
F
B
H
7 10
C
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
EMC_ADDR[6]
EMC_ADDR[8]
EMC_XWE
EMC_XOE
EMC_ADDR[1]
EMC_XCAS
EMC_ADDR[2]
EMC_ADDR[3]
EMC_XDQM[3]
EMC_ADDR[9]
EMC_ADDR[5]
EMC_ADDR[4]
EMC_ADDR[8]
EMC_ADDR[7]
EMC_ADDR[11]
EMC_ADDR[6]
EMC_ADDR[2]
EMC_ADDR[0]
EMC_ADDR[1]
EMC_ADDR[3]
EMC_ADDR[10]
EMC_ADDR[15]
EMC_ADDR[14]
EMC_ADDR[12]
EMC_ADDR[9]
EMC_ADDR[13]
EMC_ADDR[1]
EMC_ADDR[3]
EMC_ADDR[6]
EMC_ADDR[8]
EMC_ADDR[12]
EMC_ADDR[2]
EMC_ADDR[5]
EMC_ADDR[10]
EMC_ADDR[14]
EMC_ADDR[4]
EMC_ADDR[7]
EMC_ADDR[15]
EMC_ADDR[0]
EMC_ADDR[11]
EMC_XWE
EMC_XDQM[2]
EMC_XDQM[0]
EMC_XDQM[1]
EMC_DATA[15]
EMC_DATA[14]
EMC_DATA[13]
EMC_DATA[29]
EMC_DATA[12]
EMC_DATA[30]
EMC_DATA[31]
EMC_DATA[28]
EMC_DATA[27]
EMC_DATA[11]
EMC_DATA[10]
EMC_DATA[26]
EMC_DATA[25]
EMC_DATA[9]
EMC_DATA[8]
EMC_DATA[24]
EMC_DATA[6]
EMC_DATA[7]
EMC_DATA[4]
EMC_DATA[5]
EMC_DATA[18]
EMC_DATA[19]
EMC_DATA[23]
EMC_DATA[22]
EMC_DATA[3]
EMC_DATA[16]
EMC_DATA[17]
EMC_DATA[20]
EMC_DATA[21]
EMC_DATA[1]
EMC_DATA[2]
EMC_DATA[0]
EMC_DATA[2]
EMC_DATA[3]
EMC_DATA[11]
EMC_CKE
EMC_XCS[1]
EMC_XRAS
EMC_XRAS
EMC_CLK0_OUT
EMC_ADDR[11]
EMC_CLK0_OUT
EMC_XCS[1]
EMC_ADDR[13]
EMC_ADDR[4]
EMC_ADDR[7]
EMC_ADDR[10]
EMC_ADDR[14]
EMC_ADDR[9]
EMC_ADDR[15]
EMC_ADDR[0]
EMC_ADDR[12]
EMC_ADDR[5]
EMC_DATA[0]
EMC_XWE
EMC_XRESET_OUT
EMC_RDY0
EMC_XCS[0]
EMC_CKE
D_1.8V
D_1.8V
EMC_CLK1_OUT
A1
DNU
B1
DNU
B2
NC
B14
DNU
C1
DNU
C2
S_Vssd
C3
NC
C13
NC
C14
DNU
D2
S_Vdd
D3
S_A9
D4
S_A5
D12
NC
D13
S_DQ15
E2
S_A4
E3
S_A8
E4
S_A7
E5
S_A11
E11
NC
E12
S_DQ14
E13
S_DQ13
F2
NC
F3
S_CKE
F4
S_A6
F5
S_DQ29
F10
NC
F11
S_DQ12
F12
NC
F13
S_DQM1
G2
S_DQ30
G3
S_DQ31
G4
S_DQ28
G5
S_DQ27
G10
S_DQ11
G11
S_DQ10
S_Vssq
G12
S_Vddq
G13
S_Vssq
H2
S_Vddq
H3
S_DQ26
H4
S_DQ25
H5
S_DQ9
H10
S_DQ8
H11
S_Vddq
H12
S_Vssq
H13
DNU
J1
K1 K2 K3 K4 K5 K10 K11 K12 K13 K14 L1 L2 L3 L4 L5 L10 L11 L12 L13 L14 M2 M3 M4 M5 M10 M11 M12 M13 N2 N3 N4 N5 N11 N12 N13 P2 P3
S_Vddq
J2
S_Vssq
J3
S_DQ24
J4
S_DQM3
J5
S_/WE
J10
S_/CAS
J11
S_/RAS
J12
S_/CS
J13
DNU
J14
P4 P5 P6 P12 P13 R2 R3 R4 R5 R12 R13 T2 T3 T13 U1 U2 U13 U14
IC2101 (2/2)
K5R1213ACB-DK75T 512M OneNAND FLASH
A2
DNU
A3
DNU
A12
DNU
A13
DNU
A14
DNU
B3
NC
B4
NC
B5
NC
B6
NC
B7
NC
B8
F_Vsso
B9
NC
B10
F_A9
B11
F_A13
B12
NC
B13
NC
C4
F_A1
C5
F_A3
C6
F_A6
C7
NC
C8
F_Vcc
C9
NC
C10
F_A8
C11
F_A12
C12
NC
D5
F_A2
D6
F_A5
D7
NC
D8
NC
D9
NC
D10
F_A10
D11
F_A14
E6
F_A4
E7
F_A7
E8
F_/RP
F_A15
E9
NC
E10
F_A0
F6
NC
F7
F_A11
F8
NC
F9
F_/OEo
N10
F_/WEo
P7
F_DQ2
P8
F_DQ3
P9
F_DQ11
P10
P11 R6 R7 R8 R9 R10 R11 T4 T5 T6 T7 T8 T9 T10 T11 T12 U3 U4 U5 U6 U7 U8 U9 U10 U11 U12 V1 V2 V3 V4 V5 V6 V7 V8 V9 V10 V11 V12 V13 V14 W1 W2 W3 W12 W13 W14
R2104
22
R2105
XX
C2104
0.1u
B
CL2101
CL2102
REG_GND
EMC_ADDR[4]
EMC_ADDR[3]
EMC_ADDR[8]
EMC_ADDR[6]
EMC_ADDR[2]
EMC_ADDR[1]
EMC_ADDR[11]
EMC_ADDR[10]
CL2104
EMC_XCS[0]
EMC_XRAS
R2106
1k
C2107
XX
EMC_ADDR[13]
EMC_ADDR[12]
EMC_ADDR[0]
EMC_ADDR[15]
EMC_ADDR[9]
EMC_ADDR[14]
EMC_ADDR[5]
EMC_ADDR[7]
CL2103
R2108
XX
R2107
XX
C2108
XX
D_1.8V
C2109
4.7u
B
D_1.8V
RB2102
47k
1
2
3
4
5
6
7
8
XX MARK:NO MOUNT
SDRAM, OneNAND FLASH
VC-520 BOARD (8/20)
EMC_XDQM[3]
EMC_XDQM[0]
EMC_XRAS
EMC_XDQM[2]
EMC_XOE
EMC_XCS[1]
EMC_XCAS
EMC_XDQM[1]
EMC_XWE
EMC_XRESET_OUT
EMC_RDY0
EMC_CKE
EMC_DATA[22]
EMC_DATA[25]
EMC_DATA[24]
EMC_DATA[28]
EMC_DATA[26]
EMC_DATA[30]
EMC_DATA[19]
EMC_DATA[20]
EMC_DATA[29]
EMC_DATA[23]
EMC_DATA[27]
EMC_DATA[31]
EMC_DATA[8]
EMC_DATA[10]
EMC_DATA[11]
EMC_DATA[14]
EMC_DATA[15]
EMC_DATA[16]
EMC_DATA[21]
EMC_DATA[1]
EMC_DATA[3]
EMC_DATA[6]
EMC_DATA[2]
EMC_DATA[5]
EMC_DATA[4]
EMC_DATA[7]
EMC_DATA[9]
EMC_DATA[12]
EMC_DATA[18]
EMC_DATA[13]
EMC_DATA[17]
EMC_DATA[0]
EMC_DATA[1]
EMC_DATA[3]
EMC_DATA[6]
EMC_DATA[8]
EMC_DATA[10]
EMC_DATA[11]
EMC_DATA[14]
EMC_DATA[16]
EMC_DATA[15]
EMC_DATA[21]
EMC_CLK0_OUT
EMC_CLK0_IN
EMC_CLK1_OUT
EMC_CLK1_OUT
EMC_DATA[0]
EMC_DATA[2]
EMC_DATA[5]
EMC_DATA[4]
EMC_DATA[7]
EMC_DATA[9]
EMC_DATA[12]
EMC_DATA[18]
EMC_DATA[13]
EMC_DATA[17]
EMC_DATA[25]
EMC_DATA[28]
EMC_DATA[30]
EMC_DATA[22]
EMC_DATA[24]
EMC_DATA[26]
EMC_RDY0
EMC_XRAS
EMC_XDQM[3]
EMC_XCS[1]
EMC_XDQM[2]
EMC_XDQM[0]
EMC_XOE
EMC_DATA[19]
EMC_DATA[20]
EMC_DATA[29]
EMC_DATA[23]
EMC_DATA[27]
EMC_DATA[31]
EMC_XCAS
EMC_XWE
EMC_XDQM[1]
EMC_CKE
C2105
0.1u
B
C2106
0.1u
B
IC2101 (1/2)
K5R1213ACB-DK75T 512M SDRAM
DNU
S_Vssd
S_Vdd
NC
S_A12
S_Vssd
S_CLK
NC
NC
DNU
DNU
S_Vssq
S_Vddq
S_BA0
S_BA1
S_DQ6
S_DQ7
S_Vddq
S_Vssq
DNU
S_Vddq
S_Vssq
S_DQM2
NC
S_DQ4
S_DQ5
S_Vssq
S_Vddq
S_DQ18
S_DQ19
S_DQ23
S_DQ22
S_DQ3
NC
S_DQM0
S_DQ16
S_DQ17
S_DQ20
S_DQ21
S_A10
S_DQ1
S_DQ2
NC
S_A3
S_A1
S_A0
S_DQ0
NC
NC
S_A2
S_Vdd
DNU
S_Vdd
S_Vssq
DNU
F_INTo
F_RDY
F_DQ9
F_DQ10
F_DQ4
F_DQ5
F_DQ13
F_CLK
F_/AVD
F_DQ1
F_Vccq
F_Vccq
F_DQ12
F_Vccq
F_DQ6
F_DQ14
F_/CEo
NC
NC
F_DQ8
NC
NC
NC
F_Vccq
F_DQ7
F_DQ15
DNU
F_Vsso
F_Vcc
NC
F_DQ0
NC
NC
NC
NC
NC
NC
F_Vcc
F_Vsso
DNU
DNU
DNU
DNU
DNU
DNU
DNU
C2102
0.1u
B
C2101
0.1u
B
EMC_DATA[9]
EMC_DATA[10]
EMC_DATA[4]
EMC_DATA[5]
EMC_DATA[13]
EMC_DATA[1]
EMC_DATA[12]
EMC_DATA[6]
EMC_DATA[14]
EMC_DATA[8]
EMC_DATA[7]
EMC_DATA[15]
EMC_DATA[0]
EMC_RDY0
EMC_CLK1_OUT
EMC_XRESET_OUT
C2103
0.1u
B
C2112
47u
4V
TA
05
D_1.8V
D_1.8V
XFLASH_RST
EMC_XRESET_OUT
4-14
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (9/20)
B
C
9
A
I
H
F
5
F
L
3
H
K
G
13
J
C
7
A
62
I
E
16124
L
D
1
D
G
1511
K
B
E
14108
J
SDA1
SDA2
SDA3
SDA4
SDA5
SDA6
SDA7
SDA8
SDA9
SDA10
SDA11
SDBS0
SDBS1
XSDRAS
XSDCAS
XSDWE
SDCKE
SDCLK
SDLDQM
SDUDQM
XSDCS
SDDQ0
SDDQ1
SDDQ2
SDDQ3
SDDQ4
SDDQ5
SDDQ6
SDDQ7
SDDQ8
SDDQ9
SDDQ10
SDDQ11
SDDQ12
SDDQ13
SDDQ14
SDDQ15
FDQ1
FDQ2
FDQ3
FDQ4
FDQ5
FDQ6
FDQ7
FDQ8
FDQ9
FDQ10
FDQ11
FDQ12
FDQ13
FDQ14
FDQ15
FEA0
FEA1
FEA2
FEA3
FEA4
FEA5
FEA6
FEA7
FEA8
FEA9
FEA10
FEA11
FEA12
FEA13
FEA14
FEA15
FEA16
FEA17
FEA18
FEA19
FCE1Z
FOEZ
FPGMZ
FDQ0
SCLK
SCS
XRST_IC_4101
APCLOAD
WLDON
ATTPLS
MSPDSH
ROPCSH
WFPDSH
RFPDSH
LPP
DWBL
AWBL
RECD1
RFMCLK
MPXOUT2
MPXOUT1
SWRF
BH2
PH2
CE
TE
FE
PI
BH1
PH1
VC
EQRF_S
JRTCK_J
JNTRST_J
JTDO_J
JTDI_J
JTCK_J
JTMS_J
SDAT
JTDO_J
WLDON
ATTPLS
ROPCSH
RFPDSH
DWBL
XSCK_IC_4201
TXD_TO_IC_4201
RXD_TO_IC_4201
XCS_IC_4201
TXD
RXD
LID_OPEN
EJECT_DET
PLG
XATA_RESET
ATA_D15
ATA_D14
XATA_DMACK
XATA_DIOW
XATA_DIOR
XATA_CS1
ATA_D10
XATA_CS0
ATA_D9
ATA_A1
ATA_D8
ATA_A0
ATA_A2
ATA_D7
ATA_D6
ATA_D5
ATA_D4
ATA_D13
ATA_D12
ATA_D11
ATA_D3
ATA_D2
ATA_D1
ATA_D0
ATA_D15
ATA_D4
ATA_D10
ATA_D13
ATA_D1
XATA_DMACK
ATA_D6
XATA_DIOW
ATA_D7
ATA_D9
ATA_D11
ATA_D2
ATA_D0
ATA_A2
XRST_IC_4101
SLEEP_SW
LD_EN
TEMP
OSCEN
WP1_OP
WP2_OP
WP3_OP
FFDR
FRDR
TFDR
TRDR
FMPWN_OUT0
FMPWN_OUT1
SLSTFD1
SLSTRD1
SLSTFD2
SLSTRD2
FGINI
SV_FS4SV
XMUTE0
XMUTE1
TFDR
SLSTFD1
SLSTFD2
OSCEN
RXD_TO_IC_4201
PLG
XCS_IC_4201
XATA_CS0
FEA15
FEA12
FDQ14
FDQ13
FEA18
FDQ0
FEA3
FEA1
FDQ1
SDA2
SDA7
SDA8
SDA11
XSDRAS
SDDQ12
SDDQ1
SDDQ0
FEA2
FEA4
FEA5
FDQ10
FPGMZ
FDQ5
FEA8
FEA10
FEA14
SDDQ15
SDDQ2
SDDQ3
SDDQ10
SDDQ9
SDUDQM
XSDCAS
SDA4
FEA6
FDQ8
FEA17
FDQ9
FDQ3
FDQ4
FEA19
FEA9
FEA11
FDQ15
FEA16
SDDQ14
SDDQ6
SDDQ4
SDDQ11
SDDQ7
SDLDQM
XSDWE
XSDCS
SDBS1
SDA10
SDA6
SDA3
PH2
EQRF_S
AWBL
ATA_IORDY
ATA_DMARQ
SDA0
TXD
TEMP
LPP2
LPP2
RFMCLK
MPXOUT1
SWRF
XMUTE0
D_2.8V_P
VC
XATA_RESET
PH1
RECD1
ATA_INTRQ
WP2_OP
CE
JTCK_J
DRV_SEL
SDCLK
SCLK
SV_FS4SV
A_2.8V
A_2.8V
A_2.8V
ATA_DMARQ
ATA_IORDY
ATA_INTRQ
D_1.2V_C
JNTRST_J
JNTRST_J
C4219
10p
C4249
0.01u
C4248
1u
B
C4220
XX
C4240
0.01u
B
C4205
10p
C4247
XX
C4211
10u
B
C4222
10p
CH
C4210
10u
B
C4228
0.022u
C4229
0.022u
B
C4218
0.001u
B
C4230
0.022u
B
C4231
220p
CH
C4217
0.1u
B
C4203
0.1u
B
C4223
0.1u
B
C4239
XX
C4238
0.1u
B
C4232
0.1u
B
C4233
XX C4236
0.1u
B
C4207
0.1u
B
C4206
0.1u
B
C4208
0.1u
B
C4209
0.1u
B
C4237
0.1u
B
C4234
XX
C4215
0.1u
B
C4225
0.1u
B
C4212
0.1u
B
C4216
0.1u
B
C4214
0.1u
B
C4213
0.1u
B
C4226
0.1u
B
D4201
XX
GSHCK
BOOTSEL
XIC_4201_RESET
D_2.8V
A_2.8V
D_1.2V
REG_GND
WBVCTL
DEW_AD
MNT4
MNT5
MNT6
MNT7
05
MNT1
MNT2
ACCS_LED
SP_SPFD
SP_SPRD
BRMOD
JL4212
L4202
10uH
L4203
XX
IC4201
CXD5052GG-T6
DVD DSP,
DVD DRIVE CONTROL
A1
VSS
B1
RFMCLK
C1
VDDE
D1
RCVCTL
E1
AVDD3
F1
AVSS3
G1
RCVRT
H1
RCRFIN
J1
SVADRT1
K1
AVDD6
L1
CE
M1
AVSS6
N1
SVADRB1
P1
PEAK2
R1
AUX2
T1
SVADRB2
U1
VDDI
V1
AVDD10
W1
WBDAO
Y1
WBLPFI
AA1
WBLREF
AB1
WBVCTL
AC1
SUBVSS2
AC2
VDDI
AC3
OSC_EN
AC4
VDDE
AC5
VSS
AC6
VDDE
AC7
PD1
AC8
VDDE
AC9
PL1
AC10
VSS
AC11
VDDE
AC12
OSCO
AC13
OSCI
AC14
VDDI
R23
ATXRST
P23
ATDD6
N23
VDDE
M23
VSS
L23
VDDI
K23
VDDE
J23
XIOW
H23
VSS
G23
XDASP
F23
VDDE
E23
SDDQ15
D23
SDDQ2
C23
SDDQ3
B23
SDDQ10
A23
VSS
A22
SDDQ9
A21
VDDE
A20
SDUDQM
A19
XSDCAS
A18
SDA12
A17
VSS
A16
SDCK
A15
VDDE
A14
SDA4
A13
PI3
A12
VDDI
A11
VSS
A10
VDDE
A9
PH7
A8
PF3
A6
TFDR
A5
SLSTF2
A4
SPCV
A3
VDDE
A2
GSHCK
B2
RECD1
C2
SUBVSS1
D2
AVSS1
E2
RCBIAS
F2
RCDAO
G2
RCVRB
H2
AVDD7
J2
PEAK1
K2
AUX1
L2
SVNOISE
M2
SVADRT2
N2
MPXO1
P2
TEMP
R2
AVSS8
T2
WBVRT
U2
AWBLI
AVSS13
V2
WBLPFN
W2
WBLPFG
Y2
WBLPFO
AA2 AB2
DWBLI
AB3
WSP_RAP
AB4
WSP_ROP
AB5
WP2
AB6
ATP_WB
AB7
PD3
AB8
WLDON
AB9
PL2
AB10
PB1
AB11
PB5
AB12
JNTRST
AB13
JTCK
AB14
JTDO
AB15
VPD
AB16
DVSS1
AB17
PLLVCI
AB18
FEA6
AB19
FDQ8
AB20
FEA17
AB21
FDQ9
AB22
FDQ3
AA22
FDQ4
Y22
FEA19
W22
FEA9
V22
FEA11
U22
FDQ15
T22
FEA16
R22
ATDD7
P22
ATDD9
N22
ATDD11
M22
ATDD2
L22
ATDD0
K22
IORDY
J22
INTRQ
H22
ATDA2
G22
XPDIAG
AC22
FDQ10
T23
FEA14
AC21
FEA5
U23
VDDE
AC20
VDDE
V23
FEA10
AC19
FEA4
W23
FEA8
AC18
FEA2
Y23
FDQ5
AC17
AVDD15
AA23
FPGMZ
AC16
AVSS15
AB23
VDDE
AC15
DVDD1
AC23
VSS
F22
SDDQ14
E22
SDDQ6
D22
SDDQ4
C22
SDDQ11
B22
SDDQ7
B21
SDLDQM
B20
XSDWE
B19
XSDCS
B18
SDBA1
B17
SDA10
B16
SDA6
B15
SDA3
B14
PI4
B13
PI6
B12
PH2
B11
PH5
B10
PF1
B9
PF5
B8
PF6
B7
SFDR
B5
SPCW
B4
SPDW
B3
SPVS
C3
SKEWR
D3
AVDD1
E3
AVDD2
F3
AVDD4
G3
AVSS4
H3
AVSS7
J3
BOTM1
K3
VC
L3
ADIO1
M3
AVSS9
N3
BOTM2
P3
SWRF
R3
ADIO2
T3
AVDD11
U3
WBVRB
V3
AVDD13
W3
AVSS12
Y3
AVSS14
AA3
LPPI
AA4
WSP_WAP
AA5
WP3
AA6
PD0
AA7
PD4
AA8
PL0
AA9
PL3
AA10
PB3
AA11
PB6
AA12
JTMS
AA13
XRST
AA14
TRST
AA15
VDDI
AA16
FEA0
AA17
FCE1Z
AA18
FOEZ
AA19
FEA7
AA20
FDQ2
AA21
FDQ11
Y21
FDQ12
W21
FDQ6
V21
FDQ7
U21
FEA13
T21
VDDI
R21
ATDD8
P21
ATDD5
N21
ATDD3
M21
ATDD12
L21
ATDD14
K21
XIOR
J21
ATDA1
H21
ATDA0
G21
XCS1
F21
SDDQ13
E21
VDDE
D21
SDDQ5
C21
SDDQ8
C20
SDCKE
C19
SDBA0
C18
SDA9
C17
SDA0
C16
SDA1
C15
SDA5
C14
PI2
C13
PI7
C12
PH1
C11
PH4
C10
PF0
C9
PF4
C8
FFDR
C7
TRDR
C6
SLSTR2
C5
SPDV
C4
SKEWF
D4
SPRD
E4
AVSS2
F4
AVDD5
G4
AVSS5
H4
VDDI
J4
PI
K4
FE
L4
TE
M4N4P4R4T4U4V4W4Y4Y5Y6Y7Y8Y9Y10Y11Y12Y13Y14Y15Y16Y17
Y18Y19Y20W20V20U20T20R20P20N20M20L20K20J20H20G20F20E20D20D19D18D17D16D15D14D13D12D11D10D9D8D7D6D5K10L10M10N10P10P11P12P13P14N14M14L14K14K13K12K11L11M11N11N12N13M13L13
L12M12
A7
PF7
B6
FS4
R4221 10k
0.5%
R4241
100k
R4247
68k
R4219
1k
R4248
XX
R4233
10k
R4215 1k
R4214 3300
R4234
10k
R4232
1200
R4201
1k
R4222 10k
R4202
XX
R4205
XX
R4206
XX
R4207 XX
R4223 1k
R4203
270k
R4257 1k
X4201 33.8688MHz
C4250
0.47u
R4259
1200
R4260
XX
FB4205
R4240
22
FB4206 R4256
22
FB4204
R4225
22
R4261 10k
XIC_4201_RESET_A
FB4203
C4246
1u
B
FB4201
XX MARK:NO MOUNT
DVD DSP, DVD DRIVE CONTROL
VC-520 BOARD (9/20)
C4227
0.1u
B
WBVCTL
SV_NOISE
C4202
0.1u
B
C4204
0.01u
C4201
0.1u
B
AVDD9
AVDD8
MPXO2
DEW
SKEW
AVSS11
AVSS10
AVDD12
AVDD14
WP1
WSP_SV
PD2
APC_LOAD
VDDI
PB2
PB4
PB7
JTDI
JRTCK
TESTEN
FDQ1
FEA1
FEA3
FDQ0
FEA18
FDQ13
FDQ14
FEA12
FEA15
ATDD15
ATDD4
ATDD10
ATDD13
ATDD1
DMARQ
DMACK
VDDI
XCS0
SDDQ0
SDDQ1
SDDQ12
XSDRAS
SDA11
SDA8
SDA7
SDA2
VDDI
PI5
PH0
PH3
PH6
PF2
VDDI
FRDR
SLDU
SPCU
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
FRDR
SLSTRD1
TXD_TO_IC_4201
EJECT_DET
FGINI
JRTCK_J
JTDI_J
APCLOAD
MSPDSH
SDAT
LD_EN
SLEEP_SW
WP1_OP
MPXOUT2
RXD
LID_OPEN
TRDR
FMPWN_OUT0
SLSTRD2
FFDR
TE
FE
PI
DRV_SEL
XSCK_IC_4201
SDA5
SDA1
SDA0
SDA9
SDBS0
SDCKE
SDDQ8
SDDQ5
SDDQ13
ATA_D8
ATA_D5
ATA_D3
ATA_D12
XATA_DIOR
ATA_A1
ATA_A0
XATA_CS1
ATA_D14
FEA13
FDQ7
FDQ6
FDQ12
FDQ11
FDQ2
FEA7
FOEZ
FCE1Z
FEA0
LPP
WFPDSH
JTMS_J
XMUTE1
FMPWN_OUT1
BH1
BH2
LPP2LPP2
VC
SCS
WP3_OP
XSDCS
SDA0
SDA2
SDA1
SDA3
SDDQ6
SDDQ12
SDDQ5
SDUDQM
SDDQ15
SDA4
SDDQ3
SDDQ0
SDDQ8
SDDQ14
SDDQ10
SDDQ7
SDDQ13
SDDQ4
SDDQ1
SDDQ11
SDLDQM
SDDQ2
SDDQ9
SDCLK
SDCKE
SDA11
XSDCAS
SDA7
SDA5
SDA9
SDA8
SDBS0
SDA6
XSDWE
XSDRAS
SDBS1
SDA10
FEA5
FPGMZ
FEA18
FDQ9
FEA10
FEA9
FDQ14
FEA8
FDQ8
FEA2
FDQ1
FEA6
FEA1
FEA16
FDQ6
FDQ3
FEA17
FDQ11
FEA0
FEA14
FDQ12
FEA13
FDQ10
FDQ15
FDQ7
FDQ4
FDQ13
FEA11
FDQ0
FCE1Z
FEA15
FEA12
FEA19
FDQ5
FEA4
FDQ2
FEA3
FEA7
FOEZ
ATA_D12
ATA_D5
ATA_D8
ATA_D1
ATA_D0
ATA_D3
ATA_D9
ATA_D11
ATA_A1
ATA_D15
XATA_DMACK
ATA_D14
XATA_CS1
ATA_D7
ATA_D2
ATA_D10
XATA_DIOW
ATA_A2
XATA_DIOR
ATA_D13
ATA_A0
ATA_D4
ATA_D6
XATA_CS0
ATA_IORDY
ATA_INTRQ
ATA_DMARQ
FGINI
FFDR
FRDR
TRDR
TFDR
FMPWN_OUT1
XMUTE0
FMPWN_OUT0
XMUTE1
SLSTRD1
SLSTFD2
SLSTFD1
SLSTRD2
SV_FS4SV
DRV_SEL
TEMP
EJECT_DET
LID_OPEN
RXD
JTMS_J
JTDI_J
JTCK_J
JNTRST_J
JTDO_J
JRTCK_J
XSCK_IC_4201
TXD_TO_IC_4201
XCS_IC_4201
RXD_TO_IC_4201
TXD
PLG
OSCEN
WP1_OP
WP2_OP
WP3_OP
SLEEP_SW
LD_EN
LPP2
LPP
DWBL
AWBL
RECD1
MPXOUT1
PH2
BH2
MPXOUT2
SWRF
CE
PI
FE
TE
PH1
BH1
VC
EQRF_S
WFPDSH
RFMCLK
ATTPLS
RFPDSH
ROPCSH
MSPDSH
APCLOAD
WLDON
SCLK
XRST_IC_4101
SCS
SDAT
±
23
1
A_2.8V
D_1.2V
D_2.8V
XATA_RESET
4-15
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (10/20)
2.8
2.8
2.8
2.8
2.8
2.8
2.8
2.8
2.8
2.8
0
2.8
2.8
2.8
2.8
2.8
2.8
2.8
2.8
0
0
0
0
2.8
2.8 2.8
2.8
2.8
2.8
2.8
2.8
2.8
2.8
2.8
2.8
0
1.4
R0.5/P0.1
0
0
0
R0/P2.8
0
R0/P2.8
R0/P2.8
NO MARK:REC/PB MODE
R:REC MODE
P:PB MODE
Note: IC4302 is not spplied, but
this is included in VC-520
complete board.
A
D
7
CC
6
D
B
E
A
5
B
34
F
2
F
E
1 8
REG_GND
REG_GND
IC4301
XX
1
Vcc
2
DQ0
3
Vccq
4
DQ1
5
DQ2
6
Vssq
7
DQ3
8
DQ4
9
Vccq
10
DQ5
11
DQ6
12
Vssq
13
DQ7
14
Vcc
15
LDQM
16
XWE
17
XCAS
18
XRAS
19
XCS
20
BS0
21
BS1
22
A10
23
A0
24
A1
05
25
A2
26
A3
27
Vcc
28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54
D_2.8V_S
FDQ1
FDQ0
FCE1Z
FDQ2
FDQ11
FDQ3
C4304
0.1u
B
FDQ12
C4311
0.1u
B
FEA0
FDQ5
FDQ9
64M SDRAM
D6C6A6B6D5C5A5B5
D4D3A4B4C4B3A3C3B2A2C2D2B1A1
C1D1
E1 F1 H1 G1 E2 F2 H2 G2 E3 F3 H3 G3 G4 H4 F4 E4 G5 H5 F5 E5 G6 H6 F6 E6
REG_GND
FDQ14
FDQ6
FDQ10
D_2.8V
FDQ4
C4303
0.1u
B
FDQ13
FDQ8
FDQ15
IC4303
W9864G6GH-7S-ER10
1
VDD
2
DQ0
3
VDDQ
4
DQ1
5
DQ2
6
VSSQ
7
DQ3
8
DQ4
9
VDDQ
10
DQ5
11
DQ6
12
VSSQ
13
DQ7
14
VDD
15
LDQM
16
WE
17
CAS
18
RAS
19
CS
20
BS0
21
BS1
22
A10
23
A0
24
A1
25
A2
26
A3
27
VDD
28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54
FEA16
XIC_4201_RESET_A
FOEZ
FDQ7
RB4301
10k
12
34
56
78
C4302
0.1u
B
FB4301
C4301
1u
B
FB4302
C4310
1u
B
A10
A6
NC
WE#
A11
A14
A17
A8
A5
A19
RY/BY#
A1
A3
A12
A13
A18
WP#
A4
A9
NC
RESET#
A7
A15
A2
XX MARK:NO MOUNT
SDRAM, FLASH
VC-520 BOARD (10/20)
SDDQ6
SDDQ7
SDA10
SDA1
SDA3
D_2.8V_S
SDDQ6
SDDQ5
SDBS0
SDDQ4
SDLDQM
SDDQ0
SDDQ5
REG_GND
SDDQ1
XSDCAS
SDA0
XSDCS
SDDQ0
SDLDQM
SDDQ3
XSDRAS
SDDQ4
XSDRAS
SDA10
SDBS1
XSDWE
D_2.8V_S
SDDQ2
SDA3
SDA1
SDBS1
SDDQ7
XSDCS
REG_GND
SDDQ1
SDA2
SDA0
SDBS0
SDDQ2
XSDWE
XSDCAS
SDDQ3
SDA2
SDDQ11
SDDQ15
SDA7
SDDQ9
SDA4
SDA8
SDDQ10
SDA9
SDDQ13
SDA6
SDA8
SDA7
SDA6
SDDQ14
SDCLK
SDDQ11
SDA11
SDDQ13
SDDQ8
SDDQ8
SDDQ9
SDCKE
SDA11
SDDQ12
SDDQ10
SDDQ15
SDA9
SDDQ14
SDA4
SDCLK
SDUDQM
SDCKE
SDA5
SDA5
SDUDQM
SDDQ12
FPGMZ
FEA17
FEA9
FEA5
FEA12
FEA1
FEA8
FEA7
FEA6
FEA3
FEA15
FEA10
FEA11
FEA13
FEA18
FEA19
FEA14
FEA4
FEA2
VSS
A0
DQ2
BYTE#
DQ10
OE#
DQ8
CE#
DQ11
DQ5
VDD
DQ7
DQ13
VSS
DQ3
DQ6
DQ1
DQ9
A16
DQ14
DQ12
DQ4
DQ15/A-1
DQ0
IC4302
39VF1601-70-4C-B3KE-GG013T
16M FLASH
REG_GND
D_2.8V_S
D_2.8V
Vss
A4
A5
A6
A7
A8
A9
A11
NC
CKE
CLK
UDQM
NC
Vss
DQ8
Vccq
DQ9
DQ10
Vssq
DQ11
DQ12
Vccq
DQ13
DQ14
Vssq
DQ15
Vss
VSS
A4
A5
A6
A7
A8
A9
A11
NC
CKE
CLK
UDQM
NC
VSS
DQ8
VDDQ
DQ9
DQ10
VSSQ
DQ11
DQ12
VDDQ
DQ13
DQ14
VSSQ
DQ15
VSS
C4305
0.1u
B
C4308
XX
D_2.8V
4-16
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (11/20)
•Refer to page 4-2 (English), 4-3 (Japanese) for mark 0.
DVD MECHANISM DECK is
replaced as block, so that
there PRINIED WIRING
BOARD and SCHEMATIC
DIAGRAM are omitted.
3
G
6 9
F
B
H
7 10
C
05
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
XRST_IC_4101
C4108
0.001u
C4102
1u
B
C4101
1u B
C4106
0.001u
C4105
0.001u
C4107
0.001u
C4118
4.7u B
C4120
0.1u
B
C4121
0.01u
B
C4122
0.1u
B
C4123
0.01u
B
C4136
10u
C4129
0.001u B
C4124
0.1u
B
C4117
4.7u B
C4127
0.1u
B
C4128
100p
CH
C4114
10u
B
C4131
0.1u B
C4130
0.1u B
C4132
0.1u B
C4112
4.7u
B
C4104
10u
C4111
4.7u
B
C4113
4.7u
B
C4116
10u B
C4119
0.1u B
C4139
XX
C4138
39p
CH
C4137
XX
C4110
0.1u
B
C4109
0.1u
B
C4134
0.1u
B
C4126
XX
C4135
4.7u
B
WLDON
VWDC3
FCS-
DRFP
DRFN
FCS+
OSCEN
B
A
C
D
F
E
WP1_OP
APCLOAD
H
HAVC
A_2.5V
TRK+
LD_EN
VWDC2
WP3_OP
D_2.8V
DRV_A_3.9V
VRDC
A_2.8V
DRV_A_3.9V
SLEEP_SW
VWDC1
GSW
WP2_OP
ADVC
FVREF
DRV_A_3.9V
G
TLT-
TRK-
TLT+
DRFN
LPP2
REG_GND
VC
ADVC
TESTOUTP
C
TESTOUTN
HAVC
G
GSW
LPP
DRFP
AWBL
EQRF_S
SWRF
MPXOUT2
MPXOUT1
TE
F
CE
FPDO
FE
E
D
TEMP
PI
BH1
B
A
PH1
REG_GND
PH2
BH2
H
FB4106
FL4101
XX 1
3
2
4
FL4102
XX 1
3
2
4
FL4103
XX
1
3
2
4
FL4104
XX
1
3
2
4
A1
HAVCC
B1
DRFP
C1
DRFN
C2
GSW
D1
VCC
D2
A
E1
B
E2
C
F1
D
F2
E
G1
F
G2
G
H1
H
H2
APCLOAD
J1
HAVC
J2
TESTOUTN
GND
K1
TESTOUTP
K2
ADVC
L1
VC
M1
L2 M2 L3 M3 L4 M4 L5 M5 L6 M6 L7 M7 M8 L8 M9 L9 M10 L10 M11 L11
M12 L12 K11 K12 J11 J12 H11 H12 G11 G12 F11 F12 E12 E11 D12 D11 C12 C11 B12 B11
A12A11A10B10A9B9A8B8A7B7A6B6A5B5A4B4A3B3A2B2
L4103 10uH
L4102
10uH
R4136
XX
R4137
10k
R4138
XX
C4140
0.1u
C4141
0.1u
RB4101
22k
12
34
56
78
RB4102
1M
12
34
56
78
FB4101
FB4102
FB4103
FB4104
FB4105
CL4107
CL4108
CL4109
CL4105
CL4111
CL4112
CL4137
CL4138
CL4139
CL4140
CL4141
CL4134
CL4135
CL4136
CL4119
51P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
PDIC_GND
RF-
RF+
FPDIC_VC
SLEEP_SW
FPDIC_OUT
LDD_RSET
FPDIC_VCC
LDD-W1SET
G
LDD-W2SET
D
LDD-W3SET
C
E
TLT-
F
FPDIC_GND
B
FPDIC_GND
A
PDIC_GND
H
PDIC_GAIN
LDD_LVDD
PDIC_VCC
PDIC_VC
FCS+
TLT-
LDD_AVSS
ENBL
TEMP
LDD_AVDD
DVSS
OSCEN
LDD_W1DIS
LDD_W2DIS
LDD_W3DIS
FPDIC_GND
TLT+
TLT+
FCS-
FCS-
TRK+
TRK+
TRK-
TRK-
FCS+
NC
NC
LDD_LVDD
XX MARK:NO MOUNT
RF PROCESS
VC-520 BOARD (11/20)
DVD
MECHANISM
DECK
(DDX-C2000)
(1/2)
XRST_IC_4101
SCS
SCLK
SDAT
RECD1
DWBL
ATTPLS
ROPCSH
MSPDSH
RFPDSH
WFPDSH
RFMCLK
D_2.5V
REG_GND
IC4101
CXA2725GA-T4
RF PROCESS
ATTPLS
ROPCSH
MSPDSH
RFPDSH
WFPDSH
MCLK
GND
DGND
SDATA
SCLK
SCS
DVCC
VCC
XRST
RECD1
DWBL
LPP
LPP2
AGCON
WLDON
VDD
AGC1C
AGC2C
AGC3C
LPPC
AWBL
SWRF
MPXOUT2
MPXOUT1
GND
AUX1
VTIREF
BGIREF
CE
VCC
TE
FE
PI
BH1
PH1
PH2
BH2
RFTC
RFDC
VCC
NC
EQRF
NC
GND
ACHPF
VWDC3
VWDC2
VWDCN
VWDC1
WAPCTC
VRDCN
VRDC
RAPCTC
FPDO
FVREF
FPDO
FVREF
VRDC
VWDC1
VWDC2
VWDC3
CN4103
DRV_A_3.9V
A_2.5V
D_2.8V
D_2.5V
4-17
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (12/20)
•Refer to page 4-2 (English), 4-3 (Japanese) for mark 0.
DVD MECHANISM DECK is
replaced as block, so that
there PRINIED WIRING
BOARD and SCHEMATIC
DIAGRAM are omitted.
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
: Non MEGA model
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
: MEGA model
MEGA model
0
1.7
0
2.8
2.8
NO MARK:REC/PB MODE
3
G
6 9
F
B
H
7 10
C
05
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
DRV_SEL
XMUTE0
EJECT_DRV
FMPWN_OUT0
FFDR
Q4401
UNR31A3G0LS0
SWITCH
SLSTFD2
R4411 1
U
SLED2
COM
DRV_SEL
R4410 1
C4405
XX
C4403
10u
TLT+
FCS-
TFDR
FMPWN_OUT1
PLG
FRDR
D_2.8V
SLSTRD2
L4402
4.7uH
R4406 68k
C4408
10u
B
C4411
0.022u
R4405 12k
TLT-
V
TRK-
C4406
22u
10V
TA
C4402
0.047u
B
C4410
10u
W
TRDR
SLED1
SLED4
SLSTRD1
TRK+
FGINI FCS+
R4409 1
L4403
1uH
SLED3
SLSTFD1
IC4401
R2A30212LG-W00B
BD6310AGU-E2
DVD MECHA DRIVE
A1
PGNDSP
B1
NC
C3
U
C2
VSP
D2
SPRNF1
C1
VSP
D3
V
D1
SPGND
E2
SPRNF1
E3
SPRNF2
E1
W
E4
ST1IP
F1
VM3
F2
ST1IM
G1
ST2IP
G2
ST2IM
H1 H2 F3 G3 G4 H3 F4 H4 G5 F5 H5 E5 H6 G6 H7 G7
H8G8F6F7E7F8E6E8D7D6D8D5C8C7B8B7
A8
NC
A7
NC
C6
TEST
B6
REF
B5
SPDRV
A6
VCC
C5
LIMSET
A5
GND
B4
MUTE
C4
IDLE
A4
CLK
D4
FGSEL
A3
BRMOD
B3
SPDIR
A2
PGNDSP
B2
COM
C4404
10u
B
RB4401
100k
1
2
3
4
5
6
7
8
L4404
1uH
FB4401
R4413
180
Q4402
UNR32A300LS0
LED DRIVE
D4402
XX
5
43
2
1
CN4402 8P
1
2
3
4
5
6
7
8
RB4402
XX
1
2
3
4
5
6
7
8
W
V
SLED1
COM
U
SLED3
REG_GND
SLED4
CN4401 10P
1
2
3
4
5
6
7
8
9
10
REG_GND
SLED2
RB4403
10k
1
2
3
4
5
6
7
8
ACCS_VCC
XEJECT_SW
EJECT_DET
ACCS_LED
REG_GND
EJECT_DRV
LID_OPEN
REG_GND(D_MT_GND)
SLED4
U
SLED1
REG_GND
REG_GND
SLED3
V
SLED2
COM
W
FP-569
FLEXIBLE
Page 4-29
of Level 2
DVD
MECHANISM
DECK
(DDX-C2000)
(2/2)
XX MARK:NO MOUNT
DVD MECHA DRIVE
VC-520 BOARD (12/20)
REG_GND
SV_FS4SV
SP_SPRD
XMUTE1
SP_SPFD
BRMOD
XMUTE0
DRV_MT_4.3V
DRV_MT_5.0V
REG_GND
EJIN
PGND3
EJO
VM2
ST1OP
VM2
ST1OM
PGND2
ST2OP
ST2OM
PGND2
FCIP
FCIM
TRIP
TRIM
TLIP XEJECT_SW
REG_GND
EJECT_DRV
ACCS_LED
EJECT_DET
D_2.8V
REG_GND
LID_OPEN
TLIM
PGND1
TLOM
NC
TLOP
VM1
NC
PGND1
TROM
TROP
VM1
FCOM
PGND1
FCOP
MDID
FG
D_2.8V
DRV_MT_5.0V
DRV_MT_4.3V
4-18
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (13/20)
B
C
9
A
I
H
F
5
F
L
3
H
05
K
G
13
J
C
7
A
62
I
E
16124
L
D
1
D
G
1511
K
B
E
14108
J
C2423
XX
C2420
XX
C2404
0.001u
B
C2425
XX
C2417 0.1u
C2411 0.001u
B
C2408
0.001u
B
C2407
0.001u
B
C2415 0.1u
C2414 0.001u
B
C2402 0.001u
B
C2409
XX
C2410
XX
C2424
XX
C2419 0.1u
D_1.2V
D_2.8V
A_2.8V
CL2405
CL2404
CL2409
CL2408
CL2407
CL2406
R2408 180 5%
R2407 3900 5%
R2419
270 0.5%
R2418
270 0.5%
R2420
270 0.5%
R2412 3900 5%
R2405
XX
R2417 12k 0.5%
R2411 180 5%
C2401 0.001u
B
IC2401
D/A CONVERTER
R8A01015ABGTLV
B1 A1 D1 E4 E1 F4 D2 C2 F1 G4 E2 D4 G1 H4 F2 E5 G2 J4 H1 F5 H2 G5 J1 K4 J2 H5 K1 J5 K2 L4 L1 K5 L5 L2 M4 M1 R4 T2 AA3 U1 T4 U2 U4 V1 V2 W1 Y2 Y1
AA2 AA1 AA4 V5 AA5 V6 Y4 Y3 AA6 V7 Y5 V4 AA7 V8 Y6 U5 Y7 V9 AA8 U6 Y8 U7 AA9 V10 Y9 U8 AA10 U9 Y10 V11 AA11 U10 U11 Y11 V12AA12 U12 Y12 U13AA13 V13 Y13 U14AA14 U15 Y14 V14AA15 U16 Y15 Y19AA16 V15 Y16 W21AA17 V16 Y17 V17 AA18 Y18 AA19 Y20 AA20
Y21AA21V21U18U21T18V20W20T21R18U20V18R21P18T20U17
P1 T1P5 W2N2 R2N4 T5N1 R1N5 P4M2 P2M5 R5
R20N18P21T17P20R17N21M18N20P17M21N17M20L18L21M17L17L20K18K21K17K20J17J21J18J20H17H21G17H20H18G21F17G20C20F21G18F20A19E21F18E20E18D21D20C21B20B21
A20A21A18D17A17D16B18B19A16D15B17D18A15D14B16E17B15D13A14E16B14E15A13D12B13E14A12E13B12D11A11E12E11B11D10A10E10B10E9A9D9B9E8A8E7B8D8A7E6B7B3A6D7B6C1A5D6B5D5A4B4A3B2A2
IC_2401_C/PB_OUT
IC_2401_Y_OUT
PANEL_G
PANEL_B
PANEL_R
DR_VDATA6
DR_VDATA4
DR_VDATA1
DR_VDATA3
DR_VDATA5
DR_GHDATA1
DR_VDATA0
DR_VDATA2
DR_GHDATA2
DR_GSDATA0
DR_GHDATA0
DR_GHPILOT
DR_GSDATA2
DR_GHDATA3
DR_GSDATA1
DR_GSDATA3
DR_GSPILOT
DR_VDATA7
R2402
XX
R2421 XX
R2423 XX
R2427 XX
R2428 XX
REG_GND
C2427
2.2u
B
C2428
2.2u
B
C2429
2.2u
B
R2440 XX
R2439 XX
FB2401
Q2401
XX
6
2
1
3
5
4
RB2401
XX
12
34
56
78
Q2402
XX
3
2
45
7
6
18
RB2402
XX
12
34
56
78
R2429 XX
A_2.8V
D_2.8V
A_2.8V
D_2.8V
D_1.2V
A_2.8V
A_2.8V
A_2.8V
A_2.8V
D_1.2V
D_2.8V
A_2.8V
D_2.8V
D_1.2V
D_1.2V
A_2.8V
D_2.8V
A_2.8V
A_2.8V
PLLHMVDD
IOVDD6
DPNG7
TSTIN7
IOVSS3
HMCBO6
DVDD9
HMPXCKO
TSTIN17
DPIOVSS1
HMCBO3
ALFLDO_TSTO16
DVSS6
SO
DPNG1
TSTIN4
TSTIN8
DPNB3
AVVSS_l2
DVDD5
XRST
AVDD7
ALADCVINN TSTOMD5
DPNB1
ALCKO13
TSTCKIN5
DPNB6
GRFSDT3
PLLALVSS
IOVDD5
SCK54
AA21 reserve
DPNG5
DVSS4
TSTIMD3
TSTIN0
TSTIN15
TSTIMD4
DVDD4
VIN2
EVFVD
IOVSS6
DVDD8
GRSLDT2
TSTEN
ANATEST
DPNB5
DPNG0
XSCK
DVDD7
DPNB0
AVDD6
HMCBO1
ALCDT0_TSTO8
TSTCKIN3
DPNR1
ALYDT4_TSTO4
TSTIN1
ALYDT3_TSTO3
TSTIN11
ALVDO_TSTO17
DPNG3
CLPVO
HMVD
ALADYVRBB
DPNR4
PNHD
VIN3
VIN6
ALCDT7_TSTO15
TSTCKIN4
HMCBO0
ALADYVR1
AVSS_r1
DPNB4
DPNR3
DPNCKO
ALADCVRBB
DPNR7
ALYDT1_TSTO1
XCS
TSTIN2
GRSLDT3
SICKSEL
IOVSS5
DPNVD
TSTIN14
ALADYVINP
DVSS1
TSTIN19
PNVD
TSTIMD0
DVDD1
DPNR6
VIN5
DPIOVDD2
TSTIN13
ALCDT2_TSTO10
HMMCKO
VIN4
ALADYVRTB
TSTIN10
DVDD2
ALYDT7_TSTO7
DPIOVSS2
GRFSPILOT
ALADYVINN
ALADYVRBI
HMCBO2
TSTOMD1
AVDD9
TSTIN5
VIN0
TSTCKEN
A21 reserve
TSTCKIN1
MVO
SCKO
SI
TSTIN12
AVSS8
ALCK13
SDSET
ALCDT3_TSTO11
DPNB7
TSTIN6
DPNG4
GRFSDT0
AVVSS_l1
DVSS2
ALYDT0_TSTO0
TSTIMD2
GRSLDT1
GRSLDT0
EVFHD
PLLALVDD
HMHD
DPNR5
DPNG2
TSTCKIN2
TSTOMD4
DPNHD
ALADCVR1
DPNG6
IOVSS1
GRFSDT2
DPNB2
DVDD6
TSTIN3
DVSS7
TSTOMD0
ALHDO_TSTO18
ALCDT6_TSTO14
TSTIN18
TSTIMD1
ALYDT2_TSTO2
IOVDD1
HMFLD
A1 reserve
ACCVO
TSTIN16
ALYDT6_TSTO6
ALADCVRTB
GRSLPILOT
IOVDD4
AVSS6
DPNR0
VIN1
SEL18
DVSS5
DPNR2
ALADYVRTI
AVDD8
PLLHMVSS
IOVSS4
VIN7
ALCDT5_TSTO13
VINCK
GRFSDT1
ALCDT1_TSTO9
ALADCVINP
DPIOVDD1
TSTOMD2
ALCDT4_TSTO12
TSTIN9
AGCVO
ALYDT5_TSTO5
TSTOMD3
IOVDD3
AVSS7
DPNDE
D_1.2V
D_2.8V
D_1.2V
PNDAGDT
PNDABDT
PNDARDT
LNDAYDT
LNDAPBDT
Digital PANEL
HDMI
XX MARK:NO MOUNT
D/A CONVERTER
VC-520 BOARD (13/20)
TSTOUT19
AA1 reserve
PNDAREXT
AVSS2
AVDD10
HMCRO7
EVDARDT
EVDABDT
AVSS3
HMYO0
HMCRO6
TSTOUT22
TSTOUT23
RETSTEN
HMYO2
HMYO7
AVDD4
PNDABDT
AVDD11
TSTOUT24
AVSS5
HMCRO2
HMCRO1
AVDD2
AVSS_r2
TSTOUT20
HMYO5
EVDAGDT
TSTOUT21
EVDACBU
PNDACBU
LNDAPBREXT
AVDD3
IOVDD2
HMYO1
LNDAPBDT
HMYO6
HMCRO5
HMCRO4
DVDD3
LNDAPRDT
AVDD5
LNDAYDT
PNDAGDT
AVSS9
HMCRO0
HMCBO7
EVDAREXT
AVSS4
LNDAYREXT
HMCRO3
HMCBO4
HMYO3
IOVSS2
AVDD1
LNDAPRCBU
DVSS3
LNDAYCBU
LNDAPRREXT
AVSS1
HMYO4
LNDAPBCBU
HMCBO5
PNDARDT
BB_SI
XBB_SCK
BB_SO
XCS_IC_2401
±
±
±
±
±
±
±
±
A_2.8V
D_1.2V
D_2.8V
XBB_RST
DR_VINCK
PANEL_VD
PANEL_HD
4-19
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (14/20)
NO MARK:REC/PB MODE
:DVD110E/DVD610/DVD610E
R:REC MODE
P:PB MODE
1.4
2.8
1.4
1.4
1.4
2.4
0.3
1.4
2.8
0.2
2.6
R1.4/P0
R1.4/P0
1.9
1.9
2.8
0
0
0
0
0
1.4
4.1
3.6
1.4
1.4
R0.7/P0
R0.7/P0
0
0
2.8
0
2.8
4.6
1.4
4.8
1.4
1.4
2.8
0
0
1.8
1.8
3.6
3
G
6 9
F
B
H
7 10
C
05
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
C2918
XX
C2932
0.1u
B
C2903
0.001u
B
C2924
0.1u
B
C2917
XX
C2901
0.047u
B
C2912
XX
C2928
4.7u
B
C2909
0.047u
B
C2919 0.01u
B
C2902
0.047u
B
C2923
4.7u
C2915
0.1u
B
C2921 1u
C2907
4.7u
B
C2905
0.001u
B
C2916
4.7u
B
C2930 0.1u B
C2927
0.1u
B
C2920
0.1u
B
C2910 0.1u B
C2926
0.1u
B
C2929 4.7u B
C2922
10u
C2906
4.7u
B
C2911
10u
B
C2904
1u
XCS_IC_2801/IC_2901
INT_MIC_L
INT_MIC_R
REG_GND D_2.8V
BB_SO
XBB_SCK
1
OFFSET_SP
2
SPOUT_+
3
SPGND
4
SPOUT_-
5
OFFSET
6
VDD
7
C+
8
C_GND
9
C-
10
VSS
11
YOUT
12
VOUT
13
VCCDRIVE
14
COUT
15
VCC
16
CIN
17
V_GND
18
YIN
19
GND
20
SDIN
21
SDOUT
22
WCLK
23
MCLK
24
BCLK
252627282930313233343536
37
VCCH
38
OFFSET
39
OFFSET
40
VREF
41
VCC
42
LINE_IO_L
43
GND
44
LINE_IO_R
45
SP_AGC
46
VREFSP
47
BEEP_IN
48
VCCSP
L2904
10uH
L2902
10uH
L2903 10uH
L2905
10uH
Q2901
MCH3211-TL-E
3.6V REG
RB2901
10k
1
2
3
4
5
6
7
8
RB2904
100
12
34
56
78
RB2902
2200
1
2
3
4
5
6
7
8
RB2903
100k
12
34
56
78
R2905
XX
R2901
22k
R2902
4700
R2903
4700
R2904
47k
C2933
0.022u
B
VIDEO_OUT
S_Y_OUT
XX MARK:NO MOUNT
VIDEO OUT, AUDIO I/O
VC-520 BOARD (14/20)
AU_4.6V
AU_2.8V
A_2.8V
SP+
SP-
MT_5.0V
SYS_SOUND
AU_4.6V
AUDIO_R_I/O
AUDIO_L_I/O
ZAP
CLOCK
DATA
CS
OFFSET
AGC_TC
MICVCC
INT_MIC_R
INT_MIC_L
EXT_MIC_R
VDD
EXT_MIC_L
IC2901
NN12922A-BB
VIDEO OUT, AUDIO I/O
ADA_BCK
IC_2401_Y_OUT
ADA_FCK
REG_GND
ADA_LRCK
ADA_SIA0
IC_2401_C/PB_OUT
A_2.8V
ADA_SOA0
V_TO_PR
C_TO_PB
Y_TO_Y
4-20
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (15/20)
NO MARK:REC/PB MODE
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
4.8
4.1
3.6
MEGA model
:DVD115E/DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
3
G
6 9
F
B
H
710
C
05
811
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
SP+
AUDIO_L_I/O
AUDIO_R_I/O
SYS_SOUND SYS_SOUND
XSYS_RST
C2823
4.7u
C2829
C2815
0.0047u
C2839
ADA_LRCK
ADA_BCK
C2848 0.01u
C2805
4.7u
R2805
XX
C2850
XX
A_2.8V
C2821
4.7u
C2802
Q2801
MCH3211-TL-E
3.6V REG
C2819
XX
C2832
XX
C2820 0.1u
C2814
1u
C2840
10u
C2830
0.1u
0.1u
IC_2401_C/PB_OUT
C2838
XX
C2835
L2801
10uH
C2836
0.1u
0.1u
0.1u
0.1u
ADA_SOA0
L2803
10uH
IC2801
NN12923B-BB
VIDEO, AUDIO I/O
B1 B2 C2 D2 B3 C1 D1 E2 E1 F2 F1 G1 G2 H2 H1 J2 J1 K2 K1 L2 L1 M1 M2 P1
N1 N2 P2 N3 P3 P4 N4 N5 P5 P6 N6 N7 N8 P7 P8 N9 P9 N10P10 N11P11 P12P13 P14
N13M13N14M14N12L13L14K14J14K13J13H13G13H14G14F13E13F14E14D14D13C14C13B14
B13A14A13B12A12B11A11B10A10B9A9B8A8B7B6A7A6B5A5B4A4A3A2A1
C2812
0.001u
0.001u
R2803
47k
R2804
XX
C2847 1u
C2837
0.1u
0.1u
R2808
XX
C2833
C2828
XX
C2841
0.1u
C2806
D_2.8V
L2805
10uH
C2845
0.01u
C2831
XX
C2842
4.7u
R2807
XX
C2834
IC_2401_Y_OUT
ADA_FCK
C2843 10u
C2808
C2822
XX
C2801
0.1u
0.1u
R2806
XX
L2802
10uH
C2816
C2851
4.7u
SHOE_MIC_FL
R2802
4700
C2824
4.7u
C2809
C2817
C2811 0.047
0.047
0.047
C2818
0.001u
0.001u
0.001u
XBB_SCK
BB_SO
XCS_IC_2801/IC_2901
ADA_SOA1
ADA_SIA0
A_2.8V
C2825
0.01u
RB2801
2.2k
12
34
56
78
RB2803
22k
1
2
3
4
5
6
7
8
RB2804
47k
12
34
56
78
RB2805
100
12
34
56
78
R2809
XX
C2844
XX
R2818
6800
R2819
68k
C_TO_PB
Y_TO_Y
V_TO_PR
SHOE_MIC_FR
SP_IN
VCC_SP
Rear_SHOE_L
Rear_SHOE_R
MICVCC_R
VCC_L
MONI_L2
VREF_SP
A_GND
HPOUT_R
OFFSET_PBL
LINEOUT_L
A_GND
LINEOUT_R
VDD_P
P_C1
C_IN_OUT
P_GND
P_C2
D_GND
C_GCA
Y_IN_OUT
ZAP
Y_GCA
DATAOUT_Rear
SP+
DATA_IN
SDC_IN
VCC_D
Front_INT_R
SDC_J
MONITOR_R1
C_IN
SP_GND
SP-
VSS_OUT
VSS_IN
DRIVE_YOUT
HPOUT_L
DRIVE_GND
DRIVE_VOUT
VCC_DRIVE
DRIVE_COUT
N.C
MUTE_OUT
CLAMP_TC
VCC_V
V_IN
C_IN_1
V_GND
C_IN_2
Y_IN
V_GND
LOOP_IN
Y_IN_1
Y_IN_2
MICDET2
EXT_L
MONO_DET_IN
EXT_R
Rear_INT_R
A_GND
SPAGC_TC
Front_SHOE_L
SPAGC_OUT
OFFSET_PBR
Front_SHOE_R
SPAMP_OUT
SDC_OUT
MONI_RECPB_R2
Rear_INT_L
VREF_L
XX MARK:NO MOUNT
VIDEO, AUDIO I/O
AU_4.6V
INT_MIC_R
INT_MIC_F
INT_MIC_L
AUDIO_R_I/O
SP+
REG_GND
AU_2.8V
AUDIO_L_I/O
MT_5.0V
SP-
AU_4.6V
SYS_SOUND
SI
XCS
XRST
Front_INT_L
INT_EXT_OUT
MIC_MONO_OUT
ZAP_GND
LINE_IN_L
OFFSET_RL
AGC_TC_Rear
LINE_IN_R
MICVCC_F
WCLK
OFFSET_RR
MONI_L1
VCC_H
OFFSET_FR
OFFSET_FL
SCK
BCLK
MCLK
DATAOUT_Front
A_GND
AGC_TC_Front
VC-520 BOARD (15/20)
D_2.8V
AU_2.8V
A_2.8V
AU_4.6V
XSYS_RST
Ver. 1.1 2008.01
4-21
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (16/20)
Non MEGA model
MEGA model
2.8
L3.9/
E4.6
L0/
E0.6
L2.3/E1.5
L7.3/
E0.7
L0.2/
E0.6
L0/E1.2
L3.2/
E4.6
L0.6/
E0 L3.9/
E4.6
L0.1/
E4.6
L3.9/
E4.6
L3.2/
E4.6
L3.3/
E0
L3.2/
E4.6
L0/
E1.2
L7.3/
E0.7
L3.2/
E4.6
L3.8/
E0
L3.3/
E0 L3.3/
E0
1.2
2.8
1.7
1.7
1.7
L0.6/E1.8
1.4
L2.3/E2.5
L2.1/E2.3
L4.1/E3.7
L2.1/E1.8
L2.5/
E2.3
2.8
2.8
L2.8/E0
L2.8/E0
1.4
1.4
0
0.2
L0/E2.8
2.5
0
0
L2.8
/E0
2.8
1.4
0
0
8.5
8.5
L0/
E0.6
2.5
4.5
4.5
2.5
2.5
2.5
1.2
1.4
0.7
2.5
2.6
0.3
2.8
8.5
L3.8/E0
L3.9/E4.6
L3.9/E4.1
2.8
2.6
: Non MEGA model
: MEGA model
: Non MEGA model
: MEGA model
NO MARK:REC/PB MODE
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
L:LCD MODE
E:EVF MODE
3
G
6 9
F
B
H
7 10
C
05
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
EVF_STBY
EVF_VP
PANEL_VD
BB_SO
EVF_HST
EVF_EN
PANEL_HD
EVF_HCK2
EVF_PCG
EVF_HCK1
EVF_VCK
XCS_LCD
EVF_VST
BB_SI
XBB_RST
XCS_LCD
EVF_STBY
BB_SI
XBB_SCK
PANEL_HD
PANEL_VD
BB_SO
EVF_REF
EVF_VB
DWN_P
RGT_P
COM_P
XSTBY_P
KEY_AD0
EVF_VR
EVF_PCG
EVF_VCK
EVF_EN
EVF_REF
TP_Y
TP_X
TP_SEL1
EVF_VP
PANEL_NOR/REV
PANEL_NOR/REV
XSTBY_P
EVF_VG
EVF_COM_CN
COM_P
EVF_VST
DWN_P
RGT_P
EVF_HCK1
EVF_HCK2
EVF_HST
A_2.8V
XBB_SCK XBB_SCK
A_4.6V
EVF_VB
EVF_VR
EVF_VG
XBB_RST
XBB_RST
C3116
0.1u
B
C3119
XX
C3108
10u
B
C3113
4.7u
C3110
4.7u
B
C3102 0.01u
C3106
560p
CH
C3112
2.2u
B
C3120
0.01u
B
6
5
2
1
4
3
C3115
10u B
C3103 0.01u
C3101 0.01u
C3105
0.1u
B
C3104
1u
B
C3118
10u
B
C3107
XX
D3101
XX
A_4.6V
EP_8.5V
A_2.8V
1
A_OUT
2
A_IN-
3
A_IN+
4
GND
5678
IC3101
CXM3018R-T4
LCD/EVF DRIVE
123456789101112
13 14 15 16 17 18 19 20 21 22 23 24
252627282930313233343536
373839404142434445464748
L3103
10uH
L3101
10uH
L3102
10uH
3
5
46
2
1
Q3106
UNR32A3G0LS0
RB3103
100k
1
2
3
4
5
6
7
8
RB3101 XX
1
2
3
4
5
6
7
8
R3121
100k
R3119
2200
R3120
0.5%
R3102
68k
R3103
XX
R3101
XX
R3104
XX
R3105
100k
0.5%
R3111
XX
CN3102 30P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Q3107
Q3106, Q3107
B+ SWITCH
MCH6305-TL-E-S
R3122
XX
C3121
4.7u
B
Q3102
2SA1832-YGR-TE85L
R3108
4700
Q3103
2SA1832-YGR-TE85L
R3107
0.5%
Q3101
UP04501G08S0
LCD BACKLIGHT
DRIVE
Q3101-Q3104
6
2
1
3
5
4
R3114
18
0.5%
R3110
18
0.5%
Q3104
2SA1832-YGR-TE85L
R3112
1k
RB3102
47k
12
34
56
78
R3109
2200
R3113
18
0.5%
R3115
220k
0.5%
CL3104
C3109
XX
RB3104
10k
CN3101 18P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
SCAN
SO
EN
OPIN
VSS
GND1
XCLR
XSCK
VDD
SI
EP_4.6V
XCS
XHD
EXTDA
COMDA_PANEL
XVD
COM_PANEL
TRST
HCK1
HST
HCK2
XSTBY_E
POFF
RGT
PCG
OPOUT
TEST
DWN
POFF
Through the
Flexible Flat Cable
(FFC-140)
CN5701
BL-021
CN5701
BL-022
Page 4-26
of Level 2
Through the
Flexible Flat Cable
(FFC-140)
Page 4-26
of Level 2
LND031-LND060
FP-573
FLEXIBLE
Page 4-29
of Level 2
150
82
30k
39k
XX MARK:NO MOUNT
LCD/EVF DRIVE
VC-520 BOARD (16/20)
±
±
±
±±±
±
EVF_VB
EVF_PCG
EVF_REF
EVF_VST
EVF_HCK1
EVF_HCK2
EVF_HST
EVF_EN
EVF_GND
EVF_VCK
EVF_VDD
EVF_STB
LED_K
EP_4.6V
EVF_COM
EVF_PSIG
EVF_VG
EVF_VR
VCC1
EXTDA
Filter
COM_PANEL
RIN
COMREF
REF
BIN
GIN
COMDA_PANEL
COMDA_EVF
COM_EVF
VG
VSS
XSTBY_P
GND2
VR
VST
VCK
VDD
VP
VB
VCC2
WIDE
Q3105
UP04601G08S0
EVF BAKLIGHT
DRIVE
IC3102
NJM12904V(TE2)
LCD/EVF BACKLIGHT
CONTROL
B_IN+
B_IN-
B_OUT
Vcc
EVF_BL_ON
PANEL_BL_ON
REG_GND
D_2.8V
PANEL_G
PANEL_B
XBB_SCK
BB_SO
XCS_LCD
PANEL_R
REG_GND
KEY_AD0
BB_SI
PANEL_NOR/REV
KEY_AD0
TP_Y
TP_SEL1
TP_X
TP_X
HCK1
TP_Y
REG_GND
COM
VST
PANEL_VB
PSIG
PCG
VCK
HCK2
RGT
D_2.8V
PANEL_VR
TP_SEL1
KEY_AD0
EP_2.8V
EN
REG_GND
PANEL_VG
REF
DWN
XSTBY
VDD_P
HST
PANEL_NOR/REV
BL_H3
BL_H2
BL_H1
REG_GND
TP_X
TP_SEL1
TP_Y
PANEL_HD
PANEL_VD
XBB_RST
1
2
3
4
5
6
7
8
4-22
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (17/20)
Note: IC4901 is not supplied, but this included in
VC-520 complete board.
3
G
6 9
F
B
H
7 10
C
05
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
FR_EVER_SO
D_1.2V
XLANC_ON
XLANC_PWR_ON
XCS_DD
VTR_DD_ON
CLAMP_ON
VTR_DD_ON
XFR_SCK
FR_SO
FR_SI
XCS_EX
BATT_UNREG
BATT_UNREG
VTR_UNREG
VTR_UNREG
FR_EVER_SCK
EVER_3.0V
XUNREG_RESET
FR_XRESET
XSYS_RST
XSYS_RST
XFLASH_RST
XFLASH_RST
XIC_4201_RESET
XIC_4201_RESET
C4912
XX
C4907
12p
CH
C4903
XX
C4906
10p
CH
C4917
0.01u
B
C4904
XX
C4911
0.1u
B
C4905
XX
C4901
22u
TA
CL4911
CL4912
CL4910
CL4909
VTR_UNREG
D_1.8V
BATT_UNREG
XIC_4201_RESET
IC4903
XX
1
INB
2
INA
3
4
OUTY
5
R4926 XX
R4907
XX
R4930
1M
R4933
47k
R4934
100k
R4910
XX
R4931
XX
R4908
XX
R4901 XX
R4909
XX
IC4905
XX
1
INA
2
GND
3
INB
4
OUTY
5
VCC
IC4902
XX
1
INB
2
INA
3
4
OUTY
5
R4903 XX
C4902
XX
XDR_RESET
K2
RSTX
K1
MOD
K3
TMD
L2
X0A
L3
X1A
H1
CPO
J1
VCI
A1
BRSTX
L1
BDBMX
A11
BSIN
B9
BSOUT1
C9
BSOUT2
A9
BEXCK
A4
SIO2
K4
SUBCK1
L4
SUBCK2
L10
AVCC
L9
AVSS
K10
AVR
B4
P00_INT04
A3
P01_INT05
B3
P02_INT06
A2
P03_INT07
B2
P04_INT08
B1
P05_INT09
C2
P06_INT10
C1
P07_INT11
C3
P10_SI1
D2
P11_SO1
D1
P12_SCK1
D3
P13_ADTG
E3
P14
E1
P15
E2
P16
F1
P17
F2
P20_PPG00
G1
P21_PPG01
G2
P22
H2
P23
H3
P24_CS0X
J4
P25_SI0
L5
P26_SO0
K5
P27_SCK0
J5
P30_AN00
L6
P31_AN01
K6
P32_AN02
J7
P33_AN03
L7
P34_AN04
K7 L8 K8 K11 K9 J10 J11 H9 H10 H11
G10G11 F11 F10 E11 E10 E9 D11D10 D9 C11 C10
B10 B8
A8C8B7A7C7B6A6C5B5A5C4B11J2A10C6F3F9G3G9J6J8J9J3L11
C4908
0.01uB
C4909
0.1u
B
R4915
6800
R4913
1800
RB4902
1k
1
2
3
4
5
6
7
8
R4935
1k
C4915
0.1u
B
R4928
XX
C4916
0.1u
B
R4914
XX
CL4903
CL4902
CL4901
CL4904
CL4905
CL4906
CL4908
R4918
XX
C4913
0.01u
B
R4929
470k
R4932
100k
R4911
10M
1608
R4917
1k
C4914
0.01u
B
C4910
0.1u
RB4903
10k
12
34
56
78
RB4904
1k
RB4905
47k
12
34
56
78
R4936 XX
R4937 10k
X4901
32.768kHz
R4942 10k
R4941 XX
IC4904
XX
1
INA
2
GND
3
INB
4
OUTY
5
VCC
RB4901
10k
1
23
45
6
7
8
GND
VOUT
D2.8V
EVER_3.0V
D_1.2V
VOUT
EVER_3.0V
D_1.2V
D_2.8V
XX MARK:NO MOUNT
HI CONTROL
VC-520 BOARD (17/20)
XMODE_SW
XEJECT_SW
XBATT_VIEW
XPOWER_SW
BATT_SIG
XSYS_RST
XIC_4201_RESET
±
0.5%
±
0.5%
±
0.5%
±
0.5%
±0.5%
±0.5%
P65
P66
P67
P70_INT00
P71_INT01
P72_INT02
P73_INT03
P74
P75_SCK2
P76_SO2
P77_SI2
VCC1
VCC2
VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8
VSS9
NC
NC
IC4901
HI CONTROL
MB95005BGL-G-110-ERE1
P35_AN05
P36_AN06
P37_AN07
P40_AN08
P41_AN09
P42_AN10
P43_AN11
P44_AN12
P45_AN13
P46_AN14
P47_AN15
P50
P51
P52
P53
P54
P55
P56
P57
P60_PPG10
P61_PPG11
P62_LSO
P63_LSI
P64
XCHARGE_LED
XCAM_LED
INIT_CHARGE_ON
XHOT_STBY
STABLE_RUN
WD_DIS
1.8/3VCTRL
LANC_OUT
FAST_CHARGE
SYSTEM_AD
GENERAL_AD
LANC_IN
BOOT_MODE_PORT0
12
34
56
78
BATT/XEXT
XMS_IN
BATT_IN
FR_EVER_SO
XCS_DD
BATT_IN
VTR_DD_ON
FR_EVER_SCK
BATT/XEXT
BATT_SIG
1.8/3VCTRL
XSYS_RST
CLAMP_ON
FAST_CHARGE
INIT_CHARGE_ON
FR_XRESET
LANC_IN
LANC_OUT
XLANC_PWR_ON
XLANC_ON
SYSTEM_AD
GENERAL_AD
BOOT_MODE_PORT0
XUNREG_RESET
BATT_SIG
BATT/XEXT
BATT_IN
LANC_IN
XLANC_PWR_ON
FR_EVER_SO
CLAMP_ON
1.8/3VCTRL
XCS_DD
INIT_CHARGE_ON
FR_EVER_SCK
LANC_OUT
FAST_CHARGE
VTR_DD_ON
XLANC_ON
SYSTEM_AD
GENERAL_AD
BOOT_MODE_PORT0
FR_SI
XCHARGE_LED
STABLE_RUN
XPOWER_SW
XHOT_STBY
XCAM_LED
XFR_SCK
FR_SO
XCS_EX
WD_DIS
XBATT_VIEW
XEJECT_SW
XMS_IN
XMODE_SW
WD_DIS
FR_SI
REG_GND
XHOT_STBY
XCAM_LED
XCS_EX
STABLE_RUN
XEJECT_SW
XBATT_VIEW
FR_SO
XCHARGE_LED
XFR_SCK
D_1.2V
VOUT
D_2.8V
EVER_3.0V
XFLASH_RST
1
2
3
VOUT
XPOWER_SW
XMODE_SW
XUNREG_RESET
XSYS_RST
FR_XRESET
XSYS_RST
4-23
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (18/20)
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
MEGA model
MEGA model
0.1
0
0
-0.1
8
0
8.3
8.3
8.3
0.6
0.4
0.4
0.6
8
2.7
1
1.3
1.3
2.8
8.3
8.1
8
8
8.1
0
8.3
NO MARK:REC/PB MODE
8.3
2.8
XX MARK:NO MOUNT
DC IN, CHARGE
VC-520 BOARD (18/20)
3
G
6 9
F
B
H
7 10
C
05
8 11
D
B
G
12
E E
H
1
A
4
D
A
2
C
5
F
C4610
10u
C4609
10u
C4612
1u
C4608
10u
C4607
10u
C4613
XX
D4601
MA4ZD03001S0
23
1
4
D4603
1SS361-TE85L
1
2
3
F001 (1.4A/32V)
(1.4A/32V)
(1.4A/32V)
(1.4A/32V)
F004
F005 (1.4A/32V)
F003
F002
F006 (1.4A/32V)
Q4606
MCH6305-TL-E-S
1
3
4
2
5
6
Q4602
UNR32A3G0LS0
Q4605
UNR32A3G0LS0
R4614 XX
R4610
1M
R4611
1k
R4613 XX
R4604
1200
R4605
6800
R4609
10k
R4603
10
1608
Q4603
MTM684110LS0
8
7
1
6
5
4
3
R4606
100k
C4605
0.022u
16V
R4607
1M
Q4601
Q4601, Q4602
2SB798-T1-DLDK
R4612 XX
R4608
XX
C4611
0.1u
D4602
XX
C4606
XX
S-80840CNNB-B8ZT2G
SWITCH
CHARGE
SWITCH
CHARGE
CONTROL SWITCH
B+ SWITCH
RESET
IC4601
1
OUT
2
VDDN.C.
3
GND
4
R4615
XX
Q4604
2SC5846G0LS0
C4503
0.47u
B
C4506
4.7u
B
C4505
0.0022u
B
A_2.8V
GSHCK
IC4501 TA6038FNG (EL)
12345
678910
R4502
10k
R4501
100k
C4502
22p
CH
C4501
22p
CH
SE4501
SHOCK
SENSOR
SBO
SIA
SIB
SOA
GND
REG_GND
REG_GND
SHOE_ON
REG_GND
INIT_CHARGE_ON
REG_GND
FAST_CHARGE
VTR2_UNREG
DRV_UNREG
MT_BL_UNREG
BATT_UNREG
VTR_UNREG
SHOE_UNREG
DO
VCC
AI
AO
OUT
BATT_UNREG_CN
BATT/XEXT
REG_GND
ACV_UNREG_CN
REG_GND
REG_GND
SHOCK SENSOR AMP
XUNREG_RESET
•Refer to page 4-2 (English), 4-3 (Japanese) for mark 0.
4-24
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (19/20)
R-14.7/
P-16
15.7
R15/P15.5 15.7
15.1
3.9
4
8.3
2.7
4.8
4.8
2.8
R14.9/
P0
1.2
0
12.6
R-15.3/
P-16.2
3.9
15.7
R11.9/P0.4
R12/
P0
R12.6/
P0
0
R0.5/P0
R-0.1/
P0.3
R-7.5/P0
8.5
R14.9/P0
Non MEGA model
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
MEGA model
: Non MEGA model
: MEGA model
: Non MEGA model
: MEGA model
: Non MEGA model
: MEGA model
NO MARK:REC/PB MODE
4.8
3.3
3
R:REC MODE
P:PB MODE
C4810 XX
C4842 4.7u
C4859
4.7u
R4837
R4807 XX
C4829
2.2u
Q4808
UP04401G08S0
6
2
1
3
5
4
C4827 470p
R4831
100k
C4840 4.7u
22uH
L4806
0.47u
C4831
C4823 XX
CAM_-7.5V
R4810 10k
D4805
MA2SD320G8S0
C4857
2.2u
C4819 0.047u
R4819 100k
C4806 0.1u
Q4803
2SA2078G0LS0
CAM_DD_ON
C4844 4.7u
D4801
MAS3132EGLS0
Q4802
MCH5819-TL-E
R4834
22k
C4861
2.2u
C4801
1u
R4818 10k
C4812 100p CH
C4807 XX
C4814 XX
C4803 0.22u
C4848
1u
R4824 560k
4.7u
C4847
R4838
C4824 0.047u
C4818 220p CH
C4805 0.1u
C4817 0.01u
1u
C4849
R4804 XX
C4836 2.2u
Q4805
2SA2078G0LS0
C4838 2.2u
C4809
10u
R4822 XX
C4826 0.0047U
C4808
0.1u
E11 A1 F10 F9 E10 D11D10C10 G9 C11 A11 B2 B6 A4 B5 B8 A7 A8 D2 D6 D3 H6 F8 E4 H7 K7 E5 L7 J6 J5
C5 D5 E6 L5 K6 L6 E7 H1 G2 G1 F3 A3 B4 A2 F5 J1 K1 L2 F6 D1 C2 B1 F7 E1 F2 F1 G3 L4 J4 L3
E2F4E3H8K9K10H10H11G11J11J10J9H9K11L10L9J8J7B9G10F11C6C7B7D7D8C8G8L8K8
A9A5G4K5A6G5J3H5K4K3K2G6D4B3C3C4G7A10H2C9H3B10H4B11J2E9E8D9L1L11
Q4806
2SC5846G0LS0
C4821 220p
C4802
1u
4.7u
C4845
R4803
4700
C4841 4.7u
C4846
10u
R4806 2.2
C4804 1u
C4843 10u
R4836
D4806
MA4ZD03001S0
C4830
1u
R4821 10k
C4834 2.2u
R4802
XX
C4833 2.2u
R4826 47k
R4801
100
R4813 XX
EP_8.5V
D4802
1SS357-TPH3
CAM_15/12V
Q4801
SWITCHING
SWITCHING
SCH2806-TL-E
C4832 2.2u
C4816 0.1u
C4811
XX
C4815
XX
R4808
XX
R4814
XX
R4811
68k
C4813
0.0022u
REG_GND
C4835 2.2u
C4837 2.2u
DRV_UNREG
MT_BL_UNREG
VTR2_UNREG
VTR_UNREG
L4811 4.7uH
L4813 4.7uH
L4810 XX
L4821 1uH
C4866
10u
L4822 1uH
C4867
10u
L4816 XX
L4824 1uH
L4818 1uH
L4823 4.7uH
L4817 1uH
C4863
10u
L4820 4.7uH
L4819 4.7uH
L4814 1uH
CLAMP_ON Q4804
CLAMP
SSM6N16FE(TPLR3)
6
1
5
2
4
3
L4809 4.7uH
D4804
MA2SD320G8S0
R4816
R4823 XX
C4825
0.01u
R4817 XX
R4805 XX
R4809 XX
R4812 XX
R4815 XX
XX
R4825 XX
1u
C4828
CL4802
C4851
XX
C4853
4.7u
C4855
4.7u
C4862
XX
C4864
4.7u
C4868
4.7u
C4870
4.7u
C4869
4.7u
C4865
4.7u
C4854
4.7u
C4856
4.7u
C4850
4.7u
D_1.8V
C4822
10u
C4872 1u
R1114Q331D-TR-FA
IC4802 3.3V REG
1
CE
2
GND VOUT
3
VDD
4
1.8/3VCTRL
C4871
1u
L4807
33uH
L4801
22uH
L4802
10uH
L4804
10uH
L4805
22uH
L4808
22uH
L4815 4.7uH
C4820
0.001u
R4820
68k
C4858
XX
R4833
XX
R4841
XX
R4832
4700
R4835
0
R4839
22k
XX
C4852
R4840
91k
C4839
2.2u
R4844 XX
R4845
XX
Q4807
UP04601G08S0
R4828 XX
C4873
XX
R4847
XX
RB4801
100
22uH
L4803
D4803
MA4ZD03001S0
4.7u
C4874
CH5 2.5V
-15.7V
VBAT
STB
DIN
CH2 MT_5V
CH7L/H
CS
VOUT
LD
VREGA
VCC3
CH7 15.7V
CH8 3.9V
Q4806, 4808
-7.5V REG
CT
SENSE
CLK
CH8B
CH6LH
CH5LH
VOUT5
VRO
VCC2
VCC1
GND
VCH
RST
CH8A
XRESET
SLOPE
15V REG
VOUT4
VOUT6
STBY6
RT
WAKE_UP
CH5 2.5V
VR
REG78CTL
SCP
XCTL2
8.5V REG
VCONT6
DATA_OUT
SCP9
DATA_IN
REG6CTL
LANC_OUT
EVER_3.0V
CH1 4.6V
VCONT5
CH3 2.8V
SOFT
CH4 MT4.3V
GND2
CH8 3.9V
CH4 MT_4.3V
15.7V
SSREG6
CH3 2.8V
CH2 MT5V
CH1 4.6V
CH6 1.2V
2016
2016
CH6 1.2V
1.2 / 2.5
2.8 / 4.1 / 4.6
MT5 / 15
MT4.3
2016
12V REG
CAM_12VREG
B
C
9
A
I
H
F
5
F
L
3
H
05
K
G
13
J
C
7
A
62
I
E
1612
4
L
D
1
D
G
1511
K
B
E
1410
8
J
R4838
100k
220k
R4837
15k
9.1k
R4836
47k
100k
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
XX MARK:NO MOUNT
DC/DC CONVERTER
VC-520 BOARD (19/20)
VREG8
NF5
IN4
NF3
FB2
FB1
NC (CP)
VREG7
VREGD
IN7
NF1
FB7
NF4
IN2
NF8
FB5
SOFT6
FB4
NF2
FB8
NF6
IN8
IN3
IN1
NF7
FB6
FB3
IN5
HVREG
IN6
SW8
GATE8
PGND7
SW7
PVCC7
PGND6
SW6
PVCC6
PGND5
SW5
PVCC5
PGND4
SW4
PVCC4
PGND3
SW3
PVCC3
PGND2
SW2
PVCC2
PGND1
SW1
PVCC1
IC4801
BD9838GV-E2
123
4
5
1
23
4
5
6
REG_GND
AU_4.6V
A_4.6V
A_4.6V
MT_5.0V
REG_GND
DRV_MT_5.0V
REG_GND
D_2.8V
AU_2.8V
A_2.8V
A_2.8V
D_3.3V
D_2.8V_1
BATT_IN
BATT_LI_3V
VTR_UNREG
FR_EVER_SO
VOUT
FR_EVER_SCK
EVER_3.0V
XCS_DD
BATT_UNREG
1.8/3VCTRL
LANC_SIG
LANC_IN
LANC_OUT
XLANC_ON
LANC_DC
XLANC_PWR_ON
VTR_DD_ON
1.8/3VCTRL
A_1.2V
D_1.2V
DRV_A_3.9V
REG_GND
DRV_MT_4.3V
D_2.5V
A_2.5V
DC CONTROL,
RESET, LANC DRIVE
1
2
3
32
1
4
32
1
4
7
8
5
6
3
4
1
2
VOUT
FR_XRESET
LANC_DC
EVER_3.0V
4.6V
5V
2.8V
4.3V
2.5V
1.2V
4-25
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3 VC-520 (20/20)
NO MARK:REC/PB MODE
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
Non MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
Non MEGA model
DVD110E/DVD115E/
DVD310E/DVD410E
DVD610/DVD610E/
DVD710/DVD710E/
DVD810/DVD810E
MEGA model
MEGA model
DVD410E/DVD810/DVD810E
0
0
4.8
0
0
4.8
1.8
2.8
0
0
2.8
2.8
0
DVD115E/DVD310E/
DVD410E/DVD710/
DVD710E/DVD810/DVD810E
Note: MIC901 is not included in
VC-520 complete board.
B
C
9
A
I
H
F
5
F
L
3
H
05
K
G
13
J
C
7
A
62
I
E
16124
L
D
1
D
G
1511
K
B
E
14108
J
USB_D+_CN
USB_D-_CN USB_D-
USB_D+
S_Y/D3_Y
1
CE
2
GND VOUT
3
VDD
4
R1023
15
1/10W
1608
Q1002
LED DRIVE
(NIGHSHOT)
2SC5663T2L
D_2.5V
R1025
3300
CN1010 8P
1
2
3
4
5
6
7
8
R1005
XX
CN1009 14P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
IR_LED_ON
D1005
CL-335IRS2-X-TS
C1013
XX
R1024
15
1/10W
1608
REG_GND
CN1011 XX
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C1002
1u
CN1003 16P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
C1001
0.1u
B
REG_GND
GENERAL_AD
R1016
XX
MEM_SEL1
R1014
0
R1013
XX
MEM_SEL2
R1011
1200
1
CE
2
GND VOUT
3
VDD
4
C1008
XX
REG_GND
D_2.8V
R1003
0
R1002
0
CN1006 14P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C1007
1u
B
R1001
0
REG_GND
R1004
0
R1017
XX
C1006
0.1u
B
D_2.8V
SYSTEM_AD
R1010
10k
V_TO_PR
C_TO_PB
RB1001
75
12
34
56
78
Y_TO_Y
CN1004 5P
1
2
3
4
5
6
7
8
REG_GND
XVBUS_DET
LN1002
DEW_AD
C1004
XX
REG_GND
LF1001
13
4
2
LN1001
REG_GND
C1005
100p
CH
R1015
10k
USB_VCC
DEW_AD
INT_MIC_L
CN1005 6P
1
2
3
4
5
6
REG_GND
INT_MIC_F
INT_MIC_R
R1020 XX
C1011
XX
D1004
XX
C1012
XX
R1021 XX
R1022
XX
R1019
XX
D1002
XX
D1006
XX
C1010
XX
CN1008 12P
1
1
23
1
23
1
23
2
3
4
5
6
7
8
9
10
11
12
BATT_UNREG_CN
REG_GND
REG_GND
VD1001
R1009 XX
REG_GND
BATT_SIG
ACV_UNREG_CN
LF1002
12
3
4
R1012
XX
C1020
0.001u
D1001
EDZ-TE61-5.6B
C1017
0.001u
C1018
0.001u
BATT/XEXT
R1007
220
C1019
0.001u
C1016
470p
C1015
470p
CN1012
1
2
3
4
5
6
7
8
9
10
11
12
13
14
VD1006
VD1003
XX
VD1005
FB1002
VD1002
FB1001
VD1004
XX
FB1003
D1007
XX
5
43
2
1
R1018
220
R1008
150
R1006 15
CN1001 24P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
C1003
XX
R1029
XX
R1030
XX
D1008
XX
3
2
1
CN1013 18P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
CN1002 10P
1
2
3
4
5
6
7
8
9
10
LED DRIVE
Q1003
DTA114EMFS6T2L
C1021
XX
2.9V
BS
SDIO/DATA0
SCLK
INS
REG_GND
DATA2
DATA3
2.9V
REG_GND
REG_GND
REG_GND
VCC
DATA1
REG_GND
(ACV_GND_CN)
(BATT_GND_CN)
(ACV_GND_CN)
VCC
BATT_GND
ACV_UNREG
N.C.
BATT_GND
BATT_UNREG
N.C.
BATT_UNREG
ACV_UNREG
BATT_SIG
ACV_UNREG
ACV_GND
BATT_UNREG
BATT_GND
BATT_GND
ACV_UNREG
BATT_GND
BATT_UNREG
ACV_UNREG
BATT_XEXT
ACV_GND
ACV_GND
ACV_GND
ACV_GND
BATT_UNREG
XX MARK:NO MOUNT
CONNECTOR
VC-520 BOARD (20/20)
FP-840
FLEXIBLE
Page 4-29
of Level 2
FP-841
FLEXIBLE
Page 4-33
of Level 2
FP-842
FLEXIBLE
Page 4-33
of Level 2
Through the
Flexible Flat Cable
(FFC-089)
CN5801
CK-192
CN5801
CK-191
Page 4-31
of Level 2
Through the
Flexible Flat Cable
(FFC-089)
Page 4-30
of Level 2
MIC901
MICROPHONE UNIT
FRONT A/V R
FP-839
FLEXIBLE
Page 4-34
of Level 2
R
L
(USB)
CONTROL
KEY
BLOCK
(PS26100)
Page 4-34
of Level 2
XPHOTO_LED
XPOWER_SW
D_2.8V
XCAM_LED
CHARGE_LED_VDD
ZOOM_VR_AD
REG_GND
D_2.8V
KEY_AD1
XCHARGE_LED
KEY_AD2
REG_GND
S/S
MODE_LED_VDD
XMODE_SW
QUICKREC_LED_VDD
D_2.8V
REG_GND
JTCK_J
CE
JTDO_J
JTMS_J
MNT4
TRST_J
TE
JRTCK_J
MNT7
FE
PI
MNT6
MNT5
JTDI_J
MNT2
MPXOUT2
TESTOUTN
MPXOUT1
JIG_UNREG
REG_GND
D_2.8V
TXD
BOOTSEL
TESTOUTP
SV_NOISE
MNT1
XDR_RESET
RXD
TESTOUTN
BOOTSEL
VTR_UNREG
XDR_RESET
REG_GND
MNT1
MPXOUT2
RXD
MNT2
TESTOUTP
D_2.8V
MPXOUT1
SV_NOISE
TXD
(For Check)
CPC
HOST_TXD
BOOT_MODE[3]
GND
D_2.8V
N.C (Oberon_EXT)
AV_RXD
AV_TXD
HOST_RXD
UART3_SO
UART2_SI
REG_GND
UART2_SO
UART3_SI
D_2.8V
BOOT_MODE_PORT0
JNTRST_J
JTCK_J
CE
FE
MNT7
JTDO_J
JTDI_J
JRTCK_J
PI
JTMS_J
MNT4
MNT5
TE
MNT6 XQUICKREC_LED
XCAM_LED
XCHARGE_LED
EVER_3.0V
XPHOTO_LED
REG_GND
START/STOP
KEY_AD2
D_2.8V
KEY_AD1
ZOOM_VR_AD
AUDIO_L_I/O
VIDEO/D3_PR
AUDIO_R_I/O
S_C/D3_PB
REG_GND
JACK_AD
LANC_DC
S_Y/D3_Y
LANC_SIG
10P
S_Y/D3_Y
S_GND
AUDIO_R
VIDEO/AUDIO_GND
AUDIO_L
S_C/D3_Pb
LANC_SIG
VIDEO/D3_Pr
LANC_DC
JACK_AD
S_C/D3_PB
VIDEO/D3_PR
S_Y/D3_Y
(For Check)
CPC
REG_GND
SHOE_UNREG
REG_GND
SHOE_MIC_FL
HOTSHOE_ID1
EXT_STROBE
REG_GND
SHOE_MIC_FR
HOTSHOE_ID2
LANC_SIG
REG_GND
(SHOE_GND)
(SHOE_GND)
ID1
GND
ID2
GND
MIC_GND
LANC
MIC_FR
STROBE
MIC_FL
UNREG
SHOE_CONT
UNREG
MIC_REG_GND
MIC_REG_GND
INT_MIC_F
MIC_REG_GND
INT_MIC_L
INT_MIC_R
MSDATA2
XMS_IN
MS_VCC
MSDATA1
REG_GND
REG_GND
MS_BS
MS_VCC
MSDATA3
SIRCS_SIG
MS_SCLK
REG_GND
D_2.8V
REG_GND
MSDATA0
PANEL_O/C
XMS_IN
D_2.8V
MSX_BIO0
REG_GND
MSX_BIO1
MSX_BS
REG_GND
MSX_BIO3
MSX_CLK
MSX_BIO2
SIRCS_SIG
PANEL_O/C
USB_D-
USB_VCC
USB_D+
USB_GND
ID
USB_D-
REG_GND
USB_D+
USB_VCC
USB DETECT
Q1001
UNR32A3G0LS0
REG_GND
HI_XRESET
REG_GND
SP+
SP-
ACCCESS_LED
D_2.8V
KEY_AD3
BATT_LI_3V
XBATT_VIEW
XMS_ACC_LED
XBATT_VIEW
SP+
REG_GND
BATT_LI_3V
SP-
KEY_AD3
D_2.8V
MT_5.0V
REG_GND
MS_PWR_ON
R1114Q291D-TR-FA
IC1001
2.9V REG
R1114Q291D-TR-FA
IC1002
2.9V REG
REG_GND
XFM_IN
FM_BIO0
FM_BS
FM_PWR_ON
FM_BIO2
FM_BIO3
FM_BIO1
FM_CLK
MT_5.0V
123
45
FR_XRESET
XMODE_SW
XPOWER_SW
4-3. PRINTED WIRING BOARDS
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
Link
Link
VC-520 BOARD (SIDE A) VC-520 BOARD (SIDE B)
COMMON NOTE FOR PRINTED WIRING BOARDS
4-35
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
4-3. PRINTED WIRING BOARDS
4-3. PRINTED WIRING BOARDS
4-3. PRINTED WIRING BOARDS
•: Uses unleaded solder.
•: Circuit board
: Flexible board
Pattern from the side which enables seeing.
: pattern of the rear side
(The other layers’ patterns are not indicated)
•Through hole is omitted.
•There are a few cases that the part printed on diagram
isn’t mounted in this model.
•C: panel designation
(ENGLISH)
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS
(JAPANESE)
21
3
21
3
21
3
345
21
123
654
EB
C
31
5
2
46
123
654
31
5
2
46
123
54
43
12
312
45
534
12
14
23
46
2
5
31
12
4
3
14
23
•Chip parts.
Transistor Diode
プリント図共通ノート
【プリント図ノート】
・ ：無鉛半田を使用しています。
・ ：基板
：フレキシブル配線板
見ている面側のパターン。
：裏側のパターン
（他のパターンについては表示されていません）
・スルーホールは省略。
・プリント図には，本機で使用していない部品が記載されている
場合があります。
・Cはパネル表示名称。
4-37
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
VC-520 (8 layers)
: Uses unleaded solder.
VC-520 (SIDE A)
110
1
2
7
8
A
1
2
17
18
1
2
29
30
112
36 25
48 13
37 24
1
2
23
24
1
2
9
10
1
2
15
16
1
2
5
6
1
2
13
14
1
2
11
12
1
2
13
14
1
2
27
28 1
2
15
16
P
1
2
7
8
1
2
13
14
12 910
784
510
118
P
A
1
2
34
12
34
A
12
34
1
2
23
24
R5165
FB1001
FB1002
FB1003
C1702
R5172
R5173 C1703
Q1701
FB1201
C1705
C1706
FB1202
FB1203
FB1204
C1709
CN4401
CN4402
C1714
C1715
C1716
C1717
Q4402
C1720
C1723
C1724
C1725
C4606
C1726
C4607
C4608
C1728
Q4605
C4609
FB1801
C1729
Q4606
FB1802
FB1803
FB1804
L1201
RB5101
RB5102
RB5103
L1203
C4610
C1730C1731
IC1701
RB2801
C4612
C4613
RB2803
RB2804
RB2805
D4402
C2101C2102
R1717
C2103
C2104
C2105
C2106
C2107
C2108
C2109
D4602
D4603
R1721
R1722
R1724
R1725
R1726
C2112
R4413
R4609
R4610
R4611
R4612
R4613
R4614
R1735
LF1002
R1736
R1737
R1739
R2104
R2105
R2106
R2107
C4840
R1744
R2108
C4841
IC2101
R1745
C2901
C4842
R1746
C2902
C4843
C2903
C4844
C2904
C4845
C2905
Q2901
C4846
C2906
C2907
C2909
C2910
C2911
C2912
C2915
C2916
C2917
C2918
C2919
CL1201
CL1202
CL1203
C2920
CL1204
C2921
C2922
C2923
C2924
R1768
CN3101
C2926
CN3102
C2927
C2928
R2901
C2929
R2902
R2903
R2904
R2905
C2930
IC2901
C2932
C2933
R1781
R1782
R1783
R1784
R1785
CL1801
CL1802
R1787
CL1803
CL1804 CL1805
R1789
L2801
L2802
L2803
L2805
CN1001
RB1701
CN1002
CN1003
RB1703
RB1704
RB1705
CN1005
CN1006
RB1706
RB1707
CN1008
CN1009
C1001
CN1201
C1002
C1003
CN1203
CN1010
CN1011
C1006
Q1002
CN1012
Q1003
C1007
CN1013
C1008
RB4402
C1201
C1202
C1203
C1010
C1204
C1011
C1205
C1012
C1206
C1013
C1207
C1208
C1015
C1209
C1016
C1017C1018
C1019
C1210
C1211
C1212
C1213
C1020
C1214
C1021
C1215
C1216
C1217
D1001
C1219
D1002
D1004
D1005
D1006
D1007
D1008
C1220
R1005
C1221
R1006
C1222
R1007
C1223
R1008
R1009
IC1001
X1701
C1225
IC1002
RB2102
C1227
C1228 R1201
R1202
R1203
R1010
R1204
R1011
R1205
R1012
R1206
R1013
R1014
R1208
C1230
IC1201
R1209
C1231
R1016
IC1202
R1017
C1233
R1018
R1019
R1211
R1212
R1020
R1021
VD1001
R1022
VD1002
R1023
VD1003
R1024
VD1004
R1218
R1025
VD1005
R1219
VD1006
R1029
R1220
R1030
R1801
R1803
RB2901
C2002
RB2902
RB2903
C2003
RB2904
C2006
F001
F002
F003
F004
F005
F006
C2010
C2012
C2013
C2014
C2015
C2017
C2019
CN5101
R1829
C2024
C2025
C2026
R1830
R2001
R1838
Q5101
C2031
C2801
C2032
C2802
C2033
C5107
C2034
C2805
Q2801
C2806
C2038
C2808
R1840
R2011
C2039
R1841
C2809
R1842
R2012
R2013 R1843
R1844
R2014
R1845
R2015
R2016
R1846
R2017
R1847
L4801
C2811
L4802
C2042
C2812
L4803
C2043
L4804
C2814
L4805
C2045
C2815
L4806
C2816
L4807
C2817
R1850
L4808
C2818
R1851
C2819
R1852
R1853
R1854
R1855
LN1001 LN1002
R1857
R1858
C2820
R1859
C2821
C2822
C2823
C2824
C2825
R1860
C2828
C2829
R1862
R2802
R1863
R2803
R1864
R2804
R1865
R2805
R1866
R2806
R1867
R2807
R1868
R2808
C2830
R1869
R2809
C2831
IC2801
C2832
C2833
C2834
RB1001
C2835
C2836
C2837
R1870
C2838
R1871
C2839
R1872
R1873
R2818
C2840
C2841
R2819
C2842
C2843
C2844
C2845
VD5101
VD5102
C2847
C2848
C2850
C2851
L2902
L2903
L2904
L2905
CL1717
RB1806
RB1807
CL2101
X1201
CL2102
CL2103
CL2104
05
17
28
63
17
28
17
28
17
28
VC-520 BOARD (SIDE A)
D1005
(NIGHTSHOT)
A/V R
1-874-566- 11 21
Note: IC2101 is not supplied, but this is
included in VC-520 complete board.
17
28
13
46
E
B
E
BC
E
B
C
17
28
17
28
17
28
1
7
2
8
17
28
17
28
45
1
3
2345
1
EB
C
17
28
R4T4U4V4
B5C5D5E5F5G5H5J5K5L5M5N5P5R5T5U5V5
B6C6D6E6F6P6R6T6U6V6
B7C7D7E7F7P7R7T7U7V7
B8C8D8E8F8P8R8T8U8V8
B9C9D9E9F9P9R9T9U9V9
B10C10D10E10F10G10H10J10K10L10M10N10P10R10T10U10V10
B11C11D11E11F11G11H11J11K11L11M11N11P11R11T11U11V11
A12B12C12D12E12F12G12H12J12K12L12M12N12P12R12T12U12V12W12
A13B13C13D13E13F13G13H13J13K13L13M13N13P13R13T13U13V13W13
A14B14J14K14L14U14V14W14 C14
A1B1C1J1K1L1U1V1W1
A2B2C2D2E2F2G2H2J2K2L2M2N2P2R2T2U2V2W2
A3B3C3D3E3F3G3H3J3K3L3M3N3P3R3T3U3V3W3
B4C4D4E4F4G4H4J4K4L4M4N4P4
17
28
17
28
E
B
C
17
28
17
28
17
28
17
28
E
B
C
1
23
4
5
13
14
32
E
B
C
A14B14C14D14G14H14AH14AJ14AM14AN14AP14AR14
A15B15C15
B1 A1C1D1E1F1G1H1J1K1L1M1N1P1R1T1U1V1W1Y1AA1AB1AC1AD1AE1AF1AG1AH1AJ1AK1AL1AM1AN1AP1AR1
A2B2C2D2E2F2G2H2J2K2L2M2N2P2R2T2U2V2W2Y2AA2AB2AC2AD2AE2
C16D16G16H16J16K16L16AE16AF16AG16AH16AJ16AM16AN16AP16AR16
A17B17C17D17G17H17J17K17L17M17AD17AE17AF17AG17AH17AJ17AM17AN17AP17AR17
A18B18C18D18G18H18J18K18L18M18AD18AE18AF18AG18AH18AJ18
H4J4K4L4M4N4P4R4T4U4V4W4Y4AA4AB4AC4AD4AE4AF4AG4AH4AJ4AK4AL4AM4AN4AP4AR4
A5B5C5D5E5AM5AN5AP5AR5
A6B6C6D6AM6AN6AP6AR6
A7B7C7D7G7H7J7K7L7M7N7P7R7T7U7V7W7Y7AA7AB7AC7AD7AE7AF7AG7AH7AJ7AM7AN7AP7AR7
A8B8C8D8G8H8J8K8
AR11
A12B12C12D12G12H12U12V12W12AH12AJ12AM12AN12AP12AR12
A13B13C13D13G13H13AH13AJ13AM13AN13AP13AR13
AN9AP9AR9
A10B10C10D10G10H10J10K10
AD19AE19AF19AG19AH19AJ19AM19AN19AP19AR19
A20B20C20D20G20H20J20K20L20AE20AF20AG20AH20AJ20AM20AN20AP20AR20
A21B21C21D21G21H21J21AG21AH21AJ21AM21AN21AP21AR21
A22B22C22D22G22H22AH22AJ22AM22AN22AP22AR22
AF2AG2AH2AJ2AK2AL2AM2AN2AP2AR2
A3B3C3D3E3F3G3H3J3K3L3M3N3P3R3T3U3V3W3Y3AA3AB3AC3AD3AE3AF3AG3AH3AJ3AK3AL3AM3AN3AP3AR3
A4B4C4D4E4F4G4
AR24
A25B25C25D25G25H25J25T25U25V25W25Y25AG25AH25AJ25AM25AN25AP25AR25
A26B26C26D26G26H26J26K26T26U26V26W26Y26AF26AG26AH26AJ26AM26AN26AP26AR26
A27B27C27D27G27H27J27K27L27R27T27U27V27W27Y27AA27AE27AF27
L8M8N8P8R8T8U8V8W8Y8AA8AB8AC8AD8AE8AF8AG8AH8AJ8AM8AN8AP8AR8
A9B9C9D9G9H9J9K9L9R9T9U9V9W9Y9AA9AE9AF9AG9AH9AJ9AM9
P29R29T29U29V29W29Y29AA29AB29AC29AD29AE29AF29AG29AH29AJ29AM29AN29AP29AR29
A30B30C30D30AM30AN30AP30AR30
A31B31C31D31AM31AN31AP31AR31
A32B32C32D32E32F32G32H32J32K32L32M32N32P32R32T32U32V32W32Y32AA32AB32AC32AD32AE32AF32AG32AH32AJ32AK32AL32AM32AN32AP32AR32
A33B33C33D33E33F33G33H33J33K33L33M33N33P33R33T33U33
A23B23C23D23G23H23AH23AJ23AM23AN23AP23AR23
A24B24C24D24G24H24U24V24W24AH24AJ24AM24AN24AP24
V33W33Y33AA33AB33AC33AD33AE33AF33AG33AH33AJ33AK33AL33AM33AN33AP33AR33
A34B34C34D34E34F34G34H34J34K34L34M34N34P34R34T34U34V34W34Y34AA34AB34AC34AD34AE34AF34AG34AH34AJ34AK34AL34AM34AN34AP34AR34
A35B35C35D35E35F35G35H35J35K35L35M35N35P35R35T35U35V35W35Y35AA35AB35AC35AD35AE35AF35AG35AH35AJ35AK35AL35AM35AN35AP35AR35
AG27AH27AJ27AM27AN27AP27AR27
A28B28C28D28G28H28J28K28L28M28N28P28R28T28U28V28W28Y28AA28AB28AC28AD28AE28AF28AG28AH28AJ28AM28AN28AP28AR28
A29B29C29D29G29H29J29K29L29M29N29
AM18AN18AP18AR18
A19B19C19D19G19H19J19K19L19M19
G15H15J15AG15AH15AJ15AM15AN15AP15AR15
A16B16
D15
T10U10V10W10Y10AF10AG10AH10AJ10AM10AN10AP10AR10
A11B11C11D11G11H11J11U11V11W11AG11AH11AJ11AM11AN11AP11 T11Y11
1
2
34
A1B1C1D1E1F1G1H1J1K1
A2B2C2D2E2F2G2H2J2K2
A3B3
A4B4
A5B5
A6B6
A7B7
A8B8
A9B9
A10B10
J3K3
J4K4
J5K5
J6K6
J7K7
J8K8
J9K9
J10K10
H9
H10
G9
G10
F9
F10
E9
E10
D9
D10
C9
C10
D4
C3
C4
C5
C6
C7
C8H8 G8 F8 E8 D8
H4
H5
H6
H7
G3 F3 E3 D3H3
1
2
34
17
28
17
28
17
28
17
28
P14 N14 M14 L14 K14 J14 H14 G14 F14 E14 D14 C14 B14 A14
P13 N13 M13 L13 K13 J13 H13 G13 F13 E13 D13 C13 B13 A13
B12 A12
B11 A11
B10 A10
B9 A9
B8 A8
B7 A7
B6 A6
B5 A5
P1 N1 M1 L1 K1 J1 H1 G1 F1 E1 D1 C1 B1 A1
P2 N2 M2 L2 K2 J2 H2 G2 F2 E2 D2 C2 B2 A2
B3 A3
B4 A4
P3 N3
P4 N4
P5 N5
P6 N6
P7 N7
P8 N8
P9 N9
P10 N10
P11 N11
P12 N12
12
3
1
23
1
23 1
23
13
46
C
Note: LF1002, R1009 and R1012 have the same mount location.
When you replace, since either LF1002 or R1009 and R1012
are used, please refer to schematic diagram and electrical
parts list.
A_2.8V
D_1.8V
D_2.8V
4.3V
2.8V
2.5V
4.6V
5V
1.2V
A_2.8V
A_2.8V
D_1.2V
D_1.2V
D_3.3V
A_1.2V
A_2.8V
AU_2.8V
CAM_-7.5V
CAM_15/12V
AU_4.6V
D_1.8V
D_1.8V
D_2.8V
4-38
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
VC-520 (8 layers)
: Uses unleaded solder.
VC-520 (SIDE B)
A
13
46
12
34
12
34
A
24 13
112
112
36 25
48 13
37 24
1
58
4
2
1
50
51
A
127
2854
15
610
4
5
1
8
1
54
3
1
54
3
B
5
13
4
5
13
4
58
4
1
1
58
4
1
58
4
1
58
4
RB4901
RB4902
RB4903
RB4904
RB4905
R5174
C4201
C4202
C4203
C4204
C4205
C4206
C4207
C4208
C4209
C4402
C4403
C4404
C4210
C4405
Q4401
RB2401
C4211
C4406
RB2402
C4212
C4213
C4408
C4214
C4215
C4216
C4217
C4218
C4219
C4410
FB4101
Q4601
C4605
C4411
FB4102
Q4602
Q4603
FB4103
Q4604
FB4104
C4220
FB4105
C4222
FB4106
C4223
C4801
C4225
D4201
C4802
C4226
C4803
C4227
C4804
C4228
Q4801
C4805
C4611
R4201
FB4301
C4229
Q4802
C4806
FB4302
R4202
Q4803
C4807
R4203
C4808
Q4804
C4809
Q4805
R4205
Q4806
R4206
Q4807
R4207
Q4808
C4230
X4901
IC4201
C4231
C4232
C4233
C4810
C4234
C4811
C4812
C4236
C4813
C4237
C4814
C4238
C4815
R4405
C4239
C4816
R4406
C4817
C4818
R4214
D4601
C4819
IC4401
R4409
R4215
C4240
R4219
R4603 R4604
C4820
R4410
CL3104
C4821
R4605
R4411
C4822
R4606
L4102
C4246
R4607
C4823
L4103
C4247
C4824
R4608
C4248
D4801
C4825
IC4601
R4221
C4249
C4826
D4802
R4222
D4803
C4827
R4223
C4828
D4804
R4801
C4829
D4805
R4225
D4806
R4802
R4803
R4804
C4250
R4805
R4806
R4807 R4808
C4830
C4831
IC4801
R4809
R4615
LF1001
C4832
IC4802
C4833
C4834 C4835
C4836
R4232
C4837
R4233
R4810
C4838
R4234
R4811
C4839
R4812
R4813
R4814
R4815
R4816
R4817
R4818
R4819
R4240
FB2401
R4241
C4847
R4820
C4848
C4849
R4821
C5401
R4822
C5402
R4823
C5403
R4247
R4824
R4248
C5404
R4825
Q5401
C5405
R4826
C5406
C5407
R4828
C4850
C5408
C4851
C5409
C4852
C4853
C4854
C4855
C4856
C4857
C4858
C5410
R4831
C4859
C5411
R4832
R4256
C5412
R4833
C5413
R4257
R4834
C5414
R4835
R4259
R4836
R4837 R4838
R4839
C4861
C4862
C4863
C4864
R4260
C4865
R4261
C4866
C4867
R4840
C4868
C4869
R4841
R4844
R4845
D5401
R4847
C4870
C4871
C3101
SE4501
C4872
C3102
R5402
C4873
C3103
R5403
C4874
C3104
R5404
C3105
Q3101
R5405
C3106
Q3102
R5406
Q3103
C3107
Q3104
C3108
Q3105
C3109
R5409
IC5401
Q3106
Q3107
C3110
R5410
CL4105
L5101
R5411
C3112
R5412
C3113
CL4107
CL4108
R5414
C3115
CL4109
R5415
C3116
C3118
C3119
CL4111
L5301
CL4112
C3120
C3121
CL4119
D3101
R3101
R3102
R3103
R3104
R3105
R3107
R3108
IC3101
R3109
IC3102
C1004
R3110
Q1001
C1005
R3111
R3112
R3113
R3114
CL4901
RB4401
R3115
CL4902
RB4403
CL4903
CL4134
CL4904
CL4135
R3119
CL4905
CL4136
CL4906
CL4137
CL4138
CL4908
CL4139
CL4909
R3120
R3121R3122
CL4910
CL4140
CL4911
CL4141
CL4912
RB4801
CN4103
CL2404
CL2405
R1001
CL2406
R1002
CL2407
R1003
CL2408
R1004
C4101
CL2409
C4102
C4104
C4105
C4106
C4107
C4108
C4109
C4301
X4201
C4302
C4303
C4110
C4304
R1015
C4111
C4305
C4112
C4113
C4114
C4308
C4116
C4117
C4118
C4119
C4501
C4502
C4503
C4310
C4311
C4505
C4506
C4120
C4121
C4122
C4123
C4124
C4126
C4127
C4128
FB4201
C4129
FB4203
FB4204
FB4205
FB4206
C4130
C4901
IC4101
C4131
C4902
C4132
C4903
C4904
C4134
FB4401
C4905
C4135
C4906
C4136
C4907
C4137
C4908
C4138
C4909
C4139
RB5401
IC4301
IC4302
RB5402
IC4303
C4140
C4910
C4141
C4911
R4501
C4912
R4502
C4913
C4914
C4915
C4916
C4917
IC4501
C2401C2402
C2404
Q2401
Q2402
L4202
C2407
L4203
C2408
C2409
R4901
R4903
C2410
C2411
L4402
R4136
L4403
R4907
R4137
C2414
L4404
R4908
R4138
C2415
R4909
IC4901
C5101
IC4902
C2417
IC4903
IC4904
C5104
RB3101
C2419
IC4905
C5105
RB3102
Q5102
C5106
RB3103
R4910
RB3104
R4911
R4913
R4914
C2420
R4915
C5301
C5302
R4917
C2423
C5303
R4918
C2424
C5304
C2425
Q5301
C5305
C5306
C2427
C5307
C5308
C2428
C2429
C5309
R2402 R2405
R2407
R2408
C5310
L4809
IC2401
C5311
R4926
C5312
C5313
R4928
C5314
R4929
C5315
C5316
C5317
L4810
L4811
R2411
R2412
L4813
L4814
R4930
L4815
R4931
L4816
R4932
L4817
R4933
R2417
L4818
R4934
R2418
L4819
R2419
R4935
R4936
R4937
FL4101
D5301
IC5101
FL4102
D5302
IC5102
IC5103
FL4103
L4820
R2420
FL4104
L4821
R5301
R2421
L4822
R5302
L4823
R2423
R5303
L4824
R5304
R4941
R5305
R4942
R5306
R5307
R2427
R5308
R2428
IC5301
R5309
R2429
IC5302
R5310
R5311
R5312
R5313
R5314
R5315
R5316
R5317
R5318
R2439
R5319
R2440
R5320
R5321
R5322
R5135 R5136
R5137 R5138
R5139
RB4101
RB4102
R5140
RB1801
RB1802RB1803
RB1804 RB1805
RB4301
CL4802
JL4212
L3101 L3102
L3103
11
12
13
14
4
135
2
67
8
CN1004
05
CN1012
VC-520 BOARD (SIDE B)
1-874-566- 11 21
(USB)
CN1004
Note: IC4302 and IC4901 are not supplied, but
they are included in VC-520 complete board.
2
4
3
2
4
3
1
1
2
3
1
13
64
EB
C
EB
C
1
4
58
L11 K11 J11 H11 G11 F11 E11 D11 C11 B11 A11
L10 K10 J10 H10 G10 F10 E10 D10 C10 B10 A10
L9 K9 J9 H9 G9 F9 E9 D9 C9 B9 A9
L8 K8 J8 H8 G8 F8 E8 D8 C8 B8 A8
L7 K7 J7 H7 G7 F7 E7 D7 C7 B7 A7
L6 K6 J6 H6 G6 F6 E6 D6 C6 B6 A6
L5 K5 J5 H5 G5 F5 E5 D5 C5 B5 A5
L4 K4 J4 H4 G4 F4 E4 D4 C4 B4 A4
L3 K3 J3 H3 G3 F3 E3 D3 C3 B3 A3
L2 K2 J2 H2 G2 F2 E2 D2 C2 B2 A2
L1 K1 J1 H1 G1 F1 E1 D1 B1 A1
E
B
C
E
B
C
E
B
C
E
B
C
13
45
1
3
46
34
12
A1B1C1D1E1F1G1H1J1K1L1M1N1P1R1T1U1V1W1Y1AA 1AB1AC1
A2B2C2D2E2F2G2H2J2K2L2M2N2P2R2T2U2V2W2Y2AA 2AB2AC2
A3B3C3D3E3F3G3H3J3K3L3M3N3P3R3T3U3V3W3Y3AA 3AB3AC3
A4B4C4D4E4F4G4H4J4K4L4M4N4P4R4T4U4V4W4Y4AA 4AB4AC4
A5B5C5D5Y5AA5AB5AC5
A6B6C6D6Y6AA6AB6AC6
A7B7C7D7Y7AA7AB7AC7
A8B8C8D8Y8AA8AB8AC8
A9B9C9D9Y9AA9AB9AC9
A10B1 0C1 0D10K10L10M10N10P1 0Y10AA10AB10AC10
A11B1 1C1 1D11K11L11M11N1 1P11Y11AA11AB11AC11
A12B1 2C1 2D12K12L12M12N1 2P12Y12AA12AB12AC12
A13B1 3C1 3D13K13L13M13N1 3P13Y13AA13AB13AC13
A14B1 4C1 4D14K14L14M14N1 4P14Y14AA14AB14AC14
A15B1 5C1 5D15Y15AA15AB15AC15
A16B1 6C1 6D16Y16AA16AB16AC16
A17B1 7C1 7D17Y17AA17AB17AC17
A18B1 8C1 8D18Y18AA18AB18AC18
A19B1 9C1 9D19Y19AA19AB19AC19
A20B2 0C2 0D20E20F2 0G2 0H2 0J20K20L20M20N20P20R20T2 0U2 0V2 0W20Y20AA20AB20AC20
A21B2 1C2 1D21E21F2 1G2 1H2 1J21K21L21M21N21P21R21T2 1U2 1V2 1W21Y21AA21AB21AC21
A22B2 2C2 2D22E22F2 2G2 2H2 2J22K22L22M22N22P22R22T2 2U2 2V2 2W22Y22AA22AB22AC22
A23B2 3C2 3D23E23F2 3G2 3H2 3J23K23L23M23N23P23R23T2 3U2 3V2 3W23Y23AA23AB23AC23
A12B12C12D12E12F12G12H12J12K12L12M12
A11B11C11D11E11F11G11H11J11K11L11M11
A10B10L10M10
A9B9L9M9
A8B8L8M8
A7B7L7M7
A6B6L6M6
A5B5L5M5
A4B4L4M4
A3B3L3M3
A2B2C2D2E2F2G2H2J2K2L2M2
A1B1C1D1E1F1G1H1J1K1L1M1
A1
A2
A3
A4
A5
A6
B1
B2
B3
B4
B5
B6
C1
C2
C3
C4
C5
C6
D1
D2
D3
D4
D5
D6
E1
E2
E3
E4
E5
E6
F1
F2
F3
F4
F5
F6
G1
G2
G3
G4
G5
G6
H1
H2
H3
H4
H5
H6
A1
A2
A3
A4
A5
A6
A7
A8
A9
A1 0
A1 1
B1
B2
B3
B4
B5
B6
B7
B8
B9
B1 0
B1 1
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
D1
D2
D3
D9
D10
D11
E1
E2
E3
E9
E1 0
E1 1
F1
F2
F3
F9
F1 0
F1 1
G1
G2
G3
G9
G10
G11
H1
H2
H3
H9
H10
H11
J1
J2
J3
J4
J5
J6
J7
J8
J9
J1 0
J1 1
K1
K2
K3
K4
K5
K6
K7
K8
K9
K10
K11
L1
L2
L3
L4
L5
L6
L7
L8
L9
L1 0
L1 1
A1 B1 C1 D1 E1 F1 G1 H1 J1 K1 L1 M1 N1 P1 R1 T1 U1 V1 W1 Y1 AA1
A2 B2 C2 D2 E2 F2 G2 H2 J2 K2 L2 M2 N2 P2 R2 T2 U2 V2 W2 Y2 AA2
A3 B3 Y3 AA3
A4 B4 D4 E4 F4 G4 H4 J4 K4 L4 M4 N4 P4 R4 T4 U4 V4 Y4 AA4
A5 B5 D5 E5 F5 G5 H5 J5 K5 L5 M5 N5 P5 R5 T5 U5 V5 Y5 AA5
A6 B6 D6 E6 U6 V6 Y6 AA6
A7 B7 D7 E7 U7 V7 Y7 AA7
A8 B8 D8 E8 U8 V8 Y8 AA8
A9 B9 D9 E9 U9 V9 Y9 AA9
A10 B10 D10 E10 U10V10Y10AA10
A11 B11 D11 E11 U11V11Y11AA11
A12 B12 D12 E12 U12V12Y12AA12
A13 B13 D13 E13 U13V13Y13AA13
A14 B14 D14 E14 U14V14Y14AA14
A15 B15 D15 E15 U15V15Y15AA15
A16 B16 D16 E16 U16V16Y16AA16
A17 B17 D17 E17 F17 G17 H17 J17 K17L17M17N17P17R17T17U17V17Y17AA17
A18 B18 D18 E18 F18 G18 H18 J18 K18L18M18N18P18R18T18U18V18Y18AA18
A19 B19 Y19AA19
A20 B20 C20 D20 E20 F20 G20 H20 J20 K20L20M20N20P20R20T20U20V20W20Y20AA20
A21 B21 C21 D21 E21 F21 G21 H21 J21 K21L21M21N21P21R21T21U21V21W21Y21AA21
17
28
17
28
13
46
A8 B8 C8 D8 E8 F8 G8 H8
A7 B7 C7 D7 E7 F7 G7 H7
A6 B6 C6 D6 E6 F6 G6 H6
A5 B5 C5 D5 E5 F5 G5 H5
A4 B4 C4 D4 E4 F4 G4 H4
A3 B3 C3 D3 E3 F3 G3 H3
A2 B2 C2 D2 E2 F2 G2 H2
A1 B1 C1 D1 E1 F1 G1 H1
13
46
13
46
17
28
17
28
17
28
1
3
46
A1 B1 C1 D1 E1 F1 G1
A2 B2 C2 D2 E2 F2 G2
A3 B3 C3 D3 E3 F3 G3
A4 B4 C4 D4 E4 F4 G4
A5 B5 C5 D5 E5 F5 G5
A6 B6 C6 D6 E6 F6 G6
A7 B7 C7 D7 E7 F7 G7
17
28
17
28
17
28
17
28
17
28
17
28
17
28
17
28
17
28
17
28
17
28
2
4
3
1
2
4
3
1
17
218 7
28
12
34
12
3
4
E
B
C
EB
C
E
B
C
E
B
C
E
B
C
EB
C
E
B
C
E
B
C
17
28
17
28
17
28
17
28
17
28
3
45
1
17
28
12
34
E
B
C
1
2
3
3
2
1
Note: IC4301 and IC4303 have the same mounted location.
When you replace, since either IC4301 or IC4303 are used,
please refer to schematic diagram and electrical parts list.
D_2.8V
D_2.5V
VOUT
EVER_3.0V
A_2.5V DRV_A_3.9V
A_2.8V
D_2.8V
MT_5.0V_LD
D_2.8V
DRV_MT_4.3V
DRV_MT_5.0V
D_2.8V
A_2.8V
D_2.8V
D_1.2V
VOUT
D_2.8V
D_1.2V
LANC_DC
5. REPAIR PARTS LIST
5-1
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
(ENGLISH)
NOTE:
•-XX, -X mean standardized parts, so they may have some differences from
the original one.
•Items marked “*” are not stocked since they are seldom required for routine
service. Some delay should be anticipated when ordering these items.
•The mechanical parts with no reference number in the exploded views are not
supplied.
•Due to standardization, replacements in the parts list may be different from
the parts specified in the diagrams or the components used on the set.
•CAPACITORS:
uF: µF
•COILS
uH: µH
•RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
•SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
When indicating parts by reference number,
please include the board name.
(JAPANESE)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
【使用上の注意】
•ここに記載されている部品は, 補修用部品であるため, 回路図及び
セットに付いている部品と異なる場合があります。
•-XX, -Xは標準化部品のため, セットに付いている部品と異なる場合
があります。
•*印の部品は常備在庫しておりません。
•コンデンサの単位でuFはμFを示します。
•抵抗の単位Ωは省略してあります。
金  被：金属被膜抵抗。
サンキン：酸化金属被膜抵抗。
•インダクタの単位でuHはμHを示します。
•半導体の名称でuA..., uPA..., uPB..., uPC..., uPD...等はそれぞれμ
A..., μPA..., μPB..., μPC..., μPD...を示します。
0印の部品，または0印付の点線で囲まれた部品は，
安全性を維持するために，重要な部品です。
従って交換時は，必ず指定の部品を使用してください。
図面番号で部品を指定するときは基板名又はブロック
を併せて指定してください。
お願い
•Color Indication of Appearance Parts
Example:
(SILVER) : Cabinet’s Color
(Silver) : Parts Color
•外装部品色表示
例：
(SILVER):セットの色を表す。
(Silver) : 部品の色を表す。
•Abbreviation
AR : Argentine model
AUS: Australian model
BR : Brazilian model
CH : Chinese model
CND : Canadian model
EE : East European model
HK : Hong Kong model
J: Japanese model
JE : Tourist model
KR : Korea model
NE : North European model
5-15
Ref. No. Part No. Description Ref. No. Part No. Description
5-2. ELECTRICAL PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
VC-520
A-1439-718-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD110E)
A-1439-719-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD115E)
A-1439-720-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD610/DVD610E)
A-1439-739-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD310E)
A-1439-741-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD710)
A-1439-742-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD710E)
A-1439-744-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD410E)
A-1439-745-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD810)
A-1439-746-A VC-520 BOARD, COMPLETE (SERVICE)
(DVD810E)
**********************
(IC2101, IC4302 and IC4901 are not supplied,
but they are included in VC-520 complete board.)
< CAPACITOR >
C1001 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C1002 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1005 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C1006 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD410E/DVD810/DVD810E)
C1007 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
(DVD410E/DVD810/DVD810E)
C1015 1-164-935-11 CERAMIC CHIP 470PF 10% 50V
C1016 1-164-935-11 CERAMIC CHIP 470PF 10% 50V
C1017 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C1018 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C1019 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C1020 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C1201 1-164-866-11 CERAMIC CHIP 47PF 5% 50V
C1202 1-164-866-11 CERAMIC CHIP 47PF 5% 50V
C1203 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1204 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C1205 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C1206 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C1207 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C1208 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1209 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C1211 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C1212 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C1213 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD710/DVD810)
C1213 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
(EXCEPT DVD710/DVD810)
C1214 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C1216 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V
C1220 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C1221 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C1222 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C1225 1-127-820-11 CERAMIC CHIP 4.7uF 10% 16V
C1227 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1228 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V
C1231 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C1233 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1702 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C1703 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C1705 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C1706 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C1709 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C1714 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C1715 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1716 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1717 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C1720 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C1723 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C1724 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1725 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C1726 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C1728 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C1729 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C1730 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C1731 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C2002 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2003 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2006 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2010 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2012 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2013 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2014 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2015 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2017 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2019 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2024 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2025 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2026 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2031 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2032 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2033 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2034 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2038 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C2039 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C2042 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C2043 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C2045 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C2101 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2102 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2103 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2104 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2105 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2106 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2109 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
5-16
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
VC-520
C2112 1-131-862-91 TANTAL. CHIP 47uF 20% 4V
C2401 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2402 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2404 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2407 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2408 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2411 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2414 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C2415 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2417 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2419 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2427 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C2428 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C2429 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C2801 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C2802 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C2805 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2806 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C2808 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2809 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2811 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2812 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C2814 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2815 1-100-581-81 CERAMIC CHIP 0.0047uF 10% 50V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2816 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2817 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2818 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2820 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2821 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2823 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2824 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2825 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2829 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2830 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2833 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2834 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2835 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2836 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2837 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2839 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2840 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2841 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2842 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2843 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2845 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2847 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2848 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2851 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
C2901 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2902 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2903 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
(DVD110E/DVD610/DVD610E)
C2904 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2905 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
(DVD110E/DVD610/DVD610E)
5-17
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
VC-520
C2906 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD110E/DVD610/DVD610E)
C2907 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD110E/DVD610/DVD610E)
C2909 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2910 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2911 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
(DVD110E/DVD610/DVD610E)
C2915 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2916 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD110E/DVD610/DVD610E)
C2919 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD110E/DVD610/DVD610E)
C2920 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2921 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2922 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
(DVD110E/DVD610/DVD610E)
C2923 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD110E/DVD610/DVD610E)
C2924 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2926 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2927 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2928 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD110E/DVD610/DVD610E)
C2929 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD110E/DVD610/DVD610E)
C2930 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2932 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD110E/DVD610/DVD610E)
C2933 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
(DVD110E/DVD610/DVD610E)
C3101 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C3102 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C3103 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C3104 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C3105 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
*C3106 1-100-741-81 CERAMIC CHIP 560PF 5% 50V
C3108 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C3110 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C3112 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C3113 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C3115 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C3116 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C3118 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C3120 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C3121 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4101 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4102 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4104 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4105 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C4106 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C4107 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C4108 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C4109 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4110 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4111 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4112 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4113 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4114 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4116 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4117 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4118 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4119 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4120 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4121 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4122 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4123 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4124 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4127 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4128 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C4129 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C4130 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4131 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4132 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4134 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4135 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4136 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4138 1-164-864-11 CERAMIC CHIP 39PF 5% 50V
C4140 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4141 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4201 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4202 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4203 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4204 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4205 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C4206 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4207 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4208 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4209 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4210 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4211 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4212 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4213 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4214 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4215 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4216 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4217 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4218 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C4219 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C4222 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C4223 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4225 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4226 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4227 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4228 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C4229 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C4230 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C4231 1-164-882-11 CERAMIC CHIP 220PF 5% 16V
C4232 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
5-18
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
VC-520
C4236 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4237 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4238 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4240 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4246 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4248 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4249 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4250 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C4301 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4302 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4303 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4304 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4305 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4310 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4311 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4402 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
C4403 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4404 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4406 1-165-897-11 TANTAL. CHIP 22uF 20% 10V
C4408 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4410 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4411 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C4501 1-164-858-11 CERAMIC CHIP 22PF 5% 50V
C4502 1-164-858-11 CERAMIC CHIP 22PF 5% 50V
C4503 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C4505 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V
C4506 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4605 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C4607 1-165-875-11 CERAMIC CHIP 10uF 10% 10V
C4608 1-165-875-11 CERAMIC CHIP 10uF 10% 10V
C4609 1-165-875-11 CERAMIC CHIP 10uF 10% 10V
C4610 1-165-875-11 CERAMIC CHIP 10uF 10% 10V
C4611 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4612 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C4801 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4802 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4803 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C4804 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4805 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4806 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4808 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4809 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4812 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C4813 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V
C4816 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4817 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4818 1-164-882-11 CERAMIC CHIP 220PF 5% 16V
C4819 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
C4820 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C4821 1-164-933-11 CERAMIC CHIP 220PF 10% 50V
C4822 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4824 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
C4825 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4826 1-100-581-81 CERAMIC CHIP 0.0047uF 10% 50V
C4827 1-164-935-11 CERAMIC CHIP 470PF 10% 50V
C4828 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4829 1-127-861-11 CERAMIC CHIP 2.2uF 10% 16V
C4830 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4831 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V
C4832 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C4833 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C4834 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C4835 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C4836 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C4837 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C4838 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C4839 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C4840 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4841 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4842 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4843 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4844 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4845 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4846 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4847 1-127-820-11 CERAMIC CHIP 4.7uF 10% 16V
C4848 1-100-591-91 CERAMIC CHIP 1uF 10% 25V
C4849 1-100-591-91 CERAMIC CHIP 1uF 10% 25V
C4850 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4853 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4854 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4855 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4856 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4857 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C4859 1-127-820-11 CERAMIC CHIP 4.7uF 10% 16V
C4861 1-125-889-11 CERAMIC CHIP 2.2uF 10% 10V
C4863 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4864 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4865 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4866 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4867 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C4868 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4869 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4870 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C4871 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4872 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C4874 1-127-820-11 CERAMIC CHIP 4.7uF 10% 16V
(DVD110E/DVD115E/DVD610/DVD610E)
C4901 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V
C4906 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C4907 1-164-852-11 CERAMIC CHIP 12PF 5% 50V
C4908 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4909 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4910 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4911 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4913 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4914 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4915 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4916 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4917 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C5101 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C5104 1-113-682-11 TANTAL. CHIP 33uF 20% 10V
C5105 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
5-19
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
VC-520
C5106 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C5301 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C5302 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C5303 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C5304 1-164-940-11 CERAMIC CHIP 0.0033uF 10% 16V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C5305 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C5306 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C5307 1-127-772-81 CERAMIC CHIP 0.033uF 10% 10V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C5308 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C5309 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C5311 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C5313 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C5314 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
C5315 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C5402 1-100-581-81 CERAMIC CHIP 0.0047uF 10% 50V
(DVD110E/DVD115E/DVD610/DVD610E)
C5403 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
(DVD110E/DVD115E/DVD610/DVD610E)
C5404 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD110E/DVD115E/DVD610/DVD610E)
C5405 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
(DVD110E/DVD115E/DVD610/DVD610E)
C5406 1-164-935-11 CERAMIC CHIP 470PF 10% 50V
(DVD110E/DVD115E/DVD610/DVD610E)
C5407 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
(DVD110E/DVD115E/DVD610/DVD610E)
C5409 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
(DVD110E/DVD115E/DVD610/DVD610E)
C5410 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
(DVD110E/DVD115E/DVD610/DVD610E)
C5413 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V
(DVD110E/DVD115E/DVD610/DVD610E)
< CONNECTOR >
*CN1001 1-815-763-51 CONNECTOR, FFC/FPC 24P
*CN1002 1-779-329-51 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 10P
CN1003 1-779-332-51 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 16P
*CN1004 1-821-723-11 CONNECTOR, SQUARE TYPE (USB) 5P (USB)
*CN1005 1-779-327-51 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 6P
CN1006 1-815-762-51 CONNECTOR, FFC/FPC 14P
(DVD410E/DVD810/DVD810E)
CN1008 1-779-330-51 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 12P
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
CN1009 1-815-762-51 CONNECTOR, FFC/FPC 14P
CN1010 1-779-328-51 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 8P
CN1012 1-815-794-13 CONNECTOR (MULTIPLE) (A/V R)
*CN1013 1-821-546-61 CONNECTOR, FFC/FPC (ZIF) 18P
CN1201 1-779-338-51 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 28P
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
CN1203 1-779-332-51 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 16P
(DVD110E/DVD115E/DVD610/DVD610E)
*CN3101 1-779-333-51 CONNECTOR, FFC/FPC 18P
CN3102 1-779-339-51 FFC/CONNECTOR, FPC (LIF (NON-ZFF)) 30P
*CN4103 1-819-860-51 CONNECTOR, FPC (ZIF) 51P
*CN4401 1-816-643-51 FFC/CONNECTOR, FPC (LIF) 10P
CN4402 1-779-328-51 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 8P
*CN5101 1-815-763-51 CONNECTOR, FFC/FPC 24P
< DIODE >
D1001 8-719-074-67 DIODE EDZ-TE61-5.6B
*D1005 6-501-598-01 DIODE CL-335IRS-X-TS (NIGHTSHOT)
D4601 8-719-074-08 DIODE MA4ZD03001S0
D4603 8-719-421-67 DIODE MA132WK (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
*D4801 6-501-928-01 DIODE MAS3132EGLS0
D4802 8-719-027-76 DIODE 1SS357-TPH3
D4803 8-719-074-08 DIODE MA4ZD03001S0
D4804 6-500-813-01 DIODE MA2SD32008S0
D4805 6-500-813-01 DIODE MA2SD32008S0
D4806 8-719-074-08 DIODE MA4ZD03001S0
*D5301 6-501-947-01 DIODE MA2S1110G8S0 (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
*D5302 6-501-947-01 DIODE MA2S1110G8S0 (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
*D5401 6-501-947-01 DIODE MA2S1110G8S0
(DVD110E/DVD115E/DVD610/DVD610E)
< FUSE >
0F001 1-576-406-21 FUSE, MICRO (1608) (1.4A/32V)
0F002 1-576-406-21 FUSE, MICRO (1608) (1.4A/32V)
0F003 1-576-406-21 FUSE, MICRO (1608) (1.4A/32V)
0F004 1-576-406-21 FUSE, MICRO (1608) (1.4A/32V)
0F005 1-576-406-21 FUSE, MICRO (1608) (1.4A/32V)
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
0F006 1-576-406-21 FUSE, MICRO (1608) (1.4A/32V)
< FERRITE BEAD >
FB1001 1-400-927-31 BEAD, FERRITE (1005)
FB1002 1-400-927-31 BEAD, FERRITE (1005)
FB1003 1-400-833-21 SMD EMI FERRITE
FB1201 1-400-331-11 FERRITE, EMI (SMD) (1005)
FB1202 1-400-723-11 INDUCTOR, FERRITE BEAD (1005)
FB1203 1-400-331-11 FERRITE, EMI (SMD) (1005)
FB1204 1-400-331-11 FERRITE, EMI (SMD) (1005)
FB1801 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
• Refer to page 5-1 for mark 0.
5-20
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
VC-520
FB1802 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB1803 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
(DVD410E/DVD810/DVD810E)
FB1804 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
(DVD410E/DVD810/DVD810E)
FB2401 1-400-619-11 BEAD, FERRITE (CHIP) (1608)
FB4101 1-400-619-11 BEAD, FERRITE (CHIP) (1608)
FB4102 1-400-619-11 BEAD, FERRITE (CHIP) (1608)
FB4103 1-400-619-11 BEAD, FERRITE (CHIP) (1608)
FB4104 1-400-619-11 BEAD, FERRITE (CHIP) (1608)
FB4105 1-400-619-11 BEAD, FERRITE (CHIP) (1608)
FB4106 1-414-864-11 FERRITE, EMI (SMD) (1608)
FB4201 1-400-619-11 BEAD, FERRITE (CHIP) (1608)
FB4203 1-400-619-11 BEAD, FERRITE (CHIP) (1608)
FB4204 1-414-864-11 FERRITE, EMI (SMD) (1608)
FB4205 1-469-109-21 FERRITE, EMI (SMD) (1608)
FB4206 1-469-109-21 FERRITE, EMI (SMD) (1608)
FB4301 1-400-619-11 BEAD, FERRITE (CHIP) (1608)
FB4302 1-400-619-11 BEAD, FERRITE (CHIP) (1608)
FB4401 1-400-619-11 BEAD, FERRITE (CHIP) (1608)
< IC >
*IC1001 6-708-445-01 IC R1114Q291D-TR-FA
*IC1002 6-708-445-01 IC R1114Q291D-TR-FA
(DVD410E/DVD810/DVD810E)
*IC1201 6-711-079-01 IC R2J45015AHBGW0
*IC1202 6-708-445-01 IC R1114Q291D-TR-FA
(DVD110E/DVD115E/DVD610/DVD610E)
*IC1202 6-708-447-01 IC R1114Q341D-TR-FA (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
*IC1701 8-753-300-16 IC CXD4218GG-TL
IC2101 (Not supplied) IC K5R1213ACB-AK75T
*IC2401 6-709-936-01 IC R8A01015ABGTLV
*IC2801 6-710-768-01 IC NN12923B-BB
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
*IC2901 6-710-463-01 IC NN12922A-BB
(DVD110E/DVD610/DVD610E)
*IC3101 8-753-242-24 IC CXM3018R-T4
IC3102 8-759-693-13 IC NJM12904V (TE2)
*IC4101 8-753-235-82 IC CXA2725GA-T4
*IC4201 8-753-274-88 IC CXD5052GG-T6
IC4302 (Not supplied) IC 39VF1601-70-4C-B3KE-GG013T
*IC4303 6-710-459-01 IC W9864G6GH-7S-ER10
*IC4401 6-710-787-01 IC R2A30212LG-W00B
(DVD110E/DVD115E/DVD610/DVD610E)
*IC4401 6-709-970-01 IC BD6310GU-E2 (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
IC4501 6-707-601-01 IC TA6038FNG (EL)
IC4601 6-702-519-01 IC S-80840CNNB-B8ZT2G
*IC4801 6-710-736-01 IC BD9838GV-E2
IC4802 6-703-977-01 IC R1114Q331D-TR-FA
IC4901 (Not supplied) IC MB95005BGL-G-110-ERE1
IC5101 6-706-663-01 IC NJW5210RB1
IC5102 8-759-693-13 IC NJM12904V (TE2)
IC5103 8-759-693-13 IC NJM12904V (TE2)
*IC5301 6-708-988-01 IC LV8053LG-TLM-E (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
IC5302 8-759-693-13 IC NJM12904V (TE2) (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
IC5401 8-759-637-96 IC uPD16877MA-6A5-E2
(DVD110E/DVD115E/DVD610/DVD610E)
< COIL >
L1201 1-400-588-11 INDUCTOR 10uH
L2801 1-400-588-11 INDUCTOR 10uH
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
L2802 1-400-588-11 INDUCTOR 10uH
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
L2803 1-400-588-11 INDUCTOR 10uH
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
L2805 1-400-588-11 INDUCTOR 10uH
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
L2902 1-400-588-11 INDUCTOR 10uH
(DVD110E/DVD610/DVD610E)
L2903 1-400-588-11 INDUCTOR 10uH
(DVD110E/DVD610/DVD610E)
L2904 1-400-588-11 INDUCTOR 10uH
(DVD110E/DVD610/DVD610E)
L2905 1-400-588-11 INDUCTOR 10uH
(DVD110E/DVD610/DVD610E)
L3101 1-400-588-11 INDUCTOR 10uH
L3102 1-400-588-11 INDUCTOR 10uH
L3103 1-400-588-11 INDUCTOR 10uH
L4102 1-400-588-11 INDUCTOR 10uH
L4103 1-400-588-11 INDUCTOR 10uH
L4202 1-400-588-11 INDUCTOR 10uH
L4402 1-469-553-21 INDUCTOR 4.7uH
L4403 1-469-549-21 INDUCTOR 1uH
L4404 1-469-549-21 INDUCTOR 1uH
L4801 1-456-137-11 INDUCTOR 22uH
L4802 1-457-049-21 INDUCTOR 10uH
L4803 1-416-669-11 INDUCTOR 22uH
L4804 1-457-049-21 INDUCTOR 10uH
L4805 1-456-137-11 INDUCTOR 22uH
L4806 1-416-669-11 INDUCTOR 22uH
L4807 1-456-138-11 INDUCTOR 33uH
L4808 1-456-137-11 INDUCTOR 22uH
L4809 1-469-553-21 INDUCTOR 4.7uH
L4811 1-469-553-21 INDUCTOR 4.7uH
L4813 1-469-553-21 INDUCTOR 4.7uH
L4814 1-469-549-21 INDUCTOR 1uH
L4815 1-469-553-21 INDUCTOR 4.7uH
L4817 1-469-549-21 INDUCTOR 1uH
L4818 1-469-549-21 INDUCTOR 1uH
L4819 1-469-553-21 INDUCTOR 4.7uH
L4820 1-469-553-21 INDUCTOR 4.7uH
L4821 1-469-549-21 INDUCTOR 1uH
L4822 1-469-549-21 INDUCTOR 1uH
L4823 1-469-553-21 INDUCTOR 4.7uH
L4824 1-469-549-21 INDUCTOR 1uH
L5101 1-469-553-21 INDUCTOR 4.7uH
L5301 1-400-588-11 INDUCTOR 10uH
Ver. 1.1 2008.01
The changed portions from
Ver. 1.0 are shown in blue.
5-21
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
VC-520
< LINE FILTER >
LF1001 1-457-223-11 COMMON MODE CHOKE COIL
*LF1002 1-457-217-21 COMMON MODE CHOKE COIL
< TRANSISTOR >
*Q1001 6-551-766-01 TRANSISTOR UNR32A3G0LS0
Q1002 6-550-102-01 TRANSISTOR 2SC5663T2L
Q1003 6-550-238-01 TRANSISTOR DTA114EMFS6T2L
*Q1701 6-551-771-01 TRANSISTOR UNR31AFG0LS0
Q2801 8-729-056-75 TRANSISTOR MCH3211-TL-E
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
Q2901 8-729-056-75 TRANSISTOR MCH3211-TL-E
(DVD110E/DVD610/DVD610E)
*Q3101 6-551-847-01 TRANSISTOR UP04501G08S0
Q3102 8-729-425-50 TRANSISTOR 2SB1462-Q
Q3103 8-729-425-50 TRANSISTOR 2SB1462-Q
Q3104 8-729-425-50 TRANSISTOR 2SB1462-Q
Q3105 8-729-054-48 TRANSISTOR UP04601008S0
*Q3106 6-551-766-01 TRANSISTOR UNR32A3G0LS0
Q3107 6-551-184-01 TRANSISTOR MCH6305-TL-E-S
*Q4401 6-551-760-01 TRANSISTOR UNR31A3G0LS0
*Q4402 6-551-766-01 TRANSISTOR UNR32A3G0LS0
Q4601 8-729-101-07 TRANSISTOR 2SB798-DL
*Q4602 6-551-766-01 TRANSISTOR UNR32A3G0LS0
Q4603 6-551-442-01 TRANSISTOR TPCP8301 (T5RSONYF)
*Q4604 6-551-758-01 TRANSISTOR 2SC5846G0LS0
*Q4605 6-551-766-01 TRANSISTOR UNR32A3G0LS0
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
Q4606 6-551-184-01 TRANSISTOR MCH6305-TL-E-S
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
Q4801 6-550-813-01 TRANSISTOR SCH2806-TL-E
Q4802 6-550-533-01 TRANSISTOR MCH5819-TL-E
*Q4803 6-551-836-01 TRANSISTOR 2SA2078G0LS0
Q4804 6-550-180-01 TRANSISTOR SSM6N16FE (TPLR3)
*Q4805 6-551-836-01 TRANSISTOR 2SA2078G0LS0
*Q4806 6-551-758-01 TRANSISTOR 2SC5846G0LS0
Q4807 8-729-054-48 TRANSISTOR UP04601008S0
(DVD110E/DVD115E/DVD610/DVD610E)
*Q4808 6-551-846-01 TRANSISTOR UP04401G08S0
*Q5101 6-551-850-01 TRANSISTOR UP04116G08S0
*Q5102 6-551-758-01 TRANSISTOR 2SC5846G0LS0
*Q5301 6-551-758-01 TRANSISTOR 2SC5846G0LS0
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
Q5401 6-550-758-01 TRANSISTOR DTC113TMFS6T2L
(DVD110E/DVD115E/DVD610/DVD610E)
< RESISTOR >
R1001 1-218-990-81 SHORT CHIP 0
(DVD110E/DVD115E/DVD310E/DVD410E)
R1002 1-218-990-81 SHORT CHIP 0 (DVD610/DVD610E/
DVD710/DVD710E/DVD810/DVD810E)
R1004 1-218-990-81 SHORT CHIP 0
R1006 1-218-931-11 RES-CHIP 15 5% 1/16W
R1007 1-218-945-11 RES-CHIP 220 5% 1/16W
R1008 1-218-943-11 RES-CHIP 150 5% 1/16W
R1010 1-218-965-11 RES-CHIP 10K 5% 1/16W
R1011 1-218-954-11 RES-CHIP 1.2K 5% 1/16W
R1014 1-218-990-81 SHORT CHIP 0
R1015 1-218-965-11 RES-CHIP 10K 5% 1/16W
R1018 1-218-945-11 RES-CHIP 220 5% 1/16W
R1023 1-216-799-11 METAL CHIP 15 5% 1/10W
R1024 1-216-799-11 METAL CHIP 15 5% 1/10W
R1025 1-218-959-11 RES-CHIP 3.3K 5% 1/16W
R1201 1-218-990-81 SHORT CHIP 0
(DVD110E/DVD115E/DVD610/DVD610E)
R1202 1-218-937-11 RES-CHIP 47 5% 1/16W
R1203 1-218-971-11 RES-CHIP 33K 5% 1/16W
R1212 1-218-937-11 RES-CHIP 47 5% 1/16W
R1218 1-218-990-81 SHORT CHIP 0 (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
R1717 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1721 1-220-180-11 RES-CHIP 620 5% 1/16W
R1722 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R1724 1-218-941-11 RES-CHIP 100 5% 1/16W
R1725 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R1726 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R1768 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1803 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1829 1-218-977-11 RES-CHIP 100K 5% 1/16W
R1830 1-218-962-11 RES-CHIP 5.6K 5% 1/16W
R1838 1-218-973-11 RES-CHIP 47K 5% 1/16W
R1840 1-218-944-11 RES-CHIP 180 5% 1/16W
R1841 1-218-944-11 RES-CHIP 180 5% 1/16W
R1842 1-218-944-11 RES-CHIP 180 5% 1/16W
R1843 1-218-944-11 RES-CHIP 180 5% 1/16W
R1844 1-218-942-11 RES-CHIP 120 5% 1/16W
R1850 1-218-942-11 RES-CHIP 120 5% 1/16W
(DVD410E/DVD810/DVD810E)
R1855 1-218-942-11 RES-CHIP 120 5% 1/16W
(DVD410E/DVD810/DVD810E)
R1865 1-218-942-11 RES-CHIP 120 5% 1/16W
R2104 1-218-933-11 RES-CHIP 22 5% 1/16W
R2106 1-218-953-11 RES-CHIP 1K 5% 1/16W
R2407 1-218-960-11 RES-CHIP 3.9K 5% 1/16W
R2408 1-218-944-11 RES-CHIP 180 5% 1/16W
R2411 1-218-944-11 RES-CHIP 180 5% 1/16W
R2412 1-218-960-11 RES-CHIP 3.9K 5% 1/16W
R2417 1-208-709-11 METAL CHIP 12K 0.5% 1/16W
R2418 1-208-873-81 METAL CHIP 270 0.5% 1/16W
R2419 1-208-873-81 METAL CHIP 270 0.5% 1/16W
R2420 1-208-873-81 METAL CHIP 270 0.5% 1/16W
R2802 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
R2803 1-218-973-11 RES-CHIP 47K 5% 1/16W
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
R2818 1-218-963-11 RES-CHIP 6.8K 5% 1/16W
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
R2819 1-218-975-11 RES-CHIP 68K 5% 1/16W
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
5-22
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
VC-520
R2901 1-218-969-11 RES-CHIP 22K 5% 1/16W
(DVD110E/DVD610/DVD610E)
R2902 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
(DVD110E/DVD610/DVD610E)
R2903 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
(DVD110E/DVD610/DVD610E)
R2904 1-218-973-11 RES-CHIP 47K 5% 1/16W
(DVD110E/DVD610/DVD610E)
R3102 1-218-975-11 RES-CHIP 68K 5% 1/16W
R3105 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R3107 1-208-922-11 METAL CHIP 30K 0.5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R3107 1-208-721-11 METAL CHIP 39K 0.5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R3108 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
R3109 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
R3110 1-220-876-81 METAL CHIP 18 0.5% 1/16W
R3112 1-218-953-11 RES-CHIP 1K 5% 1/16W
R3113 1-220-876-81 METAL CHIP 18 0.5% 1/16W
R3114 1-220-876-81 METAL CHIP 18 0.5% 1/16W
R3115 1-208-943-11 METAL CHIP 220K 0.5% 1/16W
R3119 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
R3120 1-208-861-81 METAL CHIP 82 0.5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R3120 1-208-663-11 METAL CHIP 150 0.5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R3121 1-218-977-11 RES-CHIP 100K 5% 1/16W
R4137 1-218-965-11 RES-CHIP 10K 5% 1/16W
R4201 1-218-953-11 RES-CHIP 1K 5% 1/16W
R4203 1-218-982-11 RES-CHIP 270K 5% 1/16W
R4214 1-218-959-11 RES-CHIP 3.3K 5% 1/16W
R4215 1-218-953-11 RES-CHIP 1K 5% 1/16W
R4219 1-218-953-11 RES-CHIP 1K 5% 1/16W
R4221 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R4222 1-218-965-11 RES-CHIP 10K 5% 1/16W
R4223 1-218-953-11 RES-CHIP 1K 5% 1/16W
R4225 1-218-933-11 RES-CHIP 22 5% 1/16W
R4232 1-218-954-11 RES-CHIP 1.2K 5% 1/16W
R4233 1-218-965-11 RES-CHIP 10K 5% 1/16W
R4234 1-218-965-11 RES-CHIP 10K 5% 1/16W
R4240 1-218-933-11 RES-CHIP 22 5% 1/16W
R4241 1-218-977-11 RES-CHIP 100K 5% 1/16W
R4247 1-218-975-11 RES-CHIP 68K 5% 1/16W
R4256 1-218-933-11 RES-CHIP 22 5% 1/16W
R4257 1-218-953-11 RES-CHIP 1K 5% 1/16W
R4259 1-208-889-11 METAL CHIP 1.2K 0.5% 1/16W
R4261 1-218-965-11 RES-CHIP 10K 5% 1/16W
R4405 1-218-966-11 RES-CHIP 12K 5% 1/16W
R4406 1-218-975-11 RES-CHIP 68K 5% 1/16W
R4409 1-218-446-11 METAL CHIP 1 5% 1/10W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R4410 1-218-446-11 METAL CHIP 1 5% 1/10W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R4411 1-218-446-11 METAL CHIP 1 5% 1/10W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R4413 1-218-944-11 RES-CHIP 180 5% 1/16W
R4501 1-218-977-11 RES-CHIP 100K 5% 1/16W
R4502 1-218-965-11 RES-CHIP 10K 5% 1/16W
R4603 1-216-797-11 METAL CHIP 10 5% 1/10W
R4604 1-218-954-11 RES-CHIP 1.2K 5% 1/16W
R4605 1-218-963-11 RES-CHIP 6.8K 5% 1/16W
R4606 1-218-977-11 RES-CHIP 100K 5% 1/16W
R4607 1-218-989-11 RES-CHIP 1M 5% 1/16W
R4609 1-218-965-11 RES-CHIP 10K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R4610 1-218-989-11 RES-CHIP 1M 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R4611 1-218-953-11 RES-CHIP 1K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R4801 1-218-941-81 RES-CHIP 100 5% 1/16W
R4803 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
R4806 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R4810 1-218-965-11 RES-CHIP 10K 5% 1/16W
R4811 1-218-975-11 RES-CHIP 68K 5% 1/16W
R4818 1-218-965-11 RES-CHIP 10K 5% 1/16W
R4819 1-218-977-11 RES-CHIP 100K 5% 1/16W
R4820 1-218-975-11 RES-CHIP 68K 5% 1/16W
R4821 1-218-965-11 RES-CHIP 10K 5% 1/16W
R4824 1-218-986-11 RES-CHIP 560K 5% 1/16W
R4826 1-218-973-11 RES-CHIP 47K 5% 1/16W
R4831 1-218-977-11 RES-CHIP 100K 5% 1/16W
R4832 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R4834 1-218-969-11 RES-CHIP 22K 5% 1/16W
R4835 1-218-990-81 SHORT CHIP 0 (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
R4836 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R4836 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R4837 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R4837 1-208-943-11 METAL CHIP 220K 0.5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R4838 1-208-910-11 METAL CHIP 9.1K 0.5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R4838 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R4839 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R4840 1-208-934-11 METAL CHIP 91K 0.5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R4911 1-219-570-11 METAL CHIP 10M 5% 1/10W
R4913 1-208-893-11 METAL CHIP 1.8K 0.5% 1/16W
R4915 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R4917 1-218-953-11 RES-CHIP 1K 5% 1/16W
R4929 1-218-985-11 RES-CHIP 470K 5% 1/16W
R4930 1-218-989-11 RES-CHIP 1M 5% 1/16W
R4932 1-218-977-11 RES-CHIP 100K 5% 1/16W
R4933 1-208-927-11 METAL CHIP 47K 0.5% 1/16W
5-23
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
VC-520
R4934 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R4935 1-218-953-11 RES-CHIP 1K 5% 1/16W
R4937 1-218-965-11 RES-CHIP 10K 5% 1/16W
R4942 1-218-965-11 RES-CHIP 10K 5% 1/16W
R5135 1-218-969-11 RES-CHIP 22K 5% 1/16W
R5136 1-218-968-11 RES-CHIP 18K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5136 1-218-969-11 RES-CHIP 22K 5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R5137 1-218-965-11 RES-CHIP 10K 5% 1/16W
R5138 1-218-953-11 RES-CHIP 1K 5% 1/16W
R5139 1-218-947-11 RES-CHIP 330 5% 1/16W
R5140 1-218-969-11 RES-CHIP 22K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5301 1-216-797-11 METAL CHIP 10 5% 1/10W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5302 1-218-941-81 RES-CHIP 100 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5303 1-218-977-11 RES-CHIP 100K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5304 1-218-965-11 RES-CHIP 10K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5305 1-218-977-11 RES-CHIP 100K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5306 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5307 1-218-971-11 RES-CHIP 33K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5310 1-218-980-11 RES-CHIP 180K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5311 1-218-972-11 RES-CHIP 39K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5312 1-218-980-11 RES-CHIP 180K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5314 1-218-962-11 RES-CHIP 5.6K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5315 1-218-990-81 SHORT CHIP 0 (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
R5316 1-218-980-11 RES-CHIP 180K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5317 1-218-990-81 SHORT CHIP 0 (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
R5318 1-218-980-11 RES-CHIP 180K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5319 1-218-990-81 SHORT CHIP 0 (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
R5320 1-218-980-11 RES-CHIP 180K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5321 1-218-990-81 SHORT CHIP 0 (DVD310E/DVD410E/
DVD710/DVD710E/DVD810/DVD810E)
R5322 1-218-965-11 RES-CHIP 10K 5% 1/16W
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
R5402 1-218-990-81 SHORT CHIP 0
(DVD110E/DVD115E/DVD610/DVD610E)
R5403 1-218-989-11 RES-CHIP 1M 5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R5404 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R5405 1-218-981-91 RES-CHIP 220K 5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R5406 1-218-965-11 RES-CHIP 10K 5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R5409 1-218-990-81 SHORT CHIP 0
(DVD110E/DVD115E/DVD610/DVD610E)
R5410 1-218-990-81 SHORT CHIP 0
(DVD110E/DVD115E/DVD610/DVD610E)
R5411 1-218-967-11 RES-CHIP 15K 5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
R5412 1-218-990-81 SHORT CHIP 0
(DVD110E/DVD115E/DVD610/DVD610E)
R5414 1-218-990-81 SHORT CHIP 0
(DVD110E/DVD115E/DVD610/DVD610E)
R5415 1-218-973-11 RES-CHIP 47K 5% 1/16W
(DVD110E/DVD115E/DVD610/DVD610E)
< COMPOSITION CIRCUIT BLOCK >
*RB1001 1-234-723-21 RES, NETWORK 75 (1005X4)
RB1704 1-234-378-11 RES, NETWORK 10K (1005X4)
RB1705 1-234-381-21 RES, NETWORK 100K (1005X4)
RB1706 1-234-377-21 RES, NETWORK 4.7K (1005X4)
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
*RB1707 1-234-384-21 RES, NETWORK 1M (1005X4)
*RB1801 1-200-016-21 RES, NETWORK 82 (1005X4)
RB1802 1-242-963-21 RES, NETWORK 33 (1005X4)
RB1803 1-242-963-21 RES, NETWORK 33 (1005X4)
RB1804 1-242-963-21 RES, NETWORK 33 (1005X4)
RB1805 1-242-963-21 RES, NETWORK 33 (1005X4)
RB1806 1-234-378-11 RES, NETWORK 10K (1005X4)
RB1807 1-234-943-21 RES, NETWORK 22 (1005X4)
*RB2102 1-234-380-21 RES, NETWORK 47K (1005X4)
RB2801 1-234-376-11 RES, NETWORK 2.2K (1005X4)
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
*RB2803 1-234-379-21 RES, NETWORK 22K (1005X4)
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
*RB2804 1-234-380-21 RES, NETWORK 47K (1005X4)
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
RB2805 1-234-945-21 RES, NETWORK 100 (1005X4)
(DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
RB2901 1-234-378-11 RES, NETWORK 10K (1005X4)
(DVD110E/DVD610/DVD610E)
5-24
Ref. No. Part No. Description Ref. No. Part No. Description
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
VC-520
RB2902 1-234-376-11 RES, NETWORK 2.2K (1005X4)
(DVD110E/DVD610/DVD610E)
RB2903 1-234-381-21 RES, NETWORK 100K (1005X4)
(DVD110E/DVD610/DVD610E)
RB2904 1-234-945-21 RES, NETWORK 100 (1005X4)
(DVD110E/DVD610/DVD610E)
*RB3102 1-234-380-21 RES, NETWORK 47K (1005X4)
RB3103 1-234-381-21 RES, NETWORK 100K (1005X4)
RB3104 1-234-378-11 RES, NETWORK 10K (1005X4)
*RB4101 1-234-379-21 RES, NETWORK 22K (1005X4)
*RB4102 1-234-384-21 RES, NETWORK 1M (1005X4)
RB4301 1-234-378-11 RES, NETWORK 10K (1005X4)
RB4401 1-234-381-21 RES, NETWORK 100K (1005X4)
RB4403 1-234-378-11 RES, NETWORK 10K (1005X4)
RB4801 1-234-945-21 RES, NETWORK 100 (1005X4)
RB4901 1-234-378-11 RES, NETWORK 10K (1005X4)
RB4902 1-234-375-21 RES, NETWORK 1K (1005X4)
RB4903 1-234-378-11 RES, NETWORK 10K (1005X4)
RB4904 1-234-375-21 RES, NETWORK 1K (1005X4)
*RB4905 1-234-380-21 RES, NETWORK 47K (1005X4)
*RB5101 1-234-380-21 RES, NETWORK 47K (1005X4)
RB5102 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
(DVD310E/DVD410E/DVD710/DVD710E/
DVD810/DVD810E)
RB5103 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
(DVD110E/DVD115E/DVD610/DVD610E)
RB5401 1-234-375-21 RES, NETWORK 1K (1005X4)
(DVD110E/DVD115E/DVD610/DVD610E)
RB5402 1-234-956-21 RES, NETWORK 470K (1005X4)
(DVD110E/DVD115E/DVD610/DVD610E)
< SENSOR >
*SE4501 1-480-013-21 SHOCK SENSOR
< VARISTOR >
*VD1001 1-802-279-11 VARISTOR (SMD)
*VD1002 1-802-279-11 VARISTOR (SMD)
*VD1005 1-802-279-11 VARISTOR (SMD)
*VD1006 1-802-279-11 VARISTOR (SMD)
< VIBRATOR >
*X1201 1-813-856-11 OSCILLATOR, CRYSTAL (27MHz)
(DVD310E/DVD410E/DVD710E/DVD810E)
*X1201 1-813-857-21 OSCILLATOR, CRYSTAL (33MHz)
(DVD710/DVD810)
X1201 1-814-072-21 QUARTZ CRYSTAL OSCILLATOR (24MHz)
(DVD110E/DVD115E/DVD610/DVD610E)
*X1701 1-813-403-21 QUARTZ CRYSTAL OSCILLATOR (12MHz)
*X4201 1-813-816-21 VIBRATOR, CERAMIC (33.8688MHz)
*X4901 1-813-709-41 QUARTZCRYSTALUNITFOROSCILLATOR
(32.768kHz)
Revision History
Reverse
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L3
Ver.
1.0
1.1
Date
2007.12
2008.01
History
Official Release
Revised-1
(A1 DI07-258)
Contents
—
•Correction of Schematic Diagrams
•Correction of Repair Parts
S.M. correction: Page 4-9, Page 4-20,
Page 5-20
S.M. Rev.
issued
—
Yes
985224912.pdf
SECTION 6
ADJUSTMENTS
Revision History
Revision History
Sony EMCS Co.
Auto-ADJ
Ver. 1.2 2008.03
9-852-249-53
2008C0500-1
© 2008.3
Published by Kohda TEC
RMT-835
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Link
Link
PREPARATIONS BEFORE ADJUSTMENTS
CAMERA SECTION ADJUSTMENTS
VIDEO SYSTEM ADJUSTMENTS
USB SERIAL No. INPUT
DESTINATION DATA WRITE
ADJUSTMENT PROGRAM
LCD/EVF SYSTEM ADJUSTMENTS
AUDIO SYSTEM ADJUSTMENTS
ERROR
CAMERA SYSTEM ADJUSTMENTS
(Non MEGA model)
CAMERA SYSTEM ADJUSTMENTS
(MEGA model)
POWER ADJUSTMENT
DIAGNOSIS
TROUBLESHOOTING
SERVO ADJUSTMENT
AUDIT (Drive Adjustment Program)
PREPARATIONS BEFORE ADJUSTMENTS
DRIVE SECTION ADJUSTMENTS
APPLICATION FOR ADJUSTMENT (SeusEX)
SERVICE MODE
DATA BACKUP
SERVICE MODE
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E
Adjusting items when replacing main parts and boards
(Non MEGA model)
Adjusting items when replacing main parts and boards
(MEGA model)
Before starting adjustments
List of service tools
•Use this Service Manual together with the Automatic Adjustment Program (DCR-DVD610 Series Auto-Adj
Ver_1.2r03.exe or DCR-DVD710 Series Auto-Adj Ver_1.2r03.exe) and the AUDIT (Drive Adjustment Program).
Non MEGA model: DCR-DVD110E/DVD115E/DVD610/DVD610E
•Automatic Adjustment Program: DCR-DVD610 Series Auto-Adj Ver_1.2r03.exe
MEGA model: DCR-DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E
•Automatic Adjustment Program: DCR-DVD710 Series Auto-Adj Ver_1.2r03.exe
— 2 —
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION,
BE SURE TO OBSERVE FROM A DISTANCE OF
MORE THAN 30 cm FROM THE SURFACE OF THE
OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.
CAUTION:
The use of optical instrument with this product will increase eye
hazard.
CAUTION :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
CAUTION
Use of controls or adjustments or performance
procedures other than those specified herein may
result in hazardous radiation exposure.
Optical sensor disc (J-6082-570-A)
CAUTION
In the process of adjusting optical power,
CLASS1M laser optical radiates. so do not
remove this sensor disk.
6-1
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Lens device
Drive block
LCD block LCD901 (LCD panel)
EVF block LCD902 (LCD panel)
Microphone unit MIC901
CD-731 board IC7101 (CCD imager )
BL-021 board D5702 (EVF backlight)
PD-351 board D6203 - 6205 (LCD backlight)
VC-520 board IC1701, X1701 (CPU, Oscillator)
VC-520 board IC1201 (A/D converter, Timing generator)
VC-520 board IC2401 (D/A converter)
VC-520 board IC2801 (Video out, Audio I/O) (Note 2)
VC-520 board IC2901 (Video out, Audio I/O) (Note 3)
VC-520 board IC3101 (LCD/EVF driver)
VC-520 board IC4101 (RF process)
VC-520 board IC4201 (DVD DSP)
VC-520 board IC4401 (DVD mecha drive)
CD-731 board (COMPLETE)
BL-021 board (COMPLETE)
PD-351 board (COMPLETE)
VC-520 board (COMPLETE)
Destination
Data Write Destination data write z
USB Serial No.
In
p
ut USB serial No. input z
(Note 1) Origin oscillation check zz
S VIDEO OUT Y level adj.
S VIDEO OUT chroma level adj.
VIDEO OUT level check
CAMERA
ad
j
ustment 1 HALL adj. z z
CAMERA
ad
j
ustment 2 Flange back adj. zzz zz
CAMERA
ad
j
ustment 3 Flange back check zzz zz
F No. standard data input
MAX GAIN adj.
Color reproduction adj.
Color reproduction check
AWB & LV standard data input
AWB adj.
AWB check
CAMERA
ad
j
ustment 6 Black Defect adj. zzz
LCD automatic adj. (VCO adj, Contrast adj.)
V-COM adj.
Transmissive moed white balance adj.
EVF automatic adj. (VCO adj, Contrast adj.)
White balance adj.
AUDIO
ad
j
ustment
Internal 3ch microphone sensitivity adj.
(Note 2) zz z
POWER adj. zzzz z
SERVO adj. zzzz z
z
zz
zz
zz
zz
z
zzzz
zz
z
CAMERA
adjustment 4
CAMERA
adjustment 5 z
zzzz
AUDIT
Touch panel adj.
Touch panel
adjustment
EVF
adjustment
z
Replaced parts
Adjusting item Adjustment
Block replacement Parts replacement Board
replacement
z
LCD
adjustment
VIDEO
adjustment
z
zzz
6. ADJUSTMENTS
1-1. Adjusting items when replacing main parts and boards (Non MEGA model)
When replacing main parts and boards, adjust the items indicated by z in the following table.
Note 1: The Automatic Adjustment Program does not support.
Note 2: DCR-DVD115E only.
Note 3: DCR-DVD110E/DVD610/DVD610E only.
Note 4: IC2101 (Flash memory) on the VC-520 board and IC4302 (Flash memory) on the VC-520 board cannot be replaced.
Before starting adjustments
Table 6-1-1
6-2
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Table 6-1-2
1-2. Adjusting items when replacing main parts and boards (MEGA model)
When replacing main parts and boards, adjust the items indicated by z in the following table.
Note 1: The Automatic Adjustment Program does not support.
Note 2: When replacing the Flash Memory block, erase the data in internal memory of the board before replacement.
Note 3: DCR-DVD410E/DVD810/DVD810E only.
Note 4: CD-672 complete board is supplied instead of CD-687 complete board, because CD-672 complete board and CD-687 complete
board are compatible.
Note 5: IC2101 (Flash memory) on the VC-520 board and IC4302 (Flash memory) on the VC-520 board cannot be replaced.
Lens device
Drive block
LCD block LCD901 (LCD panel)
EVF block LCD902 (LCD panel)
Microphone unit MIC901
Flash Memory block (Note 2, 3)
CD-672/687 board IC7002 (CCD imager ) (Note 4)
CD-672/687 board SE7001, 7002 (YAW, PITCH sensor) (Note 4)
BL-022 board D5701 (EVF backlight)
PD-352 board D6203 - 6205 (LCD backlight)
VC-520 board IC1701, X1701 (CPU, Oscillator)
VC-520 board IC1201 (A/D converter, Timing generator)
VC-520 board IC2401 (D/A converter)
VC-520 board IC2801 (Video, Audio I/O)
VC-520 board IC3101 (LCD/EVF driver)
VC-520 board IC4101 (RF process)
VC-520 board IC4201 (DVD DSP)
VC-520 board IC4401 (DVD mecha drive)
CD-672/687 board (COMPLETE) (Note 4)
BL-022 board (COMPLETE)
PD-352 board (COMPLETE)
VC-520 board (COMPLETE)
Destination
Data Write Destination data write z
USB Serial No.
In
p
ut USB serial No. input z
(Note 1) Origin oscillation check zz
S VIDEO OUT Y level adj.
S VIDEO OUT chroma level adj.
VIDEO OUT level check
CAMERA
ad
j
ustment 1 HALL adj. z z
CAMERA
ad
j
ustment 2 Flange back adj. zzz zz
CAMERA
ad
j
ustment 3 Flange back check zzz zz
F No. standard data in
p
ut
MAX GAIN adj.
Mechanical shutter adj
Color reproduction adj.
Color reproduction check
AWB & LV standard data input
AWB adj.
AWB check
CAMERA
ad
j
ustment 6 Black Defec adj. zz
CAMERA
ad
j
ustment 7 Steady shot check zzzz
LCD automatic adj. (VCO adj, Contrast adj.)
V-COM adj.
Transmissive moed white balance ad
j
.
Reflective mode white balance ad
j
.
EVF automatic adj. (VCO adj, Contrast adj.)
White balance adj.
AUDIO
ad
j
ustment Internal 3ch microphone sensitivity adj. zzz
POWER adj. zzzz z
SERVO adj. zzzz z
CAMERA
adjustment 4 zz
zz
zz
zz
zzz
zzz
z
z
Adjusting item
zz
VIDEO
adjustment
z
LCD
adjustment
EVF
ad
j
ustment
CAMERA
adjustment 5
AUDIT
Touch panel adj.
Touch panel
ad
j
ustment
z
zz
zz
zz
z
z
Adjustment
Board
replacement
Parts replacementBlock replacement
Replaced parts
6-3
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
1-3. List of service tools
• Oscilloscope • Color monitor • Frequency counter
• Amplifier built-in speaker for PC • Adjustment sound source file
Fig. 6-1-1 (1)
Note 1: Personal computer
OS: Windows 2000/XP (Camera Section)
Windows 2000 SP4 or later/XP SP2 or later (Drive Section)
RAM: 256MB or more recommended
USB: 2.0 recommended (also compatible with 1.1)
Three connectors are required.
Note 2: The following programs and driver must already be installed in the personal computer. (Contact our service headquarters of each
area how to get the programs and driver)
•SeusEX
•Optical power meter driver
•AUDIT
Personal computer
(Note 1, 2)
J-1
HASP key and application
for adjustment (SeusEX)
Contact our service headquarters of each
area how to get the application for
adjustment (SeusEX) and HASP key.
J-2
USB cable
1-829-868-31
J-3
J-10
J-6
J-4
Pattern box PTB-450
J-6082-200-A
or
Small pattern box
PTB-1450
J-6082-557-A
J-7
Color bar chart
For PTB-450:
J-6020-250-A
For PTB-1450:
J-6082-559-A
J-8
Clear chart
For PTB-450:
J-6080-621-A
For PTB-1450:
J-6082-560-A
J-9
Minipattern box
J-6082-353-B
Siemens star chart
J-6080-875-A
Filter for color
temperature correction
(C14)
J-6080-058-A
J-11
ND filter 1.0
J-6080-808-A
ND filter 0.4
J-6080-806-A
ND filter 0.1
J-6080-807-A
J-5
Flange back
adjustment jig
J-6082-563-A
J-12
Camera table
J-6082-384-A
J-13
Optical power meter
J-6082-569-A
J-14
Optical sensor disc
J-6082-570-A
J-15
DVD–RW (DRW3)
Reference + DOW Disc
8-212-001-51
Ver. 1.1 2008.01
6-4
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
J-17
DVD+RDL
for Self Disc
(Manufactured by
Sony Corporation)
J-16
DVD–R
for Self Jitter Disc
8-212-002-11
Extension cable
(10P)
J-6082-572-A
J-18
AC adaptor
AC-L200/L200B
1-479-285-21/41
(Note 3)
J-19
Fig. 6-1-1 (2)
Note 3: 1-479-285-21 (for except J model)
1-479-285-41 (for J model)
6-5
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
6-1. CAMERA SECTION ADJUSTMENTS
1-1. PREPARATIONS BEFORE ADJUSTMENTS
(CAMERA SECTION)
1-1-1. Preparations
1) Connect the equipment for adjustments according to Fig. 6-1-3.
Fig. 6-1-2
Fig. 6-1-3
Pattern box Front of the lens
L = 1 m (PTB-450)
L = 40 cm (PTB-1450)
LCamera
PC
(The SeusEX must be installed in the PC.)
OS: Windows 2000/XP
RAM: 256MB or more recommended
USB: 2.0 recommended (also compatible with 1.1)
Two connectors are required.
HASP Key
USB cable
(1-829-868-31)
To DC IN jack
AC IN
AC adaptor
AC-L200/L200B
(1-479-285-21/41)
Audio R
Video
S-Video or
Video
Color monitor
Video system Adjustment Camera system Adjustment
Oscilloscope
Te r minated
75 Ω
Audio L
To A/V jack
6-6
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
1. POWER switch ............................................................. Movie
2. BACK LIGHT .................................................................. OFF
3. NIGHTSHOT PLUS ........................................................ OFF
4. (OPTION) menu
FOCUS .......................................................................... AUTO
H
A=B
C=D
AB B
CD
A
Enlargement
V
Electronic beam scanning frame
CRT picture frame
BA
Difference in level
Yellow
Cyan
Green
White
Magenta
Red
Blue
Yellow
Cyan
Green
White
Magenta
Red
Blue
Color bar chart (Color reproduction adjustment frame)
Fig. a
(VIDEO terminal of A/V jack
output waveform)
Fig. b (monitor TV picture)
Adjust the camera zoom and direction to
obtain the output waveform shown in Fig. a and
the monitor TV display shown in Fig. b.
1-1-2. Precaution
1. Setting the Switch
Unless otherwise specified, set the switches as follows and perform adjustments without inserting disc.
Fig. 6-1-4
Fig. 6-1-5
Black
White
841 mm
1189 mm
2. Order of Adjustments
Basically carry out adjustments in the order given.
3. Subjects
1) Color bar chart (Color reproduction adjustment frame)
When performing adjustments using the color bar chart, adjust
the picture frame as shown in Fig. 6-1-4. (Color reproduction
adjustment frame)
2) Clear chart (AWB adjustment frame)
Shoot the color bar chart. Then adjust the zoom to TELE side
from WIDE side, and stop it when the black frame of the chart
disappears. Remove the color bar chart from pattern box and
insert a clear chart in its place.
3) Chart for flange back adjustment
Join together a piece of white A0 size paper (1189mm × 841
mm) and a piece of black paper to make the chart shown in
Fig. 6-1-5.
Note: Use a non-reflecting and non-glazing vellum paper. The
size must be A0 or larger and the joint between the white
and black paper must not have any undulations.
5. (HOME) menu – (SETTINGS) – MOVIE SETTINGS
DIGITAL ZOOM ............................................................. OFF
STEADY SHOT............................................................... OFF
AUTO SLW SHUTTR ..................................................... OFF
6. (HOME) menu – (SETTINGS) – GENERAL SET
DEMO MODE ................................................................. OFF
6-7
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
3. Function of Each Button on Main Menu Screen
When the Automatic Adjustment Program started, the Main Menu
screen in Fig. 6-1-6 will appear. On this screen, select each adjust-
ment section.
Fig. 6-1-6
1[Connecting the Equipment] button
A connection diagram of the equipment is displayed.
2[CONNECT] button
The mode of Camcorder is switched to the Adjustment Mode.
When the Adjustment Mode has switched normally, the op-
eration of the buttons 4 - qa is enabled.
3[END] button
The mode of Camcorder is switched to the normal mode.
When the normal mode has switched correctly, the Automatic
Adjustment Program is finished.
4[DESTINATION DATA WRITE] button
The “DESTINATION DATA WRITE” screen appears.
5[USB SERIAL No. INPUT] button
The “USB SERIAL No. INPUT” screen appears.
6[VIDEO SYSTEM ADJUSTMENT] button
The “VIDEO SYSTEM ADJUSTMENT” screen appears.
7[CAMERA SYSTEM ADJUSTMENT] button
The “CAMERA SYSTEM ADJUSTMENT” screen appears.
8[LCD/EVF SYSTEM ADJUSTMENT] button
The “LCD/EVF SYSTEM ADJUSTMENT” screen appears.
9[AUDIO SYSTEM ADJUSTMENT] button
The “AUDIO SYSTEM ADJUSTMENT” screen appears.
q; [SERVICE MODE] button
The “SERVICE MODE” screen appears.
qa [DATA BACKUP] button
The “DATA BACKUP” screen appears.
qs This part indicates the version of Automatic Adjustment Pro-
gram.
qd [Adjust item] button
“Adjusting items when replacing main parts and boards” table
is displayed.
1-2. ADJUSTMENT PROGRAM
The DCR-DVD110E/DVD115E/DVD310E/DVD410E//DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E are adjusted
by the Automatic Adjustment Program. The Automatic Adjustment
Program enters automatically via the SeusEX the adjustment op-
erations that were formerly entered manually by the adjustment
remote commander (some items may be adjusted by manual op-
eration on the operation screen of the SeusEX).
1. Precautions When Using Automatic Adjustment
Program
1) The Automatic Adjustment Program writes the adjustment re-
sults such as EVR data to the set through two-way communi-
cation with the camcorder via the SeusEX. Accordingly, the
Automatic Adjustment Program must be used in the environ-
ment where the SeusEX operates.
2) The Automatic Adjustment Program cannot be used when the
SEUS or the SeusCam is running. Exit the SEUS or the
SeusCam before using the Automatic Adjustment Program.
3) The SeusEX must be already started on the PC when using the
Automatic Adjustment Program. With the SeusEX not started,
some adjustment items will take time in adjustment.
4) The program run time may vary depending on the environ-
ment of the personal computer used.
2. Start of Automatic Adjustment Program
Double-click the application file (DCR-DVD610 Series Auto-Adj
Ver_1.2r03.exe or DCR-DVD710 Series Auto-Adj Ver_1.2r03.exe),
and the Automatic Adjustment Program will start.
3
5
4
7
8
6
2
1
q;
qa
qs
9
qd
Ver. 1.2 2008.03
6-8
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
4. Setting of Adjustment Mode
Before performing the adjustment, “Setting of Adjustment Mode”
is required.
[Setting method]
1) Connect the Camcorder to the PC with a USB cable, and turn
on the power switch.
2) The USB SELECT menu will appear on the LCD screen of
the Camcorder, and then select “USB CONNECT (Memory
Stick)” to establish the connection.
3) Start the Automatic Adjustment Program, and click the [Con-
nect] button on the Main Menu screen.
4) When the following message is displayed, turn off and on again
the power switch of the Camcorder.
Note: Turning off and on the power switch causes the
Camcorder to be switched to the Adjustment Mode.
After the Camcorder restarted, click the [OK] button in
the message window.
5) Upon successful completion of the settings in the Adjustment
Mode, the operation of each button on the Main Menu screen
is enabled.
5. Release of Adjustment Mode
To finish the adjustment, be sure to perform “Release of Adjust-
ment Mode”.
[Releasing method]
1) Click the [END] button on the Main Menu screen.
2) When the following message is displayed, releasing of adjust-
ment mode has completed. Click the [OK] button in the mes-
sage window to exit the Automatic Adjustment Program.
Note: The Camcorder switches to the normal mode by turn-
ing off and on the power switch. After the adjustment
finished, turn off and on again the power switch of the
Camcorder to confirm that the USB SELECT menu is
displayed.
6-9
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
1-3. DESTINATION DATA WRITE
Note: The DESTINATION DATA WRITE can be set with the
Service board only.
Performing the DESTINATION DATA WRITE with other
than the Service board causes the error (E:20:00 will be
blinking) and the power to be shut down.
1. Function of Each Button on Destination Data Write
Screen
Click the [DESTINATION DATA WRITE] button on the Main
Menu screen, and the “DESTNATION DATA WRITE” screen
in Fig. 6-1-7 will appear.
Fig. 6-1-7
1[To Menu] button
Return to the main menu.
2Model Name List
Selects the model name.
3Destination List
Selects the written destination.
4[Data Write] button
Write the destination data to the camcorder.
2. Destination Data Write
[Writing method]
1) Select the model name from the pulldown list.
2) Select the target destination from the pulldown list.
3) Click the [Data Write] button.
4) Following message will be appeared after completing data
writing.
5) After the destination data writing completed, click the Desti-
nation Check button to check the destination.
3
2
4
1
5
5Destination Check button
Current destination setting checked when the “DESTINATION
DATA WRITE” screen started is displayed.
When this button is clicked, the destination is checked and the
display is updated.
6-10
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Table 6-1-3
3. Selectable Language Table
English
Japanese
French
Italian
German
Spanish
Dutch
Russian
Simplified Chinese
Portuguese
Greek
Braz.Portuguese
Canadian French
Espanyol
Traditional Chinese
Korean
Simplified English
Albanian
Persian
Thai
Turkish
Polish
Czech
Hungarian
Indonesia
Melayu
J1 J z
U2 US zaaa a
MX2 MX aaaz a
AR2 AR aaaz a
BR1 BR azaaa
E33 aaaz a
E23 zaaaaaa
HK1 HK zaaaaaa
KR2 KR aaaaaza
PL1 PL zaaaaaa
JE3 JE zaaaaaa
CA2 CND zaaaaaa
E34 zaaaaaaaaa a aaaa aa
E35 zaaaaaaaaa a aaaa aa
E36 zaaaaaaaaa a aaaa aa
E37 zaaaaaaaaa a aaaa aa
HK1 HK zaaaaaaaaa a aaaa aa
AU2 AUS zaaaaaaaaa a aaaa aa
CN1 aaaaaaazaa a aaaa aa
CN2 aaaaaaazaa a aaaa aa
SV1 SV zaaaaaaaaa a aaaa aa
JE3 JE zaaaaaaaaa a aaaaaaaaaa
CEL NE zaaaaaaaaa a a aaaaa
CEE zaaaaa aaa a a aaaaa
CEI zaaaaa aaa a a aaaaa
CEJ zaaaaa aaa a a aaaaa
CEM zaaaaa aaa a a aaaaa
CEP zaaaaa aaa a a aaaaa
CEN zaaaaa aaa a a aaaaa
CEH UK zaaaaa aaa a a aaaaa
z: INITIAL LANGUAGE
PAL model
DESTINATION
SELECTABLE LANGUAGE
NTSC model
AREA
E
E
CH
AEP
6-11
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
1-4. USB SERIAL No. INPUT
The set is shipped with a unique ID (USB Serial No.) written in it.
This ID has not been written in a new board for service, and there-
fore it must be entered after the board replacement.
If original ID can be read from the board before replacement, read
it from the board before replacement using the “SERIAL READ/
WRITE” screen, and then write it after replacement.
If original ID cannot be read from the board before replacement,
write the ID for service using the “MANUAL WRITE” screen.
(The ID for service is different from the ID written when the set is
shipped.) Enter the PRODUCT ID (last 5 characters of model
name) and SERIAL No. into the screen and write them.
1. Function of Each Button on USB Serial No. Input
Screen
Click the [USB SERIAL No. INPUT] button on the Main Menu screen,
and the “USB SERIAL No. INPUT” screen in Fig. 6-1-8 will ap-
pear.
Fig. 6-1-8
1[To Menu] button
Return to the main menu.
2Display area
The “PRODUCT ID”and “SERIAL No.” are displayed.
3[Check Serial] button
The USB SERIAL No. data is read from the camcorder and
displayed in the display area.
4[Read and Save] button
The USB SERIAL No. data is read from the camcorder and
saved in PC as a file.
Default file name is as follows:
(Example: MEGA model)
5[Load and Write] button
The USB SERIAL No. data is loaded from the file saved in
PC and written to the camcorder.
6Input area
Enter “PRODUCT ID” and “SERIAL No.” when writing the
ID for service.
The “PRODUCT ID” is set from the last 5 characters of model
name if the model name is selected.
For the “SERIAL No.”, read it from the label on the camcorder
body and enter it.
7[Write Manually] button
The USB SERIAL No. data entered in the input area is written
to the camcorder.
5
3
4
2
7
6
1
DCR-DVD710_SERIAL_xxxxxxxx_yyyymmdd.dat
Date
USB serial
number
Data name
6-12
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
1-5. VIDEO SYSTEM ADJUSTMENTS
1. Function of Each Button on Video System Adjust-
ment Screen
Click the [VIDEO SYSTEM ADJUSTMENT] button on the Main Menu
screen, and the “VIDEO SYSTEM ADJUSTMENT” screen in Fig.
6-1-9 will appear.
Fig. 6-1-9
1[To Menu] button
Return to the main menu.
2[Preparation] button
Notes for adjustment or jigs used are displayed.
3[Start] button
“Video Adjustment” starts.
2. Adjustment Items of VIDEO System Adjustment
The adjustment items of video system adjustment are as listed in
Table 6-1-4. The Automatic Adjustment Program executes the ad-
justment items if the VIDEO Adjustment Start button is clicked.
Note: The Automatic Adjustment Program does not support.
Table 6-1-4
3
2
1
Block Page Address
(Note) Origin Oscillation
Check Pin 3 of X1701 on VC-520 board Frequency
counter -- -
S VIDEO OUT Y
Level Adj.
Y signal terminal of S VIDEO plug of
A/V jack (75 ohm terminated) Oscilloscope 10 60 4400
S VIDEO OUT
Chroma Level Adj.
Chroma signal terminal of S VIDEO
plug of A/V jack (75 ohm terminated) Oscilloscope 10 60 4401, 4402
VIDEO OUT Level
Check
VIDEO terminal of A/V jack (75 ohm
terminated) Oscilloscope - - -
Button
Name Adjustment Measurement Point Measuring
Instrument
Adjusting Address
VIDEO
Adjustment
6-13
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
3. Origin Oscillation Check
Check the frequency of the clock for synchronization.
If deviated, the synchronization will be disrupted and the color
will become inconsistent.
Subject Not required
Measurement Point Pin 3 of X1701 on VC-520 board
Measuring Instrument Frequency counter
Specified value f = 12000000 ± 240 Hz
Switch setting
1) POWER ............................................................. MOVIE mode
Checking method:
1) Check that the frequency (f) satisfies the specified value.
Fig. 6-1-10
4. VIDEO Adjustment
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Video Adj.
2. S VIDEO OUT Y Level Adj.
3. S VIDEO OUT Chroma Level Adj.
4. VIDEO OUT Level Check
[Adjusting method]
1) Click the [Start] button of the VIDEO Adjustment.
2) The Automatic Adjustment Program executes the “1. Data
Setting during Video Adj.”.
3) If “1. Data Setting during Video Adj.” completed successfully,
the following screen is displayed during the execution of “2. S
VIDEO OUT Y Level Adj.”. Using the [Up]/[Down] button on
the screen, adjust so that the Y signal level satisfies the speci-
fied value. After the adjustment, click the [End] button in the
screen.
X1701
IC1701
Measurement
Point
VC-520 BOARD (SIDE A)
3
4
2
1
6-14
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
4) After that, the following screen is displayed during the execu-
tion of “3. S VIDEO OUT Chroma Level Adj.”. Using the [Up]/
[Down] button on the screen, adjust so that the Cr signal level
and the Cb signal level satisfies the specified value. After the
adjustment, check that the burst level of the chroma signals
satisfies the specified value, and click the [End] button in the
screen.
5) If the [End] button is clicked, “4. VIDEO OUT Level Check”
will be executed. The following message and screen are dis-
played. Check that the sync signal level and burst level of the
video signals satisfies the specified value, and click the [OK]
button in the message.
6) Upon successful completion of all item the VIDEO Adjust-
ment, the following message is displayed. Click the [OK] but-
ton.
6-15
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
1-6. CAMERA SYSTEM ADJUSTMENTS
(Non MEGA model)
1. Function of Each Button on Camera System
Adjustment Screen
Click the [CAMERA SYSTEM ADJUSTMENT] button on the Main
Menu screen, and the “CAMERA SYSTEM ADJUSTMENT”
screen in Fig. 6-1-11 will appear.
Fig. 6-1-11
1[To Menu] button
Return to the main menu.
2[Preparation] button
Notes for adjustment or jigs used are displayed.
3[Start] button
Each adjustment from “Camera Adjustment 1” to “Camera
Adjustment 6” starts.
4Model Select radio button
Selects the model to be adjusted.
Note: NTSC model: DCR-DVD610
PAL model: DCR-DVD110E/DVD115E/DVD610E
5[Release Data Setting] button
The data setting at the adjustment is cancelled.
During the data setting, the button color changes from “white”
to “red”. When the data setting is cancelled, the button color
returns to “white”.
(Use this button when an error occurred in the camera adjust-
ment. If the adjustment completed successfully, the data set-
ting is automatically cancelled and the button color returns to
“white”.)
5
3
2
1
2
3
3
3
4
6-16
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
2. Adjustment Items of Camera System Adjustment
The adjustment items of camera system adjustment are as listed in
Table 6-1-5. The Automatic Adjustment Program divides the ad-
justment items into six, camera adjustment 1-6. Clicking either
CAMERA Adjustment Start button allows the adjustment item
which corresponds to that button to be executed.
The adjustment conditions of the subject and filter vary depend-
ing on which item is adjusted. The Adjustment Program displays
an instruction for the subject and filter as a message during the
adjustment.
Note: Dark Siemens star chart.
Table 6-1-5
Block Page Address
CAMERA
Adjustment 1 HALL Adj. Not required 11 61 0150 to 0159,
0190 to 019B
Siemens star chart with ND filter for
minipattern box (Note) or
Flange back adjustment jig
Flange back adjustment chart and
subject more than 500 m away
CAMERA
Adjustment 3 Flange Back Check Siemens star chart -- -
F No. Standard Data Input 11 61 0160 to 017F
MAX GAIN Adj. 11 61 015C to 015F
Color Reproduction Adj. 11 61 0060 to 006E
Color Reproduction Check - - -
AWB & LV Standard Data Input Clear chart
(All White frame) 11 61
0074 to 007B,
0180 to 018B,
01C0 to 01C3
AWB Adj.
Clear chart
(All White frame)
Filter C14 for color temperature
correction
11 61
0070 to 0073,
008C to 0093,
01C4 to 01C7
AWB Check
Clear chart
(All White frame)
ND filter 1.0, 0.4 and 0.1
-- -
CAMERA
Adjustment 6 Black Defect Adj.
Clear chart (All White)
(Shoot the clear chart with the zoom
TELE end.)
11 61 00C0 to 011D,
01A0 to 01B3
Color bar chart
(Color reproduction adjustment frame)
0020 to 0030,
004C, 004D
61
11
CAMERA
Adjustment 2 Flange Back Adj.
Clear chart
(Center frame)
CAMERA
Adjustment 4
CAMERA
Adjustment 5
SubjectAdjustment
Button Name Adjusting Address
6-17
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
3. CAMERA Adjustment 1
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. HALL Adj.
3. Release of Data Setting during Camera Adj.
[Adjusting method]
1) Click the [Start] button of the CAMERA Adjustment 1.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) If “1. Data Setting during Camera Adj.” completed success-
fully, and the items “2. HALL Adj.” and “3. Release of Data
Setting during Camera Adj.” will be executed.
4) Upon successful completion of all items of the CAMERA
Adjustment 1, the following message is displayed. Click the
[OK] button.
6-18
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
[Preparation (Using the flange back adjustment jig)]
(Illuminance: 950 to 1050 lux)
Note 2: When using the flange back adjustment jig, take care of
the following points:
•For the illumination, use a light source such as an in-
candescent lamp or inverter type fluorescent light free
from flickering.
•Do not make an adjustment in the environment where
fluorescent lamp flickering occurs even if the illumi-
nance can be ensured with the room illumination only.
Use an incandescent lamp or inverter type fluorescent
light at a place free from the influence of room illumi-
nation.
1) Install the flange back adjustment jig so that the distance be-
tween it and the front of lens of camera is less than 3 cm.
2) Make the height of flange back adjustment jig and the camera
equal.
3) Check that the center of chart meets the center of shot image
screen with the zoom lens at TELE end and WIDE end respec-
tively.
Fig. 6-1-13
[Adjusting method]
1) Click the [Start] button of the CAMERA Adjustment 2.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed. Set the sub-
ject by referring to “Preparation”.
4) If the [OK] button is clicked, “2. Flange Back Adj.” and “3.
Release of Data Setting during Camera Adj.” will be executed.
5) Upon successful completion of all items of the CAMERA
Adjustment 2, the following message is displayed. Click the
[OK] button.
4. CAMERA Adjustment 2
(Using the minipattern box or flange back adjust-
ment jig)
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Flange Back Adj.
3. Release of Data Setting during Camera Adj.
[Preparation (Using the minipattern box)]
1) The minipattern box is installed as shown in the following fig-
ure.
Note 1: The attachment lenses are not used.
2) Install the minipattern box so that the distance between it and
the front of lens of camera is less than 3 cm.
3) Make the height of minipattern box and the camera equal.
4) Check the output voltage of the regulated power supply is the
specified voltage ± 0.01 Vdc.
5) Check that the center of Siemens star chart meets the center of
shot image screen with the zoom lens at TELE end and WIDE
end respectively.
Specified voltage: The specified voltage varies according to the
minipattern box, so adjustment the power sup-
ply output voltage to the specified voltage writ-
ten on the sheet which is supplied with the
minipattern box.
Fig. 6-1-12
Minipattern box
Below 3 cm
Camera
Red (+)
Black (–)
Yellow (SENS +)
White (SENS –)
Black (GND)
Need not connected
Regulated power supply
Output voltage : Specified voltage ± 0.01 Vdc
Output current : more than 3.5 A
Flange back adjustment jig Below 3 cm
Camera
Ver. 1.1 2008.01
6-19
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
5. CAMERA Adjustment 2
(Using the flange back adjustment chart and
subject more than 500 m away)
5-1. CAMERA Adjustment 2 (1)
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Flange Back (1) Adj.
3. Release of Data Setting during Camera Adj.
[Preparation]
1) Place the Flange back adjustment chart at 2 m position away
from the lens.
2) Check that the center of Flange back adjustment chart meets
the center of shot image screen with the zoom lens at TELE
end and WIDE end respectively.
[Adjusting method]
1) Click the [Start $1%] button of the CAMERA Adjustment 2.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed. Set the sub-
ject by referring to “Preparation”.
4) If the [OK] button is clicked, “2. Flange Back (1) Adj.” and “3.
Release of Data Setting during Camera Adj.” will be executed.
5) Upon successful completion of all items of the CAMERA
Adjustment 2 (1), the following message is displayed. Click
the [OK] button.
6) Perform “CAMERA Adjustment 2 (2)”.
5-2. CAMERA Adjustment 2 (2)
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Flange Back (2) Adj.
3. Release of Data Setting during Camera Adj.
[Preparation]
1) Set the zoom lens to the TELE end and expose a subject that is
more than 500 m away.
(subjects with clear contrast such as building, etc.)
(Nearby subjects less than 500 m away should not be in the screen)
[Adjusting method]
1) Click the [Start $2%] button of the CAMERA Adjustment 2.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed. Set the sub-
ject by referring to “Preparation”.
4) If the [OK] button is clicked, “2. Flange Back (2) Adj.” will be
executed.
The following message is displayed during the execution of
adjustment, and then place the ND filter on the lens so as to
obtain the optimum image.
5) If “2. Flange Back Adj.” completed successfully, “3. Release
of Data Setting during Camera Adj.” will be executed.
6) Upon successful completion of all items of the CAMERA
Adjustment 2 (2), the following message is displayed. Click
the [OK] button.
Ver. 1.1 2008.01
6-20
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
6. CAMERA Adjustment 3
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Flange Back Check
3. Release of Data Setting during Camera Adj.
[Adjusting method]
1) Click the [Start] button of the CAMERA Adjustment 3.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed. Set the sub-
ject in accordance with the message.
4) If the [OK] button is clicked, “2. Flange Back Check” is ex-
ecuted. The following messages are displayed, and then oper-
ate the camera to make a check in accordance with the mes-
sages.
5) Upon completion of “2. Flange Back Check”, “3. Release of
Data Setting during Camera Adj.” is executed.
6) Upon successful completion of all items of the CAMERA
Adjustment 3, the following message is displayed. Click the
[OK] button.
Ver. 1.1 2008.01
6-21
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
7. CAMERA Adjustment 4
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Picture Frame Setting (Center Frame)
3. F No. Standard Data Input
4. MAX GAIN Adj.
5. Release of Data Setting during Camera Adj.
[Adjusting method]
1) Select the model (NTSC Model or PAL Model) with the Model
Select radio button.
Note: NTSC model: DCR-DVD610
PAL model: DCR-DVD110E/DVD115E/DVD610E
2) Click the [Start] button of the CAMERA Adjustment 4.
3) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
4) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed during the
execution of “2. Picture Frame Setting (Center Frame)”. Set
the subject in accordance with the message.
5) If the [OK] button is clicked, the following message is dis-
played, and then check the size of clear chart shot on the moni-
tor screen.
6) After the checking, if the [OK] button in the message window
is clicked, the adjustment items from “3. F No. Standard Data
Input” to “4. MAX GAIN Adj.” are executed.
7) Upon successful completion of the “4. MAX GAIN Adj.”, “5.
Release of Data Setting during Camera Adj.” is executed.
8) Upon successful completion of all items of the CAMERA
Adjustment 4, the following message is displayed. Click the
[OK] button.
8. CAMERA Adjustment 5
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Picture Frame Setting (Color Reproduction Adjustment Frame)
3. Color Reproduction Adj.
4. Color Reproduction Check
5. Picture Frame Setting (AWB Adjustment Frame)
6. AWB & LV Standard Data Input
7. AWB Adj.
8. AWB Check
9. Release of Data Setting during Camera Adj.
[Adjusting method]
1) Select the model (NTSC Model or PAL Model) with the Model
Select radio button.
Note: NTSC model: DCR-DVD610
PAL model: DCR-DVD110E/DVD115E/DVD610E
2) Click the [Start] button of the CAMERA Adjustment 5.
3) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
4) Upon successful completion of the “1. Data Setting during
Camera Adj.”, “2. Picture Frame Setting (Color Reproduction
Adjustment Frame)” is executed and the following message is
displayed. Adjust the zoom and camera direction and then set
the picture frame. After the setting finished, click the [End]
button.
The buttons on this screen provide the following functions:
[Save the position] button
Saves the camera zoom and focus position data.
[Load the position] button
Reads the camera zoom and focus position data saved last and
moves the camera zoom and focus to that position.
Note 1: The zoom and focus position data are saved with
“DCR_DVD610_ZoomFocusData.txt” file name in the
same holder as the Automatic Adjustment Program.
No position data can be read if this file is moved or de-
leted.
Note 2: Only the latest position data can be saved. If the [Save
the position] button is clicked, the latest data are saved
overwriting the previous data.
6-22
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
8) After the setting, if the [OK] button is clicked, the adjustment
items from “6. AWB & LV Standard Data Input” to “8. AWB
Check” are executed. During the execution, the following
messages are displayed in the order given below. Place or re-
move the filters on the lens in accordance with the messages.
9) Upon completion of “8. AWB Check”, “9. Release of Data
Setting during Camera Adj.” is executed
10) Upon successful completion of all items of the CAMERA
Adjustment 5, the following message is displayed. Click the
[OK] button.
5) After setting the picture frame, if the [End] button is clicked,
“3. Color Reproduction Adj.” and the adjustment items of “4.
Color Reproduction Check” are executed. The following mes-
sages are displayed in the order given below during the
excution. Then, change the chart in accordance with the mes-
sages.
6) Upon successful completion of the “7. Color Reproduction
Check”, the following message is displayed. Then, set the pic-
ture frame in accordance with the message.
7) If the [OK] button is clicked, “5. Picture Frame Setting (AWB
Adjustment Frame)” is executed. The following messages are
displayed in the order given below during the execution. Then,
change the chart in accordance with the messages.
6-23
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
9. CAMERA Adjustment 6
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Black Defect Adj.
3. Release of Data Setting during Camera Adj.
[Adjusting method]
1) Click the [Start] button of the CAMERA Adjustment 6.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed. Then, set
the subject in accordance with the message.
4) Click the [OK] button, and the “2. Black Defect Adj.” will be
executed.
5) Upon completion of “2. Black Defect Adj.”, “3. Release of
Data Setting during Camera Adj.” is executed.
6) Upon successful completion of all items of the CAMERA Ad-
justment 6, the following message is displayed. Click the [OK]
button.
6-24
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
1-7. CAMERA SYSTEM ADJUSTMENTS
(MEGA model)
1. Function of Each Button on Camera System
Adjustment Screen
Click the [CAMERA SYSTEM ADJUSTMENT] button on the Main
Menu screen, and the “CAMERA SYSTEM ADJUSTMENT”
screen in Fig. 6-1-14 will appear.
Fig. 6-1-14
1[To Menu] button
Return to the main menu.
2[Preparation] button
Notes for adjustment or jigs used are displayed.
3[Start] button
Each adjustment from “Camera Adjustment 1” to “Camera
Adjustment 7” starts.
4Model Select radio button
Selects the model to be adjusted.
Note: NTSC model: DCR-DVD710/DVD810
PAL model: DCR-DVD310E/DVD410E/DVD710E/
DVD810E
5[Release Data Setting] button
The data setting at the adjustment is cancelled.
During the data setting, the button color changes from “white”
to “red”. When the data setting is cancelled, the button color
returns to “white”.
(Use this button when an error occurred in the camera adjust-
ment. If the adjustment completed successfully, the data set-
ting is automatically cancelled and the button color returns to
“white”.)
5
3
2
1
2
3
3
3
4
4
6-25
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
2. Adjustment Items of Camera System Adjustment
The adjustment items of camera system adjustment are as listed in
Table 6-1-6. The Automatic Adjustment Program divides the ad-
justment items into seven, camera adjustment 1-7. Clicking either
CAMERA Adjustment Start button allows the adjustment item
which corresponds to that button to be executed.
The adjustment conditions of the subject and filter vary depend-
ing on which item is adjusted. The Adjustment Program displays
an instruction for the subject and filter as a message during the
adjustment.
Note: Dark Siemens star chart.
Table 6-1-6
Block Page Address
CAMERA
Adjustment 1 HALL Adj. Not required 11 61 0150 to 0159,
0190 to 019B
Siemens star chart with ND filter for
minipattern box (Note) or
Flange back adjustment jig
Flange back adjustment chart and
subject more than 500 m away
CAMERA
Adjustment 3 Flange Back Check Siemens star chart -- -
F No. Standard Data Input 11 61 0160 to 017F
MAX GAIN Adj. 11 61 015C to 015F
Mechanical Shutter Adj. 11 61 0120 to 0136
Color Reproduction Adj. 11 61 0060 to 006E
Color Reproduction Check - - -
AWB & LV Standard Data Input Clear chart
(All White frame) 11 61
0074 to 007B,
0180 to 018B,
01C0 to 01C3
AWB Adj.
Clear chart
(All White frame)
Filter C14 for color temperature
correction
11 61
0070 to 0073,
008C to 0093,
01C4 to 01C7
AWB Check
Clear chart
(All White frame)
ND filter 1.0, 0.4 and 0.1
-- -
CAMERA
Adjustment 6 Black Defect Adj.
Clear chart (All White)
(Shoot the clear chart with the zoom
TELE end.)
11 61 00C0 to 011D,
01A0 to 01B3
CAMERA
Adjustment 7 Steady shot Check Not required -- -
0020 to 0030,
004C, 004D
CAMERA
Adjustment 5
Color bar chart
(Color reproduction adjustment frame)
CAMERA
Adjustment 2 Flange Back Adj. 11 61
CAMERA
Adjustment 4
Clear chart
(Center frame)
Button Name Adjustment Subject Adjusting Address
6-26
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
3. CAMERA Adjustment 1
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. HALL Adj.
3. Release of Data Setting during Camera Adj.
[Adjusting method]
1) Click the [Start] button of the CAMERA Adjustment 1.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) If “1. Data Setting during Camera Adj.” completed success-
fully, and the items “2. HALL Adj.” and “3. Release of Data
Setting during Camera Adj.” will be executed.
4) Upon successful completion of all items of the CAMERA
Adjustment 1, the following message is displayed. Click the
[OK] button.
6-27
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
[Preparation (Using the flange back adjustment jig)]
(Illuminance: 950 to 1050 lux)
Note 2: When using the flange back adjustment jig, take care of
the following points:
•For the illumination, use a light source such as an in-
candescent lamp or inverter type fluorescent light free
from flickering.
•Do not make an adjustment in the environment where
fluorescent lamp flickering occurs even if the illumi-
nance can be ensured with the room illumination only.
Use an incandescent lamp or inverter type fluorescent
light at a place free from the influence of room illumi-
nation.
1) Install the flange back adjustment jig so that the distance be-
tween it and the front of lens of camera is less than 3 cm.
2) Make the height of flange back adjustment jig and the camera
equal.
3) Check that the center of chart meets the center of shot image
screen with the zoom lens at TELE end and WIDE end respec-
tively.
Fig. 6-1-16
[Adjusting method]
1) Click the [Start] button of the CAMERA Adjustment 2.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed. Set the sub-
ject by referring to “Preparation”.
4) If the [OK] button is clicked, “2. Flange Back Adj.” and “3.
Release of Data Setting during Camera Adj.” will be executed.
5) Upon successful completion of all items of the CAMERA
Adjustment 2, the following message is displayed. Click the
[OK] button.
4. CAMERA Adjustment 2
(Using the minipattern box or flange back adjust-
ment jig)
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Flange Back Adj.
3. Release of Data Setting during Camera Adj.
[Preparation (Using the minipattern box)]
1) The minipattern box is installed as shown in the following fig-
ure.
Note 1: The attachment lenses are not used.
2) Install the minipattern box so that the distance between it and
the front of lens of camera is less than 3 cm.
3) Make the height of minipattern box and the camera equal.
4) Check the output voltage of the regulated power supply is the
specified voltage ± 0.01 Vdc.
5) Check that the center of Siemens star chart meets the center of
shot image screen with the zoom lens at TELE end and WIDE
end respectively.
Specified voltage: The specified voltage varies according to the
minipattern box, so adjustment the power sup-
ply output voltage to the specified voltage writ-
ten on the sheet which is supplied with the
minipattern box.
Fig. 6-1-15
Minipattern box
Below 3 cm
Camera
Red (+)
Black (–)
Yellow (SENS +)
White (SENS –)
Black (GND)
Need not connected
Regulated power supply
Output voltage : Specified voltage ± 0.01 Vdc
Output current : more than 3.5 A
Flange back adjustment jig Below 3 cm
Camera
Ver. 1.1 2008.01
6-28
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
5. CAMERA Adjustment 2
(Using the flange back adjustment chart and
subject more than 500 m away)
5-1. CAMERA Adjustment 2 (1)
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Flange Back (1) Adj.
3. Release of Data Setting during Camera Adj.
[Preparation]
1) Place the Flange back adjustment chart at 2 m position away
from the lens.
2) Check that the center of Flange back adjustment chart meets
the center of shot image screen with the zoom lens at TELE
end and WIDE end respectively.
[Adjusting method]
1) Click the [Start $1%] button of the CAMERA Adjustment 2.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed. Set the sub-
ject by referring to “Preparation”.
4) If the [OK] button is clicked, “2. Flange Back (1) Adj.” and “3.
Release of Data Setting during Camera Adj.” will be executed.
5) Upon successful completion of all items of the CAMERA
Adjustment 2 (1), the following message is displayed. Click
the [OK] button.
6) Perform “CAMERA Adjustment 2 (2)”.
5-2. CAMERA Adjustment 2 (2)
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Flange Back (2) Adj.
3. Release of Data Setting during Camera Adj.
[Preparation]
1) Set the zoom lens to the TELE end and expose a subject that is
more than 500 m away.
(subjects with clear contrast such as building, etc.)
(Nearby subjects less than 500 m away should not be in the screen)
[Adjusting method]
1) Click the [Start $2%] button of the CAMERA Adjustment 2.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed. Set the sub-
ject by referring to “Preparation”.
4) If the [OK] button is clicked, “2. Flange Back (2) Adj.” will be
executed.
The following message is displayed during the execution of
adjustment, and then place the ND filter on the lens so as to
obtain the optimum image.
5) If “2. Flange Back Adj.” completed successfully, “3. Release
of Data Setting during Camera Adj.” will be executed.
6) Upon successful completion of all items of the CAMERA
Adjustment 2 (2), the following message is displayed. Click
the [OK] button.
Ver. 1.1 2008.01
6-29
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
6. CAMERA Adjustment 3
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Flange Back Check
3. Release of Data Setting during Camera Adj.
[Adjusting method]
1) Click the [Start] button of the CAMERA Adjustment 3.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed. Set the sub-
ject in accordance with the message.
4) If the [OK] button is clicked, “2. Flange Back Check” is ex-
ecuted. The following messages are displayed, and then oper-
ate the camera to make a check in accordance with the mes-
sages.
5) Upon completion of “2. Flange Back Check”, “3. Release of
Data Setting during Camera Adj.” is executed.
6) Upon successful completion of all items of the CAMERA
Adjustment 3, the following message is displayed. Click the
[OK] button.
Ver. 1.1 2008.01
6-30
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
7. CAMERA Adjustment 4
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Picture Frame Setting (Center Frame)
3. F No. Standard Data Input
4. MAX GAIN Adj.
5. Mechanical Shutter Adj.
6. Release of Data Setting during Camera Adj.
[Adjusting method]
1) Select the model (NTSC Model or PAL Model) with the Model
Select radio button.
Note: NTSC model: DCR-DVD710/DVD810
PAL model: DCR-DVD310E/DVD410E/DVD710E/
DVD810E
2) Click the [Start] button of the CAMERA Adjustment 4.
3) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
4) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed during the
execution of “2. Picture Frame Setting (Center Frame)”. Set
the subject in accordance with the message.
5) If the [OK] button is clicked, the following message is dis-
played, and then check the size of clear chart shot on the moni-
tor screen.
6) After the checking, if the [OK] button in the message window
is clicked, the adjustment items from “3. F No. Standard Data
Input” to “5. Mechanical Shutter Adj.” are executed.
7) Upon successful completion of the “5. Mechanical Shutter
Adj.”, “6. Release of Data Setting during Camera Adj.” is ex-
ecuted.
8) Upon successful completion of all items of the CAMERA
Adjustment 4, the following message is displayed. Click the
[OK] button.
6-31
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
8. CAMERA Adjustment 5
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Picture Frame Setting (Color Reproduction Adjustment Frame)
3. Color Reproduction Adj.
4. Color Reproduction Check
5. Picture Frame Setting (AWB Adjustment Frame)
6. AWB & LV Standard Data Input
7. AWB Adj.
8. AWB Check
9. Release of Data Setting during Camera Adj.
[Adjusting method]
1) Select the model (NTSC Model or PAL Model) with the Model
Select radio button.
Note: NTSC model: DCR-DVD710/DVD810
PAL model: DCR-DVD310E/DVD410E/DVD710E/
DVD810E
2) Click the [Start] button of the CAMERA Adjustment 5.
3) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
4) Upon successful completion of the “1. Data Setting during
Camera Adj.”, “2. Picture Frame Setting (Color Reproduction
Adjustment Frame)” is executed and the following message is
displayed. Adjust the zoom and camera direction and then set
the picture frame. After the setting finished, click the [End]
button.
The buttons on this screen provide the following functions:
[Save the position] button
Saves the camera zoom and focus position data.
[Load the position] button
Reads the camera zoom and focus position data saved last and
moves the camera zoom and focus to that position.
Note 1: The zoom and focus position data are saved with
“DCR_DVD710_ZoomFocusData.txt” file name in the
same holder as the Automatic Adjustment Program.
No position data can be read if this file is moved or de-
leted.
Note 2: Only the latest position data can be saved. If the [Save
the position] button is clicked, the latest data are saved
overwriting the previous data.
5) After setting the picture frame, if the [End] button is clicked,
“3. Color Reproduction Adj.” and the adjustment items of “4.
Color Reproduction Check” are executed. The following mes-
sages are displayed in the order given below during the
excution. Then, change the chart in accordance with the mes-
sages.
6) Upon successful completion of the “4. Color Reproduction
Check”, the following message is displayed. Then, set the pic-
ture frame in accordance with the message.
7) If the [OK] button is clicked, “5. Picture Frame Setting (AWB
Adjustment Frame)” is executed. The following messages are
displayed in the order given below during the execution. Then,
change the chart in accordance with the messages.
6-32
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
8) After the setting, if the [OK] button is clicked, the adjustment
items from “6. AWB Standard Data Input” to “8. AWB Check”
are executed. During the execution, the following messages
are displayed in the order given below. Place or remove the
filters on the lens in accordance with the messages.
9) Upon completion of “8. AWB Check”, “9. Release of Data
Setting during Camera Adj.” is executed
10) Upon successful completion of all items of the CAMERA
Adjustment 5, the following message is displayed. Click the
[OK] button.
6-33
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
10. CAMERA Adjustment 7
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Steady Shot Check
3. Release of Data Setting during Camera Adj.
[Adjusting method]
1) Click the [Start] button of the CAMERA Adjustment 7.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed.
With the camcoder in stationary state, click the [OK] button.
4) If the [OK] button is clicked, “2. Steady Shot Check” is ex-
ecuted.
Upon successful completion of the “2. Steady Shot Check”,
the following message is displayed. Check that the steadyshot
function operates normally in accordance with the message.
5) If the [OK] button is clicked, “3. Release of Data Setting dur-
ing Camera Adj.” is executed.
6) Upon successful completion of all items of the CAMERA
Adjustment 7, the following message is displayed. Click the
[OK] button.
9. CAMERA Adjustment 6
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during Camera Adj.
2. Black Defect Adj.
3. Release of Data Setting during Camera Adj.
[Adjusting method]
1) Click the [Start] button of the CAMERA Adjustment 6.
2) The Automatic Adjustment Program executes “1. Data Setting
during Camera Adj.”.
3) Upon successful completion of the “1. Data Setting during
Camera Adj.”, the following message is displayed. Then, set
the subject in accordance with the message.
4) Click the [OK] button, and the “2. Black Defect Adj.” will be
executed.
5) Upon completion of “2. Black Defect Adj.”, “3. Release of
Data Setting during Camera Adj.” is executed.
6) Upon successful completion of all items of the CAMERA Ad-
justment 6, the following message is displayed. Click the [OK]
button.
6-34
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
1-8. LCD/EVF SYSTEM ADJUSTMENTS
1. Function of Each Button on LCD/EVF System
Adjustment Screen
Click the [LCD/EVF SYSTEM ADJUSTMENT] button on the Main
Menu screen, and the “LCD/EVF SYSTEM ADJUSTMENT”
screen in Fig. 6-1-17 will appear.
Fig. 6-1-17
2
1
Note: The adjustment data cannot be read or written from the SeusEX.
Table 6-1-7
Block Page Address
VCO Adj. 10 60 1050 (NTSC model),
1051 (PAL model)
Contrast Adj. 10 60 1058
V-COM Adj. 10 60 1052
Transmissive Mode White Balance Adj. 10 60 1056, 1057
Reflective Mode White Balance Adj. 10 60 107B, 107C
VCO Adj. 10 60 103F (NTSC model),
1040 (PAL model)
Contrast Adj. 10 60 1047
White Balance Adj. 10 60 1045, 1046
Touch Panel
Adjustment Touch Panel Adj.
Adjusting Address
(Note)
Button Name Adjustment
LCD
Adjustment
EVF
Adjustment
1[To Menu] button
Return to the main menu.
2[Start] button
Each adjustment “LCD Adjustment”, “EVF Adjustment” or
“Touch Panel Adjustment” starts.
2. Adjustment Items of LCD/EVF System Adjustment
The adjustment items of LCD/EVF system adjustment are as listed
in Table 6-1-7. The Automatic Adjustment Program executes the
adjustment items if the LCD/EVF Adjustment Start button is
clicked.
6-35
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
4) If the [End] button is clicked, the following screen is displayed
during the execution of “4. Transmissive Mode White Balance
Adj.”. Check that the LCD screen is not colored. If colored,
using the [Up]/[Down] button on the screen, adjust so that the
LCD screen is not colored. After the adjustment, click the [End]
button in the screen.
5) If the [End] button is clicked, “5. Reflective Mode White Bal-
ance Adj.” will be executed.
6) Upon successful completion of all item the LCD Adjustment,
the following message is displayed. Click the [OK] button.
3. LCD Adjustment
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during LCD/EVF Adj.
2. LCD Automatic Adj.
(VCO Adj., Contrast Adj.)
3. V-COM Adj.
4. Transmissive Mode White Balance Adj.
5. Reflective Mode White Balance Adj.
[Adjusting method]
1) Click the [Start] button of the LCD Adjustment.
2) The Automatic Adjustment Program executes the “1. Data
Setting during LCD/EVF Adj.” and “2. LCD Automatic Adj.”.
3) After that, the following screen is displayed during the execu-
tion of “3. V-COM Adj.”. Using the [Up]/[Down] button on the
screen, adjust so that the brightness of portions A and B on the
LCD panel is equal. After the adjustment, click the [End] but-
ton in the screen.
6-36
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
5. Touch Panel Adjustment
[Automatic Adjustment Program execution items and
sequence]
1. Touch Panel Adj.
[Adjusting method]
1) Click the [Start] button of the Touch Panel Adjustment.
2) The Automatic Adjustment Program executes the “1. Touch
Panel Adj.1”. The following message is displayed, and then
adjust the LCD screen in accordance with the instructions given
on the screen. After the adjustment, click the [OK] button in
the message window.
3) Upon successful completion of all item the Touch Panel Ad-
justment, the following message is displayed. Click the [OK]
button.
4. EVF Adjustment
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during LCD/EVF Adj.
2. EVF Automatic Adj.
(VCO Adj., Contrast Adj.)
3. White Balance Adj.
[Adjusting method]
1) Click the [Start] button of the EVF Adjustment.
2) The Automatic Adjustment Program executes the “1. Data
Setting during LCD/EVF Adj.” and “2. EVF Automatic Adj.”.
3) After that, the following screen is displayed during the execu-
tion of “3. White Balance Adj.”. Check that the EVF screen is
not colored. If colored, using the [Up]/[Down] button on the
screen, adjust so that the EVF screen is not colored. After the
adjustment, click the [End] button in the screen.
4) Upon successful completion of all item the EVF Adjustment,
the following message is displayed. Click the [OK] button.
6-37
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
1-9. AUDIO SYSTEM ADJUSTMENTS
(DCR-DVD115E/DVD310E/DVD410E/DVD710/
DVD710E/DVD810/DVD810E)
1. Function of Each Button on Audio System Adjust-
ment Screen
Click the [AUDIO SYSTEM ADJUSTMENT] button on the Main Menu
screen, and the “AUDIO SYSTEM ADJUSTMENT” screen in Fig.
6-1-18 will appear.
Fig. 6-1-18
1[To Menu] button
Return to the main menu.
2[Preparation] button
Notes for adjustment or jigs used are displayed.
3[Start] button
“Audio Adjustment” starts.
4[Release Data Setting] button
The data setting at the adjustment is cancelled.
During the data setting, the button color changes from “white”
to “red”.
When the data setting is cancelled, the button color returns to
“white”. (Use this button when an error occurred in the audio
adjustment. If the adjustment completed successfully, the data
setting is automatically cancelled and the button color returns
to “white”.)
2. Adjustment Items of AUDIO System Adjustment
The adjustment items of audio system adjustment are as listed in
Table 6-1-8. The Automatic Adjustment Program executes the ad-
justment items when the AUDIO Adjustment Start button is clicked.
4
3
2
1
Block Page Address
AUDIO
Adjustment Internal 3ch Microphone Sensitivity Adj. 10 60 0104 to 013F
Adjusting Address
Button Name Adjustment
Table 6-1-8
6-38
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
3. AUDIO Adjustment
Note 1: Perform “AUDIO Adjustment” without inserting disc.
Note 2: AUDIO Adjustment is available only once after the power
is turned on. If the adjustment is retried, turn off the power
and turn on again.
[Automatic Adjustment Program execution items and
sequence]
1. Data Setting during AUDIO Adj.
2. Internal 3ch microphone Adj.
3. Release of Data Setting during Audio Adj.
[Preparation]
Prepare an amplifier built-in speaker for PC and arrange it above
the internal 3ch microphone of the camcoder.
•Adjust the speaker position so that it is within ±3 cm from the
center of camcoder internal 3ch microphone at the height of 40
cm.
•The diaphragm of speaker position should be set face down to-
ward the internal 3ch microphone.
•The speaker may be held by hand if it is hard to secure.
Fig. 6-1-19
[Adjusting method]
1) Play back the adjustment sound source file on the PC.
2) Set the speaker volume so that the adjustment signal sound is
heard to the extent of the loudness of talking voices.
3) Click the [Start] button of the AUDIO Adjustment.
4) The Automatic Adjustment Program executes “1. Data Setting
during Audio Adj.”.
5) When “1. Data Setting during Audio Adj.” completed success-
fully, and the items “2. Internal 3ch microphone Adj.” and “3.
Release of Data Setting during Audio Adj.” will be executed.
6) Upon successful completion of all items of the AUDIO Ad-
justment, the following message is displayed. Click the [OK]
button.
In case of adjustment NG, reduce or increase the speaker volume,
and then retry adjustment.
If the Adjustment Program displays a message “Volume too loud”
or “Volume too low”, adjust the speaker volume following the
message.
Amplifier built-in
speaker for PC
PC
Internal 3ch
microphone
about 40 cm
6-39
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
1-10. ERROR
In the case of an error during the execution of adjustment, the
Automatic Adjustment Program interrupts the processing at that
point, and displays an error message, and then terminates the pro-
gram execution there.
1-10-1. Error Message
When an error message is displayed, perform the remedy given
below, and then retry adjustment. If the error message is displayed
though the remedy was performed, the circuits will be faulty.
1. Connect Error, Adjust Control Error
Fig. 6-1-20
Symptom USB communication with the set is abnormal.
Cause •USB cable is not inserted tightly.
•Power supply is not installed correctly.
•Communication with SeusEX is abnormal.
Remedy •Disconnect the USB cable once, and then re-
connect it tightly and check that the set is in
“USB Mode”.
•Install the power supply correctly.
•Start the SeusEX and click the [Connect] to
check that the connection state is established.
2. RESET the CAMERA and Try Again
Fig. 6-1-21
Symptom The camera is not ready for adjustment.
Cause Data error exists in the camera.
Remedy Reset the camera.
3. Adjustment Time Out
Fig. 6-1-22
Symptom Adjustment does not finish within the specified
time.
Cause •Adjustment conditions are wrong.
•Data error exists in the camera.
Remedy •Check that the conditions such as a subject
are correct.
•Reset the camera.
4. Adjustment NG
Fig. 6-1-23
Symptom The adjusted data does not become the speci-
fied value.
Cause •Adjustment conditions are wrong.
•Data error exists in the camera.
Remedy •Check that the conditions such as a subject
are correct.
•Reset the camera.
This part indicates
the adjustment
item in which
an error occurred.
This part indicates
the adjustment
item in which
an error occurred.
6-40
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
1-10-2. Precautions When an Error Occurred
The Automatic Adjustment Program sets the data for adjustment
before the adjustment starts. Accordingly, if the adjustment termi-
nates by an error, the data during the adjustment may be left in the
camera.
Note: With this data left in the camera, the camera will not oper-
ate normally.
In this case, the [Release Data Setting] button is displayed in “red”
on the screen as shown figures below. Click the [Release Data Set-
ting] button to cancel the data setting. When the data setting is
cancelled, the button color becomes “white”.
Camera System Adjustment screen
Fig. 6-1-24
Audio System Adjustment screen
Fig. 6-1-25
6-41
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
6-2. DRIVE SECTION ADJUSTMENTS
2-1. PREPARATIONS BEFORE ADJUSTMENTS (DRIVE SECTION)
2-1-1. Connection
1) Connect the apparatuses as shown below, and perform adjustment.
Note 1: Before starting the adjustment, remove the disc from the camcorder.
Note 2: Refer to “How to Set the Optical Sensor Disc”.
Fig. 6-2-1
[Connecting method]
1) Connect the Camcorder to the PC with a USB cable, and turn
on the power switch.
2) The USB SELECT menu will appear on the LCD screen of the
Camcorder, and then select “USB CONNECT (Memory Stick)
” to establish the connection.
Note 3: Don’t select “USB CONNECT (Disc) ”.
POWER Adjustment
Optical power meter
(J-6082-569-A)
Optical sensor disc
(J-6082-570-A)
To DRIVE (Note 2)
PC (The SeusEX must be installed in the PC.)
OS: Windows 2000 SP4 or later/XP SP2 or later
RAM: 256MB or more recommended
USB: 2.0 recommended (also compatible with 1.1)
Three connectors are required.
HASP Key
USB cable
(1-829-868-31)
To DC IN jack
AC IN
AC adaptor
AC-L200/L200B
(1-479-285-21/41)
Ver. 1.1 2008.01
6-42
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
2-1-3. Precautions on Adjustment
1. Adjustment data
The adjustment data for the drive block are recorded to the IC4302
on the VC-520 board.
These data cannot be read or written from the adjustment remote
commander or SeusCam, unlike the camera and LCD adjustment
data.
Accordingly, be sure to adjust all items of the drive adjustment
when the following parts were replaced:
•Drive block
•Mounted VC-520 board
•IC4101 (RF process) on the VC-520 board
•IC4201 (DVD DSP) on the VC-520 board
•IC4401 (DVD mecha drive) on the VC-520 board
2. Order of adjustment
Adjust the drive block in the following order:
1) POWER Adjustment
2) SERVO Adjustment
3. Precaution on the laser diode
In the POWER Adjustment, operate the drive with the disc cover
left open. During the adjustment, be sure to observe the fol-
lowing precautions:
1) Set the optical sensor disc correctly.
2) Keep the distance of more than 30 cm apart from the
camcoder.
3) Work on the LCD screen side of the camcoder (opposite
side of the drive).
Note: Laser light of the equipment is focused by the object lens
in the optical pick-up so that the light focuses on the reflec-
tion surface of the disc.
Therefore, be sure to keep your eyes more then 30 cm apart
from the object lens when you check the emission of laser
diode.
Fig. 6-2-4
2-1-2. How to Set Optical Sensor Disc
1) Before setting the optical sensor disc, remove a lug on the sensor
side of the disc.
Fig. 6-2-2
2) Push in the optical sensor disc until it clicks same as when a
disc is set, and adjust the position so that the cable from the
sensor comes just above the pickup lens, as shown below.
After positioning, fix the disc with a tape so that it does not
rotate.
Fig. 6-2-3
Remove this lug
This part should come just above the pickup
Fix with a tape
Pickup Lens (Laser Diode)
6-43
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Name
DVD-R Disc
for Self Jitter
DVD-RW
Reference + DOW
Disc
DVD+RDL
Self Disc
Use
Diagnosis and adjustment of DVD-R
Diagnosis and adjustment of DVD-RW
Diagnosis and adjustment of DVD+RDL
Remark
This disc can be used about 78 times (min. 22 times) for the
diagnosis and adjustment. (Note 3)
This disc can be used about 1174 times for the diagnosis and
adjustment. (Note 3)
This disc can be used about 38 times (min. 9 times) for the
diagnosis and adjustment. (Note 3)
Table 6-2-1
Note 3: If the use counts of the DVD-R Disc for Self Jitter, DVD-RW Reference + DOW Disc, or DVD+RDL Disc for Self Jitter exceed
respective limits, the following message will be displayed. Replace it with a new disc and click the [OK] button in the message
window.
The disc use counts are saved in the PC. Accordingly, the disc used for diagnosis and adjustment, PC and drive adjustment
program (AUDIT for 2008) must always be controlled in the same combination.
If the disc is used with another PC or other versions (AUDIT for Service, AUDIT for UX1, etc.), the diagnosis and adjustment
will fail and that disc will no longer be able to use.
For reference (Note 3 in Japanese)
Fig. 6-2-5
2-1-4. Alignment disc
To diagnose and adjust the drive block, the discs listed in the following table are used.
Note 1: Use the specified disc that matches each diagnostic and adjustment item. (A message is displayed by the AUDIT)
If a wrong disc is used, the disc could be destroyed and could not be reused.
Note 2: Handle the disc with care, and before use, check if the disc is scratched or dirty.
注3：DVD-R セルフジッターディスク，DVD-RWリファレンス+ DOWディスクとDVD+RDLセルフジッターディスクは，使
用限度を超えると次のメッセージが表示されます。新しいディスクと交換して，メッセージの[OK]ボタンをクリックし
てください。
ディスクの使用回数は，PC内部に保存されます。このため，診断・調整で使用するディスクとPCおよびドライブ調整
プログラム（AUDIT for 2008）の組み合わせには制限があります。（2-1-5．Unigue disc IDを参照）
別のPCや他のバージョン（AUDIT for Service，AUDIT for UX1等）でディスクを使用すると，診断・調整が正常に行わ
れずNGとなってしまい，そのディスクが使用不可能になってしまう場合があります。
6-44
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
2-1-5. Unique disc ID (For all kind, DVD-RW, DVD-R, DVD+RDL)
Unique disc ID will be written on the disc which is used first time for AUDIT for 2008.
At the same time, same disc ID will be stored in the install folder of AUDIT for 2008.
AUDIT is checking whether these ID is same or not. Thus, the PC and the adj disc must be managed together.
In fact, adjustment discs can not be swapped between the PC which AUDIT for 2008 is installed each other.
The disk which ID is not storeed is considered as new disc (not recorded at all).
When you use the disc used halfway, it might be possible cause of some error.
1. Disc shareing between the previous AUDIT and AUDIT for 2008
It is able to use on previous AUDIT but it is unable to use on AUDIT for
2008 again. Due to address mismatch of file management.
Unable to share
(AUDIT 2008 detect the disc as new one due to missing disc ID.)
DVD-R
Able to share
Start using disc first time is previous AUDIT
Able to share
DVD-RW
Start using disc first time is AUDIT for 2008
DVD+RDL
It is able to use on previous AUDIT but it is unable to use on AUDIT for
2008 again. Due to address mismatch of file management.
Unable to share
AUDIT 2008 detect the disc as new one due to missing disc ID.
All discs
Unable to share
(Each PC has deferent disc information)
AUDIT for 2008
previous AUDIT
AUDIT for 2008
previous AUDIT
AUDIT for 2008
previous AUDIT
AUDIT for 2008
previous AUDIT
AUDIT for 2008
previous AUDIT
AUDIT for 2008
previous AUDIT
AUDIT for 2008
previous AUDIT
AUDIT for 2008
previous AUDIT
AUDIT for 2008
previous AUDIT
OK
OK
OK
OK
OK
AUDIT for 2008 AUDIT for 2008
PC1 PC2
OK
2. Disc shareing between the PC which is installed AUDIT for 2008
6-45
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
2-1-6. Installation method for “Audit for 2008”
Support environment: Windows 2000 SP4 or later, Windows XP SP2 or later
(.NET Framework which used in this program may not be installed on previous version of Windows.)
“Audit for 2008” supports all functions of “Audit for 2007”.
It is not necessary to use “Audit for 2007” any more.
Disc set for adjustment which used on “Audit for 2007” can be used on “Audit for 2008” if they aren't used on other PCs before installing
“Audit for 2008”.
1) Uninstall “Audit for 2007”.
Control Panel → Add or Remove Programs
2) Uninstall “Audit for 2008” (If it is already installed).
Control Panel → Add or Remove Programs
3) Install .NET Framework 2.0 (only for the first time installation).
Download “dotnetfx.exe” as suitable for your PC environment from Microsoft Web site and install it.
(We confirmed normal operation just on .NET Framework 2.0.
Therefore, we can not guarantee on the other version (over ver. 3.0) of .NET Framework.)
4) Install “Audit for 2008”.
Double click Auditfor2008.exe and follow installer.
Note: If it is first time to install .NET Framework 2.0, we recommend to check the security patch by Windows Update, etc. and to install
if necessary.
Perform just step 2 and 4 from second installation.
Ver. 1.1 2008.01
6-46
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
2-2. AUDIT (Drive Adjustment Program)
2-2-1. AUDIT Starting Method
Click the [Start] button on the task bar, and from the [Programs], click [AUDIT for Service] – [AUDIT for 2008], and the AUDIT will start. The
SeusEX starts simultaneously with the start of AUDIT, and the operation screen appears only for a moment.
Again, the SeusEX starts and the operation screen is displayed, and after it is minimized for display at the lower left of the desktop, the
AUDIT operation screen appears. If the SeusEX cannot start (because, for instance, the HASP key is not connected to the PC), the AUDIT
also does not start.
2-2-2. Description of Screen
Fig. 6-2-6
1. Diagnosis section 2. Adjustment section
3. Comment display section 4. Status display section
6. [SET] button
7. Menu section
5. [STOP] button
8. Caution display
section
Ver. 1.1 2008.01
6-47
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
1. Diagnosis section
Use these buttons when diagnosing the drive block.
2. Adjustment section
Use these buttons when adjusting the drive block.
3. Comment display section
At the execution of diagnosis and adjustment, its progress situa-
tion is displayed.
1) [Clear] button
This button clears the comment in the display section.
2) [LOG] button
This button saves the comment in the display section as a log
file.
Fig. 6-2-7
4. Status display section
The result of diagnosis and adjustment is displayed.
Fig. 6-2-8
5. [STOP] button
This button stops the diagnosis and adjustment in the midway.
6. [SET] button (After completing the TEST)
This button cancels the TEST mode set to the cam coder during
the diagnosis and adjustment. If the TEST mode is cancelled suc-
cessfully, the following message is displayed.
Note: Before exiting the AUDIT, be sure to cancel the TEST mode
by clicking the SET button of “After completing the TEST”.
Unless the TEST mode is cancelled, the drive may not op-
erate normally, such that “disc cover does not open”, “drive
error is displayed”, etc..
Fig. 6-2-9
7. Menu section
1) [RESET] button
This button resets internal register.
(Use this button to interrupt the work so far when diagnosis
and adjustment stopped and no response is returned. The work
terminates with the previous adjustment data written to the
camcoder.)
2) [Lid Open] button
This button opens the disc cover.
8. Caution display section
At the execution of POWER Adjustment, the caution of POWER
Adjustment is displayed.
Fig. 6-2-10
[Clear] button [LOG] button
6-48
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Order Diagnostic item Message Disc Operation
1No Disc Click the [START] button of “DIAGNOSIS”.
2No Disc
Check the movement of the pickup lens (Focus
direction/Tracking direction), and click the
[OK] button in the message window.
3No Disc Check the movement of the sled, and click the
[OK] button in the message window.
4No Disc Check the rotation of the spindle, and click the
[OK] button in the message window.
Sensors
Fig. 6-2-11
2-3-2. Diagnosing Method
2-3. DIAGNOSIS
2-3-1. Menu in Diagnosis Section
START button: All items of diagnosis buttons are executed
in the descending order.
Diagnosis button: Only the diagnostic item assigned to the
button name is executed.
Status lamp: Diagnosis status is displayed with color.
White Not diagnosed
Red blinking Diagnosis in progress
Green Diagnosis OK
Red Diagnosis NG
START button
Status lamp
Diagnosis buttons
6-49
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Order Diagnostic item Message Disc Operation
5No Disc
Set the Optical sensor disc.
(At this time, when the Shock Sensor senses a
shock normally, this message disappears.
7-R Seek
Set the DVD-R Disc for Self Jitter, and then
close the disc cover and click the [OK] button
in the message window.
8-R Read (If the diagnosis result of previous item is OK,
this item is executed successively.)
9-R Write (If the diagnosis result of previous item is OK,
this item is executed successively.)
10 -RW Seek
Remove the DVD-R Disc for Self Jitter, and
set the DVD-RW Reference + DOW Disc, and
then close the disc cover and click the [OK]
button in the message window.
11 -RW Read (If the diagnosis result of previous item is OK,
this item is executed successively.)
12 -RW Write (If the diagnosis result of previous item is OK,
this item is executed successively.)
DVD-R Disc
for Self Jitter
DVD-RW
Reference + DOW
Disc
6
Set the Optical sensor disc, and with the disc
cover left open, click the [OK] button in the
message window. (Note 1)
Note 1: In the process of checking optical power, CLASS 1M laser optical radiates.
So do not remove the Optical sensor disc.
Optical Sensor Disc
Sensors
6-50
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Order Diagnostic item Message Disc Operation
13 +RDL Seek
Remove the DVD-RW Reference + DOW
Disc, and set the DVD+RDL Self Disc, and
then close the disc cover and click the [OK]
button in the message window.
14 +RDL Read (If the diagnosis result of previous item is OK,
this item is executed successively.)
15 +RDL Write (If the diagnosis result of previous item is OK,
this item is executed successively.)
16 No Disc
Remove the DVD+RDL Self Disc.
(On the AUDIT screen, if the status lamps of
respective diagnosis buttons are all lit in green,
the diagnosis is over.)
Note 2: Before exiting the AUDIT, click the [SET] button of “After completing the TEST” to cancel the TEST mode.
DVD+RDL
Self Disc
6-51
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Fig. 6-2-12
2-4. POWER ADJUSTMENT
In the POWER Adjustment, operate the drive with the disc cover left open. During the adjustment, be sure to observe the following
precautions:
1) Set the optical sensor disc correctly.
2) Keep the distance of more than 30 cm apart from the camcoder.
3) Work on the LCD screen side of the camcoder (opposite side of the drive).
2-4-1. Menu in POWER Adjustment Section
START button: All items of adjustment buttons are ex-
ecuted in the descending order.
Adjustment button: Only the adjustment item assigned to the
button name is executed.
Status lamp: Adjustment status is displayed with color.
White Not adjusted
Red blinking Adjustment in progress
Green Adjustment OK
Red Adjustment NG
START button
Status lamp
Adjustment buttons
Order Adjustment item Message Disc Operation
1No Disc Click the [START] button of “POWER
Ad
j
ustment”.
2No Disc
Set the Optical sensor disc.
(At this time, when the Shock Sensor senses a
shock normally, this message disappears.
3
Set the Optical sensor disc, and with the disc
cover left open, click the [OK] button in the
message window. (Note 1)
4Power Adjust (If the adjustment result of previous item is
OK, this item is executed successivel
y
.)
5No Disc
Remove the Optical Sensor Disc.
(On the AUDIT screen, if the status lamps of
respective adjustment buttons are all lit in
green, the adjustment is over.)
Note 2: Before exiting the AUDIT, click the [SET] button of “After completing the TEST” to cancel the TEST mode.
Note 1: In the process of adjusting optical power, CLASS 1M laser optical radiates.
So do not remove the Optical sensor disc.
Initial & Sensor
Optical Sensor Disc
2-4-2. Adjusting Method
6-52
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Fig. 6-2-13
2-5. SERVO ADJUSTMENT
2-5-1. Menu in SERVO Adjustment Section
START button: All items of adjustment buttons are ex-
ecuted in the descending order.
Adjustment button: Only the adjustment item assigned to the
button name is executed.
Status lamp: Adjustment status is displayed with color.
White Not adjusted
Red blinking Adjustment in progress
Green Adjustment OK
Red Adjustment NG
START button
Status lamp
Adjustment buttons
6-53
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Order Adjustment item Message Disc Operation
1No Disc Click the [START] button of “SERVO
Adjustment”.
2Servo Param
Initialize
Set the DVD-RW Reference + DOW Disc, and
with the disc cover left open, click the [OK]
button in the message window.
3-RW Ref (If the adjustment result of previous item is
OK, this item is executed successively.)
4-RW Self (If the adjustment result of previous item is
OK, this item is executed successively.)
5-R Self DVD-R Disc
for Self Jitter
Remove the DVD-RW Reference + DOW
Disc, and set the DVD-R Disc for Self Jitter,
and then close the disc cover and click the
[OK] button in the message window.
6+RDL Self
Remove the DVD-R Disc for Self Jitter, and
set the DVD+RDL Self Disc, and then close
the disc cover and click the [OK] button in the
message window.
7Data Dump (If the adjustment result of previous item is
OK, this item is executed successively.)
8No Disc
Remove the DVD+RDL Self Disc.
(On the AUDIT screen, if the status lamps of
respective adjustment buttons are all lit in
green, the adjustment is over.)
Note: Before exiting the AUDIT, click the [SET] button of “After completing the TEST” to cancel the TEST mode.
DVD-RW
Reference + DOW
Disc
DVD+RDL
Self Disc
2-5-2. Adjusting Method
6-54
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
2-6. TROUBLESHOOTING
2-6-1. Fundamental Troubleshooting Flow
Yes
No
No
Yes
End
OK?
Execute <ADJUST>
Faulty part isolation processing
OK?
Execute <DIAGNOSIS>
Initial inspection
VC Board recovery processing
Yes
No
OK?
Execute <ADJUST>
(MD Block is faulty)
Return to initial inspection
Replace MD Block
Faulty part isolation processing
6-55
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Priority varies depending on the isolated item
Execute <ADJUST>
Restore original MD Block
Replace Driver ICReplace DSP IC
Yes
No
End
OK?
Yes
No
OK?
Execute <ADJUST>
Replace RF IC
Replace MD Block
VC Board recovery processing
6-56
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Sensor
Purpose Trouble Symptom Cause Repair
Faulty OP Replace the MD block
Faulty Driver IC Replace the VC board
Faulty connection of flexible
board
Check flexible board
Faulty OP Replace the MD block
Faulty sensor, Faulty
connection of flexible board
Temperature sensor
t Replace the MD block
Dew sensor
t Check flexible board
Shock sensor
t Replace the VC board
OP age-based change Replace the MD block
Faulty operation of
mechanism
Replace the MD block
Faulty DSP IC Replace the VC board
Faulty RF IC Replace the VC board
Seek
Purpose Trouble Symptom Cause Repair
Check the seek performance OP age-based change Readjust
Faulty mechanism Replace the MD block
Faulty DSP IC Replace the VC board
Faulty RF IC Replace the VC board
Read
Purpose Trouble Symptom Cause Repair
Check the read performance OP age-based change Readjust
LPP Error Rate, RF Jitter Faulty mechanism Replace the MD block
Faulty DSP IC Replace the VC board
Faulty RF IC Replace the VC board
Write
Purpose Trouble Symptom Cause Repair
Check the write performance OP age-based change Readjust
Faulty mechanism Replace the MD block
Faulty DSP IC Replace the VC board
Faulty RF IC Replace the VC board
Check operation of OP
(Focus, Tracking, Sled,
Spindle)
Check the emission of laser
diode
During LPP/ADIP Error Rate,
RF Jitter
The following diagnosis is performed with DVD-R, DVD-RW and DVD+DLR
The diagnosis of DVD+RDL is performed with L0/L1 layer each layer.
Check various sensors
(Dew sensor, Temperature
sensor, Shock sensor)
(Seek between 2 points) x5
x2 patterns
t Calculation of
average time
Disc type check
(only DVD-R)
2-6-2. Diagnosis
6-57
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Prepare, Sensor
Purpose Trouble Symptom Cause Repair
Initialization of all data at
adjustment area
Faulty Flash IC Replace the VC board
Check operation of Shock
sensor
Faulty shock sensor Replace the VC board
Purpose Trouble Symptom Cause Repair
Adjust the Laser power Faulty connection to power
meter
Check connection to power
meter, Check power supply
Faulty installation of power
sensor jig
Check installation of power
sensor jig
Faulty lighting of LD Check flexible board, Replace
the MD block
Faulty operation of
mechanism
Replace the MD block
Faulty RF IC Replace the VC board
Faulty DSP IC Replace the VC board
Faulty SDRAM IC Replace the VC board
Faulty Flash IC Replace the VC board
Laser Power Adjustment
2-6-3. Power Adjust
6-58
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Purpose Trouble Symptom Cause Repair
Faulty Flash IC Replace the VC board
Faulty DSP IC Replace the VC board
Purpose Trouble Symptom Cause Repair
Adjust the servo with
DVD-RW
The disc is dirty or has
scratches on it
Check disc
Faulty OP Replace the MD block
Faulty DSP IC Replace the VC board
Faulty RF IC Replace the VC board
DVD-RW Self Jitter
Purpose Trouble Symptom Cause Repair
The disc is dirty or has
scratches on it
Check disc
Faulty OP Replace the MD block
Faulty DSP IC Replace the VC board
Faulty RF IC Replace the VC board
DVD-R Self Jitter
Purpose Trouble Symptom Cause Repair
The disc is dirty or has
scratches on it
Check disc
Faulty OP Replace the MD block
Faulty DSP IC Replace the VC board
Faulty RF IC Replace the VC board
DVD+RDL Self Jitter
Purpose Trouble Symptom Cause Repair
Adjust the servo with
DVD+RDL
The disc is dirty or has
scratches on it
Check disc
Faulty OP Replace the MD block
Faulty DSP IC Replace the VC board
Faulty RF IC Replace the VC board
Data Dump
Purpose Trouble Symptom Cause Repair
Faulty DSP IC Replace the VC board
Faulty RF IC Replace the VC board
The adjustment value is
dumped
Servo Parameter Initialize
Adjust the recording with
DVD+RDL
Check the self recording with
DVD+RDL
Initialization of servo-related
adjustment data
DVD-RW Reference Disc Adjustment
Adjust the recording with
DVD-RW
Check the self recording with
DVD-RW
Adjust the servo with DVD-R
Adjust the recording with
DVD-R
Check the self recording with
DVD-R
2-6-4. Servo Adjust
6-59
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
6-3. SERVICE MODE
3-1. APPLICATION FOR ADJUSTMENT (SeusEX)
The adjustment software (SeusEX) can change operational coeffi-
cients of signal processing, EVR data, etc. same as the adjustment
remote commander. The SeusEX performs two-way communica-
tion between PC and camcorder using the USB terminal. The two-
way communication result data can be written in the nonvolatile
memory.
1. Connection
1) Connect the HASP key to the USB terminal of the PC.
2) Connect the PC and camcorder with the USB cable.
3) Start the SeusEX on the PC.
4) Click [Connect] on the SeusEX screen. If the connection is
normal, the SeusEX screen will be as shown in Fig. 6-3-1,
indicating the “connected” state.
Note: The SeusEX will go in “disconnect” state, if the
camcorder is turned off (for instance, by resetting the
set). In such a case, click [Connect] on the SeusEX
screen to restore the “connected” state.
Fig. 6-3-1
2. Operation
•Block change
To change the block, click [Block] on the SeusEX screen and
enter the block to be changed. The block is displayed in hexa-
decimal notation.
•Page change
To change the page, click [Page] on the SeusEX screen and en-
ter the page to be changed. The page is displayed in hexadeci-
mal notation.
•Address change
To change the address, click [Address] on the SeusEX screen
and enter the address to be changed. The address is displayed in
hexadecimal notation.
•Data change
To change the data, click [Set] on the SeusEX screen and enter
the data. The data is displayed in hexadecimal notation.
This operation does not write the data to the nonvolatile memory.
•Data writing
To write the data to the EEPROM, click [Write] on the SeusEX
screen and enter the data value to be written.
To write the data to the flash memory, change the data value
using the [Set] on the SeusEX screen and then click [Save] to
save the data.
•Data reading
The data displayed on the SeusEX screen are the data values at
the time when the pages and addresses were set, and they are
not updated automatically. To check the data change, click
[Read] on the SeusEX screen and update the displayed data.
6-60
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
2. Switch Check
Click the [Switch Check] button on the SERVICE MODE screen,
and the “SWITCH CHECK” screen will appear.
Using method:
Click the [Start] button, and the switch check will start.
During execution of switch check, the pressed switch is displayed
in orange. Also, once the switch was pressed, its name characters
change to blue in color.
3-2. SERVICE MODE
1. Function of Each Button on Service Mode Screen
Click the [SERVICE MODE] button on the Main Menu screen, and
the “SERVICE MODE” screen in Fig. 6-3-2 will appear.
Fig. 6-3-2
1[To Menu] button
Return to the main menu.
2[Switch Check] button
“SWITCH CHECK” screen appears.
3[LED Check] button
“LED CHECK” screen appears.
4[Jack Check] button
“JACK CHECK” screen appears.
1
2
3
4
6-61
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
4. Jack Check
Click the [Jack Check] button on the SERVICE MODE screen,
and the “JACK CHECK” screen will appear.
Using method:
Click the [Start] button, and the jack check will start.
During execution of jack check, the connected jack is displayed in
orange.
3. LED Check
Click the [LED Check] button on the SERVICE MODE screen,
and the “LED CHECK” screen will appear.
Using method:
LED ON or OFF can be controlled with [LED ON] or [LED OFF]
button on the screen.
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
6-62E
3-3. DATA BACKUP
With the “DATA BACKUP”, the adjustment data in the
camcorder can be backed up in the PC as a file.
The adjustment data that can be backed up are as follows.
1) Video System Adjustments
2) Camera System Adjustments
3) LCD/EVF System Adjustments
4) Audio System Adjustments
Note: The adjustment data for the drive cannot be backed up.
1. Function of Each Button on Data Backup Screen
Click the [DATA BACKUP] button on the Main Menu screen, and
the “DATA BACKUP” screen in Fig. 6-3-3 will appear.
Fig. 6-3-3
1[To Menu] button
Return to the main menu.
2[Data Read and Save] button
Read the adjustment data from the camcorder and save them
in PC as a file.
Default file name is as follows:
(Example: MEGA model)
3[Data Load and Write] button
Load the adjustment data from the file saved in PC and write
them to the camcorder.
1
2
3
DCR-DVD710_MEM_xxxxxxxx_yyyymmdd.dat
Date
USB serial
number
Data name
Revision History
Reverse
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
Ver.
1.0
1.1
1.2
Date
2007.12
2008.01
2008.03
History
Official Release
Revised-1
(A1 DI07-262)
Revised-2
(A2 DI07-300)
Contents
—
Replace the previously issued SERVICE
MANUAL 9-852-249-51 with this Manual.
•Change of Automatic Adjustment Program
Version of Automatic Adjustment Program
has been changed from Ver_1.0r01 into
Ver_1.1r02.
•Correction of adjustment condition.
• Change of System requirements for using
AUDIT.
•Addition of Installation method for
“Audit for 2008”.
•Deletion of Installation Method.
S.M. revised: Page 6-3, Page 6-7,
Page 6-18, Page 6-19,
Page 6-20, Page 6-27,
Page 6-28, Page 6-29,
Page 6-41, Page 6-45,
Page 6-46
Replace the previously issued SERVICE
MANUAL 9-852-249-52 with this Manual.
•Change of Automatic Adjustment Program
Version of Automatic Adjustment Program
has been changed from Ver_1.1r02 into
Ver_1.2r03.
S.M. revised: Page 6-7
S.M. Rev.
issued
—
Yes
Yes
985224953.pdf

Navigation menu
