DXS-81

WIRELESS

CASH DRAWER

BILL TRAP

TRANSMITTER

Installation Instructions

(619) 438-7000 • FAX (619) 438-7043

USA & Canada (800) 421-1587 & (800) 392-0123

Toll Free FAX (800) 468-1340

PRODUCT DESCRIPTION

The DXS-81 is a battery powered cash drawer bill trap with a built-in

transmitter designed for use with Linear’s DX Format receivers. This

transmitter can be used in a variety of retail hold-up applications.

The DXS-81 is concealed in a cash drawer under a stack of currency, with

a single “bait” bill secured in its money clip. During a hold-up, the cashier

removes the stack of currency along with the “bait” bill. When a “bait” bill is

removed, the transmitter sends a 1-second digitally coded wireless signal

to its companion receiver. Four additional 1-second signals are sent

within the first minute after the “bait” bill is removed. When the “bait” bill

is replaced, a restore signal is sent.

The jumper located under the battery door can be set to “ON” which will

send an hourly status signal or to “OFF” which will send a signal only after

an hour if the DXS-81 senses cash drawer motion.

The digital DX code format features over a million possible codes. The DX

transmitters are precoded at the factory to unique codes, so no field coding

is required. The DXS-81 can send three different signals: alarm, restore

and low battery.

For versatility, any transmitter can be programmed into any receiver

channel. Receivers must be programmed to the transmitter’s code before

system testing and operation. Refer to the receiver’s instructions for details

on programming.

The transmitter has a red test indicator which lights when a bill is in the trap

and the test button is pressed. It also lights when the “bait” bill is inserted

into the trap. For safety, the indicator doesn’t light when the “bait” bill

is removed. The test indicator will not light when pressing the test button

with the “bait” bill removed.

The test button is disabled for 60-seconds after removing the “bait” bill.

Pressing the test button without a bill in the trap sends an alarm signal.

Pressing the test button with a bill in the trap sends a restore signal.

The unit is powered from two 3-Volt lithium batteries with an expected

battery life of up to two years. When the batteries get low, the test indicator

will flash when the test button is pressed or when the bait bill is replaced.

NOTE: Do not store the unit without a “bait” bill or storage insert

in the money clip. Battery life will be reduced.

Inside the transmitter is a rolling ball that detects when the cash drawer

opens and closes. In the “OFF” mode this determines when status

transmissions are sent. Because the transmitter’s signal might be shielded

in a closed cash drawer, the status signals are sent when the drawer is

opened. In the “ON” mode, the DXS-81 transmits status signals once per

hour regardless of motion. Some DX receivers can receive low battery

signals, others cannot (see receiver instructions).

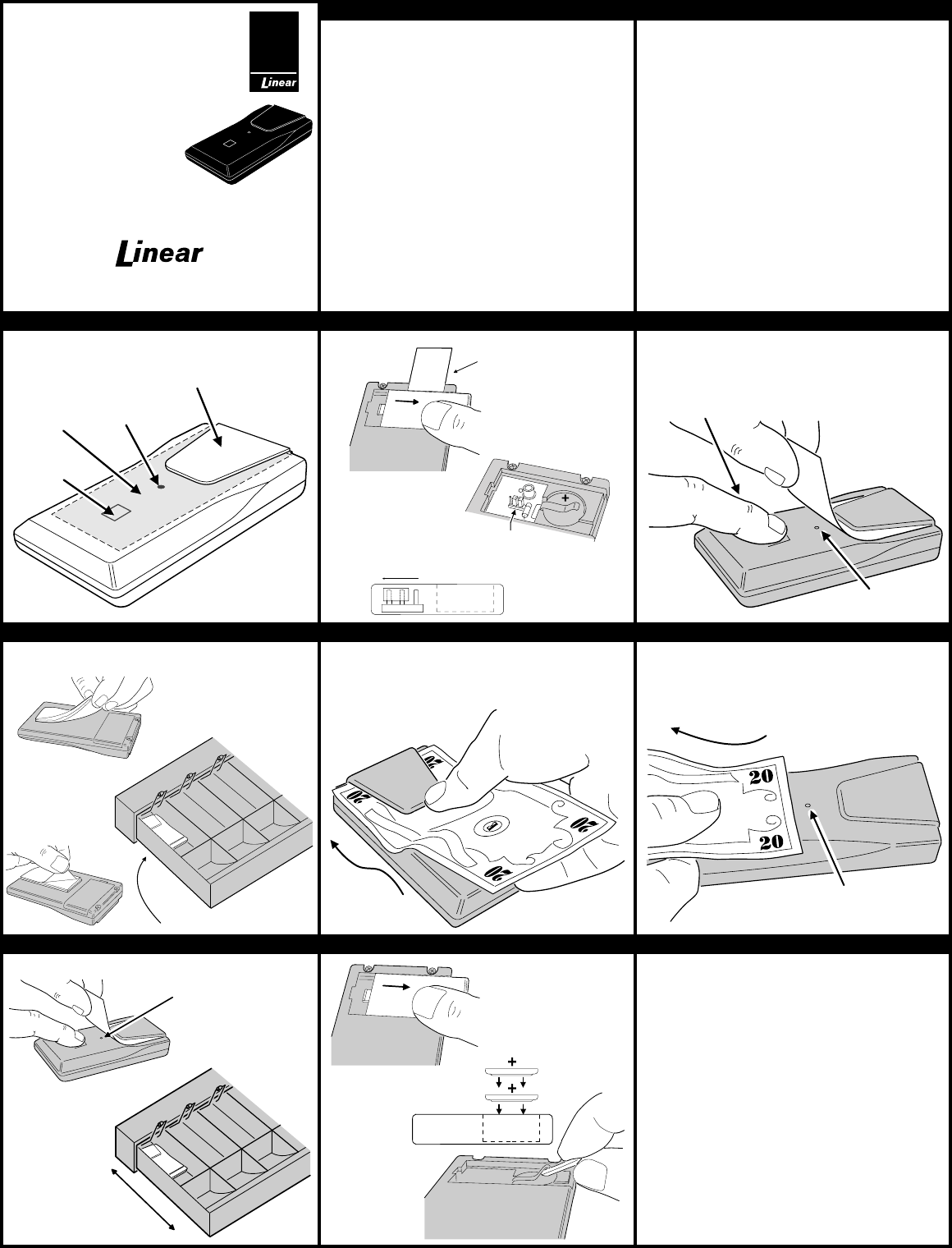

DXS-81 FEATURES TRANSMITTER SETUP PROGRAM SYSTEM

INSTALL BILL TRAP INSERT BAIT BILL TEST SYSTEM

LOW BATTERY OPERATION BATTERY REPLACEMENT LINEAR LIMITED WARRANTY

This Linear product is warranted against defects in material and workmanship for twelve (12) months.

The Warranty Expiration Date is labeled on the product. This warranty extends only to wholesale

customers who buy direct from Linear or through Linear’s normal distribution channels. Linear does

not warrant this product to consumers. Consumers should inquire from their selling dealer as to the

nature of the dealer’s warranty, if any. There are no obligations or liabilities on the part of Linear

corporation for consequential damages arising out of or in connection with use or performance

of this product or other indirect damages with respect to loss of property, revenue, or profit, or

cost of removal, installation, or reinstallation. All implied warranties, including implied warranties for

merchantability and implied warranties for fitness, are valid only until Warranty Expiration Date as labeled

on the product. This Linear Corporation Warranty is in lieu of all other warranties express or implied.

For warranty service on Linear equipment return product, at sender’s expense to:

Linear Corporation Repairs Department

2580 Pioneer Avenue, Suite C

Vista, CA 92083

IMPORTANT !!!

Linear radio controls provide a reliable communications link and fill an important need in portable wireless

signalling. However, there are some limitations which must be observed.

For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as

Part 15 devices. As such, they have limited transmitter power and therefore limited range.

A receiver cannot respond to more than one transmitted signal at a time and may be blocked by

radio signals that occur on or near their operating frequencies, regardless of code settings.

Changes or modifications to the device may void FCC compliance.

Infrequently used radio links should be tested regularly to protect against undetected interference

or fault.

A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale

distributor or dealer, and these facts should be communicated to the ultimate users.

Copyright © 1996 Linear Corporation 212863 A

DXS

FORMAT

By

STORAGE

INSERT OR

"BAIT" BILL

TEST

BUTTON

TEST

INDICATOR

MONEY

CLIP

PULL AND DISCARD

BATTERY INSULATOR

BATTERY

CAVITY

STATUS JUMPER

(HOURLY STATUS DISABLED)

HOURLY STATUS

ENABLED

SLIDE BATTERY DOOR

OPEN ON BACK

OF TRANSMITTER

PREPARE RECEIVER

FOR PROGRAMMING

PRESS TEST BUTTON

WITH STORAGE INSERT

UNDER MONEY CLIP

TEST INDICATOR

SHOULD LIGHT

STICK VELCRO TO BACK OF UNIT

(DON'T COVER BATTERY DOOR)

PEEL OFF BACKING

STICK TRANSMITTER INTO

CASH DRAWER TRAY

REMOVE STORAGE INSERT

AND SLIDE BAIT BILL

UNDER MONEY CLIP

PULL BAIT BILL FROM

MONEY CLIP

VERIFY THAT RECEIVER

ACTIVATES WHEN

BILL IS PULLED

INDICATOR

WILL NOT

LIGHT WHEN BILL IS PULLED

WHEN BATTERIES GET LOW

TEST INDICATOR WILL

BLINK WHEN TEST BUTTON

IS PRESSED

TRANSMITTER MOTION

SENSOR DETECTS WHEN

DRAWER IS OPEN

AUTOMATIC STATUS

TRANSMISSIONS WILL OCCUR

BATTERY

CAVITY

INSERT TWO

TYPE 2032

BATTERIES

PLUS SIDE UP

SLIDE BATTERY DOOR

OPEN ON BACK

OF TRANSMITTER
