Popular HVAC Motors—Dayton

HP Frame Volts RPM Rot. Cap. Req’d Shaft Lng. (In.) Shaft Dia. (In.) Item No. Notes**

Cradle Base, Single Phase/Split Phase, Fan and Blower Motors, Open Drip-Proof

1/4 48 115 1725 CW/CCW no 1 1/2 1/2* 3K771 Auto O/L, SB

1/3 48 115 1725 CW/CCW no 1 1/2 1/2* 6K778 Auto O/L SB

1/2 48 115 1725 CW/CCW no 1 1/2 1/2* 3K772 Auto O/L SB

1/4 48 115/208-230 1725 CW/CCW no 1 1/2 1/2* 3ZP92 Auto O/L, BB

1/3 48 115/208-230 1725 CW/CCW no 1 1/2 1/2* 3LY10 Auto O/L, BB

1/2 48 115/208-230 1725 CW/CCW no 1 1/2 1/2* 3LY11 Auto O/L, BB

*Motors in this section with 1/2 inch shafts are supplied with 5/8 inch bushing adaptor

Cradle Base, Single Phase/Capacitor Start, Fan and Blower Motors, Open Drip-Proof

1/4 48 115/230 1725 CW/CCW no 1 1/2 1/2 6K438 Auto O/L BB

1/3 48 115/230 1725 CW/CCW no 1 1/2 1/2 6K490 Auto O/L BB

1/2 48 115/230 1725 CW/CCW no 1 1/2 1/2 6K965 Auto O/L BB

3/4 56 115/230 1725 CW/CCW no 1 7/8 5/8 6K376 Auto O/L BB

156 115/208-230 1725 CW/CCW no 1 7/8 5/8 6K321 Auto O/L BB

Rigid Base, Single Phase/Capacitor Start, General Purpose, Open Drip-Proof

1/3 56 115/230 1725 CW/CCW no 1 7/8 5/8 5K115 Auto O/L BB

1/2 56 115/230 1725 CW/CCW no 1 7/8 5/8 5K116 Auto O/L BB

3/4 56 115/230 1725 CW/CCW no 1 7/8 5/8 5K117 Auto O/L BB

156H 115/230 1725 CW/CCW no 1 7/8 5/8 6K148 Auto O/L BB

Direct Drive Blower, Single Phase/Shaded Pole and Permanent Split Capacitor, Open Air Over (A.O. Smith)

1/8 42Y 115 1050/1 CW/CCW no 5 1/2 4KA21 Auto O/L SP

1/8 42Y 208-230 1050/1 CW/CCW no 5 1/2 4KA45 Auto O/L SP

1/5 42Y 115 1050/1 CW/CCW no 5 1/2 4KA46 Auto O/L SP

1/5 42Y 115 1050/3 CW/CCW no 5 1/2 4KA41 Auto O/L SP

1/5 42Y 208-230 1050/3 CW/CCW no 5 1/2 4KA42 Auto O/L SP

1/5 42Y 115 1075/3 CW/CCW 2GE78 5 1/2 4KA43 Auto O/L PSC

1/5 42Y 230 1075/3 CW/CCW 2GE78 5 1/2 4KA44 Auto O/L PSC

Condenser Fan All Angle, Totally Enclosed, Permanent Split Capacitor (PSC), Stud Mount

1/6 48 208-230 1075 CW/CCW 2GE74 6 1/2 4M261 Auto O/L BB

1/4 48 208-230 1075 CW/CCW 2GE76 6 1/2 4M205 Auto O/L BB

1/3 48 208-230 1075 CW/CCW 2GE78 6 1/2 4M206 Auto O/L BB

1/2 48 208-230 1075 CW/CCW 2GE78 6 1/2 4M207 Auto O/L BB

3/4 48 208-230 1075 CW/CCW 2GE79 6 1/2 4M208 Auto O/L BB

1/6 48 208-230 825 CW/CCW 2GE76 6 1/2 4M225 Auto O/L SB

1/4 48 208-230 825 CW/CCW 2GE76 6 1/2 4M226 Auto O/L SB

1/3 48 208-230 825 CW/CCW 2GE80 6 1/2 4M262 Auto O/L BB

1/2 48 208-230 825 CW/CCW 2GE80 6 1/2 4M263 Auto O/L SB

Residential Direct Drive Blower, Open Air Over, Single Phase PSC (Stud-Ring, Torsion Flex Kits available)

1/4 48 115 1075/3 CW/CCW 2GE76 4 1/2 4M096 Auto O/L SB

1/4 48 208-230 1075/3 CW/CCW 2GE76 4 1/2 4M097 Auto O/L SB

1/3 48 115 1075/3 CW/CCW 2GE76 4 1/2 4M098 Auto O/L SB

1/3 48 208-230 1075/3 CW/CCW 2GE76 4 1/2 4M099 Auto O/L SB

1/2 48 115 1075/3 CW/CCW 2GE76 4 1/2 4M100 Auto O/L SB

1/2 48 208-230 1075/3 CW/CCW 2GE76 4 1/2 4M101 Auto O/L SB

3/4 48 115 1075/3 CW/CCW 2GE81 4 1/2 4M183 Auto O/L SB

3/4 48 208-230 1075/3 CW/CCW 2GE79 4 1/2 4M184 Auto O/L SB

Double Shaft Single Phase / PSC OAO (A.O.Smith)

1/6 48 208-230 1075/3 CWLE 2GE76 8-1/2 x 7-1/2 1/2 4MA55 Auto O/L RS

1/4 48 208-230 1075/3 CWLE 2GE76 7-7/8 x 7-1/2 1/2 4MA57 Auto O/L RS

1/3 48 208-230 1075/3 CWLE 2GE76 8-1/8 x 6-3/4 1/2 4MA61 Auto O/L RS

1/2 48 208-230 1075/3 CWLE 2GE78 7-5/8 x 6-3/4 1/2 4MA65 Auto O/L RS

Condenser Fan, Three Phase

1 1/2 56Y 200-230/460 1140 CW/CCW no 6 5/8 4MB83 Band Stud

256Y 200-230/460 1140 CW/CCW no 6 5/8 4MB89 Band

EPACT Efﬁcient Motors—Dayton

Dayton EPACT Motors –140 Frame through 284T Frame –have a 3 year warranty.

HP Frame Volts RPM Construction Eff. Item No.

Three Phase, Open Drip-Proof

1/2 56 230 / 460 1800 Steel 81.5% 3N641

156 208-230/460 1800 Steel 78.5% 3N012

1143T 208-230/460 1800 Steel 82.5% 3KW25*

1 1/2 56H 230/460 1800 Steel 85.5% 3N644

1 1/2 145T 208-230/460 1800 Steel 84.0% 3KW28*

256H 230/460 1800 Steel 80.0% 3N693

2145T 208-230/460 1800 Steel 84.0% 3KW31*

3145T 208-230/460 1800 Steel 86.5% 2Z276

3182T 208-230/460 1800 Steel 86.5% 3KW34*

5184T 208-230/460 1800 Steel 87.5% 3KW37*

7 1/2 213T 208-230/460 1800 Steel 88.5% 3KW40*

10 215T 208-230/460 1800 Steel 89.5% 3KW43*

15 254T 208-230/460 1800 Steel 91.0% 3KW46*

*Usable on Inverters 10:1 Variable Torque, 2:1 Constant Torque. Usable on 200V with 1.0 SF

Exclusively from Grainger.

There are many ways to get the Dayton products you need–phone, fax, online at www.grainger.com/dayton or

stop by your local Grainger® branch.

3K771

6K438

5K115

4KA21

4M261

4M096

4MA55

4MB83

3KW34

(contiued on next page)

** Auto O/L: Automatiic Thermal Overload SB: Sleeve Bearing BB: Ball Bearing Band: Band Mount (Belly Band)

Stud: Stud Mount (Thru Bolts) RS: Resilient Ring, Stud Mount SP: Shaded Pole PSC: Permanent Split Capacitor

http://waterheatertimer.org/Color-codewire2.html#motor

EPACT Efﬁcient Motors Continued—Dayton

Dayton EPACT Motors –140 Frame through 286T Frame –have a 3 year warranty.

HP Frame Volts RPM Construction Eff. Item No.

Three Phase, Open Drip-Proof

20 256T 208-230/460 1755 Cast Iron 91.0% 2YB85*

25 284T 208-230/460 1760 Cast Iron 91.7% 2YB78*

30 286T 208-230/460 1765 Cast Iron 92.4% 2YB75*

*Usable on Inverters 10:1 Variable Torque, 3:1 Constant Torque . Usable on 200V with 1.0 SF

NEMA Premium Efﬁcient Motors

NEMA Premium Efﬁcient Motors –have a 3 year warranty.

HP Frame Volts RPM Construction Eff. Item No.

Three Phase, T-Frame, Open Drip-Proof

1143T 208-230/460 1800 Steel 85.5% 1XTV5*

2145T 208-230/460 1800 Steel 86.5% 1XTV8*

3182T 208-230/460 1800 Steel 89.5% 1XTW1*

5184T 208-230/460 1800 Steel 89.5% 1XTW3*

7 1/2 213T 208-230/460 1800 Steel 91.0% 1XTW5*

10 215T 208-230/460 1800 Steel 91.7% 1XTW7*

15 254T 208-230/460 1800 Cast Iron 93.0% 1XTW9*

20 256T 208-230/460 1800 Cast Iron 93.0% 1XTX2*

25 284T 208-230/460 1800 Cast Iron 93.6% 1XTX4*

30 286T 208-230/460 1800 Cast Iron 94.1% 1XTX6*

*Usable on Inverters 10:1 Variable Torque, 4:1 Constant Torque. Usable on 200V with 1.0 SF

Hot Water Circulator Motors—A.O. Smith

HP RPM Frame Rot. Volts Full Load Amps Item No.

Split Phase

1/12 1725 48YZ CCWLE 115 2.7 4UB99

1/12 1725 48YZ CCWLE 115 2.7 4UE10

1/8 1725 48Y CW/CCW 115 3.1 4UE22

1/8 1725 48YZ CCWLE 115 3.3 4UE25

1/6 1725 48YZ CCWLE 115 4.0 4UE11

1/6 1725 48YZ CCWLE 115 4.0 4UE12

1/6 1725 48YZ CWLE 115 3.6 4UE23

1/6 1725 48YZ CWLE 115 3.6 4UE24

1/4 1725 48YZ CWLE 115 4.6 4UE13

1/4 1725 48YZ CCWLE 115 4.6 4UE14

1/3 1725 48YZ CWLE 115 5.9 4UE15

Capacitor-start, Capacitor-run

1/2 1725 56YZ CW/CCW 115/208-230 5.8/2.8-2.9 4UE16

3/4 1725 56YZ CW/CCW 115/208-230 8.4/4.2-4.2 4UE18

Three-Phase

1/2 1725 56C CW/CCW 208-230/460 1.8-2.2/1.1 4UE17

3/4 1725 56C CW/CCW 208-230/460 2.5-2.6/1.3 4UE19

11725 56C CW/CCW 208-230/460 3.4-3.4/1.7 4UE20

1 1/2 1725 56C CW/CCW 208-230/460 5.7-5.6/2.8 4UE21

Replace Taco, Bell and Gossett, Armstrong and Teel.

Oil Burner Motors—A.O. Smith

HP RPM Frame Rot. Volts Full Load Amps Item No.

Split Phase

1/7 3450 48M CCWLE 115 2.8 4LY96

1/6 1725 48N CW/CCW 115 3.2 4MA12

Permanent Split Capacitor

1/7 3450 48M CCWLE 115 1.7 4MA32

2YB78

1XTW9

4UB99

4UE16

4UE17

4LY96

4MA32

There are many ways to get the Dayton products you need–phone, fax, online at www.grainger.com/dayton or

stop by your local Grainger® branch.

Exclusively from Grainger.

Run Capacitors—Dayton

MFD Rating Dimensions (In.) EIA UL Base Item No.

D W H

Oval, 370 VAC

31 5/16 2 3/16 2 1/8 A2GE74

41 5/16 2 3/16 2 1/8 A2GE75

51 5/16 2 3/16 2 1/8 A2GE76

61 5/16 2 3/16 2 1/8 A2GE77

7. 5 1 5/16 2 3/16 2 7/8 A2GE78

10 1 5/16 2 3/16 2 7/8 A2GE79

12.5 1 5/16 2 3/16 2 7/8 A2GE80

15 1 5/16 2 3/16 3 7/8 A2GE81

V-Belts—Dayton

Nom. Outside

Lng. (In.)

WWG

Stock No.

Nom. Outside

Lng. (In.)

WWG

Stock No.

Nom. Outside

Lng. (In.)

WWG

Stock No.

Nom. Outside

Lng. (In.)

WWG

Stock No.

Nom. Outside

Lng. (In.) Item No.

3L Type (3/8" Top width by 7/32" thick)

15 3L150 25 3L250 35 3L350 45 3L450 55 3L550

16 3L160 26 3L260 36 3L360 46 3L460 56 3L560

17 3L170 27 3L270 37 3L370 47 3L470 57 3L570

18 3L180 28 3L280 38 3L380 48 3L480 58 3L580

19 3L190 29 3L290 39 3L390 49 3L490 59 3L590

20 3L200 30 3L300 40 3L400 50 3L500 60 3L600

21 3L210 31 3L310 41 3L410 51 3L510 61 3L610

22 3L220 32 3L320 42 3L420 52 3L520

23 3L230 33 3L330 43 3L430 53 3L530

24 3L240 34 3L340 44 3L440 54 3L540

4L Type (1/2" Top width by 5/16" thick)

17 4L170 32 4L320 47 4L470 62 4L620 77 4L770

18 4L180 33 4L330 48 4L480 63 4L630 78 4L780

19 4L190 34 4L340 49 4L490 64 4L640 79 4L790

20 4L200 35 4L350 50 4L500 65 4L650 80 4L800

21 4L210 36 4L360 51 4L510 66 4L660 82 4L820

22 4L220 37 4L370 52 4L520 67 4L670 84 4L840

23 4L230 38 4L380 53 4L530 68 4L680 86 4L860

24 4L240 39 4L390 54 4L540 69 4L690 88 4L880

25 4L250 40 4L400 55 4L550 70 4L700 90 4L900

26 4L260 41 4L410 56 4L560 71 4L710 92 4L920

27 4L270 42 4L420 57 4L570 72 4L720 94 4L940

28 4L280 43 4L430 58 4L580 73 4L730 96 4L960

29 4L290 44 4L440 59 4L590 74 4L740 98 4L980

30 4L300 45 4L450 60 4L600 75 4L750 100 3X543

31 4L310 46 4L460 61 4L610 76 4L760

Accessories - Brackets —Dayton

Description Item No.

Mounting Lug Brackets

Double Wire Bracket 3LC31

Band Mount Bracket 3M133

Fits blower wheel Dia. (In.) Bracket Fits NEMA Frame (Motor Size) Item No.

Motor Mounting Brackets for 9-12" Dia. Blower Housings

9 or 10 Torsion Flex 42/48 5X247

9Welded Ring 42 3M146

10 Welded Ring 48 3M147

Pulley 1

Diameter

(d)

Center

Distance

(C)

Pulley 2

Diameter

(D)

L = 2C + 1.57 (D - d) + (D - d)2

exact

approximate

L = Pitch Length of Belt

C = Center Distance

D = Pitch Diameter of Large Sheave

d = Pitch Diameter of Small Sheave

BELT LENGTH FORMULA

Dayton V-belts interchange with major

brands like Browning, Goodyear, Gates,

Dayco, and others. Lengths are matched

to RMA (Rubber Manufacturers’

Association) standards.

3LC31

5X247 3M146

2GE74

3L150

4L170

There are many ways to get the Dayton products you need–phone, fax, online at www.grainger.com/dayton or

stop by your local Grainger® branch.

Exclusively from Grainger.

Matching Data Needed:

HP = Horsepower

RPM = Rotations Per Minute—Sometimes listed as “number of poles”.

Ph = Phase—For AC motors the choice is “single” or “three” phase

Volts or V = Voltage—Common AC Voltages are 115/200/208/230/460

Fr = Frame—Examples include: 48 / 56/ 145T etc.

SF = Service Factor—Common SF = 1.0 / 1.15 / 1.25 / 1.35

Encl = Enclosure—Basic enclosures are “Open” or “Totally Enclosed”.

Rules of Thumb for Motor Replacement:

1. In HVAC, you can often move up to the next HP or move up in

Service Factor.

2. Matching Amperage can be helpful in estimating HP.

3. Ball and sleeve bearing motors can be inter-changeable, but ball

bearing may be noisier.

4. Motors can normally run up to 10% above and below rated voltage.

5. You should not interchange “Manual Overload” with an “Automatic

Overload” motor protector.

6. You can vary the speed of a PSC (Permanent Split Capacitor), but not

of a Split Phase or Capacitor Start Motor.

7. You can move up in “Starting” or “Run Torque”, when replacing a

motor. (e.g.: Cap Start can replace a Split Phase; PSC can replace

Shaded Pole.)

8. Motor Frame Diameter can be helpful in determining frame size.

9. TEAO or OAO enclosed motors need to be mounted in the air stream

of the fan they are running.

There are four types of single phase motors:

1. Shade Pole

2. Permanent Split Capacitor (PSC)

3. Split Phase

4. Capacitor Start

Need More Help?

n If you have a manufacturer part number, you can go to

grainger.com and enter it to ﬁnd a replacement motor.

n If you have just the speciﬁcations, you can use the Motor Selection

Guide on Grainger.com to ﬁnd a replacement motor.

n You can also get more of what you need in the Grainger catalog 399:

V-belts: Pgs 153-156

Sheaves: Pgs 164

Capacitors: Pgs 90

Accessories: Pgs 91-95

n Remember: The ﬁrst nine pages of the Grainger catalog are a great

resource for motor data!

Speed in RPM

Poles No Load Speed Running or Name Plate

Speed Range

RPM RPM

23600 3000-3600

41800 1400-1800

61200 950-1200

8900 800-900

Motor Frame Data:

Frame Approx. Frame

Diameter

Approx. Shaft

Height

NOTES

3.3 3.3 inch 1 1/2 Mostly Shaded Pole

4 4 inch 2 Mostly Shaded Pole and PSC

42 5 inch 2 5/8 Mostly Shaded Pole and PSC

48 5 .5 inch 3 Mostly PSC and Split Phase

56 6.5 inch 3 1/2 Mostly Cap Start and 3 phase

56H 6.5 inch 3 1/2 Mostly Cap Start and 3 phase

140 T 6.5 inch 3 1/2 Mostly 3 phase

A, Y Sufﬁx to a frame designation means non standard mounting (i.e.: 48Y)

A, Z Sufﬁx means a non standard shaft (i.e.: 48Z)

HOW TO REPLACE A MOTOR

Ideally, you should replace like for like, but that may not be always possible. Here are some basics:

Enclosures

Abbreviation Deﬁnition Description

OP Open Holes in motor shell

ODP Open drip-proof Bottom half of motor open (water will ﬂow out)

AO/OAO Air over/Open air over Fan air blows directly over motor

TE Totally enclosed No holes anywhere in motor shell

TEAO Totally enclosed air over Fan air blows directly over motor

TENV Totally enclosed non-vented Excess heat is radiated through the body of the motor

TEFC Totally enclosed fan-cooled Has an external fan covered by a housing

EXP-PRF Explosion proof Will withstand an explosion of a gas, vapor or dust, which may occur within it

*Air-Over motors (AO, OAO and TEAO) must have air blowing over them continuously while in operation.

There are many ways to get the Dayton products you need–phone, fax, online at www.grainger.com/dayton or

stop by your local Grainger® branch.

Exclusively from Grainger.

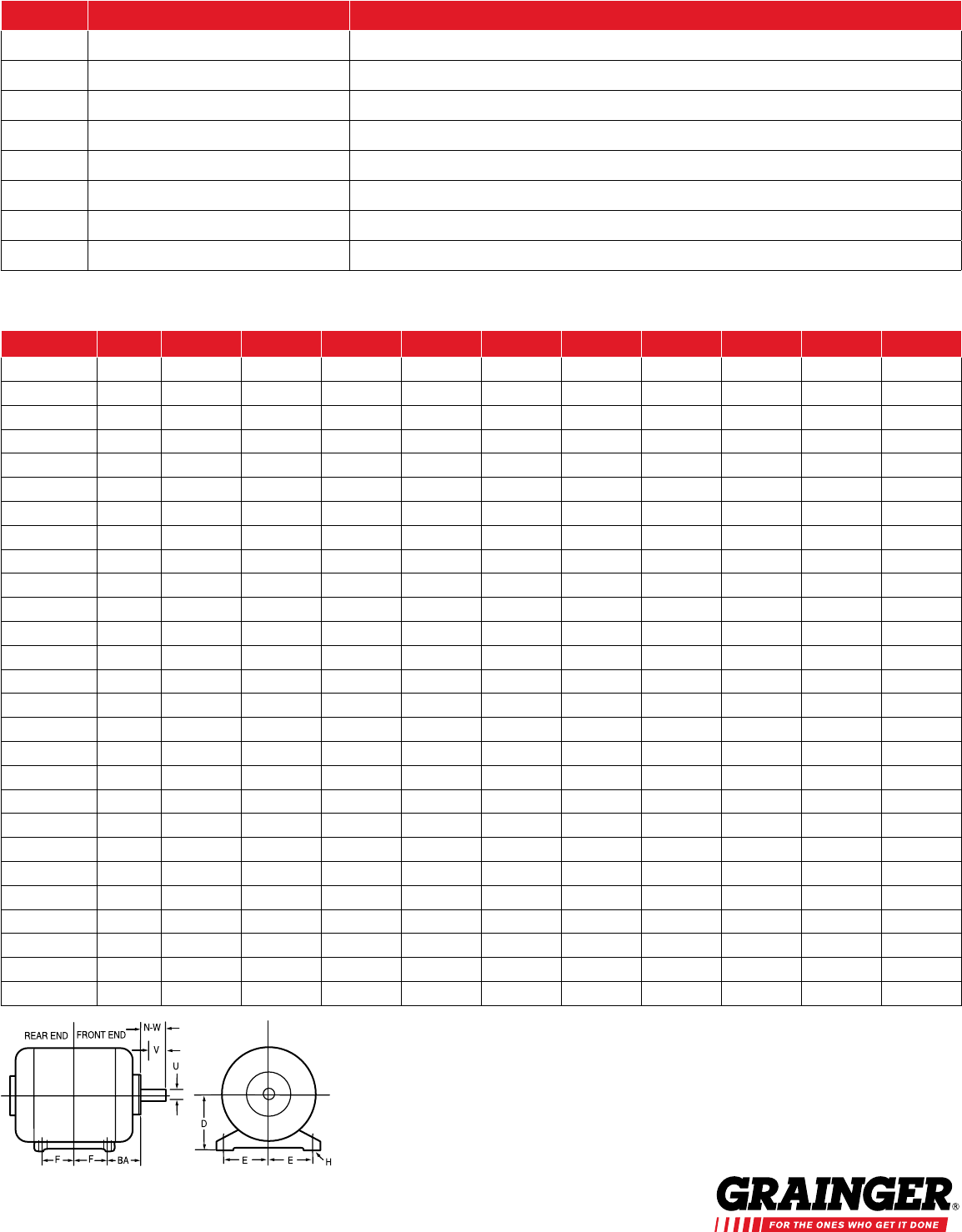

NEMA FRAME D* 2E 2F BA HN-W UV§ Min. Wide Key Thick Long

42 2 5/8 3 ½ 1 11/16 2 1/16 9/32 slot 1 1/8 3/8 -- -- 3/64 ﬂat --

48 34 ¼ 2 ¾ 2 ½ 11/32 slot 1 1/2 1/2 -- -- 3/64 ﬂat --

48H 34 ¼ 4 ¾ 2 ½ 11/32 slot 1 1/2 1/2 -- -- 3/64 ﬂat --

56 3 ½ 4 7/8 32 ¾ 11/32 slot 1 7/8 † 5/8 † -- 3/16 † 3/16 † 1 3/8 ‡

56H 3 ½ 4 7/8 3 & 5 ‡ 2 ¾ 11/32 slot 1 7/8 † 5/8 † -- 3/16 † 3/16 † 1 3/8 †

56HZ 3 ½ ** * * ** ** 2 1/4 7/8 23/16 3/16 1 3/8

66 4 1/8 5 7/8 53 1/8 13/32 slot 2 1/4 3/4 -- 3/16 3/16 1 7/8

143T 3 ½ 5 ½ 42 ¼ 11/32 dia. 2 1/4 7/8 23/16 3/16 1 3/8

145T 3 ½ 5 ½ 52 ¼ 11/32 dia. 2 1/4 7/8 23/16 3/16 1 3/8

182 4 ½ 7 ½ 4 ½ 2 ¾ 13/32 dia. 2 1/4 7/8 23/16 3/16 1 3/8

184 4 ½ 7 ½ 5 ½ 2 ¾ 13/32 dia. 2 1/4 7/8 23/16 3/16 1 3/8

182T 4 ½ 7 ½ 4 ½ 2 ¾ 13/32 dia. 2 3/4 1 1/8 2 1/2 1/4 1/4 1 ¾

184T 4 ½ 7 ½ 5 ½ 2 ¾ 13/32 dia. 2 3/4 1 1/8 2 1/2 1/4 1/4 1 ¾

213 5 ¼ 8 ½ 5 ½ 3 ½ 13/32 dia. 31 1/8 2 3/4 1/4 1/4 2

215 5 ¼ 8 ½ 73 ½ 13/32 dia. 31 1/8 2 3/4 1/4 1/4 2

213T 5 ¼ 8 ½ 5 ½ 3 ½ 13/32 dia. 3 3/8 1 3/8 3 1/8 5/16 5/16 2 3/8

215T 5 ¼ 8 ½ 73 ½ 13/32 dia. 3 3/8 1 3/8 3 1/8 5/16 5/16 2 3/8

254# 6 ¼ 10 8 ¼ 4 ¼ 21/32 dia. 3 3/8 1 1/8 3 1/8 1/4 1/4 2 3/8

254U 6 ¼ 10 8 ¼ 4 ¼ 17/32 dia. 3 3/4 1 3/8 3 1/2 5/16 5/16 2 ¾

256U 6 ¼ 10 10 4 ¼ 17/32 dia. 3 3/4 1 3/8 3 1/2 5/16 5/16 2 ¾

254T 6 ¼ 10 8 ¼ 4 ¼ 17/32 dia. 41 5/8 3 3/4 3/8 3/8 2 7/8

256T 6 ¼ 10 10 4 ¼ 17/32 dia. 41 5/8 3 3/4 3/8 3/8 2 7/8

284# 711 9 ½ 4 ¾ 21/32 dia. 3 3/4 1 1/4 3 1/2 1/4 1/4 2 ¾

284U 711 9 ½ 4 ¾ 17/32 dia. 4 7/8 1 5/8 4 5/8 3/8 3/8 3 ¾

286U 711 11 4 ¾ 17/32 dia. 4 7/8 1 5/8 4 5/8 3/8 3/8 3 ¾

284T 711 9 ½ 4 ¾ 17/32 dia. 4 5/8 1 7/8 4 3/8 1/2 1/2 3 ¼

286T 711 11 4 ¾ 17/32 dia. 4 5/8 1 7/8 4 3/8 1/2 1/2 3 ¼

Motor Dimensional Chart—All Dimensions in Inches

(*) Dimension “D” will never be greater than the above values on

rigid mount motors, but it may be less so that shims up to 1/32"

thick (1/16" on 364U and 365U frames) may be required for

certain machines.

(‡) Designated 56H motors have two sets of 2F mounting

holes—3" and 5".

(#) Discontinued NEMA frame.

(**) Base of Dayton 56HZ frame motors has holes and slots to

match NEMA 56, 56H and 145T mounting dimensions.

(†) Certain NEMA 56Z frame motors have 1/2" dia. x 11/2" long

shaft with 3/64" ﬂat. These exceptions are noted in this catalog.

(§) Dimension “V” is shaft length available for coupling, pinion or

pulley hub—this is a minimum value.

(§§) The 2F dimension is 20.

More frame dimensions available on

pages 4 thru 6 of the Grainger Catalog

or on grainger.com

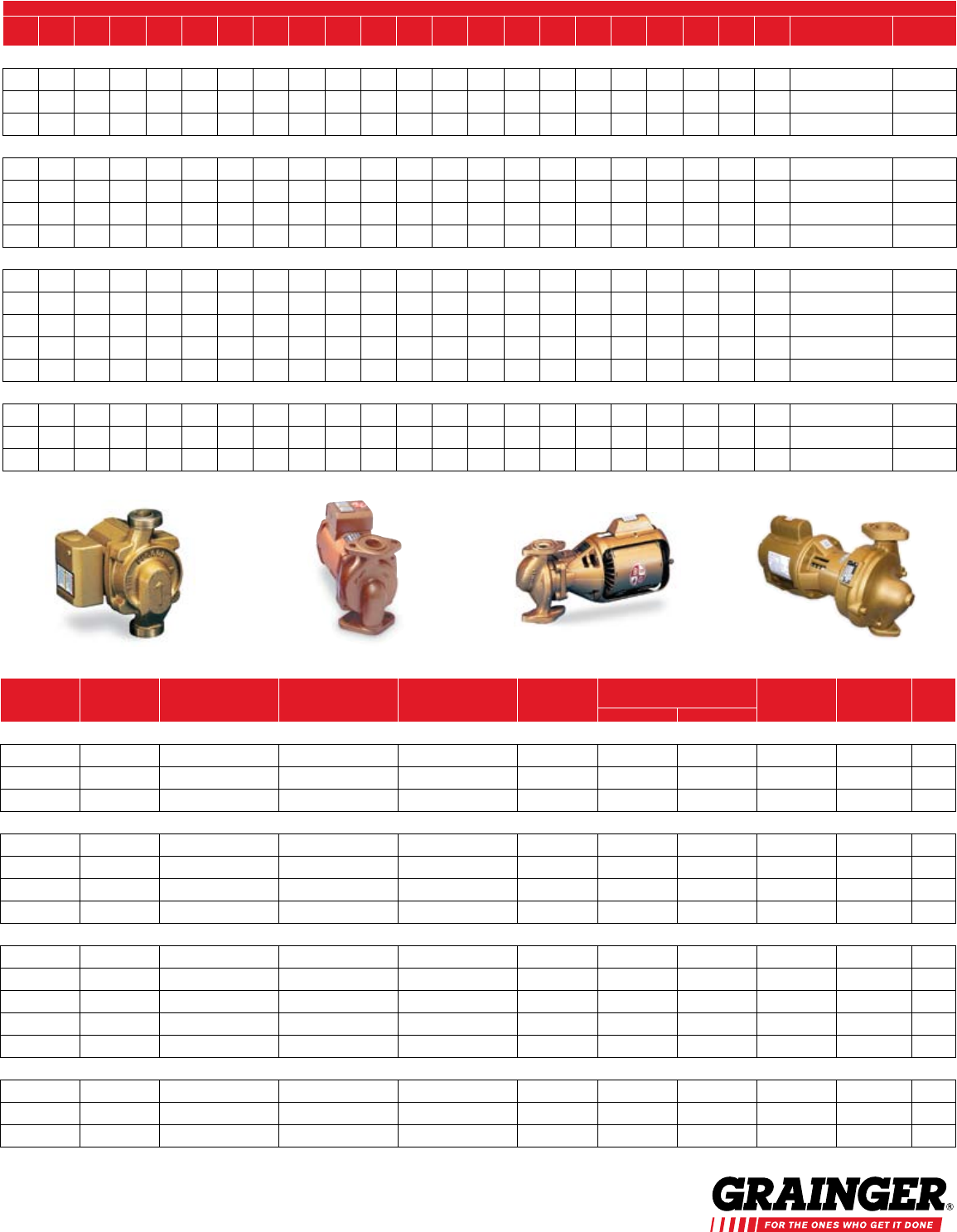

Water System Pumps—Bell & Gossett—Bronze Circulating Pumps

Total Ft. of Head @ GPM +

GPM

100

GPM

110

GPM

Best Efﬁciency

GPM @ Head Ft. Item No.

Wet Rotor Circulators

11 10 9 8 7 7 6 5 3 1———————————— 7 GPM @ 7 4RD11

13 12 12 11 10 10 9 8 7 5 3 2—————————— 10 GPM @ 8 4RD06

13 12 12 11 10 10 9 8 7 5 3 2—————————— 10 GPM @ 8 4RD05

Maintenance Free Series PL™

23 22 21 20 19 18 17. 5 17 15 13 12 10 5————————— 15 GPM @ 13 4JA87

36 35 34 33 32 31.5 31 30 27 26 24 22 1 7. 5 12.5 ———————— 20 GPM @ 22 4JA88

29 28.5 28 27 26.5 26 25.5 25 24.5 23.5 22.5 21 17. 5 15 7. 5 ——————— 25 GPM @ 18 4JA89

17. 5 17 17 16.5 16 16 15.5 15.5 15.5 15.5 15 15 14 12.5 10 5—————— 35 GPM @ 12 4JA90

Three-Piece Oil-Lubricated Booster Pumps

* * 8 8 8 7 7 7 7 7 6 5 4 2 — — — — — — — — 17 GPM @ 6 4RD17

* * 12 12 12 12 12 12 11 11 11 10 10 7———————— 28 GPM @ 8 4RC94

* * 17 17 16 16 16 16 15 14 13 12 6————————— 18 GPM @ 12 4RC92

* * 10 10 10 10 10 10 10 10 10 10 10 9 8 6 4 2 — — — — 40 GPM @ 8 4RC96

* * 16 15 15 15 15 15 15 15 15 14 14 14 13 12 11 9864— 65 GPM @ 11 4RC98

Maintenance Free Series 60

*******19 19 19 19 19 18 17 15 12 —————— 36 GPM @ 16 5YN66

********24 24 24 24 24 24 23 21 19 16 13 ——— 52 GPM @ 20 5YN67

************24 24 24 23 23 22 21 20 19 18 85 GPM @ 21 5YN69

(*) Operation of pump in this range will result in reduced pump life and/or motor damage. (+) To convert to psi, divide total feet of head by 2.31.

HP Volts Phase FLA Thermal Protection Face to Face Dimensions (In.) Inlet & Outlet Flange

Included

Item

No.

W L

Wet Rotor Circulators

1/40 115 10.48 Impedance 6 1/8 4 7/8 4 7/8 Union No 4RD11

1/25 115 10.8 Impedance 6 3/8 4 7/8 4 7/8 Union No 4RD06

1/25 115 10.8 Impedance 6 1/8 4 7/8 5 5/8 Flanged No 4RD05

Maintenance Free Series PL™

1/12 115 11.4 Auto 6 3/8 4 3/8 8 5/8 Flanged No 4JA87

1/6 115 12.1 Auto 6 3/8 4 3/8 8 5/8 Flanged No 4JA88

1/6 115 12.1 Auto 8 1/2 4 1/2 9 1/8 Flanged No 4JA89

1/6 115 11.8 Auto 8 1/2 4 1/2 9 1/8 Flanged No 4JA90

Three-Piece Oil-Lubricated Booster Pumps

1/12 115 11.75 Auto 6 3/8 5 1/4 14 7/8 Flanged No 4RD17

1/6 115 11.9 Auto 8 1/2 6 1/2 15 3/8 Flanged No 4RC94

1/6 115 11.9 Auto 8 1/2 7 1/16 15 1/4 Flanged No 4RC92

1/6 115 11.9 Auto 8 1/2 6 11/16 16 5/8 2" Flg Ye s 4RC96

1/4 115 1 3 Auto 10 7 9/16 17 1/4 2 1/2" Flg Ye s 4RC98

Maintenance Free Series 60

1/4 115/208-230 12.8/1.4 Auto 11 7 1/2 19 7/8 1.25" Flg Ye s 5YN66

1/2 115/208-230 15/2.5 Auto 11 1/2 7 7/8 21 7/16 1.5" Flg Ye s 5YN67

3/4 115/208-230 17.2/3.6 Auto 11 1/2 821 11/16 2" Flg Ye s 5YN69

Note: For use only with nonﬂammable liquids compatible with pump component materials.

4RD11 4JA87 4RD17 5YN66

There are many ways to get the Dayton products you need–phone, fax, online at www.grainger.com/dayton or

stop by your local Grainger® branch.

Exclusively from Grainger.

Seal Bearing Assemblies and Graduated Oil Tubes—Bell & Gossett

Key Fits Pump Nos. Item No.

Seal Bearing Assemblies

A 4RD16 4RD83*

A 4RD17 4RD79*

A 4RC93, 4RC95, 4RC94, 4RC96 4RD82

A 4RC91, 4RC97, 4RC99, 4RD02, 4RC92, 4RC98, 4RD01, 4RD03 4RD80

B 4RD13, 4RD14 4RD78

C 4RD15 4RD75

C 1R247, 1R470 4YM28

D 5YN64, 5YN65, 5YN66, 5YN67, 5YN68, 5YN69, 5YN70, 5YN71, 5YN72 5YN79

D 5YN73, 5YN74, 5YN75, 5YN76, 5YN77 5YN80

Graduated Oil Tubes

— Used with Nos. 4RC91-99, 4RD02, 4RD16, and 4RD17. 1 1⁄2 oz. 4YM22

— Used with Nos. 4RD13-14 and 4RD35-46. 2 1⁄2 oz. 4YM23

(*) Comes with impeller.

Circulating Pump Couplers—Bell & Gossett

Key Fits Pump Nos. Fits Shaft Size (In.) Coupling Material Item No.

A 4RD16, 4RC93, 4RC95, 4RC91, 4RD17, 4RC94, 4RC92, 4RC96 1/2 x 1/2 Cast-Iron 4RD81

A 4RC97, 4RC99, 4RD02, 4RC98, 4RD01, 4RD03 1/2 x 1/2 Cast-Iron 4RD27

A4RD13, 4RD14, 5YN65, 5YN64, 5YN71, 5YN68, 5YN72, 5YN66, 5YN67, 5YN69 1/2 x 1/2 Cast-Iron 4RD26

A 4RD41, 4RD42, 5YN70, 5YN75, 5YN73 5/8 x 1/2 Cast-Iron 4RD77

A 4RD13, 4RD14 5/8 X 1/2 Cast-Ir./Spring 4YM24

B 4RD41, 4RD42, 4RD43, 5YN76 5/8 x 5/8 Steel/Rubber 4RD76

B 5YN77, 5YN74 5/8 x 5/8 Steel/Rubber 4YM27

B 5YN75, 5YN76 5/8 X 1/2 Zinc/Rubber 5YN78

Accessories for Bronze In-Line Pumps—Bell & Gossett

Fits Pump Nos. Item No.

Motor Mount Rings for In-Line Circulator Pumps

4RD16, 4RC93, 4RC95, 4RD17, 4RC94, 4RC96, 4RC91, 4RC92 4RD24

4RC97, 4RC99, 4RD02, 4RD13, 4RD14, 4RC98, 5YN65, 5YN66,5YN64, 5YN71, 5YN67, 5YN70, 5YN68, 5YN72, 5YN69 4RD25

Accessories for Bronze In-Line Pumps—Bell & Gossett

Pipe Size (In.) Used with Pump Nos. No. Item No.

Bronze Union Connections

1/2 Sweat 4RD08, 4RD11, 4RD06 4RD20

3/4 Sweat 4RD08, 4RD11, 4RD06 4RD18

3/4 NPT 4RD08, 4RD11, 4RD06 4RD19

Bronze Flanges, Set of 2

3/4 4JA87, 4JA88, 4RD05, 4PD11, 4RD17, 4RC92, 5P428, 5P433, 4P977 4RC84

14JA87, 4JA88, 4RD05, 4PD11, 4RD17, 4RC92, 5P428, 5P433, 4P977 4RC85

1 1/4 4JA87, 4JA88, 4RD05, 4PD11, 4RD17, 4RC92, 5P428, 5P433, 4P977 4RC86

1 1/2 4JA87, 4JA88, 4RD05, 4PD11, 4RD17, 4RC92, 5P428, 5P433, 4P977 4RC87

1 4RC94, 4PC79, 4JA89, 4JA90 4RC88

1 1/4 4RC94, 4PC79 4RC89

1 1/2 4RC94, 4PC79 4RC90

Accessories

TC-1 Timer 4RD11, 4RD05, 4RD06 4RD21

1/2" Aquastat 4RD11, 4RD05, 4RD06 4RD22

3/4" Aquastat 4RD11, 4RD05, 4RD06 4RD23

4RD83

4RD78

4RD76

4RD81

4RD24

4RD20

4RD21

4RC84

Dayton Motor Guide Dayton_motor

Navigation menu

Versions of this User Manual:

Views

Navigation
