Section Properties
Width Gauge Base Steel
Thickness (in)
Yield
(ksi)
Tensile
(ksi)
Wt.
(lbs/ft2)
I+
(in4/ft)
S+
(in3/ft)
I-
(in3/ft)
S-
(in3/ft)
12" 24 0.0232 50 65 1.45 0.1185 0.0820 0.0762 0.0586
22 0.0294 50 65 1.83 0.1522 0.1080 0.0997 0.0771
16" 24 0.0232 50 65 1.34 0.0943 0.0624 0.0593 0.0440
22 0.0294 50 65 1.68 0.1213 0.0825 0.0773 0.0580
17" 24 0.0232 50 65 1.31 0.0901 0.0589 0.0562 0.0414
22 0.0294 50 65 1.65 0.1158 0.0779 0.0734 0.0546
18" 24 0.0232 50 65 1.30 0.0858 0.0557 0.0533 0.0391
22 0.0294 50 65 1.63 0.1104 0.0737 0.0696 0.0515
NOTE: The hybrid positive moment of inertia, I, presented for determining deflection is: (2IEffective + IGross)/3
Available with subtle striations for a clean pan (16", 17" & 18")
13⁄4″
12", 16", & 17" Net Coverage
standard features
n Factory applied sealant is a standard offer.
n Custom manufactured sheet lengths from 6'-0" to 45'-0".
n Subtle striations between ribs on 16" and wider panels.
n Offered in 12", 16" & 17" widths.
n Available in 24ga and 22ga in standard finishes -
Refer to AEP Span Color Charts for full range of color
options, prints, textures, finishes and paint systems.
n Recommended minimum slope of 2:12. Inquire for
slopes below 2:12.
n Tested in accordance with UL580-Class 90 & ASTM
E1592.
n Has been tested for air infiltration per ASTM E1680,
and water infiltration per ASTM E1646.
n Snap-together panel means no field seaming is required.
n Panel evaluated by accredited third party.
All structural performance data is contained
within an IBC/IRC 2015 code compliance report.
optional features
n Short cut sheets from 6'-0" to 1'-0". Additional fees
and lead times may apply.
n Longer lengths available from 70'-0" (Tacoma, WA
facility) to 100'-0" (Fontana, CA facility). Additional
fees and lead times may apply.
n Additional Batten option offers a clean bold look with
the structural capacity and weather resistance of
regular Design Span hp.
n Factory notching available for turn under at the eave.
n 18" width available. Additional fees and lead times
may apply.

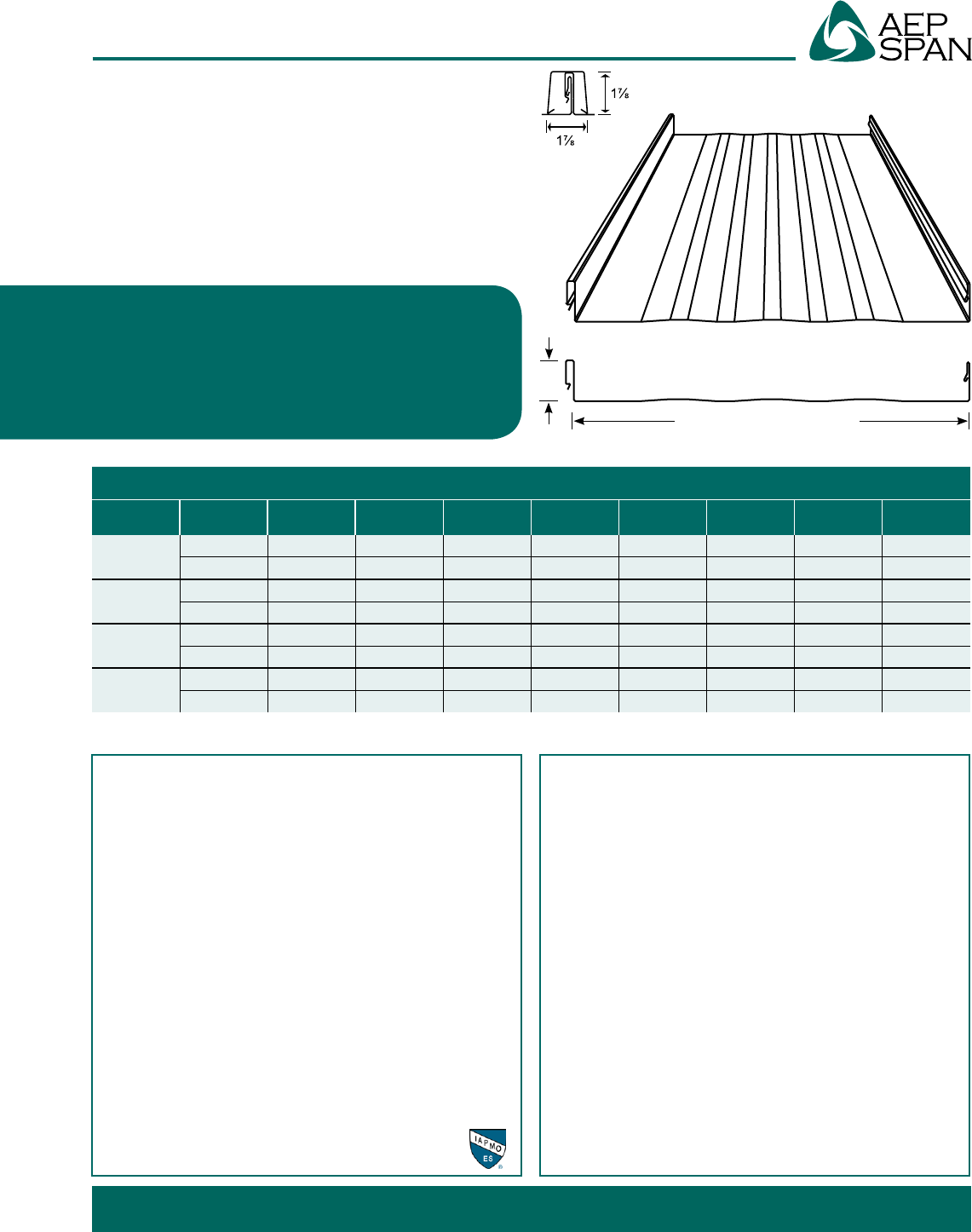

Design Span®
hp
Design Span
hp
is a perfor-
mance-rated structural standing
seam, concealed fastener metal
roof system with net coverage of
12", 16", 17" & 18".
Design Span hp is excellent as a
roof over metal or wood decking, and
as a fascia or mansard over plywood
or supports.
Optional Batten
offers a clean
bold look.
"
"
For most current versions of literature please visit
www.aepspan.com
Customer Service Centers
Tacoma, WA & Fontana, CA Phone: 800-733-4955 Fax: 253-272-0791
(18" available – additional charges and lead times apply)
NOTES:
n The information in these tables applies to uniform loads only.
n Upper values based on allowable panel strength.
Bottom values based on allowable service load deflection of L/180.
n “-” denotes that capacities are limited by panel strength vs. deflection.
n Steel con forms to ASTM A792 (ZINCALUME®) 50,000 psi minimum yield.
n Values are based on AISI S100-07/S2-10.
n Maximum allowable outward load capacities are shown and dependent upon
fastener-to-substrate capacities. Refer to IAPMO-UES report #ER-0309 for
specific product capacities.
Specifications subject to change without notice.
Gauge
Allowable Outward Loads (lbs/ft2) per Span (ft.-in.)
1'-0" 1'-6" 2'-0" 2'-6" 3'-0" 3'-6" 4'-0" 4'-6" 5'-0"
24 82 76 71 67 63 59 56 52 48
22 82 76 71 67 63 59 56 52 48
Gauge
Allowable Outward Loads (lbs/ft2) per Span (ft.-in.)
1'-0" 1'-6" 2'-0" 2'-6" 3'-0" 3'-6" 4'-0" 4'-6" 5'-0"
24 48 42 35 29 29 28 28 28 27
22 67 59 51 43 43 42 42 41 41
Gauge
Allowable Outward Loads (lbs/ft2) per Span (ft.-in.)
1'-0" 1'-6" 2'-0" 2'-6" 3'-0" 3'-6" 4'-0" 4'-6" 5'-0"
24 49 42 36 30 29 29 29 28 28
22 74 66 58 49 49 48 47 47 46
Oil Canning
All flat metal surfaces can display waviness commonly referred to as
“oil canning”. “Oil canning” is an inherent characteristic of steel
products, not a defect, and therefore is not a cause for panel rejection.

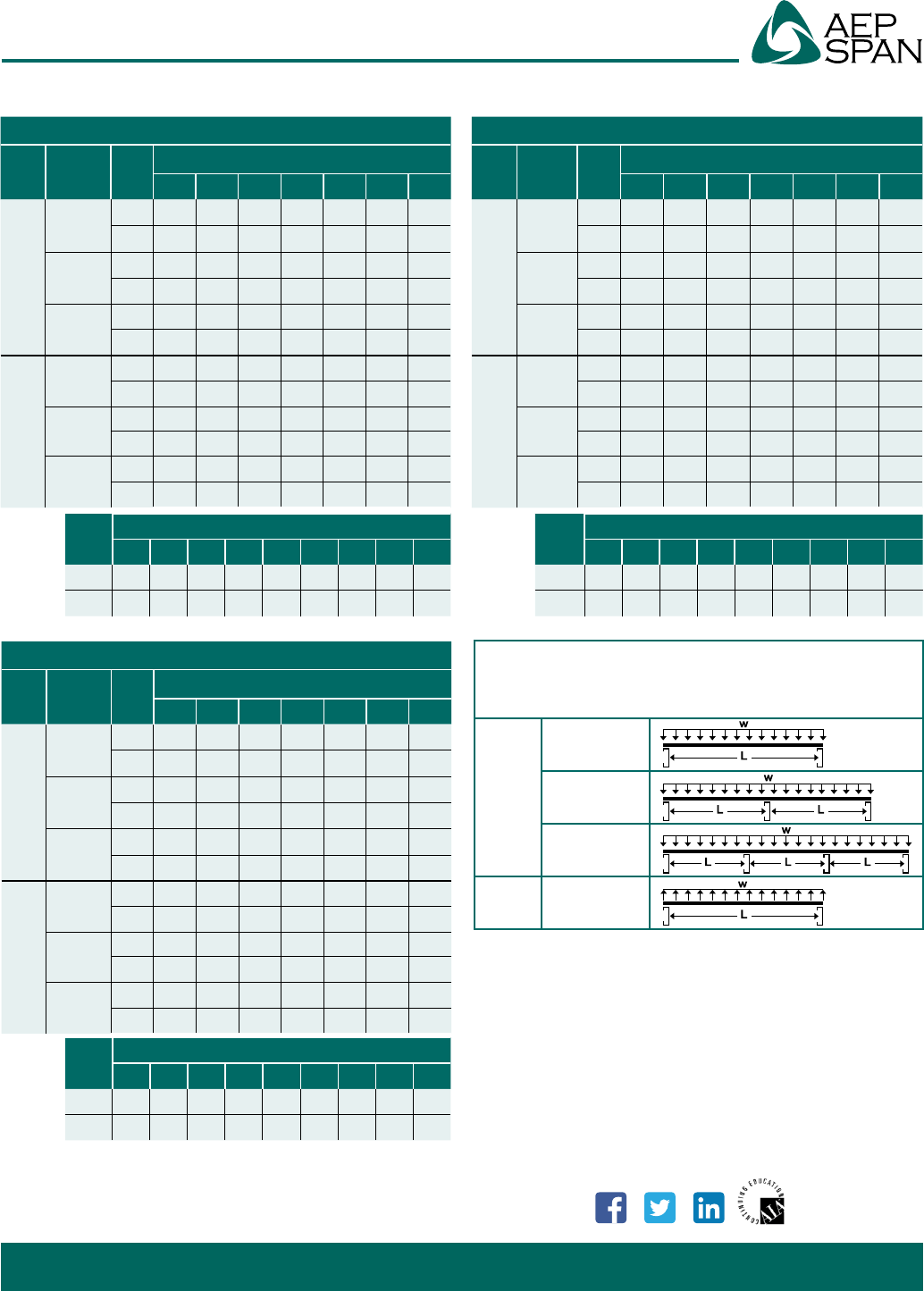

LOADING TABLE LEGEND
W/Ω - Allowable panel strength
L - Span (Inches)
L/180 - Load limited by a deflection of 1/180 of the span
W - Distributed load
Inward
Loads
Single span
Double span
Triple span
Outward
Loads
Design Span®
hp
12" Design Span hp
Gauge Span Cond.
Allowable Inward Loads (lbs/ft2) per Span (ft.-in.)
2'-0" 2'-6" 3'-0" 3'-6" 4'-0" 4'-6" 5'-0"
24
Single
Span
W/Ω409 262 182 134 102 81 65
L/180 - - - - - - -
Double
Span
W/Ω285 184 128 94 72 57 46
L/180 - - - - - - -
Triple
Span
W/Ω353 228 160 118 90 71 58
L/180 - - - - - - -
22
Single
Span
W/Ω539 345 240 176 135 106 86
L/180 - - - - - - -
Double
Span
W/Ω377 243 169 124 96 76 61
L/180 - - - - - - -
Triple
Span
W/Ω468 302 211 155 119 94 76
L/180 - - - - - - -
17" and 18" Design Span hp
Gauge Span Cond.
Allowable Inward Loads (lbs/ft2) per Span (ft.-in.)
2'-0" 2'-6" 3'-0" 3'-6" 4'-0" 4'-6" 5'-0"
24
Single
Span
f 275 178 124 91 70 55 44
L/180 - - - - - - -
Double
Span
f 190 123 86 62 48 38 31
L/180 - - - - - - -
Triple
Span
f 236 152 107 78 60 47 38
L/180 - - - - - - -
22
Single
Span
f 368 235 164 120 92 73 59
L/180 - - - - - - -
Double
Span
f 218 163 113 83 64 50 40
L/180 - - - - - - -
Triple
Span
f 247 198 141 103 79 63 51
L/180 - - - - - - -
16" Design Span hp
Gauge Span Cond.
Allowable Inward Loads (lbs/ft2) per Span (ft.-in.)
2'-0" 2'-6" 3'-0" 3'-6" 4'-0" 4'-6" 5'-0"
24
Single
Span
W/Ω309 199 138 102 78 62 50
L/180 - - - - - - -
Double
Span
W/Ω214 138 96 71 54 43 34
L/180 - - - - - - -
Triple
Span
W/Ω265 171 119 88 67 53 43
L/180 - - - - - - -
22
Single
Span
W/Ω412 263 183 134 103 81 66
L/180 - - - - - - -
Double
Span
W/Ω245 183 127 93 72 57 45
L/180 - - - - - - -
Triple
Span
W/Ω278 223 158 117 90 70 57
L/180 - - - - - - -
