End Mill Holders
800-543-6237
www.lyndexnikken.com End Mill Holders
9
Featured Video
Current Promotion
Scan
these
QR Codes
End Mill Holders
End Mill Holders

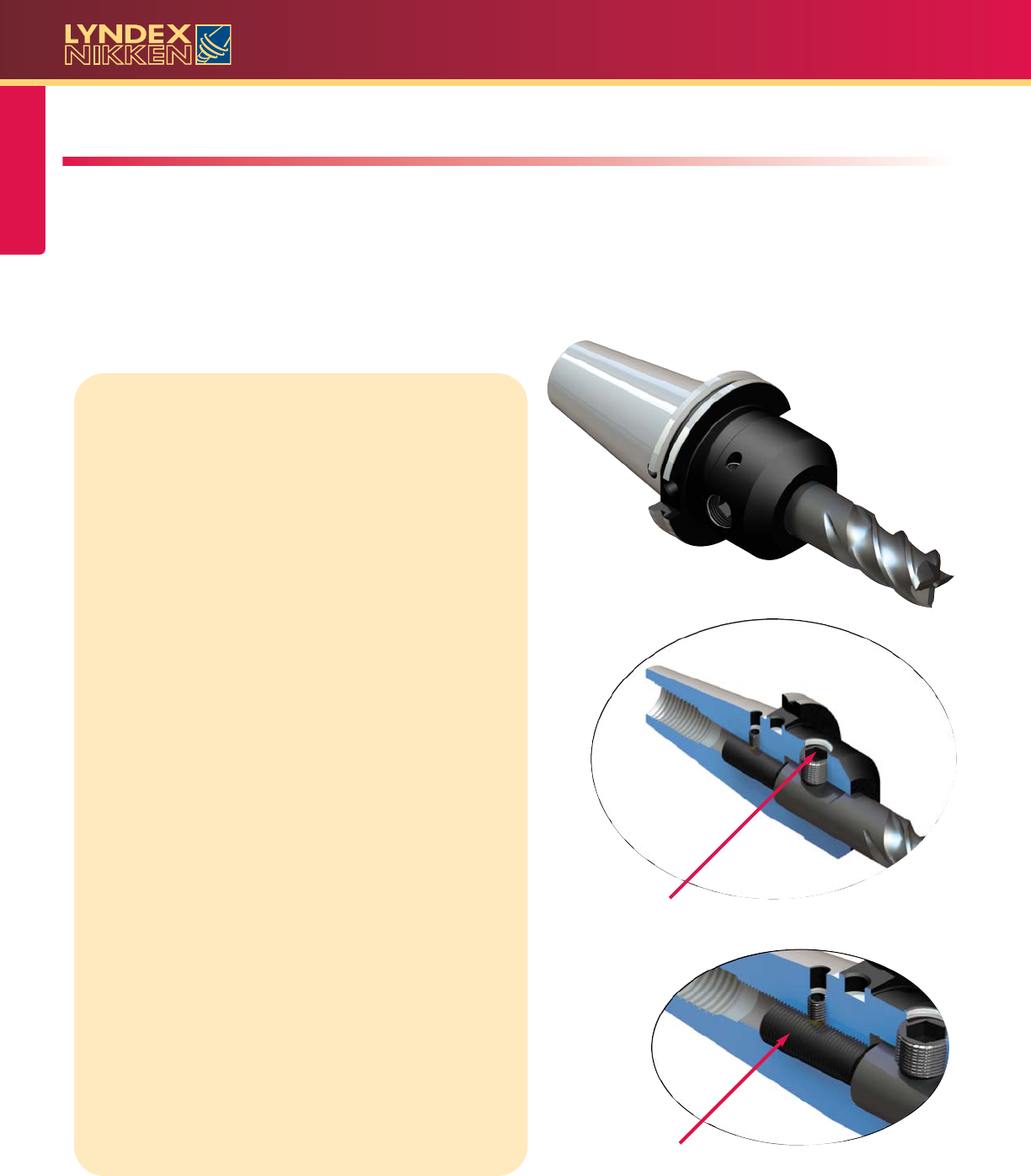

End Mill Holder Features
800-543-6237
www.lyndexnikken.com
10
Large diameter
depth adjustment screw
for greater rigidity
5 degree angle to
prevent cutter pullout
Featuring the highest taper contact and high quality steel, our End Mill Holders provide extreme rigidity for even
the heaviest machining applications.
Shank style available from stock: CAT, BT, HSK, NMTB, and Straight, with inch or metric bores.
High rigidity, stubby style, extended lengths and Aerospace whistle notch End Mill Holders also available.
Our Aerospace End Mill Holders will help you
produce aerospace parts with greater accuracy
and efficiency.
Aerospace End Mill Holders
Lyndex-Nikken Aerospace End Mill Holders are field
tested and proven to prevent the end mill from pullout,
unlike other competitors' holders
Unique Design and Built-in Features
• End Mill Holder bore does not exceed 0.0002" beyond
nominal dimension
• Dual support screws to secure depth adjustment
screw and side lock screw
• Tapped fine 2B internal threads for
precision adjustment
• AT3 taper grind to match the grind tolerance of your
machine spindle
• Balanced for high-speed machining (up to
18,000RPM)
• Made from high quality 4340 Nickel Chrome
Molybdenum Heat Treated Japanese Steel
• End Mill Holder must be used with 5 degree whistle
notch cutter (NAS 987)
Aerospace End
Mill Holder
• End mill inner bore T.I.R. < 0.0002
• Through-spindle coolant capability
• AT3 or better taper
• Available in high-speed balanceable versions
Milling
Tapping
★★★★✩
★✩✩✩✩

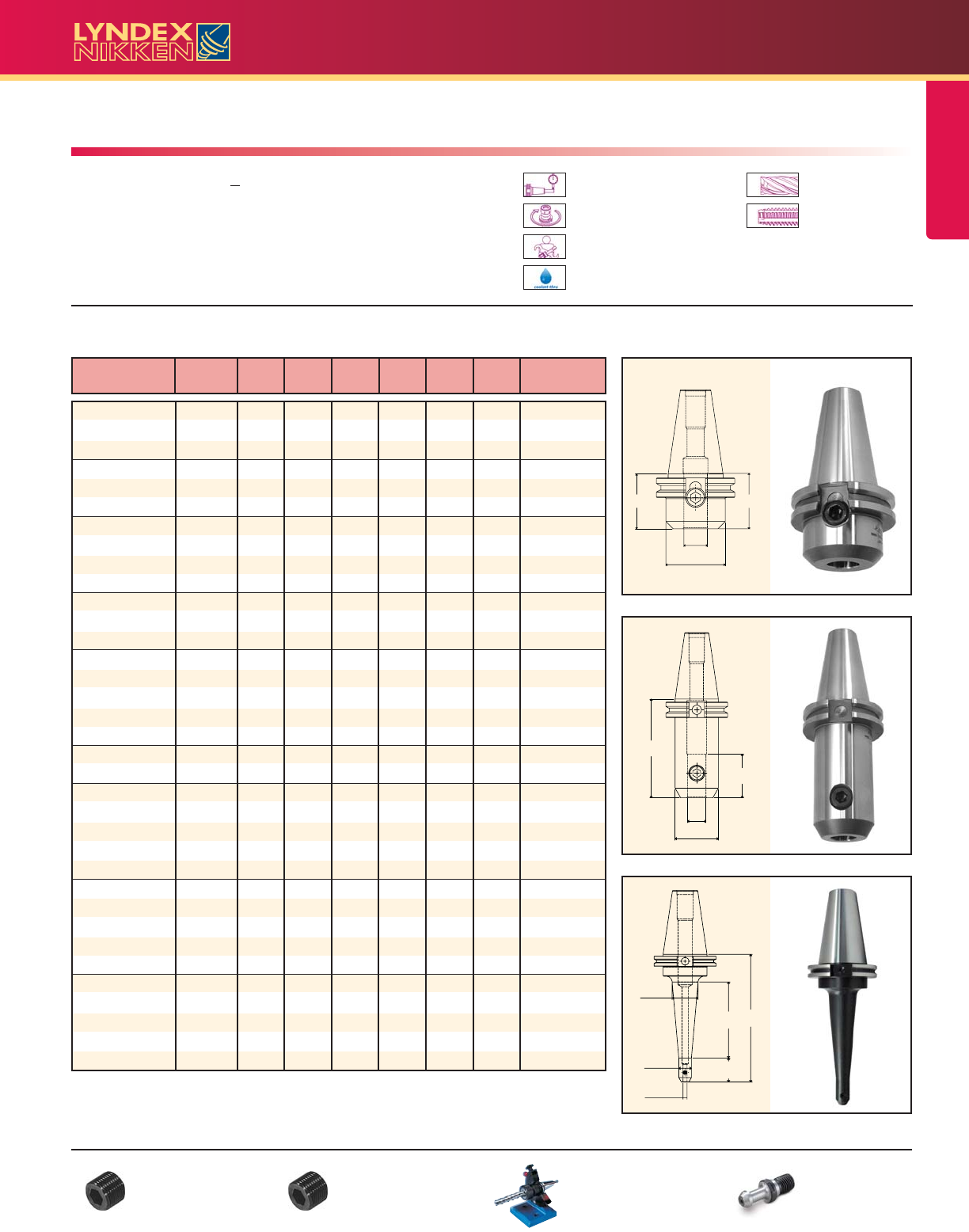

CAT 40 - Inch
Set-up: quick and easy
Coolant-thru: jet slots (optional)
Speed: up to 20,000 rpm
TIR: < .0002 run out in ID bore
Set Screws are included. Back-up screws not included.
Extended length end mill holders can be modified to DIN standard.
Please note that the maximum RPM listed in our catalog may vary depending
on the toolholder shank, weight, balanceability and the G rating.
End Mill Holders
11
End Mill Holders
CAT End Mill Holders
Accessories:
800-543-6237
www.lyndexnikken.com

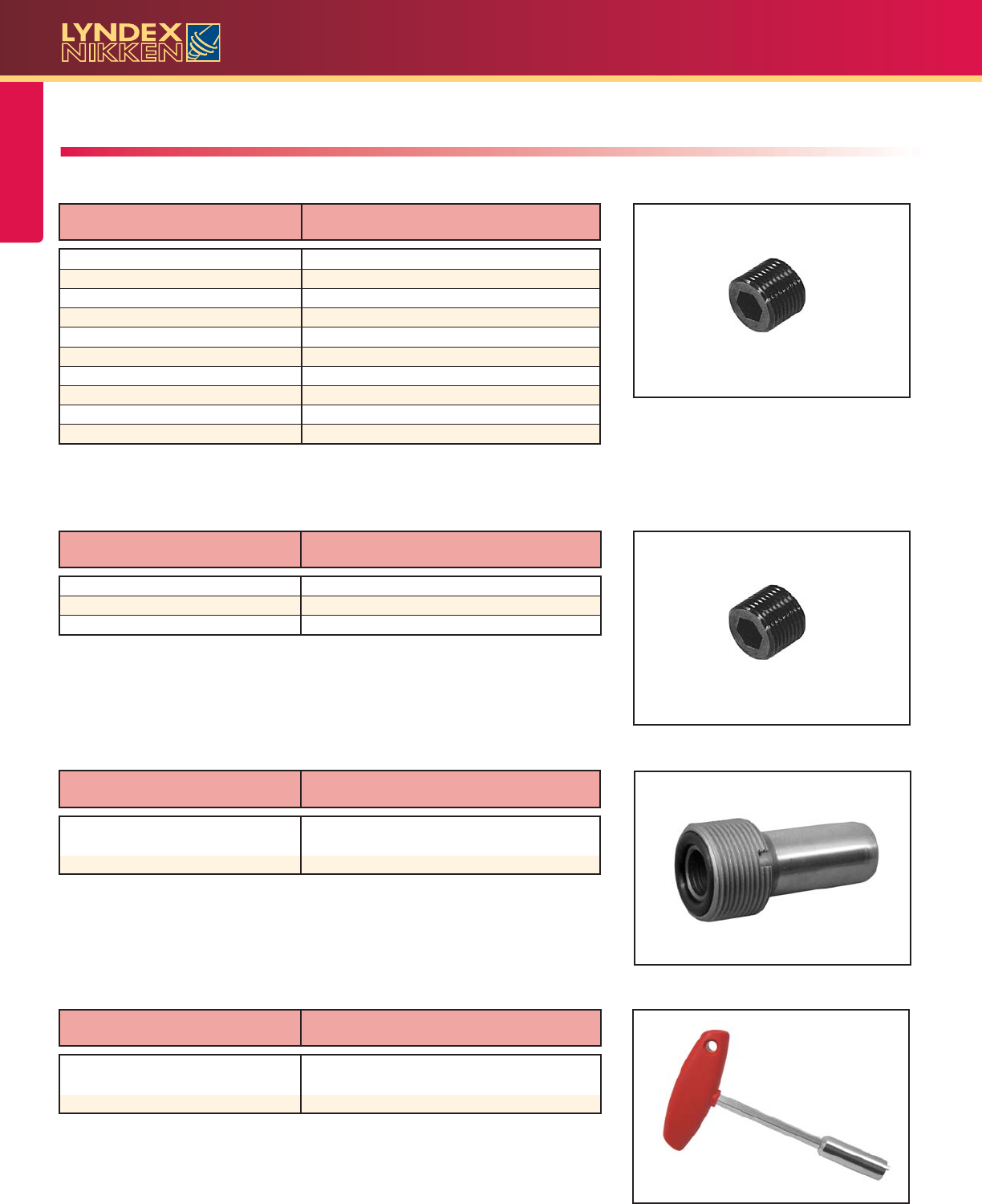

Set Screws
Page 28
Tool Jaw
Page 212
Pull Stud
Pages 139-140
Set Screws for
Aerospace Holders
Page 28
Part Number Style d L L1 L2 D D1 Set Screw
Part Number
d
L1
D
L
L1
D
d
L
C40S6-0125-1.38 Stubby 1/8” 1.38” 0.74” - 0.75” - S6-32X1/4
C4006-0125-2.36 Standard 1/8” 2.36” 0.63” - 0.75” - S6-32X1/4
C4016-0125-4.00 Standard 1/8” 4.00” 0.63” - 0.75” - S6-32X1/4
C40S6-0187-1.38 Stubby 3/16” 1.38” 0.94” - 0.75” - S8-32X1/4
C4006-0187-2.50 Standard 3/16” 2.50” 0.86” - 0.75” - S8-32X1/4
C4016-0187-4.00 Standard 3/16” 4.00” 0.86” - 0.75” - S8-32X1/4
C40S6-0250-1.38 Stubby 1/4” 1.38” 1.18” - 0.79” - S1/4-28X1/4
C4006-0250-2.50 Standard 1/4” 2.50” 1.10” - 0.79” - S1/4-28X1/4
C4016-0250-4.00 Standard 1/4” 4.00” 1.10” - 0.79” - S1/4-28X1/4
C4046-0250-9.00 Ext. Length 1/4” 9.00” 1.5” 6.12” 0.79” 1.75” S1/4-28X1/4
C40S6-0312-1.38 Stubby 5/16” 1.38” 1.34” - 0.87” - S5/16-24X1/4
C4006-0312-2.50 Standard 5/16” 2.50” 1.26” - 0.87” - S5/16-24X1/4
C4016-0312-4.00 Standard 5/16” 4.00” 1.26” - 0.87” - S5/16-24X1/4
C40S6-0375-1.38 Stubby 3/8” 1.38” 1.34” - 1.00” - S3/8-24X5/16
C4006-0375-2.50 Standard 3/8” 2.50” 1.26” - 1.00” - S3/8-24X5/16
C4016-0375-4.00 Standard 3/8” 4.00” 1.26” - 1.00” - S3/8-24X5/16
C4026-0375-5.00 Standard 3/8” 5.00” 1.26” - 1.00” - S3/8-24X5/16
C4046-0375-9.00 Ext. Length 3/8” 9.00” 1.5” 6.12” 1.00” 1.75” S3/8-24X5/16
C4006-0437-2.50 Standard 7/16” 2.50” 1.50” - 1.38” - S7/16-20X3/8
C4016-0437-4.00 Standard 7/16” 4.00” 1.50” - 1.38” - S7/16-20X3/8
C40S6-0500-1.75 Stubby 1/2” 1.75” 1.50” - 1.38” - S7/16-20X3/8
C4006-0500-2.50 Standard 1/2” 2.50” 1.50” - 1.38” - S7/16-20X3/8
C4016-0500-4.00 Standard 1/2” 4.00” 1.50” - 1.38” - S7/16-20X3/8
C4026-0500-5.00 Standard 1/2” 5.00” 1.50” - 1.38” - S7/16-20X3/8
C4046-0500-9.00 Ext. Length 1/2” 9.00” 1.5” 6.12” 1.38” 1.75” S7/16-20X3/8
C40S6-0625-1.75 Stubby 5/8” 1.75” 1.61” - 1.65” - S9/16-18X1/2
C4006-0625-3.00 Standard 5/8” 3.00” 1.61” - 1.65” - S9/16-18X1/2
C4016-0625-4.00 Standard 5/8” 4.00” 1.61” - 1.65” - S9/16-18X1/2
C4026-0625-5.50 Standard 5/8” 5.50” 1.61” - 1.65” - S9/16-18X1/2
C4046-0625-9.00 Ext. Length 5/8” 9.00” 1.5” 6.12” 1.65” 1.75” S9/16-18X1/2
C40S6-0750-1.75 Stubby 3/4” 1.75” 1.77” - 1.89” - S5/8-18X1/2
C4006-0750-3.00 Standard 3/4” 3.00” 1.77” - 1.75” - S5/8-18X1/2
C4016-0750-4.00 Standard 3/4” 4.00” 1.77” - 1.75” - S5/8-18X1/2
C4026-0750-5.50 Standard 3/4” 5.50” 1.77” - 1.75” - S5/8-18X1/2
C4046-0750-9.00 Ext. Length 3/4” 9.00” - - 1.75” - S5/8-18X1/2
d
D1
L
D
L2
L1
Stubby
Standard
Extended Length
End Mill Holders
End Mill Holders
CAT End Mill Holders
Accessories:
800-543-6237
www.lyndexnikken.com
12

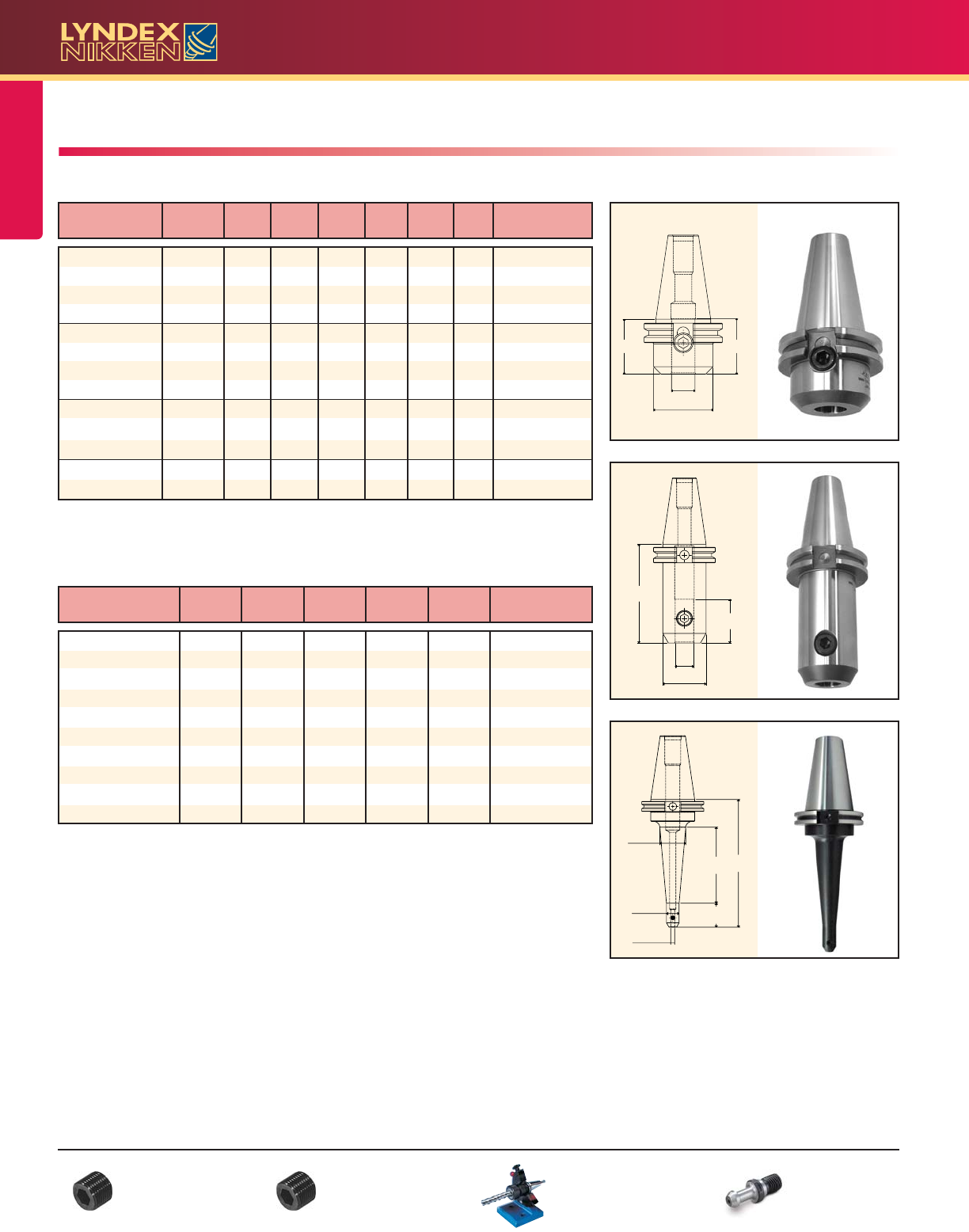

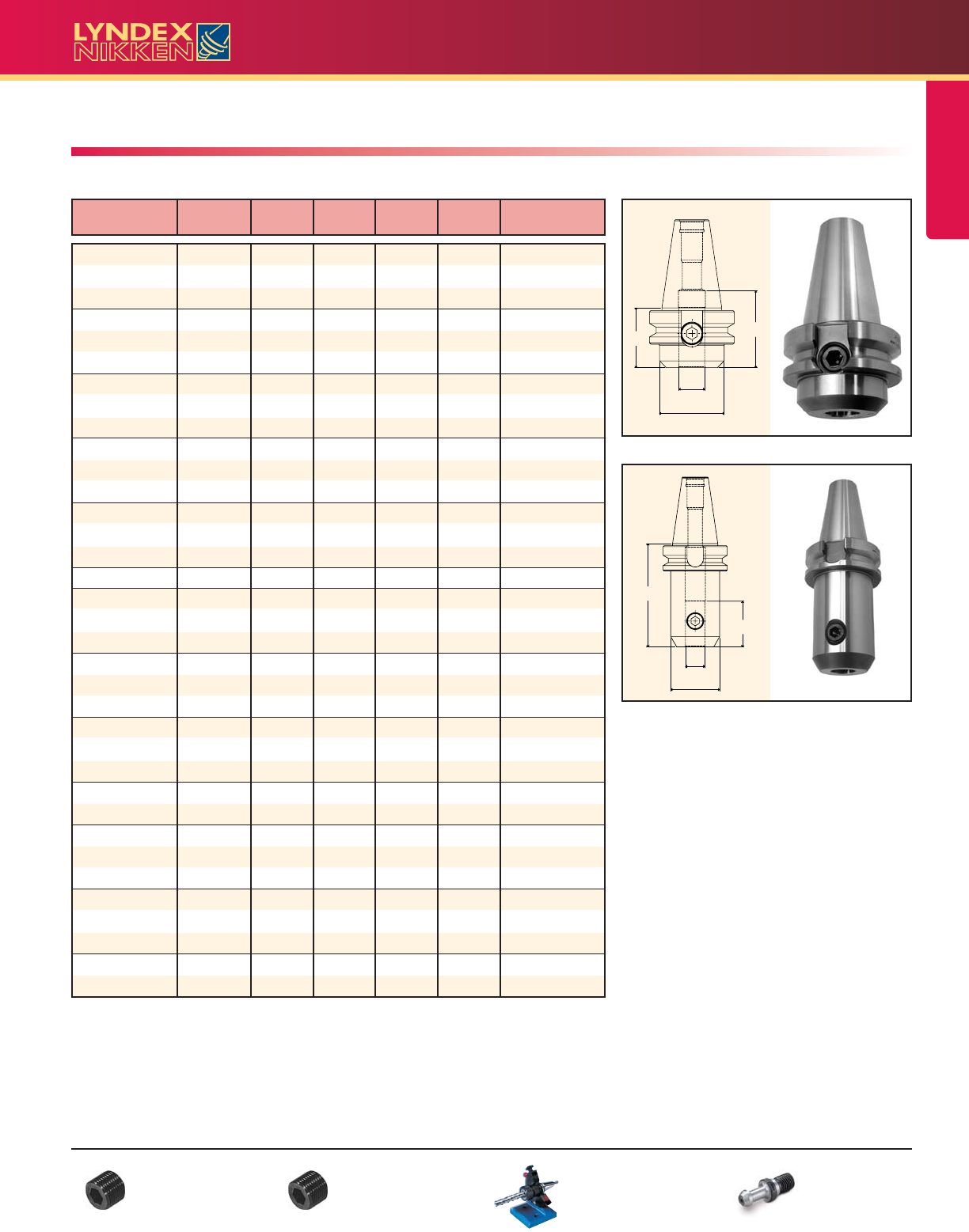

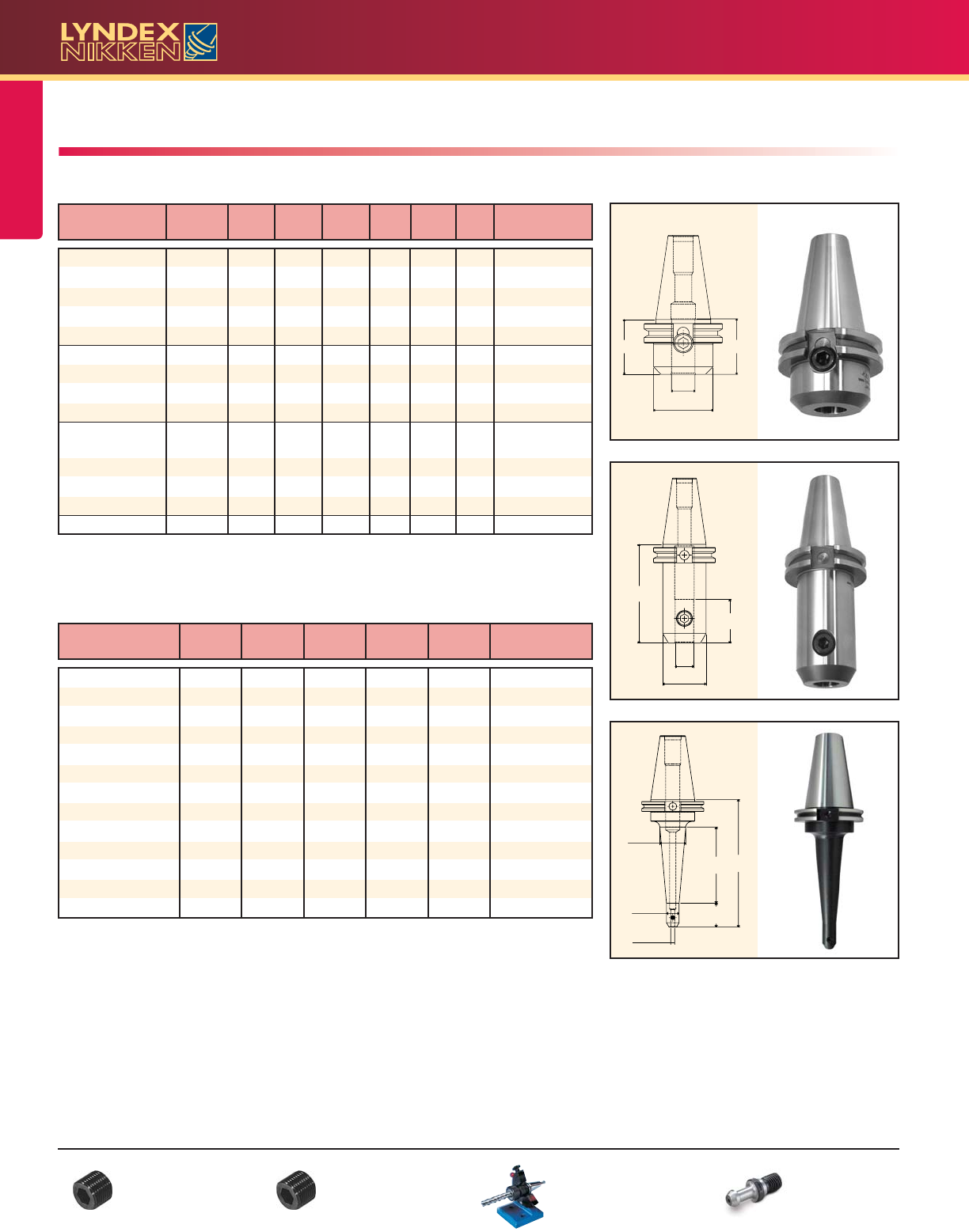

CAT 40 - Inch (cont.)
Part Number Style d L L1 L2 D D1 Set Screw
Part Number
C40S6-0875-1.75 Stubby 7/8” 1.75” 2.08” - 1.94” - S5/8-18X1/2
C4006-0875-3.50 Standard 7/8” 3.50” 2.08” - 2.00” - S5/8-18X1/2 (2)
C4016-0875-6.00 Standard 7/8” 6.00” 2.08” - 2.00” - S5/8-18X1/2 (2)
C4046-0875-9.00 Ext. Length 7/8” 9.00” - - 2.00” - S5/8-18X1/2 (2)
C40S6-1000-2.00 Stubby 1” 2.00” 2.36” - 2.25” - S3/4-16X11/16
C4006-1000-4.00 Standard 1” 4.00” 2.36” - 2.36” - S3/4-16X11/16 (2)
C4016-1000-6.00 Standard 1” 6.00” 2.36” - 2.36” - S3/4-16X11/16 (2)
C4046-1000-9.00 Ext. Length 1” 9.00” - - 2.36” - S3/4-16X11/16 (2)
C40S6-1250-2.00 Stubby 1-1/4” 2.00” 2.28” - 2.25” - S3/4-16X7/16
C4006-1250-4.00 Standard 1-1/4” 4.00” 2.55” - 2.48” - S3/4-16X11/16 (2)
C4016-1250-6.00 Standard 1-1/4” 6.00” 2.55” - 2.48” - S3/4-16X11/16 (2)
C4006-1500-4.50 Standard 1-1/2” 4.50” 2.55” - 2.99” - S3/4-16X11/16 (2)
C4016-1500-6.00 Standard 1-1/2” 6.00” 2.83” - 2.99” - S3/4-16X11/16 (2)
Set Screws are included. Back-up screws not included.
Extended length end mill holders can be modified to DIN standard.
Set Screws are included. Back-up screws not included.
CAT 40 - Metric
Part Number Style d L L1 D Set Screw
Part Number
C4006-6-2.50 Standard 6mm 2.50” 1.10” 0.78” S1/4-28X1/4
C4006-8-2.50 Standard 8mm 2.50” 1.25” 0.87” S5/16-24X1/4
C4006-10-2.50 Standard 10mm 2.50” 1.25” 1.00” S3/8-24X5/16
C4006-12-2.50 Standard 12mm 2.50” 1.50” 1.38” S7/16-20X3/8
C4006-14-3.00 Standard 14mm 3.00” 1.61” 1.65” S9/16-18X1/2
C4006-16-3.00 Standard 16mm 3.00” 1.61” 1.65” S9/16-18X1/2
C4006-18-3.00 Standard 18mm 3.00” 1.77” 1.75” S5/8-18x1/2
C4006-20-3.00 Standard 20mm 3.00” 1.77” 1.75” S5/8-18x1/2
C4006-25-4.00 Standard 25mm 4.00” 2.36” 2.36” S3/4-16X11/16 (2)
C4006-32-4.00 Standard 32mm 4.00” 2.36” 2.48” S3/4-16X11/16 (2)
d
L1
D
L
L1
D
d
L
d
D1
L
D
L2
L1
Stubby
Standard
Extended Length
Set Screws
Page 28
Tool Jaw
Page 212
Pull Stud
Pages 139-140
Set Screws for
Aerospace Holders
Page 28
End Mill Holders
13
End Mill Holders
CAT End Mill Holders
Accessories:
800-543-6237
www.lyndexnikken.com
Part Number Style d L L1 L2 D D1 Set Screw
Part Number
C50S6-0250-1.38 Stubby 1/4” 1.38” 1.10” - 0.79” - S1/4-28X1/4
C5006-0250-2.50 Standard 1/4” 2.50” 1.10” - 0.79” - S1/4-28X1/4
C5016-0250-4.00 Standard 1/4” 4.00” 1.10” - 0.79” - S1/4-28X1/4
C5026-0250-6.00 Standard 1/4” 6.00” 1.10” - 0.79” - S1/4-28X1/4
C5036-0250-8.00 Ext. Length 1/4” 8.00” 1.5” 4.76” 0.79” 1.62” S1/4-28X1/4
C5006-0312-2.50 Standard 5/16” 2.50” 1.26” - 0.87” - S5/16-24X1/4
C5016-0312-4.00 Standard 5/16” 4.00” 1.26” - 0.87” - S5/16-24X1/4
C5026-0312-6.00 Standard 5/16” 6.00” 1.26” - 0.87” - S5/16-24X1/4
C50S6-0375-1.38 Stubby 3/8” 1.38” 1.26” - 1.00” - S3/8-24X5/16
C5006-0375-2.50 Standard 3/8” 2.50” 1.26” - 1.00” - S3/8-24X5/16
C5016-0375-4.00 Standard 3/8” 4.00” 1.26” - 1.00” - S3/8-24X5/16
C5026-0375-6.00 Standard 3/8” 6.00” 1.26” - 1.00” - S3/8-24X5/16
C5036-0375-8.00 Ext. Length 3/8” 8.00” 1.5” 5.12” 1.00” 2.75” S3/8-24X5/16
C5066-0375-15.00 Ext. Length 3/8” 15.00” 1.25” 12.12” 1.00” 2.75” S3/8-24X5/16
C5006-0437-2.50 Standard 7/16” 2.50” 1.50” - 1.38” - S7/16-20X3/8
C5016-0437-4.00 Standard 7/16” 4.00” 1.50” - 1.38” - S7/16-20X3/8
C5026-0437-6.00 Standard 7/16” 6.00” 1.53” - 1.38” - S7/16-20X3/8
C5036-0437-8.00 Ext. Length 7/16” 8.00” 1.5” 5.12” 1.38” 2.75” S7/16-20X3/8
C50S6-0500-1.75 Stubby 1/2” 1.75” 1.50” - 1.38” - S7/16-20X3/8
C5006-0500-2.63 Standard 1/2” 2.63” 1.50” - 1.38” - S7/16-20X3/8
C5016-0500-4.00 Standard 1/2” 4.00” 1.50” - 1.38” - S7/16-20X3/8
C5026-0500-6.00 Standard 1/2” 6.00” 1.50” - 1.38” - S7/16-20X3/8
C5036-0500-8.00 Ext. Length 1/2” 8.00” 1.5” 5.12” 1.38” 2.75” S7/16-20X3/8
C5066-0500-15.00 Ext. Length 1/2” 15.00” 1.5” 12.12” 1.38” 2.75” S7/16-20X3/8
C50S6-0625-1.75 Stubby 5/8” 1.75” 1.61” - 1.65” - S9/16-18X1/2
C5006-0625-3.00 Standard 5/8” 3.00” 1.61” - 1.65” - S9/16-18X1/2
C5016-0625-4.00 Standard 5/8” 4.00” 1.61” - 1.65” - S9/16-18X1/2
C5026-0625-6.00 Standard 5/8” 6.00” 1.61” - 1.65” - S9/16-18X1/2
C5036-0625-8.00 Ext. Length 5/8” 8.00” 1.5” 5.12” 1.65” 2.75” S9/16-18X1/2
C5066-0625-15.00 Ext. Length 5/8” 15.00” 1.5” 12.12” 1.65” 2.75” S9/16-18X1/2
C50S6-0750-1.75 Stubby 3/4” 1.75” 1.77” - 1.89” - S5/8-18X1/2
C5006-0750-3.00 Standard 3/4” 3.00” 1.77” - 1.89” - S5/8-18X1/2
C5016-0750-4.00 Standard 3/4” 4.00” 1.77” - 1.89” - S5/8-18X1/2
C5026-0750-6.00 Standard 3/4” 6.00” 1.77” - 1.89” - S5/8-18X1/2
C5036-0750-8.00 Ext. Length 3/4” 8.00” 1.5” 5.12” 1.89” 2.75” S5/8-18X1/2
C5066-0750-15.00 Ext. Length 3/4” 15.00” 1.76” 11.86” 1.89” 2.75” S5/8-18X1/2
C50S6-0875-1.75 Stubby 7/8” 1.75” 2.08” - 2.00” - S5/8-18X1/2
C5006-0875-3.75 Standard 7/8” 3.75” 2.08” - 2.00” - S5/8-18X1/2 (2)
C5016-0875-6.00 Standard 7/8” 6.00” 2.08” - 2.00” - S5/8-18X1/2 (2)
C5066-0875-15.00 Ext. Length 7/8” 15.00” 2.76” 10.87” 2.00” 2.75” S5/8-18X1/2 (2)
C50S6-1000-2.00 Stubby 1” 2.00” 2.36” - 2.36” - S3/4-16X11/16
C5006-1000-4.00 Standard 1” 4.00” 2.36” - 2.36” - S3/4-16X11/16 (2)
C5016-1000-6.00 Standard 1” 6.00” 2.36” - 2.36” - S3/4-16X11/16 (2)
C5026-1000-8.00 Ext. Length 1” 8.00” 2.76” 3.87” 2.36” 2.75” S3/4-16X11/16 (2)
C5066-1000-15.00 Ext. Length 1” 15.00” 2.76” 10.87” 2.36” 2.75” S3/4-16X11/16 (2)

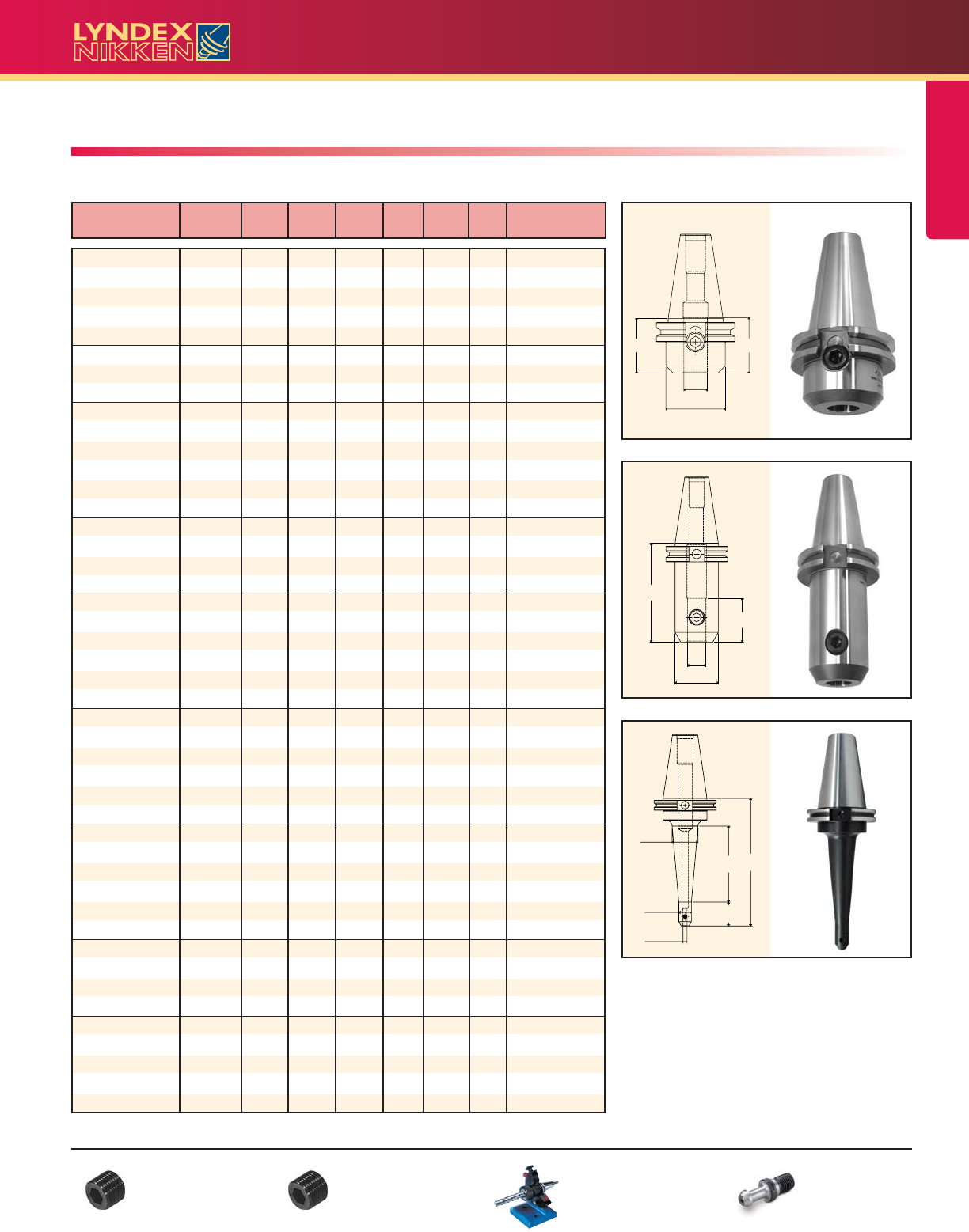

CAT 50 -Inch
d
L1
D
L
L1
D
d
L
d
D1
L
D
L2
L1
Stubby
Standard
Extended Length
Set Screws
Page 28
Tool Jaw
Page 212
Pull Stud
Pages 139-140
Set Screws for
Aerospace Holders
Page 28
End Mill Holders
CAT 50 - Inch (cont.)

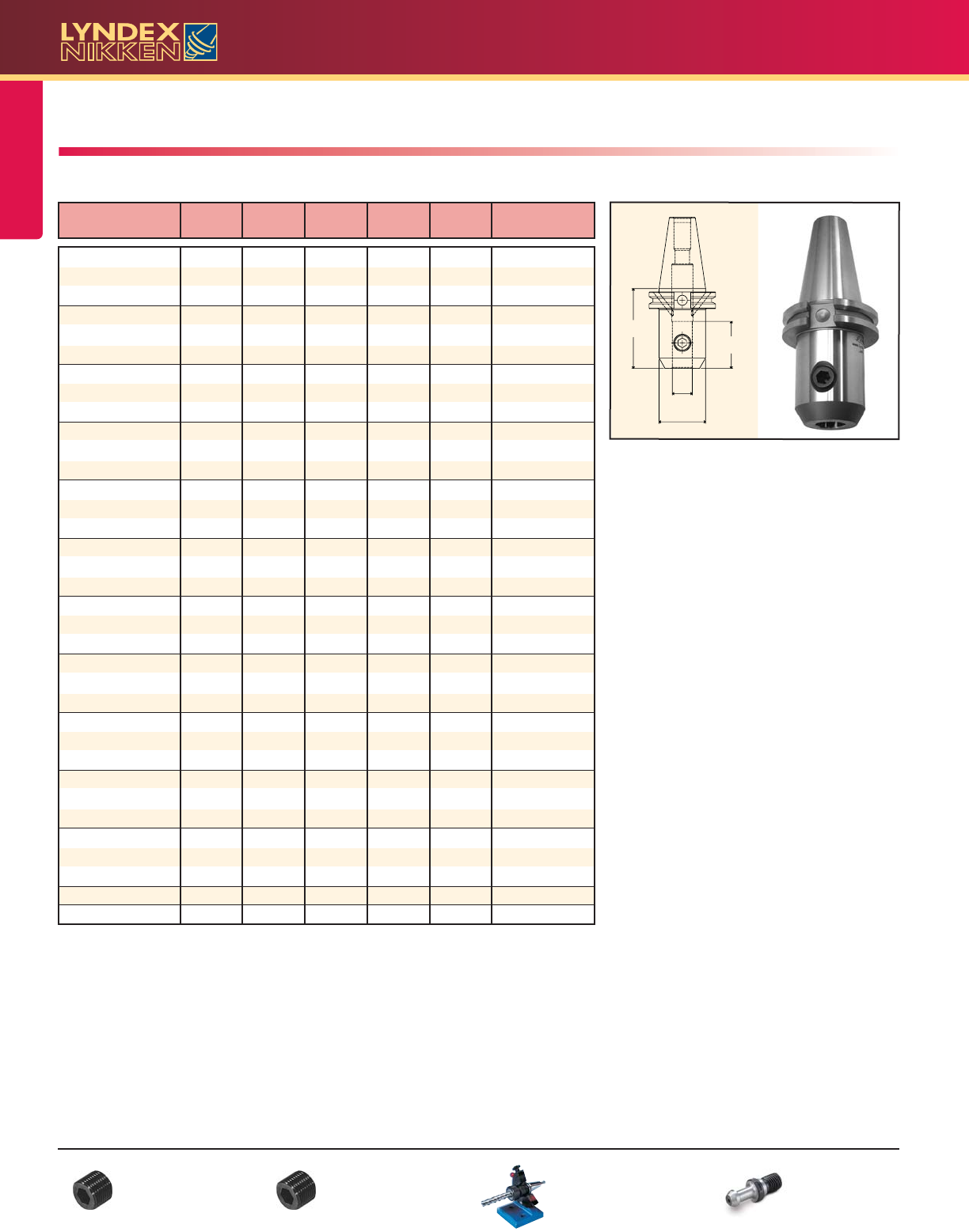

CAT 50 - Metric
Part Number Style d L L1 D Set Screw
Part Number
C5006-6-2.50 Standard 6mm 2.50” 1.10” 0.79” S1/4-28X1/4
C5006-8-2.50 Standard 8mm 2.50” 1.10” 0.87” S5/16-24X1/4
C5006-10-2.50 Standard 10mm 2.50” 1.26” 1.00” S3/8-24X5/16
C5006-12-2.63 Standard 12mm 2.63” 1.50” 1.38” S7/16-20X3/8
C5006-14-3.00 Standard 14mm 3.00” 1.61” 1.65” S9/16-18X1/2
C5006-16-3.00 Standard 16mm 3.00” 1.61” 1.65” S9/16-18X1/2
C5006-18-3.00 Standard 18mm 3.00” 1.77” 1.89” S5/8-18X1/2
C5006-20-3.00 Standard 20mm 3.00” 1.77” 1.89” S5/8-18X1/2
C5006-25-4.00 Standard 25mm 4.00” 2.36” 2.36” S3/4-16X11/16 (2)
C5006-32-4.00 Standard 32mm 4.00” 2.55” 2.48” S3/4-16X11/16 (2)
C5006-40-4.50 Standard 40mm 4.50” 2.95” 3.07” S3/4-16X11/16 (2)
C5006-42-4.50 Standard 42mm 4.50” 2.83” 3.07” S3/4-16X11/16 (2)
C5006-50-5.37 Standard 50mm 5.37” 3.35” 3.74” S1”-14X7/8 (2)
800-543-6237
www.lyndexnikken.com
Accessories:

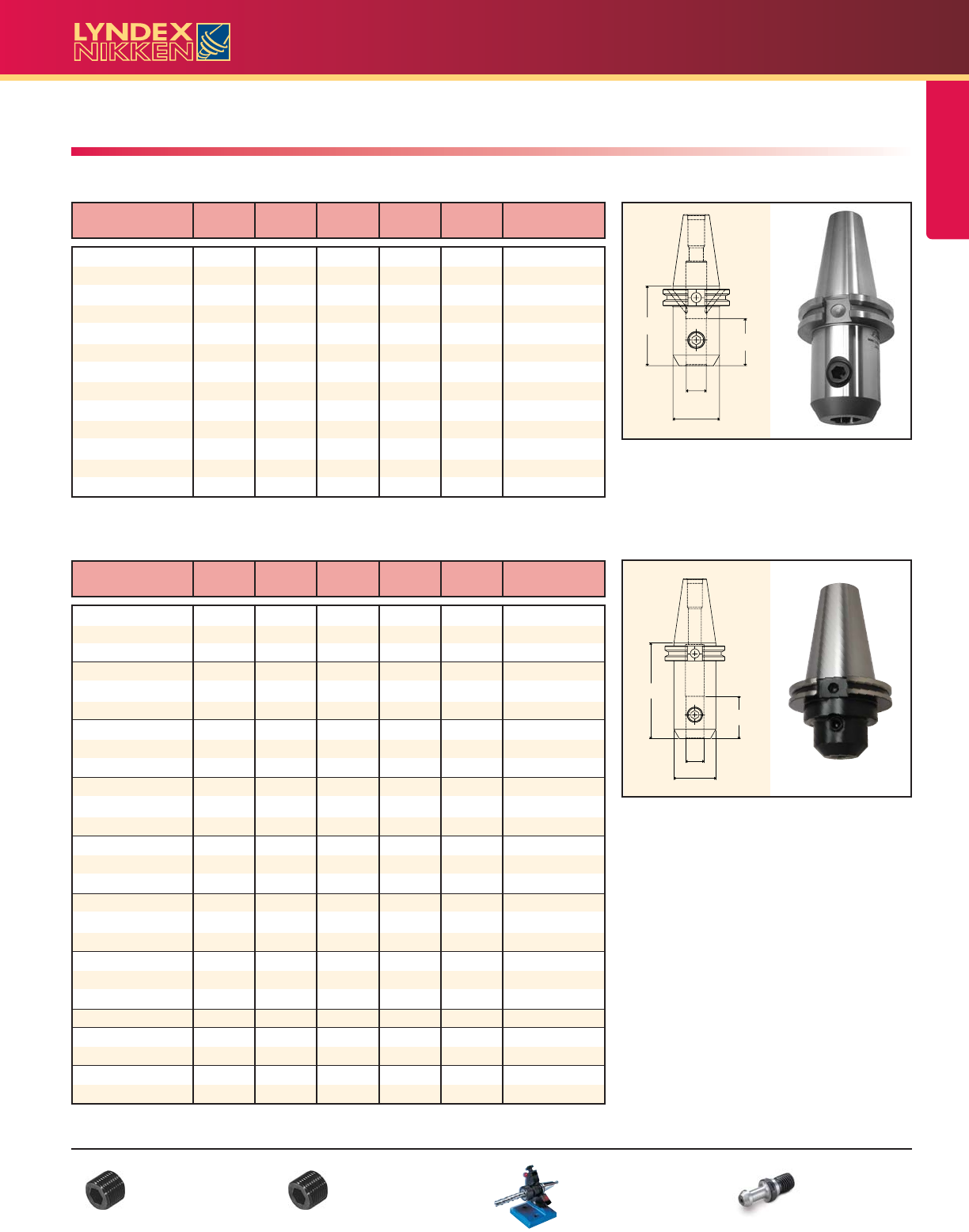

CAT End Mill Holders
End Mill Holders
14
Part Number Style d L L1 L2 D D1 Set Screw
Part Number
C50S6-1250-2.00 Stubby 1-1/4” 2.00” 2.55” - 2.75” - S3/4-16X11/16
C5006-1250-4.00 Standard 1-1/4” 4.00” 2.55” - 2.48” - S3/4-16X11/16 (2)
C5016-1250-6.00 Standard 1-1/4” 6.00” 2.55” - 2.48” - S3/4-16X11/16 (2)
C5026-1250-8.00 Ext. Length 1-1/4” 8.00” 2.76” 3.87” 2.48” 2.75” S3/4-16X11/16 (2)
C5066-1250-15.00 Ext. Length 1-1/4” 15.00” 2.76” 10.87” 2.48” 2.75” S3/4-16X11/16 (2)
C50S6-1500-2.25 Stubby 1-1/2” 2.25” 2.83” - 2.75” - S3/4-16X11/16
C5006-1500-4.50 Standard 1-1/2” 4.50” 2.83” - 2.99” - S3/4-16X11/16 (2)
C5016-1500-7.00 Standard 1-1/2” 7.00” 2.83” - 2.99” - S3/4-16X11/16 (2)
C5026-1500-9.00 Standard 1-1/2” 9.00” 2.83” - 2.99” - S3/4-16X11/16 (2)
C50S6-2000-3.63 Stubby 2” 3.63” 3.34” - 3.74” - S1”-14X7/8 (1)
S1”-17X7/16 (1)
C5026-2000-10.00 Standard 2” 10.00” 3.34” - 3.74” - S1”-14X7/8 (2)
C5006-2000-5.37 Standard 2” 5.37” 3.34” - 3.74” - S1”-14X7/8 (2)
C5016-2000-8.00 Standard 2” 8.00” 3.34” - 3.74” - S1”-14X7/8 (2)
C5006-2500-6.00 Standard 2-1/2” 6.00” 3.66” - 4.25” - S1”-14X7/8 (2)
Set Screws are included. Back-up screws not included.
Extended length End Mill Holders can be modified to DIN standard.
Set Screws are included. Back-up screws not included.
d
L1
D
L
L1
D
d
L
d
D1
L
D
L2
L1
Stubby
Standard
Extended Length
Set Screws
Page 28
Tool Jaw
Page 212
Pull Stud
Pages 139-140
Set Screws for
Aerospace Holders
Page 28

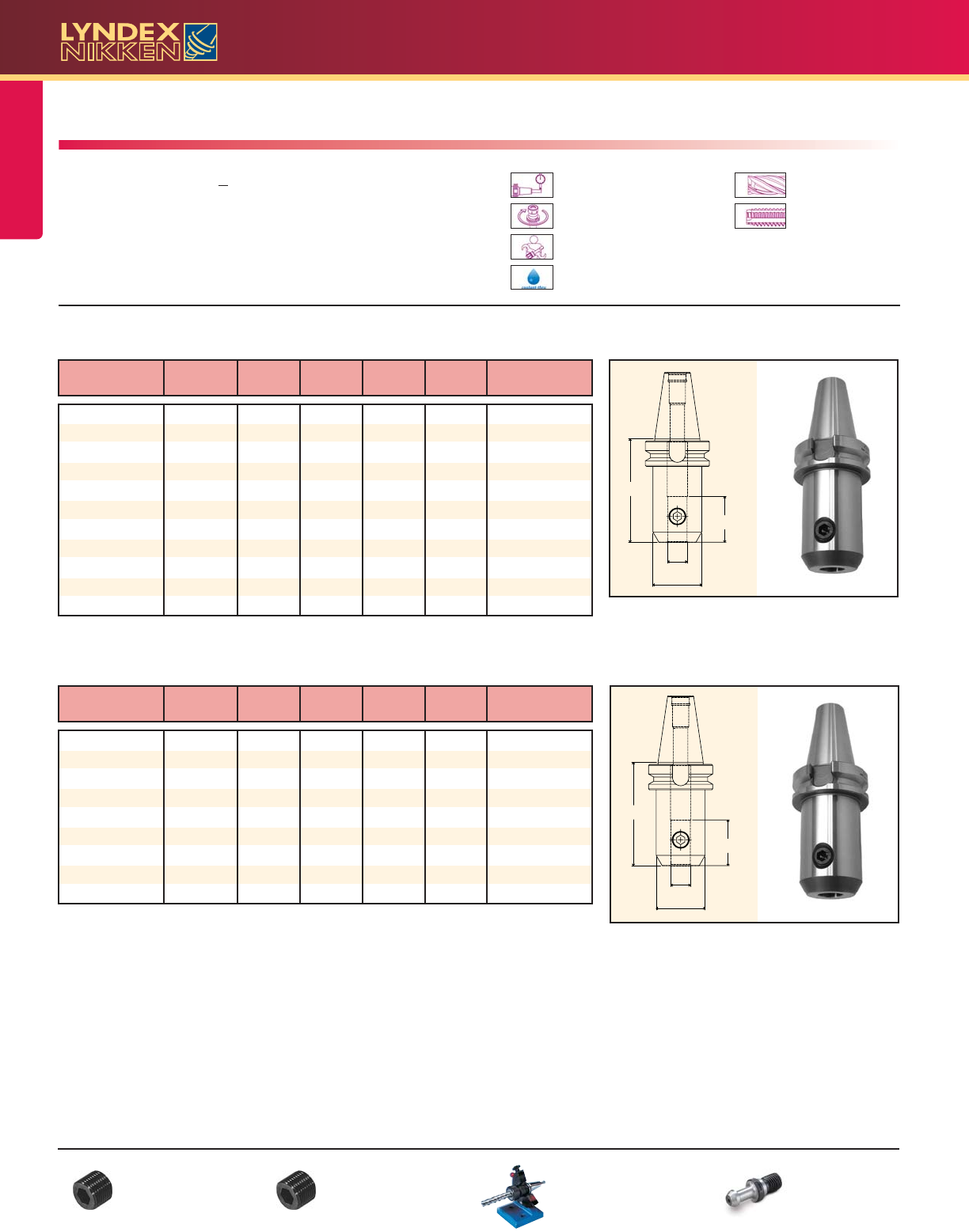

End Mill Holders
CAT40 - DIN - Inch
Part Number Style d L L1 D Set Screw
Part Number
C4006-0125-2.36DIN Standard 1/8” 2.36” 0.63” 0.75” S6-32X1/4
C4016-0125-4.00DIN Standard 1/8” 4.00” 0.63” 0.75” S6-32X1/4
C4006-0187-2.50DIN Standard 3/16” 2.50” 0.86” 0.75” S8-32X1/4
C4016-0187-4.00DIN Standard 3/16” 4.00” 0.86” 0.75” S8-32X1/4
C4006-0250-2.50DIN Standard 1/4” 2.50” 1.10” 0.79” S1/4-28X1/4
C4016-0250-4.00DIN Standard 1/4” 4.00” 1.10” 0.79” SS1/4-28X1/4
C4006-0312-2.50DIN Standard 5/16” 2.50” 1.26” 0.87” S5/16-24X1/4
C4016-0312-4.00DIN Standard 5/16” 4.00” 1.26” 0.87” S5/16-24X1/4
C4006-0375-2.50DIN Standard 3/8” 2.50” 1.26” 1.00” S3/8-24X5/16
C4016-0375-4.00DIN Standard 3/8” 4.00” 1.26” 1.00” S3/8-24X5/16
C4006-0437-2.50DIN Standard 7/16” 2.50” 1.50” 1.38” S7/16-20X3/8
C4016-0437-4.00DIN Standard 7/16” 4.00” 1.50” 1.38” S7/16-20X3/8
C4006-0500-2.50DIN Standard 1/2” 2.50” 1.50” 1.38” S7/16-20X3/8
C4016-0500-4.00DIN Standard 1/2” 4.00” 1.50” 1.38” S7/16-20X3/8
C4006-0625-3.00DIN Standard 5/8” 3.00” 1.61” 1.65” S9/16-18X1/2
C4016-0625-4.50DIN Standard 5/8” 4.50” 1.61” 1.65” S9/16-18X1/2
C4006-0750-3.00DIN Standard 3/4” 3.00” 1.77” 1.75” S5/8-18X1/2
C4016-0750-4.50DIN Standard 3/4” 4.50” 1.77” 1.75” S5/8-18X1/2
C4006-0875-3.50DIN Standard 7/8” 3.50” 2.08” 2.00” S5/8-18X1/2 (2)
C4016-0875-5.00DIN Standard 7/8” 5.00” 2.08” 2.00” S5/8-18X1/2 (2)
C4006-1000-4.00DIN Standard 1” 4.00” 2.36” 2.36” S3/4-16X11/16 (2)
C4016-1000-5.50DIN Standard 1” 5.50” 2.36” 2.36” S3/4-16X11/16 (2)
C4006-1250-4.00DIN Standard 1-1/4” 4.00” 2.55” 2.48” S3/4-16X11/16 (2)
C4016-1250-5.50DIN Standard 1-1/4” 5.50” 2.55” 2.48” S3/4-16X11/16 (2)
C4006-1500-4.50DIN Standard 1-1/2” 4.50” 2.60” 2.99” S3/4-16X11/16 (2)
C4016-1500-6.00DIN Standard 1-1/2” 6.00” 2.60” 2.99” S3/4-16X11/16 (2)
Set Screws are included. Back-up screws not included.
“DIN” designates suitability for coolant through the flange per DIN 69871 Form B specs.
800-543-6237
www.lyndexnikken.com
Accessories:
CAT End Mill Holders - DIN
End Mill Holders
L1
D
d
L

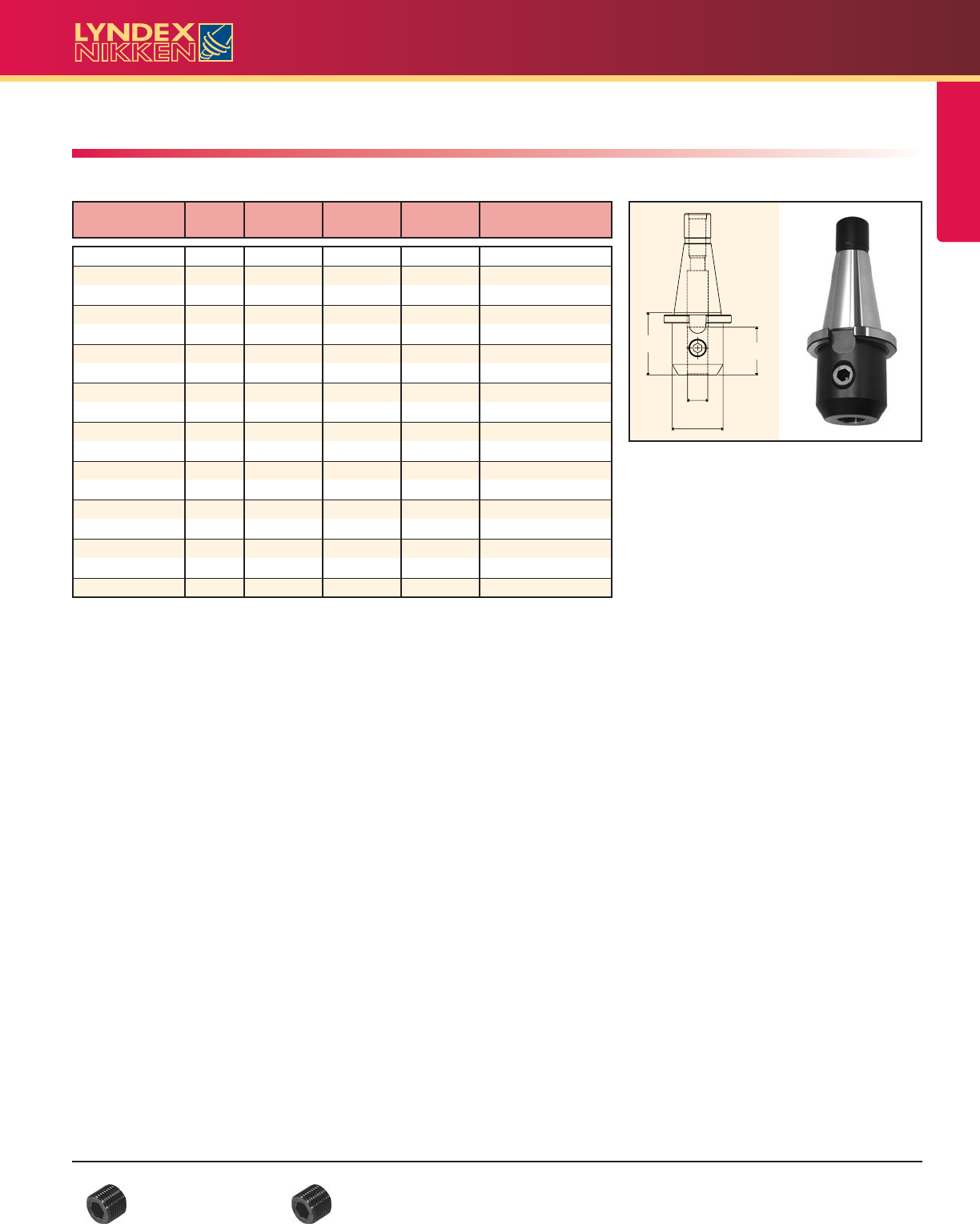

CT40 - DIN - Metric
Part Number Style d L L1 D Set Screw
Part Number
C4006-6-2.50DIN Standard 6mm 2.50” 1.10” 0.78” S1/4-28X1/4
C4006-8-2.50DIN Standard 8mm 2.50” 1.25” 0.87” S5/16-24X1/4
C4006-10-2.50DIN Standard 10mm 2.50” 1.25” 1.00” S3/8-24X5/16
C4006-12-2.50DIN Standard 12mm 2.50” 1.50” 1.38” S7/16-20X3/8
C4006-14-3.00DIN Standard 14mm 3.00” 1.61” 1.65” S9/16-18X1/2
C4006-16-3.00DIN Standard 16mm 3.00” 1.61” 1.65” S9/16-18X1/2
C4006-18-3.00DIN Standard 18mm 3.00” 1.77” 1.75” S5/8-18x1/2
C4006-20-3.00DIN Standard 20mm 3.00” 1.77” 1.75” S5/8-18x1/2
C4006-25-4.00DIN Standard 25mm 4.00” 2.36” 2.36” S3/4-16X11/16 (2)
C4006-32-4.00DIN Standard 32mm 4.00” 2.36” 2.48” S3/4-16X11/16 (2)
Set Screws are included. Back-up screws not included.
“DIN” designates suitability for coolant through the flange per DIN 69871 Form B specs.
L1
D
d
L
Set Screws
Page 28
Tool Jaw
Page 212
Pull Stud
Pages 139-140
Set Screws for
Aerospace Holders
Page 28 15

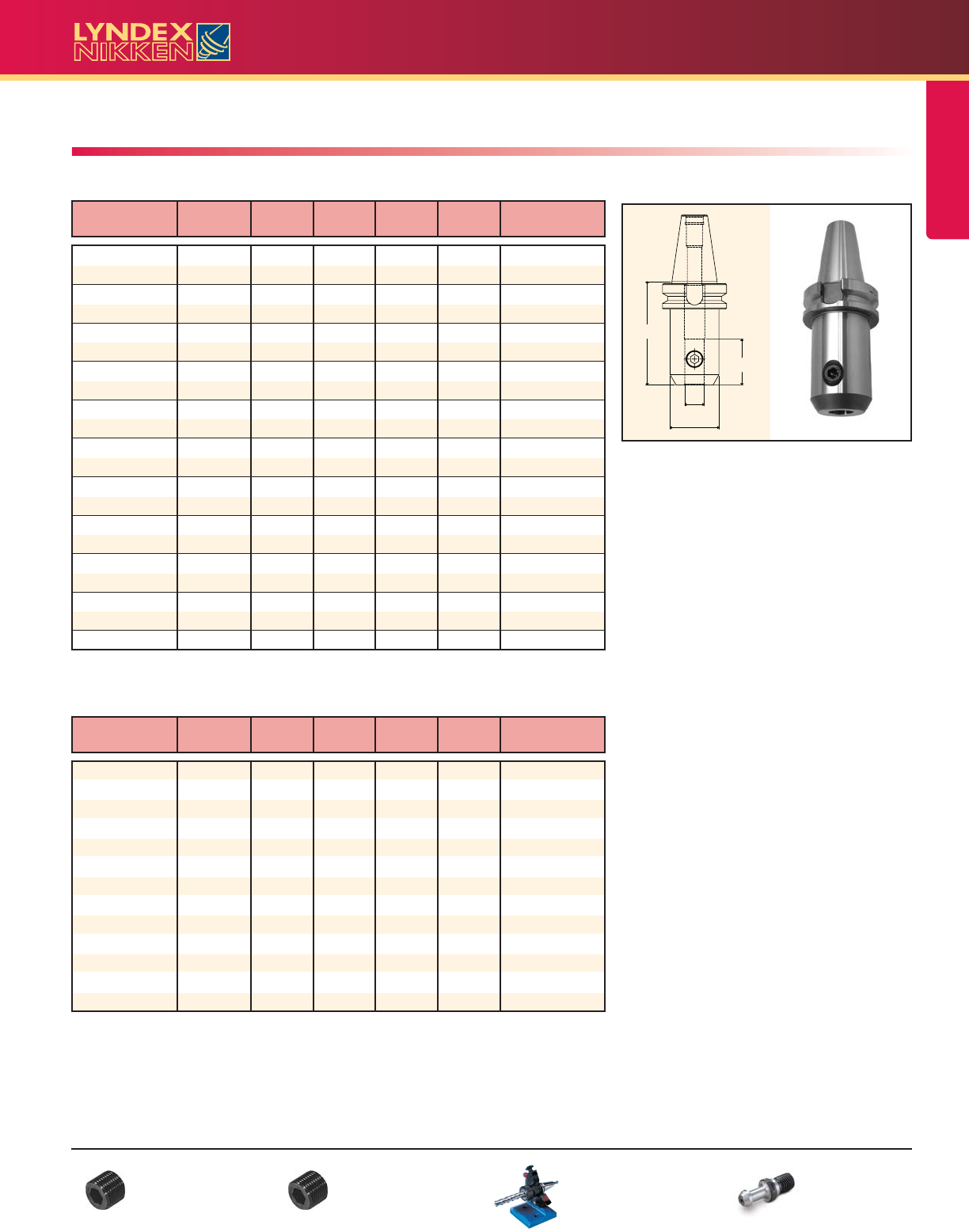

End Mill Holders
Part Number Style d L L1 D Set Screw
Part Number
C5006-0250-2.50DIN Standard 1/4” 2.50” 1.10” 0.79” S1/4-28X1/4
C5016-0250-4.00DIN Standard 1/4” 4.00” 1.10” 0.79” S1/4-28X1/4
C5026-0250-6.00DIN Standard 1/4” 6.00” 1.10” 0.79” S1/4-28X1/4
C5006-0312-2.50DIN Standard 5/16” 2.50” 1.26” 0.87” S5/16-24X1/4
C5016-0312-4.00DIN Standard 5/16” 4.00” 1.30” 0.87” S5/16-24X1/4
C5026-0312-6.00DIN Standard 5/16” 6.00” 1.30” 0.87” S5/16-24X1/4
C5006-0375-2.50DIN Standard 3/8” 2.50” 1.26” 1.00” S3/8-24X5/16
C5016-0375-4.00DIN Standard 3/8” 4.00” 1.26” 1.00” S3/8-24X5/16
C5026-0375-6.00DIN Standard 3/8” 6.00” 1.26” 1.00” S3/8-24X5/16
C5006-0437-2.50DIN Standard 7/16” 2.50” 1.50” 1.38” S7/16-20X3/8
C5016-0437-4.00DIN Standard 7/16” 4.00” 1.50” 1.38” S7/16-20X3/8
C5026-0437-6.00DIN Standard 7/16” 6.00” 1.53” 1.38” S7/16-20X3/8
C5006-0500-2.63DIN Standard 1/2” 2.63” 1.50” 1.38” S7/16-20X3/8
C5016-0500-4.00DIN Standard 1/2” 4.00” 1.50” 1.38” S7/16-20X3/8
C5026-0500-6.00DIN Standard 1/2” 6.00” 1.50” 1.38” S7/16-20X3/8
C5006-0625-3.00DIN Standard 5/8” 3.00” 1.61” 1.65” S9/16-18X1/2
C5016-0625-4.00DIN Standard 5/8” 4.00” 1.61” 1.65” S9/16-18X1/2
C5026-0625-6.00DIN Standard 5/8” 6.00” 1.61” 1.65” S9/16-18X1/2
C5006-0750-3.00DIN Standard 3/4” 3.00” 1.77” 1.89” S5/8-18X1/2
C5016-0750-4.00DIN Standard 3/4” 4.00” 1.77” 1.89” S5/8-18X1/2
C5026-0750-6.00DIN Standard 3/4” 6.00” 1.77” 1.89” S5/8-18X1/2
C5006-0875-3.75DIN Standard 7/8” 3.75” 2.08” 2.00” S5/8-18X1/2 (2)
C5016-0875-6.00DIN Standard 7/8” 6.00” 2.08” 2.00” S5/8-18X1/2 (2)
C5026-0875-8.00DIN Standard 7/8” 8.00” 2.08” 2.00” S5/8-18X1/2 (2)
C5006-1000-4.00DIN Standard 1” 4.00” 2.36” 2.36” S3/4-16X11/16 (2)
C5016-1000-6.00DIN Standard 1” 6.00” 2.36” 2.36” S3/4-16X11/16 (2)
C5026-1000-8.00DIN Standard 1” 8.00” 2.36” 2.36” S3/4-16X11/16 (2)
C5006-1250-4.00DIN Standard 1-1/4” 4.00” 2.55” 2.48” S3/4-16X11/16 (2
C5016-1250-6.00DIN Standard 1-1/4” 6.00” 2.55” 2.48” S3/4-16X11/16 (2)
C5026-1250-8.00DIN Standard 1-1/4” 8.00” 2.55” 2.48” S3/4-16X11/16 (2)
C5006-1500-4.50DIN Standard 1-1/2” 4.50” 2.75” 2.99” S3/4-16X11/16 (2)
C5016-1500-7.00DIN Standard 1-1/2” 7.00” 2.75” 2.99” S3/4-16X11/16 (2)
C5026-1500-9.00DIN Standard 1-1/2” 9.00” 2.75” 2.99” S3/4-16X11/16 (2)
C5006-2000-5.37DIN Standard 2” 5.37” 3.34” 3.74” S1”-14X7/8 (2)
C5006-2500-6.00DIN Standard 2-1/2” 6.00” 3.66” 4.25” S1”-14X7/8 (2)
800-543-6237
www.lyndexnikken.com
Accessories:
CAT End Mill Holders - DIN
End Mill Holders
16
CAT50 - DIN - Inch
Set Screws are included. Back-up screws not included.
“DIN” designates suitability for coolant through the flange per DIN 69871 Form B specs.
DIN extended length end mill holders are available. Please call us for more information.
L1
D
d
L
Set Screws
Page 28
Tool Jaw
Page 212
Pull Stud
Pages 139-140
Set Screws for
Aerospace Holders
Page 28
End Mill Holders
Part Number Style d L L1 D Set Screw
Part Number
C5006-6-2.50DIN Standard 6mm 2.50” 1.10” 0.79” S1/4-28X1/4
C5006-8-2.50DIN Standard 8mm 2.50” 1.10” 0.87” S5/16-24X1/4
C5006-10-2.50DIN Standard 10mm 2.50” 1.26” 1.00” S3/8-24X5/16
C5006-12-2.63DIN Standard 12mm 2.63” 1.50” 1.38” S7/16-20X3/8
C5006-14-3.00DIN Standard 14mm 3.00” 1.61” 1.65” S9/16-18X1/2
C5006-16-3.00DIN Standard 16mm 3.00” 1.61” 1.65” S9/16-18X1/2
C5006-18-3.00DIN Standard 18mm 3.00” 1.77” 1.89” S5/8-18X1/2
C5006-20-3.00DIN Standard 20mm 3.00” 1.77” 1.89” S5/8-18X1/2
C5006-25-4.00DIN Standard 25mm 4.00” 2.36” 2.36” S3/4-16X11/16 (2)
C5006-32-4.00DIN Standard 32mm 4.00” 2.55” 2.48” S3/4-16X11/16 (2)
C5006-40-4.50DIN Standard 40mm 4.50” 2.76” 3.07” S3/4-16X11/16 (2)
C5006-42-4.50DIN Standard 42mm 4.50” 2.76” 3.07” S3/4-16X11/16 (2)
C5006-50-5.37DIN Standard 50mm 5.37” 3.35” 3.74” S1-14X7/8 (2)
Set Screws are included. Back-up screws not included.
“DIN” designates suitability for coolant through the flange per DIN 69871 Form B specs.
800-543-6237
www.lyndexnikken.com
Accessories:
CAT End Mill Holders
End Mill Holders
17
CAT50 - DIN - Metric
Part Number Style d L L1 D Set Screw
Part Number
C5006-0375-2.82A Standard 3/8” 2.82” 1.52” 1.37” S3/8-24UNF
C5016-0375-4.69A Standard 3/8” 4.69” 1.52” 1.37” S3/8-24UNF
C5026-0375-6.69A Standard 3/8” 6.69” 1.52” 1.37” S3/8-24UNF
C5006-0500-2.73A Standard 1/2” 2.73” 1.68” 1.63” S3/8-24UNF
C5016-0500-4.60A Standard 1/2” 4.60” 1.68” 1.63” S3/8-24UNF
C5026-0500-6.60A Standard 1/2” 6.60” 1.68” 1.63” S3/8-24UNF
C5006-0625-2.66A Standard 5/8” 2.66” 1.74” 1.81” S1/2-20UNF
C5016-0625-4.53A Standard 5/8” 4.53” 1.74” 1.81” S1/2-20UNF
C5026-0625-6.53A Standard 5/8” 6.53” 1.74” 1.81” S1/2-20UNF
C5006-0750-2.63A Standard 3/4” 2.63” 2.01” 2.00” S1/2-20UNF
C5016-0750-4.50A Standard 3/4” 4.50” 2.01” 2.00” S1/2-20UNF
C5026-0750-6.50A Standard 3/4” 6.50” 2.01” 2.00” S1/2-20UNF
C5006-0875-2.63A Standard 7/8” 2.63” 2.01” 2.25” S1/2-20UNF
C5016-0875-4.50A Standard 7/8” 4.50” 2.01” 2.25” S1/2-20UNF
C5026-0875-6.50A Standard 7/8” 6.50” 2.01” 2.25” S1/2-20UNF
C5006-1000-3.00A Standard 1” 3.00” 2.27” 2.63” S3/4-16x7/16
C5016-1000-4.50A Standard 1” 4.50” 2.27” 2.63” S3/4-16x7/16
C5026-1000-6.50A Standard 1” 6.50” 2.27” 2.63” S3/4-16x7/16
C5006-1250-3.00A Standard 1-1/4” 3.00” 2.27” 2.87” S3/4-16x7/16
C5016-1250-4.50A Standard 1-1/4” 4.50” 2.27” 2.87” S3/4-16x7/16
C5026-1250-6.50A Standard 1-1/4” 6.50” 2.27” 2.87” S3/4-16x7/16
C5006-1500-3.00A Standard 1-1/2” 3.00” 2.27” 3.25” S3/4-16x7/16
C5006-2000-5.35A Standard 2” 5.35” 3.38” 4.00” S3/4-16x7/16(2)
C5016-2000-7.35A Standard 2” 7.35” 3.38” 4.00” S3/4-16x7/16(2)
C5006-2500-5.35A Standard 2-1/2” 5.35” 3.38” 5.00” S3/4-16x7/16(2)
C5016-2500-7.35A Standard 2-1/2” 7.35” 3.38” 5.00” S3/4-16x7/16(2)
CAT50 Aerospace
Set Screws are included. Back-up screws not included.
L1
D
d
L
L1
D
d
L
CAT50 Aerospace End Mill holders take back-up screws
3/4-16UNFx2-1/4.
Aerospace End Mill Holders accept end mills with a 5°
angled flat shank (per NAS 987).
Side double locking screw only available in 1” and above.
Set Screws
Page 28
Tool Jaw
Page 212
Pull Stud
Pages 139-140
Set Screws for
Aerospace Holders
Page 28
End Mill Holders
BT30 - Inch
Part Number Style d L L1 D Set Screw
Part Number
B3006-0125-2.36 Standard 1/8” 2.36” 0.63” 0.75” S6-32X1/4
B3006-0187-2.36 Standard 3/16” 2.36” 0.87” 0.75” S8-32X1/4
B3006-0250-2.36 Standard 1/4” 2.36” 1.10” 0.79” S1/4-28X1/4
B3006-0312-2.36 Standard 5/16” 2.36” 1.26” 0.87” S5/16-24X1/4
B3006-0375-2.36 Standard 3/8” 2.36” 1.26” 1.00” S3/8-24X5/16
B3006-0437-2.36 Standard 7/16” 2.36” 1.50” 1.38” S7/16-20X3/8
B3006-0500-2.36 Standard 1/2” 2.36” 1.50” 1.38” S7/16-20X3/8
B3006-0625-2.50 Standard 5/8” 2.50” 1.61” 1.65” S9/16-18X1/2
B3006-0750-3.00 Standard 3/4” 3.00” 1.77” 1.88” S5/8-18X1/2
B3006-0875-3.54 Standard 7/8” 3.54” 2.09” 2.00” S5/8-18X1/2 (2)
B3006-1000-3.54 Standard 1” 3.54” 2.36” 2.36” S3/4-16X11/16 (2)
Set Screws are included. Back-up screws not included.
800-543-6237
www.lyndexnikken.com
Accessories:
End Mill Holders
18
BT End Mill Holders
L1
d
D
L
• End mill inner bore T.I.R. < 0.0002
• Through-spindle coolant capability
• AT3 or better taper
• Available in high-speed balanceable versions Set-up: quick and easy
Coolant-thru: jet slots (optional)
Speed: up to 20,000 rpm
TIR: < .0002 run out in ID bore
BT30 - Metric
Part Number Style d L L1 D Set Screw
Part Number
B3006-6-2.50 Standard 6mm 2.50” 1.10” 0.79” S1/4-28X1/4
B3006-8-2.50 Standard 8mm 2.50” 1.26” 0.87” S5/16-24X1/4
B3006-10-2.50 Standard 10mm 2.50” 1.26” 1.00” S3/8-24X5/16
B3006-12-2.50 Standard 12mm 2.50” 1.50” 1.38” S7/16-20X3/8
B3006-14-2.50 Standard 14mm 2.50” 1.61” 1.65” S9/16-18X1/2
B3006-16-2.50 Standard 16mm 2.50” 1.61” 1.65” S9/16-18X1/2
B3006-18-3.50 Standard 18mm 3.50” 1.65” 1.89” S5/8-18X1/2
B3006-20-3.50 Standard 20mm 3.50” 1.65” 1.89” S5/8-18X1/2
B3006-25-3.50 Standard 25mm 3.50” 2.36” 2.36” S3/4-16X11/16(2)
Set Screws are included. Back-up screws not included.
L1
d
D
L
Set Screws
Page 28
Tool Jaw
Page 212
Pull Stud
Pages 139-140
Set Screws for
Aerospace Holders
Page 28
Milling
Tapping
★★★★✩
★✩✩✩✩
Please note that the maximum RPM listed in our catalog may vary depending
on the toolholder shank, weight, balanceability and the G rating.
End Mill Holders
BT40 - Inch
Part Number Style d L L1 D Set Screw
Part Number
Stubby
800-543-6237
www.lyndexnikken.com
Accessories:
BT End Mill Holders
End Mill Holders
19
B40S6-0125-1.38 Stubby 1/8” 1.38” 0.78” 0.75” S6-32X1/4
B4006-0125-2.36 Standard 1/8” 2.36” 0.63” 0.75” S6-32X1/4
B4016-0125-4.00 Standard 1/8” 4.00” 0.63” 0.75” S6-32X1/4
B40S6-0187-1.38 Stubby 3/16” 1.38” 0.98” 0.75” S8-32X1/4
B4006-0187-2.50 Standard 3/16” 2.50” 0.86” 0.75” S8-32X1/4
B4016-0187-4.00 Standard 3/16” 4.00” 0.86” 0.75” S8-32X1/4
B40S6-0250-1.38 Stubby 1/4” 1.38” 1.18” 0.79” S1/4-28X1/4
B4006-0250-2.50 Standard 1/4” 2.50” 1.10” 0.79” S1/4-28X1/4
B4016-0250-4.00 Standard 1/4” 4.00” 1.10” 0.79” S1/4-28X1/4
B40S6-0312-1.38 Stubby 5/16” 1.38” 1.38” 0.87” S5/16-24X1/4
B4006-0312-2.50 Standard 5/16” 2.50” 1.26” 0.87” S5/16-24X1/4
B4016-0312-4.00 Standard 5/16” 4.00” 1.26” 0.87” S5/16-24X1/4
B40S6-0375-1.38 Stubby 3/8” 1.38” 1.38” 1.00” S3/8-24x5/16
B4006-0375-2.50 Standard 3/8” 2.50” 1.26” 1.00” S3/8-24x5/16
B4016-0375-4.00 Standard 3/8” 4.00” 1.26” 1.00” S3/8-24x5/16
B4006-0437-2.50 Standard 7/16” 2.50” 1.53” 1.38” S7/16-20X3/8
B40S6-0500-1.75 Stubby 1/2” 1.75” 1.57” 1.38” S7/16-20X3/8
B4006-0500-2.50 Standard 1/2” 2.50” 1.50” 1.38” S7/16-20X3/8
B4016-0500-4.00 Standard 1/2” 4.00” 1.57” 1.38” S7/16-20X3/8
B40S6-0625-1.75 Stubby 5/8” 1.75” 1.61” 1.65” S9/16-18X1/2
B4006-0625-2.50 Standard 5/8” 2.50” 1.61” 1.65” S9/16-18X1/2
B4016-0625-4.00 Standard 5/8” 4.00” 1.61” 1.65” S9/16-18X1/2
B40S6-0750-1.75 Stubby 3/4” 1.75” 1.77” 1.89” S5/8-18X1/2
B4006-0750-2.50 Standard 3/4” 2.50” 1.77” 1.89” S5/8-18X1/2
B4016-0750-4.00 Standard 3/4” 4.00” 1.77” 1.89” S5/8-18X1/2
B4006-0875-3.38 Standard 7/8” 3.38” 2.08” 2.00” S5/8-18X1/2(2)
B4016-0875-6.00 Standard 7/8” 6.00” 2.08” 2.00” S5/8-18X1/2(2)
B40S6-1000-2.00 Stubby 1” 2.00” 2.28” 2.25” S3/4-16X11/16
B4006-1000-3.56 Standard 1” 3.56” 2.36” 2.36” S3/4-16X11/16(2)
B4016-1000-6.00 Standard 1” 6.00” 2.36” 2.36” S3/4-16X11/16(2)
B40S6-1250-2.00 Stubby 1-1/4” 2.00” 2.16” 2.25” S3/4-16X11/16
B4006-1250-3.56 Standard 1-1/4” 3.56” 2.56” 2.48” S3/4-16X11/16(2)
B4016-1250-6.00 Standard 1-1/4” 6.00” 2.56” 2.48” S3/4-16X11/16(2)
B4006-1500-4.50 Standard 1-1/2” 4.50” 2.83” 2.99” S3/4-16X11/16(2)
B4016-1500-6.00 Standard 1-1/2” 6.00” 2.83” 2.99” S3/4-16X11/16(2)
Set Screws are included. Back-up screws not included.
D
d
L1
L
L1
d
D
L
Standard
Set Screws
Page 28
Tool Jaw
Page 212
Pull Stud
Pages 139-140
Set Screws for
Aerospace Holders
Page 28
End Mill Holders
800-543-6237
www.lyndexnikken.com
Accessories:
End Mill Holders
20
BT40 - Metric
Part Number Style d L L1 D Set Screw
Part Number
BT End Mill Holders
B4006-6-2.50 Standard 6mm 2.50” 1.10” 0.79” S1/4-28X1/4
B4016-6-4.00 Standard 6mm 4.00” 1.10” 0.79” S1/4-28X1/4
B4006-8-2.50 Standard 8mm 2.50” 1.26” 0.87” S5/16-24X1/4
B4016-8-4.00 Standard 8mm 4.00” 1.26” 0.87” S5/16-24X1/4
B4006-10-2.50 Standard 10mm 2.50” 1.26” 1.00” S3/8-24X5/16
B4016-10-4.00 Standard 10mm 4.00” 1.26” 1.00” S3/8-24X5/16
B4006-12-2.50 Standard 12mm 2.50” 1.50” 1.38” S7/16-20X3/8
B4016-12-4.00 Standard 12mm 4.00” 1.50” 1.38” S7/16-20X3/8
B4006-14-2.50 Standard 14mm 2.50” 1.61” 1.65” S9/16-18X1/2
B4016-14-4.00 Standard 14mm 4.00” 1.61” 1.65” S9/16-18X1/2
B4006-16-2.50 Standard 16mm 2.50” 1.61” 1.65” S9/16-18X1/2
B4016-16-4.00 Standard 16mm 4.00” 1.61” 1.65” S9/16-18X1/2
B4006-18-2.50 Standard 18mm 2.50” 1.77” 1.89” S5/8-18X1/2
B4016-18-4.00 Standard 18mm 4.00” 1.77” 1.89” S5/8-18X1/2
B4006-20-2.50 Standard 20mm 2.50” 1.77” 1.89” S5/8-18X1/2
B4016-20-4.00 Standard 20mm 4.00” 1.77” 1.89” S5/8-18X1/2
B4006-25-3.56 Standard 25mm 3.56” 2.36” 2.36” S3/4-16X11/16(2)
B4016-25-6.00 Standard 25mm 6.00” 2.36” 2.36” S3/4-16X11/16(2)
B4006-32-3.56 Standard 32mm 3.56” 2.56” 2.48” S3/4-16X11/16(2)
B4016-32-6.00 Standard 32mm 6.00” 2.56” 2.48” S3/4-16X11/16(2)
Set Screws are included. Back-up screws not included.
L1
d
D
L
Set Screws
Page 28
Tool Jaw
Page 212
Pull Stud
Pages 139-140
Set Screws for
Aerospace Holders
Page 28
End Mill Holders
BT50 - Metric
BT End Mill Holders
800-543-6237
www.lyndexnikken.com
Accessories:
End Mill Holders
21
Part Number Style d L L1 D Set Screw
Part Number
B5006-6-2.50 Standard 6mm 2.50” 1.10” 0.79” S1/4-28X1/4
B5006-8-2.50 Standard 8mm 2.50” 1.25” 0.87” S5/16-24X1/4
B5006-10-2.75 Standard 10mm 2.75” 1.25” 1.00” S3/8-24X5/16
B5006-12-3.00 Standard 12mm 3.00” 1.50” 1.38” S7/16-20X3/8
B5006-14-3.00 Standard 14mm 3.00” 1.61” 1.65” S9/16-18X1/2
B5006-16-3.00 Standard 16mm 3.00” 1.61” 1.65” S9/16-18X1/2
B5006-18-3.00 Standard 18mm 3.00” 1.77” 1.89” S5/8-18X1/2
B5006-20-3.00 Standard 20mm 3.00” 1.77” 1.89” S5/8-18X1/2
B5006-25-4.00 Standard 25mm 4.00” 2.36” 2.36” S3/4-16X11/16 (2)
B5006-32-4.00 Standard 32mm 4.00” 2.55” 2.48” S3/4-16X11/16 (2)
B5006-40-4.49 Standard 40mm 4.49” 2.83” 3.07” S3/4-16X11/16 (2)
B5006-42-4.49 Standard 42mm 4.49” 2.83” 3.07” S3/4-16X11/16 (2)
B5006-50-5.00 Standard 50mm 5.00” 3.34” 3.74” S1-14X7/8 (2)
Part Number Style d L L1 D Set Screw
Part Number
B5006-0250-3.00 Standard 1/4” 3.00” 1.10” 0.78” S1/4-28X1/4
B5016-0250-6.00 Standard 1/4” 6.00” 1.10” 0.78” S1/4-28X1/4
B5006-0375-2.75 Standard 3/8” 2.75” 1.26” 1.00” S3/8-24X5/16
B5016-0375-6.00 Standard 3/8” 6.00” 1.26” 1.00” S3/8-24X5/16
B5006-0500-3.00 Standard 1/2” 3.00” 1.50” 1.38” S7/16-20X3/8
B5016-0500-6.00 Standard 1/2” 6.00” 1.50” 1.38” S7/16-20X3/8
B5006-0625-3.00 Standard 5/8” 3.00” 1.61” 1.65” S9/16-18X1/2
B5016-0625-6.00 Standard 5/8” 6.00” 1.61” 1.65” S9/16-18X1/2
B5006-0750-3.00 Standard 3/4” 3.00” 1.77” 1.89” S5/8-18X1/2
B5016-0750-6.00 Standard 3/4” 6.00” 1.77” 1.89” S5/8-18X1/2
B5006-0875-4.00 Standard 7/8” 4.00” 2.08” 2.00” S5/8-18X1/2 (2)
B5016-0875-6.00 Standard 7/8” 6.00” 2.08” 2.00” S5/8-18X1/2 (2)
B5006-1000-4.00 Standard 1” 4.00” 2.36” 2.36” S3/4-16X11/16 (2)
B5016-1000-6.00 Standard 1” 6.00” 2.36” 2.36” S3/4-16X11/16 (2)
B5006-1250-4.00 Standard 1-1/4” 4.00” 2.56” 2.48” S3/4-16X11/16 (2)
B5016-1250-6.00 Standard 1-1/4” 6.00” 2.56” 2.48” S3/4-16X11/16 (2)
B5006-1500-4.50 Standard 1-1/2” 4.50” 2.83” 2.99” S3/4-16X11/16 (2)
B5016-1500-7.00 Standard 1-1/2” 7.00” 2.83” 2.99” S3/4-16X11/16 (2)
B5006-2000-5.00 Standard 2” 5.00” 3.34” 3.74” S1-14X7/8 (2)
B5016-2000-8.00 Standard 2” 8.00” 3.34” 3.74” S1-14X7/8 (2)
B5006-2500-6.00 Standard 2-1/2” 6.00” 3.66” 4.25” S1-14X7/8 (2)
BT50 - Inch
L1
d
D
L
Set Screws are included. Back-up screws not included.
Set Screws are included. Back-up screws not included.
Set Screws
Page 28
Tool Jaw
Page 212
Pull Stud
Pages 139-140
Set Screws for
Aerospace Holders
Page 28
End Mill Holders
800-543-6237
www.lyndexnikken.com
Accessories:
End Mill Holders
22
HSK63A
Part Number d L L1 D Set Screw
Part Number
HSK63A-0187-3.00 3/16” 3.00” 0.866” 0.748” S8-32X1/4
HSK63A-0187-5.00 3/16” 5.00” 0.866” 0.748” S8-32X1/4
HSK63A-0250-3.00 1/4” 3.00” 1.102” 0.787” S1/4-28X1/4
HSK63A-0250-5.00 1/4” 5.00” 1.102” 0.787” S1/4-28X1/4
HSK63A-0312-3.00 5/16” 3.00” 1.417” 0.874” S5/16-24X1/4
HSK63A-0312-5.00 5/16” 5.00” 1.417” 0.874” S5/16-24X1/4
HSK63A-0375-3.50 3/8” 3.50” 1.574” 1.00” S3/8-24X5/16
HSK63A-0375-5.00 3/8” 5.00” 1.574” 1.00” S3/8-24X5/16
HSK63A-0437-4.00 7/16” 4.00” 1.771” 1.378” S7/16-20X3/8
HSK63A-0437-5.00 7/16” 5.00” 1.771” 1.378” S7/16-20X3/8
HSK63A-0500-4.00 1/2” 4.00” 1.771” 1.378” S7/16-20X3/8
HSK63A-0500-5.00 1/2” 5.00” 1.771” 1.378” S7/16-20X3/8
HSK63A-0625-4.00 5/8” 4.00” 1.889” 1.654” S9/16-18X1/2
HSK63A-0625-5.00 5/8” 5.00” 1.889” 1.654” S9/16-18X1/2
HSK63A-0750-4.50 3/4” 4.50” 1.968” 1.889” S5/8-18X1/2
HSK63A-0750-6.00 3/4” 6.00” 1.968” 1.889” S5/8-18X1/2
HSK63A-1000-4.50 1” 4.50” 2.755” 2.363” S3/4-16X11/16 (2)
HSK63A-1000-6.00 1” 6.00” 2.755” 2.363” S3/4-16X11/16 (2)
HSK63A-1250-4.50 1-1/4” 4.50” 2.952” 2.88” S3/4-16X11/16 (2)
HSK63A-1250-6.00 1-1/4” 6.00” 2.952” 2.88” S3/4-16X11/16 (2)
HSK40A
Part Number d L L1 D Set Screw
Part Number
HSK40A-0125-75 1/8” 2.95” 0.63” 0.75” S6-32X1/4
HSK40A-0187-75 3/16” 2.95” 0.87” 0.75” S8-32X1/4
HSK40A-0250-75 1/4” 2.95” 1.42” 0.79” S1/4-28x1/4
HSK40A-0312-75 5/16” 2.95” 1.42” 0.87” S5/16-24X1/4
HSK40A-0375-75 3/8” 2.95” 1.57” 1.00” S3/8-24X5/16
HSK40A-0437-75 7/16” 2.95” 1.78” 1.38” S7/16-20X3/8
HSK40A-0500-75 1/2” 2.95” 1.78” 1.38” S7/16-20X3/8
HSK40A-0625-75 5/8” 2.95” 1.89” 1.65” S9/16-18X1/2
HSK40A-0750-75 3/4” 2.95” 1.97” 1.89” S5/8-18X1/2
Set Screws are included. Back-up screws not included.
Coolant tube and coolant tube wrench are sold separately.

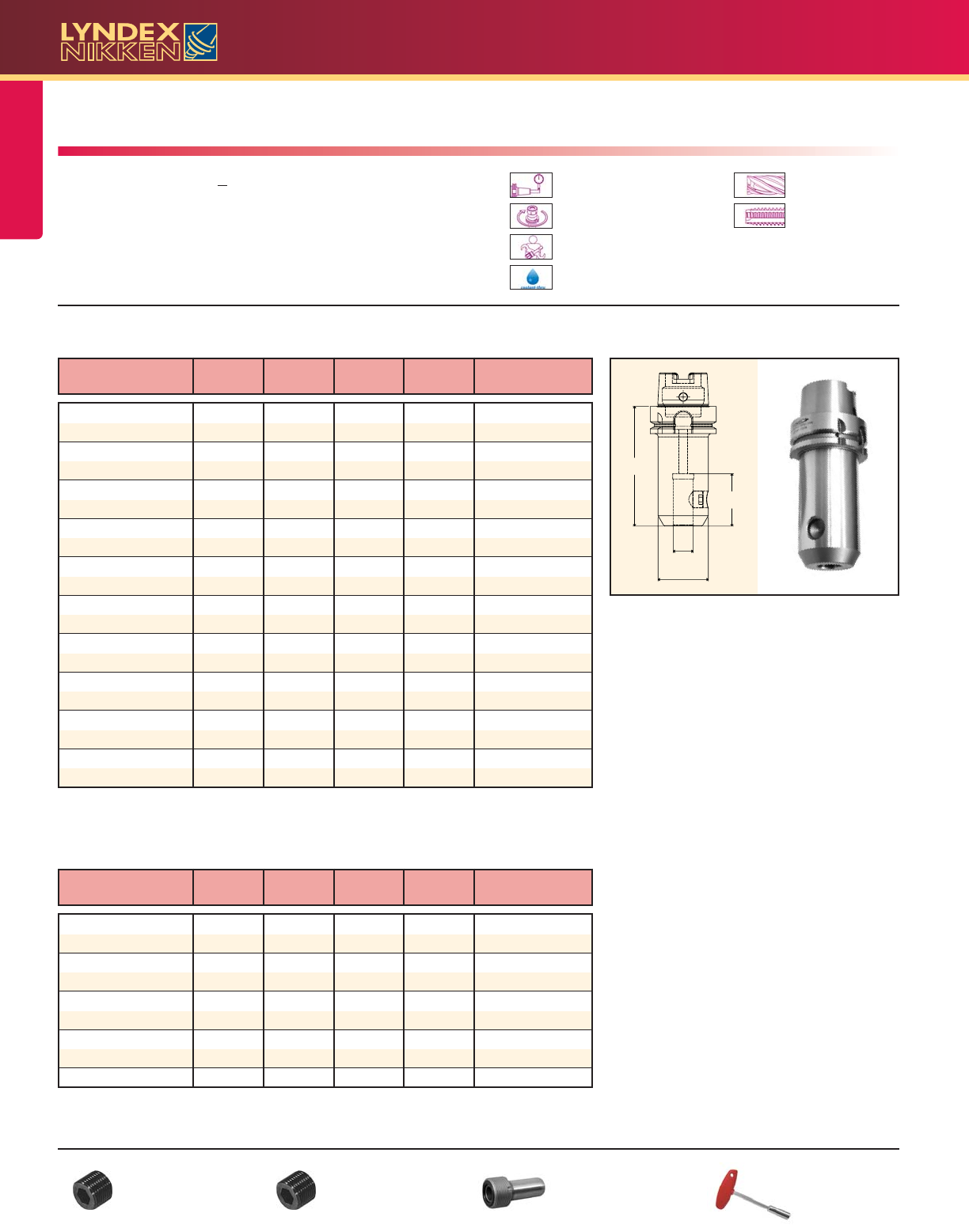

HSK End Mill Holders
d
L1
D
L
• End mill inner bore T.I.R. < 0.0002
• Through-spindle coolant capability
• AT3 or better taper
Set-up: quick and easy
Coolant-thru: jet slots (optional)
Speed: up to 20,000 rpm
TIR: < .0002 run out in ID bore
Set Screws
Page 28
HSK Coolant Tube
Page 28
HSK Coolant
Tube Wrench
Page 28
Set Screws for
Aerospace Holders
Page 28
Milling
Tapping
★★★★✩
★✩✩✩✩
Please note that the maximum RPM listed in our catalog may vary depending
on the toolholder shank, weight, balanceability and the G rating.
End Mill Holders
800-543-6237
www.lyndexnikken.com
Accessories:
End Mill Holders
23

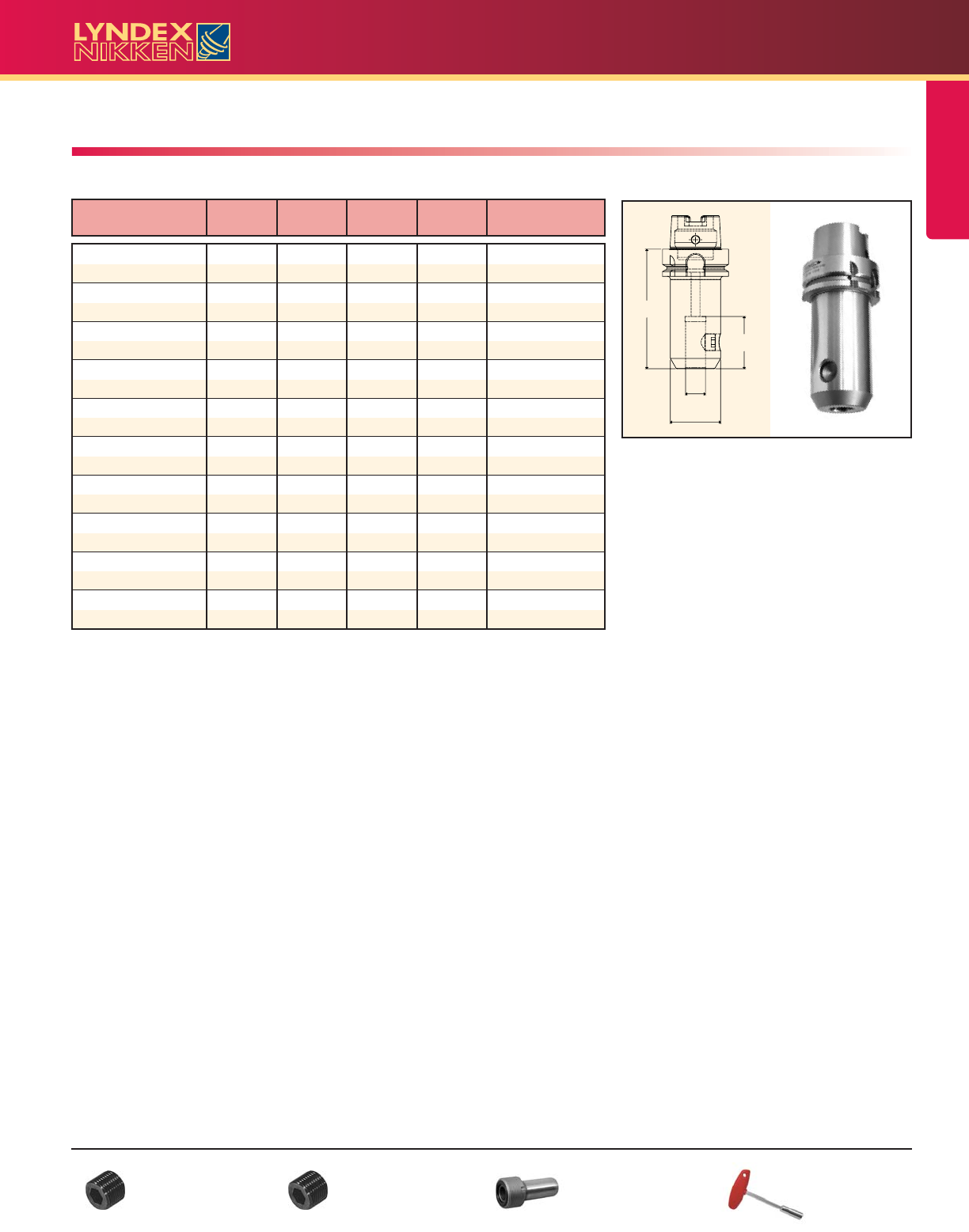

HSK End Mill Holders
HSK100A
Part Number d L L1 D Set Screw
Part Number
HSK100A-0187-4.00 3/16” 4.00” 0.867” 0.748” S8-32X1/4
HSK100A-0187-6.00 3/16” 6.00” 0.867” 0.748” S8-32X1/4
HSK100A-0250-4.00 1/4” 4.00” 1.102” 0.787” S1/4-28X1/4
HSK100A-0250-6.00 1/4” 6.00” 1.102” 0.787” S1/4-28X1/4
HSK100A-0312-4.00 5/16” 4.00” 1.220” 0.866” S5/16-24X1/4
HSK100A-0312-6.00 5/16” 6.00” 1.220” 0.866” S5/16-24X1/4
HSK100A-0375-4.00 3/8” 4.00” 1.260” 1.00” S3/8-24X5/16
HSK100A-0375-6.00 3/8” 6.00” 1.260” 1.00” S3/8-24X5/16
HSK100A-0437-4.00 7/16” 4.00” 1.496” 1.378” S7/16-20X3/8
HSK100A-0437-6.00 7/16” 6.00” 1.496” 1.378” S7/16-20X3/8
HSK100A-0500-4.00 1/2” 4.00” 1.575” 1.378” S7/16-20X3/8
HSK100A-0500-6.00 1/2” 6.00” 1.575” 1.378” S7/16-20X3/8
HSK100A-0625-4.00 5/8” 4.00” 1.693” 1.654” S9/16-18X1/2
HSK100A-0625-6.00 5/8” 6.00” 1.693” 1.654” S9/16-18X1/2
HSK100A-0750-4.00 3/4” 4.00” 1.969” 1.890” S5/8-18X1/2
HSK100A-0750-6.00 3/4” 6.00” 1.969” 1.890” S5/8-18X1/2
HSK100A-1000-4.00 1” 4.00” 2.559” 2.362” S3/4-16X11/16 (2)
HSK100A-1000-6.00 1” 6.00” 2.559” 2.362” S3/4-16X11/16 (2)
HSK100A-1250-4.00 1-1/4” 4.00” 2.559” 2.480” S3/4-16X11/16 (2)
HSK100A-1250-6.00 1-1/4” 6.00” 2.559” 2.480” S3/4-16X11/16 (2)
Set Screws are included. Back-up screws not included.
Coolant tube and coolant tube wrench are sold separately.
d
L1
D
L
Set Screws
Page 28
HSK Coolant Tube
Page 28
HSK Coolant
Tube Wrench
Page 28
Set Screws for
Aerospace Holders
Page 28
End Mill Holders
End Mill Holders
Accessories:
800-543-6237
www.lyndexnikken.com
24
NMTB30
Part Number d L L1 D Set Screw
Part Number
N3006-0125-1.75 1/8” 1.75” 0.63” 0.75” S6-32X1/4
N3006-0187-1.75 3/16” 1.75” 0.87” 0.75” S8-32X1/4
N3006-0250-1.75 1/4” 1.75” 1.10” 0.79” S1/4-28X1/4
N3006-0312-1.75 5/16” 1.75” 1.26” 0.87” S5/16-24X1/4
N3006-0375-1.75 3/8” 1.75” 1.26” 1.00” S3/8-24X5/16
N3006-0500-1.75 1/2” 1.75” 1.57” 1.38” S7/16-20X3/8
N3006-0625-1.75 5/8” 1.75” 1.69” 1.43” S9/16-18X1/2
N3006-0750-2.25 3/4” 2.25” 1.85” 1.89” S5/8-18X1/2
N3006-0875-2.50 7/8” 2.50” 1.96” 2.01” S5/8-18X1/2
N3006-1000-2.69 1” 2.69” 2.24” 2.36” S3/4-16X11/16
N3006-1250-3.62 1-1/4” 3.62” 2.24” 2.48” S3/4-16X11/16 (2)
N4006-0125-2.31 1/8” 2.31” 0.63” 0.75” S6-32X1/4
N4006-0187-2.31 3/16” 2.31” 0.87” 0.75” S8-32X1/4
N4006-0250-2.31 1/4” 2.31” 1.10” 0.79” S1/4-28X1/4
N4006-0312-2.31 5/16” 2.31” 1.26” 0.87” S5/16-24X1/4
N4006-0375-2.31 3/8” 2.31” 1.26” 1.00” S3/8-24X5/16
N4006-0437-2.31 7/16” 2.31” 1.50” 1.38” S7/16-20X3/8
N4006-0500-2.31 1/2” 2.31” 1.50” 1.38” S7/16-20X3/8
N4006-0625-2.31 5/8” 2.31” 1.61” 1.65” S9/16-18X1/2
N4006-0750-2.31 3/4” 2.31” 1.77” 1.89” S5/8-18X1/2
N4006-0875-2.94 7/8” 2.94” 2.09” 2.01” S5/8-18X1/2 (2)
N4006-1000-3.37 1” 3.37” 2.36” 2.36” S3/4-16X11/16 (2)
N4006-1250-3.69 1-1/4” 3.69” 2.56” 2.48” S3/4-16X11/16 (2)
N4006-1500-3.95 1-1/2” 3.95” 2.56” 2.99” S3/4-16X11/16 (2)
NMTB shanks are suitable for use with Erickson QC spindles.
Set Screws are included. Back-up screws not included.

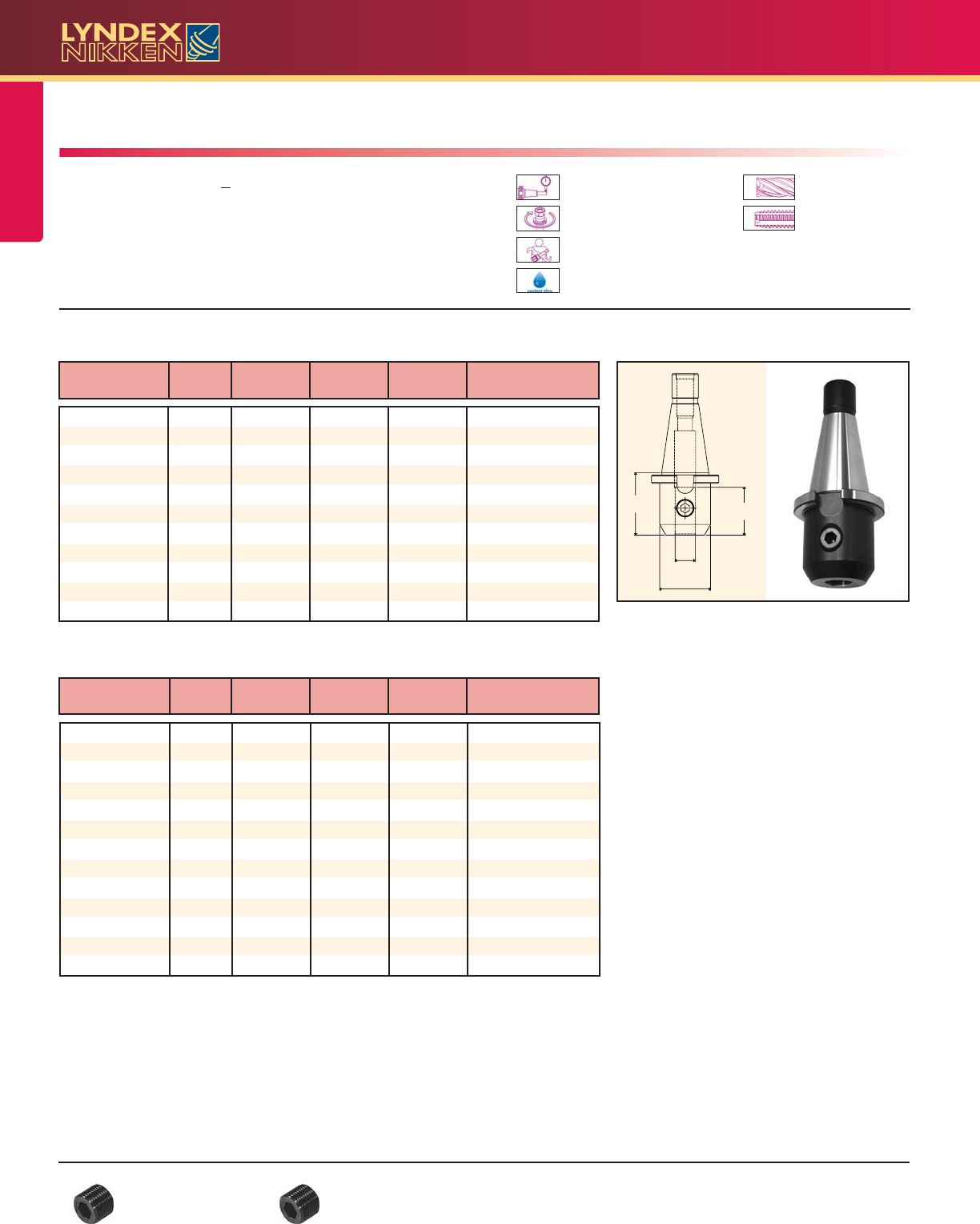

NMTB End Mill Holders
d
L1
D
L
• End mill inner bore T.I.R. < 0.0002
• Through-spindle coolant capability
• AT3 or better taper
Set-up: quick and easy
Coolant-thru: jet slots (optional)
Speed: up to 20,000 rpm
TIR: < .0002 run out in ID bore
NMTB40
Part Number d L L1 D Set Screw
Part Number
Set Screws
Page 28
Set Screws for
Aerospace Holders
Page 28
Milling
Tapping
★★★★✩
★✩✩✩✩
Please note that the maximum RPM listed in our catalog may vary depending
on the toolholder shank, weight, balanceability and the G rating.
End Mill Holders
25
End Mill Holders
NMTB End Mill Holders
Accessories:
800-543-6237
www.lyndexnikken.com
NMTB50
Part Number d L L1 D Set Screw
Part Number
N5006-0250-2.75 1/4” 2.75” 1.10” 0.79” S1/4-28X1/4
N5006-0375-2.75 3/8” 2.75” 1.26” 1.00” S3/8-24X5/16
N5016-0375-4.50 3/8” 4.50” 1.26” 1.00” S3/8-24X5/16
N5006-0500-2.75 1/2” 2.75” 1.50” 1.38” S7/16-20X3/8
N5016-0500-4.50 1/2” 4.50” 1.50” 1.38” S7/16-20X3/8
N5006-0625-2.75 5/8” 2.75” 1.61” 1.65” S9/16-18X1/2
N5016-0625-4.50 5/8” 4.50” 1.61” 1.65” S9/16-18X1/2
N5006-0750-2.88 3/4” 2.88” 1.77” 1.89” S5/8-18X1/2
N5016-0750-4.50 3/4” 4.50” 1.77” 1.89” S5/8-18X1/2
N5006-0875-2.88 7/8” 2.88” 2.09” 2.01” S5/8-18X1/2 (2)
N5016-0875-4.50 7/8” 4.50” 2.09” 2.01” S5/8-18X1/2 (2)
N5006-1000-3.50 1” 3.50” 2.36” 2.36” S3/4-16X11/16 (2)
N5016-1000-5.50 1” 5.50” 2.36” 2.36” S3/4-16X11/16 (2)
N5006-1250-3.50 1-1/4” 3.50” 2.56” 2.48” S3/4-16X11/16 (2)
N5016-1250-5.50 1-1/4” 5.50” 2.56” 2.48” S3/4-16X11/16 (2)
N5006-1500-4.00 1-1/2” 4.00” 2.83” 2.99” S3/4-16X11/16 (2)
N5016-1500-6.00 1-1/2” 6.00” 2.83” 2.99” S3/4-16X11/16 (2)
N5006-2000-4.69 2” 4.69” 3.34” 3.74” S1-14X7/8 (2)
NMTB shanks are suitable for use with Erickson QC spindles.
Set Screws are included. Back-up screws not included.
d
L1
D
L
Set Screws
Page 28
Set Screws for
Aerospace Holders
Page 28
End Mill Holders
End Mill Holders
Accessories:
800-543-6237
www.lyndexnikken.com
26
Part Number d L L1 D Set Screw
Part Number
830-008-1.33 1/8” 1.33” 0.63” 0.75” S6-32X1/4
830-012-1.33 3/16” 1.33” 0.87” 0.75” S8-32X1/4
830-016-1.33 1/4” 1.33” 1.10” 0.79” S1/4-28X1/4
830-020-1.75 5/16” 1.75” 1.26” 0.87” S5/16-24X1/4
830-024-1.33 3/8” 1.33” 1.26” 1.00” S3/8-24X5/16
830-028-1.33 7/16” 1.33” 1.50” 1.38” S7/16-20X3/8
830-032-1.33 1/2” 1.33” 1.50” 1.38” S7/16-20X3/8
830-040-1.50 5/8” 1.50” 1.61” 1.65” S9/16-18X1/2
830-048-2.37 3/4” 2.37” 1.77” 1.89” S5/8-18X1/2
830-056-2.75 7/8” 2.75” 2.36” 2.01” S5/8-18X1/2 (2)
830-064-3.25 1” 3.25” 2.76” 2.36” S3/4-16X11/16 (2)
830-080-3.25 1-1/4” 3.25” 2.56” 2.48” S3/4-16X11/16 (2)
830-096-3.75 1-1/2” 3.75” 2.83” 2.99” S3/4-16X11/16 (2)
Set Screws are included. Back-up screws not included.

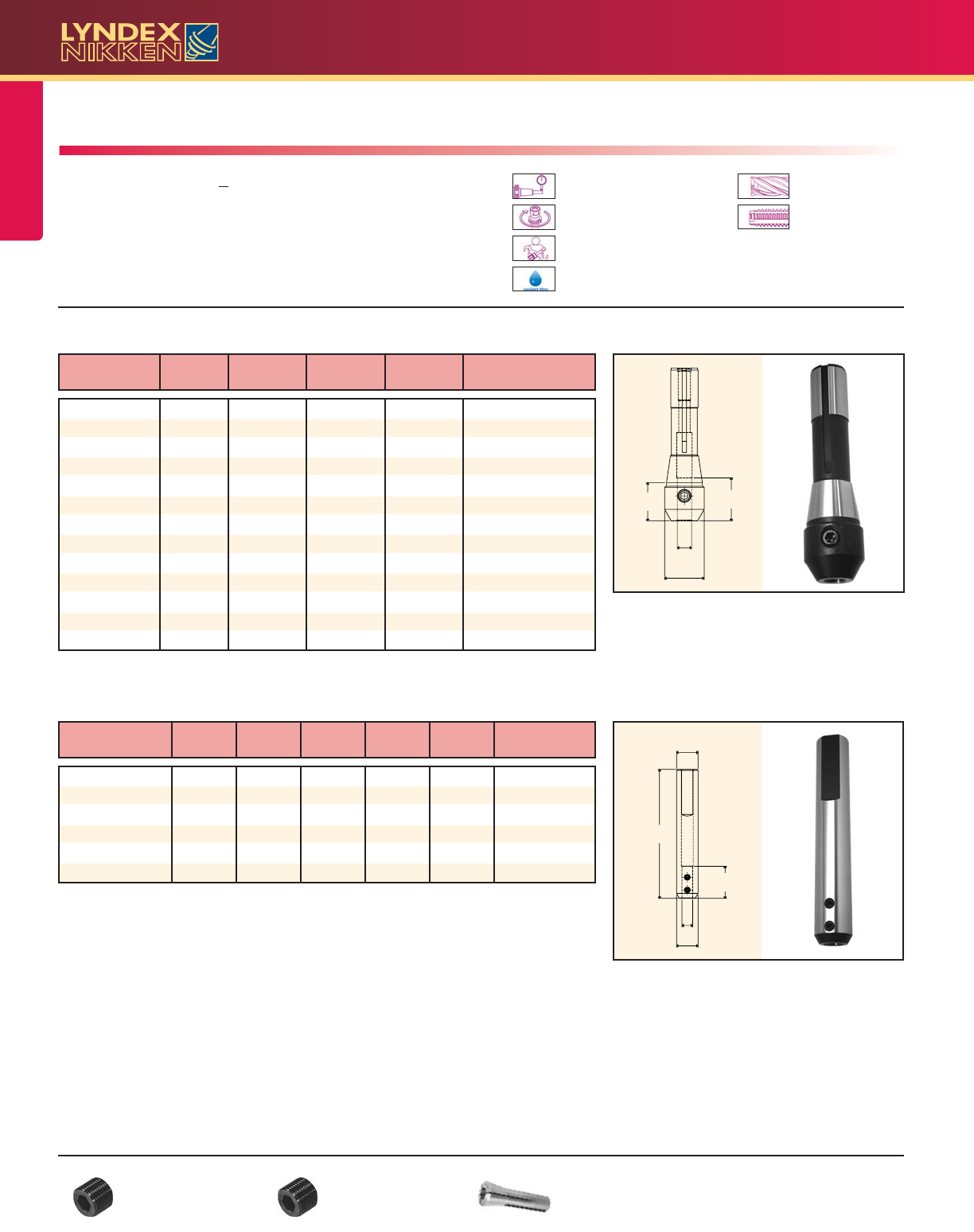

R8 and Straight Shank End Mill Holders
Part Number d L L1 D D1 Set Screw
Part Number
S7506-0125-6.00 1/8” 6.00” 0.63” .750” 0.50” S6-32X1/4
S7506-0187-6.00 3/16” 6.00” 0.86” .750” 0.56” S8-32X1/4
S7506-0250-6.00 1/4” 6.00” 1.10” .750” 0.75” S1/4-28X1/4
S7506-0312-6.00 5/16” 6.00” 1.26” .750” 0.75” S5/16-24X1/4
S1006-0375-6.00 3/8” 6.00” 1.26” 1.00” 1.00” S3/8-24X5/16 (2)
S1006-0500-6.00 1/2” 6.00” 1.49” 1.00” 1.00” S1/4-28x1/4 (2)
Set Screws are included. Back-up screws not included.
D
L
d
L1
D
D1
d
L
L1
• End mill inner bore T.I.R. < 0.0002
• Through-spindle coolant capability
• AT3 or better taper
Set-up: quick and easy
Coolant-thru: jet slots (optional)
Speed: up to 20,000 rpm
TIR: < .0002 run out in ID bore
R8
Straight Shank
Set Screws
Page 28
R8 Collet
Page 128
Set Screws for
Aerospace Holders
Page 28
Milling
Tapping
★★★★✩
★✩✩✩✩
Please note that the maximum RPM listed in our catalog may vary depending
on the toolholder shank, weight, balanceability and the G rating.
End Mill Holders
27
End Mill Holders
Accessories:
800-543-6237
www.lyndexnikken.com
Part Number Taper d L L1 D Set Screw
Part Number
M0206-0125-1.50 MT#2 1/8” 1.50” 0.67” 0.75” S6-32X1/4
M0206-0187-1.50 MT#2 3/16” 1.50” 0.87” 0.75” S8-32X1/4
M0206-0250-1.50 MT#2 1/4” 1.50” 1.07” 0.79” S1/4-28X1/4
M0306-0250-1.50 MT#3 1/4” 1.50” 1.07” 0.79” S1/4-28X1/4
M0206-0312-1.50 MT#2 5/16” 1.50” 1.26” 0.87” S5/16-24X5/16
M0306-0312-1.50 MT#3 5/16” 1.50” 1.26” 0.87” S5/16-24X5/16
M0206-0375-1.63 MT#2 3/8” 1.63” 1.26” 1.00” S3/8-24X5/16
M0306-0375-1.88 MT#3 3/8” 1.88” 1.26” 1.00” S3/8-24X5/16
M0406-0375-2.00 MT#4 3/8” 2.00” 1.35” 1.00” S3/8-24X5/16
M0206-0500-1.81 MT#2 1/2” 1.81” 1.53” 1.26” S7/16-20X3/8
M0306-0500-1.94 MT#3 1/2” 1.94” 1.50” 1.38” S7/16-20X3/8
M0406-0500-2.31 MT#4 1/2” 2.31” 1.46” 1.38” S7/16-20X3/8
M0406-0625-2.50 MT#4 5/8” 2.50” 1.61” 1.65” S9/16-18X1/2
M0406-0750-2.75 MT#4 3/4” 2.75” 1.77” 1.89” S5/8-18X1/2

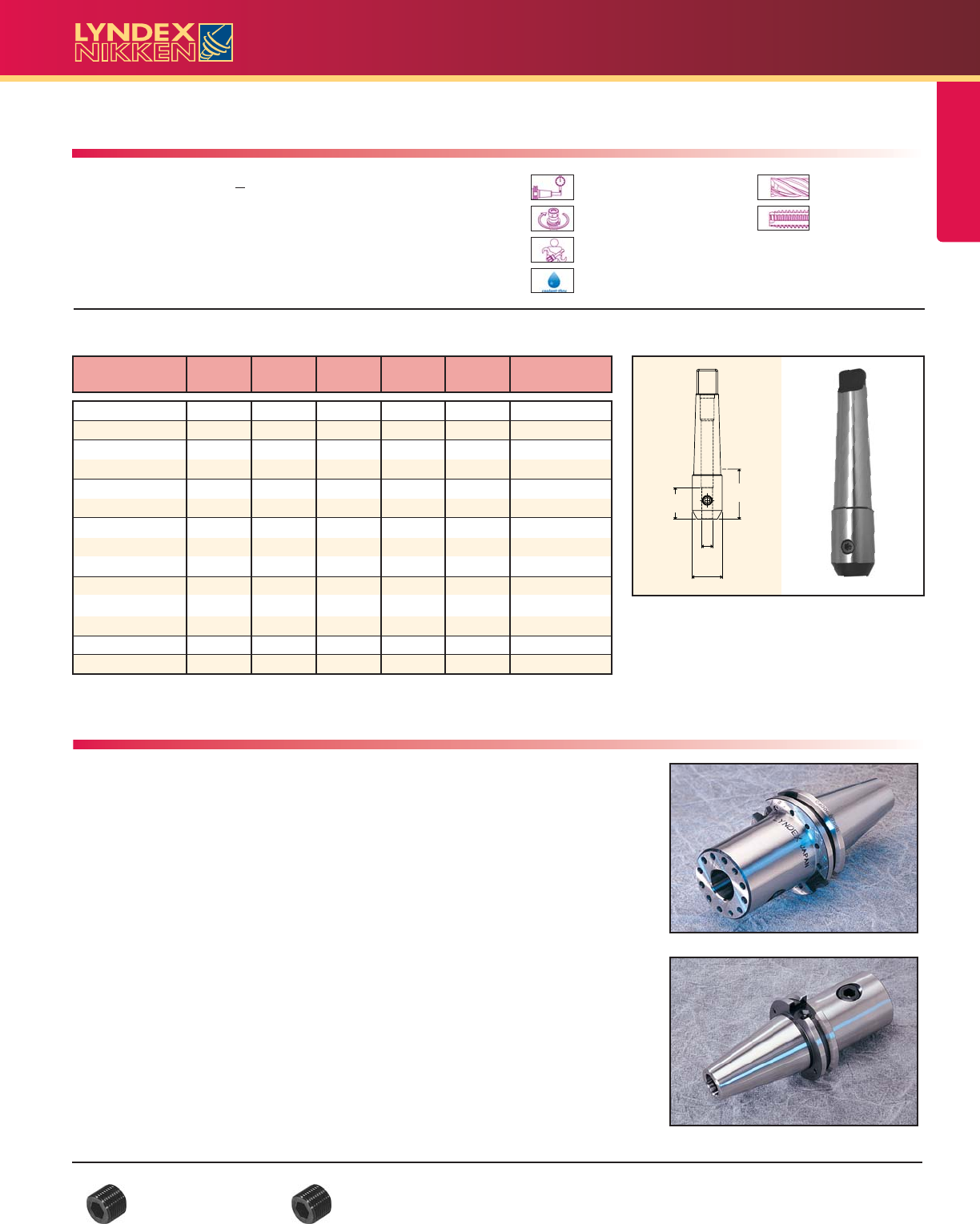

Morse Taper End Mill Holders
High-Speed Balanceable End Mill Holders
CAT40 HSBalance™ End Mill Holder
CAT40 HSBalance™ End Mill Holder DIN
Balanceable End Mill Holders are available in CAT and BT taper styles.
Part numbers are identical to standard End Mill Holders part numbers
except that there is a “B” at the end. (Ex: C4006-0125B)
• 30 and 40 taper toolholders are prebalanced to G2.5 or better at 24,000 RPM
• 50 taper toolholders are prebalanced to G2.5 or better at 15,000 RPM
• Lyndex-Nikken uses a Patented Balancing Method which allows greater
compensation necessary for extremely high RPM applications.
• HSBalance™ toolholders come with a printout of actual balance condition
• HSBalance™ toolholders need to be used with balance-qualified pull studs
• A balancing machine is required to balance or re-balance toolholders
L
D
d
L1
• End mill inner bore T.I.R. < 0.0002
• AT3 or better taper
• Tang adapter is removable for draw bar use on MT#2 and #4
holders Set-up: quick and easy
Coolant-thru: jet slots (optional)
Speed: up to 20,000 rpm
TIR: < .0001 run out in ID bore
Set Screws are included. Back-up screws not included.
Morse
Set Screws
Page 28
Set Screws for
Aerospace Holders
Page 28
Milling
Tapping
★★★★✩
★✩✩✩✩
Please note that the maximum RPM listed in our catalog may vary depending
on the toolholder shank, weight, balanceability and the G rating.
End Mill Holders
End Mill Holders
800-543-6237
www.lyndexnikken.com
28
Replacement Set Screws for End Mill Holders
Part Number Size of Holder Internal Diameter
Coolant Tube for HSK holders
Part Number Description
HSK63-TUBE Coolant tube for HSK63 holders
HSK40-TUBE Coolant tube for HSK40 holders
HSK100-TUBE Coolant tube for HSK100 holders
Part Number Size of Holder Internal Diameter
Replacement Set Screws for Aerospace End Mill Holders
Coolant Tube Wrench for HSK holders
Part Number Description
Coolant tube wrenches are needed to remove or install coolant tubes in HSK toolholders
Accessories
S6-32X1/4 1/8”
S8-32X1/4 3/16”
S1-14x7/8 2”, 2-1/2”
S1/4-28x1/4 1/4”, 6mm
S5/16-24X1/4 5/16”, 8mm
S3/8-24X5/16 3/8”, 7/16”,10mm
S7/16-20X3/8 1/2”, 12mm
S9/16-18X1/2 5/8”, 14-16mm
S5/8-18X1/2 3/4”, 7/8”, 18-20mm
S3/4-16X11/16 1”, 1-1/4”, 1-1/2”, 25-42mm
S3/4-16x7/16 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”
S1/2-20UNF 5/8”, 3/4”, 7/8”
S3/8-24UNF 3/8”, 1/2”
HSK63-WRENCH Wrench for HSK63 Coolant Tube
HSK40-WRENCH Wrench for HSK40 Coolant Tube
HSK100-WRENCH Wrench for HSK100 Coolant Tube
