CAT.NO.E01111-K1209

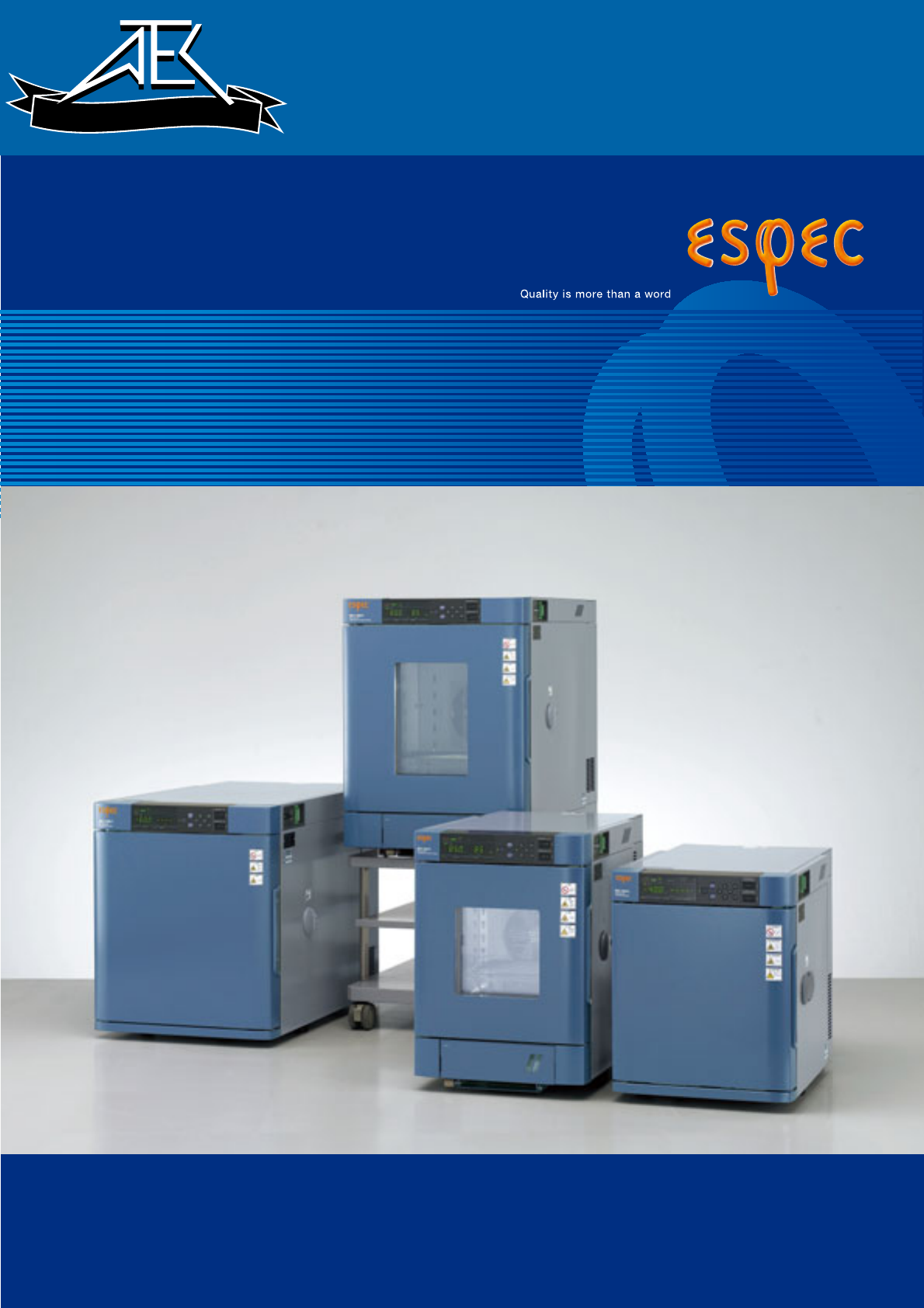

Bench-Top Type Temperature
(& Humidity) Chamber
SH･SU
小型環境_e_.indd H1 12.9.10 10:09:01
Advanced Test Equipment Rentals
www.atecorp.com 800-404-ATEC (2832)
®
E
s
t
a
b
l
i
s
h
e
d
1
9
8
1
3
Full variation to select from
With its 3 temperature range patterns
(to −60, −40 or −20℃), and 2 volumes
(20 and 60L) selection, the Bench-top
chambers offer 10 models in temperature
or temperature/ humidity configuration,
to fulfill customers' needs.
Light and small structure
The chamber structure is optimized to
save space while offering a wide test
area (22.5L for 1st model). Its relatively
light weight allows setup almost
everywhere.
Full-size chamber performance
in a compact design
The SH-661 model achieves −60 to
＋150℃ temperature range and 30 to
95％rh for humidity in a small structure.
It shows undoubtedly better performance
than any other previous bench-top
model.
A refrigeration system that
reduces energy
consumption by 55%
Our exclusive refrigerator system with
capacity control achieves 55％ reduction
in power consumption compared to our
previous model. (SH/SU-221
･241 models)
Easy wiring access
The chamber features free access to the
test area. Cable ports are provided on
both right and left side to allow easy
wiring of specimens for measurement
or voltage application.
Test area (60L model)
Characteristics
Stacked chambers (on stands)
小型環境_e_.indd 3 12.9.10 10:09:05
4
Layout arrangement thanks to
additional stand (option)
L and H stands are equipped with casters,
and allow easy storage to optimize your
testing zone. L stand is lower to fit under
H stand and stack chambers. (L=Low,
H=High)
* It is recommended to secure stands to the
floor with provided anchor bolts.
Easy water supply
Water is supplied from the front side
tank (equipped with a level sensor).
Auxiliary water tank circuit (option) is
also available for extended operation
time. (SH model)
Right-opening door (option)
The door opening can be reversed to fit
your installation space.
Viewing window (option)
An optional viewing window can be
added to check specimens and wiring
during testing.
(W215×H215mm for 20L model,
W215×H315mm for 60L model)
* Standard performance of the chamber will
not be met when adding this option.
Stands (option)
Characteristics
Water supply tank
Right-opening door (option) Viewing window (option)
小型環境_e_.indd 4 12.9.10 10:09:08
5
Ion migration evaluation
The Bench-top chamber can be
combined with ESPEC's Ion Migration
Evaluation System (AMI) to ensure
even more accurate evaluation results.
Paperless recorder (option)
Portable type, to record temperatures
from various sources, such as test area
temperature. Recording is possible on
Compact Flash Card or via USB port.
Material labeling for
easy recycling
Plastic molded components are labeled
and easily detachable to make recycling
easier for future disposal of the
equipment.
Example: Bench-top Type Temperature (& Humidity) Chamber connected
with the Ion Migration Evaluation System (sold separately)
Cable port plug (Material marked)Paperless recorder Portable type (option)
Characteristics
小型環境_e_.indd 5 12.9.10 10:09:12
6
Program function
Step program
Temperature
gradient program
Termination
program
Pattern
*1 Sets a program repetition frequency between a range of 1 and 99.
*2 Selects HOLD, CONST or OFF when a program is over.
Temp.
Time
Temp.
Temp.
Time
Time Time Time
*1,2
*1,2
1.HOLD 2.CONST 3.OFF
END
END END
Retains value
of last step
Operation at
constant temp.
Chamber
OFF
2
4
1
3
6
5
8
7
9
24
1
3
6
5
8
7
9
Control operation
Key input setting
Easy setting of temperature and
humidity values, but also upper and
lower temperature (& humidity) limit
alarms, by mechanical key input.
Program operation up to 9 steps
Besides constant setting, program
operation is available by setting
different patterns (9 step/ pattern) of
heat up and pull down temperatures, to
meet requirements of temperature
characteristic test or temperature (&
humidity) cycling. The instrumentation
additionally offers various functions.
Flexible communication interface
An RS-485 connector is equipped as
standard, but RS-232C or GP-IB is also
available as option.
Remote control from your PC
Using "WEB Manager" (converter sold
separately) and an intranet to connect
the chamber and a computer makes it
possible to edit profiles and perform
monitoring from the computer.
Temperature (& humidity) program indicator controller
Description of program function
Setting Mechanical key input
Display 7 segment LED display
Operating mode Program operation, constant operation
Control PID control
Setting and indication
Temp. : 0.1ºC
Humid. : 1%rh (SH only)
Time : 1 minute
Setting and
indication ranges
Temp. :
−25 to ＋155ºC (SH-221, SU-221)
−45 to ＋155ºC (SH-241/641, SU-241/641)
−65 to ＋155ºC (SH-261/661, SU-261/661)
Humid. : 0 to 100%rh (SH only)
Time : 0 to 99 hours 59 minutes, 100 to 999 hours
Indication accuracy *
Temp. : 0.5ºC (Typ.)
Humid. : ±2%rh (Typ.) (SH only)
Time : within 30 sec. per month
Program memory capacity
9 steps per pattern (1 to 99 times)
Interface RS-485
Auxiliary functions
Input-burnout detection
Upper and lower temp. (& humid.) limit alarm
Self-diagnostic (watchdog timer)
Alarm indication
Power cut protection
Refrigerator capacity automatic control
Battery Lithium battery ×1
* At ambient temperature ＋23ºC
小型環境_e_.indd 6 12.9.10 10:09:14
7
SH
Model SH
−
221 SH
−
241
SH
−
261
SH
−
641
SH
−
661
System Balanced Temperature & Humidity Control system (BTHC system)
Temp. performance *1
Temp. range −20 to ＋150℃
(−4 to ＋302℉)
−40 to ＋150℃
(−40 to ＋302℉)
−60 to ＋150℃
(−76 to ＋302℉)
−40 to ＋150℃
(−40 to ＋302℉)
−60 to ＋150℃
(−76 to ＋302℉)
Temp. fl uctuation
±0.3℃ (−20 to ＋100℃)
±0.5℃ (＋100.1 to ＋150℃)
±0.3℃ (−40 to ＋100℃)
±0.5℃ (＋100.1 to ＋150℃)
±0.3℃ (−60 to ＋100℃)
±0.5℃ (＋100.1 to ＋150℃)
±0.3℃ (−40 to ＋100℃)
±0.5℃ (＋100.1 to ＋150℃)
±0.3℃ (−60 to ＋100℃)
±0.5℃ (＋100.1 to ＋150℃)
Temp. gradient /
Temp. variation in space
2.5℃ (−20 to ＋100℃)
4.0℃ (＋100.1 to ＋150℃)
2.5℃ (−40 to ＋100℃)
4.0℃ (＋100.1 to ＋150℃)
2.5℃ (−60 to ＋100℃)
4.0℃ (＋100.1 to ＋150℃)
2.5℃ (−40 to ＋100℃)
4.0℃ (＋100.1 to ＋150℃)
2.5℃ (−60 to ＋100℃)
4.0℃ (＋100.1 to ＋150℃)
Temp.
rate of
change
Heat up rate
3.2℃ /min. 3.2℃ /min. 3.2℃ /min. 2.9℃ /min. 2.9℃ /min.
Pull down rate
2.1℃ /min. 2.1℃ /min. 2.1℃ /min. 1.7℃ /min. 1.7℃ /min.
Heat up time
From −20 to ＋150℃
within 55 min.
From −40 to ＋150℃
within 60 min.
From −60 to ＋150℃
within 70 min.
From −40 to ＋150℃
within 70 min.
From −60 to ＋150℃
within 80 min.
Temp. extreme
achievement time
Pull down time
From ＋20 to −20℃
within 20 min.
From ＋20 to −40℃
within 50 min.
From ＋20 to −60℃
within 70 min.
From ＋20 to −40℃
within 60 min.
From ＋20 to −60℃
within 90 min.
Lowest attainable temp.
−20℃−
40℃−
60℃−
40℃−
60℃
Humid.
performance *1
Humid. range 30 to 95％rh (Refer to diagram on page 9)
Humid. fl uctuation ±3.0％rh
Construction
Heater Nichrome strip wire heater
Humidifi er Sheathed heater
Refrigeration unit
System
Mechanical single-stage refrigeration system
Mechanical cascade refrigeration system
Cooler Plate fi n cooler
Refrigerator Hermetically sealed compressor, Air-cooled condenser, Expansion mechanism: Capillary tube system
Refrigerator capacity
400W [Unit 1: 400W ×1, Unit 2: 400W ×1]
Refrigerant R404A R23, R404A
Capacity 22.5 L 64 L
Chamber total load
resistance 20 kg
Inside dimensions
mm (inch) *2
W300×H300×D250
(W11.81×H11.81×D9.84)
W400×H400×D400
(W15.75×H15.75×D15.75)
Outside dimensions
mm (inch) *2
W440×H630×D695
(W17.32×H24.80×D27.36)
W440×H690×D785
(W17.32×H27.18×D30.91)
W540×H730×D920
(W21.26×H28.74×D36.22)
Weight 83 kg (78 for 100V type) 105 kg 130 kg
Utility requirements
Allowable ambient conditions
＋5 to ＋35℃ (＋41 to ＋95℉）
Power supply *3
100V AC 1φ50/60Hz
13.5 A 15.0 A 18.0 A
115V AC 1φ60Hz
13.0 A 14.5 A
—
200V AC 1φ50/60Hz
—
10.5 A
220V AC 1φ50/60Hz
8.0 A 9.5 A 10.0 A
220V AC 1φ60Hz
*4 8.0 A 9.5 A 10.0 A
230V AC 1φ50Hz
*4 7.5 A 9.5 A 10.0 A
Noise level *5 55 dB 59 dB 61 dB
Exhaust heat quantity 3500 kJ/h (836 kcal/h)
4000 kJ/h (955 kcal/h)
5040 kJ/h (1204 kcal/h)
*1 The performance values are based on IEC 60068-3-5:2001, JTM K07:2007 for the temperature chamber, IEC 60068-3-6:2001, JTM K09:2009 for the humidity
chamber. Performance fi gures are given for a ＋23℃ ambient temperature, 65% rh, rated power supply and no specimens inside the test area. However, the lowest
attainable temperature is given for a max. ambient temperature of ＋30℃. Heat-up time is the achieved time from lowest temperature to highest temperature within
temperature range.
*2 Excluding protrusions.
*3 At ambient temperature ＋23℃. For SH-641/661, make sure to check the power capability of your installation beforehand.
*4 Compliance with CE Marking.
*5 Measurements are to be taken in an anechoic room at a height of 1.2m from the fl oor and a distance of 1m from the chamber front panel
(ISO 1996-1:2003 _ A-weighted sound pressure level)
小型環境_e_.indd 7 12.9.10 10:09:16
Model SU
−
221 SU
−
241
SU
−
261
SU
−
641
SU
−
661
System Balanced Temperature Control system (BTC system)
Temp. performance *1
Temp. range −20 to ＋150℃
(−4 to ＋302℉)
−40 to ＋150℃
(−40 to ＋302℉)
−60 to ＋150℃
(−76 to ＋302℉)
−40 to ＋150℃
(−40 to ＋302℉)
−60 to ＋150℃
(−76 to ＋302℉)
Temp. fl uctuation
±0.3℃ (−20 to ＋100℃)
±0.5℃ (＋100.1 to ＋150℃)
±0.3℃ (−40 to ＋100℃)
±0.5℃ (＋100.1 to ＋150℃)
±0.3℃ (−60 to ＋100℃)
±0.5℃ (＋100.1 to ＋150℃)
±0.3℃ (−40 to ＋100℃)
±0.5℃ (＋100.1 to ＋150℃)
±0.3℃ (−60 to ＋100℃)
±0.5℃ (＋100.1 to ＋150℃)
Temp. gradient /
Temp. variation in space
2.5℃ (−20 to ＋100℃)
4.0℃ (＋100.1 to ＋150℃)
2.5℃ (−40 to ＋100℃)
4.0℃ (＋100.1 to ＋150℃)
2.5℃ (−60 to ＋100℃)
4.0℃ (＋100.1 to ＋150℃)
2.5℃ (−40 to ＋100℃)
4.0℃ (＋100.1 to ＋150℃)
2.5℃ (−60 to ＋100℃)
4.0℃ (＋100.1 to ＋150℃)
Temp.
rate of
change
Heat up rate 3.2℃ /min. 3.2℃ /min. 3.2℃ /min. 2.9℃ /min. 2.9℃ /min.
Pull down rate
2.1℃ /min. 2.1℃ /min. 2.1℃ /min. 1.7℃ /min. 1.7℃ /min.
Heat up time
From −20 to ＋150℃
within 55 min.
From −40 to ＋150℃
within 60 min.
From −60 to ＋150℃
within 70 min.
From −40 to ＋150℃
within 70 min.
From −60 to ＋150℃
within 80 min.
Temp. extreme
achievement time
Pull down time
From ＋20 to −20℃
within 20 min.
From ＋20 to −40℃
within 50 min.
From ＋20 to −60℃
within 70 min.
From ＋20 to −40℃
within 60 min.
From ＋20 to−60℃
within 90 min.
Lowest attainable temp.
−20℃−
40℃−
60℃−
40℃−
60℃
Construction
Heater Nichrome strip wire heater
Refrigeration unit
System
Mechanical single-stage refrigeration system
Mechanical cascade refrigeration system
Cooler Plate fi n cooler
Refrigerator Hermetically sealed compressor, Air-cooled condenser, Expansion mechanism: Capillary tube system
Refrigerator capacity
400W [Unit 1: 400W ×1, unit 2: 400W ×1]
Refrigerant R404A R23, R404A
Capacity 22.5 L 64 L
Chamber total load
resistance 20 kg
Inside dimensions
mm (inch) *2
W300×H300×D250
(W11.81×H11.81×D9.84)
W400×H400×D400
(W15.75×H15.75×D15.75)
Outside dimensions
mm (inch) *2
W440×H560×D695
(W17.32×H24.8×D27.36)
W440×H620×D785
(W17.32×H24.41×D30.91)
W540×H660×D920
(W21.26×H25.98×D36.22)
Weight 78 kg (73 for 100V type) 100 kg 123 kg
Utility requirements
Allowable ambient conditions
＋5 to ＋35℃ (＋41 to ＋95℉）
Power supply *3
100V AC 1φ50/60Hz
11.0 A 15.0 A 18.0 A
115V AC 1φ60Hz
10.5 A 14.5 A
—
200V AC 1φ50/60Hz
—
10.5 A
220V AC 1φ50/60Hz
7.0 A 9.5 A 10.0 A
220V AC 1φ60Hz
*4 7.0 A 9.5 A 10.0 A
230V AC 1φ50Hz
*4
6.5 A 9.5 A 10.0 A
Noise level *5 55 dB 59 dB 61 dB
Exhaust heat quantity 3500 kJ/h (836 kcal/h)
4000 kJ/h (955 kcal/h)
5040 kJ/h (1204 kcal/h)
8
SU
*1 The performance values are based on IEC 60068-3-5:2001, JTM K07:2007 for the temperature chamber. Performance fi gures are given for a ＋23℃ ambient temperature,
65%rh, rated power supply and no specimens inside the test area. However, the lowest attainable temperature is given for a max. ambient temperature of ＋30 ℃.
Heat-up time is the achieved time from lowest temperature to highest temperature within temperature range.
*2 Excluding protrusions.
*3 At ambient temperature ＋23℃. For SU-641/661, make sure to check the power capability of your installation beforehand.
*4 Compliance with CE Marking.
*5 Measurements are to be taken in an anechoic room at a height of 1.2m from the fl oor and a distance of 1m from the chamber front panel
(ISO 1996-1:2003 _ A-weighted sound pressure level)
小型環境_e_.indd 8 12.9.10 10:09:17
9
TEMPERATURE & HUMIDITY CONTROL RANGE (SH)
S
-
1
Temperature range
2:
−
20 to
＋
150
℃
4:
−
40 to
＋
150
℃
6:
−
60 to
＋
150
℃
Capacity 2: 22.5L
6: 64.0L
H: Temperature & humidity chamber
U: Temperature chamber
100
90
80
70
60
50
40
30
20
10
010 20 30 40 50 60 70 80 90 100
85
℃
15
℃
Temperature (
℃
)
95
％
rh
Relative Humidity (%rh)
* At ambient temperature +23℃
MODEL
SAFETY DEVICES
● Leakage breaker
● Thermal fuse
● Boil dry protector (SH only)
● Control circuit short-circuit protective fuse
● Overheat and overcool protector
● Temperature switch for air circulator
● Specimen power supply control terminals
● Refrigerator overload relay
● Refrigerator high pressure switch
● Chamber door switch
● Upper and lower temperature (& humidity) limit alarms
(Built-into temperature [humidity] controller)
● Burn-out detection circuit
(Built-into temperature [humidity] controller)
● Watchdog timer
(Built-into temperature [humidity] controller)
● Refrigerator automatic delay circuit
(Built-into temperature [humidity] controller)
● Temperature-Humidity recorder terminal
● Specimen power supply control terminal
● External alarm terminal
● External output terminal
● Cable port
● Power cable
● Drain hose
● Water supply tank (SH only)
● Humidifying tray drain plug (SH only)
● Drain socket for water sensor box (SH only)
ACCESSORIES
FITTINGS
● Shelf 1
Capacity
SH/ SU-221, 241, 261 : 500g
SH/ SU-641, 661 : 5kg
Max. number of shelves
SH/ SU-221, 241, 261 : 5 (Shelf pitch 35mm)
SH/ SU-641, 661 : 5 (Shelf pitch 50mm)
● Connector
2P for connecting terminal for temp. & humid. recorder SH:2/ SU:1
6P for connecting signal terminal 1
● Cable port plug (φ25mm) 2
● Cartridge fuse (Class A, 250V, 3A) 1
● Socket adapter (100V, 115V on 20L type only) 1
● Wet-bulb wick (Box of 24pcs) 1 (SH only)
● Humidifying tray drain hose 2m 1 (SH only)
● Drain hose for water sensor box 0.3m 1 (SH only)
● User's manual (CD-R, booklet) 1 set
小型環境_e_.indd 9 12.9.10 10:09:18
10
DIMENSIONS
unit：mm (inch)
● SH-641･661
● SH-221･241 ● SH-261
540 (21.3) 920 (36.2)
400 (15.7)
400 (15.7)
400 (15.7)
10 (0.4)
70
(2.8)
30
300 (11.8)
440 (17.3) 695 (27.4)
35 (1.4)
30
30
250 (9.8)
250 (9.8)
785 (30.9)
250 (9.8)
35 (1.4)
300 (11.8)
440 (17.3)
250 (9.8)
300 (11.8)
400 (15.7)
300 (11.8)
630 (24.8)
70
(2.8)
610 (24.0)
730 (28.7)
90
(3.5)
510 (20.0)
90
(3.5)
150
(5.9) 510 (20.0)
70
(2.8)
690 (27.2)
440 (17.3)
70
(2.8)
440 (17.3)
70
(2.8)
540 (21.3)
70
(2.8)
小型環境_e_.indd 10 12.9.10 10:09:19
11
DIMENSIONS
unit：mm (inch)
300 (11.8)
440 (17.3) 695 (25.7)
35 (1.4)
530 (20.8)
560 (22.0)
30
30
250 (9.8)
440 (17.3)
300 (11.8)
300 (11.8)
70
(2.8)
70
(2.8) 70
(2.8)
70
(2.8)
70
(2.8)
70
(2.8)
300 (11.8)
● SU-221・241 ● SU-261
440 (17.3) 785 (30.9)
590 (23.2)
620 (24.4)
250 (9.8)
436.5 (17.1)
250 (9.8)
250 (9.8)
35(1.4)
540 (21.2) 920 (36.2)
630 (24.8)
660 (25.9)
400 (15.7)
536.5 (21.1)
400 (15.7)
400 (15.7)
400 (15.7)
10 (0.4)
● SU-641・661
30
小型環境_e_.indd 11 12.9.10 10:09:20
12
Effective recording chart width:
100mm
Number of inputs: Temperature 5
Humidity 1
[SRJ14]
Temperature range: −100 to ＋150℃
Humidity range: 0 to 100%rh (for SH)
[SRJ12]
Temperature range: −50 to ＋150℃/
Humidity range: 0 to 100%rh (for SH)
Inner door
Glass door provided inside the chamber,
to observe the conditions of the
specimens.
* A wiper is included for SH models.
* This option is not compatible with a viewing
window or right-opening door.
* Used for observation of the specimens inside
the chamber.
SU model
OPTIONS
Wet-bulb temperature detecting terminal
For the test area wet-bulb temperature
detection. A thermocouple type T
(Copper/Copper-Nickel) or of
equivalent thermoelectric capacity is
used. Connector included.
* Not available for SU.
[SRJ25]
Temperature range: −100 to ＋200℃
Effective recording chart width:
100mm
Number of inputs: Temperature 6
Temperature recorder (Portable type)
Temperature & humidity recorder (Portable type)
Thermocouple
Attached to specimens to measure
specimen temperature.
・
2m
・4m
・6m
* Thermocouple type T without ball
(Copper / Copper-Nickel)
* Same as accessory items
Paperless recorder (Portable type)
Records temperature of each section
such as the temperature inside the
chamber.
Data saving cycle: 5 sec
Portable type
External recording media:
CF memory card (256MB)
USB port
Language support: ENG, JPN
[Temperature type]
Temperature range: −100 to ＋200℃
Number of inputs (Initial setting):
Temperature 1
(5 more channels can be turned ON)
[Temperature and humidity type]
Temperature range: − 50 to ＋150℃
−100 to ＋150℃
Humidity range: 0 to 100%rh
Number of inputs (Initial setting):
Temperature 1 / Humidity 1
(4 more channels can be turned ON)
Paperless recorder Portable type
W215×H215mm
Viewing window
SH/SU-221, 241, 261 W215×H215mm
SH/SU-641, 661 W215×H315mm
When equipped with a viewing
window, chamber performance
are as follow:
Temperature uniformity :
±1.0℃ (−20 to ＋100℃)
±1.5℃ (−100.1 to ＋150℃)
Humidity uniformity : ±5.0％rh
Temp. heat up rate:
Std rate ＋10 min. (or less)
Temp. pull down rate:
Std rate ＋10 min. (or less)
(＋20 to −35℃)
Std rate +30 min. (or less)
(＋20 to −60℃)
小型環境_e_.indd 12 12.9.10 10:09:20
13
Enhances the mobility of the chamber,
and facilitates load/ unload of
specimens.
L stand can fit under the H stand to
save space.
* Be sure to secure the stand to the floor with
the provided anchor bolts.
・ L stand
SH/SU-221, 241:
W440×H450×D750mm (25kg)
SH/SU-261:
W440×H390×D750mm (21.5kg)
SH/SU-641, 661:
W540×H350×D860mm (28kg)
・ H stand
SH/SU-221, 241, 261:
W630×H1140×D815mm (36kg)
SH/SU-641, 661:
W730×H1140×D925mm (40kg)
StandAuxiliary water tank circuit (SH)
Used to automatically refill the standard
tank with the auxiliary water tank.
Required water quality:
Conductivity 0.1 to 10μS/cm
Water supply pressure:
4.9 to 19.6KPa (Gauge)
Auxiliary water tank (SH)
Used to refill the standard tank.
Tray for auxiliary tank (SH)
Prevents water leakage during
standard tank refill process.
OPTIONS
Additional cable port
Provided in addition / replacement of
the standard cable ports.
・ 25mm diameter
・ 50mm diameter
・ 100mm diameter
・ Flat cable port (W100×H25mm)
* Each cable port is equipped with a silicone
sponge rubber plug.
* Basic specification of the chamber may not be
met when equipped with a cable port.
Cable port rubber plug
Prevents air leakage from the cable
port.
Shelf
Equivalent to standard accessory:
〈SH/SU-221, 241, 261〉
Effective size: W200×D150m m
Load resistance: 500gr.
〈SH/SU-641, 661〉
Effective size: W300×D300mm
Load resistance: 5kg.
Specimen basket
Equivalent to standard accessory.
Material: Stainless steel (5 mesh)
25mm diameter type flat type
L stand
Two chambers stacked
(L and H stands)
■Some photographs listed in this catalog contain Japanese display.
■This product can be customized for your needs. For further information, please contact us.
Right-opening door
Door can be changed for a reverse one
(hinges on the right, handle on the left)
* This option is not compatible with inner glass
door option.
小型環境_e_.indd 13 12.9.10 10:09:24
14
OPTIONS
・GPIB
・RS-232C
* Select one, instead of standard RS-485
・RS-485 5m/ 10m/ 30m
・GPIB 2m/ 4m
・RS-232C 1.5m/ 3m/ 6m
Interface
Communication cables
Safety precautions
●
Do not use specimens which are explosive or inflammable, or which contain such
substances. To do so could be hazardous, as this may lead to fire or explosion.
●
Do not place corrosive materials in the chamber. If corrosive substances or liquid is
used, the life of the unit may be significantly shortened specifically because of the
corrosion of stainless steel, resin and silicone materials.
●
Do not place life forms or substances that exceed allowable heat generation.
●
Be sure to read the user's manual before operation.
小型環境_e_.indd 14 12.9.10 10:09:28
TS9B24C03 (The contents of this catalog is as of September, 2012.)
●Specifications are subject to change without notice due to design improvements.
●Corporate names and trade names mentioned in this catalog are trademarks or registered trademarks.
ESPEC CORP.
Environmental Management System Assessed
and Registered
ESPEC CORP. has been assessed by and
registered in the Quality Management System
based on the International Standard ISO
9001:2008 (JIS Q 9001:2008) through the
Japanese Standards Association (JSA).
＊Registration : ESPEC CORP.
(Overseas subsidiaries not included)
Quality Management System Assessed
and Registered
http://www.espec.co.jp/english
Head Office
3-5-6, Tenjinbashi, Kita-ku, Osaka 530-8550, Japan
Tel : 81-6-6358-4741 Fax : 81-6-6358-5500
ESPEC NORTH AMERICA, INC.
Tel : 1-616-896-6100 Fax : 1-616-896-6150
ESPEC EUROPE GmbH
Tel : 49-89-1893-9630 Fax : 49-89-1893-96379
ESPEC (CHINA) LIMITED
Tel : 852-2620-0830 Fax : 852-2620-0788
ESPEC ENVIRONMENTAL EQUIPMENT (SHANGHAI) CO., LTD.
Head Office
Tel : 86-21-51036677 Fax : 86-21-63372237
BEIJING Branch
Tel : 86-10-64627025 Fax : 86-10-64627036
TIANJIN Branch
Tel : 86-22-26210366 Fax : 86-22-26282186
GUANGZHOU Branch
Tel : 86-20-83317826 Fax : 86-20-83317825
SHENZHEN Branch
Tel : 86-755-83674422 Fax : 86-755-83674228
SUZHOU Branch
Tel : 86-512-68028890 Fax : 86-512-68028860
ESPEC TEST TECHNOLOGY (SHANGHAI) CO., LTD.
Tel : 86-21-68798008 Fax : 86-21-68798088
ESPEC SOUTH EAST ASIA SDN.BHD.
Tel : 60-3-8945-1377 Fax : 60-3-8945-1287
小型環境_e_.indd H4 12.9.10 10:08:57
