User’s Guide

Version 2.0.2 Beta

Ryan J Urbanowicz1, and Jason H Moore2

October 15, 2014

1ryan.j.urbanowicz@dartmouth.edu - ExSTraCS Design and Development

2jason.h.moore@dartmouth.edu - Post-Doctoral Mentor

Contents

1 Introduction 2

1.1 WhatisExSTraCS? ......................... 2

1.2 AlgorithmOverview ......................... 3

1.3 FurtherReading ........................... 4

1.4 Obtaining the Software . . . . . . . . . . . . . . . . . . . . . . . . 5

1.5 Minimum System Requirements . . . . . . . . . . . . . . . . . . . 5

1.6 ExSTraCSVersions.......................... 5

1.7 Contact ................................ 6

2 Using ExSTraCS 7

2.1 RunningExSTraCS.......................... 7

2.2 Conﬁguration File and Run Parameters . . . . . . . . . . . . . . 8

2.2.1 Dataset Parameters . . . . . . . . . . . . . . . . . . . . . 9

2.2.2 General Run Parameters . . . . . . . . . . . . . . . . . . . 13

2.2.3 Supervised Learning Parameters . . . . . . . . . . . . . . 15

2.2.4 Mechanism Parameters . . . . . . . . . . . . . . . . . . . 17

2.3 Overview of ExSTraCS Code . . . . . . . . . . . . . . . . . . . . 24

2.4 OutputFiles ............................. 27

2.4.1 Rule Population . . . . . . . . . . . . . . . . . . . . . . . 27

2.4.2 Population Statistics . . . . . . . . . . . . . . . . . . . . . 32

2.4.3 Co-occurrence......................... 32

2.4.4 Attribute Tracking Scores . . . . . . . . . . . . . . . . . . 33

2.4.5 Predictions .......................... 33

2.4.6 Learning Tracking . . . . . . . . . . . . . . . . . . . . . . 34

2.4.7 Expert Knowledge . . . . . . . . . . . . . . . . . . . . . . 34

2.5 MakingPredictions.......................... 35

3 Future ExSTraCS Expansions 36

3.1 Continuous Attribute Improvements . . . . . . . . . . . . . . . . 36

3.2 Continuous Phenotypes . . . . . . . . . . . . . . . . . . . . . . . 37

3.3 Fitness and Deletion Schemes . . . . . . . . . . . . . . . . . . . . 37

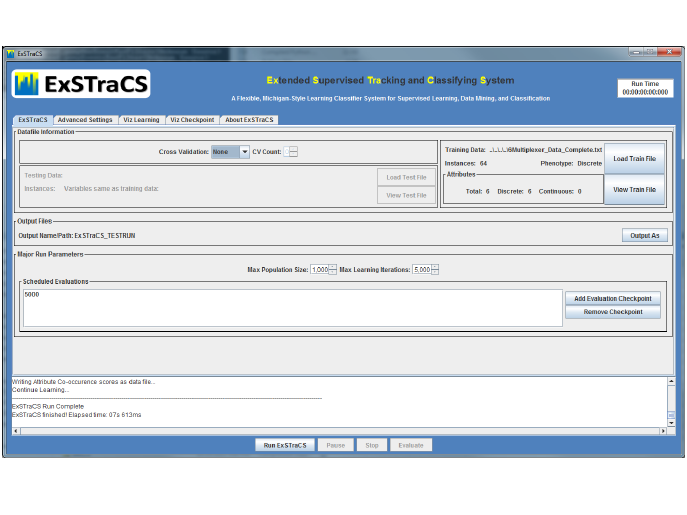

3.4 ExSTraCSGUI............................ 38

4 Version Fixes/Updates 39

4.1 ExSTraCS2.0.2............................ 39

4.2 ExSTraCS2.0.1............................ 39

4.3 ExSTraCS2.0............................. 39

Chapter 1

Introduction

1.1 What is ExSTraCS?

Extended Supervised Tracking and Classifying System (ExSTraCS) is a Michigan-

Style learning classiﬁer system (LCS) algorithm developed to specialize in clas-

siﬁcation, prediction, data mining, and knowledge discovery tasks. Michigan-

style LCS algorithms constitute a unique class of algorithms that distribute

learned patterns over a collaborative population of individually interpretable

(IF:THEN) rules/classiﬁers (NOTE: that the terms ‘rule’ and ‘classiﬁer’ are

used interchangeably in this context), allowing them to ﬂexibly and eﬀectively

describe complex and diverse problem spaces. These rule-based algorithms com-

bine the global search of evolutionary computing (i.e. a genetic algorithm)

with the local optimization of supervised machine learning. They apply itera-

tive, rather than batch-wise learning, meaning that classiﬁers are evaluated and

evolved one data instance at a time. This makes them naturally well-suited

to learning diﬀerent problem niches found in multi-class, latent-class, or het-

erogeneous problem domains. They are also naturally multi-objective, evolving

classiﬁers toward maximal accuracy and generality (i.e. classiﬁer simplicity)

to improve predictive performance. ExSTraCS is limited to supervised learn-

ing problems, involving any number of potentially predictive attributes, a ﬁnite

number of training instances, and a single discrete class(where class is also re-

ferred to as phenotype, endpoint, or the dependent variable). The size datasets

that ExSTraCS can handle may be limited by memory requirements.

ExSTraCS was primarily developed to address a need in epidemiological

data mining, to identify predictive attribute in noisy datasets, where the rela-

tionship(s) between predictive attributes and disease phenotype is believed to be

complex, multi-locus, and potentially epistatic and/or heterogeneous. These are

all characteristics that make the identiﬁcation of disease risk factors much more

challenging. ExSTraCS is also designed to be as ﬂexible as possible in handling

the characteristics of diﬀerent datasets taking into account the following; (1)

discrete or continuous attributes, (2) missing data, (3) scalability in large-scale

datasets (large numbers of attributes and/or training instances), (4) balanced

or imbalanced datasets, and (5) binary or many classes. While we do not claim

that ExSTraCS is optimized to all these characteristics, we have extended func-

tionality in each of these areas, and oﬀer ExSTraCS as a platform for further

development/improvements. This current implementation of ExSTraCS is not

set up to handle extremely large-scale analyses. We roughly recommend using

ExSTraCS on datasets of up to 5,000 attributes, and up to 10,000 instances.

ExSTraCS still may function beyond these dataset dimensions, but it has not

yet been explored. Expect both ExSTraCS and the expert knowledge algorithms

to take longer to run as dataset dimensions increase.

ExSTraCS, and LCS algorithms in general, constitute a unique alternative to

other well known machine learning/modeling/classiﬁcation/data mining strate-

gies that follow the classic paradigm of seeking to identify a ‘best’ model of

disease that can individual be applied to the entire dataset. Examples include

logistic regression, neural networks, decision trees, artiﬁcial immune systems,

genetic algorithms, multifactor dimmensionality reduction, and support vector

machines. ExSTraCS relies on a genetic algorithm to evolve it’s classiﬁer pop-

ulation, making it a stochastic algorithm. This means that while ExSTraCS

is not guaranteed to ﬁnd the optimal solution, it may be reasonably applied

to complex, or larger-scale analyses, to intelligently search the problem space

where deterministic algorithms become intractable options.

ExSTraCS is currently implemented in Python 2.7 and can be run from a

command line or within an editor such as Eclipse with PyDev.

1.2 Algorithm Overview

ExSTraCS is descended from a lineage of Michigan-style LCS algorithms, founded

on the architecture of Wilson’s Extended Classiﬁer System (XCS) [22], the most

successful and best-studied LCS algorithm to date. The Supervised Classiﬁer

System (UCS) [2] replaced XCS’s reinforcement learning scheme with a su-

pervised learning strategy to deal explicitly with single-step problems such as

classiﬁcation and data mining. Comparing select Michigan and Pittsburgh-

style LCS algorithms, UCS showed particular promise when applied to complex

biomedical data mining problems with patterns of epistasis and heterogeneity

[17, 15]. UCS inspired two algorithmic expansions named Attribute Tracking

and Feedback UCS (AF-UCS) and Expert Knowledge UCS (UCS-EK). AF-

UCS introduced mechanisms that improved learning and uniquely allowed for

the explicit characterization of heterogeneous patterns and the identiﬁcation

of candidate disease subgroups [18, 21]. UCS-EK incorporated expert knowl-

edge into UCS learning for smart population initialization, directed classiﬁer

discovery, and reduced run time [20]. Additionally, novel rapid rule compaction

strategies were recently developed and evaluated for post-processing classiﬁer

populations to enhance interpretability and improve predictive performance [13].

ExSTraCS merges successful components of this algorithmic lineage with other

valuable LCS research, and a redesigned UCS-like framework with a few novel

features. In addition to integrating attribute tracking/feedback, expert knowl-

edge covering, and rapid rule compaction, ExSTraCS (1) adopts a ﬂexible and

eﬃcient classiﬁer representation similar to the one described in [1], to accommo-

date data with both discrete and continuous attributes, (2) outputs attribute

tracking scores and global statistics (in addition to a classiﬁer population) for

signiﬁcance testing, and visualization-guided knowledge discovery as described

in [19], (3) includes an adaptive data detection scheme to adjust the algorithm

to the characteristics of the dataset, (4) includes a rule speciﬁcity limit and

an expert knowledge driven mutation operator to dramatically improve algo-

rithm scalability (5) includes a built-in selection of four attribute weighting

algorithms (ReliefF, SURF, SURF*, and MultiSURF) to discover potentially

useful expert knowledge as a pre-processing step, and (6) includes an expert

knowledge wrapper algorithm that improves the performance of the aforemen-

tioned four attribute weighting algorithms on noisy datasets with a greater

number of attributes. Additionally, ExSTraCS 2.0 includes new features geared

towards algorithm scalability such as a rule speciﬁcity limit, and the optional

TuRF expansion to all four attribute weighting algorithms. TuRF improves the

performance of each respective attribute weighting algorithm when the dataset

includes larger number of attributes, and noisy data is an issue.

1.3 Further Reading

•For a complete description and performance evaluation of the ExSTraCS

2.0 algorithm see [16].

•For a complete description and performance evaluation of the ExSTraCS

1.0 algorithm see [14].

•For a detailed explanation of attribute tracking and feedback see [18].

Please note that [14] corrects a subtile miss-statement in [18] about how

the attribute feedback mechanism works.

•For a detailed description of expert knowledge covering see [20].

•For a detailed description of ReliefF (one of the expert knowledge discovery

algorithms), see [9].

•For a detailed description of SURF (one of the expert knowledge discovery

algorithms), see [7].

•For a detailed description of SURF* (one of the expert knowledge discov-

ery algorithms), see [6].

•For a detailed description of MultiSURF (one of the expert knowledge

discovery algorithms), see [5].

•For a detailed description of the 6 rule compaction/ﬁltering strategies that

have been implemented in ExSTraCS, see [13].

•For a detailed description of the knowledge representation scheme upon

which ExSTraCS’s scheme is based, see [1].

•For a detailed description of TuRF (an expert knowledge discovery wrap-

per algorithm), see [11].

1.4 Obtaining the Software

ExSTraCS 2.0.2 is available as open-source (GPL) code. It is a cross-platform

program written entirely in Python 2.7. It is freely available for download from

http://sourceforge.net. You may also contact Dr. Ryan Urbanowicz or Dr.

Jason Moore for a copy of the code if you experience diﬃculties downloading it

from the web site.

1.5 Minimum System Requirements

•Python 2.7 (http://www.python.org).

•1 GHz processor

•256 MB Ram

•800x600 screen resolution

1.6 ExSTraCS Versions

•Version 2.0.2: Made available on 10/14/2014. Fixed functionality of

outputTestPredictions run parameter, and ﬁxed InstanceID’s values

output in the Predictions ﬁles.

•Version 2.0.1: Made available on 10/13/2014. Fixed a zero division error

involving balanced accuracy calculation that appeared with very small or

highly class imbalanced datasets. Also added updated balanced accuracy

calculation to rule compaction.

•Version 2.0: Made available on 10/7/2014. This version focused on

improving algorithm scalability, adding a data-driven rule speciﬁcity limit

(RSL), an expert knowledge guided mutation operator, and the addition

of the TuRF wrapper for improving expert knowledge generation in noisy

data with a greater number of attributes.

•Version 1.0: Made available on 6/20/2014. This is the initial beta version

of the algorithm/code.

1.7 Contact

If you (1) have a question not answered by this user’s guide, (2) would like to

report any potential bugs or issues related to the ExSTraCS 2.0.2 Beta code,

(3) have any suggestions for further improvements or expansions, or (4) have an

interest in collaborating; please contact Dr. Ryan Urbanowicz at the following

email: ryan.j.urbanowicz@dartmouth.edu.

Chapter 2

Using ExSTraCS

2.1 Running ExSTraCS

This section describes the bare minimum steps required to get ExSTraCS run-

ning on your dataset of interest. First, make sure that Python 2.7 is installed

on your computer. ExSTraCS is run from the command line, and requires a

properly formatted conﬁguration ﬁle. Included with ExSTraCS is an example

conﬁguration ﬁle named ExSTraCS Configuration File Minimum.txt. To get

ExSTraCS running on the included training and testing datasets, leave this

conﬁguration ﬁle as is. This ‘minimum’ conﬁguration ﬁle relies on all avail-

able built-in default ExSTraCS run parameters. Next, from the command line,

navigate to the folder where ExSTraCS has been saved and type the following:

python ./ExSTraCS Main.py ExSTraCS Configuration File Minimum.txt

This is the standard command for running ExSTraCS. Notice that the only

argument required by ExSTraCS is the ﬁle path/name for a properly formatted

conﬁguration ﬁle.

In order to run ExSTraCS on diﬀerent datasets using the same default

parameters, users should edit this conﬁguration ﬁle to specify respective ﬁle

paths/names for the desired training and testing datasets (i.e. edit trainFile

and testFile. Keep in mind that both training and testing datasets should

be tab-delimited .txt format, and columns including attributes, instance identi-

ﬁers, and class, should be in the same order for both the training and the testing

dataset (if a testing dataset is provided). Additionally ExSTraCS identiﬁes the

class phenotype column using the default speciﬁed label ‘Class’, and an optional

column for instance identiﬁers using the default label ‘InstanceID’. These labels

may be edited in the conﬁguration ﬁle to match the labels in the users dataset.

The location of ‘Class’ and ‘instanceID’ columns relative to attribute columns is

not important as ExSTraCS will automatically detect their location using these

unique labels. Note that the only run parameter in ExSTraCS without some

kind of default value is trainFile.

The user can also specify a unique ﬁle path/name for outFileName, which

gives the location and an optional preﬁx for the ﬁle-name for all standard ExS-

TraCS output text ﬁles. Note that ExSTraCS will overwrite any output ﬁles with

the same name. By default, (or when the user speciﬁes ’None’ for outFileName),

ExSTraCS will use the name of the training dataset alone as the root of the out-

put ﬁle names, and save these ﬁles locally in the working directory if no path is

provided in outFileName. Also, whenever expert knowledge is active (as it is by

default), the user can specify a unique ﬁle path/name for outEKFileName, which

gives the location and optional preﬁx for the ﬁle-name for the expert knowledge

weights generated by the selected attribute weight algorithm. Similar to with

outFileName, by default,(or when the user speciﬁes ’None’ for outEKFileName),

ExSTraCS will use the name of the training dataset alone as the root of the ex-

pert knowledge output ﬁle, and save this ﬁle locally in the working directory if

no path is provided in outEKFileName. Since the expert knowledge generation

strategies are deterministic, they need only ever be run once on a given train-

ing dataset, and the weights output to outEKFileName can simply be loaded

in future runs/analyses of the given training dataset. If a outEKFileName al-

ready exists it will not be overwritten, and ExSTraCS will instead automatically

attempt to load the weights from the existing text ﬁle.

2.2 Conﬁguration File and Run Parameters

In this section we take a look at two other example conﬁguration ﬁles included

with the code and get into all of the editable run parameters available in ExS-

TraCS. First, we refer the reader to...

ExSTraCS Configuration File Complete.txt

This is an example conﬁguration ﬁle including all available run paramters

in ExSTraCS. Some may ﬁnd it convenient to use/edit this conﬁguration ﬁle

format so that they have greater control over algorithm parameters, and/or

to have a record of parameters used in an analysis via a copy of a complete

conﬁguration ﬁle. Second, we refer the reader to...

ExSTraCS Configuration File Recommended.txt

This is a conﬁguration ﬁle example that includes parameters that (1) may

dramatically impact performance given diﬀerent dataset characteristics (2) are

convenient for data formatting, or (3) give users access to useful optional fea-

tures. We expect that most users would ﬁnd it convenient to use/edit this

conﬁguration ﬁle format, as it leaves out parameters that we have found to

have limited positive impact to shift from the default values included within the

ExSTraCS algorithm.

Now we examine each run parameter in as much detail as possible. The

order in which parameters are discussed is the same order as they are listed

in the ‘complete’ conﬁguration ﬁle example. We suggest that readers review

parameters as needed. Most default parameter values are somewhat arbitrarily

based on what has been typically used in other LCS algorithms. Default run

parameters do not reﬂect an optimal set of run parameters for any given dataset.

However, we expect ExSTraCS to function well on most small or modestly sized

datasets using these default parameters.

2.2.1 Dataset Parameters

trainFile

This is the only parameter that must be speciﬁed in the conﬁguration ﬁle. This

parameter speciﬁes the ﬁle path/name for the training dataset. If a path is

not given, it is assumed that the training data is located in the same folder as

the ExSTraCS algorithm (as is the case for the example training dataset). The

training data constitutes the ‘environment’ within which ExSTraCS is seeking

to learn. The training data ﬁle should be a tab-delimited .txt ﬁle, where the ﬁrst

row includes column headers (i.e. identiﬁers for attributes, the class variable,

and optionally instance identiﬁers). Missing values in the dataset should have

a standard designation (we suggest NA by default).

testFile

This parameter speciﬁes the ﬁle path/name for the testing dataset. If a path is

not given, it is assumed that the testing data is located in the same folder as the

ExSTraCS algorithm (as is the case for the example testing dataset). Columns

in the testing data should have all attributes, InstanceID (optional), and Class in

the same order as found in the training dataset. The testing dataset is optional.

If no testing dataset is available (or desired) give the value None instead of

a ﬁle path/name. This is the default value for this parameter, therefore if

not speciﬁed, ExSTraCS will assume that not testing dataset is available. If a

testing dataset is speciﬁed it will be used during complete classiﬁer population

evaluations to determine testing accuracy, a particularly important performance

metric in noisy data where overﬁtting is a critical concern. Testing accuracy

assesses ExSTraCS’s ability to make predictions on data instances that it has not

yet seen, or in other words, it’s ability to learn patterns that are generalizable

to other instances or situations. Note that ExSTraCS learning is put on hold

whenever evaluations are being completed such that the algorithm does not get

any chance to unfairly learn from testing instances.

outFileName

This parameter speciﬁes the ﬁle path/preﬁx-name for for most standard ExS-

TraCS output ﬁles, including (1) the rule population, (2) the population statis-

tics, (3) the co-occurrence values, (4) attribute tracking scores, and (5) learning

tracking. ExSTraCS outputs up to four unique text ﬁles every time it completes

a classiﬁer population evaluation, and outputs learning tracking once for the en-

tire learning process. By default, this parameter is set to None. When set to

None, ExSTraCS will use the name of the training dataset alone as the root of

the output ﬁle names, and save these ﬁles locally in the working directory if no

path is provided in outFileName. While the training dataset name will always

be included into the output ﬁle names, this parameter allows users to specify

not only a path, but a preﬁx to the ﬁlename. For instance if the training data

was called ‘MyTrain.txt’, and the user set this parameter to C:

Results

Study1 one output ﬁle would be C:

Results

Study1 MyTrain ExSTraCS 5000 PopStats.txt. Do not include a ﬁle exten-

sion (such as .txt) in this parameter, as this is done automatically. The fol-

lowing text will automatically be added to this parameter for each respective

output ﬁle (where [Iteration] indicates the current iteration integer value): (1)

‘ ExSTraCS [Iteration] PopStats.txt’, (2) ‘ ExSTraCS [Iteration] RulePop.txt’,

(3) ‘ ExSTraCS [Iteration] CO.txt’, (4) ‘ ExSTraCS [Iteration] AttTrack.txt’,

(5) ‘ ExSTraCS [Iteration] Predictions.txt’, and (6) ‘ ExSTraCS LearnTrack.txt’.

We recommend that users use this parameter to only specify the desired path

for where output ﬁles will be saved, or leave it at None if output ﬁles are to be

saved in the working directory. When specifying a ﬁle path, end with ‘

’.

oﬄineData

This parameter speciﬁes whether ExSTraCS will acquire data online or oﬄine.

While ExSTraCS learns iteratively (i.e. one training instance at a time), in-

stances can be made available to ExSTraCS as a complete dataset (i.e. ‘oﬄine’)

or only when they become available, one instance at a time (i.e. ‘online’) By

default, ExSTraCS is speciﬁcally designed for ‘oﬄine’ iterative learning, where

a dataset is initially loaded by ExSTraCS in its entirety. However we have in-

cluded the option to learn on data instances that are obtained one instance at a

time each iteration. This option has not yet been fully tested, and is not meant

to be the focus of ExSTraCS. We included this option for development purposes,

in an eﬀort to make ExSTraCS as ﬂexible as possible to the needs of diﬀerent

users. Currently the only ‘online’ learning data available is accessed using the

included module (Problem Multiplexer.py) that provides a method to randomly

generate and return a single multiplexer training instance for ‘online’ data ac-

quisition. Of further note, when offlineData is set to 0 (i.e. ’onlineData’) the

following mechanisms should not function (and must be deactivatetd); expert

knowledge covering, attribute tracking, attribute feedback, and rule compaction.

Additionally complete classiﬁer population evaluations will not function prop-

erly, since they rely on ﬁnite, loaded training and testing datasets. By default,

a value of 1 should be used for this parameter whenever the user is training on

a ﬁnite data ﬁle. We expect this will be the case for almost all users.

internalCrossValidation

This parameter allows the user to perform cross validation analysis internally,

in a serial set of ExSTraCS algorithm runs. A value of 0 or 1 indicates that

no internal cross validation is to be completed, while any other positive integer

value, indicates that internal cross validation is to be completed, and gives the

number of divisions of the data to be included in the cross validation. Speciﬁ-

cally a value of 10 will break the original dataset into 10 random (class balanced)

groups. 10 training and 10 testing datasets will be generated and saved as text

ﬁles where in each 9 out of 10 groups make up the training data, and the re-

maining 1/10 makes up the testing dataset, where the 1/10 constituting the

testing data is a diﬀerent 1/10 for each cross validation set. Activating internal

cross validation will automatically result in these datasets being generated, and

ExSTraCS serially performing a complete run and evaluation on each training

and testing dataset pair. The user can still perform cross validation by generat-

ing their own training and testing datasets outside of ExSTraCS and specifying

these ﬁle locations as previously described above. By default we suggest setting

internalCrossValidation to 0, deactivating this option.

randomSeed

This parameter allows the user to set a constant random seed, such that if the

same random seed is used, ExSTraCS will yield the same results in a subsequent

run on the same dataset with the same run parameters. To specify a random

seed value, simply provide any integer value for this parameter. To use a psuedo-

random number that won’t replicate run to run, set this parameter ‘False’ By

default, this parameter is set to ‘False’. However, this parameter should not

meaningfully impact the performance of ExSTraCS, other than any random

chance advantage or disadvantage.

labelInstanceID

This parameter speciﬁes the column header which ExSTraCS uses to identify

the column in dataset ﬁles that includes unique identiﬁers for each attribute

in the respective dataset. This feature serves two purposes. Most simply, if

the dataset includes a column for instance identiﬁers, the user does not have

to delete or edit this column for formatting reasons. Instead, simply edit this

parameter to match the header label for instance identiﬁers in the dataset, and

ExSTraCS will know not to treat this column as an attribute upon which to

try and learn. Additionally, the attribute tracking mechanism stores weights

uniquely for every instance in the training dataset. When attribute tracking

scores are output, the instance labels included in the dataset are used to pair

attribute tracking scores to a given instances. If instance identiﬁers are not

provided in the original dataset, they are generated based on the order of in-

stances in the original dataset, and attribute tracking scores are paired with

these internally generated identiﬁers in the attribute tracking output ﬁle. This

way, users have some way of ﬁguring out which attribute tracking score goes

with what instance in the data. This is particularly important, because the

dataset is randomly, internally shuﬄed at the end of loading/formatting, to try

and remove any potential order bias from the training dataset.

labelPhenotype

This parameter speciﬁes the column header which ExSTraCS uses to identify

the column in the dataset ﬁles that includes phenotype values for all instances.

Phenotype is our preferred terminology for ‘class’, ‘endpoint’, or ‘action’ (as it

is often referred to in classic LCS algorithms applied to reinforcement learning

problems). In other words, phenotype refers to the dependent variable. The

phenotype column may be the ﬁrst, last or any middle column. The value

of this parameter must match the label for phenotype column included in the

dataset. We suggest using ‘Class’ by default.

discreteAttributeLimit

This parameter speciﬁes the number of unique attribute states that may ex-

ist for a given attribute before it is considered to be a continuous attribute

instead. When dealing with datasets that include both discrete and contin-

uous attributes, the user should take some care to ensure that this limit is

set correctly. This parameter has been included as part of the adaptive data

management scheme to automatically detect and discriminate discrete from con-

tinuous attributes. By default, this value is set to 10, which means that if any

attribute has more than 10 possible states, ExSTraCS will treat it as a continu-

ous variable instead. The included example training dataset has 20 attributes,

each with only 3 possible states (0,1, or 2). Based on the default setting of

this parameter, ExSTraCS will treat all 20 attributes as discrete. To ensure

that attributes intended to be considered to be discrete, are treated as such,

we recommend that the user identify (or estimate) the discrete variable in their

dataset with the largest number of states, and set this parameter to that value.

labelMissingData

This parameter speciﬁes the unique designation for a missing data point in a

given training or testing dataset. This allows the user to conveniently change

this parameter instead of changing the identiﬁer for all missing data points

in the dataset. Additionally, this allows ExSTraCS to run on data (without

imputation bias) despite missing data points within instances. Note, the value

speciﬁed for this parameter must universally identify missing data points in the

loaded training or testing datsets. We suggest using ‘NA’ by default.

2.2.2 General Run Parameters

trackingFrequency

This parameter speciﬁes the frequency with which ExSTraCS performs minor

learning performance tracking estimates (and subsequently outputs these statis-

tics to an output ﬁle ending in ‘ ExSTraCS LearnTrack.txt’. This value is set

to zero by default which means that tracking will occur every epoch (i.e. ev-

ery complete cycle through the training dataset). Alternatively, ExSTraCS will

output tracking performance every niterations, where nis the integer value

speciﬁed for this parameter. Keep in mind that tracking performance estimates

are based on the last nlearning iterations. More frequent performance evalu-

ations will be less accurate, more variable, and increase overall algorithm run

time. We suggest leaving this parameter at the default, unless the dataset has a

particularly large number of training instances (e.g. greater than 5000), or the

user simply wants more frequent performance estimates.

learningIterations

This parameter is used to specify two things. (1) The last integer value in the

string speciﬁes the maximum number of learning iterations that should be per-

formed using ExSTraCS, and (2) each integer speciﬁes an iteration ‘checkpoint’

at which a complete evaluation of the ExSTraCS classiﬁer population across the

entire training (and testing) datasets is completed and output ﬁles are generated.

The user can specify any number of learning checkpoints, however the iteration

numbers should be increasing up to some maximum number of iterations, and

individual values should be separated by a period. Alternatively, the user can

specify a single integer value which indicates that ExSTraCS should run with-

out interim evaluations and ﬁle outputs, until that speciﬁed iteration is reached.

For larger datasets, or more complex problems, the user may wish to increase

the number of learning iterations. To help estimate the maximum number of

iterations ExSTraCS should be run, consider that XCS [8] can solve the 20-bit

Multiplexer problem in about 50,000 iterations. Some additional examples of

how to properly specify this run parameter include; ’1000.5500’, ’200000’, and

’5000.50000.500000’. Note, do not use commas when specifying learning itera-

tions. The default setting for this parameter is ‘5000.10000.50000.100000’. This

is a largely arbitrary default, and we encourage users to adjust this parameter

to suit their speciﬁc needs.

outputSummary

This parameter directs ExSTraCS to output a population statistics summary

ﬁle each time a classiﬁer population evaluation is completed (i.e. at each iter-

ation speciﬁed in learningIterations). This ﬁle includes a number of sum-

mary statistics including training accuracy, testing accuracy, training coverage,

testing coverage, macro-population size, micro-population size, global classiﬁer

generality, three variations of attribute speciﬁcity sums (which can be used to

identify which attributes ExSTraCS relies on the most to make accurate predic-

tions), and a break down of ExSTraCS run times. To output this ﬁle, set this

parameter to 1. To keep it from being generated, set this parameter to 0.

outputPopulation

This parameter directs ExSTraCS to output a text ﬁle that speciﬁes the cur-

rent classiﬁer population in it’s entirety. This ﬁle allows the user to manually

inspect or visualize the classiﬁer population output by ExSTraCS for knowledge

extraction purposes. This ﬁle includes all information required reconstitute the

classiﬁer population from the learning iteration it was output (e.g. condition,

phenotype, ﬁtness, accuracy, numerosity, initial time stamp, etc.). In other

words, ExSTraCS can be ‘reboot’ to continue learning from where a previous

ExSTraCS run left oﬀ, by loading this output ﬁle (Note that the PopStats.txt ﬁle

is also required for a population reboot). To output this ﬁle, set this parameter

to 1. To keep it from being generated, set this parameter to 0.

outputAttCoOccur

This parameter directs ExSTraCS to output a text ﬁle that ranks top pairs

of attributes that are co-speciﬁed in classiﬁers across the classiﬁer population.

If the loaded training dataset include <= 50 attributes, all attribute pair co-

occurrence scores will be output to this ﬁle. If there are more than 50 attributes,

the only top speciﬁed 50 attribute will be used to determine the top co-speciﬁed

attribute pairs. This is due to the fact that that as the number of attributes

in the dataset increases, the number of attribute pair combinations goes up

exponentially. This co-occurrence metric can be used to better characterize the

relationships between attributes in classiﬁers across the population. This can be

used, for instance, to help diﬀerentiate epistatic interactions from heterogeneous

relationships. To output this ﬁle, set this parameter to 1. To keep it from being

generated, set this parameter to 0.

outputTestPredictions

This parameter directs ExSTraCS to output a text ﬁle that gives the algorithm’s

predictions for all instances in the loaded testing dataset. For each instance, this

includes the class prediction made, and the respective votes calculated in the

prediction array for each possible class endpoint. These votes may be used as a

fuzzy prediction, Bayesian probabilities, or estimates of prediction conﬁdence.

To output this ﬁle, set this parameter to 1. To keep it from being generated,

set this parameter to 0.

2.2.3 Supervised Learning Parameters

This parameter speciﬁes the maximum population size (i.e. the micro-population

size) that ExSTraCS is allowed to reach before the deletion mechanism turns

on and maintains this maximum number. For reference, the macro-population

size refers to the number of ‘unique’ classiﬁers in the classiﬁer population, while

micro-population size (N) takes into account the numerosity of unique classiﬁers.

Numerosity refers to the number of ‘copies’ of a given classiﬁer that currently

exist in the classiﬁer population. Numerosity provides robustness to classiﬁers,

making it unlikely for for good classiﬁers to be completely eliminated by chance.

Numerosity also improves performance by not requiring ExSTraCS to maintain

multiple separate copies of the same classiﬁer. The value of the maximum popu-

lation size parameter can have a dramatic inﬂuence on ExSTraCS performance.

If N is too small, an LCS algorithm can’t properly explore a given search space,

or maintain ‘good’ classiﬁers. If N is too large, an LCS algorithm will take

longer to run, and the resulting classiﬁer population will likely be much bigger

than necessary. Properly setting this parameter my require some initial trial

and error or a more formal parameter sweep. By default, ExSTraCS uses a

maximum population size of 1000, which (in our analyses) has yielded reliable

performance on datasets with up to at least 20 attributes. We commonly also

set this parameter to 2000 for more complex, noisy problems, and on datasets

with as many as 2000 attributes. For particularly small datasets, a maximum

population size as low as 500, or even smaller may still function well.

This parameter (ν) speciﬁes the power to which accuracy is raised in calculating

classiﬁer ﬁtness. Tim Kovaks explores this parameter in [10]. In our work,

where we focus on noisy problems/data, it is impossible to achieve a testing

acccuracy of 100%. This these noisy problem domains we have observed that

keeping νlow yields better performance. Essentially, this places less pressure on

the algorithm to evolve classiﬁers that have a perfect accuracy, which in noisy

problem domains would only occur when a classiﬁer is overﬁtting. We suggest

a default value of 1, since we assume that we are dealing with noisy problem

domains. For ‘clean’ problem domains such as the multiplexer toy problems, it

might be advantageous to return this parameter value back to the value of 10

used in the original UCS algorithm [2], or the value of 5 used in XCS [4].

chi

This parameter (χ) speciﬁes the probability that the crossover operator will

be applied when the genetic algorithm is activated to discover new oﬀspring

classiﬁers. This value is typically set within the range of 0.5 to 1.0. We suggest

a default value of 0.8 which has been traditionally used by the XCS and UCS

algorithms [4, 2].

upsilon

This parameter (υ) speciﬁes the probability that the mutation operator will

specify or generalize a given attribute state within an oﬀspring classiﬁer any

time the genetic algorithm is activated. This parameter value is typically set

within the range of 0.01 to 0.05. We suggest a default value of 0.04 which has

been traditionally used by the XCS and UCS algorithms [4, 2].

theta GA

This parameter (θGA) is a threshold applied to activating the genetic algorithm.

Speciﬁcally, the genetic algorithm is activated when the average number of it-

erations since the genetic algorithm was last applied to classiﬁers in the correct

set is greater than this threshold. In other words, if the correct set is ﬁlled with

very young classiﬁers, the genetic algorithm is prevented from being applied.

We suggest a default value of 25 which has been traditionally used by the XCS

and UCS algorithms [4, 2].

theta del

This parameter (θdel) is a threshold applied to the deletion mechanism. Specif-

ically, an alternative, more protective deletion vote is calculated for a given

classiﬁer if it’s experience (i.e. the number of instances it has matched so far)

is less than this threshold. We suggest a default value of 20 which has been

traditionally used by the XCS and UCS algorithms [4, 2].

theta sub

This parameter (θsub) is a threshold applied to the subsumption mechanism.

Speciﬁcally, a given classiﬁer can only be a potential subsumer if its experience

(i.e. the number of instances it has matched so far) is greater than this threshold.

We suggest a default value of 20 which has been traditionally used by the XCS

and UCS algorithms [4, 2].

acc sub

This parameter is an accuracy threshold applied to the subsumption mechanism.

Speciﬁcally, a given classiﬁer can only be a potential subsumer if its accuracy is

greater than this threshold. We suggest a default value of 0.99 which was used

by the UCS algorithm [2]. We suspect that in noisy problem domains it may

be advantageous to lower this threshold, since the expectation that a subsumer

have an accuracy >0.99 is likely poor in noisy problem domains.

beta

This parameter (β) is a learning parameter used to update the average correct

set size value maintained for each classiﬁer. We suggest a default value of 0.2

which has been traditionally used by the XCS and UCS algorithms [4, 2].

delta

This parameter (δ) is a deletion parameter applied to the deletion vote cal-

culation for each classiﬁer. We suggest a default value of 0.1 which has been

traditionally used by the XCS and UCS algorithms [4, 2].

init ﬁt

This parameter speciﬁes the initial ﬁtness given to a new classiﬁer. We suggest

a default value of 0.01 which is a fairly typical value for an LCS algorithm. We

expect that any reasonably low-valued setting for this parameter would work.

ﬁtnessReduction

This parameter speciﬁes an initial ﬁtness reduction applied to oﬀspring classi-

ﬁers generated using the crossover operator in the genetic algorithm. We suggest

a default value of 0.1 which has been traditionally used by the XCS and UCS

algorithms [4, 2].

theta sel

This parameter speciﬁes the fraction of the correct set that will be randomly

included in tournament selection, whenever tournament selection is used to

select parents for the genetic algorithm. We suggest a default value of 0.5 which

is similar to the value of 0.4 utilized in [3].

RSL Override

This parameter is a completely optional override to the rule speciﬁcity limit

(RSL). When this parameter is set to 0 (default), ExSTraCS automatically

calculates a reasonable RSL based on the number of instances, and the average

number of attribute states in the training dataset. When set to an integer

greater than 0, but less than or equal to the number of attributes in the dataset,

ExSTraCS will apply the speciﬁed integer as the RSL. Setting this value equal to

the number of attributes in the dataset, will allow rules to specify an attribute

state for all attributes in the dataset. Generally, speaking, as the number of

attributes in the dataset becomes large, the use of a large RSL may prevent

ExSTraCS from learning useful generalizations.

2.2.4 Mechanism Parameters

doSubsumption

This parameter speciﬁes whether subsumption (both action/correct set sub-

sumption and genetic algorithm subsumption) is activated or not. A value of 1

activates subsumption and a value of 0 turns it oﬀ. Subsumption was introduced

by Wilson [22] as a strategy to promote eﬀective generalization in the classiﬁer

population, and get avoid the speciﬁcation of attributes that confer not accu-

racy advantage. One classiﬁer subsumes (i.e. absorbs) another if the subsuming

classiﬁer is more general and has equal or greater accuracy than the classiﬁer

to be subsumed. The subsuming classiﬁer has it’s numerosity increased by the

current numerosity of the subsumed classiﬁer, while the subsumed classiﬁer is

completely deleted.

selectionMethod

This parameter speciﬁes the selection method that will be used by the ExSTraCS

genetic algorithm to pick parent classiﬁers. Two methods are currently available

in ExSTraCS including tournament and roulette selection (give a value . We

suggest tournament selection by default based on the results described in [3].

Tournament selection chooses a speciﬁed fraction of the classiﬁers in the correct

set randomly, and deterministically picks the most ﬁt classiﬁer to be a parent.

Roulette wheel selection probabilistically picks a parent classiﬁer based on the

ﬁtness values of all classiﬁers in the correct set (where a larger ﬁtness equals a

larger selection probability).

doAttributeTracking

This parameter speciﬁes whether the attribute tracking (AT) mechanism is acti-

vated or not. A value of 1 activates AT and a value of 0 turns it oﬀ. AT is akin

to long-term memory for supervised, iterative learning. For a ﬁnite training

dataset, a vector of accuracy scores is maintained for each instance in the data.

In other words, for every instance in the data we increase attribute weights based

on which attributes are being speciﬁed in classiﬁers found in [C] every iteration.

Post-training, these scores can be applied to characterize patterns of association

in the dataset, in particular heterogeneous patterns which might suggest clinical

patient subgroups that may be targeted for research, treatment, or preventative

measures [18]. Note that using AT alone does not impact learning performance.

Lastly, AT is only useful under the assumption that ExSTraCS will be repeat-

edly exposed to instances in the dataset, so that AT scores become more reliable

through experience. In other words, if the training dataset has a large number

of instances, AT scores may be based on few weight updates, depending on how

many overall learning iterations were completed. An epoch is a complete cycle

through all instances in the training dataset. The more epochs completed by

ExSTraCS, the more useful/reliable we would expect AT scores to be.

doAttributeFeedback

This parameter speciﬁes whether the attribute feedback (AF) mechanism is ac-

tivated or not. A value of 1 activates AF and a value of 0 turns it oﬀ. AF

can only be applied if AT is also activated. AF is applied to the GA muta-

tion and crossover operators, probabilistically directing classiﬁer generalization

based on the AT scores from a randomly selected instance in the dataset. The

probability that AF will be used in the GA is proportional to the algorithm’s

progress through the speciﬁed number of learning iterations (i.e. AF is applied

infrequently early-on, but frequently towards the end). As with AT, we would

expect AF to function better when a greater number of epochs are completed

by ExSTraCS. It is possible that AF may not improve performance in datasets

with a large number of training instances (i.e. where the number of training in-

stances is of similar or greater magnitude than the number of training iterations

to be completed. Note that in developing ExSTraCS we realized that AF-UCS

was not using the AT scores from the current training instance (as mistakenly

described in [18]), but rather the scores from a neighboring instance. This ‘error’

turned out to be essential to recapitulate attribute feedback performance. While

AF using the current training instance is better than no AF at all, AF using a

the AT scores from a random training instance worked even better. AF speeds

up eﬀective learning by gradually guiding the algorithm to more intelligently

explore reliable attribute patterns.

useExpertKnowledge

This parameter speciﬁes whether the expert knowledge (EK) covering mecha-

nism is activated or not. A value of 1 activates EK covering and a value of 0 turns

it oﬀ. EK is essentially an external bias introduced to better guide learning, such

that attributes more likely to be important tend to be speciﬁed more often when

covering. In other words, classiﬁers tend to be initialized in parts of the problem

space deemed by the EK to be most useful for predicting class status. Notably,

the utility of EK is only as good as the quality of the information behind the

weights. EK covering is implemented in ExSTraCS as described in [20] including

the calculation of EK probability weights from raw EK scores, and the applica-

tion of these weights within the covering mechanism. In theory, the source of EK

is up to the user (i.e. classiﬁer population initialization can be biased towards

whatever attributes desired). If this parameter is activated there are a number

of associated run parameters described below, that the user may need to specify

accordingly. These include; external EK Generation, outEKFileName, ﬁlterAl-

gorithm, turfPercent, reliefNeighbors, reliefSampleFraction, and onlyEKScores.

The most important to consider include; external EK Generation, outEKFile-

Name, ﬁlterAlgorithm, and onlyEKScores.

external EK Generation

This parameter speciﬁes whether EK will be generated by one of the four at-

tribute weight/ﬁlter algorithms built into ExSTraCS including; ReliefF, SURF,

SURF*, and MultiSURF, or whether it will be loaded from some external source

ﬁle. By default ExSTraCS sets this parameter to None, which indicates that

EK will be generated internally (Note: Thus the user may need to consider

the following parameter values; outEKFileName, ﬁlterAlgorithm, turfPercent,

reliefNeighbors, reliefSampleFraction, and onlyEKScores). Alternatively this

parameter can be set to the full path/name including the ‘.txt’ ﬁle extension

pointing to a properly formatted external EK weight ﬁle. This tells ExSTraCS

that this ﬁle and the included EK weights should be loaded and utilized by the

algorithm. This ﬁle should have the same formatting as the EK ﬁles output by

ExSTraCS when internally generated. Speciﬁcally, there must be three initial

rows in the text ﬁle that can be ﬁlled with any information, or left blank. The

fourth row should begin the EK scores themselves. Every row from the fourth

down to the last should include the following; (1) the ﬁrst column should give

an attribute ID as it appears in the training data, and (2) the second column

should include some real-valued (positive or negative) numerical weight for that

respective attribute. Additional columns are optional, and will not be read by

ExSTraCS. For an example of this format, please observe an internally gen-

erated EK ﬁle output by ExSTraCS. This parameter only impacts ExSTraCS

if useExpertKnowledge is set to 1. If EK is being internally generated, and

higher dimensional datasets are being considered (with many attributes and/or

many training instances), the python implementation of these attribute weight-

ing algorithms may take a while to run. They have not yet been optimized for

very large datasets. If you notice that EK generation is taking an unreasonable

amount of time for a larger dataset, you might with to refrain from using ExS-

TraCS to generate EK. A faster version of these algorithms that only works on

datasets with discrete, case/control (i.e. two class) datasets is currently available

build into the Multifactor Dimmensionality Reduction (MDR) software [12]. We

plan to make faster versions of these EK generation algorithms available that

can handle discrete and continuous, attributes and endpoints. These currently

implemented versions can indeed handle discrete and continuous, attributes and

endpoints, they have just not yet been optimized for run eﬃciency.

outEKFileName

This parameter speciﬁes the path/preﬁx-ﬁle root name for the EK score ﬁle that

can be internally generated by ExSTraCS. This preserves EK scores for future

reference or use. Similar to with outFileName, by default,(or when the user

speciﬁes ’None’ for outEKFileName), ExSTraCS will use the name of the train-

ing dataset alone as the root of the expert knowledge output ﬁle, and save this

ﬁle locally in the working directory if no path is provided in outEKFileName.

Also, for this parameter, do not include a ﬁle extension such as ‘.txt’. The fol-

lowing text will automatically be added to the EK output ﬁlename based on the

weight algorithm [alg] selected for EK generation; ‘ [alg] scores.txt’. [alg] can

be ‘relieﬀ’, ‘surf’, ‘surfstar’, ‘multisurf’, ‘relieﬀ turf’,‘surf turf’,‘surfstar turf’, or

‘multisurf turf’. The value of outEKFileName only matters if useExpertKnowledge

is set to 1 and external EK Generation is set to None. If an expert knowledge

output ﬁle of the same name already exists it will not be overwritten, and ExS-

TraCS will instead automatically attempt to load the weights from the existing

text ﬁle. We recommend that users use this parameter to only specify the de-

sired path for where output EK ﬁles will be saved, or leave it at None if output

EK ﬁles are to be saved in the working directory. When specifying a ﬁle path,

end with ‘

’.

ﬁlterAlgorithm

This parameter speciﬁes the weight/ﬁlter algorithm that will be used to gen-

erate EK internally within ExSTraCS. The ﬁrst four valid values for this pa-

rameter include; ‘relieﬀ’, ‘surf’, ‘surfstar’, or ‘multisurf’. These four rapid at-

tribute weighting algorithms were designed to estimate attribute quality, in

terms of predicting class status. For the speciﬁcs of a given weighting algo-

rithm please refer to the corresponding reference; ReliefF [9], SURF [7], SURF*

[6], and MultiSURF [5]. We recommend that MultiSURF be used by default,

as it is the newest, and best performing of the four available options, how-

ever MultiSURF can take slightly more time to run compared to the other

three options. New to ExSTraCS 2.0 is the ability to run any of these at-

tribute weighting algorithms in concert with the TuRF wrapper algorithm.

TuRF will run the speciﬁed attribute weight algorithm repeatedly, each time

removing a percentage of the lowest scoring attributes. To run an attribute

weight algorithm along with TuRF use one of the following valid values for

this parameter; ‘relieﬀ turf’,‘surf turf’,‘surfstar turf’, or ‘multisurf turf’. The

value of filterAlgorithm only matters if useExpertKnowledge is set to 1 and

external EK Generation is set to None.

turfPercent

This parameter speciﬁes two things. First, it speciﬁes the percent of attributes

that are eliminated from consideration each iteration of the TuRF wrapper

algorithm [11]. Second, this value is inversely proportional to the number of

TuRF iterations that are completed. This way, despite the value chosen for

this parameter, roughly the same number of attributes will remain in the ﬁnal

attribute weight calculation iteration. While [11] suggests a value of 0.05 for

this parameter, we have adopted a default of 0.2, as requires less time, and

performed well in our preliminary testing.

reliefNeighbors

This parameter is only applicable when using the ReliefF algorithm to gener-

ate EK weights. Speciﬁcally this parameter gives the number of ‘neighbors’

used in the calculation of ReliefF scores. Please see [9] for more details on

ReliefF, and the neighbors parameter. We suggest using 10 by default. The

value of reliefNeighbors only matters if useExpertKnowledge is set to 1,

external EK Generation is set to None, and filterAlgorithm is ‘relieﬀ’ or

‘relieﬀ turf’.

reliefSampleFraction

This parameter is only applicable when using either the ReliefF, SURF, or

SURF* algorithm to generate EK weights (i.e. not applicable to MultiSURF).

Speciﬁcally this parameter gives the number of iterations to be completed by

the respective EK weight algorithm, given as a percent of the training dataset

instances (i.e. between 0 and 1). We suggest using 1 by default, which means

that the respective weight algorithm will iterate over all training instances in the

dataset. The value of reliefNeighbors only matters if useExpertKnowledge,

is set to 1, external EK Generation is set to None, and filterAlgorithm is

either ‘relieﬀ’, ‘surf’, ‘surfstar’, ‘relieﬀ turf’, ‘surf turf’, or ‘surfstar turf’. Please

see ReliefF [9], SURF [7], or SURF* [6] respectively for further discussion.

onlyEKScores

This parameter gives the user the option to use the ExSTraCS platform to only

run one of the accompanied EK generating attribute weight/ﬁlter algorithms

including; ReliefF, SURF, SURF*, and MultiSURF. In other words, EK will

be generated, but the rest of the ExSTraCS algorithm will not run. This al-

lows EK generation to be run as a separate pre-processing step. A value of

1 directs ExSTraCS to only perform EK generation, while a value of 0 indi-

cates that ExSTraCS should both perform EK generation and run the core

ExSTraCS LCS algorithm as well. The value of onlyEKScores only matters if

useExpertKnowledge is set to 1.

doRuleCompaction

This parameter speciﬁes whether rule compaction is activated or not. A value

of 1 activates rule compaction and a value of 0 turns it oﬀ. ExSTraCS makes

the six rule compaction strategies evaluated in [13] available to post-process the

classiﬁer population. Rule compaction utilizes the whole training dataset to

consolidate the classiﬁer population with the goal of improving interpretation

and knowledge discovery. Comparisons in [13] suggested that simple Quick Rule

Filtering (QRF) was both the fastest, and particularly was well suited to the

theme of global knowledge discovery [19] where it is more important to preserve

or improve performance than to minimize classiﬁer population size(useful for

knowledge discovery by manual rule inspection) [13].

onlyRC

This parameter gives the user the option to use the ExSTraCS platform to only

run one of the accompanied rule compaction strategies on an existing saved

classiﬁer population output ﬁle. Essentially this parameter gives the user the

option to try out diﬀerent rule compaction strategies on any saved classiﬁer

population ﬁle output by ExSTraCS. This allows for comparisons between rule

compaction strategies, and the ﬂexibility for a user to return to a previous ExS-

TraCS run in which rule compaction had not been utilized, and quickly compact

this saved classiﬁer population without having to run the entire ExSTraCS al-

gorithm again from scratch. A value of 1 activates this parameter while of value

of 0 indicates that ExSTraCS should be run normally. A value of 1 supersedes

most other run parameters, directing ExSTraCS to only run rule compaction

on an existing classiﬁer population, and not running the ExSTraCS core LCS

algorithm at all. When onlyRC is set to 1, doPopulationReboot must also be

set to 1, and popRebootPath must be provided with a valid path/ﬁle name for

an existing saved ExSTraCS classiﬁer population ﬁle.

ruleCompactionMethod

This parameter speciﬁes the rule compaction or ﬁlter algorithm that will be ap-

plied by ExSTraCS after the last learning iteration completes, or when onlyRC

is activated. Valid values for this argument include; ‘QRF’, ‘PDRC’, ‘QRC’,

‘CRA2’, ‘Fu2’ and ‘Fu1’, each which represent an available rule compaction/ﬁlter

algorithm implemented in ExSTraCS. We suggest using QRF by default, as it is

extremely fast, simple, and basically just eliminates clearly poor classiﬁers from

the classiﬁer population.

doPopulationReboot

This parameter gives the user the option to load a previously saved ExSTraCS

classiﬁer population output, and continue to run ExSTraCS from where it left

oﬀ. Essentially this prevents the user from having to run the algorithm from

scratch if they wanted to see if additional learning iterations would improve

performance. This parameter must also be activated when onlyRC is set to

1, since rule compaction relies on an existing ExSTraCS classiﬁer population.

A value of 1 activates the population ‘reboot’ (as we refer to it) and a value

of 0 turns it oﬀ. If this parameter is set to 1, the user must also specify an

appropriate value for popRebootPath. By default, this option is turned oﬀ (i.e.

popRebootPath

This parameter speciﬁes the iteration number for the population ﬁle from which

ExSTraCS will ‘reboot’ (i.e. load the saved classiﬁer population, and continue

learning, or run a rule compaction strategy). ExSTraCS will automatically take

from outFileName and trainFile to construct the path/ﬁlename for previ-

ously saved output ﬁles (including the rule population ﬁle and the population

statistics ﬁle). Together, these ﬁles included everything ExSTraCS needs to

load a previous analyis and rule population and continue learning from where

it left oﬀ. No default is available for this parameter, thus it must be speciﬁed

if doPopulationReboot is set to 1. Since doPopulationReboot is set to 0 by

default, generally a user does not need to worry about specifying this parameter.

2.3 Overview of ExSTraCS Code

This section gives an overview of the ExSTraCS algorithm code itself, including

the overall organization and function of each ﬁle. The ExSTraCS algorithm

is open source and coded in Python 2.7. Each following subsection describes

a respective module ﬁle within ExSTraCS. We have left out the four EK at-

tribute weight algorithm ﬁles (including ReliefF.py, SURF.py, SURFStar.py,

and MultiSURF.py) as well as Problem Multiplexer.py, as they are not strictly

part of the ExSTraCS algorithm code, but rather can optionally be used by the

ExSTraCS algorithm. We have also left out TuRF Me.py below, which serves

as a wrapper algorithm to the aforementioned attribute weighting algorithm.

Problem Multiplexer.py has been included in the software download for users

who may wish to generate multiplexer datasets, or users that might be inter-

ested in trying out the ExSTraCS online learning feature (which has not yet

been fully tested).

Before reviewing individual modules in the code, we begin by pointing out

some of the most notable modules. First, ExSTraCS Main.py is the main run

ﬁle for running ExSTraCS from the command line. Second, ExSTraCS Test.py

is a convenient alternative to ExSTraCS Main.py, for running ExSTraCS locally

within a coding environment such as Eclipse with PyDev. Throughout devel-

opment, we used ExSTraCS Test.py to run and debug ExSTraCS in Eclipse

with PyDev. Third, ExSTraCS Algorithm.py initializes the classiﬁer popula-

tion, runs the core learning cycle of the ExSTraCS algorithm, and completes

local and global performance evaluations. Fourth, ExSTraCS ClassiﬁerSet.py

deﬁnes and manages all mechanisms operating at the level of classiﬁer sets,

where a classiﬁer set can be the whole population, a match set, or a correct

set. Lastly, ExSTraCS Classiﬁer.py deﬁnes and manages individual classiﬁers

making up the classiﬁer population.

ExSTraCS Main.py

This module is called to run ExSTraCS from the command line. Initialization

of the algorithm and key mechanisms takes place here.

ExSTraCS Test.py

This module is for developing and testing the ExSTraCS algorithm locally. This

module will run ExSTraCS directly within an editor (e.g. Eclipse with PyDev).

Initialization of the algorithm and key mechanisms takes place here.

ExSTraCS Algorithm.py

The major controlling module of ExSTraCS. Includes the major run loop which

controls learning over a speciﬁed number of iterations. Also includes periodic

tracking of estimated performance, and checkpoints where complete evaluations

of the ExSTraCS classiﬁer population is performed.

ExSTraCS ClassiﬁerSet.py

This module handles all classiﬁer sets (population, match set, correct set) along

with mechanisms and heuristics that act on these sets.

ExSTraCS Classiﬁer.py

This module deﬁnes an individual classiﬁer within the classiﬁer population,

along with all respective classiﬁer parameters. Also included are classiﬁer-level

methods, including constructors(covering, copy, reboot) matching, subsump-

tion, crossover, and mutation. Classiﬁer parameter update methods are also

included. Please note that classiﬁer parameters are something diﬀerent than

‘run parameters’ discussed above in this users guide.

ExSTraCS Constants.py

Stores and makes available all alogrithmic run parameters, and acts as a gateway

for referencing the timer, environment, dataset properties, attribute tracking,

and expert knowledge scores/weights. This is also where the generation expert

knowledge and respective weights is controlled.

ExSTraCS ConﬁgParser.py

Manages the conﬁguration ﬁle by loading, parsing, and passing it’s values to

ExSTraCS Constants. Also includes a method for generating datasets for cross

validation.

ExSTraCS DataManagement.py

Loads the dataset, characterizes and stores critical features of the datasets (in-

cluding discrete vs. continuous attributes and phenotype), determines the rules

speciﬁcity limit, handles missing data, and ﬁnally formats the data so that it

may be conveniently utilized by ExSTraCS. This is the ‘adaptive data manage-

ment’ component of ExSTraCS.

ExSTraCS Oﬄine Environment.py

In the context of data mining and classiﬁcation tasks, the ’environment’ for

ExSTraCS is a data set with a limited number of instances with some number

of attributes and a single endpoint (typically a discrete phenotype or class) of

interest. This module manages ExSTraCS’s stepping through learning itera-

tions, and data instances respectively. Special methods are included to jump

from learning to evaluation of a training dataset.

ExSTraCS Online Environment.py

ExSTraCS is best suited to oﬄine iterative learning, however this module has

been implemented as an example of how ExSTraCS may be used to perform

online learning as well. Here, this module has been written to perform online

learning for a n-multiplexer problem, where training instances are generated in

an online fashion. This module has not been fully tested.

ExSTraCS Timer.py

This module’s role is largely for development and evaluation purposes. Speciﬁ-

cally it tracks not only global run time for ExSTraCS, but tracks the time uti-

lized by diﬀerent key mechanisms of the algorithm. This tracking likely wastes a

bit of run time, so for optimal performance check that all ’cons.timer.startXXXX’,

and ’cons.timer.stopXXXX’ commands are commented out within ExSTraCS Main,

ExSTraCS Test, ExSTraCS Algorithm, and ExSTraCS ClassiﬁerSet.

ExSTraCS Prediction.py

Based on a given match set, this module uses a voting scheme to select the

phenotype prediction for ExSTraCS.

ExSTraCS AttributeTracking.py

Handles the storage, update, and application of the attribute tracking and feed-

back heuristics.

ExSTraCS ExpertKnowledge.py

A pre-processing step when activated in ExSTraCS. Converts numerical ex-

pert knowledge scores from any source into probabilities to guide the covering

mechanism in determining which attributes will be speciﬁed and which will be

generalized.

ExSTraCS RuleCompaction.py

Includes several rule compaction/rule ﬁlter strategies, which can be selected

as a post-processing stage following ExSTraCS classiﬁer population learning.

Fu1, Fu2, and CRA2 were previously proposed/published strategies from other

authors. QRC, PDRC, and QRF were proposed and published by Jie Tan, Jason

Moore, and Ryan Urbanowicz.

ExSTraCS ClassAccuracy.py

Used for global evaluations of the LCS classiﬁer population for problem domains

with a discrete phenotype. Allows for the calculation of balanced accuracy when

a discrete phenotype includes two or more possible classes.

ExSTraCS OutputFileManager.py

This module contains the methods for generating the diﬀerent output ﬁles gen-

erated by ExSTraCS. These ﬁles are generated at each learning checkpoint, and

the last iteration. These include...

•writePopStats: Summary of the population statistics

•writePop: Outputs a snapshot of the entire classiﬁer population including

classiﬁer conditions, classes, and parameters.

•attCo Occurence: Calculates and outputs co-occurrence scores for each

attribute pair in the dataset.

•writePredictions: Outputs class predictions with corresponding class votes

for each instance in an included testing dataset.

2.4 Output Files

As discussed brieﬂy in the previous section dealing with algorithm run param-

eters, ExSTraCS can output a number of ﬁles upon completion. In this section

we review all text ﬁles that may be generated as a result of running ExSTraCS,

and provide some direction for interpreting and utilizing these output ﬁles as

they were intended. We will begin with ﬁles that are generated each time the

classiﬁer population is evaluated globally, and then we will discuss other ﬁles

that would be output at most once per run of ExSTraCS.

2.4.1 Rule Population

Likely the most important output ﬁle is the rule population ﬁle, a.k.a the clas-

siﬁer population ﬁle (the ﬁle extension is [Iteration] RulePop.txt). This ﬁle

details the classiﬁer population as it exists after [Iteration] learning iterations.

This ﬁle can be used to ‘reboot’ ExSTraCS, i.e. to pick up learning from where

it was stopped previously. Additionally this ﬁle can be used for knowledge dis-

covery and extraction either by manual rule inspection (where the user can rank

classiﬁers by numerosity, and examine individual classiﬁers in search for useful

predictive classiﬁers), or employ global knowledge discovery strategies to look

for patterns based on what attributes are speciﬁed within the classiﬁer popula-

tion as a whole (as described in [19]). Each column in the classiﬁer population

ﬁle includes a respective classiﬁer parameter stored for each classiﬁer. Each

row gives the parameter values necessary to remake a respective classiﬁer in

the ExSTraCS classiﬁer population. Below we brieﬂy review each classiﬁer pa-

rameter maintained by ExSTraCS, and saved in the classiﬁer population output

ﬁle. Note that these ‘classiﬁer’ parameters, are diﬀerent than ExSTraCS ‘run’

parameters.

Speciﬁed

This parameter gives a list of attribute position identiﬁers, that indicates which

attributes in the dataset have been speciﬁed in a given classiﬁer. For example

the following entry [3,4,10] would indicate that this classiﬁer speciﬁes the fourth,

ﬁfth, and eleventh attributes in the dataset since zero based numbering is used,

where the ﬁrst attribute in the dataset would be at position zero. This parameter

is never changed for a given classiﬁer.

Condition

This parameter gives a list of the state values for each attribute speciﬁed in a

given classiﬁer. Using the previous example where the attributes speciﬁed for a

classiﬁer included [3,4,10], a condition of [’0’,[0.43,0.78],’red’] indicates the the

fourth attribute must have a state equal to ’0’, the ﬁfth attribute must have a

state value within the range of 0.43 and 0.78, and the eleventh classiﬁer must

have a state equal to ’red’. Note that by storing discrete states as string values

and continuous states as a minimum to maximum value range, ExSTraCS can

easily accommodate continuous attributes, and discrete attributes with numer-

ical or discrete values. This parameter is never changed for a given classiﬁer.

Phenotype

This parameter gives the phenotype (i.e. the endpoint or class) that a respective

classiﬁer predicts given the associated attribute states speciﬁed. This parameter

is never changed for a given classiﬁer.

Fitness

This parameter stores the ﬁtness of a respective classiﬁer. Currently, the ﬁtness

of a classiﬁer is equal to classiﬁer accuracy to the power of the run parameter ν.

Since by default this parameter is set to 1, by default ﬁtness is equal to accuracy.

The ﬁtness of a classiﬁer determines (1) it’s likelihood of being selected by the

genetic algorithm to be a parent classiﬁer, (2) it’s likelihood of being selected for

deletion, and (3) it’s vote, when ExSTraCS seeks to apply it’s current classiﬁer

population to make a class prediction. This parameter is updated for a given

classiﬁer any learning iteration that it is included in a match set.

Accuracy

This parameter stores the accuracy of a respective classiﬁer. If you are not

familiar with learning classiﬁer system algorithms, it is important to realize

that the accuracy of a classiﬁer has nothing to do with it’s global accuracy

across a dataset as a whole, rather the accuracy of a classiﬁer is a more local

calculation. Speciﬁcally the accuracy of a classiﬁer in ExSTraCS is equal to the

number of times a classiﬁer has been in a correct set, divided by the number of

times it has been in a match set. This parameter is updated for a given classiﬁer

any learning iteration that it is included in a match set.

Numerosity

This parameter stores the numerosity of a respective classiﬁer. The numerosity

of a classiﬁer represents the number of virtual copies of a given classiﬁer are be-

ing maintained within the classiﬁer population. Typically, a high numerosity is

an indicator that a classiﬁer is particularly ‘good’. Traditionally, when seeking

to interpret a classiﬁer population, classiﬁers are ranked by increasing numeros-

ity, and researchers begin by manually inspecting classiﬁers with the highest

numerosities. However this is not a completely reliable indicator, as numerosity

can sometimes be high by random chance, or simply because a classiﬁer has a

reasonable ﬁtness, but a low speciﬁcity (very few attributes speciﬁed). In this

situation, the classiﬁer would likely be involved in match sets very frequently,

and thus have a greater opportunity to reproduce through the genetic algorithm,

and thus a greater chance that the same or similar classiﬁers may be added to

the population. Now we will review some important mechanisms that impact

the numerosity of a classiﬁer. It is useful to note that when a classiﬁer is se-

lected for deletion, it is only completely removed from the population if it has

a numerosity of only one (only one copy of itself). If the classiﬁer’s numerosity

is larger, than deletion will decrement the numerosity of that classiﬁer (i.e. if

it’s numerosity was 5, deletion will reduce it to 4). Numerosity plays a role in

many aspects of the ExSTraCS algorithm including, for example, the prediction

scheme, where classiﬁers get a vote proportional to their numerosity. When

calculating the micro population size of the classiﬁer population, we sum the

numerosities of all classiﬁers in the population. Before adding a new classiﬁer

to the population ExSTraCS checks to make sure that a classiﬁer with the same

‘speciﬁed’, ‘condition’, and ‘phenotype’ doesn’t already exist. If it does, instead

of adding an entirely new copy of the classiﬁer, the numerosity of the existing

classiﬁer is increased by one. This parameter is updated for a given classiﬁer

whenever it is deleted, whenever a copy of itself is added to the population,

or whenever it subsumes another classiﬁer (in which this classiﬁer’s numerosity

would increase by the numerosity of the classiﬁer it subsumed.

AveMatchSetSize

This parameter stores the estimated average match set size that is maintained

for each classiﬁer. In other words, this parameter is roughly tracking the average

number of classiﬁers in match sets in which a given classiﬁer is also included.

This parameter is mainly utilized in the calculation of a classiﬁer’s deletion

probability, where a larger AveMatchSetSize yields a larger deletion probability.

Essentially this applies a pressure on the classiﬁer population as a whole to

maintain a diversity of classiﬁers that apply to diﬀerent niches of the problem

space. In other words this pressure seeks to balance the number of classiﬁers

adopting available phenotype/class states, and the number of classiﬁers that are

speciﬁc to diﬀerent parts of the solution space. This parameter is updated for

a given classiﬁer any learning iteration that it is included in a match set.

TimeStampGA

This parameter stores the last iteration which a given classiﬁer was last in a

correct set upon which the genetic algorithm was activated. This parameter

is in-turn used to determine when the genetic algorithm should be activated.

Generally speaking if the classiﬁers in a correct set are very young (i.e. the

average TimeStampGA of classiﬁers in the correct set is low, relative to the current

iteration), than the genetic algorithm will not be activated. This parameter is

updated for a given classiﬁer any learning iteration that it is included in a correct

set in which the genetic algorithm was also activated.

InitTimeStamp

This parameter stores the iteration in which a given classiﬁer was ﬁrst created.

This parameter is never changed for a given classiﬁer. However, note that if a

classiﬁer gets completely deleted, and then the same classiﬁer appears during

some later iteration, it will have a new InitTimeStamp value, since it will be

treated as an entirely new classiﬁer. As currently implemented, this parameter

does not inﬂuence learning, but may be used to characterize the classiﬁers and

the greater classiﬁer population. This parameter is used to determine when

a classiﬁer has been around long enough to have had the opportunity to be

exposed to every instance in the training data (i.e. EpochComplete)

Speciﬁcity

This parameter stores the proportion of attributes in the training dataset that

have been speciﬁed within a given classiﬁer. This parameter is never changed for

a given classiﬁer. As currently implemented, this parameter does not inﬂuence

learning, but may be used to characterize the classiﬁers and the greater classiﬁer

population.

DeletionProb

This parameter stores the current deletion weight for a given classiﬁer. This pa-

rameter is updated for a given classiﬁer whenever deletion is activated. Other

LCS algorithms calculated this value as needed and do not store it as a parame-

ter. ExSTraCS stores classiﬁer deletion weights to better characterize classiﬁers

and the greater population after run completion.

CorrectCount

This parameter stores the number of times that a given classiﬁer has been in a

correct set. This parameter along with MatchCount are used to calculate/update

classiﬁer accuracy whenever needed. This parameter is updated any time a given

classiﬁer is in a correct set.

MatchCount

This parameter stores the number of times that a given classiﬁer has been

in a match set. This parameter along with CorrectCount are used to calcu-

late/update classiﬁer accuracy whenever needed. This parameter is updated

any time a given classiﬁer is in a match set.

CorrectCover

This parameter stores the number of instances in the training data, for which

this classiﬁer made it into a correct set. This parameter value will be the same

as CorrectCount for a given classiﬁer until an epoch is complete (i.e. until this

classiﬁer has had the opportunity to be exposed to every instance in the training

dataset). At this point CorrectCover becomes a ﬁxed value that can no longer

be updated. This parameter indicates the number of instances in the training

data that are correctly covered by a given classiﬁer. This parameter is currently

used to characterize classiﬁers in the population and does not impact learning.

MatchCover

This parameter stores the number of instances in the training data, for which

this classiﬁer made it into a match set. This parameter value will be the same

as MatchCount for a given classiﬁer until an epoch is complete (i.e. until this

classiﬁer has had the opportunity to be exposed to every instance in the training

dataset). At this point MatchCover becomes a ﬁxed value that can no longer be

updated. This parameter indicates the number of instances in the training data

that are correctly or incorrectly covered by a given classiﬁer. This parameter is

currently used to characterize classiﬁers in the population and does not impact

learning.

EpochComplete

This parameter has a boolean value (True/False) and indicates whether a given

classiﬁer has been around long enough to have the opportunity to be exposed

to every instance in the training data. This occurs when the current iteration

number minus InitTimeStamp is larger than the number of training instances

in the dataset. Currently this parameter is used to characterize classiﬁers in

the population and does not impact learning. However, we expect that in order

to improve learning on datasets with a smaller number of training instances

available, it will be useful to keep track of which classiﬁers have already seen all

training instances.

2.4.2 Population Statistics

The second ﬁle that is output by ExSTraCS each time the classiﬁer popula-

tion is evaluated globally, is the population statistics ﬁle (the ﬁle extension

is ‘[Iteration] PopStats.txt’). This ﬁle is intended to summarize global perfor-

mance of ExSTraCS over the entire training and testing datasets, as well as

characterize global classiﬁer population statistics. Key performance statistics

include, training accuracy, testing accuracy, training coverage, and testing cov-

erage (where coverage refers to the proportion of instances in either the training

or testing datasets that are matched by at least one classiﬁer in the classiﬁer

population). This ﬁle also outputs the macro population size, the micro pop-

ulation size, and the average generality of classiﬁers in the population (where

numerosity is taken into account). Next, this ﬁle includes three summary statis-

tics introduced in [19] which can be used in knowledge discovery to identify at-

tributes that were of particular importance in making class predictions. These

statistics include the speciﬁcity sum, the accuracy sum, and the attribute track-

ing global sum. For each statistic a sum is calculated for every attribute in the

training data. The speciﬁcity sum, sums the number of times a respective at-

tribute was speciﬁed in classiﬁers across the population (numerosity taken into

account). The accuracy sum is calculated similarly, but the sum is weighted by

the accuracy of each respective classiﬁer. Lastly, the attribute tracking global

sum is only calculated when attribute tracking has been activated (otherwise

all attribute sums will be zero in this output ﬁle). Here, instead of summing

when attributes were speciﬁed in the classiﬁer population, attribute tracking

scores for all instances in the dataset are summed for each individual attribute.

Attributes that consistently have the highest sums for these three metrics are

likely to be most important for making accurate predictions.

Next, this ﬁle outputs both the global run time (the time in minutes that

ExSTraCS has been running up to the point where this evaluation was con-

ducted), and a breakdown of how much time was required by individual ExS-

TraCS components. The last information included in this output ﬁle is the

CorrectTrackerSave. This information has nothing to do with performance

statistics, or a characterization of the classiﬁer population. Rather, this infor-

mation is exclusively used for ‘rebooting’ the classiﬁer population. Speciﬁcally

these values capture the prediction successes and failures for the trackingFreq-

uency, which tracks estimated prediction performance of ExSTraCS during

learning. Including this information in this output ﬁle allows it to be loaded

back into ExSTraCS’s memory so that the Learning Tracking output ﬁle (see

below) can pick up where it left oﬀ uninterrupted when the classiﬁer popula-

tion is reboot in ExSTraCS. As a result, this ﬁle is required along with the rule

population ﬁle in order to successfully reboot a classiﬁer population.

2.4.3 Co-occurrence

The third ﬁle that is output by ExSTraCS each time the classiﬁer population is

evaluated globally, is the Co-ocurrence ﬁle (the ﬁle extension is ‘[Iteration] CO.txt’).

This ﬁle ranks top pairs of attributes that are co-speciﬁed in classiﬁers across the

classiﬁer population. If the loaded training dataset include <= 50 attributes,

all attribute pair co-occurrence scores will be output to this ﬁle. If there are

more than 50 attributes, the only top speciﬁed 50 attribute will be used to de-

termine the top co-speciﬁed attribute pairs. This is due to the fact that that as

the number of attributes in the dataset increases, the number of attribute pair

combinations goes up exponentially. This co-occurrence metric can be used to

better characterize the relationships between attributes in classiﬁers across the

population. This can be used, for instance, to help diﬀerentiate epistatic inter-

actions from heterogeneous relationships. Uniquely, this output ﬁle includes no

header labels for columns. The ﬁrst two columns specify a pair of attributes.

The third column gives the co-speciﬁcation sum for that particular attribute

pair (i.e. the number of times both attributes were speciﬁed in a classiﬁer to-

gether where numerosity is as usual taken into account). The fourth column is

similar to the third, however the sum is weighted by the respective accuracy of

each classiﬁer in which both attributes were speciﬁed. Rows are ranked from

largest co-speciﬁcation sum to smallest (i.e. based on the values in the third

column).

2.4.4 Attribute Tracking Scores

The fourth ﬁle that is output by ExSTraCS each time the classiﬁer population is

evaluated globally (and attribute tracking is activated), is the attribute tracking

score ﬁle (the ﬁle extension is ‘[Iteration] AttTrack.txt’). This output ﬁle should

have the same dimmensionality (i.e. the same number of rows and columns) as

the training data (assuming that the training data includes a column for instance

ID labels). In this output ﬁle, the ﬁrst row gives headers. The ﬁrst column gives

instance identiﬁers for all instances in the training dataset. Following columns

give attribute tracking scores for each attribute in the dataset. The last column

is the class/phenotype value for a respective instance in the data. As described

in [18] and [21], hierarchical clustering can be performed on instances, and

attributes within this ﬁle to identify groups of instances with similar patterns

of attributes with high attribute tracking scores in order to identify potentially

heterogeneous instance subgroups and better characterize relationships between

attributes predictive of class/phenotype state.

2.4.5 Predictions

The ﬁfth ﬁle that is output by ExSTraCS each time the classiﬁer population is

evaluated globally is the Prediction ﬁle (the ﬁle extension is ‘[Iteration] Predictions.txt’).

This output ﬁle will only be able to be generated if a testing dataset has made

available to the algorithm. The ﬁrst column gives instance identiﬁers for all

instances in the training dataset. The second column gives the predicted class

made by ExSTraCS for the current instance. The third column gives the true

class value for the current instance. The remaining columns will give respective

votes for each possible class in the dataset. These were the votes that were used

to make the prediction for the given testing instance.

2.4.6 Learning Tracking

Diﬀerent from the previously described output ﬁles, the Learning Tracking ﬁle

(the ﬁle extension is ‘LearnTrack.txt’) is only output once per run of ExS-

TraCS on a given dataset. The run parameter trackingFrequency, determines

how often a learning tracking estimated performance evaluation is completed

and output to this ﬁle. Each evaluation includes the following information:

(1) the current learning iteration, (2) the macro population size, (3) the mi-

cro population size, (4) an accuracy estimate (calculated using the previous

trackingFrequency learning iterations, (5) average classiﬁer population gen-

erality, (6) the proportion of experienced classiﬁers (i.e. classiﬁers that have

completed at least one epoch), and (7) the amount of run time that has elapsed.

Additionally if an ExSTraCS classiﬁer population is ‘reboot’ to run longer, than

the existing Learning Tracking ﬁle will be opened and further learning track-

ing statistics will be added to the original ﬁle, picking oﬀ from where learning

tracking left oﬀ. This ﬁle can be used to graph estimated features of learning

progress over time or learning iterations.

2.4.7 Expert Knowledge

The last ﬁle that can be output by ExSTraCS is a text ﬁle giving the expert

knowledge weights generated internally by ExSTraCS using one of the four in-

cluded attribute ﬁltering/weighting algorithms. This ﬁle will only be output if

run parameter useExpertKnowledge is set to 1 and external EK Generation

is set to None. The ﬁle extension will be based on the weight algorithm [alg]

selected for EK generation; ‘ [alg] scores.txt’. ExSTraCS will format this ex-

pert knowledge weight ﬁle as a tab-delimited .txt ﬁle. Speciﬁcally, there will

be three initial rows in the text ﬁle that serve as a header and give the weight

algorithm run, and the time it took to generate the expert knowledge weights in

seconds. The fourth row will begin the EK scores themselves. Every row from

the fourth down to the last will include the following; (1) the ﬁrst column will

give an attribute ID as it appears in the training data, (2) the second column

will include the numerical weight for that respective attribute, and (3) the third

column will include the weight rank of an attribute relative to the others. A

user may wish to generate and use these expert knowledge ﬁles for a purpose

completely separate from the running the core ExSTraCS algorithm. For this

reason, we included the run parameter onlyEKScores, so that this ﬁle could be

produced without running the ExSTraCS algorithm itself.

2.5 Making Predictions

One of the major goals for ExSTraCS is to evolve a prediction model (made up of

a population of classiﬁers) that can then be applied to the task of class prediction

in data that the algorithm has not yet seen. Currently the simplest way to

examine the predictive ability of the evolved ExSTraCS classiﬁer population is

to include a testing dataset along with the training dataset. While the core

ExSTraCS algorithm is geared towards learning predictive patterns, ExSTraCS

also tests it’s predictive ability on the current training instance each iteration

(to provide a training accuracy estimate for the Learning Tracking output ﬁle.

Class predictions are handled by the ExSTraCS Prediction.py module, which

takes all classiﬁers in the current match set (i.e. all classiﬁers that match the

current data instance), and sums up a vote score for each possible class state.

The vote score for a given class state sums the ﬁtness values for all classiﬁers

that specify that given class state. This sum is weighted by classiﬁer numerosity

(e.g. a classiﬁer with a numerosity of 3 has it’s ﬁtness value added 3 times to

the vote score sum. New to ExSTraCS 2.0, the votes of individual rules are also

weighted by the class imbalance, such that rules specifying an over-represented

class get a smaller vote than rules from an under-represented class. In balanced

data, this update will not alter algorithm predictive performance. The class

state that is predicted by ExSTraCS is the class state with the largest vote

score. If a tie occurs, than the class state with the largest number of classiﬁers

(including numerosity) is chosen as the prediction. If a tie still occurs, than the

class state with the youngest average classiﬁers is chosen as the prediction. If a

tie still exists, than a random choice is made between the possible class states

(this should be very unlikely to occur). This ‘extended’ prediction scheme is

unique to ExSTraCS. Other LCS algorithms tend to use a prediction strictly

based on the ﬁtness vote (as described above), and a tie immediately leads to a

random prediction of state class.

Chapter 3

Future ExSTraCS

Expansions

Currently, we have a number of expansions being developed for inclusion in

upcoming versions of ExSTraCS. In the following sections we will brieﬂy discuss

these upcoming additions and the reason for their development.

3.1 Continuous Attribute Improvements

While the knowledge representation scheme adopted by ExSTraCS gives it the

ﬂexibility to handle data with both discrete and continuous attributes, our pre-

liminary analysis has indicated that it does not achieve the same levels of per-

formance when running on discrete vs. continuous attribute datasets with the

same underlying signal strength. This is likely due to the fact that in order to

learn an eﬀective classiﬁer in the context of a continuous attribute, ExSTraCS

has to learn not only ‘which’ attributes to specify, but the optimal range of

continuous values to specify for a given attribute in a classiﬁer. Intuitively this

should be a more diﬃcult, and time consuming task. Additionally, consider

the case where a continuous valued range speciﬁed in a classiﬁer covers all or

the majority of the range observed in the training data. In this situation, this

attribute would match for all or most classiﬁers, providing little or no useful

information pertaining to class prediction. Currently there is no real pressure

to prevent this from happening. Therefore we are exploring an explicit pressure

that will directly encourage narrower continuous valued ranges to be speciﬁed

in classiﬁers, so that such attributes do not become arbitrarily speciﬁed within

classiﬁers, further slowing down matching, and clouding the task of knowledge

discovery.

3.2 Continuous Phenotypes

Currently, the adopted ExSTraCS knowledge representation gives this algorithm

the ﬂexibility to handle data with both discrete and continuous attributes. No-

tably, the included expert knowledge attribute weight algorithms have also been

adapted to this end as well. We are interested in giving ExSTraCS the added

ﬂexibility to learn on problems/datasets involving a continuous-valued pheno-

type (where phenotype is also referred to as an endpoint, the dependent variable,

class, or action). While a handful of LCS algorithms have been developed to

handle continuous ‘actions’ (i.e. continuous phenotypes) these expansions have

been primarily geared towards function approximation or behavior modeling

problems. Learning on continuous phenotype data brings about a number of

challenges not found in discrete phenotype learning. For instance, in order for

a classiﬁer to ever generalize to more than one training instance, the phenotype

of a classiﬁer must either be a function of the condition state values, which has

been done previously in computed action research, or classiﬁer phenotypes will

need to be a continuous-valued interval. Additionally predictions will need to be

evaluated based on their error, where error is no longer just a matter of whether

the right or wrong class was predicted, but rather how far the phenotype pre-

diction was from the true phenotype of the data instance. We are currently

evaluating a couple promising implementations that allow for continuous phe-

notype learning.

3.3 Fitness and Deletion Schemes

In the context of modern XCS-based Michigan-style LCS algorithms, it is ex-

tremely common for ﬁtness to be directly based on a power function of classiﬁer

accuracy. The natural multi-objective nature of these algorithms relies on im-

plicit generalization pressures to push classiﬁers towards a state of maximal

accuracy and maximal generality (i.e. simplicity). However, our experience

with noisy complex data mining problems has indicated some obvious problems

with a ﬁtness scheme based only on accuracy. Upon manual inspection of clas-

siﬁer populations generated in this way, it is clear that many classiﬁers that

are actually very poor and over speciﬁc, despite the use of the subsumption

mechanism and the implicit generalization pressure derived from the fact that

more general classiﬁers will tend to appear in match and correct sets more often,

and therefore more often reproduce to potentially yield similar, lower generality

classiﬁers. Additionally we noted that deletion does not always target classi-

ﬁers that a user could identify as clearly ‘bad’ (e.g. the classiﬁer only covers

one instance in the data). Presently we are working on a complete revision

both of how ﬁtness is calculated, as well as how the deletion weight of a clas-

siﬁer is calculated, that will more intelligently improve and speed up learning

mainly geared towards supervised learning in complex, noisy problem domains

(as commonly found in real world problems).

3.4 ExSTraCS GUI

In order to make ExSTraCS even more hands-on, user-friendly, we have de-

veloped a GUI prototype for the software that we hope to ﬁnalize and release

sometime early in 2015 (see above). This GUI includes an interface for setting

run parameters, and live visualizations to track algorithm learning progress, and

additional visualizations to guide knowledge discovery.

Chapter 4

Version Fixes/Updates

4.1 ExSTraCS 2.0.2

•Fixed the outputTestPredictions run parameter so that users can ac-

tually tell ExSTraCS whether or not to output the Predictions ﬁles.

•Fixed the InstanceID values that were being outupt in the Predictions

ﬁles. Previously the training data instance ID’s (which had been shuﬄed

for learning) were being mistakenly output instead of the testing data

instance ID’s.

4.2 ExSTraCS 2.0.1

•Fixed a zero division error involving balanced accuracy calculation that

appeared with very small or highly class imbalanced datasets.

•Added updated balanced accuracy calculation introduced in 2.0 to rule

compaction where it also needed to be ﬁxed.

4.3 ExSTraCS 2.0

•Fixed Mac-related bug: Algorithm crashed tying to load some .txt data

ﬁles on the Mac platform. Updated the load ﬁle commands to allow for

the diﬀerent .txt format in dealing with newlines vs return characters.

•Updated ExSTraCS to calculate and utilize a rule speciﬁcity limit. This

required alteration to the code dealing with rule covering, mutation, and

crossover, as well as modiﬁcations to how expert knowledge and attribute

tracking values were applied in these respective mechanisms. Expert

knowledge module also greatly simpliﬁed in how EK scores were trans-

formed and utilized as weights in the algorithm. Eliminated the need

for slow, and more complex logistic transformation of weights into scaled

probabilities.

•Updated ExSTraCS to include the TuRF wrapper algorithm as a separate

module. TuRF works in concert with any of the four included attribute

weighting algorithms included in ExSTraCS.

•Updated ExSTraCS Prediction module to more eﬀectively make predic-

tions on imbalanced datasets. Speciﬁcally, vote contributions of individual

rules are weighted by class imbalance. In other words, rules that specify

an over-represented class get a proportionally smaller vote, vs. rules that

specify an under-represented class get a proportionally larger vote. This

change has no impact on prediction on balanced datasets.

•Fixed an error in balanced accuracy calculation that would primarily im-

pact accuracy performance evaluations within imbalanced datasets and

datasets with more than two classes. This ﬁx, properly gives the pre-

diction accuracy within each class an equal weight in determining overall

balanced accuracy. This is applied to the calculation of both training and

testing accuracy of the rule population as a whole. Notably, with this

ﬁx, the user should not expect standard accuracy and balanced accuracy

to be equal even when the the datasets are balanced. This is because

the calculation of balanced accuracy independently takes the number of

correctly classiﬁed instances for each respective class into consideration.

Thus after an evaluation, 70 out of 100 instances may have been correctly

classiﬁed (i.e. 70% standard accuracy), but if 40 of the 70 were from class

A, and 30 of the 70 were from class B, the balanced accuracy will have a

slightly diﬀerent value. If 35 instances were were correctly classiﬁed from

either class, only then would standard accuracy equal balanced accuracy.

•Updated ExSTraCS to simplify run parameters. Added default values for

all parameters except trainFile. Also, to avoid confusion, ExSTraCS

now automatically integrates the name of the training data into the name

of the output ﬁles. The output ﬁle name parameter can now be left out or

set to None, which will simply save the output ﬁles to the working direc-

tory, and name them based on the training dataset name. Additionally,

users can not optionally leave out the ‘.txt’ when specifying the training or

testing dataset names. Lastly, we combined two parameters related to the

use of expert knowledge (i.e. internal EK Generation and EK source)

into the single parameter external EK Generation. If this new parameter

is set to None, ExSTraCS will internally generate EK scores. Otherwise

this parameter should specify the ﬁle path/name of the EK source ﬁle

giving properly formatted EK scores.

•Fixed small bug involving rule compaction crash on datasets with a smaller

number of attributes than the calculated or manually set rule speciﬁcity

limit.

Bibliography

[1] Jaume Bacardit and Natalio Krasnogor. A mixed discrete-continuous at-

tribute list representation for large scale classiﬁcation domains. In Proceed-

ings of the 11th Annual conference on Genetic and evolutionary computa-

tion, pages 1155–1162. ACM, 2009.

[2] E. Bernad´o-Mansilla and J.M. Garrell-Guiu. Accuracy-based learning clas-

siﬁer system: models, analysis and applications to classiﬁcation tasks. Evo-

lutionary Computation, 11(3):209–238, 2003.

[3] Martin V Butz, Kumara Sastry, and David E Goldberg. Tournament se-

lection: Stable ﬁtness pressure in xcs. In Genetic and Evolutionary Com-

putationGECCO 2003, pages 1857–1869. Springer, 2003.

[4] Martin V Butz and Stewart W Wilson. An algorithmic description of xcs.

In Advances in Learning Classiﬁer Systems, pages 253–272. Springer, 2001.

[5] Delaney Granizo-Mackenzie and Jason H Moore. Multiple threshold spa-

tially uniform relieﬀ for the genetic analysis of complex human diseases. In

Evolutionary Computation, Machine Learning and Data Mining in Bioin-

formatics, pages 1–10. Springer, 2013.

[6] Casey S Greene, Daniel S Himmelstein, Jeﬀ Kiralis, and Jason H Moore.

The informative extremes: using both nearest and farthest individuals can

improve relief algorithms in the domain of human genetics. In Evolutionary

Computation, Machine Learning and Data Mining in Bioinformatics, pages

182–193. Springer, 2010.

[7] C.S. Greene, N.M. Penrod, J. Kiralis, and J.H. Moore. Spatially uniform

relieﬀ (surf) for computationally-eﬃcient ﬁltering of gene-gene interactions.

BioData mining, 2(1):1–9, 2009.

[8] Muhammad Iqbal, Will N Browne, and Mengjie Zhang. Extending learning

classiﬁer system with cyclic graphs for scalability on complex, large-scale

boolean problems. In Proceeding of the ﬁfteenth annual conference on Ge-

netic and evolutionary computation conference, pages 1045–1052. ACM,

2013.

[9] Igor Kononenko. Estimating attributes: analysis and extensions of relief.

In Machine Learning: ECML-94, pages 171–182. Springer, 1994.

[10] Tim Kovacs, Narayanan Edakunni, and Gavin Brown. Accuracy expo-

nentiation in ucs and its eﬀect on voting margins. In Proceedings of the

13th annual conference on Genetic and evolutionary computation, pages

1251–1258. ACM, 2011.

[11] J. Moore and B. White. Tuning relieﬀ for genome-wide genetic analysis.

Evolutionary computation, machine learning and data mining in bioinfor-

matics, pages 166–175, 2007.

[12] Qinxin Pan, Ting Hu, and Jason H Moore. Epistasis, complexity, and

multifactor dimensionality reduction. In Genome-Wide Association Studies

and Genomic Prediction, pages 465–477. Springer, 2013.

[13] Jie Tan, Jason Moore, and Ryan Urbanowicz. Rapid rule compaction

strategies for global knowledge discovery in a supervised learning classiﬁer

system. In Advances in Artiﬁcial Life, ECAL, volume 12, pages 110–117,

2013.

[14] R. Urbanowicz, G. Bertasius, and J. Moore. An extended michigan-style

learning classiﬁer system for ﬂexible supervised learning, classiﬁcation, and

data mining. Parallel Problem Solving from Nature–PPSN XIII, page In

press, 2014.

[15] R. Urbanowicz and J. Moore. The application of pittsburgh-style lcs to

address genetic heterogeneity and epistasis in association studies. Parallel

Problem Solving from Nature–PPSN XI, pages 404–413, 2011.

[16] R. Urbanowicz and J. Moore. Addressing scalability with a rule speciﬁcity

limit in a michigan-style supervised learnign classiﬁer system for classiﬁca-

tion, prediction, and knowledge discovery. In Review, 2014.

[17] R.J. Urbanowicz and J.H. Moore. The application of michigan-style learn-

ing classiﬁer systems to address genetic heterogeneity and epistasis in as-

sociation studies. In Proceedings of the 12th annual conference on Genetic

and evolutionary computation, pages 195–202. ACM, 2010.

[18] Ryan Urbanowicz, Ambrose Granizo-Mackenzie, and Jason Moore.

Instance-linked attribute tracking and feedback for michigan-style super-

vised learning classiﬁer systems. In Proceedings of the fourteenth inter-

national conference on Genetic and evolutionary computation conference,

pages 927–934. ACM, 2012.

[19] Ryan J Urbanowicz, Ambrose Granizo-Mackenzie, and Jason H Moore.

An analysis pipeline with statistical and visualization-guided knowledge

discovery for michigan-style learning classiﬁer systems. Computational In-

telligence Magazine, IEEE, 7(4):35–45, 2012.

[20] Ryan J Urbanowicz, Delaney Granizo-Mackenzie, and Jason H Moore. Us-

ing expert knowledge to guide covering and mutation in a michigan style

learning classiﬁer system to detect epistasis and heterogeneity. In Parallel

Problem Solving from Nature-PPSN XII, pages 266–275. Springer, 2012.

[21] Ryan John Urbanowicz, Angeline S Andrew, Margaret Rita Karagas, and

Jason H Moore. Role of genetic heterogeneity and epistasis in bladder

cancer susceptibility and outcome: a learning classiﬁer system approach.

Journal of the American Medical Informatics Association, 2013.

[22] S.W. Wilson. Classiﬁer ﬁtness based on accuracy. Evolutionary computa-

tion, 3(2):149–175, 1995.

Ex STra CS V.2.0.2 Users Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
