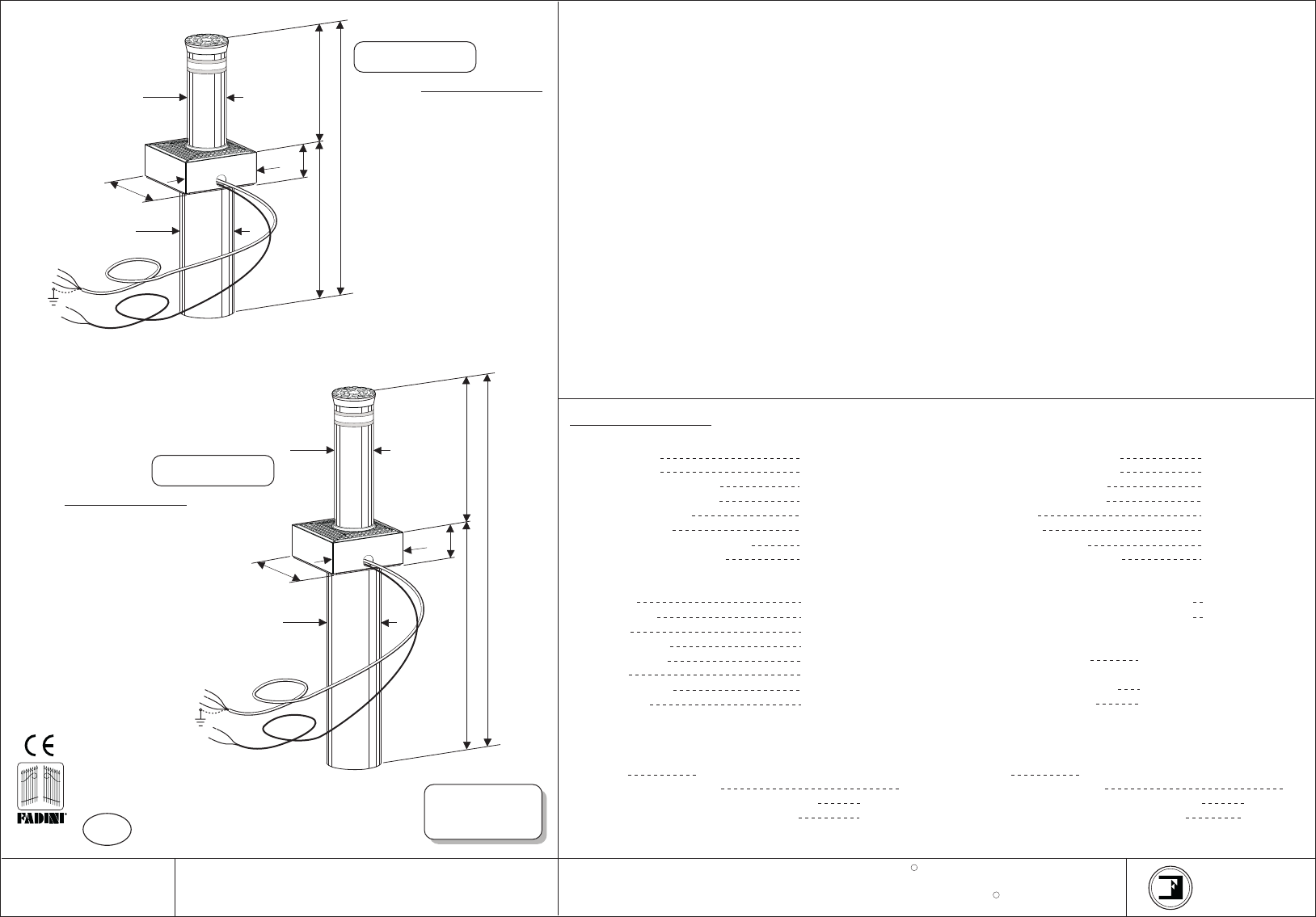

Drwg. No. 4492 TECHNICAL SPECIFICATION TABLE
VIGILO is an electro-hydraulic post for traffic control. The motor pomp is incorporated and pre-connected. This makes the unit
easier to install. The cylindrical post is made of steel, has a diametre of 200 mm and can be commanded to rise from the ground
level or lower by remote control.
Two options are available: Vigilo 2250 (500mm stroke) and Vigilo 2280 (stroke 800mm).
All the essential component parts (motor pump and hydraulic actuator) are inside the location enclosure, which is made of
cataphoresis treated steel, a special treatment to prevent rust, and designed to be sunk into the ground. The up and down
movements are carried out by the piston shaft, directly connected to the top of the post from inside the unit.
This automation is factory pre-set and calibrated making installation quick and easy in that no further adjusting is needed for
proper operations. Just the electrical connections are required to be made on site for the electric motor and UP-cycle limit switch
(10 m cables each are supplied with the equipment) to the electronic control board Elpro S40. Once the post has been driven to
the upper limit stroke, the motor is stopped by means of a water-tight, fully sealed limit switch (limit switch Rising), on descending
the motor is stopped when the post reaches the end of the permitted down stroke.
The connections between the motor pump assembly, positioned in the front side of the automation, and the hydraulic actuator
are by means of rigid copper pipes completely inside the foundation housing.
A shaped universal spanner is supplied with the post to over-ride the hydraulic circuit in the pump inside the enclosure and lower
the unit by hand if required. The cover of the square enclosure is designed to remain clear of standing water or other fluids.
A brim is fitted to protect the top edge of the post.
A back reflecting sticker, with red and yellow stripes, ensures full visibility of the post in daylight as well as in the dark, even in difficult
weather conditions.
All Vigilo automations are individually tested to ensure best performance at Meccanica Fadini.
meccanica
FADINI
Oil-hydraulic motor-pump unit - Vico 2240 -
Hydraulic pump P10
Pump flow rate 4.45 l/min.
Average working pressure 2 MPa (20 bar)
Max. Achievable pressure 4 MPa (40 bar)
Working temperature -20°C +80°C
Hydraulic oil type Oil Fadini
Static weight of pump assembly 10 Kg
Pump protection standards IP 54
GB
Made in Italy
the gate opener
Electric motor
Power yield 0.25 KW (0.33 HP)
Supply voltage 230 V
Frequency 50 Hz
Absorbed current 1.8 A
Absorbed power 330 W
Capacitor 20 µF
Motor revolutions 2'800 rpm
Service mode S3
TECHNICAL DATA
Hydraulic actuator
Piston travel time Vigilo 2250 4 s
Piston travel time Vigilo 2280 6 s
Service stroke Vigilo 2250 500 mm
Service stroke Vigilo 2280 800 mm
Shaft diametre 16 mm
Piston diametre 30 mm
Pre-set Pushing Power 15 daN
Protection standard complete IP 557
Construction features
Post colour Vigilo range Anthracite greig RAL 7016
Post, housing and
cylindrical container material "Fe 360" steel
Anti-corrosion treatment Cataphoresis
Post weights Vigilo Range
Static weight Vigilo 2250 (stroke 500 mm) 102 Kg
Static weight Vigilo 2280 (stroke 800 mm) 131 Kg
RISING BOLLARDS VIGILO 2250
VIGILO 2280
R
R
Model
Registered
10 metres of cable
Electric motor
Limit switch
Performance Vigilo 2250
Duty cycle 4s Rise - 30s Dwell - 4s Lower - 30s Dwell
Time of one complete cycle 68s
Complete cycles Rise - Dwell - Lower - Dwell No.53/hour
Cycles per year (8 hours' service per day) No.154'000
Performance Vigilo 2280
Duty cycle 6s Rise - 30s Dwell - 6s Lower - 30s Dwell
Time of one complete cycle 72s
Complete cycles Rise - Dwell - Lower - Dwell No.50/hour
Cycles per year (8 hours' service per day) No.146'000
VIGILO 2250
VIGILO 2280
10
metres of cable
Electric motor
Limit switch
bollard thickness 4mm
bollard thickness 4mm
stroke 500
housing
850
170
410
410
1
'
350
Ø200
Ø275
l'apricancello
FADINI
stroke 800
housing
1
'
140
170
410
410
1
'
940
Ø200
Ø275
l'apricancello
FADINI
inox
inox

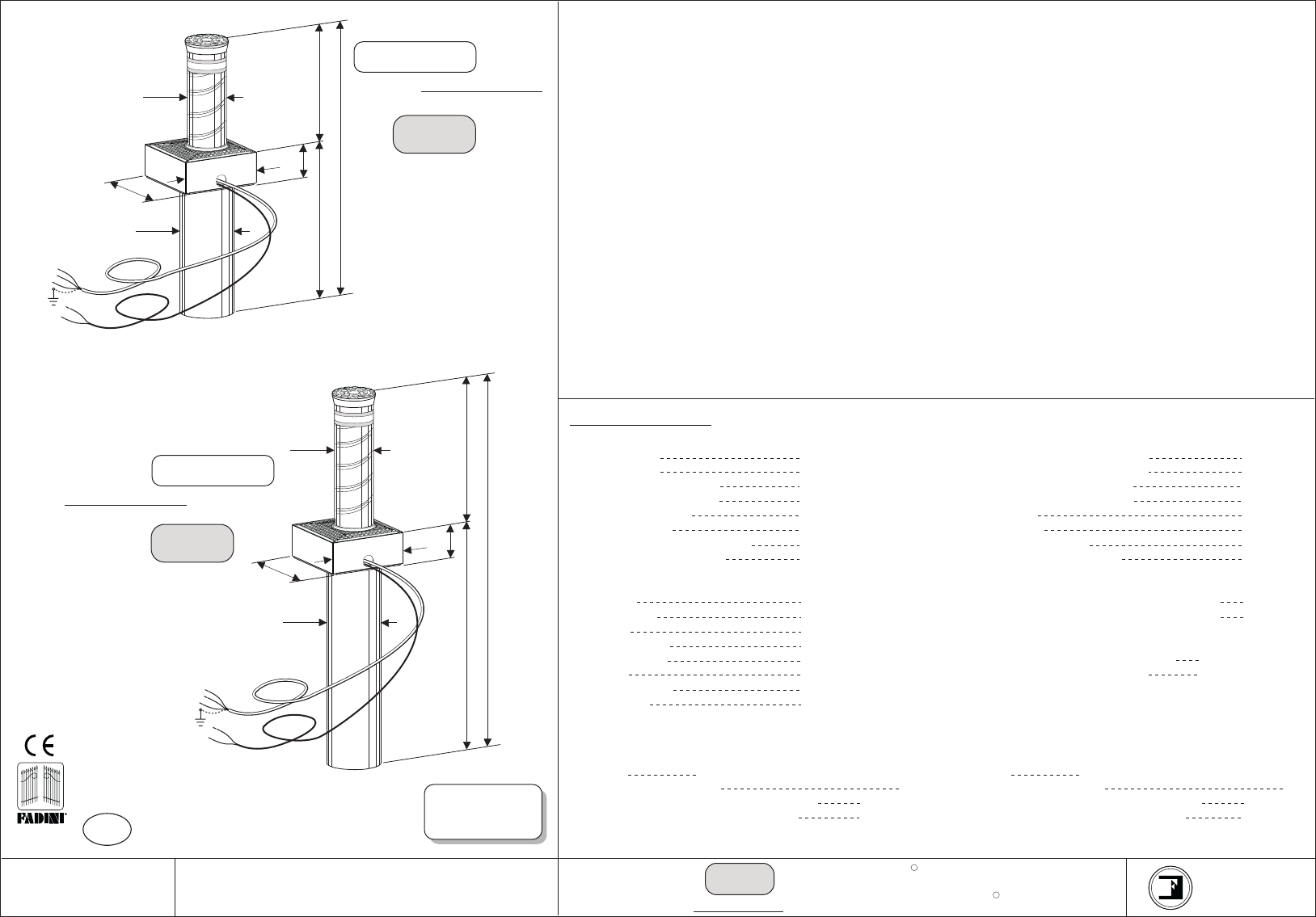

Drwg. No. 6109 TECHNICAL SPECIFICATION TABLE
VIGILO - inox - is an electro-hydraulic post for traffic control. The motor pomp is incorporated and pre-connected. This makes
the unit easier to install. The cylindrical post is made of steel, has a diametre of 200 mm and can be commanded to rise from
the ground level or lower by remote control.
Two options are available: Vigilo 2250 - inox - (500mm stroke) and Vigilo 2280 - inox - (stroke 800mm).
All the essential component parts (motor pump and hydraulic actuator) are inside the location enclosure, which is made of
cataphoresis treated steel, a special treatment to prevent rust, and designed to be sunk into the ground. The up and down
movements are carried out by the piston shaft, directly connected to the top of the post from inside the unit.
This automation is factory pre-set and calibrated making installation quick and easy in that no further adjusting is needed for
proper operations. Just the electrical connections are required to be made on site for the electric motor and UP-cycle limit switch
(10 m cables each are supplied with the equipment) to the electronic control board Elpro S40. Once the post has been driven to
the upper limit stroke, the motor is stopped by means of a water-tight, fully sealed limit switch (limit switch Rising), on descending
the motor is stopped when the post reaches the end of the permitted down stroke.
The connections between the motor pump assembly, positioned in the front side of the automation, and the hydraulic actuator
are by means of rigid copper pipes completely inside the foundation housing.
A shaped universal spanner is supplied with the post to over-ride the hydraulic circuit in the pump inside the enclosure and lower
the unit by hand if required. The cover of the square enclosure is designed to remain clear of standing water or other fluids.
A brim is fitted to protect the top edge of the post.
A back reflecting sticker, with red and yellow stripes, ensures full visibility of the post in daylight as well as in the dark, even in difficult
weather conditions.
All Vigilo - inox - automations are individually tested to ensure best performance at Meccanica Fadini.
meccanica
FADINI
Oil-hydraulic motor-pump unit - Vico 2240 -
Hydraulic pump P10
Pump flow rate 4.45 l/min.
Average working pressure 2 MPa (20 bar)
Max. Achievable pressure 4 MPa (40 bar)
Working temperature -20°C +80°C
Hydraulic oil type Oil Fadini
Static weight of pump assembly 10 Kg
Pump protection standards IP 54
GB
Made in Italy
the gate opener
Electric motor
Power yield 0.25 KW (0.33 HP)
Supply voltage 230 V
Frequency 50 Hz
Absorbed current 1.8 A
Absorbed power 330 W
Capacitor 20 µF
Motor revolutions 2'800 rpm
Service mode S3
TECHNICAL DATA
Hydraulic actuator
Piston travel time Vigilo 2250 inox 4 s
Piston travel time Vigilo 2280 inox 6 s
Service stroke Vigilo 2250 inox 500 mm
Service stroke Vigilo 2280 inox 800 mm
Shaft diametre 16 mm
Piston diametre 30 mm
Pre-set Pushing Power 15 daN
Protection standard complete IP 557
Construction features
Material of the enclosure and structure "Fe 360"
" of the stainless steel post Inox "Aisi 304"
Post weights Vigilo Range - inox -
Static weight Vigilo 2250 inox (stroke 500 mm) 102 Kg
Static weight Vigilo 2280 inox (stroke 800 mm) 131 Kg
VIGILO 2250
VIGILO 2280
R
R
Model
Registered
10 metres of cable
Electric motor
Limit switch
Performance Vigilo 2250 - inox -
Duty cycle 4s Rise - 30s Dwell - 4s Lower - 30s Dwell
Time of one complete cycle 68s
Complete cycles Rise - Dwell - Lower - Dwell No.53/hour
Cycles per year (8 hours' service per day) No.154'000
Performance Vigilo 2280 - inox -
Duty cycle 6s Rise - 30s Dwell - 6s Lower - 30s Dwell
Time of one complete cycle 72s
Complete cycles Rise - Dwell - Lower - Dwell No.50/hour
Cycles per year (8 hours' service per day) No.146'000
VIGILO 2250
VIGILO 2280
10
metres of cable
Electric motor
Limit switch
bollard thickness 4mm
bollard thickness 4mm
stroke 500
housing
850
170
410
410
1
'
350
Ø200
Ø275
l'apricancello
FADINI
stroke 800
housing
1
'
140
170
410
410
1
'
940
Ø200
Ø275
l'apricancello
FADINI
RISING
BOLLARDS
inox
Stainless steel

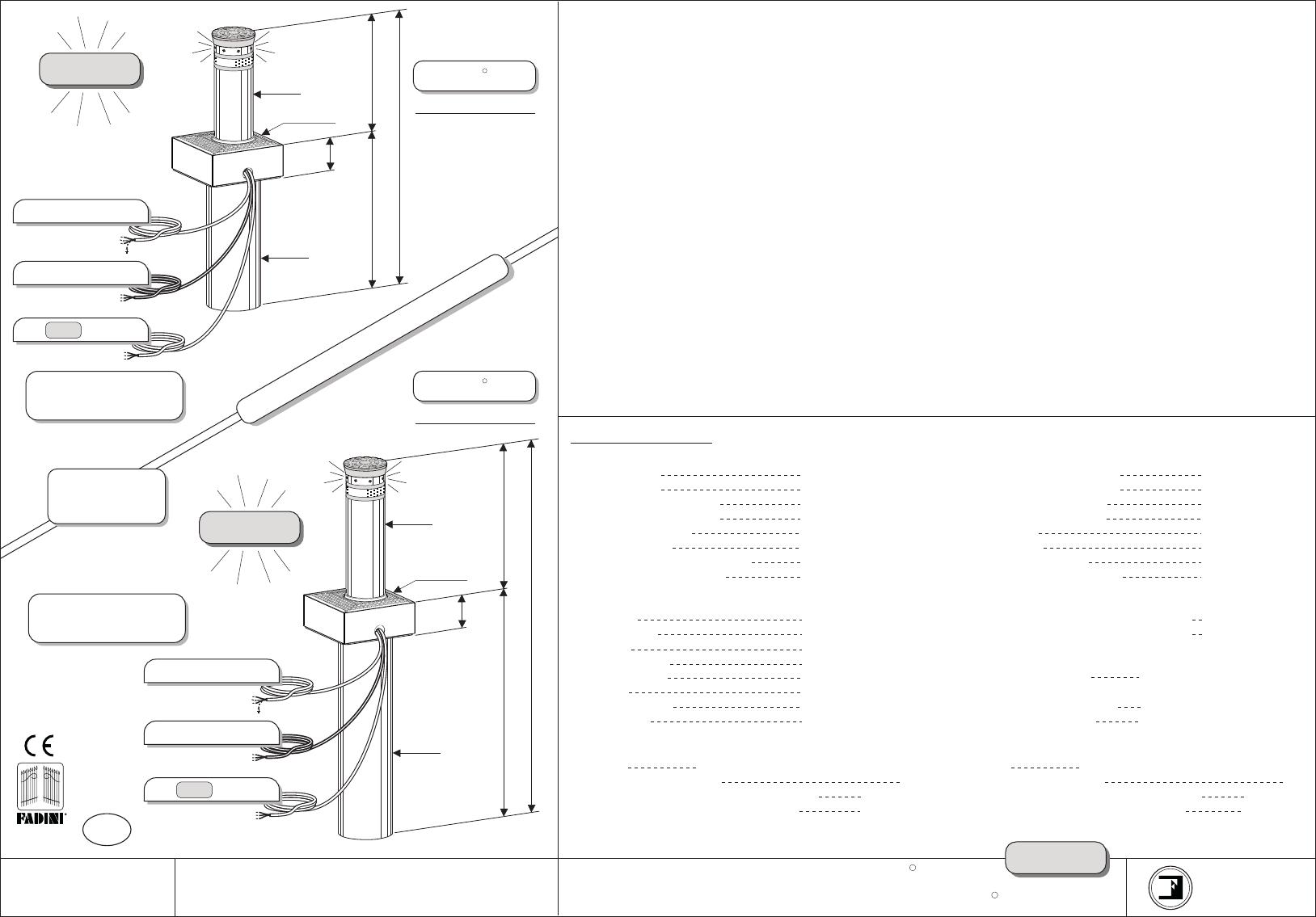

Drwg. No. 6456 TECHNICAL SPECIFICATION TABLE
VIGILO 2251 and VIGILO 2281 are electro-hydraulic posts for traffic control. The motor pomp is incorporated and pre-connected.
This makes the unit easier to install. The cylindrical post is made of steel, has a diametre of 200 mm and can be commanded
to rise from the ground level or lower by remote control.
Two options are available: Vigilo 2251 (500mm stroke) and Vigilo 2281 (stroke 800mm), both models are fitted with mechanical
limit switches, for rising and lowering cycles, and 8 led lamps for intermittent light.
All the essential component parts (motor pump and hydraulic actuator) are inside the location enclosure, which is made of
cataphoresis treated steel, a special treatment to prevent rust, and designed to be sunk into the ground.
The up and down movements are carried out by the piston shaft, directly connected to the top of the post from inside the unit.
This automation is factory pre-set and calibrated making installation quick and easy in that no further adjusting is needed for
proper operations. Just the electrical connections are required to be made on site for the electric motor, led lamps and limit
switches (supplied with the equipment in 10 m lengths, each) to the electronic control board Elpro S40.
The movement of the post is stopped by means of a water-tight limit switch, operated by a sliding feeler, fitted on to the post.
The connections between the motor pump assembly, positioned in the front side of the automation, and the hydraulic actuator
are by means of rigid copper pipes completely inside the foundation housing.
A shaped universal spanner is supplied with the post to over-ride the hydraulic circuit in the pump inside the enclosure and lower
the unit by hand if required. The cover of the square enclosure is designed to remain clear of standing water or other fluids.
A rubber brim is fitted to protect the top edge of the post.
A back reflecting sticker, with red and yellow stripes, ensures full visibility of the post in daylight as well as in the dark, even in difficult
weather conditions.
All Coral posts are individually tested at Meccanica Fadini's to ensure best performance.
meccanica
FADINI
RISING BOLLARDS
n°
8
LEDs
ONE LIMIT SWITCH - DOUBLE CONTACT
Model
Registered
10 metres electric
cables each bundle
10 metres electric
cables each bundle
n°
8
LEDs
GB
Made in Italy
the gate opener
Oil-hydraulic motor-pump unit - Vico 2240 -
Hydraulic pump P10
Pump flow rate 4.45 l/min.
Average working pressure 2 MPa (20 bar)
Max. Achievable pressure 4 MPa (40 bar)
Working temperature -20°C +80°C
Hydraulic oil type Oil Fadini
Static weight of pump assembly 10 Kg
Pump protection standards IP 54
Electric motor
Power yield 0.25 KW (0.33 HP)
Supply voltage 230 V
Frequency 50 Hz
Absorbed current 1.8 A
Absorbed power 330 W
Capacitor 20 µF
Motor revolutions 2'800 rpm
Service mode S3
TECHNICAL DATA
Hydraulic actuator
Piston travel time Vigilo 2251 4 s
Piston travel time Vigilo 2281 6 s
Service stroke Vigilo 2251 500 mm
Service stroke Vigilo 2281 800 mm
Shaft diametre 16 mm
Piston diametre 30 mm
Pre-set Pushing Power 15 daN
Protection standard complete IP 557
Construction features
Post colour Vigilo range Anthracite greig RAL 7016
Post, housing and
cylindrical container material "Fe 360" steel
Anti-corrosion treatment Cataphoresis
Bollard weights Vigilo Range
Static weight Vigilo 2251 (stroke 500 mm) 102 Kg
Static weight Vigilo 2281 (stroke 800 mm) 131 Kg
Performance Vigilo 2251
Duty cycle 4s Rise - 30s Dwell - 4s Lower - 30s Dwell
Time of one complete cycle 68s
Complete cycles Rise - Dwell - Lower - Dwell No.53/hour
Cycles per year (8 hours' service per day) No.154'000
Performance Vigilo 2281
Duty cycle 6s Rise - 30s Dwell - 6s Lower - 30s Dwell
Time of one complete cycle 72s
Complete cycles Rise - Dwell - Lower - Dwell No.50/hour
Cycles per year (8 hours' service per day) No.146'000
n°
8
LEDs
VIGILO 2251
VIGILO 2281
R
R
bollard thickness 4mm
bollard thickness 4mm
l
'
a
p
r
i
c
a
n
c
e
ll
o
F
A
D
I
N
I
stroke 500
housing
850
170
1
'
350
Ø275
Ø200
410x410
l
'
a
p
r
i
c
a
n
c
e
ll
o
F
A
D
I
N
I
stroke 800
housing
1
'
140
170
1
'
940
Ø275
Ø200
410x410
Electric Motor cable
Limit switch cable
LED cable
Electric Motor cable
Limit switch cable
LED cable
VIGILO 2251
R
VIGILO 2281
R
