- 1 -
Fingerprint Identification Module
User Manual
- 2 -
I Introduction
Operation Principle
Fingerprint processing includes two parts: fingerprint enrollment and fingerprint matching (the
matching can be 1:1 or 1: N).
When enrolling, user needs to enter the finger two times. The system will process the two time
finger images, generate a template of the finger based on processing results and store the template.
When matching, user enters the finger through optical sensor and system will generate a template of the
finger and compare it with templates of the finger library. For 1:1 matching, system will compare the
live finger with specific template designated in the Module; for 1: N matching, or searching, system will
search the whole finger library for the matching finger. In both circumstances, system will return the
matching result, success or failure.
![](asset-3.png)
- 3 -
Power
DC 3.8V-7.0V
Interface
UART(TTL logical level)
Working current
Typical: <65mA
Peak: <95mA
Matching Mode
1:1 and 1:N
Baud rate
(9600*N)bps,
N=1~12 (default N=6)
Character file size
256 bytes
Image acquiring time
<1s
Template size
512 bytes
Storage capacity
1000
Security level
5 (1, 2, 3, 4, 5(highest))
FAR
<0.001%
FRR
<1.0%
Average searching time
< 1s (1:500)
Window dimension
14.5mm*19.4mm
Working environment
Temp: -20℃- +60℃
Storage environment
Temp: -40℃- +85℃
RH: 40%-85%
RH: <85%

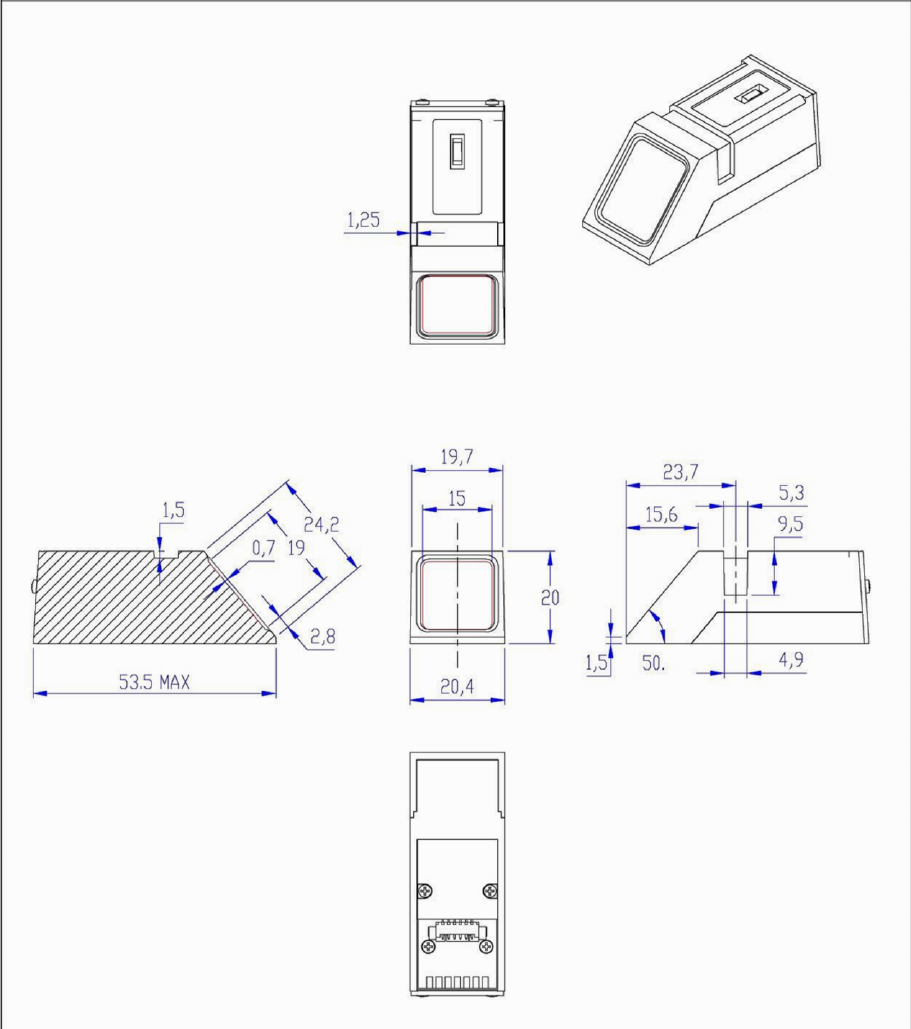

Outline Dimention
Integral type
54*20*20.5mm
II Main Parameters
![](asset-4.png)
- 4 -

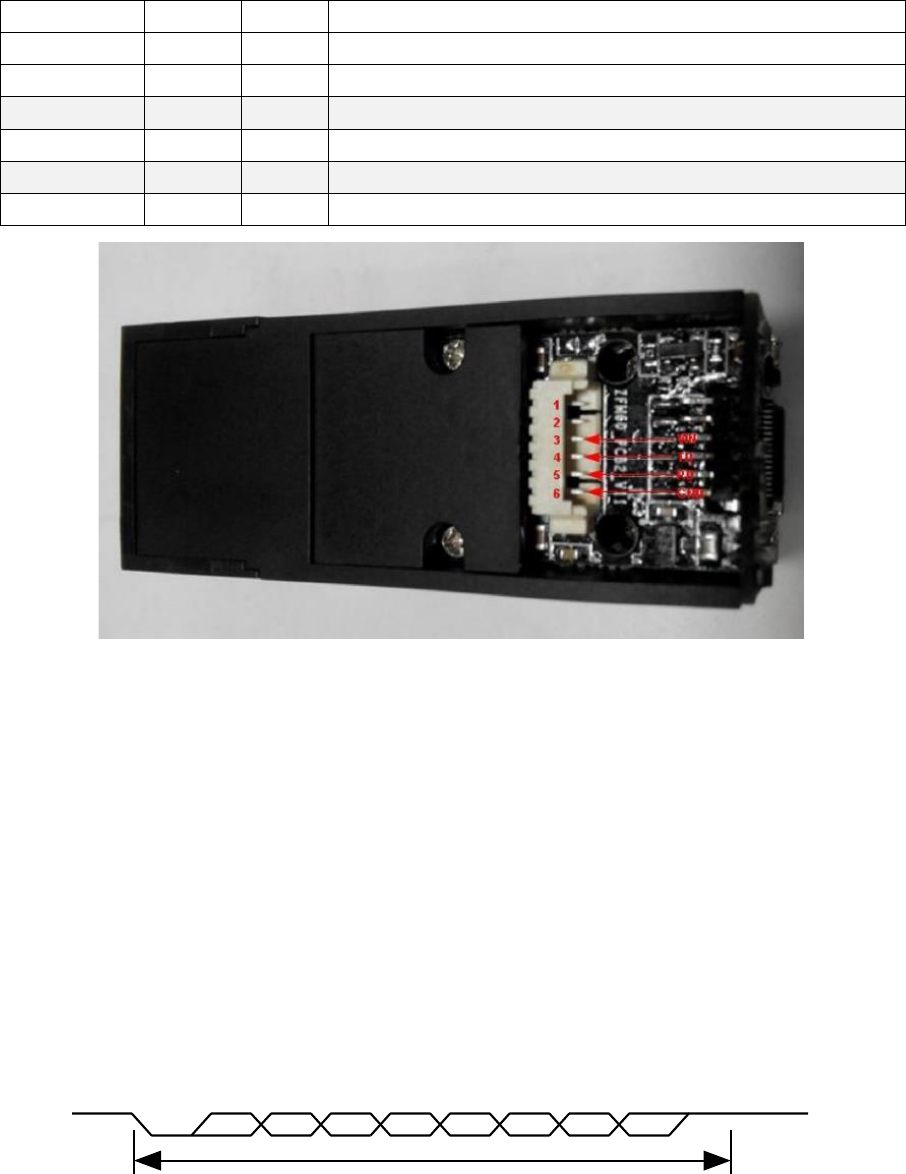

III Hardware Interface
3.1 Connecting with upper computer
3.1.1 Serial Communication
Pin Nmuber
Name
Type
Function Description
1
Vtouch
in
Touch induction power input(cable color: blue)
2
Sout
out
Induction signal output(cable color:yellow)
3
Vin
in
Power input(cable color: red)
4
TD
out
Data output. TTL logical level (cable color: green)
5
RD
in
Data input. TTL logical level (cable color: white)
6
GND
-
Signal ground. Connected to power ground (cable color: black)
3.1.1.1 Hardware connection
Via serial interface, the Module may communicate with MCU of 5V power: TD connects with
RXD (receiving pin of MCU), RD connects with TXD (transferring pin of MCU).
Should the upper computer (PC) be in RS-232 mode, please add level converting circuit, like
MAX232, between the Module and PC.
3.1.1.2 Serial communication protocol
The mode is semiduplex synchronism serial communication. And the default baud rate is 57600bps.
User may set the baud rate in 9600~115200bps.
Transferring frame format is 10 bit: the low-level starting bit, 8-bit data with the LSB first, and an
ending bit. There is no check bit.
start bit stop bit
1 0
D0
D
1
D2
D3
D
4
D5
D6
D7
1
10bit frame format
![](asset-5.png)
- 5 -
3.1.1.3 Reset time
At power on, it takes about 300ms for initialization. During this period, the Module can't accept
commands for upper computer.
Module initialized immediately after sending a byte (0x55) to the host computer, said module can
already work normally and the receiving host computer instruction.
3.1.1.4 Electrical parameter (All electrical level takes GND as reference)
1. Power supply
Item
Parameter
Unit
Note
Min
Typ
Max
Power Voltage (Vin)
3.8
7.0
V
Normal working value.
Maximum Voltage
(Vinmax)
-0.3
9.0
V
Exceeding the Maximum rating
may cause permant harm to the
Module.
Operation Current
(Icc)
90
110
130
mA
Peak Current (Ipeak)
130
mA
2. TD(output, TTL logic level)
Item
Condition
Parameter
Unit
Note
Min
Typ
Max
VOL
IOL=-4mA
0.4
V
Logic 0
VOH
IOH= 4mA
2.4
3.3
V
Logic 1
3. RD(input, TTL logic level)
Item
Condition
Parameter
Unit
Note
Min
Typ
Max
VIL
0.6
V
Loigc 0
VIH
2.4
V
Logic 1
I
IH
VIH =5V
1
mA
VIH =3.3V
30
uA
VImax
-0.3
5.5
V
Maximum input voltage
- 6 -
IV System Resources
use. To address demands of different customer, Module system provides abundant resources at users
4.1 Notepad
The system sets aside a 512-bytes memory (16 pages* 32 bytes) for user's notepad, where data
requiring power-off protection can be stored. The host can access the page by instructions of
PS_WriteNotepad and PS_ReadNotepad.
Note: when write on one page of the pad, the entire 32 bytes will be written in wholly covering the
original contents.
4.2 Buffer
There are an image buffer and two 512-byte-character-file buffer within the RAM space of the
module. Users can read & write any of the buffers by instructions.
Note: Contents of the above buffers will be lost at power-off.
4.2.1 Image buffer
ImageBuffer serves for image storage and the image format is 256*288 pixels.
When transferring through UART, to quicken speed, only the upper 4 bits of the pixel is transferred
(that is 16 grey degrees). And two adjacent pixels of the same row will form a byte before the
transferring. When uploaded to PC, the 16-grey-degree image will be extended to 256-grey-degree
format. That's 8-bit BMP format.
4.2.2 Character file buffer
Character file buffer, CharBuffer1, CharBuffer2, can be used to store both character file and
template file.
4.3 Fingerprint Library
System sets aside a certain space within Flash for fingerprint template storage, that's fingerprint
library. Contents of the library remain at power off.
Capacity of the library changes with the capacity of Flash, system will recognize the latter
automatically. Fingerprint template's storage in Flash is in sequential order. Assume the fingerprint
capacity N, then the serial number of template in library is 0, 1, 2, 3……N-2, N-1. User can only access
library by template number.
4.4 System Configuration Parameter
To facilitate users developing, Module opens part system parameters for use. And the basic
instructions are SetSysPara & ReadSysPara. Both instructions take Parameter Number as parameter.
![](asset-7.png)
- 7 -
When upper computer sends command to modify parameter, Module first responses with original
configurations, then performs the parameter modification and writes configuration record into Flash. At
the next startup, system will run with the new configurations.
4.4.1 Baud rate control (Parameter Number: 4)
The Parameter controls the UART communication speed of the Module. Its value is an integer N,
N= [1, 12]. Corresponding baud rate is 9600*N bps.
4.4.2 Security Level (Parameter Number: 5)
The Parameter controls the matching threshold value of fingerprint searching and matching.
Security level is divided into 5 grades, and corresponding value is 1, 2, 3, 4 and 5. At level 1, FAR is the
highest and FRR is the lowest; however at level 5, FAR is the lowest and FRR is the highest.
4.4.3 Data package length (Parameter Number: 6)
The parameter decides the max length of the transferring data package when communicating with
upper computer. Its value is 0, 1, 2, 3, corresponding to 32 bytes, 64 bytes, 128 bytes, 256 bytes
respectively.
4.5 System status register
System status register indicates the current operation status of the Module. Its length is 1 word, and
can be read via instruction ReadSysPara. Definition of the register is as follows:
Bit Num 15 4 3 2 1 0
Description Reserved ImgBufStat PWD Pass Busy
Note:
- Busy:1 bit. 1: system is executing commands; 0: system is free;
- Pass:1 bit. 1: find the matching finger; 0: wrong finger;
- PWD:1 bit. 1: Verified devices handshaking password.
- ImgBufStat:1 bit. 1: image buffer contains valid image.
4.6 Module password
The default is 0x00000000,If the default password is not modified;If be modified through UART
communication or password, the first instruction is the host computer and the communication module must be
verify the password, only the password verification through, module can enter the normal working state, receiving
other instructions(That is, the serial communication must first perform a handshake signal processing).
Password modification, new password stored in Flash, power cuts are still preserved(The modified password
cannot be acquired through communication instructions, such as accidentally forgetting the modules cannot
communicate, please kindly with).
4.7 Module address
Each module has an identifying address. When communicating with upper computer, each
instruction/data is transferred in data package form, which contains the address item. Module system
only responds to data package whose address item value is the same with its identifying address.
The address length is 4 bytes, and its default factory value is 0xFFFFFFFF. User may modify the
address via instruction SetAdder. The new modified address remains at power off.
![](asset-8.png)
- 8 -
V Communication Protocol
5.1 Data package format
When communicating, the transferring and receiving of command/data/result are all
wrapped in data package format.
Data package format
Header
Adder
Package
identifier
Package
length
Package content
(instruction/data/Parameter)
Checksum
Definition of Data package
Name
Symbol
Length
Description
Header
START
2 bytes
Fixed value of EF01H; High byte transferred first.
Adder
ADDR
4 bytes
Default value is 0xFFFFFFFF, which can be modified by
command. High byte transferred first and at wrong adder
value, module will reject to transfer.
Package
identifier
PID
1 byte
01H
Command packet;
02H
Data packet; Data packet shall not appear
alone in executing process, must follow
command packet or acknowledge packet.
07H
Acknowledge packet;
08H
End of Data packet.
Package
length
LENGTH
2 bytes
Refers to the length of package content (command packets
and data packets) plus the length of Checksum (2 bytes).
Unit is byte. Max length is 256 bytes. And high byte is
transferred first.
Package
contents
DATA
-
It can be commands , data , command's parameters,
acknowledge result, etc. (fingerprint character value,
template are all deemed as data);
Checksum
SUM
2 bytes
The arithmetic sum of package identifier, package length
and all package contents. Overflowing bits are omitted. High
byte is transferred first.
- 9 -
5.2 Check and acknowledgement of data package
Note: Commands shall only be sent from upper computer to the Module, and the Module
acknowledges the commands.
Upon receipt of commands, Module will report the commands execution status and results to upper
computer through acknowledge packet. Acknowledge packet has parameters and may also have
following data packet. Upper computer can't ascertain Module's package receiving status or command
execution results unless through acknowledge packet sent from Module. Acknowledge packet includes 1
byte confirmation code and maybe also the returned parameter.
Confirmation code definition is:
1. 00h: command execution complete;
2. 01h: error when receiving data package;
3. 02h: no finger on the sensor;
4. 03h: fail to enroll the finger;
5. 06h: fail to generate character file due to the over-disorderly fingerprint image;
6. 07h: fail to generate character file due to weakness of character point or over-smallness of
fingerprint image
7. 08h: finger doesn't match;
8. 09h: fail to find the matching finger;
9. 0Ah: fail to combine the character files;
10. 0Bh: addressing PageID is beyond the finger library;
11. 0Ch: error when reading template from library or the template is invalid;
12. 0Dh: error when uploading template;
13. 0Eh: Module can't receive the following data packages.
14. 0Fh: error when uploading image;
15. 10h: fail to delete the template;
16. 11h: fail to clear finger library;
17. 15h: fail to generate the image for the weakness of valid primary image;
18. 18h: error when writing flash;
19. 1Ah: invalid register number;
![](asset-a.png)
- 10 -
VI Module Instruction System
6.1 System-related instructions
6.1.1 Verify password :VfyPwd
Description: The password verification module(Serial communication must be shake)
Input Parameter: control code 0
Return Parameter: confirmation code;
Instruction code: 13H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
4byte
2 bytes
Header
Chip
address
Package
identifier
Package
length
Instruction
code
Control
code
Checksum
EF01H
xxxx
01H
0007H
13H
0
001BH
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Chip
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Note: Confirmation code=00H: Port operation complete;
Confirmation code=01H: error when receiving package;
Confirmation code=13H: fail to operate the communication port;
6.1.2 Set password : SetPwd
Description: Module password settings. (Refer to 4.6 for more information)
Input Parameter: PassWord;
Return Parameter: Confirmation code
Instruction code: 12H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
4byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
PassWord
Checksum
EF01H
xxxx
01H
0007H
12H
PassWord
sum
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1
byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmatio
n
cod
e
Checksum
EF01H
xxxx
07H
0003H
xx
H
Sum
Note: Confirmation code=00H: OK;
Confirmation code=01H: error when receiving package;
![](asset-b.png)
- 11 -
6.1.3 Set Module address: SetAdder
Description: Set Module address.
Input Parameter: New Module address
Return Parameter: Confirmation code (1 byte)
Instruction code: 15H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
4 bytes
2 bytes
Header
Original
Module address
Package
identifier
Package
length
Instruction
code
New Module
address
Checksum
EF01H
xxxx
01H
0007H
15H
xxxx
sum
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
New Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
Sum
Note: Confirmation code=00H: address setting complete;
Confirmation code=01H: error when receiving package;
6.1.4 Set module system’s basic parameter: SetSysPara
Description: Operation parameter settings. (Refer to 4.4 for more information)
Input Parameter: Parameter number+ Contents;
Return Parameter: Confirmation code (1 byte)
Instruction code: 0eH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1byte
1byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Parameter
number
Contents
Checksum
EF01H
xxxx
01H
0005H
0eH
4/5/6
xx
sum
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
Sum
Note: Confirmation code=00H: parameter setting complete;
Confirmation code=01H: error when receiving package;
Confirmation code=1aH: wrong register number;
Table6.1 Parameter number+ Contents
Name
Parameter number
Contents
Baud rate
4
N(N=1~12, Corresponding baud rate is 9600*N bps.)
Security level
5
N(1、2、3、4、5)
Data package length
6
N(0、1、2、3,corresponding length is 32、64、128、
256(bytes))
![](asset-c.png)
- 12 -
6.1.5 Read system Parameter: ReadSysPara
Description: Read Module’s status register and system basic configuration parameters(;
Refer to 4.4 for system configuration parameter and 4.5 for system status register).
Input Parameter:none
Return Parameter:Confirmation code (1 byte) + basic parameter(16bytes)
Instruction code: 0Fh
Command (or instruction) package format:
Acknowledge package format:
Note: Confirmation code=00H: read complete;
Confirmation code=01H: error when receiving package;
Table6.2 system basic parameters
Name
Description
Offset (word)
Size (word)
Status register
Contents of system status register
0
1
System identifier code
Fixed value: 0x0000
1
1
Finger library size
Finger library size
2
1
Security level
Security level (1, 2, 3, 4, 5)
3
1
Device address
32-bit device address
4
2
Data packet size
Size code (0, 1, 2, 3)
6
1
Baud settings
N (baud = 9600*N bps)
7
1
6.1.6 Read the fingerprint template index table: ReadConList
Description: Reading fingerprint template index table and each time the most read 256 fingerprint template.
Input Parameter: Index page=0~3.
Index page 0 representative read 0 ~ 255 fingerprint template index table
Index page 1 representative read 256 ~ 511 fingerprint template index table
Index page 2 representative read 512 ~ 767 fingerprint template index table
Index page 3 representative read 768 ~ 1024 fingerprint template index table
Return Parameter: Confirmation code (1 byte) + template index table
Instruction code: 1fH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
Header
Module address
Package
identifier
Package
length
Instruction
code
Index
page
Checksum
EF01H
xxxx
01H
0004H
1FH
0/1/2/3
sum
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
32 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Index table
Checksum
EF01H
xxxx
07H
0023H
xxH
See following
Table6.3
sum
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package length
Instruction
code
Checksum
EF01H
xxxx
01H
0003H
0fH
0013H
2 bytes
4bytes
1 byte
2 bytes
1 byte
16 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Basic parameter
list
Checksum
EF01H
xxxx
07H
0013H
xxH
See following
Table6.2
sum
![](asset-d.png)
- 13 -
1:Confirmation code =0x00: Read index table success;
Confirmation code =0x01: error when receiving package;
2:Every time the most read 256 fingerprint template index data, the data is insufficient 256 bit
"0".
3:Index table data structure: each of the 8 as a group, and each group consists of beginning a high
output.
Table6.3 Index table data structure
Order of transmission
From low to high byte output, and each byte by beginning a high output.
least significant byte
Template Number
7
6
5
4
3
2
1
0
Template index table
data
0/1
0/1
0/1
0/1
0/1
0/1
0/1
0/1
Template Number
Template Number
15
14
13
12
11
10
9
8
Template index table
data
0/1
0/1
0/1
0/1
0/1
0/1
0/1
0/1
…
…
…
Most significant byte
Template Number
255
254
253
252
251
250
249
248
Template index table
data
0/1
0/1
0/1
0/1
0/1
0/1
0/1
0/1
Note: the index table data "0" on behalf of the corresponding position without a valid template; "1"
represents the corresponding to the location of the effective template.
6.1.7 Read valid template number: TempleteNum
Description: read the current valid template number of the Module
Input Parameter: none
Return Parameter: Confirmation code (1 byte),template number N
Instruction code: 1dH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package
length
Instruction
code
Checksum
EF01H
xxxx
01H
0003H
1DH
0021H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Template
number
Checksum
EF01H
xxxx
07H
0005
xxH
N
sum
Note: Confirmation code=00H: read complete;
Confirmation code=01H: error when receiving package;
6.2 Fingerprint-processing instructions
6.2.1 To collect finger image: GenImg
Description: detecting finger and store the detected finger image in ImageBuffer while
returning successful confirmation code; If there is no finger, returned
confirmation code would be” can’t detect finger” .
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instruction code: 01H
Command (or instruction) package format:
![](asset-e.png)
- 14 -
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package length
Instruction
code
Checksum
EF01H
xxxx
01H
0003H
01H
0005H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
Sum
Note: Confirmation code=00H: finger collection success;
Confirmation code=01H: error when receiving package;
Confirmation code=02H: can’t detect finger;
Confirmation code=03H: fail to collect finger;
6.2.2 Open the fingerprint lighting background LED : OpenLED
Description: Open the fingerprint lighting background LED
Input Parameter: none
Instruction code: 50H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package length
Instruction code
Checksum
EF01H
xxxx
01H
0003H
50H
0054H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Confirmation code=00H: operation success;
Confirmation code =others: operation failed
6.2.3 Close the fingerprint lighting background LED : CloseLED
Description: Close the fingerprint lighting background LED
Input Parameter: none
Instruction code: 51H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package length
Instruction code
Checksum
EF01H
xxxx
01H
0003H
51H
0055H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Confirmation code=00H: operation success;
Confirmation code =others: operation failed
![](asset-f.png)
- 15 -
6.2.4 Fingerprint get image free lighting : GetmageFree
Description: Fingerprint get image free lighting
Input Parameter: none
Instruction code: 52H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package length
Instruction code
Checksum
EF01H
xxxx
01H
0003H
52H
0056H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Confirmation code =00H: finger collection success;
Confirmation code =01H: error when receiving package;
Confirmation code =02H: sensor has no finger;
Confirmation code =03H: fail to collect finger
6.2.5 Handshake : GetEcho
Description: Instructions to the module to send to shake hands, if the module is working
correctly, will return to the confirmation code 0x55, the computer can continue to
send instructions to the module; if the confirmation code for other or no response,
said equipment abnormal.
Input Parameter: none
Instruction code: 53H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package length
Instruction code
Checksum
EF01H
xxxx
01H
0003H
53H
0057H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Confirmation code=55H: The equipment is normal, can receive the command;
Confirmation code = Other or no response, said equipment abnormal.
In addition, module after power on automatically send 0x55 as handshake marks, MCU detected after 0x55, can
immediately send the command to enter the working state.
6.2.6 Auto-login : AutoLogin
Description: Send the instruction, can make the module automatically complete the image acquisition,
generation characteristics, synthetic template and the stored template work, To the four
command line" To collect finger image (GenImg)", "To generate character file from
image (Img2Tz)", "To generate template (RegModel) ", "To store template (Store)" into
an instruction to complete.
Input Parameter: Fingerprint wait time + Number of times for pressing the fingerprint +Stored sequence
number
Instruction code: 54H
Command (or instruction) package format:
![](asset-10.png)
- 16 -
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Fingerprint
wait time
Number of times
for pressing the
fingerprint
Stored
sequence
number
Repeated
registration
mark
Checksum
EF01H
xxxx
01H
0003H
54H
xxH
2/3
xxxx
0/1
sum
1. The fingerprint wait time is to wait the longest finger presses each image acquisition, if there is no finger
presses on this parameter setting time, is that there is no finger. The domain values range from 1 to 255, the
higher the value, the more time. The 70 series, usually taken as 54 (36H), corresponding to a time of 3.5 seconds,
the other time intervals are listed in the following table:
Fingerprint wait time
Real time interval(s)
Fingerprint wait time
Real time interval(s)
31(1fH)
2
62(3eH)
4
38(26H)
2.5
69(45H)
4.5
46(2eH)
3
77(4dH)
5
54(36H)
3.5
85(55H)
5.5
2. Number of times for pressing the fingerprint is to Press the number of fingers to confirm the registration
fingerprint, only the value of 2 or 3. Value of 2 represents the two press fingerprint recognition, value of 3
represents the 3 press fingerprint recognition.
3. Number of times for pressing the fingerprint is 2, the command will gather two fingerprint to register as a
template, if collect the fingerprint success for the first time will sending a response code 56H
(PS_AUTOLOGIN_OK1), then continue the second fingerprint process. Number of times for pressing the
fingerprint is 3, the command will gather three fingerprint to register as a template, if collect the fingerprint
success for the first time will sending a response code 56H (PS_AUTOLOGIN_OK1), and if collect the
fingerprint success for the second time will sending a response code 57H (PS_AUTOLOGIN_OK2), then
continue the third fingerprint process.
4. Repeated registration mark is set whether to allow repeated registration. 0 representative does not allow
duplicate registration, i.e. if the current registration finger has been registered in the fingerprint database,
then this will no longer register. 1 representative allows repeated registration, namely the current registration
finger regardless of the fingerprint database whether registered, the registration of all.
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Confirmation code =00H: auto Login success
Confirmation code =02H: sensor has no finger;
Confirmation code=06H: fail to generate character file due to the over-disorderly fingerprint image;
Confirmation code=07H: fail to generate character file due to lackness of character point or over-smallness of
fingerprint image;
Confirmation code =0aH: fail to combine the character files. That’s, the character files don’t belong to one
finger;
Confirmation code =0bH: the stored sequence number exceeds the effective range;
Confirmation code =56H: the first finger collection success;
Confirmation code =57H: the Second finger collection success;
Confirmation code =24H: failure due to repeated registration(That is, the current registered fingerprint in
fingerprint database already exists)
![](asset-11.png)
- 17 -
6.2.7 Auto-Search : AutoSearch
Description:Send the instruction, can make the module automatically complete the image acquisition,
generation characteristics and search fingerprint in the fingerprint template library work. To the three command
line " To collect finger image (GenImg)", "To generate character file from image (Img2Tz)", " To search finger
library (Search) " into an instruction to complete.
Input Parameter:Fingerprint wait time + Start page number + Search number.
Instruction code:55H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Fingerprint
wait time
Start page
number
Search
number
Checksum
EF01H
xxxx
01H
0008H
55H
xxH
xxxx
xxxx
sum
The fingerprint wait time is to wait the longest finger presses each image acquisition, if there is no finger presses
on this parameter setting time, is that there is no finger. The domain values range from 1 to 255, the higher the
value, the more time. The 70 series, usually taken as 54 (36H), corresponding to a time of 3.5 seconds, the other
time intervals are listed in the following table:
Fingerprint wait time
Real time interval(s)
Fingerprint wait time
Real time interval(s)
31(1fH)
2
62(3eH)
4
38(26H)
2.5
69(45H)
4.5
46(2eH)
3
77(4dH)
5
54(36H)
3.5
85(55H)
5.5
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Number
score
Checksum
EF01H
xxxx
07H
0007H
xxH
xxxx
xxxx
sum
Confirmation code =00H: search success;
Confirmation code =09H: search failed;
Confirmation code =02H: sensor has no finger;
Confirmation code=06H: fail to generate character file due to the over-disorderly fingerprint image;
Confirmation code=07H: fail to generate character file due to lackness of character point or over-smallness of
fingerprint image;
Confirmation code =22H: residual fingerprint;
Confirmation code =23H: The specified interval does not exist an effective fingerprint template
6.2.8 Search fingerprints(With residual judgment): SearchResBack
Description:to search the whole or part finger library for the template that matches the one in CharBuffer1
or CharBuffer2. When found, PageID will be returned. This command with Search (Instruction code = 04H)
difference is for the remaining fingerprint return code is different, SearchResBack detected residual return
code 22H, and the Search command detection residual return code 09H
Input Parameter:BufferID + StartPage + PageNum
Return Parameter:Confirmation code + Number(Match the fingerprint template)
Instruction code:56H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Buffer
number
StartPage
Page
number
Checksum
EF01H
xxxx
01H
0008H
56H
BufferID
StartPage
PageNum
sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively.
![](asset-12.png)
- 18 -
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Page number
Score
Checksum
EF01H
xxxx
07H
0007H
xxH
PageID
MatchScore
sum
Confirmation code =00H,search success;
Confirmation code =01H,error when receiving package;
Confirmation code =09H,search failed;
Confirmation code =22H,residual fingerprint
6.2.9 Upload image: UpImage
Description: to upload the image in ImageBuffer to upper computer.
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instruction code: 0aH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package length
Instruction code
Checksum
EF01H
xxxx
01H
0003H
0AH
000EH
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Data package format(have subsequent packet):
2 bytes
4bytes
1 byte
2 bytes
N bytes
2 bytes
Header
Module address
Package
identifier
Package length
Contents
Checksum
EF01H
xxxx
02H
N+2
Image data
Sum
End package format(have not subsequent packets):
2 bytes
4bytes
1 byte
2 bytes
N bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Contents
Checksum
EF01H
xxxx
08H
N+2
Image data
sum
Note 1: Confirmation code=00H: ready to transfer the following data packet;
Confirmation code=01H: error when receiving package;
Confirmation code=0fH: fail to transfer the following data packet;
2:Module shall transfer the following data packet and end packet after responding to the
upper computer. And data packet and end packet no reply packet.
3.The value of N(number of bytes of the packet content) is determined by the length of the
packet content, factory package content length is set to 128 bytes.
6.2.10 Download the image: DownImage
Description: to download image from upper computer to ImageBuffer. The image must
be 256*288 size in BMP format.
![](asset-13.png)
- 19 -
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instruction code: 0bH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package
length
Instruction
code
Checksum
EF01H
xxxx
01H
0003H
0bH
000FH
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Data package format(have subsequent packet):
2 bytes
4bytes
1 byte
2 bytes
N bytes
2 bytes
Header
Module address
Package
identifier
Package length
Contents
Checksum
EF01H
xxxx
02H
N+2
Image data
Sum
End package format(have not subsequent packets):
2 bytes
4bytes
1 byte
2 bytes
N bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Contents
Checksum
EF01H
xxxx
08H
N+2
Image data
sum
Note: 1:Confirmation code=00H: ready to transfer the following data packet;
Confirmation code=01H: error when receiving package;
Confirmation code=0eH: fail to transfer the following data packet;
2:Module shall transfer the following data packet and end packet after responding to the
upper computer.
3:The value of N (number of bytes of the packet content) is determined by the length of
the packet content, factory package content length is set to 128 bytes.
6.2.11 To generate character file from image: Img2Tz
Description: to generate character file from the original finger image in ImageBuffer and
store the file in CharBuffer1 or CharBuffer2.
Input Parameter: BufferID (character file buffer number)
Return Parameter: Confirmation code (1 byte)
Instruction code: 02H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Buffer
number
Checksum
EF01H
xxxx
01H
0004H
02H
BufferID
sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively. Other values
(except 1h, 2h) would be processed as CharBuffer2.
Acknowledge package format:
![](asset-14.png)
- 20 -
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Note: Confirmation code=00H: generate character file complete;
Confirmation code=01H: error when receiving package;
Confirmation code=06H: fail to generate character file due to the over-disorderly
fingerprint image;
Confirmation code=07H: fail to generate character file due to lackness of character
point or over-smallness of fingerprint image;
Confirmation code=15H: fail to generate the image for the lackness of valid primary
image;
6.2.12 To generate template: RegModel
Description: To combine information of character files from CharBuffer1 and CharBuffer2 and
generate a template which is stored back in both CharBuffer1 and CharBuffer2.
Input Parameter:none
Return Parameter:Confirmation code (1 byte)
Instruction code: 05H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Checksum
EF01H
xxxx
01H
0003H
05H
09H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Note: Confirmation code=00H: operation success; Confirmation
code=01H: error when receiving package;
Confirmation code=0aH: fail to combine the character files. That’s, the character files
don’t belong to one finger.
6.2.13 To upload character or template: UpChar
Description: to upload the character file or template of CharBuffer1/CharBuffer2 to upper
computer;
Input Parameter: BufferID (Buffer number)
Return Parameter: Confirmation code (1 byte)
Instruction code: 08H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Buffer
number
Checksum
EF01H
xxxx
01H
0004H
08H
BufferID
sum
![](asset-15.png)
- 21 -
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively.
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Data package format(have subsequent packet):
2 bytes
4bytes
1 byte
2 bytes
N bytes
2 bytes
Header
Module address
Package
identifier
Package length
Contents
Checksum
EF01H
xxxx
02H
N+2
Template data
Sum
End package format(have not subsequent packets):
2 bytes
4bytes
1 byte
2 bytes
N bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Contents
Checksum
EF01H
xxxx
08H
N+2
Template data
sum
Note 1: Confirmation code=00H: ready to transfer the following data packet;
Confirmation code=01H: error when receiving package; Confirmation
code=0dH: error when uploading template;
2: Module shall transfer following data packet after responding to the upper computer.;
3.The value of N(number of bytes of the packet content) is determined by the length of the
packet content, factory package content length is set to 128 bytes.
4: The instruction doesn’t affect buffer contents.
6.2.14 To download character file or template: DownChar
Description: to download character file or template from upper computer to the specified buffer of
Module;
Input Parameter: BufferID (buffer number)
Return Parameter: Confirmation code (1 byte)
Instruction code: 09H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
buffer
number
Checksum
EF01H
xxxx
01H
0004H
09H
BufferID
sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively.
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Data package format(have subsequent packet):
2 bytes
4bytes
1 byte
2 bytes
N bytes
2 bytes
Header
Module address
Package
identifier
Package length
Contents
Checksum
EF01H
xxxx
02H
N+2
Template data
Sum
![](asset-16.png)
- 22 -
End package format(have not subsequent packets):
2 bytes
4bytes
1 byte
2 bytes
N bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Contents
Checksum
EF01H
xxxx
08H
N+2
Template data
sum
Note 1: Confirmation code=00H: ready to transfer the following data packet;
Confirmation code=01H: error when receiving package;
Confirmation code=0eH: fail to receive the following data packages.
2: Module shall transfer the following data packet after responding to the upper computer.
3.The value of N(number of bytes of the packet content) is determined by the length of the
packet content, factory package content length is set to 128 bytes.
6.2.15 To store template: Store
Description: to store the template of specified buffer (Buffer1/Buffer2) at the designated location of
Flash library.
Input Parameter: BufferID(buffer number)+PageID(Flash location of the template, two bytes with
high byte front and low byte behind)
Return Parameter: Confirmation code (1 byte)
Instruction code: 06H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
buffer
number
Location
number
Checksum
EF01H
xxxx
01H
06H
0006H
BufferID
PageID
sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively.
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Note: Confirmation code=00H: storage success;
Confirmation code=01H: error when receiving package;
Confirmation code=0bH: addressing PageID is beyond the finger library;
Confirmation code=18H: error when writing Flash.
6.2.16 To read template from Flash library: LoadChar
Description: to load template at the specified location (PageID) of Flash library to template buffer
CharBuffer1/CharBuffer2
Input Parameter: BufferID(buffer number)+PageID (Flash location of the template, two bytes with
high byte front and low byte behind)。
Return Parameter: Confirmation code (1 byte)Instruction code: 07H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
buffer
number
Page
number
Checksum
EF01H
xxxx
01H
0006H
07H
BufferID
PageID
sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively.
![](asset-17.png)
- 23 -
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Note: Confirmation code=00H: load success;
Confirmation code=01H: error when receiving package;
Confirmation code=0cH: error when reading template from library or the readout template is
invalid;
Confirmation code=0BH: addressing PageID is beyond the finger library;
6.2.17 To delete template: DeletChar
Description: to delete a segment (N) of templates of Flash library started from the specified
location (or PageID);
Input Parameter: PageID (template number in Flash)+ N (number of templates to be deleted)
Return Parameter: Confirmation code (1 byte)
Instruction code: 0cH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
2bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Page
number
number of
templates to
be deleted
Checksum
EF01H
xxxx
01H
0007H
0cH
PageID
N
sum
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package identifier
Package
length
Confirmation
code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Note: Confirmation code=00H: delete success;
Confirmation code=01H: error when receiving package;
Confirmation code=10H: failed to delete templates;
6.2.18 To empty finger library: Empty
Description: to delete all the templates in the Flash library
Input Parameter: none
Return Parameter: Confirmation code (1 byte)
Instruction code: 0dH
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Checksum
EF01H
xxxx
01H
0003H
0dH
0011H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Checksum
![](asset-18.png)
- 24 -
EF01H
xxxx
07H
0003H
xxH
sum
Note: Confirmation code=00H: empty success;
Confirmation code=01H: error when receiving package;
Confirmation code=11H: fail to clear finger library;
6.2.19 To carry out precise matching of two finger templates: Match
Description: to carry out precise matching of templates from CharBuffer1 and
CharBuffer2, providing matching results.
Input Parameter: none
Return Parameter: Confirmation code (1 byte) + matching score.
Instruction code: 03H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module
address
Package
identifier
Package length
Instruction code
Checksum
EF01H
xxxx
01H
0003H
03H
0007H
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Matching
score
Checksum
EF01H
xxxx
07H
0005H
xxH
xxH
sum
Note 1: Confirmation code=00H: templates of the two buffers are matching;
Confirmation code=01H: error when receiving package;
Confirmation code=08H: templates of the two buffers aren’t matching;
2: The instruction doesn’t affect the contents of the buffers.
6.2.20 To search finger library: Search
Description: to search the whole or part finger library for the template that matches the one
in CharBuffer1 or CharBuffer2. When found, PageID will be returned.
Input Parameter: BufferID+StartPage (searching start address)+ PageNum(searching numbers)
Return Parameter: Confirmation code (1 byte)+PageID (matching templates location)
Instruction code: 04H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1 byte
2 bytes
2 bytes
2 bytes
Header
Module
address
Package
identifie
r
Package
length
Instructio n
code
buffer
number
Start page
number
Number
Checksum
EF01H
xxxx
01H
0008H
04H
BufferID
StartPage
PageNum
sum
Note: BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively.
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
2 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
Page
Score
Checksum
EF01H
xxxx
07H
0007H
xxH
PageID
MatchScore
sum
Note 1: Confirmation code=00H: found the matching finer;
Confirmation code=01H: error when receiving package;
![](asset-19.png)
- 25 -
Confirmation code=09H: No matching in the library (both the PageID and matching
score are 0);
2: The instruction doesn’t affect the contents of the buffers.
6.3 Other instructions
6.3.1 To write note pad: WriteNotepad
Description: for upper computer to write data to the specified Flash page;
Input Parameter: NotePageNum, user content (or data content)
Return Parameter: Confirmation code (1byte)
Instruction code: 18H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1byte
32 bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Page
number
Data
content
Checksum
EF01H
xxxx
01H
0024H
18H
0~15
content
sum
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
2 bytes
Header
Module address
Package
identifier
Package
length
Confirmation code
Checksum
EF01H
xxxx
07H
0003H
xxH
sum
Note: Confirmation code=00H: write success;
Confirmation code=01H: error when receiving package;
6.3.2 To read note pad: ReadNotepad
Description: to read the specified page’s data content;.
Input Parameter: none
Return Parameter: Confirmation code (1 byte) + data content
Instruction code: 19H
Command (or instruction) package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
1byte
2 bytes
Header
Module
address
Package
identifier
Package
length
Instruction
code
Page
number
Checksum
EF01H
xxxx
01H
0004H
19H
0~15
xxH
Acknowledge package format:
2 bytes
4bytes
1 byte
2 bytes
1 byte
32bytes
2 bytes
Header
Module
address
Package
identifier
Package
length
Confirmation
code
User content
Checksum
EF01H
xxxx
07H
0023H
xxH
content
sum
Note: Confirmation code=00H: read success;
Confirmation code=01H: error when receiving package;
![](asset-1a.png)
- 26 -
Dimentions
Dimentions of integral type Module(unit:mm)
